Lecture 2

MIPS Instructions

Byung-gi Kim

School of Computer Science and Engineering

Soongsil University

2. Instruction: Language of the Computer

(3rd edition)

2.1 Introduction

2.2 Operations of the Computer Hardware

2.3 Operands of the Computer Hardware

2.4 Representing Instructions in the Computer

2.5 Logical Operations

2.6 Instructions for Making Decisions

2.7 Supporting Procedures in Computer Hardware

2.8 Communicating with People

2.9 MIPS Addressing for 32-Bit Immediates and Addresses

2.19 Historical Perspective and Further Reading

Computer Architecture 2-1

2.1 Introduction

Instructions

The words of a machine's language

A single operation of a processor defined by an instruction set

architecture

Opcode + operand specifiers

Instruction set

The vocabulary of the language

Set of all instructions that a computer understands

RISC vs. CISC

Reduced Instruction Set Computer

Complex Instruction Set Computer

Computer Architecture 2-2

Common Goal of the Computer Designers

To find a language that makes it easy to build thehardwareand

the compiler, while maximizing performance and minimizing cost.

“Simplicity of the equipment”

KISS (Keep it short and simple or Keep it simple, stupid) principle

MIPS (Microprocessor without Interlocked Pipeline Stages)

MIPS Technologies, Inc.

1984: MIPS Computer Systems, Inc.

1992: SGI acquires MIPS Computer Systems -> MIPS Technologies, Inc.

1998: SGI decided to migrate to the Itanium architecture

-> spun out as an intellectual property licensing company

2000: SGI가 완전히 손을 뗌

Computer Architecture 2-3

Some of MIPS Processors

Computer Architecture 2-4

Instruction set Year Model Clock Cache Transistors

MIPS I 1987 R2000 16 MHz External (4K+4K ~ 32K+32K) 0.115 M

1990 R3000 33 MHz External (4K+4K ~ 64K+64K) 0.120 M

MIPS III

1991 R4000 100 MHz 8K + 8K 1.35 M

1993 R4400 150 MHz 16K + 16K 2.3 M

R4600 100 MHz 16K + 16K 1.9 M

1995 VR4300 133 MHz 16K + 8K 1.7 M

MIPS IV

1996 R5000 200 MHz 32K + 32K 3.9 M

R10000 200 MHz 32K + 32K 6.8 M

1999 R12000 300 MHz 32K + 32K 7.2 M

2002 R14000 600 MHz 32K + 32K 7.2 M

2.2 Operations of the Computer

Hardware

MIPS arithmetic instructions

add a,b,c # a = b + c

sub a,b,c # a = b - c

Example: f=(g+h)-(i+j);

add t0,g,h # t0 = g + h

add t1,i,j # t1 = i + j

sub f,t0,t1 # f = to - t1 = (g+h)-(i+j)

Computer Architecture 2-5

Design Principle 1 : Simplicity favors regularity.

Always three operands

Keeping the hardware simple

2.3 Operands of the Computer Hardware

Arithmetic instruction’s operands must be registers

Only 32 registers provided

Compiler associates variables with registers

What about programs with lots of variables

Processor I/O

Control

Datapath

Memory

Input

Output

Computer Architecture 2-6

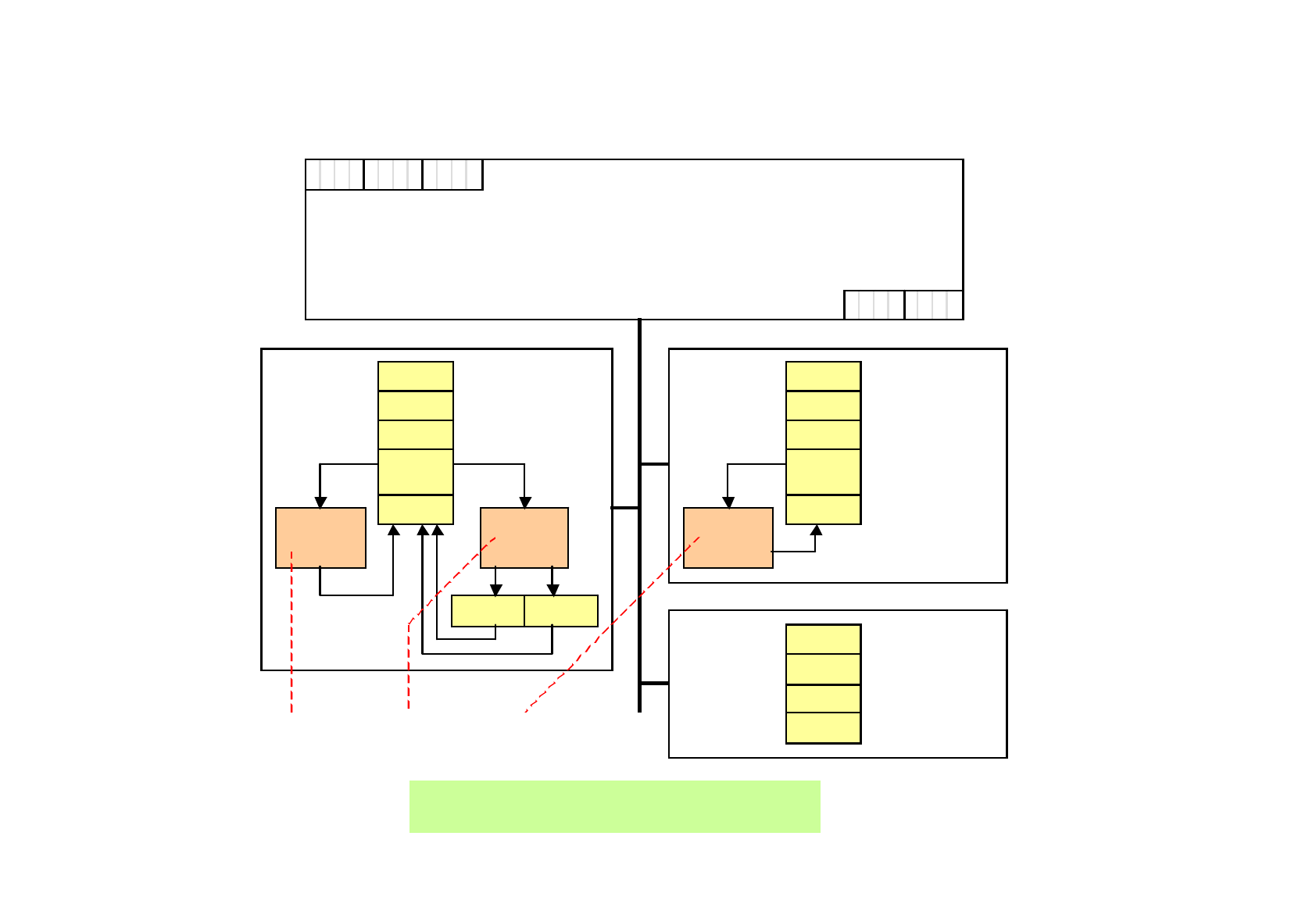

Memory and Processing Subsystems

Computer Architecture 2-7

Memory

up to 2 words

30

Loc 0 Loc 4 Loc 8

Loc

m 4

Loc

m 8

4 B / location

m  2

32

$0

$1

$2

$31

Hi Lo

ALU

$0

$1

$2

$31

FP

arith

EPC

Cause

BadVaddr

Status

EIU FPU

TMU

Execution

& integer

unit

Floating-

point unit

Trap &

memory

unit

. . .

. . .

(Coproc. 1)

(Coproc. 0)

(Main proc.)

Integer

mul/div

Chapter

10 Chapter

11 Chapter

12

Figure 5.1 of Parhami

32 registers

Variables

$s0, $s1, $s2, … $s7

Temporary registers

$t0, $t1, $t2, … $t9

Computer Architecture 2-8

Design Principle 2 : Smaller is faster.

A very large number of registers

Convenient for the programmers

But, longer distance to travel for the electronic signals

Increased clock cycle time

MIPS Registers: Figure 2.18

Example: f=(g+h)-(i+j);

int f, g, h, i, j;

f, g, h, i, j $s0, $s1, $s2, $s3, $s4

[Answer]

add $t0, $s1, $s2

add $t1, $s3, $s4

sub $s0, $t0, $t1

Computer Architecture 2-9

Memory Operands

Arrays and structures

Too many data elements

Stored in memory, not in registers

Data transfer instructions

load: lw (load word) in MIPS

store: sw (store word) in MIPS

Example: g = h + A[8];

base address of A $s3

int g, h, A[100];

[Answer]

lw $t0, 8($s3) # $t0 gets A[8] (actually wrong!)

add $s1, $s2, $t0 # g = h + A[8]

Computer Architecture 2-10

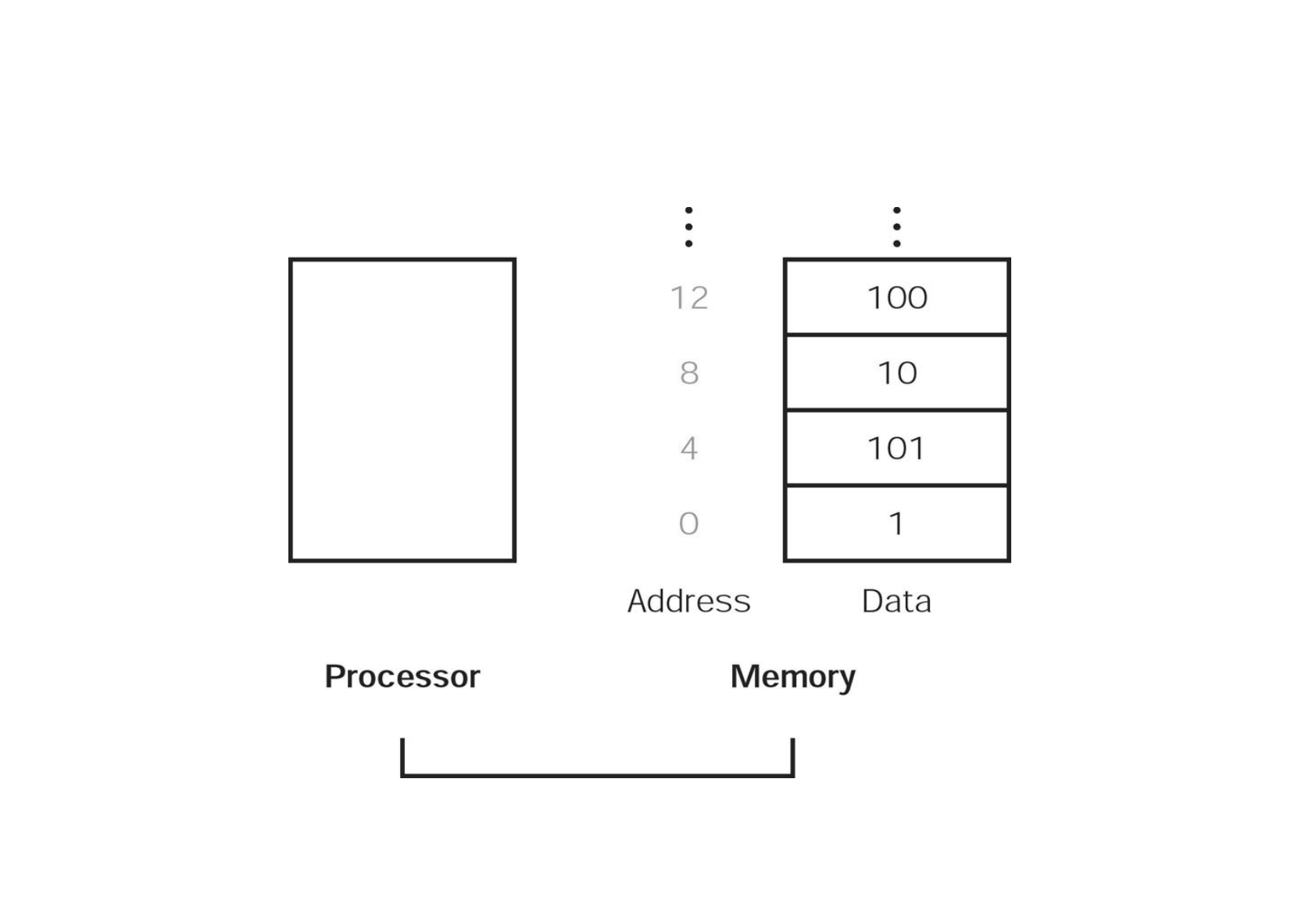

Actual MIPS Memory Structure

Figure 2.3

Computer Architecture 2-11

Byte addressing

Hardware architectures which support accessing individual bytes of data

rather than only words

Word addressing

Alignment restriction (aka memory alignment)

Putting the data at a memory

address equal to some multiple

of the data size

Increasing the system's

performance due to the way

the CPU handles memory

Hardware/Software Interface (1/2)

Computer Architecture 2-12

0 1 2 3

Aligned

Not

Aligned

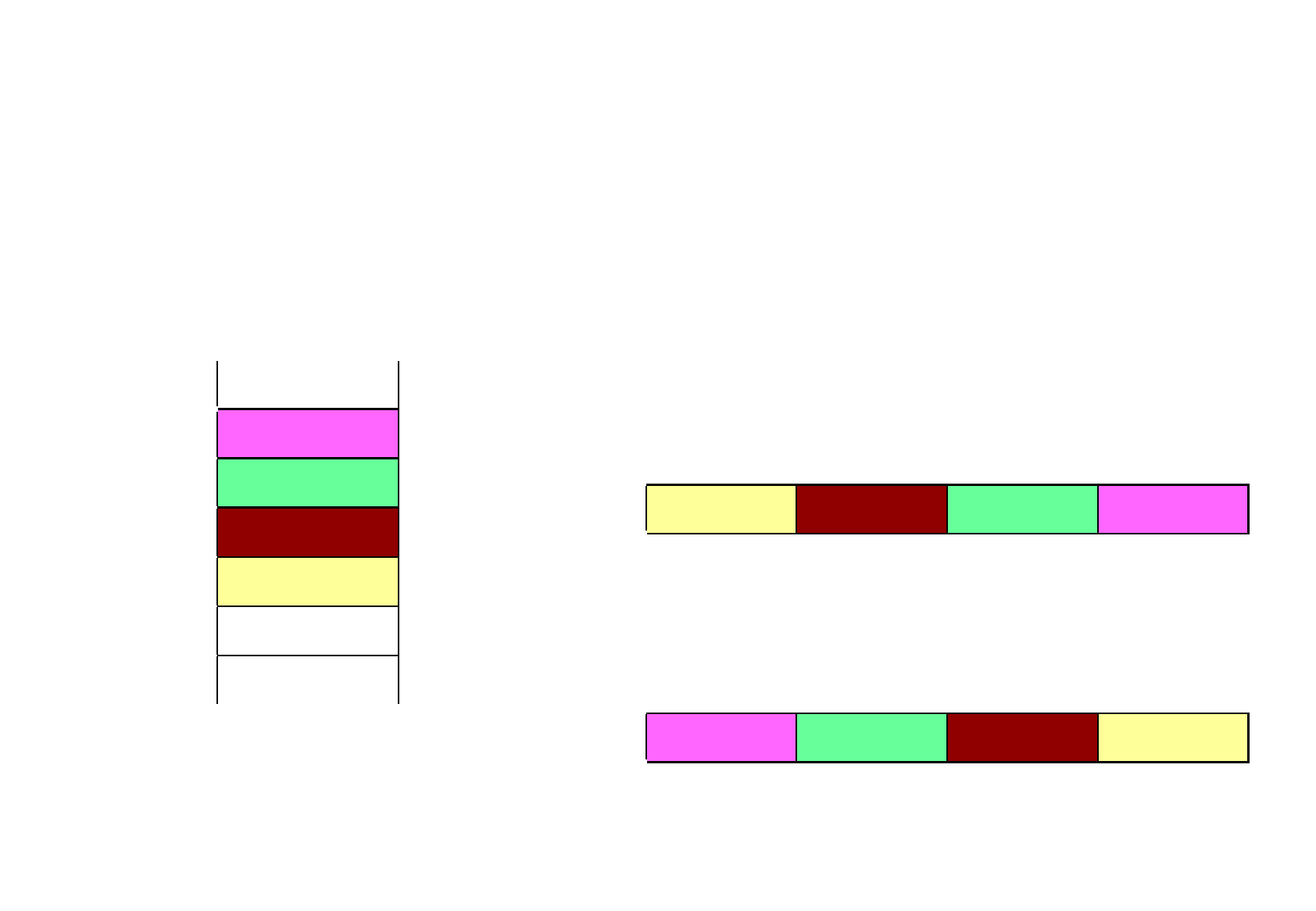

Endianness

From Gulliver’s Travels by Jonathan Swift

Little endian

Using the address of the rightmost (or “little end”) byte as the word

address

Intel IA-32, DEC PDP 11, VAX-11, Alpha, Atmel AVR

Big endian

Using the address of the leftmost (or “big end”) byte as the word

address

MIPS, IBM S/360 and S/370, Motorola 680x0, SPARC, PA-RISC

Bi-endian

ARM, IA-64, PowerPC, Alpha, SPARC V9, MIPS, PA-RISC

Hardware/Software Interface (2/2)

Computer Architecture 2-13

Endianness and Load

Load $s1 from M[200]

lw $s1,200($zero)

Little endian

199

200 81

201 C5

202 3B

203 02

204

205 Big endian

$s1 02 3B C5 81

$s1 81 C5 3B 02

Computer Architecture 2-14

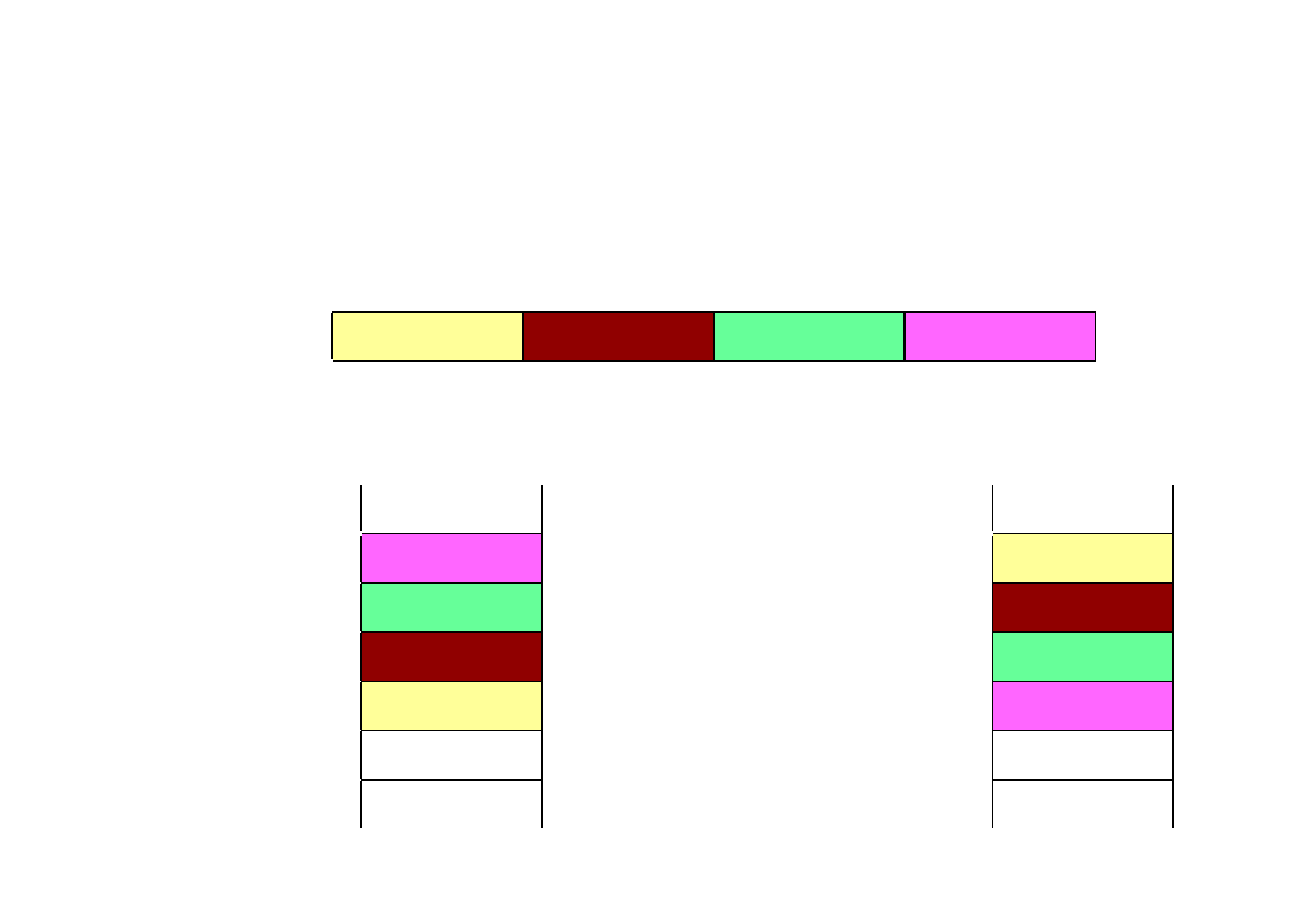

Endianness and Store

Store $s2 into M[100]

sw $s2,100($zero)

$s2 0000 0010 0011 1011 1100 0101 1000 0001

Little endian

99

100 1000 0001

101 1100 0101

102 0011 1011

103 0000 0010

104

105

99

100 0000 0010

101 0011 1011

102 1100 0101

103 1000 0001

104

105

Big endian

Computer Architecture 2-15

Example: A[12] = h + A[8];

base address of A$s3

h$s2

[Answer]

lw $t0,32($s3) # Temporary reg. $t0 gets A[8]

add $t0,$s2,$t0 # Temporary reg. $t0 gets h+A[8]

sw $t0,48($s3) # Stores h+A[8] back into A[12]

Register spilling

Hardware/Software Interface

Computer Architecture 2-16

Constant or Immediate Operands

Constant operands

More than half of the SPEC2000 operands

Adding 4 to $s3 without constant operand

lw $t0,AddrConstant4($s1) # $t0=constant 4

add $s3,$s3,$t0 # $s3=$s3+$t0 ($t0=4)

Faster version

addi(add immediate) instruction

addi $s3,$s3,4 # $s3=$s3+4

Computer Architecture 2-17

Design Principle 3 : Make the common case fast.

Constant operands are frequently used.

Arithmetic operations with constant operands.
