16 Lamp Specification Guide 2012–2013
Philips T5 Lamp Family—Life Ratings
Philips T5 Lamp Warranty Periods
Products
Programmed Start1
Rated Average Life (Hrs.)
3 Hr. Start 12 Hr. Start
T5HE—14W, 21W, 28W and 35W 25,000 35,000
T5HE Energy Advantage F28T5/800/EA/ALTO 25W 35,000 40,000
T5HO—24W, 39W, 54W and 80W 25,000 35,000
T5HO—Energy Advantage F54T5/800/HO/EA/ALTO 49W 35,000 40,000
T5HO—Extra Energy Advantage F54T5/800/HO/EA/ALTO 44W 35,000 40,000
1) Average life under engineering data on programmed start ballast with lamps turned off and restarted once every 3 or 12 operating hours as noted.
* Certain limitations and conditions apply. See Philips for further warranty details.
110
100
90
80
70
60
50
40
30
20
10
0
Lumen Output (%)
510152025303540455055
T5
T8
Philips Lamp Warranty period*
3 Hr. Start 12 Hr. Start
T5HE—14W, 21W, 28W and 35W 30 Months 36 Months
T5HE Energy Advantage
F28T5/800/EA/ALTO 25W 36 Months 42 Months
T5HO—24W, 39W, 54W and 80W 30 Months 36 Months
T5HO—Energy Advantage
F54T5/800/HO/EA/ALTO 49W 36 Months 42 Months
T5HO—Extra Energy Advantage
F54T5/800/HO/EA/ALTO 44W 42 Months 48 Months
T5/T8 Lumens vs. Temperature
T5 High Efficiency
• New 25W Energy Advantage version of 28W
• Up to 116 lumens per watt
• 5000 kelvin being added to all sizes
• Slim profile lamp and ballast
• Perfect for office, healthcare and government applications
T5 High Output
• New 49W HO Energy Advantage version of 54W HO
• 49W HO also available in extreme temperature version
• T5HO offers superb high bay options
• Increased energy saving options for many applications
• Perfect for retail, industrial and warehouse applications
Industry low 1.4mg of mercury in all Philips T5 and T5HO lamps
No burn in required before dimming Philips T5 and T5HO lamps
Operate on programmed start ballast only to maintain warranty
Lumen output ratings at 35ºC, lumens at 25ºC, average 10% lower
Philips T5 Fluorescent Lamps
featuring ALTO Technology
Powerful, environmentally-responsible, ultra-slim lamps
T5 Miniature Bipin
Nom. Rated Average Life Approx. Design
Product Symbols, Ordering Pkg. Length 3 Hr. 12 Hr. Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) Start (202) Start (241) (203,204) (208) CRI
Fluorescent Lamps
T5 Lamps
T5 High Output (HO) Energy Advantage Lamps
T5 Miniature Bipin; Programmed Start (226)
44 41781-6 $ F54T5/835/HO/XEW/ALTO 44W 40 TL 835, 3500K 46 35,000 40,000 4500 4275 85
41782-4 $ F54T5/841/HO/XEW/ALTO 44W 40 TL 841, 4100K 46 35,000 40,000 4500 4275 85
41783-2 $ F54T5/850/HO/XEW/ALTO 44W 40 TL 850, 5000K 46 35,000 40,000 4320 4100 82
49 22049-1 $ F54T5/830/HO/EA/ALTO 49W 40 TL 830, 3000K 46 35,000 40,000 5000 4750 85
22050-9 $ F54T5/835/HO/EA/ALTO 49W 40 TL 835, 3500K 46 35,000 40,000 5000 4750 85
22052-5 $ F54T5/841/HO/EA/ALTO 49W 40 TL 841, 4100K 46 35,000 40,000 4800 4600 85
40649-6 $ F54T5/850/HO/EA/ALTO 49W 40 TL 850, 5000K 46 35,000 40,000 4850 4625 82
T5 High Output (HO) Energy Advantage Lamps “Extreme Temperature” with Amalgam Technology
T5 Miniature Bipin; Programmed Start (226)
49 40729-6 $ F54T5/835/HO/A/EA/ALTO 49W 40 TL 835, 3500K 46 35,000 40,000 5000 4750 85
40730-4 $ F54T5/841/HO/A/EA/ALTO 49W 40 TL 841, 4100K 46 35,000 40,000 5000 4750 85
40752-8 $
†
F54T5/850/HO/A/EA/ALTO 49W 40 TL 850, 5000K 46 35,000 40,000 4800 4600 82
T5 High Output (HO) Lamps—(2ft–5ft)
T5 Miniature Bipin; Programmed Start (226)
24 29019-7 $ F24T5/830/HO/ALTO 40 TL 830, 3000K 22 25,000 35,000 1950 1850 85
29020-5 $ F24T5/835/HO/ALTO 40 TL 835, 3500K 22 25,000 35,000 1950 1850 85
29021-3 $ F24T5/841/HO/ALTO 40 TL 841, 4100K 22 25,000 35,000 1950 1850 85
41277-5 $ F24T5/850/HO/ALTO 40 TL 850, 5000K 22 25,000 35,000 1870 1775 82
39 29022-1 $ F39T5/830/HO/ALTO 40 TL 830, 3000K 34 25,000 35,000 3500 3325 85
29023-9 $ F39T5/835/HO/ALTO 40 TL 835, 3500K 34 25,000 35,000 3500 3325 85
29025-4 $ F39T5/841/HO/ALTO 40 TL 841, 4100K 34 25,000 35,000 3500 3325 85
41435-9 $ F39T5/850/HO/ALTO 40 TL 850, 5000K 34 25,000 35,000 3360 3190 82
54 29026-2 $ F54T5/830/HO/ALTO 40 TL 830, 3000K 46 25,000 35,000 5000 4750 85
29028-8 $ F54T5/835/HO/ALTO 40 TL 835, 3500K 46 25,000 35,000 5000 4750 85
29083-3 $ F54T5/841/HO/ALTO 40 TL 841, 4100K 46 25,000 35,000 5000 4750 85
13510-3 $ F54T5/850/HO/ALTO 40 TL 850, 5000K 46 25,000 35,000 4800 4600 82
14745-4 $ F54T5/865/HO/ALTO 40 TL 865, 6500K 46 25,000 35,000 4650 4415 82
25,000
35,000
35,000
40,000
Philips Energy Advantage LampsPhilips T5 Lamps
Rated Average Life
Performance
(Relative Light Output vs. Temperature)
Philips T5 Extreme Temperature Lamps vs. Standard F54T5 Lamps
For the most current product information, go to the e-catalog on www.philips.com
Fluorescent symbols and footnotes located on page 40
Lamp Specification Guide 2012–2013 17

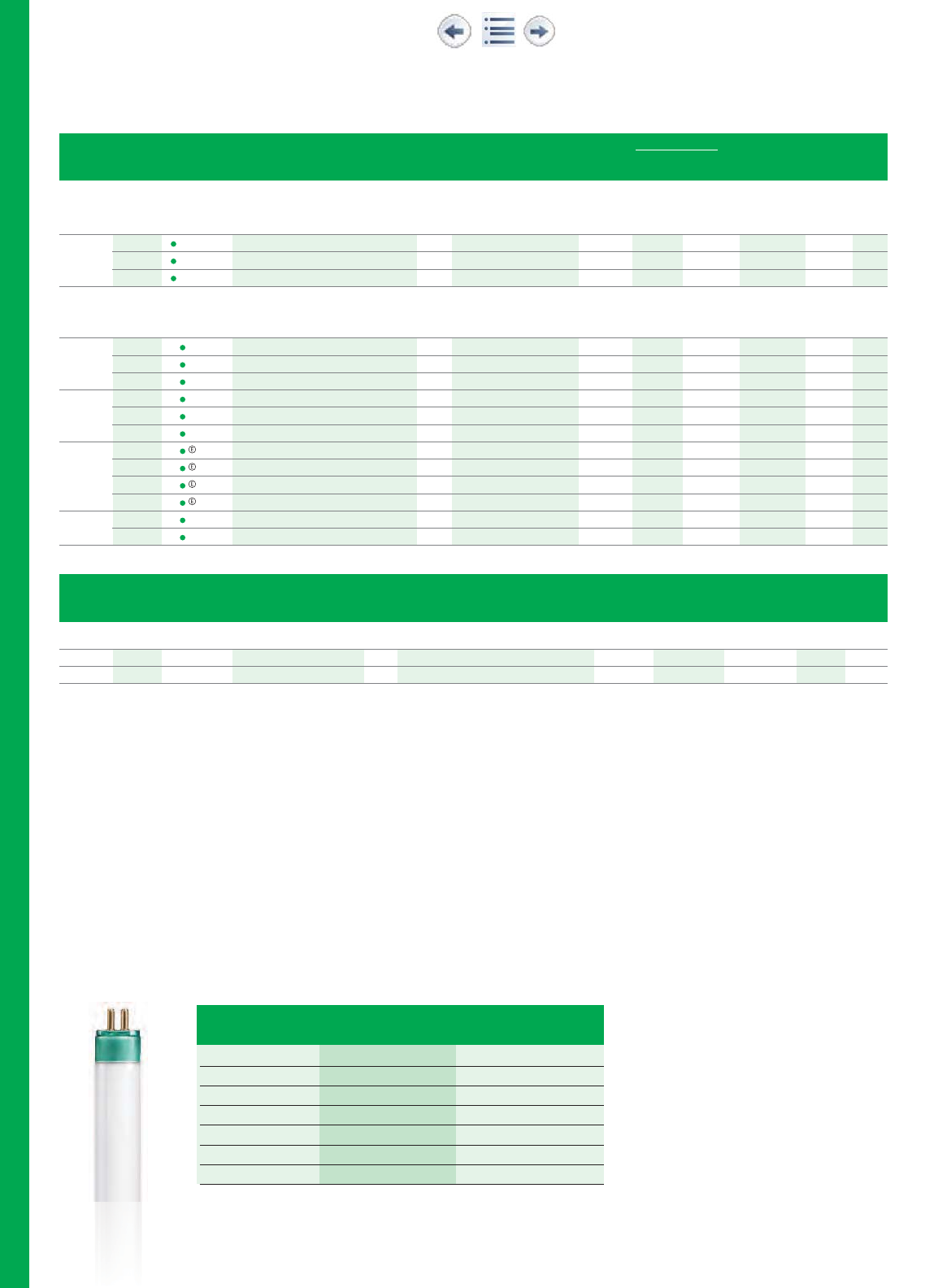

T5 Miniature Bipin
18 Lamp Specification Guide 2012–2013
Nom. Rated Average Life Approx. Design
Product Symbols, Ordering Pkg. Length 3 Hr. 12 Hr. Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) Start (202) Start (241) (203,204) (208) CRI
Fluorescent Lamps
T5, Colored Linear Fluorescent Lamps
Energy Advantage T5 Lamps —(4ft)
T5 Miniature Bipin; Programmed Start (226)
25 40631-4 F28T5/835/EA/ALTO 25W 40 TL 835, 3500K 46 35,000 40,000 2900 2750 85
40632-2 F28T5/841/EA/ALTO 25W 40 TL 841, 4100K 46 35,000 40,000 2900 2750 85
41420-1 F28T5/850/EA/ALTO 25W 40 TL 850, 5000K 46 35,000 40,000 2780 2640 82
T5 High Efficiency Lamps—(2ft–5ft)
T5 Miniature Bipin; Programmed Start (226)
14 23077-1 $ F14T5/830/ALTO 40 TL 830, 3000K 22 25,000 35,000 1350 1275 85
23079-7 $ F14T5/835/ALTO 40 TL 835, 3500K 22 25,000 35,000 1350 1275 85
23080-5 $ F14T5/841/ALTO 40 TL 841, 4100K 22 25,000 35,000 1350 1275 85
21 23081-3 $ F21T5/830/ALTO 40 TL 830, 3000K 34 25,000 35,000 2100 2000 85
23082-1 $ F21T5/835/ALTO 40 TL 835, 3500K 34 25,000 35,000 2100 2000 85
23083-9 $ F21T5/841/ALTO 40 TL 841, 4100K 34 25,000 35,000 2100 2000 85
28 23084-7 $ F28T5/830/ALTO 40 TL 830, 3000K 46 25,000 35,000 2900 2750 85
23085-4 $ F28T5/835/ALTO 40 TL 835, 3500K 46 25,000 35,000 2900 2750 85
40485-3 $ F28T5/835/ALTO 6 TL 835, 3500K 46 25,000 35,000 2900 2750 85
23086-2 $ F28T5/841/ALTO 40 TL 841, 4100K 46 25,000 35,000 2900 2750 85
35 23088-8 $ F35T5/830/ALTO 40 TL 830, 3000K 58 25,000 35,000 3650 3450 85
23095-3 $ F35T5/841/ALTO 40 TL 841, 4100K 58 25,000 35,000 3650 3450 85
Colored—Linear Fluorescent Lamps—T5 High Output (226)
24 27547-9 $ F24T5/BLUE/HO 15 TL5HO Colored Pro 24W/180 Blue 22 12,000 550 440 N/A
54 27562-8 $ F54T5/BLUE/HO 15 TL5HO Colored Pro 54W/180 Blue 46 12,000 1500 1200 N/A
Nom. Rated Approx. Design
Product Symbols, Ordering Pkg. Length Avg. Life Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) (Hrs.) (202) (203,204) (208) CRI
T5 Lumens at 35ºC and 25ºC
Approx. Initial Lumens Approx. Initial Lumens
Lamp Type at 35°C
(203, 204)
at 25°C
(203, 204)
F14T5 1350 1175
F21T5 2100 1800
F28T5 2900 2625
F35T5 3650 3275
F24T5/HO 1950 1675
F39T5/HO 3500 3100
F54T5/HO 5000 4450
For the most current product information, go to the e-catalog on www.philips.com
Fluorescent symbols and footnotes located on page 40
T5 Miniature BipinT5 Circular
T5 Circular Fluorescent Lamps
2GX13 Base; Programmed Start
22 16601-7 $ TL5C 22W/830 10 Formerly FC9T5/830 9 OD 16,000 1800 1530 85
16600-9 $ TL5C 22W/840 10 Formerly FC9T5/841 9 OD 16,000 1800 1530 85
40 14859-3 $ TL5C 40W/835 10 Formerly FC12T5/835 12 OD 16,000 3300 2805 85
55 16593-6 $ TL5C 55W/830 10 Formerly FC12T5/830/HO 12 OD 16,000 4200 3580 85
16592-8 $ TL5C 55W/840 10 Formerly FC12T5/841/HO 12 OD 16,000 4200 3580 85
Preheat Fluorescent Lamps
T5 Miniature Bipin; Requires Use of Starters
4 33236-1 F4T5/CW 25 Cool White, 4100K 6 6000 135 95 59
6 33241-1 F6T5/CW 25 Cool White, 4100K 9 7500 295 230 59
8 33247-8 F8T5/CW 25 Cool White, 4100K 12 7500 400 300 59
13 33253-6 F13T5/CW 25 Cool White, 4100K 21 7500 820 655 59
20703-5 F13T5/30U 25 Ultralume, 3000K 21 7500 1000 800 85
Fluorescent Lamps
T5 Circular Lamps, Preheat Fluorescent Lamps
Nom. Rated Approx. Design
Product Symbols, Ordering Pkg. Length Avg. Life Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) (Hrs.) (202) (203,204) (208) CRI

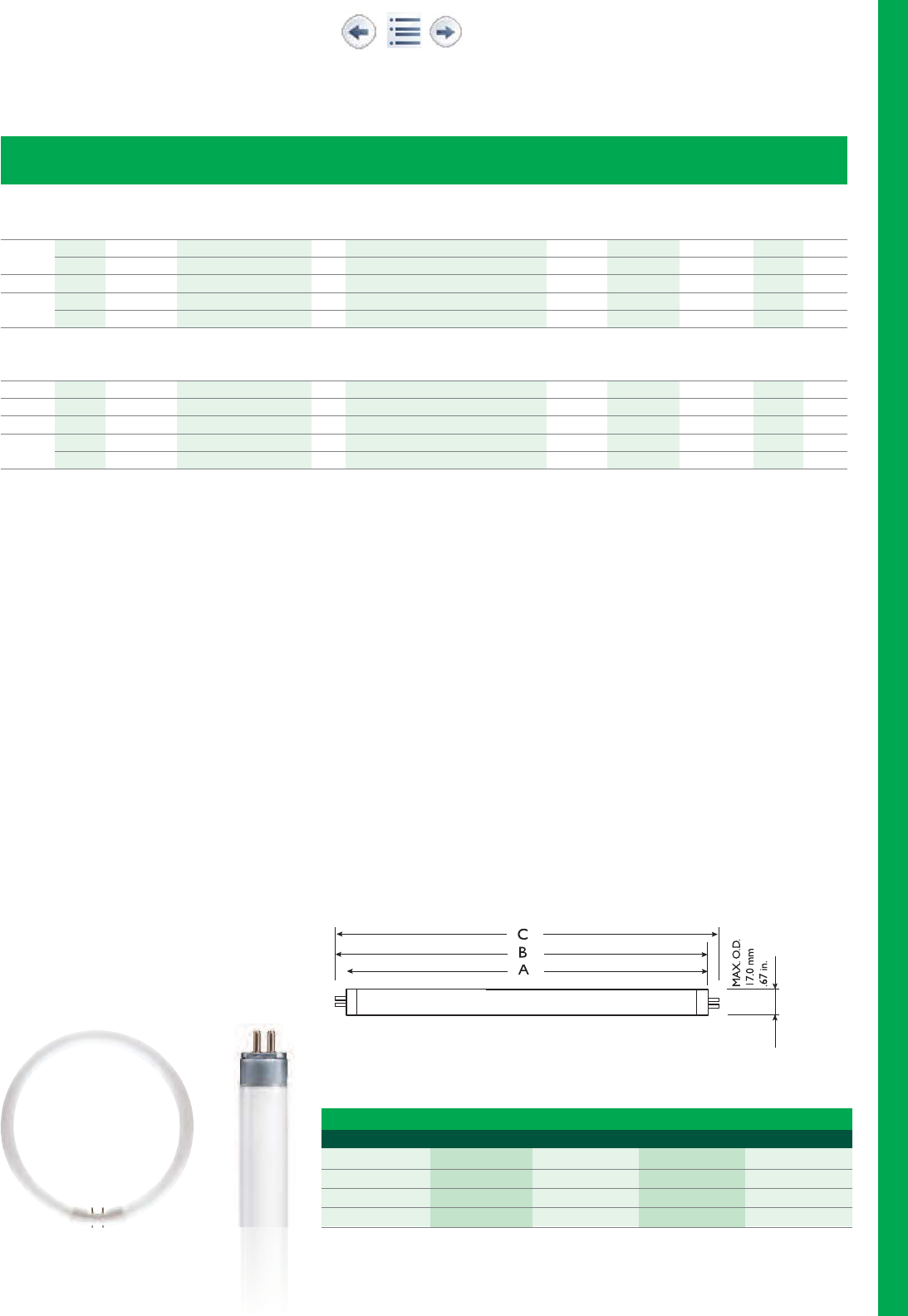

T5 and T5 High Output Dimensions (226)
Type A Max. (Width) B Min. (Width) B Max. (Width) C Max. (Width)
inches mm inches mm inches mm inches mm
T5 14W/24W 21.61 549.0 21.80 553.7 21.89 556.1 22.17 563.2
T5 21W/39W 33.42 849.0 33.61 853.7 33.70 856.1 33.98 863.2
T5 28W/54W 45.24 1149.0 45.42 1153.7 45.52 1156.1 45.80 1163.2
T5 35W/80W 57.05 1449.0 57.23 1453.7 57.33 1456.1 57.61 1463.2
For the most current product information, go to the e-catalog on www.philips.com
Fluorescent symbols and footnotes located on page 40
Lamp Specification Guide 2012–2013 19
20 Lamp Specification Guide 2012–2013
Philips ALTO II Technology
Philips T8 Fluorescent Lamps featuring ALTO II Technology
Better for your business, better for the environment
ALTO lamps with green endcaps have become synonymous with environmental
responsibility and low mercury. Since the launch of ALTO Lamp Technology in 1995,
2.0 billion Philips fluorescent lamps with ALTO Lamp Technology have been produced
with over 20 tons less mercury than previous non-ALTO lamps
1.
Philips launched ALTO II Technology in 2007. ALTO II Technology has 50% less
mercury than prior T8 lamps featuring ALTO Technology, making these lamps the
most sustainable linear fluorescents available. Best of all, these lamps offer the same
performance levels as ALTO lamps (life, energy, and light output).
Philips T8 Lamp Family—Life ratings
1) [1994 industry average (22.8mg)—PLC average (4.0mg)] x 2 billion lamps. Convert to pounds by dividing by 464. Convert to tons by dividing by 2000.
2) Conditions apply—Based on maximum annual burn hours of 5110. Please contact Philips for warranty conditions for use of other equipment, including sensors.
3) Warranty Periods: 700 & 800 Series T8–30 months; Energy Advantage T8–36 months; PLUS T8–36 months; and Advantage T8–36 months; Extra Long Life T8–48 months; Energy Advantage Extra Long Life T8–48 months.
4) Average life under engineering data on instant start ballast with lamps turned off and restarted once every 3 or 12 operating hours as indicated.
5) Average life under engineering data on programmed start ballast with lamps turned off and restarted once every 3 or 12 operating hours as noted.
Philips Lamp
Instant Start4Programmed Start5
3 hours 12 hours 3 hours 12 hours
T8 700 and 800 Series 24,000 30,000 30,000 36,000
Advantage T8 32W High Lumen 24,000 30,000 30,000 36,000
PLUS T8 32W 30,000 36,000 38,000 44,000
Energy Advantage and Value Energy Advantage 25W and 32W 32,000 38,000 38,000 44,000
T8 32W Extra Long Life (XLL) 40,000 46,000 46,000 52,000
Energy Advantage T8 25W and 28W (XLL) Extra Long Life 40,000 46,000 46,000 52,000
Did you know?
• ALTO II T8 lamps have warranty
periods ranging from 2
1
⁄
2
–4 years3
• ALTO II T8 lamps require no burn
in before dimming
• ALTO II T8 lamps can contribute
to LEED-EB certification. For more
information, go to ww.usgbc.org
Philips T8 Lamp Warranty Periods
2
Philips Lamp Instant Start
Warranty
(3hr/12hr starts)
Programmed
Start Warranty
(3hr/12hr starts)
T8 700 and 800 Series 30/30 Months 30/36 Months
Advantage T8 32W High Lumen 30/30 Months 36/36 Months
PLUS T8 32W 36/42 Months 42/48 Months
Energy Advantage and Value Energy
Advantage 25W and 32W 36/42 Months 48/54 Months
T8 32W Extra Long Life (XLL) 42/48 Months 48/60 Months
Energy Advantage T8 25W and
28W (XLL) Extra Long Life 42/48 Months 48/60 Months
T8 Medium Bipin
Lamp Specification Guide 2012–2013 21
120
110
100
90
80
70
60
50
40
30
20
10
Relative Lumens (%)
0 10203040506070
25W 28W 32W TL80
Nom. Rated Average Life Approx. Design
Product Symbols, Ordering Pkg. Length 3 Hr. 12 Hr. Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) Start
(202)
Start
(241)
(203,204)
(208)
CRI
Energy Advantage T8 25 Watt Fluorescent Lamps
T8 Medium Bipin Featuring ALTO II Technology
25 28204-6 $
†
F32T8/ADV830/XEW/ALTO 25 Watt 30 Advantage 830, 3000K 48 32,000 38,000 2500 2450 85
28209-5 $
†
F32T8/ADV835/XEW/ALTO 25 Watt 30 Advantage 835, 3500K 48 32,000 38,000 2500 2450 84
28078-4 $
†
F32T8/ADV841/XEW/ALTO 25 Watt 30 Advantage 841, 4100K 48 32,000 38,000 2500 2450 82
15238-9 $ F32T8/ADV841/XEW/ALTO 25 Watt 10 Advantage 841, 4100K, 10PK 48 32,000 38,000 2500 2450 82
28079-2 $
†
F32T8/ADV850/XEW/ALTO 25 Watt 30 Advantage 850, 5000K 48 32,000 38,000 2400 2350 82
Energy Advantage T8 28 Watt Fluorescent Lamps
T8 Medium Bipin Featuring ALTO II Technology
28 28101-4 $
†
F32T8/ADV830/EW/ALTO 28 Watt 30 Advantage 830, 3000K 48 32,000 38,000 2725 2645 85
28102-2 $
†
F32T8/ADV835/EW/ALTO 28 Watt 30 Advantage 835, 3500K 48 32,000 38,000 2725 2645 84
28103-0 $
†
F32T8/ADV841/EW/ALTO 28 Watt 30 Advantage 841, 4100K 48 32,000 38,000 2725 2645 82
28105-5 $
†
F32T8/ADV850/EW/ALTO 28 Watt 30 Advantage 850, 5000K 48 32,000 38,000 2675 2595 82
Fluorescent Lamps
Energy Advantage T8 Lamps
Cost of Ownership Savings
Energy Advantage T8 fluorescent lamps vs. standard T8 lamps.
General Overview
Energy Advantage 25W T8 fluorescent lamps provide energy
savings of up to 25% versus standard 32W T8, so the benefits
and financial impact can be significant.
Benefits
By using Energy Advantage 25W T8 lamps the energy savings of 7
watts per lamp can be achieved instantly by simply changing the lamp.
Financial Impact
Energy Savings per Lamp 7 W
Operating Hours per Year 8760 hours, continuous burn
Cost per kWh $ .10
Cost of Ownership Savings = $6.13 per lamp per year
** 4380 hours are based on operating the lamps 12 hours per day/7 days per week.
8760 hours are based on operating the lamps 24 hours per day/7 days per week.
For the most current product information, go to the e-catalog on www.philips.com
Fluorescent symbols and footnotes located on page 40
Rated Average Life
32,000
38,000
38,000
44,000

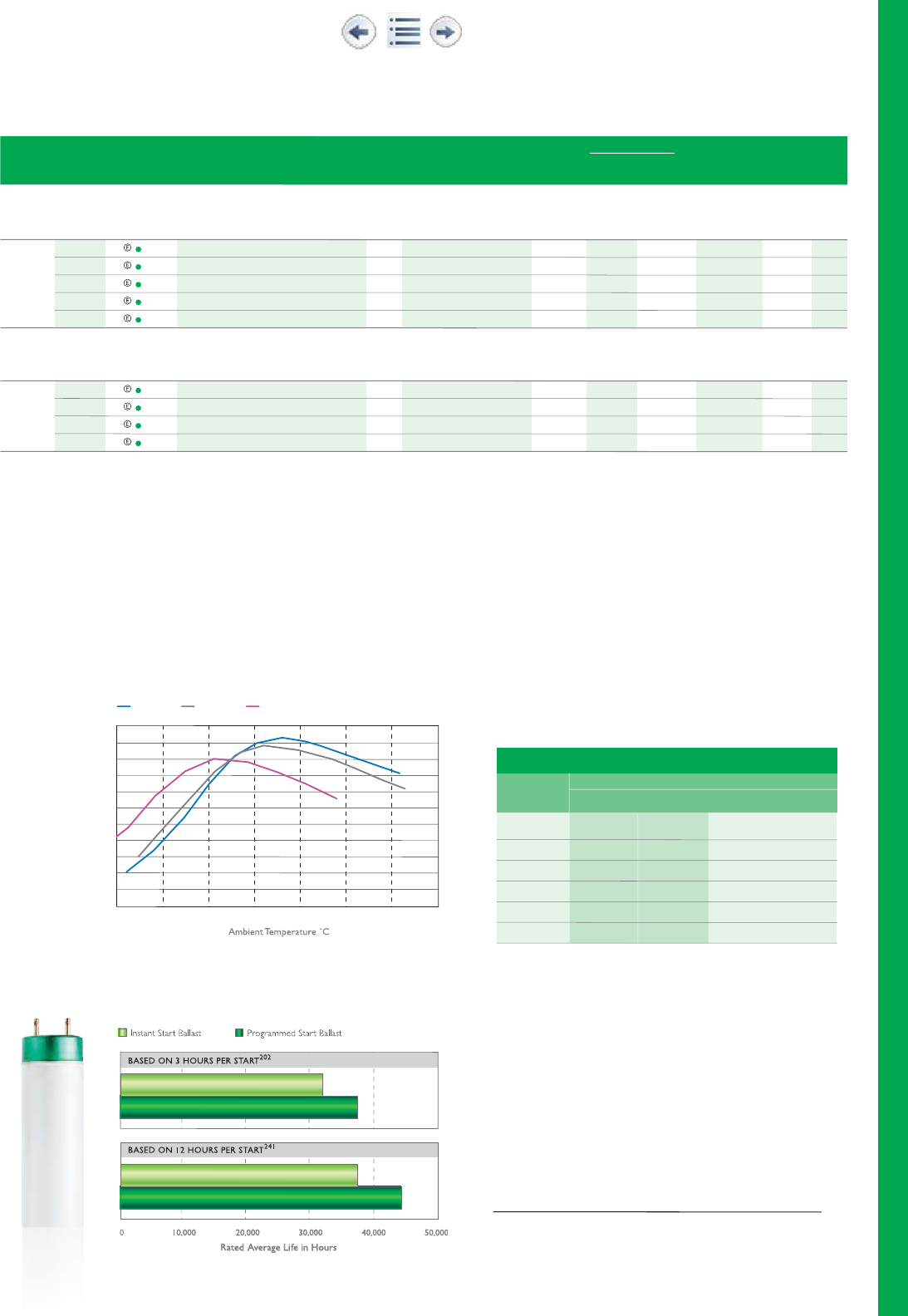

Relative Light Output vs. Ambient Temperature
4' T8 Lamps — 0.88 BF Ballast
Relative light output with respect to 25ºC rated temperature
Energy Advantage 25W T8 Savings
7 watts per
lamp saved
Save 7 Watts Instantly
Energy Savings Calculator
Annual Operating Hours
**
Savings Over Lamp Life
KWH Rate 4380 8760 38,000 hrs.
$0.06 $1.84 $3.68 $15.96
$0.08 $2.45 $4.90 $20.28
$0.10 $3.07 $6.13 $26.60
$0.12 $3.68 $7.36 $31.92
$0.20 $6.13 $12.26 $53.20
T8 Medium Bipin

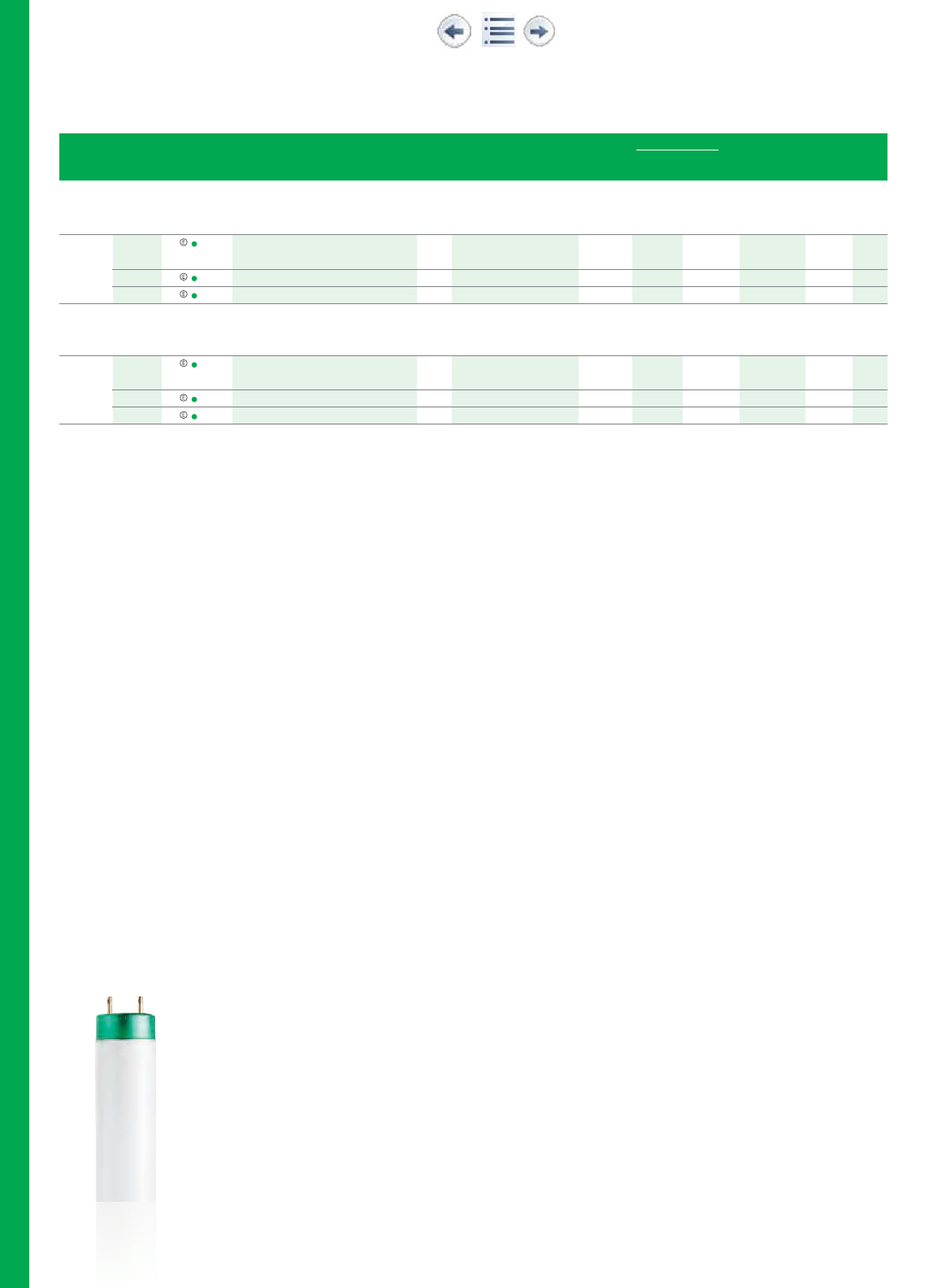

22 Lamp Specification Guide 2012–2013
Nom. Rated Average Life Approx. Design
Product Symbols, Ordering Pkg. Length 3 Hr. 12 Hr. Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) Start (202) Start (241) (203,204) (208, 239) CRI
Fluorescent Lamps
Value Energy Advantage T8 Lamps
For the most current product information, go to the e-catalog on www.philips.com
Fluorescent symbols and footnotes located on page 40
Energy Advantage T8 Value 25 Watt Fluorescent Lamps
T8 Medium Bipin Featuring ALTO II Technology
25 42418-4 $
†
F32T8/VEA835/XEW/ALTO 25W 30 Value Energy Advantage 48 32,000 38,000 2300 2250 82
835, 3500K
42420-0 $
†
F32T8/VEA841/XEW/ALTO 25W 30 Value Advantage 841, 4100K 48 32,000 38,000 2300 2250 82
42422-6 $
†
F32T8/VEA850/XEW/ALTO 25W 30 Value Advantage 850, 5000K 48 32,000 38,000 2300 2250 82
Energy Advantage T8 Value 28 Watt Fluorescent Lamps
T8 Medium Bipin Featuring ALTO II Technology
28 42417-6 $
†
F32T8/VEA835/EW/ALTO 28W 30 Value Energy Advantage 48 32,000 38,000 2600 2550 82
835, 3500K
42419-2 $
†
F32T8/VEA841/EW/ALTO 28W 30 Value Advantage 841, 4100K 48 32,000 38,000 2600 2550 82
42421-8 $
†
F32T8/VEA850/EW/ALTO 28W 30 Value Advantage 850, 5000K 48 32,000 38,000 2600 2550 82

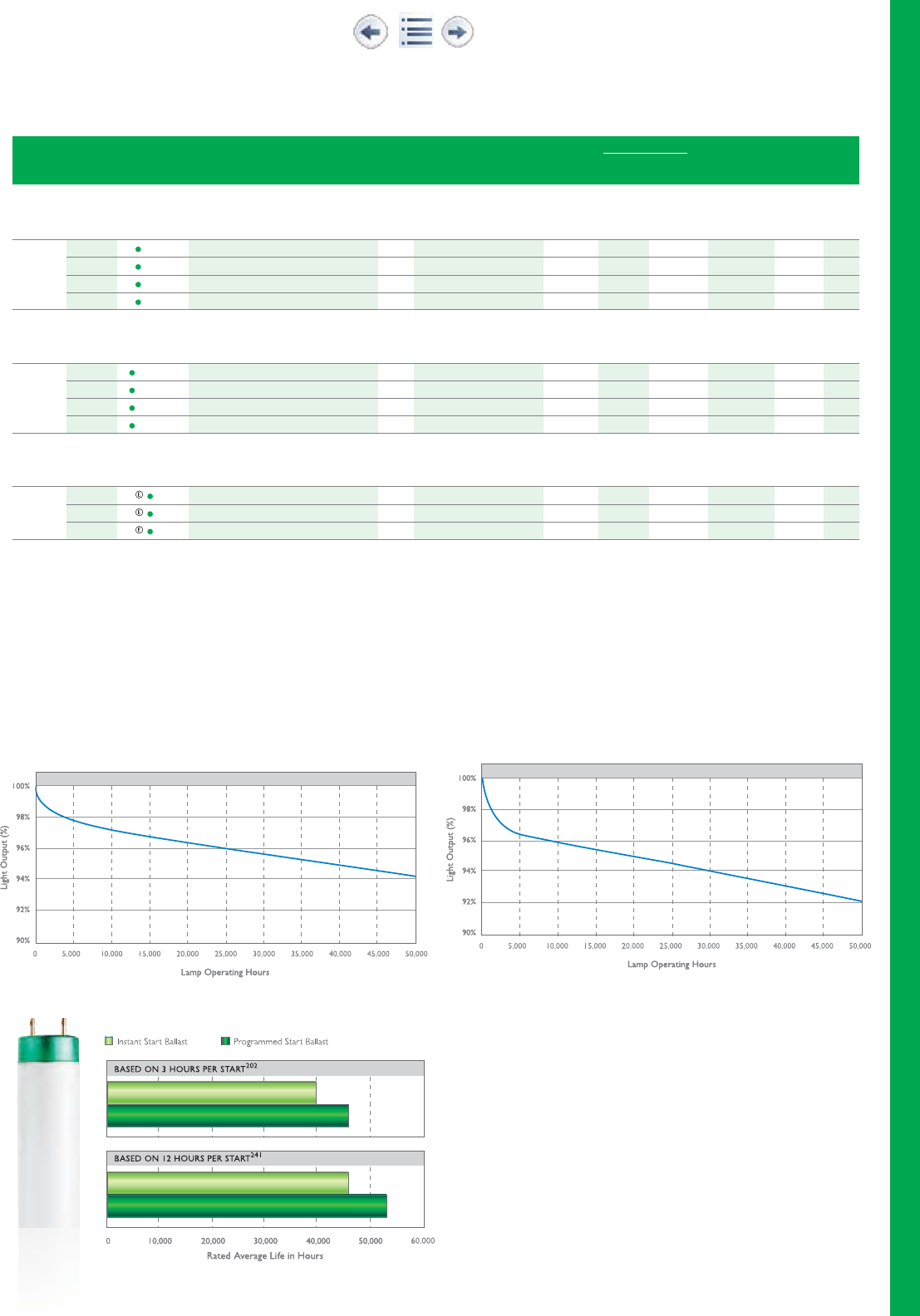

T8 Medium Bipin
97% Lumen Maintenance
Philips Energy Advantage T8 25W and 28W XEW and XLL Lamps
95% Lumen Maintenance
Philips T8 32W XLL Lamps
Nom. Rated Average Life Approx. Design
Product Symbols, Ordering Pkg. Length 3 Hr. 12 Hr. Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) Start (202) Start (241) (203,204) (208) CRI
Fluorescent Lamps
Extra Long Life (XLL) T8 Lamps
Extra Long Life Energy Advantage 25 Watt T8 Fluorescent Lamp
T8 Medium Bipin Featuring ALTO II Technology
25 28121-2 $
†
F32T8/ADV830/XLL/ALTO 25 Watt 30 Advantage 830, 3000K 48 40,000 46,000 2400 2330 85
28122-0 $
†
F32T8/ADV835/XLL/ALTO 25 Watt 30 Advantage 835, 3500K 48 40,000 46,000 2400 2330 84
28123-8 $
†
F32T8/ADV841/XLL/ALTO 25 Watt 30 Advantage 841, 4100K 48 40,000 46,000 2400 2330 82
28125-3 $
†
F32T8/ADV850/XLL/ALTO 25 Watt 30 Advantage 850, 5000K 48 40,000 46,000 2350 2280 82
Extra Long Life Energy Advantage 28 Watt T8 Fluorescent Lamp
T8 Medium Bipin Featuring ALTO II Technology
28 28146-9
†
F32T8/ADV830/XLL/ALTO 28 Watt 30 Advantage 830, 3000K 48 40,000 46,000 2675 2595 85
28148-5
†
F32T8/ADV835/XLL/ALTO 28 Watt 30 Advantage 835, 3500K 48 40,000 46,000 2675 2595 84
28127-9
†
F32T8/ADV841/XLL/ALTO 28 Watt 30 Advantage 841, 4100K 48 40,000 46,000 2675 2595 82
28128-7
†
F32T8/ADV850/XLL/ALTO 28 Watt 30 Advantage 850, 5000K 48 40,000 46,000 2625 2545 82
Extra Long Life 32 Watt T8 Fluorescent Lamps
T8 Medium Bipin Featuring ALTO II Technology
32 28115-4 $
†
F32T8/TL835/XLL/ALTO 30 TL 835, 3500K 48 40,000 46,000 2950 2800 84
28116-2 $
†
F32T8/TL841/XLL/ALTO 30 TL 841, 4100K 48 40,000 46,000 2950 2800 82
28120-4 $
†
F32T8/TL850/XLL/ALTO 30 TL 850, 5000K 48 40,000 46,000 2850 2700 82
40,000
46,000
46,000
52,000
Rated Average Life
For the most current product information, go to the e-catalog on www.philips.com
Fluorescent symbols and footnotes located on page 40
Lamp Specification Guide 2012–2013 23
T8 Medium Bipin

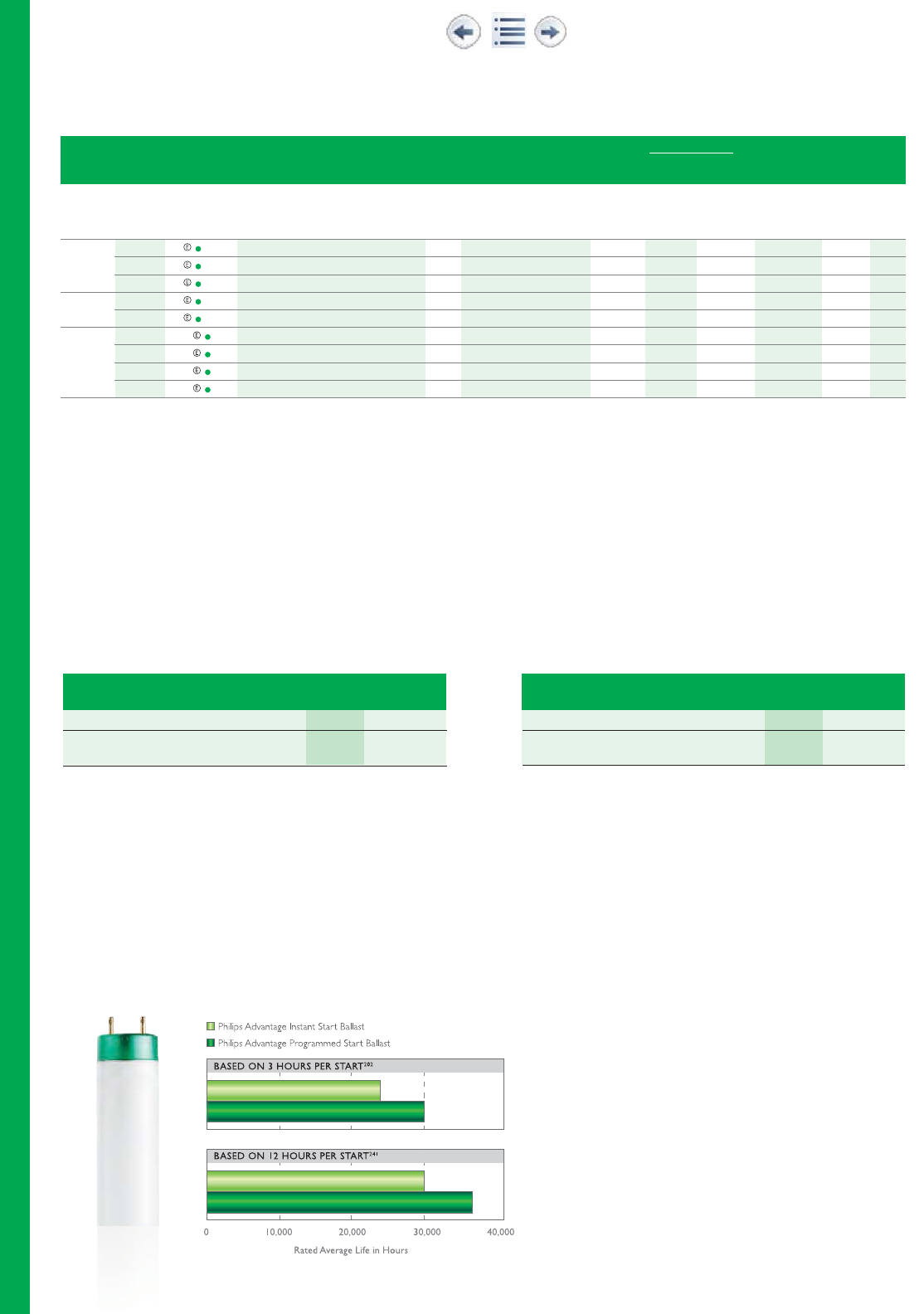

24 Lamp Specification Guide 2012–2013
Nom. Rated Average Life Approx. Design
Product Symbols, Ordering Pkg. Length 3 Hr. 12 Hr. Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) Start (202) Start (241) (203,204) (208, 239) CRI
Fluorescent Lamps
Advantage T8 Lamps
Advantage T8 High Lumen Fluorescent Lamps
T8 Medium Bipin Featuring ALTO II Technology
17 28130-3 $
†
F17T8/ADV830/ALTO 30 Advantage 830, 3000K 24 24,000 30,000 1500 1450 85
28131-1 $
†
F17T8/ADV835/ALTO 30 Advantage 835, 3500K 24 24,000 30,000 1500 1450 84
28132-9 $
†
F17T8/ADV841/ALTO 30 Advantage 841, 4100K 24 24,000 30,000 1500 1450 82
25 28140-2 $
†
F25T8/ADV835/ALTO 30 Advantage 835, 3500K 36 24,000 30,000 2380 2300 84
28142-8 $
†
F25T8/ADV841/ALTO 30 Advantage 841, 4100K 36 24,000 30,000 2380 2300 82
32 28080-0 ¥$
†
F32T8/ADV830/ALTO 30 Advantage 830, 3000K 48 24,000 30,000 3100 3000 85
28081-8 ¥$
†
F32T8/ADV835/ALTO 30 Advantage 835, 3500K 48 24,000 30,000 3100 3000 84
28085-9 ¥$
†
F32T8/ADV841/ALTO 30 Advantage 841, 4100K 48 24,000 30,000 3100 3000 82
28089-1 ¥$
†
F32T8/ADV850/ALTO 30 Advantage 850, 5000K 48 24,000 30,000 3000 2910 82
Combine Advantage T8 lamps with reduced light
output electronic ballasts, with these results:
• Saves 7 system watts vs. standard T8 system
• Saves $2.80 per fixture per year
• Energy savings based on 4000 hrs/yr @ $.10 kw/hr
Combine advantage T8 lamps with increased light output
ballasts. A two lamp advantage T8 system vs. a three lamp
standard T8 system will:
• Save 10 system watts
• Save $4.00 per fixture per year
• Save energy based on 4000 hrs/yr @ $.10 kw/hr
• Reduce lighting installation costs (lamps, ballasts, fixtures and labor)
• Operate on ballast with ballast factors up to 1.32 with warranty intact
Energy Savings: Two Lamp vs. Three Lamp System
Electronic Ballast No. of Lamp Standard Advantage System
Ballast Factor Lamps Watts T8 Lumens T8 Lumens Watts Savings
Standard T8 0.87 3 32 2850 — 88 —
Increased Light
Output T8 1.20 2 32 — 3100 78 $4.00/yr
Energy Savings: Two Lamp vs. Two Lamp System
Electronic Ballast No. of Lamp Standard Advantage System
Ballast Factor Lamps Watts T8 Lumens T8 Lumens Watts Savings
Standard T8 0.87 2 32 2850 — 58 —
Reduced Light
Output T8 0.75 2 32 — 3100 51 $2.80/yr
24,000
30,000
30,000
36,000
Rated Average Life
For the most current product information, go to the e-catalog on www.philips.com
Fluorescent symbols and footnotes located on page 40
T8 Medium Bipin

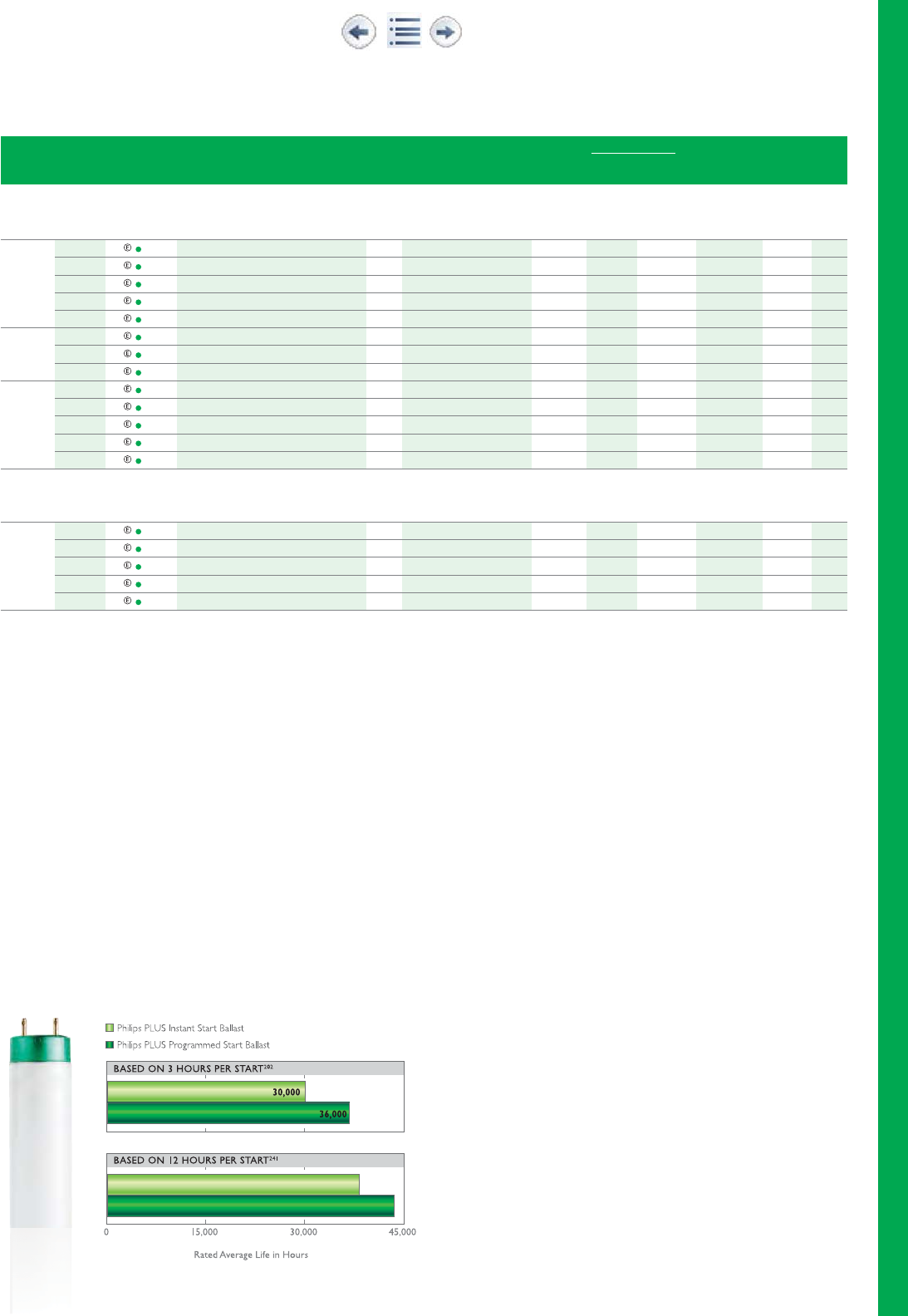

Lamp Specification Guide 2012–2013 25
Nom. Rated Average Life Approx. Design
Product Symbols, Ordering Pkg. Length 3 Hr. 12 Hr. Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) Start (202) Start (241) (203,204) (208, 239) CRI
Fluorescent Lamps
PLUS 800 Series T8 Lamps, PLUS 700 Series T8 Lamps
PLUS 800 Series Long Life T8 Fluorescent Lamps
T8 Medium Bipin Featuring ALTO II Technology
17 29093-3 $
†
F17T8/TL830/PLUS/ALTO 30 TL 830, 3000K 24 30,000 36,000 1400 1330 85
28094-1 $
†
F17T8/TL835/PLUS/ALTO 30 TL 835, 3500K 24 30,000 36,000 1400 1330 85
28095-8 $
†
F17T8/TL841/PLUS/ALTO 30 TL 841, 4100K 24 30,000 36,000 1400 1330 85
28096-6 $
†
F17T8/TL850/PLUS/ALTO 30 TL 850, 5000K 24 30,000 36,000 1325 1260 82
28193-1 $
†
F17T8/TL865/PLUS/ALTO 30 TL 865, 6500K 24 30,000 36,000 1275 1210 82
25 28097-4 $
†
F25T8/TL830/PLUS/ALTO 30 TL 830, 3000K 36 30,000 36,000 2225 2115 85
28098-2 $
†
F25T8/TL835/PLUS/ALTO 30 TL 835, 3500K 36 30,000 36,000 2225 2115 85
28099-0 $
†
F25T8/TL841/PLUS/ALTO 30 TL 841, 4100K 36 30,000 36,000 2225 2115 85
32 28165-9 $
†
F32T8/TL830/PLUS/ALTO 30 TL 830, 3000K 48 30,000 36,000 2950 2800 85
28167-5 $
†
F32T8/TL835/PLUS/ALTO 30 TL 835, 3500K 48 30,000 36,000 2950 2800 85
28179-0 $
†
F32T8/TL841/PLUS/ALTO 30 TL 841, 4100K 48 30,000 36,000 2950 2800 85
20277-0 $ F32T8/TL841/PLUS/ALTO 10 TL 841, 4100K, 10 PK 48 30,000 36,000 2950 2800 85
28181-6 $
†
F32T8/TL850/PLUS/ALTO 30 TL 850, 5000K 48 30,000 36,000 2850 2710 82
PLUS 700 Series Long Life T8 Fluorescent Lamps
T8 Medium Bipin Featuring ALTO II Technology
32 28182-4 $
†
F32T8/TL730/PLUS/ALTO 30 TL 730, 3000K 48 30,000 36,000 2800 2660 78
28183-2 $
†
F32T8/TL735/PLUS/ALTO 30 TL 735, 3500K 48 30,000 36,000 2800 2660 78
28184-0 $
†
F32T8/TL741/PLUS/ALTO 30 TL 741, 4100K 48 30,000 36,000 2800 2660 78
28185-7 $
†
F32T8/TL750/PLUS/ALTO 30 TL 750, 5000K 48 30,000 36,000 2700 2550 78
42306-1 $
†
F32T8/TL765/PLUS/ALTO 30 TL 765, 6500K 48 30,000 36,000 2750 2610 78
For the most current product information, go to the e-catalog on www.philips.com
Fluorescent symbols and footnotes located on page 40
38,000
44,000
Rated Average Life
T8 Medium Bipin

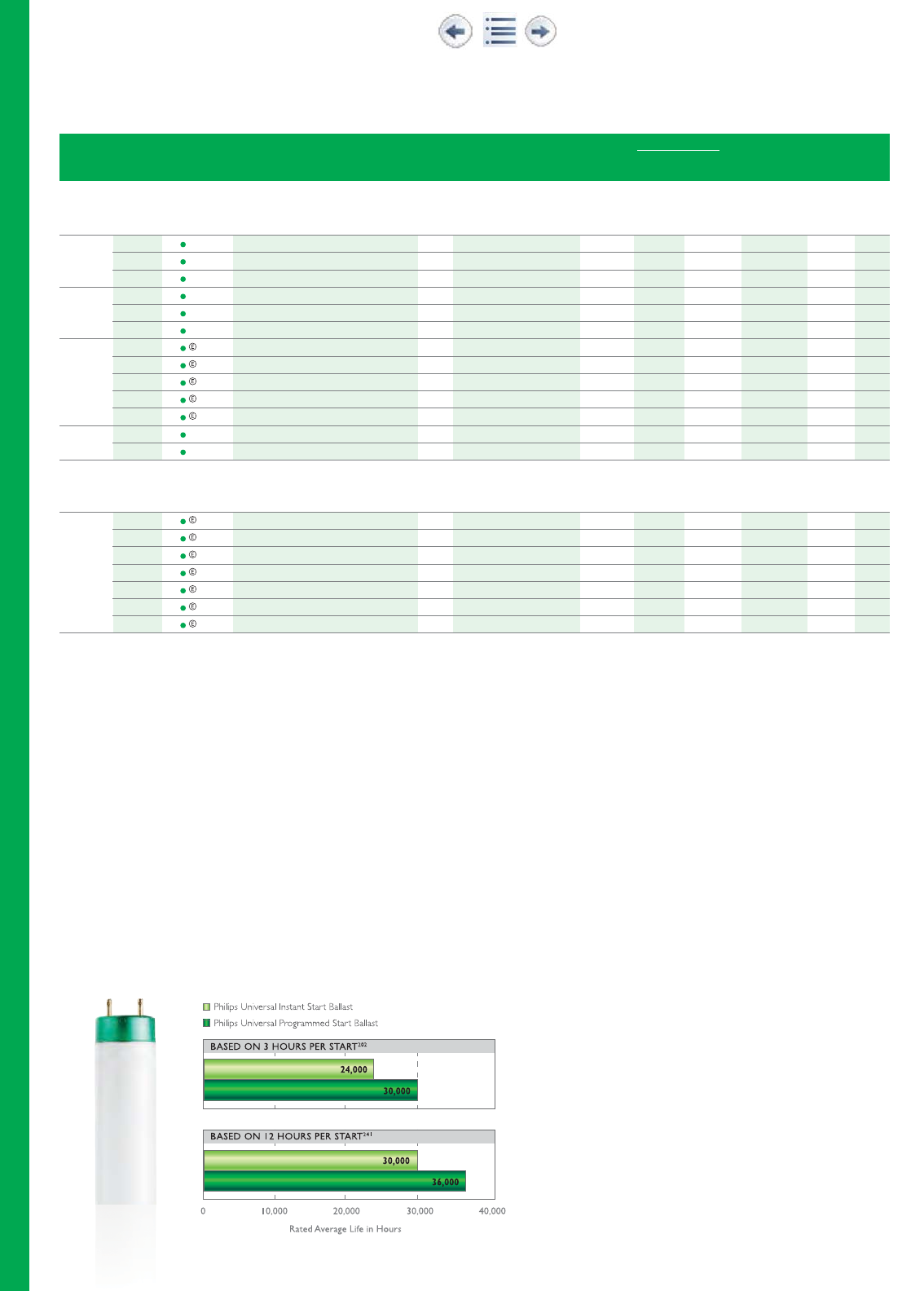

26 Lamp Specification Guide 2012–2013
Nom. Rated Average Life Approx. Design
Product Symbols, Ordering Pkg. Length 3 Hr. 12 Hr. Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) Start (202) Start (241) (203,204) (208, 239) CRI
Fluorescent Lamps
800 Series T8 Lamps, 700 Series T8 Lamps
800 Series T8 Fluorescent Lamps
T8 Medium Bipin Featuring ALTO II Technology
17 28188-1 $
†
F17T8/TL835/ALTO 30 TL 835, 3500K 24 24,000 30,000 1350 1280 84
28189-9 $
†
F17T8/TL841/ALTO 30 TL 841, 4100K 24 24,000 30,000 1350 1280 82
28090-9 $
†
F17T8/TL850/ALTO 30 TL 850, 5000K 24 24,000 30,000 1300 1235 82
25 28190-7 $
†
F25T8/TL835/ALTO 30 TL 835, 3500K 36 24,000 30,000 2150 2040 85
28191-5 $
†
F25T8/TL841/ALTO 30 TL 841, 4100K 36 24,000 30,000 2150 2040 84
28092-5 $
†
F25T8/TL850/ALTO 30 TL 850, 5000K 36 24,000 30,000 2150 2040 82
32 28151-9 $
†
F32T8/TL830/ALTO 30 TL 830, 3000K 48 24,000 30,000 2850 2710 85
28153-5 $
†
F32T8/TL835/ALTO 30 TL 835, 3500K 48 24,000 30,000 2850 2710 84
28155-0 $
†
F32T8/TL841/ALTO 30 TL 841, 4100K 48 24,000 30,000 2850 2710 82
27235-1 $
†
F32T8/TL841/ALTO PLZ 1350 TL 841, 4100K 48 24,000 30,000 2850 2710 82
28156-8 $
†
F32T8/TL850/ALTO 30 TL 850, 5000K 48 24,000 30,000 2850 2710 82
40 36834-0 $
†
F40T8/TL835/ALTO 25 TL 835, 3500K 60 24,000 30,000 3725 3500 84
36847-2 $
†
F40T8/TL841/ALTO 25 TL 841, 4100K 60 24,000 30,000 3725 3500 82
700 Series T8 Fluorescent Lamps
T8 Medium Bipin Featuring ALTO II Technology
32 28162-6 $
†
F32T8/TL730 ALTO 30 TL 730, 3000K 48 24,000 30,000 2700 2565 78
28161-8 $
†
F32T8/TL735/ALTO 30 TL 735, 3500K 48 24,000 30,000 2700 2565 78
27259-1 $
†
F32T8/TL735/ALTO PLZ 1350 TL 735, 3500K 48 24,000 30,000 2700 2565 78
28157-6 $
†
F32T8/TL741/ALTO 30 TL 741, 4100K 48 24,000 30,000 2700 2565 78
38351-3 $
†
F32T8/TL741/ALTO 10 TL 741, 4100K, 10PK 48 24,000 30,000 2700 2565 78
27255-9 $
†
F32T8/TL741/ALTO PLZ 1350 TL 741, 4100K 48 24,000 30,000 2700 2565 78
28163-4 $
†
F32T8/TL750/ALTO 30 TL 750, 5000K 48 24,000 30,000 2600 2470 78
For the most current product information, go to the e-catalog on www.philips.com
Fluorescent symbols and footnotes located on page 40
Rated Average Life
T8 U-Bent Lamp
Medium Bipin
T8 1
5
⁄
8
" U-Bent Lamp
Medium Bipin

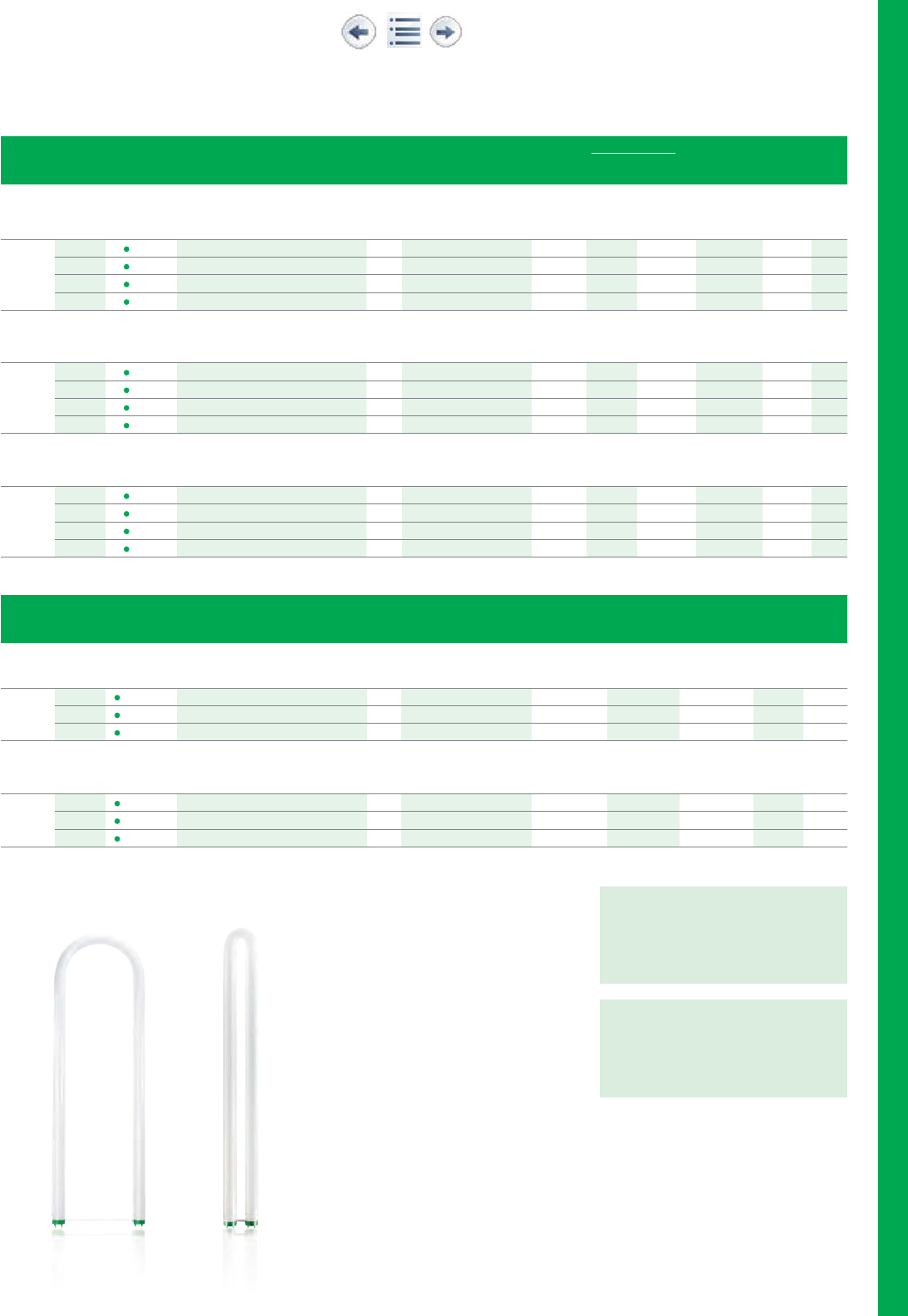

Lamp Specification Guide 2012–2013 27
Fluorescent Lamps
T8 U-Bent Lamps
Nom. Rated Average Life Approx. Design
Product Symbols, Ordering Pkg. Length 3 Hr. 12 Hr. Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) Start (202) Start (241) (203,204) (208) CRI
Energy Advantage U-Bent 6" T8 Fluorescent Lamps
T8 Medium Bipin with 6'' Wide Spacing (212)
25 20420-6 $ FB32T8/ADV830/6/XEW/ALTO 25 WATT 20 TL 830, 3000K 227⁄16 24,000 30,000 2400 2330 85
20421-4 $ FB32T8/ADV835/6/XEW/ALTO 25 WATT 20 TL 835, 3500K 227⁄16 24,000 30,000 2400 2330 85
20423-0 $ FB32T8/ADV841/6/XEW/ALTO 25 WATT 20 TL 841, 4100K 227⁄16 24,000 30,000 2400 2330 85
20424-8 $ FB32T8/ADV850/6/XEW/ALTO 25 WATT 20 TL 850, 5000K 227⁄16 24,000 30,000 2350 2280 82
800 Series U-Bent Rapid Start T8 Fluorescent Lamps
T8 Medium Bipin with 6'' Wide Spacing (212)
32 37897-6 $ FB32T8/TL830/6/ALTO 20 TL 830, 3000K 227⁄16 24,000 30,000 2800 2535 85
37900-8 $ FB32T8/TL835/6/ALTO 20 TL 835, 3500K 227⁄16 24,000 30,000 2800 2535 85
37902-4 $ FB32T8/TL841/6/ALTO 20 TL 841, 4100K 227⁄16 24,000 30,000 2800 2535 85
37880-2 $ FB32T8/TL850/6/ALTO 20 TL 850, 5000K 227⁄16 24,000 30,000 2700 2450 82
700 Series U-Bent Rapid Start T8 Fluorescent Lamps
T8 Medium Bipin with 6'' Wide Spacing (212)
32 37892-7 $ FB32T8/TL730/6/ALTO 20 TL 730, 3000K 227⁄16 20,000 24,000 2650 2370 78
37893-5 $ FB32T8/TL735/6/ALTO 20 TL 735, 3500K 227⁄16 20,000 24,000 2650 2370 78
37894-3 $ FB32T8/TL741/6/ALTO 20 TL 741, 4100K 227⁄16 20,000 24,000 2650 2370 78
37882-8 $ FB32T8/TL750/6/ALTO 20 TL 750, 5000K 227⁄16 20,000 24,000 2600 2325 78
Nom. Rated Approx. Design
Product Symbols, Ordering Pkg. Length Avg. Life Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) (Hrs.) (202) (203,204) (208) CRI
Energy Advantage U-Bent 1
5
⁄
8
" T8 Fluorescent Lamps
T8 Medium Bipin with 15⁄8'' Wide Spacing (212)
29 22675-3 FB29T8/TL830/EA/ALTO 15 TL 830, 3000K 223⁄5 24,000 2600 2470 85
22676-1 FB29T8/TL835/EA/ALTO 15 TL 835, 3500K 223⁄5 24,000 2600 2470 85
22677-9 FB29T8/TL841/EA/ALTO 15 TL 841, 4100K 223⁄5 24,000 2600 2470 85
800 Series U-Bent 1
5
⁄
8
" T8 Fluorescent Lamps
T8 Medium Bipin with 15⁄8'' Wide Spacing (212)
31 22671-2 FB31T8/TL830/ALTO 15 TL 830, 3000K 223⁄5 24,000 2775 2636 85
22672-0 FB31T8/TL835/ALTO 15 TL 835, 3500K 223⁄5 24,000 2775 2636 85
22674-6 FB31T8/TL841/ALTO 15 TL 841, 4100K 223⁄5 24,000 2775 2636 85
For the most current product information, go to the e-catalog on www.philips.com
Fluorescent symbols and footnotes located on page 40
Philips Standard and
1
5
⁄
8
" U-Bent T8
Warranty Period: 24 months
*
Philips Energy
Advantage U-Bent T8
Warranty Period: 36 months
*
* Certain limitations and conditions apply.
See Philips for further warranty details.
T8 Medium Bipin

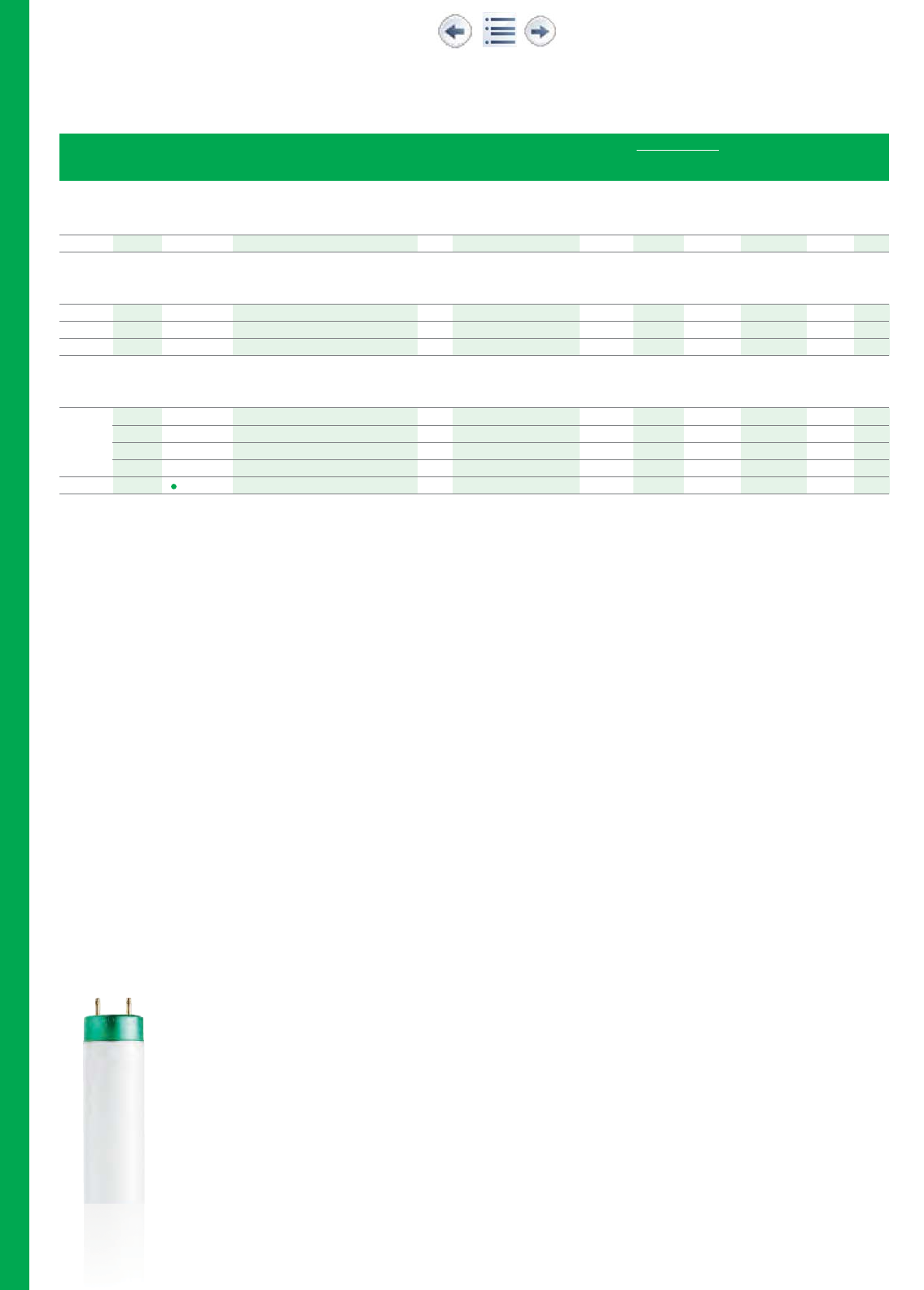

28 Lamp Specification Guide 2012–2013
Fluorescent Lamps
Rapid Start T8 Lamps, Preheat T8 Lamps
Nom. Rated Average Life Approx. Design
Product Symbols, Ordering Pkg. Length 3 Hr. 12 Hr. Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) Start (202) Start (241) (203,204) (208) CRI
Rapid Start T8 Fluorescent Lamps
T8 Medium Bipin; High CRI
17 20905-6 $ F32T8/TL950 25 TL 950, 5000K 48 20,000 20,000 2000 1860 98
TL-D Rapid Start T8 Fluorescent Lamps—for Operation on European Ballast
T8 Medium Bipin; High CRI
36 29189-8 TLD36W/840NG 25 TL840, 4000K 48 20,000 — 3350 3100 82
58 29184-9 TLD58W/840NG 25 TL840, 4000K 60 20,000 — 5200 4300 82
70 29186-4 TLD70W/840NG 25 TL840, 4000K 72 20,000 — 6200 5100 82
Preheat T8 Fluorescent Lamps
T8 Medium Bipin Linear Fluorescent Lamps; Requires Use of Starters (202)
15 40720-5 F15T8D 25 Daylight, 6500K 18 7500 — 750 660 73
40719-7 F15T8/CW 25 Cool White, 4100K 18 7500 — 870 765 59
36436-4 F15T8/CW BULK 96 Cool White, 4100K 18 7500 — 850 750 59
39226-6 F15T8/PLANT 6 Plant Lite, Sleeved 18 7500 — 410 N/A N/A
30 28147-7
†
F30T8/CW/ALTO 25 Cool White, 4100K 36 7500 — 2200 2000 59
For the most current product information, go to the e-catalog on www.philips.com
Fluorescent symbols and footnotes located on page 40
T8 Single Pin
Lamp Specification Guide 2012–2013 29
Fluorescent Lamps
Slimline T8 Lamps
Nom. Rated Average Life Approx. Design
Product Symbols, Ordering Pkg. Length 3 Hr. 12 Hr. Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) Start (202) Start (241) (203,204) (208) CRI
Energy Advantage T8 Slimline 8-Ft Fluorescent Lamps
T8 Single Pin; Featuring ALTO Lamp Technology; Instant Start
51 16321-2 ¥$ F96T8/ADV835/XEW/ALTO 51W 25 TL 835, 3500K 96 24,000 30,000 5300 4940 85
16331-1 ¥$ F96T8/ADV841/XEW/ALTO 51W 25 TL 841, 4100K 96 24,000 30,000 5300 4940 85
16457-4 ¥$ F96T8/ADV850/XEW/ALTO 51W 25 TL 850, 5000K 96 24,000 30,000 5200 4840 82
PLUS Slimline T8 8-Ft Fluorescent Lamps
T8 Single Pin; Featuring ALTO Lamp Technology; Instant Start
59 23684-4 ¥$ F96T8/TL835/PLUS/ALTO 25 TL 835, 3500K 96 24,000 30,000 5900 5490 85
23685-1 ¥$ F96T8/TL841/PLUS/ALTO 25 TL 841, 4100K 96 24,000 30,000 5900 5490 85
23686-9 ¥$ F96T8/TL850/PLUS/ALTO 25 TL 850, 5000K 96 24,000 30,000 5780 5375 82
23681-0 ¥$ F96T8/TL735/PLUS/ALTO 25 TL 735, 3500K 96 24,000 30,000 5700 5190 78
23682-8 ¥$ F96T8/TL741/PLUS/ALTO 25 TL 741, 4100K 96 24,000 30,000 5700 5190 78
PLUS Slimline T8 8-Ft Cost of Ownership Savings
PLUS Slimline 8-foot T8 Fluorescent Lamps vs.
Standard 8-foot T8 Lamps
General Overview
PLUS Slimline 8-foot T8 fluorescent lamps may
provide up to 60% longer life than standard
8-foot T8 products. With an incremental cost as
little as $1.00 per lamp, benefits and financial
impact can be significant.
Benefits
By using PLUS Slimline 8-foot T8 lamps, the
lamp replacement and labor costs are
extended by an extra 2 years on a facility that
operates an average of 4000 hours per year.
For example, a standard 8-foot T8 product,
with a rated average life expectancy of 15,000
hours, will last nearly 4 years (15,000 hours rated
average life/4000 hours per year = 33⁄4years).
Conversely, PLUS Slimline 8-foot T8 lamps will
operate for 6 years due to their rated average
life expectancy of 24,000 hours (24,000 hours
rated average life/4000 hours per year = 6 years).
Financial Impact
With the extended life expectancy of
2 years and the benefits of Philips exclusive
TCLP-compliant low mercury technology,
the positive financial impact of installing PLUS
Slimline 8-foot T8 lamps may provide cost
of ownership savings per lamp as follows:
Incremental Cost $ (1.00)
Material Cost Avoidance A $ 4.00
Labor Cost Avoidance B $ 3.72
Disposal Cost Avoidance C $ 0.72
Cost of Ownership Savings $ 7.44
AMaterial Cost Avoidance is the annualized acquisi-
tion cost per lamp (average cost per lamp of $7.50
for standard 8-Foot T8 product / 3 3/4 years =
$2.00 per year). By installing PLUS Slimline 8-Foot
T8 lamps, a material cost per lamp of $4.00 is
avoided due to the extra 2 years of life expectancy.
Note that the average cost per lamp may vary.
BLabor Cost Avoidance is the annualized labor
replacement cost per lamp (labor replacement cost
per lamp of $7.00 / 3 years = $1.86 per year). By
installing PLUS Slimline 8-Foot T8 lamps, a labor
replacement cost per lamp of $3.72 is avoided due
to the extra 2 years life expectancy. Note that the
labor replacement cost per lamp may vary.
CDisposal Cost Avoidance is based on an average of
$.09 per foot for lamp recycling or $.72 per 8-foot
lamp. Philips Lighting Company encourages the
recycling of all fluorescent lamps.
Philips XEW Slimline T8
Warranty Period: 30 months
*
Philips PLUS Slimline T8
Warranty Period: 24 months
*
Rated Average Life
For the most current product information, go to the e-catalog on www.philips.com
Fluorescent symbols and footnotes located on page 40
* Certain limitations and conditions apply.
See Philips for further warranty details.

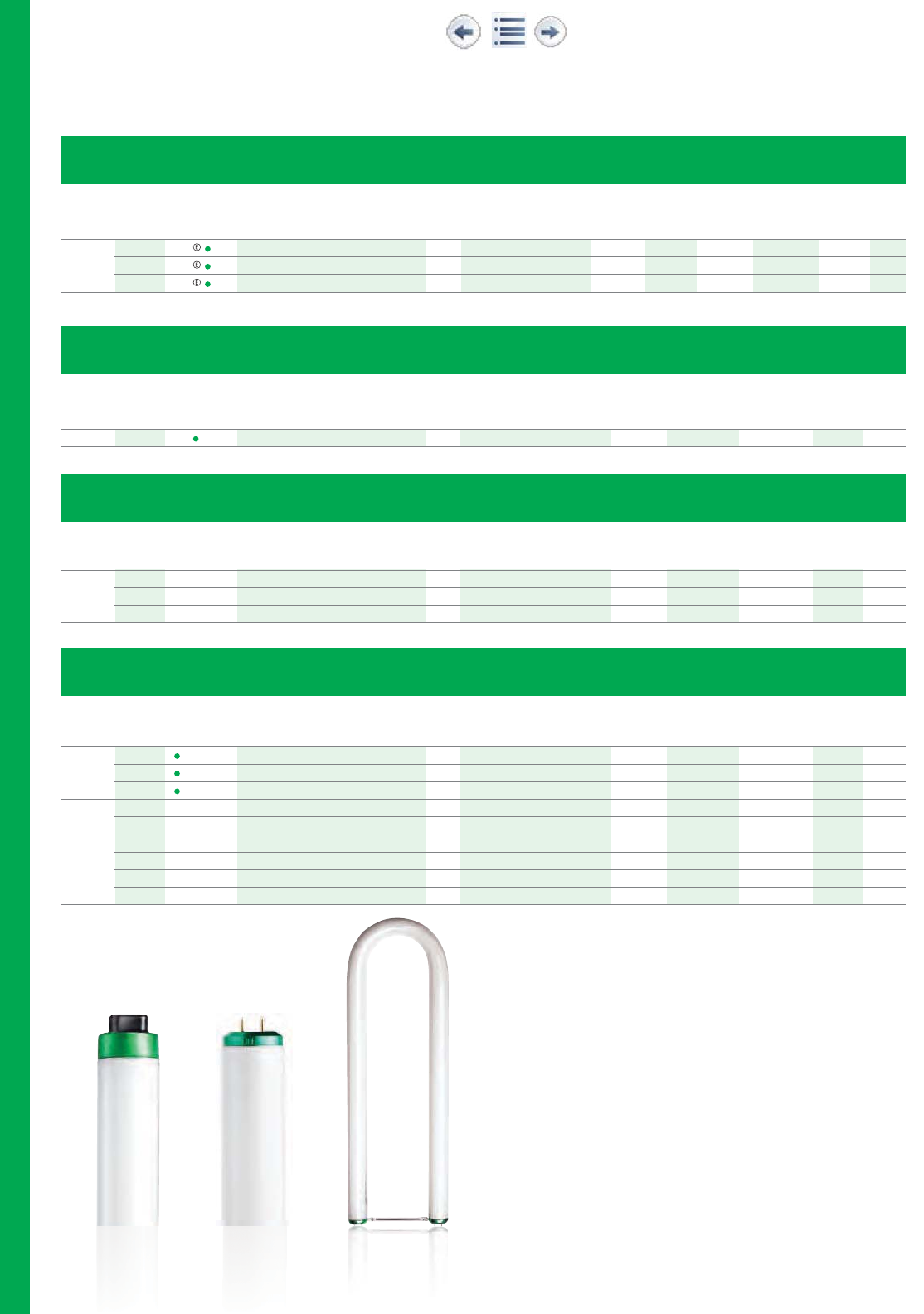

T8 Recessed DC T12 Medium Bipin T12 U-Bent
Medium Bipin
30 Lamp Specification Guide 2012–2013
Nom. Rated Average Life Approx. Design
Product Symbols, Ordering Pkg. Length 3 Hr. 12 Hr. Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) Start (202) Start (241) (203,204) (208) CRI
Nom. Rated Approx. Design
Product Symbols, Ordering Pkg. Length Avg. Life Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) (Hrs.)(202) (203,204) (208) CRI
PLUS High Output (HO) T8 8-Foot Fluorescent Lamps
T8 Recessed D.C.; Featuring ALTO Lamp Technology, Use on proper Programmed Start Ballasts Only
*
86 23687-7 ¥$ F96T8/TL835/HO/PLUS/ALTO 25 TL 835, 3500K 96 24,000 30,000 8200 7625 85
23688-5 ¥$ F96T8/TL841/HO/PLUS/ALTO 25 TL 841, 4100K 96 24,000 30,000 8200 7625 85
23689-3 ¥$ F96T8/TL850/HO/PLUS/ALTO 25 TL 850, 5000K 96 24,000 30,000 8100 7550 82
Fluorescent Lamps
High Output T8 Lamps, U-Bent T12 Lamps, Rapid Start T12 Lamps
High Output (HO) T8 Fluorescent Lamps—4 foot
T8 Recessed D.C.; Featuring ALTO Lamp Technology, Use on proper Programmed Start Ballasts Only
*
44 23679-4 ¥$ F48T8/TL841/HO/ALTO 25 TL 841, 4100K 48 18,000 4000 3600 85
U-Bent T12 Fluorescent Lamps
T12 Medium Bipin
40 42309-5 FB40/T12/NX/6 12 Neutral Deluxe, 3500K 227⁄16 18,000 2300 1955 90
42308-7 FB40/T12/CWSupreme/6 12 Cool White Supreme, 4100K 227⁄16 18,000 2300 1955 90
21993-1 FB40/DX/6 12 Daylight Deluxe, 6500K 227⁄16 18,000 2250 1950 90
Rapid Start T12 Fluorescent Lamps
T12 Medium Bipin
30 37649-1 F30T12/D/RS/ALTO 30 Daylight, 6500K 36 18,000 1950 1700 73
27242-7 F30T12/CW/RS/ALTO 30 Cool White, 4100K 36 18,000 2250 1900 59
13221-7 F30T12/WW/RS/ALTO 30 Warm White, 3000K 36 18,000 2300 1950 49
40 42318-6 F40T12/NX/ALTO 30 Neutral Deluxe, 3500K 48 20,000 2550 2200 88
42389-9 F40T12/CWSupreme/ALTO 30 Cool White Supreme, 4100K 48 20,000 2600 2250 89
42312-9 F40T12/CWSupreme/PLUS/ALTO 30 Cool White Supreme, 4100K 48 24,000 2550 2220 89
42389-7 F40T12/C50Supreme/ALTO 30 Color Tone 50 Supreme, 5000K 48 20,000 2500 2175 90
27359-9 F40/DX/ALTO 30 Daylight Deluxe, 6500K 48 20,000 2325 2025 90
39228-2 F40/PLANT 6 Plant Light, Sleeved 48 20,000 1600 1360 —
For the most current product information, go to the e-catalog on www.philips.com
Fluorescent symbols and footnotes located on page 40
Nom. Rated Approx. Design
Product Symbols, Ordering Pkg. Length Avg. Life Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) (Hrs.)(202) (203,204) (208) CRI
Nom. Rated Approx. Design
Product Symbols, Ordering Pkg. Length Avg. Life Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) (Hrs.)(202) (203,204) (208) CRI
* Per ANSI C78.81, this lamp is designed for programmed start operation with high frequency operating currents of 400mA (nominally) to achieve the rated lumens and life
* Per ANSI C78.81, this lamp is designed for programmed start operation with high frequency operating currents of 400mA (nominally) to achieve the rated lumens and life

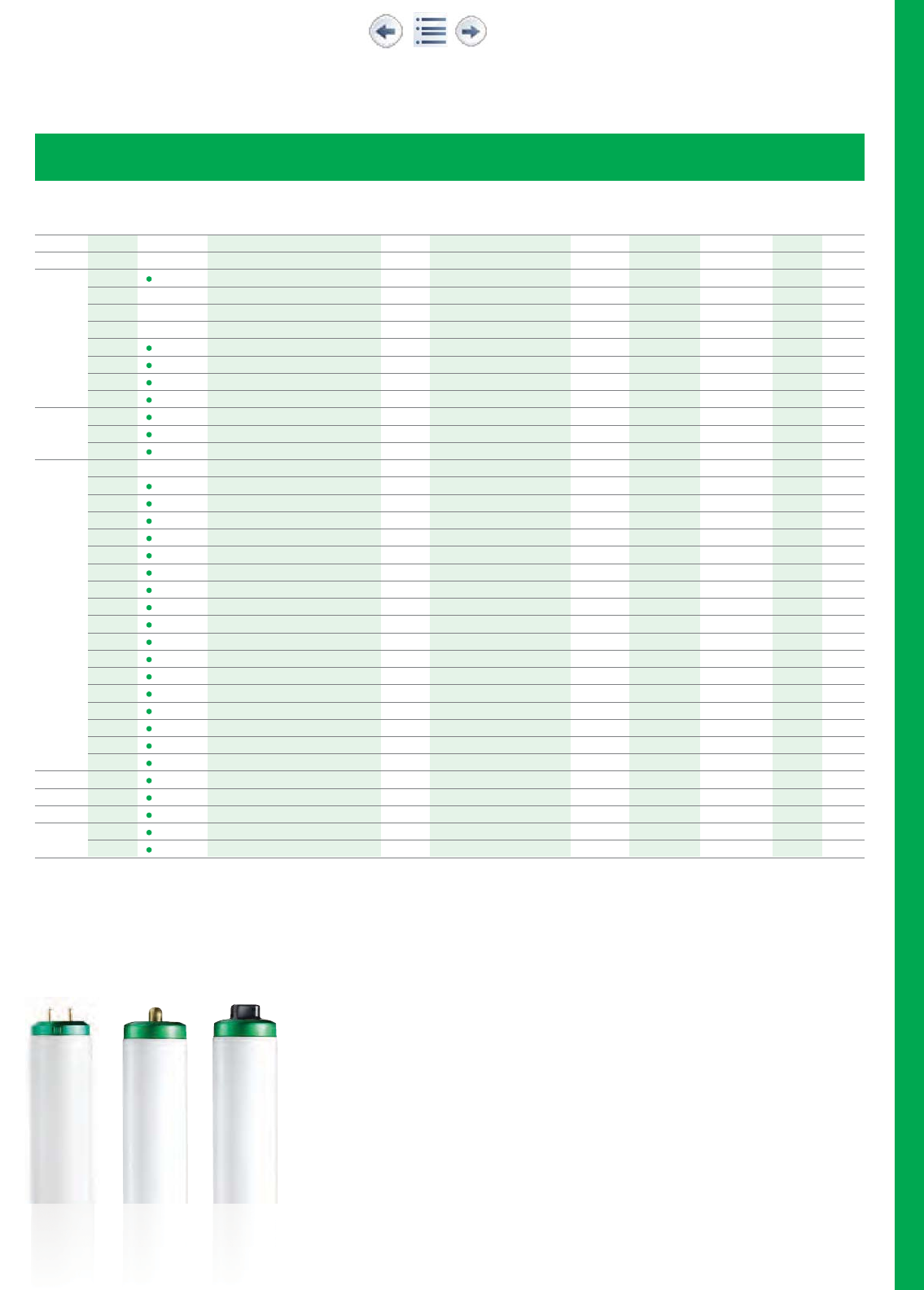

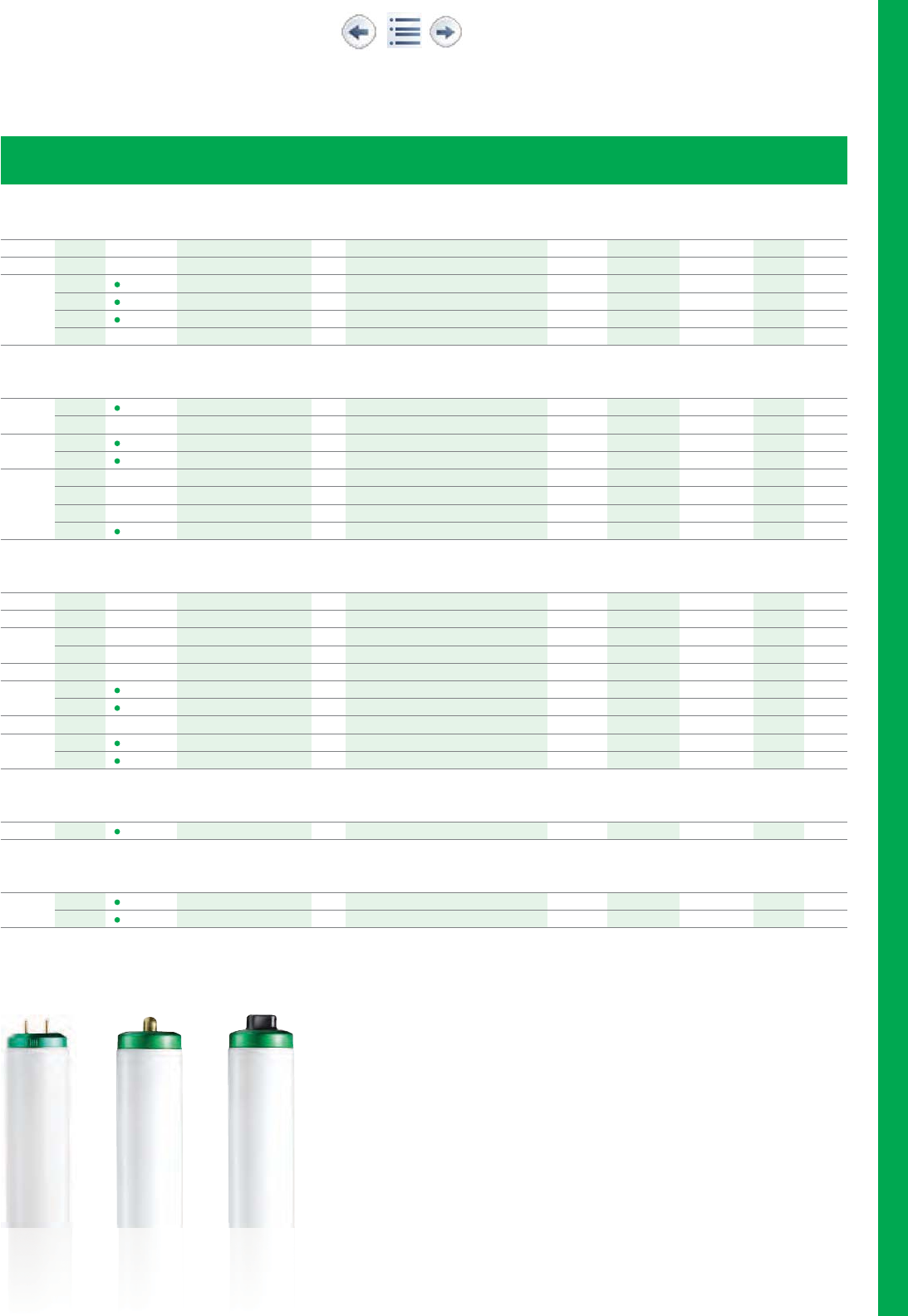

T12 Recessed DCT12 Medium Bipin T12 Single Pin
Lamp Specification Guide 2012–2013 31
Fluorescent Lamps
Preheat T12 Lamps, Slimline T12 Lamps, High Output T12 Lamps
Nom. Rated Approx. Design
Product Symbols, Ordering Pkg. Length Avg. Life Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) (Hrs.)(202) (203,204) (208) CRI
For the most current product information, go to the e-catalog on www.philips.com
Fluorescent symbols and footnotes located on page 40
Preheat T12 Fluorescent Lamps
T12 Medium Bipin Linear Fluorescent Lamps
14 14151-5 F14T12/CW 30 Cool White, 4100K 15 9000 710 590 59
15 14149-9 F15T12/CW 30PK 30 Cool White, 4100K 18 9000 800 695 62
20 27328-4 F20T12/D/ALTO 30 Daylight, 6500K 24 9000 960 960 73
27332-6 F20T12/CW/ALTO 30 Cool White, 4100K 24 9000 1200 1050 59
27349-0 F20T12/WW/ALTO 30 Warm White, 3000K 24 9000 1250 1100 49
39227-4 F20T12/PLANT 6 Plant Lite, Sleeved 24 9000 600 500 —
Slimline T12 Fluorescent Lamps
T12 Single Pin Linear Fluorescent Lamps; Instant Start
39 36219-4 F48T12/D/ALTO 15 Daylight, 6500K 48 9000 2500 2220 73
36321-8 F48T12/CW ALTO 15PK 15 Cool White, 4100K 48 9000 2950 2600 62
56 36985-0 F72T12/D/ALTO 15 Daylight, 6500K 72 12,000 3800 3350 73
36989-2 F72T12/CW/ALTO 15 Cool White, 4100K 72 12,000 4450 3900 59
75 42305-3 F96T12/NX/ALTO 15 Neutral Deluxe, 3500K 96 12,000 5000 4250 88
42319-4 F96T12/CWSupreme/ALTO 15 Cool White Supreme, 4100K 96 12,000 5000 4250 89
42387-1 F96T12/C50Supreme/ALTO 15 Color Tone 50 Supreme, 5000K 96 12,000 5000 4350 90
37282-1 F96T12/DX/ALTO 15 Daylight Deluxe, 6500K 96 12,000 4775 4200 90
High Output T12 Fluorescent Lamps (800ma)
T12 Recessed D.C. Linear Fluorescent Lamps (207, 214)
35 14145-7 F24T12/CW/HO 30 Cool White, 4100K 24 9000 1650 1390 59
40 14142-4 F30T12/CW/HO 30 Cool White, 4100K 30 9000 2290 1900 59
50 14138-2 F36T12/D/HO 30 Daylight, 6500K 36 9000 2500 2150 73
14139-0 F36T12/CW/HO 30 Cool White, 4100K 36 9000 2800 2450 59
55 14137-4 F42T12/CW/HO 30 Cool White, 4100K 42 9000 3400 2950 59
60 36984-3 F48T12/D/HO/ALTO 15 Daylight, 6500K 48 12,000 3400 3000 73
36978-5 F48T12/CW/HO/ALTO 15 Cool White, 4100K 48 12,000 4050 3500 59
80 35578-4 F64T12/CW/HO 15 Cool White, 4100K 64 12,000 5600 4850 62
85 36653-4 F72T12/D/HO/ALTO 15 Daylight, 6500K 72 12,000 5600 4850 73
36651-8 F72T12/CW/HO/ALTO 15 Cool White, 4100K 72 12,000 6350 5500 59
High Output T12 Fluorescent Lamps (800ma)
T12 Recessed D.C. Linear Fluorescent Lamps (207, 214)
110 21489-0 F96T12/DX/HO 15 Daylight Deluxe, 6500K 96 12,000 6750 5800 90
High Output T12 800 Series Fluorescent Lamps (800ma)
T12 Recessed D.C. Linear Fluorescent Lamps; For Low Temperature Applications (223)
110 38177-4 F96T12/D/HO-O/ALTO 15 Daylight, 6500K 96 12,000 7800 6800 73
38176-4 F96T12/CW/HO-O/ALTO 15 Cool White, 4100K 96 12,000 8800 7650 59
32 Lamp Specification Guide 2012–2013
Fluorescent Lamps

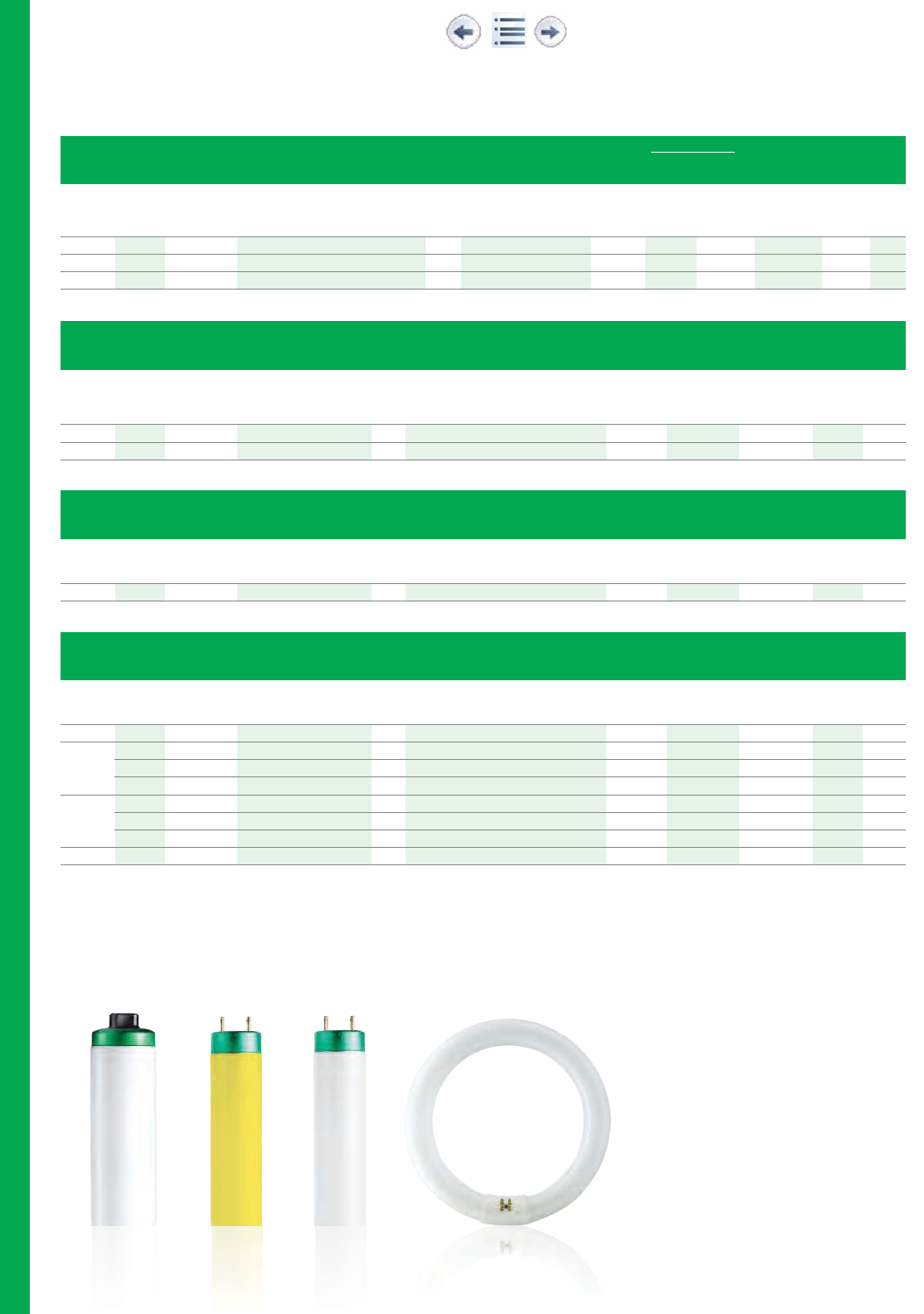

Very High Output T12, Gold Fluorescent, Appliance, T9 Circline Lamps
Very High Output T12 Fluorescent Lamps (1500ma)
T12 Recessed D.C. Linear Fluorescent Lamps (214)
110 21819-8 F48T12/CW/VHO 15 Cool White, 4100K 48 12,000 12,000 7050 4950 59
185 34232-9 $ F96T12/CW/VHO/EW 15 Cool White, 4100K 96 12,000 12,000 13,000 9000 59
215 34234-5 F96T12/CW/VHO 15 Cool White, 4100K 96 12,000 12,000 15,200 10,700 59
T12 Recessed DC
Nom. Rated Average Life Approx. Design
Product Symbols, Ordering Pkg. Length 3 Hr. 12 Hr. Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) Start (202) Start (241) (203,204) (208) CRI
Nom. Rated Approx. Design
Product Symbols, Ordering Pkg. Length Avg. Life Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) (Hrs.)(202) (203,204) (208) CRI
Gold Fluorescent Lamps
Blocks UV Emissions
32 42531-4 F32T8/GOLD PLUS 30 Gold Sleeved 48 24,000 1750 1480 —
40 14750-4 F40T12/GOLD 30 Gold Sleeved 48 20,000 1700 1465 —
Appliance Fluorescent Lamps
T8 Medium Bipin Linear Fluorescent Lamps; For use with Starters
18 23690-1
†
F18T8/CW/24 24 Cool White, 4100K 24 7500 1175 940 59
Circline Fluorescent Lamps
T9 4-Pin Circular Fluorescent Lamps
20 24982-1 FC6T9/COOL WHITE PLUS 12 Cool White, 4100K 61⁄2OD 12,000 800 590 59
22 39222-5 FC8T9/SOFT WHITE 12 3000K 8 OD 12,000 1150 875 85
39235-7 FC8T9/DAYDLX 12 6500K 8 OD 12,000 910 675 79
39116-9 FC8T9/COOL WHITE PLUS 12 Cool White, 4100K 8 OD 12,000 1050 775 59
32 39122-7 FC12T9/SOFT WHITE 12 3000K 12 OD 12,000 1900 1600 85
26260-0 FC12T9/D 12 Daylight, 6500K 12 OD 12,000 1570 1300 73
39117-7 FC12T9/COOL WHITE PLUS 12 Cool White, 4100K 12 OD 12,000 1800 1500 59
40 39118-5 FC16T9/COOL WHITE PLUS 12 Cool White, 4100K 16 OD 12,000 2500 1975 59
GOLD Lamp T8 Medium Bipin T9 4-Pin Circular
Nom. Rated Approx. Design
Product Symbols, Ordering Pkg. Length Avg. Life Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) (Hrs.)(202) (203,204) (208) CRI
Nom. Rated Approx. Design
Product Symbols, Ordering Pkg. Length Avg. Life Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) (Hrs.)(202) (203,204) (208) CRI
For the most current product information, go to the e-catalog on www.philips.com
Fluorescent symbols and footnotes located on page 40
T8 Medium BipinT5 Miniature Bipin
Lamp Specification Guide 2012–2013 33
Fluorescent Lamps

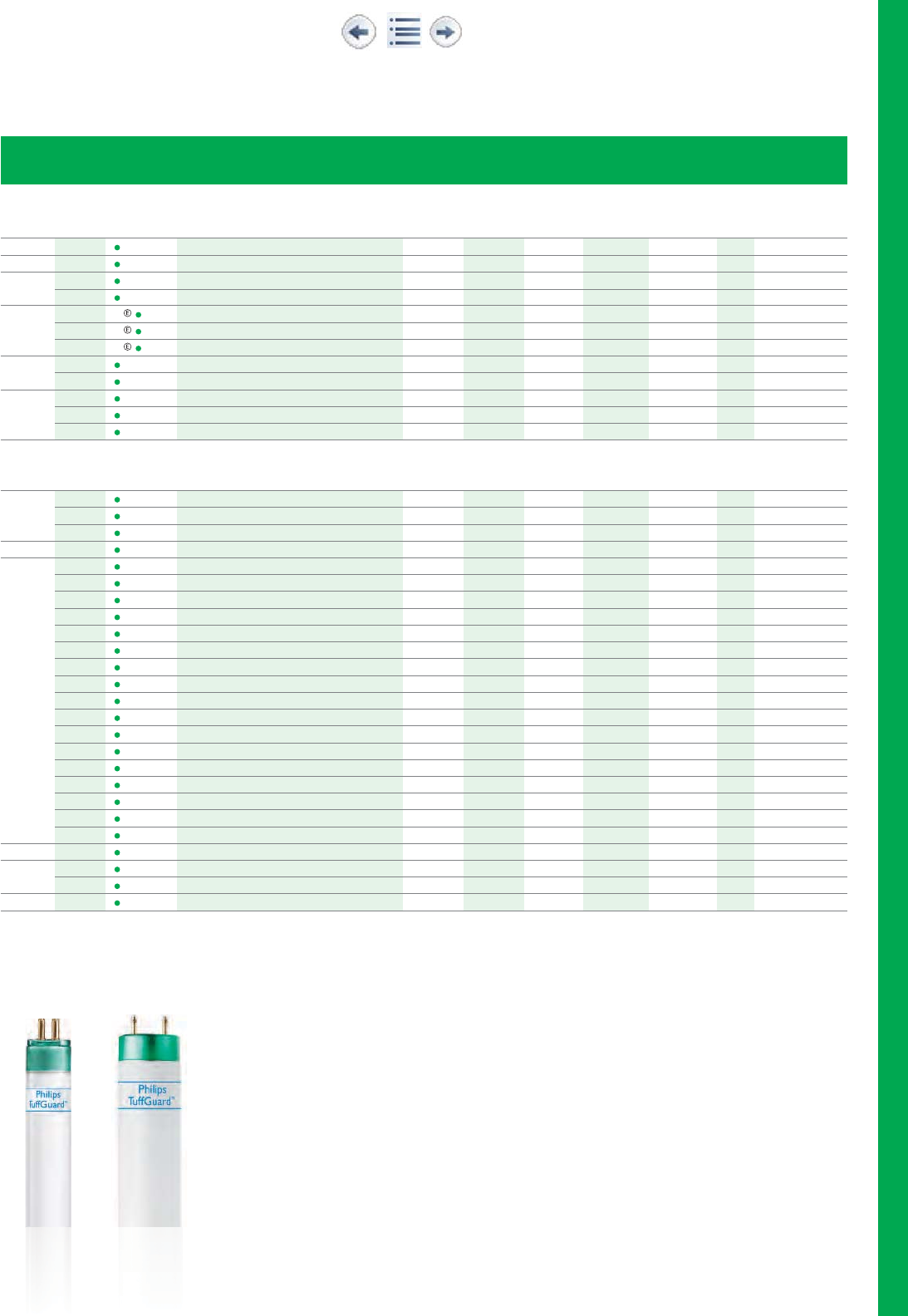

TuffGuard Lamps
Color Nom. Rated Approx.
Product Symbols, Ordering Pkg. Temp. Length Avg. Life Initial Lumens
Watts Number Footnotes Code Qty. (K) (In.) (Hrs.)(241) (203,204) CRI Availability
TuffGuard T5 Fluorescent Coated Lamps
T5 Miniature Bipin Linear Fluorescent Lamps
14 16690-0 F14T5/830/ALTO TG 40 3000 22 35,000 1350 85 Made to Order
21 16669-4 F21T5/841/ALTO TG 40 4100 34 35,000 2100 85 Made to Order
28 16417-8 F28T5/835/ALTO TG 40 3500 46 35,000 2900 85 Stocked
16674-4 F28T5/841/ALTO TG 40 4100 46 35,000 2900 85 Stocked
44 42060-4 $
†
F54T5/835/HO/XEW/ALTO 44W TG 40 3500 46 35,000 4520 85 Made to Order
42058-8 $
†
F54T5/841/HO/XEW/ALTO 44W TG 40 4100 46 35,000 4520 85 Made to Order
42059-6 $
†
F54T5/850/HO/XEW/ALTO 44W TG 40 5000 46 35,000 4400 82 Made to Order
49 16961-5
†
F54T5/841/HO/EA/ALTO 49W TG 40 4100 46 35,000 5000 85 Stocked
40900-3
†
F54T5/850/HO/EA/ALTO 49W TG 40 5000 46 35,000 4850 82 Stocked
54 16672-8 F54T5/835/HO/ALTO TG 40 3500 46 35,000 5000 85 Stocked
16298-2 F54T5/841/HO/ALTO TG 40 4100 46 35,000 5000 85 Stocked
16686-8 F54T5/850/HO/ALTO TG 40 5000 46 35,000 5000 82 Stocked
TuffGuard T8 Fluorescent Coated Lamps
T8 Medium Bipin Linear Fluorescent Lamps
25 28290-5
†
F25T8/TL830/PLUS/ALTO TG 30 3000 36 36,000 2225 85 Stocked
28301-0
†
F25T8/TL835/PLUS/ALTO TG 30 3500 36 36,000 2225 85 Stocked
28308-5
†
F25T8/TL841/PLUS/ALTO TG 30 4100 36 36,000 2225 85 Stocked
28 28319-2
†
F32T8/ADV830/EW/ALTO 28W TG 30 3000 48 36,000 2725 85 Stocked
32 28329-1
†
F32T8/ADV850/ALTO TG 30 5000 48 30,000 3000 82 Made to Order
28312-7
†
F32T8/ADV850/XEW/ALTO TG 30 5000 48 30,000 2400 82 Made to Order
28330-9
†
F32T8/TL730/ALTO TG 30 3,000 48 30,000 2700 78 Made to Order
28331-7
†
F32T8/TL735/ALTO TG 30 3500 48 30,000 2700 78 Stocked
28332-5
†
F32T8/TL741/ALTO TG 30 4100 48 30,000 2700 78 Stocked
28333-3
†
F32T8/TL750/ALTO TG 30 5000 48 30,000 2600 78 Made to Order
28335-8
†
F32T8/TL835/ALTO TG 30 3500 48 30,000 2850 85 Stocked
28336-6
†
F32T8/TL841/ALTO TG 30 4100 48 30,000 2850 85 Made to Order
28337-4
†
F32T8/TL850/ALTO TG 30 5000 48 30,000 2850 82 Made to Order
28339-0
†
F32T8/ADV841/ALTO TG 30 4100 48 30,000 3150 85 Stocked
28342-4
†
F32T8/TL741/PLUS/ALTO TG 30 4100 48 36,000 2800 78 Stocked
28343-2
†
F32T8/TL750/PLUS/ALTO TG 30 5000 48 36,000 2700 78 Stocked
28345-7
†
F32T8/TL835/PLUS/ALTO TG 30 3500 48 36,000 2950 85 Stocked
28303-6
†
F32T8/TL841/XLL/ALTO TG 30 4100 48 40,000 2950 85 Stocked
28346-5
†
F32T8/TL841/PLUS/ALTO TG 30 4100 48 36,000 2950 85 Stocked
28347-3
†
F32T8/TL850/PLUS/ALTO TG 30 5000 48 36,000 2850 82 Stocked
42304-6
†
F32T8/TL765/PLUS/ALTO TG 30 6500 48 36,000 2750 78 Made To Order
44 40905-2
†
F48T8/TL841/HO/ALTO TG 25 4100 48 18,000 4000 85 Made to Order
59 40907-8
†
F96T8/TL741/PLUS/ALTO TG 25 4100 96 30,000 5700 78 Made to Order
40909-4
†
F96T8/TL841/PLUS/ALTO TG 25 4100 96 30,000 5900 85 Made to Order
86 40912-8
†
F96T8/TL841/HO/PLUS/ALTO TG 25 4100 96 30,000 8200 85 Stocked
Note: Made to order products require a 3 week lead time.
For the most current product information, go to the e-catalog on www.philips.com
Fluorescent symbols and footnotes located on page 40
T12 Medium Bipin T12
Single Pin
T12
Recessed DC Bay
34 Lamp Specification Guide 2012–2013
Color Nom. Rated Approx.
Product Symbols, Ordering Pkg. Temp. Length Avg. Life Initial Lumens
Watts Number Footnotes Code Qty. (K) (In.) (Hrs.)(202) (203,204) CRI Availability

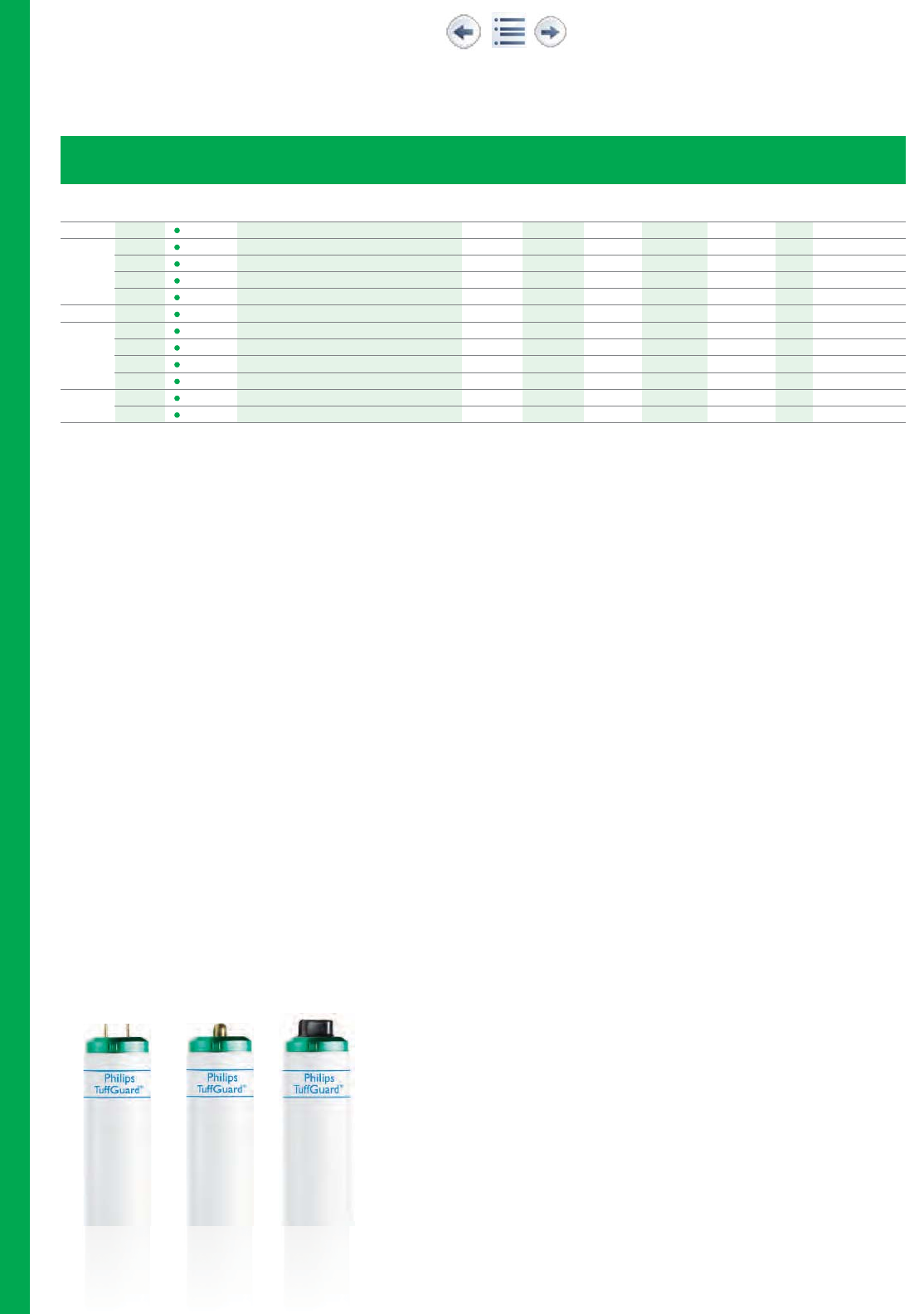

TuffGuard T12 Fluorescent Coated Lamps
39 16307-1 F48T12/D/ALTO TG 15 6500 48 9000 2500 73 Stocked
40 42310-3
†
F40T12/NX/ALTO TG 30 3500 48 20,000 2550 88 Made To Order
42400-2
†
F40T12/CWSUPREME/ALTO TG 30 4100 48 20,000 2600 89 Made To Order
42399-5
†
F40T12/C50 SUPREME/ALTO/TG 30 5000 48 20,000 2500 90 Made To Order
16299-0 F40DX/ALTO TG 30 6500 48 20,000 2325 90 Stocked
60 16296-6 F48T12/CW/HO/ALTO TG 15 4100 48 12,000 4050 59 Stocked
75 42317-8
†
F96T12/NX/ALTO TG 15 3500 96 12,000 5000 88 Made To Order
42316-0
†
F96T12/CWSUPREME/ALTO TG 15 4100 96 12,000 5000 89 Made To Order
42401-0
†
F96T12/C50 SUPREME/ALTO/TG 15 5000 96 12,000 5000 90 Made To Order
16297-4 F96T12/DX/ALTO/TG 15 6500 96 12,000 4500 90 Stocked
110 16301-4 F96T12/CW/HO-O/ALTO TG 15 4100 96 12,000 8800 59 Stocked
16302-2 F96T12/D/HO-O/ALTO TG 15 6500 96 12,000 7800 73 Stocked
Fluorescent Lamps
TuffGuard Lamps
Note: Made to order products require a 3 week lead time.
For the most current product information, go to the e-catalog on www.philips.com
Fluorescent symbols and footnotes located on page 40
T5 Miniature Bipin
Lamp Specification Guide 2012–2013 35
Nom. Rated Approx. Design
Product Symbols, Ordering Pkg. Length Avg. Life Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) (Hrs.) (202) (203,204) (208) CRI
Fluorescent Lamps
Consumer Lamps

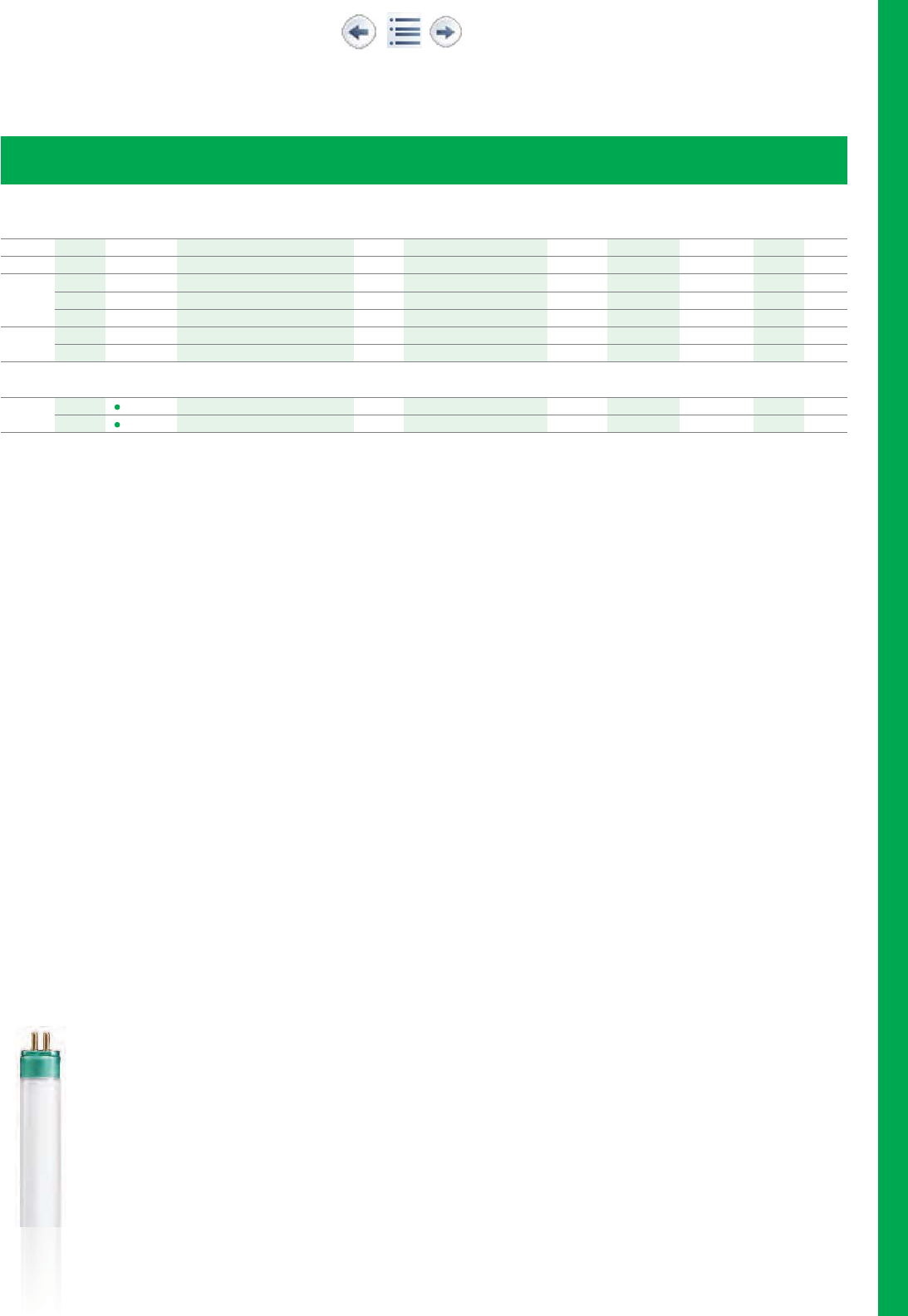

T5 Fluorescent Lamps
Blister-Carded Linear Fluorescent Lamps; Miniature Bipin
4 39218-3 F4T5/SOFT WHITE 12/1 3000K 6 6000 150 120 85
6 39219-1 F6T5/SOFT WHITE 12/1 3000K 9 7500 325 260 85
8 39220-9 F8T5/SOFT WHITE 12/1 3000K 12 7500 450 360 85
39114-4 F8T5/COOL WHITE PLUS 12/1 4100K 12 7500 400 300 59
15756-0 F8T5/BLB UPC 25/1 — 12 7500 — — —
13 39221-7 F13T5/SOFT WHITE 12/1 3000K 21 7500 1000 800 85
40974-8 F13T5/Cool White 12/1 4100K 21 7500 820 660 59
T5 Fluorescent Lamps
28 20613-6 F28T5/TL835 ALTO UPC 15/1 15 TL835, 3500K 46 20,000 2900 2750 85
40963-1 F28T5/TL841 ALTO UPC 15/1 15 TL841, 4100K 46 25,000 2900 2750 85
For the most current product information, go to the e-catalog on www.philips.com
Fluorescent symbols and footnotes located on page 40
T8 Single PinT8 Medium Bipin
36 Lamp Specification Guide 2012–2013
Fluorescent Lamps
Consumer Lamps
Nom. Rated Approx. Design
Product Symbols, Ordering Pkg. Length Avg. Life Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) (Hrs.) (202) (203,204) (208) CRI
For the most current product information, go to the e-catalog on www.philips.com
Fluorescent symbols and footnotes located on page 40

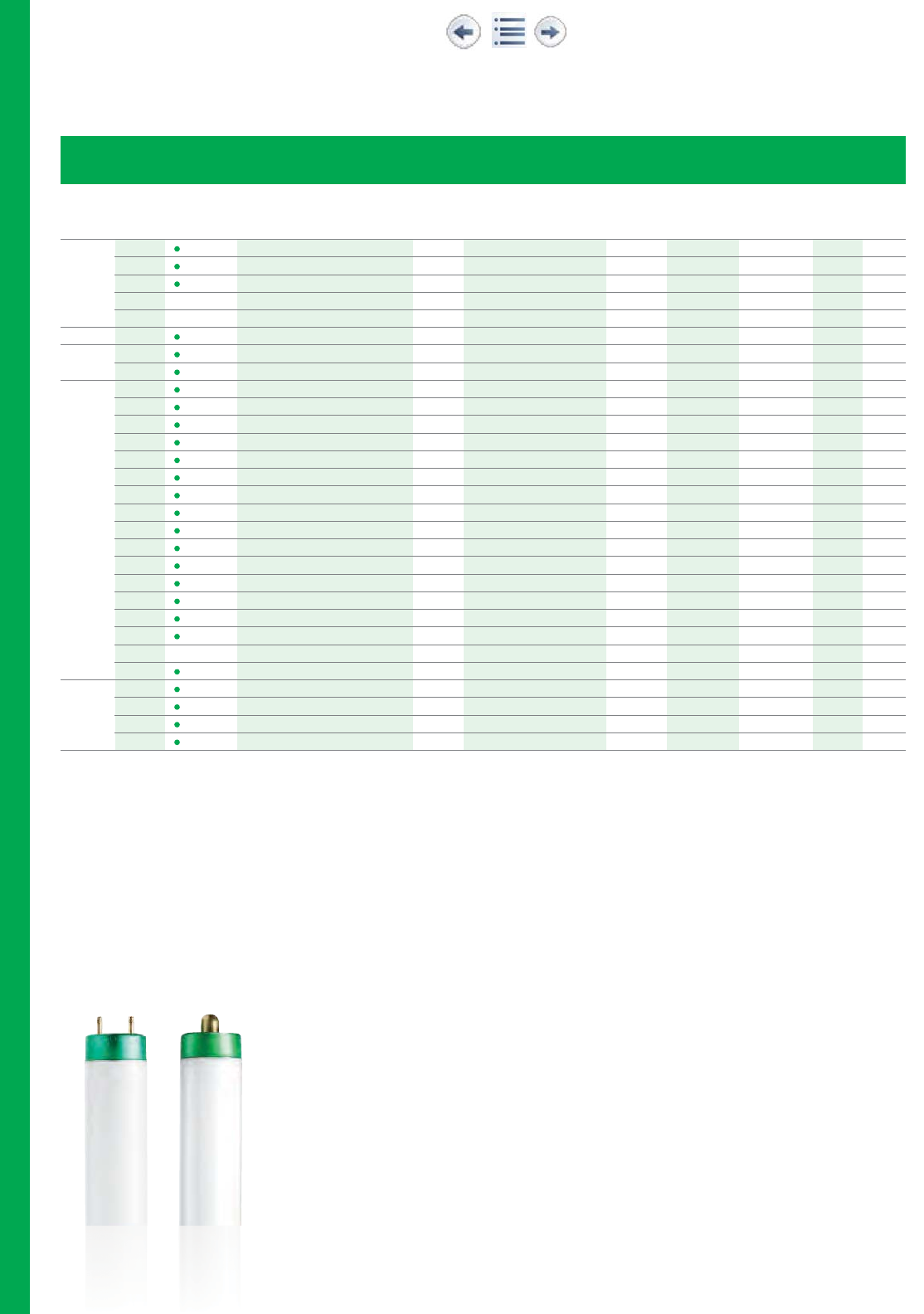

T8 Fluorescent Lamps
Medium Bipin & Single Pin Linear Fluorescent Lamps
15 39212-6 F15T8/Soft White 1 3000K Individually Sleeved 18 7500 1000 900 85
39207-6 F15T8/Cool White Plus 1 4100K Individually Sleeved 18 7500 870 765 59
39108-6 F15T8/Cool White Plus 1 4100K Individually Sleeved 24 7500 1175 1035 59
39226-6 F15T8/Plant 1 Individually Sleeved 18 7500 410 — —
15760-2 F15T8/Blacklight 6/1 Individually Sleeved 18 7500 — — —
17 28126-1
†
F17T8/Soft White UPC 30 3000K 30 Pk Case 24 20,000 1400 1300 85
30 39216-7 F30T8/Soft White 6/1 3000K Individually Sleeved 36 7500 2500 2250 85
28145-1
†
F30T8/CW ALTO UPC 30 4100K Individually Sleeved 36 7500 2200 1760 59
32 40943-3 F32T8/SOFT WHITE ALTO 10 3000K 10 Pk Case 48 24,000 2950 2800 85
40986-0 F32T8/TL735/ALTO 15/2 15/2 3500K 2 Pk 48 24,000 2700 2565 78
20545-0 F32T8/TL735 ALTO 10PK 10 3500K 10 Pk Case 48 24,000 2700 2565 78
40944-1 F32T8/TL741/ALTO TG 10 Safety Coated 4100K 10 Pk 48 24,000 2700 2565 78
38351-3 F32T8/TL741 ALTO 10PK 10 4100K 10 Pk Case 48 24,000 2700 2565 78
15238-9 F32T8/ADV841/XEW/ALTO 25W 10 4100K 10 Pk Case 48 30,000 2500 2425 85
20278-8 F32T8/TL841/XLL/ALTO 10PK 10 4100K 10 Pk Case 48 36,000 2950 2800 85
20504-7 F32T8/TL850 ALTO 10PK 10 5000K 10 Pk Case 48 24,000 2850 2710 82
42294-9
†
F32T8/Daylight Deluxe/ALTO 1/10 10 6500K 10 Pk Case 48 30,000 2750 2600 78
28200-4
†
F32T8/TL735/ALTO 30 3500K 30 Pk Case 48 24,000 2700 2565 78
28197-2
†
F32T8/TL741/ALTO 30 4100K 30 Pk Case 48 24,000 2700 2565 78
28199-8
†
F32T8/TL850/ALTO 30 5000K 30 Pk Case 48 24,000 2850 2710 82
42295-5
†
F32T8/Daylight Deluxe/ALTO 1/30 30 6500K 30 Pk Case 48 30,000 2750 2600 78
40966-4 F32T8/TL850/ALTO 15/2 5000K 2 Pk 48 24,000 2850 2710 82
22682-9 F32T8/SOFT WHITE /ALTO 36/2 36/2 3000K 2 Pk 48 24,000 2950 2800 84
22679-5 F32T8/COOL WHITE PLUS 36/2 36/2 4100K 2 Pk 48 24,000 2800 2660 78
42296-3
†
F32T8/Daylight Deluxe/ALTO 36/2 36/2 6500K 2 Pk 48 30,000 2750 2600 78
75 42279-0
†
F96T12/NX/ALTO 8/2 8/2 Neutral Deluxe, 3500K 96 12,000 5000 4250 88
42277-4
†
F96T12/CWSupreme/ALTO 1/15 1/15 Cool White Supreme, 4100K 96 12,000 5000 4250 89
42278-2
†
F96T12/CWSupreme/ALTO 8/2 8/2 Cool White Supreme, 4100K 96 12,000 5000 4250 89
42398-7
†
F96T12/C50 Natural Supreme 8/2 8/2 Natural Light, 5000K 96 12,000 4800 4350 90
T12 Medium Bipin T12 Single Pin T12 Recessed DC
Lamp Specification Guide 2012–2013 37
Nom. Rated Approx. Design
Product Symbols, Ordering Pkg. Length Avg. Life Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) (Hrs.) (202) (203,204) (208) CRI
Fluorescent Lamps
Consumer Lamps
T12 Fluorescent Lamps
Medium Bipin, Single Pin and High Output
14 14150-7 F14T12/SOFT WHITE 6/1 3000K Individually Sleeved 15 9000 700 560 85
15 14146-5 F15T12/SOFT WHITE 6/1 3000K Individually Sleeved 18 9000 800 720 85
20 39120-1 F20T12/SOFT WHITE 6/1 3000K Individually Sleeved 24 9000 1350 1215 85
39230-8 F20T12/NATURAL SUNSHINE 6/1 5000K Individually Sleeved 24 9000 850 755 92
39227-4 F20T12/PLANT 6/1 Individually Sleeved 24 9000 600 — —
15761-0 F20T12/BLACKLIGHT 6/1 Individually Sleeved 24 9000 — — —
40945-8 F20T12/CW/ALTO 10 4100K 10 Pk Case 24 9000 1200 1050 59
38693-8 F20T12/SPEC 35 UPC 30 3500K 30 Pk Case 24 9000 1200 1050 75
20550-0 F20T12/CW/ALTO 15/2 15/2 4100K 2 Pk 24 9000 1200 1050 59
20554-2 F20T12/D/ALTO 15/2 15/2 6500K 2 Pk 24 9000 1075 960 73
30 39215-9 F30T12/SOFT WHITE 6/1 3000K Individually Sleeved 36 18,000 2400 2160 85
40937-5 F30T12/DAYLIGHT DELUXE/ALTO 6/1 6500K Individually Sleeved 36 18,000 1950 1700 90
38694-6 F30T12/SPEC 35 UPC 30 3500K 30 Pk Case 36 18,000 2350 2080 73
40 39228-2 F40T12/PLANT 6/1 Individually Sleeved 48 20,000 1600 — —
15762-8 F40T12/BLACKLIGHT 6/1 Individually Sleeved 48 20,000 — — —
42275-8
†
F40T12/SOFT WHITE DX/ALTO 1/10 1/10 Soft White Deluxe, 3000K 48 20,000 2600 2260 88
42276-6
†
F40T12/SOFT WHITE DX/ALTO 15/2 15/2 Soft White Deluxe, 3000K 48 20,000 2850 2710 88
42272-5
†
F40T12/NEUTRAL DX/ALTO 1/10 1/10 Neutral Deluxe, 3500K 48 20,000 2550 2200 88
42273-3
†
F40T12/NEUTRAL DX/ALTO 1/30 1/30 Neutral Deluxe, 3500K 48 20,000 2550 2200 88
42274-1
†
F40T12/NEUTRAL DX/ALTO 15/2 15/2 Neutral Deluxe, 3500K 48 20,000 2550 2200 88
42267-5
†
F40T12/CWSUPREME/ALTO 1/10 1/10 Cool White Supreme, 4100K 48 20,000 2600 2250 89
42270-9
†
F40T12/CWSUPREME/ALTO 1/30 1/30 Cool White Supreme, 4100K 48 20,000 2600 2250 89
42281-6
†
F40T12/CWSUPREME/ALTO 36/2 36/2 Cool White Supreme, 4100K 48 20,000 2600 2250 89
42283-2
†
F40T12/CWSUPREME/PLUS/ALTO 1/10 1/10 Cool White Supreme, 4100K 48 24,000 2600 2250 89
42285-7
†
F40T12/CWSUPREME/PLUS/ALTO 15/2 15/2 Cool White Supreme, 4100K 48 24,000 2600 2250 89
42396-1
†
F40T12/C50 NATURAL SUPREME 1/10 10 Natural Light, 5000K 48 20,000 2500 2250 92
42395-3
†
F40T12/C50 NATURAL SUPREME 1/30 30 Natural Light, 5000K 48 20,000 2500 2250 92
42397-9
†
F40T12/C50 NATURAL SUPREME 15/2 15/2 Natural Light, 5000K 48 20,000 2500 2250 92
38752-2 F40T12/DAYDLX 10 6500K 10 Pk 48 20,000 2325 2025 90
22683-7 F40T12/DAYDELUX ALTO 36/2PK 36/2 6500K 2 Pk 48 20,000 2325 2025 90
40938-3 F40T12/DAYLIGHT DELUXE/ALTO 30 6500K 30 Pk Case 48 20,000 2325 2025 90
56 36999-1 F72T12/CW/ALTO UPC 15 4100K 15 Pk Case 72 12,000 4450 3900 59
60 36982-7 F48T12/CW/HO/UPC 15 4100K 15 Pk Case 48 12,000 4050 3500 59
75 37663-2 F96T12/DAYDLX/ ALTO 8/2PK 8/2 6500K 2 Pk 96 12,000 4775 4200 90
110 38176-4 F96T12/CW/HO-O/ALTO 15 Cool White, 4100K 15 Pk 96 12,000 8800 7650 59
20544-3 F96T12/CW/HO-O/ALTO 8/2 4100K 2 Pk 96 12,000 8800 7650 59
For the most current product information, go to the e-catalog on www.philips.com
Fluorescent symbols and footnotes located on page 40
T8 U-Bent
T9 4-Pin Circular T12 U-Bent
Medium Bipin
38 Lamp Specification Guide 2012–2013

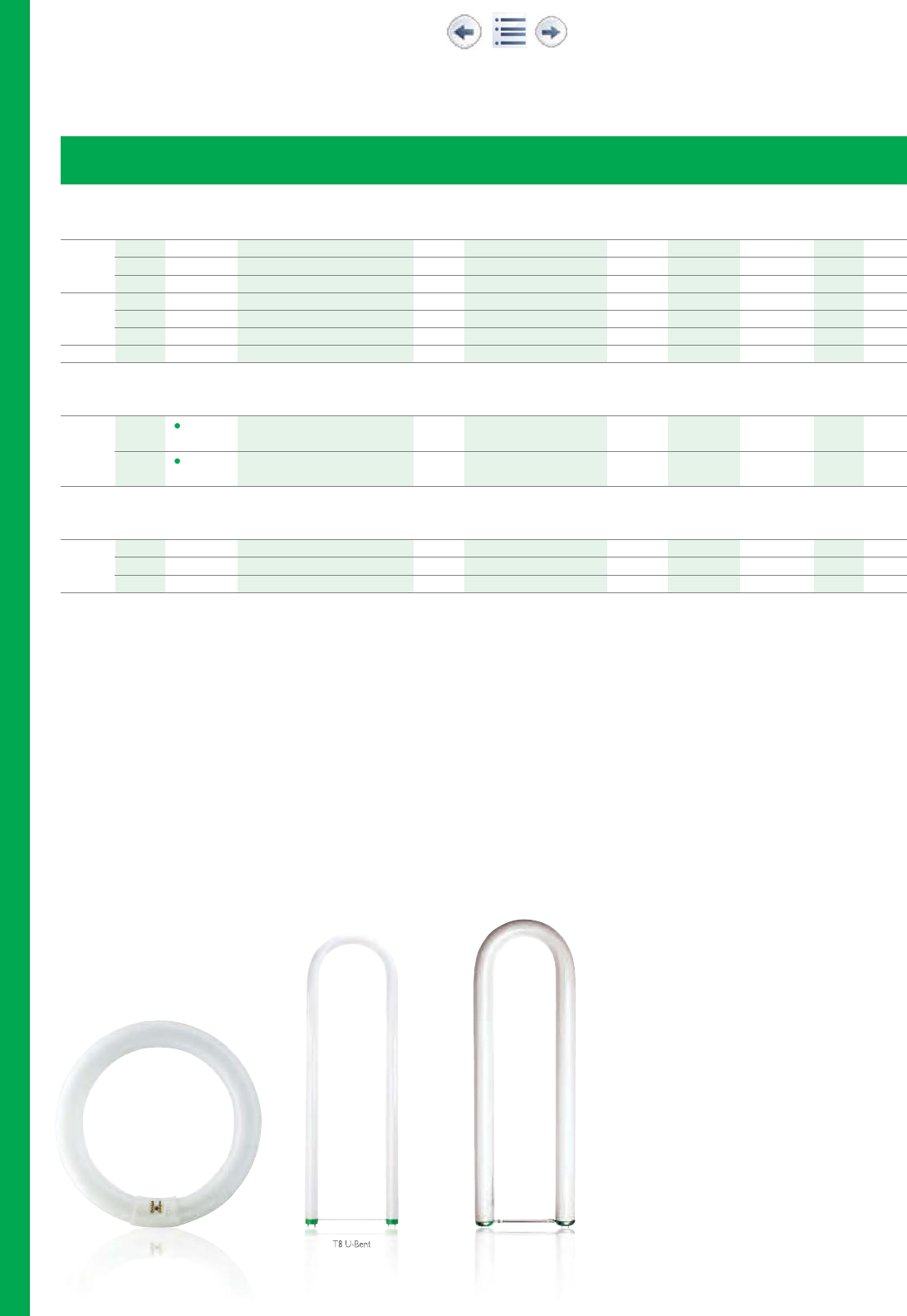

Circline Fluorescent Lamps
T9 Circular 4-Pin Fluorescent Lamps
22 39222-5 FC8T9/SOFT WHITE 6/1 3000K Individually Sleeved 8 OD 12,000 1150 875 85
39116-9 FC8T9/COOL WHITE PLUS 6/1 4100K Individually Sleeved 8 OD 12,000 1050 775 59
39235-7 FC8T9/DAYDLX 6/1 6500K Individually Sleeved 8 OD 12,000 910 675 79
32 39122-7 FC12T9/SOFT WHITE 6/1 3000K Individually Sleeved 12 OD 12,000 1900 1600 85
39117-7 FC12T9/COOL WHITE PLUS 6/1 4100K Individually Sleeved 12 OD 12,000 1800 1500 59
26260-0 FC12T9/DAYLIGHT DELUXE 6/2 6500K Individually Sleeved 13 OD 12,000 1570 1300 79
40 39118-5 FC16T9/COOL WHITE PLUS 6/1 4100K Individually Sleeved 16 OD 12,000 2500 1975 59
U-Bent T8
T8 Medium Bipin
32 20549-2 FB32T8/TL735/6/ALTO UPC 10/1 1 TL70, 3500K 227⁄16 20,000 2650 2370 78
Individually Sleeved
20548-4 FB32T8/TL741/6/ALTO UPC 10/1 1 TL70, 4100K 227⁄16 20,000 2650 2370 78
Individually Sleeved
Rapid Start U-Bent T12
T12 Medium Bipin
40 42280-8
†
FB40/T12/CWSupreme/6 UPC 12/1 12/1 Cool White Supreme, 4100K 227⁄16 18,000 2300 1955 90
42282-4
†
FB40/T12/Neutral DX/6 UPC 12/1 12/1 Neutral Deluxe, 3500K 227⁄16 18,000 2300 1955 90
21993-1 FB40DX/6 12 Daylight Deluxe, 6500K 227⁄16 18,000 2250 1950 90
For the most current product information, go to the e-catalog on www.philips.com
Fluorescent symbols and footnotes located on page 40
Fluorescent Lamps
Consumer Lamps
Nom. Rated Approx. Design
Product Symbols, Ordering Pkg. Length Avg. Life Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) (Hrs.) (202) (203,204) (208) CRI
Lamp Specification Guide 2012–2013 39
Fluorescent Lamps

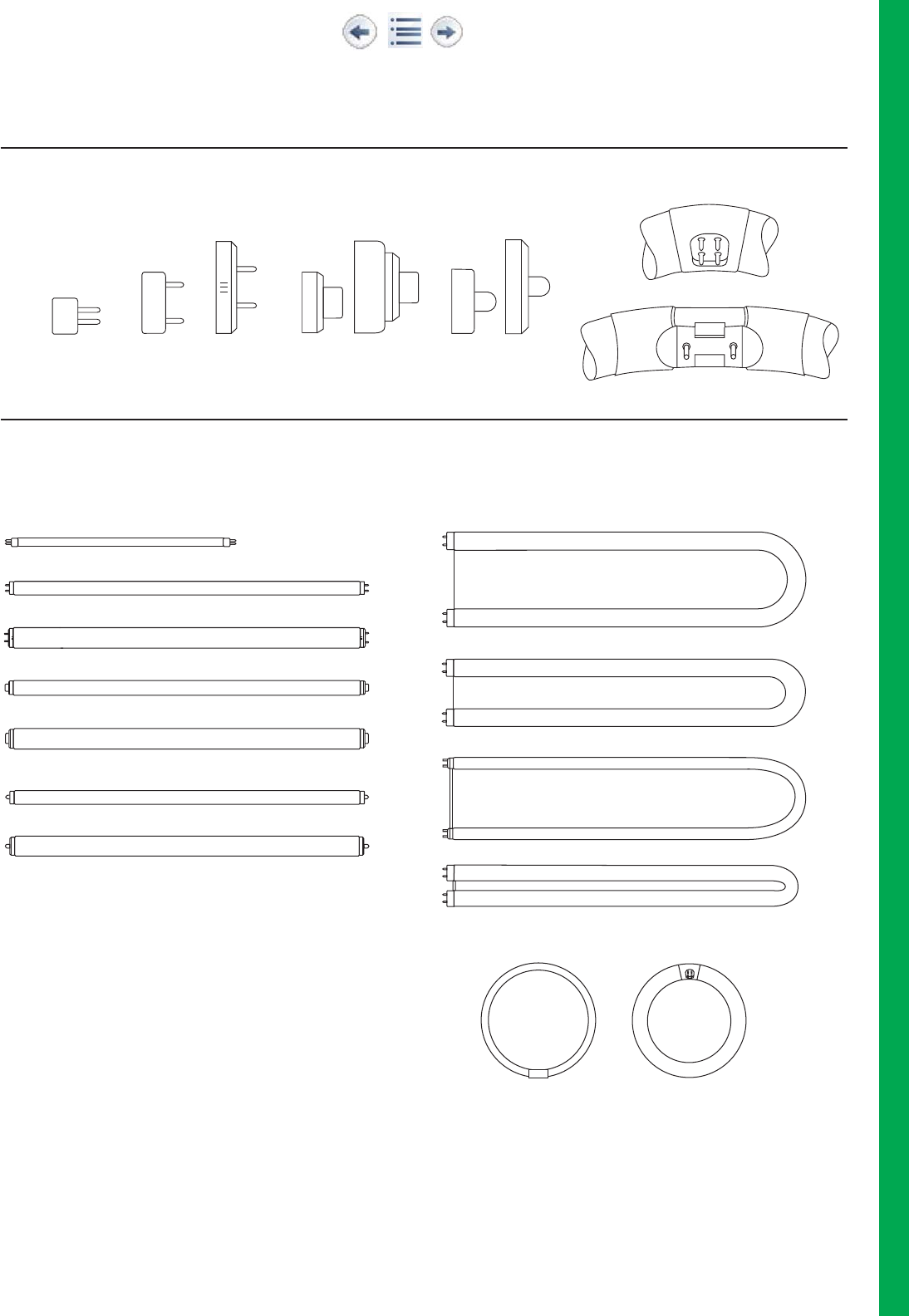

Base Types and Bulb Shapes
Base Types (Not Actual Sizes)
Miniature
Bipin T5
Min. Bipin
Medium
Bipin T8/T12
Med. Bipin
Recessed Double
Contact T8/T12
Recessed D.C.
Slimline
Single Pin
T8/T12
T5 Circular
Bulb Shapes (Not Actual Sizes)
The size and shape of a bulb is designated by a letter or letters followed by a number. The letter indicates the shape of the bulb, while the number indicates the
diameter of the bulb in eighths of an inch. For example, “T12” indicates a tubular shaped bulb having a diameter of 12⁄8or 11⁄2inches. The following illustrations
show some of the more popular bulb shapes and sizes.
T9 Circline 4-Pin
T5 Circular T9 Circline 4-Pin
T8 Medium Bipin U-Bent Lamp
T8 Medium Bipin 15⁄8" U-Bent Lamp
T12 Single Pin Slimline
T8 Single Pin Slimline
T12 Recessed Double Contact
T12 Medium Bipin
T8 Medium Bipin
T5 Miniature Bipin
T8 Recessed Double Contact
T12 Medium Bipin U-Bent Lamp (3")
T12 Medium Bipin U-Bent Lamp (6")
40 Lamp Specification Guide 2012–2013
For the most current product information, go to the
e-catalog on www.philips.com
¥Exclusive to Philips Lighting Company
$Energy Saving Product
This lamp is better for the environment because of its
reduced mercury content. All Philips ALTO lamps give you
end-of-life options, which can simplify and reduce your
lamp disposal costs, depending on your state and local
regulations. ALTO II Lamps have only 1.7mg of mercury.
This Bulb Meets US Federal Minimum Efficiency Standard.
Philips designs and manufactures fluorescent lamps to the
following lighting industry standard: NEMA Standard LSD
26—Measurement Methods and Performance Tolerances
for Verification Testing of General Purpose Incandescent
and Fluorescent Lamps
†New since last printing
(202) Average life under specified test conditions with lamps
turned off and restarted no more frequently than once every
3 operating hours. Lamp life is appreciably longer if lamps are
started less frequently.
(203) Approximate initial lumens. The lamp lumen output is
based upon lamp performance after 100 hours of operating
life, when the output is measured during operation on a
reference ballast under standard laboratory conditions.
(204) For expected lamp lumen output, commercial ballast
manufacturers can advise the appropriate ballast factor for
each of their ballasts when they are informed of the designated
lamp. The ballast factor is a multiplier applied to the designated
lamp lumen output.
(207) Approximate initial lumens are for 800 ma. operation.
For 1000 ma. operation, lumens are approximately 10% higher
and watts approximately 15% higher.
(208) Design lumens are the approximate lamp lumen output
at 40% of the lamp’s rated average life. This output is based
upon measurements obtained during lamp operation on a
reference ballast under standard laboratory conditions.
(212) Nominal length measured from face of base to maximum
distant outside point of U. Measurement does not include base
pins. Leg spacing center to center approximately 6", for /6 and
35⁄8" for /3 lamps.
(214) Econ-o-watt lamps are only recommended for use on
high power factor lead, indoor ballasts that meet ANSI standards.
The lamps are not recommended for use in drafty areas, or
locations where the ambient temperature is less than 60°F,
except as noted. Also they should not be operated on low
power factor ballasts, reduced light or reduced current ballasts,
dimming ballasts or emergency system inverter ballasts.
(223) Meets the National Energy Policy Act of 1992
exemption for outdoor or cold temperature applications only.
(226) T5 nominal lamp lengths are shorter than standard sizes.
See chart on page 27 for details.
(239) Design lumens rated at 3 hours per start on Instant
Start ballast.
(241) Average life under engineering data with lamps turned
off and restarted once every 12 operating hours.
Fluorescent Lamps
Symbols and Footnotes
Lamp Specification Guide 2012–2013 41
Fluorescent Lamps
Cross Reference Guide
Philips GE OSI
F15T8/CW/24/ALTO F24"T8/CW/4 F18T8/CW/K/24
F16T8/CW/26 F26"T8/CW/4 F18T8/CW/K/26
F17T8/CW/28 F28"T8/CW/4 F18T8/CW/K/28
F18T8/CW/30 F30"T8/CW/4 F18T8/CW/K/30
F20T12/CW/ALTO (6PK) F20T12/CW (6 Pack) F20T12/CW/6
F25T12/CW F25T12/CW/33 F25T12/CW/33
F30T12/CW/RS/EW/ALTO F30T12/CW/RS/WM F30T12/CW/RS/SS
TL 70 Trimline Octron
F17T8/TL741/ALTO F17T8/SP41/RS FO17/741
F25T8/TL741/ALTO F25T8/SP41/RS FO25/741
F32T8/TL741/ALTO F32T8/SP41/RS FO32/741
F40T8/TL741/ALTO F40T8/SP41/RS FO40/741
F96T8/TL741/ALTO F96T8/SP41 FO96T8/741
FB32T8/TL741/ALTO F32T8/SP41/U/6 FB032/741/6
TL 80
F17T8/TL841/ALTO F17T8/SPX41 FO17/841
F25T8/TL841/ALTO F25T8/SPX41 FO25/841
F32T8/TL841/ALTO F32T8/SPX41 FO32/841
F40T8/TL841/ALTO F40T8/SPX41 FO40/841
F96T8/TL841/ALTO F96T8/SPX41 FO96/841
FB32T8/TL841/ALTO F32T8/SPX41/U/6 FBO32/841/6
Long Life XL EXTRA-LIFE XP
F17T8/TL841/PLUS/ALTO F17T8/XL/SPX41/ECO FO17/841/XP/ECO
F25T8/TL841/PLUS/ALTO F25T8/XL/SPX41/ECO FO25/841/XP/ECO
F32T8/TL841/PLUS/ALTO F32T8/XL/SPX41/ECO FO32/841/XP/ECO
Energy Savings WATTMISER/ULTRAMAX SS
F32T8/ADV841/EW/ALTO 30 Watt F32T8/XL/SP41/WM/ECO FO30/841/XP/SS/ECO
F32T8/ADV841/EW/ALTO 28 Watt F28T8/XL/SP41/WM/ECO FO28/841/XP/SS/ECO
F32T8/ADV841/XEW/ALTO 25 Watt NA NA
F40CW/RS/EW/ALTO F40CW/RS/WM F40CW/RS/SS
F40LW/RS/EW/ALTO F40LW/RS/WM F40LW/RS/SS
F40T12/841/ALTO F40/SP41 F40/D41
F40T12/ADV41/ALTO F40/SPX41 F40/D841
F96T12/CW/EW/ALTO F96T12/CW/WM F96T12/CW/SS
F96T12/CW/HO/EW/ALTO F96T12/CW/HO/WM F96T12/CW/HO/SS
F96T12/CW/HO-O/ALTO F96T12/CW/HO/CT F96T12/CW/HO/COLD TEMP
F96T12/CW/VHO/EW/ALTO F96PG17/CW/WM F96T12/CW/VHO/SS
FB40CW/6/EW/ALTO F40CW/U/6/WM FB40CW/6/SS
F48T12/CW/VHO F48T12/CW/1500 F48T12/CW/VHO
F72T12/CW/VHO F72T12/CW/1500 F72T12/CW/VHO
F96T12/CW/VHO F96T12/CW/1500 F96T12/CW/VHO
F48T12/CW/VHO-O F48T12/CW/1500/0 F48T12/CW/VHO/LT
F60T12/CW/VHO-O F60T10/CW —
F72T12/CW/VHO-O F72T12/CW/1500/0 F72T12/CW/VHO/LT
F96T12/CW/VHO-O F96T12/CW/1500/0 F96T12/CW/VHO/LT
42 Lamp Specification Guide 2012–2013
Fluorescent Lamps
Cross Reference Guide
Color Cross Reference Guide
Philips GE OSI
SPEC
SPEC 30 or 730 SP 30 D 30
SPEC 35 or 735 SP 35 D 35
SPEC 41 or 741 SP 41 D 41
Ultralume Designer 800
27 or 27U SPX 27 27K
30U or 830 SPX 30 D 830
35U or 835 SPX 35 D 835
41U or 841 SPX 41 D 841
C50 C50 DSGN50
Light Source Color Chart
Fluorescent Color Light Output CIE Color Coordinates
Color Abbreviation Atmosphere (%) In 4' Lamp CCT CRI X Y
Cool White CW Cool 100 4100K 62 0.38 0.38
Deluxe Cool White CWX Cool 72 4100K 89 0.376 0.367
Daylight D Cool Daylight 85 6500K 79 0.313 0.337
Daylight Deluxe DX Cool Daylight 76 6500K 84 0.314 0.341
Lite White LW Cool 104 4200K 51 0.376 0.386
Natural N Neutral 69 3700K 90 0.384 0.357
3000K, SPEC30 SPEC30 Warm 105 3000K 70 0.444 0.409
3500K, SPEC35 SPEC35 Neutral 105 3500K 73 0.41 0.395
4100K, SPEC41 SPEC41 Cool 105 4100K 70 0.382 0.385
Advantage T12 30 ADV30 Warm 118 3000K 82 0.444 0.409
Advantage T12 35 ADV35 Neutral 118 3500K 82 0.41 0.395
Advantage T12 41 ADV41 Cool 118 4100K 82 0.382 0.385
Advantage T12 50 ADV50 Daylight 118 5000K 82 0.346 0.36
Warm White WW Warm 102 3000K 53 0.44 0.403
Colortone 50 C50 Daylight 72 5000K 92 0.345 0.359
Colortone 75 C75 Daylight Plus 66 7500K 95 0.299 0.316
3000K, Ultralume 30U Warm 108 3000K 85 0.444 0.409
3500K, Ultralume 35U Neutral 108 3500K 85 0.413 0.395
4100K, Ultralume 41U Cool 108 4100K 85 0.382 0.385
5000K, Ultralume 50U Daylight 93 5000K 85 0.346 0.356
3000K, TL 70 TL730 Warm 93 3000K 78 0.439 0.402
3500K, TL 70 TL735 Neutral 93 3500K 78 0.41 0.395
4100K, TL 70 TL741 Cool 93 4100K 78 0.382 0.385
5000K, TL 70 TL750 Daylight 90 5000K 76 0.346 0.356
3000K, TL 80 TL830 Warm 98 3000K 86 0.439 0.402
3500K, TL 80 TL835 Neutral 98 3500K 86 0.41 0.395
4100K, TL 80 TL841 Cool 98 4100K 86 0.382 0.385
5000K, TL 80 TL850 Daylight 97 5000K 86 0.346 0.356
3000K, TL 90 TL930 Warm 66 3000K 95 0.438 0.399
5000K, TL 90 TL950 Daylight 66 5000K 98 0.344 0.355
Advantage T8 830 ADV830 Warm 105 3000K 86 0.444 0.409
Advantage T8 835 ADV835 Neutral 105 3500K 86 0.41 0.395
Advantage T8 841 ADV841 Cool 105 4100K 86 0.382 0.385
Advantage T8 850 ADV850 Daylight 105 5000K 86 0.346 0.36
Lamp Specification Guide 2012–2013 43
Fluorescent Lamps
Cross Reference Guide
Residential Applications Light Source Color Chart
Lighted Appearance
Fluorescent Light Output Light Output CIE Color Coordinates
Color Atmosphere (%) In 4' Lamp CCT CRI X Y
Cool White Plus Cool 105 4100K 62-70 0.382 0.385
Natural Sunshine Daylight 72 5000K 92 0.345 0.359
Soft White Warm 108 3000K 85 0.444 0.409
Correlated Color Temperature, CCT, describes the apparent color, or chromaticity, of a light source. Fluorescent light sources of 3000K, for example, Warm White or 3000K
Ultralume, have a warm chromaticity, while 5000K lamps such as Colortone®50 or 5000K Ultralume have a higher blue content and are considered to be cooler in color.
Color Rendering Index, CRI, is a relative value that indicates the color rendering quality of illumination provided by a light source. The higher the index number, the better the quality
of illumination. While one lamp may have the same apparent color in CCT as another, its ability to render colors properly may be more or less than another light source.
For example, Warm White 3000K 53 CRI lamps will not render colors of objects in an illuminated space as well as 3000K Ultralume 85 CRI lamps.
Both CCT and CRI should be cited together when properly describing light source color attributes.
