G E NE RAL INF O RM AT I O N
•
Owner's Record and Service Information
...
frontpiece
•Important Safety Instructions....................... 2-3
•
Manufacturer's Do's and Don'ts/WARNINGS
.... 3
S ET UP AND IN STA L LAT I O N
• Site Selection/LOCAL CODES.............................. 4
• Clearances................................................................... 5
• Electrical Requirements and Installation... 6-10
• Cover Installation................................................... 11
O PE RATION IN ST RU C T I O N S
• Filling Your Spa....................................................... 12
• Initial Startup............................................................ 12
A. Setting Permanent Temperature ........... 12
B. Setting Current Day .................................... 12
C. Setting Current Time ................................. 12
• Using Your Spa .......................................................13
A. Displaying Time or Temperature ........... 13
B. Temporarily Adjusting Temperature ..... 13
C. Water Jet Therapy ....................................... 13
D. Air Injection Therapy ................................. 13
E. Turning on the Light ................................... 13
F. Fiberoptic Options ....................................... 13
G. Aromatherapy Injection Pump .............. 13
• Special Features .................................................... 14
A. Automatic Blower and Jets Purge ........ 14
B. Memory .......................................................... 14
C. System Reset ................................................ 14
D. Inverting Display ......................................... 14
E. Panel Lock ...................................................... 14
F. Heater Lock .................................................... 14
G. Freeze Protection ........................................ 15
H. Flow Protection ........................................... 15
I. Overheat Protection ..................................... 15
J. H.E.E.T. Pump ................................................ 15
K. Skim Away ..................................................... 15
L. Remote Control ............................................ 15
• Advanced Features ................................................16
A. Fahrenheit and Celsius Degrees ........... 16
B. Heat Days ...................................................... 16
• Jet Operation ...........................................................17
A. Select-A-Swirl Jet ......................................... 17
B. Pulsator Jet .................................................... 17
C. Quad Stream ................................................ 17
D. Turbo Jet ........................................................ 18
E. Three Way Power Diverter Valve ........... 18
F. Cluster ............................................................ 18
G. Tension Ease ................................................ 18
H. Air Control ..................................................... 19
I. Waterfall Operation ...................................... 19
J. Aromatherapy Injector ................................ 19
• VitAroma Therapy System ..................................20
• Water Purification System ...................................21
• Sparkle Clear ...........................................................21
S PA MAIN T E N A N C E
• Filter Maintenance .................................................22
• Draining Your Spa ..................................................22
• Winterizing Your Spa .............................................23
• Excelwood Cabinet Maintenance......................23
• Natural Redwood....................................................23
• Cover Maintenance................................................23
• Care of Acrylic Surface and Spa Pillows .......23
• Spa Light Colors &Lenses ..................................24
• Spa Light Bulb Replacement .............................24
• Fiber Optic Lamp Replacement .......................24
• Diverter Valve Cleaning .......................................25
• Priming the Pump .................................................25
WATER QUA L I TY & MAIN T E N A N C E
• Sanitizing ................................................................. 26
• pH Control .............................................................. 26
• Important Maintenance Procedures ............. 27
• Balancing Spa Water .................................... 28-29
• Water Maintenance Do’s and Don'ts ........... 30
• Water Troubleshooting ................................. 31-32
D I AG N O ST I C S & TROUBL ES H O OT IN G
• Diagnostic Messages .......................................... 33
• LCDDisplay ............................................................ 34
• Maintenance Log Recording Area ........... 35-44
TA BLE OF CON T EN TS
L700C / LC500 SERIES
OWNER’S MANUAL
VITA INTERNATIONAL
2320 N.W. 147th Street Miami, Florida 33054
OWNER’S RECORD
DATE PURCHASED: _____________________________________
DATE I NSTALLED: _______________________________________
DEALER: _______________________________________________
ADDRESS: _____________________________________________
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
TELEPHONE: ___________________________________________
SERIAL #: ______________________________________________
MODEL #: _____________________________________________
To contact our Technical Service Department, please write to Vita International, 2320 NW 147th
Street, Miami, FL 33054 or call 1-305-685-2063, during normal business hours, Monday through
Friday, 8:30 am to 5pm, EST.
The Serial Number is located along the base of the spa. Please verify that the serial number is
noted on your dealer’s purchase contract.
❋
❋
PA G E 2
Congratulations!
Thank you for the purchase of your new VITA SPA. You are now the proud owner of
one of the most comfortable and therapeutic spas in the world.
This Owner’s Manual has been designed to familiarize you with your Vita Spa
operations and general maintenance. We suggest that you take some time to carefully
review it. Please keep this manual available for reference.
If you have any questions regarding your Vita Spa set-up, operations, or maintenance,
please contact your Authorized Vita Spa Dealer.
Consumer satisfaction is important to us. We welcome your comments and suggestions.
Please share them with us via telephone, letter, or E-mail us at
vitaspa@dmindustries.com
.
Sincerely,
Eric Dormoy,
President
DM Industries, Ltd.
PAGE 1
PAGE 2
WA RNIN G – To reduce the risk of injury, do not
permit children to use this product unless they are
closely supervised at all times.
DANGER – RISK OF ACC ID E N TAL DROW NIN G .
Extreme caution must be exercised to prevent
unauthorized access by children. To avoid
accidents, ensure that children can not use the
spa unless they are supervised at all times.
A ground te r m i n a l
(pressure wire connector)
is provided on the control box inside the unit to
permit connection of a minimum No. 8 AWG
(8.4 mm2) solid copper bonding conductor
between this point and any metal equipment,
metal water pipe, metal enclosures of electrical
equipment, or conduit within five feet (1.5m)
of the unit.
DA N G E R – To reduce the risk of injury to
persons, DO NOT remove suction fittings. The
suction fittings on this spa are sized to match
the specific water flow created by the pump.
Should the need arise to replace the suction
fittings or the pump, be sure that the flow
rates are compatible. Never operate the spa if
the suction fittings are broken or missing.
Never replace a suction fitting with one rated
less than the flow rate marked on the original
suction fitting.
Install the spa
–
so proper drainage is provided
for the compartment containing electrical components.
DANGER – RISK OF ELEC T RICAL SHOCK –
Install at least 5 feet (1.5 m) from all metal
surfaces. (A spa may be installed within 5 feet
of a metal surface if each metal surface is
permanently connected by a minimum No. 8
AWG (8.42 mm2) solid copper conductor
attached to the wire connector on the terminal
box that is provided for this purpose). National
Electrical Code ANSI/NMFP A70-1993.
DANGER – RISK OF ELEC T RICAL SHOCK- D o
not permit any electrical appliances, such as a light,
telephone, radio, or television within 5 feet (1.5 m)
of the spa.
WA R NING – TO REDUCE THE RISK OF INJURY:
A .
The water in a spa should never exceed
40 degrees Celsius (104 degrees F). Water
temperatures between 38 degrees C (100 F)
and 40 degrees C (104 F) are considered safe
for a healthy adult. Lower water temperatures
are recommended for extended use (exceeding
10 minutes) and for young children.
B.
Since excessive water temperatures have a high
potential for causing fetal damage during the
early months of pregnancy, pregnant or possibly
pregnant women should limit spa temperature
to 38 degrees C (100 F).
C .
Before entering a spa, the user should measure
the water temperature with an accurate
t h e r m o m e t e r, since the tolerances of water
temperature regulating devices vary.
D .
The use of alcohol, drugs, or medication, before
or during spa use, may lead to unconsciousness
with the possibility of drowning.
E .
Persons suffering from obesity or with a
medical history of heart disease, low or high
blood pressure, circulation system problems, or
diabetes, should consult a physician before
using a spa.
F.
Persons using medication should consult a
physician before using a spa since some
medication may induce drowsiness, while other
medication may affect heart rate, blood
pressure and circulation.
IMPORTANT SAFETY INSTRUCTIONS
WHEN INSTALLING AND USING THIS ELECTRICAL EQUIPMENT, BASIC SAFETY
PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:
SAVE THESE INSTRUCTIONS
PAGE 3
DO’S AND DON ’ TS
DO — Make sure the spa is connected to a Ground Fault Circuit Interrupter (GFCI)
protected circuit. This GFCI is required by the National Electrical Code (NEC )
and must be installed by a licensed electrician. Test the GFCI monthly.
DO — Test the water with your hand before entering the spa to be sure it is
c o m f o rt a b l e .
DO — Remember that wet surfaces can be slippery. Take care when entering and
exiting the spa. Only enter by way of the steps in the spa. Do not step on spa
edges or filter lids.
DO — Use the thermal cover when the spa is not in use, empty or full.
DO — Take steps to prevent the intrusion of sand and dirt into the spa.
DO — Maintain proper water chemistry.
DO — Clean the filter cartridge weekly.
DON’T — Use the spa for long periods of time at temperatures over 104º F.
DON’T — Operate the spa without water. Turn the circuit breaker off before emptying the
spa and while it is empty.
DON’T — Store chemicals in the spa’s equipment compart m e n t .
DON’T — Open the electrical box. There are no user serviceable parts inside.
DON’T — Operate the pump(s) on hi-speed for extended periods of time with the cover
on. Extended hi-speed pump operation will cause a slow heat build-up due to
water friction, which could trip the spa’s hi-limit thermostat.
WA RNING S
Prolonged immersion in water that is warmer than normal body temperature can result in a dangerous
condition known as HYPE RT HE RMIA. The causes, symptoms, and effects of hyperthermia may be described
as follows: Hyperthermia occurs when the internal temperature of the body reaches a level several degr e e s
above the normal body temperature of 98.6 degrees F. The symptoms of hyperthermia include dizziness,
fainting, drowsiness, lethargy, and an increase in the internal temperature of the body. The effects of
h y p e rthermia include (1) unawareness of impending hazard, (2) failure to perceive heat, (3) failure to
recognize the need to exit the spa, (4) physical inability to exit the spa, (5) fetal damage in pregnant women,
and (6) unconsciousness resulting in a danger of drowning.
WA RNING – The use of alcohol, drugs, or medication can greatly increase the risk of fatal hyperthermia in spas.
Persons taking medications that induce drowsiness such as tranquilizers, antihistamines or anticoagulants
should not use the spa. Pregnant women and persons with a medical history of heart disease, circulatory
problems, diabetes or high blood pressure should consult their physician before using the spa.
Children are especially sensitive to hot water. At no time should children have unsupervised access to the spa.
The use of elevated decking may encourage children to climb onto the thermal cover – IT IS NOT DESIGNED
AS A SA FETY OR CHILD RESIS TANT CO V ER !
Every Vita Spa comes with a thermal cover which is provided with locking straps. I n s tall the locks for your
child’s safety.
PAGE 4
SITE SEL E CT ION / PREPA RAT ION :
The spa must be installed on a structurally strong,
solid and reasonably level surface. The majority
of the weight of the spa is placed under the
footwell area of the spa. This area must be firmly
supported at all times. The site should allow for
drainage away from the equipment compartment
in which the electrical components are housed.
Take into account the following when considering
prospective sites.
Vita Spas have a loading capacity in the range of
57lbs/sq ft to 83 lbs/sq ft. Refer to your actual
model for exact loading requirements.
LOCAL CODE S :
There may be certain restrictions and/ or
requirements that are particular to your
locality.
DEL I V ERY PA S S A GE WAY :
Doors, halls, stairs, etc. may pose obstructions to
deliver the spa to its intended site.
MAINTENANCE:
Trees, lawn, placement surfaces, etc. can create
extra work in keeping your spa area clean and
safe. Please be advised that placing your spa on
dirt or grass may increase the amount of debris
inadvertently brought into the spa water on the
feet of users or by the wind. The intrusion of this
debris into the spa water may cause harm to your
equipment as well as the spa surface and is not
covered under warranty.
PRIVACY AND WIND SHIELDING:
A sheltered environment can result in lower
operating and maintenance costs. You may also
want to take into consideration your privacy
during times of the year when trees may be
barren, having the spa located where you have a
view of a peaceful sunset, where you may be
able to catch soothing breezes, or your view and
the view of your neighbors may also be
something that you should address prior to the
final installation of your spa.
INSTA L LAT ION INST RUCT IONS
PAGE 5

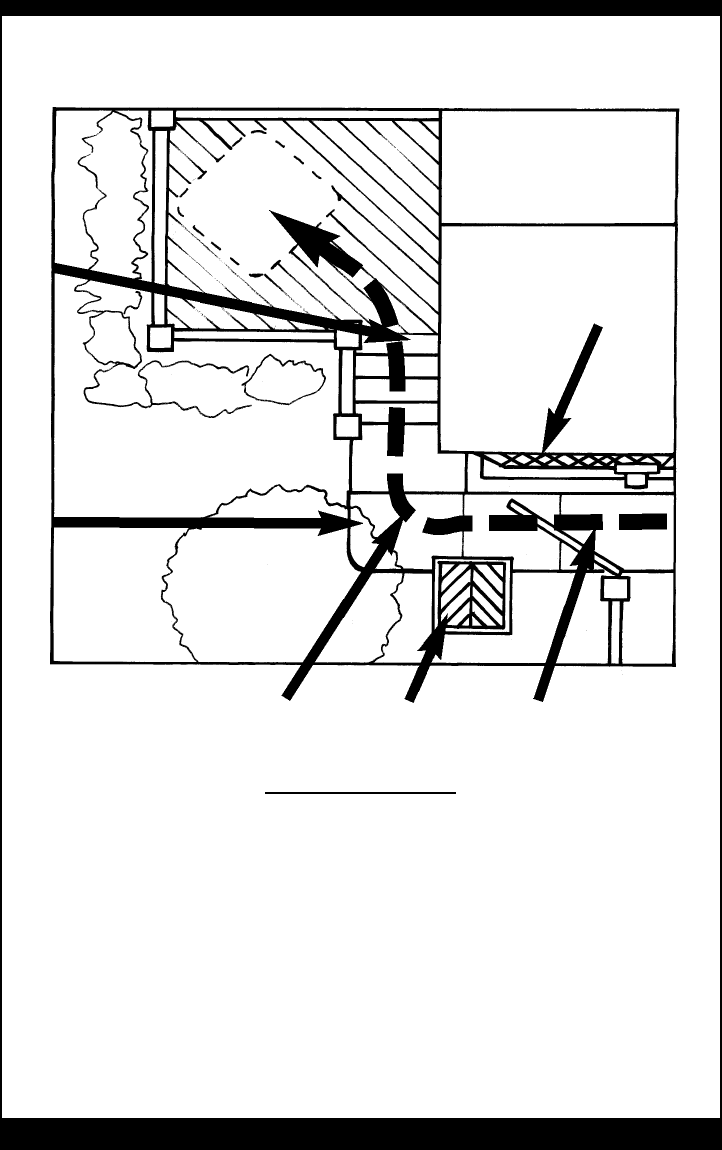

CLEARANCES
CHECK THE FOLLOWING AREAS P RIOR TO SPA DELIVERY
1. STEPS - We suggest no more than six without a landing.
2. TREE BRANCHES - Clearance for spa passage.
3. TIGHT CORNERS - Make sure there is space to maneuver.
4. STORAGE SHEDS, DOG HOUSES, WOOD PILES - Remove out of the way.
5. GATES: CLEARANCE FOR PASSAGE OF SPA - Does gate need to be
removed from hinges?
6. OVERHANGS AND GUTTERS - Anything overhead, as well as drain pipe
locations, must allow for spa passage.
Spa
L o c a t i o n
1
2
345
6
PAGE 6
W IRE YOUR SPA PER ONE OF THE DI A GRA MS MO ST SIMILAR TO YOUR
HOUSE PA NEL
ALL WIRES FEEDING THE SPA ARE TO BE THE SAME GAUGE. GROUND WIRES ARE
TO BE INSULATED AS WELL. WHEN USING A GROUND ROD, THE GROUND WIRE
TO THE ROD SHOULD BE #6 BARE COPPER.
ALL SPAS REQUIRE THE USE OF AN ISOLATED GFCI PROTECTED CIRCUIT. THE
INSTALLATION OF A DISCONNECT IS REQUIRED NO MORE THAN TEN (10) VISUAL
FEET FROM THE SPA AND NOT LESS THAN FIVE (5) FEET.
THIS REQUIREMENT IS TO ASSURE THAT WHEN POWER IS DISCONNECTED FROM
THE SPA, POWER CAN NOT BE INADVERTENTLY TURNED BACK ON.
EL E CT RICAL RE QUIREMEN TS AND INSTA L LAT ION
S E PA RATE NE U T RAL & SO L ID
G R O UND
PAGE 7
CO MMON NE U T RAL GROUND BAR
IN MAIN
S E PA RATE NE U T RAL & WEAK
G R O U ND OR ROMEX WIRE USED TO
FEED GFCI WITH UND E R S I Z E D
G R O UND WIRE
PAGE 8

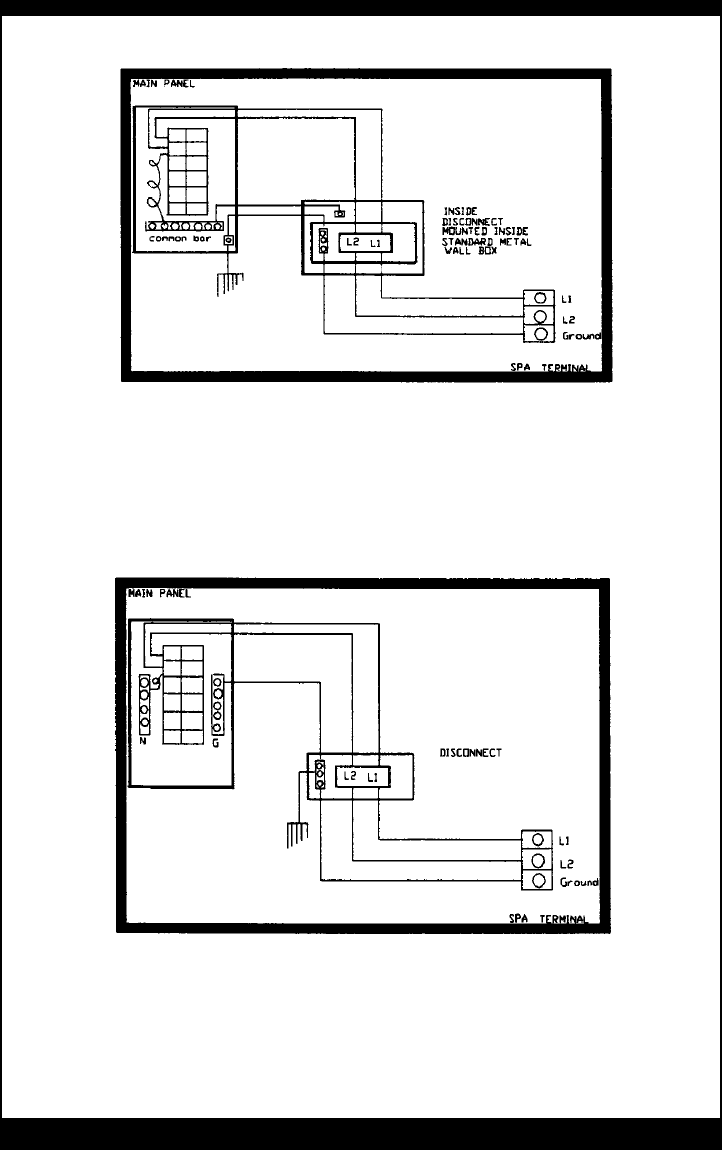

GFCI IN PA NEL WITH SEPA R AT E
NE U T RAL AND SO L ID GROUND TO
PA NE L
GFCI IN PA NEL WITH CO MM O N
NE U T RAL BAR AND/OR ROME X
WITH UNDERSIZED WIRE USED TO
FEED DISCO NNEC T.
PAGE 9
GFCI MOUNTED IN PA NEL AND
D I S CO NNECT MOUNTED IN S IDE TO
CO MMON WALL WITH META L
ST UDS OR WITH METAL
M O UN T ING BOX .
GFCI IN PA NEL WITH WEAK GROUND
OR ROMEX WITH UND E R S I Z E D
G R O UND WIRE USED TO FEED
D I SCO NNEC T
1 . The spa must be permanently connected
(hardwired) to the power supply. No
extension cords or plug-type connections are
to be used in conjunction with the operation
of the spa. Failure to supply power to the spa
that is not in accordance with these
instructions could create a potential health
hazard and will void both the manufacturer’s
warranty and the independent testing agency
l i s t i n g .
2 . The National Electrical Code (NEC )
requires that the power supply to this spa
must be a dedicated, ground fault circuit
(GFCI) prote c ted circuit with no other
appliances or lights sharing power on this
c i r c u i t .
3 . Refer to the wiring diagram posted inside
the electrical equipment door to determine
the current, voltage, and wire size
requirements for your spa.
4. T HHN type wire is recommended. The wire
size for the distance of the wire run must
conform to NEC and local electrical codes.
5 . To ensure proper connections use copper
conductors only.
DO NOT USE ALUMINUM WIRE.
6 . The spas’ power terminal strip is located
within the electrical control box.
7. Feed supply conductors through power
supply inlets provided on the spa and
install into the control box. Modifications
to the electrical equipment box are not
p e r m i t ted. Drilling holes in the electrical
control box to provide access for wires in
areas other than those provided for will
void the manufacturer’s warranty and the
independent testing agency listing.
8 . Connect wires to terminal block (TBI) color for
c o l o r. All wires must be connected or damage
may result. TIGHTEN SEC URE LY !
PAGE 10
ALL WIRING TO THE SPA SHOULD BE IN ACCORDANCE WITH ALL
LOCAL AND NATIONAL ELECTRICAL CODES. ALL WIRING SHOULD
BE PERFORMED BY A LICENSED ELECTRICIAN KNOWLEDGEABLE IN
THE OPERATION AND WI RING OF A GFCI PROTECTED SYSTEM.
PAGE 11
INSTA L L ING THE SPA COVER
1 . Position the cover squarely over the spa.
2 . Position the locks for the tie-downs on the sides of the spa. You should allow approximately 1/2” to 3/4 ”
slack in the straps for ease of insertion into the locks and to allow for material shrinkage during
temperature changes.
3 . Using the screws provided, attach the locks and insert the cover tie-down straps. Utilizing the cover
a n ytime the spa is not in use will reduce heat loss and thereby reduce the amount of running time
required to make up that loss by the heating system.
Keep cover fastened down at all times when not in use.
DA NGER - RISK OF INJURY
To reduce the risk of potential injury:
1 . Never leave a spa uncovered or unatte n d e d .
2 . Never leave a spa cover unlocked.
3 . Do not stand, sit, or lie on the cover.
A LWAYS RE M O VE SNOW FROM THE COVER. THE COVER HAS NOT BE E N
D ES I G NED TO SUSPE ND THE WEIGHT OF WET SNOW.

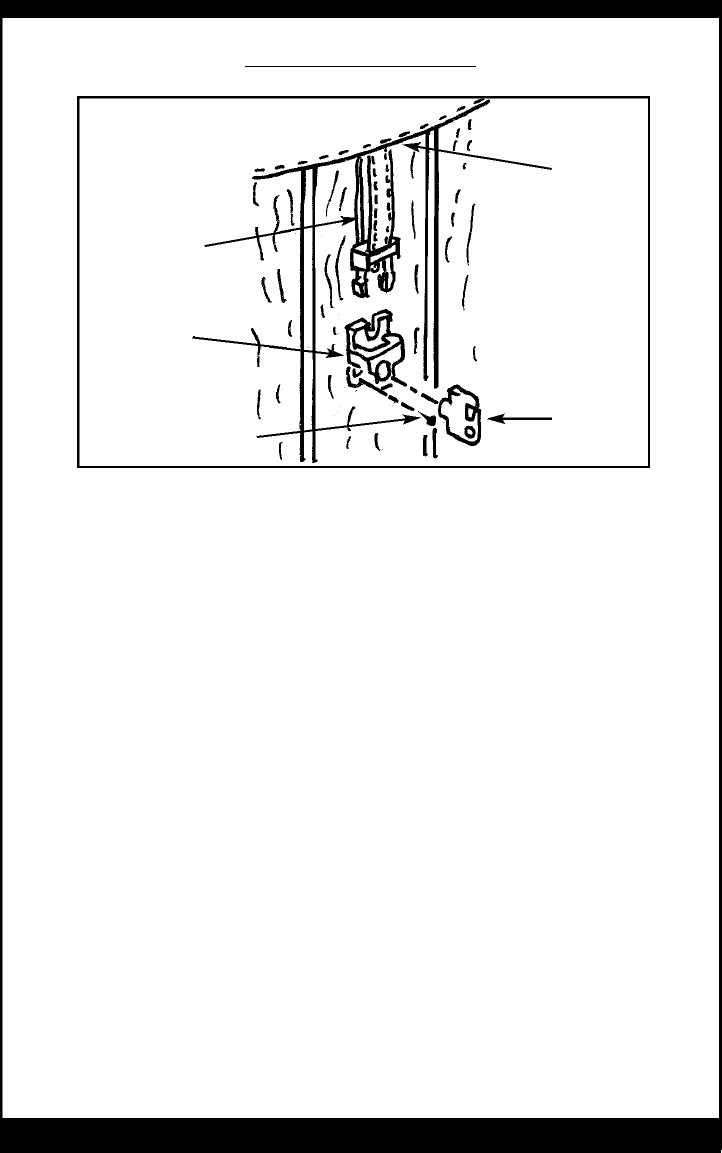

C O V E R INSTA L LAT ION
Ke y
C o v e r
Tie Down
S t ra p
Lo c k
S c r e ws (2)
OPERAT ING INST RUCT IONS
PAGE 12
INITIAL START UP
Your spa has been programmed for your
convenience. Once properly connected, the
H . E . E . T. circulation pump, heater and BiOzone
water purification system will automatically come
on, heat the spa to 102 F and introduce ozone 24
hours a day. Initial temperature, day, and time can
be set and changed by following these instructions.
A . S ETT I NG PE RM A NENT TEMPE RAT URE :
1 . Press “ PR O G ” to enter the progr a m m i n g
mode. Notice the heater icon flashing.
2 . Press “ UP ” or “ D OW N ” arrows to choose the
desired temperature. NOTE: There is a
procedure to choose a different temperature
for each day of the week (See “A d v a n c e d
Features–Heat Days”).
B . S ETT ING CURRENT DAY :
1 . Press “ V IE W ” to show the day of week.
Notice the clock icon flashing.
2 . Press “ UP ” or “ D OW N ” to select the current
d a y. Choose 1 for Sunday, 2 for Monday, so
on and so forth up to 7 for Saturday.
N OTE: To change current day directly, do
s tep A1 & B1.
C . S ETT ING CURRENT TIME :
Press “VIEW” to show the Hour. Observe
the PM indicator. No indicator means AM.
Press “ UP ” or “ D OW N ” to select the
current hour. Press “ V IE W ” to show
the minutes. Press “UP” or “DOWN” to
select the current minute. NOTE: To change
current time at any time, press the “PROG”
button and then press the “VIEW” button
twice to display time.
RET URNING TO REG ULAR DISPLAY :
Wait 30 seconds or press any button to exit the
p r o gramming mode.
NOTE: For best results, read each
step carefully and entirely before
proceeding to the next.
FIL L ING YO UR SPA
Wipe the interior of the spa with a damp, soft cloth
to remove any residue that may be on the surf a c e .
Fill with a garden hose by inserting the nozzle of

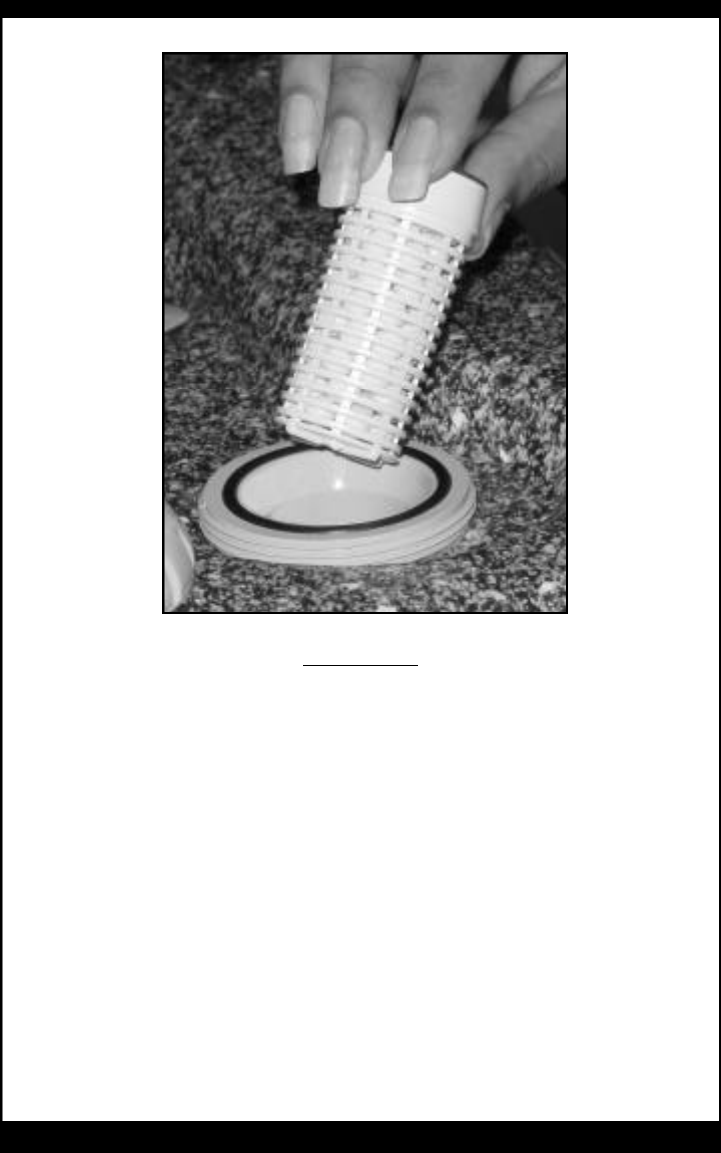

the hose in the filter inlet. (After filling is complete,
remember to put the filter cartridge in place prior
to starting the spa.) As the spa is filling, check in
the equipment access area for any leaks. On
occasion, it may be necessary to hand tighten a
union fitting that may have come loose during
transit. Also check that the gate valves are pulled
out to the open position and that the hose bib is
closed. Continue to fill to the water line.
N OT E : If your water is extremely hard, it is
preferable to fill the spa halfway with hard water
and the rest with softened water. Never fill the spa
entirely with softened water.

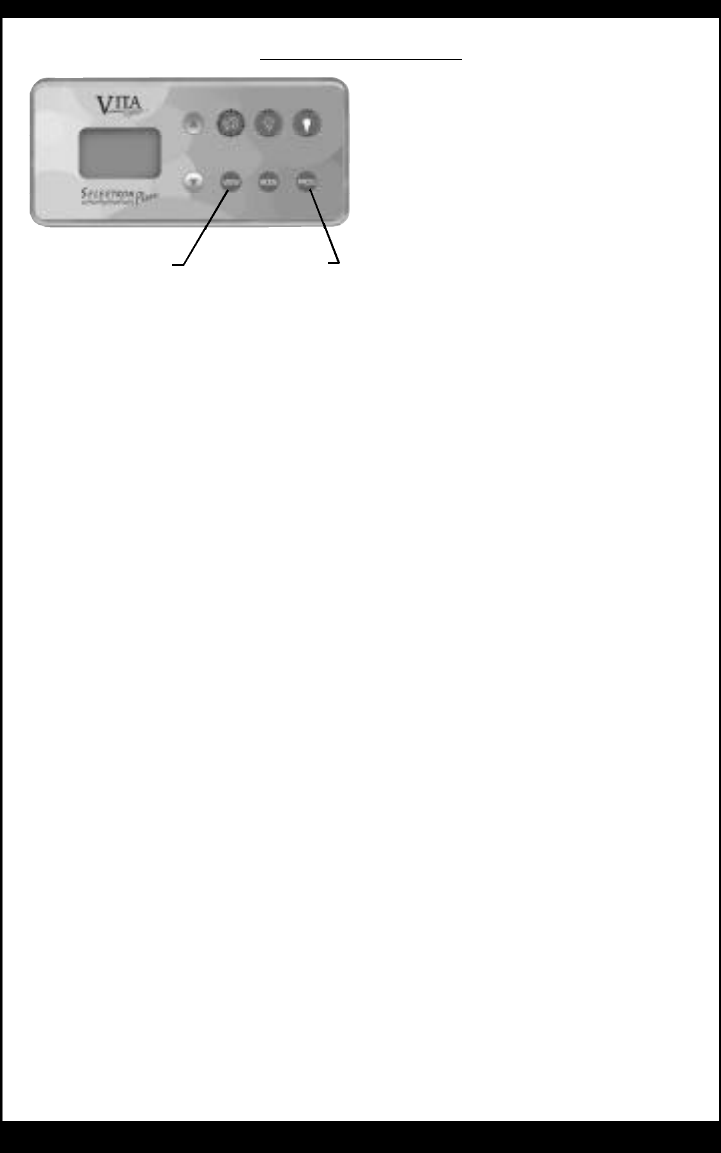

V IE W
JETS BLOW E R L I G H T
F° / C° PROGRA M
WATER LINE
PAGE 13
D. AIR INJECTION/THERAPY AIR BUTTON
Your spa is equipped with an air therapy
b l o w e r. A touch of the blower button
activates the power-mode for air bubble
action. Touching the blower button again
will turn it off. For safety, the blower will
automatically turn off after 30 minutes.
To reactivate, start sequence over.
E. TURNING ON THE LIGHT
Your spa has an underwater light. A single
touch of the Light button turns the light on.
A second touch will activate the aroma-
therapy pump. A third touch turns both the
light and the aromatherapy pump off. If left
on, the light or the light and aromatherapy
pump will automatically turn off after three
(3) hours of continuous operation.
F. FIBER OPTIC LIGHTING (Optional)
The Fiber Optic option is activated by
pressing the Light button on the spa side
control. Once activated, the lights will
continue to change colors systematically
unless paused by depressing the air button
control.
To restart the color cycling, depress the air
button again. To turn off the Fiber Optic
lighting, press the Light button on the spa side.
The lighting system will automatically turn
itself off after three (3) hours.
A. DISPLAYING TIME OR TEMPERATURE
Pressing the “VIEW” button will switch the
display between current time and current
water temperature.
B.
T E MP O RA RILY ADJU ST ING TEMPE RAT URE
If you like to temporarily change your water
temperature setting, up or down, during any
one day, you can do so for the current day
by switching to the current temperature
display (press “VIEW”) and by pressing the
“UP” or “DOWN” arrows. The “adjusted”
temperature will be in effect until midnight
that day, at which point, the temperature
setting will revert back to the original setting
for that day. Notice the flashing heater icon
while making this change.
C. WATER JET THERAPY
Your spa is equipped with one or two
2-mode therapy pumps. The soft-mode
(Low) provides soft Relaxation Therapy and
the power-mode (High) provides vigorous
Power Therapy.
DUAL PUMP SYSTEMS:
LC560 - LC580 / L760C - L780C
Press “JET ” to activate the Relax a t i o n
Therapy mode. Both pumps will turn on to
service every seat.
Press “JET” to activate the Power Therapy
mode. Pump #1 will turn on.
Press “JET” to activate pump #2 in Power
Therapy mode. Both pumps will be on.
Press “JET” to de-activate pump #1.
Pump #2 will remain in Power Therapy
mode.
Press “JET” to de-activate pump #2. Both
pumps will be off.
Note that for safety, all jet modes will
automatically turn off after 30 minutes. Re-activate
any therapy mode as indicated above.
USING YOUR SPA
A. AUTO M ATIC BLOWER AND JET PUR G E
Twice each day, at 10AM and 6PM,
the blower and jet pump(s) will
automatically run for one minute to
circulate potential stale water in the
piping. This is a normal function of the
spa. “BJ2P” will be displayed while this
takes place. You can manually stop the
purge cycle by pressing any button.
B. ME M O RY
All settings that are entered into your spa
controller will be permanently retained in
its solid state memory. In the event of a
power failure, the time will be captured
and held until power returns. All settings
existing at the time of the power failure
will be restored when power returns.
C. SYSTEM RES ET
A n ytime there is reason to believe that
your spa electronic system is not operating
p r o p e r l y, perhaps as a result of lightning or
other interference, like your PC at home,
your spa system can be reset by holding
down the “ PROG” button for 5 seconds.
The system will be reset, maintaining all
the settings you had in memory. If your
spa still does not operate properly, the
system needs to be rebooted to factory
settings as follows:
1. Turn off the power breaker to the spa
for five minutes.
2. Turn breaker on
3 . Hold down the “ V IE W ” button for
10 seconds.
” 12 : 0 0 ”
will be displayed
and all previous settings will be lost
other than temperature ” 10 2 º F.”
Time, day, and heat days will have to
be programmed into the system.
D. IN V E R T ING DISPLAY
The Selectron Plus display can be
inverted to allow easier reading from
inside the spa. To do so, first make sure
“ T IME ” is displayed. Use “ V IE W ”
button to change to “TIME” display if
needed. Then press the “DOWN” arrow
for approximately 10 seconds to invert
the display. Follow the same procedure
to revert the view back to its original
position.
E. PA NEL LO C K
The Selectron Plus spa panel can be
locked to keep children or others from
using any of the spa functions. To
deactivate all buttons, make sure
“ T I ME ” is displayed. Use “ V IE W ”
button to change to “TIME” display if
needed. Then hold the “ UP ” a r r o w
button for 5 seconds. Notice the flashing
lock icon. The panel is locked. To unlock
the panel, hold the “UP” arrow button
for 5 seconds again. The flashing lock
icon will disappear and all spa functions
will be accessible.
F. HE ATER LO C K
You may want to prevent anyone from
c h a n ging the water temperature you
have chosen, while still allowing the use
of any of the spa functions. This can be
accomplished from the “PANEL LOCK”
position only. Follow the “PANEL LOCK”
procedures first and then, with the lock
icon flashing, hold down the “DOWN”
arrow for 5 seconds. The lock icon will be
present but not flashing. All other spa
functions will still operate. To unlock the
“HEATER LOCK” and “PANEL LOCK”
hold down the “UP” arrow button for 5
seconds. The lock icon will disappear and
all spa functions, including temperature
adjustment will be accessible.
PAGE 14
Factory Settings S y s tem Reset
SPE CIAL FE AT URE S
PAGE 15
G. FREEZE PROTECTION
If the temperature in the spa plumbing falls
below 50º Fahrenheit (10º Celsius) the
water pump(s) will turn on soft-mode and
run for at least one minute. The display will
show “ICE”. After one minute, if the water is
still below 50º F (10º Celsius), the heater
will turn on and raise the water temperature
10º F.
H. FLOW PROTECTION
If the flow of water through the heater
is insufficient, the spa controller will
automatically turn the heater off to
prevent overheating. The display will show
“FLO”, indicating a flow restriction caused
by a clogged filter, shut gate valves or by
a malfunction in the pressure switch. Call for
service if you cannot pinpoint the cause.
I. OVERHEAT PROTECTION
If the water temperature inside the spa
reaches 110º F, the display will show “HILI”
(High Limit) and the heater will be disabled.
If the water temperature continues to rise
and reaches 118º F due to friction in the
pumps and plumbing system, the entire
system including all pumps will be disabled.
In “HILI” condition, DO NOT ENTER THE
WATER! Remove the cover and allow the
water temperature to cool down to 104
degrees F. Then reset the system by holding
down the “PROG” button for 5 seconds. If
the “HILI” message returns, call for service.
K. H.E.E.T. PUMP
Each spa is equipped with Vita Spa’s
exclusive High Efficiency Energy Transfer
pump. Similar to the principle of heat
transfer pumps, the H . E . E . T.s y s t e m
transfers the heat generated by the
circulation pump motor to the water 24
hours a day. After the first twelve hours of
operation each day, as a protection against
overheating, the H.E.E.T. pump will turn off
if the water temperature exceeds the
desired temperature. The 4kw-system
heater will come back on when the water
temperature falls 1 degree F° under the
desired temperature.
L. SKIM–AWAY
S k i m – Away is an automatic skimming
action which takes place each day from
8am until 8:30am each morning and
from 4pm until 4:30pm each afternoon.
The primary pump will activate in high
speed mode. This will pull all surface oils
and debris into the filter well cavity.
M. REMOTE CONTROL
Your spa model may come equipped with a
remote control located on the opposite side
of the spa from the main spa side control.
The remote control will operate the jets,
blower, and light. It can not be used to
program the spa.
PAGE 16
Example:
Let’s assume that you have selected 100
degrees F as your desired temperature in
the “Setting Permanent Te m p e r a t u r e ”
procedure and Sunday as “1.” You would
now like to lower the water temperature
to 80 degrees F on Mondays, Tuesdays, and
Wednesdays.
Press “PROG.”
Hold down “PROG” for 5 seconds.
Press “PROG” as many times as needed to
display “hd=2” (Monday).
Press “UP” to display temperature.
Hold down “ D OW N ” button to lower
temperature to 80 degrees F.
Repeat steps 2, 3, & 4 to do the same for
Tuesday and Wednesday.
Note that using the procedure outlined in
“Setting Permanent Temperature” will reset all
heat days to the same temperature.
ADD START UP CHEMICAL
Carefully follow the directions and add the
start-up chemicals recommended to you by
your dealer. Contact your dealer to clarify
any questions you may have.
“F” FAHRENHEIT OR “C” CELSIUS DEGREES
Your spa has been preset to show the
temperature in Fahrenheit “F” degrees in
areas that use 60 Hz electricity. In areas
powered by 50 Hz, the temperature will
automatically be displayed in Celsius “C” on
your display.
HEAT DAYS
If your spa is located in a weekend home,
or if your schedule allows utilization of the
spa only on certain days of the week, you
may decide for energy conservation reasons
to lower the water temperature on the days
you will not use the spa. To choose different
temperatures for different days of the week:
1. Press the “ PR O G ” button. The heater
icon will start flashing. With the temperature
showing and the heater icon flashing,
hold down the “ PR O G ” button for
5 seconds and the current heat day
(hd=1,hd=2…etc.) will appear.
2. Press the “PROG” button to advance to the
next heat day or if you would like to change
the temperature from the originally set
temperature.
3. With the heat day showing, press the “UP”
arrow button to display the set temperature
for that day.
4. Then press the “UP” or “DOWN” arrow
buttons to select the temperature for that
day.
5. Repeat steps 2, 3, & 4 to select any other
temperature for any other day. To exit
procedure, wait 30 seconds or press any
button except “ PR O G ”, “ UP ” a n d
“DOWN”.
A D VA NCED FE AT URE S
PAGE 17

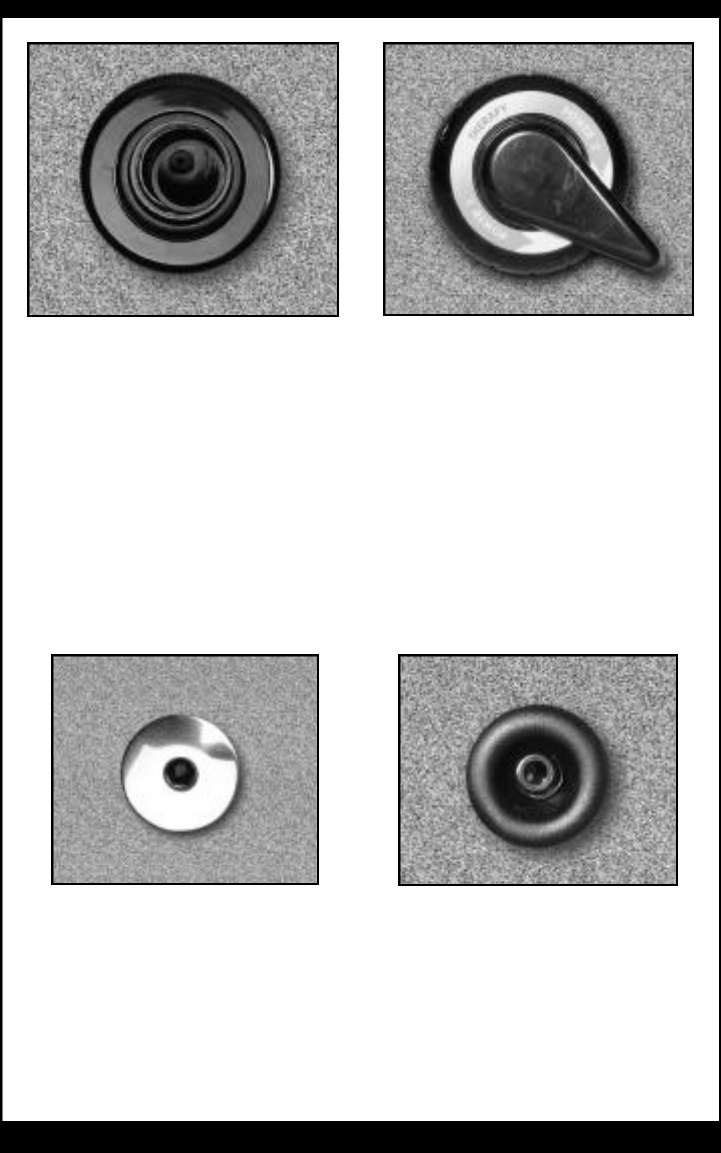

(A) SELEC T — A — S W IRL™ JETS
The water flow direction is adjustable by rotating
the directional jet nozzle. The amount of pressure
can be adjusted by rotating the outer rim of
the jet(s) clockwise for minimum pressure and
counter–clockwise for maximum pressure.
Pressure may also be varied by the use of the
air control.
This jet can be removed for cleaning by turning the
outer ring counter–clockwise until you feel it stop.
Then slightly apply pressure in the same direction
to overcome the “stop”. The jet can then be pulled
out of the jet body for cleaning. To install the jet,
i n s e rt the jet back into the body and turn clockwise.
(B) PULSATOR JETS
Interchangeable with SELEC T– A – S W IRL™ and
Q UAD ST REAM™ jets. Water pressure can be
adjusted by rotating the outer rim of the jet(s)
clockwise for minimum pressure and
counter–clockwise for maximum pressure.
Pressure may also be varied by the use of the air
c o n t r o l .
This jet can be removed for cleaning by turning the
outer ring counter–clockwise until you feel it stop.
Then slightly apply pressure in the same direction
to overcome the “stop” . The jet can then be pulled
out of the jet body for cleaning. To install the jet,
i n s e rt the jet back into the body and turn clockwise.
JET OPERAT ION
Your Vita Spa is designed with a unique jet system to allow you to select a wide variety of massage patterns.
The following is a description of the various types of jets and their operation you may use to tailor your spa
to your specific massage needs.
(C) QUAD STREAM™
Interchangeable with SELECT—A—SWIRL™ and
PULSATOR JETS. It is one powerful jet, whose
force, redirected into four different directions,
results in strong, even vibrations to soothe those
overworked calf muscles.
PAGE 18
(D) TURBO JET
The Turbo Whirlpool Jet is not individually
adjustable. To adjust the flow, you must open or
close air control valve.
The Turbo Whirlpool Jet utilizes a high flow design
to create a powerful whirlpool current throughout
the spa. It's great for working out the hard to relieve
knot. For cleaning purposes, the Turbo Jet face can
be removed by turning the face counter clockwise.
Re-install by pushing the face in and turning
c l o c k w i s e .
(E) THRE E — WAY POWER DIVERTER
VA LV E
This valve is functional when the primary or
s e c o n d a r y, two-speed pumps are operating. Wa t e r
may be diverted to two individual sections of jets
or a combined operation of both sections.
Do not adjust when pump is set at high speed.
For the operation of a specific spa, review the
f o l l o w i n g :
(G) MIDI DIRECTION & MIDI SWIRL
(TENSION EAS E ™ )
Creates a powerful massaging action that
penetrates deep into your upper back, neck and
shoulders—the areas most commonly afflicted by
tension. Adjust the pressure to your own comfort
l e v e l .
(F) CLU S TER JET
These jets work as a team, that’s why they’re
usually found in groups of two or more. They can
deliver vigorous pinpoint action for a therapeutic
effect, or you can turn into soothing massage
with just a twist of your finger.
PAGE 19
(H) AIR CO N T R O L
The Air Controls are used to introduce air into the
water jet stream. They allow the user to increase
(open) jet pressure or decrease (close) jet
pressure as desired.
(I) WAT E RFALL OPE RAT I O N S
On the Nuage and Romance model spas. Th i s
valve increases or decreases volume of water from
the waterfall. On the Nuage, a second valve of this
type increases or decreases the volume of water
from the Colorado River Jet.™l
(J) FRAG RANCE INJEC TO R S
These injectors blow thousands of air bubbles
while at the same time allowing the Vi t A r o m a
scents to be released.
PAGE 20
V I TA R OM A
A R O M AT HE RAPY SYST E M
VitAroma therapy offers the unique benefits of combining Aroma and Hydrotherapy. Simply defined,
aromatherapy is the practice of using pure essential oils – the highly concentrated extracts of plants, herbs,
and flowers – to improve one’s feelings of well being through the acute sense of smell.
Your spa is equipped with a unique “Above the Water” aromatherapy induction system. To activate Vi t A r o m a ,
i n s e rt one of Vita Spa’s exclusive aromatherapy scents and turn on the VitAroma Induction System. Th e
system is activated when the light button is depressed a second time. This system dispenses aromatherapy
through the small ports adjacent to the spa pillows. Experience the wonder and pleasure of aromatherapy. It
will soothe your senses and invigorate your spirit.
To extend the lifespan of the VitAroma beads, it is recommended that they be removed from the spa and
stored in the resealable packet after each use. VitAroma aromatherapy scents are available exclusively from
Vita Spa Dealers.
PAGE 21
S PA RKLE CLEAR
( L 7 00C & LC 5 00 Series)
The cartridge is housed in your filter attached to
the filter cap. It works in conjunction with the
Vitazone ozonation system. Sparkle Clear sanitation
procedures are different than conventional means,
therefore you must carefully follow the Sparkle
Clear instructions.
PURIFIER START UP
Upon filling your spa, balance the water per dealer
guidelines. Add 1 teaspoon of dichlor to the spa
per 250 gallons.
E V E R Y DAY
No action required.
BE F O RE EACH USE
Add 1 tablespoon of potassium
p e r o x y m o n o s u l f a t e
( MPS) to spa per 250 gallons
ONCE A WEEK (if required)
Per “Brand” guidelines, shock with a chlorine or
bromine shock.
E V E RY 4 MONTHS
Drain and refill spa.
Replace SPA RKLE CLEAR cart r i d g e .
AS NE E D E D
If water looks hazy, shock treat with
1 teaspoon of dichlor per 250 gallons.
N OT E : Potassium peroxymonosulfate may cause
a lowering of the pH and total alkalinity of your spa
w a t e r. Please monitor pH and total alkalinity at
least once per week and adjust accordingly.
V I TAZO NE
Located in the equipment compartment, the
VitaZone ozonator converts O2into O3. In such
form, it acts as an oxidizer, and reduces the need
for sanitation (bromine or chlorine).
B i OZO NE
The L700C & LC 500 series spas are equipped
with our exclusive BiOzone purification system.
BiOzone is the combination of ozone (a strong
oxidizer) and Sparkle Clear, our trademarked
mineral sanitation system.
WAT ER PURIFIC AT ION SYST EM
PAGE 22
FILTER MAIN T E N A N C E
Vita Spas are designed with the most efficient top
loading filtration system in the industry. Filter
maintenance is the most critical factor in keeping
your spa water clean.
TO CLEAN THE FILT E R :
( N OTE: Never run the spa without a
filter installed)
Remove the cartridge and spray it with a garden
hose. It will be necessary to rotate the cart r i d g e
while spraying so as to thoroughly remove the
debris lodged between the filter pleats.
After allowing to dry, inspect the cartridge for
calcium deposit (scaling) or an oil film. Rapid
mineral build-up from hard water, or oil build-up
from the use of oil-based water scent or body oil
may coat the filter cartridge. A filter cleaner to soak
the cartridge is available from your Vita Spa dealer
and should be used as part of your spa
maintenance. Use a rag to remove any debris at
the bottom of the filter housing and inside the filter
screen. Replace the cartridge in the filter housing.
We recommend the use of a spare filter. This way
one can be soaking and cleaning while you
continue to enjoy the use of your spa.
D RA INING YO UR SPA
Detergent residues from bathing suits as well as
soap film from your body may gr a d u a l l y
accumulate in the water. Foam inhibitors will
suppress the foam but will not remove the soap
from the water. Eventually, the soap build-up in the
water will concentrate enough to leave an unclean
feeling on the user’s skin, causing sudsing and
make the water impossible to clarify. Depending
on the amount of soap input, the spa water should
last between two and three months.
TO DRA IN YO UR SPA
Turn the power off at the GFCI breaker. Attach a
garden hose to the bib located in the base directly
below the spa control. Pull out the cover cap from
the base and unscrew it from the bib. Route the
outlet of the hose to an appropriate draining area.
The spa will empty by gr a v i t y . Siphon or scoop out
the balance of the water.
IMP O R TA N T : Spa water with a high sanitizer level
may harm plants and grass. If you are draining your
spa for the winter, be sure to fully drain water from
the pipe by disconnecting the two unions at the
gate valves found by each of the two speed
pumps and the two unions found by the
circulation pump. Drain the water pumps by
removing the pump plug. Then reinstall the pump
plugs. Remove the filter and clean as required.
Inspect the spa shell and clean as required.
Refill the spa BE F O R E restoring power to it.
S PA MAIN T E N A N C E
Your Vita Spa is manufactured with the highest quality and most durable materials available. A spa care
and maintenance program is recommended to increase your comfort, maintain the spa’s reliability, and
protect your investment.
W IN T E RI Z ING YO UR SPA
Your Vita Spa has been designed and engi n e e r e d
for year-round use in any climate. If the spa will not
be used, drain it completely, following the
instructions on “DRA I NING THE SPA .”If you intend
to use the spa during the winter, keep the spa
covered to prevent heat loss.
E XC E L- WOOD CABINET MAINTENANCE (L70 0 C )
The exterior of your Vita Spa cabinet is made from
a newly formulated high strength material that is
factory stained and sealed. Depending on the
location and exposure of the spa to nature’s
elements, it is recommended that you clean the
cabinet once or twice a year with warm water and
a mild soap.
N AT URAL RE DWOOD (LC 50 0 )
Although your spa came stained from the factory,
exposure to wind, rain and sun will cause the wood
to weather. Much like any piece of furniture, if your
spa came with natural redwood, you will be
required to preserve it from time to time
(suggested minimum of two times per year). Yo u r
Vita Spa is treated with a specially formulated
“water-based” stain and sealer. This sealer can be
obtained through your local Vita Spa dealer. DO
N OT USE URET H A NE OR POLY E S TER COAT IN G S
that will prevent the wood from its need for natural
m o i s t u r i z i n g .
COVER MAIN T E N A N C E
Your cover is manufactured from a durable marine
grade, UV resistant material. Even so, monthly
cleaning and periodic conditioning is
recommended to maintain its beauty. To clean
and condition the vinyl cover: Lightly spray the
cover with a garden hose to rinse it and remove
the debris. Using a large sponge or soft cloth and
a mild soap solution (1 teaspoon dish washing
liquid with 2 gallons of water), scrub lightly in
circular motion. Then rinse it thoroughly with
plenty of water. Condition the vinyl after cleaning
by applying a thin film of vinyl conditioner. NOT E :
To remove tree saps, use lighter fluid (not charcoal
lighter but the kind used in cigarette lighters).
Use sparingly and rinse with mild soap solution
afterwards. Wipe dry.
C A RE OF AC RYLIC SURFAC E
To maintain the surface of your spa, simply clean
with a soft damp cloth (a mild detergent is okay)
or with any glass cleaner. DO NOT clean the
s u rface with any type of abrasive as it will dull the
s u rface and natural luster of the acrylic. DO NOT
use any type of oil based solvent. Such products
can be very harmful to the surface of the spa and
will void the surface warranty of the spa.
C A RE OF SPA PIL LOWS
The spa pillows will provide years of comfort if
treated with care. Each pillow has been positioned
above the water level to minimize the bleaching
effects of chlorinated water and other spa water
chemicals. It is recommended that pillows be
removed and cleaned each time the spa itself is
cleaned. A mild soap and warm water works best
in removing body oils. ALWAYS rinse the pillows off
thoroughly after applying any type of soap to
assure that no residue remains. If you are
winterizing your spa or do not plan on using it for
a while, it is best to remove the pillows until the
next use. Pillows should always be removed
whenever the spa is being superchlorinated.
PAGE 23
S PA MAIN T E N A N C E
PAGE 24
S PA LIGHT CO LO RED LENS RE M OVA L
In your owners packet you will find colored lenses
for your spa light. They can easily be installed or
removed by placing them over the spa light and
gently pushing on the outer edges to install and
pulling along the edges to remove.
LIGHT BULB REPLACEMENT
1. Turn off the power to the spa.
2. Remove the front panel of the spa.
3. Locate the spa light.
4. Turn the bulb counter - clockwise 1/4 turn to
remove from its socket
5. The replacement bulb is locked into place
by turning it clockwise 1/4 turn
6. Close up the cabinet and turn the power
back on.
7. Check the Top Side display and adjust the
time.

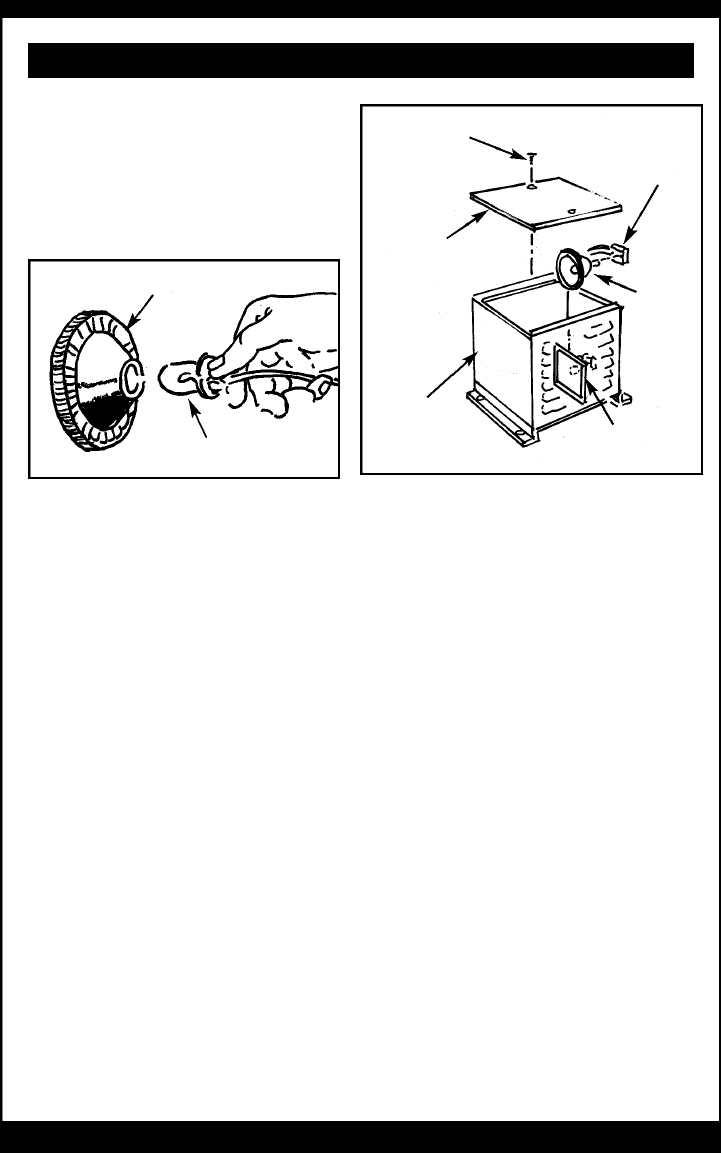

FIBER OPTICS LA MP RE PLAC E ME N T
WARNING: DO NOT ATTEMPT TO TOUCH OR
IMMEDI AT ELY REPLA CE A LA MP THAT HAS
BEEN OPERAT IONAL. THE LIGHT ASSEMBLY
CAN BE VERY HOT AND CO ULD CAUSE BURNS.
1. Turn off the power to the spa.
2. Remove the front panel of the spa.
3. Remove the two screws securing the cover
on the light assembly.
4. Remove the cover.
5. Locate the light assembly holder and pull
the light assembly straight up and out.
6. Remove the lamp form the receptacle.
7. DO NOT TOUCH the new lamp with your
fingers as the oils from your skin will cause
the lamp to fail. Position the lamp and firmly
insert it into the receptacle.
8. Replace the cover.
9. Restore the cabinet panel back into place.
10. Power up the spa.
11. Check the Top Side display and adjust for
time.
S PA MAIN T E N A N C E
S PA LIGHT
LIGHT BUL B
SC REW (2)
L I G H T
REC E P TAC L E
L I G H T
ASS E MBLY
ACC E SS
COV E R
PE RIMET E R
LIGHT POW E R
M O D UL E
L I G H T
ASS E M BLY
LIGHT ASS E MBLY
H O L D E R
DIVERTER VA LV E
Over a period of time sand or grit may intrude
into your spa. The diverter valves may become
difficult to turn. It is important that the debris be
removed as soon as possible to avoid damage to
the valve.
1 . Turn off the power to the spa.
2 . Remove the diverter handle by pulling upward
and gently rocking it.
3 . Grasp the collar and turn it counter-clockwise.
4 . Lift the valve body up.
5 . Wipe the valve body and interior walls of the
valve with a soft cloth.
6 . Inspect the valve and valve walls for any
grooves caused by the debris.
7. Using a fine grit sandpaper, smooth down any
deep furrows.
8 . Wipe the valve and wall down with a damp
cloth and remove any debris left behind.
9 . Lubricate the valve body with a waterproof
l u b r i c a n t .
10 . Reassemble the valve and restore the power
to the spa.
11 . Check the Top Side display and adjust for
t i m e .
PRIMING THE PUMP
Every so often after a spa is filled or refilled a
pump is operating but the water is not flowing
from any of its jets. This is a sign that the pump
did not properly prime.
To correct, please perform the following:
1 . Turn off the power to the spa.
2 . Remove the front cabinet panel.
3 . Turn the power back on and locate the pump
by listening to the pumps and cycling them to
determine which pump is not primed.
4 . Turn the power back off.
5 . Locate the union on the top of the pump and
loosen it to allow the air to escape. Wh e n
water begins to flow out of the union, hand
tighten the union.
6 . Turn the power back on to the spa. Activate
the pump and check to make sure that the
union is tight enough to keep from leaking.
7. Reinstall the cabinet panel and adjust the To p
Side display for time.
PAGE 25
S PA MAIN T E N A N C E
PAGE 26
WAT ER QU A L I TY AND MAIN T EN A NCE
G E NE RAL GUID E L INES FOR WATER QUA L I TY
M A IN T E N A N C E
Maintaining water quality within specific limits will
enhance your enjoyment and prolong the life of
the spa. Safe, comfortable and clean spa water is a
fairly simple task to achieve, but it does require
attention because of the numerous factors that can
alter it. There is no one formula to be followed
because of the variables, i.e. quality of the water
used to fill the spa, water temperature, user load,
etc. For specific guidelines for water quality
maintenance, consult your Vita Spa dealer who can
assist you to develop a program based on your
specific needs. Disregard for water maintenance
will result in poor soaking conditions, damage your
spa investment, and possibly void your warranty.
S PA WATER MAINTENANCE CO N S I STS OF THRE E
S E PA RATE, EAS ILY DEVELO PED PR O G RA M S :
Sanitizing and maintaining a safe level of
sanitizer in the spa water. Balancing the pH and
maintaining the recommended mineral content
level. Achieving and maintaining water clarity.
SA NI T I Z IN G
To destroy bacteria and organic compounds in the
spa water, a sanitizer must be used regularly. Th e
use of ozone as an oxidizer has proven to be an
effective method to help maintain water
cleanliness, but a residual chemical sanitizer such
as bromine, the most common sanitizer used in
spas, must be used in conjunction with ozone. Do
not drop bromine tablets directly in the spa. Th e
use of a floater is required to dispense safely and
properly the right amount of bromine in the spa
w a t e r. A bromine residual of 2 to 3 PPM is
generally considered desirable. A two-part bromine
system or granular chlorine (Dichlor) are also
acceptable sanitizers.
pH CO N T R O L
pH is a measure of acidity and alkalinity of the spa
w a t e r. The recommended pH for spa water is 7. 4
to 7.6 PPM. Below 7.0 (considered neutral), the
spa water is acidic and can cause damage to the
heating system. Above 7.8 the water is too alkaline
and can result in cloudy water and scale formation
on the spa shell, heater and cover.
IMP O R TANT: NEVER USE CHLO RINE TA BL ETS
( T RI C HLOR) IN YO UR SPA .
This chemical can have an extremely corrosive
effect on certain materials in the spa. Also, the use
of liquids, chlorine or acid, are not recommended.
Damage caused by use of any chemical, is not
covered under the spa warranty.
OZO NE WATER PURIFI C ATION SYST E M
The use of Ozone has become very popular in
spas as a water treatment method. In addition to
being a strong oxidizer, Ozone makes spa waters
easier to maintain, creates “softer” water with no
skin or eye irritation, reduces chemical sanitizer by
up to 70% and helps provide a pleasant, sparkling
environment.
Used in conjunction with a residual chemical
sanitizer such as bromine, Ozone provides the
safest and most effective way to ensure max i m u m
water quality.
Your spa comes equipped with a 24 - h o u r
BI OZO NE water purification system, the most
efficient and effective system to introduce ozone in
spa water. After being filtered and heated, the spa
water goes through a venturi ozone injector known
as a “Vitazone Injector”. The Vitazone Injector draws
ozone from a high efficiency ozone generator
and mixes it under pressure with the water.
The ozonated water travels around the spa before
it is discharged into the main body of water.
The Vitazone injector and travel time provide
optimum ozonation effectiveness with minimum
undissolved ozone release.
PAGE 27
IMPORTANT WAT ER MAIN T EN A NCE PR OCEDURE S
DA ILY
3 days a week
Check water level. Keep water above bottom of skimmer
door and a minimum of 1” above highest jet.
Check and adjust chlorine level to 1.0 to 3.0 ppm
if chlorine is used as sanitizer. If Sparkle Clear is used, check
weekly.
W EEKLY
Once a week
Test the spa water using 3-way water test strips
Adjust pH and total alkalinity. pH: 7.4 to 7.6 (ideal 7.6).
Total Alkalinity: 80 to 120 ppm
Maintain 1.0 to 3.0 ppm bromine or free chlorine.
Add 1 ounce of additive, such as “Spa Defender,” to
prevent calcium build-up.
Calcium hardness: 120 to 250 ppm.
Spray filter element to remove loose particles.
MON T HLY
Four to six weeks
Two to three months
Inspect and clean the spa filter cartridge. It is important
to maintain your spa filter cartridge and keep it clean and free
of particles which can restrict water flow. If the filter is not
cleaned on a regular basis, the filter may clog and restrict water
f l o w, which causes improper filtration and poor jet
performance. See “Filter Cleaning” instructions.
Drain your spa. Follow the procedures outlined in “Draining
Your Spa” page 22 and clean it following the procedures on
page 23. When refilling your spa, be sure to follow the
procedures outlined in “Balancing Your Spa Water” on the next
page.
PAGE 28
Water treatment is an important factor in the
enjoyment of your Vita Spa. Proper water
sanitation is essential to your health as well as
permitting years of trouble-free use of your spa.
The most common water chemistry problems
that can damage your spa are:
1. Improper pH maintenance. pH balance is
critical to proper water maintenance. Too low
of a pH level will result in corrosion of the
spa’s components.
2. Not pre-dissolving chemicals before adding to
the water.
3. Use of improper chemicals.
4.
Over chlorinization. Sodium dichlor is the
recommended type of sanitizer. Sodium
dichlor dissolves easily and has a neutral pH,
which minimizes the effect that the addition
of a sanitizer has on a pH balance. Trichlor
compounds are not recommended because
they have a very low pH, and are very potent
and difficult to dissolve.
BALANCING YOUR SPA WATER
The instructions below will assist you with balancing
the spa water for the first time. You will need
the following items to balance your spa water.
1. “3-WAY TEST STRIPS”
2. “PH-UP” and”PH-DOWN” for pH control.
3. “ MINE R AL SURFACE PR OT EC TOR” for
Calcium and Scale control.
4. “ METAL INHIBI TOR” for breakdown of
mineral deposits.
5. “ P OTA S S IUM PE R OX Y- M O N O S UL FATE” for
shock treatment.
6. “BROMINE” or “CHLORINE” for sanitizing the
spa water.
Please read “WATER MAINTENANCE” then
follow these easy ste p s :
1 . Fill your spa until the water level is 1 inch above
the highest jet. It is NOT advisable to use softened
water in your spa, as may become corrosive.
2 . Add a 1/2 pint of Spa Metal Inhibitor to prevent
iron or copper deposits from staining the finish of
your spa. If your water is known to contain high
concentrations of these metals it may be necessary
to add an additional quantity of Spa Metal Inhibitor.
3 . Use a 3-Way Spa Water Test Strip or test kit to
measure the pH and Alkalinity of your water. Th e
following instructions utilize test strips for testing.
Immerse the test strip in the spa water, following
the instructions on the test strip container label.
Compare the strip to the label to determine the
condition of the spa water.
4 . If the Alkalinity is not within the acceptable
range (80 to 120 ppm) it should be adjusted
first. If it is low, raise the alkalinity by adding
PH - UP 1 oz. at a time, retesting until the
alkalinity reaches 120 ppm. If the alkalinity is
high, it should be lowered by using PH - D OW N
1 oz. at a time.
5 . After the alkalinity is properly adjusted, the pH
is next. If the pH is above 7.8, use PH - D OW N
(1 oz. at a time) to lower it to the acceptable
range. It is extremely important to NE V E R
allow the pH of your spa water to be under
7.0, as this can severely damage your
equipment and will void the warranty.
6 . Add Sanitizer, either chlorine or bromine. Fo r
Chlorine: Follow the directions on the bottle.
Chlorine dissolves rapidly; you should get a
reading on the test strip within minutes of
application. For Bromine: Follow the directions
on your floating brominator. It is necessary to
add sodium bromine only when the spa is
being filled. Bromine tablets erode slowly, and
it may take several hours before you will get a
reading on the test strip. It may be necessary to
adjust the floating brominator.
7. To properly maintain the chemical balance of
your spa, follow the 3 day a week progr a m
outlined on pages 27 and 29 .
B A LA NCING THE SPA WAT ER
WAT ER MAIN T EN A NCE
PAGE 29
M O NDAY
1 . T E ST THE WATER US ING “3-WAY SPA
WATER TEST ST R IPS ”.
2 . Adjust pH and total alkalinity - Refer to
pH and total alkalinity on label of “PH -
UP” and “PH - D OW N ”.
3 . Maintain 1.0 to 3.0 ppm Bromine or
free Chlorine.
4 . Add 1 ounce of “METAL SURFAC E
PR OT EC T OR” to prevent calcium build
u p .
5 . Shock treat with 2 ounces of “POTA S S IUM
PE R OXY MONOSUL FAT E ”, a non-chlorine
shock, every week as needed.
W E D NES D AY
1 . Nothing required if Bromine is used as
s a n i t i z e r. Check and adjust Chlorine
level if Chlorine is used.
FRIDAY
1 . Nothing required if Bromine is used
as sanitizer. Check and adjust Chlorine
level if Chlorine is used.
TOO ALKA L INE
S CA L ING ZO NE
CO MF O RT ZO NE
TOO ACID I C
CO RR O SI V E
ZO NE
ADD pH DECREA S ER
TO LO W ER pH
ID EA L
ADD pH IN CREA SER
TO RA ISE pH
8.4
8.2
7.8
7.6
7.4
7.2
7.0
6.8
B A LA NCING THE SPA WAT ER
3 DAY A WEEK SPA CARE PROGRAM ALKALINITY
pH LEVEL
DO NOT USE SPA UN T IL TEST KIT
REA D I NG IS BELOW 5.0 ppm
RE CO MMEND ED LEV EL
S A FE
DO NOT USE SPA
ADD SANI T I ZER TO REACH
RE CO MMEND E D LEV EL
p p m
5 . 0 -
4 . 0 -
3 . 0 -
2 . 0 -
1. 0 -
0 -
SANITIZER LEVEL
Note: The above table is an
example only. Actual spa usage
will determine the amount of
chemicals required to maintain
proper chemical balance.
VERY LOW 0 ADD SO D IUM
BI CA RB O N AT E
TO IN C RE A S E
8 0
ACC E P TA BL E
ZO NE ID E A L
120
HI G H 18 0 ADD SO D IUM
BIS UL FATE TO
VERY HI G H 24 0 D EC RE A S E
PAGE 30
DO
Add all chemicals slowly with the hydro jets
operating in high speed.
DO
Use care when handling chemicals.
DO
Store granulated chlorine in a cool, dry place
to maintain the chlorine’s freshness. Granulated
chlorine will degrade if stored improperly or for a
long period of time. Do not store in sunlight.
DO
Maintain total alkalinity level within the
recommended range of 80 to 120 ppm.
The calcium hardness level should be maintained
in the 120 to 250 ppm range.
DO
Maintain the pH level within the
recommended range of 7.4 to 7. 6 .
DO
Maintain proper chemical balance to reduce
the risk of catching or spreading infection.
DO
Use granulated chlorine/bromine produced
specifically for portable spas.
DO NOT Use swimming pool chemicals in your
s p a .
DO NOT Use household bleach (liquid sodium
h y p o c h l o r i n e ) .
DO NOT Use swimming pool (muriatic) acid to
lower pH. Many swimming pool water care
products can cause damage to spa and
e q u i p m e n t .
DO NOT Allow anyone to be in the spa while
chemicals are being added or dissolving.
DO NOT Use incorrect products such as Tr i c h l o r,
which has a very low pH (2.6), dissolves very
s l o w l y, is highly concentrated, and was designed
for concrete or plaster swimming pools. It will
cause damage to your spa!
C HE MICAL SA FETY IN ST RU C T I O N S
When using chemicals, read labels carefully and
follow directions precisely. Though chemicals
protect you and your spa when used correctly, they
may be hazardous in a concentrated form.
Observe these guidelines:
DO
Accurately measure and use the exact
quantities specified, never more.
DO
Handle all containers with care. Store in a
cool, dry, well ventilated place.
DO
Keep chemical containers closed at all times
when not in use. Replace caps on proper
c o n t a i n e r s .
DO
Allow only a responsible person to handle
spa chemicals. Keep them out of the reach of
c h i l d r e n .
DO
Follow the emergency advice on the product
label in case of accidental contact, or if the
chemical is swallowed. Call a doctor or local Po i s o n
Control Center. If a doctor is needed, take the
product container along so that the substance can
be identified.
DO NOT Inhale fumes or let chemicals come in
contact with your eyes, nose or mouth. Wash your
hands after use.
DO NOT Let chemicals get on surrounding
s u rfaces or landscaping. Don’t use a vacuum
cleaner to clean up chemical spills.
DO NOT Smoke around chemicals. Fumes may
be highly flammable.
WAT ER MAIN T E N A NCE DO’S AND DON ’ TS
PAGE 31
SPA WAT ER TROUBL E SHOOT ING
SYMP TO M
Cloudy Wa te r
Wa t er Odor
Chlorine Odor
Musty Odor
Foaming
Organic Buildup/
Scum Ring
Around The Tu b
PR O BA BLE CAUSE
Inadequate filtration/dirty filter
Excessive oils/organic matter
Improper sanitation
High pH and/or high alkalinity
Suspended particles/organic matter
Overused or old water
Excessive Organics
Too many chloramines
bromamines - insufficient free
available chlorine
Improper sanitation
Low pH
Too many chloramines-insufficient
free available chlorine
Low pH
Bacterial or algae gr o wt h
Buildup of body oils,
lotion and chemicals
resulting in soap or detergent
Overused or old water
Excessive organics
Body oils and dirt
Inadequate filtration
SO LU T I O N S
Clean filter with a filter cleaner or
d e gr e a s e r .
Shock the spa with “POTA S S IUM
PE R O XY MONOSUL FAT E ”.
Increase sanitizer to recommended level.
Adjust pH; add “PH - D OW N ”.
Use clarifier
Drain the spa, clean and refill.
Shock the spa with “POTA S S IUM
PE R OXY MONOSUL FAT E ”.
Increase sanitizer level to recommended lev e l .
Raise pH with “PH - UP ”.
Shock the spa with “POTA S S IUM
PE R OXY MONOSUL FAT E ”.
Adjust pH; raise pH with “PH - UP ”
Shock the spa. If problem is visible,
draining and cleaning may be required.
Add defoamer, or drain and refill.
Drain and refill.
Shock with “POTA S S IUM PE R OXY
M O N O S UL FAT E ”.
Wipe off scum with a clean rag or use
mild detergent. If needed, drain, refill
spa, and adjust water.
Clean filter with a filter cleaner or
d e gr e a s e r .
PAGE 32
SYMP TO M
A l g a e
Eye Irritation
Skin Irrita t i o n / R a s h
Stains
S c a l e
PR O BA BLE CAUSE
High pH
Low free chlorine/bromine
Low pH
Insufficient free available
c h l o r i n e / b r o m i n e
Unsanitary/polluted water.
Chlorine/bromine level too high
(above 5ppm FAC ) .
pH or total alkalinity too low.
High iron or copper in water
s o u r c e .
Too much calcium dissolved in
water pH.
SO LU T I O N S
Shock with “POTA S S IUM PE R OXY
M O N O S UL FAT E ”, adjust pH.
Shock with “POTA S S IUM PE R OX Y
M O N O S UL FAT E ”, maintain sanitizer at
recommended level.
Raise pH with “PH - UP ”.
Shock with “POTA S S IUM PE R OXY
M O N O S UL FAT E . "
Maintain recommended sanitizer
residual at all times; super-chlorinate.
Allow chlorine/bromine level to drop
below 5 ppm before using spa.
Adjust pH and total alkalinity; use
sequestering agent; drain and clean
with appropriate product.
Use sequestering agent for metals;
adjust water
Adjust total alkalinity and pH levels
by adding the appropriate sodium
bisulfate product; with concentrated
scale deposits, drain the spa, clean the
liner (as outlined in Liner Clean Up),
refill the spa and balance the water.
SPA WAT ER TROUBL E SHOOT ING
PAGE 33
SYMPTOM
Spa Inoperative
Spa Side Inoperative
MESSAGE
BJ2P
FLO
HILI
ICE
BLO
H1 or H2
HS1
HS2
LS1
LS2
LI
O3
LS=O or LS=S
SS=O or SS=S
PB
CP
ME A NIN G
Power failure outside of spa.
Spa Side could be locked.
Purging of plumbing.
Lack of water flow through Heater.
Overheating detected. 1 Heater off
at 110º F Pumps off at 112º F.
IF THIS HAPPENS A SECOND TIME
IN A ROW, DO NOT USE SPA. CALL
FOR SERVICE.
Water in plumbing below 50 F
Call for service if spa fails to come
on.
Blower inoperative
Heater Inoperative
PUMP 1 High-speed inoperative
PUMP 2 High-speed inoperative
PUMP 1 Low-speed inoperative
PUMP 2 Low-speed inoperative
LIGHT Inoperative
No light reading at ozonator
Water temperature sensor
High Limit sensor
Break in communication
Circulation Pump Inoperative
AC T I O N
Check power source Breaker and GFCI;
Reset breaker/GFCI. Call Electrician if it
will not start.
If lock icon is visible, unlock by depressing
the “ UP ” button for 5 seconds
Normal system operation for one minute
each day at 10 AM and at 6 PM.
Remove filter and check for debris in
filter and filter adapter. If ”FLO” remains
check for closed gate valves or see
priming the pump.
SEE PAGE 15. Let water temperature
cool down to 104 F and reset by holding
”HEATER” button for 5 seconds or until
display returns to normal. If ” HIL I ”
message returns, turn power off to spa
for 15 minutes and then power up and
reboot to factory settings
No action required. Pump will come on
to circulate water and then heater.
Heater will stay on until water reaches
60 F or set temperature.
Turn power off to spa and check fuse.
Replace with 10 AMP MDL Fu s e .
Turn power off to spa for 15 minutes
Restore power and reboot to factory settings.
Turn power off to spa and check fuse
Replace with 25 AMP MDL Fuse.
Call for service.
Call for service.
See Replacement of spa light.
Press Jet button and cycle through.
Check for blue light emitting from
O z o n a t o r. Make sure that sensor is
attached to ozonator bib.
Reboot the factory settings
Reboot the factory settings
Reboot the factory settings
Call for service.
DI A GNO ST IC & TROUBL E SHOOT ING
PAGE 34

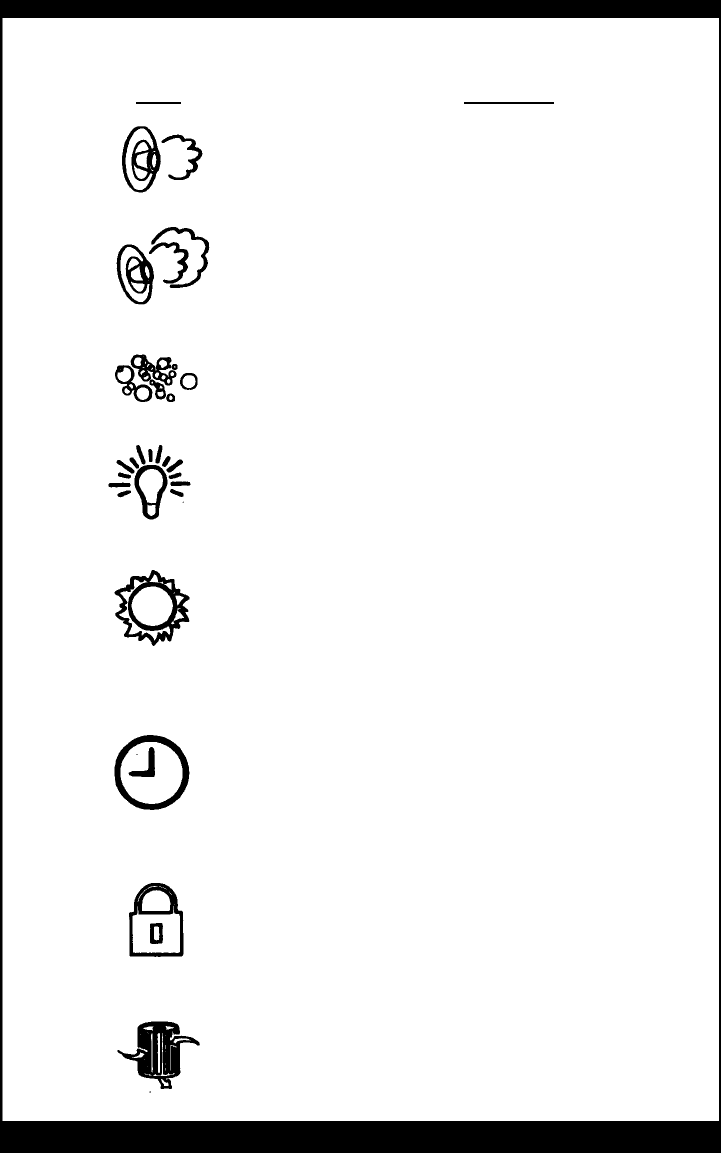

Jet Therapy Soft-mode (Low Speed)
Jet Therapy Power-mode (High Speed)
Air Injection Blower On
Light On
S t i l l : H e a ter is on
F l a s h i n g : Temperature Adjustment Mode
S t i l l : Economy Mode (No timer Icon
means Standard Mode)
F l a s h i n g : Day and Time Adjustment Mode
S t i l l : H e a ter adjustment is locked
F l a s h i n g : Panel lock. All buttons are deactivate d
S t i l l : F i l ter is On
F l a s h i n g : F i l t er adjustment Mode
IC ON ME A NING
LCD DISPLAY GLO S S A R Y
PAGE 35
Maintenance Log
Use this page to print a template sheet to record details of
when you perform any maintenance on your spa.
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
DM Industries, Ltd., 2320 Northwest 147th Street, Miami, Florida 330 54
Phone: (305) 685-2063 or (305) 908-8187 • Toll Free: (877) 24 0 - 9 4 57
FAX: (305) 685-979 4
MIAMI FLORIDA
Vita Inte r n a t i o n a l
Division of
Is a Registered Trademark of
SPA02-0228PDF
© 2002 DM IN DUSTR IES • ALL RIGHTS R ESERVED

Navigation menu
