TUSCANY
DAMON MOTOR COACH
2006
Elevating the motorhome experience.
Since its introduction in 2005, the stylish Tuscany diesel pusher has been Damon’s masterwork — one of the most
luxurious motorhomes on the market today.
For 2006, we proudly announce that Tuscany is even better. Just about everything inside and outside has been
improved, with more amenities, more standard features, more horsepower and fewer options (because most of them
are now standard). More than ever, Tuscany is loaded with comfortable surroundings, amenity-rich luxury and an
incredibly long list of valuable standard features, including high ceilings, more storage and accessories.
But one thing isn’t new for 2006. Tuscany’s price tag remains low in relation to the high-end motorhomes with
which it compares. Some things never change.
Elevating the motorhome experience.

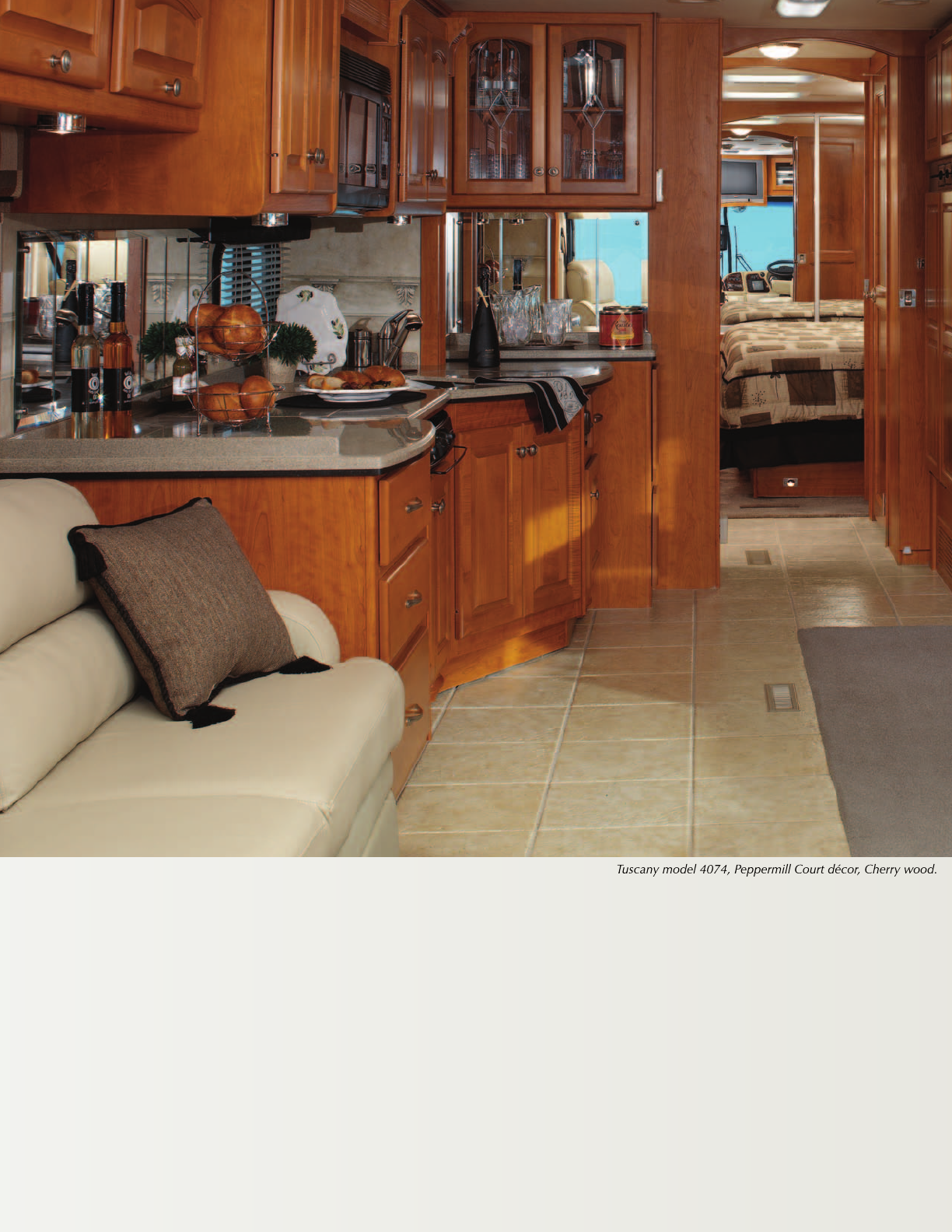

Tuscany model 4074, Peppermill Court décor, Cherry wood.

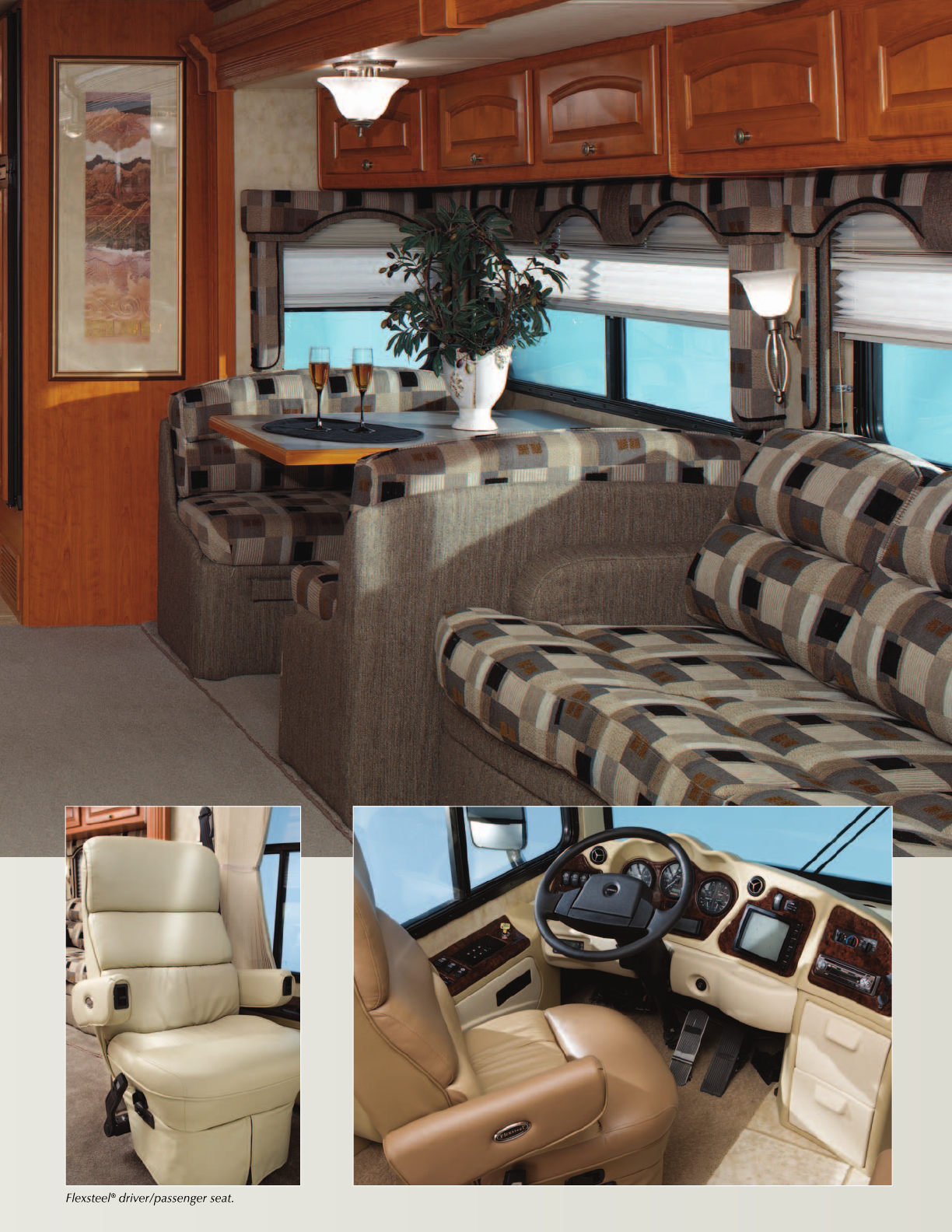

Flexsteel® driver/passenger seat.
You’ll never have to leave luxury behind.
Tuscany offers a completely new front-end cap,
including newly designed hood, headlights, clearance
lights and an enormous windshield that dramatically
increases your fi eld of vision.
The dash has been revamped as well, now
including a three gauge IP panel, ABS dash pod, a 7-inch
back up monitor for safety’s sake and gooseneck map
lights. Plus the dash area is now padded for extra safety.
Window size increases for 2006 — larger cockpit
windows for driver and passengers, plus larger windows
in the living room slide-out.

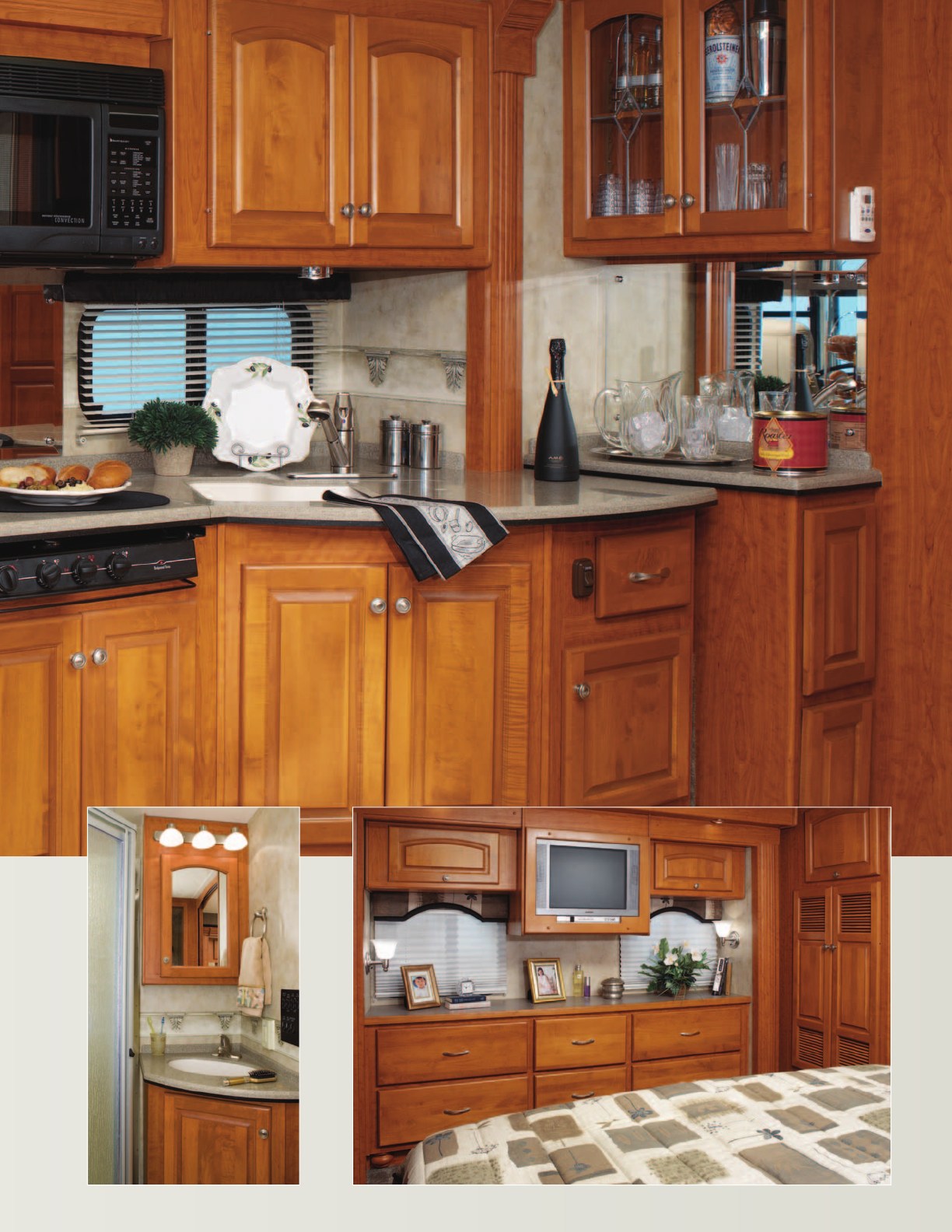

Quality is always in the details, and in the
Tuscany it includes elegant decorative feet below the
kitchen cabinets, wood arches on the wardrobe and in
the hallways, stylish glass inserted on the front
overhead and decorative slide-out fascia trim.
There are many more upscale attributes. Take a look
at the new electronic control panel above Tuscany’s entry
door and the rugged steel reinforcement in the front over-
head. And check out the new automatic hydraulic leveling
jacks and the new Flexsteel® driver and passenger seats
with adjustable arms.
Fresh for ’06.

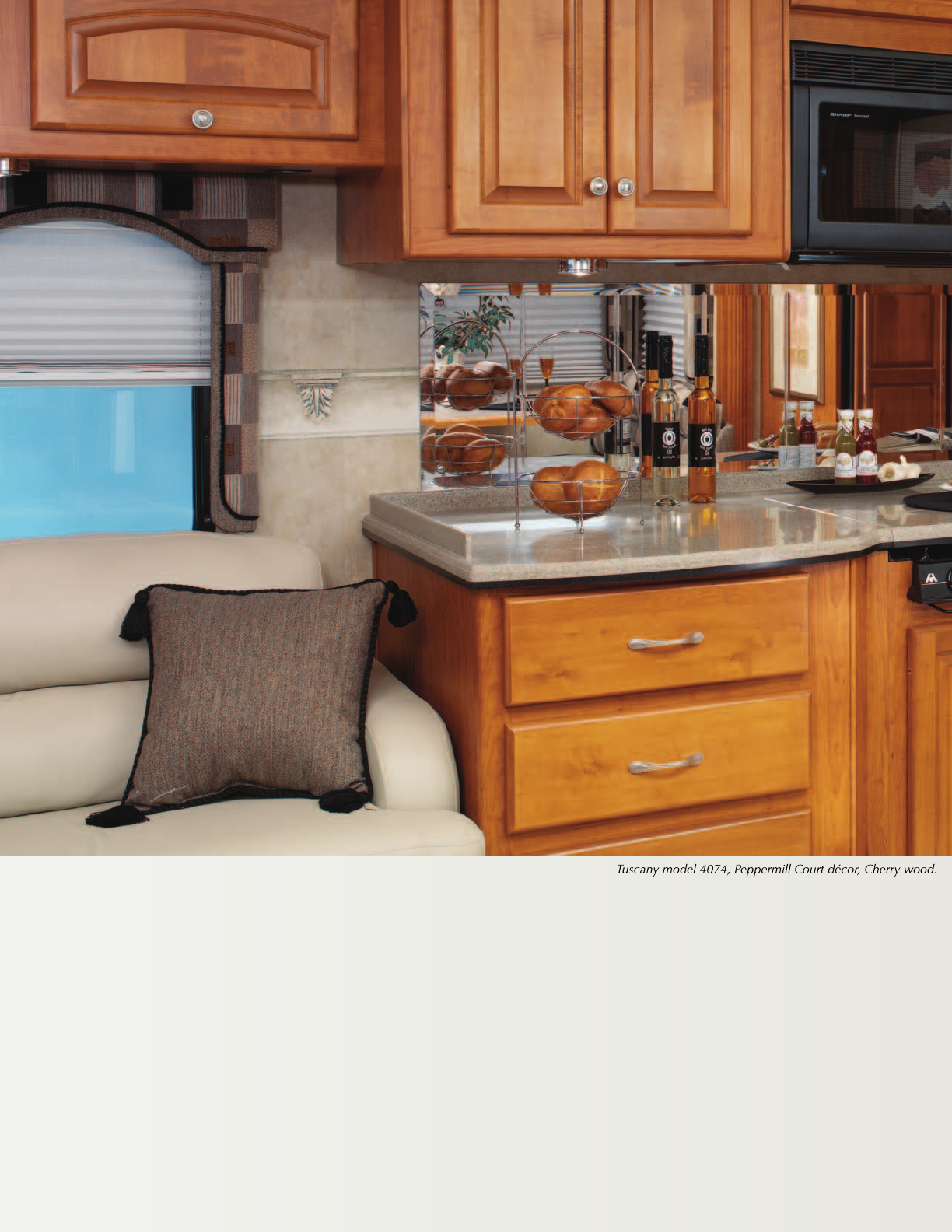

Tuscany model 4074, Peppermill Court décor, Cherry wood.
4074
Quadruple slideout. Large living space. King-size bed.
3974
Triple slideout. Dual vanities. Residential kitchen countertops.
Floor Plans
Whichever Tuscany fl oor plan you choose, you can
be sure it’s been thoughtfully created to provide the
roomiest, most comfortable, most convenient travel
living experience you’ve ever had.
Value by Design. It’s our driving force.
If it seems like most of our motorhomes are
loaded with features, you’re right. It’s part of our “Value
by Design” way of doing business. You see, we become
more effi cient when we offer more of your favorite
amenities standard. Construction is more streamlined.
And you get more motorhome. For less. This is just one
of the ways we design more value into every motor-
home we manufacture.
In addition, unlike many of our competitors who
produce motorhomes, towables and other products,
the sole focus of our business is Class A motorhomes.
We believe this simplifi es our manufacturing process
and helps us focus on doing a single job exception-
ally well. Doing that job well also means using only
high-quality materials, components and state-of-the-art
construction techniques. All told, it’s what we call,
“Value by Design.”
Value by Design. It’s more than a slogan; it’s our
way of delivering more motorhome for your money.
Décor
Damon’s interior designers and engineers have created
a choice of exciting environments that not only help
you feel right at home, but also lend a sense of your
personality to the Tuscany.

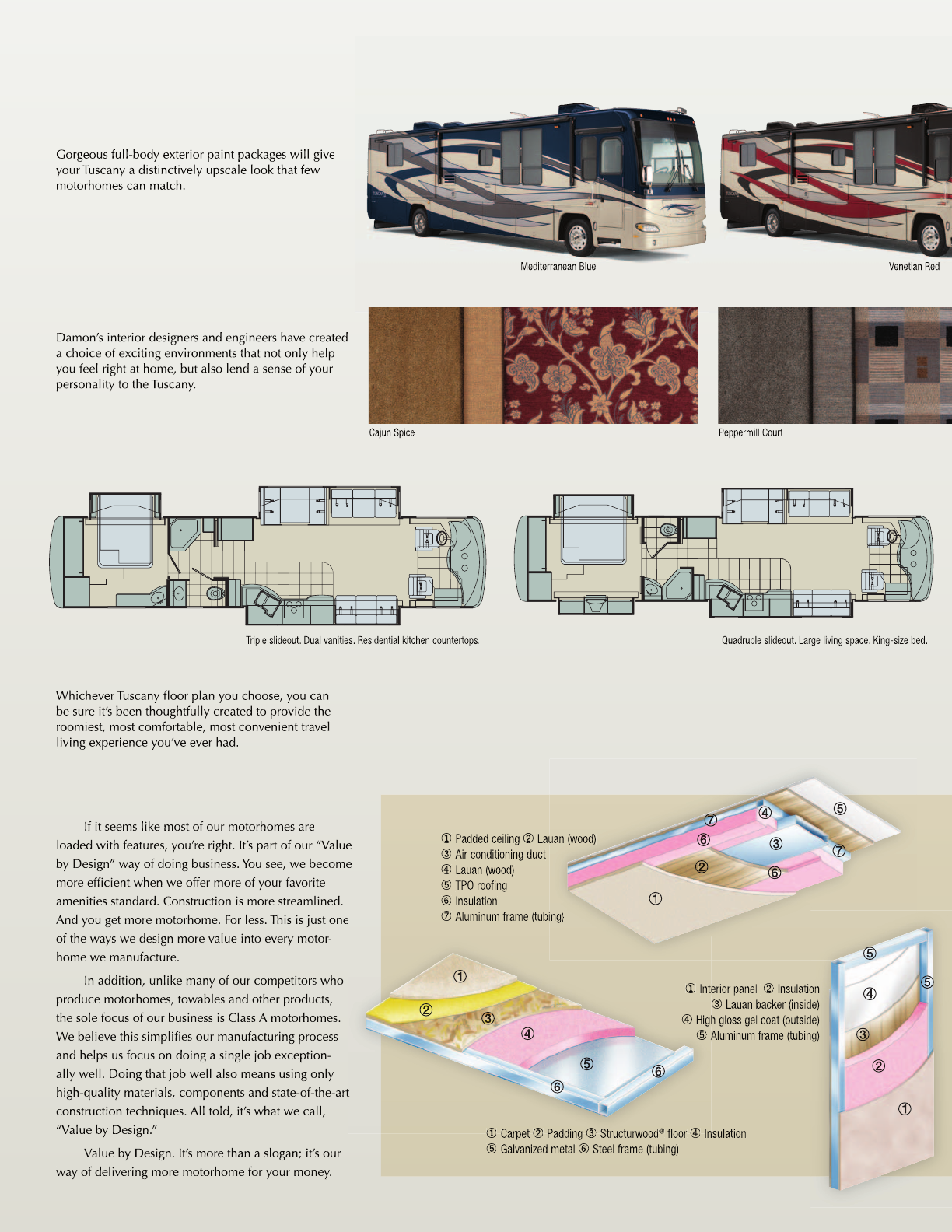

Paint
Gorgeous full-body exterior paint packages will give
your Tuscany a distinctively upscale look that few
motorhomes can match.
Cajun Spice
Peppermill Court
1
2
3
4
5
6
7
6
7
4
3
2
1
5
5
high-quality materials, components and state-of-the-art
1
2
3
4
5
6
6
FLOOR
Carpet
Carpet
Padding
Padding
Structurwood
Structurwood
®
fl oor
fl oor
Insulation
Insulation
Galvanized metal
Steel frame (tubing)
SIDEWALLS
Interior panel
Interior panel
Insulation
Insulation
Lauan backer (inside)
Lauan backer (inside)
High gloss gel coat (outside)
High gloss gel coat (outside)
High gloss gel coat (outside)
Aluminum frame (tubing)
Aluminum frame (tubing)
Aluminum frame (tubing)
ROOF
Padded ceiling
Lauan (wood)
Lauan (wood)
Air conditioning duct
Lauan (wood)
TPO roofi ng
Insulation
Aluminum frame (tubing)
Aluminum frame (tubing)
Venetian Red
Mediterranean Blue
4077
Dual slideout. TV in living room entertainment center. Extra wardrobe space.
4075
Double slideout. Dual zone living. Extra large shower.

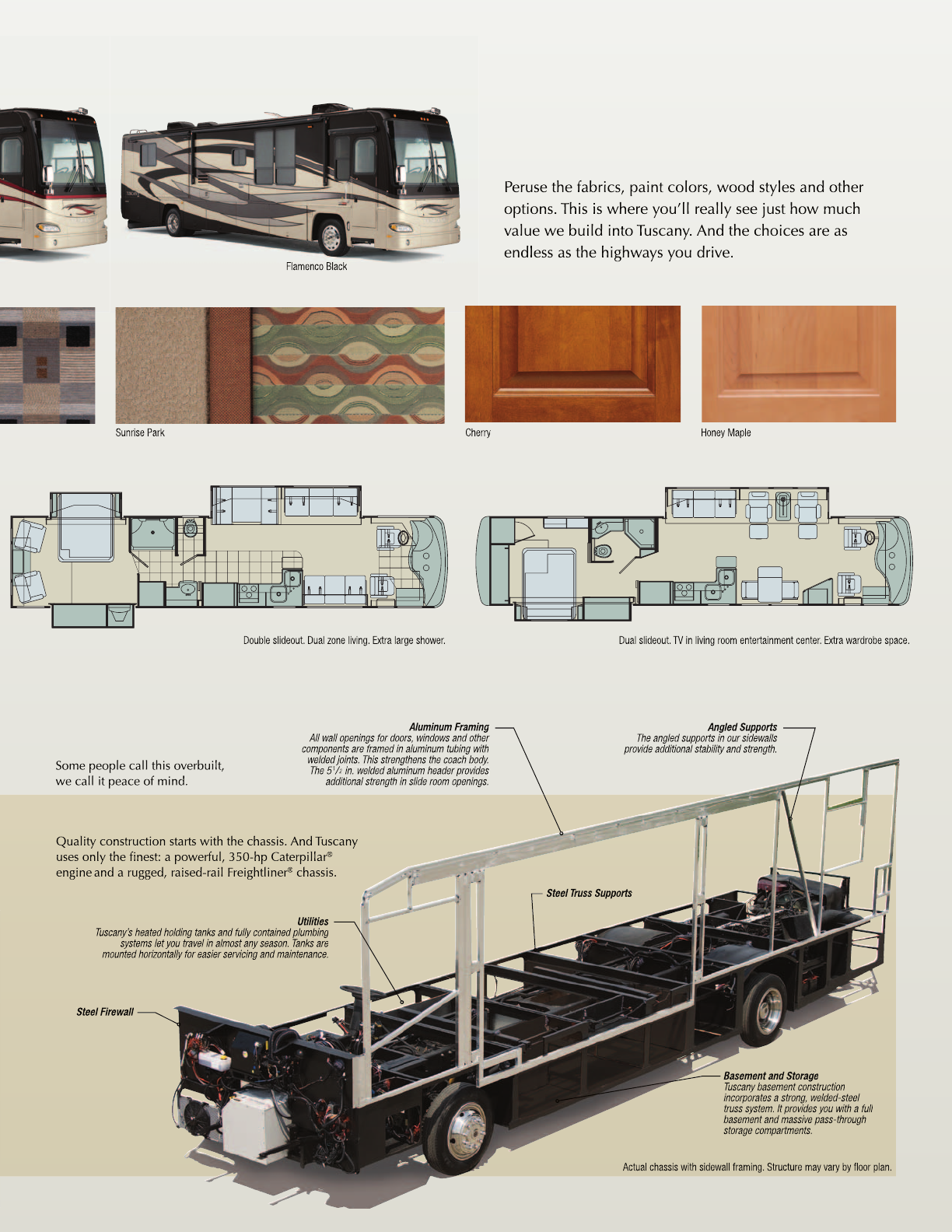

Stylish surroundings.
Peruse the fabrics, paint colors, wood styles and other
options. This is where you’ll really see just how much
value we build into Tuscany. And the choices are as
endless as the highways you drive.
Steel Firewall
Sunrise Park
Honey Maple
Cherry
Aluminum Framing
All wall openings for doors, windows and other
components are framed in aluminum tubing with
welded joints. This strengthens the coach body.
The 5
1
/
2
/2
/
in. welded aluminum header provides
2 in. welded aluminum header provides
2
additional strength in slide room openings.
Angled Supports
The angled supports in our sidewalls
provide additional stability and strength.
Utilities
Tuscany’s heated holding tanks and fully contained plumbing
systems let you travel in almost any season. Tanks are
mounted horizontally for easier servicing and maintenance.
CHASSIS
Quality construction starts with the chassis. And Tuscany
uses only the fi nest: a powerful, 350-hp Caterpillar
®
engine
and a rugged, raised-rail Freightliner
®
chassis.
Flamenco Black
Basement and Storage
Tuscany basement construction
incorporates a strong, welded-steel
truss system. It provides you with a full
basement and massive pass-through
storage compartments.
Steel Truss Supports
Actual chassis with sidewall framing. Structure may vary by fl oor plan.
Damon Construction
Some people call this overbuilt,
we call it peace of mind.
P.O. Box 2888 • Elkhart, IN 46515
Customer Service: 800-860-3812
Sales Department: 800-860-5658
www.DamonRV.com
Due to constant product improvements, the specifi cations, component parts and standard/optional equipment are subject to change without notice or obligation. Product photography or diagrams may show equipment that is
optional. Damon Motor Coach reserves the right to make changes in prices and models and to discontinue models without notice or obligation. Components, parts or chassis may have been manufactured at times other than the
model year indicated. All capacities are approximate and dimensions are nominal. All dry weights are based on standard model features and do not include optional features or equipment. Various RV components and features
may differ to conform to local codes. Due to EPA environmental restrictions, engine power and torque ratings may change mid-year.
DC 8/05 © 2005 Damon Motor Coach Printed in U.S.A.

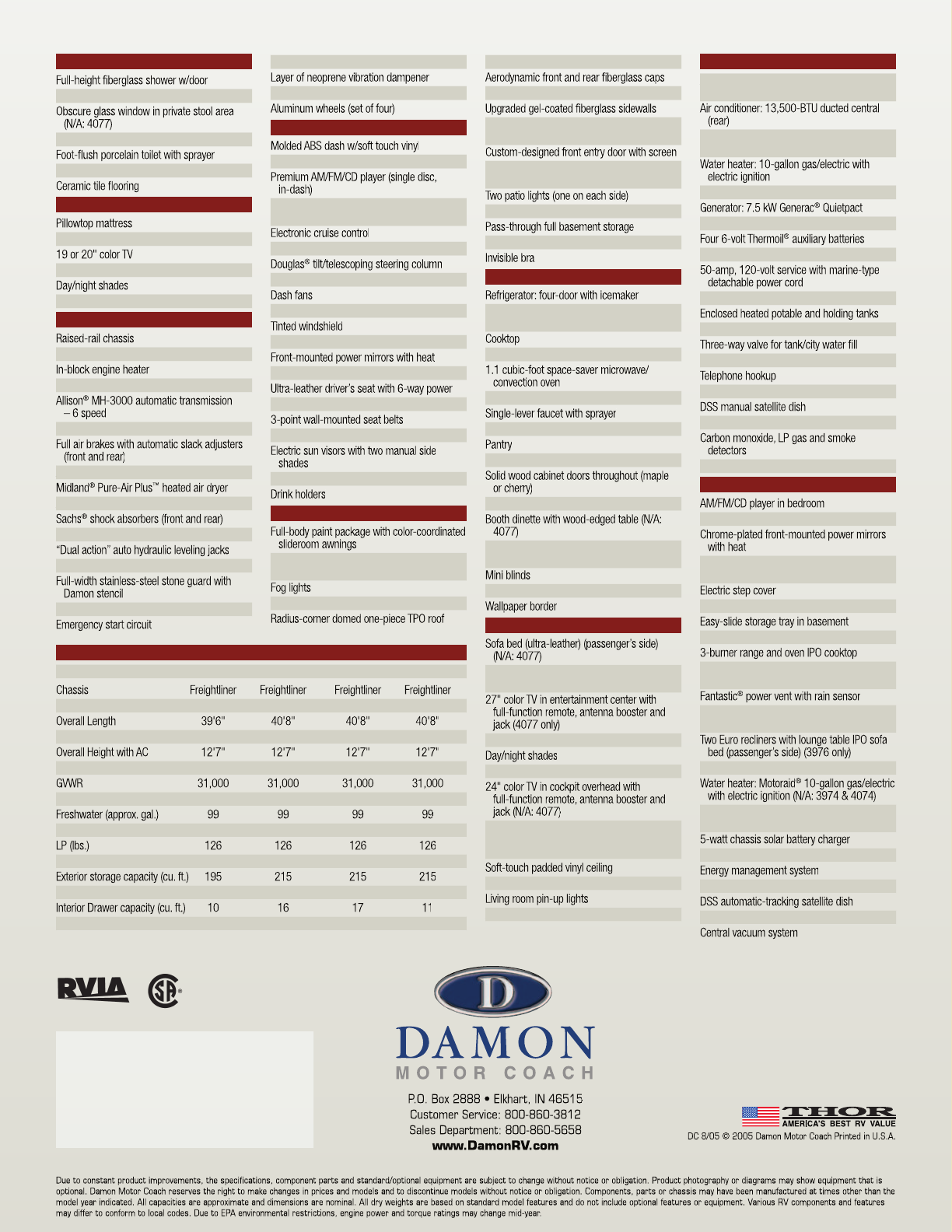

Weights and Measures
Model 3974 4074 4075 4077
Chassis Freightliner Freightliner Freightliner Freightliner
Wheelbase 252 266 266 266
Overall Length 39'6" 40'8" 40'8" 40'8"
Overall Width 101" 101" 101" 101"
Overall Height with AC 12'7" 12'7" 12'7" 12'7"
Std. weight (approx. lbs.) 26,052 26,356 25,970 25,208
GVWR 31,000 31,000 31,000 31,000
GCWR 41,000 41,000 41,000 41,000
Freshwater (approx. gal.) 99 99 99 99
Grey/black water (approx. gal.) 50 50 50 50
LP (lbs.) 126 126 126 126
Sleeping capacity 4 4 4 4
Exterior storage capacity (cu. ft.) 195 215 215 215
Interior Drawers 15 16 17 13
Interior Drawer capacity (cu. ft.) 10 16 17 11
Fuel capacity (approx. gal.) 100 100 100 100
Bathroom
Full-height fi berglass shower w/door
Skylight in shower
Obscure glass window in private stool area
(N/A: 4077)
Power vent
Foot-fl ush porcelain toilet with sprayer
Wallpaper border
Ceramic tile fl ooring
Bedroom
Pillowtop mattress
Bedspread with throw pillows
19 or 20" color TV
Lambrequin window treatments
Day/night shades
Pin-up lights
Chassis
Raised-rail chassis
350-hp Caterpillar
®
engine
In-block engine heater
Leece Neville
®
160-amp, 12-volt alternator
Allison
®
MH-3000 automatic transmission
– 6 speed
Exhaust brake
Full air brakes with automatic slack adjusters
(front and rear)
Antilock brakes
Antilock brakes
Midland
®
Pure-Air Plus
™
heated air dryer
Air-ride suspension system
Air-ride suspension system
Sachs
®
shock absorbers (front and rear)
22.5" radial tires
“Dual action” auto hydraulic leveling jacks
Rear steel wheel well liners
Full-width stainless-steel stone guard with
Damon stencil
Trailer hitch (10,000 lbs.)
Emergency start circuit
Under-hood light
Layer of neoprene vibration dampener
Dual fuel fi lls
Aluminum wheels (set of four)
Cockpit
Molded ABS dash w/soft touch vinyl
Electronically controlled dash air conditioning
Premium AM/FM/CD player (single disc,
in-dash)
Premium 4-speaker system with powered
subwoofer
Electronic cruise control
Padded steering wheel
Douglas
®
tilt/telescoping steering column
Map lights
Dash fans
Air horns
Air horns
Tinted windshield
Windshield privacy shade
Front-mounted power mirrors with heat
Ceramic tile entry
Ultra-leather driver’s seat with 6-way power
Ultra-leather passenger seat with 6-way power
3-point wall-mounted seat belts
Storage cabinets above driver and passenger
Electric sun visors with two manual side
shades
Backup monitor system with audio
Drink holders
Exterior
Full-body paint package with color-coordinated
slideroom awnings
Color-coordinated electric patio awning with
remote control and wind sensor
Fog lights
Wide-body design
Radius-corner domed one-piece TPO roof
Rear ladder
Aerodynamic front and rear fi berglass caps
Side-mounted awning over slideout
Upgraded gel-coated fi berglass sidewalls
Locking aluminum exterior storage
compartments
Custom-designed front entry door with screen
Black-framed, dual-pane, radius-cornered
windows
Two patio lights (one on each side)
Lighted storage compartments
Pass-through full basement storage
Gas pistons on exterior storage doors
Invisible bra
Kitchen
Refrigerator: four-door with icemaker
Refrigerator: raised-panel hardwood front
(maple or cherry)
Cooktop
Solid-surface range cover
1.1 cubic-foot space-saver microwave/
convection oven
Two solid-surface sink covers
Single-lever faucet with sprayer
Kitchen faucet water fi lter
Pantry
Solid-surface countertops
Solid wood cabinet doors throughout (maple
or cherry)
Ceramic tile fl ooring
Booth dinette with wood-edged table (N/A:
4077)
Freestanding dinette with four chairs (two fi xed
and two folding) (4077 only)
Mini blinds
Fantastic
®
power vent
Wallpaper border
Living Area
Sofa bed (ultra-leather) (passenger’s side)
(N/A: 4077)
Two Euro recliners with coffee table and lamp
IPO sofa bed (driver’s side) (4077 only)
27" color TV in entertainment center with
full-function remote, antenna booster and
jack (4077 only)
Hide-a-bed (décor fabric)(driver’s side)
Day/night shades
100% continuous-fi lament nylon carpeting
24" color TV in cockpit overhead with
full-function remote, antenna booster and
jack (N/A: 4077)
Home theater package (VCR, DVD/CD player
and 5-channel Dolby
®
Pro-Logic receiver
amplifi er)
Soft-touch padded vinyl ceiling
Fluorescent lighting
Living room pin-up lights
Aisle lights
Aisle lights
Utilities
Air conditioner: 13,500-BTU ducted central
Air conditioner: 13,500-BTU ducted central
(front)
Air conditioner: 13,500-BTU ducted central
(rear)
Furnace: 35,000-BTU electronic ignition
fl oor-ducted
Water heater: 10-gallon gas/electric with
electric ignition
Water heater bypass kit
Generator: 7.5 kW Generac
®
Quietpact
Inverter: 2000-watt
Four 6-volt Thermoil
®
auxiliary batteries
Battery disconnect
50-amp, 120-volt service with marine-type
detachable power cord
Exterior GFCI receptacle inside compartment
Enclosed heated potable and holding tanks
Black water tank fl ush
Three-way valve for tank/city water fi ll
Washer/dryer prep
Telephone hookup
Cable TV/satellite hookup
DSS manual satellite dish
Exterior shower
Carbon monoxide, LP gas and smoke
detectors
Monitor panel with LPG readout
Popular Options
AM/FM/CD player in bedroom
Multi-disk CD changer
Chrome-plated front-mounted power mirrors
with heat
Ultra-leather oversized passenger seat with
6-way power and electric foot rest
Electric step cover
Color-coordinated window awnings
Easy-slide storage tray in basement
Exterior entertainment center with 20" TV
3-burner range and oven IPO cooktop
Buffet with additional storage and four chairs
(two fi xed and two folding) (N/A: 4077)
Fantastic
®
power vent with rain sensor
Two Euro recliners IPO sofa bed (passenger’s
side) (4075 only)
Two Euro recliners with lounge table IPO sofa
bed (passenger’s side) (3976 only)
Hide-a-bed (ultra-leather) (driver’s side)
Water heater: Motoraid
®
10-gallon gas/electric
with electric ignition (N/A: 3974 & 4074)
Dual heat pumps with 15,000-BTU A/C and
12,700-BTU heat
5-watt chassis solar battery charger
Generator: 7.5 kW Onan
®
diesel
Energy management system
Washer/dryer combo
DSS automatic-tracking satellite dish
Motoraid
®
auxiliary rear heater
Central vacuum system

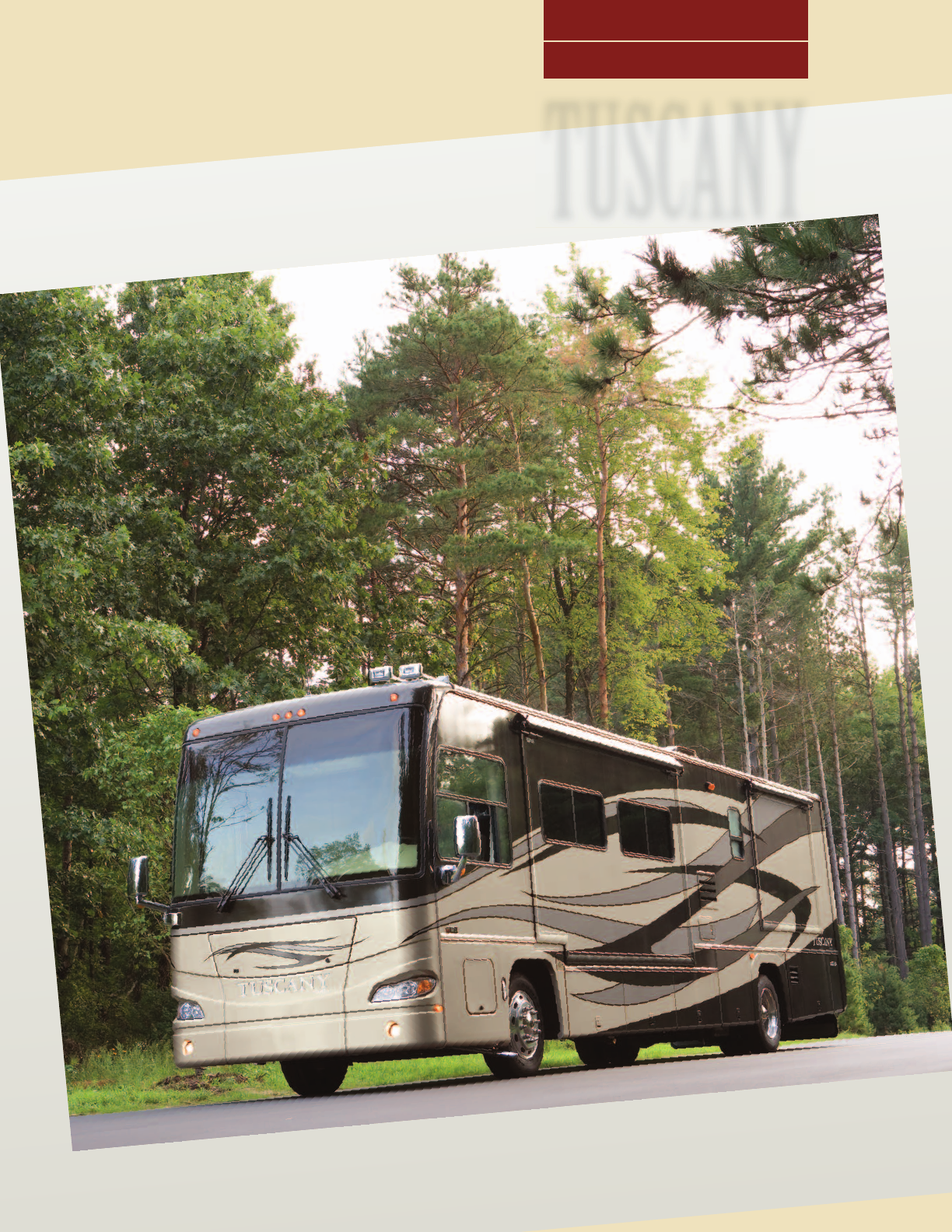

Tuscany standard specifications and features
