COMPONENTS AND SYSTEMS
2010
ENG
RCF S.p.A. Italy
tel. +39 0522 274 411
e-mail: info@rcf.it
RCF UK
tel. 0844 745 1234
e-mail: info@rcfaudio.co.uk
RCF France
tel. +33 1 49 01 02 31
e-mail: rcffrance@aol.com
RCF Germany
tel. +49 2203 925370
e-mail: germany@rcf.it
RCF Spain
tel. +34 918174266
e-mail: info@rcfaudio.es
RCF USA Inc.
tel. +1 (603) 926-4604
e-mail: info@rcf-usa.com
03/2010-SM10116129
www.rcfaudio.com
HEADQUARTERS:
2010
COMMERCIAL AUDIO PUBLIC ADDRESS
COMMERCIAL AUDIO PUBLIC ADDRESS COMPONENTS AND SYSTEMS
1949 - 2009:
60 YEARS
AT THE FOREFRONT
OF THE AUDIO
INDUSTRY
Founded in 1949, RCF built its history of sound
amplification from basic solutions for small
spaces to vast and complex digital systems for
theatres, shopping malls, airports, railway stations,
underground metro’s, exhibition centres, schools,
hospitals, sports arenas, stadia, hotels.
Our Product’s design and manufacturing are held
in the Reggio Emilia headquarters where more
than 240 people are employed ensuring the high
quality of RCF’s products and systems.
Today RCF produces a wide and diverse range
of products to satisfy any sound and musical
amplification need. This can range from a single
product to complete integrated solution. In doing
so, the company can cover everything from a small
project to very large and complex system.
RCF controls every step of the production process,
from the design to the construction and marketing
of its products. Owning its own transducers
technology gives RCF an enormous advantage in
the development of complete speaker systems,
achieving the perfect match between transducers
and electronics, now more and more focused on
digital technology.
4
The continuing effort in research and development is a
strategic asset, in which the company invests a great
amount of human, financial and technical resource.
The high knowledge level reached by the Company led
to a close cooperation with Universities in the research
of new materials, of innovative production process and
for the study of algorithms to apply in the newest digital
products.
Thanks to the constant innovation by a group of
dedicated sound engineers, the company offers a range
of groundbreaking products that takes the RCF brand, a
protagonist of ‘Made In Italy’ into the audio sector all
over the world.
A strict Quality Control dept verifies, for every component and finished product,
the reaching of the established standards. Special procedures and severe controls
complying to the highest international standards have been implemented and all
products are tested one by one. RCF has been certified ISO 9001 since 1995.
RCF has a complete International project design office. Our team has available
Professional Acousticians – Electronic System designers and Professional
Engineers that will work to provide project quotations and designs for any
system large or small. We work in partnership with Integrators, Consultants,
Engineering Companies from initial design through to final system
commissioning.
Ãan advanced factory for the production and after sales services;
Ãlaboratories and hi tech instruments for testing, research and development
of the products;
Ãmodern machines for packing and shipment;
Ãanechoic chambers for acoustic measurements;
Ãtools for testing vibrations and thermal behaviour;
Ãreal time materials handling management with computers and software.
THE REGGIO EMILIA HEADQUARTERS INCLUDE:
5
8
7
18
24
26
40
42
60
70
82
86
90
96
SOUND SYSTEMS EN 60849 NORM COMPLIANT
To completely control and manage background music and paging, even for
emergency and evacuation purposes, with signals and controls EN 60849 compliant.
MULTI-ZONE SYSTEMS
Paging and background music to different zones.

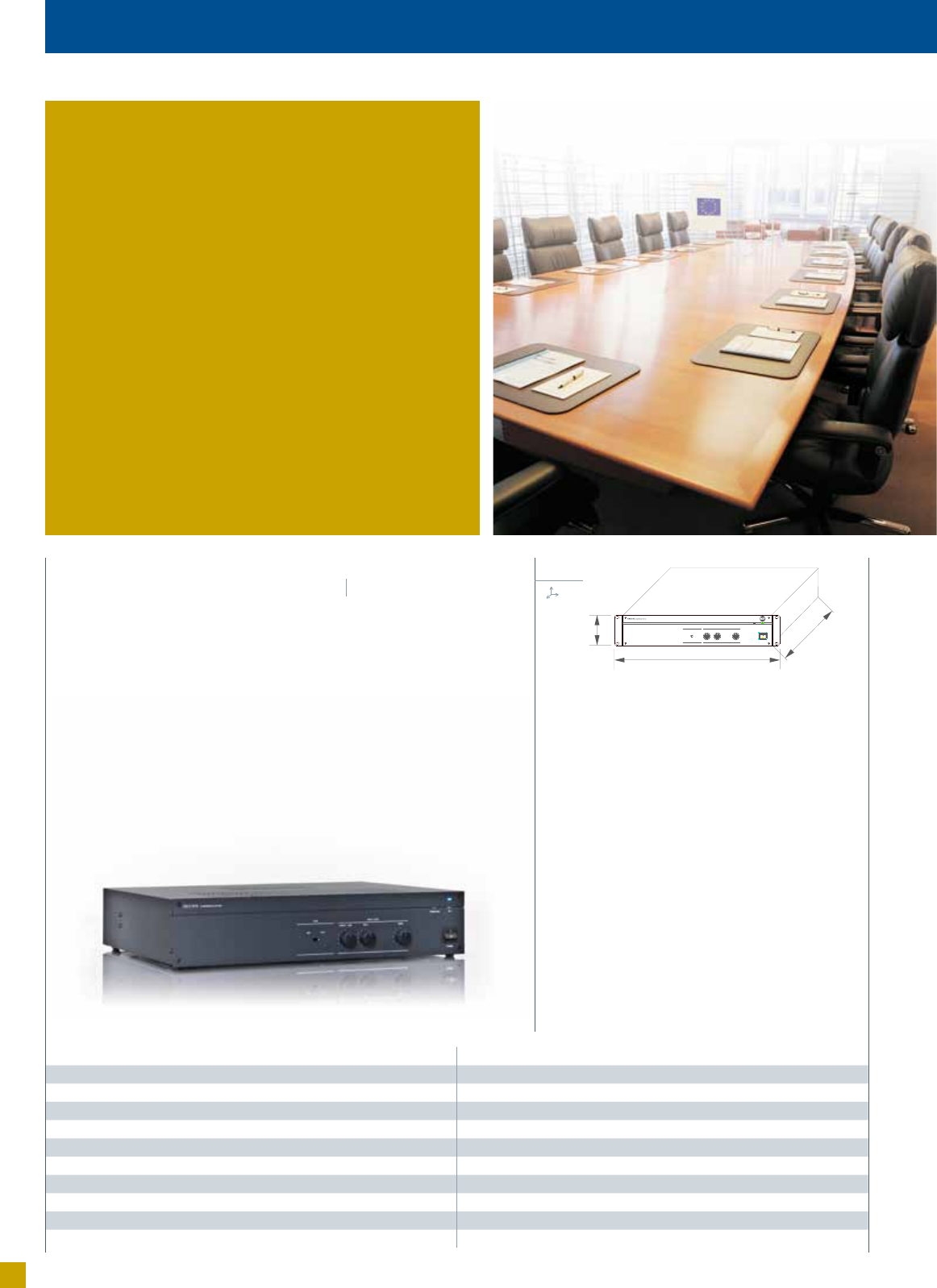

CONFERENCE SYSTEMS
Flexible, easy to use and install. Suitable for any small hall or council
chambers.

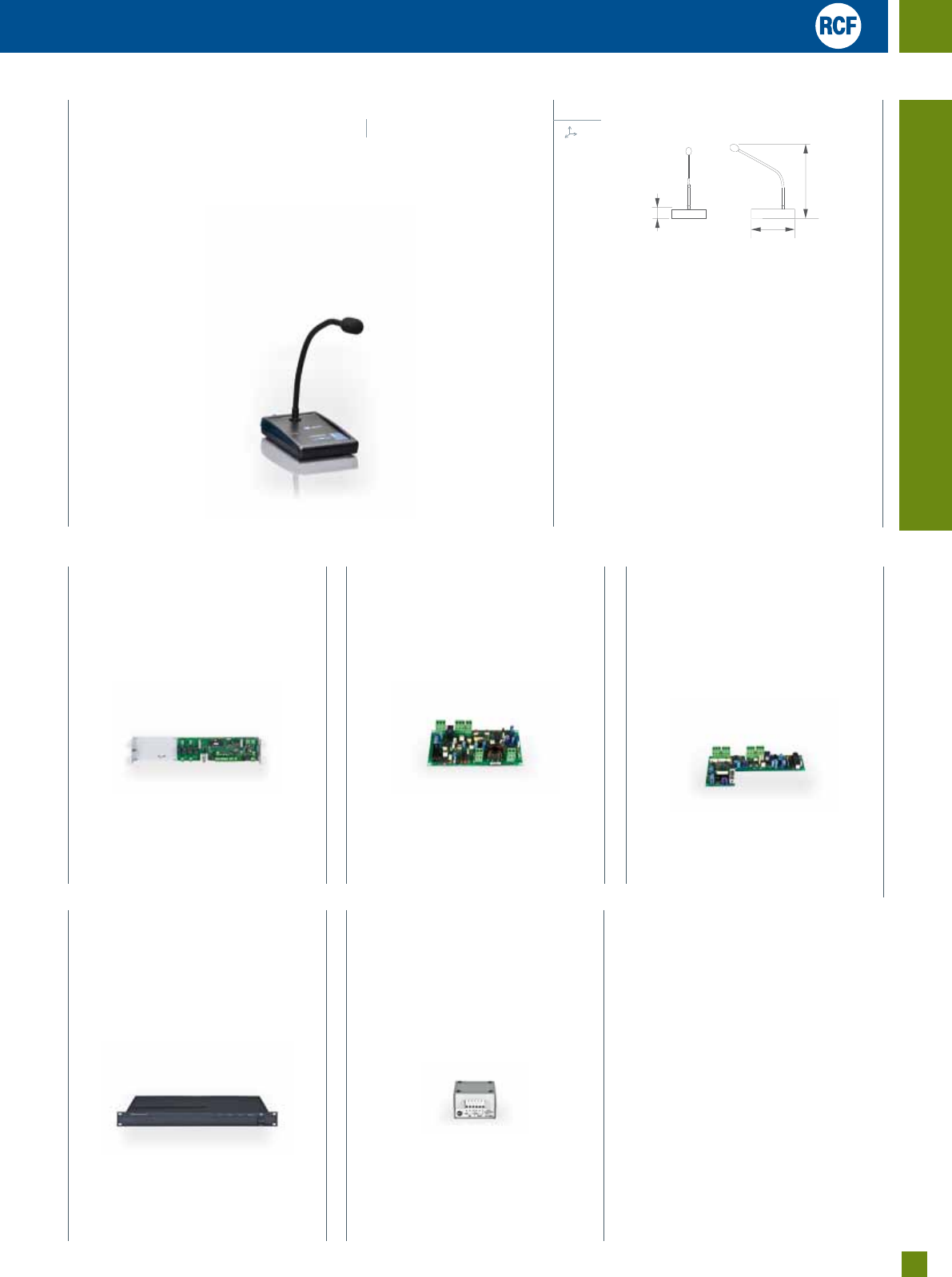

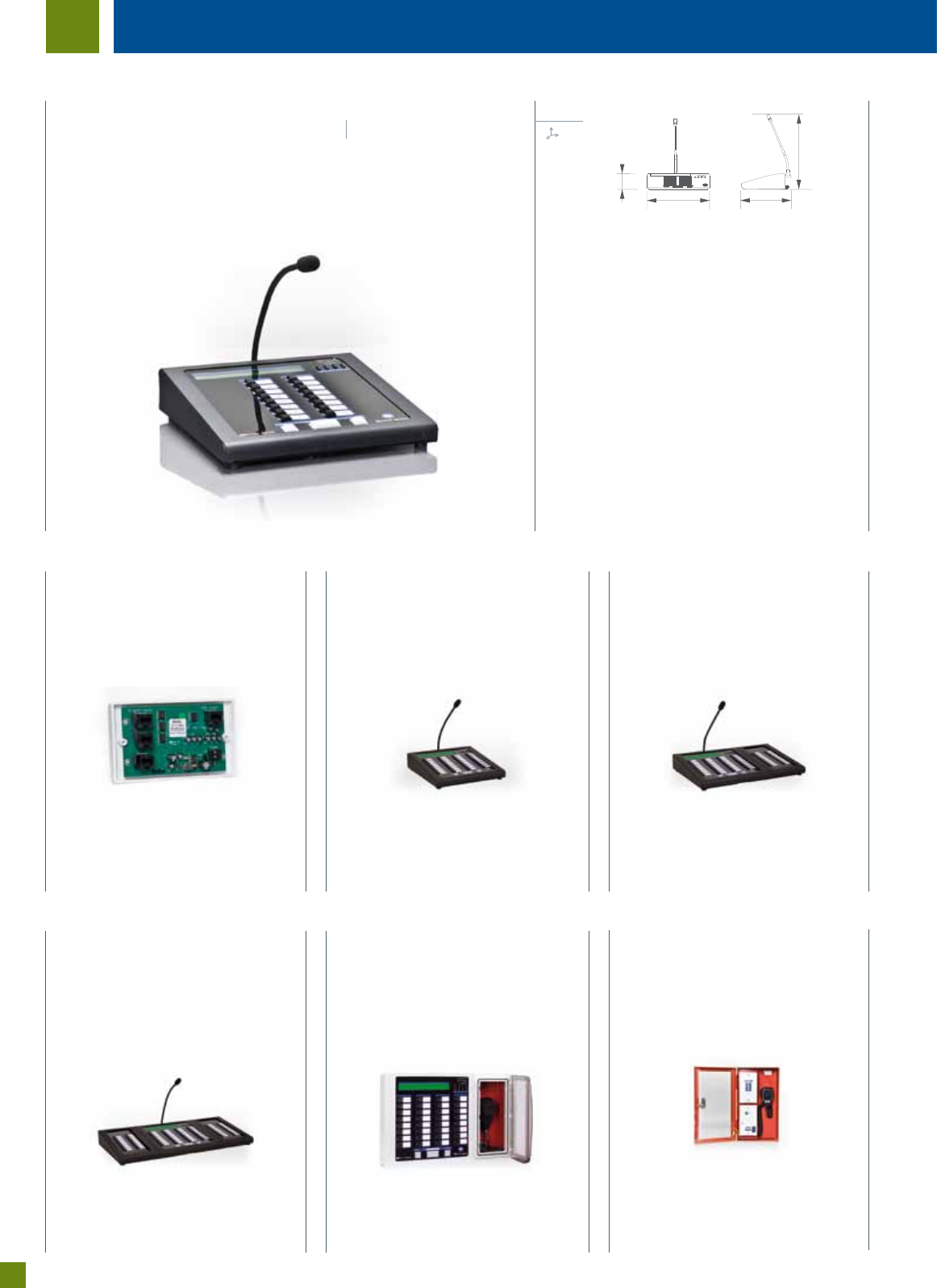

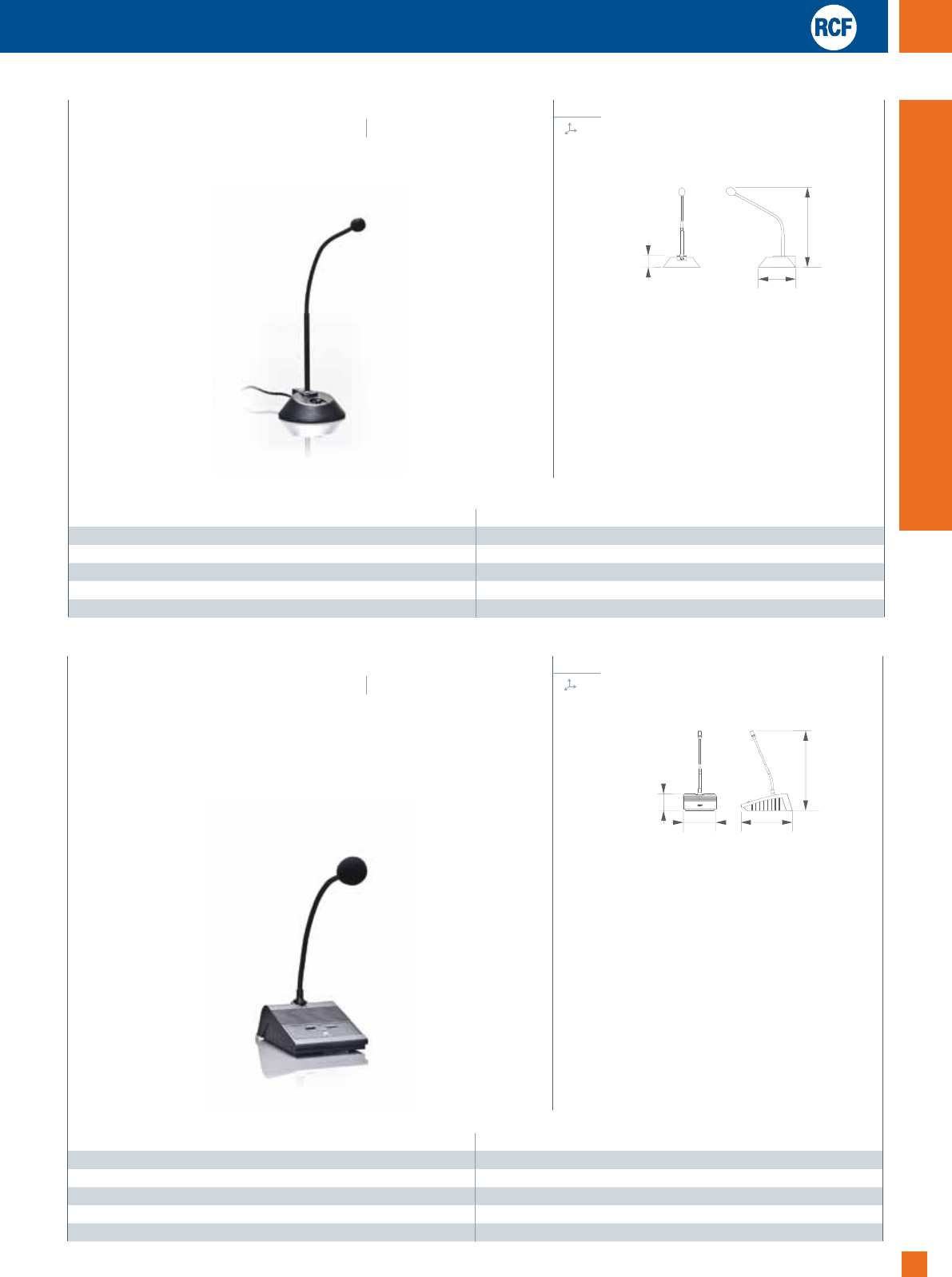

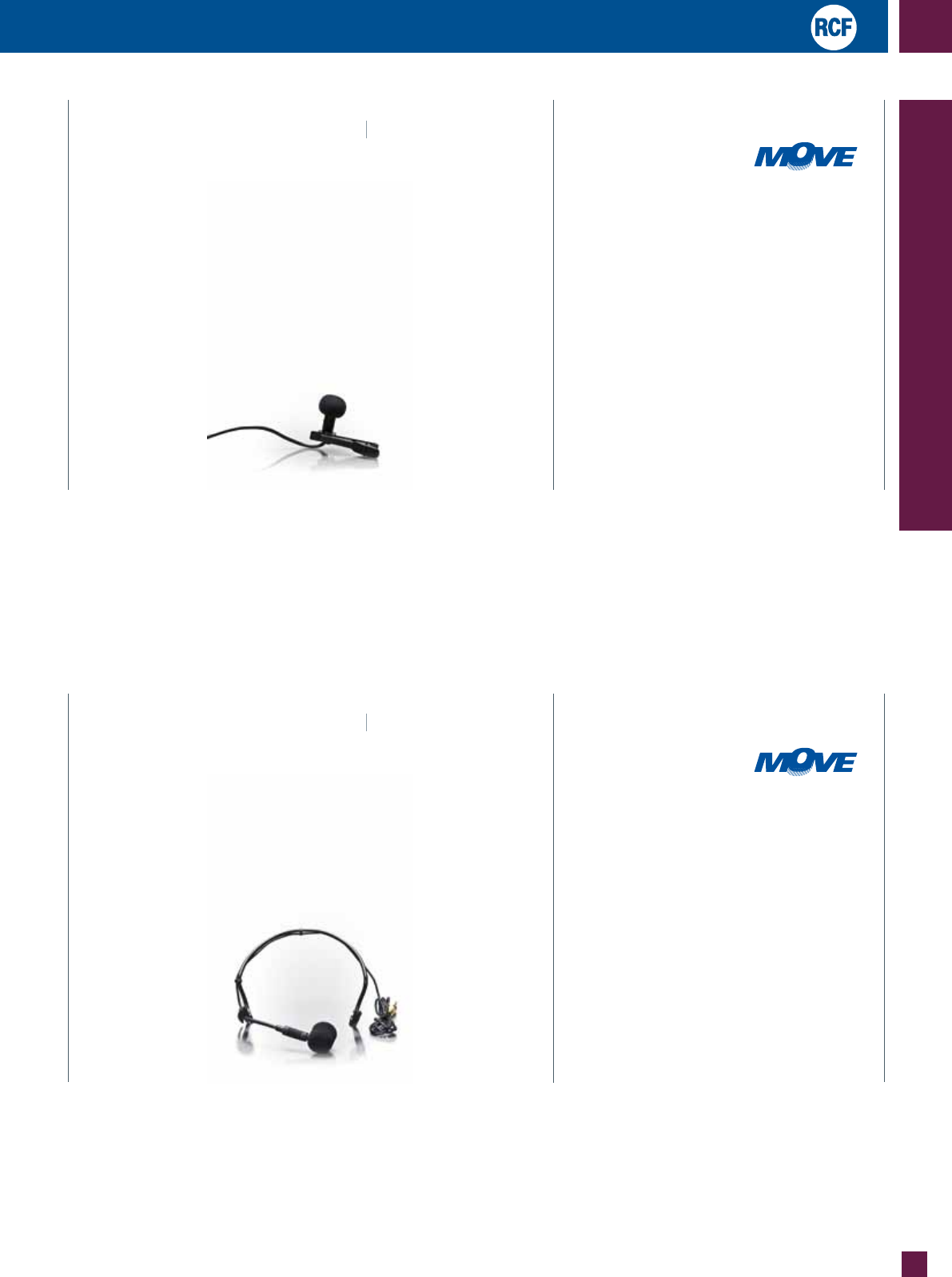

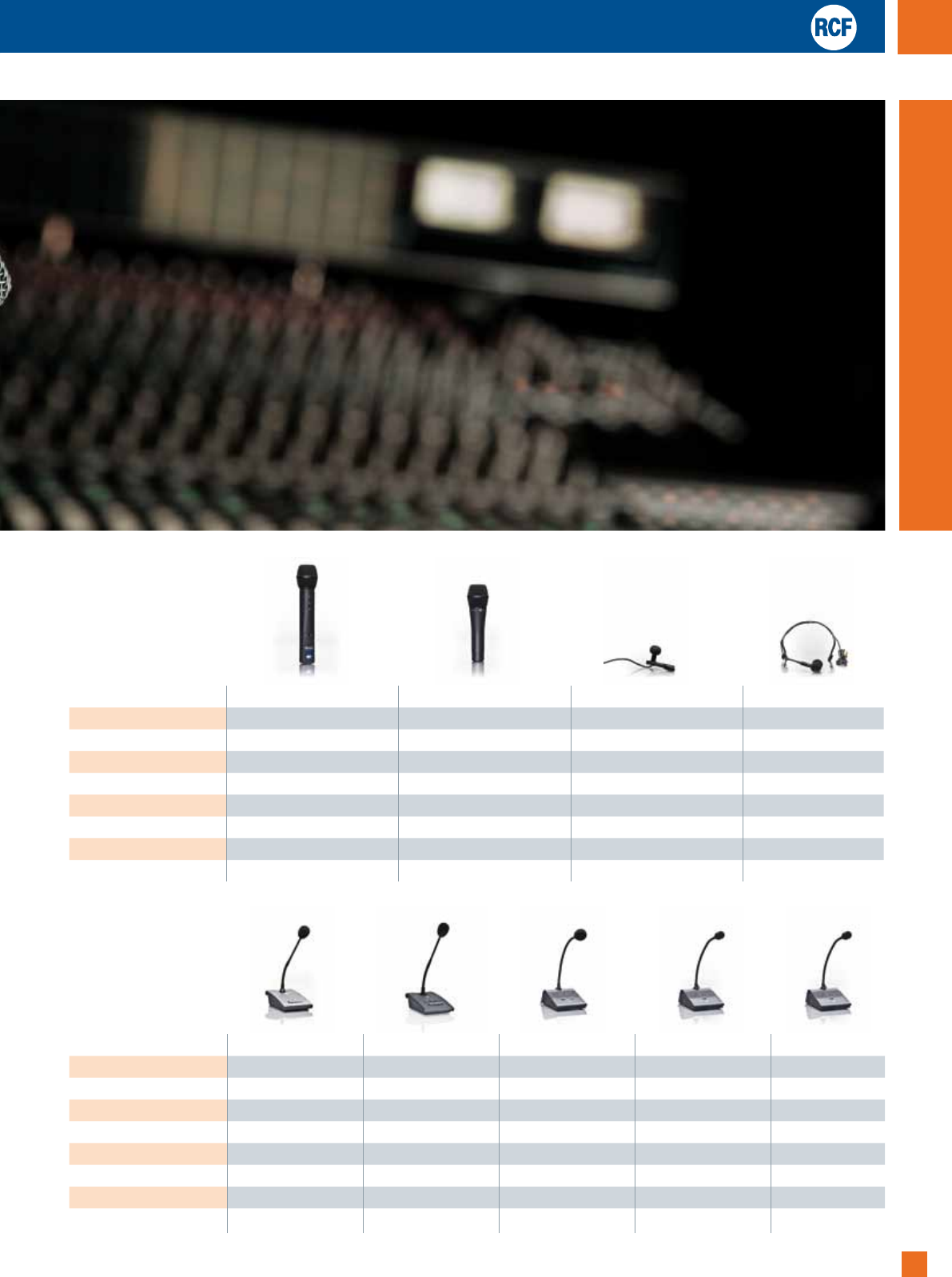

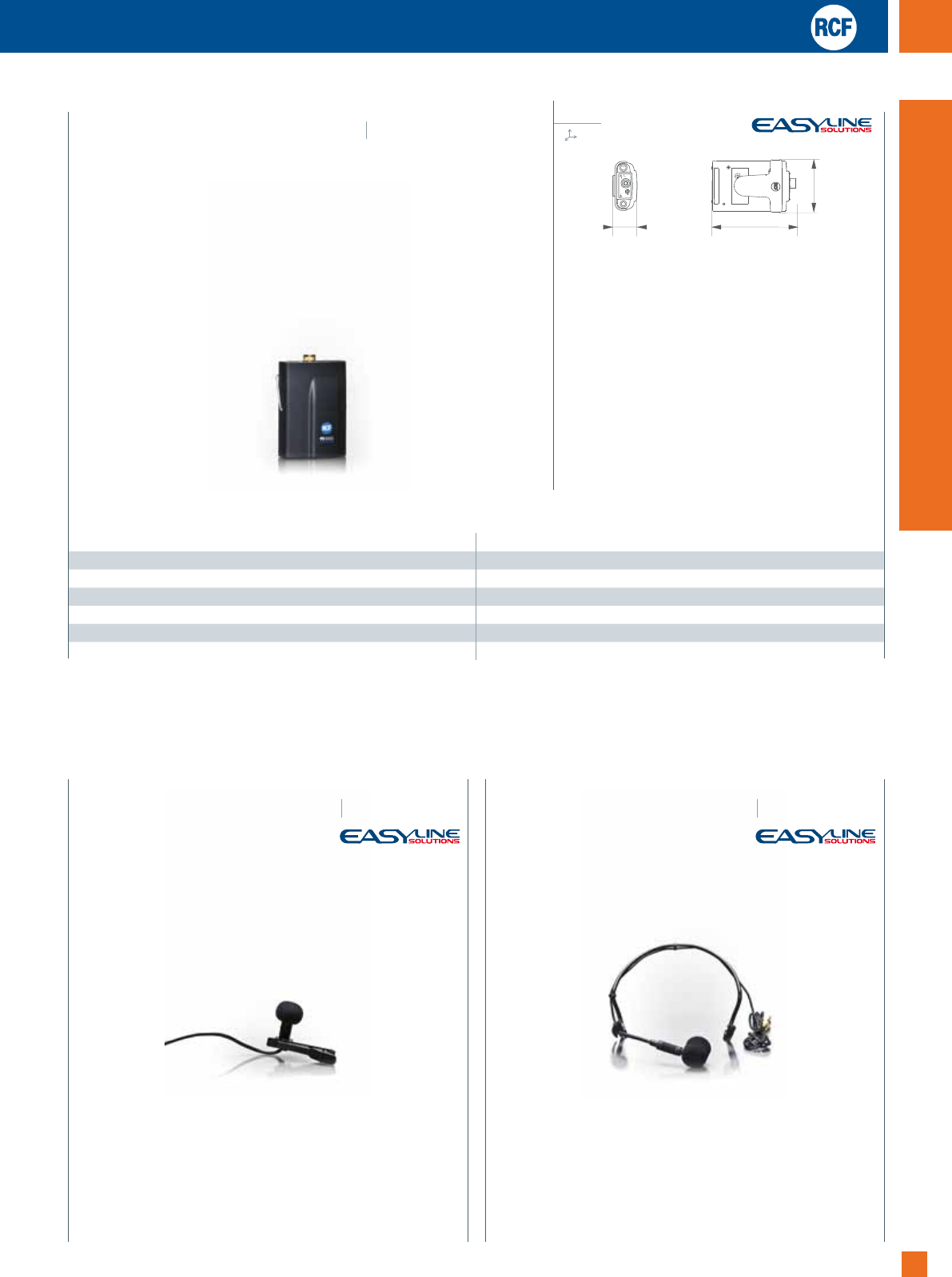

MICROPHONES AND WIRELESS MICROPHONES
Optimised in the voice frequency range to guarantee maximum speech clarity.
AUDIO SOURCES
CD players, Radio receivers, message players for every hi-fidelity
listening need.

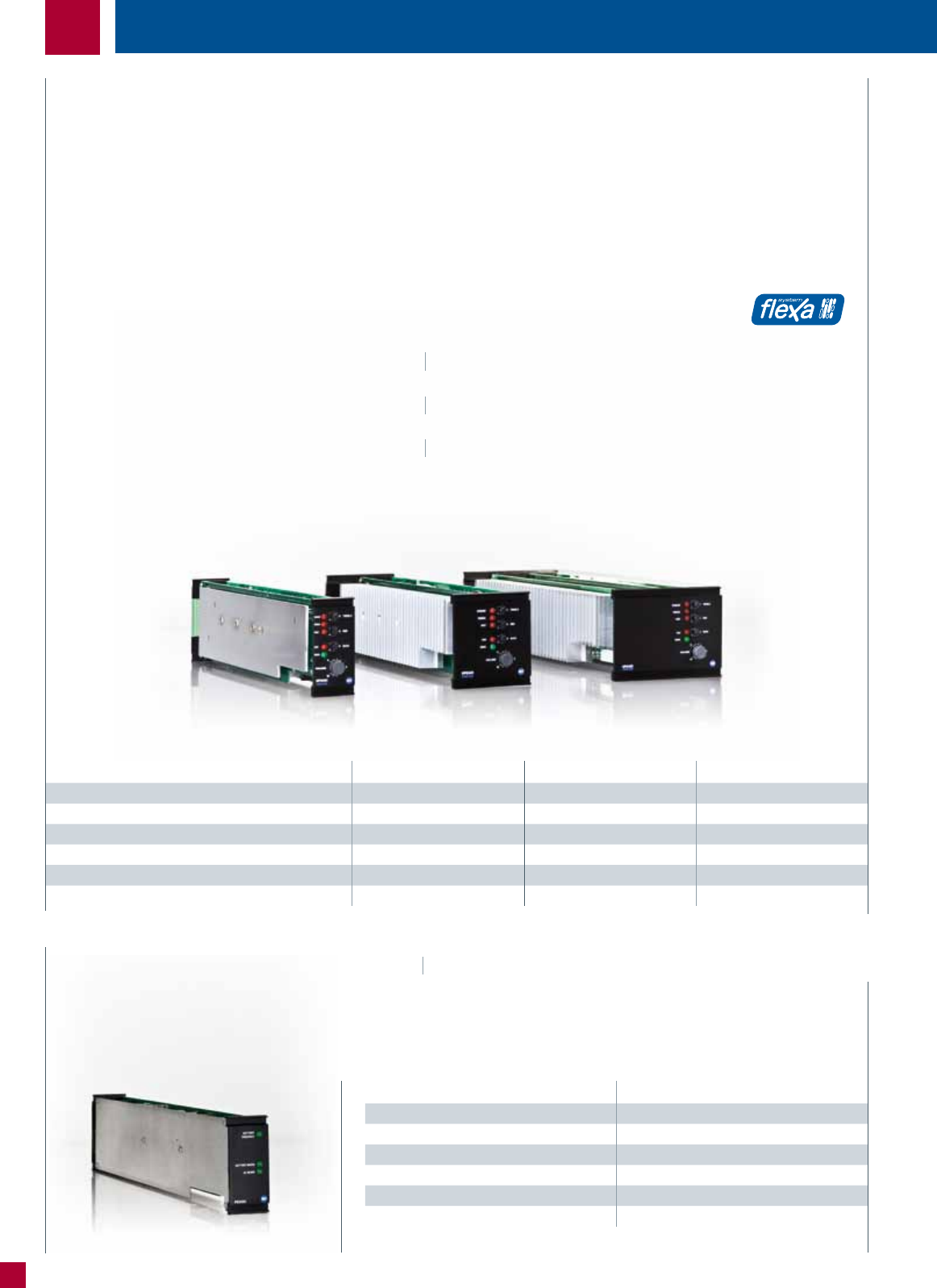

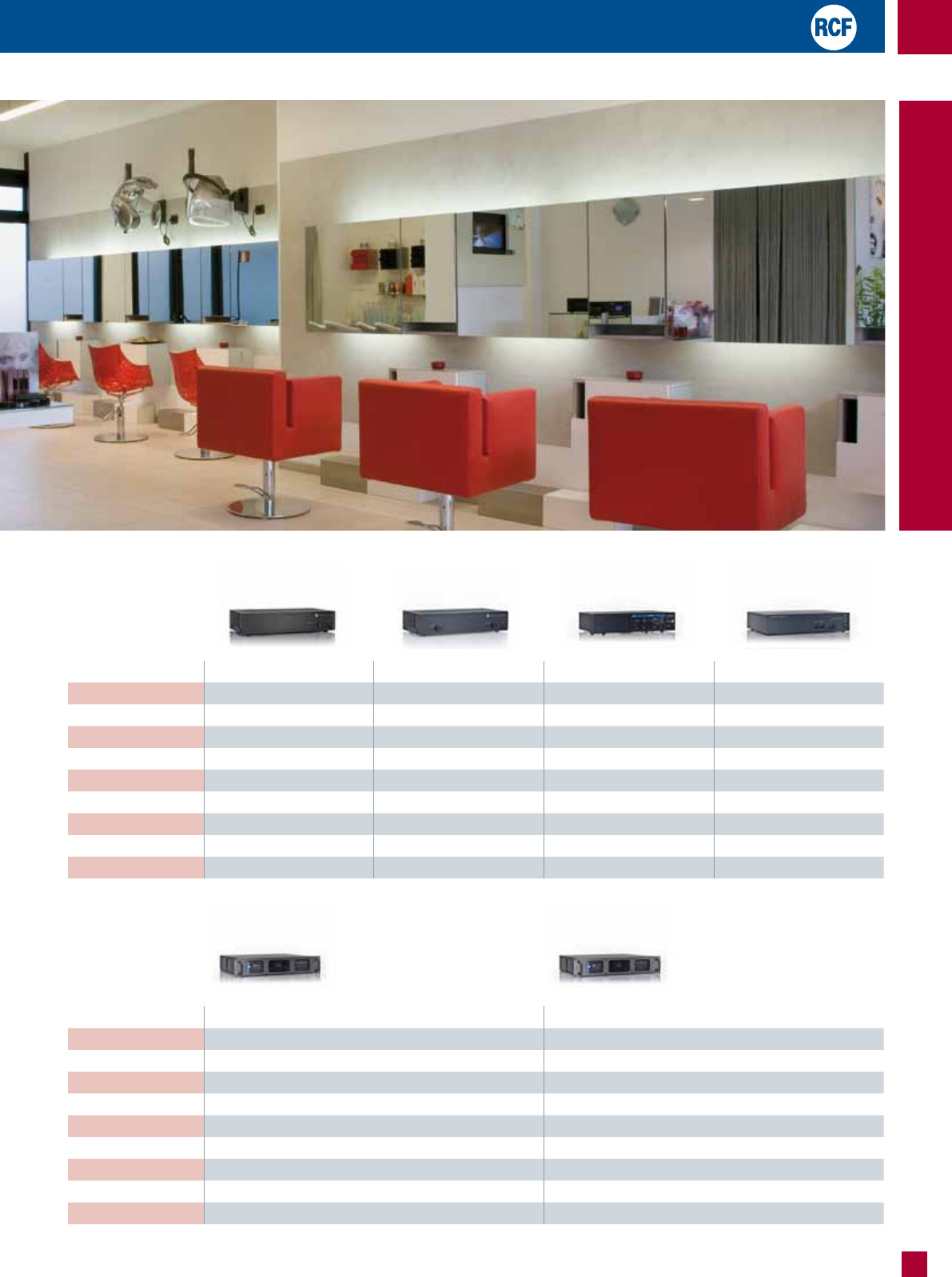

AMPLIFIERS AND PREAMPLIFIERS
For constant voltage systems or professional audio applications.

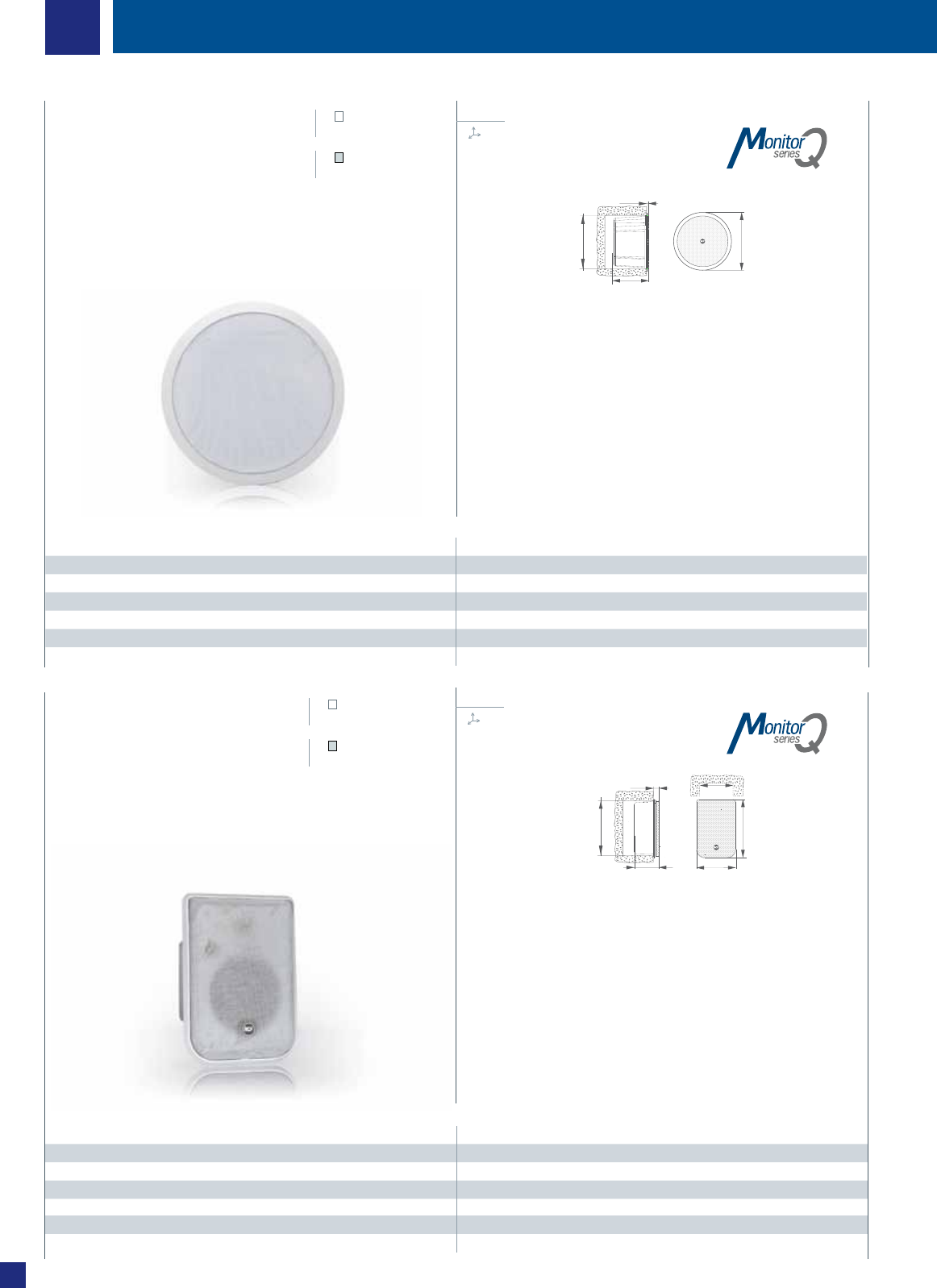

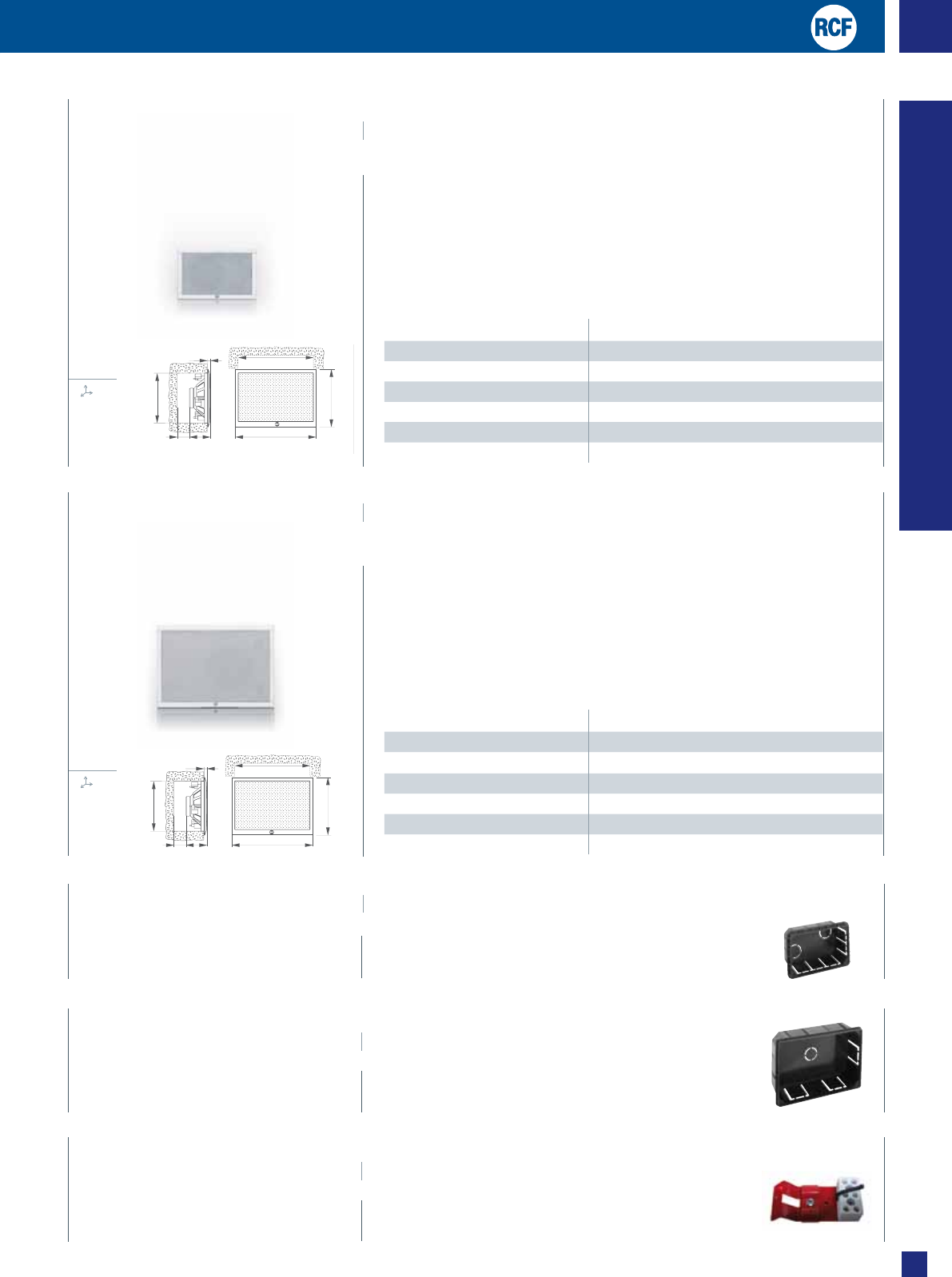

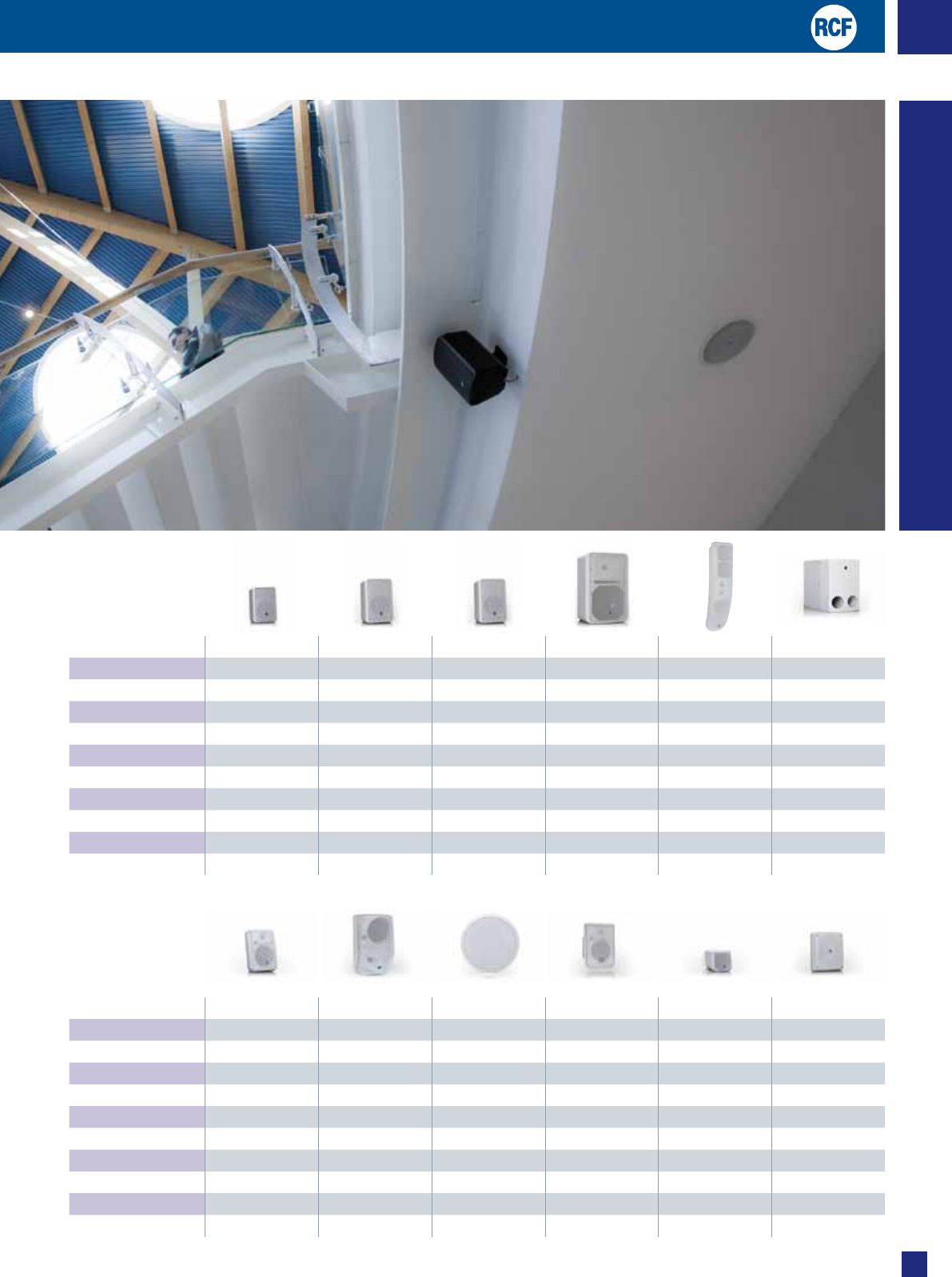

FLUSH MOUNTED AND WALL SPEAKERS

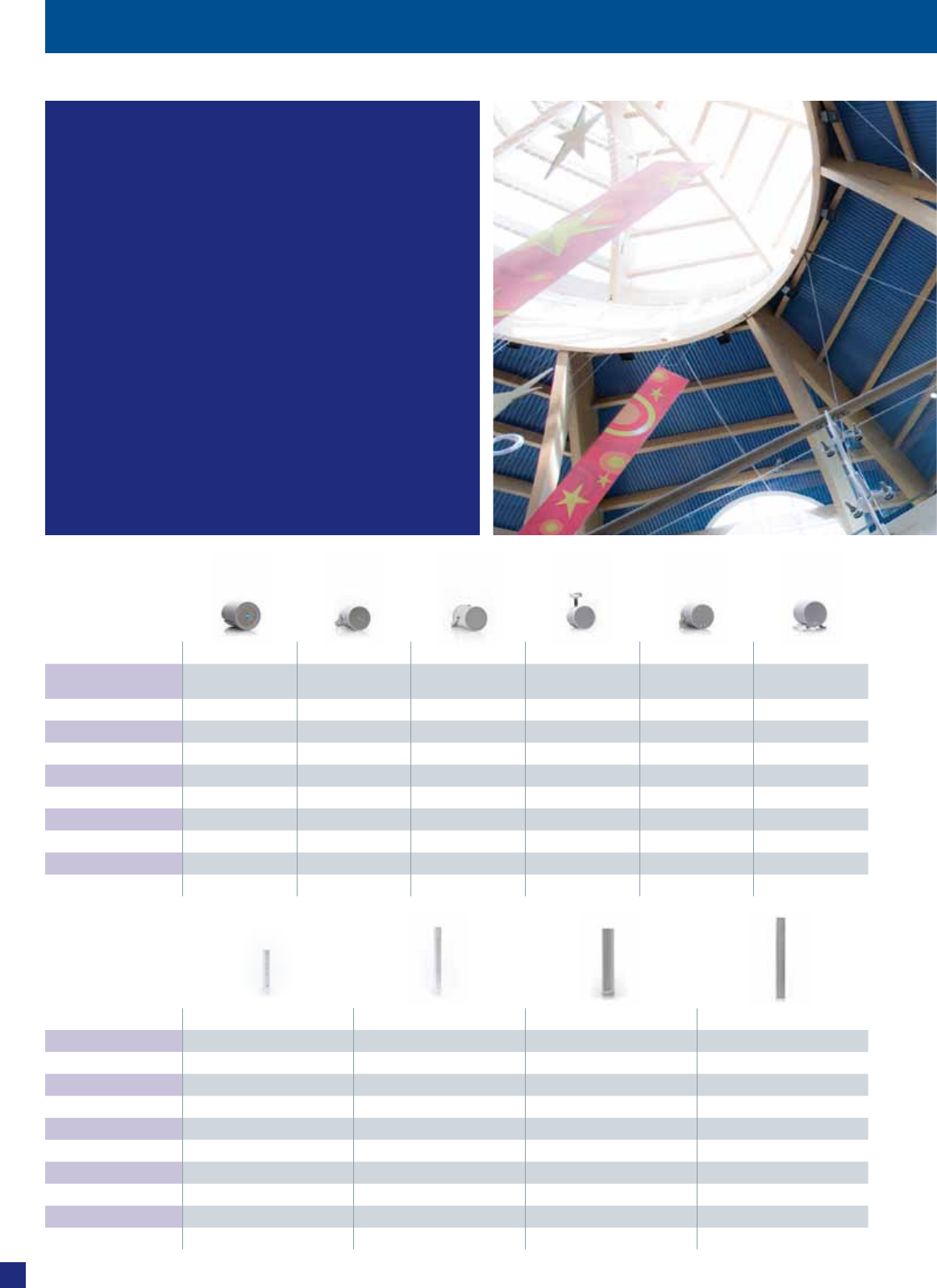

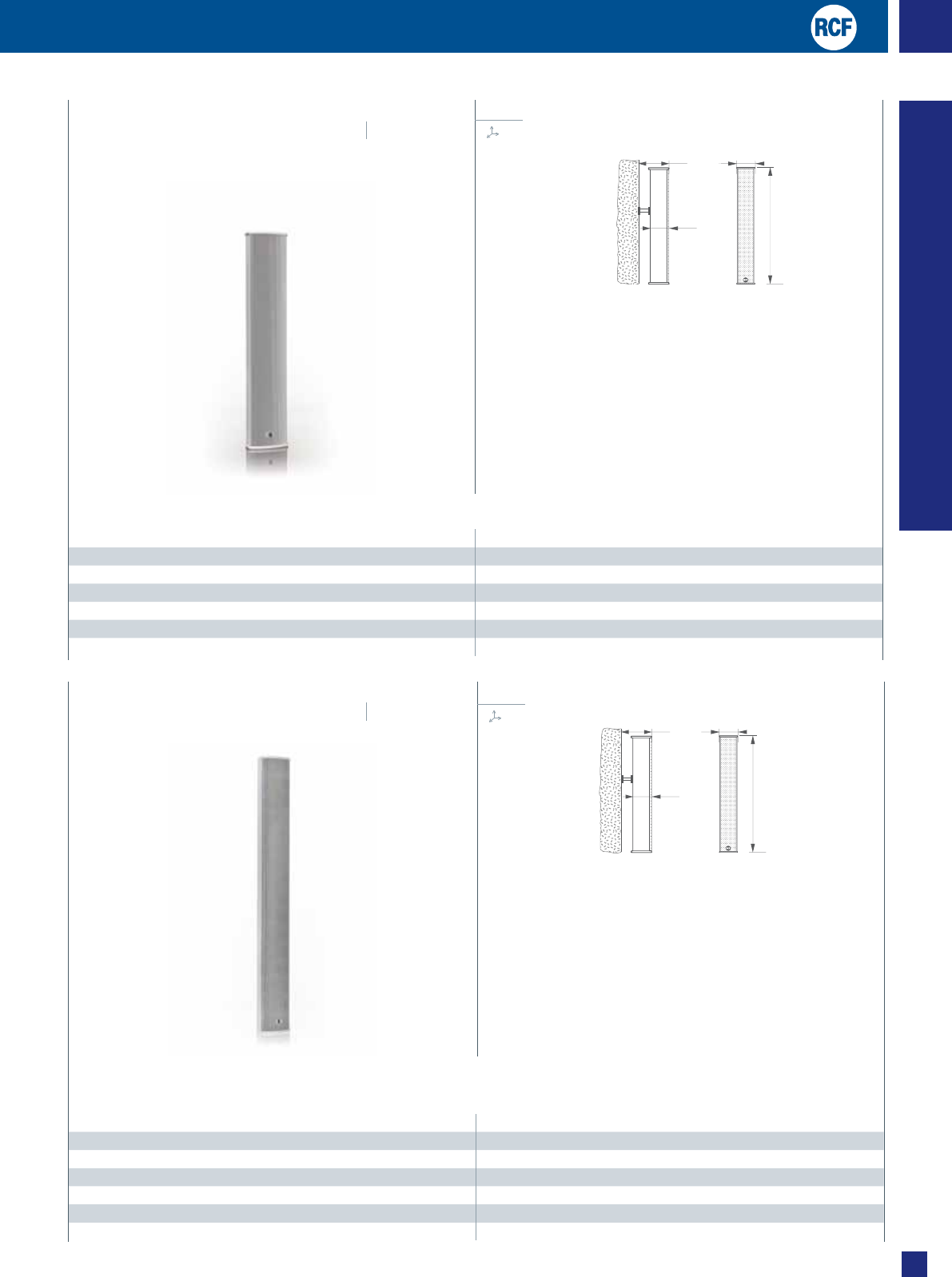

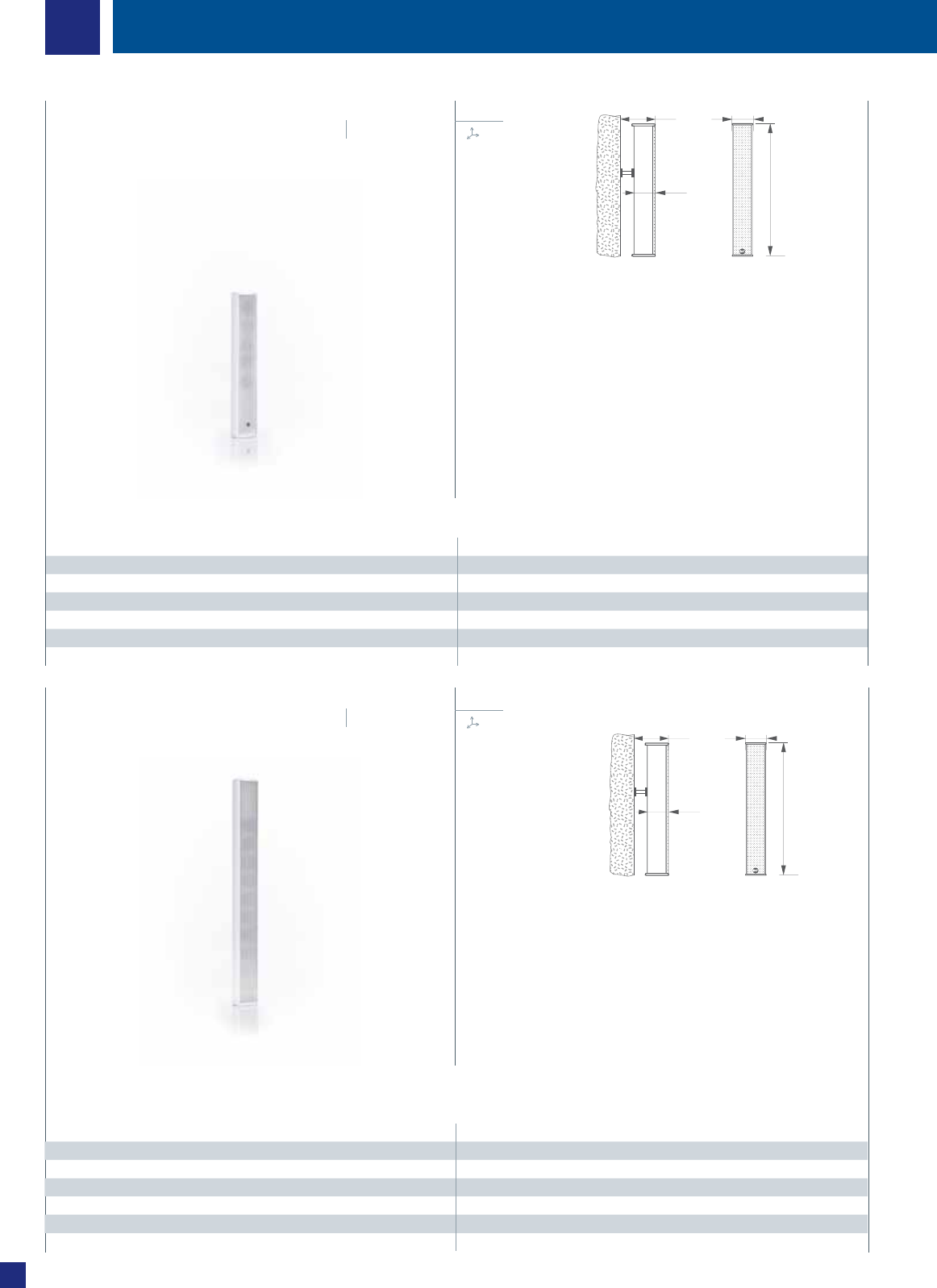

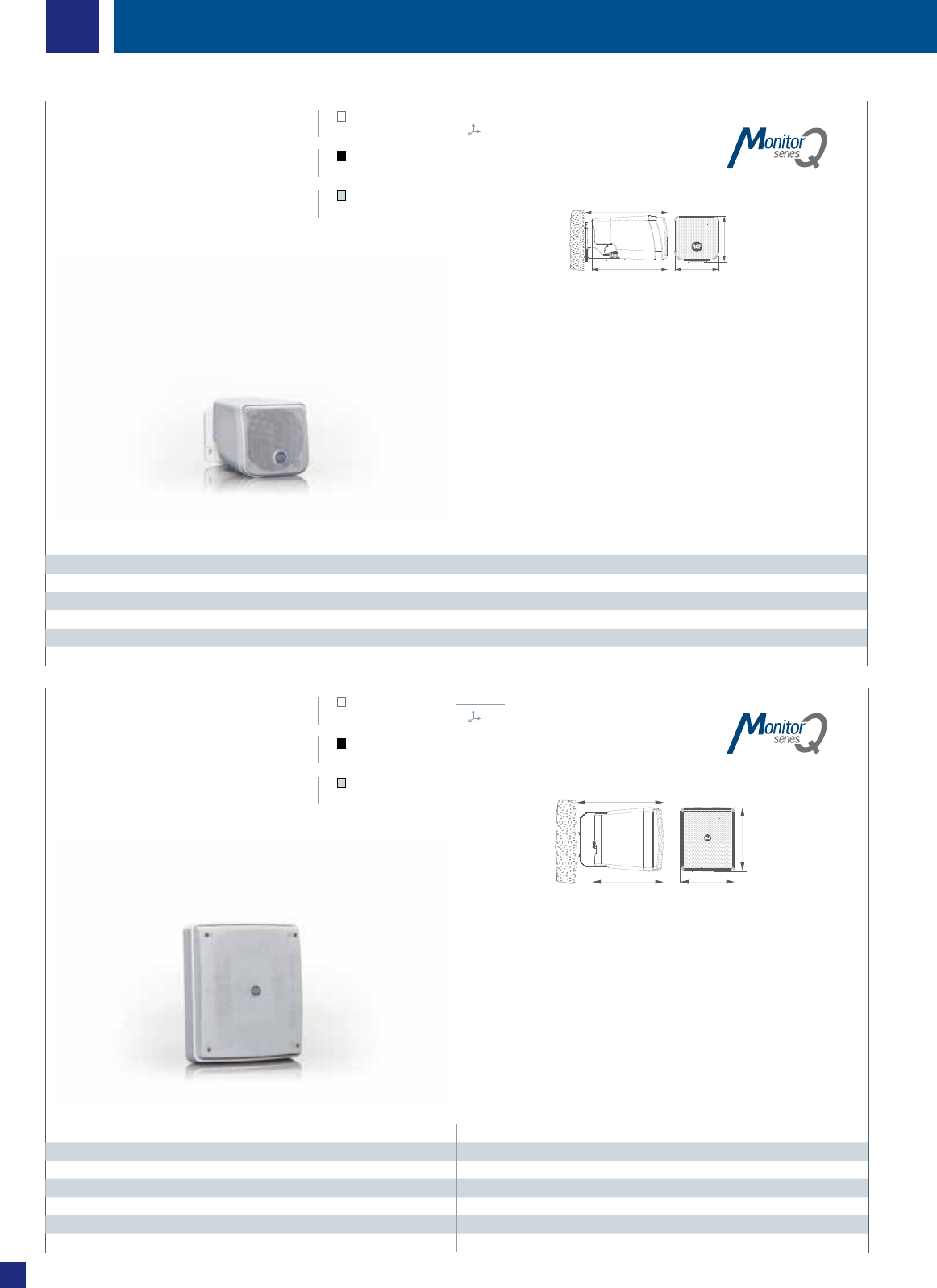

SOUND PROJECTORS, MONITORS AND COLUMN SPEAKERS

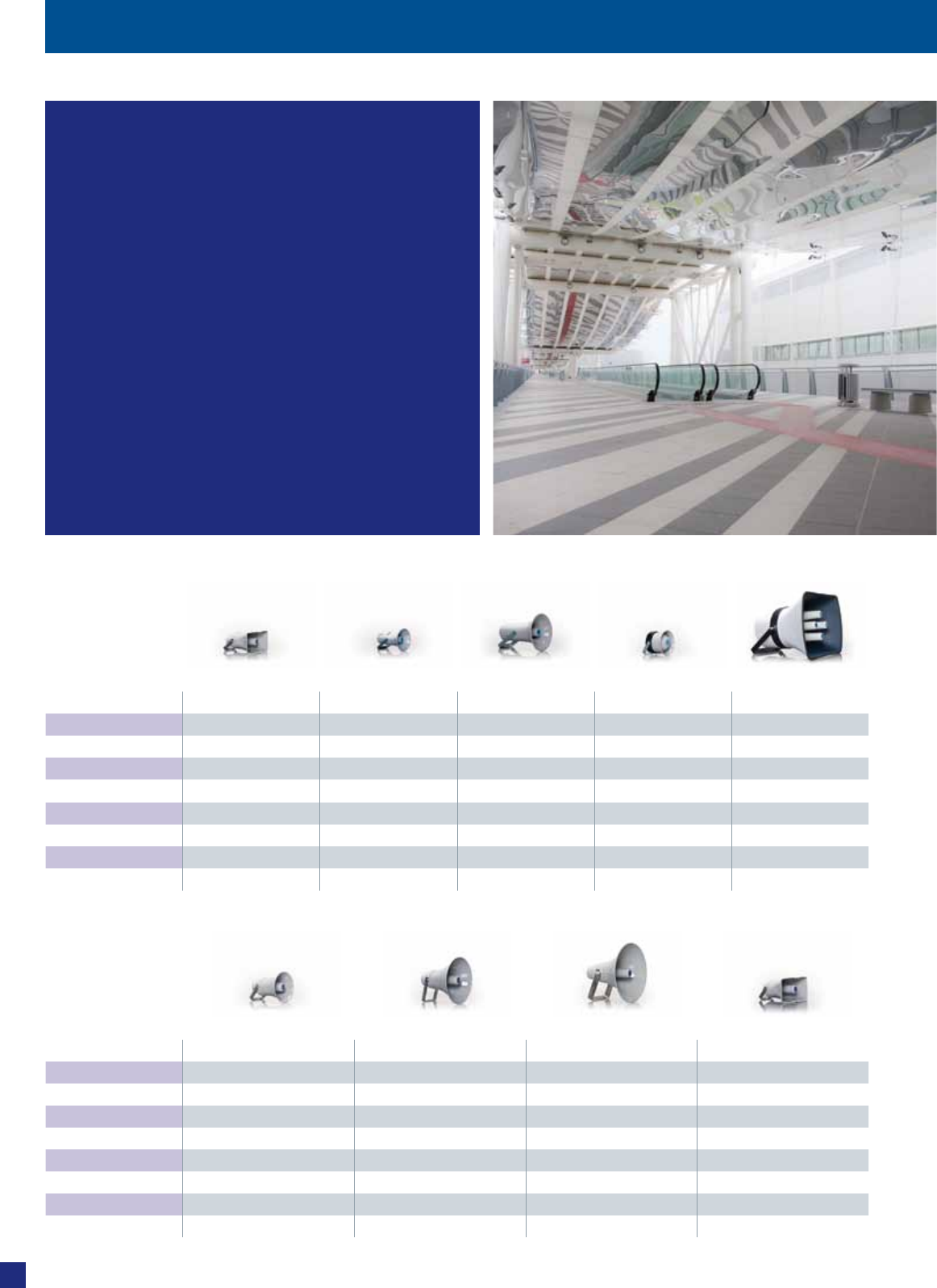

HORN SPEAKERS

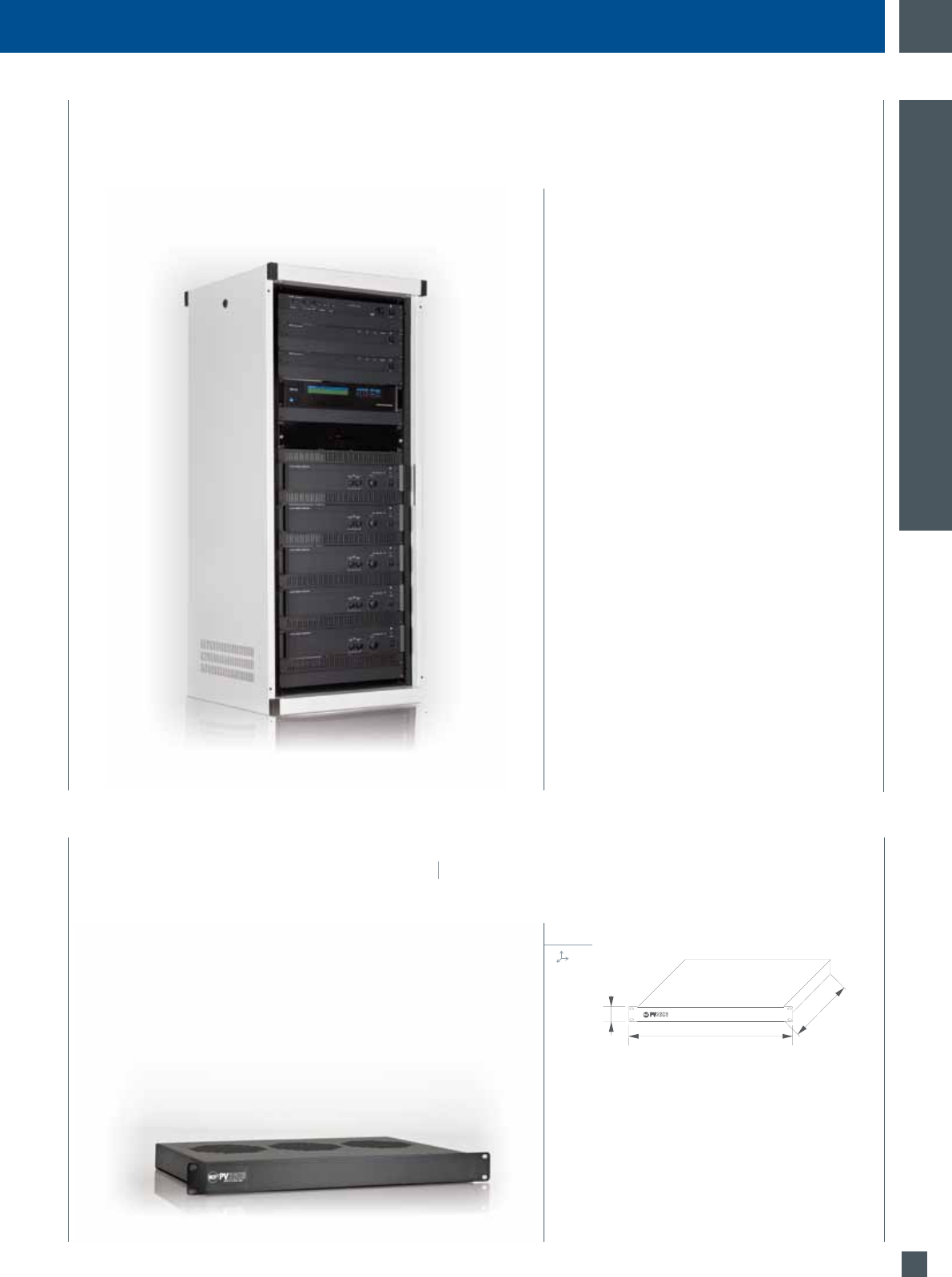

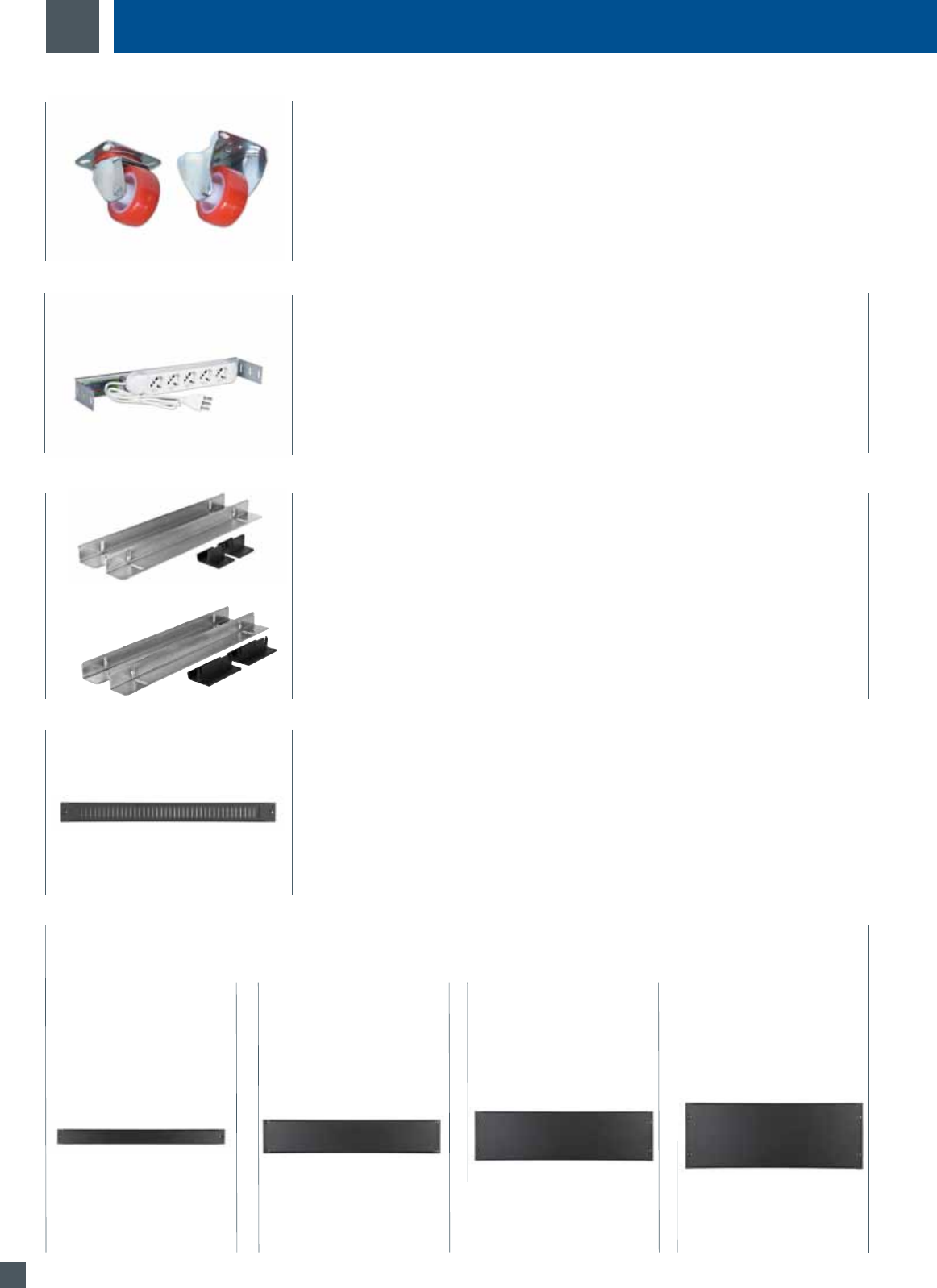

RACK COMPONENTS
For the optimum management of the system configurations.

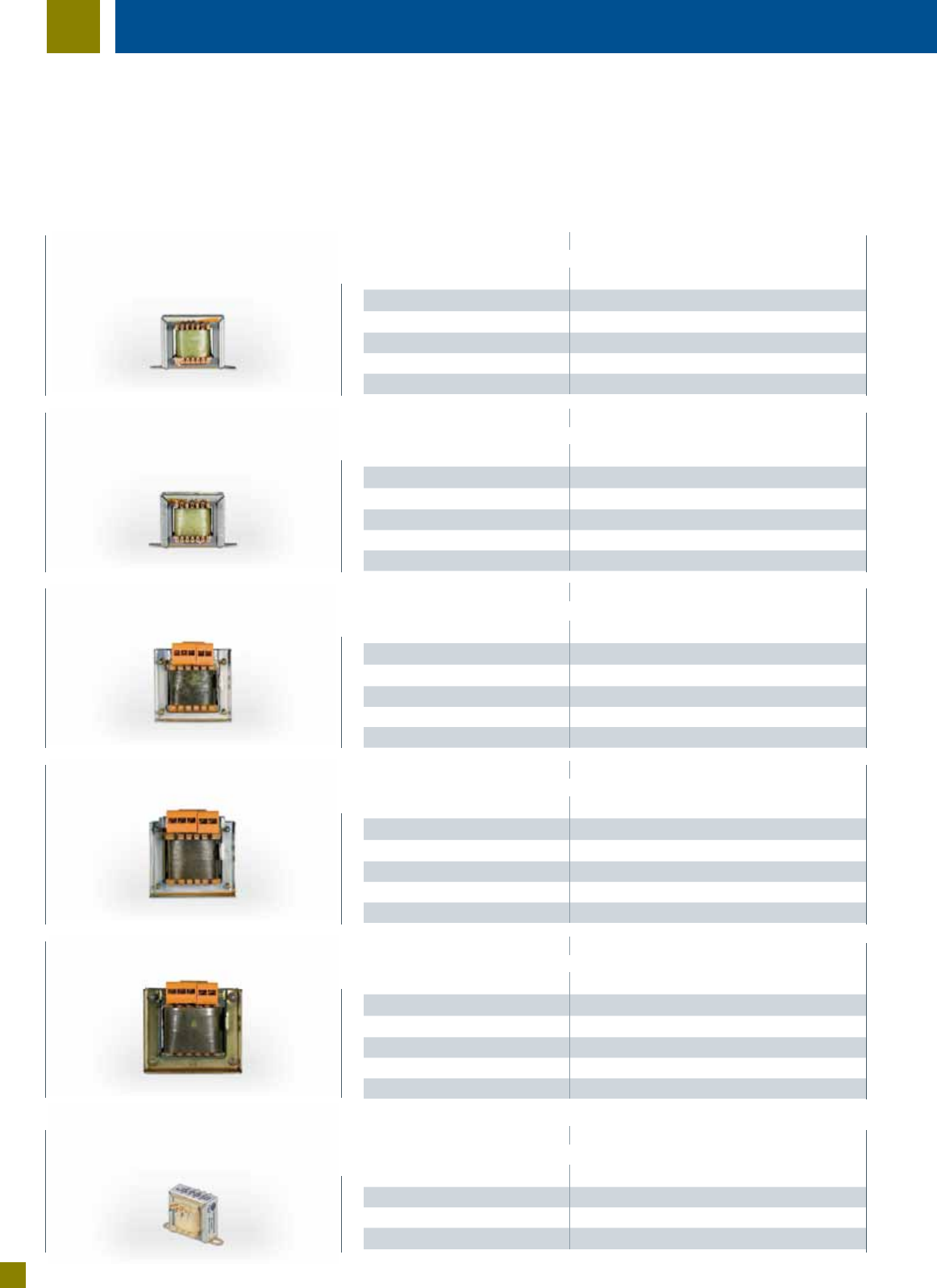

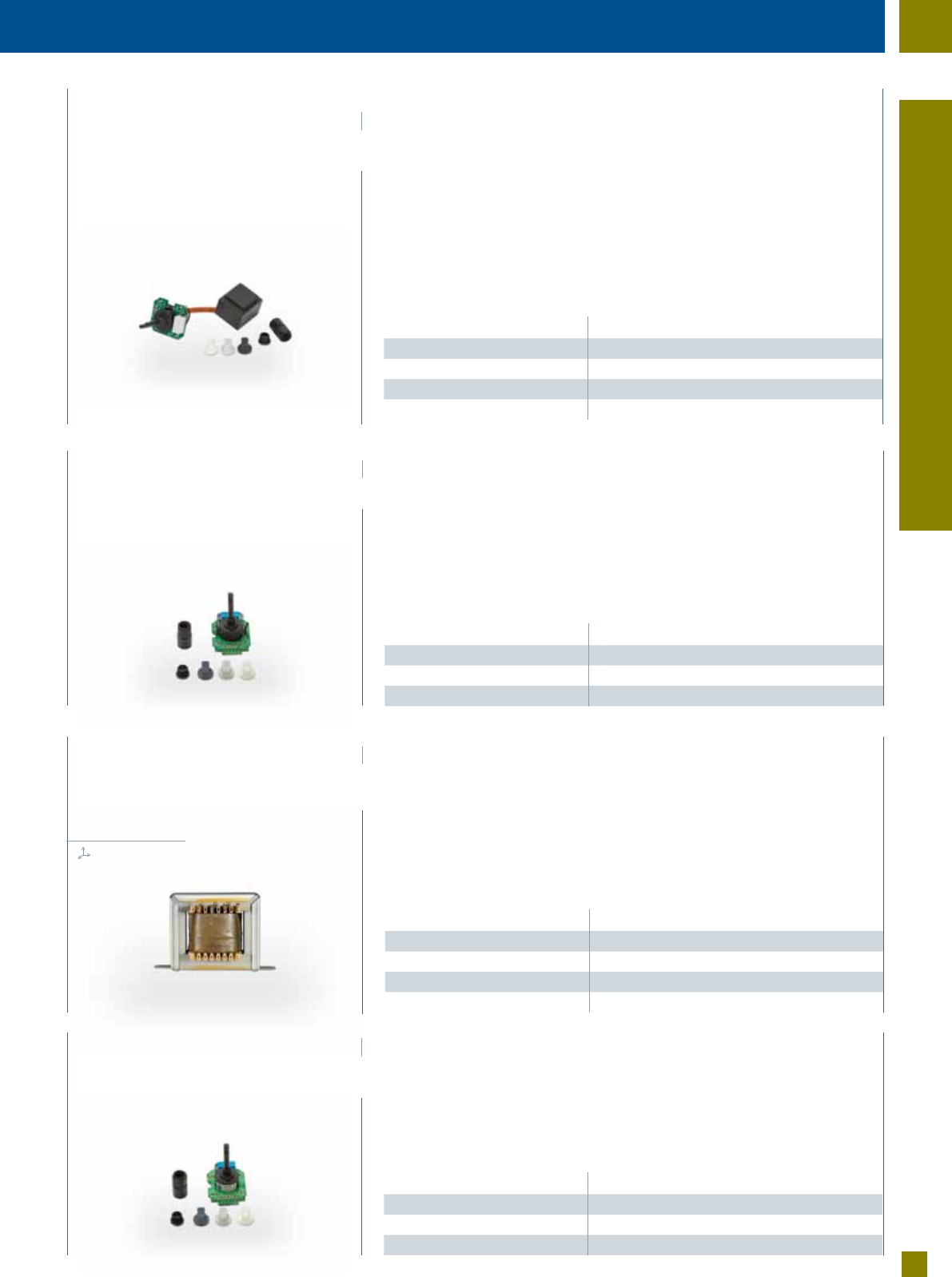

VOLUME ATTENUATORS AND AUDIO TRANSFORMERS
To adjust the audio system according to specific needs.

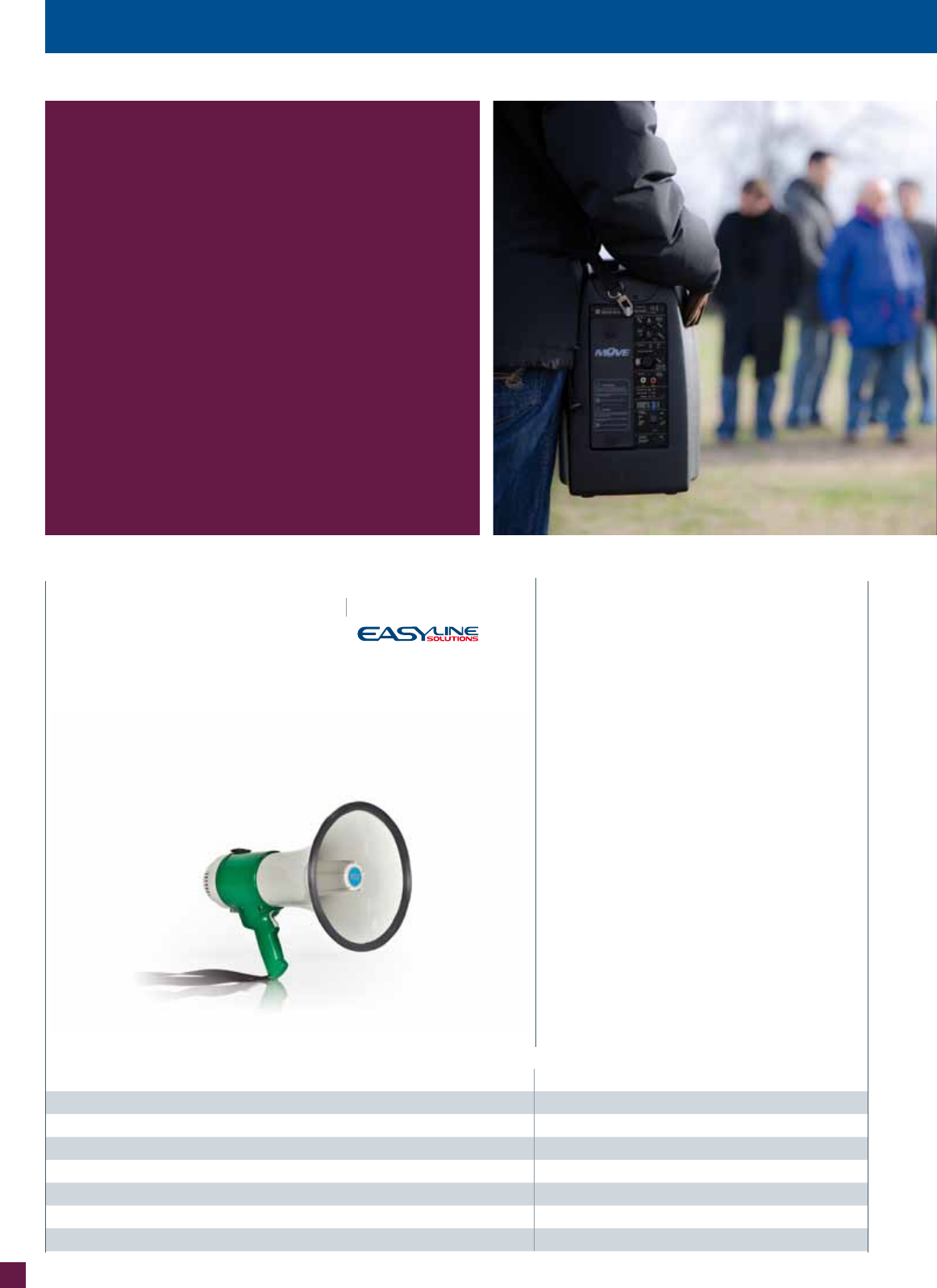

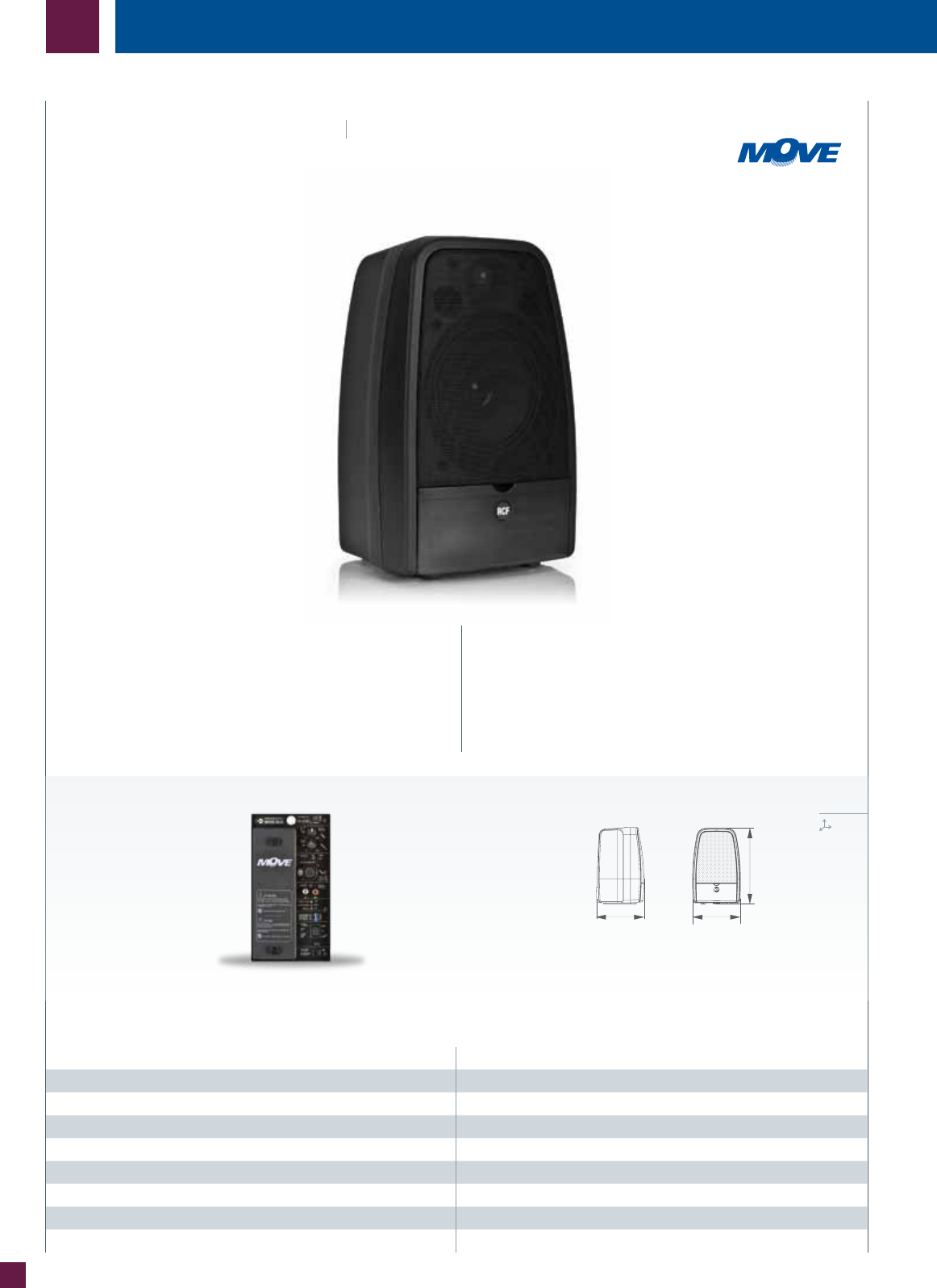

MOBILE AMPLIFICATION
Portable system for all the situations in which mobility is important.
102

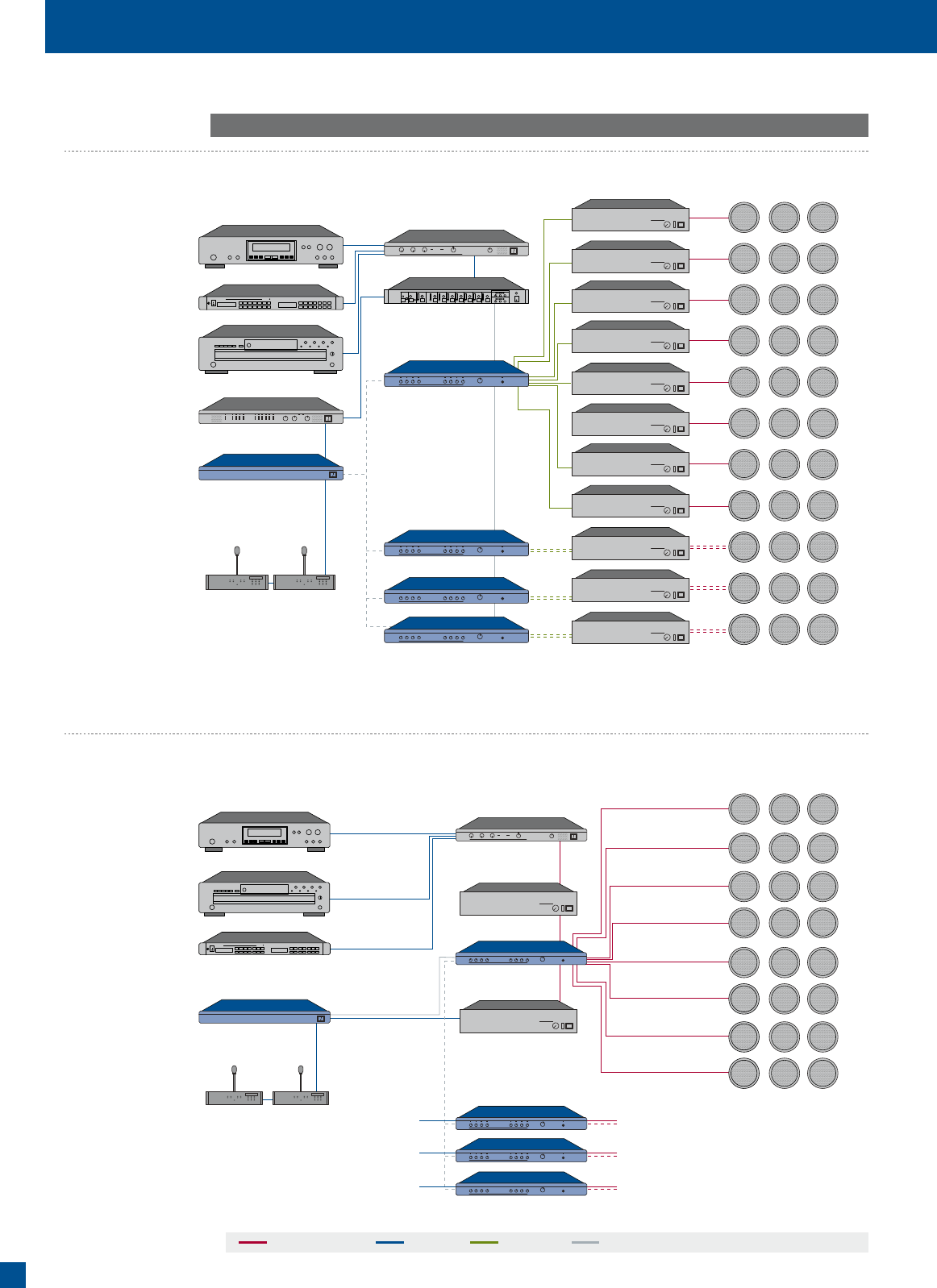

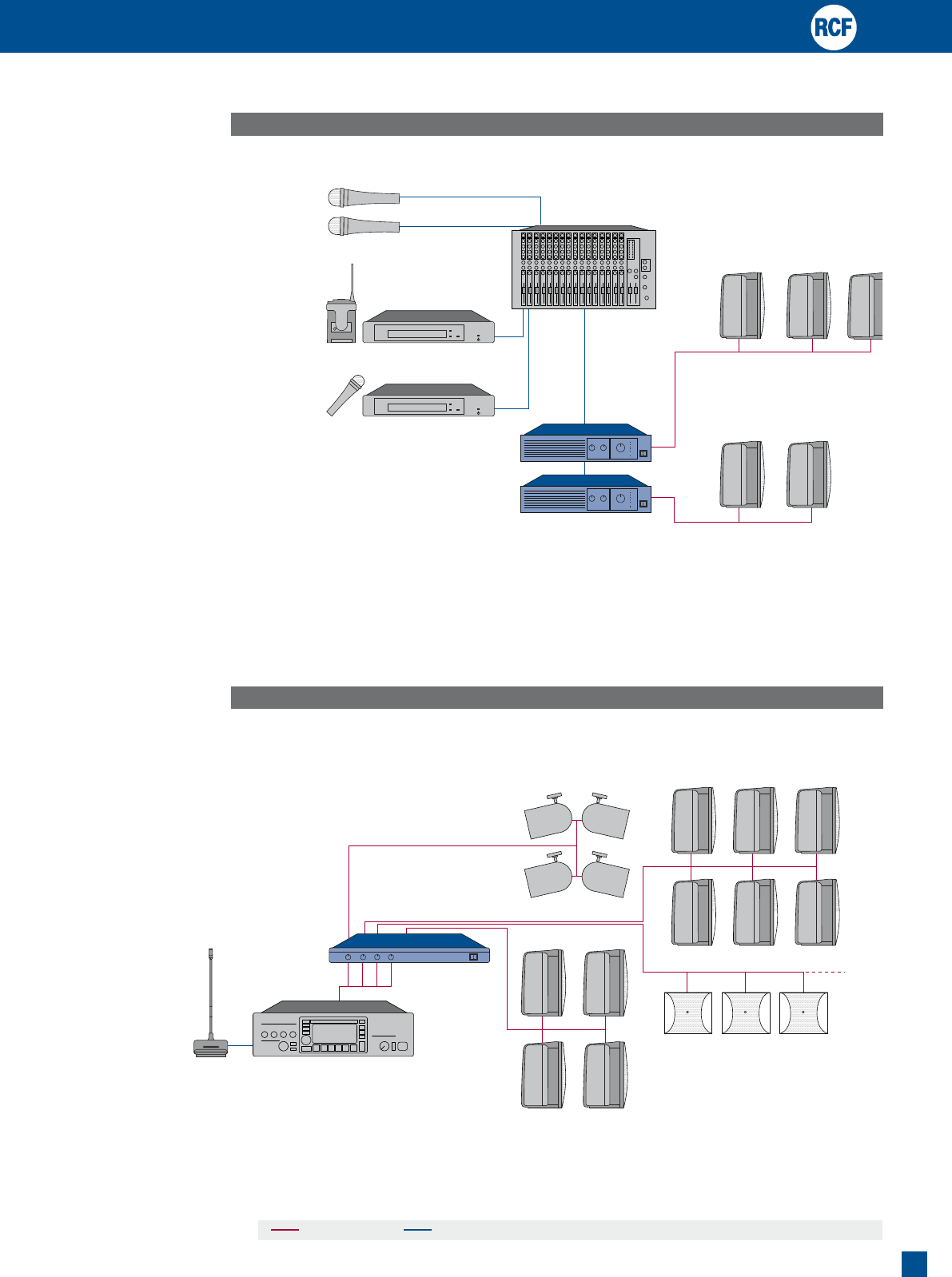

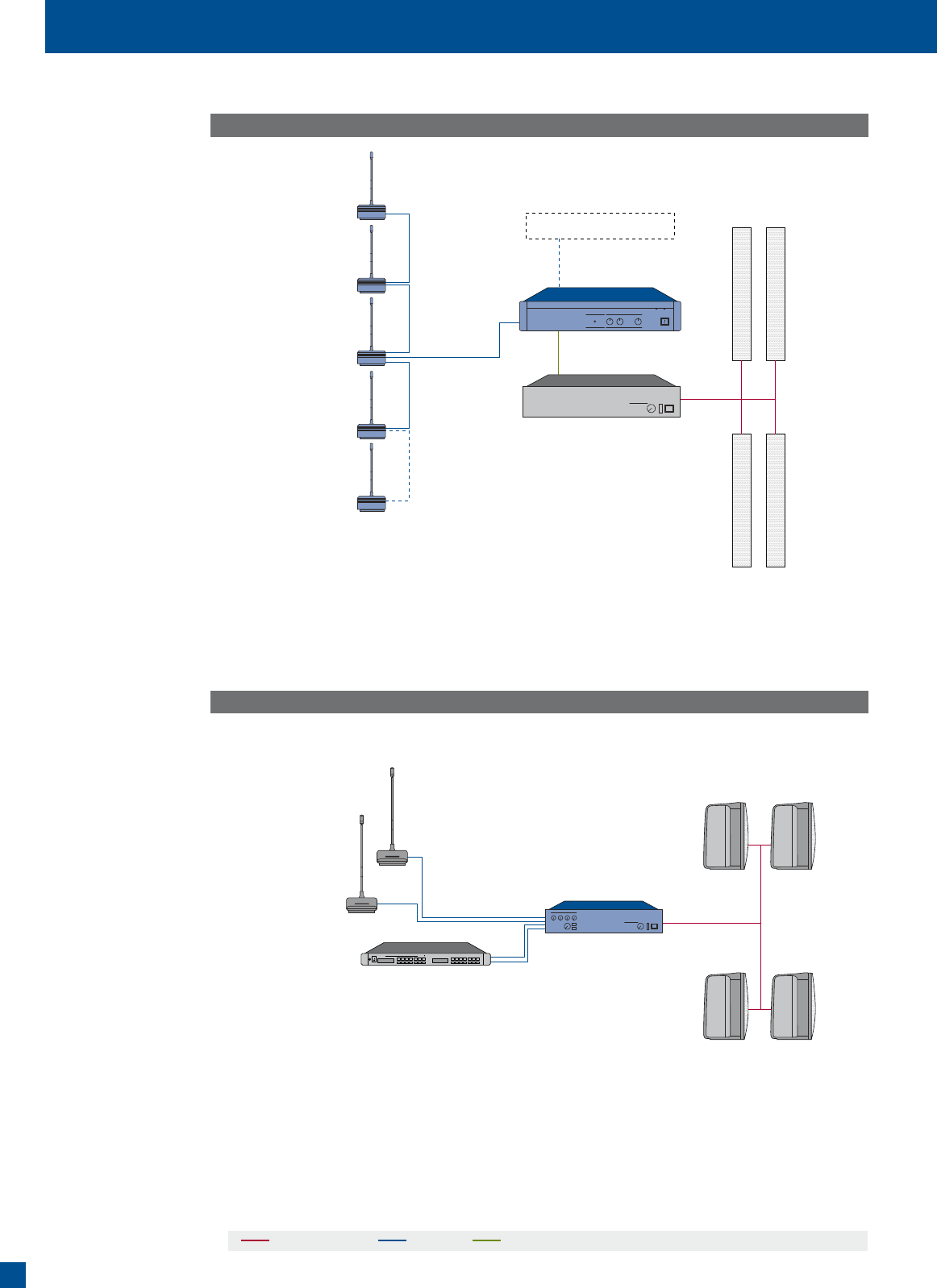

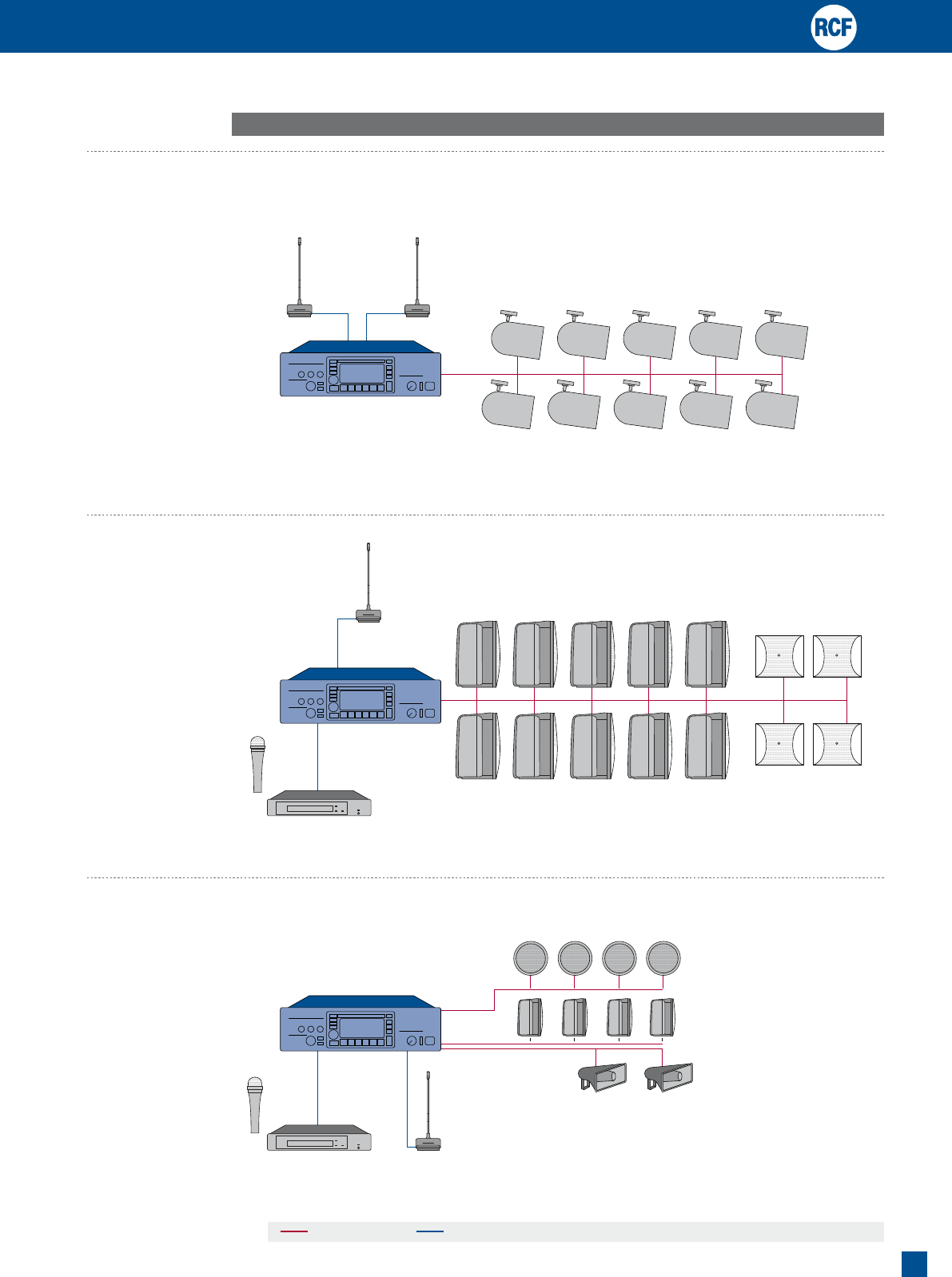

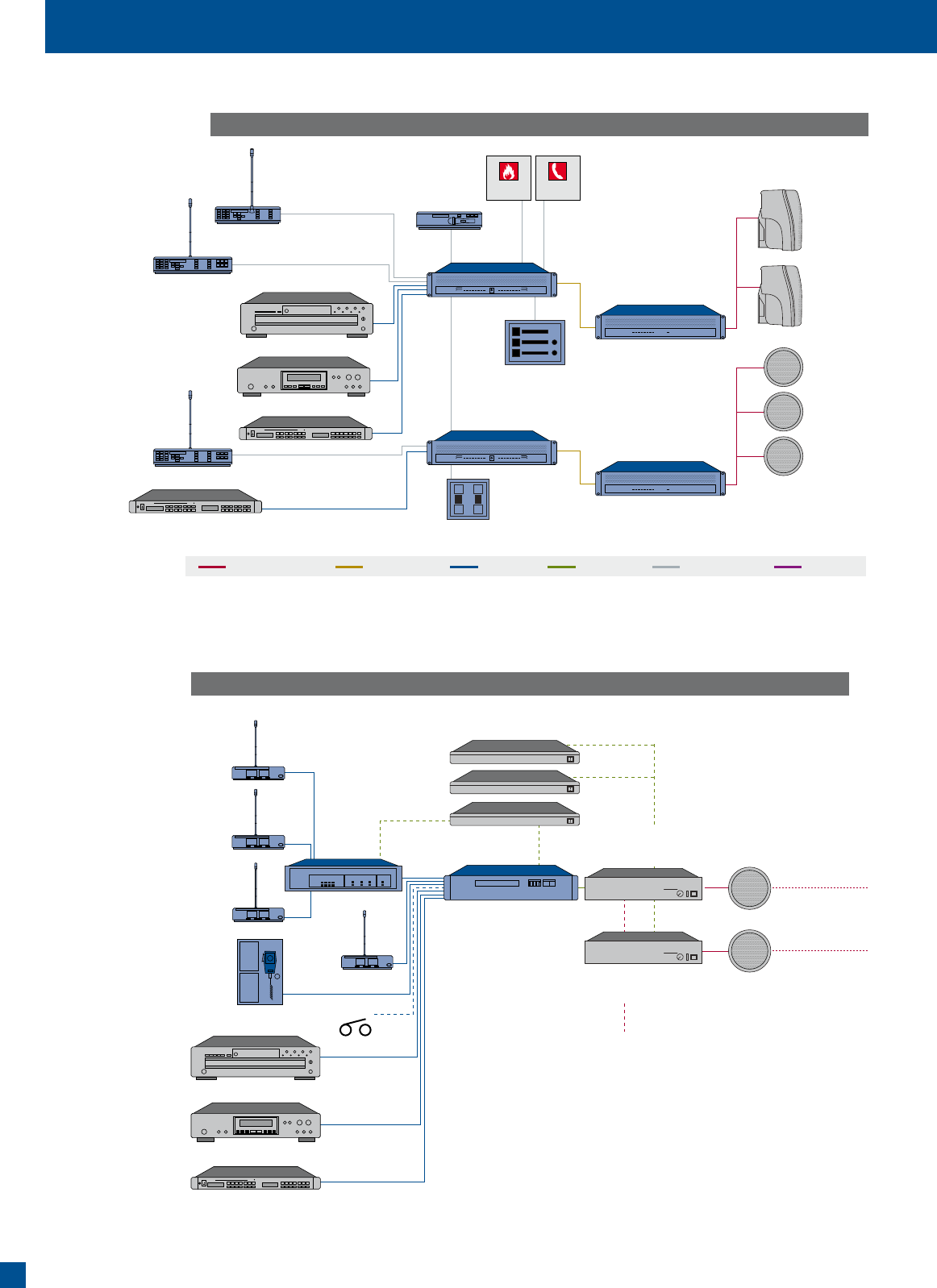

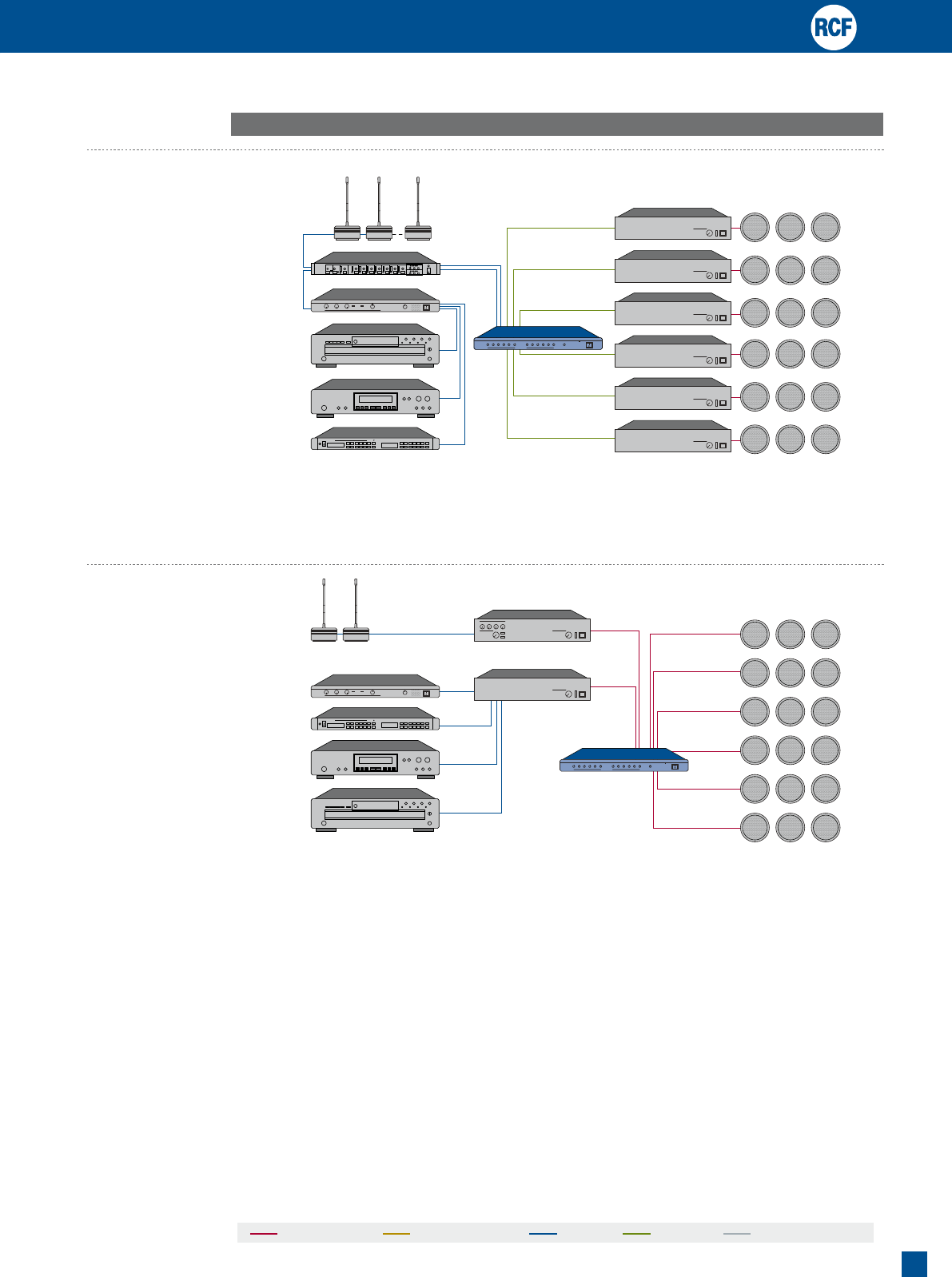

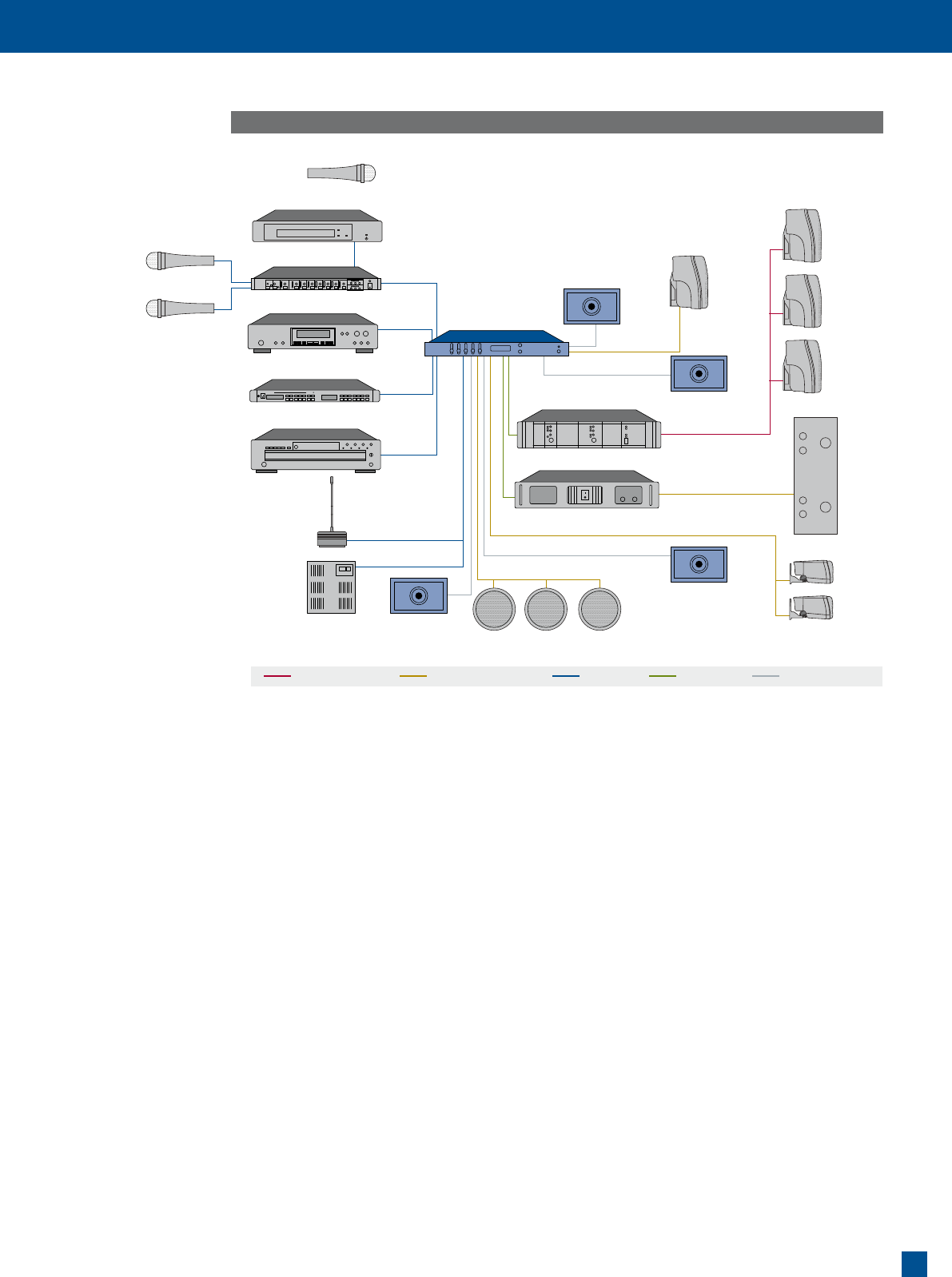

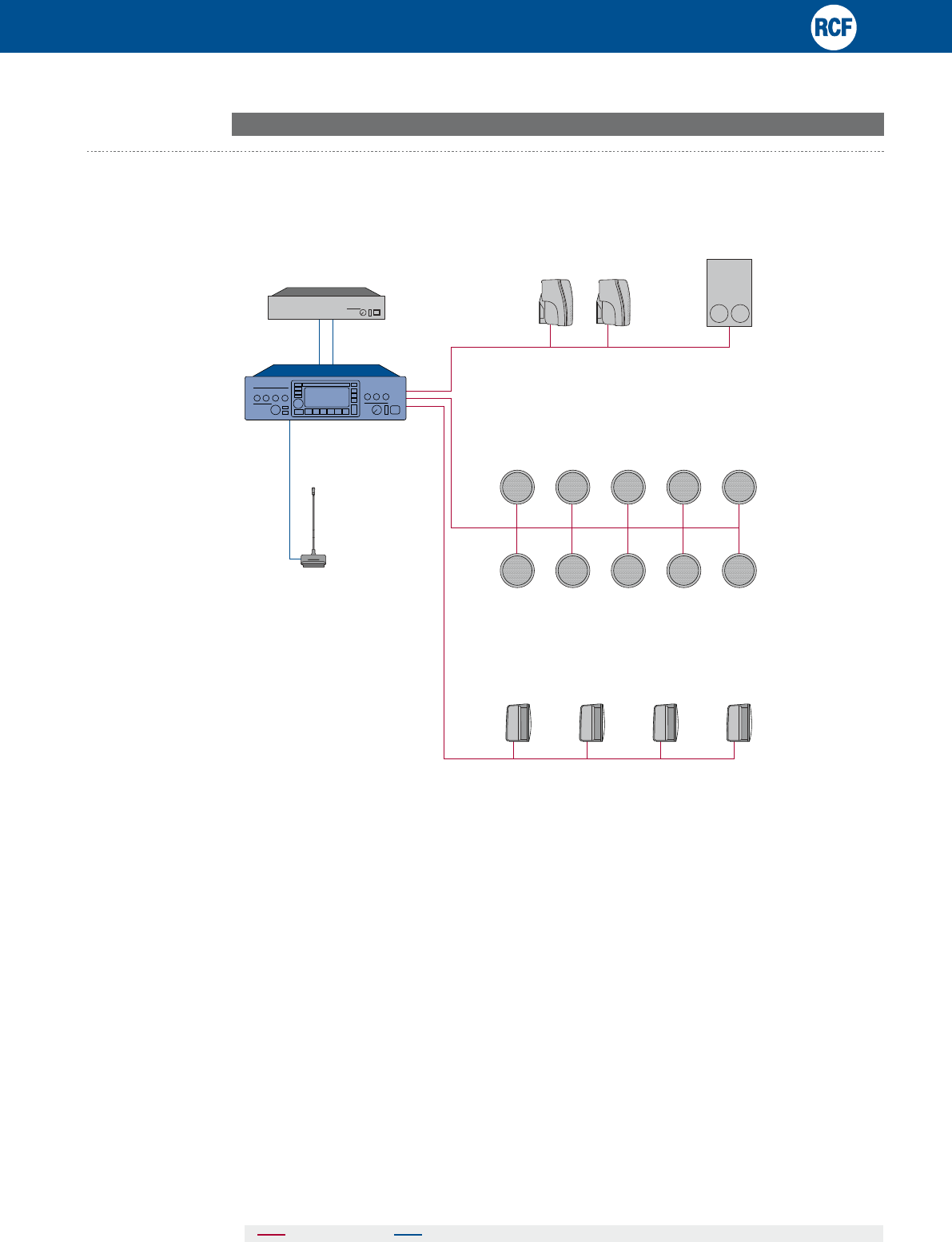

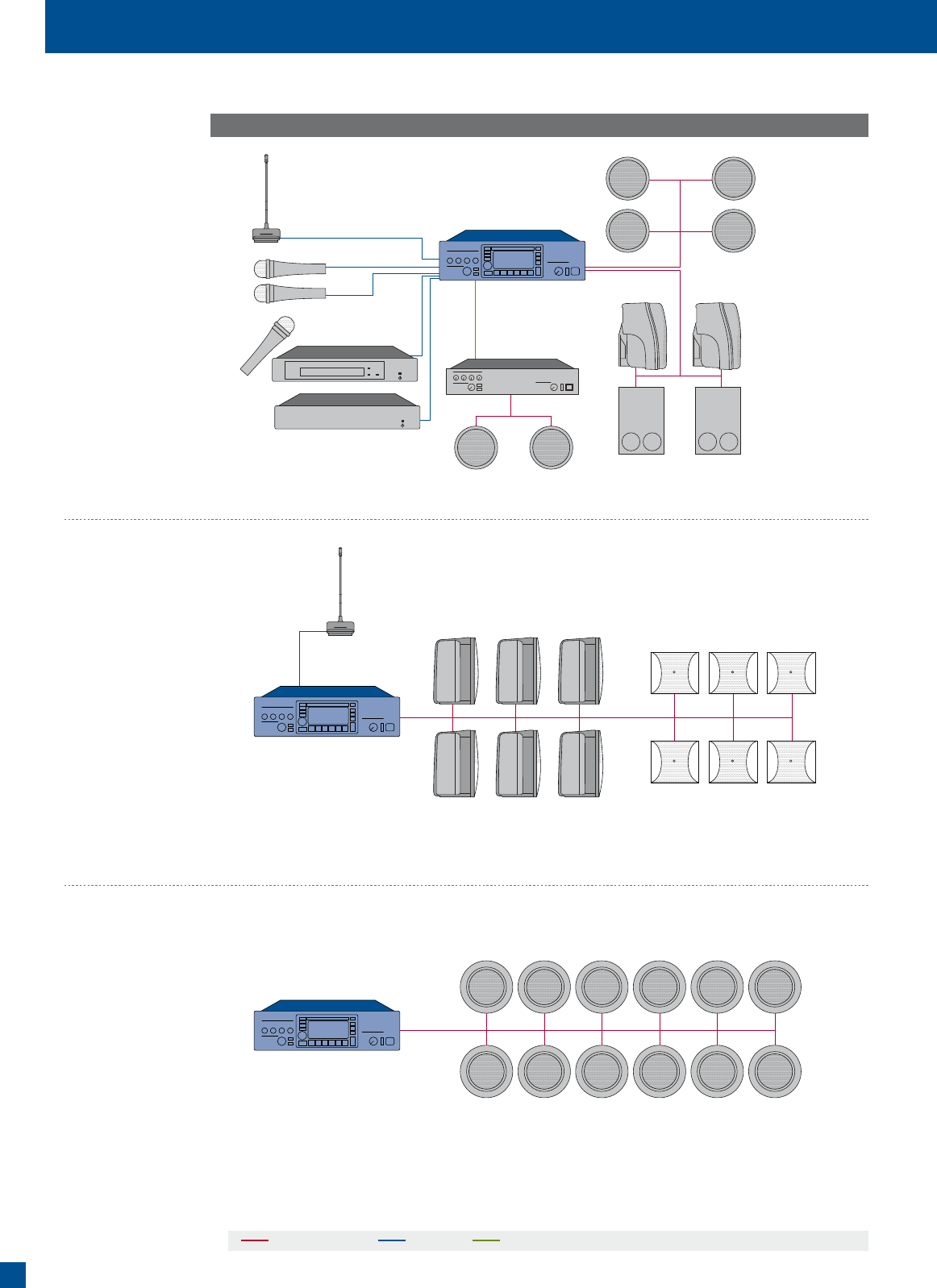

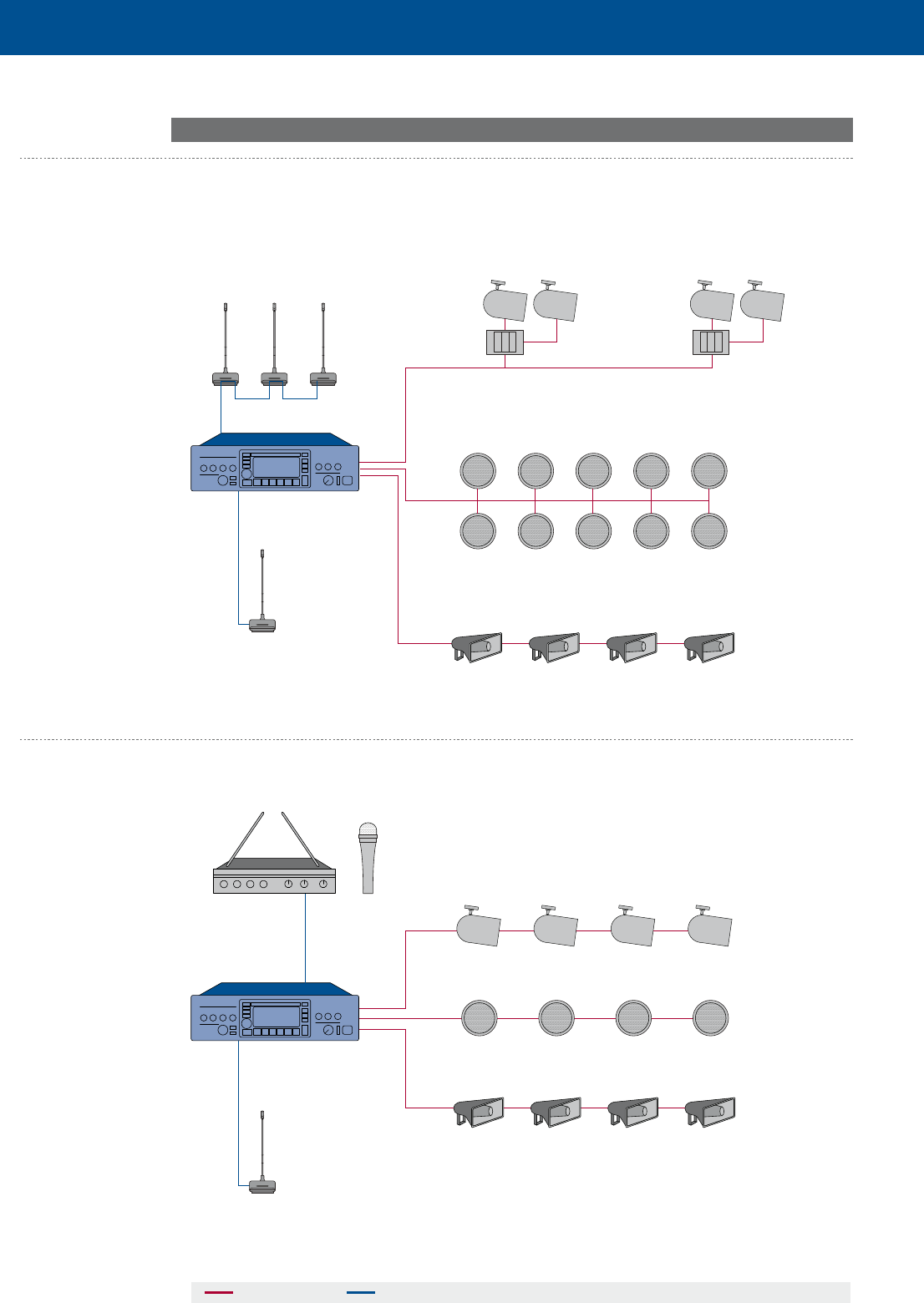

CONFIGURATIONS EXAMPLES
112
ALPHANUMERICAL INDEX
EASYLINE SOLUTIONS PRODUCTS
INDEX
114
PART NUMBER INDEX
116
REFERENCE INSTALLATIONS
6
ES 3160
p/n 121.35.057 page 45
BM 3001
p/n 143.22.008 page 34
HD 2414/T
p/n 131.33.036 page 83
HD 3216/T
p/n 131.33.037 page 97
MG 80
p/n 131.40.011 page 96
AM 1122-N
p/n 121.35.045 page 50
UP 1123
p/n 121.35.025 page 70
BM 3014
p/n 143.20.135 page 36
MD 7600
p/n 141.10.001 page 28
DU 100X
p/n 130.00.105 page 65
DM 41
p/n 130.00.049 page 68
MR 33T MR 33WT
p/n 130.00.107p/n 130.00.104p/n 00.07.140 p/n 00.07.141 page 73page 73page 76 page 76
DP 2X DP 2X/1
DS 313 WT
p/n 00.06.081 page 64
PL 60
p/n 131.10.214 page 62
PL 40
p/n 131.33.045 page 62
HS 1026 W HS 1026 C HS 1026 G
p/n 131.10.062 p/n 131.10.063 p/n 131.10.064
page 65 page 65 page 65
A 1360
p/n 133.20.107 page 62
TX 1000
Refer to Kit p/n page 30 Refer to Kit p/n
PX 1000
page 31 Refer to Kit p/n
RX 1000
page 30 p/n 143.80.007
HE 1002
page 31
LA 1000
p/n 143.80.006 page 31

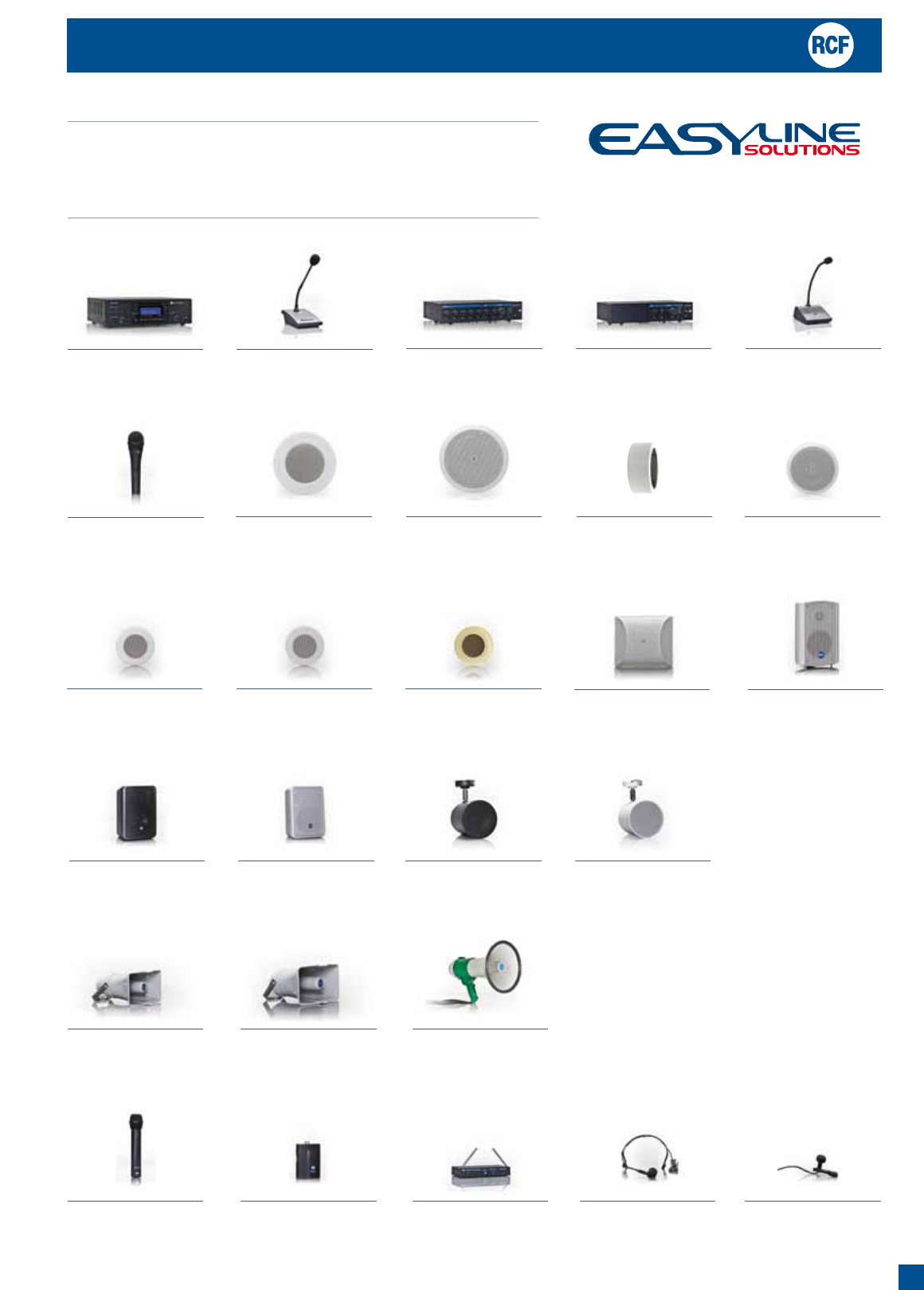

The new Easy Line Solution is a complete range of products to satisfy
the majority of small and medium sized audio installations simply and
quickly. FLEXIBLE AND RELIABLE SOLUTIONS
FOR ALL ELECTRICAL INSTALLERS AND
SYSTEM INTEGRATORS
EASYLINE SOLUTIONS PRODUCTS
7

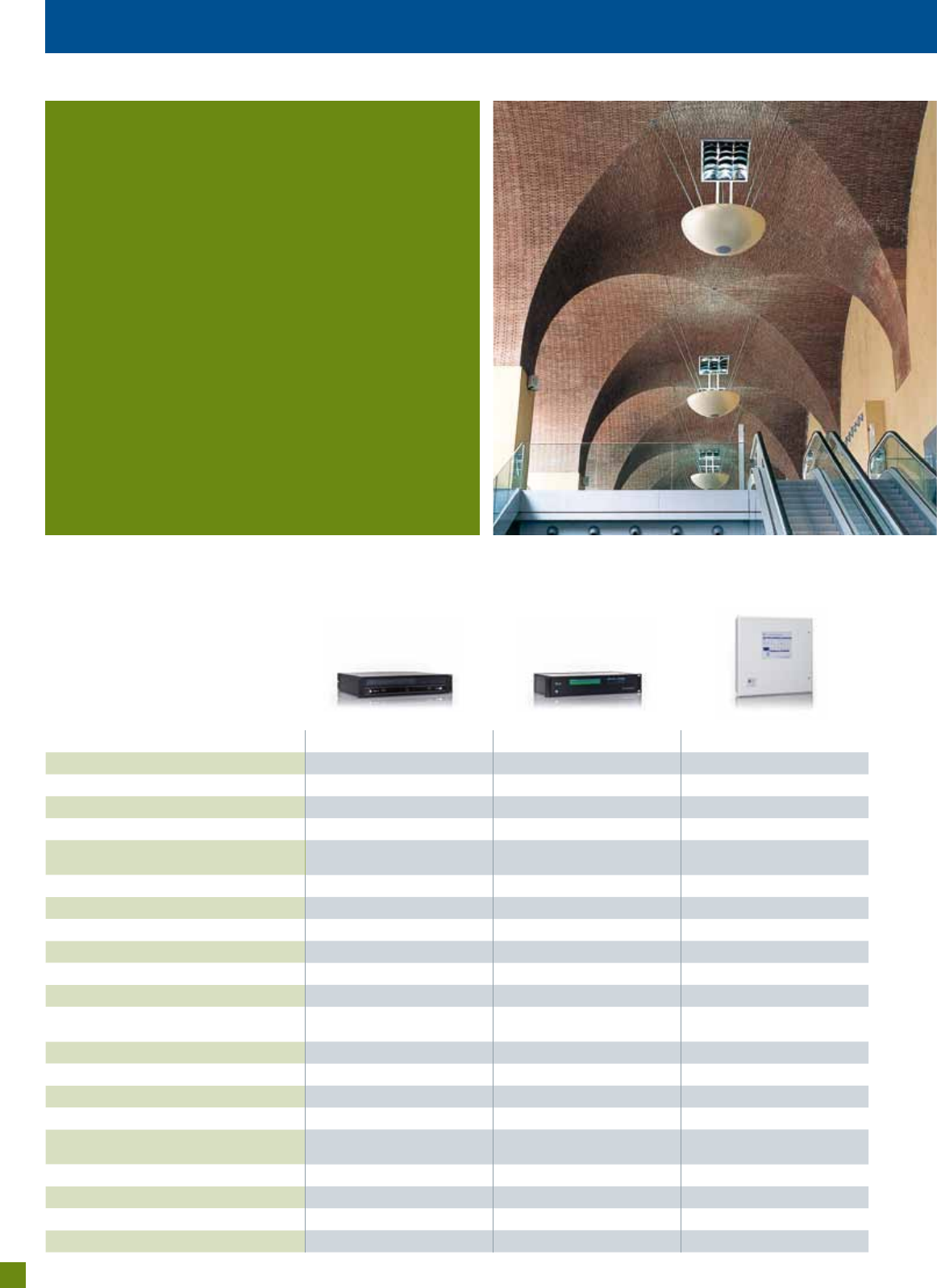

PRODUCT DXT 7000 RX 4000 SE 5000
MAX. NUMBER OF ZONES 256 64 1 Alarm, 10 local announc. or music
MAX. POWER (100 V SWITCHING) 20.480 W 32.000 W 1.920 W
REDUNDANCY AMPLIFIER AND LINE CONTROL YES YES YES
STAND-BY AMPLIFIER CONTROL Inside for the amplifier associeted YES -
MAX. NUMBER OF
PAGING MICROPHONES
32 32 3
INTERACTIVE LCD ON THE BASE YES YES -
SIMULTANEOUS AUDIO CHANNEL 7 for unit, 32 units for system 8 2
PAGING MICROPHONE PROGRAMMABILITY YES YES -
AUDIO SOURCE INPUTS 6 for unit, 32 units for system up to 8 1
AUX AUDIO ANALOG. IN / OUT CONNECTION 5 / 1 for unit, 32 units for system 4 / - 1 / 1
CONFIGURATION PC PC DIPs
EVACUATION / ROUTINE INSIDE MESSAGE RECORDER
PLAYER
YES/YES YES / - YES / -
DSP AUDIO PROCESSING YES - -
INTERFACE USB + Serial Serial -
PAGING MICROPHONE CABLES CAT 6 FTP or J Type CAT 6 FTP or J Type CAT 6 FTP or J Ttype
SYSTEM CONNECTIONS CABLES CAT 6 or J type CAT 6 or J Type CAT 6 or J Type
LOUDSPEAKER CABLES Twisted pairs. The wire section shall be
chosen according to the connected power
Twisted pairs. The wire section shall be
chosen according to the connected power
Twisted pairs. The wire section shall be
chosen according to the connected power
DIGITAL REMOTE CONTROL YES - -
BACK-UP POWER SUPPLY External UPS 24 V dc Intenal Battery
EN 60849 COMPLIANT YES YES YES
BS 5839-8 COMPLIANT - YES YES
To completely control and manage
background music and paging,
even for emergency and evacuation
purposes, with signals and controls
EN 60849 compliant.
SOUND SYSTEMS
EN 60849 NORM
COMPLIANT
8
SPECIFICATIONS MU 7100
OUTPUT POWER 8 x 80 W RMS @ 8 Ω
FREQUENCY RESPONSE 20 ÷ 20.000 Hz (± 1 dB)
DISTORTION (THD+N) < 0.05% @ 1 kHz
SIGNAL/NOISE RATIO > 96 dBA
INPUT SENSITIVITY -40 ÷ +6 dBu (8 mV ÷ 1.55 V)
INPUT IMPEDANCE 20 K Ω BALANCED
PHANTOM POWER 12 V
POWER SUPPLY 100 V A.C MIN., 240 V A.C MAX. @ 50 - 60 Hz
INPUT TERMINALS REMOVABLE SCREW TERMINALS
SV 7982
REMOTE PROGRAMME SELECTORE
AND LEVEL CONTROL DEVICE
Used as local sound control device. It controls a zone group volume and
operates as program selector. Connection to local or system bus by using
CAT5/6 cabling. To be wall mounted by using with accessories provided.
Used for connection and routing of a local program source (mono signal, 3.5
mm balanced stereo plug). 3 function keys can be individually programmed,
for example, to route local program source to desired loudspeaker lines.
To be wall mounted by using the accessories provided.
LI 7903
REMOTE LOCAL
INPUT / CONTROL DEVICE
p/n 171.70.140 p/n 171.70.141
13˙000 g
mm
277
330
125
80
277 125
80
128
452
203
39
128
452
1.100 g
203
39
203
78
39
483
177
387
483
132
376
PU 5218
483
44 377
483
88 382
178
63 158
(mm)
DR 5301 Data Repeater
178
63 158
(mm)
DR 5301-P Data Repeater for Power Bridge
PB 5310 Power Bridge
483
88 375
MU 5100 -1 MT 5708 -2 BM 5804 -3
LT 7208 - 11
BM 5802 -5
BM 7802 - 12
PU 5218 -7
BM 7801FM - 11
BE 5808 -6
DR 5301 - 8 MU 7100 -10
PB 5310 - 9
REAR VIEW
ÃThe system has been designed to fulfil all requirements of EN 60849 standard
ÃUp to 32 MU 7100 can be linked together in order to get an extended
system including many paging stations and up to 256 loudspeaker lines /
paging zones
ÃThe main unit can play all necessary evacuation and alarm messages
previously stored into its built-in digital memory
ÃThe 8 digital internal amplifiers are highly reliable and their efficiency is
excellent (> 90%), that means less heat dissipation and smaller capacity
requirement for unbreakable power supply sources (UPS) used in security
applications
ÃThe whole signal path from fireman's microphone to loudspeaker lines is
completely and automatically monitored against faults

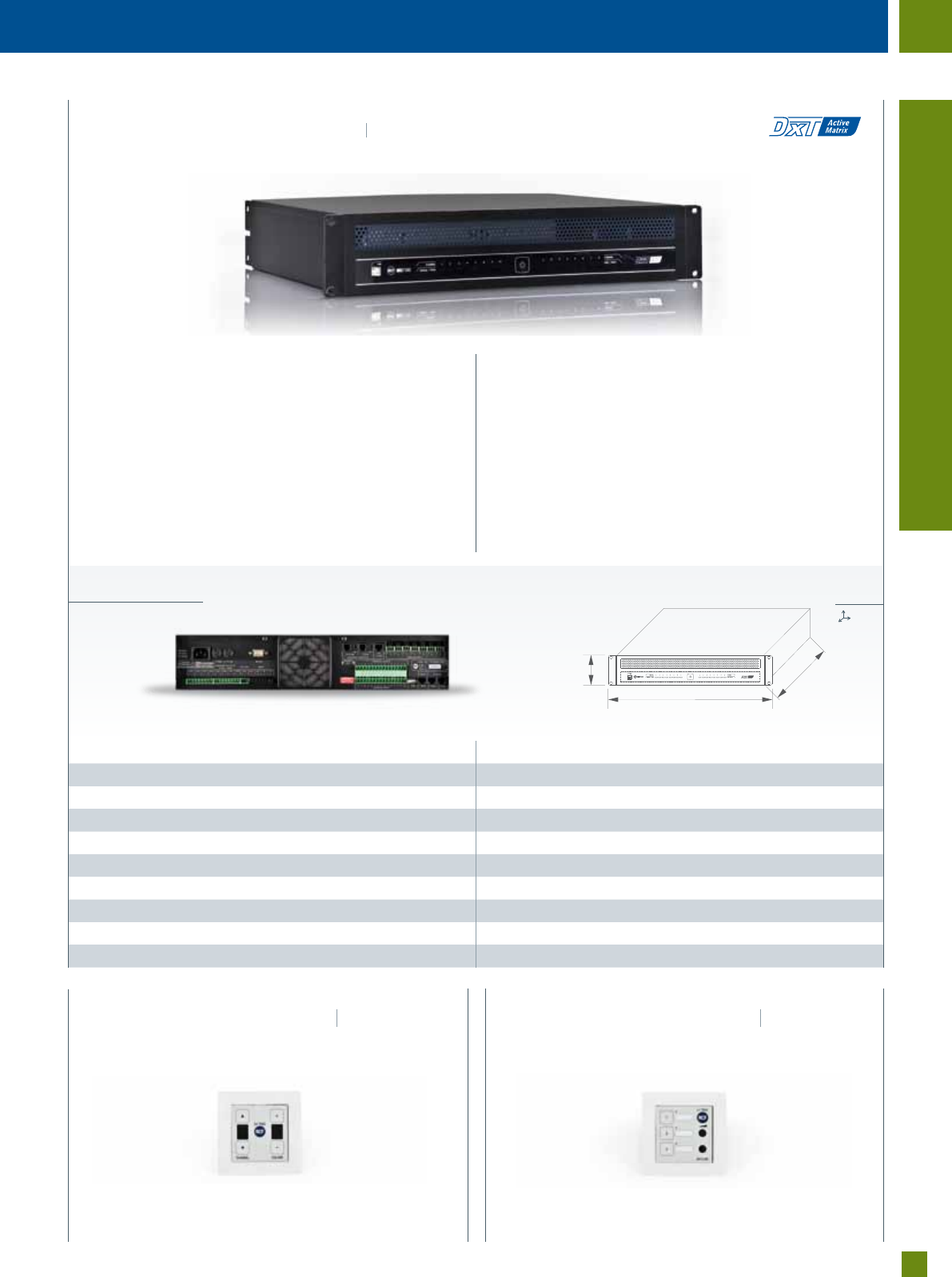

MU 7100
8 x 80 W AMPLIFIER / MAIN UNIT
p/n 171.70.138
SOUND SYSTEMS EN 60849 COMPLIANT
DXT 7000 SYSTEM
ÃDigital Matrix 7 x 8 is configurable for several applications witth routing to
any output channel
ÃEfficient Digital Signal Processor (DSP): 5-Band Parametric EQ, High and Low
Pass Filters, Delay circuit for line array speaker applications, Compressor /
Limiter, Level controls are provided
ÃAn automatic level control facility can be got by simply connecting an omni-
directional noise detection microphone to the inputs
à Built-in WAV file message player (up to128 messages)
à Software Utility for saving unit parameters to PC,updating unit firmware,
virtual control activation and status indication
à Keylock Security sets password-protected access to the system
ÃAn RS-232 serial port is available for external commands and monitoring
9
SPECIFICATIONS LT 7208
OUTPUT POWER 8 x 80 W RMS
CONSTANT VOLTAGE OUTPUT 100 V (70 V o r 50 V INTERNAL COMMUTATION)
INPUT IMPEDANCE 8 Ω BALANCED
OUTPUT CONNECTORS REMOVABLE SCREW TERMINALS
277
330
125
80
277 125
80
128
452
203
39
128
452
1.100 g
203
39
203
78
39
483
177
387
483
132
376
PU 5218
483
44 377
483
88 382
178
63 158
(mm)
DR 5301 Data Repeater
178
63 158
(mm)
DR 5301-P Data Repeater for Power Bridge
PB 5310 Power Bridge
483
88 375
MU 5100 -1 MT 5708 -2 BM 5804 -3
LT 7208 - 11
BM 5802 -5
BM 7802 - 12
PU 5218 -7
BM 7801FM - 11
BE 5808 -6
DR 5301 - 8 MU 7100 -10
PB 5310 - 9
mm
13˙000 g
p/n 171.70.139

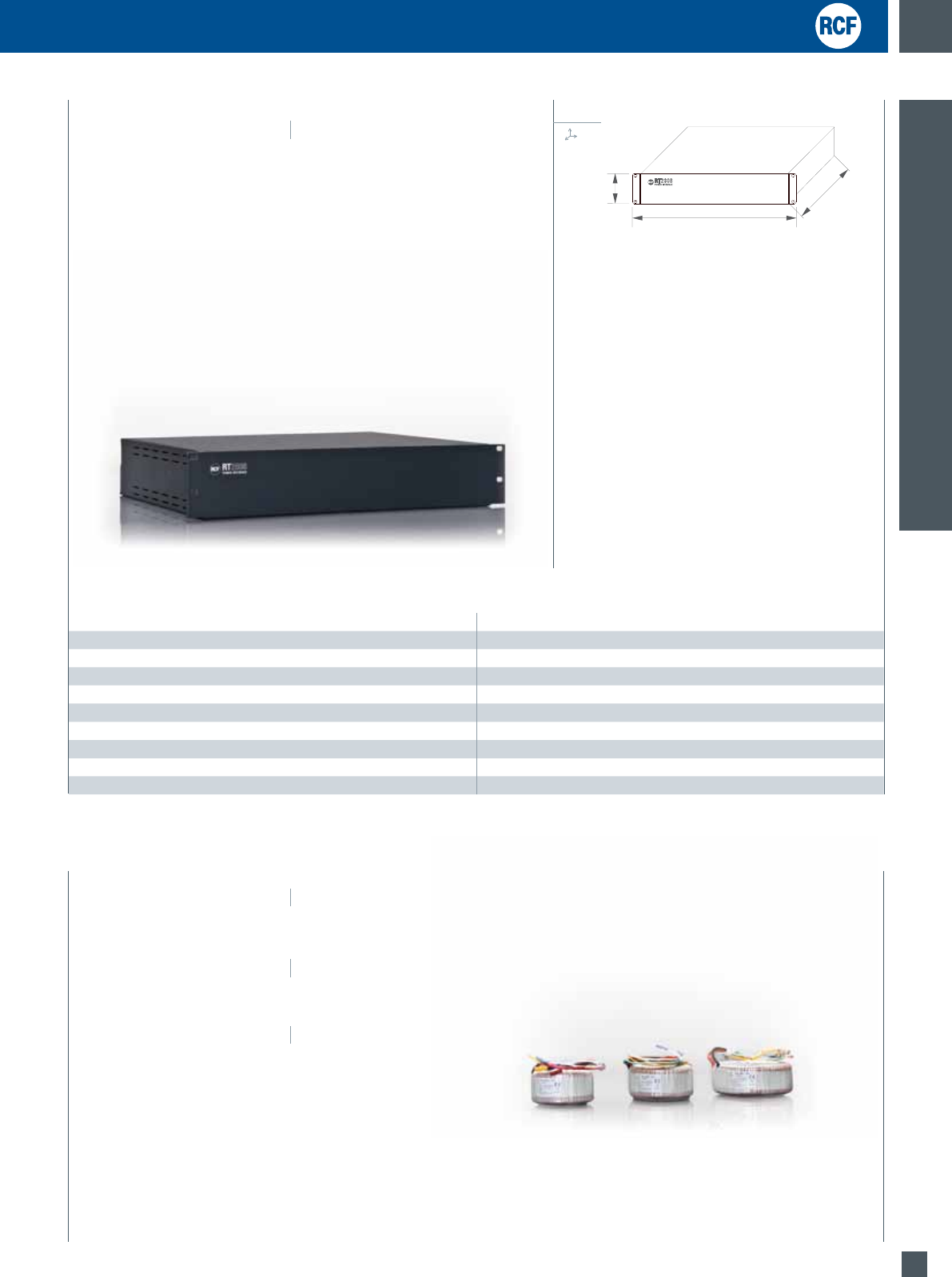

LT 7208
LINE TRANSFORMER INTERFACE
ÃThe LT 7208 line transformer interface allows you to link/
group the 8 amplifiers to increase the power of the speaker
lines two, three or four times
ÃIf the needed speaker line power is more than 80W, several
outputs (in groups made of 2, 3 or 4) can be connected
together (in parallel) in order to get locked groups for 160 W,
240 W or 320 W lines
ÃOutput line voltage setting (50 - 70 - 100 V) is made by
changing the output tapping of each transformer
à Includes also line specific 24V dc outputs for override relays
(max. current: 1A / line)
ÃConnection cable to MU 7100 main unit 8 pcs. of ‘end of line’
unit, used when the loudspeaker line monitoring is provided
ÃThe ‘end of line’ unit shall be installed right at the end of the
line, near the last installed loudspeaker
DXT 7000 SYSTEM
10
The SI 7120 board is a system monitoring
module for the DXT 7000 system.
It monitors the operation condition of 2 lines
coming from the fire alarm system to DXT 7000.
If a line is open or shorted, the SI 7120 board
will detect the fault and activate a command.
A RO 7102 board can be directly connected
to a pair of MU 7100 control outputs.
It converts the 2 MU 7100 open-collector
‘control outputs’ to 2 dry closing contacts that
can be used as commands or external devices.
It also has resistors needed for monitored
alarm lines.
The board has 2 main 70-100V loudspeaker
line inputs, spare amplifier input and output,
2 relays. AC 7212 terminal shall be directly
connected to a pair of LT 7208 loudspeaker
50-70-100 V outputs.
The LT 7208 override voltage output is used to
activate the AC 7212 relay in case of the main
amplifier is faulty and switch the spare amplifier
output to the respective loudspeaker line.
SI 7120
MONITORED LOGICAL INPUT
BOARD FOR MU 7100
p/n 171.70.153
RO 7102
DRY OUTPUT CONTACT BOARD
FOR MU 7100
p/n 171.70.151
AC 7212
SPARE AMPLIFIER CHANGE-
OVER BOARD FOR LT 7208
p/n 171.70.152
SPECIFICATIONS BM 7802
MICROPHONE ELECTRET, CARDIOID
MAX. SIGNAL OUTPUT (AUDIO) 0.5 V
FREQUENCY RESPONSE 40 ÷16.000 Hz
CONNECTORS RJ 45
SPECIFICATIONS BM 7806
MICROPHONE ELECTRET, CARDIOID
MAX. SIGNAL OUTPUT (AUDIO) 0.5 V
FREQUENCY RESPONSE 40 ÷16.000 Hz
CONNECTORS RJ 45
SPECIFICATIONS BM 7801FM
MICROPHONE ELECTRET, CARDIOID
MAX. SIGNAL OUTPUT (AUDIO) 0.5 V
FREQUENCY RESPONSE 40 ÷16.000 Hz
CONNECTORS RJ 45
mm
900 g
mm
1˙250 g
mm
900 g
277
330
125
80
277 125
80
128
452
203
39
128
452
1.100 g
203
39
203
78
39
483
177
387
483
132
376
PU 5218
483
44 377
483
88 382
178
63 158
(mm)
DR 5301 Data Repeater
178
63 158
(mm)
DR 5301-P Data Repeater for Power Bridge
PB 5310 Power Bridge
483
88 375
MU 5100 -1 MT 5708 -2 BM 5804 -3
LT 7208 - 11
BM 5802 -5
BM 7802 - 12
PU 5218 -7
BM 7801FM - 11
BE 5808 -6
DR 5301 - 8 MU 7100 -10
PB 5310 - 9
335
145
30
483
88 270
RX 4000 - VOICE ALARM SYSTEM
CP
Sound Vault Dual Message Player
Message
1 2 3 4
Status
Switch Audio Module
Power
Module 1
Module 2
249
41
159
445
445
115
35
20
10
277
330
125
80
285
360
300
75
483
44 136
BM 7806 -13
PR 5006EN - 19
SE 5120 - 14 BM 5001WM - 15
CP 4001 -16 BM 4601 - 18
BM 4716 - 17
LD 5002EN - 20
277
330
125
80
277 125
80
128
452
203
39
128
452
1.100 g
203
39
203
78
39
483
177
387
483
132
376
PU 5218
483
44 377
483
88 382
178
63 158
(mm)
DR 5301 Data Repeater
178
63 158
(mm)
DR 5301-P Data Repeater for Power Bridge
PB 5310 Power Bridge
483
88 375
MU 5100 -1 MT 5708 -2 BM 5804 -3
LT 7208 - 11
BM 5802 -5
BM 7802 - 12
PU 5218 -7
BM 7801FM - 11
BE 5808 -6
DR 5301 - 8 MU 7100 -10
PB 5310 - 9

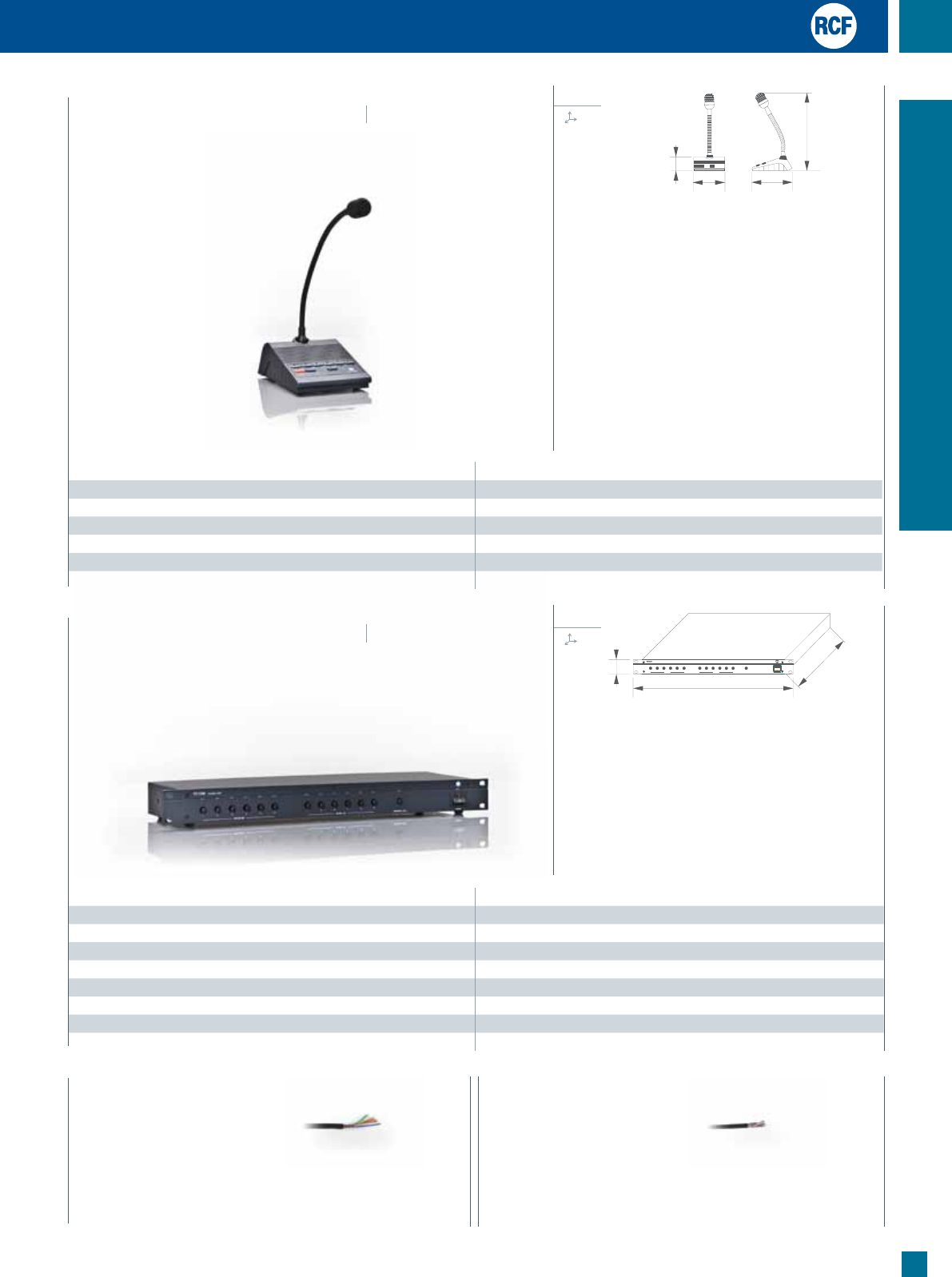

BM 7801FM
FIREMAN'S MICROPHONE
ÃHigh priority paging microphone with 4 programmable,
Ãlatching and safety pushbuttons, 3 of which with safety cover
ÃCritical signal path monitoring
ÃHigh quality hand-held microphone
ÃDesk-top or wall mounting
p/n 143.22.009
BM 7806
EMERGENCY / MULTIZONE
PAGING MICROPHONE
p/n 143.22.011
ÃIn addition to BM 7802 features:
Ã6 latching pushbuttons with safety covers for testing and alarm purposes
ÃCritical signal path monitoring
ÃIndication of system faults both in visual and acoustic way
ÃFault log memory browser and fault offset
ÃMenu based user interface with back lighted liquid crystal display (LCD)
Ã8 programmable function keys
ÃConnector for an external program source
ÃSound source selection and volume control
Ã256 independent broadcast zones can be configured as groups.
ÃUp to 32 remote microphones can be connected
ÃAn external microphone input terminal is provided for headset microphone.
ÃConnection through CAT5/CAT6 to local or system bus
p/n 143.22.010
BM 7802
MULTI-ZONE PAGING MICROPHONE
SOUND SYSTEMS EN 60849 COMPLIANT
DXT 7000 SYSTEM
11
SPECIFICATIONS CP 4100
AUDIO OUTPUT LEVEL + 4 dBu (1.23 V) MAX
FREQUENCY RESPONSE 20 ÷ 20.000 Hz (± 1 dB)
INPUT SENSITIVITY (MIC) 0 dBu (775 mV); (TAPE) - 8.2 dBu (300 mV); (LINE) 2.2 dBu (1 V); (CD) 8.2 dBu (2 V);
PHANTOM POWER SUPPLY 15 V
POWER SUPPLY 2 x 24 V cc
INPUT CONNECTORS SCREW TERMINALS
OUTPUT CONNECTORS SCREW TERMINALS
mm
4˙500 g
335
145
30
483
88 270
RX 4000 - VOICE ALARM SYSTEM
CP
Sound Vault Dual Message Player
Message
1 2 3 4
Status
Switch Audio Module
Power
Module 1
Module 2
249
41
159
445
445
115
35
20
10
277
330
125
80
285
360
300
75
483
44 136
BM 7806 -13
PR 5006EN - 19
SE 5120 - 14 BM 5001WM - 15
CP 4001 -16 BM 4601 - 18
BM 4716 - 17
LD 5002EN - 20
RX 4000 SYSTEM
REAR VIEW
ÃFeature-packed, fully integrated Voice Alarm (EN 60849, BS 5839-8),
Public Address (PA) and Background Music (BGM) system
ÃProgrammable 2 to 16 zone Voice Alarm / Paging / Background
ÃMusic System (expandable up to 64 zones)
Ã2U 19” rack mounted mainframe (CP 4100) containing all the logic,
routing and prioritising components for the system in a 17- slot frame
ÃSlot no.1 contains the central processor card, leaving 8 input slot and 8
output slot
ÃThe audio output slots can accommodate either logical input boards LI
4116 or audio output boards OB 4102 (2 zones / each), allowing up to
16 audio zones.
p/n 171.70.065
CP 4100
MAINFRAME / CENTRAL UNIT
ÃCards fitted into the 8 audio input slots can provide a variety of functions
including zoned fire microphones, fireman’s microphones, messages,contact
inputs, zoned PA inputs and zoned music inputs.
ÃThe revolutionary simulator software allows the routing and priorities
of multiple audio sources to be set up and tested on a PC before
assembling the hardware. This is especially useful, as it allows the
evacuation cause and effect scenario to be checked and approved before
any equipment is purchased.
ÃDifferent audio inputs, such as fireman’s microphone, alert and evacuate
messages can be triggered simultaneously
ÃEN 60849 certificated by TRL
12
RX 4000 SYSTEM

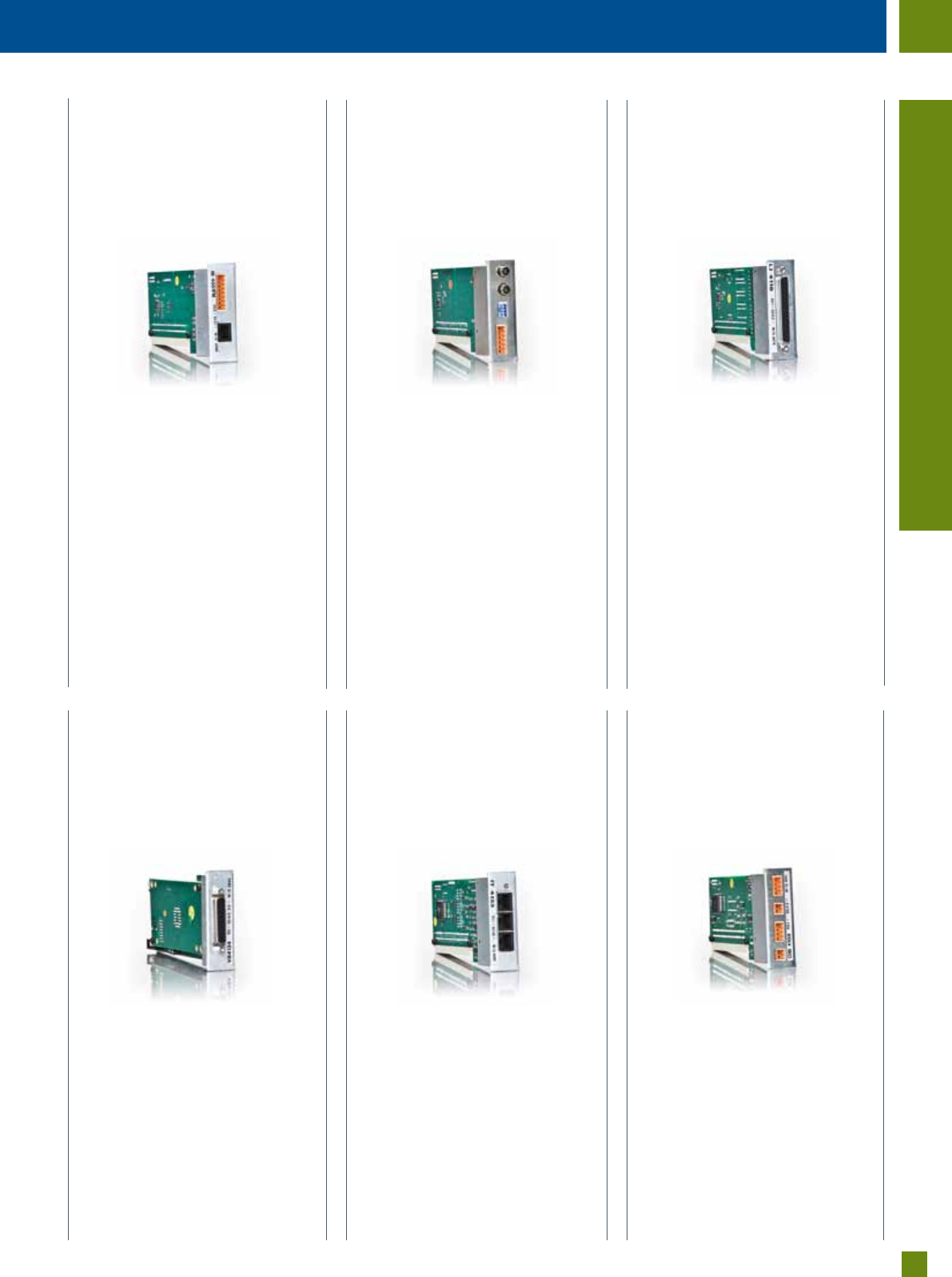

IB 4121BGM
BACKGROUND MUSIC INPUT
BOARD
p/n 171.70.071
LI 4116
16 LOGICAL INPUTS BOARD
p/n 171.70.072
IB 4001FM
ALL CALL FIRE MICROPHONE
INPUT BOARD
p/n 171.70.066
This card is normally used for an all-call
fireman’s microphone, but can also be used for
normal paging microphones or any balanced
line level audio source and may be routed to
any pre-defined combination of zones. Up to 4
paging units BM 4631WM (or only one paging
unit BM 4601) can be connected to one IB
4001FM card and they will work on a first-
come-first-served basis. When multiple inputs
are connected to a single card, they must all
page the same audio zones. The card also has
two additional monitored switch inputs that
are normally used to manually trigger the
emergency messages, but can be used for any
purpose. The card provides full monitoring of
the fireman’s microphone(s) in accordance
with EN 60849 and a fault will result in a text
message being logged and displayed
Pair of phono (RCA) stereo unbalanced inputs.
A 4-way dipswitch allows the user to set the
sensitivity of the phono connectors for levels
and also enables default selection of audio
zones for music. External contacts allow up to
4 individual groups to be manually selected for
music, depending on the state of the switch
and the programming of the cause and effects
software.
17 opto-isolated switch inputs (16 latching
triggers plus silence) for monitored connection
to sounder outputs from a fire detection
system. If these outputs are not available, a
24 V dc - 50 mA protected voltage output is
provided so that normally open relay outputs
can be used. Operating any of the inputs
triggers pre-set messages in pre-defined
zones depending on the way the cause-and
effects matrix in the mainframe has been set
up unit. The inputs can also be used for any
other routing, such as routing music to pre-set
zones, in which case, the inputs can be set to
automatically un-latch.
IT 4133
INPUT BOARD FOR SYSTEM
PAGING CONSOLES
p/n 171.70.067
OB 4102
2 ZONE BALANCED OUTPUT
BOARD
p/n 171.70.073
VB 4134
MESSAGE BOARD
p/n 171.70.068
Internal flash memory chip supporting up to 4
messages of up to 30” in length ( best quality
8 kHz 16- bit audio). Messages are loaded into
the board VB4134 from a PC using up-load
software (not XP). Any failure of memory is
flagged to the system as a fault.
It is normally used to allow up to 4 mainframes
CP 4100 to be linked via one or more paging
consoles BM 4732WM - BM 47XX. The paging
console(s) can page and control messages
in any combination of zones in all the 4
mainframes CP 4100 and can display status
and fault information from all systems.
2 independent balanced line level audio
outputs to drive amplifiers. The card contains an
audio selector (which is controlled by software)
and a digitally controlled attenuator for each
output. A different volume level may be
programmed for each type of input (emergency,
paging and BGM). The card also reports faults
from the amplifiers through a monitored output
and provides a closing contact that is typically
used for volume restoration or activating
beacons when emergency paging occurs.
RX 4000 SYSTEM
13
SOUND SYSTEMS EN 60849 COMPLIANT
mm
2˙500 g
335
145
30
483
88 270
RX 4000 - VOICE ALARM SYSTEM
CP
Sound Vault Dual Message Player
Message
1 2 3 4
Status
Switch Audio Module
Power
Module 1
Module 2
249
41
159
445
445
115
35
20
10
277
330
125
80
285
360
300
75
483
44 136
BM 7806 -13
PR 5006EN - 19
SE 5120 - 14 BM 5001WM - 15
CP 4001 -16 BM 4601 - 18
BM 4716 - 17
LD 5002EN - 20

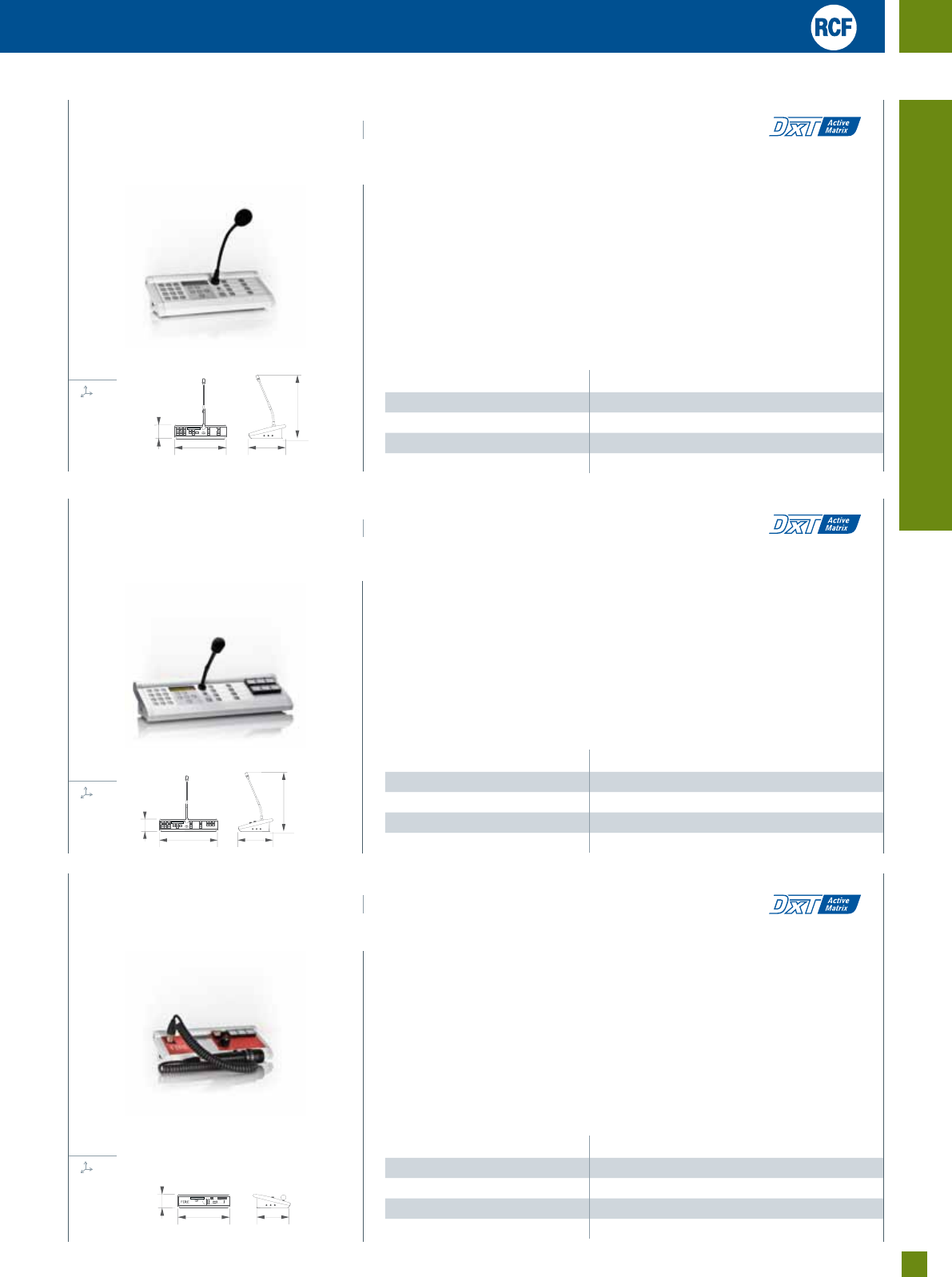

RX 4000 SYSTEM
BM 4732
32 BUTTON PAGING CONSOLE
p/n 171.70.078
BM 4748
48 BUTTON PAGING CONSOLE
p/n 171.70.084
HB 4103
HUB FOR BM47XX SERIES
PAGING CONSOLES
p/n 171.70.070
Multi RJ45 connector hub to connect up to
4 paging consoles BM 4716, BM 4732, BM
4748, BM 4764 (to IT 4133 board).
BM4732 has the same features of the BM4716
but with 32 configurable buttons.
BM4748 has the same features of the BM4716
but with 48 configurable buttons.
BM 4732WM
WALL MOUNTING FIREMAN'S
MULTI-ZONE PAGING CONSOLE
p/n 171.70.077
BM 4764
64 BUTTONS PAGING CONSOLE
p/n 171.70.085
BM4764 has the same features of the BM4716
but with 64 configurable buttons.
BM4732 WM has the same features of the
BM4716 but with 32 configurable buttons in a
steel wall mointing case
BM 4716
16 BUTTON PAGING CONSOLE
p/n 171.70.076
ÃSturdy metallic enclosure, with 300 mm flexible goose-neck
microphone
ÃThe console has 16 programmable buttons for zone or
group of zone paging
ÃGeneral Call button
ÃChime activation button
ÃPush to talk button for microphone and zone activation
ÃLCD screen for programming, state and fault monitoring
Ã4 functional buttons to check the state of the console and
to set several parameters. These buttons can be password
protected
ÃAllows the triggering of prerecorded messages from the VB
4134
Ã2 m cable with RJ 45 provided
ÃRequires the IT 4133 board
BM 4631WM
WALL MOUNTING ALL CALL
FIREMAN'S MICROPHONE
p/n 171.70.075
Wall mount all call fireman’s microphone
with palm-held microphone, triggers for two
messages stored on VB4134
14
mm
500 g
335
145
30
483
88 270
RX 4000 - VOICE ALARM SYSTEM
CP
Sound Vault Dual Message Player
Message
1 2 3 4
Status
Switch Audio Module
Power
Module 1
Module 2
249
41
159
445
445
115
35
20
10
277
330
125
80
285
360
300
75
483
44 136
BM 7806 -13
PR 5006EN - 19
SE 5120 - 14 BM 5001WM - 15
CP 4001 -16 BM 4601 - 18
BM 4716 - 17
LD 5002EN - 20
p/n 171.70.074

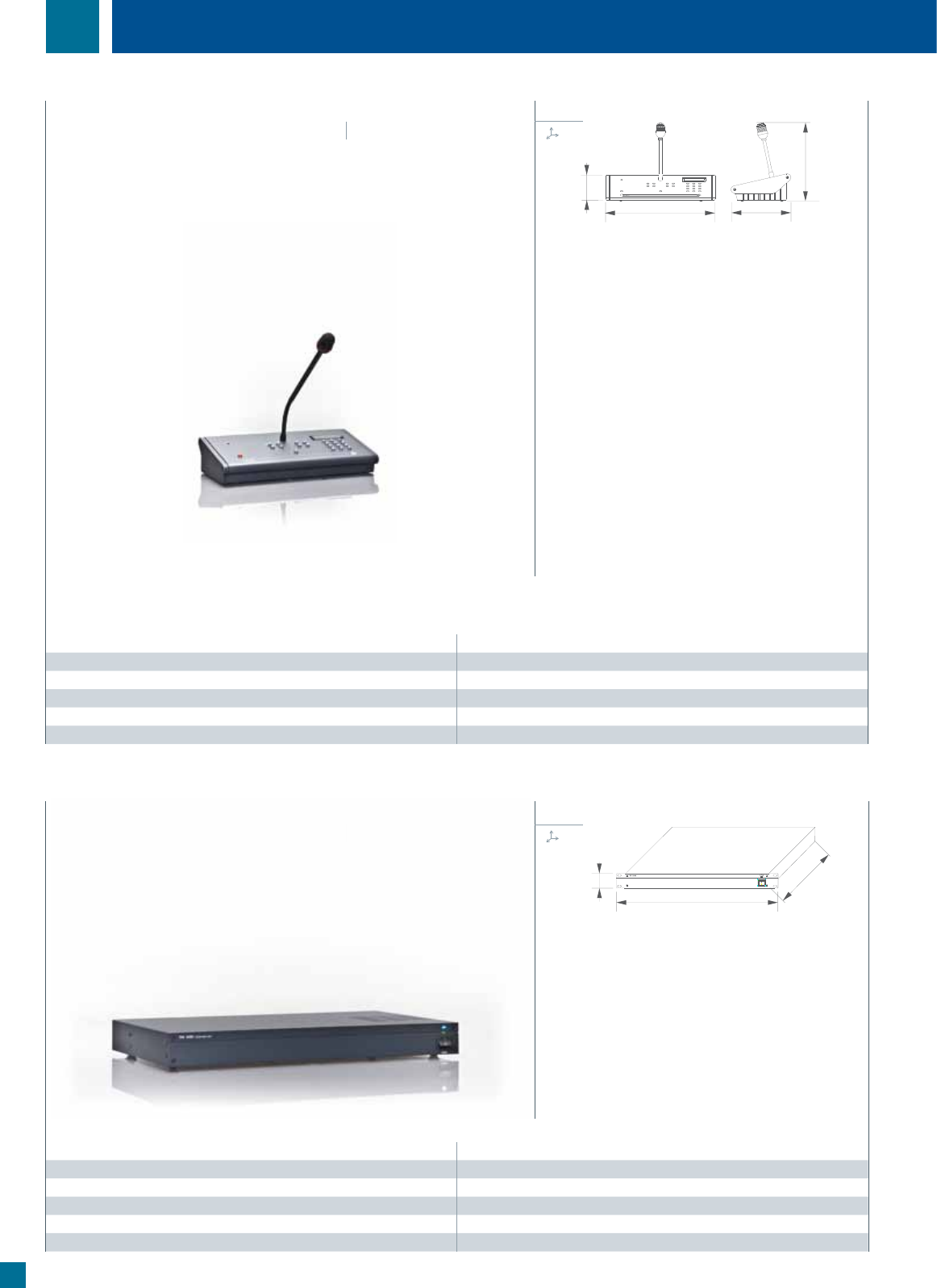

BM 4601
SINGLE ZONE DESKTOP PAGING CONSOLE
ÃMetal body with 300 mm gooseneck
ÃIt can be routed to any preset zone combination
ÃVolume control with compressor, noise gate, monitored capsule
and wiring
ÃPolyurethane foam wind screen
ÃLine level desktop gooseneck microphone with compressor, noise
gate, monitored capsule and wiring
Ã2 m connecting cable (with RJ 45 plugs) included
RB 3300
Back-amplifier board
p/n 171.20.051
SB 3320
POWER AMPLIFIER AND
SPEAKER LINE SURVEILLANCE
CARD FOR RB 3300
p/n 171.20.052
Main control board for power amplifier and
speaker line with microprocessor interface for
SB 3320 and LB 3340 and power amplifier
change-over circuit built-in.
Board for amplifier, line impedance and earth
dispersions diagnosis with a direct priority input
on power amplifier controlled
PS 3400
POWER SUPPLY FOR
BACK-AMPLIFIER BOARDS
RB 3300
p/n 171.30.006
OT 3500
TRANSFORMER FOR
DISTRIBUTED SYSTEMS
p/n 171.20.056
Power supply unit in 1RU 19” for back-
amplifier boards RB 3300. Electronic protection
circuit for voltage, current and temperature.
Mumental insulation tranformer with
removeable screw terminals. Can work with
0dB signals.
RX 4000 SYSTEM
LB 3340
Card for automatic digital
control of the ambient signal/
noise ratio
p/n 171.20.053
Card for automatic digital control of the ambient
signal/noise ratio. Connection for up to four
noise detection omnidirectional microphones or
loudspeakers. Preselection for Nighttime sound
level attenuation
15
SOUND SYSTEMS EN 60849 COMPLIANT
SPECIFICATIONS SE 5120 - SE 5121
OUTPUT POWER 2 x 60 W RMS
FREQUENCY RESPONSE 150 ÷ 20.000 Hz (± 1 dB)
INPUT SENSITIVITY -10 ÷ +10 dBu (0.23 ÷ 2.3 V)
POWER SUPPLY 230 V a.c +/- 10% @ 50 - 60 Hz
INPUT CONNECTORS REMOVABLE SCREW TERMINALS
OUTPUT CONNECTORS REMOVABLE SCREW TERMINALS
335
145
30
483
88 270
RX 4000 - VOICE ALARM SYSTEM
CP
Sound Vault Dual Message Player
Message
1 2 3 4
Status
Switch Audio Module
Power
Module 1
Module 2
249
41
159
445
445
115
35
20
10
277
330
125
80
285
360
300
75
483
44 136
BM 7806 -13
PR 5006EN - 19
SE 5120 - 14 BM 5001WM - 15
CP 4001 -16 BM 4601 - 18
BM 4716 - 17
LD 5002EN - 20
335
145
30
483
88 270
RX 4000 - VOICE ALARM SYSTEM
CP
Sound Vault Dual Message Player
Message
1 2 3 4
Status
Switch Audio Module
Power
Module 1
Module 2
249
41
159
445
445
115
35
20
10
277
330
125
80
285
360
300
75
483
44 136
BM 7806 -13
PR 5006EN - 19
SE 5120 - 14 BM 5001WM - 15
CP 4001 -16 BM 4601 - 18
BM 4716 - 17
LD 5002EN - 20
mm
mm
3˙400 g
8˙000 g

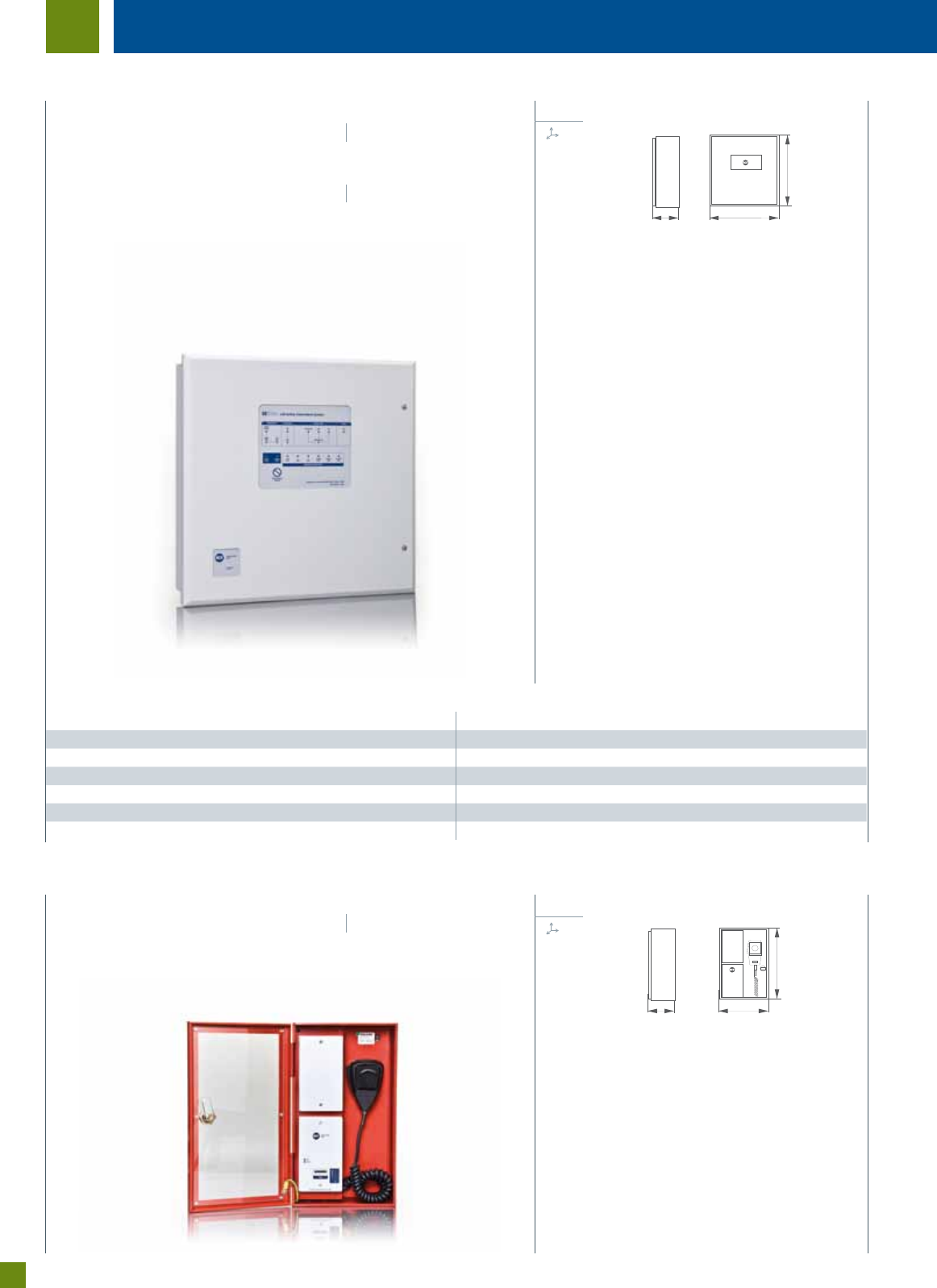

ÃWall mount microphone in housing for evacuation system
ÃConnected in parallel to up to 10 SE5120/ SE5121
ÃMonitoraggio del microfono e del pulsante di attivazione
ÃPalm-held microphone with PTT button with highest priority
over other inputs
ÃState and output indicators
ÃIntegrated Voice Alarm modular system for emergency
announcements
ÃEquipped with a dual amplification circuit 2 x 60W that can
drive 2 lines of speakers at 100V constant voltage
ÃThe system incorporates a digital reader for messages that
can be activated from the fire alarm control unit.
ÃThe preamplification circuit includes dedicated inputs for
emergency microphones (BM 5001WM), preamplified
announcement microphones, and background music source.
ÃThe system operates with the mains voltage, which it also
uses for recharging the batteries that automatically power it
in the event of a black-out.
ÃThe system is supplied with hermetically sealed batteries that
are situated inside the enclosure itself
ÃEnd-line sensors to be installed in parallel with the last
speaker of each line to verify the continuity of the line.
ÃEach SE 5120 Master system can be connected to a maximum
of te n SE 5121 Slave systems
ÃSlave amplifiers are typically used to extend loudspeaker
coverage in areas such as large warehouses. They also allow
greater flexibility to manage paging and background music as
they have their own paging and background music inputs
ÃWall mount enclosure
p/n 171.70.087
BM 5001WM
WALL MOUNT EVACUATION
MICROPHONE
p/n 171.70.083
p/n 171.70.086
SE 5120
MASTER UNIT
SE 5121
SLAVE UNIT
SE 5000 SYSTEM
16
SPECIFICATIONS LD 5002EN
AUDIO OUTPUT LEVEL 0 dBu (0.775 V RMS)
SAMPLING FREQUENCY 16 kHz 16 bit
STORAGE 2 MODULES OF 4 MESSAGES EACH (MAX 30 SECONDS EACH MODULE)
INPUT SENSITIVITY 0 dBu (0.775 V RMS)
CONSUMPTION 100 mA @18 - 36V CC, EXTERNAL SELECTOR
POWER SUPPLY 24 V cc
CONNECTORS REMOVABLE SCREW TERMINALS
SPECIFICATIONS PR 5006EN
AUDIO OUTPUT LEVEL 0 dBu (0.775 V RMS)
OUTPUT IMPEDANCE 600 Ω BALANCED
FREQUENCY RESPONSE 30 ÷ 30.000 Hz (± 1 dB)
DISTORSION (THD+N) < 0.05% @ 1 kHz
DYNAMIC ≥ 90 dB @ RMS
SIGNAL/NOISE RATIO > 70 dB
INPUT SENSITIVITY 0 dBu (0.775 V RMS)
INPUT IMPEDANCE 10 KΩ UNBALANCED
POWER SUPPLY + 24V
INPUT CONNECTORS REMOVABLE SCREW TERMILAS
OUTPUT CONNECTORS REMOVABLE SCREW TERMINALS
335
145
30
483
88 270
RX 4000 - VOICE ALARM SYSTEM
CP
Sound Vault Dual Message Player
Message
1 2 3 4
Status
Switch Audio Module
Power
Module 1
Module 2
249
41
159
445
445
115
35
20
10
277
330
125
80
285
360
300
75
483
44 136
BM 7806 -13
PR 5006EN - 19
SE 5120 - 14 BM 5001WM - 15
CP 4001 -16 BM 4601 - 18
BM 4716 - 17
LD 5002EN - 20
335
145
30
483
88 270
RX 4000 - VOICE ALARM SYSTEM
CP
Sound Vault Dual Message Player
Message
1 2 3 4
Status
Switch Audio Module
Power
Module 1
Module 2
249
41
159
445
445
115
35
20
10
277
330
125
80
285
360
300
75
483
44 136
BM 7806 -13
PR 5006EN - 19
SE 5120 - 14 BM 5001WM - 15
CP 4001 -16 BM 4601 - 18
BM 4716 - 17
LD 5002EN - 20
mm
mm
865 g
3˙000 g
Ã6 input mixer with gradueted priority
ÃInputs monitoring and built in 22.05 kHz tone generator to
monitor connected amplifiers
ÃInternal jumper to set input 6 as BGM or paging input
ÃMicrophone capsule monitoring
à 130 mV to 1 Volt selectable input level (for CD player)
ÃDouble message player with two modules storing up to 8
Mbit
ÃEach module can store a total of 30 seconds, that can be
divided into 4 messages
ÃHalf of a19" 1RU
ÃBS 5839 and EN 60849 monitoring of the state with LED's on
the front panel
ÃAutomatic diagnosis of ROM, RAM and E2PROM
p/n 171.70.089

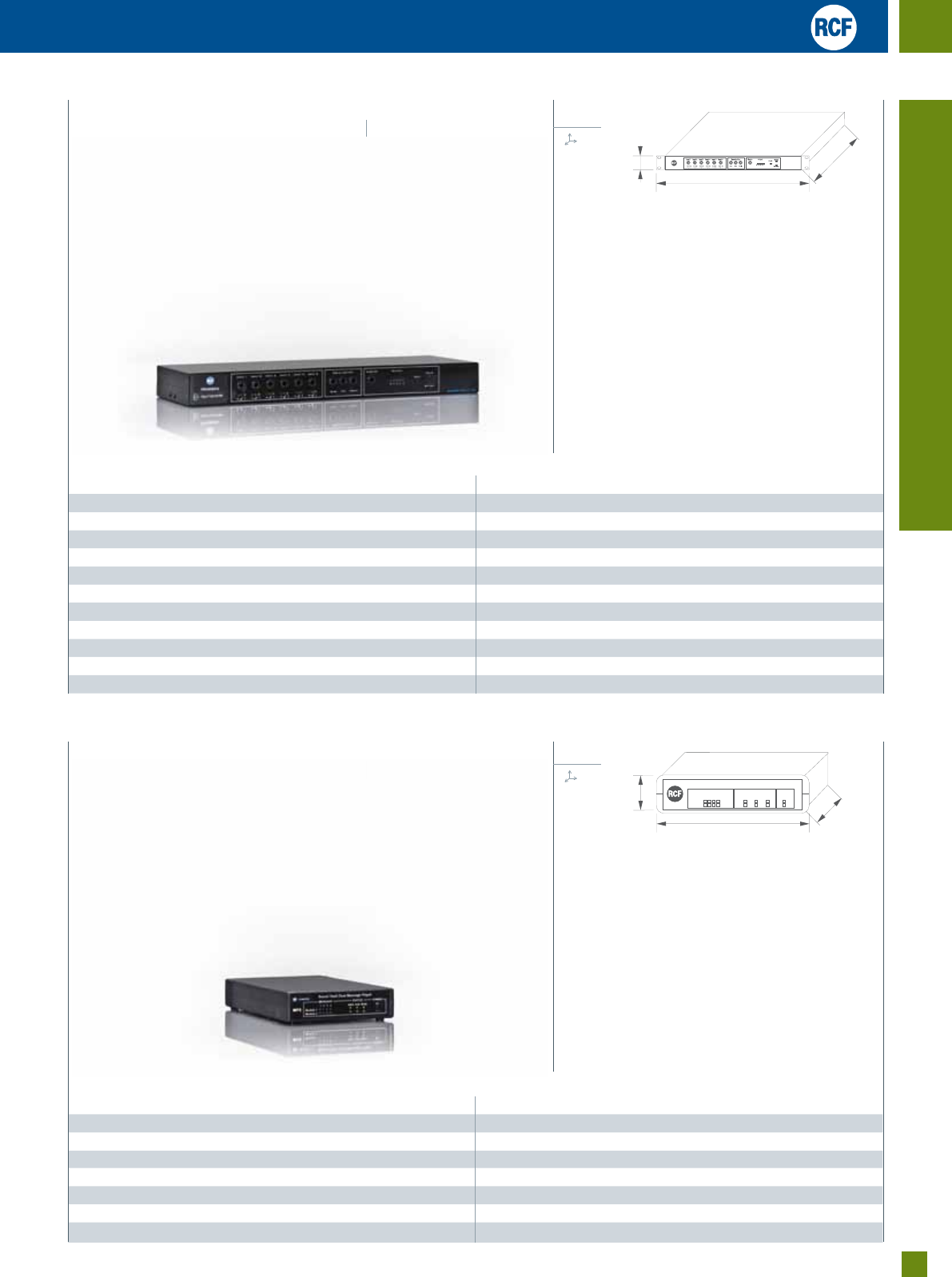

LD 5002EN
DOUBLE DIGITAL MESSAGE PLAYER
p/n 171.70.088

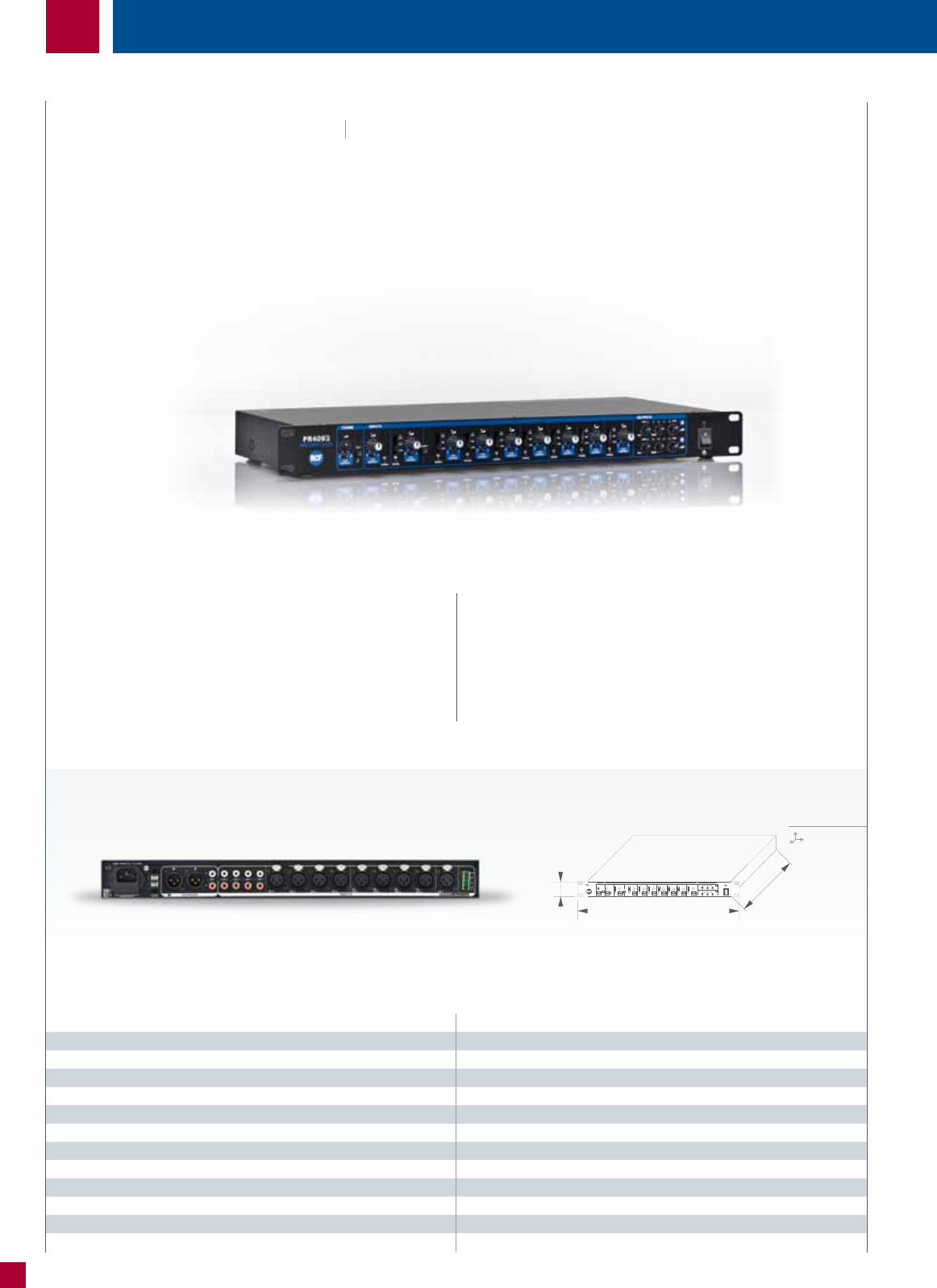

PR 5006EN
6 INPUT PREAMPLIFIER
PREAMPLIFIERS AND PLAYERS
17
SOUND SYSTEMS EN 60849 COMPLIANT
PRODUCT CS 1066 SPA 8000 MS 520
MAX. NUMBER OF ZONES 6 31 (upgradable to 125) 5
MAX. POWER (100 V SWITCHING) 500 W per zone 500 W per zone -
MAX. POWER ON
0 dBu AUDIO SIGNAL SWITCHING
It depends on the max. power of the
amplifier(s) directly connected to the
commutation unit outputs
It depends on the max. power of the
amplifier(s) directly connected to the
commutation unit outputs
5 x 20 W (on 4 ohm load) amplifiers;
5 audio LINE outputs (1 per zone) are
available to connect additional power
amplifiers
MAX. NUMBER OF
PAGING MICROPHONES
10 6 1
LCD ON PAGING MICROPHONES NO YES NO
AUDIO CHANNELS 2 (either 100 V or LINE) 2 (either 100 V or LINE) 5 (LINE level)
PAGING MIC. PROGRAMMING NO YES (4 keys assigned to zone groups) NO
SYSTEM SETUP NO NO YES
SYSTEM SETUP DISPLAY - - LCD
PAGING MICROPHONE CABLES RCF CA 40 + RCF CA 3000 RCF CA 4000 To be chosen according to the used paging
microphone and the number of paged
zones
LOUDSPEAKER CABLES Twisted pair for 100 V line Twisted pair for 100 V line Twisted pair
REMOTE CONTROLS NO NO YES
MUSIC ON/OFF ON EACH ZONE YES YES YES
DIRECT CURRENT POWER SUPPLY YES (24 V dc) NO NO
Paging and background music to
different zones.
MULTI-ZONE
SYSTEMS
18
MULTI-ZONE SYSTEMS
CS 1066 SYSTEM
SPECIFICATIONS BM 3067
TYPE DYNAMIC, CARDIOID
IMPEDANCE 600 Ω BALANCED
FREQUENCY RESPONSE 250 ÷ 7000 Hz
MIC. SENSITIVITY - 80 dB ± 3 dB (0 dB=1V/µbar, 1kHz)
CONNECTORS SCREW TERMINALS
POWER SUPPLY 24 V dc - 50 mA, or supplied by PD 1066
SPECIFICATIONS PD 1066
MAX. POWER PER ZONE (AMPLIFIERS BEFORE PD 1066) 500 W (100 V); 350 W (70 V); 250 W (50 V); 125 W (25 V);
INPUTS / OUTPUTS 2 / 6
POWER SUPPLY OUTPUT 24 V dc - 300 mA
GENERAL CALL REMOTE COMMAND THROUGH EXTERNAL CONTACT OR 10÷24 V dc POWER SUPPLY
LOUDSPEAKER RELAYS 6 (MAX. CURRENT ON EACH RELAY CONTACTS: 5 A)
ALARM AUX RELAY 1 (2 CONTACTS; MAX. CURRENT: 5 A)
POWER SUPPLY 230 / 115 V ac (50 / 60 Hz) - 24 V dc
INPUT / OUTPUT CONNECTORS SCREW TERMINALS
216
88
262
FAULT POWERSystem AmplifierBA 1040
220
290
160
50
132
270
200
70
483
44 160
483
44 244
438
44 253
483
44 160
325
127
165
75
BM 8001 - 2
MS 520 - 1 RM 8080 - 3
RU 8020 - 4 BM 3067 - 5 PD 1066 - 6
BA 1040-PCU - 7 BA 1040-SA - 8
216
88
262
FAULT POWERSystem AmplifierBA 1040
220
290
160
50
132
270
200
70
483
44 160
483
44 244
438
44 253
483
44 160
325
127
165
75
BM 8001 - 2
MS 520 - 1 RM 8080 - 3
RU 8020 - 4 BM 3067 - 5 PD 1066 - 6
BA 1040-PCU - 7 BA 1040-SA - 8
2˙800 g
1˙800 g
mm
mm
Ã6 paging keys (one per zone)
Ã6 music on / off keys (one per zone)
ÃGeneral call key (to switch all the 6 paging relays on)
ÃAll the front panel keys have an LED
Ã2 possibile wiring modes:
- amplifiers after the PD 1066 switching unit -
amplifiers before the PD 1066 switching unit
ÃThe general call function can be activated by both the front
panel key and an external device
ÃEasy zone selection
ÃCardioid dynamic microphone on 320 mm gooseneck; plastic
base
Ã6 keys for zone selection, a general call key, a PTT key, an
alarm key (to control the internal siren)
ÃUp to 10 paging microphones can be linked in series (priority
/ interlocking configurable)
Ã4 modes: mixed, interlocking, mixed with 2 microphones
having graduated priority, interlocking with 2 microphones
having graduated priority
ÃBuilt-in bi-tonal siren (adjustable level and frequencies)
ÃMax. total cable length: 1000 m (high-level audio signal)
Ã5 m cables included for connection to amplifiers and the PD
1066 switching unit
BM 3067
PREAMPLIFIED PAGING
MICROPHONE (FOR PD 1066)
p/n 143.20.138
p/n 171.20.047
Ã6 pole connection cable (1 screened pair + 2 pairs
for audio / controls) to connect BM 3067 paging
microphones, available in 100 m coils (note: its p/n refers
to 1 m)
Ã10 pole screened cable (for selection / controls), to
connect BM 3067 paging microphone, available in 100 m
coils (note: its p/n refers to 1 m)
CA 40
CABLE
p/n 143.40.020
CA 3000
CABLE
p/n 123.10.020

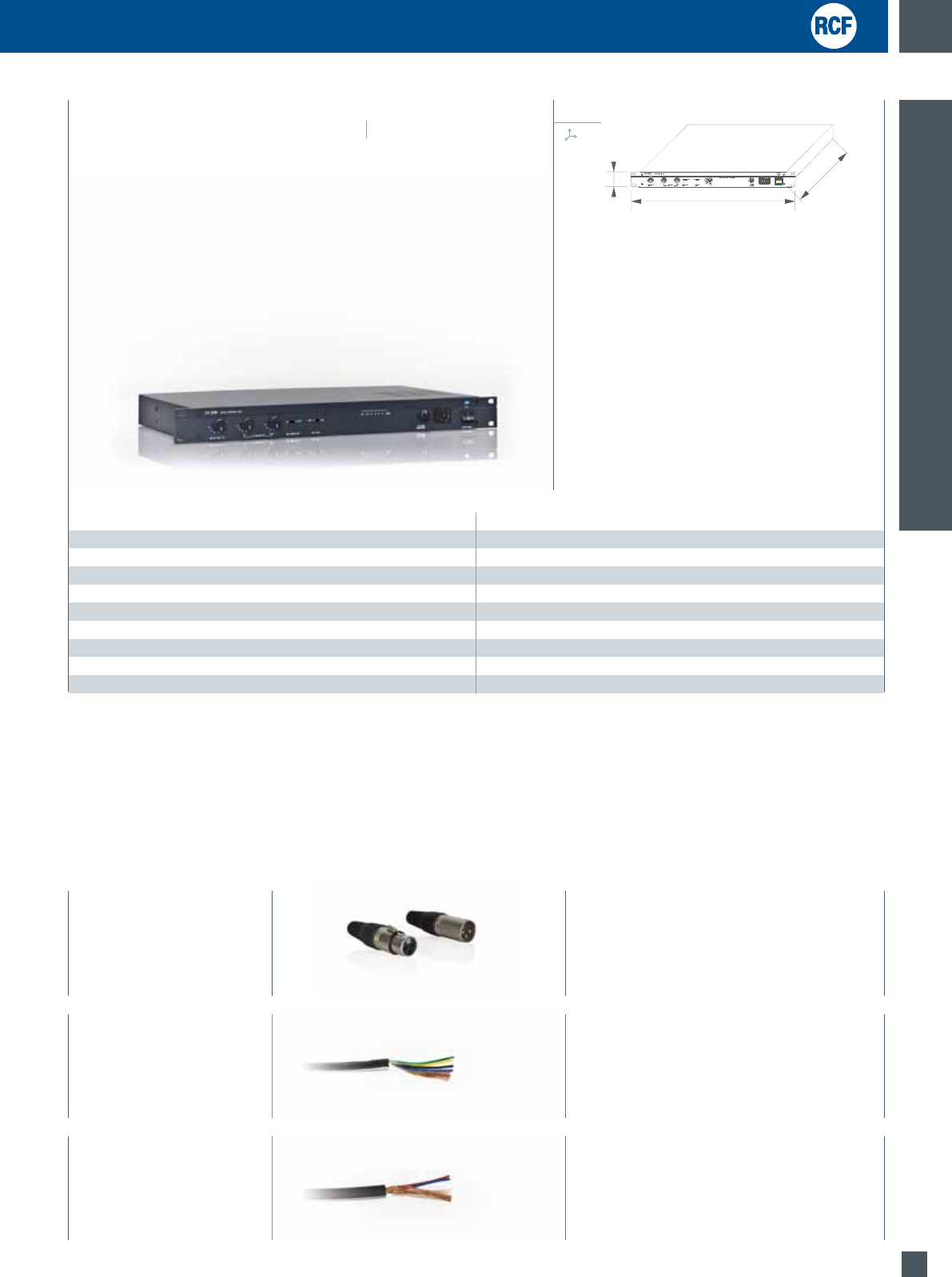

PD 1066
6 ZONE SPEECH / MUSIC SWITCHING
UNIT
19
SPECIFICATIONS RM 8080
AUDIO OUTPUT LEVEL 0 dBu (0.775 V RMS)
POWER SUPPLY 230 V (50 / 60 Hz)
CONSUMPTION max. 150 mA
CONNECTORS 'D' TYPE, PUSH TERMINALS
AUDIO OUTPUT CONNECTOR DIN
SPECIFICATIONS BM 8001
TYPE ELECTRET, CARDIOID
IMPEDANCE 600 Ω BALANCED
FREQUENCY RESPONSE 200 ÷ 6000 Hz
CONNECTORS 15 POLE 'D' TYPE
POWER SUPPLY 19 ÷ 24 V dc
216
88
262
FAULT POWERSystem AmplifierBA 1040
220
290
160
50
132
270
200
70
483
44 160
483
44 244
438
44 253
483
44 160
325
127
165
75
BM 8001 - 2
MS 520 - 1 RM 8080 - 3
RU 8020 - 4 BM 3067 - 5 PD 1066 - 6
BA 1040-PCU - 7 BA 1040-SA - 8
216
88
262
FAULT POWERSystem AmplifierBA 1040
220
290
160
50
132
270
200
70
483
44 160
483
44 244
438
44 253
483
44 160
325
127
165
75
BM 8001 - 2
MS 520 - 1 RM 8080 - 3
RU 8020 - 4 BM 3067 - 5 PD 1066 - 6
BA 1040-PCU - 7 BA 1040-SA - 8
1˙800 g
3˙300 g
mm
mm
ÃPreamplifier, mixer, receiver, system central unit
ÃPower supply unit for BM 8001 paging microphones and SZ 8040
local boards
ÃIt controls the (optional) message player, adds the chime before an
announcement and provides the audio output for a sound system
ÃThe audio output level can be adjusted to match the amplifier
input gain properly
ÃOn request, the system can be upgraded to manage up to
125 zones
ÃRack mount by using the optional AR 1051N accessory (1U
19” rack)
RM 8080
PREAMPLIFIER, MIXER, RECEIVER, POWER
SUPPLY UNIT
ÃThe system allows up to 6 operators to page system zones
selectively and keep backgrund music in non-paged zones
ÃIt allows to send prerecorded messages (max. 12 each) stored
on (optional) dedicated players (i.e. RCF RD 2008 digital message
recorder)
ÃThe alarm key, having the highest priority, starts the
prerecorded message no.1 (if stored on an optional message
recorder) and allows the system general call
ÃUp to 6 BM 8001 paging microphones (having a 6 level
graduated priority) can be connected to the system
ÃAutomatic all zone on / off function.
ÃUp to 4 zone groups can be stored and recalled. Automatic
release of paging function in the activated microphone, if not
used for a certain time
ÃThe max. distance from the last BM 8001 paging microphone
and the RU 8020 control unit is 400 m

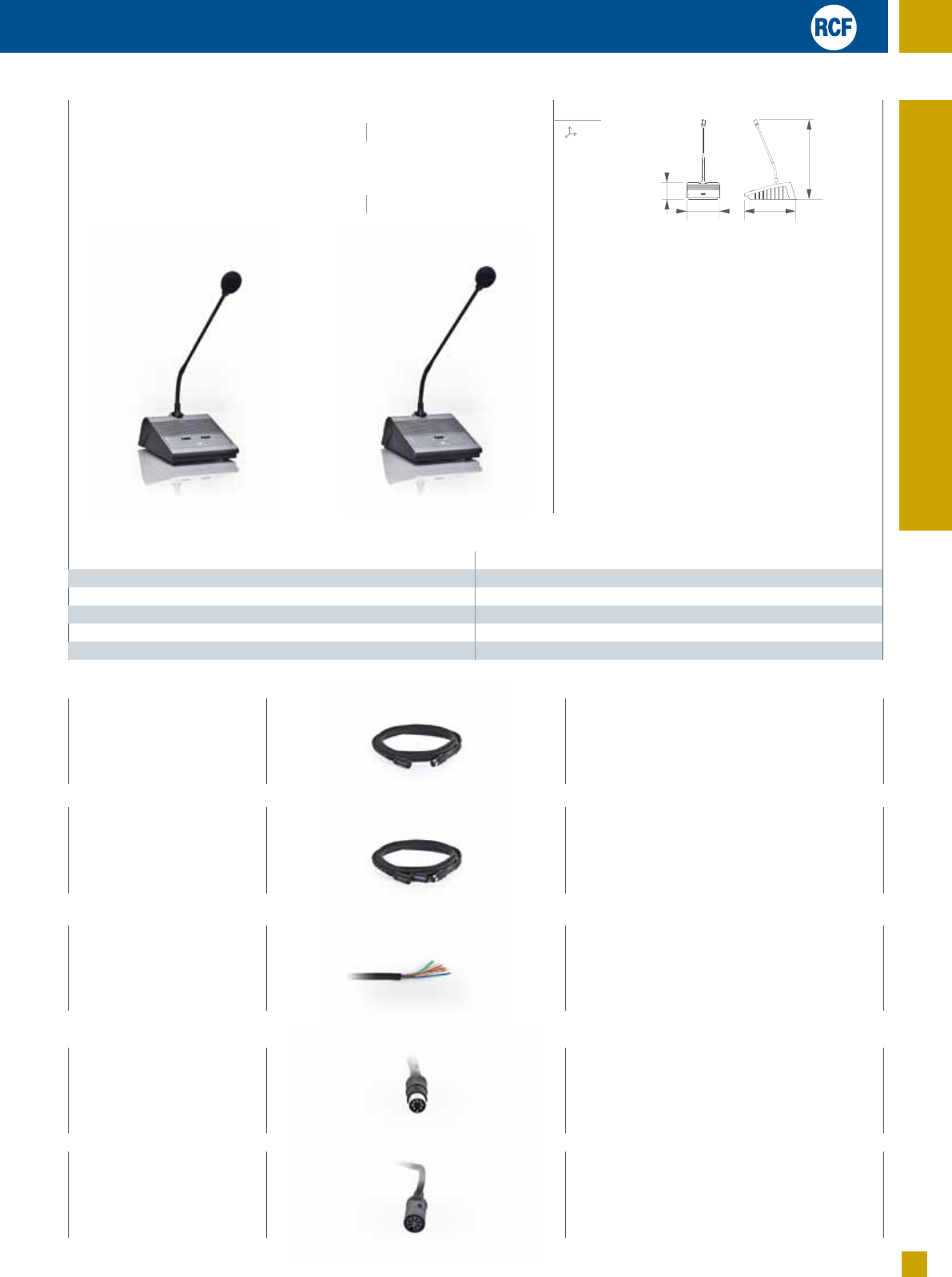

BM 8001
PAGING MICROPHONE
p/n 125.10.007
p/n 125.10.009
SPA 8000 SYSTEM
20
SPECIFICATIONS RU 8020
MAX. POWER PER ZONE (AMPLIFIERS BEFORE RU 8020) 500 W (100 V); 350 W (70 V); 250 W (50 V); 125 W (25 V);
INPUTS 2
OUTPUTS 4 + 4
GENERAL CALL REMOTE COMMAND THROUGH EXTERNAL CONTACT OR 10÷24 V dc POWER SUPPLY
LOUDSPEAKER RELAYS 8 (MAX. CURRENT ON EACH RELAY CONTACTS: 5 A)
AUXILIARY RELAY 1 (MAX. CURRENT: 2 A)
POWER SUPPLY 230 / 115 V ac (50 / 60 Hz)
SECONDARY POWER SUPPLY 24 V dc
INPUT / OUTPUT CONNECTORS SCREW TERMINALS
SPECIFICATIONS SZ 8040
MAX. OUTPUT POWER 60 W
RECEIVER CARRIER FREQUENCY 8.5 kHz
POWER SUPPLY 10 ÷ 24 V dc
CONSUMPTION max. 150 mA
CONNECTORS SCREW TERMINALS
216
88
262
FAULT POWERSystem AmplifierBA 1040
220
290
160
50
132
270
200
70
483
44 160
483
44 244
438
44 253
483
44 160
325
127
165
75
BM 8001 - 2
MS 520 - 1 RM 8080 - 3
RU 8020 - 4 BM 3067 - 5 PD 1066 - 6
BA 1040-PCU - 7 BA 1040-SA - 8
2˙800 g
mm
CA 4000
MULTIPOLAR CABLE

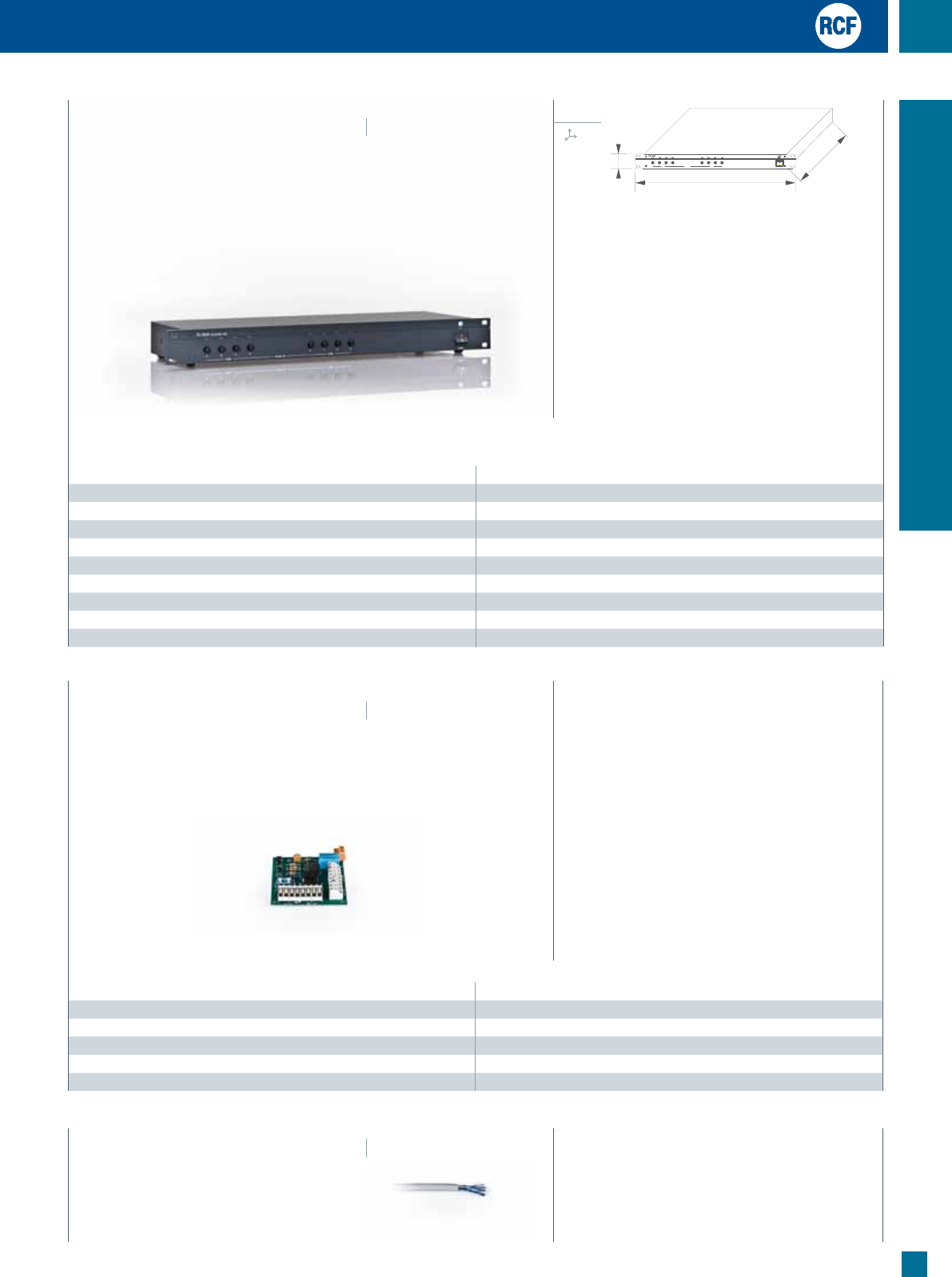

ÃIt provides speech / music switching in 8 zones selectively (max. 31
zones with 4 RU 8020)
ÃThe selection of zones to be paged (in which the music is
muted) is made by BM 8001 paging microphones
ÃThe 8 front panel keys allow to switch on / off the background
music in their respective zone
Ã2 possibile wiring modes:
- amplifiers after the RU 8020 switching unit
- amplifiers before the RU 8020 switching unit
Ã2 inputs for either amplifiers or preamplifiers;
Ã8 outputs for speakers or amplifiers
ÃAuxiliary relay (max. 2A) active on general call
RU 8020
8 ZONE SWITCHING UNIT
p/n 125.10.056
p/n 125.10.008
p/n 125.10.013

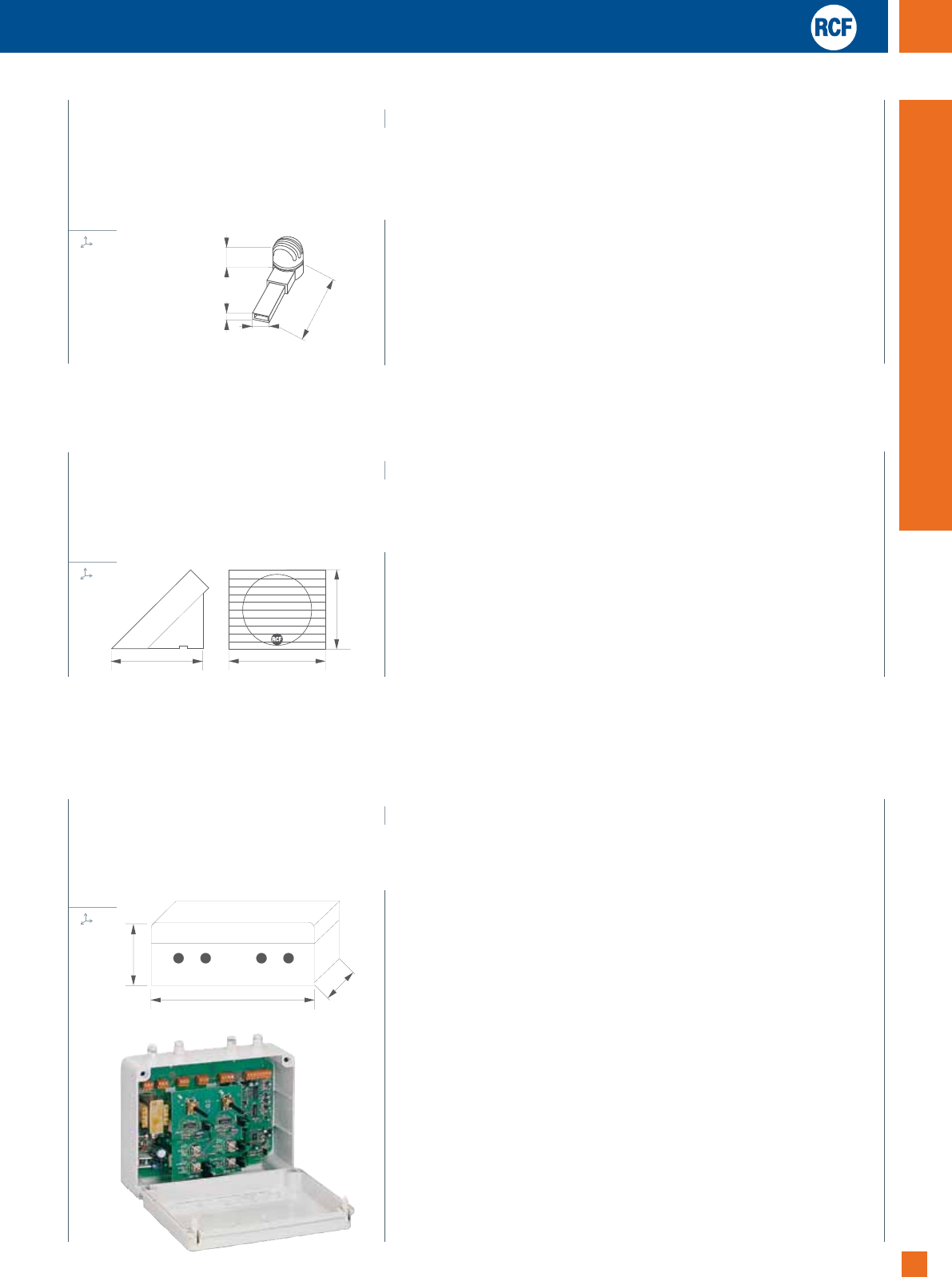

SZ 8040
LOCAL BOARDS / RECEIVERS
ÃAs alternative to RU 8020 commutation units, the system can
manage up to 31 SZ 8040 local boards. Each SZ 8040 local
board controls 1 zone and can drive loudspeakers having a total
power not exceeding 60 W
ÃSmall size. It can be put into a standard flush / wall mounting
box for electrical systems
ÃIn order to find faulty local boards (or damaged cables) easily,
the system tests itself and any faulty zone is indicated on BM
8001 display
14 pole cable (3 screened pairs) to connect BM 8001 paging
microphones to the RM 8080 receiver unit.
Available in 100 m coils (note: the p/n refers to 1 m)
SPA 8000 SYSTEM
21
MULTI-ZONE SYSTEMS
SPECIFICATIONS MS 520
OUTPUT POWER 5 x 20 W RMS
FREQUENCY RESPONSE 20 ÷ 18000 Hz (± 3 dB)
T.H.D. < 0.5% @ 1 kHz
MIN. OUTPUT LOAD (PER ZONE) 4 Ω
TONE CONTROLS LOW: 100 Hz ± 8 dB; HIGH: 12.5 kHz ± 8 dB
SIGNAL / NOISE RATIO > 60 dB (PAGING IN); > 78 dB (MUSIC SOURCE IN, DIRECT IN)
INPUT SENSITIVITY (MIC) - 58 dBu ÷ - 41 dBu (1 ÷ 7 mV); (LINE) - 43 dBu ÷ -27 dBu (5.5 ÷ 35 mV);
(MUSIC, DIRECT) - 16 dBu (120 mV)
PHANTOM POWER SUPPLY (PAGING INPUT) 16 V dc
POWER SUPPLY 100 ÷ 240 V ac (50 - 60 Hz)
INPUT CONNECTORS 11 x RCA (LINE), RJ 45 FOR REMOTE CONTROLS
OUTPUT CONNECTORS 7 x RCA, SCREW TERMINALS FOR LOUDSPEAKERS
3˙000 g
mm
216
88
262
FAULT POWERSystem AmplifierBA 1040
220
290
160
50
132
270
200
70
483
44 160
483
44 244
438
44 253
483
44 160
325
127
165
75
BM 8001 - 2
MS 520 - 1 RM 8080 - 3
RU 8020 - 4 BM 3067 - 5 PD 1066 - 6
BA 1040-PCU - 7 BA 1040-SA - 8

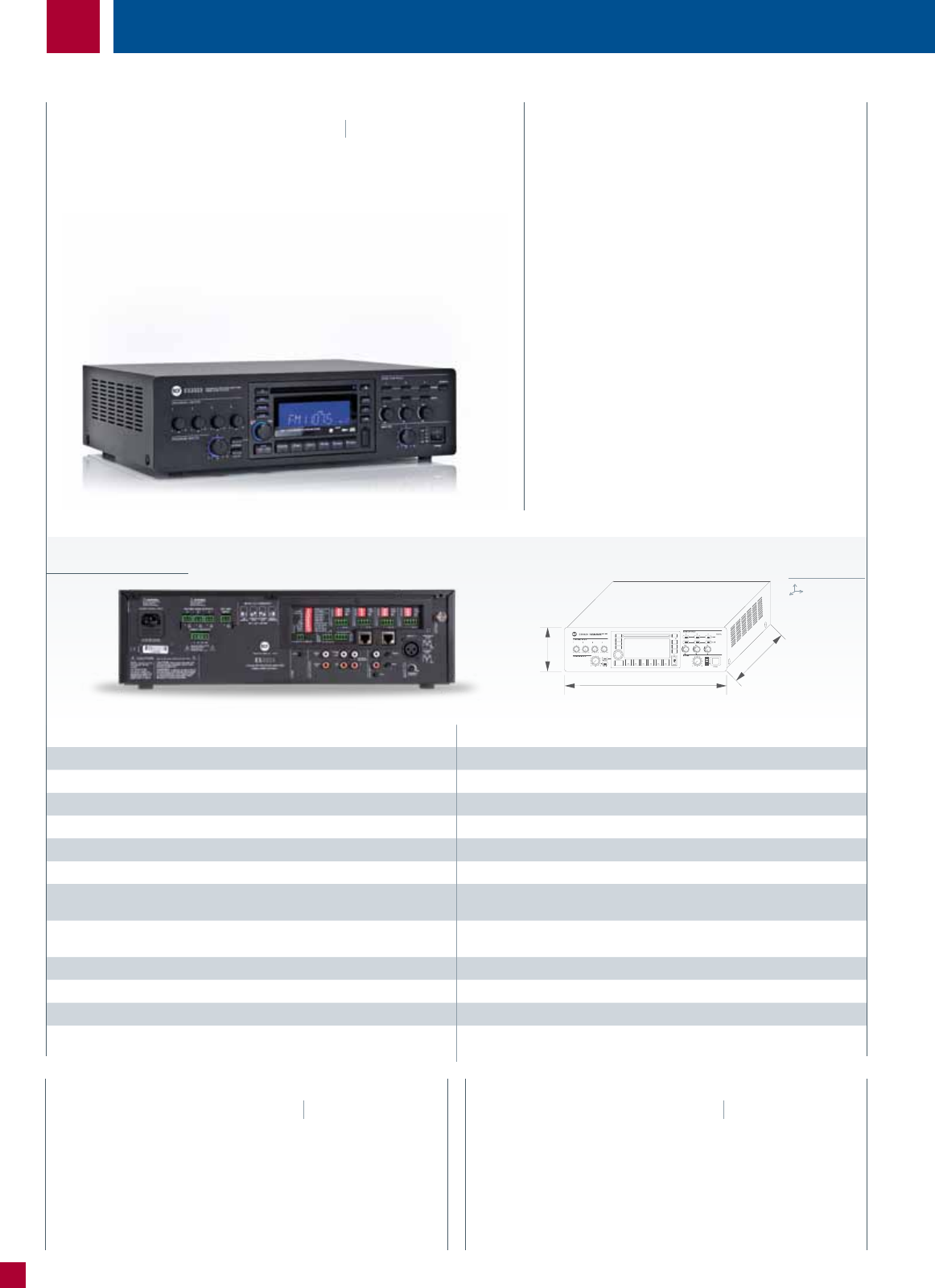

ÃMS 520 contains all functions required by a system to send different musical
programmes in homes and commercial premises
ÃThree different musical programmes and one for paging can be sent to five
mono zones or, alternatively, 3 mono zones and one stereo zone
ÃIt is also possible link two RCF AMBIENTE and share the music sources in
order to extend the number of zones to ten
ÃIts backlit display and function keys make it possible to access all menus to
configure and adjust the system: volume, tone, loudness, output settings,
'VOX'

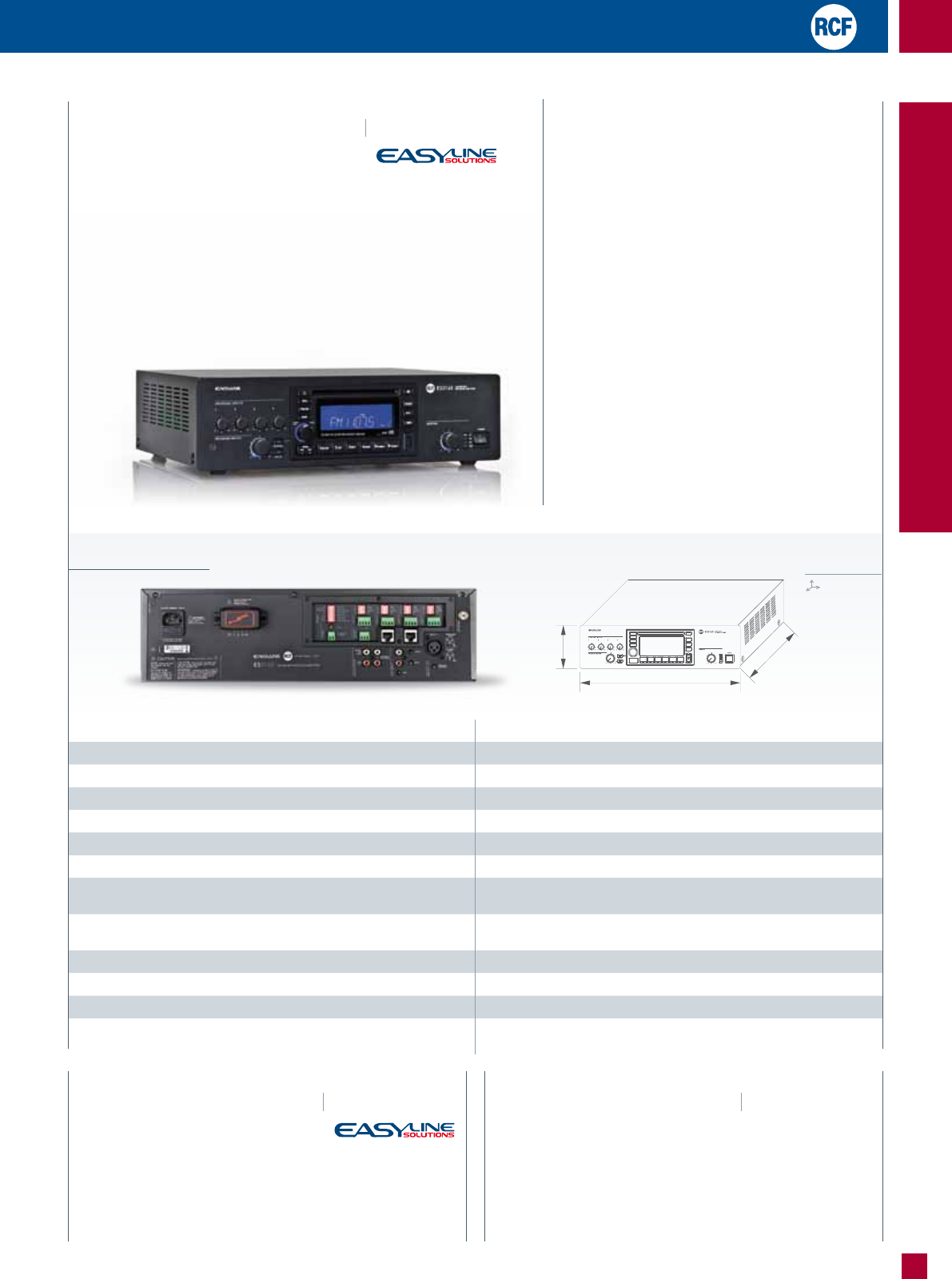

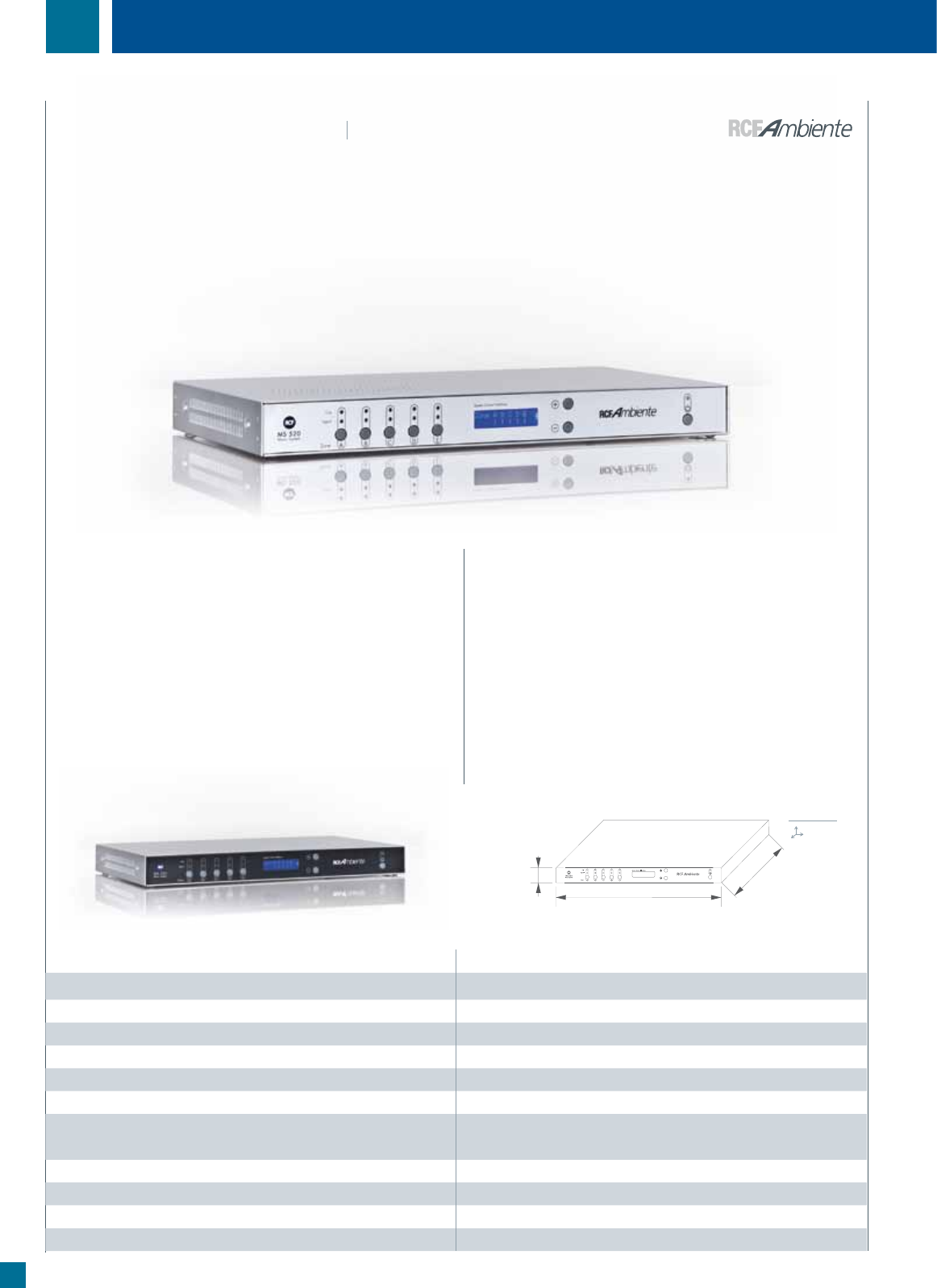

MS 520
AMPLIFIER / CONTROL UNIT
p/n 121.35.043
RCF 'AMBIENTE' SYSTEM
ÃThe third music source input can have priority (when enabled) over the other
two music sources
ÃPower outlet controlled by the system to switch a connected sound sources
on/off
ÃBlack label provided for front panel
22
MS 520
REAR PANEL VIEW
RC 62-W white p/n 133.60.039
RC 62-G grey p/n 133.60.040
RC 62-S silver p/n 133.60.041
Designed to be simply inserted into any 503 flush / wall mounted box
using original standard supports and cover-plates that can be found on
the market.
It allows to select programmes and adjust the volume in the respective
zone. It can turn the MS 520 in stand-by mode as well.
It can be linked to a MS 520 by using CAT5 cables and RJ 45 plugs.
Available in white (W), grey (G) and silver (S)
* The picture above shows a possible installation of the RC 62 remote control (box, front plate, blank keys are not included).

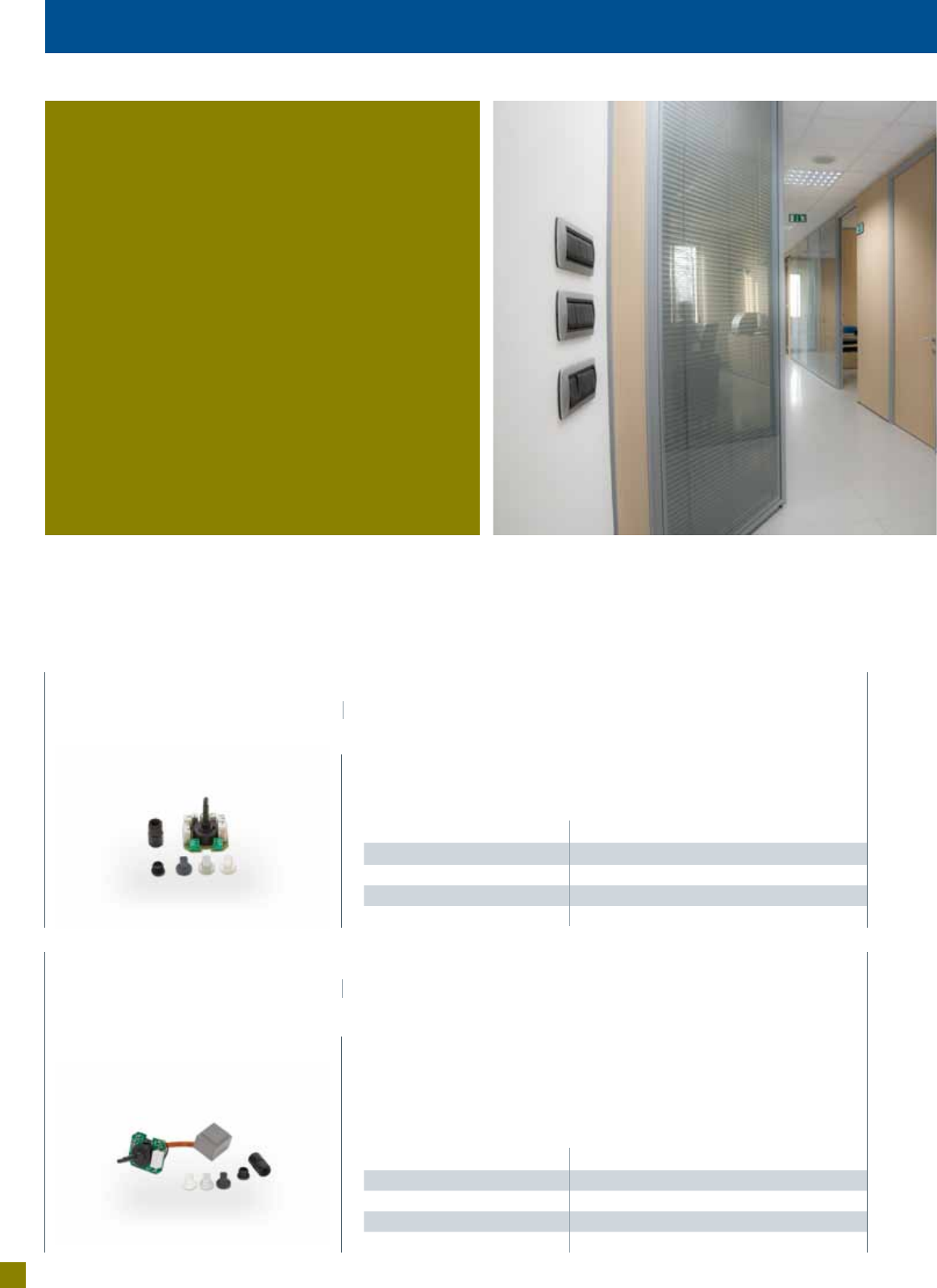

RC 62
REMOTE CONTROL
FOR RCF MS 520
RCF 'AMBIENTE' SYSTEM
ÃFive amplified 20 W / 4 ohm outputs, each also available as full-range or low-
pass signal at line level on RCA connectors to drive external power amplifiers
(when areas to be covered are particularly large)
ÃA direct auxiliary input is available for each of the five zones to connect
sources such as CD players, wireless microphones or mixers to be used
exclusively for one zone/room
ÃThe universal MIC-LINE input can be used for paging, with the possibility to
have a tone that precedes the announcement
ÃThe VOX function can be matched to a zone group to work without pressing
keys or closing contacts (e.g. from a suitable private telephone exchange)
ÃFor each zone, an RJ 45 connector allows the connection of remote controls
(max. 3 per zone) via CAT5 cable for volume control, musical programme
selection or direct input activation installable in any electrical mounting box
by using the original local country supports and cover-plates
23
MULTI-ZONE SYSTEMS
24
SPECIFICATIONS DI.CO SYS
OUTPUT POWER 30 W RMS
FREQUENCY RESPONSE 80 ÷ 12000 Hz (± 3 dB)
LOUDSPEAKER OUTPUTS 100 V, 70 V, 8 Ω
ADDITIONAL OUTPUTS 600 Ω, 2.5 V (PRE-OUT, AUX); 1 KΩ, 0÷2.2 V (TAPE OUT)
SIGNAL / NOISE RATIO > 60 dB (MIC); > 70 dB (LINE); > 75 dB (TAPE IN); > 85 dB (MAIN IN);
INPUT SENSITIVITY (MIC) - 58 dBu (1 mV); (LINE) - 20 dBu (80 mV); (AUX); 0 dBu (0.775 V)
INPUT IMPEDANCE (MIC) 2 KΩ; (LINE) 47 KΩ; (TAPE IN) 47 KΩ; (MAIN IN) 27 KΩ
POWER SUPPLY 230 / 115 V ac (50 / 60 Hz)
INPUT CONNECTORS 1 x XLR, 2 x RCA (TAPE), 1 x RCA (MAIN IN)
OUTPUT CONNECTORS 5 x RCA (TAPE-OUT, PRE-OUT, AUX-OUT), SCREW TERMINALS (POWER OUTPUTS)
132
270
200
70
483
88 315
DI.CO SYS - 1 DI.CO PRES PLUS - 2
6˙200 g
mm
Flexible, easy to use and install.
Suitable for any small hall and council
chambers.
CONFERENCE
SYSTEMS
DI.CO SYS
AMPLIFIER / POWER SUPPLY UNIT
p/n 121.70.021
ÃSuitable for any small conference hall (fixed or mobile
installations)
ÃFor the connection of up to 30 DI.CO DEL PLUS and DI.CO
PRES PLUS microphone stands
ÃPossibility to interconnect up to five DI.CO SYS units for
systems up to 150 microphone stands
ÃNominal 30W amplifier for loudspeakers incorporated in
microphone stands
ÃA universal MIC-LINE input (with VOICE / MUSIC selector)
allows to connect either a low impedance dynamic
microphone (300÷600 Ω) or a high level sound source
ÃMAIN IN; TAPE IN with independent level control
ÃPRE OUT, AUX OUT, TAPE OUT with level control
ÃRack mount, 2U 19” using the optional AR 1052N accessory
SPECIFICATIONS DI.CO PLUS
TYPE ELECTRET, CARDIOID
MIC. IMPEDANCE 600 Ω BALANCED
FREQUENCY RESPONSE 100 ÷ 12000 Hz
SENSITIVITY - 80 dB ± 3 dB (DEL); - 71 dB ± 3 dB (PRES) (0 dB=1V/µbar, 1kHz)
CONNECTORS 7 POLE DIN
132
270
200
70
483
88 315
DI.CO SYS - 1 DI.CO PRES PLUS - 2
1˙600 g
mm
p/n 143.20.011
p/n 143.20.010
ÃStand in plastic with 440 mm gooseneck
ÃDI.CO PRES PLUS: chairman's microphone
ÃDI.CO DEL PLUS: delegate's microphone
ÃElectret cardioid microphone with lighted ring showing
microphone activation
ÃTALK button for locking microphone activation
ÃPRIORITY button (DI.CO PRES PLUS only), for momentary
chairman's microphone activation with exclusion of the active
delegates’ microphones
ÃBuilt-in monitor loudspeaker driven by the DI.CO SYS
amplifier
Ã2-metre cable with 7-pole DIN connector
DI.CO PRES PLUS
CHAIRMAN'S MICROPHONE
DI.CO DEL PLUS
DELEGATE'S MICROPHONE
Ã6 pole cable (a screened pair + 2 pairs)
Ã10 m extension cable with 7 pole DIN connectors for
DI.CO PRES PLUS and DI.CO DEL PLUS
CA20
10 m EXT. CABLE
p/n 143.40.014
ÃY adapter cable to connect two lines of delegates'
microphones to the president’s one
CA Y
Y ADAPTER CABLE
p/n 123.10.001
Ã7 pole DIN plug
SEP/7
DIN PLUG
p/n 143.50.027
Ã7 pole DIN socket
PEP/7
DIN SOCKET
p/n 143.50.028
CONFERENCE SYSTEMS
DI.CO SYSTEM
Ã6 pole cable (a screened pair + 2 pairs)
ÃAvailable in 100 m coils
(note: the p/n refers to 1 m)
CA40
CABLE
p/n 143.40.020
25
MODEL MC 4040 MT 3100 MT 3200 MC 5030
TYPE Electret Electret Electret Electret
POLAR PATTERN Cardioid Omnidirectional Semicardioid Cardioid
FREQUENCY RESPONSE 50 ÷ 18000 Hz 50 ÷ 18000 Hz 50 ÷ 18000 Hz 80 ÷ 14000 Hz
SENSITIVITY (0 dB=1V/µbar, 1kHz) - 58 dB - 58 dB - 58 dB - 75 dB
PHANTOM PWR. SUPPLY 12 ÷ 52 V 12 ÷ 52 V 12 ÷ 52 V 12 ÷ 48 V
CONNECTOR 3 pole XLR (M) 3 pole XLR (M) 3 pole XLR (M) 3 pole XLR (M)
ON/OFF SWITCH Yes - - Yes
USE Speech, conference Speech (table top) Speech (table top) Speech, announcements
MODEL MD 7600 MD 7800 MD 6000X
TYPE Dynamic Dynamic Dynamic
POLAR PATTERN Supercardioid Supercardioid Cardioid
FREQUENCY RESPONSE 60 ÷ 16000 Hz 60 ÷ 20000 Hz 300 ÷ 3000 Hz
SENSITIVITY (0 dB=1V/µbar, 1kHz) - 75 dB - 70 dB - 70 dB
PHANTOM PWR. SUPPLY - - -
CONNECTOR 3 pole XLR (M) 3 pole XLR (M) 3 pole XLR (M)
ON/OFF SWITCH Yes Yes Yes
USE Speech, singing Speech, singing Speech, emergency
MICROPHONES
AND WIRELESS
MICROPHONES
Optimised in the voice frequency range
to guarantee maximum speech clarity.
26
MODEL BM 3001 BM 3003 BM 3002 BM 3014 BM 3013
TYPE Electret Electret Electret Dynamic Dynamic
POLARN PATTERN Cardioid Cardioid Cardioid Cardioid Cardioid
FREQUENCY RESPONSE 50 ÷ 18000 Hz 50 ÷ 18000 Hz 80 ÷ 16000 Hz 100 ÷ 12000 Hz 100 ÷ 12000 Hz
SENSITIVITY (0 dB=1V/µbar, 1kHz) - 65 dB - 65 dB - 71 dB - 80 dB - 80 dB
POWER SUPPLY 18 ÷ 48 V PHANTOM 18 ÷ 48 V PHANTOM 115 - 230 V ac / 24 V dc - 115 - 230 V ac / 24 V dc
CONNECTORS RJ 45 RJ 45 Screw Terminals (2 x RJ 45) 3 pole XLR (M) 3 pole XLR (M)
ON/OFF SWITCH Yes Yes Yes Yes Yes
USE Announcements Announcements Announcements Announcements Announcements
MODEL TX 1000 TX 1600 LA 1000 HE 1002
TYPE Electret Electret Electret Electret
POLARN PATTERN Cardioid Cardioid Cardioid Cardioid
FREQUENCY RESPONSE 40 ÷ 15000 Hz 35 ÷ 16000 Hz 50 ÷ 18000 Hz 50 ÷ 16000 Hz
SENSITIVITY (0 dB=1V/µbar, 1kHz) - - - 47 dB -45 dB
POWER SUPPLY 9 V dc (BATTERY) 3 V dc (BATTERIES) 1.5 ÷ 10 V PHANTOM 1.5 ÷ 10 V PHANTOM
CONNECTORS No (VHF transmitter) No (UHF transmitter) 3.5 mono jack 3.5 mono jack
ON/OFF SWITCH Yes Yes - -
USE Speech, singing Speech, singing Speech Speech, shows
MICROPHONES - WIRELESS MICROPHONES
27
mm

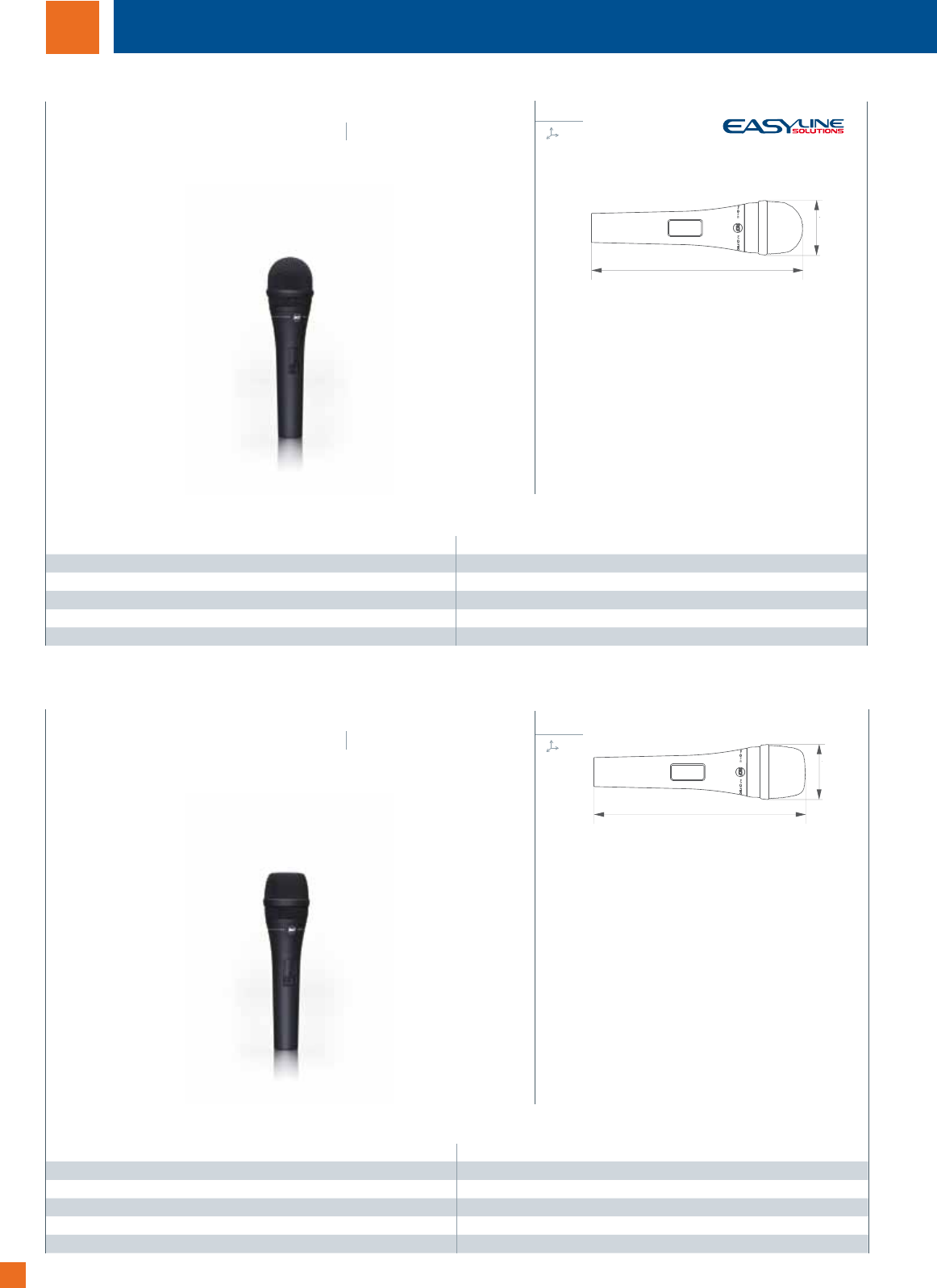

SPECIFICATIONS MD 7800
TYPE DYNAMIC, SUPERCARDIOID
IMPEDANCE 600 Ω ± 30% (1 kHz)
SENSITIVITY - 70 dB ± 3 dB (0 dB=1V/µbar, 1kHz)
FREQUENCY RESPONSE 60 ÷ 20000 Hz
CONNECTORS 3 pole XLR (m)
SPECIFICATIONS MD 7600
TYPE DYNAMIC, SUPERCARDIOID
IMPEDANCE 500 Ω ± 30% (1 kHz)
SENSITIVITY - 75 dB ± 3 dB (0 dB=1V/µbar, 1kHz)
FREQUENCY RESPONSE 60 ÷ 16000 Hz
CONNECTORS 3 pole XLR (m)
mm
132
270
200
70
222
98
200
48
180
16
5
9
21
48
180
75
67
83
146
152
84
195
132
270
200
70
132
270
200
70
132
270
200
70
BM 3002 - 12
MD 7800 - 17
MD 7600 - 16
BM 3014 - 14
BM 3013 - 15
MP 321 - 18 MP 301 - 19 MP 302 - 20
BM 4072 - 13
MP 341 - 21
132
270
200
70
222
98
200
48
180
16
5
9
21
48
180
75
67
83
146
152
84
195
132
270
200
70
132
270
200
70
132
270
200
70
BM 3002 - 12
MD 7800 - 17
MD 7600 - 16
BM 3014 - 14
BM 3013 - 15
MP 321 - 18 MP 301 - 19 MP 302 - 20
BM 4072 - 13
MP 341 - 21
305 g
290 g
MD 7800
PROFESSIONAL DYNAMIC MICROPHONE
ÃTypical use: speech, singing
ÃProfessional supercardioid dynamic microphone
ÃAnti-pop filter
ÃON/OFF switch with lock
ÃMinimum handling noise
Ã5 metre balanced and screened cable with 3 pole XLR
connectors included
ÃMic. holder for stands and soft bag included
p/n 141.15.013
MD 7600
DYNAMIC MICROPHONE
ÃTypical use: speech, singing
ÃSupercardioid dynamic microphone
ÃAnti-pop filter
ÃON/OFF switch with lock
ÃMinimum handling noise
Ã5 metre balanced and screened cable with 3 pole XLR
connectors included
ÃMic. holder for stands and soft bag included
p/n 141.15.014
MICROFONI AD IMPUGNATURA
MICROPHONES
28

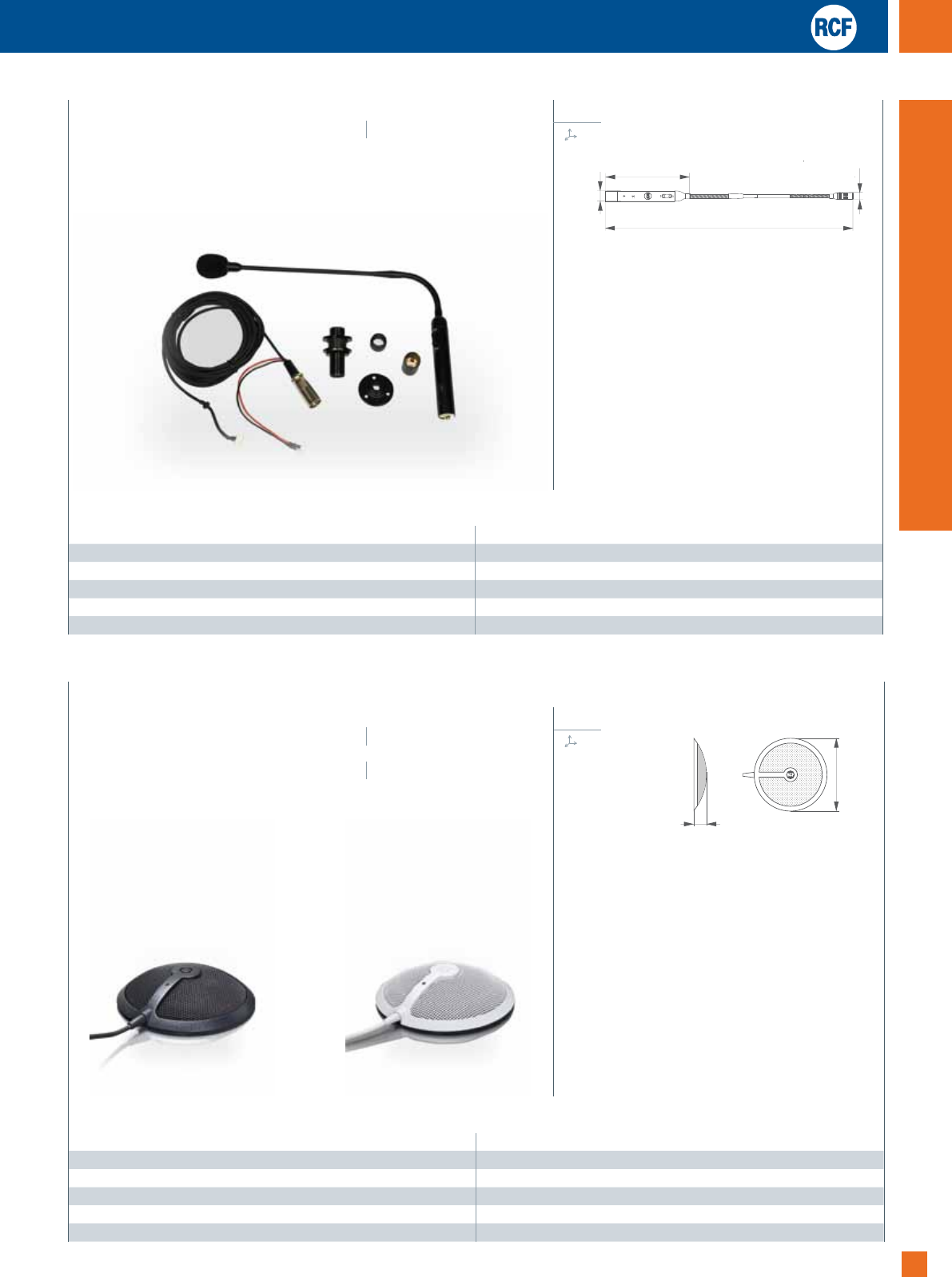

SPECIFICATIONS MT 3100 - 3200
TYPE ELECTRET, OMNIDIRECTIONAL (MT 3100), SEMICARDIOID (MT 3200)
IMPEDANCE 600 Ω BALANCED
FREQUENCY RESPONSE 50 ÷ 18000 Hz
SENSITIVITY - 54 dB ± 3 dB (0 dB=1V/µbar, 1kHz)
CONNECTORS 3 pole XLR (m)
SPECIFICATIONS MC 4040
TYPE ELECTRET, CARDIOID
IMPEDANCE 600 Ω BALANCED
FREQUENCY RESPONSE 50 ÷ 18000 Hz
SENSITIVITY - 58 dB ± 3 dB (0 dB=1V/µbar, 1kHz)
CONNECTOR 3 pole XLR (m)
48
190
189
27
48
245
ON OFF
MIC
MUTE
TX
483
44 110
100
350
159
48
340
80
30
90
63
30
mu te
ON /
pea k
line
sn s
mic
pwr
58,65 0
58,97 5
863,0 50
863,4 25
-8 6 3,8 0 0
D - 8 64,1 75
E - 86 4,55 0
F - 8 64 ,950
1
3
5
7
9
B
mu te
ON /
pea k
line
sn s
mic
pwr
58,65 0
58,97 5
863,0 50
863,4 25
-8 6 3,8 0 0
D - 8 64,1 75
E - 86 4,55 0
F - 8 64 ,950
1
3
5
7
9
B
90
63
30
13
672
21
172
220
35
110
222
38
140
TX 1000 - 2RX 1000 - 1 PX 1000 - 3
AS 1606 - 5RX 1600 - 4
PX 1600 - 7
TX 1600 - 6
BM 3001 - 8 MC 5030 - 9
MC 4040 - 10 MT 3100 - 11
48
190
189
27
48
245
ON OFF
MIC
MUTE
TX
483
44 110
100
350
159
48
340
80
30
90
63
30
mu te
ON /
pea k
line
sn s
mic
pwr
58,65 0
58,97 5
863,0 50
863,4 25
-8 6 3,8 0 0
D - 8 64,1 75
E - 86 4,55 0
F - 8 64 ,950
1
3
5
7
9
B
mu te
ON /
pea k
line
sn s
mic
pwr
58,65 0
58,97 5
863,0 50
863,4 25
-8 6 3,8 0 0
D - 8 64,1 75
E - 86 4,55 0
F - 8 64 ,950
1
3
5
7
9
B
90
63
30
13
672
21
172
220
35
110
222
38
140
TX 1000 - 2RX 1000 - 1 PX 1000 - 3
AS 1606 - 5RX 1600 - 4
PX 1600 - 7
TX 1600 - 6
BM 3001 - 8 MC 5030 - 9
MC 4040 - 10 MT 3100 - 11
mm
130 g
mm
200 g
ÃResistant plastic body with metal mesh and base
ÃRed LED lit when the microphone is ON
ÃElectronic filter for suppressing noise caused by vibrations
transmitted from the support surface
ÃPhantom power supply (12 ÷ 52 V dc)
Ã5 m screened and balanced cable with 3 pole XLR connectors
ÃDimensions: Ø120 x 27mm (h)
ÃColour:
RAL 7021 anthracite grey (MT 3100)
RAL 9003 white (MT 3200)
p/n 141.10.079
p/n 141.10.080
MT 3100
MT 3200
DESK-TOP MICROPHONES
ÃDouble joint gooseneck, 670 mm long
ÃInstallation on desks (with or without hole), lecterns, mic.
floor stands
ÃIt has two switches (PUSH, LOCK), a red ring lamp that is lit
when the microphone is activated, a high-pass filter with a
switch to cut frequencies below 100 Hz.
ÃPhantom power supply (12 ÷ 52 V)
Ã3 m screened and balanced cable with XLR connectors for
linking to a mixer / amplifier, with 2 additional wires for
command
ÃPolyurethane foam wind screen
p/n 141.15.020
MC 4040
GOOSENECK MICROPHONE
(DESK-TOP / ON FLOOR STAND)
DESKTOP MICROPHONESMICROPHONES
MT 3100 OMNIDIRECTIONAL MT 3200 SEMICARDIOID
29

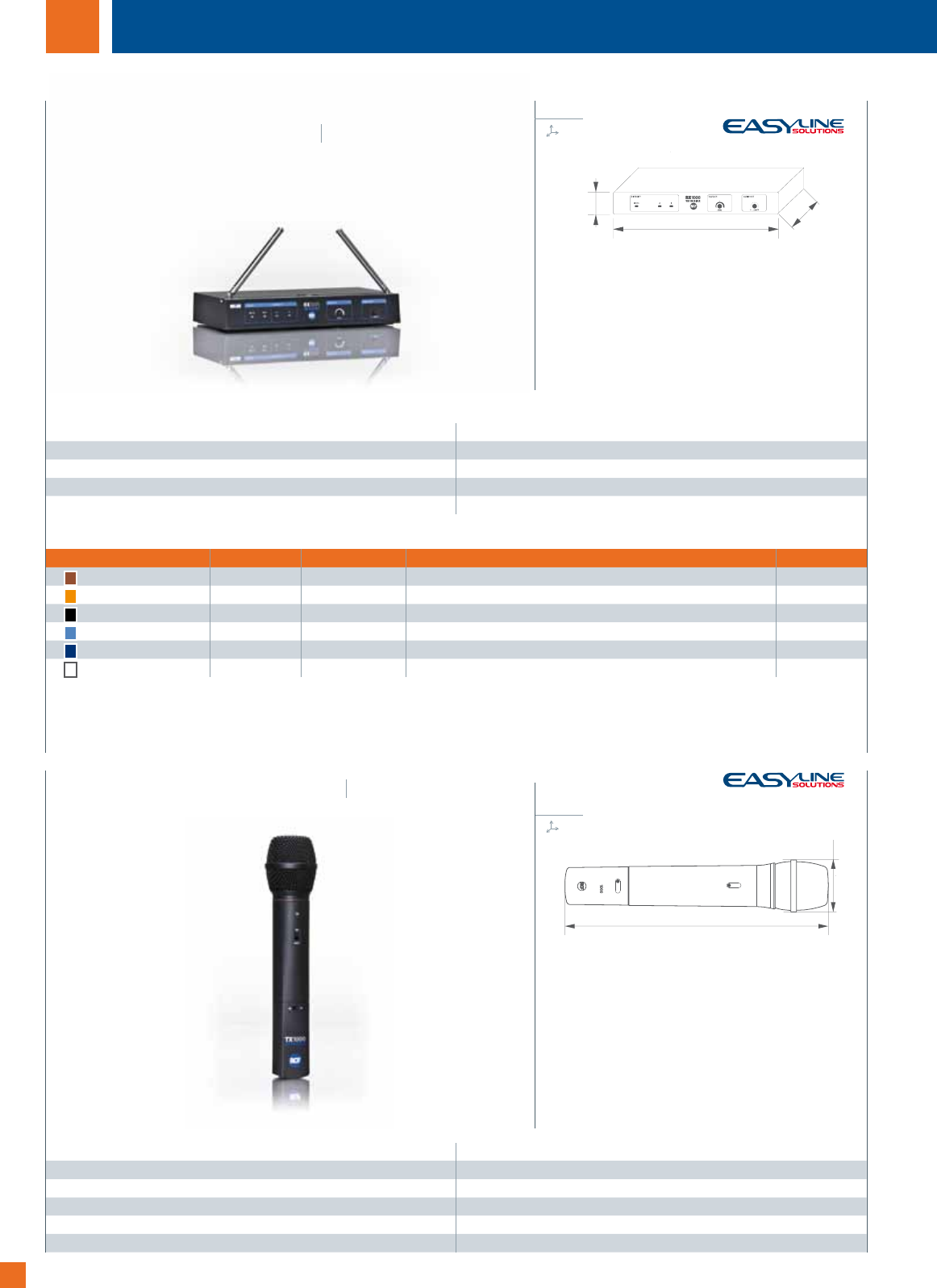

MICROPHONES - WIRELESS MICROPHONES
KIT P/N FREQUENCY COMPONENTS COLOUR
TX 1010 142.00.005 174.500 MHz TX 1000 HANDHELD TRANSMITTER + RX 1000 RECEIVER BROWN
TX 1020 142.00.006 175.750 MHz TX 1000 HANDHELD TRANSMITTER + RX 1000 RECEIVER ORANGE
TX 1040 142.00.008 201.625 MHz TX 1000 HANDHELD TRANSMITTER + RX 1000 RECEIVER BLACK
PX 1050 142.00.009 216.250 MHz PX 1000 BELT PACK TRANSMITTER + RX 1000 RECEIVER LIGHT BLUE
PX 1060 142.00.010 233.125 MHz PX 1000 BELT PACK TRANSMITTER + RX 1000 RECEIVER DARK BLUE
PX 1070 142.00.011 237.775 MHz PX 1000 BELT PACK TRANSMITTER + RX 1000 RECEIVER WHITE
SPECIFICATIONS RX 1000
TYPE DESK-TOP DIVERSITY RADIO RECEIVER
CARRIER FREQUENCY VHF, 174 ÷ 240 MHz
CONSUMPTION < 80 mA
OUTPUT CONNECTOR 3 pole XLR
48
190
189
27
48
245
ON OFF
MIC
MUTE
TX
483
44 110
100
350
159
48
340
80
30
90
63
30
mu te
ON /
pea k
line
sn s
mic
pwr
58,65 0
58,97 5
863,0 50
863,4 25
-8 6 3,8 0 0
D - 8 64,1 75
E - 86 4,55 0
F - 8 64 ,950
1
3
5
7
9
B
mu te
ON /
pea k
line
sn s
mic
pwr
58,65 0
58,97 5
863,0 50
863,4 25
-8 6 3,8 0 0
D - 8 64,1 75
E - 86 4,55 0
F - 8 64 ,950
1
3
5
7
9
B
90
63
30
13
672
21
172
220
35
110
222
38
140
TX 1000 - 2RX 1000 - 1 PX 1000 - 3
AS 1606 - 5RX 1600 - 4
PX 1600 - 7
TX 1600 - 6
BM 3001 - 8 MC 5030 - 9
MC 4040 - 10 MT 3100 - 11
500 g
The kits PX 1050. PX 1060. PX 1070 need to be completed by either LA 1000 'Lavalier' or HE 1002 'headset' microphones, sold separately.
The available seven frequencies can be used all together at the same time (without interferences).
ÃMetal housing
Ã2 telescopic antennas
Ã2 LED for diversity function (A/B) control
ÃMUTE state LED
ÃSquelch and level controls on its front panel
Ã12 V dc input for a power supply unit
Ã230 V ac power supply unit (/ adapter) included
ÃETSI homologation
RX 1000
VHF DIVERSITY RECEIVER
Refer to Kit p/n

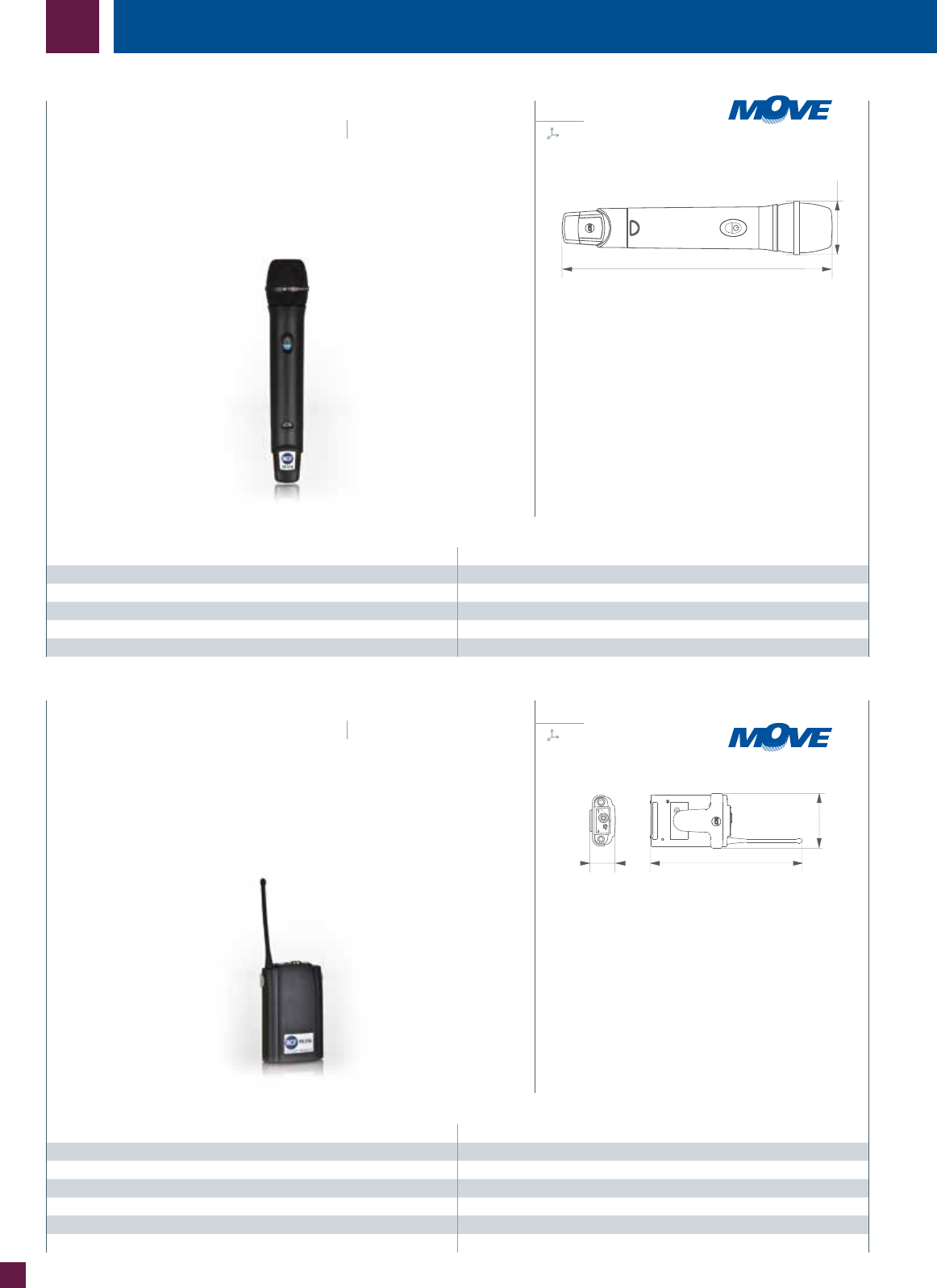

SPECIFICATIONS TX 1000
TYPE ELECTRET, CARDIOID, HANDHELD
CARRIER FREQUENCY VHF, 174 ÷ 240 MHz
FREQUENCY RESPONSE 40 ÷ 15000 Hz
CONSUMPTION < 40 mA
TRANSMITTER POWER 10 mW (max)
48
190
189
27
48
245
ON OFF
MIC
MUTE
TX
483
44 110
100
350
159
48
340
80
30
90
63
30
mu te
ON /
pea k
line
sn s
mic
pwr
58,65 0
58,97 5
863,0 50
863,4 25
-8 6 3,8 0 0
D - 8 64,1 75
E - 86 4,55 0
F - 8 64 ,950
1
3
5
7
9
B
mu te
ON /
pea k
line
sn s
mic
pwr
58,65 0
58,97 5
863,0 50
863,4 25
-8 6 3,8 0 0
D - 8 64,1 75
E - 86 4,55 0
F - 8 64 ,950
1
3
5
7
9
B
90
63
30
13
672
21
172
220
35
110
222
38
140
TX 1000 - 2RX 1000 - 1 PX 1000 - 3
AS 1606 - 5RX 1600 - 4
PX 1600 - 7
TX 1600 - 6
BM 3001 - 8 MC 5030 - 9
MC 4040 - 10 MT 3100 - 11
195 g
mm
TX 1000
VHF HANDHELD
WIRELESS MICROPHONE
ÃTypical use: speech, singing
ÃCardioid electret microphone with suspended capsule
ÃMinimum handling noise
ÃTransmitter ON/OFF switch
ÃMUTE switch
ÃBattery charge LED
ÃETSI homologation
Refer to Kit p/n
RADIOMICROFONI VHF
VHF WIRELESS MICROPHONES
mm
30
SPECIFICATIONS PX 1000
TYPE BELT PACK
CARRIER FREQUENCY VHF, 174 ÷ 240 MHz
CONSUMPTION < 40 mA
TRANSMITTER POWER 10 mW (max)
AUDIO INPUT SENSITIVITY 50 mV ÷ 5 V RMS
CONNECTORS 3.5 mm mono jack (with screw)
48
190
189
27
48
245
ON OFF
MIC
MUTE
TX
483
44 110
100
350
159
48
340
80
30
90
63
30
mu te
ON /
pea k
line
sn s
mic
pwr
58,65 0
58,97 5
863,0 50
863,4 25
-8 6 3,8 0 0
D - 8 64,1 75
E - 86 4,55 0
F - 8 64 ,950
1
3
5
7
9
B
mu te
ON /
pea k
line
sn s
mic
pwr
58,65 0
58,97 5
863,0 50
863,4 25
-8 6 3,8 0 0
D - 8 64,1 75
E - 86 4,55 0
F - 8 64 ,950
1
3
5
7
9
B
90
63
30
13
672
21
172
220
35
110
222
38
140
TX 1000 - 2RX 1000 - 1 PX 1000 - 3
AS 1606 - 5RX 1600 - 4
PX 1600 - 7
TX 1600 - 6
BM 3001 - 8 MC 5030 - 9
MC 4040 - 10 MT 3100 - 11
60 g
mm
PX 1000
VHF BELT PACK TRANSMITTER
ÃTypical use: speech (belt pack transmitter)
ÃTransmitter ON/OFF switch
ÃMUTE switch
ÃBattery charge LED
ÃPEAK LED
ÃInput sensitivity trimmer
ÃTo be used with either LA 1000 or HE 1002 mic
ÃETSI homologation
Refer to Kit p/n
Cardioid electret capsule.
Typicla use: readers, presenters and actors who need to have free hands during
their performances, without compromising the quality.The clip allows easy
positioning.
'Headset' type, reliable and light.
Cardioid electret capsule.
It ensures an excellent isolation from environmental noise.
Typical use: dancers, singers, djs, aerobic instructors, presenters, actors, etc.
The optimal use of the microphone requires a distance between the capsule
and mouth of about 25 mm.
HE 1002
'HEADSET' MICROPHONE
LA 1000
'LAVALIER' MICROPHONE
p/n 143.80.006 p/n 143.80.007
VHF WIRELESS MICROPHONES VHF WIRELESS MICROPHONES
31
MICROPHONES - WIRELESS MICROPHONES

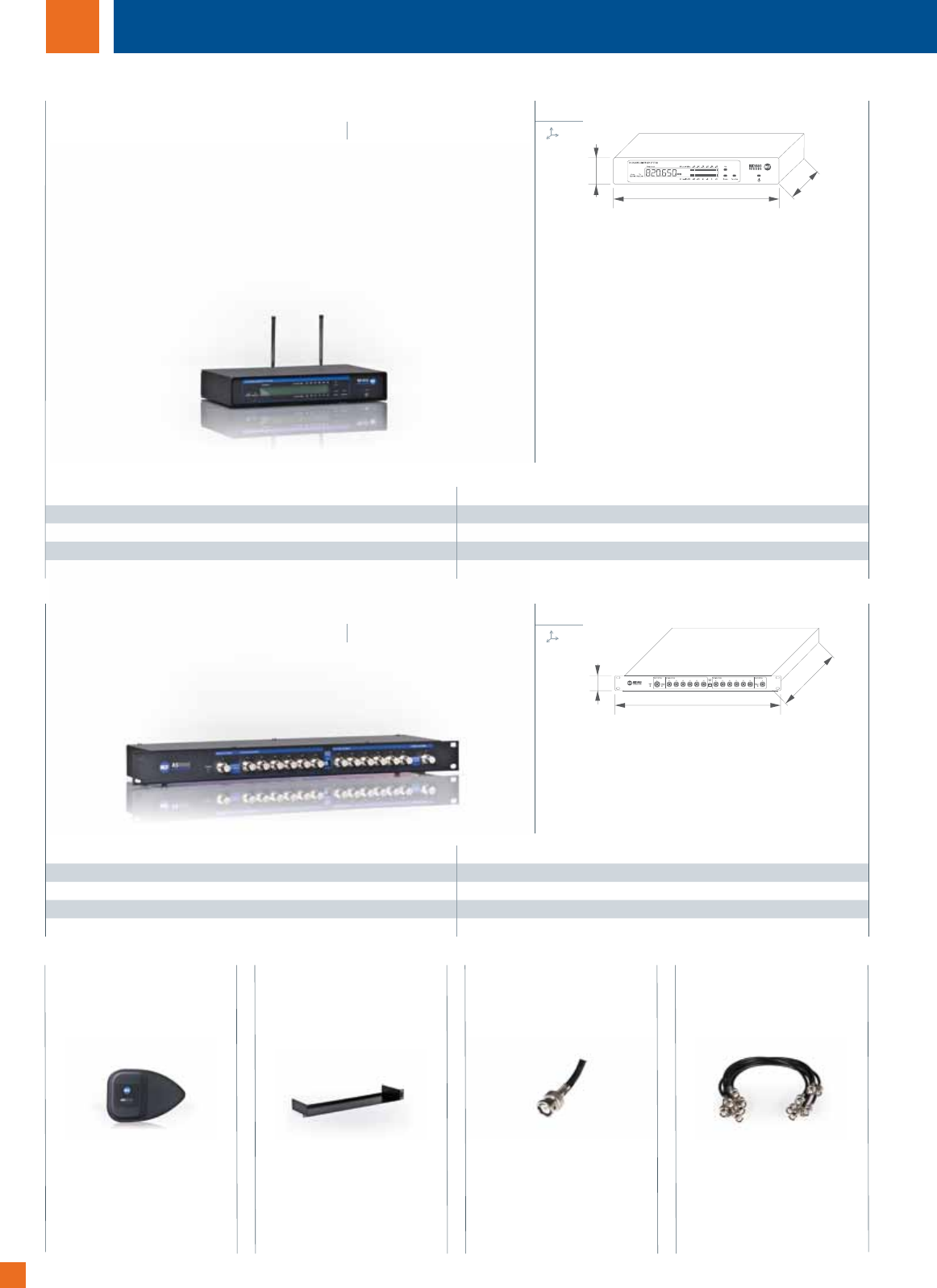

SPECIFICATIONS RX 1600
TYPE DESK-TOP DIVERSITY RADIO RECEIVER
CARRIER FREQUENCY UHF, 770 ÷ 870 MHz MULTICHANNEL
CONSUMPTION 250 mA
CONNECTORS 3 pole XLR
SPECIFICATIONS AS 1606
TYPE DIVERSITY ANTENNA SPLITTER, 2 INPUTS AND 6 OUTPUTS
BANDS VHF (170 ÷ 238 MHz), UHF (770 ÷ 870 MHz)
IMPEDANCE 50 Ω
GAIN 0 dB
mm
mm
48
190
189
27
48
245
ON OFF
MIC
MUTE
TX
483
44 110
100
350
159
48
340
80
30
90
63
30
mu te
ON /
pea k
line
sn s
mic
pwr
58,65 0
58,97 5
863,0 50
863,4 25
-8 6 3,8 0 0
D - 8 64,1 75
E - 86 4,55 0
F - 8 64 ,950
1
3
5
7
9
B
mu te
ON /
pea k
line
sn s
mic
pwr
58,65 0
58,97 5
863,0 50
863,4 25
-8 6 3,8 0 0
D - 8 64,1 75
E - 86 4,55 0
F - 8 64 ,950
1
3
5
7
9
B
90
63
30
13
672
21
172
220
35
110
222
38
140
TX 1000 - 2RX 1000 - 1 PX 1000 - 3
AS 1606 - 5RX 1600 - 4
PX 1600 - 7
TX 1600 - 6
BM 3001 - 8 MC 5030 - 9
MC 4040 - 10 MT 3100 - 11
48
190
189
27
48
245
ON OFF
MIC
MUTE
TX
483
44 110
100
350
159
48
340
80
30
90
63
30
mu te
ON /
pea k
line
sn s
mic
pwr
58,65 0
58,97 5
863,0 50
863,4 25
-8 6 3,8 0 0
D - 8 64,1 75
E - 86 4,55 0
F - 8 64 ,950
1
3
5
7
9
B
mu te
ON /
pea k
line
sn s
mic
pwr
58,65 0
58,97 5
863,0 50
863,4 25
-8 6 3,8 0 0
D - 8 64,1 75
E - 86 4,55 0
F - 8 64 ,950
1
3
5
7
9
B
90
63
30
13
672
21
172
220
35
110
222
38
140
TX 1000 - 2RX 1000 - 1 PX 1000 - 3
AS 1606 - 5RX 1600 - 4
PX 1600 - 7
TX 1600 - 6
BM 3001 - 8 MC 5030 - 9
MC 4040 - 10 MT 3100 - 11
500 g
1˙600 g
ÃMetal housing
Ã16 switchable frequencies
Ã2 removable antennas on BNC connectors
ÃLCD indicating the channel, the carrier signal level, the audio
signal level of the active antenna and the squelch
ÃStand-by switch
ÃTransmitter battery empty LED
ÃSquelch and level controls
Ã12 V dc input for power supply unit
Ã230 V ac power supply unit (/ adapter) included
ÃETSI homologation
ÃMetal housing
ÃIt can be linked to max. 6 diversity receivers
Ã12 V power supply for active antennas
Ã12 V dc input for power supply unit
Ã230 V ac power supply unit (/ adapter) included
Ã1U (19") rack unit
RX 1600
UHF DIVERSITY RECEIVER
AS 1606
UHF DIVERSITY
ANTENNA SPLITTER
p/n 142.50.003
p/n 143.80.004
AN 1602
DIRECTIONAL ANTENNA
(UHF)
p/n 143.80.005
AR 1620
RACK MOUNTING
ACCESSORY
p/n 173.60.031
CA 223U
ANTENNA CABLE
p/n 143.80.008
AC 1660
CONNECTING CABLES
p/n 143.80.009
Directional preamplified UHF
antenna, power supplied by the
AS 1606 splitter, to be used in
large areas.
1U 19" rack kit suitable for
1 or 2 receivers
(models: RX 1000 or
RX 1600).
RG 223U cable to connect remote
UHF antennas. Available in 100
m coils.
Kit made of six RG 223U
(6 pole) cables to connect the AS
1606 splitter to three
RX 1600 diversity receivers.
RADIOMICROFONI UHF
UHF WIRELESS MICROPHONES
32

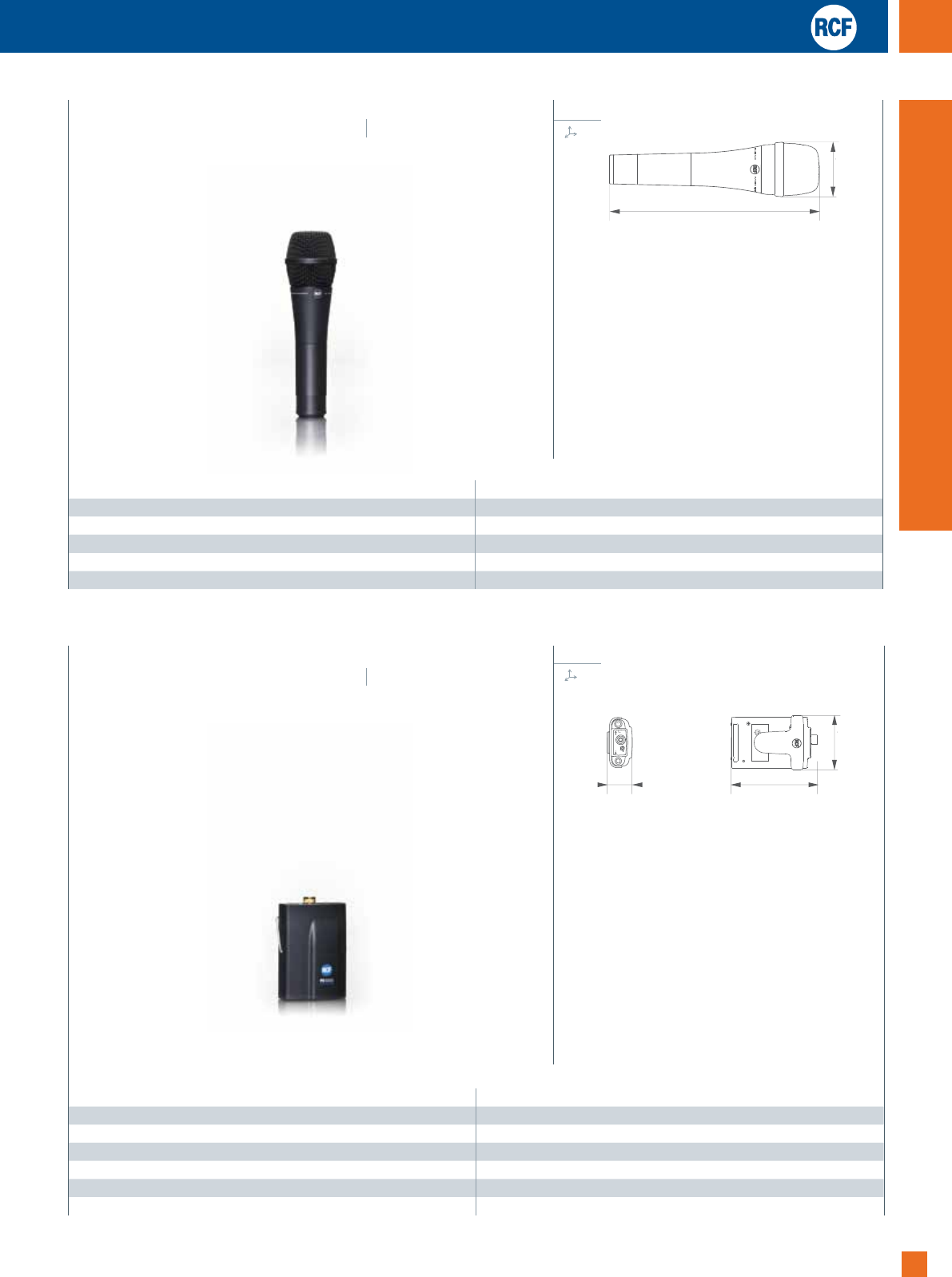

SPECIFICATIONS PX 1600
TYPE BELT PACK
CARRIER FREQUENCY UHF, 770 ÷ 870 MHz
CONSUMPTION 40 mA
TRANSMITTER POWER 10 mW (max)
AUDIO INPUT SENSITIVITY 50 mV ÷ 5 V RMS
CONNECTORS 3.5 mm mono jack (with screw)
SPECIFICATIONS TX 1600
TYPE ELECTRET, CARDIOID, HANDHELD
CARRIER FREQUENCY UHF, 770 ÷ 870 MHz
FREQUENCY RESPONSE 35 ÷ 16000 Hz
CONSUMPTION 70 mA
TRANSMITTER POWER 10 mW (MAX)
mm
mm
48
190
189
27
48
245
ON OFF
MIC
MUTE
TX
483
44 110
100
350
159
48
340
80
30
90
63
30
mu te
ON /
pea k
line
sn s
mic
pwr
58,65 0
58,97 5
863,0 50
863,4 25
-8 6 3,8 0 0
D - 8 64,1 75
E - 86 4,55 0
F - 8 64 ,950
1
3
5
7
9
B
mu te
ON /
pea k
line
sn s
mic
pwr
58,65 0
58,97 5
863,0 50
863,4 25
-8 6 3,8 0 0
D - 8 64,1 75
E - 86 4,55 0
F - 8 64 ,950
1
3
5
7
9
B
90
63
30
13
672
21
172
220
35
110
222
38
140
TX 1000 - 2RX 1000 - 1 PX 1000 - 3
AS 1606 - 5RX 1600 - 4
PX 1600 - 7
TX 1600 - 6
BM 3001 - 8 MC 5030 - 9
MC 4040 - 10 MT 3100 - 11
48
190
189
27
48
245
ON OFF
MIC
MUTE
TX
483
44 110
100
350
159
48
340
80
30
90
63
30
mu te
ON /
pea k
line
sn s
mic
pwr
58,65 0
58,97 5
863,0 50
863,4 25
-8 6 3,8 0 0
D - 8 64,1 75
E - 86 4,55 0
F - 8 64 ,950
1
3
5
7
9
B
mu te
ON /
pea k
line
sn s
mic
pwr
58,65 0
58,97 5
863,0 50
863,4 25
-8 6 3,8 0 0
D - 8 64,1 75
E - 86 4,55 0
F - 8 64 ,950
1
3
5
7
9
B
90
63
30
13
672
21
172
220
35
110
222
38
140
TX 1000 - 2RX 1000 - 1 PX 1000 - 3
AS 1606 - 5RX 1600 - 4
PX 1600 - 7
TX 1600 - 6
BM 3001 - 8 MC 5030 - 9
MC 4040 - 10 MT 3100 - 11
60 g
230 g
ÃTypical use: speech, singing
ÃCardioid electret microphone with suspended capsule
ÃChannel selector to choose 1 of the 16 available frequencies
ÃMinimum handling noise
ÃTransmitter ON/OFF switch
ÃCarrier frequency digital control
ÃBattery charge LED
ÃETSI homologation
ÃTypical use: speech (belt pack transmitter)
ÃChannel selector to choose 1 of the 16 available frequencies
ÃTransmitter ON/OFF switch
ÃMute switch
ÃCarrier frequency digital control
ÃInput sensitivity trimmer
ÃBattery charge LED
ÃPEAK LED
ÃTo be used with either LA 1000 or HE 1002 mic
ÃETSI homologation
p/n 142.50.002
PX 1600
UHF BELT PACK TRANSMITTER
p/n 142.50.001
TX 1600
UHF WIRELESS
HANDHELD MICROPHONE
UHF WIRELESS MICROPHONES UHF WIRELESS MICROPHONES
33
MICROPHONES - WIRELESS MICROPHONES

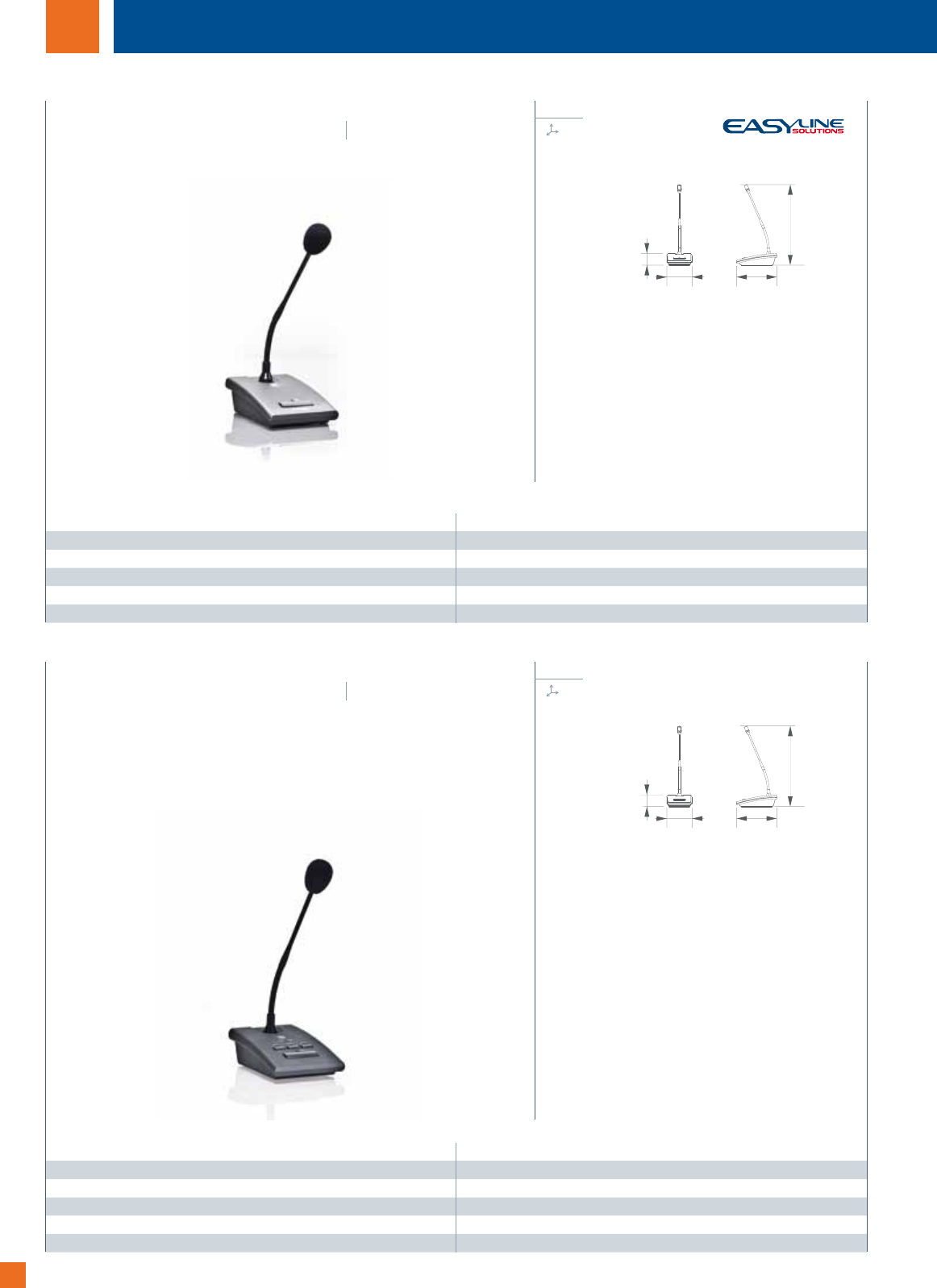

SPECIFICATIONS BM 3001
TYPE ELECTRET, CARDIOID
IMPEDANCE 470 Ω BALANCED
FREQUENCY RESPONSE 50 ÷ 18000 Hz
SENSITIVITY - 65 dB ± 3 dB (0 dB=1V/µbar, 1kHz)
CONNECTORS 8 pole RJ 45
SPECIFICATIONS BM 3003
TYPE ELECTRET, CARDIOID
IMPEDANCE 470 Ω BALANCED
FREQUENCY RESPONSE 50 ÷ 18000 Hz
SENSITIVITY - 65 dB ± 3 dB (0 dB=1V/µbar, 1kHz)
CONNECTORS 2 x 8 pole RJ 45
48
190
189
27
48
245
ON OFF
MIC
MUTE
TX
483
44 110
100
350
159
48
340
80
30
90
63
30
mu te
ON /
pea k
line
sn s
mic
pwr
58,65 0
58,97 5
863,0 50
863,4 25
-8 6 3,8 0 0
D - 8 64,1 75
E - 86 4,55 0
F - 8 64 ,950
1
3
5
7
9
B
mu te
ON /
pea k
line
sn s
mic
pwr
58,65 0
58,97 5
863,0 50
863,4 25
-8 6 3,8 0 0
D - 8 64,1 75
E - 86 4,55 0
F - 8 64 ,950
1
3
5
7
9
B
90
63
30
13
672
21
172
220
35
110
222
38
140
TX 1000 - 2RX 1000 - 1 PX 1000 - 3
AS 1606 - 5RX 1600 - 4
PX 1600 - 7
TX 1600 - 6
BM 3001 - 8 MC 5030 - 9
MC 4040 - 10 MT 3100 - 11
48
190
189
27
48
245
ON OFF
MIC
MUTE
TX
483
44 110
100
350
159
48
340
80
30
90
63
30
mu te
ON /
pea k
line
sn s
mic
pwr
58,65 0
58,97 5
863,0 50
863,4 25
-8 6 3,8 0 0
D - 8 64,1 75
E - 86 4,55 0
F - 8 64 ,950
1
3
5
7
9
B
mu te
ON /
pea k
line
sn s
mic
pwr
58,65 0
58,97 5
863,0 50
863,4 25
-8 6 3,8 0 0
D - 8 64,1 75
E - 86 4,55 0
F - 8 64 ,950
1
3
5
7
9
B
90
63
30
13
672
21
172
220
35
110
222
38
140
TX 1000 - 2RX 1000 - 1 PX 1000 - 3
AS 1606 - 5RX 1600 - 4
PX 1600 - 7
TX 1600 - 6
BM 3001 - 8 MC 5030 - 9
MC 4040 - 10 MT 3100 - 11
BASI MICROFONICHE
mm
mm
600 g
600 g
ÃPlastic body with 300 mm gooseneck
ÃES 3160, AM 2160, AM 2320 chime activation
ÃPTT button with LED
ÃPower supplied by 'Phantom' (18 ÷ 48 V dc)
Ã5 m connecting cable (with RJ 45 plugs) included
ÃPolyurethane foam wind screen
ÃIt can be directly connected to ES 3160, AM 2160,
AM 2320 amplifiers
ÃPlastic body with 300 mm gooseneck
ÃES 3323 chime activation
ÃPTT button with LED
Ã3 zone selection push buttons with LED
ÃON / BUSY state LED (bi-colour)
ÃPower supplied by 'Phantom' (18 ÷ 48 V dc)
Ã5 m connecting cable (with RJ 45 plugs) included
ÃPolyurethane foam wind screen
ÃIt can be directly connected to ES 3323 amplifiers
ÃThe power voltage for the first BM 3003 connected to the
units is supplied by the ES 3323
ÃLine of max.12 BM 3003 paging microphones can be
connected to the ES 3323 by using an additional power
supply unit 24 V dc (not included with the BM 3003)
p/n 143.22.008
p/n 143.22.012
BM 3001
PAGING MICROPHONE
BM 3003
3 ZONE PAGING MICROPHONE
PAGING MICROPHONES
34
SPECIFICATIONS MC 5030
TYPE ELECTRET, CARDIOID
IMPEDANCE 200 Ω BALANCED
FREQUENCY RESPONSE 80 ÷ 14000 Hz
SENSITIVITY - 75 dB ± 3 dB (0 dB=1V/µbar, 1kHz)
CONNECTORS 3 pole XLR
SPECIFICATIONS BM 3002
TYPE ELECTRET
IMPEDANCE 600 Ω BALANCED
FREQUENCY RESPONSE 80 ÷ 16000 Hz
SENSITIVITY - 71 dB ± 3 dB (0 dB=1V/µbar, 1kHz)
CONNECTORS SCREW TERMINALS
48
190
189
27
48
245
ON OFF
MIC
MUTE
TX
483
44 110
100
350
159
48
340
80
30
90
63
30
mu te
ON /
pea k
line
sn s
mic
pwr
58,65 0
58,97 5
863,0 50
863,4 25
-8 6 3,8 0 0
D - 8 64,1 75
E - 86 4,55 0
F - 8 64 ,950
1
3
5
7
9
B
mu te
ON /
pea k
line
sn s
mic
pwr
58,65 0
58,97 5
863,0 50
863,4 25
-8 6 3,8 0 0
D - 8 64,1 75
E - 86 4,55 0
F - 8 64 ,950
1
3
5
7
9
B
90
63
30
13
672
21
172
220
35
110
222
38
140
TX 1000 - 2RX 1000 - 1 PX 1000 - 3
AS 1606 - 5RX 1600 - 4
PX 1600 - 7
TX 1600 - 6
BM 3001 - 8 MC 5030 - 9
MC 4040 - 10 MT 3100 - 11
132
270
200
70
222
98
200
48
180
16
5
9
21
48
180
75
67
83
146
152
84
195
132
270
200
70
132
270
200
70
132
270
200
70
BM 3002 - 12
MD 7800 - 17
MD 7600 - 16
BM 3014 - 14
BM 3013 - 15
MP 321 - 18 MP 301 - 19 MP 302 - 20
BM 4072 - 13
MP 341 - 21
PAGING MICROPHONESPAGING MICROPHONES
mm
2˙000 g
ÃPlastic body with 320 mm gooseneck
ÃPushbuttons for momentary and locking microphone
activation, LED indicator
ÃBuilt-in pre-announcement chime generator
ÃInternal preamplifier providing high level audio output
(0 dBu: 775 mV)
ÃConnections on screw terminals inside
ÃAuxiliary input for series connection of thirty BM 3002
consoles, priority/interlocking circuit
ÃPower supply 230V ac or 24 V dc (batteries)
ÃPolyurethane foam wind screen
Ã1.5 m power supply cable
p/n 143.20.125
BM 3002
PREAMPLIFIED PAGING MICROPHONE
35
MICROPHONES - WIRELESS MICROPHONES
mm
295 g
ÃCompact die-cast metal base with gooseneck
ÃLocking pushbutton with LED for microphone activation
ÃPower supplied by 'Phantom' (12 ÷ 48 V dc)
Ã3 m screened and balanced cable with XLR connectors for
linking to a mixer / amplifier, with 2 additional wires for
command
ÃPolyurethane foam wind screen
p/n 141.15.005
MC 5030
DESK-TOP MICROPHONE
SPECIFICATIONS BM 3013
TYPE DYNAMIC, CARDIOID
IMPEDANCE 250 Ω BALANCED
FREQUENCY RESPONSE 100 ÷ 12000 Hz
SENSITIVITY - 71 dB ± 3 dB (0 dB=1V/µbar, 1kHz)
CONNECTORS 3 pole XLR
SPECIFICATIONS BM 3014
TYPE DYNAMIC, CARDIOID
IMPEDANCE 500 Ω BALANCED
FREQUENCY RESPONSE 100 ÷ 12000 Hz
SENSITIVITY - 71 dB ± 3 dB (0 dB=1V/µbar, 1kHz)
CONNECTORS 3 pole XLR
132
270
200
70
222
98
200
48
180
16
5
9
21
48
180
75
67
83
146
152
84
195
132
270
200
70
132
270
200
70
132
270
200
70
BM 3002 - 12
MD 7800 - 17
MD 7600 - 16
BM 3014 - 14
BM 3013 - 15
MP 321 - 18 MP 301 - 19 MP 302 - 20
BM 4072 - 13
MP 341 - 21
132
270
200
70
222
98
200
48
180
16
5
9
21
48
180
75
67
83
146
152
84
195
132
270
200
70
132
270
200
70
132
270
200
70
BM 3002 - 12
MD 7800 - 17
MD 7600 - 16
BM 3014 - 14
BM 3013 - 15
MP 321 - 18 MP 301 - 19 MP 302 - 20
BM 4072 - 13
MP 341 - 21
mm
1˙600 g
mm
1˙600 g
ÃPlastic body with 320 mm gooseneck
ÃBuilt-in pre-announcement chime generator
ÃPushbutton for momentary microphone activation
Ã5 m screened and balanced cable with XLR connectors for
linking to a mixer / amplifier, with 2 additional wires for
command
ÃPower supply 230V ac or 24 V dc (batteries)
p/n 143.20.013
BM 3013
PAGING MICROPHONE WITH
PRE-ANNOUNCEMENT CHIME GENERATOR
ÃPlastic body with 320 mm gooseneck
ÃPushbutton for momentary microphone activation
Ã5 m screened and balanced cable with XLR connectors for
linking to a mixer / amplifier, with 2 additional wires for
command
p/n 143.20.135
BM 3014
PAGING MICROPHONE
BASI MICROFONICHE
36
PAGING MICROPHONES
ÃDesk top microphone stand with die-cast base, suitable
for 5/8” or 3/8” thread
ÃTilting telescopic rod, adjustable from 38 cm to 58 cm
ÃWeight 2 Kg
ÃBase dimensions: 16 x 18 cm
AC S50DK
DESK-TOP STAND
p/n 143.80.011
ÃFloor microphone stand with die-cast base, suitable for
5/8” or 3/8” thread
ÃTilting telescopic rod, adjustable from 92 cm to 156 cm.
ÃWeight: 6.8 Kg
ÃBase dimensions: 20 x 26 cm
AC S64FL
FLOOR STAND
p/n 143.80.010
ÃFloor microphone stand with folding base, suitable for
5/8” thread
ÃJoints and legs in die-cast aluminium
ÃSteel telescopic rod,
adjustable from 96 cm to 156 cm
ÃTilting steel boom-arm, adjustable from 46 cm to 86 cm
ÃDamping base with 58 cm limited opening diameter
ÃWeight: 3.2 Kg
ÃLength once folded: 102 cm
AC S62FL
FLOOR STAND
p/n 143.80.012
ACCESSORIES
A 504-N
MIC. SUPPORT
p/n 143.80.014
A 507
MIC. SUPPORT
p/n 143.10.008
A 770
ADAPTER
p/n 143.60.020
CA 5XX
MIC. CABLE
p/n 143.40.017
Microphone support
(5/8" thread).
Suitable for use with the
MD 7600, MD 7800 micro-
phones on AC S64FL,
AC S62FL and AC S50DK sup-
ports.
Universal quick-release clamp
holder for holding cylindrical,
conical, and polyhedron
shaped microphones.
Clamp opening: from 15 to
38 mm. Suitable for use with
TX 1000 / TX 1600 / TX 516
wireless mic. on AC S64FL, AC
S62FL and AC S50DK supports.
3/8" / 11 mm adapter for
microphone supports.
5 m microphone cable with
XLR connectors.
37
MICROPHONES - WIRELESS MICROPHONES
PAGING MICROPHONES

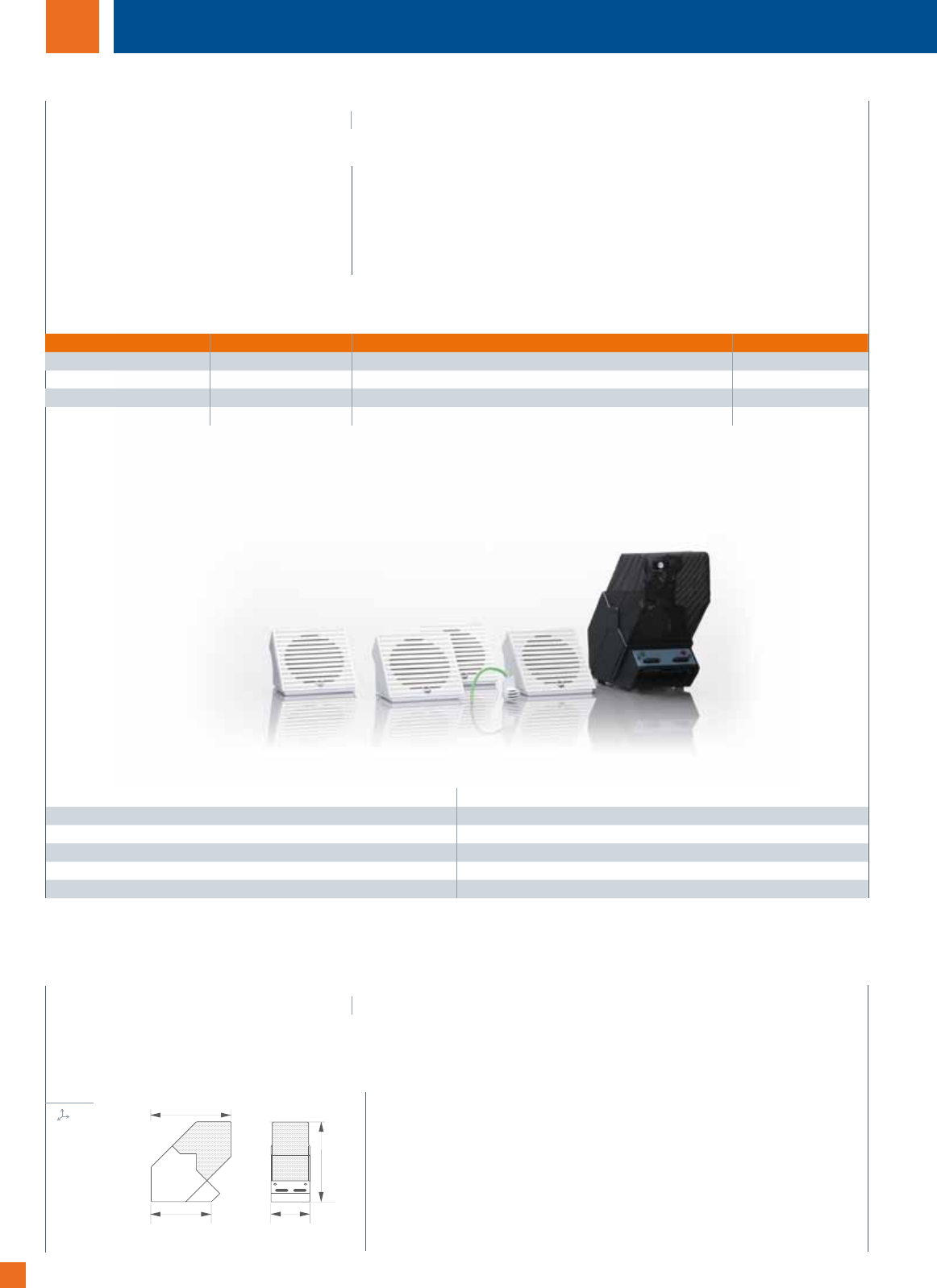

SPECIFICATIONS MP 300
MICROPHONES ELECTRET, UNIDIRECTIONAL
AMPLIFIER POWER 2 W (per each line)
ADDITIONAL LOUDSPEAKER OUTPUT 1 W - 8 Ω
POWER SUPPLY (AC) 230 / 115 V (50 / 60 Hz)
POWER SUPPLY (DC) 12 V
132
270
200
70
222
98
200
48
180
16
5
9
21
48
180
75
67
83
146
152
84
195
132
270
200
70
132
270
200
70
132
270
200
70
BM 3002 - 12
MD 7800 - 17
MD 7600 - 16
BM 3014 - 14
BM 3013 - 15
MP 321 - 18 MP 301 - 19 MP 302 - 20
BM 4072 - 13
MP 341 - 21
800 g
mm
MODEL P/N DESCRIPTION QUANTITY
MP 341 124.01.005 Control unit / amplifier 1
MP 321 124.01.008 Operator microphone console with activation keys 1
MP 302 124.01.007 User microphone 1
MP 301 124.01.006 Loudspeaker 4
ÃElectret microphone with unidirectional polarn pattern, housed into an anthracite grey die-cast
aluminium alloy and protected by a painted stainless steel grille
ÃEquipped with 2 push-buttons to activate the operator-user line and the user-operator line
respectively
ÃA LED indicates which line is activated
ÃIt can be remote controlled (e.g. through a pedal switch)
MP 300 SPEAK THROUGH SYSTEM
ÃMP 300 system allows conversations between an operator and users /clients when these are
separated by a safety glass that reduces the sound transmission
ÃOperaties in full-duplex mode, automatic or mixed-switching depending on the ambient noise in the
room / hall served.
ÃOn request, each single component can be purchased separately
MP 321
OPERATOR MICROPHONE
p/n 124.01.008
MP 300
OPERATOR/USER INTERCOM
SYSTEM KIT
p/n 121.70.094
38
mm
132
270
200
70
222
98
200
48
180
16
5
9
21
48
180
75
67
83
146
152
84
195
132
270
200
70
132
270
200
70
132
270
200
70
BM 3002 - 12
MD 7800 - 17
MD 7600 - 16
BM 3014 - 14
BM 3013 - 15
MP 321 - 18 MP 301 - 19 MP 302 - 20
BM 4072 - 13
MP 341 - 21
1˙400 g
132
270
200
70
222
98
200
48
180
16
5
9
21
48
180
75
67
83
146
152
84
195
132
270
200
70
132
270
200
70
132
270
200
70
BM 3002 - 12
MD 7800 - 17
MD 7600 - 16
BM 3014 - 14
BM 3013 - 15
MP 321 - 18 MP 301 - 19 MP 302 - 20
BM 4072 - 13
MP 341 - 21
mm
mm
132
270
200
70
222
98
200
48
180
16
5
9
21
48
180
75
67
83
146
152
84
195
132
270
200
70
132
270
200
70
132
270
200
70
BM 3002 - 12
MD 7800 - 17
MD 7600 - 16
BM 3014 - 14
BM 3013 - 15
MP 321 - 18 MP 301 - 19 MP 302 - 20
BM 4072 - 13
MP 341 - 21
120 g
3.5 g
MP 302
USER MICROPHONE
p/n 124.01.007
ÃElectret microphone having high sensitivity and an unidirectional polar pattern, suitable for clear
voice reproduction even in very noisy rooms / halls
ÃIts compact white plastic enclosure has a very sleek contemporary design
ÃMP 302 has a slot (close to the audio cable output) for the insertion of a standard wiring duct
ÃIt can be easily attached on safety glasses through bi-adhesive tape
Ã5 m balanced and screened cable for connection to the MP 341 control unit / amplifier
MP 341
CONTROL UNIT / AMPLIFIER
p/n 124.01.005
ÃIt is the system main unit that manages audio signals coming from microphones.
Ã4 switches inside (with LEDs) allow to select one of the 4 operating modes, according to the
noise level at the operator's microphone and at the users' microphone. A switch for each
line makes it possible to select either the 'direct' function (the line is always activated) or the
'switched' mode (the line is momentary activated when speaking). If both lines are set to the
'switched' mode, only one can be activated at a time. The other 2 switches enable the 'forced
volume' function of each line, useful whenever it is necessary to increase (+ 10 dB) the audio level
ÃIt is possible to adjust the listening volume of each position independently, as well as the trigger
threshold level of each microphone (factory preset)
ÃIts plastic enclusure can be wall mounted
ÃMP 301 loudspeakers shall be installed near the microphones of the operator and users
ÃWhite plastic body
Ã70 mm loudspeaker suitable for voice reproduction
ÃLoudspeakers can be fixed by using biadhesive tape (included)
Ã5m loudspeaker cables for connection to the MP 341 control unit / amplifier
p/n 124.01.006
MP 301
LOUDSPEAKERS
MP 300 SPEAK THROUGH SYSTEM
39
MICROPHONES - WIRELESS MICROPHONES

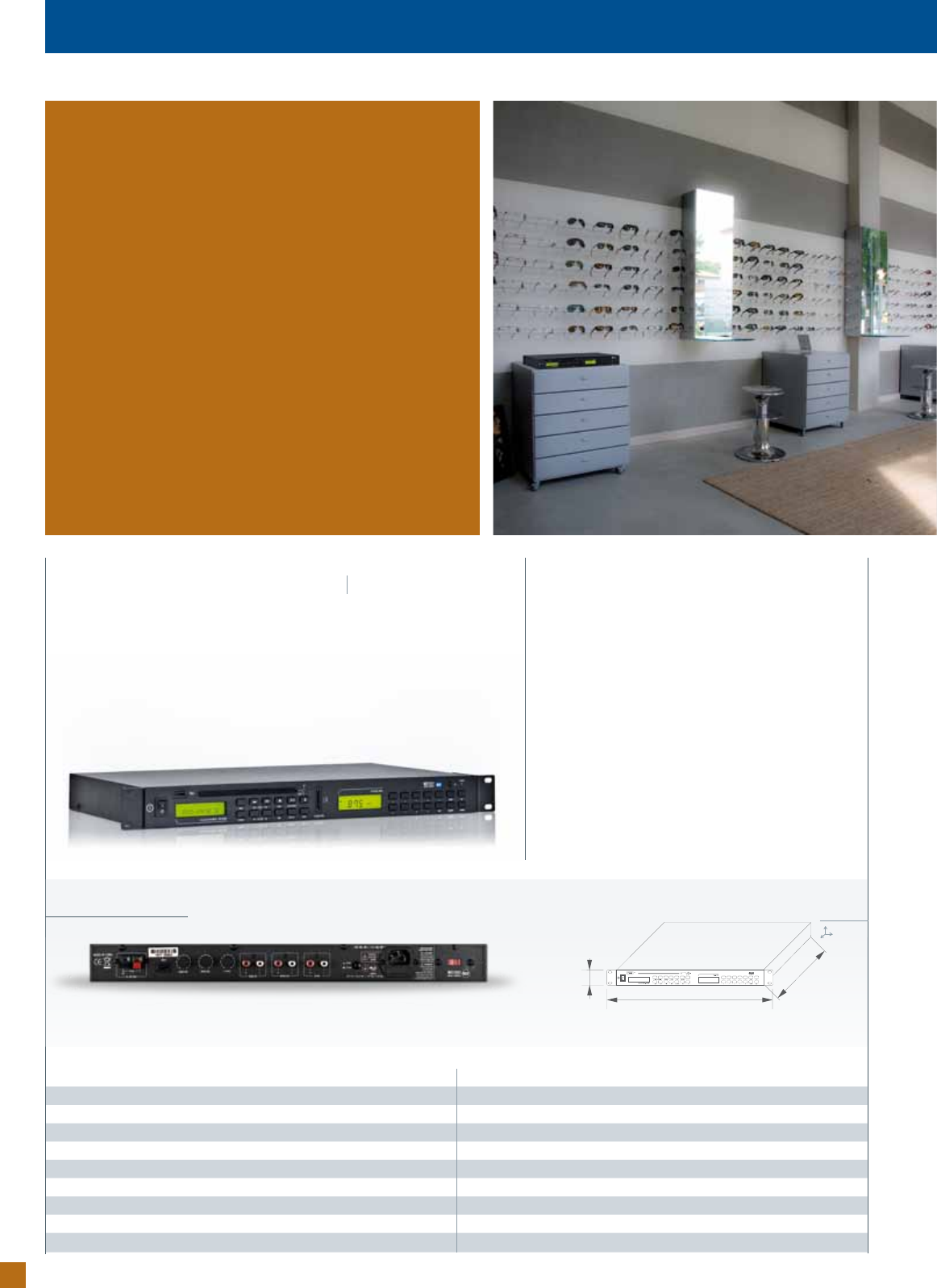

SPECIFICATIONS MS 1033
AUDIO OUTPUT LEVEL +4 dBu ± 2 dBu (1.2 V ± 0.2 V)
FREQUENCY RESPONSE 20 ÷ 20.000 Hz (CD); 100 ÷ 12.000 Hz (RADIO)
DISTORTION (THD+N) < 0.1% (CD); < 0.8% (RADIO)
FREQUENCY RANGE 87.5 ÷ 108 MHz (FM)
SIGNAL TO NOISE RATIO > 70 dB (CD); > 60 dB (RADIO)
CHANNEL SPLIT ≥ 60 dB (CD); ≥ 30 dB (RADIO)
SENSITIVITY ≤ 10 V
SUPPLY VOLTAGE 220 ÷ 240 V / 110 ÷ 120 V (50 / 60 Hz)
OUTPUT CONNECTORS RCA (L&R RADIO); RCA (L&R CD USB/MP3); RCA (L&R MIXED)
CD players, Radio receivers, message
players for every hi-fidelity listening
need.
AUDIO SOURCES
482
44 250
440
97
312
440
114 404
MS 1033 -1 ST 6001 - 2 CC 4001 - 3
3˙600 g
mm
REAR VIEW
MS 1033
CD-USB MP3 PLAYER WITH FM RADIO TUNER
p/n 171.70.108
40
ÃDouble sound source with two independent sections and
outputs (Tuner - CD/Mp3)
ÃCD player to reproduce audio tracks and MP3 files from
a compact disc (CD, CD-R, CD-R/W) or from the USB drive
("Flash" memory-stick with only MP3 files)
ÃThe USB port is available on both front and back panels
to provide maximum flexibility
ÃThe SD card port is available on front panels
ÃLCD backlit display gives information on the CD and MP3 files
ÃI/R remote control for CD and Tuner included
ÃFM radio tuner (87.5 - 108 MHz) with possibility to memorize
your 30 favourite radio stations
ÃStereo / Mono selector for applications where stereo signals
are not needed
ÃLCD backlit display shows the frequency and stations that are
in the memory

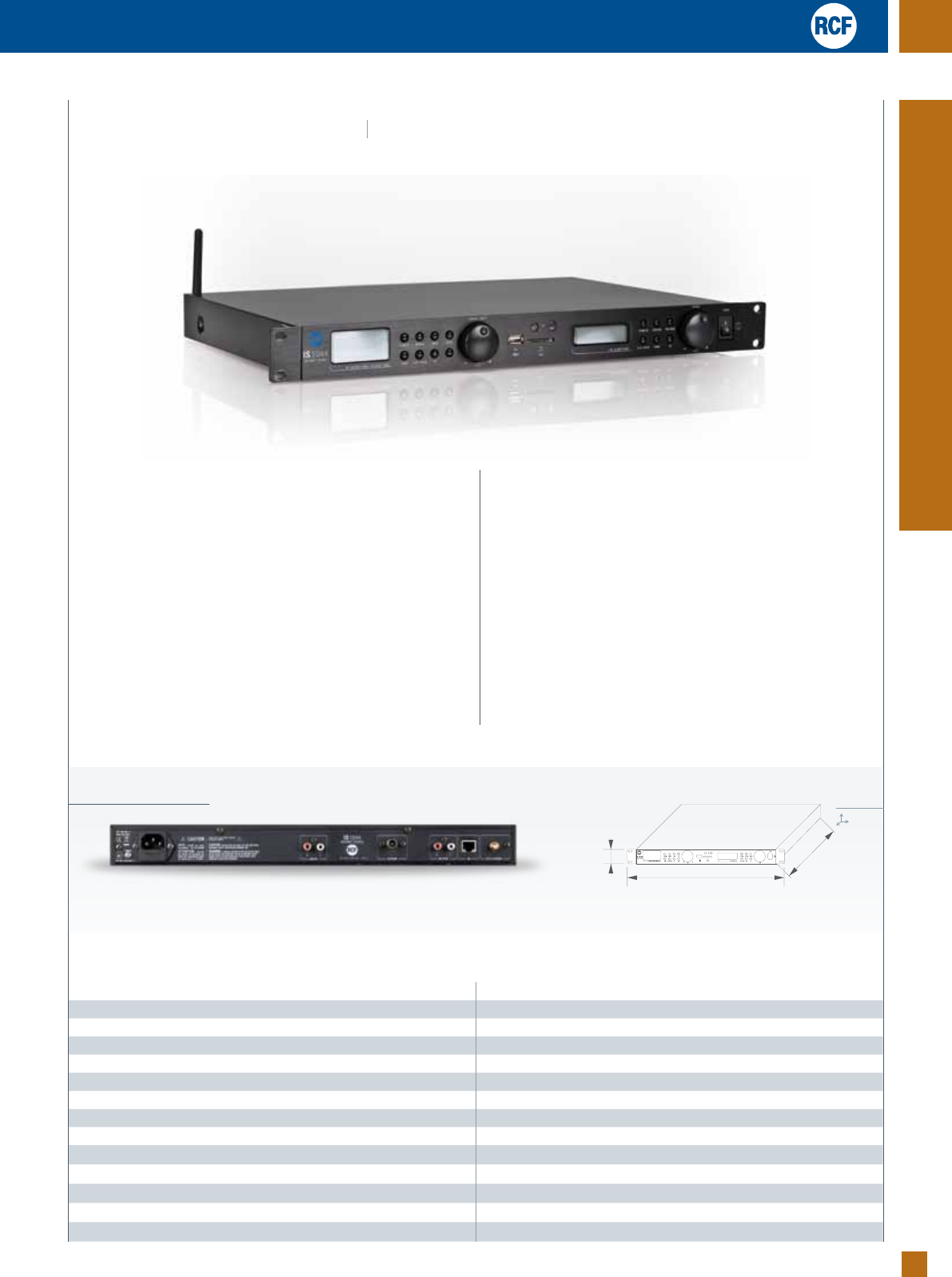

SPECIFICATIONS IS 1044
FORMAT FILE Real Audio, Microsoft Windows Media Audio, MP3, AAC MPEG 4, AU, WAV, AIFFW
CONNECTION USB IEEE 802.11b wireless, USB IEEE 802.11g wireless, USB IEEE 802.3 Ethernet
PROTECTION WEP (Hex and ASCII. 64 and 128 bit, auto-sense), WPA1, WPA2 (TKIP with PSK only)
AUDIO OUTPUT LEVEL +2 dBu
FREQUENCY RESPONSE 20 - 20.000 Hz (MP3); 100 - 12.000 Hz (RADIO)
DISTORTION (THD+N) < 1%
FREQUENCY RANGE 87,5 ÷ 108 MHz (FM)
SIGNAL TO NOISE RATIO > 50 dB (RADIO)
CHANNEL SPLIT ≥ 25 dB (RADIO)
SENSITIVITY ≤ 6 µV
SUPPLY VOLTAGE 220 ÷ 240 V / 110 ÷ 120 V (50 / 60 Hz)
INPUT CONNECTORS RJ 45
OUTPUT CONNECTORS RCA (L&R RADIO); RCA (L&R CD USB/MP3)
444
88
220
444
88
220
483
132
455
Channel 1 Channel 2
Professional Stereo Amplier
3200HC
483
88 455
2000HC
Channel 1 Channel 2
Professional Stereo Amplier
HC 2000 - 13 HC 3200 - 14
AM 2080
ES 3323 UP 2162
444
127
345
IS 1044
482
44 303
+-
AUDIO PLAYERS
AUDIO SOURCES
1˙600 g
mm
REAR VIEW
IS 1044
SD-USB PLAYER WITH INTERNET RADIO
p/n 171.70.108
ÃDouble sound source with two independent sections and outputs
(FM Tuner or Internet Tuner - CD/Mp3)
ÃThe digital receiver of elevated integral quality WiFi 802.11b/g and a
door Ethernet (RJ45)
ÃWide chosen between more than 10.000 broadcasting stations available
all over the world
ÃThe technology allows the search issuing based on the nation or to the
musical kind
ÃIncludes also a FM radio tuner (87,5 ÷ 108 MHz) with RDS for the fast
selection of the frequencies radio
ÃTwo output on RCA stereo with gain control
ÃLCD backlit display gives information on the MP3 files
ÃGraphic LCD 128 x 64 backlit for indications of the radio stations
INTERNET
ÃI/R remote control for MP3 unit included
ÃMultimedia reader who affords to manage audio (AAC, AIFF, AU, MP3,
RM, WAV and WMA) and wireless musical lists (M3U) stored on a PC
of nets or Apple Mackintosh
ÃThe functions of the multimedia reader are tried and certificate been
about to work with Windows 2000, Windows XP, Windows Vista and
mackintosh OSX a 10,2 or successive version
ÃStreaming protocols: RTSP (Real Time Streaming Protocol), MMS
(Medium Microsoft® Server protocol), HTTP (Hyper Text Protocol
Transfer)
ÃDirect connection to the PC with UPnP (Universal Plug and Play) server
trough an user interface like Windows Media Player 11 (WMP11)
ÃDefine your playlist with music and advertising on your PC and send to
the player via LAN or Wireless
ÃThe USB port and SD Port are available on front panels to play MP3
files on a "Flash" memory-stick
41

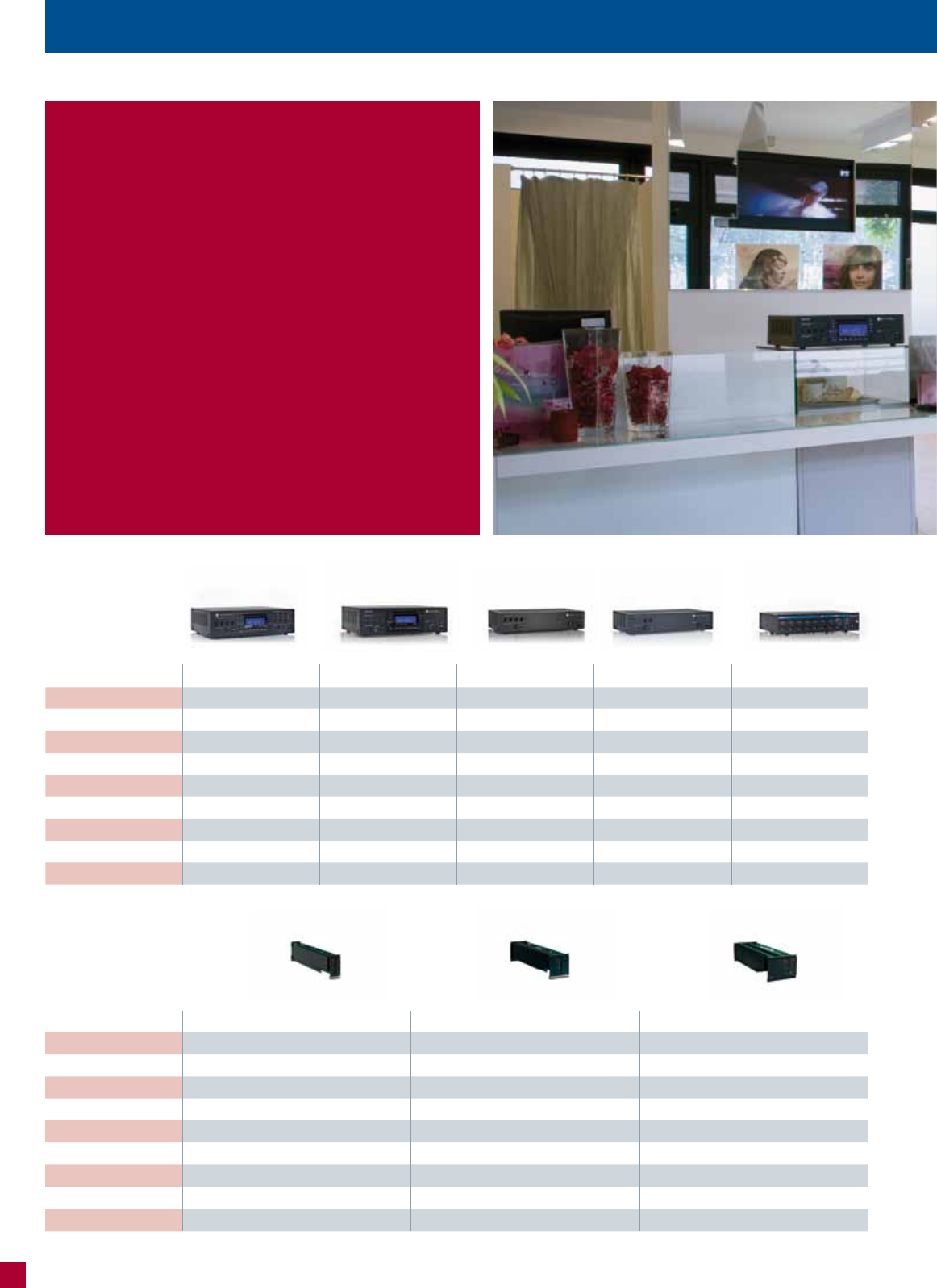

MODEL ES 3323 ES 3160 AM 2160 - AM 2320 AM 2080 AM 1122-N
OUTPUT RMS POWER 320 W 160 W 160 W / 320 W 80 W 120 W
OUTPUT 4 Ω (2 W max), 100 V, 70 V 4 Ω, 100 V, 70 V 4 Ω, 100 V, 70 V 4 Ω, 100 V, 70 V 4 Ω, 100 V, 70 V
FREQUENCY RESPONSE 50 ÷ 18.000 Hz 50 ÷ 18.000 Hz 50 ÷ 18.000 Hz 50 ÷ 18.000 Hz 50 ÷ 15.000 Hz
DISTORTION @ 1 kHz < 0.3% < 0.3% < 0.3% < 0.3% < 2%
SIGNAL TO NOISE RATIO > 65 dB > 65 dB > 60 dB > 60 dB > 60 dB
INPUT SENSITIVITY (MIC) -60 dBu; (AUX) -80 dBu (MIC) -60 dBu; (AUX) -80 dBu (MIC) -58 dBu; (LINE) 0 dBu (MIC) -58 dBu; (LINE) 0 dBu (MIC) -54 dBu; (LINE) -8 dBu
INPUT IMPEDANCE (MIC) 10 KΩ; (AUX) 20 KΩ(MIC) 10 KΩ; (AUX) 20 KΩ(MIC) 10 KΩ; (AUX) 20 KΩ(MIC) 10 KΩ; (AUX) 20 KΩ(MIC) 2.4 KΩ; (LINE) 10 KΩ
INPUT CONNECTORS 1 x XLR, 2 x RJ45, 4 Term., 1 RCA 1 x XLR, 2 x RJ45, 4 Term., 1 RCA 1 x XLR, 2 x RJ45, 4 Term., 4 RCA 1 x XLR, 2 x RJ45, 4 Term. 4 x XLR, 1 x RCA
OUTPUT CONNECTORS 4 x RCA, Screw terminal 4 x RCA, Screw terminal 4 x RCA, Screw terminal 4 x RCA, Screw terminal 2 x RCA, Screw terminal

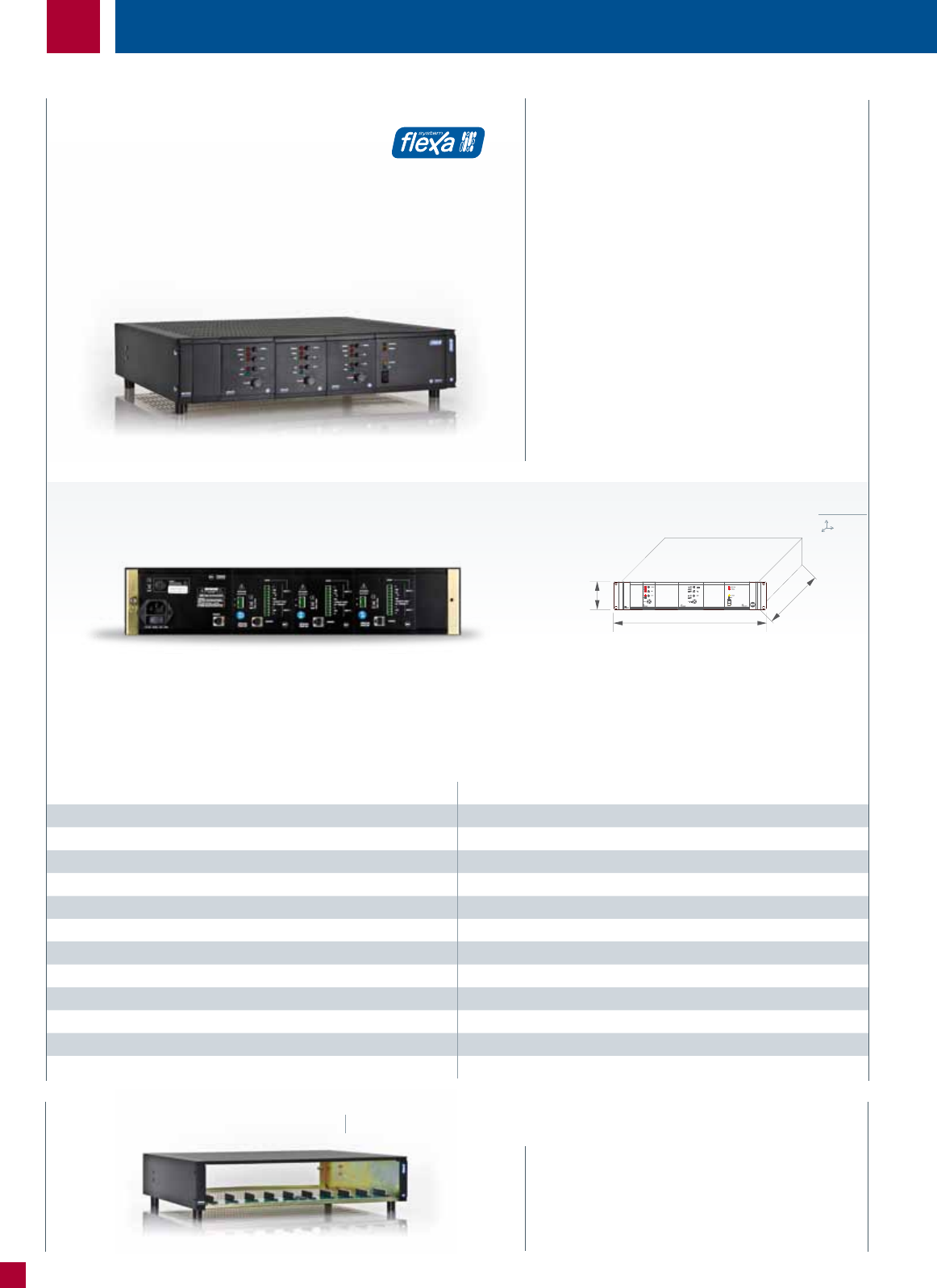

MODEL UP 6081*UP 6241*UP 6481*
OUTPUT RMS POWER 80 W 240 W 480 W
OUTPUT 100 V 100 V 100 V
FREQUENCY RESPONSE 50 ÷ 18.000 Hz 50 ÷ 18.000 Hz 50 ÷ 18.000 Hz
DISTORTION @ 1 kHz < 0.1% < 0.1% < 0.1%
SIGNAL TO NOISE RATIO > 90 dB > 90 dB > 90 dB
INPUT SENSITIVITY -2 ÷ -20 dBu -2 ÷ -20 dBu -2 ÷ -20 dBu
INPUT IMPEDANCE 18 KΩ18 47 18 KΩ
INPUT CONNECTORS Screw terminal Screw terminal Screw terminal
OUTPUT CONNECTORS Screw terminal Screw terminal Screw terminal
AMPLIFIERS AND
PREAMPLIFIERS
For constant voltage systems or
professional audio applications.
*Working with dedicated power supplies PS 6320 - PS 6640.
42
MODEL ED 600 ED 1100
OUTPUT RMS POWER (4 Ω) 2 x 300 W (4 Ω) 2 x 550 W
OUTPUT 4 Ω - 8 Ω4 Ω - 8 Ω
FREQUENCY RESPONSE 20 ÷ 20.000 Hz 20 ÷ 20.000 Hz
DISTORTION @ 1 kHz < 0.05% < 0.05%
SIGNAL TO NOISE RATIO > 105 dB > 105 dB
INPUT SENSITIVITY 0 dBu 0 dBu
INPUT IMPEDANCE 20 KΩ bal. (10 KΩ unbal.) 20 KΩ bal. (10 KΩ unbal.)
INPUT CONNECTORS 2 x XLR, Jack 6.3mm 2 x XLR, Jack 6.3 mm
OUTPUT CONNECTORS SPEAKON-4 SPEAKON-4
MODEL UP 2081 / UP 2161 / UP 2321 UP 2162 UP 1123 UP 4242 / UP 4482
OUTPUT RMS POWER 80W / 160 W / 320 W 2 x 100 W 120 W 240 W / 480 W
OUTPUT 4 Ω, 100 V, 70 V 4 Ω, 100 V, 70 V 4 Ω, 100 V, 70 V 8 Ω, 4 Ω, 100 V, 70 V, 50 V
FREQUENCY RESPONSE 50 ÷ 18.000 Hz 50 ÷ 18.000 Hz 50 ÷ 15.000 Hz 50 ÷ 16.000 Hz
DISTORTION @ 1 kHz < 0.3% < 0.3% < 2% < 1%
SIGNAL TO NOISE RATIO > 80 dB > 80 dB > 75dB (MIC) > 60 dB (LINE) > 90 dB
INPUT SENSITIVITY (MIC) -58 dBu; (LINE) 0 dBu (MIC) -58 dBu; (LINE) 0 dBu (MIC) -54 dBu; (LINE) -8 dBu 0 ÷ -20 dBu
INPUT IMPEDANCE (MIC) 10 KΩ; (AUX) 20 KΩ(MIC) 10 KΩ; (AUX) 20 KΩ(MIC) 2.4 KΩ; (LINE) 10 KΩ(bal.) 50 KΩ; (unbal.) 100 KΩ
INPUT CONNECTORS 1 x XLR, 1 x RJ45, 1 Terminal 1 x XLR, 1 x RJ45, 1 Terminal 1 x XLR (or Screw terminal) 1 x XLR (or Term.), 1 x RCA (or Term.)
OUTPUT CONNECTORS 1 x RCA, Screw terminal 1 x RCA, Screw terminal Screw terminal Screw terminal
AMPLIFIERS AND PREAMPLIFIERS
43
SPECIFICATIONS ES 3323
OUTPUT POWER 320 W
FREQUENCY RESPONSE 50 - 18.000 Hz (± 3 dB)
DISTORTION (THD+N) < 0,3% @ 1 kHz
SPEAKER OUTPUTS 100 V, 70 V, 4 Ω (MONITOR MAX 2 W)
AUXILIARY OUTPUTS 600 Ω, -1 dBu (690 mV)
SIGNAL TO NOISE RATIO > 65 dB (INPUTS 1-4); > 75 dB (AUX IN); > 85 dB (MAIN IN)
INPUT SENSITIVITY (MIC) -58 dBu (1 mV); (MIC PHANTOM) -28 dBu (30 mV);
(AUX) -11 ÷ +10 dBu (0.2 ÷ 2.5 V)
INPUT IMPEDANCE (MIC) 10 KΩ; (AUX) 20 KΩ
(MIC) 10 kΩ; (MIC PHANTOM) 6.5 kΩ; (LINE): 10 kΩ; (AUX): 20 kΩ
SUPPLY VOLTAGE 220 ÷ 240 V / 110 ÷ 120 V (50 / 60 Hz) INTERNAL SETTING
POWER CONSUMPTION 600 W
INPUT CONNECTORS 1 x XLR, 2 x RJ 45, 4 x TERMINAL
OUTPUT CONNECTORS 4 x RCA (MUSIC ON HOLD, PRE-OUT, INTERNAL PROGRAM),
SCREW TERMINALS FOR CONSTANT VOLTAGE LINES
444
88
220
444
88
220
483
132
455
Channel 1 Channel 2
Professional Stereo Amplier
3200HC
483
88 455
2000HC
Channel 1 Channel 2
Professional Stereo Amplier
HC 2000 - 13 HC 3200 - 14
AM 2080
ES 3323 UP 2162
444
127
345
IS 1044
482
44 303
+-
10˙100 g
mm
REAR VIEW
ÃMixer-amplifier with 4 mic-line inputs on removable connectors
a CD/USB - MP3 player and tuner, an aux input for an additional
external music source
ÃIR Remote control for CD - USB/MP3 player & tuner functions
ÃFull digital technology amplifier 320W RMS, 100V - 70V outputs
Ã4 universal inputs with phantom facility, Presence Control and
per-channel High-Pass filters
ÃRJ 45 connectors on input 2 and 3 for connection to BM3001
and BM 3003 paging microphones
ÃScrew terminal connections, additional XLR and RJ45 input
connections available
ÃUSB port on front panel allows reproduction of MP3 files from
a memory stick
ÃMusic On Hold and PRE outputs
ÃThe 3 PAGING buttons can be used to select zones to be paged
by either the channel 1 or 4
ÃGENERAL call button with override function is available
ÃThe 3 MUSIC buttons turn the music on in the respective zones
ÃPossible to link an external power amplifier to keep the background
music in the zones that are not paged
ÃLow impedance (min. 4 Ω) 2 W output for a monitor loudspeaker is
available as well
p/n 121.35.064
ES 3323
3 - ZONE MIXER - AMPLIFIER WITH
TUNER AND CD/USB - MP3 PLAYER
p/n 143.22.012
BM 3003
3 ZONE PAGING MICROPHONE
The paging microphone allows to make selective calls to 3 zones and is
the ideal complement of the ES 3323 mixer amplifier (through CAT 5 cable
and RJ 45 connector)
Rack mounting support, 3U.
p/n 133.60.101
AR 3000
RACK SUPPORT
AMPLIFICATORI CON SORGENTICD-USB/MP3 DIGITAL RECEIVER AMPLIFIERS
44
SPECIFICATIONS ES 3160
OUTPUT POWER 160 W
FREQUENCY RESPONSE 50 ÷ 18.000 Hz (± 3 dB)
DISTORTION (THD+N) < 0.3% @ 1 kHz
SPEAKER OUTPUTS 100 V, 70 V, 4 Ω
AUXILIARY OUTPUTS 600 Ω, -1 dBu (690 mV)
SIGNAL TO NOISE RATIO > 65 dB (INGRESSO 1-4); > 75 dB (AUX IN); > 85 dB (MAIN IN)
INPUT SENSITIVITY (MIC) -58 dBu (1 mV); (MIC PHANTOM) -28 dBu (30 mV);
(AUX) -11 ÷ +10 dBu (0.2 ÷ 2.5 V)
INPUT IMPEDANCE (MIC) 10 KΩ; (AUX) 20 KΩ
(MIC) 10 kΩ; (MIC PHANTOM) 6.5 kΩ; (LINE): 10 kΩ; (AUX): 20 kΩ
SUPPLY VOLTAGE 220 ÷ 240 V / 110 ÷ 120 V (50 / 60 Hz) INTERNAL SETTING
POWER CONSUMPTION 350 W
INPUT CONNECTORS 1 x XLR, 2 x RJ 45, 4 x TERMINAL
OUTPUT CONNECTORS 4 x RCA (MUSIC ON HOLD, PRE-OUT, INTERNAL PROGRAM),
SCREW TERMINALS FOR CONSTANT VOLTAGE LINES
483
266
120
482
44 200
4092
PREAMPLIFIER
CHIME
A
B
INPUTS OUTPUTS
433
88 315
VOLUME
UP 4000-SERIES P.A. POWER UNIT
TONE
433
88 382
VOLUME
UP 4000-SERIES P.A. POWER UNIT
444
127
345
420
88 260
MASTER
MIXER AMPLIFIER
TONE
INPUTS
1122-NAM
483
132
455
Channel 1 Channel 2
Professional Stereo Amplifier
3200HC
483
88 455
1600HC
Channel 1 Channel 2
Professional Stereo Amplifier
483
88 350
1100ED
483
88 350
600ED
483
88 370
FLEXA
6081 6241
6320
483
88 455
2000HC
Channel 1 Channel 2
Professional Stereo Amplifier
444
88
220
420
88 280
MASTER
TONE
1123UP
ES 3160 - 1
AM 1122 - 4 AM 2160 - 5 UP 1123 - 6
UP 4121 - 7 UP 4242 - 8 FLEXA - 9
ED 1100 - 11 HC 1600 - 12
PR 4092 - 2 MX 1822 - 3
HC 2000 - 13 HC 3200 - 14
ED 600 - 10
444
88
220
8˙000 g
mm
REAR VIEW
ÃCD - USB/MP3 Player / FM tuner / Mixer-Amplifier
ÃIR Remote control for CD - USB/MP3 player & tuner functions
ÃFull digital technology amplifier 160W RMS, 100V-70V and 4 Ohm
outputs
Ã4 universal inputs with phantom facility, Presence Control and per-
channel High-Pass filters
ÃRJ45 connectors on input 2 and 3 for connection to BM3001
microphone
ÃConfigurable Priority settings, VOX facility on input 1
ÃSelectable aux input for music source with volume and tone controls
ÃUSB port on front panel allows reproduction of MP3 files from a
memory stick
ÃMusic On Hold and PRE outputs
ÃMicroprocessor controlled
ÃPROTECT-PRIORITY-SIGN/PEAK indicators
ÃDigital Chime and Siren built-in generator
ÃContinuous Chime or Siren activation through dry contact
ÃScrew terminal connections, additional XLR and RJ45 input
connections available
Ã3U rack mounting through optional accessory
ÃStatus / Priority / Audio Level LED indications
p/n 121.35.057
ES 3160
CD-USB/MP3 DIGITAL RECEIVER
AMPLIFIER
p/n 143.22.008
BM 3001
MICROPHONE CONSOLE
Dedicated microphone console with Cat5 connection cable and RJ45
connector.
Rack mounting support, 3U.
p/n 133.60.101
AR 3000
RACK SUPPORT
INTEGRATED AMPLIFIERSCD-USB/MP3 DIGITAL RECEIVER AMPLIFIERS
45
AMPLIFIERS AND PREAMPLIFIERS
SPECIFICATIONS AM 2160 - AM 2320
OUTPUT POWER 160 W (AM 2160) - 320 W (AM 2320)
FREQUENCY RESPONSE 50 Hz ÷ 18.000 kHz
DISTORTION (THD+N) < 0.3% @ 1 kHz
SPEAKER OUTPUTS 100 V, 70 V, 4 Ω
AUXILIARY OUTPUTS 600 Ω, - 1 dBu (690 mV)
SIGNAL TO NOISE RATIO > 60 dB (INPUTS 1-4); > 80 dB (AUX IN)
INPUT SENSITIVITY (MIC) -58 dBu (1 mV); (MIC PHANTOM) -21 dBu (70 mV); (LINE) 0 dBu (775 mV); (AUX)
–6 ÷ +13 dBu (0.39 ÷ 3.5 V)
INPUT IMPEDANCE (MIC) 10 kΩ; (MIC PHANTOM) 5 kΩ; (LINE): 10 kΩ; (AUX): 20 kΩ
SUPPLY VOLTAGE 230 V / 115 (50 / 60 Hz) - INTERNAL SETTING
POWER CONSUMPTION 240 W (AM 2160) - 440 W (AM 2320)
INPUT CONNECTORS 1 x XLR, 2 x RJ 45, 4 x SCREW TERMINALS, 2 x DOUBLE RCA (AUX)
OUTPUT CONNECTORS 2 x RCA (MUSIC ON HOLD, PRE-OUT), SCREW TERMINALS FOR SPEAKERS
483
266
120
482
44 200
4092
PREAMPLIFIER
CHIME
A
B
INPUTS OUTPUTS
433
88 315
VOLUME
UP 4000-SERIES P.A. POWER UNIT
TONE
433
88 382
VOLUME
UP 4000-SERIES P.A. POWER UNIT
444
127
345
420
88 260
MASTER
MIXER AMPLIFIER
TONE
INPUTS
1122-NAM
483
132
455
Channel 1 Channel 2
Professional Stereo Amplifier
3200HC
483
88 455
1600HC
Channel 1 Channel 2
Professional Stereo Amplifier
483
88 350
1100ED
483
88 350
600ED
483
88 370
FLEXA
6081 6241
6320
483
88 455
2000HC
Channel 1 Channel 2
Professional Stereo Amplifier
444
88
220
420
88 280
MASTER
TONE
1123UP
ES 3160 - 1
AM 1122 - 4 AM 2160 - 5 UP 1123 - 6
UP 4121 - 7 UP 4242 - 8 FLEXA - 9
ED 1100 - 11 HC 1600 - 12
PR 4092 - 2 MX 1822 - 3
HC 2000 - 13 HC 3200 - 14
ED 600 - 10
444
88
220
INTEGRATED AMPLIFIERSINTEGRATED AMPLIFIERS
46
p/n 143.22.008
BM 3001
MICROPHONE CONSOLE
Dedicated microphone console with Cat5 connection cable and RJ45
connector.
6˙000 g
5˙000 g
mm

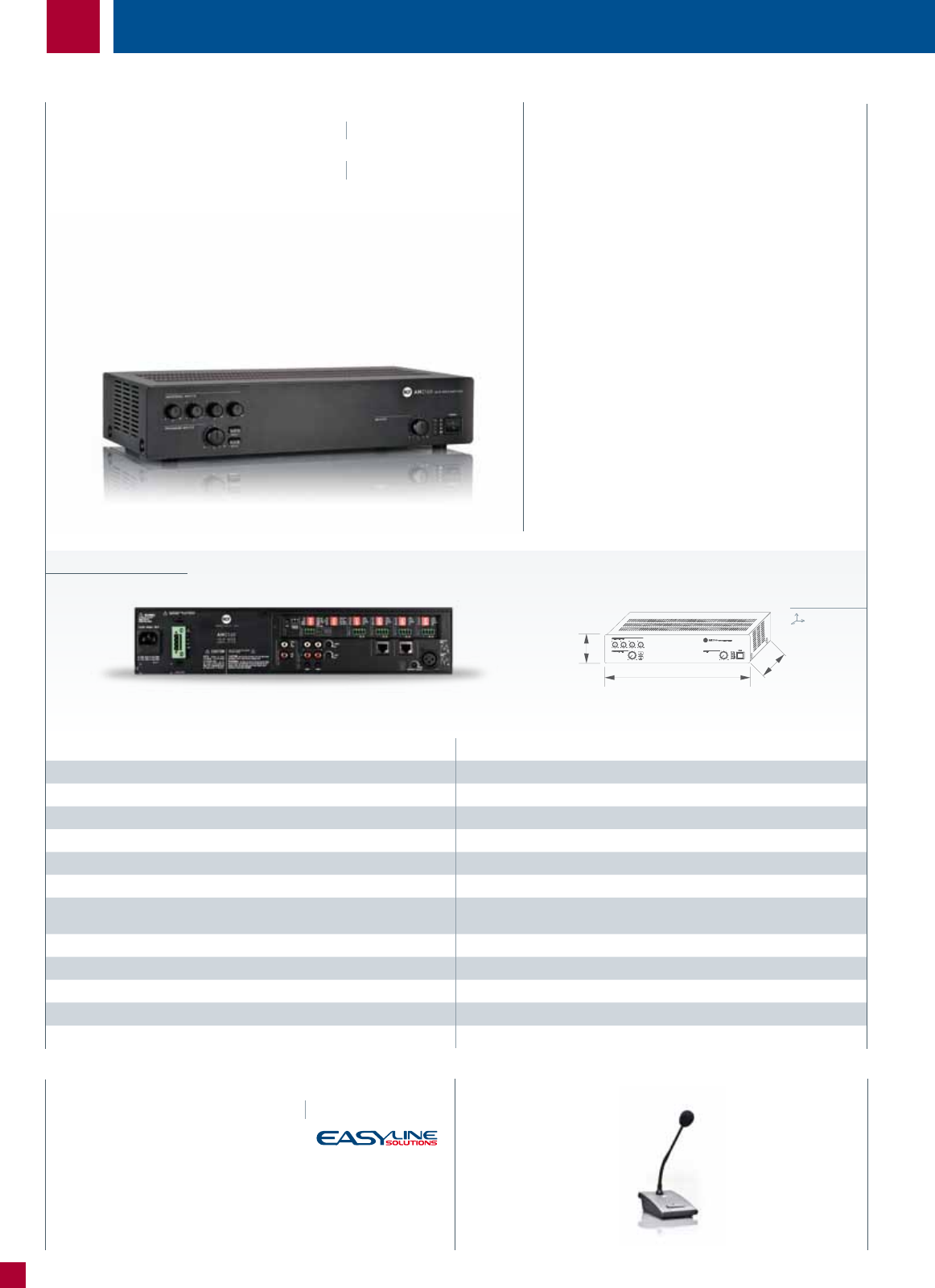

AM 2160
AM 2320
INTEGRATED AMPLIFIERS
p/n 121.35.058
p/n 121.35.059
REAR VIEW
Ã160/320W 4-input Mixer-Amplifier
à Input 1 on XLR
ÃVOX facility on input 1
ÃPriority activation through dry contact on all 4 inputs
ÃRJ45 connectors on input 2 and 3 for connection to BM3001
microphone
ÃPresence Control and per-channel High-Pass filters
Ã2 Aux inputs with tone controls, selectable with two keys on
the front panel
ÃMusic On Hold and PRE outputs
ÃDigital Chime and Siren built-in generator
Ã24V/0.5A priority relay output
ÃStatus / Priority / Audio Level LED indications
SPECIFICATIONS AM 2080
OUTPUT POWER 80 W
FREQUENCY RESPONSE 50 - 18.000 Hz (± 3 dB)
DISTORTION (THD+N) < 0,3% @ 1 kHz
SPEAKER OUTPUTS 100 V, 70 V, 4 Ω
AUXILIARY OUTPUTS 600 Ω, -1 dBu (690 mV)
SIGNAL TO NOISE RATIO > 60 dB (INPUTS 1-2); > 80 dB (AUX IN)
INPUT SENSITIVITY (MIC) -58 dBu (1 mV); (MIC PHANTOM) -28 dBu (30 mV); (AUX) -21 ÷ +10 dBu (0.70
÷ 23.5 V)
INPUT IMPEDANCE (MIC) 10 kΩ; (MIC PHANTOM) 10 kΩ; (AUX) 20 KΩ
SUPPLY VOLTAGE 220 ÷ 240 V / 110 ÷ 120 V (50 / 60 Hz) INTERNAL SETTING
POWER CONSUMPTION 160 W
INPUT CONNECTORS 1 x XLR, 1 x RJ 45, 2 x TERMINAL, 2 x DOUBLE RCA (AUX)
OUTPUT CONNECTORS 2 x RCA (MUSIC ON HOLD, PRE-OUT), SCREW TERMINALS FOR CONSTANT VOLTAGE LINES
444
88
220
444
88
220
483
132
455
Channel 1 Channel 2
Professional Stereo Amplier
3200HC
483
88 455
2000HC
Channel 1 Channel 2
Professional Stereo Amplier
HC 2000 - 13 HC 3200 - 14
AM 2080
ES 3323 UP 2162
444
127
345
IS 1044
482
44 303
+-
POWER AMPLIFIERSINTEGRATED AMPLIFIERS
47
AMPLIFIERS AND PREAMPLIFIERS
p/n 143.22.008
BM 3001
MICROPHONE CONSOLE
Dedicated microphone console with Cat5 connection cable and RJ45
connector.
3˙800 g
mm

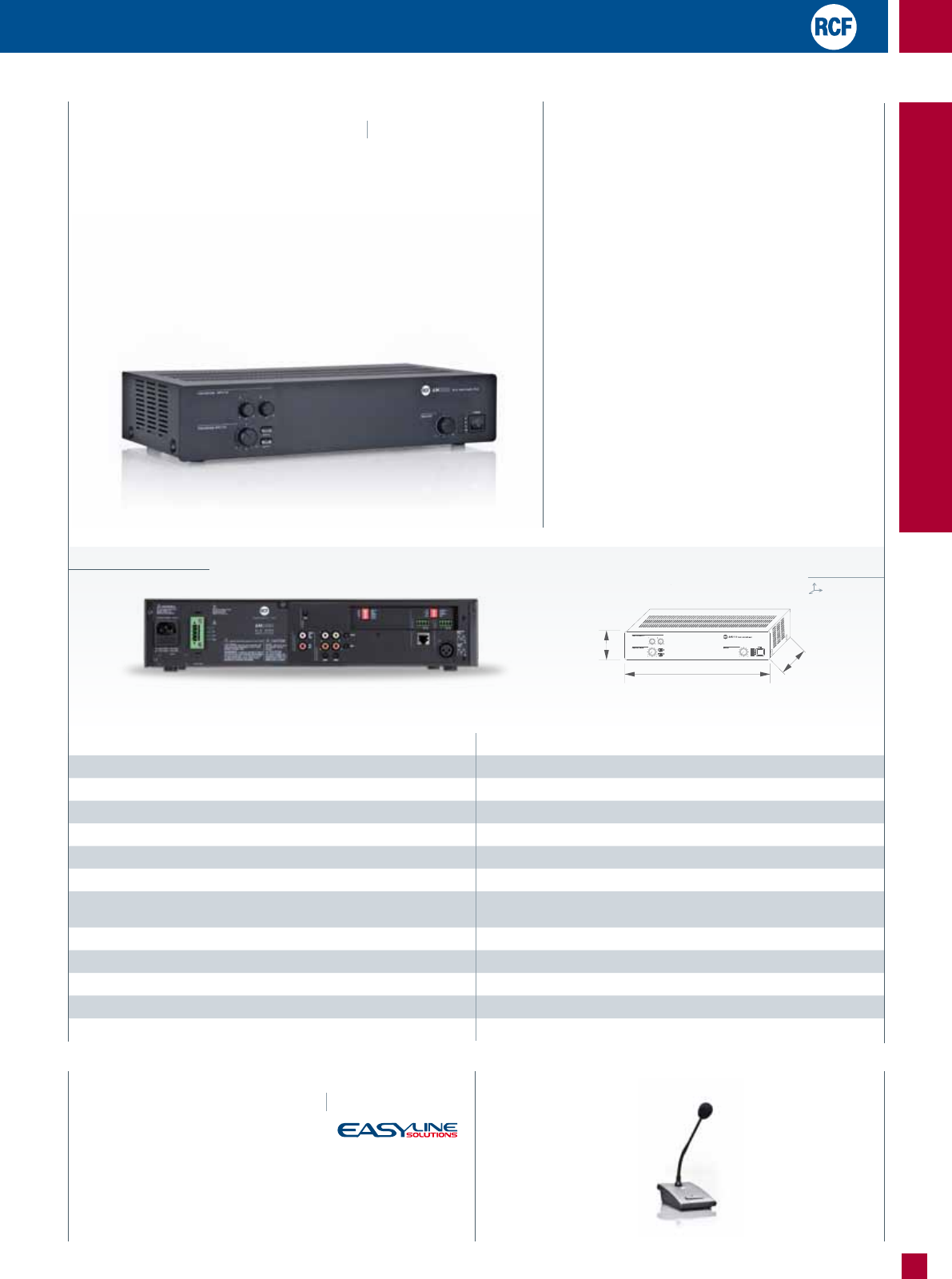

AM 2080
INTEGRATED AMPLIFIER
p/n 121.35.062
REAR VIEW
Ã80 W mixer-amplifier, with 2 mic-line audio inputs on
removable connectors and 2 aux inputs for music sources
ÃInput 1 also has an XLR XLR socket
ÃThe input 1 has a signal detection circuit (‘VOX’) providing
automatic priority operation
ÃThe inputs 1 and 2 can access the priority through an external
command
ÃThe inputs 2 also has an RJ 45 port for quick connection of an
RCF BM 3001 paging microphone (through CAT5 cable)
ÃThe 2 mic-line inputs have a high-pass filter that are useful to
improve speech intelligibility
Ã2 Aux inputs with tone controls, selectable with two keys on
the front panel
ÃA ‘MUSIC ON HOLD’ aux output allows to send the music to
additional amplifiers, mixers, phone systems
ÃA ‘PRE OUT’ aux output is useful to send the signal to
additional amplifiers
ÃDigital Chime built-in generator
ÃThe amplifier output is available either for low impedance
loudspeakers (min. 4 Ω) or 100 - 70 V constant voltage line
(for loudspeakers having 100 - 70 V transformers)
ÃFront panel LEDs indicate the device state (ON, PROT), priority
circuit enabled (PRIOR) and the signal level / peak (SIG/PK)

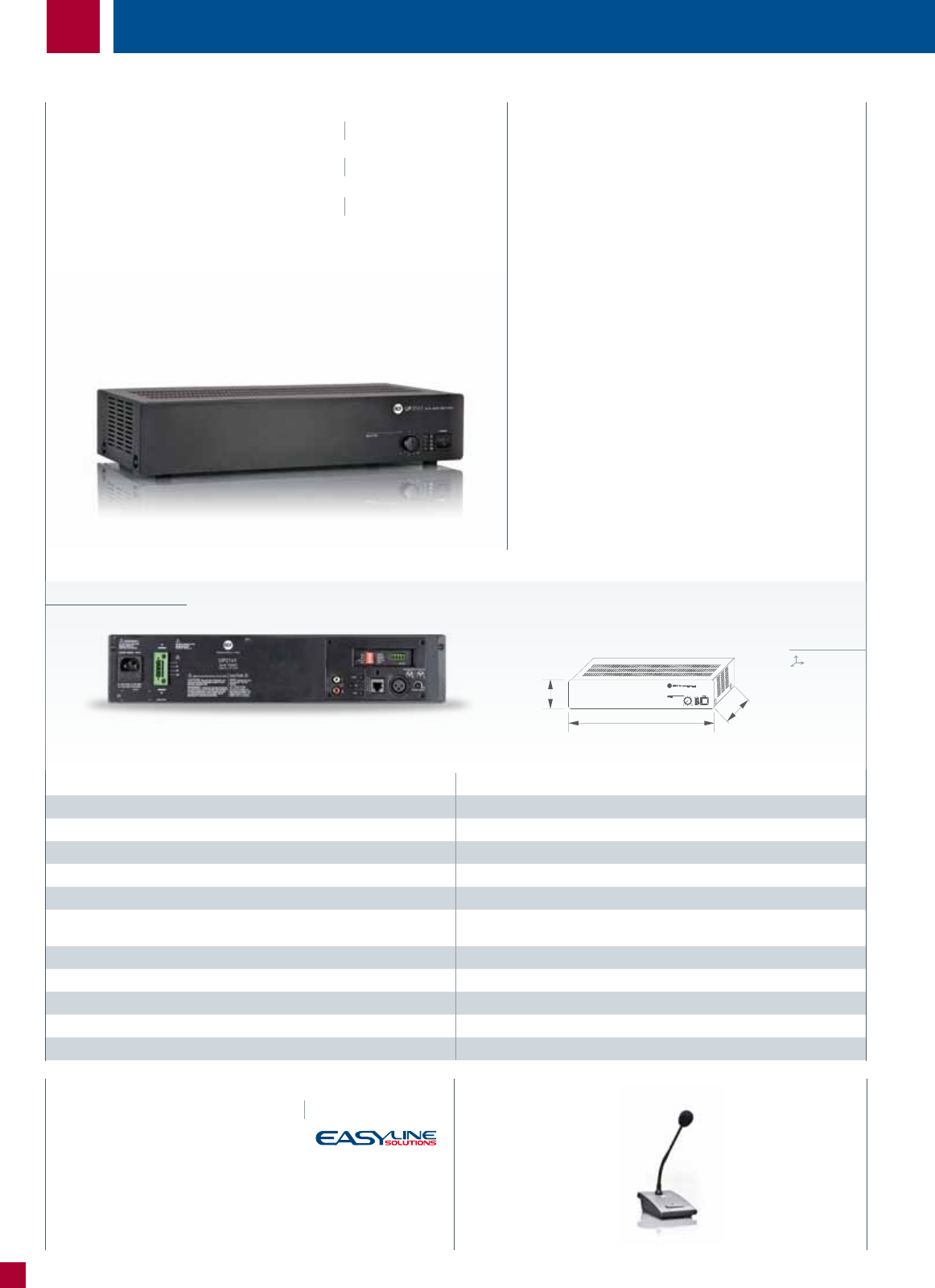

SPECIFICATIONS UP 2081 - UP 2161 - UP 2321
OUTPUT POWER 80 W (UP 2081) - 160 W (UP 2161) - 320 W (UP 2321)
FREQUENCY RESPONSE 50 Hz ÷ 18.000 kHz
DISTORTION (THD+N) < 0.3% @ 1 kHz
SPEAKER OUTPUTS 100 V, 70 V, 4 Ω
SIGNAL TO NOISE RATIO > 60 dB (INPUTS 1-4); > 80 dB (AUX IN)
INPUT SENSITIVITY (MIC) -58 dBu (1 mV); (MIC PHANTOM) -21 dBu (70 mV); (LINE) 0 dBu (775 mV); (AUX)
- 6 ÷ +13 dBu (0.39 ÷ 3.5 V)
INPUT IMPEDANCE (MIC) 10 kΩ; (MIC PHANTOM) 5 kΩ; (LINE): 10 kΩ; (AUX): 20 kΩ
SUPPLY VOLTAGE 230 V / 115 (50 / 60 Hz) - INTERNAL SETTING
POWER CONSUMPTION 160 W (UP 2081) - 240 W (UP 2161) - 440 W (UP 2321)
INPUT CONNECTORS 1 x XLR, 1 x RJ 45, 1 x SCREW TERMINALS, 1 x DOUBLE RCA (AUX)
OUTPUT CONNECTORS SCREW TERMINALS FOR SPEAKERS
483
266
120
482
44 200
4092
PREAMPLIFIER
CHIME
A
B
INPUTS OUTPUTS
433
88 315
VOLUME
UP 4000-SERIES P.A. POWER UNIT
TONE
433
88 382
VOLUME
UP 4000-SERIES P.A. POWER UNIT
444
127
345
420
88 260
MASTER
MIXER AMPLIFIER
TONE
INPUTS
1122-NAM
483
132
455
Channel 1 Channel 2
Professional Stereo Amplifier
3200HC
483
88 455
1600HC
Channel 1 Channel 2
Professional Stereo Amplifier
483
88 350
1100ED
483
88 350
600ED
483
88 370
FLEXA
6081 6241
6320
483
88 455
2000HC
Channel 1 Channel 2
Professional Stereo Amplifier
444
88
220
420
88 280
MASTER
TONE
1123UP
ES 3160 - 1
AM 1122 - 4 AM 2160 - 5 UP 1123 - 6
UP 4121 - 7 UP 4242 - 8 FLEXA - 9
ED 1100 - 11 HC 1600 - 12
PR 4092 - 2 MX 1822 - 3
HC 2000 - 13 HC 3200 - 14
ED 600 - 10
444
88
220
POWER AMPLIFIERPOWER AMPLIFIERS
48
ÃPower Amplifier designed for the transmission of announcements
and / or musical programmes
ÃThree models with identical features, but the nominal power:
UP 2081 is a 80 W amplifier; UP 2161 is a 160 W amplifier;
UP 2321 is a 320 W amplifier
ÃMain input on either removable connector or XLR or RJ 45
(for quick connection of an RCF BM 3001 paging microphone
through CAT5 cable)
ÃAUX Input for music sources (e.g. CD players, tuners, etc.) on
dual RCA connector
ÃControls for treble, bass and Gain on the AUX Input
ÃMain Input can have priority over the Aux Input (by means of
an external command linked to the removable connector)
ÃMain Input has a 'presence' control and a separate high-pass filter
which are useful for improving speech intelligibility
ÃOutput speaker available either for low impedance loudspeakers
(min. 4 Ω) or 100 - 70 V constant voltage line (for loudspeakers
having 100 - 70 V transformers)
ÃFront panel LEDs indicate the device state (ON, PROT), the priority
activation (PRIOR) and the signal/peak level (SIG/PK)
UP 2081
UP 2161
UP 2321
POWER AMPLIFIERS
p/n 121.35.071
p/n 121.35.060
p/n 121.35.061
p/n 143.22.008
BM 3001
MICROPHONE CONSOLE
Dedicated microphone console with Cat5 connection cable and RJ45
connector.
5˙500 g
4˙500 g
3˙700 g
mm
REAR VIEW
SPECIFICATIONS UP 2162
OUTPUT POWER 2 x 160 W
FREQUENCY RESPONSE 50 - 18.000 Hz (± 3 dB)
DISTORTION (THD+N) < 0,3% @ 1 kHz
SPEAKER OUTPUTS 100 V, 70 V, 4 Ω
AUXILIARY OUTPUTS 600 Ω, -1 dBu (690 mV)
SIGNAL TO NOISE RATIO > 80 dB
INPUT SENSITIVITY (INPUT 1) O dBu (1 mV); (INPUT 2) -20 ÷ +0 dBu (0.70 ÷ 23.5 V)
INPUT IMPEDANCE (INPUT 1) 20 kΩ; (INPUT 2) 20 kΩ; (INPUT 2 STEREO) 10 KΩ
SUPPLY VOLTAGE 220 ÷2 40 V / 110 ÷ 120 V (50 / 60 Hz) INTERNAL SETTING
POWER CONSUMPTION 2 x 350 W
INPUT CONNECTORS 2 x TERMINAL
OUTPUT CONNECTORS SCREW TERMINALS FOR CONSTANT VOLTAGE LINES
444
88
220
444
88
220
483
132
455
Channel 1 Channel 2
Professional Stereo Amplier
3200HC
483
88 455
2000HC
Channel 1 Channel 2
Professional Stereo Amplier
HC 2000 - 13 HC 3200 - 14
AM 2080
ES 3323 UP 2162
444
127
345
IS 1044
482
44 303
+-
POWER AMPLIFIERSPOWER AMPLIFIERS
49
AMPLIFIERS AND PREAMPLIFIERS

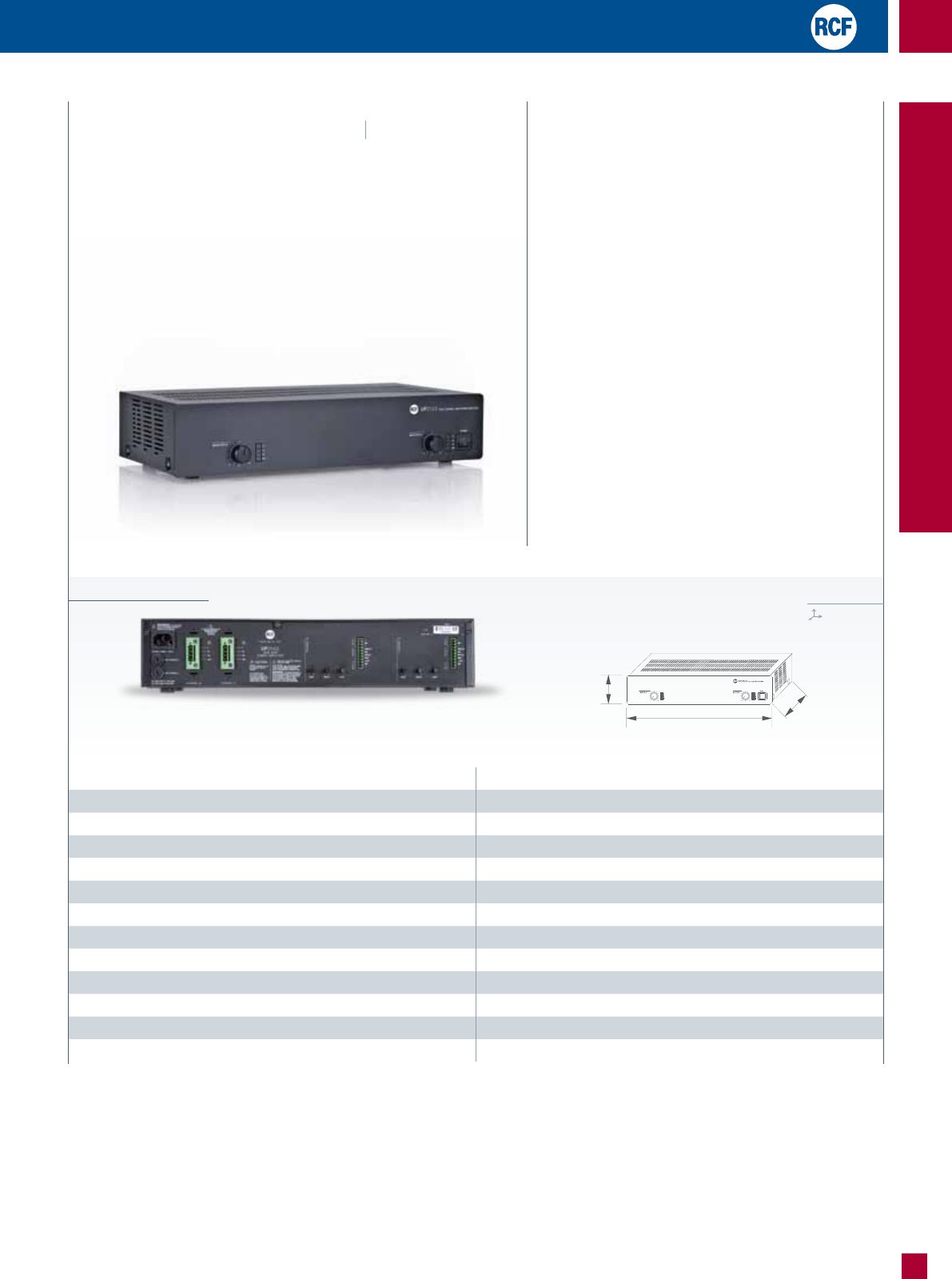

UP 2162
POWER AMPLIFIER
ÃPower Amplifier designed for the transmission of announcements
and / or musical programmes
ÃTwo separated and independent 160 W amplifiers
ÃEach amplifier having 2 audio inputs, of which one with priority
function through a closing contact on either removable connector
ÃThe audio inputs are at ‘line’ level: for pre-amplified signals or music
sources (e.g. CD players, tuners, etc.)
ÃControls for treble, bass and Gain on the Input
ÃThe input 1 can get the priority, which mutes the input 2, through
an external command connected to the PRIOR IN.1 contact
ÃThe input 1 can be muted through an external command connected
to the MUTE IN 1 contact
ÃOutput speaker available either for low impedance loudspeakers
(min. 4 Ω) or 100 - 70 V constant voltage line (for loudspeakers
having 100 - 70 V transformers)
ÃFront panel LEDs indicate the device state (ON, PROT), the priority
activation (PRIOR) and the signal/peak level (SIG/PK)
p/n 121.35.065
7˙000 g
mm
REAR VIEW
SPECIFICATIONS AM 1122-N
OUTPUT POWER / FREQUENCY RESPONSE 120 W / 50 ÷ 15.000 Hz (± 3 dB)
DISTORTION (THD+N) < 2% @ 1 kHz
SPEAKER OUTPUTS 100 V, 70 V, 4 Ω
AUXILIARY OUTPUTS 600 Ω, 1V (0 dBv / +2 dBu), UNBALANCED (PRE-OUT, LINE-OUT)
SIGNAL TO NOISE RATIO > 60 dB (INPUTS 1-4); > 75 dB (INPUT 5, MAIN)
INPUT SENSITIVITY (MIC) -54 dBu (1.5 mV); (LINE) -8 dBu (0.3 V)
INPUT IMPEDANCE (MIC) 2.4 KΩ; (LINE) 10 KΩ
SUPPLY VOLTAGE / POWER CONSUMPTION 220 ÷ 240 V / 110 ÷ 120 V (50 / 60 Hz) / 350 W
INPUT CONNECTORS 4 x XLR, 1 x RCA (LINE) UNBALANCED, 1 x RCA (MAIN IN)
OUTPUT CONNECTORS 2 x RCA (LINE-OUT, PRE-OUT), SCREW TERMINALS FOR CONSTANT VOLTAGE LINES
SPECIFICATIONS UP 1123
OUTPUT POWER / FREQUENCY RESPONSE 120 W / 50 ÷ 15.000 Hz (± 3 dB)
DISTORTION (THD+N) < 2% @ 1 kHz
SPEAKER OUTPUTS 100 V, 70 V, 4 Ω
SIGNAL TO NOISE RATIO > 60 dB (MIC); > 75 dB (LINE)
INPUT SENSITIVITY (MIC) - 54 dBu (1.5 mV); (LINE) -8 dBu (0.3 V)
INPUT IMPEDANCE (MIC) 2.4 KΩ; (LINE) 10 KΩ
SUPPLY VOLTAGE / POWER CONSUMPTION 220 ÷ 240 V / 110 ÷ 120 V (50 / 60 Hz) / 350 W
INPUT CONNECTORS 1 XLR (OR SCREW TERMINALS)
OUTPUT CONNECTORS SCREW TERMINALS FOR CONSTANT VOLTAGE LINES
483
266
120
482
44 200
4092
PREAMPLIFIER
CHIME
A
B
INPUTS OUTPUTS
433
88 315
VOLUME
UP 4000-SERIES P.A. POWER UNIT
TONE
433
88 382
VOLUME
UP 4000-SERIES P.A. POWER UNIT
444
127
345
420
88 260
MASTER
MIXER AMPLIFIER
TONE
INPUTS
1122-NAM
483
132
455
Channel 1 Channel 2
Professional Stereo Amplifier
3200HC
483
88 455
1600HC
Channel 1 Channel 2
Professional Stereo Amplifier
483
88 350
1100ED
483
88 350
600ED
483
88 370
FLEXA
6081 6241
6320
483
88 455
2000HC
Channel 1 Channel 2
Professional Stereo Amplifier
444
88
220
420
88 280
MASTER
TONE
1123UP
ES 3160 - 1
AM 1122 - 4 AM 2160 - 5 UP 1123 - 6
UP 4121 - 7 UP 4242 - 8 FLEXA - 9
ED 1100 - 11 HC 1600 - 12
PR 4092 - 2 MX 1822 - 3
HC 2000 - 13 HC 3200 - 14
ED 600 - 10
444
88
220
483
266
120
482
44 200
4092
PREAMPLIFIER
CHIME
A
B
INPUTS OUTPUTS
433
88 315
VOLUME
UP 4000-SERIES P.A. POWER UNIT
TONE
433
88 382
VOLUME
UP 4000-SERIES P.A. POWER UNIT
444
127
345
420
88 260
MASTER
MIXER AMPLIFIER
TONE
INPUTS
1122-NAM
483
132
455
Channel 1 Channel 2
Professional Stereo Amplifier
3200HC
483
88 455
1600HC
Channel 1 Channel 2
Professional Stereo Amplifier
483
88 350
1100ED
483
88 350
600ED
483
88 370
FLEXA
6081 6241
6320
483
88 455
2000HC
Channel 1 Channel 2
Professional Stereo Amplifier
444
88
220
420
88 280
MASTER
TONE
1123UP
ES 3160 - 1
AM 1122 - 4 AM 2160 - 5 UP 1123 - 6
UP 4121 - 7 UP 4242 - 8 FLEXA - 9
ED 1100 - 11 HC 1600 - 12
PR 4092 - 2 MX 1822 - 3
HC 2000 - 13 HC 3200 - 14
ED 600 - 10
444
88
220
FLEXA MODULAR AMPLIFICATION SYSTEM
50
10˙000 g
mm
p/n 121.35.045
p/n 121.35.025

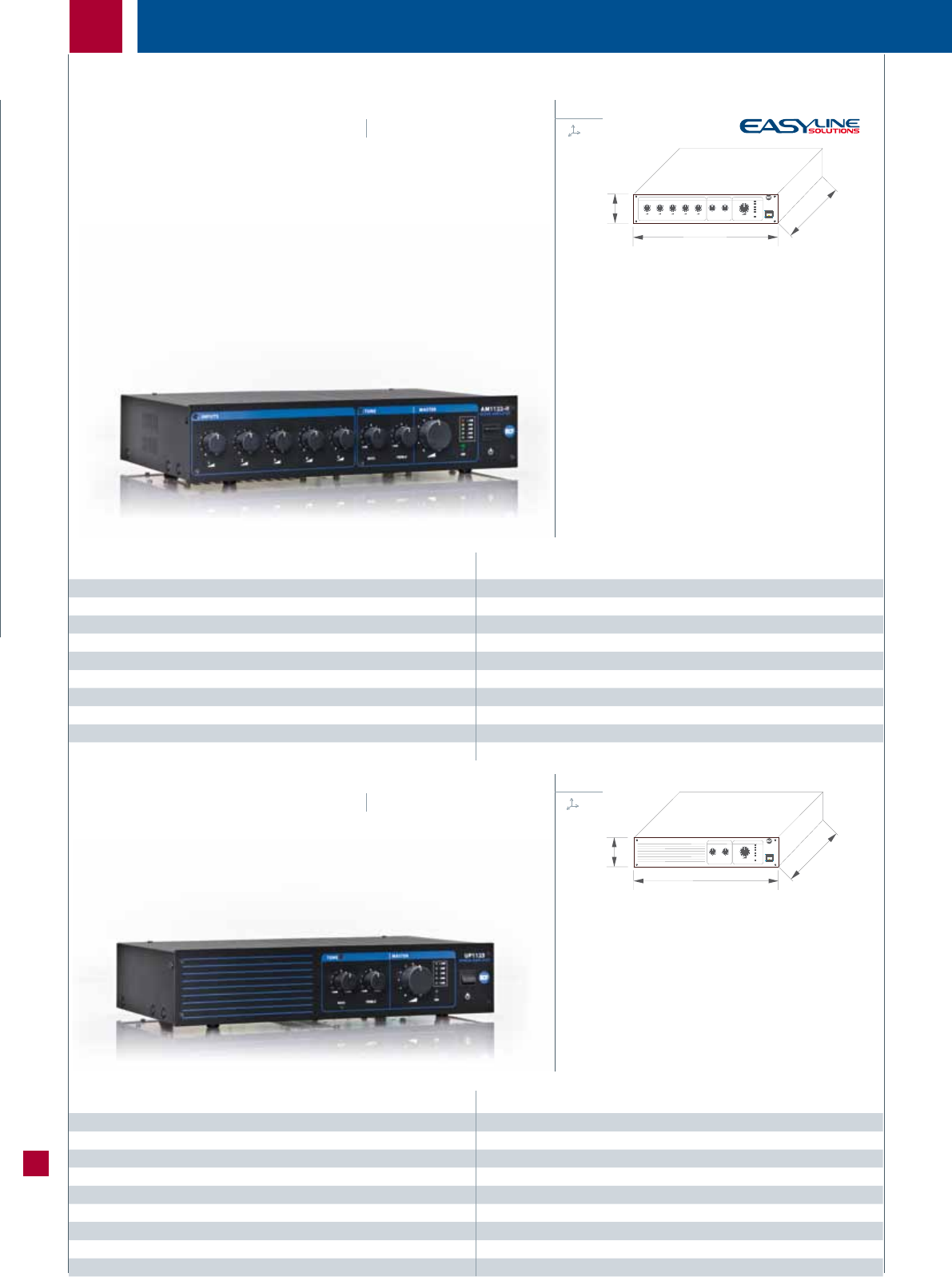

AM 1122-N
INTEGRATED AMPLIFIER
UP 1123
POWER AMPLIFIER
mm
10˙000 g
Ã120W 5-input Mixer-Amplifier
Ã4 universal XLR inputs with independent volume controls
Ã21V phantom power switch
ÃRCA stereo aux input
ÃAuxiliary direct input to power amplifier only
ÃVoice activated priority (VOX) of input 1 over the other inputs
ÃREC/LINE output on RCA stereo connector
ÃPRE-OUT/MAIN-IN connections
ÃBuilt-in Chime generator with remote activation through
contact closure
ÃMaster volume control with LED VU-meter
ÃTreble and bass controls
ÃConvection cooling for long-term safe operation
ÃPower supply 115/230Vac or direct current 24V
Ã19'' rack mount 2U (accessory included)
Ã120W amplifier with universal input
ÃXLR or screw terminal input with selectable mic/line sensitivity
Ã21V phantom power switch
ÃVolume control with LED VU-meter
ÃTreble and bass controls
ÃConvection cooling for the maximum reliability
Ã115/230VAC and 24VDC power supply
ÃAudio level LEDs
Ã19'' rack mount 2U (accessory included)
SPECIFICATIONS UP 4482
OUTPUT POWER 480 W
FREQUENCY RESPONSE 50 ÷ 16.000 Hz (± 3 dB)
DISTORTION (THD+N) < 1% @ 1 kHz
SPEAKER OUTPUTS 100 V, 70 V, 50 V, 4 Ω, 8 Ω
SIGNAL TO NOISE RATIO > 90 dB
INPUT SENSITIVITY (RCA) 0 ÷ -20 dBu (775÷80 mV); (TERMINALS) 0 dBu (775 mV)
INPUT IMPEDANCE (RCA) 50 KΩ BALANCED o 100 KΩ UNBALANCED
SUPPLY VOLTAGE 22 0÷ 240 V / 110 ÷ 120 V (50 / 60 Hz) DEPENDING ON THE MODEL
POWER CONSUMPTION 1000 W
INPUT CONNECTORS 1 x XLR (OR TERMINALS), 1 x RCA (OR TERMINALS)
SPECIFICATIONS UP 4242
OUTPUT POWER 240 W
FREQUENCY RESPONSE 50 ÷ 16.000 Hz (± 3 dB)
DISTORTION (THD+N) < 1% @ 1 kHz
SPEAKER OUTPUTS 100 V, 70 V, 50 V, 4 Ω, 8 Ω
SIGNAL TO NOISE RATIO > 90 dB
INPUT SENSITIVITY (RCA) 0 ÷ -20 dBu (775÷80 mV); (TERMINALS) 0 dBu (775 mV)
INPUT IMPEDANCE (RCA) 50 KΩ BALANCED o 100 KΩ UNBALANCED
SUPPLY VOLTAGE 220 ÷ 240 V / 110 ÷ 120 V (50 / 60 Hz) DEPENDING ON THE MODEL
POWER CONSUMPTION 500 W
INPUT CONNECTORS 1 x XLR (OR TERMINALS), 1 x RCA (OR TERMINALS)
483
266
120
482
44 200
4092
PREAMPLIFIER
CHIME
A
B
INPUTS OUTPUTS
433
88 315
VOLUME
UP 4000-SERIES P.A. POWER UNIT
TONE
433
88 382
VOLUME
UP 4000-SERIES P.A. POWER UNIT
444
127
345
420
88 260
MASTER
MIXER AMPLIFIER
TONE
INPUTS
1122-NAM
483
132
455
Channel 1 Channel 2
Professional Stereo Amplifier
3200HC
483
88 455
1600HC
Channel 1 Channel 2
Professional Stereo Amplifier
483
88 350
1100ED
483
88 350
600ED
483
88 370
FLEXA
6081 6241
6320
483
88 455
2000HC
Channel 1 Channel 2
Professional Stereo Amplifier
444
88
220
420
88 280
MASTER
TONE
1123UP
ES 3160 - 1
AM 1122 - 4 AM 2160 - 5 UP 1123 - 6
UP 4121 - 7 UP 4242 - 8 FLEXA - 9
ED 1100 - 11 HC 1600 - 12
PR 4092 - 2 MX 1822 - 3
HC 2000 - 13 HC 3200 - 14
ED 600 - 10
444
88
220
483
266
120
482
44 200
4092
PREAMPLIFIER
CHIME
A
B
INPUTS OUTPUTS
433
88 315
VOLUME
UP 4000-SERIES P.A. POWER UNIT
TONE
433
88 382
VOLUME
UP 4000-SERIES P.A. POWER UNIT
444
127
345
420
88 260
MASTER
MIXER AMPLIFIER
TONE
INPUTS
1122-NAM
483
132
455
Channel 1 Channel 2
Professional Stereo Amplifier
3200HC
483
88 455
1600HC
Channel 1 Channel 2
Professional Stereo Amplifier
483
88 350
1100ED
483
88 350
600ED
483
88 370
FLEXA
6081 6241
6320
483
88 455
2000HC
Channel 1 Channel 2
Professional Stereo Amplifier
444
88
220
420
88 280
MASTER
TONE
1123UP
ES 3160 - 1
AM 1122 - 4 AM 2160 - 5 UP 1123 - 6
UP 4121 - 7 UP 4242 - 8 FLEXA - 9
ED 1100 - 11 HC 1600 - 12
PR 4092 - 2 MX 1822 - 3
HC 2000 - 13 HC 3200 - 14
ED 600 - 10
444
88
220
FLEXA MODULAR AMPLIFICATION SYSTEM
51
AMPLIFIERS AND PREAMPLIFIERS
mm
20˙000 g
mm
20˙000 g

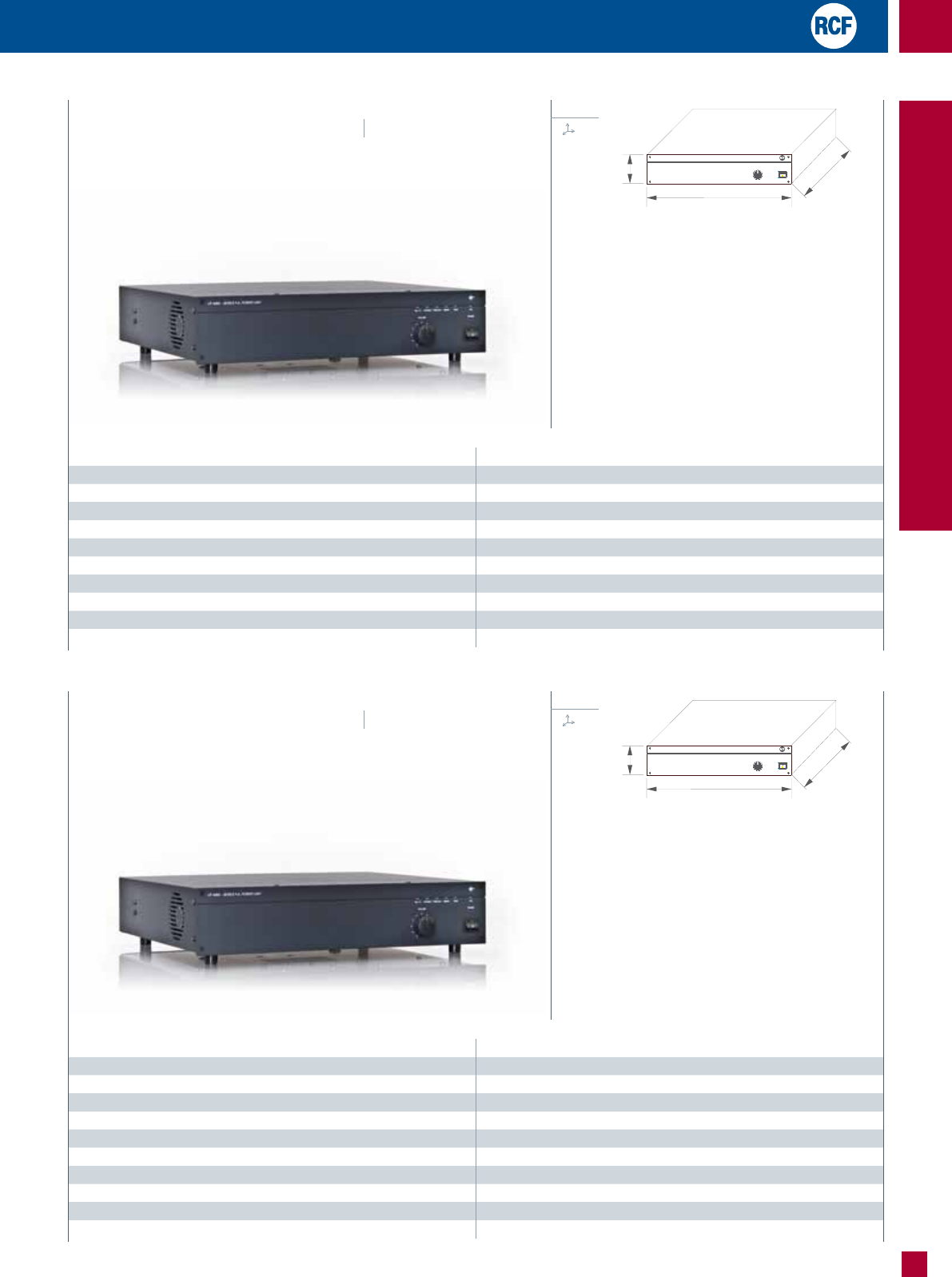

ÃAmplifier 480W RMS with constant voltage outputs
ÃElectronic protection circuits on voltage-current-temperature active
on the final stages and for fan stop
Ã1 balanced input on XLR and on terminal strip, priority circuit
Ã1 balanced/unbalanced input on RCA connector and on terminal
strip, adjustable gain
ÃMaster volume control on front panel, removable knob
Ã3-band semi-parametric tone control on the rear panel
ÃCooling by thermostat controlled side fan.
ÃPower supply 115/230Vac and 24Vdc
ÃRack mount using optional AR 1052-N accessory (173.10.059)
ÃAmplifier 480W RMS with constant voltage outputs
ÃElectronic protection circuits on voltage-current-temperature active
on the final stages and for fan stop
Ã1 balanced input on XLR and on terminal strip, priority circuit
Ã1 balanced/unbalanced input on RCA connector and on terminal
strip, adjustable gain
ÃMaster volume control on front panel, removable knob
Ã3-band semi-parametric tone control on the rear panel
ÃCooling by thermostat controlled side fan.
ÃPower supply 115/230Vac and 24Vdc
ÃRack mount using optional AR 1052-N accessory (173.10.059)
p/n 121.30.005
p/n 121.30.007
UP 4482
POWER AMPLIFIERS
UP 4242
POWER AMPLIFIERS
SPECIFICATIONS FLEXA
OUTPUT POWER 80 W (UP 6081) - 240 W (UP 6241) - 480 W (UP 6481)
FREQUENCY RESPONSE 30 ÷ 18.000 Hz (± 3 dB)
DISTORTION (THD+N) < 0.1% @ 1 kHz;
SPEAKER OUTPUTS 100 V
AUXILIARY OUTPUTS 600 Ω, 2.5 V (PRE-OUT); 600 Ω, 0÷2 V (TAPE OUT)
SIGNAL TO NOISE RATIO > 90 dB
INPUT SENSITIVITY (IN 1) -2 dBu (600 mV); (IN 2) -2 ÷ -22 dBu (600÷60 mV);
INPUT IMPEDANCE 18 KΩ
SUPPLY VOLTAGE 220÷240 V / 110÷120 V (50 / 60 Hz) DEPENDING ON THE MODEL
POWER CONSUMPTION 600 W (PS 6320) - 1300 W (PS 6640)
INPUT CONNECTORS SCREW TERMINALS
OUTPUT CONNECTORS SCREW TERMINALS FOR CONSTANT VOLTAGE LINES
483
266
120
482
44 200
4092
PREAMPLIFIER
CHIME
A
B
INPUTS OUTPUTS
433
88 315
VOLUME
UP 4000-SERIES P.A. POWER UNIT
TONE
433
88 382
VOLUME
UP 4000-SERIES P.A. POWER UNIT
444
127
345
420
88 260
MASTER
MIXER AMPLIFIER
TONE
INPUTS
1122-NAM
483
132
455
Channel 1 Channel 2
Professional Stereo Amplifier
3200HC
483
88 455
1600HC
Channel 1 Channel 2
Professional Stereo Amplifier
483
88 350
1100ED
483
88 350
600ED
483
88 370
FLEXA
6081 6241
6320
483
88 455
2000HC
Channel 1 Channel 2
Professional Stereo Amplifier
444
88
220
420
88 280
MASTER
TONE
1123UP
ES 3160 - 1
AM 1122 - 4 AM 2160 - 5 UP 1123 - 6
UP 4121 - 7 UP 4242 - 8 FLEXA - 9
ED 1100 - 11 HC 1600 - 12
PR 4092 - 2 MX 1822 - 3
HC 2000 - 13 HC 3200 - 14
ED 600 - 10
444
88
220
mm
REAR VIEW
ÃModular amplification system, suitable for EN 60849
compliant applications
ÃFlexa allows you to select the right power for each 100V line
in an easy, compact and cost-effective way
ÃEach mainframe is 2U high and has 10 slot for the various
modules
ÃReliable, compact high quality amplifiers with high efficiency
and full protection, available in 80 W - 240 W - 480 W
modules
ÃState of the art power supplies, small, lightweight and fully
protected: PS 6320 (320W) and PS 6640 (640W)
ÃMP 6003 is a preamplifier, mixer/automixer module that allows
fast switching and considerable reduction of acoustic feedback
ÃEach MP 6003 features 3 universal inputs (mic/line with
optional phantom) with selectable priority on input 1
ÃUp to 9 MP 6003 modules can be connected to obtain a 27
input mixer / automixer
FLEXA SYSTEM
POWER AMPLIFIER
MF 6000 MAINFRAME
à Flexa Mainframe (10 slots)
Ã19'' Rack Mount (2U) using the AR1052N rack mount kit
p/n 121.35.020
52
AMPLIFIERS AND PREAMPLIFIERS
SPECIFICATIONS MP 6003
TYPE 3 CHANNELS MIXER/AUTOMIXER - 1 SLOT
FREQUENCY RESPONSE 20 ÷ 20.000 Hz
DISTORTION (THD+N) < 0,1%
TONE CONTROLS ± 12 dB (60 Hz; 6 kHz)
INPUT SENSITIVITY 15 dBu (4,5 V) ÷ - 19 dBu (86 mV)
INPUT IMPEDANCE 20 KΩ BALANCED
POWER SUPPLY PS 6060 (PS 6320 E PS 6640 CAN FEED UP TO 2 MP 6003 MODULES)

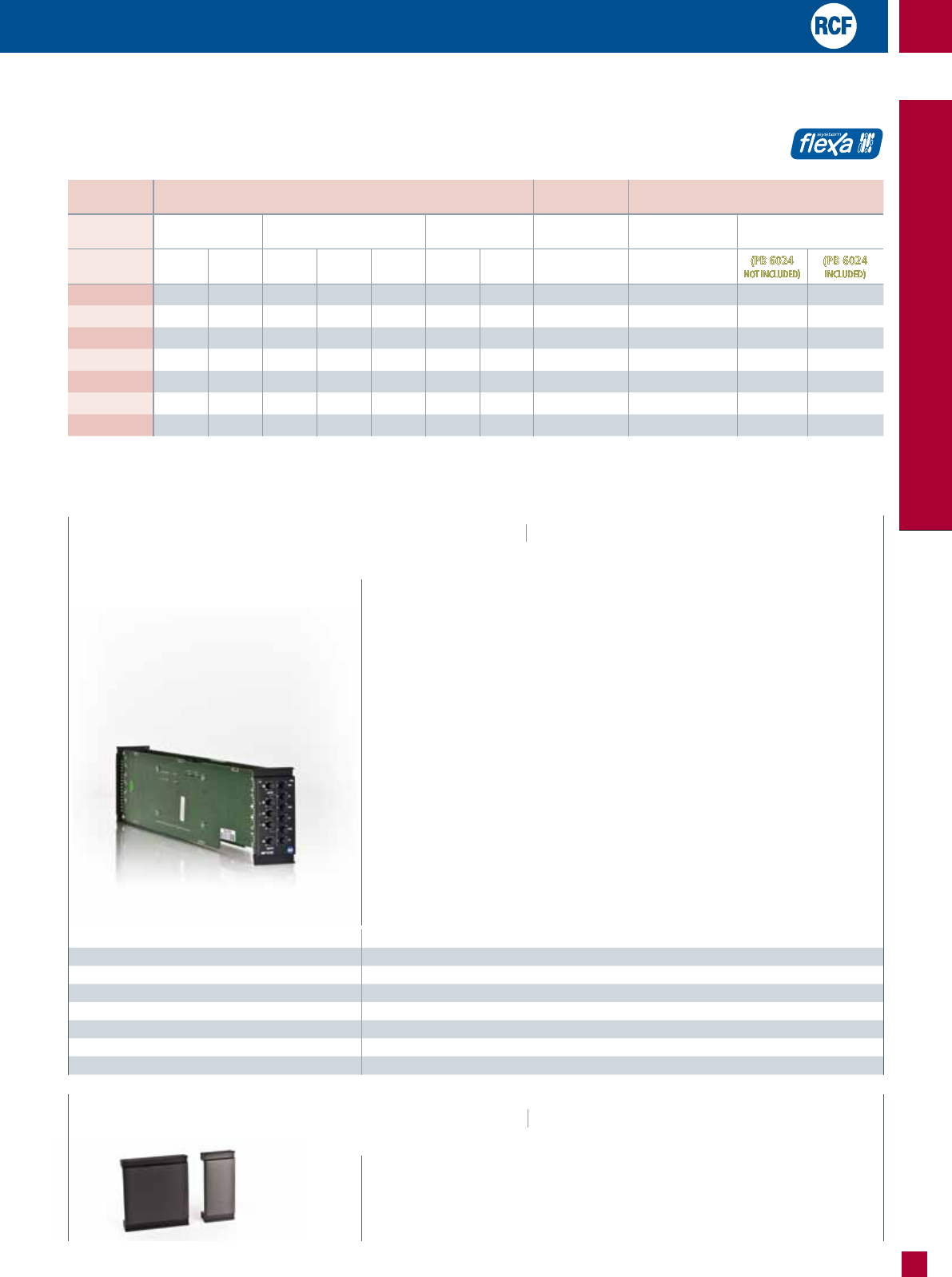

CONFIGURATION NEEDED PARTS OPTIONAL PARTS EXPANSIONS
POWER SUPPLIES
230V AC POWER AMPLIFIERS AUXILIARY PARTS POWER SUPPLY
+24V DC UNUSED POWER FREE SLOTS
PS 6320 PS 6640 UP 6081 UP 6241 UP 6481 MF 6000 BP 6010 PB 6024 ADDITIONAL
AMPLIFIERS
(PB 6024
NOT INCLUDED)
(PB 6024
INCLUDED)
1 x 480 W - 1 - - 1 1 1 1 160 W 4 3
1 x 240 W 1 - 1 - 1 1 1 80 W 6 5
1 x 160 W 1 - - 11- 1 1 1 160 W 6 5
2 x 240 W - 1 - 2 - 1 1 1 160 W 3 2
2 x 160 W 1 - - 22- 1 1 1 - 4 3
4 x 80 W 1 - 4 - - 1 1 1 - 4 3
6 x 80 W - 1 6 - - 1 1 1 160 W 1 -
ÃSet of 10 front and rear closure panels for MF 6000 (6 single, 4 double)
BP 6010 BLANK PANELS P/n 123.20.027
CONFIGURATIONS
EXAMPLES
ÃModular 3 input mixer/automixer
ÃMaximum useable 9 modules for 27 total inputs
ÃFast, noise free, selectable VOX microphone activation with automatically adjustable
à threshold according to background noise
ÃSelectable max number of open microphones
ÃAutomatic volume control (A.V.C.) available for each input
ÃAutomatic gain control (A.G.C.) variable with the number of activated inputs
ÃSelectable hold time
ÃMaster input programmable priority
ÃInfinite to 15 dB channel attenuation on in 1
ÃAutomatic input volume control
ÃRemote output volume control
ÃTone control
ÃInsertion, signal and peak indicator on bicolour Led
ÃPhantom power 24V selectable
ÃInput address able to AUX Output - Direct output
Le configurazioni nella tabella sono alcune delle numerose attuabili. Per sfruttare
al meglio i vantaggi offerti dal sistema FLEXA, in fase di dimensionamento del
sistema, raccomandiamo di scegliere i moduli amplificatori e di consegenza i moduli
alimentatori in base alla potenza effettivamente richiesta dai diffusori.
1 potenza erogata considerata nell'esempio: 160W
2 massima potenza erogata: 160W per modulo
MP 6003 MODULAR 3 INPUT MIXER / AUTOMIXER P/n 121.35.048
53

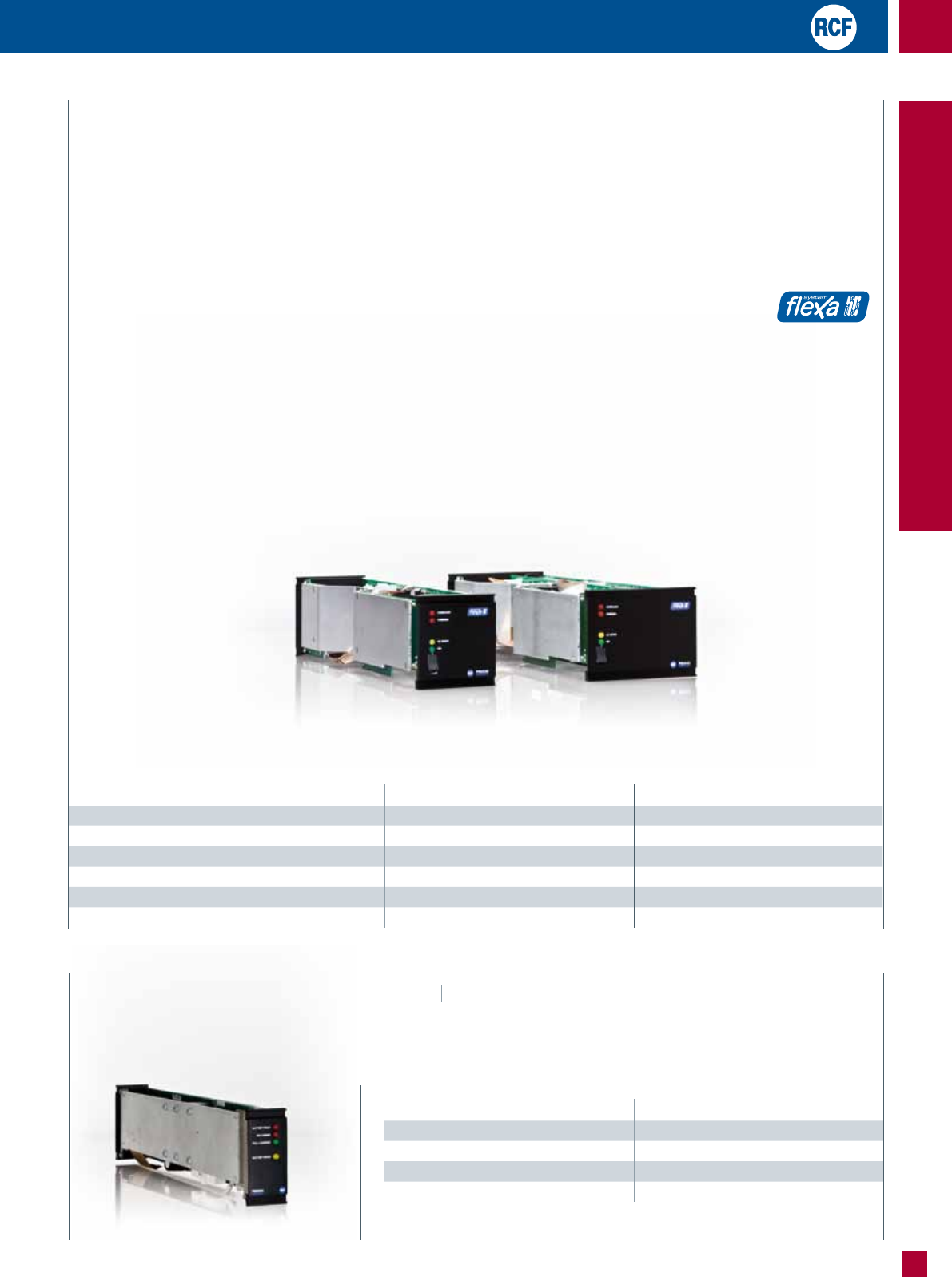

Ã60W 240 Vac / 24 V dc auxiliary power supply for preamplification modules MP 6003.
ÃTotal protection with auto CUT-OFF system
ÃLED indicators for activity, DC operation, battery presence
ÃMaster switch on rear panel
ÃConnector for diagnostics interface
SPECIFICATIONS PS 6060
TYPE POWER SUPPLY FOR MP6003
MAX POWER 60 W
DIMENSIONS 1 SLOT
WEIGHT 0.6 Kg
POWER CONSUMPTION 100 W
MAXIMUM OPERATING TEMPERATURE 55°C
SPECIFICATIONS UP 6081 UP 6241 UP 6481
TYPE 80 W - MONO 240 W - MONO 480 W - MONO
MAX. POWER 120 W 1 msec ON 0.1 sec OFF 360 W 1 msec ON 0.1 sec OFF 720 W 1 msec ON 0.1 sec OFF
DIMENSIONS 1 SLOT 2 SLOT 3 SLOT
WEIGHT 0.8 Kg 1.5 Kg 1.9 Kg
POWER SUPPLY PS 6320 - PS 6640 PS 6320 - PS 6640 PS 6640
MAXIMUM OPERATING TEMPERATURE 55°C 55°C 55°C
PS 6060 AUXILIARY POWER SUPPLY p/n 121.35.049
FLEXA MODULAR AMPLIFICATION SYSTEM
ÃH-Class "Three Step" design, high quality audio and high efficiency. An automatic "cut-out"
à System insulates any faulty unit without affecting other devices on the same Flexa frame.
ÃAutomatic cut-out system that isolates a faulty amplifier from the rest of the system so as not to affect the
other devices
Ã2 balanced/unbalanced inputs on terminal strip
ÃTwo input circuits with priority (for alarm circuits)
ÃVolume control and mono-stereo connection on input 2
ÃVolume and equalisation controls on the front panel (the volume knob is removable; the tone controls have
a cut-off switch)
ÃLED indicators for volume/peak and status (OVERLOAD, OVERHEAT, FAULT)
ÃRemovable Euro-block connectors
ÃConnector for audio and diagnostics interface
FLEXA
POWER
AMPLIFIERS
UP 6081 80 W POWER AMPLIFIER p/n 121.35.022
UP 6241 240 W POWER AMPLIFIER p/n 121.35.021
UP 6481 480 W MODULAR POWER UNIT p/n 121.35.036
54
Ã24VDC adapter module (1 FLEXA slot)
ÃDedicated to be interfaced with FLEXA power supply units PS 6320 or PS 6640
ÃAllows 24VDC back-up operation according to BS 5839-8 and EN 60849
ÃRecharging facility for lead-acid batteries and relevant monitoring
SPECIFICATIONS PS 6640 PS6320
TYPE AC POWER SUPPLY AC POWER SUPPLY
MAX. POWER 640 W (RMS AUDIO) 320 W (RMS AUDIO)
DIMENSIONS 3 SLOT 2 SLOT
WEIGHT 1.7 Kg 1.3 Kg
POWER CONSUMPTION MAX 1300 W 1600 W
MAXIMUM OPERATING TEMPERATURE 55°C 55°C
SPECIFICATIONS PB 6024
TYPE DC ADAPTER
DIMENSIONS 1 SLOT
WEIGHT 0.7 Kg
MAXIMUM OPERATING TEMPERATURE 55°
ÃSmall, lightweight quartz-controlled power supplies
ÃSynchronisation to prevent interference with other power supplies installed close to each other
ÃTotal protection with auto cut-out
ÃLED indicators for OVERLOAD and OVERHEAT
ÃSwitch and indicators for ON - Stand-By
ÃMaster switch on rear panel
ÃFactory-set to work with 24VDC adapter/battery charger/tester module (1 slot)
ÃConnector for diagnostics interface
FLEXA
POWER
SUPPLIES
PS 6320 320 W POWER SUPPLY p/n 121.35.023
PS 6640 640 W POWER SUPPLY p/n 121.35.037
PB 6024 24 V ADAPTER p/n 121.35.035
FLEXA MODULAR AMPLIFICATION SYSTEM
55
AMPLIFIERS AND PREAMPLIFIERS

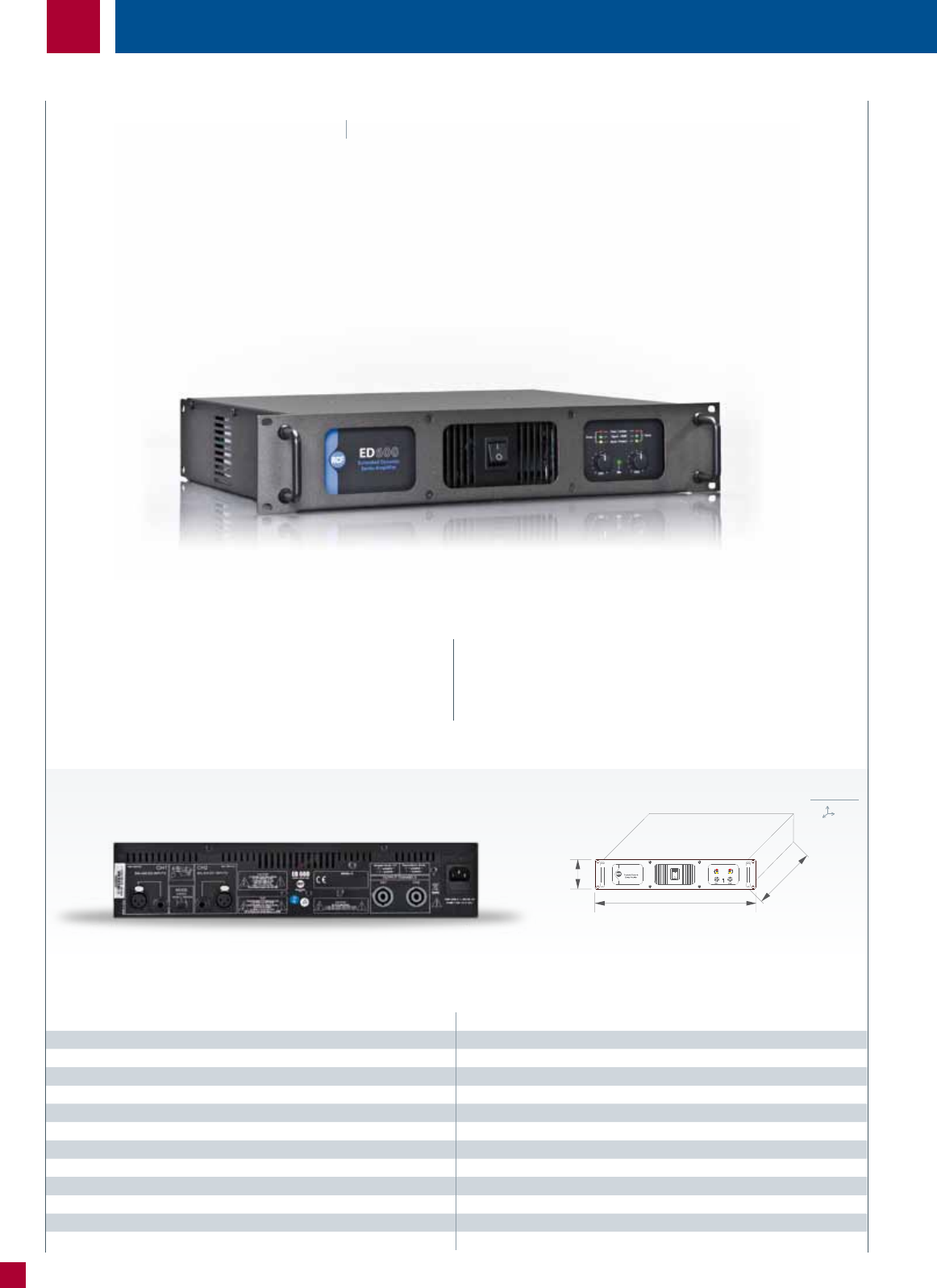

SPECIFICATIONS ED 600
OUTPUT POWER (RMS) STEREO (4 Ω) 2 x 300 W - (8 Ω) 2 x 180 W
OUTPUT POWER (RMS) BRIDGE (8 Ω) 1 x 600 W
OUTPUT POWER (RMS) MONO (4 Ω) 1 x 310 W - (8 Ω) 1 x 195 W
FREQUENCY RESPONSE 20 ÷ 20.000 Hz (± 1 dB)
DISTORTION (THD+N) < 0.05% @ 1 kHz
INTERMODULATION (SMPTE IMD) < 0.03% @ MAX POWER (4 Ω)
SIGNAL TO NOISE RATIO > 105 dB "A" WEIGHTED
INPUT SENSITIVITY 0 dBm (0.775 V RMS)
INPUT IMPEDANCE 20 KΩ BALANCED OR 10 KΩ UNBALANCED
SUPPLY VOLTAGE 220÷240 V / 110÷120 V (50 / 60 Hz) DEPENDING ON THE MODEL
POWER CONSUMPTION 1300 W MAX
INPUT/OUTPUT CONNECTORS 2 x XLR, JACK 6.3 mm / SPEAKON-4
483
266
120
482
44 200
4092
PREAMPLIFIER
CHIME
A
B
INPUTS OUTPUTS
433
88 315
VOLUME
UP 4000-SERIES P.A. POWER UNIT
TONE
433
88 382
VOLUME
UP 4000-SERIES P.A. POWER UNIT
444
127
345
420
88 260
MASTER
MIXER AMPLIFIER
TONE
INPUTS
1122-NAM
483
132
455
Channel 1 Channel 2
Professional Stereo Amplifier
3200HC
483
88 455
1600HC
Channel 1 Channel 2
Professional Stereo Amplifier
483
88 350
1100ED
483
88 350
600ED
483
88 370
FLEXA
6081 6241
6320
483
88 455
2000HC
Channel 1 Channel 2
Professional Stereo Amplifier
444
88
220
420
88 280
MASTER
TONE
1123UP
ES 3160 - 1
AM 1122 - 4 AM 2160 - 5 UP 1123 - 6
UP 4121 - 7 UP 4242 - 8 FLEXA - 9
ED 1100 - 11 HC 1600 - 12
PR 4092 - 2 MX 1822 - 3
HC 2000 - 13 HC 3200 - 14
ED 600 - 10
444
88
220
STEREO POWER AMPLIFIERS
ED 600
EXTENDED DYNAMIC
STEREO POWER AMPLIFIERS
p/n 121.35.027
ÃProfessional high efficiency H class stereo amplifier
ÃInputs on XLR connectors and 6.3 mm jacks
ÃOutputs on SPEAKON connectors
ÃSoft clip limiter
mm
12˙500 g
REAR VIEW
ÃProtection: thermal, DC, RFI, Soft-Start, short circuit, temperature
ÃForced-air cooling with two automatically controlled fans
Ã19'' rack mount 2U
ÃSystem Status LEDs
56
SPECIFICATIONS ED 1100
OUTPUT POWER (RMS) STEREO (4 Ω) 2 x 550 W - (8 Ω) 2 x 265 W
OUTPUT POWER (RMS) BRIDGE (8 Ω) 1 x 1100 W
OUTPUT POWER (RMS) MONO (4 Ω) 1 x 570 W - (8 Ω) 1 x 325 W
FREQUENCY RESPONSE 20 ÷ 20.000 Hz (± 1 dB)
DISTORTION (THD+N) < 0.05% @ 1 kHz
INTERMODULATION (SMPTE IMD) < 0.03% @ MAX POWER (4 Ω)
SIGNAL TO NOISE RATIO > 105 dB "A" WEIGHTED
INPUT SENSITIVITY 0 dBm (0.775 V RMS)
INPUT IMPEDANCE 20 KΩ BALANCED OR 10 KΩ UNBALANCED
SUPPLY VOLTAGE 220÷240 V / 110÷120 V (50 / 60 Hz) DEPENDING ON THE MODEL
POWER CONSUMPTION 2200 W MAX
INPUT/OUTPUT CONNECTORS 2 x XLR, JACK 6.3 mm / SPEAKON-4
483
266
120
482
44 200
4092
PREAMPLIFIER
CHIME
A
B
INPUTS OUTPUTS
433
88 315
VOLUME
UP 4000-SERIES P.A. POWER UNIT
TONE
433
88 382
VOLUME
UP 4000-SERIES P.A. POWER UNIT
444
127
345
420
88 260
MASTER
MIXER AMPLIFIER
TONE
INPUTS
1122-NAM
483
132
455
Channel 1 Channel 2
Professional Stereo Amplifier
3200HC
483
88 455
1600HC
Channel 1 Channel 2
Professional Stereo Amplifier
483
88 350
1100ED
483
88 350
600ED
483
88 370
FLEXA
6081 6241
6320
483
88 455
2000HC
Channel 1 Channel 2
Professional Stereo Amplifier
444
88
220
420
88 280
MASTER
TONE
1123UP
ES 3160 - 1
AM 1122 - 4 AM 2160 - 5 UP 1123 - 6
UP 4121 - 7 UP 4242 - 8 FLEXA - 9
ED 1100 - 11 HC 1600 - 12
PR 4092 - 2 MX 1822 - 3
HC 2000 - 13 HC 3200 - 14
ED 600 - 10
444
88
220

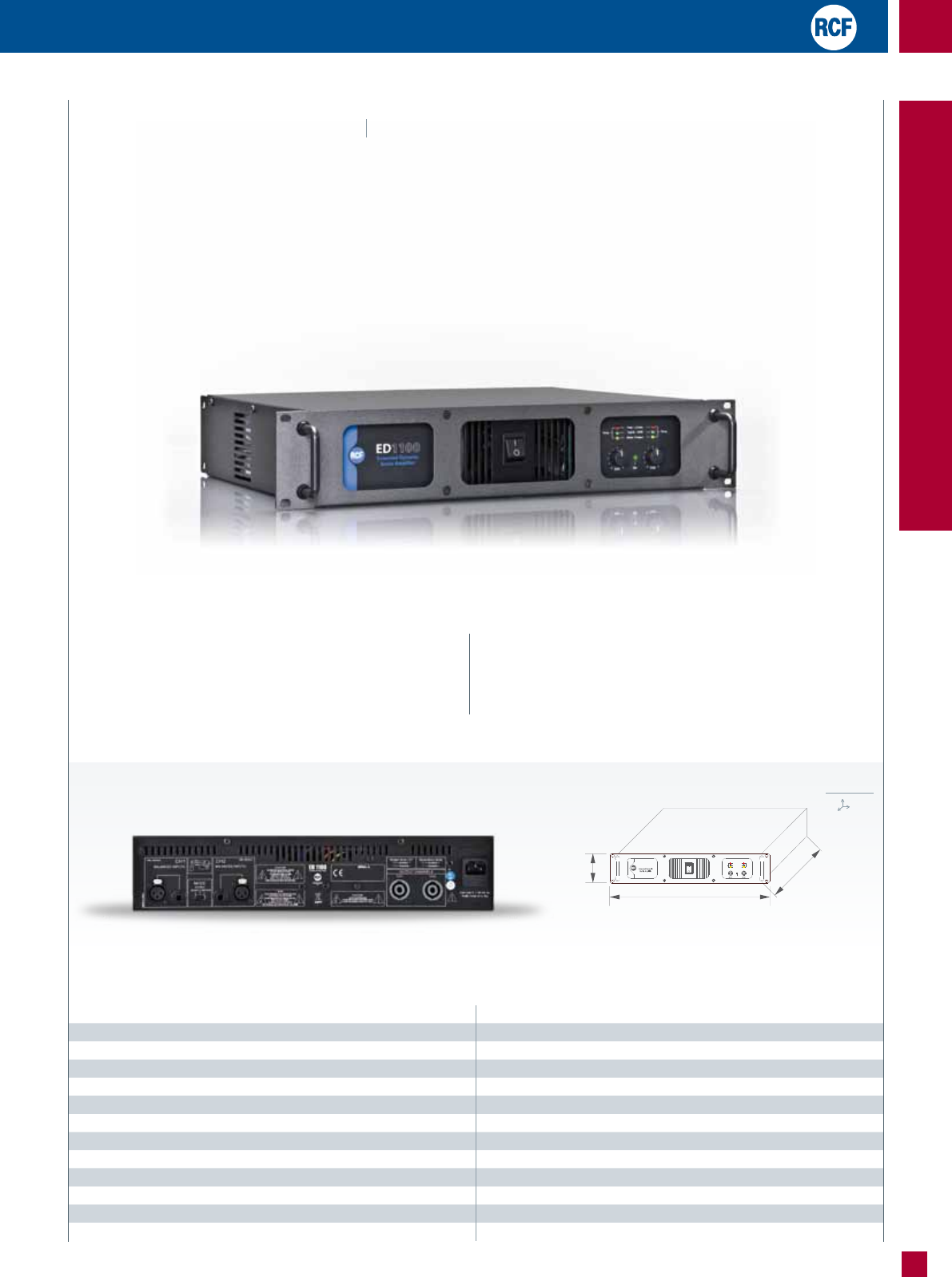

ÃProfessional high efficiency H class stereo amplifier
ÃInputs on XLR connectors and 6.3 mm jacks
ÃOutputs on SPEAKON connectors
ÃSoft clip limiter
ED 1100
EXTENDED DYNAMIC
STEREO POWER AMPLIFIERS
p/n 121.35.028
STEREO POWER AMPLIFIERS
mm
15˙000 g
REAR VIEW
ÃProtection: thermal, DC, RFI, Soft-Start, short circuit, temperature
ÃForced-air cooling with two automatically controlled fans
Ã19'' rack mount 2U
ÃSystem Status LEDs
57
AMPLIFIERS AND PREAMPLIFIERS
SPECIFICATIONS PR 4092
AUDIO OUTPUT LEVEL MASTER A,B: +4 dBu (1.23 V); REC: 0 dBu (775 mV)
FREQUENCY RESPONSE 20 ÷ 20.000 Hz
DISTORTION (THD+N) < 0.5% (MIC); < 0.3% (LINE)
TONE CONTROLS BASS: 100 Hz ± 10 dB; TREBLE: 10 kHz ± 10 dB
SIGNAL TO NOISE RATIO > 75dB (LINE) > 60 dB (MIC)
INPUT SENSITIVITY MIC: - 50 dBu (2.45 mV); LINE: - 10 dBu (245 mV)
INPUT IMPEDANCE MIC (XLR) e LINE (XLR): 5 kΩ BALANCED; LINE (RCA): 10 kΩ BALANCED
OUTPUT IMPEDANCE MASTER 200 kΩ BALANCED; REC: 2.2 kΩ UNBALANCED
SUPPLY VOLTAGE 220÷240 V / 110÷120 V (50 / 60 Hz) - 24 VCC
POWER CONSUMPTION 450 W
INPUT CONNECTORS 9 x XLR, 4 x RCA (L&R)
OUTPUT CONNECTORS 2 x XLR, 2 x RCA
ÃPreamplifier/mixer 9 inputs - 2 outputs
Ã9 balanced XLR inputs
Ã8 inputs have MIC/LINE sensitivity
ÃSwitchable PHANTOM 24 V power supply and HIGH-PASS filters on the
microphone inputs
ÃEach input has an OUTPUT SELECTOR
ÃSIGNAL presence indicator on each input
Ã2 levels of PRIORITY:
· input 1 by VOX or by contact on removable connector
· inputs 2 and 3 by VOX
p/n 121.35.032
PR 4092
9 INPUTS, 2 OUTPUTS
PREAMPLIFIER
483
266
120
482
44 200
4092
PREAMPLIFIER
CHIME
A
B
INPUTS OUTPUTS
433
88 315
VOLUME
UP 4000-SERIES P.A. POWER UNIT
TONE
433
88 382
VOLUME
UP 4000-SERIES P.A. POWER UNIT
444
127
345
420
88 260
MASTER
MIXER AMPLIFIER
TONE
INPUTS
1122-NAM
483
132
455
Channel 1 Channel 2
Professional Stereo Amplifier
3200HC
483
88 455
1600HC
Channel 1 Channel 2
Professional Stereo Amplifier
483
88 350
1100ED
483
88 350
600ED
483
88 370
FLEXA
6081 6241
6320
483
88 455
2000HC
Channel 1 Channel 2
Professional Stereo Amplifier
444
88
220
420
88 280
MASTER
TONE
1123UP
ES 3160 - 1
AM 1122 - 4 AM 2160 - 5 UP 1123 - 6
UP 4121 - 7 UP 4242 - 8 FLEXA - 9
ED 1100 - 11 HC 1600 - 12
PR 4092 - 2 MX 1822 - 3
HC 2000 - 13 HC 3200 - 14
ED 600 - 10
444
88
220
2˙000 g
mm
REAR VIEW
PREAMPLIFIERS
Ã4 of the LINE inputs are available on RCA stereo connectors
ÃBuilt-in three-tone chime generator with contact on removable Euro-block
connector
Ã2 balanced XLR outputs
ÃTone controls (Treble and Bass) on each output
ÃLED level measurement on the two outputs
ÃRECORD OUTPUT on RCA connector (pre-master)
Ã19'' rack mount 1U
58
SPECIFICATIONS MX 1822
AUDIO OUTPUT LEVEL MASTER 1.2: +4 ÷ +28 dBu ; AUX 1.2: +22 dBu
FREQUENCY RESPONSE 10 Hz ÷ 45 kHz (MIC-AUX); 10 Hz ÷ 80 kHz (LINE-AUX); 10 Hz ÷ 65 kHz (AUX-L&R)
DISTORTION (THD+N) < 0.006% (MIC); < 0.006% (LINE); < 0.0025% (AUX)
TONE CONTROLS BASS: 60 Hz ± 15 dB; MEDIUM: 250 Hz ± 15 dB; TREBLE: 12 kHz ± 15 dB
SIGNAL TO NOISE RATIO > 80 dB (1 CH.); > 85 dB (8 CH.)
INPUT SENSITIVITY MIC: 12 dB ÷ 60 dB; LINE: -8 dB ÷ 40 dB
INPUT IMPEDANCE MIC: 2 kΩ BALANCED; LINE: 20 kΩ BALANCED; AUX: 10 kΩ BALANCED
OUTPUT IMPEDANCE L&R: 75 Ω; AUX: 100 Ω
SUPPLY VOLTAGE 220÷240 V / 110÷12v0 V (50 / 60 Hz)
POWER CONSUMPTION 25 W
INPUT CONNECTORS XLR, JACK 6.3 mm (LINE)
OUTPUT CONNECTORS 2 x XLR, 2 x RCA, 2 x JACK (AUX OUTPUT)

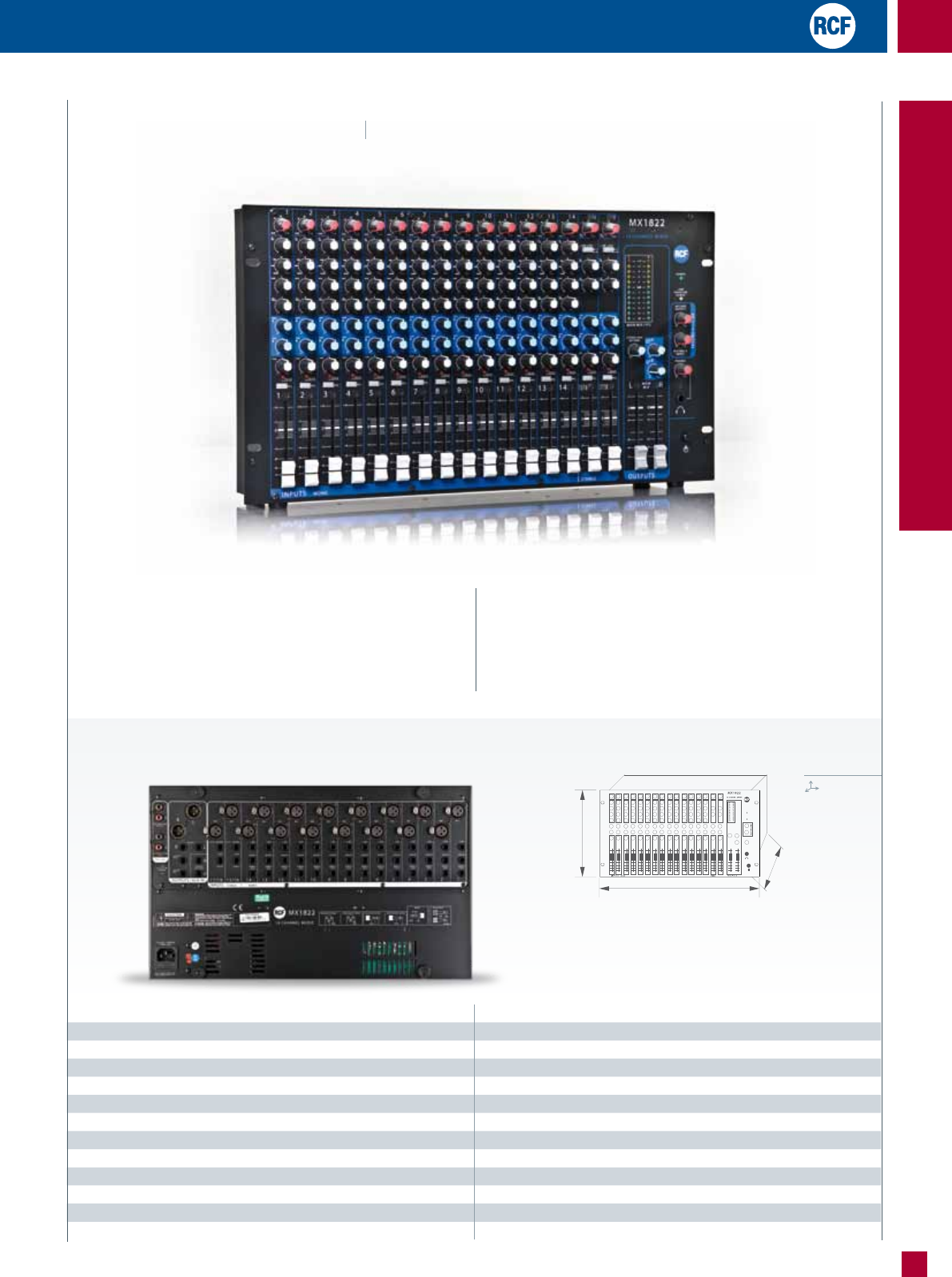

ÃMixer 14+2 universal input and 2+2 output
Ã14 balanced MIC/LINE XLR inputs
Ã2 stereo inputs at line level for music sources (can also be configured as MIC)
Ã48 V PHANTOM power supply
ÃEach input can be directed onto two Master outputs and two AUX outputs
ÃLED indicator for SIGNAL presence on each input
ÃVU-meter assignable to each input or to the main output
p/n 171.40.001
MX 1822
14+2 UNIVERSAL INPUT, 2+2 OUTPUT
RACK MIXER
483
266
120
482
44 200
4092
PREAMPLIFIER
CHIME
A
B
INPUTS OUTPUTS
433
88 315
VOLUME
UP 4000-SERIES P.A. POWER UNIT
TONE
433
88 382
VOLUME
UP 4000-SERIES P.A. POWER UNIT
444
127
345
420
88 260
MASTER
MIXER AMPLIFIER
TONE
INPUTS
1122-NAM
483
132
455
Channel 1 Channel 2
Professional Stereo Amplifier
3200HC
483
88 455
1600HC
Channel 1 Channel 2
Professional Stereo Amplifier
483
88 350
1100ED
483
88 350
600ED
483
88 370
FLEXA
6081 6241
6320
483
88 455
2000HC
Channel 1 Channel 2
Professional Stereo Amplifier
444
88
220
420
88 280
MASTER
TONE
1123UP
ES 3160 - 1
AM 1122 - 4 AM 2160 - 5 UP 1123 - 6
UP 4121 - 7 UP 4242 - 8 FLEXA - 9
ED 1100 - 11 HC 1600 - 12
PR 4092 - 2 MX 1822 - 3
HC 2000 - 13 HC 3200 - 14
ED 600 - 10
444
88
220
6˙950 g
mm
REAR VIEW
MIXERS
ÃSemi-parametric 3-band equaliser on each MIC/LINE input
ÃOUTPUTS: Master on XLR connectors, AUX on 6.3 mm jacks
ÃINSERT connections available on each input
ÃRecording OUTPUT / INPUT on RCA connectors
ÃHeadphones output with volume control
ÃDimensions: 6U 19'' rack (all the connections are on the rear panel)
59
AMPLIFIERS AND PREAMPLIFIERS

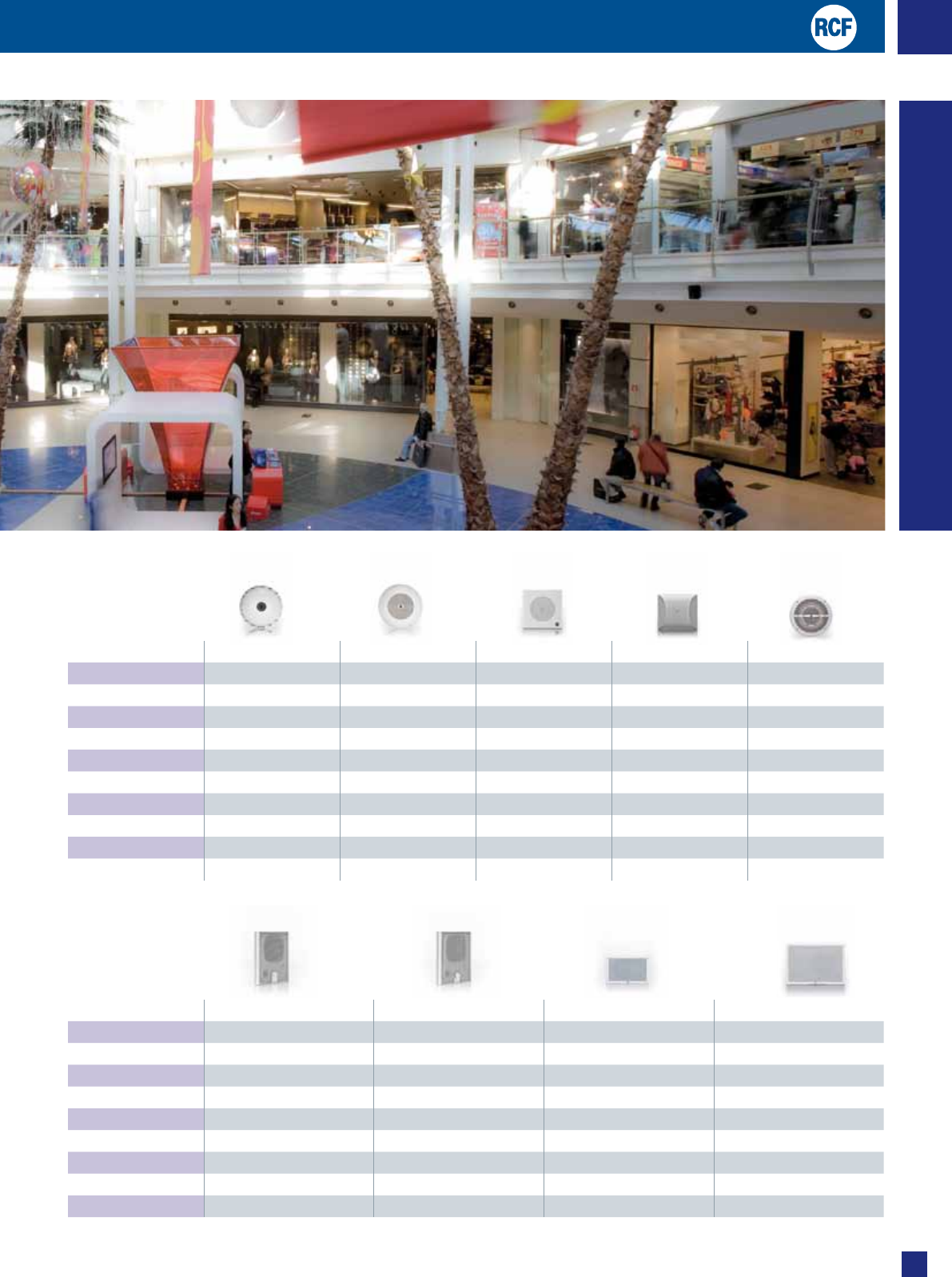

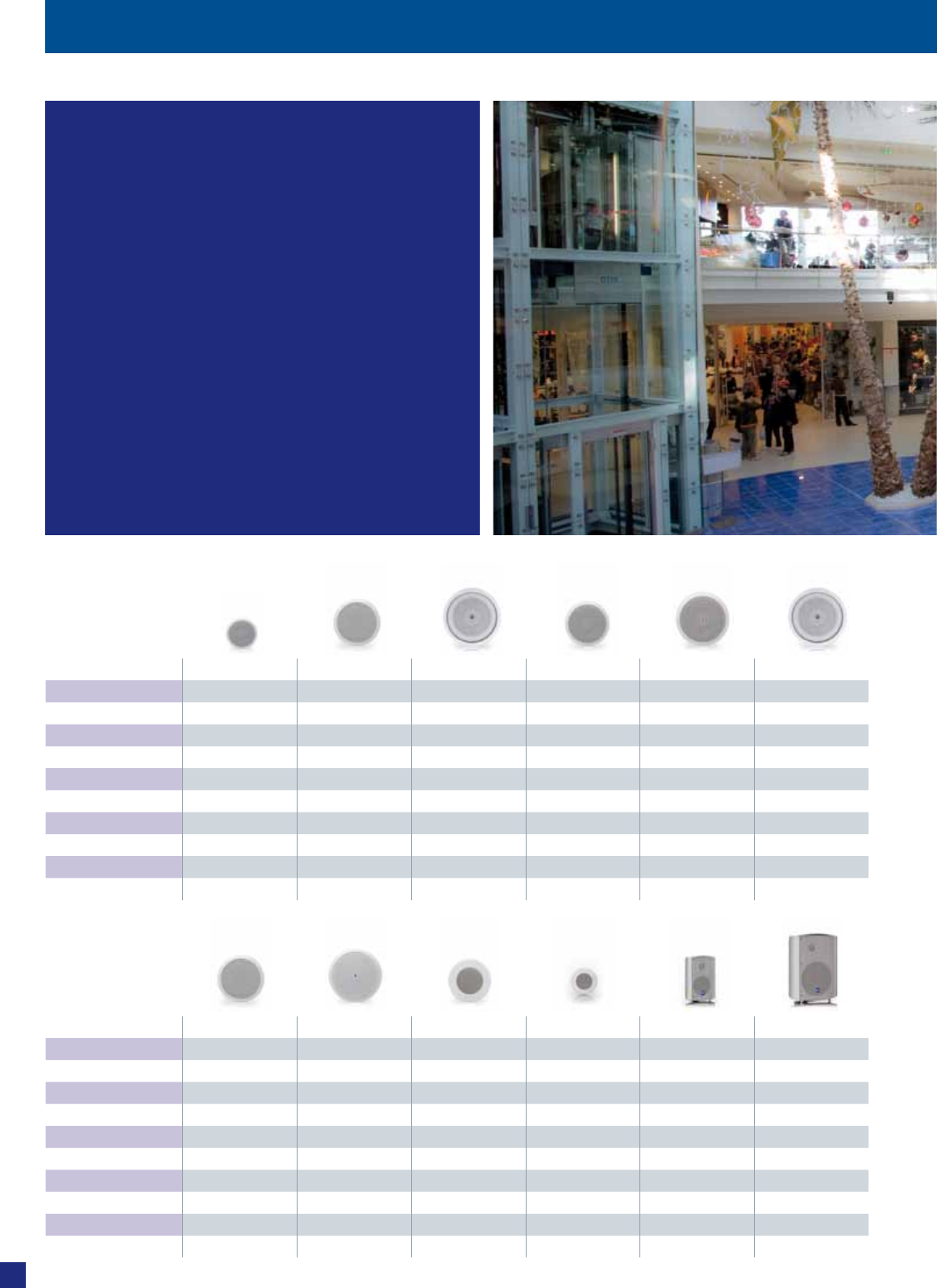

MODEL PL 40 PL 60 PL 80/A PL 6X PL 8X PL 81/A
TYPE CEILING SPEAKER CEILING SPEAKER CEILING SPEAKER CEILING SPEAKER CEILING SPEAKER CEILING SPEAKER
INSTALLATION FLUSH MOUNTED FLUSH MOUNTED FLUSH MOUNTED FLUSH MOUNTED FLUSH MOUNTED FLUSH MOUNTED
COLOUR White White White White White White
SPEAKER 3.5” 6” dual-cone 8” dual-cone 6” + 1” 8” + 1” 8” + 1”
POWER NOM. / MAX. 8 W RMS / 16 W 6 W RMS / 12 W 6 W RMS / 15 W 12 W RMS / 24 W 20 W RMS / 40 W 10 W RMS / 20 W
INPUT 100 V, 70 V 100 V, 70 V 100 V, 50 V 100 V, 70 V 100 V, 70 V 100 V, 50 V
FREQUENCY RESPONSE 90 ÷ 20.000 Hz 110 ÷ 20.000 Hz 40 ÷ 18.000 Hz 70 ÷ 20.000 Hz 60 ÷ 20.000 Hz 40 ÷ 20.000 Hz
MAX. SOUND PRESSURE 100 dB 102 dB 105 dB 106 dB 109 dB 110 dB
ANGLE OF COVERAGE 120° 150° 130° 100° 80° 90°
PROTECTION IP 44 - - IP 44 IP 44 -
MODEL PL 60 FD PL 70 BS DS 313/WT HS 1026 DM 41 DM 61
TYPE CEILING SPEAKER CEILING SPEAKER CEILING SPEAKER CEILING SPEAKER Compact two-way Compact two-way
INSTALLATION FLUSH MOUNTED FLUSH MOUNTED FLUSH MOUNTED FLUSH MOUNTED Wall Wall
COLOUR White White White White/Gold/Chrome White Ivory White Ivory
SPEAKER 6” dual-cone 6” dual-cone 5” 2.5” 3.5” + 1” 6” + 1”
POWER NOM. / MAX. 6 W RMS / 10 W 6 W RMS / 10 W 4 W RMS / 6 W 6 W RMS / 12 W 15 W RMS / 30 W 25 W RMS / 50 W
INPUT 100 V, 70 V 100 V, 70 V 100 V, 70 V 100 V, 70 V 100 V, 70 V 100 V, 70 V
FREQUENCY RESPONSE 150 ÷ 15.000 Hz 120 ÷ 18.000 Hz 150 ÷ 12.000 Hz 220 ÷ 17.000 Hz 100 ÷ 20.000 Hz 70 ÷ 20.000 Hz
MAX. SOUND PRESSURE 105 dB 104 dB 100 dB 102 dB 102 dB 106 dB
ANGLE OF COVERAGE 150° 150° 150° 170° 180° (Horiz) 170° (Ver) 120° (Horiz) 140° (Ver)
PROTECTION - BS 5839-8 - - IP 55 IP 55
The best solutions for wall or flush
installations in false ceiling or panels.
FLUSH MOUNTED
AND WALL SPEAKERS
60

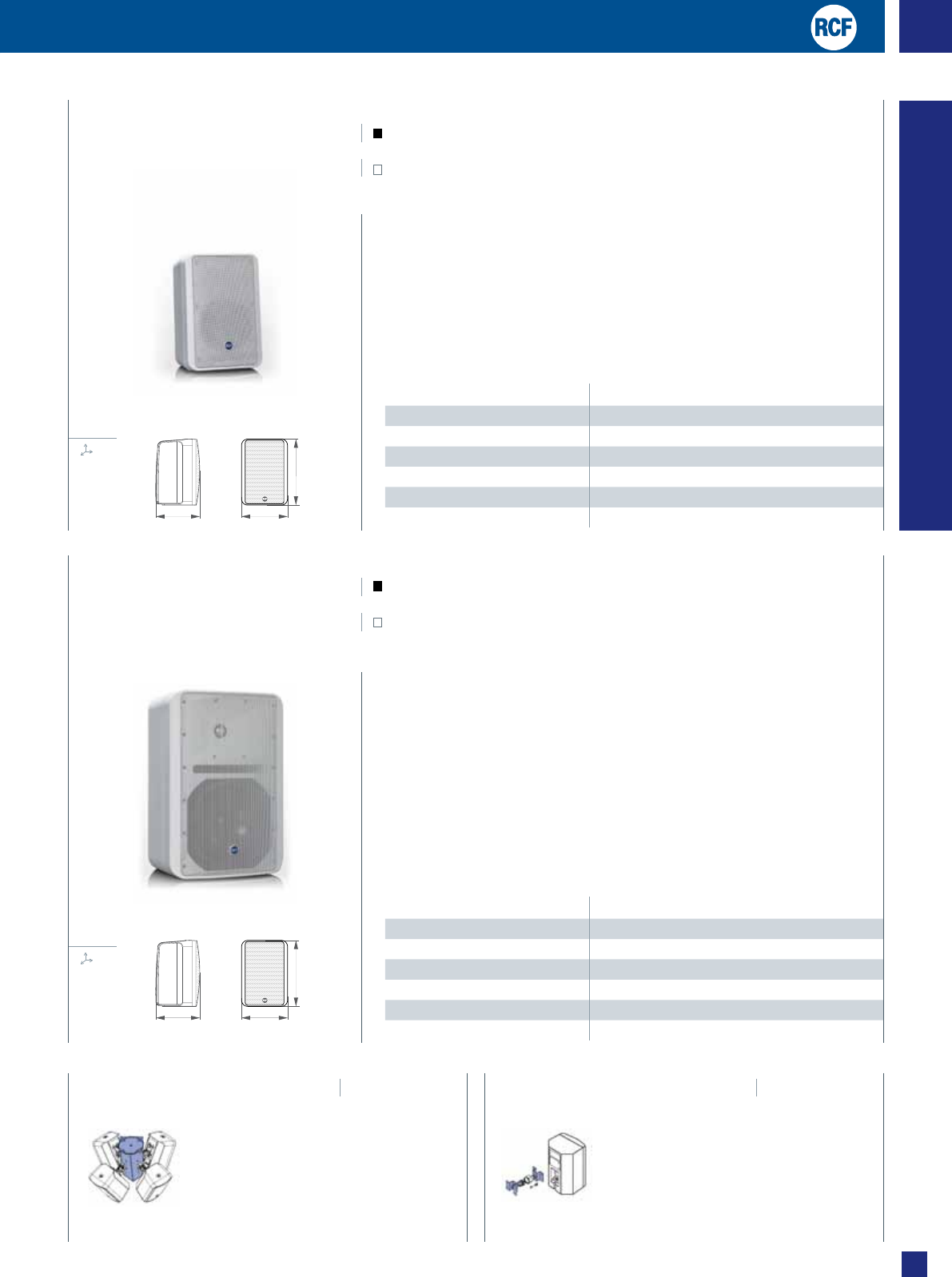

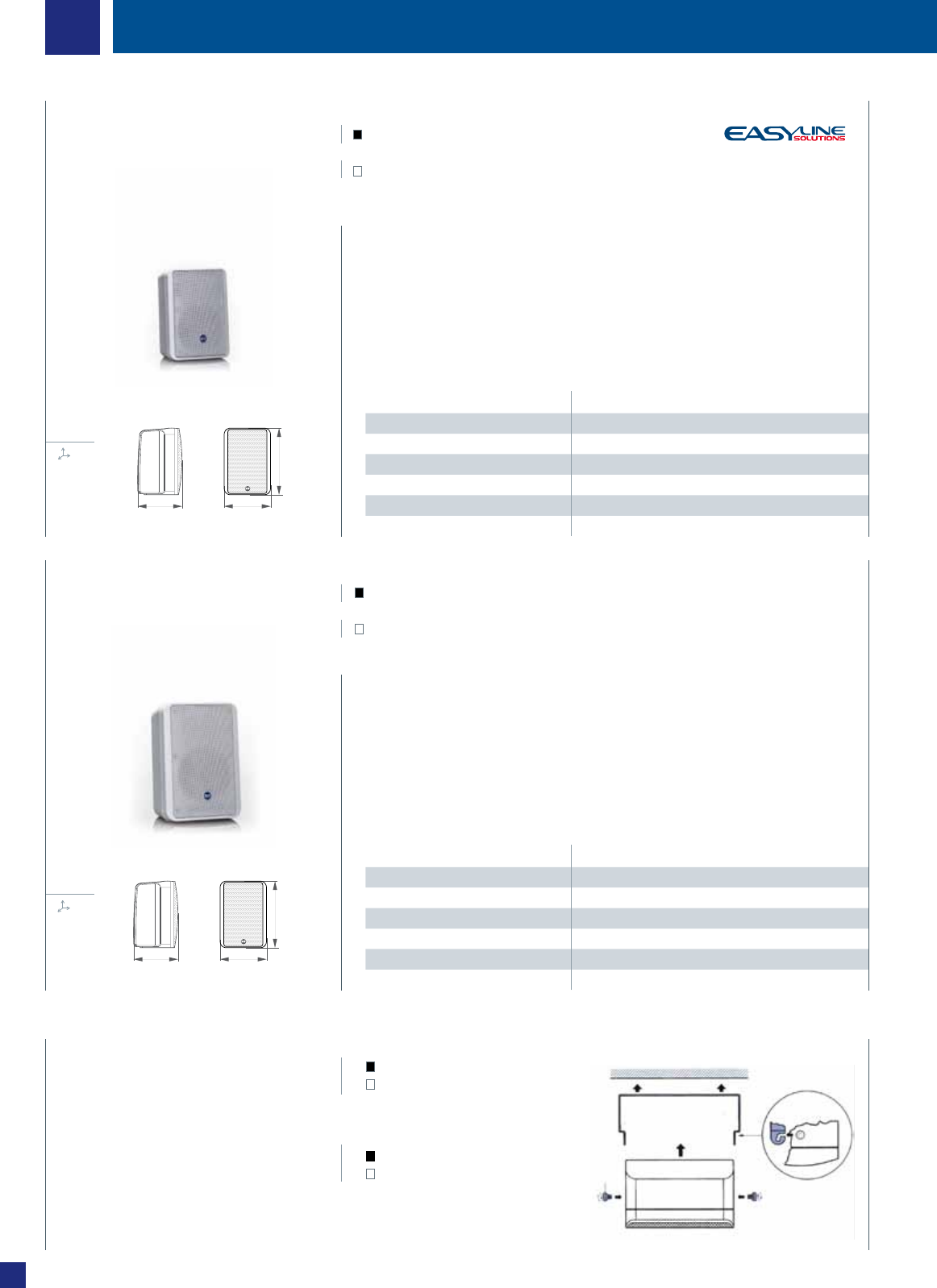

MODEL DU 31 DU 31AT ELISA 50 ELISA 100
TYPE Universal two-way Universal two-way Universal Universal two-way
INSTALLATION Wall or Flush-mounted Wall or Flush-mounted Flush-mounted Flush-mounted
COLOUR White Ivory White Ivory White White
SPEAKER 3.5" + 0.85" 3.5" + 0.85" 3.5” 4.7” + 1”
POWER NOM. / MAX. 8 - 4 - 2 W (100 V) - 8 W (25 V) 8 - 4 - 2 - 1 - 0,5 W (100 V) - 8 W (25 V) 6 W RMS / 12 W 10 W RMS / 20 W
INPUT 100 V, 70 V, 25 V 100 V, 70 V, 25 V 100 V, 70 V, 25 V, 4 Ω100 V, 70 V, 25 V, 4 Ω
FREQUENCY RESPONSE 100 ÷ 17.000 Hz 100 ÷ 17.000 Hz 120 ÷ 16.000 Hz 100 ÷ 20.000 Hz
MAX. SOUND PRESSURE 91 dB 91 dB 99 dB 104 dB
ANGLE OF COVERAGE 160° 160° 160° 160°
MODEL BS 8 BS 2620 DU50 BS DU 100X WS 620-XT
TYPE Spherical Spherical Universal Universal Universal two-way
INSTALLATION Suspended Suspended Wall or FLUSH MOUNTED Wall or FLUSH MOUNTED Flush-mounted
COLOUR White White White White White
SPEAKER 8” 6” dual-cone 4.5” 4”+ 1" 5” + 1”
POWER NOM. / MAX. 20 W RMS / 40 W 20 W RMS / 40 W 6 W RMS / 12 W 10 W RMS / 20 W 12 W RMS / 24 W
INPUT 100 V 100 V 100 V, 70 V 100 V, 70 V, 25 V 100 V, 70 V, 4 Ω
FREQUENCY RESPONSE 160 ÷ 12.500 Hz 20 ÷ 20.000 Hz 200 ÷ 12.000 Hz 100 ÷ 18.000 Hz 70 ÷ 20.000 Hz
MAX. SOUND PRESSURE 106 dB 106 dB 102 dB 103 dB 105 dB
ANGLE OF COVERAGE 360° (Horiz) 140° (Ver) 360° (Horiz) 150° (Ver) 150° 100° (Horiz) 140° (Ver) 120°
PROTECTION IP 55 BS 5839-8 IP 55
LOUDSPEAKERS
* Valore riferito ad SINGLE LOUDSPEAKER
61

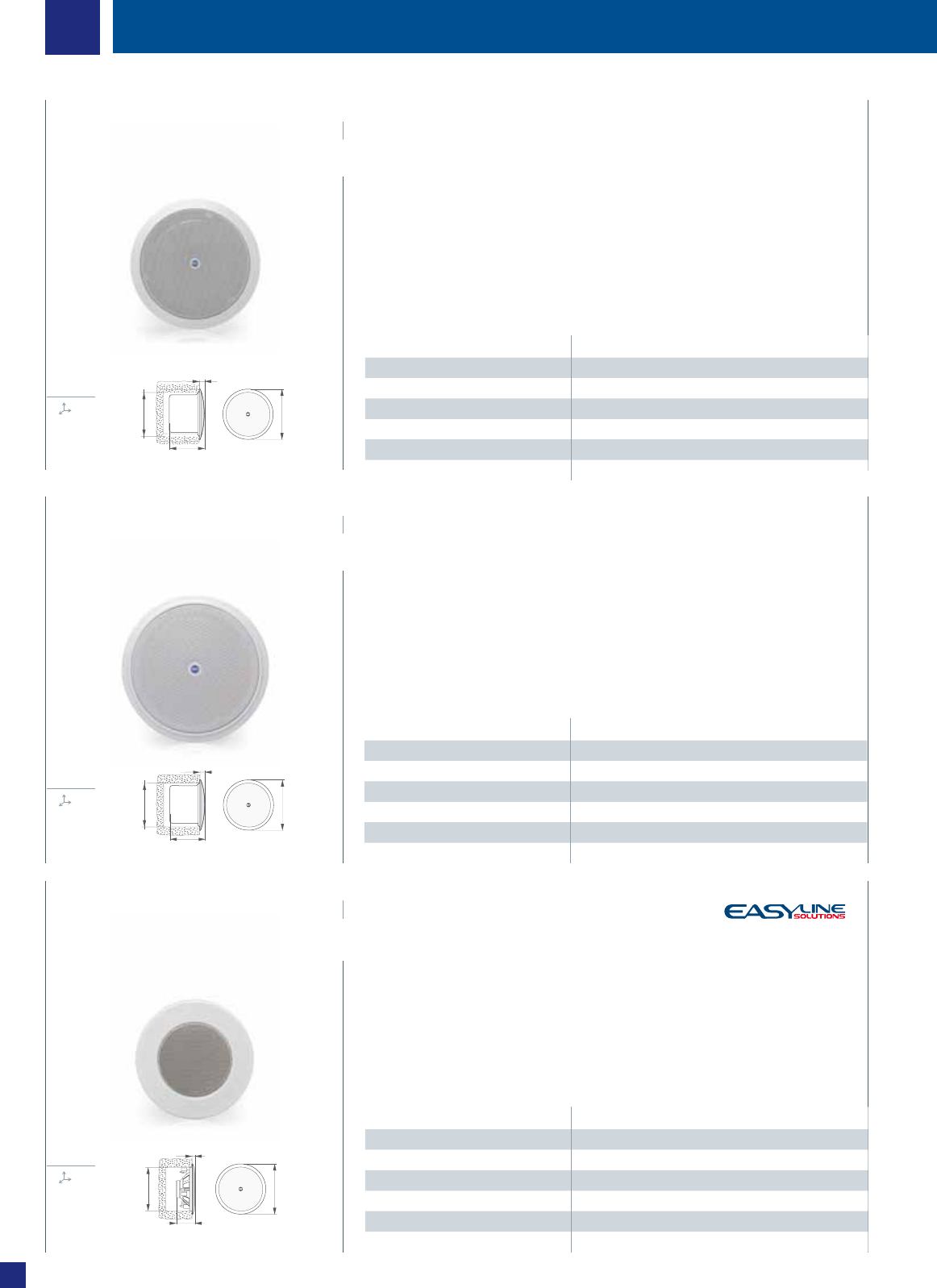

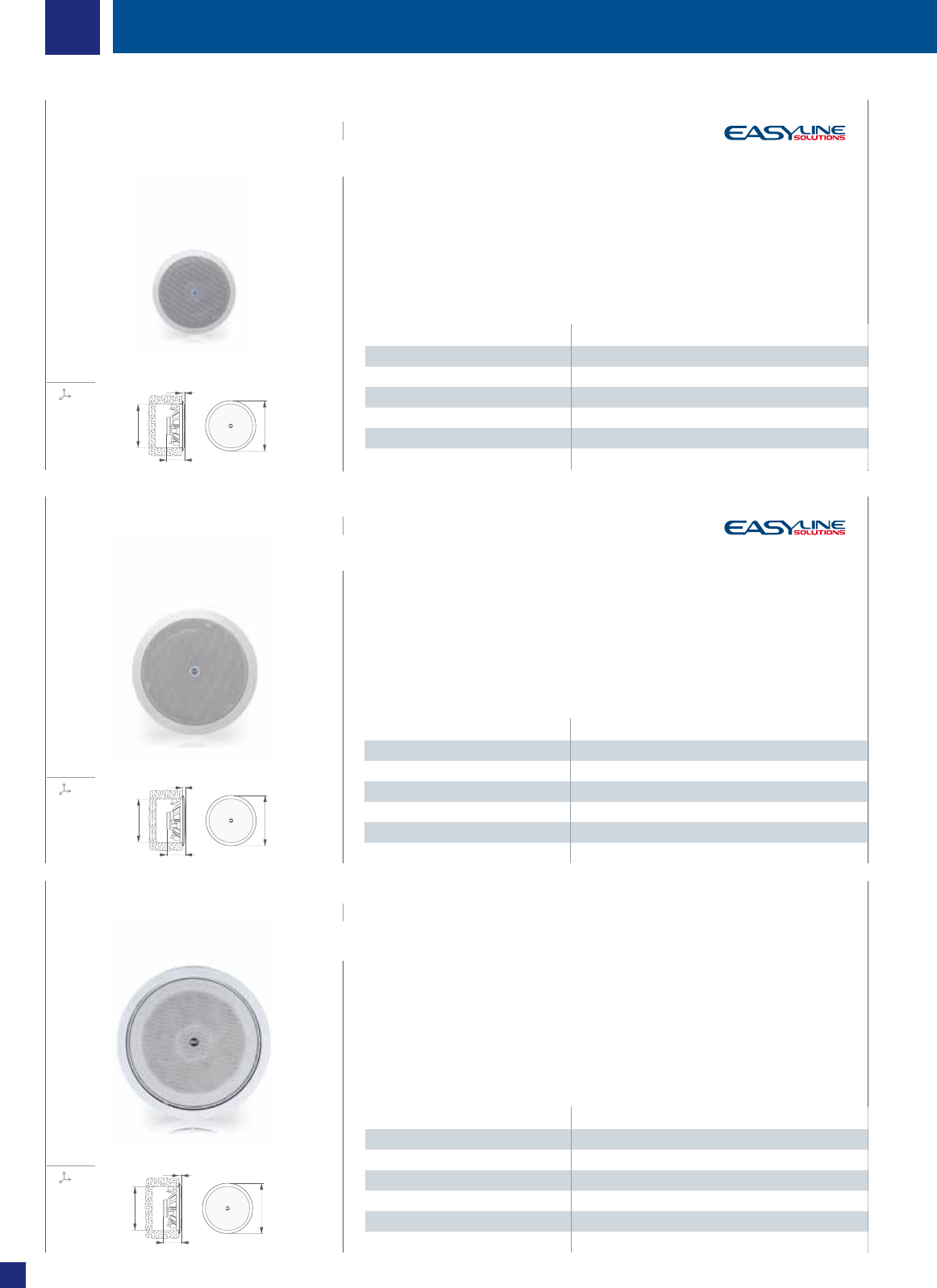

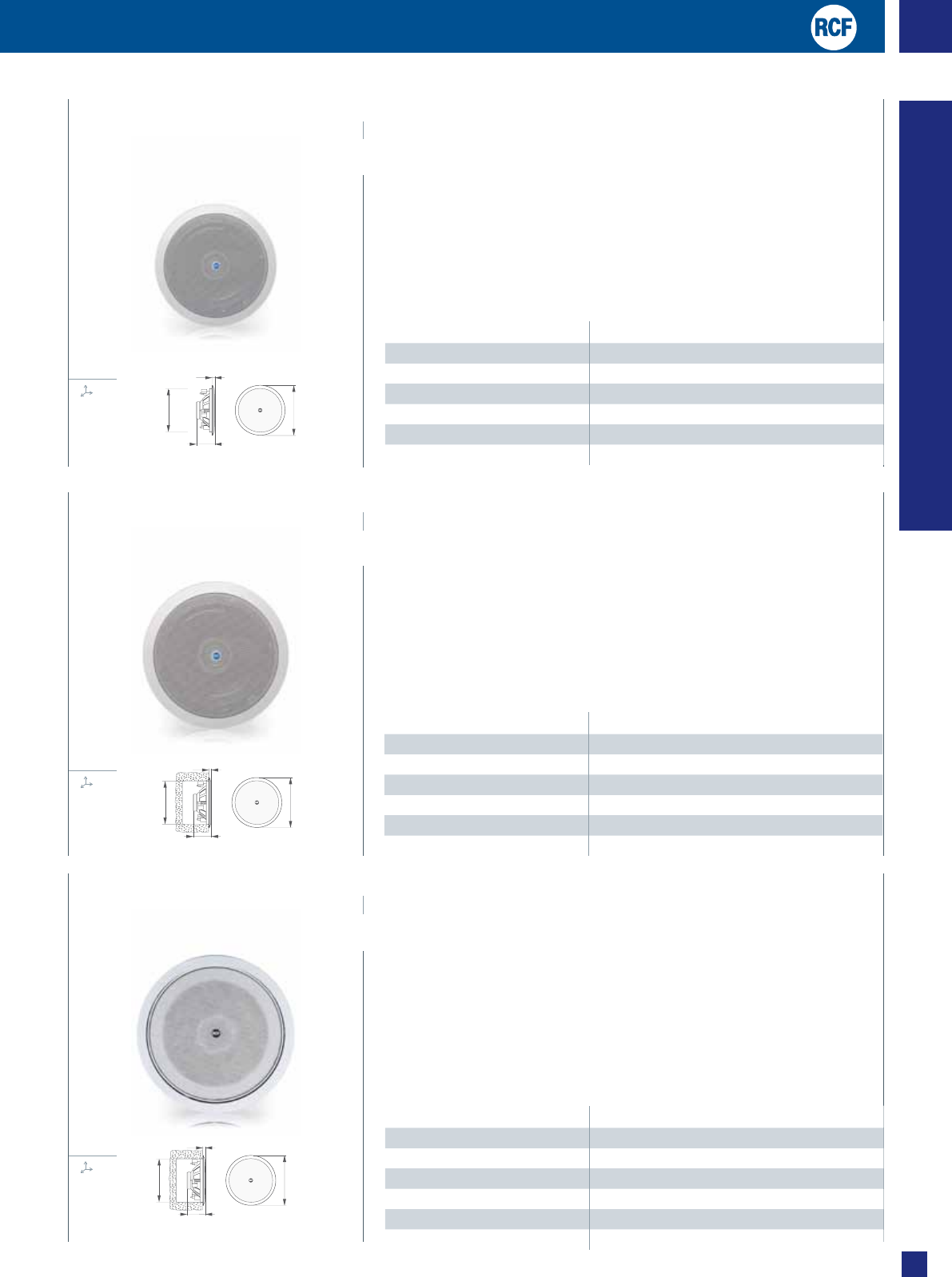

SPECIFICATIONS PL 80/A
POWER 6 - 3 - 1.5 - 0.75 - 0.37 W (100 V)
CONSTANT VOLTAGE 100 V, 50 V
FREQUENCY RESPONSE 40 ÷ 18.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 93 dB
MAXIMUM SOUND PRESSURE 105 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 130°
SPECIFICATIONS PL 60
POWER 6 - 3 W (100 V)
CONSTANT VOLTAGE 100 V, 70 V
FREQUENCY RESPONSE 110 ÷ 20.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 91 dB
MAXIMUM SOUND PRESSURE 102 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 150°
SPECIFICATIONS PL 40
POWER 8 - 6 - 4 - 2 W (100 V)
CONSTANT VOLTAGE 100 V, 70 V
FREQUENCY RESPONSE 90 ÷ 20.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 88 dB
MAXIMUM SOUND PRESSURE 100 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 120°
mm
1˙200 g
mm
800 g
mm
1˙700 g
289
200
216
177
197
150
130
115
130
110
7
122 204
75
6
180
266
100
3
244
266
112
3
244
204
73
7
182
230
150
7
200 230
127
16
200
247
88
8
224
104
91
189
73
12
156
PL 40 - 22 PL 60 - 23 PL80/A -24
PL 6X - 25 PL 8X - 26 PL 81/A - 27
PL 60FD - 28 PL 70BS - 29 DS 313/WT - 30
HS 1026 - 31 DM 41 - 32 DM 61 - 33
289
200
216
177
197
150
130
115
130
110
7
122
204
75
6
180
266
100
3
244
266
112
3
244
204
73
7
182
230
150
7
200 230
127
16
200
247
88
8
224
104
91
189
73
12
156
PL 40 - 22 PL 60 - 23 PL80/A -24
PL 6X - 25 PL 8X - 26 PL 81/A - 27
PL 60FD - 28 PL 70BS - 29 DS 313/WT - 30
HS 1026 - 31 DM 41 - 32 DM 61 - 33
289
200
216
177
197
150
130
115
130
110
7
122
204
75
6
180 266
100
3
244
266
112
3
244
204
73
7
182
230
150
7
200 230
127
16
200
247
88
8
224
104
91
189
73
12
156
PL 40 - 22 PL 60 - 23 PL80/A -24
PL 6X - 25 PL 8X - 26 PL 81/A - 27
PL 60FD - 28 PL 70BS - 29 DS 313/WT - 30
HS 1026 - 31 DM 41 - 32 DM 61 - 33
ÃFor sound systems with high quality speech/music
ÃMusic power/RMS: 10/6W
Ã8” dual cone extended range loudspeaker
ÃAngle of dispersion related to speech intelligibility 1000Hz: 180°
ÃLow impedance (4Ω) or 100V
ÃBuilt-in multi-tapped transformer for 100/50V constant voltage connection
ÃBody in self-extinguishing plastic UL-94-5VA and front metal grille RAL 9010 White
ÃOptional accessory: A 1380 dust-proof cover (p/n13320031)
p/n 00.06.089
PL 80/A
HIGH EFFICIENCY CEILING SPEAKER
ÃFor paging and background music
ÃMusic power/RMS: 10/6W
Ã6” dual cone wide band loudspeaker
ÃSound pressure level at music power: 102 dB/1 m
ÃLow impedance (8Ω) or 100V
ÃBuilt-in multi-tapped transformer for 100/70V constant voltage connection
ÃBody in self-extinguishing plastic UL-94-V0 and front metal grille RAL 9010 White
ÃOptional accessory: A 1360 base for surface mount installation (p/n13320107)
p/n 131.10.214
PL 60
HIGH EFFICIENCY CEILING SPEAKER
ÃRecommended for speech and background-music reproduction
ÃMusic power/RMS: 16/8W
ÃLow impedance (8Ω) or 100V
Ã3.5” full range speaker
ÃThree hooks mounting system (no screws or other attachment elements)
ÃBuilt-in multi-tapped transformer for constant voltage connection
ÃBody in self-extinguishing (UL 94V-0) plastic and front metal grille RAL 9003 White
ÃIP 44 protection
p/n 131.33.045
PL 40
CEILING SPEAKER
CEILING SPEAKERS
62
SPECIFICATIONS PL 81/A
POWER 10 - 5 - 2.5 - 1.25 W (100 V)
CONSTANT VOLTAGE 100 V, 50 V
FREQUENCY RESPONSE 40 ÷ 20.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 97 dB
MAXIMUM SOUND PRESSURE 110 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 90°
SPECIFICATIONS PL 8X
POWER 20 - 10 - 5 - 2.5 W (100 V)
CONSTANT VOLTAGE 100 V, 70 V
FREQUENCY RESPONSE 60 ÷ 20.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 93 dB
MAXIMUM SOUND PRESSURE 109 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 80°
SPECIFICATIONS PL 6X
POWER 12 - 6 - 3 W (100 V)
CONSTANT VOLTAGE 100 V, 70 V
FREQUENCY RESPONSE 70 ÷ 20.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 92 dB
MAXIMUM SOUND PRESSURE 106 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 100°
mm
1˙000 g
mm
1˙800 g
mm
2˙350 g
289
200
216
177
197
150
130
115
130
110
7
122 204
75
6
180 266
100
3
244
266
112
3
244
204
73
7
182
230
150
7
200 230
127
16
200
247
88
8
224
104
91
189
73
12
156
PL 40 - 22 PL 60 - 23 PL80/A -24
PL 6X - 25 PL 8X - 26 PL 81/A - 27
PL 60FD - 28 PL 70BS - 29 DS 313/WT - 30
HS 1026 - 31 DM 41 - 32 DM 61 - 33
289
200
216
177
197
150
130
115
130
110
7
122 204
75
6
180 266
100
3
244
266
112
3
244
204
73
7
182
230
150
7
200 230
127
16
200
247
88
8
224
104
91
189
73
12
156
PL 40 - 22 PL 60 - 23 PL80/A -24
PL 6X - 25 PL 8X - 26 PL 81/A - 27
PL 60FD - 28 PL 70BS - 29 DS 313/WT - 30
HS 1026 - 31 DM 41 - 32 DM 61 - 33
289
200
216
177
197
150
130
115
130
110
7
122 204
75
6
180 266
100
3
244
266
112
3
244
204
73
7
182
230
150
7
200 230
127
16
200
247
88
8
224
104
91
189
73
12
156
PL 40 - 22 PL 60 - 23 PL80/A -24
PL 6X - 25 PL 8X - 26 PL 81/A - 27
PL 60FD - 28 PL 70BS - 29 DS 313/WT - 30
HS 1026 - 31 DM 41 - 32 DM 61 - 33
ÃHigh efficiency speaker for high quality speech/music reproduction, also in environments with high
ceilings
ÃMusic power/RMS for use without transformer: 20/10W (max. 40W, 8Ω)
ÃProfessional 8” coaxial speaker, cone tweeter
ÃLow impedance (8Ω) or 100V
ÃBuilt-in multi-tapped transformer for 100/70V constant voltage connection
ÃBody in self-extinguishing plastic UL-94-5VA and front metal grille RAL 9010 White
ÃOptional accessory: A 1380 dust-proof cover (p/n13320031)
p/n 00.06.090
PL 81/A
HIGH EFFICIENCY COAXIAL CEILING SPEAKER
ÃTwo way speaker system with dome tweeter recommended for hi level speech and
background-music reproduction
ÃMusic power/RMS: 40/20W
Ã8” woofer with coaxial tweeter
ÃLow impedance (8Ω) or 100V
ÃBuilt-in multi-tapped transformer for 100/70V constant voltage connection
ÃBody in self-extinguishing plastic (UL 94V-0) and front metal grille RAL 9003 White
ÃIP 44 protection
p/n 131.33.043
PL 8X
COAXIAL CEILING SPEAKER
ÃTwo way speaker system with dome tweeter recommended for speech and background-music
reproduction
ÃMusic power/RMS: 24/12W
Ã6” woofer with coaxial tweeter
ÃLow impedance (8Ω) or 100V
ÃBuilt-in multi-tapped transformer for 100/70V constant voltage connection
ÃThree hooks mounting system (no screws or other attachment elements)
ÃBody in self-extinguishing (UL 94V-0) plastic and front metal grille RAL 9003 White
ÃIP 44 protection
p/n 131.33.042
PL 6X
COAXIAL CEILING SPEAKER
CEILING SPEAKERS
63
LOUDSPEAKERS
SPECIFICATIONS DS 313WT
POWER 4 - 2 - 1 - 0.5 - 0.25 W (100 V)
CONSTANT VOLTAGE 100 V, 70 V
FREQUENCY RESPONSE 150 ÷ 12.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 92 dB
MAXIMUM SOUND PRESSURE 100 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 150°
SPECIFICATIONS PL 70BS
POWER 6 - 3 - 1.5 W (100 V)
CONSTANT VOLTAGE 100 V, 70 V
FREQUENCY RESPONSE 120 ÷ 18.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 93 dB
MAXIMUM SOUND PRESSURE 104 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 150°
SPECIFICATIONS PL 60FD
POWER 6 - 3 - 1.5 W (100 V)
CONSTANT VOLTAGE 100 V, 70 V
FREQUENCY RESPONSE 150 ÷ 15.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 94 dB
MAXIMUM SOUND PRESSURE 105 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 150°
mm
2˙800 g
mm
2˙000 g
mm
430 g
289
200
216
177
197
150
130
115
130
110
7
122 204
75
6
180 266
100
3
244
266
112
3
244
204
73
7
182
230
150
7
200
230
127
16
200
247
88
8
224
104
91
189
73
12
156
PL 40 - 22 PL 60 - 23 PL80/A -24
PL 6X - 25 PL 8X - 26 PL 81/A - 27
PL 60FD - 28 PL 70BS - 29 DS 313/WT - 30
HS 1026 - 31 DM 41 - 32 DM 61 - 33
289
200
216
177
197
150
130
115
130
110
7
122 204
75
6
180 266
100
3
244
266
112
3
244
204
73
7
182
230
150
7
200
230
127
16
200
247
88
8
224
104
91
189
73
12
156
PL 40 - 22 PL 60 - 23 PL80/A -24
PL 6X - 25 PL 8X - 26 PL 81/A - 27
PL 60FD - 28 PL 70BS - 29 DS 313/WT - 30
HS 1026 - 31 DM 41 - 32 DM 61 - 33
289
200
216
177
197
150
130
115
130
110
7
122 204
75
6
180 266
100
3
244
266
112
3
244
204
73
7
182
230
150
7
200 230
127
16
200
247
88
8
224
104
91
189
73
12
156
PL 40 - 22 PL 60 - 23 PL80/A -24
PL 6X - 25 PL 8X - 26 PL 81/A - 27
PL 60FD - 28 PL 70BS - 29 DS 313/WT - 30
HS 1026 - 31 DM 41 - 32 DM 61 - 33
ÃIdeal for sound systems with speech and background music
ÃMusic power/RMS: 6/4W
Ã5” extended range loudspeaker
ÃLow impedance (4Ω) or 100V
ÃBuilt-in multi-tapped transformer for 100V constant voltage connection
ÃRAL 9010 White
ÃOptional accessory: A1383 base for surface mount installation
p/n 00.06.081
DS 313/WT
CEILING SPEAKER
ÃSpeaker for transmitting voice alarm messages with high intelligibility and background music
ÃMusic power/RMS: 10/6W
Ã6” diameter dual cone wide band loudspeaker
ÃLow impedance (8Ω) or 100V
ÃSteel protection Fire Dome, terminal strip in ceramic material for connecting flameproof input and
output cables, thermal fuse, suitable internal wiring
ÃConforms to BS 5839-8 regulations
ÃStructure, front grille, and protection cap in steel, RAL 9003 White
p/n 131.10.029
PL 70BS
CEILING SPEAKER WITH FIRE DOME
ÃExpecially suitable for alarm/evac applications
Ã6” dual cone wide band loudspeaker
ÃSound pressure level at music power: 105 dB/1 m
ÃLow impedance (8Ω) or 100V
ÃBuilt-in multi-tapped transformer for 100/70V constant voltage connection
ÃMetal back cover, RAL 3020 red
ÃCeramic termination blocks, thermal fuse, fire resistant cable
ÃFront metal grille RAL 9010 White
p/n 131.33.059
PL 60FD
CEILING SPEAKER WITH FIRE DOME
CEILING SPEAKERS
64

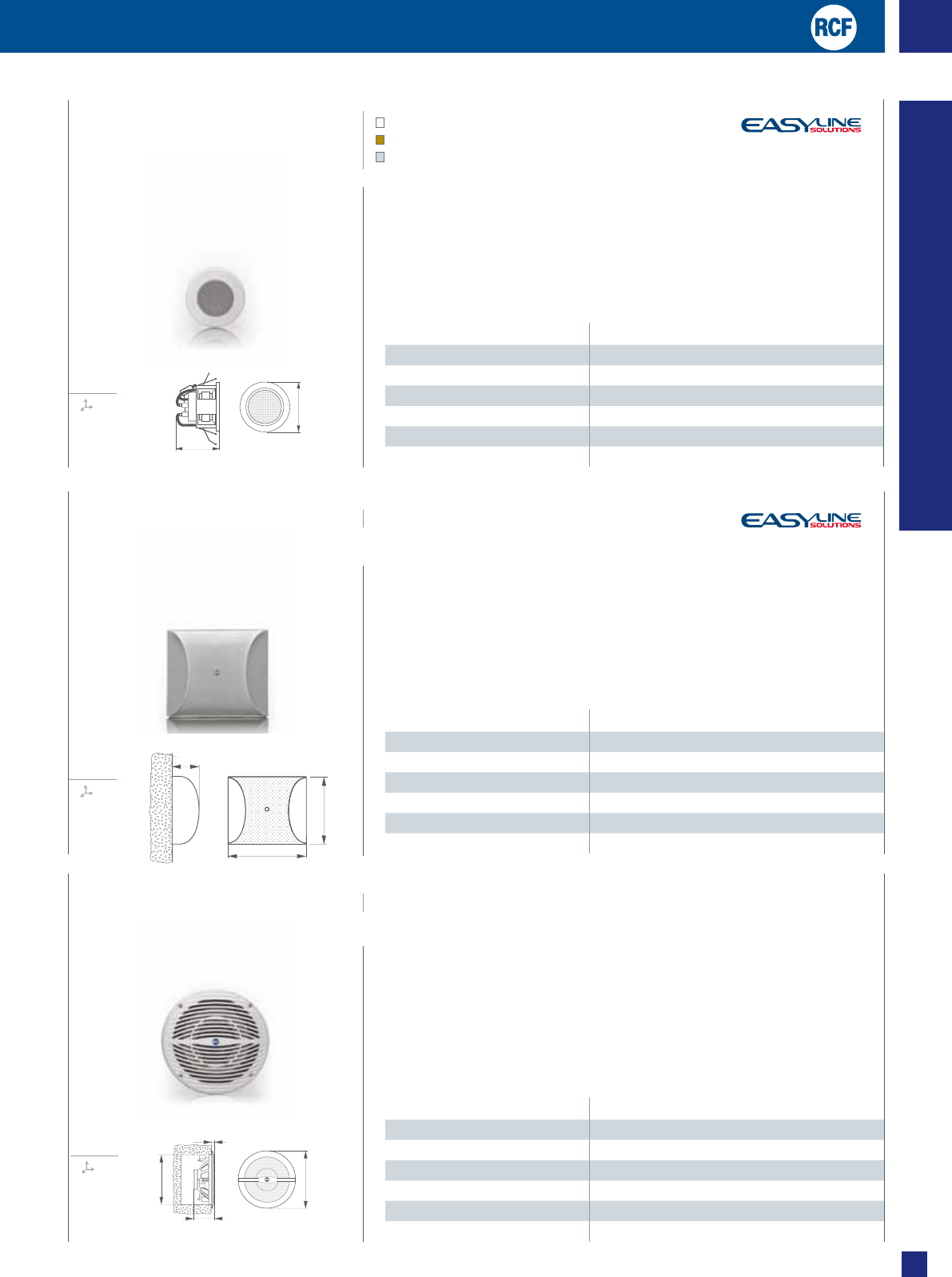

SPECIFICATIONS HS 1026 W
POWER 6 - 3 W (100 V)
CONSTANT VOLTAGE 100 V, 70 V
FREQUENCY RESPONSE 220 ÷ 17.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 89 dB
MAXIMUM SOUND PRESSURE 102 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 170°
SPECIFICATIONS WS 620XT
POWER 12 - 6 - 3 W (100 V)
CONSTANT VOLTAGE 100 V, 70 V
FREQUENCY RESPONSE 70 ÷ 20.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 91 dB
MAXIMUM SOUND PRESSURE 105 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 120°
SPECIFICATIONS DU 100X
POWER 10 - 5 - 2.5 - 1.25 - 0.75 W (100 V)
CONSTANT VOLTAGE 100 V, 70 V, 25 V
FREQUENCY RESPONSE 100 ÷ 18.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 93 dB
MAXIMUM SOUND PRESSURE 103 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 100° (HORIZ.); 140° (VERT.)
mm
1˙100 g
165
115
18
132
260240
250240
110
43
14
108
170
27
185
55
18
155
260
20
164 220
184
150
237
234
188
184
240
190
87
220
164
60
164
284
81
169
14
239
166
60
5
155
15
220
BS 8 - 1 BS 2620 - 2 DU 50BS - 3
Du 100X -4 CSN-N - 5 CSB-1T - 6
DA 1/N - 7 DP 3011- 8 WS 620 XT - 9
ELISA 50 - 10 ELISA 100 - 11
289
200
216
177
197
150
130
115
130
110
7
122 204
75
6
180 266
100
3
244
266
112
3
244
204
73
7
182
230
150
7
200 230
127
16
200
247
88
8
224
104
91
189
73
12
156
PL 40 - 22 PL 60 - 23 PL80/A -24
PL 6X - 25 PL 8X - 26 PL 81/A - 27
PL 60FD - 28 PL 70BS - 29 DS 313/WT - 30
HS 1026 - 31 DM 41 - 32 DM 61 - 33
165
115
18
132
260240
250240
110
43
14
108
170
27
185
55
18
155
260
20
164 220
184
150
237
234
188
184
240
190
87
220
164
60
164
284
81
169
14
239
166
60
5
155
15
220
BS 8 - 1 BS 2620 - 2 DU 50BS - 3
Du 100X -4 CSN-N - 5 CSB-1T - 6
DA 1/N - 7 DP 3011- 8 WS 620 XT - 9
ELISA 50 - 10 ELISA 100 - 11
mm
550 g
ÃFor paging and background music
ÃMusic power/RMS: 12/6 W - 2.5” extended range loudspeaker
ÃHigh-pass filter for use with optional subwoofer
ÃLow impedance (8Ω) or 100V
ÃBuilt-in multi-tapped transformer for 100/70V constant voltage connection
ÃEase of installation in standard holes used for lightspots
HS 1026W White p/n 131.10.062
HS 1026G Gold p/n 131.10.064
HS 1026C Chrome p/n 131.10.063
HS 1026W
HS 1026G
HS 1026C
SPOTLIGHT CEILING SPEAKER
CEILING AND COMPACT SPEAKERS
65
LOUDSPEAKERS
mm
1˙100 g
WS 620XT
TWO-WAY WEATHER RESISTANT
FULSH MOUNTING SPEAKER ÃWeather resistant splashproof speaker
ÃTwo way speaker system with coaxial tweeter, recommended for hi level speech and
background-music reproduction
ÃMusic power/RMS: 24/12W (20W if used at 4Ω)
Ã6” woofer with coaxial tweeter
ÃBody and grille in plastic RAL 9016 White
ÃIP 55 protection
p/n 131.33.044
DU 100X
COAXIAL SPEAKER
p/n 130.00.105
ÃIdeal for paging and background music, wall or ceiling installation
ÃMusic power/RMS: 20/10W
ÃDual-cone extended range loudspeaker, 4” diameter
ÃPlastic body with shock-proof metal grid
ÃBuilt-in multi-tapped transformer for 100/70V constant voltage connection
ÃBody in ABS and metal grille RAL 9003 White

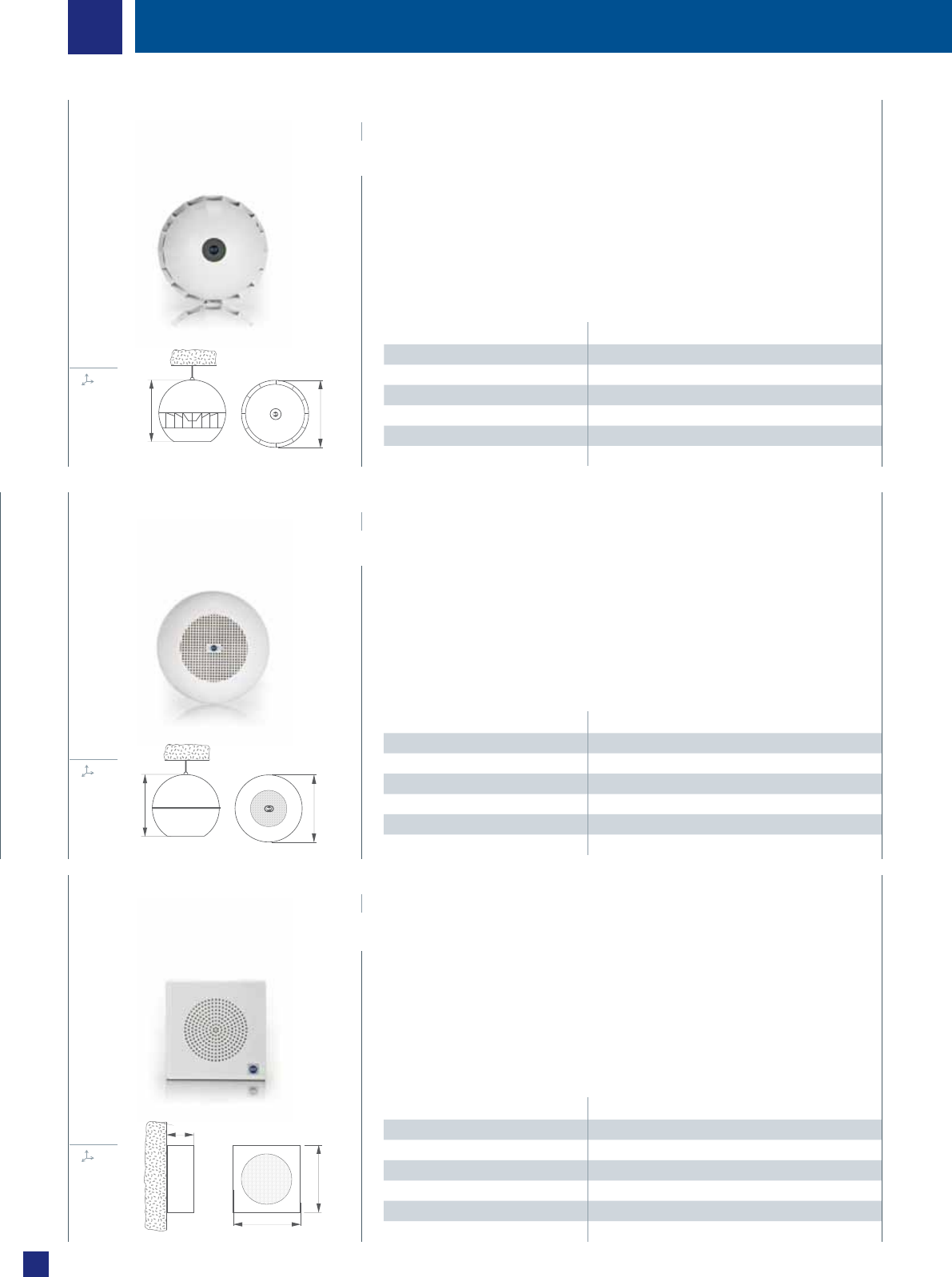

SPECIFICATIONS BS 2620
POWER 20-15-10-5-2.5 W (100 V)
CONSTANT VOLTAGE 100 V
FREQUENCY RESPONSE 50 ÷ 20.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 93 dB
MAXIMUM SOUND PRESSURE 106 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 360° (HORIZ.); 150° (VERT.)
SPECIFICATIONS DU 50BS
POWER 6-3-10-1.5-0.75 W (100 V)
CONSTANT VOLTAGE 100 V, 70 V
FREQUENCY RESPONSE 200 ÷ 12.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 91 dB
MAXIMUM SOUND PRESSURE 102 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 150°
SPECIFICATIONS BS 8
POWER 20-10-5 W (100 V)
CONSTANT VOLTAGE 100 V
FREQUENCY RESPONSE 160 ÷ 12.500 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 93 dB
MAXIMUM SOUND PRESSURE 106 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 360° (HORIZ.); 140° (VERT.)
p/n 131.33.049
mm
1˙200 g
mm
3˙000 g
mm
1˙100 g
165
115
18
132
260240
250240
110
43
14
108
170
27
185
55
18
155
260
20
164 220
184
150
237
234
188
184
240
190
87
220
164
60
164
284
81
169
14
239
166
60
5
155
15
220
BS 8 - 1 BS 2620 - 2 DU 50BS - 3
Du 100X -4 CSN-N - 5 CSB-1T - 6
DA 1/N - 7 DP 3011- 8 WS 620 XT - 9
ELISA 50 - 10 ELISA 100 - 11
ÃPendent speaker
ÃFor paging and background music
ÃMusic power/RMS: 40/20W
Ã6” diameter dual cone wide band speaker
Ã5-metre suspension and connection cable included
ÃWeather-resistant construction (IP55) for use both indoors and outdoors
ÃBody in self-extinguishing plastic UL94VO, UV ray protected, RAL 9010 White
ÃSpeaker designed for transmitting alarm messages with high intelligibility, and background
music
ÃMusical power/RMS: 12/6W
ÃWide-band dual cone loudspeaker, diameter 5”
ÃExtra-thick steel housing, terminal strip for connections made of ceramic material for flameproof
input and output cables, thermal fuse, suitable internal wiring
ÃIn compliance with norm BS 5839-8
ÃColour: RAL 9010 White
BS 2620
HIGH PERFORMANCE PENDENT BALL SPEAKER
DU 50BS
UNIVERSAL STEEL SPEAKER
ÃPendent speaker
ÃFor paging and background music
Ã8” diameter dual cone wide band speaker
ÃPlastic body - White RAL 9010
ÃBuilt-in transformer for 100V constant voltage connection
Ã5-metre suspension and connection cable included
BS 8
PENDENT BALL SPEAKER
p/n 131.33.054
p/n131.10.006
UNIVERSAL SPEAKERS
165
115
18
132
260240
250240
110
43
14
108
170
27
185
55
18
155
260
20
164 220
184
150
237
234
188
184
240
190
87
220
164
60
164
284
81
169
14
239
166
60
5
155
15
220
BS 8 - 1 BS 2620 - 2 DU 50BS - 3
Du 100X -4 CSN-N - 5 CSB-1T - 6
DA 1/N - 7 DP 3011- 8 WS 620 XT - 9
ELISA 50 - 10 ELISA 100 - 11
165
115
18
132
260240
250240
110
43
14
108
170
27
185
55
18
155
260
20
164 220
184
150
237
234
188
184
240
190
87
220
164
60
164
284
81
169
14
239
166
60
5
155
15
220
BS 8 - 1 BS 2620 - 2 DU 50BS - 3
Du 100X -4 CSN-N - 5 CSB-1T - 6
DA 1/N - 7 DP 3011- 8 WS 620 XT - 9
ELISA 50 - 10 ELISA 100 - 11
66

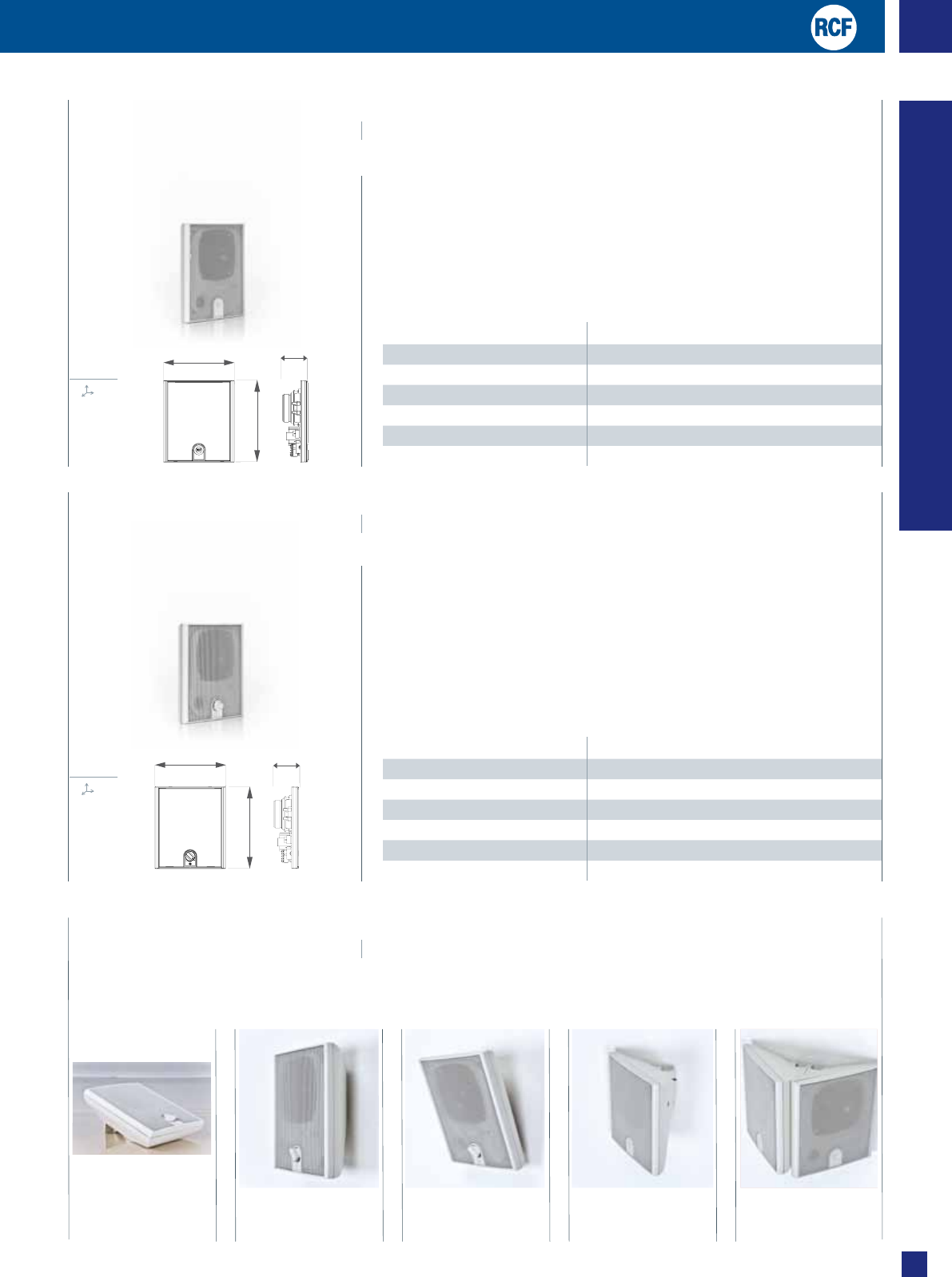

SPECIFICATIONS DU 31
POWER 8 - 4 -2 W (100 V) - 8 W (25 V)
CONSTANT VOLTAGE 100 V, 70 V, 25 V
FREQUENCY RESPONSE 100 - 17.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 82 dB
MAXIMUM SOUND PRESSURE 91 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 160°
SPECIFICATIONS DU 31AT
POWER 8 - 4 -2 - 1- 0,5 W (100 V) - 8 W (25 V)
CONSTANT VOLTAGE 100 V, 70 V, 25 V
FREQUENCY RESPONSE 100 - 17.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 82 dB
MAXIMUM SOUND PRESSURE 91 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 160°
170
170
145
145 70
70
170
170
145
145 70
70
UNIVERSAL SPEAKERS
p/n 133.60.123
mm
600 g
ÃQuickly and easily installed on any flat surface
ÃBody in plastic, RAL 9002 White Ivory
A1331
SURFACE MOUNT FOR
DU 31 / DU 31AT
ÃFor paging and background music for several type of installation
Ã2 way wall speaker with flexible design with wide band 3,5" woofer and 1" tweeter
ÃIncludes a transformer inside for the connection to (100 - 70 - 25 V) constant voltage lines
ÃPower selector 8 W, 4 W, 2W at 100 V and a 25 V (8W) socket makes it possible to connect
multiple speakers in parallel to a constant impedance line
ÃUniversal mounting in wall on the standard European flush mounting box (like Gewiss GW 48005
dimension 160(L) x 130(H) x 70(P) or B-Ticino 16205 dimension 170(L) x 145(H) x 70(P))
ÃBody in plastic, RAL 9002 White Ivory
DU 31
FLUSH MOUNT WALL SPEAKER
p/n 130.00.204
67
LOUDSPEAKERS
DU 31AT Table mounting
support with tilt 15°
DU31 and A1331 wall
mounting support
with tilt 0°
DU31 and A1331 wall
mounting support
with tilt 15°
DU31 and A1331 flag
mount support
unidirectional
2 x DU31 and
2 x A1331 flag mount
support bi-directional
mm
600 g
DU 31AT
FLUSH MOUNT WALL SPEAKER
WITH POWER SELECTOR
p/n 130.00.220
ÃFor paging and background music for several type of installation
Ã2 way wall speaker with flexible design with wide band 3,5" woofer and 1" tweeter
ÃWattage taps (8 W, 4 W, 2W, 1W, 0,5W at 100 V) is selectable by means of a Rotary switch,
accessible from the front panel
ÃIncludes a transformer inside for the connection to (100 - 70 - 25 V) constant voltage lines and a
25 V socket makes it possible to connect multiple speakers in parallel to a constant impedance line
ÃUniversal mounting in wall on the standard European flush mounting box (like Gewiss GW 48005
dimension 160(L) x 130(H) x 70(P) or B-Ticino 16205 dimension 170(L) x 145(H) x 70(P))
ÃBody in plastic, RAL 9002 White Ivory
SPECIFICATIONS DM 41-B16
POWER 15W
SPEAKER IMPEDANCE 16Ω
FREQUENCY RESPONSE 100 ÷ 20.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 87 dB
MAXIMUM SOUND PRESSURE 102 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 180° (HORIZ.); 170° (VERT.)
SPECIFICATIONS DM 61
POWER 25 - 15 - 10 - 5 W (100 V)
CONSTANT VOLTAGE 100 V, 70 V
FREQUENCY RESPONSE 100 ÷ 20.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 89 dB
MAXIMUM SOUND PRESSURE 106 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 120° (HORIZ.); 140° (VERT.)
289
200
216
177
197
150
130
115
130
110
7
122 204
75
6
180 266
100
3
244
266
112
3
244
204
73
7
182
230
150
7
200 230
127
16
200
247
88
8
224
104
91
189
73
12
156
PL 40 - 22 PL 60 - 23 PL80/A -24
PL 6X - 25 PL 8X - 26 PL 81/A - 27
PL 60FD - 28 PL 70BS - 29 DS 313/WT - 30
HS 1026 - 31 DM 41 - 32 DM 61 - 33
289
200
216
177
197
150
130
115
130
110
7
122 204
75
6
180 266
100
3
244
266
112
3
244
204
73
7
182
230
150
7
200 230
127
16
200
247
88
8
224
104
91
189
73
12
156
PL 40 - 22 PL 60 - 23 PL80/A -24
PL 6X - 25 PL 8X - 26 PL 81/A - 27
PL 60FD - 28 PL 70BS - 29 DS 313/WT - 30
HS 1026 - 31 DM 41 - 32 DM 61 - 33
289
200
216
177
197
150
130
115
130
110
7
122 204
75
6
180 266
100
3
244
266
112
3
244
204
73
7
182
230
150
7
200 230
127
16
200
247
88
8
224
104
91
189
73
12
156
PL 40 - 22 PL 60 - 23 PL80/A -24
PL 6X - 25 PL 8X - 26 PL 81/A - 27
PL 60FD - 28 PL 70BS - 29 DS 313/WT - 30
HS 1026 - 31 DM 41 - 32 DM 61 - 33
UNIVERSAL SPEAKERS
68

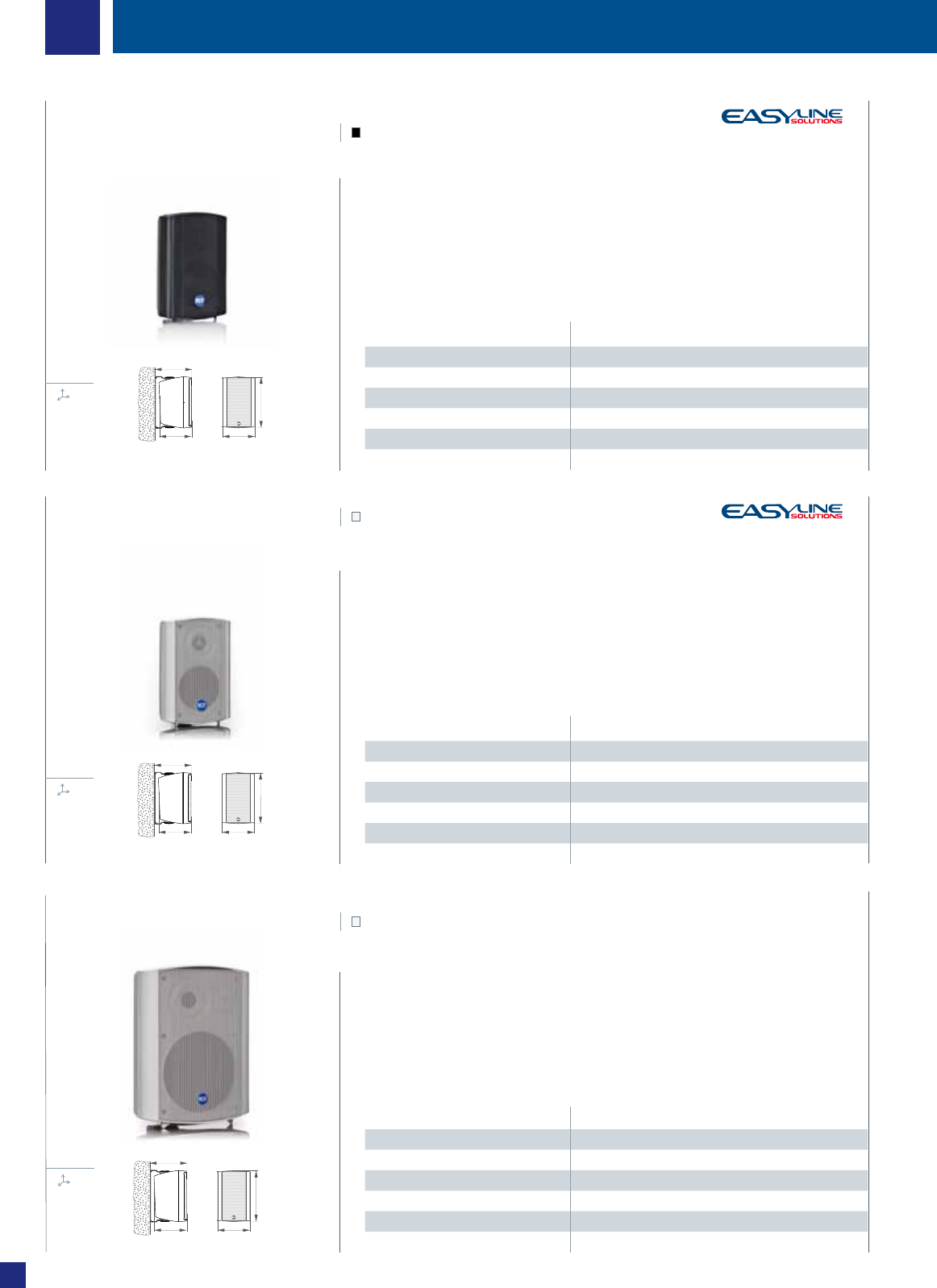

SPECIFICATIONS V
POWER 15 - 10 - 5 - 2.5 W (100 V) SELEZ.
CONSTANT VOLTAGE 100 V, 70 V
FREQUENCY RESPONSE 100 ÷ 20.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 87 dB
MAXIMUM SOUND PRESSURE 102 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 180° (HORIZ.); 170° (VERT.)
mm
1˙800 g
mm
1˙800 g
Ã3.5” woofer with mylar dome 1'' tweeter
ÃMusic power/RMS: 30 W/ 15 W
ÃBuilt-in multitap transformer for constant voltage system
ÃBody in self-extinguishing composite material
ÃIP55 protection, suitable for outdoor use
ÃAdjustable mounting accessory included
Ã3.5” woofer with mylar dome 1'' tweeter
ÃMusic power/RMS: 30 W/ 15 W
ÃBody in self-extinguishing composite material
ÃIP55 protection, suitable for outdoor use
ÃAdjustable mounting accessory included
ÃLow impedance version available (DM41-B16), 16Ω
DM 41 White Ivory p/n 130.00.049
DM 41-B16 Black p/n 130.00.185
DM 41
COMPACT TWO-WAY SPEAKER
DM 41- B 16
COMPACT TWO-WAY SPEAKER
mm
4˙000 g
ÃWoofer 6” with mylar dome tweeter
ÃProgram/rated power: 50/25W
ÃBuilt-in multitap transformer for constant voltage system
ÃBody in self-extinguishing composite material
ÃIP55 protection, suitable for outdoor use
ÃAdjustable mounting accessory included
DM 61
COMPACT TWO-WAY SPEAKER
DM 61 White Ivory p/n 130.00.050
SPECIFICATIONS E.LI.S.A. 100
POWER 10-5 W (100 V)
CONSTANT VOLTAGE 100 V, 70 V, 25 V, 4 Ω
FREQUENCY RESPONSE 100 ÷ 20.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 91 dB
MAXIMUM SOUND PRESSURE 104 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 160°
SPECIFICATIONS E.LI.S.A. 50
POWER 6-3-1 W (100 V)
CONSTANT VOLTAGE 100 V, 70 V, 25 V, 4 Ω
FREQUENCY RESPONSE 120 ÷ 16.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 88 dB
MAXIMUM SOUND PRESSURE 99 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 160°
mm
900 g
mm
1˙350 g
165
115
18
132
260240
250240
110
43
14
108
170
27
185
55
18
155
260
20
164
220
184
150
237
234
188
184
240
190
87
220
164
60
164
284
81
169
14
239
166
60
5
155
15
220
BS 8 - 1 BS 2620 - 2 DU 50BS - 3
Du 100X -4 CSN-N - 5 CSB-1T - 6
DA 1/N - 7 DP 3011- 8 WS 620 XT - 9
ELISA 50 - 10 ELISA 100 - 11
ÃFor high quality paging and background music
ÃMusic power/RMS: 20/10W (30/15W for use without transformer, 4Ω)
Ã4” coaxial speaker, main cone in carbon fibre, tweeter with 1” diaphragm
ÃEquipped with multi-tapped transformer for 100/70/25V constant voltage connection
ÃFlush mount box with soundproof material included
ÃFront frame in ABS and metal grille RAL 9003 White
p/n 131.10.072
E.LI.S.A. 100
TWO-WAY HI-DEFINITION COAXIAL
FLUSH MOUNT WALL SPEAKER
ÃFor high quality paging and background music
ÃMusic power/RMS: 12/6W (20/10W in use without transformer, 4Ω)
Ã3” extended range speaker with central equaliser, carbon fibre cone
ÃEquipped with multi-tapped transformer for 100/70/25V constant voltage connection
ÃFlush mount box with soundproof material included
ÃFront frame in ABS and metal grille RAL 9010 White
p/n 131.10.071
E.LI.S.A. 50
COMPACT HI-DEFINITION
FLUSH MOUNT WALL SPEAKER
ÃFlush mount box for E.LI.S.A. 50 speaker
ÃDimensions. 152x97x70 mm
AC 50B
FLUSH MOUNT BOX
p/n 133.60.038
ÃFlush mount box for E.LI.S.A. 100 speaker and DA1/N
ÃDimensions. 214x143x75 mm
AC 100B
FLUSH MOUNT BOX
p/n 133.60.037
UNIVERSAL SPEAKERS
165
115
18
132
260240
250240
110
43
14
108
170
27
185
55
18
155
260
20
164
220
184
150
237
234
188
184
240
190
87
220
164
60
164
284
81
169
14
239
166
60
5
155
15
220
BS 8 - 1 BS 2620 - 2 DU 50BS - 3
Du 100X -4 CSN-N - 5 CSB-1T - 6
DA 1/N - 7 DP 3011- 8 WS 620 XT - 9
ELISA 50 - 10 ELISA 100 - 11
ÃAccessory with ceramic terminal and a thermal fuse to connect a
loudspeaker in sound systems for emergency purposes
AC 1503
CERAMIC TERMINAL WITH
THERMAL FUSE ACCESSORY
p/n 133.60.112
69
LOUDSPEAKERS
MODEL CS 3041 CS 3082 CS 6520 CS6940
TYPE Column speaker two-way Column speaker two-way Column speaker two-way Column speaker two-way
INSTALLATION Wall Wall Wall Wall
COLOUR White White White White
SPEAKER 4 x 2” + 1” 8 x 2” + 2 x 1” 4 x 3.15” + 0.8” 8 x 3.15” + 0.8”
POWER NOM./MAX. 15 W RMS / 30 W 30 W RMS / 60 W 20 W RMS / 40 W 40 W RMS / 80 W
INPUT 100 V, 70 V 100 V, 70 V 100 V, 70 V 100 V, 70 V
FREQUENCY RESPONSE 160 - 20.000 Hz (? 3 dB) 180 - 20.000 Hz (? 3 dB) 250 ÷ 20.000 Hz 160 ÷ 20.000 Hz
MAX. SOUND PRESSURE 105 dB (1 m / POWER MAX) 111 dB (1 m / POWER MAX) 110 dB 113 dB
ANGLE OF COVERAGE 180° (Horiz) 70° (Ver) 180° (Horiz) 50° (Ver) 180° (Horiz) 60° (Ver) 180° (Horiz) 40° (Ver)
PROTECTION IP 66 IP 66
MODEL DP 1T/G DP 4 BD 42 DP 2X - DP 2X/1 DP1420BS BD 2412BS
TYPE Projector Projector Projector Bidirectional Projector two-way Projector Aluminium Projector All. Bidirec-
tional
INSTALLATION Wall o Flush Mounted Wall o Flush Mounted Wall o Flush Mounted Wall o Flush Mounted Wall o Flush Mounted Wall o Flush Mounted
COLOUR Grey Grey Grey White/Anthracite grey Grey Grey
SPEAKER 5” 5” 2 x 5” 5” + 1 “ 5” 2 x 5”
POWER NOM./MAX. 10 W RMS / 20 W 10 W RMS / 20 W 10 W RMS / 20 W 4 W RMS / 8 W 20 W RMS / 40 W 12 W RMS / 24 W
INPUT 100 V, 16 Ω100 V 100 V 100 V, 4 Ω100 V, 70 V, 100 V, 70 V,
FREQUENCY RESPONSE 50 ÷ 13.500 Hz 180 ÷ 16.000 Hz 180 ÷ 16.000 Hz 150 ÷ 18.000 Hz 150 ÷ 20.000 Hz 150 ÷ 20.000 Hz
MAX. SOUND PRESSURE 109 dB 104 dB 104 dB 102 dB 104 dB 102 dB
ANGLE OF COVERAGE 170° 130° 130°*110° 160° 120°*
PROTECTION IP 66, BS 5839-8 IP 55, BS 5839-8
Maximum speech intelligibility
for every public ambience and for any
kind of application.
SOUND PROJECTORS,
MONITORS AND
COLUMN SPEAKERS
* Valore riferito ad SINGLE LOUDSPEAKER
70
MODEL MR 33T MR 44T MR 55 MR 88 MQ 100L MQ 90S
TYPE Compact two-way Compact two-way Compact two-way Compact two-way Column speaker Three-way Subwoofer
INSTALLATION Wall Wall Wall Wall Wall Universal
COLOUR White/Black White/Black White/Black White/Black White/black White/Black
SPEAKER 4.75” + 0.5” 5” + 0.5” 5” + 0.75” 8” + 1” 2 x 3.5” + 2 x 3.5” + 0.75” 8”
POWER NOM./MAX. 40 W IEC 60 W IEC 175 W IEC 300 W IEC 80 W RMS / 160 W 60 W RMS / 120 W
INPUT 100 V, 70 V, 50 V, 25 V 100 V, 70 V, 50 V, 25 V 4 Ω8 Ω100 V, 70 V 100 V, 70 V
FREQUENCY RESPONSE 160 ÷ 20.000 Hz 150 ÷ 20.000 Hz 150 ÷ 20.000 Hz 70 ÷ 20.000 Hz 70 ÷ 20.000 Hz 70 ÷ 220 Hz
MAX. SOUND PRESSURE 105 dB 108 dB 112 dB 120 dB 120 dB 107 dB
ANGLE OF COVERAGE 110° (Horiz) 100° (Ver) 110° (Horiz) 100° (Ver) 110° (Horiz) 100° (Ver) 110° (Horiz) 80° (Ver) 180° (Horiz) 60° (Ver) -
PROTECTION - - - - -
MODEL MQ 50 MQ 60H MQ 50C MQ 50I MQ 30P MQ 80P
TYPE Compact two-way Compact two-way Ceiling two-way Compact two-way Compact two-way Compact two-way
INSTALLATION Wall Wall Ceiling Flush mounted Projector Projector
COLOUR White/Silver/Black White/Silver/Black White/Silver White/Silver White/Silver/Black White/Silver/Black
SPEAKER 5” + 0.75” 5” + 2 x 1” 5” + 1” 5” + 0.75” 3” + 0.75” 5” + 1”
POWER NOM./MAX. 60 W RMS / 120 W 60 W RMS / 120 W 60 W RMS / 120 W 60 W RMS / 120 W 12 W RMS / 24 W 60 W RMS / 120 W
INPUT 100 V, 70 V 100 V, 70 V 100 V, 70 V 100 V, 70 V 100 V, 70 V 100 V, 70 V
FREQUENCY RESPONSE 70 ÷ 20.000 Hz 100 ÷ 19.000 Hz 70 ÷ 20.000 Hz 180 ÷ 20.000 Hz 150 ÷ 20.000 Hz 100 ÷ 20.000 Hz
MAX. SOUND PRESSURE 110dB 109 dB 112 dB 108 dB 102 dB 115 dB
ANGLE OF COVERAGE 120° (Horiz) 90° (Ver) 180° (Horiz) 120° (Ver) 120° 120° (Horiz) 100° (Ver) 120° 90° (Horiz) 60° (Ver)
PROTECTION - - - - - IP 55
71
LOUDSPEAKERS
SPECIFICATIONS DP 1T/G
POWER 10 - 5 - 2.5 W (100 V)
CONSTANT VOLTAGE 100 V
FREQUENCY RESPONSE 50 ÷ 13.500 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 96 dB
MAXIMUM SOUND PRESSURE 109 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 170°
SPECIFICATIONS DP 4
POWER 10 - 5 - 2.5 W (100 V)
CONSTANT VOLTAGE 100 V
FREQUENCY RESPONSE 180 ÷ 16.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 91 dB
MAXIMUM SOUND PRESSURE 104 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 130°
SPECIFICATIONS BD 42
POWER 12 - 6 - 3 W (100 V)
CONSTANT VOLTAGE 100 V
FREQUENCY RESPONSE 180 ÷ 16.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 91 dB
MAXIMUM SOUND PRESSURE 104 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 130° (per single loudspeaker)
956
184 114
96
580
184 114
96
615
73 90
65
402
73 90
65
146
150
186
100
175
146
200
200
155
176
136
205
245
200
160
245
200
160
137
215
215
146
DP 4 - 12 DP 1 TG - 13 DP 1/STK - 14
DP 2X -15 DB 1420 - 16 BD 2412 - 17
CS 2012 - 18 CS 2020- 19 CS 6520 - 20
CS 6940 - 21
956
184 114
96
580
184 114
96
615
73 90
65
402
73 90
65
146
150
186
100
175
146
200
200
155
176
136
205
245
200
160
245
200
160
137
215
215
146
DP 4 - 12 DP 1 TG - 13 DP 1/STK - 14
DP 2X -15 DB 1420 - 16 BD 2412 - 17
CS 2012 - 18 CS 2020- 19 CS 6520 - 20
CS 6940 - 21
140
132
200
150
mm
1˙500 g
ÃIt’s ideal for train stations, underground stations, car parks, factories, warehouses, and PA
systems in general
ÃBidirectional sound projector with double loudspeaker, characterized by high acoustic
performance, excellent design and compact dimensions
ÃIP55 protection, suitable for outdoor use
Ã2 x 5” (130 mm) diameter extended range twin-cone loudspeaker
ÃBuilt-in multi-tapped transformer for 100 V constant voltage connection
ÃEquipped with aluminium "U" bracket. Body in ABS grey RAL 7035 with metal grill
p/n 130.00.247
BD 42
INDOOR / OUTDOOR BIDIRECTIONAL SOUND PROJECTOR
mm
1˙950 g
p/n 00.06.086
ÃIdeal for music and speech reproduction in particularly large and noisy environments
Ã5” (130 mm) diameter extended range high efficiency speaker in resonant cavity
ÃParticularly linear frequency response thanks to the use of an anti-resonance volume system
ÃBuilt-in multi-tapped transformer for 100 V constant voltage connection
Ã16-ohm input that can be selected on the projector
ÃBody in ABS and front grille in galvanised steel, RAL 7035 grey
ÃEquipped with hinged support that enables orientation in different directions
DP 1T/G
HIGH EFFICIENCY SOUND PROJECTOR
mm
1˙300 g
ÃIdeal for paging and background music
ÃIP55 protection, suitable for outdoor use
ÃMusic power/RMS: 20/10W
Ã5” (130 mm) diameter extended range twin-cone loudspeaker
ÃBuilt-in multi-tapped transformer for 100 V constant voltage connection
ÃEquipped with aluminium "U" bracket
ÃBody in ABS grey RAL 7035 with metal grill
p/n 130.00.106
DP 4
INDOOR / OUTDOOR SOUND PROJECTOR
SOUND PROJECTORS
72

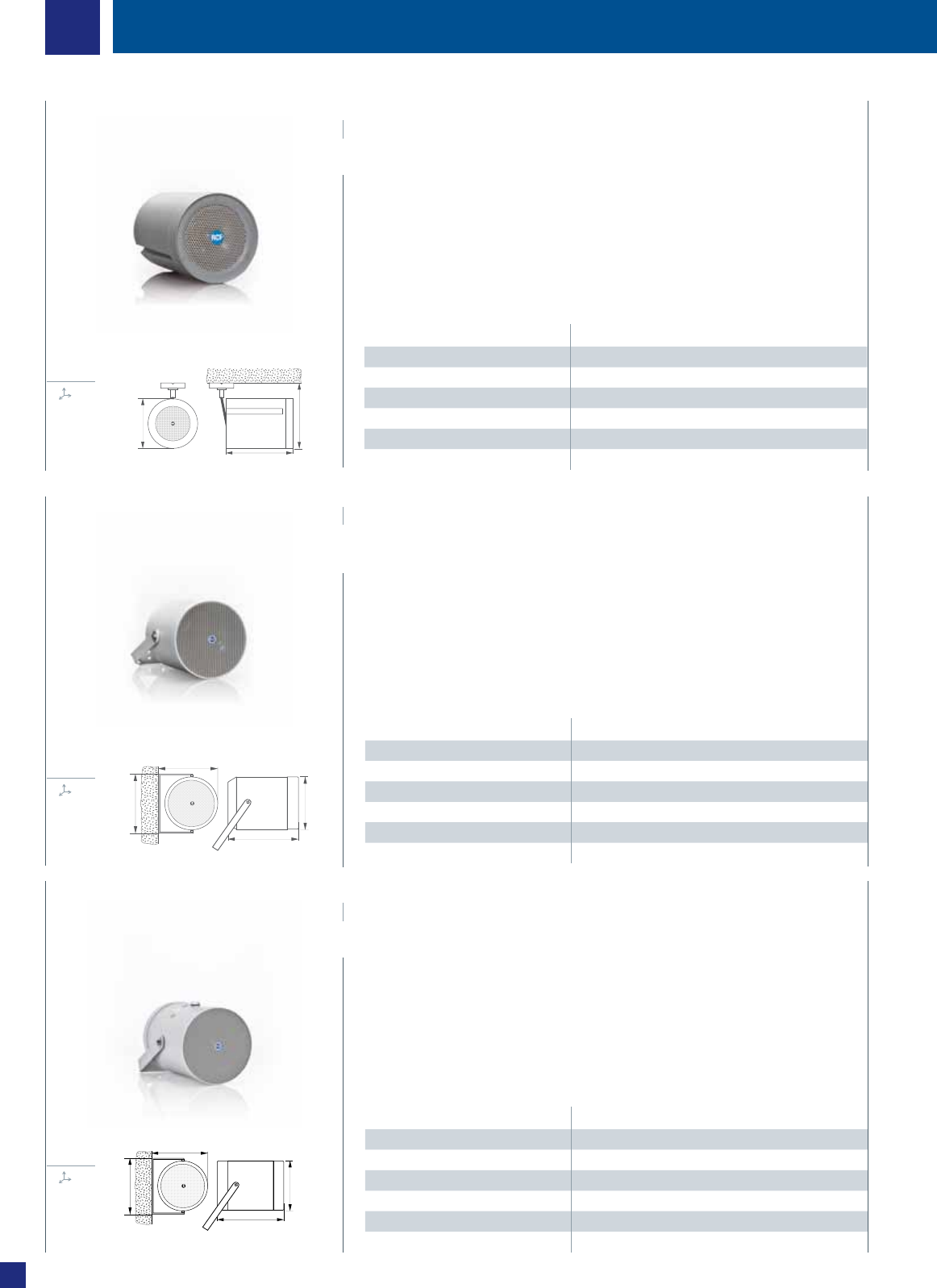

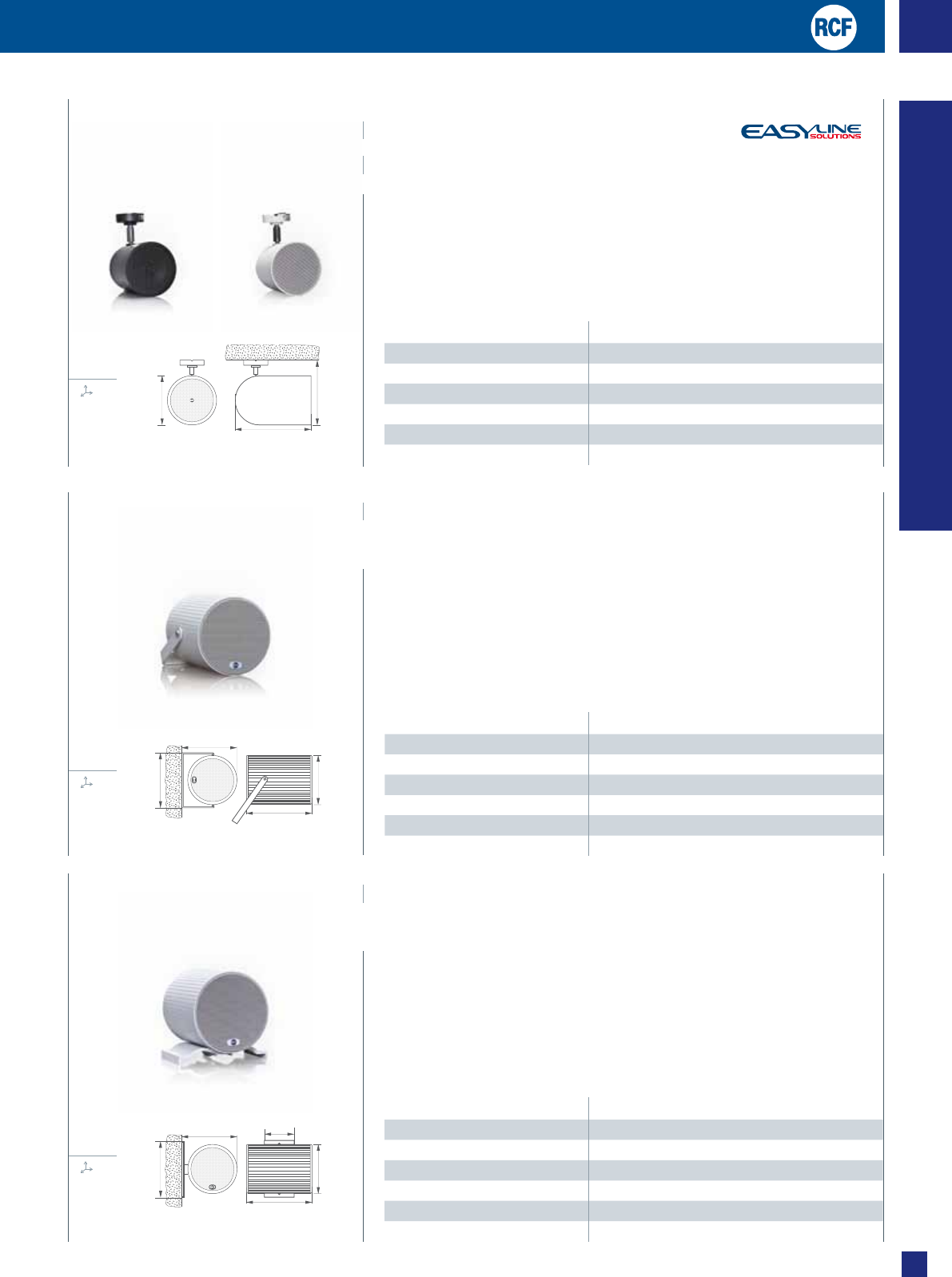

SPECIFICATIONS BD 2412 BS
POWER 12-6-3 W (100 V)
CONSTANT VOLTAGE 100 V, 70 V
FREQUENCY RESPONSE 150 ÷ 20.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 91 dB
MAXIMUM SOUND PRESSURE 102 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 120° (per SINGLE LOUDSPEAKER)
SPECIFICATIONS DP 1420BS
POWER 20-10-5 W (100 V)
CONSTANT VOLTAGE 100 V, 70 V
FREQUENCY RESPONSE 150 ÷ 20.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 91 dB
MAXIMUM SOUND PRESSURE 104 dB (1 m / POWER MAX) 2
ANGLE OF COVERAGE 160°
SPECIFICATIONS DP 2X - DP 2X/1
POWER 4-2-1 (100 V)
CONSTANT VOLTAGE 100 V
FREQUENCY RESPONSE 150 ÷ 18.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 94 dB
MAXIMUM SOUND PRESSURE 102 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 110°
mm
1˙100 g
mm
2˙500 g
mm
3˙200 g
956
184 114
96
580
184 114
96
615
73 90
65
402
73 90
65
146
150
186
100
175
146
200
200
155
176
136
205
245
200
160
245
200
160
137
215
215
146
DP 4 - 12 DP 1 TG - 13 DP 1/STK - 14
DP 2X -15 DB 1420 - 16 BD 2412 - 17
CS 2012 - 18 CS 2020- 19 CS 6520 - 20
CS 6940 - 21
956
184 114
96
580
184 114
96
615
73 90
65
402
73 90
65
146
150
186
100
175
146
200
200
155
176
136
205
245
200
160
245
200
160
137
215
215
146
DP 4 - 12 DP 1 TG - 13 DP 1/STK - 14
DP 2X -15 DB 1420 - 16 BD 2412 - 17
CS 2012 - 18 CS 2020- 19 CS 6520 - 20
CS 6940 - 21
956
184 114
96
580
184 114
96
615
73 90
65
402
73 90
65
146
150
186
100
175
146
200
200
155
176
136
205
245
200
160
245
200
160
137
215
215
146
DP 4 - 12 DP 1 TG - 13 DP 1/STK - 14
DP 2X -15 DB 1420 - 16 BD 2412 - 17
CS 2012 - 18 CS 2020- 19 CS 6520 - 20
CS 6940 - 21
ÃBidirectional sound projector with double loudspeaker, characterized by high acoustic
performance, excellent design and compact dimensions
ÃComplying with BS5839-8 standard thanks to ceramic termination block, thermal fuse and
internal fire-resistant cable
ÃIP 55 protection, suitable for outdoor use
ÃIt’s ideal for train stations, underground stations, car parks, factories, warehouses, and PA
systems in general
ÃContinuous nominal power: 12/24 W ([100 V]: 12-6-3 W - [70 V]: 12-6-3 W)
p/n 131.33.057
BD 2412 BS
ALUMINIUM BIDIRECTIONAL SOUND PROJECTOR
ÃUnidirectional sound projector characterized by high acoustic performance.
ÃComplying with BS5839-8 standard thanks to ceramic termination block, thermal fuse and
internal fire-resistant cable
ÃIP 66 protection, suitable for outdoor use
ÃIt’s ideal for train stations, underground stations, car parks, factories, warehouses, and PA
systems in general
ÃContinuous nominal power: 20/40 W ([100 V]: 20-10-5 W - [70V]: 20-10-5 W)
ÃIdeal for paging and background music
ÃMusic power/RMS: 8/4W
Ã5” diameter extended range loudspeaker
ÃEquipped with hinged support that makes it possible to orient the speaker in any direction
ÃDP 2X: body in ABS, RAL 7016 anthracite grey, metal grille RAL 9005 black
ÃDP 2X/1: body in ABS RAL 9003 White, metal grille White
DP 1420BS
ALUMINIUM SOUND PROJECTOR
p/n 131.33.058
p/n 130.00.104
p/n 130.00.107
DP 2X
DP 2X/1
TWO-WAY SOUND PROJECTOR
SOUND PROJECTORS
73
LOUDSPEAKERS
SPECIFICATIONS CS 3041
POWER 15 W - 10 W - 5 W
CONSTANT VOLTAGE 100 V
FREQUENCY RESPONSE 160 - 20.000 Hz (? 3 dB)
SENSITIVITY (1 m / 1 W) (1 m / 1 W) 87 dB
MAXIMUM SOUND PRESSURE 105 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 165° (HORIZ.); 75° (VERT.)
956
184 114
96
580
184 114
96
670
70 76
65
430
70 76
65
146
150
186
100
175
146
200
200
155
176
136
205
245
200
160
245
200
160
137
215
215
146
DP 4 - 12 DP 1 TG - 13 DP 1/STK - 14
DP 2X -15 DB 1420 - 16 BD 2412 - 17
CS 2012 - 18 CS 2020- 19 CS 6520 - 20
CS 6940 - 21
956
184 114
96
580
184 114
96
670
70 76
65
430
70 76
65
146
150
186
100
175
146
200
200
155
176
136
205
245
200
160
245
200
160
137
215
215
146
DP 4 - 12 DP 1 TG - 13 DP 1/STK - 14
DP 2X -15 DB 1420 - 16 BD 2412 - 17
CS 2012 - 18 CS 2020- 19 CS 6520 - 20
CS 6940 - 21
1˙700 g
mm
SPECIFICATIONS CS 3082
POWER 30 W - 20 W - 10 W
CONSTANT VOLTAGE 100 V
FREQUENCY RESPONSE 180 - 20.000 Hz (? 3 dB)
SENSITIVITY (1 m / 1 W) (1 m / 1 W) 90 dB
MAXIMUM SOUND PRESSURE 111 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 165° (HORIZ.); 75° (VERT.)
mm
2˙700 g
ÃIdeal for speech reproduction, shape designed to enable corner installation
ÃEight 50 mm (2”) diameter extended range speakers and two tweeter 25
mm (1”)
ÃBody in extruded aluminium bake-painted RAL 9003 White and front metal
grille RAL 9010 White, includes accessory for wall mounting
ÃBuilt-in multi-tapped transformer (30 - 20 - 10 W) for 100 V constant
voltage connection
Ã16-ohm input that can be selected on the terminal block
ÃAudio connection on screw terminal block
p/n 130.00.232
CS 3082
SLIM-LINE COLUMN SPEAKER
ÃIdeal for speech reproduction, shape designed to enable corner installation
ÃFour 50 mm (2”) diameter extended range speakers and one tweeter 25 mm (1”)
ÃBody in extruded aluminium bake-painted RAL 9003 White and front metal
grille RAL9010 White, includes accessory for wall mounting
ÃBuilt-in multi-tapped transformer (15 - 10 - 5 W) for 100 V constant voltage
connection
Ã16-ohm input that can be selected on the terminal block
ÃAudio connection on screw terminal block
p/n 130.00.231
CS 3041
SLIM-LINE COLUMN SPEAKER
COLUMN SPEAKERS
74
SPECIFICATIONS CS 6940
POWER 40 - 20 - 10 - 5 W (100 V)
CONSTANT VOLTAGE 100 V, 70 V
FREQUENCY RESPONSE 160 ÷ 20.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 94 dB
MAXIMUM SOUND PRESSURE 113 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 180° (HORIZ.); 40° (VERT.)
SPECIFICATIONS CS 6520
POWER 20 - 10 - 5 - 2.5 W (100 V)
CONSTANT VOLTAGE 100 V, 70 V
FREQUENCY RESPONSE 250 ÷ 20.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 94 dB
MAXIMUM SOUND PRESSURE 110 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 180° (HORIZ.); 60° (VERT.)
956
184 114
96
580
184 114
96
615
73 90
65
402
73 90
65
146
150
186
100
175
146
200
200
155
176
136
205
245
200
160
245
200
160
137
215
215
146
DP 4 - 12 DP 1 TG - 13 DP 1/STK - 14
DP 2X -15 DB 1420 - 16 BD 2412 - 17
CS 2012 - 18 CS 2020- 19 CS 6520 - 20
CS 6940 - 21
956
184 114
96
580
184 114
96
615
73 90
65
402
73 90
65
146
150
186
100
175
146
200
200
155
176
136
205
245
200
160
245
200
160
137
215
215
146
DP 4 - 12 DP 1 TG - 13 DP 1/STK - 14
DP 2X -15 DB 1420 - 16 BD 2412 - 17
CS 2012 - 18 CS 2020- 19 CS 6520 - 20
CS 6940 - 21
mm
4˙200 g
7˙000 g
mm
ÃIdeal for speech reproduction with high intelligibility in acoustically difficult
environments, both indoors and outdoors, also suitable for music
ÃMusic power/RMS: 80/40W
ÃEight 3” diameter speakers, one 20mm tweeter, filtered and connected for
improved control of vertical dispersion
à Weather-resistant construction IP 66 for use also outdoors, sturdy hinged
support in resin, stainless steel fasteners
ÃBody in aluminium and front grille in steel bake-painted RAL 9003 White
ÃArticulated support for wall mounting included
p/n 131.50.006
CS 6940
TWO-WAY HIGH DIRECTIVITY
COLUMN SPEAKER
ÃIdeal for speech reproduction with high intelligibility in acoustically difficult
environments, both indoors and outdoors, also suitable for music
ÃMusic power/RMS: 40/20W
ÃFour 3” mid-woofer speakers and one central 20mm tweeter
ÃWeather-resistant construction IP 66 for use also outdoors, sturdy hinged
support in resin, stainless steel fasteners
ÃBody in aluminium and front grille in steel bake-painted RAL 9003 White
ÃArticulated support for wall mounting included
p/n 131.50.005
CS 6520
TWO-WAY COLUMN SPEAKER
COLUMN SPEAKERS
75
LOUDSPEAKERS
SPECIFICATIONS MONITOR 44T
POWER 40 - 30 - 20 - 10 - 5 W (100 V)
CONSTANT VOLTAGE 100 V, 70 V, 50 V, 25 V
FREQUENCY RESPONSE 150 ÷ 20.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 89 dB
MAXIMUM SOUND PRESSURE 108 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 110° (HORIZ.); 100° (VERT.)
SPECIFICATIONS MR 33T
POWER 20 - 10 - 5 - 2.5 - 1 W (100 V)
CONSTANT VOLTAGE 100 V, 70 V, 50 V, 25 V
FREQUENCY RESPONSE 160 ÷ 20.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 88 dB
MAXIMUM SOUND PRESSURE 105 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 110° (HORIZ.); 100° (VERT.)
mm
2˙200 g
mm
3˙600 g
266
156
10
245
216
154
136
270
187
172
270
187
172
430
290
260
800
290508
300
205400
104
100170
186
223
191236
319
245
165
175
297
198
122
268
195
88
27
228
163
MR 33 - 34 MR 44 - 35 MR 55 - 36
MR 88 -37 MSW 8 - 38 MQ 90 - 39
MQ 30P - 40 MQ 80P- 41 MQ 50 - 42
MQ 60 - 43 MQ 50C - 44 MQ 50I - 45
266
156
10
245
216
154
136
270
187
172
270
187
172
430
290
260
800
290508
300
205400
104
100170
186
223
191236
319
245
165
175
297
198
122
268
195
88
27
228
163
MR 33 - 34 MR 44 - 35 MR 55 - 36
MR 88 -37 MSW 8 - 38 MQ 90 - 39
MQ 30P - 40 MQ 80P- 41 MQ 50 - 42
MQ 60 - 43 MQ 50C - 44 MQ 50I - 45
MA 3B - MA 3W
WALL MOUNT BRACKET
MA 5B - MA 5W
WALL MOUNT BRAKET
MA 3B Black p/n 00.08.056
MA 3W White p/n 00.08.057
Bracket for mounting one MR 33T speaker on
the wall
MA 5B Black p/n 00.08.058
MA 5W White p/n 00.08.059
Bracket for mounting one Monitor 44T
or 55 series speaker on the wall
MR 44T
MR 44WT
TWO-WAY MONITOR SPEAKERS
WITH TRANSFORMER
ÃIdeal for high quality paging and music reproduction
ÃLow impedance (4Ω - 40W) or 100V operating mode
ÃTwo-way system, woofer with carbon fiber cone, 0.5” tweeter in Mylar on constant directivity
horn
ÃBuilt-in low inductance passive crossover, bass reflex @150Hz
ÃOrientable mounting accessory included
ÃBody in self-extinguishing composite material, UV resistant
ÃIdeal for high quality paging and music reproduction
ÃLow impedance (4Ω - 60W) or 100V operating mode
à Transducers LF 5” - HF 0.5” constant directivity tweeter
ÃBuilt-in low inductance passive crossover with high frequency dynamic protection, bass reflex
@65Hz
ÃBody in self-extinguishing plastic
ÃIncludes hinged support for installation
MR 33T Black p/n 00.07.140
MR 33WT White p/n 00.07.141
MR 44T Black p/n 00.07.142
MR 44WT White p/n 00.07.354
MR 33T
MR 33WT
TWO-WAY COMPACT MONITOR SPEAKERS
WITH TRANSFORMER
MONITOR SERIES
76
SPECIFICATIONS MONITOR 88
NOMINAL POWER 300 W (IEC268-1)
SPEAKER IMPEDANCE 8 Ω
FREQUENCY RESPONSE 70 ÷ 20.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 91 dB
MAXIMUM SOUND PRESSURE 120 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 110° (HORIZ.); 80° (VERT.)
SPECIFICATIONS MONITOR 55
NOMINAL POWER 175 W (IEC268-1)
SPEAKER IMPEDANCE 4 Ω
FREQUENCY RESPONSE 100 ÷ 19.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 87 dB
MAXIMUM SOUND PRESSURE 112dB (1 m / POWER MAX)
ANGLE OF COVERAGE 110° (HORIZ.); 100° (VERT.)
mm
3˙900 g
mm
9˙800 g
266
156
10
245
216
154
136
270
187
172
270
187
172
430
290
260
800
290508
300
205400
104
100170
186
223
191236
319
245
165
175
297
198
122
268
195
88
27
228
163
MR 33 - 34 MR 44 - 35 MR 55 - 36
MR 88 -37 MSW 8 - 38 MQ 90 - 39
MQ 30P - 40 MQ 80P- 41 MQ 50 - 42
MQ 60 - 43 MQ 50C - 44 MQ 50I - 45
266
156
10
245
216
154
136
270
187
172
270
187
172
430
290
260
800
290508
300
205400
104
100170
186
223
191236
319
245
165
175
297
198
122
268
195
88
27
228
163
MR 33 - 34 MR 44 - 35 MR 55 - 36
MR 88 -37 MSW 8 - 38 MQ 90 - 39
MQ 30P - 40 MQ 80P- 41 MQ 50 - 42
MQ 60 - 43 MQ 50C - 44 MQ 50I - 45
MR 88
MR 88W
TWO-WAY HIGH-POWER MONITOR
SPEAKERS
MR 55
MR 55W
TWO-WAY HIGH DEFINITION
MONITOR SPEAKERS ÃIdeal for high quality paging and music reproduction
ÃTransducers LF 5” - HF 0.75” constant directivity tweeter
ÃBuilt-in low inductance passive crossover with high frequency dynamic protection, bass reflex
@65Hz
ÃBody in self-extinguishing plastic
ÃIncludes hinged support for installation
ÃHigh quality music reproduction
ÃTransducers LF 8” - HF 1” constant directivity tweeter
ÃBuilt-in low inductance passive crossover with high frequency dynamic protection, bass reflex
@65Hz
ÃBody in self-extinguishing plastic
ÃIncludes hinged support for installation
MR 55 Black p/n 00.07.143
MR 55 White p/n 00.07.355
MR 88 Black p/n 130.00.021
MR 88 White p/n 130.00.022
p/n 133.60.009 p/n 133.20.054
MA 4X
CEILING MOUNT BRACKET
MA 8-2
WALL MOUNT SUPPORT
Bracket for installing four Monitor MR 33T - MR 44T - MR 55 speakers on
the ceiling in cluster configuration
Support with ball joint for mounting one Monitor 88 speaker on the wall
MONITOR SERIES
77
LOUDSPEAKERS

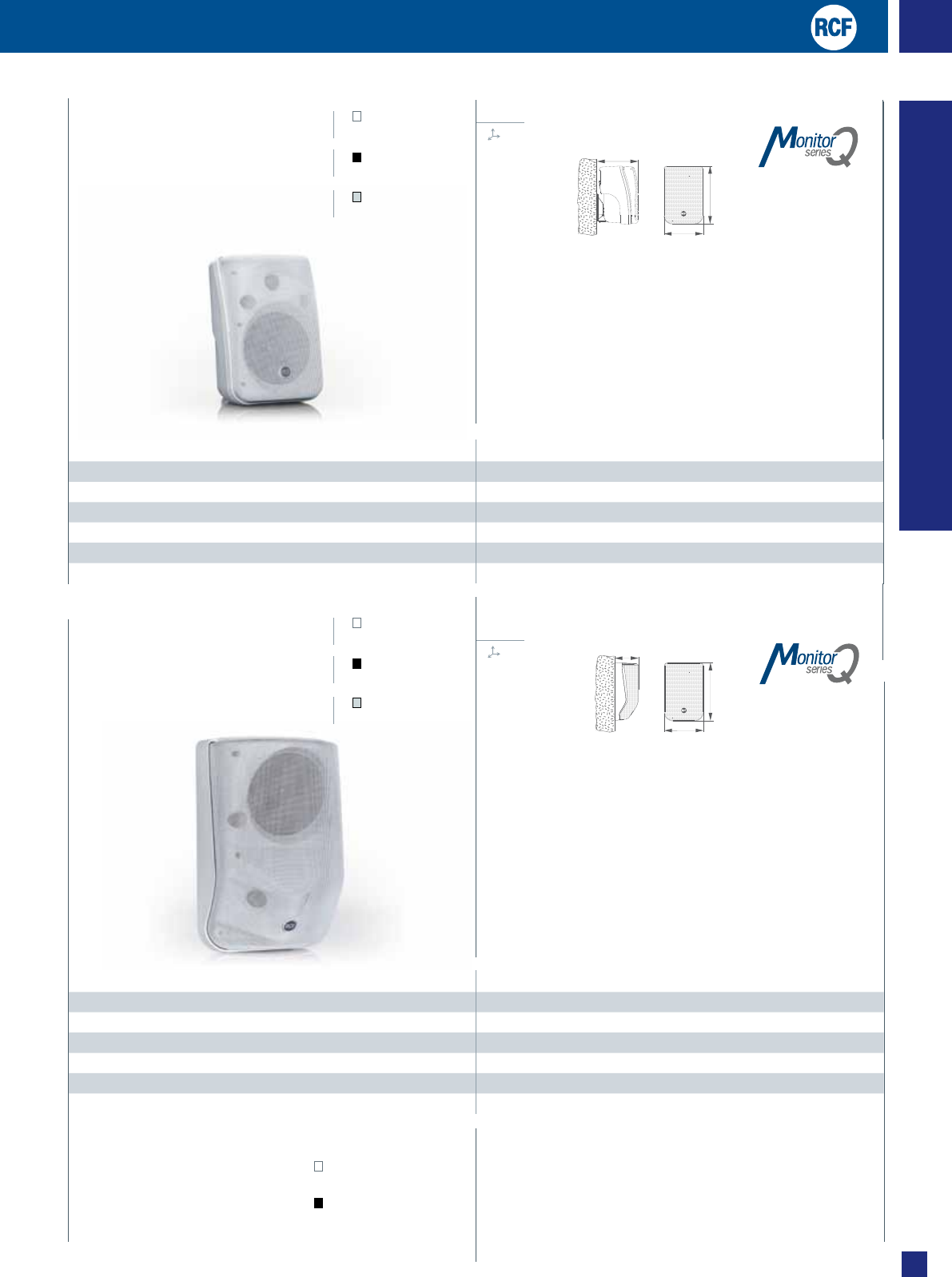

SPECIFICATIONS MQ 80P
POWER 30 - 20 - 10 - 5 W (100 V)
CONSTANT VOLTAGE 100 V, 70 V
FREQUENCY RESPONSE 100 ÷ 20.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 94 dB
MAXIMUM SOUND PRESSURE 115 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 90° (HORIZ.); 60° (VERT.)
SPECIFICATIONS MQ 30P
POWER 12 - 6 W (100 V)
CONSTANT VOLTAGE 100 V, 70 V
FREQUENCY RESPONSE 150 ÷ 20.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 88 dB
MAXIMUM SOUND PRESSURE 102 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 120°
266
156
10
245
216
154
136
270
187
172
270
187
172
430
290
260
800
290508
300
205400
104
100170
186
223
191236
319
245
165
175
297
198
122
268
195
88
27
228
163
MR 33 - 34 MR 44 - 35 MR 55 - 36
MR 88 -37 MSW 8 - 38 MQ 90 - 39
MQ 30P - 40 MQ 80P- 41 MQ 50 - 42
MQ 60 - 43 MQ 50C - 44 MQ 50I - 45
266
156
10
245
216
154
136
270
187
172
270
187
172
430
290
260
800
290508
300
205400
104
100170
186
223
191236
319
245
165
175
297
198
122
268
195
88
27
228
163
MR 33 - 34 MR 44 - 35 MR 55 - 36
MR 88 -37 MSW 8 - 38 MQ 90 - 39
MQ 30P - 40 MQ 80P- 41 MQ 50 - 42
MQ 60 - 43 MQ 50C - 44 MQ 50I - 45
3˙000 g
1˙100 g
mm
mm
ÃSpeaker: woofer 5” horn-loaded, 1” horn-loaded compression driver with
phase-plug loaded on CD horn
ÃPower/RMS: 120/60 W Bypass
ÃImpedance: [Bypass] 8 Ω
Ã[70.7V]: 15W - 10W - 5W - 2.5W
ÃTuning frequency: 100 Hz
ÃCrossover frequency: 3000 Hz Crossover: Notch/6 dB/oct
ÃCabinet: self-extinguishing high-density polystyrene, UV stabilized
ÃIP 55, suitable for outdoor use
ÃSuitable for cluster installation (2x, 3x) for a wide and uniform coverage
MQ 80P
ÃOrientable mini-speaker fir high quality reproduction
ÃTwo way coaxial speaker: LF 3.5” - tweeter 0.75” dome
ÃPower/RMS: 24/12 W Bypass
ÃConstant voltage: 70.7 - 100 V
ÃImpedance: [Bypass] 16 Ω
ÃCrossover frequencies: 5400 Hz, 6/6 dB/oct
ÃBuilt-in High-Pass filter at 150 Hz for integration with a subwoofer
ÃCabinet: Hi-density polystyrene HB grade
ÃConnectors: Euroblock, removable for easy installation
MQ 30P MQ 30P-W White
p/n 130.00.058
MQ 30P-B Black
p/n 130.00.068
MQ 30P-S Silver
p/n 130.00.067
MQ 80P-W White
p/n 130.00.096
MQ 80P-B Black
p/n 130.00.094
MQ 80P-S Silver
p/n 130.00.095
MONITOR Q SERIES
MINIATURE TWO-WAY COAXIAL
SPEAKER
TWO-WAY INDOOR / OUTDOOR
MONITOR
78
MONITOR Q SERIES
SPECIFICATIONS MQ 60H
POWER 30 - 20 - 10 - 5 W (100 V)
CONSTANT VOLTAGE 100 V, 70 V
FREQUENCY RESPONSE 100 ÷ 19.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 88 dB
MAXIMUM SOUND PRESSURE 109 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 180° (HORIZ.); 120° (VERT.)
SPECIFICATIONS MQ 50
POWER 30 - 20 - 10 - 5 W (100 V)
CONSTANT VOLTAGE 100 V, 70 V
FREQUENCY RESPONSE 70 ÷ 20.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 89 dB
MAXIMUM SOUND PRESSURE 110 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 120° (HORIZ.); 90° (VERT.)
266
156
10
245
216
154
136
270
187
172
270
187
172
430
290
260
800
290508
300
205400
104
100170
186
223
191236
319
245
165
175
297
198
122
268
195
88
27
228
163
MR 33 - 34 MR 44 - 35 MR 55 - 36
MR 88 -37 MSW 8 - 38 MQ 90 - 39
MQ 30P - 40 MQ 80P- 41 MQ 50 - 42
MQ 60 - 43 MQ 50C - 44 MQ 50I - 45
mm
3˙000 g
266
156
10
245
216
154
136
270
187
172
270
187
172
430
290
260
800
290508
300
205400
104
100170
186
223
191236
319
245
165
175
297
198
122
268
195
88
27
228
163
MR 33 - 34 MR 44 - 35 MR 55 - 36
MR 88 -37 MSW 8 - 38 MQ 90 - 39
MQ 30P - 40 MQ 80P- 41 MQ 50 - 42
MQ 60 - 43 MQ 50C - 44 MQ 50I - 45
mm
3˙000 g
ÃAC MQ60HLINK accessories, available in black or White can be used to
support 2 MQ 60H speakers to form an Omni directional high quality
speaker array (360°) dispersion over a horizontal surface which is controlled
over a vertical surface.
ÃMQ 60H Link is made in fibre-glass loaded nylon and it is provided with
the slide-insupports for the direct mounting of the two MQ 60H speaker
systems.
ÃCentral fixing ring for the safe suspension of the speaker assembly through a
chain or a steel-wire.
MQ 60H Link W
MQ 60H Link B
ACCESSORIES
ÃTwo way Bass reflex speaker for music reproduction
ÃSpeaker: woofer 5” - tweeter 2 x 1” dome
ÃPower/RMS: 120/60 W Bypass
ÃImpedance: [Bypass] 16 Ω
ÃLine transformer [100V]: 30W - 20W - 10W - 5W - [70.7V]: 15W - 10W -
5W - 2.5W
ÃCrossover frequencies: 2600 Hz. Crossover: 12/12 dB/oct
ÃProtection: Dynamic on woofer and tweeter
ÃCabinet: Hi-density polystyrene HB grade
ÃConnectors: Euroblock, removable for easy installation
MQ 60H
ÃTwo way Bass reflex speaker for music reproduction
ÃSpeaker: woofer 5” - tweeter 0.75” dome
ÃPower/RMS: 120/60 W Bypass
ÃImpedance: [Bypass] 16 Ω
ÃCrossover frequencies: 4500 Hz, 12/12 dB/oct
ÃProtection: Dynamic on woofer and tweeter
ÃCabinet: Hi-density polystyrene HB grade
ÃConnectors: Euroblock, removable for easy installation
MQ 50
White p/n 133.60.080
Black p/n 133.60.081
MQ 50-W White
p/n 130.00.056
MQ 50-B Black
p/n 130.00.070
MQ 50-S Silver
p/n 130.00.069
MQ 60H-W White
p/n 130.00.060
MQ 60H-B Black
p/n 130.00.072
MQ 60H-S Silver
p/n 130.00.071
TWO-WAY MONITOR
WIDE DISPERSION CONSTANT
DIRECTIVITY MONITOR
79
LOUDSPEAKERS
SPECIFICATIONS MQ 50i
POWER 30 - 20 - 10 - 5 W (100 V)
CONSTANT VOLTAGE 100 V, 70 V
FREQUENCY RESPONSE 180 ÷ 20.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 90 dB
MAXIMUM SOUND PRESSURE 108 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 120° (HORIZ.); 100° (VERT.)
SPECIFICATIONS MQ 50C
POWER 30 - 20 - 10 - 5 W (100 V)
CONSTANT VOLTAGE 100 V, 70 V
FREQUENCY RESPONSE 70 ÷ 20.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 92 dB
MAXIMUM SOUND PRESSURE 112 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 120°
266
156
10
245
216
154
136
270
187
172
270
187
172
430
290
260
800
290508
300
205400
104
100170
186
223
191236
319
245
165
175
297
198
122
268
195
88
27
228
163
MR 33 - 34 MR 44 - 35 MR 55 - 36
MR 88 -37 MSW 8 - 38 MQ 90 - 39
MQ 30P - 40 MQ 80P- 41 MQ 50 - 42
MQ 60 - 43 MQ 50C - 44 MQ 50I - 45
266
156
10
245
216
154
136
270
187
172
270
187
172
430
290
260
800
290508
300
205400
104
100170
186
223
191236
319
245
165
175
297
198
122
268
195
88
27
228
163
MR 33 - 34 MR 44 - 35 MR 55 - 36
MR 88 -37 MSW 8 - 38 MQ 90 - 39
MQ 30P - 40 MQ 80P- 41 MQ 50 - 42
MQ 60 - 43 MQ 50C - 44 MQ 50I - 45
3˙000 g
2˙150 g
mm
mm
ÃIn-wall speaker system for music reproduction
ÃTwo way bass reflex construction for flush mount
ÃSpeaker: woofer 5” neodymium magnet, 0.75” dome tweeter
ÃPower: max. 60W (bypass)
ÃImpedance: [Bypass] 16 Ω
Ã[70.7V]: 15W - 10W - 5W - 2.5 W
ÃCrossover frequency: 3000 Hz, 12/12 dB/oct
ÃCabinet: Plastic material self-extinguishing, Tuned Alu-dome
ÃConnectors: Euroblock
ÃSuitable for standard Multibox enclosure, 2 modules
MQ 50i
ÃTwo way bass reflex ceiling speaker for music reproduction
ÃSpeaker: woofer 5” neodymium magnet, tweeter 1” dome neodymium
magnet
ÃPower/RMS: 120/60W Bypass
ÃImpedance: [Bypass] 16 Ω
Ã[70.7V]: 15W - 10W - 5W - 2.5 W
ÃCrossover frequencies: 3000 Hz, 12/12 dB/oct - High pass filter at 150 Hz
ÃAngle of coverage: 120° horizontal x 120° vertical
ÃCabinet: Plastic material self-extinguishing, Tuned Alu-dome
ÃConnectors: Euroblock, removable for easy installation
MQ 50C MQ 50C-W White
p/n 130.00.081
MQ 50C-S Silver
p/n 130.00.087
MQ 50i-W White
p/n 130.00.139
MQ 50i-S Silver
p/n 130.00.140
MONITOR Q SERIES
TWO-WAY CEILING MONITOR
SPEAKER
TWO-WAY IN WALL SPEAKER
80
266
156
10
245
216
154
136
270
187
172
270
187
172
430
290
260
800
290508
300
205400
104
100170
186
223
191236
319
245
165
175
297
198
122
268
195
88
27
228
163
MR 33 - 34 MR 44 - 35 MR 55 - 36
MR 88 -37 MSW 8 - 38 MQ 90 - 39
MQ 30P - 40 MQ 80P- 41 MQ 50 - 42
MQ 60 - 43 MQ 50C - 44 MQ 50I - 45
500
166.8
120

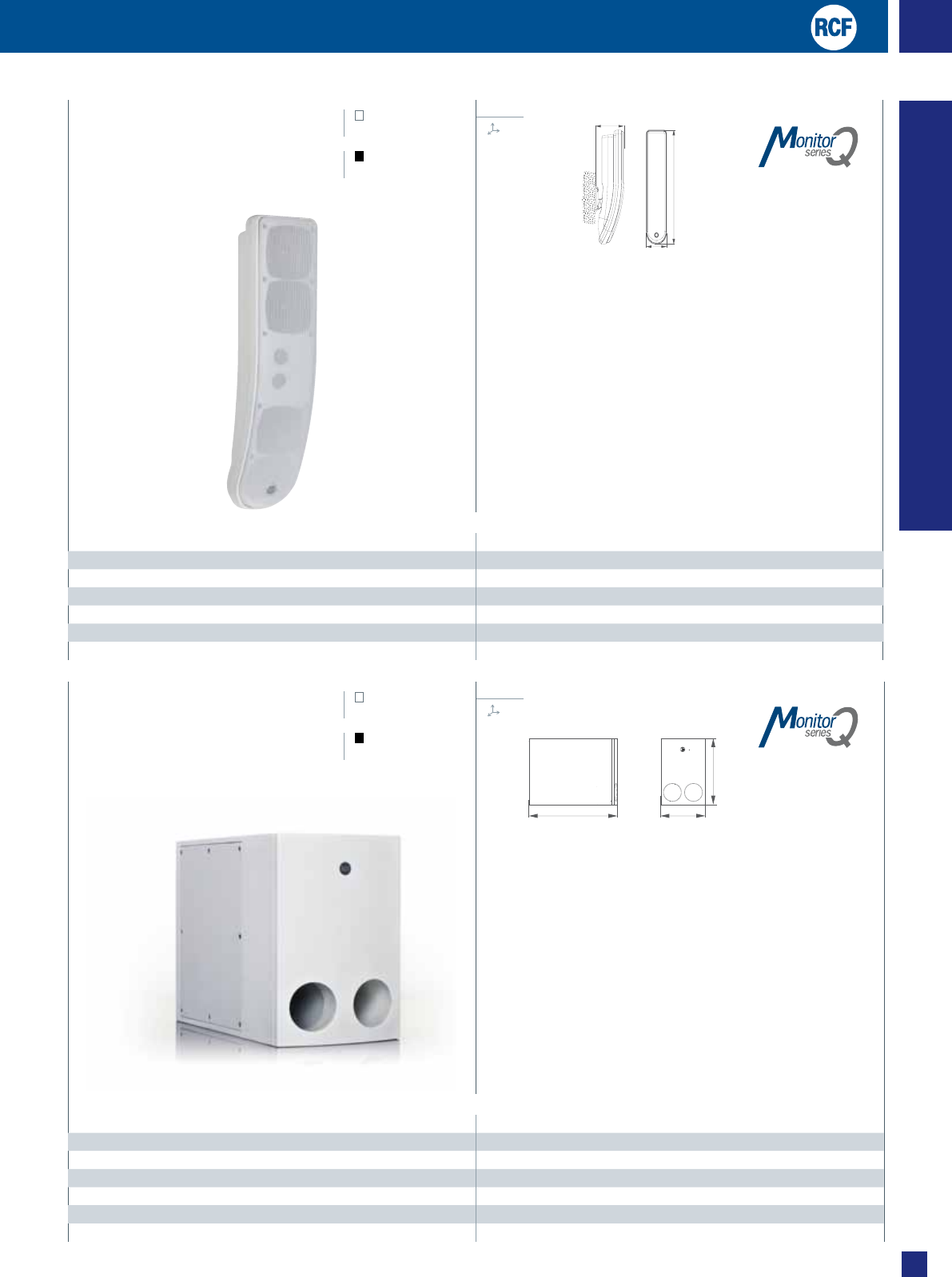

SUBWOOFERS
SPECIFICATIONS MQ 90S
POWER 60 - 30 - 15 - 7.5 W (100 V)
CONSTANT VOLTAGE 100 V, 70 V
FREQUENCY RESPONSE 70 - 220 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 89 dB
MAXIMUM SOUND PRESSURE 107 dB (1 m / POWER MAX)
CONNECTORS EUROBLOCK
8˙000 g
mm
ÃCompact band-pass 8” subwoofer, expecially designed to be used with
MonitorQ series speakers
ÃWell suitable also for other RCF speakers such as PL40, PL6X, DU 100X, DP 2X
ÃThe cabinet material is PVC covered with a scratch resistant surface and
Painted Front Medium density
ÃBuilt-in multi-tapped transformer (60 – 30 – 7.5 W) for 100 V constant
voltage connection
Ã16-ohm input that can be selected by switch with MAX power 160 W / 80
W Bypass
ÃInternal Crossover filter at 200 Hz frequency 12 dB/oct
ÃAs the subwoofer range is non-directional, the unit can be installed in a
semi-hidden position
ÃConnection through a removable Euroblock plug that allows the parallel
connection of other loudspeakers.
MQ 90S-W White
p/n 130.00.098
MQ 90S-B Black
p/n 130.00.097
MQ 90S-W
MQ 90S-B
8" BAND PASS SUBWOOFER
SPECIFICATIONS MQ 100L-W - MQ 100L-B
POWER 120 - 60 W (100 V)
CONSTANT VOLTAGE 100 V, 70 V
FREQUENCY RESPONSE 70 - 20.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 94 dB
MAXIMUM SOUND PRESSURE 120 dB (1 m / POWER MAX)
CONNECTORS 180° (HORIZ.); 60° (VERT.)
3˙000 g
mm
Ã3 way column array speaker system providing natural high intelligibility hi-
fidelity sound of both speech and music
ÃBody is made of self-extinguishing (HB level) high density polystyrene
ÃThe wide horizontal coverage angle (180°) and the 60° asymmetrical vertical
dispersion allow the correct sound reproduction and feedback reduction
ÃMQ 100L is equipped with: 2 rubber surround 3.5” woofers, 2 fabric
surround 3.5” mid-woofers, 2 cloth coated 0.75” dome tweeters
ÃMounting accessories are included. These have been studied to keep the
column as close as possible to the wall and simplify its installation
ÃThe pre-oriented vertical acoustic axis allows to cover already the majority of
the installations.
ÃProvided with accessories to orient the speaker down of extra 5° and 10°
ÃBuilt-in multi-tapped transformer (40 – 20– 10 -5 W) for 100 V constant
voltage connection
Ã16-ohm input that can be selected by switch with MAX power 60 W
MQ 90S-W White
p/n 130.00.187
MQ 90S-B Black
p/n 130.00.186
MQ 100L-W
MQ 100L-B
3 WAYS COLUMN LOUDSPEAKER
81
LOUDSPEAKERS
MODEL HD 2414/T HD 125/T HD 216/ST HD 1110 H6045 (4 DRIVER D5076)
TYPE Rectangular Round Round Round Rectangular
MATERIAL ABS Die-Cast Aluminium Die-Cast Aluminium ABS Fiberglass
POWER NOM./MAX. 15 W RMS / 23 W 10 W RMS / 20 W 20 W RMS / 30 W 20 W RMS / 30 W 200 W RMS / 300 W
INPUT 100 V - 70 V 100 V 100 V - 70 V - 25 V 8 Ω - 16 Ω100 V - 70 V - 25 V
FREQUENCY RESPONSE 275 ÷ 7.000 Hz 750 ÷ 13.000 Hz 350 ÷ 15.000 Hz 900 ÷ 13.000 Hz 150 ÷ 12.000 Hz
MAX. SOUND PRESSURE 118 dB 120dB 123dB 116 dB 132 dB
ANGLE OF COVERAGE 90° (Horiz) 60° (Ver) 130° 80° 180° 60° (Horiz) 50° (Ver)
PROTECTION IP 66 IP 55 IP 55 - -
MODEL HD 210/T HD 310/T HD 410/T HD 3216/T*
TYPE Round Round Round Rectangular
MATERIAL Aluminium Aluminium Aluminium ABS
POWER NOM./MAX. 20 W RMS / 30 W 30 W RMS / 45 W 50 W RMS / 75W 25 W RMS / 38 W
INPUT 100 V - 70 V 100 V - 70 V 100 V - 70 V 100 V - 70 V
FREQUENCY RESPONSE 300 ÷ 9.000 Hz 240 ÷ 10.000 Hz 180 ÷ 7.000 Hz 250 ÷ 10.000 Hz
MAX. SOUND PRESSURE 121 dB 123 dB 130 dB 122 dB
ANGLE OF COVERAGE 70° 80° 80° 60° (Horiz) 130° (Ver)
PROTECTION IP 66 IP 66 IP 66 IP 66
Designed to be weather resistant
and to withstand high sound
pressure levels outdoor or in large
environments.
HORN
SPEAKERS
* See specification details page 103
82

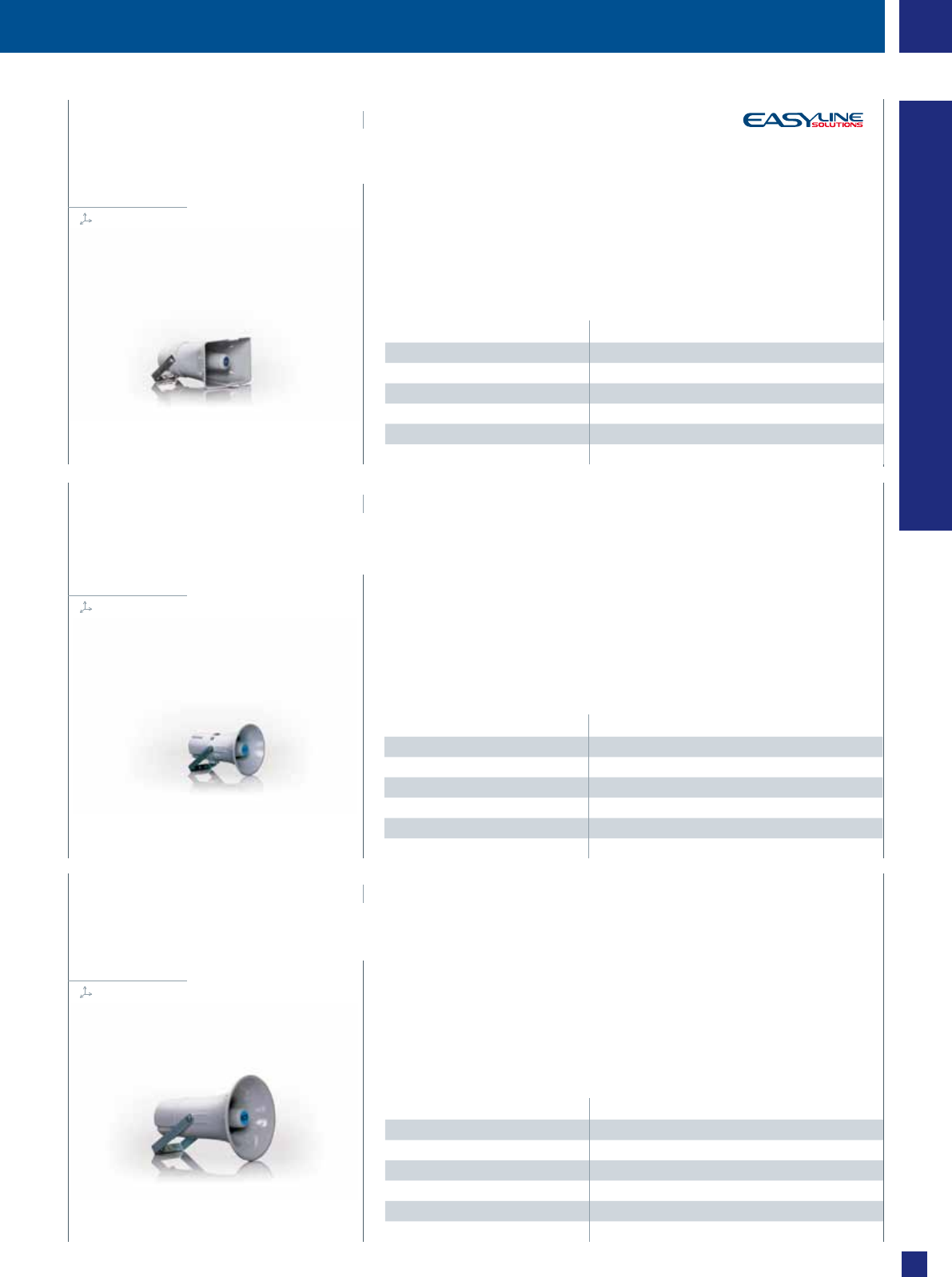

SPECIFICATIONS HD 216/ST
POWER 20 - 10 - 5 - 2.5 W (100 V)
CONSTANT VOLTAGE 100 V; 70 V; 25 V
FREQUENCY RESPONSE 350 ÷ 15.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 108 dB
MAXIMUM SOUND PRESSURE 123 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 80° (HORIZ. AND VERT.)
SPECIFICATIONS HD 125/T
POWER
10-5-2.5 W (100 V)
CONSTANT VOLTAGE 100 V; 70 V; 25 V
FREQUENCY RESPONSE 750 ÷ 13.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 107 dB
MAXIMUM SOUND PRESSURE 120 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 130° (HORIZ. AND VERT.)
SPECIFICATIONS HD 2414/T
POWER
15 - 10 - 7.5 - 5 - 2.5 W (100 V)
CONSTANT VOLTAGE 100 V; 70 V
FREQUENCY RESPONSE 275 ÷ 7.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 106 dB
MAXIMUM SOUND PRESSURE 118 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 90° (HORIZ.); 60° (VERT.)
ÃHigh efficiency speaker ideal for speech reproduction
ÃMusic power/RMS: 30/20W
ÃDriver impedance 16 Ω
ÃConstruction in pressure die-cast aluminium, weather-resistant IP 55 for outdoor use
ÃAttachment bracket included
ÃColour: RAL 7035 grey
p/n 131.30.035
HD 216/ST
DIE-CAST ALUMINIUM HORN SPEAKER WITH DRIVER UNIT
ÃHigh efficiency speaker ideal for speech reproduction
ÃMusic power/RMS: 20/10W
ÃDriver impedance 16
Ω
ÃConstruction in pressure die-cast aluminium, weather-resistant IP 55 for use also outdoors,
attachment bracket included
ÃColour: RAL 7035 grey
p/n 131.30.009
HD 125/T
DIE-CAST ALUMINIUM HORN SPEAKER WITH DRIVER UNIT
ÃCompact speaker with high directivity and efficiency for intelligible speech reproduction
ÃMusic power/RMS: 23/15W
ÃDriver impedance 8
Ω
ÃSelector accessible on rear cover
ÃIP 66 double insulation construction for temperatures between -25°C and +70°C
ÃHigh-pass filter for protection of the driver against low frequencies out of range
à Body in UV stabilised self-extinguishing ABS, RAL 7035 grey
ÃStainless steel attachment bracket included
p/n 131.33.036
HD 2414/T
COMPACT HORN SPEAKER WITH DRIVER UNIT
HORN SPEAKERS
1˙600 g
250 x 145 x 272 mm
900 g
Ø 120 x 180 mm
3˙200 g
Ø 215 x 180 mm
83
LOUDSPEAKERS

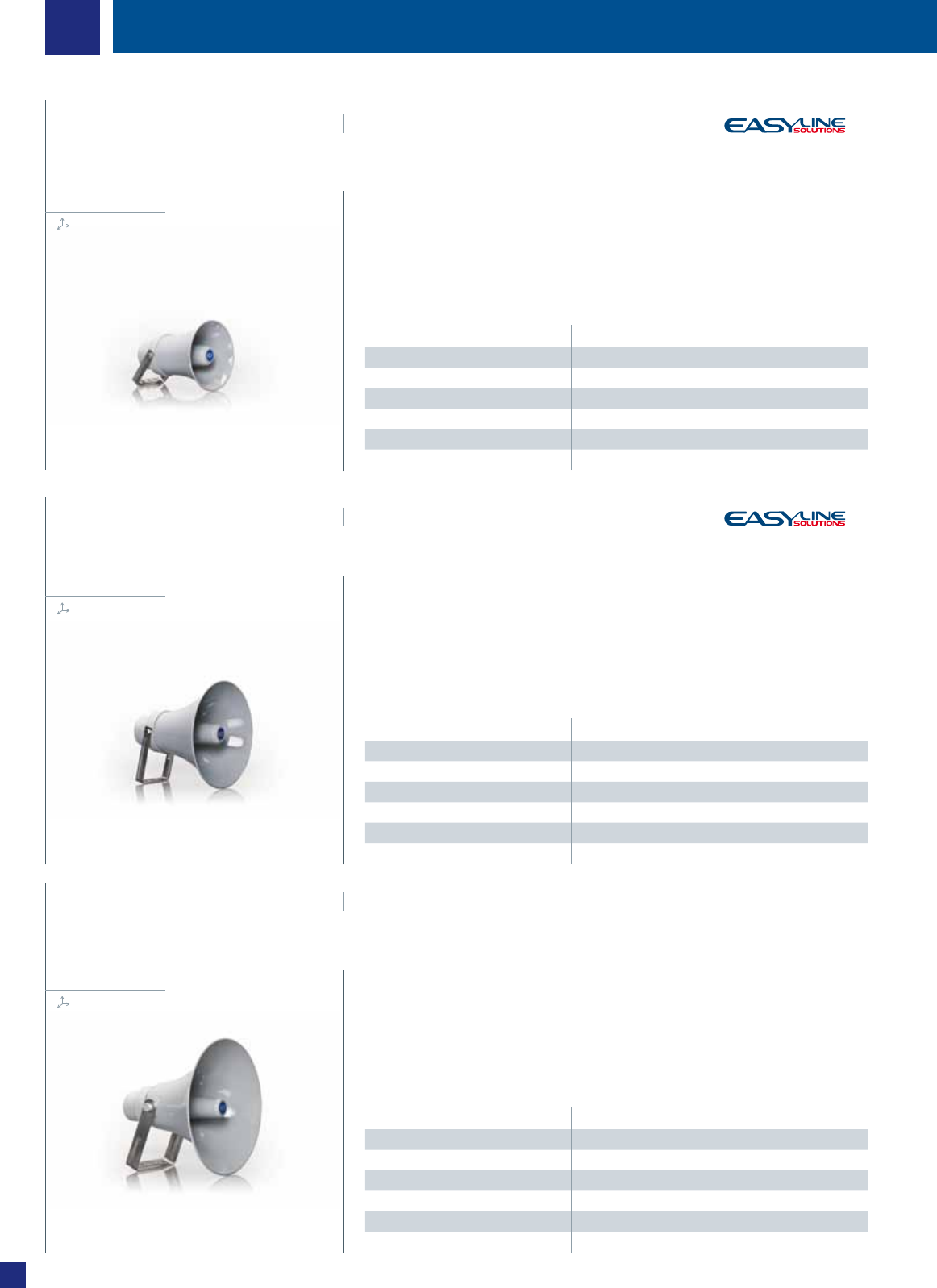

SPECIFICATIONS HD 410/T
POWER 50 - 30 - 25 - 15 W (100 V)
CONSTANT VOLTAGE 100 V; 70 V
FREQUENCY RESPONSE 180 ÷ 7.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 112 dB
MAXIMUM SOUND PRESSURE 130 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 80° (HORIZ. AND VERT.)
SPECIFICATIONS HD 310/T
POWER 30 - 20 - 15 - 10 - 5 W (100 V)
CONSTANT VOLTAGE 100 V; 70 V
FREQUENCY RESPONSE 240 ÷ 10.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 108 dB
MAXIMUM SOUND PRESSURE 123 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 80° (HORIZ. AND VERT.)
SPECIFICATIONS HD 210/T
POWER 20 - 10 - 5 - 2.5 W (100 V)
CONSTANT VOLTAGE 100 V; 70 V
FREQUENCY RESPONSE 300 ÷ 9.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 108 dB
MAXIMUM SOUND PRESSURE 121 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 70° (HORIZ. AND VERT.)
ÃHigh efficiency speaker ideal for speech reproduction
ÃMusic power/RMS: 75/50W
ÃWeather-resistant construction IP 66 Rating, suitable for outdoor use
for temperatures
between -25°C and +70°C
ÃHigh-pass filter for protection of the driver against low frequencies out of range
ÃDriver impedance 8 Ω
ÃStainless steel attachment bracket included
ÃRear cover in UV stabilised self-extinguishing ABS, RAL 7035 grey
p/n 131.33.041
ÃHigh efficiency speaker ideal for speech reproduction
ÃMusic power/RMS: 45/30W
ÃWeather-resistant construction IP 66 Rating, suitable for outdoor use
for temperatures
between -25°C and +70°C
ÃHigh-pass filter for protection of the driver against low frequencies out of range
ÃDriver impedance 8 Ω
ÃStainless steel attachment bracket included
ÃRear cover in UV stabilised self-extinguishing ABS, RAL 7035 grey
HD 310/T
ALUMINIUM HORN SPEAKER WITH DRIVER
HD 410/T
ALUMINIUM HORN SPEAKER WITH DRIVER AND TRANSFORMER
ÃCompact speaker with high directivity and efficiency for intelligible speech reproduction
ÃMusic power/RMS: 30/20W
ÃIP 66 double insulation construction, suitable for outdoor use for temperature
between -25°C and +70°C
ÃHigh-pass filter for protection of the driver against low frequencies out of range
ÃDriver impedance 8 Ω
ÃRear cover in UV stabilised self-extinguishing ABS, RAL 7035 grey
ÃStainless steel attachment bracket included
p/n 131.33.040
HD 210/T
ALUMINIUM HORN SPEAKER WITH DRIVER
HORN SPEAKERS
p/n 131.30.001
2˙200 g
Ø 212 x 290 mm
3˙100 g
Ø 310 x 315 mm
4˙100 g
Ø 410 x 385 mm
84

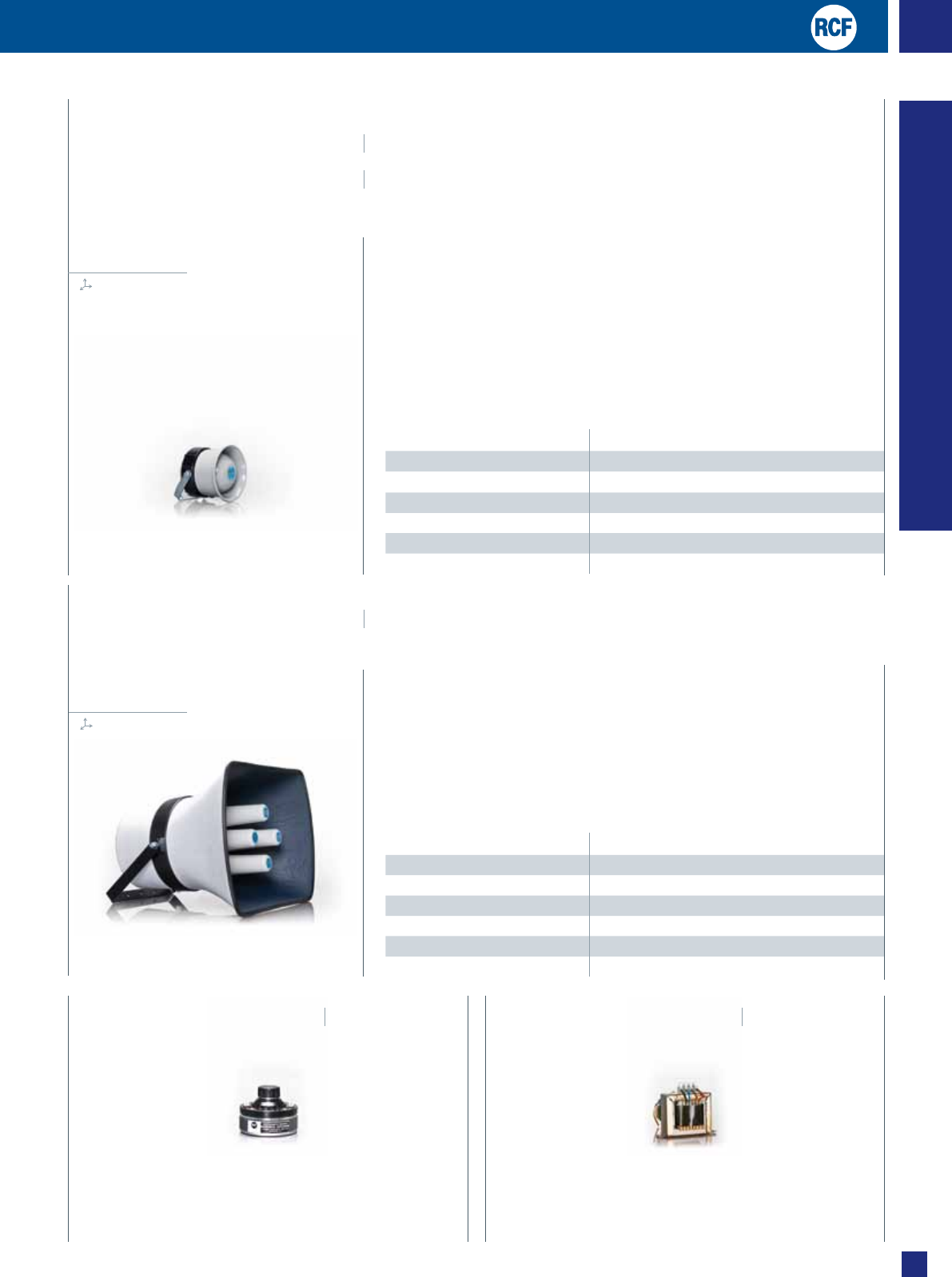

SPECIFICATIONS H 6045
POWER 200 W RMS - 300 W MAX (WITH 4 DRIVER D 5076)
CONSTANT VOLTAGE 100 V; 70 V; 25 V (with 4 transformer TD 507)
FREQUENCY RESPONSE 150 ÷ 12.000 Hz (± 3 dB) (WITH 4 DRIVER D 5076)
SENSITIVITY (1 m / 1 W) 101 dB
MAXIMUM SOUND PRESSURE 132 dB (1 m / POWER MAX, 4 DRIVER D 5076)
ANGLE OF COVERAGE 60° (HORIZ.); 50° (VERT.)
SPECIFICATIONS HD 1110
POWER 20 W RMS - 30 W MAX
SPEAKER IMPEDANCE 8 Ω - 16 Ω
FREQUENCY RESPONSE 900 ÷ 13.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 101 dB
MAXIMUM SOUND PRESSURE 116 dB (1 m / POWER MAX)
ANGLE OF COVERAGE 180° (HORIZ. AND VERT.)
p/n 131.33.030
p/n 131.30.030
ÃHigh power, efficiency and directivity for intelligible speech reproduction
ÃTo be used in combination with four D5076 drivers
ÃSturdy construction, suitable for outdoor use in harsh weather conditions
ÃBody in fibreglass, RAL 9003 grey
ÃAttachment bracket included
p/n 131.20.011
H 6045
LONG-THROW MULTI CELL HORN
SPEAKER
ÃFor alarm and paging systems in places with a high level of background noise
ÃMusical power/RMS: 30/20W
ÃHigh-pass filter for protection of the driver against low frequencies out of range
ÃBody in plastic, RAL 7035 grey
ÃSuitable for outdoor use
ÃAttachment steel bracket included
HD 1110 (8 Ω)
HD 1110 (16 Ω)
HORN SPEAKERS WITH
DYNAMIC DRIVER UNIT
ÃMusical power/RMS: 75/50W
Ã1 3/8” W - 18 N threaded horn attachment
ÃPressure die-cast compression chamber
ÃDriver impedance 16 Ω
ÃDimensions Ø 98 x 75 mm, weight 1.7 Kg
à Optional TD 507 line transformer
Ã50V Multi-tapped line transformer
ÃSuitable for connecting the D 5076 driver to 100/70V constant voltage
lines
ÃOutput power can be selected from four different values: 50-25-12-6W
p/n 151.10.017
D 5076
DRIVER UNIT
p/n 133.30.006
TD 507
50 V MULTI-TAPPED TRANSFORMER
HORN SPEAKERS
800 g
Ø 110 x 93 mm
9˙800 g
620 x 475 x 560 mm
85
LOUDSPEAKERS
To adjust the settings of the audio
system according to any needs.
ATTENUATORS,
AUDIO TRANSFORMERS
AND ACCESSORIES
ÃThe volume control is made of a control circuit having a 6 position (5 + off) selector and a separated
transformer
ÃInstalled on whichever supporting frame for home / office electrical systems by drilling a hole in a blank key
and fixing its control circuit
Ã3 knobs are included in 3 different colours: white, silver, anthracite
ÃThe maximum depth of the volume control circuits are measured between the inner side of the front panel
ATTENUATORS
(SWITCHERS)
SPECIFICATIONS AT 10Z
IN/OUT IMPEDANCE 4 Ω
MAX. POWER 10 W
ATTENUATION 0 dB - 6 dB - 12 dB - 18 dB - 24 dB - OFF
MAX. DEPTH 50 mm
SPECIFICATIONS AT 20T
INPUT VOLTAGE 100 V
MAX. POWER 20 W
ATTENUATION 0 dB - 3 dB - 6 dB - 9 dB - 12 dB - OFF
MAX. DEPTH 50 mm
ÃAttenuator for constant voltage systems, max 20W
ÃUniversal mounting on any standard European electrical wall plate.
Ã5 selectable positions + OFF volume control
ÃBypass relay or 3-wire control system for alarm/evac applications
ÃConstant impedance attenuator for speakers with minimum impedance 4 Ω
ÃUniversal mounting on any standard European electrical wall plate.
Ã5 selectable positions + OFF volume control
AT 10Z
CONSTANT IMPEDANCE ATTENUATOR
p/n 131.60.032
AT 20T
20 W / 100 V TRANSFORMER ATTENUATOR
p/n 131.60.033
86
ATTENUATORS/SWITCHERS
ATTENUATORS AND TRANSFORMERS
SPECIFICATIONS TL 128
INPUT VOLTAGE 100 - 70 - 50 - 35 - 25 - 18 - 12 V
MAX. POWER 120 W
MINIMUM LOAD IMPEDANCE 83.3 - 41.7 - 20.8 - 10.4 - 5.2 - 2.6 - 1.3 Ω
FREQUENCY RESPONSE 60 ; 18.000 Hz (± 3 dB)
ÃThe TL 128 transformer can be used in audio systems with constant voltage lines (usually 100
or 70V) to regulate the power of one or more acoustic speakers that have line transformers
with a combined power of a maximum of 120 W
ÃIt can be combined with a switch (up to 8 positions), in order to form a volume control that
fades at 3 dB intervals
TL 128
120 W LINE TRANSFORMER
p/n 133.60.050
SPECIFICATIONS CT 61
INPUT VOLTAGE 100 V
MAX. POWER 120 W
MAX. DEPTH 58 mm
Ã5 selectable position + OFF volume control
ÃTo be used with TL 128 autotransformer
ÃBypass relay or 3-wire control system for alarm/evac applications
CT 61
6 POSITION 1 WAY ROTARY SWITCHER
p/n 131.60.036
SPECIFICATIONS CP 52
MAX INPUT VOLTAGE 100 V
MAX. POWER 120 W
MAX. DEPTH 58 mm
SPECIFICATIONS AT 40T
INPUT VOLTAGE 100 V
MAX. POWER 40 W
ATTENUATION 0 dB - 3 dB - 6 dB - 9 dB - 12 dB - OFF
MAX. DEPTH 58 mm
ÃAttenuator for constant voltage systems, max 20W
ÃUniversal mounting on any standard European electrical wall plate.
Ã5 selectable positions + OFF volume control
ÃBypass relay or 3-wire control system for alarm/evac applications
AT 40T
40 W / 100 V TRANSFORMER ATTENUATOR
p/n 131.60.035
Ã5 Line selector for 100V system, load max 120W
ÃBypass relay for emergency calls on line 1
CP 52
5 POSITION 2 WAY ROTARY SWITCHER
p/n 131.60.034
1˙140 g
68 x 72 x 85 mm
87
LINE TRANSFORMERS
SPECIFICATIONS TD 10
OUTPUT POWER 4 Ω1.2 - 2.5 - 5 - 10 W
OUTPUT POWER 8 Ω0.6 - 1.2 - 2.5 - 5 - 10 W
FREQUENCY RESPONSE 50÷18'000 Hz
DIMENSIONS 86 x 53 x 59 mm
WEIGHT 500 g
SPECIFICATIONS TD 30
OUTPUT POWER 4 Ω15 - 30 W
OUTPUT POWER 8 Ω7.5 - 15 - 30 W
FREQUENCY RESPONSE 50÷18'000 Hz
DIMENSIONS 87 x 53 x 68 mm
WEIGHT 700 g
SPECIFICATIONS TD 60
OUTPUT POWER 4 Ω15 - 30 - 60 W
OUTPUT POWER 8 Ω7.5 - 15 - 30 - 60 W
FREQUENCY RESPONSE 50÷18'000 Hz
DIMENSIONS 77 x 77 x 79 mm
WEIGHT 1200 g
SPECIFICATIONS TD 240
OUTPUT POWER 4 Ω60 - 120 - 240 W
OUTPUT POWER 8 Ω30 - 60 - 120 - 240 W
FREQUENCY RESPONSE 50÷18'000 Hz
DIMENSIONS 98 x 89 x 100 mm
WEIGHT 3100 g
SPECIFICATIONS TD 120
OUTPUT POWER 4 Ω30 - 60 - 120 W
OUTPUT POWER 8 Ω15 - 30 - 60 - 120 W
FREQUENCY RESPONSE 50÷18'000 Hz
DIMENSIONS 85 x 85 x 90 mm
WEIGHT 1900 g
SPECIFICATIONS TD 105
INPUT VOLTAGE 100 V, 50 V
MAX. POWER 4 W
OUTPUT POWER 4 Ω4 - 2 - 1 - 0.5 - 0.25 W
ÃHigh quality transformers suitable to connect loudspeakers with 4-8 Ω impedance (TD 105
excluded) to constant voltage lines (70-100V). It's possible to select different power values choosing
different outputs.
ÃThanks to material over-sizing and alternate layer windings, they offer high performance: dynamics
and frequency response are particularly extended. They are suitable to drive professional speakers
through constant voltage power amplifiers (TD 105 excluded)
UNIVERSAL LINE
TRANSFORMERS
TD 10 10 W UNIVERSAL LINE TRANSFORMER p/n 133.60.045
TD 30 30 W UNIVERSAL LINE TRANSFORMER p/n 133.60.046
TD 60 60 W UNIVERSAL LINE TRANSFORMER p/n 133.60.047
TD 240 240 W UNIVERSAL LINE TRANSFORMER p/n 133.60.049
TD 120 120 W UNIVERSAL LINE TRANSFORMER p/n 133.60.048
TD 105 4 W UNIVERSAL LINE TRANSFORMER p/n 133.30.001
88
MODEL IMPEDANCE LOUDSPEAKER P/N
M 3 16 Ω HD 125, HD 125/T 154.10.005
M 22 4 ΩMG 200 154.10.010
M 24 16 ΩHD 1110 154.10.026
M 25 8 ΩHD 1110 154.10.027
M 26 16 ΩHD 216/ST 154.10.028
M 27 16 ΩHD 2220. HD 2220/T, HD 3421. HD 3421/T 154.10.029
M 29 16 ΩHD 1120, HD 1120/T 154.10.031
M 30 8 ΩHD 1120 154.10.032
M 31 16 ΩD 3045, D 3045/T, D 3045/TS, D 5076 154.10.033
M 40 16 ΩHD 3418, HD 3418/T 154.10.040
M 80 8 ΩHD 3422 154.10.080
M 96 8 ΩHD 3216/T, HD 3216, HD 210/T , HD 2414/T 154.20.021
M 97 16 ΩHD 410/T, HD 4020/T 154.20.020
M 99 8 ΩHD 310/T 154.10.099
DRIVER REPLACEMENTS DIAPHRAGMS
DIAPHRAGMS
SPECIFICATIONS IM 2220
SIGNAL TEST FREQUENCY 1 kHz
ACCURACY ± 2%
ALTITUDE 2000 m (~ 6500 ft)
OPERATING TEMPERATURE 0 ÷ 40°C (32 ÷ 104 °F)
POWER SUPPLY 9 V c.c (6 x 1.5 V AA, ALCALINE)
DIMENSIONS 168 x 110 x 62 mm
WEIGHT 0.5 Kg
p/n 133.60.089
IM 2220
PORTABLE IMPEDANCE TESTER
ÃThe IM 2220 is a portable instrument, easy to use for
measuring the impedance of the constant voltage speaker lines
or of a single loudspeaker.
ÃThe test range is quite wide thanks to the three measure
fields (20 Ohm,200 Ohm, 2000 Ohm). It is suitable for both
commercial audio and domestic use.
ÃThe IM 2220 is easy to use, comfortable and safe, thanks
to the large control knob, to the large display and the high
insulation.
ÃMeets IEC-1010 (EN 61010); CAT III 100V
ÃDisplay 3 ½ digit LCD
ÃData HOLD indication
ÃAutomatic switch-off of the pilot tone after 20s unless the
LOCK key is pressed
ÃAutomatic switch-off of the device after 15 minutes without
being used
89
ATTENUATORS AND TRANSFORMERS
MODEL CR 2615 CR 2615 FV CR 2628 CR 2642
PART NUMBER 171.70.080 171.70.129 171.70.081 171.70.082
TYPE 15 U 15 U 28 U 42 U
BASE DIMENSIONS 600 x 600 mm 600 x 600 mm 600 x 600 mm 600 x 600 mm
HEIGHT 800 mm 800 mm 1600 mm 2000 mm
WEIGHT 26 Kg 30 Kg 54 Kg 68 Kg
MAX LOAD 105 Kg 100 Kg 320 Kg 350 Kg
VENTILATION - Thermostat controlled Thermostat controlled Thermostat controlled
Thermal Dissipation 25 °C 230 W 3130 W 3280 W 3320 W
Thermal Dissipation 35 °C 140 W 2070 W 2160 W 2180 W
INCLUDED ACCESSORIES 4 wheels with braking system 4 wheels with braking system - -
MODEL DOOR AK 2615 AK 2615 AK 2628 AK 2642
PART NUMBER DOOR (173.60.028) (173.60.028) (173.60.029) (173.60.030)
For the optimum management of
the system configurations.
RACK
COMPONENTS
90
483
44 271
VENTILATION UNIT
483
44 160
483
88 383
483
44 244
483
44 244
PV 2603 - 1 RT 2006 - 2
RD 2008 - 4 VR 1004 - 5
SA 2095 - 3
mm
5˙000 g
CR 2600
RACK ENCLOSURES
ÃThe CR 2600 series rack enclouseres are designed to hold all
RCF 19" rack standard components.
ÃThey are constructed in compliance with the IEC 297-2
dimensional standard, and the depth is 600 mm for all models.
ÃThe structure is made of steel painted RAL 7035 light grey. The
rack enclosures are bake-painted at high temperature using
epoxy powders to make the structure unalterable over time
and resistant to scratching, abrasion, and atmospheric agents.
ÃThe protection level is IP 30. The CR 2600 SERIES rack
enclosures are composed of a basic structure that is assembled
simply and quickly by fitting and securing four steel uprights to
the upper and lower panels.
ÃThe lower door and side panels are fitted following the wiring
operations to facilitate the insertion and connection of the
components. The lower panel, which forms the base of the
rack, has openings for the passage of external connection
cables (speaker lines, power supply, data, etc.) that are
sized and shaped to guarantee the electrical safety of the
structure. The earthing of the rack complies with current safety
regulations.
ÃFor the optimisation of the internal wiring, supports are
supplied to gather the cable and attach them in an orderly
fashion. The packing materials can be reused for transport the
enclosure once it has been wired.
ÃFront doors are also available, which are useful for to protect
the components installed in the rack.
p/n171.70.137
PV 2603
VENTILATION UNIT
ÃPV 2603 is a ventilation unit composed by 3 blowers (230
V ac) and a main switch. The blowers turn on due to the
activation command of a thermostat included ia all RCF CR
2600 rack cabinets series.
ÃThe ventilation unit has an air flow capacity of 500 m /h
Ã9" Rack muonting, 1 unit
ÃMain switch placed on the rear panel
à Low noise
RACK COMPONENTS
RACK ENCLOSURES
91
Ã5-socket frame, Schuko and Italian standard, on back-rack support 2U.
ÃPortion of Omega bar for installing 5 Omega standard modules
Ã16A total capacity; cable included
AR 2605
FRAME WITH POWER SOCKETS
p/n 173.60.027
Ã2U accessory for installation in RCF CR2600 series racks
AR 1051-N
RACK LATERAL SUPPORT
AR 1052-N
RACK LATERAL SUPPORT
Ã1U accessory for installation in RCF CR2600 series racks
p/n 173.10.058
p/n 173.10.059
ÃWheels for RCF rack cabinets CR 2628 and CR 2642.
ÃThe kit includes 2 wheels with brake and 2 swivel wheels. Wheel diameter: 80 mm .
ÃThe maximum applicable load does not change when wheels are mounted.
RR 2601
RACK WHEELS KIT
p/n173.60.038
RACK ACCESSORIES
92
p/n 171.30.149
ÃFront ventilation panel, 1U for CR 2600 series racks, RAL 9005 black
P AER1
FRONT VENTILATION PANELS
ÃRAL 9005 black ÃRAL 9005 black ÃRAL 9005 black ÃRAL 9005 black
CLOSURE PANELS
PU 1
p/n 171.70.145 PU 2
p/n 171.70.146 PU 3
p/n 171.70.147 PU 4
p/n 171.70.148
SPECIFICATIONS TD 300 - TD 500 - TD 1000
INPUT IMPEDANCE (PRIMARY) 4 Ω (35 V - TD 300; 45 V - TD 500; 63 V - TD 1000)
OUTPUT VOLTAGE (SECONDARY) 100 V (33 Ω - TD 300; 20 Ω - TD 500; 10 Ω - TD 1000)
FREQUENCY RESPONSE 50 - 20.000 Hz
THERMAL DETECTION THRESHOLD 90° C
NOMINAL POWER 300 VA (TD 300); 500 VA (TD 500); 1000 VA (TD 1000)
DIMENSIONS (DIAMETER, HEIGHT) ø 115 mm, 65 mm (TD 300); ø 125 mm, 70 mm (TD 500); ø 170 mm, 75 mm (TD 300)
NET WEIGHT 2.7 kg (TD 300); 3.3 kg (TD 500); 7.2 kg (TD 1000)
INPUT CONNECTORS SPEAKON (RT 2006)
OUTPUT CONNECTORS SCREW TYPE EUROBLOCK (RT 2006)
483
44 271
VENTILATION UNIT
483
44 160
483
88 383
483
44 244
483
44 244
PV 2603 - 1 RT 2006 - 2
RD 2008 - 4 VR 1004 - 5
SA 2095 - 3
mm
2˙700 g
RT 2006
RACK CONNECTIONS FOR POWER TRANSFORMERS
TD 300-TD 500-TD 1000
p/n 171.70.125
p/n 171.70.126
p/n 171.70.127
p/n 171.70.128
ÃThe RT 2006 is a 2 standard unit 19" high rack container to
house and connect up to 6 TD 300 transformers, 4 model TD
500 transformers or 2 TD 1000 transformers.
ÃDifferent transformers can also be combined within the
transformer panel.
ÃThe RT 2006 has an interface circuit with connection
terminals between amplifiers, transformers and speaker lines.
ÃThe connections are all removable and sized for maximum
applicable power.
ÃEasy transformer installation and connection to terminals
ÃThanks to material over-sizing and alternate layer windings,
frequency response of the transformers is particularly
extended. These transformers can be used also with
professional high performance loudspeakers.
TD 300
300W PROFESSIONAL AUDIO TOROIDAL TRANSFORMER
TD 500
500W PROFESSIONAL AUDIO TOROIDAL TRANSFORMER
TD 1000
1000W PROFESSIONAL AUDIO TOROIDAL TRANSFORMER
Nominal 300W TD 300 Toroidal transformer, main 4Ω,
secondary 100V
Terminals for quick connection to panel RT 2006
Quick transformer mounting inside the rack chassis with
the supplied kit
Nominal 1000W TD 1000 Toroidal transformer, main
4Ω, secondary 100V
Terminals for quick connection to panel RT 2006
Quick transformer mounting inside the rack chassis with
the supplied kit
Nominal 500W TD 500 Toroidal transformer, main 4Ω,
secondary 100V
Terminals for quick connection to panel RT 2006
Quick transformer mounting inside the rack chassis with
the supplied kit.
POWER TRANSFORMERS
93
RACK COMPONENTS
SPECIFICATIONS RD 2008
OUTPUTS-VOLTAGE 0 dBu (775 mV)
FREQUENCY RESPONSE 20 - 3.800 Hz
SAMPLING FREQUENCY 8 kHz
RECORDING CYCLES 100.000
SENSITIVITY IN INPUT (MIC) - 55 dBu (2.45 mV); (AUX) 0 dBu (775 mV)
POWER SUPPLY 220÷240 V / 110÷120 V (50 / 60 Hz)
CONNECTORS INPUT 1 x XLR - SCREW TERMINAL
CONNECTORS OUTPUT SCREW TERMINAL
SPECIFICATIONS VR 1004
OUT POWER 60 W (1 attenuator)
OUTPUT VOLTAGE 100 V, 70 V
ATTENUATION 0 dB - 1.2 dB - 1.9 dB - 3 dB - 5.2 dB - OFF
REMOTE CONTROL DRY CONTACT OR 10÷24 Vdc EXTERNAL SUPPLY
MINIMUM IMPEDANCE TO THE SECONDARY [100 V]: 167 Ω - [70 V]: 82 Ω
POWER SUPPLY 220÷240 V / 110÷120 V (50 / 60 Hz)
CONSUMPTION 10 VA
CONNECTORS SCREW TERMINAL
3˙900 g
483
44 271
VENTILATION UNIT
483
44 160
483
88 383
483
44 244
483
44 244
PV 2603 - 1 RT 2006 - 2
RD 2008 - 4 VR 1004 - 5
SA 2095 - 3
mm
2˙900 g
mm
483
44 271
VENTILATION UNIT
483
44 160
483
88 383
483
44 244
483
44 244
PV 2603 - 1 RT 2006 - 2
RD 2008 - 4 VR 1004 - 5
SA 2095 - 3
ÃRecording/playback of four messages of 30 seconds each or two
messages of 60 seconds each using solid state memory
ÃElectret cardioid microphone on the front panel
ÃRecording input with adjustable sensitivity on XLR connector
ÃMUSIC IN input for sound source, interrupted during
transmission of messages, on screw connectors
ÃControls for message recording and playback on the front panel,
excludable
ÃAlarm key at maximum priority, auxiliary control
ÃMonitor loudspeaker
ÃVolume controls for messages, siren, monitor loudspeaker with
removable knobs
ÃScrew connectors for remote message activation, single or
continuous
ÃAuxiliary relay that switches to activate message playback
Ã1U 19” rack
RD 2008
DIGITAL PLAYER RECORDER
p/n 171.15.002
p/n 171.20.055
VR 1004
MULTI-ZONE POWER REGULATOR
ÃOperates on four lines of speakers at 100V constant voltage
Ã4 independent inputs
ÃCan control up to 60W per line
ÃBy-pass control on attenuation by front panel pushbutton or
by closing controls
ÃReset of maximum level in case of absence of power supply
Ã1U 19” rack
ÃPower supply 230Vac and emergency power supply in direct
current (24Vdc)
RACK COMPONENTS
94
SPECIFICATIONS SA 2095
SOURCE INPUTS - SENSITIVITY 0 dBu (775 mV)
POWER AMPLIFIERS - SENSITIVITY 100 V (70 V o 50 V SELECTABLE INTERNALLY); COSTANT IMPEDANCE
SENSITIVITY VU-METER 0 dBu (775 mV); (200 mV o 80 mV SELECTABLE INTERNALLY)
ATTENUATION VOLUME SPEAKER 0 dB - 1.2 dB - 1.9 dB - 3 dB - 5.2 dB - OFF
REMOT CONTROL BY MEANS OF CONTACT OR 10÷24 Vdc EXTERNAL SUPPLY
MAX. CURRENT THAT CAN BE TAPPED 8 A (AC OUTLET)
POWER SUPPLY 220÷240 V / 110÷120 V (50 / 60 Hz)
CONSUMPTION 10 VA
CONNECTORS INPUT/OUTPUT SCREW RERMINAL
483
44 271
VENTILATION UNIT
483
44 160
483
88 383
483
44 244
483
44 244
PV 2603 - 1 RT 2006 - 2
RD 2008 - 4 VR 1004 - 5
SA 2095 - 3
2˙900 g
mm
SA 2095
RACK CONTROL UNIT
p/n 171.30.046
ÃAllows centralised switch-on of the equipment installed in
the rack enclosure and directly connected to the 230 Vac 8A
output.
Ã6 unbalanced inputs on terminal strip 775mV for pre-liste-
ning to sound sources, selection switch
ÃBalanced inputs on terminal strip for 100/70/50V power
amplifier for audio monitoring of six amplifiers at constant
voltage, selection switch
ÃInternal monitor loudspeaker with volume control, LED VU
Meter
Ã1U 19” rack
ÃColor: grey RAL 7021
Ã4 Pole cable, 2 shielded wire and 2 unshelded, available in
200 meters coils (code refers to 1 meter cable)
2+2/C
AUDIO CABLE
p/n 143.40.013
ÃXLR CONNECTORS KIT:
- 3 XLR Female connector with nickel body and silver
contacts
- 3 XLR Male connector with nickel body and silver
contacts
AC XLR-3M3F
CONNECTORS
p/n 133.60.102
Ã2 Pole shielded cable, available in 200 meters coils (code
refers to 1 meter cable)
2/C
AUDIO CABLE
p/n 143.40.012
RACK COMPONENTS
ACCESSORIES
95
RACK COMPONENTS
SPECIFICATIONS MG 80
NOMINAL POWER 10 W RMS - 25 W MAX
FREQUENCY RESPONSE 500 ÷ 9.000 Hz (± 3 dB)
S/N RATIO 50 dB (1 W)
MICROPHONE SENSITIVITY - 37 dB ± 3 dB
DISTORTION < 1.5 % (1 kHz)
DIMENSIONS Ø 230 x 370 mm
WEIGHT 1.4 Kg (NO BATTERY)
Portable systems for all the
situations in which mobility is
important.
MOBILE
AMPLIFICATION
ÃSpeaker with high directivity and efficiency for intelligible
speech reproduction
ÃMusical power/RMS: 38/25W
ÃSound pressure level at musical power: 122 dB/1 m
ÃAngle of dispersion related to speech intelligibility: (HxV)
60°x50°
ÃSturdy IP 66 double insulation construction for
temperatures between -25°C and +70°C
ÃApproximated range 500m
ÃHigh-pass filter to protect the driver against low frequencies
out of range
ÃBody in UV stabilised self-extinguishing ABS, RAL 7035
grey
ÃStainless steel attachment bracket included
ÃDimensions (W x H x D): 310 x 165 x 320 mm
p/n 131 40 011
MG 80
MEGAPHONE
96
200
50
190
288
199
212
mute
mu te
ON /
pea k
line
sn s
mic
pwr
58,65 0
58,97 5
863,0 50
863,4 25
-8 6 3,8 0 0
D - 8 64,1 75
E - 86 4,55 0
F - 8 64 ,950
1
3
5
7
9
B
342
215
212
45
250 170
63
30
MOVE 60 - 1 TX 516 - 2 PX 516 - 3
MOVE 60 S - 4 AM 6020 - 5
MD 6000-X
52
101
SPECIFICATIONS HD 3216 HD 3216/T
POWER 25 W RMS – 38 W MAX 25 W RMS – 38 W MAX
POWER (CONSTANT VOLTAGE) - 25-20-15-10-5 W
INPUT 8 Ω100 V; 70V
FREQUENCY RESPONSE 250 ÷ 10.000 Hz (± 3 dB) 250 ÷ 10.000 Hz (± 3 dB)
SENSITIVITY (1 m / 1 W) 106 dB 106 dB
ANGLE OF COVERAGE 60° (HORIZ.); 50° (VERT.) 60° (HORIZ.); 50° (VERT.)
MAXIMUM SOUND PRESSURE 122 dB (1 m / POT. MAX) 122 dB (1 m / POT. MAX)
SPECIFICATIONS AM 6020
TYPE STEREO AMPLIFIER
FREQUENCY RESPONSE 150÷6.000 Hz (mic) 20÷15.000 Hz (aux)
CONSUMPTION 80 W (24 V cc) - 40 W (12 V cc)
NOMINAL POWER 20+20 W (24 V cc) - 10+10 W (12 V cc)
INPUT SENSITIVITY 50 mV ÷ 5 V RMS
CONNECTORS DIN o XLR / 0,7 mV – 2 KOhm (mic), e DIN (aux) / 150 mV
– 22 KOhm
SPECIFICATIONS MD 6000-X
TYPE Dynamic, unidirectional
IMPEDANCE 600 Ω
FREQUENCY RESPONSE 60 ÷ 3000 Hz
SENSITIVITY - 70 dB ± 3 dB (0 dB=1V/µbar, 1kHz)
CONNECTORS 3 pin XLR
1˙100 g
mm
ÃUnbalanced unidirectional handheld microphone optimised for voice reproduction
ÃOn/off pushbutton incorporated in the shockproof plastic body. Colour: black
ÃExtendable screened cable with 5-pole XLR 3 pin connector amplifier side
ÃAccessory included to hang the microphone on a vertical surface
MD 6000-X
MICROPHONE WITH PUSH-BUTTON FOR MOBILE SYSTEMS
ST 7300
UNIVERSAL VEHICLE SUPPORT FOR HORN SPEAKERS
p/n 141.15.021
ÃHorn support to use with bridge for car roof. It can be connected to the luggage carrier
ÃAllows to rotate the horn 160°
ÃDimensions: 230 x 90 x 18 mm. Weight: 0.5 Kg
p/n 133.20.036
ÃSpeaker with high directivity and efficiency for intelligible speech reproduction
ÃIP 66 double insulation construction for temperatures between -25°C and +70°C
ÃHigh-pass filter to protect of the driver against low frequencies out of range
ÃBody in UV stabilised self-extinguishing ABS, RAL 7035 grey
ÃStainless steel attachment bracket included
HD 3216
HD 3216/T
PLASTIC HORN SPEAKER
WITH DRIVER
Ã2 unbalanced AUX stereo inputs on DIN connector
Ã1 balanced microphone input on DIN connector, 1 balanced microphone input on XLR connector
ÃCircuit for automatic attenuation of music in the presence of announcements
ÃOne-tone signal generator 600 Hz (siren)
ÃProtection against overload and short circuits
ÃPower supply 12 Vdc or 24 Vdc selectable
AM 6020
MOBILE AMPLIFIER
p/n 121.10.012
p/n 131.33.039
p/n 131.33.037
MOBILE AMPLIFICATION
MOBILE AMPLIFICATION SYSTEMS
2˙500 g
2˙100 g
310x 165 x 290 mm
310x 165 x 320 mm
97
SPECIFICATIONS MOVE 60 S
SYSTEM 2 WAYS BIAMPLIFIED, ACTIVE BASS REFLEX
RMS POWER 30 W
FREQUENCY RESPONSE 95 ÷ 16˙000 Hz
SOUND PRESSURE LEVEL (SPL) 105 dB MAX
TRANSDUCERS WOOFER 6.5” ; COIL 25 mm; DOME TWEETER 1”
FREQUENCY RESPONSE (INTERNAL SOURCE) 20 ÷ 20.000 Hz
HARMONIC DISTORSION (INTERNAL SOURCE) ≤ 0.1 % (1 kHz, 0 dB)
SIGNAL / NOISE RATIO ≥ 70 dB
200
50
190
288
199
212
mute
mu te
ON /
pea k
line
sn s
mic
pwr
58,65 0
58,97 5
863,0 50
863,4 25
-8 6 3,8 0 0
D - 8 64,1 75
E - 86 4,55 0
F - 8 64 ,950
1
3
5
7
9
B
342
215
212
45
250 170
63
30
MOVE 60 - 1 TX 516 - 2 PX 516 - 3
MOVE 60 S - 4 AM 6020 - 5
mm
5˙150 g
REAR VIEW
ÃPortable bi-amplified speaker with integrated sound source
ÃWorks with internal rechargeable batteries or 12V adapter
ÃDigitally controlled integrated recharge system
ÃUHF receiver with gain control, to be used with TX516 or PX516
ÃXLR universal mic/line input with gain control
ÃAuxiliary input on RCA connectors
ÃLED radio carrier, battery, speaker status indication
p/n 130.00.142
MOVE 60 S
PORTABLE BI-AMPLIFIED
SPEAKER WIITH CD/USB/MP3 PLAYER
PORTABLE SPEAKERS
ÃEasy to carry thanks to top handle and carrying belt
ÃMounting hole for standard microphone stand
ÃCD/USB/Mp3 player with infrared remote control included
Ã230Vac adapter and 10 type C batteries included
ÃBattery duration 2 to 4 hours depending on the use
98
SPECIFICATIONS MOVE 60
SYSTEM 2 WAYS BIAMPLIFIED, ACTIVE BASS REFLEX
RMS POWER 30 W
FREQUENCY RESPONSE 95 ÷ 16.000 Hz
SOUND PRESSURE LEVEL (SPL) 105 dB MAX
TRANSDUCERS WOOFER 6.5”; COIL 25 mm; TWEETER 1”
3˙000 g
mm
200
50
190
288
199
212
mute
mu te
ON /
pea k
line
sn s
mic
pwr
58,65 0
58,97 5
863,0 50
863,4 25
-8 6 3,8 0 0
D - 8 64,1 75
E - 86 4,55 0
F - 8 64 ,950
1
3
5
7
9
B
342
215
212
45
250 170
63
30
MOVE 60 - 1 TX 516 - 2 PX 516 - 3
MOVE 60 S - 4 AM 6020 - 5
REAR VIEW
MOVE 60
PORTABLE BI-AMPLIFIED
SPEAKER WITH UHF RECEIVER
p/n 130.00.141
PORTABLE SPEAKERS
ÃPortable bi-amplified speaker with integrated sound source
ÃWorks with internal rechargeable batteries or 12V adapter
ÃDigitally controlled integrated recharge system
ÃUHF receiver with gain control, to be used with TX516 or PX516
ÃXLR universal mic/line input with gain control
ÃAuxiliary input on RCA connectors
ÃLED radio carrier, battery, speaker status indication
ÃEasy to carry thanks to top handle and carrying belt
ÃMounting hole for standard microphone stand
Ã230Vac adapter and 10 type C batteries included
ÃBattery duration 2 to 4 hours depending on the use
99
MOBILE AMPLIFICATION
SPECIFICATIONS PX 516
TYPE BELT PACK
CARRIER FREQUENCY UHF, 770÷870 MHz
POWER CONSUMPTION 60 mA
IRRADIATED POWER 10 mW (MAX)
INPUT AUDIO SENSIBILITY 50 mV ÷ 5 V RMS
CONNECTOR JACK 3.5 mm, 3 POLE SCREW DOWN
SPECIFICATIONS TX 516
TYPE ELECTRET, CARDIOID, HANDHELD
CARRIER FREQUENCY UHF, 770÷870 MHz
FREQUENCY RESPONSE 35 ; 16.000 Hz
POWER CONSUMPTION 60 mA
IRRADIATED POWER 10 mW (MAX)
200
50
190
288
199
212
mute
mu te
ON /
pea k
line
sn s
mic
pwr
58,65 0
58,97 5
863,0 50
863,4 25
-8 6 3,8 0 0
D - 8 64,1 75
E - 86 4,55 0
F - 8 64 ,950
1
3
5
7
9
B
342
215
212
45
250
170
63
30
MOVE 60 - 1 TX 516 - 2 PX 516 - 3
MOVE 60 S - 4 AM 6020 - 5
120 g
mm
200
50
190
288
199
212
mute
mu te
ON /
pea k
line
sn s
mic
pwr
58,65 0
58,97 5
863,0 50
863,4 25
-8 6 3,8 0 0
D - 8 64,1 75
E - 86 4,55 0
F - 8 64 ,950
1
3
5
7
9
B
342
215
212
45
250
170
63
30
MOVE 60 - 1 TX 516 - 2 PX 516 - 3
MOVE 60 S - 4 AM 6020 - 5
230 g
mm
p/n 141.15.018
PX 516
POCKET SIZE UHF TRANSMITTER
p/n 141.15.019
ÃPocket size UHF transmitter
ÃTransmitter with a belt clip to be used with the Lavalier LA
500 microphone or the HE 502 headset.
ÃInput sensitivity trimmer
ÃDigital radio carrier control
ÃON/OFF and Mute switches with security lock
ÃLED peak indicator
ÃLED battery status indicator
ÃSuitable for line level signals
TX 516
UHF HAND-HELD TRANSMITTER
MICROPHONE
ÃUHF handheld transmitter/microphone
ÃSuitable for speaking or singing voice
ÃEquipped with a unidirectional electret capsule placed on
a rubber suspension to limit disturbance caused by hand
movements
ÃON/OFF and Mute switches
ÃDigital radio carrier control
ÃLED battery status indicato
MICROPHONES FOR PORTABLE SPEAKERS
100
LA 500
LAVALIER MINIATURE
MICROPHONE
p/n 143.80.015
ÃLavalier miniature microphone
ÃCondenser tie-clip microphone ideal for lecturers/presenters,
video and theatre applications.
ÃEspecially suitable to work with MOVE PX516 pocket transmit-
ters.
ÃCondenser capsule with cardioid characteristic
HE 502
HEADSET MICROPHONE
p/n 143.80.016
ÃHeadset lightweight microphone
ÃIdeal for presenters or anywhere hands free operations is
necessary.
ÃGood insulation from environmental noise
ÃEspecially suitable to work with MOVE PX516 pocket transmit-
ters.
ÃCondenser capsul, cardioid pattern.
MICROPHONES FOR PORTABLE SPEAKERS
101
MOBILE AMPLIFICATION
ST 6001
MS 1033
MS 1033
—— 100 V bipolar cable —— 4/8 Ohm cable —— input cable —— output cable —— system bus cable —— optical fiber
CC 4001
BM 7802
BM 7806
BM 7806
BM 7801 FM
MU 7100
LI 7903
SV 7982
LT 7801
LT 7801
LT 7801
MU 7100
MQ 50 C
SPEAKER LINE 100 V
MQ 50
MQ 50 C
MQ 50
LINEA DIFFUSORI ATTIVA
LINEA DIFFUSORI 100 V
MQ 50
MQ 50
MQ 50 C
MQ 50 C
SC 5926
BM 5802
BM 5804 +
BE 5808
BM 5804 +
BE 5808
MT 5708
MQ 50
MT 5708
MT 5708
FLEXA
FLEXA
FLEXA
MT 5708
MU 5100
MS 1033
PB 5310OC 5302
PC
SC 5926 SC 5926
SC 5926 SC 5926
DR 5301
Base vigili
del fuoco
Pannelli vigili
del fuoco
Fire Departement
Panel
RISERVA
RISERVA
RISERVA
TX 1600
MD 7600
RX 1600
PR 4092
ST 6001
MS 1033
CC 4001
BM 3014
PABX RC 62
MQ 50 C
RC 62
RC 62
MQ 50
30W Amplifier built-in
SPEAKER LINE 100 V
MQ 50
MSW8
MQ 30P
RC 62
FLEXA
MS 520
ED 600
BM 4716
PS 3400
CP 4100
UP 2161, RB 3300,
SB 3320 board
SPEAKER LINE 100 V
PL 60
BM 4716
BM 4716
BM 4631WM
CC 4001
x 16
BM 4716
HB 4103
ST 6001
MS 1033
UP 2161, RB 3300,
SB 3320 board
—— 100 V bipolar cable —— 4/8 Ohm bipolar cable —— input cable —— output cable —— system bus cable
102
DXT 7000 SOURCE CONTROL AMPLIFICATION SOUND DIFFUSION
CONFIGURATION EXAMPLES
RX 4000 SOURCE CONTROL AMPLIFICATION SOUND DIFFUSION
TX 1600
MD 7600
RX 1600
PR 4092
ST 6001
MS 1033
CC 4001
BM 3014
PABX RC 62
MQ 50 C
RC 62
RC 62
MQ 50
30W Amplifier built-in
SPEAKER LINE 100 V
MQ 50
MSW8
MQ 30P
RC 62
FLEXA
MS 520
ED 600
BM 4716
PS 3400
CP 4100
UP 2161, RB 3300,
SB 3320 board
SPEAKER LINE 100 V
PL 60
BM 4716
BM 4716
BM 4631WM
CC 4001
x 16
BM 4716
HB 4103
ST 6001
MS 1033
UP 2161, RB 3300,
SB 3320 board
—— 100 V bipolar cable —— 4/8 Ohm bipolar cable —— input cable —— output cable —— system bus cable
103
MS 520 SOURCE CONTROL AMPLIFICATION SOUND DIFFUSION
ST 6001
MS 1033
CC 4001
RD 2008
RM 8080
BM 8001
RU 8020
RU 8020
RU 8020
RU 8020
PR 4092
SA 2095
UP 2161 MQ 50C
RU 8020
MQ 50C
MS 1033
ST 6001
CC 4001
RM 8080
BM 8001
RU 8020
SA 2095
UP 2161
UP 2161
100 V SPEAKER LINE
100 V SPEAKER LINE
—— 100 V bipolar cable —— input cable —— output cable —— system bus cable
104
100 V CONFIGURATION
SPA 8000
LINE CONFIGURATION
SOURCE CONTROL AMPLIFICATION SOUND DIFFUSION
CONFIGURATION EXAMPLES
BM 3067
BM 3001
PR 4092
PD 1066
PD 1066
UP 2161
UP 2161
AM 2160
MQ 50C
100 V SPEAKER LINE
100 V SPEAKER LINE
MQ 50C
SA2095
SA2095
CC4001
CC4001
ST 6001
MS 1033
MS 1033
ST 6001
B B
N. 1 N. 2 N. 3
—— 100 V bipolar cable —— 4/8 Ohm bipolar cable —— input cable —— output cable —— system bus cable
105
CS 1066
LINE CONFIGURATION
100 V CONFIGURATION
SOURCE CONTROL AMPLIFICATION SOUND DIFFUSION
100 V SPEAKER LINE
MS 1033
BM 3001
BM 3001
AM 2160
MR 33T
UP 2161 FOR
PUBLIC AREA SPEAKERS
CS 2020
PUBLIC AREAS 100V
SPEAKER LINE
DICO SYS
DICO PRES
Optional recorder
President
microphone
Delegate
microphone 1
Delegate
microphone 2
Delegate
microphone 3
Delegate
microphone 30
—— 100 V bipolar cable —— input cable —— output cable
106
AM 2160
DICO SOURCE
SOURCE
AMPLIFICATION
AMPLIFICATION
SOUND DIFFUSION
SOUND DIFFUSION
CONFIGURATION EXAMPLES
100 V SPEAKER LINE
MR 33T
10 w MAX
DP 2X
VR 1004
ES 3160BM 3001
MR 33T 10 w MAX
DU 100X
100 V SPEAKER LINE
PX 1600
RX 1600
MD 7800
MD 7800 MX 1822
MR 33T
UP 1123
PX 1600
RX 1600
—— 100 V bipolar cable —— input cable
107
UP 1123
VR 1004
SOURCE
SOURCE
AMPLIFICATION
CONTROL
SOUND DIFFUSION
4 DIFFERENT ZONE SOUND DIFFUSION
DU 100XMR 33T
ES 3160
BM 3001
SALA SERVICE AREA
ES 3160
HS 1026
BM 3001
MD 7800
MD 7800
RX 1600
TX 1600
AM 2160
DECODER SAT
ES 3160
MQ 50
ZONE 2
ZONE 1 PL 60
MQ 90S
PL 60
—— 100 V bipolar cable —— input cable —— output cable
108
ES 3160 SOURCE AMPLIFICATION SOUND DIFFUSION
RESTAURANTS
400 square meters area to cover
BEAUTY CENTER
400 sqare meters area to cover
CONFIGURATION EXAMPLES
ES 3160
DP 2X
BM 3001
DU 100X
MR 33T
ES 3160
RX 1600
TX 1600
RX 1600
TX 1600
BM 3001
ROOMS CHANGING ROOM
ES 3160
PL 40
DM 41
HD 2414/T
BM 3001
INNER BAR
EXTERNAL BAR
BEACH
—— 100 V bipolar cable —— input cable
109
ES 3160 SOURCE AMPLIFICATION SOUND DIFFUSION
MARKET
500 square meters area with no false ceiling
FITNESS CENTER / GYM
400 square meters area to cover
BATHING ESTABLISHMENT
ES 3323
BM 3001
OFFICE
ES 3323
BM 3003
TX 1000RX 1000
SPORTS
GROUND
STANDS
LOCKER
ROOMS
BM 3003
COUNTERS
AREA
DP4
AT 20T
DP4
AT 20T
PL 60
HD 2414/T
WAREHOUSEPROCESSING DEPARTMENTS
MARKET
AREA
ENTRANCE -
PARKING
DP4
PL 60
HD 2414/T
—— 100 V bipolar cable —— input cable
SPORT PLANT
small area to cover
ES3323 SOURCE AMPLIFICATION SOUND DIFFUSION
SUPERMARKET
mid-large size area to cover
ES 3323
UP 2161
BM 3003
BAR -
RELAX AREA
RECEPTION
BEAUTY
TREATMENT
AREA
SOLARIUM
PL 6X
DM 41
MQ 50
MQ 90S
—— 100 V bipolar cable —— input cable
ES3323 SOURCE AMPLIFICATION SOUND DIFFUSION
BEAUTY SALOON
112
ALPHANUMERICAL INDEX
PRODUCT P/N PAGE
2/C 14340012 95
2+2C 14340013 95
A
A 1331 13360123 67
A 1360 13320107 62
A 1380 13320031 62
A 1383 13320058 64
A 504-N 14380014 37
A 507 14310008 37
A 770 14360020 37
AC 100B 13360037 69
AC 1503 13360112 69
AC 1660 14380009 32
AC 50B 13360038 69
AC 7212 17170152 10
AC S50DK 14380011 37
AC S62FL 14380012 37
AC S64FL 14380010 37
AC XLR-3M3F 13360102 95
AD 3001 13320065 68
AK 2615 17360028 90
AK 2628 17360029 90
AK 2642 17360030 90
AM 1122-N 12135045 50
AM 2080 12135062 47
AM 2160 12135058 46
AM 2320 12135059 46
AM 6020 12110012 97
AN 1602 14380005 32
AR 1051 N 17310058 92
AR 1052 N 17310059 92
AR 1620 17360031 32
AR 2605 17360027 92
AR 3000 13360101 45
AS 1606 14380004 32
AT 10Z 13160032 86
AT 20T 13160033 86
AT 40T 13160035 87
B
BD 2412 BS 13133057 73
BD 42 13000247 72
BM 3001 14322008 34
BM 3002 14320125 35
BM 3003 14322012 34
BM 3013 14320013 36
BM 3014 14320135 36
BM 3067 14320138 19
BM 4601 17170074 15
BM 4631WM 17170075 14
BM 4716 17170076 14
BM 4732 17170078 14
BM 4732WM 17170077 14
BM 4748 17170084 14
BM 4764 17170085 14
BM 5001WM 17170087 16
BM 7801FM 14322009 11
BM 7802 14322010 11
PRODUCT P/N PAGE PRODUCT P/N PAGE
BM 7806 14322011 11
BM 8001 12510007 20
BP 6010 12320027 53
BS 2620 13110006 66
BS 8 13133054 66
C
CA 20 14340014 25
CA 223U 14380008 32
CA 3000 12310020 19
CA 40 14340020 19
CA 4000 12510013 21
CA 5XX 14340017 37
CA Y 12310001 25
CP 4100 17170065 12
CP 52 13160034 87
CR 2615 17170080 90
CR 2615 FV 17170129 90
CR 2628 17170081 90
CR 2642 17170082 90
CS 3041 13000231 74
CS 3082 13000232 74
CS 6520 13150005 75
CS 6940 13150006 75
CT 61 13160036 87
D
D 5076 15110017 85
DI.CO DEL PLUS 14320010 25
DI.CO PRES PLUS 14320011 25
DI.CO SYS 12170021 24
DM 41 13000049 68
DM 41-B16 13000185 68
DM 61 13000050 68
DP 1420 BS 13133058 73
DP 2X 13000104 73
DP 2X/1 13000107 73
DP 4 13000106 72
DP1/TG 6086 72
DS 313-WT 6081 64
DU 31 13000204 67
DU 31AT 13000220 67
DU 100X 13000105 65
DU 50BS 13133049 66
E
E.LI.S.A. 100 13110072 69
E.LI.S.A. 50 13110071 69
ED 1100 12135028 57
ED 600 12135027 56
ES 3160 12135057 45
ES 3323 12135064 44
H
H 6045 13120011 85
HB 4103 17170070 14
HD 1110 16 Ohm 13130030 85
HD 1110 8 Ohm 13133030 85
HD 125/T 13130009 83
HD 210/T 13133040 84
HD 216/ST 13130035 83
HD 2414/T 13133036 83
HD 310/T 13130001 84
HD 3216 13133039 97
HD 3216/T 13133037 97
HD 410/T 13133041 84
HE 1002 14380007 31
HE 502 14380016 101
HS 1026C 13110063 65
HS 1026G 13110064 65
HS 1026W 13110062 65
I
IB 4001FM 17170066 13
IB 4121BGM 17170071 13
IM 2220 13360089 89
IS 1044 17170108 41
IT 4133 17170067 13
L
LA 1000 14380006 31
LA 500 14380015 101
LB 3340 17120053 15
LD 5002EN 17170089 17
LI 4116 17170072 13
LI 7903 17170141 9
LT 7208 17170139 10
M
M 22 15410010 89
M 24 15410026 89
M 25 15410027 89
M 26 15410028 89
M 27 15410029 89
M 29 15410031 89
M 3 15410005 89
M 30 15410032 89
M 31 15410033 89
M 40 15410040 89
M 80 15410080 89
M 96 15420021 89
M 97 15420020 89
M 99 15410099 89
MA 3B 8056 76
MA 3W 8057 76
MA 4X 13360009 77
MA 5B 8058 76
MA 5W 8059 76
MA 7W 13322032 74
MA 8-2 13320054 77
MC 4040 14115020 29
MC 5030 14115005 35
MD 6000-X 14115021 97
MD 7600 14115014 28
MD 7800 14115013 28
MF 6000 12135020 52
MG 80 13140011 96
MOVE 60 13000141 99
113
MOVE 60S 13000142 98
MP 300 12170094 38
MP 6003 12135048 53
MQ 30P - B 13000068 78
MQ 30P - S 13000067 78
MQ 30P - W 13000058 78
MQ 50 - B 13000070 79
MQ 50 - S 13000069 79
MQ 50 - W 13000056 79
MQ 50C - S 13000087 80
MQ 50C - W 13000081 80
MQ 50i-S 13000140 80
MQ 50i-W 13000139 80
MQ 60H - B 13000072 79
MQ 60H - S 13000071 79
MQ 60H - W 13000060 79
MQ 60H Link-B 13360081 79
MQ 60H Link-W 13360080 79
MQ 80P - B 13000094 78
MQ 80P - S 13000095 78
MQ 80P - W 13000096 78
MQ 90S - B 13000097 81
MQ 90S - W 13000098 81
MQ 100 L - B 13000186 81
MQ 100 L - W 13000187 81
MR 33T 7140 76
MR 33WT 7141 76
MR 44T 7142 76
MR 44TW 7354 76
MR 55 7143 77
MR 55W 7355 77
MR 88 13000021 77
MR 88W 13000022 77
MS 1033 17170108 40
MS 520 12135043 22
MSW 8 13110122 81
MT 3100 14110079 29
MT 3200 14110080 29
MU 7100 17170138 9
MX 1822 17140001 59
O
OB 4102 17170073 13
OT 3500 17120056 15
P
P/AER1 17130149 92
P/U1 17170145 92
P/U2 17170146 92
P/U3 17170147 92
P/U4 17170148 92
PB 6024 12135035 55
PD 1066 17120047 19
PEP/7 14350028 25
PL 40 13133045 62
PL 60FD 13133059 64
PL 6X 13133042 63
PL 8X 13133043 63
PL/80A 6089 62
PL/81A 6090 63
PL60 13110214 62
PL60 FD 13133059 64
PL70 BS 13110029 64
PR 4092 12135032 58
PR 5006EN 17170088 17
PS 3400 17130006 15
PS 6060 12135049 54
PS 6320 12135023 55
PS 6640 12135037 55
PX 1050 14200009 30
PX 1060 14200010 30
PX 1070 14200011 30
PX 1600 14250002 33
PX 516 14115019 100
PV 2603 17170137 91
R
RB 3300 17120051 15
RC 62-G 13360040 23
RC 62-S 13360041 23
RC 62-W 13360039 23
RD 2008 17115002 94
RM 8080 12510009 20
RO 7102 17170151 10
RR 2601 17360038 92
RT 2006 17170125 93
RU 8020 12510056 21
RX 1600 14250003 32
S
SA 2095 17130046 95
SB 3320 17120052 15
SE 5120 17170083 16
SE 5121 17170086 16
SEP/7 14350027 25
SI 7120 17170153 10
ST 7300 13320036 97
SV 7982 17170140 9
SZ 8040 12510008 21
T
TD 10 13360045 88
TD 105 13330001 88
TD 1000 17170128 93
TD 120 13360048 88
TD 240 13360049 88
TD 30 13360046 88
TD 300 17170126 93
TD 500 17170127 93
TD 507 13330006 85
TD 60 13360047 88
TL 128 13360050 87
TX 1010 14200005 30
TX 1020 14200006 30
TX 1030 14200007 30
TX 1040 14200008 30
TX 1600 14250001 33
TX 516 14115018 100
U
UP 1123 12135025 50
UP 2081 12135071 48
UP 2161 12135060 48
UP 2162 12135065 49
UP 2321 12135061 48
UP 4242 12130007 51
UP 4482 12130005 51
UP 6081 12135022 54
UP 6241 12135021 54
UP 6481 12135036 54
V
VB 4134 17170068 13
VR 1004 17120055 94
W
WS 620XT 13133044 65
PRODUCT P/N PAGEPRODUCT P/N PAGE PRODUCT P/N PAGE
NEW PRODUCT
114
p/n PRODUCT PAGE
6081 DS 313-WT 64
6086 DP1/TG 72
6089 PL/80A 62
6090 PL/81A 63
7140 MR 33T 76
7141 MR 33WT 76
7142 MR 44T 76
7143 MR 55 77
7354 MR 44TW 76
7355 MR 55W 77
8056 MA 3B 76
8057 MA 3W 76
8058 MA 5B 76
8059 MA 5W 76
12110012 AM 6020 97
12130005 UP 4482 51
12130007 UP 4242 51
12135020 MF 6000 52
12135021 UP 6241 54
12135022 UP 6081 54
12135023 PS 6320 55
12135025 UP 1123 50
12135027 ED 600 56
12135028 ED 1100 57
12135032 PR 4092 58
12135035 PB 6024 55
12135036 UP 6481 54
12135037 PS 6640 55
12135043 MS 520 22
12135045 AM 1122-N 50
12135048 MP 6003 53
12135049 PS 6060 54
12135057 ES 3160 45
12135058 AM 2160 46
12135059 AM 2320 46
12135060 UP 2161 48
12135061 UP 2321 48
12135062 AM 2080 47
12135064 ES 3323 44
12135065 UP 2162 49
12135071 UP 2081 48
12170021 DI.CO SYS 24
12170094 MP 300 38
12310001 CA Y 25
12310020 CA 3000 19
12320027 BP 6010 53
12510007 BM 8001 20
12510008 SZ 8040 21
12510009 RM 8080 20
12510013 CA 4000 21
12510056 RU 8020 21
13000021 MR 88 77
13000022 MR 88W 77
13000049 DM 41 68
13000050 DM 61 68
13000056 MQ 50 - W 79
13000058 MQ 30P - W 78
13000060 MQ 60H - W 79
13000067 MQ 30P - S 78
13000068 MQ 30P - B 78
13000069 MQ 50 - S 79
13000070 MQ 50 - B 79
13000071 MQ 60H - S 79
13000072 MQ 60H - B 79
13000081 MQ 50C - W 80
13000087 MQ 50C - S 80
13000094 MQ 80P - B 78
13000095 MQ 80P - S 78
13000096 MQ 80P - W 78
13000097 MQ 90S - B 81
13000098 MQ 90S - W 81
13000104 DP 2X 73
13000105 DU 100X 65
13000106 DP 4 72
13000107 DP 2X/1 73
13000139 MQ 50i-W 80
13000140 MQ 50i-S 80
13000141 MOVE 60 99
13000142 MOVE 60S 98
13000185 DM 41-B16 68
13000186 MQ 100 L - B 81
13000187 MQ 100 L - W 81
13000204 DU 31 67
13000220 DU 31AT 67
13000231 CS 3041 74
13000232 CS 3082 74
13000247 BD 42 72
13110006 BS 2620 66
13110029 PL70 BS 64
13110062 HS 1026W 65
13110063 HS 1026C 65
13110064 HS 1026G 65
13110071 E.LI.S.A. 50 69
13110072 E.LI.S.A. 100 69
13110122 MSW 8 81
13110214 PL60 62
13120011 H 6045 85
13130001 HD 310/T 84
13130009 HD 125/T 83
13130030 HD 1110 16 Ohm 85
13130035 HD 216/ST 83
13133030 HD 1110 8 Ohm 85
13133036 HD 2414/T 83
13133037 HD 3216/T 97
13133039 HD 3216 97
13133040 HD 210/T 84
13133041 HD 410/T 84
13133042 PL 6X 63
13133043 PL 8X 63
13133044 WS 620XT 65
13133045 PL 40 62
13133049 DU 50BS 66
13133054 BS 8 66
13133057 BD 2412 BS 73
13133058 DP 1420 BS 73
13133059 PL 60FD 64
13140011 MG 80 96
13150005 CS 6520 75
13150006 CS 6940 75
13160032 AT 10Z 86
13160033 AT 20T 86
13160034 CP 52 87
13160035 AT 40T 87
13160036 CT 61 87
13320031 A 1380 62
13320036 ST 7300 97
13320054 MA 8-2 77
13320058 A 1383 64
13320065 AD 3001 68
13320107 A 1360 62
13322032 MA 7W 74
13330001 TD 105 88
13330006 TD 507 85
13360009 MA 4X 77
13360037 AC 100B 69
13360038 AC 50B 69
13360039 RC 62-W 23
13360040 RC 62-G 23
13360041 RC 62-S 23
13360045 TD 10 88
13360046 TD 30 88
13360047 TD 60 88
13360048 TD 120 88
13360049 TD 240 88
13360050 TL 128 87
13360080 MQ 60H Link-W 79
13360081 MQ 60H Link-B 79
13360089 IM 2220 89
13360101 AR 3000 45
13360102 AC XLR-3M3F 95
13360112 AC 1503 69
13360123 A 1331 67
14110079 MT 3100 29
14110080 MT 3200 29
14115005 MC 5030 35
PART NUMBER INDEX
115
14115013 MD 7800 28
14115014 MD 7600 28
14115018 TX 516 100
14115019 PX 516 100
14115020 MC 4040 29
14115021 MD 6000-X 97
14200005 TX 1010 30
14200006 TX 1020 30
14200007 TX 1030 30
14200008 TX 1040 30
14200009 PX 1050 30
14200010 PX 1060 30
14200011 PX 1070 30
14250001 TX 1600 33
14250002 PX 1600 33
14250003 RX 1600 32
14310008 A 507 37
14320010 DI.CO DEL PLUS 25
14320011 DI.CO PRES PLUS 25
14320013 BM 3013 36
14320125 BM 3002 35
14320135 BM 3014 36
14320138 BM 3067 19
14322008 BM 3001 34
14322009 BM 7801FM 11
14322010 BM 7802 11
14322011 BM 7806 11
14322012 BM 3003 34
14340012 2/C 95
14340013 2+2C 95
14340014 CA 20 25
14340017 CA 5XX 37
14340020 CA 40 19
14350027 SEP/7 25
14350028 PEP/7 25
14360020 A 770 37
14380004 AS 1606 32
14380005 AN 1602 32
14380006 LA 1000 31
14380007 HE 1002 31
14380008 CA 223U 32
14380009 AC 1660 32
14380010 AC S64FL 37
14380011 AC S50DK 37
14380012 AC S62FL 37
14380014 A 504-N 37
14380015 LA 500 101
14380016 HE 502 101
15110017 D 5076 85
15410005 M 3 89
15410010 M 22 89
15410026 M 24 89
15410027 M 25 89
15410028 M 26 89
15410029 M 27 89
15410031 M 29 89
15410032 M 30 89
15410033 M 31 89
15410040 M 40 89
15410080 M 80 89
15410099 M 99 89
15420020 M 97 89
15420021 M 96 89
17115002 RD 2008 94
17120047 PD 1066 19
17120051 RB 3300 15
17120052 SB 3320 15
17120053 LB 3340 15
17120055 VR 1004 94
17120056 OT 3500 15
17130006 PS 3400 15
17130046 SA 2095 95
17130149 P/AER1 92
17140001 MX 1822 59
17170065 CP 4100 12
17170066 IB 4001FM 13
17170067 IT 4133 13
17170068 VB 4134 13
17170070 HB 4103 14
17170071 IB 4121BGM 13
17170072 LI 4116 13
17170073 OB 4102 13
17170074 BM 4601 15
17170075 BM 4631WM 14
17170076 BM 4716 14
17170077 BM 4732WM 14
17170078 BM 4732 14
17170080 CR 2615 90
17170081 CR 2628 90
17170082 CR 2642 90
17170083 SE 5120 16
17170084 BM 4748 14
17170085 BM 4764 14
17170086 SE 5121 16
17170087 BM 5001WM 16
17170088 PR 5006EN 17
17170089 LD 5002EN 17
17170108 IS 1044 41
17170108 MS 1033 40
17170125 RT 2006 93
17170126 TD 300 93
17170127 TD 500 93
17170128 TD 1000 93
17170129 CR 2615 FV 90
17170137 PV 2603 91
17170138 MU 7100 9
17170139 LT 7208 10
17170140 SV 7982 9
17170141 LI 7903 9
17170145 P/U1 92
17170146 P/U2 92
17170147 P/U3 92
17170148 P/U4 92
17170151 RO 7102 10
17170152 AC 7212 10
17170153 SI 7120 10
17310058 AR 1051 N 92
17310059 AR 1052 N 92
17360027 AR 2605 92
17360028 AK 2615 90
17360029 AK 2628 90
17360030 AK 2642 90
17360031 AR 1620 32
17360038 RR 2601 92
116
REFERENCE INSTALLATIONS
EXHIBITION AND CONGRESS CENTRES
New Fiere Roma Exhibition Complex - Bologna Exhibition Centre - Parma Exhibition Centre- Modena
Exhibition Centre - Naples Exhibition Centre - Il Lingotto, Turin - Stelline, Milan - Scuderie del
Quirinale, Rome
AIRPORTS
Abu Dhabi International Airport - Athens International Airport- Lisbon International Airport -
Jomo Kenyatta International Airport, Nairobi - Jose Marti International Airport, Havana -
Le Caselle International Airport, Turin - Fiumicino and Ciampino Airports, Rome -
Linate International Airport, Milan - Catullo Airport, Verona - Capodichino Airport, Naples - Raffaello
Sanzio Airport, Ancona - Pretola Airport, Florence - Aviano Airport - Brindisi Airport
HOTELS
Four Seasons Hotel, Florence - New Fiera Milano Exhibition Complex Hotel - Sheraton, Florence
Grand Excelsior Sheraton, Rome - Sheraton, Istanbul - Royal Olympic, Athens - S. Biagio Hotel,
Genova - Marriot, Beirut
RAILWAY STATIONS
Amsterdam - Termini Station, Rome - Bologna - Bari - Reggio Emilia - Taranto
117
SHOPPING MALLS
Le Befane, Rimini - Etnapolis, Catania - Ipercoop La Favorita, Mantova - Ipercoop L’Ariosto, Reggio
Emilia - Carrefour, Rome - Carrefour, Brindisi - Grand’Emilia, Modena - Auchan S. Rocco al Porto Lodi,
Milan - Gravina Ipercoop, Catania - Ipercoop, Piacenza
HOSPITALS
Maggiore Hospital, Bologna - Careggi Hospital, Florence - Central Hospital of Livorno - Hospital of
Mantova - Trigoria Biomedical Campus, Rome - Hospital of Pavia - D. Cutugno Hospital, Bari
VARIOUS
Wyvern Theatre, Swindon (UK) - 2006 Winter Olympic Games Ice Palace, Turin - “Dushambe”
Palace of Nations, Tajikistan - Santo Volto Church, Turin - Cathedral of Noto, Italy - Pin Up Bowling,
Germany - Restaurant "O", Paris - Casa Bonaventura Ferrer, Barcelona - Turin Royal Palace -
University of Perugia - Petruzzelli Theatre, Bari - Zadar Sport Dome, Croatia - Mantova Sport Dome
- Equatorial Guinea 's Parliament - Museum of Modena - The Lonely Poet Bar, Belfast - The Salty Dog
Bar, Bangor - Ground Espresso, Northern Ireland - Hong Kong Jockey Club
118
COMPONENTS AND SYSTEMS
2010
ENG
RCF S.p.A. Italy
tel. +39 0522 274 411
e-mail: info@rcf.it
RCF UK
tel. 0844 745 1234
e-mail: info@rcfaudio.co.uk
RCF France
tel. +33 1 49 01 02 31
e-mail: rcffrance@aol.com
RCF Germany
tel. +49 2203 925370
e-mail: germany@rcf.it
RCF Spain
tel. +34 918174266
e-mail: info@rcfaudio.es
RCF USA Inc.
tel. +1 (603) 926-4604
e-mail: info@rcf-usa.com
03/2010-SM10116129
www.rcfaudio.com
HEADQUARTERS:
2010
COMMERCIAL AUDIO PUBLIC ADDRESS
COMMERCIAL AUDIO PUBLIC ADDRESS COMPONENTS AND SYSTEMS
