User Manual: KD-S51

Open the PDF directly: View PDF PDF.
Page Count: 79

SERVICE MANUAL
COPYRIGHT © 2005 Victor Company of Japan, Limited No.MA124
2005/2
CD RECEIVER
MA12420052
KD-S51
TABLE OF CONTENTS
1 PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-25

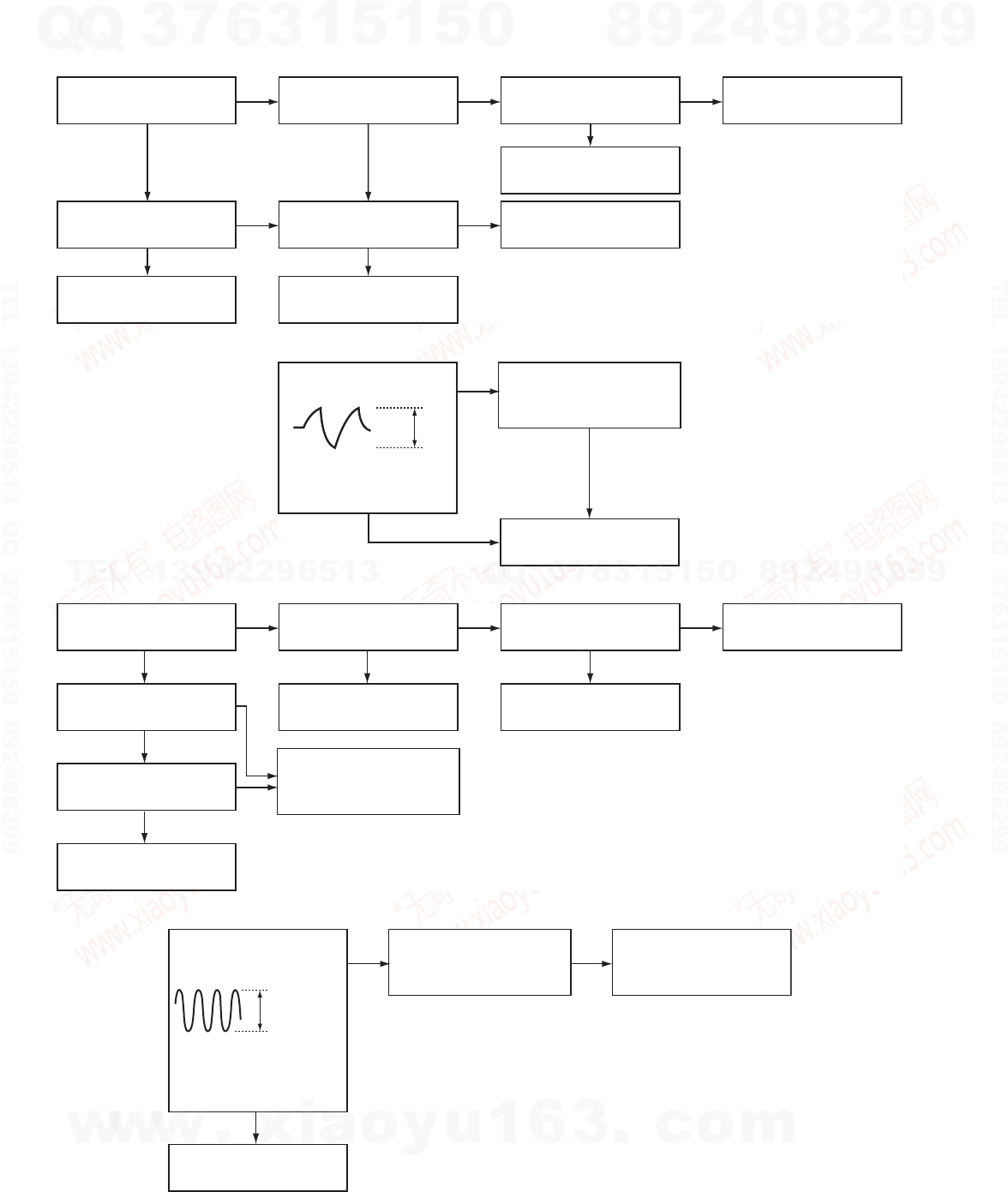

5 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-26
Area suffix
J ------------- Northern America
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-2 (No.MA124)
SPECIFICATION
Design and specifications are subject to change without notice.
AUDIO AMPLIFIER SECTION
Power Output 20 W RMS × 4 Channels at 4 Ω and [< or =] 1% THD+N
Signal to Noise Ratio 80 dBA (reference: 1 W into 4 Ω)
Load Impedance 4 Ω (4 Ω to 8 Ω allowance)
Tone Control Range Bass ±10 dB at 100Hz
Treble ±10 dB at 10kHz
Frequency Response 40 Hz to 20 000 Hz
Line-Out Level/Impedance 2.5 V/20 kΩ load (full scale)
Output Impedance 1 kΩ
Subwoofer-Out Level/Impedance 2.0 V/20 kΩ load (full scale)
Other Terminals CD changer
TUNER SECTION
Frequency Range FM 87.5 MHz to 107.9 MHz (with channel interval set to 200 kHz)
87.5 MHz to 108.0 MHz (with channel interval set to 50 kHz)
AM 530 kHz to 1 710 kHz (with channel interval set to 10 kHz)
531 kHz to 1 602 kHz (with channel interval set to 9 kHz)
[FM Tuner] Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω)
50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω)
Alternate Channel Selectivity (400 kHz) 65 dB
Frequency Response 40 Hz to 15 000 Hz
Stereo Separation 35 dB
Capture Ratio 1.5 dB
[AM Tuner] Sensitivity 20 µV
Selectivity 35 dB
CD PLAYER SECTION
Type Compact disc player
Signal Detection System Non-contact optical pickup (semiconductor laser)
Number of channels 2 channels (stereo)
Frequency Response 5 Hz to 20 000 Hz
Dynamic Range 96 dB
Signal-to-Noise Ratio 98 dB
Wow and Flutter Less than measurable limit
MP3 Decoding Format MPEG1/2 Audio Layer 3
Max. Bit Rate : 320 kbps
WMA (Windows Media Audio) Decoding Format Max. Bit Rate : 192 kbps
GENERAL
Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance)
Grounding System Negative ground
Allowable Operating Temperature 0°C to +40°C (32°F to 104°F)
Dimensions (W × H × D) Installation Size (approx.) 182 mm × 52 mm × 150 mm (7-3/16" × 2-1/16" × 5-15/16")
Panel Size (approx.) 188 mm × 58 mm × 11 mm (7-7/16" × 2-5/16" × 7/16")
Mass (approx.) 1.5 kg (3.4 lbs) (excluding accessories)
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA124)1-3
SECTION 1
PRECAUTIONS
1.1 Safety Precautions
!Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
!Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-4 (No.MA124)
1.2 Preventing static electricity
Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged, can destroy the laser
diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs.

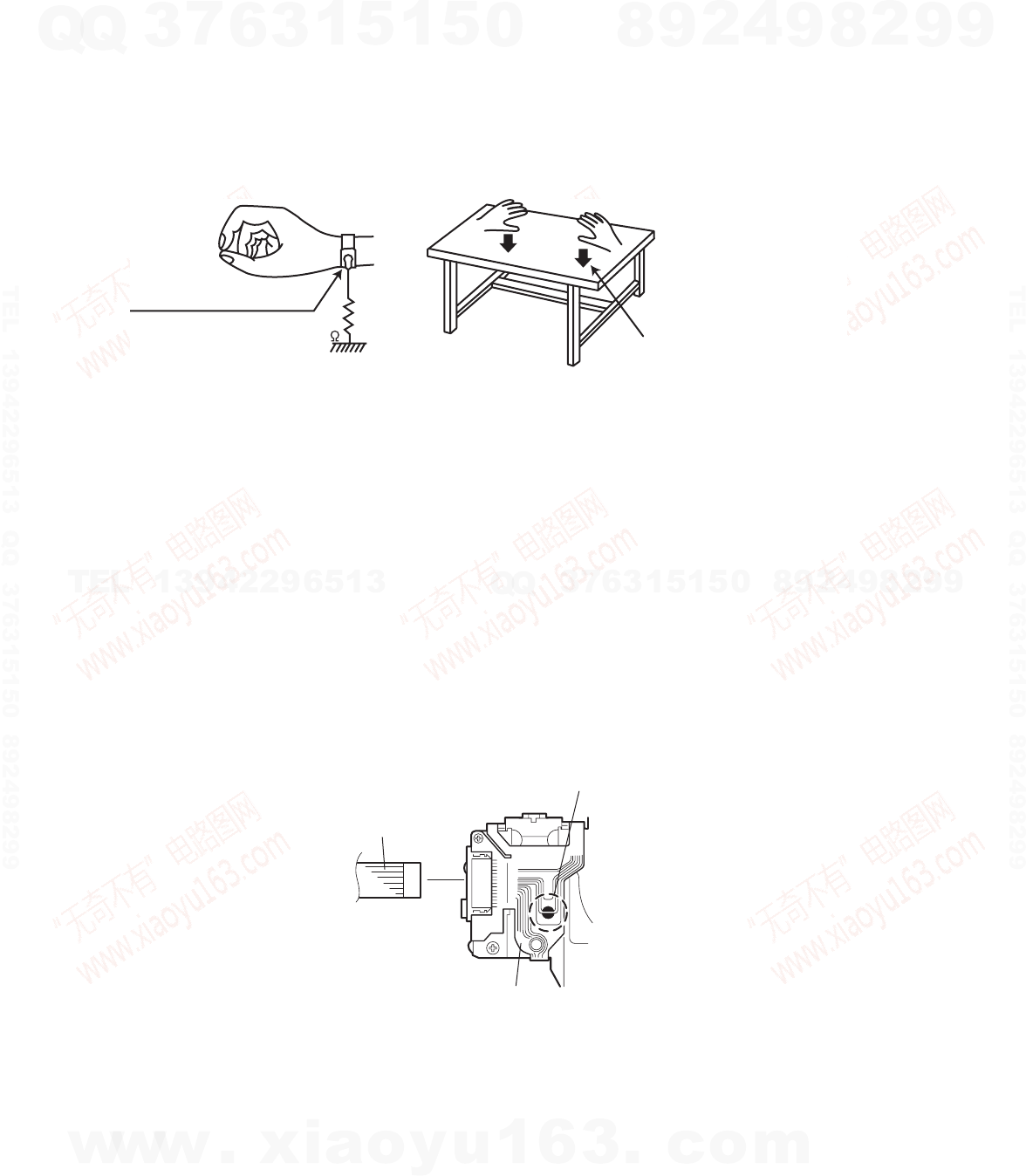

1.2.1 Grounding to prevent damage by static electricity
Static electricity in the work area can destroy the optical pickup (laser diode) in devices such as CD players.
Be careful to use proper grounding in the area where repairs are being performed.
(1) Ground the workbench
Ground the workbench by laying conductive material (such as a conductive sheet) or an iron plate over it before placing the
traverse unit (optical pickup) on it.
(2) Ground yourself
Use an anti-static wrist strap to release any static electricity built up in your body.
(3) Handling the optical pickup
• In order to maintain quality during transport and before installation, both sides of the laser diode on the replacement optical
pickup are shorted. After replacement, return the shorted parts to their original condition.
(Refer to the text.)
• Do not use a tester to check the condition of the laser diode in the optical pickup. The tester's internal power source can easily
destroy the laser diode.
1.3 Handling the traverse unit (optical pickup)
(1) Do not subject the traverse unit (optical pickup) to strong shocks, as it is a sensitive, complex unit.
(2) Cut off the shorted part of the flexible cable using nippers, etc. after replacing the optical pickup. For specific details, refer to the
replacement procedure in the text. Remove the anti-static pin when replacing the traverse unit. Be careful not to take too long a
time when attaching it to the connector.
(3) Handle the flexible cable carefully as it may break when subjected to strong force.
(4) It is not possible to adjust the semi-fixed resistor that adjusts the laser power. Do not turn it.
1.4 Attention when traverse unit is decomposed
*Please refer to "Disassembly method" in the text for the CD pickup unit.
• Apply solder to the short land before the flexible wire is disconnected from the connector on the CD pickup unit.
(If the flexible wire is disconnected without applying solder, the CD pickup may be destroyed by static electricity.)
• In the assembly, be sure to remove solder from the short land after connecting the flexible wire.
1M
(caption)
Anti-static wrist strap
Conductive material
(conductive sheet) or iron plate
Pickup
Short-circuit point
(Soldering)
Flexible wire
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA124)1-5
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
2.1 HOW TO IDENTIFY MODELS
2.1.1 NAME PLATE
Discernment sign
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-6 (No.MA124)
SECTION 3
DISASSEMBLY
3.1 Main body

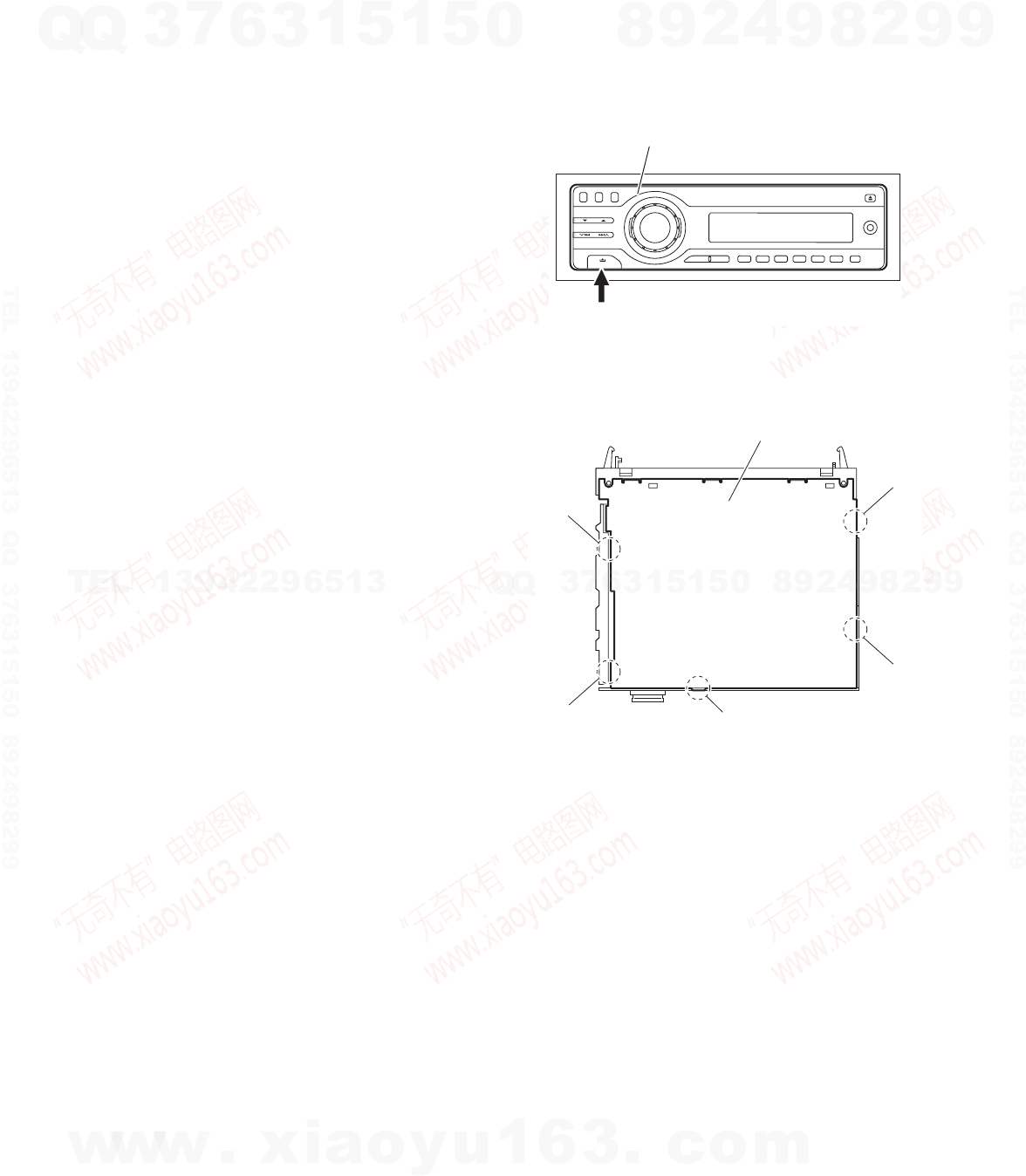

3.1.1 Removing the front panel assembly
(See Fig.1)
(1) Push the detach button in the lower right part of the front
panel assembly and remove the front panel assembly.
(2) Take out the front panel assembly.
Fig.1
3.1.2 Removing the bottom cover
(See Fig.2)
(1) Turn the main body up side down.
(2) Insert a screwdriver under the joints to release the two
joints a on the left side, two joints b on the right side and
joint c on the back side of the main body, then remove the
bottom cover from the main body.
CAUTION:
When releasing the joints using a screwdriver, do not damage
the main board.
Fig.2
Front panel assembly
Detach button
Bottom cover
Joint a
Joint b
Joint a
Joint b
Joint c
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA124)1-7

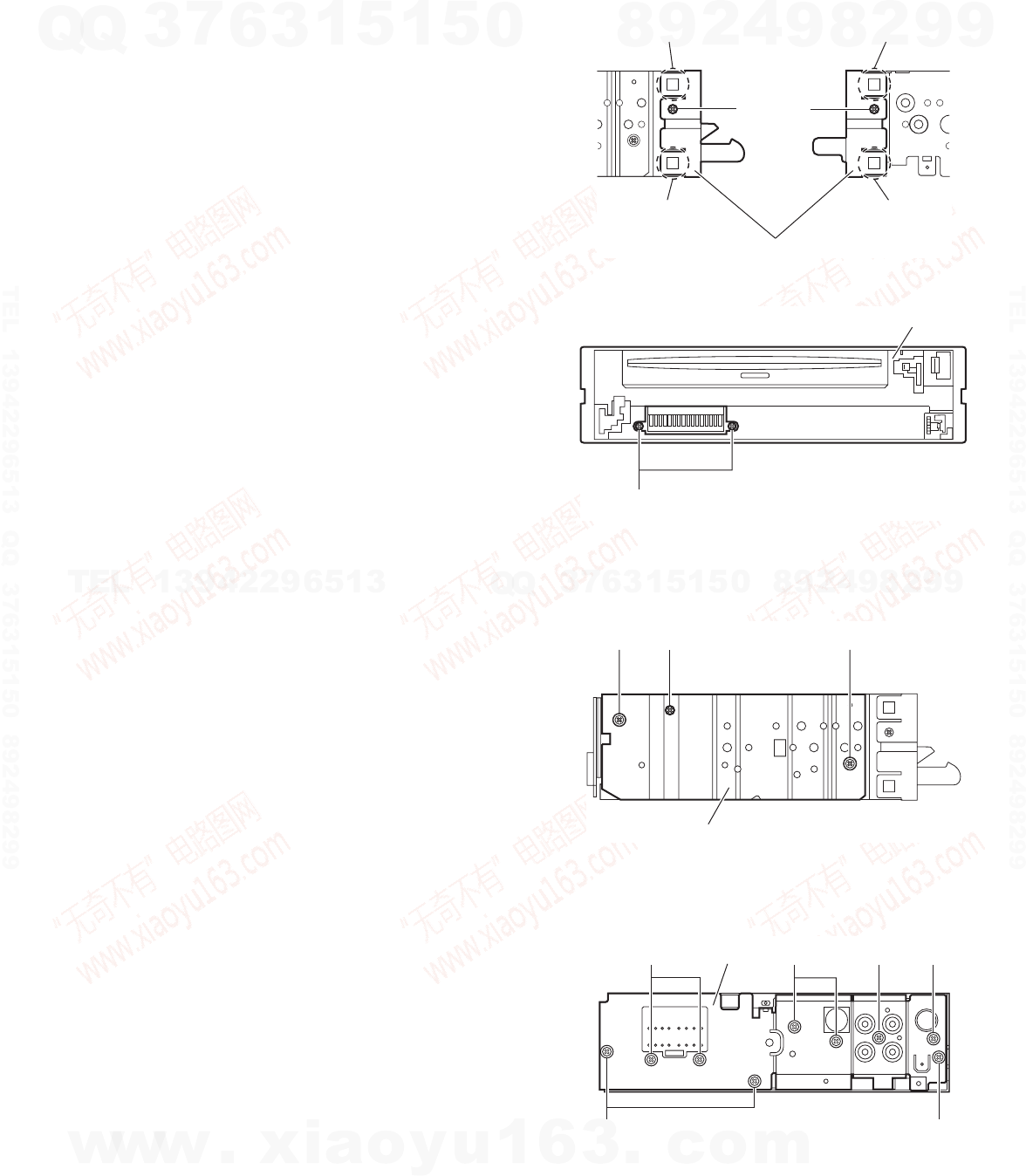

3.1.3 Removing the front chassis assembly
(See Figs.3 and 4)
• Prior to performing the following procedures, remove the front
panel assembly and bottom cover.
(1) Remove the two screws A on the both sides of the main
body. (See Fig.3)
(2) Remove the two screws B on the front side of the main
body. (See Fig.4)
(3) Release the two joints d and two joints e on the both sides
of the main body, then remove the front chassis assembly
forward. (See Fig.3)
Fig.3
Fig.4
3.1.4 Removing the side panel
(See Fig.5)
Reference:
Remove the front panel assembly as required. (Refer to "3.1.1
Removing front panel assembly")
(1) Remove the two screws C and screw D attaching the side
panel on the left side of the main body.
(2) Take out the side panel from the main body.
Fig.5
3.1.5 Removing the rear bracket
(See Fig.6)
• Prior to performing the following procedure, remove the bottom
cover.
(1) Remove the three screws E, three screws F and three
screws G attaching the rear bracket on the back side of the
main body.
(2) Take out the rear bracket.
Fig.6
Joint d
Joint d
Front chassis assembly
A
Joint e
Joint e
A
B
Front chassis assembly
Side panel
CCD
F
E E
Rear bracket GFG
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-8 (No.MA124)

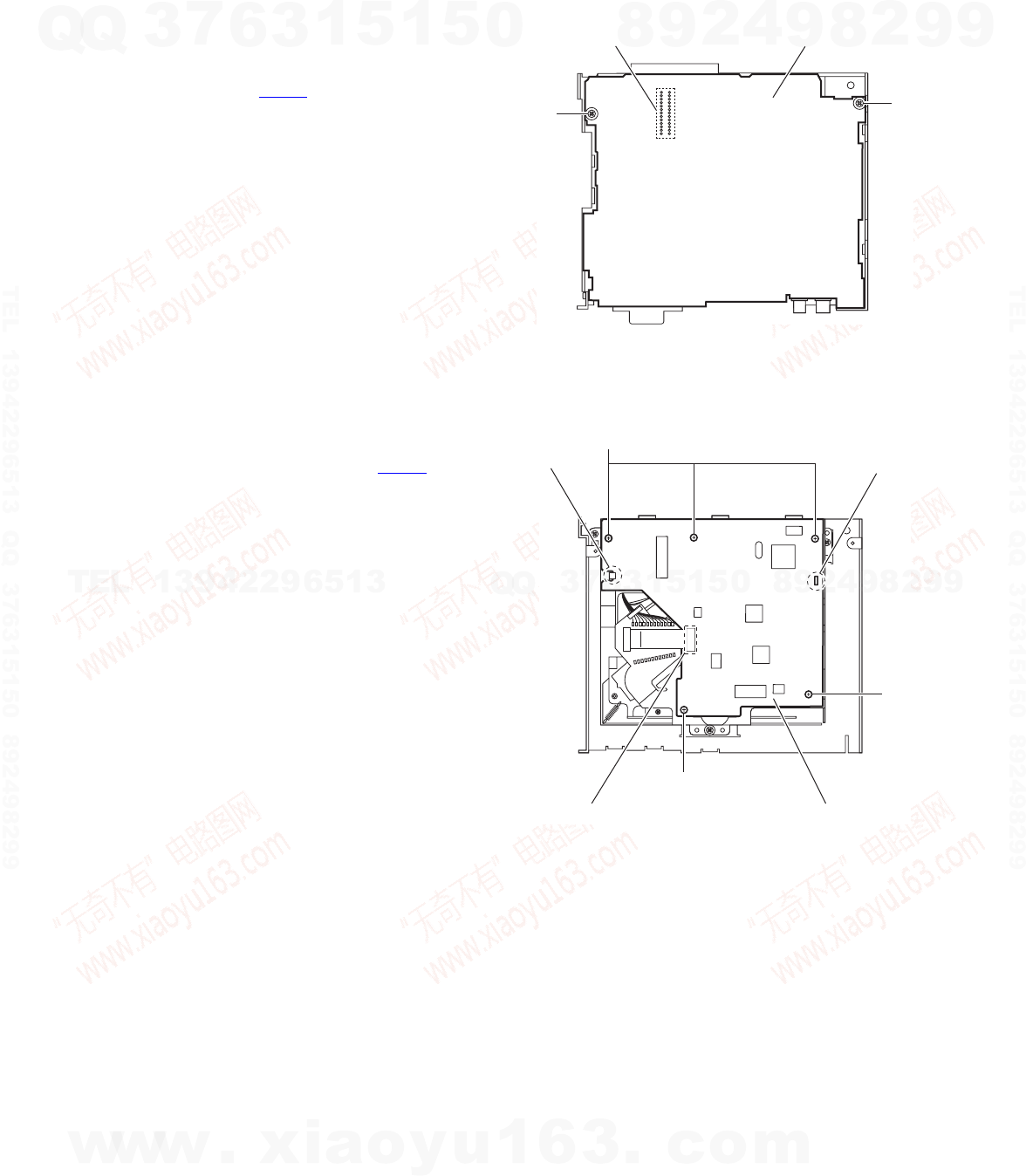

3.1.6 Removing the main board
(See Fig.7)
• Prior to performing the following procedure, remove the front
panel assembly, front chassis assembly, side panel, bottom
cover and rear bracket.
(1) Remove the two screws H attaching the main board.
(2) Disconnect the connector CN501 and take out the main
board.
Fig.7
3.1.7 Removing the CD mecha control board
(See Fig.8)
• Prior to performing the following procedure, remove the front
panel assembly, front chassis assembly, side panel, bottom
cover, rear bracket and main board.
(1) Disconnect the card wire from the connector CN601 on the
CD mecha control board.
(2) Remove the five screws J attaching the CD mecha control
board.
(3) Release the claw f, and take out the CD mecha control
board.
Reference:
When attaching the CD mecha control board, attach it to the
claw f and pass the slot g of it into the boss of the CD mecha-
nism assembly.
Fig.8
Main board
H
H
CN501
CD mecha control board
CN601
J
J
J
Slot g
Claw f
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA124)1-9
3.1.8 Removing the CD mechanism assembly
(See Fig.9)
• Prior to performing the following procedure, remove the front
panel assembly, front chassis assembly, side panel, bottom
cover, rear bracket, main board and CD mecha control board.
(1) Remove the three screws K attaching the top chassis.
(2) Take out the CD mechanism assembly.
Fig.9
3.1.9 Removing the front board
(See Figs.10 to 12)
• Prior to performing the following procedure, remove the front
panel assembly.
(1) Remove the five screws L attaching the front panel assem-
bly. (See Fig.10)
(2) Release the nine joints h, and take out the rear cover. (See
Fig.11)
(3) Take out the front board. (See Fig.12)
NOTE:
When removing the rear cover assembly and switch board, be
careful not to lose the compression spring and comp. spring.
(See Fig.12)
Fig.10
Fig.11
Fig.12
K
K
CD mechanism assembly Top chassis
L
Rear cover
Rear cover
Joint h
Joint h
Joint h Joint h
Front board
Spring
Spring
Front panel assembly
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-10 (No.MA124)

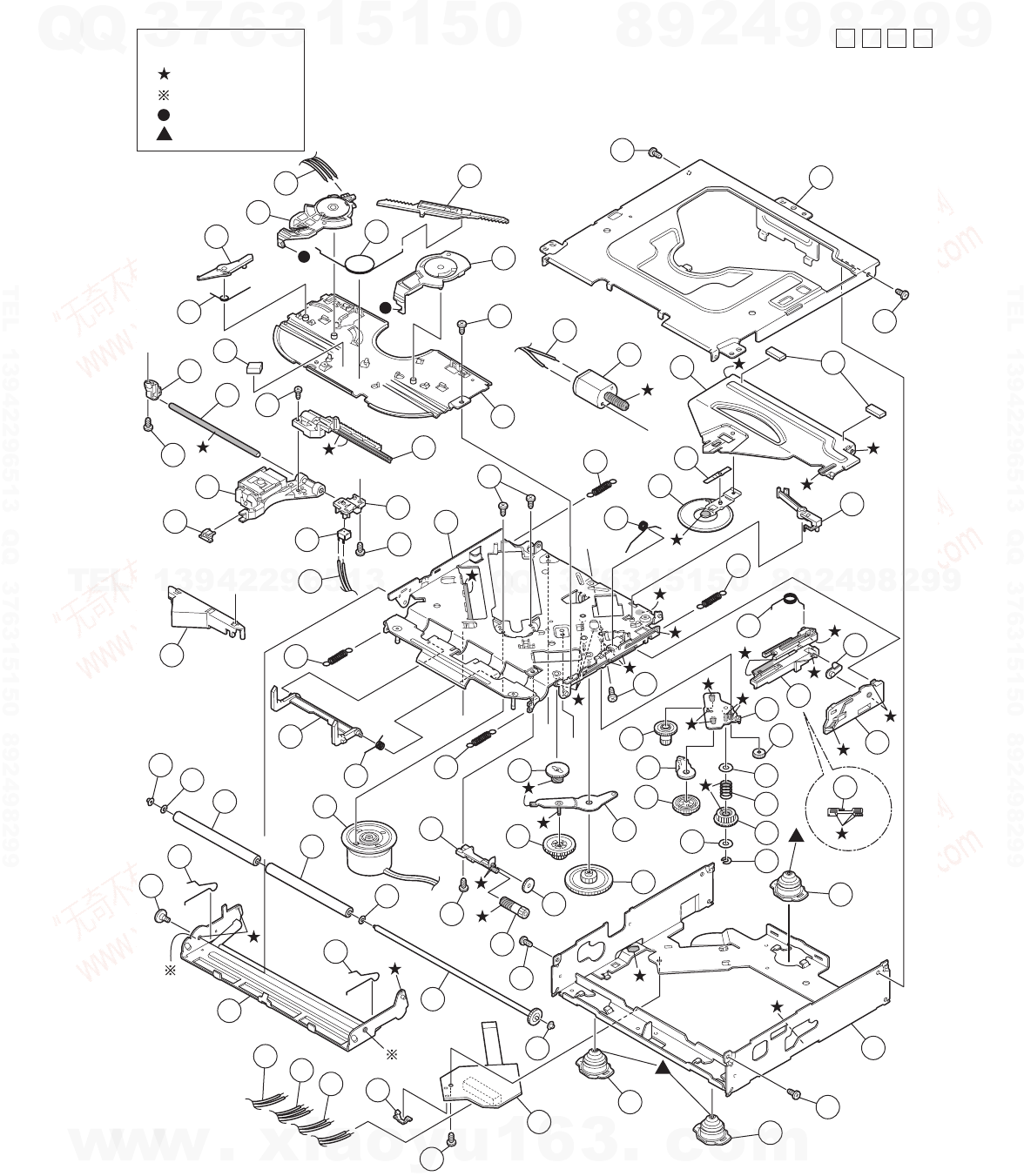

3.2 CD Mechanism section
3.2.1 Removing the top cover
(See Figs.1 and 2)
(1) Remove the four screws A on the both side of the body.
(2) Lift the front side of the top cover and move the top cover
backward to release the two joints a.
Fig.1
Fig.2
A
A
A
Joints a
Top cover
Joints a
Top cover
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA124)1-11

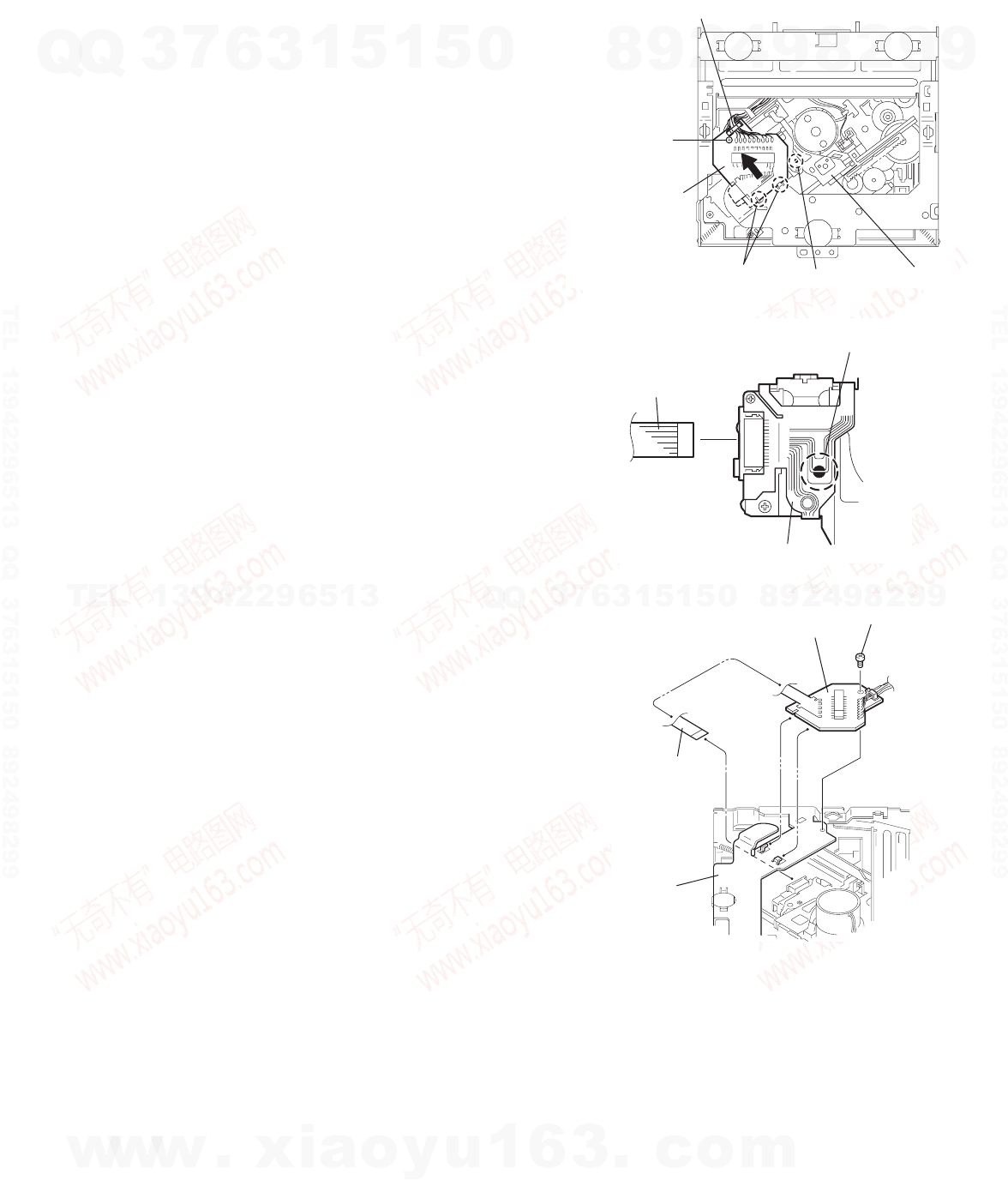

3.2.2 Removing the connector board
(See Figs.3 to 5)
CAUTION:
Before disconnecting the flexible wire from the pickup, solder
the short-circuit point on the pickup. No observance of this in-
struction may cause damage of the pickup.
(1) Remove the screw B fixing the connector board.
(2) Solder the short-circuit point on the pickup.
(3) Disconnect the flexible wire from the pickup.
(4) Move the connector board in the direction of the arrow to
release the two joints b.
(5) Unsolder the wires on the connector board if necessary.
CAUTION:
Unsolder the short-circuit point after reassembling.
Fig.3
Fig.4
Fig.5
B
Connector board
Pickup
Short-circuit point
Joints b
Wires
Pickup
Short-circuit point
(Soldering)
Flexible wire
B
Flexible wire
Connector board
Frame
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-12 (No.MA124)

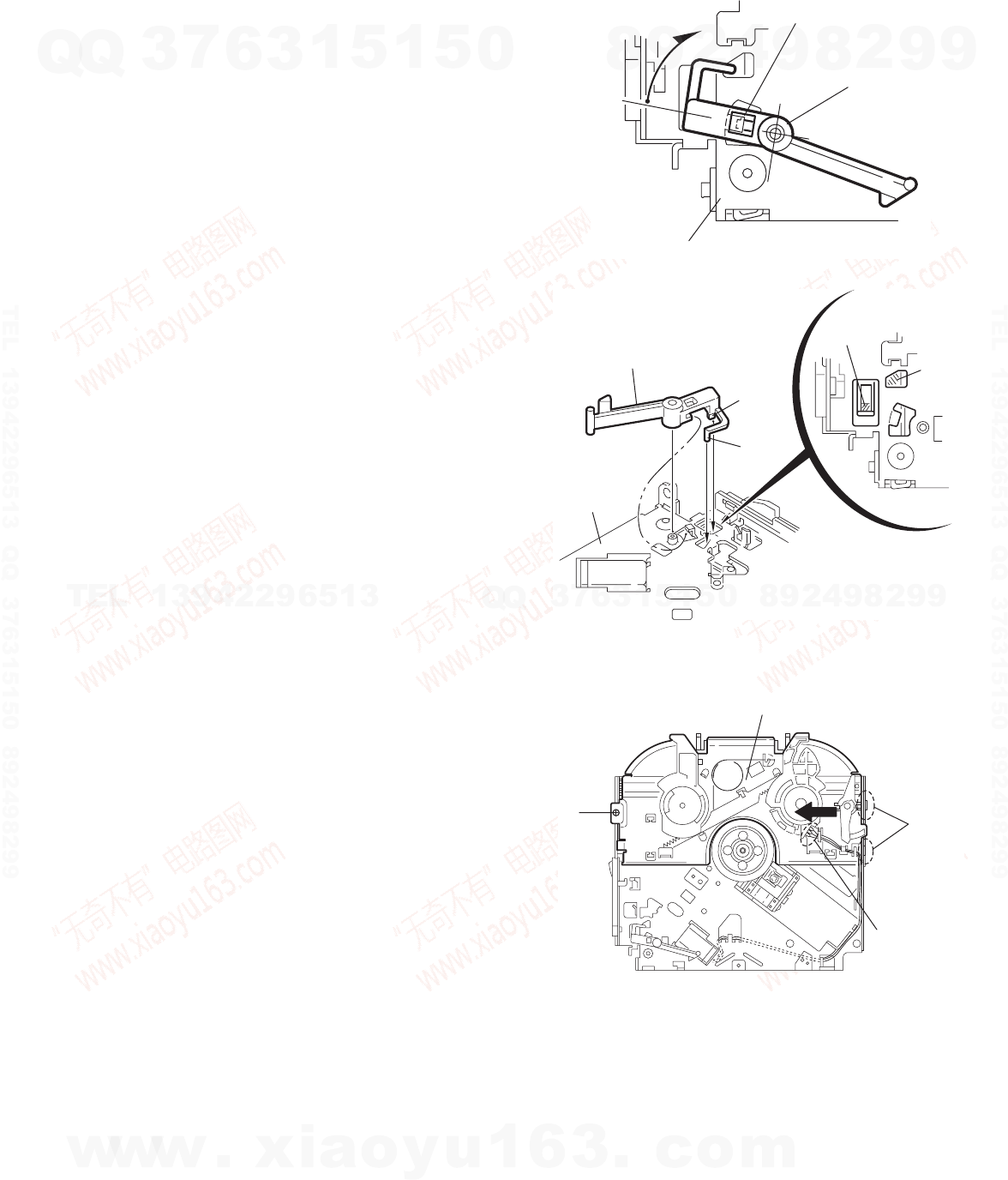

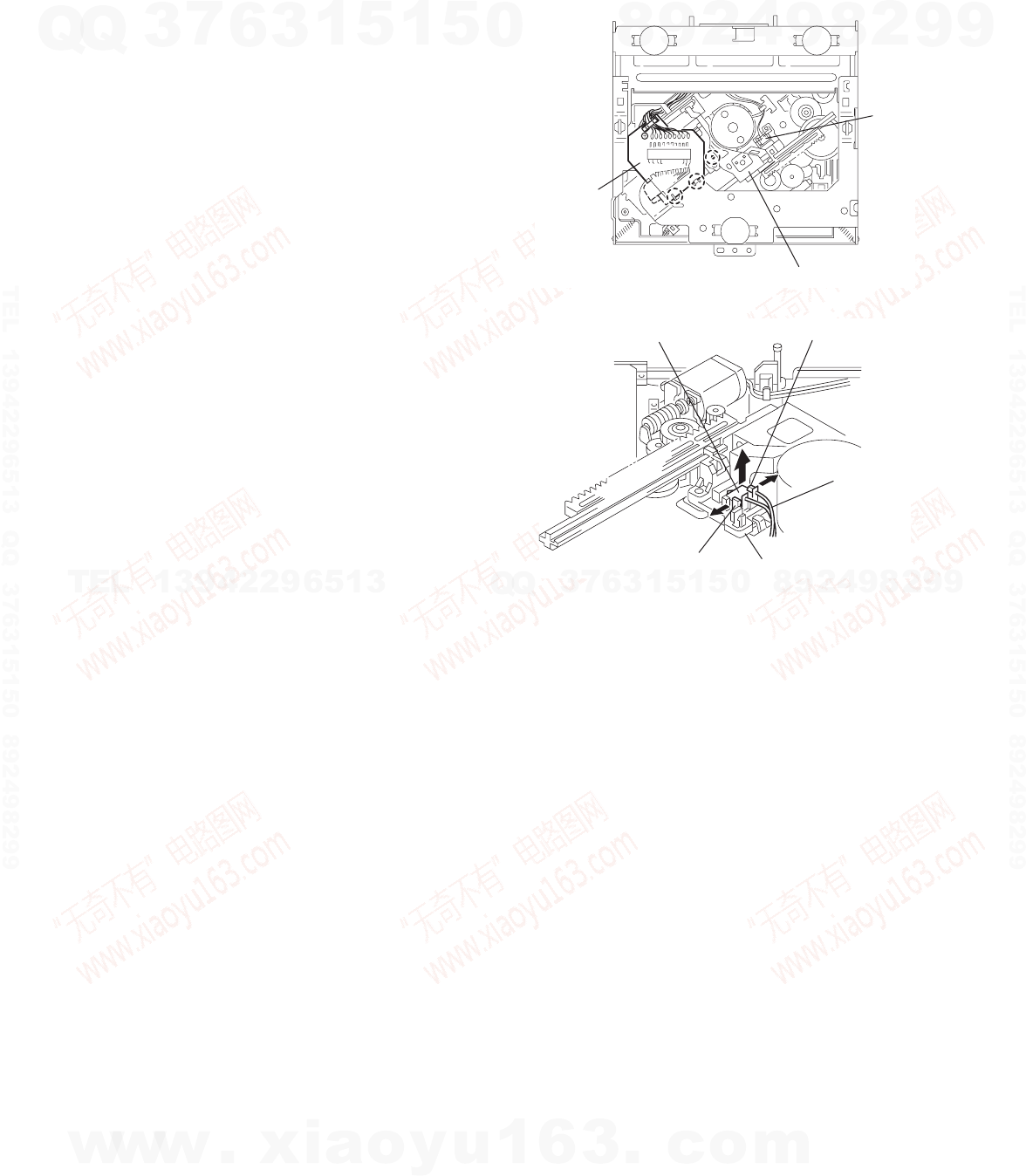

3.2.3 Removing the DET switch
(See Figs.6 and 7)
(1) Extend the two tabs c of the feed sw. holder and pull out
the switch.
(2) Unsolder the DET switch wire if necessary.
Fig.6
Fig.7
Connector
board
DET
switch
Pickup
DET switch Tab c
Tab c
DET switch wire
Feed sw. holder
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA124)1-13

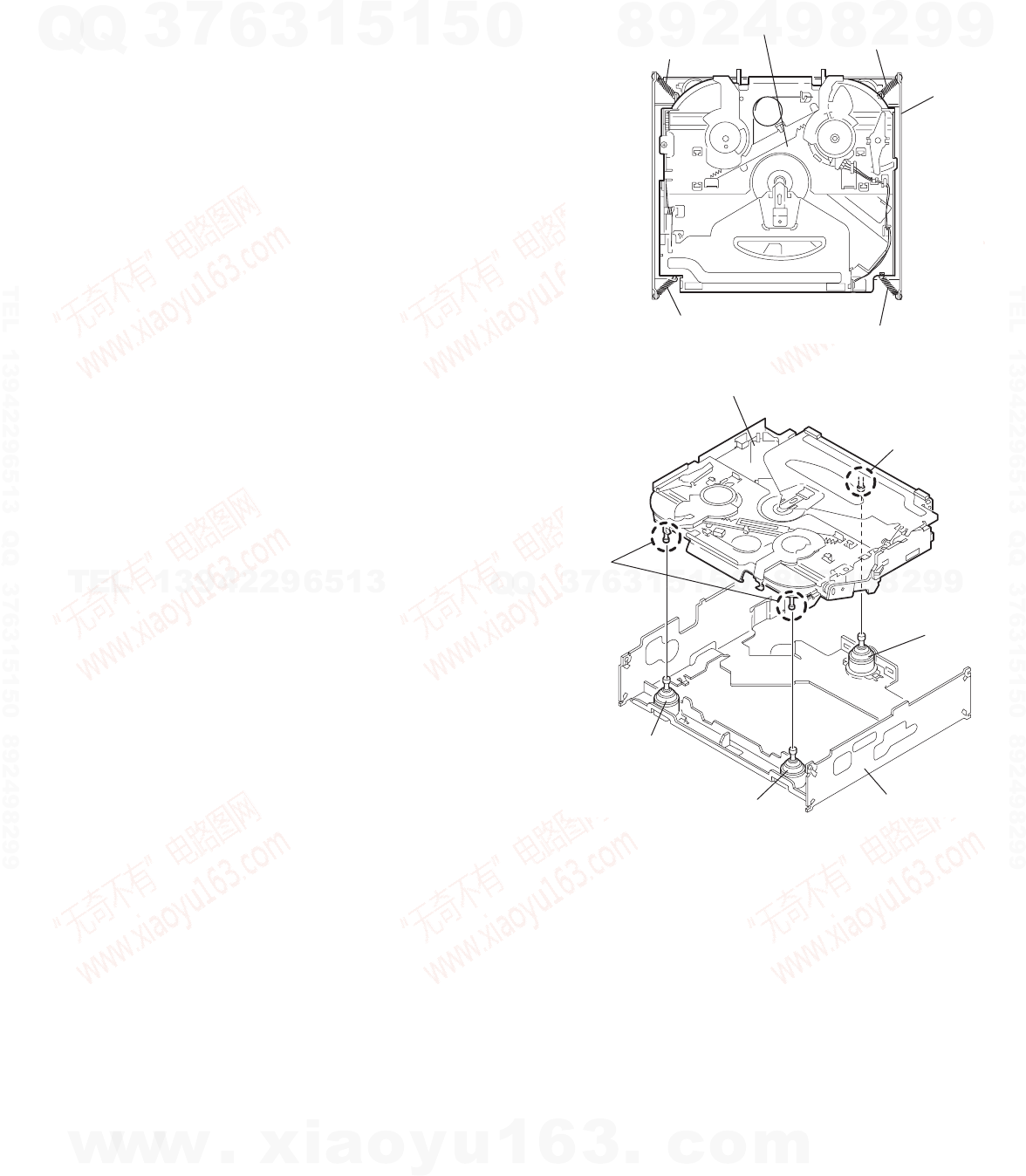

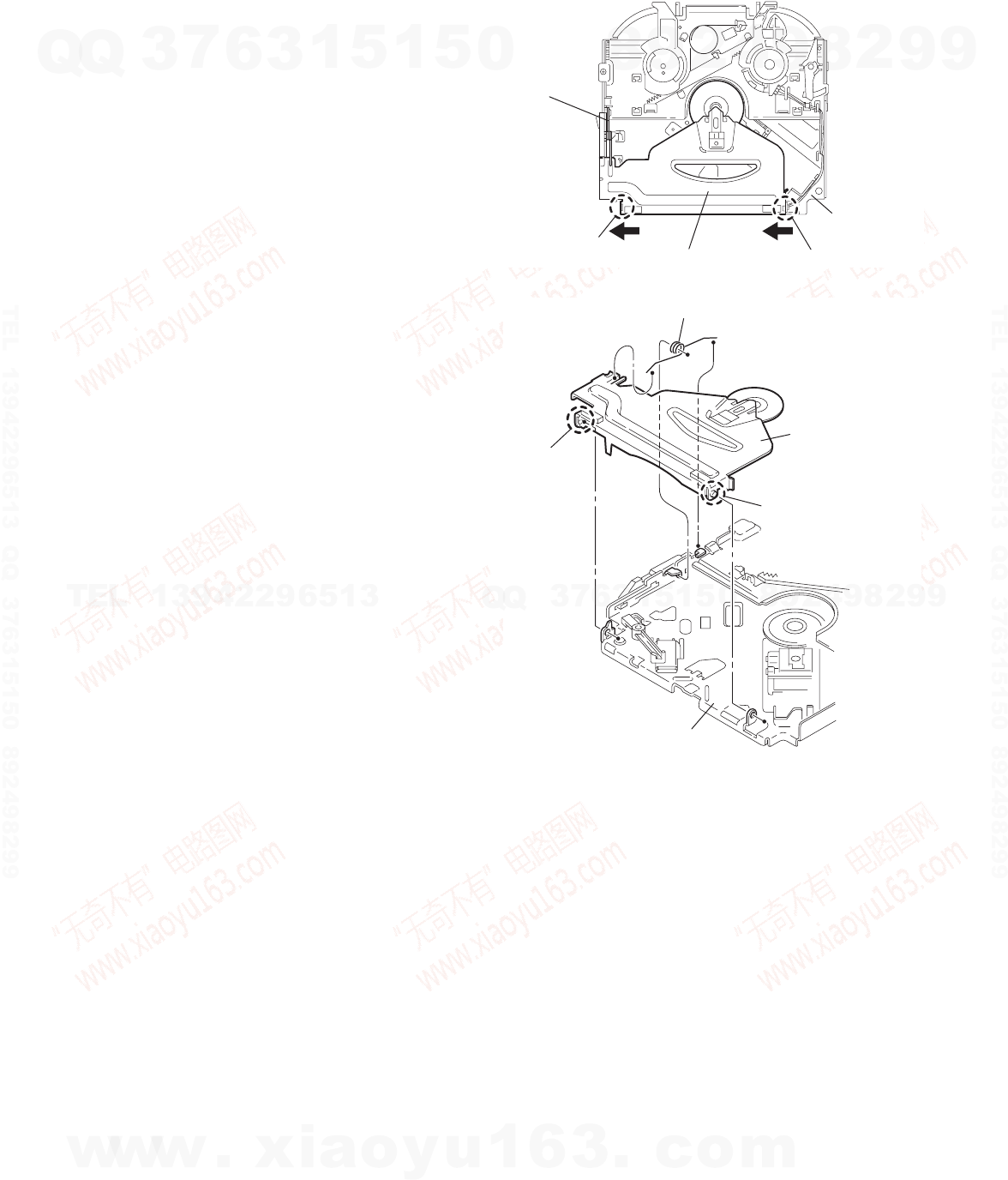

3.2.4 Removing the chassis unit
(See Figs.8 and 9)
• Prior to performing the following procedure, remove the top
cover and connector board.
(1) Remove the two suspension springs (L) and (R) attaching
the chassis unit to the frame.
CAUTION:
• The shape of the suspension spring (L) and (R) are dif-
ferent. Handle them with care.
• When reassembling, make sure that the three shafts
on the underside of the chassis unit are inserted to the
dampers certainly.
Fig.8
Fig.9
Suspension spring (L)
Suspension spring (L)
Suspension spring (R)
Suspension spring (R)
Chassis unit
Frame
Chassis unit
Frame
Shafts
Shaft
Dampe
r
Damper
Damper
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-14 (No.MA124)
3.2.5 Removing the clamper assembly
(See Figs.10 and 11)
• Prior to performing the following procedure, remove the top
cover.
(1) Remove the clamper arm spring.
(2) Move the clamper assembly in the direction of the arrow to
release the two joints d.
Fig.10
Fig.11
Clamper arm
spring
Chassis rivet
assembly
Joint d
Joint d Clamper assembly
Clamper arm spring
Clamper assembly
Joint d
Joint d
Chassis rivet assembly
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA124)1-15

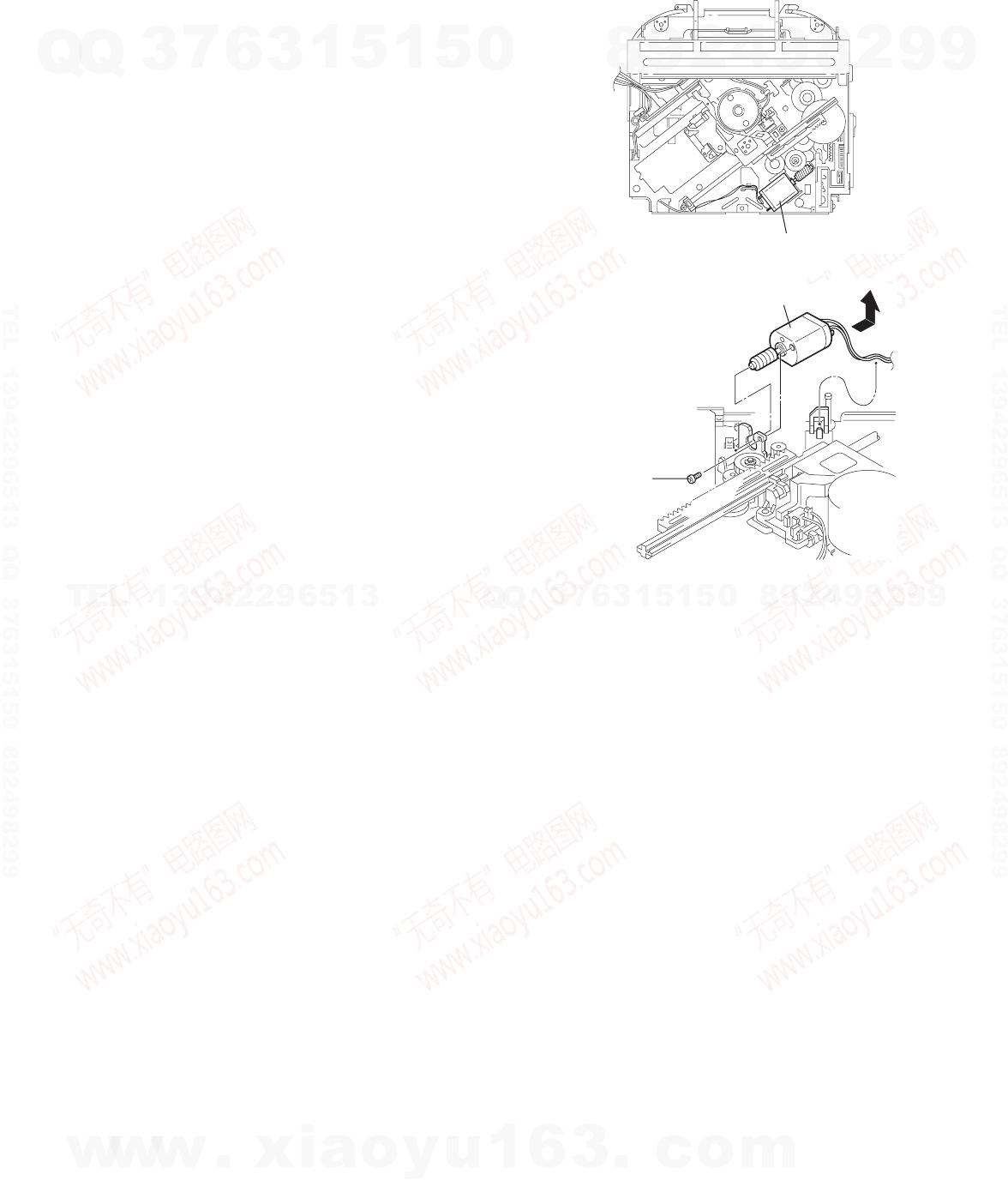

3.2.6 Removing the loading / feed motor assembly
(See Figs.12 and 13)
• Prior to performing the following procedure, remove the top
cover, connector board and chassis unit.
(1) Remove the screw C and move the loading / feed motor as-
sembly in the direction of the arrow to remove it from the
chassis rivet assembly.
(2) Disconnect the wire from the loading / feed motor assembly
if necessary.
CAUTION:
When reassembling, connect the wire from the loading /
feed motor assembly to the flame as shown in Fig.12.
Fig.12
Fig.13
Loading / feed motor assembly
Loading / feed motor assembly
C
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-16 (No.MA124)

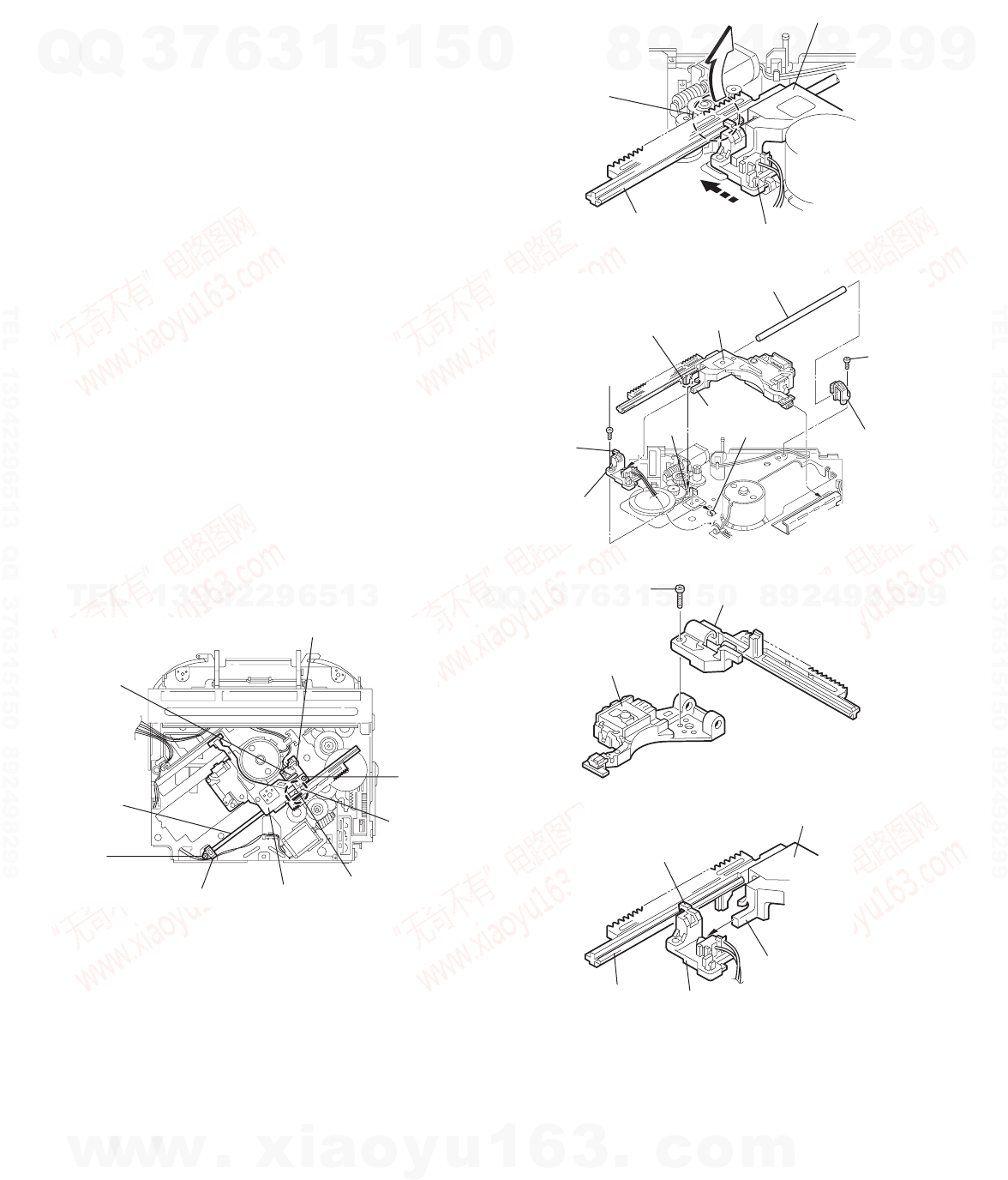

3.2.7 Removing the pickup unit
(See Figs.14 to 18)
• Prior to performing the following procedure, remove the top
cover, connector board and chassis unit.
(1) Remove the screw D and pull out the pu. shaft holder from
the pu. shaft.
(2) Remove the screw E attaching the feed sw. holder.
(3) Move the part e of the pickup unit upward with the pu. shaft
and the feed sw. holder, then release the joint f of the feed
sw. holder in the direction of the arrow. The joint g of the
pickup unit and the feed rack is released, and the feed sw.
holder comes off.
(4) Remove the pu. shaft from the pickup unit.
(5) Remove the screw F attaching the feed rack to the pickup
unit.
3.2.8 Reattaching the pickup unit
(See Figs.14 to 17)
(1) Reattach the feed rack to the pickup unit using the screw F.
(2) Reattach the feed sw. holder to the feed rack while setting
the joint g to the slot of the feed rack and setting the joint f
of the feed rack to the switch of the feed sw. holder correct-
ly.
(3) As the feed sw. holder is temporarily attached to the pickup
unit, set to the gear of the joint g and to the bending part of
the chassis (joint h) at a time.
CAUTION:
Make sure that the part i on the underside of the feed
rack is certainly inserted to the slot j of the change lock
lever.
(4) Reattach the feed sw. holder using the screw E.
(5) Reattach the pu. shaft to the pickup unit. Reattach the pu.
shaft holder to the pu. shaft using the screw D.
Fig.14
Fig.15
Fig.16
Fig.17
Fig.18
Feed sw. holder
E
D
Joint g
Joint f
Part e
Pickup unit
Pu. shaft holder
Pu. shaft
Feed sw. holder
Part e
Pickup unit
Feed rack
Feed sw. holder
D
E
Joint f
Pu. shaft holde
r
Pu. shaft
Pickup unit
Joint h
Part i
Slot j
Joint g
FFeed rack
Pickup unit
Joint f
Joint g
Feed rack
Pickup unit
Feed sw. holder
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA124)1-17
3.2.9 Removing the trigger arm
(See Figs.19 and 20)
• Prior to performing the following procedure, remove the top
cover, connector board and clamper unit.
(1) Turn the trigger arm in the direction of the arrow to release
the joint k and pull out upward.
CAUTION:
When reassembling, insert the part m and n of the trigger
arm into the part p and q at the slot of the chassis rivet
assembly respectively and join the joint k at a time.
Fig.19
Fig.20
3.2.10 Removing the top plate assembly
(See Fig.21)
• Prior to performing the following procedure, remove the top
cover, connector board, chassis unit, and clamper assembly.
(1) Remove the screw H.
(2) Move the top plate assembly in the direction of the arrow to
release the two joints r.
(3) Unsolder the wire marked s if necessary.
Fig.21
Joint k
Trigger arm
Chassis rivet assembly
Trigger arm
Chassis
rivet
assembly
Part p
Part m
Part n
Part q
Top plate assembly
Joints
r
s
H
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-18 (No.MA124)
3.2.11 Removing the mode sw. / select lock arm
(See Figs.22 and 23)
• Prior to performing the following procedure, remove the top
plate assembly.
(1) Bring up the mode sw. to release from the link plate (joint t)
and turn in the direction of the arrow to release the joint u.
(2) Unsolder the wire of the mode sw. marked s if necessary.
(3) Turn the select lock arm in the direction of the arrow to re-
lease the two joints v.
(4) The select lock arm spring comes off the select lock arm at
the same time.
Fig.22
Fig.23
Mode sw.
Select lock arm
Joint t
Link plate
Joint u s
Top plate
Top plate
Select lock arm
Select lock
arm spring
Select lock arm
Link plate
Joints v
Hook w
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA124)1-19

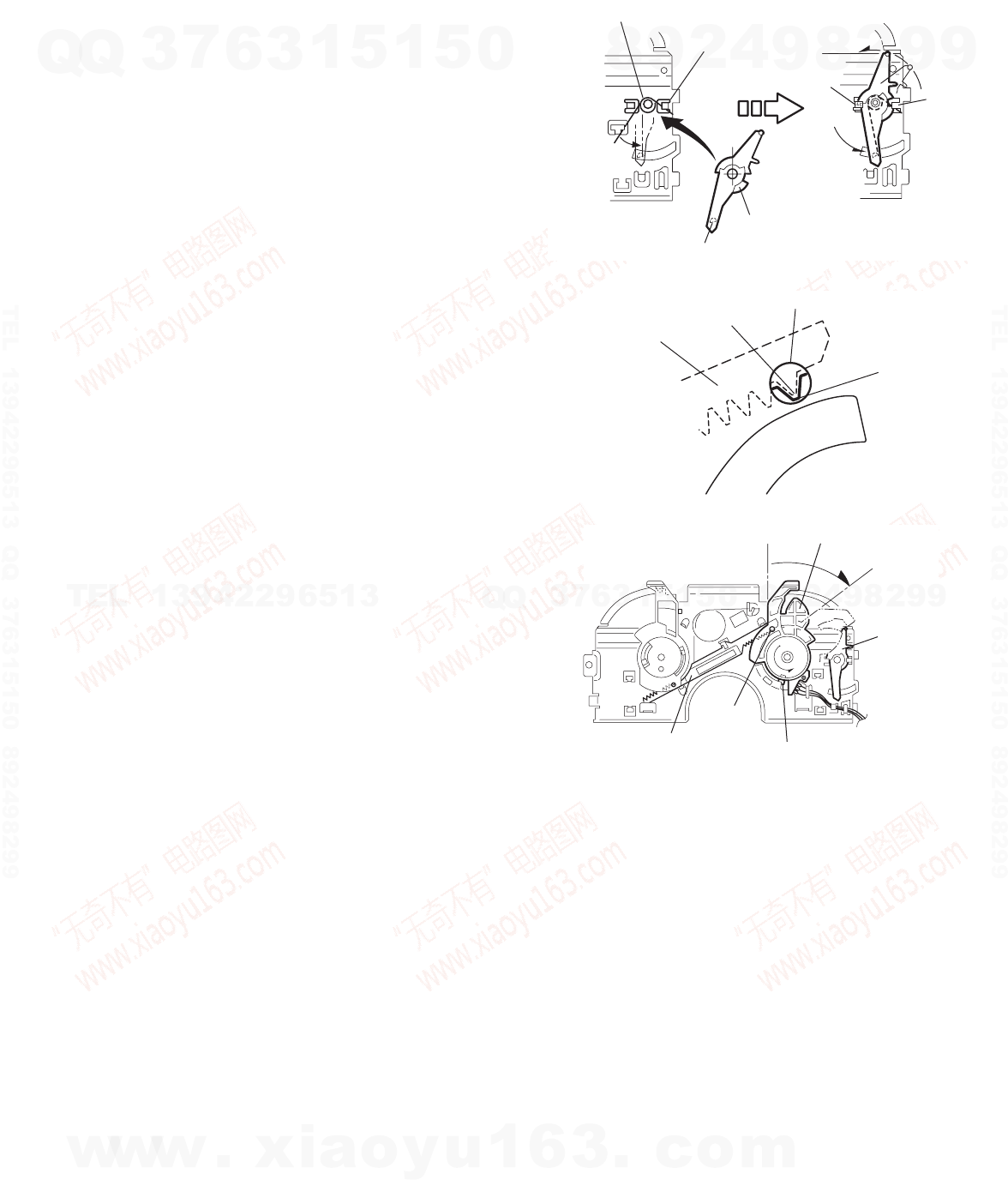

3.2.12 Reassembling the mode sw. / select lock arm
(See Figs.24 to 26)
REFERENCE:
Reverse the above removing procedure.
(1) Reattach the select lock arm spring to the top plate and set
the shorter end of the select lock arm spring to the hook w
on the top plate.
(2) Set the other longer end of the select lock arm spring to the
boss x on the underside of the select lock arm, and join the
select lock arm to the slots (joint v). Turn the select lock
arm as shown in the figure.
(3) Reattach the mode sw. while setting the part t to the first
peak of the link plate gear, and join the joint u.
CAUTION:
When reattaching the mode sw., check if the points y and
z are correctly fitted and if each part operates properly.
Fig.24
Fig.25
Fig.26
Select lock arm
Hook w
Boss x
Select lock arm spring
Joint v
Joint v
Link plate
Joint t
Point z
Point y
Select
lock arm
Mode sw.
Joint t
Joint u
Link plate
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-20 (No.MA124)

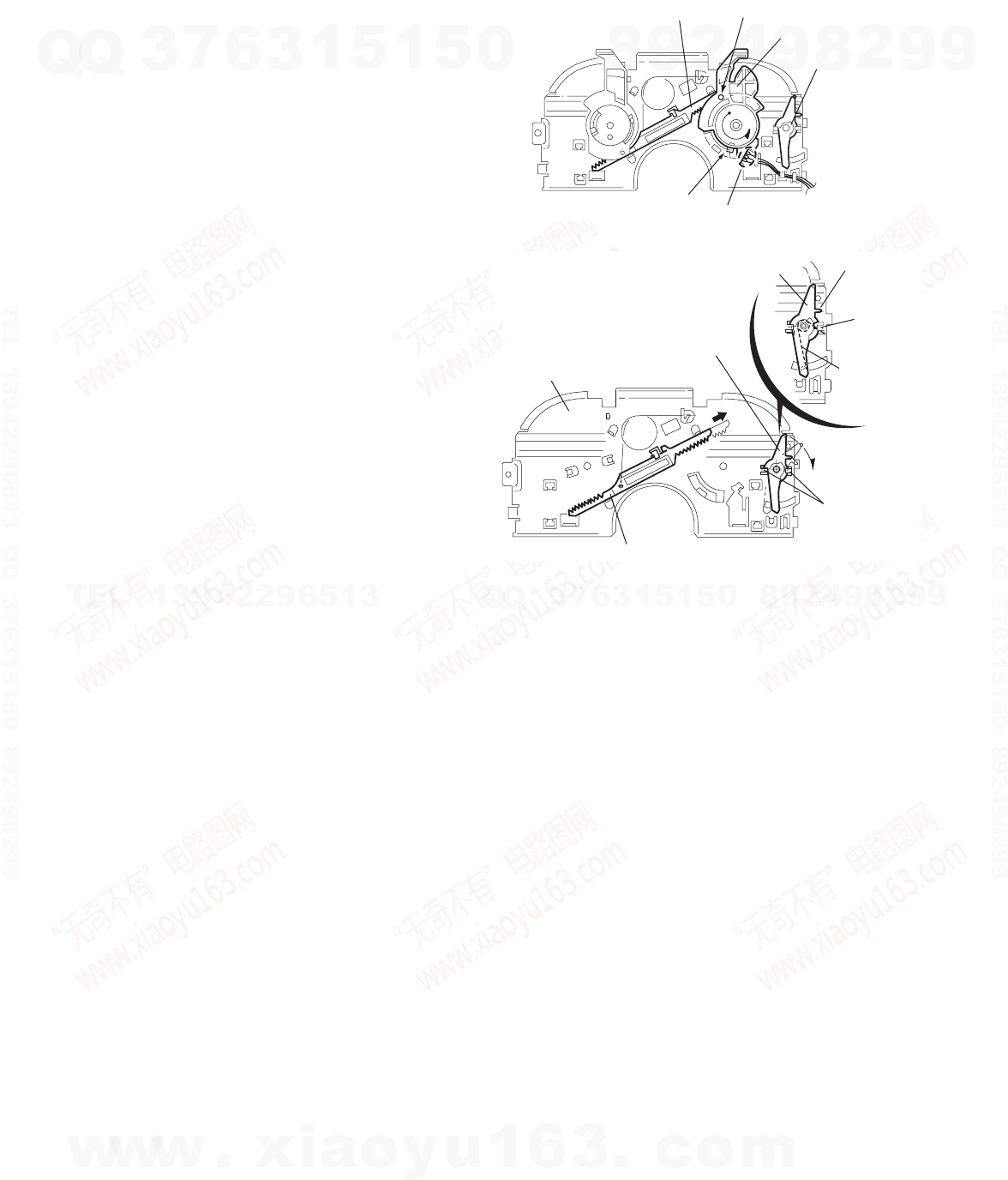

3.2.13 Removing the select arm R / link plate
(See Figs.27 and 28)
• Prior to performing the following procedure, remove the top
plate assembly.
(1) Bring up the select arm R to release from the link plate
(joint a') and turn as shown in the figure to release the two
joints b' and joint c'.
(2) Move the link plate in the direction of the arrow to release
the joint d'. Remove the link plate spring at the same time.
REFERENCE:
Before removing the link plate, remove the mode sw..
Fig.27
Fig.28
3.2.14 Reattaching the Select arm R / link plate
(See Figs.29 and 30)
REFERENCE:
Reverse the above removing procedure.
(1) Reattach the link plate spring.
(2) Reattach the link plate to the link plate spring while joining
them at joint d'.
(3) Reattach the joint a' of the select arm R to the first peak of
the link plate while joining the two joints b' with the slots.
Then turn the select arm R as shown in the figure. The top
plate is joined to the joint c'.
CAUTION:
When reattaching the select arm R, check if the points e'
and f' are correctly fitted and if each part operates prop-
erly.
Fig.29
Fig.30
Joint r
Link plate
Joint b'
Joint b'
Joint c'
Select arm R
Joint a'
Top plate
Link plate
Link plate spring
Joint d'
Select arm R Joint c'
Joint d'
Link plate spring
Joint b'
Joint b' Joint a'
Link plate
Joint a'
Point e' Point f'
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA124)1-21

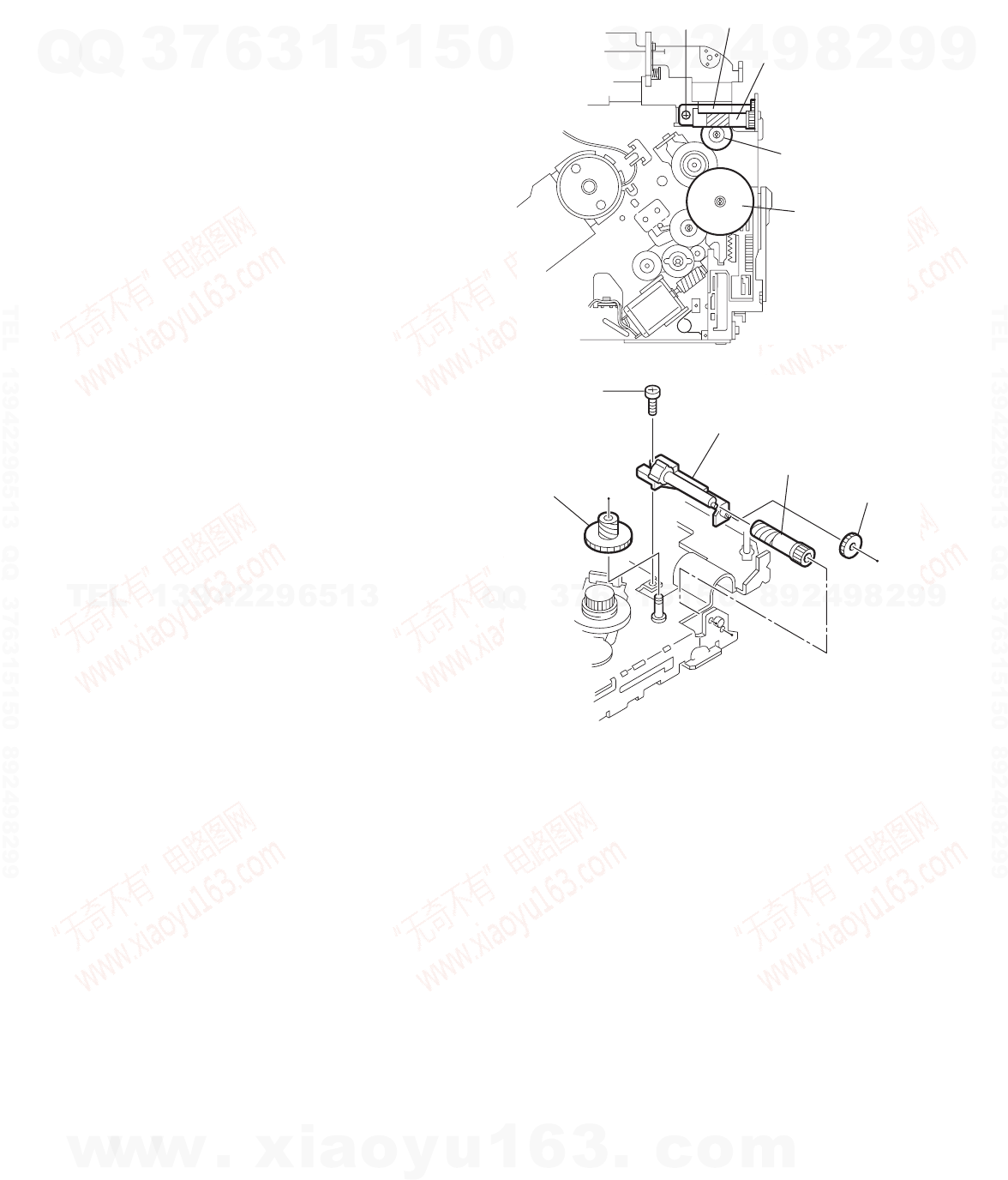

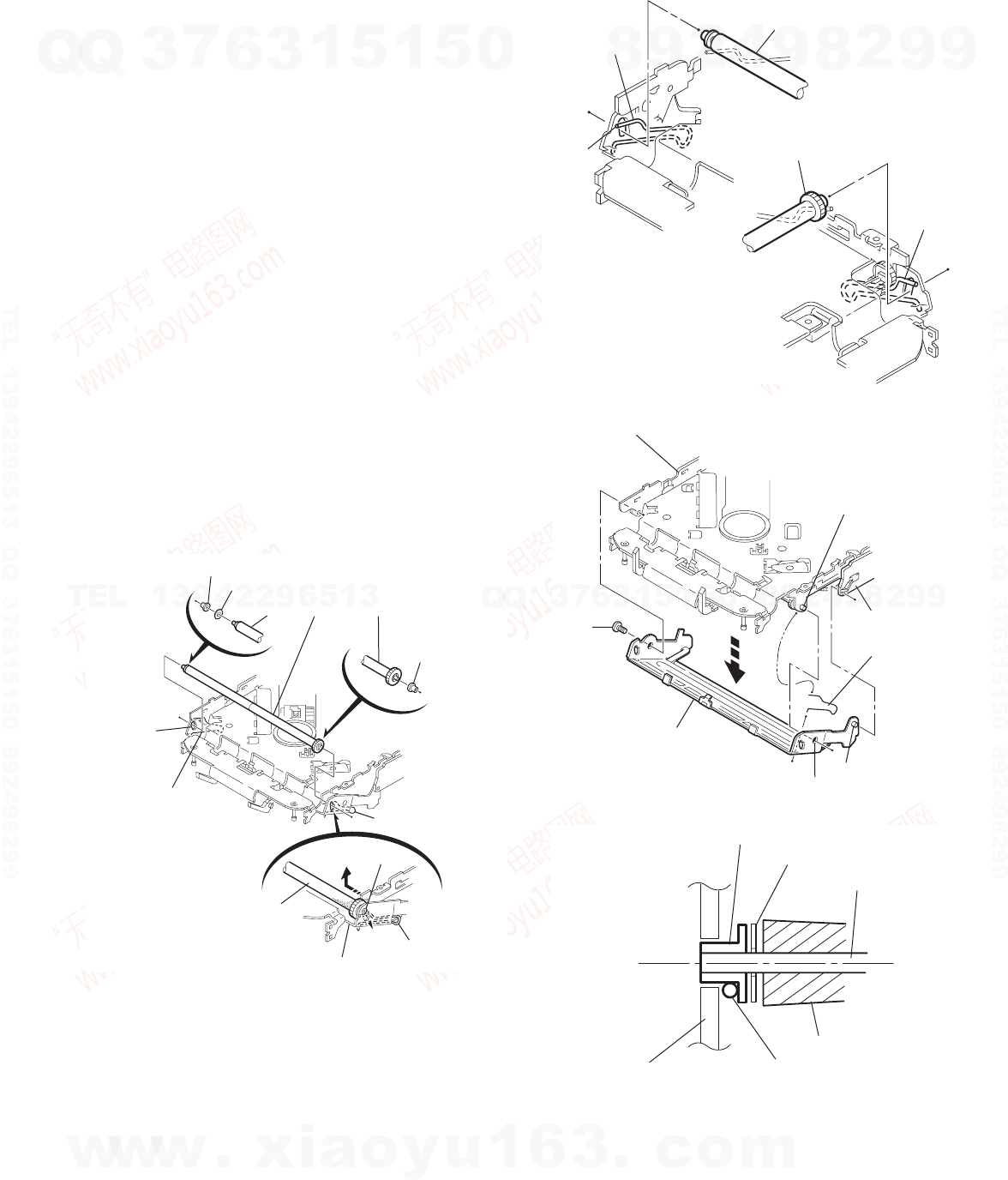

3.2.15 Removing the loading roller assembly
(See Figs.31 to 33)
• Prior to performing the following procedure, remove the
clamper assembly and top plate assembly.
(1) Push inward the loading roller assembly on the gear side
and detach it upward from the slot of the joint g' of the lock
arm rivet assembly.
(2) Detach the loading roller assembly from the slot of the joint
h' of the lock arm rivet assembly.
The roller guide comes off the gear section of the loading
roller assembly.
Remove the roller guide and the HL washer from the shaft
of the loading roller assembly.
(3) Remove the screw J attaching the lock arm rivet assembly.
(4) Push the shaft at the joint i' of the lock arm rivet assembly
inward to release the lock arm rivet assembly from the slot
of the L side plate.
(5) Extend the lock arm rivet assembly outward and release
the joint j' from the boss of the chassis rivet assembly. The
roller guide springs on both sides come off at the same
time.
CAUTION:
When reassembling, reattach the left and right roller
guide springs to the lock arm rivet assembly before reat-
taching the lock arm rivet assembly to the chassis rivet
assembly. Make sure to fit the part k' of the roller guide
spring inside of the roller guide. (Refer to Fig.34.)
Fig.31
Fig.32
Fig.33
Fig.34
Roller guide
Roller guide spring
Roller guide spring
Roller guide spring
Roller guide
HL washer
Loading roller assembly
Loading roller assembly
Joint h'
Joint g'
Lock arm rivet assembly
Roller guide
spring
Roller guide
spring
Loading roller assembly
Loading roller assembly
Part k'
Roller guide spring
Boss
L side plate
Joint i'
Joint j'
Lock arm rivet assembly
J
Chassis rivet assembly
Roller guide
HL washer
Lock arm rivet assembly Roller guide spring
Loading roller
Roller shaft assembly
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-22 (No.MA124)
3.2.16 Removing the loading gear 5, 6 and 7
(See Figs.35 and 36)
• Prior to performing the following procedure, remove the top
cover, chassis unit, pickup unit and top plate assembly.
(1) Remove the screw K attaching the loading gear bracket.
The loading gear 6 and 7 come off the loading gear brack-
et.
(2) Pull out the loading gear 5.
Fig.35
Fig.36
KLoading gear bracket
Loading gear 6
Loading gear 5
Loading gear 3
K
Loading gear bracket
Loading gear 6
Loading gear 5 Loading gear 7
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA124)1-23

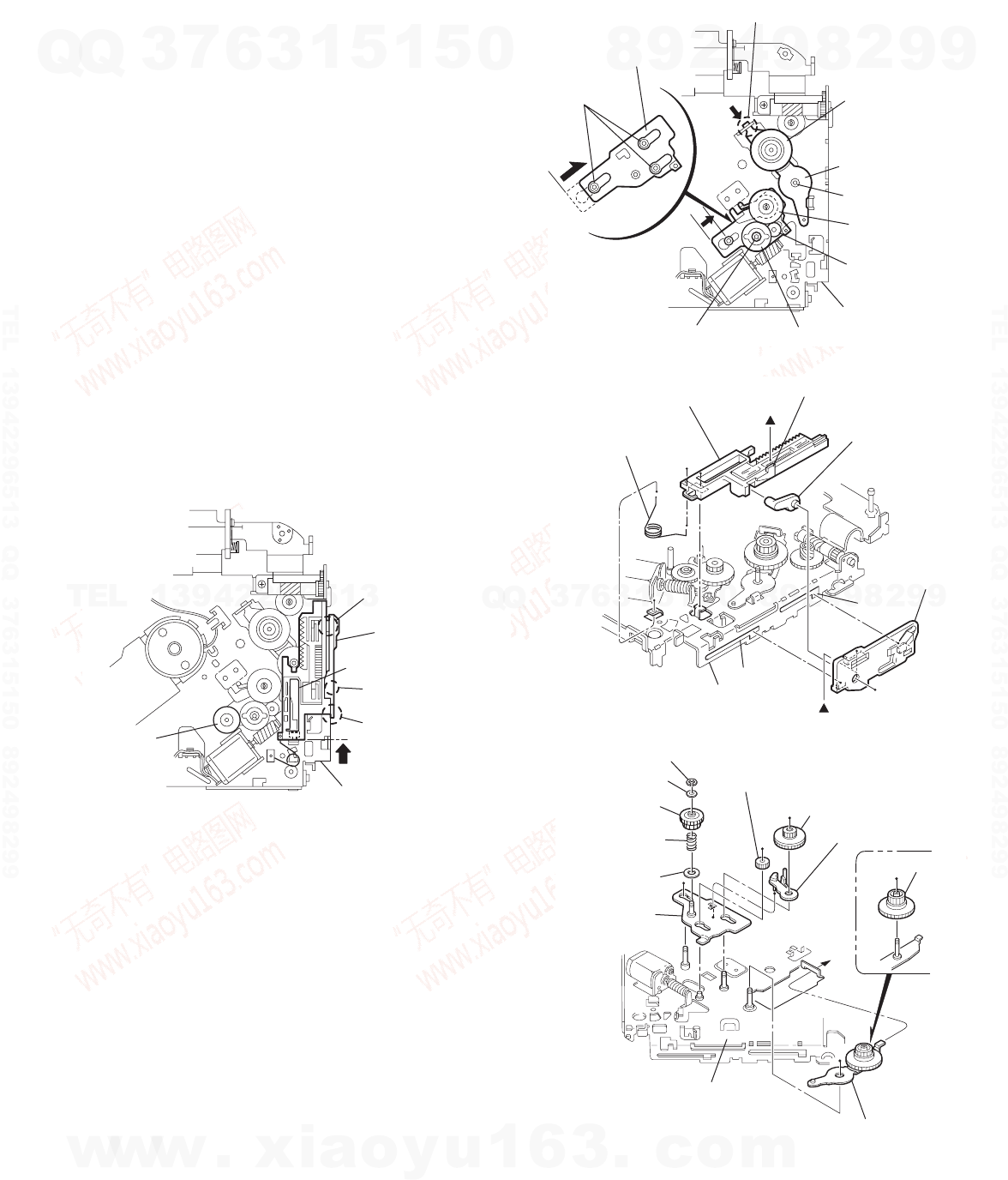

3.2.17 Removing the gears
(See Figs.37 to 40)
• Prior to performing the following procedure, remove the top
cover, chassis unit, top plate assembly and pickup unit.
• Pull out the loading gear 3. (See Fig.35.)
(1) Pull out the feed gear.
(2) Move the loading plate assembly in the direction of the ar-
row to release the L side plate from the two slots m' of the
chassis rivet assembly. (See Fig.37.)
(3) Detach the loading plate assembly upward from the chas-
sis rivet assembly while releasing the joint n'. Remove the
slide hook and loading plate spring from the loading plate
assembly.
(4) Pull out the loading gear 2 and remove the change lock le-
ver.
(5) Remove the E ring and washer attaching the change gear
2.
(6) The change gear 2, change gear spring and adjusting
washer come off.
(7) Remove the loading gear 1.
(8) Move the change plate rivet assembly in the direction of the
arrow to release from the three shafts of the chassis rivet
assembly upward. (See Fig.38.)
(9) Detach the loading gear plate rivet assembly from the shaft
of the chassis rivet assembly upward while releasing the
joint p'. (See Figs.38 and 40.)
(10) Pull out the loading gear 4.

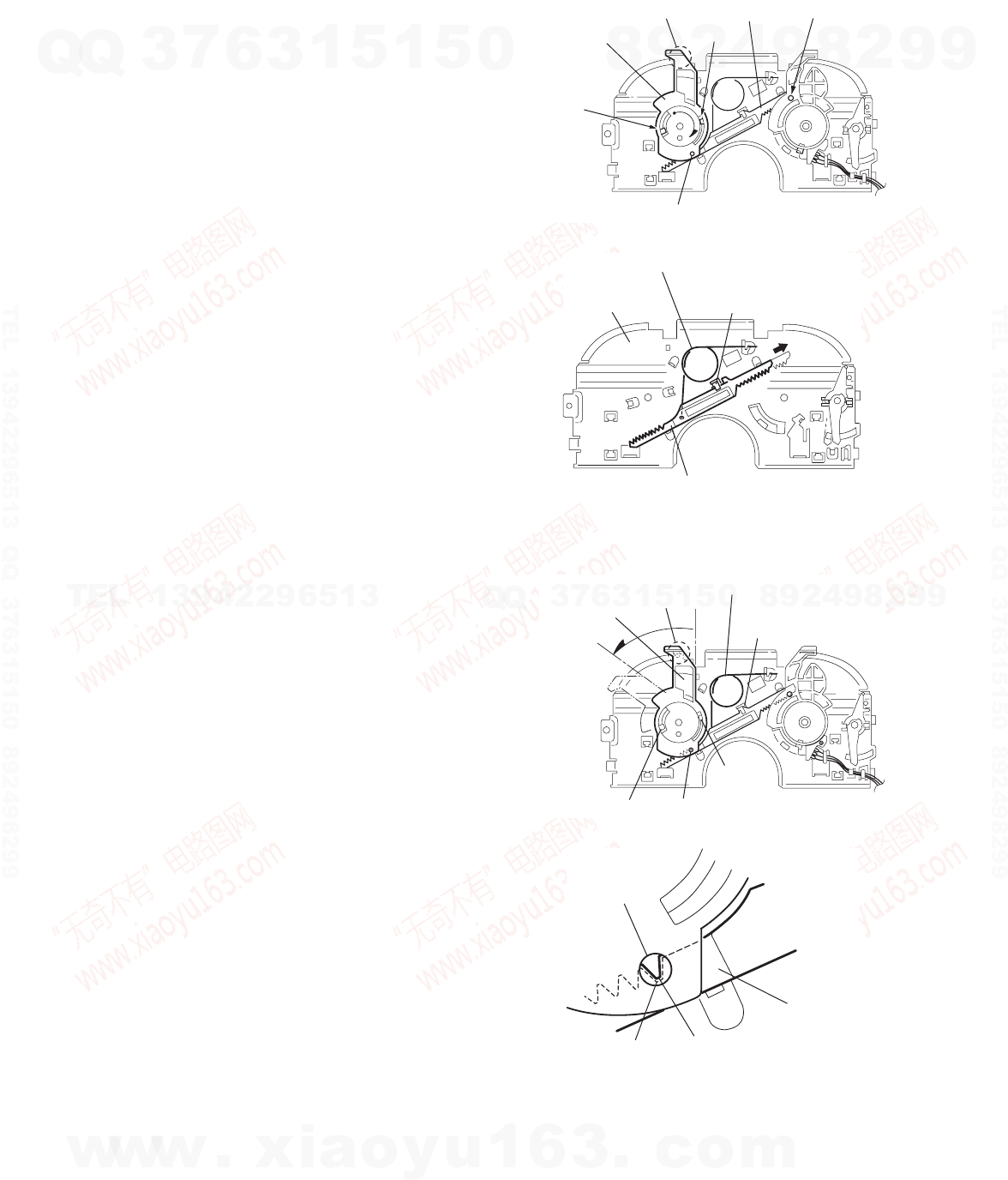

Fig.37
Fig.38
Fig.39
Fig.40
Slot m'
Slot m'
Joint n'
Feed gear
Loading plate assembly
L side plate
Chassis rivet assembly
Joint p'
Loading gear 4
Loading gear 2
Loading gear 1
Change gear 2
Loading gear plate
rivet assembly
E ring
Shafts
Change plate
rivet assembly
Shaft
Chassis rivet assembly
Loading plate assembly
Loading plate spring
Chassis rivet assembly
Slot m'
Slot m'
Joint n'
L side plate
Slide hook
Loading gear 2
Loading gear 4
Change gear 2
Loading gear 1
E ring
Washer
Change gear
spring
Loading gear plate rivet
assembly
Chassis rivet assembly
Adjusting
washer
Change plate
rivet assembly
Change lock lever
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-24 (No.MA124)

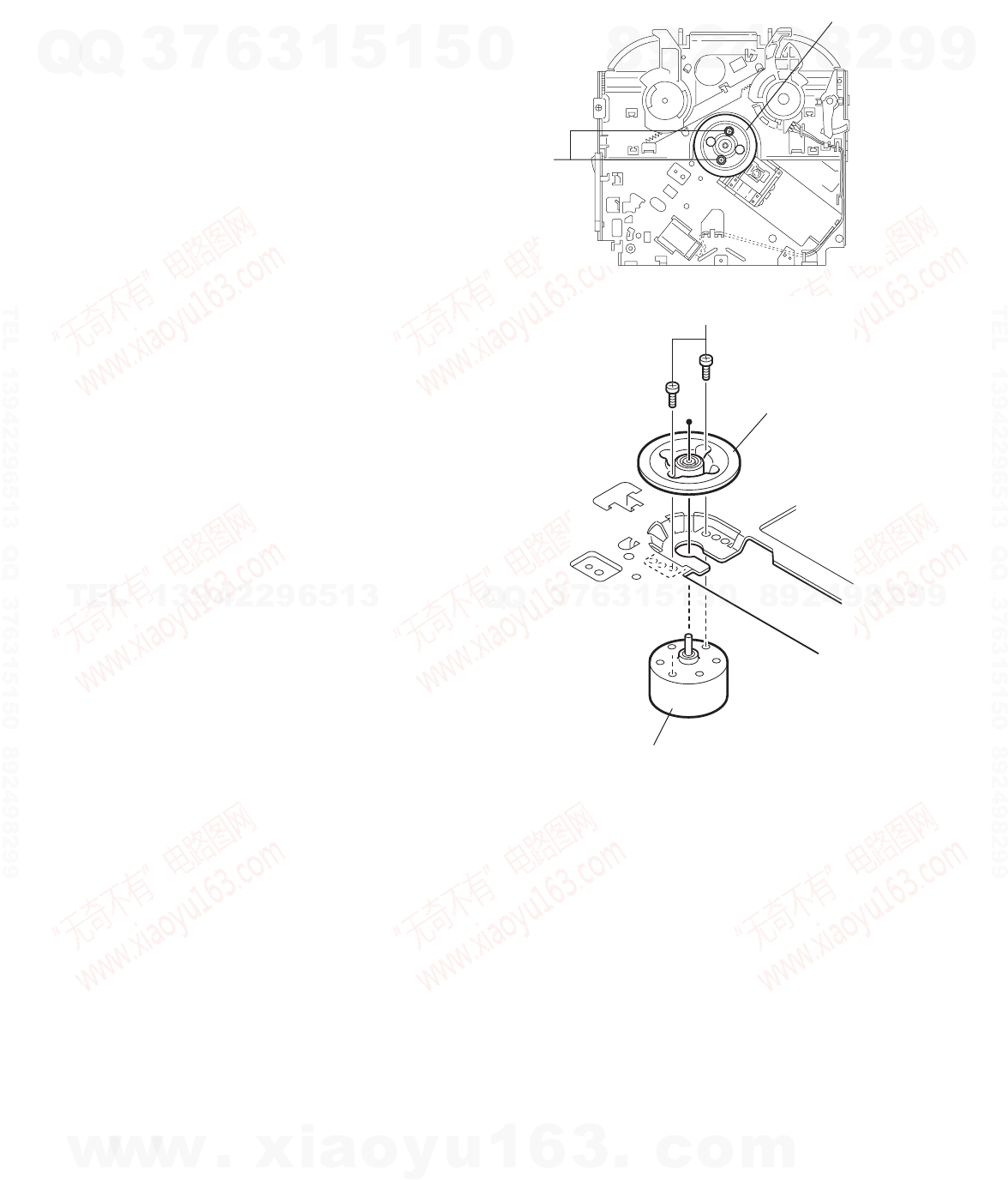

3.2.18 Removing the turn table / spindle motor
(See Figs.41 and 42)
• Prior to performing the following procedure, remove the top
cover, connector board, chassis unit and clamper assembly.
(1) Remove the two screws L attaching the spindle motor as-
sembly through the slot of the turn table on top of the body.
(2) Unsolder the wire on the connector board if necessary.
Fig.41
Fig.42
L
Turn table
L
Turn table
Spindle motor
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA124)1-25
SECTION 4
ADJUSTMENT
4.1 Adjustment method
Test instruments required for adjustment
(1) Digital oscilloscope (100MHz)
(2) Electric voltmeter
(3) Digital tester
(4) Tracking offset meter
(5) Test Disc JVC :CTS-1000
(6) Extension cable for check
EXTSH002-22P × 1
Standard volume position
Balance and Bass &Treble volume : lndication"0"
Loudness : OFF
Standard measuring conditions
Dummy load
Exclusive dummy load should be used for AM,and FM. For FM
dummy load,there is a loss of 6dB between SSG output and
antenna input.The loss of 6dB need not be considered since
direct reading of figures are applied in this working standard.

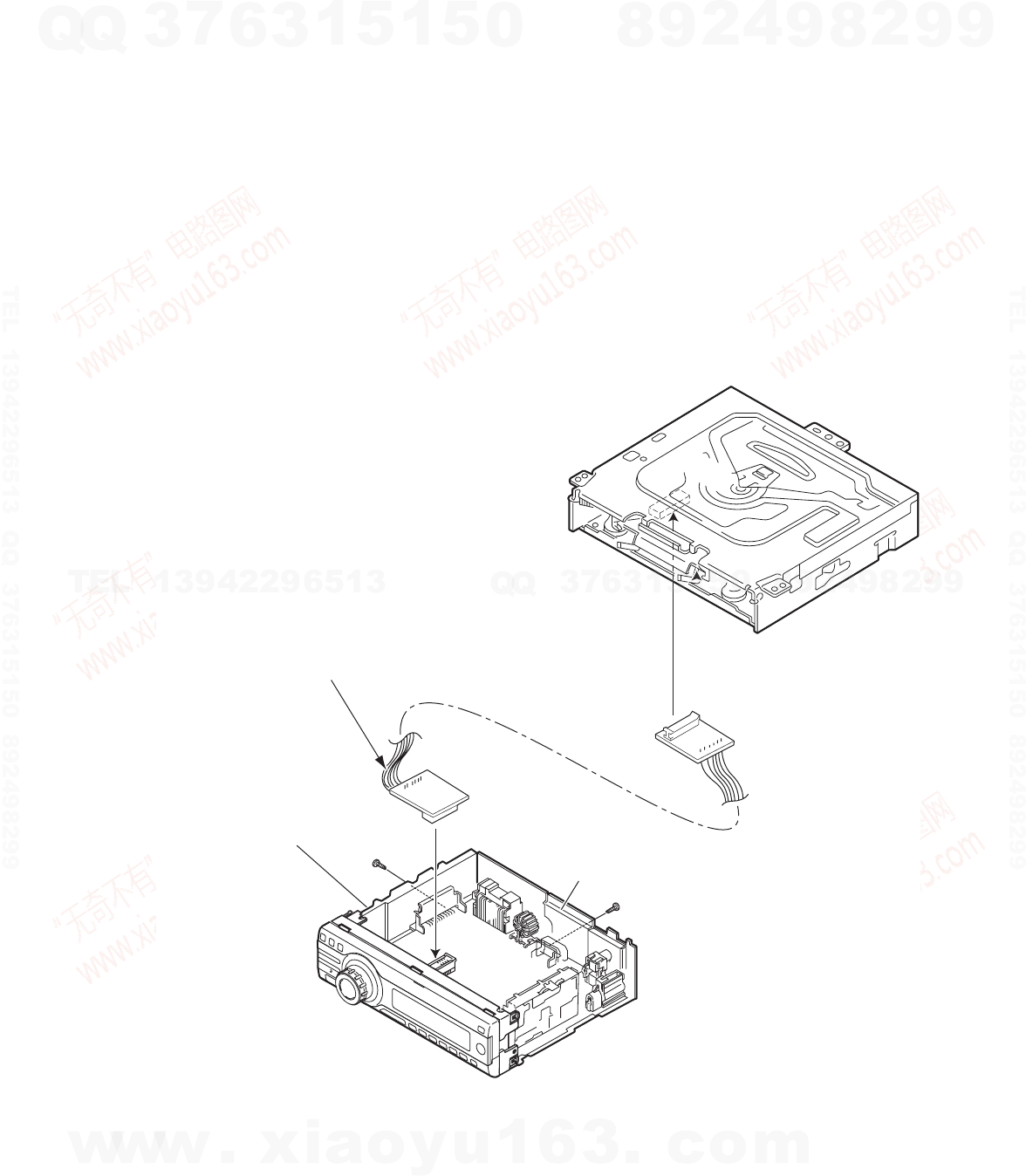

How to connect the extension cable for adjusting
Caution:
Be sure to attach the heat sink and rear bracket onto the power amplifier IC and regulator IC respectively, before supply the power.
If voltage is applied without attaching these parts, the power amplifier IC and regulator IC will be destroyed by heat.
Power supply voltage DC14.4V(11 to 16V)
Load impedance 20KΩ(2 Speakers connection)
Output Level Line out 2.5V (Vol. MAX)
Heat sink
Rear bracket
Extension cable: EXTSH002-22P
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-26 (No.MA124)
SECTION 5
TROUBLESHOOTING
5.1 Feed section
5.2 Focus section
5.3 Spindle section
5.4 Tracking section
Check the feed motor.
Is 4V present at both
sides of the feed motor?
Is the wiring for IC621
pin 40 correct?
NO
YES
YES
Is the voltage output at
IC621 pin 40?
NO
Is 6V or 2V present at
IC681 pins 17 and 18?
NO
Check IC681.
YES
YES
Is 5V present at IC681
pin 6?
Check the feed motor
connection wiring.
YES
Check the vicinity of
IC621.
NO
Check CD 8V.
NO
When the lens is
moving:
Check the circuits in
the vicinity of IC681
pins 1 and 2.
Does the S-search
waveform appear at
IC681 pins 13 and 14?
4V
YES
NO
YES
Check the pickup and
its connections.
Is the disk rotated?
YES
NO Is 4V present between
IC681 pins 15 and 16?
NO Is 4V present at IC621
pin 41?
NO
Check IC621.
Does the RF signal
appear at IC601 pin 19?
YES
YES
Check the spindle motor
and its wiring.
Is the RF waveform
at IC601 pin 19 distorted?
YES
Proceed to the Tracking
section
Check the circuits in
the vicinity of IC601
or the pickup.
NO
NO
YES
Check the vicinity of
IC681
When the disc is rotated
at first:
Approx. 1.2V
Is the tracking error
signal output at IC601
pins 10 and 11?
YES
Check IC621.
Check the circuits in
the vicinity of IC601
pins 2 to 12.
NO
Check the pickup and
its connections.
NO
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA124)1-27
5.5 Signal processing section
No sound from either
channel.
Is 9V present at IC161
pin 26?
Compare the L-ch and
R-ch to locate the
defective point.
Is the sound output from
both channels (L, R)?
NO
YES
Is the audio signal
(including sampling
output components)
output to IC572 pins 1
and 7 during playback?
Is the audio signal
output at IC161 pins 1
to 2 during playback?
Normal
NO
YES
NO Is 9V present at IC901
pin 10?
YES
Check the connection
between IC901 pin10
and IC161 pin 26.
Check IC901 and its
peripheral circuits.
NO
YES
NO Check IC572 and its
peripheral circuits.
YES
NO Check IC161 and its
peripheral circuits.
Check the power amp.
IC301.
YES
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-28 (No.MA124)
5.6 Maintenance of laser pickup
(1) Cleaning the pick up lens
Before you replace the pick up, please try to clean the lens
with a alcohol soaked cotton swab.
(2) Life of the laser diode
When the life of the laser diode has expired, the following
symptoms will appear.
• The level of RF output (EFM output: amplitude of eye
pattern) will be low.
(3) Semi-fixed resistor on the APC PC board
The semi-fixed resistor on the APC printed circuit board
which is attached to the pickup is used to adjust the laser
power.Since this adjustment should be performed to match
the characteristics of the whole optical block, do not touch
the semi-fixed resistor.
If the laser power is lower than the specified value, the la-
ser diode is almost worn out, and the laser pickup should
be replaced. If the semi-fixed resistor is adjusted while the
pickup is functioning normally, the laser pickup may be
damaged due to excessive current.
5.7 Replacement of laser pickup
Is RF output
1.3 0.4Vp-p?
YES
NO
OK
Replace it.
Turn of the power switch and, disconnect the
power cord.
Replace the pickup with a normal one. (Refer
to "Removing the pickup unit" on the previous page.)
Plug the power cord in, and turn the power on.
At this time, check that the laser emits for about
seconds and the objective lens moves up and down.
Note: Do not observe the laser beam directly.
Play a disc.
Check the eye-pattern at
IC601 pin 19.
Finish.
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA124)1-29
5.8 16 PIN CORD DIAGRAM
8
7
6
5
4
3
2
1
GY
VI
GN
WH
BL/WH
NC
RD
BK
16
15
14
13
12
11
10
9
YL
GY/BK
VI/BK
GN/BK
WH/BK
OR/WH
NC
NC
Black
RD
BK
Red
BL
Blue
WH
White
GN Green
VI Violet
GY Gray
Yellow
RR
FR
FL
RL
REMOTE
ACC
GND
MEMORY
Rear Right
Front Right
Front Left
Rear Left
Remote out
ACC Line
Ground
Memory Backup Battery +
YL
OR
Orange
ILL
Illuminations Control
CAUTION!
REMOTE
OUTPUT ONLY
GND
16 YL
8 BK
7 RD
15 OR/WH
3 GN
11 GN/BK
2 VI
10 VI/BK
4 WH
12 WH/BK
1 GY
9 GY/BK
5 BL/WH
MEMORY
GND
ACC
ILL
RL+
RL-
RR+
RR-
FL+
FL-
FR+
FR-
REMOTE
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA124)
AV & MULTIMEDIA COMPANY AUDIO/VIDEO SYSTEMS CATEGORY 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan
Victor Company of Japan, Limited
VPT
Printed in Japan
http://www.xiaoyu163.com
http://www.xiaoyu163.com
SCHEMATIC DIAGRAMS
CD RECEIVER
No.MA124SCH
2005/2
KD-S51
Area suffix
J ------------- Northern America
COPYRIGHT 2005 Victor Company of Japan, Limited.
CD-ROM No.SML200502
Contents
Block diagram (For J2 version)

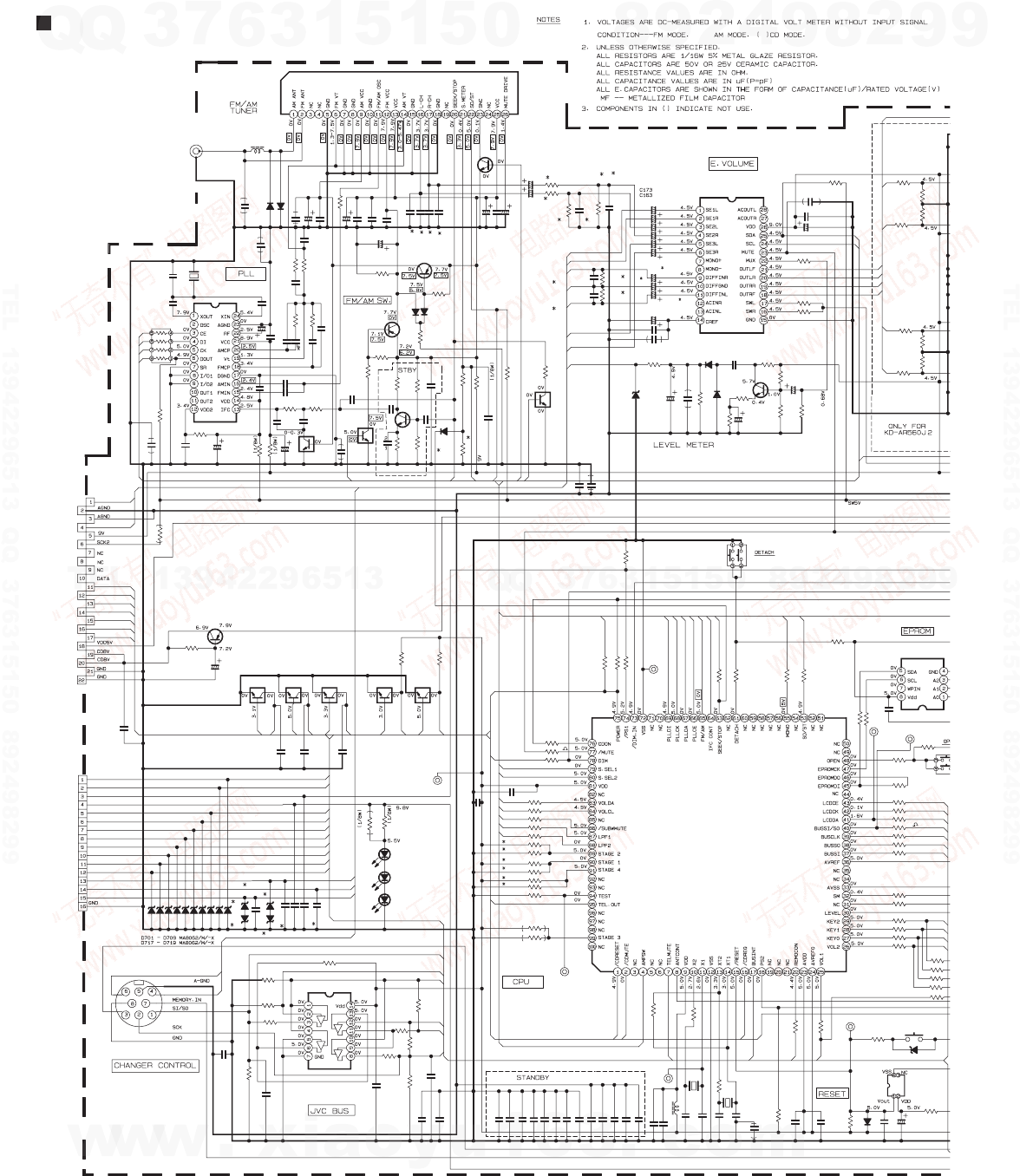

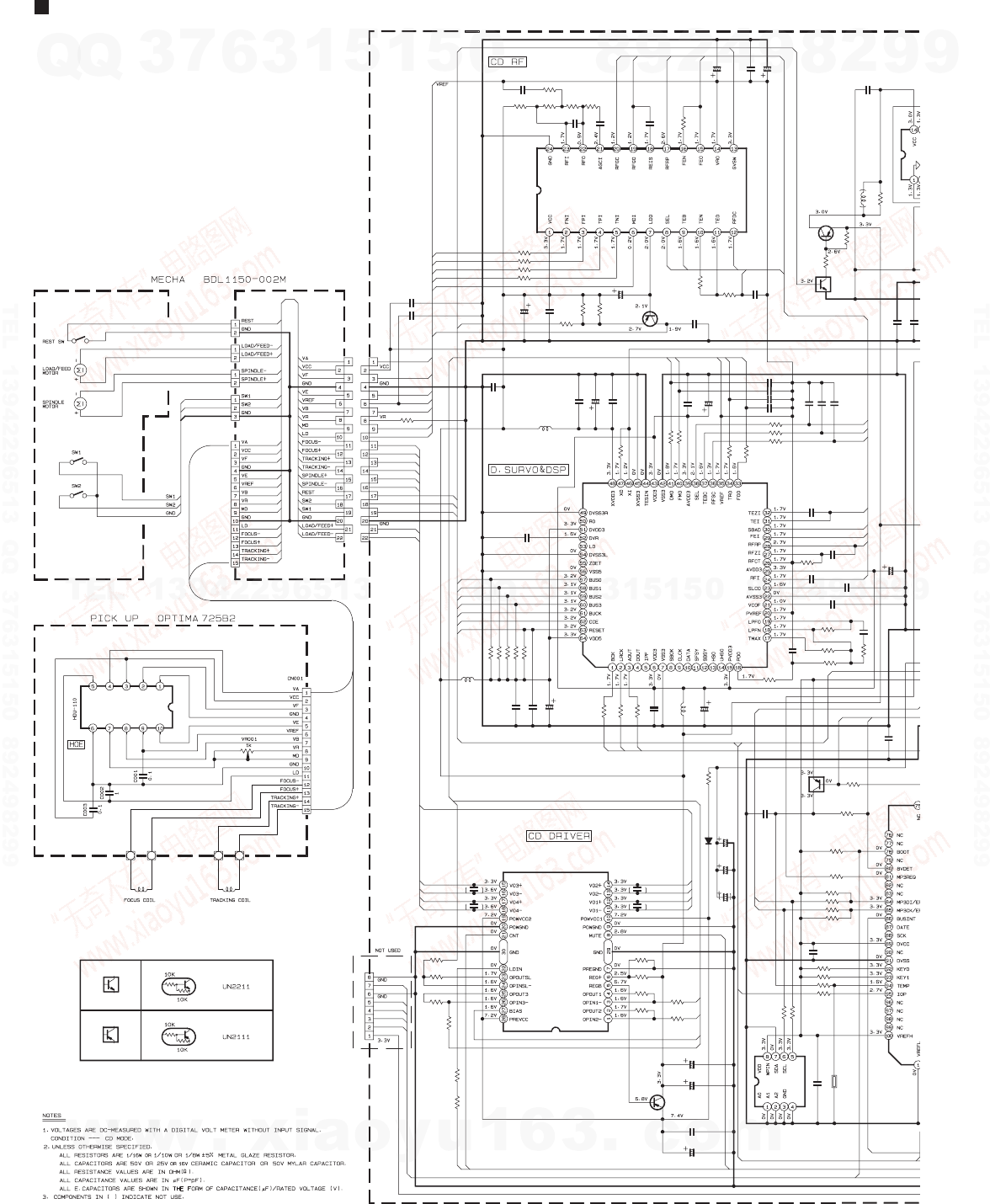

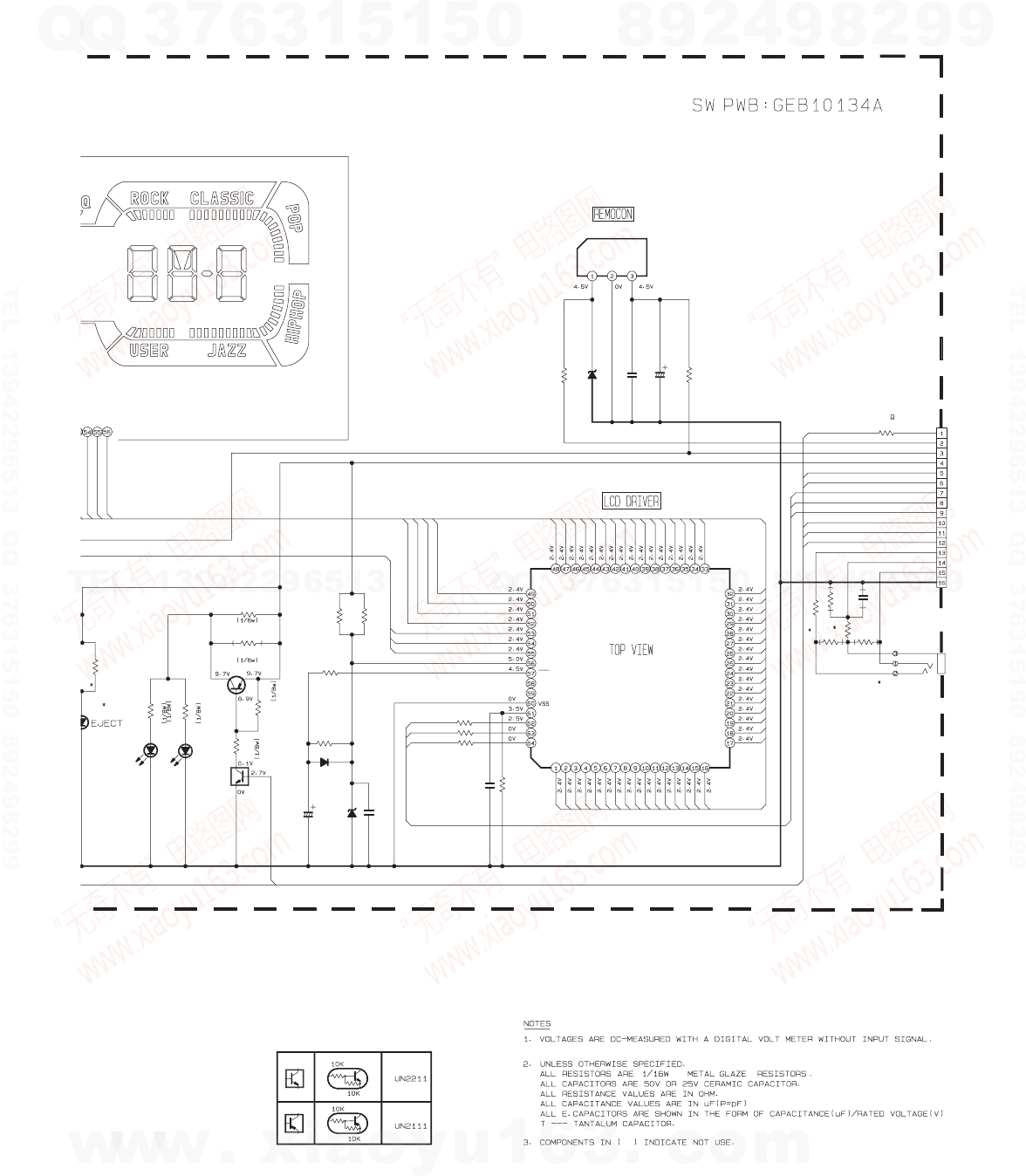

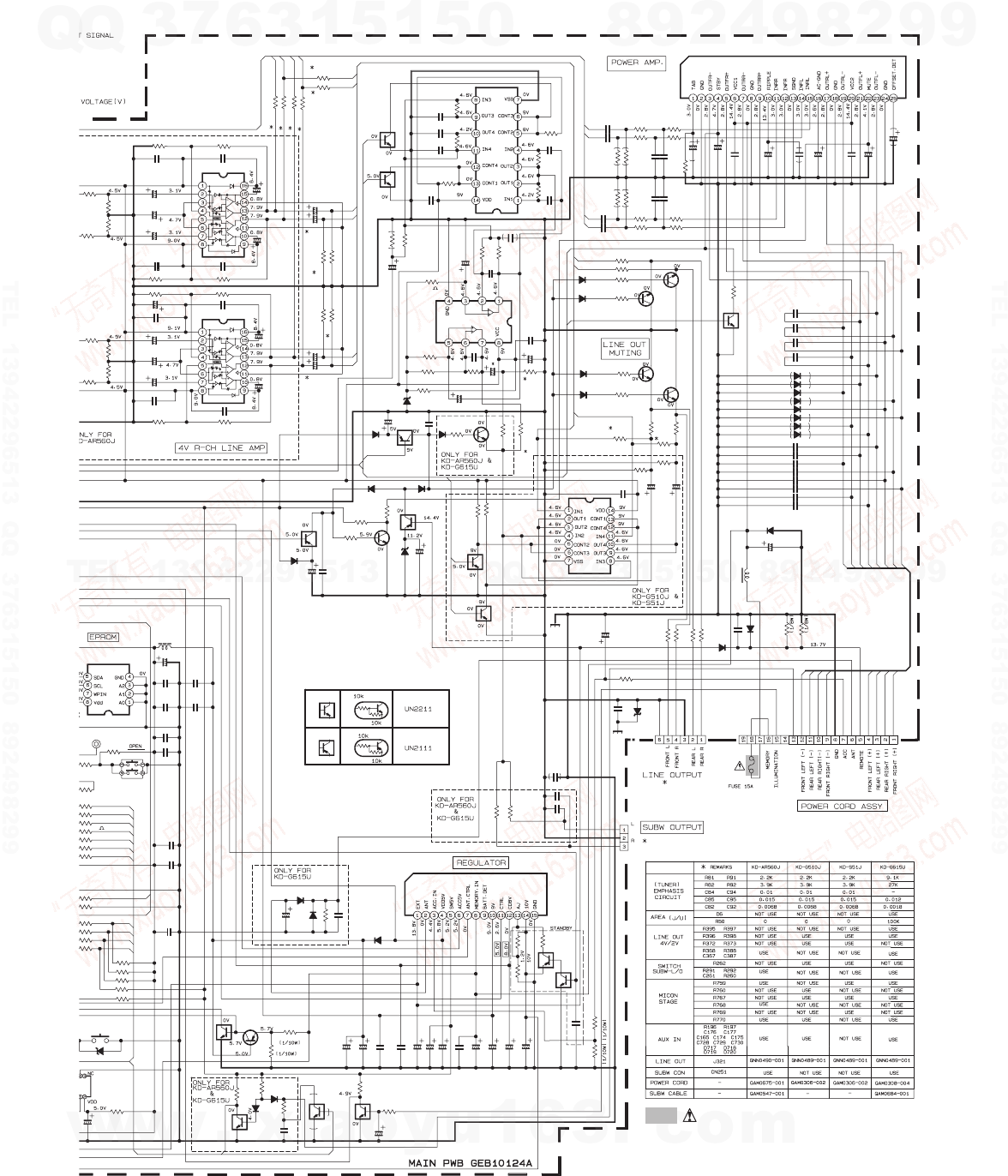

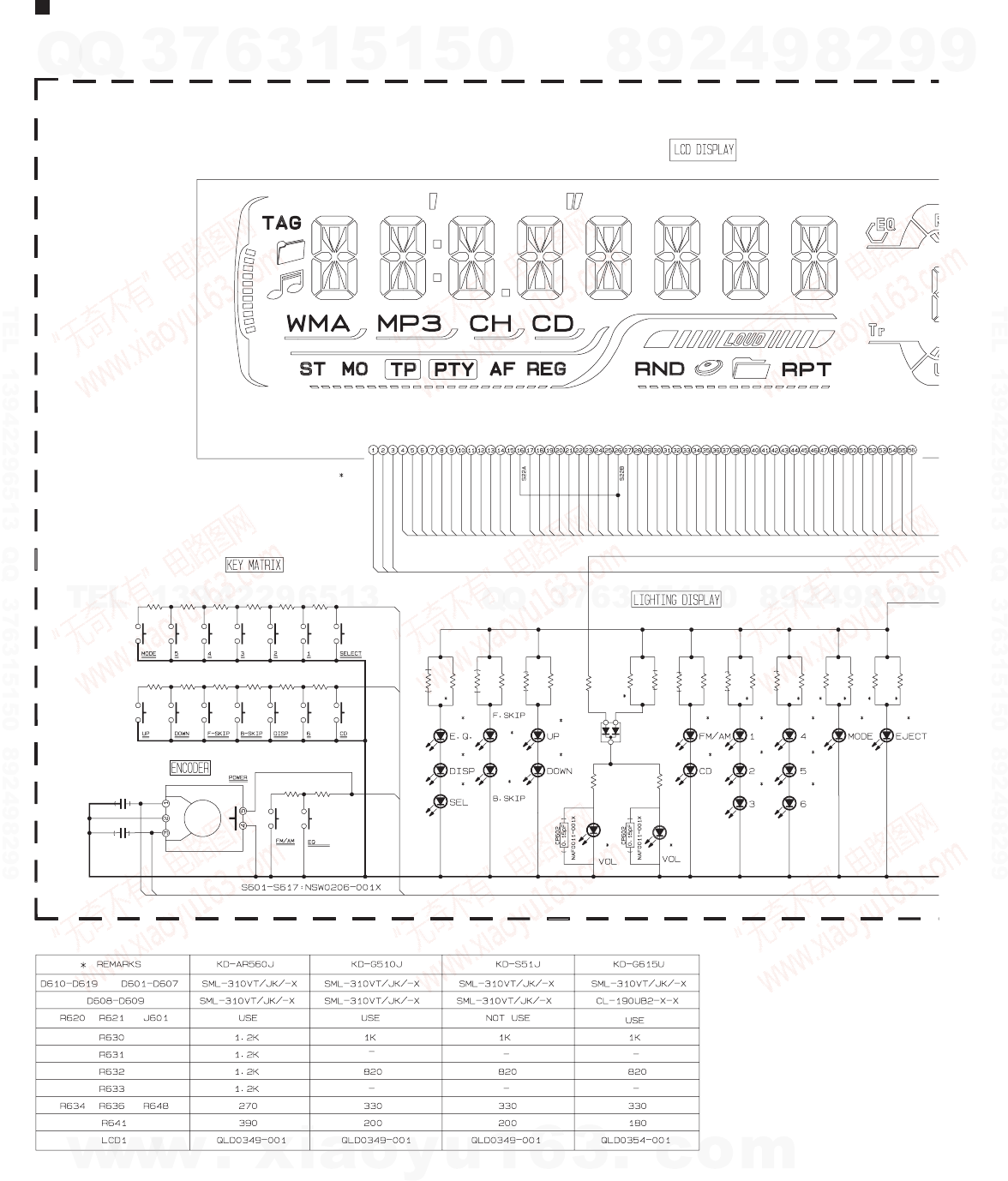

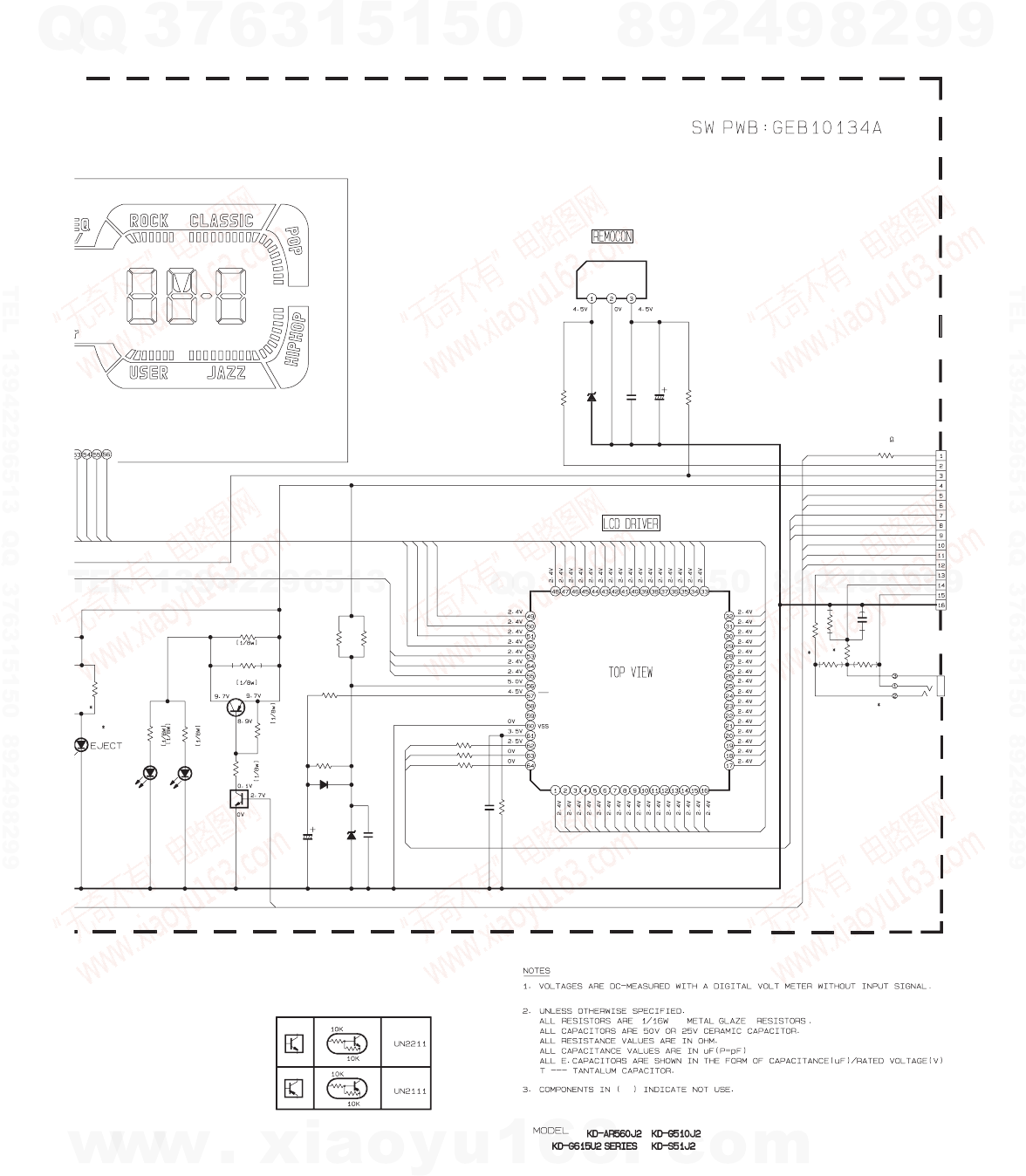

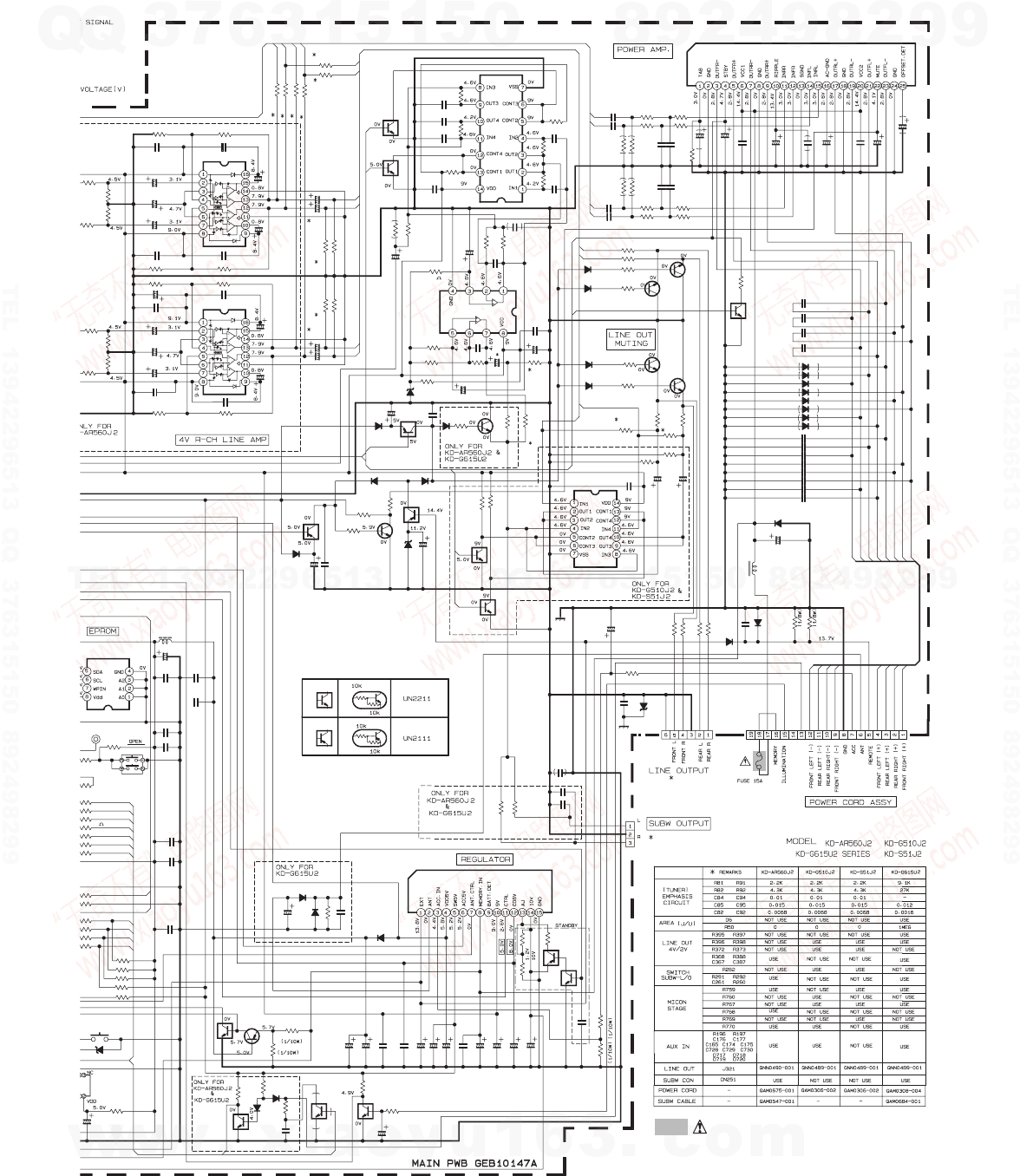

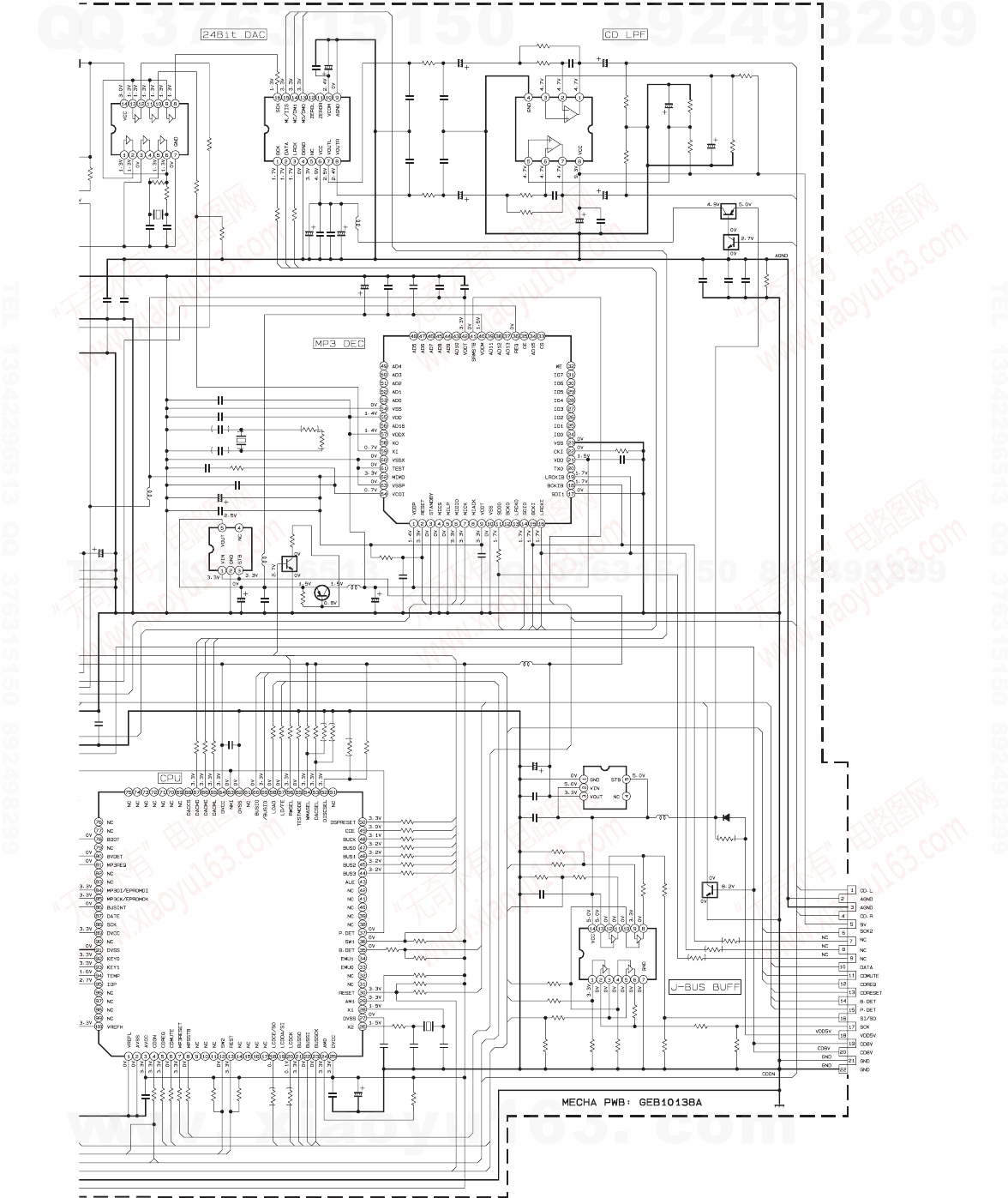

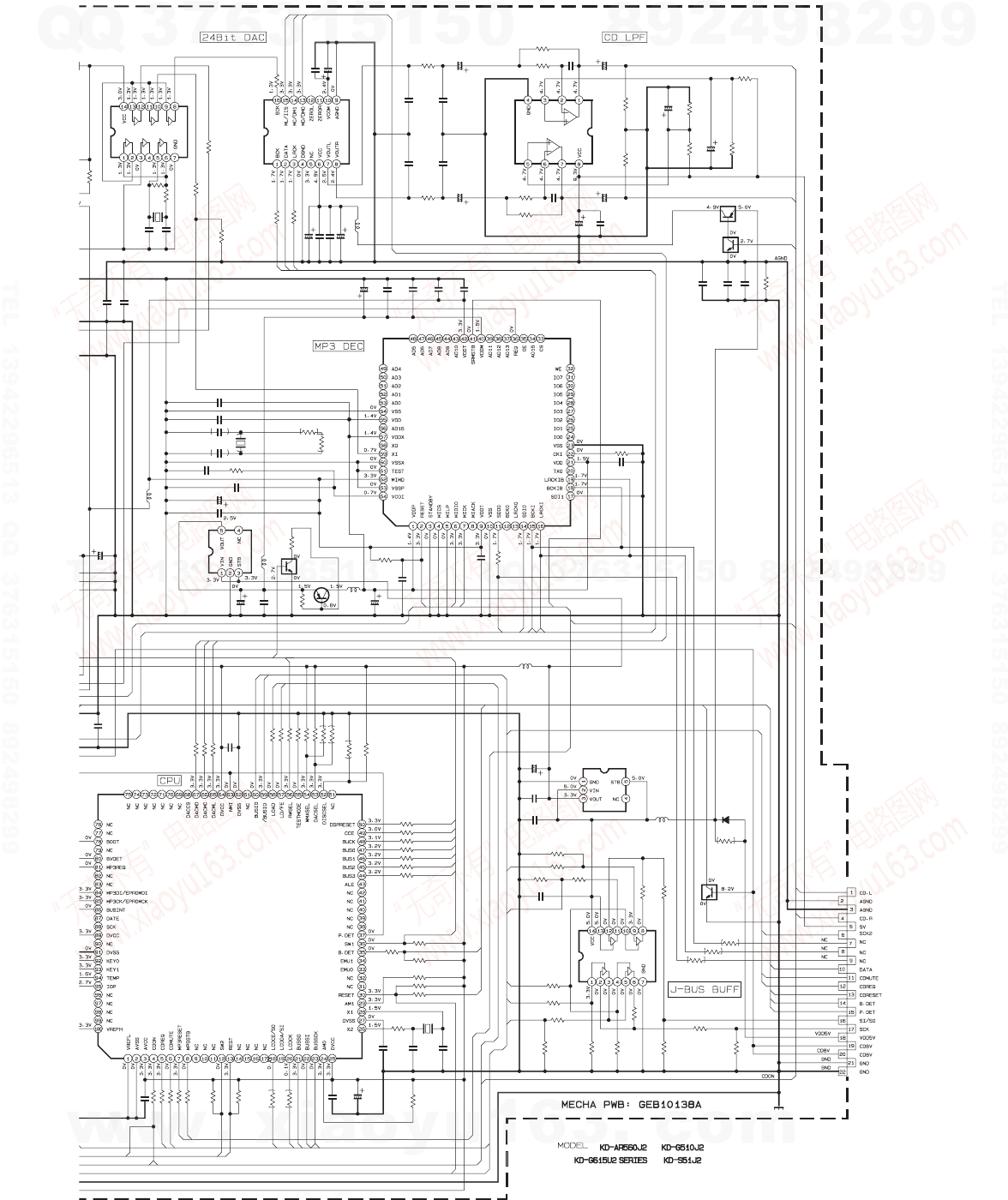

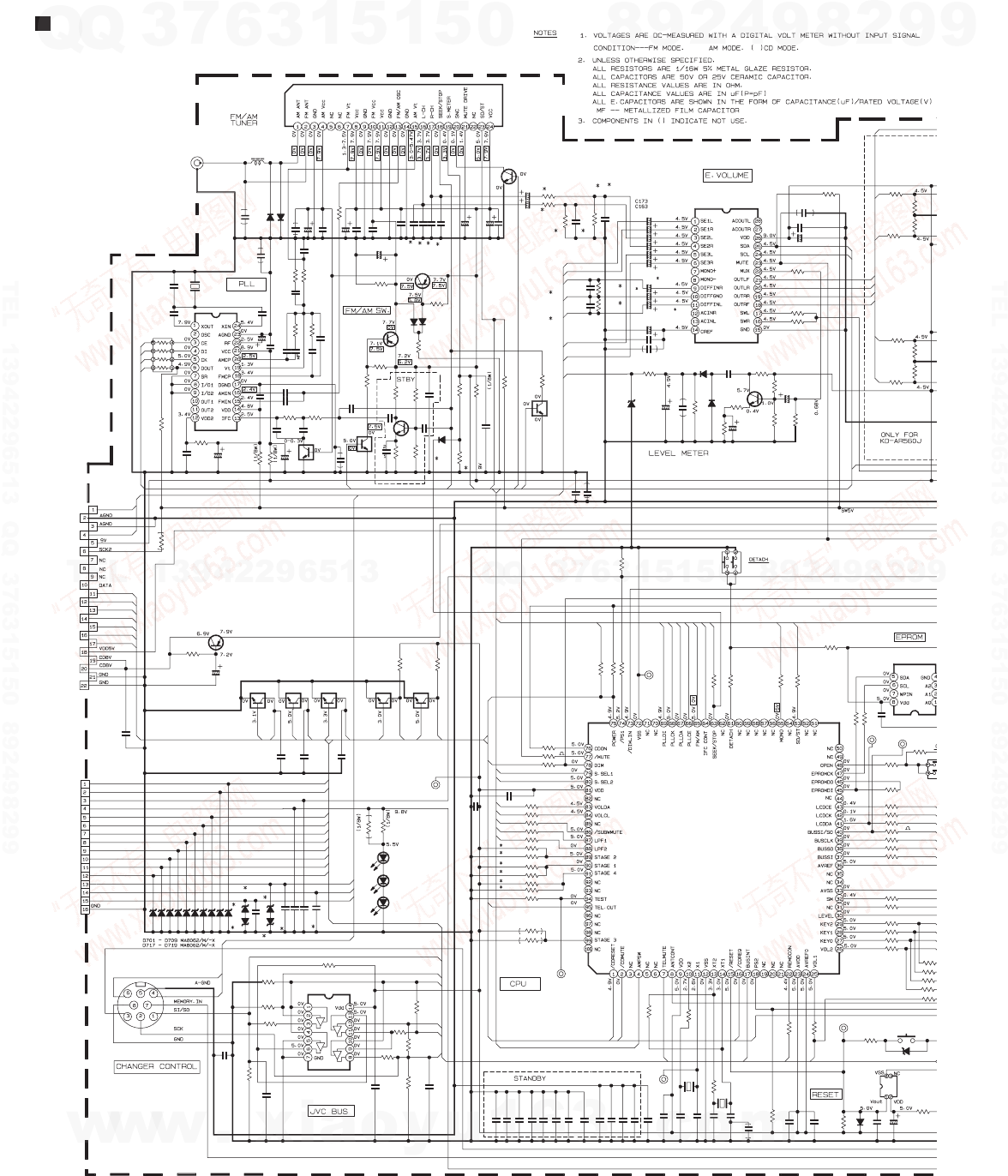

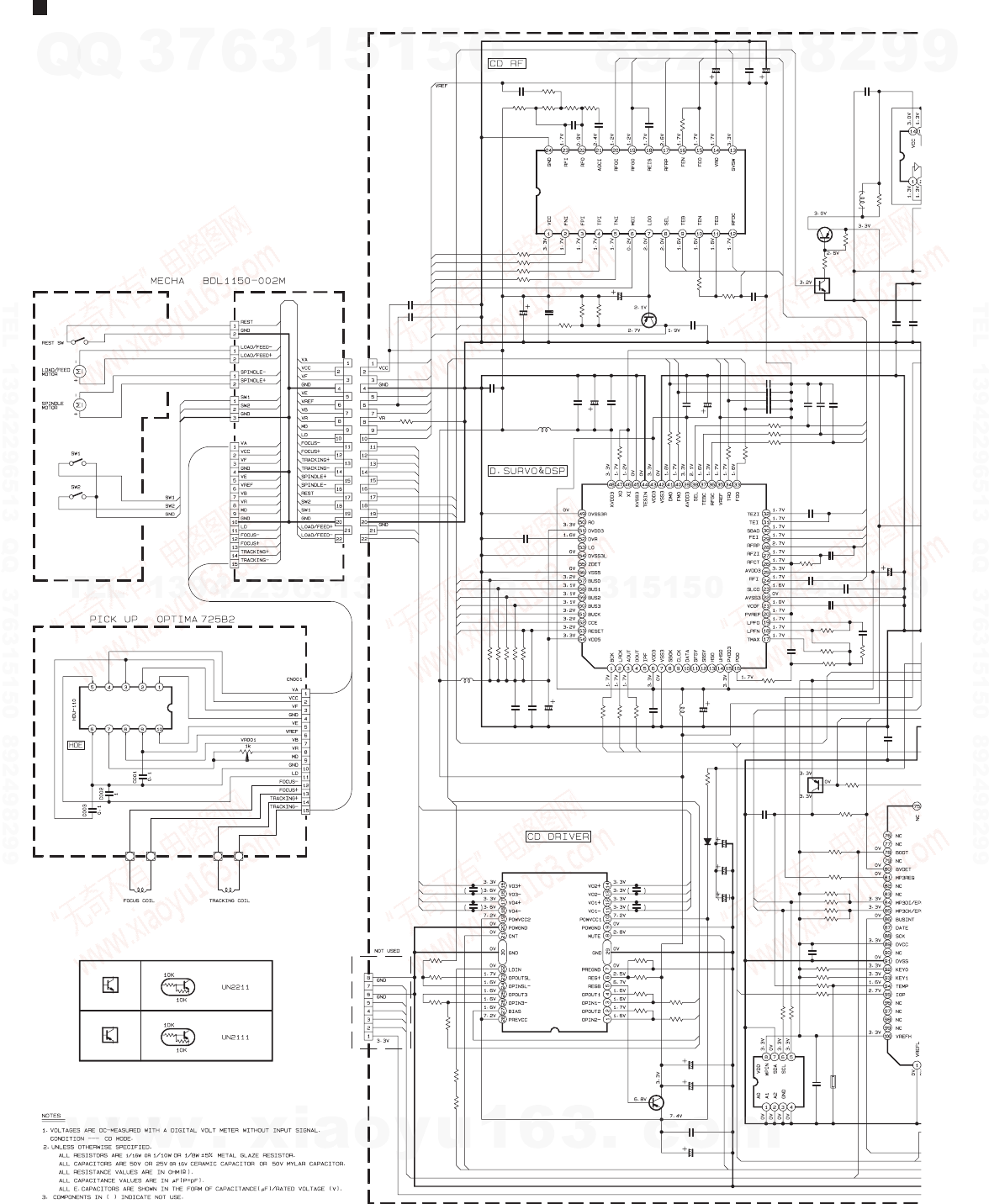

Standard schematic diagrams (For J2 version)

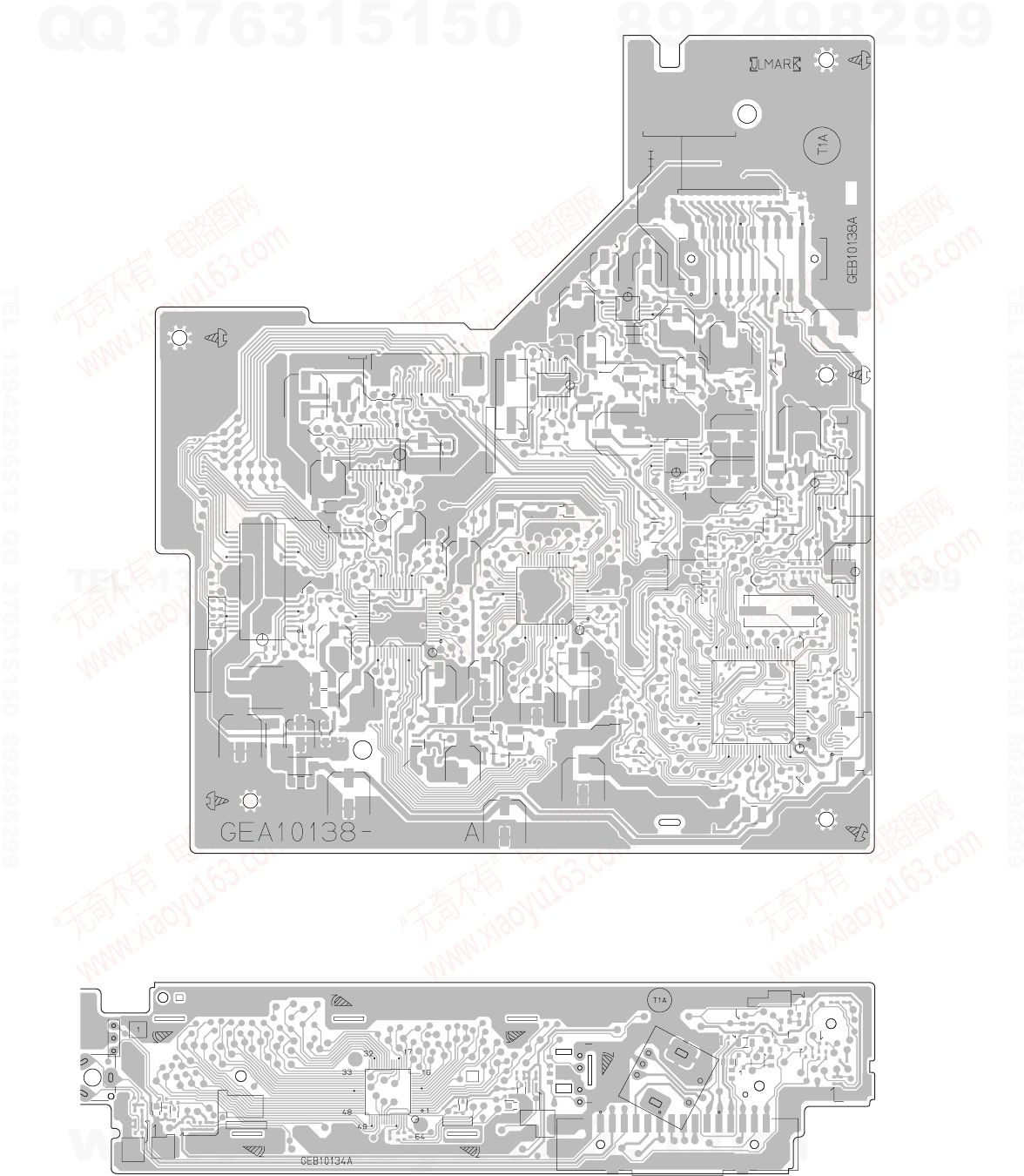

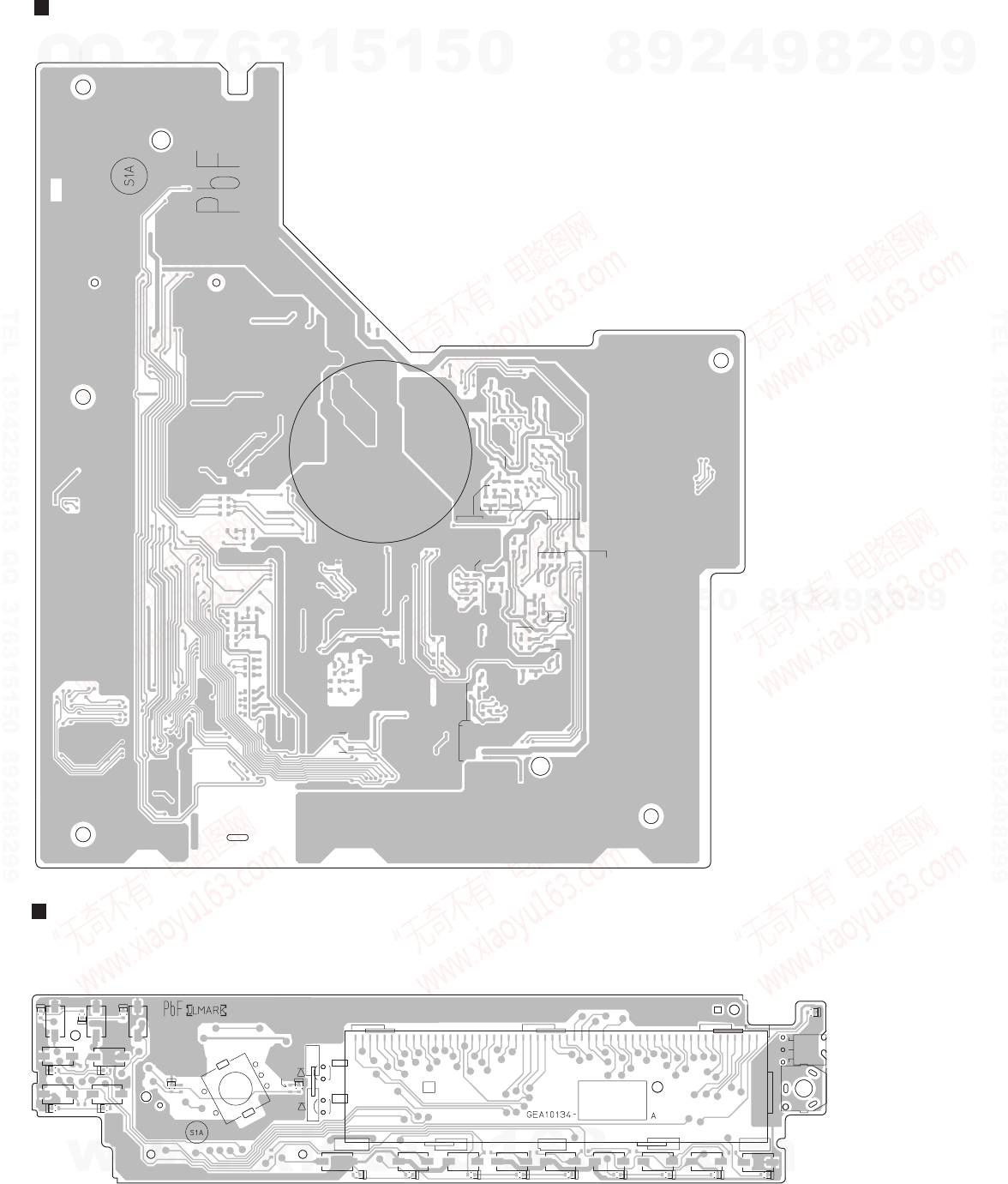

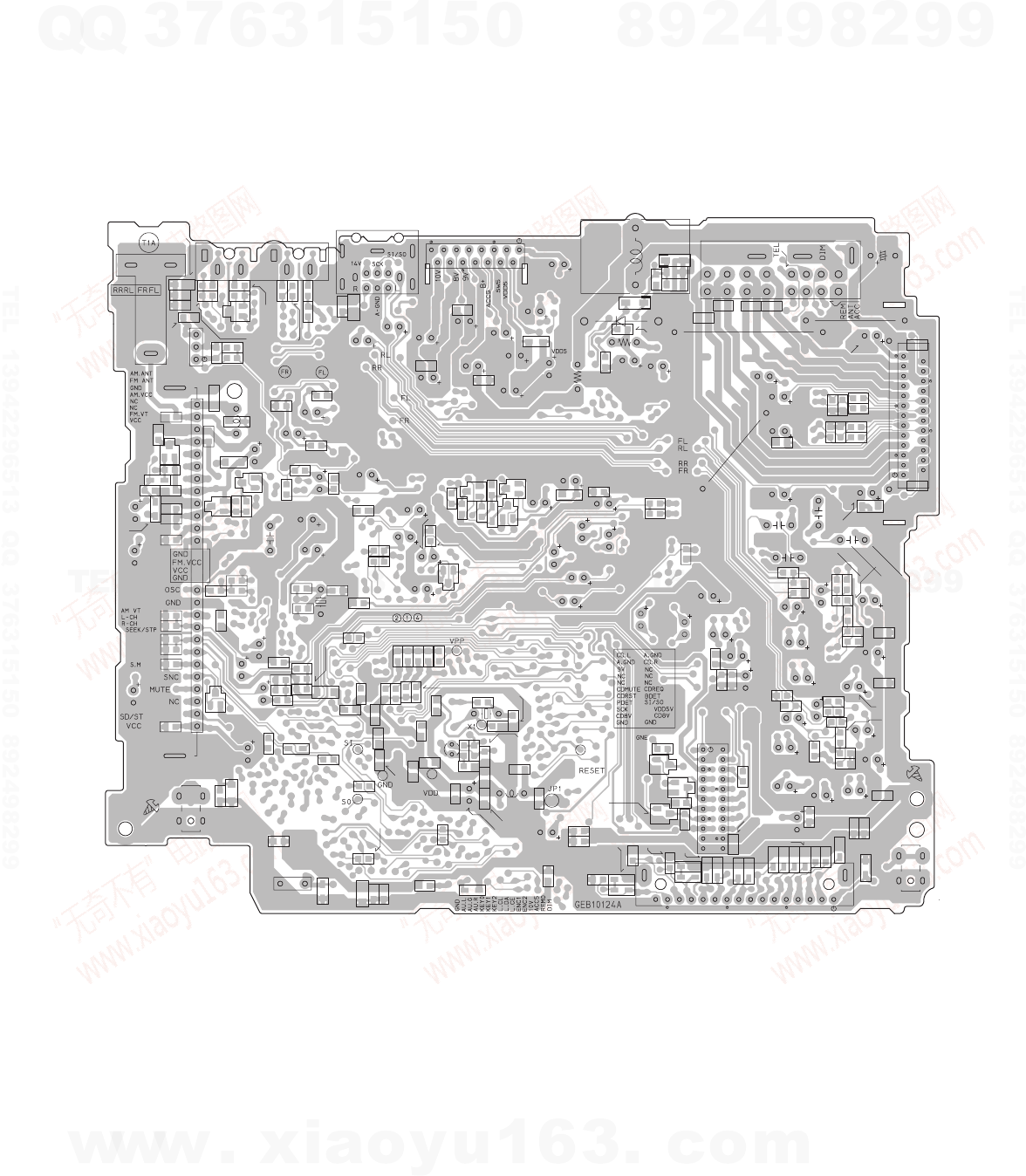

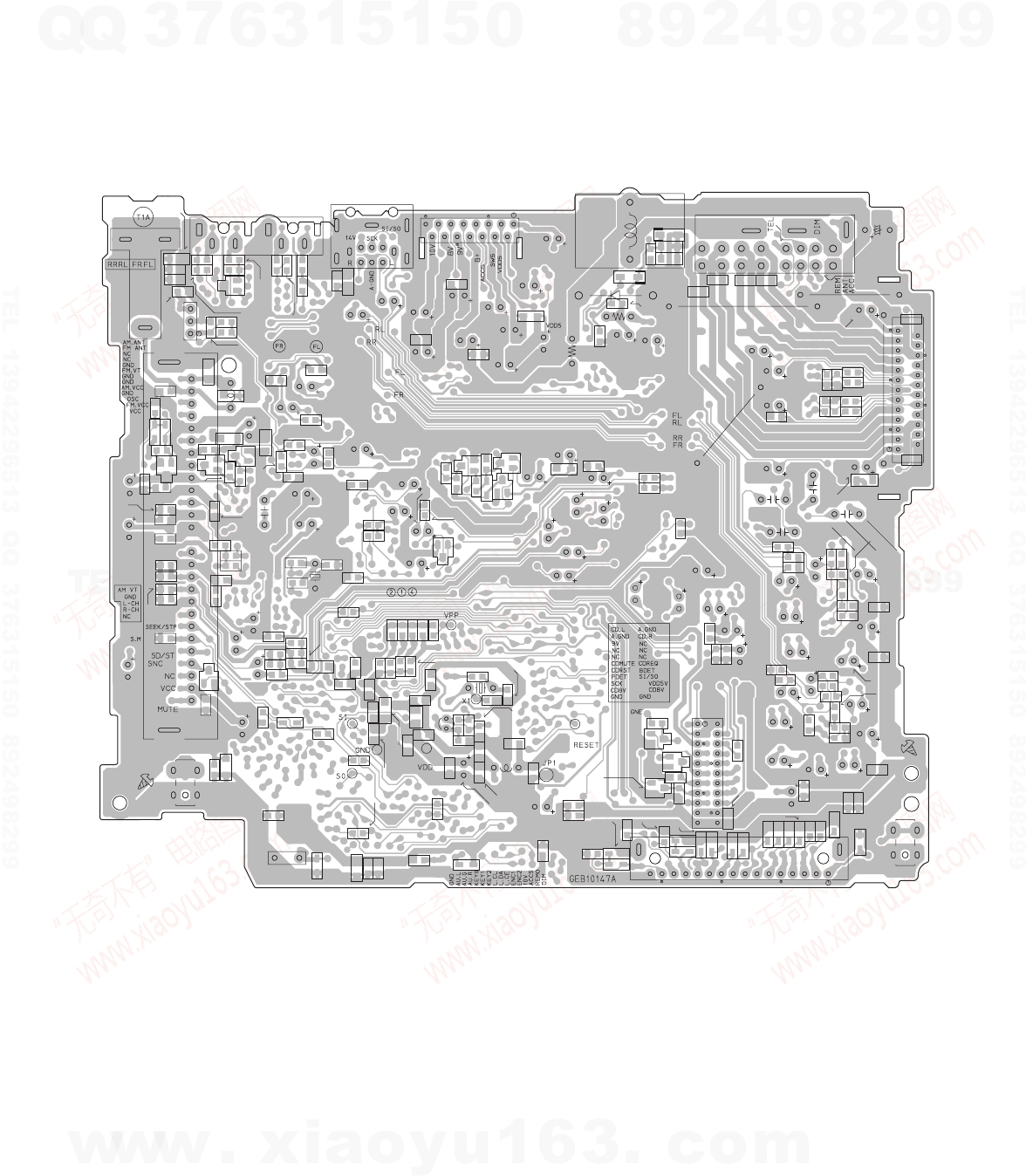

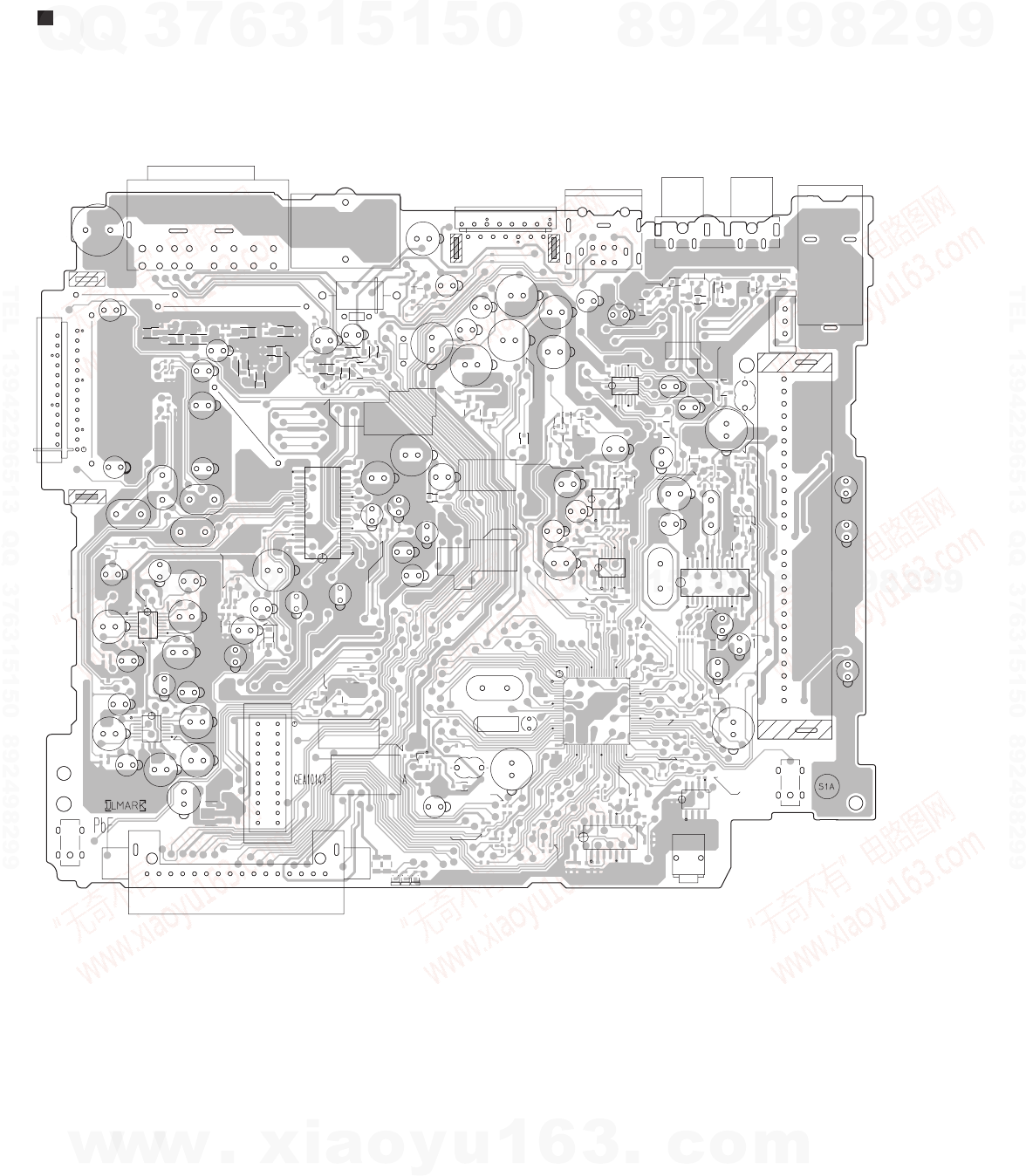

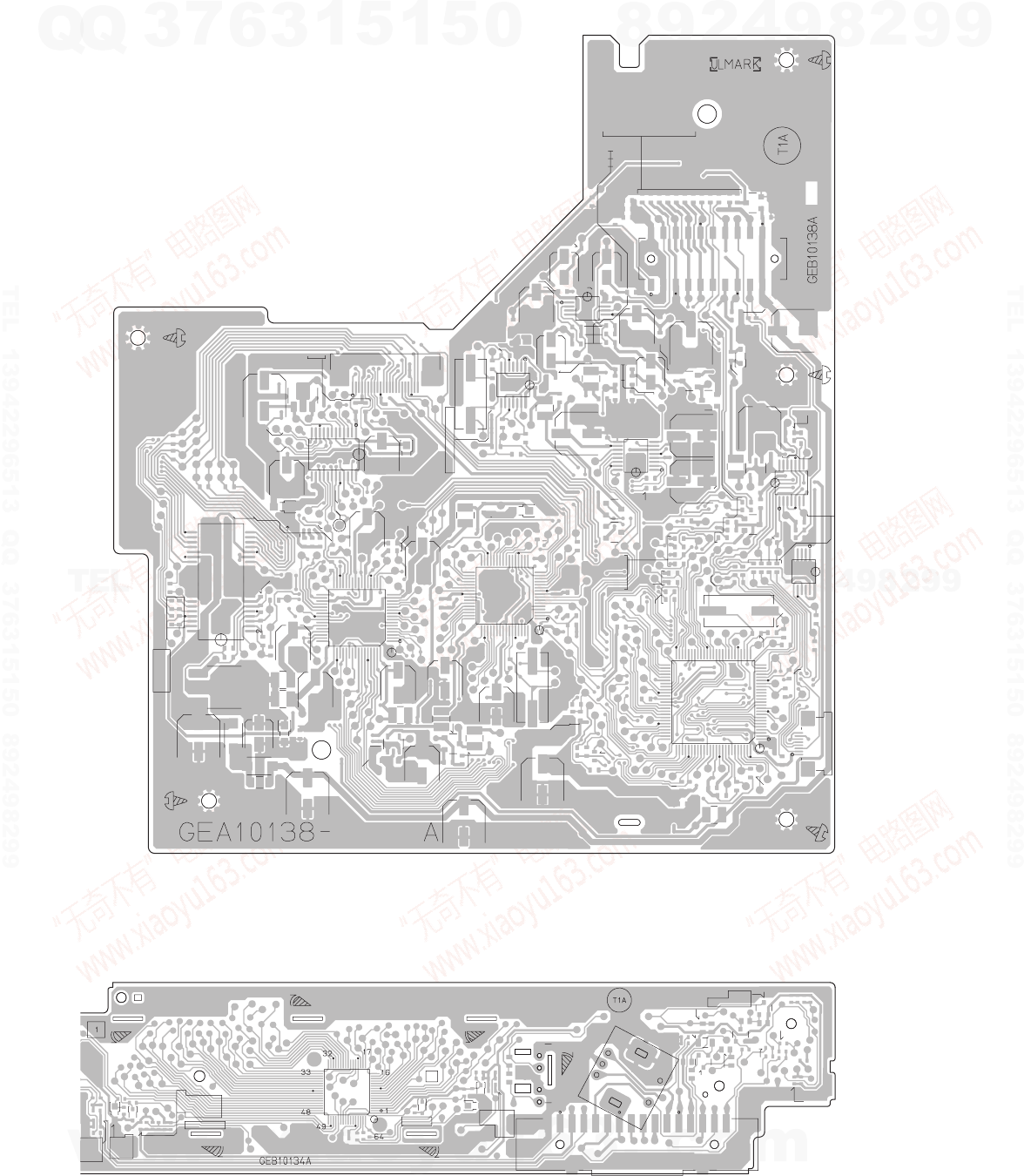

Printed circuit boards (For J2 version)
2-1
2-3
2-9
Block diagram (For J version)
Standard schematic diagrams (For J version)
Printed circuit boards (For J version)
2-13
2-15
2-21 to 24
http://www.xiaoyu163.com
http://www.xiaoyu163.com
!Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
Safety precaution
!Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.
http://www.xiaoyu163.com
http://www.xiaoyu163.com
< MEMO >
http://www.xiaoyu163.com
http://www.xiaoyu163.com
2-1
REST
SWITCH
LOAD&FEED
MOTOR
SPINDLE
MOTOR
SW1, SW2
PICK UP
REST
SW1, SW2
CN601
CN501
IC681
CD
DRIVER
IC621
D.SURVO
& DSP
IC501
CPU
IC652
MP3 DEC
IC601
CD RF
IC572
CD LPF
IC503
J-BUS
BUFF
IC571
24BIt DAC
BUS0 to 3
BUCK, CCE
DSPRST
FE, TE
RFGC, RF
RFRP, RFDC
SEL, TEB
FMO, DMO
TRO, FOO
LOAD/FEED+, LOAD/FEED-
SPINDLE+, SPINDLE-
TRACKING+, TRACKING-
FOCUS+, FOCUS-
VA, VB
VE, VF
MD, LD
VREF
MP3REQ, MP3CK, MP3DA, MP3STB, MP3RST
REST
SW1
SW2
CN601
S601 to S614
S616, S617
KEY MATRIX
KEY0, KEY1
KEY2
IC601
LCD DRIVER
LCD1
LCD DISPLAY
COM1 to COM10
S1 to S73
LCDCL, LCDDA
LCDCE, DIMMER
J
A
N
LOAD/FEED+, LOAD/FEED-
SPINDLE+, SPINDLE-
VA, VB, VE, VF
LD, MD, VREF
IC602
REMOCON
REMOCON
VOUTL, VOUTR
DACML, DACMC, DACMD
BCK
LRCK
DATA
SDO
BCK
LRCK
CD.L
CD.R
CDRESET
B.DET, P.DET
CDMUTE
CDREQ BUSSI/SO
BUSCLK
EN601
ENCODER
ENC1
ENC2
LOAD, LD/FE
RWSEL
CN001
FOCUS & TRACKING
COIL
TRACKING+, TRACKING-
FOCUS+, FOCUS-
CD servo control section
LCD & Key control section
IC502
EPROM
D601 to D643
LIGHTING
DISPLAY

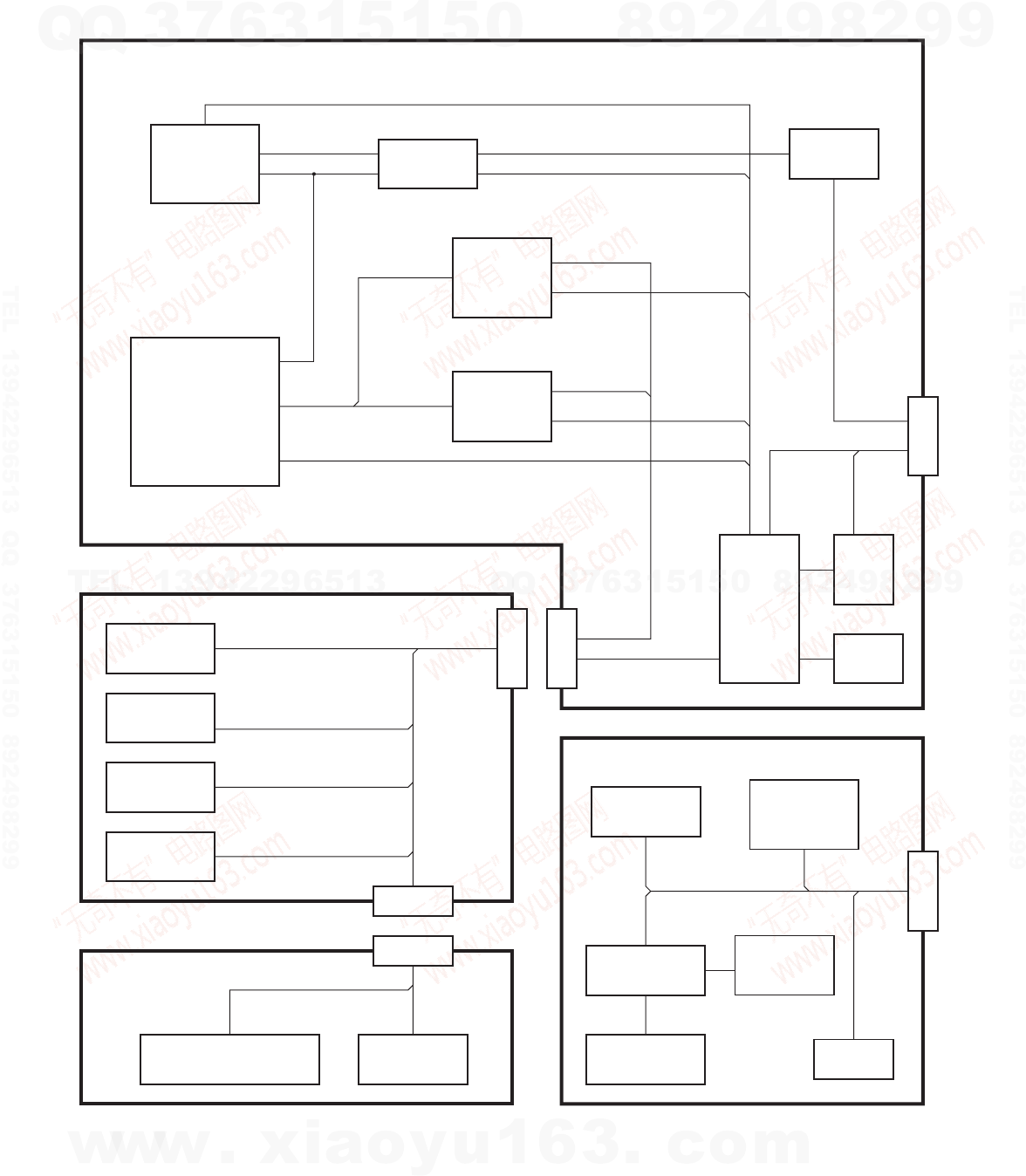

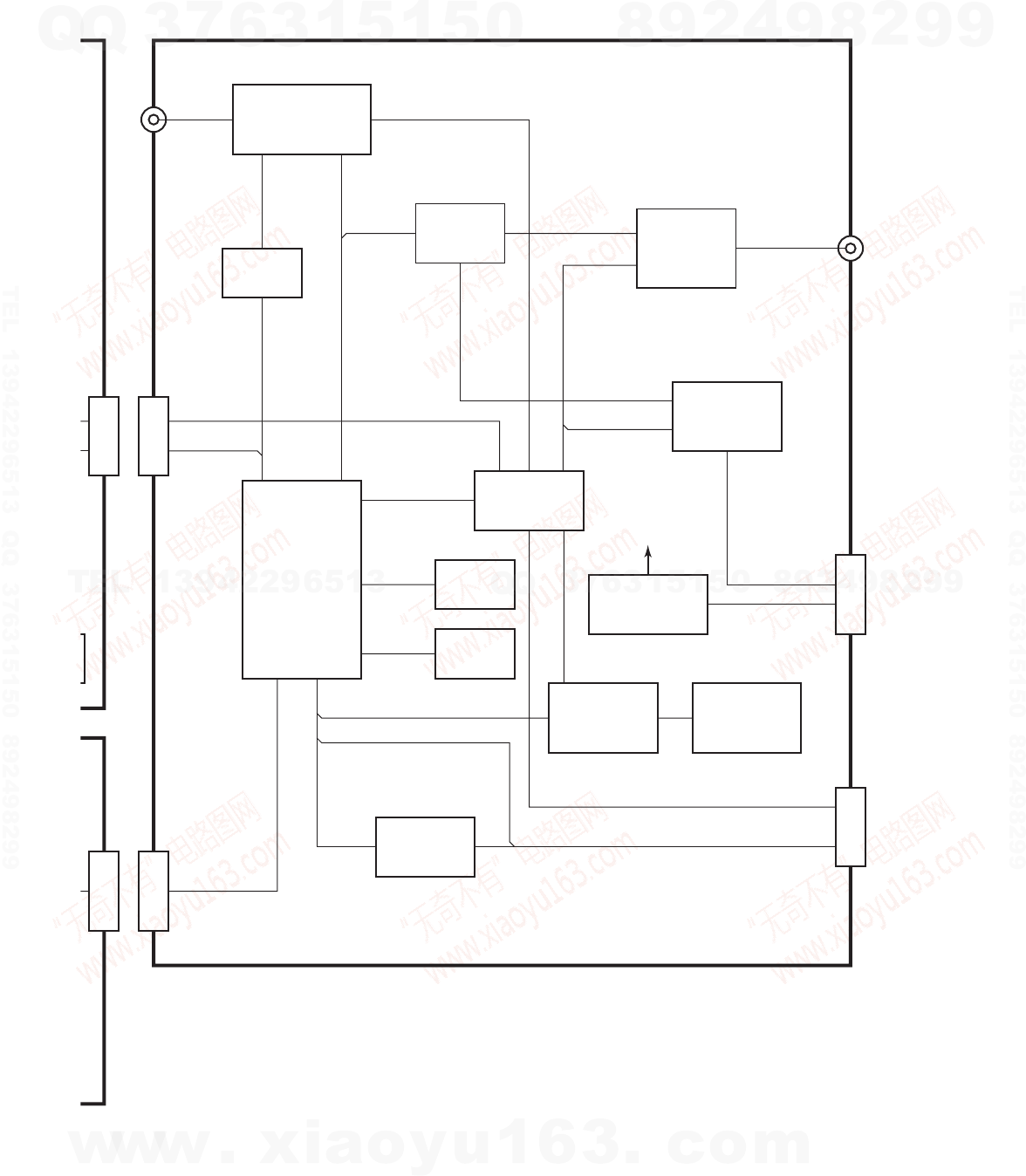

Block diagram (For J version)
http://www.xiaoyu163.com
http://www.xiaoyu163.com

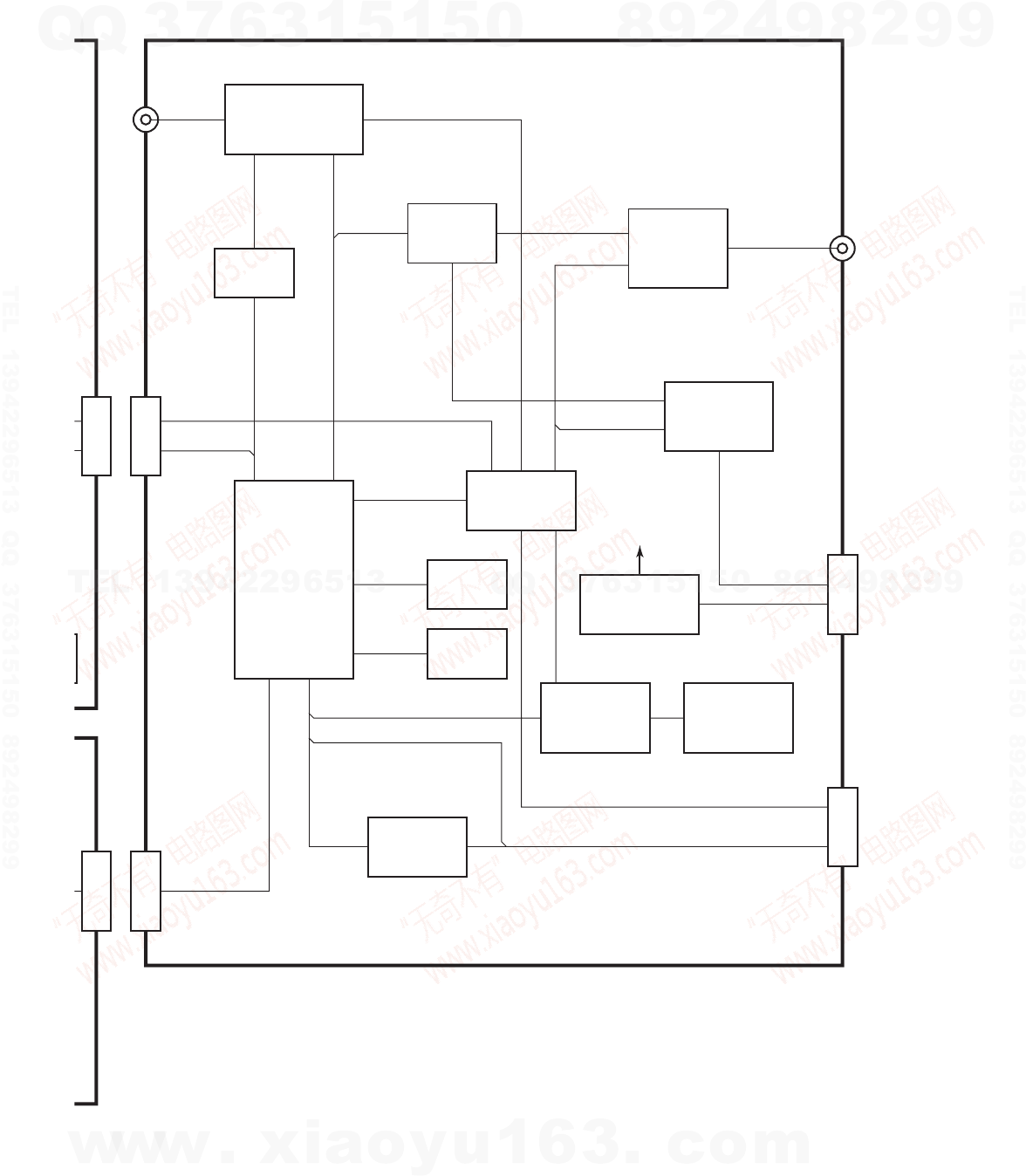

2-2
CN501 CN601
CN701CN101
TU1
FM/AM
TUNER
IC701
CPU
IC161
E.VOLUME
Q781, Q782
MUTE
CONTROL
IC31
PLL
IC702
RESET
IC771
EPROM
IC301
POWER
AMP.
IC251
SUBWOOFER
AMP.
IC271
SUBWOOFER
SELECTOR
IC901
REGULATOR
EACH BLOCK
TU.L
TU.R
FL, FR, RL, RR
XFL, XFR
XRL, XRR
CD.L
CD.R
FRONT LEFT (+)
FRONT LEFT (-)
FRONT RIGHT (+)
FRONT RIGHT (-)
REAR LEFT (+)
REAR LEFT (-)
REAR RIGHT (+)
REAR RIGHT (-)
VOLDA
VOLCL
RESET
EPROMCK
EPROMDI
EPROMDO
MUTE
J1
ANT
SPK
BATTERY
CN901
SD/ST, MONO
SM, IFC.CONT
SEEK/STOP, FM/AM
PLLCE
PLLDA
PLLCL
PLLDI
FMVT
AMVT
FM/AM OSC
KEY0
KEY1
KEY2
LCDCL
LCDDA
LCDCE
REMOCON
ENC1
ENC2
DIMMER
CDRESET
CDMUTE
CDREQ
B.DET
P.DET
SI/SO
SCK
S
O
K
CH.L
CH.R
IC801
JVC BUS
SI/SO
BUSSO
I/O
BUSINT
SCK
BUSCLK SCK
J801
CD CHANGER
CONTROL
SI/SO, BUSCLK
LPF1, LPF2
J321
Main amplifier section
FRONT
REAR
LINE OUT
SWOUT
Q321, Q331
Q341, Q351
LINE OUT
MUTING
LN.FL,LNFR
LN.RL,LN.RR
http://www.xiaoyu163.com
http://www.xiaoyu163.com
2-3
To CN501
(SHEET 2)
To CN601
(SHEET 3)
R738
IC801
R739
IC702
R740
C181
R734
L1
Q7
D713
R5
R6
R735
R736
IC701
R743
R744
R745
C241
IC31
C31
R38
C163
C173
C50
R709
D714
C182
D715
C81 R81
R91
Q5
R8
C9
R11
R787
Q901
R161
X31
R162
C36
C35
C46
CN701
C172
C162
C161
R768
C171
R767
R904
S
7
R746
C39
C47
R808
R39
D716
C91
C723
R759
Q703Q702
R760
R803
R804
R805
R806
R810
Q701
VSS
R720
R719
VDD
VPP
Q704 Q705
C730
C32
C24
X1
C706
R741
RESET
TD
C243 R244
Q241
D243
C147
RD
R732
X701
X702
S702
R248
R766
R714
Q6
J801
R43
C38
R44
C174
Q31
R730
C165
C183
C175
R729
R731
C184
IC771
R370
R371
R390
R391
Q1
C179
R32
C771
R163
R791
IC161
R737
R158
R159
R757
R245
S703
R764
R792
R793
R770
R769
RA30
C29
R761
R762
TU1
C30
C52
J1
Q2
C49
C28
C40
R1
C43
CN101
D717 D1
D2
D711
D701
R7
R4
C12
C726
C716
C4
D719
R42
R751
R789
C1
R92
C92
C82
R82
Q8
C727
R788
C5
C48
C916
R763
R31
C245
R765
D703
R750
R807
R9
C41
C244
D6
R802
R809
R801
D720
C801
R753
R721
R722 R758
R723
R50
R780
C95
R781
C728
R243
R242
R246
R247
C94
D242
C85
R726
R728
R756
D718
C701
C702
R33
C703
C704
D244
C2
R52
C3
C804
R2
C242
C803
D705
D707
D709
D702
D704
D706
D708
C717
C6
R197R196
C177C176
D4
C722
R725
R40
C721
R41
C42
C720
C45
R771
C44
C33
C37
C34
C51
R772
C708
C705
R701
C710
C709
R241
D710
C802
D5 C84
R754
R755
R366 R367
R387 R386
C8
C10
C729
C731
C732
C739
C742
C747
R13
R15
C27
R12
R14 C25
C11
C26
C395
C396
C7
C734
C735
C736
C737
C738
C797
C798
4.7k
HD74HC126FP-X
4.7k
IC-PST3433U-
X
4.7k
100/16
2.2k
4.7u
UN2211-X
UDZS5.6B-X
47k
47k
2.2k
2.2k
UPD784217AGC308
10k
10k
10k
1/50
TB2118F-X
100/10
100
QTE1H55-225Z
QTE1H55-225Z
100P
10k
SML-310VT/JK/-X
0.1
SML-310VT/JK/-X
1/50
2SB709A/R/-X
10k
47K
47K
22/16
10k
10k
2SB1132/QR/-W
2.2k
QAX0616-001Z
2.2k
7P
10P
0.01
QNZ0605-001
1/50
1/50
1/50
47k
1/50
47k
220
QSW0
4
10k
0.001
0.01
330
0
SML-310VT/JK/-X
1/50
0.1
47k
UN2211-XUN2211-X
47k
100
22k
100k
10k
100
UN2211-X
1.2k
0
UN2211-X UN2211-X
100P
47P
0.001
0.1
100P
10k
0.047 12k
2SD601A/R/-X
RB160M-30-X
0.01
10k
QAX0617-001Z QAX0401-001
QSW0451-001
220
47k
10K
2SB624/4/-X
QNZ0095-001
470
1000P
220
1/50
4.7k
4.7k
4.7k
UN2211-X
10k
1/50
0.22
1/50
47k
47k
0.22
BR24L16F-W-X
1k
1k
1k
1k
KTD1304-X
47/16
6.2k
0.047
120k
0
TDA7404D-X
0
10K
10K
2.2k
47
MA111-X
QSW1049-001Z
100
0
0
47k
47k
2.2K
120P
100P 47k
47k
QAU0312-002
0.01
4700P
QNB0100-002
2SC2411K
0.001
0.01
10/16
12
0.047
QGB2027M4-22S
MA111-X
MA111-X
4.7k
3.3k
220/10
0.1
0.1
220/10
10
10k
270
22/16
UN2211-X
0.1
0
0.1/50
0.047
47/16
1k
10
0.22/50
270
10k
100k
100
0.047
0.015
MA111-X
47k
22k
47k
0.047
47k
1k
10k
47k
10k
47k
47k
180k
22k
1k
39K
MA111-X
10k
10k
47k
22P
27P
10k
27P
8P
UDZS5.1B-X
0.1
27K
0.1
22P
47k
22/16
22P
0.1
0.1
100K100K
0.0470.047
MA111-X
0.01
10k
39k
0.01 10k
0.01
0.01
0.0027
270
0.01
47/6.3
10P
0.047
330P
270
0.1
0.1
47k
47/6.3
0.01
47k
0.0047
MA111-X
820
10M
100k 100k
100k 100k
0.1
0.1
4700P
4700P
0.01
0.015
0.047
4.7k
33
5600P
4.7k
4.7k
330P
0.1
0.1
0.01
0.01
0.1
0.01
0.01
0.01
0.01
0.01
0.01
0.01
PWR
LN.CTR
SUB.CTR
CD.L
VOLDA
CD.R
/SUBMUTE
AUX.GND
CD.L
CH.R
TEL.OUT
CD.R
CDMUTE
VOLCL
CDREQ
CDRESET
B.DET
P.DET
SI/SO
AUX.L
SCK
DIMOUT
CH.L
CH.R
10V
CH.L
LCDCE
KEY0
I/O
KEY1
KEY2
LCDCL
LCDDA
AUX.R
ENC2
ENC1
LEVEL
BUSSO
BUSCL
K
LCDC
E
LCDC
L
LCDD
A
KEY
2
KEY1
KEY
0
ENC
2
BUSS
O
SI/SO
BUSINT
SW5V
FL
ANT.CNT
REMOCON
SCK
ACC5V
BUSCLK
RL
VOLDA
RL
VOLCL
RR
FL
LEV
E
FR
RR
PLLCE
DIMOUT
PLLDA
AUX.R
AUX.GND
AUX.L
PLLCL
FR
LPF2
PLLDI
I/O
LPF1
V
D
SI/SO
PWR
/CDRESET
/CDMUTE
MONO
AMPSW
SD/ST
IFC.CNT
SM
SEEK/STOP
BUSINT
IFC.CNT
CDMUTE
FM/AM
CDREQ
/CDRESET
PS2
B.DET
P.DET
CDRESET
/CDREQ
/CDMUTE
/CDREQ
PS2
MONO
REMOCON
ENC1
SEEK/STOP
PLLDI
PLLCL
PLLDA
PLLCE
FM/AM
FM.VCC
/RESET
TELMUTE
SD/ST
STBY
Standard schematic diagrams
(For J version)
Main amplifier section
http://www.xiaoyu163.com
http://www.xiaoyu163.com
2-4
SHEET 1
Parts are safety assurance parts.
When replacing those parts make
sure to use the specified one.
CN901
8
IC901
Q782
9
IC702
0
C724
C312
4
D713
5
6
3
4
5
IC361
C361
C901
D851
D852
IC271
R776
R775
D251
C725
Q781
D271
C272
C273
C367
L701
S701
6
D325
D321
D972
R783
D781
Q881
R259
D
C301
C781
RD
2
C302
R260
Q272
C311
C382
R785
Q891
C390
C391 C362
6
C363
D891
CN251
C964
C963
C968
C967
C962
IC291
J321
R977
R976
C966
C961
C965
IC301
IC381
C388
R362
R363
C360
D902
R361
R365
C383
C251
C393
C707
C392
R313 R314
R304
R303
C385
Q784
R882
R382
R383
R906
Q903
Q902
R747
R748
R749
D351
C394
R730
R381
C365
C381
C782
C713
R311
R312
R301
R302
R385
C322
C323
C324
C325
D341
D901
R901
C711
R352
R342
C380
R341
R351
R331
R321
R784
R731
C256
C368
D782
D994
C261
C881
C387
R370
R371
Q977
R390
R391
C281
C771
D998
D993
D997
D992
D996
D991
D995
7
R274
R757
C277
C278
C276
C274
C275
Q273
Q274 R279
S703
C298
D971
D273
D783
R372
R255
C254
R256
R257
R258
R373
C279
R271
C262
R292
R291
C292
R317
R318
R307
R308
Q892
C257
D331
R298 R297
C740
C745
C746
C743
C744
C903
C316
L901
C910
C906
C851
C313
C314
C303
C304
C852
R851
R276
C271
C252
IC251
C911
R369
R368
C904
D892
C319
C905
Q292
C318
Q291
C909
R972
Q351
C917
C389
C891
R891
R892
Q976
C308
C253
C369
C386
R251
C366
C907
C908
R881
R907
R905
R252
R971
C317
D784
C912
C315
R903 R902
C902
R332
R322
Q331
Q321
R353
R343
R333
R323
C784
C255
R389
R388
C914
C915
C710
R275
R278 R277
Q341
C971
C341
R296
R295
R254
R253
R366 R367
R387 R386
R261
Q271
R262
C307
B305
C293
C320
R397
R398
R396
R395
R294
R293
R893
C326
C294
Q706 R706
QNZ0611-001
4.7k
HA13164A
KTD1304-X
4.7k
IC-PST3433U-X
4.7k 0.1
0.47
2.2k
UDZS5.6B-X
2.2k
2.2k
10k
10k
10k
NJM2160BV-X
4.7/25
QEZ0723-338
RB160M-30-X
RB160M-30-X
CD4066BPW-X
47K
47K
UDZS4.7B-X
0.1
UN2111-X
MA111-X
100P
100P
4.7/25
4.7u
QSW0451-001
10k
UDZS11B-X
MA111-X
RB160M-30-X
10K
MA111-X
UN2211-X
1.2k
10k
0.47
47/6.3
10k
0.47
47k
UN2111-X
0.47
0.0015
2.2K
UN2211-X
100/10
0.1 0.0015
47k
47/16
MA111-X
QGA2501C1-03
470P
470P
470P
470P
470P
CD4066BPW-X
8.2k
20k
470P
470P
470P
TB2906HQ
NJM2160BV-X
4.7/25
22k
22k
0.0015
MA111-X
33k
33k
47/16
0.0082
0.1
0.1
0.1
4.7/25
UN2111-X
4.7k
22k
22k
10k
UN2211
UN2111
4.7k
4.7k
4.7k
MA111-X
0.1
10k
33k
4.7/25
4.7/25
0.47
0.22
47K
47K
47K
47K
33k
4700P
4700P
4700P
4700P
MA111-X
1N5401-F64
1k
220/10
820
820
0.0015
2.2k
2.2k
2.2k
2.2k
47K
47k
0.1
4.7/25
MA111-X
RB160M-30-X
2.2/50
22/16
BR24L16F-W-X
4.7/25
1k
1k
2SB709A/QR/-X
1k
1k
0.082
0.047
RB160M-30-X
RB160M-30-X
RB160M-30-X
RB160M-30-X
RB160M-30-X
RB160M-30-X
RB160M-30-X
0
47K
2.2k
0.0056
0.012
0.022
0.022
0.022
47K
QSW1049-001Z
0.1
RB160M-30-X
MA111-X
MA111-X
0
0
0.082
100k
8.2k
15K
0
47/6.3
2.2k
2.2/50
0
0
0.1
1.2K
1.2K
1.2K
1.2K
UN2211-X
0.047
MA111-X
47K
47K
0.1
0.33
0.1
0.33
0.1
47/16
4.7/25
QQR1378-002
47/16
0.1
10/16
100p
100p
100p
100p
0.01
10k
1M
0.1
47/6.3
NJM4565M-WE
10/16
47K
47K
10/16
MA111-X
0.1
47/16
UN2211-X
2.2/50
UN2211-X
220/10
2.2K
KTD1304-X
0.1
100/10
0.1
1k
47k
UN2211-X
1/50
10/16
100/10
100/10
100k
100/10
220/10
220/10
47k
5.6k
1k
51K
2.2K
22/16
UDZS11B-X
0.1
2.2/50
4.7k 9.1k
2.2/50
820
820
KTD1304-X
KTD1304-X
100
100
100
100
100/16
47/16
47K
47K
100/16
0.1
47/6.3
1M
1M 1M
KTD1304-X
0.1
UN2211-X UN2211-X
0.1
47K
47K
470k
100k
100k 100k
100k 100k
820
KTD1304-X
0
1/50
0
4.7/25
0.1
0
0
0
0
100
100
0
1000P
4.7/25
UN2211-X 1K
LN.CTR
IN.DIMMER
AMPSW
STBY
XRL
LPF2
XFL
XFL
XFR
XFL
XFR
XRR
RL
I/O
CD8V
XFR
XRL
XRR
BUSCLK
LCDCE
LCDCL
LCDDA
KEY2
KEY1
KEY0
ENC2
BUSSO
SI/SO
RR
ANT
FL
FR
/SUBMUTE
L
SM
L
CNT.MI
LEVEL
R
LPF1
R
VDD5V
MUTE
RR
RL
OUTFL-
TEL.OUT
LN.FR
SUB.CTR
TELMUTE
OUTFR-
ACCIN
OUTRR-
OUTFR+
OUTRR+
OUTRL+
LN.RL
OUTRL-
LN.RR
LN.FL
OUTFL+
OUTFL-
OUTRL-
OUTRR-
OUTFR-
OUTFL+
OUTRL+
OUTRR+
OUTFR+
FL
FR
http://www.xiaoyu163.com
http://www.xiaoyu163.com
2-5
CD servo control section
IC621
IC502
Q601
R615
C693
C694
IC501
Q501
R616
R601
R602
R603
R604
C603
R608
C604
C610
R610R611R612R614
R613
C611
C605
R632
R633
R634
C631
C632
C636
C637
C630
C627
C626
C625
R629
C629
C628
R626
R625
R624
R628
C614
C643
L622
L623
CN502
R548
R543
R544
R540
C613
R516
R541
C508
R525
R542
C577
R689
R690
R685
R687
R683
R539
R545
R549
R550
Q574
Q573
C685
C686
C687
IC681
R681
R682
R686
R688
C612
Q681
C682
C684
C690
C683
C688
C689
IC601
B681
C644
C601
C602
R605
R606
R607
C609
C608
R609
C606
C607
R630
R631
C633
C635
C634
R635
R636
R637
C638
C639
C624
C623
R627
R621
R622
R623
C622
C621
R638
R639
R640
R641
R642
C645
C646
C640
C641
C642
L621
R546
R547
C514
C616
TH501
C510
C509
C598
IC573
B682
R577
L573
R578
R579
CN601
D682
R684
R691
C597
TC94A14FA
BR24L01AFV-W-X
2SB1132/QR/-W
150
47/16
47/16
TMP91CW12AF5
V
UN2111-X
10k
82k
82k
330k
330k
100/6.3 820
0.01
5p
10010k2k15k
1k
68p
0.0068
0
0
0
470p
470p
0.047
0.047
0.033
0.01
0.0027
0.01
10k
0.033
47/6.3
470k
47k
5.6k
1.5M
0.01
0.01
47u
47u
QGF0501F1-08X
8.2k
100
100
47k
0.01
1k
100
0.01
100k
10k
0.1
12k
33k
6.8k
6.8k
6.8k
47k
10k
4.7k
4.7k
UN2211-X
2SB624/4/-X
-
-
-
BA5830FP-X
6.8k
2.2k
12k
1.8k
0.01
2SB1184/QR/-X
4.7/35
47/16
10/6.3
0.1
-
47/16
TA2157FN-X
0
0.33 47/6.3
0.01
22
22
82k
0.1
0.1
56k
47/6.3
0.01
100
100
0.047
0.047
0.047
100
100
1M
0.01
47/6.3
0.015
47p
15k
47
47
47
47/6.3
0.01
4.7k
4.7k
4.7k
4.7k
10k
47/6.3
0.01
0.01
47/6.3
100p
47u
270
270
0.001
10/6.3
NAD0028-103X
0.01
0.01
1000p
SN74AHCU04PW-X
0
100
-
47k
2.2k
QGF0527F2-22W
1SR154-400-X
8.2k
15k
1000p
VA
VF
VE
VB
MD
LD
FOCUS-
FOCUS+
MD
LOAD/FEED+
SEL
RFGC
TE
RFDC
RFRP
FE
RF
BUS0
VB
BUS3
BUS2
BUS1
BUCK
CCE
DSPRST
TEB
IOP
MP3DA
MP3CK
IOP
TRO
VREF
CDON
FOCUS+
FOCUS-
TRACKING+
TRACKING-
DMO
FOO
VA
SPINDLE+
SPINDLE-
LOAD/FEED-
BUSSI
VF
VE
VREF
TRACKING+
TRACKING-
SPINDLE+
SPINDLE-
LOAD/FEED+
LOAD/FEED-
LD
REST
SW2
SW1
BUSSO
BUSSCK
BOOT
RESET
BCK
FMO
FE
RWSEL
RFRP
RFGC
RF
SEL
TEB
RFDC
TE
FOO
TRO
FMO
DMO
LRCK
DATA
CDON
P.DET
8VDET
BOOT
VREF
LOAD
BUSSCK
LD/FE
http://www.xiaoyu163.com
http://www.xiaoyu163.com
2-6
SHEET 2
R572
Q651
R581
CN501
R565
R566
L501
IC501
R678
C628
IC504
R523
R522
R521
R520
R519
R518
R517
R509
R511
R512
R655
Q652
R515
R513
R514
X501
R510
7
7
L651
C667
C666
C656
R568
R675
C664
C665
C668
R651
C507
R564
IC652
B501
C669
C676
R570
C675
R582
C585
C586
Q572
Q571
R583
R585
R584
R586
C587
C588
C589
C590
R589
C511
C513
C512
R561
R563 R562
R556
R553
R569
C551
L502
Q502
D506
R533
R508
L653
R656
IC572
R598
R599
IC571
R594
C599
C506
R502
C578
R657
R503
R534
C501
IC503
IC651
R532
R504
R505
R535
R536
R537
R506
R507
R526
R528
R531
R530
C514
C505
C504
C503
C571
C502
C651
C652
C598
R677
C653
C572
R668
X571
C663
C662
L652
R527
C654
R654
R529
R573
R575
C661
C655
C659
C660
R574
X651
C575
R595
L572
C574
C573
C582 C581
C583C584
R588 R587
R592R590
R591
C591
C592
C593
R501
R560
R552
R558 R559
R551
R555
R557
R554
R577
R576
C594
R524
C596
C595
R593
C597
C561
C580
2.2M
2SB624/4/-X
24K
QGB2027L1-22X
-
-
47u
TMP91CW12AF5VD9
-
7
47/6.3
NJU7241F33-X
100
100
100
100
100
100
100
47k
1k
47k
10k
UN2211-X
47k
1k
47k
NAX0385-001X
100
1
47u
0.01
100p
0.1
1k
220
2200P
0.1
47/6.3
100k
0.01
-
TC94A34FG-002
0
0.01
-
1k
-
24K
4.7/35
4.7/35
UN2211-X
UN2111-X
8.2K
27K
8.2K
27K
150P
150P
4.7/35
4.7/35
10k
0.1
0.01
100/6.3
100k
6.8k 3.9k
0
18k
1k
0.01
47u
UN2211-X
MA111-X
100
47k
47u
47k
NJM4580V-X
-
-
PCM1753-X
47
-
0.01
1k
100/6.3
2.2k
1k
100
0
.
01515k
0.01
SN74AHCT126PW-X
NJU7772F15-X
1k
100
100
100
100
100
47k
47k
47k
47k
47k
47k
0.001
22P
22P
100/6.3
27P
0.01
47/6.3
0.01
1000p
-
47/6.3
27P
47
NAX0375-001X
SN74AHCU04PW-X
10/6.3
100p
47u
-
0.1
39
-
1K
1K
0.01
0.01 0.1
100p
47
100/6.3
47
47u
100/6.3
0.1
100p 100p
820p820p
47k 47k
10k10k
10k
47/6.3
47/6.3
47/16
1k
100
100k
100k 0
100k
100
100k
33k
100
1K
1000p
-
100p
0.047
4.7
1000p
0.012
0.012
DATA
CDON
CDRESET
AGND
SCK
BUS3
BUS2
BUS1
BUS0
BUCK
CCE
DSPRST
SW1
BUSIO
B.DET
BUSSO
/BUSIO
CD.L
CDON
CD.R
CD.L
9V
CD.R
BUSSI/SO
BUSSCK BUSCLK
BUSSI
CDMUTE
CDREQ
P.DET
B.DET
CDRESET
CD8V
BCK
MP3STB
LRCK
SDO
MP3DA
DACML
DACMC
8VDET
DACMD
SDO
CDON
DATA
CDREQ
BUSSI
BUSSO
BUSSCK
CDON
8VDET
CDMUTE
RWSELSCK
MP3RST
DACMD
DACMC
DACML
/BUSIO
BUSIO
RESET
SW2
MP3RST
LD/FE
MP3CK
DATA
BCK
LRCK
MP3STB
LOAD
BUSSCK
REST
To CN101
(SHEET 1)
http://www.xiaoyu163.com
http://www.xiaoyu163.com
2-7
LCD & Key control section
R601
D614
D611 D613
EN601
D612
D608
D610
D609
D606
D607
D603 D605
D615
C682
D604
C681
D616
D618
D617
R605
D619
LCD1
R612
R614
R606
R607R608R611 R610 R609
R602R603R604
R613
D602
D601
D640
R642
S601
R634
R636
R640
R649
R648
R645
R637
R635
S602
R638
R650
R644
R639
R641
R647
S603
R632
R633
R630
R631
S604
S605
S606
R646
S607S614
S613
S612
S611
S610
S609
S608
S616
S617
R643
820
QSW1115-001
0.022
0.022
2.7K
3.9K
820
3.9K
8208202.7K 1.8K 1.2K
8201.2K1.8K
820
MA152WK-X
330
330
470
470
470
390
KEY1
KEY0
KEY2
ENC1
COM1
COM2
COM3
S47
S48
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
S11
S12
S13
S14
S15
S16
S17
S49
S50
S51
S52
S18
S19
S20
S21
S23
S24
S25
S26
S27
S28
S29
S30
S31
S32
S33
S34
S35
S36
S37
S38
S39
S40
S41
S42
S46
S45
S44
S43
S22
http://www.xiaoyu163.com
http://www.xiaoyu163.com
2-8
SHEET 3
R658
R653
R672
IC601
D619
R623
R657
C602
R654
R655
R656
R670
R622
IC602
R671
J601
C603
D642
R661
R692
C612
C611
CN601
D641
C620
R630
D643
R674
R652
C601
R660
R673
R651
D646
D645
Q641
Q640
R624
R691
R620
R621
180k
10k
470
PT6523LQ-L
51k
680p
10k
10k
10k
0
RPM7338-V4
470
QNS0245-001
10/6.3
MA111-X
390
470
4.7/6.3
0.012
NNZ0085-001
UDZS5.1B-X
0.047
MA8062/M/-X
1k
2.2k
0.022
390
47k
2.2k
NSPW310BS/BRS/
NSPW310BS/BRS/
UN2211-X 2SB624/4/-X
470
10K
0
0
KEY0
KEY1
REMOCON
KEY2
LCDDA
LCDCL
LCDCE
S50
ENC1
LCDDA
S51
DIM_CON
INH
ACC5V
LCDCL
GND
DIMOUT
LCDCE
S17
CE
ENC2
S18
OSC
CLK
DATA
AUX.R
AUX.L
VDD
AUX.GND
S52
10V
S19
S20
S21
S22
S23
S24
S25
S26
S27
S28
S29
S30
S31
S32S49
COM3
COM2
COM1
S3
S4
S5
S6
S7
S8
S9
S10
S2
S11
S1
S12
S13
S14
S15
S16
DIM_CON
S50
S51
S52
S33
S34
S35
S36
S37
S38
S39
S40
S41
S42
S43
S44
S45
S46
S47
S48
To CN701
(SHEET 1)
http://www.xiaoyu163.com
http://www.xiaoyu163.com
2-9
C183
C1
C4
C5 C9
C31
C32
C33 C34
C38
C39
C40
C41
C42
C43
C44
C45
C48
C24
C50
C81
C91
C161
C162
C163
C165
C171
C172
C173
C174
C175
C176C177
C179
C181
C182
C241
C242
C243
C245
C251
C252
C253
C254
C255
C256
C261
C262
C274
C275
C276
C279
C281
C292
C308
C301
C302
C311
C312
C315
C316
C317
C318
C360
C361
C362
C363
C365 C366
C367
C368
C369
C380
C381
C382
C383
C385
C386
C387
C388
C389
C390
C391
C392
C393
C394
C705
C706
C707
C708
C709
C710
C711
C307
C722
C771
C781
C784
C801
C803
C804
B303
C851
C852
C881
C891
C901
C902
C903
C904
C905
C907
C908
C909
C910
C911
C914
C916
C917
C961
C962
C963
C964
C965
C966
C967
C968
CN101
CN701
CN901
D242
D243
D251
D271
D273
D341
D331
D710
D714
D715
D716
D781
D851
D852
D891
D892
D901
D991
D992
D993
D994
D995
D996
D997
D998
IC31
IC161
B304
IC271
R706
IC301
IC361
IC381
IC701
IC702
IC771
IC801
IC901
J1
J321
J801
L1
L701
L901
Q8
Q31
Q241
Q271
Q272
Q274
Q321
Q331
Q341
Q701
Q704
Q706
Q881
Q891
Q901
Q902
Q903
Q976
Q977
R2
R8
R31
R32
R33
R38
R39
R40
R41
R42
R43
R44
R161
R162
R163
Q2
R15
R12
R14
R196
R197
R241
R242
R243
R244
R245
R248
R251
R252
R253
R255
R256
R257
R258
R259
R271
R13
C25
R274
R275 R276
R277
R278
R279
R291
C298
R301
R302
R303
R304
R311
R312
R313
R314
R321
R331
R341
R351
R366
R367
R370
R371
R386
R387
R390
R391
R709
R719
R720
R721
R722
R723
R725
R726
R728
R730
R731
R732
C26
R734
R735
R736
R737
R738
R739
R740
R743
R744
R745
R746
R747
R748
R749
R750
R751
R753
R756
R757
R763
R764
R765
R771
R772
R775
R776
C27
R780
R789
R791
R792
R793
C49
R801
R802
R803
R804
R805
R806
R807
R808
R810
R851
R881
R882
R891
R892
R901
R904
R905 R906
R907
R976
R977
RA30
S701
S702
X31
X701
X702
B301
D321
D351
B302
R893
Q892
TU1
C12
C257
S703
B902
IC291
C294
C293
IC251
Q292
Q291
R295
R296
D783
CN251
Forward side
Printed circuit boards (For J version)
Main board
http://www.xiaoyu163.com
http://www.xiaoyu163.com
2-10
C1
C2
C3
C4
C5
C6
C8
C9
C10
C31
C33
C35
C36
C37
C40
C43
C46
C47
C51
C81
C82
C84
C85
C91
C92
C94
C95
C147
C161
C162
C163
C165
C171
C172
C173
C174
C175
C179
C181
C241
C242
C244
C245
C252
C253
C255
C261
C262
C271
C272
C273
C277
C278
C279
C308
C301
C302 C303
C304
B305
C311
C312
C313
C314
C315
C316
C317
C318
C319
C320
C395
C322
C323
C324
C325
C341
C361
C363
C365
C366
C367
C368
C369
C381
C383
C385
C386
C387
C388
C389
C390
C701
C702
C703
C704
C710
C711
C713
C716
C717
C307
C720
C721
C731
C727
C781
C782
C784
C802
B303
C851
C881
C901
C902
C903
C904
C905
C906
C907
C908
C909
C910
C911
C912
C914
C915
C916
C971
CN101
C11
CN701
B701
CN901
D1
D2
D4
D5
D6
D244
D701
D702
D703
D704
D705
D706
D707
D708
D709
D711
C747
D713
D717
D718
D719
D720
C28
D784
D901
D902
D971
D972
B304
IC301
IC901
J1
J321
J801
L1
L701
L901
Q1
Q5
Q6
Q7
Q273
Q351
Q702
Q703
Q705
Q781
Q782
Q784
R1
R4
R5
R6
R7
R9
R11
R50
R52
R81
R82
R91
R92
C7
R158
R159
R246
R247
R254
R260
R261
R292
R293
R294
R307
R308
R317
R318
R322
R323
R332 R333
R342
R343
R352
R353
R361
R362
R363
R365
R368
R369
R381
R382
R383
R385
R388
R389
R395
R396
R397
R398
R701
R714
R729
R741
R754
R755
R758
R759
R760
R766
R767
R768
R769
R770
C184
R781
R783
R784
R785
R787
R788
C733
R809
R901
R902
R903
R971
R972
S701
S702
C797
X31
X701
X702
B301
C798
C326
B15
B302
TU1
C12
D325
C729
C728
C730
R762
R761
C29
C732
B17
C735
C734
B14
C396
S703
C724
C725
C726
C723
C738
C739
C736
C737
B902
C30
D782
C742
C746
C744
C743
C745
C740
C741
C52
R373
R372
C294
C293
R298
R297
R262
CN251
Reverse side
http://www.xiaoyu163.com
http://www.xiaoyu163.com
2-11
R678
Q652
C576
C602
C605
C608
C609
C610
C611
C621
C625
C626 C627
C631
C632
C636
C637
C638
C640
C642
C643
C644
C646
C659
C660
C664
C665
C666
C667
C669 R655
R543
R544
R504
R505
R535
R536
R537
R527
R526
R528
R539
R530
R529
R507
R506
R564
R565
R566
R601
R602
R603
R604
R605
R606
R607
R608
R609
R610
R611
R612
R613
R614
R615
R621
R622
R623
R624
R625
R626
R627
R628
R629
R630
R631
R632
R633
R634
R635
R636
R637
R638
R639
R640
R641
R642
R675
TH501
C614
C676
C675
R579 R578
R616
R524
C580
Forward side
D601
D602
D603
D604
D605
D606
D607
D608
D609
D610
D611 D612 D613 D614 D615 D616 D617 D618
D619
D645 D646
EN601
IC602
R601
R602 R603 R604 R605 R606
R610
R612
S601
S602 S603
S604
S605
S606
S607
S608
S609
S610
S611
S612
S613
S614
J601
S616
S617
LCD1
CP602
CP601
Forward side
CD mecha control board
Switch board
http://www.xiaoyu163.com
http://www.xiaoyu163.com
2-12
C501
C508
C502
C503
C504
C505
C509
C510
C506
C511 C512
C513
C551
C578
C575
C573
C574
R657
R656
C581
C582
C583
C584
C585
C586
C587 C588
C589
C590
C591
C592
C593
C601
C603
C604
C606
C607
C612
C613
C622
C623
C624
C628
C629
C630
C633
C634
C635
C639
C641
C645
C651
C652
C653
C654
C655
C656
C661
C663
C668
R545
IC573
C673
C681
C682
C683
C684
CN501
CN502
CN601
C599
D681
D682
IC502 IC503
IC504
R573
IC572
IC601
IC621
IC651
IC652
IC681
L501
L502
L572
L621
L622
L623
L651
L652
L653
Q501
Q502
Q571
Q572
Q601
Q681
R548
R547
R509
R546
R502
R503
R523
R522
R521
R520
R519
R518
R517
R532
R534
R533
R508
R531
R540
R511
R512
R515
R513
R514
R516
R541
R510
R542
R525
R549
R550
R551
R552
R553
R554
R555
R556
R557
R558
R559
R560
R561
R562
R563
R577
R575
R572
R574
R581
R582
R583 R584
R585 R586
R587
R588
R589
R590
R591
R592
R651
R689
R690
R654
C514
C507
R685R687
R668
R576
C571
R677
R681
R682
R683
R684
R686
R688
R691
X501
C572
RFDC
TEB
SEL
TE
FE
RFRP
RF
RFGC
RWSEL
VREF
BUS0
1
2
CCE
BUCK 3
C577
B501
X651
Q574
R501
R568
R569
R570
Q573
C662
RCH
SCK
LRCK
DSEL
REQ BDET
SI/SO
VDD
BUSCK
PDET
RESET
CDMUTE
DATA
BCK
9V
LCH
X571
L573
R598
R599
C647
C674
B571
R594
C594
C597
R595
C561 C521 C522
C524
C526
C528
C530
C531
C534
C535
C533
C527
C538
C539
C523
C525
C529
C536
C537
C532
C616
C687
C685 C686
C688
Q651
C596
C595
R593
C598
C689
C690
C615
B681
D506
IC501
C693
C694
IC571
Reverse side
C601
C602
C603
C611
C612
C620
C681
C682
CN601
D640
D641
D642
D643
D645
D646
EN601
IC601
Q640
Q641 R607
R608
R609
R611R613
R614
R620
6
21
R623
R624
R630
R631
R632
R633
R634
R635
R636
R637
R638
R639
R640
R641
R642
R643
R644
R645
R646
R647
R648
R649
R651
R652
R653
R654
R655
R656
R657
R658
R660 R661
R670
R671
R672
R673R674
R691
R692
6
01
R650
Reverse side
http://www.xiaoyu163.com
http://www.xiaoyu163.com
2-13
REST
SWITCH
LOAD&FEED
MOTOR
SPINDLE
MOTOR
SW1, SW2
PICK UP
REST
SW1, SW2
CN601
CN501
IC681
CD
DRIVER
IC621
D.SURVO
& DSP
IC501
CPU
IC652
MP3 DEC
IC601
CD RF
IC572
CD LPF
IC503
J-BUS
BUFF
IC571
24BIt DAC
BUS0 to 3
BUCK, CCE
DSPRST
FE, TE
RFGC, RF
RFRP, RFDC
SEL, TEB
FMO, DMO
TRO, FOO
LOAD/FEED+, LOAD/FEED-
SPINDLE+, SPINDLE-
TRACKING+, TRACKING-
FOCUS+, FOCUS-
VA, VB
VE, VF
MD, LD
VREF
MP3REQ, MP3CK, MP3DA, MP3STB, MP3RST
REST
SW1
SW2
CN601
S601 to S614
S616, S617
KEY MATRIX
KEY0, KEY1
KEY2
IC601
LCD DRIVER
LCD1
LCD DISPLAY
COM1 to COM10
S1 to S73
LCDCL, LCDDA
LCDCE, DIMMER
J
A
N
LOAD/FEED+, LOAD/FEED-
SPINDLE+, SPINDLE-
VA, VB, VE, VF
LD, MD, VREF
IC602
REMOCON
REMOCON
VOUTL, VOUTR
DACML, DACMC, DACMD
BCK
LRCK
DATA
SDO
BCK
LRCK
CD.L
CD.R
CDRESET
B.DET, P.DET
CDMUTE
CDREQ BUSSI/SO
BUSCLK
EN601
ENCODER
ENC1
ENC2
LOAD, LD/FE
RWSEL
CN001
FOCUS & TRACKING
COIL
TRACKING+, TRACKING-
FOCUS+, FOCUS-
CD servo control section
LCD & Key control section
IC502
EPROM
D601 to D643
LIGHTING
DISPLAY
Block diagram (For J2 version)
http://www.xiaoyu163.com
http://www.xiaoyu163.com
2-14
CN501 CN601
CN701CN101
TU1
FM/AM
TUNER
IC701
CPU
IC161
E.VOLUME
Q781, Q782
MUTE
CONTROL
IC31
PLL
IC702
RESET
IC771
EPROM
IC301
POWER
AMP.
IC251
SUBWOOFER
AMP.
IC271
SUBWOOFER
SELECTOR
IC901
REGULATOR
EACH BLOCK
TU.L
TU.R
FL, FR, RL, RR
XFL, XFR
XRL, XRR
CD.L
CD.R
FRONT LEFT (+)
FRONT LEFT (-)
FRONT RIGHT (+)
FRONT RIGHT (-)
REAR LEFT (+)
REAR LEFT (-)
REAR RIGHT (+)
REAR RIGHT (-)
VOLDA
VOLCL
RESET
EPROMCK
EPROMDI
EPROMDO
MUTE
J1
ANT
SPK
BATTERY
CN901
SD/ST, MONO
SM, IFC.CONT
SEEK/STOP, FM/AM
PLLCE
PLLDA
PLLCL
PLLDI
FMVT
AMVT
FM/AM OSC
KEY0
KEY1
KEY2
LCDCL
LCDDA
LCDCE
REMOCON
ENC1
ENC2
DIMMER
CDRESET
CDMUTE
CDREQ
B.DET
P.DET
SI/SO
SCK
S
O
K
CH.L
CH.R
IC801
JVC BUS
SI/SO
BUSSO
I/O
BUSINT
SCK
BUSCLK SCK
J801
CD CHANGER
CONTROL
SI/SO, BUSCLK
LPF1, LPF2
J321
Main amplifier section
FRONT
REAR
LINE OUT
SWOUT
Q321, Q331
Q341, Q351
LINE OUT
MUTING
LN.FL,LNFR
LN.RL,LN.RR
http://www.xiaoyu163.com
http://www.xiaoyu163.com
2-15
To CN501
(SHEET 2)
To CN601
(SHEET 3)
R738
IC801
R739
IC702
R740
C181
R734
L1
Q7
D713
R5
R7
R735
R736
IC701
R743
R744
R745
C241
IC31
C31
R38
C163
C173
C50
R709
D714
C182
D715
C81 R81
R91
Q5
R8
C9
R11
R787
Q901
R161
X31
R162
C36
C35
C46
CN701
C172
C162
C161
R768
C171
R767
R904
S7
0
R746
C39
C47
R808
R39
D716
C91
C723
R759
Q703Q702
R760
R803
R804
R805
R806
R810
Q701
VSS
R720
R719
VDD
VPP
Q704 Q705
C730
C32
C24
X1
C706
R741
RESET
TD
C243 R244
Q241
D243
C147
RD
R732
X701
X702
S702
R248
R766
R714
Q6
J801
R43
C38
R44
C174
Q31
R730
C165
C183
C175
R729
R731
C184
IC771
R370
R371
R390
R391
C179
R32
C771
R163
R791
IC161
R737
R158
R159
R757
R245
S703
R764
R792
R793
R770
R769
RA30
C29
R761
R762
C30
C52
J1
Q2
C49
C28
TU1
C40
R1
C43
CN101
D717 D1
D2
D711
D701
R6
R4
C12
C726
C716
C4
D719
R42
R751
R789
C1
R92
C92
C82
R82
Q8
C727
R788
C725
C5
C48
C916
R763
R31
C245
R765
D703
R750
R807
R9
C41
C244
D6
R802
R809
R801
D720
C801
R753
R721
R722 R758
R723
R50
R780
C95
R781
C728
R243
R242
R246
R247
C94
D242
C85
R726
R728
R756
D718
C701
C702
R33
C703
C704
D244
C2
R52
C3
C804
R2
C242
C803
D705
D707
D709
D702
D704
D706
D708
C717
C6
R197R196
C177C176
D4
C722
R725
R40
C721
R41
C42
C720
C45
R771
Q1
C44
C33
C37
C34
C51
R772
C708
C705
R701
C710
C709
R241
D710
C802
D5
C84
R754
R755
R366 R367
R387 R386
C8
C10
C729
C23
C731
C732
C739
C742
C747
R13
R15
C27
R12
R14 C25
C11
C26
C395
C396
C7
C734
C735
C736
C737
C738
C797
C798
C733
C741
L702
4.7k
HD74HC126FP-X
4.7k
IC-PST3433U-X
4.7k
100/16
2.2k
4.7u
UN2211-X
UDZS5.6B-X
47k
47k
2.2k
2.2k
UPD784217AGC322
10k
10k
10k
1/50
TB2118F-X
100/10
100
QTE1H55-225Z
QTE1H55-225Z
100P
10k
SML-310VT/JK/-X
0.1
SML-310VT/JK/-X
1/50
2SB709A/R/-X
10k
47K
47K
22/16
10k
10k
2SB1132/QR/-W
2.2k
QAX0616-001Z
2.2k
7P
10P
0.01
QNZ0605-001
1/50
1/50
1/50
47k
1/50
47k
220
QSW04
5
10k
0.001
0.01
330
0
SML-310VT/JK/-X
1/50
0.1
47k
UN2211-XUN2211-X
47k
100
22k
100k
10k
100
UN2211-X
1.2k
0
UN2211-X UN2211-X
100P
47P
0.001
0.1
100P
10k
0.047 12k
2SD601A/R/-X
RB160M-30-X
0.01
10k
QAX0617-001Z QAX0401-001
QSW0451-001
220
47k
10K
2SB624/4/-X
QNZ0095-001
470
1000P
220
1/50
4.7k
4.7k
4.7k
UN2211-X
10k
1/50
0.22
1/50
47k
47k
0.22
BR24L16F-W-X
1k
1k
1k
1k
47/16
6.2k
0.047
120k
0
TDA7404D-E-X
0
10K
10K
2.2k
47
MA111-X
QSW1049-001Z
100
0
0
47k
47k
2.2K
120P
100P 47k
47k
0.047
4700P
QNB0100-002
2SC2411K
0.001
0.01
QAU0223-001
10/16
12
0.047
QGB2027M4-22S
MA111-X
MA111-X
4.7k
3.3k
220/10
0.1
0.1
220/10
10
10k
270
22/16
UN2211-X
0.1
0
0.22
0.1/50
0.047
47/16
1k
10
0.22/50
270
10k
100k
100
0.047
0.015
MA111-X
47k
22k
47k
0.047
47k
1k
10k
47k
10k
47k
47k
180k
22k
1k
39K
MA111-X
10k
10k
47k
22P
27P
10k
27P
8P
UDZS5.1B-X
0.1
22K
0.1
22P
47k
22/16
22P
0.1
0.1
100K100K
0.0470.047
MA111-X
0.01
10k
39k
0.01 10k
0.01
0.01
0.0027
270
KTD1304-X
0.01
47/6.3
10P
0.047
0.01
270
0.1
0.1
47k
47/6.3
0.01
47k
0.0047
MA111-X
820
10M
100k 100k
100k 100k
0.1
0.1
0.01
4700P
4700P
0.01
0.015
0.047
4.7k
33
5600P
4.7k
4.7k
330P
0.1
0.1
0.01
0.01
0.1
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.22
4.7u
PWR
LN.CTR
SUB.CTR
CD.L
VOLDA
CD.R
/SUBMUTE
AUX.GND
CD.L
CH.R
TEL.OUT
CD.R
CDMUTE
VOLCL
CDREQ
CDRESET
B.DET
P.DET
SI/SO
AUX.L
SCK
DIMOUT
CH.L
CH.R
10V
CH.L
LCDCE
KEY0
I/O
KEY1
KEY2
LCDCL
LCDDA
AUX.R
ENC2
ENC1
LEVEL
BUSSO
BUSCLK
LCDCE
LCDCL
LCDDA
KEY2
KEY1
KEY0
ENC2
BUSSO
SI/SO
BUSINT
SW5V
FL
ANT.CNT
REMOCON
SCK
ACC5V
BUSCLK
RL
VOLDA
RL
VOLCL
RR
FL
LEVEL
FR
RR
PLLCE
DIMOUT
PLLDA
AUX.R
AUX.GND
AUX.L
PLLCL
FR
LPF2
PLLDI
I/O
LPF1
VDD
5
SI/SO
PWR
/CDRESET
/CDMUTE
MONO
SD/ST
AMPSW
IFC.CNT
SM
SEEK/STOP
BUSINT
IFC.CNT
CDMUTE
FM/AM
CDREQ
/CDRESET
PS2
B.DET
P.DET
CDRESET
/CDREQ
/CDMUTE
/CDREQ
PS2
MONO
REMOCON
ENC1
SEEK/STOP
PLLDI
PLLCL
PLLDA
PLLCE
FM/AM
FM.VCC
/RESET
TELMUTE
SD/ST
STBY
Standard schematic diagrams
(For J2 version)
Main amplifier section
http://www.xiaoyu163.com
http://www.xiaoyu163.com
2-16
SHEET 1
Parts are safety assurance parts.
When replacing those parts make
sure to use the specified one.
CN901
IC901
Q782
IC702
C724
C312
D713
IC361
C361
C901
D851
D852
IC271
R776
R775
D251
Q781
D271
C272
C273
C367
L701
S701
D325
D321
D972
R783
D781
Q881
R259
C301
C781
RD
C302
R260
Q272
C311
C382
R785
Q891
C390
C391 C362
C363
D891
CN251
C964
C963
C968
C967
C962
IC291
J321
R977
R976
C966
C961
C965
IC301
IC381
C388
R362
R363
C360
D902
R361
R365
C383
C251
C393
C707
C392
R313 R314
R304
R303
C385
Q784
R882
R382
R383
R906
Q903
Q902
R747
R748
R749
D351
C394
R
730
R381
C365
C381
C782
C713
R311
R312
R301
R302
R385
C322
C323
C324
C325
D341
D901
R901
C711
R352
R342
C380
R341
R351
R331
R321
R784
R731
C256
C368
D782
D994
C261
C881
C387
R370
R371
Q977
R390
R391
C281
C771
D998
D993
D997
D992
D996
D991
D995
R274
R757
C277
C278
C276
C274
C275
Q273
Q274 R279
S703
C298
D971
D273
D783
R372
R255
C254
R256
R257
R258
R373
C279
R271
C262
R292
R291
C292
R317
R318
R307
R308
Q892
C257
D331
R298 R297
C740
C745
C746
C743
C744
C903
C316
L901
C910
C906
C851
C313
C314
C303
C304
C852
R851
R276
C271
C252
IC251
C911
R369
R368
C904
D892
C319
C905
Q292
C318
Q291
C909
R972
Q351
C917
C389
C891
R891
R892
Q976
C308
C253
C369
C386
R251
C366
C907
C908
R881
R907
R905
R252
R971
C317
D784
C912
C315
R903 R902
C902
R332
R322
Q331
Q321
R353
R343
R333
R323
C784
C255
R389
R388
C914
C915
C710
R275
R278 R277
Q341
C971
C341
R296
R295
R254
R253
R366 R367
R387 R386
R261
Q271
R262
C307
B305
C293
C320
R397
R398
R396
R395
R294
R293
R893
C326
C294
Q706 R706
QNZ0611-001
4.7k
HA13164A
KTD1304-X
4.7k
IC-PST3433U-X
4.7k 0.1
0.47
2.2k
UDZS5.6B-X
2.2k
2.2k
10k
10k
10k
NJM2160BV-X
4.7/25
QEZ0723-338
RB160M-30-X
RB160M-30-X
CD4066BPW-X
47K
47K
UDZS4.7B-X
UN2111-X
MA111-X
100P
100P
4.7/25
4.7u
QSW0451-001
10k
UDZS11B-X
MA111-X
RB160M-30-X
10K
MA111-X
UN2211-X
1.2k
10k
0.47
47/6.3
10k
0.47
47k
UN2111-X
0.47
0.0015
2.2K
UN2211-X
100/10
0.1 0.0015
47k
47/16
MA111-X
QGA2501C1-03
470P
470P
470P
470P
470P
CD4066BPW-X
8.2k
20k
470P
470P
470P
TB2906HQ
NJM2160BV-X
4.7/25
22k
22k
0.0015
MA111-X
33k
33k
47/16
0.0082
0.1
0.1
0.1
4.7/25
UN2111-X
4.7k
22k
22k
10k
UN2211
UN2111
4.7k
4.7k
4.7k
MA111-X
0.1
10k
33k
4.7/25
4.7/25
0.47
0.22
47K
47K
47K
47K
33k
4700P
4700P
4700P
4700P
MA111-X
1N5401-F64
1k
220/10
820
820
0.0015
2.2k
2.2k
2.2k
2.2k
47K
47k
0.1
4.7/25
MA111-X
RB160M-30-X
2.2/50
22/16
BR24L16F-W-X
4.7/25
1k
1k
2SB709A/QR/-X
1k
1k
0.082
0.047
RB160M-30-X
RB160M-30-X
RB160M-30-X
RB160M-30-X
RB160M-30-X
RB160M-30-X
RB160M-30-X
0
47K
2.2k
0.0056
0.012
0.022
0.022
0.022
47K
QSW1049-001Z
0.1
RB160M-30-X
MA111-X
MA111-X
0
0
0.082
100k
8.2k
15K
0
47/6.3
2.2k
2.2/50
0
0
0.1
1.2K
1.2K
1.2K
1.2K
UN2211-X
0.047
MA111-X
47K
47K
0.1
0.33
0.1
0.33
0.1
47/16
4.7/25
QQR1378-002
47/16
0.1
10/16
100p
100p
100p
100p
0.01
10k
1M
0.1
47/6.3
NJM4565M-WE
10/16
47K
47K
10/16
MA111-X
0.1
47/16
UN2211-X
2.2/50
UN2211-X
220/10
2.2K
KTD1304-X
0.1
100/10
0.1
1k
47k
UN2211-X
1/50
10/16
100/10
100/10
100k
100/10
220/10
220/10
47k
5.6k
1k
51K
2.2K
22/16
UDZS11B-X
0.1
2.2/50
4.7k 9.1k
2.2/50
820
820
KTD1304-X
KTD1304-X
100
100
100
100
100/16
47/16
47K
47K
100/16
0.1
47/6.3
1M
1M 1M
KTD1304-X
0.1
UN2211-X UN2211-X
0.1
47K
47K
470k
100k
100k 100k
100k 100k
820
KTD1304-X
0
1/50
0
4.7/25
0.1
0
0
0
0
100
100
0
1000P
4.7/25
UN2211-X 1K
LN.CTR
IN.DIMMER
AMPSW
STBY
XRL
LPF2
XFL
XFL
XFR
XFL
XFR
XRR
RL
I/O
CD8V
XFR
XRL
XRR
BUSCLK
LCDCE
LCDCL
LCDDA
KEY2
KEY1
KEY0
ENC2
BUSSO
SI/SO
RR
ANT
FL
FR
/SUBMUTE
SM
CNT.MI
LEVEL
R
LPF1
VDD5V
MUTE
RR
RL
OUTFL-
TEL.OUT
LN.FR
SUB.CTR
TELMUTE
OUTFR-
ACCIN
OUTRR-
OUTFR+
OUTRR+
OUTRL+
LN.RL
OUTRL-
LN.RR
LN.FL
OUTFL+
OUTFL-
OUTRL-
OUTRR-
OUTFR-
OUTFL+
OUTRL+
OUTRR+
OUTFR+
FL
FR
http://www.xiaoyu163.com
http://www.xiaoyu163.com
2-17
IC621
IC502
Q601
R615
C693
C694
IC501
Q501
R616
R601
R602
R603
R604
C603
R608
C604
C610
R610R611R612R614
R613
C611
C605
R632
R633
R634
C631
C632
C636
C637
C630
C627
C626
C625
R629
C629
C628
R626
R625
R624
R628
C614
C643
L622
L623
CN502
R548
R543
R544
R540
C613
R516
R541
C508
R525
R542
C577
R689
R690
R685
R687
R683
R539
R545
R549
R550
Q574
Q573
C685
C686
C687
IC681
R681
R682
R686
R688
C612
Q681
C682
C684
C690
C683
C688
C689
IC601
B681
C644
C601
C602
R605
R606
R607
C609
C608
R609
C606
C607
R630
R631
C633
C635
C634
R635
R636
R637
C638
C639
C624
C623
R627
R621
R622
R623
C622
C621
R638
R639
R640
R641
R642
C645
C646
C640
C641
C642
L621
R546
R547
C514
C616
TH501
C510
C509
C598
IC573
B682
R577
L573
R578
R579
CN601
D682
R684
R691
C597
TC94A14FA
BR24L01AFV-W-X
2SB1132/QR/-W
150
47/16
47/16
TMP91CW12AF5V
D
UN2111-X
10k
82k
82k
330k
330k
100/6.3 820
0.01
5p
10010k2k15k
1k
68p
0.0068
0
0
0
470p
470p
0.047
0.047
0.033
0.01
0.0027
0.01
10k
0.033
47/6.3
470k
47k
5.6k
1.5M
0.01
0.01
47u
47u
QGF0501F1-08X
8.2k
100
100
47k
0.01
1k
100
0.01
100k
10k
0.1
12k
33k
6.8k
6.8k
6.8k
47k
10k
4.7k
4.7k
UN2211-X
2SB624/4/-X
-
-
-
BA5830FP-X
6.8k
2.2k
12k
1.8k
0.01
2SB1184/QR/-X
4.7/35
47/16
10/6.3
0.1
-
47/16
TA2157FN-X
0
0.33 47/6.3
0.01
22
22
82k
0.1
0.1
56k
47/6.3
0.01
100
100
0.047
0.047
0.047
100
100
1M
0.01
47/6.3
0.015
47p
15k
47
47
47
47/6.3
0.01
4.7k
4.7k
4.7k
4.7k
10k
47/6.3
0.01
0.01
47/6.3
100p
47u
270
270
0.001
10/6.3
NAD0028-103X
0.01
0.01
1000p
SN74AHCU04PW-X
0
100
-
47k
2.2k
QGF0527F2-22W
1SR154-400-X
8.2k
15k
1000p
VA
VF
VE
VB
MD
LD
FOCUS-
FOCUS+
MD
LOAD/FEED+
SEL
RFGC
TE
RFDC
RFRP
FE
RF
BUS0
VB
BUS3
BUS2
BUS1
BUCK
CCE
DSPRST
TEB
IOP
MP3DA
MP3CK
IOP
TRO
VREF
CDON
FOCUS+
FOCUS-
TRACKING+
TRACKING-
DMO
FOO
VA
SPINDLE+
SPINDLE-
LOAD/FEED-
BUSSI
VF
VE
VREF
TRACKING+
TRACKING-
SPINDLE+
SPINDLE-
LOAD/FEED+
LOAD/FEED-
LD
REST
SW2
SW1
BUSSO
BUSSCK
BOOT
RESET
BCK
FMO
FE
RWSEL
RFRP
RFGC
RF
SEL
TEB
RFDC
TE
FOO
TRO
FMO
DMO
LRCK
DATA
CDON
P.DET
8VDET
BOOT
VREF
LOAD
BUSSCK
LD/FE
CD servo control section
http://www.xiaoyu163.com
http://www.xiaoyu163.com
2-18
SHEET 2
R572
Q651
R581
CN501
R565
R566
L501
IC501
R678
C628
IC504
R523
R522
R521
R520
R519
R518
R517
R509
R511
R512
R655
Q652
R515
R513
R514
X501
R510
7
7
L651
C667
C666
C656
R568
R675
C664
C665
C668
R651
C507
R564
IC652
B501
C669
C676
R570
C675
R582
C585
C586
Q572
Q571
R583
R585
R584
R586
C587
C588
C589
C590
R589
C511
C513
C512
R561
R563 R562
R556
R553
R569
C551
L502
Q502
D506
R533
R508
L653
R656
IC572
R598
R599
IC571
R594
C599
C506
R502
C578
R657
R503
R534
C501
IC503
IC651
R532
R504
R505
R535
R536
R537
R506
R507
R526
R528
R531
R530
C514
C505
C504
C503
C571
C502
C651
C652
C598
R677
C653
C572
R668
X571
C663
C662
L652
R527
C654
R654
R529
R573
R575
C661
C655
C659
C660
R574
X651
C575
R595
L572
C574
C573
C582 C581
C583C584
R588 R587
R592R590
R591
C591
C592
C593
R501
R560
R552
R558 R559
R551
R555
R557
R554
R577
R576
C594
R524
C596
C595
R593
C597
C561
C580
2.2M
2SB624/4/-X
24K
QGB2027L1-22X
-
-
47u
TMP91CW12AF5VD9
-
7
47/6.3
NJU7241F33-X
100
100
100
100
100
100
100
47k
1k
47k
10k
UN2211-X
47k
1k
47k
NAX0385-001X
100
47u
0.01
100p
0.1
1k
220
2200P
0.1
47/6.3
100k
0.01
-
TC94A34FG-002
0
0.01
-
1k
-
24K
4.7/35
4.7/35
UN2211-X
UN2111-X
8.2K
27K
8.2K
27K
150P
150P
4.7/35
4.7/35
10k
0.1
0.01
100/6.3
100k
6.8k 3.9k
0
18k
1k
0.01
47u
UN2211-X
MA111-X
100
47k
47u
47k
NJM4580V-X
-
-
PCM1753-X
47
-
0.01
1k
100/6.3
2.2k
1k
100
0
.
01515k
0.01
SN74AHCT126PW-X
NJU7772F15-X
1k
100
100
100
100
100
47k
47k
47k
47k
47k
47k
0.001
22P
22P
100/6.3
27P
0.01
47/6.3
0.01
1000p
-
47/6.3
27P
47
NAX0375-001X
SN74AHCU04PW-X
10/6.3
100p
47u
-
0.1
39
-
1K
1K
0.01
0.01 0.1
100p
47
100/6.3
47
47u
100/6.3
0.1
100p 100p
820p820p
47k 47k
10k10k
10k
47/6.3
47/6.3
47/16
1k
100
100k
100k 0
100k
100
100k
33k
100
1K
1000p
-
100p
0.047
4.7
1000p
0.012
0.012
DATA
CDON
CDRESET
AGND
SCK
BUS3
BUS2
BUS1
BUS0
BUCK
CCE
DSPRST
SW1
BUSIO
B.DET
BUSSO
/BUSIO
CD.L
CDON
CD.R
CD.L
9V
CD.R
BUSSI/SO
BUSSCK BUSCLK
BUSSI
CDMUTE
CDREQ
P.DET
B.DET
CDRESET
CD8V
BCK
MP3STB
LRCK
SDO
MP3DA
DACML
DACMC
8VDET
DACMD
SDO
CDON
DATA
CDREQ
BUSSI
BUSSO
BUSSCK
CDON
8VDET
CDMUTE
RWSELSCK
MP3RST
DACMD
DACMC
DACML
/BUSIO
BUSIO
RESET
SW2
MP3RST
LD/FE
MP3CK
DATA
BCK
LRCK
MP3STB
LOAD
BUSSCK
REST
To CN101
(SHEET 1)
http://www.xiaoyu163.com
http://www.xiaoyu163.com
2-19
R601
D614
D611 D613
EN601
D612
D608
D610
D609
D606
D607
D603 D605
D615
C682
D604
C681
D616
D618
D617
R605
D619
LCD1
R612
R614
R606
R607R608R611 R610 R609
R602R603R604
R613
D602
D601
D640
R642
S601
R634
R636
R640
R649
R648
R645
R637
R635
S602
R638
R650
R644
R639
R641
R647
S603
R632
R633
R630
R631
S604
S605
S606
R646
S607S614
S613
S612
S611
S610
S609
S608
S616
S617
R643
820
QSW1115-002
0.022
0.022
2.7K
3.9K
820
3.9K
8208202.7K 1.8K 1.2K
8201.2K1.8K
820
MA152WK-X
330
330
470
470
470
390
KEY1
KEY0
KEY2
ENC1
COM1
COM2
COM3
S47
S48
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
S11
S12
S13
S14
S15
S16
S17
S49
S50
S51
S52
S18
S19
S20
S21
S23
S24
S25
S26
S27
S28
S29
S30
S31
S32
S33
S34
S35
S36
S37
S38
S39
S40
S41
S42
S46
S45
S44
S43
S22
LCD & Key control section
http://www.xiaoyu163.com
http://www.xiaoyu163.com
2-20
SHEET 3
R658
R653
R672
IC601
D619
R623
R657
C602
R654
R655
R656
R670
R622
IC602
R671
J601
C603
D642
R661
R692
C612
C611
CN601
D641
C620
R630
D643
R674
R652
C601
R660
R673
R651
D646
D645
Q641
Q640
R624
R691
R620
R621
180k
10k
470
PT6523LQ-L
51k
680p
10k
10k
10k
0
RPM7338-V4
470
QNS0245-001
10/6.3
MA111-X
390
470
4.7/6.3
0.012
NNZ0085-001
UDZS5.1B-X
0.047
MA8062/M/-X
1k
2.2k
0.022
390
47k
2.2k
NSPW310BS/BRS/
NSPW310BS/BRS/
UN2211-X 2SB624/4/-X
470
10K
0
0
KEY0
KEY1
REMOCON
KEY2
LCDDA
LCDCL
LCDCE
S50
ENC1
LCDDA
S51
DIM_CON
INH
ACC5V
LCDCL
GND
DIMOUT
LCDCE
S17
CE
ENC2
S18
OSC
CLK
DATA
AUX.R
AUX.L
VDD
AUX.GND
S52
10V
S19
S20
S21
S22
S23
S24
S25
S26
S27
S28
S29
S30
S31
S32S49
COM3
COM2
COM1
S3
S4
S5
S6
S7
S8
S9
S10
S2
S11
S1
S12
S13
S14
S15
S16
DIM_CON
S49
S50
S51
S52
S33
S34
S35
S36
S37
S38
S39
S40
S41
S42
S43
S44
S45
S46
S47
S48
To CN701
(SHEET 1)
http://www.xiaoyu163.com
http://www.xiaoyu163.com
2-21
C183
C1
C4
C5 C9
C31
C32
C33 C34
C38
C39
C40
C41
C42
C43
C44
C45
C48
C24
C50
C81
C91
C161
C162
C163
C165
C171
C172
C173
C174
C175
C176C177
C179
C181
C182
C241
C242
C243
C245
C251
C252
C253
C254
C255
C256
C261
C262
C274
C275
C276
C279
C281
C292
C308
C301
C302
C311
C312
C315
C316
C317
C318
C360
C361
C362
C363
C365 C366
C367
C368
C369
C380
C381
C382
C383
C385
C386
C387
C388
C389
C390
C391
C392
C393
C394
C705
C706
C707
C708
C709
C710
C711
C307
C722
C771
C781
C784
C801
C803
C804
B303
C851
C852
C881
C891
C901
C902
C903
C904
C905
C907
C908
C909
C910
C911
C914
C916
C917
C961
C962
C963
C964
C965
C966
C967
C968
CN101
CN701
CN901
D242
D243
D251
D271
D273
D341
D331
D710
D714
D715
D716
D781
D851
D852
D891
D892
D901
D991
D992
D993
D994
D995
D996
D997
D998
IC31
IC161
B304
IC271
R706
IC301
IC361
IC381
IC701
IC702
IC771
IC801
IC901
J1
J321
J801
L1
L701
L901
Q8
Q31
Q241
Q271
Q272
Q274
Q321
Q331
Q341
Q701
Q704
Q706
Q881
Q891
Q901
Q902
Q903
Q976
Q977
R2
R8
R31
R32
R33
R38
R39
R40
R41
R42
R43
R44
R161
R162
R163
Q2
R15
R12
R14
R196
R197
R241
R242
R243
R244
R245
R248
R251
R252
R253
R255
R256
R257
R258
R259
R271
R13
C25
R274
R275 R276
R277
R278
R279
R291
C298
R301
R302
R303
R304
R311
R312
R313
R314
R321
R331
R341
R351
R366
R367
R370
R371
R386
R387
R390
R391
R709
R719
R720
R721
R722
R723
R725
R726
R728
R730
R731
R732
C26
R734
R735
R736
R737
R738
R739
R740
R743
R744
R745
R746
R747
R748
R749
R750
R751
R753
R756
R757
R763
R764
R765
R771
R772
R775
R776
C27
R780
R789
R791
R792
R793
C49
R801
R802
R803
R804
R805
R806
R807
R808
R810
TU1
R851
R881
R882
R891
R892
R901
R904
R905 R906
R907
R976
R977
RA30
S701
S702
X31
X701
X702
B301
D321
D351
B302
R893
Q892
C12
C257
S703
B902
IC291
C294
C293
IC251
Q292
Q291
R295
R296
D783
CN251
Forward side
Printed circuit boards (For J2 version)
Main board
http://www.xiaoyu163.com
http://www.xiaoyu163.com
2-22
C1
C2
C3
C4
C5
C6
C8
C9
C10
C31
C33
C35
C36
C37
C40
C43
C46
C47
C51
C81
C82
C84
C85
C91
C92
C94
C95
C147
C161
C162
C163
C165
C171
C172
C173
C174
C175
C179
C181
C241
C242
C244
C245
C252
C253
C255
C261
C262
C271
C272
C273
C277
C278
C279
C308
C301
C302 C303
C304
B305
C311
C312
C313
C314
C315
C316
C317
C318
C319
C320
C395
C322
C323
C324
C325
C341
C361
C363
C365
C366
C367
C368
C369
C381
C383
C385
C386
C387
C388
C389
C390
C701
C702
C703
C704
C710
C711
C713
C716
C717
C307
C720
C721
C731
C727
C781
C782
C784
C802
B303
C851
C881
C901
C902
C903
C904
C905
C906
C907
C908
C909
C910
C911
C912
C914
C915
C916
C971
CN101
C11
CN701
B701
CN901
D1
D2
D4
D5
D6
D244
D701
D702
D703
D704
D705
D706
D707
D708
D709
D711
C747
D713
D717
D718
D719
D720
C28
D784
D901
D902
D971
D972
B304
IC301
IC901
J1
J321
J801
L1
L701
L901
Q1
Q5
Q6
Q7
Q273
Q351
Q702
Q703
Q705
Q781
Q782
Q784
R1
R4
R5
R7
R6
R9
R11
R50
R52
R81
R82
R91
R92
C7
R158
R159
R246
R247
R254
R260
R261
R292
R293
R294
R307
R308
R317
R318
R322
R323
R332 R333
R342
R343
R352
R353
R361
R362
R363
R365
R368
R369
R381
R382
R383
R385
R388
R389
R395
R396
R397
R398
R701
R714
R729
R741
R754
R755
R758
R759
R760
R766
R767
R768
R769
R770
C184
R781
R783
R784
R785
R787
R788
C733
R809
TU1
R901
R902
R903
R971
R972
S701
S702
C797
X31
X701
X702
B301
C798
C326
B15
C23
B302
B702
B18
B22
L702
B20
C12
D325
C729
C728
C730
R762
R761
B19
C732
B17
C735
C734
B14
C396
S703
C724
C725
C726
C723
C738
C739
C736
C737
B902
C30
D782
C742
C746
C744
C743
C745
C740
C741
C52
R373
R372
C294
C293
R298
R297
R262
CN251
Reverse side
http://www.xiaoyu163.com
http://www.xiaoyu163.com
2-23
R678
Q652
C576
C602
C605
C608
C609
C610
C611
C621
C625
C626 C627
C631
C632
C636
C637
C638
C640
C642
C643
C644
C646
C659
C660
C664
C665
C666
C667
C669 R655
R543
R544
R504
R505
R535
R536
R537
R527
R526
R528
R539
R530
R529
R507
R506
R564
R565
R566
R601
R602
R603
R604
R605
R606
R607
R608
R609
R610
R611
R612
R613
R614
R615
R621
R622
R623
R624
R625
R626
R627
R628
R629
R630
R631
R632
R633
R634
R635
R636
R637
R638
R639
R640
R641
R642
R675
TH501
C614
C676
C675
R579 R578
R616
R524
C580
Forward side
D601
D602
D603
D604
D605
D606
D607
D608
D609
D610
D611 D612 D613 D614 D615 D616 D617 D618
D619
D645 D646
EN601
IC602
R601
R602 R603 R604 R605 R606
R610
R612
S601
S602 S603
S604
S605
S606
S607
S608
S609
S610
S611
S612
S613
S614
J601
S616
S617
LCD1
CP602
CP601
Forward side
CD mecha control board
Switch board
http://www.xiaoyu163.com
http://www.xiaoyu163.com
2-24
C501
C508
C502
C503
C504
C505
C509
C510
C506
C511 C512
C513
C551
C578
C575
C573
C574
R657
R656
C581
C582
C583
C584
C585
C586
C587 C588
C589
C590
C591
C592
C593
C601
C603
C604
C606
C607
C612
C613
C622
C623
C624
C628
C629
C630
C633
C634
C635
C639
C641
C645
C651
C652
C653
C654
C655
C656
C661
C663
C668
R545
IC573
C673
C681
C682
C683
C684
CN501
CN502
CN601
C599
D681
D682
IC502 IC503
IC504
R573
IC572
IC601
IC621
IC651
IC652
IC681
L501
L502
L572
L621
L622
L623
L651
L652
L653
Q501
Q502
Q571
Q572
Q601
Q681
R548
R547
R509
R546
R502
R503
R523
R522
R521
R520
R519
R518
R517
R532
R534
R533
R508
R531
R540
R511
R512
R515
R513
R514
R516
R541
R510
R542
R525
R549
R550
R551
R552
R553
R554
R555
R556
R557
R558
R559
R560
R561
R562
R563
R577
R575
R572
R574
R581
R582
R583 R584
R585 R586
R587
R588
R589
R590
R591
R592
R651
R689
R690
R654
C514
C507
R685R687
R668
R576
C571
R677
R681
R682
R683
R684
R686
R688
R691
X501
C572
RFDC
TEB
SEL
TE
FE
RFRP
RF
RFGC
RWSEL
VREF
BUS0
1
2
CCE
BUCK 3
C577
B501
X651
Q574
R501
R568
R569
R570
Q573
C662
RCH
SCK
LRCK
DSEL
REQ BDET
SI/SO
VDD
BUSCK
PDET
RESET
CDMUTE
DATA
BCK
9V
LCH
X571
L573
R598
R599
C647
C674
B571
R594
C594
C597
R595
C561 C521 C522
C524
C526
C528
C530
C531
C534
C535
C533
C527
C538
C539
C523
C525
C529
C536
C537
C532
C616
C687
C685 C686
C688
Q651
C596
C595
R593
C598
C689
C690
C615
B681
D506
IC501
C693
C694
IC571
Reverse side
C601
C602
C603
C611
C612
C620
C681
C682
CN601
D640
D641
D642
D643
D645
D646
EN601
IC601
IC602
Q640
Q641 R607
R608
R609
R611R613
R614
R620
R621
R622
R623
R624
R630
R631
R632
R633
R634
R635
R636
R637
R638
R639
R640
R641
R642
R643
R644
R645
R646
R647
R648
R649
R651
R652
R653
R654
R655
R656
R657
R658
R660 R661
R670
R671
R672
R673R674
R691
R692
J601
R650
Reverse side
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA124SCH)
Victor Company of Japan, Limited
AV & MULTIMEDIA COMPANY CAR ELECTRONICS CATEGORY 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan
Printed in Japan
VPT
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-1
PARTS LIST
* All printed circuit boards and its assemblies are not available as service parts.
- Contents -
Exploded view of general assembly and parts list (Block No.M1)
CD mechanism assembly and parts list (Block No.MB)
Electrical parts list (Block No.01~05)(KD-S51J,KD-S51J2)
Packing materials and accessories parts list (Block No.M3)
[ KD-S51 ]
Area suffix
J ------------- Northern America
3-2
3-5
3-7
3-20
MA124
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-2
Exploded view of general assembly and parts list
CD mecha control board
Switch board
C
11 11
32
39
31
35
42
43
13
38
41
40
37
34
36
58
57
4
4
4
2
1
10
9
24
16
26
18
15
2
5
44
55
30
33
68
Block No. MM
M
1
70
69
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-3
B
Main board
C
53
42
43
13
12
10
17
25 14
22 6
28 21
20 19
27
6
38
41
4
1
10
9
24
16
26
18
15
23
29
5
3
8
5
59
7
60
64
7
61
63 65
7
62
49
48
52
55
47
45
56
66
67
46
54
MM
M
1
70
69
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-4
General Assembly
Block No. [M][1][M][M]
Symbol No. Part No. Part Name Description Local
1 GE10043-210A TOP CHASSIS
2 GE40135-001A EARTH PLATE
3 GE30938-003A SIDE PANEL
4 QYSDST2604ZA TAP SCREW M2.6 x 4mm(x3)
5 GE40235-001A SCREW (x2)
6 GE40235-004A SCREW (x2)
7 QYSDST2604ZA TAP SCREW M2.6 x 4mm(x3)
8 QYSDST2610ZA TAP SCREW M2.6 x 10mm
9 QYSDSF2006ZA TAP SCREW M2 x 6mm(x2)
10 QYSDST2004ZA TAP SCREW M2 x 4mm(x2)
11 QYSDST2004ZA TAP SCREW M2 x 4mm(x5)
12 GE30823-005A F.CHASSIS ASSY
13 FSYH4036-098 SHEET
14 GE30827-002A OPEN LEVER
15 GE30824-002A LOCK LEVER(O.L)
16 GE31245-002A RELEASE LEVER
17 GE30829-001A LOCK LEVER(TOP)
18 GE31607-001A LOCK LEVER(L)
19 GE31608-001A LOCK LEVER(R)
20 GE40154-001A GEAR
21 QZW0108-002 OIL DAMPER
22 GE40153-001A T.SPRING
23 GE40157-001A T.SPRING
24 VKW5264-005 T.SPRING
25 FSKW4012-002 T.SPRING
26 VKW5263-002 T.SPRING
27 GE40155-001A T.SPRING
28 QYSDSF2006ZA TAP SCREW M2 x 6mm
29 GE40156-001A BLIND
30 GE31590-001A FRONT PANEL ASSY
31 GE31592-009A FINDER ASSY
32 GE40254-004A VOLUME KNOB ASS
33 GE31599-001A RIM LENS
34 GE31593-003A D.FUNC BTN
35 GE20175-003A PRESET BUTTON
36 GE31594-005A UP/DOWN BTN
37 GE31595-005A SEARCH BTN
38 GE31601-006A EJECT BUTTON S51J
38 GE31601-001A EJECT BUTTON S51J2
39 GE31598-001A RIM COVER
40 FSKW3002-012 COMP.SPRING
41 GE40202-012A COMPRESSION SPRING
42 GE10107-001A REAR COVER
43 VKZ4777-010 MINI SCREW (x4)
44 GE31603-001A LCD CASE
45 GE31604-001A LCD LENS
46 GE31605-001A LENS CASE
47 GE40251-002A LIGHTING SHEET
48 GE30393-002A BOTTOM COVER
49 FSMA3005-001 INSULATOR
52 GE31449-001A NAME PLATE S51J
52 GE31449-002A NAME PLATE S51J2
53 GE40225-001A CAR STEREO TAG
54 QYSPSP5014ZA SCREW M5 x 14mm
55 QLD0349-001 LCD MODULE
56 QNZ0772-001 RUBBER CONN
57 QUQ105-2207AE FFC WIRE 22pin 7cm
58 VYSH101-009 SPACER
59 QMFZ047-150-T FUSE 15A
60 GE30912-015A REAR BRACKET
61 QYSDST2606ZA TAP SCREW M2.6 x 6mm
62 QYSDST2606ZA TAP SCREW M2.6 x 6mm
63 QYSDST2606ZA TAP SCREW M2.6 x 6mm
64 QYSDSF2606ZA TAP SCREW M2.6 x 6mm(x2)
65 QYSDSF2606ZA TAP SCREW M2.6 x 6mm
66 GE40172-004A IC BRACKET
67 GE40124-002A REG BRACKET
68 GE30854-001A LED HOLDER
69 VKZ4777-010 MINI SCREW
70 GE40218-032A SHEET
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-5
CD mechanism assembly and parts list
Grease
TNG-87
GP-501MK
CFD-005Z
GP-305T
Block No.
MM
M
B
A
A
C
C
D
D
B
a
a
B
TN-2001-1013
The parts without symbol number are not service.
111
2
111
37
27
32
23
13
15
99
28
98
83
12
86
121
16
17
124
4
125
1
111
3
3
71
111
93
111
91
92
113
88
89 82
87
20
18
115
90
32
30
38
114
11
85
25
73
111
33
34
74
72
35
26
31
22
36
116
29
112 19
61
24
112
62
21
38
76
95
96
14
97
100
123
81
94
77
75
74
73
84
94
101
100
122
93
75
83
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-6
CD mechanism
Block No. [M][B][M][M]
Symbol No. Part No. Part Name Description Local
1 30320101T FRAME
2 30320102T TOP COVER
3 30320115T DANPER F (x2)
4 30320116T DANPER R
11 303205505T CHASSIS RIVET
12 303205503T CHANGE P. RVT A
13 303205301T CLAMPER ASSY
14 303205302T SPINDLE MOTOR A
15 30320502T CLAMPER ARM
16 30320503T CHANGE GEAR SPG
17 30320505T CHANGE GEAR 2
18 30320506T FEED GEAR
19 30320507T FEED RACK
20 30320509T CHANGE LOCK RAR
21 30320510T FEED SW HOLDER
22 30320511T PU SHAFT HOLDER
23 30320513T CLAMPER SUB SPG
24 30320514T FD SUB HOLDER
25 30320518T TOP PLATE
26 30320519T SELECT LOCK ARM
27 30320520T TRIGGER ARM
28 30320521T SLIDE HOOK
29 30320522T PU SHAFT
30 30320525T CLAMPER ARM SPG
31 30320526T SELECT L ARM SP
32 30320538T SUSPENSION SP R (x2)
33 30320529T SELECT ARM R
34 30320530T LINK PLATE
35 30320531T LINK PLATE SPG
36 30320523T CUSHION F
37 30320524T CUSHION R (x2)
38 30320539T SUSPENSION SP L (x2)
61 69011614T PICKUP OPT-725
62 64180406T DET SW ESE22
71 303210302T CONN BOARD ASSY
72 30321002T MODE SW
73 30321003T LOAD MOTOR WIRE
74 30321005T MODE SW WIRE
75 30321009T SL WIRE
76 30321011T WIRE HOLDER
77 19501403T WIRE CLUMPER
81 303211301T ROLLER SHAFT AS
82 303211501T L GEAR PLATE RV
83 303211302T LOADING PLATE A
84 303211502T LOCK ARM RV ASS
85 303211303T L/F MOTOR ASSY
86 30321101T LOADING GEAR 1
87 30321102T LOADING GEAR 2
88 30321103T LOADING GEAR 3
89 30321104T LOADING GEAR 4
90 30321105T LOADING GEAR 5
91 30321106T LOADING GEAR 6
92 30321107T LOADING GEAR 7
93 30321149T ROLLER GUIDE (x2)
94 30321114T ROLLER GUIDE SP (x2)
95 30321116T DISC STOPPER AR
96 30321117T DISC ST ARM SPG
97 30321118T LD GEAR BRACKET
98 30321125T L SIDE PLATE
99 30321131T LOAD PLATE SPG
100 30321133T LDG ROLLER (x2)
101 18211223T COLLAR SCREW
111 9P0420031T SCREW (x6)
112 9P0420041T TAP.SCREW (x2)
113 9B0320041T SCREW
114 9C0117183T SCREW (x2)
115 9C0120203T SCREW
116 9C0317503T SCREW
121 9W0130170T PW 3.5X8X0.3
122 9W0513060T HL WASHER
123 9W0710070T L WASHER
124 9E0100152T E RING
125 9W0113020T PW 2.1X4X0.13
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-7
Electrical parts list
Main board (KD-S51J)
Block No. [0][1]
Symbol
No. Part No. Part Name Description Local
IC31 TB2118F-X PLL IC S51J
IC161 TDA7404D-E-X IC S51J
IC251 NJM4565M-WE IC S51J
IC271 CD4066BPW-X IC S51J
IC291 CD4066BPW-X IC S51J
IC301 TB2906HQ IC S51J
IC701 UPD784217AGC322 IC S51J
IC702 IC-PST3433U-X IC S51J
IC771 BR24L16F-W-X IC S51J
IC801 HD74HC126FP-X IC S51J
IC901 HA13164A IC S51J
Q1 KTD1304-X TRANSISTOR S51J
Q5 2SB709A/R/-X TRANSISTOR S51J
Q6 2SB624/4/-X TRANSISTOR S51J
Q7 UN2211-X TRANSISTOR S51J
Q8 UN2211-X TRANSISTOR S51J
Q31 UN2211-X TRANSISTOR S51J
Q241 2SD601A/R/-X TRANSISTOR S51J
Q272 UN2111-X TRANSISTOR S51J
Q273 UN2211-X TRANSISTOR S51J
Q274 UN2211-X TRANSISTOR S51J
Q291 UN2211-X TRANSISTOR S51J
Q292 UN2211-X TRANSISTOR S51J
Q321 KTD1304-X TRANSISTOR S51J
Q331 KTD1304-X TRANSISTOR S51J
Q341 KTD1304-X TRANSISTOR S51J
Q351 KTD1304-X TRANSISTOR S51J
Q701 UN2211-X TRANSISTOR S51J
Q702 UN2211-X TRANSISTOR S51J
Q703 UN2211-X TRANSISTOR S51J
Q704 UN2211-X TRANSISTOR S51J
Q705 UN2211-X TRANSISTOR S51J
Q781 UN2111-X TRANSISTOR S51J
Q782 KTD1304-X TRANSISTOR S51J
Q784 UN2111-X TRANSISTOR S51J
Q881 UN2211-X TRANSISTOR S51J
Q901 2SB1132/QR/-W TRANSISTOR S51J
Q976 UN2211-X TRANSISTOR S51J
Q977 2SB709A/QR/-X TRANSISTOR S51J
D1 MA111-X SI DIODE S51J
D2 MA111-X SI DIODE S51J
D4 MA111-X SI DIODE S51J
D5 MA111-X SI DIODE S51J
D242 MA111-X SI DIODE S51J
D243 RB160M-30-X SB DIODE S51J
D244 UDZS5.1B-X Z DIODE S51J
D251 UDZS4.7B-X Z DIODE S51J
D273 MA111-X SI DIODE S51J
D321 MA111-X SI DIODE S51J
D325 UDZS11B-X Z DIODE S51J
D331 MA111-X SI DIODE S51J
D341 MA111-X SI DIODE S51J
D351 MA111-X SI DIODE S51J
D701 MA8062/M/-X Z DIODE S51J
D702 MA8062/M/-X Z DIODE S51J
D703 MA8062/M/-X Z DIODE S51J
D704 MA8062/M/-X Z DIODE S51J
D705 MA8062/M/-X Z DIODE S51J
D706 MA8062/M/-X Z DIODE S51J
D707 MA8062/M/-X Z DIODE S51J
D708 MA8062/M/-X Z DIODE S51J
D709 MA8062/M/-X Z DIODE S51J
D710 MA111-X SI DIODE S51J
D711 MA8062/M/-X Z DIODE S51J
D713 UDZS5.6B-X Z DIODE 1.5k
Ω
1/10W J S51J
D714 SML-310VT/JK/-X LED S51J
D715 SML-310VT/JK/-X LED S51J
D716 SML-310VT/JK/-X LED S51J
D781 MA111-X SI DIODE S51J
D782 MA111-X SI DIODE S51J
D783 MA111-X SI DIODE S51J
D784 UDZS11B-X Z DIODE S51J
D901 1N5401-F64 DIODE S51J
D902 MA111-X SI DIODE S51J
D971 RB160M-30-X SB DIODE S51J
D972 RB160M-30-X SB DIODE S51J
D996 RB160M-30-X SB DIODE S51J
D997 RB160M-30-X SB DIODE S51J
C1 QEKJ1CM-226Z E CAPACITOR 22uF 16V M S51J
C2 NCB31EK-104X C CAPACITOR 0.1uF 25V K S51J
C3 NCB31EK-104X C CAPACITOR 0.1uF 25V K S51J
C4 QERF1AM-227Z E CAPACITOR 220uF 10V M S51J
C5 QEKJ1HM-104Z E CAPACITOR 0.1uF 50V M S51J
C6 NCB31EK-104X C CAPACITOR 0.1uF 25V K S51J
C9 QEKJ1CM-226Z E CAPACITOR 22uF 16V M S51J
C10 NCB31EK-104X C CAPACITOR 0.1uF 25V K S51J
C11 NCB31EK-104X C CAPACITOR 0.1uF 25V K S51J
C12 QERF1AM-227Z E CAPACITOR 220uF 10V M S51J
C30 NCB31HK-103X C CAPACITOR 0.01uF 50V K S51J
C31 QERF1AM-107Z E CAPACITOR 100uF 10V M S51J
C32 NDC31HJ-470X C CAPACITOR 47pF 50V J S51J
C33 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M S51J
C34 NCB31EK-473X C CAPACITOR 0.047uF 25V K S51J
C35 NDC31HJ-100X C CAPACITOR 10pF 50V J S51J
C36 NDC31HJ-7R0X C CAPACITOR 7pF 50V J S51J
C37 NDC31HJ-100X C CAPACITOR 10pF 50V J S51J
C38 NCB31HK-102X C CAPACITOR 1000pF 50V K S51J
C39 NCB31HK-102X C CAPACITOR 1000pF 50V K S51J
C40 QERF1CM-106Z E CAPACITOR 10uF 16V M S51J
C41 NCB31EK-473X C CAPACITOR 0.047uF 25V K S51J
C42 NCB31HK-103X C CAPACITOR 0.01uF 50V K S51J
C43 QFV61HJ-473Z MF CAPACITOR 0.047uF 50V J S51J
C44 NCB31HK-103X C CAPACITOR 0.01uF 50V K S51J
C45 NCB31HK-272X C CAPACITOR 2700pF 50V K S51J
C46 NCB31HK-103X C CAPACITOR 0.01uF 50V K S51J
C47 NCB31HK-103X C CAPACITOR 0.01uF 50V K S51J
C48 NCB31EK-473X C CAPACITOR 0.047uF 25V K S51J
C49 NCB31HK-102X C CAPACITOR 1000pF 50V K S51J
C50 NDC31HJ-101X C CAPACITOR 100pF 50V J S51J
C51 NCB31HK-331X C CAPACITOR 330pF 50V K S51J
C81 QERF1HM-105Z E CAPACITOR 1uF 50V M S51J
C82 NCB31HK-682X C CAPACITOR 6800pF 50V K S51J
C84 NCB31EK-103X C CAPACITOR 0.01uF 25V K S51J
C85 NCB31EK-153X C CAPACITOR 0.015uF 25V K S51J
C91 QERF1HM-105Z E CAPACITOR 1uF 50V M S51J
C92 NCB31HK-682X C CAPACITOR 6800pF 50V K S51J
C94 NCB31EK-103X C CAPACITOR 0.01uF 25V K S51J
C95 NCB31EK-153X C CAPACITOR 0.015uF 25V K S51J
C161 QEKJ1HM-105Z E CAPACITOR 1uF 50V M S51J
C162 QERF1HM-105Z E CAPACITOR 1uF 50V M S51J
C163 QTE1H55-225Z E CAPACITOR 2.2uF 50V S51J
C171 QEKJ1HM-105Z E CAPACITOR 1uF 50V M S51J
C172 QERF1HM-105Z E CAPACITOR 1uF 50V M S51J
C173 QTE1H55-225Z E CAPACITOR 2.2uF 50V S51J
C179 QERF1CM-476Z E CAPACITOR 47uF 16V M S51J
C181 QERF1CM-107Z E CAPACITOR 100uF 16V M S51J
C182 NCB31EK-104X C CAPACITOR 0.1uF 25V K S51J
C184 NCB31CK-224X C CAPACITOR 0.22uF 16V K S51J
C241 QERF1HM-105Z E CAPACITOR 1uF 50V M S51J
C242 QERF1CM-226Z E CAPACITOR 22uF 16V M S51J
C243 NCB31EK-473X C CAPACITOR 0.047uF 25V K S51J
C245 QERF1HM-224Z E CAPACITOR 0.22uF 50V M S51J
C251 NCB31HK-822X C CAPACITOR 8200pF 50V K S51J
C252 QERF0JM-476Z E CAPACITOR 47uF 6.3V M S51J
C253 QERF1CM-106Z E CAPACITOR 10uF 16V M S51J
C254 NCB31EK-823X C CAPACITOR 0.082uF 25V K S51J
C255 QERF1CM-476Z E CAPACITOR 47uF 16V M S51J
C256 NCB31EK-104X C CAPACITOR 0.1uF 25V K S51J
C262 QERF1HM-225Z E CAPACITOR 2.2uF 50V M S51J
C274 NCB31EK-223X C CAPACITOR 0.022uF 25V K S51J
C275 NCB31EK-223X C CAPACITOR 0.022uF 25V K S51J
C276 NCB31EK-223X C CAPACITOR 0.022uF 25V K S51J
C277 NCB31EK-562X C CAPACITOR 5600pF 25V K S51J
Symbol
No. Part No. Part Name Description Local
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-8
C278 NCB31EK-123X C CAPACITOR 0.012uF 25V K S51J
C279 QERF0JM-476Z E CAPACITOR 47uF 6.3V M S51J
C281 NCB31EK-823X C CAPACITOR 0.082uF 25V K S51J
C292 NCB31EK-104X C CAPACITOR 0.1uF 25V K S51J
C293 QERF1EM-475Z E CAPACITOR 4.7uF 25V M S51J
C294 QERF1EM-475Z E CAPACITOR 4.7uF 25V M S51J
C298 NCB31EK-104X C CAPACITOR 0.1uF 25V K S51J
C301 QFV91HJ-474Z MF CAPACITOR 0.47uF 50V J S51J
C302 QFV91HJ-474Z MF CAPACITOR 0.47uF 50V J S51J
C303 NDC31HJ-101X C CAPACITOR 100pF 50V J S51J
C304 NDC31HJ-101X C CAPACITOR 100pF 50V J S51J
C311 QFV91HJ-474Z MF CAPACITOR 0.47uF 50V J S51J
C312 QFV91HJ-474Z MF CAPACITOR 0.47uF 50V J S51J
C313 NDC31HJ-101X C CAPACITOR 100pF 50V J S51J
C314 NDC31HJ-101X C CAPACITOR 100pF 50V J S51J
C315 QERF1HM-225Z E CAPACITOR 2.2uF 50V M S51J
C316 QERF1EM-475Z E CAPACITOR 4.7uF 25V M S51J
C317 QERF1CM-226Z E CAPACITOR 22uF 16V M S51J
C318 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M S51J
C319 NCB31EK-104X C CAPACITOR 0.1uF 25V K S51J
C320 NCB31EK-104X C CAPACITOR 0.1uF 25V K S51J
C322 NCB21HK-472X C CAPACITOR 4700pF 50V K S51J
C323 NCB21HK-472X C CAPACITOR 4700pF 50V K S51J
C324 NCB21HK-472X C CAPACITOR 4700pF 50V K S51J
C325 NCB21HK-472X C CAPACITOR 4700pF 50V K S51J
C341 NCB31EK-104X C CAPACITOR 0.1uF 25V K S51J
C368 QERF1EM-475Z E CAPACITOR 4.7uF 25V M S51J
C388 QERF1EM-475Z E CAPACITOR 4.7uF 25V M S51J
C701 NDC31HJ-220X C CAPACITOR 22pF 50V J S51J
C702 NDC31HJ-270X C CAPACITOR 27pF 50V J S51J
C703 NDC31HJ-270X C CAPACITOR 27pF 50V J S51J
C704 NDC31HJ-8R0X C CAPACITOR 8pF 50V J S51J
C705 NCB31EK-104X C CAPACITOR 0.1uF 25V K S51J
C706 NCB31EK-104X C CAPACITOR 0.1uF 25V K S51J
C707 NCB31EK-104X C CAPACITOR 0.1uF 25V K S51J
C708 NCB31EK-104X C CAPACITOR 0.1uF 25V K S51J
C709 NCB31HK-103X C CAPACITOR 0.01uF 50V K S51J
C710 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M S51J
C711 QERF1AM-227Z E CAPACITOR 220uF 10V M S51J
C713 NCB31CK-224X C CAPACITOR 0.22uF 16V K S51J
C716 NCB31EK-104X C CAPACITOR 0.1uF 25V K S51J
C717 NCB31EK-104X C CAPACITOR 0.1uF 25V K S51J
C720 NCB31HK-103X C CAPACITOR 0.01uF 50V K S51J
C721 NCB31HK-103X C CAPACITOR 0.01uF 50V K S51J
C722 NCB31HK-103X C CAPACITOR 0.01uF 50V K S51J
C723 NCB31EK-104X C CAPACITOR 0.1uF 25V K S51J
C724 NCB31EK-104X C CAPACITOR 0.1uF 25V K S51J
C725 NCB31EK-104X C CAPACITOR 0.1uF 25V K S51J
C726 NCB31EK-104X C CAPACITOR 0.1uF 25V K S51J
C727 NCB31EK-104X C CAPACITOR 0.1uF 25V K S51J
C740 NCB31EK-104X C CAPACITOR 0.1uF 25V K S51J
C743 NCB31AK-334X C CAPACITOR 0.33uF 10V K S51J
C744 NCB31EK-104X C CAPACITOR 0.1uF 25V K S51J
C745 NCB31AK-334X C CAPACITOR 0.33uF 10V K S51J
C746 NCB31EK-104X C CAPACITOR 0.1uF 25V K S51J
C747 NCB31EK-473X C CAPACITOR 0.047uF 25V K S51J
C771 NCB31EK-473X C CAPACITOR 0.047uF 25V K S51J
C781 QERF0JM-476Z E CAPACITOR 47uF 6.3V M S51J
C782 NCB31AK-474X C CAPACITOR 0.47uF 10V K S51J
C784 QERF1CM-107Z E CAPACITOR 100uF 16V M S51J
C801 NCB31EK-473X C CAPACITOR 0.047uF 25V K S51J
C802 NCB31HK-472X C CAPACITOR 4700pF 50V K S51J
C803 NDC31HJ-220X C CAPACITOR 22pF 50V J S51J
C804 NDC31HJ-220X C CAPACITOR 22pF 50V J S51J
C881 QERF1CM-226Z E CAPACITOR 22uF 16V M S51J
C901 QEZ0723-338 E CAPACITOR 3300uF S51J
C902 QERF1HM-225Z E CAPACITOR 2.2uF 50V M S51J
C903 QERF1CM-476Z E CAPACITOR 47uF 16V M S51J
C904 QERF1CM-106Z E CAPACITOR 10uF 16V M S51J
C905 QERF1CM-476Z E CAPACITOR 47uF 16V M S51J
C906 NCB31EK-104X C CAPACITOR 0.1uF 25V K S51J
C907 QERF1AM-227Z E CAPACITOR 220uF 10V M S51J
C908 QERF1AM-227Z E CAPACITOR 220uF 10V M S51J
C909 QERF1AM-227Z E CAPACITOR 220uF 10V M S51J
C910 QERF1CM-476Z E CAPACITOR 47uF 16V M S51J
C911 QERF1CM-106Z E CAPACITOR 10uF 16V M S51J
C912 NCB31EK-104X C CAPACITOR 0.1uF 25V K S51J
Symbol
No. Part No. Part Name Description Local
C914 QERF1CM-107Z E CAPACITOR 100uF 16V M S51J
C915 NCB31CK-104X C CAPACITOR 0.1uF 16V K S51J
C916 QERF1CM-476Z E CAPACITOR 47uF 16V M S51J
C961 NDC31HJ-471X C CAPACITOR 470pF 50V J S51J
C962 NDC31HJ-471X C CAPACITOR 470pF 50V J S51J
C963 NDC31HJ-471X C CAPACITOR 470pF 50V J S51J
C964 NDC31HJ-471X C CAPACITOR 470pF 50V J S51J
C965 NDC31HJ-471X C CAPACITOR 470pF 50V J S51J
C966 NDC31HJ-471X C CAPACITOR 470pF 50V J S51J
C967 NDC31HJ-471X C CAPACITOR 470pF 50V J S51J
C968 NDC31HJ-471X C CAPACITOR 470pF 50V J S51J
C971 NCB31EK-104X C CAPACITOR 0.1uF 25V K S51J
R1 NRS181J-120X MG RESISTOR 12
Ω
1/8W J S51J
R2 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R4 NRSA63J-332X MG RESISTOR 3.3k
Ω
1/16W J S51J
R5 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R6 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R7 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J S51J
R8 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R9 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J S51J
R11 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R31 NRS181J-100X MG RESISTOR 10
Ω
1/8W J S51J
R32 NRSA63J-622X MG RESISTOR 6.2k
Ω
1/16W J S51J
R33 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R38 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J S51J
R39 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J S51J
R40 NRSA63J-393X MG RESISTOR 39k
Ω
1/16W J S51J
R41 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R42 NRS181J-100X MG RESISTOR 10
Ω
1/8W J S51J
R43 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J S51J
R44 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J S51J
R50 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J S51J
R52 NRSA63J-273X MG RESISTOR 27k
Ω
1/16W J S51J
R81 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J S51J
R82 NRSA63J-392X MG RESISTOR 3.9k
Ω
1/16W J S51J
R91 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J S51J
R92 NRSA63J-392X MG RESISTOR 3.9k
Ω
1/16W J S51J
R158 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R159 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R161 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J S51J
R162 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J S51J
R163 NRSA63J-124X MG RESISTOR 120k
Ω
1/16W J S51J
R241 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R242 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J S51J
R243 NRSA63J-184X MG RESISTOR 180k
Ω
1/16W J S51J
R244 NRSA63J-123X MG RESISTOR 12k
Ω
1/16W J S51J
R245 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J S51J
R246 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J S51J
R247 NRSA63J-393X MG RESISTOR 39k
Ω
1/16W J S51J
R248 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J S51J
R251 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J S51J
R252 NRSA63J-513X MG RESISTOR 51k
Ω
1/16W J S51J
R253 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J S51J
R255 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J S51J
R256 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J S51J
R257 NRSA63J-822X MG RESISTOR 8.2k
Ω
1/16W J S51J
R258 NRSA63J-153X MG RESISTOR 15k
Ω
1/16W J S51J
R259 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J S51J
R262 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J S51J
R274 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R275 NRSA63J-105X MG RESISTOR 1M
Ω
1/16W J S51J
R276 NRSA63J-105X MG RESISTOR 1M
Ω
1/16W J S51J
R277 NRSA63J-105X MG RESISTOR 1M
Ω
1/16W J S51J
R278 NRSA63J-105X MG RESISTOR 1M
Ω
1/16W J S51J
R279 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R295 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R296 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R297 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R298 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R301 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R302 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R307 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J S51J
R308 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J S51J
R311 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R312 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R317 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J S51J
Symbol
No. Part No. Part Name Description Local
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-9
R318 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J S51J
R321 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J S51J
R322 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J S51J
R323 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J S51J
R331 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J S51J
R332 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J S51J
R333 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J S51J
R341 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J S51J
R342 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J S51J
R343 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J S51J
R351 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J S51J
R352 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J S51J
R353 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J S51J
R369 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R372 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J S51J
R373 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J S51J
R389 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R396 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J S51J
R398 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J S51J
R701 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R709 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R714 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R719 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J S51J
R720 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J S51J
R721 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J S51J
R722 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R723 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R725 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R726 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R728 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R729 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R730 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R731 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R732 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R734 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J S51J
R735 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J S51J
R736 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J S51J
R737 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J S51J
R738 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J S51J
R739 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J S51J
R740 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J S51J
R741 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R743 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R744 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R745 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R746 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R747 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J S51J
R748 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J S51J
R749 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J S51J
R750 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R751 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R753 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R754 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J S51J
R755 NRSA63J-106X MG RESISTOR 10M
Ω
1/16W J S51J
R756 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R757 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J S51J
R758 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R759 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R763 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J S51J
R764 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J S51J
R765 NRS181J-271X MG RESISTOR 270
Ω
1/8W J S51J
R766 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R767 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R769 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R771 NRSA63J-271X MG RESISTOR 270
Ω
1/16W J S51J
R772 NRSA63J-271X MG RESISTOR 270
Ω
1/16W J S51J
R775 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R776 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R780 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R781 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R783 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R784 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R785 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J S51J
R787 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R791 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J S51J
R792 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J S51J
R793 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J S51J
Symbol
No. Part No. Part Name Description Local
R801 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R802 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R803 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J S51J
R804 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J S51J
R805 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J S51J
R806 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R807 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J S51J
R808 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J S51J
R809 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J S51J
R810 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J S51J
R881 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R882 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J S51J
R901 QRE142J-102X C RESISTOR 1k
Ω
1/4W J S51J
R902 NRSA02J-912X MG RESISTOR 9.1k
Ω
1/10W J S51J
R903 NRSA02J-472X MG RESISTOR 4.7k
Ω
1/10W J S51J
R904 NRSA02J-221X MG RESISTOR 220
Ω
1/10W J S51J
R971 NRS181J-222X MG RESISTOR 2.2k
Ω
1/8W J S51J
R972 NRS181J-222X MG RESISTOR 2.2k
Ω
1/8W J S51J
R976 NRSA02J-203X MG RESISTOR 20k
Ω
1/10W J S51J
R977 NRSA02J-822X MG RESISTOR 8.2k
Ω
1/10W J S51J
RA30 NRZ0065-222X NET RESISTOR 2.2k
Ω
S51J
L1 QQL244J-4R7Z COIL 4.7uH J S51J
L701 QQL244K-4R7Z COIL 4.7uH K S51J
L901 QQR1378-002 COIL S51J
CN101 QGB2027M4-22S CONNECTOR B-B (1-22) S51J
CN701 QNZ0605-001 CAR CONNECTOR S51J
CN901 QNZ0611-001 16P CONNECTOR S51J
J1 QNB0100-002 CAR ANT JACK S51J
J321 QNN0489-001 PIN JACK S51J
J801 QNZ0095-001 CONNECTOR S51J
S701 QSW0451-001 DETECT SW S51J
S702 QSW0451-001 DETECT SW S51J
S703 QSW1049-001Z TACT SW S51J
TU1 QAU0312-002 TUNER PACK S51J
X31 QAX0616-001Z CRYSTAL 10.250MHz S51J
X701 QAX0617-001Z CRYSTAL 12.500MHz S51J
X702 QAX0401-001 CRYSTAL 32.768KHz S51J
Symbol
No. Part No. Part Name Description Local
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-10
Switch board (KD-S51J)
Block No. [0][2]
Symbol
No. Part No. Part Name Description Local
IC601 PT6523LQ-L LCD DRIVER S51J
IC602 RPM7338-V4 RM.RECEIVER S51J
Q640 2SB624/4/-X TRANSISTOR S51J
Q641 UN2211-X TRANSISTOR S51J
D601 SML-310VT/JK/-X LED S51J
D602 SML-310VT/JK/-X LED S51J
D603 SML-310VT/JK/-X LED S51J
D604 SML-310VT/JK/-X LED S51J
D605 SML-310VT/JK/-X LED S51J
D606 SML-310VT/JK/-X LED S51J
D607 SML-310VT/JK/-X LED S51J
D608 SML-310VT/JK/-X LED S51J
D609 SML-310VT/JK/-X LED S51J
D610 SML-310VT/JK/-X LED S51J
D611 SML-310VT/JK/-X LED S51J
D612 SML-310VT/JK/-X LED S51J
D613 SML-310VT/JK/-X LED S51J
D614 SML-310VT/JK/-X LED S51J
D615 SML-310VT/JK/-X LED S51J
D616 SML-310VT/JK/-X LED S51J
D617 SML-310VT/JK/-X LED S51J
D618 SML-310VT/JK/-X LED S51J
D619 SML-310VT/JK/-X LED S51J
D640 MA152WK-X SI DIODE S51J
D641 UDZS5.1B-X Z DIODE S51J
D642 MA111-X SI DIODE S51J
D643 MA8062/M/-X Z DIODE S51J
D645 NSPW310BS/BRS/ LED S51J
D646 NSPW310BS/BRS/ LED S51J
C601 NCB31HK-223X C CAPACITOR 0.022uF 50V K S51J
C602 NCS31HJ-681X C CAPACITOR 680pF 50V J S51J
C603 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M S51J
C611 NCB31HK-123X C CAPACITOR 0.012uF 50V K S51J
C612 NBE20JM-475X TA E CAPACITOR 4.7uF 6.3V M S51J
R601 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J S51J
R602 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J S51J
R603 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J S51J
R604 NRSA63J-182X MG RESISTOR 1.8k
Ω
1/16W J S51J
R605 NRSA63J-272X MG RESISTOR 2.7k
Ω
1/16W J S51J
R606 NRSA63J-392X MG RESISTOR 3.9k
Ω
1/16W J S51J
R607 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J S51J
R608 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J S51J
R609 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J S51J
R610 NRSA63J-182X MG RESISTOR 1.8k
Ω
1/16W J S51J
R611 NRSA63J-272X MG RESISTOR 2.7k
Ω
1/16W J S51J
R612 NRSA63J-392X MG RESISTOR 3.9k
Ω
1/16W J S51J
R613 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J S51J
R614 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J S51J
R630 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J S51J
R632 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J S51J
R634 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J S51J
R636 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J S51J
R638 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J S51J
R640 NRSA02J-331X MG RESISTOR 330
Ω
1/10W J S51J
R641 NRSA02J-201X MG RESISTOR 200
Ω
1/10W J S51J
R642 NRSA02J-331X MG RESISTOR 330
Ω
1/10W J S51J
R643 NRSA02J-391X MG RESISTOR 390
Ω
1/10W J S51J
R644 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J S51J
R646 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J S51J
R648 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J S51J
R651 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J S51J
R652 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J S51J
R653 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R654 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R655 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R656 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R657 NRSA63J-513X MG RESISTOR 51k
Ω
1/16W J S51J
R658 NRSA63J-184X MG RESISTOR 180k
Ω
1/16W J S51J
R660 NRSA02J-391X MG RESISTOR 390
Ω
1/10W J S51J
R661 NRSA02J-391X MG RESISTOR 390
Ω
1/10W J S51J
R670 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J S51J
R672 NRSA02J-471X MG RESISTOR 470
Ω
1/10W J S51J
R673 NRSA02J-473X MG RESISTOR 47k
Ω
1/10W J S51J
R674 NRSA02J-102X MG RESISTOR 1k
Ω
1/10W J S51J
R691 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R692 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J S51J
CN601 NNZ0085-001 CAR CONNECTOR S51J
EN601 QSW1115-002 ROTARY ENCODER S51J
S601 NSW0206-001X TACT SWITCH S51J
S602 NSW0206-001X TACT SWITCH S51J
S603 NSW0206-001X TACT SWITCH S51J
S604 NSW0206-001X TACT SWITCH S51J
S605 NSW0206-001X TACT SWITCH S51J
S606 NSW0206-001X TACT SWITCH S51J
S607 NSW0206-001X TACT SWITCH S51J
S608 NSW0206-001X TACT SWITCH S51J
S609 NSW0206-001X TACT SWITCH S51J
S610 NSW0206-001X TACT SWITCH S51J
S611 NSW0206-001X TACT SWITCH S51J
S612 NSW0206-001X TACT SWITCH S51J
S613 NSW0206-001X TACT SWITCH S51J
S614 NSW0206-001X TACT SWITCH S51J
S616 NSW0206-001X TACT SWITCH S51J
S617 NSW0206-001X TACT SWITCH S51J
Symbol
No. Part No. Part Name Description Local
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-11
CD mechanism control board
Block No. [0][3]
Symbol
No. Part No. Part Name Description Local
IC501 TMP91CW12AF5VD9 IC S51J
IC501 TMP91CW12AF5VD9 IC
IC502 BR24L01AFV-W-X IC S51J
IC502 BR24L01AFV-W-X IC
IC503 SN74AHCT126PW-X IC(DIGITAL) S51J
IC503 SN74AHCT126PW-X IC(DIGITAL)
IC504 NJU7241F33-X IC S51J
IC504 NJU7241F33-X IC
IC571 PCM1753-X IC S51J
IC571 PCM1753-X IC
IC572 NJM4580V-X IC S51J
IC572 NJM4580V-X IC
IC573 SN74AHCU04PW-X IC S51J
IC573 SN74AHCU04PW-X IC
IC601 TA2157FN-X RF AMP IC S51J
IC601 TA2157FN-X RF AMP IC
IC621 TC94A14FA CD LSI IC S51J
IC621 TC94A14FA CD LSI IC
IC651 NJU7772F15-X IC S51J
IC651 NJU7772F15-X IC
IC652 TC94A34FG-002 IC S51J
IC652 TC94A34FG-002 IC
IC681 BA5830FP-X IC S51J
IC681 BA5830FP-X IC
Q501 UN2111-X TRANSISTOR S51J
Q501 UN2111-X TRANSISTOR
Q502 UN2211-X TRANSISTOR S51J
Q502 UN2211-X TRANSISTOR
Q571 UN2111-X TRANSISTOR S51J
Q571 UN2111-X TRANSISTOR
Q572 UN2211-X TRANSISTOR S51J
Q572 UN2211-X TRANSISTOR
Q573 2SB624/4/-X TRANSISTOR S51J
Q573 2SB624/4/-X TRANSISTOR
Q574 UN2211-X TRANSISTOR S51J
Q574 UN2211-X TRANSISTOR
Q601 2SB1132/QR/-W TRANSISTOR S51J
Q601 2SB1132/QR/-W TRANSISTOR
Q651 2SB624/4/-X TRANSISTOR S51J
Q651 2SB624/4/-X TRANSISTOR
Q652 UN2211-X TRANSISTOR S51J
Q652 UN2211-X TRANSISTOR
Q681 2SB1184/QR/-X TRANSISTOR S51J
Q681 2SB1184/QR/-X TRANSISTOR
D506 MA111-X SI DIODE S51J
D506 MA111-X SI DIODE
D682 1SR154-400-X DIODE S51J
D682 1SR154-400-X DIODE
C501 NCB31HK-103X C CAPACITOR 0.01uF 50V K S51J
C501 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C502 NCB31HK-103X C CAPACITOR 0.01uF 50V K S51J
C502 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C503 NEAG0JM-107X E CAPACITOR 100uF 6.3V M S51J
C503 NEAG0JM-107X E CAPACITOR 100uF 6.3V M
C504 NDC31HJ-220X C CAPACITOR 22pF 50V J S51J
C504 NDC31HJ-220X C CAPACITOR 22pF 50V J
C505 NDC31HJ-220X C CAPACITOR 22pF 50V J S51J
C505 NDC31HJ-220X C CAPACITOR 22pF 50V J
C506 NCB31HK-103X C CAPACITOR 0.01uF 50V K S51J
C506 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C507 NCB31HK-103X C CAPACITOR 0.01uF 50V K S51J
C507 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C508 NCB31HK-103X C CAPACITOR 0.01uF 50V K S51J
C508 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C509 NCB31HK-103X C CAPACITOR 0.01uF 50V K S51J
C509 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C510 NCB31HK-103X C CAPACITOR 0.01uF 50V K S51J
C510 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C511 NCB31CK-104X C CAPACITOR 0.1uF 16V K S51J
C511 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C512 NEAG0JM-107X E CAPACITOR 100uF 6.3V M S51J
C512 NEAG0JM-107X E CAPACITOR 100uF 6.3V M
C513 NCB31HK-103X C CAPACITOR 0.01uF 50V K S51J
C513 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C514 NCS31HJ-102X C CAPACITOR 1000pF 50V J S51J
C514 NCS31HJ-102X C CAPACITOR 1000pF 50V J
C551 NCB31HK-103X C CAPACITOR 0.01uF 50V K S51J
C551 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C561 NCB31EK-123X C CAPACITOR 0.012uF 25V K S51J
C561 NCB31EK-123X C CAPACITOR 0.012uF 25V K
C571 NDC31HJ-270X C CAPACITOR 27pF 50V J S51J
C571 NDC31HJ-270X C CAPACITOR 27pF 50V J
C572 NDC31HJ-270X C CAPACITOR 27pF 50V J S51J
C572 NDC31HJ-270X C CAPACITOR 27pF 50V J
C573 NCB31CK-104X C CAPACITOR 0.1uF 16V K S51J
C573 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C574 NEAG0JM-107X E CAPACITOR 100uF 6.3V M S51J
C574 NEAG0JM-107X E CAPACITOR 100uF 6.3V M
C575 NEAG0JM-107X E CAPACITOR 100uF 6.3V M S51J
C575 NEAG0JM-107X E CAPACITOR 100uF 6.3V M
C577 NCB31CK-104X C CAPACITOR 0.1uF 16V K S51J
C577 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C578 NEAG0JM-107X E CAPACITOR 100uF 6.3V M S51J
C578 NEAG0JM-107X E CAPACITOR 100uF 6.3V M
C580 NCB31EK-123X C CAPACITOR 0.012uF 25V K S51J
C580 NCB31EK-123X C CAPACITOR 0.012uF 25V K
C581 NDC31HJ-101X C CAPACITOR 100pF 50V J S51J
C581 NDC31HJ-101X C CAPACITOR 100pF 50V J
C582 NDC31HJ-101X C CAPACITOR 100pF 50V J S51J
C582 NDC31HJ-101X C CAPACITOR 100pF 50V J
C583 NCS31HJ-821X C CAPACITOR 820pF 50V J S51J
C583 NCS31HJ-821X C CAPACITOR 820pF 50V J
C584 NCS31HJ-821X C CAPACITOR 820pF 50V J S51J
C584 NCS31HJ-821X C CAPACITOR 820pF 50V J
C585 NEAG1VM-475X E CAPACITOR 4.7uF 35V M S51J
C585 NEAG1VM-475X E CAPACITOR 4.7uF 35V M
C586 NEAG1VM-475X E CAPACITOR 4.7uF 35V M S51J
C586 NEAG1VM-475X E CAPACITOR 4.7uF 35V M
C587 NDC31HJ-151X C CAPACITOR 150pF 50V J S51J
C587 NDC31HJ-151X C CAPACITOR 150pF 50V J
C588 NDC31HJ-151X C CAPACITOR 150pF 50V J S51J
C588 NDC31HJ-151X C CAPACITOR 150pF 50V J
C589 NEAG1VM-475X E CAPACITOR 4.7uF 35V M S51J
C589 NEAG1VM-475X E CAPACITOR 4.7uF 35V M
C590 NEAG1VM-475X E CAPACITOR 4.7uF 35V M S51J
C590 NEAG1VM-475X E CAPACITOR 4.7uF 35V M
C591 NEAG0JM-476X E CAPACITOR 47uF 6.3V M S51J
C591 NEAG0JM-476X E CAPACITOR 47uF 6.3V M
C592 NEAG0JM-476X E CAPACITOR 47uF 6.3V M S51J
C592 NEAG0JM-476X E CAPACITOR 47uF 6.3V M
C593 NEAG1CM-476X E CAPACITOR 47uF 16V M S51J
C593 NEAG1CM-476X E CAPACITOR 47uF 16V M
C594 NCS31HJ-102X C CAPACITOR 1000pF 50V J S51J
C594 NCS31HJ-102X C CAPACITOR 1000pF 50V J
C595 NCB31CK-473X C CAPACITOR 0.047uF 16V K S51J
C595 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C596 NDC31HJ-101X C CAPACITOR 100pF 50V J S51J
C596 NDC31HJ-101X C CAPACITOR 100pF 50V J
C597 NCS31HJ-102X C CAPACITOR 1000pF 50V J S51J
C597 NCS31HJ-102X C CAPACITOR 1000pF 50V J
C598 NCS31HJ-102X C CAPACITOR 1000pF 50V J S51J
C598 NCS31HJ-102X C CAPACITOR 1000pF 50V J
C601 NEAG0JM-476X E CAPACITOR 47uF 6.3V M S51J
C601 NEAG0JM-476X E CAPACITOR 47uF 6.3V M
C602 NCB31HK-103X C CAPACITOR 0.01uF 50V K S51J
C602 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C603 NEAG0JM-107X E CAPACITOR 100uF 6.3V M S51J
C603 NEAG0JM-107X E CAPACITOR 100uF 6.3V M
C604 NCB31HK-103X C CAPACITOR 0.01uF 50V K S51J
C604 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C605 NCB31HK-682X C CAPACITOR 6800pF 50V K S51J
C605 NCB31HK-682X C CAPACITOR 6800pF 50V K
C606 NEAG0JM-476X E CAPACITOR 47uF 6.3V M S51J
C606 NEAG0JM-476X E CAPACITOR 47uF 6.3V M
C607 NCB31HK-103X C CAPACITOR 0.01uF 50V K S51J
C607 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C608 NCB31CK-104X C CAPACITOR 0.1uF 16V K S51J
Symbol
No. Part No. Part Name Description Local
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-12
C608 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C609 NCB31CK-104X C CAPACITOR 0.1uF 16V K S51J
C609 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C610 NDC31HJ-5R0X C CAPACITOR 5pF 50V J S51J
C610 NDC31HJ-5R0X C CAPACITOR 5pF 50V J
C611 NDC31HJ-680X C CAPACITOR 68pF 50V J S51J
C611 NDC31HJ-680X C CAPACITOR 68pF 50V J
C612 NCB31HK-103X C CAPACITOR 0.01uF 50V K S51J
C612 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C613 NCB31HK-103X C CAPACITOR 0.01uF 50V K S51J
C613 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C614 NCB31HK-103X C CAPACITOR 0.01uF 50V K S51J
C614 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C616 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M S51J
C616 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C621 NCB31HK-103X C CAPACITOR 0.01uF 50V K S51J
C621 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C622 NEAG0JM-476X E CAPACITOR 47uF 6.3V M S51J
C622 NEAG0JM-476X E CAPACITOR 47uF 6.3V M
C623 NDC31HJ-470X C CAPACITOR 47pF 50V J S51J
C623 NDC31HJ-470X C CAPACITOR 47pF 50V J
C624 NCB31HK-153X C CAPACITOR 0.015uF 50V K S51J
C624 NCB31HK-153X C CAPACITOR 0.015uF 50V K
C625 NCB31HK-103X C CAPACITOR 0.01uF 50V K S51J
C625 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C626 NCB31HK-272X C CAPACITOR 2700pF 50V K S51J
C626 NCB31HK-272X C CAPACITOR 2700pF 50V K
C627 NCB31HK-103X C CAPACITOR 0.01uF 50V K S51J
C627 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C628 NEAG0JM-476X E CAPACITOR 47uF 6.3V M S51J
C628 NEAG0JM-476X E CAPACITOR 47uF 6.3V M
C629 NCB31EK-333X C CAPACITOR 0.033uF 25V K S51J
C629 NCB31EK-333X C CAPACITOR 0.033uF 25V K
C630 NCB31EK-333X C CAPACITOR 0.033uF 25V K S51J
C630 NCB31EK-333X C CAPACITOR 0.033uF 25V K
C631 NDC31HJ-471X C CAPACITOR 470pF 50V J S51J
C631 NDC31HJ-471X C CAPACITOR 470pF 50V J
C632 NDC31HJ-471X C CAPACITOR 470pF 50V J S51J
C632 NDC31HJ-471X C CAPACITOR 470pF 50V J
C633 NCB31CK-473X C CAPACITOR 0.047uF 16V K S51J
C633 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C634 NCB31CK-473X C CAPACITOR 0.047uF 16V K S51J
C634 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C635 NCB31CK-473X C CAPACITOR 0.047uF 16V K S51J
C635 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C636 NCB31CK-473X C CAPACITOR 0.047uF 16V K S51J
C636 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C637 NCB31CK-473X C CAPACITOR 0.047uF 16V K S51J
C637 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C638 NCB31HK-103X C CAPACITOR 0.01uF 50V K S51J
C638 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C639 NEAG0JM-476X E CAPACITOR 47uF 6.3V M S51J
C639 NEAG0JM-476X E CAPACITOR 47uF 6.3V M
C640 NCB31HK-103X C CAPACITOR 0.01uF 50V K S51J
C640 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C641 NEAG0JM-476X E CAPACITOR 47uF 6.3V M S51J
C641 NEAG0JM-476X E CAPACITOR 47uF 6.3V M
C642 NDC31HJ-101X C CAPACITOR 100pF 50V J S51J
C642 NDC31HJ-101X C CAPACITOR 100pF 50V J
C643 NCB31HK-103X C CAPACITOR 0.01uF 50V K S51J
C643 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C644 NCB31AK-334X C CAPACITOR 0.33uF 10V K S51J
C644 NCB31AK-334X C CAPACITOR 0.33uF 10V K
C645 NEAG0JM-476X E CAPACITOR 47uF 6.3V M S51J
C645 NEAG0JM-476X E CAPACITOR 47uF 6.3V M
C646 NCB31HK-103X C CAPACITOR 0.01uF 50V K S51J
C646 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C651 NEAG0JM-476X E CAPACITOR 47uF 6.3V M S51J
C651 NEAG0JM-476X E CAPACITOR 47uF 6.3V M
C652 NCB31HK-103X C CAPACITOR 0.01uF 50V K S51J
C652 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C653 NEAG0JM-476X E CAPACITOR 47uF 6.3V M S51J
C653 NEAG0JM-476X E CAPACITOR 47uF 6.3V M
C654 NCB31CK-104X C CAPACITOR 0.1uF 16V K S51J
C654 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C655 NCB31HK-103X C CAPACITOR 0.01uF 50V K S51J
C655 NCB31HK-103X C CAPACITOR 0.01uF 50V K
Symbol
No. Part No. Part Name Description Local
C656 NCB31CK-104X C CAPACITOR 0.1uF 16V K S51J
C656 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C659 NCB31CK-104X C CAPACITOR 0.1uF 16V K S51J
C659 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C660 NDC31HJ-101X C CAPACITOR 100pF 50V J S51J
C660 NDC31HJ-101X C CAPACITOR 100pF 50V J
C661 NCB31HK-103X C CAPACITOR 0.01uF 50V K S51J
C661 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C662 NDC31HJ-101X C CAPACITOR 100pF 50V J S51J
C662 NDC31HJ-101X C CAPACITOR 100pF 50V J
C663 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M S51J
C663 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C664 NCB31HK-222X C CAPACITOR 2200pF 50V K S51J
C664 NCB31HK-222X C CAPACITOR 2200pF 50V K
C665 NCB31EK-104X C CAPACITOR 0.1uF 25V K S51J
C665 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C666 NDC31HJ-101X C CAPACITOR 100pF 50V J S51J
C666 NDC31HJ-101X C CAPACITOR 100pF 50V J
C667 NCB31HK-103X C CAPACITOR 0.01uF 50V K S51J
C667 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C668 NEAG0JM-476X E CAPACITOR 47uF 6.3V M S51J
C668 NEAG0JM-476X E CAPACITOR 47uF 6.3V M
C669 NCB31HK-103X C CAPACITOR 0.01uF 50V K S51J
C669 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C682 NEAG1VM-475X E CAPACITOR 4.7uF 35V M S51J
C682 NEAG1VM-475X E CAPACITOR 4.7uF 35V M
C683 NCB31CK-104X C CAPACITOR 0.1uF 16V K S51J
C683 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C684 NEAG1CM-476X E CAPACITOR 47uF 16V M S51J
C684 NEAG1CM-476X E CAPACITOR 47uF 16V M
C689 NEAG1CM-476X E CAPACITOR 47uF 16V M S51J
C689 NEAG1CM-476X E CAPACITOR 47uF 16V M
C690 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M S51J
C690 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C693 NEAG1CM-476X E CAPACITOR 47uF 16V M S51J
C693 NEAG1CM-476X E CAPACITOR 47uF 16V M
R501 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J S51J
R501 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R502 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J S51J
R502 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R503 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J S51J
R503 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R504 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J S51J
R504 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R505 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J S51J
R505 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R506 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R506 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R507 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R507 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R508 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R508 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R509 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R509 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R510 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J S51J
R510 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R511 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J S51J
R511 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R512 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R512 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R513 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J S51J
R513 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R514 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R514 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R515 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R515 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R516 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J S51J
R516 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R517 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J S51J
R517 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R518 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J S51J
R518 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R519 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J S51J
R519 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R520 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J S51J
R520 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
Symbol
No. Part No. Part Name Description Local
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-13
R521 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J S51J
R521 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R522 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J S51J
R522 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R523 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J S51J
R523 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R525 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J S51J
R525 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R526 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R526 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R528 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R528 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R530 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R530 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R531 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R531 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R532 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J S51J
R532 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R533 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J S51J
R533 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R534 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J S51J
R534 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R535 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J S51J
R535 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R536 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J S51J
R536 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R537 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J S51J
R537 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R539 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R539 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R540 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R540 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R541 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J S51J
R541 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R542 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R542 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R543 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J S51J
R543 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R544 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J S51J
R544 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R545 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R545 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R546 NRSA63J-271X MG RESISTOR 270
Ω
1/16W J S51J
R546 NRSA63J-271X MG RESISTOR 270
Ω
1/16W J
R547 NRSA63J-271X MG RESISTOR 270
Ω
1/16W J S51J
R547 NRSA63J-271X MG RESISTOR 270
Ω
1/16W J
R548 NRSA63J-822X MG RESISTOR 8.2k
Ω
1/16W J S51J
R548 NRSA63J-822X MG RESISTOR 8.2k
Ω
1/16W J
R549 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J S51J
R549 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R550 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J S51J
R550 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R551 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J S51J
R551 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R552 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J S51J
R552 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R553 NRSA63J-183X MG RESISTOR 18k
Ω
1/16W J S51J
R553 NRSA63J-183X MG RESISTOR 18k
Ω
1/16W J
R554 NRSA63J-333X MG RESISTOR 33k
Ω
1/16W J S51J
R554 NRSA63J-333X MG RESISTOR 33k
Ω
1/16W J
R555 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J S51J
R555 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R556 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J S51J
R556 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R557 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J S51J
R557 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R558 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J S51J
R558 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R559 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J S51J
R559 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R560 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J S51J
R560 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R561 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J S51J
R561 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R562 NRSA63J-392X MG RESISTOR 3.9k
Ω
1/16W J S51J
R562 NRSA63J-392X MG RESISTOR 3.9k
Ω
1/16W J
R563 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J S51J
Symbol
No. Part No. Part Name Description Local
R563 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J
R568 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J S51J
R568 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R569 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J S51J
R569 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R570 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J S51J
R570 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R572 NRSA63J-225X MG RESISTOR 2.2M
Ω
1/16W J S51J
R572 NRSA63J-225X MG RESISTOR 2.2M
Ω
1/16W J
R573 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J S51J
R573 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R574 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J S51J
R574 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J
R575 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J S51J
R575 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R576 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J S51J
R576 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R577 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J S51J
R577 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R578 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R578 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R579 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J S51J
R579 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R581 NRSA63J-243X MG RESISTOR 24k
Ω
1/16W J S51J
R581 NRSA63J-243X MG RESISTOR 24k
Ω
1/16W J
R582 NRSA63J-243X MG RESISTOR 24k
Ω
1/16W J S51J
R582 NRSA63J-243X MG RESISTOR 24k
Ω
1/16W J
R583 NRSA63J-822X MG RESISTOR 8.2k
Ω
1/16W J S51J
R583 NRSA63J-822X MG RESISTOR 8.2k
Ω
1/16W J
R584 NRSA63J-822X MG RESISTOR 8.2k
Ω
1/16W J S51J
R584 NRSA63J-822X MG RESISTOR 8.2k
Ω
1/16W J
R585 NRSA63J-273X MG RESISTOR 27k
Ω
1/16W J S51J
R585 NRSA63J-273X MG RESISTOR 27k
Ω
1/16W J
R586 NRSA63J-273X MG RESISTOR 27k
Ω
1/16W J S51J
R586 NRSA63J-273X MG RESISTOR 27k
Ω
1/16W J
R587 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R587 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R588 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R588 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R589 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R589 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R590 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R590 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R591 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R591 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R592 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R592 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R593 NRSA63J-4R7X MG RESISTOR 4.7
Ω
1/16W J S51J
R593 NRSA63J-4R7X MG RESISTOR 4.7
Ω
1/16W J
R594 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J S51J
R594 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J
R595 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J S51J
R595 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J
R601 NRSA63J-823X MG RESISTOR 82k
Ω
1/16W J S51J
R601 NRSA63J-823X MG RESISTOR 82k
Ω
1/16W J
R602 NRSA63J-823X MG RESISTOR 82k
Ω
1/16W J S51J
R602 NRSA63J-823X MG RESISTOR 82k
Ω
1/16W J
R603 NRSA63J-334X MG RESISTOR 330k
Ω
1/16W J S51J
R603 NRSA63J-334X MG RESISTOR 330k
Ω
1/16W J
R604 NRSA63J-334X MG RESISTOR 330k
Ω
1/16W J S51J
R604 NRSA63J-334X MG RESISTOR 330k
Ω
1/16W J
R605 NRSA63J-220X MG RESISTOR 22
Ω
1/16W J S51J
R605 NRSA63J-220X MG RESISTOR 22
Ω
1/16W J
R606 NRSA63J-220X MG RESISTOR 22
Ω
1/16W J S51J
R606 NRSA63J-220X MG RESISTOR 22
Ω
1/16W J
R607 NRSA63J-823X MG RESISTOR 82k
Ω
1/16W J S51J
R607 NRSA63J-823X MG RESISTOR 82k
Ω
1/16W J
R608 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J S51J
R608 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R609 NRSA63J-563X MG RESISTOR 56k
Ω
1/16W J S51J
R609 NRSA63J-563X MG RESISTOR 56k
Ω
1/16W J
R610 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J S51J
R610 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R611 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R611 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R612 NRSA63J-202X MG RESISTOR 2k
Ω
1/16W J S51J
R612 NRSA63J-202X MG RESISTOR 2k
Ω
1/16W J
Symbol
No. Part No. Part Name Description Local
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-14
R613 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J S51J
R613 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R614 NRSA63J-153X MG RESISTOR 15k
Ω
1/16W J S51J
R614 NRSA63J-153X MG RESISTOR 15k
Ω
1/16W J
R615 NRSA63J-151X MG RESISTOR 150
Ω
1/16W J S51J
R615 NRSA63J-151X MG RESISTOR 150
Ω
1/16W J
R616 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R616 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R621 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J S51J
R621 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J
R622 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J S51J
R622 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J
R623 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J S51J
R623 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J
R624 NRSA63J-562X MG RESISTOR 5.6k
Ω
1/16W J S51J
R624 NRSA63J-562X MG RESISTOR 5.6k
Ω
1/16W J
R625 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R625 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R626 NRSA63J-474X MG RESISTOR 470k
Ω
1/16W J S51J
R626 NRSA63J-474X MG RESISTOR 470k
Ω
1/16W J
R627 NRSA63J-153X MG RESISTOR 15k
Ω
1/16W J S51J
R627 NRSA63J-153X MG RESISTOR 15k
Ω
1/16W J
R628 NRSA63J-155X MG RESISTOR 1.5M
Ω
1/16W J S51J
R628 NRSA63J-155X MG RESISTOR 1.5M
Ω
1/16W J
R629 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R629 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R630 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J S51J
R630 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R631 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J S51J
R631 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R632 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J S51J
R632 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R633 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J S51J
R633 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R634 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J S51J
R634 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R635 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J S51J
R635 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R636 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J S51J
R636 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R637 NRSA63J-105X MG RESISTOR 1M
Ω
1/16W J S51J
R637 NRSA63J-105X MG RESISTOR 1M
Ω
1/16W J
R638 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J S51J
R638 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R639 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J S51J
R639 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R640 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J S51J
R640 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R641 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J S51J
R641 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R642 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R642 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R651 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J S51J
R651 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R654 NRSA63J-390X MG RESISTOR 39
Ω
1/16W J S51J
R654 NRSA63J-390X MG RESISTOR 39
Ω
1/16W J
R655 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J S51J
R655 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R656 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J S51J
R656 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R657 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J S51J
R657 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R668 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J S51J
R668 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J
R675 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J S51J
R675 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R681 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J S51J
R681 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J
R682 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J S51J
R682 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R683 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J S51J
R683 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J
R684 NRSA63J-822X MG RESISTOR 8.2k
Ω
1/16W J S51J
R684 NRSA63J-822X MG RESISTOR 8.2k
Ω
1/16W J
R685 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J S51J
R685 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J
R686 NRSA63J-123X MG RESISTOR 12k
Ω
1/16W J S51J
Symbol
No. Part No. Part Name Description Local
R686 NRSA63J-123X MG RESISTOR 12k
Ω
1/16W J
R687 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J S51J
R687 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J
R688 NRSA63J-182X MG RESISTOR 1.8k
Ω
1/16W J S51J
R688 NRSA63J-182X MG RESISTOR 1.8k
Ω
1/16W J
R689 NRSA63J-123X MG RESISTOR 12k
Ω
1/16W J S51J
R689 NRSA63J-123X MG RESISTOR 12k
Ω
1/16W J
R690 NRSA63J-333X MG RESISTOR 33k
Ω
1/16W J S51J
R690 NRSA63J-333X MG RESISTOR 33k
Ω
1/16W J
R691 NRSA63J-153X MG RESISTOR 15k
Ω
1/16W J S51J
R691 NRSA63J-153X MG RESISTOR 15k
Ω
1/16W J
L501 NQL114K-470X INDUCITOR 47uH K S51J
L501 NQL114K-470X INDUCITOR 47uH K
L502 NQL114K-470X INDUCITOR 47uH K S51J
L502 NQL114K-470X INDUCITOR 47uH K
L572 NQL114K-470X INDUCITOR 47uH K S51J
L572 NQL114K-470X INDUCITOR 47uH K
L621 NQL114K-470X INDUCITOR 47uH K S51J
L621 NQL114K-470X INDUCITOR 47uH K
L622 NQL114K-470X INDUCITOR 47uH K S51J
L622 NQL114K-470X INDUCITOR 47uH K
L623 NQL114K-470X INDUCITOR 47uH K S51J
L623 NQL114K-470X INDUCITOR 47uH K
L651 NQL114K-470X INDUCITOR 47uH K S51J
L651 NQL114K-470X INDUCITOR 47uH K
L652 NQL114K-470X INDUCITOR 47uH K S51J
L652 NQL114K-470X INDUCITOR 47uH K
L653 NQL114K-470X INDUCITOR 47uH K S51J
L653 NQL114K-470X INDUCITOR 47uH K
CN501 QGB2027L1-22X CONNECTOR B-B (1-22) S51J
CN501 QGB2027L1-22X CONNECTOR B-B (1-22)
CN601 QGF0527F2-22W CONNECTOR FFC/FPC (1-22) S51J
CN601 QGF0527F2-22W CONNECTOR FFC/FPC (1-22)
TH501 NAD0028-103X N THERMISTOR 10k
Ω
S51J
TH501 NAD0028-103X N THERMISTOR 10k
Ω
X501 NAX0385-001X CRYSTAL 24.576MHz S51J
X501 NAX0385-001X CRYSTAL 24.576MHz
X571 NAX0375-001X CRYSTAL 16.9344MHz S51J
X571 NAX0375-001X CRYSTAL 16.9344MHz
Symbol
No. Part No. Part Name Description Local
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-15
Main board (KD-S51J2)
Block No. [0][4]
Symbol
No. Part No. Part Name Description Local
IC31 TB2118F-X PLL IC
IC161 TDA7404D-E-X IC
IC251 NJM4565M-WE IC
IC271 CD4066BPW-X IC
IC291 CD4066BPW-X IC
IC301 TB2906HQ IC
IC701 UPD784217AGC322 IC
IC702 IC-PST3433U-X IC
IC771 BR24L16F-W-X IC
IC801 HD74HC126FP-X IC
IC901 HA13164A IC
Q1 KTD1304-X TRANSISTOR
Q5 2SB709A/R/-X TRANSISTOR
Q6 2SB624/4/-X TRANSISTOR
Q7 UN2211-X TRANSISTOR
Q8 UN2211-X TRANSISTOR
Q31 UN2211-X TRANSISTOR
Q241 2SD601A/R/-X TRANSISTOR
Q272 UN2111-X TRANSISTOR
Q273 UN2211-X TRANSISTOR
Q274 UN2211-X TRANSISTOR
Q291 UN2211-X TRANSISTOR
Q292 UN2211-X TRANSISTOR
Q321 KTD1304-X TRANSISTOR
Q331 KTD1304-X TRANSISTOR
Q341 KTD1304-X TRANSISTOR
Q351 KTD1304-X TRANSISTOR
Q701 UN2211-X TRANSISTOR
Q702 UN2211-X TRANSISTOR
Q703 UN2211-X TRANSISTOR
Q704 UN2211-X TRANSISTOR
Q705 UN2211-X TRANSISTOR
Q781 UN2111-X TRANSISTOR
Q782 KTD1304-X TRANSISTOR
Q784 UN2111-X TRANSISTOR
Q881 UN2211-X TRANSISTOR
Q901 2SB1132/QR/-W TRANSISTOR
Q976 UN2211-X TRANSISTOR
Q977 2SB709A/QR/-X TRANSISTOR
D1 MA111-X SI DIODE
D2 MA111-X SI DIODE
D4 MA111-X SI DIODE
D5 MA111-X SI DIODE
D242 MA111-X SI DIODE
D243 RB160M-30-X SB DIODE
D244 UDZS5.1B-X Z DIODE
D251 UDZS4.7B-X Z DIODE
D273 MA111-X SI DIODE
D321 MA111-X SI DIODE
D325 UDZS11B-X Z DIODE
D331 MA111-X SI DIODE
D341 MA111-X SI DIODE
D351 MA111-X SI DIODE
D701 MA8062/M/-X Z DIODE
D702 MA8062/M/-X Z DIODE
D703 MA8062/M/-X Z DIODE
D704 MA8062/M/-X Z DIODE
D705 MA8062/M/-X Z DIODE
D706 MA8062/M/-X Z DIODE
D707 MA8062/M/-X Z DIODE
D708 MA8062/M/-X Z DIODE
D709 MA8062/M/-X Z DIODE
D710 MA111-X SI DIODE
D711 MA8062/M/-X Z DIODE
D713 UDZS5.6B-X Z DIODE 1.5k
Ω
1/10W J
D714 SML-310VT/JK/-X LED
D715 SML-310VT/JK/-X LED
D716 SML-310VT/JK/-X LED
D781 MA111-X SI DIODE
D782 MA111-X SI DIODE
D783 MA111-X SI DIODE
D784 UDZS11B-X Z DIODE
D901 1N5401-F64 DIODE
D902 MA111-X SI DIODE
D971 RB160M-30-X SB DIODE
D972 RB160M-30-X SB DIODE
D996 RB160M-30-X SB DIODE
D997 RB160M-30-X SB DIODE
C1 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C2 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C3 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C4 QERF1AM-227Z E CAPACITOR 220uF 10V M
C5 QEKJ1HM-104Z E CAPACITOR 0.1uF 50V M
C6 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C9 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C10 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C11 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C12 QERF1AM-227Z E CAPACITOR 220uF 10V M
C28 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C30 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C31 QERF1AM-107Z E CAPACITOR 100uF 10V M
C32 NDC31HJ-470X C CAPACITOR 47pF 50V J
C33 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C34 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C35 NDC31HJ-100X C CAPACITOR 10pF 50V J
C36 NDC31HJ-7R0X C CAPACITOR 7pF 50V J
C37 NDC31HJ-100X C CAPACITOR 10pF 50V J
C38 NCB31HK-102X C CAPACITOR 1000pF 50V K
C39 NCB31HK-102X C CAPACITOR 1000pF 50V K
C40 QERF1CM-106Z E CAPACITOR 10uF 16V M
C41 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C42 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C43 QFV61HJ-473Z MF CAPACITOR 0.047uF 50V J
C44 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C45 NCB31HK-272X C CAPACITOR 2700pF 50V K
C46 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C47 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C48 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C49 NCB31HK-102X C CAPACITOR 1000pF 50V K
C50 NDC31HJ-101X C CAPACITOR 100pF 50V J
C51 NCB31HK-331X C CAPACITOR 330pF 50V K
C81 QERF1HM-105Z E CAPACITOR 1uF 50V M
C82 NCB31HK-682X C CAPACITOR 6800pF 50V K
C84 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C85 NCB31EK-153X C CAPACITOR 0.015uF 25V K
C91 QERF1HM-105Z E CAPACITOR 1uF 50V M
C92 NCB31HK-682X C CAPACITOR 6800pF 50V K
C94 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C95 NCB31EK-153X C CAPACITOR 0.015uF 25V K
C161 QEKJ1HM-105Z E CAPACITOR 1uF 50V M
C162 QERF1HM-105Z E CAPACITOR 1uF 50V M
C163 QTE1H55-225Z E CAPACITOR 2.2uF 50V
C171 QEKJ1HM-105Z E CAPACITOR 1uF 50V M
C172 QERF1HM-105Z E CAPACITOR 1uF 50V M
C173 QTE1H55-225Z E CAPACITOR 2.2uF 50V
C179 QERF1CM-476Z E CAPACITOR 47uF 16V M
C181 QERF1CM-107Z E CAPACITOR 100uF 16V M
C182 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C184 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C241 QERF1HM-105Z E CAPACITOR 1uF 50V M
C242 QERF1CM-226Z E CAPACITOR 22uF 16V M
C243 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C245 QERF1HM-224Z E CAPACITOR 0.22uF 50V M
C251 NCB31HK-822X C CAPACITOR 8200pF 50V K
C252 QERF0JM-476Z E CAPACITOR 47uF 6.3V M
C253 QERF1CM-106Z E CAPACITOR 10uF 16V M
C254 NCB31EK-823X C CAPACITOR 0.082uF 25V K
C255 QERF1CM-476Z E CAPACITOR 47uF 16V M
C256 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C262 QERF1HM-225Z E CAPACITOR 2.2uF 50V M
C274 NCB31EK-223X C CAPACITOR 0.022uF 25V K
C275 NCB31EK-223X C CAPACITOR 0.022uF 25V K
C276 NCB31EK-223X C CAPACITOR 0.022uF 25V K
C277 NCB31EK-562X C CAPACITOR 5600pF 25V K
C278 NCB31EK-123X C CAPACITOR 0.012uF 25V K
C279 QERF0JM-476Z E CAPACITOR 47uF 6.3V M
C281 NCB31EK-823X C CAPACITOR 0.082uF 25V K
Symbol
No. Part No. Part Name Description Local
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-16
C292 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C293 QERF1EM-475Z E CAPACITOR 4.7uF 25V M
C294 QERF1EM-475Z E CAPACITOR 4.7uF 25V M
C298 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C301 QFV91HJ-474Z MF CAPACITOR 0.47uF 50V J
C302 QFV91HJ-474Z MF CAPACITOR 0.47uF 50V J
C303 NDC31HJ-101X C CAPACITOR 100pF 50V J
C304 NDC31HJ-101X C CAPACITOR 100pF 50V J
C311 QFV91HJ-474Z MF CAPACITOR 0.47uF 50V J
C312 QFV91HJ-474Z MF CAPACITOR 0.47uF 50V J
C313 NDC31HJ-101X C CAPACITOR 100pF 50V J
C314 NDC31HJ-101X C CAPACITOR 100pF 50V J
C315 QERF1HM-225Z E CAPACITOR 2.2uF 50V M
C316 QERF1EM-475Z E CAPACITOR 4.7uF 25V M
C317 QERF1CM-226Z E CAPACITOR 22uF 16V M
C318 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C319 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C320 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C322 NCB21HK-472X C CAPACITOR 4700pF 50V K
C323 NCB21HK-472X C CAPACITOR 4700pF 50V K
C324 NCB21HK-472X C CAPACITOR 4700pF 50V K
C325 NCB21HK-472X C CAPACITOR 4700pF 50V K
C341 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C368 QERF1EM-475Z E CAPACITOR 4.7uF 25V M
C388 QERF1EM-475Z E CAPACITOR 4.7uF 25V M
C701 NDC31HJ-220X C CAPACITOR 22pF 50V J
C702 NDC31HJ-270X C CAPACITOR 27pF 50V J
C703 NDC31HJ-270X C CAPACITOR 27pF 50V J
C704 NDC31HJ-8R0X C CAPACITOR 8pF 50V J
C705 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C706 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C707 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C708 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C709 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C710 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C711 QERF1AM-227Z E CAPACITOR 220uF 10V M
C713 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C716 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C717 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C720 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C721 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C722 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C723 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C724 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C725 NCB31AK-224X C CAPACITOR 0.22uF 10V K
C726 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C727 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C733 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C740 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C741 NCB31AK-224X C CAPACITOR 0.22uF 10V K
C743 NCB31AK-334X C CAPACITOR 0.33uF 10V K
C744 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C745 NCB31AK-334X C CAPACITOR 0.33uF 10V K
C746 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C747 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C771 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C781 QERF0JM-476Z E CAPACITOR 47uF 6.3V M
C782 NCB31AK-474X C CAPACITOR 0.47uF 10V K
C784 QERF1CM-107Z E CAPACITOR 100uF 16V M
C801 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C802 NCB31HK-472X C CAPACITOR 4700pF 50V K
C803 NDC31HJ-220X C CAPACITOR 22pF 50V J
C804 NDC31HJ-220X C CAPACITOR 22pF 50V J
C881 QERF1CM-226Z E CAPACITOR 22uF 16V M
C901 QEZ0723-338 E CAPACITOR 3300uF
C902 QERF1HM-225Z E CAPACITOR 2.2uF 50V M
C903 QERF1CM-476Z E CAPACITOR 47uF 16V M
C904 QERF1CM-106Z E CAPACITOR 10uF 16V M
C905 QERF1CM-476Z E CAPACITOR 47uF 16V M
C906 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C907 QERF1AM-227Z E CAPACITOR 220uF 10V M
C908 QERF1AM-227Z E CAPACITOR 220uF 10V M
C909 QERF1AM-227Z E CAPACITOR 220uF 10V M
C910 QERF1CM-476Z E CAPACITOR 47uF 16V M
C911 QERF1CM-106Z E CAPACITOR 10uF 16V M
C912 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C914 QERF1CM-107Z E CAPACITOR 100uF 16V M
Symbol
No. Part No. Part Name Description Local
C915 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C916 QERF1CM-476Z E CAPACITOR 47uF 16V M
C961 NDC31HJ-471X C CAPACITOR 470pF 50V J
C962 NDC31HJ-471X C CAPACITOR 470pF 50V J
C963 NDC31HJ-471X C CAPACITOR 470pF 50V J
C964 NDC31HJ-471X C CAPACITOR 470pF 50V J
C965 NDC31HJ-471X C CAPACITOR 470pF 50V J
C966 NDC31HJ-471X C CAPACITOR 470pF 50V J
C967 NDC31HJ-471X C CAPACITOR 470pF 50V J
C968 NDC31HJ-471X C CAPACITOR 470pF 50V J
C971 NCB31EK-104X C CAPACITOR 0.1uF 25V K
R1 NRS181J-120X MG RESISTOR 12
Ω
1/8W J
R2 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R4 NRSA63J-332X MG RESISTOR 3.3k
Ω
1/16W J
R5 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R6 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R7 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R8 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R9 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R11 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R31 NRS181J-100X MG RESISTOR 10
Ω
1/8W J
R32 NRSA63J-622X MG RESISTOR 6.2k
Ω
1/16W J
R33 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R38 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R39 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R40 NRSA63J-393X MG RESISTOR 39k
Ω
1/16W J
R41 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R42 NRS181J-100X MG RESISTOR 10
Ω
1/8W J
R43 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J
R44 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R50 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R52 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
R81 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R82 NRSA63J-432X MG RESISTOR 4.3k
Ω
1/16W J
R91 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R92 NRSA63J-432X MG RESISTOR 4.3k
Ω
1/16W J
R158 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R159 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R161 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R162 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R163 NRSA63J-124X MG RESISTOR 120k
Ω
1/16W J
R241 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R242 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
R243 NRSA63J-184X MG RESISTOR 180k
Ω
1/16W J
R244 NRSA63J-123X MG RESISTOR 12k
Ω
1/16W J
R245 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J
R246 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R247 NRSA63J-393X MG RESISTOR 39k
Ω
1/16W J
R248 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R251 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R252 NRSA63J-513X MG RESISTOR 51k
Ω
1/16W J
R253 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R255 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R256 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R257 NRSA63J-822X MG RESISTOR 8.2k
Ω
1/16W J
R258 NRSA63J-153X MG RESISTOR 15k
Ω
1/16W J
R259 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J
R262 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R274 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R275 NRSA63J-105X MG RESISTOR 1M
Ω
1/16W J
R276 NRSA63J-105X MG RESISTOR 1M
Ω
1/16W J
R277 NRSA63J-105X MG RESISTOR 1M
Ω
1/16W J
R278 NRSA63J-105X MG RESISTOR 1M
Ω
1/16W J
R279 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R295 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R296 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R297 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R298 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R301 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R302 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R307 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J
R308 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J
R311 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R312 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R317 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J
R318 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J
Symbol
No. Part No. Part Name Description Local
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-17
R321 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R322 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R323 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R331 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R332 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R333 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R341 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R342 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R343 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R351 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R352 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R353 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R369 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R372 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R373 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R389 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R396 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R398 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R701 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R709 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R714 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R719 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R720 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J
R721 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R722 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R723 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R725 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R726 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R728 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R729 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R730 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R731 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R732 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R734 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R735 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R736 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R737 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R738 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R739 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R740 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R741 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R743 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R744 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R745 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R746 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R747 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R748 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R749 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R750 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R751 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R753 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R754 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R755 NRSA63J-106X MG RESISTOR 10M
Ω
1/16W J
R756 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R757 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R758 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R759 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R763 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R764 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R765 NRS181J-271X MG RESISTOR 270
Ω
1/8W J
R766 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R767 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R769 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R771 NRSA63J-271X MG RESISTOR 270
Ω
1/16W J
R772 NRSA63J-271X MG RESISTOR 270
Ω
1/16W J
R775 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R776 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R780 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R781 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R783 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R784 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R785 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R787 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R791 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R792 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R793 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R801 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
Symbol
No. Part No. Part Name Description Local
R802 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R803 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R804 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
R805 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R806 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R807 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R808 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R809 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
R810 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R881 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R882 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R901 QRE142J-102X C RESISTOR 1k
Ω
1/4W J
R902 NRSA02J-912X MG RESISTOR 9.1k
Ω
1/10W J
R903 NRSA02J-472X MG RESISTOR 4.7k
Ω
1/10W J
R904 NRSA02J-221X MG RESISTOR 220
Ω
1/10W J
R971 NRS181J-222X MG RESISTOR 2.2k
Ω
1/8W J
R972 NRS181J-222X MG RESISTOR 2.2k
Ω
1/8W J
R976 NRSA02J-203X MG RESISTOR 20k
Ω
1/10W J
R977 NRSA02J-822X MG RESISTOR 8.2k
Ω
1/10W J
RA30 NRZ0065-222X NET RESISTOR 2.2k
Ω
L1 QQL244J-4R7Z COIL 4.7uH J
L701 QQL244K-4R7Z COIL 4.7uH K
L702 NQL79GM-4R7X COIL 4.7uH M
L901 QQR1378-002 COIL
CN101 QGB2027M4-22S CONNECTOR B-B (1-22)
CN701 QNZ0605-001 CAR CONNECTOR
CN901 QNZ0611-001 16P CONNECTOR
J1 QNB0100-002 CAR ANT JACK
J321 QNN0489-001 PIN JACK
J801 QNZ0095-001 CONNECTOR
S701 QSW0451-001 DETECT SW
S702 QSW0451-001 DETECT SW
S703 QSW1049-001Z TACT SW
TU1 QAU0223-001 TUNER
X31 QAX0616-001Z CRYSTAL 10.250MHz
X701 QAX0617-001Z CRYSTAL 12.500MHz
X702 QAX0401-001 CRYSTAL 32.768KHz
Symbol
No. Part No. Part Name Description Local
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-18
Switch board (KD-S51J2)
Block No. [0][5]
Symbol
No. Part No. Part Name Description Local
IC601 PT6523LQ-L LCD DRIVER
IC602 RPM7338-V4 RM.RECEIVER
Q640 2SB624/4/-X TRANSISTOR
Q641 UN2211-X TRANSISTOR
D601 SML-310VT/JK/-X LED
D602 SML-310VT/JK/-X LED
D603 SML-310VT/JK/-X LED
D604 SML-310VT/JK/-X LED
D605 SML-310VT/JK/-X LED
D606 SML-310VT/JK/-X LED
D607 SML-310VT/JK/-X LED
D608 SML-310VT/JK/-X LED
D609 SML-310VT/JK/-X LED
D610 SML-310VT/JK/-X LED
D611 SML-310VT/JK/-X LED
D612 SML-310VT/JK/-X LED
D613 SML-310VT/JK/-X LED
D614 SML-310VT/JK/-X LED
D615 SML-310VT/JK/-X LED
D616 SML-310VT/JK/-X LED
D617 SML-310VT/JK/-X LED
D618 SML-310VT/JK/-X LED
D619 SML-310VT/JK/-X LED
D640 MA152WK-X SI DIODE
D641 UDZS5.1B-X Z DIODE
D642 MA111-X SI DIODE
D643 MA8062/M/-X Z DIODE
D645 NSPW310BS/BRS/ LED
D646 NSPW310BS/BRS/ LED
C601 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C602 NCS31HJ-681X C CAPACITOR 680pF 50V J
C603 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C611 NCB31HK-123X C CAPACITOR 0.012uF 50V K
C612 NBE20JM-475X TA E CAPACITOR 4.7uF 6.3V M
R601 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R602 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R603 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J
R604 NRSA63J-182X MG RESISTOR 1.8k
Ω
1/16W J
R605 NRSA63J-272X MG RESISTOR 2.7k
Ω
1/16W J
R606 NRSA63J-392X MG RESISTOR 3.9k
Ω
1/16W J
R607 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R608 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R609 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J
R610 NRSA63J-182X MG RESISTOR 1.8k
Ω
1/16W J
R611 NRSA63J-272X MG RESISTOR 2.7k
Ω
1/16W J
R612 NRSA63J-392X MG RESISTOR 3.9k
Ω
1/16W J
R613 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R614 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R630 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R632 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R634 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R636 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R638 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J
R640 NRSA02J-331X MG RESISTOR 330
Ω
1/10W J
R641 NRSA02J-201X MG RESISTOR 200
Ω
1/10W J
R642 NRSA02J-331X MG RESISTOR 330
Ω
1/10W J
R643 NRSA02J-391X MG RESISTOR 390
Ω
1/10W J
R644 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J
R646 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J
R648 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R651 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R652 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R653 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R654 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R655 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R656 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R657 NRSA63J-513X MG RESISTOR 51k
Ω
1/16W J
R658 NRSA63J-184X MG RESISTOR 180k
Ω
1/16W J
R660 NRSA02J-391X MG RESISTOR 390
Ω
1/10W J
R661 NRSA02J-391X MG RESISTOR 390
Ω
1/10W J
R670 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R672 NRSA02J-471X MG RESISTOR 470
Ω
1/10W J
R673 NRSA02J-473X MG RESISTOR 47k
Ω
1/10W J
R674 NRSA02J-102X MG RESISTOR 1k
Ω
1/10W J
R691 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R692 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J
CN601 NNZ0085-001 CAR CONNECTOR
EN601 QSW1115-002 ROTARY ENCODER
S601 NSW0206-001X TACT SWITCH
S602 NSW0206-001X TACT SWITCH
S603 NSW0206-001X TACT SWITCH
S604 NSW0206-001X TACT SWITCH
S605 NSW0206-001X TACT SWITCH
S606 NSW0206-001X TACT SWITCH
S607 NSW0206-001X TACT SWITCH
S608 NSW0206-001X TACT SWITCH
S609 NSW0206-001X TACT SWITCH
S610 NSW0206-001X TACT SWITCH
S611 NSW0206-001X TACT SWITCH
S612 NSW0206-001X TACT SWITCH
S613 NSW0206-001X TACT SWITCH
S614 NSW0206-001X TACT SWITCH
S616 NSW0206-001X TACT SWITCH
S617 NSW0206-001X TACT SWITCH
Symbol
No. Part No. Part Name Description Local
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-19
<MEMO>
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-20
Packing materials and accessories parts list
Block No. MM
M
3
KIT:A13 A14 A15
A16 A17
P2
A6 A7 A8
A9 A10 A11 A12
A18
A19
A3
A2
A4
A1
P3
P7
P3
P1
P8
P4
P5
No additional / supplemental order of WARRANTY CARDs are available.
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-21
Packing and Accessories
Block No. [M][3][M][M]
Symbol No. Part No. Part Name Description Local
A 1 FSJB3002-30C HARD CASE
A 2 RM-RK60 REMOCON UNIT
A 3 ------------ BATTERY
A 4 QAM0306-002 16P CORD ASSY
A 6 GET0264-001A INST BOOK ENG SPA FRE
A 7 GET0264-002A INSTALL MANUAL
A 8 LVT0717-001B TROUBLE SHEET(C
A 9 GET0222-001A TAG CAUTION SH
A 10 ------------ WARRANTY CARD BT-51018-4
A 11 ------------ WARRANTY CARD BT-52006-2
A 12 BT-51034-2 REGISTRATION CARD
A 13 VKZ4027-202 PLUG NUT
A 14 VKH4871-003 MOUNT BOLT
A 15 VKZ4328-003 LOCK NUT
A 16 QYWWS53A008ZA WASHER 0mm/5.3mm x
A 17 GE40130-002A HOOK (x2)
A 18 GE20137-003A MOUNTING SLEEVE
A 19 GE20149-012A TRIM PLATE
KIT SPW-385U SCREW PARTS KIT A13 A14 A15 A16 A17
P 1 QPC03004315P POLY BAG 30cm x 43cm
P 2 GE31450-001A CARTON
P 3 GE10108-001A PAPER CUSHION (x2)
P 4 FSYH4036-068 SHEET
P 5 QPA01003003 POLY BAG 10cm x 30cm
P 7 FSPG4002-001 POLY BAG
P 8 QPA00801205 POLY BAG 8cm x 12cm
http://www.xiaoyu163.com
http://www.xiaoyu163.com

Navigation menu
