SERVICE MANUAL
COPYRIGHT © 2004 Victor Company of Japan, Limited No.MA048
2004/5
CD RECEIVER
MA04820045
KD-SHX705
TABLE OF CONTENTS
1 PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-22

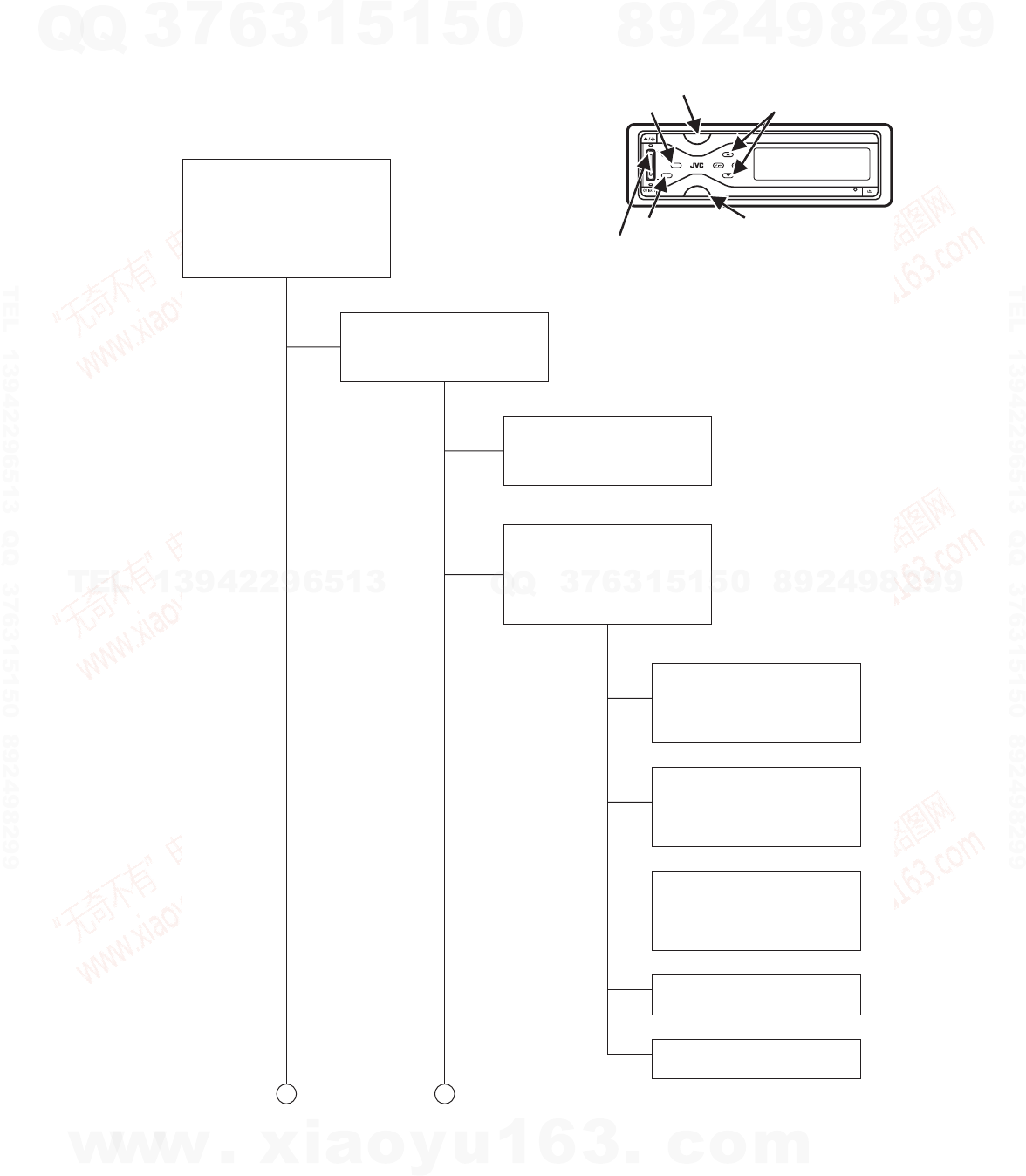

5 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-32
Area suffix
U -------------------- Other Areas
KD-SHX705
PICT
OK
BAND
SOURCE
MENU
BACK
DISP
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-2 (No.MA048)
SPECIFICATION
Design and specifications are subject to change without notice.
AUDIO AMPLIFIER SECTION
Maximum Power Output Front 50 W per channel
Rear 50 W per channel
Continuous Power Output
(RMS)
Front 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more
than 0.8% total harmonic distortion.
Rear 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more
than 0.8% total harmonic distortion.
Load Impedance 4 Ω (4 Ω to 8 Ω allowance)
Equalizer Control Range Frequencies 60 Hz, 150 Hz, 400 Hz, 1 kHz, 2.4 kHz, 6 kHz, 12 kHz
Level ±10 dB
Frequency Response 40 Hz to 20 000 Hz
Signal-to-Noise Ratio 70 dB
Line-In Level/Impedance LINE IN 1.5 V/20 kΩ load
Line-Out Level/Impedance 5.0 V/20 kΩ load (full scale)
Output Impedance 1 kΩ
Other Terminals SUBWOOFER OUT
Changer control
TUNER SECTION
Frequency Range FM 87.5 MHz to 108.0 MHz
AM 531 kHz to 1 602 kHz
[FM Tuner] Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω)
50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω)
Alternate Channel Selectivity (400 kHz) 65 dB
Frequency Response 40 Hz to 15 000 Hz
Stereo Separation 35 dB
Capture Ratio 1.5 dB
[AM Tuner] Sensitivity 20 µV
Selectivity 65 dB
CD PLAYER SECTION
Type Compact disc player
Signal Detection System Non-contact optical pickup (semiconductor laser)
Number of channels 2 channels (stereo)
Frequency Response 5 Hz to 20 000 Hz
Dynamic Range 98 dB
Signal-to-Noise Ratio 102 dB
Wow and Flutter Less than measurable limit
MP3 (MPEG Audio Layer 3) Max. Bit rate 320 Kbps
WMA (Windows Media Audio) Max. Bit rate 192 Kbps
GENERAL
Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance)
Grounding System Negative ground
Allowable Operating Temperature 0ºC to +40ºC (32ºF to 104ºF)
Dimensions (W × H × D) Installation Size 182 mm × 52 mm × 157 mm
Panel Size 188 mm × 58 mm × 13 mm
Mass 1.7 kg (excluding accessories)
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA048)1-3
SECTION 1
PRECAUTIONS
1.1 Safety Precautions
!Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
!Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-4 (No.MA048)
1.2 Preventing static electricity
Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged, can destroy the laser
diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs.

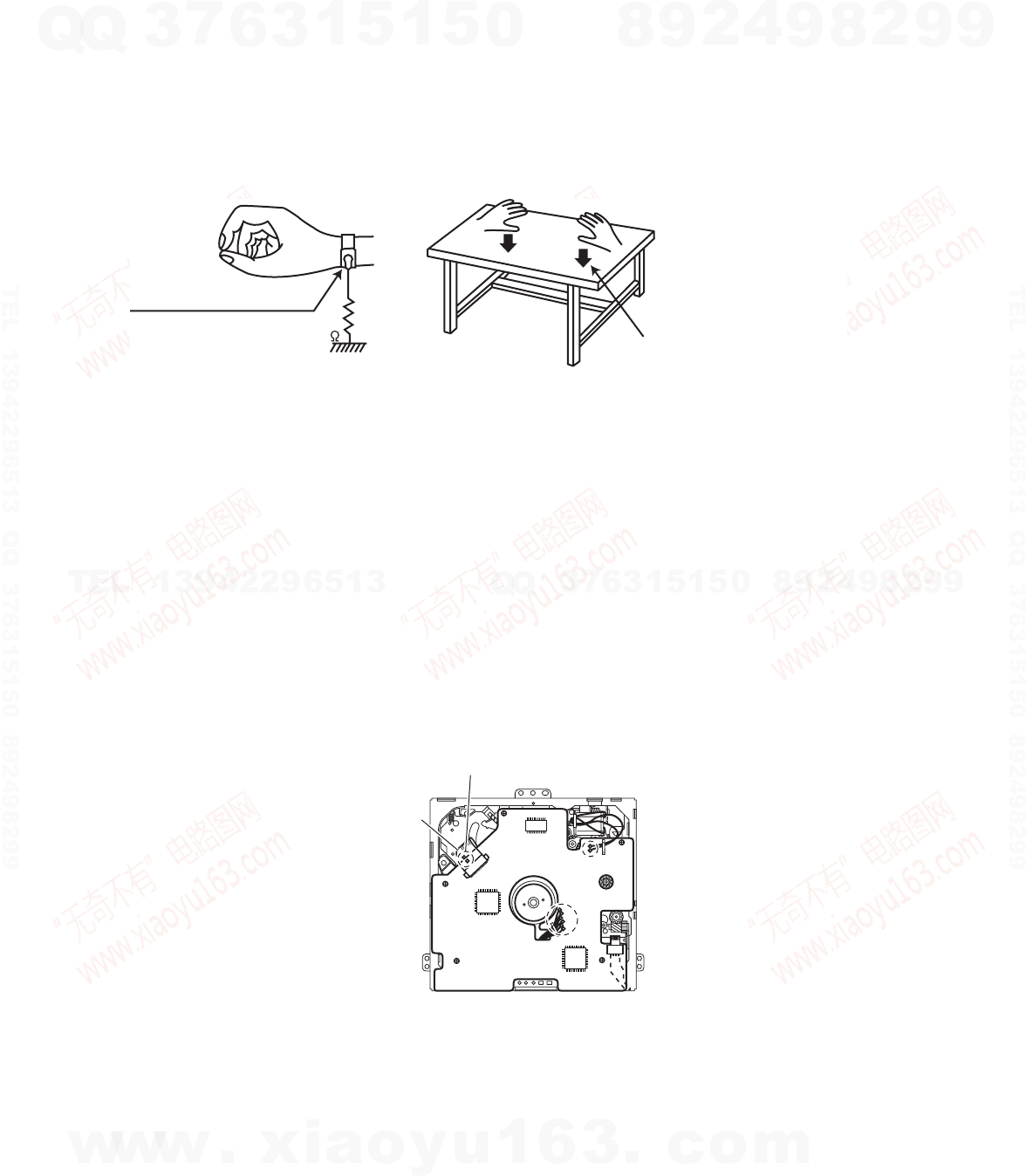

1.2.1 Grounding to prevent damage by static electricity
Static electricity in the work area can destroy the optical pickup (laser diode) in devices such as CD players.
Be careful to use proper grounding in the area where repairs are being performed.
(1) Ground the workbench
Ground the workbench by laying conductive material (such as a conductive sheet) or an iron plate over it before placing the
traverse unit (optical pickup) on it.
(2) Ground yourself
Use an anti-static wrist strap to release any static electricity built up in your body.
(3) Handling the optical pickup
• In order to maintain quality during transport and before installation, both sides of the laser diode on the replacement optical
pickup are shorted. After replacement, return the shorted parts to their original condition.
(Refer to the text.)
• Do not use a tester to check the condition of the laser diode in the optical pickup. The tester's internal power source can easily
destroy the laser diode.
1.3 Handling the traverse unit (optical pickup)
(1) Do not subject the traverse unit (optical pickup) to strong shocks, as it is a sensitive, complex unit.
(2) Cut off the shorted part of the flexible cable using nippers, etc. after replacing the optical pickup. For specific details, refer to the
replacement procedure in the text. Remove the anti-static pin when replacing the traverse unit. Be careful not to take too long a
time when attaching it to the connector.
(3) Handle the flexible cable carefully as it may break when subjected to strong force.
(4) It is not possible to adjust the semi-fixed resistor that adjusts the laser power. Do not turn it.

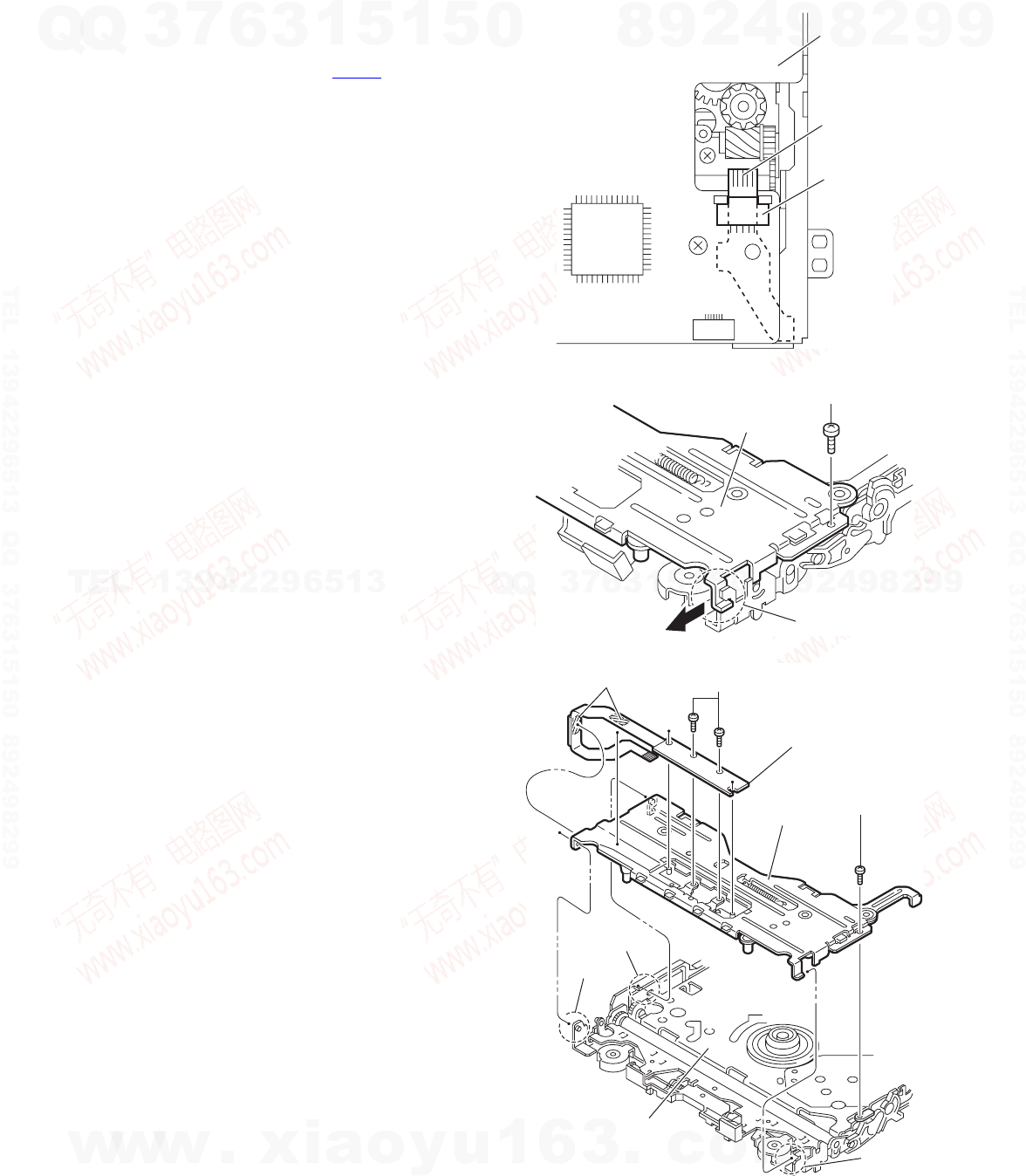

1.4 Attention when traverse unit is decomposed
*Please refer to "Disassembly method" in the text for the CD pickup unit.
• Apply solder to the short land before the flexible wire is disconnected from the connector on the CD pickup unit.
(If the flexible wire is disconnected without applying solder, the CD pickup may be destroyed by static electricity.)
• In the assembly, be sure to remove solder from the short land after connecting the flexible wire.
1M
(caption)
Anti-static wrist strap
Conductive material
(conductive sheet) or iron plate
Flexible wire
Short-circuit point
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA048)1-5
1.5 Important for laser products
1.CLASS 1 LASER PRODUCT
2.DANGER : Invisible laser radiation when open and inter
lock failed or defeated. Avoid direct exposure to beam.
3.CAUTION : There are no serviceable parts inside the
Laser Unit. Do not disassemble the Laser Unit. Replace
the complete Laser Unit if it malfunctions.
4.CAUTION : The CD,MD and DVD player uses invisible
laser radiation and is equipped with safety switches which
prevent emission of radiation when the drawer is open and
the safety interlocks have failed or are defeated. It is
dangerous to defeat the safety switches.
5.CAUTION : If safety switches malfunction, the laser is able
to function.
6.CAUTION : Use of controls, adjustments or performance of
procedures other than those specified here in may result in
hazardous radiation exposure.
REPRODUCTION AND POSITION OF LABELS
!
Please use enough caution not to
see the beam directly or touch it
in case of an adjustment or operation
check.
WARNING LABEL
CAUTION : Visible and Invisible
laser radiation when open and
interlock failed or defeated.
AVOID DIRECT EXPOSURE TO
BEAM. (e)
VARNING : Synlig och
osynling laserstrålning när
den öppnas och spärren är
urkopplad. Betrakta ej
strålen. (s)
VARO : Avattaessa ja suojalukitus
ohitettuna tai viallisena olet alttiina
näkyvälle ja näkymättömälle
lasersäteilylle. Vältä säteen
kohdistumista suoraan itseesi. (f)
ADVARSEL : Synlig og usynlig
laserstråling når maskinen er
åben eller interlocken fejeler.
Undgå direkte eksponering til
stråling. (d)
CLASS 1
LASER PRODUCT
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-6 (No.MA048)
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
This service manual does not describe SPECIFIC SERVICE INSTRUCTIONS.
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA048)1-7
SECTION 3
DISASSEMBLY
3.1 Main body section

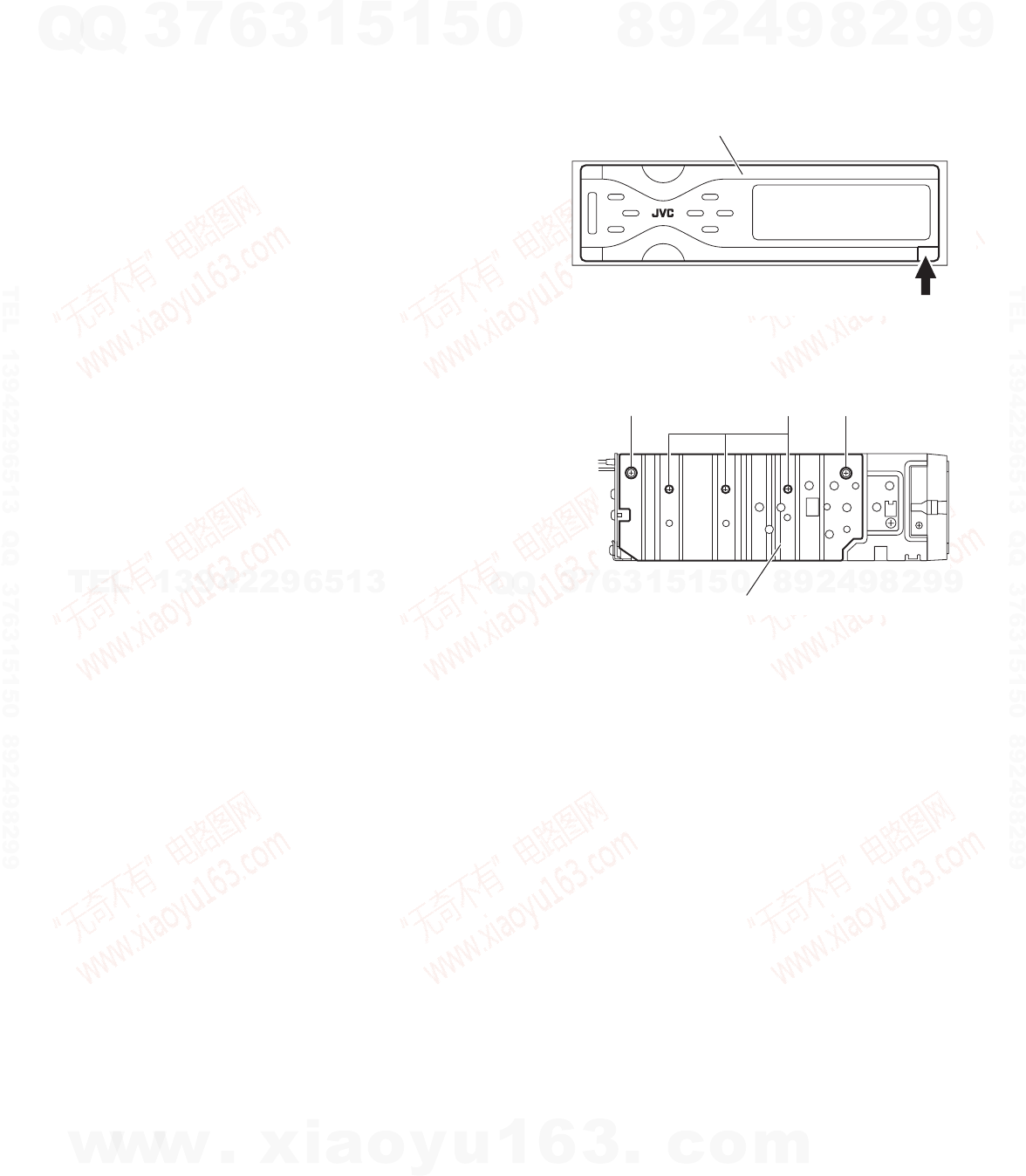

3.1.1 Removing the front panel assembly
(See Fig.1)
(1) Push the detach button in the lower right part of the front
panel assembly.
(2) Remove the front panel assembly.
Fig.1
3.1.2 Removing the heat sink
(See Fig.2)
(1) From the left side of the main body, remove the two screws
A and three screws B attaching the heat sink.
Fig.2
Front panel assembly
Detach button
Heat sink
AAB
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-8 (No.MA048)

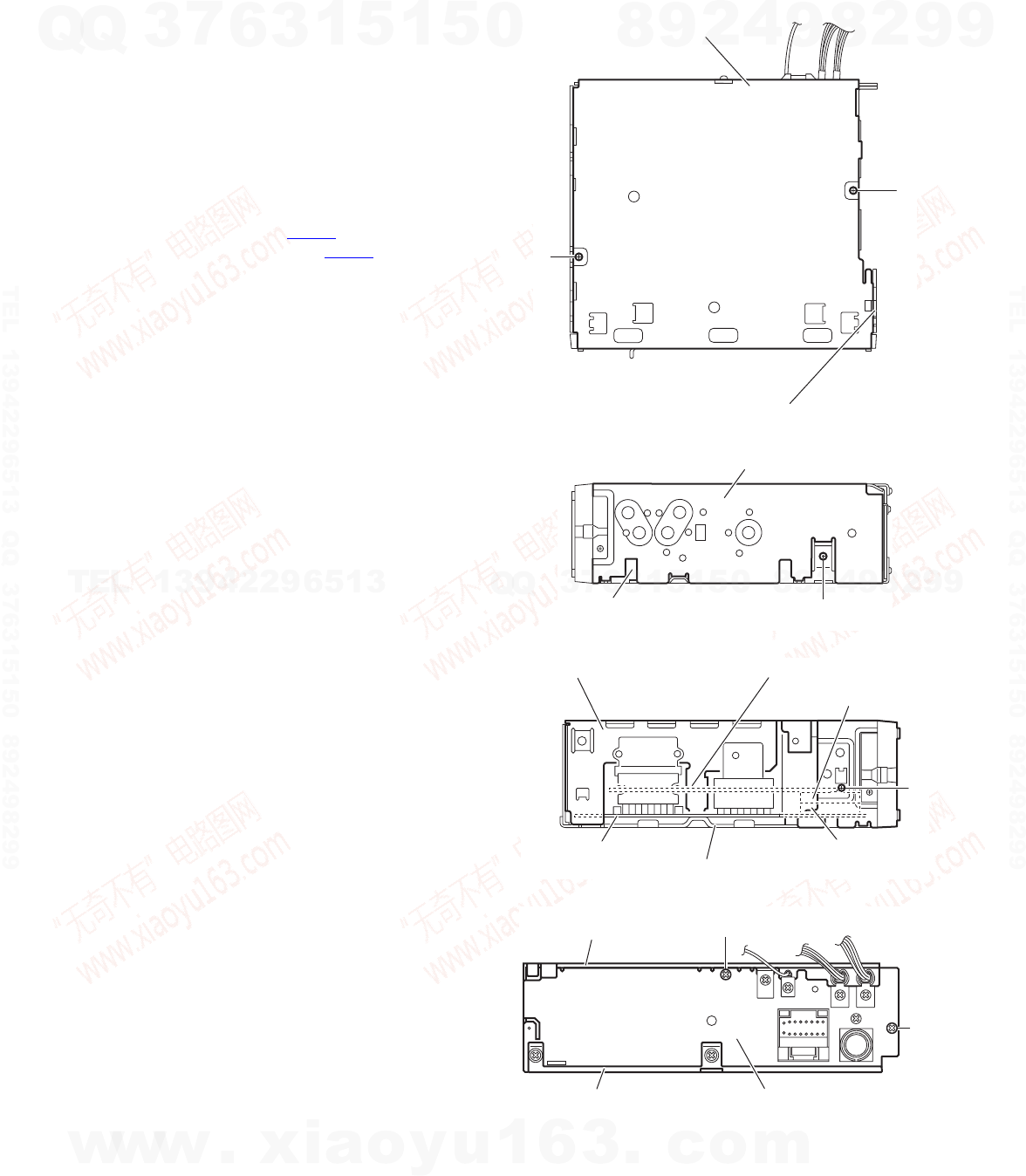

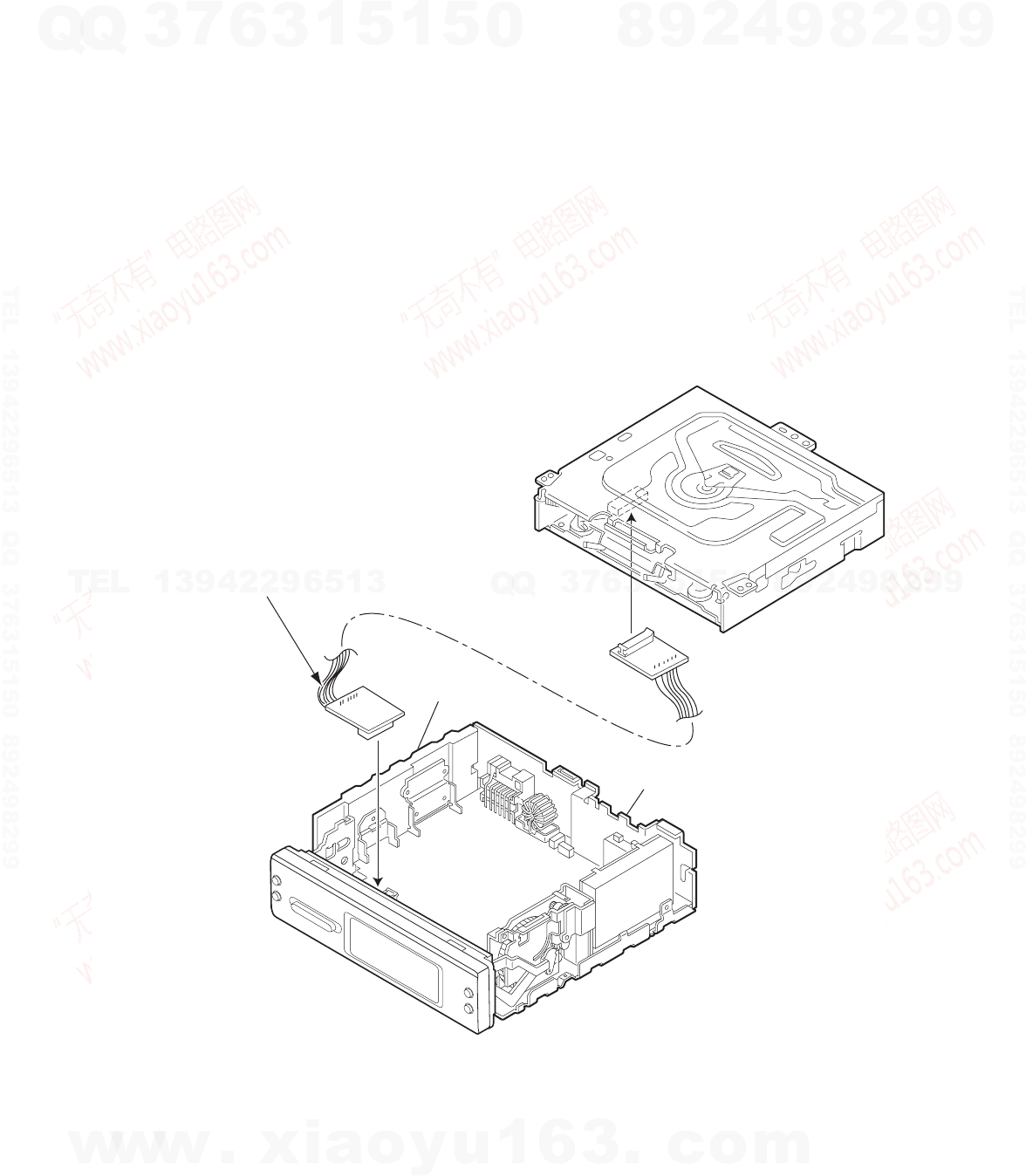

3.1.3 Removing the top chassis assembly
(See Figs.3 to 6)
• Prior to performing the following procedures, remove the heat
sink.
Reference:
Remove the front panel assembly as required.
(1) From the bottom side of the main body, remove the two
screws C attaching the top chassis assembly to the bottom
chassis assembly. (See Fig.3)
(2) From the both and rear sides of the main body, remove the
four screws D attaching the top chassis assembly to the
bottom chassis assembly. (See Figs.4 to 6)
(3) Lift the top chassis assembly in the direction of the arrow,
and disconnect the connector CN501 on the mechanism
control board from the connector CN702 on the main
board. (See Figs.5 and 6)
(4) Take out the top chassis assembly from the bottom chassis
assembly.
Fig.3
Fig.4
Fig.5
Fig.6
Top chassis assembly
C
C
Bottom chassis assembly
Bottom chassis assembly
Top chassis assembly
D
Top chassis assembly
D
Bottom chassis assembly
Mechanism control board
Main board CN702
CN501
Top chassis assembly
Bottom chassis assembly Rear bracket
D
D
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA048)1-9

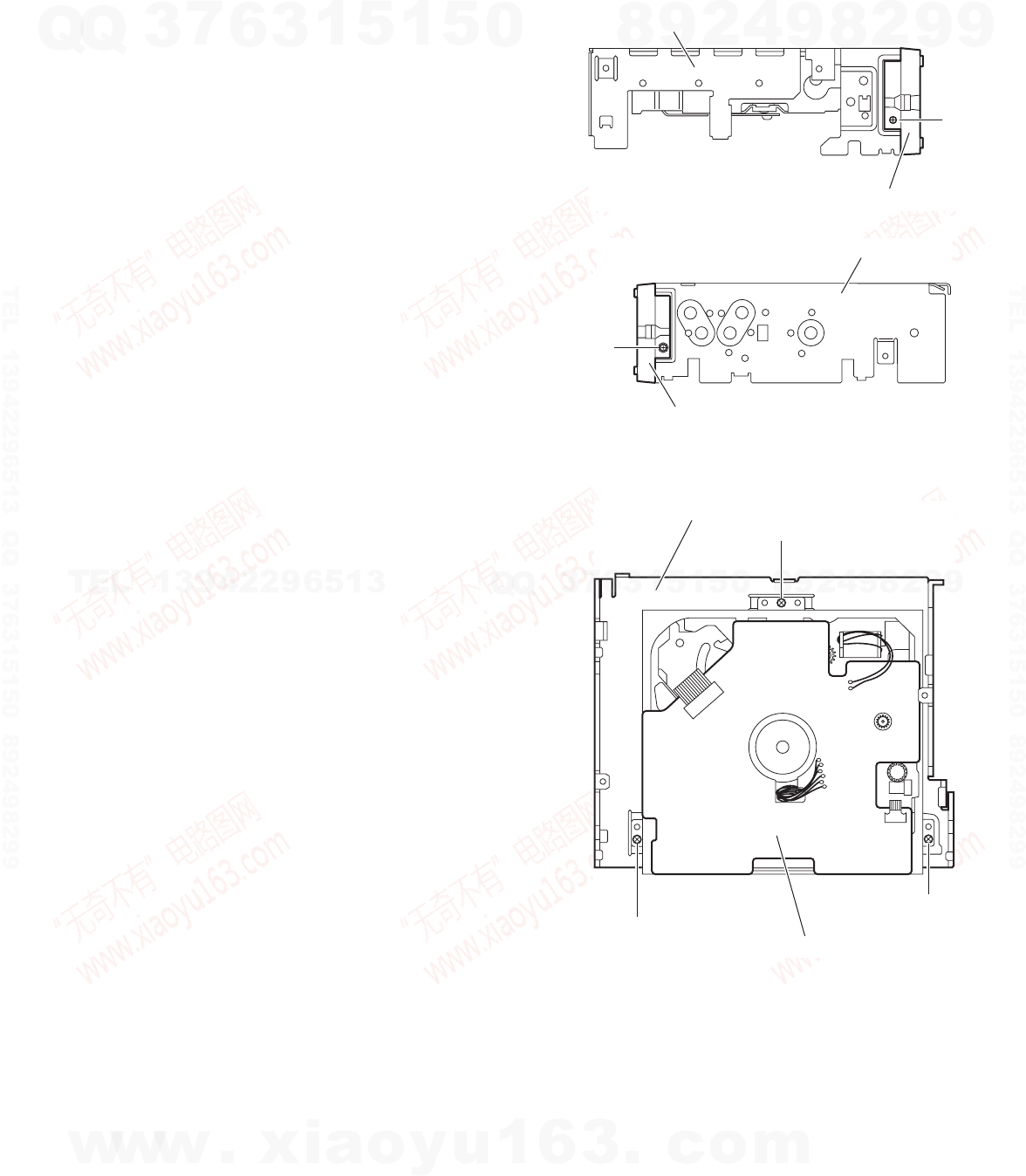

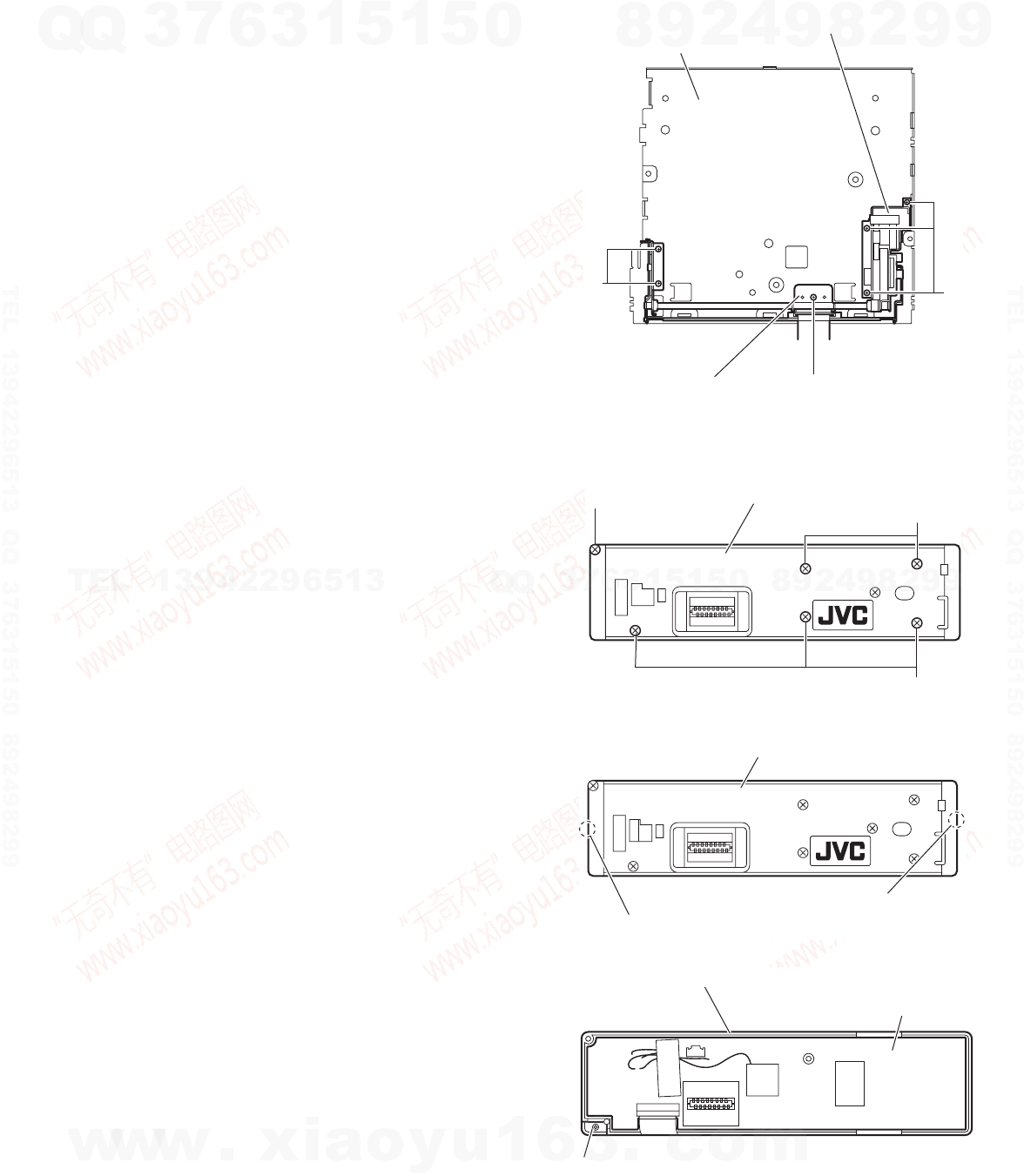

3.1.4 Removing the front chassis
(See Figs.7 and 8)
• Prior to performing the following procedure, remove the front
panel assembly, heat sink and top chassis assembly.
(1) From the both sides of the top chassis assembly, remove
the two screws E attaching the front chassis.
Fig.7
Fig.8

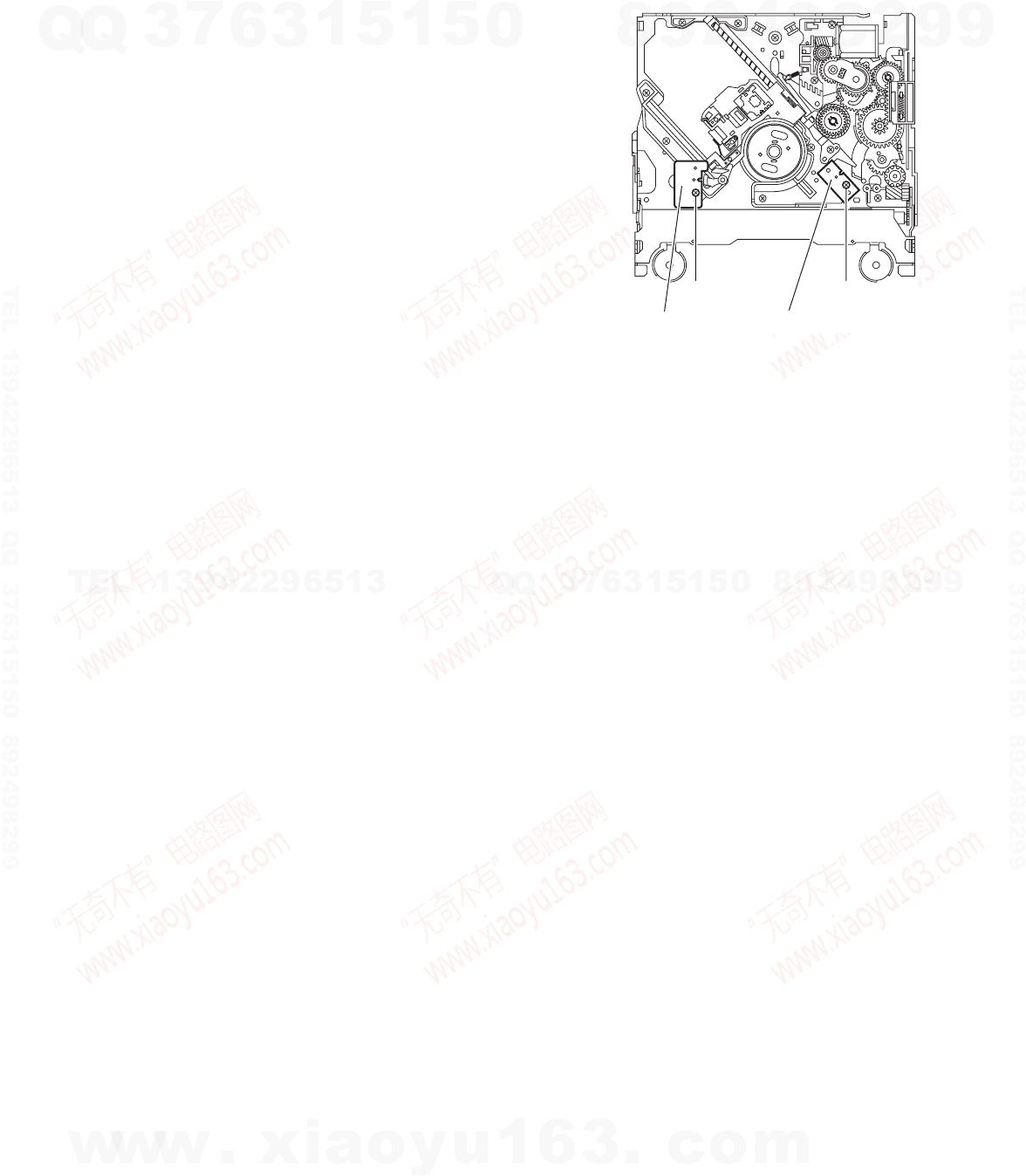

3.1.5 Removing the CD mechanism assembly
(See Fig.9)
• Prior to performing the following procedures, remove the front
panel assembly, heat sink and top chassis assembly.
(1) From the inside of the top chassis assembly, remove the
three screws F attaching the CD mechanism assembly.
(2) Take out the CD mechanism assembly from the top chas-
sis.
Fig.9
Top chassis assembly
Front chassis
E
Top chassis assembly
Front chassis
E
Top chassis F
FF
CD mechanism assembly
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-10 (No.MA048)

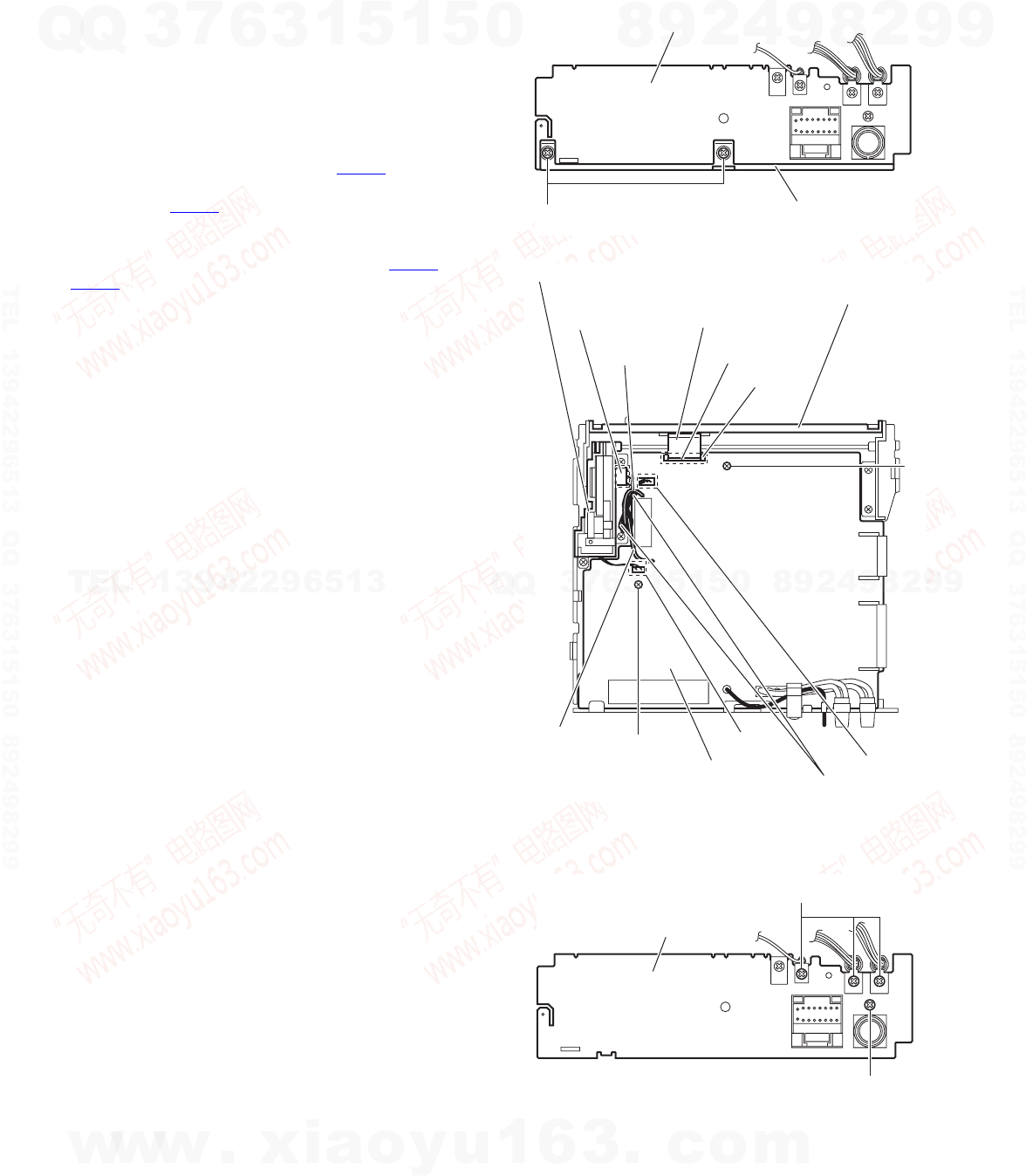

3.1.6 Removing the main board
(See Figs.10 and 11)
• Prior to performing the following procedures, remove the front
panel assembly, heat sink and top chassis assembly.
(1) From the rear side of the bottom chassis assembly, remove
the two screws G attaching the rear bracket to the bottom
chassis assembly. (See Fig.10)
(2) From the top side of the bottom chassis assembly, remove
the two screws H attaching the main board to the bottom
chassis assembly. (See Fig.11)
(3) Release the stopper of the connector CN701 on the main
board in an upward direction, disconnect the card wire from
the connector CN701. (See Fig.11)
(4) Disconnect the wire from the connector of the front door
mechanism assembly. (See Fig.11)
(5) Disconnect the wire from the connectors CN991 and
CN992 on the main board. (See Fig.11)
Reference:
After connecting the wires, fix the wires with the wire
holders.
(6) Take out the main board from the bottom chassis assem-
bly.
Fig.10
Fig.11
3.1.7 Removing the rear bracket
(See Fig.12)
• Prior to performing the following procedures, remove the front
panel assembly, heat sink, top chassis assembly and main
board.
(1) From the rear side of the main board, remove the wires
from the rear bracket in the direction of the arrow.
(2) Remove the four screws J attaching the rear bracket to the
main board.
Reference:
After attaching the rear bracket to the main board, pass the
wires through the wire holder and insert them into the slots of
the rear bracket.
Fig.12
Rear bracket
Bottom chassis assembly
G
Connector
Wire holder CN701
Stopper
Bottom chassis assembly
H
HCN991
Wires
Main board
Card wire
Front door mechanism assembly
CN992
Wire holder
Rear bracket
J
J
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA048)1-11

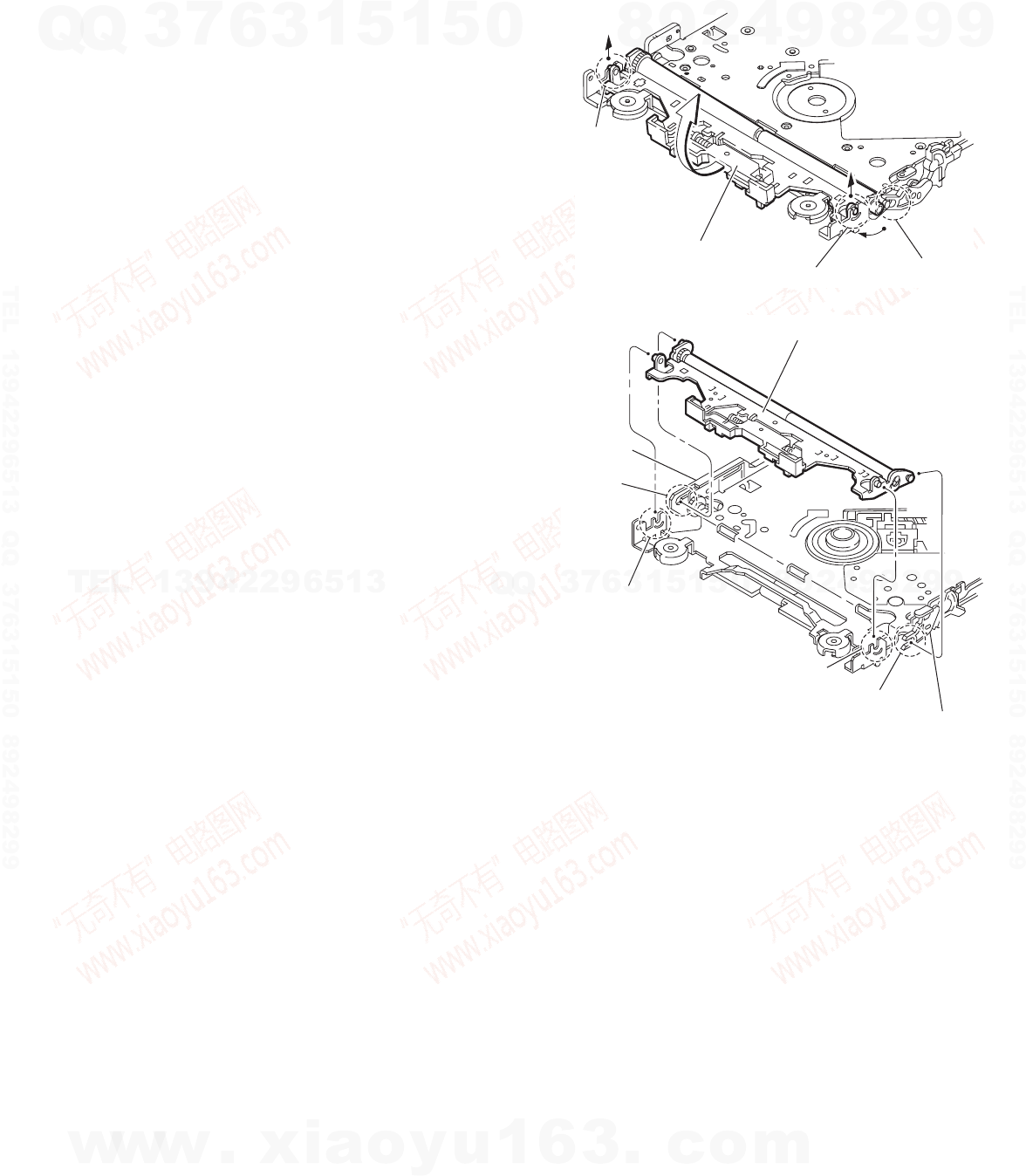

3.1.8 Removing the front door mechanism assembly
(See Fig.13)
• Prior to performing the following procedures, remove the front
panel assembly, heat sink, top chassis assembly and main
board.
(1) From the top side of the bottom chassis assembly, remove
the screw K attaching the shaft holder to the bottom chas-
sis.
(2) Remove the five screws L attaching the front door mecha-
nism assembly to the bottom chassis.
Reference:
When attaching the screws M and N, apply a locking
agent them.
(3) Take out the front door mechanism assembly from the bot-
tom chassis.
Fig.13
3.1.9 Removing the front board
(See Figs.14 to 16)
• Prior to performing the following procedures, remove the front
panel assembly.
(1) From the rear side of the front panel assembly, remove the
six screws M attaching the rear cover assembly to the front
panel assembly. (See Fig.14)
(2) Release the twelve joints a of the front panel assembly and
remove the rear cover assembly. (See Fig.15)
(3) Take out the front board from the front panel assembly.
(See Fig.16)
Caution:
Take care not to lose the spring.
Fig.14
Fig.15
Fig.16
Bottom chassis
LL
K
Shaft holder
Front door mechanism assembly
MRear cover assembly
M
M
Rear cover assembly
Joints a
Joints a
Front board
Front panel assembly
Spring
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-12 (No.MA048)
3.2 CD mechanism assembly
• Prior to performing the following procedure "Removing the CD mechanism assembly".
3.2.1 Removing the front-end board
(See Fig.1)
(1) From the top side of the CD mechanism assembly, solder
the short-circuit point on the flexible wire extending from
the CD pickup.
Caution:
Solder the short-circuit points on the flexible wire extend-
ing from the DVD pickup. If you do not follow this instruc-
tion, the DVD pickup may be damaged.
(2) Disconnect the flexible wire from connector CN601 on the
front-end board.
(3) Disconnect the flexible wire from connector CN503 on the
front-end board.
(4) Remove the solders from two solder points a on the front-
end board and disconnect the wire extending from the feed
motor.
(5) Remove the solders from six solder points b on the front-
end board disconnect the wires extending from the spindle
motor, SW board and reset SW board.
(6) Remove the five screws A attaching the front-end board.
Caution:
Unsolder the solders from the short-circuit points after reas-
sembling.
Fig.1
Feed motor
Solder
point a
Front end board
CN503
CN601
A
Solder
point b
A
A
A
Flexible wire
Short-circuit point
Spindle motor
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA048)1-13
3.2.2 Removing the top cover
(See Fig.2)
(1) From the back side of the CD mechanism assembly, re-
move the two screws B attaching the top cover.
(2) Take out the top cover upward.
Reference:
When reassembling the top cover, set parts c of the top cover
under the bending parts d of the chassis base.

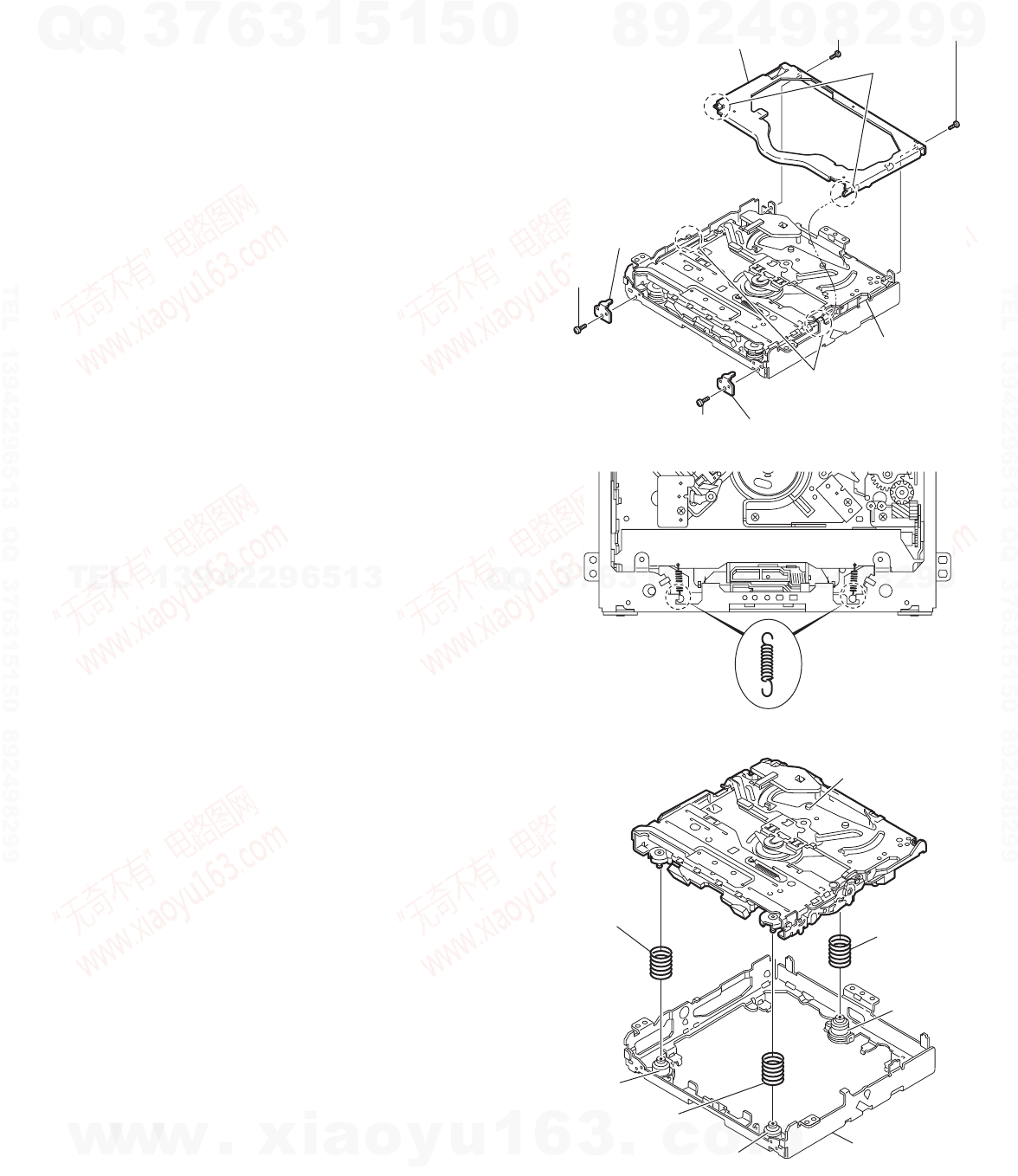

3.2.3 Removing the mechanism section
(See Figs.2 to 4)
• Prior to performing the following procedure, remove the top
cover.
(1) From the front side of the CD mechanism assembly, re-
move the two screws C attaching the right and left stop-
pers. (See Fig.2)
(2) Remove the two floating springs on the bottom of the body.
(See Fig.3)
(3) Take out the mechanism section upward, and remove the
three damper springs from the dampers. (See Fig.4)
Caution:
• When reassembling the mechanism section, reattach the
damper spring to the damper respectively and insert the
three shafts on the bottom of the mechanism to the damp-
ers. (See Fig.4)
• Before inserting the shaft to the dampers, apply IPA to the
hole of damper.
Fig.2
Fig.3
Fig.4
B
Top cover
Stopper
Stopper
C
C
B
Parts c
Parts d
Chassis base
Floating spring
Mechanism section
Damper
(Purple)
Damper
(Black)
Damper
(Black)
Chassis base
Damper
spring(F)
(Silver)
Damper
spring(F)
(Silver)
Damper
spring(R)
(Red)
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-14 (No.MA048)

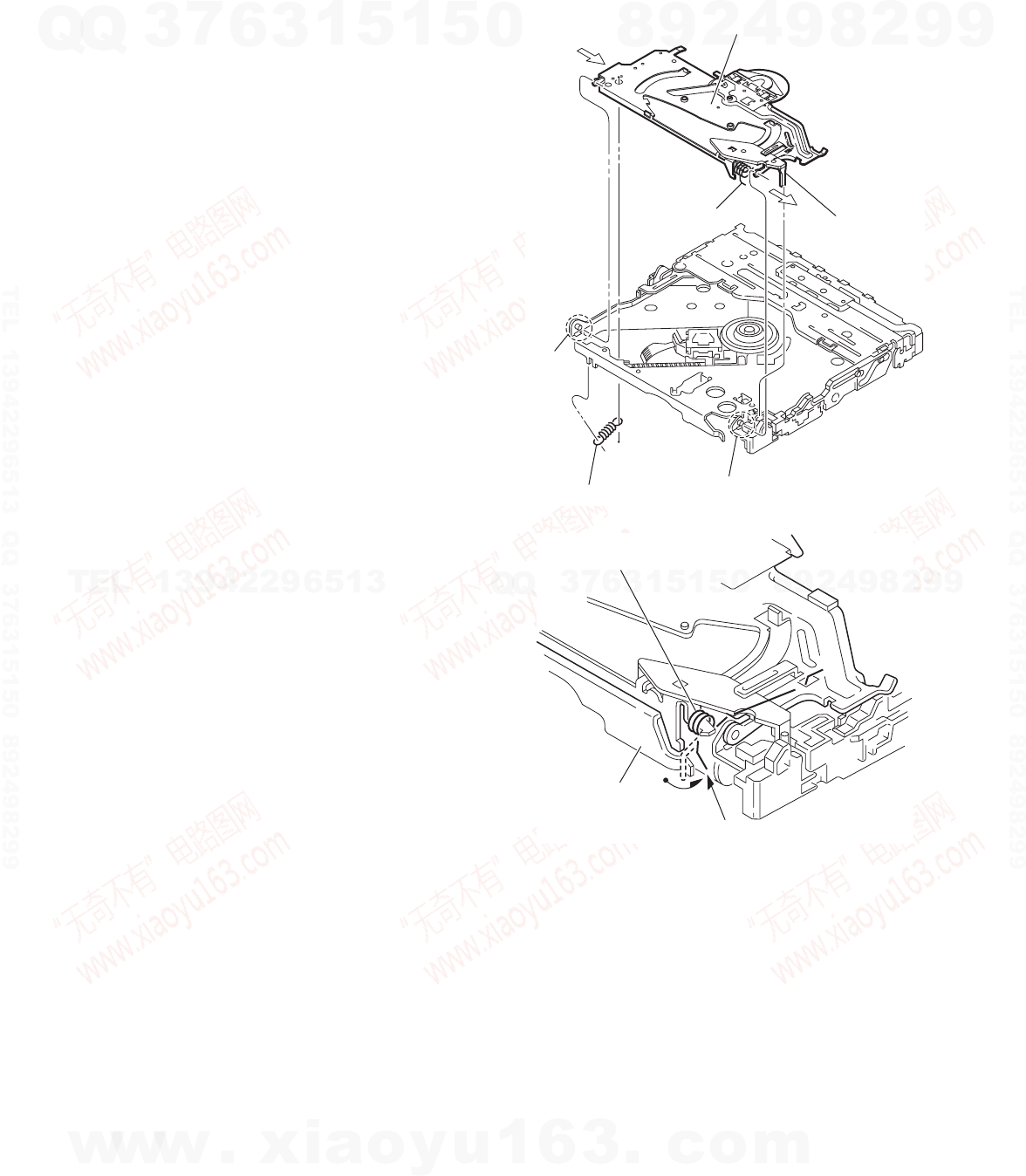

3.2.4 Removing the clamper unit
(See Figs.5 and 6)
• Prior to performing the following procedures, remove the top
cover and mechanism section.
(1) From the bottom of the mechanism section, remove the
clamper spring2. (See Fig.5)
(2) Release part e of the clamper spring from the bending part
of the chassis base assembly. (See Fig.6)
(3) Move the clamper unit in the direction of the arrow, and re-
lease the two joints f and g. (See Fig.5)
(4) Take out the clamper unit upward. (See Fig.5)
Fig.5
Fig.6
Clamper unit
Clamper spring
Clamper2 spring
Part h
Joint f
Joint g
Clamper spring
Chassis base
Part e
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA048)1-15
3.2.5 Reattaching the clamper unit
(See Figs.5 to 9)
(1) From the bottom of the mechanism section, attach the
clamper spring2 to the clamper unit. (See Figs.5 and 7)
(2) Move the clamper unit to set the side joints f and g to each
boss of the chassis base. (See Fig.5)
(3) Make sure that part h is inserted to the notch of the chassis
base. (See Figs.5 and 8)
(4) Move the clamper spring to the outside of the bending part
of the chassis base. (See Fig.9)
Caution:
When reattaching the clamper unit, temporarily hook the end
of the clamper spring as shown in the figure to make the work
easy. (See Fig.9)

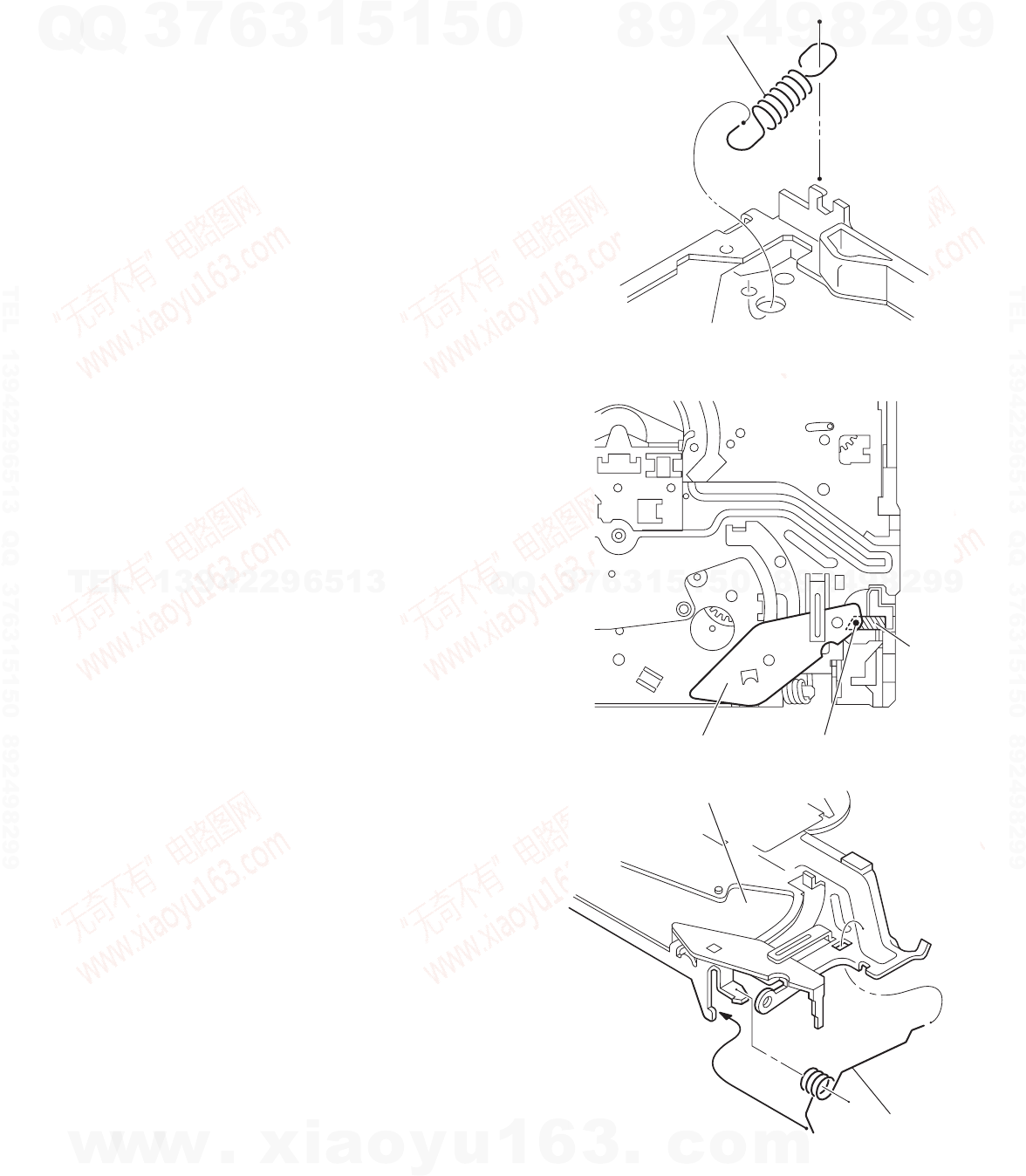

Fig.7
Fig.8
Fig.9
Chassis base
Clamper2 spring
Notch
Part h
Clamper unit
Clamper unit
Clamper spring
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-16 (No.MA048)
3.2.6 Removing the front unit
(See 10 to 12)
• Prior to performing the following procedures, remove the top
cover and mechanism section.
(1) From the bottom side of the mechanism section, discon-
nect the flexible wire from connector CN503 on the front-
end board. (See Fig.10)
(2) From the top of the mechanism section, remove the screw
D attaching the front unit. (See Fig.11)
(3) Move the front unit toward the front to release joint i. (See
Fig.11)
(4) Release two joints j and k on the right side of the chassis
base. (See Fig.12)
(5) Take out the front unit upward, and remove the two screws
E attaching the switch wire. (See Fig.12)
Reference:
You can remove the switch wire only without removing the
front unit.
Caution:
When reassembling, attach the flexible wire extending from
the switch wire using a double-stick tape. (See Fig.12)
Fig.10
Fig.11
Fig.12
Front-end
board
Flexible
wire
CN503
D
Front unit
Joint i
Joint i
Front unit
Switch wire
Joint j
D
E
Joint k
Double-stick tape
Chassis base
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA048)1-17
3.2.7 Removing the loading arm S.A.
(See Figs.13 and 14)
• Prior to performing the following procedures, remove the top
cover, mechanism section and front unit.
(1) From top side of the front unit, move the loading arm S.A.
from the front upwards. (See Fig.13)
(2) Release the bosses from the right and left joints m and n of
the chassis base. (See Figs.13 and 14)
(3) Release the boss from notch p of the connect arm on the
right side of the body, and release the boss from notch q of
the slide cam assembly on the left side. (See Fig.14)
Fig.13
Fig.14
Joint mNotch p
Joint n
Loading arm S.A.
Joint m
Notch p
Joint n
Loading arm S.A.
Notch q
Side cam
assembly
Connect arm
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-18 (No.MA048)

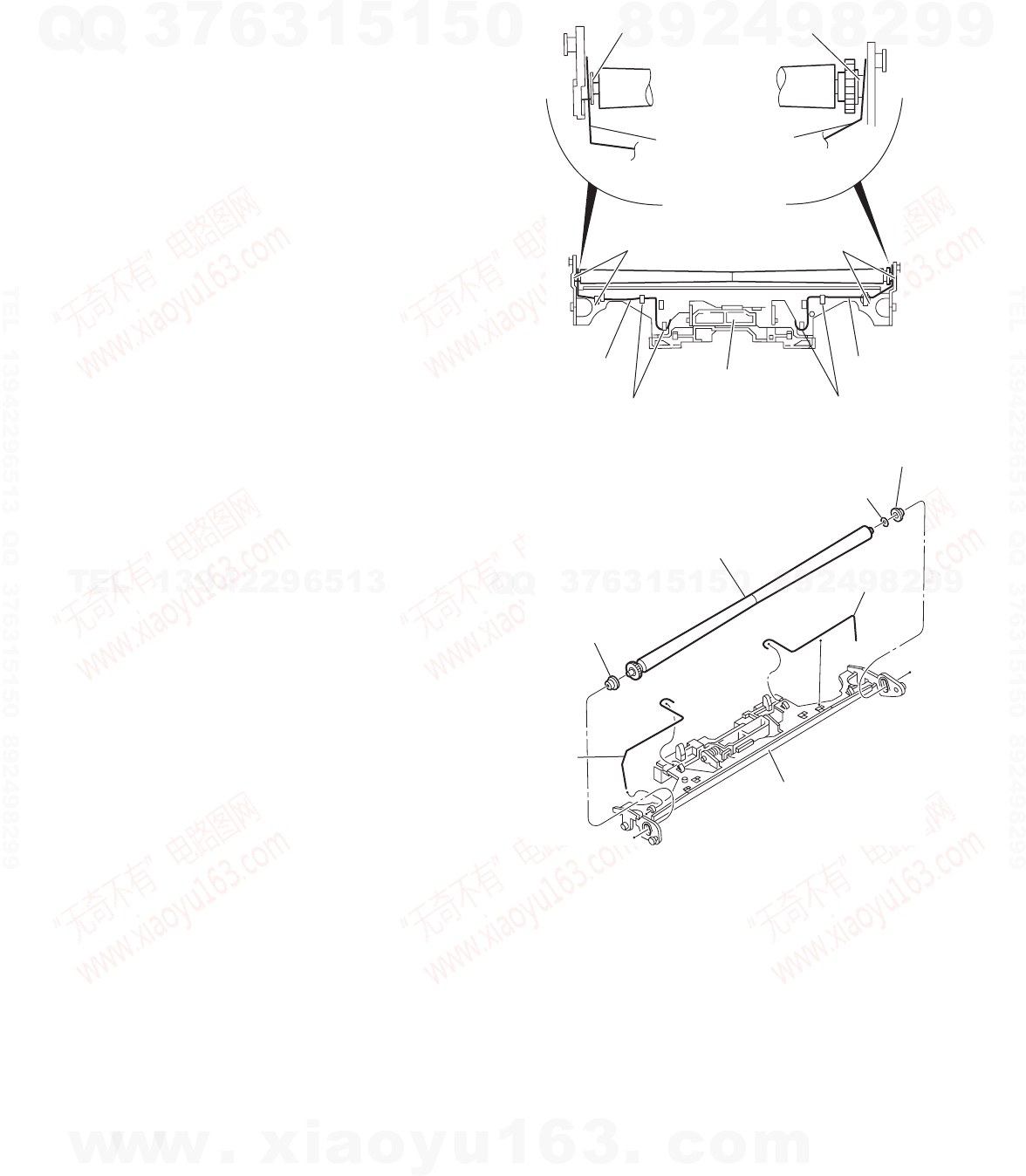

3.2.8 Removing the rod (L)(R) and roller assembly
(See Figs.15 and 16)
• Prior to performing the following procedures, remove the top
cover, mechanism section, front unit and loading arm S.A.
(1) From the bottom side of the loading arm S.A., release the
rod (L) and (R) from the joints r. (See Fig.15)
(2) Remove the roller assembly from the loading assembly.
(See Fig.16)
(3) Remove the two collars and washer from the roller assem-
bly. (See Fig.16)
Caution:
After attaching the roller assembly to the loading arm S.A., at-
tach the rod (L) and (R). Attach the rods to the right and left col-
lars of the roller. (See Fig.15)
Fig.15
Fig.16
Joints r
Joints rJoints r
Joints r
Rod(R) Loading arm S.A.
Rod(L)
Collar Collar
Rod(R) Rod(L)
Roller assembly
Washer
Collar
Collar
Rod(L)
Loading arm S.A.
Rod(R)
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA048)1-19
3.2.9 Removing the CD pickup assembly
(See Figs.17 to 19)
• Prior to performing the following procedure, remove the front-
end board.
(1) From the bottom of the CD mechanism assembly, turn the
feed gear in the direction of the arrow to move the CD pick-
up assembly outwards. (See Fig.17)
(2) Remove the screw F attaching the thrust spring. (See
Fig.17)
(3) Remove the CD pickup assembly upward from the side of
L.S.gear and release sub shaft from joint s. (See Fig.18)
(4) Move the lead screw of the CD pickup assembly in the di-
rection of the arrow to release at joint t. (See Fig.18)
(5) Remove the screw G attaching the rack spring and rack
plate on the CD pickup. (See Fig.19)
(6) Pull out the lead screw. (See Fig.19)
Caution:
• When reattaching the CD pickup assembly, reattach the sub
shaft at section s of the CD pickup assembly to the sub guide
first, and attach the lead screw shaft to the joint t on the
L.S.holder2. (See Fig.18)
• Perform adjustment after replacing the pickup.
Fig.17
Fig.18
Fig.19
F
Feed gear
Thrust spring
CD Pickup assembly
Joint s
Joint t
L.S.holder 2
L.S.Gear
Lead screw
Sub shaft
CD Pickup assembly
Sub guide
G
Rack spring
Rack plate
L.S.Collar
CD Pickup
Lead screw
L.S.Gea
r
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-20 (No.MA048)
3.2.10 Removing the spindle motor
(See Fig.20)
• Prior to performing the following procedure, remove the front-
end board.
(1) From the bottom side of the CD mechanism assembly, re-
move the T.table assembly and washer from the spindle
motor.
(2) Remove the two screws H attaching the spindle motor.
Caution:
Perform adjustment when reattaching the spindle motor.
Fig.20
3.2.11 Removing the FL motor S.A.
(See Figs.21 and 22)
• Prior to performing the following procedure, remove the front-
end board.
(1) From the top side of the CD mechanism assembly, remove
the F.T.spring. (See Fig.21)
(2) Remove the two screws J attaching the FL motor S.A. (See
Fig.21)
(3) Remove the slit washer from the motor H.assembly and
pull out the worm wheel. (See Fig.22)
(4) Remove the two screws K attaching the FL motor. (See
Fig.22)
Fig.21
Fig.22
Washer
H
T. table assembly
Spindle motor
J
FL Motor S.A.
F.T.Spring
FL Moto
r
Motor H.assembly
Worm wheel
K
Slit washer
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA048)1-21

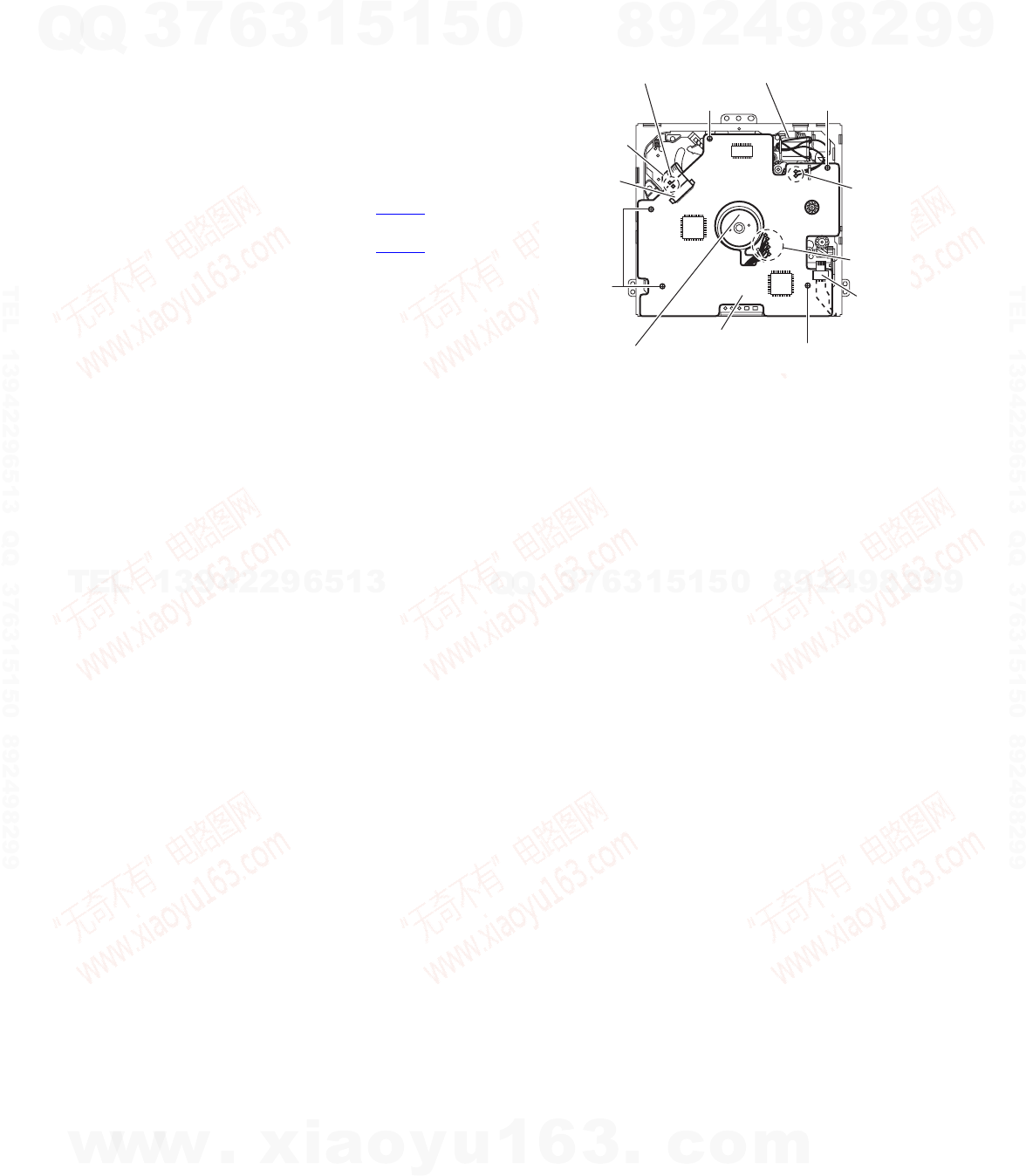

3.2.12 Removing the SW board and reset SW board
(See Fig.23)
• Prior to performing the following procedure, remove the front-
end board.
(1) From the top side of the CD mechanism assembly, remove
the screw L attaching the SW board.
(2) Remove the screw M attaching the reset SW board.
Fig.23
ML
Reset SW boardSW board
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-22 (No.MA048)
SECTION 4
ADJUSTMENT
4.1 Adjustment method
Test instruments required for adjustment
(1) Digital oscilloscope (100MHz)
(2) Electric voltmeter
(3) Digital tester
(4) Tracking offset meter
(5) Test Disc JVC :CTS-1000
(6) Extension cable for check
EXTSH002-22P × 1
Standard volume position
Balance and Bass &Treble volume : lndication"0"
Loudness : OFF
Standard measuring conditions
Dummy load
Exclusive dummy load should be used for AM,and FM. For FM
dummy load,there is a loss of 6dB between SSG output and
antenna input.The loss of 6dB need not be considered since
direct reading of figures are applied in this working standard.

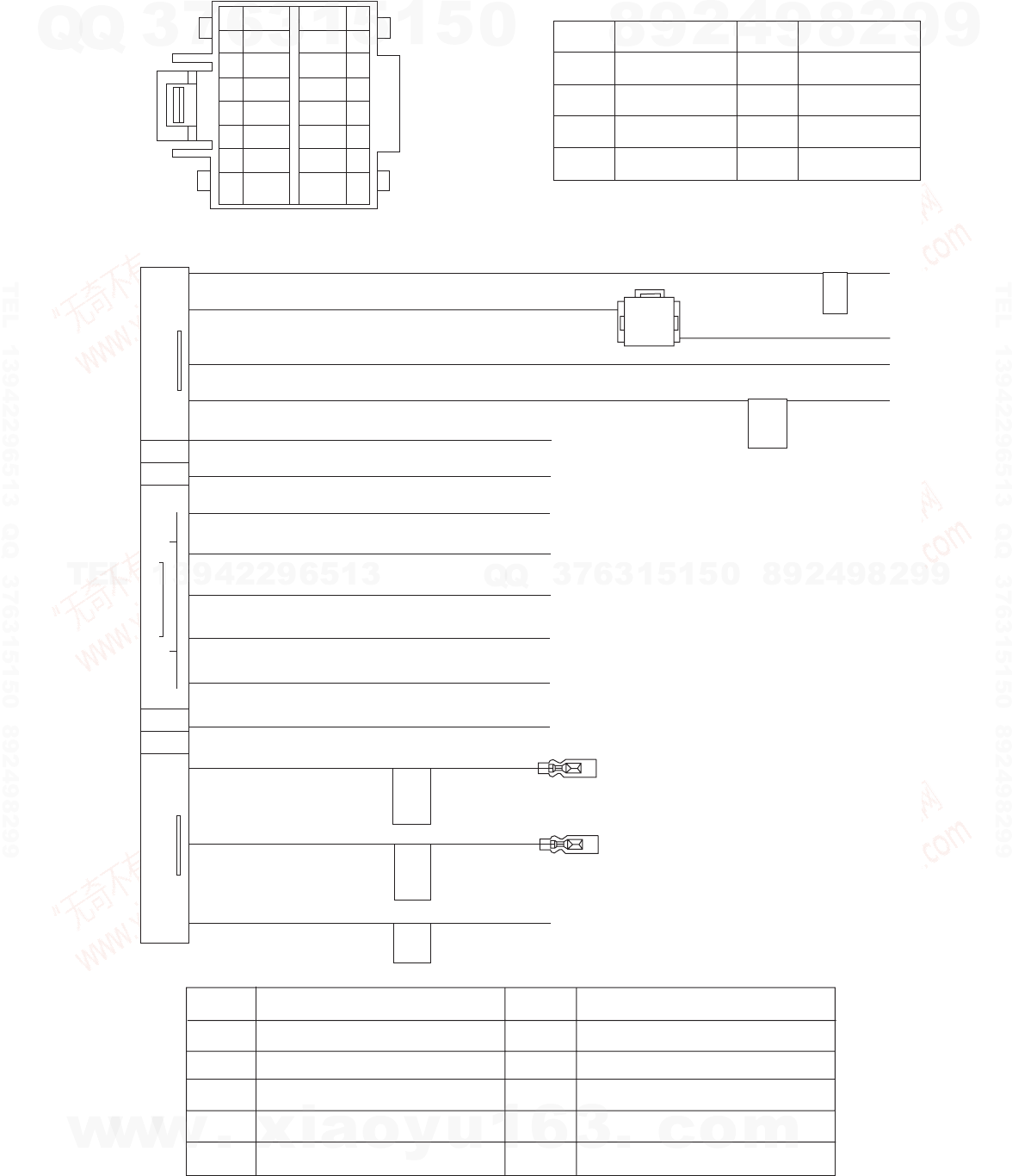

How to connect the extension cable for adjusting
Caution:
Be sure to attach the heat sink and rear bracket onto the power amplifier IC and regulator IC respectively, before supply the power.
If voltage is applied without attaching these parts, the power amplifier IC and regulator IC will be destroyed by heat.
Power supply voltage DC14.4V(11 to 16V)
Load impedance 20KΩ(2 Speakers connection)
Output Level Line out 5.0V (Vol. MAX)
Extension cable: EXTSH002-22P
Rear bracket
Heat sink
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA048)1-23
4.2 Service mode
4.2.1 Service mode setting
(1) Push POWER BOTTON (Power ON)
(2) Set to service mode
By pushing and holding "DISP" button + "VOLUME +" button + "MENU" button sequentially.
SERVICE MODE
RUNNING MODE
DATA CLEAR
ROM COLLECTION
DSP TUNER S MODE
DSP TUNER ADJUST
SERVICE MODE (MENU)
VERSION
ERR READ
CD DATA READ
SERVICE MODE
CD V***
VERSION
CD ERROR READ
CH ERROR READ
PANEL MECHA ERROR READ
A.DSP ERROR READ
T.DSP ERROR READ
CD ERROR READ
TOTAL ERROR : ****
E1 **** E3 ****
E2 ****
1 **** 4****
2 **** 5****
3 ****
CD ERROR READ
AB
VERSION
MAIN V***
CH V***
TOTAL ERROR : ****
E1 **** E3 ****
E2 ****
1 **** 4****
2 **** 5****
3 ****
CH ERROR READ
TOTAL ERROR : ****
E1 **** E3 ****
E2 ****
1 **** 4****
2 **** 5****
3 ****
PANEL MECHA ERROR READ
ERROR COUNT ***
RETRY OVER ***
A.DSP ERROR READ
RETRY ***
NG ***
T.DSP ERROR READ
PICT
OK
BAND
SOURCE
MENU
BACK
DISP
"VOLUME +" button
"DISP" button "MENU" button
"OK" button "CURSOR" button
"SOURCE" button
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-24 (No.MA048)
AB
CD
ADJ NOW
ADJ INT
OTHERS
CD DATA READ
FEB ** FEO ** TEB ** RFG**
FGA ** TEO ** TGA **
ADJ NOW
IOP TEMP I** T** TOP INT
TEMP MIX ** P TOTAL ****H
OTHERS
FEB ** FEO ** TEB ** RFG**
FGA ** TEO ** TGA **
ADJ INT
RUNNING MODE 1
RUNNING MODE 2
RUNNING MODE 3
RUNNING MODE 4
RUNNING MODE
RUNNING MODE 1
COUNT : ******
ERROR : ******
RUNNING MODE 2
COUNT : ******
ERROR : ******
RUNNING MODE 3
COUNT : ******
ERROR : ******
RUNNING MODE 4
COUNT : ******
ERROR : ******
Running mode1
Loading TOC reading 1st Tr playing (30s)
Last Tr playing (30s) Eject
Running mode1
Loading TOC reading 1st Tr playing (30s)
Last Tr playing (30s) Eject
Running mode3
Loading Check completed Eject
Running mode 4
Loading TOC reading Last Tr playing (1s)
Eject
ADJ NOW
The auto adjustment value o
f
survo at now
ADJ INT
The auto adjustment value o
f
survo at initial
EPROM CLEAR
NAME CLEAR
CD ERROR CLEAR
CH ERROR CLEAR
PANEL MECHA ERROR CLEAR
PICTURE CLEAR
A.DSP ERROR CLEAR
T.DP ERROR CLEAR
DATA CLEAR
EPROM CLEAR
NOW... EPROM CLEAR
NAME CLEAR
NOW... NAME CLEAR
CD ERROR CLEAR
NOW... CD ERROR CLEAR
CH ERROR CLEAR
NOW... CH ERROR CLEAR
PANEL MECHA ERROR CLEAR
NOW... PANEL MECHA ERROR CLEAR
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA048)1-25
CD
PICTURE CLEAR
NOW... PICTURE CLEAR
A.DSP ERROR CLEAR
NOW... A.DSP ERROR CLEAR
T.DSP ERROR CLEAR
NOW... T.DSP ERROR CLEAR
DATA READ
DATA CLEAR
ROM COLLECTION
DATA READ (Without disk)
PLEASE INSERT
DATA READ (With disk)
NOW...
DATA CLEAR
If "DISP" and "SOURCE" buttons are pushed and
held during the usual display, it will shift to ROM
COLLECTION.
DATA CD
DATA READING
DON'T TOUCH ANY KEY
NOW... DATA CLEAR
SUCCESS
FAILURE
SUCCESS!! VER ***
PLEASE EJECT CD
FAIL
PLEASE EJECT CD
A panel is opened automatically
Insert data disk
VER=V*** SPI=**
PI=**** ***.** SMI=***%
PTY=** ******* MP=***%
TP/TA=*/* EON ADJ=***%
MS/DI=*/* STERO BW=*
AF
** ** ** ** ** ** **
** ** ** ** ** ** **
** ** ** **
RDS ENGINNER MODE
DSP TUNER S MODE
RDS ENGINNER MODE
OK/BAND : ENTER
EF
SYNC=*
AFC=****s
PIC=****s
SYNC=*
Select the value with
"CURSOR" button.
PIC=****s
Select the value with
"CURSOR" button.
Status "PI", "PTY", "TP/TA",
"EON", "MS/DI", "AF" are
RDS model only.
RDS model only
SYNC=* DEFAULT * BACK / DISP
ENTER : OK / BAND
PIC=****s DEFAULT * BACK / DISP
ENTER : OK / BAND
AFC=****s DEFAULT * BACK / DISP
ENTER : OK / BAND
AFC=****s
Select the value with
"CURSOR" button.
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-26 (No.MA048)
EF
MP=******
SMTH1=******
SMTH2=******
MP=******
Change the value with
"CURSOR" button.
SMTH2=******
Change the value with
"CURSOR" button.
RDS model only
MP=****** DEFAULT * BACK / DISP
ENTER : OK / BAND
SMTH2=****** DEFAULT * BACK / DISP
ENTER : OK / BAND
SMTH1=****** DEFAULT * BACK / DISP
ENTER : OK / BAND
SMTH1=******
Change the value with
"CURSOR" button.
SM L=******
ADJ=******
SM L=******
Change the value with
"CURSOR" button.
ADJ=******
Change the value with
"CURSOR" button.
SM L=****** DEFAULT * BACK / DISP
ENTER : OK / BAND
ADJ=****** DEFAULT * BACK / DISP
ENTER : OK / BAND
SMM2=******
SMM1=******
SMM2=******
Change the value with
"CURSOR" button.
SMM1=******
Change the value with
"CURSOR" button.
SMM2=****** DEFAULT * BACK / DISP
ENTER : OK / BAND
SMM1=****** DEFAULT * BACK / DISP
ENTER : OK / BAND
AUTO ADJUSTMENT
MANUAL ADJUSTMENT
DSP TUNER AJUST
AUTO ADJUSTMENT
AUTO ADJUSTMENT
G H
1.FM DAA
87.5MHz
40dBuV 0%
1.FM DAA
87.5MHz
40dBuV 0% No Signal
2.FM DAA
97.9MHz
40dBuV 0%
2.FM DAA
97.9MHz
40dBuV 0% No Signal
3.FM DAA
108.0MHz
40dBuV 0%
3.FM DAA
108.0MHz
40dBuV 0% No Signal
4.FM S.MATER
97.9MHz
40dBuV 0%
4.FM S.MATER
97.9MHz
40dBuV 0%
High or Low or No Signal
5.FM S.MATER
97.9MHz 7
0dBuV 0%
5.FM S.MATER
97.9MHz 7
0dBuV 0%
High or Low or No Signal
6.FM FULL SEPARATION
97.9MHz 7
0dBuV 0%
Lch 40MHzmod 1kHz
6.FM FULL SEPARATION
97.9MHz 7
0dBuV 0%
Adjustment NG or No Signal
J
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA048)1-27
MANUAL ADJUSTMENT
MANUAL ADJUSTMENT
G H
7.FM IF COUNTER
97.9MHz 7
0dBuV 0%
7.FM COUNTER
97.9MHz 7
0dBuV 0%
Adjustment NG or No Signal
8.AM S.METER
999kHz 26
dBuV 0%
8.AM S.METER
999kHz 26
dBuV 0%
High or Low or No Signal
9.AM S.METER
999kHz 56
dBuV 0%
9.AM S.METER
999kHz 56
dBuV 0%
High or Low or No Signal
10.AM IF COUNTER
999kHz 56
dBuV 0%
10.AM IF COUNTER
999kHz 56
dBuV 0%
Adjustment NG or No Signal
AUTO ADJUSTMENT
COMPLETED
POWER
J
POWER OFF
(ADJUSTMENT MODE FINISH)
1.FM DAA
87.5MHz
40dBuV 0%
1.FM DAA
87.5MHz
40dBuV 0% No Signal
2.FM DAA
97.9MHz
40dBuV 0%
2.FM DAA
97.9MHz
40dBuV 0% No Signal
3.FM DAA
108.0MHz
40dBuV 0%
3.FM DAA
108.0MHz
40dBuV 0% No Signal
4.FM S.MATER
97.9MHz
40dBuV 0%
4.FM S.MATER
97.9MHz
40dBuV 0%
High or Low or No Signal
5.FM S.MATER
97.9MHz 7
0dBuV 0%
5.FM S.MATER
97.9MHz 7
0dBuV 0%
High or Low or No Signal
6.FM FULL SEPARATION
97.9MHz 7
0dBuV 0%
Lch 40MHzmod 1kHz
6.FM FULL SEPARATION
97.9MHz 7
0dBuV 0%
Adjustment NG or No Signal
7.FM IF COUNTER
97.9MHz 7
0dBuV 0%
7.FM COUNTER
97.9MHz 7
0dBuV 0%
Adjustment NG or No Signal
8.AM S.METER
999kHz 26
dBuV 0%
8.AM S.METER
999kHz 26
dBuV 0%
High or Low or No Signal
9.AM S.METER
999kHz 56
dBuV 0%
9.AM S.METER
999kHz 56
dBuV 0%
High or Low or No Signal
10.AM IF COUNTER
999kHz 56
dBuV 0%
10.AM IF COUNTER
999kHz 56
dBuV 0%
Adjustment NG or No Signal
MANUAL ADJUSTMENT
COMPLETED
POWER
POWER OFF
(ADJUSTMENT MODE FINISH)
Press OK
Press OK
Press OK
Press OK
Press OK
Press OK
Press OK
Press OK
Press OK
Press OK
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-28 (No.MA048)
4.2.2 Detailed CD error code
Error Details of error Error code Detailed error code
Focus serch error
Focus is not adjusted by
3-round focus serch
When foucus is not adjusted by
3-round(1set) focus serch after
disc change or focus shock,
the result is NG
81H 0053
0054
0055
0056
0057
0058
0059
0060
0061
0062
0063
0064
Tracking balance adjustment error
Time over(1s)
Tracking balance adjustment is
not finished 1s after adjustment
command(TBA) is executed
TOC area search error
Time over(10s)
TOC area search is not finished
after 10s
Focus balance adjustment error
Time over(2s)
Foucus gain adjustment error is not
finished 0.6s after the adjustment
command(FGA) is executed
Focus balance adjustment is
not finishied 2s after the adjustment
command(FBA) is executed
Focus gain adjustment error
Time over(0.6s)
Tracking gain adjustment error
Time over(0.6s)
Tracking gain adjustment error
is not finished 0.6s after the
adjustment command(TGA) is
executed
TOC read error
Time over(30s)
TOC read operation is not
finished after 30s
1st track access error
Time over(10s)
1st track access is not finished
10s after TOC reading is finished
Last track access error
Time over(10s)
Last track access is not finished
10s after 1st track in running mode
Q code read error
Time over(0.6s)
Q code is not read for 0.6s during
playback of TOC and program
area
TEXT data read error ALL TEXT data are not read
RF read error RF is not read
RFOK is recognized as L
82H
80H
82H
82H
82H
84H
80H
80H
80H
80H
81H
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA048)1-29
4.2.3 Detailed error code of mechanism error
4.2.4 CD error
Error Details of error Error code Detailed error code
Disc loading error
1.B1 Time out
2.C1 Time out
3.D1 Time out
4.C2 Time out
5.B2 Time out
6.A2 Time out
7.F1 Time out
8.A0 (State of the non-existing switch)
9.G1 Time out
Error while wating for loading
While waiting for loading (15
seconds), SW1 becomes L
before stating loading motor
When a disc is removed
09H
09H
09H
09H
09H
09H
09H
09H
09H
01H
01H
01H
01H
01H
01H
01H
01H
01H
09H
0011
0012
0013
0014
0015
0016
0017
0018
0019
0021
0022
0023
0024
0025
0026
0027
0028
0029
0031
Eject error
1.F2 Time out
2.A1 Time out
3.B1 Time out
4.C1 Time out
5.D1 Time out
6.C2 Time out
7.B2 Time out
8.A0 (State of the non-existing switch)
9.G2 Time out
Pickup movement error
1.Time over of the pickup movement
around inner circumference (10 sec.)
2.Time over of the pickup movement
around inner circumference (10 sec.)
Time over at PUBWD and
PUFWD by monitoring
RESET SW
04H
04H
0051
0052
Indication Details
R1_????
E1_????
E2_????
E3_????
##E????
Displaying running count
Last error
Second last error
Third last error
Displaying CD error
##: Amount of errors
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-30 (No.MA048)
4.2.5 Detailed CD changer mechanisum error code
0041
0042
0043
02H
02H
02H
02H
01H
02H
02H
02H
Tray retraction error
1.Tray-in switch time out
(Tray-in switch Low,Tray-out switch High)
2.Tray-out switch time out
(Tray-in switch High,Tray-out switch High)
3.Tray-in switch time out
(Tray-in switch Low,Tray-out switch Low)
4.MAG-in switch Low to high
Error Details of error Error code Detailed error code
Tray extension error
1.Tray-in switch time out
(Tray-in switch Low,Tray-out switch High)
2.Tray-out switch time out
(Tray-in switch High,Tray-out switch High)
3.Tray-in switch time out
(Tray-in switch Low,Tray-out switch Low)
4.MAG-in switch Low to high
Tray stops part way
Tray stops part way
Tray-in switch faulty or
other defect
Magazine removed when
tray partly extende
0011
0012
0013
0014
0021
0022
0023
Tray motor inoperative
Tray retraction stops part way
Tray-in switch faulty or
other defect
Magazine removed when
tray partly retracted
03H
03H
03H
03H
0016
0017
0018
0019
0026
0027
0028
0036
0037
0038
0046
0047
Position motor inoperative
Posistion not stable in
fine adjust mode
Other fault
Position motor inoperative
Position not stabel in
fine adjust mode
Other fault
Position motor inoperative
Position not stable in
fine adjust mode
Other fault
Position motor inoperative
Position not stable in
fine adjust mode
Other fault
Position motor inoperative
Eject position not attained*
Magazine not ejected
Both Tray-in and Tray-out Low
Not stable at absolute position*
02H
02H
02H
Lifter raise error
1.Wait position time out
2.Wait position time out
3.Wait position time out
Lifter lower error
1.Wait position time out
2.Wait position time out
3.Wait position time out
Chuck error
1.Play position time out
2.Play position time out
3.Play position time out
Unchuck error
1.Wait position time out
2.Wait position time out
3.Wait position time out
Eject error
1.Eject position time out
2.Eject position time out
3.MAG in switch time out
Initialize error
1.Mechanism switch NG error
2.Absolute position time out
02H
02H
02H
02H
02H
02H
0031
0032
0033
03H
03H
03H
03H
Note*:Wait position,play position,not stable at absolute position and eject position not attained,
all error is position motor time out.
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA048)1-31
4.2.6 Detailed CD changer error code
Error Details of error Error code Detailed error code
Focus serch error
Focus is not adjusted by
3-round focus serch
When foucus is not adjusted by
3-round(1set) focus serch after
disc change or focus shock,
the result is NG
81H 53H
54H
55H
56H
57H
58H
59H
60H
61H
62H
Tracking balance adjustment error
Time over(1s)
Tracking balance adjustment is
not finished 1s after adjustment
command(TBA) is executed
TOC area search error
Time over(10s)
TOC area search is not finished
after 10s
Focus balance adjustment error
Time over(2s)
Foucus gain adjustment error is not
finished 0.6s after the adjustment
command is executed
Focus balance adjustment is
not finishied 2s after the adjustment
command is executed
Focus gain adjustment error
Time over(0.6s)
Tracking gain adjustment error
Time over(0.6s)
Tracking gain adjustment error
is not finished 0.6s after the
adjustment command is
executed
TOC read error
Time over(20s)
TOC read operation is not
finished after 20s
1st track access error
Time over(10s)
1st track access is not finished
10s after TOC reading is finished
Last track access error
Time over(10s)
Last track access is not finished
10s after 1st track in running mode
Q code read error
Time over(0.6s)
Q code is not read for 0.6s during
playback of TOC and program
area
82H
80H
82H
82H
82H
84H
80H
80H
80H
Pickup movement error
1.Time over of pickup movement
around inner circumference (10s)
2.Time over of pickup movement
around outer circumference (10s)
Time over at PUBWD and PUFWD
by monitoring RESET SW
Pickup cannot move to an inner
circumference. RESET SW is not on.
Pickup cannot move to an outer
circumference. RESET SW is not off.
04H
04H
51H
52H
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-32 (No.MA048)
SECTION 5
TROUBLESHOOTING

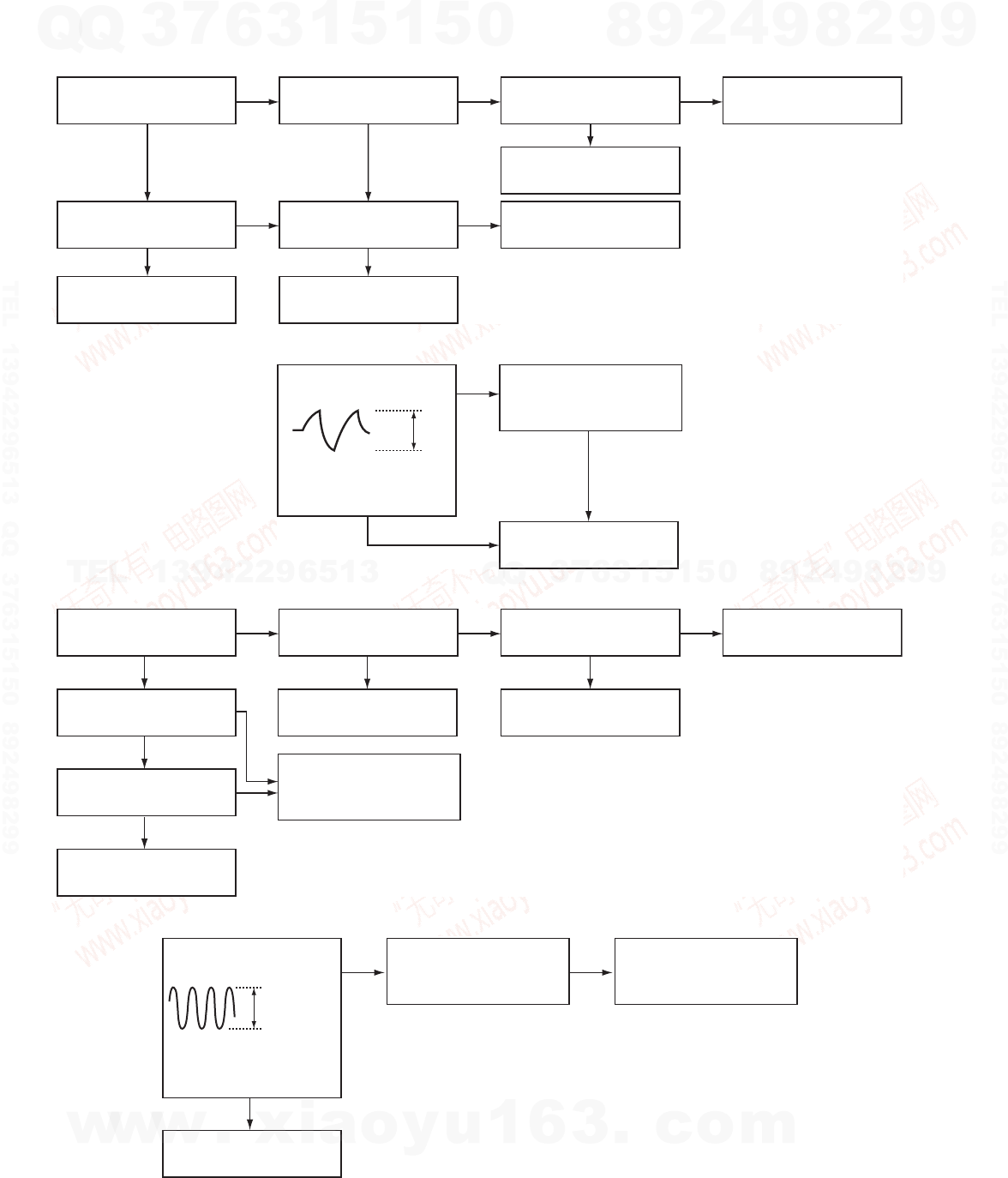

5.1 Feed section
5.2 Focus section
5.3 Spindle section
5.4 Tracking section
Check the feed motor.
Is 4V present at both
sides of the feed motor?
Is the wiring for IC601
pin 63 correct?
NO
YES
YES
Is 2V at IC601 pin 63?
NO Is 2V present at IC681
pins 1 and 27?
NO
Check IC681.
YES
YES
Is 8V present at IC681
pins 3 and 12?
Check the feed motor
connection wiring.
YES
Check the vicinity of
IC601.
NO Check CD8V.
NO
When the lens is
moving:
Check the circuits in
the vicinity of IC681
pins 13 and 14.
Does the S-search
waveform appear at
IC681 pins 10 and 11?
4V
YES
NO
YES
Check the pickup and
its connections.
Is the disk rotated?
YES
NO Is 4V present between
IC681 pins 6 and 7?
NO Is 4V present at IC601
pin 64?
NO
Check IC601.
Does the RF signal
appear at IC601 pin 26?
YES
YES
Check the spindle motor
and its wiring.
Is the RF waveform
at IC601 pin 26 distorted?
YES
Proceed to the Tracking
section
Check the circuits in
the vicinity of IC601
or the pickup.
NO
NO
YES
Check the vicinity of
IC681.
When the disc is rotated
at first:
Approx. 1.2V
Is the tracking error
signal output at IC601
pin 57?
YES
Check IC601.
Check the circuits in
the vicinity of IC601
pins 48 and 49 .
NO
Check the pickup and
its connections.
NO
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA048)1-33
5.5 Signal processing section
No sound from either
channel.
Is 9V present at IC165
/IC265 pin 16?
Compare the L-ch and
R-ch to locate the
defective point.
Is the sound output from
both channels (L, R)?
NO
YES
Is 5V present at IC365
pina 2, 3, 9 and 10?
Normal
NO
YES
NO Is 9V present at IC901
pin 10?
YES
Check the connection
between IC901 pin10
and IC165/IC265 pin
16.
Check IC901 and its
peripheral circuits.
NO
YES
NO Check the vicinity of
IC365.
YES
Check the speaker
connector and its
connection.
YES
Is 7V present at IC951
pina 1, 5, 7, 9, 17, 19
21 and 23?
NO Check the power amp.
IC951.
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-34 (No.MA048)
5.6 Maintenance of laser pickup
(1) Cleaning the pick up lens
Before you replace the pick up, please try to clean the lens
with a alcohol soaked cotton swab.
(2) Life of the laser diode
When the life of the laser diode has expired, the following
symptoms will appear.
• The level of RF output (EFM output: amplitude of eye
pattern) will be low.
(3) Semi-fixed resistor on the APC PC board
The semi-fixed resistor on the APC printed circuit board
which is attached to the pickup is used to adjust the laser
power.Since this adjustment should be performed to match
the characteristics of the whole optical block, do not touch
the semi-fixed resistor.
If the laser power is lower than the specified value, the la-
ser diode is almost worn out, and the laser pickup should
be replaced. If the semi-fixed resistor is adjusted while the
pickup is functioning normally, the laser pickup may be
damaged due to excessive current.

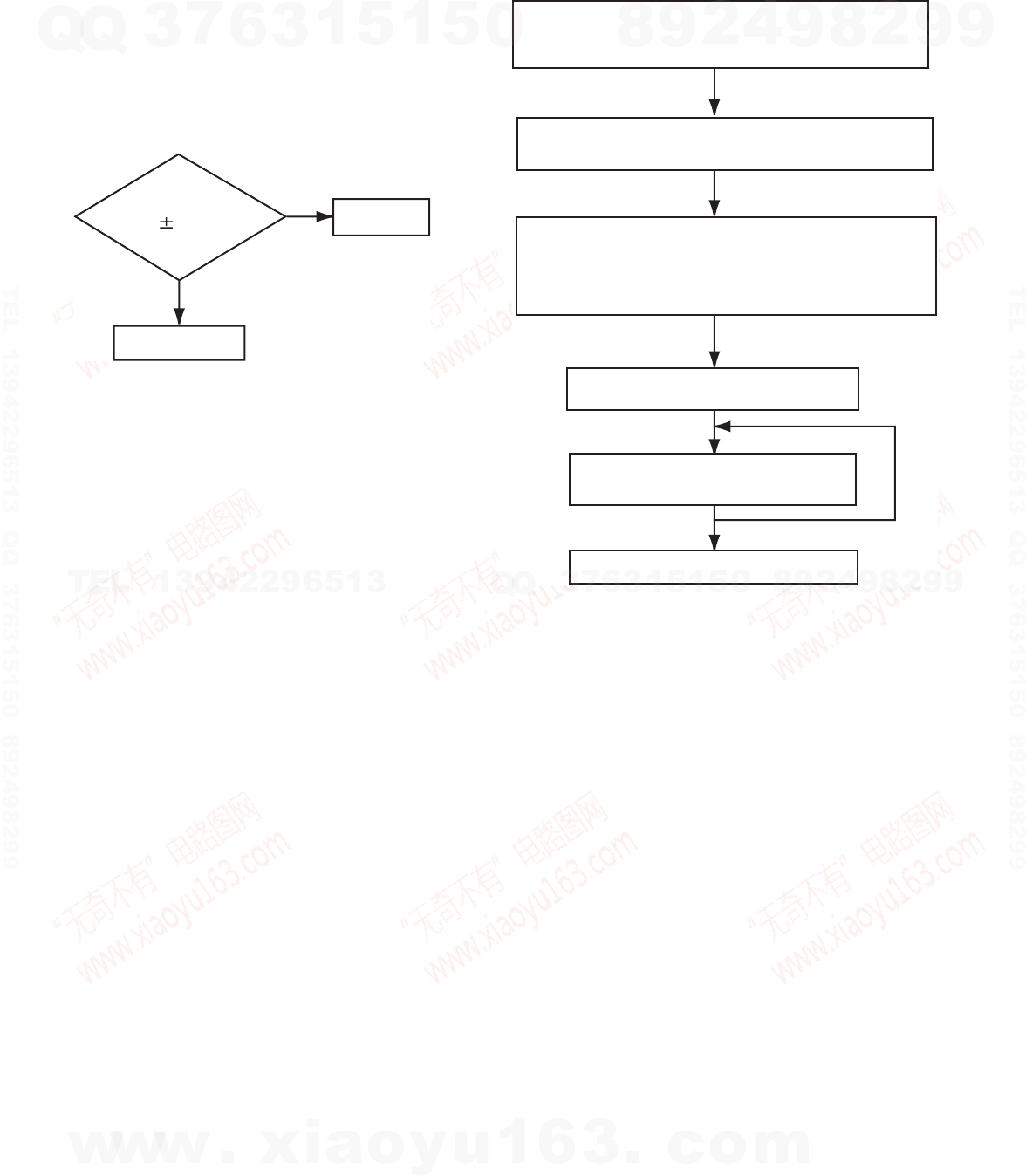

5.7 Replacement of laser pickup
Is RF output
1.3 0.4Vp-p?
YES
NO
OK
Replace it.
Turn of the power switch and, disconnect the
power cord.
Replace the pickup with a normal one. (Refer
to "Removing the pickup unit" on the previous page.)
Plug the power cord in, and turn the power on.
At this time, check that the laser emits for about
seconds and the objective lens moves up and down.
Note: Do not observe the laser beam directly.
Play a disc.
Check the eye-pattern at
RF test point.
Finish.
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA048)1-35
5.8 16PIN CORD DIAGRAM
9
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8GN
GN/BK
VI/BK
VI
BL
BL/WH
RD
BK
WH
WH/BK
GY/BK
GY
NC
BR
OR/WH
YL
Black
RD
BK
Red
BL Blue
WH White
GN Green
VI Violet
GY Gray
OR Orange
YL
Yellow
BR Brown
GND
BK
1
6YL
2RD
ILLUMINATION
CONTROL
OR/WH
15
9WH
10 WH/BK
12 GY
11 GY/BK
8GN
7GN/BK
5VI
6 VI/BK
4BL
3 BL/WH
13 BR
POWER ANTENNA
REMOTE OUT
TEL MUTING
RR
FR
FL
RL
REMOTE
ANT
ACC
ILL
GND
MEMORY
Rear Right
Front Right
Front Left
Rear Left
Remote out
ACC Line
Illuminations Control
Ground
Memory Backup Battery+
Auto Antenna
TEL Telephone muting
GND
MEMORY
ACC
ILL
FL+
FL-
FR+
FR-
RL+
RL-
RR+
RR-
ANT
REMOTE
TEL
Choking Coil
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA048)
AV & MULTIMEDIA COMPANY CAR ELECTRONICS CATEGORY 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan
Victor Company of Japan, Limited
WPC
Printed in Japan
http://www.xiaoyu163.com
http://www.xiaoyu163.com
SCHEMATIC DIAGRAMS
CD RECEIVER
No.MA048SCH
2004/5
COPYRIGHT 2004 VICTOR COMPANY OF JAPAN, LTD.
KD-SHX705
Area suffix
U -------------------- Other Areas
KD-SHX705
PICT
OK
BAND
SOURCE
MENU
BACK
DISP
Contents
Block diagram
Standard schematic diagrams
Printed circuit boards
2-1
2-2 to 6
2-7 to 9
CD-ROM No.SML200405
http://www.xiaoyu163.com
http://www.xiaoyu163.com
!Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
Safety precaution
!Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.
http://www.xiaoyu163.com
http://www.xiaoyu163.com

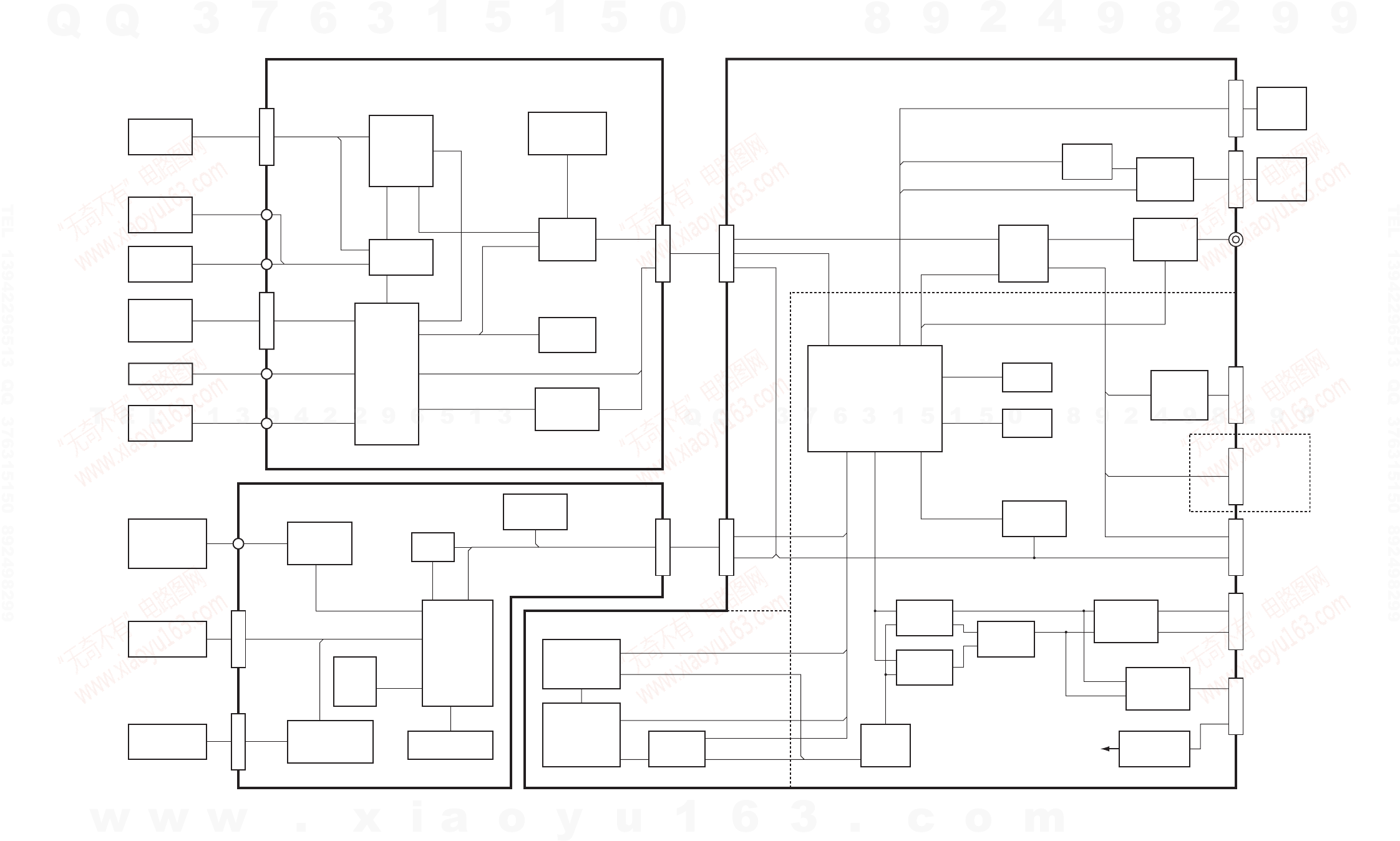

2-1
IC841
REMOCON
IC801
LCD
DRIVER
LCD
MODULE
REM
KEY0 to 2
KEYIN
D0 to D7
OSC, RES, CS2
A0, WE, RE/RD
SW1
SW2
SW3
REST
SWITCH
LOAD/FEED
MOTOR
SPINDLE
MOTOR
PICK UP
CN601
SW1, SW2, SW3
REST
LOAD/FEED+
LOAD/FEED-
SPINDLE+
SPINDLE-
FOCUS+
FOCUS-
TRACKING+
TRACKING-
VF1, VF2
VT1, VT2
MD, LD
IC601
CD RF
& SERVO
IC681
CD DRIVER
VF1,VF2, VT1,VT2
MDI,LDO, VREF
IC501
CPU
IC503
J-BUS BUFF
CN501
SW4
TRACKING+
TRACKING-
FOCUS+
FOCUS-
VREF
CDON
LD/FE
LOAD
FMO
DMO
TRO
FOO
PVREF
BUS0 to BUS3
BUCK
CCE
DSPRST
IOP
PDATA,PCLK, CDRESET
B.DET,P.DET, CDMUTE,CDREQ
BUSSO,BUSSI
BUSIO,/BUSIO
BUSSCK
BUSSI/SO
BUSCLK
BUSENABLE
DSP_TUNER_IIC_SDA
DSP_TUNER_IIC_SCL
IC652
MP3/WMA
DEC
DATA, BCK
LRCK
MP3DA
MP3CK
MP3STB
MP3RST
MP3REQ
IC815
FLASH
ROM
A1 to A21
D0 to D15
RE/RD,WE
RY/BY,CS1
ROMCNT
IC821
RESET
KEYDA,DISPCE
DISPDA,DISPCK
PICTDI,PICTCLK
CN801
CN851
S8001 to S8007
KEY MATRIX
TU1
FM/AM
TUNER
IC901
REGULATOR
EACH
BLOCK
FRNTL_OUT
FRNTR_OUT
FL+, FL-
FR+, FR-
RL+, RL-
RR+, RR-
VOLDA
VOLCK
VOLMUTE
IC701
CONTROL
MICOM
J1
ANT
IC951
POWER
AMP
IC171
IC271
LINE AMP
IC710
J-BUS
BUFF
JBUS_SI/SO
JBUS_SCK
CN721
CD RESET
PON,CDMUTE
CDREQ
REMOCON
DISPCK
DISPDA
DISPCE
RST_101E
KEYDATA
SUBWFER
/BUS_I/O
BUSSI
BUSSO
BUS_I/O
BUSSCK
BUSINT
CD
CHANGER
CN351
CN701
RST
LINE IN
CN381
KD-AR7000 only
IC573
X571
CLOCK GEN.
SCK
CL1
CL2
CL3
Q8751
to Q8761
DRIVER
R1 to R3
G1 to G3
B1 to B3
D8731
to D8733
BACK
LIGHT
Q8701 to Q8704
TOUCH PANEL
DRIVE
X, XL, XR
Y, YD, YU
IC703
EPROM
E2PROM DI
E2PROM DO
E2PROM CLK
IC702
RESET
RESET
SPK
BATTERY
CN901
IC381
SUB
WOOFER
AMP
SUB
WOOFER
OUT
CN381
IC360
IC362
LPF
IC991
PA N E L
DRIVER
OUT1
OUT2
PM+, PM-
CN991
PA N E L
MOTOR
CN992
PA N E L
CAM
SWITCH
IC502
EPROM
MP3DA
MP3CK
SDO
BCK
LRCK
IC10
DSP
PICTCLK
PICTDI
KAGC2, AF_SAMPLE1
AF_HOLD2, SDA, SCL
AGC1_1, AGC1_2
D1_1, D1_2
CDSCK, CDLRCK, CDDATA
RDS_CLK, RDS_DATA
DSP_TUNER_IIC_SDA
DSP_TUNER_IIC_SCL
DSP-INITIAL
TOUCH PANEL
DRIVE
CN871
LINE.IN-L
LINE.IN-R
Changer-L
Changer-R
F-LCH+/-
F-RCH+/-
BK-LCH
BK-RCH
IC165
E.VOLUME
LINE.IN-L, LINE.IN-R
Changer-L, Changer-R
SUBWFER
ACC
CN345
FRONT
LINE OUT
REAR
LINE OUT
REARL_OUT
REARR_OUT
IC265
E.VOLUME
IC365
SELECTOR
FRONTL
FRONTR
REARL
REARR
Q991
DRIVER
CONTROL
PMKICK
CODE1, CODE2, CODE3
IC401
SOUND FIELD
IMAGE DSP
IC411
CC
CONVERTER IC412
DAC
F-LCH+/-
F-RCH+/-
BK-LCH
BK-RCH
MCLK
BICK
SDTI
LRCK
DAC_PDN, DAC_CSN
DAC_CLK, DACCDTI
CCC_RST, CCC_MCK
CCC_MDT, CCCMLEN
AK_IRST
AK_SRST
AK_REQ
AK_SCLK
AK_SI
AK_SO
DIRNCLK
DIRNSDINA
DIRNLRCLK
DIRNABLK
SDOUTA
Sound mix section
LCD & Key control section
CD servo control section
Main amplifier section
DSP section
CN602
SW4
SW4
LOAD/FEED+
LOAD/FEED-
SPINDLE+
SPINDLE-
SW1, SW2, SW3
REST
Block diagram
http://www.xiaoyu163.com
http://www.xiaoyu163.com
2-2

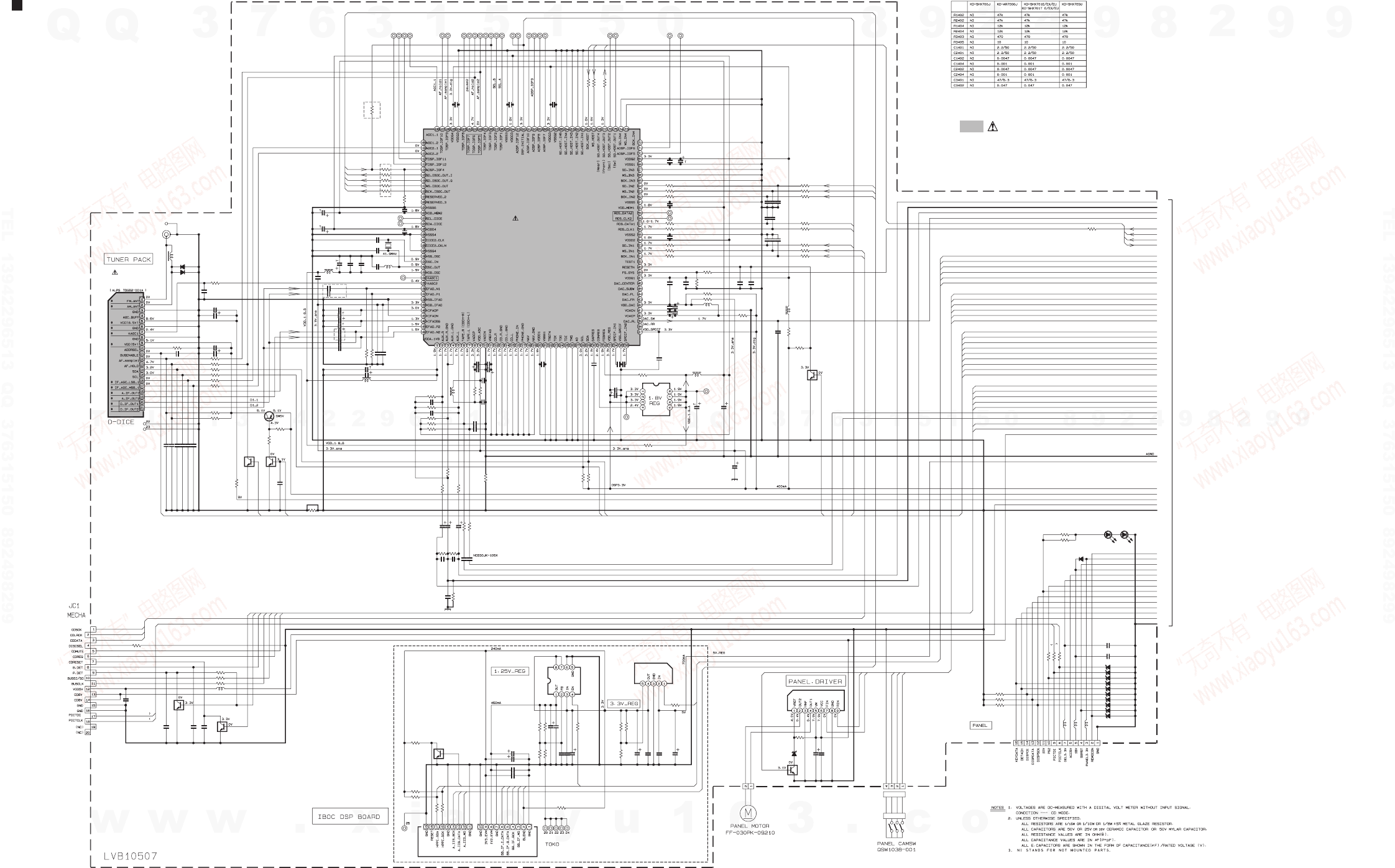

SHEET 1
Standard schematic diagrams
DSP section
To CN501
(SHEET 5)
To CN801
(SHEET 4)
(SHEET 1)
Parts are safety assurance parts.
When replacing those parts make
sure to use the specified one.
R1323
R2
CN701
D711
D712
IC991
C5
C3
J1
D713
D1
D714
R1001
D2
D716
C2
R3
R4
D717
C39
C38
R8
R7
C4
R991
R5
R6
C42
C43
C44
C45
X1
C32
C33
C37
L31
D722
L30
C28
L40
C46
C47
L63
Q30
R49
C60 C61
IC10
C76
C55
Q991
R45
C31
C30
C75
C69
R9
R778
D991
C79
L61
IC11
R44
R60
R61
R12
R78
D719
R779
D721
R10
R64
R63
R72
R73
R74
R780
R772
R771 D718
R2401
R77
R76
R75
R67
R66
R65
R1401
R69
R68
R71
R70
D715
D710
D709
R59
C56
C57
IC132
C13
C2404
C1404
IC130
C1501
C1502
R2503
R1503
R3401
J1
TU1
TU1
R1309
R90
R89
KAGC1
R1322
IC131
C21
C22
C29
C83
C84
R88
R87
R86
Q1321
IC132
R4057
R7204
IC132
C726
C725
TU1
R1
R1321
RDS-D2
RDS-C2
R1326
C1322
C1321
C1324
C1323
REG18O
R62
SCL-DI
SDA-DI
R7201
R7202
R7203
Q7202
L7201
SD_O2
SD_O1
L1
R11
C41
C40
C34
C35
CN721
R43
R42
R93
R7401
C62
R775
C59
C63
R41
C82
C80
L41
C48
C49
C50 C51
C54
R40
C58
C36
C81
C52
R92
C65
R58
Q3
Q1
C64
C88
L62
R48
R13
C3801
C2402
C1402
R2402
R1402
C3401
C1401
R1404
C2401 R2404
R3403
C3402
C72
C73
C74
C66
C67
C68
C70
C71
R7402
C14
R3405
R82
R1305
R85
R84
ADSP7
ADSP8
ADSP9
ADSP10
ADSP11
ADSP12
TDSP1
TDSP2
TDSP3
TDSP4
TDSP5
TDSP6
TDSP7
TDSP9
TDSP8
TDSP10
TDSP11
TDSP12
ADSP6
ADSP5
C2501
R2504
R1504
C2502
R1306
R1307
R94
C1314
C1315
C53
C7
C8
C9
C10
C11
C12
R91
C77 C78
C87
C86
C85
L705
L706
C991
Q2
C6
R1000
R1315
L704
C1311
C1312
R1312
R1313
C1313
AGC2_1
AGC2_2
C1302
R1324
R1325
C1301
C1303
C1304
C992
CN991
CN992
R1314
R1311
REG18I
C1
C7201
C7202
C7203
C7204
Q7201
NI
1k
QGF1041C1-16W
UDZS5.6B-X
UDZS5.6B-X
BA6956AN
390P
390P
QAM0556-002
UDZS5.6B-X
1SS355-X
UDZS5.6B-X
0
1SS355-X
UDZS5.6B-X
47/16
0
0
UDZS5.6B-X
NI
NI
100
100
47/16
1k
330
330
0.1
0.1
4.7/6.3
4.7/6.3
QAX0781-001Z18p
10p
0.01
2.2
UDZS5.6B-X
NQR0129-003X
10/6.3
NQR0129-003X
0.1
4.7/6.3
1.8
UN2211-X
10k
0.1 100/6.3
SAF7730HV/N114F
0.022
0.1
UN2211-X
0
220P
NI
NI
220P
27k
6.8k
UDZS3.9B-X
10/6.3
NQR0129-003X
PHK04P02T-X
0
10
NI
10k
100
SML-310LT/MN/-X
6.8k
NI
27k
100
100
100
100
100
6.8k
820
820 SML-310LT/MN/-X
**
**
6.8k
100
100
100
100
100
100
6.8k
**
*
*
*
**
100
100
100
100
UDZS5.6B-X
UDZS5.6B-X
UDZS5.6B-X
NI
100p
100p
*
390P
0.001
0.001
NI
100p
1
6.8k
6.8k
47k
NI
NI
NI
NI
NI
0.001
0.001
10/6.3
NI
NI
NI
NI
NI
NI
NI
0
NI
QAU0329-001
0.01
0.01
QAU0325-001
NI
NI
NI
NI
NI
NI
NI
NI
NI
0
0
UN2211-X
47
NQL79GM-4R7X
10
0.1
100p
4.7/6.3
0.1
QGB2027M5-20S
2.2k
2.2k
0
0
220/6.3
2.2k
0.033
0.022
10
0.022
0.022
NI
100/6.3
NI
22/6.3 0.047
47/6.3
100
4.7/6.3
180p
220P
NI
0
470p
47k
NI
2SB815/7/-X
1
10/6.3
00
1k
0.0033
47k
47k
47k
100p
100p
100p
100p
100p
0
390P
0
NI
0
0
100p
10k
10k
1
NI
NI
NI
NI
NI
1
390p
NI
NI
NI
NI
NI
0
0.01 0.01
0.1/50
0.1
0.1
4.7
4.7
100/10
UN2211-X
NI
0
NI
4.7
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
NI
0.047
QGA2501C1-02
QGA2001C1-04
NI
NI
0.0022
0.01
0.01
0.01
0.01
UN2211-X
SUBWFER
AFCK
LINE.IN-L
LINE.IN-R
CDMUTE
RDS_DATA
IDM_ON
DSP-INITIAL
PSAVE2
DETACH
RST_101E
DGND
ACC5V
DISPCK
DISPDA
DISPCE
PANEL3.3V
RDS_CLK
CDDATA
KEY
REMOCON
18V
10V
VDD_1.8_B
DSP3.3V
Chenger-R
Chenger-L
LINE.IN-GND
IDM_DATA
DSP3.3V
8V
IDM_WS
IDM_BCK
CDLRCK
CDSCK
DGND
SW5V
DGND
DIRNCLK
5V_REG
9V
iboc_bck
iboc_i
iboc_ws
iboc_q
blend
DIRNSDINA
DIRNBCK
DIRNLRCLK
iboc_SDA
iboc_SCK
IDM_ON
DGND
PICTDI
PICTCLK
VDD5V
CODE2
CDREQ
CODE3
PMKICK
RESET_EVM
CODE1
blend
PM-
PON
CDRESET
PSAVE2
JBUS_SI/SO
JBUS_SCK
DRI_ON
PM+
CDSCK
CDLRCK
CDDATA
RFON
BUSENABLE
DSP_TUNER_IIC_SDA
DSP_TUNER_IIC_SCL
RESET_7730
RDS_DATA
RDS_CLK
RESET_7730
BUSENABLE
AFCK
RFON
PICTDI
DSP_TUNER_IIC_SDA
DSP_TUNER_IIC_SCL
PSAVE2
IDM_WS
PICTCLK
RESET_EVMIDM_DATA
iboc_SDA
IDM_BCK
iboc_ws
iboc_bck
iboc_q
iboc_i
DRI_ON
DSP-INITIAL
DIRNSDINA
DIRNBCK
DIRNLRCLK
PM+
iboc_SCK
PM-
PMKICK
JBUS_SI/SO
JBUS_SCK
CDRESET
blend
CDMUTE
CDREQ
CODE1
CODE2
CODE3
PON
!
http://www.xiaoyu163.com
http://www.xiaoyu163.com

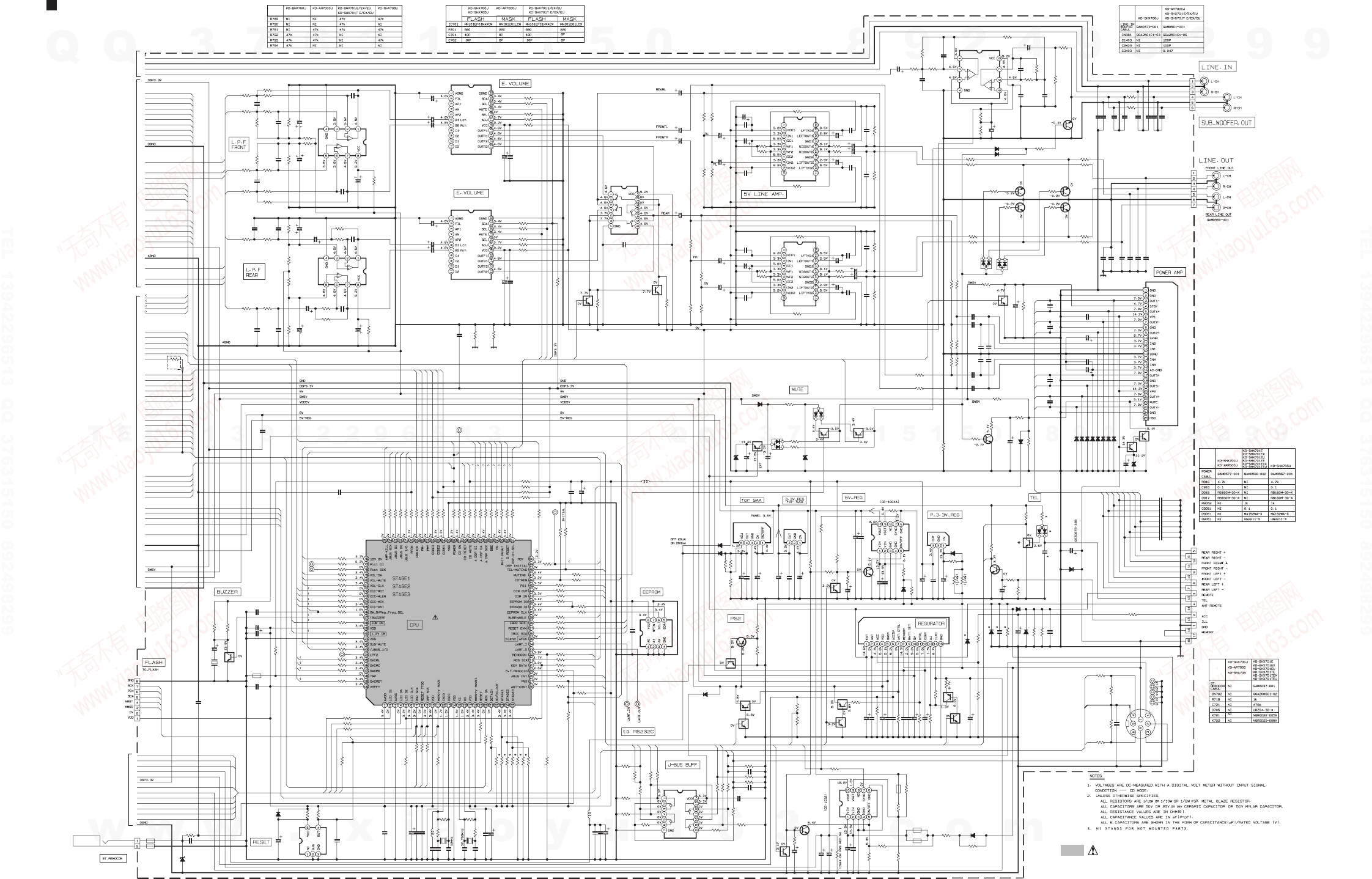

2-3
SHEET 2
Main amplifier section
(SHEET 1) (SHEET 1) (SHEET 3) (SHEET 1)
Parts are safety assurance parts.
When replacing those parts make
sure to use the specified one.
IC701
C2751
IC710
C2771
IC951
IC901
C1771
C1751
C1702
C1721
C1724
C3701
C1722
C1701
C1723
C1725
C1704
C1703
R1722
R1702
IC171
C1705
C2722
C2704
C3721
C2701
C2702 C2703
C2705
C2721
C2724
C2723
R2702
R2722
R954
R955
IC271
C2725
R1704
C721
C1700
R751
R2652
Q943
R2651
R784
R755
R756
C2652
C2653
C2651
Q905
R717
R753
Q907
R719
Q3655
R1724
R1754
R1774
R716
LPF2
R796
R7301
R7302
R757
R747
R7303
R7304
R760
R703
R759
C716
C719
Q952
IC971
Q953
R715
TP708
R733
R731
R730
R752
R2724
R723
R724
R722
R2601
R770
R769
R736
R735 R734
R750
R768
L701
C720
R7101
R7105
R7106
R7107
R7110
R754
C7116
C7117
R926
R927
R2501
R1501
D702
R729
Q901
D979
Q941
Q903
Q942
D943
R2704
R9002
Q954
R1801
R2801
TH714
R797
R2621
R2602
R798
R1621
C2700
R1602
R1601
C722
R1652
R1605
R1626
R1604
R1625
R1608
TP786
R1451
R1452
R2452
R2451
C1625
C1603
R727
R1622
IC975
R1651
C3803
R950
C3804
R3801 R3802
Q1451 Q1452
R1455 R1456
R2456
R2455
R1453
R1454
R2453
R2454
IC381 R3805
Q3801
R3807
C1652
D3802
C1653
C1651
R1606
C1720
R710
R2605
R913
R2626
R2604
R2625
R2608
C1726
C2625R2622
R2606
C952
C953
C954
R951
C961
R799
C962
C963
C964
C965
C966
C967
C968
D904
R910
R700
R781
R782
R783
R785
R786
D3801
R718
CN702
R711
R712
IC165
R1653
R1654
R2655
R1655
C960
R921
IC973
K722
K723
IC365
C3655
L921
IC703
R709
R787
R714
C1624
C2624
Q906
IC265
R2653
R2654
R971
R1725
R7111
R7118
R7116
R7117
R1705
C7101
R2705
R2725
TP787
C2720
D944
R941
R942
IC976
R940
R980
TH903
TH902
D921
C724
R3810
R3811
R934
CN715
IC921
C710
CN351
R790
Q922
R1723
R1703R2703R2723
R725
R713
CN345
Q921
R791
R3651
C2655
C2654
B1
R973
R708R704
C922
R721
R792
R7119
BZ791
R972
C2451
C1451
C2452
C1452
C2801
C1801
C2403
C1403
R793
X701
X702
R746
R758
C984
Q902
C983
C985
L702
C707
C706
C705
R794
R7319
R7318
R7317
R701
R702
C704
C703
C702
C701
C718
C713
C712
R745
R740
R7316
R776
R777
D701
C776
C777
R749 R761
R7315
R726
R7314
R7313
C717
R7312
R7311
R953
R732
R728
TP707
C791 R795
Q791
R767
R720
R739
R766
R765
R764
R763
R762
R743
R744
R742
R741
R737
R738
Q971
R774
R773
C708
C709
C971
TP706
R7112
R7102
R7104
R7113
R7115
R748
C921
C923
R3660
R925
R969
C1802
R924
C3501
R1502
R2502
R901R902
C902
C903
R903
R904
C905
C904
C906
R906
C950
C910
R905
R705
C907
C908
C714
D952
CN381
R909
R908
C941
C942
D941
Q9001
R9003
TH901
CN901
R2754
R2774
C9001
C3403
TP705
C3807
Q972
Q951
C2601 C1601
C1621
R3603
R3623
R706
Q9051
R1624
C917
D917
D916
R1607
C3806
C1607
C1602
C916
R916
C1622
R917
C972
R2624
C987
C989
C988
C973
R1623
R2623
C974
R979
IC702
R3803
Q2452
Q2451
D1451
D2451
C3451
C3452
R3804
C1655
C1654
Q703
R707
R1603
C3603
IC360
R970
C2621
C3623
L703
B2
R2607
C2607
C2602
C2622
C2603
R2603
C2752
C2772
C1752
C1772
R952
C951
C955
Q3656
C956C957C958C959
D968
D967
D966
D965
D964
D963
D962
D961
C700
C901
D901
D905
R912
R911
C911
C912 R9001
R789
IC362
R920
R2772
R2752R1752
R1772
D705
R1701
R1721
R923
R922
R1720
R1700
R2700
R2720
Q908
R3655
R3656
C925
R9051
R9052
D9051
C9051
C3808
C715
C2623 C1623
C920
R2701
R2721
R3808
R3809
R935
C913
C2802
R920
C3805
R7114
R7103
C1728C1706C2706C2728
D942
R918
C975
C977
C976
R977
R976
R975
D976 D975
R974
C970
D940
D971
R978
C723
C994
C993
C3809
R3812
C3810
C3811
R956
D953
*
1
SN74AHCT126PW-X
1
TB2901HB
HA13164A
1
1
0.1
22/16
0.0015
47/10
0.1
22/16
100/10
4.7/25
0.0015
100/10
24k
24k
LA2900M-X
4.7/25
0.1
0.0015
47/10
22/16
0.1 100/10
4.7/25
22/16
0.0015
100/10
24k
24k
0
47k
LA2900M-X
4.7/25
36k
*
4.7/25
12k
0
UN2113-X
0
1k
220
220
1/50
1/50
10/16
UN2111-X
1k
0
UN2111-X
0
UN2211-X
36k
0
0
1k
1k
1k
1k
**
1k
47k
1k
1k
1k
10M
1k
470p
330/6.3
UN2211-X
NAL0024-002X
UN2213-X
1k
1k
0
1k
1k
36k
100
100
100
4.7k
220k
220k
270
10k
270
1k
220k
2SD601A/RS/-X
NQL79GM-100X
0.01
33k
100k
100k
100
100
22k
100p
100p
180k NI
100
100
1SS355-X
1k
UN2111-X
NI
*
UN2111-X
2SB709A/QR/-X
UN2113-X
MA152WA-X
36k
10k
UN2113-X
*
100
100
NI
1k
0
4.7k
1k
0
4.7/25
4.7k
4.7k
NI
01.2k
12k
3.9K
33k
1k
820
820
820
820
120p
390p
0
20k
BA33BC0FP-X
0
4.7/25
47k
4.7/25
22k 10k
2SD2114K/VW/-X 2SD2114K/VW/-X
2.2k 2.2k
2.2k
2.2k
180
180
180
180
NJM4565V-X
820
2SD1781K/QR/-X
2.2k
1/50
NI
1/50
10/16
1.2k
4.7/25
NI
1.2k
1k
12k
3.9K
33k
1k
NI
120p20k
1.2k
0.01
10/16
4.7/50
2.2k
100p
1k
100p
100p
100p
100p
100p
100p
100p
RB160M-30-X
1k
NI
NI
NI
NI
1k
1k
1SS355-X
*
*
NI
NI
BD3805F-X
10k
39k
0
0
NI
1k
TA48033F-X
*
*
CD4066BPW-X
0.1
0
BR24L32F-W-X
100
1k
1k
4.7/25
4.7/25
UN2211-X
BD3805F-X
10k
39k
2.2k
220
100k
6.8k
100k
100k
220
0.01
220
220
4.7/25
1SS355-X
0
100
BA00BC0WFP-X
100
0
NI
NAD0031-002X
1SR154-400-X
0.047
27k
27k
NI
NI
NAL0026-001X
0.047
QNZ0095-001
UN2211-X
10k10k10k10k
10k
8.2k
QGA2501C1-07
2SD601A/RS/-X
4.7k
0.1
10/16
NI
47k
27k47k
0.1
1k
1k
QAN0023-001Z
1k
100p
100p
100p
100p
0.22
0.1
QAX0782-001Z
QAX0401-001
1k
47k
0.01
UN2211-X
100/16
220/6.3
0NI
NI
220/10
1k
1k
1k
*
47k
18p
33p
*
*
330/6.3
330/6.3
0.01
1k
0
1k
2.2k
47k
1SS355-X
47/6.3
0.01
1k
0
1k
NI
1k
1k
0.01
1k
1k
10k
0
NI
0.1/50 6.8k
UN2211-X
1k
1k
NI
1k
1k
1k
1k
1k
1k
1k
1k
1k
1k
1k
47k
220k
10/10
0.01
0.1
3.9k
18k
1k
1k
0
6.8k
100/16
100/25
NI
47k
NI
NI
75k
0.047
100k
100k
9.1k
4.7k22/16
22/16
5.6k
1k
100/10
0.01
0.1
47k
47/16
10/16
10k
220
0.01
220/10
0.01
UDZS11B-X
56k 18k
100/16
100/6.3
UDZS11B-X
2SD601A/QR/-X
47k
NAD0036-224X
QNZ0090-001
0
0
10/16
0.047
UN2211-X
2SD601A/QR/-X
0.001 0.001
100p
0
0
1k
10k
0.01
1k
0.0022
47/10
390p
820p
10k
100/16
10k
100/16
100/6.3
0.01
0.1
10k
10k
100/16
22
PST9121N-X
100k
2SD2114K/VW/-X
2SD2114K/VW/-X
MA152WA-X
MA152WA-X
0.047
100p
47k
0.1
10/16
UN2213-X
220
3.9K
22/16
NJM4580V-X
0
100p
22/16
NI
0
1k
47/10
390p
820p
390p
3.9K
100p
100p
100p
100p
27k
22/16
2.2/50
UN2211-X
NINININI
NI
NI
NI
NI
NI
NI
NI
NI
NI
3300/16
1N5401-F64
RB160M-30-X
2.2k
2.2k
0.1
2.2/50
100k
NJM4565V-X
NI
47k
47k47k
47k
*
1k
1k
8.2k
27k
100k
100k
100k
100k
UN2211-X
2.2k
2.2k
NI
47k
0.1
0.1
47/10 47/10
NI
1k
1k
10k10k
51k
NI
NI
18k
47/6.3
0
0
NINININI
MA152WA-X
47k
100/16
100/6.3
0.01
10k
39k
39k
RB160M-30-X RB160M-30-X
100
2.2/50
UDZS3.3B-X
1SR154-400-X
22
100p
0.047
0.01
0.033
27k
0.047
0.01
NI
NI
RFON
SDA_IN
DGND
BUSENABLE
CDRESET
Chenger-L
Chenger-R
FRONT_LCH
DETACH
AGND
REAR_OUT
18V
DGND
SCK_IN
REARL
CDREQ
FREQ_SEL
ACC5V
BUSINT
DSP-INITIAL
P04_IN
VOLMUTE
VOLDA
VOLCK
CDREQ
MMOD_IN
BUSENABLE
CDMUTE
RR+
AMPKILL
RR-
AFCK
RDS_CLK
AFCK
RDS_CLK
RST_101E
RDS_DATA
RESET_7730
BK-RCH
TELMUTE
KEY
DAC_PDN
LINE.IN-L
18VON
/BUS_I/O
DISPDA
DISPCE
DISPCK
REMOCON
RST_IN
FR+
PSAVE2
PANEL3.3V
PMKICK
PM-
PM+
CODE3
JBUS_SI/SO
JBUS_SCK
CODE2
CODE1
BK-LCH
KEY
SUBWFER
8V
DSP_TUNER_IIC_SCL
9V
FRONTR_OUT
DSP_TUNER_IIC_SDA
DSP-INITIAL FR-
F-LCH-
blend
DIM
REMOCON
RESET_EVM
PSAVE2
DRI_ON
IDM_ON
iboc_SCK
FL+
iboc_SDA
F-RCH+
FL-
LINE.IN-R
ANTCONT
F-LCH+
F-RCH-
DGND
LINE.IN-GND
DAC_PDN
DAC_CSN
DAC_CCLK
DAC_CDTI
DIRNCLK
RST_101E
iboc_SCK
RESET_EVM
iboc_SDA
IDM_ON
DRI_ON
DIMIN
FRONT-RCH
TELMUTE
PSAVE2
SUBWMUTE
5V_REG
RL+
DSP3.3V
BACKL
JBUS_SI/SO
BK-LCH
DIMIN
PS1
10V
BACK_LCH
VDD5V
JBUS_SCK
FRNTL_OUT
BACK_RCH
REARL_OUT
F-RCH+
F-RCH-
BK-RCH
F-LCH-
F-LCH+
DAC_CSN
DAC_CCLK
DAC_CDTI
CCC_MDT
CCC_MLEN
CCC_MCK
CCC_RST
AGND
Chenger-R
Chenger-L
RST_IN
AK_IRST
AK_SRST
RL-
AK_REQ
AK_SCLK
AK_SI
AK_SO
DIRNLRCLK
DIRNBCK
DIRNSDINA
AK_BBE
AK_DRY
CCC_MLEN
CCC_MDT
CCC_MCK
CCC_RST
DIRNCLK
DIRNLRCLK
DIRNBCK
DIRNSDINA
SW5V
PON
FR-
FR+
RR-
RR+
RL+
RL-
FL+
FL-
DISPCE
CDRESET
PS1
RFON
RST_101E
DISPDA
DISPCK
VOLMUTE
VOLCK
PON
SUBWMUTE
DSPSEL
RDS_DATA
DSP_TUNER_IIC_SCL
DETACH
AK_SI
AK_SO
AK_SCLK
AK_BBE
AK_REQ
AK_IRST
AK_SRST
CDMUTE
BUSSI
CODE1
CODE2
CODE3
PM+
PM-
PMKICK
ANTCONT
BUSSO
18VON
CDON
PON
BUS_I/O
BUSSCK
BUSINT
/BUS_I/O
SCK_IN
MMOD_IN
SDA_IN
DSP_TUNER_IIC_SDA
P04_IN
DSPSEL
RESET_7730
FREQ_SEL
BUSSI
BUSSCK
BUS_I/O
BUSSO
AMPKILL
DIM
VOLDA
AK_DRY
!
http://www.xiaoyu163.com
http://www.xiaoyu163.com
2-4

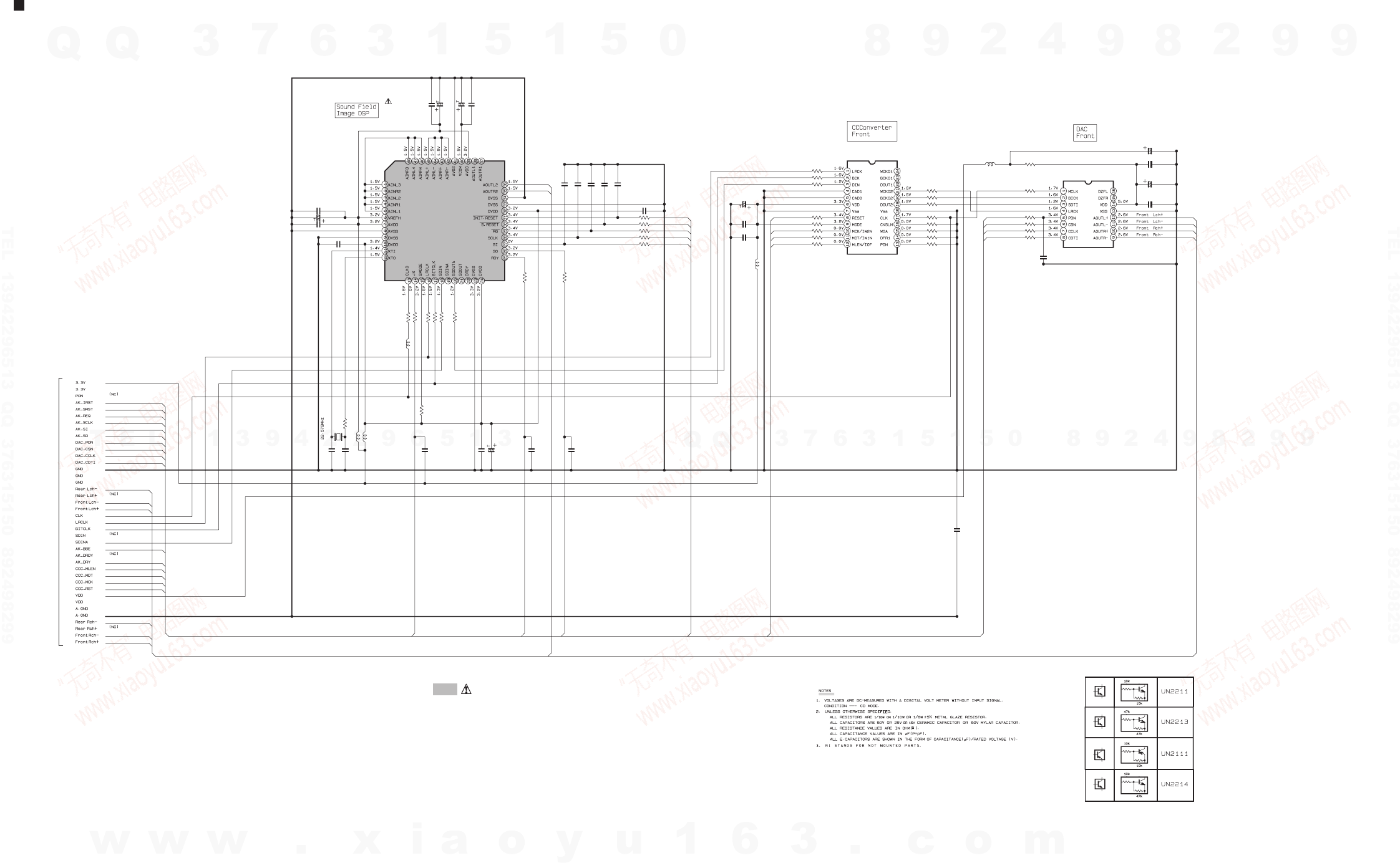

SHEET 3
Sound mix section
(SHEET 2)
Parts are safety assurance parts.
When replacing those parts make
sure to use the specified one.
IC401
C4100
IC411
C4101
IC412
C4131
C4130
C4132
R4130
R4115
R4114
R4100
R4101
R4102
R4104
R4105
R4106
R4107
R4103
R4113
C4102
C4134
L4130
C4035
C4034
C4036
C4012
C4038
R4017
R4016
R4131
R4018
R4014
R4112
R4111
R4015
R4132
R4133
R4134
R4135
R4110
R4109
R4108
C4028
C4025
C4024
L4002
L4003
C4133
R4068
C4050
L4101
C995
R4056
L4001
C4031
C4030
C4011
C4032
C4033
C4027
C4026
R4013
R4011
R4010
C4010
X4001C4001
C4002
R4001
C4045
R4051
R4053
R4054
R4055
C4046
AK7740VT
10/6.3
JCV8009-W
0.1
AK4385VT-X
47/6.3
0.1
100P
0
330
330
1k
1k
1k
1k
1k
1k
1k
1k
330
0.047
100/10
47
10/6.3
0.001
0.001
0.001
0.001
1k
1k
47
1k
1k
47
47k
1k
1k
1k
1k
1k
47k
47k
47k
0.01
NI
NI
47
1.8
470p
1k
0.047
47
0.01
0
47
10/6.3
0.001
10/6.3
10/6.3
0.001
0.01
NI
1k
47k
1k
0.001
NAX0664-001X8P
12P 100
NI
330
1k
330
220
NI
SW5V
AK_IRST
DIRNLRCLK
AK_REQ
AK_SCLK
AK_SRST
AK_SI
DAC_PDN
DIRNSDINA
F-LCH+
DIRNBCK
F-LCH-
F-RCH+
DAC_CDTI
DAC_PDN
F-RCH-
DAC_CSN
DAC_CCLK
DAC_CDTI
BK-LCH
BK-RCH
BK-LCH
F-LCH-
F-LCH+
BK-LCH
F-RCH-
F-RCH+
CCC_MLEN
CCC_MDT
CCC_MCK
CCC_RST
DAC_CSN
DAC_CCLK
DSP3.3V
AK_IRST
DIRNCLK
AK_SRST
AK_REQ
AK_SCLK
DGND
AK_SI
AK_SO
AK_BBE
AK_DRY
CCC_MLEN
AGND
CCC_MDT
CCC_MCK
CCC_RST
AK_BBE
AK_SO
AK_DRY
!
http://www.xiaoyu163.com
http://www.xiaoyu163.com
2-5

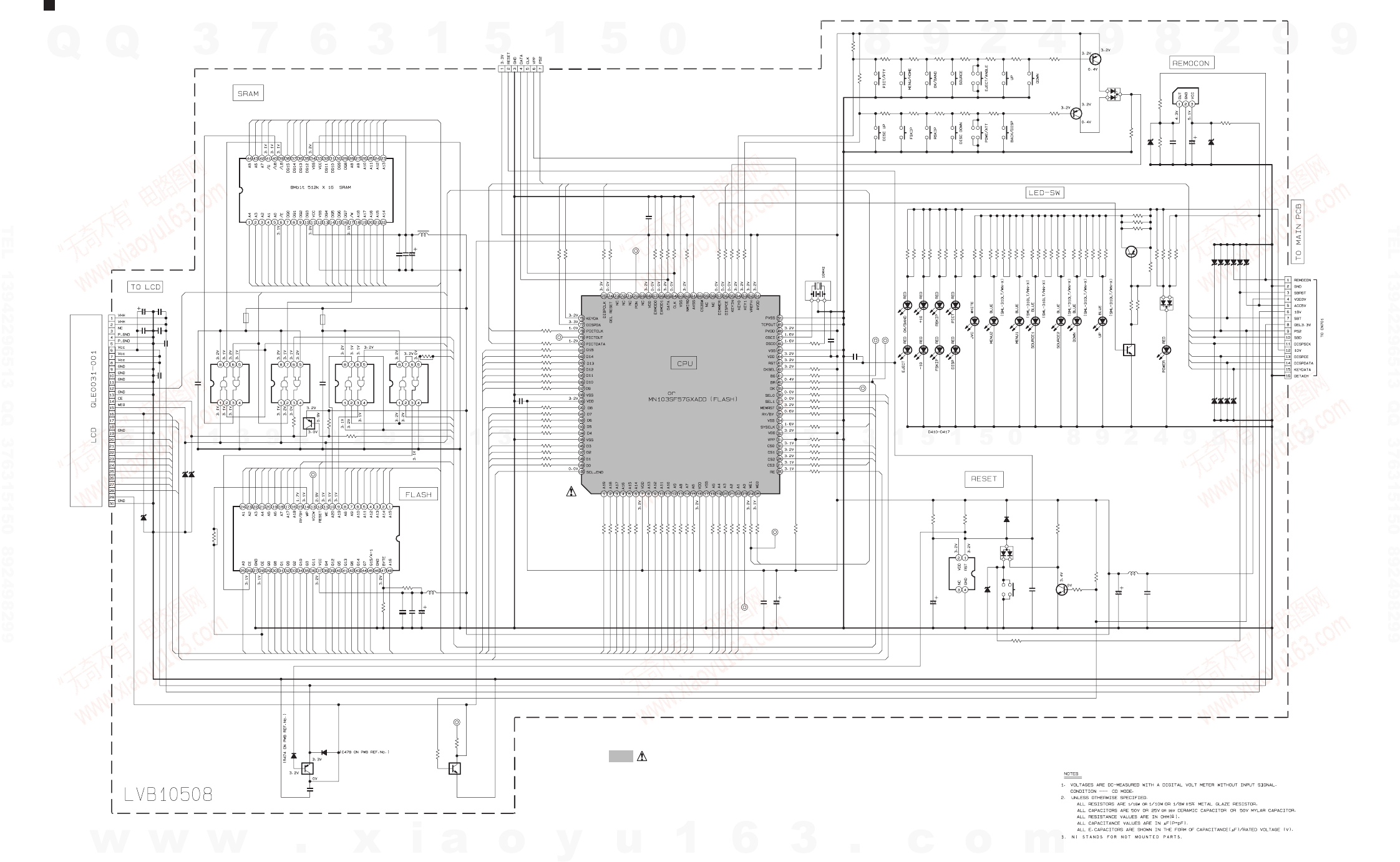

SHEET 4
Parts are safety assurance parts.
When replacing those parts make
sure to use the specified one.
LCD & Key control section
(SHEET 1)
TP801
R840
R854
C804
K471
R875
R874
IC801
R873
R855
R830
R872
R453R449
R446R442 R443
R870
R871
C871 C873
R447
R876
R877
R434
R435
R436
IC461
R492
D441
R886
Q441
Q442
R454
R455
C874
C872
R481
D478
CN802
Q481 R483
Q472 Q470
R444 R445
R450 R452R451
Q470VCC
L891
R464
R836
R837
R839
K491
R825
R826
R827
R828
R829
R831
R832
R833
R834
R835
C807
R838
R861
R860
R862
R863
R864
R865
R866
R867
R883
R463
D408
X801
C876
CN871
IC471
R817
R818
R819
TP802
R820
R844
VCCW
R417
R416
D418
Q881
D432
R810
IC491
R461
IC483
R845
S444
R846
S445
R847
D881
D411
R410
R411
R848
R849
R823
C806
C473
R415
R414
C472
C471
R408
R409
D413
D414
WE1
R413
R412
R493
K481
S451
S441
S442
S448S455
R429
R428
D424
IC482
S811
R868
S452
S453
S450
D426
D417
D416
C805
S449
TP803
C481
D425
R431
R427
C875
R433
Q411
R426
R801
D423
D415
D412
D410
R425
R424
D422
R421
R420
D420
R423
R422
D421
R419
R418
D419
R448
R441
R456
R438
R437
R439Q412
K483
C483
IC484
S454 S447
IC481
TPA0
D871
TP804
D872
D873
D434
R457
R458
R459
R460
R465
R466
R482
R484
D474
R471
R470
C477
R857
D431
C479
C892
R885
CN801
R884
R804
C461
R432
R430
R802
R805
R811
R822
D430
D433
R843
R821
R851
R852
R853
R806
R841
R842
IC881
R815
R812
R813
R814
R816
C891
C802
C881
C493
C801
C882
C491
C492
D882
R881
R882
D406
D407
D405D401
D403
D402
D404
R803
R491
R807
R808
R809
0
1k
0.001
0
1k
1k
MN103S57GDD
1k
SML-310LT/MN/-X
1k
NI
SML-310LT/MN/-XSML-310LT/MN/-X
1k
820300
820300 270
1k
1k
10/6.3 1/25
SML-310LT/MN/-XSML-310LT/MN/-X
1.5k
1k
1k
0
NI
NI
RPM7338-V4
10K
MA152Wk-X
470k
SML-310LT/MN/-XSML-310LT/MN/-XSML-310LT/MN/-X
2SB709A/QR/-X
2SB709A/QR/-X
47k
47k
0.001
0.001
NI
1SS400-X
QGF0522F1-07W
UN2111-X
0
UN2111-X NI
390 560
270 560390
47
47
NI
1k
1k
0
470
820
820
820
820
1k
1k
1k
1k
1k
0.047
NI
1k
1k
1k
1k
1k
1k
1k
1k
1k
0
UDZS6.2B-X
NAX0663-001X
NI
QGF0534F1-30X
M68AW512ML70ND6
1k
1k
1k
1k
1k
1k
1k
NECW050A/BPQ/-X
2SD601A/QR/-X
NI
1k
LH28F320BFHET72
NI
SN74AHC2G08U-X
1k
NSW0124-001X
1k
NSW0124-001X
1k
MA152WA-X
NSW0220-001X
820
820
1k
1k
NSW0220-001X
1k
0.001
10/6.3
820
820
0.047
470p
820
820
820
820
NI
0
NSW0124-001X
NSW0124-001X
NSW0124-001X
NSW0124-001XNSW0124-001X
1.2k
1.2k
NECBB205/WQR/-X
SN74AHC2G08U-X
NSW0220-001X
1k
NSW0124-001X
NSW0124-001X
NSW0124-001X
MA152WK-X
0.001
NSW0124-001X
0.01
SML-310LT/MN/-X
1.2k
1.2k
NI
1k
NI
1.2k
1k
NECBB205/WQR/-X
NI
1k
NECBB205/WQR/-X
NI
1k
NECBB205/WQR/-X
NI
1k
NECBB205/WQR/-X
NI
1k
NECBB205/WQR/-X
1.5k
1.5k
470k
NI
NI
NI
NI
0
0.01
SN74AHC2G08U-X
SN74AHC2G08U-X
NI
NI
NI
UDZS6.2B-X
NI
NI
NI
NI
NI
NI
680
NI
1SS400-X
NI
NI
NI
2.2k
NI
NI
0.047
47k
NNZ0098-002X
NI
1k
4.7/6.3
1k
1.2k
1k
1k
1k
820
NI
NI
1k
820
1k
1k
1k
1k
1k
1k
IC-PST3424U-X
1k
1k
1k
1k
1k
10/6.3
10/6.3
4.7/6.3
10/6.3
0.047
0.047
470p
0.047
1SS355-X
2.2k
47k
UDZS6.2B-X
UDZS6.2B-X
UDZS6.2B-X
UDZS6.2B-X
UDZS6.2B-X
UDZS6.2B-X
UDZS6.2B-X
1k
NI
1k
1k
1k
KEY0
KEY1
SYSCLK
PICTDI
PICTCLK
PICTDI
DISPCK
DISPCE
DISPDA
KEYDA
CS2
D8
RE
CS1
OEL3.3V
CS3SW
SEL0
SEL1
MEMRST
RY/BY
SYSCLK
CS0
CS0
CS1
CS2
PICTCLK
CS3
RE
18V
D9
SEL0
SEL1
SCL_END
DK
D7
D0
D1
D2
D3
D4
D5
D6
SCL_END
CS3
D10
D12
D13
D14
D15
PS2
WE0
10V
D11
CS3SW
CS2
RE
CS3
D0
D1
D2
D3
D4
D5
D6
D7
RY/BY
DISPDA
PS2
RE
A19
A18
A17
A16
A15
A14
A13
A12
KEYDA
DISPCK
DISPCE
A0
A11
A10
A9
A8
A7
A6
A5
A4
A18
A17
MEMRST
A17
A16
A15
A14
A4
A3
WE1
A2
A1
A3
A2
A1
D15
D7
D6
D5
D4
D3
D2
D1
WE0
D0
A1 A2
A3
A4
A5
A6
A7
A8
A18
A19
A9
A10
A11
A12
A13
A14
A15
A16
A19
D3
D4
D5
D2
A13
A12
A11
A10
A9
A8
D10
D11
D12
D13
D15
A7
A6
A5
CS0
D14
D9
D8
D0
D1
D6
D7
D8
D9
D10
D11
D13
D14
D12
WE1
RE
http://www.xiaoyu163.com
http://www.xiaoyu163.com
2-6

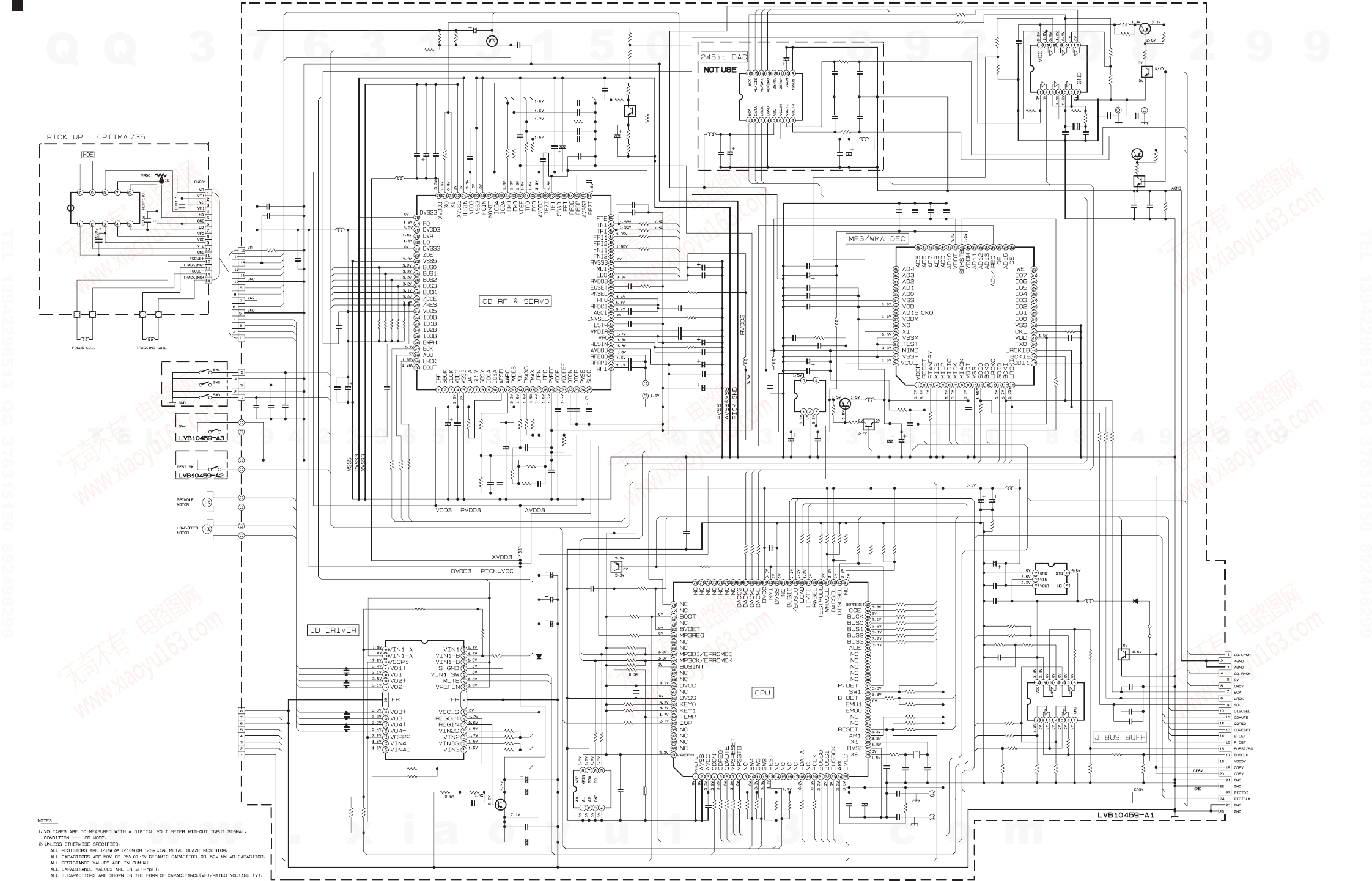

SHEET 5
CD servo control section
To CN721
(SHEET 1)
IC601
Q652
IC502
R581
Q651
Q601
R615
Q571
C693
C648
C694
L571
RF
VREF
R688
L501
IC501
Q501
R616
R601
R602
R603
R604
C601
C602
C603
C604
C609
C608
R610
R611
R689
SW4_
R609
C606
C607
C605
C631
C632
C636
C633
C635
C634
C637
C627
R629
C628
C624
C623
R627
GND1
R628
C643
L622
L623
CN502
R548
IC504
R523
R522
R521
R520
R519
R518
R517
R543
R509
R544
R511
R540
R512
C613
R678
C672
R515
R513
R516
R541
R514
C508
R525
X501
R510
R542
L651
R656
C667
C666
C663
C656
R668
R568
C647
R675
C664
C665
C671
C668
R651
R685
C507
IC652
FE-
FE+
S-
S+
R683
R539
R545
CN601
GND2
C669
REST
R574
R570
CN501
CN602
L572
R582
Q573
Q572
Q574
L573
X571
R577
C695
Q653
R549
R550
C511
C513
C512
R561
R563 R562
R556
R553
R569
C685
C686
C551
C687
L502
Q502
IC681
R681
R686
R684
C612
Q681
C682
C684
C690
C683
C688
C689
D506
R643
C649
R692
R691
R690
C521
C522
C523
C677
C678
C525
FGND1
PFGND2
R662
R693 C579
FGND2
C527
C526
PFGND1
R657
R653
R533
R572
C619
R508
L653
IC573
R567
R565
R566
IC571
C644
C506
R502
B681
C620
R571
R503
R534
R605
R606
R607
R608
C610
R532
C611
R630
R631
R632
R633 R634
R635
R636
R637
C638
C639
C630
C626
C625
C629
R626
R625
R621
R622
R623
C622
C621
R638
R639
R640
R641
R642
C614
C645
C646
C640
C641
C642
L621
C501
R546
R547
IC503
IC651
R575
R504
R505
R535
R536
R537
R655
R506
R507
R526
R528
R531
R530
C514
C616
TH501
C510
C505
C504
C503
C617
C618
C509
C502
C651
C652
R590
C653
C662
L652
R527
R687
C654
R654
R529
R564
L624
R680
C661
C655
C659
C660
R591
C657
C516
C575
C576
C577
C574
C573
C582 C581
C583C584
R578
R576
R579
C578
R596
R597
C572
C571
R598
R599
C517
C650
C676
R501
R560
R552
R558 R559
R551
R555
R557
R554
D682
R682
R524
C596
C595
R593
R617
R624
R612
C675
C674
C518
C519
C520
R594
R660R659
R658
R661
C673
R664 R663
TC94A15FG
2SB624/4/-X
BR24L01AFV-W-X
20k
UN2211-X
2SB1132/QR/-W
150
2SA1037AK/R/-X
47/16
10/6.3
47/16
47u
16k
47u
TMP91FY12AF
UN2111-X
0
10k
0
0
18k
18k
100/6.3
680p
100/6.3
0.01
-
0.1
-
47k
10k
47k
47/6.3
0.1
0.1
470p
470p
0.047
0.1
0.015
4700p
0.047
0.1
22k
0.033
47/6.3
0.015
47p
18k
2.2M
0.1
47u
47u
QGF0501F1-08X
8.2k
NJU7241F33-X
100
100
100
100
100
100
100
100
47k
100
1k
47k
47k
0.01
10k
0.1
47k
1k
1k
100
47k
0.01
100k
NAX0385-001X
100
10k
47u
2.2k
0.01
100p
0.1
0.1
47
1k
68p
220
2200p0.1
10/10
47/6.3
100k
0
0.022
TC94A34FG-002
4.7k
47k
10k
QGF1006F2-15W
0.01
-
1k
QGB2027L1-26X
QGF1038F1-05X
47u
20k
2SB624/4/-X
UN2211-X
UN2211-X
-
2.2M
NAX0375-001X
100
-
4.7k
4.7k
0.1
0.01
220/6.3
100k
6.8k 3.9k
0
18k
1k
0.047
0.047
0.01
0.047
47u
UN2211-X
LA6242H-X
6.8k
0
0
0.01
2SB1184/QR/-X
4.7/25
47/16
10/6.3
0.1
0.047
47/16
1SS355-X
3.3k
5600p
-
-
-
-
-
-
470p
470p
-
-0
--
-
47k
0
100
-
-
47k
47u
SN74AHCU04PW-X
47k
100
100
PCM1748KE-X
0.33
0.01
1k
-
47k
1k
100
22
22
-
-
0.1
47k
-
100
10k
47k
-
-
100
100
1M
0.01
47/6.3
0.033
0.01
0.01
470k
47k
47
47
47
47/6.3
0.1
4.7k
4.7k
4.7k
4.7k
10k
0.01
47/6.3
0.1
0.01
47/6.3
100p
47u
0.01
270
270
SN74AHCT126PW-X
NJU7772F15-X
47
100
100
-
-
-
0
47k
47k
47k
-
47k
47k
0.001
47/6.3
NAD0028-103X
0.01
22p
22p
220/6.3
0.1
0.1
0.022
0.022
47/6.3
0.01
0
47/6.3
100p
47u
47k
22k
0.1
47
-
100
47u
24k
0.01
0.01
0.1
100p
-
0.047
220/6.3
47/6.3
0.1
47/6.3
100/6.3
0.1 100p 100p
820p820p
47k
47
2.2k
0.1
1k
27p
27p
1k
1k
10/6.3
2SC2412/QR/-X
0.22
0.047
1k
100
100k
100k 0
100k
100
100k
33k
1SR154-400-X
8.2k
100
-
-
0
47k
5.6k
0
10/6.3
-
-
-
-
0
--
-
-
-
--
DISCSEL
FMO
VF1
BUSSO
BUSSI
DSPRST
VT1
REST
CDON
PDATA
VT2
PCLK
BOOT
BUCK
CCE
BUSSCK
VF2
RESET
MDI
SW4
FOCUS+
FOCUS-
TRACKING-
LD
FOO
TRACKING+
CD.L-CH
CD.R-CH
CDON
LOAD/FEED+
SW1
SPINDLE+
MDI
IOP
VT1
VT2
VF1
LD
VF2
BUS0
LDO
FOCUS-
SW2
SW3
CDRESET
BUS3
BUS2
BUS1
DSPRST
IOP
BUS3
BUS2
BUS1
BUS0
BUCK
CCE
SW1
MP3DA
LOAD/FEED-
MP3CK
LOAD/FEED+
SPINDLE-
SPINDLE+
SPINDLE-
LOAD/FEED-
TRO
FOCUS+
TRACKING-
TRACKING+
CDON
LD/FE
DMO
B.DET
BUSSO
BUSIO
/BUSIO
PVREF
ON5V
CD.L-CH
CD.R-CH
BUSSI/SO
BUSSCK BUSCLK
ON5V
BUSSI
CDMUTE
CDREQ
P.DET
B.DET
CDRESET
CD8V
BCK
PVREF
MP3STB
LRCK
SDO
MP3DA
CDON
DACML
DACML
DACMD
DACMC
SW3 DACMC
8VDET
DACMDLRCK
BCK
SDO
PCLK
PDATA
SW4
8VDET
SW2
REST
FOO
DATA
DMO
FMO
TDETC
TDETC
TRO
LDO
DISCSEL
P.DET
CDREQ
BUSSI
BUSSO
BUSSCK
CDON
CDMUTE
MP3RST
BOOT
/BUSIO
BUSIO
RESET
PVREF
MP3RST
LD/FE
MP3CK
LOAD
DATA
BCK
LRCK
MP3STB
LOAD
BUSSCK
http://www.xiaoyu163.com
http://www.xiaoyu163.com
2-7

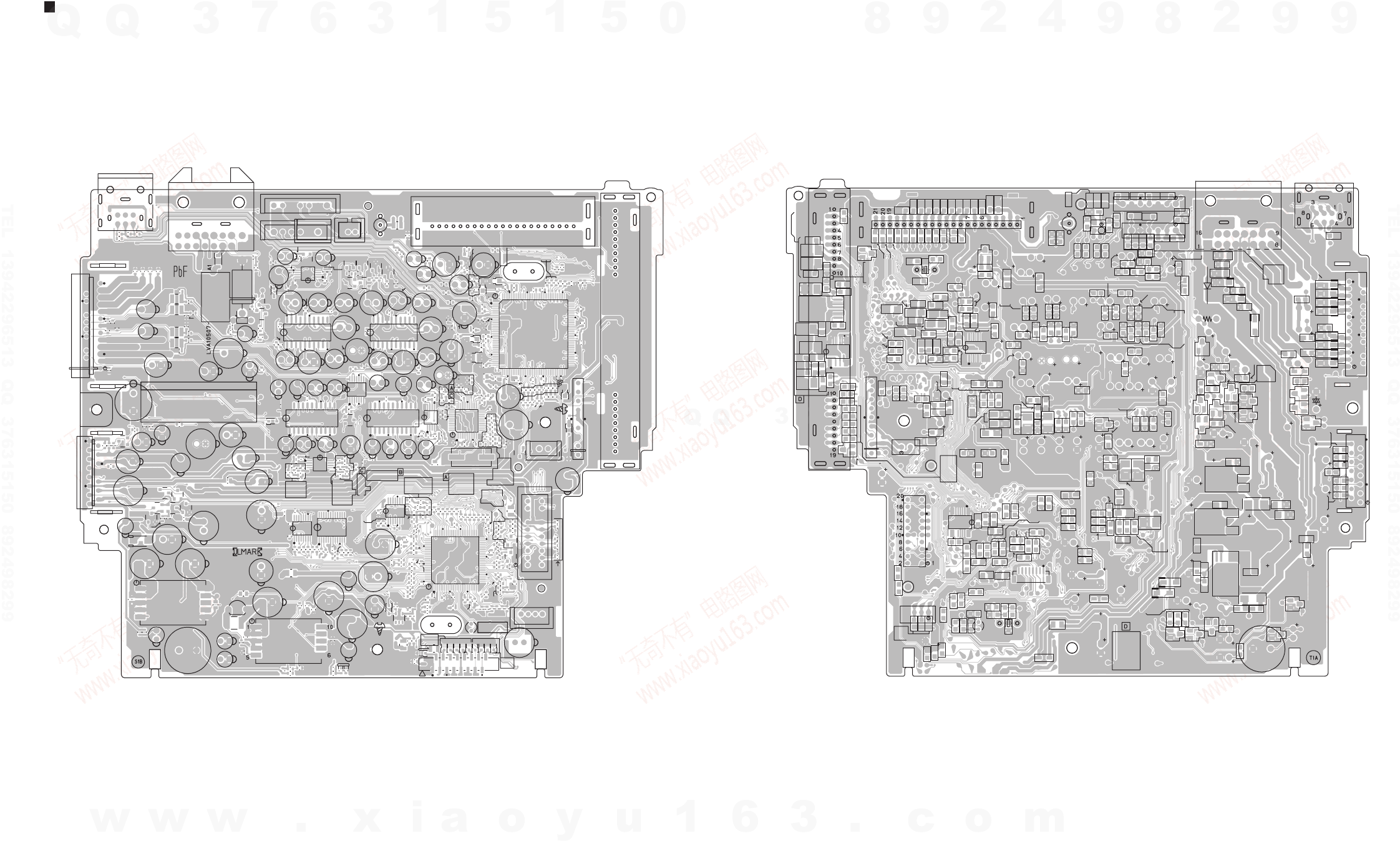

Printed circuit boards
Main board
Forward side Reverse side
BZ791
C2
C4
C6
C14
C30
C31
C40
C41
C42
C43
C44
C45
C46
C48
C49
C51
C54
C55
C58
C59
C60
C61
C62
C69
C72
C73
C74
C75
C76
C80
C81
C82
C705
C706
C707
C708
C712
C713
C715
C716
C718
C719
C720
C722
C776
C777
C791
C901
C902
C903
C904
C905
C908
C910
C912
C921
C922
C923
C924
C925
C972
C974
C941
C942
C950
C951
C952
C953
C954
C955
C961
C962
C963
C964
C973
C975
C977
C983
C985
R748
C987
C989
C991
C992
R1404
C1401
C1402
C1501
C1502
C1601
C1602
C1603
C1621
C1622
C1624
C1625
C1651
C1652
C1653
C1654
C1655
C1700
C1701
C1703
C1705
C1720
C1721
C1723
C1724
C1725
C1726
R2404
C1751
C1752
C1771
C1772
C2401
C2402
C2501
C2502
C2601
C2602 C2603
C2621
C2622
C2624
C2625
C2651
C2652
C2653
C2654
C2655
C2700
C2701
C2703
C2704
C2705
C2720
C2721
C2723
C2725
C2751
C2752
C2771
C2772
C3401
C3603
C3623
C3701 C3721
C3801
C3803
C3804
C3805
C3806
C3808
C7101
C7201
C7202
C7203
C7204
C9001
C9051
CN345
CN351
CN381
CN701
CN702
CN721
CN901
CN991
CN992
D701
D709
D710
D711
D712
D713
D714
D715
D716
D717
D718
D719
D722
D901
D904
D991
D1451
D2451
D3802
D9051
IC10
IC132
IC165
IC171
IC265
IC271
IC360
IC362
IC365
IC381
IC701
IC702
IC710
IC901
IC921
C920
IC951
IC971
IC991
J1
L1
C87
L61
L62
L701
L702
L7201
Q2
Q30
Q703
Q901
Q903
Q905
Q906
Q907
Q908
Q991
R94
Q1451
Q1452
R956
Q2451
Q2452
D944
Q3655
Q3801
Q7201
Q7202
Q9051
R2 R13
R42
R43
R44
R4057
R48
R62
R63
R64
R65
R66
R67
R68
R69
R70
R71
R72
R73
R74
R78
R86
R87
R88
R89
R90
R93
R700
R704
R708
R710
R713
R714
R715
R716
R717
R719
R720
R721
R722
R723
R724
R726
R727
R728
R729
R730
R731
R733
R736
R738
R739
R740
R741
R743
R744
R749
R750
R751
R752
R753
R754
R755
R756
R757
R758
R760
R761
R765
R766
R767
R771
R772
R774
R776
R777
R781
R782
R783
R784
R785
R787
R789
R790
R791
R792
R793
R794
R795
R796
R797
R798
R799
R901
R902
R903
R904
R905
R908
R909
R910
R913
PP1
R921
R922
R923
R924
C970
R953
R954
R971
R972
R991
PP2
B2
R1401
R1402
R1455
R1456
R1501
R1502
R1504
R1601
R1602
R1603
R1604
R1605
R1606
R1621
R1622
R1625
R1626
R1705
R1720
R1721
R1725
R1752
R1754
R1772
R1774
R2401
R2402
R2451
R2452
R2455
R2456
C3811
R2501
R2502
R2504
R2601
R2602
R2603
R2604
R2605
R2606
R2621
R2622
R2625
R2626
R2700
R2701
R2705
R2721
R2725
R2752
R2754
R2772
R2774
L4002
R3651
R3655
R3656
R3802
R3803
R3805
R3807
R3808
R7101
R7102
R7104
R7105
R7106
R7107
R7110
R7111
R7113
R7114
R7119
R7201
R7202
R7203
R7204
R7301
R7302
R7303 R7304
R7311
R7312
R7313
R7314
R7315
R7316
R7317
R7318
R7319
R9001
R9002
R9003 R9051 R9052
TH714
TH901
TU1
X1
X701
X702
C21
C22
C4010
C4012
C4024
C4025
C4026
C4027
C4028
C4030
C4033
C4034
C4036 C4038
L4003
C4045
C4046
C4130
C4132
C4133
IC401
IC411 IC412
R4001
R4010
R4011
R4013
R4014
R4016
D971
R4051
TH903
R4053
R4054
R4055
R4056
R4068
R4100
R4101
R4102
R4103
R4104
R4105
R4106
R4107
C85
R4130
R4131
R4132
R4133
R4134
R4135
TH902
R980
X4001
C993
C1404 C2404
C4102
C4134
L4130
C4050
C77
C86
C79
R3660
R925
R926
L704
L705
C725
C726
R1001
PP3
B1
BZ791
C1
C2
C3
C4
C5
C7
C8
C9
C10
C11
C12
C13
C32
C33
C34
C35
C36
C37
C38
C39
C47
C48
C50
C52
C53
C56
C57
C61
C62
C63
C64
C65
C66
C67
C68
C70
C71
C83
C84
C700
C701
C702
C703
C704
C705
C708
C709
C710
C713
C714
C717
C718
C719
C721
C776
C791
C901
C902
C903
C905
C906
C907
C908
C910
C911
C912
C913
C916
C917
C921
C923
C925
C972
C974
C941
C942
R940
C950
C951
C953
C954
C955
C956 C957 C958 C959
C960
C965
C966
C967
C968
C971
C975
C976
C977
C983
C984
C985
C987
C988
C989
C991
C1301
C1302
C1303
C1304
C1311
C1312
C1313
C1314
C1315
C1321
C1322
C1323
C1324
C1401
C1403
C1451 C1452
C1607
C1623
C1624
C1651
C1652
C1653
C1654
C1700
C1701
C1702
C1703
C1704
C1705
C1706
C1720
C1721
C1722
C1723
C1725
C1726
C1728
C1801
C2401
C2403
C2451 C2452
C2607
C2623
C2624
C2651
C2652
C2653
C2654
C2700
C2701
C2702
C2703
C2705
C2706
C2720
C2721
C2722
C2723
C2724
C2725
D976
D975
C2728
C2801
C3401
C3402
C3403
C3451
C3452
C3501
C3603
C3623
C3655
C3701
C3721
C3803
C3804
C3805
C3807
C9001
CN345
CN351
CN381
CN702
CN715
CN721
CN901
CN991
CN992
D1
D2
D702
D705
D721
D901
D905
D916
D917
D941
D942
D943 D952
D961
D962
D963
D964
D965
D966
D967
D968
D3801
IC11
IC131
IC132
IC703
IC901
C920
IC951
IC973
IC975
R975
IC991
J1
K722
K723
L30
L31
C87
L40
L41
R934
R935
L703
L921
Q1
Q3
Q791
Q902
Q921
Q941
Q942
Q943
Q951
Q952
Q953
Q954
Q971
Q972
Q1321
D953
D940
Q9001
R1
R3
R4
R5
R6
R7
R8
R9
R10
R11
R12
R40
R41
R45
C3809
R49
R59
R60
R61
R75
R76
R77
R3810
R82
R84
R85
R91
R92
R701
R702
R703 R705
R706
R707
R709
R711
R712
R718
R725
R732
R734
R735
R737
R742
R745
R746
R747
R759
R762
R763
R764
R768
R769
R770
R773
R775
R778
R779
R780
R786
L706
R906
R910
R911
R912
PP1
R916
R917
R918
R920
Q922
C970
R974
R941
R942
R950
R951
R952
R955
R970
R973
R978
PP2
R1311
R1312
R1313
R1314
R1315
R1321
R1322
R1323
R1324
R1325
R1326
R1451
R1452
R1453
R1454
R3811
R3812
R1503
R1607
R1608
R1623
R1624
R1651
R1652
R1653
R1654
R1655
R1700
R1701
R1702
R1703
R1704
R1722
R1723
R1724
R1801
R2453
R2454
C3810
R2503
R2607
R2608
R2623 R2624
R2651
R2652
R2653
R2654
R2655
R2702
R2703
R2704
R2720
R2722
R2723
R2724
R2801
R3401
R3403
R3603
R3623
R3801 R3804
R3809
R7103
R7112
R7115
R7116
R7117
R7118
R7401
R7402
R1000
TU1
X1
X701
X702
C4001
C4002
C4011
C4031
C4032
C4035
C4100
C4101
C4131
L4001
C994
R4015
R4017
R4018
D921
TH903
R4108
R4109
R4110
R4111
R4112
R4113
R4114
R4115
R979
IC130
R1305
R1306
R1307
R1309
R58
R3405
IC976
R976
R977
D979
C4134
C88
C78
C995
L4101
C28
C29
C723
C724
L63
Q3656
C7116
C7117
R927
R969
C1802 C2802
PP3
http://www.xiaoyu163.com
http://www.xiaoyu163.com
2-8

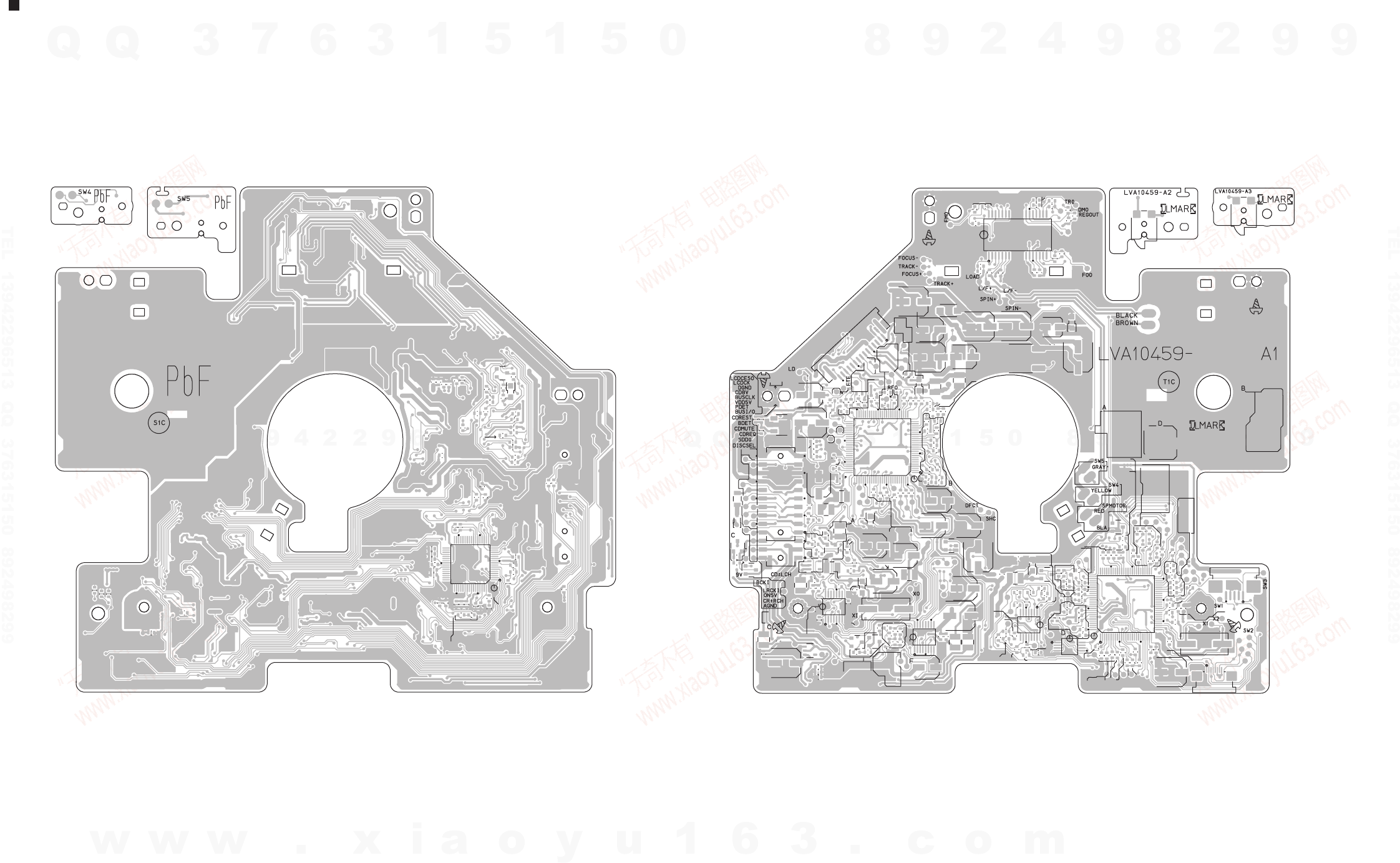

Mecha control board
Forward side Reverse side
(Switch board)
(Mecha control board)
(Reset SW board) (Switch board)
(Mecha control board)
(Reset SW board)
C602
C605
C610
C617
C627
C630
C638
C646
C647
C654
C655
C656
C659
C660
C661
C662
C663
C664
C665
C666
C667
C669
C672
C572
C571
C506
IC652
Q653
C674 R661
R660
C673
R610
R611
C518
C519
R629
R630
R631
R635
R636
R638
R639
C520
R651
R653
R654
R675
R597
R678
R596
R662
R659
R664
R663
R658
R576
R575
R643
C649
R612
C527
C526
SW4
SW5
B681
C501
C502
C503
C504
C505
C507
C508
C509
C510
C511
C512
C513
C514
C551
C573 C574
C575
C576
C577
C581
C582
C583
C584
C523
C521
C522
C595
C596
C601
C603
C604
C606
C607
C608
C609
C611
C612
C613
C614
C616
C618
C619
C620
C621
C622
C623
C624
C625
C626
C628
C629
C631
C632
C633
C634
C635
C636
C637
C639
C640
C641
C642
C643
C644
C645
C651
C652
C653
C668
C671
C682
C683
C684
C685
C686
C687
C688
C689
C690
C693
C694
CN501
CN502
CN601
R689
R688
CN602
C676
D506
D682
FE+
FE-
IC501
IC502
IC503
IC504
IC571
IC601
IC651
IC681
L501
L502
L571 L572
L621
L622
L623
L624
L651
L652
L653
Q501
Q502
Q571
Q572
Q601
Q651
Q652
Q681
R501
R502
R503
R504
R505
R506
R507 R508
R509
R510
R511
R512
R513
R514
R515
R516
R517
R518
R519
R520
R521
R522
R523
R524
R525
R526
R527
R528
R529
R530
R531
R533
R534
R535
R536
R537
R539
R540
R541
R542
R543
R544
R545
R546
R547
R548
R549
R550
R551
R552
R553
R554
R555
R556
R557
R558
R559
R560
R561
R562
R563
R564
R565
R566
R567
R568
R569
R570
R574
R581
R582
CN503
C516
R593
R601
R602
R603
R604
R605
R606
R607
R608
R609
R615
R616
R621
R622
R623
R624
R625
R626
R627
R628
R632 R633
R634
R637
R640
R641
R642
R656
R657
R668
R681 R682
R683
R684
R685
R686
R687
TH501
X501
X571
C695
R680
R617
R572 R571
VREF
RF
C648
C650
C578
C675 C657
R532
FEI
R591
R655
R590
IC573
C517
R594
L573
Q573
R693
Q574
R577
R578
TEI
R692 R691
R690
R579
R598
R599
C677
C678
C525
C579
http://www.xiaoyu163.com
http://www.xiaoyu163.com
2-9

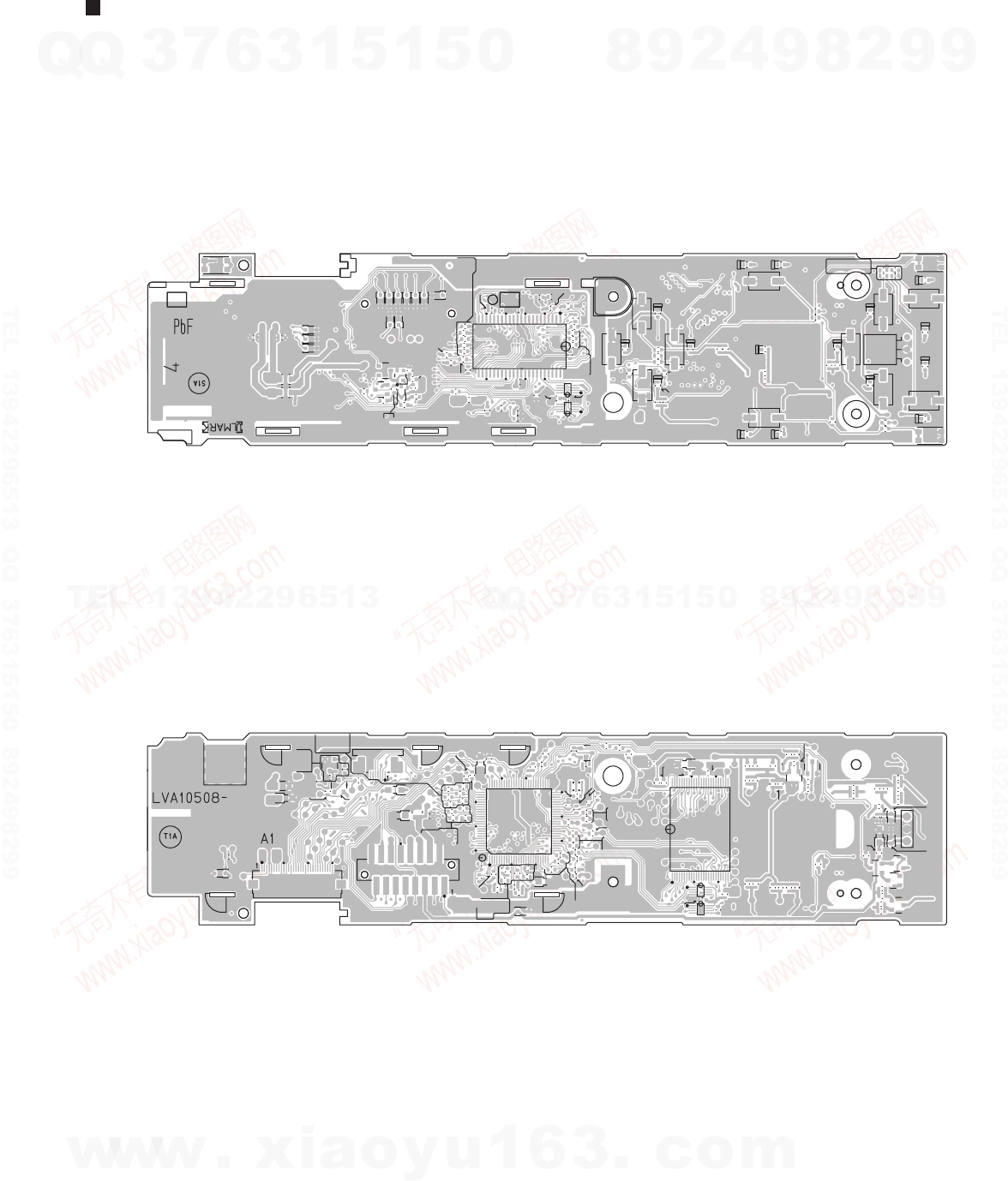

Front board
Forward side
Reverse side
C471
C472
C481
R408
C806
C872
C874
C875
C876
C882
IC471
D401
D402
D403
D404
D405
D406
D407
D408
D410 D411
D412
D413
D414
D415 D416
D417
D418
D419
D420
D421
D422
D423 D424
D425
D881
D882
IC461
IC481
R409
IC881
K471
K481
Q881
R410
R411
R412
R413
R416
R417
R442
R443
R444
R445
R446
R447
R448
R449
R450
R451
R452
R453 R454
R455
R877
R491
R802
R812
R813
R814
R815
R816
R817
R818
R819
R823 R830
R834
R835
R846
R847
R848
R851
R860
R861
R862
R863
R864
R865
R866
R867
R881
R882
R884
R885
R886
S441
S442
S444
S445
S447
S448
S449
S450
S451
S452
S453
S454
S455
S811
IC482
D871
D872
D873
R857
D430
C461
C473
K491
C491
C492
C493
C801
C802
C804
C805
C807
C871
C873
C881
C891
C892
R870
CN801
CN802
CN871
D426
D441
IC461
R492
IC483
IC491
IC801
R871
R872
R873
L891
R874
WE1
Q441
Q442
Q481
R414
R415
R418
R419
R420
R421
R422
R423
R424
R425
R426
R427
R428
R429
R430
R431
R432
R433
R441
R456
R461
C479
R463
R464
R868
R875
R876
R801
R803 R804
R805
R806
R807
R808
R809
R810
R811
R820
R821
R822
R481
R825
R826
R827
R828 R829
R831
R832 R833
R836 R837
R838
R839
R840
R841
R842
R843
R844
R845
R849
R852
R853
R854 R855
R493
R465
R883
R434
R435
W2 X801
TPA0
R436
R437
Q411
Q412
R438
R439
W1
K483
C483
IC484
R466
R459
R460
R457
R458
R482
D434
R483
R484
W6
W5
W3 W4
Q470
Q472
C478
D433
D431 D432
R470
R471
R474
C477
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA048SCH)
VICTOR COMPANY OF JAPAN, LIMITED
AV & MULTIMEDIA COMPANY CAR ELECTRONICS CATEGORY 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan
Printed in Japan
WPC
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-1
PARTS LIST
* All printed circuit boards and its assemblies are not available as service parts.
- Contents -
Exploded view of general assembly and parts list (Block No.M1)
CD mechanism assembly and parts list (Block No.MB)
Electrical parts list (Block No.01~03)
Packing materials and accessories parts list (Block No.M3)
[ KD-SHX705 ]
3- 2
3- 6
3- 9
3-18
Area suffix
U --------------------- Other Areas
MA048
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-2

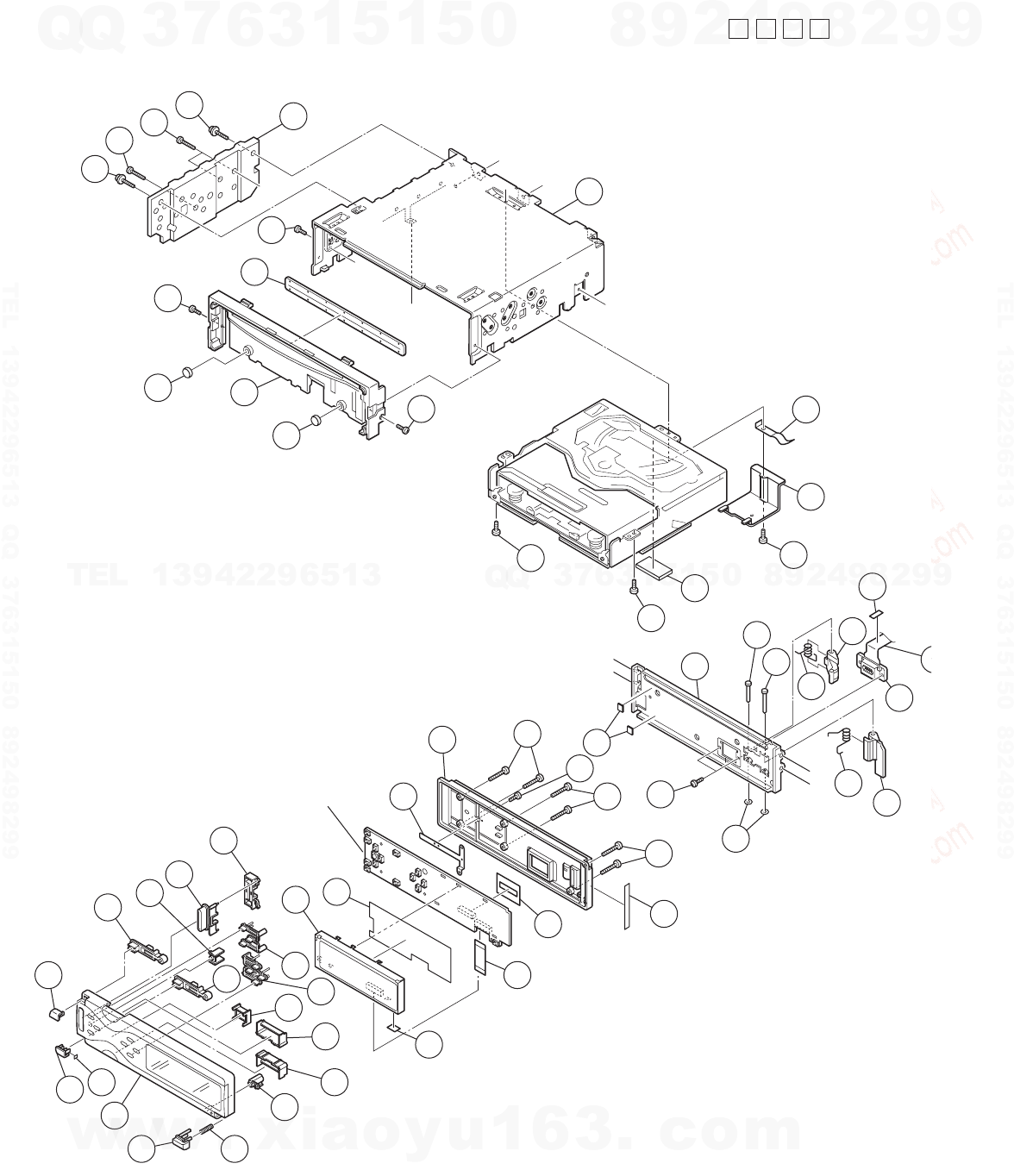

Exploded view of general assembly and parts list
Block No. MM
M
1
C
B
A
a
E
D
J
G
F
F'
G'
Front board
55
49
57
52
53
54
62
6059
50 51
48
47
54
58
61
56
71
77
69
64
70
63
65
66
66
66
67
68
14
18
33
7
10
16
17
11
13
12
45
45
45
20
21
25
42
43
32
40
24
27
23 32
19
31
8
9
6
42
44
27
http://www.xiaoyu163.com
http://www.xiaoyu163.com

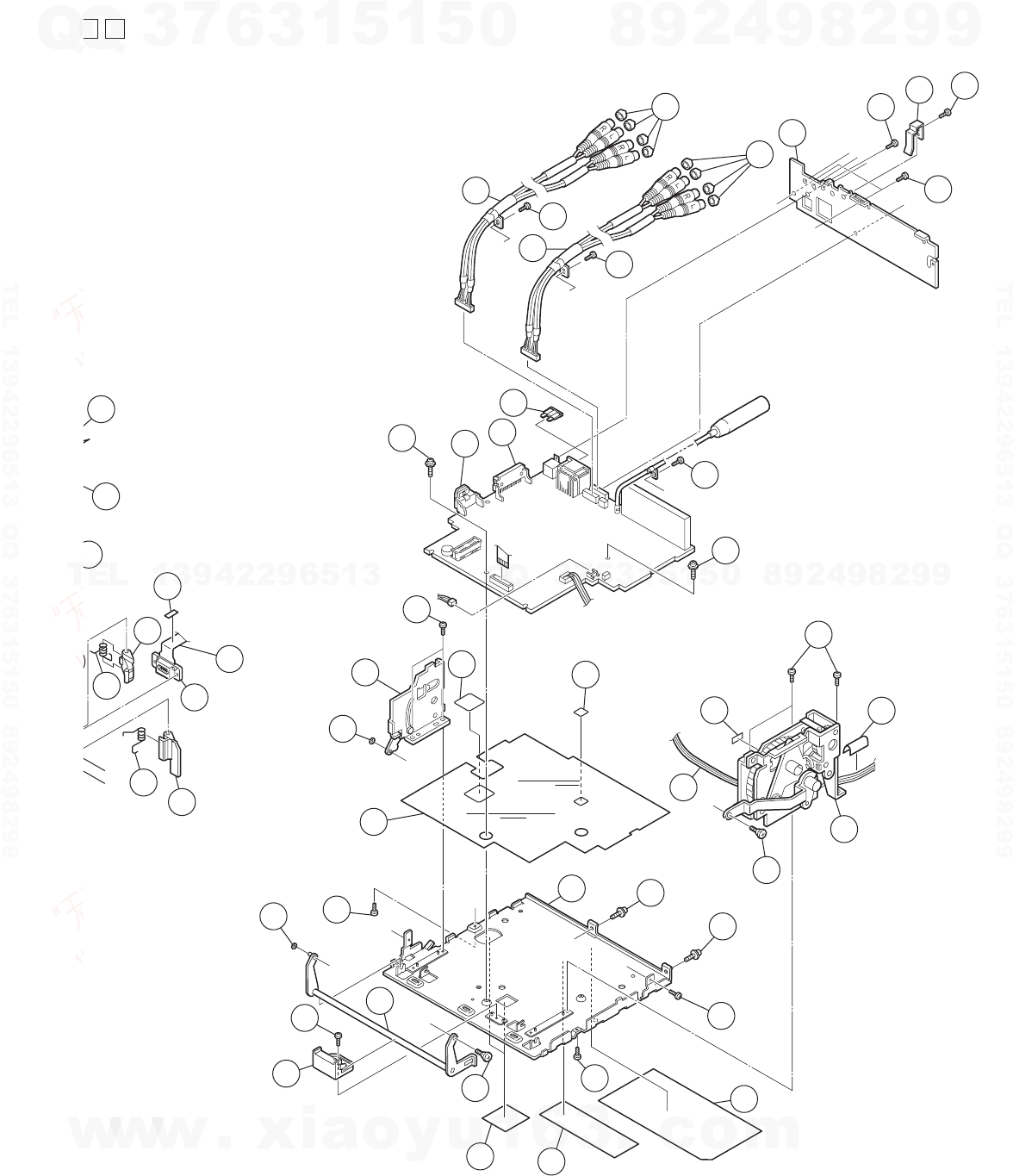

3-3
M
M
C
D
E
H
B
a
a
g
b
c
Main board
H
g
e
G
G'
G'
F'
c
b
G
F
d
e
J
d
39
15
5
37
26 34
74 73
39
72
41
41
40
34
3
36
76
2
15
35
29 30
38
4
7
10
16
17
11
46
86
84
4
5
20
25
8
9
22
85
1
28
78
79
38
83
75
75
81
87
82 87
88
80
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-4
General Assembly
Block No. [M][1][M][M]
Symbol No. Part No. Part Name Description Local
1 GE20156-002A GEAR BKT UNIT
2 LV40847-002A SPACER
3 FSYH4036-100 SHEET
4 GE30968-001A LEVER BKT UNIT
5 GE30964-002A LOWER LEVER ASS
6 GE30975-003A FRONT BKT ASSY
7 QNZ0664-002 CAR CONNECTOR
8 QAL0587-001 FPC
9 FSYH4036-100 SHEET
10 GE30972-001A DETACH LEVER
11 GE30973-001A KICK LEVER
12 GE40192-001A SHAFT
13 GE40193-001A SHAFT
14 WDL123525 SLIT WASHER (x2)
15 WDL215025 WASHER (x2)
16 GE40194-001A T SPRING
17 GE40195-002A T SPRING
18 LV43971-001A ABSORBER (x2)
19 LV10884-001A TOP CHASSIS
20 LV35317-001A MECHA HEAT SINK
21 LV43854-003A COOLING RUBBER
22 GE10074-001A BOTTOM CHASSIS
23 LV34930-005A F CHASSIS ASSY
24 GE40156-001A BLIND
25 LV35233-001A EARTH SPRING2
26 GE30974-001A FPC GUIDE
27 GE40196-001A ABSORBER (x2)
28 LV35332-001A INSULATOR
29 LV43854-001A COOLING RUBBER
30 LV43854-002A COOLING RUBBER
31 GE31206-003A HEAT SINK
32 QYSPSP2003M SCREW 2mm x 3mm(x2)
33 QYSPSGU2040M TAP SCREW M2 x 4mm(x2)
34 LV42181-002A SPECIAL SCREW (x2)
35 LV40865-001A MINI SCREW (x2)
36 LV40865-001A MINI SCREW (x3)
37 LV40865-001A MINI SCREW
38 LV41200-001A SPECIAL SCREW (x2)
39 FSKZ4005-001 SCREW (x2)
40 QYSDST2604Z SCREW 2.6mm x 4mm(x2)
41 LV41200-001A SPECIAL SCREW (x2)
42 FSKZ4005-002 SCREW (x2)
43 QYSDST2614Z TAPPING SCREW M2.6 x 14mm(x2)
44 QYSDST2614Z TAPPING SCREW M2.6 x 14mm
45 QYSDST2605Z SCREW 2.6mm x 5mm(x3)
46 QYSDST2604Z SCREW 2.6mm x 4mm(x2)
47 LV34975-003A FRONT PANEL ASSY
48 LV34806-001A EJECT BUTTON
49 LV34807-001A EJECT BUTTON BA
50 LV34808-001A POWER BUTTON
51 LV43999-001A SHEET
52 LV34809-001A POWER BUTTON BA
53 LV34815-001A SHADING WALL 1
54 LV34805-001A SHADING WALL 2 (x2)
55 LV34810-001A VOL BUTTON
56 LV34816-001A SHADING WALL 3
57 LV34800-003A 3 BUTTON
58 LV34801-002A 4 BUTTON
59 LV34799-001A DETACH BUTTON
60 LV43723-001A COMPRESSION SPRING
61 LV34817-001A IR FILTER
62 LV34818-001A RESET BUTTON
63 LV10882-001A REAR COVER
64 LV40848-051A SPACER(P)
65 LV34812-001A EARTH SPRING
66 VKZ4777-001 MINI SCREW (x6)
67 QYSPSPU1730M SCREW 1.7mm x 3mm
68 QLE0031-001 OEL MODULE
69 LV43972-001A OEL INSULATOR
70 LV43889-001A SW PWB SHEET
71 LV40848-050A SPACER(P)
72 LV34974-001A NAME PLATE
73 LV41843-002A LASER CAUTION
74 GE40218-011A SHEET (x2)
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-5
75 GE40101-001A PIN CAP (x8)
76 QJJ010-040904 SIN CR C-C WIR
77 QUQ105-3003AB FFC WIRE
78 LV43349-001A POWE IC BKT
79 LV43373-001A REG IC BKT
80 QMFZ039-150-T FUSE 15A
81 QAM0561-001 CAR CABLE
82 QAM0560-001 CAR CABLE
83 LV34596-004A REAR BRACKET
84 LV43864-001A WIRE BRACKET
85 QYSDST2604Z SCREW 2.6mm x 4mm
86 QYSDST2604Z SCREW 2.6mm x 4mm
87 QYSDST2604Z SCREW 2.6mm x 4mm(x2)
88 QYSDST2604Z SCREW 2.6mm x 4mm
Symbol No. Part No. Part Name Description Local
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-6
CD mechanism assembly and parts list
A
B
A
B
C
C
a
b
b
a
FLM-JC1-1D
Block No. M M
M
B
11.10mm 0.10mm
1.0
1.2 0.1mm
1
2
2
1
98
93
26
30
24
25
27 30
29
23
31
32
28
20 66
65
64
60
36
35
39
37
22
15
63
73
74 67
71
72
84
81
82 82
85
1
83 82
1
1
1
1
3
2
6
8
4
9
14
13
13
14
6
8
4
35
76
75
53
54
17
16
56
19
40
43
44
45
41 42
47
59
48
49
51
58
52
50
77
62 78
78
6
7
69
68
39
90
86
91
11
88
12
12
10
18
34
94 95
96
97
57
87
55
92
80
70
25
89
46
33
61 38
21
79
= JC-803B
= MOBIL-1
= JVG-31N
= JVS-1003
Grease
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-7
CD mechanism
Block No. [M][B][M][M]
Symbol No. Part No. Part Name Description Local
1 VKZ4539-026 MINI SCREW (x5)
2 LV10857-001A CHASSIS FRAME 2
3 LV30225-0J6A SPACER (x2)
4 LV35272-001A DAMPER(F) (x2)
5 LV35273-001A DAMPER(R)
6 QYSPSTU2045M TAP SCREW M2 x 4.5mm(x3)
7 LV43039-001A DAMPER SP.(R)
8 LV43849-001A DAMPER SP(F2) (x2)
9 LV43041-001A FLOATING SPRING (x2)
10 LV10675-001A TOP COVER
11 LV30225-0J5A SPACER
12 VKZ4539-026 MINI SCREW (x2)
13 LV33669-001A STOPPER (x2)
14 VKZ4539-026 MINI SCREW (x2)
15 LV21615-001A CD CHASSIS ASSY
16 LV33608-001A GEAR HOLDER
17 VKZ4539-026 MINI SCREW
18 LV43561-001A ABSORBER
19 LV30225-0J5A SPACER
20 LV33683-003A SLIDE CAM ASSY
21 LV33610-001A FLOATING ARM
22 LV33611-001A CONNECT ARM
23 LV33678-003A LOADING A. ASSY
24 LV43049-001A LOADING SHAFT
25 LV43052-003A ROLLER (x2)
26 LV33612-001A LOADING GEAR
27 QYWFM124013 WASHER 4mm/1.2mm x 0.13mm
28 LV43053-002A ROD(L)
29 LV43725-001A ROD(R)
30 LV43001-001A COLLAR (x2)
31 LV21285-001A PROTECTOR
32 LV43055-001A PROTECTOR SP.
33 QAR0144-003 MOTOR
34 LV43002-002A WORM GEAR
35 QYSPSPT2025M MINI SCREW 2mm x 2.5mm(x2)
36 LV33679-001A MOTOR H. ASSY
37 LV33614-002A WORM WHEEL
38 QYWDL1230250 SLIT WASHER 3mm/1.2mm x 0.25mm
39 VKZ4539-026 MINI SCREW (x2)
40 LV33615-001A GEAR 2
41 LV43057-003A IDLER ARM ASSY
42 QYWDL1635252 SLIT WASHER 3.5mm/1.6mm x 0.25mm
43 LV21286-001A CONTROL CAM
44 QYWDL1230250 SLIT WASHER 3mm/1.2mm x 0.25mm
45 LV33616-001A LOAD.LOCK LEVER
46 LV43060-001A CAM SPRING
47 LV43005-001A GEAR 4
48 LV43006-001A GEAR 5
49 LV33617-001A GEAR 6
50 LV33618-002A LOADING G. ARM
51 QYWDL1635252 SLIT WASHER 3.5mm/1.6mm x 0.25mm
52 LV43007-001A GEAR 7
53 LV33619-002A GEAR 8
54 LV42132-001A E RING
55 QYWFM215013 WASHER 5mm/2.1mm x 0.13mm
56 LV33620-001A GEAR 9
57 LV43008-001A GEAR10
58 LV43061-001A LOAD SPRING
59 LV33621-001A FEED GEAR
60 LV33622-001A TRIGGER ARM
61 LV43062-001A FEED TRI.SPRING
62 QYSPSFT2040Z TAP SCREW M2 x 4mm
63 QAR0305-001 SPINDLE MOTOR
64 QYSPSPT1720M SCREW M1.7 x 2mm(x2)
65 LV43669-002A T.TABLE ASSY
66 QYWFM214025 WASHER 4mm/2.1mm x 0.25mm
67 QAL0563-001 PICK UP
68 LV34583-002A CD RACK PLATE
69 LV34579-001A CD RACK SPRING
70 LV43903-001A MINI TAP SCREW
71 LV34580-001A P.S.SPRING
72 QYSPSGT1425M TAP SCREW 1.4mm x 2.5mm
73 LV43670-001A LEAD SCREW
74 LV43010-001A L.S.GEAR
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-8
75 LV43011-001A THRUST SPRING
76 QYSPSFT2040Z TAP SCREW M2 x 4mm
77 LV21604-003A L.S.HOLDER 1
78 VKZ4539-026 MINI SCREW (x2)
79 LV34582-002A L.S.HOLDER 2
80 VKZ4539-026 MINI SCREW (x2)
81 LV34581-001A SUB GUIDE
82 VKZ4539-026 MINI SCREW (x3)
83 LV34915-001A SW LEVER
84 LV43898-001A S.L.SPRING
85 QYSPSFT2040Z TAP SCREW M2 x 4mm
86 LV34602-002A CLAMPER UNIT 2
87 LV34585-001A KICK ARM 2
88 LV43507-001A SPL WASHER
89 LV43070-001A CLAMPER SPRING
90 LV43355-001A CLAMPER2 SPRING
91 LV30225-0J6A SPACER
92 LV21616-003A FRONT UNIT 2
93 VKZ4539-026 MINI SCREW
94 LVB30016-001A SW FPC2
95 NSW0187-001 SWITCH S1
96 NSW0187-001 SWITCH S2
97 NSW0187-001 SWITCH S3
98 VKZ4539-025 MINI SCREW (x2)
Symbol No. Part No. Part Name Description Local
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-9
Electrical parts list
Main board
Block No. [0][1][0][0]
Symbol No.
Part No. Part Name Description Local
IC10 SAF7730HV/N114F IC
IC11 PHK04P02T-X POWER MOS FET
IC165 BD3805F-X IC
IC171 LA2900M-X IC
IC265 BD3805F-X IC
IC271 LA2900M-X IC
IC360 NJM4580V-X IC
IC362 NJM4565V-X IC
IC365 CD4066BPW-X IC
IC381 NJM4565V-X IC
IC401 AK7740VT IC
IC411 JCV8009-W IC
IC412 AK4385VT-X IC
IC701 MN101E01LCW IC
IC702 PST9121N-X IC
IC703 BR24L32F-W-X IC
IC710 SN74AHCT126PW-X IC(DIGITAL)
IC901 HA13164A IC
IC921 NAL0026-001X D/D CONVERTER
IC951 TB2901HB IC
IC971 NAL0024-002X D/D CONVERTER
IC973 TA48033F-X IC
IC975 BA33BC0FP-X IC
IC976 BA00BC0WFP-X IC(DIGITAL)
IC991 BA6956AN IC
Q1 2SB815/7/-X TRANSISTOR
Q2 UN2211-X TRANSISTOR
Q30 UN2211-X TRANSISTOR
Q703 UN2213-X DIGI TRANSISTOR
Q791 UN2211-X TRANSISTOR
Q901 UN2111-X TRANSISTOR
Q902 UN2211-X TRANSISTOR
Q903 2SB709A/QR/-X TRANSISTOR
Q905 UN2111-X TRANSISTOR
Q906 UN2211-X TRANSISTOR
Q907 UN2111-X TRANSISTOR
Q908 UN2211-X TRANSISTOR
Q921 2SD601A/RS/-X TRANSISTOR
Q922 UN2211-X TRANSISTOR
Q941 UN2111-X TRANSISTOR
Q942 UN2113-X TRANSISTOR
Q943 UN2113-X TRANSISTOR
Q951 2SD601A/QR/-X TRANSISTOR
Q952 UN2211-X TRANSISTOR
Q953 UN2213-X DIGI TRANSISTOR
Q954 UN2113-X TRANSISTOR
Q971 2SD601A/RS/-X TRANSISTOR
Q972 UN2211-X TRANSISTOR
Q991 UN2211-X TRANSISTOR
Q1451 2SD2114K/VW/-X TRANSISTOR
Q1452 2SD2114K/VW/-X TRANSISTOR
Q2451 2SD2114K/VW/-X TRANSISTOR
Q2452 2SD2114K/VW/-X TRANSISTOR
Q3655 UN2211-X TRANSISTOR
Q3656 UN2211-X TRANSISTOR
Q3801 2SD1781K/QR/-X TRANSISTOR
Q7201 UN2211-X TRANSISTOR
Q7202 UN2211-X TRANSISTOR
Q9001 2SD601A/QR/-X TRANSISTOR
Q9051 UN2211-X TRANSISTOR
D1 1SS355-X SI DIODE
D2 1SS355-X SI DIODE
D701 1SS355-X SI DIODE
D702 1SS355-X SI DIODE
D709 UDZS5.6B-X Z DIODE 1.5k
Ω
1/10W J
D710 UDZS5.6B-X Z DIODE 1.5k
Ω
1/10W J
D711 UDZS5.6B-X Z DIODE 1.5k
Ω
1/10W J
D712 UDZS5.6B-X Z DIODE 1.5k
Ω
1/10W J
D713 UDZS5.6B-X Z DIODE 1.5k
Ω
1/10W J
D714 UDZS5.6B-X Z DIODE 1.5k
Ω
1/10W J
D715 UDZS5.6B-X Z DIODE 1.5k
Ω
1/10W J
D716 UDZS5.6B-X Z DIODE 1.5k
Ω
1/10W J
D717 UDZS5.6B-X Z DIODE 1.5k
Ω
1/10W J
D718 SML-310LT/MN/-X LED
D719 SML-310LT/MN/-X LED
D722 UDZS5.6B-X Z DIODE 1.5k
Ω
1/10W J
D901 1N5401-F64 DIODE
D904 RB160M-30-X SB DIODE
D905 RB160M-30-X SB DIODE
D916 RB160M-30-X SB DIODE
D917 RB160M-30-X SB DIODE
D921 1SR154-400-X DIODE
D940 UDZS3.3B-X Z DIODE
D941 UDZS11B-X Z DIODE
D942 MA152WA-X DIODE
D943 MA152WA-X DIODE
D944 1SS355-X SI DIODE
D952 UDZS11B-X Z DIODE
D971 1SR154-400-X DIODE
D975 RB160M-30-X SB DIODE
D976 RB160M-30-X SB DIODE
D991 UDZS3.9B-X Z DIODE
D1451 MA152WA-X DIODE
D2451 MA152WA-X DIODE
D3801 1SS355-X SI DIODE
D9051 MA152WA-X DIODE
C1 NCB31HK-222X C CAPACITOR 2200pF 50V K
C2 QERF1CM-476Z E CAPACITOR 47uF 16V M
C3 NCS31HJ-391X C CAPACITOR 390pF 50V J
C4 QERF1CM-476Z E CAPACITOR 47uF 16V M
C5 NCS31HJ-391X C CAPACITOR 390pF 50V J
C7 NCS31HJ-391X C CAPACITOR 390pF 50V J
C13 NCS31HJ-391X C CAPACITOR 390pF 50V J
C14 NCS31HJ-391X C CAPACITOR 390pF 50V J
C21 NCB31HK-102X C CAPACITOR 1000pF 50V K
C22 NCB31HK-102X C CAPACITOR 1000pF 50V K
C28 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C29 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C32 NCS31HJ-180X C CAPACITOR 18pF 50V J
C33 NCS31HJ-100X C CAPACITOR 10pF 50V J
C34 NBE20JM-475X TA E CAPACITOR 4.7uF 6.3V M
C35 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C36 NCS31HJ-181X C CAPACITOR 180pF 50V J
C37 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C40 NCS31HJ-101X C CAPACITOR 100pF 50V J
C41 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C42 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C43 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C44 NBE20JM-475X TA E CAPACITOR 4.7uF 6.3V M
C45 NBE20JM-475X TA E CAPACITOR 4.7uF 6.3V M
C46 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C47 NBE20JM-475X TA E CAPACITOR 4.7uF 6.3V M
C48 QERF0JM-107Z E CAPACITOR 100uF 6.3V M
C50 NBE20JM-226X TA E CAPACITOR 22uF 6.3V M
C51 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C53 NCB21CK-105X C CAPACITOR 1uF 16V K
C54 NBE40JM-476X TA E CAPACITOR 47uF 6.3V M
C55 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C56 NCS31HJ-101X C CAPACITOR 100pF 50V J
C57 NCS31HJ-101X C CAPACITOR 100pF 50V J
C58 NBE20JM-475X TA E CAPACITOR 4.7uF 6.3V M
C59 NCB31CK-333X C CAPACITOR 0.033uF 16V K
C60 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C61 QERF0JM-107Z E CAPACITOR 100uF 6.3V M
C62 QERF0JM-227Z E CAPACITOR 220uF 6.3V M
C63 NCB31EK-223X C CAPACITOR 0.022uF 25V K
C64 NCB21CK-105X C CAPACITOR 1uF 16V K
C65 NCB31HK-471X C CAPACITOR 470pF 50V K
C66 NCS31HJ-101X C CAPACITOR 100pF 50V J
C67 NCS31HJ-101X C CAPACITOR 100pF 50V J
C68 NCS31HJ-101X C CAPACITOR 100pF 50V J
C70 NCS31HJ-101X C CAPACITOR 100pF 50V J
C71 NCS31HJ-101X C CAPACITOR 100pF 50V J
C72 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
C73 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
Symbol No.
Part No. Part Name Description Local
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-10
C74 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
C76 NCB31EK-223X C CAPACITOR 0.022uF 25V K
C77 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C78 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C79 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C80 NCB31EK-223X C CAPACITOR 0.022uF 25V K
C82 NCB31EK-223X C CAPACITOR 0.022uF 25V K
C85 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z
C86 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z
C88 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C701 NCS31HJ-100X C CAPACITOR 10pF 50V J
C702 NCS31HJ-100X C CAPACITOR 10pF 50V J
C703 NCS31HJ-330X C CAPACITOR 33pF 50V J
C704 NCS31HJ-180X C CAPACITOR 18pF 50V J
C705 QERF1AM-227Z E CAPACITOR 220uF 10V M
C708 QERF1AM-106Z E CAPACITOR 10uF 10V M
C709 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C710 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C712 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C713 QERF0JM-337Z E CAPACITOR 330uF 6.3V M
C714 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C715 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C716 NCB31HK-471X C CAPACITOR 470pF 50V K
C717 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C718 QERF0JM-337Z E CAPACITOR 330uF 6.3V M
C719 QERF0JM-337Z E CAPACITOR 330uF 6.3V M
C720 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C723 NCS31HJ-101X C CAPACITOR 100pF 50V J
C724 NCF31CZ-473X C CAPACITOR 0.047uF 16V Z
C725 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C726 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C776 QERF0JM-476Z E CAPACITOR 47uF 6.3V M
C777 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C791 QERF1HM-104Z E CAPACITOR 0.1uF 50V M
C901 QEZ0675-338 E CAPACITOR 3300uF
C902 QERF1CM-226Z E CAPACITOR 22uF 16V M
C903 QERF1CM-226Z E CAPACITOR 22uF 16V M
C904 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C905 QERF1AM-107Z E CAPACITOR 100uF 10V M
C906 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C907 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C908 QERF1AM-227Z E CAPACITOR 220uF 10V M
C910 QERF1CM-106Z E CAPACITOR 10uF 16V M
C911 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C912 QERF1HM-225Z E CAPACITOR 2.2uF 50V M
C916 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C917 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C921 QERF1CM-107Z E CAPACITOR 100uF 16V M
C922 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z
C923 QERF1EM-107Z E CAPACITOR 100uF 25V M
C941 QERF1CM-107Z E CAPACITOR 100uF 16V M
C942 QERF0JM-107Z E CAPACITOR 100uF 6.3V M
C950 QERF1CM-476Z E CAPACITOR 47uF 16V M
C951 QERF1CM-226Z E CAPACITOR 22uF 16V M
C952 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C953 QERF1CM-106Z E CAPACITOR 10uF 16V M
C954 QERF1HM-475Z E CAPACITOR 4.7uF 50V M
C955 QERF1HM-225Z E CAPACITOR 2.2uF 50V M
C961 NCS31HJ-101X C CAPACITOR 100pF 50V J
C962 NCS31HJ-101X C CAPACITOR 100pF 50V J
C963 NCS31HJ-101X C CAPACITOR 100pF 50V J
C964 NCS31HJ-101X C CAPACITOR 100pF 50V J
C965 NCS31HJ-101X C CAPACITOR 100pF 50V J
C966 NCS31HJ-101X C CAPACITOR 100pF 50V J
C967 NCS31HJ-101X C CAPACITOR 100pF 50V J
C968 NCS31HJ-101X C CAPACITOR 100pF 50V J
C970 QERF1HM-225Z E CAPACITOR 2.2uF 50V M
C971 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C972 QERF1CM-107Z E CAPACITOR 100uF 16V M
C973 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C974 QERF1CM-107Z E CAPACITOR 100uF 16V M
C975 QERF1CM-107Z E CAPACITOR 100uF 16V M
C976 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C977 QERF0JM-107Z E CAPACITOR 100uF 6.3V M
C983 QERF1CM-107Z E CAPACITOR 100uF 16V M
C984 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C985 QERF0JM-227Z E CAPACITOR 220uF 6.3V M
C987 QERF1CM-107Z E CAPACITOR 100uF 16V M
Symbol No.
Part No. Part Name Description Local
C988 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C989 QERF0JM-107Z E CAPACITOR 100uF 6.3V M
C991 QERF1AM-107Z E CAPACITOR 100uF 10V M
C992 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C993 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C994 NCF31CZ-473X C CAPACITOR 0.047uF 16V Z
C995 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C1401 QERF1HM-225Z E CAPACITOR 2.2uF 50V M
C1402 NCB31HK-472X C CAPACITOR 4700pF 50V K
C1403 NCS31HJ-101X C CAPACITOR 100pF 50V J
C1404 NCB31CK-102X C CAPACITOR 1000pF 16V K
C1451 NCS31HJ-101X C CAPACITOR 100pF 50V J
C1452 NCS31HJ-101X C CAPACITOR 100pF 50V J
C1501 NCS31HJ-101X C CAPACITOR 100pF 50V J
C1502 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C1601 NCB31HK-102X C CAPACITOR 1000pF 50V K
C1602 NCS31HJ-391X C CAPACITOR 390pF 50V J
C1603 NCS31HJ-391X C CAPACITOR 390pF 50V J
C1607 NBE41AM-476X TA E CAPACITOR 47uF 10V M
C1621 NCS31HJ-101X C CAPACITOR 100pF 50V J
C1622 NCS31HJ-821X C CAPACITOR 820pF 50V J
C1623 NBE41AM-476X TA E CAPACITOR 47uF 10V M
C1624 QERF1EM-475Z E CAPACITOR 4.7uF 25V M
C1625 NCS31HJ-121X C CAPACITOR 120pF 50V J
C1651 QERF1CM-106Z E CAPACITOR 10uF 16V M
C1652 QTE1H52-105Z E CAPACITOR 1uF 50V
C1653 QERF1HM-105Z E CAPACITOR 1uF 50V M
C1654 QERF1CM-106Z E CAPACITOR 10uF 16V M
C1655 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z
C1700 QTE1E52-475Z E CAPACITOR 4.7uF 25V
C1701 QERF1CM-226Z E CAPACITOR 22uF 16V M
C1702 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C1703 QERF1AM-107Z E CAPACITOR 100uF 10V M
C1704 NCB31HK-152X C CAPACITOR 1500pF 50V K
C1705 QERF1EM-475Z E CAPACITOR 4.7uF 25V M
C1720 QTE1E52-475Z E CAPACITOR 4.7uF 25V
C1721 QERF1CM-226Z E CAPACITOR 22uF 16V M
C1722 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C1723 QERF1AM-107Z E CAPACITOR 100uF 10V M
C1724 NCB31HK-152X C CAPACITOR 1500pF 50V K
C1725 QERF1EM-475Z E CAPACITOR 4.7uF 25V M
C1751 NFV81CM-105X MF CAPACITOR 1uF 16V M
C1752 NCS31HJ-101X C CAPACITOR 100pF 50V J
C1771 NFV81CM-105X MF CAPACITOR 1uF 16V M
C1772 NCS31HJ-101X C CAPACITOR 100pF 50V J
C1801 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C2401 QERF1HM-225Z E CAPACITOR 2.2uF 50V M
C2402 NCB31HK-472X C CAPACITOR 4700pF 50V K
C2403 NCS31HJ-101X C CAPACITOR 100pF 50V J
C2404 NCB31CK-102X C CAPACITOR 1000pF 16V K
C2451 NCS31HJ-101X C CAPACITOR 100pF 50V J
C2452 NCS31HJ-101X C CAPACITOR 100pF 50V J
C2501 NCS31HJ-101X C CAPACITOR 100pF 50V J
C2502 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C2601 NCB31HK-102X C CAPACITOR 1000pF 50V K
C2602 NCS31HJ-391X C CAPACITOR 390pF 50V J
C2603 NCS31HJ-391X C CAPACITOR 390pF 50V J
C2607 NBE41AM-476X TA E CAPACITOR 47uF 10V M
C2621 NCS31HJ-101X C CAPACITOR 100pF 50V J
C2622 NCS31HJ-821X C CAPACITOR 820pF 50V J
C2623 NBE41AM-476X TA E CAPACITOR 47uF 10V M
C2624 QERF1EM-475Z E CAPACITOR 4.7uF 25V M
C2625 NCS31HJ-121X C CAPACITOR 120pF 50V J
C2651 QERF1CM-106Z E CAPACITOR 10uF 16V M
C2652 QTE1H52-105Z E CAPACITOR 1uF 50V
C2653 QERF1HM-105Z E CAPACITOR 1uF 50V M
C2654 QERF1CM-106Z E CAPACITOR 10uF 16V M
C2655 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z
C2700 QTE1E52-475Z E CAPACITOR 4.7uF 25V
C2701 QERF1CM-226Z E CAPACITOR 22uF 16V M
C2702 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C2703 QERF1AM-107Z E CAPACITOR 100uF 10V M
C2704 NCB31HK-152X C CAPACITOR 1500pF 50V K
C2705 QERF1EM-475Z E CAPACITOR 4.7uF 25V M
C2720 QTE1E52-475Z E CAPACITOR 4.7uF 25V
C2721 QERF1CM-226Z E CAPACITOR 22uF 16V M
C2722 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C2723 QERF1AM-107Z E CAPACITOR 100uF 10V M
Symbol No.
Part No. Part Name Description Local
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-11
C2724 NCB31HK-152X C CAPACITOR 1500pF 50V K
C2725 QERF1EM-475Z E CAPACITOR 4.7uF 25V M
C2751 NFV81CM-105X MF CAPACITOR 1uF 16V M
C2752 NCS31HJ-101X C CAPACITOR 100pF 50V J
C2771 NFV81CM-105X MF CAPACITOR 1uF 16V M
C2772 NCS31HJ-101X C CAPACITOR 100pF 50V J
C2801 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C3401 QERF0JM-476Z E CAPACITOR 47uF 6.3V M
C3402 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C3403 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C3451 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C3452 NCS31HJ-101X C CAPACITOR 100pF 50V J
C3501 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C3603 QERF1CM-226Z E CAPACITOR 22uF 16V M
C3623 QERF1CM-226Z E CAPACITOR 22uF 16V M
C3655 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z
C3701 QERF1AM-476Z E CAPACITOR 47uF 10V M
C3721 QERF1AM-476Z E CAPACITOR 47uF 10V M
C3801 NCB31HK-332X C CAPACITOR 3300pF 50V K
C3803 QERF1EM-475Z E CAPACITOR 4.7uF 25V M
C3804 QERF1EM-475Z E CAPACITOR 4.7uF 25V M
C3805 QERF0JM-476Z E CAPACITOR 47uF 6.3V M
C3806 NCB31HK-222X C CAPACITOR 2200pF 50V K
C3807 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C3808 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z
C3809 NCB31CK-333X C CAPACITOR 0.033uF 16V K
C3810 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C3811 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C4001 NDC31HJ-8R0X C CAPACITOR 8pF 50V J
C4002 NDC31HJ-120X C CAPACITOR 12pF 50V J
C4010 NCB31HK-102X C CAPACITOR 1000pF 50V K
C4011 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C4012 NCB31HK-102X C CAPACITOR 1000pF 50V K
C4027 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C4028 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C4030 NCB31HK-102X C CAPACITOR 1000pF 50V K
C4031 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C4032 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C4033 NCB31HK-102X C CAPACITOR 1000pF 50V K
C4034 NCB31HK-102X C CAPACITOR 1000pF 50V K
C4035 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C4036 NCB31HK-102X C CAPACITOR 1000pF 50V K
C4038 NCB31HK-102X C CAPACITOR 1000pF 50V K
C4050 NCF31CZ-473X C CAPACITOR 0.047uF 16V Z
C4100 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C4101 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C4102 NCF31CZ-473X C CAPACITOR 0.047uF 16V Z
C4130 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C4131 NBE40JM-476X TA E CAPACITOR 47uF 6.3V M
C4132 NCS31HJ-101X C CAPACITOR 100pF 50V J
C4133 NCS31HJ-471X C CAPACITOR 470pF 50V J
C4134 QERF1AM-107Z E CAPACITOR 100uF 10V M
C7101 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C7116 NCS31HJ-101X C CAPACITOR 100pF 50V J
C7117 NCS31HJ-101X C CAPACITOR 100pF 50V J
C7201 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C7202 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C7203 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C7204 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C9001 QERF1CM-106Z E CAPACITOR 10uF 16V M
C9051 NCB31CK-104X C CAPACITOR 0.1uF 16V K
R2 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R3 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R4 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R5 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R6 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R7 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R8 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R9 NRSA63J-273X MG RESISTOR 27k
Ω
1/16W J
R10 NRSA63J-273X MG RESISTOR 27k
Ω
1/16W J
R11 NRS181J-100X MG RESISTOR 10
Ω
1/8W J
R12 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R13 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R40 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R41 NRSA63J-100X MG RESISTOR 10
Ω
1/16W J
R42 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R43 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
Symbol No.
Part No. Part Name Description Local
R44 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R45 NRSA02J-0R0X MG RESISTOR 0
Ω
1/10W J
R48 NRSA02J-0R0X MG RESISTOR 0
Ω
1/10W J
R49 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R58 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R60 NRSA02J-100X MG RESISTOR 10
Ω
1/10W J
R63 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R64 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R65 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R66 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R67 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R68 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R69 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R70 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R71 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R72 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R73 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R74 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R75 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R76 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R77 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R78 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R82 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R84 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R85 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R91 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R92 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R93 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R701 NRSA63J-681X MG RESISTOR 680
Ω
1/16W J
R702 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R703 NRSA63J-106X MG RESISTOR 10M
Ω
1/16W J
R704 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R705 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R706 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R707 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R708 NRSA63J-273X MG RESISTOR 27k
Ω
1/16W J
R709 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R713 NRSA63J-822X MG RESISTOR 8.2k
Ω
1/16W J
R714 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R715 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R716 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R717 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R719 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R720 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R721 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R722 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R723 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R724 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R725 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R727 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R729 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R730 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R731 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R732 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R733 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R734 NRSA63J-271X MG RESISTOR 270
Ω
1/16W J
R735 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R736 NRSA63J-271X MG RESISTOR 270
Ω
1/16W J
R737 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R738 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R740 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R741 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R742 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R743 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R744 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R745 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R746 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R747 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R748 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J
R749 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R750 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R751 NRSA63J-123X MG RESISTOR 12k
Ω
1/16W J
R752 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R753 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R754 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
R755 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R756 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R757 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
Symbol No.
Part No. Part Name Description Local
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-12
R758 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R759 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R760 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R761 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R762 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R763 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R764 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R765 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R766 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R767 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R768 NRSA63J-224X MG RESISTOR 220k
Ω
1/16W J
R769 NRSA63J-224X MG RESISTOR 220k
Ω
1/16W J
R770 NRSA63J-224X MG RESISTOR 220k
Ω
1/16W J
R771 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R772 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R773 NRSA63J-224X MG RESISTOR 220k
Ω
1/16W J
R774 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R775 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R776 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R777 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R778 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J
R779 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J
R780 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J
R784 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R785 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R786 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R787 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R789 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R791 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R793 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R795 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J
R796 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R797 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R798 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R799 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R901 NRSA63J-912X MG RESISTOR 9.1k
Ω
1/16W J
R902 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R903 NRSA63J-562X MG RESISTOR 5.6k
Ω
1/16W J
R904 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R905 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R906 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R908 NRSA63J-183X MG RESISTOR 18k
Ω
1/16W J
R909 NRSA63J-563X MG RESISTOR 56k
Ω
1/16W J
R910 QRE142J-102X C RESISTOR 1k
Ω
1/4W J
R911 NRS181J-222X MG RESISTOR 2.2k
Ω
1/8W J
R912 NRS181J-222X MG RESISTOR 2.2k
Ω
1/8W J
R913 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R916 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R917 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R918 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R920 NRSA63-183X MG RESISTOR
R921 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R922 NRSA63J-273X MG RESISTOR 27k
Ω
1/16W J
R923 NRSA63J-822X MG RESISTOR 8.2k
Ω
1/16W J
R924 NRSA63J-753X MG RESISTOR 75k
Ω
1/16W J
R925 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R926 NRSA63J-184X MG RESISTOR 180k
Ω
1/16W J
R935 NRSA63J-513X MG RESISTOR 51k
Ω
1/16W J
R940 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R941 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R942 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R950 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R951 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R952 NRSA63J-273X MG RESISTOR 27k
Ω
1/16W J
R953 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R954 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R955 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R970 NRSA02J-0R0X MG RESISTOR 0
Ω
1/10W J
R971 NRSA02J-222X MG RESISTOR 2.2k
Ω
1/10W J
R972 NRSA02J-102X MG RESISTOR 1k
Ω
1/10W J
R973 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R974 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R975 NRSA63J-393X MG RESISTOR 39k
Ω
1/16W J
R976 NRSA63J-393X MG RESISTOR 39k
Ω
1/16W J
R977 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R978 NRS181J-220X MG RESISTOR 22
Ω
1/8W J
R979 NRS181J-220X MG RESISTOR 22
Ω
1/8W J
R980 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
Symbol No.
Part No. Part Name Description Local
R991 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R1000 NRS181J-0R0X MG RESISTOR 0
Ω
1/8W J
R1001 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R1401 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J
R1402 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R1404 NRSA63J-123X MG RESISTOR 12k
Ω
1/16W J
R1451 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R1452 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R1453 NRSA63J-181X MG RESISTOR 180
Ω
1/16W J
R1454 NRSA63J-181X MG RESISTOR 180
Ω
1/16W J
R1455 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R1456 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R1501 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R1502 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R1503 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J
R1504 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R1601 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R1602 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R1603 NRSA63J-392X MG RESISTOR 3.9k
Ω
1/16W J
R1604 NRSA63J-392X MG RESISTOR 3.9k
Ω
1/16W J
R1605 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J
R1606 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J
R1607 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R1608 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R1621 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R1622 NRSA63J-203X MG RESISTOR 20k
Ω
1/16W J
R1623 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R1624 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R1625 NRSA63J-333X MG RESISTOR 33k
Ω
1/16W J
R1626 NRSA63J-123X MG RESISTOR 12k
Ω
1/16W J
R1651 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R1652 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R1653 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R1654 NRSA63J-393X MG RESISTOR 39k
Ω
1/16W J
R1655 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R1700 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R1701 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R1702 NRSA63J-243X MG RESISTOR 24k
Ω
1/16W J
R1703 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R1704 NRSA63J-363X MG RESISTOR 36k
Ω
1/16W J
R1705 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R1720 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R1721 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R1722 NRSA63J-243X MG RESISTOR 24k
Ω
1/16W J
R1723 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R1724 NRSA63J-363X MG RESISTOR 36k
Ω
1/16W J
R1725 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R1752 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R1754 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R1772 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R1774 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R1801 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R2401 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J
R2402 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R2404 NRSA63J-123X MG RESISTOR 12k
Ω
1/16W J
R2451 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R2452 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R2453 NRSA63J-181X MG RESISTOR 180
Ω
1/16W J
R2454 NRSA63J-181X MG RESISTOR 180
Ω
1/16W J
R2455 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R2456 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R2501 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R2502 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R2503 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J
R2504 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R2601 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R2602 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R2603 NRSA63J-392X MG RESISTOR 3.9k
Ω
1/16W J
R2604 NRSA63J-392X MG RESISTOR 3.9k
Ω
1/16W J
R2605 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J
R2606 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J
R2607 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R2608 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R2621 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R2622 NRSA63J-203X MG RESISTOR 20k
Ω
1/16W J
R2623 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R2624 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R2625 NRSA63J-333X MG RESISTOR 33k
Ω
1/16W J
Symbol No.
Part No. Part Name Description Local
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-13
R2626 NRSA63J-123X MG RESISTOR 12k
Ω
1/16W J
R2651 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R2652 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R2653 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R2654 NRSA63J-393X MG RESISTOR 39k
Ω
1/16W J
R2655 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R2700 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R2701 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R2702 NRSA63J-243X MG RESISTOR 24k
Ω
1/16W J
R2703 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R2704 NRSA63J-363X MG RESISTOR 36k
Ω
1/16W J
R2705 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R2720 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R2721 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R2722 NRSA63J-243X MG RESISTOR 24k
Ω
1/16W J
R2723 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R2724 NRSA63J-363X MG RESISTOR 36k
Ω
1/16W J
R2725 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R2752 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R2754 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R2772 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R2774 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R2801 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R3401 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R3403 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J
R3405 NRSA63J-100X MG RESISTOR 10
Ω
1/16W J
R3603 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R3623 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R3651 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R3655 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R3656 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R3801 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
R3802 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R3803 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R3804 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R3805 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R3807 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R3808 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R3809 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R3810 NRSA63J-273X MG RESISTOR 27k
Ω
1/16W J
R3811 NRSA63J-273X MG RESISTOR 27k
Ω
1/16W J
R3812 NRSA63J-273X MG RESISTOR 27k
Ω
1/16W J
R4001 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R4010 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R4011 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R4013 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R4014 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R4015 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R4016 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R4017 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R4018 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R4051 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R4053 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R4054 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R4055 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R4056 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R4057 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R4068 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R4100 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R4101 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R4102 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R4103 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R4104 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R4105 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R4106 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R4107 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R4108 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R4109 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R4110 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R4111 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R4112 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J
R4113 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R4114 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R4115 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R4130 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R4131 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J
R4132 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R4133 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
Symbol No.
Part No. Part Name Description Local
R4134 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R4135 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7101 NRSA63J-333X MG RESISTOR 33k
Ω
1/16W J
R7102 NRSA63J-183X MG RESISTOR 18k
Ω
1/16W J
R7103 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R7104 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7105 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R7106 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R7107 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R7110 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R7111 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R7112 NRSA63J-392X MG RESISTOR 3.9k
Ω
1/16W J
R7113 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7114 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R7115 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R7116 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R7117 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R7118 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J
R7119 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7202 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R7203 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R7301 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7302 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7303 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7304 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7311 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7312 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7313 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7314 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7315 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7316 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7317 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7318 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7319 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R7401 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R7402 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R9001 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R9002 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R9003 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R9051 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R9052 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
L1 NQL79GM-4R7X COIL 4.7uH M
L30 NQR0129-003X FERRITE BESDA
L31 NQL093K-2R2X COIL 2.2uH K
L40 NQR0129-003X FERRITE BESDA
L61 NQR0129-003X FERRITE BESDA
L62 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
L63 NQL093K-1R8X COIL 1.8uH K
L701 NQL79GM-100X COIL 10uH M
L702 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
L704 NQL79GM-4R7X COIL 4.7uH M
L705 NQL79GM-4R7X COIL 4.7uH M
L706 NQL79GM-4R7X COIL 4.7uH M
L921 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
L4001 NQL382M-470X COIL 47uH M
L4002 NQL382M-470X COIL 47uH M
L4003 NQL093K-1R8X COIL 1.8uH K
L4101 NQL79GM-470X COIL 47uH M
L4130 NQL382M-470X COIL 47uH M
L7201 NQL79GM-470X COIL 47uH M
BZ791 QAN0023-001Z BUZZER
CN345 QGA2501C1-07 CONNECTOR W-B (1-7)
CN351 QNZ0095-001 CONNECTOR
CN381 QGA2501C1-06 CONNECTOR W-B (1-6)
CN701 QGF1041C1-16W CONNECTOR FFC/FPC (1-16)
CN721 QGB2027M5-20S CONNECTOR B-B (1-20)
CN901 QNZ0090-001 CAR CONNECTOR
CN991 QGA2501C1-02 CONNECTOR W-B (1-2)
CN992 QGA2001C1-04 CONNECTOR W-B (1-4)
J1 QAM0556-002 CAR CABLE
PP1 QZW0010-001 STYLE PIN
PP2 QZW0010-001 STYLE PIN
PP3 QZW0010-001 STYLE PIN
TH901 NAD0036-224X N THERMISTOR 220k
Ω
TH902 NAD0031-002X N THERMISTOR
Ω
TU1 QAU0325-001 TUNER PACK
Symbol No.
Part No. Part Name Description Local
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-14
Front board
Block No. [0][2][0][0]
X1 QAX0781-001Z CRYSTAL
X701 QAX0782-001Z CRYSTAL
X702 QAX0401-001 CRYSTAL 32.768KHz
X4001 NAX0664-001X CRYSTAL
Symbol No.
Part No. Part Name Description Local
IC461 RPM6938-SV4 IC
IC471 M68AW512ML70ND6 IC(DIGITAL)
IC481 SN74AHC2G08U-X IC
IC482 SN74AHC2G08U-X IC
IC483 SN74AHC2G08U-X IC
IC484 SN74AHC2G08U-X IC
IC491 LH28F320BFHET72 I.C(FLASH
IC801 MN103S57GDD IC
IC881 IC-PST3424U-X IC
Q441 2SB709A/QR/-X TRANSISTOR
Q442 2SB709A/QR/-X TRANSISTOR
Q472 UN211L-X TRANSISTOR
Q481 UN2111-X TRANSISTOR
Q881 2SD601A/QR/-X TRANSISTOR
D401 UDZS6.2B-X Z DIODE
D402 UDZS6.2B-X Z DIODE
D403 UDZS6.2B-X Z DIODE
D404 UDZS6.2B-X Z DIODE
D405 UDZS6.2B-X Z DIODE
D406 UDZS6.2B-X Z DIODE
D407 UDZS6.2B-X Z DIODE
D408 UDZS6.2B-X Z DIODE
D410 SML-310LT/MN/-X LED
D411 SML-310LT/MN/-X LED
D412 SML-310LT/MN/-X LED
D413 SML-310LT/MN/-X LED
D414 SML-310LT/MN/-X LED
D415 SML-310LT/MN/-X LED
D416 SML-310LT/MN/-X LED
D417 SML-310LT/MN/-X LED
D418 NECW050A/BPQ/-X E CAPACITOR #NCVpF 0
D419 NECBB205/WQR/-X E CAPACITOR #NCVpF 0
D420 NECBB205/WQR/-X E CAPACITOR #NCVpF 0
D421 NECBB205/WQR/-X E CAPACITOR #NCVpF 0
D422 NECBB205/WQR/-X E CAPACITOR #NCVpF 0
D423 NECBB205/WQR/-X E CAPACITOR #NCVpF 0
D424 NECBB205/WQR/-X E CAPACITOR #NCVpF 0
D425 SML-310LT/MN/-X LED
D426 MA152WK-X SI DIODE
D434 UDZS6.2B-X Z DIODE
D441 MA152WK-X SI DIODE
D474 1SS400-X SI DIODE
D478 1SS400-X SI DIODE
D881 MA152WA-X DIODE
D882 1SS355-X SI DIODE
C461 NBE20JM-475X TA E CAPACITOR 4.7uF 6.3V M
C471 NCS31HJ-471X C CAPACITOR 470pF 50V J
C472 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C473 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C481 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C483 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C491 NCS31HJ-471X C CAPACITOR 470pF 50V J
C492 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C493 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C801 NCF31CZ-473X C CAPACITOR 0.047uF 16V Z
C802 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C804 NCB31HK-102X C CAPACITOR 1000pF 50V K
C805 NCB31HK-102X C CAPACITOR 1000pF 50V K
C806 NCB31HK-102X C CAPACITOR 1000pF 50V K
C807 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C871 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
Symbol No.
Part No. Part Name Description Local
C872 NCB31HK-102X C CAPACITOR 1000pF 50V K
C873 NCB11EM-105X C CAPACITOR 1uF 25V M
C874 NCB31HK-102X C CAPACITOR 1000pF 50V K
C875 NQR0450-001X EMI FILTER 0.022uF 50V M
C876 NQR0450-001X EMI FILTER 0.022uF 50V M
C881 NBE20JM-475X TA E CAPACITOR 4.7uF 6.3V M
C882 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C891 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C892 NCB31CK-473X C CAPACITOR 0.047uF 16V K
R408 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R409 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R410 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R411 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R412 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R413 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R414 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R415 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R416 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R417 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R418 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R420 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R422 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R424 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R426 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J
R427 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J
R428 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J
R429 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J
R430 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J
R431 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J
R432 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R433 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R434 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R441 NRSA63J-152X MG RESISTOR 1.5k
Ω
1/16W J
R442 NRSA63J-301X MG RESISTOR 300
Ω
1/16W J
R443 NRSA63J-271X MG RESISTOR 270
Ω
1/16W J
R444 NRSA63J-391X MG RESISTOR 390
Ω
1/16W J
R445 NRSA63J-561X MG RESISTOR 560
Ω
1/16W J
R446 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R447 NRSA63J-152X MG RESISTOR 1.5k
Ω
1/16W J
R448 NRSA63J-152X MG RESISTOR 1.5k
Ω
1/16W J
R449 NRSA63J-301X MG RESISTOR 300
Ω
1/16W J
R450 NRSA63J-271X MG RESISTOR 270
Ω
1/16W J
R451 NRSA63J-391X MG RESISTOR 390
Ω
1/16W J
R452 NRSA63J-561X MG RESISTOR 560
Ω
1/16W J
R453 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R454 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R455 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R456 NRSA63J-474X MG RESISTOR 470k
Ω
1/16W J
R463 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R464 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J
R482 NRSA63J-681X MG RESISTOR 680
Ω
1/16W J
R483 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R492 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R801 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R802 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R803 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R804 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R805 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R806 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R807 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R808 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R809 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R810 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R811 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R812 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R813 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R814 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R815 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R816 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R817 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R818 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R819 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R820 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R821 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R822 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R823 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R825 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J
Symbol No.
Part No. Part Name Description Local
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-15
CD module board
Block No. [0][3][0][0]
R826 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R827 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R828 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R829 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R831 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R832 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R833 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R834 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R835 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R837 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R839 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R840 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R841 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R842 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R843 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R844 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R845 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R846 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R847 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R848 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R849 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R851 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R852 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R853 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R854 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R855 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R857 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R860 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R861 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R862 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R863 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R864 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R865 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R866 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R867 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R868 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R870 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R871 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R872 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R873 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R874 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R875 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R876 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R877 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R881 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R882 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R883 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R885 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R886 NRSA63J-474X MG RESISTOR 470k
Ω
1/16W J
L891 NQL79GM-470X COIL 47uH M
CN801 NNZ0098-002X CAR CONNECTOR
CN802 QGF0522F1-07W CONNECTOR FFC/FPC (1-7)
CN871 QGF0534F1-30X CONNECTOR FFC/FPC (1-30)
K471 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
K481 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
K483 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
K491 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
S441 NSW0124-001X TACT SW
S442 NSW0124-001X TACT SW
S444 NSW0124-001X TACT SW
S445 NSW0124-001X TACT SW
S447 NSW0220-001X TACT SW
S448 NSW0124-001X TACT SW
S449 NSW0124-001X TACT SW
S450 NSW0124-001X TACT SW
S451 NSW0124-001X TACT SW
S452 NSW0124-001X TACT SW
S453 NSW0124-001X TACT SW
S454 NSW0220-001X TACT SW
S455 NSW0124-001X TACT SW
S811 NSW0220-001X TACT SW
X801 NAX0663-001X C RESONATOR
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part Name Description Local
IC501 TMP91CW12AF5JP3 IC
IC502 BR24L01AFV-W-X IC
IC503 SN74AHCT126PW-X IC(DIGITAL)
IC504 NJU7241F33-X IC
IC573 SN74AHCU04PW-X IC
IC601 TC94A15F IC
IC651 NJU7772F15-X IC
IC652 TC94A34FG-002 IC
IC681 LA6242H-X IC
Q501 UN2111-X TRANSISTOR
Q502 UN2211-X TRANSISTOR
Q573 2SB624/4/-X TRANSISTOR
Q574 UN2211-X TRANSISTOR
Q601 2SB1132/QR/-W TRANSISTOR
Q651 UN2211-X TRANSISTOR
Q652 2SB624/4/-X TRANSISTOR
Q681 2SB1184/QR/-X TRANSISTOR
D506 1SS355-X SI DIODE
D682 1SR154-400-X DIODE
C501 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C502 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C503 NEAD0GM-227X E CAPACITOR 220uF 4V M
C504 NDC31HJ-220X C CAPACITOR 22pF 50V J
C505 NDC31HJ-220X C CAPACITOR 22pF 50V J
C506 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C507 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C508 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C509 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C510 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C511 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C512 NEAD0GM-227X E CAPACITOR 220uF 4V M
C513 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C514 NDC31HJ-102X C CAPACITOR 1000pF 50V J
C516 NEAD0GM-227X E CAPACITOR 220uF 4V M
C517 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C551 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C571 NDC31HJ-270X C CAPACITOR 27pF 50V J
C572 NDC31HJ-270X C CAPACITOR 27pF 50V J
C578 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C601 NEA70JM-107X E CAPACITOR 100uF 6.3V M
C602 NCB31HK-681X C CAPACITOR 680pF 50V K
C603 NEA70JM-107X E CAPACITOR 100uF 6.3V M
C604 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C605 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C606 NEA70JM-476X E CAPACITOR 47uF 6.3V M
C607 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C608 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C610 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C612 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C613 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C614 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C616 NEA70JM-476X E CAPACITOR 47uF 6.3V M
C617 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C618 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C621 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C622 NEA70JM-476X E CAPACITOR 47uF 6.3V M
C623 NCS31HJ-470X C CAPACITOR 47pF 50V J
C624 NCB31HK-153X C CAPACITOR 0.015uF 50V K
C625 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C626 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C627 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C628 NEA70JM-476X E CAPACITOR 47uF 6.3V M
C629 NCB31EK-333X C CAPACITOR 0.033uF 25V K
C630 NCB31EK-333X C CAPACITOR 0.033uF 25V K
C631 NCS31HJ-471X C CAPACITOR 470pF 50V J
C632 NCS31HJ-471X C CAPACITOR 470pF 50V J
C633 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C634 NCB31HK-472X C CAPACITOR 4700pF 50V K
C635 NCB31CK-153X C CAPACITOR 0.015uF 16V K
C636 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C637 NCB31CK-473X C CAPACITOR 0.047uF 16V K
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-16
C638 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C639 NEA70JM-476X E CAPACITOR 47uF 6.3V M
C640 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C641 NEA70JM-476X E CAPACITOR 47uF 6.3V M
C642 NCS31HJ-101X C CAPACITOR 100pF 50V J
C643 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C644 NCB31AK-334X C CAPACITOR 0.33uF 10V K
C645 NEA70JM-476X E CAPACITOR 47uF 6.3V M
C646 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C647 NCS31HJ-680X C CAPACITOR 68pF 50V J
C648 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C649 NCB31HK-562X C CAPACITOR 5600pF 50V K
C650 NCB31AK-224X C CAPACITOR 0.22uF 10V K
C651 NEA70JM-476X E CAPACITOR 47uF 6.3V M
C652 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C653 NEA70JM-476X E CAPACITOR 47uF 6.3V M
C654 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C655 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C656 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C657 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C659 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C660 NCS31HJ-101X C CAPACITOR 100pF 50V J
C661 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C662 NCS31HJ-101X C CAPACITOR 100pF 50V J
C663 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C664 NCB31HK-222X C CAPACITOR 2200pF 50V K
C665 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C666 NCS31HJ-101X C CAPACITOR 100pF 50V J
C667 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C668 NEA70JM-476X E CAPACITOR 47uF 6.3V M
C669 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C671 NBE21AM-106X TA E CAPACITOR 10uF 10V M
C672 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C675 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C676 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C677 NCS31HJ-471X C CAPACITOR 470pF 50V J
C678 NCS31HJ-471X C CAPACITOR 470pF 50V J
C682 NEA71EM-475X E CAPACITOR 4.7uF 25V M
C683 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C684 NEA71CM-476X E CAPACITOR 47uF 16V M
C685 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C686 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C687 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C688 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C689 NEA71CM-476X E CAPACITOR 47uF 16V M
C690 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C693 NEA71CM-476X E CAPACITOR 47uF 16V M
R501 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R502 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R503 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R504 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R505 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R506 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R507 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R508 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R509 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R510 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R511 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R512 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R513 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R514 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R515 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R516 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R517 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R518 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R519 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R520 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R521 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R522 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R523 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R524 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R525 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R526 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R527 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R530 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R531 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R532 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
Symbol No.
Part No. Part Name Description Local
R533 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R534 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R539 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R540 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R541 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R542 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R543 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R544 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R545 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R546 NRSA63J-271X MG RESISTOR 270
Ω
1/16W J
R547 NRSA63J-271X MG RESISTOR 270
Ω
1/16W J
R548 NRSA63D-822X MG RESISTOR 8.2k
Ω
1/16W D
R549 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R550 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R551 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R552 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R553 NRSA63J-183X MG RESISTOR 18k
Ω
1/16W J
R554 NRSA63J-333X MG RESISTOR 33k
Ω
1/16W J
R555 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R556 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R557 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R558 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R559 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R560 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R561 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R562 NRSA63J-392X MG RESISTOR 3.9k
Ω
1/16W J
R563 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J
R564 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R565 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R566 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R567 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R568 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R569 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R570 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R571 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R575 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J
R576 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J
R577 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R578 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R579 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R590 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R593 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R594 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R596 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R597 NRSA63J-225X MG RESISTOR 2.2M
Ω
1/16W J
R598 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R599 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R601 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R602 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R603 NRSA63D-183X MG RESISTOR 18k
Ω
1/16W D
R604 NRSA63D-183X MG RESISTOR 18k
Ω
1/16W D
R605 NRSA63J-220X MG RESISTOR 22
Ω
1/16W J
R606 NRSA63J-220X MG RESISTOR 22
Ω
1/16W J
R609 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R611 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R612 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R615 NRSA63J-151X MG RESISTOR 150
Ω
1/16W J
R616 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R617 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R621 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J
R622 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J
R623 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J
R624 NRSA63J-562X MG RESISTOR 5.6k
Ω
1/16W J
R625 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R626 NRSA63J-474X MG RESISTOR 470k
Ω
1/16W J
R627 NRSA63J-183X MG RESISTOR 18k
Ω
1/16W J
R628 NRSA63J-225X MG RESISTOR 2.2M
Ω
1/16W J
R629 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
R630 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R631 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R632 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R635 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R636 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R637 NRSA63J-105X MG RESISTOR 1M
Ω
1/16W J
R638 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R639 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R640 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R641 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
Symbol No.
Part No. Part Name Description Local
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-17
R642 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R643 NRSA63J-332X MG RESISTOR 3.3k
Ω
1/16W J
R651 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R653 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R654 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J
R655 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R656 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R657 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R668 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J
R675 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R678 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R680 NRSA63J-243X MG RESISTOR 24k
Ω
1/16W J
R681 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J
R682 NRSA63J-822X MG RESISTOR 8.2k
Ω
1/16W J
R683 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R684 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R685 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R686 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R687 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
R688 NRSA63D-163X MG RESISTOR 16k
Ω
1/16W D
R689 NRSA63D-103X MG RESISTOR 10k
Ω
1/16W D
R693 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
L501 NQL114K-470X INDUCITOR 47uH K
L502 NQL114K-470X INDUCITOR 47uH K
L621 NQL114K-470X INDUCITOR 47uH K
L622 NQL114K-470X INDUCITOR 47uH K
L623 NQL114K-470X INDUCITOR 47uH K
L624 NQL114K-470X INDUCITOR 47uH K
L651 NQL114K-470X INDUCITOR 47uH K
L652 NQL114K-470X INDUCITOR 47uH K
L653 NQL114K-470X INDUCITOR 47uH K
CN503 QGB2027L5-20X CONNECTOR B-B (1-20)
CN601 QGF1006F2-15W CONNECTOR FFC/FPC (1-15)
CN602 QGF1038F1-05X CONNECTOR FFC/FPC (1-5)
SW4 NSW0219-001X PUSH SWITCH
SW5 NSW0219-001X PUSH SWITCH
TH501 NAD0028-103X N THERMISTOR 10k
Ω
X501 NAX0385-001X CRYSTAL 24.576MHz
X571 NAX0375-001X CRYSTAL 16.9344MHz
Symbol No.
Part No. Part Name Description Local
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-18
Packing materials and accessories parts list
Block No. MM
M
3
P1
P7
P8
A20
P6
A17
A16
P3
A18
A19
KIT :
P5
P4
A15
A13 A14
A10 A11
A12
P2
A1 A2 A3 A4 A5
A6 A7 A8 A9
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3-19
Packing and Accessories
Block No. [M][3][M][M]
Symbol No. Part No. Part Name Description Local
A 1 LVT1160-001A INST BOOK ENG CHI(TAIWAN) THA ARA
A 2 LVT1160-002A INST BOOK PER
A 3 LVT1160-003A INSTALL MANUAL
A 4 LVT1160-004A INSTALL MANUAL
A 5 GET0213-002A CAUTION SHEET
A 6 LVT1161-002A DEMO MODE SHEET
A 7 LVT1120-003A MP3 GUIDE
A 8 LVT1157-001A IMAGE CONV.SHEE
A 9 QAM0555-001 CD ROM
A 10 VKZ4027-202 PLUG NUT
A 11 VKH4871-001SS MOUNT BOLT
A 12 VKZ4328-001 LOCK NUT
A 13 WNS5000Z WASHER
A 14 GE40130-002A HOOK (x2)
A 15 FSJB3002-00F HARD CASE ASSY
A 16 GE20137-003A MOUNTING SLEEVE
A 17 LV21648-004A TRIM PLATE
A 18 RM-RK300 REMOCON
A 19 ------------ BATTERY
A 20 QAM0567-001 CAR CABLE
KIT SRW-200J SCREW PARTS KIT A10 A11 A12 A13 A14
P 1 LV35285-003A CARTON
P 2 FSPG4002-001 POLY BAG
P 3 QPA00801205 POLY BAG 8cm x 12cm
P 4 QPC01002515 POLY BAG 10cm x 25cm
P 5 QPA01003003 POLY BAG 10cm x 30cm
P 6 QPC03004315P POLY BAG 30cm x 43cm
P 7 LV10967-002A CUSHION(L)
P 8 LV10968-002A CUSHION(R)
http://www.xiaoyu163.com
http://www.xiaoyu163.com

Navigation menu
