TL HMA FOREWORD
TL HMA 1
TL HMA 2
TL HMA 3
TL HMA 4A
TL HMA 4B
TL HMA 5
TL HMA 6
TL HMA 7
TL HMA 8
TL HMA INDEX

OOWWNNEERR''SS MMAANNUUAALL

OOppeerraattiioonn

MMaaiinntteennaannccee

SSppeecciiffiiccaattiioonnss

All information in this Owner’s Manual is current at the time of pub-

lication. However, HYUNDAI reserves the right to make changes at

any time so that our policy of continual product improvement may be

carried out.

This manual applies to all HYUNDAI models and includes descrip-

tions and explanations of optional as well as standard equipment.

As a result, you may find material in this manual that does not apply

to your specific vehicle.

Your HYUNDAI should not be modified in any way. Such modifications may adversely affect

the performance, safety or durability of your HYUNDAI and may, in addition, violate condi-

tions of the limited warranties covering the vehicle. Certain modifications may also be in vio-

lation of regulations established by the U.S. Department of Transportation and other federal

or state agencies.

Your vehicle is equipped with electronic fuel injection and other electronic components. It is

possible for an improperly installed/adjusted two-way radio or cellular telephone to adversely

affect electronic systems. For this reason, we recommend that you carefully follow the radio

manufacturer’s instructions or consult your HYUNDAI dealer for precautionary measures or

special instructions if you choose to install one of these devices.

CAUTION: MODIFICATIONS TO YOUR HYUNDAI

TWO-WAY RADIO OR CELLULAR TELEPHONE INSTALLATION

This manual includes information titled as DANGER, WARNING, CAUTION and NOTICE.

These titles indicate the following:

SAFETY AND VEHICLE DAMAGE WARNING

DANGER indicates a hazardous situa-

tion which, if not avoided, will result

in death or serious injury.

DANGER

WARNING indicates a hazardous situ-

ation which, if not avoided, could

result in death or serious injury.

CAUTION indicates a hazardous situa-

tion which, if not avoided, could result

in minor or moderate injury.

CAUTION

NOTICE indicates a situation which, if

not avoided, could result in vehicle

damage.

NOTICE

WARNING

INTRODUCTION

Congratulations, and thank you for choosing HYUNDAI. We are pleased to welcome you to the growing number of dis-

criminating people who drive HYUNDAIS. We are very proud of the advanced engineering and high-quality construc-

tion of each HYUNDAI we build.

Your Owner’s Manual will introduce you to the features and operation of your new HYUNDAI. To become familiar with

your new HYUNDAI, so that you can fully enjoy it, read this Owner’s Manual carefully before driving your new vehicle.

This manual contains important safety information and instructions intended to familiarize you with your vehicle’s con-

trols and safety features so you can safely operate your vehicle.

This manual also contains information on maintenance designed to enhance safe operation of the vehicle. It is recom-

mended that all service and maintenance on your car be performed by an authorized HYUNDAI dealer. HYUNDAI deal-

ers are prepared to provide high-quality service, maintenance and any other assistance that may be required.

This Owner’s Manual should be considered a permanent part of your vehicle, and should be kept in the vehicle so you

can refer to it at any time. The manual should stay with the vehicle if you sell it to provide the next owner with impor-

tant operating, safety and maintenance information.

HYUNDAI MOTOR AMERICA

in any retrieval system or transmitted in any form or by any means without the prior written permission of HYUNDAI

Motor America.

Severe engine and transmission damage may result from the use of poor quality fuels and lubricants that

do not meet HYUNDAI specifications. You must always use high quality fuels and lubricants that meet the

specifications listed on Page 8-7 in the Vehicle Specifications section of the Owner’s Manual.

CAUTION

1.What are HYUNDAI Genuine

Parts?

HYUNDAI Genuine Parts are the

same parts used by HYUNDAI

Motor Company to manufacture

vehicles. They are designed and

tested for the optimum safety, per-

formance, and reliability for our

customers.

2. Why should you use genuine

parts?

HYUNDAI Genuine Parts are engi-

neered and built to meet rigid man-

ufacturing requirements. Damage

caused by using imitation, counter-

feit or used salvage parts is not

covered under the HYUNDAI New

Vehicle Limited Warranty or any

other HYUNDAI warranty.

In addition, any damage to or fail-

ure of HYUNDAI Genuine Parts

caused by the installation or failure

of an imitation, counterfeit or used

salvage part is not covered by any

HYUNDAI Warranty.

3. How can you tell if you are pur-

chasing HYUNDAI Genuine

Parts?

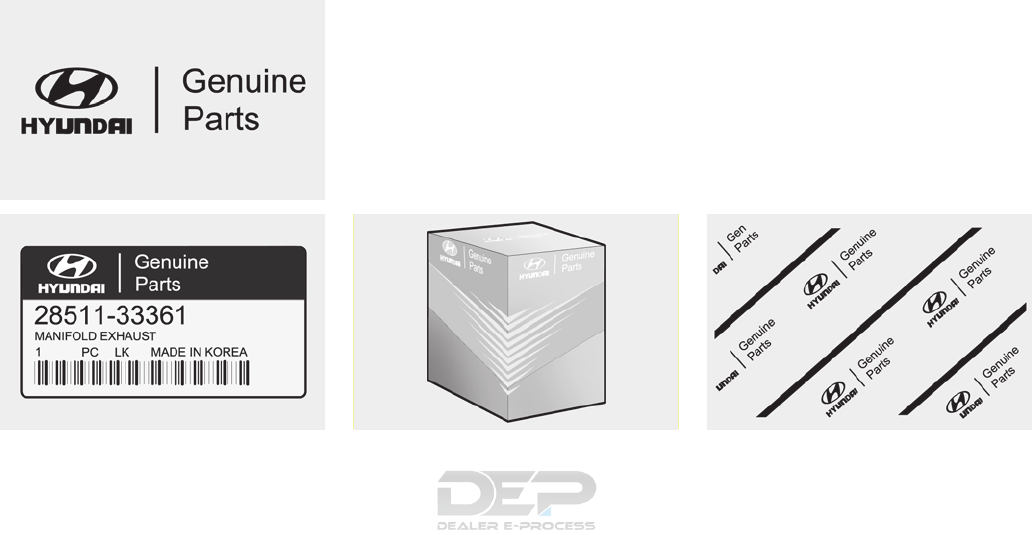

Look for the HYUNDAI Genuine

Parts Logo on the package (see

below).

HYUNDAI Genuine Parts exported

to the U.S. are packaged with

labels written only in English.

HYUNDAI Genuine Parts are only

sold through authorized HYUNDAI

Dealerships.

GUIDE TO HYUNDAI GENUINE PARTS

Introduction

We want to help you get the greatest

possible driving pleasure from your

vehicle. Your Owner’s Manual can

assist you in many ways. To gain an

overview of the contents of your

Owner’s Manual, use the Table of

Contents in the front of the manual.

The first page of each Chapter

includes a detailed Table of Contents

of the Topics in that Chapter.

To quickly locate information about

your vehicle, use the Index in the

back of the manual. It is an alphabet-

ical list of what is in this manual and

the page number where it can be

found.

For your convenience, we have

incorporated tabs on the right-hand

page edges. These tabs are coded

with the Chapter titles to assist you

with navigating through the manual.

Your safety, and the safety of others,

is very important. This Owner’s

Manual provides you with many safe-

ty precautions and operating proce-

dures. This information alerts you to

potential hazards that may hurt you

or others, as well as damage to your

vehicle.

Safety messages found on vehicle

labels and in this manual describe

these hazards and what to do to

avoid or reduce the risks.

Warnings and instructions contained

in this manual are for your safety.

Failure to follow safety warnings and

instructions can lead to serious injury

or death.

Throughout this manual DANGER,

WARNING, CAUTION, NOTICE and

the SAFETY ALERT SYMBOL will

be used.

This is the safety alert sym-

bol. It is used to alert you to

potential physical injury haz-

ards. Obey all safety mes-

sages that follow this symbol

to avoid possible injury or

death. The safety alert sym-

bol precedes the signal words

DANGER, WARNING and

CAUTION.

HHOOWW TTOO UUSSEE TTHHIISS MMAANNUUAALL

DANGER indicates a hazardous

situation which, if not avoided,

will result in death or serious

injury.

DANGER

WARNING indicates a hazardous

situation which, if not avoided,

could result in death or serious

injury.

WARNING

SSAAFFEETTYY MMEESSSSAAGGEESS

Introduction

FFUUEELL RREEQQUUIIRREEMMEENNTTSS

NOTICE indicates a situation

which, if not avoided, could result

in vehicle damage.

Your new vehicle is designed to

obtain maximum performance with

UNLEADED FUEL, as well as mini-

mize exhaust emissions and spark

plug fouling.

Your new vehicle is designed to use

only unleaded fuel having an octane

number ((R+M)/2) of 87 (Research

Octane Number 91) or higher. (Do not

use methanol blended fuels)

To prevent damage to the engine

and engine components, never

add any fuel system cleaning

agents to the fuel tank other than

what has been specified.

Consult an authorized HYUNDAI

dealer for additional information.

Gasoline containing alcohol or

methanol

Gasohol, a mixture of gasoline and

ethanol (also known as grain alco-

hol) are being marketed along with or

instead of leaded or unleaded gaso-

line.

Do not use gasohol containing more

than 10% ethanol, and do not use

gasoline or gasohol containing any

methanol. Either of these fuels may

cause drivability problems and dam-

age to the fuel system, engine con-

trol system and emission control sys-

tem.

Discontinue using gasohol of any

kind if drivability problems occur.

NOTICE

CAUTION indicates a hazardous

situation which, if not avoided,

could result in minor or moder-

ate injury.

CAUTION

•Do not "top off" after the noz-

zle automatically shuts off

when refueling.

•Always check that the fuel cap

is installed securely to pre-

vent fuel spillage in the event

of an accident.

WARNING

Introduction

"E85" fuel is an alternative fuel com-

prised of 85 percent ethanol and 15

percent gasoline, and is manufac-

tured exclusively for use in Flexible

Fuel Vehicles. “E85” is not compati-

ble with your vehicle. Use of “E85”

may result in poor engine perform-

ance and damage to your vehicle’s

engine and fuel system. HYUNDAI

recommends that customers do not

use fuel with an ethanol content

exceeding 10 percent.

To prevent damage to your vehicle’s

engine and fuel system:

• Never use gasohol which con-

tains methanol.

• Never use gasohol containing

more than 10% ethanol.

• Never use leaded fuel or leaded

gasohol.

• Never use "E85" fuel.

Your New Vehicle Limited

Warranty does not cover damage

to the fuel system or any perform-

ance problems caused by the use

of "E85" fuel.

Using Fuel Additives (except

Detergent Fuel Additives)

Using fuel additives such as:

- Silicone fuel additive

- Ferrocene (iron-based) fuel additive

- Other metallic-based fuel additives

may result in cylinder misfire, poor

acceleration, engine stalling, dam-

age to the catalyst, or abnormal cor-

rosion, and may cause damage to

the engine resulting in a reduction in

the overall life of the powertrain.

- The Malfunction Indicator Lamp

(MIL) may illuminate.

Damage to the fuel system or per-

formance problem caused by the

use of these fuels or fuel additives

may not be covered by your New

Vehicle Limited Warranty.

Gasoline containing MMT

Some gasoline contains harmful

manganese-based fuel additives

such as

MMT (

Methylcyclopentadienyl

Manganese Tricarbonyl

)

HYUNDAI does not recommend the

use of gasoline containing MMT.

This type of fuel can reduce vehicle

performance and affect your emis-

sion control system.

The malfunction indicator lamp on

the cluster may come on.

Detergent Fuel Additives

HYUNDAI recommends that you use

good quality gasolines treated with

detergent additives such as TOP TIER

Detergent Gasoline, which help pre-

vent deposit formation in the engine.

These gasolines will help the engine

run cleaner and enhance performance

of the Emission Control System. For

more information on TOP TIER

Detergent Gasoline, please go to the

website (www.toptiergas.com).

NOTICE

Introduction

For customers who do not use TOP

Tier Detergent Gasoline regularly,

and have problems starting or the

engine does not run smoothly, deter-

gent-based fuel additives that you

can purchase separately may be

added to the gasoline. If TOP TIER

Detergent Gasoline is not available,

one bottle of additive added to the

fuel tank at every 7,500 miles or 12

months is recommended.

Additives are available from your

authorized HYUNDAI dealer along

with information on how to use them.

Do not mix other additives.

Operation in foreign countries

If you are going to drive your vehicle

in another country, be sure to:

• Observe all regulations regarding

registration and insurance.

• Determine that acceptable fuel is

available.

No special break-in period is needed.

By following a few simple precautions

for the first 600 miles (1,000 km) you

may add to the performance, econo-

my and life of your vehicle.

• Do not race the engine.

• While driving, keep your engine

speed (rpm, or revolutions per

minute) between 2,000 rpm and

4,000 rpm.

• Do not maintain a single speed for

long periods of time, either fast or

slow.Varying engine speed is need-

ed to properly break-in the engine.

• Avoid hard stops, except in emer-

gencies, to allow the brakes to seat

properly.

VVEEHHIICCLLEE BBRREEAAKK--IINN PPRROOCCEESSSS

CALIFORNIA PROPOSITION 65

WARNING

Items contained in motor vehi-

cles or emitted from them are

known to the State of California

to cause cancer and birth

defects or reproductive harm.

These include:

•Gasoline and its vapors

•Engine exhaust

•Used engine oil

•Interior passenger compart-

ment components and materi-

als

•Component parts which are

subject to heat and wear

In addition, battery posts, termi-

nals and related accessories

contain lead, lead compounds

and other chemicals known to

the State of California to cause

cancer and reproductive harm.

WARNING

F10

Introduction

This vehicle is equipped with an

event data recorder (EDR). The

main purpose of an EDR is to

record, in certain crash or near

crash-like situations, such as an

air bag deployment or hitting a

road obstacle, data that will assist

in understanding how a vehicle’s

systems performed. The EDR is

designed to record data related to

vehicle dynamics and safety sys-

tems for a short period of time,

typically 30 seconds or less. The

EDR in this vehicle is designed to

record such data as:

• How various systems in your

vehicle were operating;

• Whether or not the driver and

passenger safety belts were

buckled/ fastened;

• How far (if at all) the driver was

depressing the accelerator

and/or brake pedal; and,

• How fast the vehicle was travel-

ing.

These data can help provide a bet-

ter understanding of the circum-

stances in which crashes and

injuries occur. NOTE: EDR data

are recorded by your vehicle only

if a non-trivial crash situation

occurs; no data are recorded by

the EDR under normal driving

conditions and no personal data

(e.g., name, gender, age, and

crash location) are recorded.

However, other parties, such as

law enforcement, could combine

the EDR data with the type of per-

sonally identifying data routinely

acquired during a crash investiga-

tion.

To read data recorded by an EDR,

special equipment is required, and

access to the vehicle or the EDR is

needed. In addition to the vehicle

manufacturer, other parties, such

as law enforcement, that have the

special equipment, can read the

information if they have access to

the vehicle or the EDR.

VVEEHHIICCLLEE DDAATTAA CCOOLLLLEECCTTIIOONN AANNDD EEVVEENNTT DDAATTAA RREECCOORRDDEERRSS

Your vehicle at a glance

Safety system of your vehicle

Convenient features of your vehicle

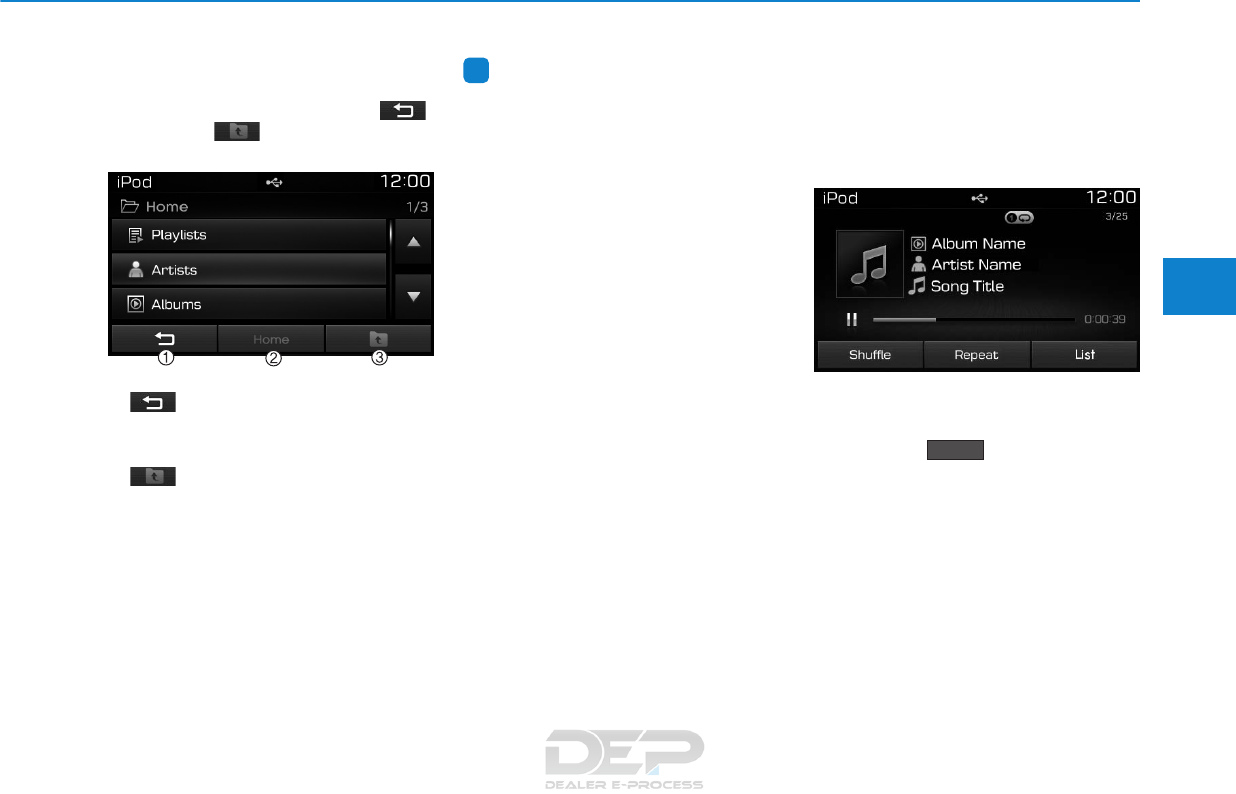

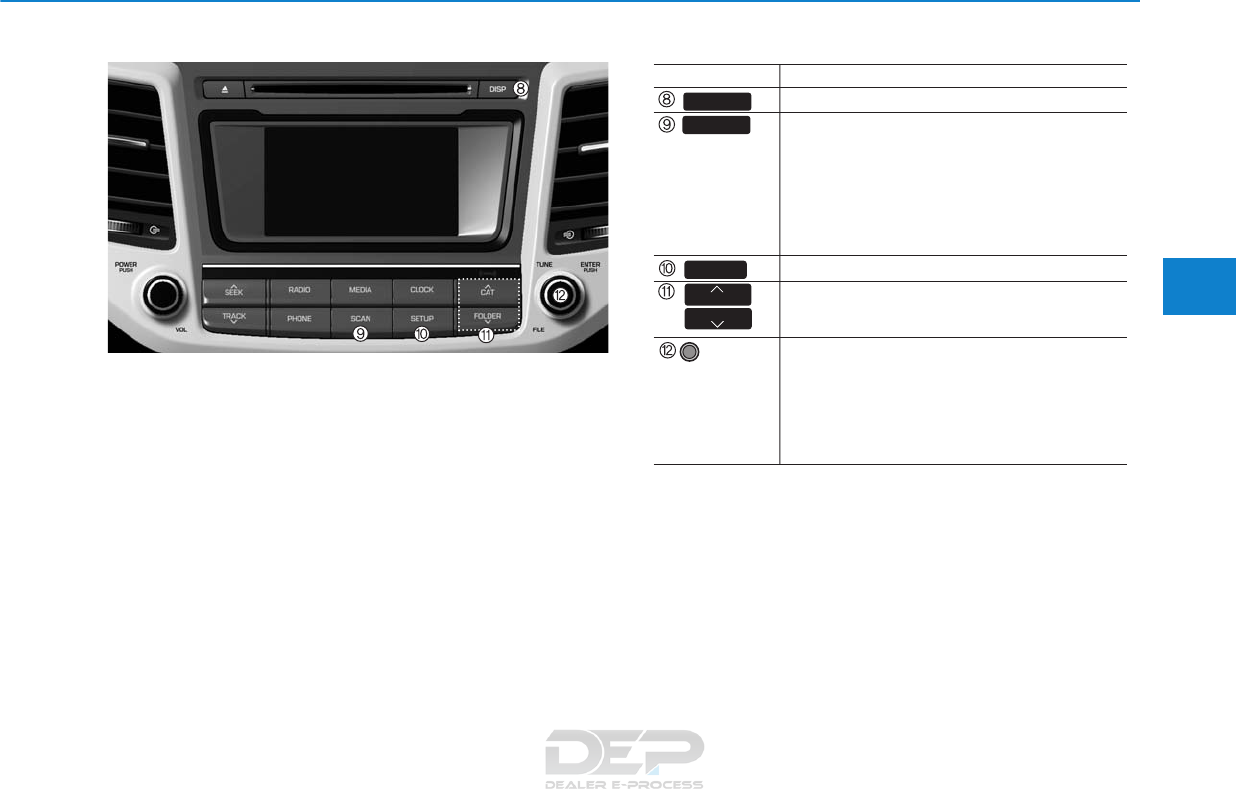

Multimedia System

Driving your vehicle

What to do in an emergency

Maintenance

Specifications, Consumer information and

Reporting safety defects

Index

TABLE OF CONTENTS

F11

F12F12

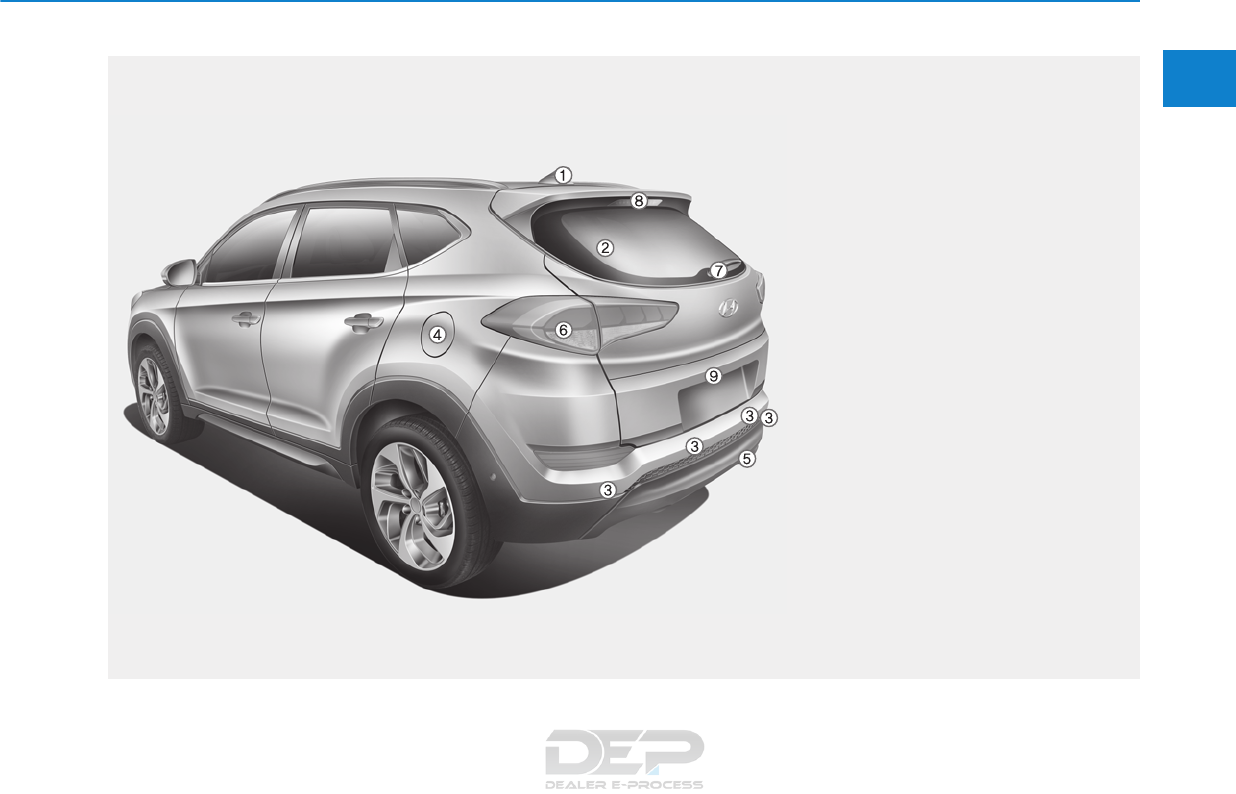

Exterior overview ..................................................1-2

Interior overview....................................................1-4

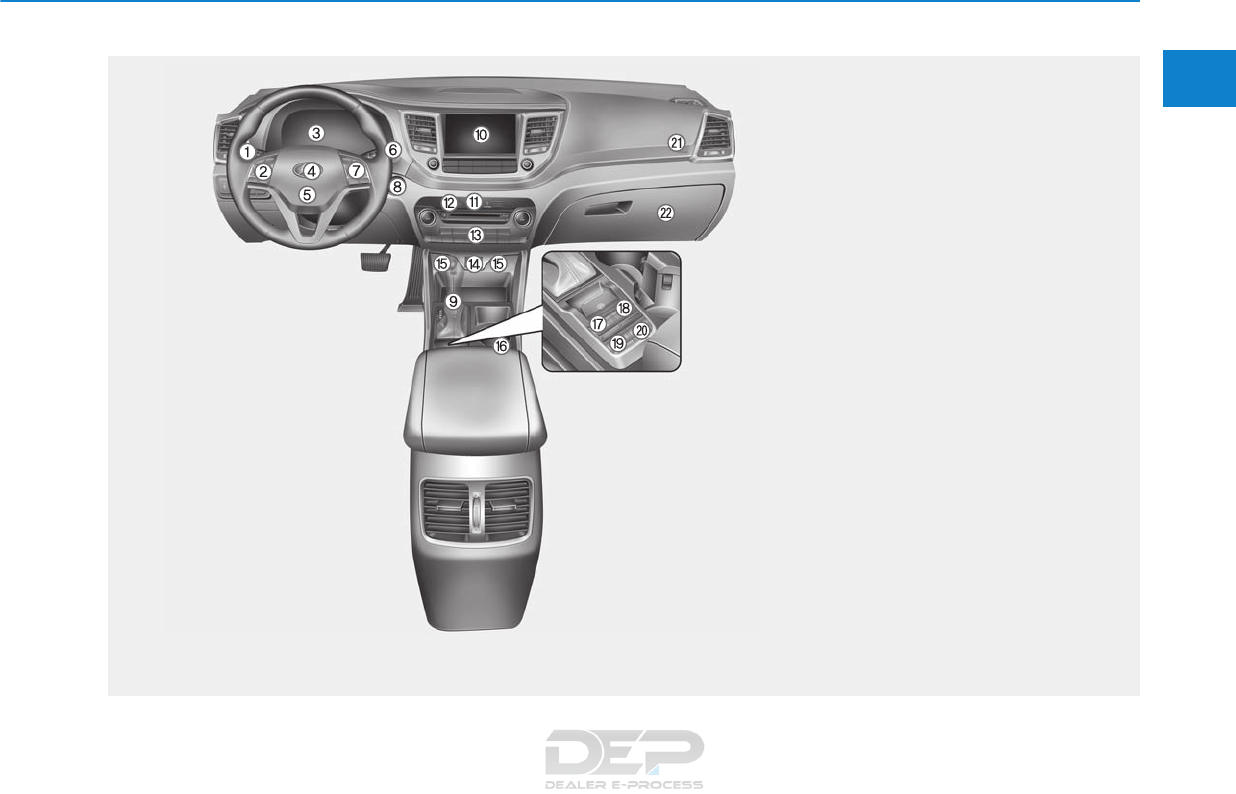

Instrument panel overview...................................1-5

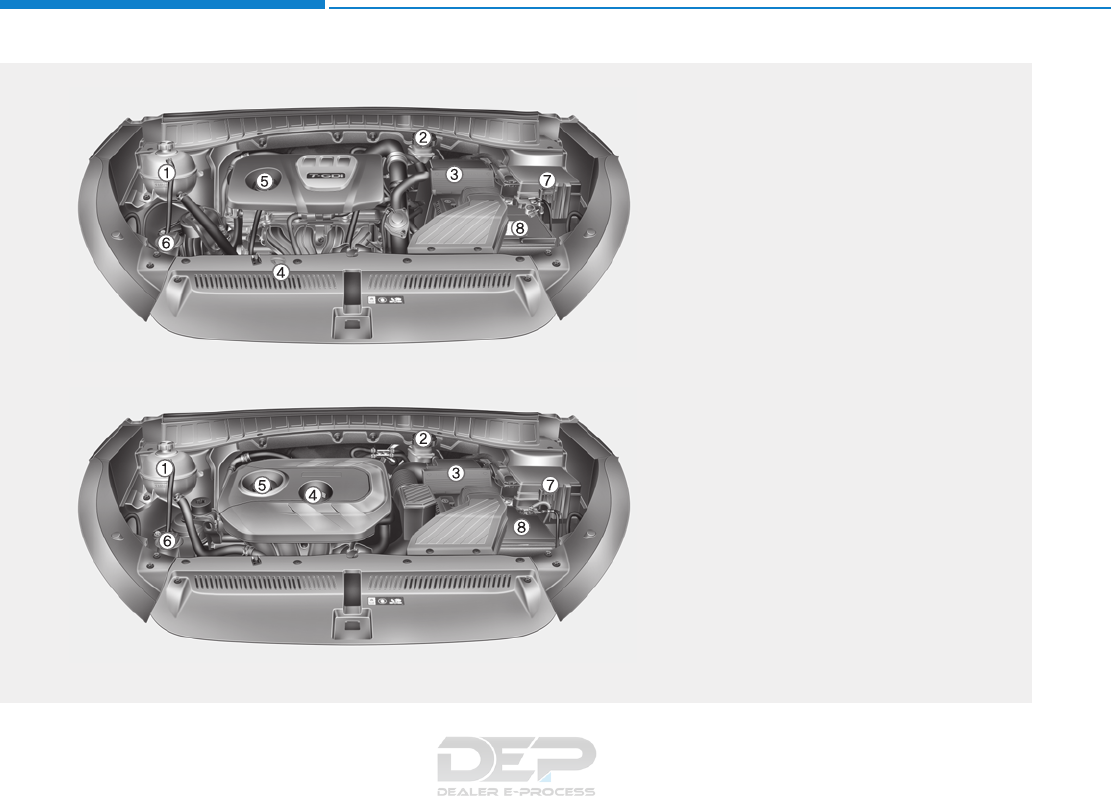

Engine compartment .............................................1-6

Important Safety Precautions..............................2-2

Always Wear Your Seat Belt ..........................................2-2

Restrain All Children.........................................................2-2

Air Bag Hazards.................................................................2-2

Driver Distraction ..............................................................2-2

Control Your Speed...........................................................2-3

Keep Your Vehicle in Safe Condition............................2-3

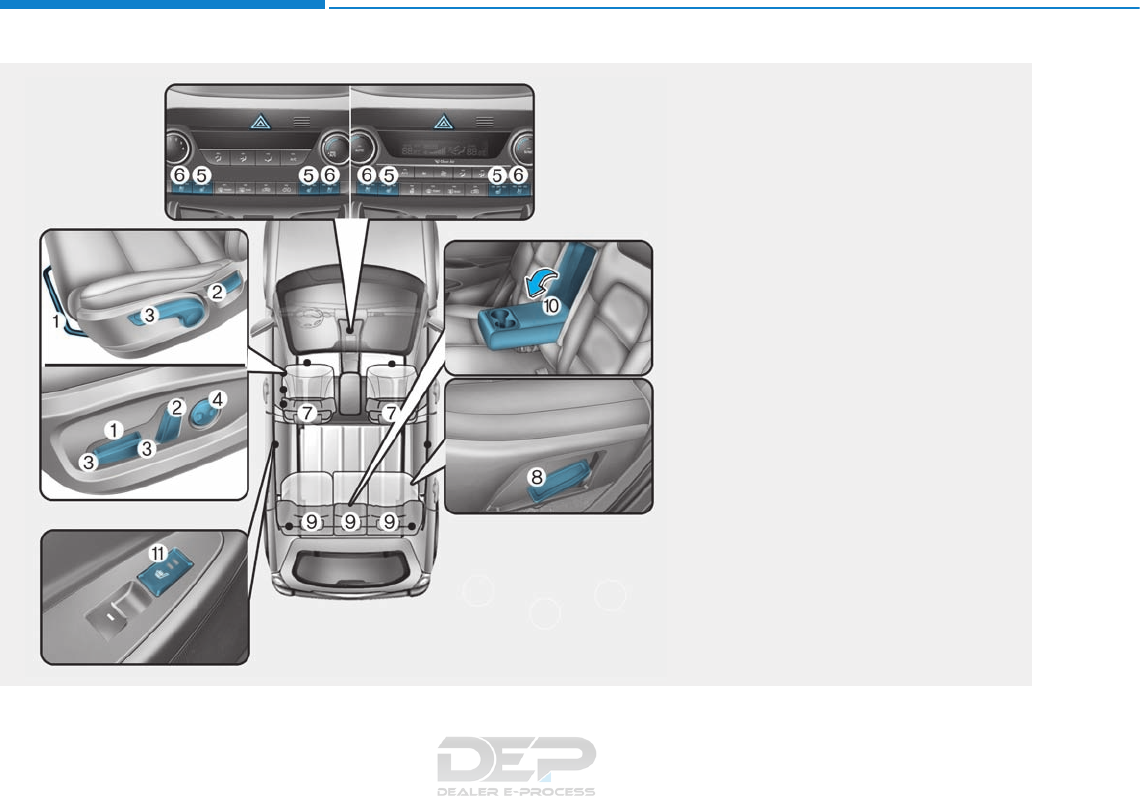

Seats ........................................................................2-4

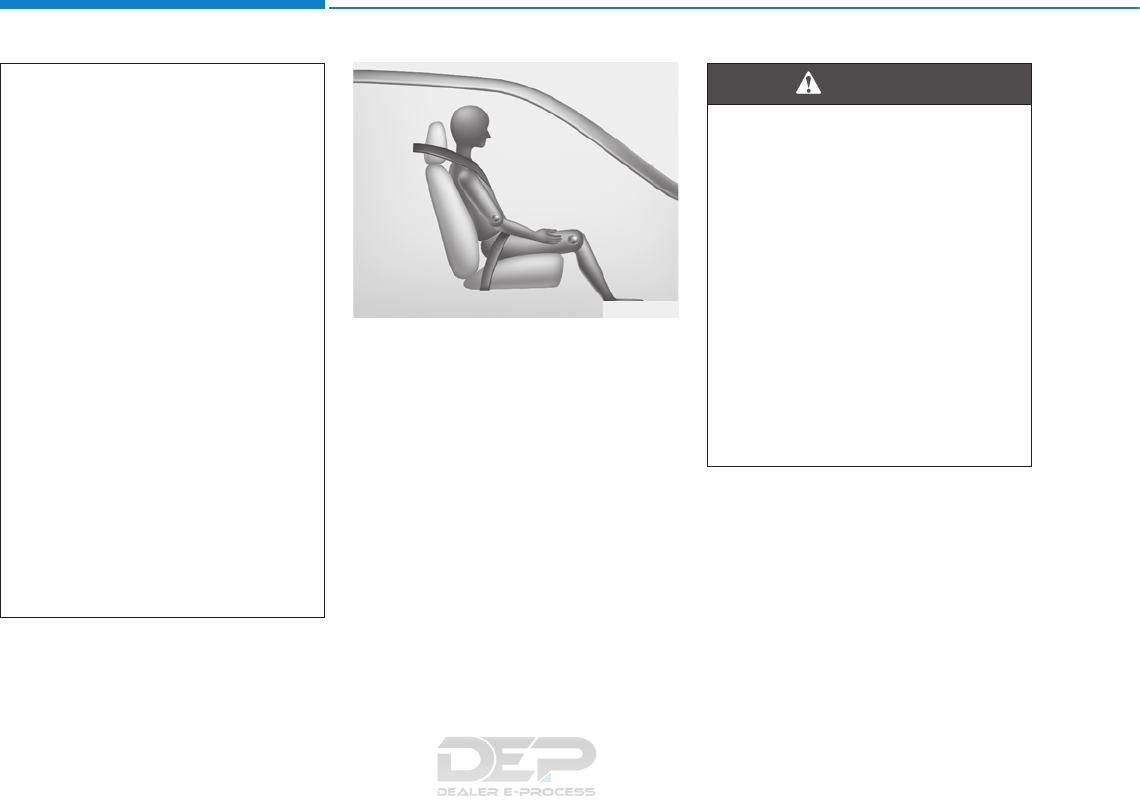

Safety Precautions ...........................................................2-5

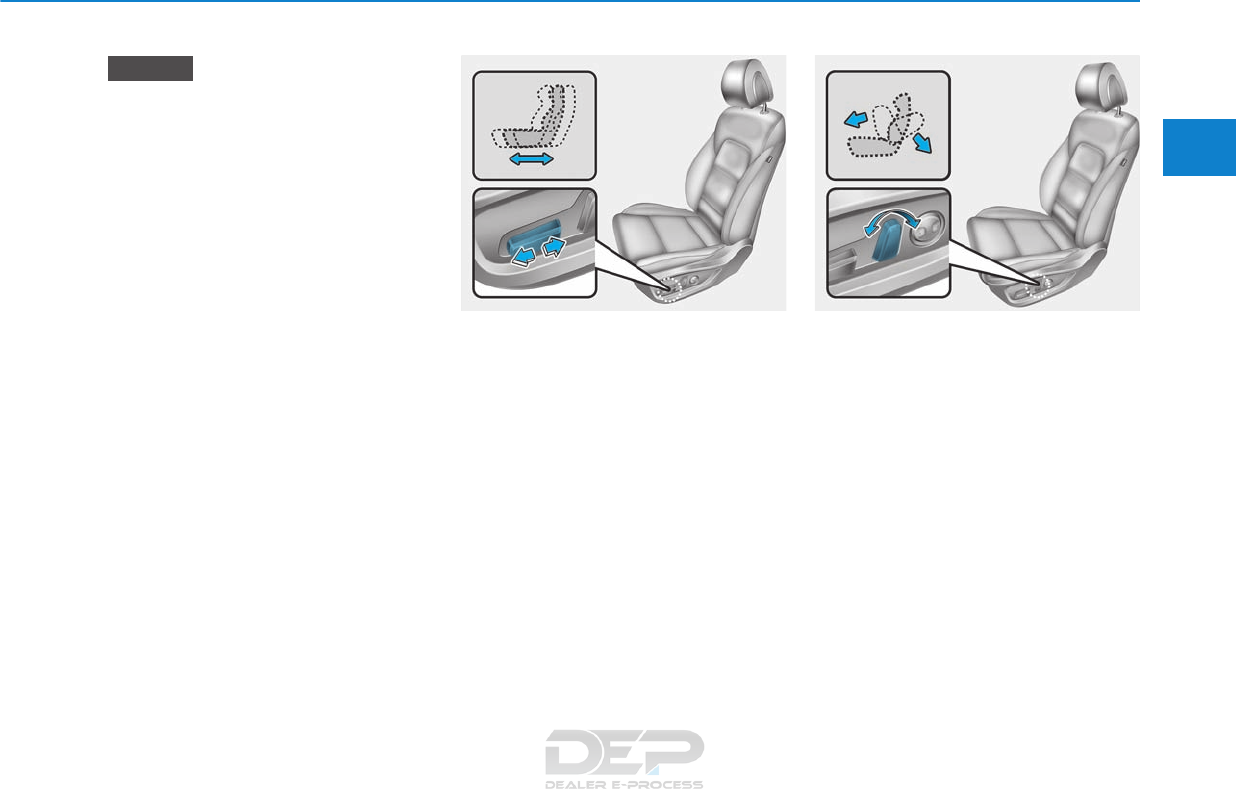

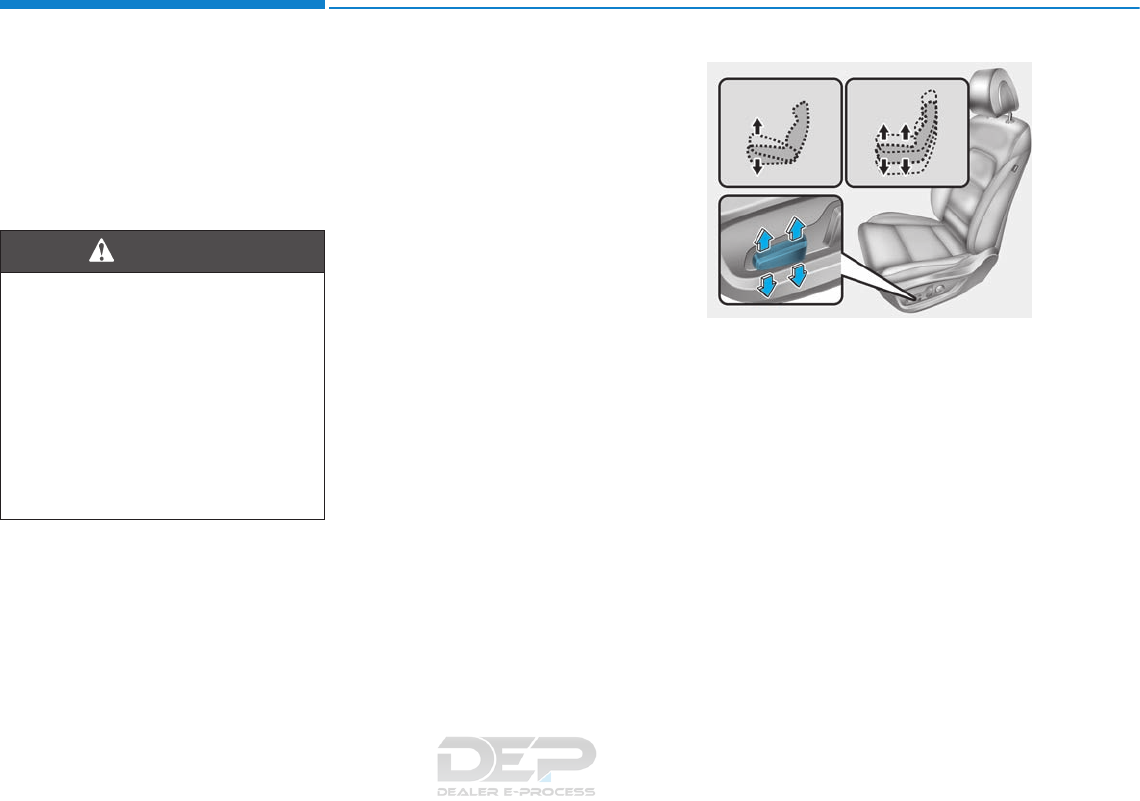

Front Seats .........................................................................2-6

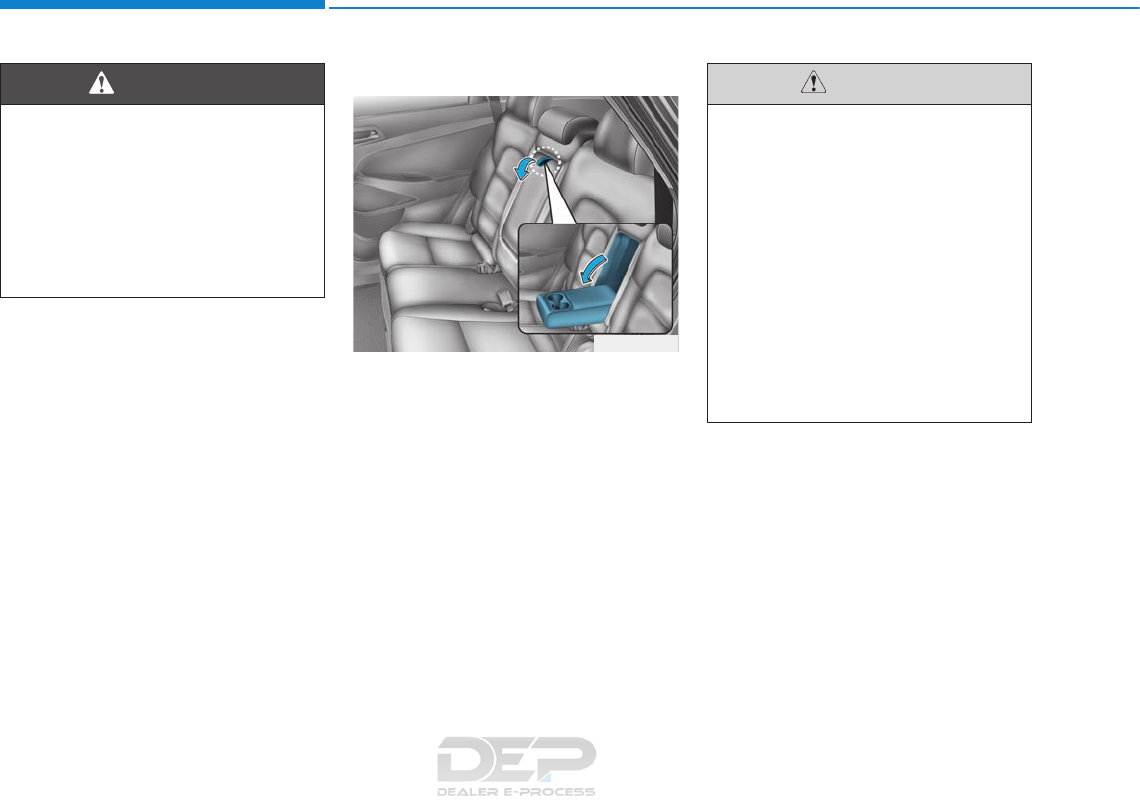

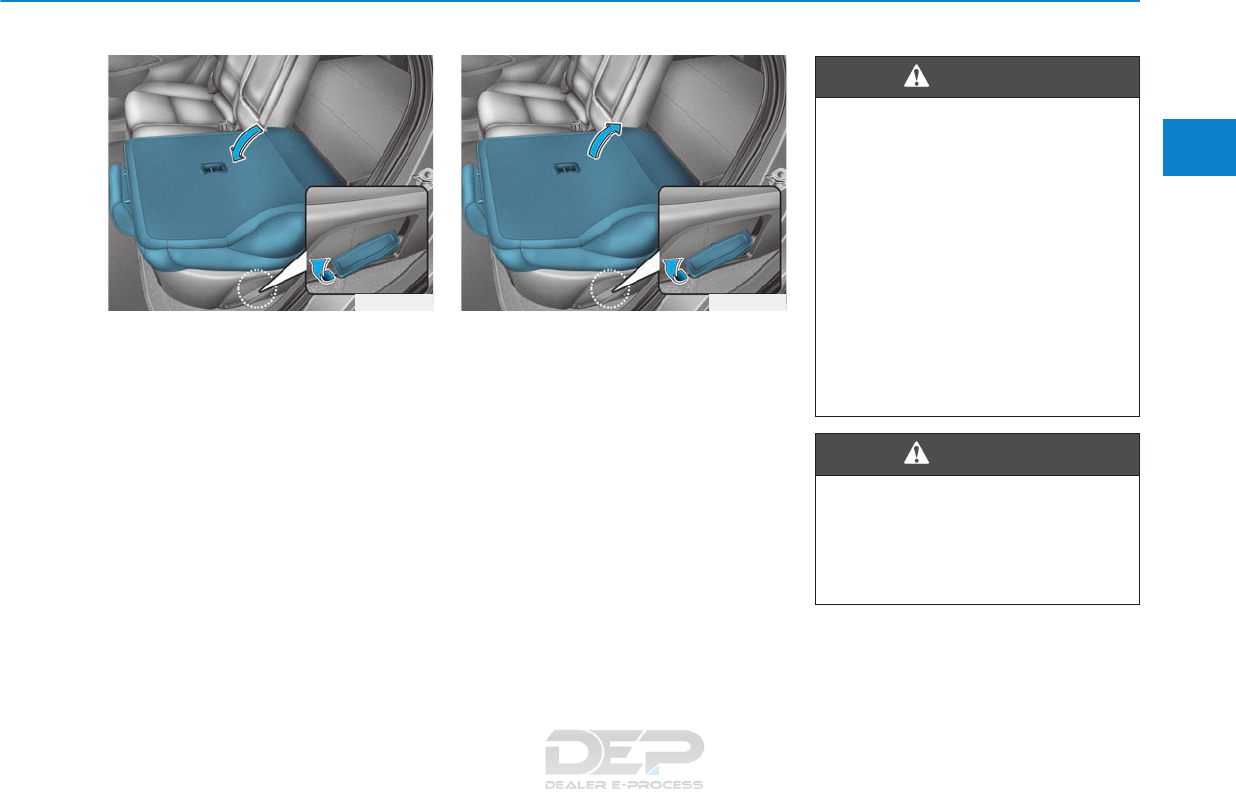

Rear Seats.........................................................................2-12

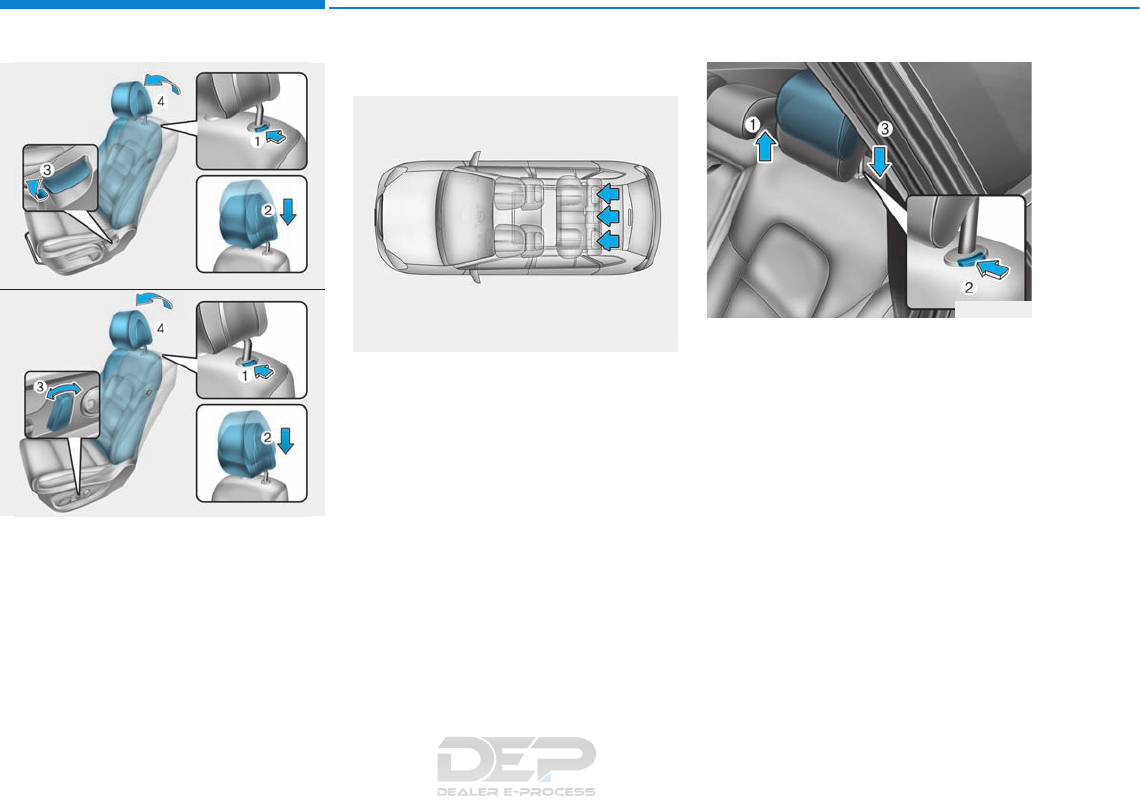

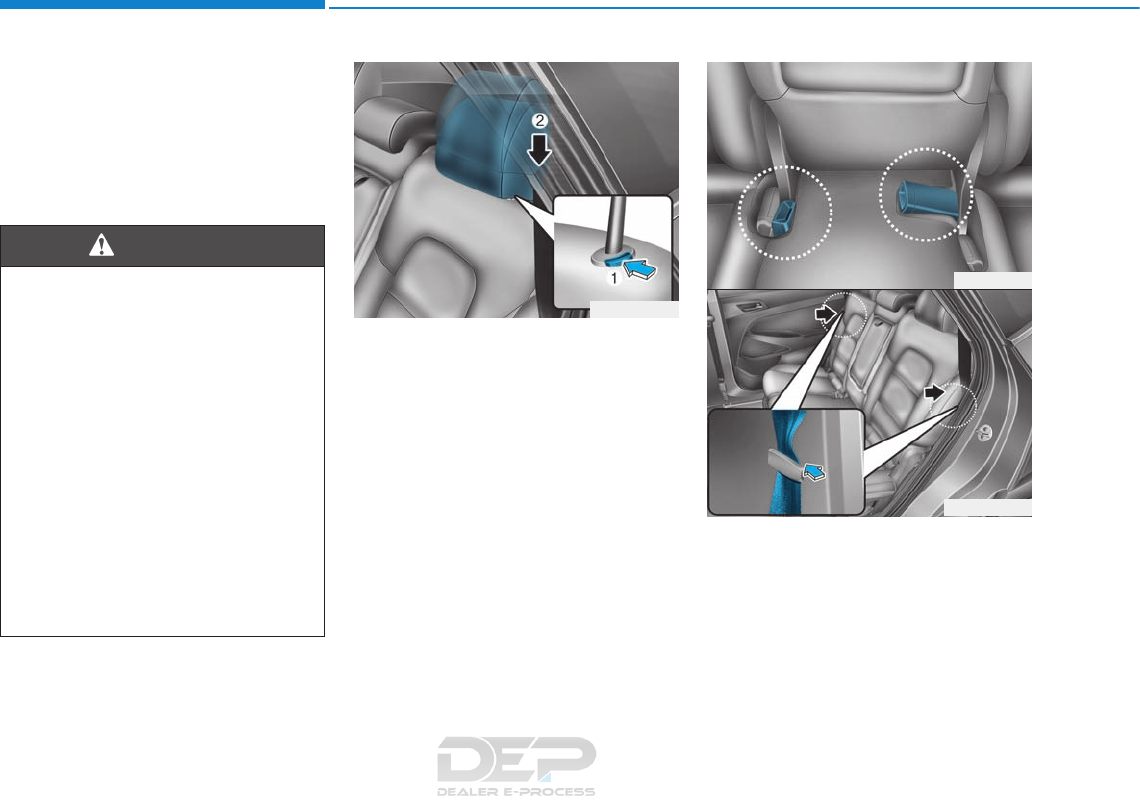

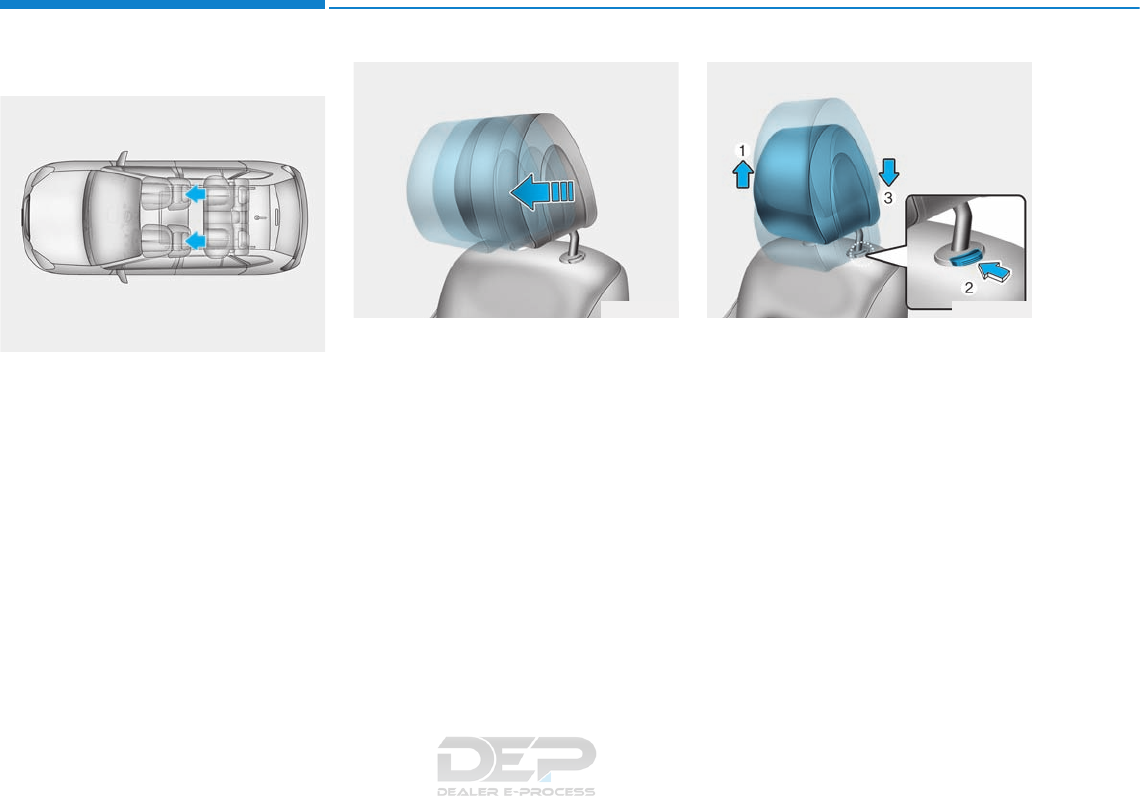

Head restraints ................................................................2-15

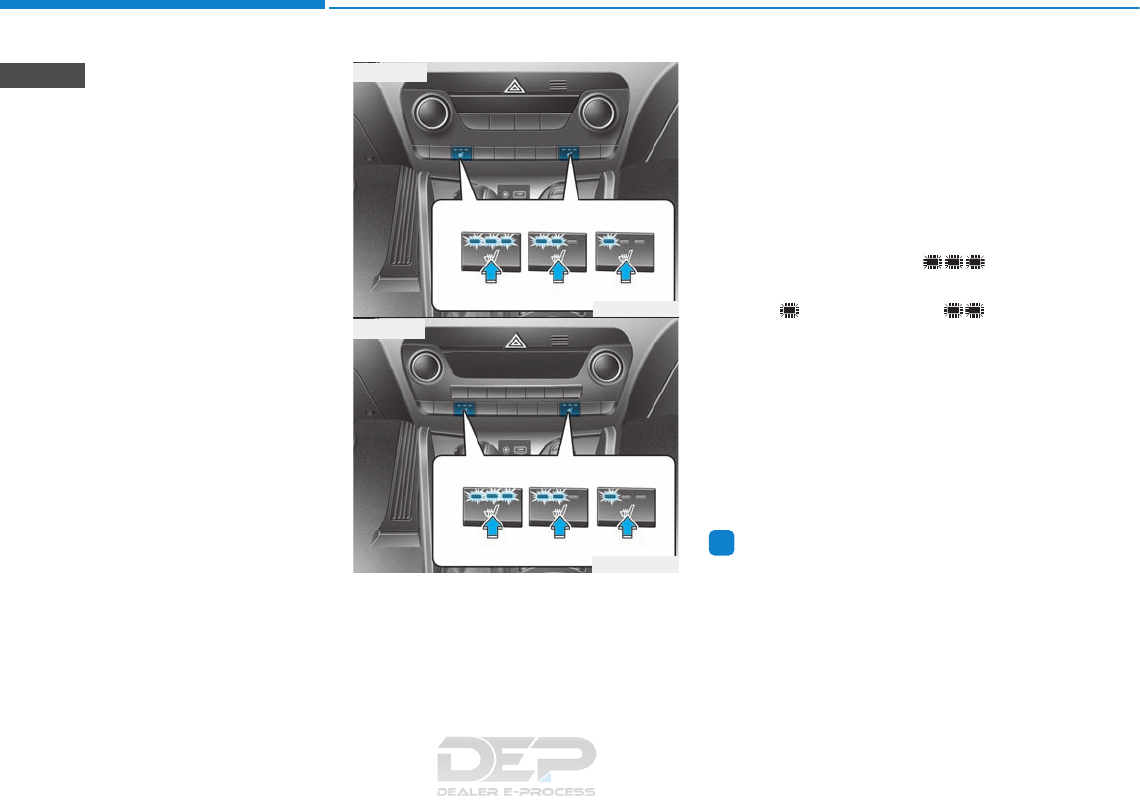

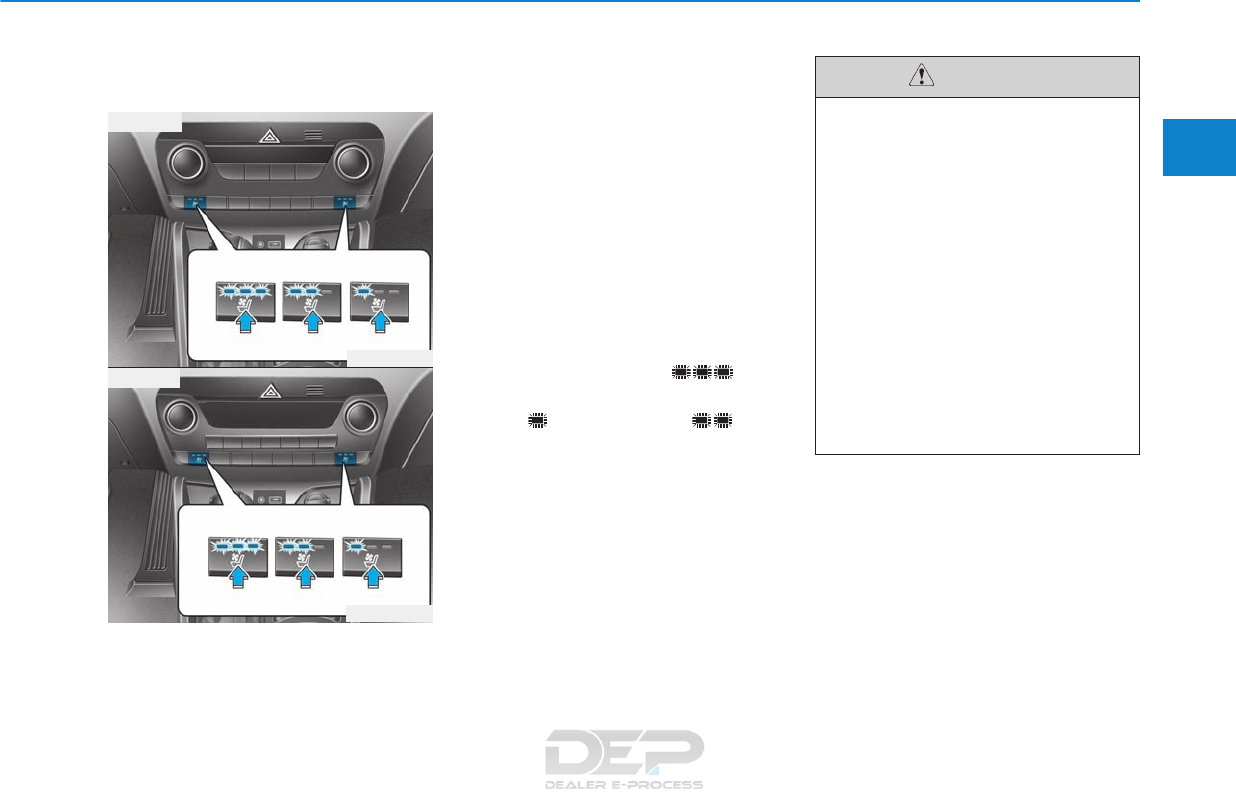

Seat warmers and air ventilation seats.....................2-19

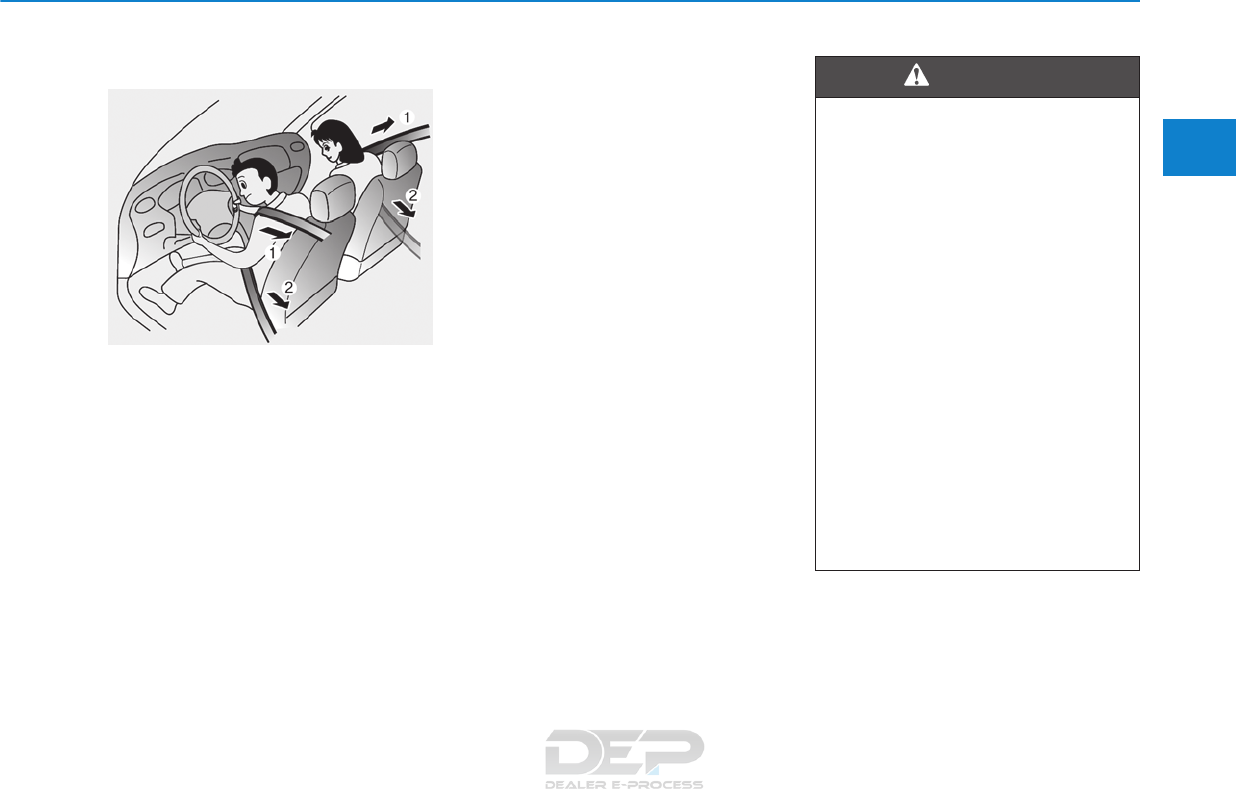

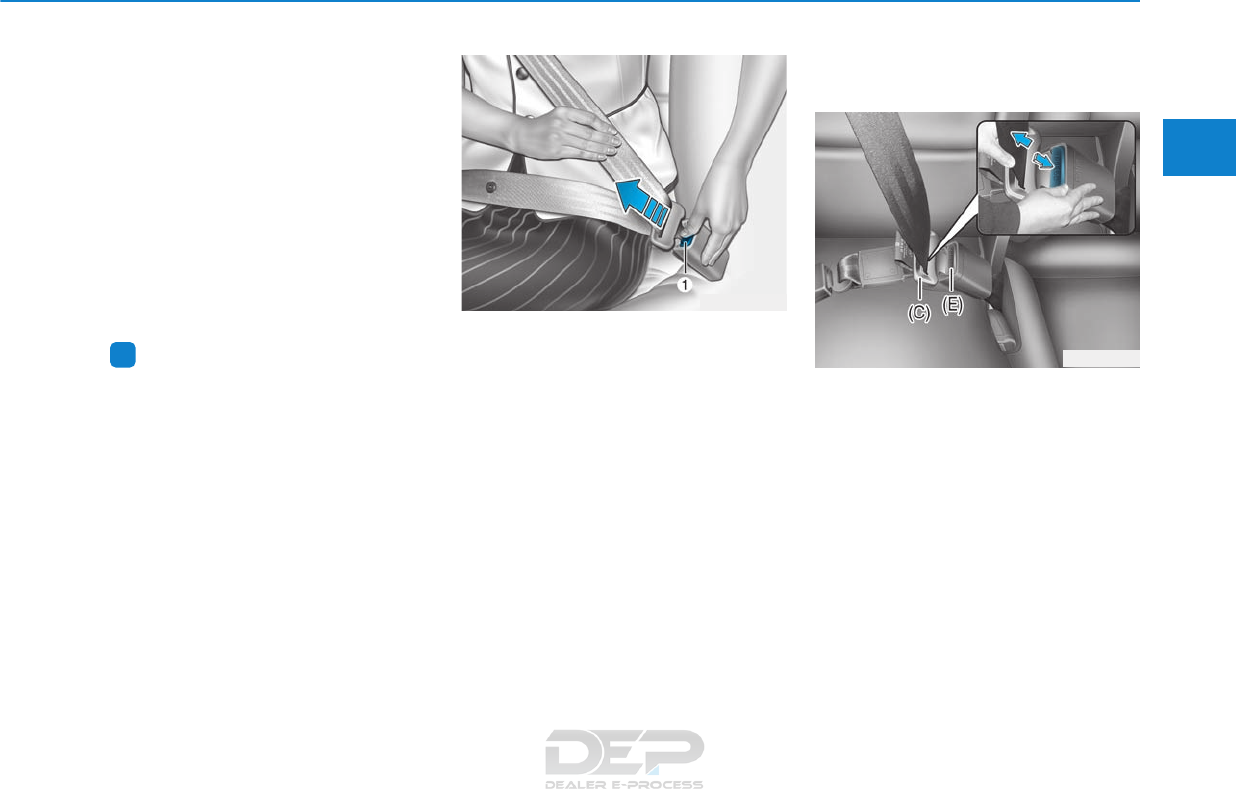

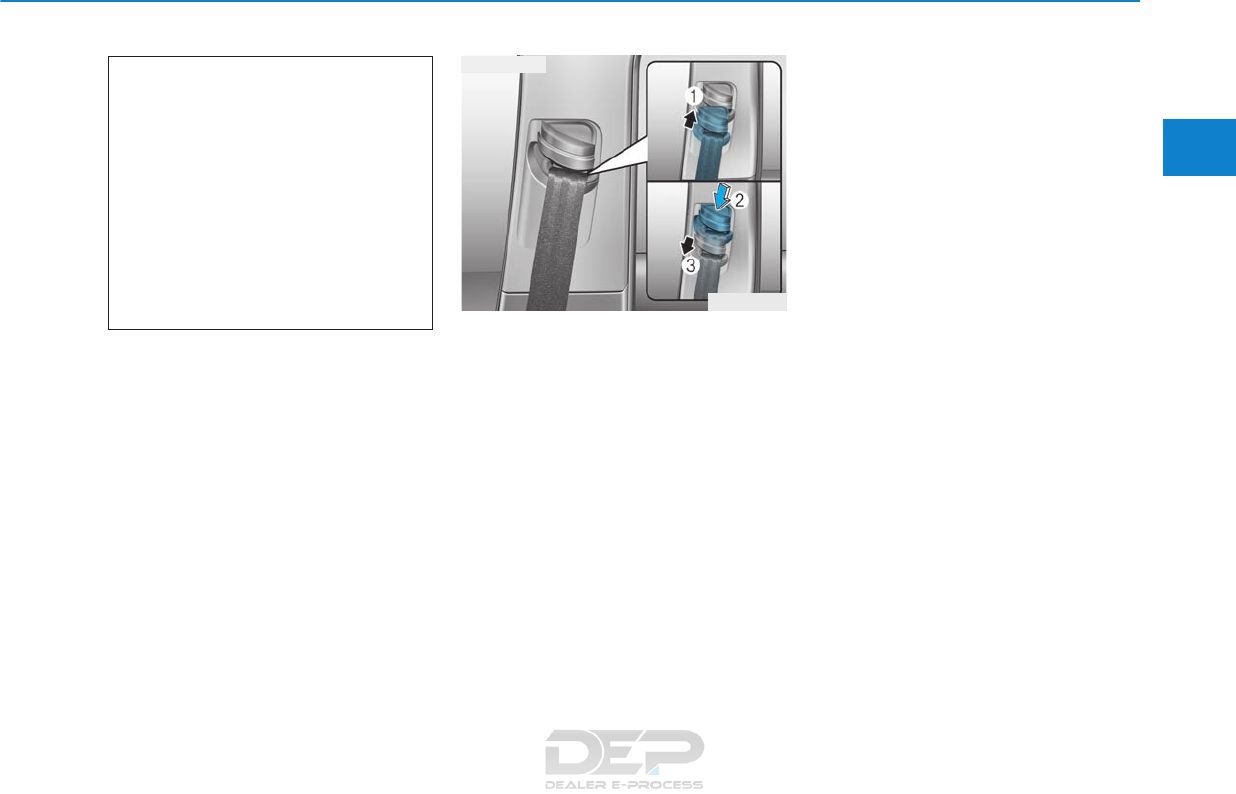

Seat Belts..............................................................2-23

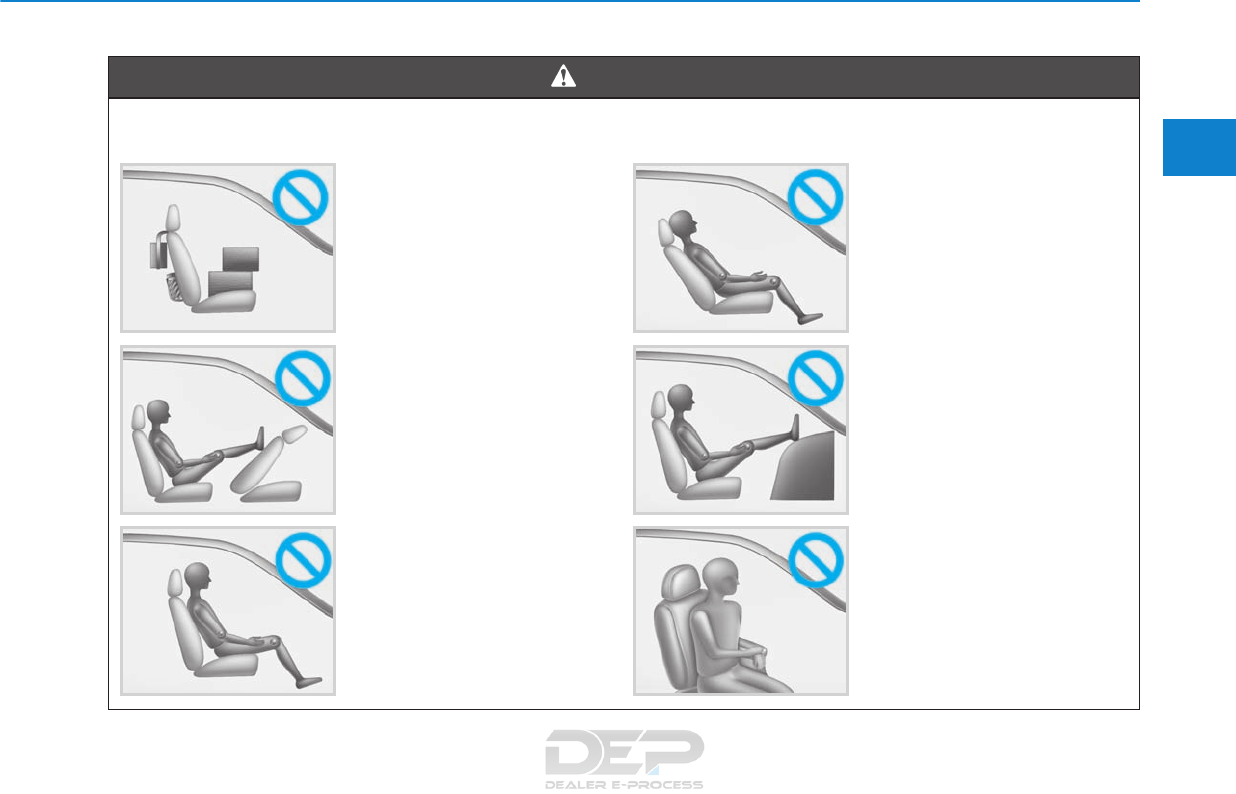

Seat Belt Safety Precautions.......................................2-23

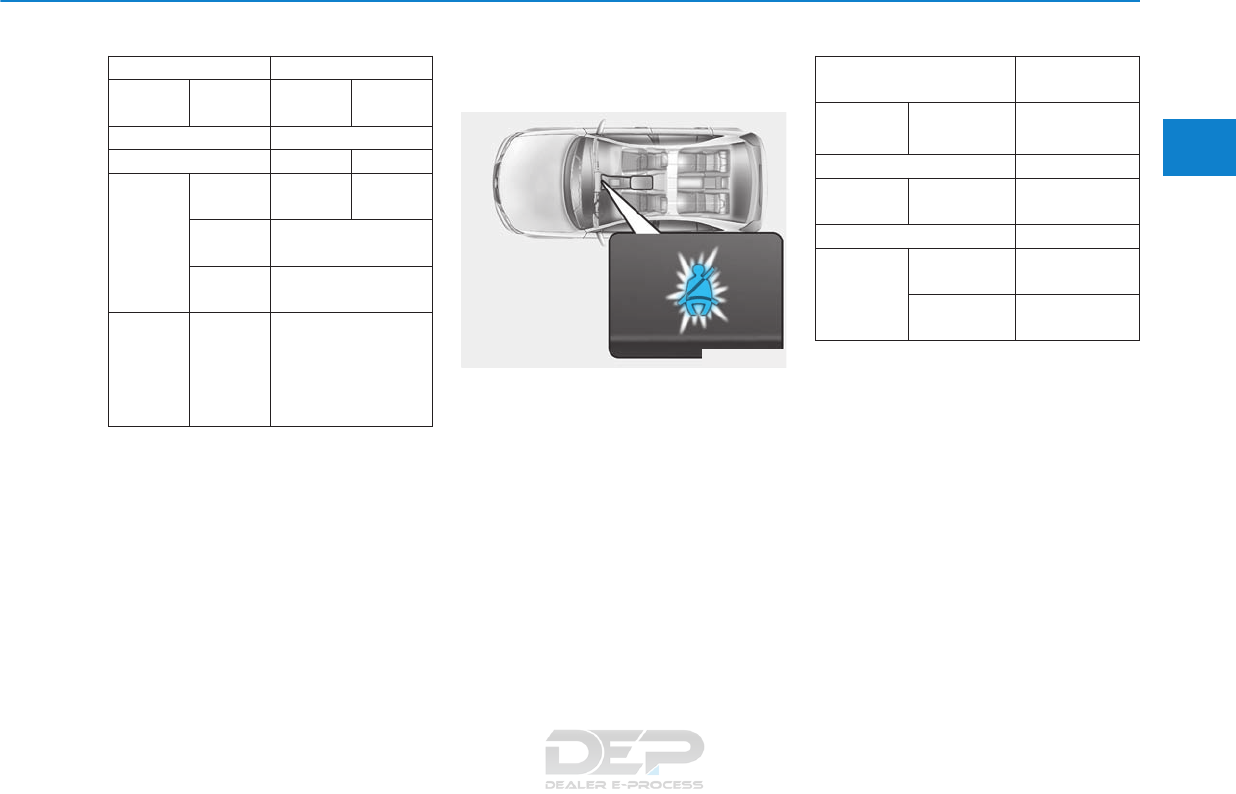

Seat Belt Warning Light ................................................2-24

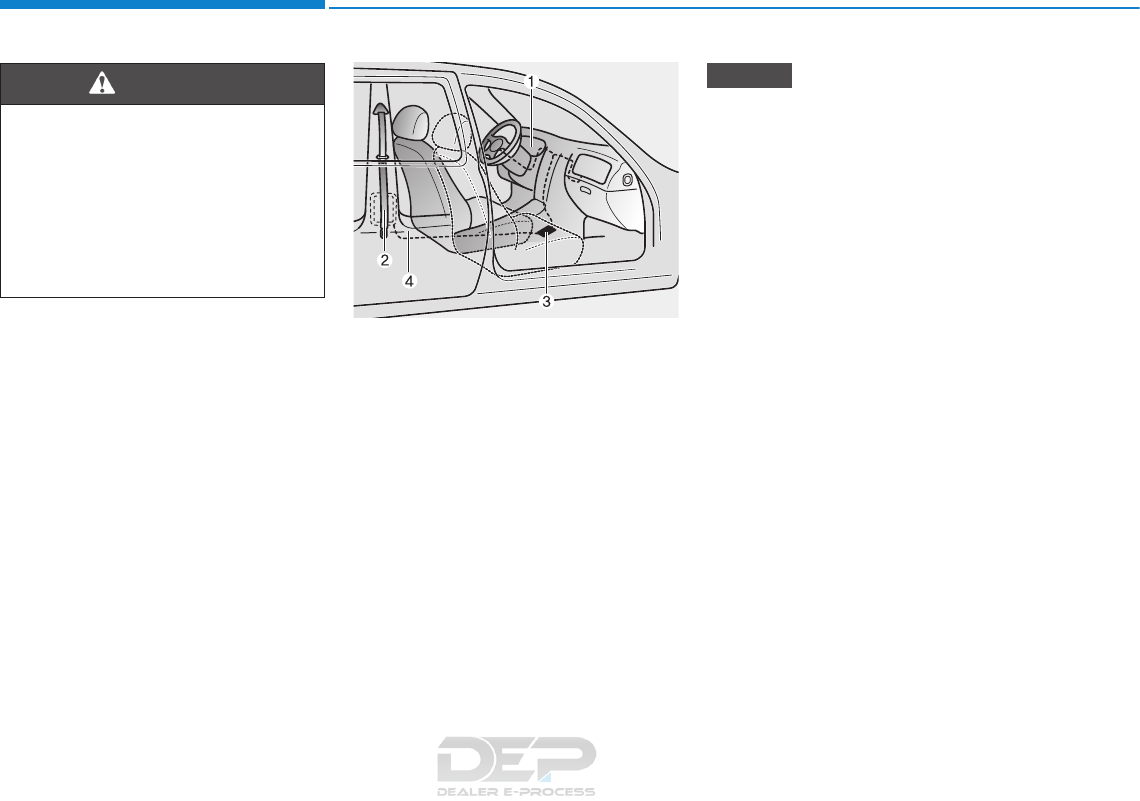

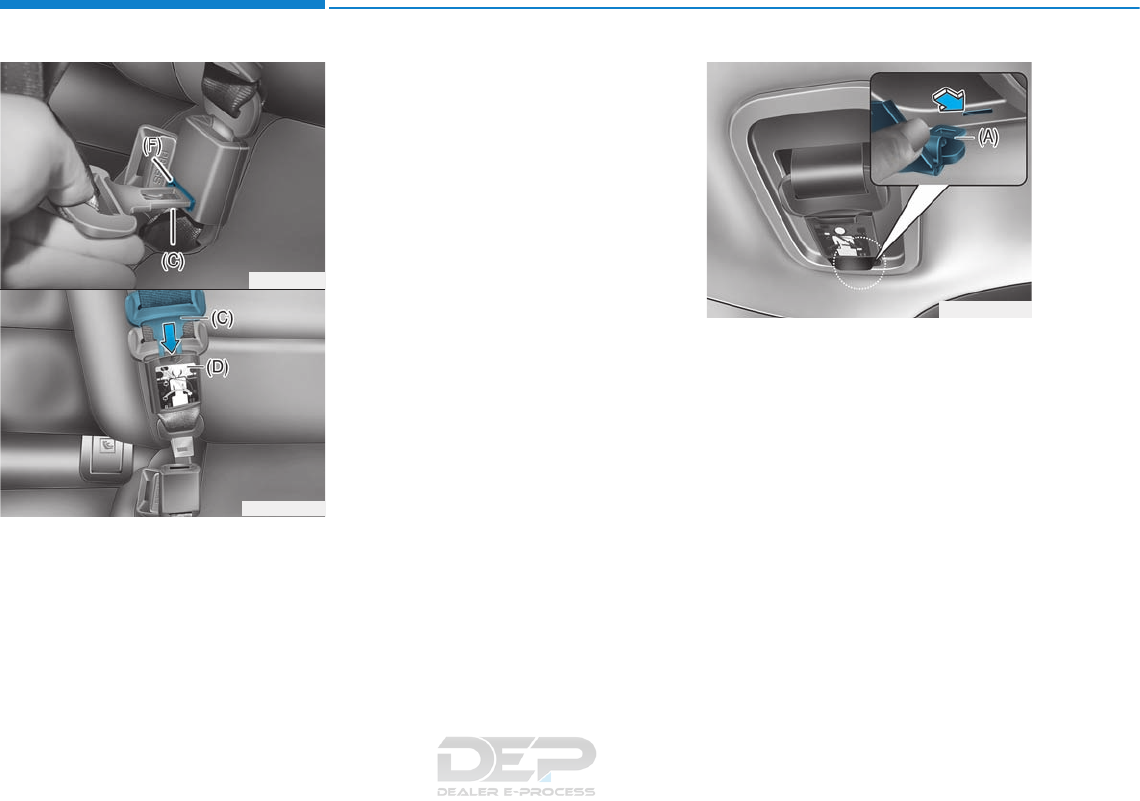

Seat Belt Restraint System...........................................2-26

Additional Seat Belt Safety Precautions...................2-33

Care of Seat Belts...........................................................2-36

Child Restraint System (CRS).............................2-37

Children Always in the Rear.........................................2-37

Selecting a Child Restraint System (CRS) .................2-38

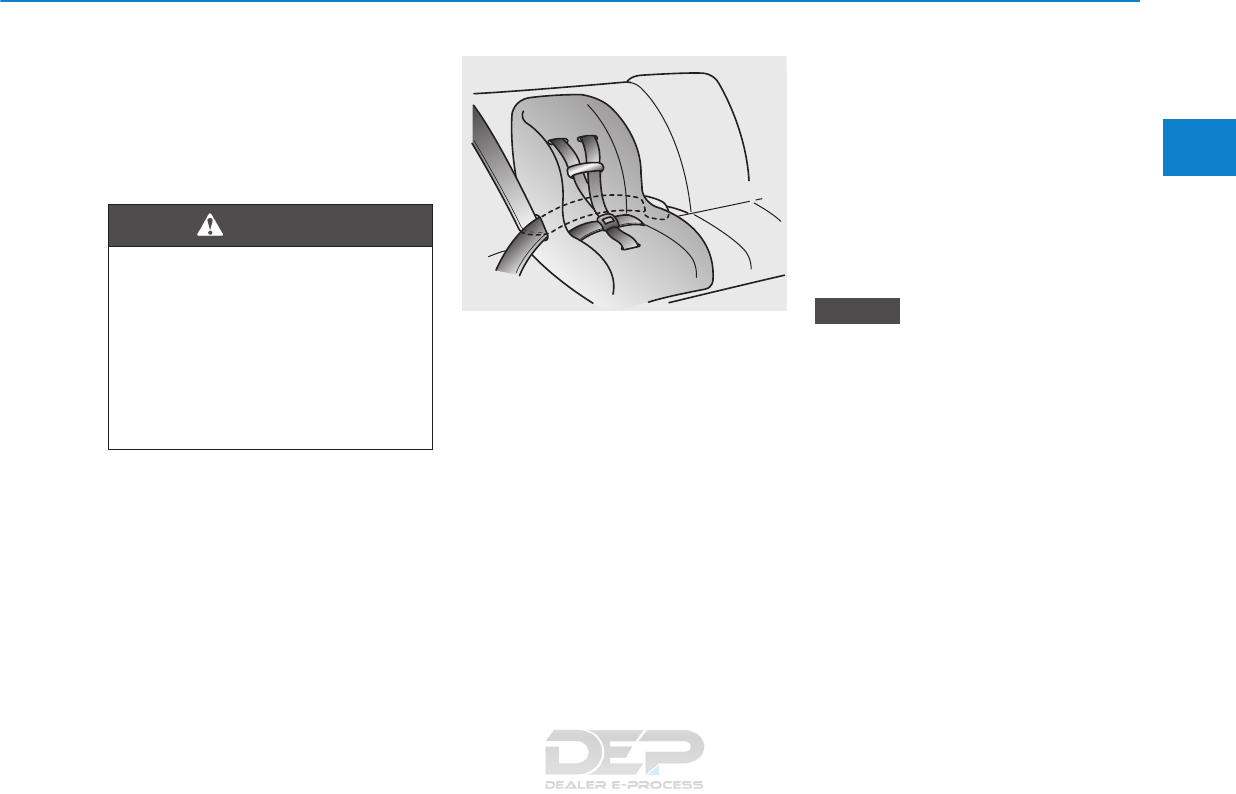

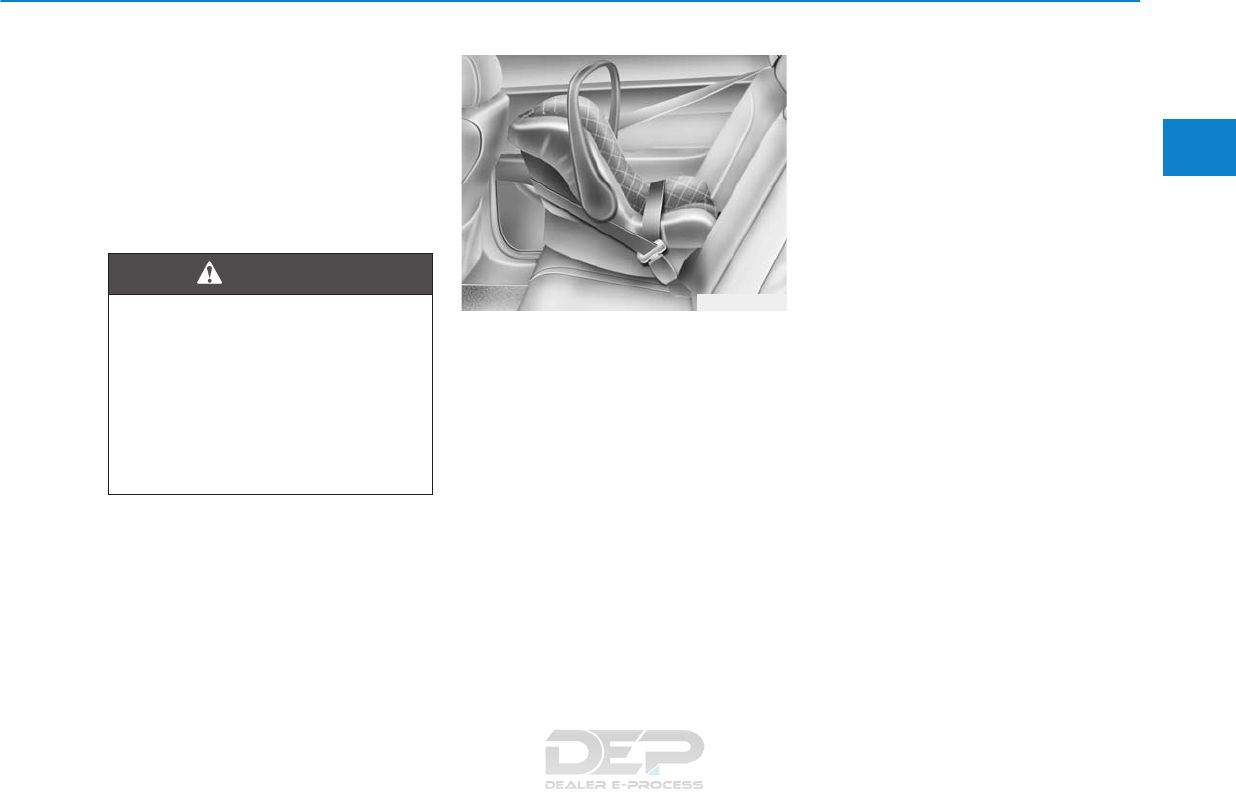

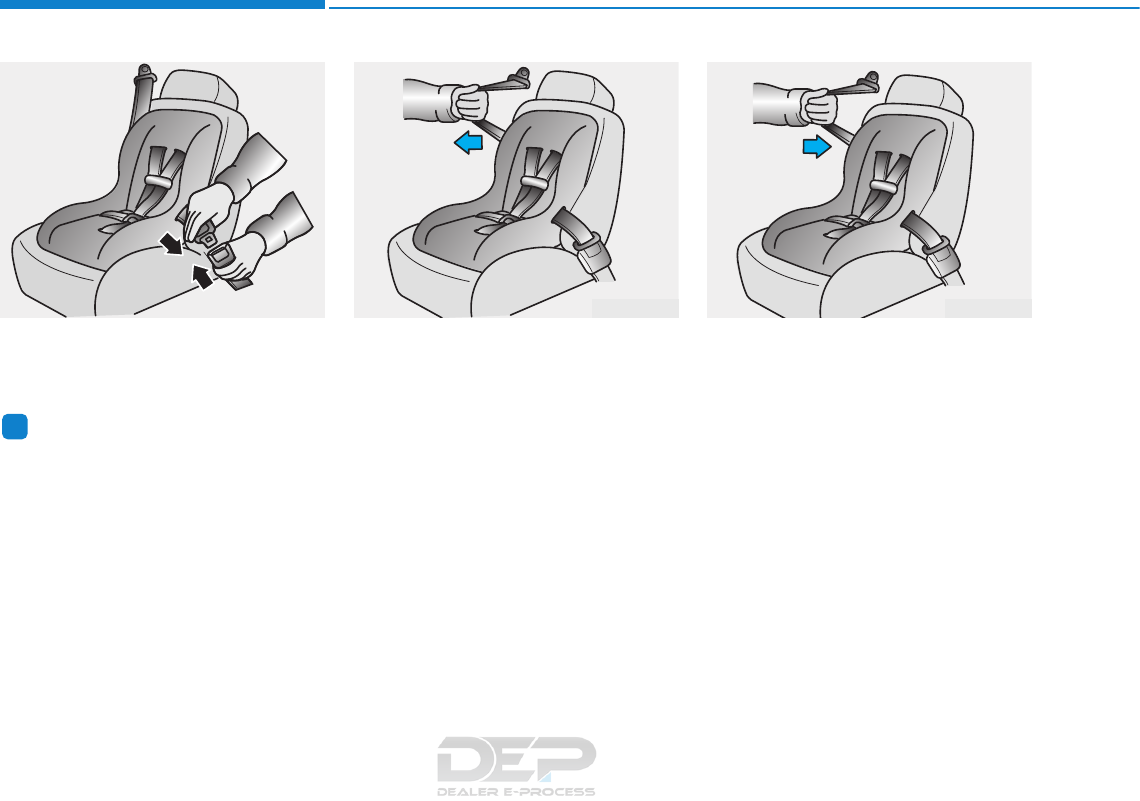

Installing a Child Restraint System (CRS)..................2-40

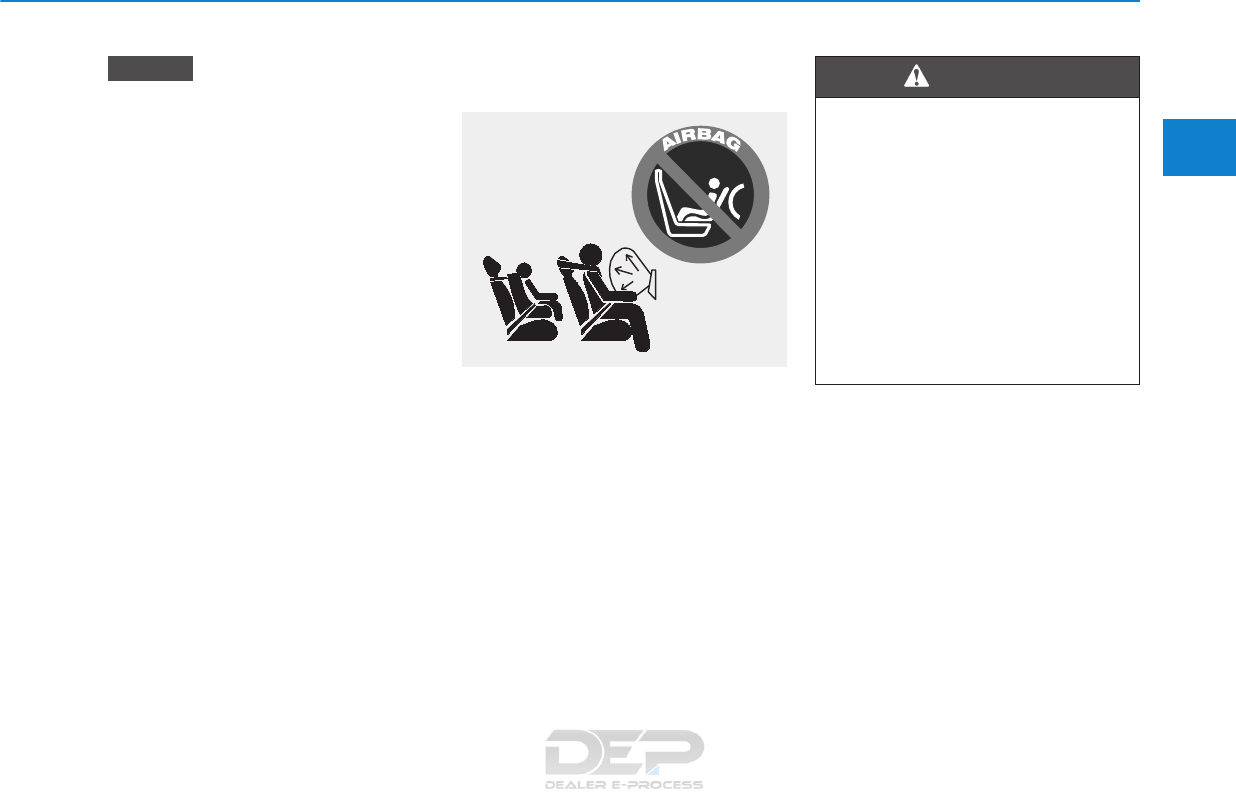

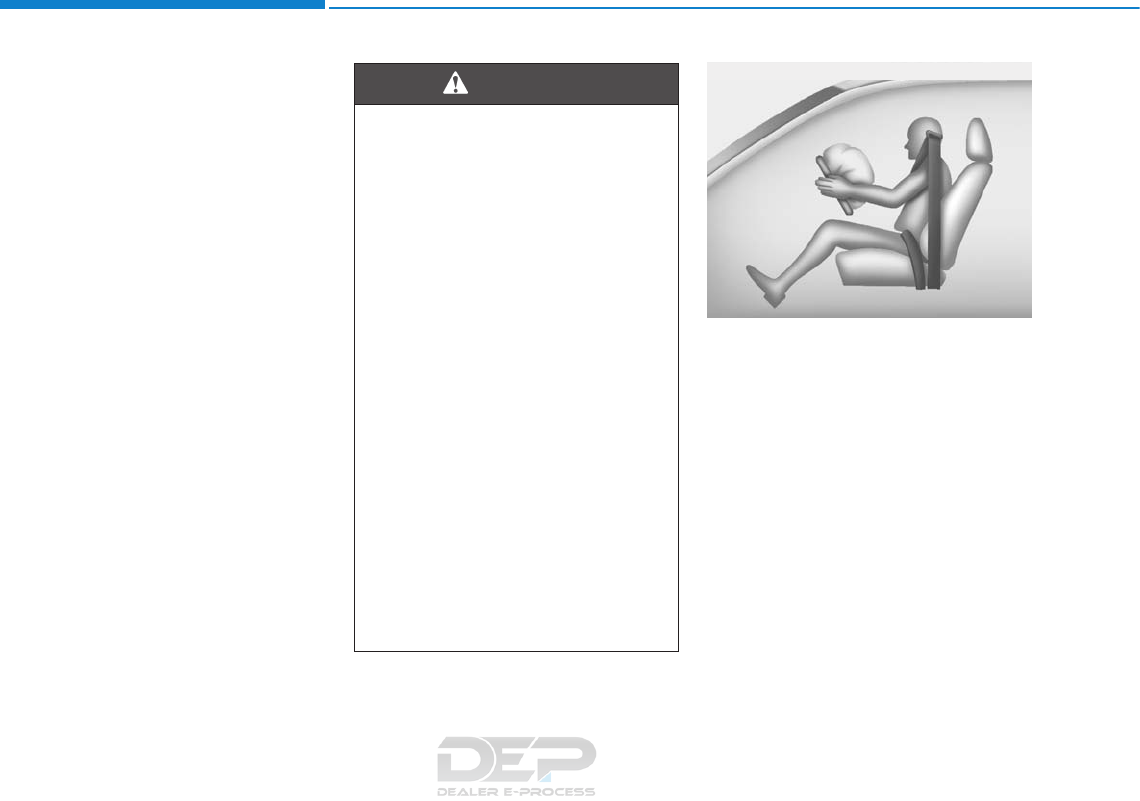

Air Bag -

Advanced Supplemental Restraint System.......2-48

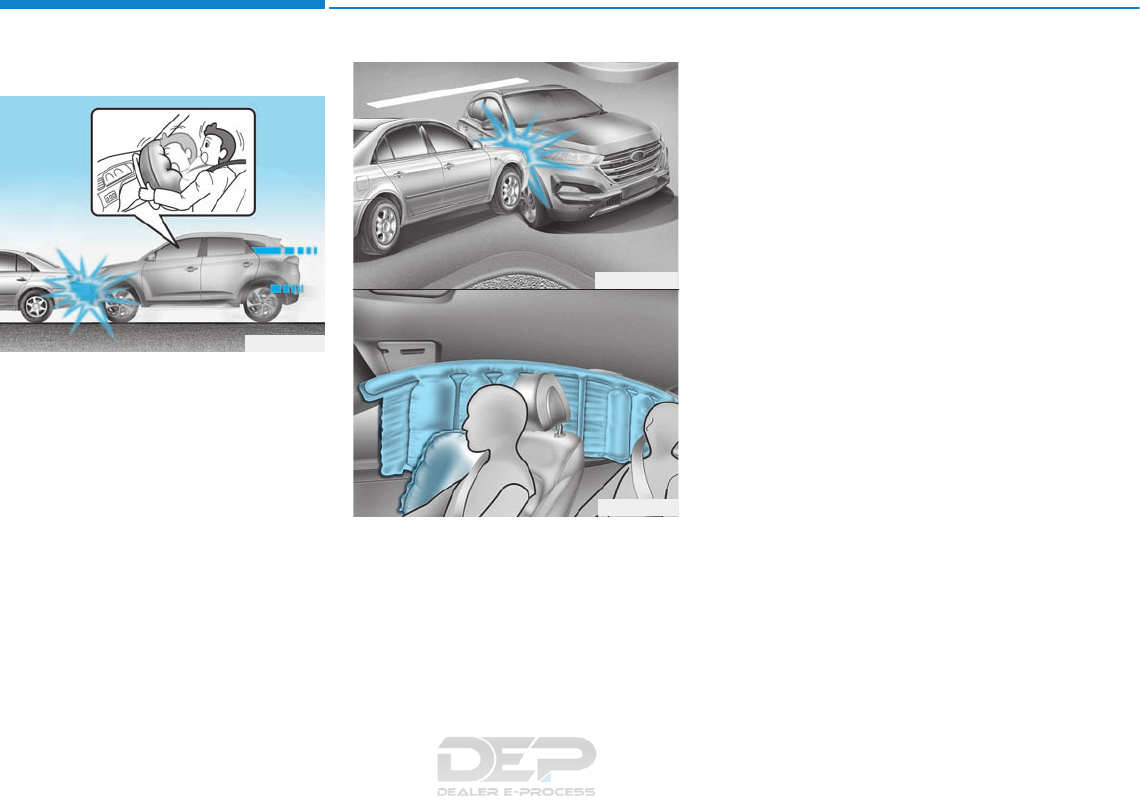

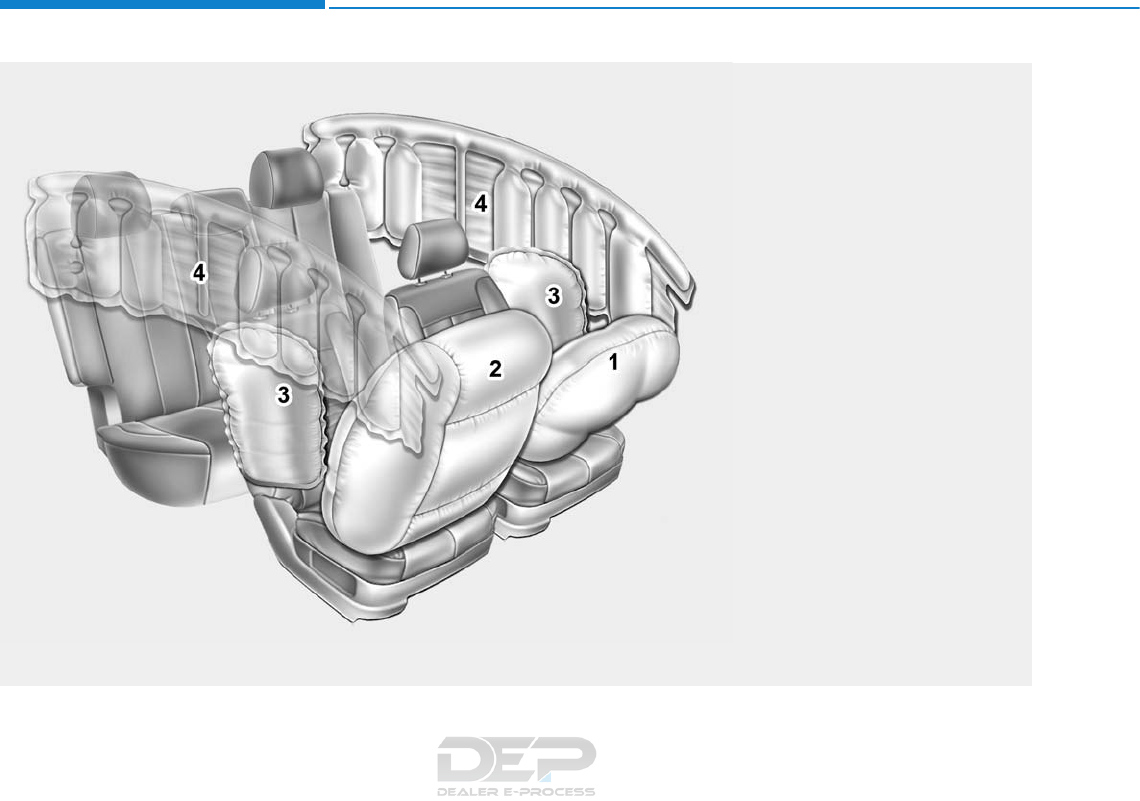

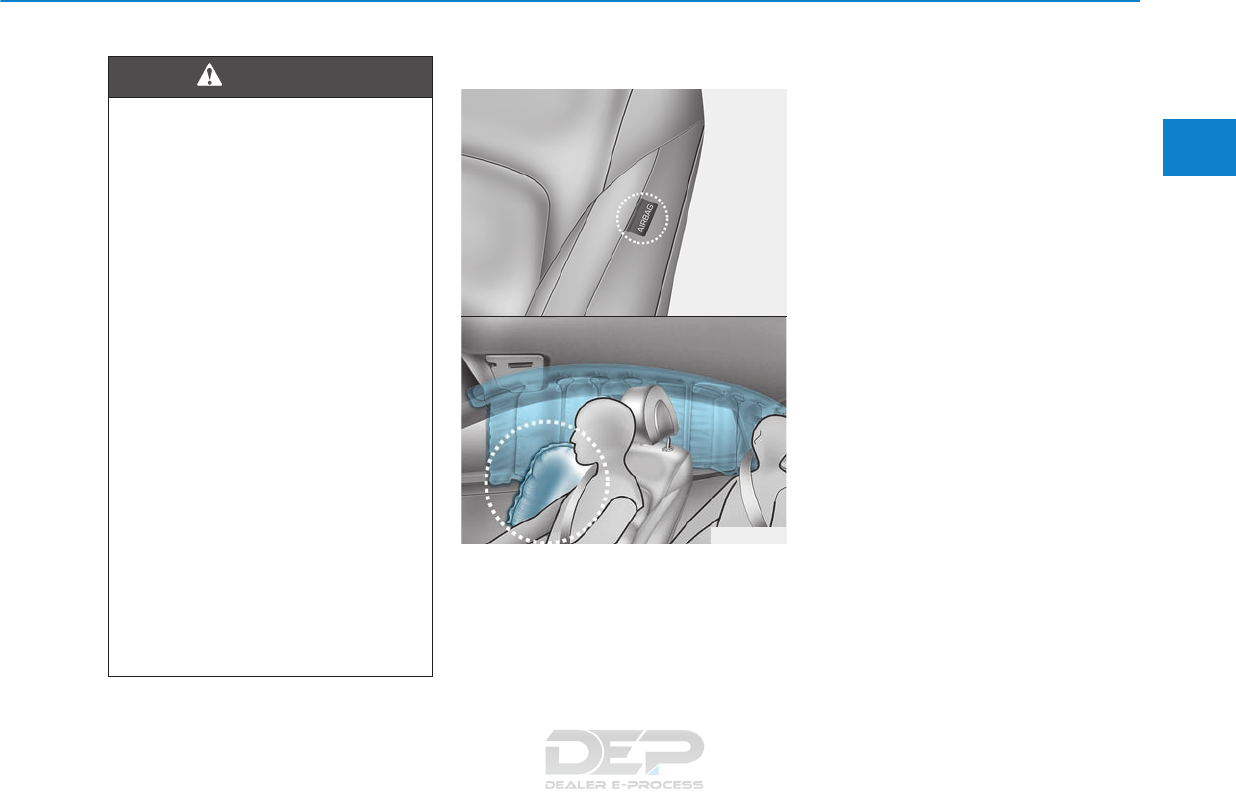

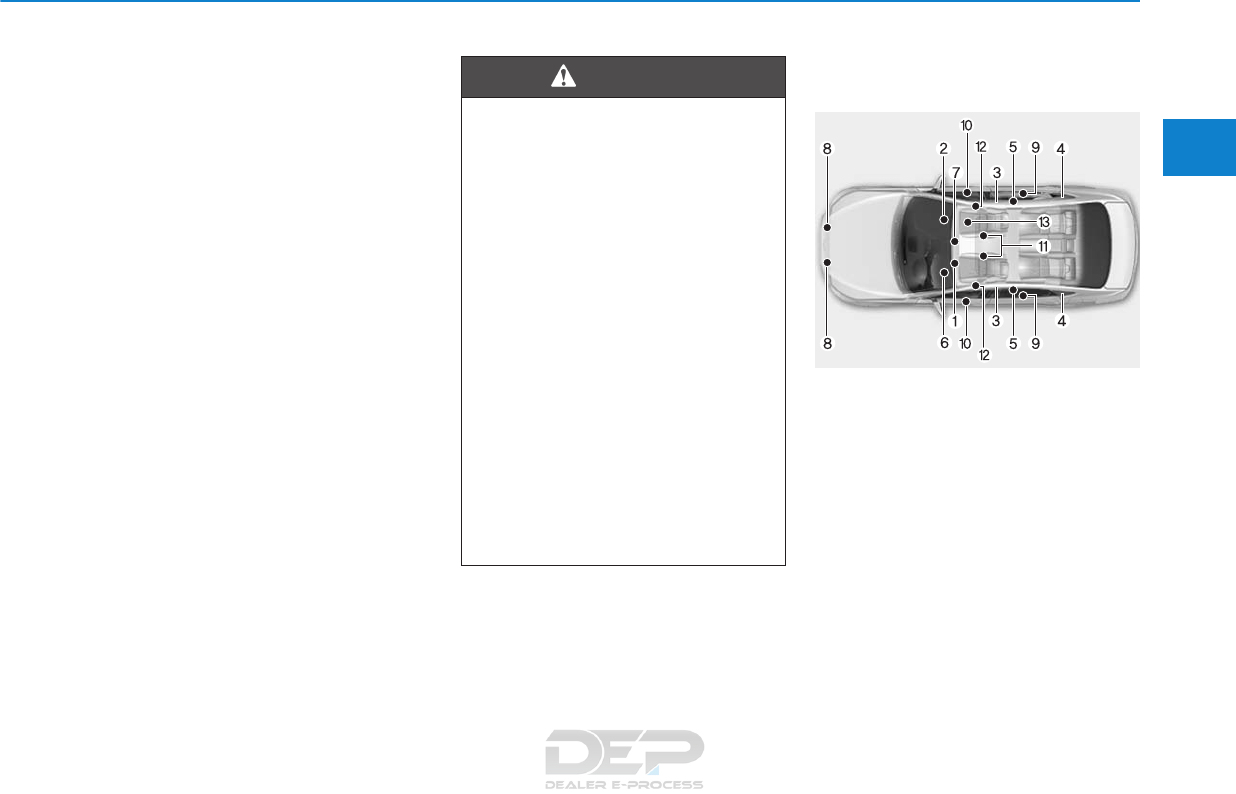

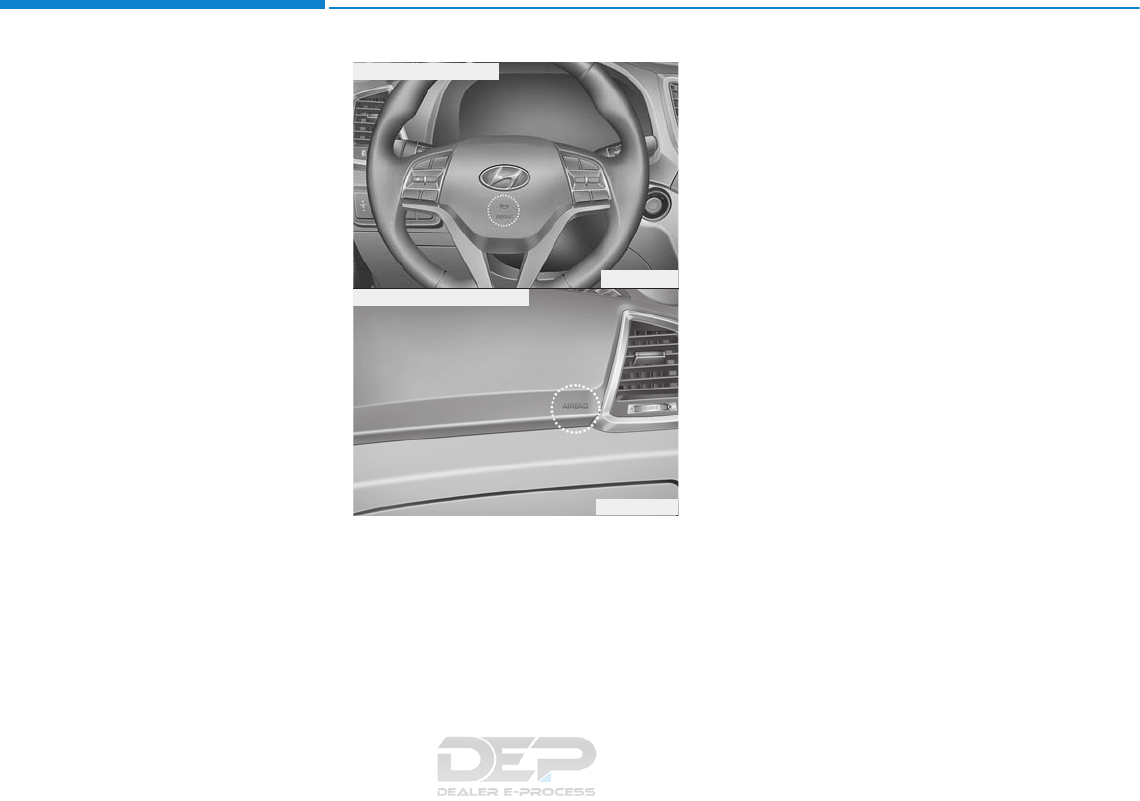

Where Are the Air Bags?..............................................2-50

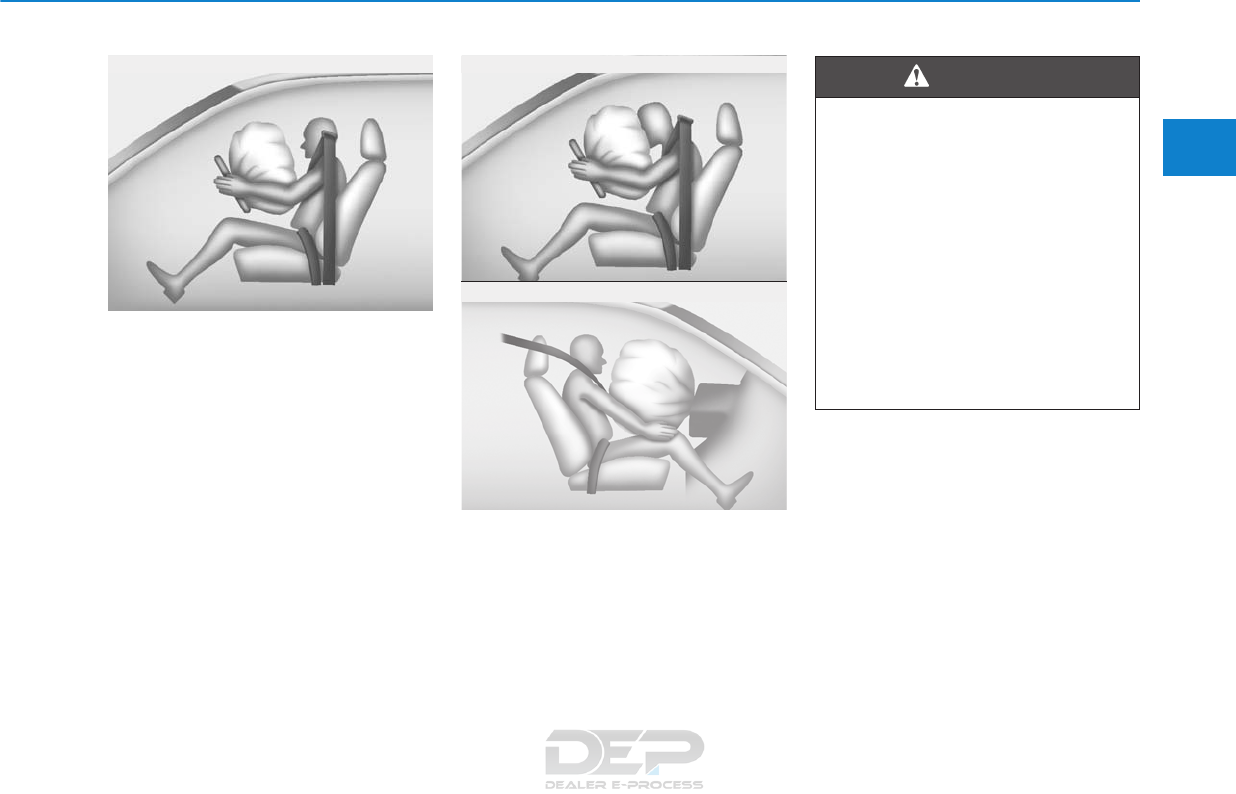

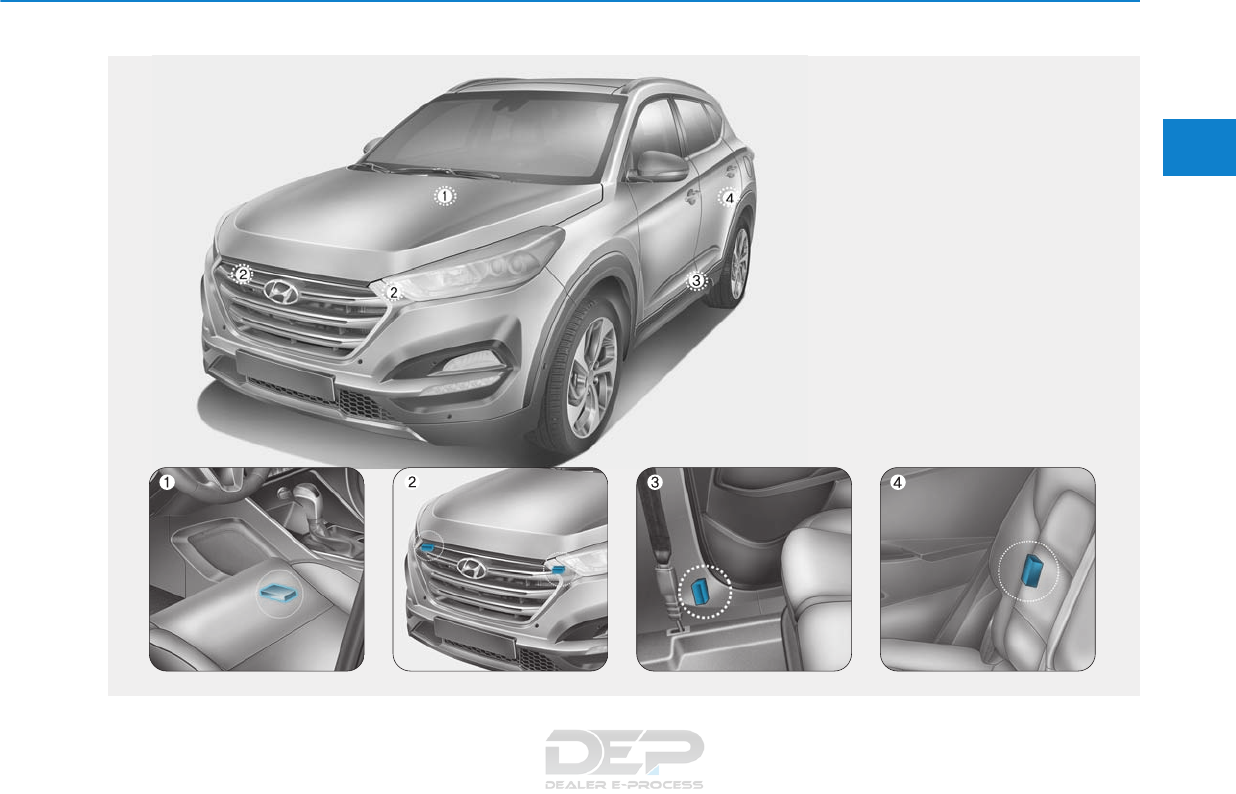

How Does the Air Bag System Operate?..................2-53

What to Expect After an Air Bag Inflates................2-58

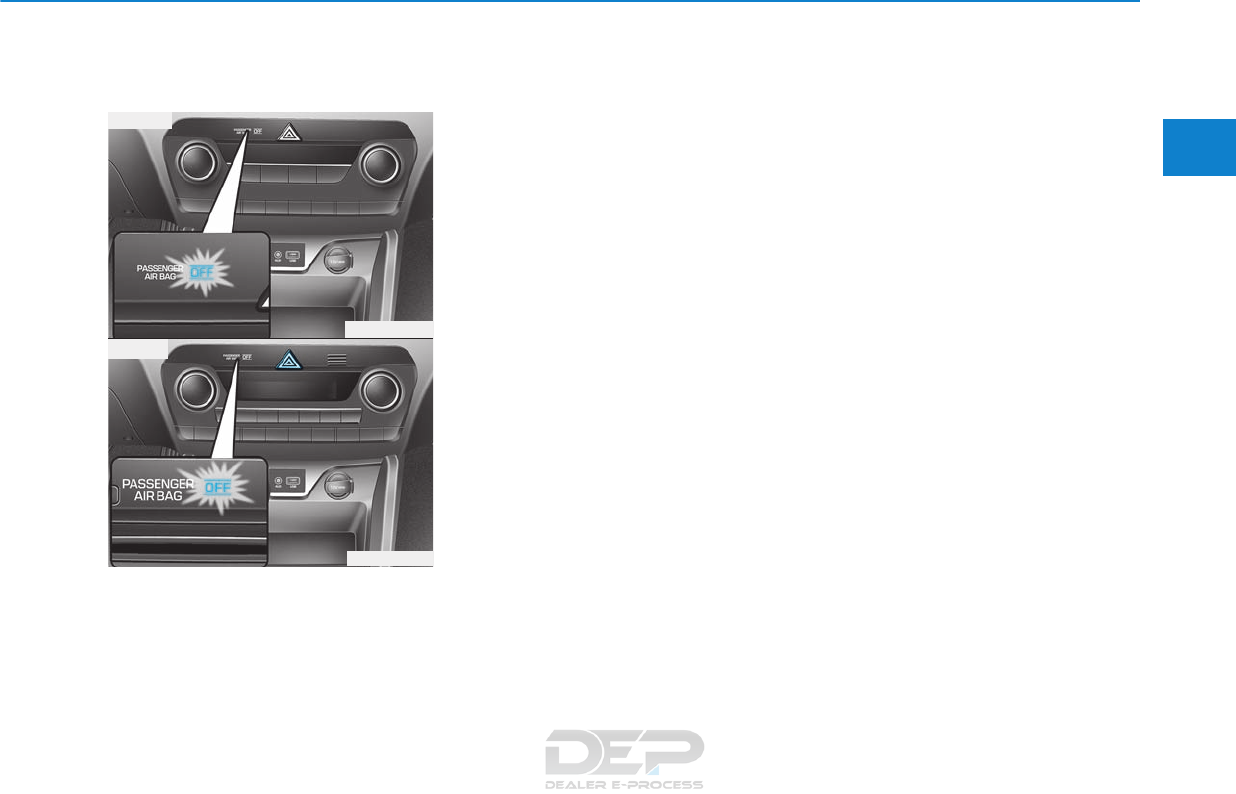

Occupant Classification System (OCS).......................2-59

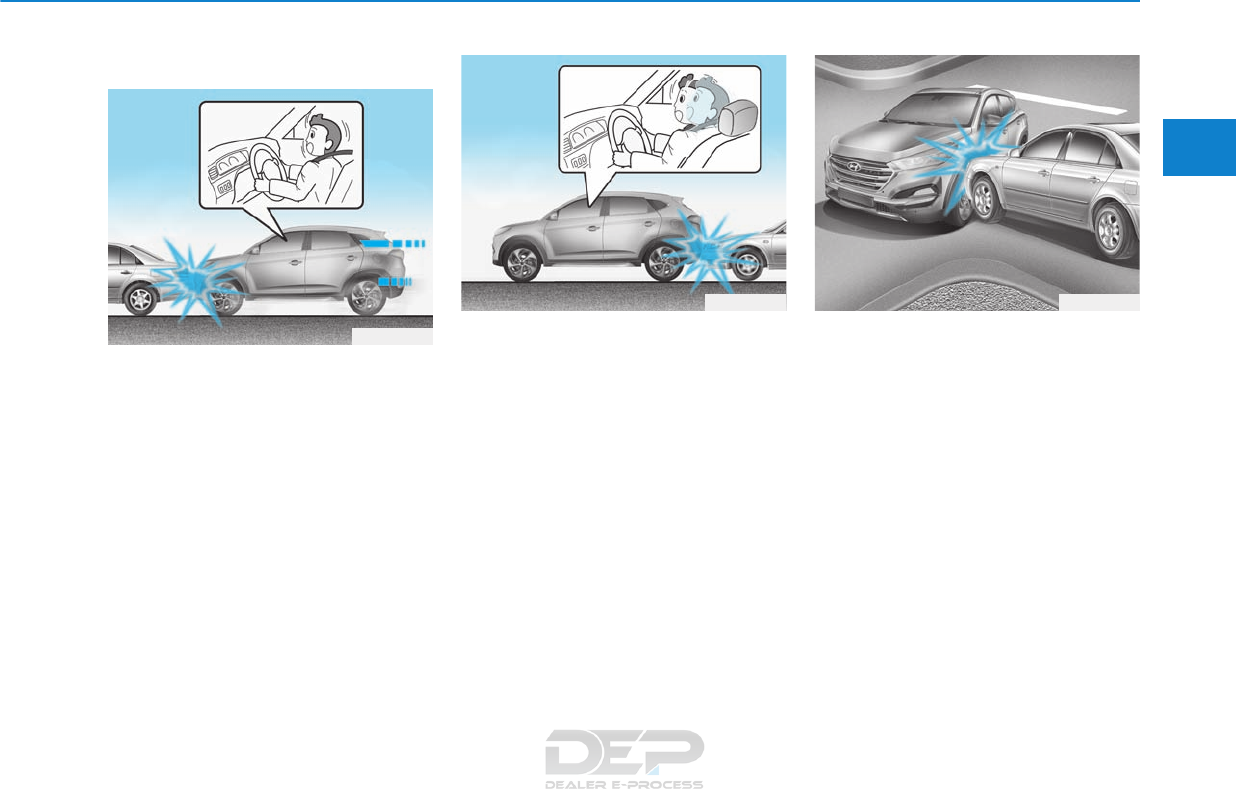

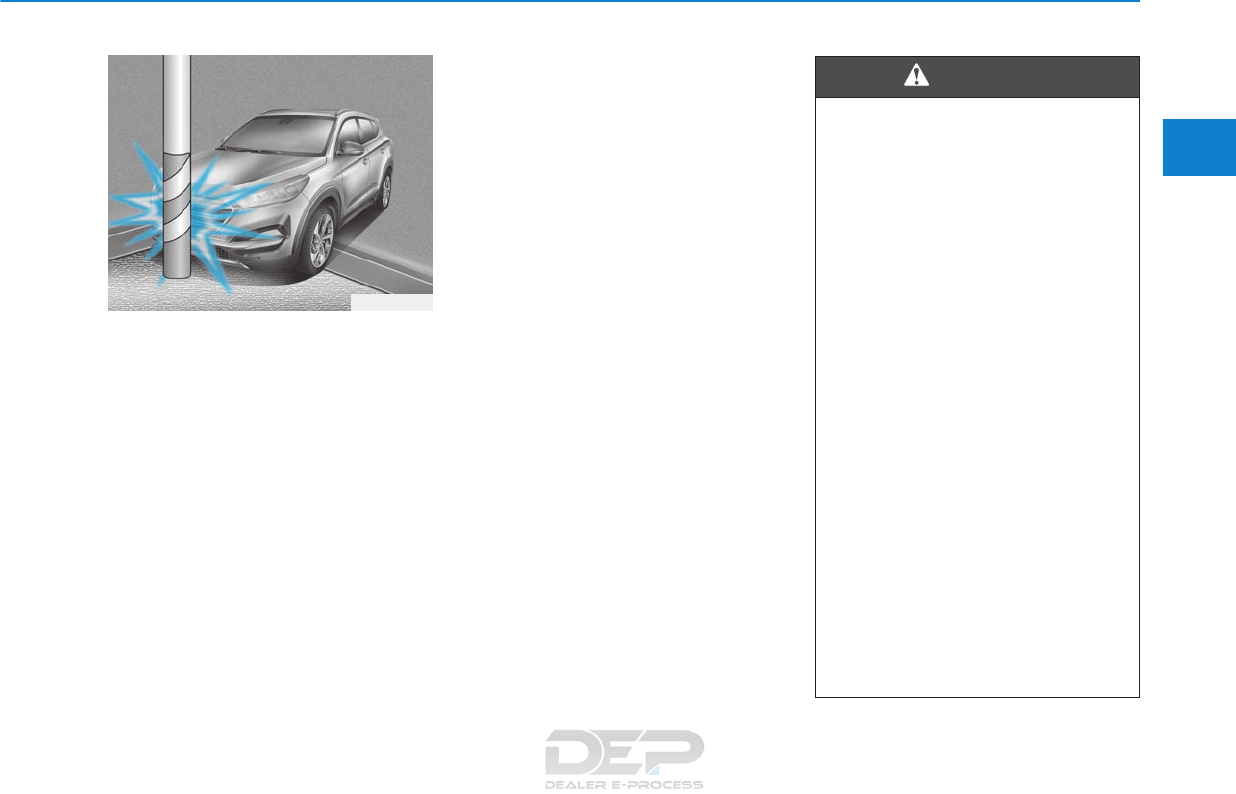

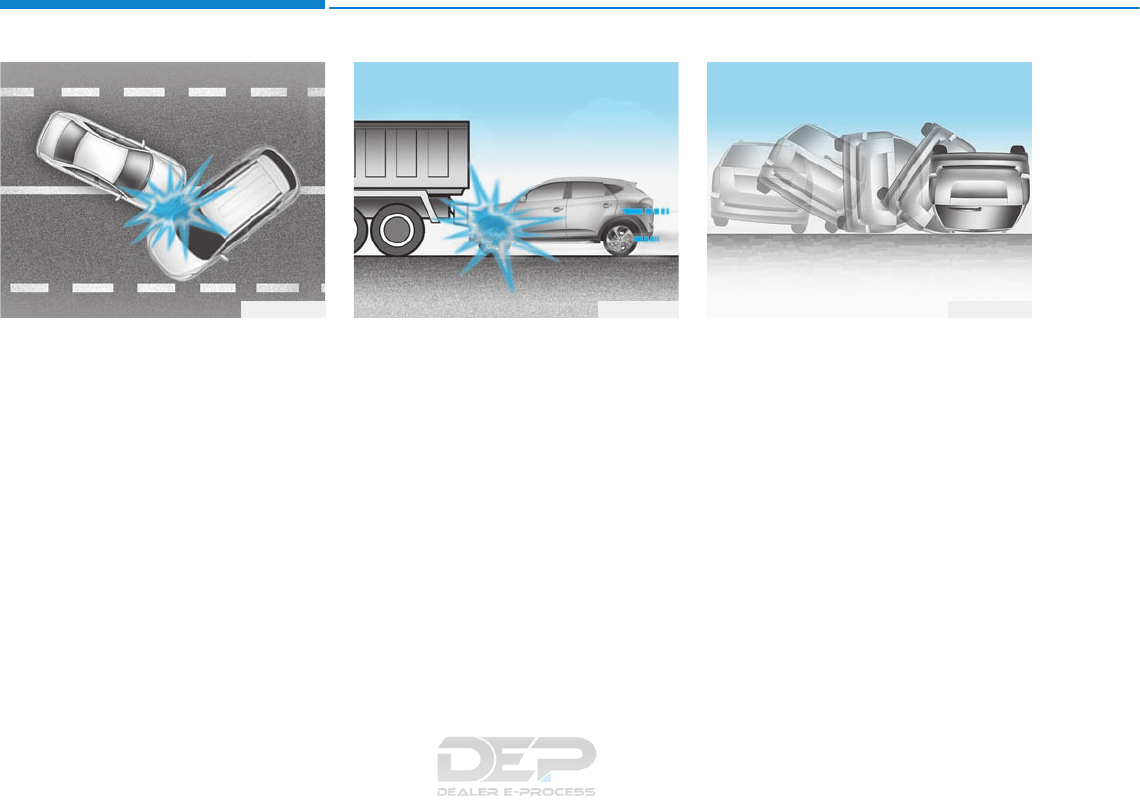

Why Didn't My Air Bag Go Off in a Collision? ........2-64

SRS Care ..........................................................................2-69

Additional Safety Precautions .....................................2-70

Air Bag Warning Labels.................................................2-71

1Your vehicle at a glance

2Safety system of your vehicle

F13F13

Accessing your vehicle .........................................3-4

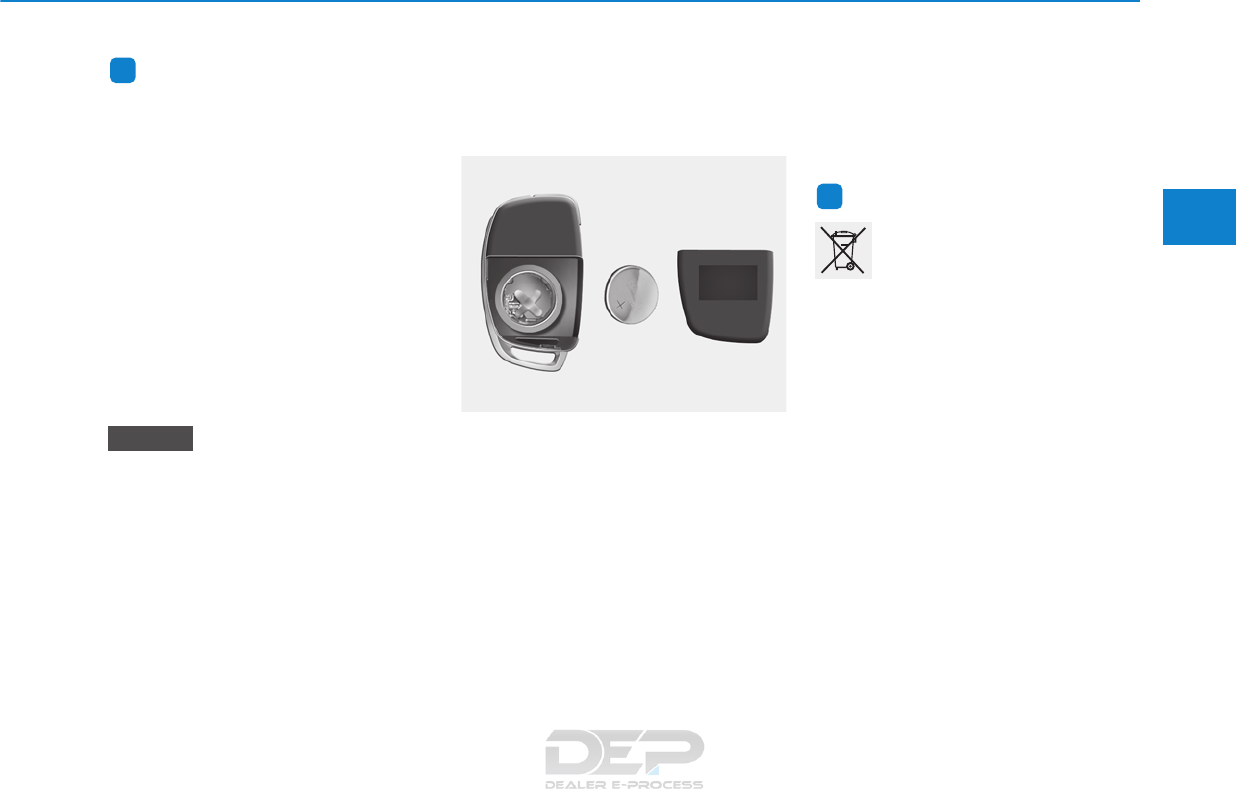

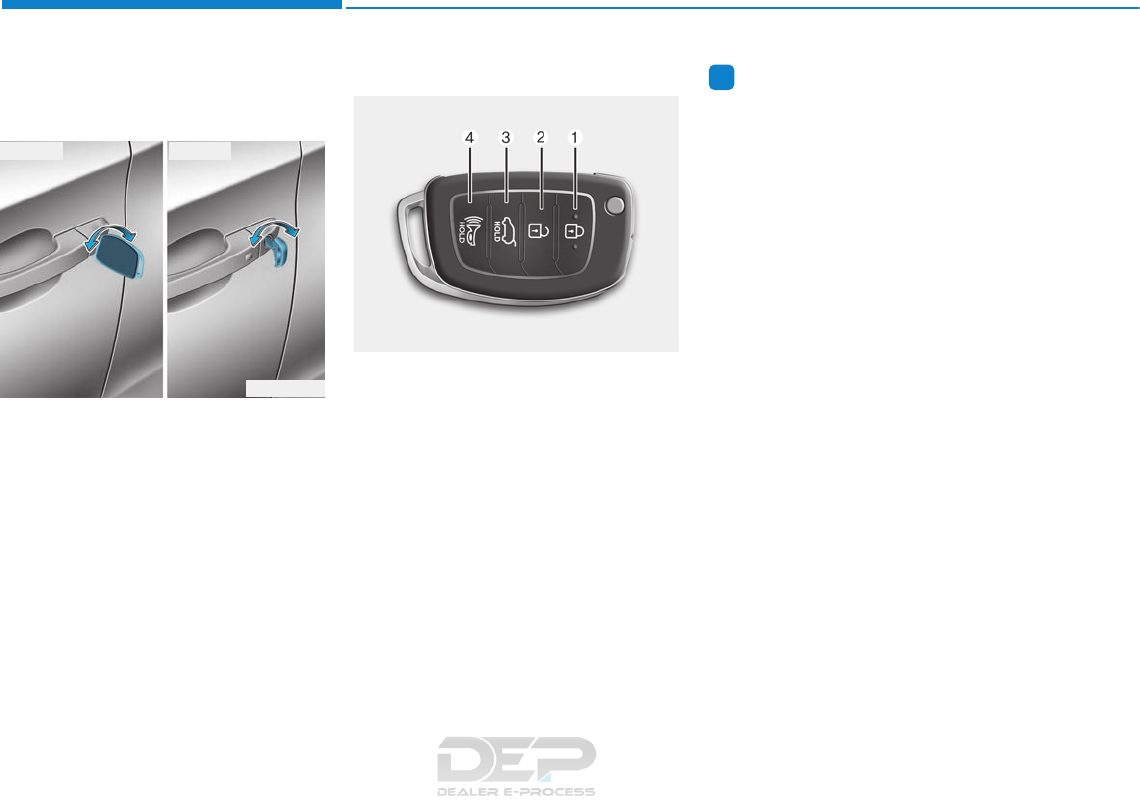

Remote Key.........................................................................3-4

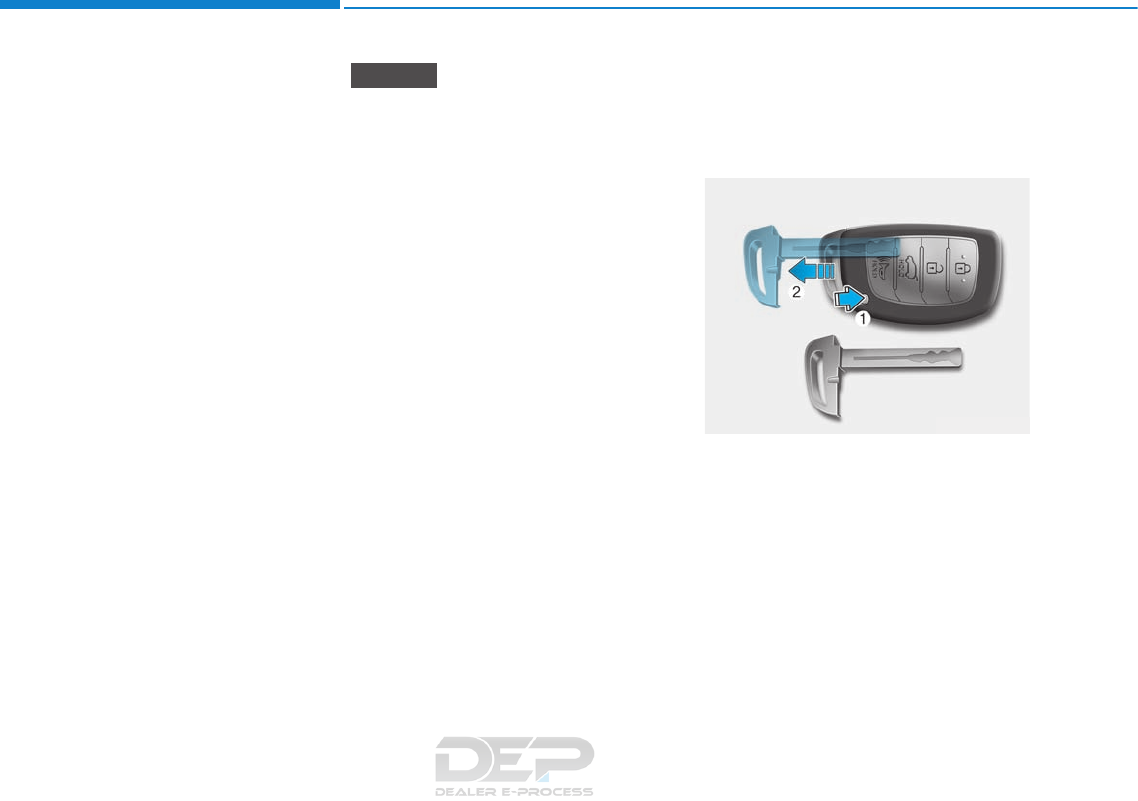

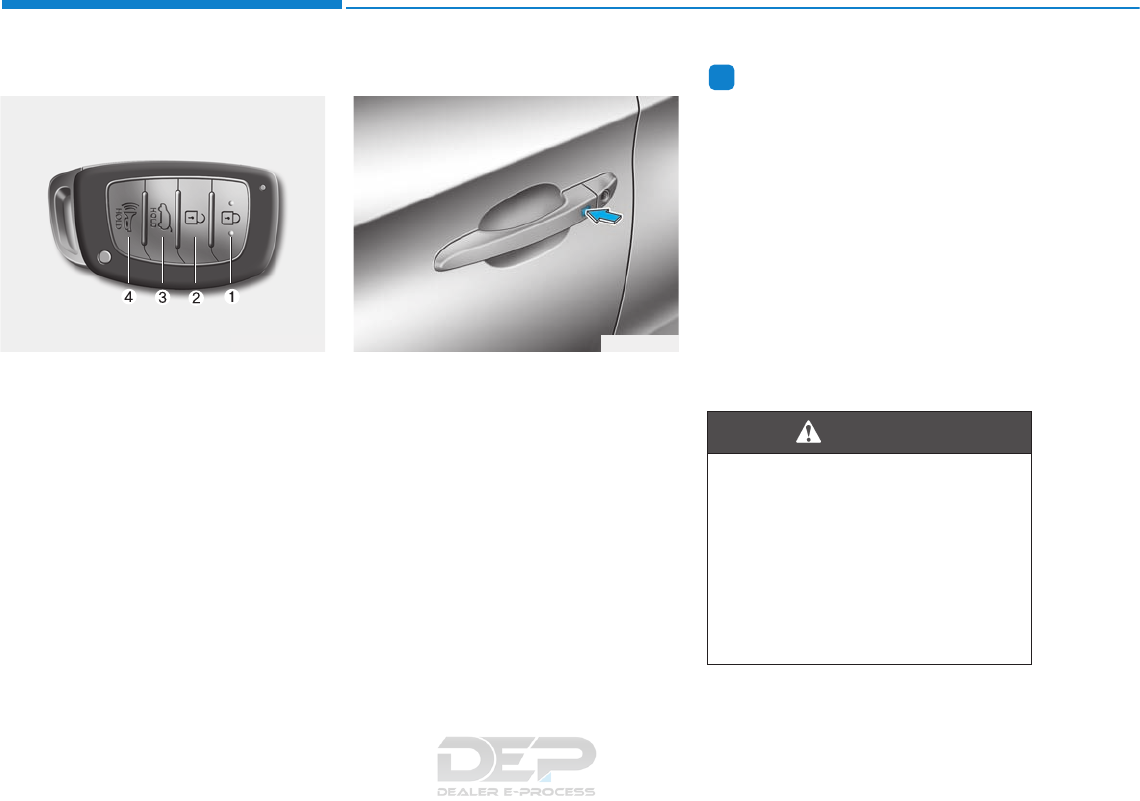

Smart Key............................................................................3-8

Immobilizer System.........................................................3-12

Door locks.............................................................3-14

Operating Door Locks from Outside the Vehicle....3-14

Operating Door Locks from Inside the Vehicle .......3-15

Auto Door Lock/Unlock Features...............................3-17

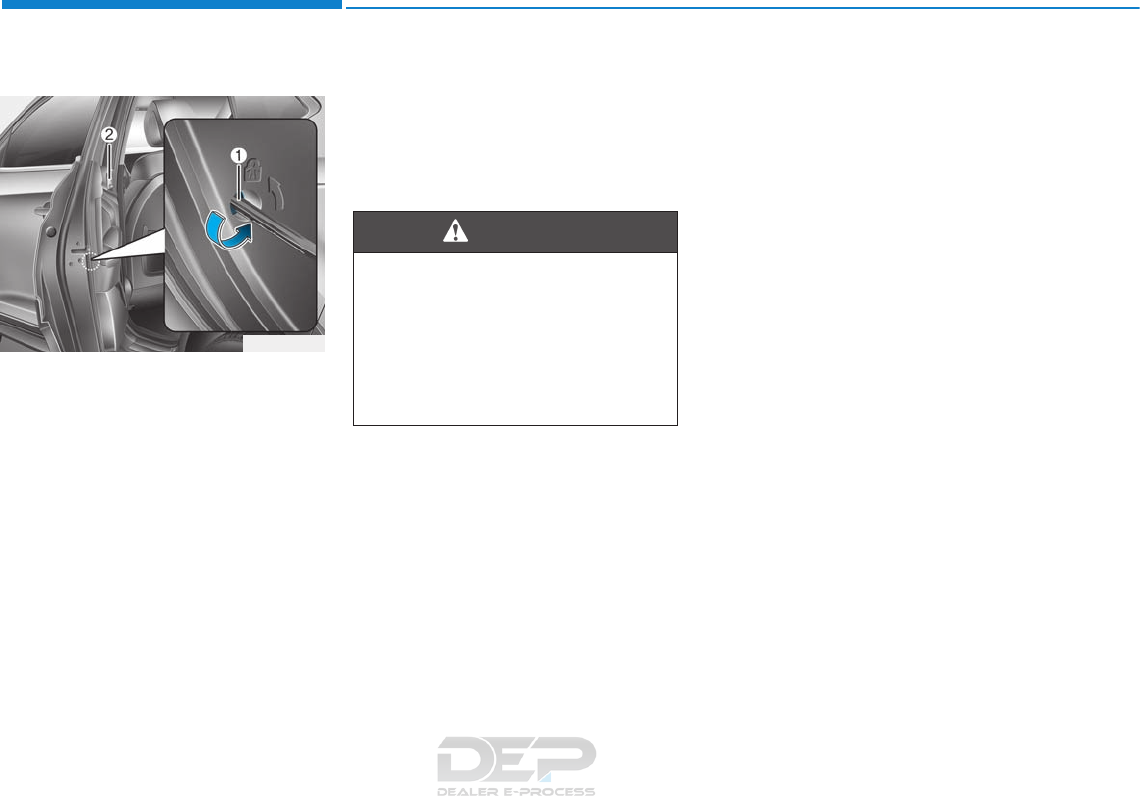

Child-Protector Rear Door locks ................................3-18

Theft-alarm system.............................................3-19

Steering wheel......................................................3-20

Electric Power Steering (EPS) .....................................3-20

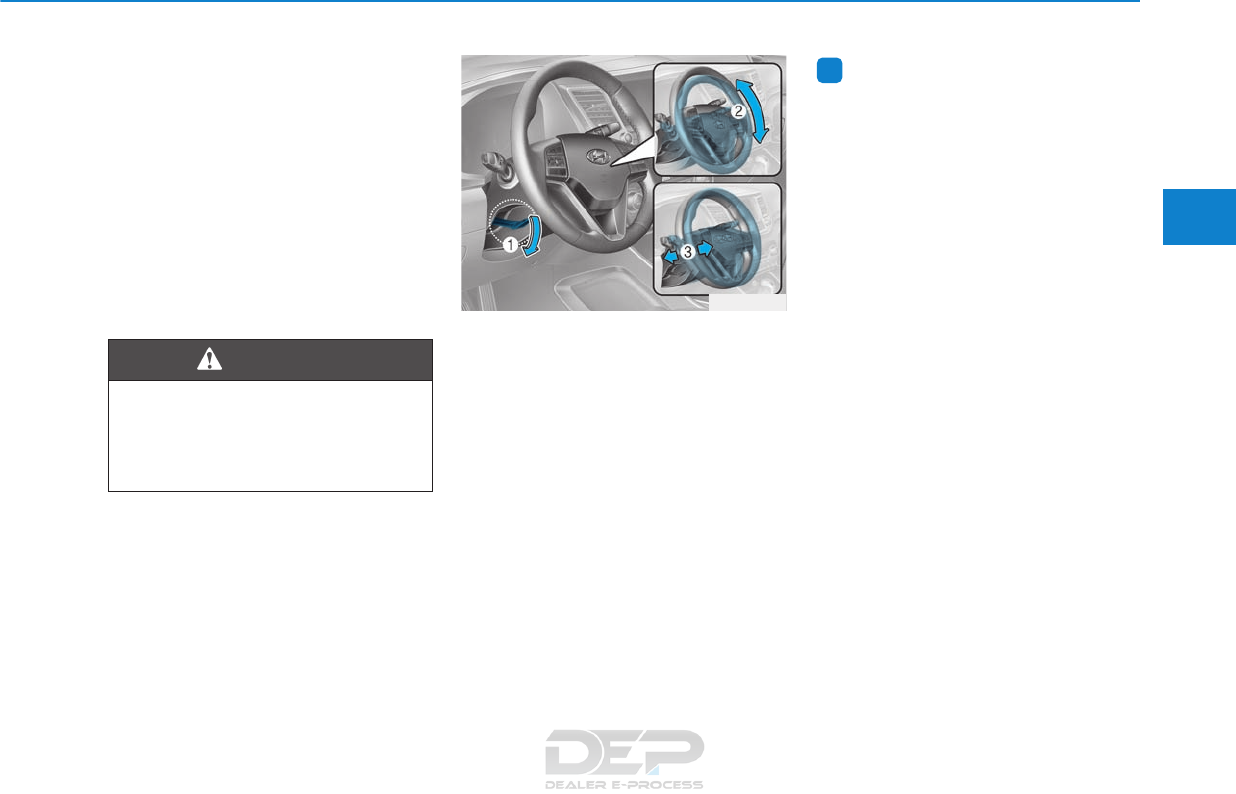

Tilt Steering / Telescope Steering..............................3-21

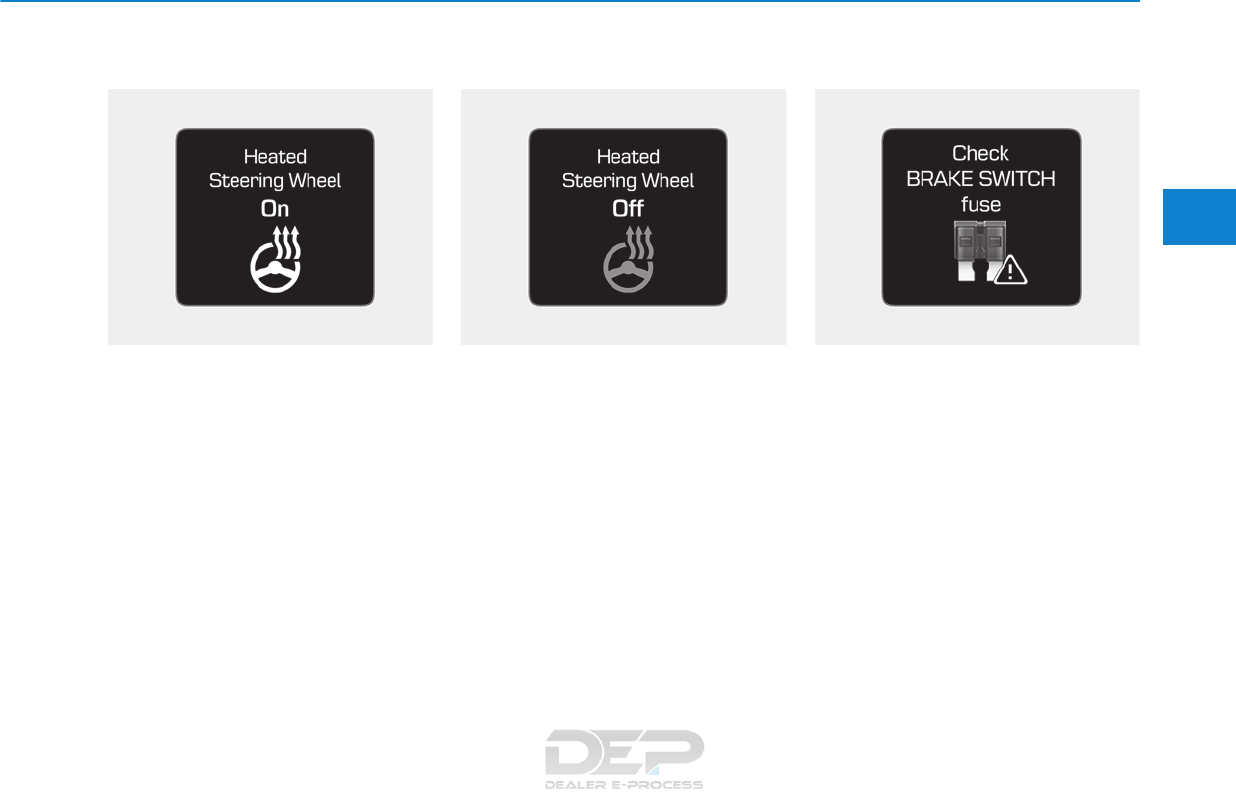

Heated Steering Wheel..................................................3-21

Horn....................................................................................3-22

Mirrors...................................................................3-23

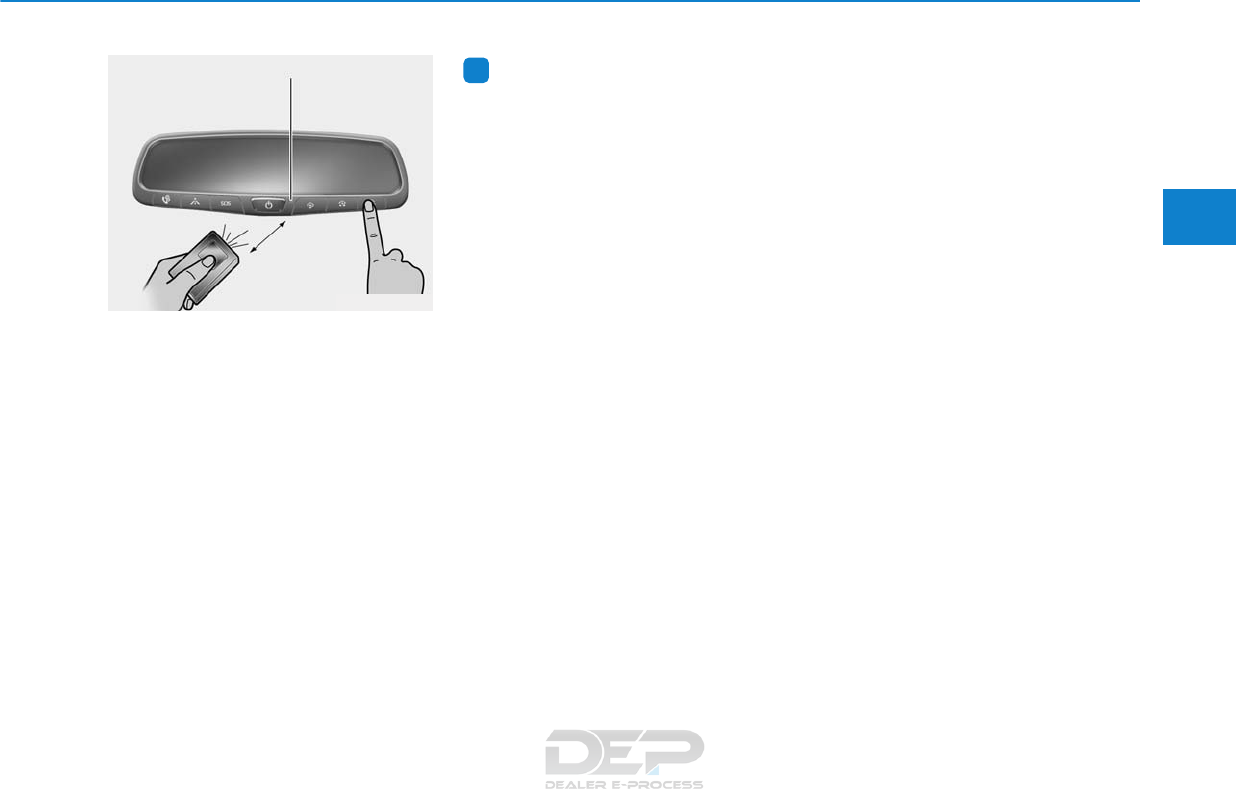

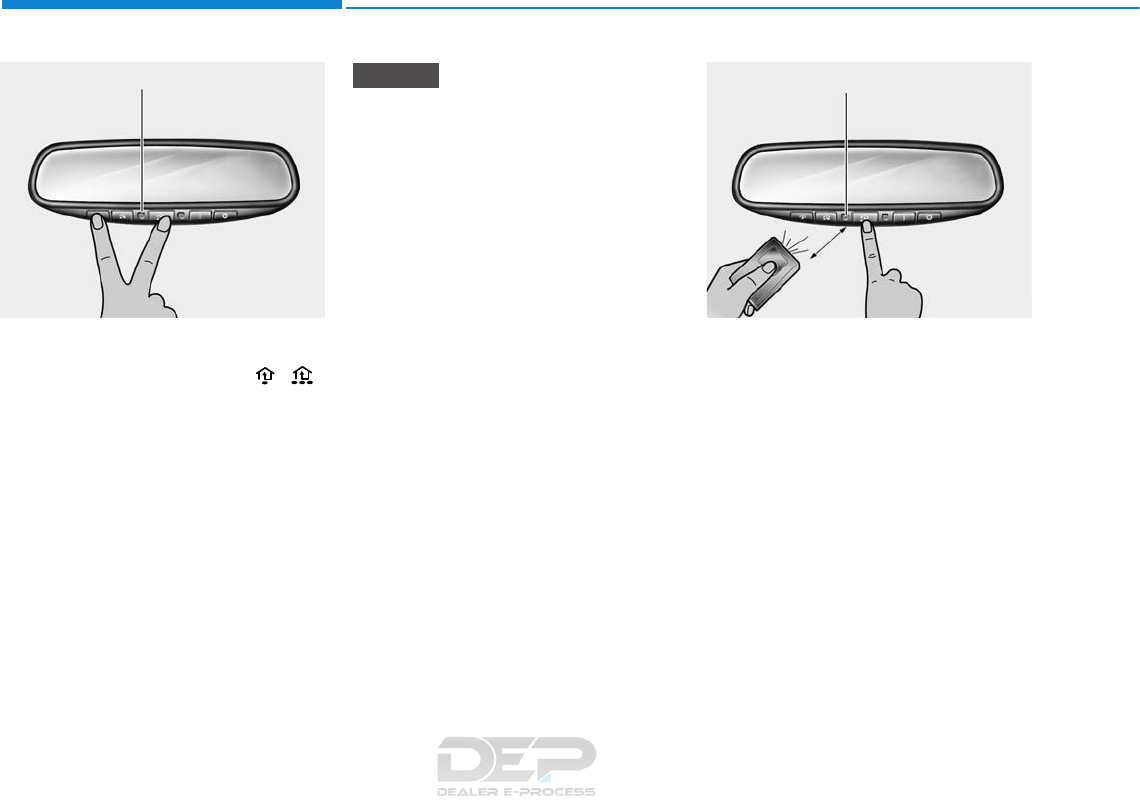

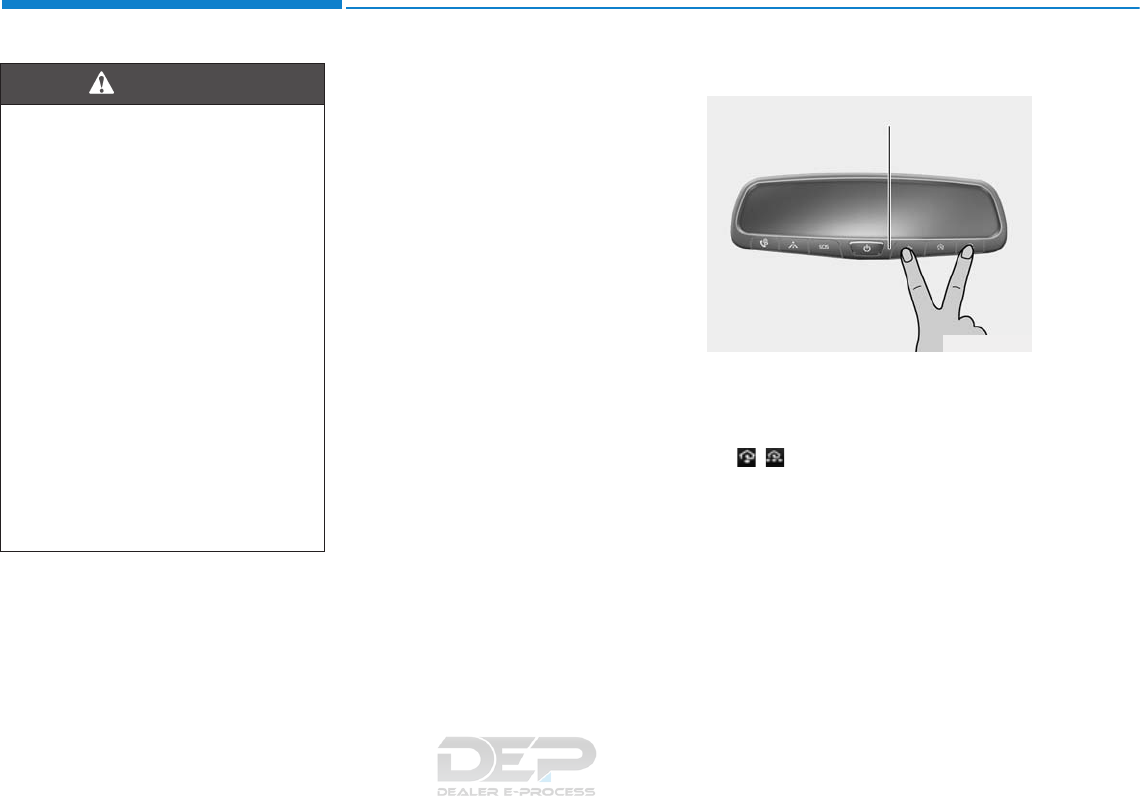

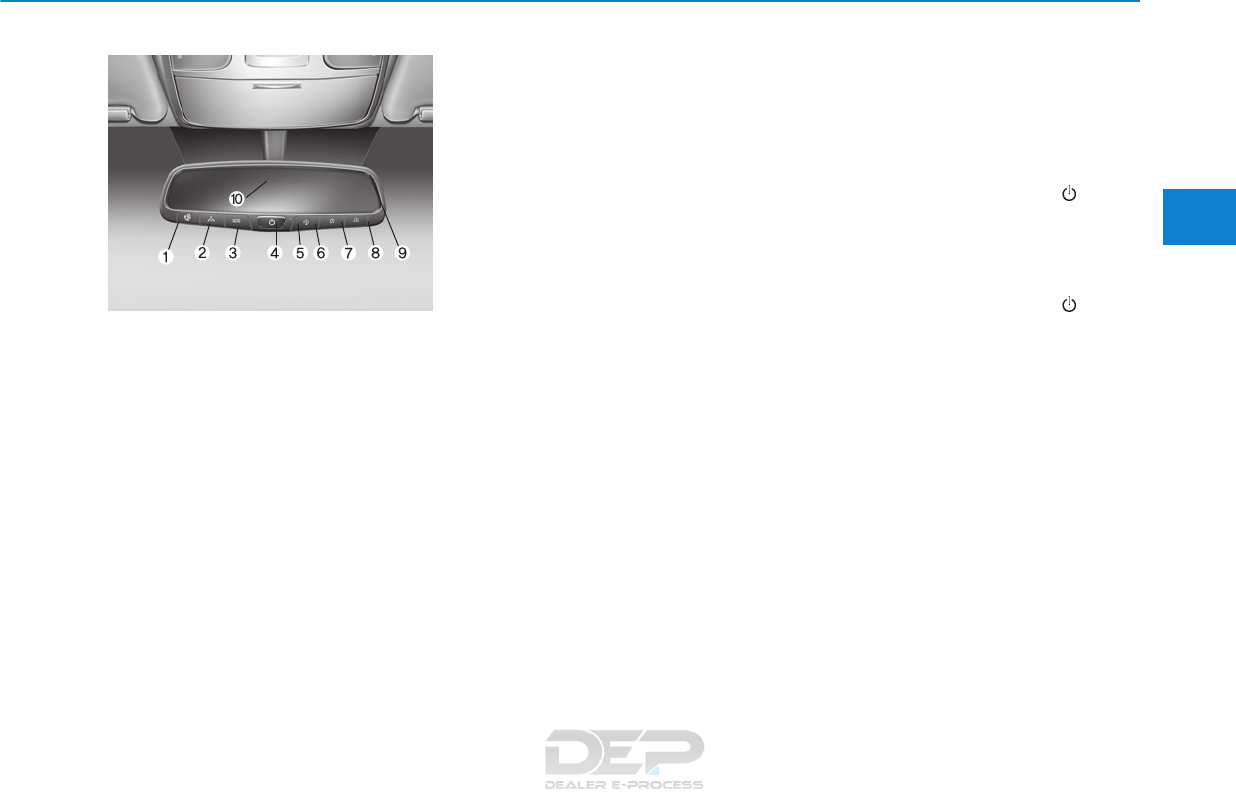

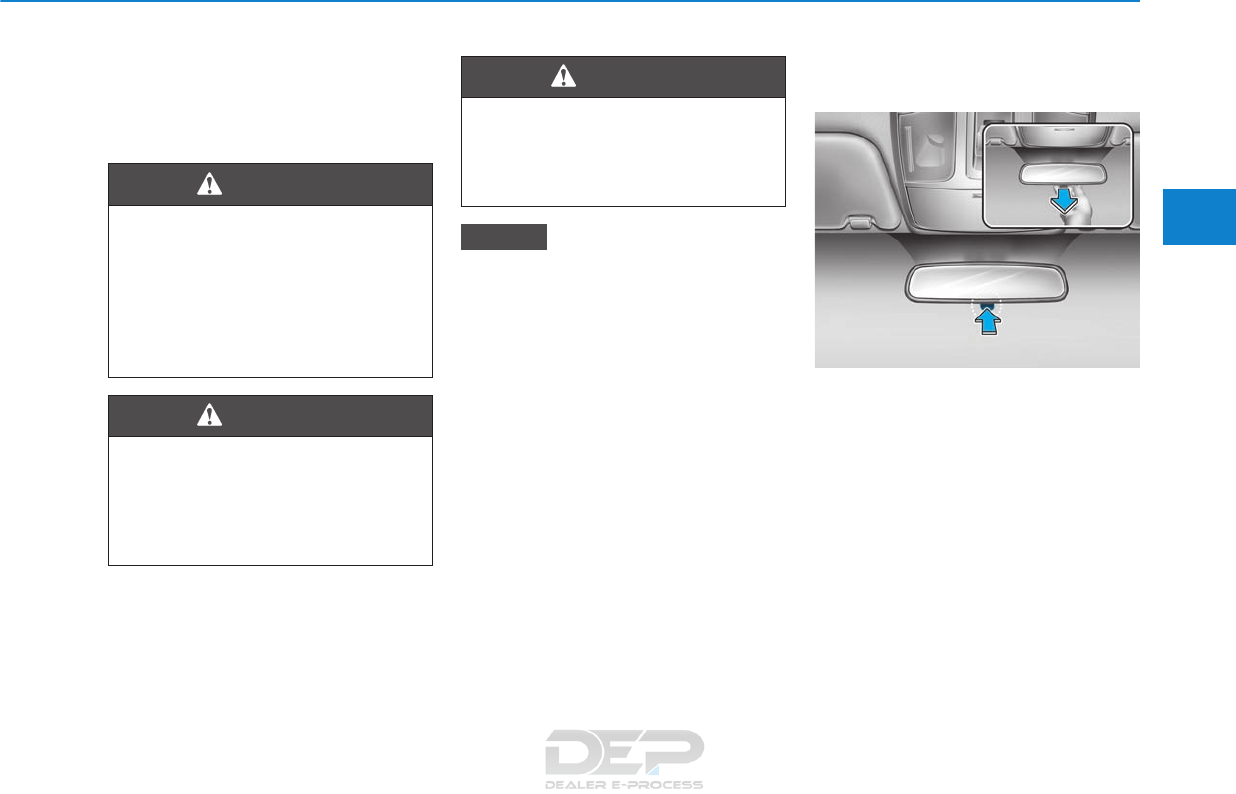

Inside Rearview Mirror ..................................................3-23

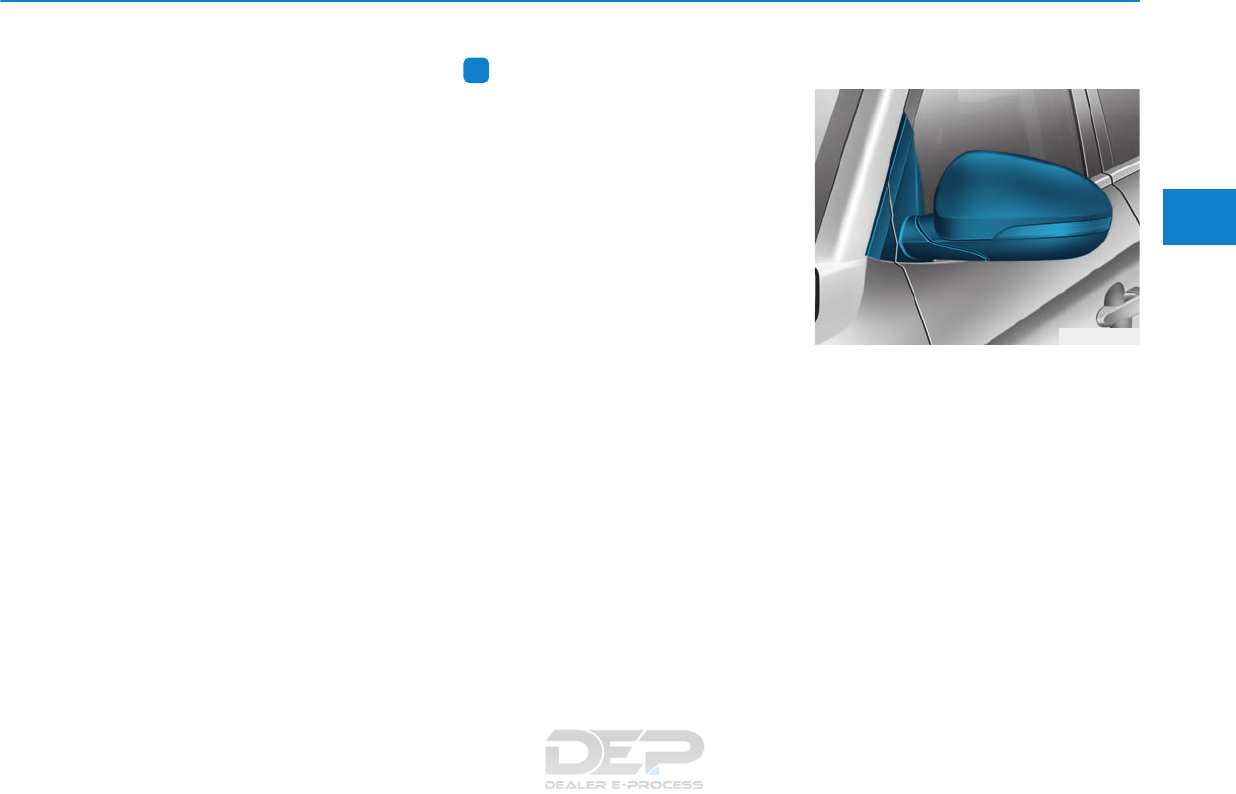

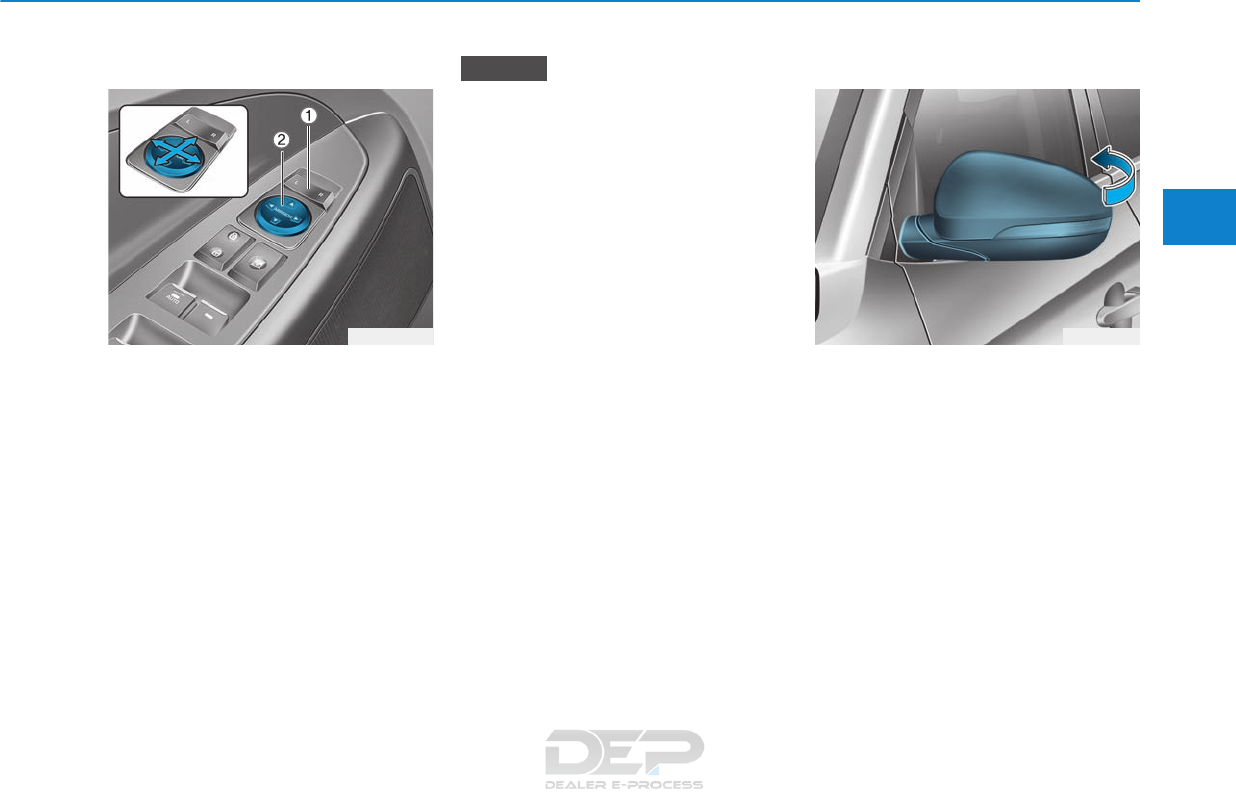

Outside Rearview Mirror...............................................3-35

Windows ................................................................3-38

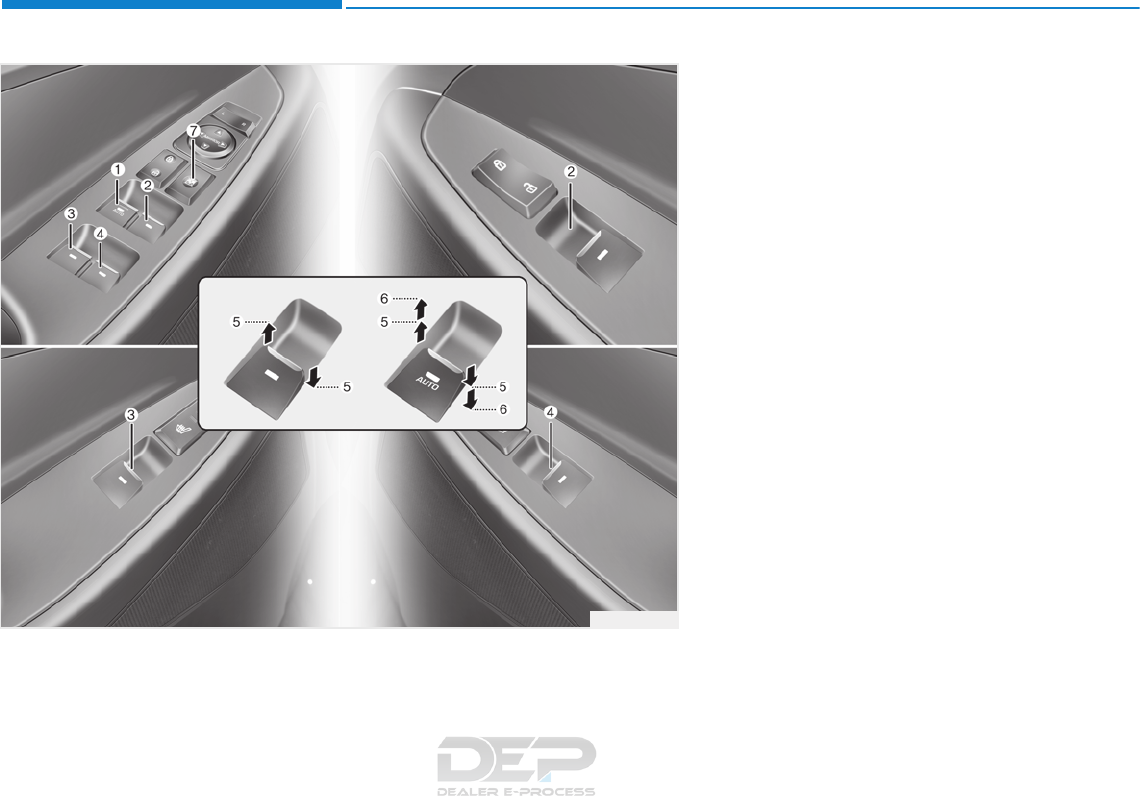

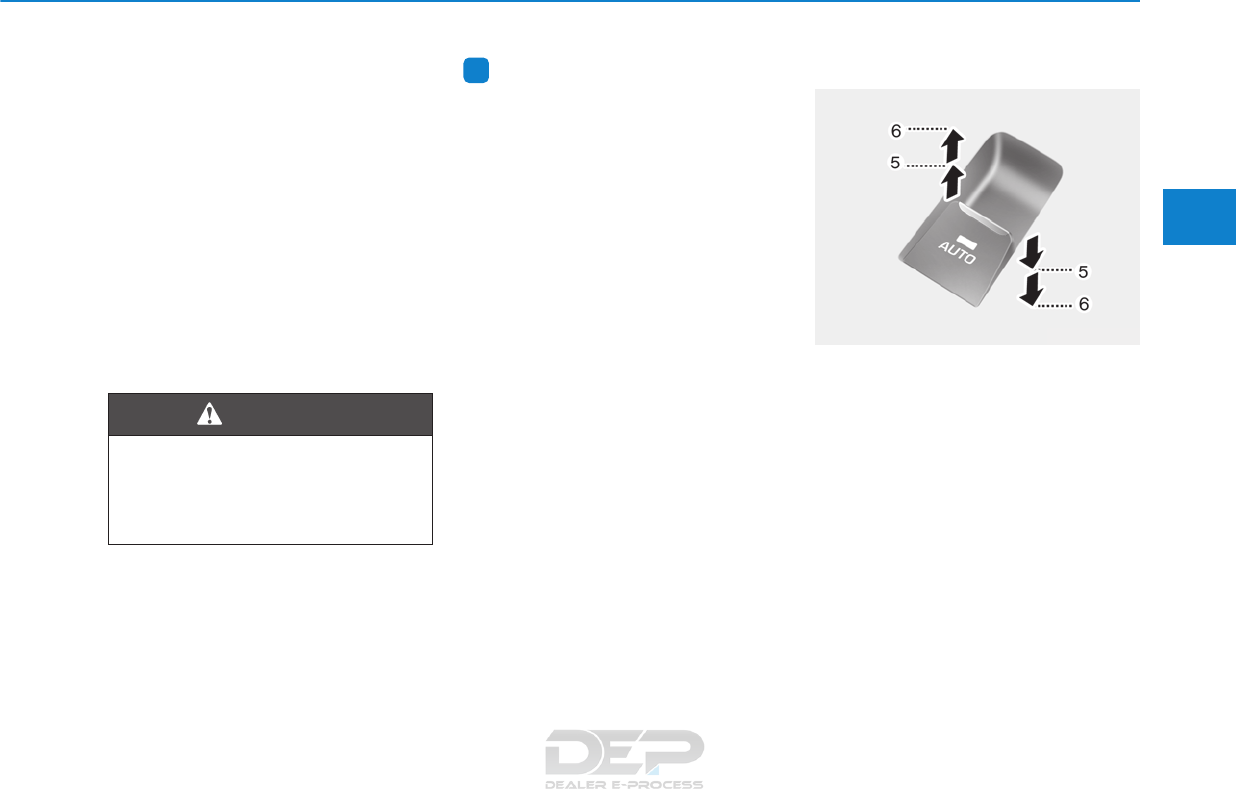

Power Windows...............................................................3-39

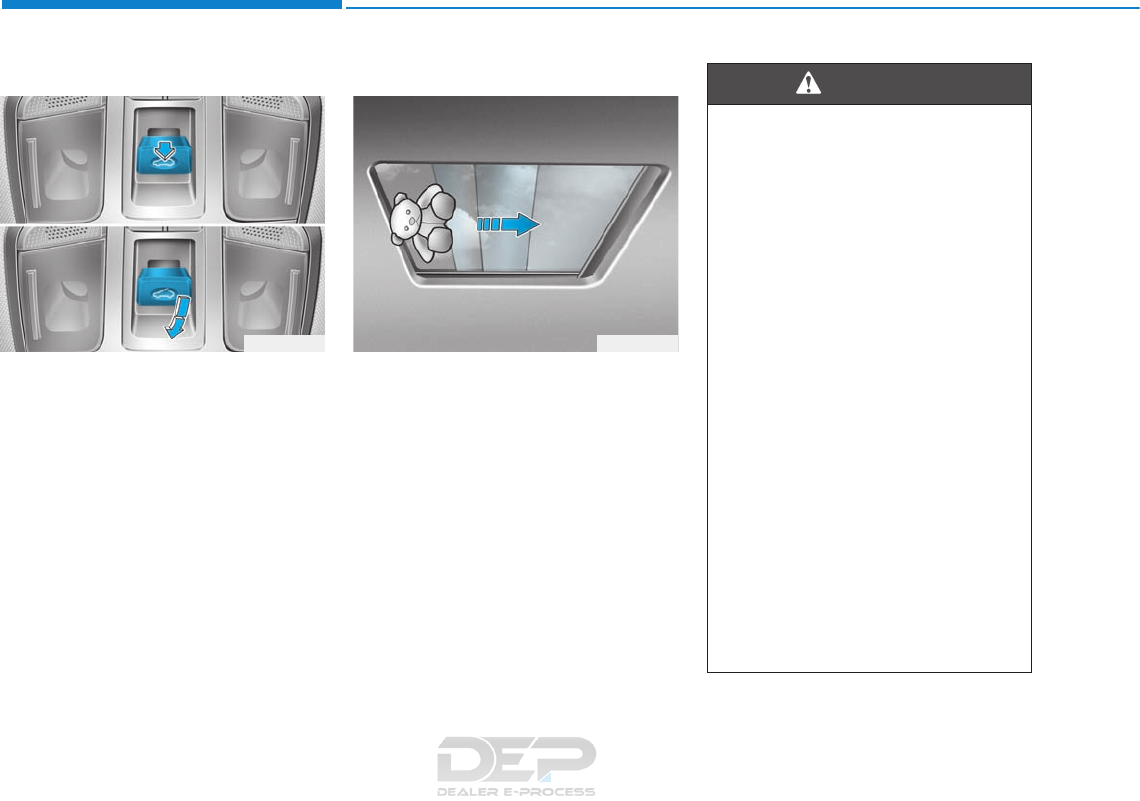

Panoramic sunroof ..............................................3-42

Sunshade...........................................................................3-42

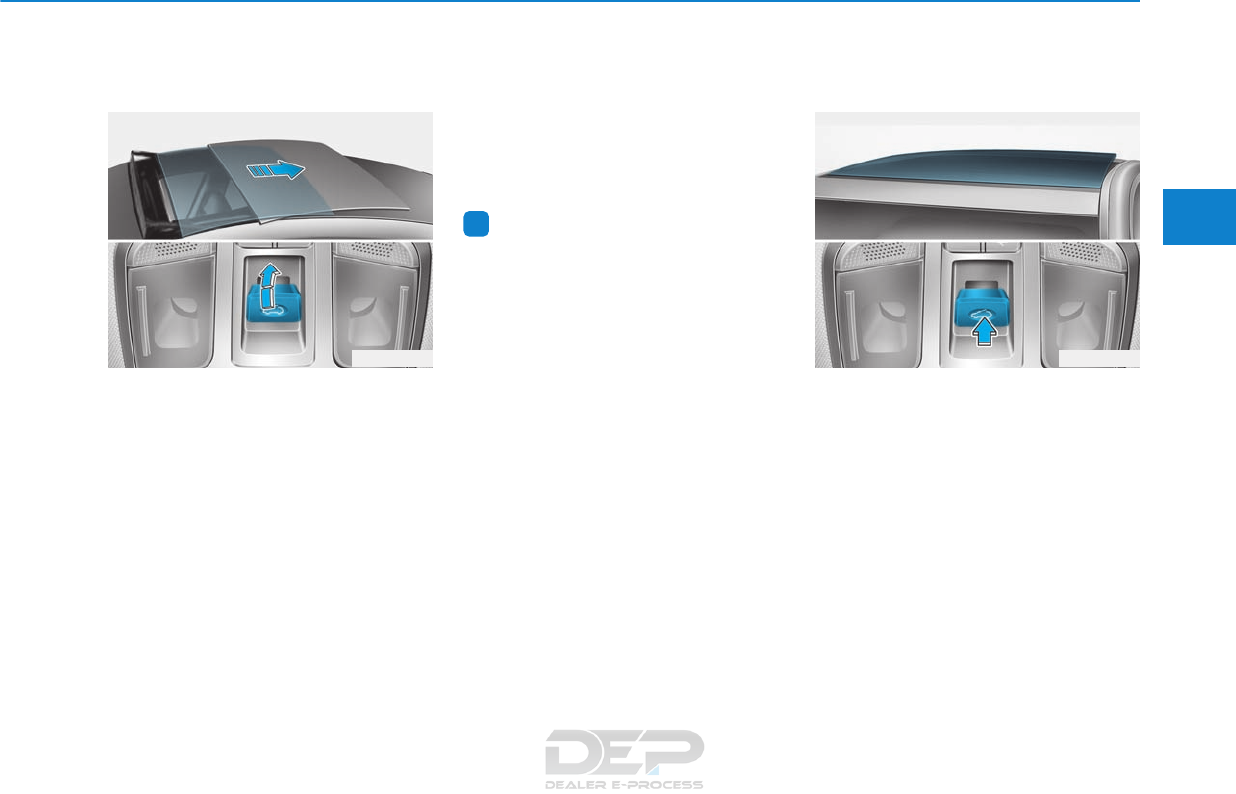

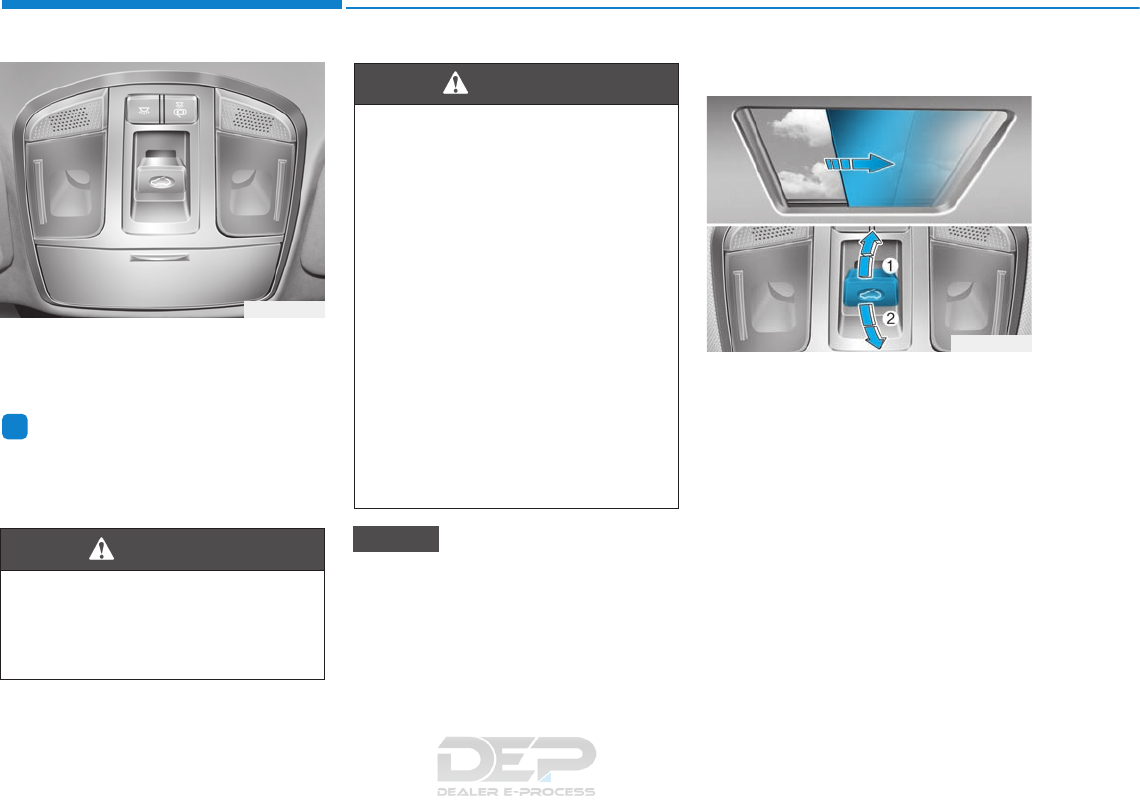

Sliding the Sunroof.........................................................3-43

Tilting the Sunroof .........................................................3-43

Closing the Sunroof........................................................3-44

To Reset the Sunroof.....................................................3-45

Exterior features .................................................3-46

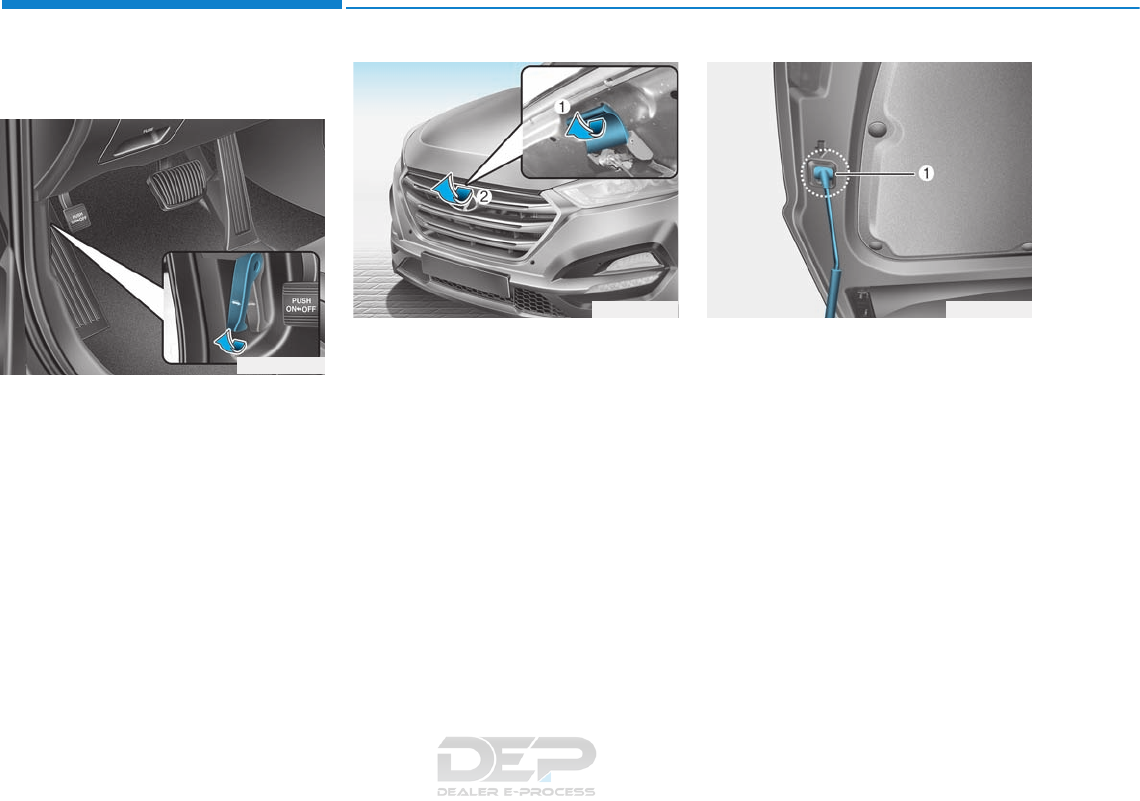

Hood ...................................................................................3-46

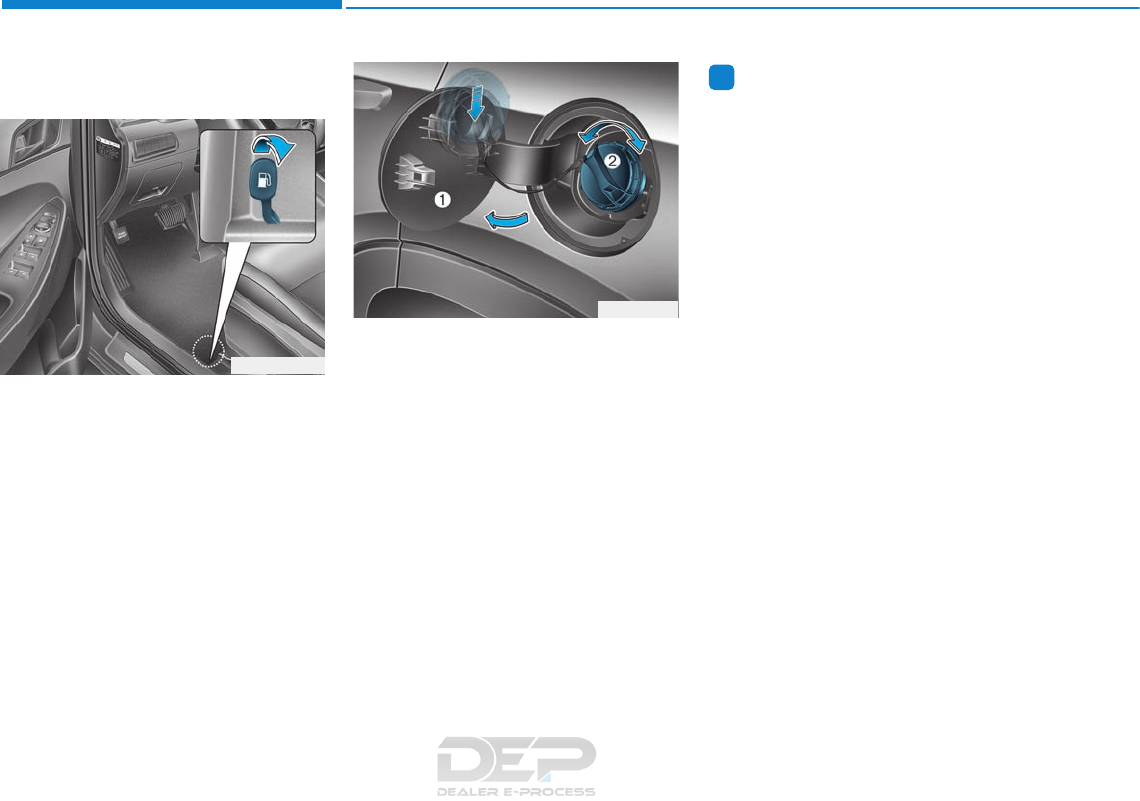

Fuel Filler Door................................................................3-48

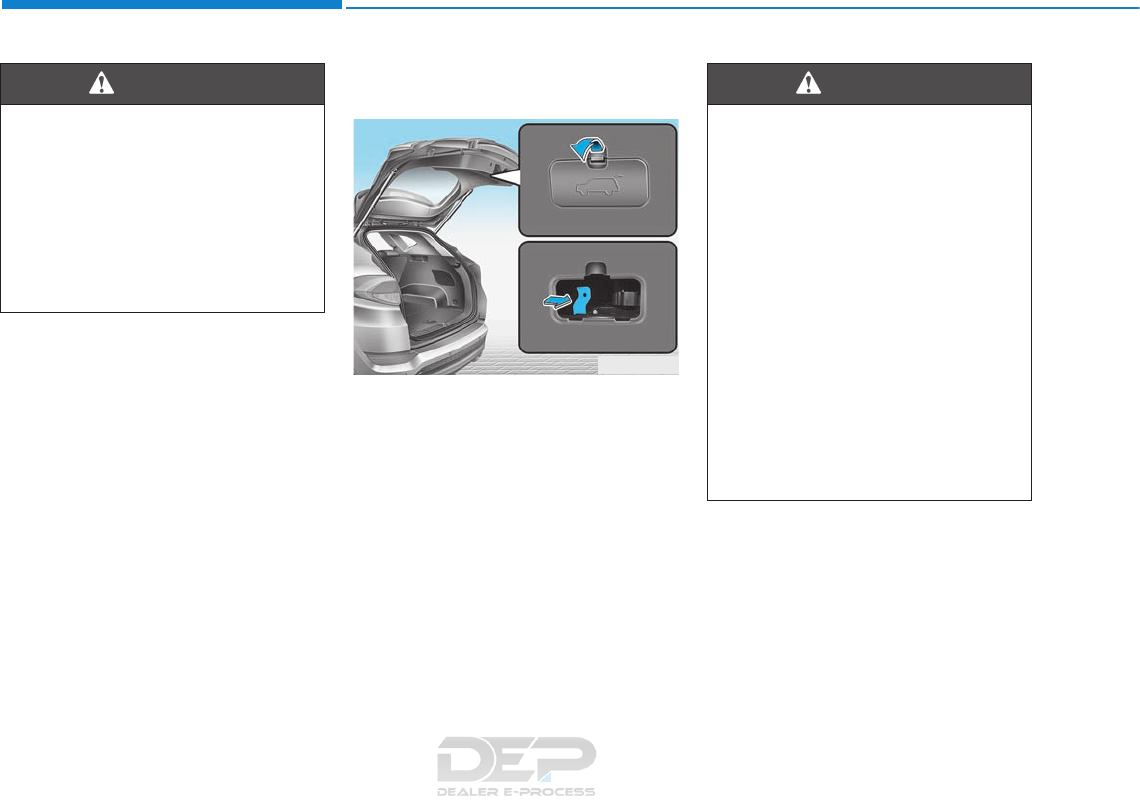

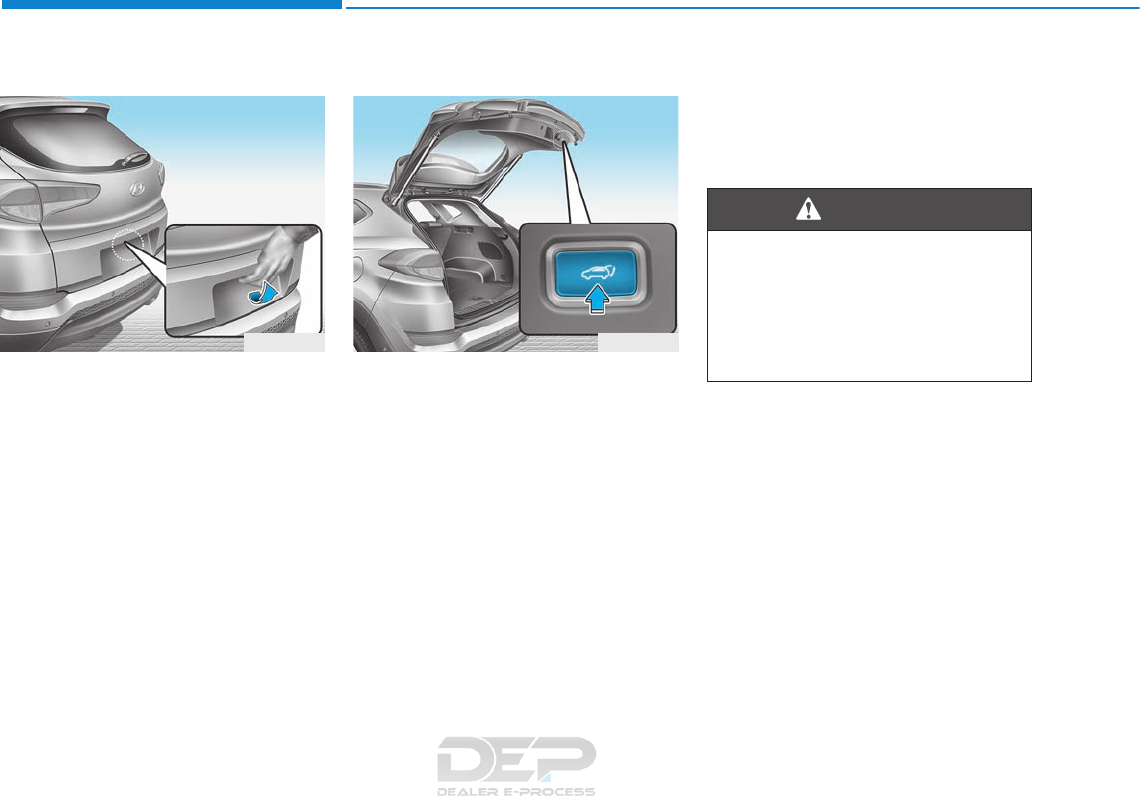

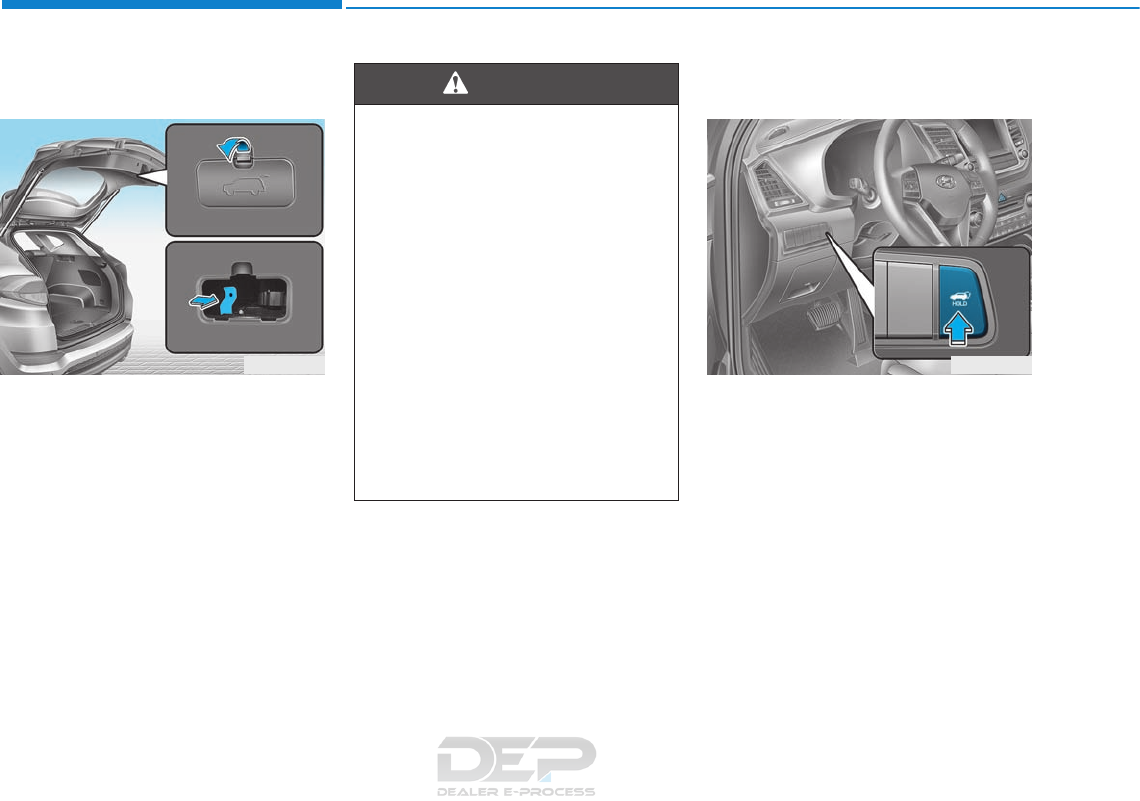

Liftgate ..................................................................3-51

Non-Powered liftgate....................................................3-51

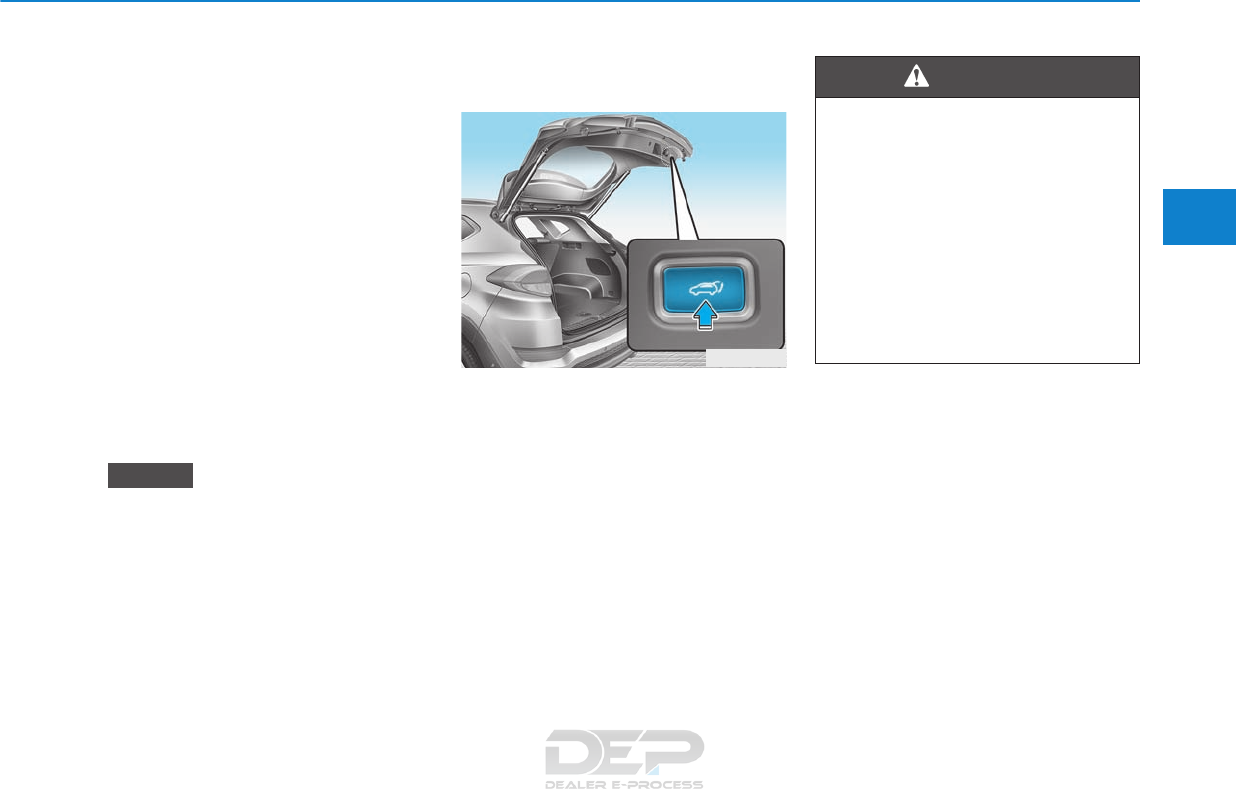

Power liftgate ..................................................................3-52

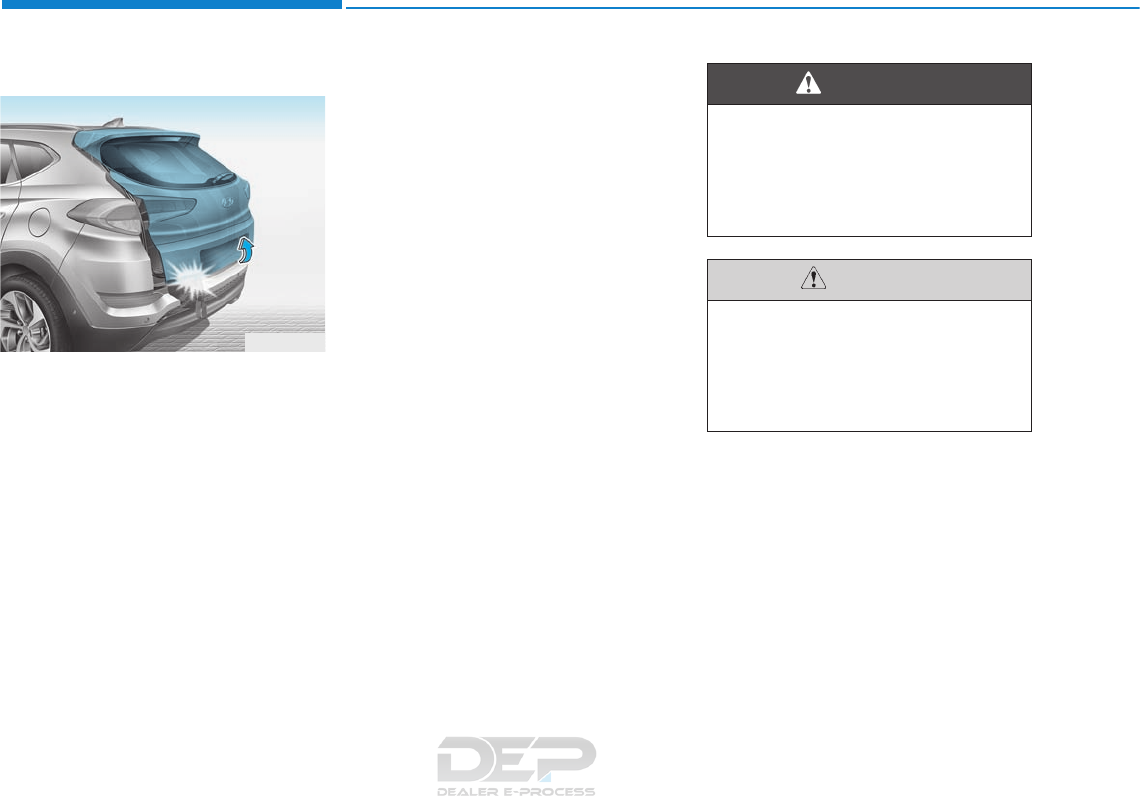

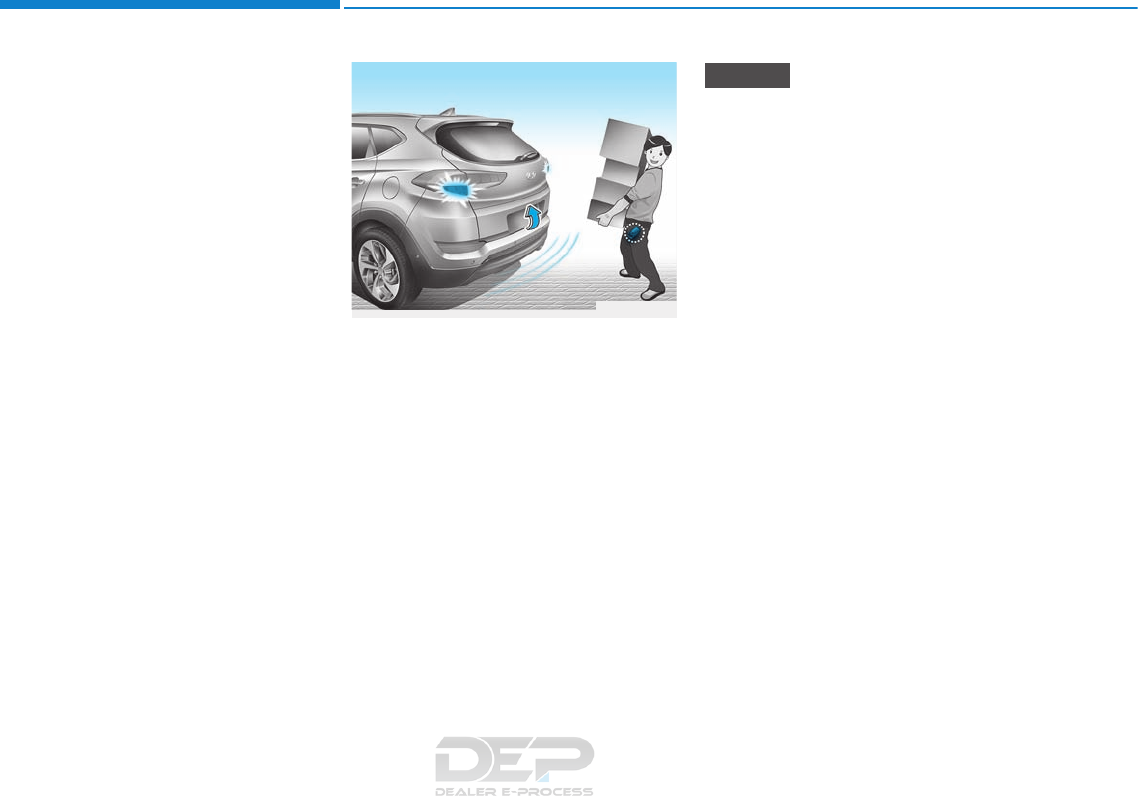

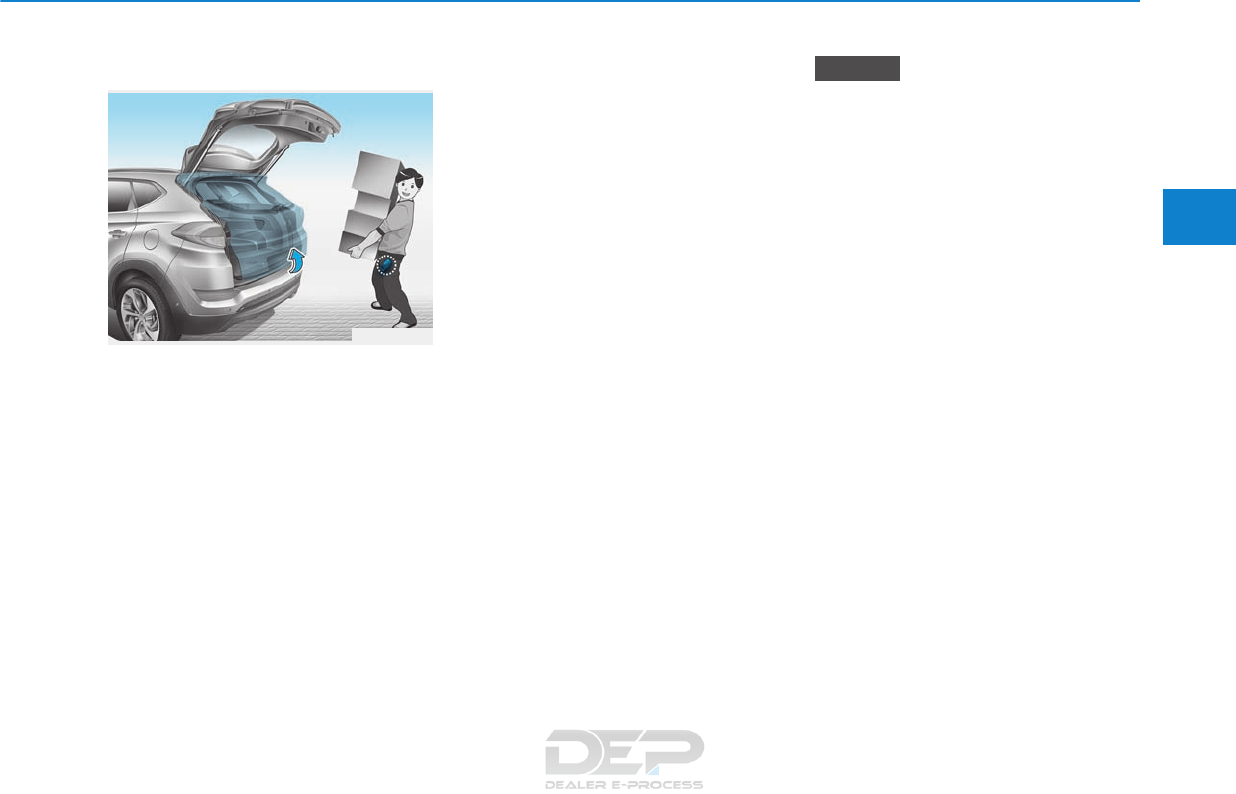

Smart Liftgate..................................................................3-59

Instrument cluster................................................3-63

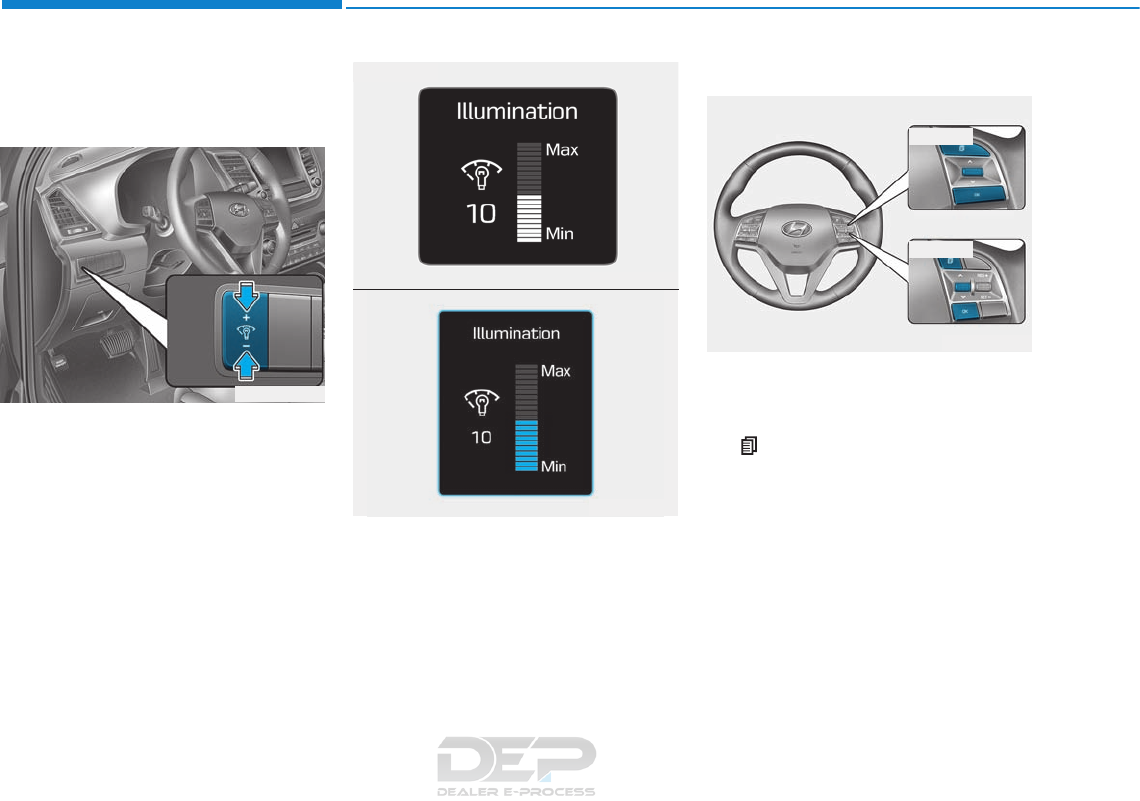

Instrument Cluster Control............................................3-64

LCD Display Control........................................................3-64

Gauges ...............................................................................3-65

3Convenient features of your vehicle

F14F14

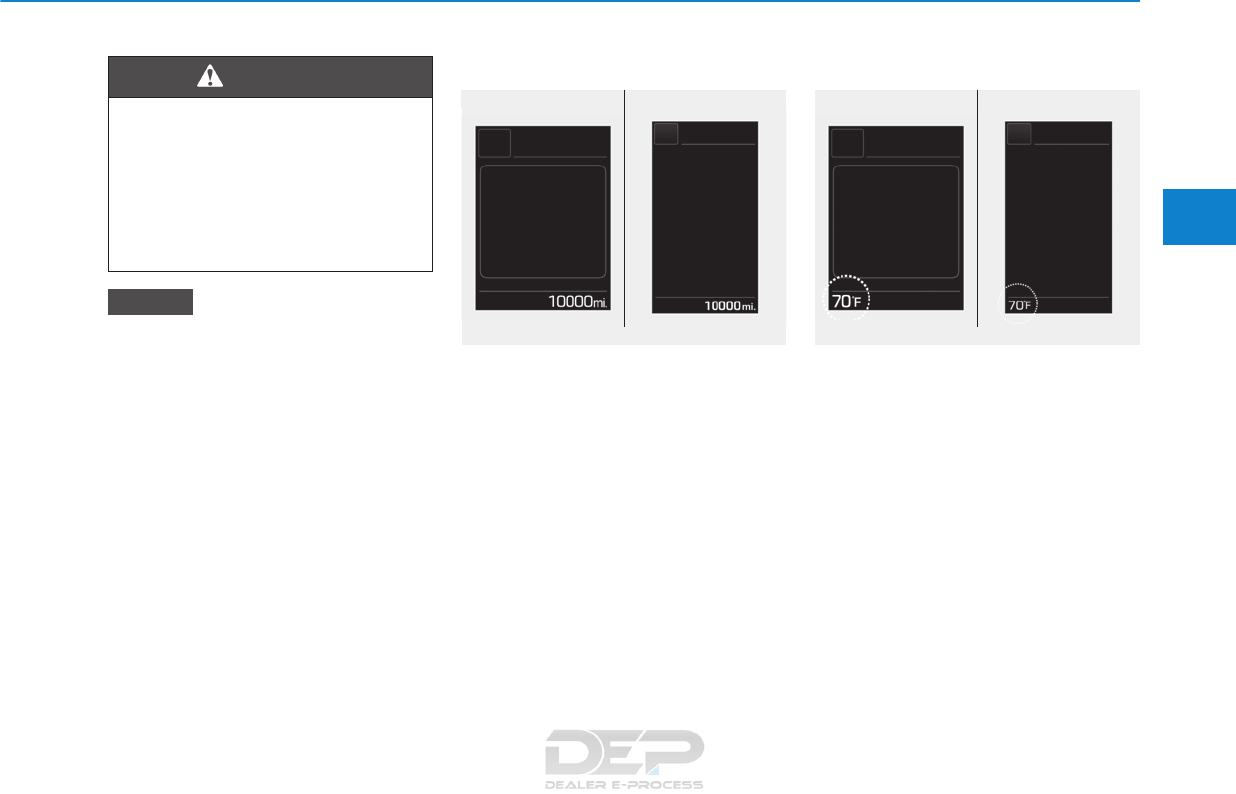

LCD Display...........................................................3-70

LCD Modes........................................................................3-70

Trip Computer Mode.......................................................3-71

Turn By Turn (TBT) Mode ............................................3-72

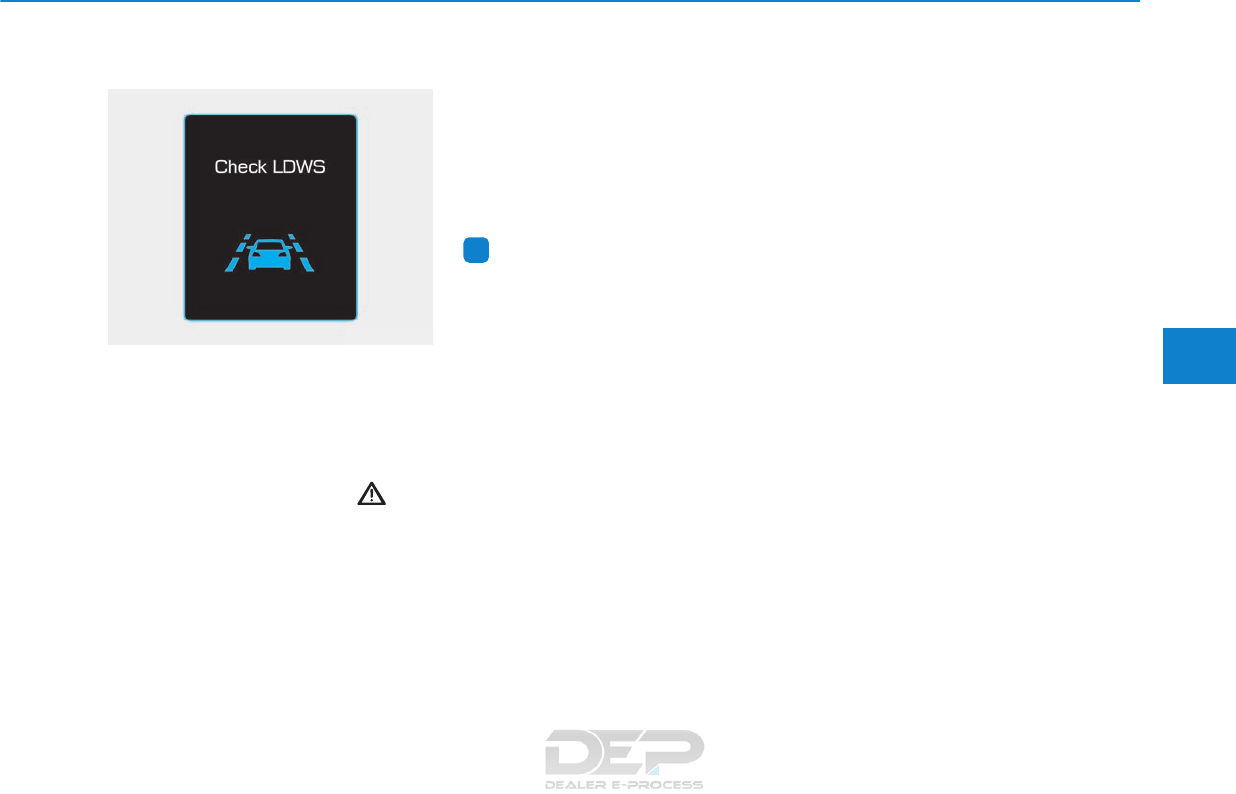

LDWS Mode......................................................................3-72

A/V Mode..........................................................................3-72

Information Mode ...........................................................3-73

User Settings Mode........................................................3-75

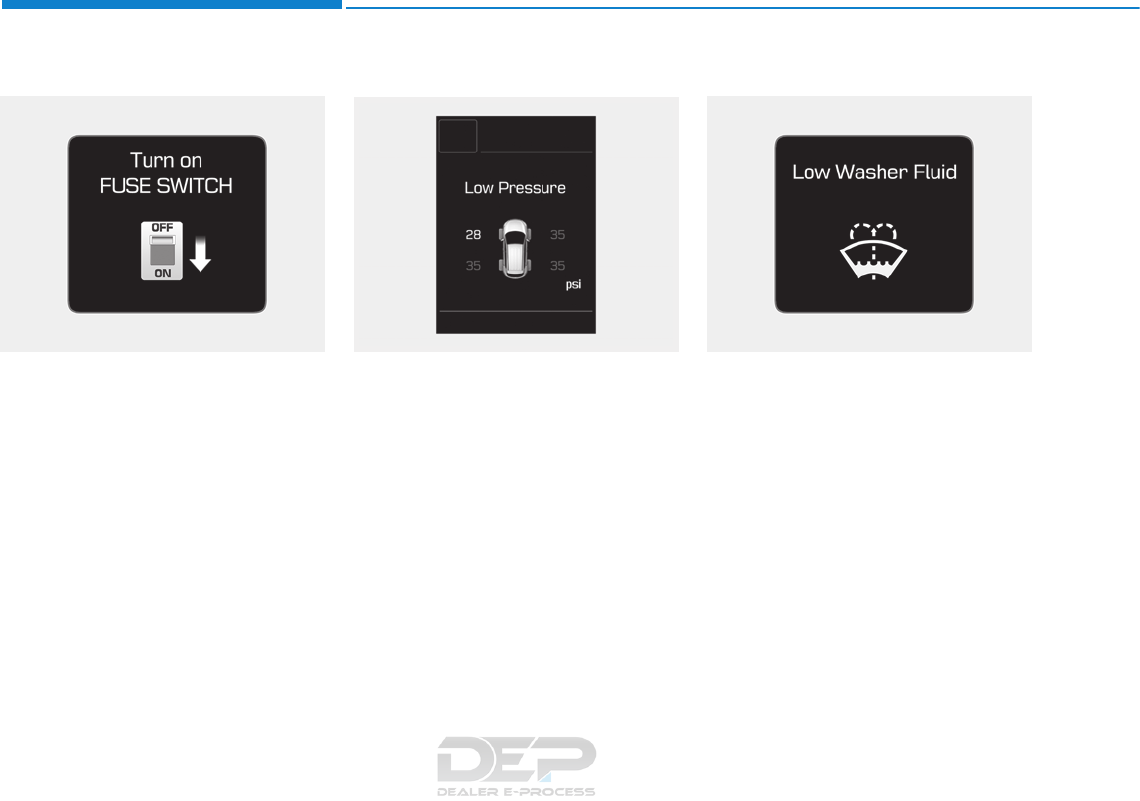

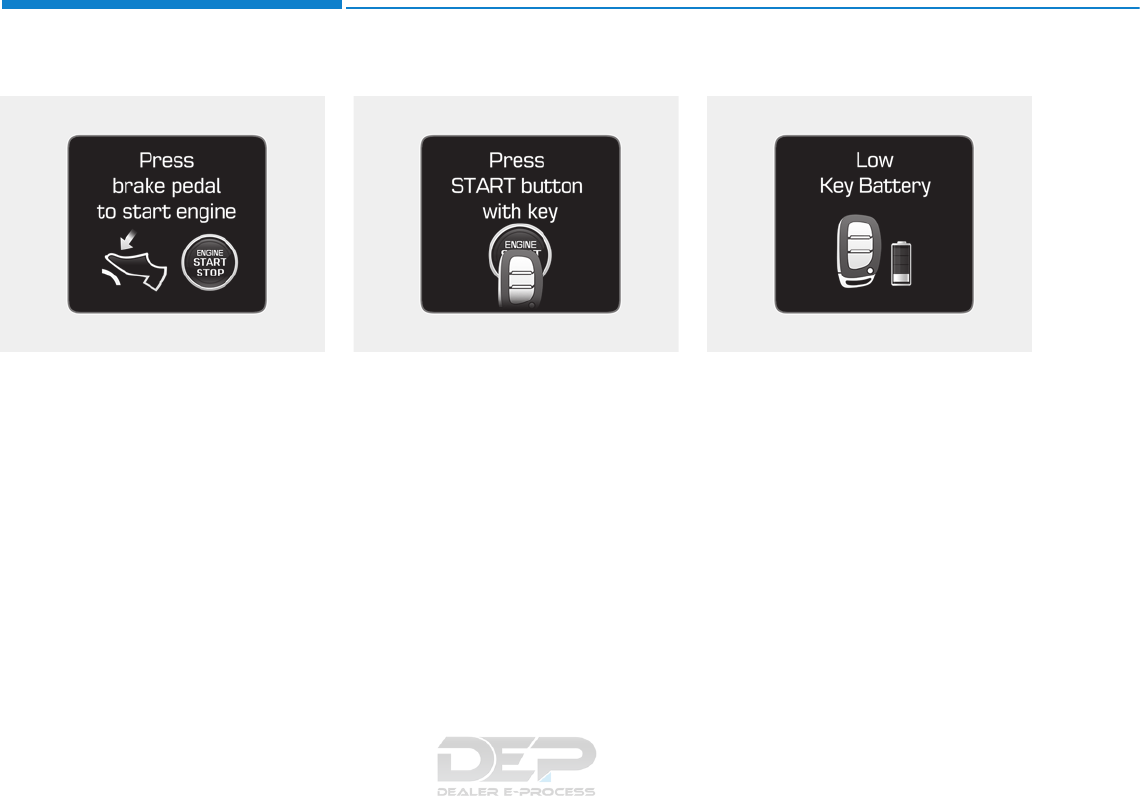

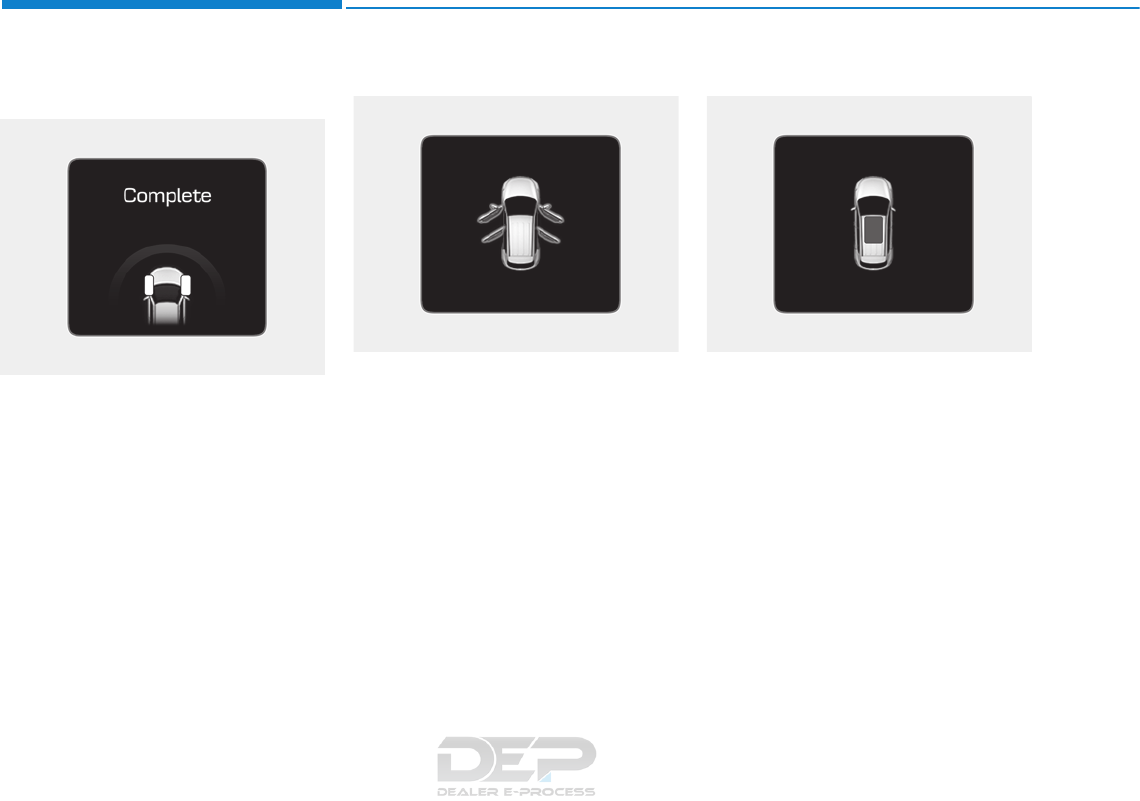

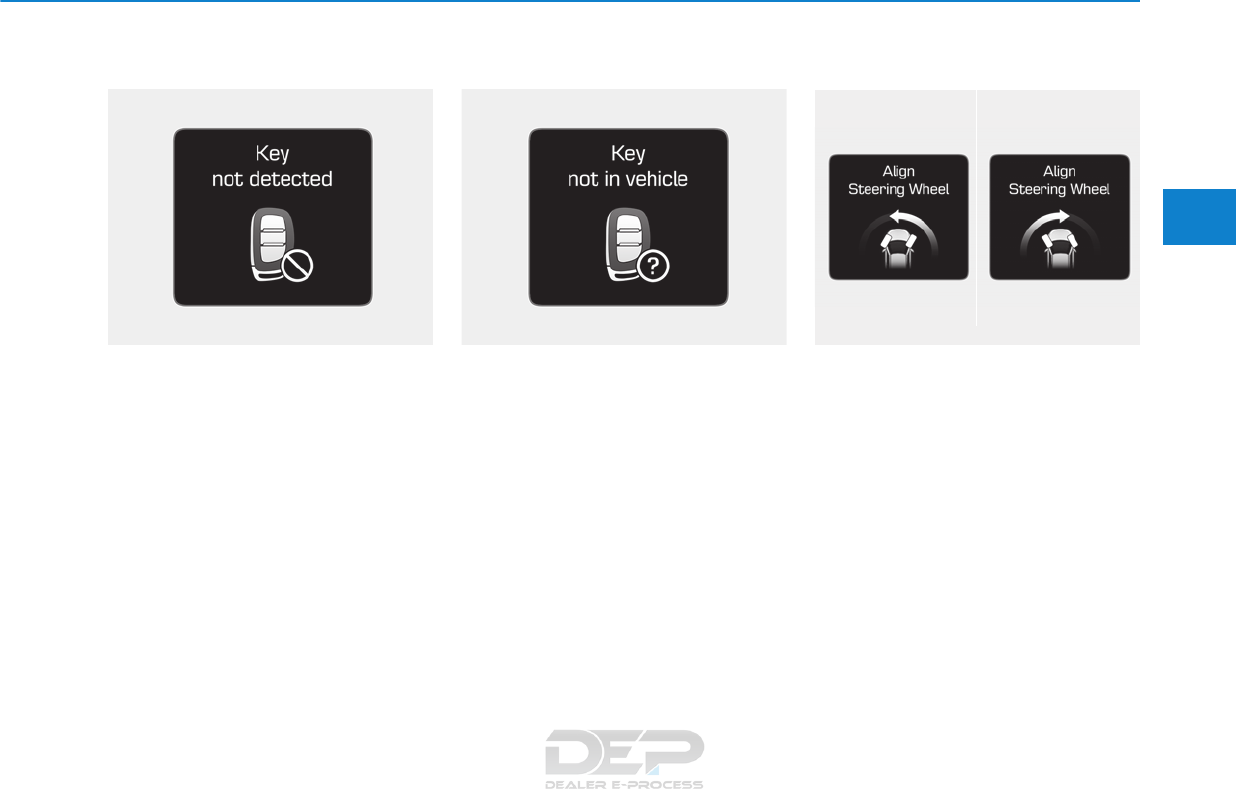

Warning Messages..........................................................3-81

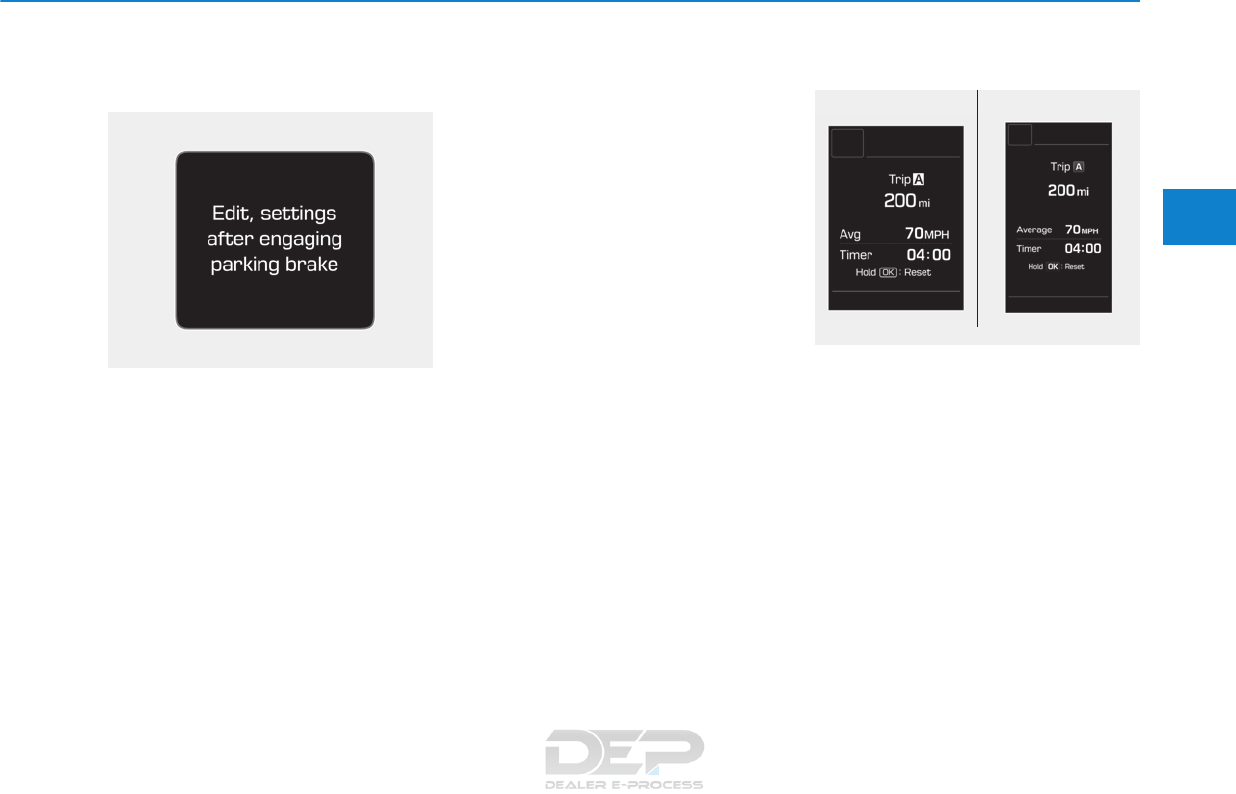

Trip computer .......................................................3-89

Overview............................................................................3-89

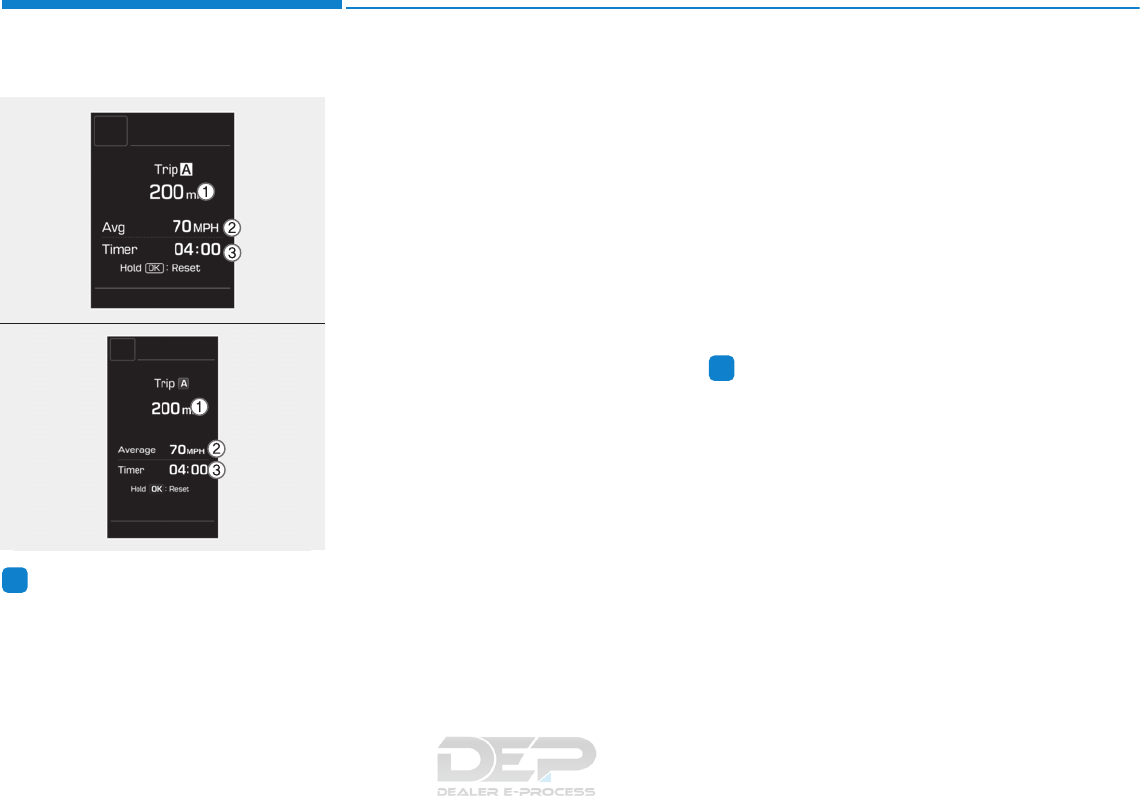

Trip A/B .............................................................................3-90

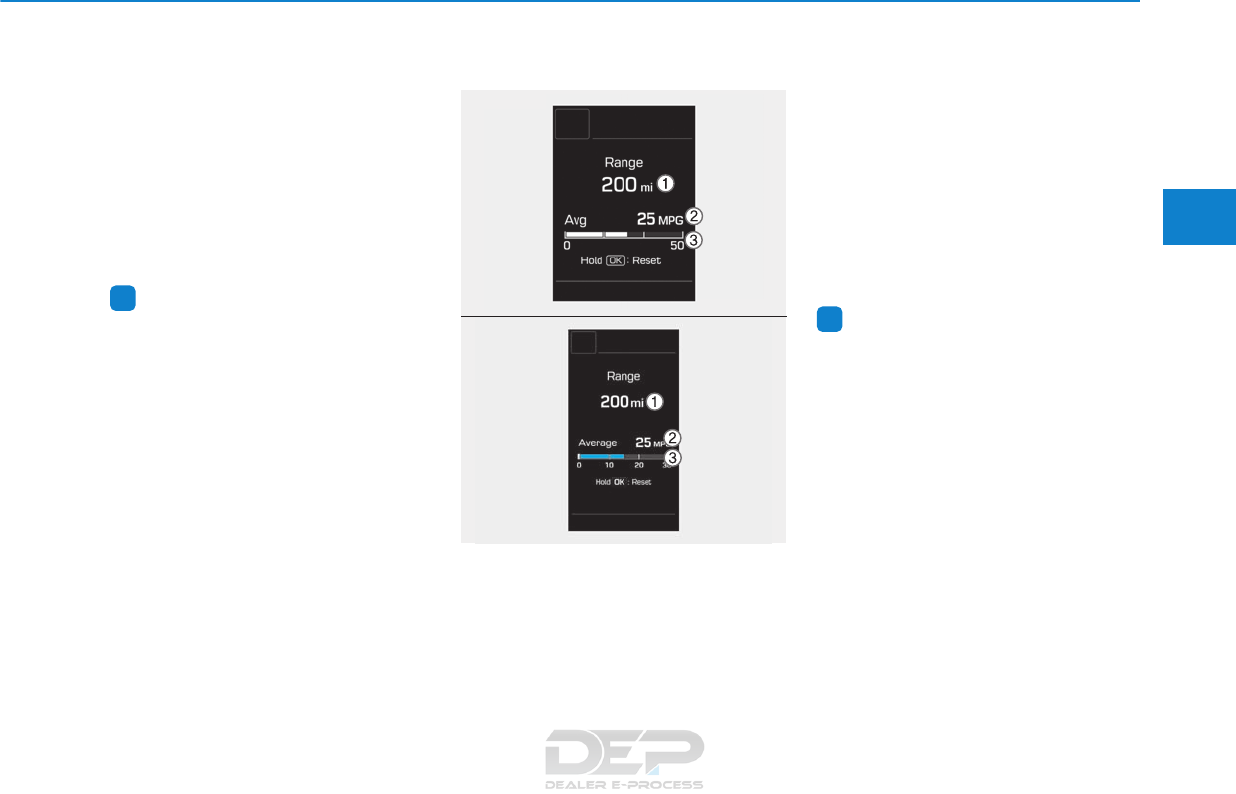

Fuel Economy...................................................................3-91

Digital Speedometer .......................................................3-93

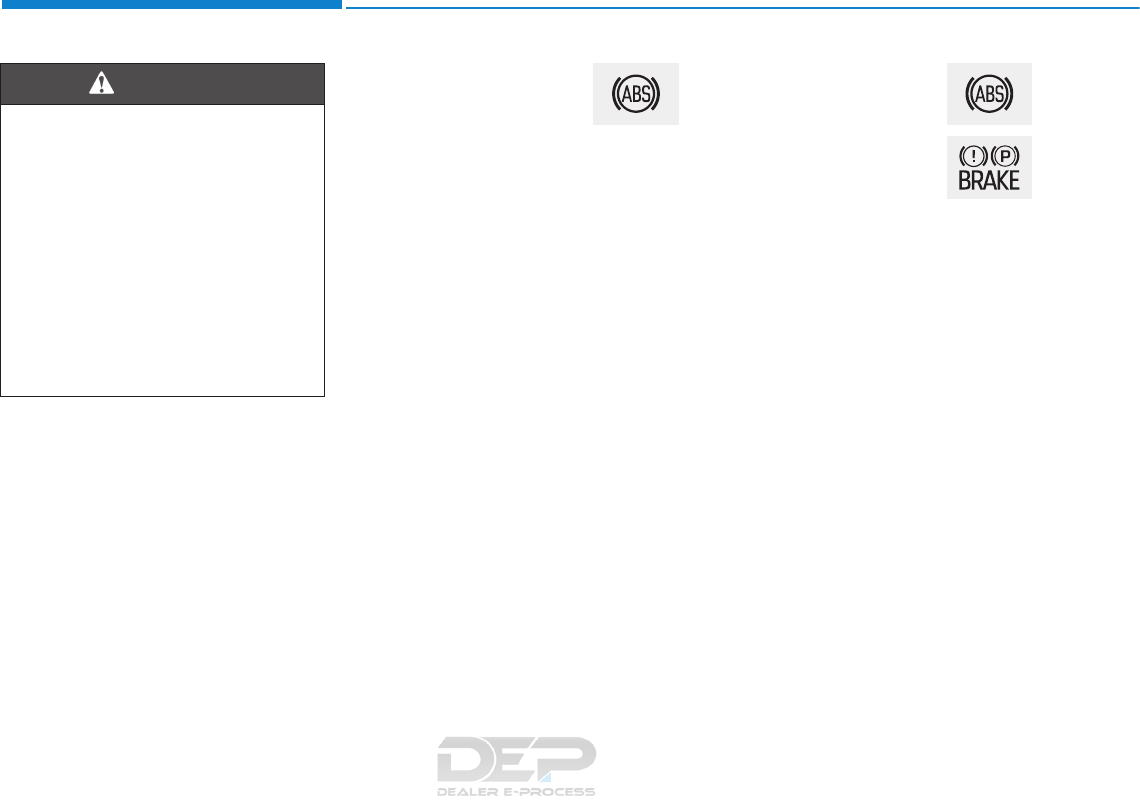

Warning and indicator lights..............................3-94

Warning Lights.................................................................3-94

Indicator Lights..............................................................3-102

Light.....................................................................3-107

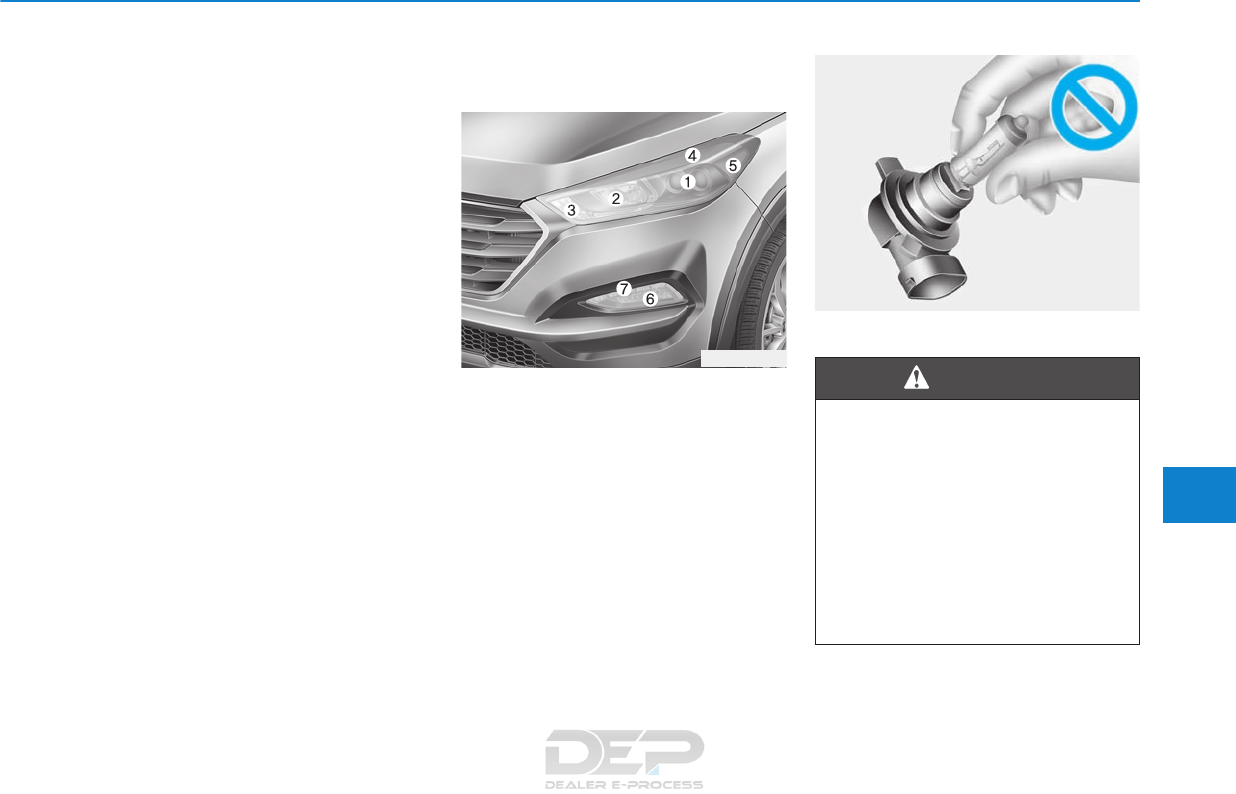

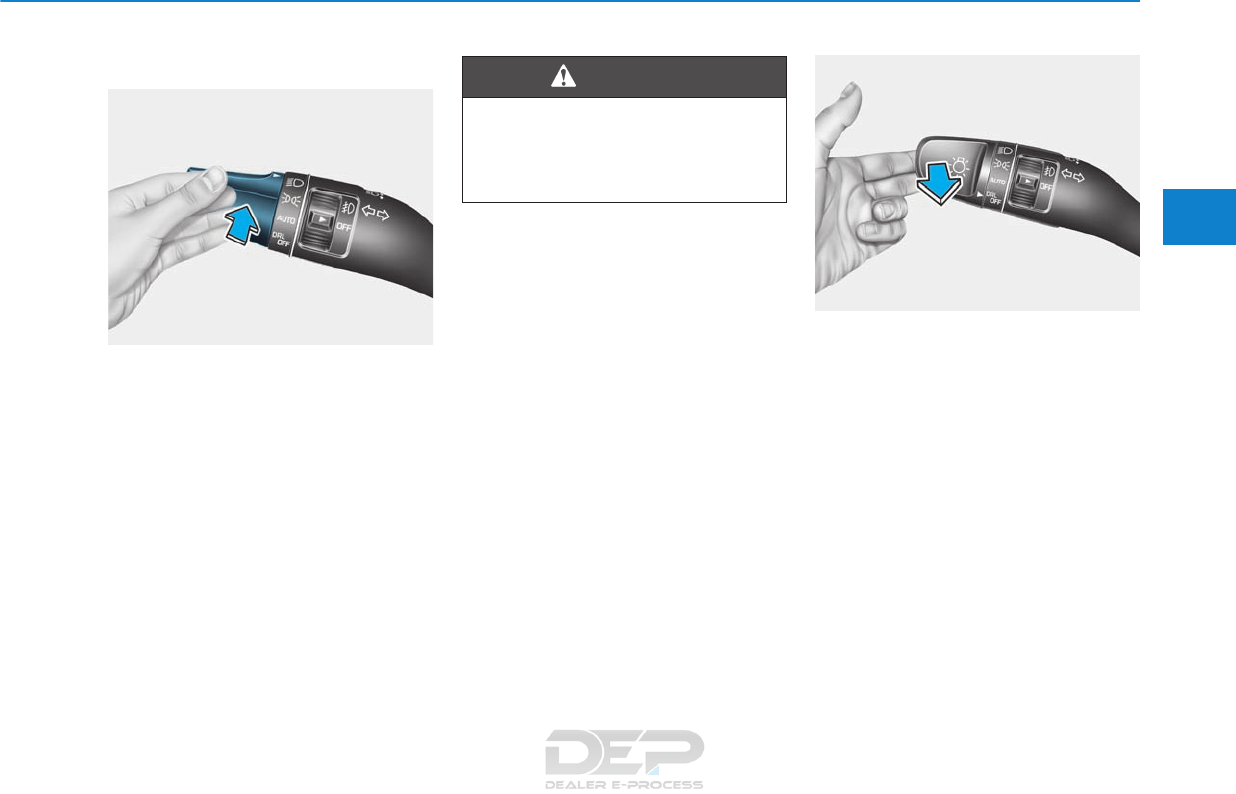

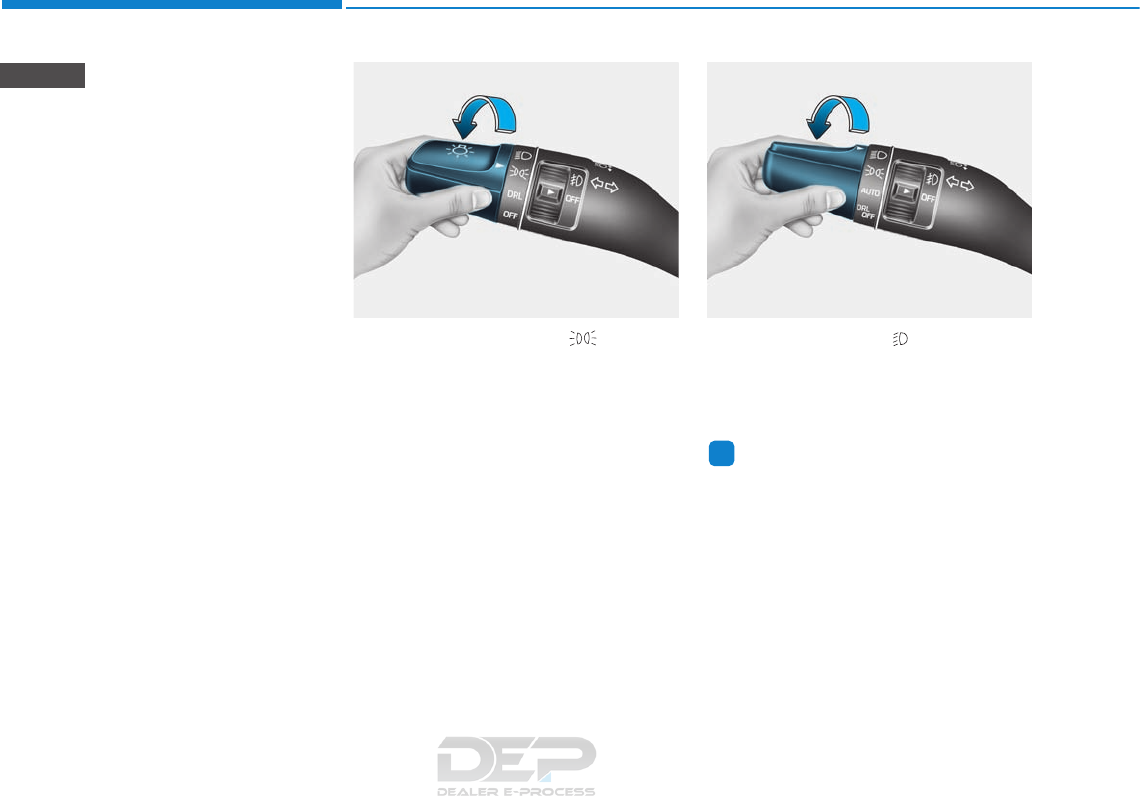

Exterior Lights ...............................................................3-107

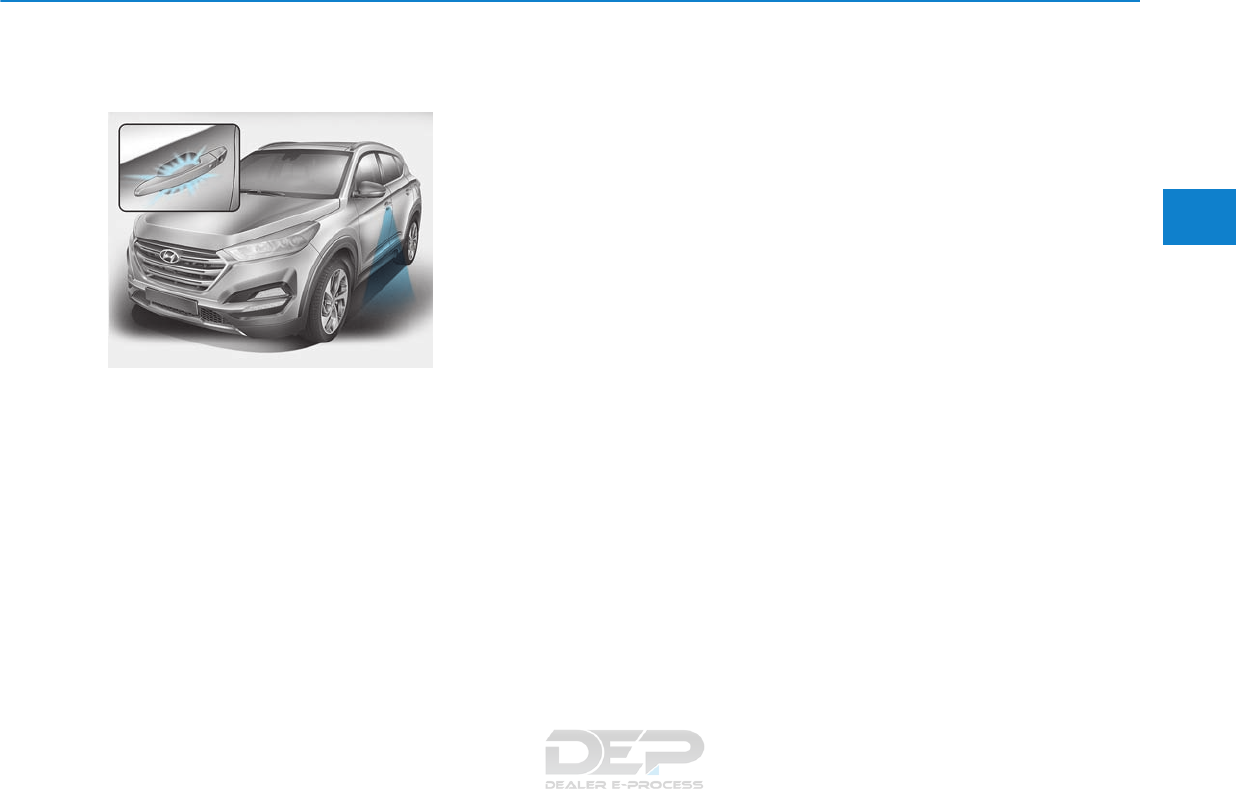

Welcome System ...........................................................3-113

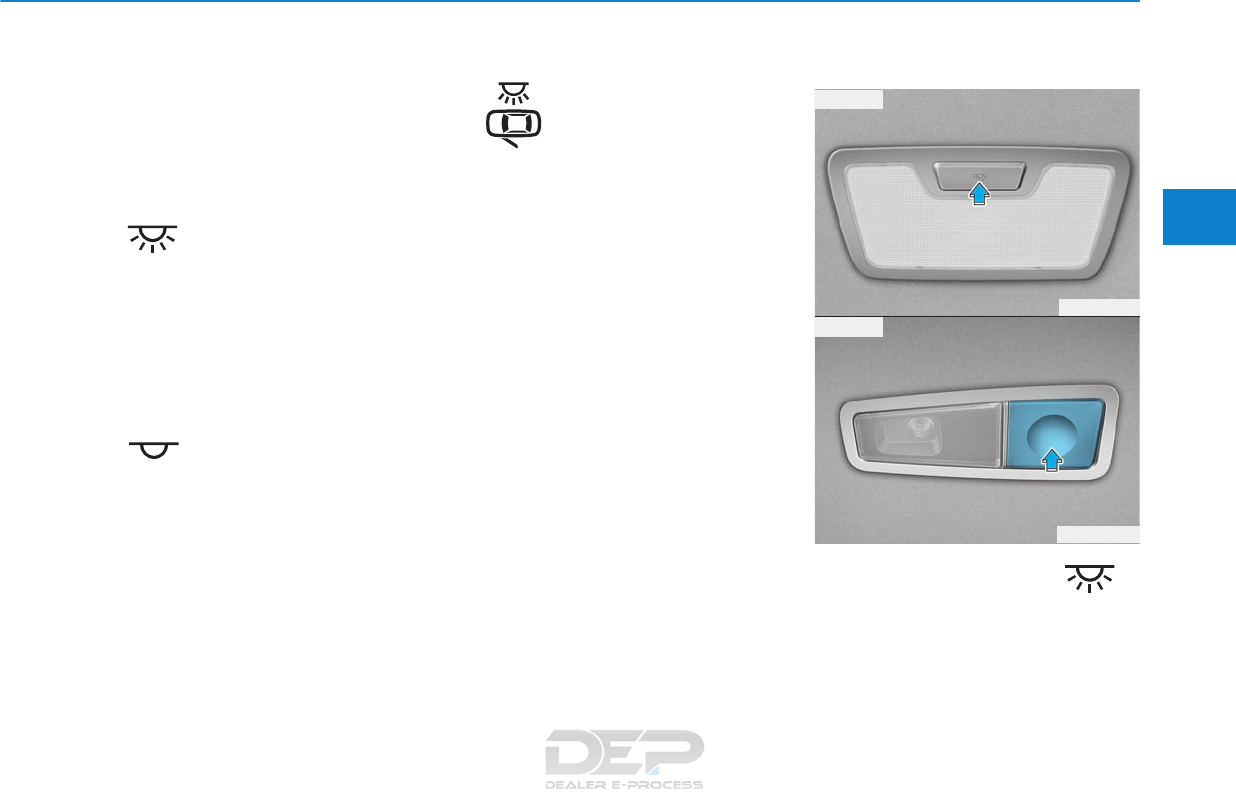

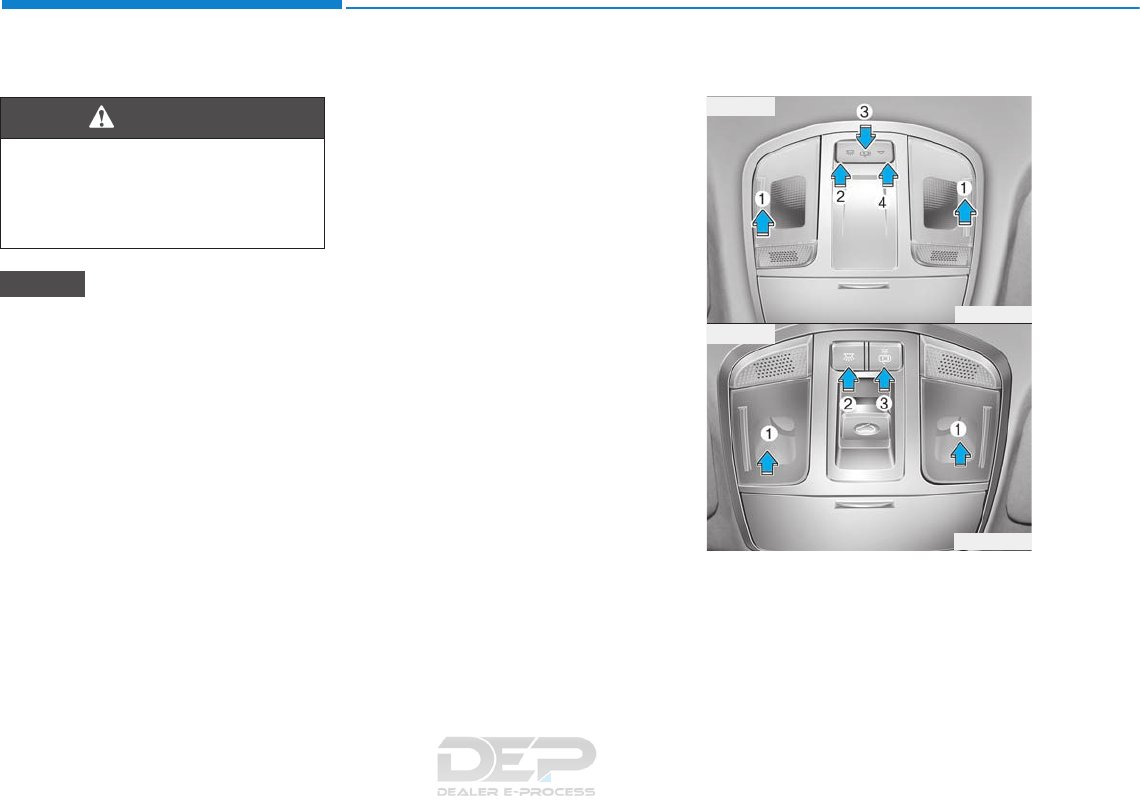

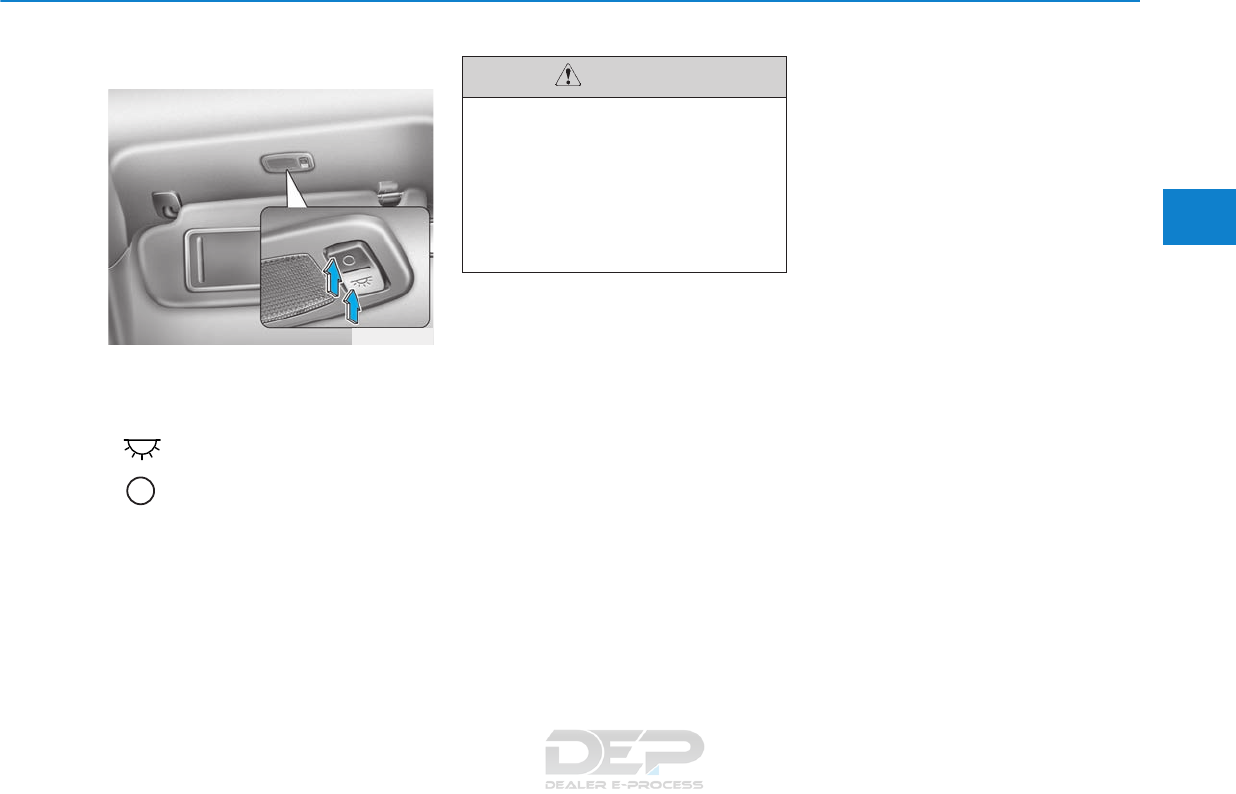

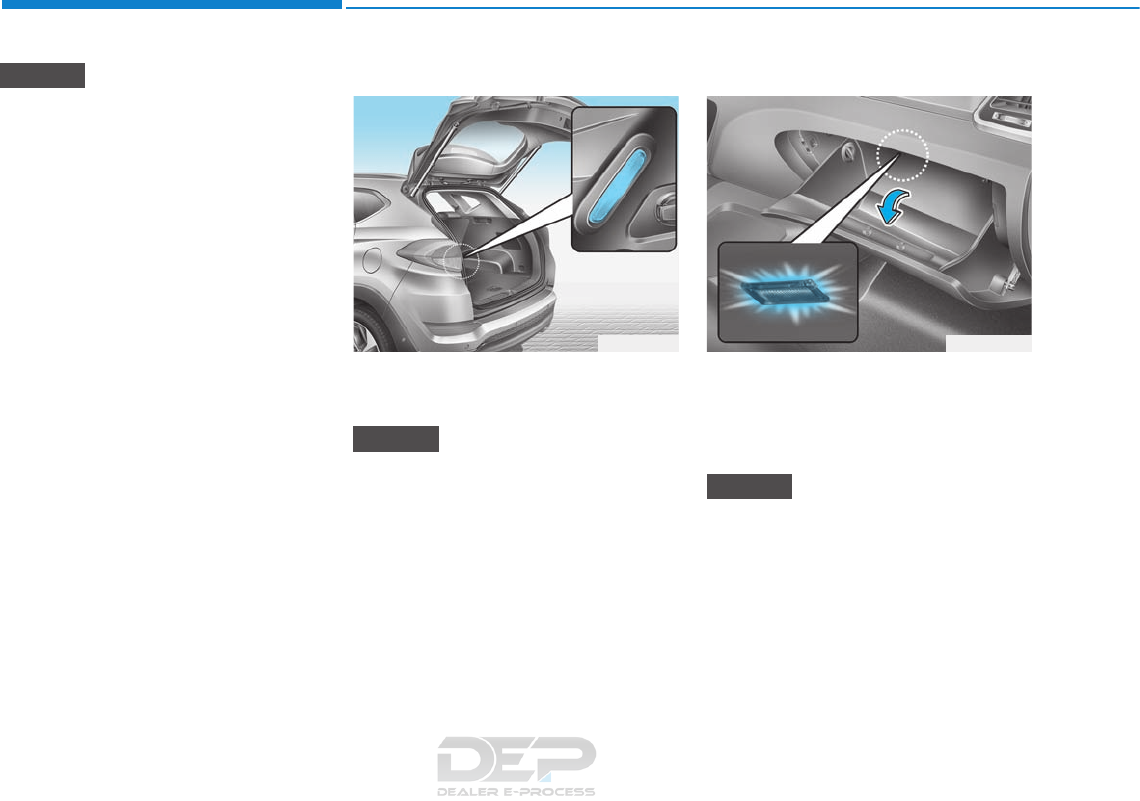

Interior Lights ................................................................3-114

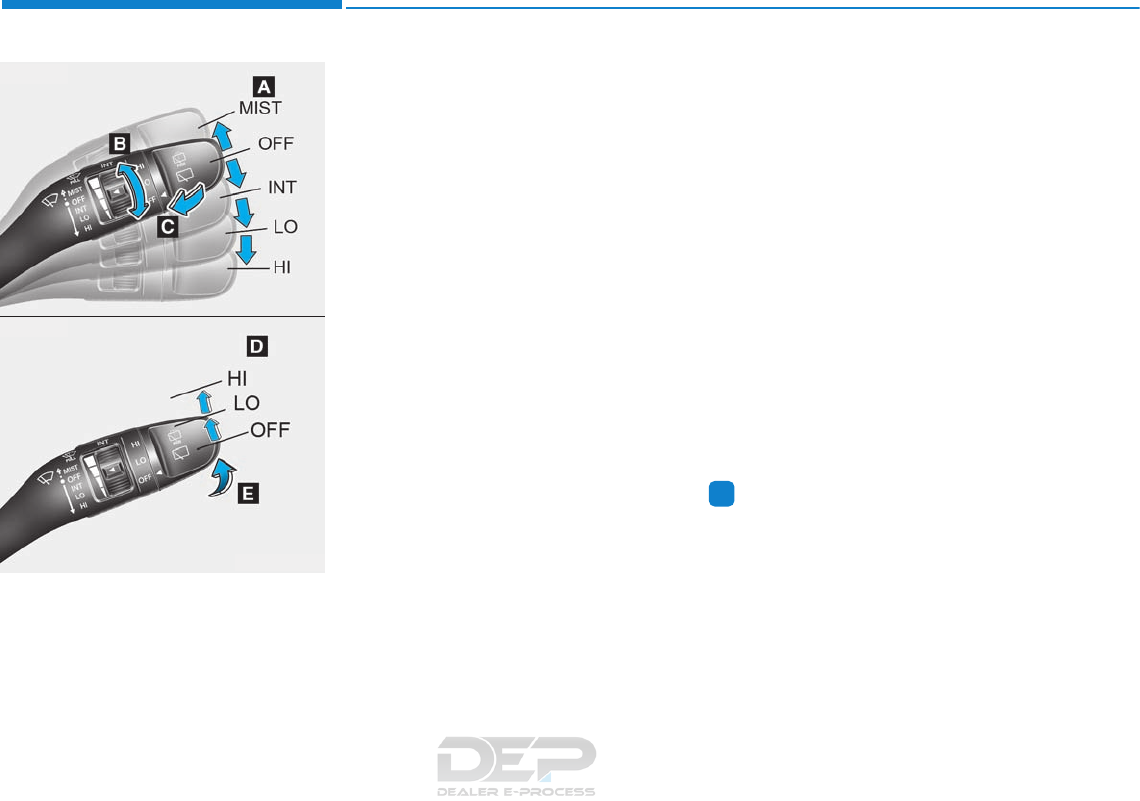

Wipers and washers ..........................................3-118

Windshield Wipers ........................................................3-118

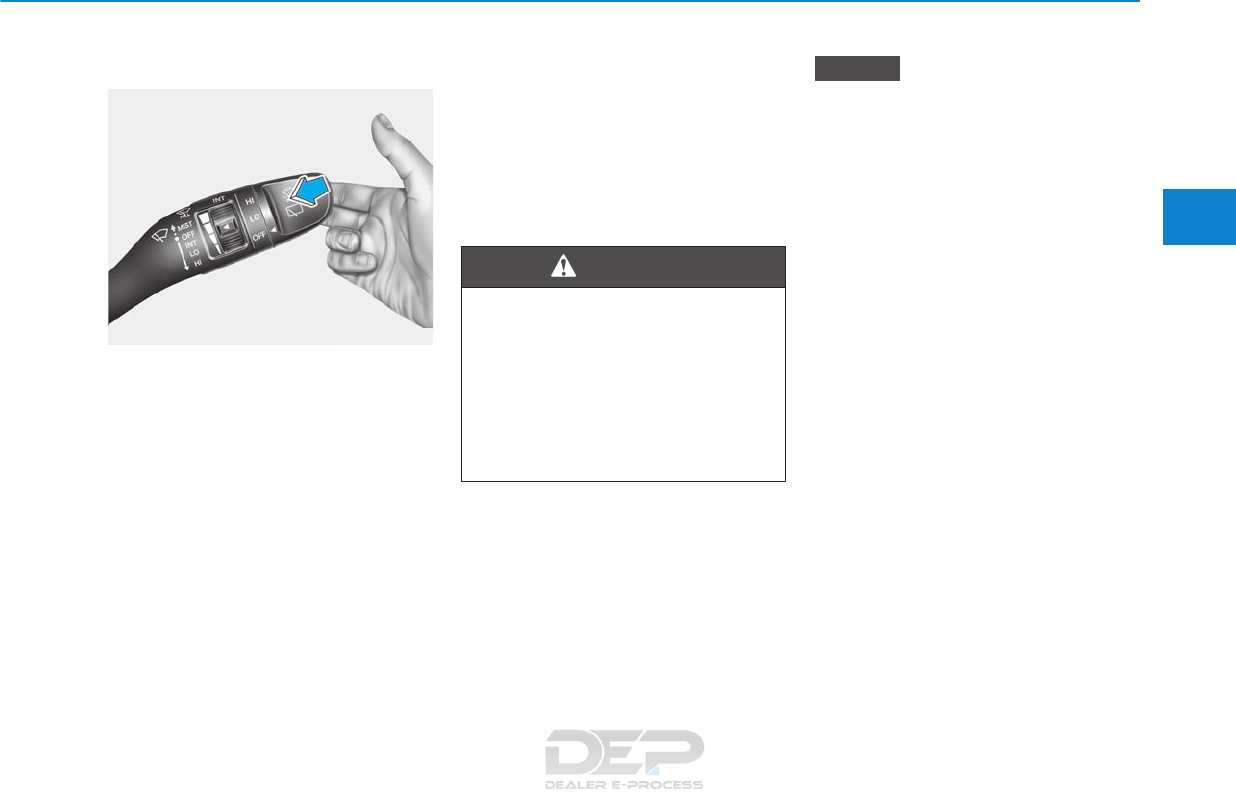

Windshield Washers .....................................................3-119

Rear window wiper and washer switch ..................3-120

Driver Assist System .........................................3-121

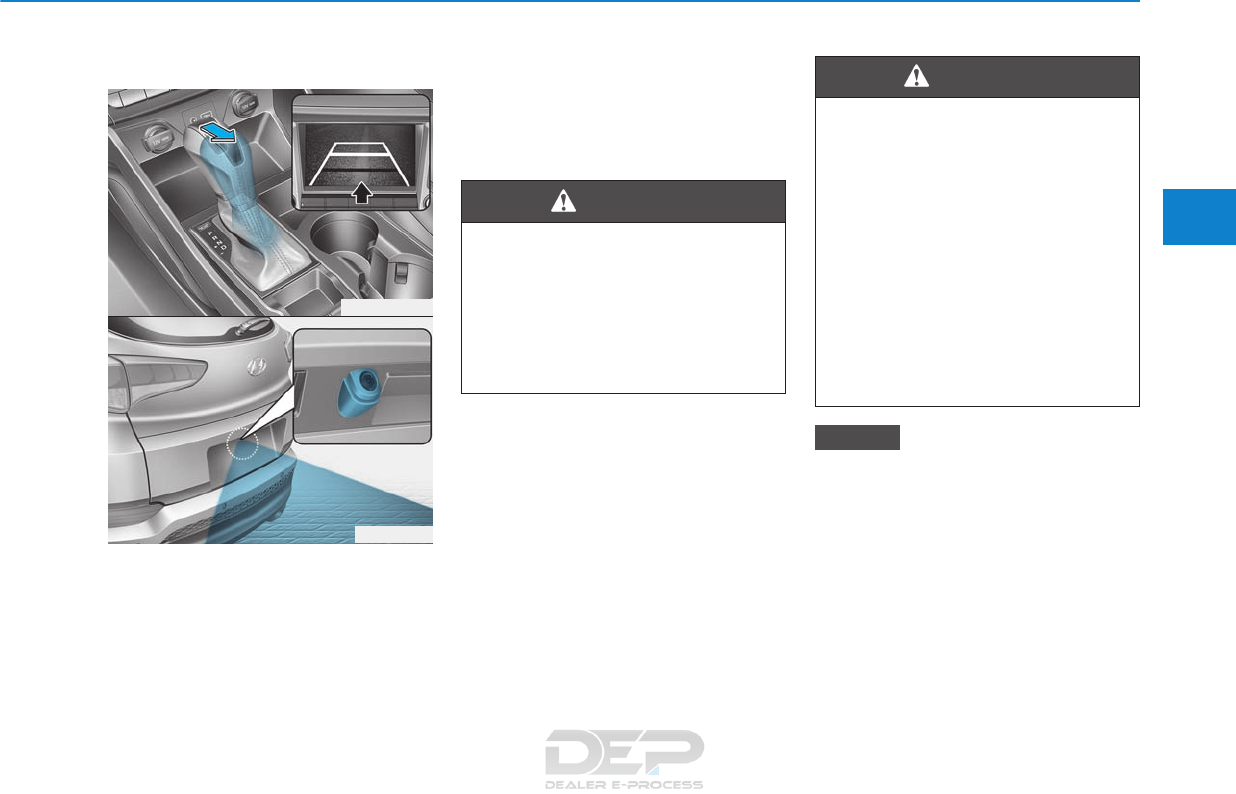

Rear View Camera ........................................................3-121

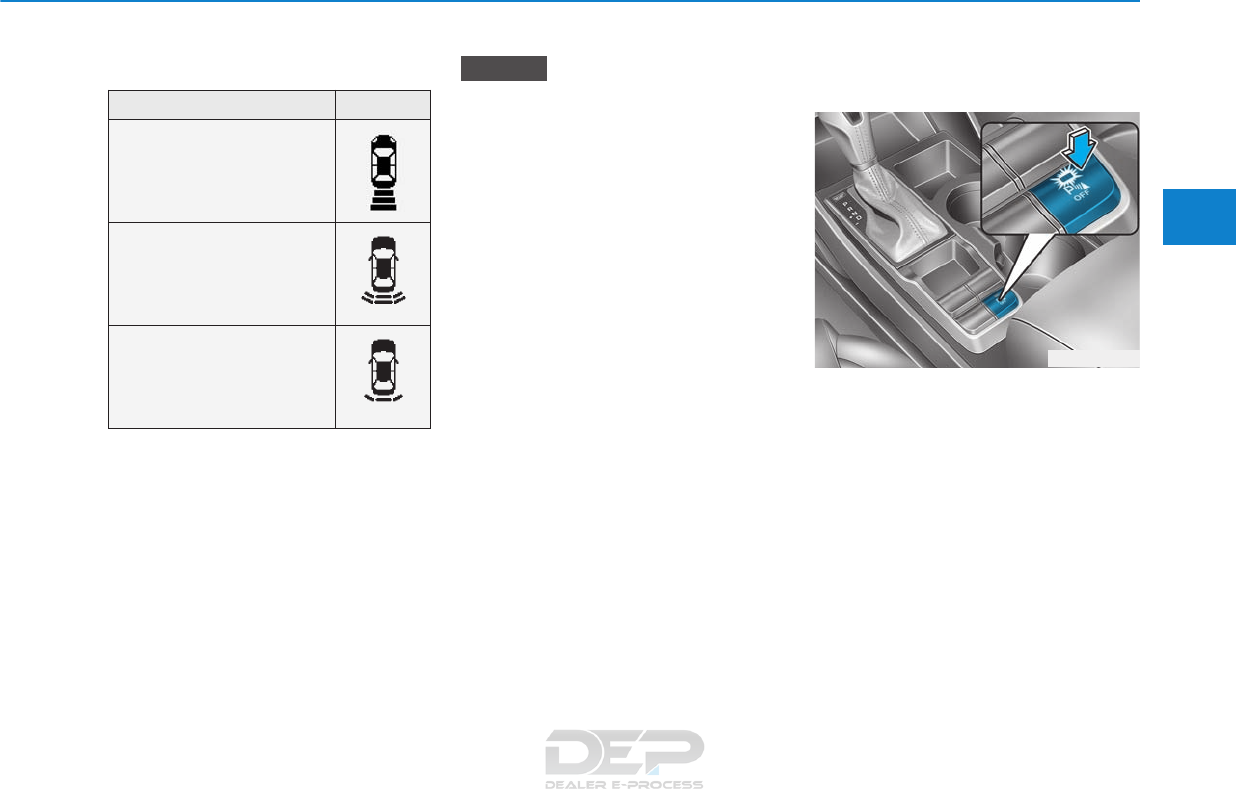

Rear Parking Assist System .......................................3-122

Rear parking assist system precautions.................3-125

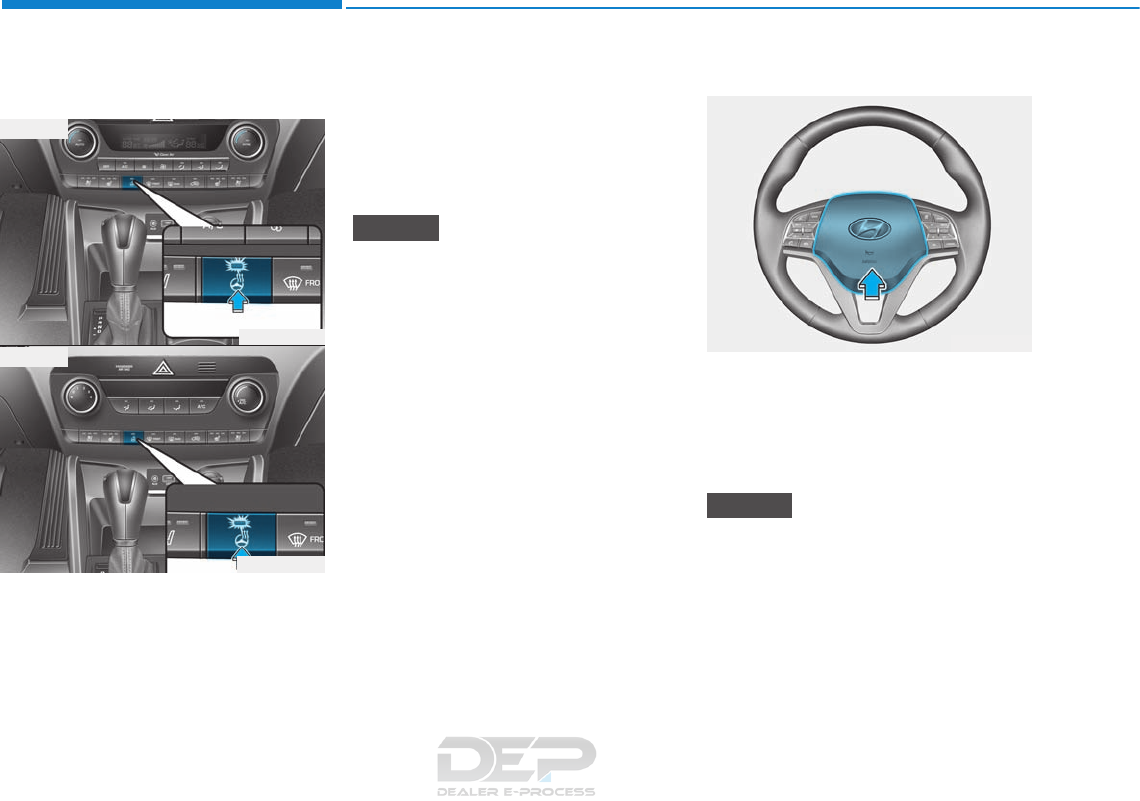

Defroster.............................................................3-126

Rear Window Defroster ..............................................3-126

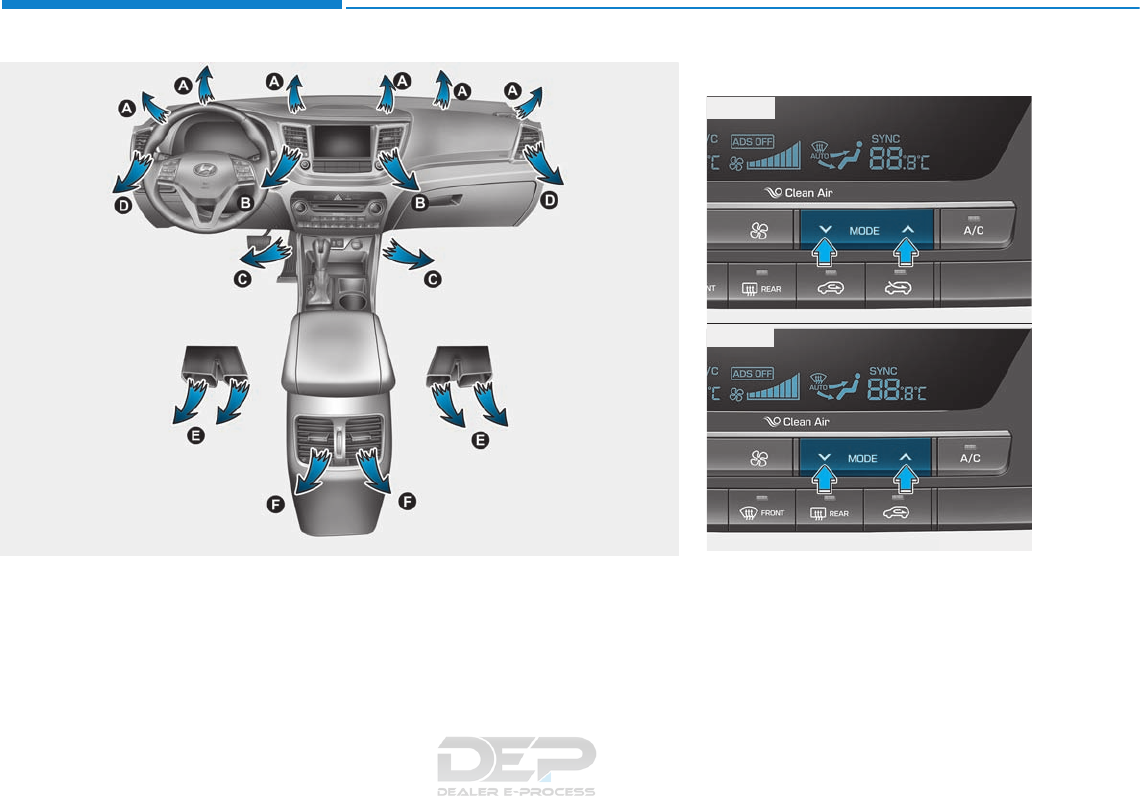

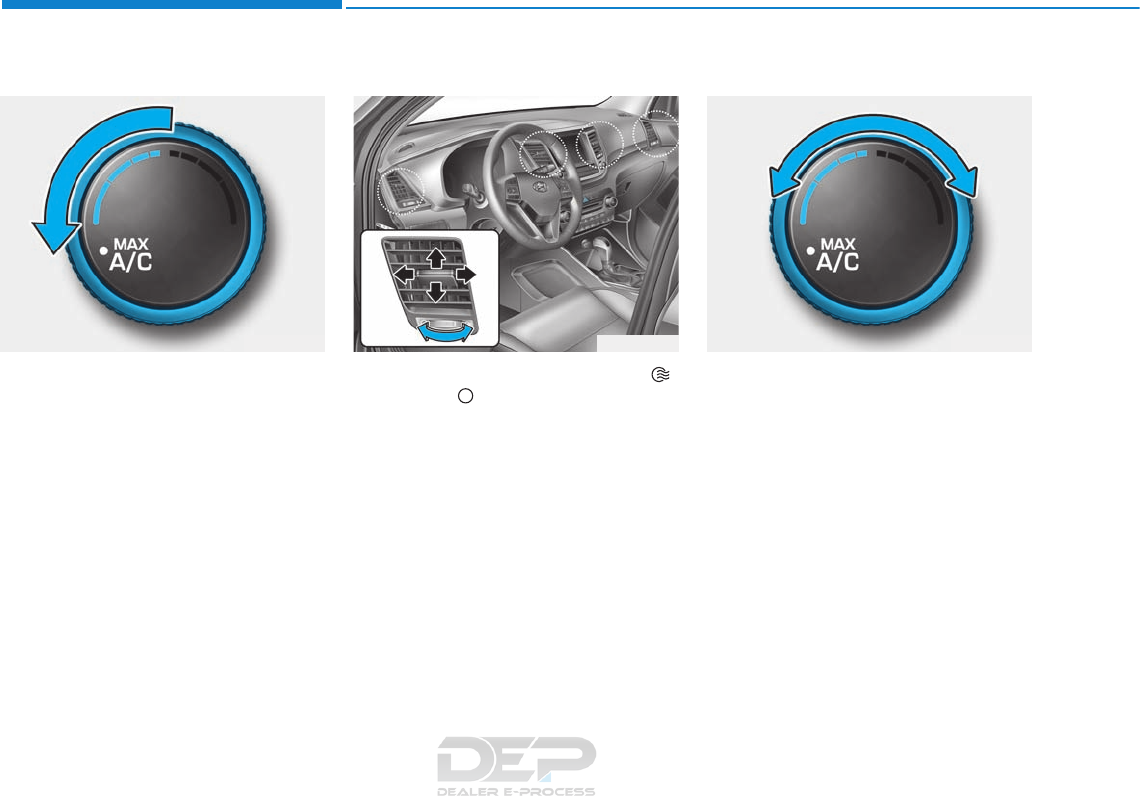

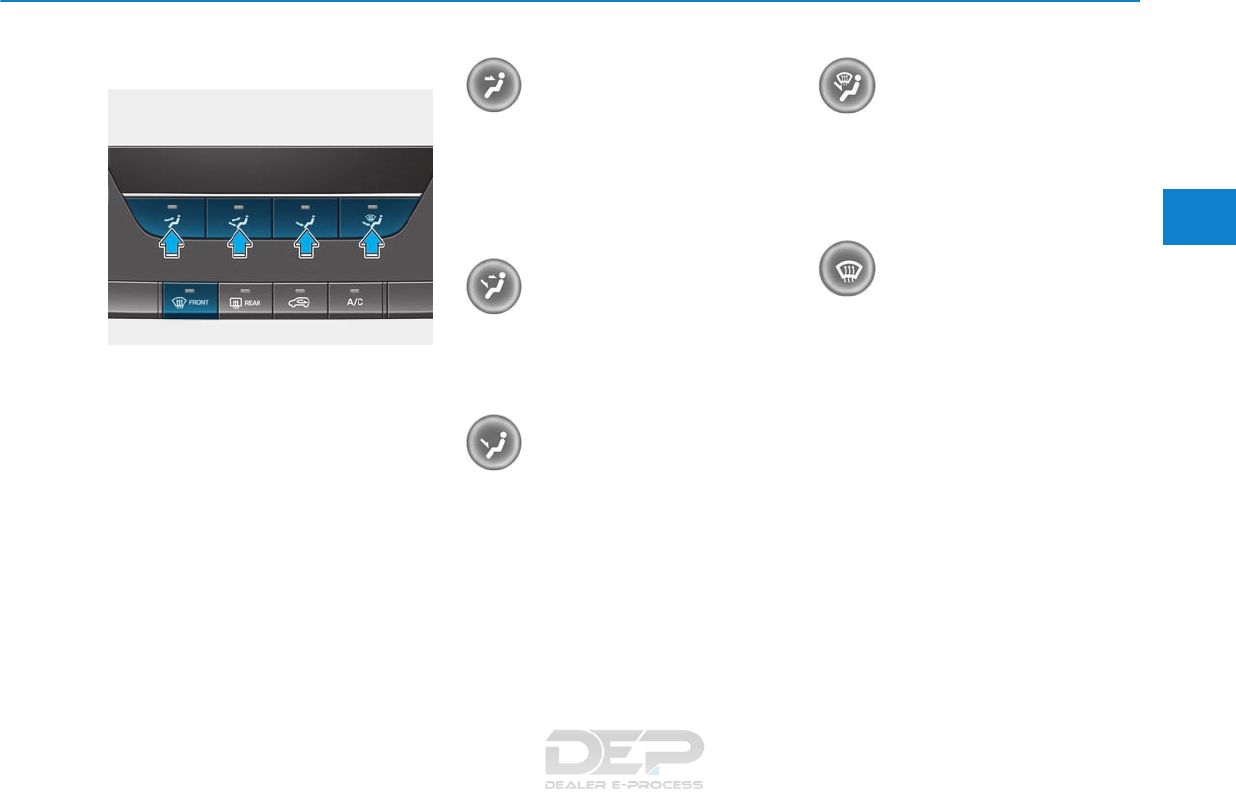

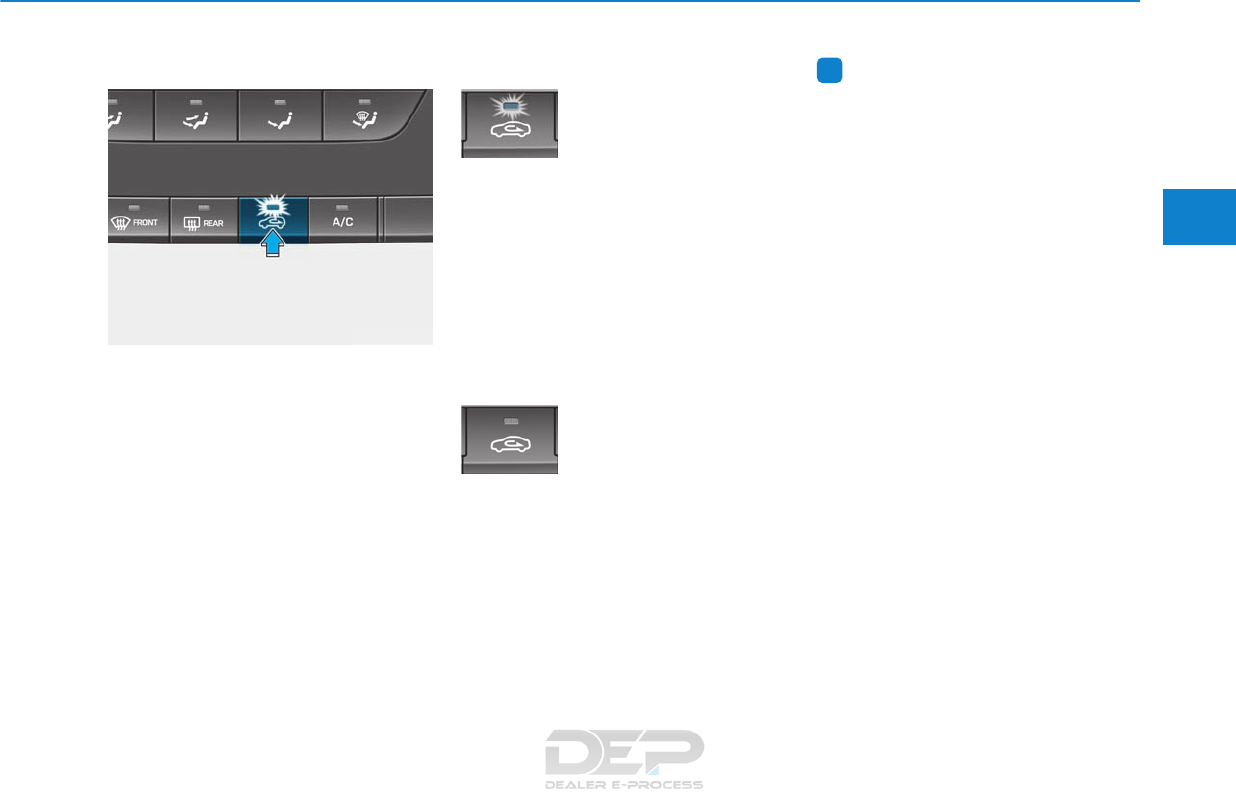

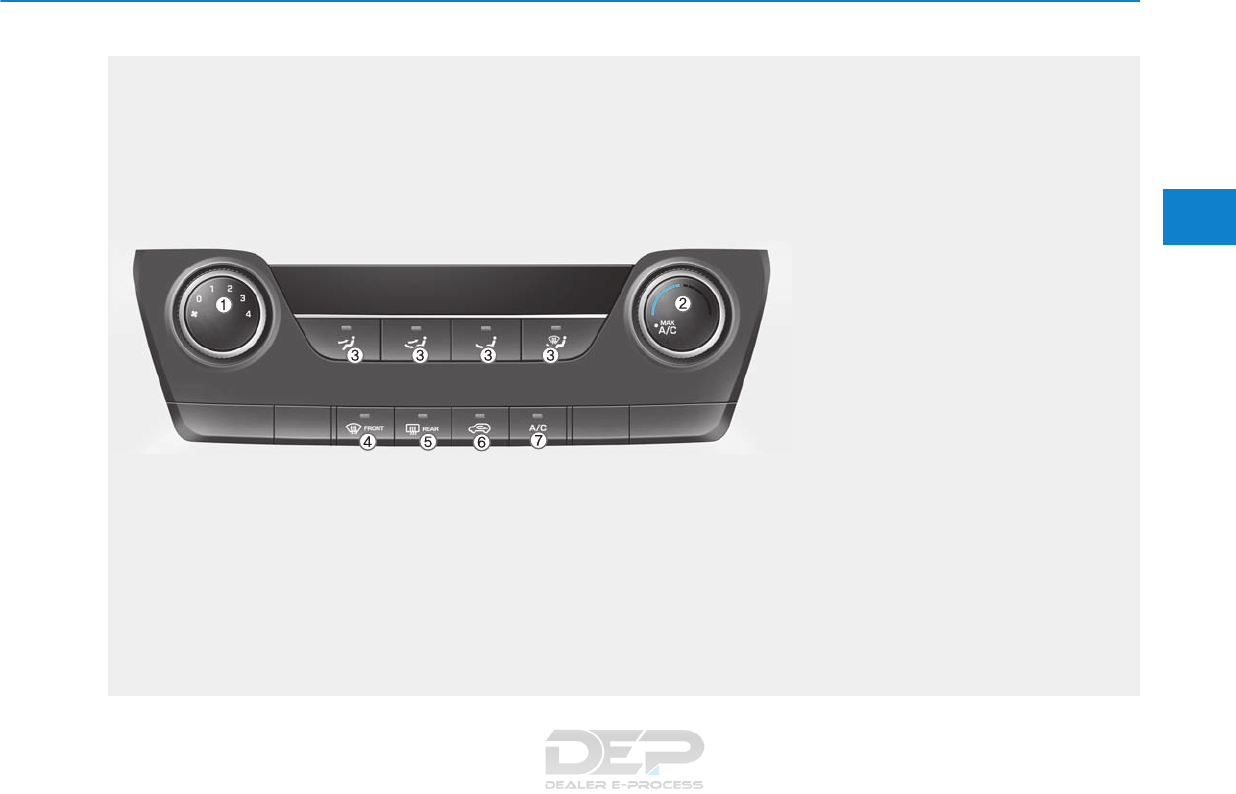

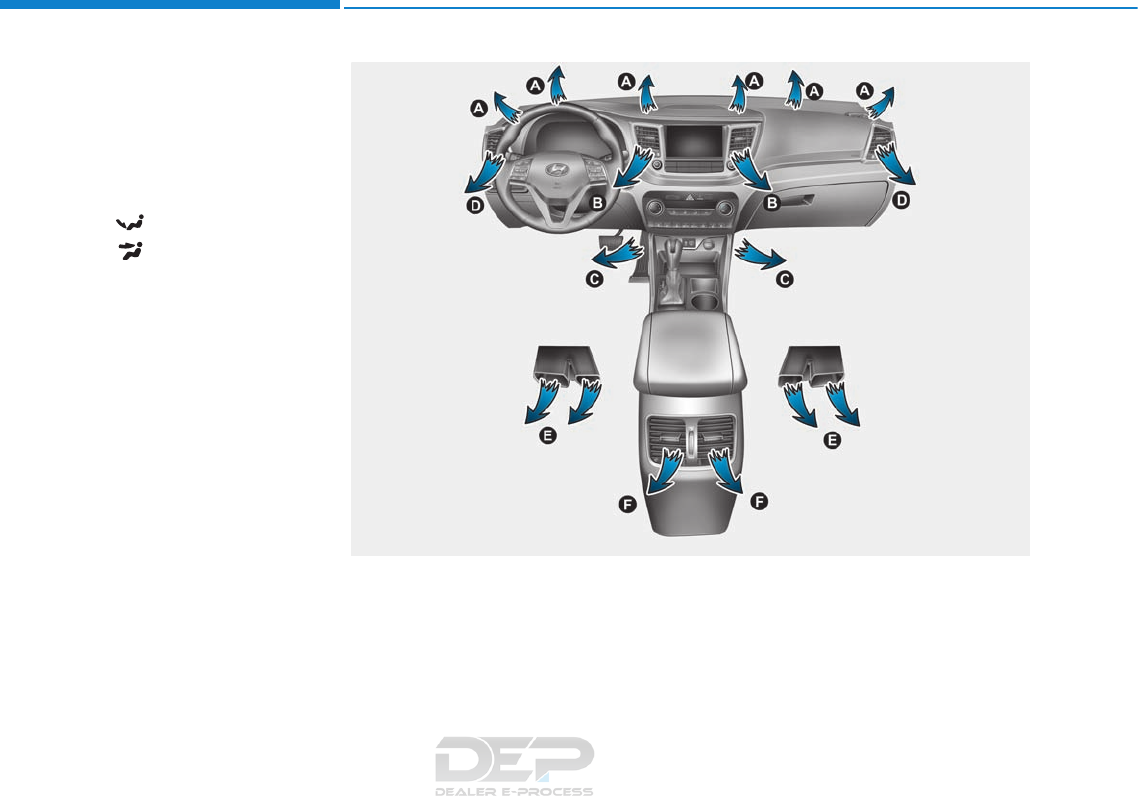

Manual climate control system........................3-127

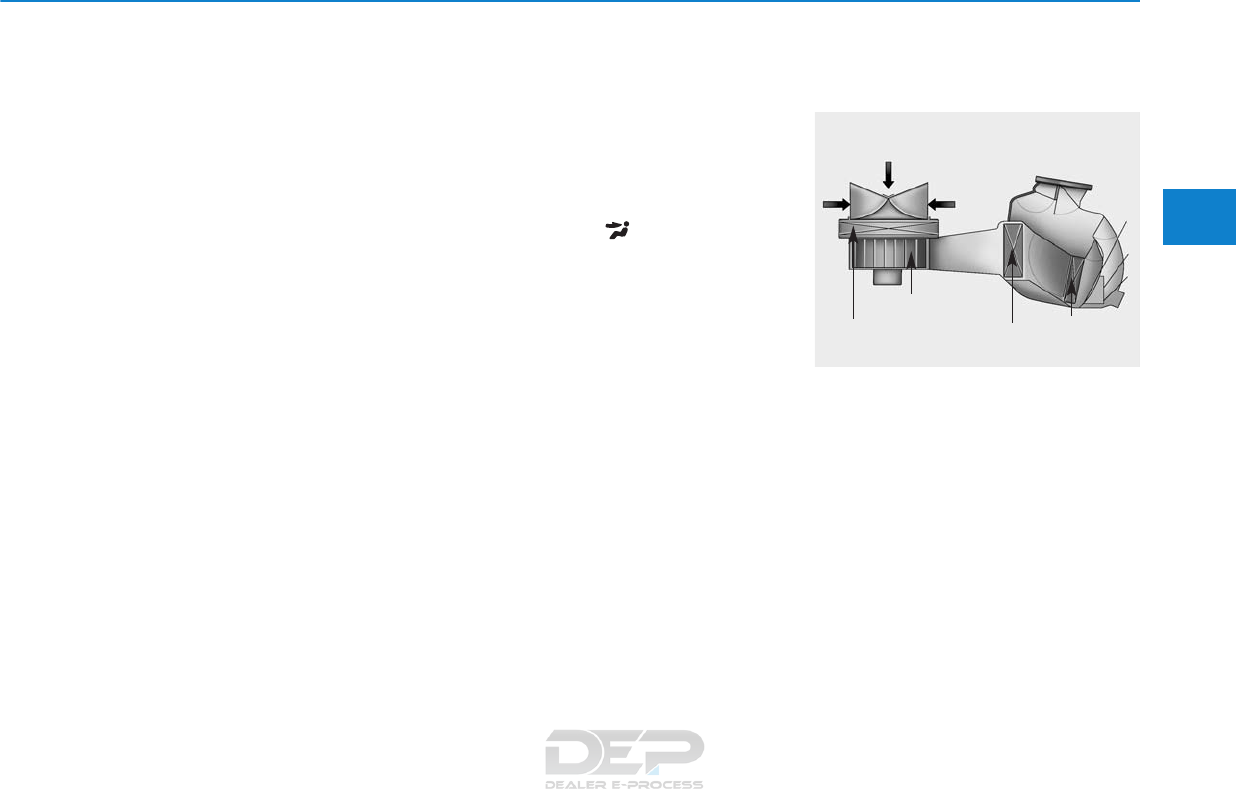

Heating and Air Conditioning.....................................3-128

System Operation .........................................................3-133

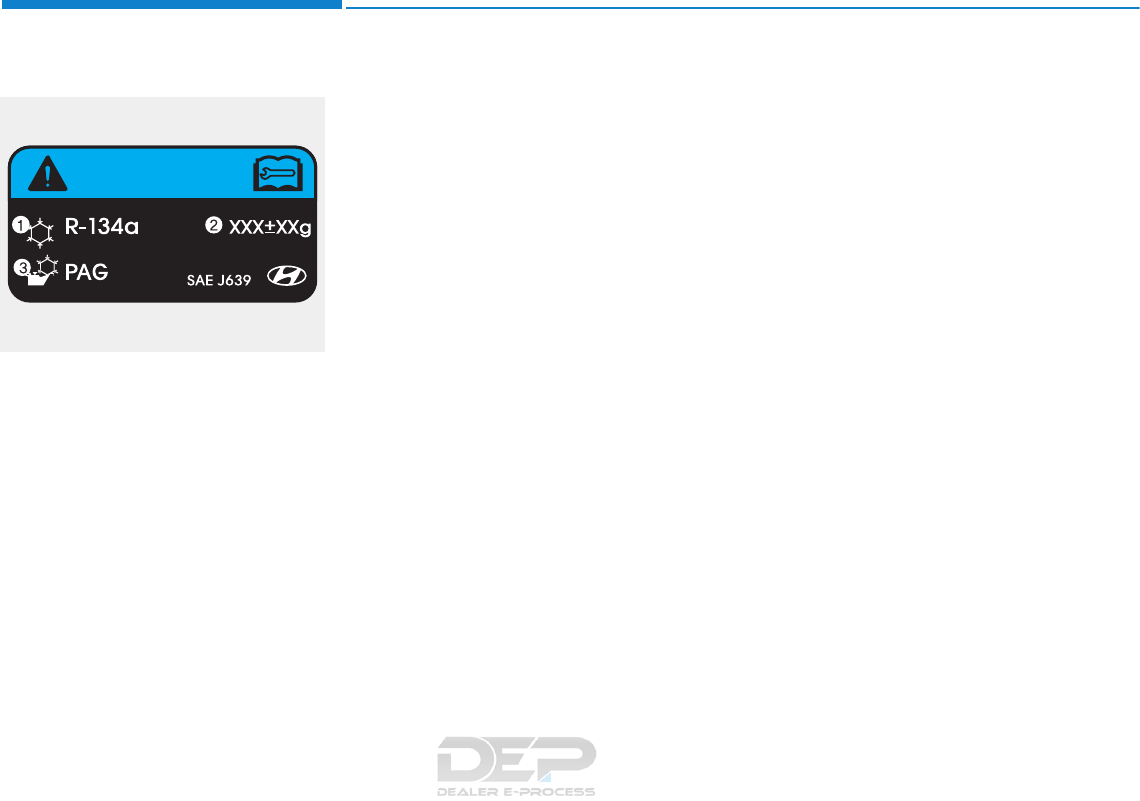

System Maintenance....................................................3-135

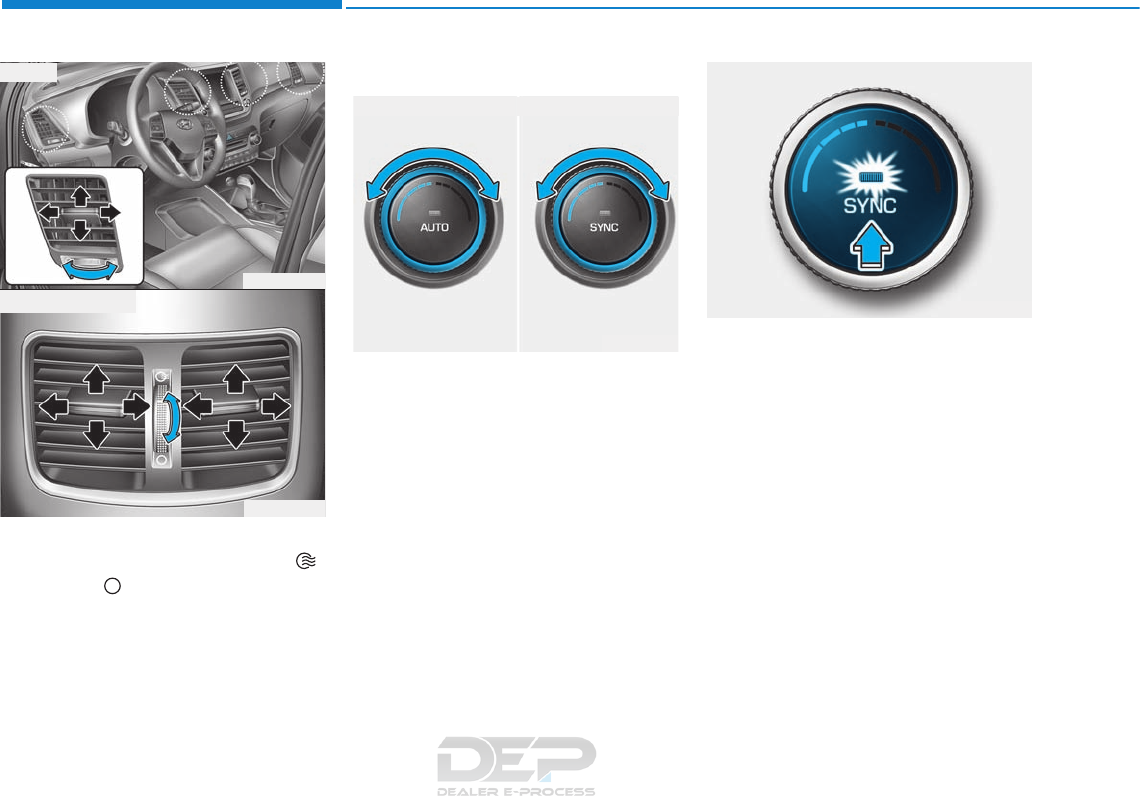

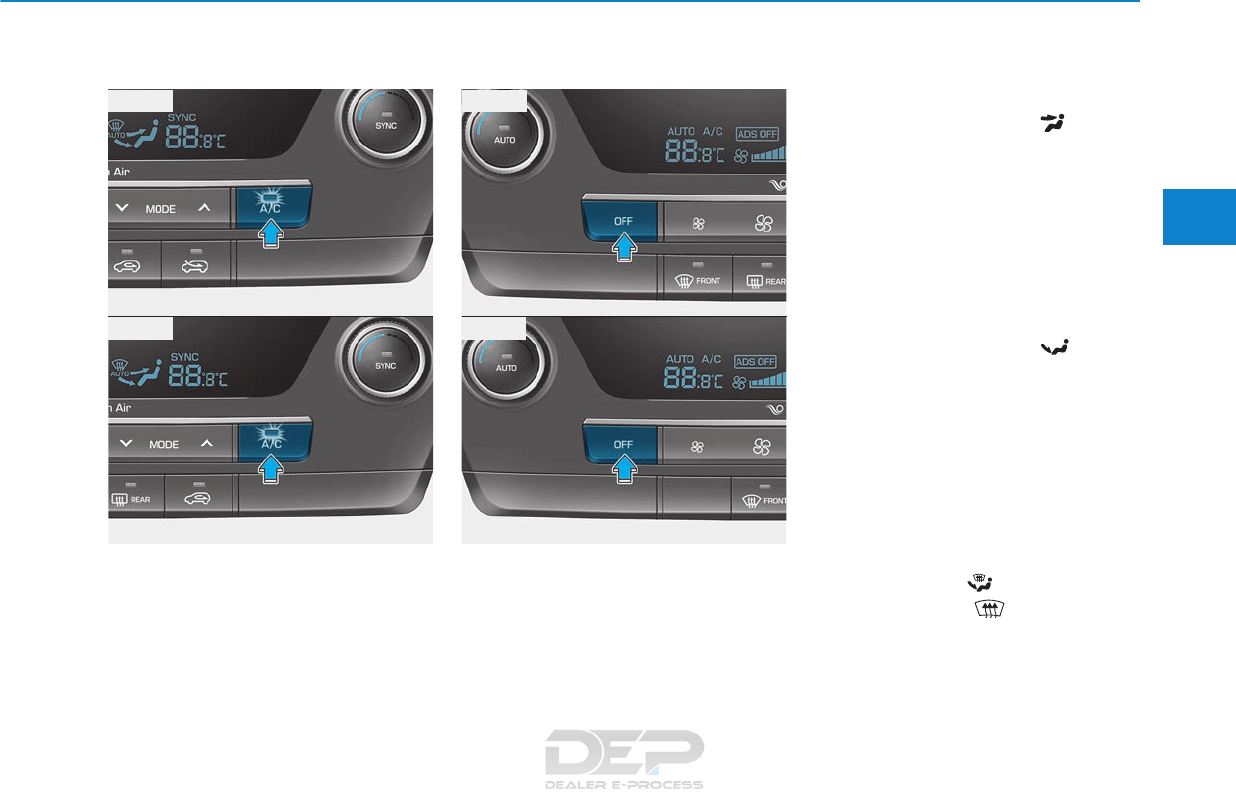

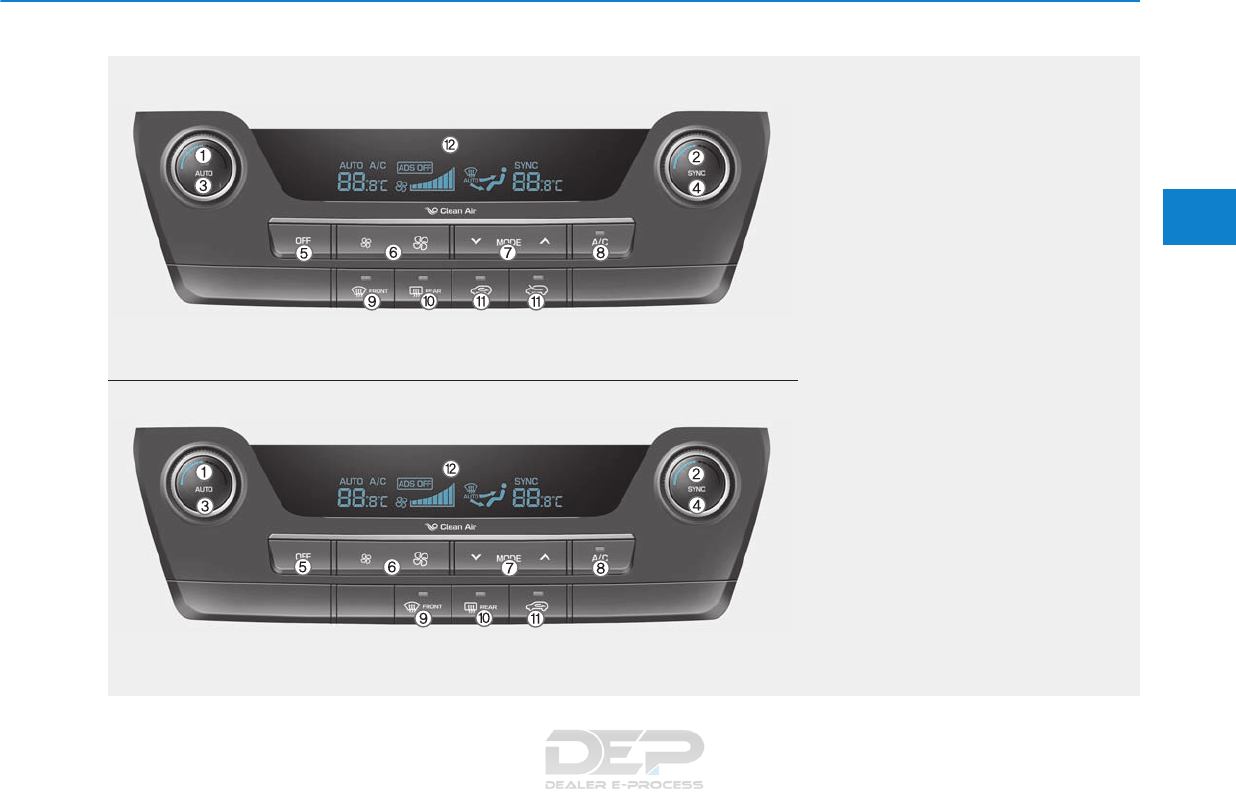

Automatic climate control system...................3-137

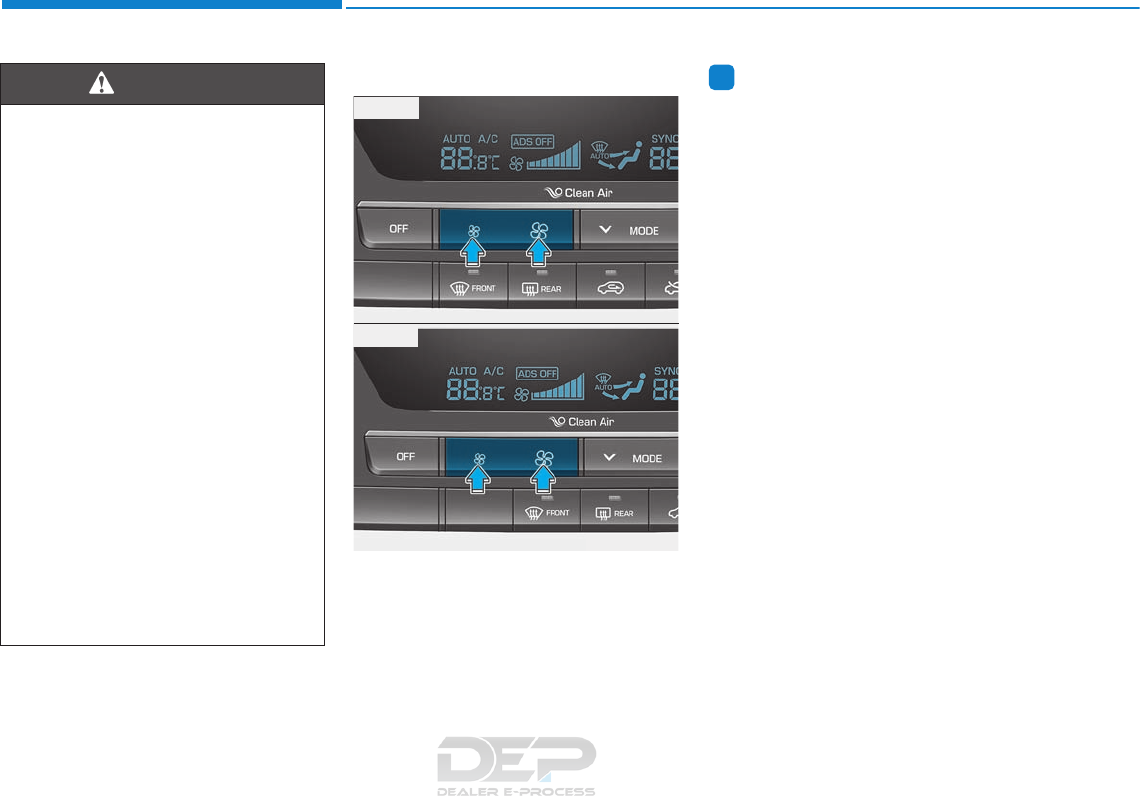

Automatic Heating and Air Conditioning.................3-138

Manual Heating and Air Conditioning......................3-139

System Operation .........................................................3-145

System Maintenance....................................................3-147

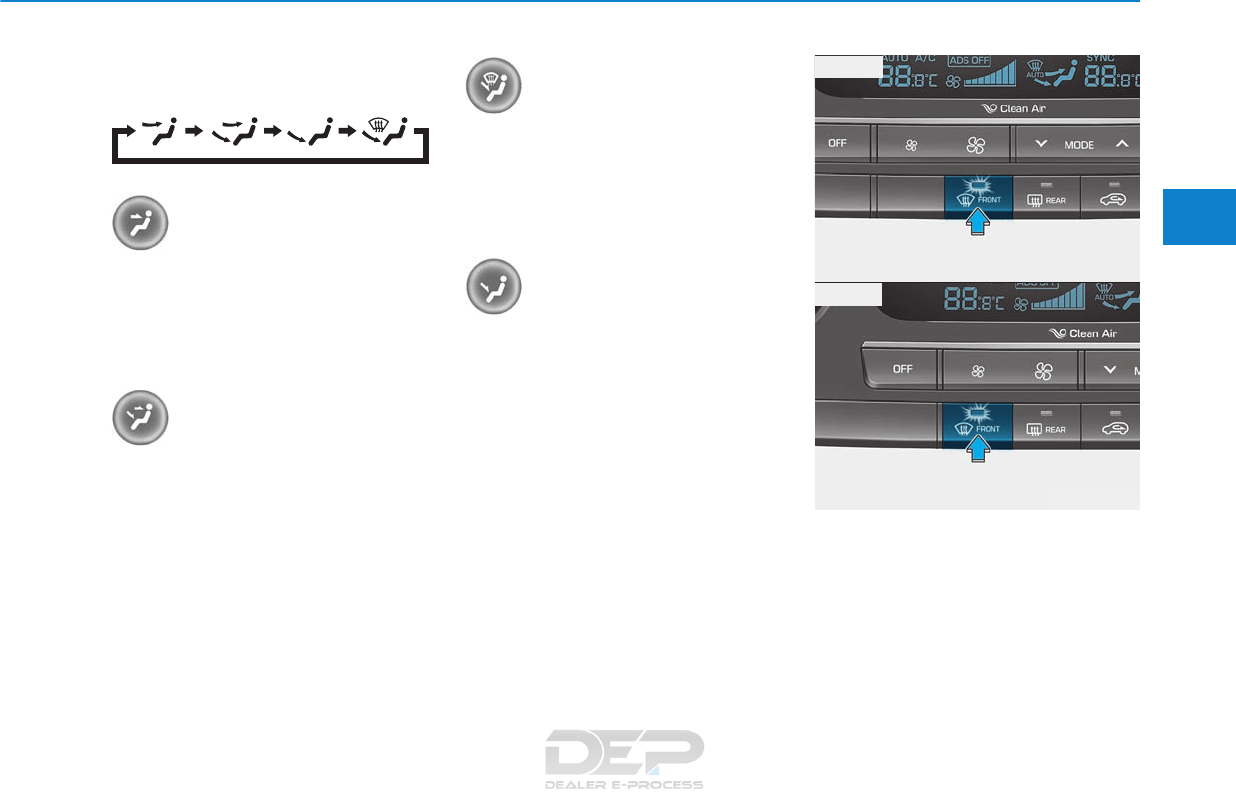

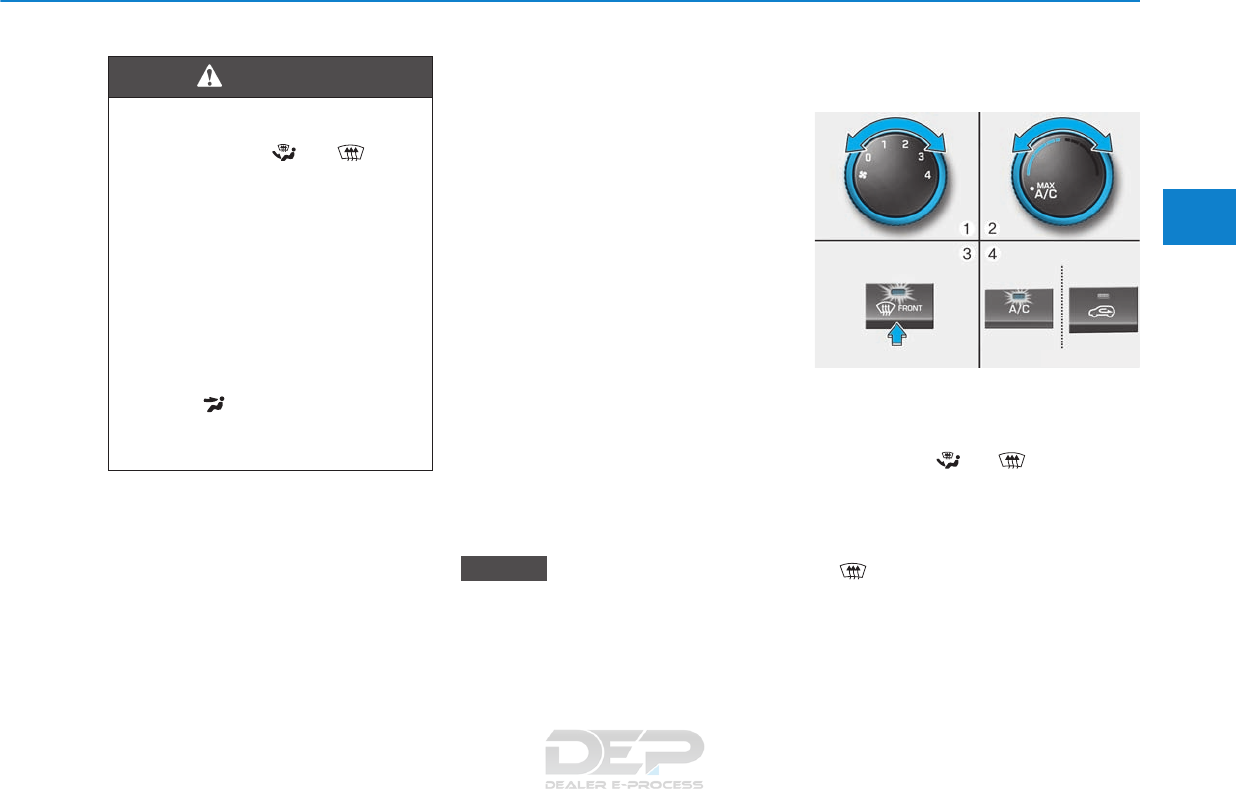

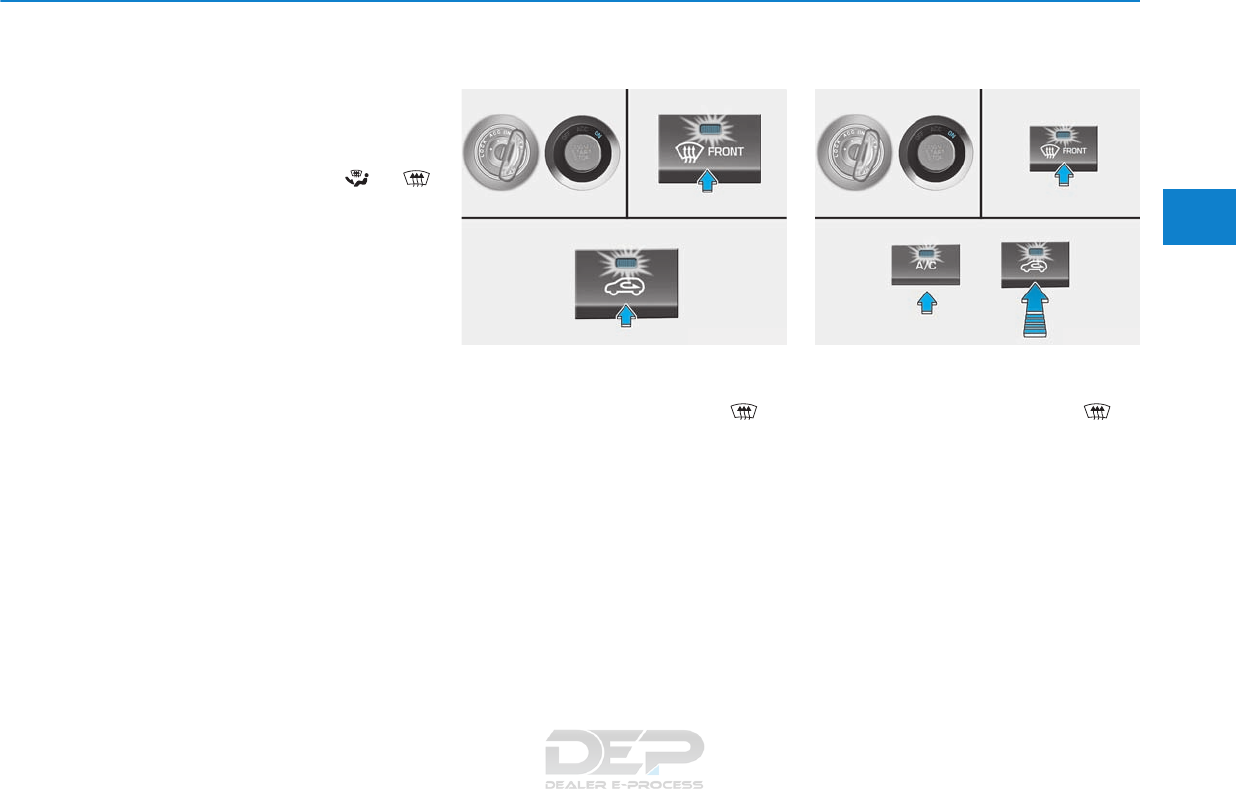

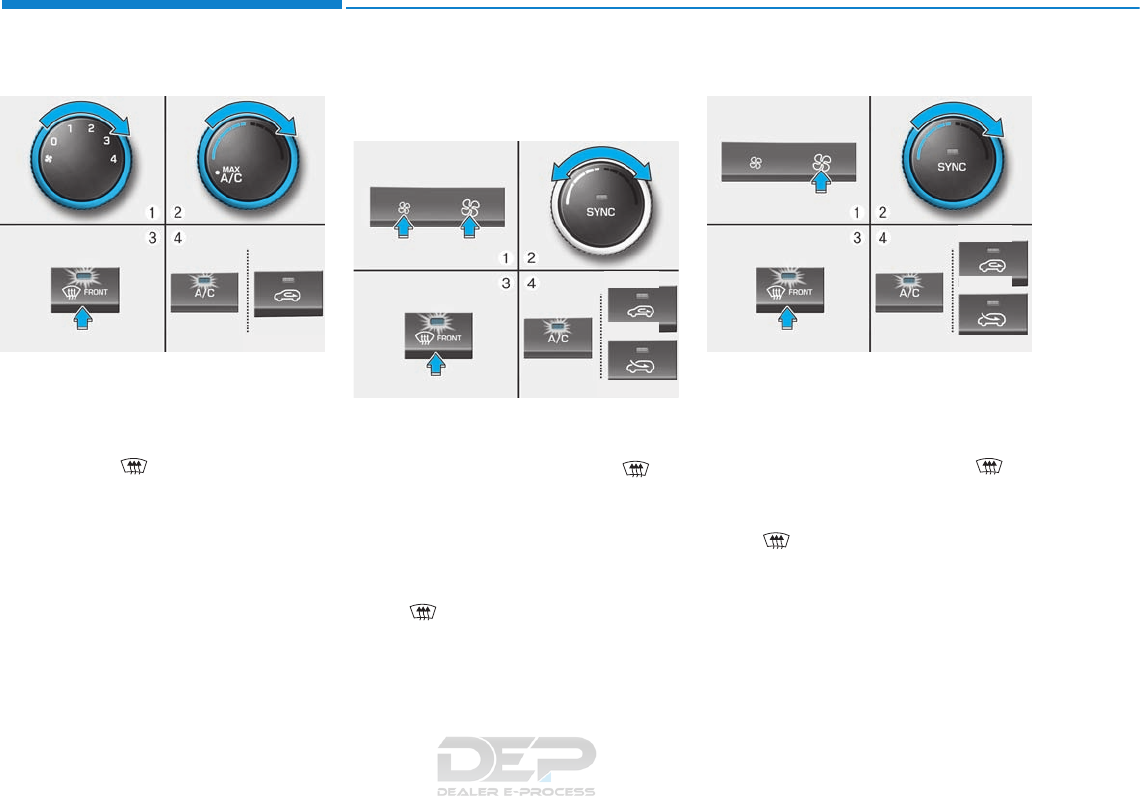

Windshield defrosting and defogging ............3-149

Manual Climate Control System ................................3-149

Automatic Climate Control System ...........................3-150

Defogging logic..............................................................3-151

F15F15

Climate control additional features.................3-152

Automatic Ventilation...................................................3-152

Sunroof Inside Air Recirculation...............................3-152

Storage compartment........................................3-153

Center Console Storage ..............................................3-153

Glove Box........................................................................3-153

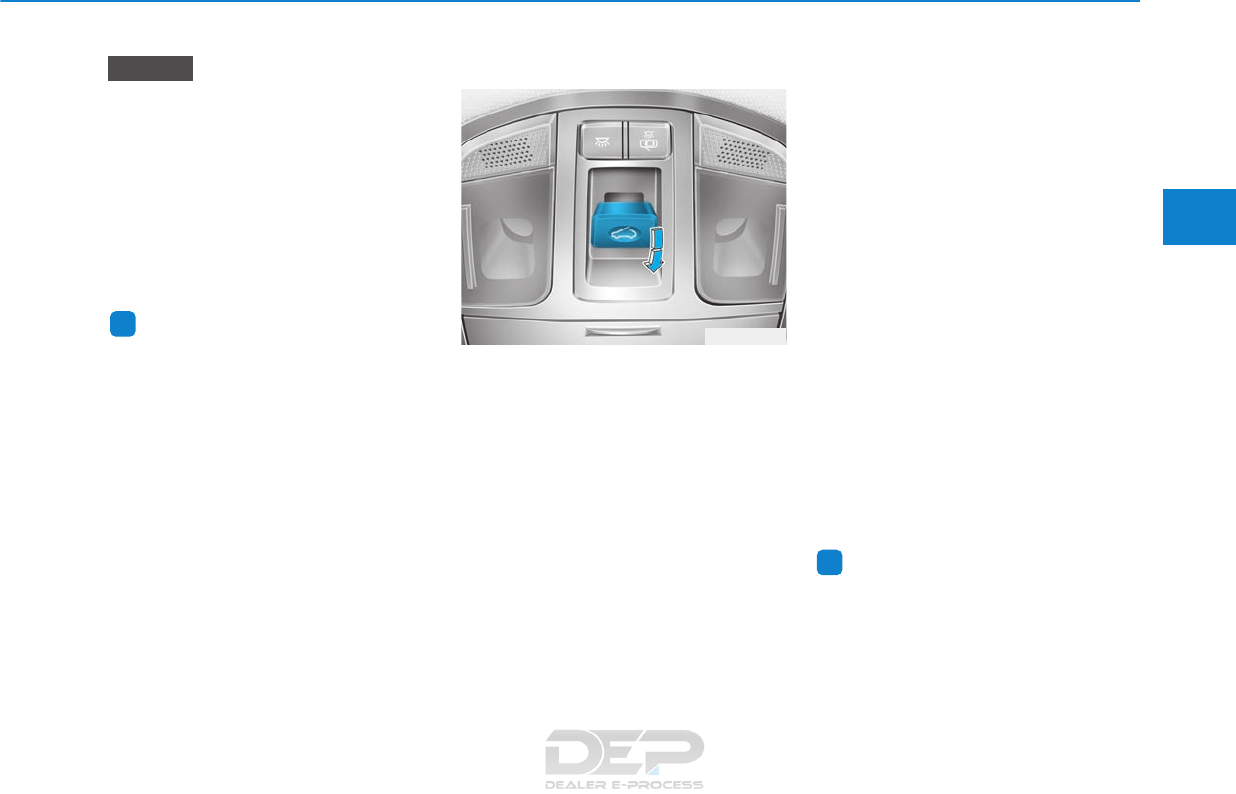

Sunglass Holder.............................................................3-154

Interior features.................................................3-155

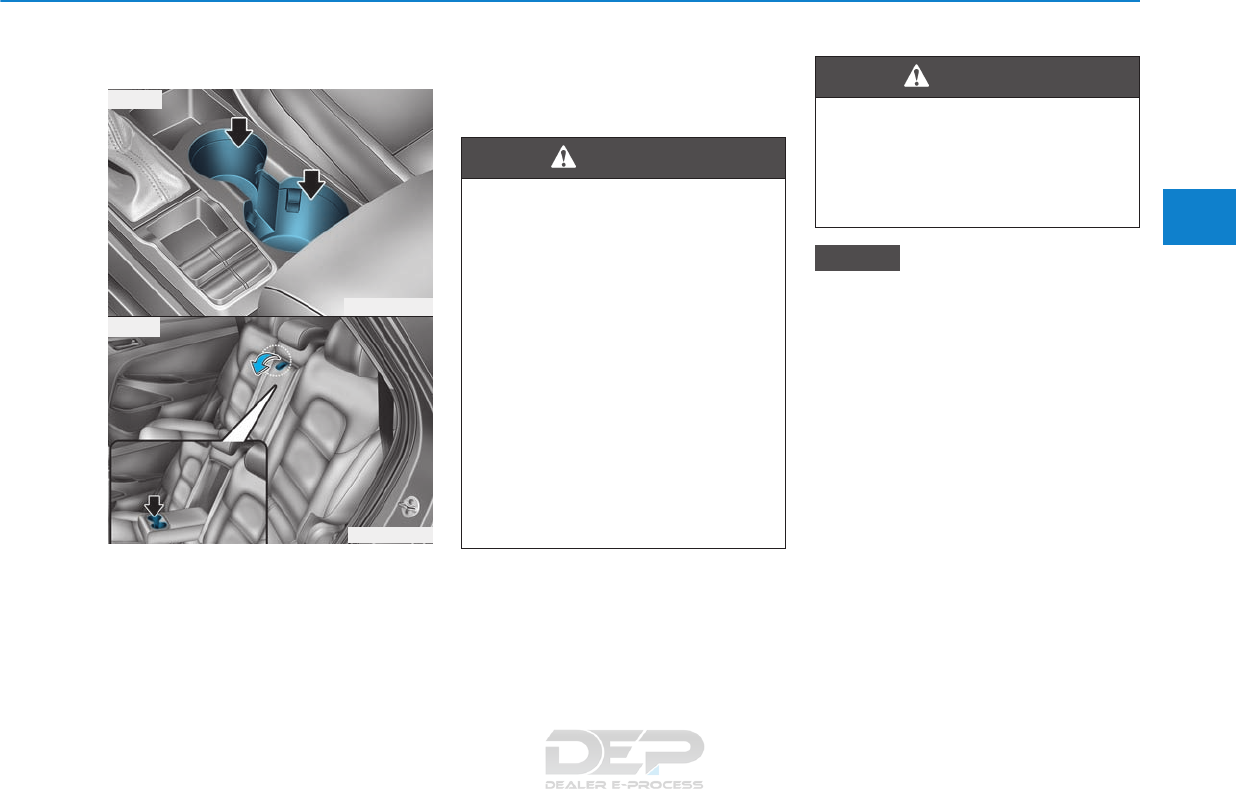

Cup Holder ......................................................................3-155

Sunvisor...........................................................................3-156

Power Outlet ..................................................................3-156

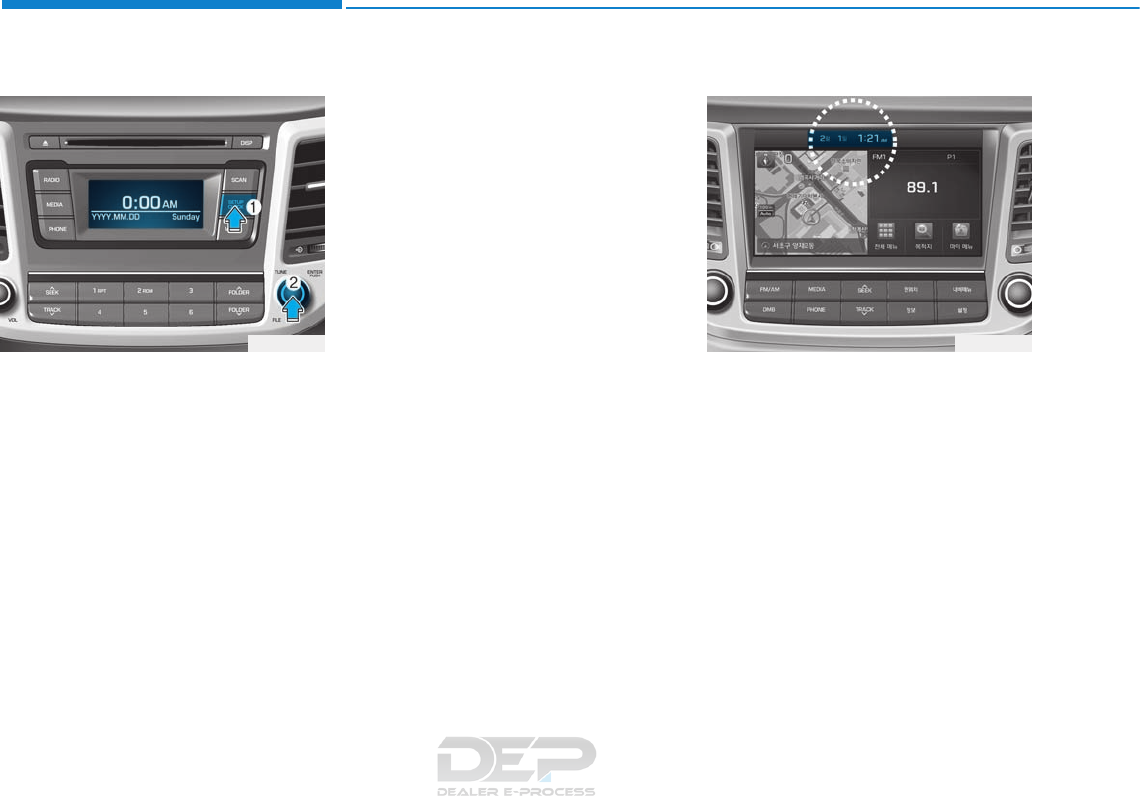

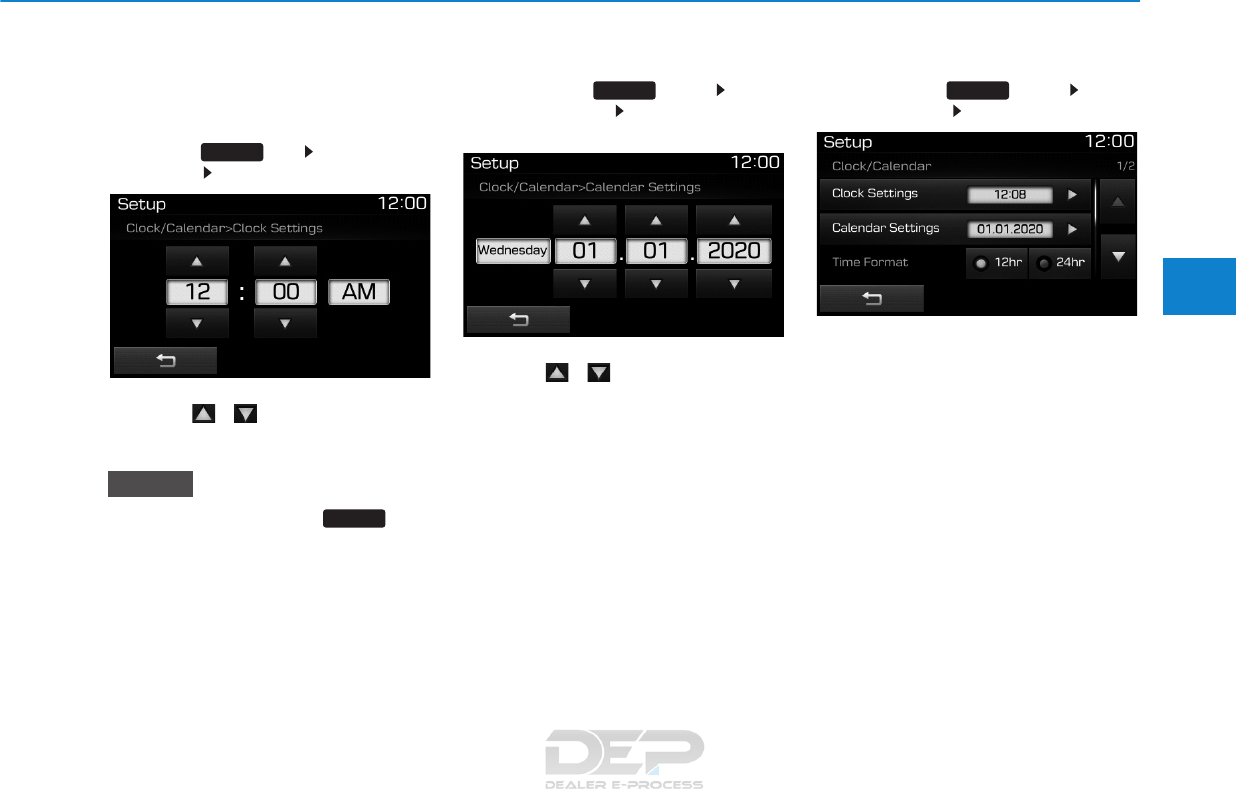

Clock.................................................................................3-157

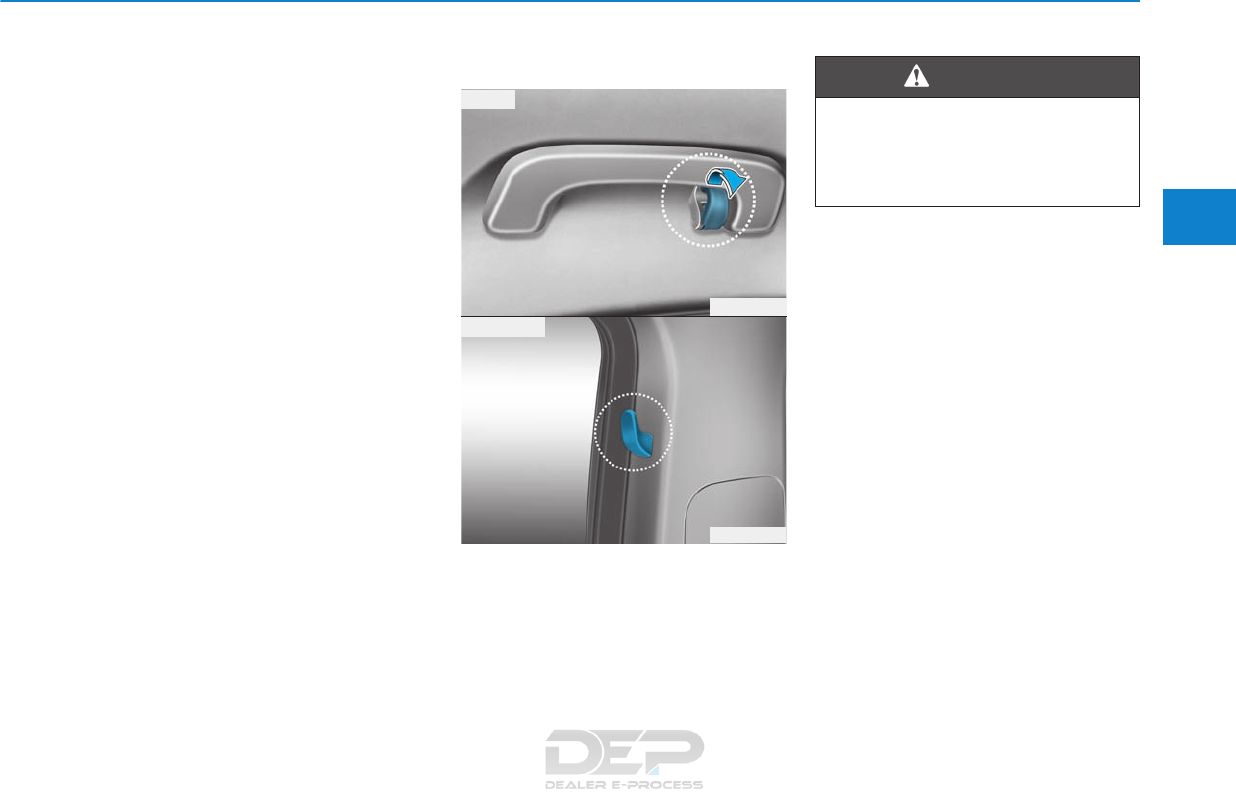

Clothes Hanger ..............................................................3-159

Plastic bag hook............................................................3-160

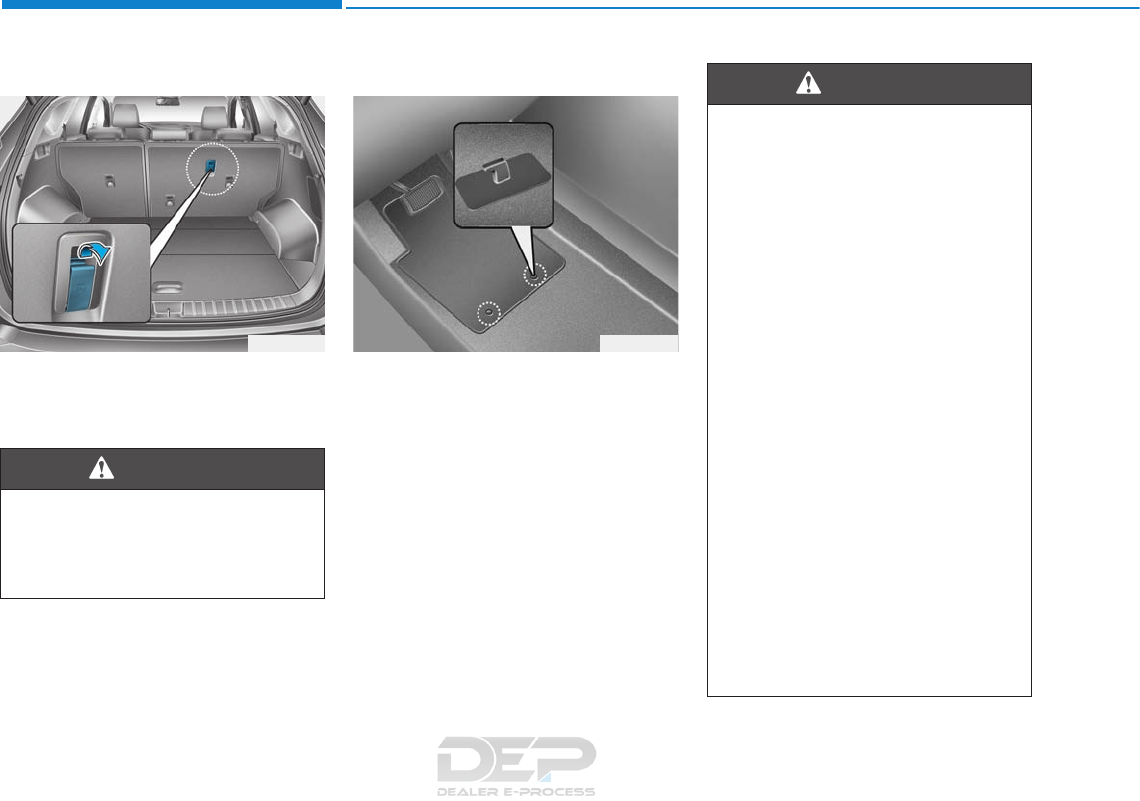

Floor Mat Anchor(s).....................................................3-160

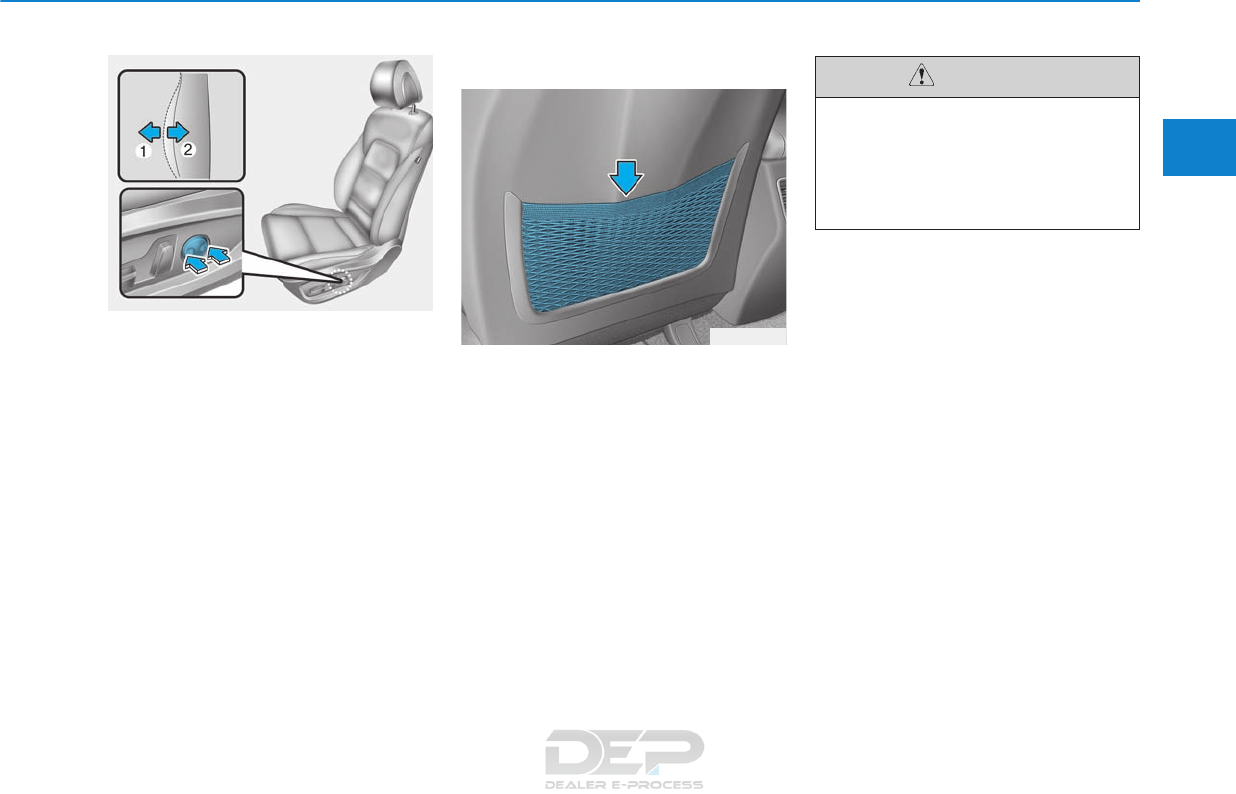

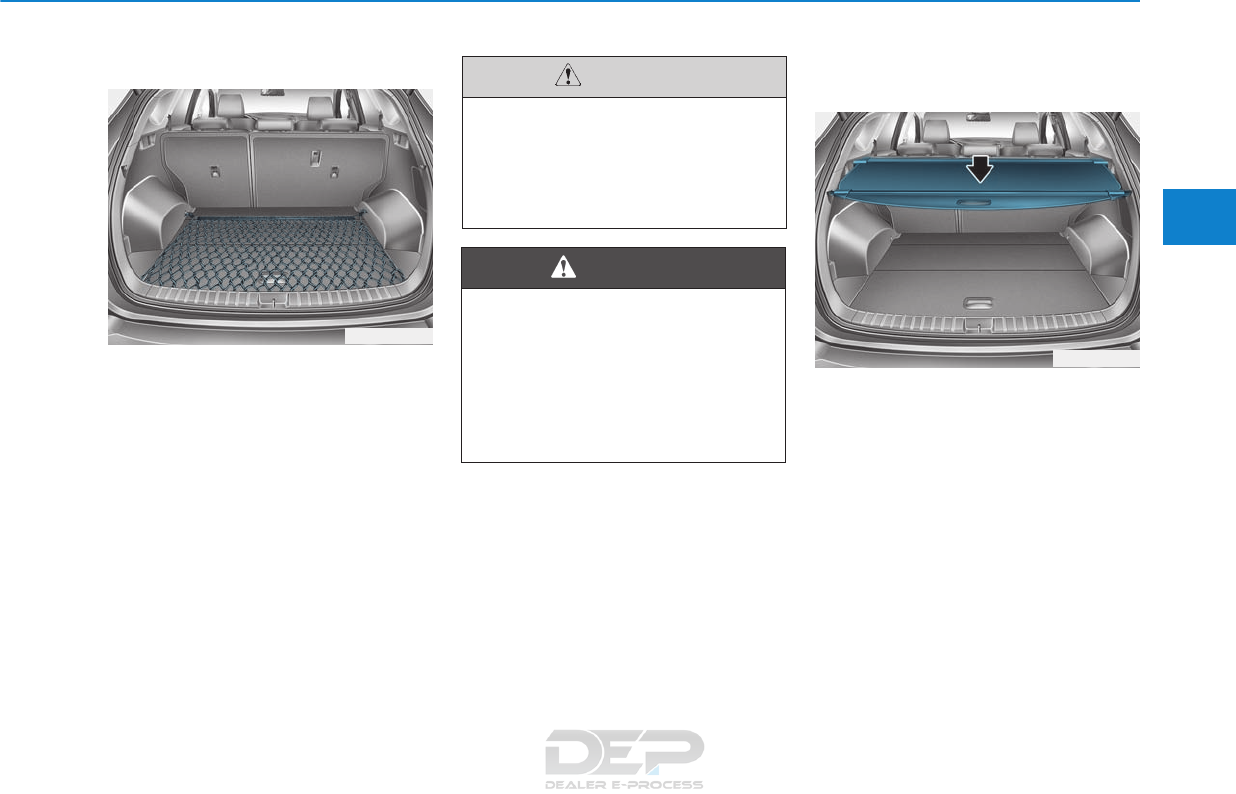

Luggage net (holder) ...................................................3-161

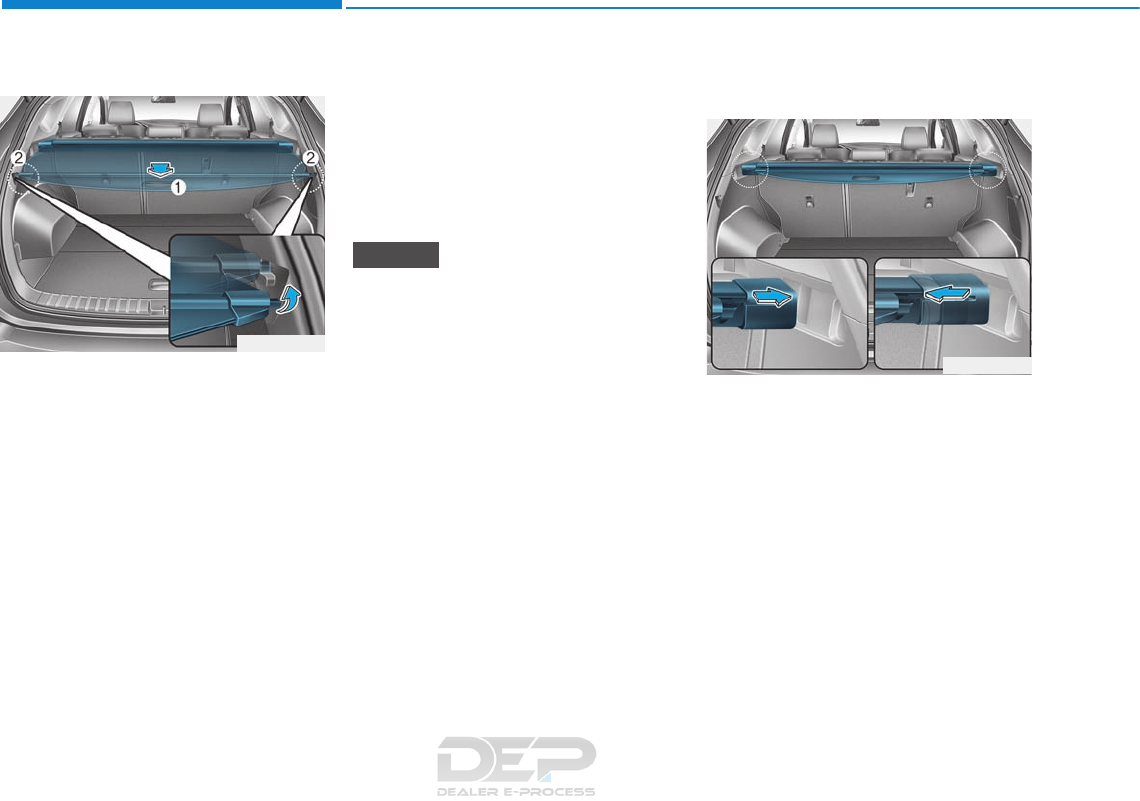

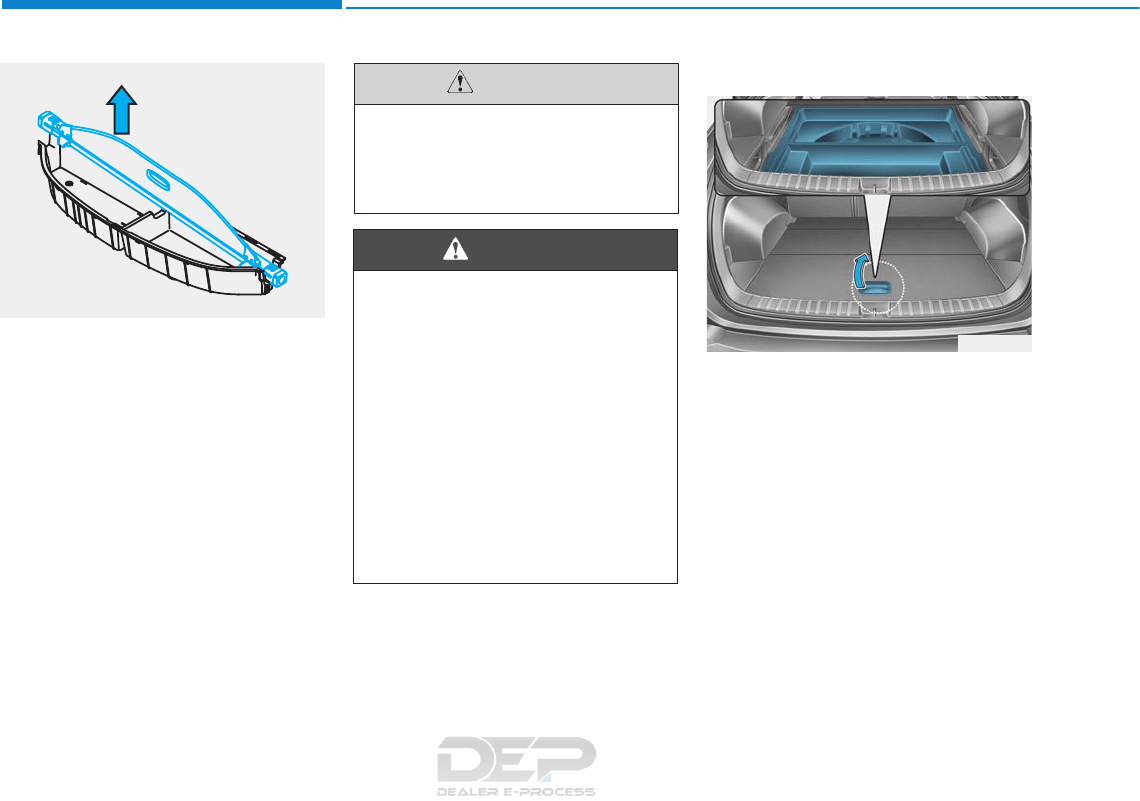

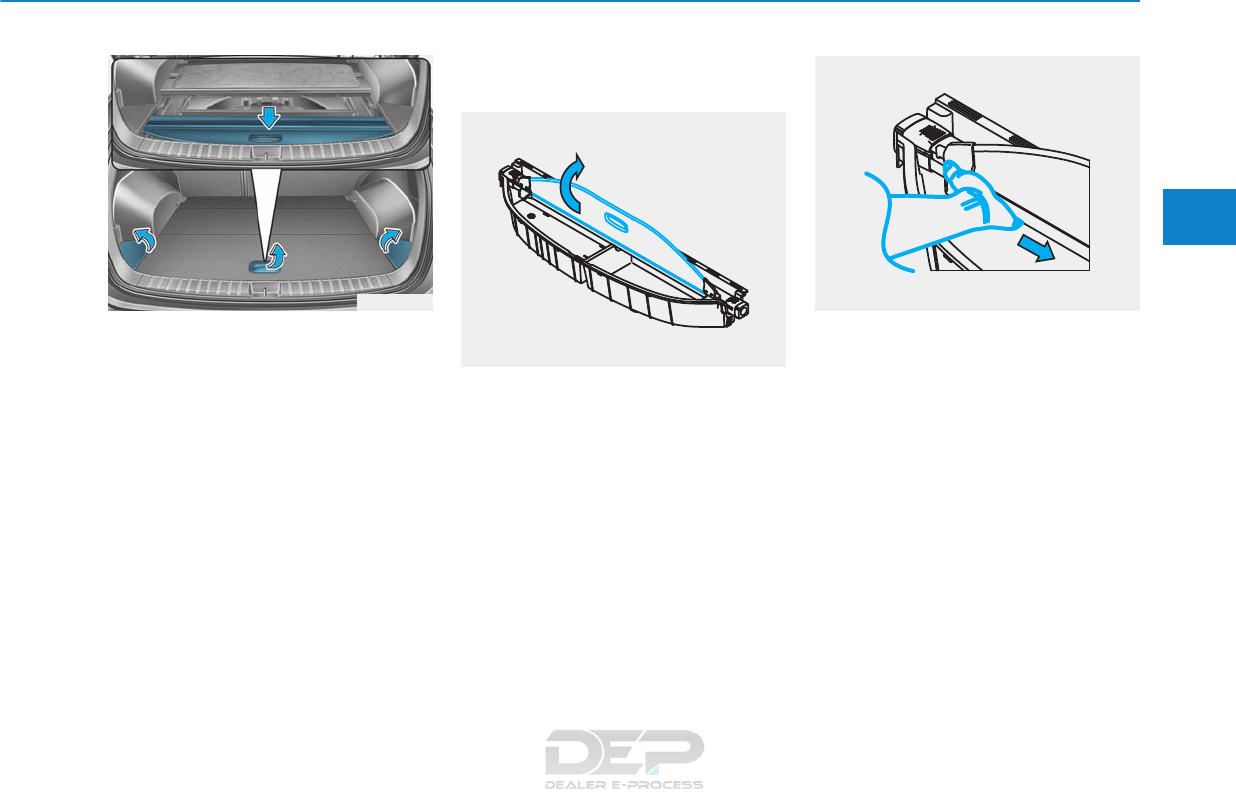

Cargo security screen..................................................3-161

Luggage tray..................................................................3-164

Exterior features ...............................................3-165

Roof rack ........................................................................3-165

F16F16

Multimedia System.................................................4-2

AUX, USB and iPod®Port ...............................................4-2

Antenna ...............................................................................4-2

Steering Wheel Audio Control........................................4-3

Audio / Video / Navigation System (AVN)..................4-4

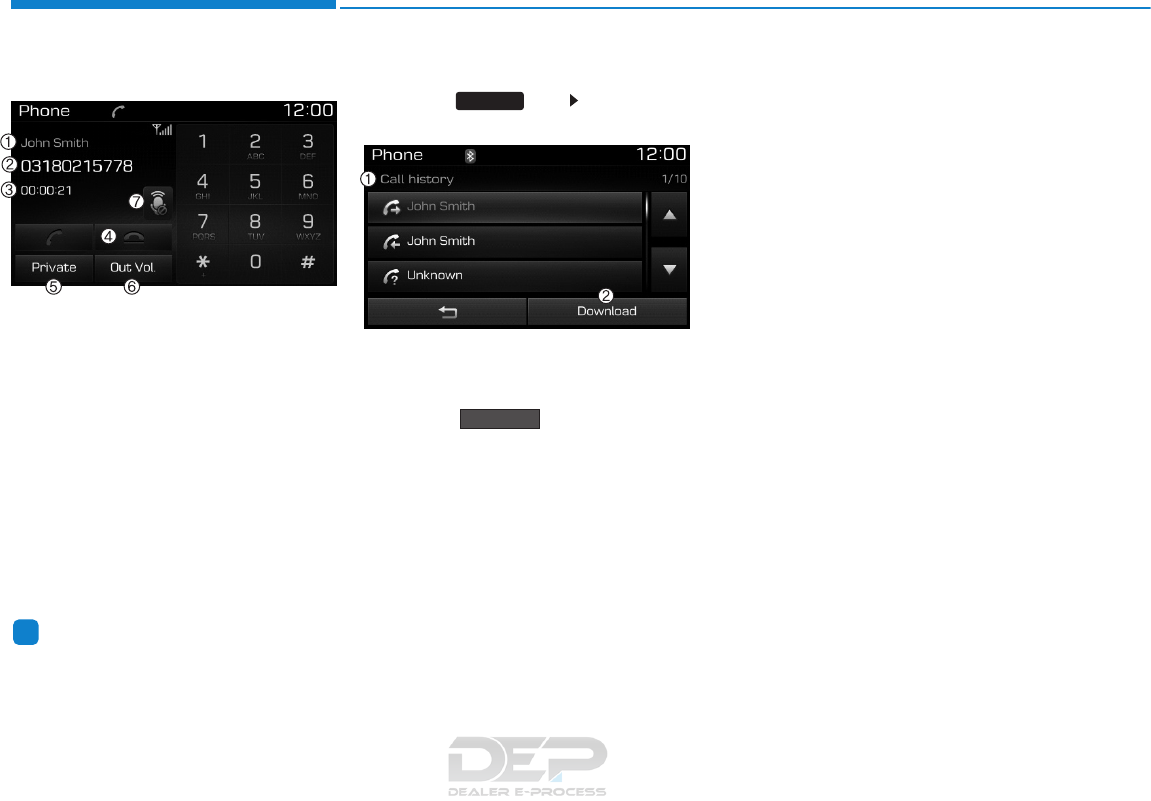

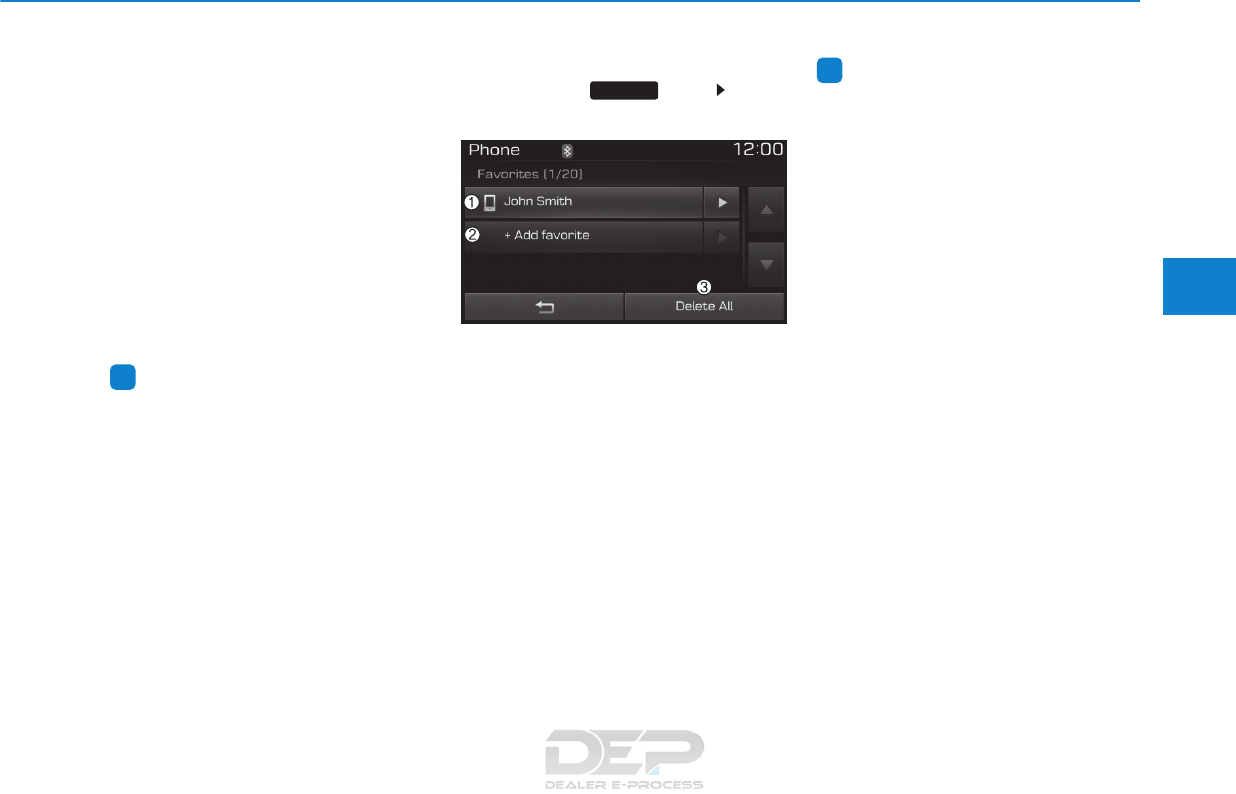

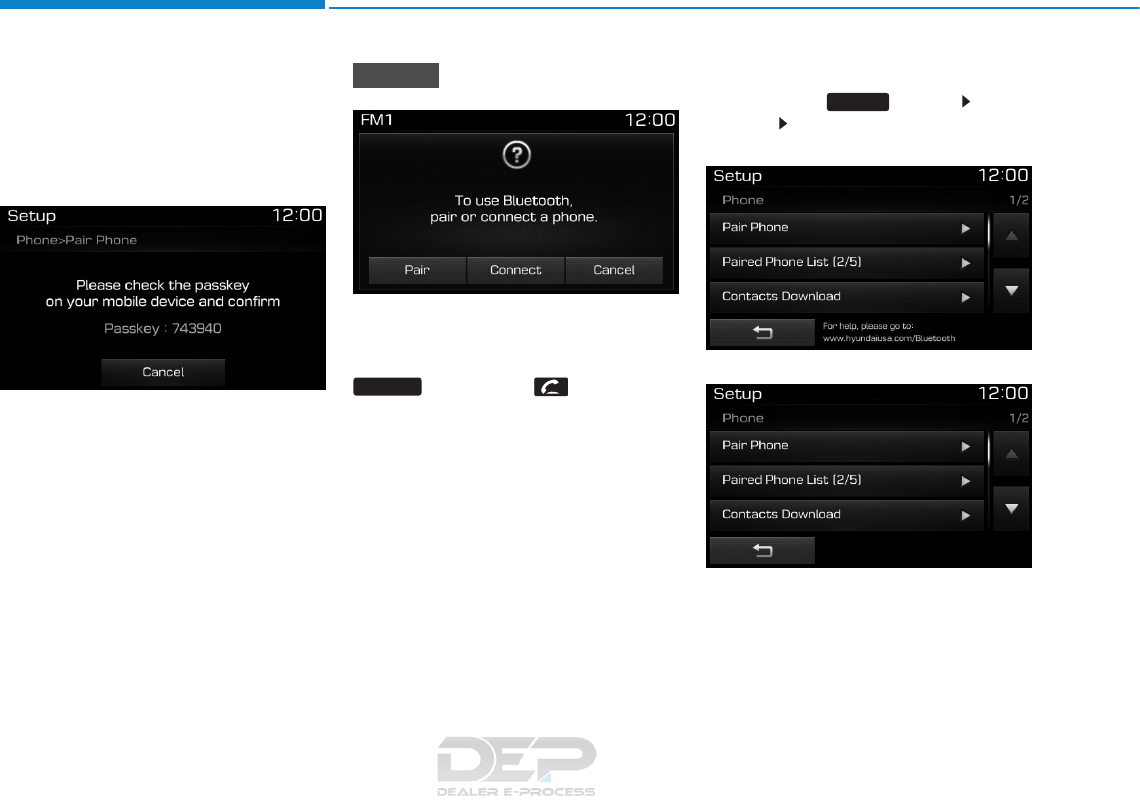

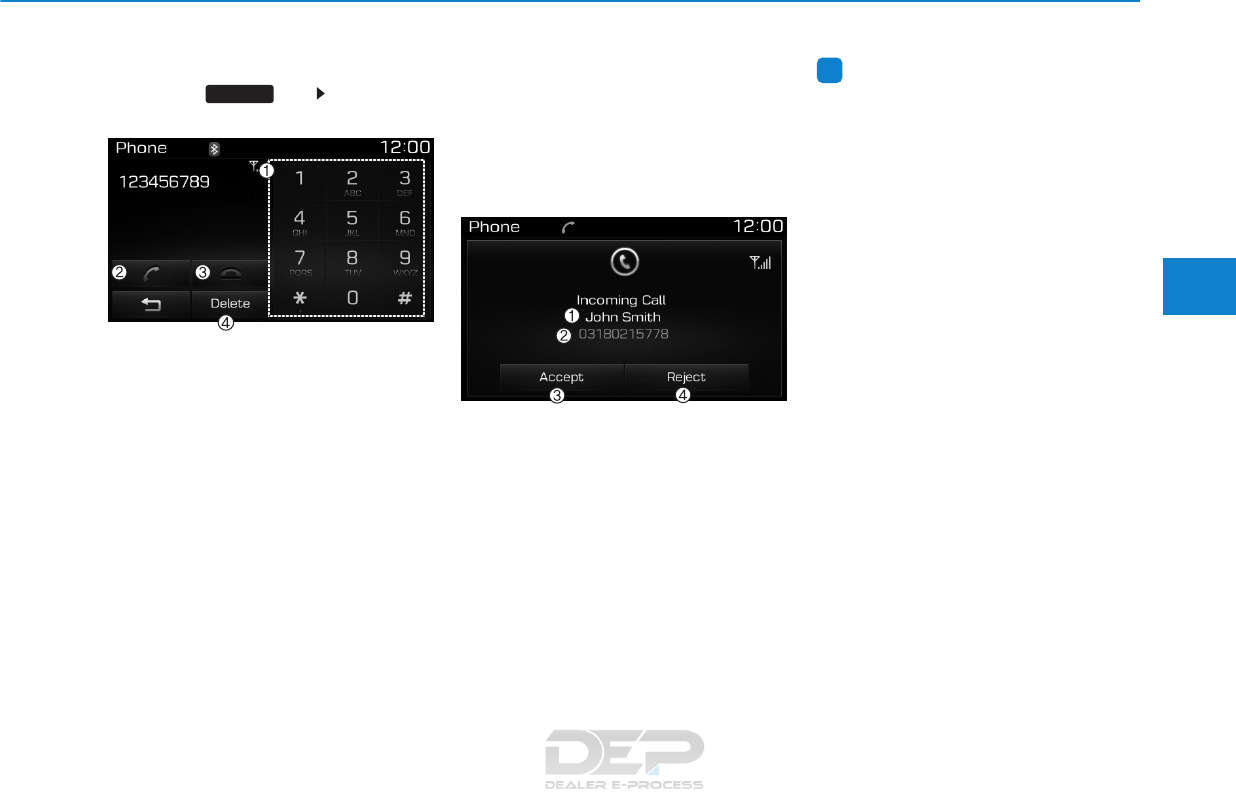

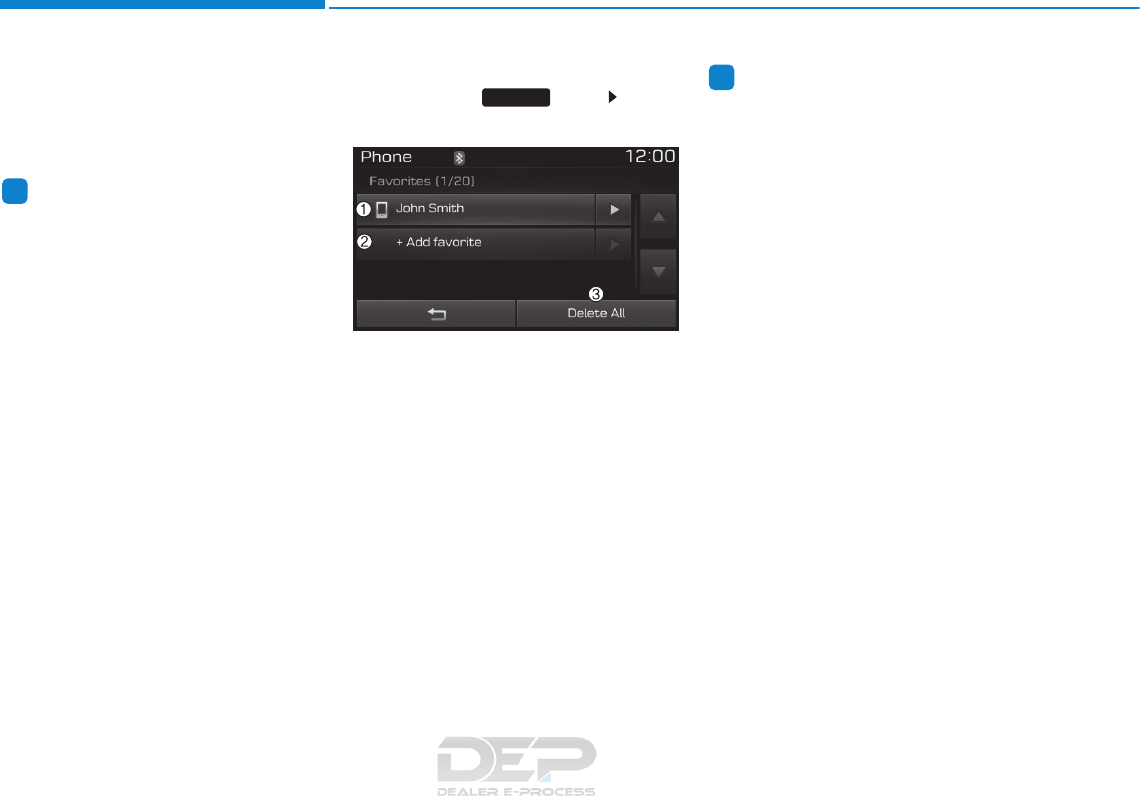

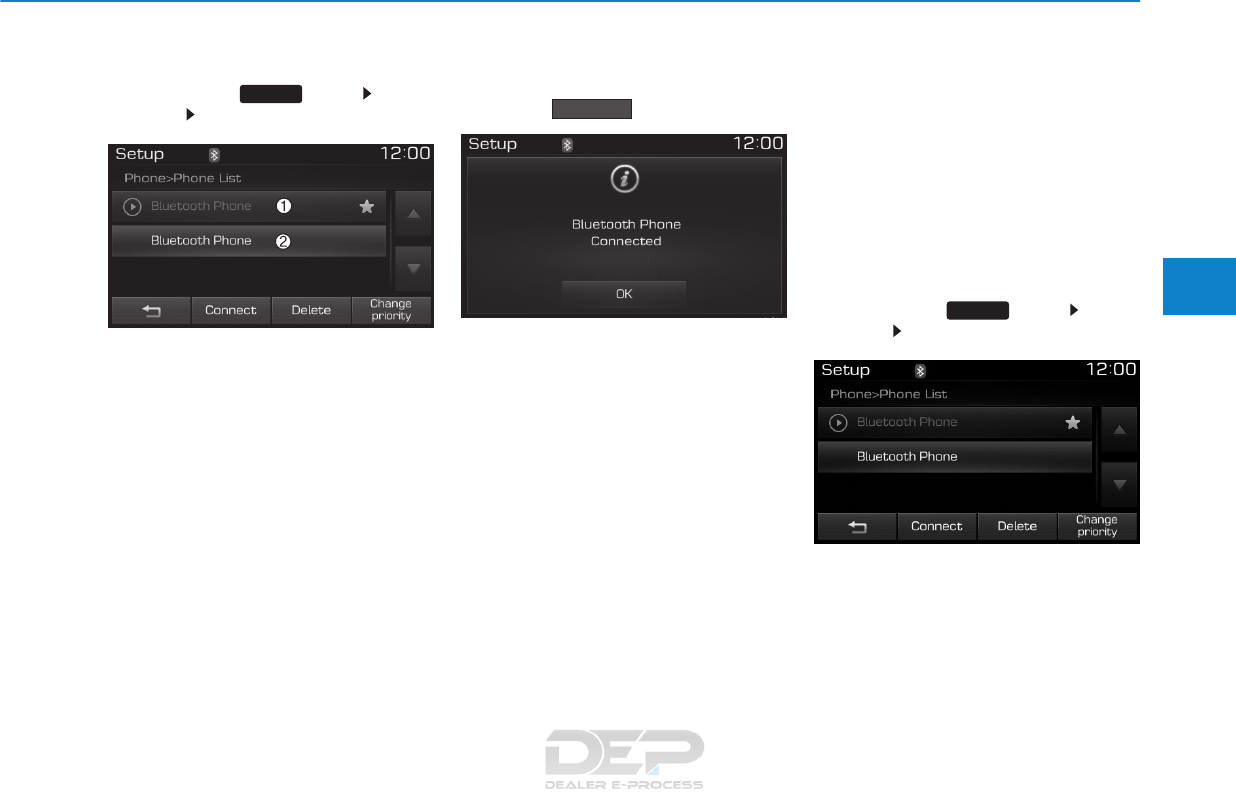

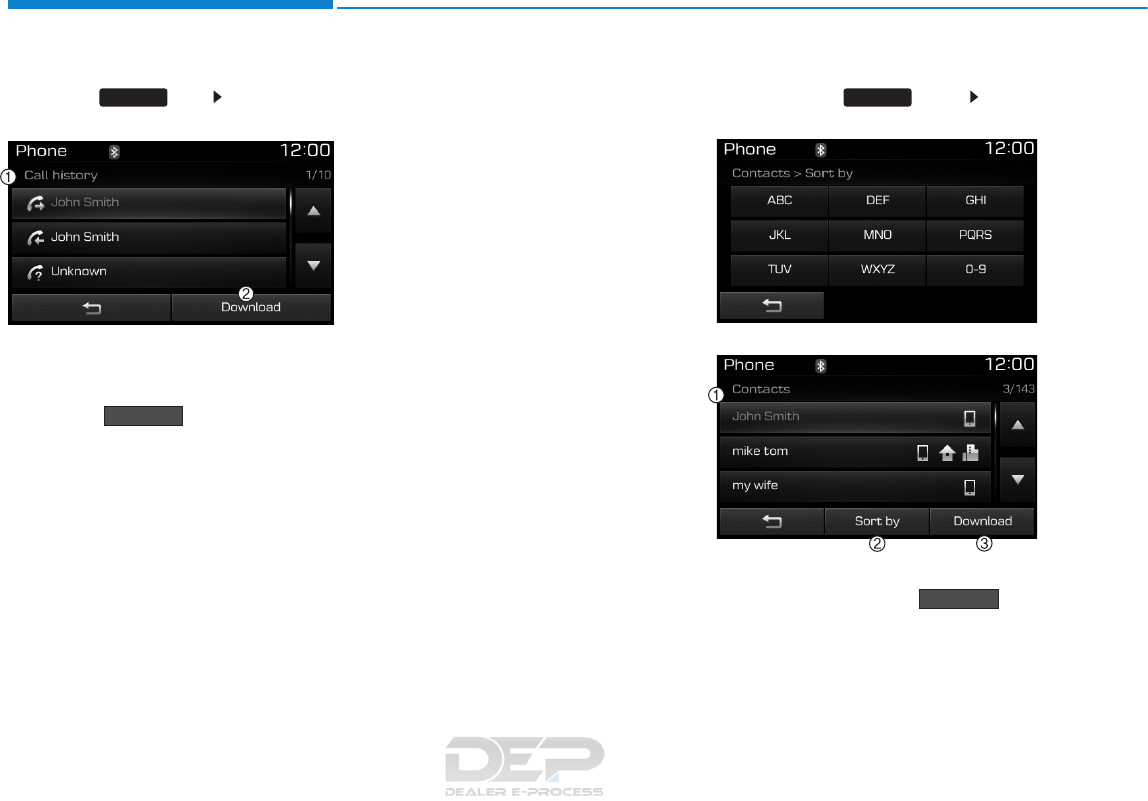

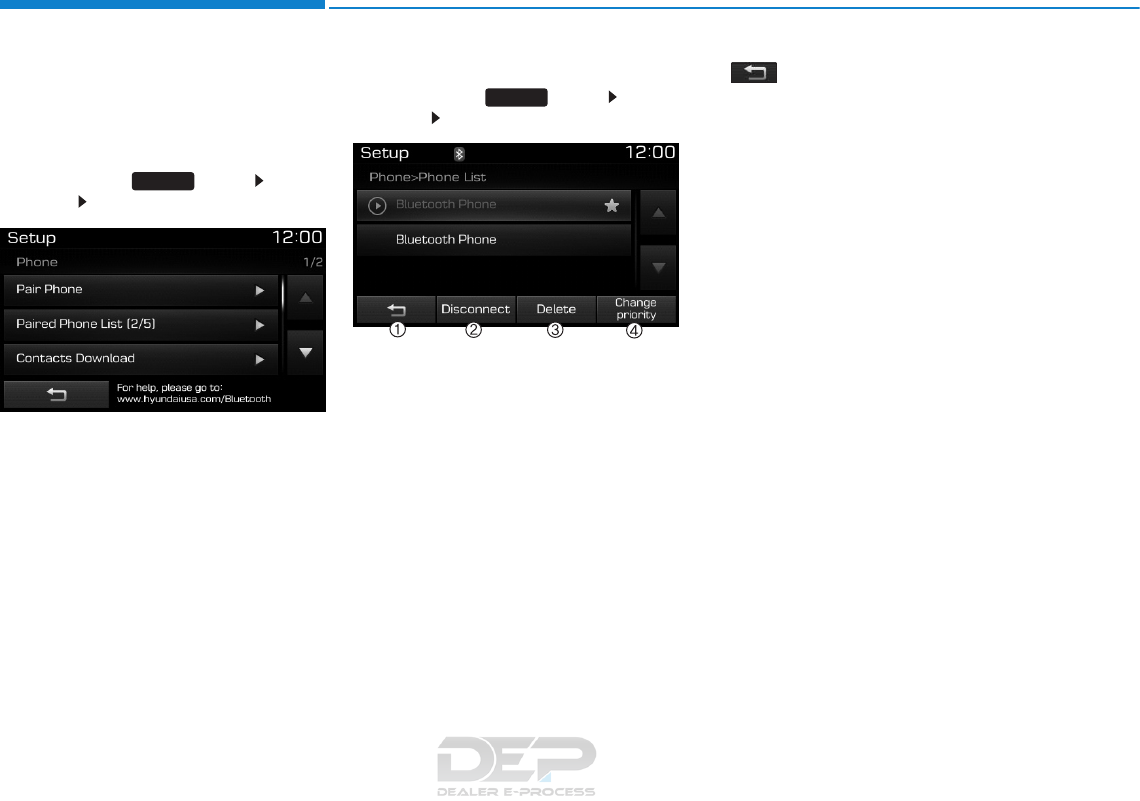

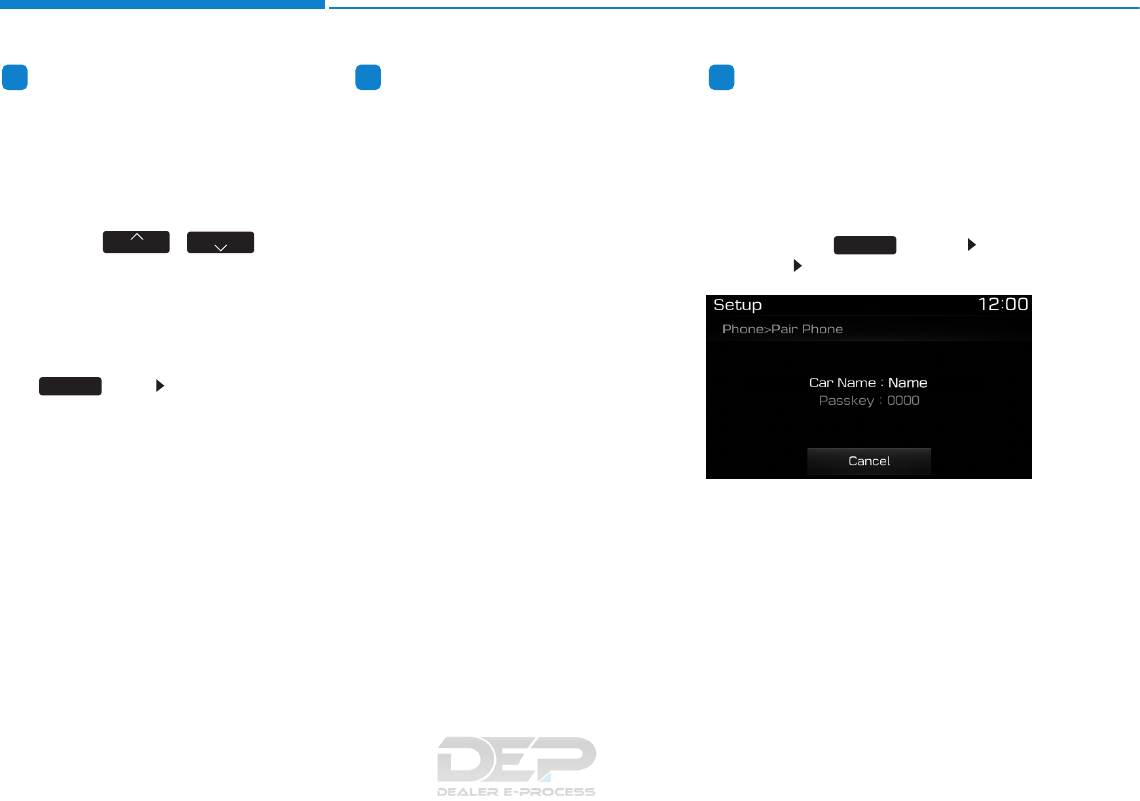

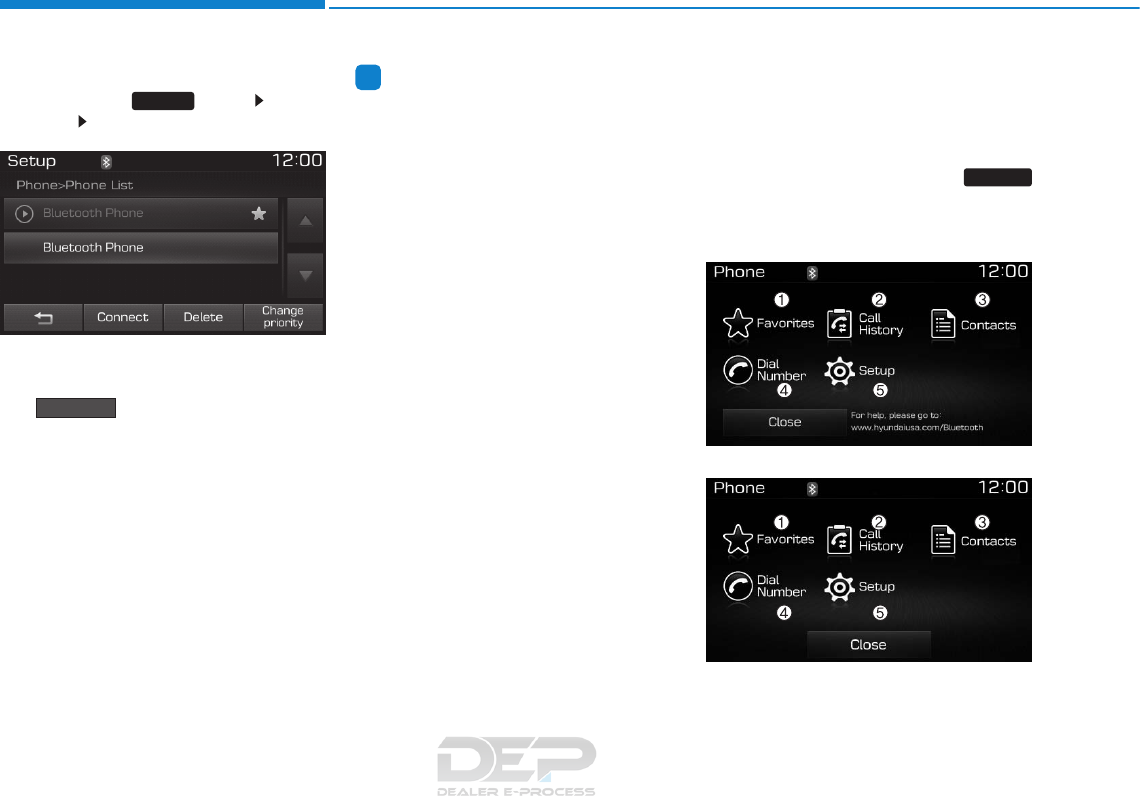

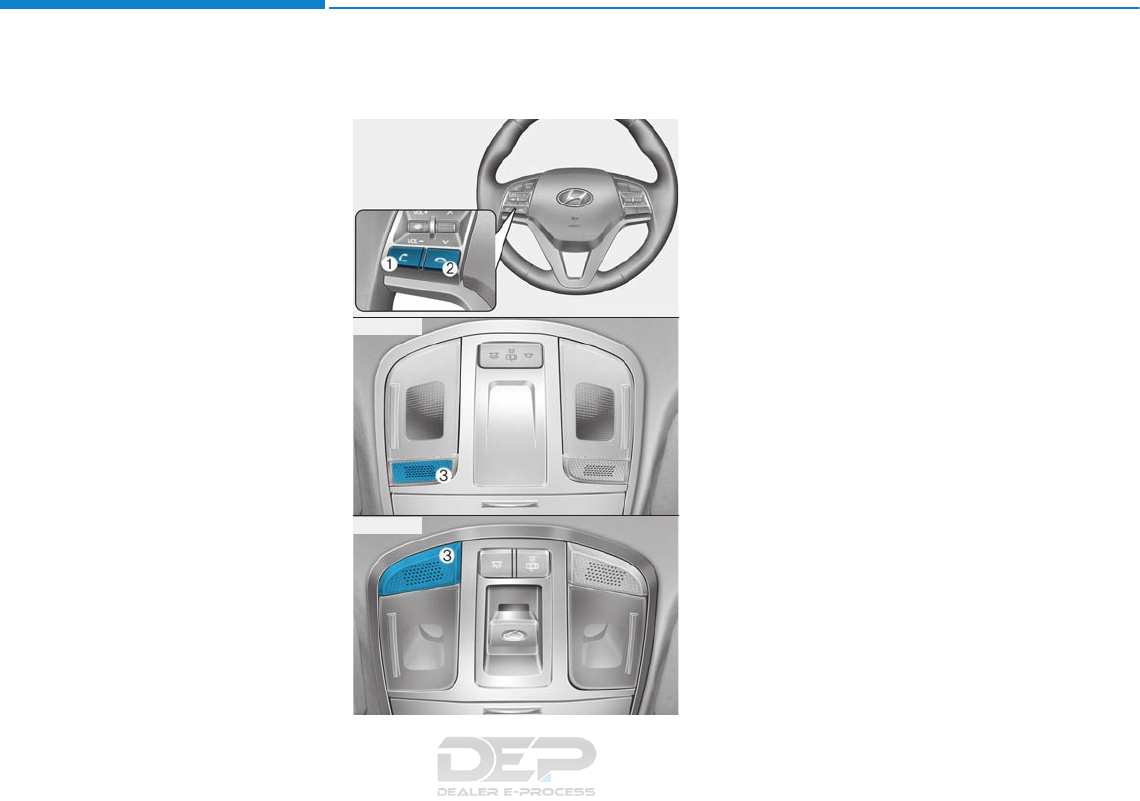

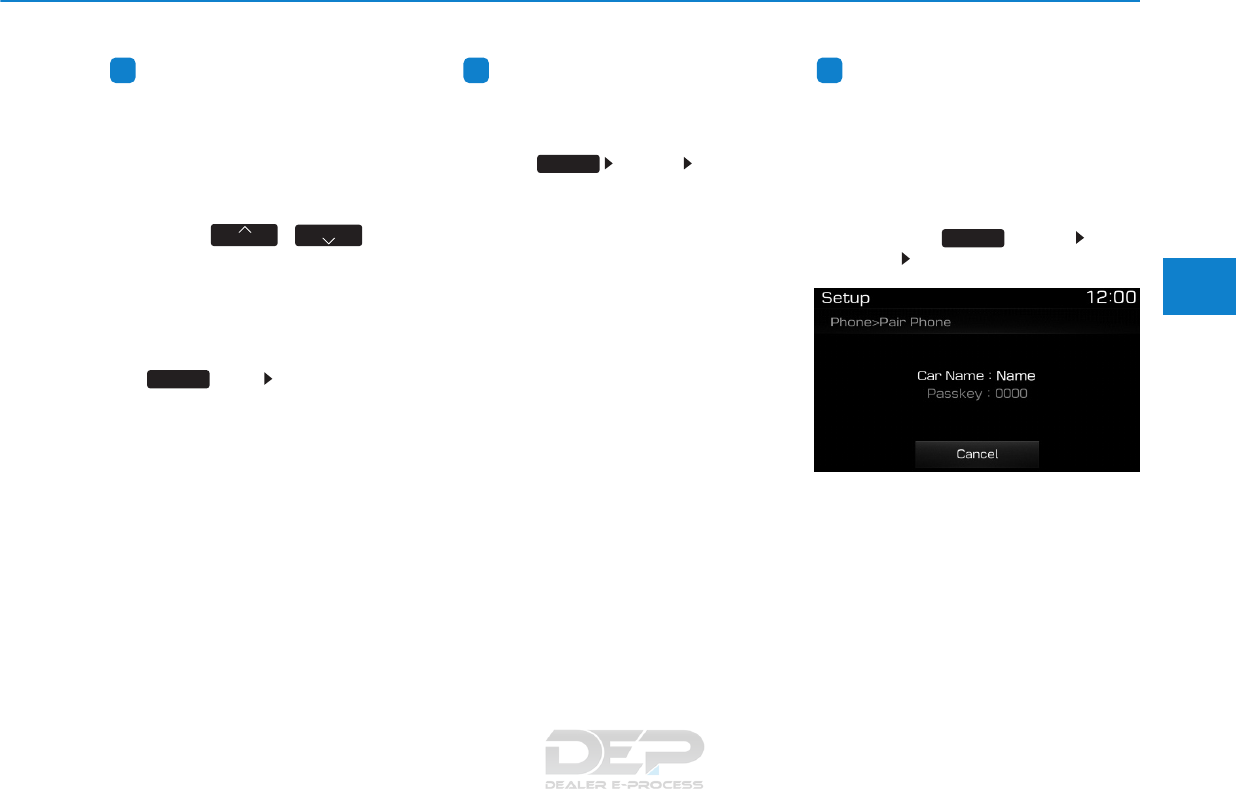

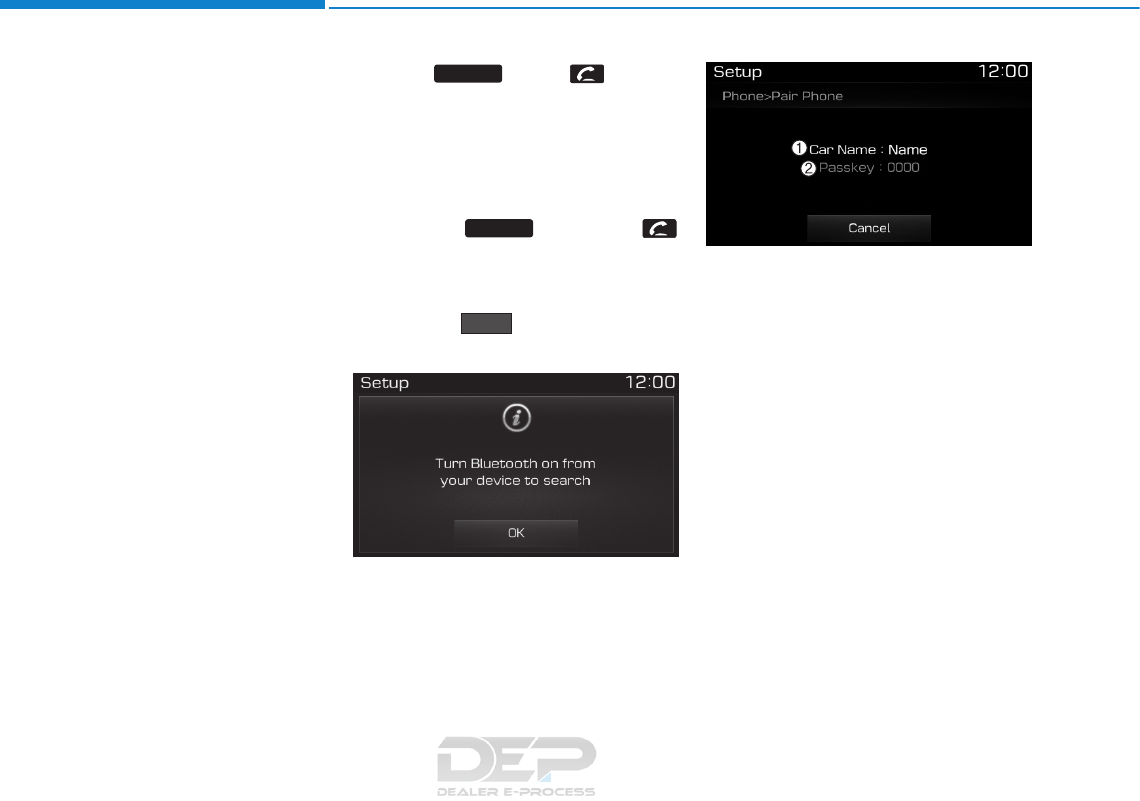

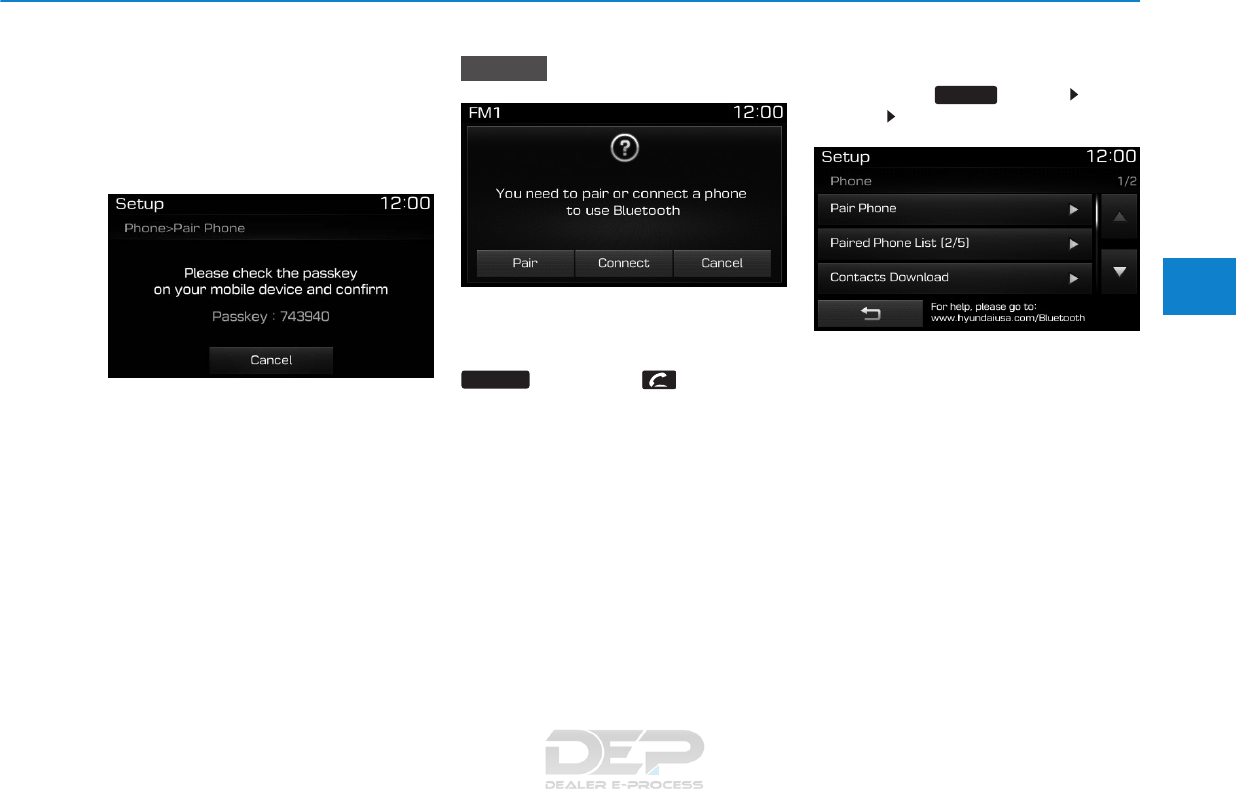

Bluetooth

®Wireless Technology Hands-Free...........4-4

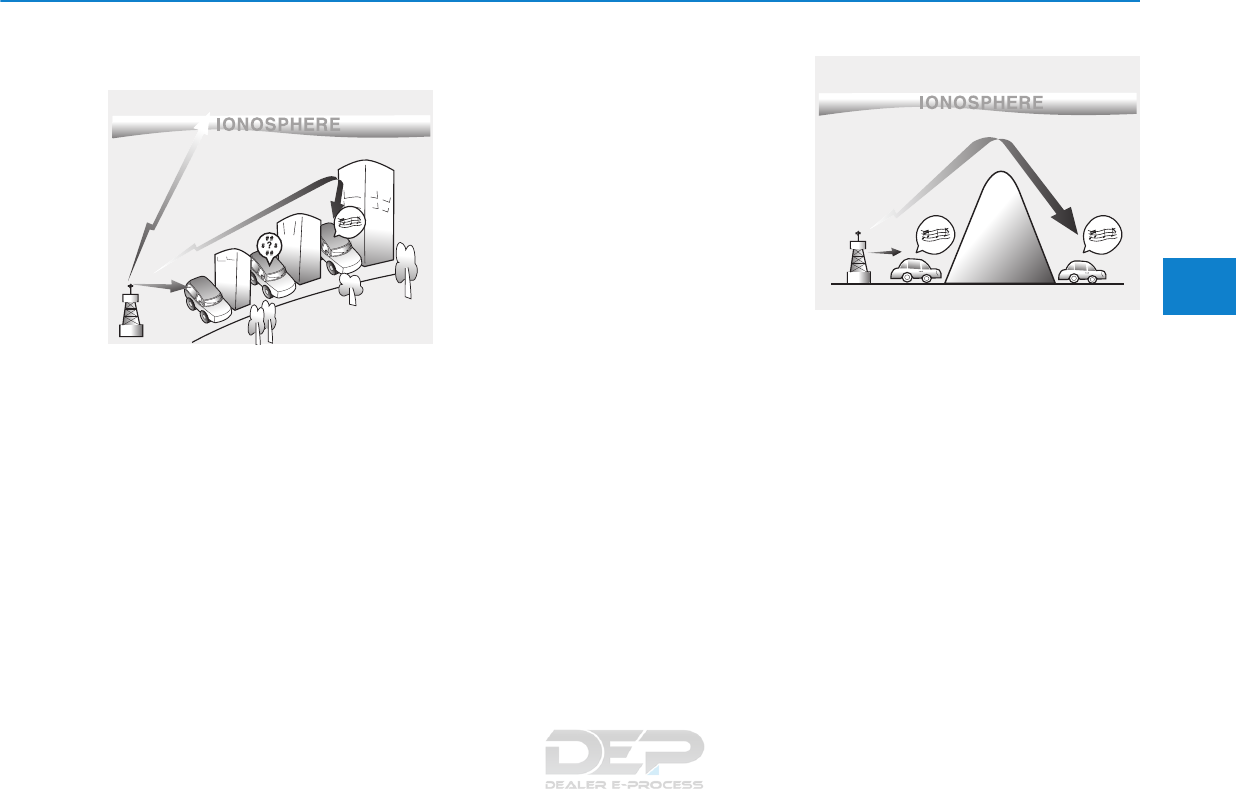

How Vehicle Audio Works ...............................................4-5

Features of Your Vehicle.................................................4-7

Caring for Disc ...................................................................4-8

System Controllers and Functions..........4-18, 4-71

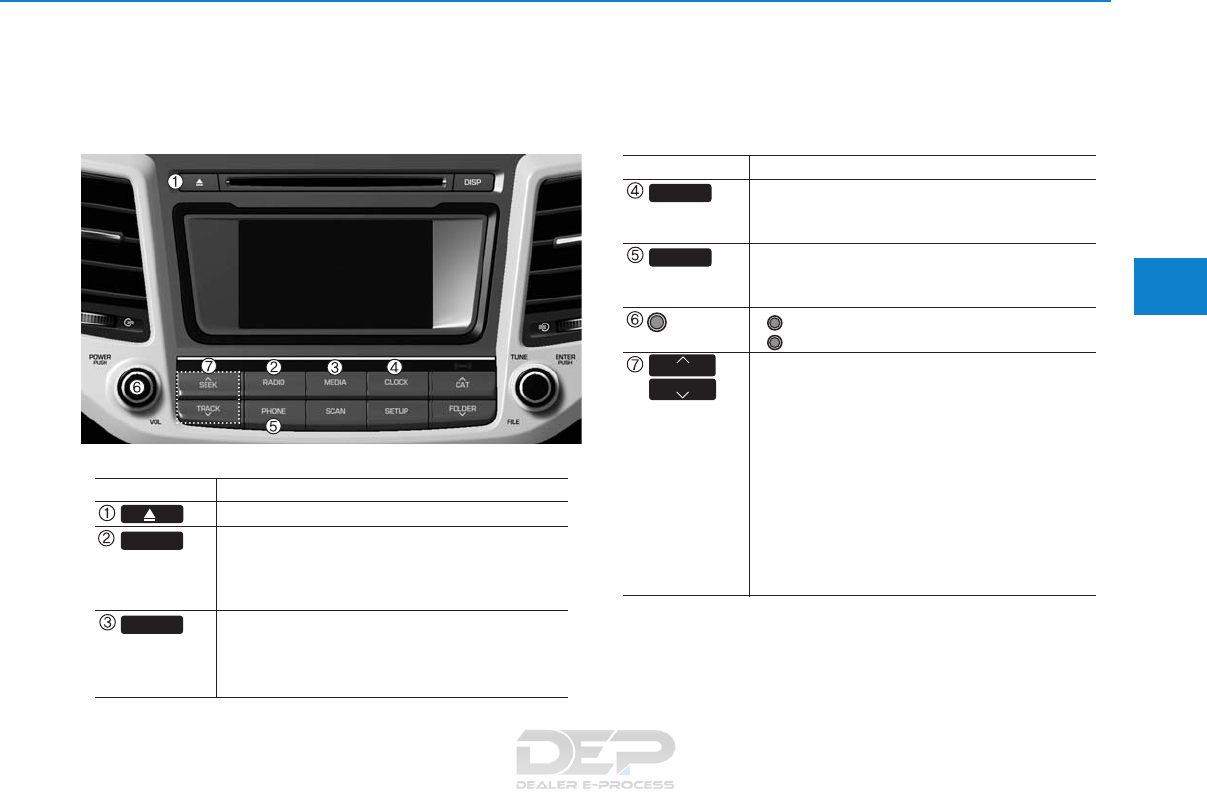

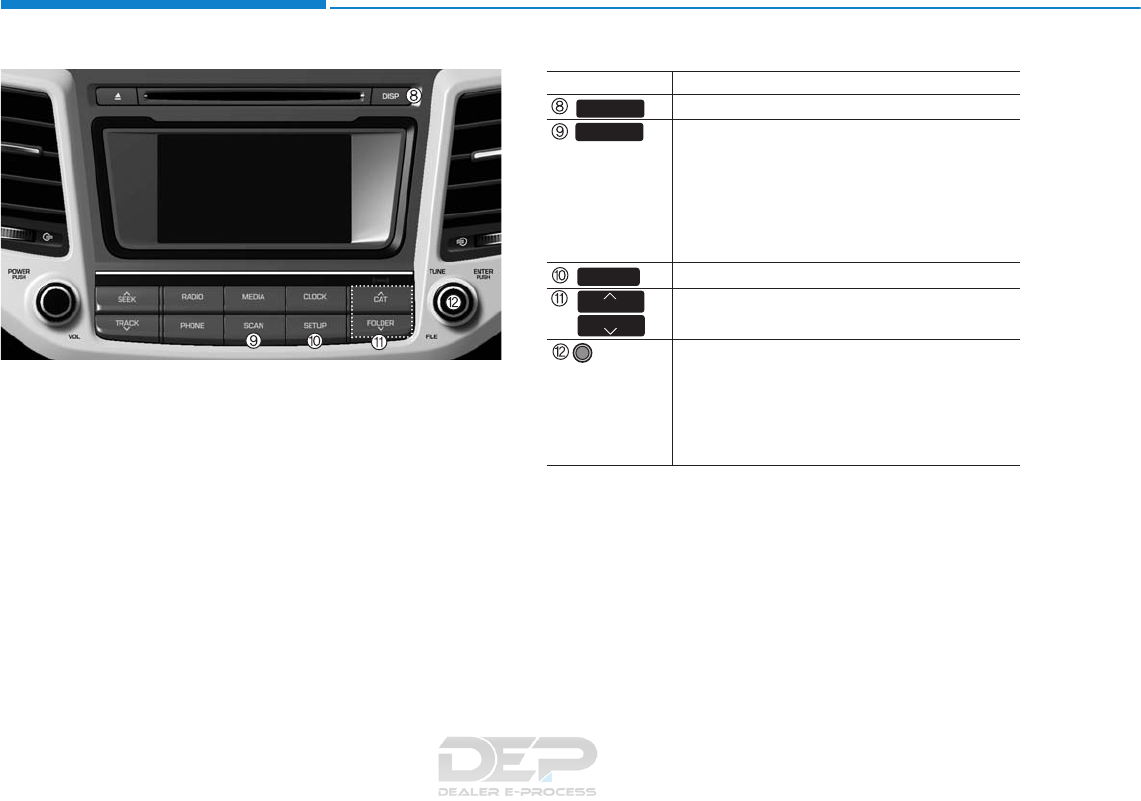

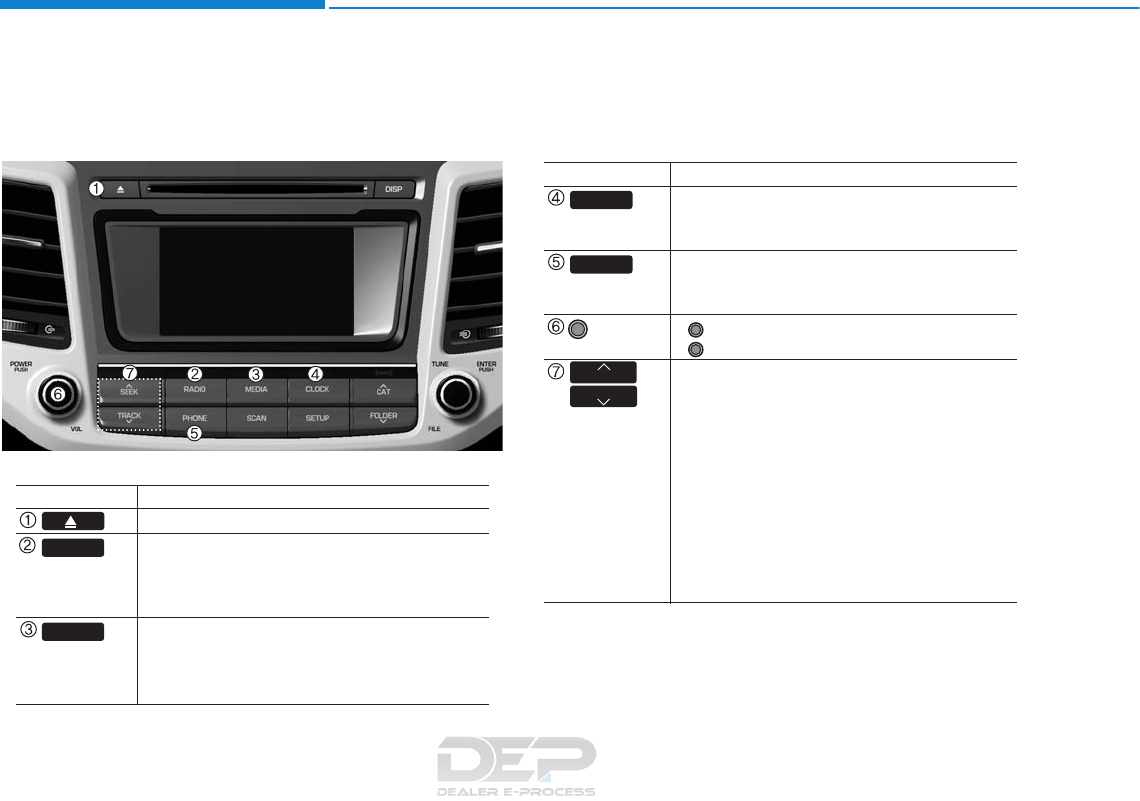

Audio Head Unit ...................................................4-18, 4-71

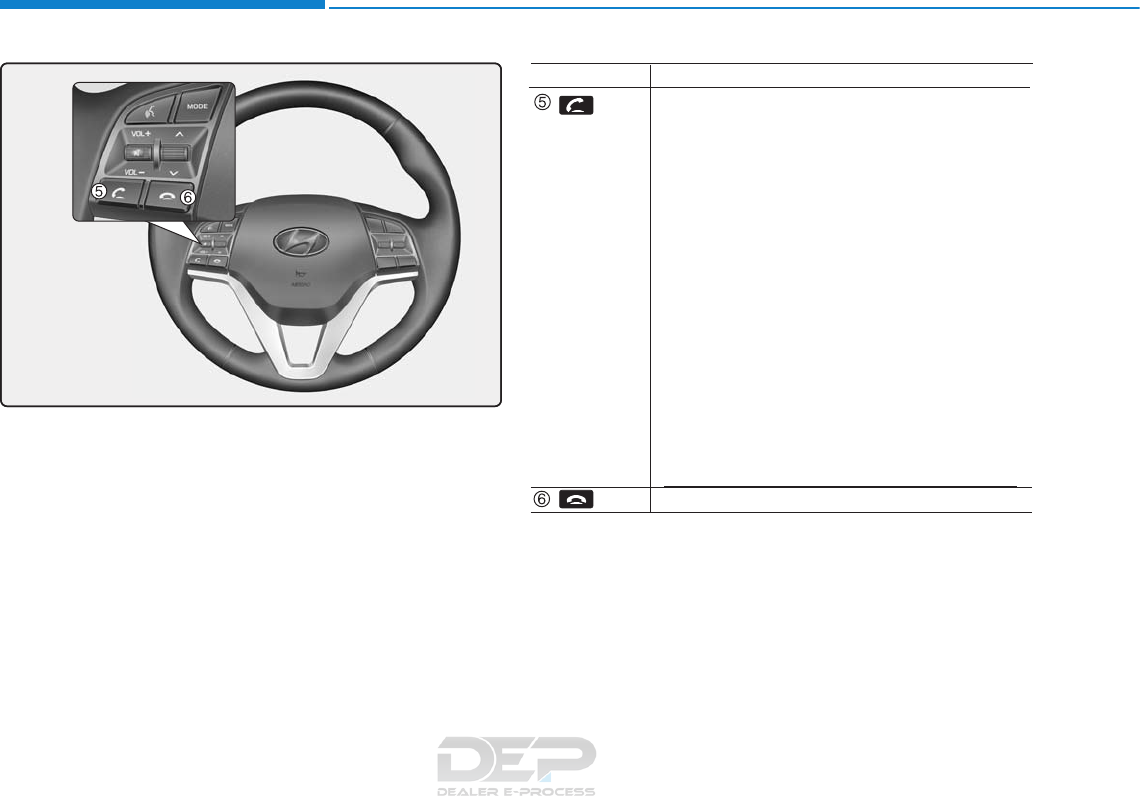

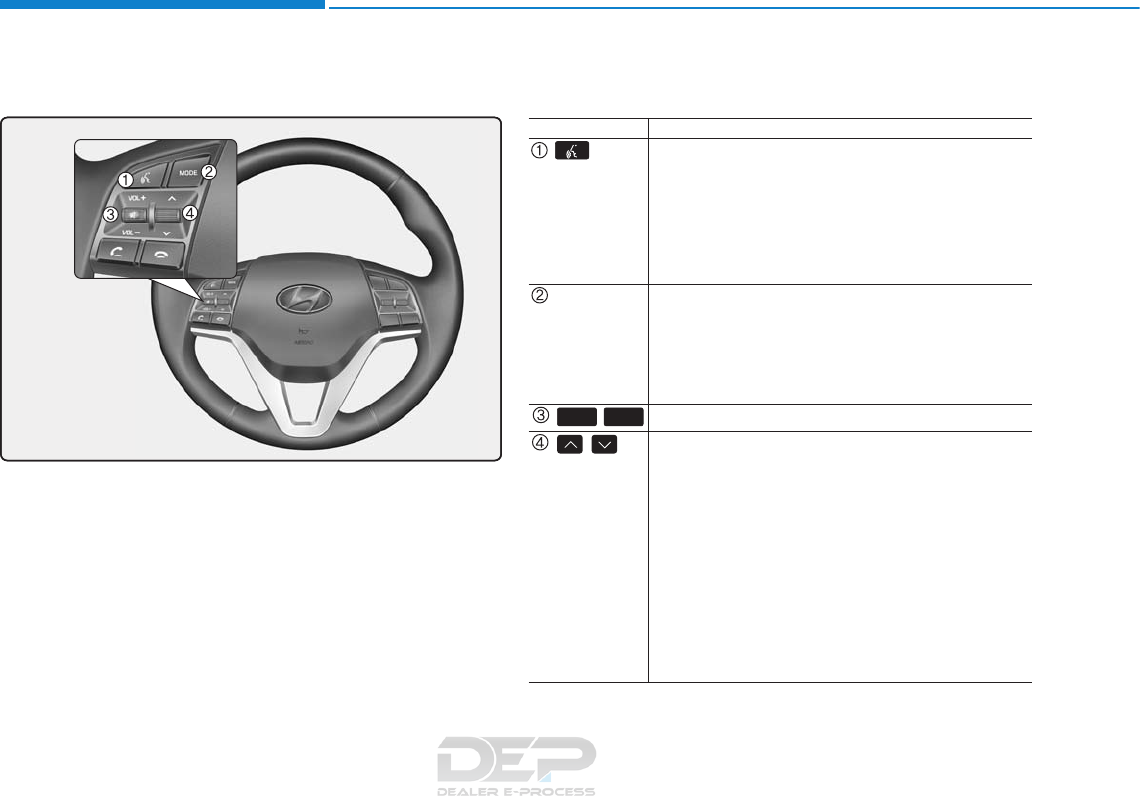

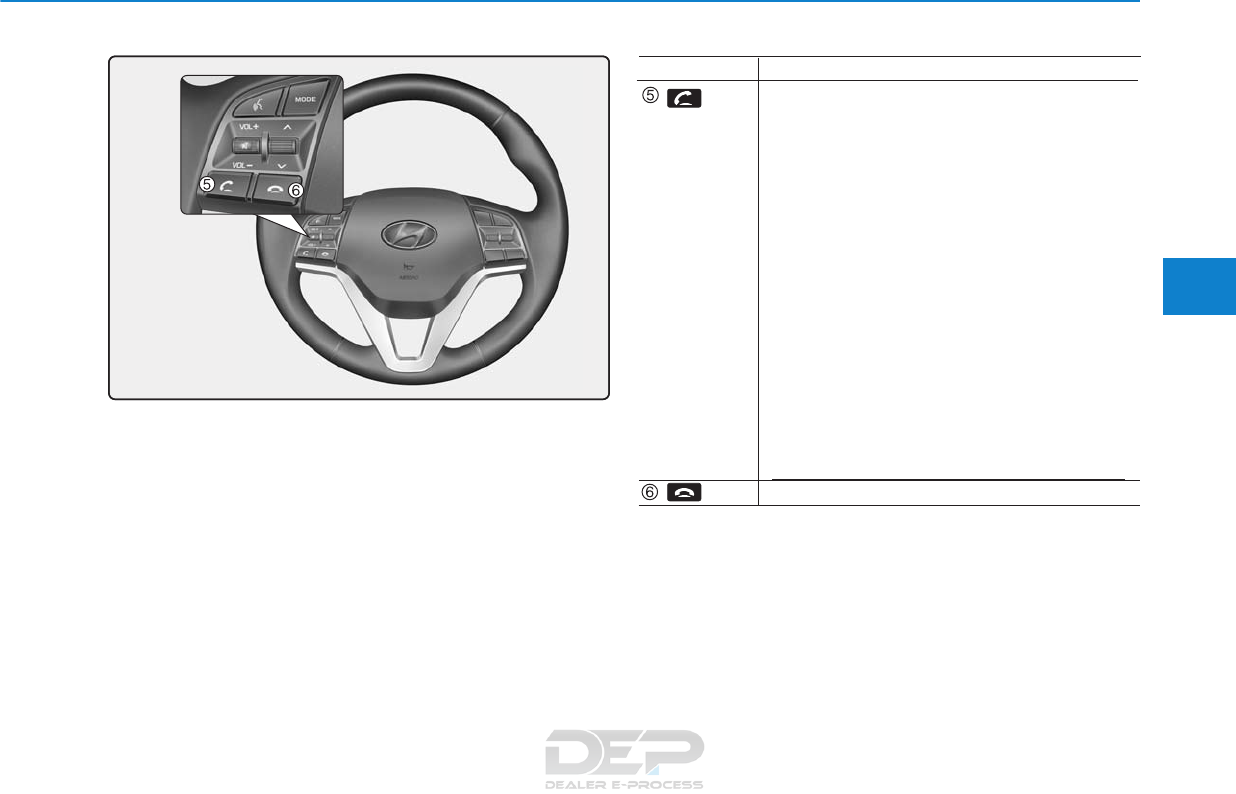

Steering-Wheel Mounted Controls .................4-20, 4-73

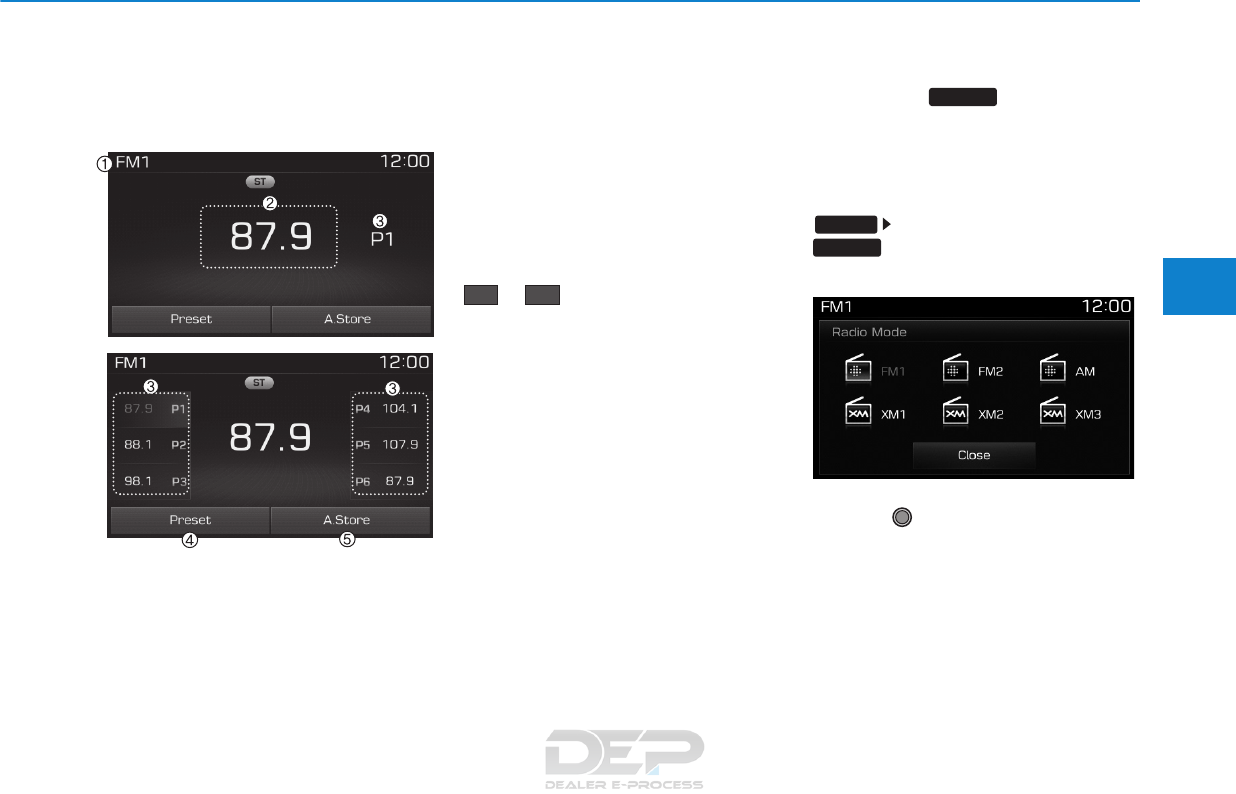

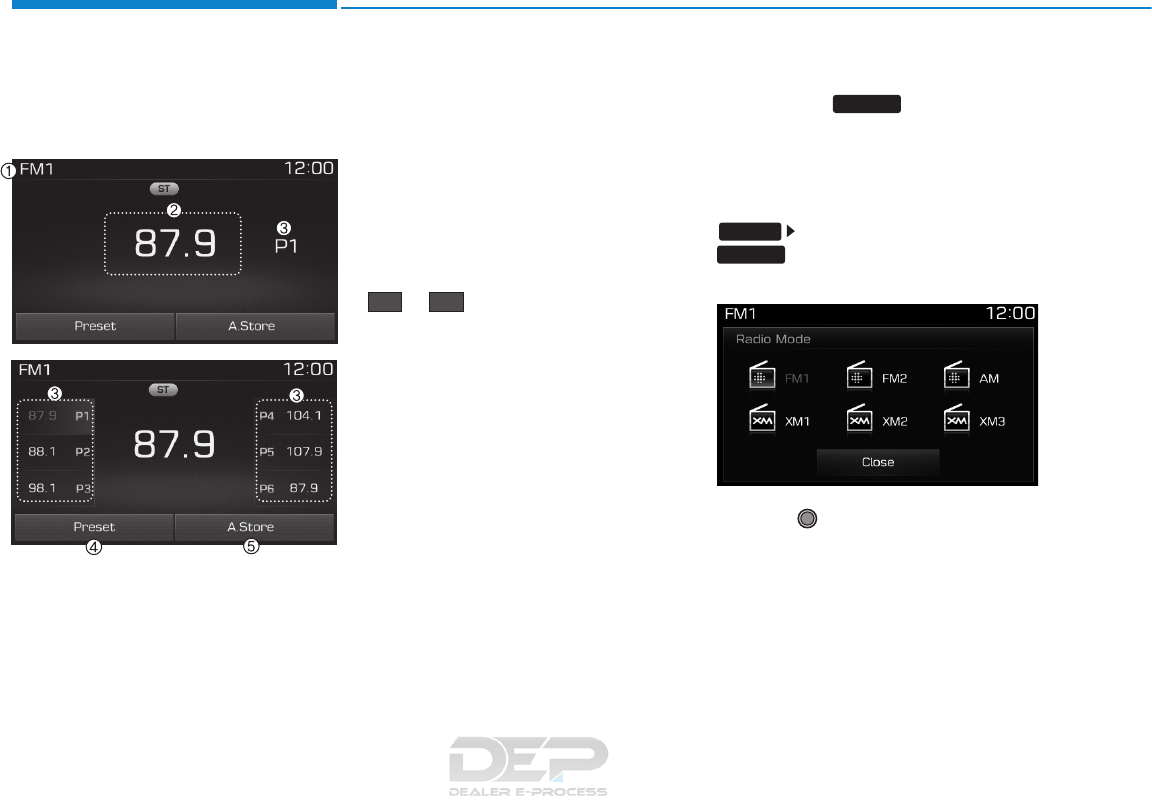

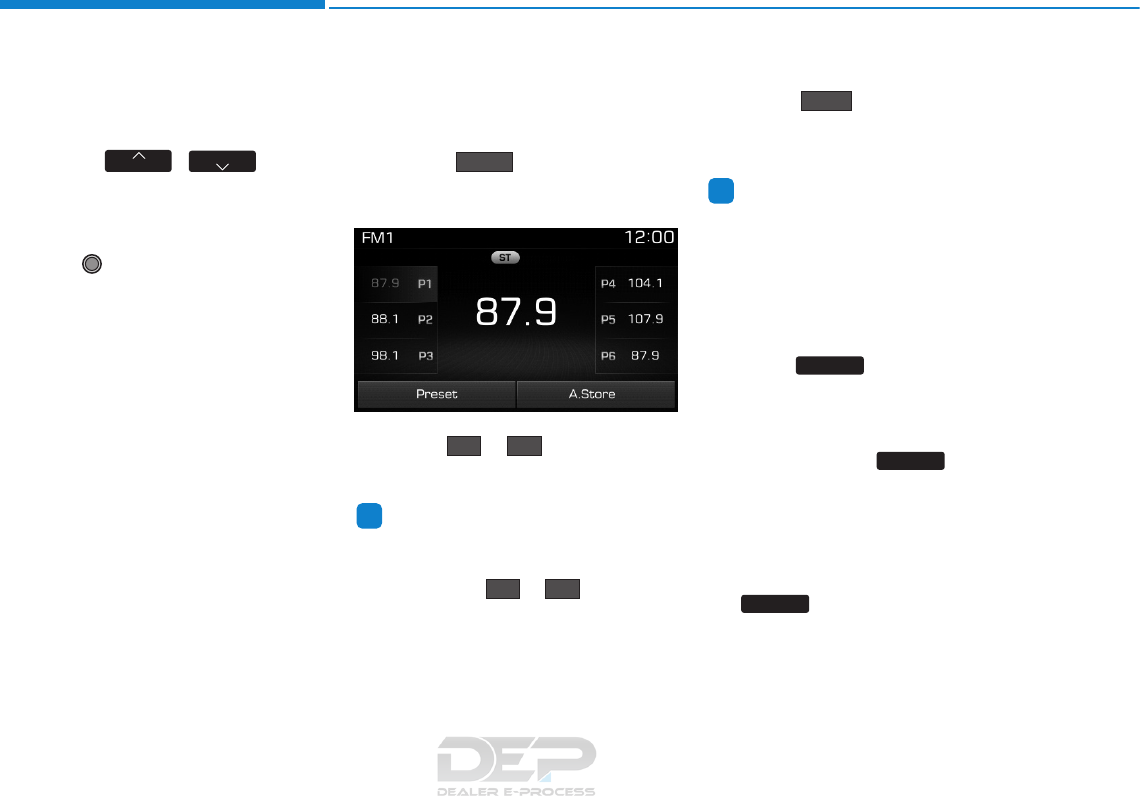

Radio Mode ...........................................................4-22, 4-75

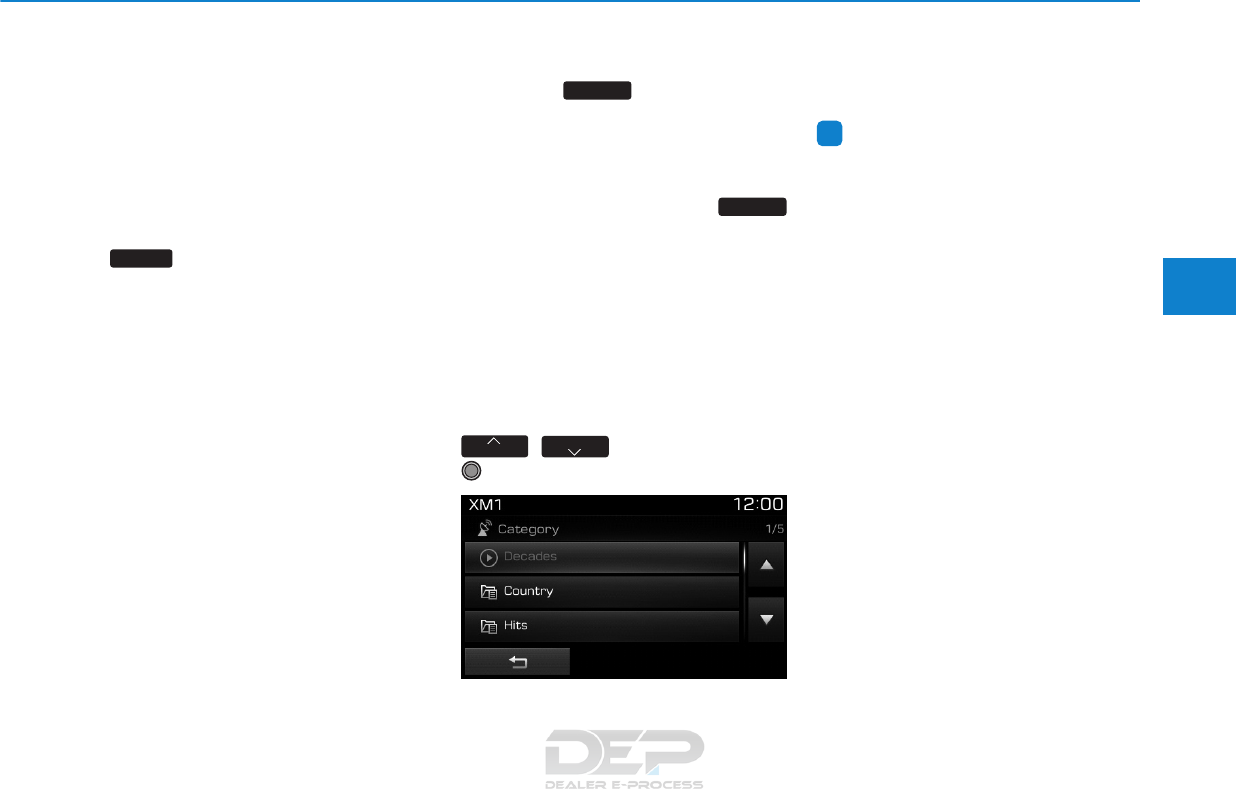

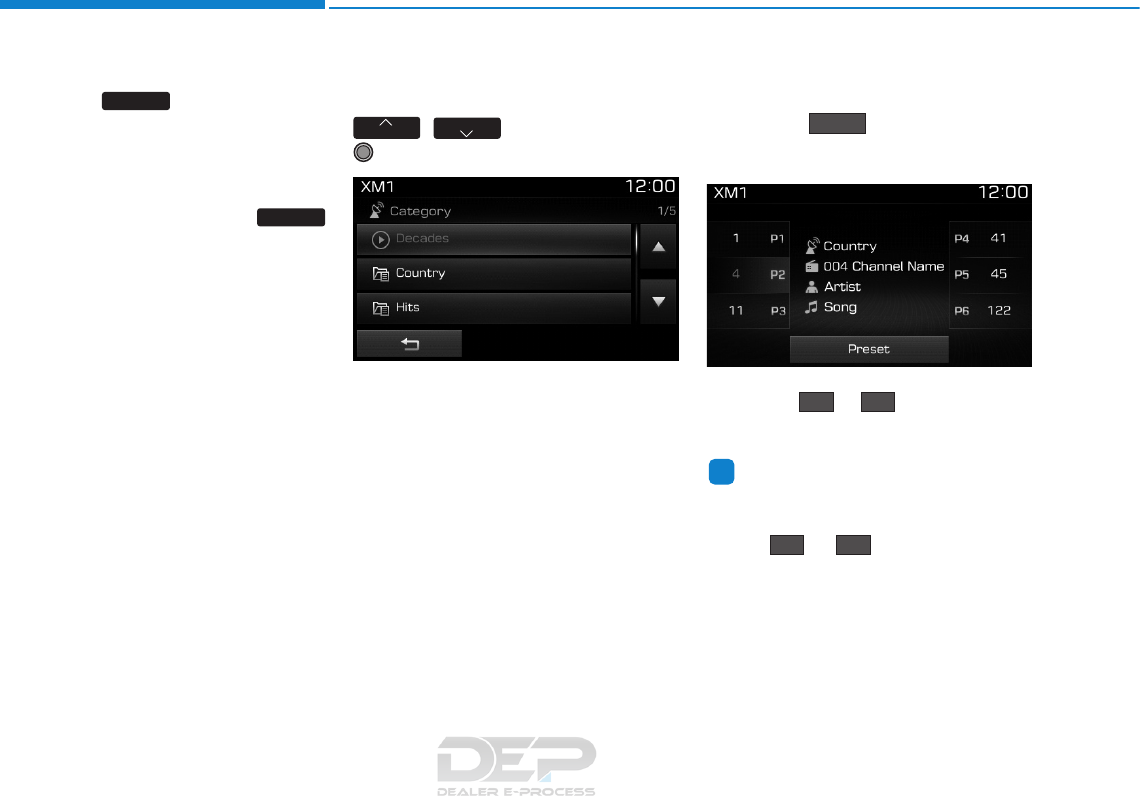

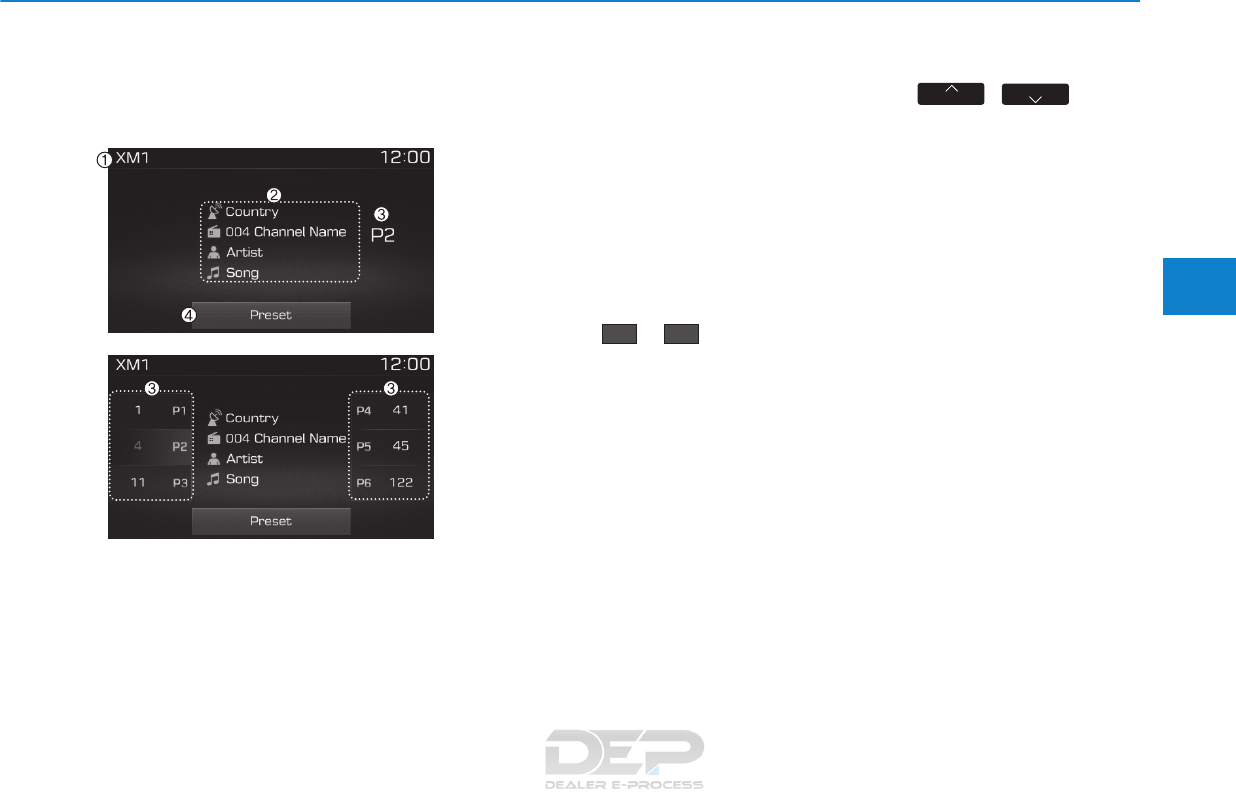

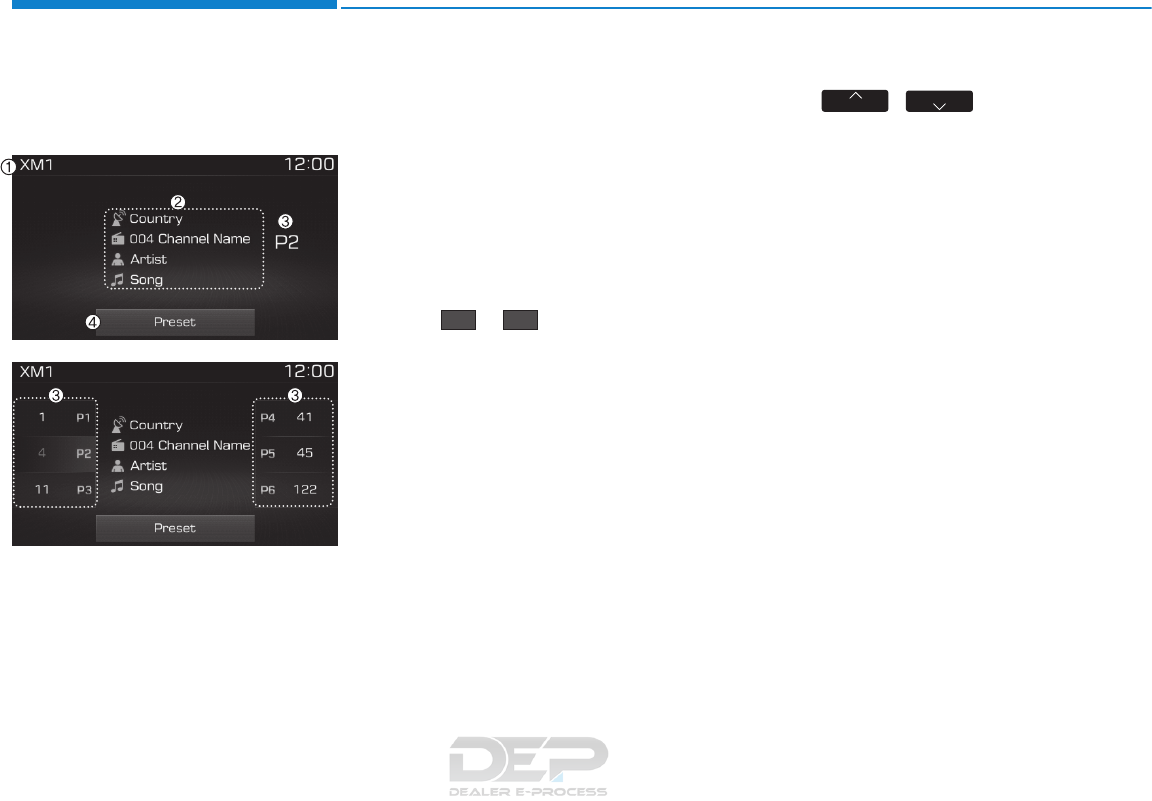

SiriusXM Radio Mode / XMTM Radio

Mode .......................................................................4-26, 4-77

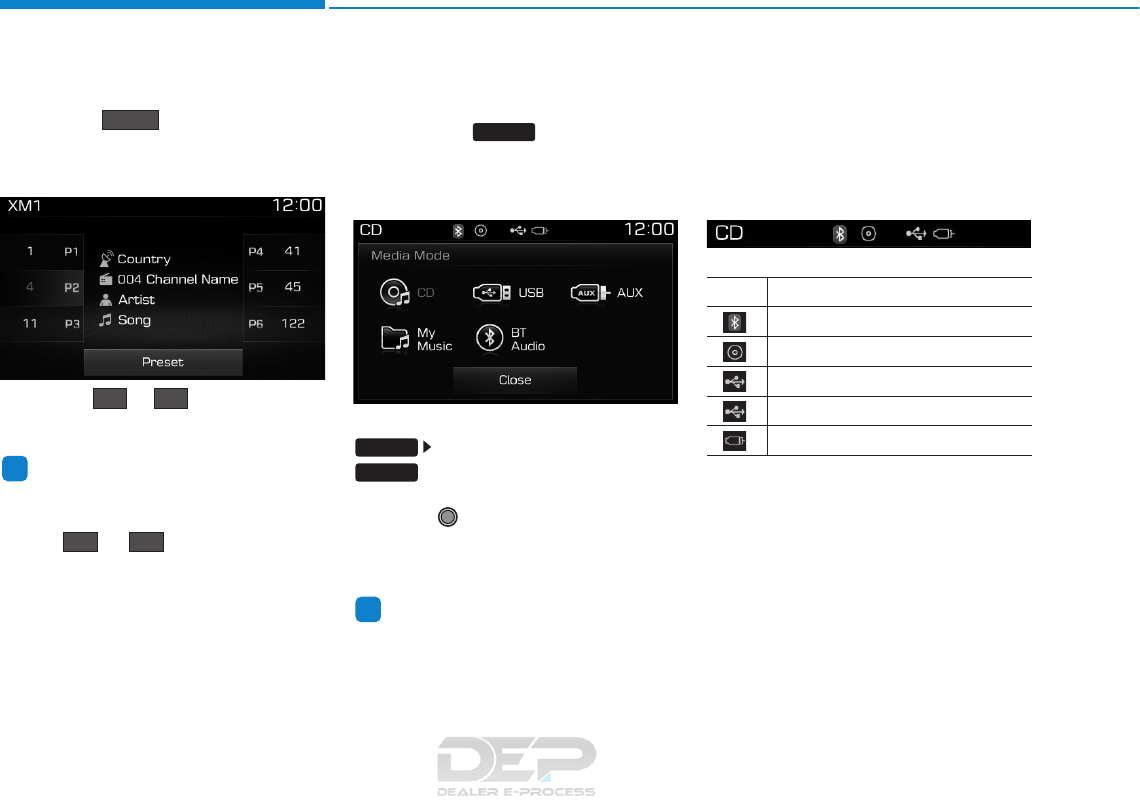

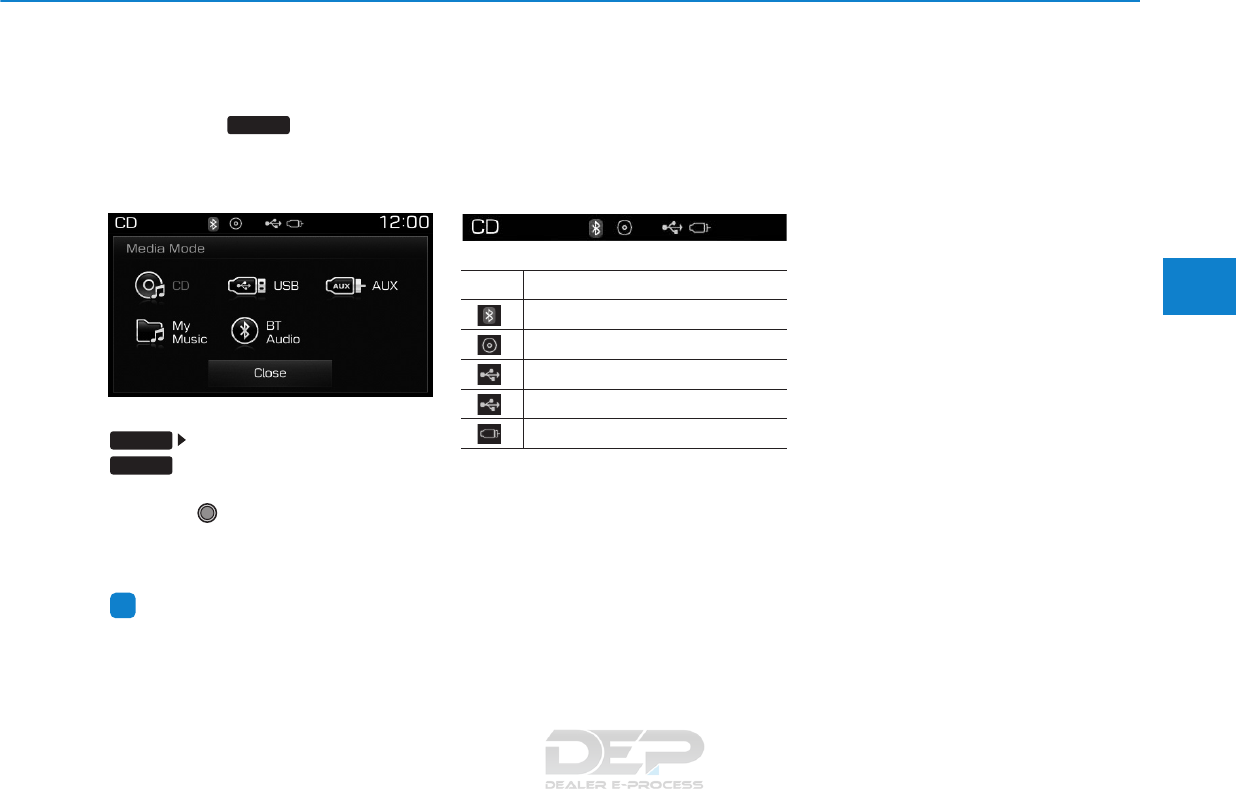

Media Mode ..........................................................4-28, 4-79

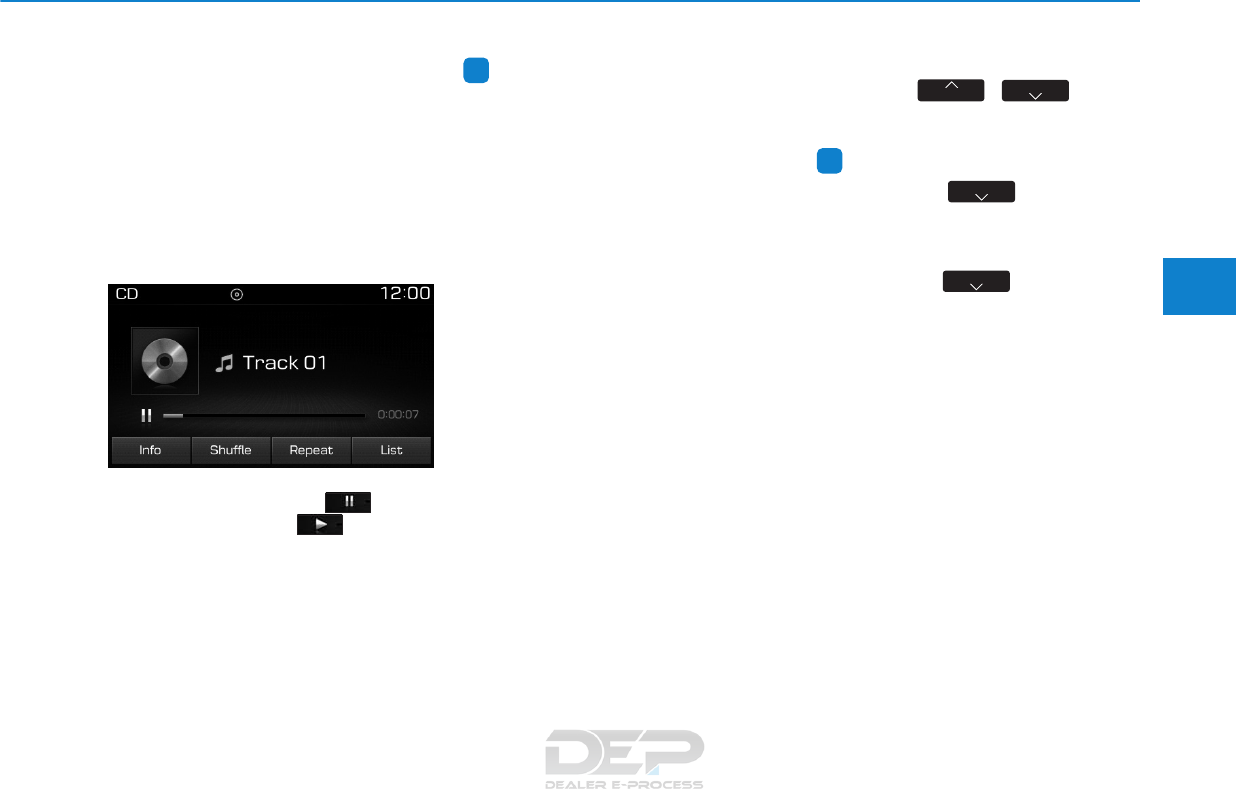

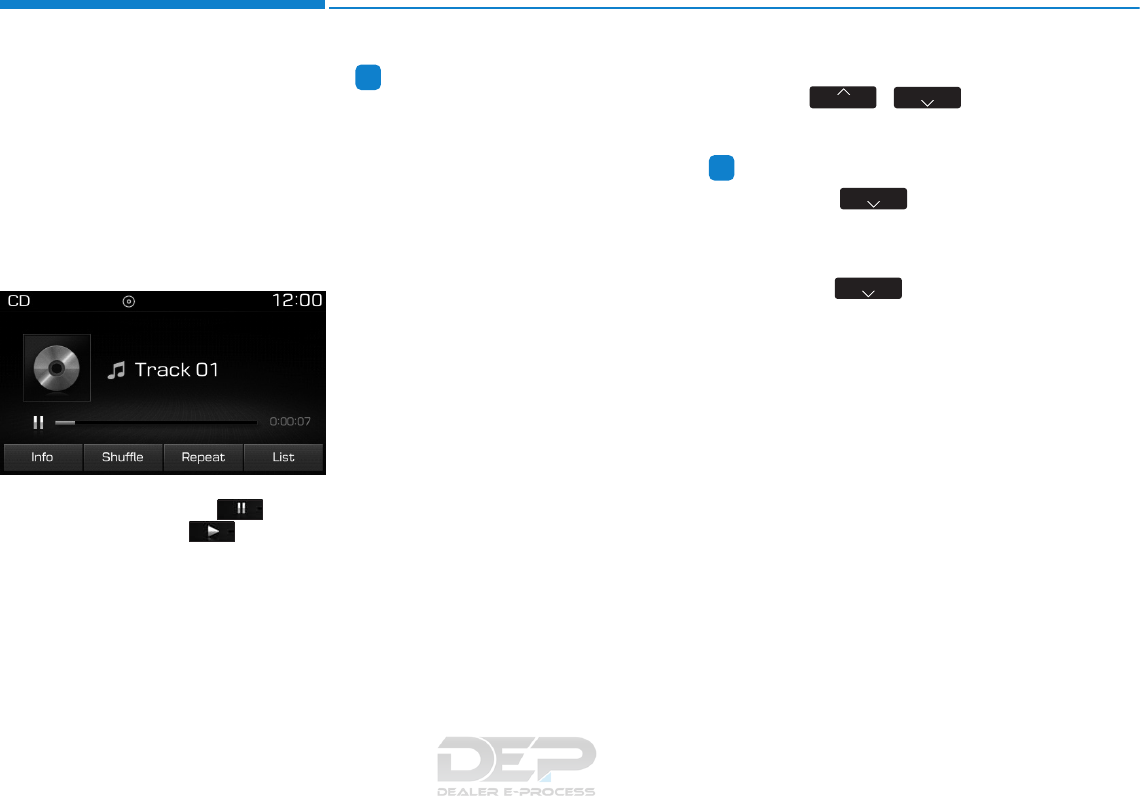

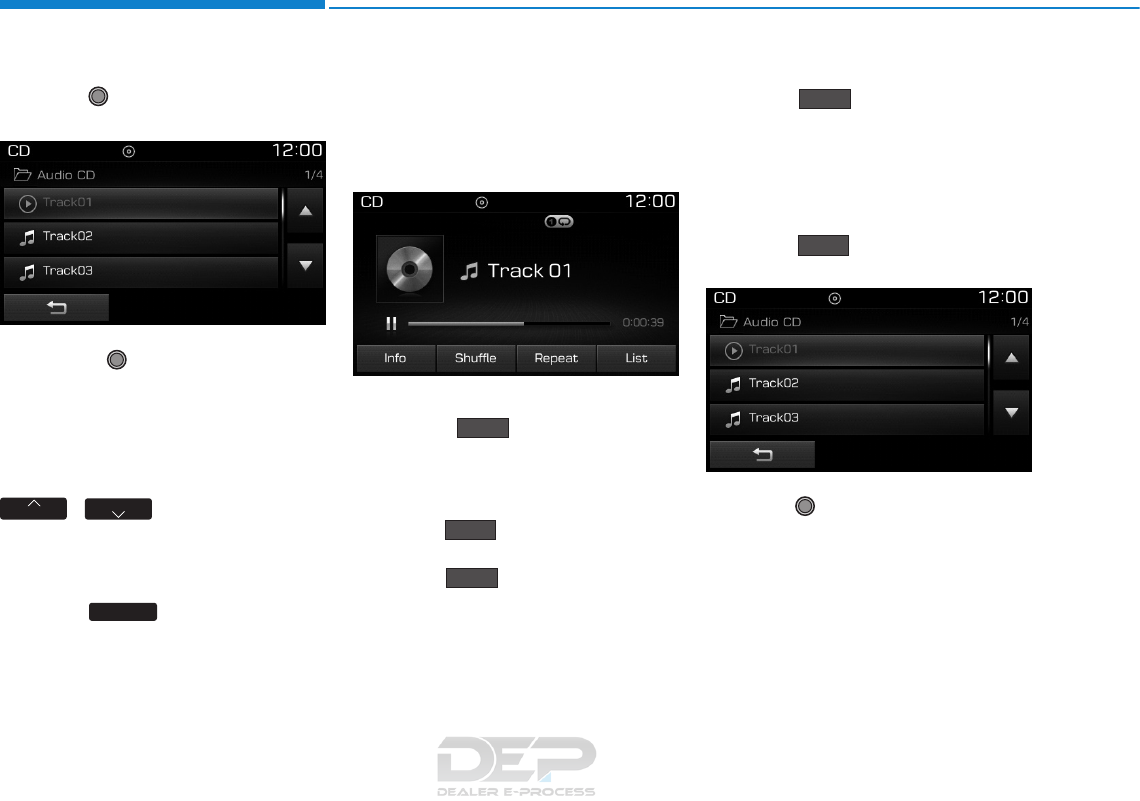

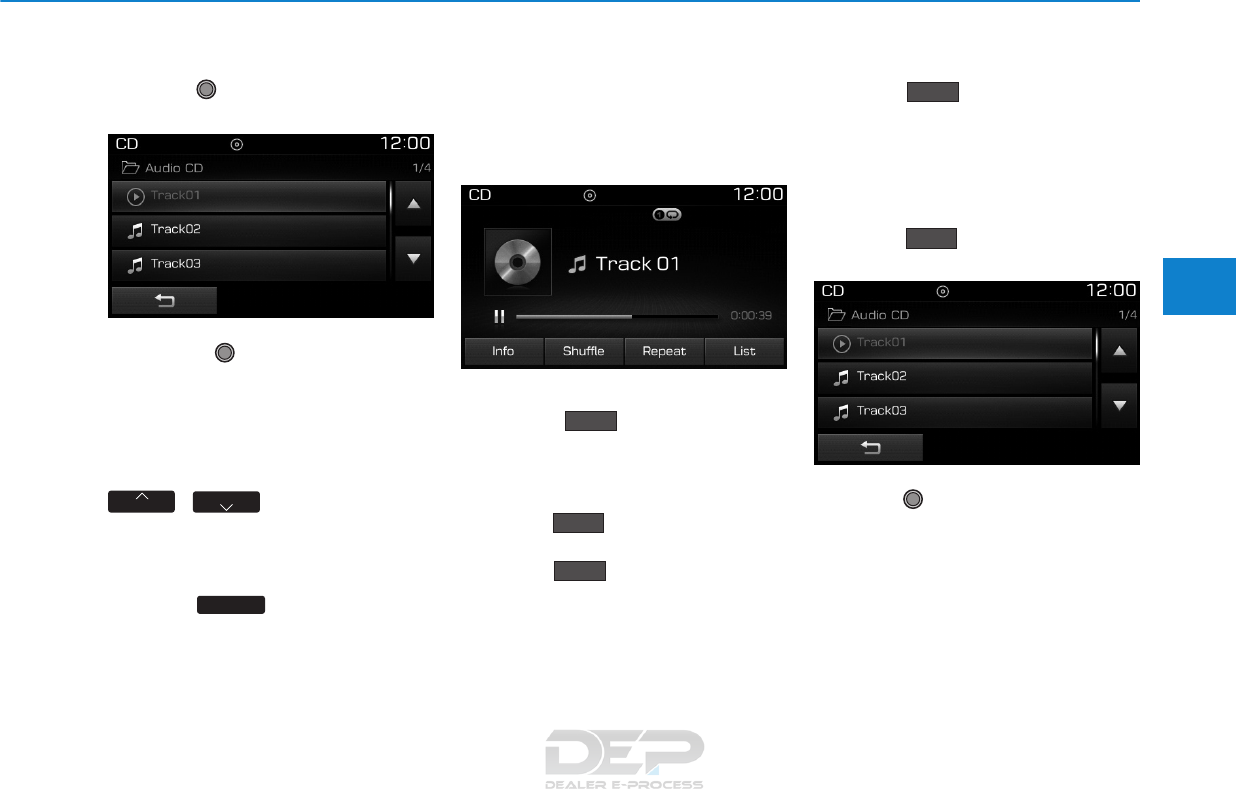

Audio CD Mode.....................................................4-29, 4-80

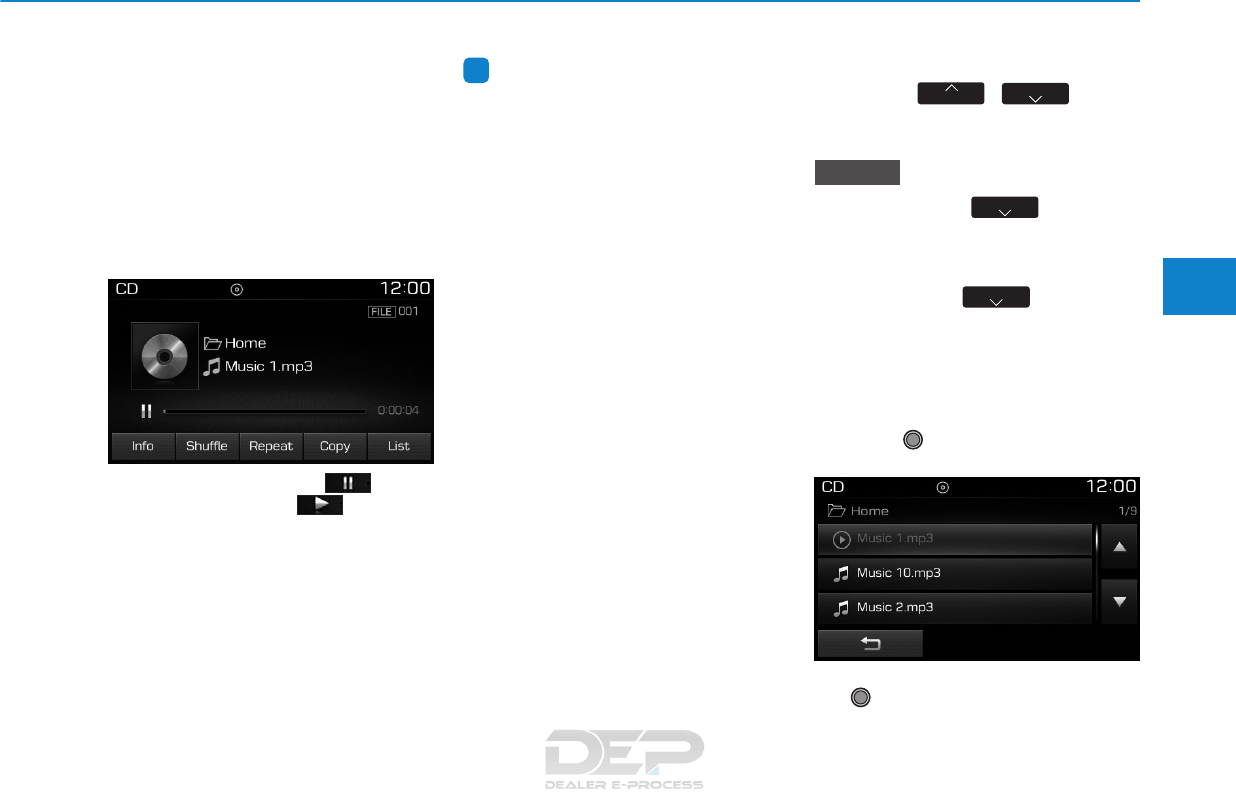

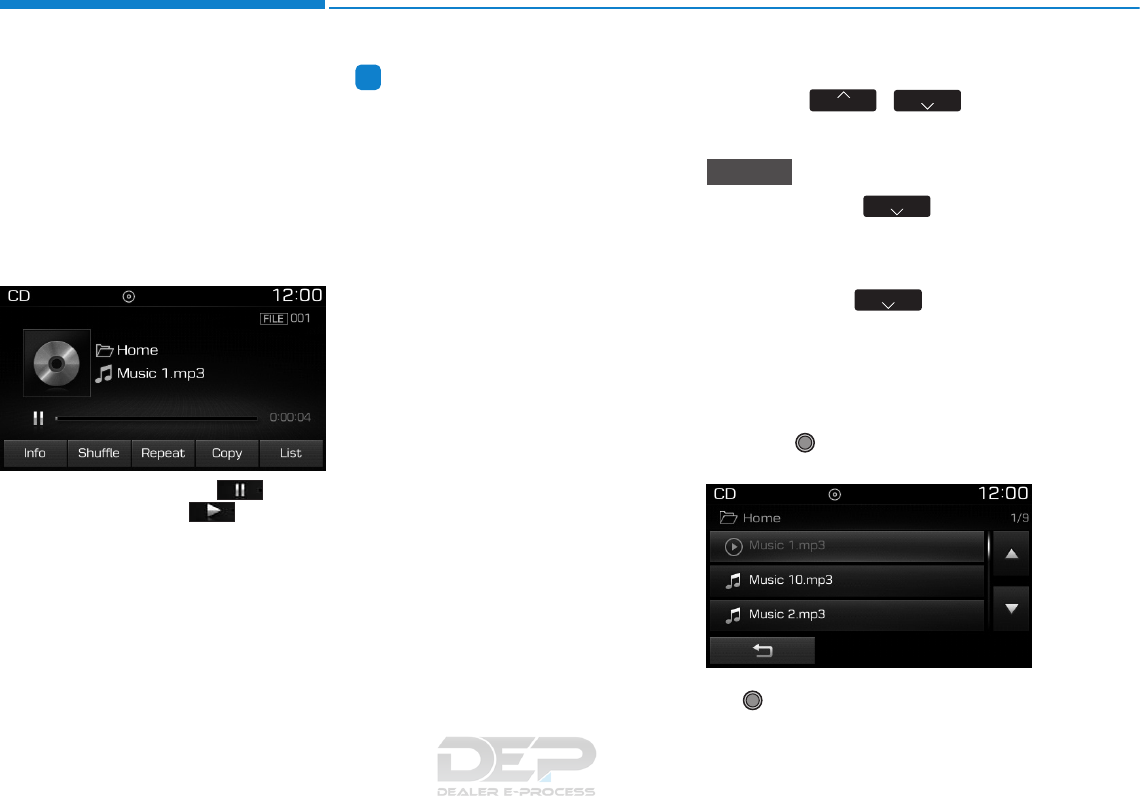

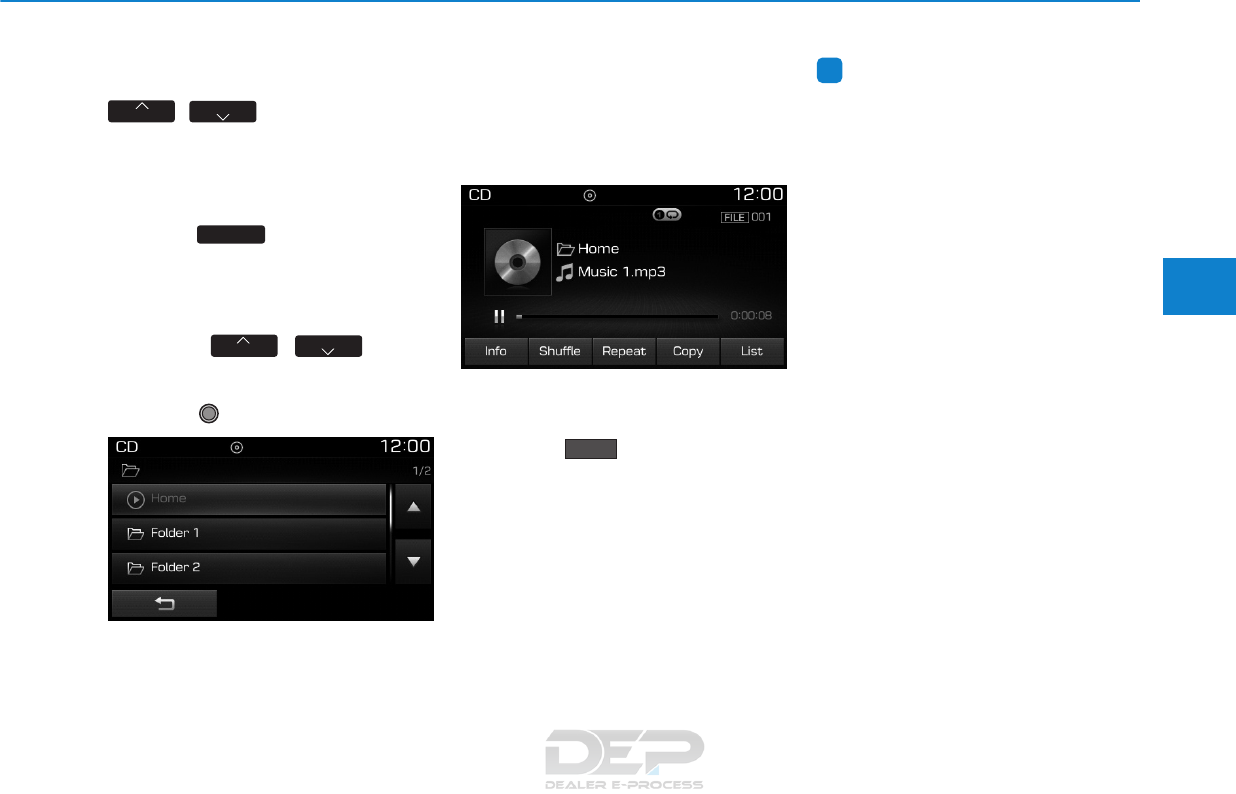

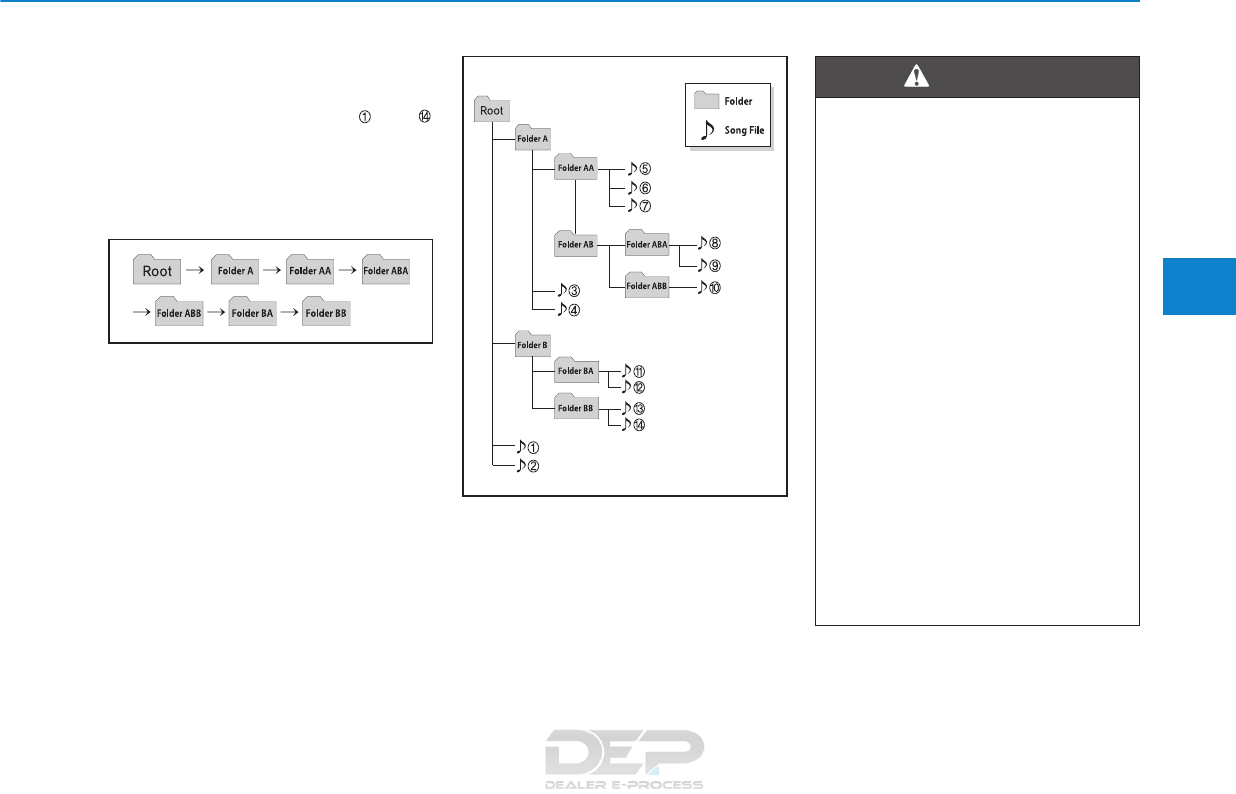

MP3 CD Mode.......................................................4-31, 4-82

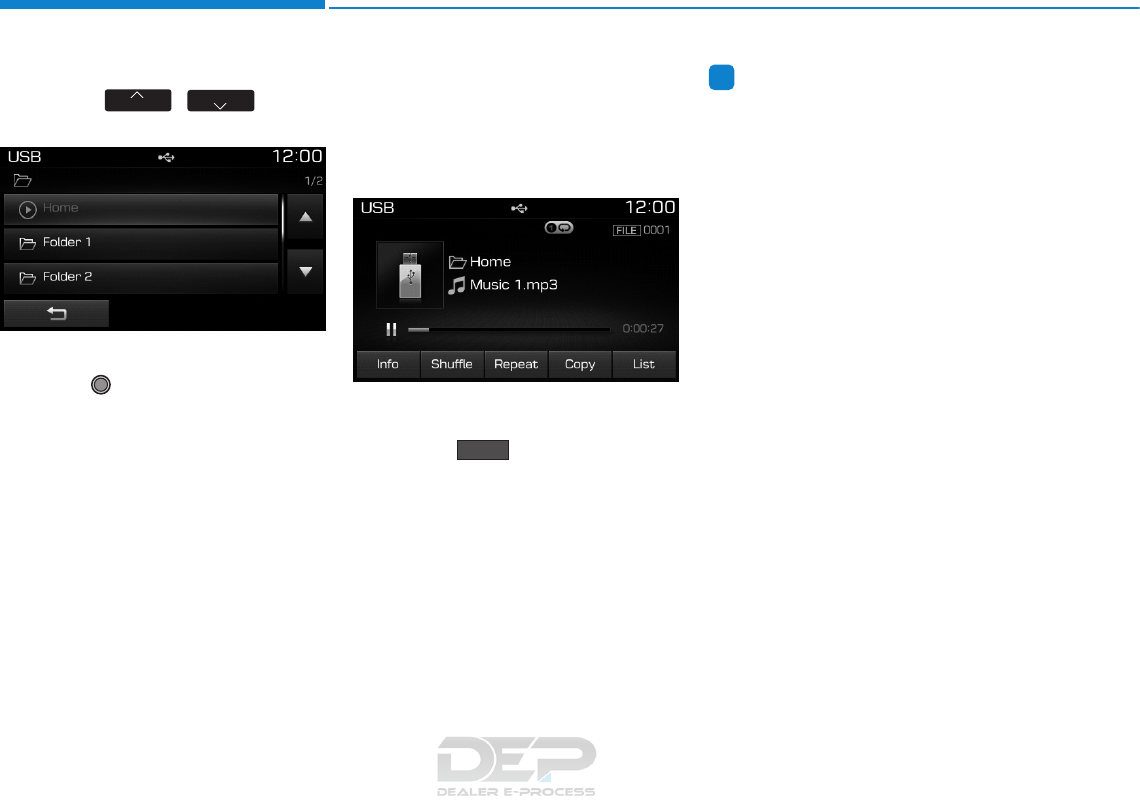

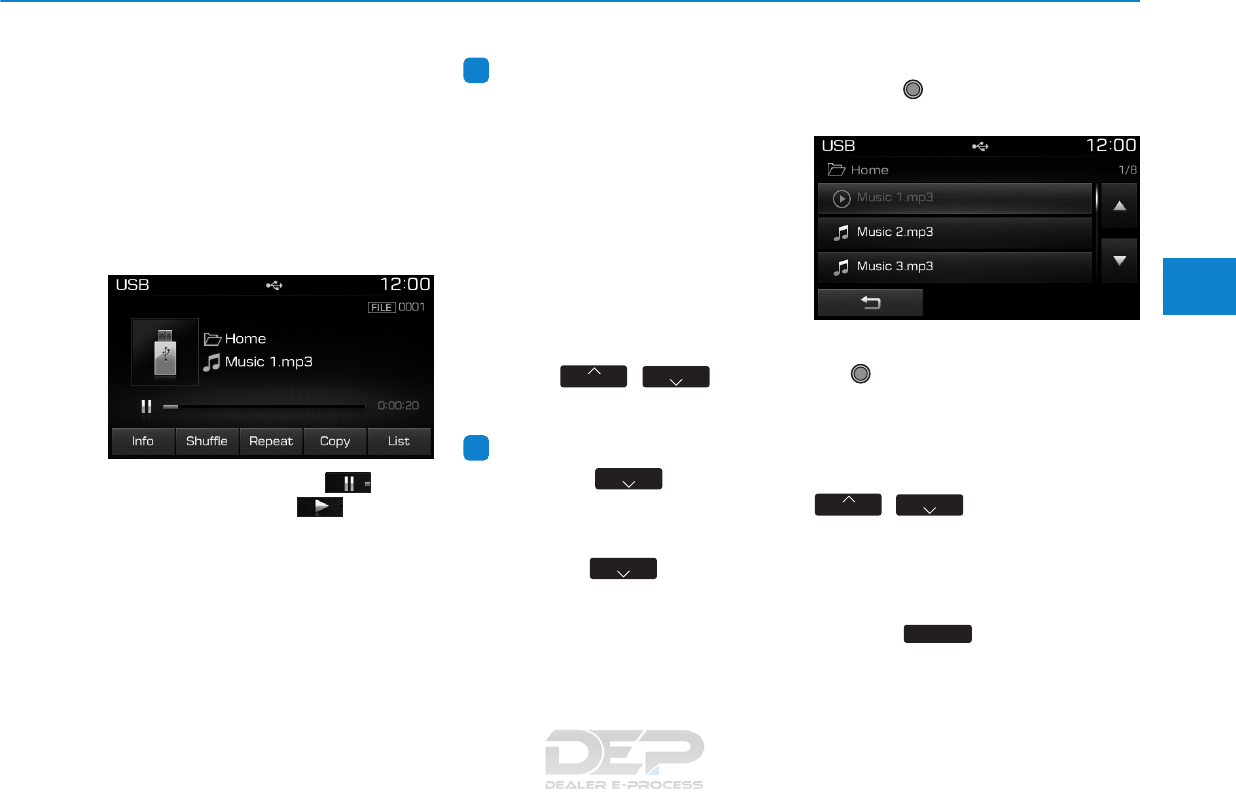

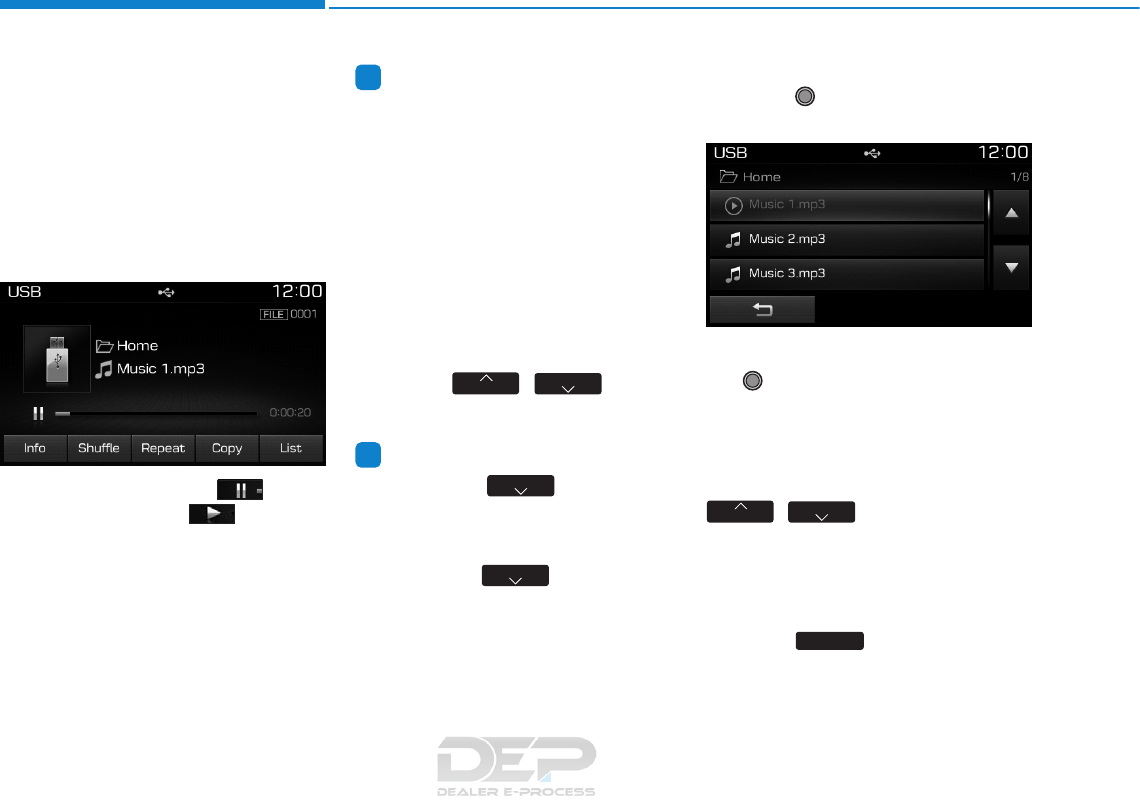

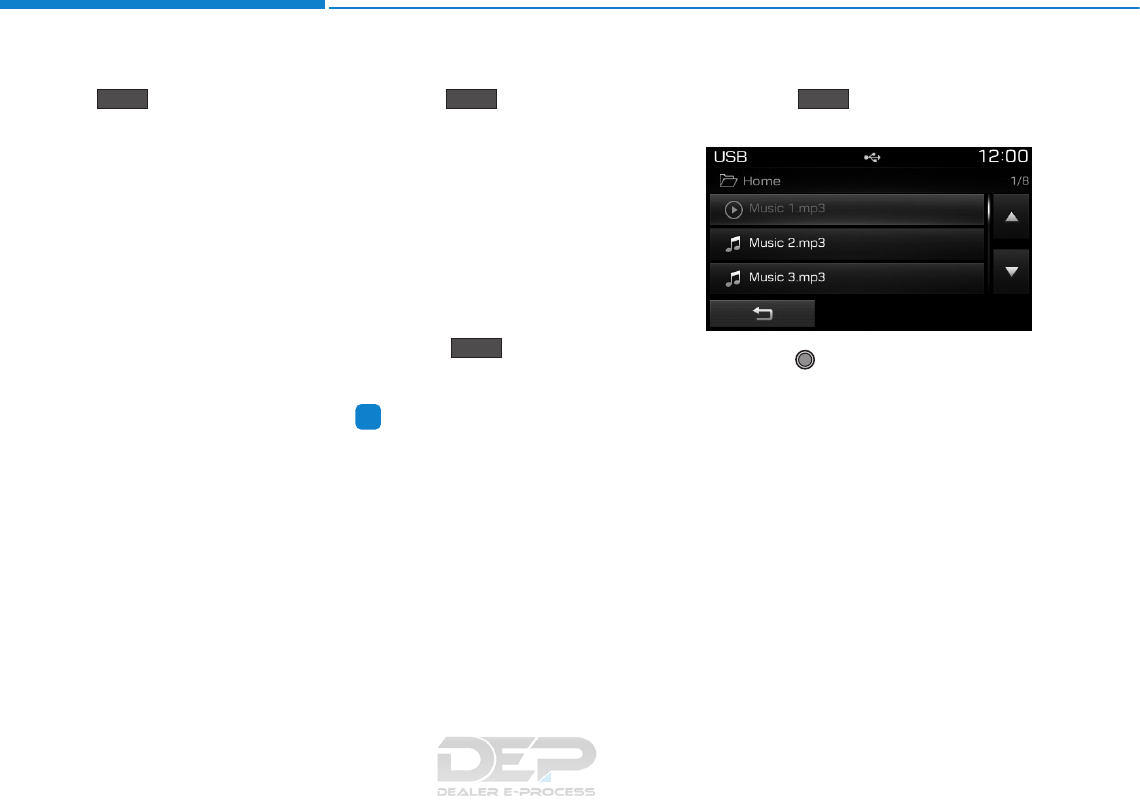

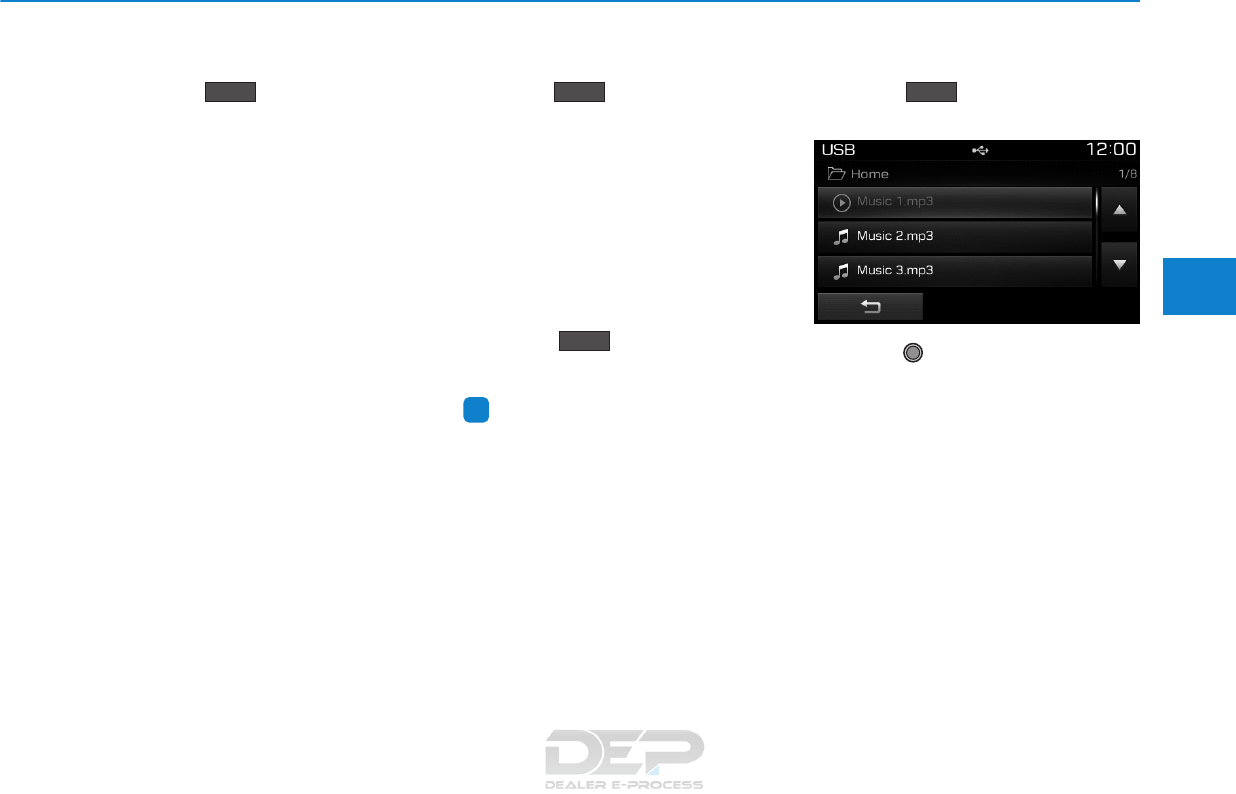

USB Mode..............................................................4-34, 4-85

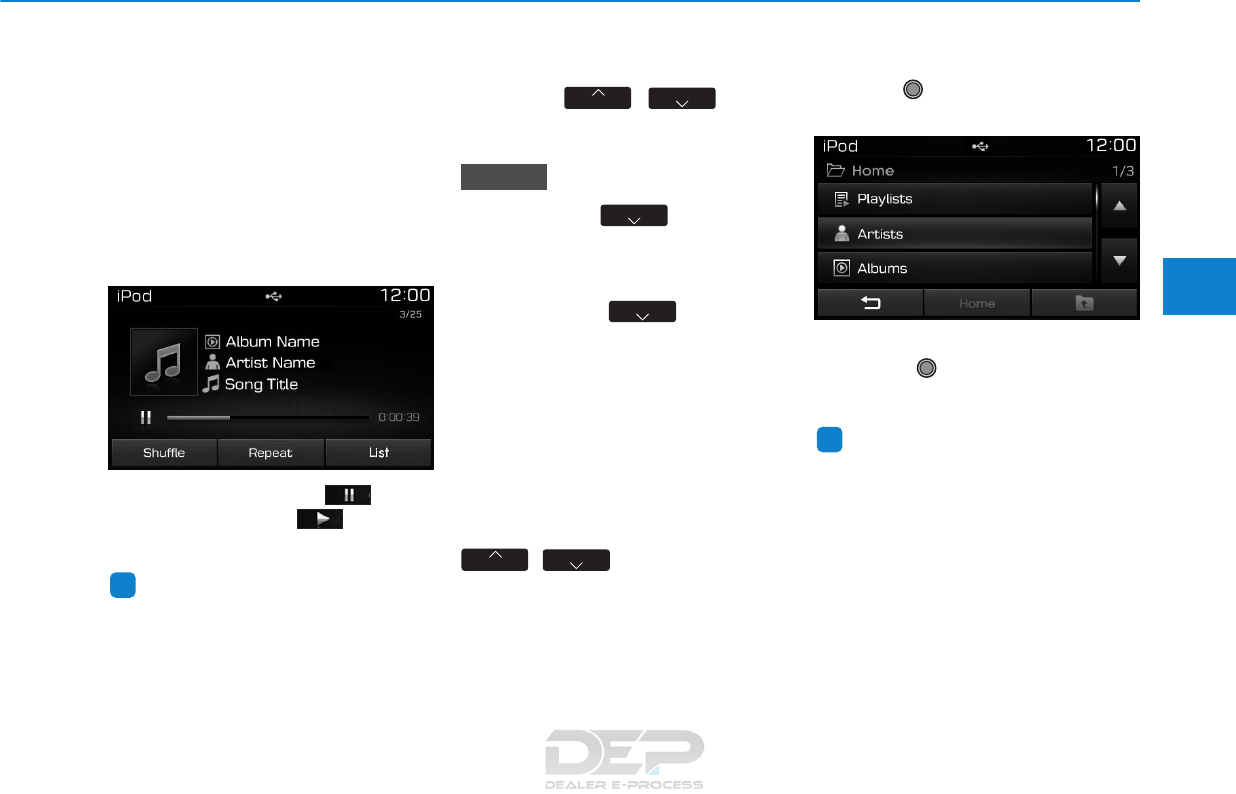

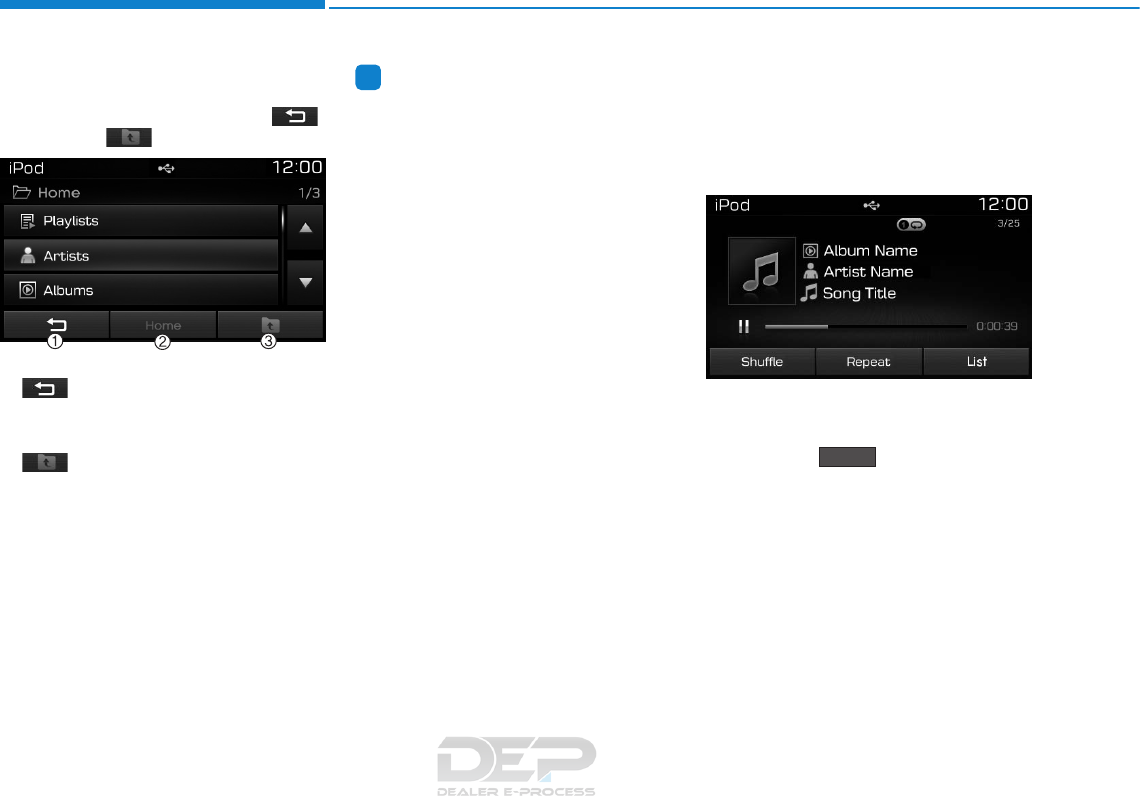

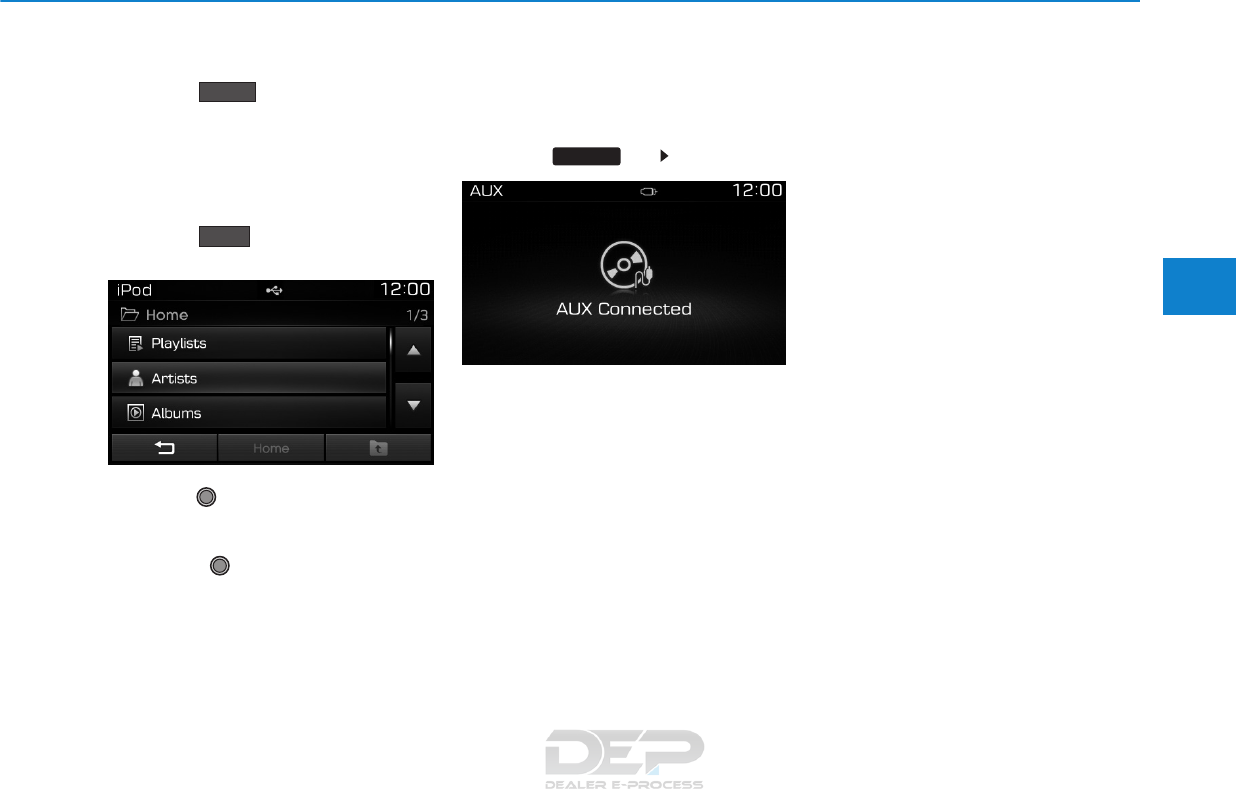

iPod®Mode ...........................................................4-37, 4-88

AUX Mode..............................................................4-39, 4-90

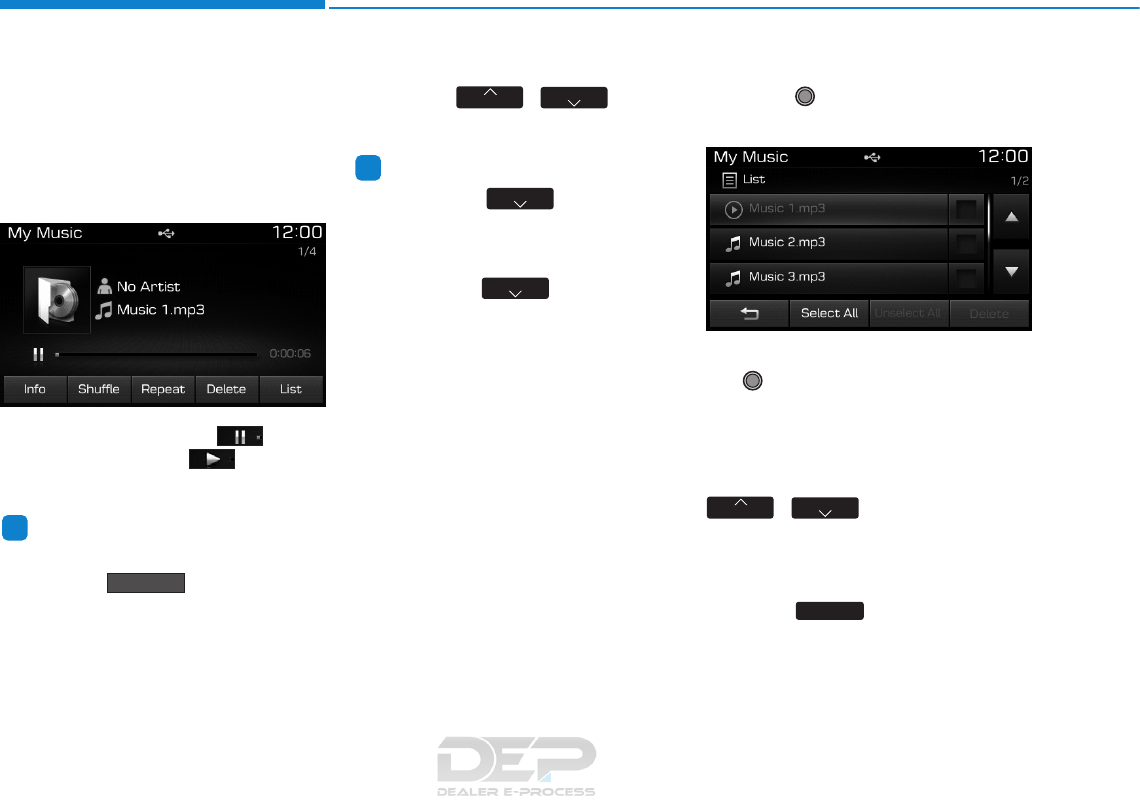

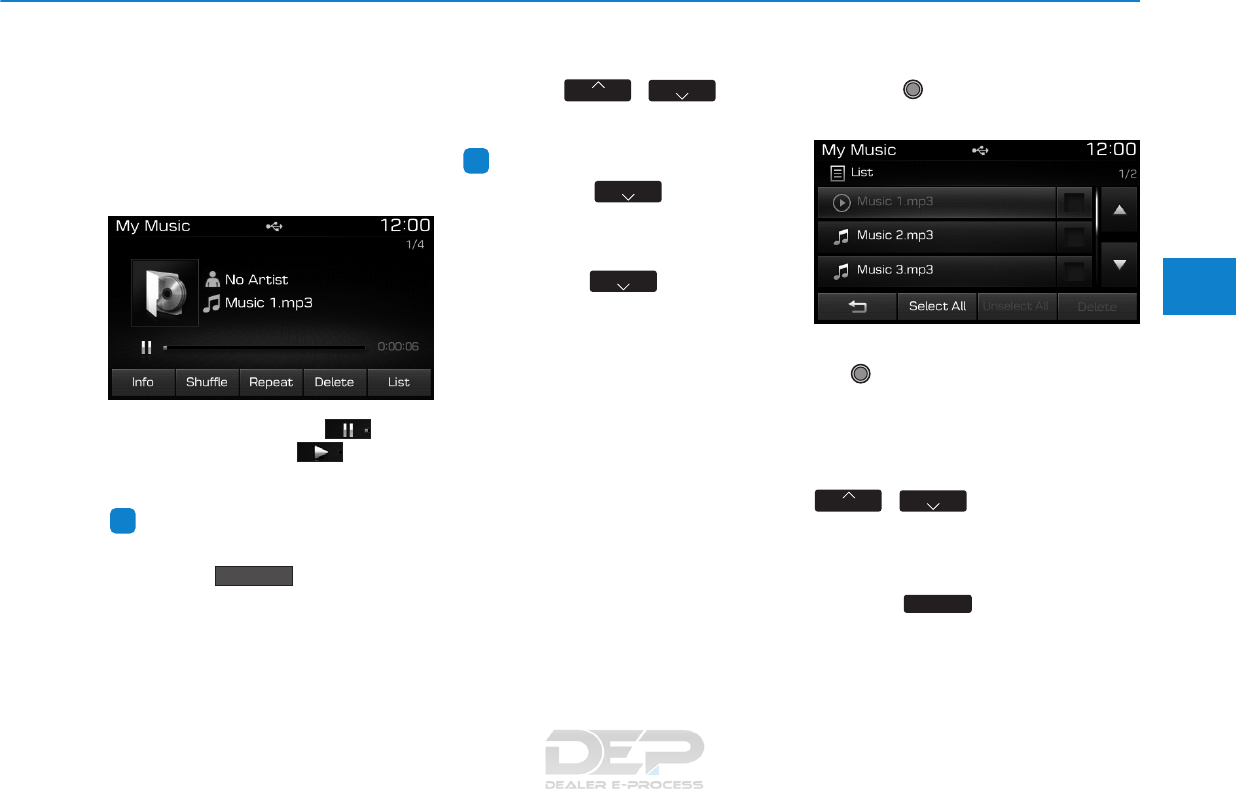

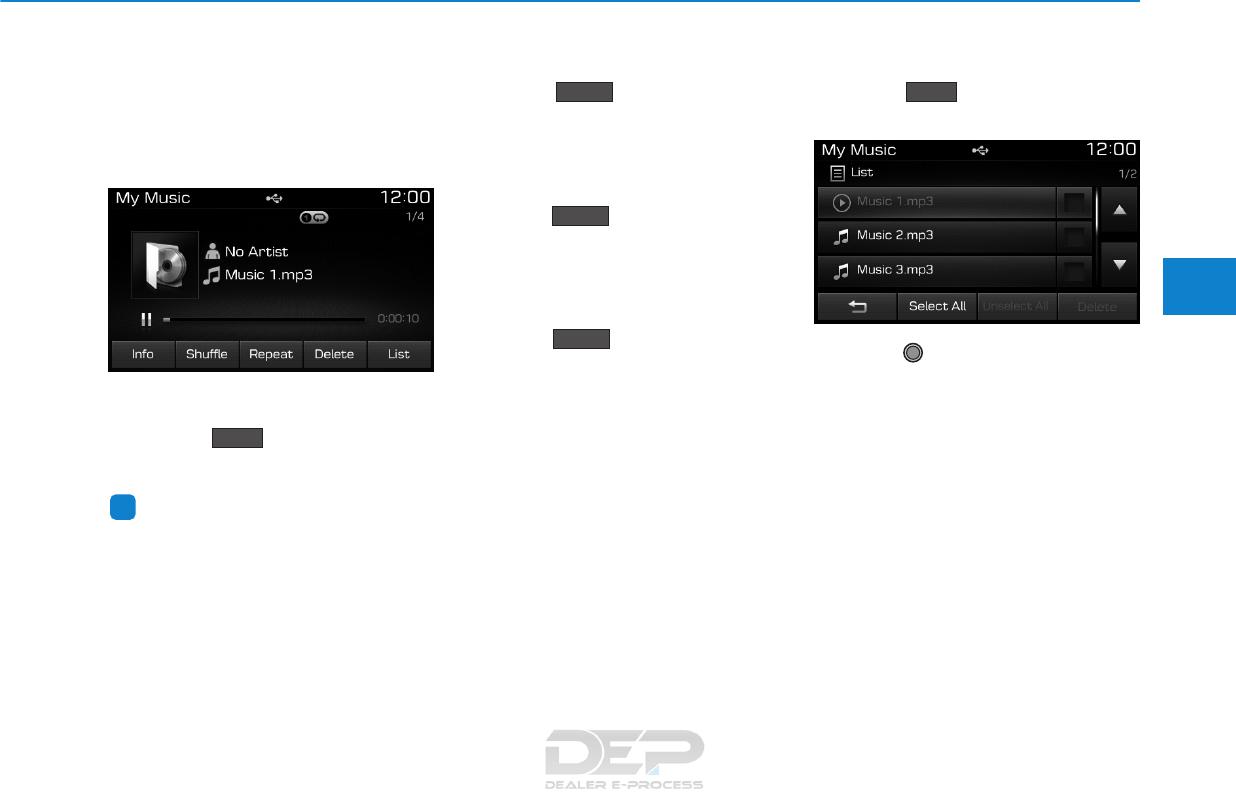

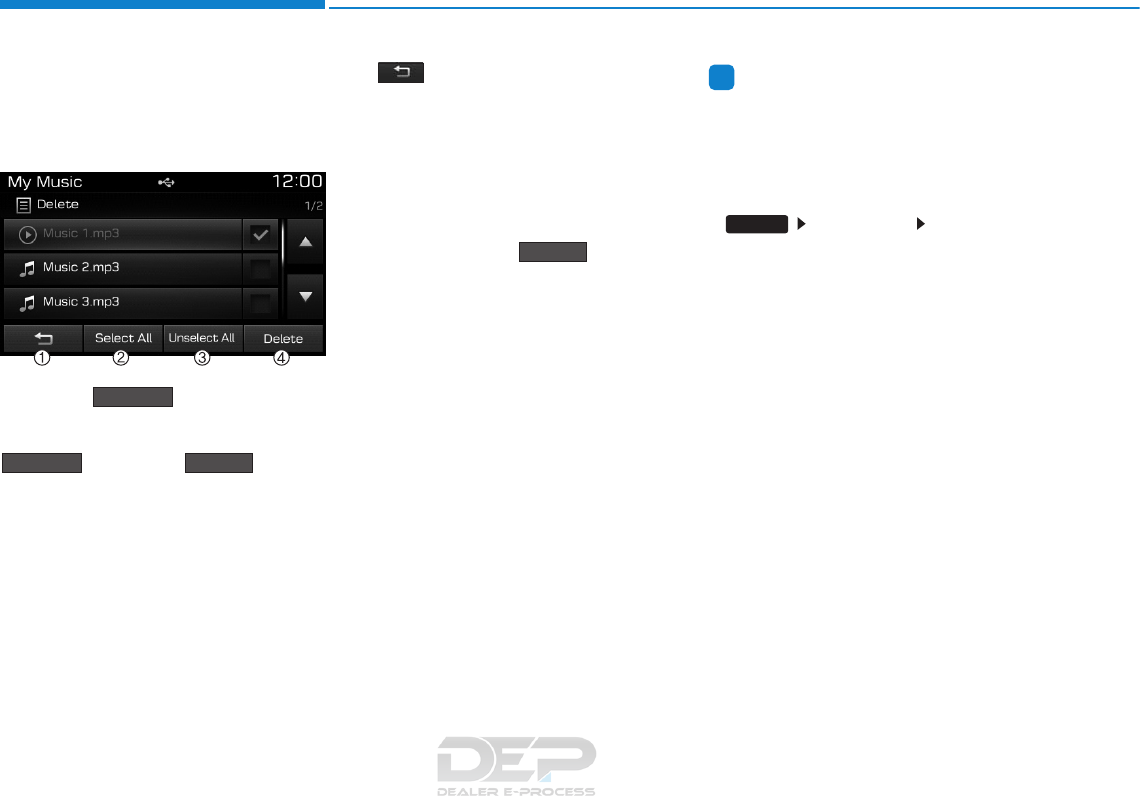

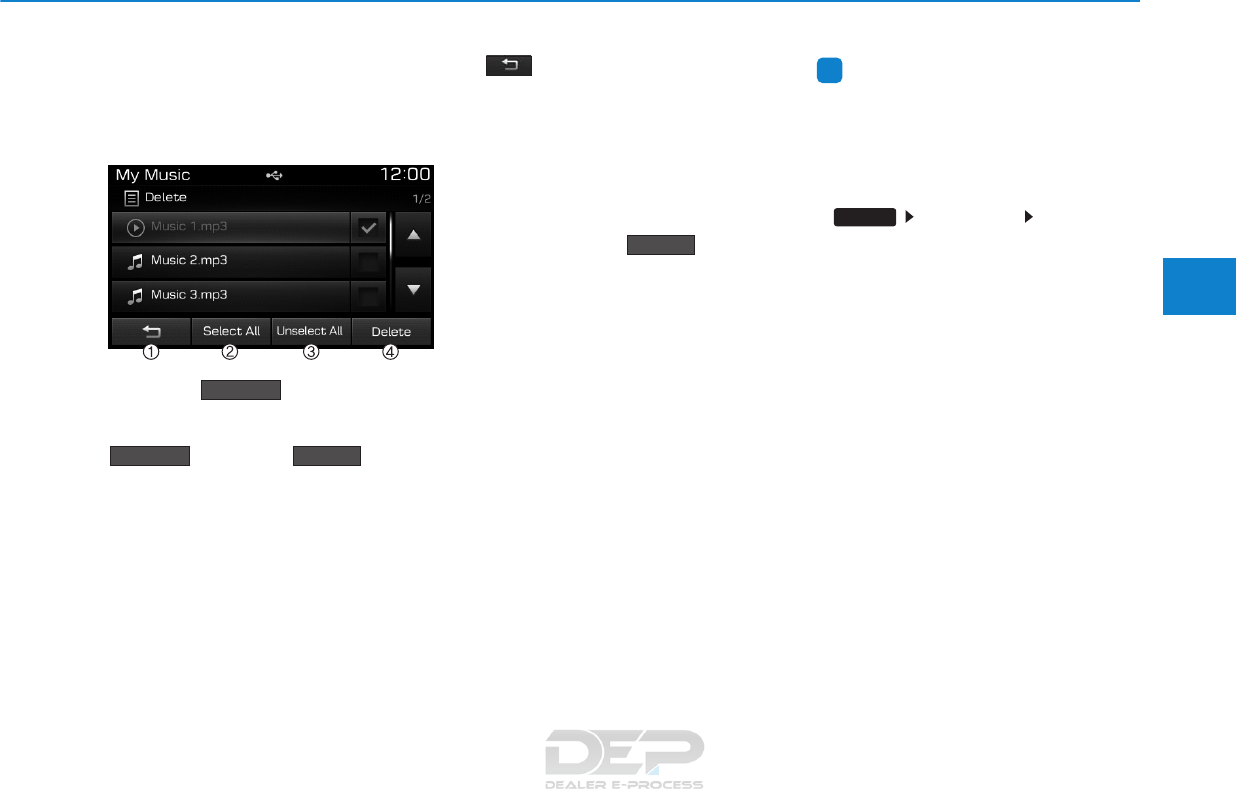

MY Music Mode...................................................4-40, 4-91

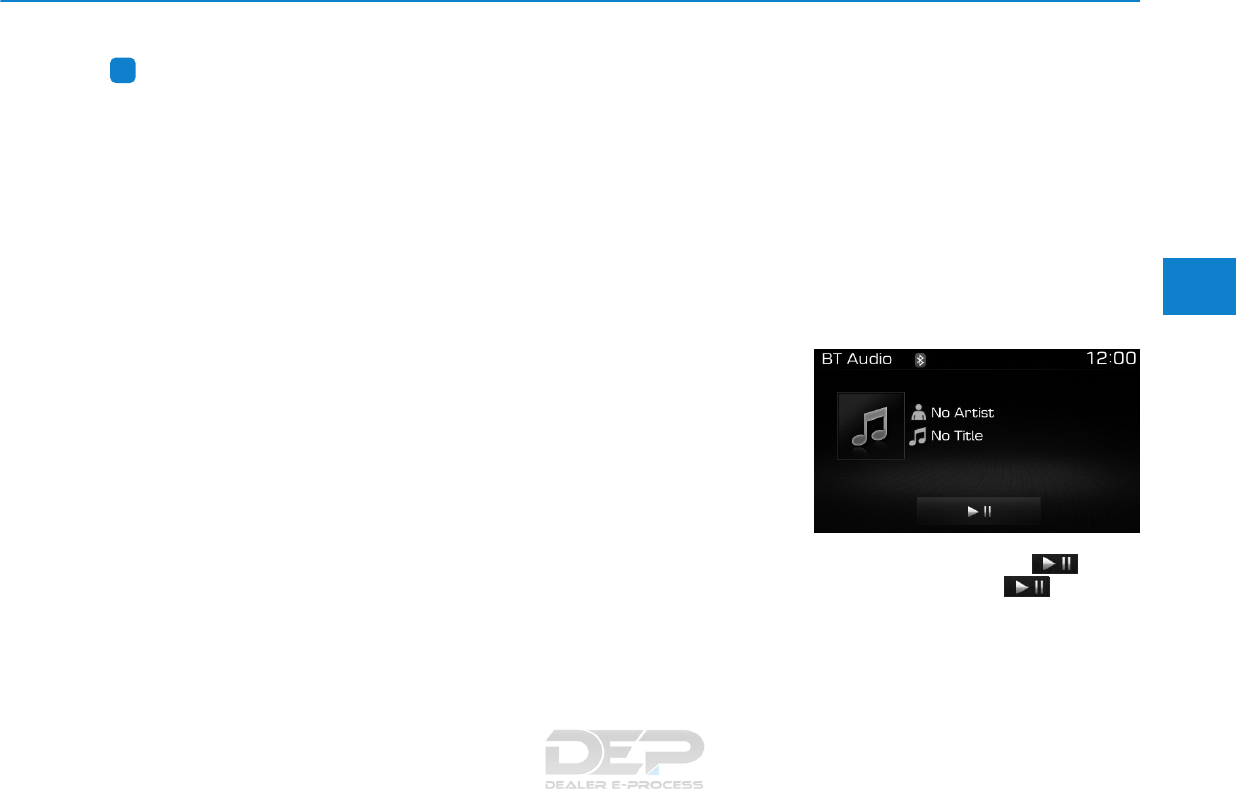

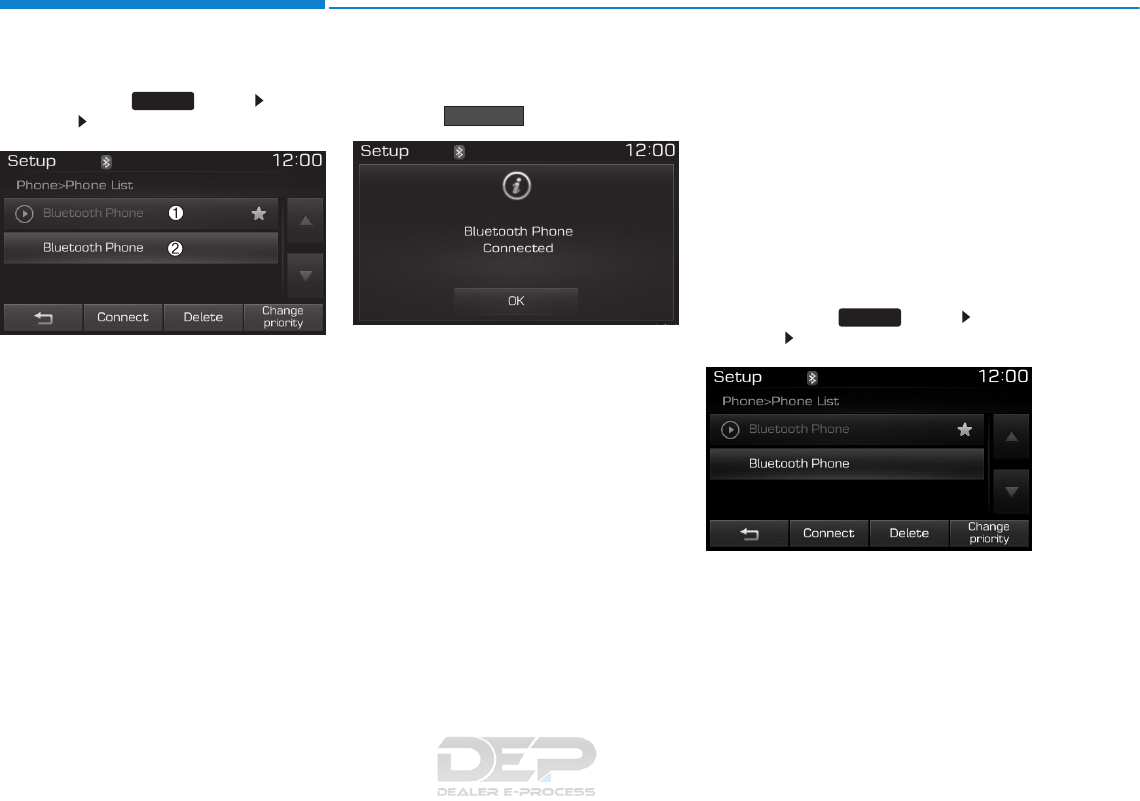

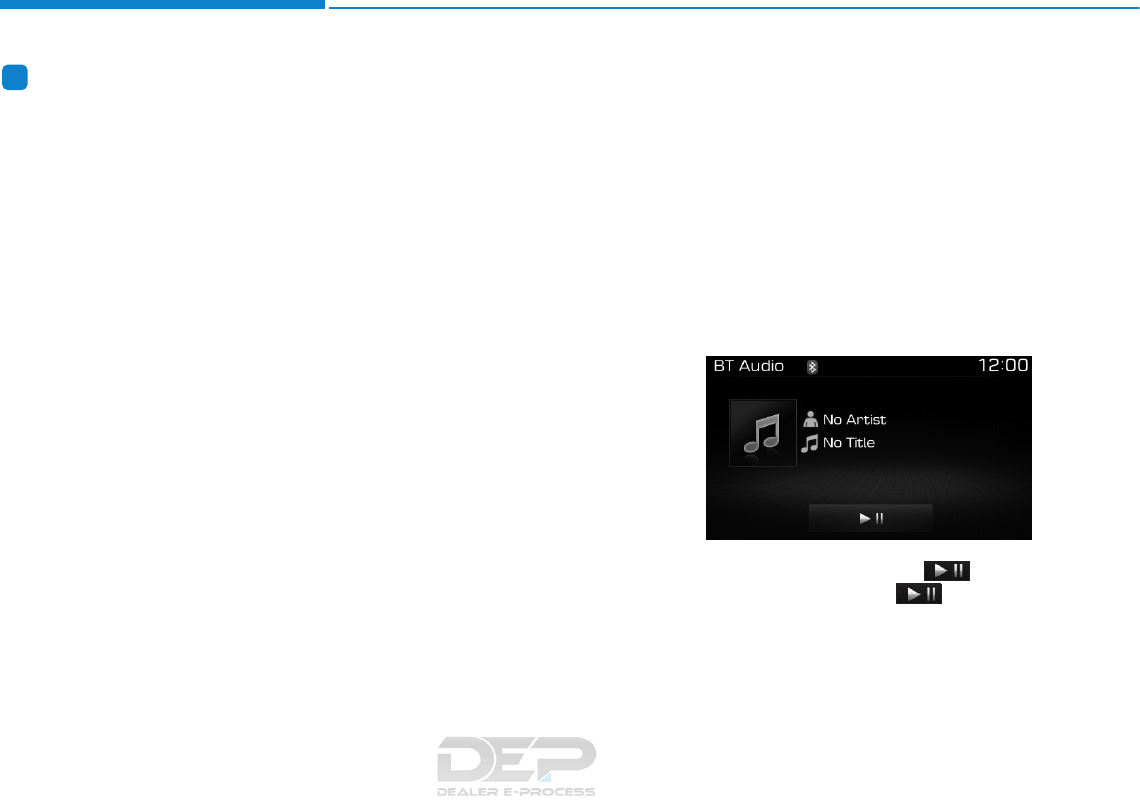

Bluetooth

®Wireless Technology

Audio Mode ...........................................................4-43, 4-94

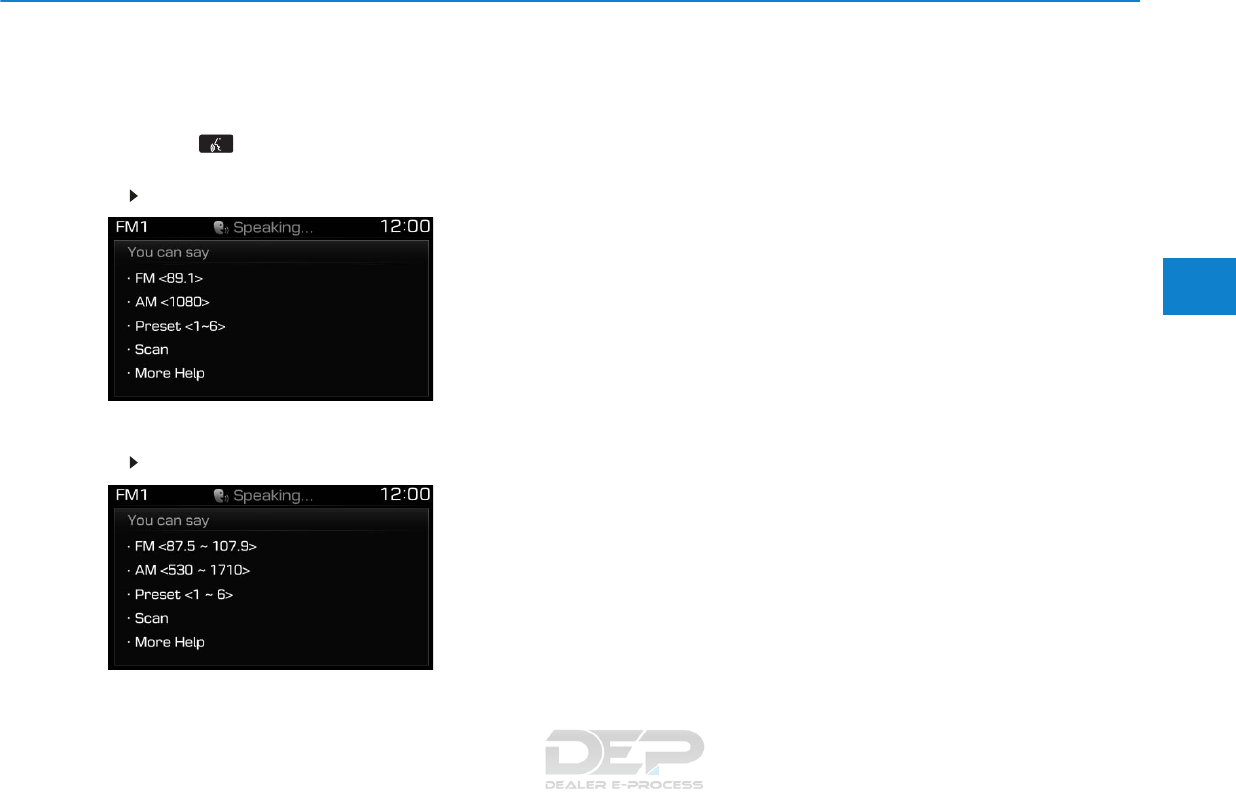

Voice Recognition..............................................4-58, 4-109

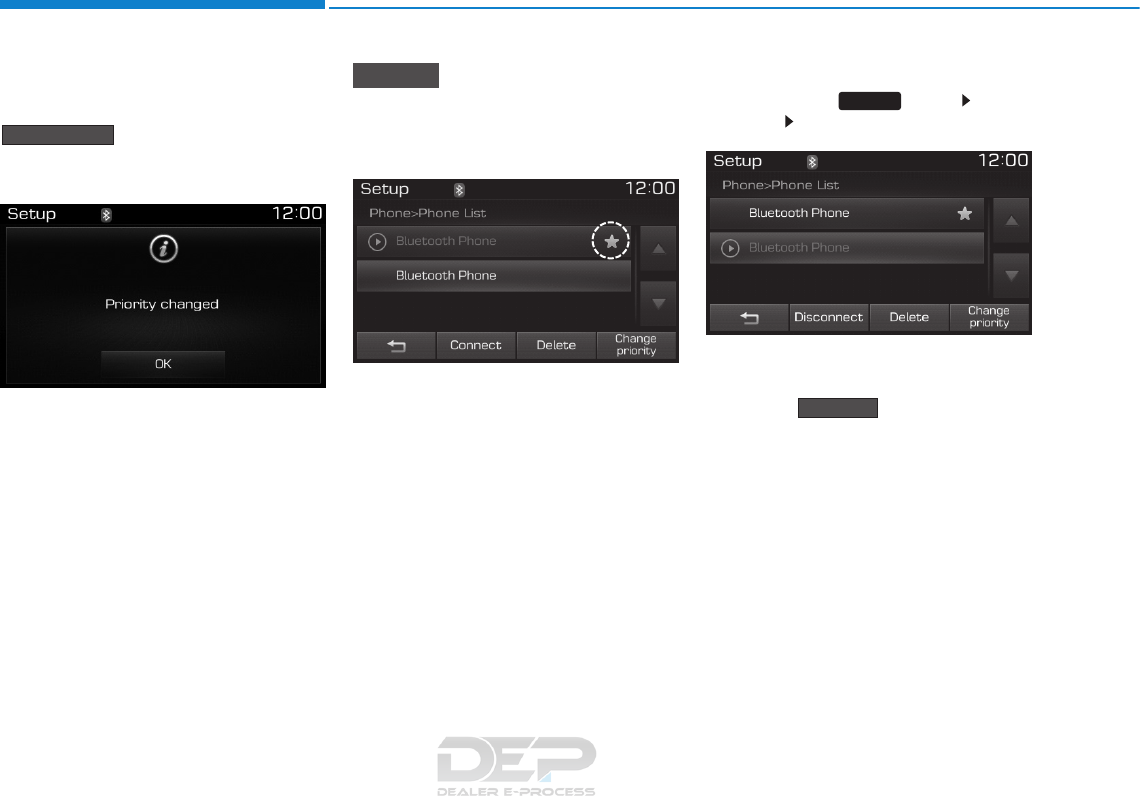

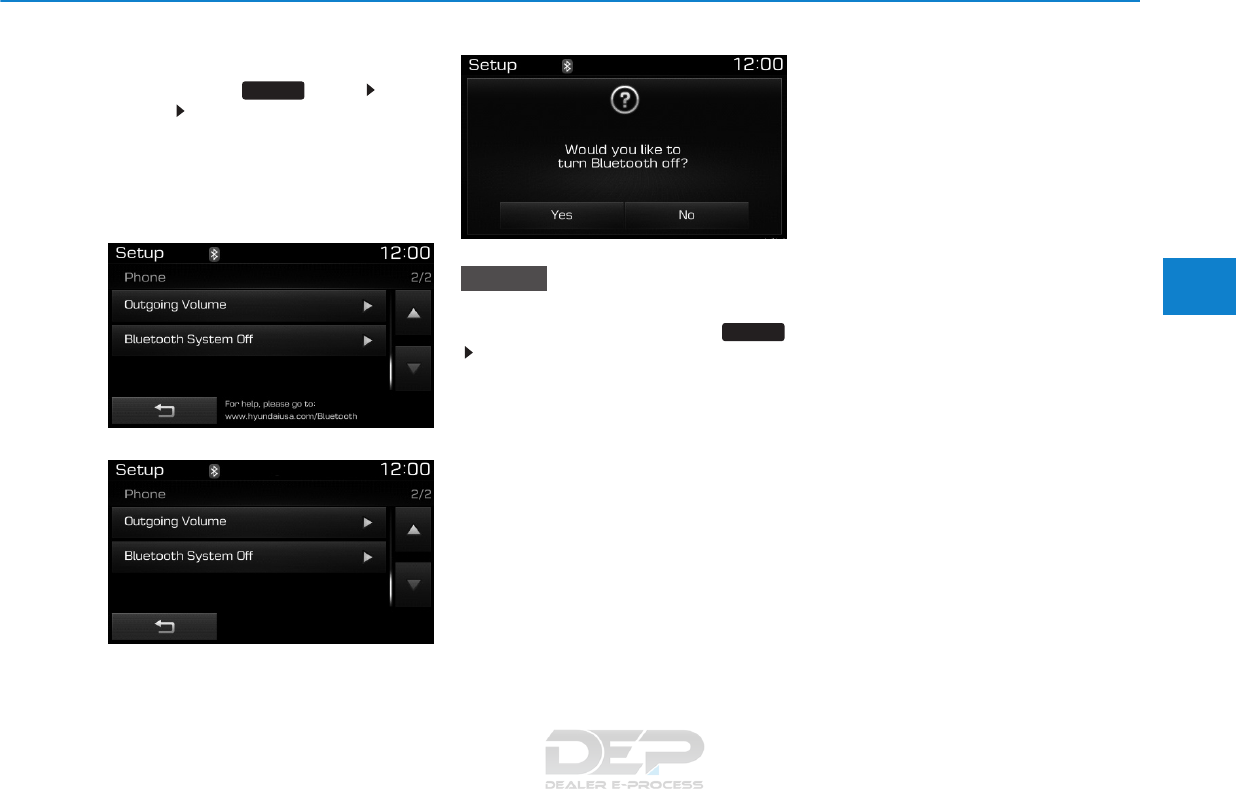

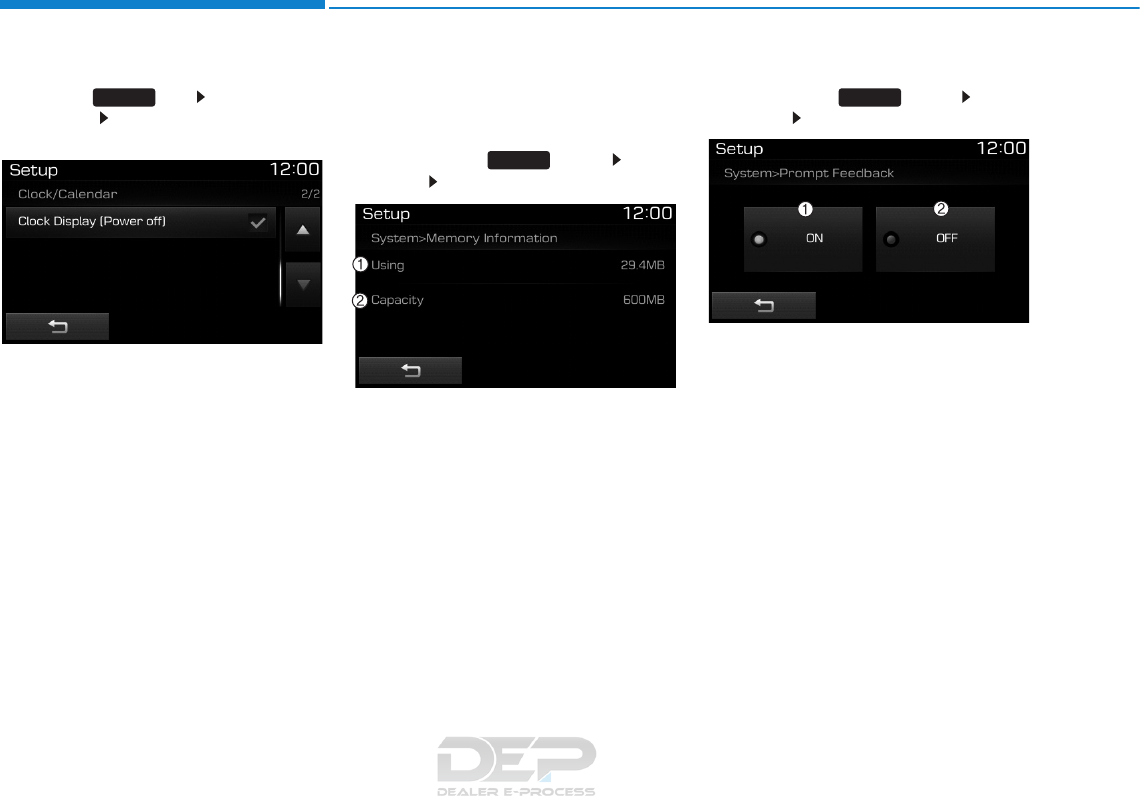

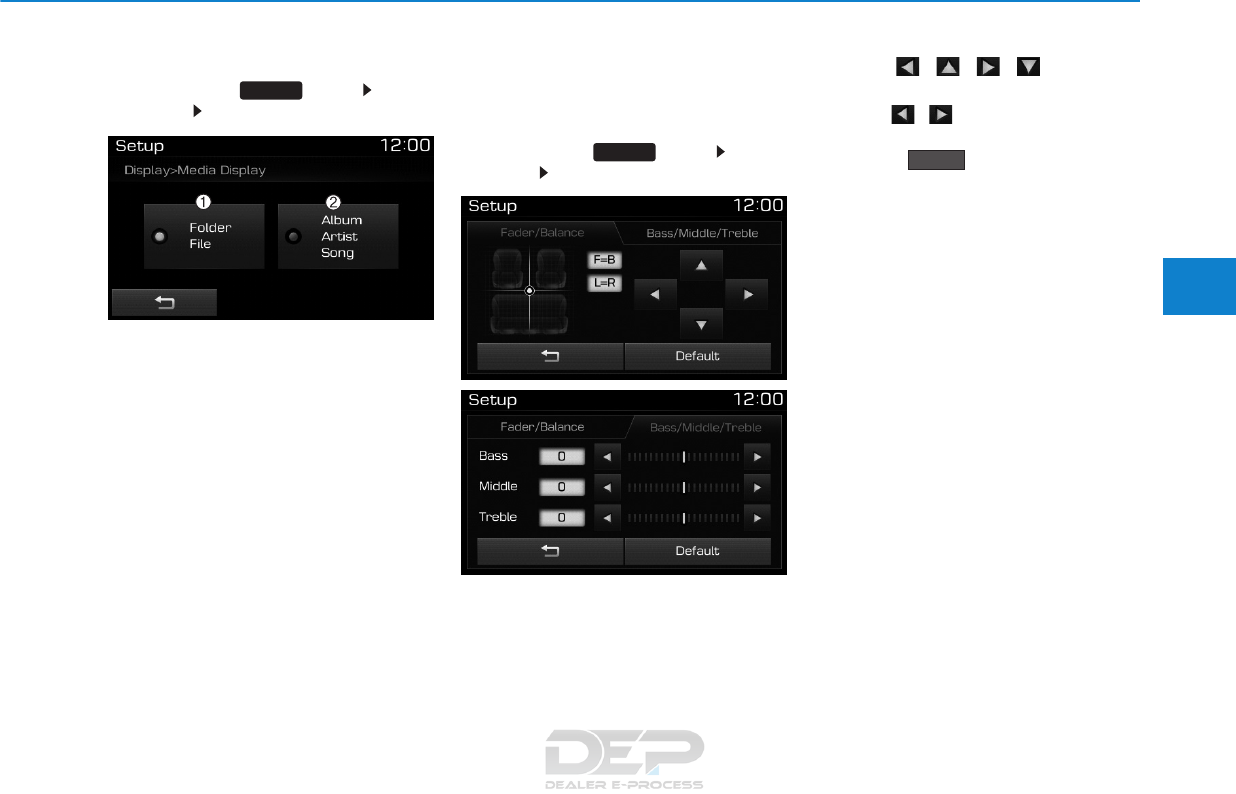

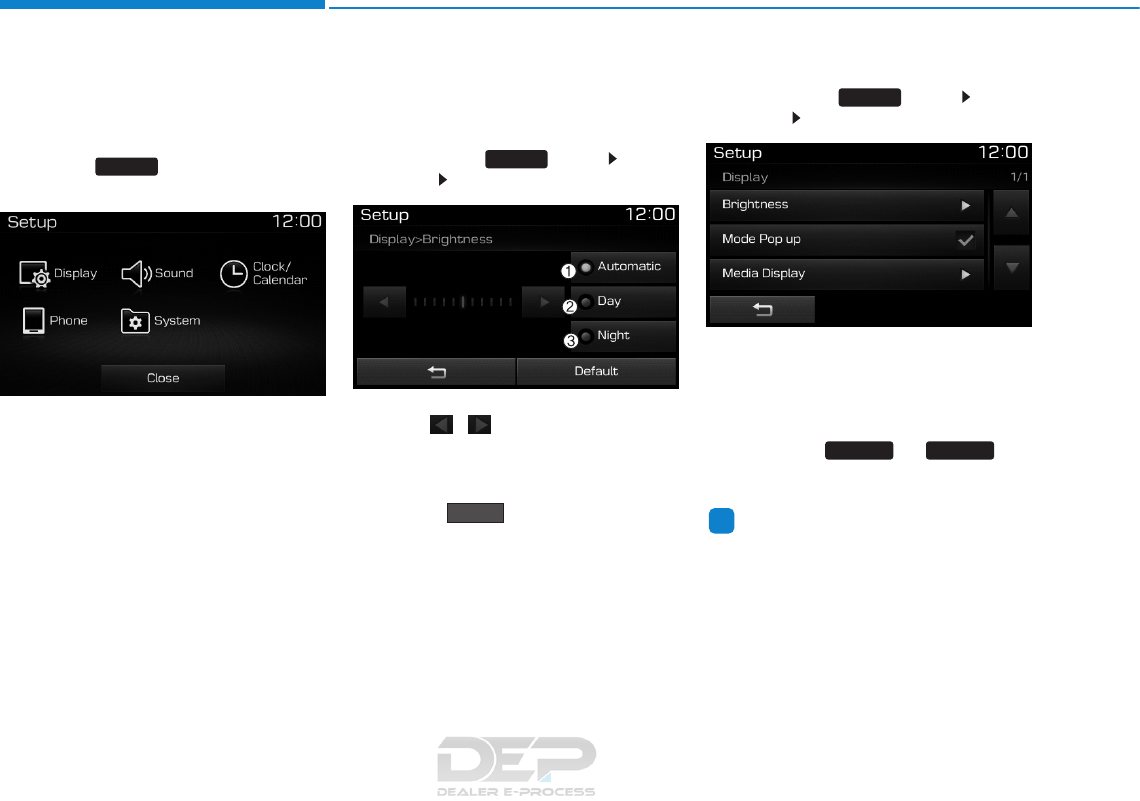

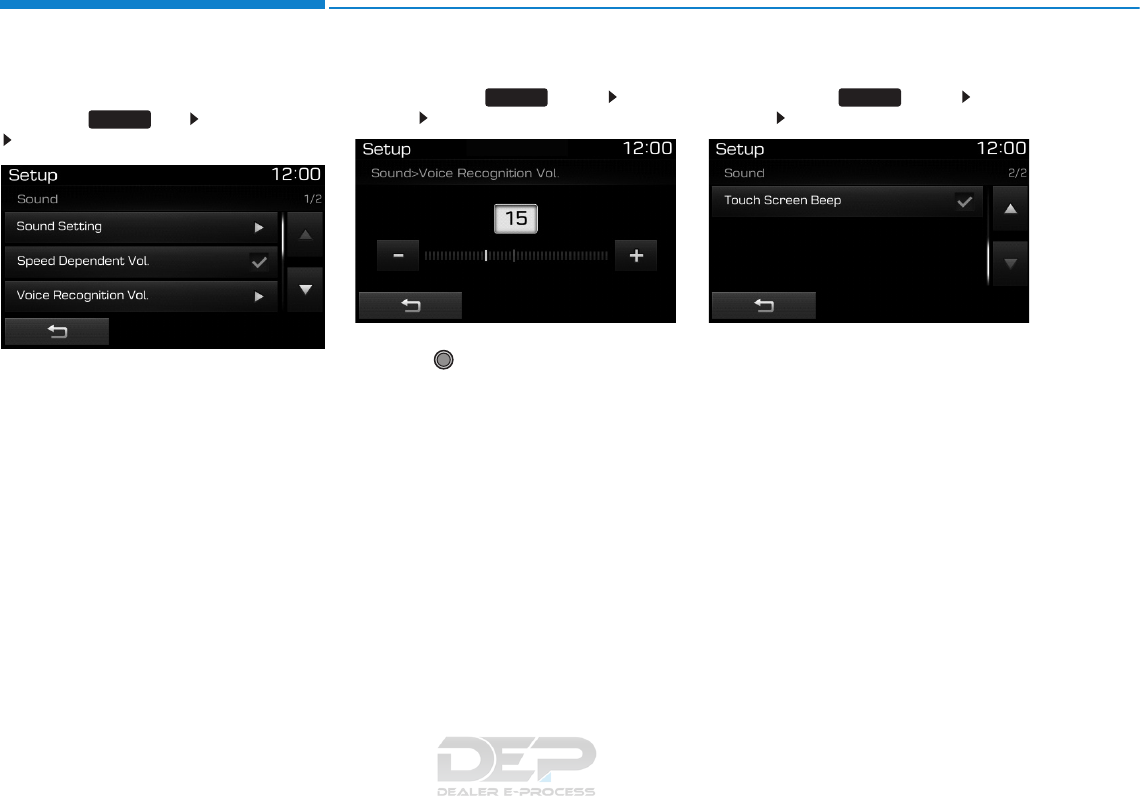

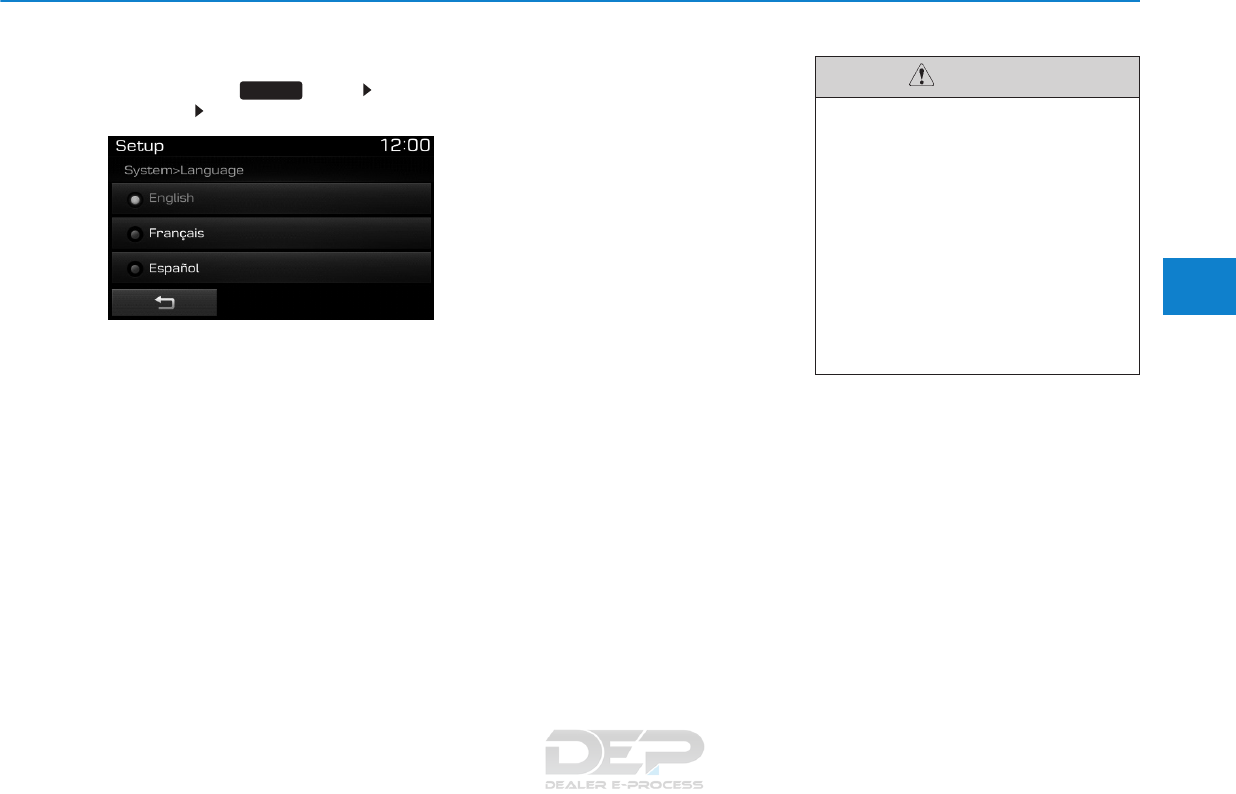

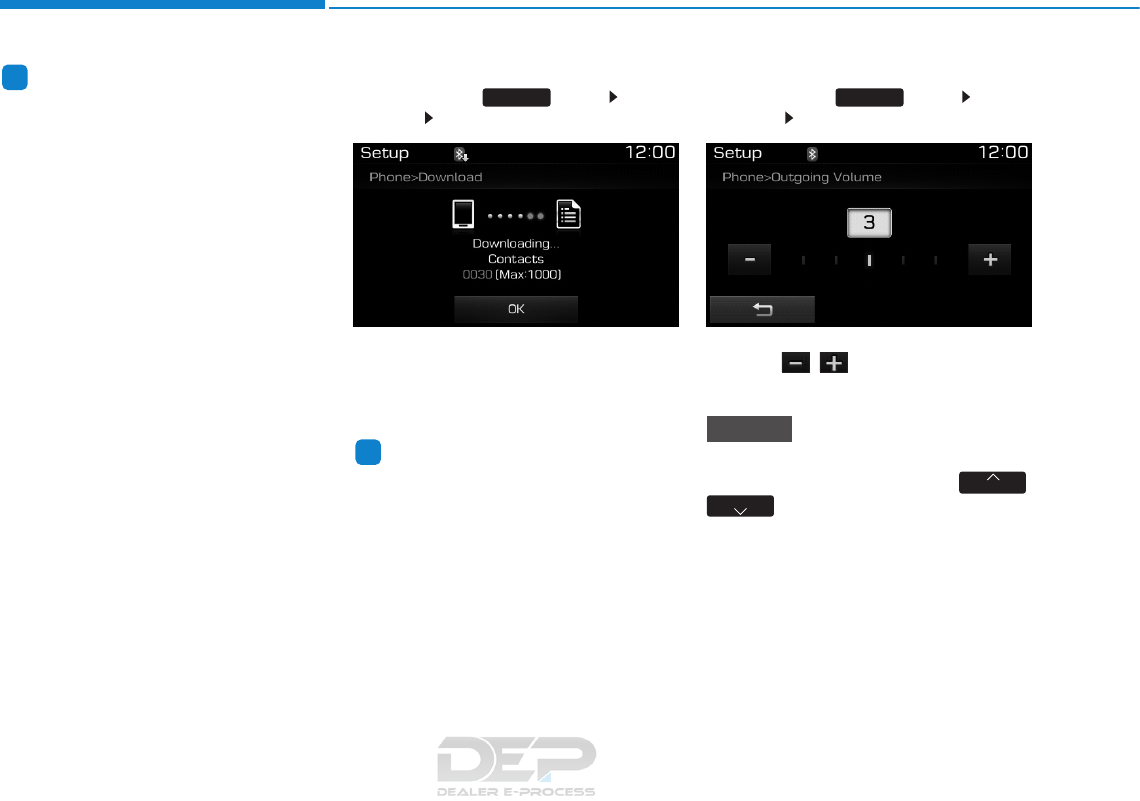

Setup.....................................................................4-64, 4-116

Rear View Camera.............................................4-69, 4-121

4Multimedia system

F17F17

Before driving.........................................................5-4

Before Entering the Vehicle...........................................5-4

Before Starting ..................................................................5-4

Ignition switch ........................................................5-6

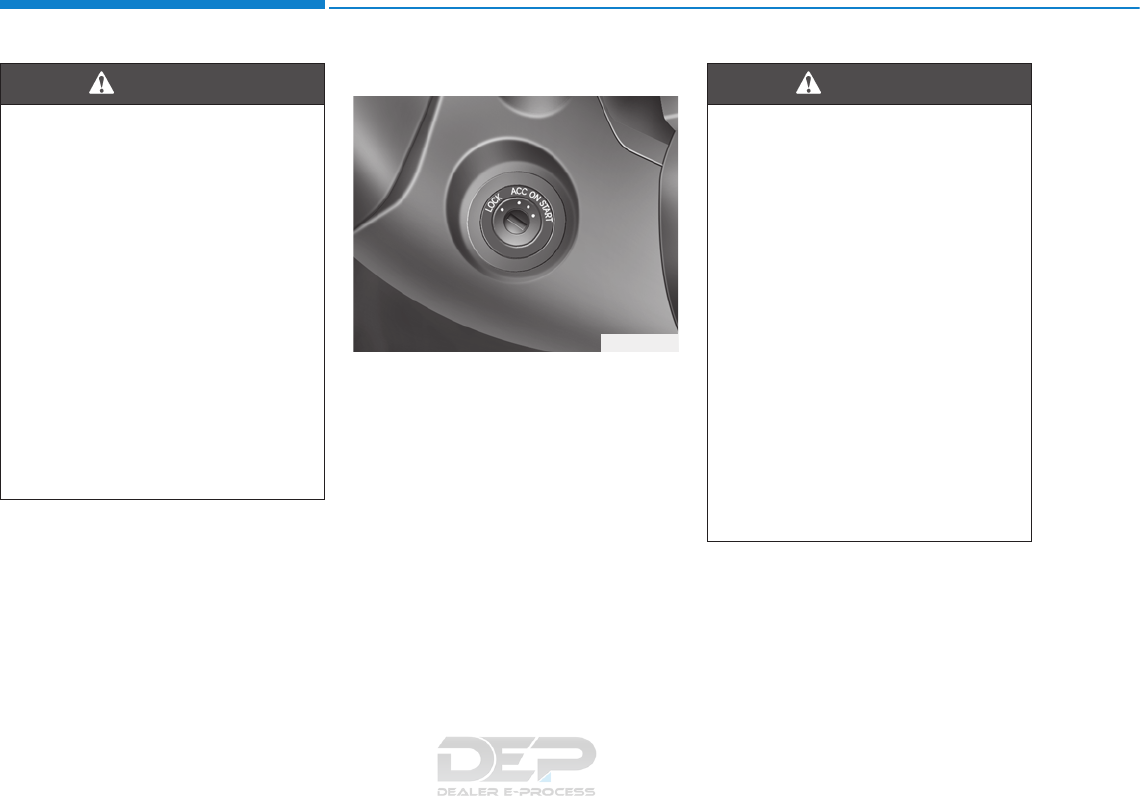

Key Ignition Switch ...........................................................5-6

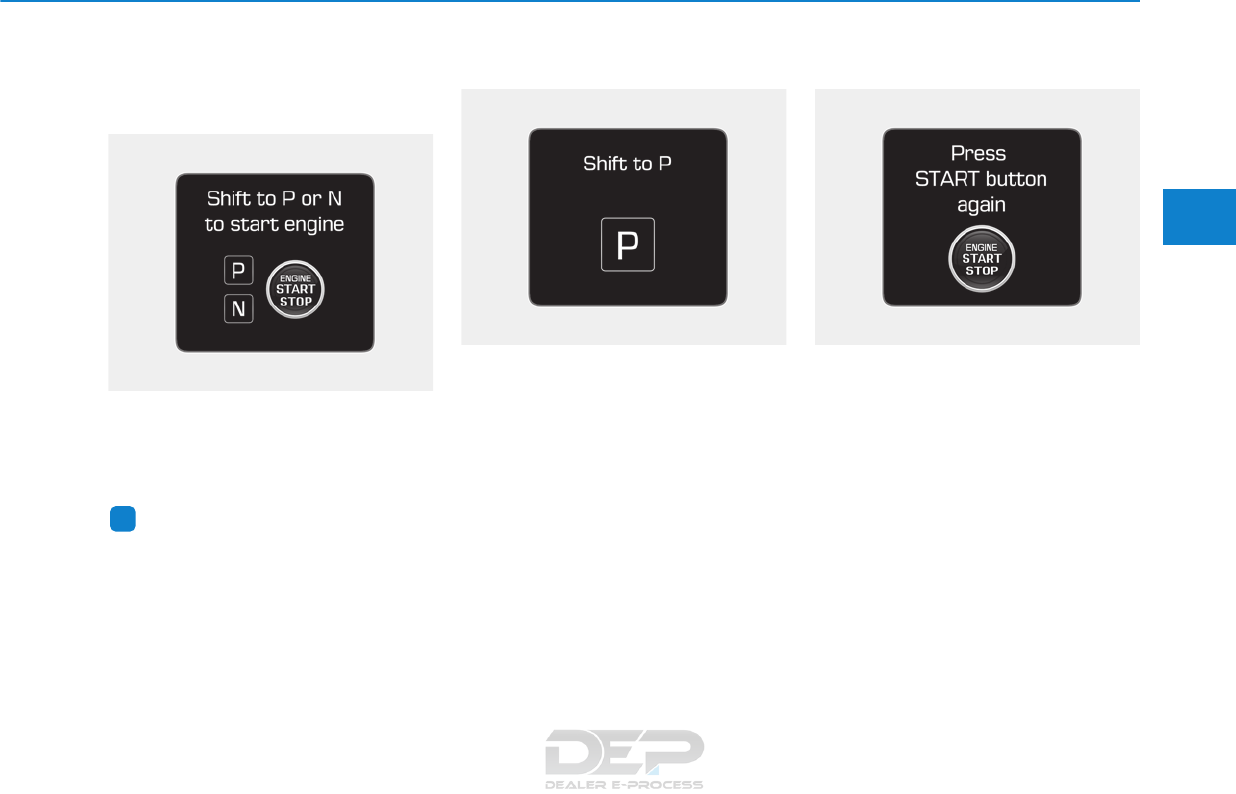

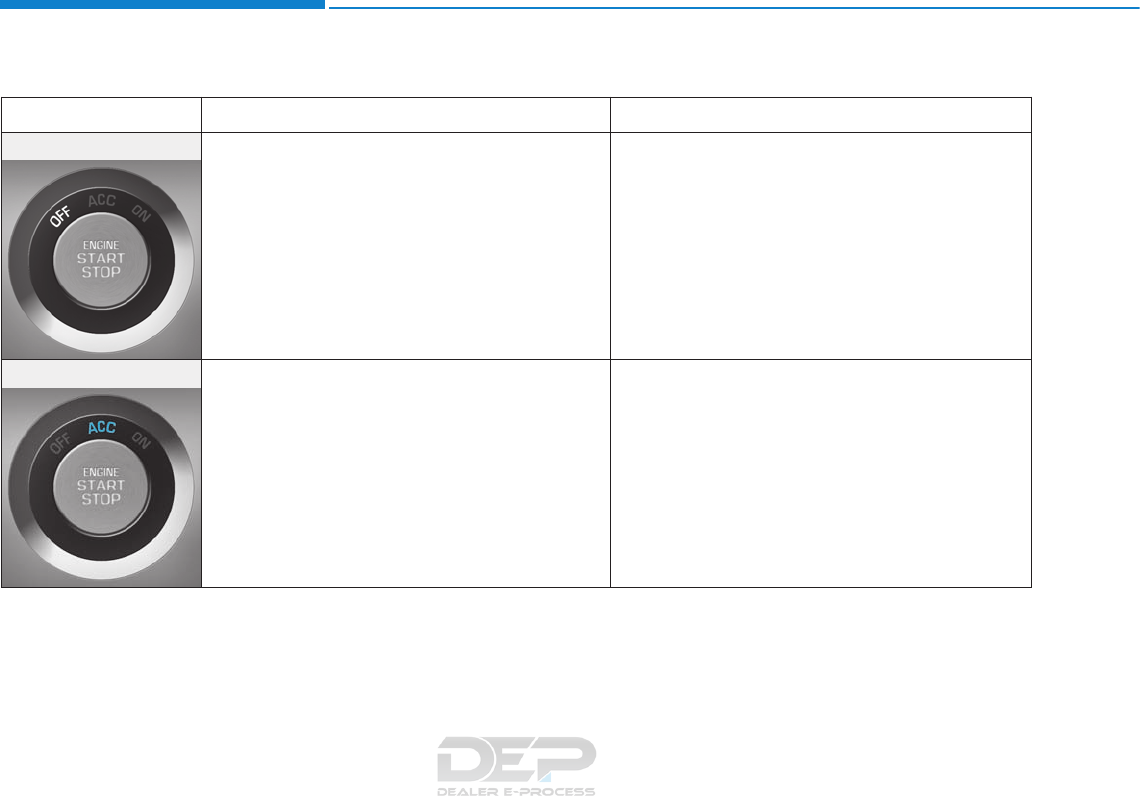

Engine Start/Stop Button................................................5-9

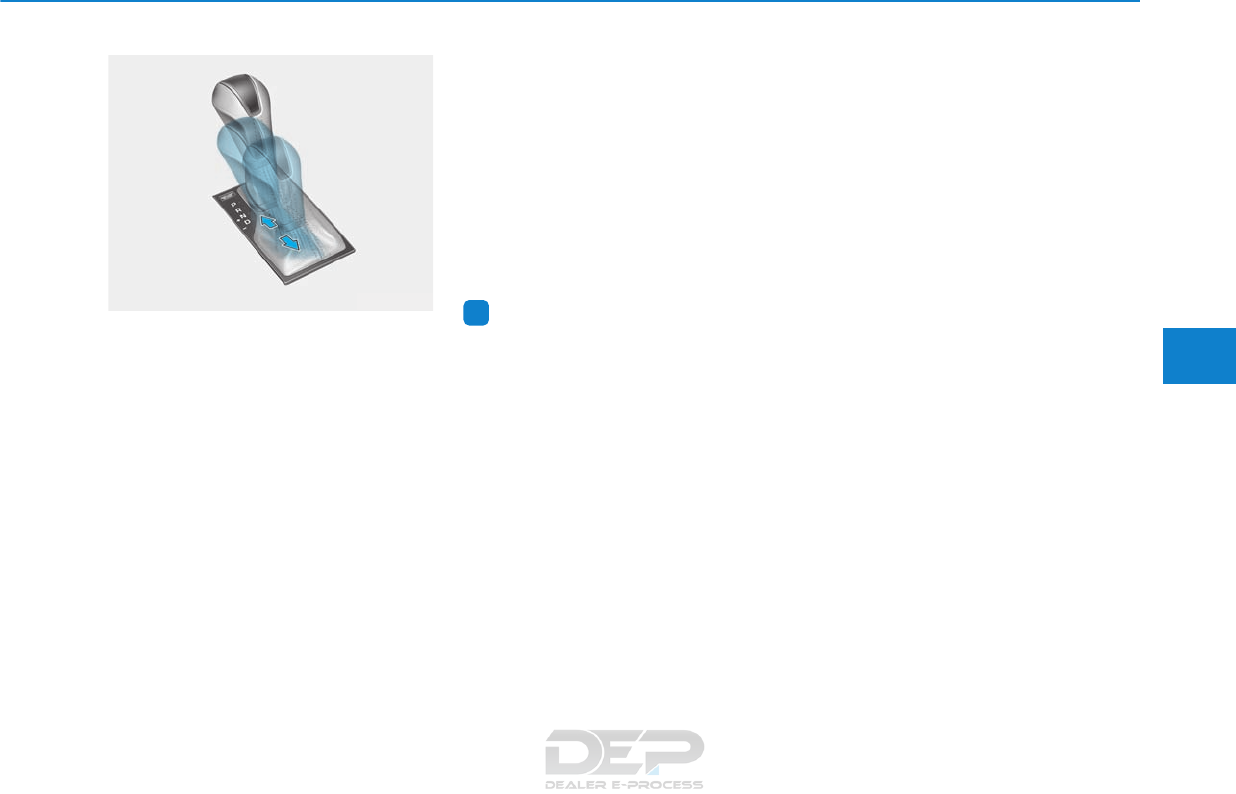

Transmission .........................................................5-14

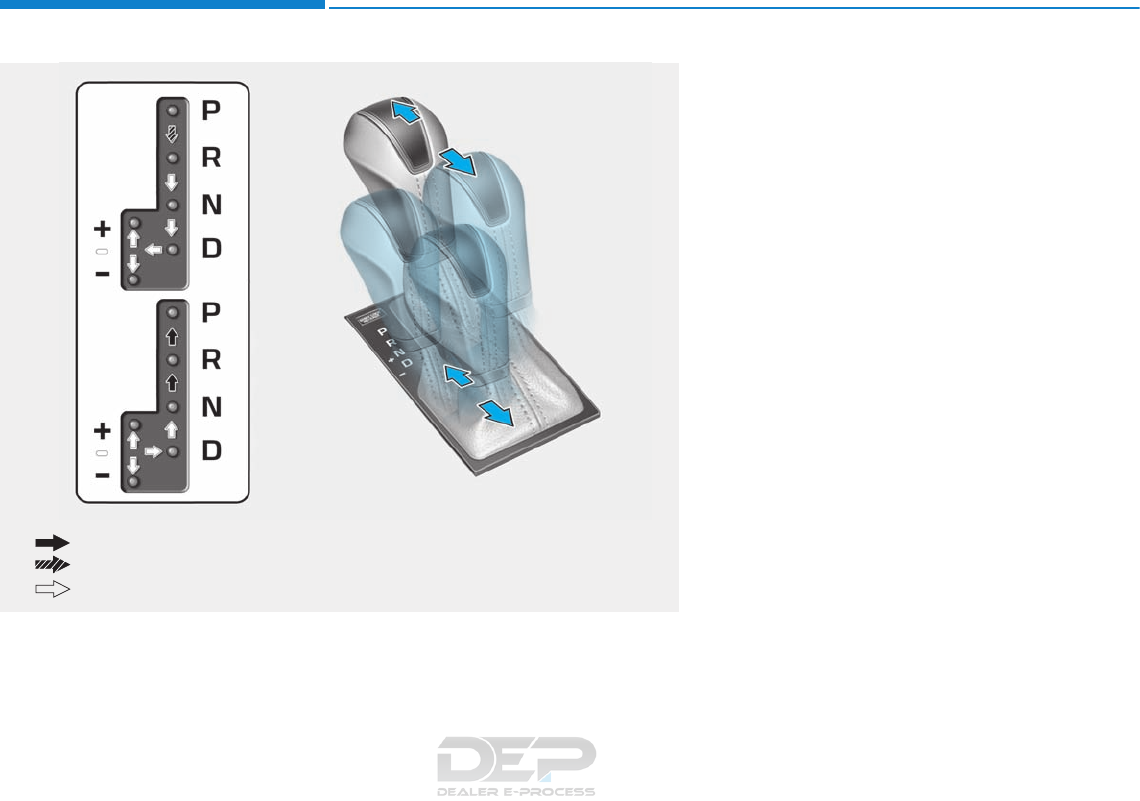

Automatic Transmission.................................................5-14

Ecoshift dual clutch transmission...............................5-18

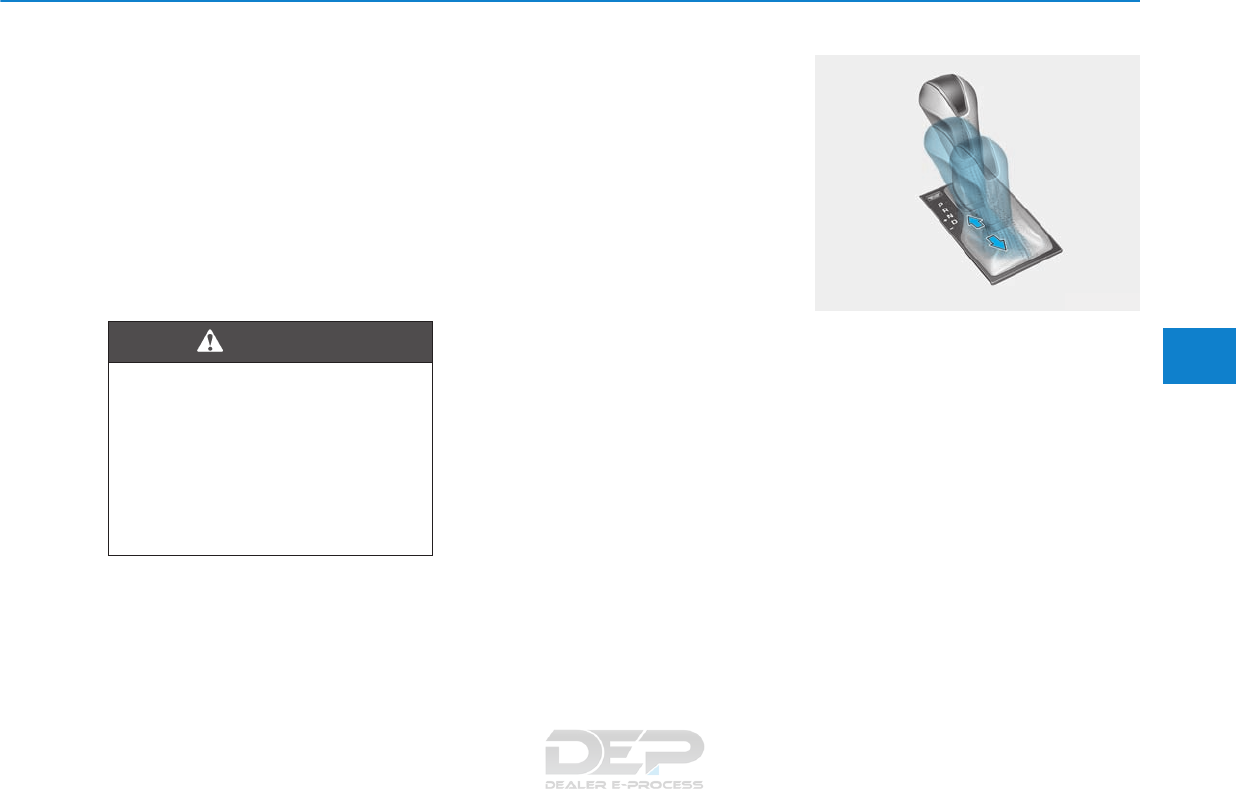

Shift-Lock System..........................................................5-24

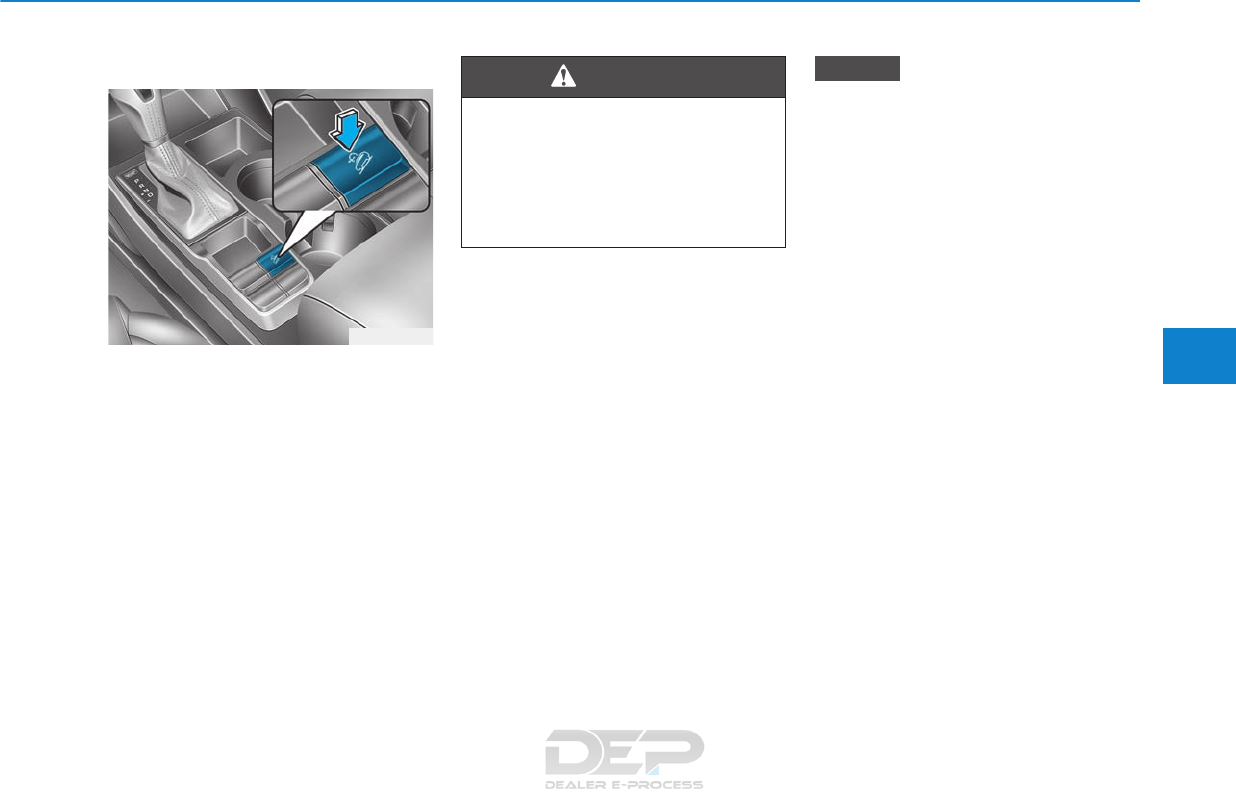

Shift-Lock Release.........................................................5-25

Parking...............................................................................5-25

Good Driving Practices ..................................................5-26

Braking system.....................................................5-28

Power Brakes ...................................................................5-28

Disc Brakes Wear Indicator ..........................................5-29

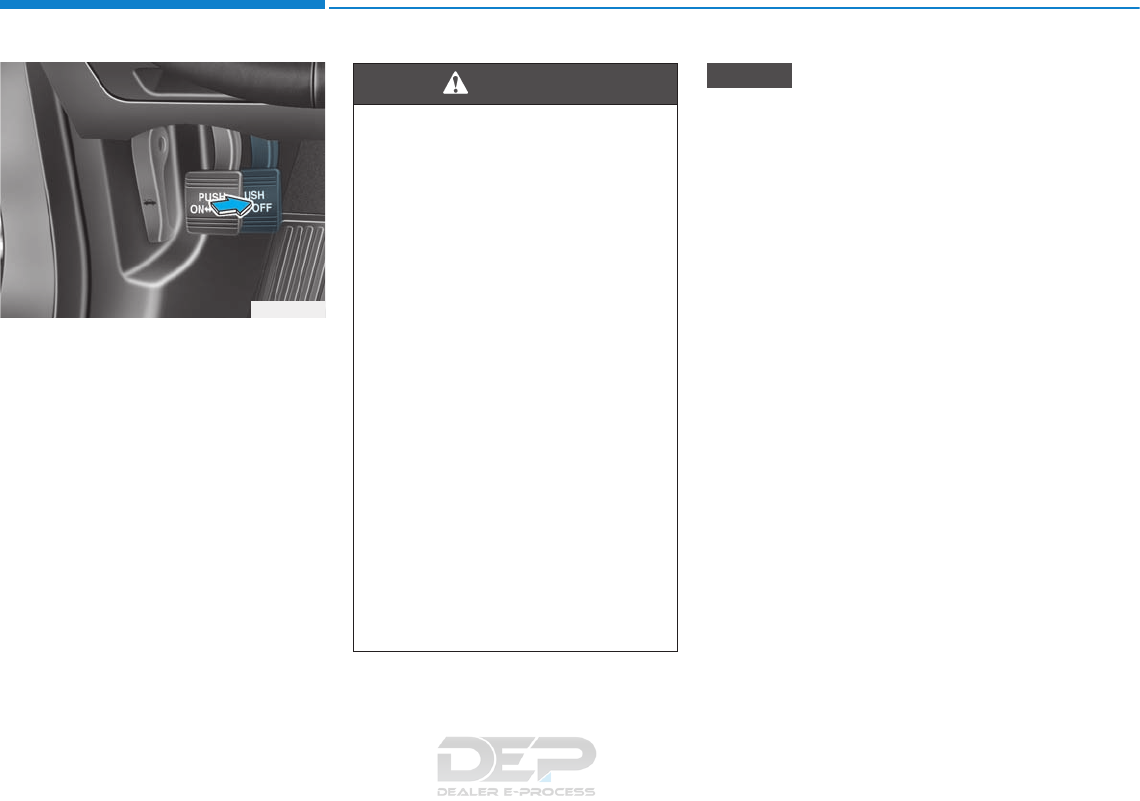

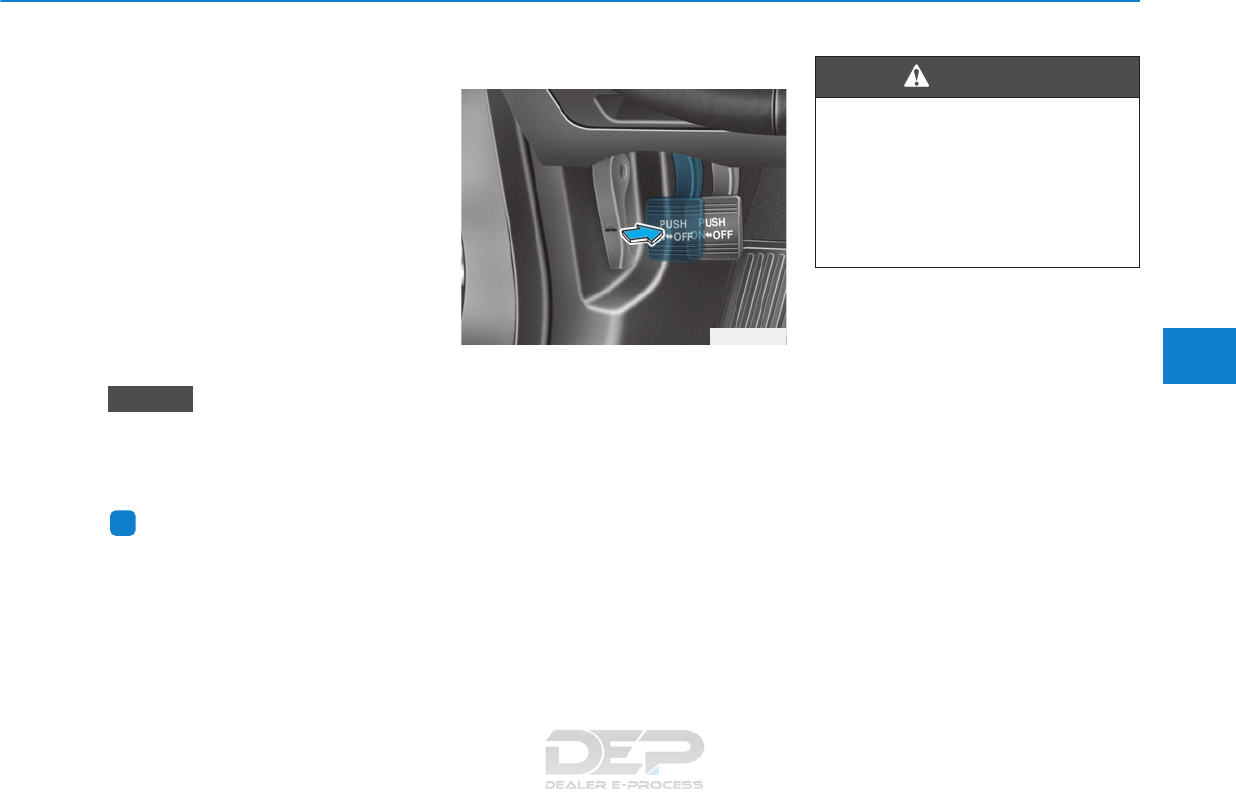

Parking Brake...................................................................5-29

Anti-lock Brake System (ABS) ....................................5-31

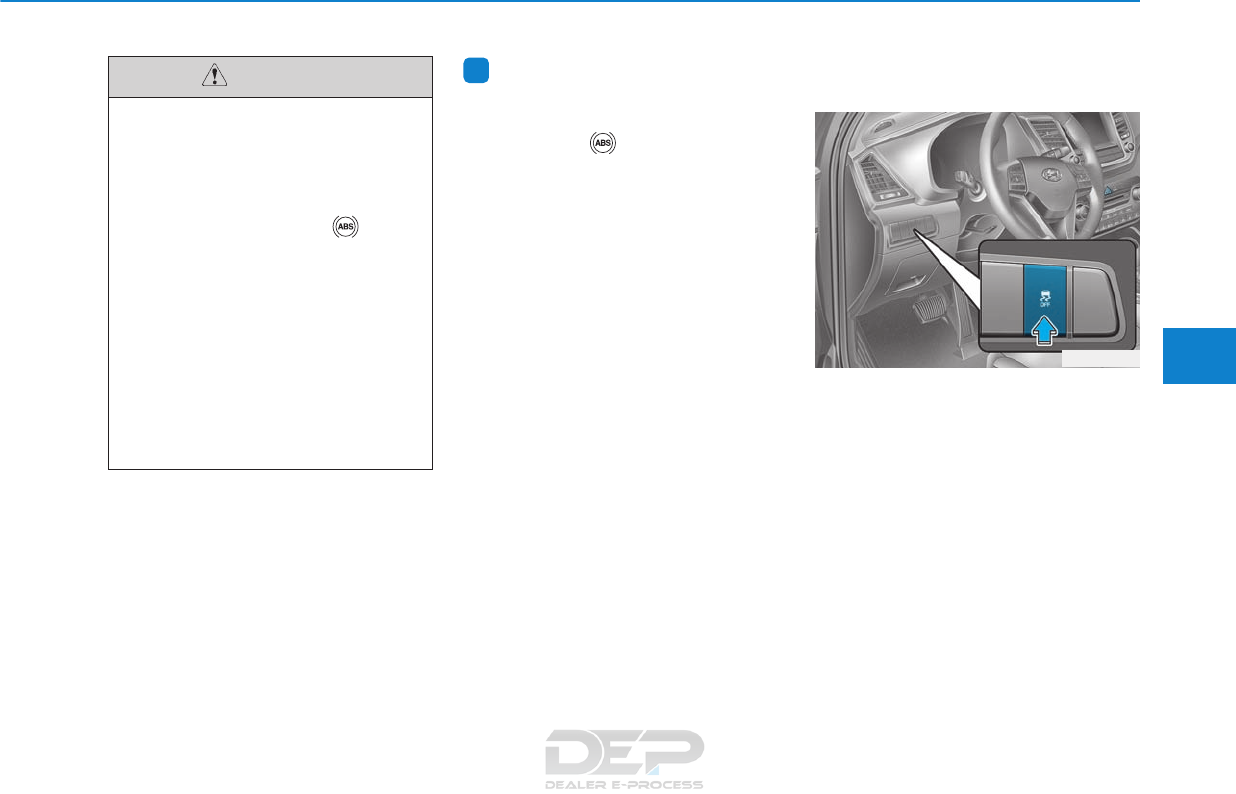

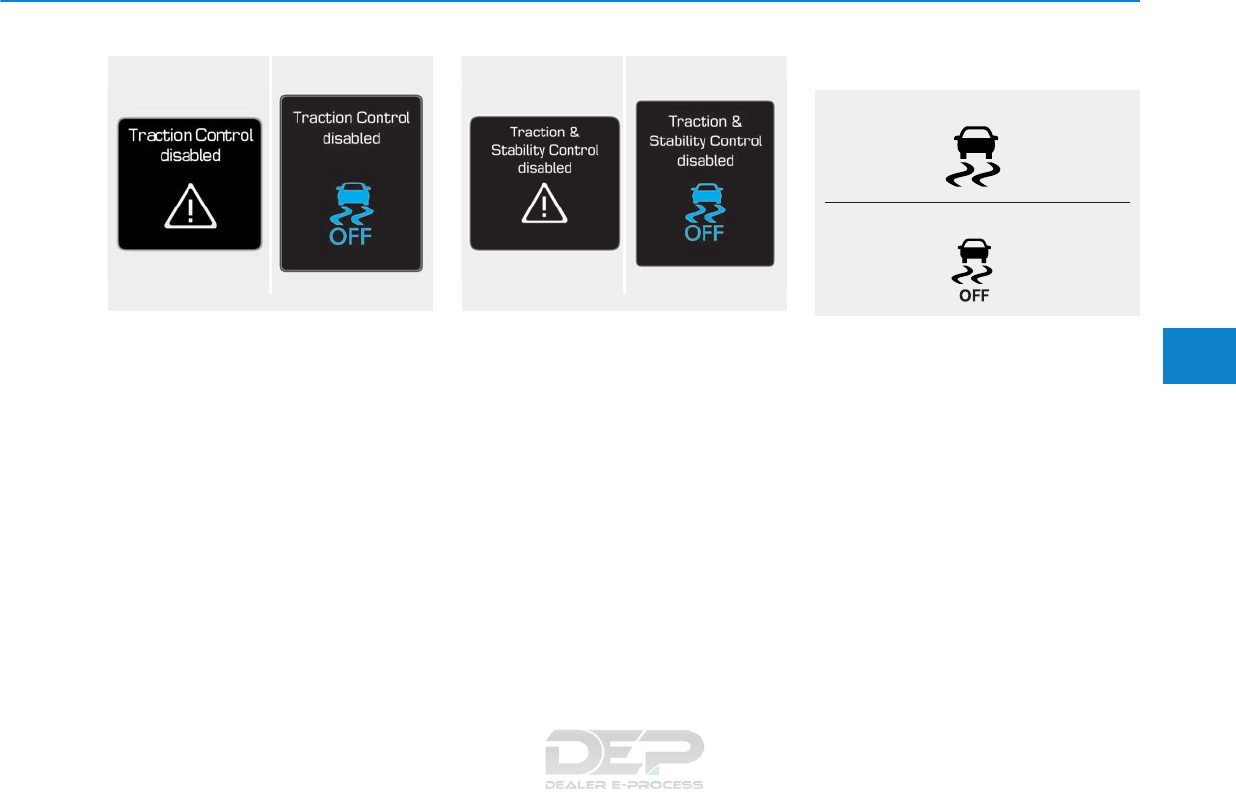

Electronic Stability Control (ESC)................................5-33

Vehicle Stability Management (VSM).........................5-37

Hill-Start Assist Control (HAC) ....................................5-38

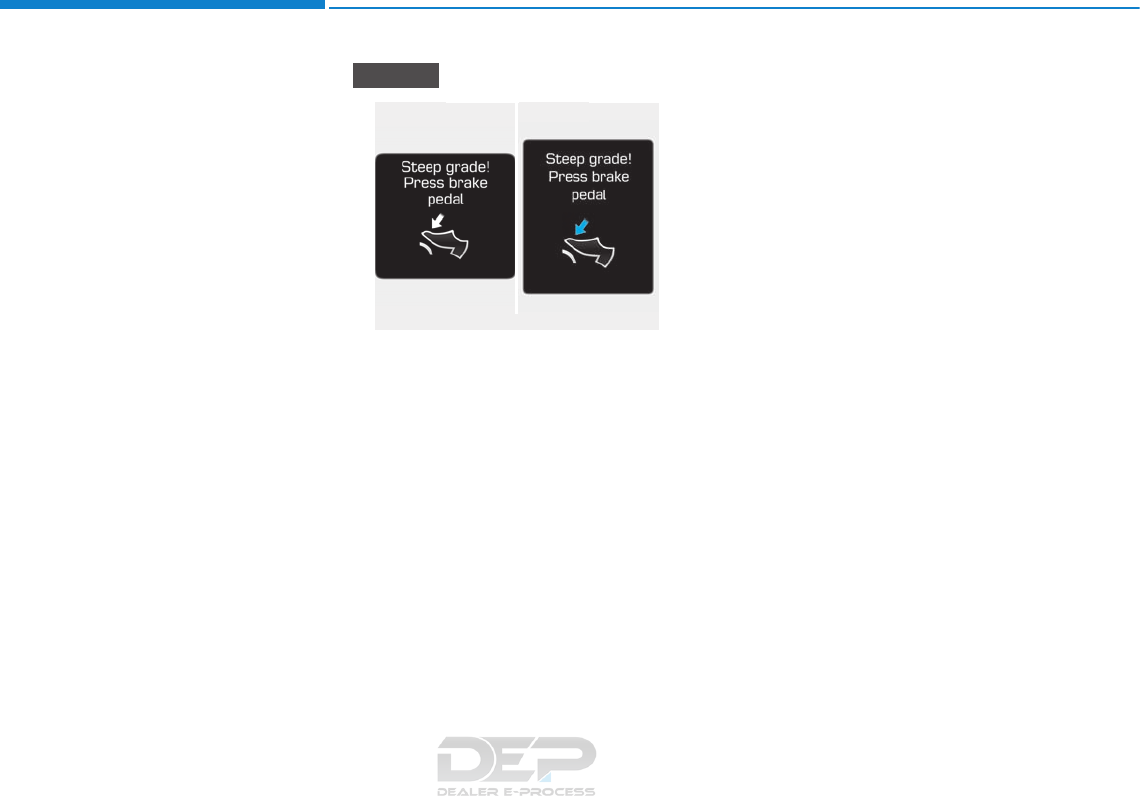

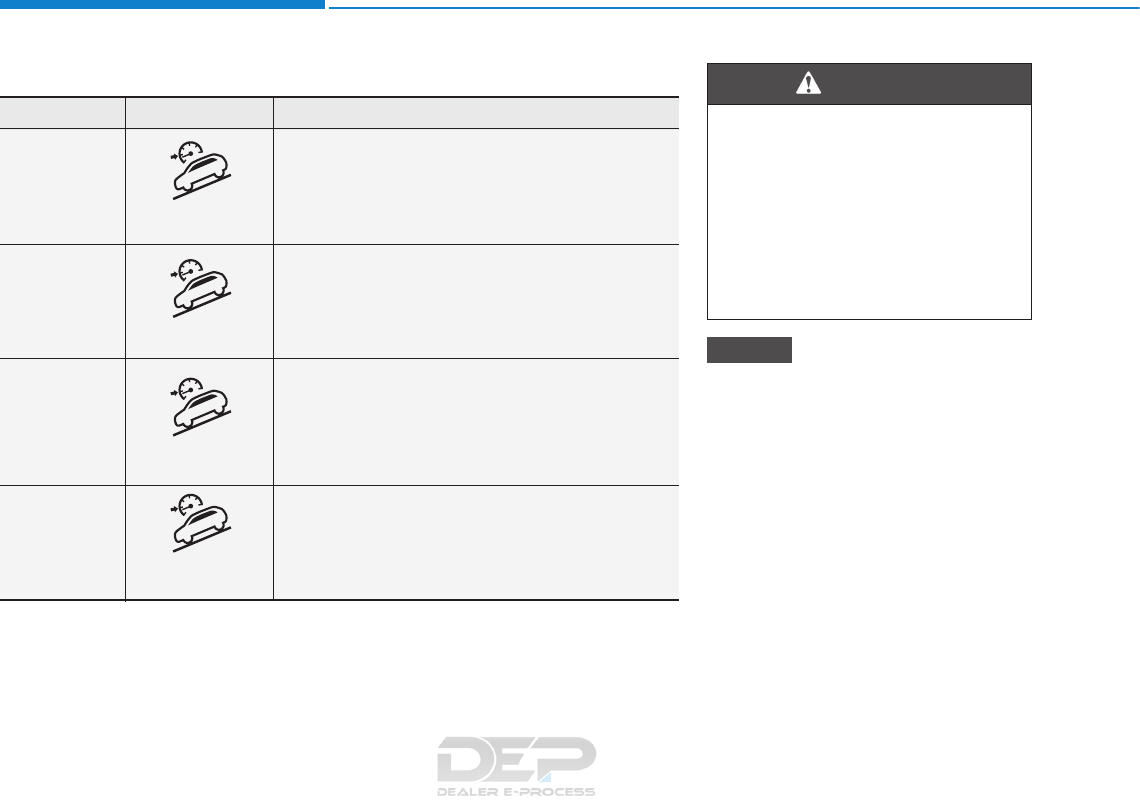

Downhill Brake Control (DBC)......................................5-39

Good Braking Practices.................................................5-41

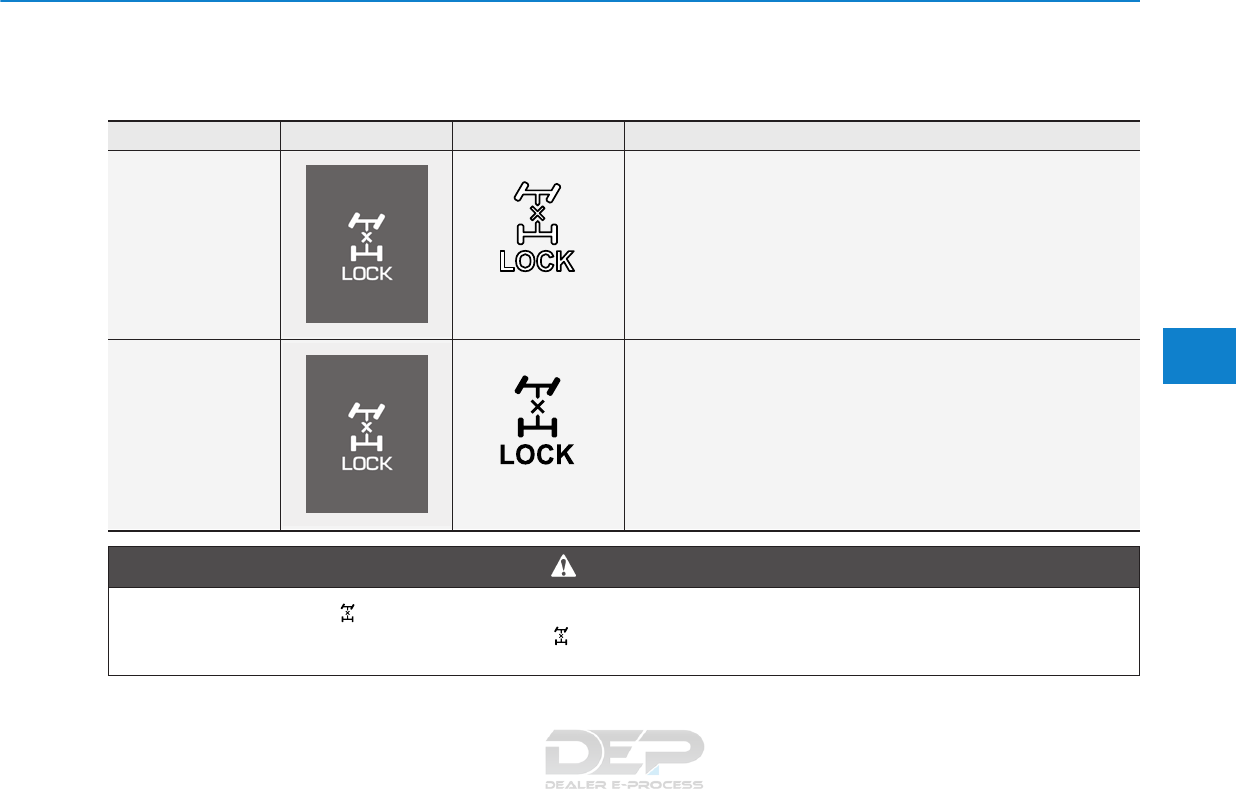

All wheel drive (AWD) .........................................5-42

AWD operation.................................................................5-43

Emergency precautions.................................................5-47

Drive mode integrated control system .............5-49

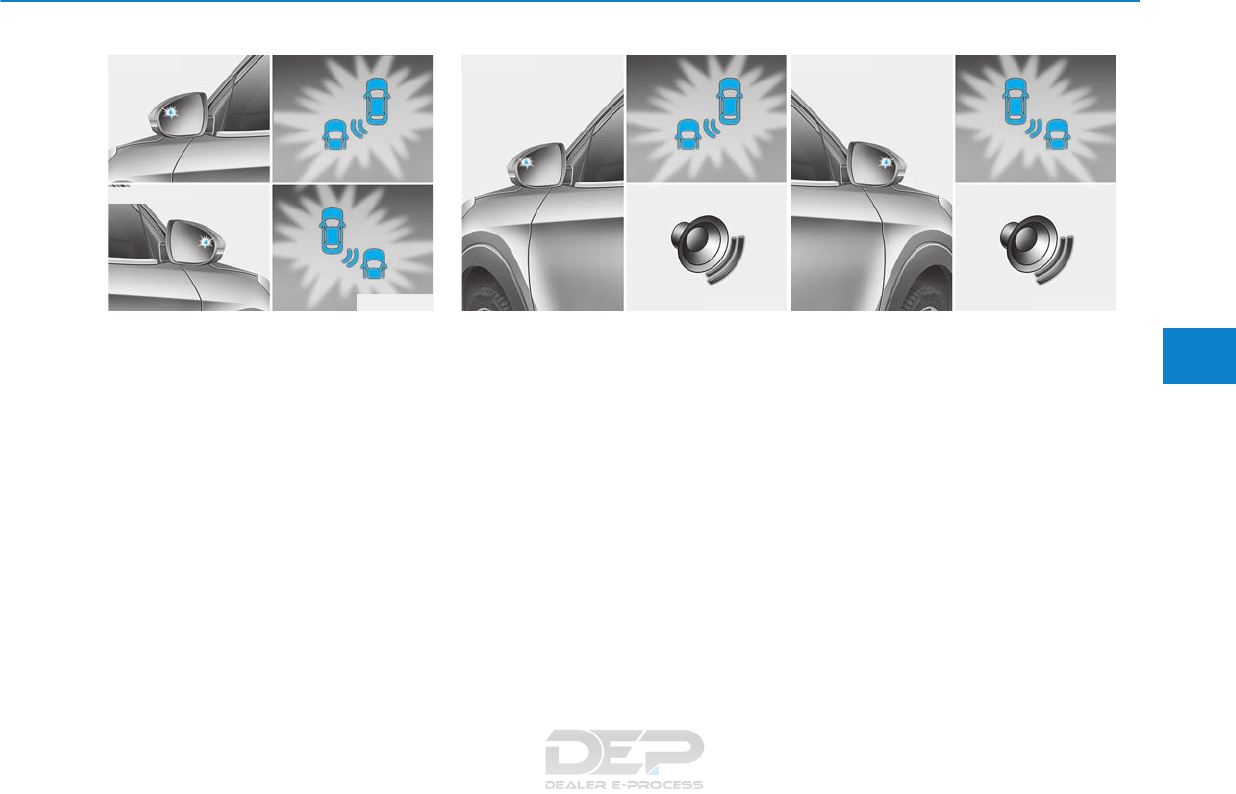

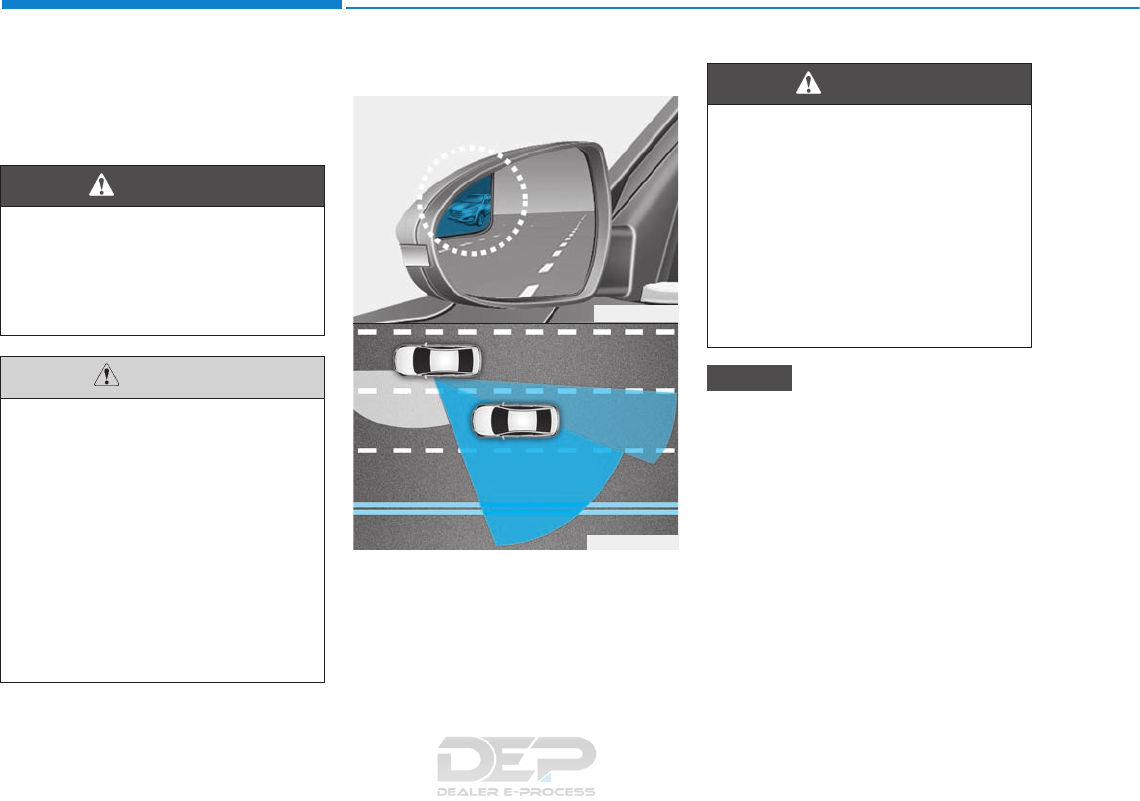

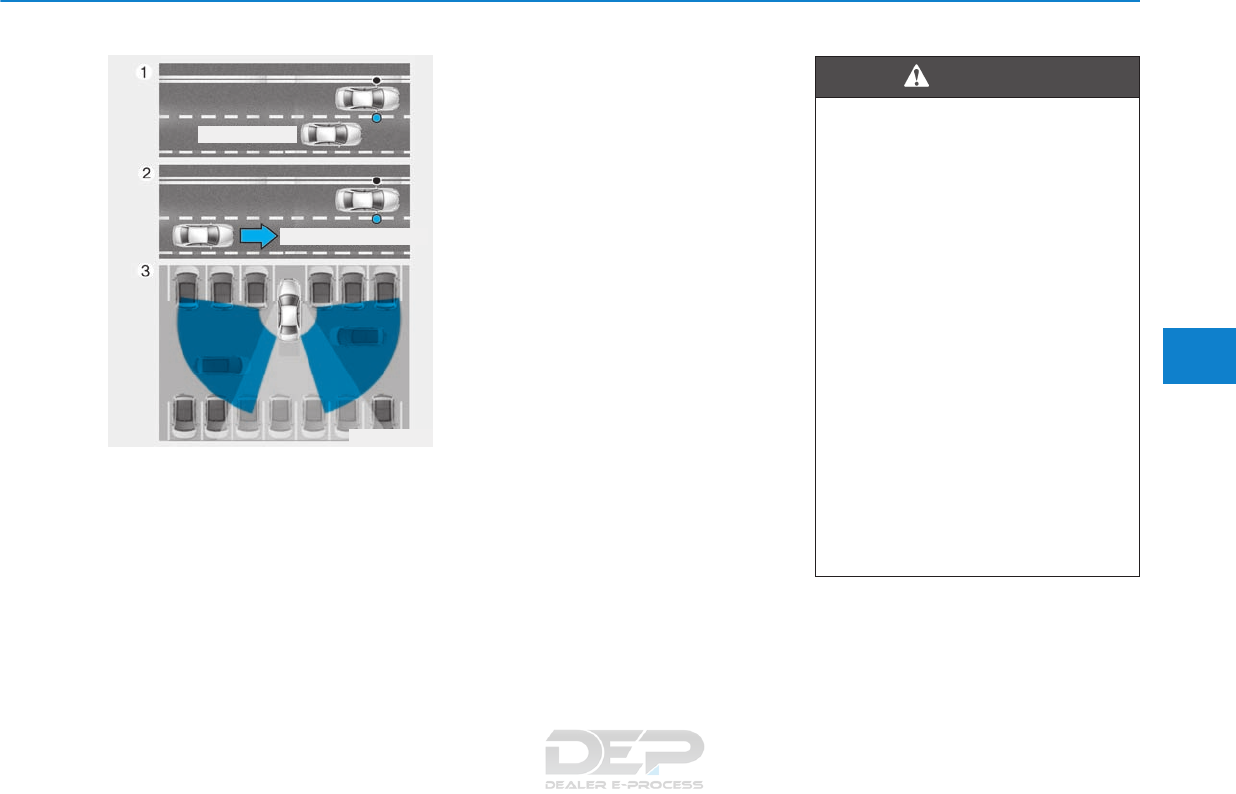

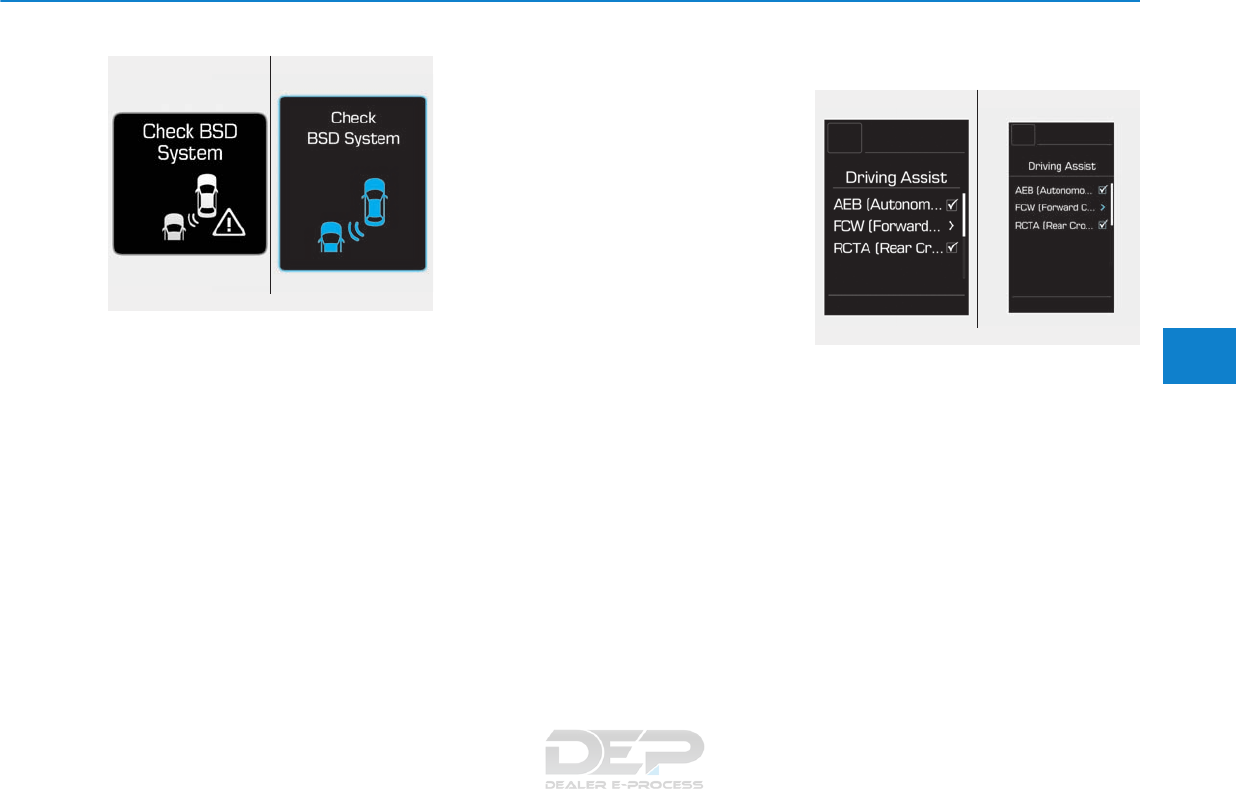

Blind spot detection system (BSD) ...................5-51

BSD (Blind Spot Detection) /

LCA (Lane Change Assist).............................................5-52

RCTA (Rear Cross Traffic Alert) ..................................5-55

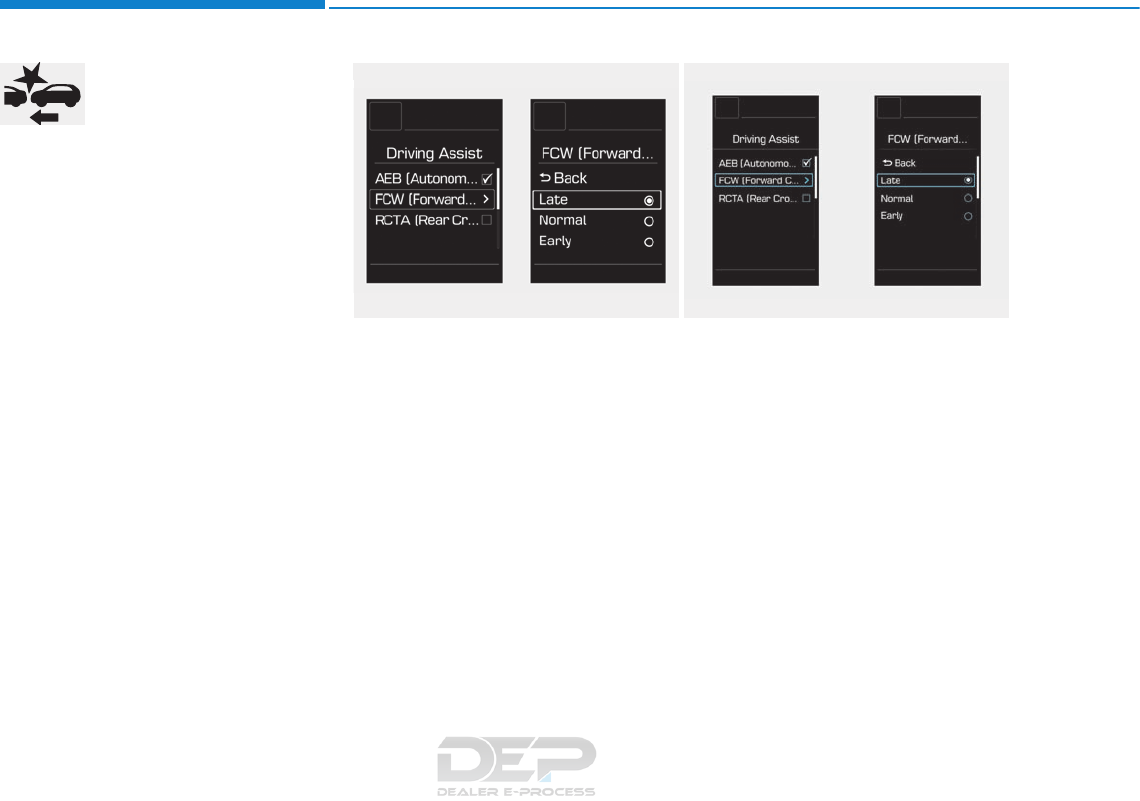

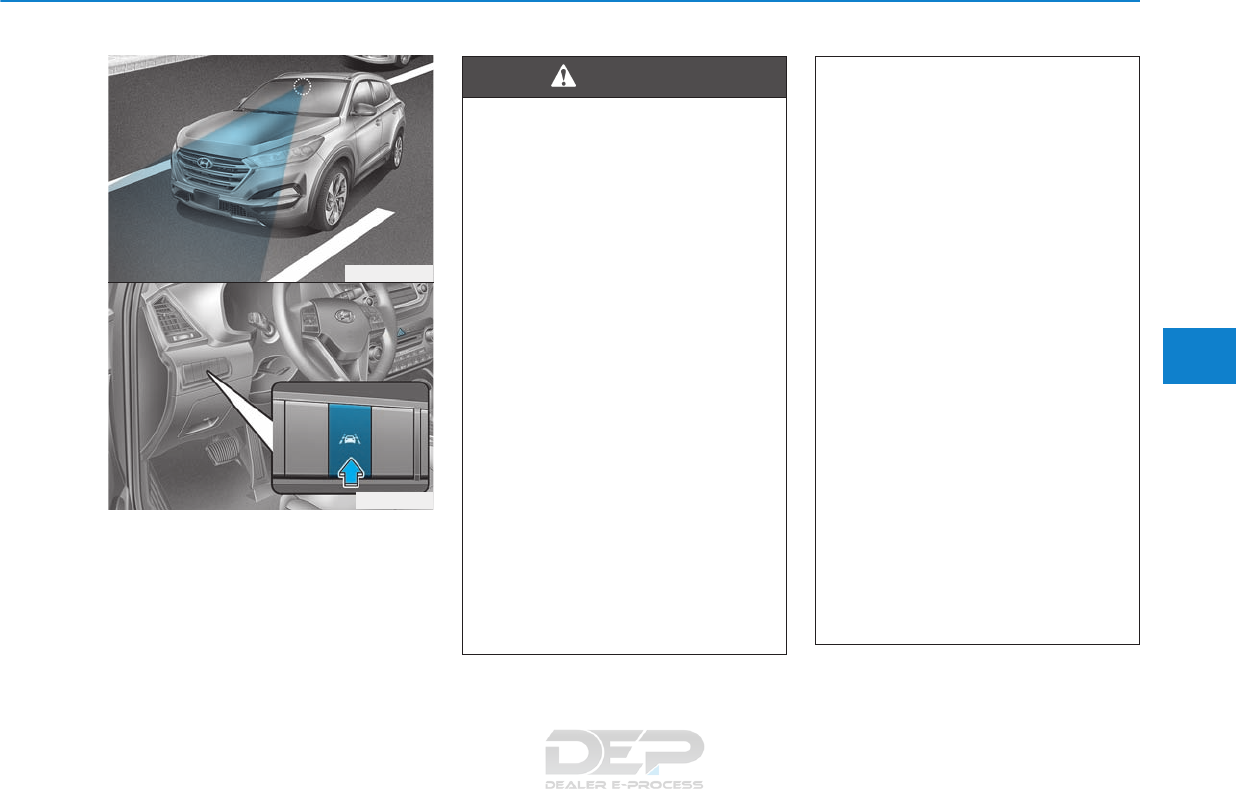

Autonomous emergency braking (AEB) ...........5-59

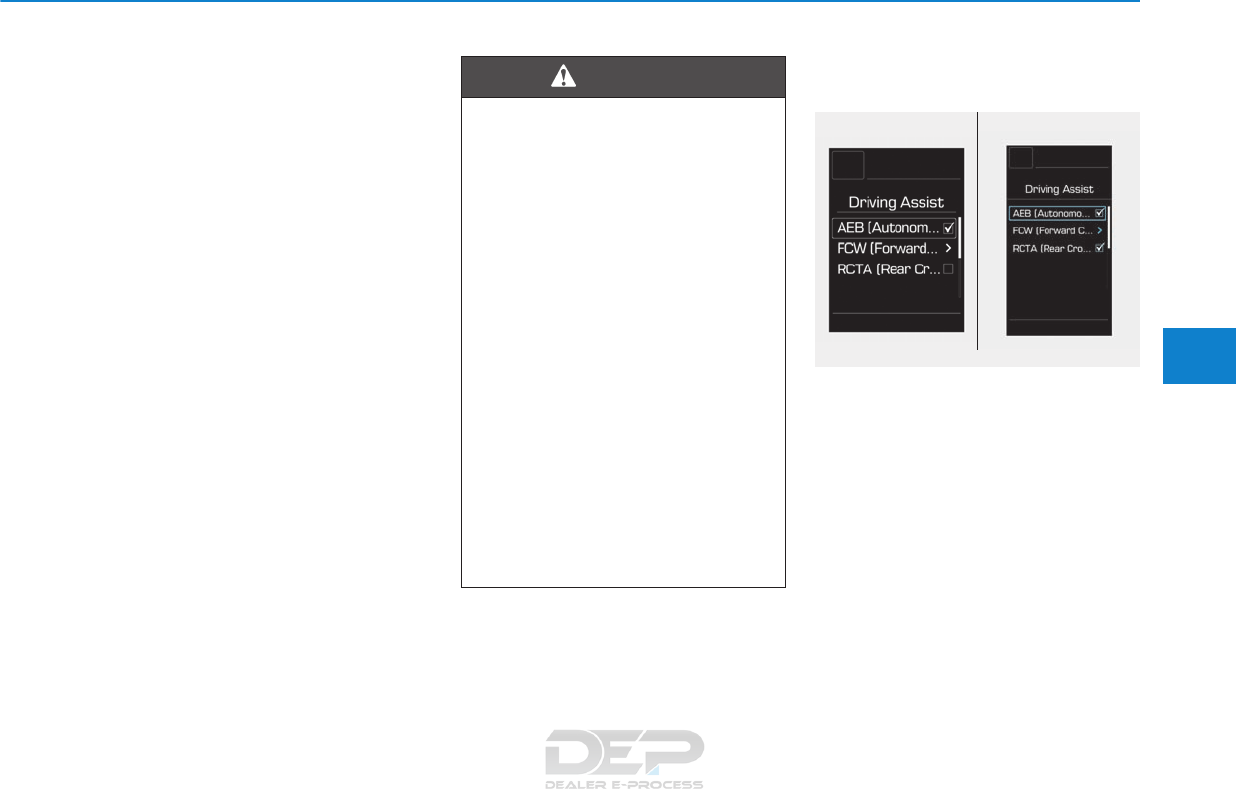

System setting and activation......................................5-59

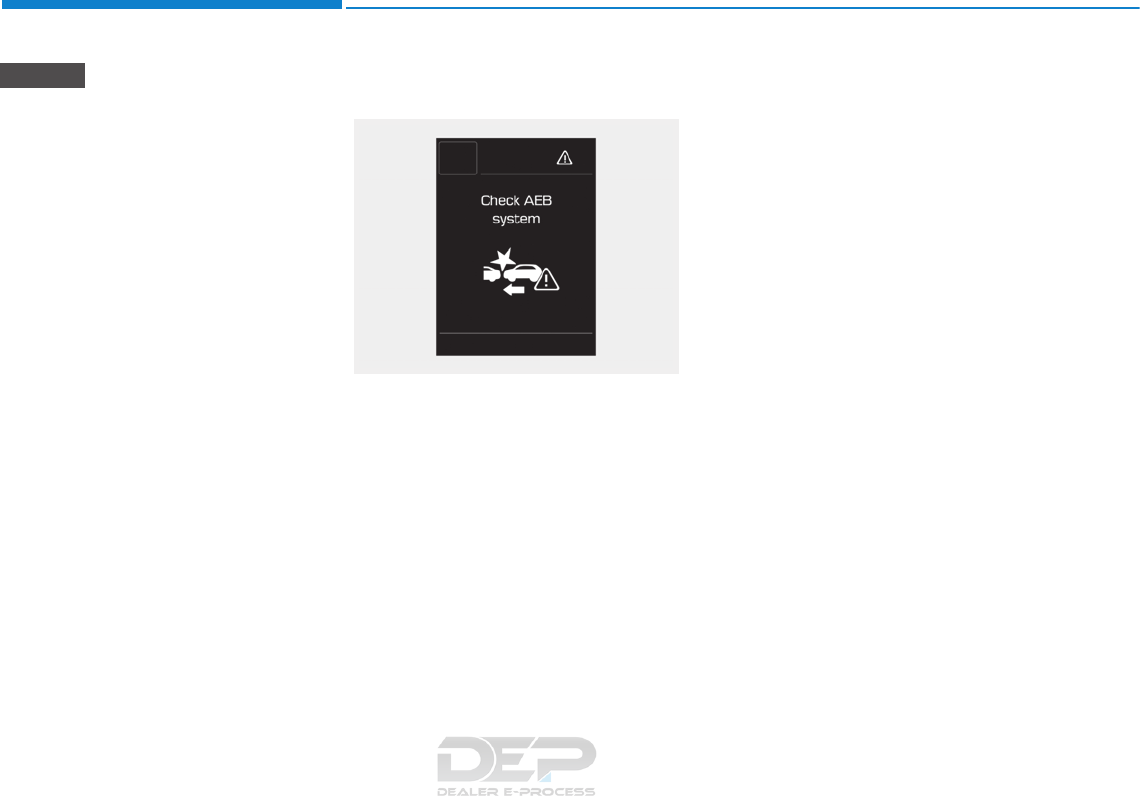

AEB warning message and system control..............5-61

AEB front radar sensor.................................................5-64

System malfunction........................................................5-65

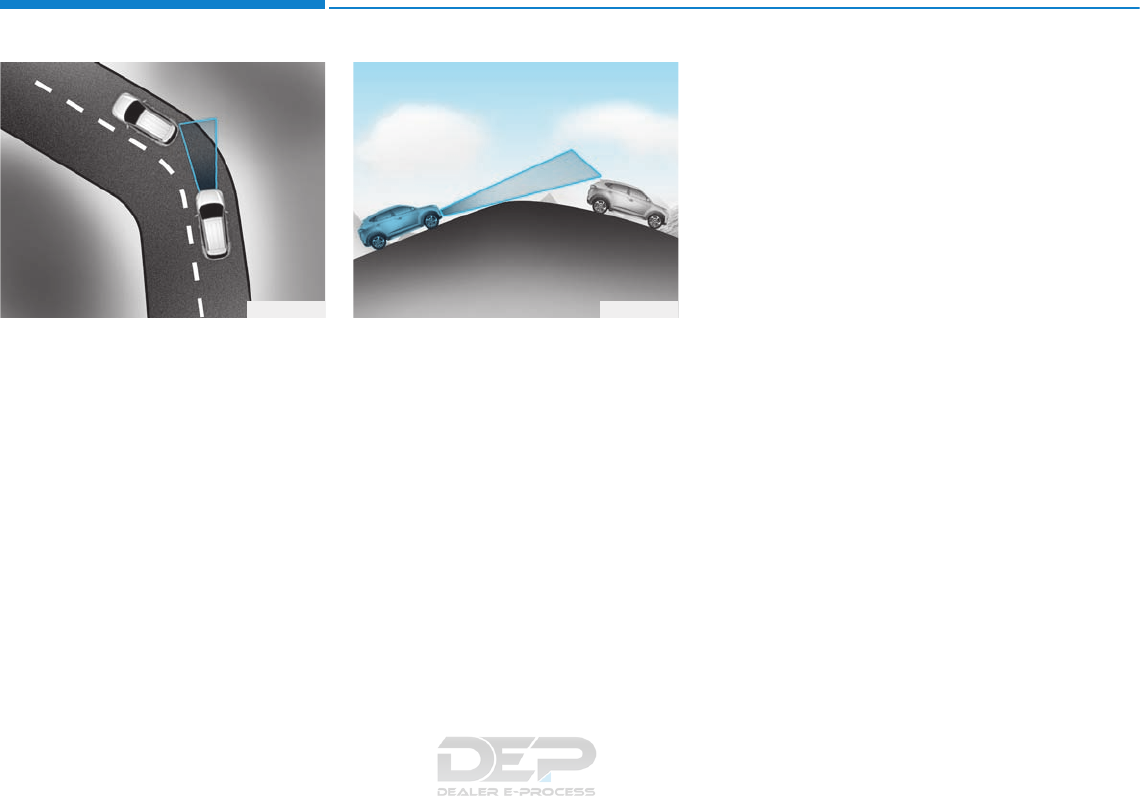

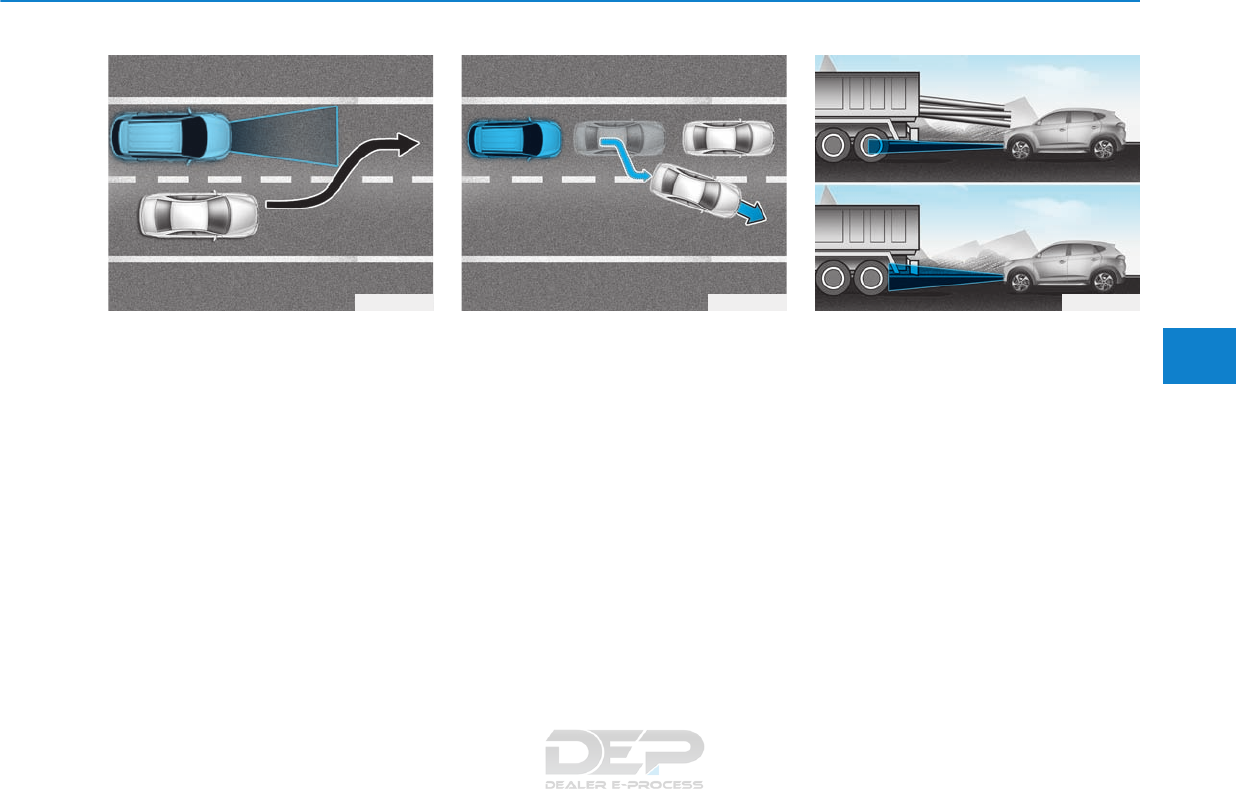

Limitations of the system .............................................5-67

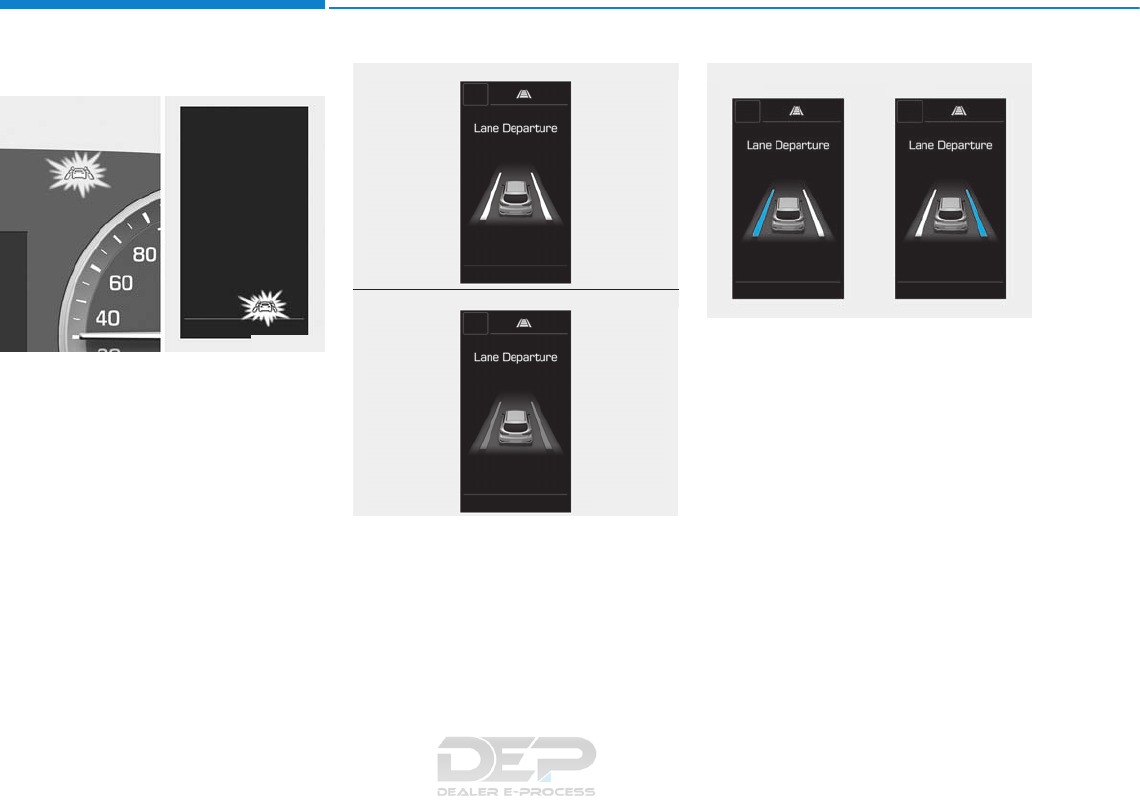

Lane departure warning system (LDWS) .........5-71

LDWS Operation..............................................................5-72

Warning Light and Message.........................................5-73

Limitations of the system .............................................5-73

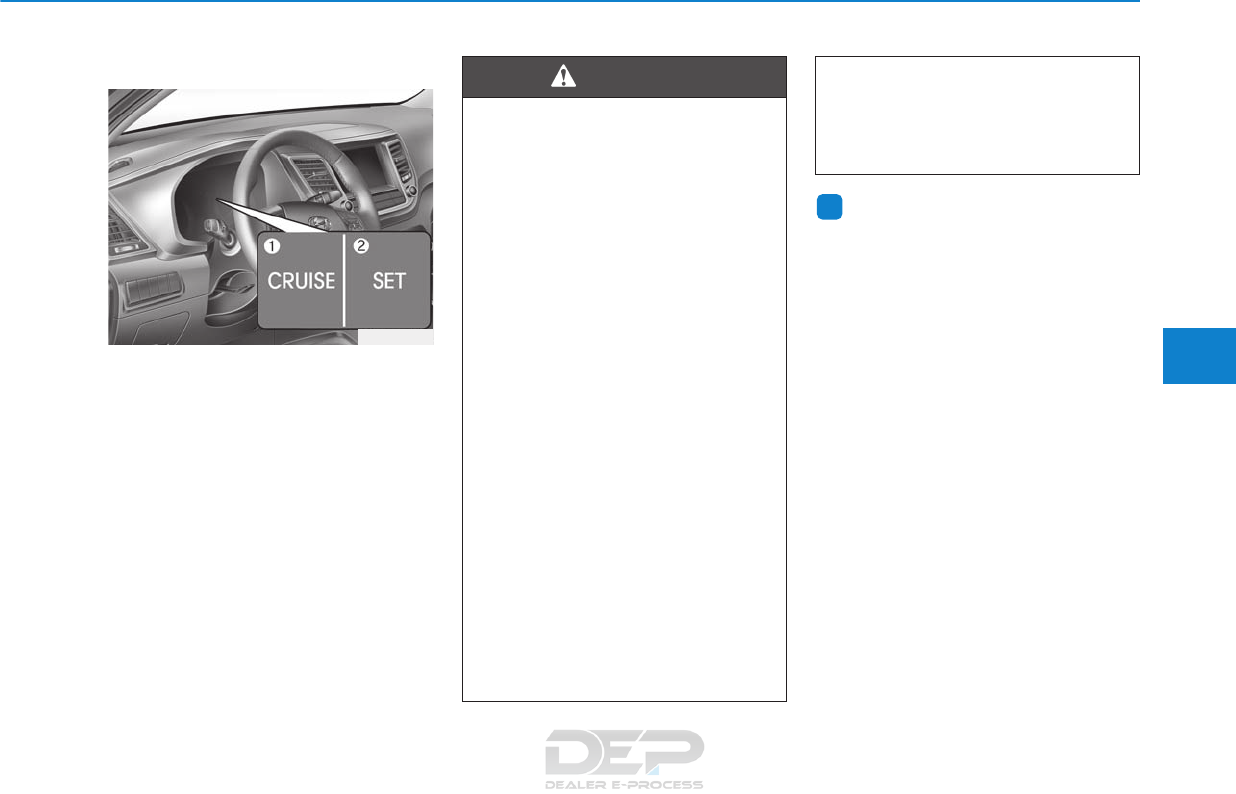

Cruise control .......................................................5-75

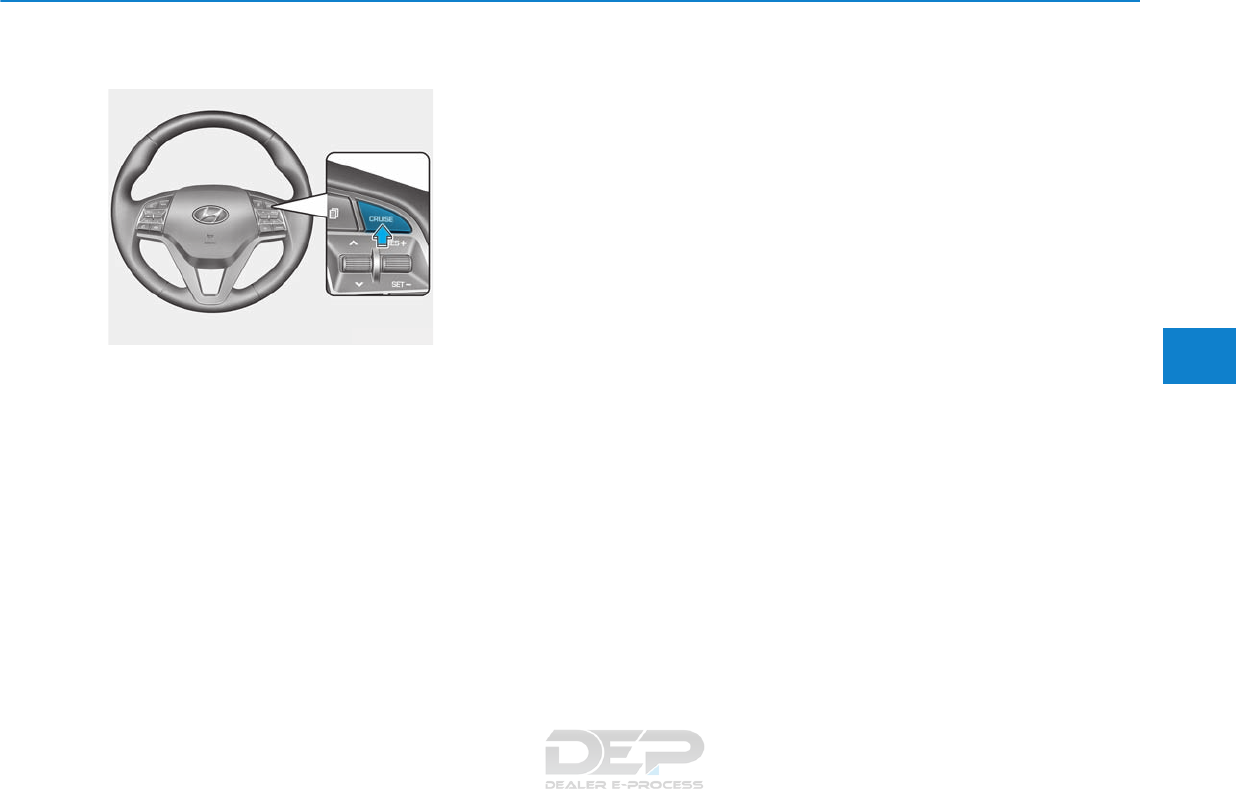

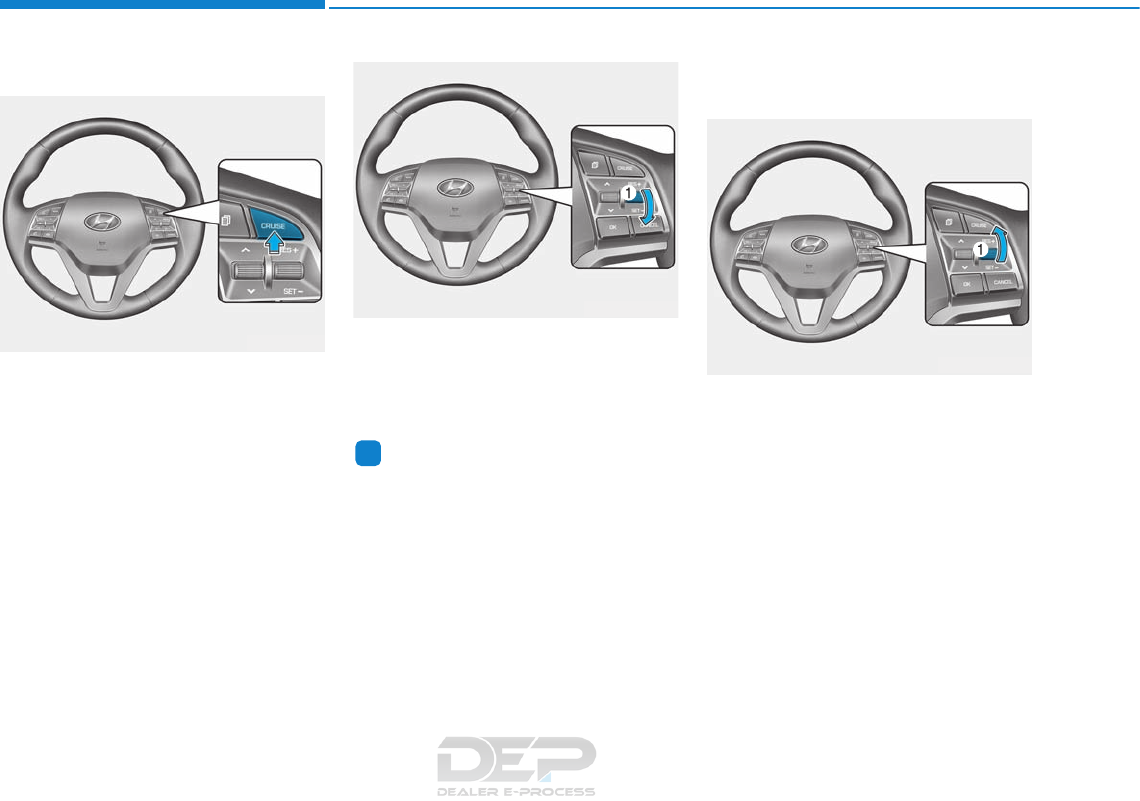

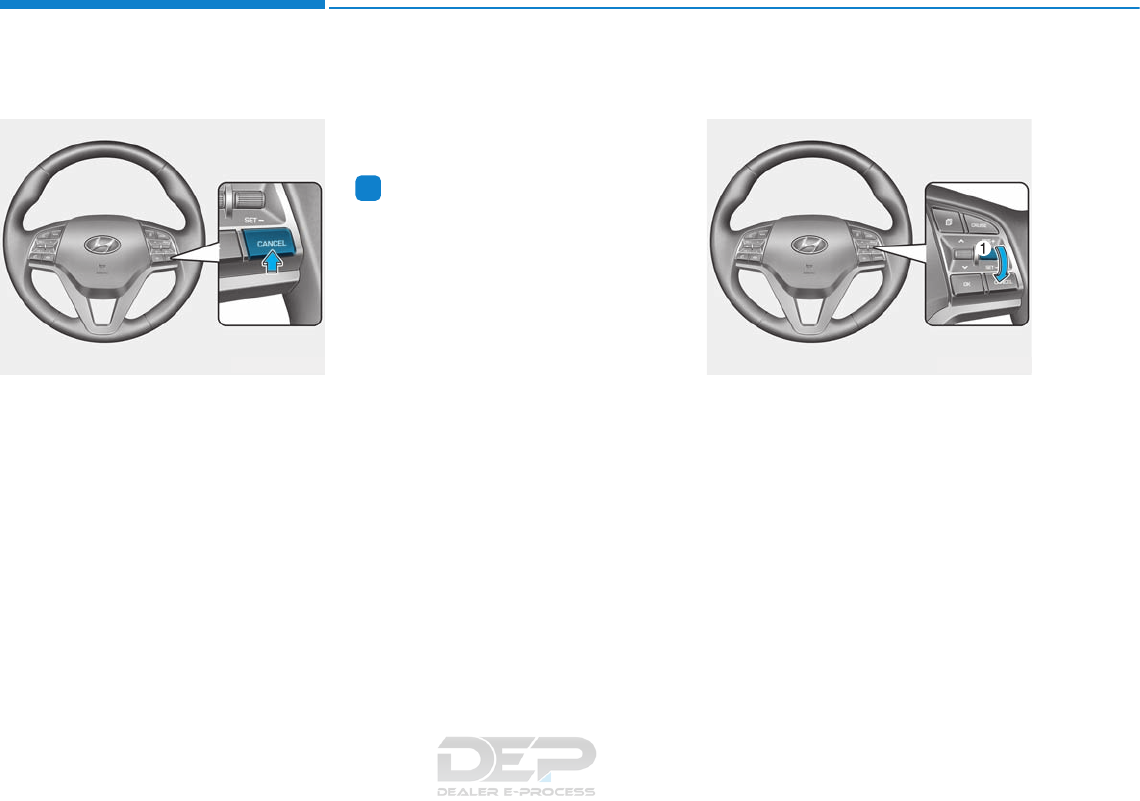

Cruise Control operation ...............................................5-75

5Driving your vehicle

F18

Special driving conditions...................................5-80

Hazardous driving conditions.......................................5-80

Rocking the vehicle ........................................................5-80

Smooth cornering ...........................................................5-81

Driving at night................................................................5-81

Driving in the rain ...........................................................5-82

Driving in flooded areas................................................5-82

Highway driving...............................................................5-83

Reducing the risk of a rollover ...................................5-83

Winter driving.......................................................5-85

Snow or Icy Conditions..................................................5-85

Winter Precautions.........................................................5-87

Trailer towing .......................................................5-89

If you decide to pull a trailer?.....................................5-90

Trailer towing equipment ..............................................5-92

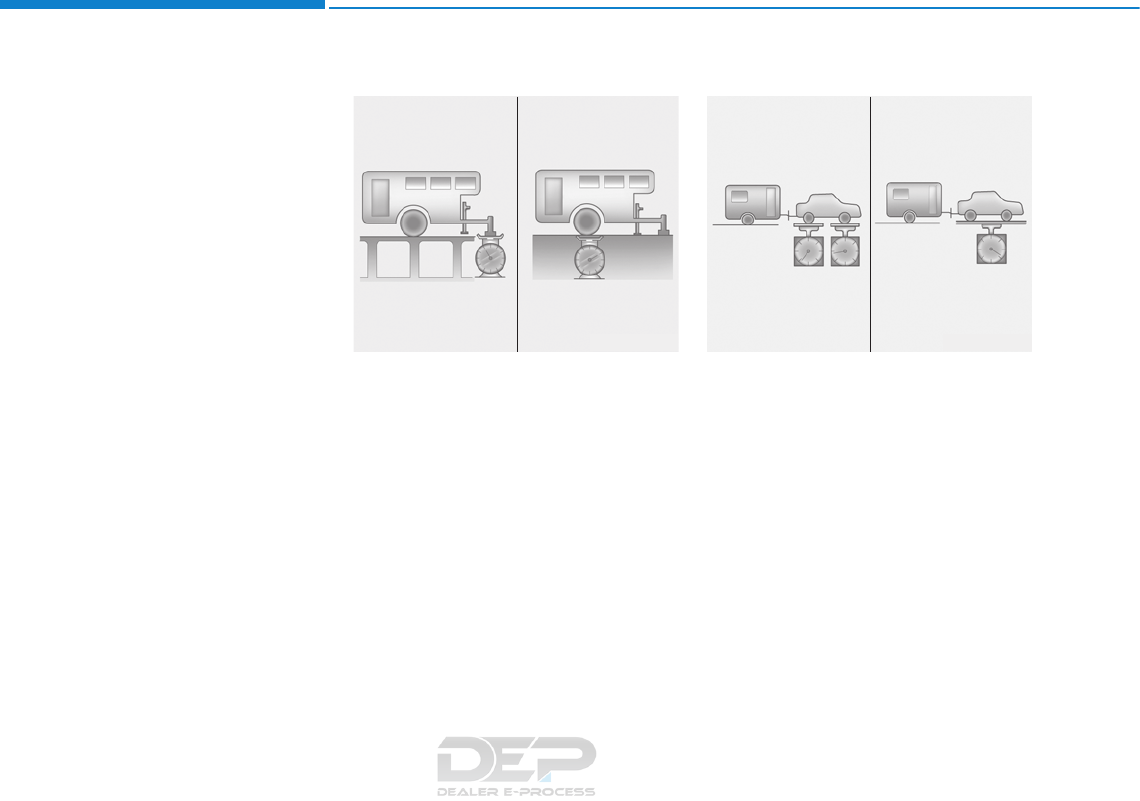

Driving with a trailer ......................................................5-93

Maintenance when trailer towing...............................5-97

Vehicle load limit..................................................5-98

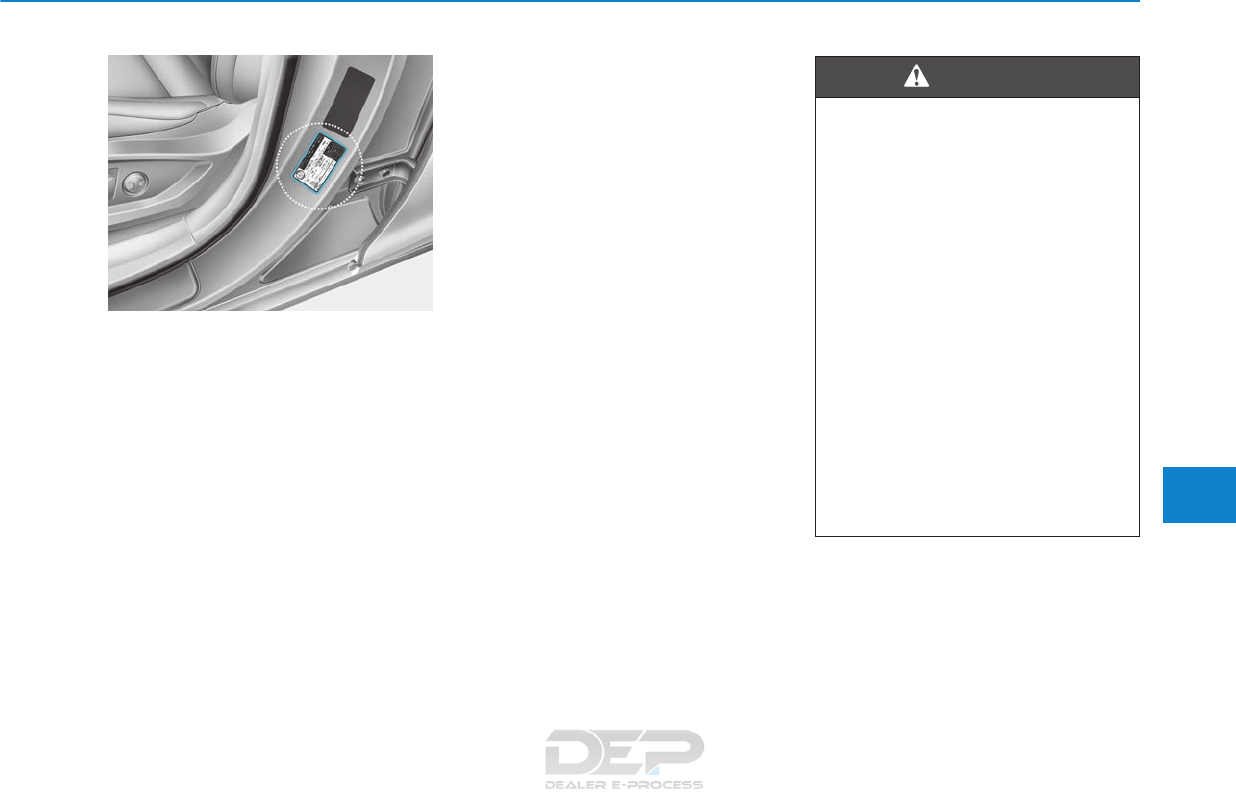

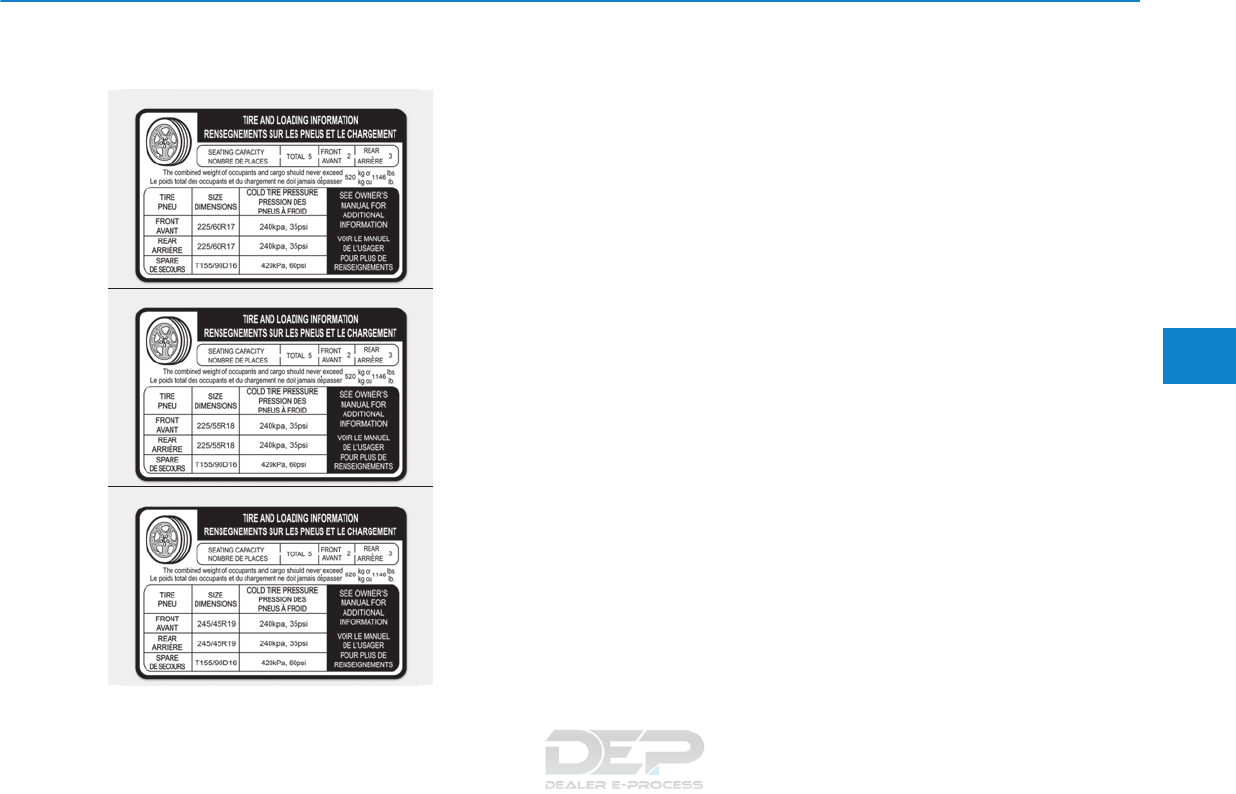

Tire Loading Information Label ...................................5-99

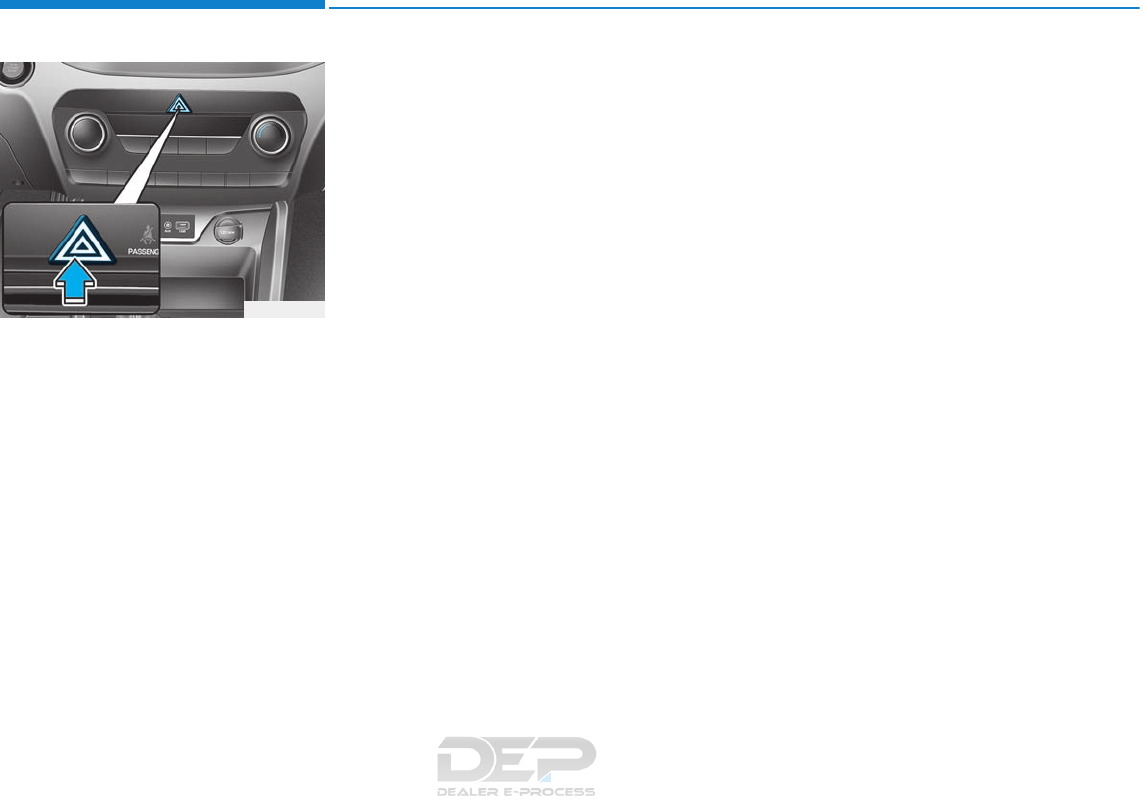

Hazard warning flasher ........................................6-2

In case of an emergency while driving ..............6-2

If the Engine Stalls While Driving .................................6-2

If the Engine Stalls at a Crossroad or Crossing........6-2

If you Have a Flat Tire While Driving ..........................6-3

If the engine will not start ..................................6-3

If the Engine Doesn't Turn Over or Turns

Over Slowly .........................................................................6-3

If the Engine Turns Over Normally but

Doesn't Start ......................................................................6-3

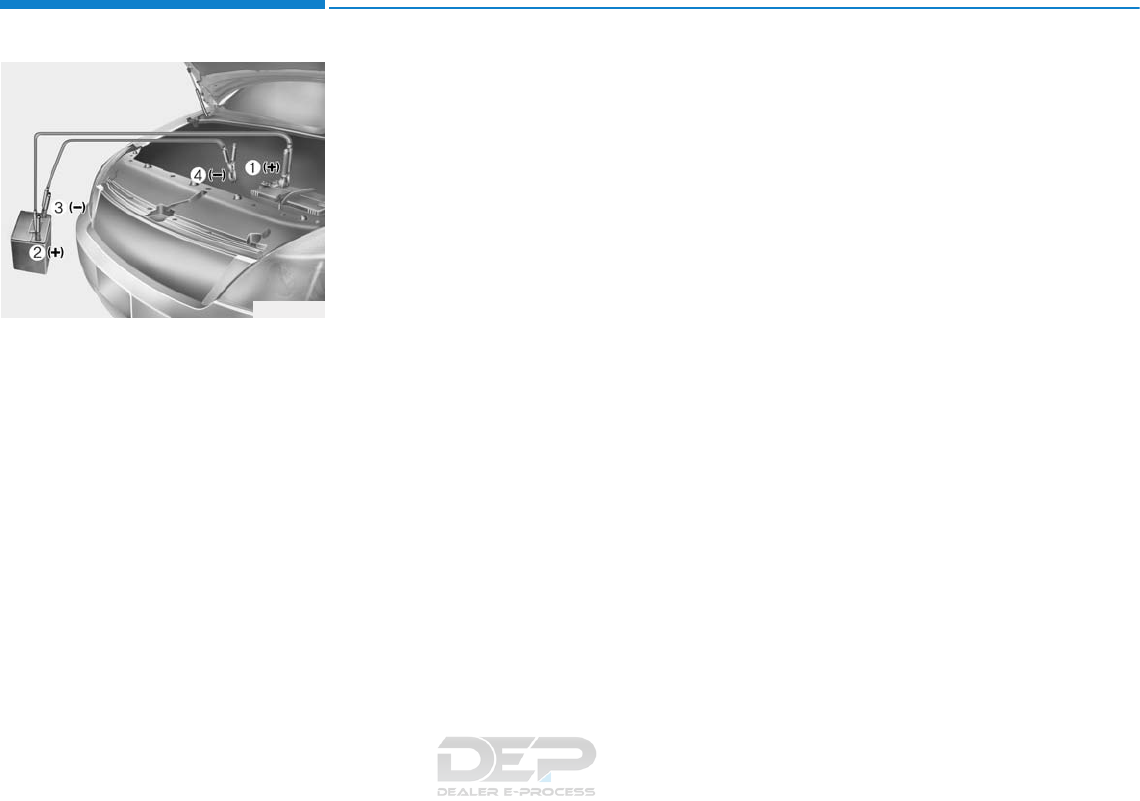

Jump starting ..........................................................6-4

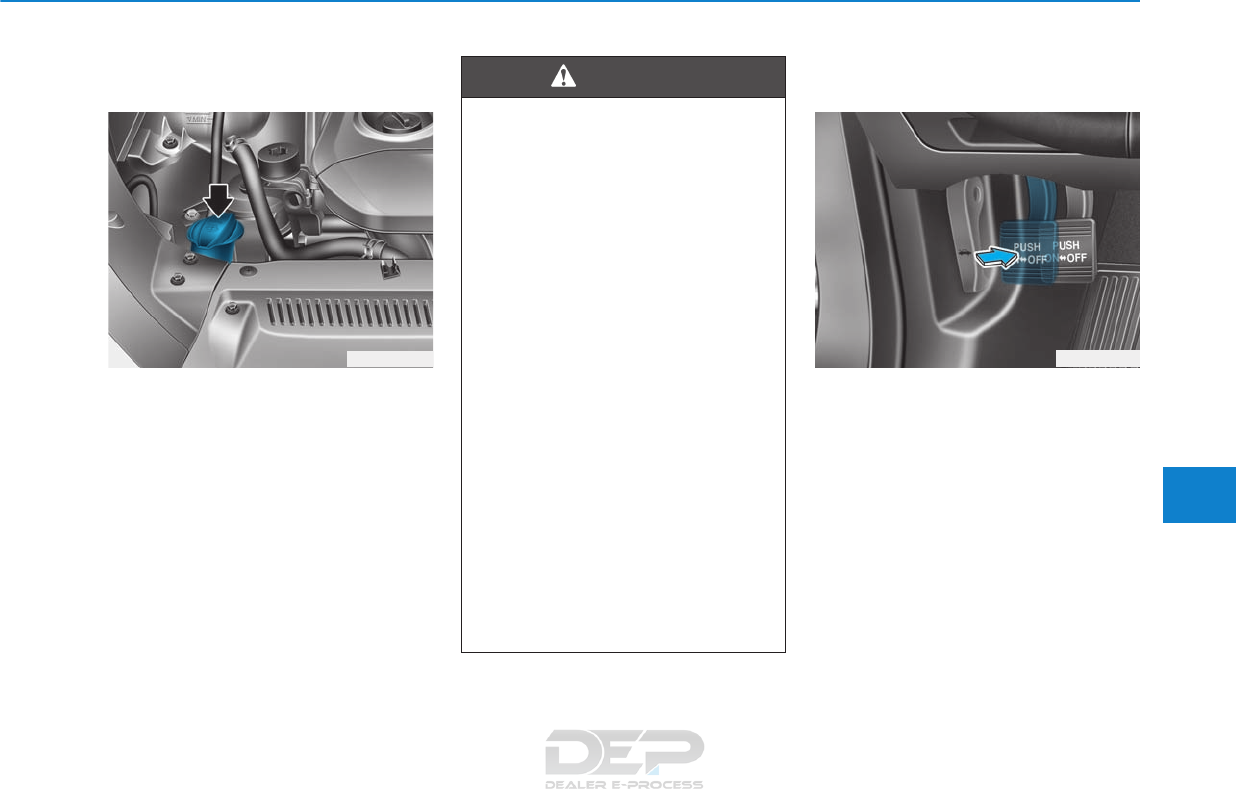

If the engine overheats ........................................6-7

Tire pressure monitoring system (TPMS)..........6-9

Check Tire Pressure .........................................................6-9

Tire Pressure Monitoring System...............................6-10

Low tire pressure indicator ..........................................6-11

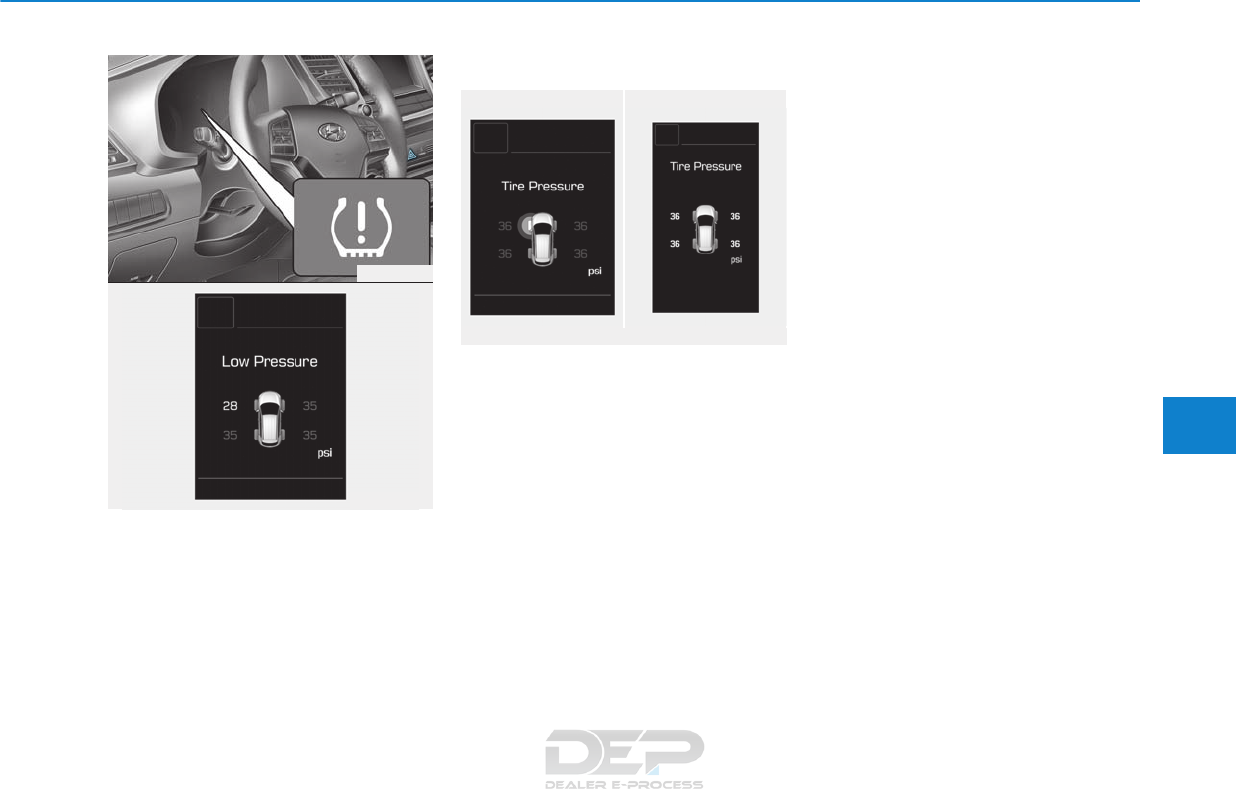

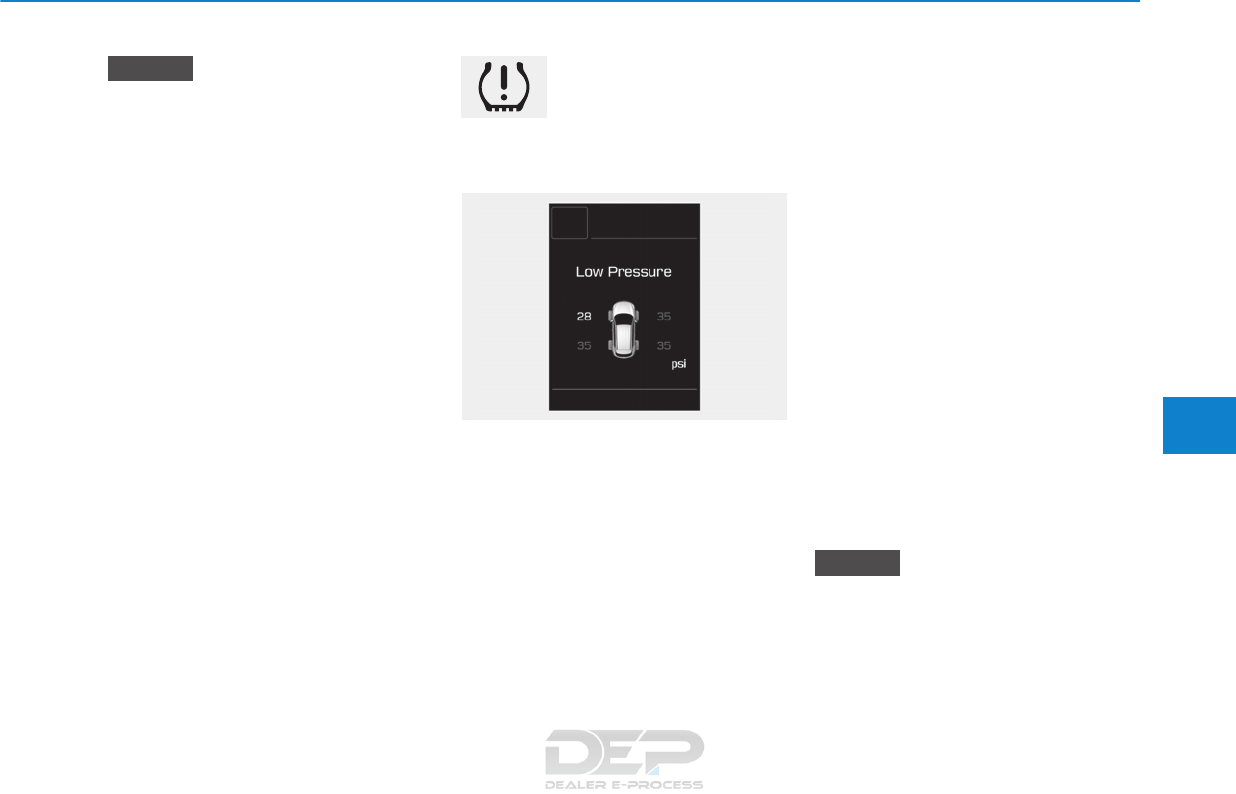

Low tire pressure LCD display with position

indicator.............................................................................6-11

TPMS (Tire Pressure Monitoring System)

Malfunction Indicator.....................................................6-12

Changing a Tire with TPMS..........................................6-13

F18

6What to do in an emergency

F19

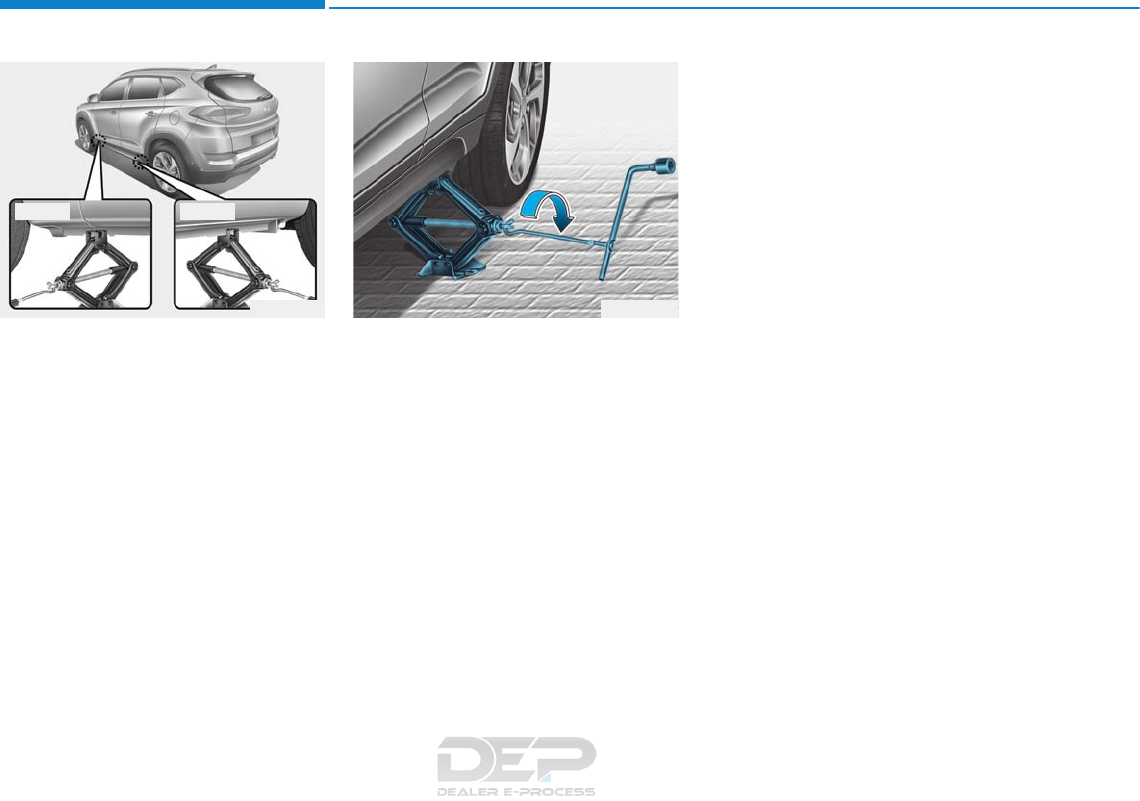

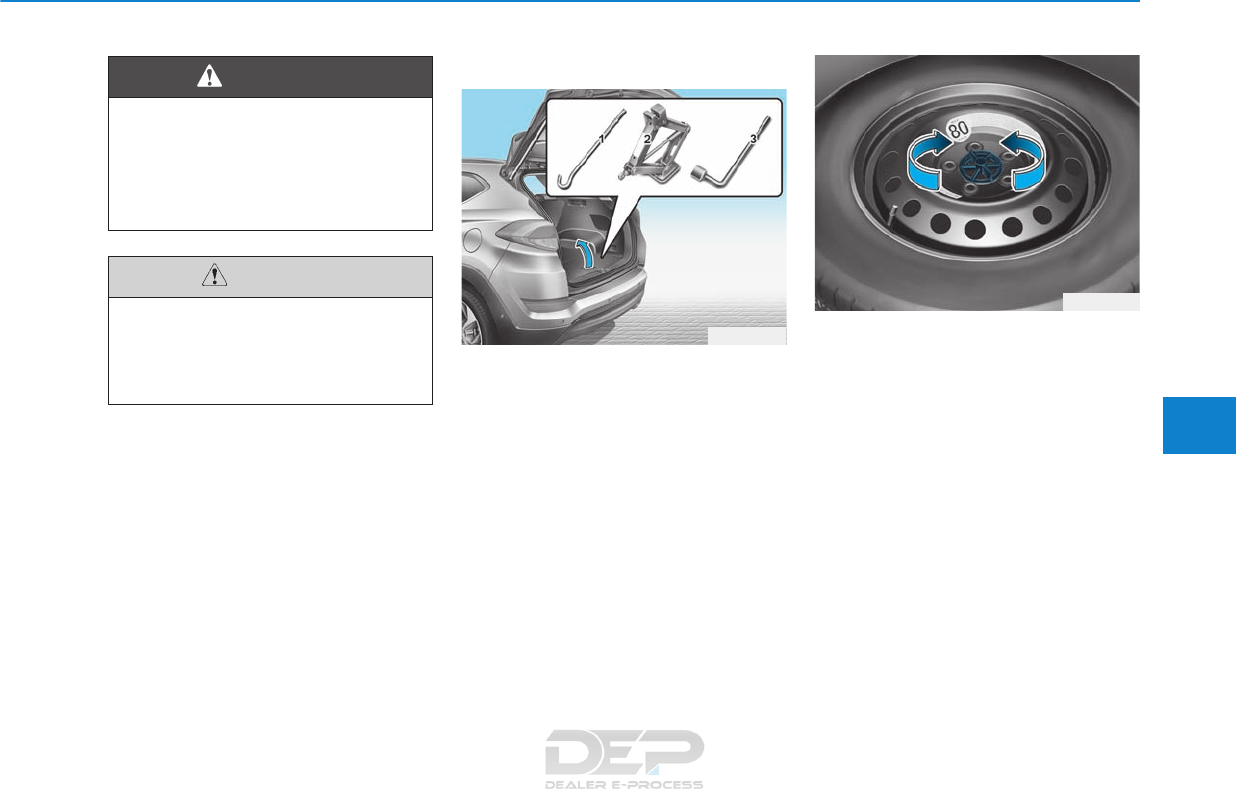

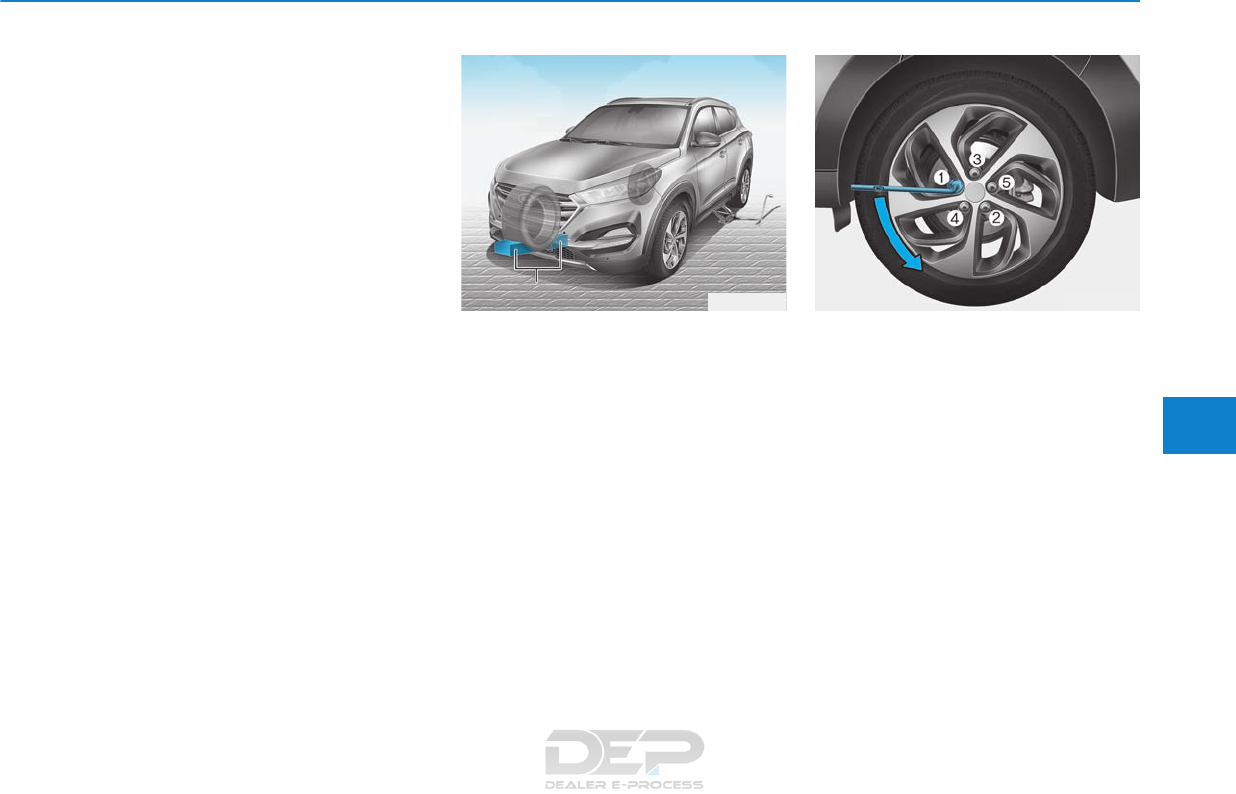

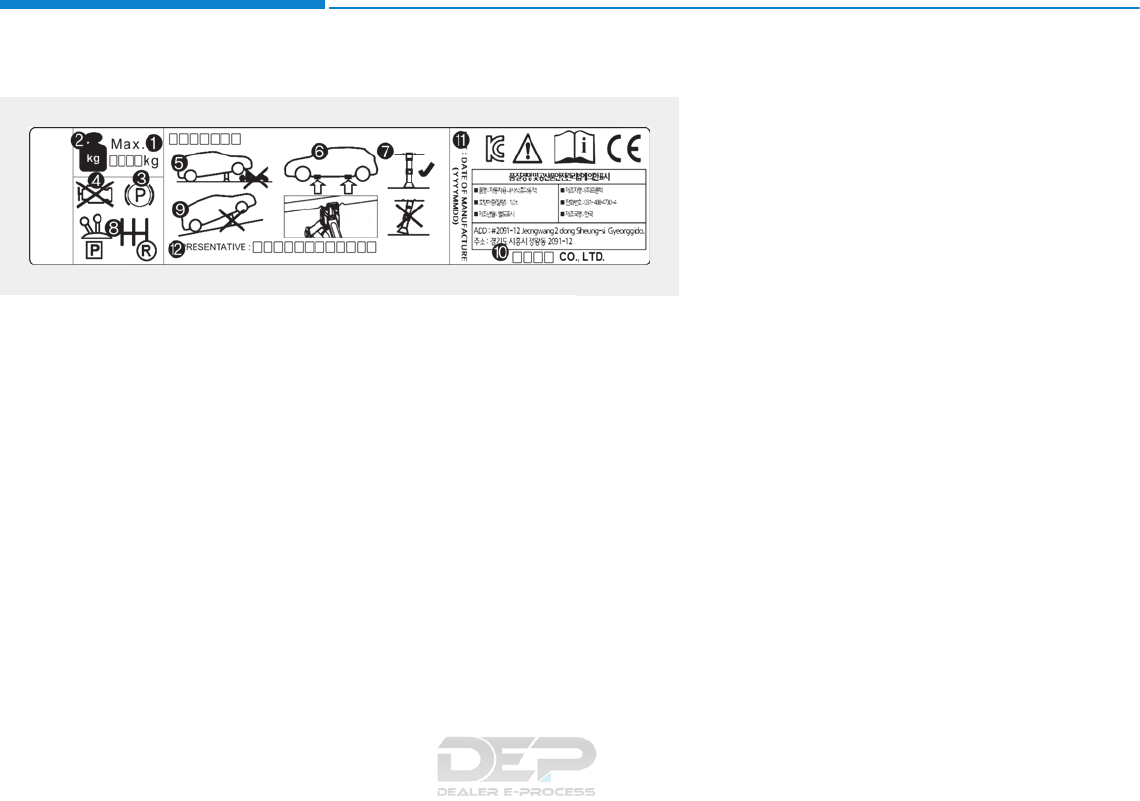

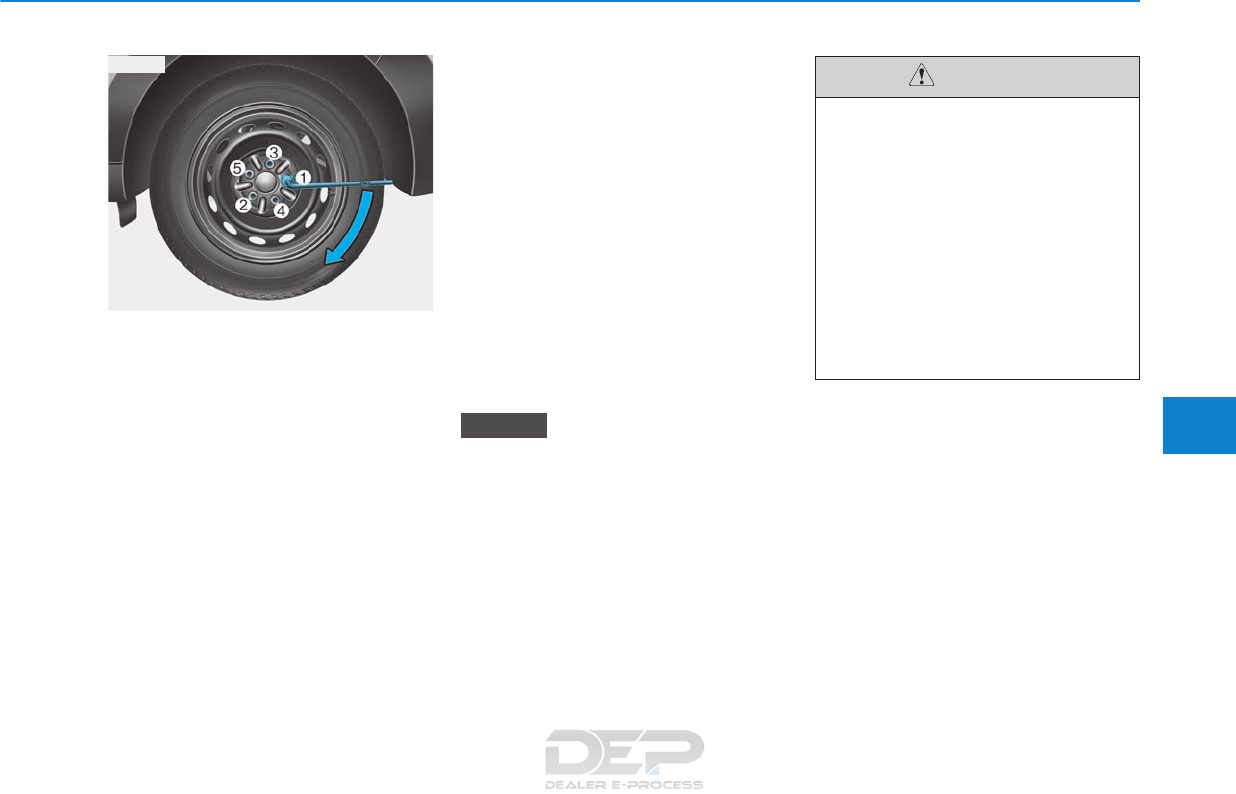

If you have a flat tire..........................................6-15

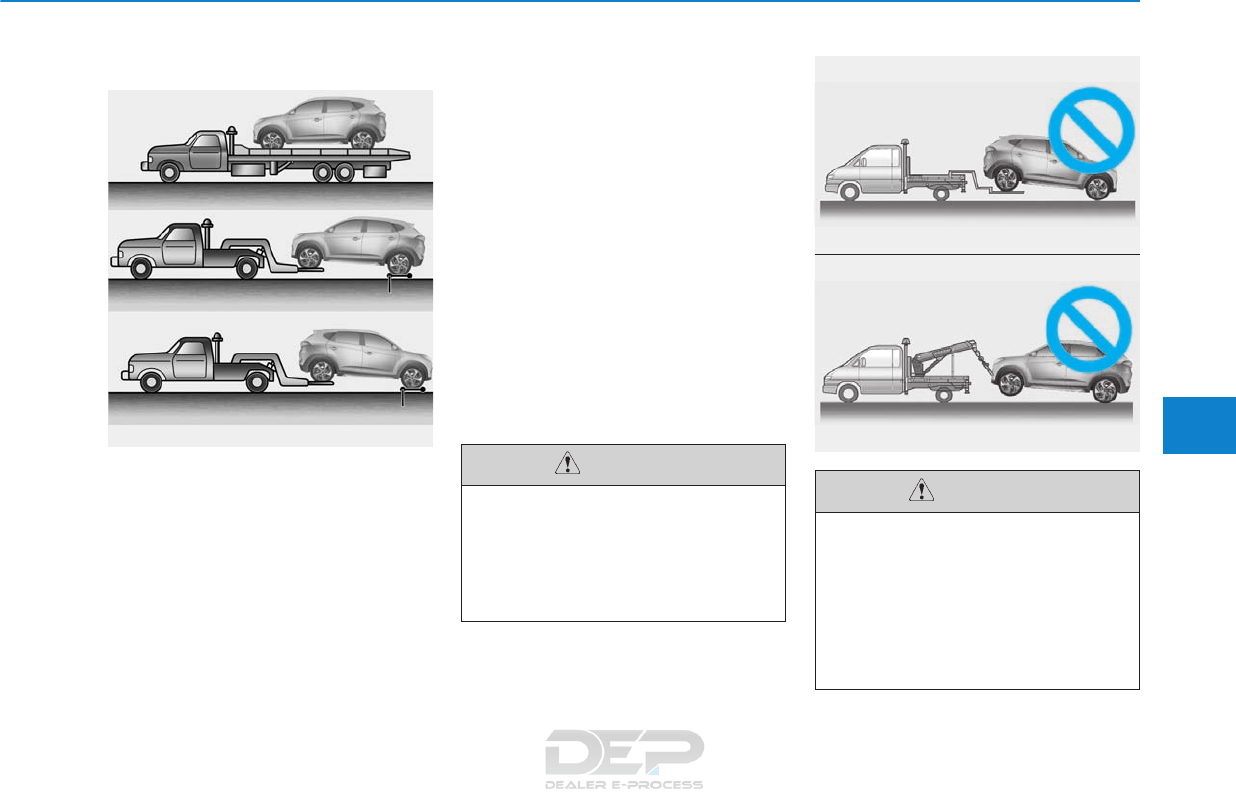

Towing ...................................................................6-23

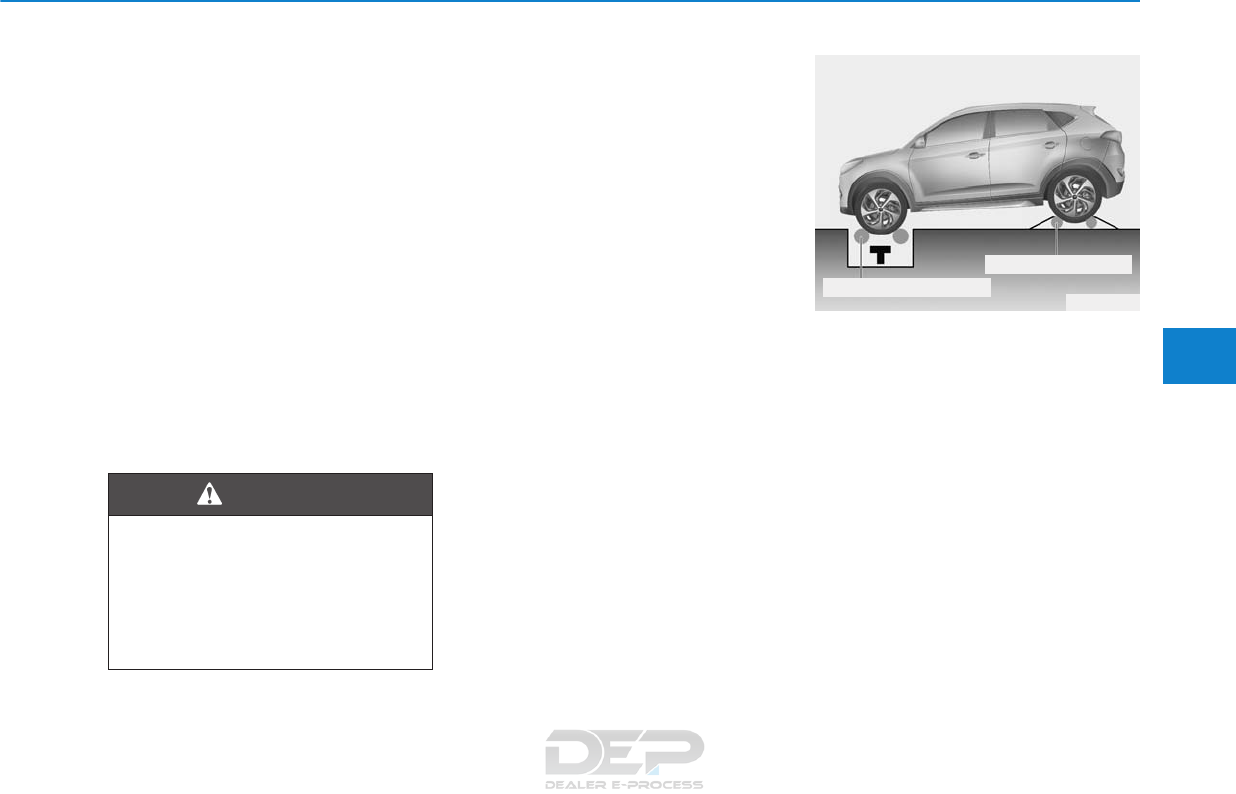

Towing service .................................................................6-23

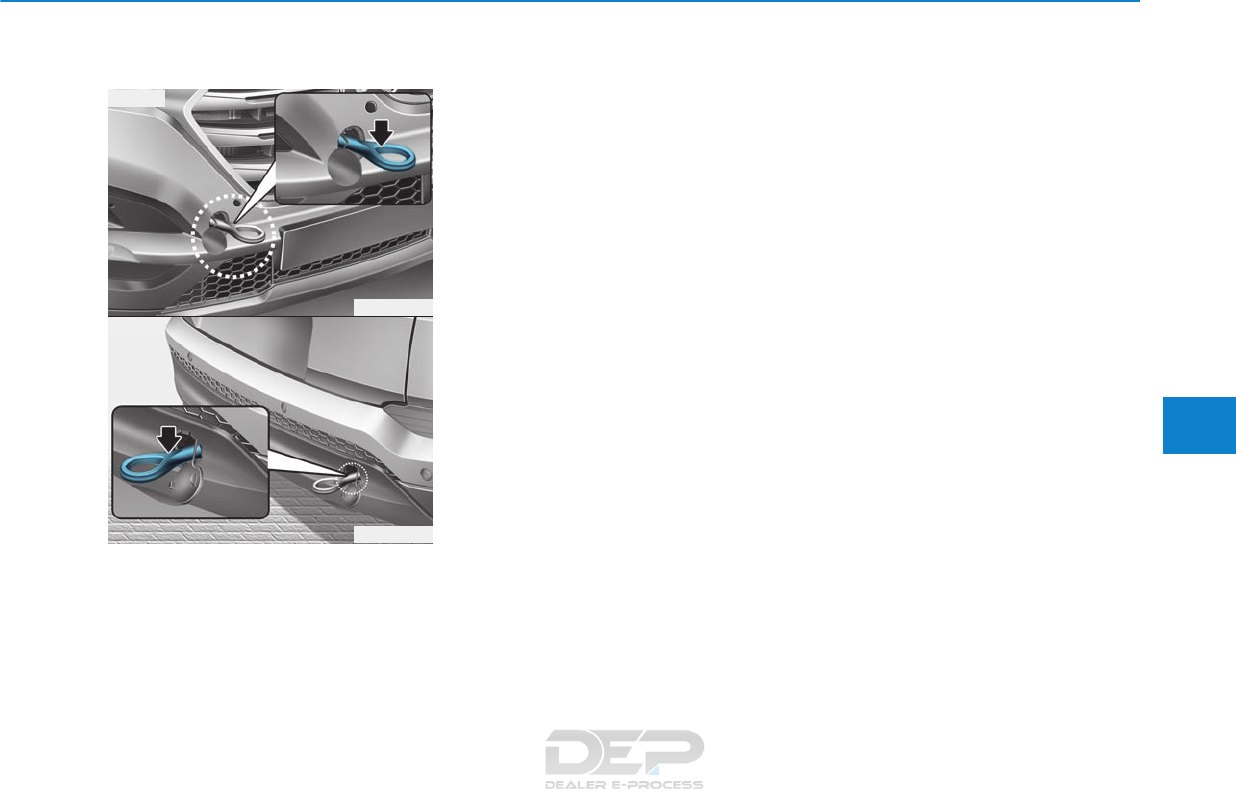

Removable towing hook ................................................6-24

Emergency towing ..........................................................6-25

Tie-down hook ................................................................6-26

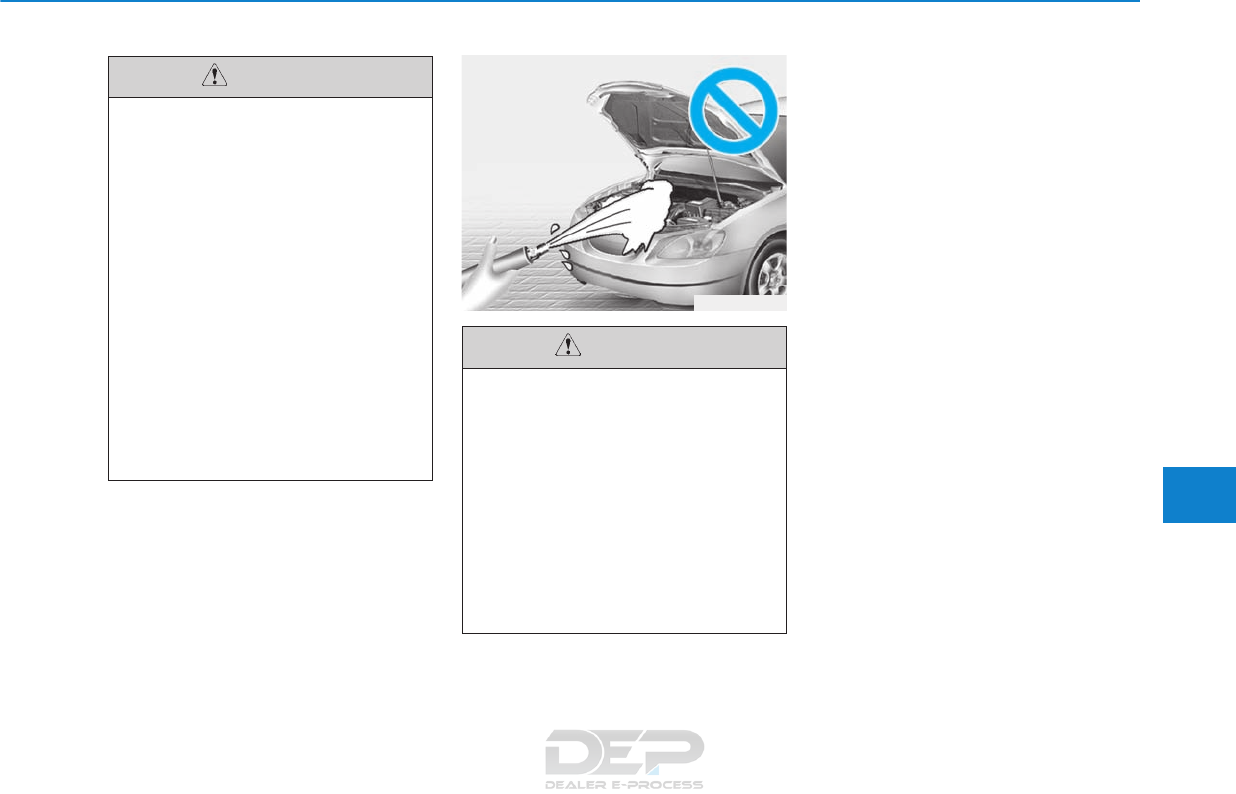

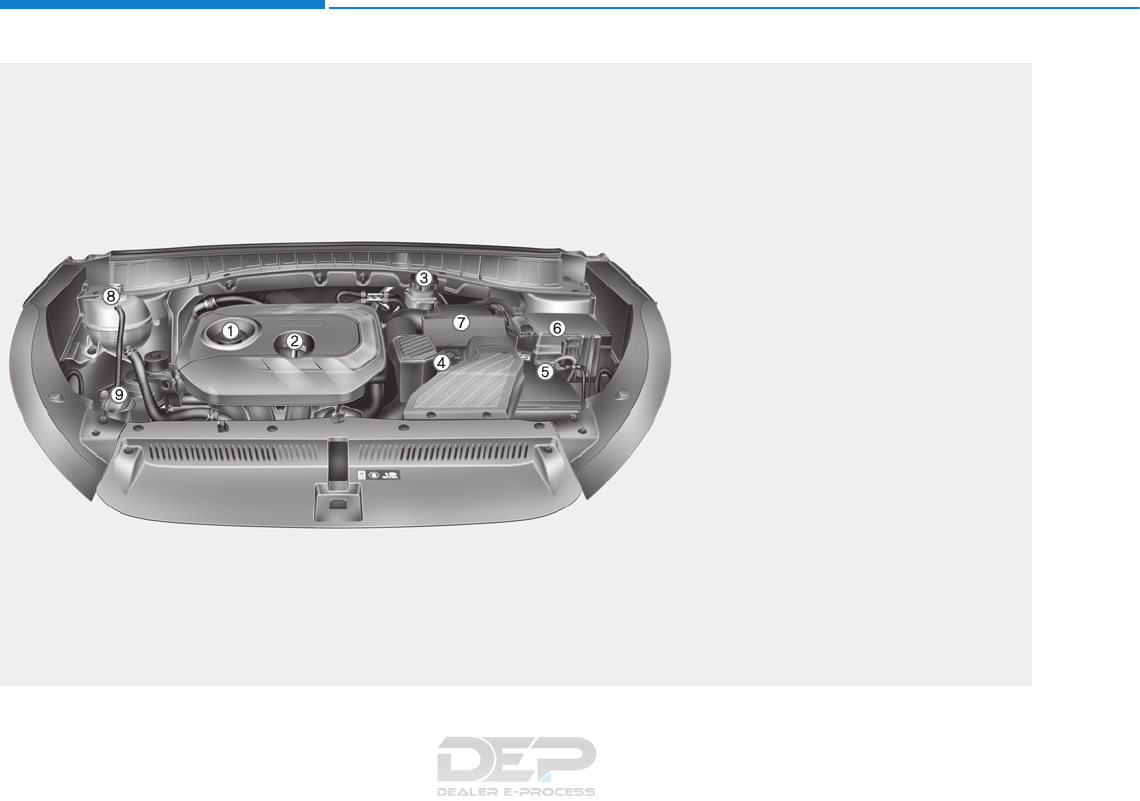

Engine compartment .............................................7-3

Maintenance services ...........................................7-5

Owner's Responsibility.....................................................7-5

Owner Maintenance Precautions..................................7-5

Owner maintenance...............................................7-6

Owner Maintenance Schedule.......................................7-7

Scheduled maintenance services.........................7-8

Explanation of scheduled maintenance items..7-26

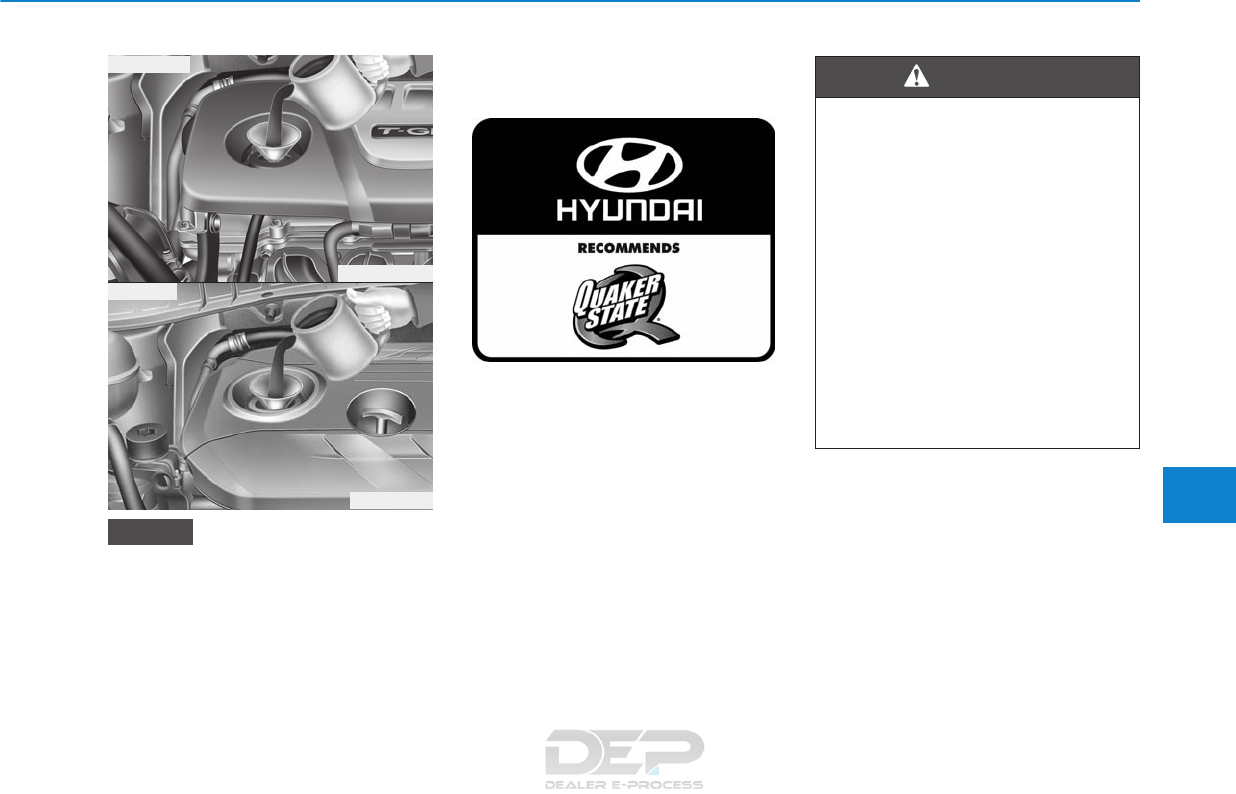

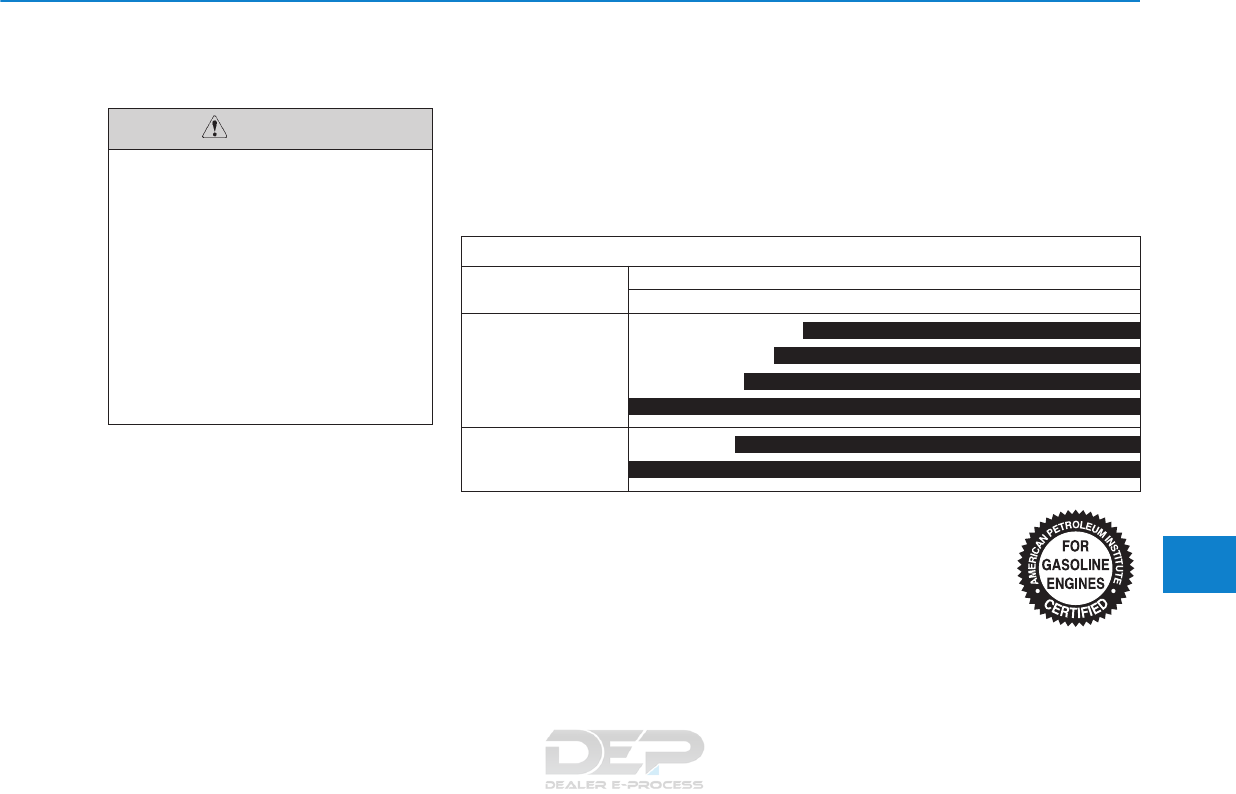

Engine oil ..............................................................7-30

Checking the Engine Oil Level.....................................7-30

Checking the Engine Oil and Filter.............................7-31

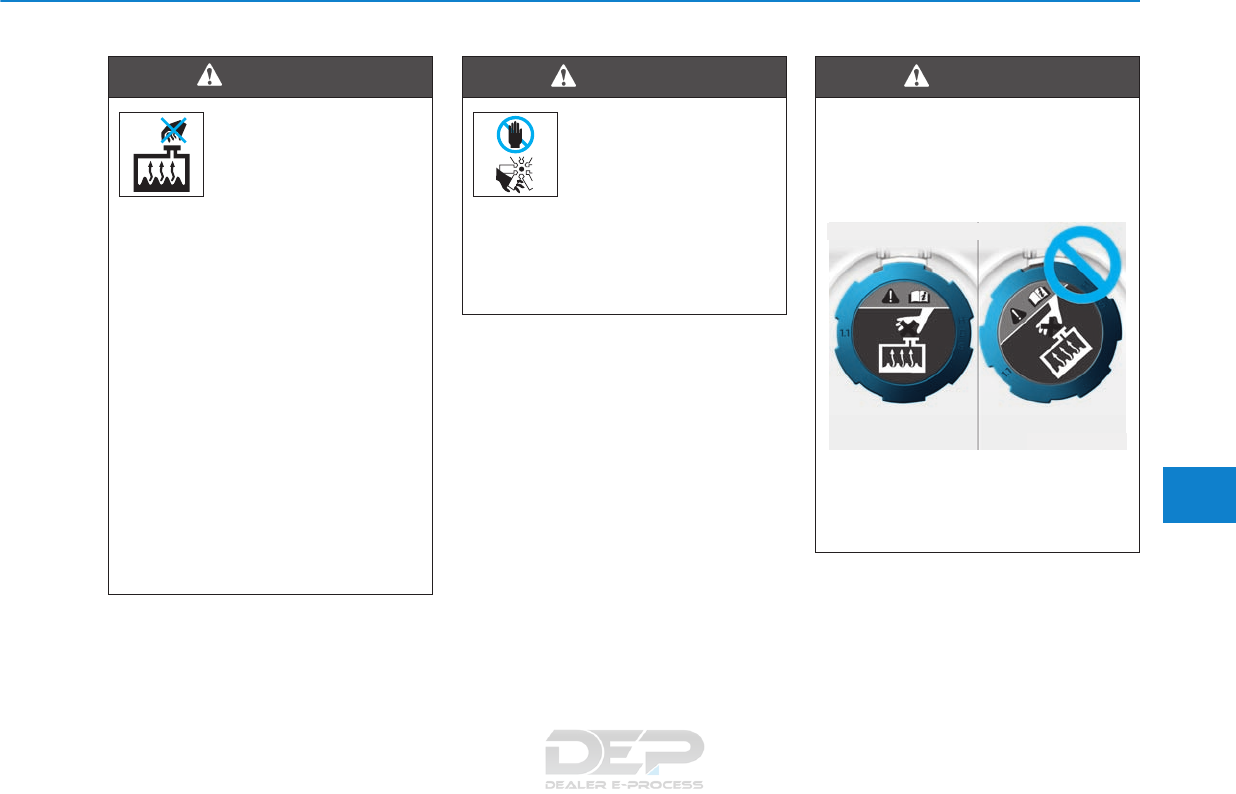

Engine coolant......................................................7-32

Checking the Engine Coolant Level............................7-32

Changing Engine Coolant ..............................................7-35

Brake fluid ............................................................7-36

Checking the Brake Fluid Level...................................7-36

Washer fluid .........................................................7-37

Checking the Washer Fluid Level................................7-37

Parking brake .......................................................7-37

Checking the Parking Brake.........................................7-37

Air cleaner ............................................................7-38

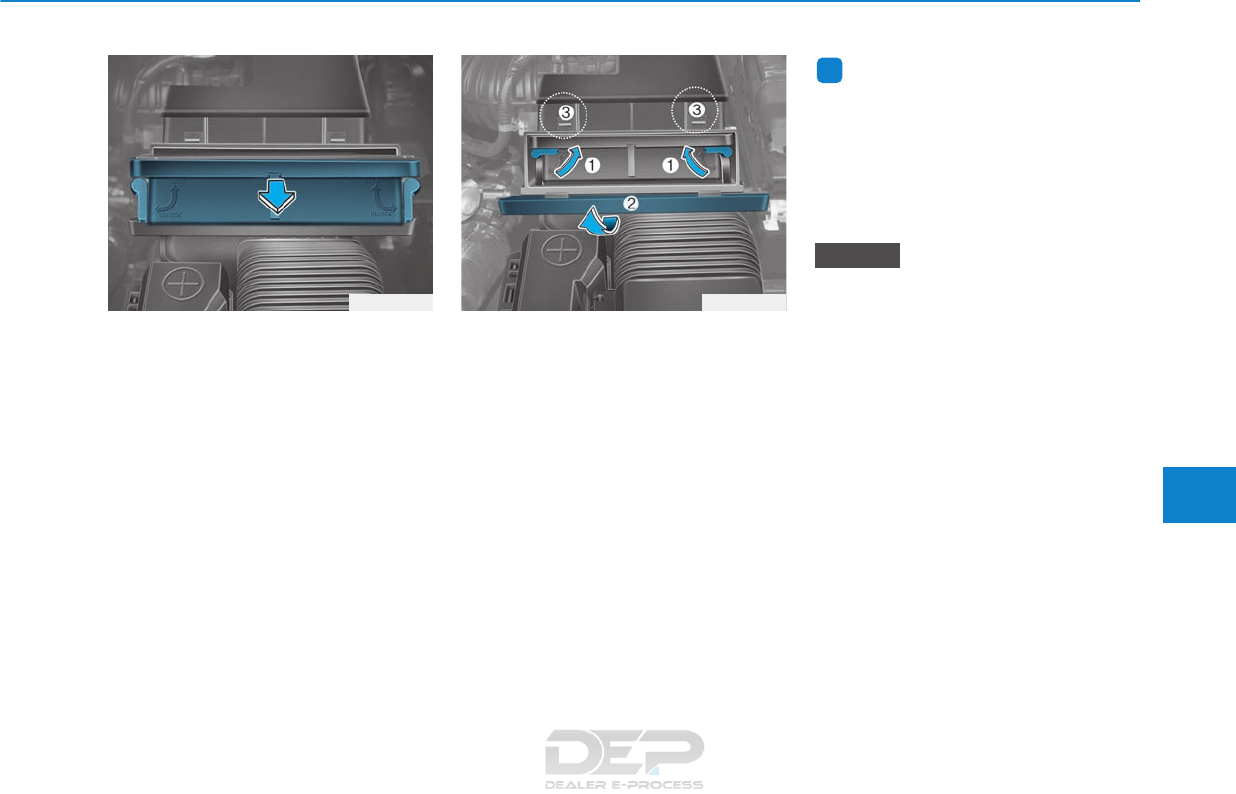

Filter Replacement..........................................................7-38

F19

7Maintenance

F20

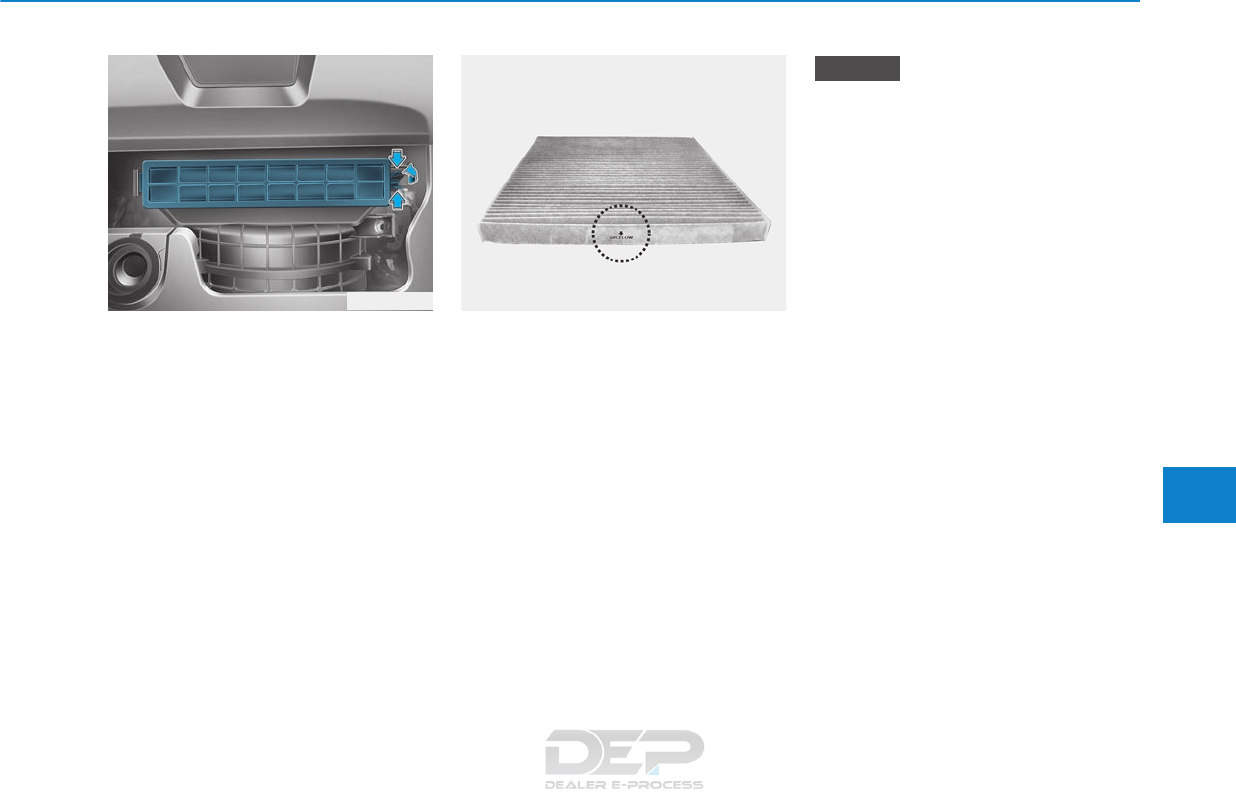

Climate control air filter .....................................7-40

Filter Inspection...............................................................7-40

Wiper blades.........................................................7-42

Blade Inspection ..............................................................7-42

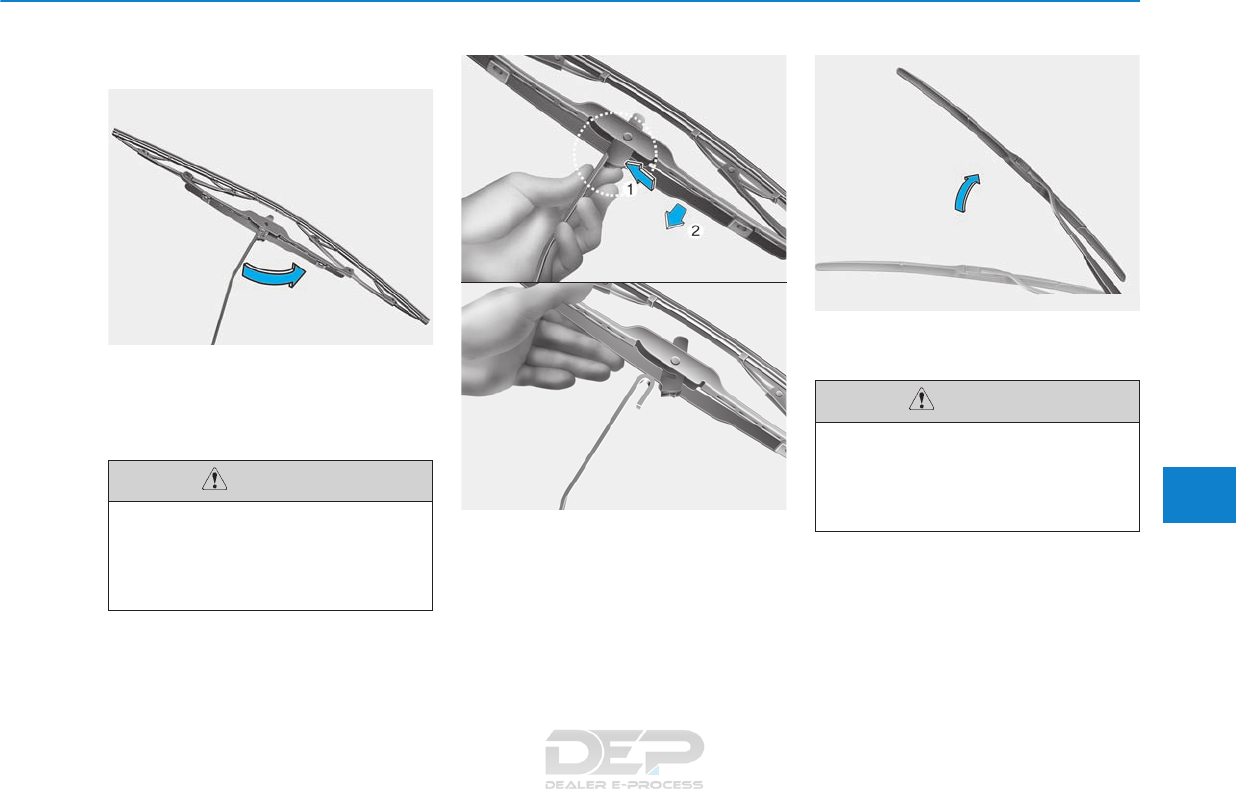

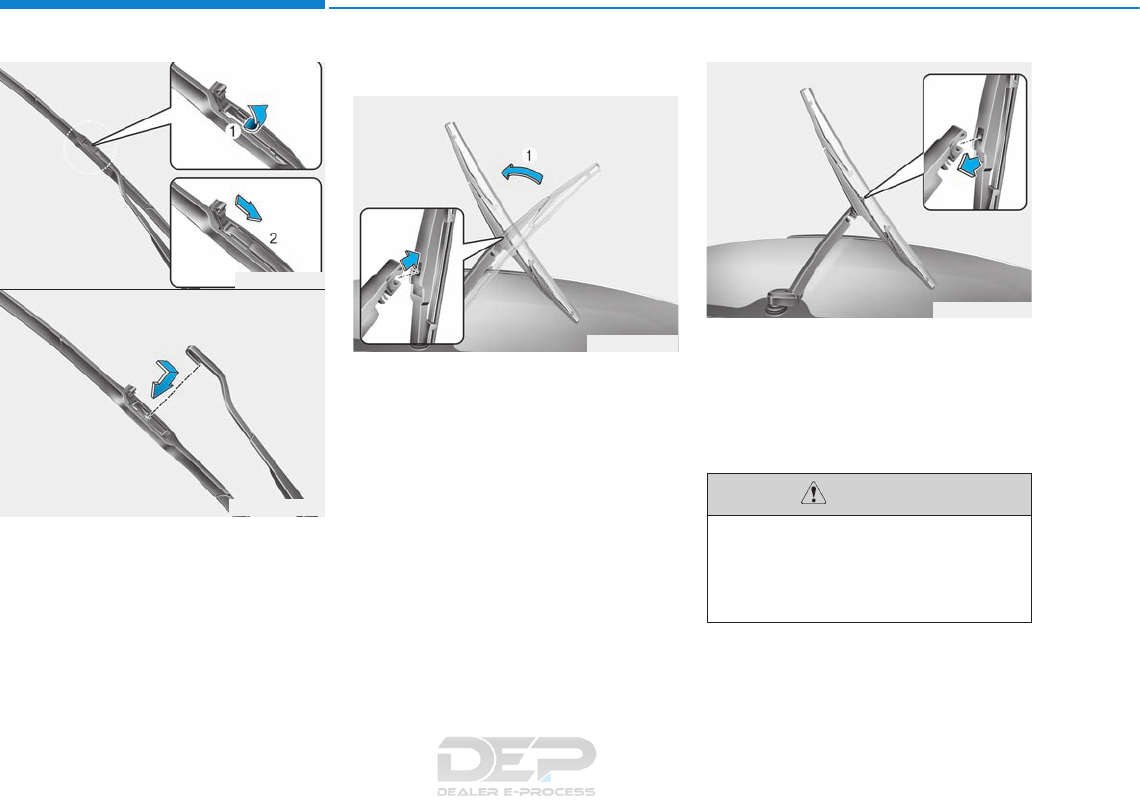

Blade Replacement .........................................................7-42

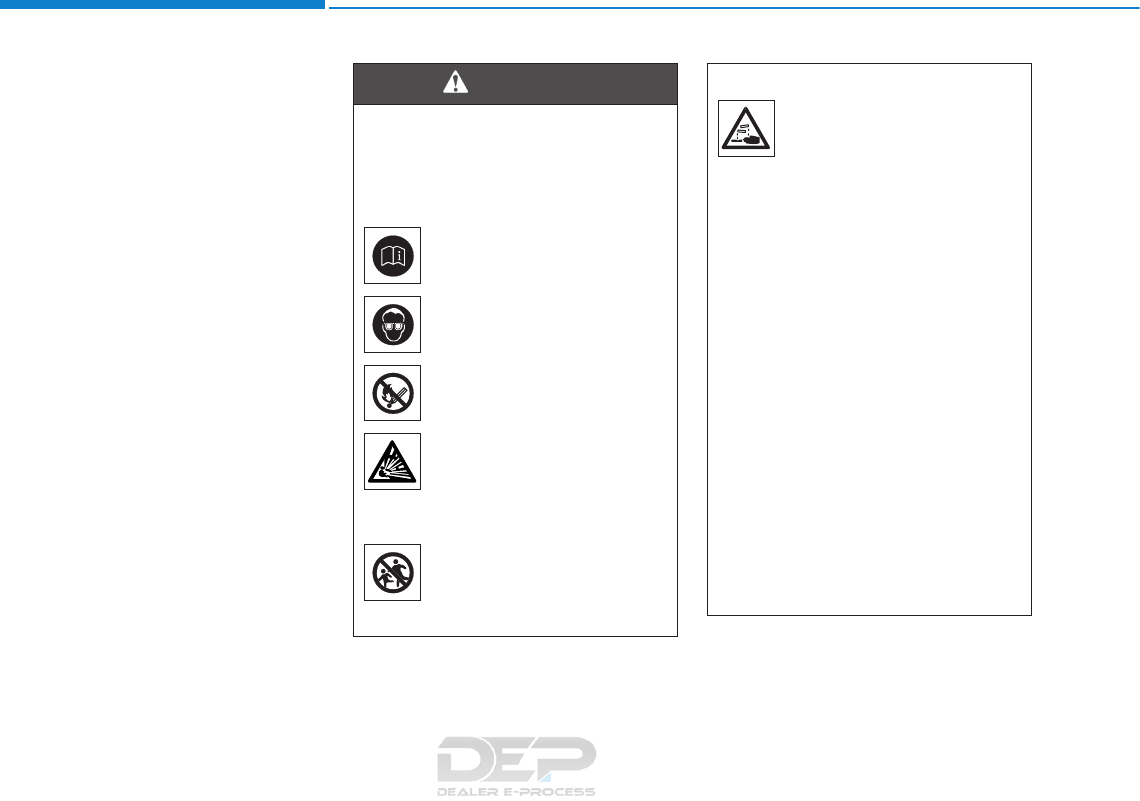

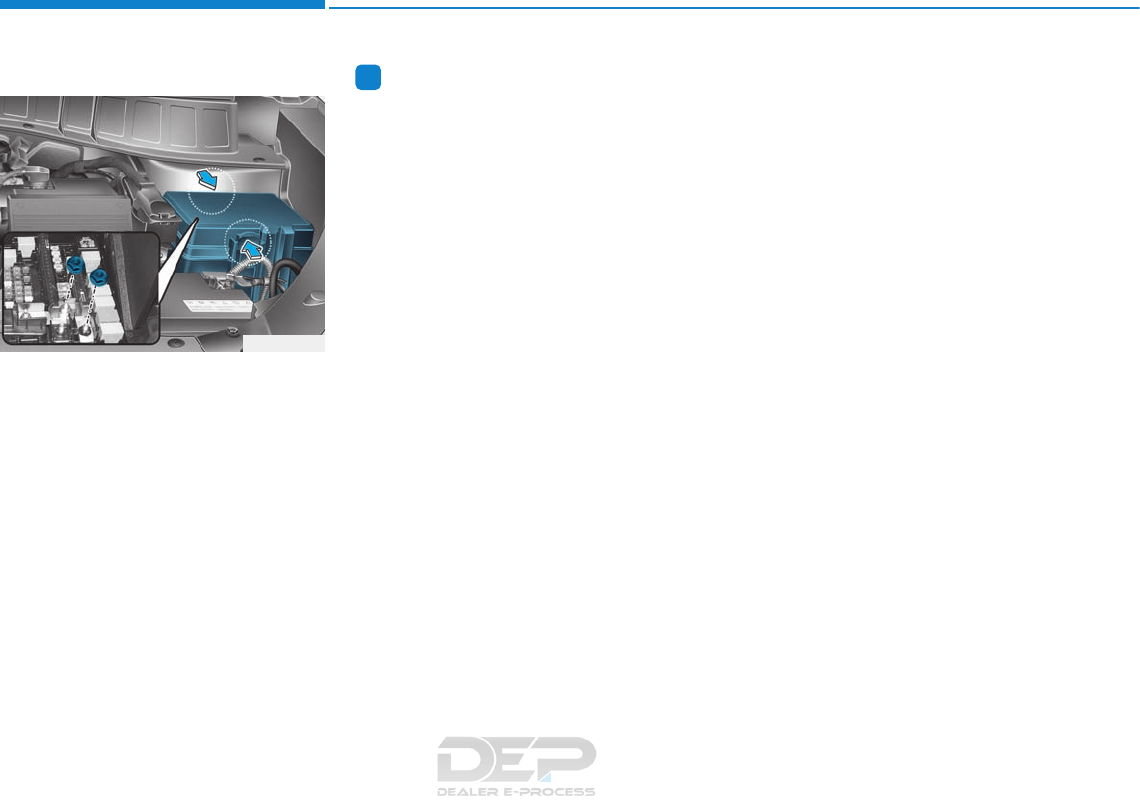

Battery...................................................................7-45

For Best Battery Service ..............................................7-46

Battery Recharging ........................................................7-46

Reset features .................................................................7-47

Tires and wheels..................................................7-48

Tire Care............................................................................7-48

Recommended Cold Tire Inflation Pressures...........7-49

Check Tire Inflation Pressure ......................................7-50

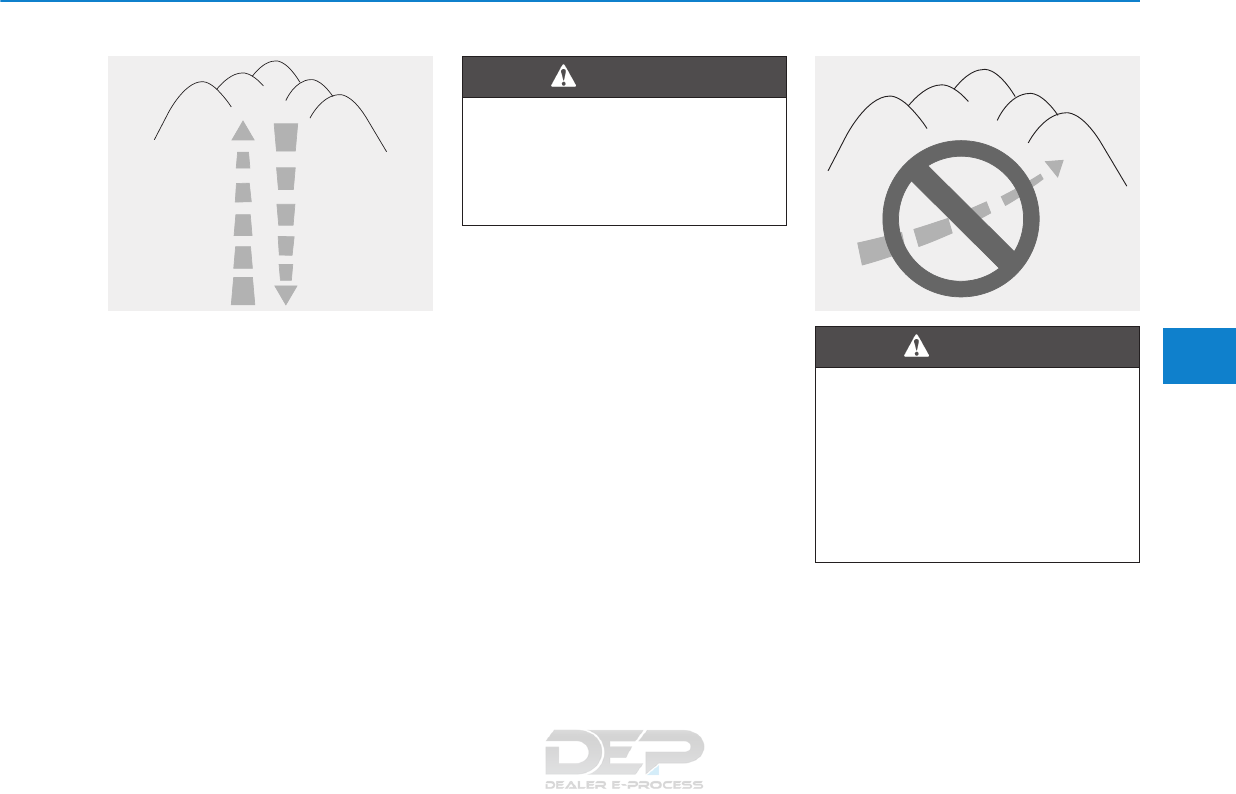

Tire Rotation.....................................................................7-51

Wheel Alignment and Tire Balance ............................7-52

Tire Replacement ............................................................7-52

Wheel Replacement ........................................................7-53

Tire Traction.....................................................................7-53

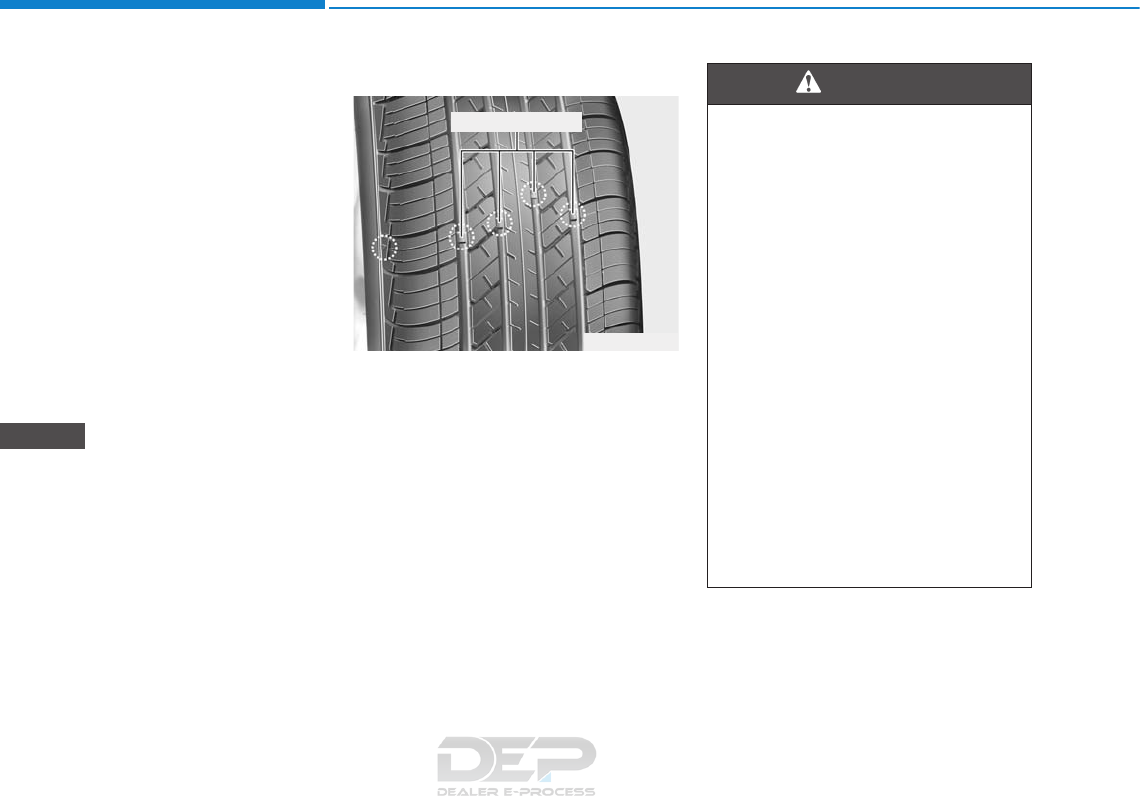

Tire Maintenance............................................................7-54

Tire Sidewall Labeling ....................................................7-54

Tire Terminology and Definitions................................7-58

All Season Tires...............................................................7-61

Summer Tires ...................................................................7-61

Snow Tires ........................................................................7-61

Radial-Ply Tires ...............................................................7-62

Low Aspect Ratio Tires..................................................7-62

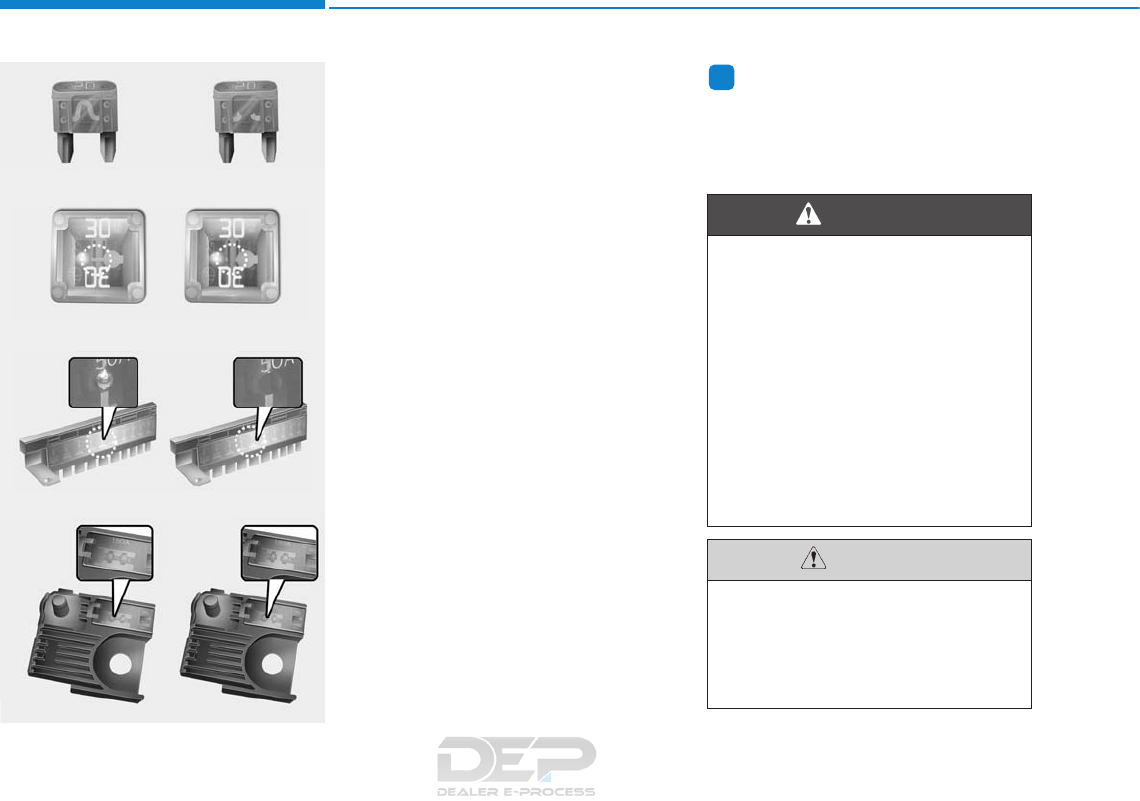

Fuses......................................................................7-64

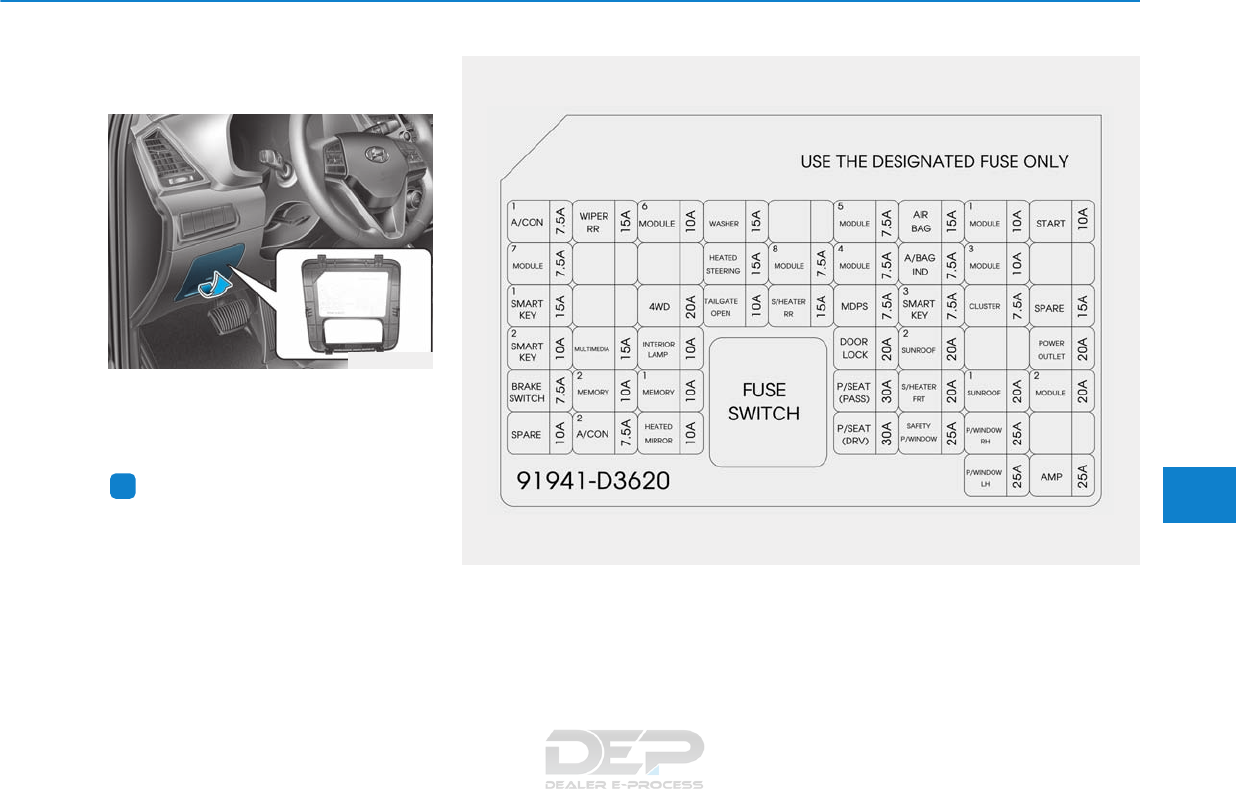

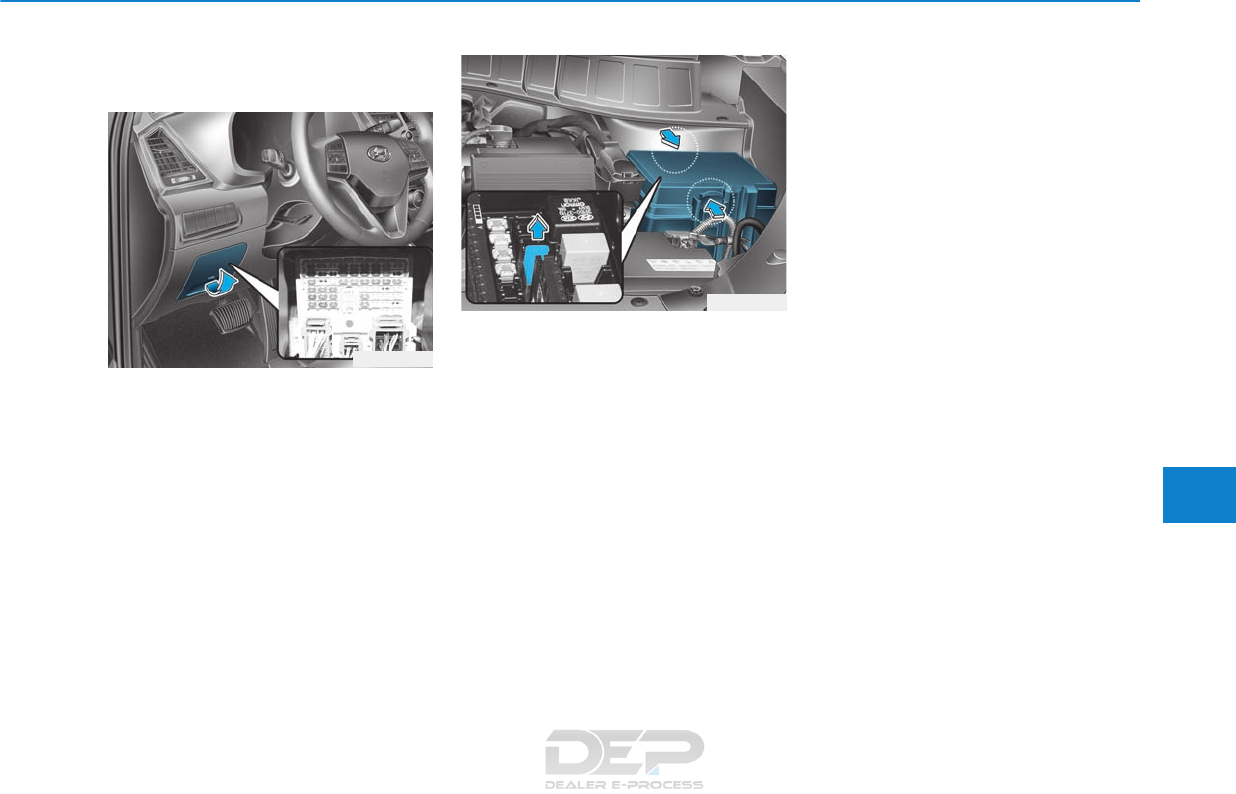

Instrument Panel Fuse Replacement..........................7-65

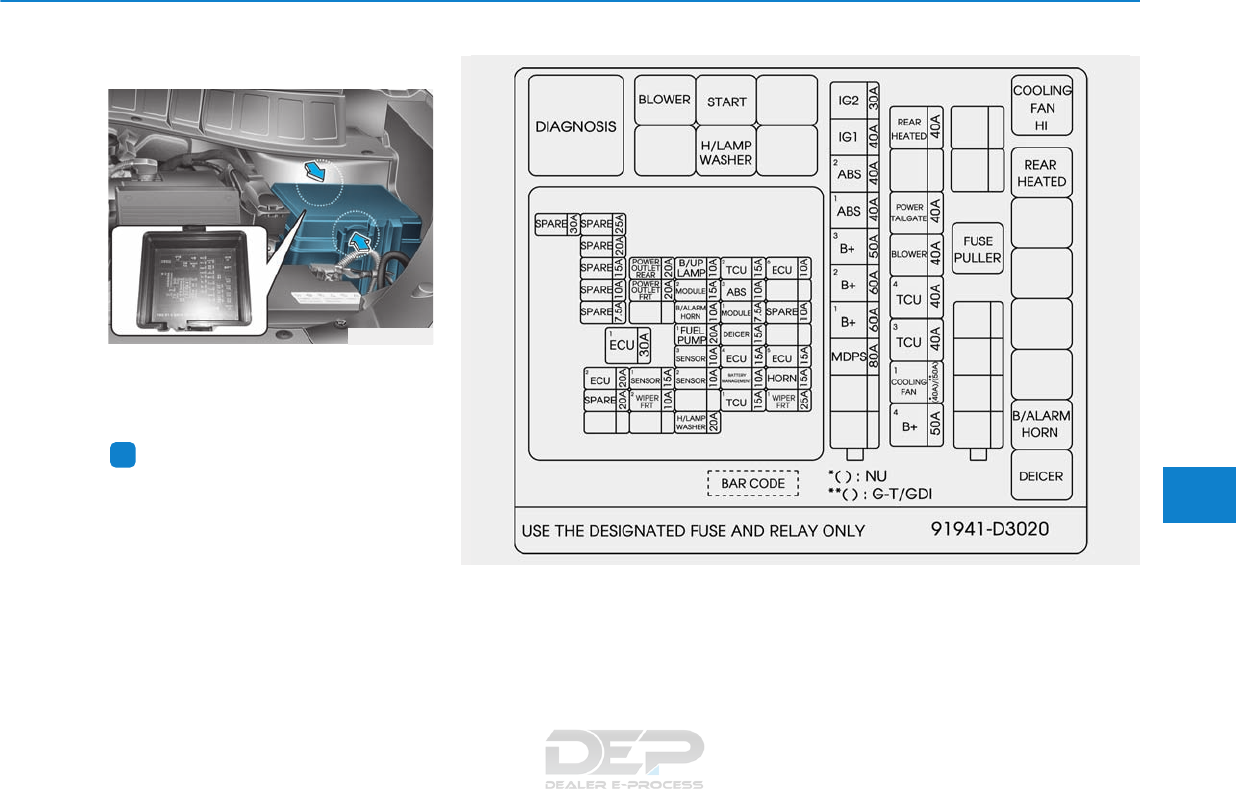

Engine Compartment Panel Fuse Replacement.......7-66

Fuse/Relay Panel Description......................................7-69

Light bulbs.............................................................7-77

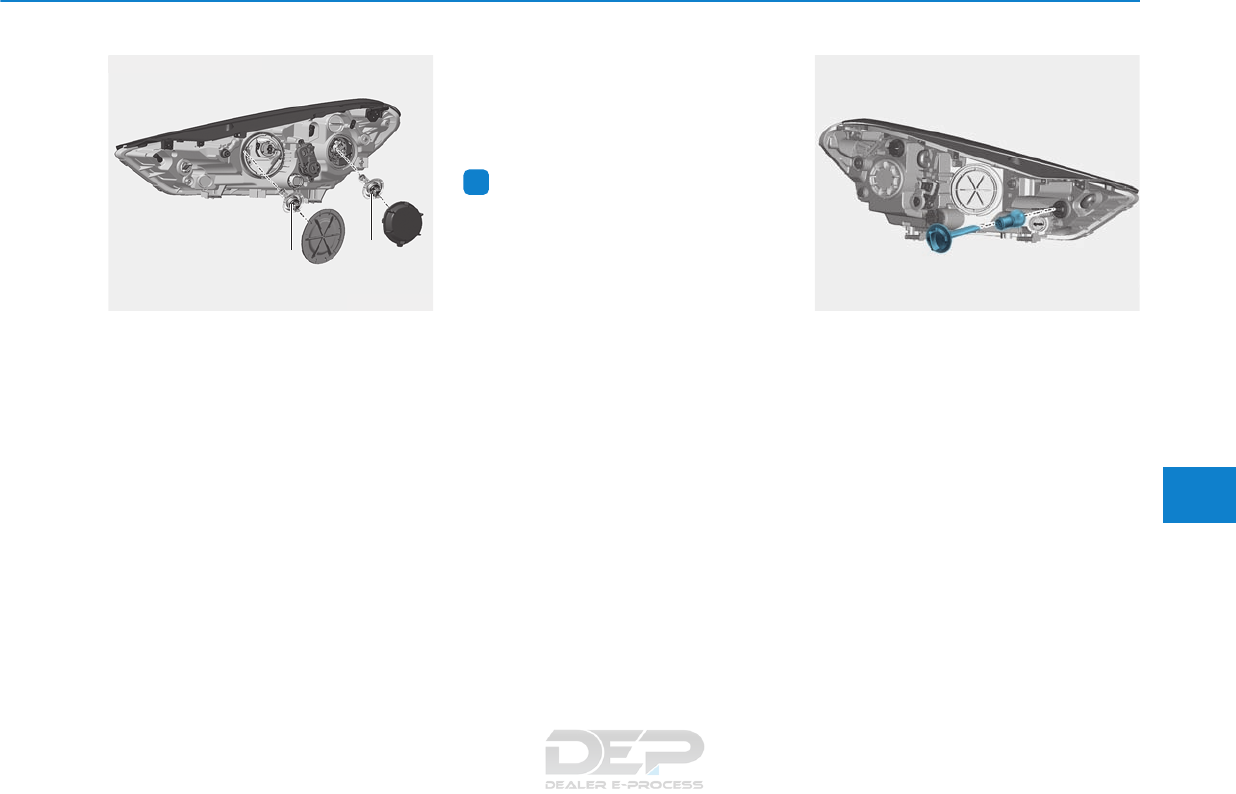

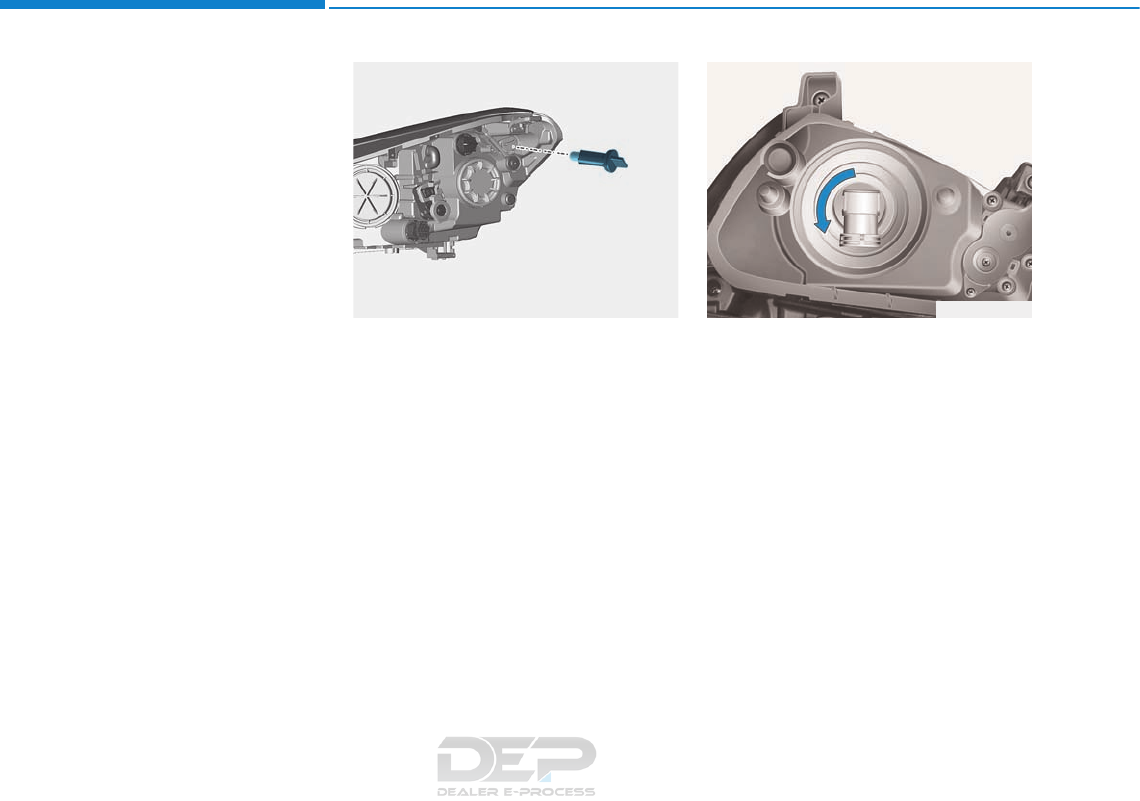

Headlamp, Parking lamp, Turn signal lamp,

side marker and front fog lamp bulb

replacement......................................................................7-78

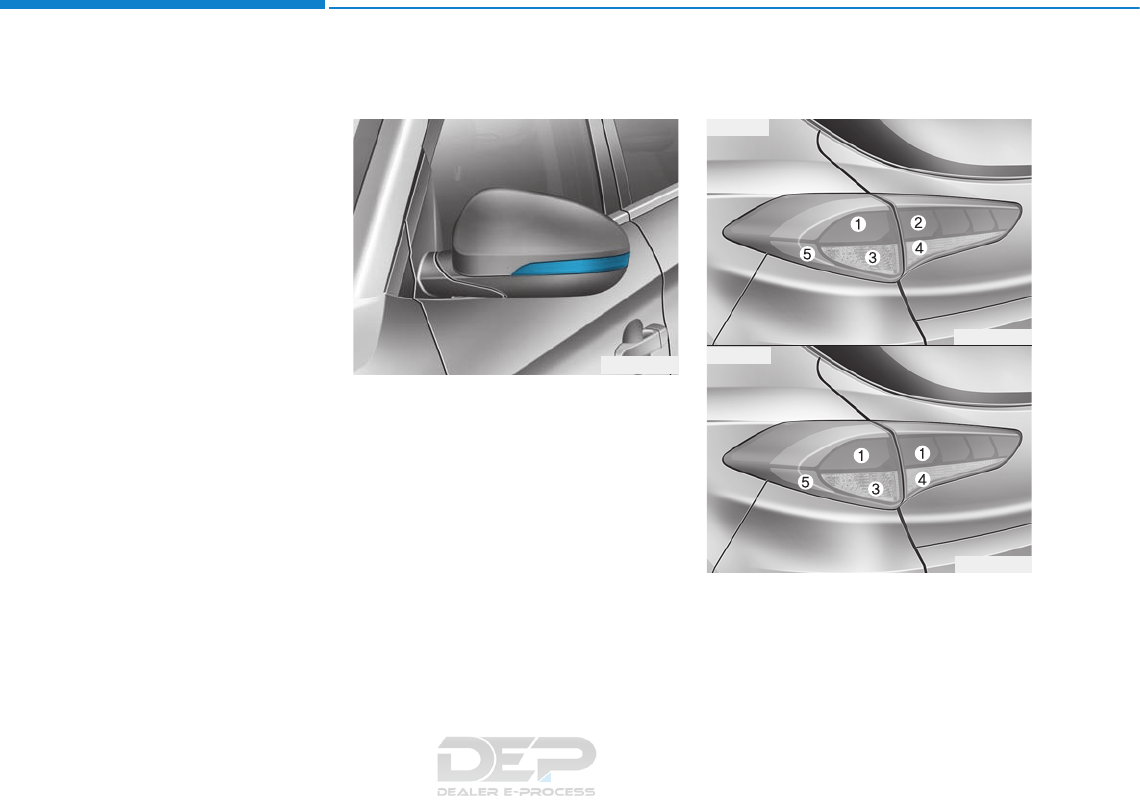

Side repeater lamp replacement .................................7-88

Rear combination light bulb replacement.................7-88

High mounted stop lamp replacement.......................7-91

License plate light bulb replacement .........................7-91

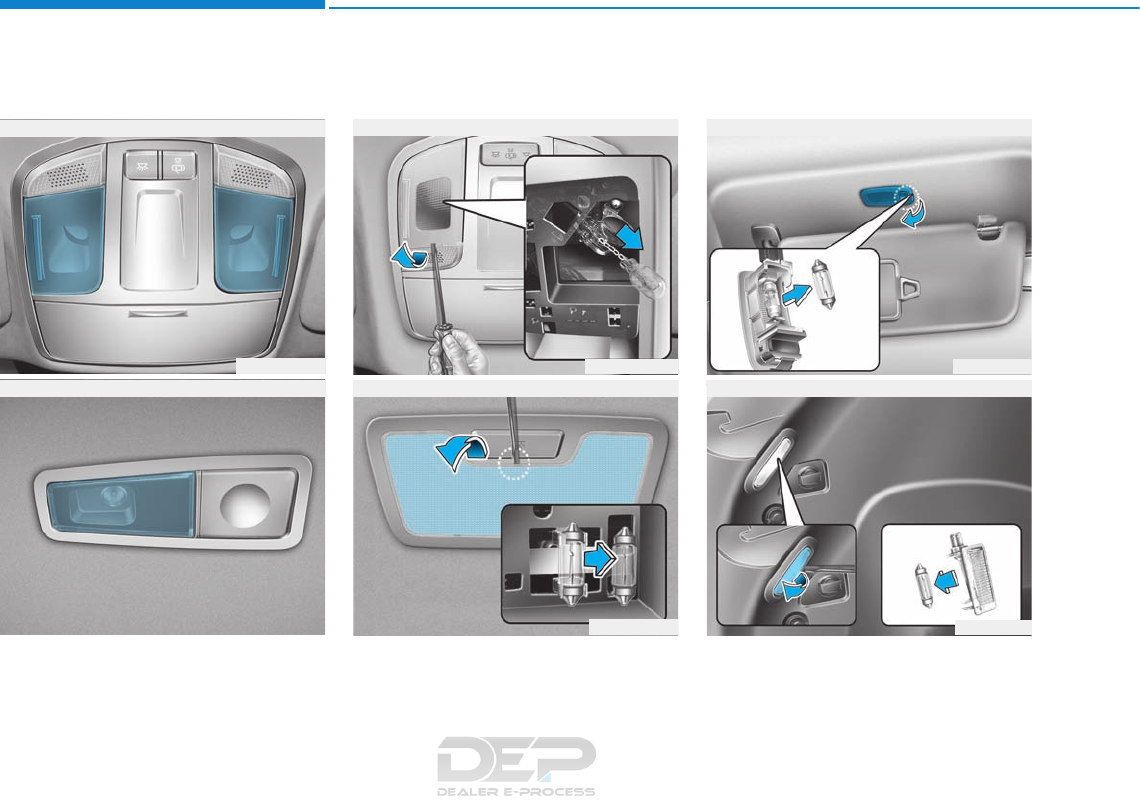

Interior light bulb replacement ....................................7-92

Appearance care..................................................7-94

Exterior Care....................................................................7-94

Interior Care .....................................................................7-99

Emission control system ...................................7-101

Crankcase Emission Control System........................7-101

Evaporative Emission Control System Including

Onboard Refueling Vapor Recovery (ORVR) .........7-101

Exhaust Emission Control System ............................7-102

California perchlorate notice ...........................7-105

F20

F21F21

Engine......................................................................8-2

Dimensions..............................................................8-2

Gross vehicle weight .............................................8-3

Luggage volume .....................................................8-3

Bulb Wattage ..........................................................8-4

Tires and Wheels ...................................................8-6

Air Conditioning System........................................8-6

Recommended Lubricants and Capacities..........8-7

Recommended SAE Viscosity Number.........................8-9

Vehicle Identification Number (VIN) .................8-10

Vehicle Certification Label .................................8-10

Tire Specification and Pressure Label .............8-11

Engine Number.....................................................8-11

Refrigerant Label.................................................8-11

Consumer Information.........................................8-12

Reporting Safety Defects ...................................8-13

8Specifications, Consumer information and

Reporting safety defects

Your vehicle at a glance

Exterior overview ..................................................1-2

Interior overview....................................................1-4

Instrument panel overview...................................1-5

Engine compartment .............................................1-6

1-2

EEXXTTEERRIIOORR OOVVEERRVVIIEEWW

Your vehicle at a glance

1. Panoramic sunroof* ............................3-42

2. Front windshield wiper blades ............7-42

3. Side view mirror ..................................3-35

4. Door locks ..........................................3-14

5. Headlight ............................................7-78

6. Front fog lamp*..................................3-110

7. Hood....................................................3-46

8.Tires and wheels ........................7-48 / 8-6

9. Daytime running lamp*............3-112 / 7-78

*: if equipped

OTLA015001

❈The actual shape may differ from the illustration.

■ Front view

1-3

Your vehicle at a glance

1. Antenna ................................................4-2

2. Defroster............................................3-126

3. Parking assist system*......................3-122

4. Fuel filler door ....................................3-48

5.Towing hook ........................................6-23

6. Rear combination lamp ......................7-88

7. Rear window wiper blade....................7-44

8. High mounted stop lamp ....................7-91

9. Rearview camera ..............................3-121

*: if equipped

OTL015002

❈The actual shape may differ from the illustration.

■ Rear view

1-4

Your vehicle at a glance

IINNTTEERRIIOORR OOVVEERRVVIIEEWW

1. Door lock/unlock button ........................3-15

2. Side view mirror control switch..............3-37

3. Central door lock switch ........................3-16

4. Power window switches ........................3-38

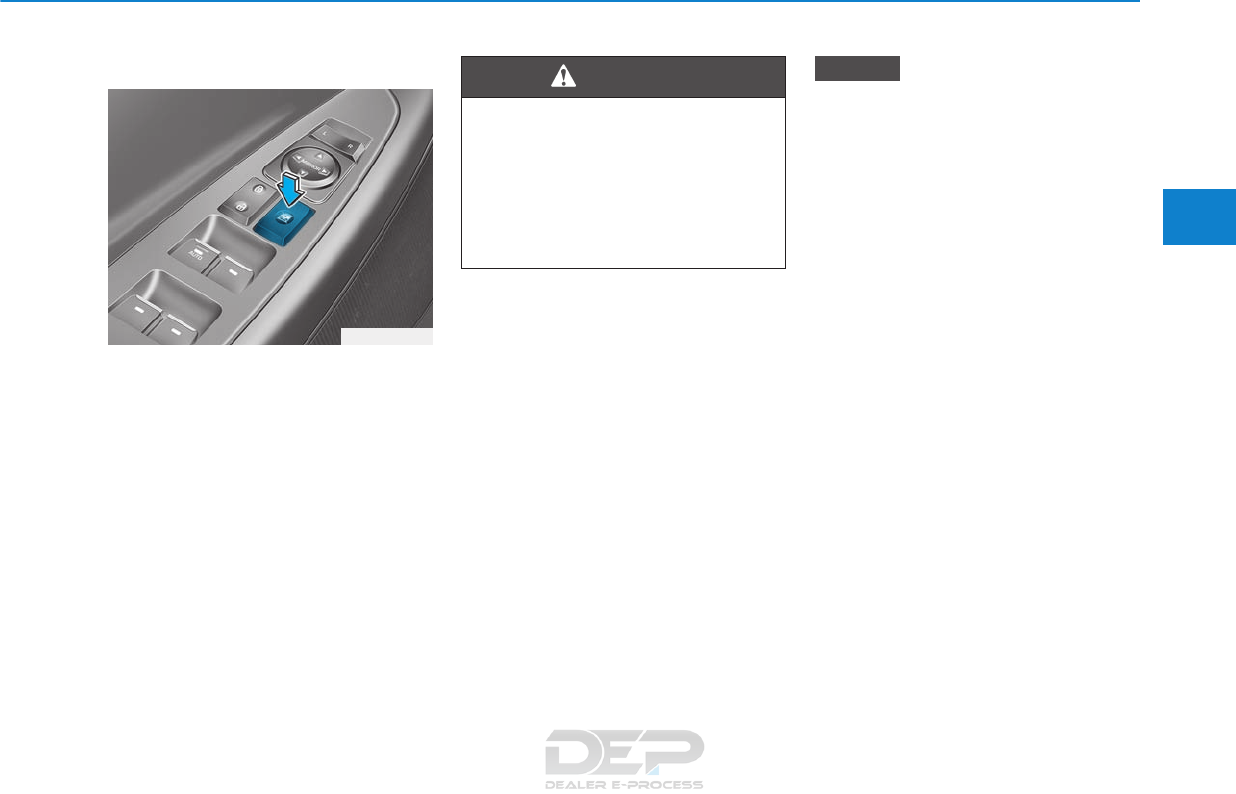

5. Power window lock switch......................3-41

6. Fuel filler door release lever ..................3-48

7. Instrument panel illumination control

switch ....................................................3-64

8. Blind spot detection(BSD) system

button*....................................................5-51

9. Lane departure warning system (LDWS)

button*....................................................5-71

10. ESC OFF button ..................................5-35

11. Power liftgate button ............................3-53

12. Fuse panel ..........................................7-65

13. Steering wheel ....................................3-20

14. Steering wheel tilt/telescope lever ......3-21

15. Seat........................................................2-4

16. Hood release lever ..............................3-46

17. Parking brake ......................................5-29

18. Brake pedal..........................................5-28

19. Accelerator pedal

* : if equipped

OTLA015003

❈The actual shape may differ from the illustration.

IINNSSTTRRUUMMEENNTT PPAANNEELL OOVVEERRVVIIEEWW

❈The actual shape may differ from the illustration.

1-5

Your vehicle at a glance

1. Light control/Turn signals..................3-107

2. Steering wheel audio controls*/

Bluetooth

®wireless technology

hands-free controls*..............................4-3

3. Instrument cluster ..............................3-63

4. Horn....................................................3-22

5. Driver’s front air bag ..........................2-48

6.Wiper/Washer ..................................3-118

7. Cruise Control buttons/switch ............5-75

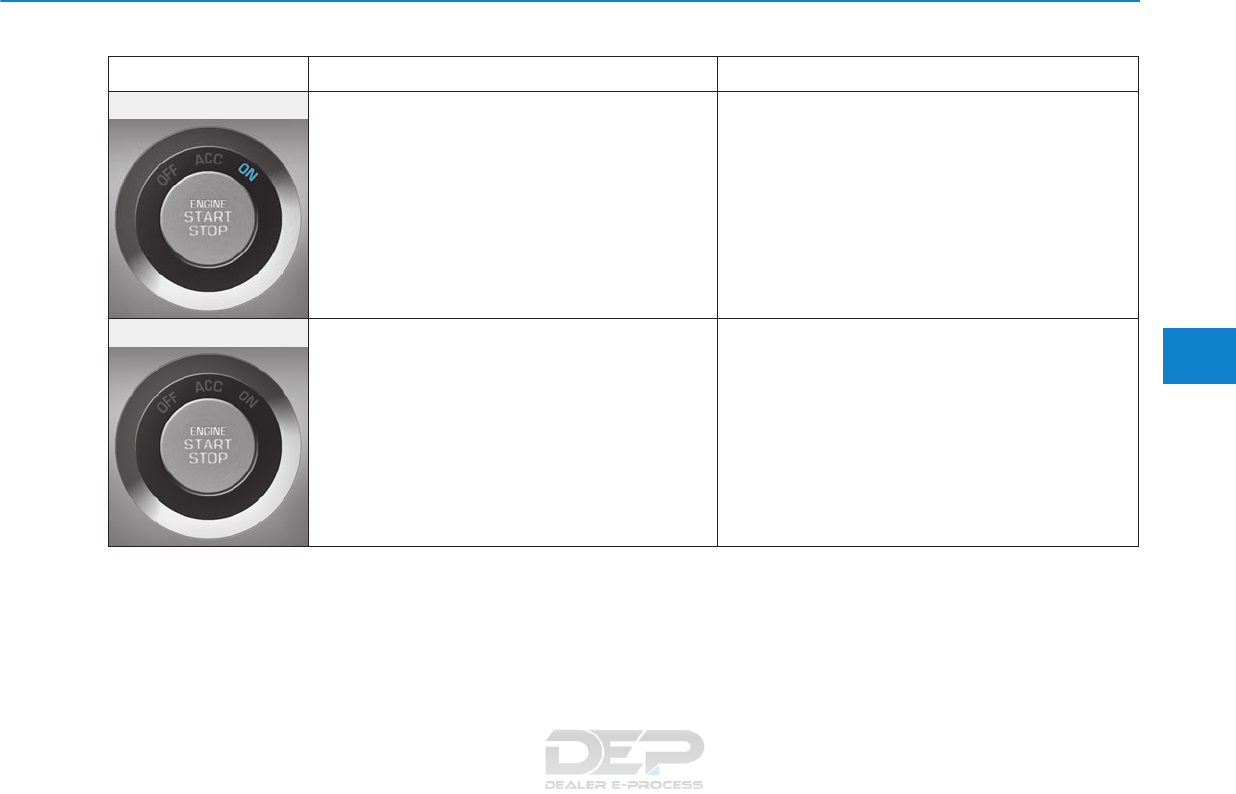

8. Engine Start/Stop button/

Key ignition switch ................................5-6

9. Automatic transmission/

Dual clutch transmission shifter..........5-14

10. Audio/AVN* ......................................4-17

11. Hazard warning flasher button ..............6-2

12. PASSENGER AIR BAG OFF

indicator

............................................2-59

13. Climate control system ..................3-137

14. AUX, USB ..........................................4-2

15. Power outlet....................................3-156

16. Cup holder......................................3-155

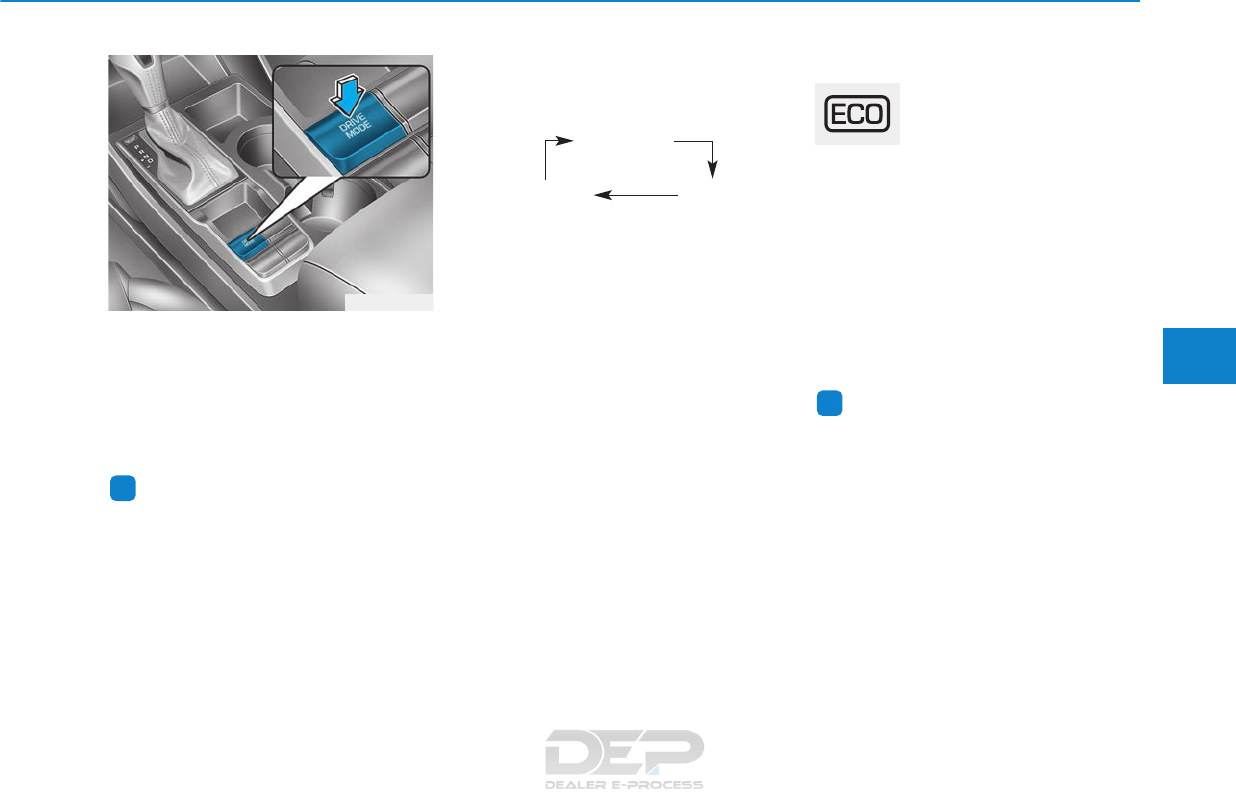

17. Drive mode integrated control

system ..............................................5-49

18. DBC button ......................................5-39

19. AWD LOCK button*..........................5-43

20. Rear parking assist system* ..........3-122

21. Passenger’s front air bag..................2-48

22. Glove box........................................3-153

* : if equipped OTLA015005

1-6

Your vehicle at a glance

EENNGGIINNEE CCOOMMPPAARRTTMMEENNTT

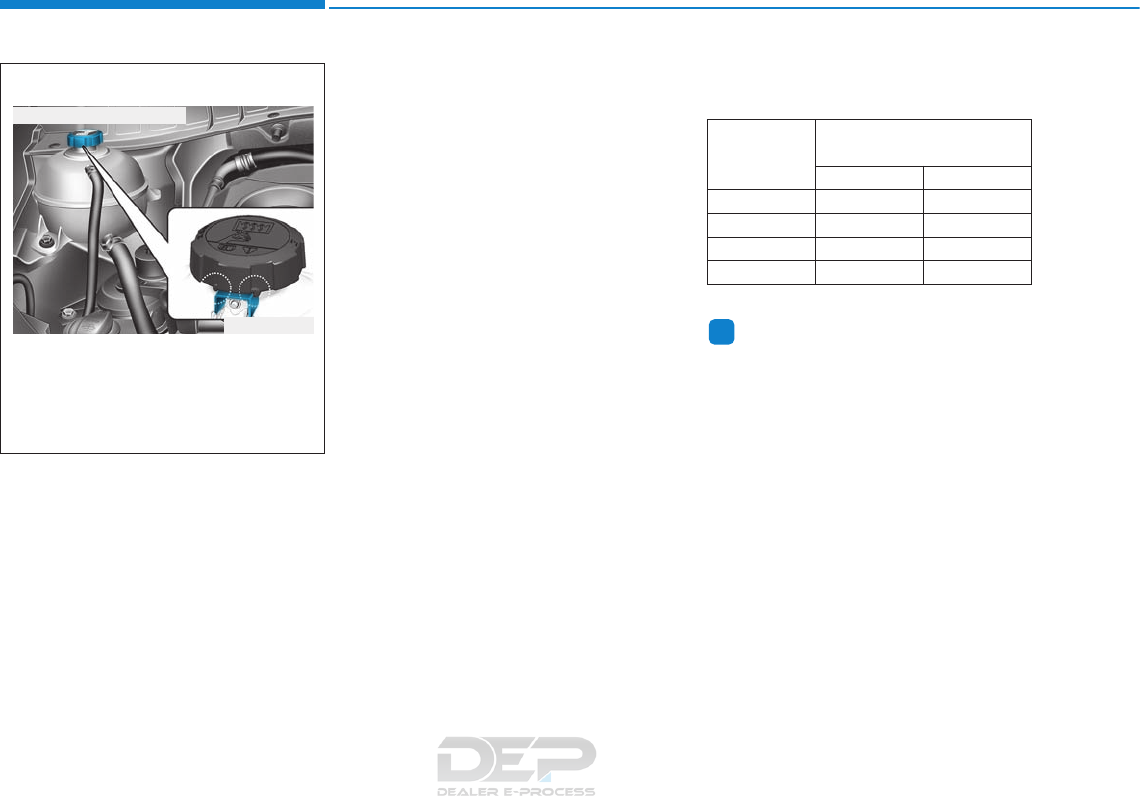

1. Engine coolant reservoir...................7-32

2. Brake fluid reservoir..........................7-36

3. Air cleaner.........................................7-38

4. Engine oil dipstick.............................7-30

5. Engine oil filler cap ...........................7-31

6.Windshield washer fluid reservoir.....7-37

7. Fuse box...........................................7-66

8. Battery ..............................................7-45

OTLE075002/OTLA075001

■■Gamma 1.6 T-GDI

The actual engine compartment in the

vehicle may differ from the illustration.

■■Nu 2.0 GDI
