2017 Civic

User Manual: 2017-civic

Open the PDF directly: View PDF PDF.
Page Count: 601 [warning: Documents this large are best viewed by clicking the View PDF Link!]

California Proposition 65 Warning
Event Data Recorders
This vehicle is equipped with an event data recorder (EDR).
The main purpose of an EDR is to record, in certain crash or near
crash-like situations, such as an air bag deployment or hitting a
road obstacle, data that will assist in understanding how a vehicle’s
systems performed. The EDR is designed to record data related
to vehicle dynamics and safety systems for a short period of
time, typically 30 seconds or less. The EDR in this vehicle is
designed to record such data as:
•How various systems in your vehicle were operating;
•Whether or not the driver and passenger safety belts were
buckled/fastened;
•How far (if at all) the driver was depressing the accelerator
and/or brake pedal; and,
•How fast the vehicle was traveling.
These data can help provide a better understanding of the
circumstances in which crashes and injuries occur. NOTE: EDR data
are recorded by your vehicle only if a non-trivial crash situation
occurs; no data are recorded by the EDR under normal driving
conditions and no personal data (e.g., name, gender, age, and
crash location) are recorded. However, other parties, such as law
enforcement, could combine the EDR data with the type of
personally identifying data routinely acquired during a crash
investigation.
WARNING: This product contains or emits
chemicals known to the state of California to cause
cancer and birth defects or other reproductive
harm.
To read data recorded by an EDR, special equipment is required,
and access to the vehicle or the EDR is needed. In addition to the
vehicle manufacturer, other parties, such as law enforcement, that
have the special equipment, can read the information if they have
access to the vehicle or the EDR.
The data belongs to the vehicle owner and may not be accessed by
anyone else except as legally required or with the permission of the
vehicle owner.
Service Diagnostic Recorders
This vehicle is equipped with service-related devices that record
information about powertrain performance. The data can be used
to verify emissions law requirements and/or help technicians
diagnose and solve service problems. It may also be combined with
data from other sources for research purposes, but it remains
confidential.
California Perchlorate Contamination Prevention Act
The airbags, seat belt tensioners, and CR type batteries in this
vehicle may contain perchlorate materials - special handling may
apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate/
As you read this manual, you will find information that is preceded
by a symbol. This information is intended to help you avoid
damage to your vehicle, other property, or the environment.
NOTICE
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 0 ページ ２０１６年８月３１日　水曜日　午後６時５分
00X31-TBA-6100 2017 Civic Sedan Owner's Manual AOM-03553
A Few Words About Safety
Your safety, and the safety of others, is very important. And
operating this vehicle safely is an important responsibility.
To help you make informed decisions about safety, we have
provided operating procedures and other information on labels and
in this manual. This information alerts you to potential hazards that
could hurt you or others.
Of course, it is not practical or possible to warn you about all the
hazards associated with operating or maintaining your vehicle. You
must use your own good judgment.
You will find this important safety information in a variety of forms,
including:
●Safety Labels - on the vehicle.
●Safety Messages - preceded by a safety alert symbol 3 and
one of three signal words: DANGER, WARNING, or CAUTION.
These signal words mean:
●Safety Headings - such as Important Safety Precautions.
●Safety Section - such as Safe Driving.
●Instructions - how to use this vehicle correctly and safely.
This entire book is filled with important safety information - please
read it carefully.
3DANGER
You WILL be KILLED or SERIOUSLY HURT if
you don't follow instructions.
3WARNING
You CAN be KILLED or SERIOUSLY HURT if
you don't follow instructions.
3CAUTION
You CAN be HURT if you don't follow
instructions.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 1 ページ ２０１６年８月３１日　水曜日　午後６時５分
Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manual (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular model may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications included in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.
2Safe Driving P. 33
For Safe Driving P. 34 Seat Belts P. 38 Airbags P. 46
2Instrument Panel P. 75
Indicators P. 76 Gauges and Displays P. 108
2Controls P. 127
Clock P. 128 Locking and Unlocking the Doors P. 130
Opening and Closing the Moonroof* P. 156
Adjusting the Seats P. 173
Climate Control System* P. 196
2Features P. 203
Audio System P. 204 Audio System Basic Operation P. 211, 229
Customized Features P. 308 Bluetooth® HandsFreeLink®* P. 339, 362
2Driving P. 395
Before Driving P. 396 Towing a Trailer P. 401
Multi-View Rear Camera P. 474 Refueling P. 476
2Maintenance P. 481
Before Performing Maintenance P. 482 Maintenance MinderTM P. 485
Checking and Maintaining Wiper Blades P. 519
Heating System*/Climate Control System* Maintenance P. 535
2Handling the Unexpected P. 543
Tools P. 544 If a Tire Goes Flat P. 545
Overheating P. 559 Indicator, Coming On/Blinking P. 561
When You Cannot Open the Trunk P. 573 Refueling P. 574
2Information P. 575
Specifications P. 576 Identification Numbers P. 580
Emissions Testing P. 583 Warranty Coverages P. 585
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 2 ページ ２０１６年８月３１日　水曜日　午後６時５分
Contents
Child Safety P. 60 Exhaust Gas Hazard P. 72 Safety Labels P. 73
Opening and Closing the Trunk P. 147 Security System P. 150 Opening and Closing the Windows P. 153
Operating the Switches Around the Steering Wheel P. 157 Adjusting the Mirrors P. 171
Interior Lights/Interior Convenience Items P. 181 Heating System* P. 193
Audio Error Messages P. 299 General Information on the Audio System P. 302
When Driving P. 402 Braking P. 457 Parking Your Vehicle P. 473
Fuel Economy and CO2 Emissions P. 479 Turbo Engine Vehicle* P. 480
Maintenance Under the Hood P. 495 Replacing Light Bulbs P. 510
Checking and Maintaining Tires P. 522 Battery P. 531 Remote Transmitter Care P. 533
Cleaning P. 536 Accessories and Modifications P. 541
Engine Does Not Start P. 552 Jump Starting P. 555 Shift Lever Does Not Move P. 558
Fuses P. 567 Emergency Towing P. 571 When You Cannot Unlock the Fuel Fill Door P. 572
Devices that Emit Radio Waves P. 581 Reporting Safety Defects P. 582
Authorized Manuals P. 587 Customer Service Information P. 588
Quick Reference Guide P. 4
Safe Driving P. 33
Instrument Panel P. 75
Controls P. 127
Features P. 203
Driving P. 395
Maintenance P. 481
Handling the Unexpected P. 543
Information P. 575
Index P. 589
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 3 ページ ２０１６年８月３１日　水曜日　午後６時５分
4
Quick Reference Guide
Quick Reference Guide
Visual Index
❙Ignition Switch* (P157)
❙ENGINE START/STOP Button*1 (P158)
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
❙Tire Pressure Monitoring System
(TPMS) Button* (P452)
❙Information Display* (P110)
❙System Indicators (P76)
❙Gauges (P108)
❙Collision Mitigation Braking SystemTM
(CMBSTM) OFF Button* (P465)
❙ (Vehicle Stability Assist (VSA®)
System OFF) Button (P448)
❙Road Departure Mitigation (RDM)
Button* (P436)
❙Navigation System*
() See Navigation System Manual
❙Audio System (P211, 229)
❙Hazard Warning Button
❙Rear Window Defogger (P169)
❙Heated Door Mirror Button* (P169)
❙Heating System* (P193)
❙Climate Control System* (P196)
❙Front Seat Heater Buttons* (P191)
❙Steering Wheel Adjustments (P170)
❙Driver Information Interface* (P113)
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 4 ページ ２０１６年８月３１日　水曜日　午後６時５分
5
❙Headlights/Turn Signals (P162)
❙Km/Mile Change Knob* (P108)
❙ (TRIP) Knob (P110, 114)
❙SOURCE Button* (P207)
❙Brightness Control (P168)
❙LaneWatchTM* (P450)
❙Fog Lights* (P165)
❙Wipers/Washers (P166)

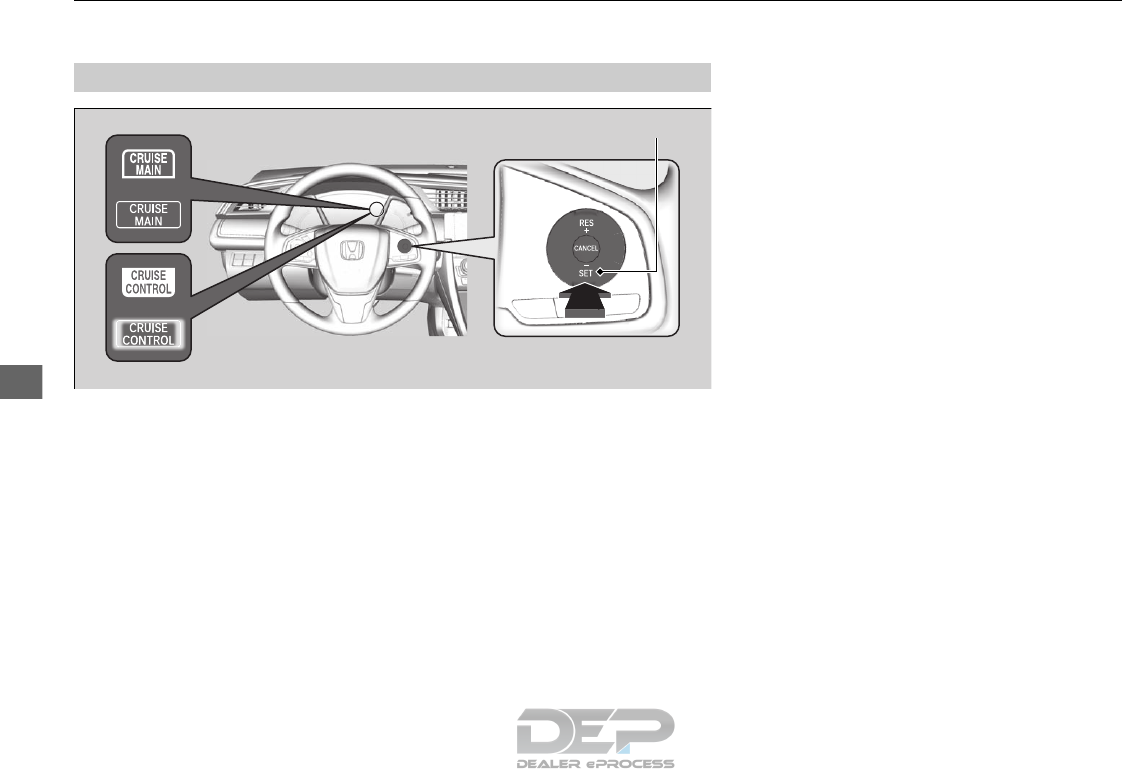

❙Cruise Control Buttons* (P417)
❙Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF) Buttons* (P422)
❙Lane Keeping Assist System (LKAS) Button*
(P440)
❙ (Display/Information) Button*
(P113)
❙Navigation System Voice Control Buttons*
(P254) () See the Navigation System Manual
❙Bluetooth® HandsFreeLink® System
Voice Control Buttons* (P339, 362)
❙ENTER Button* (P208)
❙(+ / (- / / Buttons* (P207)
❙ / / / Buttons* (P208)
3
4
❙Interval Button* (P430)
❙Horn (Press an area around .)
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 5 ページ ２０１６年８月３１日　水曜日　午後６時５分
Visual Index
6
Quick Reference Guide
❙Door Mirror Controls (P172)
❙Passenger’s Front Airbag
(P49)
❙Glove Box (P183)
❙Rearview Mirror (P171)
❙Accessory Power Socket
(P187)
❙Hood Release Handle (P497)
❙Trunk Opener (P147)
❙Power Door Lock Master Switch (P142)
❙Power Window Switches (P153)
❙Interior Fuse Box (P568)
❙Driver’s Front Airbag (P49)
❙USB Port (P205)
❙Shift Lever
Continuously Variable
Transmission (P411)
Manual Transmission (P413)
❙ECON Button (P416)
❙Electric Parking Brake Switch (P457)
❙Automatic Brake Hold Button (P460)
❙USB Port* (P205)
❙Wireless Charger* (P188)
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 6 ページ ２０１６年８月３１日　水曜日　午後６時５分
7
❙Seat Belt to Secure a Child Seat (P68)
❙Seat Belt (Installing a Child Seat) (P67)
❙Moonroof Switch* (P156)
❙Front Seat (P173)
❙Seat Belts (P38)
❙Side Airbags (P53)
❙Rear Seat (P179)
❙LATCH to Secure a Child Seat (P65)
❙Ceiling Light (P181)
❙Side Curtain Airbags (P55)
❙Coat Hook (P190)
❙Grab Handle
❙Coat Hook (P190)
❙Sun Visors
❙Vanity Mirrors
❙Map Lights (P182)
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 7 ページ ２０１６年８月３１日　水曜日　午後６時５分
Visual Index
8
Quick Reference Guide
❙Maintenance Under the Hood (P495)
❙Windshield Wipers (P166, 519)
❙Tires (P522, 545)
❙Fog Lights* (P165, 512)
❙Power Door Mirrors (P172)
❙How to Refuel (P477)
❙High-Mount Brake Light (P518)
❙Emergency Trunk Release Lever (P149)
❙Opening/Closing the Trunk (P147)
❙Multi-View Rear Camera (P474)
❙Door Lock/Unlock Control (P133)
❙Side Turn Signal Lights* (P162, 516)
❙Headlights (P162, 510)
❙Front Turn Signal Lights (P162, 514)
❙Parking/Daytime Running Lights (P162, 516)
❙Front Side Marker Lights (P515)
❙Taillights (P518)
❙Back-Up Lights (P517)
❙Brake Lights (P517)
❙Rear Turn Signal Lights (P517)
❙Tail/Rear Side Marker Lights (P517)
❙Trunk Release Button* (P148)
❙License Plate Light (P518)
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 8 ページ ２０１６年８月３１日　水曜日　午後６時５分
9
Eco Assist® System (P 416)
Ambient Meter
●Changes color to reflect your driving
style.
Green: Fuel efficient driving
White green: Moderate acceleration/
deceleration
White: Aggressive acceleration/
deceleration
●The ambient meter color changes in
accordance with your brake or
accelerator pedal operation.
ECON Button (P 416)
Helps maximize fuel economy.
ECON Mode Indicator (P 86)
Comes on when the ECON button is pressed.
The message is displayed for a few seconds when the
ECON button is pressed.
Models with driver information interface
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 9 ページ ２０１６年８月３１日　水曜日　午後６時５分
10
Quick Reference Guide
Safe Driving (P 33)
Airbags (P 46)
●Your vehicle is fitted with airbags to help to protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P 60)
●All children 12 and younger should be seated in the rear seat.
●Smaller children should be properly restrained in a forward-facing child seat.
●Infants must be properly restrained in a rear-facing child seat.
Exhaust Gas Hazard (P 72)
●Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P 37)
●Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P 38)
●Fasten your seat belt and sit upright well
back in the seat.
●Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 10 ページ ２０１６年８月３１日　水曜日　午後６時５分
11
Instrument Panel (P 75)
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
Indicator
Anti-lock Brake System
(ABS) Indicator
Vehicle Stability Assist
(VSA®) System
Indicator
VSA® OFF Indicator
Low Tire Pressure/
TPMS Indicator*
Electric Power
Steering (EPS) System
Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Seat Belt Reminder
Indicator
System Indicators
CRUISE CONTROL
Indicator*
Parking Brake and
Brake System
Indicator (Red)
Supplemental
Restraint System
Indicator
Door and Trunk Open
Indicator
CRUISE MAIN
Indicator*
Tachometer
Speedometer Fuel Gauge
Immobilizer System Indicator/
Security System Alarm Indicator
Shift Lever Position Indicator*
Low Fuel Indicator
Gauges (P 108)/Information Display* (P 110)/
Driver Information Interface* (P 113)/System Indicators (P 76)
ECON Mode Indicator
Turn Signal and
Hazard Warning
Indicators
Maintenance Minder
Indicator
Washer Level
Indicator*
Models with information display
Parking Brake and
Brake System
Indicator (Amber)
System Indicators
U.S.
Canada
U.S.
Canada
Automatic Brake Hold
System Indicator
Automatic Brake Hold
Indicator
U.S.
Canada
Temperature Gauge Brake Depressing
Indicator
Continuously variable
transmission models
Brake Depressing
Indicator
Manual transmission
models
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 11 ページ ２０１６年８月３１日　水曜日　午後６時５分
12
Quick Reference Guide
200
323.412ᾉ34
Menu
40 80
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
Indicator
Anti-lock Brake System
(ABS) Indicator
Vehicle Stability Assist
(VSA®) System
Indicator
VSA® OFF Indicator
Low Tire Pressure/
TPMS Indicator*
Electric Power
Steering (EPS) System
Indicator
Seat Belt Reminder
Indicator
System Indicators
Parking Brake and
Brake System
Indicator (Red)
Supplemental
Restraint System
Indicator
Tachometer
Speedometer Fuel Gauge
Immobilizer System
Indicator/Security System
Alarm Indicator
Shift Lever Position Indicator*
Low Fuel Indicator
ECON Mode Indicator
Turn Signal and
Hazard Warning
Indicators
Models with driver information interface
Parking Brake and
Brake System
Indicator (Amber)
System Indicators
U.S.
Canada
U.S.
Canada
Automatic Brake Hold
System Indicator
Automatic Brake Hold
Indicator
U.S.
Canada Temperature Gauge
Lights Indicators
Lights On Indicator
High Beam Indicator
Fog Light Indicator*
Adaptive Cruise
Control (ACC) with
Low Speed Follow
(LSF) Indicator
(Amber/Green)*
System Message
Indicator
Collision Mitigation
Braking SystemTM
(CMBSTM) Indicator*
Road Departure
Mitigation (RDM)
Indicator*
Lane Keeping Assist
System (LKAS)
Indicator (Amber/
Green)*
CRUISE MAIN
Indicator*
CRUISE CONTROL
Indicator*
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 12 ページ ２０１６年８月３１日　水曜日　午後６時５分
13
Controls (P 127)
Clock (P 128)
aPress and hold the MENU/CLOCK
button.
bRotate to change hour, then press
.
cRotate to change minute, then
press .
dSelect SET, then press .
These indications are used to show how to
operate the LIST/SELECT (List/Selector) knob.
•Rotate to select.
•Press to enter.
Models with color audio system
The audio system receives signals from GPS
satellites, updating the clock automatically.
aSelect the (HOME) icon, then select
Settings.
bSelect Clock, then Clock Adjustment.
cTouch the respective / icon to
adjust the hours or minutes up or
down.
dSelect OK.
Models with Display Audio
3
4
ENGINE START/STOP
Button* (P 158)
●Press the button to change the vehicle’s
power mode.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 13 ページ ２０１６年８月３１日　水曜日　午後６時５分
14
Quick Reference Guide
Turn Signals (P 162)
Turn Signal Control Lever
Right
Left
Lights (P 162)
Light Control Switches
Low Beam
High Beam
Flashing
Wipers and Washers
(P 166)
*1:Models with automatic intermittent
wipers
*2:Models without automatic intermittent
wipers
AUTO should always be turned OFF before
the following situation in order to prevent
severe damage to the wiper system:
●Cleaning the windshield
●Driving through a car wash
●No rain present
Wiper/Washer Control Lever
Adjustment Ring*
(-: Low sensitivity*1
(- : Lower speed, fewer sweeps*2
(+: High sensitivity*1
(+ : Higher speed, more sweeps*2
MIST
OFF
AUTO*1: Wiper speed varies automatically
INT*2: Low speed with intermittent
LO: Low speed wipe
HI: High speed wipe
Pull toward
you to spray
washer fluid.
Models with automatic intermittent wipers
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 14 ページ ２０１６年８月３１日　水曜日　午後６時５分
15
Steering Wheel (P 170)
●To adjust, pull the adjustment lever
towards you, adjust to the desired
position, then lock the lever back in place.
Unlocking the Front
Doors from the Inside
(P 141)
●Pull either front door inner handle to
unlock and open it at the same time.
Trunk (P 147)
●To unlock and open the trunk:
•Press the trunk opener on the driver’s
door.
•Press the trunk release button on the
remote transmitter or the smart entry
remote.
•Press the trunk release button* on the
trunk lid.
Power Door Mirrors
(P 172)
●With the ignition switch in ON (w*1, move
the selector switch to L or R.
●Push the appropriate edge of the
adjustment switch to adjust the mirror.
Trunk Opener
Selector Switch
Adjustment Switch
Power Windows (P 153)
●With the ignition switch in ON (w*1, open
and close the power windows.
●If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
●If the power window lock button is in the
on position (indicator is on), each
passenger’s window switch is disabled.
*1:Models with the smart entry system have
an ENGINE START/STOP button
instead of an ignition switch.
Power Window Lock Button
Window
Switch
Indicator
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 15 ページ ２０１６年８月３１日　水曜日　午後６時５分
16
Quick Reference Guide
Heating System* (P 193)
●Press the AUTO button to activate the heating system.
●Press the button to turn the system on or off.
●Press the button to defrost the windshield.
Canadian models with color audio system
Fan Control Dial
(Windshield Defroster) Button
Temperature Control Dial
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
(Recirculation) Button (MODE Control) Button
(Fresh Air) Button
(ON/OFF) Button
AUTO Button
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 16 ページ ２０１６年８月３１日　水曜日　午後６時５分
17
Climate Control System* (P196)
●Press the AUTO button to activate the climate control system.
●Press the button to turn the system on or off.
●Press the button to defrost the windshield.
U.S. models with color audio system
Fan Control Dial
(Windshield Defroster) Button
Temperature Control Dial
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
(Recirculation) Button
(MODE Control) Button
(ON/OFF) Button
AUTO Button
A/C (Air Conditioning) Button
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 17 ページ ２０１６年８月３１日　水曜日　午後６時５分
18
Quick Reference Guide
Models with Display Audio
Models without SYNC button
Fan Control Dial
(Windshield Defroster) Button
Temperature Control Dial
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
(Recirculation) Button
(CLIMATE) Button
(Fresh Air) Button
(ON/OFF) Button
AUTO Button
Audio/Information Touch Screen
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 18 ページ ２０１６年８月３１日　水曜日　午後６時５分
19
Models with Display Audio
Models with SYNC button
Passenger side Temperature
Control Dial
(Windshield Defroster) Button
Driver side Temperature
Control Dial
(Recirculation) Button
(CLIMATE) Button
(ON/OFF) Button
AUTO Button
Audio/Information Touch Screen
SYNC (Synchronized) Button
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 19 ページ ２０１６年８月３１日　水曜日　午後６時５分
20
Quick Reference Guide
Features (P 203)
Audio Remote Controls
(P 207)
●(+ / (- Button
Press to adjust the volume up/down.
●SOURCE Button
Press to change the audio mode: FM/AM/
USB/iPod/Bluetooth®Audio.
● / Button
Radio:Press to change the preset station.
Press and hold to select the next or
previous strong station.
USB device:
Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
Models with information display
SOURCE Button
(+ / (- / / Button
●(+ / (- Bar
Press to adjust the volume up/down.
Sliding up or down also increases or
decreases the volume.
Swipe down quickly to mute the volume
and swipe up to cancel the mute.
● / Button
Press or to cycle through the audio
mode as follows:
FM AM SiriusXM®*USB iPod
Bluetooth®Audio Pandora®*Apps*
Audio Apps*
Models with driver information interface
ENTER Button
/ / / Button
3
4
(+ / (- Bar
3
4
3
4
•When listening to the radio and
SiriusXM®*
aPress ENTER to switch the display to a
preset list you stored in the preset
buttons.
bPress or to select a preset, then
press ENTER.
•When listening to a USB flash drive
aPress ENTER to display the folder list.
bPress or to select a folder.
cPress ENTER to display a list of tracks in
that folder.
dPress or to select a track, then
press ENTER.
You can also swipe up or down to scroll
through the list of tracks alphabetically.
3
4
3
4
3
4
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 20 ページ ２０１６年８月３１日　水曜日　午後６時５分
21
•When listening to an iPod
aPress ENTER to display the iPod music
list.
bPress or to select a category.
cPress ENTER to display a list of items in
the category.
dPress or to select an item, then
press ENTER.
uPress ENTER and press or
repeatedly until a desired item you
want to listen is displayed.
You can also swipe up or down to scroll
through the list of tracks alphabetically.
•When listening to Internet Radio*
aPress ENTER to display the station list.
bPress or to select an item, then
press ENTER.
•When listening to Bluetooth®Audio
aPress ENTER to display the track list.
bPress or to select a track, then
press ENTER.
3
4
3
4
3
4
3
4
3
4
● / Button
● Button:
Press to change contents.
2Driver Information Interface*
(P113)
Radio:Press to change the preset station.
Press and hold to select the next or
previous strong station.
USB device:
Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 21 ページ ２０１６年８月３１日　水曜日　午後６時５分
22
Quick Reference Guide
Audio system (P 204)
(P 211)
Models with color audio system
(Seek/Skip) Button
RADIO Button
Driver Information Interface*
(Day/Night) Button
MEDIA Button
Preset Buttons (1-6)
(Seek/Skip) Button
VOL/ (Volume/Power) Knob
Audio/Information Screen
(Back) Button
(Sound) Button
MENU/CLOCK Button
LIST/SELECT (List/Selector) Knob
(Phone) Button
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 22 ページ ２０１６年８月３１日　水曜日　午後６時５分
23
(P 229)
For navigation system operation () See the Navigation System Manual
Models with Display Audio
(Menu) Icon
VOL (Volume) Icons
(Home) Icon
(Back) Icon
Audio/Information Screen
(Audio) Icon
Driver Information Interface
(Instrument Panel) Icon
(Day/Night) Button
*
*
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 23 ページ ２０１６年８月３１日　水曜日　午後６時５分
24
Quick Reference Guide
Driving (P 395)
Release Button
Shift Lever
Depress the brake pedal and press the
release button to move out of (P.
Move the shift lever without
pressing the release button.
Press the release button to
move the shift lever.
Manual Transmission* (P 413)
Continuously Variable Transmission* (P 411)
●Shift to (P and depress the brake pedal when starting the engine.
●Shifting
Park
Turn off or start the engine.
Transmission is locked.
Reverse
Used when reversing.
Neutral
Transmission is not locked.
Drive
Normal driving.
Drive (S)
●Better acceleration.
●Increased engine braking.
●Going up or down hills.
Low
●Further increased engine braking.
●Going up or down hills.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 24 ページ ２０１６年８月３１日　水曜日　午後６時５分
25
VSA® On and Off (P 448)
●
The vehicle stability assist (VSA
®
) system helps
stabilize the vehicle during cornering, and
helps maintain traction while accelerating on
loose or slippery road surfaces.
●VSA® comes on automatically every time
you start the engine.
●To partially disable or fully restore VSA®
function, press and hold the button until
you hear a beep.
Cruise Control* (P 417)
●Cruise control allows you to maintain a
set speed without keeping your foot on
the accelerator pedal.
●To use cruise control, press the CRUISE
button, then press the –/SET button once
you have achieved the desired speed
(above 25 mph or 40 km/h).
Collision Mitigation
Braking SystemTM (CMBSTM)
OFF Button* (P 465)
●
When a possible collision is likely unavoidable,
the CMBS
TM
can help you to reduce the vehicle
speed and the severity of the collision.
●To turn the CMBSTM on or off, press and
hold the button until you hear a beep.
Tire Pressure Monitoring
System (TPMS) (P 452)
●
Detects a change in tire conditions and overall
dimensions due to decrease in tire pressures.
●The TPMS is turned on automatically
every time you start the engine.
●A calibration procedure must be
performed when certain conditions arise.
U.S. models
Refueling (P 476)
Fuel recommendation: Unleaded gasoline, pump octane number 87 or higher
Fuel tank capacity: 12.39 US gal (46.9 L)
aUnlock the driver’s
door.
2Locking/Unlocking
the Doors from
the Inside
(P140)
bPress on the edge of
the fuel fill door to
make it pop up
slightly.

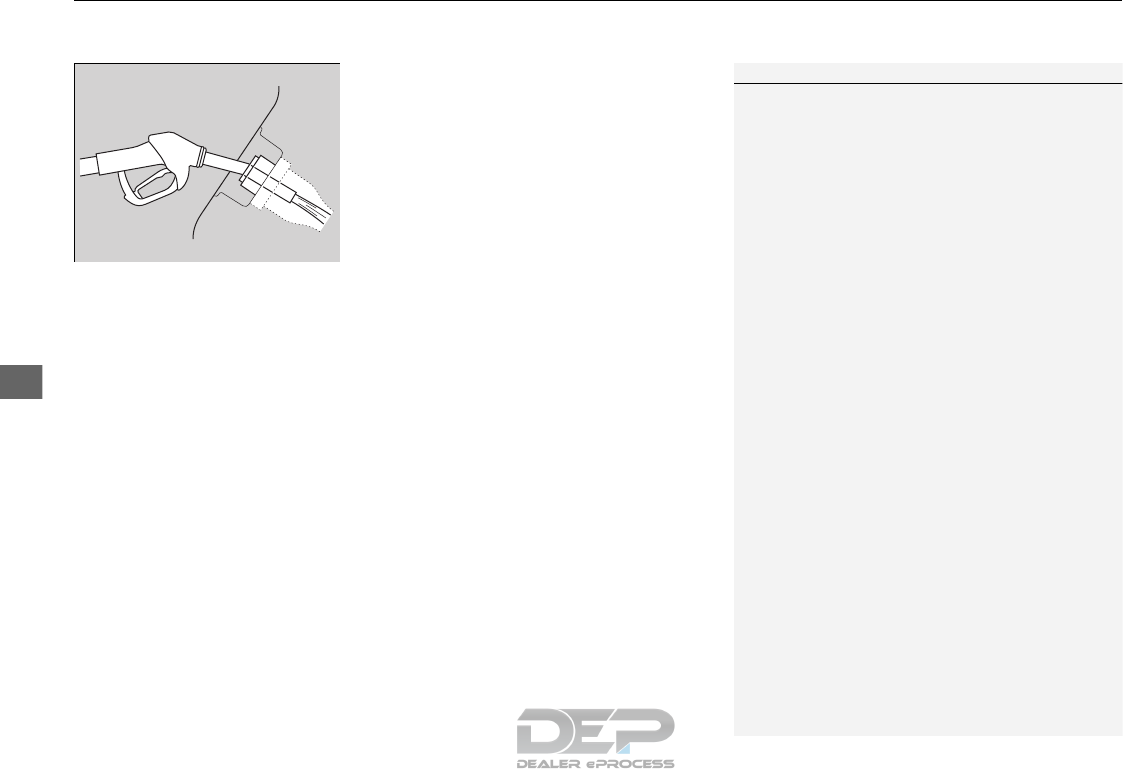

cAfter refueling, wait
for about five
seconds before
removing the filler
nozzle.
Wait for five seconds
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 25 ページ ２０１６年８月３１日　水曜日　午後６時５分
26
Quick Reference Guide
Honda SensingTM*
Honda SensingTM is a driver support system
which employs the use of two distinctly
different kinds of sensors, a radar sensor
located in the lower bumper and a front
sensor camera mounted to the interior side
of the windshield, behind the rear view
mirror.

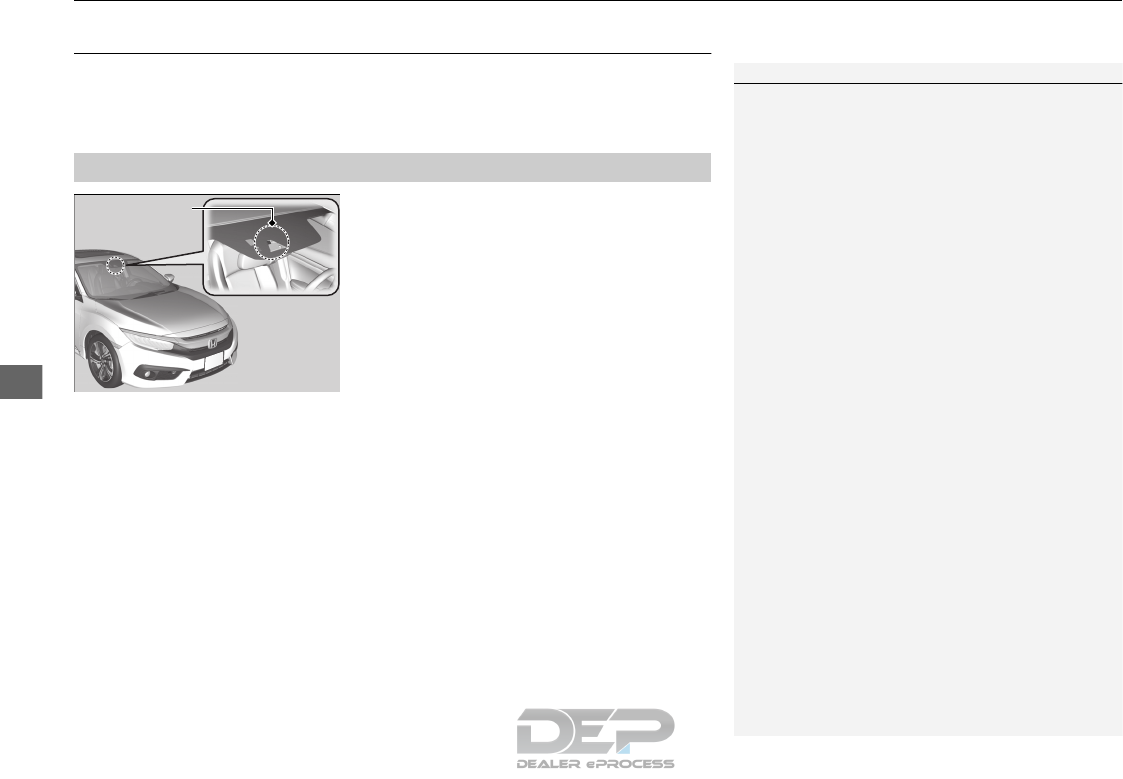

Front Sensor Camera
The camera is located
behind the rearview
mirror.
Radar Sensor
The radar sensor is in
the lower bumper
next to the fog light.
Adaptive Cruise Control
(ACC) with Low Speed
Follow (LSF)* (P422)
Helps maintain a constant vehicle speed and
a set following interval behind a vehicle
detected ahead of yours and, if the detected
vehicle comes to a stop, can decelerate and
stop your vehicle, without you having to
keep your foot on the brake or the
accelerator.
Road Departure
Mitigation (RDM)
System* (P 436)
Alerts and helps to assist you when the
system detects a possibility of your vehicle
unintentionally crossing over detected lane
markings.
Lane Keeping Assist
System (LKAS)* (P 440)
Provides steering input to help keep the
vehicle in the middle of a detected lane and
provides tactile and visual alerts if the
vehicle is detected drifting out of its lane.
Collision Mitigation
Braking SystemTM
(CMBSTM)* (P 465)
Can assist you when there is a possibility of
your vehicle colliding with a vehicle or a
pedestrian detected in front of yours. The
CMBSTM is designed to alert you when a
potential collision is determined, as well as
to reduce your vehicle speed to help
minimize collision severity when a collision is
deemed unavoidable.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 26 ページ ２０１６年８月３１日　水曜日　午後６時５分
27
Maintenance (P 481)
Under the Hood (P 495)
●Check engine oil, engine coolant, and windshield washer fluid. Add
when necessary.
●Check brake fluid.
●Check the battery condition monthly.
aPull the hood release handle under the corner of the dashboard.
bLocate the hood latch lever, pull it up, and then raise the hood.
Once you have raised the hood slightly, you can release the lever.
cWhen finished, close the hood and make sure it is firmly locked in
place.
Lights (P 510)
●Inspect all lights regularly.
Wiper Blades (P 519)
●Replace blades if they leave streaks
across the windshield.
Tires (P 522)
●Inspect tires and wheels
regularly.
●Check tire pressures regularly.
●Install snow tires for winter
driving.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 27 ページ ２０１６年８月３１日　水曜日　午後６時５分
28
Quick Reference Guide
Handling the Unexpected (P 543)
Flat Tire (P 545)
●Park in a safe location and replace the
flat tire with the compact spare tire in the
trunk.
Indicators Come On
(P 561)
●Identify the indicator and consult the
owner's manual.
Engine Won’t Start
(P 552)
●If the battery is dead, jump start using a
booster battery.
Blown Fuse (P 567)
●Check for a blown fuse if an electrical
device does not operate.
Overheating (P 559)
●Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing
(P 571)
●Call a professional towing service if you
need to tow your vehicle.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 28 ページ ２０１６年８月３１日　水曜日　午後６時５分
29
What to Do If
*1:Except U.S. models with continuously variable transmission
The ignition switch does
not turn from (0 to (q.
Why?
The power mode does not
change from VEHICLE OFF
(LOCK) to ACCESSORY.
Why?
The steering wheel may be locked.
●Try to turn the steering wheel left and right
while turning the ignition key.
●Move the steering wheel left and right after pressing the
ENGINE START/STOP button.
The ignition switch does
not turn from (q to (0 and
I cannot remove the key.
Why?
The power mode does not
change from ACCESSORY
to VEHICLE OFF (LOCK).
Why?
The shift lever should be moved to (P.
Why does the brake pedal
pulsate slightly when
applying the brakes?
This can occur when the ABS activates, and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
Models without smart entry system
Models with smart entry system
Models without smart entry system
Models with smart entry system*1
Models without smart entry system
Models with smart entry system
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 29 ページ ２０１６年８月３１日　水曜日　午後６時５分
30
Quick Reference Guide
The rear door cannot be
opened from inside the
vehicle. Why?
Check if the childproof lock is in the
lock position. If so, open the rear
door with the outside door handle.
To cancel this function, slide the lever
to the unlock position.
Why do the doors lock
after I unlocked the doors
using a remote
transmitter?
If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver's door?
The beeper sounds when:
●The key is left in the ignition switch*.
●The power mode* is in ACCESSORY.
●The exterior lights are left on.
Why does the beeper
sound when I start driving?
The beeper sounds when the driver and/or front passenger are
not wearing their seat belts.
Why do I hear a screeching
sound when I apply the
brake pedal?
The brake pads may need to be replaced. Have your vehicle
inspected by a dealer.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 30 ページ ２０１６年８月３１日　水曜日　午後６時５分
31
Pressing the electric
parking brake switch does
not release the parking
brake. Why?
Press the electric parking brake switch with the brake pedal
depressed.
Depressing the accelerator
pedal does not release the
parking brake
automatically. Why?
●Fasten the driver’s seat belt.
●Check if the transmission is in (P or (N. If so, select any other
position.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 31 ページ ２０１６年８月３１日　水曜日　午後６時５分
32
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 32 ページ ２０１６年８月３１日　水曜日　午後６時５分
33
Safe Driving
You can find many safety recommendations throughout this chapter, and throughout this manual.
For Safe Driving
Important Safety Precautions ............. 34
Your Vehicle’s Safety Features............ 36
Safety Checklist ................................. 37
Seat Belts
About Your Seat Belts........................ 38
Fastening a Seat Belt.......................... 42
Seat Belt Inspection............................ 45
Airbags
Airbag System Components............... 46
Types of Airbags ................................ 49
Front Airbags (SRS) ............................ 49
Side Airbags ...................................... 53
Side Curtain Airbags .......................... 55
Airbag System Indicators.................... 57
Airbag Care ....................................... 59
Child Safety
Protecting Child Passengers ............... 60
Safety of Infants and Small Children.......62
Safety of Larger Children ................... 70
Exhaust Gas Hazard
Carbon Monoxide Gas....................... 72
Safety Labels
Label Locations .................................. 73
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 33 ページ ２０１６年８月３１日　水曜日　午後６時５分
34
Safe Driving
For Safe Driving
The following pages explain your vehicle's safety features and how to use them
properly. The safety precautions below are ones that we consider to be among the
most important.
Important Safety Precautions
■Always wear your seat belt
A seat belt is your best protection in all types of collisions. Airbags are designed to
supplement seat belts, not replace them. So even though your vehicle is equipped
with airbags, make sure you and your passengers always wear your seat belts, and
wear them properly.
■Restrain all children
Children ages 12 and under should ride properly restrained in a back seat, not the
front seat. Infants and small children should be restrained in a child seat. Larger
children should use a booster seat and a lap/shoulder seat belt until they can use the
belt properly without a booster seat.
■Be aware of airbag hazards
While airbags can save lives, they can cause serious or fatal injuries to occupants
who sit too close to them, or are not properly restrained. Infants, young children,
and short adults are at the greatest risk. Be sure to follow all instructions and
warnings in this manual.
■Don't drink and drive
Alcohol and driving don't mix. Even one drink can reduce your ability to respond to
changing conditions, and your reaction time gets worse with every additional drink.
So don't drink and drive, and don't let your friends drink and drive, either.
1Important Safety Precautions
Some states, provinces and territories prohibit the use
of cell phones other than hands-free devices by the
driver while driving.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 34 ページ ２０１６年８月３１日　水曜日　午後６時５分
35
uuFor Safe DrivinguImportant Safety Precautions
■Pay appropriate attention to the task of driving safely
Engaging in cell phone conversation or other activities that keep you from paying
close attention to the road, other vehicles, and pedestrians could lead to a crash.
Remember, situations can change quickly, and only you can decide when it is safe to
divert some attention away from driving.
■Control your speed
Excessive speed is a major factor in crash injuries and deaths. Generally, the higher
the speed, the greater the risk, but serious injuries can also occur at lower speeds.
Never drive faster than is safe for current conditions, regardless of the maximum
speed posted.
■Keep your vehicle in safe condition
Having a tire blowout or a mechanical failure can be extremely hazardous.
To reduce the possibility of such problems, check your tire pressures and condition
frequently, and perform all regularly scheduled maintenance.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 35 ページ ２０１６年８月３１日　水曜日　午後６時５分
36
uuFor Safe DrivinguYour Vehicle’s Safety Features
Safe Driving
Your Vehicle’s Safety Features
The following checklist will help you take an active role in protecting yourself and
your passengers.
1Your Vehicle’s Safety Features
Your vehicle is equipped with many features that
work together to help protect you and your
passengers during a crash.
Some features do not require any action on your part.
These include a strong steel framework that forms a
safety cage around the passenger compartment,
front and rear crush zones, a collapsible steering
column, and tensioners that tighten the front seat
belts in a sufficient crash.
However, you and your passengers cannot take full
advantage of these features unless you remain seated
in the correct position and always wear your seat
belts. In fact, some safety features can contribute to
injuries if they are not used properly.
6
7
8
9
10
11
Safety Cage
Crush Zones
Seats and Seat-Backs
Head Restraints
Collapsible Steering Column
Seat Belts
Front Airbags
Side Curtain Airbags
Door Locks
Side Airbags
Seat Belt Tensioners
7
7
99
8
8
10
10
6
11
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 36 ページ ２０１６年８月３１日　水曜日　午後６時５分
37
uuFor Safe DrivinguSafety Checklist
Safety Checklist
For the safety of you and your passengers, make a habit of checking these items
each time before you drive.
•After everyone has entered the vehicle, be sure all doors are closed and locked.
Locking the doors helps prevent an occupant from being ejected and an outsider
from unexpectedly opening a door.
2Locking/Unlocking the Doors from the Inside P. 140
•Adjust your seat to a position suitable for driving. Be sure the front seats are
adjusted as far to the rear as possible while allowing the driver to control the
vehicle. Sitting too close to a front airbag can result in serious or fatal injury in a
crash.
2Adjusting the Seats P. 173
•Adjust head restraints to the proper position. Head restraints are most effective
when the center of the head restraint aligns with the center of your head. Taller
persons should adjust their head restraint to the highest position.
2Adjusting the Front Head Restraints P. 176
•Always wear your seat belt, and make sure you wear it properly. Confirm that any
passengers are properly belted as well.
2Fastening a Seat Belt P. 42
•Protect children by using seat belts or child seats according to a child’s age, height
and weight.
2Child Safety P. 60
1Safety Checklist
If the door and trunk open indicator is on, a door or
the trunk is not completely closed. Close all doors
tightly until the indicator goes off.
2Door and Trunk Open Indicator* P. 82
If the door and trunk open message appears on the
driver information interface, a door and/or the trunk
is not completely closed. Close all doors and the
trunk tightly until the message disappears.
2Driver Information Interface Warning and
Information Messages* P. 94
Models with information display
Models with driver information interface
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 37 ページ ２０１６年８月３１日　水曜日　午後６時５分
38
Safe Driving
Seat Belts
About Your Seat Belts
Seat belts are the single most effective safety device because they keep you
connected to the vehicle so that you can take advantage of many built-in safety
features. They also help keep you from being thrown against the inside of the
vehicle, against other passengers, or out of the vehicle. When worn properly, seat
belts also keep your body properly positioned in a crash so that you can take full
advantage of the additional protection provided by the airbags.
In addition, seat belts help protect you in almost every type of crash, including:
-frontal impacts
-side impacts
-rear impacts
-rollovers
■Lap/shoulder seat belts
All five seating positions are equipped with lap/shoulder seat belts with emergency
locking retractors. In normal driving the retractor lets you move freely while keeping
some tension on the belt. During a collision or sudden stop the retractor locks to
restrain your body. The front passenger’s and rear seat belts also have a lockable
retractor for use with child seats.
2Installing a Child Seat with a Lap/Shoulder Seat Belt P. 67
1About Your Seat Belts
Seat belts cannot completely protect you in every
crash. But in most cases, seat belts can reduce your
risk of serious injury.
Most states and all Canadian provinces and territories
require you to wear seat belts.
The emergency locking retractor may lock if you lean
forward too quickly. Slower movements will allow
the belt to extend fully without locking.
3
WARNING
Not wearing a seat belt properly increases
the chance of serious injury or death in a
crash, even though your vehicle has
airbags.
Be sure you and your passengers always
wear seat belts and wear them properly.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 38 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 39
uuSeat BeltsuAbout Your Seat Belts
■Proper use of seat belts
Follow these guidelines for proper use:
•All occupants should sit upright, well back in the seat, and remain in that position
for the duration of the trip. Slouching and leaning reduce the effectiveness of the
belt and can increase the chance of serious injury in a crash.
•Never place the shoulder part of a lap/shoulder seat belt under your arm or
behind your back. This could cause very serious injuries in a crash.
•Two people should never use the same seat belt. If they do, they could be very
seriously injured in a crash.
•Do not put any accessories on the seat belts. Devices intended to improve comfort
or reposition the shoulder part of a seat belt can reduce the protective capability
and increase the chance of serious injury in a crash.
1About Your Seat Belts
If a rear seat passenger moves around and extends
the seat belt, the lockable retractor may activate. If
this happens, release the retractor by unfastening the
seat belt and allow the belt to retract completely.
Then refasten the belt.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 39 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuSeat BeltsuAbout Your Seat Belts
40
Safe Driving
The seat belt system includes an indicator on
the instrument panel to remind the driver or a
front passenger or both to fasten their seat
belts.
If the ignition switch is turned to ON (w*1 and
a seat belt is not fastened, a beeper will sound
and the indicator will blink. After a few
seconds, the beeper will stop and the
indicator will come on and remain illuminated
until the seat belt is fastened.
The beeper will periodically sound and the
indicator will blink while the vehicle is moving
until the seat belt is fastened.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Seat Belt Reminder
1Seat Belt Reminder
The indicator will also come on if a front passenger
does not fasten their seat belt within six seconds after
the ignition switch is turned to ON (w*1.
When no one is sitting in the front passenger’s seat,
the indicator will not come on and the beeper will not
sound. The indicator also may not come on and the
beeper may not sound when the occupant is not
heavy enough to trigger the weight sensor. Such
occupants (e.g., infants and smaller children) should
be moved to the rear seat as a deploying front airbag
likely will injure or kill them.
2Protecting Child Passengers P. 60
Models with information display
Models with driver information
interface
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 40 ページ ２０１６年８月３１日　水曜日　午後６時５分
41
uuSeat BeltsuAbout Your Seat Belts
The front seats are equipped with automatic seat belt tensioners to enhance safety.
The tensioners automatically tighten the front seat belts during a moderate-to-
severe frontal collision, sometimes even if the collision is not severe enough to
inflate the front airbags.
■Automatic Seat Belt Tensioners
1Automatic Seat Belt Tensioners
The seat belt tensioners can only operate once.
If a tensioner is activated, the SRS indicator will come
on. Have a dealer replace the tensioner and
thoroughly inspect the seat belt system as it may not
offer protection in a subsequent crash.
During a moderate-to-severe side impact, the
tensioner on that side of the vehicle also activates.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 41 ページ ２０１６年８月３１日　水曜日　午後６時５分
42
uuSeat BeltsuFastening a Seat Belt
Safe Driving
Fastening a Seat Belt
After adjusting a front seat to the proper position, and while sitting upright and well
back in the seat:
2Adjusting the Seats P. 173
1. Pull the seat belt out slowly.
2. Insert the latch plate into the buckle, then
tug on the belt to make sure the buckle is
secure.
uMake sure that the belt is not twisted or
caught on anything.
1Fastening a Seat Belt
No one should sit in a seat with an inoperative seat
belt or one that does not appear to be working
correctly. Using a seat belt that is not working
properly may not protect the occupant in a crash.
Have a dealer check the belt as soon as possible.
Never insert any foreign objects into the buckle or
retractor mechanism.
Pull out slowly.
Correct
Seated
Posture.
Latch
Plate
Buckle
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 42 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 43
uuSeat BeltsuFastening a Seat Belt
3. Position the lap part of the belt as low as
possible across your hips, then pull up on
the shoulder part of the belt so the lap part
fits snugly. This lets your strong pelvic
bones take the force of a crash and reduces
the chance of internal injuries.
4. If necessary, pull up on the belt again to
remove any slack, then check that the belt
rests across the center of your chest and
over your shoulder. This spreads the forces
of a crash over the strongest bones in your
upper body.
The front seats have adjustable shoulder anchors to accommodate taller and shorter
occupants.
1. Move the anchor up and down while
pulling the release outward.
2. Position the anchor so that the belt rests
across the center of your chest and over
your shoulder.
1Fastening a Seat Belt
To release the belt, push the red PRESS button then
guide the belt by hand until it has retracted
completely.
When exiting the vehicle, be sure the belt is out of
the way and will not get caught by closing the door.
3
WARNING
Improperly positioning the seat belts can
cause serious injury or death in a crash.
Make sure all seat belts are properly
positioned before driving.
Lap belt
as low as
possible
■Adjusting the Shoulder Anchor
1Adjusting the Shoulder Anchor
The shoulder anchor height can be adjusted to four
levels. If the belt contacts your neck, lower the height
one level at a time.
After an adjustment, make sure that the shoulder
anchor position is secure.
Pull
outward
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 43 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuSeat BeltsuFastening a Seat Belt
44
Safe Driving
If you are pregnant, the best way to protect yourself and your unborn child when
driving or riding in a vehicle is to always wear a seat belt and keep the lap part of the
belt as low as possible across the hips.
■Advice for Pregnant Women
1Advice for Pregnant Women
Each time you have a checkup, ask your doctor if it is
okay for you to drive.
To reduce the risk of injuries to both you and your
unborn child that can be caused by an inflating front
airbag:
•When driving, sit upright and adjust the seat as far
back as possible while allowing full control of the
vehicle.
•When sitting in the front passenger's seat, adjust
the seat as far back as possible.
Wear the shoulder belt
across the chest avoiding
the abdomen.
Wear the lap part of the
belt as low as possible
across the hips.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 44 ページ ２０１６年８月３１日　水曜日　午後６時５分
45
uuSeat BeltsuSeat Belt Inspection
Seat Belt Inspection
Regularly check the condition of your seat belts as follows:
•Pull each belt out fully, and look for frays, cuts, burns, and wear.
•Check that the latch plates and buckles work smoothly and the belts retract
easily.
uIf a belt does not retract easily, cleaning the belt may correct the problem. Only
use a mild soap and warm water. Do not use bleach or cleaning solvents. Make
sure the belt is completely dry before allowing it to retract.
Any belt that is not in good condition or working properly will not provide proper
protection and should be replaced as soon as possible.
A belt that has been worn during a crash may not provide the same level of
protection in a subsequent crash. Have your seat belts inspected by a dealer after
any collision.
1Seat Belt Inspection
3
WARNING
Not checking or maintaining seat belts can
result in serious injury or death if the seat
belts do not work properly when needed.
Check your seat belts regularly and have
any problem corrected as soon as possible.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 45 ページ ２０１６年８月３１日　水曜日　午後６時５分
46
Safe Driving
Airbags
Airbag System Components
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 46 ページ ２０１６年８月３１日　水曜日　午後６時５分
47
uuAirbagsuAirbag System Components
Continued
The front, front side, and side curtain
airbags are deployed according to the
direction and severity of impact. Both side
curtain airbags are deployed in a rollover.
The airbag system includes:
aTwo SRS (Supplemental Restraint System)
front airbags. The driver's airbag is stored
in the center of the steering wheel; the
front passenger's airbag is stored in the
dashboard. Both are marked SRS
AIRBAG.
bTwo side airbags, one for the driver and
one for a front passenger. The airbags are
stored in the outer edges of the seat-
backs. Both are marked SIDE AIRBAG.
cTwo side curtain airbags, one for each
side of the vehicle. The airbags are stored
in the ceiling, above the side windows.
The front and rear pillars are marked
SIDE CURTAIN AIRBAG.
dAn electronic control unit that, when the
vehicle is on, continually monitors
information about the various impact
sensors, seat and buckle sensors, rollover
sensor, airbag activators, seat belt
tensioners, and other vehicle
information. During a crash event the
unit can record such information.
eAutomatic front seat belt tensioners. In
addition, the driver’s and front
passenger’s seat belt buckles incorporate
sensors that detect whether or not the
belts are fastened.
fA driver’s seat position sensor. If the seat
is too far forward, the airbag will inflate
with less force.
gWeight sensors in the front passenger’s
seat. The front passenger’s airbag will be
turned off if the weight on the seat is
approximately 65 lbs (29 kg) or less (the
weight of an infant or small child).
hImpact sensors that can detect a
moderate-to-severe front impact or side
impact.
iAn indicator on the dashboard that alerts
you that the front passenger’s front
airbag has been turned off.
jAn indicator on the instrument panel that
alerts you to a possible problem with your
airbag system or seat belt tensioners.
kA rollover sensor that detects if your
vehicle is about to roll over and signal the
control unit to deploy both side curtain
airbags.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 47 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuAirbagsuAirbag System Components
48
Safe Driving
Airbags can pose serious hazards. To do their job, airbags must inflate with
tremendous force. So, while airbags help save lives, they can cause burns, bruises,
and other minor injuries, sometimes even fatal ones if occupants are not wearing
their seat belts properly and sitting correctly.
What you should do: Always wear your seat belt properly, and sit upright and as
far back from the steering wheel as possible while allowing full control of the
vehicle. A front passenger should move their seat as far back from the dashboard as
possible.
Remember, however, that no safety system can prevent all injuries or deaths that
can occur in a severe crash, even when seat belts are properly worn and the airbags
deploy.
Do not place hard or sharp objects between yourself and a front airbag.
Carrying hard or sharp objects on your lap, or driving with a pipe or other sharp
object in your mouth, can result in injuries if your front airbag inflates.
Do not attach or place objects on the front airbag covers. Objects on the
covers marked SRS AIRBAG could interfere with the proper operation of the airbags
or be propelled inside the vehicle and hurt someone if the airbags inflate.
■Important Facts About Your Airbags
1Important Facts About Your Airbags
Do not attempt to deactivate your airbags. Together,
airbags and seat belts provide the best protection.
When driving, keep hands and arms out of the
deployment path of the front airbag by holding each
side of the steering wheel. Do not cross an arm over
the airbag cover.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 48 ページ ２０１６年８月３１日　水曜日　午後６時５分
49
uuAirbagsuTypes of Airbags
Continued
Types of Airbags
Your vehicle is equipped with three types of airbags:
•Front airbags: Airbags in front of the driver’s and front passenger’s seats.
•Side airbags: Airbags in the driver’s and front passenger’s seat-backs.
•Side curtain airbags: Airbags above the side windows.
Each is discussed in the following pages.
Front Airbags (SRS)
The front SRS airbags inflate in a moderate-to-severe frontal collision to help protect
the head and chest of the driver and/or front passenger.
SRS (Supplemental Restraint System) indicates that the airbags are designed to
supplement seat belts, not replace them. Seat belts are the occupant's primary
restraint system.
The front airbags are housed in the center of the steering wheel for the driver, and
in the dashboard for the front passenger. Both airbags are marked SRS AIRBAG.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Housing Locations
1Types of Airbags
The airbags can inflate whenever the ignition switch
is in ON (w*1.
After an airbag inflates in a crash, you may see a
small amount of smoke. This is from the combustion
process of the inflator material and is not harmful.
People with respiratory problems may experience
some temporary discomfort. If this occurs, get out of
the vehicle as soon as it is safe to do so.
1Front Airbags (SRS)
Dual-Stage, Multiple-Threshold Front Airbags
(SRS)
Your vehicle is equipped with dual-stage, multiple-
threshold front airbags (SRS).
During a frontal crash severe enough to cause one or
both front airbags to deploy, the airbags can inflate
at different rates, depending on the severity of the
crash, whether or not the seat belts are latched, and/
or other factors. Frontal airbags are designed to
supplement the seat belts to help to reduce the
likelihood of head and chest injuries in frontal
crashes.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 49 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuAirbagsuFront Airbags (SRS)
50
Safe Driving
Front airbags are designed to inflate during moderate-to-severe frontal collisions.
When the vehicle decelerates suddenly, the sensors send information to the control
unit which signals one or both front airbags to inflate.
A frontal collision can be either head-on or angled between two vehicles, or when a
vehicle crashes into a stationary object, such as a concrete wall.
While your seat belt restrains your torso, the
front airbag provides supplemental protection
for your head and chest.
The front airbags deflate immediately so that
they won't interfere with the driver's visibility
or the ability to steer or operate other
controls.
The total time for inflation and deflation is so fast that most occupants are not
aware that the airbags deployed until they see them lying in front of them.
■Operation
■How the Front Airbags Work
1How the Front Airbags Work
Although the driver's and front passenger's airbags
normally inflate within a split second of each other, it
is possible for only one airbag to deploy. This can
happen if the severity of a collision is at the margin,
or threshold, that determines whether or not the
airbags will deploy. In such cases, the seat belt will
provide sufficient protection, and the supplemental
protection offered by the airbag would be minimal.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 50 ページ ２０１６年８月３１日　水曜日　午後６時５分
51
uuAirbagsuFront Airbags (SRS)
Continued
■When front airbags should not deploy
Minor frontal crashes: Front airbags were designed to supplement seat belts and
help to save lives, not to prevent minor scrapes, or even broken bones that might
occur during a less than moderate-to-severe frontal crash.
Side impacts: Front airbags can provide protection when a sudden deceleration
causes a driver or front passenger to move towards the front of the vehicle. Side
airbags and side curtain airbags have been specifically designed to help to reduce
the severity of injuries that can occur during a moderate-to-severe side impact which
can cause the driver or passenger to move towards the side of the vehicle.
Rear impacts: Head restraints and seat belts are your best protection during a rear
impact. Front airbags cannot provide any significant protection and are not designed
to deploy in such collisions.
Rollovers: In a rollover, your best form of protection is a seat belt or, if your vehicle
is equipped with a rollover sensor, both a seat belt and a side curtain airbag. Front
airbags, however, are not designed to deploy in a rollover as they would provide
little if any protection.
■When front airbags deploy with little or no visible damage
Because the airbag system senses sudden deceleration, a strong impact to the
vehicle framework or suspension might cause one or more of the airbags to deploy.
Examples include running into a curb, the edge of a hole, or other low fixed object
that causes a sudden deceleration in the vehicle chassis. Since the impact is
underneath the vehicle, damage may not be readily apparent.
■When front airbags may not deploy, even though exterior damage
appears severe
Since crushable body parts absorb crash energy during an impact, the amount of
visible damage does not always indicate proper airbag operation. In fact, some
collisions can result in severe damage but no airbag deployment because the airbags
would not have been needed or would not have provided protection even if they
had deployed.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 51 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuAirbagsuFront Airbags (SRS)
52
Safe Driving
The airbags have advanced features to help reduce the likelihood of airbag related
injuries to smaller occupants.
The driver’s advanced airbag system includes a
seat position sensor.
Based on information from this sensor and the
severity of the impact, the advanced airbag
system determines the optimal deployment of
the driver’s airbag.
The front passenger’s advanced airbag system
has weight sensors.
We advise against allowing a child under the
age of 12 to ride in the front passenger’s seat.
However, if you do allow a child under 12
to ride in the front passenger’s seat, note
that the system will automatically turn off the
front passenger’s airbag if the sensors detect
that the child is approximately 65 lbs (29 kg)
or less.
■Advanced Airbags
1Advanced Airbags
If there is a problem with the driver’s seat position
sensor, the SRS indicator will come on and the airbag
will inflate with full (normal) force, regardless of the
driver’s seating position.
For the advanced airbags to work properly:
•Do not spill any liquid on or under the seats.
•Do not put any object under the passenger’s seat.
•Make sure any objects are positioned properly on
the floor. Improperly positioned objects can
interfere with the advanced airbag sensors.
•All occupants should sit upright and wear their seat
belts properly.
•Do not cover the passenger’s side dashboard with
a cloth, towel, cover, etc.
2Passenger Front Airbag Off Indicator
P. 58
Driver’s
Seat
Position
Sensor
Passenger’s
Seat
Weight
Sensors
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 52 ページ ２０１６年８月３１日　水曜日　午後６時５分
53
uuAirbagsuSide Airbags
Continued
Side Airbags
The side airbags help protect the torso and pelvis of the driver or a front passenger
during a moderate-to-severe side impact.
The side airbags are housed in the outside
edge of the driver’s and passenger’s seat-
backs.
Both are marked SIDE AIRBAG.
When the sensors detect a moderate-to-
severe side impact, the control unit signals the
side airbag on the impact side to immediately
inflate.
■Housing Locations
1Side Airbags
Make sure you and your front seat passenger always
sit upright. Leaning into the path of a side airbag can
prevent the airbag from deploying properly and
increases your risk of serious injury.
Do not attach accessories on or near the side airbags.
They can interfere with the proper operation of the
airbags, or hurt someone if an airbag inflates.
Do not cover or replace the front seat-back covers
without consulting a dealer.
Improperly replacing or covering front seat-back
covers can prevent your side airbags from properly
deploying during a side impact.
Housing
Location
■Operation
When
inflated
Side
Airbag
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 53 ページ ２０１６年８月３１日　水曜日　午後６時５分
54
uuAirbagsuSide Airbags
Safe Driving
■When a side airbag deploys with little or no visible damage
Because the airbag system senses sudden acceleration, a strong impact to the side
of the vehicle’s framework can cause a side airbag to deploy. In such cases, there
may be little or no damage, but the side impact sensors detected a severe enough
impact to deploy the airbag.
■When a side airbag may not deploy, even though visible damage appears
severe
It is possible for a side airbag to not deploy during an impact that results in
apparently severe damage. This can occur when the point of impact was toward the
far front or rear of the vehicle, or when the vehicle’s crushable body parts absorbed
most of the crash energy. In either case, the side airbag would not have been
needed nor provided protection even if it had deployed.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 54 ページ ２０１６年８月３１日　水曜日　午後６時５分
55
uuAirbagsuSide Curtain Airbags
Continued
Side Curtain Airbags
The side curtain airbags help protect the heads of the driver and passengers in the
outer seating positions during a moderate-to-severe side impact. The side curtain
airbags equipped in this vehicle are also designed to help reduce the likelihood of
partial and complete ejection of vehicle occupants through side windows in crashes,
particularly rollover crashes.
The side curtain airbags are located in the
ceiling above the side windows on both sides
of the vehicle.
The side curtain airbag is designed to deploy
in a rollover or a moderate-to-severe side
impact.
■Housing Locations
1Side Curtain Airbags
If the SRS control unit senses that your vehicle is
about to rollover, it immediately deploys both side
curtain airbags and activates both front seat belt
tensioners.
If the impact is on the passenger’s side, the
passenger’s side curtain airbag deploys even if there
is no passenger in the passenger seat.
To get the best protection from the side curtain
airbags, occupants should wear their seat belts
properly and sit upright and well back in their seats.
Do not attach any objects to the side windows or roof
pillars as they can interfere with the proper operation
of the side curtain airbags.
Side Curtain Airbag Storage
■Operation
Deployed Side Curtain Airbag
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 55 ページ ２０１６年８月３１日　水曜日　午後６時５分
56
uuAirbagsuSide Curtain Airbags
Safe Driving
■When side curtain airbags deploy in a frontal collision
One or both side curtain airbags may also inflate in a moderate-to-severe angled
frontal collision.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 56 ページ ２０１６年８月３１日　水曜日　午後６時５分
57
uuAirbagsuAirbag System Indicators
Continued
Airbag System Indicators
If a problem occurs in the airbag system, the SRS indicator will come on and a
message appears on the driver information interface*.
■When the ignition switch is turned to
ON (w*1
The indicator comes on for a few seconds,
then goes off. This tells you the system is
working properly.
If the indicator comes on at any other time, or does not come on at all, have the
system checked by a dealer as soon as possible. If you don’t, your airbags and seat
belt tensioners may not work properly when they are needed.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Supplemental Restraint System (SRS) Indicator
1Supplemental Restraint System (SRS) Indicator
3
WARNING
Ignoring the SRS indicator can result in
serious injury or death if the airbag systems
or tensioners do not work properly.
Have your vehicle checked by a dealer as
soon as possible if the SRS indicator alerts
you to a possible problem.
Models with information display
Models with driver information interface
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 57 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuAirbagsuAirbag System Indicators
58
Safe Driving
■When the passenger airbag off
indicator comes on
The indicator comes on to alert you that the
passenger’s front airbag has been turned off.
This occurs when the weight sensors detect
about 65 lbs (29 kg) or less, the weight of an
infant or small child, on the seat.
Infants and small children should always ride properly restrained in a back seat.
2Child Safety P. 60
If the front passenger seat is empty, the passenger’s front airbag will not deploy and
the indicator will come on.
■Passenger Front Airbag Off Indicator
1Passenger Front Airbag Off Indicator
To ensure the passenger is detected properly, confirm
that:
•There is no child seat or other object pressing
against the rear of the seat-back.
•There is no rear passenger pushing or pulling on
the back of the front passenger’s seat.
•The front seat or seat-back is not forced back
against an object on the seat or floor behind it.
•There is no object placed under or beside the front
passenger’s seat.
•The occupant is sitting in an upright position and
the seat back is not excessively reclined.
•The occupant is not leaning against the door or
center console.
•The occupant’s feet are placed on the floor in front
of them.
•There are no objects hanging from the front
passenger’s seat.
•Only small, lightweight objects are in the seat-back
pocket.
The passenger airbag off indicator may come on and
go off repeatedly if the total weight on the seat is
near the airbag cutoff threshold.
Have your vehicle checked by a dealer as soon as
possible if:
•All of the above conditions are met, and the
indicator comes on with an adult seated in the
front passenger seat.
•The seat is empty and the indicator is off.
Do not allow an adult passenger to ride in the front
seat when the indicator is on.
U.S.
Canada
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 58 ページ ２０１６年８月３１日　水曜日　午後６時５分
59
uuAirbagsuAirbag Care
Airbag Care
You do not need to, and should not, perform any maintenance on or replace any
airbag system components yourself. However, you should have your vehicle
inspected by a dealer in the following situations:
■When the airbags have deployed
If an airbag has inflated, the control unit and other related parts must be replaced.
Similarly, once an automatic seat belt tensioner has been activated, it must be
replaced.
■When the vehicle has been in a moderate-to-severe collision
Even if the airbags did not inflate, have your dealer inspect the following: the driver’s
seat position sensor, weight sensors in the passenger’s seat, front seat belt
tensioners, and each seat belt that was worn during the crash.
■Do not remove or modify a front seat without consulting a dealer
This would likely disable or affect the proper operation of the driver’s seat position
sensor or the weight sensors in the passenger’s seat. If it is necessary to remove or
modify a front seat to accommodate a person with disabilities, contact a Honda
dealer, or for U.S. vehicles, American Honda Automobile Customer Service at 1-800-
999-1009 and for Canadian vehicles, Honda Canada Customer Relations at 1-888-
9-HONDA-9.
1Airbag Care
We recommend against the use of salvaged airbag
system components, including the airbag, tensioners,
sensors, and control unit.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 59 ページ ２０１６年８月３１日　水曜日　午後６時５分
60
Safe Driving
Child Safety
Protecting Child Passengers
Each year, many children are injured or killed in vehicle crashes because they are
either unrestrained or not properly restrained. In fact, vehicle crashes are the
number one cause of death of children ages 12 and under.
To reduce the number of child deaths and injuries, every state, Canadian province
and territory requires that infants and children be properly restrained when they ride
in a vehicle.
Children should sit properly restrained in a rear seat. This is because:
•An inflating front or side airbag can injure
or kill a child sitting in the front seat.
•A child in the front seat is more likely to
interfere with the driver’s ability to safely
control the vehicle.
•Statistics show that children of all sizes and
ages are safer when they are properly
restrained in a rear seat.
1Protecting Child Passengers
The National Highway Traffic Safety Administration
and Transport Canada recommend that all children
ages 12 and under be properly restrained in a rear
seat. Some states or provinces/territories have laws
restricting where children may ride.
3
WARNING
Children who are unrestrained or
improperly restrained can be seriously
injured or killed in a crash.
Any child too small for a seat belt should be
properly restrained in a child seat. A larger
child should be properly restrained with a
seat belt, using a booster seat if necessary.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 60 ページ ２０１６年８月３１日　水曜日　午後６時５分
61
uuChild SafetyuProtecting Child Passengers
•Any child who is too small to wear a seat belt correctly must be restrained in an
approved child seat that is properly secured to the vehicle using either the lap belt
portion of the lap/shoulder belt or the lower anchors of the LATCH system.
•Never hold a child on your lap because it is impossible to protect them in the
event of a collision.
•Never put a seat belt over yourself and a child. During a crash, the belt would
likely press deep into the child and cause serious or fatal injuries.
•Never let two children use the same seat belt. Both children could be very
seriously injured in a crash.
•Do not allow children to operate the doors, windows or seat adjustments.
•Do not leave children in the vehicle unattended, especially in hot weather when
the inside of the vehicle can get hot enough to kill them. They could also activate
vehicle controls causing it to move unexpectedly.
1Protecting Child Passengers
To deactivate a lockable retractor, release the buckle
and allow the seat belt to wind up all the way.
To remind you of the passenger's front airbag
hazards and child safety, your vehicle has warning
labels on the dashboard (U.S. models) and on the
front visors. Please read and follow the instructions
on these labels.
2Safety Labels P. 73
3
WARNING
Allowing a child to play with a seat belt or
wrap one around their neck can result in
serious injury or death.
Instruct children not to play with any seat
belt and make sure any unused seat belt a
child can reach is buckled, fully retracted,
and locked.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 61 ページ ２０１６年８月３１日　水曜日　午後６時５分
62
uuChild SafetyuSafety of Infants and Small Children
Safe Driving
Safety of Infants and Small Children
An infant must be properly restrained in a rear-facing, reclining child seat until the
infant reaches the seat manufacturer’s weight or height limit for the seat, and the
infant is at least one year old. Many experts recommend use of a rear-facing seat for
a child up to two years old if the child’s height and weight are appropriate for a rear-
facing seat.
■Positioning a rear-facing child seat
Child seats must be placed and secured in a
rear seating position.
When properly installed, a rear-facing child seat may prevent the driver or a front
passenger from moving their seat all the way back, or from locking their seat-back
in the desired position.
It can also interfere with proper operation of the passenger’s advanced front airbag
system.
2Airbags P. 46
If this occurs, we recommend that you install the child seat directly behind the front
passenger’s seat, move the seat as far forward as needed, and leave it unoccupied.
Or, you may wish to get a smaller rear-facing child seat.
■Protecting Infants
1Protecting Infants
Rear-facing child seats should never be installed in a
forward facing position.
Always refer to the child seat manufacturer’s
instructions before installation.
3
WARNING
Placing a rear-facing child seat in the front
seat can result in serious injury or death
during a crash.
Always place a rear-facing child seat in the
rear seat, not the front.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 62 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 63
uuChild SafetyuSafety of Infants and Small Children
If a child is at least one year old and within the weight range indicated by the child
seat manufacturer, the child should be properly restrained in a firmly secured
forward-facing child seat.
■Forward-facing child seat placement
We strongly recommend placing a forward-
facing child seat in a rear seating position.
Placing a forward-facing child seat in the front seat can be hazardous, even with
advanced front airbags that automatically turn the passenger's front airbag off. A
rear seat is the safest place for a child.
■Protecting Smaller Children
1Protecting Smaller Children
Educate yourself about the laws and regulations
regarding child seat use where you are driving, and
follow the child seat manufacturer's instructions.
Many experts recommend use of a rear-facing seat
for a child up to two years old if the child’s height and
weight are appropriate for a rear-facing seat.
3
WARNING
Placing a forward-facing child seat in the
front seat can result in serious injury or
death if the front airbag inflates.
If you must place a forward-facing child
seat in front, move the vehicle seat as far
back as possible, and properly restrain the
child.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 63 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuChild SafetyuSafety of Infants and Small Children
64
Safe Driving
Most child seats are LATCH-compatible (Lower Anchors and Tethers for CHildren).
Some have a rigid-type connector while others have a flexible-type connector. Both
are equally easy to use. Some existing and previously owned child seats can only be
installed using the seat belt. Whichever type you choose, follow the child seat
manufacturer’s use and care instructions as well as the instructions in this manual.
Proper installation is key to maximizing your child’s safety.
In seating positions and vehicles not equipped with LATCH, a LATCH-compatible
child seat can be installed using the seat belt and a top tether for added security.
This is because all child seats are required to be designed so that they can be secured
with a lap belt or the lap part of a lap/shoulder belt. In addition, the child seat
manufacturer may advise that a seat belt be used to attach a LATCH-compatible seat
once a child reaches a specified weight. Please read the child seat owner’s manual
for proper installation instructions.
■Important consideration when selecting a child seat
Make sure the child seat meets the following three requirements:
•The child seat is the correct type and size for the child.
•The child seat is the correct type for the seating position.
•The child seat is compliant with Federal Motor Vehicle Safety Standard 213 or
Canadian Motor Vehicle Safety Standard 213.
■Selecting a Child Seat
1Selecting a Child Seat
Installation of a LATCH-compatible child seat is
simple.
LATCH-compatible child seats have been developed
to simplify the installation process and reduce the
likelihood of injuries caused by incorrect installation.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 64 ページ ２０１６年８月３１日　水曜日　午後６時５分
65
uuChild SafetyuSafety of Infants and Small Children
Continued
A LATCH-compatible child seat can be installed in either of the two outer rear seats.
A child seat is attached to the lower anchors with either the rigid or flexible type of
connectors.
1. Locate the lower anchors under the marks.
2. Place the child seat on the vehicle seat then
attach the child seat to the lower anchors
according to the instructions that came
with the child seat.
uWhen installing the child seat, make sure
that the lower anchors are not
obstructed by the seat belt or any other
object.
■Installing a LATCH-Compatible Child Seat
Marks
Rigid Type
Lower Anchors
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 65 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuChild SafetyuSafety of Infants and Small Children
66
Safe Driving
3. Open the tether anchor cover behind the
head restraint.
4. Route the tether strap over the top of the
head restraint and secure the tether strap
hook to the anchor.
5. Tighten the tether strap as instructed by the
child seat manufacturer.
6. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; little movement should be felt.
7. Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the belt is fully retracted
and locked.
Flexible Type
1Installing a LATCH-Compatible Child Seat
For your child’s safety, when using a child seat
installed using the LATCH system, make sure that the
child seat is properly secured to the vehicle. A child
seat that is not properly secured will not adequately
protect a child in a crash and may cause injury to the
child or other vehicle occupants.
Tether Strap
Hook
Anchor
Straight Top Tether Type
Tether Strap
Hook
Anchor
Other Top Tether Type
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 66 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 67
uuChild SafetyuSafety of Infants and Small Children
1. Place the child seat on the vehicle seat.
2. Route the seat belt through the child seat
according to the seat manufacturer’s
instructions, and insert the latch plate into
the buckle.
uInsert the latch plate fully until it clicks.
3. Slowly pull the shoulder part of the belt all
the way out until it stops. This activates the
lockable retractor.
4. Let the seat belt completely wind up into
the retractor, then try to pull it out to make
sure the retractor is locked.
uIf you are able to pull the shoulder belt
out, the lockable retractor is not
activated. Pull the seat belt all the way
out, and repeat steps 3 – 4.
5. Grab the shoulder part of the seat belt near
the buckle, and pull up to remove any slack
from the lap part of the belt.
uWhen doing this, place your weight on
the child seat and push it into the vehicle
seat.
■Installing a Child Seat with a Lap/Shoulder Seat Belt
1Installing a Child Seat with a Lap/Shoulder Seat Belt
A child seat that is not properly secured will not
adequately protect a child in a crash and may cause
injury to the child or other vehicle occupants.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 67 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuChild SafetyuSafety of Infants and Small Children
68
Safe Driving
6. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; little movement should be felt.
7. Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the belt is fully retracted
and locked.
A tether anchorage point is provided behind
each rear seating position. If you have a child
restraint system that comes with a tether but
can be installed with a seat belt, the tether
may be used for additional security.
1. Locate the appropriate tether anchorage
point and lift the cover.
2. Route the tether strap over the head
restraint. Make sure the strap is not twisted.
1Installing a Child Seat with a Lap/Shoulder Seat Belt
To deactivate a lockable retractor, release the buckle
and allow the seat belt to wind up all the way.
■Adding Security with a Tether
1Adding Security with a Tether
Since a tether can provide additional security to the
lap/shoulder seat belt installation, we recommend
using a tether whenever one is available.
Tether Anchorage Points
Cover
Anchor
Straight Top Tether Type in Outer
Position
Tether Strap
Hook
Anchor
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 68 ページ ２０１６年８月３１日　水曜日　午後６時５分
69
uuChild SafetyuSafety of Infants and Small Children
3. Secure the tether strap hook to the anchor.
4. Tighten the tether strap as instructed by the
child seat manufacturer.
Other Top Tether Type in Outer
Position
Tether Strap
Hook
Anchor
Straight Top Tether Type in Center
Position
Tether Strap
Hook
Anchor
Other Top Tether Type in Center
Position
Tether Strap
Hook
Anchor
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 69 ページ ２０１６年８月３１日　水曜日　午後６時５分
70
uuChild SafetyuSafety of Larger Children
Safe Driving
Safety of Larger Children
The following pages give instructions on how to check proper seat belt fit, what kind
of booster seat to use if one is needed, and important precautions for a child who
must sit in front.
When a child is too big for a child seat, secure the child in a rear seat using the lap/
shoulder seat belt. Have the child sit upright and all the way back, then answer the
following questions.
■Checklist
•Do the child’s knees bend comfortably over
the edge of the seat?
•Does the shoulder belt cross between the
child’s neck and arm?
•Is the lap part of the seat belt as low as
possible, touching the child’s thighs?
•Will the child be able to stay seated like this
for the whole trip?
If you answer yes to all these questions, the child is ready to wear the lap/shoulder
seat belt correctly. If you answer no to any question, the child needs to ride on a
booster seat until the seat belt fits properly without a booster seat.
■Protecting Larger Children
■Checking Seat Belt Fit
1Safety of Larger Children
3
WARNING
Allowing a child age 12 or under to sit in
front can result in injury or death if the
passenger’s front airbag inflates.
If a larger child must ride in front, move the
vehicle seat as far to the rear as possible,
have the child sit up properly and wear the
seat belt properly, using a booster seat if
needed.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 70 ページ ２０１６年８月３１日　水曜日　午後６時５分
71
uuChild SafetyuSafety of Larger Children
If a lap/shoulder seat belt cannot be used
properly, position the child in a booster seat in
a rear seating position. For the child’s safety,
check that the child meets the booster seat
manufacturer’s recommendations.
Your vehicle has a rear seat where children can be properly restrained. If you ever
have to carry a group of children, and a child must ride in front:
•Make sure you read and fully understand the instructions and safety information
in this manual.
•Move the front passenger seat as far back as possible.
•Have the child sit upright and well back in the seat.
•Check that the seat belt is properly positioned so that the child is secure in the
seat.
■Monitoring child passengers
We strongly recommend that you keep an eye on child passengers. Even older, more
mature children sometimes need to be reminded to fasten their seat belts and sit up
properly.
■Booster Seats
1Booster Seats
When installing a booster seat, make sure to read the
instructions that came with it, and install the seat
accordingly.
There are high- and low-type booster seats. Choose a
booster seat that allows the child to wear the seat
belt correctly.
Some U.S. states, and Canadian provinces and
territories require children to use a booster seat until
they reach a given age or weight (e.g. six years or 60
lbs). Be sure to check current laws in the state or
province, or territory where you intend to drive.
■Protecting Larger Children-Final Checks
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 71 ページ ２０１６年８月３１日　水曜日　午後６時５分
72
Safe Driving
Exhaust Gas Hazard
Carbon Monoxide Gas
The engine exhaust from this vehicle contains carbon monoxide, a colorless,
odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon
monoxide gas will not get into the interior.
■Have the exhaust system inspected for leaks whenever
•The exhaust system is making an unusual noise.
•The exhaust system may have been damaged.
•The vehicle is raised for an oil change.
When you operate a vehicle with the trunk open, airflow can pull exhaust gas into
the interior and create a hazardous condition. If you must drive with the trunk open,
open all the windows and set the heating system*/climate control system* as shown
below.
1. Select the fresh air mode.
2. Select the mode.
3. Set the fan speed to high.
4. Set the temperature control to a comfortable setting.
Adjust the heating system*/climate control system* in the same manner if you sit in
your parked vehicle with the engine running.
1Carbon Monoxide Gas
An enclosed area such as a garage can quickly fill up
with carbon monoxide gas.
Do not run the engine with the garage door closed.
Even when the garage door is open, drive out of the
garage immediately after starting the engine.
3
WARNING
Carbon monoxide gas is toxic.
Breathing it can cause unconsciousness and
even kill you.
Avoid any enclosed areas or activities that
expose you to carbon monoxide.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 72 ページ ２０１６年８月３１日　水曜日　午後６時５分
73
Safety Labels
Label Locations
These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels
carefully.
If a label comes off or becomes hard to read (except for the U.S. dashboard label which may be removed by the owner), contact a dealer
for a replacement.
Sun Visor
U.S. models
Canadian models
Reserve Tank Cap
U.S. models
U.S. models only
Dashboard
Canadian models
Air Conditioner System*
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 73 ページ ２０１６年８月３１日　水曜日　午後６時５分
74
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 74 ページ ２０１６年８月３１日　水曜日　午後６時５分
75
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators ............................................ 76
Information Display Warning and
Information Messages*.................... 93
Driver Information Interface Warning and
Information Messages*.................... 94
Gauges and Displays
Gauges............................................ 108
Information Display*........................ 110
Driver Information Interface *........... 113
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 75 ページ ２０１６年８月３１日　水曜日　午後６時５分
76
Instrument Panel
Indicators
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
Indicator Name On/Blinking Explanation Message*
Parking Brake
and Brake
System Indicator
(Red)
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off if the parking
brake has been released.
●Comes on when the parking brake
is applied, and goes off when it is
released.
●Comes on when the brake fluid
level is low.
●Comes on if there is a problem
with the brake system.
●The beeper sounds and the
indicator comes on if you drive
with the parking brake not fully
released.
●Comes on for about 15 seconds
when you pull the electric parking
brake switch while the ignition
switch is in LOCK (0*1.
●Stays on for about 15 seconds
when you turn the ignition switch
to LOCK (0*1 while the electric
parking brake is set.
●Comes on while driving - Make sure
the parking brake is released. Check the
brake fluid level.
2What to do when the indicator
comes on P. 563
●Comes on along with the ABS
indicator - Have your vehicle checked by
a dealer.
2If the Brake System Indicator (Red)
Comes On or Blinks P. 563
●Blinks and the brake system indicator
(amber) comes on at the same time -
There is a problem with the electric
parking brake system. The parking brake
may not be set.
Avoid using the parking brake and have
your vehicle checked by a dealer
immediately.
2If the Brake System Indicator (Red)
Comes On or Blinks at the Same
Time When the Brake System
Indicator (Amber) Comes On P. 564
U.S.
Canada
(Red)
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 76 ページ ２０１６年８月３１日　水曜日　午後６時５分
77
uuIndicatorsu
Continued
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
Indicator Name On/Blinking Explanation Message*
Parking Brake
and Brake
System Indicator
(Amber)
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
●Comes on if there is a problem
with a system related to braking
other than the conventional brake
system.
●Comes on if there is a problem
with the electric parking brake
system or the automatic brake
hold system.
●Stays on constantly - Have your vehicle
checked by a dealer.
●Comes on while driving - Avoid using
the parking brake and have your vehicle
checked by a dealer immediately.
U.S.
Canada
(Amber)
U.S.
Canada
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 77 ページ ２０１６年８月３１日　水曜日　午後６時５分
78
uuIndicatorsu
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
Indicator Name On/Blinking Explanation Message*
Automatic Brake
Hold System
Indicator
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
●Comes on when the automatic
brake hold system is on.
2Automatic Brake Hold P. 460
Automatic Brake
Hold Indicator
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
●Comes on when the automatic
brake hold is activated. 2Automatic Brake Hold P. 460 —
Low Oil Pressure
Indicator
●Comes on when you turn the
ignition switch to ON (w*1, and
goes off when the engine starts.
●Comes on when the engine oil
pressure is low.
●Comes on while driving - Immediately
stop in a safe place.
2If the Low Oil Pressure Indicator
Comes On P. 561
U.S.
Canada
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 78 ページ ２０１６年８月３１日　水曜日　午後６時５分
79
uuIndicatorsu
Continued
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
Indicator Name On/Blinking Explanation Message*
Malfunction
Indicator Lamp
●Comes on when you turn the
ignition switch to ON (w*1, and
goes off when the engine starts, or
after several seconds if the engine
did not start. If “readiness codes”
have not been set, it blinks five
times before it goes off.
●Comes on if there is a problem
with the emissions control system.
●Blinks when a misfire in the
engine’s cylinders is detected.
●Readiness codes are part of the on board
diagnostics for the emissions control
systems.
2Testing of Readiness Codes P. 583
●Comes on while driving - Have your
vehicle checked by a dealer.
●Blinks while driving - Stop in a safe
place where there are no flammable
objects. Stop the engine for 10 minutes
or more, and wait for it to cool down.
Then, take your vehicle to a dealer.
2If the Malfunction Indicator Lamp
Comes On or Blinks P. 562
Charging System
Indicator
●Comes on when you turn the
ignition switch to ON (w*1, and
goes off when the engine starts.
●Comes on when the battery is not
charging.
●Comes on while driving - Turn off the
heating system*/climate control system*
and rear defogger in order to reduce
electricity consumption.
2If the Charging System Indicator
Comes On P. 561
Shift Lever
Position
Indicator*
●Indicates the current shift lever
position.
2Shifting P. 411 —
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 79 ページ ２０１６年８月３１日　水曜日　午後６時５分
80
uuIndicatorsu
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
Indicator Name On/Blinking Explanation Message*
Transmission
Indicator*
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
●Blinks if the transmission system
has a problem.
●Blinks while driving - Avoid sudden
starts and acceleration and have your
vehicle checked by a dealer immediately.
Seat Belt
Reminder
Indicator
●Comes on and the beeper sounds
if you are not wearing a seat belt
when you turn the ignition switch
to ON (w*1.
●If the front passenger is not
wearing a seat belt, the indicator
comes on a few seconds later.
●Blinks while driving if either you or
the front passenger has not
fastened a seat belt. The beeper
sounds and the indicator blinks at
regular intervals.
●The beeper stops and the indicator goes
off when you and the front passenger
fasten their seat belts.
●Stays on after you or the front
passenger has fastened the seat belt
- A detection error may have occurred in
the sensor. Have your vehicle checked by
a dealer.
2Seat Belt Reminder P. 40
Low Fuel
Indicator
●Comes on when the fuel reserve is
running low (approximately 1.8
U.S. gal/7.0 Liter left).
●Blinks if there is a problem with
the fuel gauge.
●Comes on - Refuel your vehicle as soon
as possible.
●Blinks - Have your vehicle checked by a
dealer.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 80 ページ ２０１６年８月３１日　水曜日　午後６時５分
81
uuIndicatorsu
Continued
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
Indicator Name On/Blinking Explanation Message*
Anti-lock Brake
System (ABS)
Indicator
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
●If it comes on at any other time,
there is a problem with the ABS.
●Stays on constantly - Have your vehicle
checked by a dealer. With this indicator
on, your vehicle still has normal braking
ability but no anti-lock function.
2Anti-lock Brake System (ABS) P. 463
Supplemental
Restraint System
Indicator
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
●Comes on if a problem with any of
the following is detected:
-Supplemental restraint system
-Side airbag system
-Side curtain airbag system
-Seat belt tensioner
●Stays on constantly or does not come
on at all - Have your vehicle checked by
a dealer.
Vehicle Stability
Assist (VSA®)
System Indicator
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
●Blinks when VSA® is active.
●Comes on if there is a problem
with the VSA® system or hill start
assist system.
●Stays on constantly - Have your vehicle
checked by a dealer.
2Vehicle Stability Assist (VSA®), aka
Electronic Stability Control (ESC),
System P. 447
●Comes on if the VSA® system is
deactivated temporarily after the
battery has been disconnected,
then re-connected.
●Drive a short distance at more than 12
mph (20 km/h). The indicator should go
off. If it does not, have your vehicle
checked by a dealer.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 81 ページ ２０１６年８月３１日　水曜日　午後６時５分
82
uuIndicatorsu
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
Indicator Name On/Blinking Explanation Message*
Vehicle Stability
Assist (VSA®)
OFF Indicator
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
●Comes on when you partially
disable VSA®.
2VSA® On and Off P. 448
●Comes on if the VSA® system is
deactivated temporarily after the
battery has been disconnected,
then re-connected.
●Drive a short distance at more than 12
mph (20 km/h). The indicator should go
off. If it does not, have your vehicle
checked by a dealer.
Door and Trunk
Open Indicator*
●Comes on for a few seconds if you
turn the ignition switch to ON
(w*1, then goes off.
●Comes on if any door or the trunk
is not completely closed.
●The beeper sounds and the
indicator comes on if any door or
the trunk is opened while driving.
●Goes off when all doors and the trunk are
closed.
—
Electric Power
Steering (EPS)
System Indicator
●Comes on when you turn the
ignition switch to ON (w*1, and
goes off when the engine starts.
●Comes on if there is a problem
with the EPS system.
●Stays on constantly or does not come
on at all - Have your vehicle checked by
a dealer.
2If the Electric Power Steering (EPS)
System Indicator Comes On P. 565
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 82 ページ ２０１６年８月３１日　水曜日　午後６時５分
83
uuIndicatorsu
Continued
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
Indicator Name On/Blinking Explanation Message*
Low Tire
Pressure/TPMS
Indicator
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1.
●May come on briefly if the ignition
switch is turned to ON (w*1 and
the vehicle is not moved within 45
seconds, to indicate the calibration
process is not yet complete.
●Comes on and stays on when:
-One or more tires’ pressures are
determined to be significantly
low.
-The system has not been
calibrated.
●Comes on while driving - Stop in a safe
place, check tire pressures, and inflate the
tire(s) if necessary.
●Stays on after the tires are inflated to
the recommended pressures - The
system needs to be calibrated.
2TPMS Calibration P. 452
●Blinks for about one minute, and
then stays on if there is a problem
with the TPMS, or when a compact
spare tire is temporarily installed.
●Blinks and remains on - Have your
vehicle checked by a dealer. If the vehicle
is fitted with a compact spare, get your
regular tire repaired or replaced and put
back on your vehicle as soon as you can.
●Comes on if the TPMS is
deactivated temporarily after the
battery has been disconnected,
then re-connected.
●Drive a short distance at more than 12
mph (20 km/h). The indicator should go
off. If it does not, have your vehicle
checked by a dealer.
U.S.
models
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 83 ページ ２０１６年８月３１日　水曜日　午後６時５分
84
uuIndicatorsu
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
Indicator Name On/Blinking Explanation Message*
System Message
Indicator*
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
●Comes on along with a beep
when a problem is detected. A
system message on the driver
information interface appears at
the same time.
●While the indicator is on, press the
(display/information) button to see the
message again.
●Refer to the Indicators information in this
chapter when a system message appears
on the driver information interface. Take
the appropriate action for the message.
●The driver information interface does not
return to the normal screen unless the
warning is canceled, or the button
is pressed.
—
Turn Signal and
Hazard Warning
Indicators
●Blink when you operate the turn
signal lever.
●Blink along with all turn signals
when you press the hazard
warning button.
●Does not blink or blinks rapidly - A
turn signal light bulb has blown. Change
the bulb immediately.
2Replacing Light Bulbs P. 514, 517
—
High Beam
Indicator
●Comes on when the high beam
headlights are on. ——
Lights On
Indicator
●Comes on whenever the light
switch is on, or in AUTO* when
the exterior lights are on.
●If you remove the key from the ignition
switch*1 while the exterior lights are on, a
chime sounds when the driver’s door is
opened.
—
Fog Light
Indicator*
●Comes on when the fog lights are
on. ——
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 84 ページ ２０１６年８月３１日　水曜日　午後６時５分
85
uuIndicatorsu
Continued
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
*2:Canadian models only: Apply and hold the brake pedal before turning the ignition on.
Indicator Name On/Blinking Explanation Message*
Immobilizer
System Indicator
●Blinks if the immobilizer system
cannot recognize the key
information.
●Blinks - You cannot start the engine. Turn
the ignition switch to LOCK (0*1, pull the
key out*2, and then insert the key and turn
it to ON (w*1 again.
●Repeatedly blinks - The system may be
malfunctioning. Have your vehicle
checked by a dealer.
●Do not attempt to alter this system or add
other devices to it. Electrical problems can
occur.
—
Security System
Alarm Indicator
●Blinks when the security system
alarm has been set.
2Security System Alarm P. 150 —
Indicator
Indicator
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 85 ページ ２０１６年８月３１日　水曜日　午後６時５分
86
uuIndicatorsu
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
Indicator Name On/Blinking Explanation Message*
ECON Mode
Indicator
●Comes on when you press the
ECON button. 2ECON Button P. 416
CRUISE MAIN
Indicator*
●Comes on when you press the
CRUISE button. 2Cruise Control* P. 417 —
CRUISE
CONTROL
Indicator*
●Comes on if you have set a speed
for cruise control. 2Cruise Control* P. 417 —
Washer Level
Indicator*
●Comes on when the washer fluid
gets low.
●Refill the washer fluid.
2Refilling Window Washer Fluid
P. 509
—
Maintenance
Minder
Indicator*
●Comes on for a few seconds
when you turn the ignition switch
to ON (w*1, then goes off.
●Comes on when the scheduled
maintenance is due soon.
2Maintenance MinderTM P. 485 —
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 86 ページ ２０１６年８月３１日　水曜日　午後６時５分
87
uuIndicatorsu
Continued
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
Indicator Name On/Blinking Explanation Message*
Brake
Depressing
Indicator*
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
●Blinks when the electric parking
brake switch is pressed without
depressing the brake pedal while
the electric parking brake is in
operation.
●Blinks while driving - Press the electric
parking brake switch with the brake pedal
depressed.
2Parking Brake P. 457
—
●Blinks when the automatic brake
hold button is pressed without
depressing the brake pedal while
the automatic brake hold is in
operation.
●Blinks if the automatic brake hold
is automatically canceled while it
is in operation. The beeper
sounds.
●Blinks while driving - Press the
automatic brake hold button with the
brake pedal depressed.
2Automatic Brake Hold P. 460
●Immediately depress the brake pedal.
—
Continuously
variable
transmission
models
Manual
transmission
models
Electric Parking Brake System
Automatic Brake Hold System
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 87 ページ ２０１６年８月３１日　水曜日　午後６時５分
88
uuIndicatorsu
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
Indicator Name On/Blinking Explanation Message*
Road Departure
Mitigation (RDM)
Indicator*
●Comes on for a few seconds
when you turn the ignition switch
to ON (w*1, then goes off.
●Comes on if there is a problem
with the RDM system.
●Stays on constantly - Have your vehicle
checked by a dealer.
●Comes on when the RDM system
shuts itself off.
●Stays on - The temperature inside the
camera is too high.
Use the climate control system to cool
down the camera.
The system activates when the
temperature inside the camera cools
down.
2Front Sensor Camera* P. 420
●Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your
vehicle in a safe place, and wipe it off with
a soft cloth.
●Have your vehicle checked by a dealer if
the indicator and message come back on
after you cleaned the area around the
camera.
2Front Sensor Camera* P. 420
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 88 ページ ２０１６年８月３１日　水曜日　午後６時５分
89
uuIndicatorsu
Continued
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
Indicator Name On/Blinking Explanation Message*
Adaptive Cruise
Control (ACC)
with Low Speed
Follow (LSF)
Indicator
(Amber)*
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
●Comes on if there is a problem
with ACC with LSF.
●Comes on while driving - Have your
vehicle checked by a dealer.
●Comes on if anything covers the
radar sensor cover and prevents
the sensor from detecting a
vehicle in front.
●May come on when driving in bad
weather (rain, snow, fog, etc.)
●ACC with LSF has been
automatically canceled.
●When the radar sensor gets dirty, stop
your vehicle in a safe place, and wipe off
dirt using a soft cloth.
●Have your vehicle checked by a dealer if
the indicator does not go off even after
you clean the sensor cover.
Adaptive Cruise
Control (ACC)
with Low Speed
Follow (LSF)
Indicator
(Green)*
●Comes on when you press the
MAIN button.
2Adaptive Cruise Control (ACC) with
Low Speed Follow (LSF)* P. 422 —
●Comes on when ACC with LSF is
in operation, but the temperature
inside the front sensor camera is
too high. ACC with LSF cancels
automatically. The beeper sounds
simultaneously.
●Use the climate control system to cool
down the camera.
●Goes off - The camera has been cooled
down. Pressing the MAIN button can
resume the system.
2Front Sensor Camera* P. 420
2Adaptive Cruise Control (ACC) with
Low Speed Follow (LSF)* P. 422
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 89 ページ ２０１６年８月３１日　水曜日　午後６時５分
90
uuIndicatorsu
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
Indicator Name On/Blinking Explanation Message*
Lane Keeping
Assist System
(LKAS) Indicator
(Amber)*
●Comes on for a few seconds
when you turn the ignition switch
to ON (w*1, then goes off.
●Comes on if there is a problem
with the LKAS.
●Stays on constantly - Have your vehicle
checked by a dealer.
Lane Keeping
Assist System
(LKAS) Indicator
(Green)*
●Comes on when you press the
MAIN button.
2Lane Keeping Assist System (LKAS)*
P. 440 —
●Comes on when the LKAS is in
operation, or the LKAS button is
pressed, but the temperature
inside the front sensor camera is
too high. The LKAS cancels
automatically. The beeper sounds
simultaneously.
●Use the climate control system to cool
down the camera.
●Goes off - The camera has cooled down
and the system is working normally.
2Front Sensor Camera* P. 420
●Comes on when the area around
the camera is blocked by dirt,
mud, etc. Stop your vehicle in a
safe place, and wipe it off with a
soft cloth.
●May come on when driving in bad
weather (rain, snow, fog, etc.)
●Have your vehicle checked by a dealer if
the indicator and message come back on
after you cleaned the area around the
camera.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 90 ページ ２０１６年８月３１日　水曜日　午後６時５分
91
uuIndicatorsu
Continued
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
Indicator Name On/Blinking Explanation Message*
Collision
Mitigation
Braking
SystemTM
(CMBSTM)
Indicator*
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
●Comes on when you deactivate
the CMBSTM. A driver information
interface message appears for five
seconds.
●Comes on if there is a problem
with the CMBSTM.
●Stays on constantly without the
CMBSTM off - Have your vehicle checked
by a dealer.
2Collision Mitigation Braking
SystemTM (CMBSTM)* P. 465
●Comes on if the CMBSTM is
deactivated temporarily after the
battery has been disconnected,
then re-connected.
●Drive a short distance at more than 12
mph (20 km/h). The indicator should go
off. If it does not, have your vehicle
checked by a dealer.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 91 ページ ２０１６年８月３１日　水曜日　午後６時５分
92
uuIndicatorsu
Instrument Panel
Indicator Name On/Blinking Explanation Message*
Collision
Mitigation
Braking
SystemTM
(CMBSTM)
Indicator*
●Comes on when the CMBSTM
system shuts itself off.
●Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your
vehicle in a safe place, and wipe it off with
a soft cloth.
2Front Sensor Camera* P. 420
●When the radar sensor gets dirty, stop
your vehicle in a safe place, and wipe off
dirt using a soft cloth.
●Have your vehicle checked by a dealer if
the indicator does not go off even after
you clean the sensor cover.
2Collision Mitigation Braking
SystemTM (CMBSTM)* P. 465
●Stays on - The temperature inside the
camera is too high. Use the climate control
system to cool down the camera. The
system activates when the temperature
inside the camera cools down.
2Front Sensor Camera* P. 420
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 92 ページ ２０１６年８月３１日　水曜日　午後６時５分
93
uuIndicatorsuInformation Display Warning and Information Messages*
Information Display Warning and Information Messages*
The following messages appear only on the information display.
Message Condition Explanation
●Appears when there is a problem with the sensor on
the battery.
●Stays on constantly - Have your vehicle checked by a
dealer.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 93 ページ ２０１６年８月３１日　水曜日　午後６時５分
94
uuIndicatorsuDriver Information Interface Warning and Information Messages*
Instrument Panel
Driver Information Interface Warning and Information Messages*
The following messages appear only on the driver information interface. Press the (display/information) button to see the message
again with the system message indicator on.
Message Condition Explanation
●Appears if any door or the trunk is not completely
closed.
●Appears if any door or the trunk is opened while
driving. The beeper sounds.
●Goes off when all doors and the trunk are closed.
●Appears when the washer fluid gets low. ●Refill the washer fluid.
2Refilling Window Washer Fluid P. 509
●Appears when the scheduled maintenance is due
soon.
●Consequently, Maintenance Due Now and
Maintenance Past Due follow.
2Maintenance Minder Messages on the Driver
Information Interface P. 491
●Appears when there is a problem with the sensor on
the battery.
●Have your vehicle checked by a dealer.
2Checking the Battery P. 531
●Appears along with the battery charging system
indicator when the battery is not charging.
●Turn off the climate control system and rear defogger to
reduce electricity consumption.
2If the Charging System Indicator Comes On P. 561
Canadian models
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 94 ページ ２０１６年８月３１日　水曜日　午後６時５分
95
uuIndicatorsuDriver Information Interface Warning and Information Messages*
Continued
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
Message Condition Explanation
●Appears when the engine coolant temperature gets
abnormally high. 2Overheating P. 559
●Appears when you turn the ignition switch to ON
(w*1 without fastening the driver’s seat belt.
●Fasten the seat belt properly before you start to drive.
●Appears if the automatic brake hold is automatically
canceled while it is in operation.
●Immediately depress the brake pedal.
●Appears when the automatic brake hold system is
turned off. 2Automatic Brake Hold P. 460
Continuously
variable transmission
models
Manual transmission
models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 95 ページ ２０１６年８月３１日　水曜日　午後６時５分
96
uuIndicatorsuDriver Information Interface Warning and Information Messages*
Instrument Panel
Message Condition Explanation
●Appears when the automatic brake hold button is
pressed without wearing the driver’s seat belt.
●Fasten the driver’s seat belt.
2Automatic Brake Hold P. 460
●Appears when the automatic brake hold button is
pressed without depressing the brake pedal while
the automatic brake hold is in operation.
●Press the automatic brake hold button with the brake
pedal depressed.
2Automatic Brake Hold P. 460
●Appears when the parking brake is applied
automatically while it is in operation. 2Automatic Brake Hold P. 460
2Parking Brake P. 457
Continuously
variable transmission
models
Manual transmission
models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 96 ページ ２０１６年８月３１日　水曜日　午後６時５分
97
uuIndicatorsuDriver Information Interface Warning and Information Messages*
Continued
Message Condition Explanation
●Appears when the electric parking brake switch is
pressed without depressing the brake pedal while
the electric parking brake is in operation.
●Appears while driving - Press the electric parking
brake switch with the brake pedal depressed.
2Parking Brake P. 457
Message Condition Explanation
●Appears when you open the driver’s door while the
ignition key is in ACCESSORY (q.
●Turn the ignition switch to LOCK (0, then remove the
key.
●Appears when the ignition key is turned to
ACCESSORY (q from ON (w. (The driver’s door is
closed.)
—
●Appears when you open the driver’s door while the
ignition key is in LOCK (0.
●Remove the key from the ignition switch.
Continuously
variable transmission
models
Manual transmission
models
Models without smart entry system
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 97 ページ ２０１６年８月３１日　水曜日　午後６時５分
98
uuIndicatorsuDriver Information Interface Warning and Information Messages*
Instrument Panel
Message Condition Explanation
●Appears after you set the power mode to
ACCESSORY or ON.
2Starting the Engine P. 404
●Appears when the steering wheel is locked. ●Move the steering wheel left and right while pressing the
ENGINE START/STOP button.
Models with smart entry system
Continuously
variable
transmission
models
Manual
transmission
models
Except U.S.
models with
continuously
variable
transmission
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 98 ページ ２０１６年８月３１日　水曜日　午後６時５分
99
uuIndicatorsuDriver Information Interface Warning and Information Messages*
Continued
Message Condition Explanation
●Appears if you push the ENGINE START/STOP
button to turn the engine off without the shift lever
in (P.
●Move the shift lever to (P. The power mode changes to
VEHICLE OFF.
●Move the shift lever to (P, then press the ENGINE
START/STOP button twice.
●Appears when the power mode is in ACCESSORY.
—
●Appears after the driver’s door is opened when the
power mode is in ACCESSORY.
●Press the ENGINE START/STOP button twice with your
foot off the brake pedal (continuously variable
transmission) or the clutch pedal (manual transmission)
to change the power mode to VEHICLE OFF (LOCK).
●Appears when you close the door with the power
mode in ON without the smart entry remote inside
the vehicle.
●Disappears when you bring the smart entry remote back
inside the vehicle and close the door.
2Smart Entry Remote Reminder P. 160
●Appears when the smart entry remote battery
becomes weak.
●Replace the battery as soon as possible.
2Replacing the Button Battery P. 533
Continuously
variable
transmission
models
U.S. models
Canadian models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 99 ページ ２０１６年８月３１日　水曜日　午後６時５分
100
uuIndicatorsuDriver Information Interface Warning and Information Messages*
Instrument Panel
Message Condition Explanation
●Appears if the smart entry remote battery is too
weak to start the engine or the key is not within
operating range to start the engine.
A beeper sounds six times.
●Bring the smart entry remote in front of the ENGINE
START/STOP button to be touched with.
2If the Smart Entry Remote Battery is Weak P. 553
●Appears when the starter system has a problem. ●As a temporary measure, press and hold the ENGINE
START/STOP button for up to 15 seconds while pressing
the brake pedal and manually start the engine.
Have your vehicle checked by a dealer.
●Appears as soon as a problem is detected in the
smart entry system or push button starting system.
●Appears constantly - Have your vehicle checked by a
dealer.
U.S.
Canada
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 100 ページ ２０１６年８月３１日　水曜日　午後６時５分
101
uuIndicatorsuDriver Information Interface Warning and Information Messages*
Continued
Message Condition Explanation
●Appears if there is a problem with the light control
system.
●Appears while driving - Manually turn the lights on,
and have your vehicle checked by a dealer.
●Appears if there is a problem with the headlights. ●Appears while driving - The headlights may not be on.
When conditions allow you to drive safely, have your
vehicle checked by a dealer as soon as possible.
Models with LED headlight
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 101 ページ ２０１６年８月３１日　水曜日　午後６時５分
102
uuIndicatorsuDriver Information Interface Warning and Information Messages*
Instrument Panel
Message Condition Explanation
●Appears when ACC with LSF has been
automatically canceled.
●You can resume the set speed after the condition that
caused ACC with LSF to cancel improves. Press the RES/
+ button.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 422
●Appears when the distance between your vehicle
and the vehicle ahead of you is too close while ACC
with LSF is in operation.
●ACC with LSF has been automatically canceled.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 422
●Appears when pressing the –/SET button while the
distance between your vehicle and the vehicle
ahead of you is too close.
●ACC with LSF cannot be set.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 422
●Appears when pressing the –/SET button while the
driver’s seat belt is unfastened.
●ACC with LSF cannot be set.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 422
Models with ACC with LSF
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 102 ページ ２０１６年８月３１日　水曜日　午後６時５分
103
uuIndicatorsuDriver Information Interface Warning and Information Messages*
Continued
Message Condition Explanation
●Appears when the vehicle in front of you starts
moving while your vehicle is stopped automatically
by ACC with LSF.
●Either press the RES/+ button or –/SET button, or
depress the accelerator pedal.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 422
●Appears when pressing the –/SET button while the
shift lever is in any position other than (D or (S.
●ACC with LSF cannot be set.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 422
●Appears when the vehicle is stopped on a very steep
slope while ACC with LSF is in operation.
●ACC with LSF has been automatically canceled.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 422
Models with ACC with LSF
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 103 ページ ２０１６年８月３１日　水曜日　午後６時５分
104
uuIndicatorsuDriver Information Interface Warning and Information Messages*
Instrument Panel
Message Condition Explanation
●Appears when pressing the –/SET button while the
vehicle is stopped on a very steep slope.
●ACC with LSF cannot be set.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 422
●Appears when the parking brake is applied
automatically while ACC with LSF is in operation.
●ACC with LSF has been automatically canceled.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 422
2Parking Brake P. 457
●Appears when pressing the –/SET button while the
parking brake is applied.
●ACC with LSF cannot be set.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 422
2Parking Brake P. 457
●Appears when pressing the –/SET button while the
vehicle is moving and the brake pedal is depressed.
●ACC with LSF cannot be set.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 422
●Appears if ACC with LSF is canceled while your
vehicle is automatically stopped by ACC with LSF.
●Immediately depress the brake pedal.
Models with ACC with LSF
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 104 ページ ２０１６年８月３１日　水曜日　午後６時５分
105
uuIndicatorsuDriver Information Interface Warning and Information Messages*
Continued
Message Condition Explanation
●Flashes when the system senses a likely collision
with a vehicle in front of you.
●Take the appropriate means to prevent a collision (apply
the brakes, change lanes, etc.)
2Collision Mitigation Braking SystemTM (CMBSTM)*
P. 465
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 422
Models with ACC with LSF
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 105 ページ ２０１６年８月３１日　水曜日　午後６時５分
106
uuIndicatorsuDriver Information Interface Warning and Information Messages*
Instrument Panel
Message Condition Explanation
●Appears when the vehicle is driving out of a detected
line. The steering wheel vibrates rapidly.
●Keep the vehicle within the lane you are driving.
2Lane Keeping Assist System (LKAS)* P. 440
●Appears when the vehicle is driving out of a detected
lane.
-The steering wheel vibrates rapidly when the
vehicle is drifting out of a detected lane.
-The steering wheel vibrates rapidly when the
vehicle is drifting out of a detected line. The system
also steers the vehicle to help you remain within
your driving lane.
●Keep the vehicle within the lane you are driving.
2Road Departure Mitigation (RDM) System* P. 436
●You can change the setting for the road departure
mitigation system. Normal, Wide, and Warning Only
can be selected.
2Customized Features P. 118, 308
●Blinks when you fail to steer the vehicle. The beeper
sounds simultaneously.
●Operate the steering wheel to resume the LKAS.
Models with LKAS
Lane Keeping Assist System (LKAS)
Road Departure Mitigation (RDM) System
When you selected Warning Only
When you selected Normal or Wide
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 106 ページ ２０１６年８月３１日　水曜日　午後６時５分
107
uuIndicatorsuDriver Information Interface Warning and Information Messages*
Message Condition Explanation
●Appears when you unlock and open the driver’s
door while the engine is running by remote engine
start.
2Remote Engine Start with Vehicle Feedback* P. 406
Models with remote engine starter
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 107 ページ ２０１６年８月３１日　水曜日　午後６時５分
108
Instrument Panel
Gauges and Displays
Gauges
Gauges include the speedometer, tachometer, fuel gauge, and related indicators.
They are displayed when the ignition switch is in ON (w*1.
Displays your driving speed in mph or km/h.
Shows the number of engine revolutions per minute.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Speedometer
■Tachometer
1Gauges
Press and hold the km/mile change knob until you
hear a beep. The speedometer reading and the
displayed measurements switch between mph and
km/h.
Press the (display/information) button
repeatedly until the icon is shown on the driver
information interface. Press ENTER, then press and
hold it again. The speedometer reading and the
displayed measurements will switch between mph
and km/h.
Models with information display
km/mile change knob
Models with driver information interface
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 108 ページ ２０１６年８月３１日　水曜日　午後６時５分
109
uuGauges and DisplaysuGauges
Displays the amount of fuel left in the fuel tank.
Displays the temperature of the engine coolant.
■Fuel Gauge
■Temperature Gauge
1Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the catalytic converter.
The actual amount of remaining fuel may differ from
the fuel gauge reading.
E
1Temperature Gauge
NOTICE
Driving with the temperature gauge pointer in the
upper zone can cause serious engine damage. Pull
safely to the side of the road and allow engine
temperature to return to normal.
2Overheating P. 559
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 109 ページ ２０１６年８月３１日　水曜日　午後６時５分
110
uuGauges and DisplaysuInformation Display*
Instrument Panel
Information Display*
The information display shows the odometer, trip meter, engine oil life and
maintenance service item codes, and other gauges.
Press the (TRIP) knob to change the display.
Shows the total number of miles or kilometers that your vehicle has accumulated.
Shows the total number of miles or kilometers driven since the last reset. Meters A
and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then press and hold the knob. The trip meter is
reset to 0.0.
■Switching the Display
1Switching the Display
Each time you press the knob, the information
display changes as follows:
Instant Fuel Economy,
Odometer, Trip Meter A,
Outside Temperature
Instant Fuel Economy,
Range, Trip Meter A,
Outside Temperature
Engine Oil Life
Instant Fuel Economy, Average
Fuel Economy A, Trip Meter A,
Outside Temperature
Instant Fuel Economy, Average
Fuel Economy B, Trip Meter B,
Outside Temperature
■Odometer
■Trip Meter
(TRIP) Knob
1Trip Meter
Switch between trip meter A and trip meter B by
pressing the knob.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 110 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 111
uuGauges and DisplaysuInformation Display*
Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. When a trip meter is reset, the average fuel
economy is also reset.
Shows the instant fuel economy as a bar graph in mpg or l/100km.
Shows the remaining oil life and Maintenance MinderTM.
2Maintenance MinderTM P. 485
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel economy of your previous trips.
■Average Fuel Economy
■Instant Fuel Economy Gauge
■Engine Oil Life
■Range
1Average Fuel Economy
Press and hold the km/mile change knob to switch
the measurement.
1Instant Fuel Economy Gauge
Press and hold the km/mile change knob to switch
the measurement.
1Range
Press and hold the km/mile change knob to switch
the measurement.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 111 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuGauges and DisplaysuInformation Display*
112
Instrument Panel
Shows the outside temperature in Fahrenheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature indicator
Adjust the temperature reading up to ± 5°F or ± 3°C if the temperature reading
seems incorrect.
1. Turn the ignition switch to ON (w*1.
2. Press and hold the (TRIP) knob for 10 seconds or more while the outside
temperature is shown on the information display.
uThe information display goes into temperature adjustment mode. The display
starts showing from -5°F to +5°F (U.S.) or -3°C to +3°C (Canada).
3. Release the knob when the right adjustment amount is shown.
uThe adjustment is complete.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Outside Temperature
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 112 ページ ２０１６年８月３１日　水曜日　午後６時５分
113
uuGauges and DisplaysuDriver Information Interface*
Continued
Driver Information Interface*
The driver information interface shows the odometer, trip meter, outside
temperature indicator, and other gauges.
It also displays important messages such as warnings and other helpful information.
■Main displays
Press the (display/information) button and press or to change the
display. Press ENTER to see detailed information.
■Switching the Display
1Switching the Display
You can edit, add, and delete the meter contents
using the audio/information screen.
2Customizing the Meter P. 235
(Display/
Information) Button
Press , ,
or .
Press ENTER.
Range & Fuel Turbo Meter*Navigation* &
Compass*
Maintenance
MinderTM
Customize*Audio*
Phone*
Speed Unit &
Disp OFF
Warning
Messages
Average Speed &
Elapsed Time
Mail
Optional contents*:
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 113 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuGauges and DisplaysuDriver Information Interface*
114
Instrument Panel
■Trip computer
Press the (TRIP) knob to change the display.
Shows the total number of miles or kilometers that your vehicle has accumulated.
Shows the total number of miles or kilometers driven since the last reset. Meters A
and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then press and hold the knob. The trip meter is
reset to 0.0.
■Odometer
■Trip Meter
Menu Menu Menu
Odometer
Outside temperature
Trip A Trip B
(TRIP)
Knob
1Trip Meter
Switch between trip meter A and trip meter B by
pressing the knob.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 114 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 115
uuGauges and DisplaysuDriver Information Interface*
Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. When a trip meter is reset, the average fuel
economy is also reset.
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel economy of your previous trips.
Shows the time elapsed since Trip A or Trip B was reset.
Shows the average speed in mph or km/h since Trip A or Trip B was reset.
Shows the remaining oil life and Maintenance MinderTM.
2Maintenance MinderTM P. 485
■Average Fuel Economy
■Range
■Elapsed Time
■Average Speed
■Engine Oil Life
1Average Fuel Economy
You can change when to reset the average fuel
economy.
2Customized Features P. 118, 308
1Elapsed Time
You can change when to reset the elapsed time.
2Customized Features P. 118, 308
1Average Speed
You can change when to reset the average speed.
2Customized Features P. 118, 308
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 115 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuGauges and DisplaysuDriver Information Interface*
116
Instrument Panel
Shows the outside temperature in Fahrenheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature display
Adjust the temperature reading up to ±5°F or ±3°C if the temperature reading
seems incorrect.
Use the driver information interface’s customized features or audio/information
screen to correct the temperature.
2Customized Features P. 118, 308
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
When the turbo charger is producing boost,
this meter shows the boost pressure.
Shows you turn-by-turn driving directions to your destination linked with the
navigation system.
2Refer to the Navigation System Manual
■Outside Temperature
■Instant Fuel Economy
■Turbo Meter*
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
■Turn-by-Turn Directions*
1Turn-by-Turn Directions*
You can select whether the turn-by-turn display
comes on during the route guidance.
2Customized Features P. 308
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 116 ページ ２０１６年８月３１日　水曜日　午後６時５分
117
uuGauges and DisplaysuDriver Information Interface*
Continued
Shows the current audio information.
2Audio System Basic Operation P. 211, 229
Shows the current mail information.
2Bluetooth® HandsFreeLink®* P. 362
Shows the current phone information.
2Bluetooth® HandsFreeLink®* P. 339, 362
■Audio*
■Mail*
■Phone*
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 117 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuGauges and DisplaysuDriver Information Interface*
118
Instrument Panel
Use the driver information interface to customize certain features.
■How to customize
Select the Vehicle Settings screen by pressing the button while the ignition
switch is in ON (w*1, and the vehicle is at a complete stop. Select Vehicle Settings,
then press the ENTER button.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Customized Features
Models with color audio system
1Customized Features
To customize other features, press the /
button.
2List of customizable options P. 121
2Example of customization settings P. 125
3
4
Button
Press to go to the next
display.
ENTER Button
Press to set your selection.
Button
Press to go to
Vehicle Menu
.
Button
Press to scroll upwards.
3
Button
Press to go back to the
previous display.
Button
Press to scroll downwards.
4
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 118 ページ ２０１６年８月３１日　水曜日　午後６時５分
119
uuGauges and DisplaysuDriver Information Interface*
Continued
■Customization flow
Press the button.
ENTER
Vehicle Settings
“Trip A” Reset Timing
Language Selection
Adjust Outside Temp. Display
3
4
3
4
TPMS Calibration
ENTER
“Trip B” Reset Timing
Fuel Efficiency Backlight
3
4
ACC Forward Vehicle Detect Beep
3
4
Tachometer
ENTER
Forward Collision Warning Distance
3
4
3
4
Lane Keeping Assist Suspend Beep
Road Departure Mitigation Setting
Adjust Alarm Volume
Speed/Distance Units
Adjust Clock
3
4
Clock Display
3
4
ENTER
ENTER
Clock Setup
Driver Assist System Setup
Meter Setup
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 119 ページ ２０１６年８月３１日　水曜日　午後６時５分
120
uuGauges and DisplaysuDriver Information Interface*
Instrument Panel
Exit
3
4
3
4
3
4
Maintenance Reset
Default All
3
4
ENTER
3
4
3
4
Key And Remote Unlock Mode
Auto Door Lock
Auto Door Unlock
Keyless Lock Answer Back
Security Relock Timer
Interior Light Dimming Time
Headlight Auto OFF Timer
Auto Light Sensitivity
3
4
3
4
Auto Headlight ON With Wiper ON
ENTER
ENTER
Auto Interior Illumination Sensitivity
Lighting Setup
Door Setup
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 120 ページ ２０１６年８月３１日　水曜日　午後６時５分
121
uuGauges and DisplaysuDriver Information Interface*
Continued
■List of customizable options
*1:Default Setting
Setup Group Customizable Features Description Selectable Settings
TPMS
Calibration —Calibrates the TPMS. Cancel/Calibrate
Clock Setup
Adjust Clock Adjusts clock.
2Clock P. 128 —
Clock Display Selects the digital clock display from 12H to 24H. 24h/12h*1/OFF
Driver Assist
System
Setup
Forward Collision
Warning Distance Changes at which distance the CMBSTM alerts. Long/Normal*1/Short
ACC Forward Vehicle
Detect Beep
Causes the system to beep when the system detects a
vehicle, or when the vehicle goes out of ACC range. ON/OFF*1
Road Departure
Mitigation Setting
Changes the setting for the road departure
mitigation system.
Normal*1/Wide/Warning
Only
Lane Keeping Assist
Suspend Beep
Causes the system to beep when the LKAS is
suspended. ON/OFF*1
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 121 ページ ２０１６年８月３１日　水曜日　午後６時５分
122
uuGauges and DisplaysuDriver Information Interface*
Instrument Panel
*1:Default Setting
Setup Group Customizable Features Description Selectable Settings
Meter Setup
Language Selection Changes the displayed language. English*1/French/Spanish
Adjust Outside Temp.
Display Adjusts the temperature reading by a few degrees. -5°F ~ ±0°F*1 ~ +5°F
“Trip A” Reset Timing
Changes the setting of how to reset trip meter A,
average fuel economy A, average speed A, and
elapsed time A.
When Refueled/IGN OFF/
Manually Reset*1
“Trip B” Reset Timing
Changes the setting of how to reset trip meter B,
average fuel economy B, average speed B, and
elapsed time B.
When Refueled/IGN OFF/
Manually Reset*1
Adjust Alarm Volume Changes the alarm volume, such as buzzers,
warnings, turn signal sound, and so on. High/Mid*1/Low
Fuel Efficiency Backlight Turns the ambient meter feature on and off. ON*1/OFF
Speed/Distance Units Selects the trip computer units. mph∙miles*1/km/h∙km
Tachometer Selects whether the tachometer come on the driver
information interface. ON*1/OFF
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 122 ページ ２０１６年８月３１日　水曜日　午後６時５分
123
uuGauges and DisplaysuDriver Information Interface*
Continued
*1: Default Setting
Setup Group Customizable Features Description Selectable Settings
Lighting
Setup
Interior Light Dimming
Time
Changes the length of time the interior lights stay on
after you close the doors. 60sec/30sec*1/15sec
Headlight Auto OFF
Timer
Changes the length of time the exterior lights stay
on after you close the driver’s door. 60sec/30sec/15sec*1/0sec
Auto Light Sensitivity Changes the timing for the headlights to come on. Max/High/Mid*1/Low/Min
Auto Interior
Illumination Sensitivity
Changes the sensitivity of the brightness of the
instrument panel when the headlight switch is in the
AUTO position.
Max/High/Mid*1/Low/Min
Auto Headlight ON With
Wiper ON
Changes the settings for the wiper operation when
the headlights automatically come on while the
headlight switch is in the AUTO position.
ON/OFF*1
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 123 ページ ２０１６年８月３１日　水曜日　午後６時５分
124
uuGauges and DisplaysuDriver Information Interface*
Instrument Panel
*1: Default Setting
Setup Group Customizable Features Description Selectable Settings
Door Setup
Auto Door Lock Changes the setting for when the doors
automatically lock.
With Vehicle Speed*1/Shift
from P/OFF
Auto Door Unlock Changes the setting for when the doors
automatically unlock.
When Driver’s Door Opens*1/
When Shifting Into Park/
When Ignition Switched
OFF/OFF
Key And Remote Unlock
Mode
Sets up either the driver’s door or all doors to unlock
on the first operation of the remote or built-in key. Driver Door*1/ All Doors
Keyless Lock Answer
Back
LOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds. ON*1/OFF
Security Relock Timer
Changes the time it takes for the doors to relock and
the security system to set after you unlock the
vehicle without opening any door.
90sec/60sec/30sec*1
Maintenance
Reset —Resets/Cancels the engine oil life display when you
have performed the maintenance service. Cancel/All Due Items
Default All —Cancels/Resets all the customized settings as
default. Cancel/Set
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 124 ページ ２０１６年８月３１日　水曜日　午後６時５分
125
uuGauges and DisplaysuDriver Information Interface*
Continued
■Example of customization settings
The steps for changing the “Trip A” Reset Timing setting to When Refueled are
shown below. The default setting for “Trip A” Reset Timing is Manually Reset.
1. Press the button to select Vehicle
Settings, then press the ENTER button.
2. Press the / button until Meter Setup
appears on the display.
3. Press the ENTER button.
uLanguage Selection appears first in the
display.
3
4
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 125 ページ ２０１６年８月３１日　水曜日　午後６時５分
126
uuGauges and DisplaysuDriver Information Interface*
Instrument Panel
4. Press the / button until “Trip A”
Reset Timing appears on the display, then
press the ENTER button.
uThe display switches to the
customization setup screen, where you
can select When Refueled, IGN Off,
Manually Reset, or Exit.
5. Press the / button and select When
Refueled, then press the ENTER button.
uThe When Refueled Setup screen
appears, then the display returns to the
customization menu screen.
6. Press the / button until Exit appears
on the display, then press the ENTER
button.
7. Repeat Step 6 until you return to the
normal screen.
3
4
3
4
3
4
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 126 ページ ２０１６年８月３１日　水曜日　午後６時５分
127
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock .................................................. 128
Locking and Unlocking the Doors
Key Types and Functions .................. 130
Low Smart Entry Remote Signal Strength
*
... 132
Locking/Unlocking the Doors from the
Outside .......................................... 133
Locking/Unlocking the Doors from the
Inside ............................................. 140
Childproof Door Locks ..................... 142
Auto Door Locking/Unlocking .......... 143
Opening and Closing the Trunk....... 147
Security System
Immobilizer System .......................... 150
Security System Alarm...................... 150
Opening and Closing the Windows..... 153
Opening and Closing the Moonroof
*
..... 156
Operating the Switches Around the
Steering Wheel
Ignition Switch*............................... 157
ENGINE START/STOP Button*........... 158
Ignition Switch and Power Mode
Comparison ................................... 161
Turn Signals..................................... 162
Light Switches.................................. 162
Fog Lights*...................................... 165
Daytime Running Lights ................... 165
Wipers and Washers ........................ 166
Brightness Control ........................... 168
Rear Defogger/Heated Door Mirror*
Button ........................................... 169
Adjusting the Steering Wheel........... 170
Adjusting the Mirrors
Interior Rearview Mirror ................... 171
Power Door Mirrors ......................... 172
Adjusting the Seats .......................... 173
Interior Lights/Interior Convenience
Items ................................................ 181
Heating System*
Using Automatic Heating................. 193
Automatic Heating Sensors.............. 195
Climate Control System*
Using Automatic Climate Control .... 196
Automatic Climate Control Sensors......202
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 127 ページ ２０１６年８月３１日　水曜日　午後６時５分
128
Controls
Clock
Adjusting the Clock
You can adjust the time in the clock display with the ignition switch in ON (w*1.
■Using the MENU/CLOCK button
1. Press and hold the MENU/CLOCK button.
uAdjust Clock is selected.
2. Rotate to change hour, then press .
3. Rotate to change minute, then press
.
4. To enter the selection, rotate and select
Set, then press .
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Adjusting the Time
1Adjusting the Clock
The clock is automatically updated through the audio
system, so the time does not need to be adjusted.
You can customize the clock display to show the 12
hour clock or 24 hour clock.
2Customized Features P. 118, 308
You cannot adjust the time while the vehicle is
moving.
Models with navigation system
Models with Display Audio
Models with information display
Models without navigation system
1Using the MENU/CLOCK button
These indications are used to show how to operate
the LIST/SELECT (List/Selector) knob.
Rotate to select.
Press to enter.
Models with color audio system
Models with color audio system
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 128 ページ ２０１６年８月３１日　水曜日　午後６時５分
129
uuClockuAdjusting the Clock
■Using the Settings menu on the audio/
information screen
1. Select Settings.
2. Select Clock.
3. Select Clock Adjustment.
4. Select or to change hour.
5. Select or to change minute, then
select OK.
Models with Display Audio
1Using the Settings menu on the audio/information screen
The clock display is set to off by factory default.
You can turn the clock display on and off.
2Customized Features P. 308
The clock is automatically updated when your
smartphone is connected to the audio system.
You can also adjust the clock by touching the clock
displayed on the upper right corner of the display.
1. Touch the clock on the display for a few seconds.
2. Select Clock Adjustment.
3. Select or to change hour.
4. Select or to change minute, then select OK.
3
4
3
4
VOL
HOME
MENU
BACK
AUDIO
3
4
3
4
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 129 ページ ２０１６年８月３１日　水曜日　午後６時５分
130
Controls
Locking and Unlocking the Doors
Key Types and Functions
This vehicle comes with the following keys:
Use the key to start and stop the engine, to lock and unlock the doors and to open
the trunk. You can also use the remote transmitter or smart entry system* to lock
and unlock the doors and to open the trunk.
■Smart entry remote*
The built-in key can be used to lock/unlock the
doors when the smart entry remote battery
becomes weak and the power door lock/
unlock operation is disabled.
To remove the built-in key, pull it out while
sliding the release knob. To reinstall the built-
in key, push the built-in key into the smart
entry remote until it clicks.
■Keys
1Key Types and Functions
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft.
2Immobilizer System P. 150
The keys contain precision electronics.
Adhere to the following advice to prevent damage to
the electronics:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.
•Keep the keys away from liquids.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the engine
may not start, and the remote transmitter may not
work.
If the keys do not work properly, have them
inspected by a dealer.
You can remotely start the engine using the remote
engine start.
2Remote Engine Start with Vehicle
Feedback* P. 406
Models with remote engine starter
Ignition key with
remote transmitter
Smart entry remote
Smart entry remote with
remote engine starter
Built-in Key
Release Knob
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 130 ページ ２０１６年８月３１日　水曜日　午後６時５分
131
uuLocking and Unlocking the DoorsuKey Types and Functions
Contains a number that you will need if you
purchase a replacement key.
■Key Number Tag
1Key Number Tag
Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact a
dealer.
If you lose your key and you cannot start the engine,
contact a dealer.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 131 ページ ２０１６年８月３１日　水曜日　午後６時５分
132
uuLocking and Unlocking the DoorsuLow Smart Entry Remote Signal Strength*
Controls
Low Smart Entry Remote Signal Strength*
The vehicle transmits radio waves to locate the smart entry remote when locking/
unlocking the doors and fuel fill door, opening the trunk, or starting the engine.
In the following cases, locking/unlocking the doors, opening the trunk, or starting
the engine may be inhibited or operation may be unstable:
•Strong radio waves are being transmitted by nearby equipment.
•You are carrying the smart entry remote together with telecommunications
equipment, laptop computers, cell phones, or wireless devices.
•A metallic object is touching or covering the smart entry remote.
1Low Smart Entry Remote Signal Strength*
Communication between the smart entry remote and
the vehicle consumes the smart entry remote’s
battery.
Battery life is about two years, but this varies
depending on regularity of use.
The battery is consumed whenever the smart entry
remote is receiving strong radio waves. Avoid placing
it near electrical appliances such as televisions and
personal computers.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 132 ページ ２０１６年８月３１日　水曜日　午後６時５分
133
uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside
Continued
Locking/Unlocking the Doors from the Outside
When you carry the smart entry remote, you
can lock/unlock the doors, fuel fill door, and
open the trunk.
You can lock/unlock the doors and fuel fill
door within a radius of about 32 inches (80
cm) of the outside door handle. You can open
the trunk within about 32 inches (80 cm)
radius from the trunk release button.
■Locking the vehicle
Press the door lock button on the front door.
uSome exterior lights flash; the beeper
sounds; all the doors and trunk lock; and
the security system sets.
■Using the Smart Entry with Push Button Start System*
1Locking/Unlocking the Doors from the Outside
If the interior light switch is in the door activated position,
the interior lights come on when you unlock the doors.
No doors opened: The lights fade out after 30 seconds.
Doors relocked: The lights go off immediately.
2Interior Lights P. 181
1Using the Smart Entry with Push Button Start System*
•Do not leave the smart entry remote in the vehicle
when you get out. Carry it with you.
•Even if you are not carrying the smart entry remote,
you can lock/unlock the doors while someone else
with the remote is within range.
•The door may be unlocked if the door handle is
covered with water in heavy rain or in a car wash if
the smart entry remote is within range.
•If you grip a front door handle wearing gloves, the
door sensor may be slow to respond or may not
respond by unlocking the doors.
•After locking the door, you have up to 2 seconds
during which you can pull the door handle to
confirm whether the door is locked. If you need to
unlock the door immediately after locking it, wait
at least 2 seconds before gripping the handle,
otherwise the door will not unlock.
•The door might not open if you pull it immediately
after gripping the door handle. Grip the handle
again and confirm that the door is unlocked before
pulling the handle.
•
Even within the 32 inches (80 cm) radius, you may not
be able to lock/unlock the doors with the smart entry
remote if it is above or below the outside handle.
•The smart entry remote may not operate if it is too
close to the door and door glass.
The light flash, beep, and door unlock mode settings
can be customized.
2Customized Features P. 308
Door Lock Button
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 133 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside
134
Controls
■Locking the vehicle (Walk away auto
lock)
When you walk away from the vehicle while
carrying the smart entry remote, the doors will
automatically lock.
The auto lock function activates when all
doors are closed, and the smart entry remote
is within about 8 feet (2.5 m) radius of the
outside door handle.
1. Exit vehicle while carrying smart entry
remote and close door(s).
2. While within about 8 feet (2.5 m) radius of
the vehicle.
uThe beeper sounds; the auto lock
function will be activated.
3. Carry the smart entry remote beyond about
5 feet (1.5 m) from the vehicle and remain
outside this range for 2 or more seconds.
uSome exterior lights flash; the beeper
sounds; all doors will then lock.
1Locking the vehicle (Walk away auto lock)
The auto lock function is set to OFF as the factory
default setting. The auto lock function can be set to
ON using the audio/information screen.
2Customized Features P. 308
After the auto lock function has been activated,
when you stay within the locking/unlocking
operation range, the indicator on the smart entry
remote will continue to flash until the doors are
locked.
When you stay beside the vehicle within the
operation range, the doors will automatically lock
approximately 30 seconds after the auto lock
function activating beeper sounds.
When you open a door after the auto lock function
activating beeper sounds, the auto lock function will
be canceled.
When all doors have been closed and the smart entry
remote is inside the vehicle, or if the smart entry
remote is not detected within about 8 feet (2.5 m) of
the vehicle, auto lock function will not be activated.
The activation range of
the auto lock function is
about 8 feet (2.5 m)
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 134 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 135
uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside
To temporarily deactivate the function:
1. Set the power mode to OFF.
2. Open the driver’s door.
3. Using the master door lock switch, operate
the lock as follows:
Lock Unlock Lock Unlock.
uThe beeper sounds and the function is
deactivated.
To restore the function:
•Set the power mode to ON.
•Lock the vehicle without using the auto lock
function
•Walk away at least more than about 8 feet
(2.5 m) away from the vehicle while
carrying the smart entry remote.
1Locking the vehicle (Walk away auto lock)
The auto lock function does not operate when any of
the following conditions are met.
•The smart entry remote is inside the vehicle.
•A door or the hood is not closed.
•The power mode is set to any mode other than
OFF.
•The smart entry remote is not located within a
radius of about 8 feet (2.5 m) from the vehicle
when you get out of the vehicle and close the
doors.
Auto lock function operation stop beeper
After the auto lock function has been activated, the
auto lock operation stop beeper sounds for
approximately two seconds in the following cases.
•The smart entry remote is put inside the vehicle
through a window.
•You are located too close to the vehicle.
•The smart entry remote is put inside the trunk.
If the warning beeper sounds, check that you are
carrying the smart entry remote. Then, open/close a
door and confirm the auto lock activation beeper
sounds once.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 135 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside
136
Controls
■Unlocking the vehicle
Grab the driver’s door handle:
uThe driver’s door and fuel fill door
unlocks.
uSome exterior lights flash twice and the
beeper sounds twice.
Grab the front passenger’s door handle:
uAll the doors unlock.
uSome exterior lights flash twice and the
beeper sounds twice.
Press the trunk release button:
uThe trunk unlocks and opens.
uSome exterior lights flash and the beeper
sounds.
2Using the Trunk Opener P. 147
1Using the Smart Entry with Push Button Start System*
If you do not open a door within 30 seconds of
unlocking the vehicle with the smart entry system,
the doors will automatically relock.
You can lock or unlock doors using the smart entry
system only when the power mode is in VEHICLE OFF.
Trunk Release Button
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 136 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 137
uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside
■Locking the doors
Press the lock button.
Once:
uSome exterior lights flash, all the doors
and fuel fill door lock, and the security
system sets.
Twice (within five seconds after the first
push):
uThe beeper sounds and verifies the
security system is set.
■Using the Remote Transmitter
1Using the Remote Transmitter
If you do not open a door within 30 seconds of
unlocking the vehicle with the remote transmitter,
the doors will automatically relock.
You can change the relock timer setting.
2Customized Features P. 118, 308
The remote transmitter uses low-power signals, so
the operating range may vary depending on the
surroundings.
The remote transmitter will not work when the key is
in the ignition switch.
You can lock or unlock doors using the remote
transmitter only when the power mode is in VEHICLE
OFF.
The remote will not lock the vehicle when a door is
open.
Models with driver information interface
Models without smart entry system
Models with smart entry system
All models
LED
Unlock Button
Lock Button
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 137 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside
138
Controls
■Unlocking the doors
Press the unlock button.
Once:
uSome exterior lights flash twice, and the driver’s door and fuel fill door unlock.
Twice:
uThe remaining doors unlock.
1Using the Remote Transmitter
If the distance at which the remote transmitter works
varies, the battery is probably low.
If the LED does not come on when you press a
button, the battery is dead.
2Replacing the Button Battery P. 533
You can customize the door unlock mode setting.
2Customized Features P. 118, 308
Models with driver information interface
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 138 ページ ２０１６年８月３１日　水曜日　午後６時５分
139
uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside
If the keyless remote battery or the vehicle battery is dead, use the key instead of the
keyless remote.
Fully insert the key and turn it.
■Locking the driver’s door
Push the lock tab forward a or push the
master door lock switch in the lock direction
b, and close the door.
■Locking the passenger’s doors
Push the lock tab forward and close the door.
■Lockout prevention system
The doors cannot be locked when the key is in the ignition switch.
The doors cannot be locked when the smart entry remote is inside the vehicle.
■Locking/Unlocking the Doors Using a Key
1Locking/Unlocking the Doors Using a Key
When you lock the driver’s door with a key, all the
other doors lock at the same time. When unlocking,
the driver’s door unlocks first. Turn the key a second
time within a few seconds to unlock the remaining
doors.
You can customize the door unlock mode setting.
2Customized Features P. 118, 308
Models with driver information interface
Lock
Unlock
■Locking a Door Without Using a Key
1Locking a Door Without Using a Key
When you lock the driver’s door, all the other doors
lock at the same time.
Make sure you have the key in your hand when you
lock the driver’s door or any of the other doors,
otherwise you may end up locking the key inside the
vehicle.
Models without smart entry system
Models with smart entry system
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 139 ページ ２０１６年８月３１日　水曜日　午後６時５分
140
uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Inside
Controls
Locking/Unlocking the Doors from the Inside
■Locking a door
Push the lock tab forward.
■Unlocking a door
Pull the lock tab rearward.
■Using the Lock Tab
1Using the Lock Tab
When you lock the door using the lock tab on the
driver’s door, all of the other doors lock at the same
time.
When you unlock the door using the lock tab on the
driver’s door, only the driver’s door will unlock.
To Unlock
Lock Tab
To Lock
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 140 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 141
uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Inside
Pull the front door inner handle.
uThe door unlocks and opens in one
motion.
Unlocking and opening the driver’s door from the inner handle unlocks all the other
doors.
To avoid all the doors to be unlocked, use the lock tab on the driver’s door to unlock,
then lock again before opening the door.
uThis setting works for one time only.
If you do not want all the doors to be unlocked all the time, customize the
Auto Door Unlock setting to Off using the driver information interface or
audio/information screen.
2Customized Features P. 118, 308
If you do not want all the doors to be unlocked all the time, customize the auto
door unlocking setting to off using the master door lock switch.
2Customizing Flow for Auto Door Unlocking Options P. 146
■Unlocking Using the Front Door Inner Handle
1Unlocking Using the Front Door Inner Handle
The front door inner handles are designed to allow
front seat occupants to open the door in one motion.
However, this feature requires that front seat
occupants never pull a front door inner handle while
the vehicle is in motion.
Children should always ride in a rear seat where
childproof door locks are provided.
2Childproof Door Locks P. 142
Inner
Handle
Models with driver information interface
Models without driver information interface
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 141 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuLocking and Unlocking the DoorsuChildproof Door Locks
142
Controls
Press the master door lock switch in as shown
to lock or unlock all doors.
Childproof Door Locks
The childproof door locks prevent the rear doors from being opened from the inside
regardless of the position of the lock tab.
Slide the lever in the rear door to the lock
position, and close the door.
■When opening the door
Open the door using the outside door handle.
■Using the Master Door Lock Switch
1Using the Master Door Lock Switch
When you lock/unlock either of the front doors using
the master lock switch, all the other doors lock/
unlock at the same time.
To Unlock
Master Door
Lock Switch
To Lock
■Setting the Childproof Door Locks
1Childproof Door Locks
To open the door from the inside when the
childproof door lock is on, put the lock tab in the
unlock position, lower the rear window, put your
hand out of the window, and pull the outside door
handle.
Lock
Unlock
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 142 ページ ２０１６年８月３１日　水曜日　午後６時５分
143
uuLocking and Unlocking the DoorsuAuto Door Locking/Unlocking
Auto Door Locking/Unlocking
Your vehicle locks and unlocks all doors automatically when a certain condition is
met.
■Drive lock mode
All doors lock when the vehicle’s speed reaches about 10 mph (15 km/h).
■Driver’s door open mode
All doors unlock when the driver’s door is opened.
■Auto Door Locking
■Auto Door Unlocking
1Auto Door Locking/Unlocking
You can turn off or change to another auto door
locking/unlocking setting using the master door lock
switch.
2Customizing the Auto Door Locking/
Unlocking Setting P. 144
You can turn off or change to another auto door
locking/unlocking setting using the driver
information interface or audio/information screen.
2Customized Features P. 118, 308
Models without driver information interface
Models with driver information interface
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 143 ページ ２０１６年８月３１日　水曜日　午後６時５分
144
uuLocking and Unlocking the DoorsuCustomizing the Auto Door Locking/Unlocking Setting
Controls
Customizing the Auto Door Locking/Unlocking Setting
You can customize the auto door locking/unlocking setting to your liking using the master door lock switch.
■Auto door locking
■Auto door unlocking
*1:Default setting
■
List of the Auto Door Locking/Unlocking Customizable Options
Mode Description
Drive Lock Mode*1 All doors lock when the vehicle’s speed reaches about 10 mph (15 km/h).
Off The auto door locking is deactivated all the time.
Mode Description
Driver’s Door Open
Mode*1 All doors unlock when the driver’s door is opened.
Park Unlock Mode
All doors unlock when the shift lever is moved into (P with the brake pedal depressed.
Off The auto door unlocking is deactivated all the time.
Models with
continuously variable
transmission
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 144 ページ ２０１６年８月３１日　水曜日　午後６時５分
145
uuLocking and Unlocking the DoorsuCustomizing the Auto Door Locking/Unlocking Setting
Continued
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
*2:Default setting
■Customizing Flow for Auto Door Locking Options
Steps Drive Lock Mode*2 Off
1
Apply the parking brake.
Move the shift lever out of (P.
Apply the parking brake.
Move the shift lever to (P.
2Close the driver’s door. Open the driver’s door.
3Turn the ignition switch to ON (w*1.Turn the ignition switch to ON (w*1.
4
Press and hold the right side of the master door lock switch on the driver’s door
for more than five seconds. Release the switch after you hear a click twice.
Press and hold the right side of the master door
lock switch on the driver’s door for more than
five seconds. Release the switch after you hear
one click.
5Turn the ignition switch to ACCESSORY (q*1 within 20 seconds.
uCustomization is completed.
Models with continuously variable transmission
Models with continuously variable transmission
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 145 ページ ２０１６年８月３１日　水曜日　午後６時５分
146
uuLocking and Unlocking the DoorsuCustomizing the Auto Door Locking/Unlocking Setting
Controls
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
*2:Default setting
■Customizing Flow for Auto Door Unlocking Options
Steps Driver's Door Open Mode*2
Park Unlock Mode Off
1
Apply the parking brake.
Move the shift lever out of (P.
Apply the parking brake.
Move the shift lever to (P.
Apply the parking brake.
Move the shift lever to (P.
2Close the driver’s door. Open the driver’s door.
3Turn the ignition switch to ON (w*1.Turn the ignition switch to ON
(w*1.
4
Press and hold the left side of the master door lock switch on the driver’s door for more than five seconds. Release the switch
after you hear a click twice.
5Turn the ignition switch to ACCESSORY (q*1 within 20 seconds.
uCustomization is completed.
Models with continuously variable transmission
Models with continuously variable transmission
Models with continuously variable
transmission
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 146 ページ ２０１６年８月３１日　水曜日　午後６時５分
147
Opening and Closing the Trunk
Precautions for Opening/Closing the Trunk
■Opening the trunk
Open the trunk all the way.
uIf it is not fully opened, the trunk lid may begin to close under its own weight.
■Closing the trunk
Keep the trunk lid closed while driving to:
uAvoid possible damage.
uPrevent exhaust gas from leaking into the vehicle.
2Exhaust Gas Hazard P. 72
Using the Trunk Opener
Pressing the trunk opener on the driver’s door
unlocks and opens the trunk.
2When You Cannot Open the Trunk P. 573
Trunk Opener
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 147 ページ ２０１６年８月３１日　水曜日　午後６時５分
148
uuOpening and Closing the TrunkuUsing the Trunk Release Button
Controls
Using the Trunk Release Button
Push up the release button on the trunk lid
after the doors are unlocked.
2When You Cannot Open the Trunk P. 573
Even if the trunk is locked, you can open the
trunk if you carry the smart entry remote.
uSome exterior lights flash and the beeper
sounds.
Using the Remote Transmitter
Press the trunk release button for
approximately one second to unlock and open
the trunk.
1Using the Trunk Release Button
•A person who is not carrying the smart entry
remote can unlock the trunk if a person who is
carrying it is within range.
•The smart entry remote may not operate if it is too
close to the trunk.
•If you forget the remote inside, the beeper will
sound and the trunk will not close.
•If the beeper sounds after you close the trunk,
move the smart entry remote away from the trunk
and close again.
Models with smart entry system
Trunk Release Button
Models with smart entry system
Trunk Release Button
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 148 ページ ２０１６年８月３１日　水曜日　午後６時５分
149
uuOpening and Closing the TrunkuEmergency Trunk Opener
Emergency Trunk Opener
The trunk release lever allows you to open the
trunk from inside for your safety.
Slide the release lever in the direction of the
arrow.
1Emergency Trunk Opener
Parents should decide if their children should be
shown how to use this feature.
Lever
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 149 ページ ２０１６年８月３１日　水曜日　午後６時５分
150
Controls
Security System
Immobilizer System
The immobilizer system prevents a key that has not been pre-registered from
starting the engine. Each key contains electronic transmitters that use electronic
signals to verify the key.
Pay attention to the following when inserting the key into the ignition switch or
pressing the ENGINE START/STOP button:
•Do not allow objects that emit strong radio waves near the ignition switch or the
ENGINE START/STOP button.
•Make sure the key is not covered by or touching a metal object.
•Do not bring a key from another vehicle’s immobilizer system near the ignition
switch or the ENGINE START/STOP button.
•Do not put the key near magnetic items. Electronic devices, such as televisions
and audio systems emit strong magnetic fields. Note that even a key chain can
become magnetic.
Security System Alarm
The security system alarm activates when the trunk, hood or doors are forcibly
opened. The alarm does not go off if the trunk or doors are opened with the key,
remote transmitter or smart entry system*.
However, the alarm activates if a door is opened with the key and then the shift lever
is moved out of (P (continuously variable transmission models) or the hood is
opened before the ignition switch is turned to ON (w*1.
■When the security system alarm activates
The horn sounds intermittently and all the exterior lights flash.
■To deactivate the security system alarm
Unlock the vehicle using remote transmitter, or smart entry system*. The system,
along with the horn and flashing lights, is deactivated.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1Immobilizer System
NOTICE
Leaving the key in the vehicle can result in theft or
accidental movement of the vehicle.
Always take the key with you whenever you leave the
vehicle unattended.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
Canadian models only: Apply and hold the brake
pedal before turning the vehicle on the first time after
the battery has been disconnected.
1Security System Alarm
The security alarm continues for a maximum of two
minutes until the security system deactivates.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 150 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 151
uuSecurity SystemuSecurity System Alarm
■Setting the security system alarm
The security system alarm automatically sets when the following conditions have
been met:
•The ignition switch is in LOCK (0*1, and the key has been removed from the
ignition switch.
•The hood and trunk are closed.
•All doors are locked with the key, the remote transmitter, or smart entry system*.
■When the security system alarm sets
The security system alarm indicator in the instrument panel blinks. When the
blinking interval changes after about 15 seconds, the security system alarm is set.
■To cancel the security system alarm
The security system is canceled when the vehicle is unlocked using the remote
transmitter, smart entry system*, or the ignition switch is turned to ON (w*1. The
security system indicator goes off at the same time.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1Security System Alarm
Do not set the security system alarm when someone
is in the vehicle or a window is open. The system can
accidentally activate when:
•Unlocking the door with the lock tab.
•Opening the trunk with the trunk release button on
the driver’s door or the emergency trunk opener.
•Opening the hood with the hood release.
•Moving the shift lever out of (P.
If the battery goes dead after you have set the
security system alarm, the security alarm may go off
once the battery is recharged or replaced.
If this occurs, deactivate the security system alarm by
unlocking a door using the remote transmitter or
smart entry system*.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
Continuously variable transmission models
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 151 ページ ２０１６年８月３１日　水曜日　午後６時５分
152
uuSecurity SystemuSecurity System Alarm
Controls
■The panic button on the remote
transmitter
If you press the panic button for
approximately one second, the following will
occur for about 30 seconds:
•The horn sounds.
•Some exterior lights flash.
■Canceling panic mode
Press any button on the remote transmitter, or turn the ignition switch to ON (w*1.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Panic Mode
Panic Button
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 152 ページ ２０１６年８月３１日　水曜日　午後６時５分
153
Continued
Opening and Closing the Windows
Opening/Closing the Power Windows
The power windows can be opened and closed when the ignition switch is in ON
(w*1, using the switches on the doors. The driver’s side switches can be used to
open and close all of the windows.
The power window lock button on the driver’s side must be switched off (indicator
off) to open and close the windows from anywhere other than the driver’s seat.
When the power window lock button is pressed, the indicator comes on and you
can only operate the driver’s window. Turn the power window lock button on if a
child is in the vehicle.
■Automatic operation
To open: Push the switch down firmly.
To close: Pull the switch up firmly.
The window opens or closes completely. To
stop the window at any time, push or pull the
switch briefly.
■Manual operation
To open: Push the switch down lightly, and
hold it until the desired position is reached.
To close: Pull the switch up lightly, and hold it
until the desired position is reached.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Opening/Closing Windows with Auto-Open/Close Function
1Opening/Closing the Power Windows
The power windows can be operated for up to 10
minutes after you turn the ignition switch off.
Opening either front door cancels this function.
Auto Reverse
If a power window senses resistance when closing
automatically, it will stops closing and reverse
direction.
The driver’s window auto reverse function is disabled
when you continuously pull up the switch.
The auto reverse function stops sensing when the
window is almost closed to ensure that it fully closes.
3
WARNING
Closing a power window on someone's
hands or fingers can cause serious injury.
Make sure your passengers are away from
the windows before closing them.
Power Window
Lock Button
Indicator
Driver’s
Window
Switch
Front Passenger’s
Window Switch
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 153 ページ ２０１６年８月３１日　水曜日　午後６時５分
154
uuOpening and Closing the WindowsuOpening/Closing the Power Windows
Controls
To open: Push the switch down.
To close: Pull the switch up.
Release the switch when the window reaches
the desired position.
To open: Press the unlock button, and then
within 10 seconds, press it again and hold it. If
the windows and moonroof* stop midway,
repeat the procedure.
■Opening/Closing Windows without Auto-Open/Close
Function
Close
Open
■Opening Windows and Moonroof* with the Remote
Unlock Button
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 154 ページ ２０１６年８月３１日　水曜日　午後６時５分
155
uuOpening and Closing the WindowsuOpening/Closing the Power Windows
To open: Unlock the driver’s door with the
key. Within 10 seconds of returning the key to
the central position, turn the key in the unlock
direction and hold it there.
To close: Lock the driver’s door with the key.
Within 10 seconds of returning the key to the
central position, turn the key in the lock
direction and hold it there.
Release the key to stop the windows and
moonroof at the desired position. If you want
further adjustment, repeat the same
operation.
■
Opening/Closing the Windows and Moonroof
*
with the Key
Close
Open
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 155 ページ ２０１６年８月３１日　水曜日　午後６時５分
156
Controls
Opening and Closing the Moonroof*
You can only operate the moonroof when the power mode is in ON. Use the switch
in the front of the ceiling to open and close the moonroof.
■Automatic operation
To open: Pull the switch back firmly.
To close: Push the switch forward firmly.
The moonroof will automatically open or close
all the way. To stop the moonroof midway,
touch the switch briefly.
■Manual operation
To open: Pull the switch back lightly, and
hold it until the desired position is reached.
To close: Push the switch forward lightly, and
hold it until the desired position is reached.
■Tilting the moonroof up
To tilt: Push on the center of the moonroof
switch.
To close: Push the switch forward firmly,
then release.
■Opening/Closing the Moonroof
1Opening/Closing the Moonroof
NOTICE
Opening the moonroof in below freezing
temperature or when it is covered with snow or ice
can damage the moonroof panel or motor.
The power moonroof can be operated for up to 10
minutes after you set the power mode to VEHICLE
OFF (LOCK).
Opening either front door cancels this function.
When resistance is detected, the auto reverse
function causes the moonroof to change directions,
then stop. Auto reverse stops sensing when the
moonroof is almost closed to ensure that it fully
closes. Make sure that all objects, including fingers,
are clear of the moonroof.
You can use the remote transmitter or the key to
operate the moonroof.
2Opening Windows and Moonroof* with
the Remote P. 154
2Opening/Closing the Windows and
Moonroof* with the Key P. 155
3
WARNING
Opening or closing the moonroof on
someone’s hands or fingers can cause
serious injury.
Make sure all hands and fingers are clear of
the moonroof before opening or closing it.
Open
Close Tilt
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 156 ページ ２０１６年８月３１日　水曜日　午後６時５分
157
Operating the Switches Around the Steering Wheel
Ignition Switch*
1Ignition Switch*
You cannot take the key out unless the shift lever is
in (P.
If you open the driver’s door when the key is in LOCK
(0 or ACCESSORY (q, a warning buzzer will sound
to remind you to take the key out.
When this happens, the following messages appear
on the driver information interface*:
•In LOCK (0: Remove Key From Ignition.
•In ACCESSORY (q: Turn Ignition Switch To Lock
(0) Position. The buzzer will stop when you take
the key out.
If the key won’t turn from LOCK (0 to ACCESSORY
(q, turn the key while moving the steering wheel left
and right. The steering wheel will unlock, allowing
the key to turn.
3
WARNING
Removing the key from the ignition switch
while driving locks the steering. This can
cause you to lose control of the vehicle.
Remove the key from the ignition switch
only when parked.
Manual transmission models
Continuously variable transmission models
All models
(0 LOCK: Insert and remove the key in this
position.
(q ACCESSORY: Operate the audio system and
other accessories in this position.
(w ON: This is the position when driving.
(e START: This position is for starting the engine.
The switch returns to ON (w when you let go of
the key.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 157 ページ ２０１６年８月３１日　水曜日　午後６時５分
158
uuOperating the Switches Around the Steering WheeluENGINE START/STOP Button*
Controls
ENGINE START/STOP Button*
*1: Except U.S. models with continuously variable transmission
*2: U.S. models
■Changing the Power Mode
1ENGINE START/STOP Button*
ENGINE START/STOP Button Operating Range
You can start the engine when the smart entry
remote is inside the vehicle.
The engine may also run if the smart entry remote is
close to the door or window, even if it is outside the
vehicle.
If the smart entry remote battery is weak, beeper
sounds and the To Start, Hold Remote Near Start
Button message appears on the driver information
interface.
2If the Smart Entry Remote Battery is Weak
P. 553
Do not leave the power mode in ACCESSORY or ON
when you get out.
Operating Range
Continuously Variable Transmission Manual Transmission
VEHICLE OFF (LOCK)
The button is off.
The steering wheel is locked*1.
The power to all electrical
components is turned off.
Press the button without the
shift lever in (P.
Shift to (P then press the button.
Press the button.
Without pressing
the clutch pedal
Without pressing
the brake pedal
ACCESSORY
The button blinks (in red).
Operate the audio system and
other accessories in this position.
ON
The button blinks (in red).
All electrical components can be
used.
Shift to (P*2.
*2
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 158 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 159
uuOperating the Switches Around the Steering WheeluENGINE START/STOP Button *
If you leave the vehicle for 30 to 60 minutes with the shift lever in (P*1 and the
power mode in ACCESSORY, the vehicle automatically goes into the mode similar to
VEHICLE OFF (LOCK) to avoid draining the battery.
When in this mode:
The steering wheel does not lock.
You cannot lock or unlock doors with the remote transmitter or the smart entry
system.
Press the ENGINE START/STOP button twice to switch the mode to VEHICLE OFF
(LOCK).
*1: Continuously variable transmission models
■Automatic Power Off
1Changing the Power Mode
If the power mode does not change from VEHICLE
OFF to ACCESSORY, press the ENGINE START/STOP
button while moving the steering wheel left and
right. The steering wheel will unlock, allowing the
mode to change.
Except U.S. continuously variable transmission models
Except U.S. continuously variable transmission models
All models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 159 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuOperating the Switches Around the Steering WheeluENGINE START/STOP Button*
160
Controls
If you open the driver’s door when the power mode is set to ACCESSORY, a warning
beep sounds.
Warning buzzers may sound from inside and/
or outside the vehicle to remind you that the
smart entry remote is out of the vehicle. If the
buzzer continues even after the remote is put
back inside, place it within the system’s
operational range.
■When the power mode is in ON
If the smart entry remote is taken out of the
vehicle, and the driver’s door is closed,
warning buzzers sound from both inside and
outside the vehicle. A warning message on
the driver information interface notifies the
driver inside that the remote is out.
■When the power mode is in
ACCESSORY
If the smart entry remote is taken out of the
vehicle, and all the doors are closed, a
warning buzzer sounds from outside the
vehicle.
■Power Mode Reminder
■Smart Entry Remote Reminder
1Smart Entry Remote Reminder
When the smart entry remote is within the system’s
operational range, and the driver’s door is closed, the
warning function cancels.
If the smart entry remote is taken out of the vehicle
after the engine has been started, you can no longer
change the ENGINE START/STOP button mode or
restart the engine. Always make sure if the remote is
in your vehicle when you operate the ENGINE
START/STOP button.
Removing the smart entry remote from the vehicle
through a window does not activate the warning
buzzer.
Do not put the smart entry remote on the dashboard
or in the glove box. It may cause the warning buzzer
to go off. Under some other conditions that can
prevent the vehicle from locating the remote, the
warning buzzer may also go off even if the remote is
within the system’s operational range.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 160 ページ ２０１６年８月３１日　水曜日　午後６時５分
161
uuOperating the Switches Around the Steering WheeluIgnition Switch and Power Mode Comparison
Ignition Switch and Power Mode Comparison
*1:Except U.S. models with continuously variable transmission
Ignition Switch
Position
LOCK (0)
(with/without
the key)
ACCESSORY (I) ON (II) START (III)
Without Smart Entry
System
●Engine is turned off and
power is shut down.
●The steering wheel is
locked*1.
●No electrical
components can be
used.
●Engine is turned off.
●Some electrical
components such as the
audio system and the
accessory power socket
can be operated.
●Normal key position
while driving.
●All electrical components
can be used.
●Use this position to start
the engine.
●The ignition switch
returns to the ON (II)
position when you
release the key.
Power Mode VEHICLE OFF
(LOCK)
ACCESSORY ON START
With Smart Entry
System and ENGINE
START/STOP
Button
Button-Off
●Engine is turned off and
power is shut down.
●The steering wheel is
locked*1.
●No electrical
components can be
used.
Button-Blinking
●Engine is turned off.
●Some electrical
components such as the
audio system and the
accessory power socket
can be operated.
Button-
Blinking (engine is turned
off)
On (engine is running)
●All electrical components
can be used.
Button-On
●The mode automatically
returns to ON after the
engine starts.
Button is: Blinking On
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 161 ページ ２０１６年８月３１日　水曜日　午後６時５分
162
uuOperating the Switches Around the Steering WheeluTurn Signals
Controls
Turn Signals
The turn signals can be used when the ignition
switch is in ON (w*1.
■One-touch turn signal
When you lightly push up or down and release
the turn signal lever, the exterior turn signals
and turn signal indicator blink three times.
This feature can be used when signaling for a
lane change.
Light Switches
Rotating the light switch turns the lights on
and off, regardless of the power mode setting
or position of the ignition switch.
■High beams
Push the lever forward until you hear a click.
■Low beams
When in high beams, pull the lever back to
return to low beams.
■Flashing the high beams
Pull the lever back, and release it.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Right Turn
Left Turn
■Manual Operation
1Light Switches
If you leave the power mode in VEHICLE OFF (LOCK)
while the lights are on, a chime sounds when the
driver’s door is opened.
If you remove the key from the ignition switch while
the lights are on, a chime sounds when the driver’s
door is opened.
When the lights are on, the lights on indicator in the
instrument panel will be on.
2Lights On Indicator P. 84
Do not leave the lights on when the engine is off
because it will cause the battery to discharge.
If you sense that the level of the headlights is
abnormal, have the vehicle inspected by a dealer.
Models with smart entry system
Models without smart entry system
High Beams
Flashing the high beams
Low Beams
Turns on parking/daytime
running lights, side marker, tail,
and rear license plate lights
Turns on headlights, parking, side
marker, tail, and rear license plate
lights
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 162 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 163
uuOperating the Switches Around the Steering WheeluLight Switches
Automatic lighting control can be used when
the ignition switch is in ON (w*1.
When you turn the light switch to AUTO, the
headlights and other exterior lights will switch
on and off automatically depending on the
ambient brightness.
uYou can change the auto light sensitivity
setting.
2Customized Features P. 118, 308
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Automatic Operation (automatic lighting control)*
1Automatic Operation (automatic lighting control)*
We recommend that you turn on the lights manually
when driving at night, in a dense fog, or in dark areas
such as long tunnels or parking facilities.
The light sensor is in the location shown below.
Do not cover this light sensor with anything;
otherwise, the automatic lighting system may not
work properly.
Light Sensor
Models without automatic
intermittent wiper
Light Sensor
Models with automatic intermittent
wiper
Models with driver information interface
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 163 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuOperating the Switches Around the Steering WheeluLight Switches
164
Controls
The headlights automatically come on when the wipers are used several times within
a certain number of intervals with the headlight switch in AUTO.
The headlights automatically go off a few minutes later if the wipers are stopped.
The headlights, all other exterior lights, and the instrument panel lights turn off 15
seconds after you remove the key or set the power mode to VEHICLE OFF (LOCK),
take the remote with you, and close the driver’s door.
uYou can change the headlight auto off timer setting.
2Customized Features P. 118
If you turn the ignition switch to LOCK (0*1 with the headlight switch on, but do
not open the door, the lights turn off after 10 minutes (3 minutes, if the switch is in
the AUTO position).
The lights turn on again when you unlock or open the driver’s door. If you unlock
the door, but do not open it within 15 seconds, the lights go off. If you open the
driver’s door, you will hear a lights on reminder chime.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Headlight Integration with Wipers*
■Automatic Lighting Off Feature
1Automatic Operation (automatic lighting control)*
Adjust the auto light sensitivity as follows:
2Customized Features P. 118
Setting The exterior lights come on
when the ambient light is at
MAX
HIGH
MID
LOW
MIN
Bright
Dark
1Headlight Integration with Wipers*
This feature activates while the headlights are off in
AUTO.
The instrument panel brightness does not change
when the headlights come on.
At dark ambient light levels, the automatic lighting
control feature turns on the headlights, regardless of
the number of wiper sweeps.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 164 ページ ２０１６年８月３１日　水曜日　午後６時５分
165
uuOperating the Switches Around the Steering WheeluFog Lights*
Fog Lights*
When the low beam headlights are on, turn
the fog light switch on to use the fog lights.
Daytime Running Lights
The parking/daytime running lights come on when the following conditions have
been met:
•The ignition switch is in ON (w*1.
•The headlight switch is off.
•The parking brake is released.
The lights remain on even if you set the parking brake. Turning off the ignition
switch or setting the power mode to VEHICLE OFF will turn off the daytime running
lights.
The daytime running lights are off once the headlight switch is turned on, or when
the headlight switch is in AUTO* and it is getting darker outside.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1Fog Lights*
When the fog lights are on, the indicator in the
instrument panel will be on.
They go off when the headlights turn off, or when
the daytime running lights are on.
2Fog Light Indicator* P. 84
Fog Light Switch
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 165 ページ ２０１６年８月３１日　水曜日　午後６時５分
166
uuOperating the Switches Around the Steering WheeluWipers and Washers
Controls
Wipers and Washers
The windshield wipers and washers can be
used when the ignition switch is in ON (w*1.
■MIST
The wipers run at high speed until you release
the lever.
■Wiper switch (OFF, INT*2/AUTO*3, LO,
HI)
Move the lever up or down to change the
wiper settings.
■Adjusting wiper operation*
Turn the adjustment ring to adjust the wiper
operation.
■Washer
Sprays while you pull the lever toward you.
When you release the lever for more than one
second, the spray stops, the wipers sweep two
or three more times to clear the windshield,
then stop.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
*2: Models with manual intermittent operation
*3: Models with automatic intermittent operation
■Windshield Wiper/Washer
1Wipers and Washers
NOTICE
Do not use the wipers when the windshield is dry.
The windshield will get scratched, or the rubber
blades will get damaged.
NOTICE
In cold weather, the blades may freeze to the
windshield.
Operating the wipers in this condition may damage
the wipers. Use the defroster to warm the
windshield, then turn the wipers on.
If the vehicle speeds up while the wipers are
operating intermittently, the length of the wipe
interval shortens.
When the vehicle speeds up, the wiper operation’s
shortest delay setting ( ) and the LO setting become
the same.
Turn the washers off if no washer fluid comes out.
The pump may get damaged.
The wiper motor may stop motor operation
temporarily to prevent an overload. Wiper operation
will return to normal within a few minutes, once the
circuit has returned to normal.
If the wiper stops operating due to any obstacle such as
the build-up of snow, park the vehicle in a safe place.
Rotate the wiper switch to OFF, and turn the ignition
switch to ACCESSORY (q or LOCK (0*1, then
remove the obstacle.
Models with adjustment ring
All models
Intermittent Time
Adjustment Ring*
MIST
INT*2/AUTO*3
OFF
LO: Low speed wipe
HI: High speed wipe
Pull to
use
washer.
Lower speed, fewer sweeps
Higher speed, more sweeps
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 166 ページ ２０１６年８月３１日　水曜日　午後６時５分
167
uuOperating the Switches Around the Steering WheeluWipers and Washers
When you push the lever down to AUTO, the
windshield wipers sweep once, and go into
the automatic mode.
The wipers operate intermittently, at low
speed, or at high speed and stops in
accordance with the amount of rainfall the
rainfall sensor detects.
■AUTO sensitivity adjustment
When the wiper function is set to AUTO, you
can adjust the sensitivity of the rainfall sensor
(using the adjustment ring) so that wipers will
operate in accordance with your preference.
Sensor sensitivity
■Automatic Intermittent Wipers*
1Automatic Intermittent Wipers*
The rainfall sensor is in the location shown below.
AUTO should always be turned OFF before the
following situation in order to prevent severe damage
to the wiper system:
•Cleaning the windshield
•Driving through a car wash
•No rain present
Rainfall Sensor
Adjustment Ring
Low sensitivity
High sensitivity
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 167 ページ ２０１６年８月３１日　水曜日　午後６時５分
168
uuOperating the Switches Around the Steering WheeluBrightness Control
Controls
Brightness Control
When the parking lights are turned on and the
ignition switch is in ON (w*1, you can use the
brightness control knob to adjust instrument
panel brightness.
Brighten: Turn the knob to the right.
Dim: Turn the knob to the left.
You will hear a beep when the brightness
reaches minimum or maximum. Several
seconds after adjusting the brightness, you
will be returned to the previous screen.
■Brightness level indicator
The brightness level is shown on the display
while you are adjusting it.
*1: Models with the smart entry system have an
ENGINE START/STOP button instead of an ignition
switch.
1Brightness Control
Instrument panel brightness varies, depending on
whether the exterior lights are on or off. The
instrument panel dims to reduce glare when they are
on.
Pressing the (TRIP) knob or the (display/
information) button* switches the display.
If you turn the knob to the right until the brightness
display is up to max, the beeper sounds. This cancels
the reduced instrument panel brightness when the
exterior lights are on.
Control Knob
On information display
On driver information interface
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 168 ページ ２０１６年８月３１日　水曜日　午後６時５分
169
uuOperating the Switches Around the Steering WheeluRear Defogger/Heated Door Mirror* Button
Rear Defogger/Heated Door Mirror* Button
Press the rear defogger and heated door mirror button to defog the rear window
and mirrors when the ignition switch is in ON (w*1.
The rear defogger and heated door mirrors
automatically switch off after 10-30 minutes
depending on the outside temperature.
However, if the outside temperature is 32°F
(0°C) or below, they do not automatically
switch off.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1Rear Defogger/Heated Door Mirror* Button
NOTICE
When cleaning the inside of the rear window, be
careful not to damage the heating wires.
It is critical to wipe the window from side to side
along the defogger heating wires.
This system consumes a lot of power, so turn it off
when the window has been defogged.
Also, do not use the system for a long period when
the engine is idling. This may weaken the battery,
making it difficult to start the engine.
Models with color audio system
Models with Display Audio
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 169 ページ ２０１６年８月３１日　水曜日　午後６時５分
170
uuOperating the Switches Around the Steering WheeluAdjusting the Steering Wheel
Controls
Adjusting the Steering Wheel
The steering wheel height and distance from your body can be adjusted so that you
can comfortably grip the steering wheel in an appropriate driving posture.
1. Pull the steering wheel adjustment lever up.
uThe steering wheel adjustment lever is
under the steering column.
2. Move the steering wheel up or down, and
in or out.
uMake sure you can see the instrument
panel gauges and indicators.
3. Push the steering wheel adjustment lever
down to lock the steering wheel in position.
uAfter adjusting the position, make sure
you have securely locked the steering
wheel in place by trying to move it up,
down, in, and out.
1Adjusting the Steering Wheel
Make any steering wheel adjustments before you
start driving.
3
WARNING
Adjusting the steering wheel position while
driving may cause you to lose control of the
vehicle and be seriously injured in a crash.
Adjust the steering wheel only when the
vehicle is stopped.
To adjust
To lock
Lever
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 170 ページ ２０１６年８月３１日　水曜日　午後６時５分
171
Adjusting the Mirrors
Interior Rearview Mirror
Adjust the angle of the rearview mirror when you are sitting in the correct driving
position.
Flip the tab to switch the position.
The night position will help to reduce the glare
from headlights behind you when driving
after dark.
When driving after dark, the automatic
dimming rearview mirror reduces the glare
from headlights behind you, based in inputs
from the mirror sensor. This feature is always
active.
■Rearview Mirror with Day and Night Positions*
1Adjusting the Mirrors
Keep the inside and outside mirrors clean and
adjusted for best visibility.
Adjust the mirrors before you start driving.
2Front Seats P. 173
Tab
Daytime
Position
Night Position
Up
Down
■Automatic Dimming Rearview Mirror*
1Automatic Dimming Rearview Mirror*
The auto dimming function cancels when the shift
position is in (R.
Sensor
Down
Up
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 171 ページ ２０１６年８月３１日　水曜日　午後６時５分
172
uuAdjusting the MirrorsuPower Door Mirrors
Controls
Power Door Mirrors
You can adjust the door mirrors when the
ignition switch is in ON (w*1.
■Mirror position adjustment
L/R selector switch: Select the left or right
mirror. After adjusting the mirror, return the
switch to the center position.
Mirror position adjustment switch: Press
the switch left, right, up, or down to move the
mirror.
Selector
Switch
Adjustment
Switch
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 172 ページ ２０１６年８月３１日　水曜日　午後６時５分
173
Continued
Adjusting the Seats
Front Seats
Adjust the driver’s seat as far back as possible
while allowing you to maintain full control of
the vehicle. You should be able to sit upright,
well back in the seat and be able to
adequately press the pedals without leaning
forward, and grip the steering wheel
comfortably. The passenger’s seat should be
adjusted in a similar manner, so that it is as far
back from the front airbag in the dashboard
as possible.
■Adjusting the front power seat*
1Adjusting the Seats
The National Highway Traffic Safety Administration
and Transport Canada recommend that drivers allow
at least 10 inches (25 cm) between the center of the
steering wheel and the chest.
Always make seat adjustments before driving.
3
WARNING
Sitting too close to a front airbag can result
in serious injury or death if the front
airbags inflate.
Always sit as far back from the front
airbags as possible while maintaining
control of the vehicle.
Move back.
Allow sufficient
space.
■Adjusting the Seat Positions
Horizontal Position
Adjustment
Height Adjustment
(Driver’s seat only) Seat-back Angle
Adjustment
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 173 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuAdjusting the SeatsuFront Seats
174
Controls
■Adjusting the front manual seat(s)*
1Adjusting the front manual seat(s)*
Once a seat is adjusted correctly, rock it back and
forth to make sure it is locked in position.
Horizontal Position
Adjustment
Pull up on the bar to move the
seat, then release the bar.
Height Adjustment
(Driver side only)
Pull up or push down the lever
to raise or lower the seat.
Seat-back Angle
Adjustment
Pull up the lever to
change the angle.
Driver’s seat is shown.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 174 ページ ２０１６年８月３１日　水曜日　午後６時５分
175
uuAdjusting the SeatsuFront Seats
Adjust the driver's seat-back to a comfortable,
upright position, leaving ample space
between your chest and the airbag cover in
the center of the steering wheel.
The front seat passenger should also adjust
their seat-back to a comfortable, upright
position.
Reclining a seat-back so that the shoulder part of the belt no longer rests against the
occupant's chest reduces the protective capability of the belt. It also increases the
chance of sliding under the belt in a crash and being seriously injured. The farther a
seat-back is reclined, the greater the risk of injury.
■Adjusting the Seat-Backs
1Adjusting the Seat-Backs
Do not put a cushion, or other object, between the
seat-back and your back.
Doing so may interfere with proper seat belt or airbag
operation.
If you cannot get far enough away from the steering
wheel and still reach the controls, we recommend
that you investigate whether some type of adaptive
equipment may help.
3
WARNING
Reclining the seat-back too far can result in
serious injury or death in a crash.
Adjust the seat-back to an upright position,
and sit well back in the seat.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 175 ページ ２０１６年８月３１日　水曜日　午後６時５分
176
uuAdjusting the SeatsuHead Restraints
Controls
Head Restraints
Your vehicle is equipped with head restraints in all seating positions.
Front head restraints are most effective for
protection against whiplash and other rear-
impact crash injuries when the center of the
back of the occupant’s head rests against the
center of the restraint. The tops of the
occupant’s ears should be level with the
center height of the restraint.
To raise the head restraint:
Pull it upward.
To lower the head restraint:
Push it down while pressing the release
button.
■Adjusting the Front Head Restraints
1Adjusting the Front Head Restraints
In order for the head restraint system to work
properly:
•Do not hang any items on the head restraints, or
from the restraint legs.
•Do not place any object between an occupant and
the seat-back.
•Install each restraint in its proper location.
3
WARNING
Improperly positioning head restraints
reduces their effectiveness and increases
the likelihood of serious injury in a crash.
Make sure head restraints are in place and
positioned properly before driving.
Position head in the center
of the head restraint.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 176 ページ ２０１６年８月３１日　水曜日　午後６時５分
177
uuAdjusting the SeatsuHead Restraints
Front head restraints can be removed for cleaning or repair.
To remove a head restraint:
Pull the restraint up as far as it will go. Then push the release button, and pull the
restraint up and out.
To reinstall a head restraint:
Insert the legs back in place, then adjust the head restraint to an appropriate height
while pressing the release button. Pull up on the restraint to make sure it is locked
in position.
■Removing and Reinstalling the Front Head Restraints
1Removing and Reinstalling the Front Head Restraints
3
WARNING
Failure to reinstall, or correctly reinstall, the
head restraints can result in severe injury
during a crash.
Always replace the head restraints before
driving.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 177 ページ ２０１６年８月３１日　水曜日　午後６時５分
178
uuAdjusting the SeatsuMaintain a Proper Sitting Position
Controls
Maintain a Proper Sitting Position
After all occupants have adjusted their seats and head restraints, and put on their
seat belts, it is very important that they continue to sit upright, well back in their
seats, with their feet on the floor, until the vehicle is safely parked and the engine is
off.
Sitting improperly can increase the chance of injury during a crash. For example, if
an occupant slouches, lies down, turns sideways, sits forward, leans forward or
sideways, or puts one or both feet up, the chance of injury during a crash is greatly
increased.
In addition, an occupant who is out of position in the front seat can be seriously or
fatally injured in a crash by striking interior parts of the vehicle or being struck by an
inflating front airbag.
1Maintain a Proper Sitting Position
3
WARNING
Sitting improperly or out of position can
result in serious injury or death in a crash.
Always sit upright, well back in the seat,
with your feet on the floor.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 178 ページ ２０１６年８月３１日　水曜日　午後６時５分
179
uuAdjusting the SeatsuRear Seats
Rear Seats
1. Pull the release lever in the trunk to release
the lock.
2. Fold the seat-back down.
■Folding Down the Rear Seats
1Folding Down the Rear Seats
The rear seat-back(s*) can be folded down to
accommodate bulkier items in the trunk.
Never drive with the seat-back folded down and the
trunk lid open.
2Exhaust Gas Hazard P. 72
To lock a seat-back upright, push it backwards until it
locks.
When returning the seat-back to its original position,
push it firmly back. Also, make sure all rear shoulder
belts are positioned in front of the seat-back.
Make sure that the folded seat-back does not press
against the front passenger seat, as this can cause the
weight sensors in the front passenger seat to work
improperly.
2Passenger Front Airbag Off Indicator P. 58
Make sure all items in the trunk or items
extending through the opening into the rear
seats are properly secured. Loose items can fly
forward if you have to brake hard.
The front seat(s) must be far enough forward so they
do not interfere with the rear seats as they fold
down.
Release
Lever*
Release Lever
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 179 ページ ２０１６年８月３１日　水曜日　午後６時５分
180
uuAdjusting the SeatsuArmrest
Controls
Armrest
The console lid can be used as an armrest.
To adjust:
Slide the armrest to desired position.
Pull down the armrest in the center backrest.
■Using the Front Seat Armrest
■Using the Rear Seat Armrest*
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 180 ページ ２０１６年８月３１日　水曜日　午後６時５分
181
Continued
Interior Lights/Interior Convenience Items
Interior Lights
■ON
The interior lights come on regardless of
whether the doors are open or closed.
■Door activated
The interior lights come on in the following
situations:
•When any doors are opened.
•You unlock the driver’s door.
•You remove the key from the ignition
switch.
•When the power mode is set to VEHICLE
OFF (LOCK).
■OFF
The interior lights remain off regardless of
whether the doors are open or closed.
■Interior Light Switches
1Interior Light Switches
In the door activated position, the interior lights fade out
and go off about 30 seconds after the doors are closed.
The lights go off after 30 seconds in the following
situations:
•When you unlock the driver’s door but do not open it.
•When you remove the key from the ignition switch
but do not open a door.
•When you set the power mode to VEHICLE OFF
(LOCK) but do not open a door.
You can change the interior lights dimming time.
2Customized Features P. 118, 308
The interior lights go off immediately in the following
situations:
•When you lock the driver’s door.
•When you turn the ignition switch to ON (w*1.
•When you close the driver’s door with the key in
the ignition switch.
•When you close the driver’s door in ACCESSORY
mode.
If you leave any of the doors open in VEHICLE OFF
(LOCK) mode, or without the key in the ignition
switch, the interior lights go off after about 15
minutes.
*1: Models with the smart entry system have an
ENGINE
START/STOP
button instead of an ignition switch.
Models without smart entry system
Models with smart entry system
Models with driver information interface
Models without smart entry system
Models with smart entry system
Door Activated Position
Off
Front
Door Activated Position
On
Off
Rear
Models without smart entry system
Models with smart entry system
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 181 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuInterior Lights/Interior Convenience ItemsuInterior Lights
182
Controls
The map lights can be turned on and off by
pressing the lenses.
■Map Lights
1Map Lights
When the front interior light switch is in the door
activated position and any door is open, the map
light will not go off when you press the lens.
Models without moonroof
Models with moonroof
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 182 ページ ２０１６年８月３１日　水曜日　午後６時５分
183
uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items
Continued
Interior Convenience Items
Pull the handle to open the glove box.
■Glove Box
1Glove Box
3
WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 183 ページ ２０１６年８月３１日　水曜日　午後６時５分
184
uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items
Controls
Your vehicle has a multi-function center
console. It includes a storage compartment,
an armrest, and a sliding tray*.
Slide the armrest to the rearmost position. Pull
the handle to open the console compartment.
You can put small items in the sliding tray*
located in the console compartment lid. Slide
the sliding tray forward or rearward.
You can create more storage space by
removing the removable beverage holder tray
and a divider.
■Console Compartment
Sliding Tray*
Removable
Beverage
Holder Tray Divider
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 184 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 185
uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items
■Front seat beverage holders
Are located in the console between the front
seats.
uMove the armrest rearward to use the
beverage holders.
To place a short beverage container:
Move the removable beverage holder tray
forward.
To place a tall beverage container: Move
the removable beverage holder tray rearward.
■Rear seat beverage holders*
Fold the armrest down to use the rear seat
beverage holders.
■Beverage Holders
1Beverage Holders
NOTICE
Spilled liquids damage the upholstery, carpeting, and
electrical components in the interior.
Be careful when you are using the beverage holders.
Hot liquid can scald you.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 185 ページ ２０１６年８月３１日　水曜日　午後６時５分
186
uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items
Controls
■Door beverage holders
Front seat
Rear seat
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 186 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 187
uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items
The accessory power socket can be used when the ignition switch is in ACCESSORY
(q or ON (w*1.
Open the cover to use it.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Accessory Power Socket
1Accessory Power Socket
NOTICE
Do not insert an automotive type cigarette lighter
element: The power socket can overheat.
The accessory power socket is designed to supply
power for 12 volt DC accessories that are rated 180
watts (15 amps) or less.
To prevent battery drain, use the power socket only
when the engine is running.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 187 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items
188
Controls
To use the wireless charger, the power mode must be in ACCESSORY or ON.
Charge a compatible device on the area indicated by the mark as follows:
1. To turn the system on and off, press and
hold the (power) button.
uWhen the system is activated, the green
indicator light comes on.
2. Place the device you want to charge on the
charging area.
uThe system will automatically start
charging the device, and the amber
indicator light will come on.
uMake sure that the device is compatible
with the system and placed with the
chargeable side in the center of the
charging area.
3. When charging is completed, the green
indicator light will come on.
uDepending on the device, the amber
indicator light will stay on.
■Wireless Charger*
Canadian models
1Wireless Charger*
This system consumes a lot of power. Do not use the
system for a long time when the engine is not
running. This may weaken the battery, making it
difficult to start the engine.
When using the wireless charger, check the user’s manual
that came with the compatible device you want to charge.
3
CAUTION
Metal objects between the charge pad
and the device to be charged will get
hot and can burn you.
•Always remove foreign objects from
the charge pad before charging the
device.
•Be sure the surface is clear of dust and
other debris before charging.
•Do not spill liquids (i. e. water, drinks,
etc.) on the charger and the device.
•Do not use oil, grease, alcohol,
benzine or thinner for cleaning the
charge pad.
•Do not cover the system with towels,
clothing, or other objects while
charging etc.
•Avoid spraying aerosols which may
come in contact with the charge pad
surface.
Green Indicator
Amber Indicator
Charging Area
(Power) Button
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 188 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 189
uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items
■When charging does not start
Perform one of the solutions in the following table.
Indicator Cause Solution
Green
&
Amber
Blinking
simulta-
neously
There is an obstacle(s) between
the charging area and the
device.
Remove the
obstacle(s).
The device is not within the
charging area.
Move the device to the
center of the charging
area where is
located.
Amber Blinking The wireless charger is faulty. Contact a dealer for
repairs.
1Wireless Charger*
NOTICE
Do not place any magnetic recording media or
precision machines within the charging area while
charging.
The data on your cards such as credit cards can be
lost because of the magnetic effect. Also precision
machines such as watches can go wrong.
“Qi” and marks are the registered trademarks
owned by Wireless Power Consortium (WPC).
In the following cases, charging may stop or not start:
•The device is already fully charged.
•The temperature of the device is extremely high
while charging.
•You are at a place that emits strong
electromagnetic wave or noises, such as a TV
station, electric power plant, or gas station.
A device may not charge if the size or shape of its
chargeable side is not appropriate for use with the
charging area.
Not all devices are compatible with the system.
During the charging phase, it is normal for the
charging area and device to heat up.
Charging may be briefly interrupted when:
•All the doors and the trunk are closed
- to avoid interference with the proper functioning
of the smart entry system.
•The position of the device is altered.
Do not charge more than one device at a time on a
charging area.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 189 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items
190
Controls
There is a coat hook on the rear left grab
handle. Pull it down to use it.
There are coat hooks on the left and right
door pillars.
■Coat Hooks
1Coat Hooks
The coat hook is not designed for large or heavy
items.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 190 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 191
uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items
The ignition switch must be in ON (w*1 to use
the seat heaters.
Press the seat heater button:
Once - The HI setting (three indicators on)
Twice - The MID setting (two indicators on)
Three times - The LO setting (one indicator on)
Four times - The OFF setting (no indicators on)
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Front Seat Heaters*
1Front Seat Heaters*
Do not use the seat heaters even in LO when the
engine is off. Under such conditions, the battery may
be weakened, making the engine difficult to start.
3
WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 191 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items
192
Controls
The power mode must be in ON to use the
seat heaters.
There is no heater in the rear center seating
position.
The indicator for your setting comes on while
the seat heater is in use. Press the button on
the opposite side to turn the heater off. The
indicator goes off.
While in HI, the heater cycles on and off.
When a comfortable temperature is reached,
select LO to keep the seat warm.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Rear Seat Heaters*
1Rear Seat Heaters*
Do not use the seat heaters even in LO when the
engine is off. Under such conditions, the battery may
be weakened, making the engine difficult to start.
In the LO setting, the heater runs continuously and
does not automatically turn off.
3
WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 192 ページ ２０１６年８月３１日　水曜日　午後６時５分
193
Continued
Heating System*
Using Automatic Heating
The automatic heating system maintains the interior temperature you select. The
system also selects the proper mix of heated or cooled air that raises or lowers the
interior temperature to your preference as quickly as possible.
Use the system when the engine is running.
1. Press the AUTO button.
2. Adjust the interior temperature using the temperature control dial.
3. Press the (on/off) button to cancel.
1Using Automatic Heating
If any buttons are pressed while using the heating
system in auto, the function of the button that was
pressed will take priority.
The AUTO indicator will go off, but functions
unrelated to the button that were pressed will be
controlled automatically.
To prevent cold air from blowing in from outside, the
fan may not start immediately when the AUTO
button is pressed.
When you set the temperature to the lower or upper
limit, Lo or Hi is displayed.
(ON/OFF)
Button
(Recirculation) Button
Floor and
defroster
vents
Floor vents
Dashboard
and floor
vents
Dashboard
vents
AUTO Button
(Fresh Air) Button
Temperature
Control Dial
Fan Control
Dial
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 193 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuHeating System*uUsing Automatic Heating
194
Controls
■Switching between the recirculation and fresh air modes
Press the (recirculation) or (fresh air) button to switch the mode
depending on environmental conditions.
Recirculation mode (indicator on): Recirculates air from the vehicle’s interior
through the system.
Fresh air mode (indicator on): Maintains outside ventilation. Keep the system
in fresh air mode in normal situations.
Pressing the (windshield defroster) button
automatically switches the system to fresh air
mode.
Press the button again to turn off, the
system returns to the previous settings.
■To rapidly defrost the windows
1. Press the button.
2. Press the button.
■Defrosting the Windshield and Windows
1Using Automatic Heating
Pressing the button switches the heating system
between on and off. When turned on, the system
returns to your last selection.
While in the ECON mode, the heating system has
greater temperature fluctuations.
1Defrosting the Windshield and Windows
For your safety, make sure you have a clear view
through all the windows before driving.
Do not set the temperature near the upper or lower
limit.
When cold air hits the windshield, the outside of the
windshield may fog up.
If the side windows fog up, adjust the vents so that
the air hits the side windows.
1To rapidly defrost the windows
After defrosting the windows, switch over to fresh air
mode. If you keep the system in recirculation mode,
the windows may fog up from humidity. This
impedes visibility.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 194 ページ ２０１６年８月３１日　水曜日　午後６時５分
195
uuHeating System*uAutomatic Heating Sensors
Automatic Heating Sensors
The automatic heating system is equipped
with sensors. Do not cover or spill any liquid
on them.
Sensor
Sensor
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 195 ページ ２０１６年８月３１日　水曜日　午後６時５分
196
Controls
Climate Control System*
Using Automatic Climate Control
The automatic climate control system maintains the interior temperature you select.
The system also selects the proper mix of heated or cooled air that raises or lowers
the interior temperature to your preference as quickly as possible.
Use the system when the engine is running.
1. Press the AUTO button.
2. Adjust the interior temperature using the temperature control dial.
3. Press the (on/off) button to cancel.
1Using Automatic Climate Control
Press the CLIMATE button to display A/C, MODE, fan
control information on the audio/information screen
for several seconds. Select icon to turn on or off A/C,
change the vent mode, or change the fan speed.
If any buttons are pressed while using the climate
control system in auto, the function of the button
that was pressed will take priority.
The AUTO indicator will go off, but functions
unrelated to the button that were pressed will be
controlled automatically.
To prevent cold air from blowing in from outside, the
fan may not start immediately when the AUTO
button is pressed.
If the interior is very warm, you can cool it down
more rapidly by partially opening the windows,
turning the system on AUTO, and setting the
temperature to low. Change the fresh mode to
recirculation mode until the temperature cools down.
When you set the temperature to the lower or upper
limit, Lo or Hi is displayed.
Models with Display Audio
U.S. models with color audio system
Models with Display Audio
Models without SYNC button
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 196 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 197
uuClimate Control System*uUsing Automatic Climate Control
Use the system when the engine is running.
1. Press the AUTO button.
2. Adjust the interior temperature using the driver’s side or passenger’s side control
dial.
3. Press the button to cancel.
1Using Automatic Climate Control
Pressing the button switches the climate control
system between on and off. When turned on, the
system returns to your last selection.
While in the ECON mode, the climate control system
has greater temperature fluctuations.
Models with Display Audio
Models with SYNC button
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 197 ページ ２０１６年８月３１日　水曜日　午後６時５分
198
uuClimate Control System*uUsing Automatic Climate Control
Controls
■Switching between the recirculation and fresh air modes
Press the (recirculation) button and switch the mode depending on
environmental conditions.
Recirculation mode (indicator on): Recirculates air from the vehicle’s interior through
the system.
Fresh air mode (indicator off): Maintains outside ventilation. Keep the system in
fresh air mode in normal situations.
Press the (recirculation) or (fresh air) button to switch the mode
depending on environmental conditions.
Recirculation mode (indicator on): Recirculates air from the vehicle’s interior
through the system.
Fresh air mode (indicator on): Maintains outside ventilation. Keep the system
in fresh air mode in normal situations.
U.S. models with color audio system
Models with Display Audio
Models with SYNC button
Models with Display Audio
Models without SYNC button
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 198 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 199
uuClimate Control System*uUsing Automatic Climate Control
Pressing the (windshield defroster) button
turns the air conditioning system on and
automatically switches the system to fresh air
mode.
Press the button again to turn off, the
system returns to the previous settings.
■Defrosting the Windshield and Windows
1Defrosting the Windshield and Windows
For your safety, make sure you have a clear view
through all the windows before driving.
Do not set the temperature near the upper or lower
limit.
When cold air hits the windshield, the outside of the
windshield may fog up.
If the side windows fog up, adjust the vents so that
the air hits the side windows.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 199 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuClimate Control System*uUsing Automatic Climate Control
200
Controls
■To rapidly defrost the windows
1. Press the button.
2. Press the button.
1To rapidly defrost the windows
After defrosting the windows, switch over to fresh air
mode. If you keep the system in recirculation mode,
the windows may fog up from humidity. This
impedes visibility.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 200 ページ ２０１６年８月３１日　水曜日　午後６時５分
201
uuClimate Control System*uUsing Automatic Climate Control
You can set the temperature synchronously for the driver’s side and the passenger’s
side in synchronized mode.
1. Press the SYNC button.
uThe system switches to synchronized mode.
2. Adjust the temperature using the driver’s side temperature control dial.
Press the SYNC button to return to dual mode.
■Synchronized Mode*
1Synchronized Mode*
When the system is in dual mode, the driver’s side
temperature and the passenger’s side temperature
can be set separately.
SYNC Button
Driver Side
Temperature
Control Dial
Passenger
Side
Temperature
Control Dial
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 201 ページ ２０１６年８月３１日　水曜日　午後６時５分
202
uuClimate Control System*uAutomatic Climate Control Sensors
Controls
Automatic Climate Control Sensors
The automatic climate control system is
equipped with sensors. Do not cover or spill
any liquid on them.
Sensor
Sensor
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 202 ページ ２０１６年８月３１日　水曜日　午後６時５分
203
Features
This chapter describes how to operate technology features.
Audio System
About Your Audio System................ 204
USB Port(s)....................................... 205
Audio System Theft Protection ......... 206
Audio Remote Controls.................... 207
Audio System Basic Operation ........ 211
Audio/Information Screen ................ 212
Adjusting the Sound ........................ 216
Display Setup ................................... 217
Playing the AM/FM Radio ................. 218
Playing an iPod ................................ 220
Models with color audio system
Playing a USB Flash Drive ................. 223
Playing Bluetooth® Audio................. 226
Audio System Basic Operation ........ 229
Audio/Information Screen ................ 230
Adjusting the Sound ........................ 251
Display Setup ................................... 252
Voice Control Operation .................. 254
Playing AM/FM Radio....................... 258
Playing SiriusXM® Radio*................. 262
Playing an iPod ................................ 270
Song By VoiceTM (SBV)...................... 273
Playing Pandora®*............................ 277
Models with Display Audio
Playing a USB Flash Drive ................. 279
Playing Bluetooth® Audio ................ 282
HondaLink®..................................... 284
Wi-Fi Connection............................. 289
Siri Eyes Free.................................... 291
Apple CarPlay .................................. 292
Android Auto .................................. 295
Audio Error Messages ...................... 299
General Information on the Audio
System ............................................. 302
Customized Features........................ 308
Bluetooth® HandsFreeLink®*... 339, 362
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 203 ページ ２０１６年８月３１日　水曜日　午後６時５分
204
Features
Audio System
About Your Audio System
The audio system features AM/FM radio and SiriusXM® Radio service*. It can also
play USB flash drives, and iPod, iPhone and Bluetooth® devices.
You can operate the audio system from the buttons and switches on the panel, the
remote controls on the steering wheel, or the icons on the touchscreen interface*.
1About Your Audio System
SiriusXM® Radio* is available on a subscription basis
only. For more information on SiriusXM® Radio*,
contact a dealer.
2General Information on the Audio System
P. 302
SiriusXM® Radio* is available in the United States and
Canada, except Hawaii, Alaska, and Puerto Rico.
SiriusXM®* is a registered trademark of SiriusXM
Radio, Inc.
iPod, iPhone and iTunes are trademarks of Apple Inc.
State or local laws may prohibit the operation of
handheld electronic devices while operating a
vehicle.
Remote Controls
iPod
USB Flash Drive
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 204 ページ ２０１６年８月３１日　水曜日　午後６時５分
205
uuAudio SystemuUSB Port(s)
USB Port(s)
Install the iPod USB connector or the USB flash
drive to the front USB port.
uThe USB port (1.0A) is for playing audio
files on a USB flash drive and connecting
a cellular phone and charging device.
uThe USB port (1.5A) is for charging
devices, playing audio files and
connecting compatible phones with
Apple CarPlay or Android Auto.
■In the console compartment*
The USB port (1.0A) is for playing audio files
on the USB flash drive and connecting a
cellular phone and charging device.
uMove the removable beverage holder
tray rearward.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1USB Port(s)
•Do not leave the iPod or USB flash drive in the
vehicle. Direct sunlight and high temperatures may
damage it.
•We recommend using an extension cable with the
USB port.
•Do not connect the iPod or USB flash drive using a
hub.
•Do not use a device such as a card reader or hard
disk drive, as the device or your files may be
damaged.
•We recommend keeping your data backed up
before using the device in your vehicle.
•Displayed messages may vary depending on the
device model and software version.
If the audio system does not recognize the iPod, try
reconnecting it a few times or reboot the device. To
reboot, follow the manufacturer’s instructions
provided with the iPod or visit www.apple.com/ipod.
The front USB port can supply up to 1.5A of power.
It does not output 1.5A unless requested by the
device.
For amperage details, read the operating manual of
the device that needs to be charged.
Turn the ignition switch to ACCESSORY (q or ON
(w*1 first.
Under certain conditions, a device connected to the
port may generate noise in the radio you are listening
to.
USB charge (1.5A)
Models with
color audio
system
Models with
Display Audio
Models with color audio system
Models with Display Audio
In the console compartment
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 205 ページ ２０１６年８月３１日　水曜日　午後６時５分
206
uuAudio SystemuAudio System Theft Protection
Features
Audio System Theft Protection
The audio system is disabled when it is disconnected from the power source, such as
when the battery is disconnected or goes dead. In certain conditions, the system
may display a code entry screen. If this occurs, reactivate the audio system.
■Reactivating the audio system
1. Turn the ignition switch to ON (w*1.
2. Turn on the audio system.
3. Press and hold the audio system power button for more than two seconds.
uThe audio system is reactivated when the audio control unit establishes a
connection with the vehicle control unit. If the control unit fails to recognize
the audio unit, you must go to a dealer and have the audio unit checked.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 206 ページ ２０１６年８月３１日　水曜日　午後６時５分
207
uuAudio SystemuAudio Remote Controls
Continued
Audio Remote Controls
Allow you to operate the audio system while driving.
SOURCE Button
Cycles through the audio modes as follows:
FM AM USB iPod Bluetooth® Audio
(+ (- (Volume) Buttons
Press (+: To increase the volume.
Press (-: To decrease the volume.
Buttons
•When listening to the radio
Press : To select the next preset radio station.
Press : To select the previous preset radio station.
Press and hold : To select the next station with strong reception.
Press and hold : To select the previous station with strong reception.
•When listening to an iPod, USB flash drive, or Bluetooth® Audio
Press : To skip to the next song.
Press : To go back to the beginning of the current or previous song.
•When listening to a USB flash drive
Press and hold : To skip to the next folder.
Press and hold : To go back to the previous folder.
1Audio Remote Controls
Some modes appear only when an appropriate
device or medium is used.
Depending on the Bluetooth® device you connect,
some functions may not be available.
Models with information display
Button
SOURCE Button
Button
(+ Button
(- Button
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 207 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuAudio SystemuAudio Remote Controls
208
Features
Allow you to operate the audio system while driving. The information is shown on
the driver information interface.
Buttons
Press or to cycle through the audio
mode as follows:
FM AM SiriusXM®*USB iPod
Bluetooth®Audio Pandora®*Apps*
Audio Apps*
•When listening to the radio and SiriusXM®*
1. Press ENTER to switch the display to a
preset list you stored in the preset buttons.
2. Press or to select a preset, then press
ENTER.
•When listening to a USB flash drive
1. Press ENTER to display the folder list.
2. Press or to select a folder.
3. Press ENTER to display a list of tracks in that
folder.
4. Press or to select a track, then press
ENTER.
You can also swipe up or down to scroll
through the list of tracks alphabetically.
1Audio Remote Controls
Some modes appear only when an appropriate
device or medium is used.
Depending on the Bluetooth® device you connect,
some functions may not be available.
Press the (Hang-up/back) button to go back
to the previous command or cancel a command.
Press the button to switch display.
2Switching the Display P. 230
Models with driver information interface
Button
ENTER Button
Button
(+ (- Bar
Button
Button
3
Button
4
3
4
3
4
3
4
3
4
3
4
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 208 ページ ２０１６年８月３１日　水曜日　午後６時５分
209
uuAudio SystemuAudio Remote Controls
Continued
•When listening to an iPod
1. Press ENTER to display the iPod music list.
2. Press or to select a category.
3. Press ENTER to display a list of items in the
category.
4. Press or to select an item, then press
ENTER.
uPress ENTER and press or
repeatedly until the desired mode you
want to listen to is displayed.
You can also swipe up or down to scroll
through the list of tracks alphabetically.
•When listening to Internet Radio*
1. Press ENTER to display the station list.
2. Press or to select an item, then press
ENTER.
•When listening to Bluetooth®Audio
1. Press ENTER to display the track list.
2. Press or to select a track, then press
ENTER.
3
4
3
4
3
4
3
4
3
4
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 209 ページ ２０１６年８月３１日　水曜日　午後６時５分
210
uuAudio SystemuAudio Remote Controls
Features
(+ (- (Volume) Bar
Press (+: To increase the volume.
Press (-: To decrease the volume.
Slide your finger up or down to increase or decrease the volume, respectively.
Swipe down quickly to mute the volume and swipe up to cancel the mute.
Buttons
•When listening to the radio
Press : To select the next preset radio station.
Press : To select the previous preset radio station.
Press and hold : To select the next strong station.
Press and hold : To select the previous strong station.
•When listening to an iPod, USB flash drive, or Bluetooth® Audio
Press : To skip to the next song.
Press : To go back to the beginning of the current or previous song.
•When listening to a USB flash drive
Press and hold : To skip to the next folder.
Press and hold : To go back to the previous folder.
•When listening to Internet radio*
Press : To skip to the next song.
Press and hold : To select the next station.
Press and hold : To select the previous station.
Models with Display Audio
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 210 ページ ２０１６年８月３１日　水曜日　午後６時５分
211
Audio System Basic Operation
To use the audio system, the ignition switch must be in ACCESSORY (q or ON (w.
Use the selector knob or MENU/CLOCK
button to access some audio functions.
Press to switch between the normal and
extended display for some functions.
Selector knob: Rotate left or right to scroll
through the available choices. Press to set
your selection.
MENU/CLOCK button: Press to select any
mode.
The available mode includes the wallpaper,
display, clock, language setup, and play
modes. Play modes can be also selected from
scan, random, repeat, and so on.
(Back) button: Press to go back to the previous display.
(Sound) button: Press to select the sound setting mode.
(Day/Night) button: Press to change the audio/information screen
brightness.
Press , then adjust the brightness using .
uEach time you press , the mode switches between the daytime mode,
nighttime mode and OFF mode.
Models with color audio system
1Audio System Basic Operation
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
Menu Items
2Adjust Clock P. 128
2Wallpaper Setup P. 214
2Display Setup P. 217
2Scan P. 219, 225
2Play Mode P. 222, 225
2RDS Settings P. 219
2Bluetooth P. 226
Press the SOURCE, , , or button on the
steering wheel to change any audio setting.
2Audio Remote Controls P. 207
(Back)
Button
Selector Knob
MENU/
CLOCK
Button
(Day/Night)
Button
(Sound)
Button
Menu Display
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 211 ページ ２０１６年８月３１日　水曜日　午後６時５分
212
uuAudio System Basic OperationuAudio/Information Screen
Features
Audio/Information Screen
Displays the audio status and wallpaper. From this screen, you can go to various
setup options.
■Switching the Display
Audio/Information Screen
Audio
Clock/Wallpaper
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 212 ページ ２０１６年８月３１日　水曜日　午後６時５分
213
uuAudio System Basic OperationuAudio/Information Screen
Continued
■Audio
Shows the current audio information.
■Clock/Wallpaper
Shows a clock screen or an image you import.
■Change display
1. Press the MENU/CLOCK button.
2. Rotate to select Settings, then press .
3. Rotate to select Display Change, then press .
4. Rotate to select Wallpaper, then press .
uIf you want to return to the audio display, select Audio.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 213 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuAudio System Basic OperationuAudio/Information Screen
214
Features
You can change, store, and delete the wallpaper on the audio/information screen.
■Import wallpaper
You can import up to three images, one at a time, for wallpaper from a USB flash
drive.
1. Connect the USB flash drive to the USB
port.
2USB Port(s) P. 205
2. Press the MENU/CLOCK button.
3. Rotate to select Settings, then press
.
4. Rotate to select Wallpaper, then press
.
5. Rotate to select Import, then press .
uThe picture name is displayed on the list.
6. Rotate to select a desired picture, then
press .
uThe selected picture is displayed.
7. Press to save the picture.
8. Press to select OK.
9. Rotate to select a location to save the
picture, then press .
uThe display will return to the wallpaper
setting screen.
■Wallpaper Setup
1Wallpaper Setup
•When importing wallpaper files, the image must be
in the USB flash drive’s root directory. Images in a
folder cannot be imported.
•The file name must be fewer than 64 characters.
•The file format of the image that can be imported
is BMP (bmp) or JPEG (jpg).
•The individual file size limit is 2 MB.
•The maximum image size is 1,920 x 936 pixels. If
the image size is less than 480 × 234 pixels, the
image is displayed in the middle of the screen with
the extra area appearing in black.
•Up to 255 files can be selected.
•If the USB flash drive does not have any pictures,
the No files detected message appears.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 214 ページ ２０１６年８月３１日　水曜日　午後６時５分
215
uuAudio System Basic OperationuAudio/Information Screen
■Select wallpaper
1. Press the MENU/CLOCK button.
2. Rotate to select Settings, then press .
3. Rotate to select Wallpaper, then press .
4. Rotate to select Select, then press .
uThe screen changes to the wallpaper list.
5. Rotate to select a desired wallpaper, then press .
■To view wallpaper once it is set
1. Press the MENU/CLOCK button.
2. Rotate to select Settings, then press .
3. Rotate to select Display Change, then press .
4. Rotate to select Wallpaper, then press .
uThe screen changes to the wallpaper list.
5. Rotate to select a wallpaper that you want to set, then press .
■Delete wallpaper
1. Press the MENU/CLOCK button.
2. Rotate to select Settings, then press .
3. Rotate to select Wallpaper, then press .
4. Rotate to select Delete, then press .
uThe screen changes to the wallpaper list.
5. Rotate to select a wallpaper that you want to delete, then press .
6. Rotate to select Yes, then press .
uThe display will return to the wallpaper setting screen.
1Wallpaper Setup
To go back to the previous screen, press the
(Back) button.
When the file size is large, it takes a while to be
previewed.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 215 ページ ２０１６年８月３１日　水曜日　午後６時５分
216
uuAudio System Basic OperationuAdjusting the Sound
Features
Adjusting the Sound
Press the (sound) button, and rotate
to scroll through the following choices:
Rotate to adjust the sound setting, then
press .
1Adjusting the Sound
The SVC has four modes: Off, Low, Mid, and High.
SVC adjusts the volume level based on the vehicle
speed. As you go faster, audio volume increases. As
you slow down, audio volume decreases.
LIST/SELECT (Selector) Knob
(Sound) Button
TRE is selectable.
BAS
TRE
FAD
BAL
SVC
Bass
Treble
Fader
Balance
Speed-sensitive
Volume
Compensation
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 216 ページ ２０１６年８月３１日　水曜日　午後６時５分
217
uuAudio System Basic OperationuDisplay Setup
Display Setup
You can change the brightness or color theme of the audio/information screen.
1. Press the MENU/CLOCK button.
2. Rotate to select Settings, then press
.
3. Rotate to select Display Adjustment,
then press .
4. Rotate to select Brightness, then press
.
5. Rotate to adjust the setting, then press
.
1. Press the MENU/CLOCK button.
2. Rotate to select Settings, then press
.
3. Rotate to select Color Theme, then
press .
4. Rotate to select the setting you want,
then press .
■Changing the Screen Brightness
1Changing the Screen Brightness
You can change the Contrast and Black level
settings in the same manner.
■Changing the Screen’s Color Theme
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 217 ページ ２０１６年８月３１日　水曜日　午後６時５分
218
uuAudio System Basic OperationuPlaying the AM/FM Radio
Features
Playing the AM/FM Radio
RADIO Button
Press to select a band.
(Back) Button
Press to go back to the previous
display or cancel a setting.
/ (Seek/Skip) Buttons
Press or to search up and down
the selected band for a station with a strong
signal.
VOL/ (Volume/power) Knob
Press to turn the audio system
on and off.
Turn to adjust the volume.
Preset Buttons (1-6)
To store a station:
1. Tune to the selected station.
2. Pick a preset button and hold it until you hear a beep.
To listen to a stored station, select a band, then press the preset button.
Selector Knob
Turn to tune the radio frequency.
Press, and then turn to select an
item. After that, press again to
make your selection.
MENU/CLOCK Button
Press to display the menu items.
Audio/Information Screen
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 218 ページ ２０１６年８月３１日　水曜日　午後６時５分
219
uuAudio System Basic OperationuPlaying the AM/FM Radio
Provides text data information related to your selected RDS capable FM station.
■To find an RDS station from Station List
1. Press while listening to an FM station.
2. Rotate to select the station, then press .
■Update List
Updates your available station list at any time.
1. Press while listening to an FM station.
2. Rotate to select Update List, then press .
■Radio text
Displays the radio text information of the selected RDS station.
1. Press the MENU/CLOCK button.
2. Rotate to select Settings, then press .
3. Rotate to select RDS Settings, then press .
4. Rotate to select Radio Text, then press .
■Scan
Samples each of the strongest stations on the selected band for 10 seconds.
1. Press the MENU/CLOCK button.
2. Rotate to select Scan, then press .
To turn off scan, press .
■Radio Data System (RDS)
1Playing the AM/FM Radio
The ST indicator appears on the display indicating
stereo FM broadcasts.
Stereo reproduction in AM is not available.
You can store 6 AM stations and 12 FM stations into
the preset memory.
Switching the Audio Mode
Press the SOURCE button on the steering wheel.
2Audio Remote Controls P. 207
1Radio Data System (RDS)
When you select an RDS-capable FM station, the RDS
automatically turns on, and the frequency display
changes to the station name. However, when the
signals of that station become weak, the display
changes from the station name to the frequency.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 219 ページ ２０１６年８月３１日　水曜日　午後６時５分
220
uuAudio System Basic OperationuPlaying an iPod
Features
Playing an iPod
Connect the iPod using your USB connector to the USB port, then press the MEDIA
button.
2USB Port(s) P. 205
USB Indicator
Appears when an iPod is connected.
MEDIA Button
Press to select iPod
(if connected).
(Back) Button
Press to go back to the previous
display or cancel a setting.
/ (Seek/Skip) Buttons
Press or to change songs.
Press and hold to move rapidly within a song.
VOL/ (Volume/power) Knob
Press to turn the audio system on
and off.
Turn to adjust the volume.
Selector Knob
Turn to change songs.
Press and turn to select an item,
then press to set your selection.
MENU/CLOCK Button
Press to display the menu items.
Audio/Information Screen
Album Art
Play Mode Buttons
Press to select a play mode.
Play Button
Press to resume a
song.
Pause Button
Press to pause a
song.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 220 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 221
uuAudio System Basic OperationuPlaying an iPod
1. Press to display the iPod music list.
2. Rotate to select a category.
3. Press to display a list of items in the
category.
4. Rotate to select an item, then press .
uPress and rotate repeatedly until a
desired item you want to listen is
displayed.
■How to Select a Song from the iPod Music List with the
Selector Knob
1Playing an iPod
Available operating functions vary on models or
versions. Some functions may not be available on the
vehicle’s audio system.
If there is a problem, you may see an error message
on the audio/information screen.
2iPod/USB Flash Drive P. 299
Item
Selection
Category
Selection
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 221 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuAudio System Basic OperationuPlaying an iPod
222
Features
You can select repeat and shuffle modes when playing a song.
Available mode icons appear above the play
mode buttons.
Press the button corresponding to the mode
you want to select.
■To turn off a play mode
Press the selected button.
■How to Select a Play Mode
1How to Select a Play Mode
Play Mode Menu Items
Shuffle Album: Plays all available albums in
a selected category (playlists, artists, albums, songs,
genres, or composers) in random order.
Shuffle All: Plays all available songs in a
selected category (playlists, artists, albums, songs,
genres, or composers) in random order.
Repeat One Track: Repeats the current
song.
You can also select a play mode by pressing the
MENU/CLOCK button.
Rotate to select Play Mode, then press .
Rotate to select a mode, then press .
To turn it off, rotate to select Normal Play, then
press .
Play Mode Buttons
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 222 ページ ２０１６年８月３１日　水曜日　午後６時５分
223
uuAudio System Basic OperationuPlaying a USB Flash Drive
Continued
Playing a USB Flash Drive
Your audio system reads and plays sound files on a USB flash drive in either MP3,
WMA or AAC*1 format.
Connect your USB flash drive to the USB port, then press the MEDIA button.
2USB Port(s) P. 205
*1:Only AAC format files recorded with iTunes are playable on this unit.
USB Indicator
Appears when a USB flash drive is connected.
MEDIA Button
Press to select USB flash drive
(if connected).
(Back) Button
Press to go back to the previous display.
/ (Seek/Skip) Buttons
Press or to change files.
Press and hold to move rapidly within a file.
VOL/ (Volume/power) Knob
Press to turn the audio system on
and off.
Turn to adjust the volume.
Selector Knob
Turn to change files.
Press and turn to select an item,
then press to set your selection.
MENU/CLOCK Button
Press to display the menu items.
Audio/Information Screen
Play Mode Buttons (1-6)
Press to select a play mode.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 223 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuAudio System Basic OperationuPlaying a USB Flash Drive
224
Features
1. Press to display a folder list.
2. Rotate to select a folder.
3. Press to display a list of files in that
folder.
4. Rotate to select a file, then press .
■How to Select a File from a Folder with the Selector Knob
1Playing a USB Flash Drive
Use the recommended USB flash drives.
2General Information on the Audio System
P. 302
Files in WMA format protected by digital rights
management (DRM) cannot be played.
The audio system displays UNPLAYABLE FILE, and
then skips to the next file.
If there is a problem, you may see an error message
on the audio/information screen.
2iPod/USB Flash Drive P. 299
Track
Selection
Folder
Selection
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 224 ページ ２０１６年８月３１日　水曜日　午後６時５分
225
uuAudio System Basic OperationuPlaying a USB Flash Drive
You can select repeat, random, and scan modes when playing a file.
Available mode icons appear above the play
mode buttons.
Press the button corresponding to the mode
you want to select.
■To turn off a play mode
Press the selected button.
■How to Select a Play Mode
1How to Select a Play Mode
Play Mode Menu Items
Repeat
Repeat One Folder: Repeats all files in the
current folder.
Repeat One Track: Repeats the current file.
Random
Random in Folder: Plays all files in the
current folder in random order.
Random All: Plays all files in random order.
Scan
Scan Folders: Provides 10-second sampling
of the first file in each of the main folders.
Scan Tracks: Provides 10-second sampling of
all files in the current folder.
You can also select a play mode by pressing the
MENU/CLOCK button.
Rotate to select Play Mode, then press .
Rotate to select a mode, then press .
To turn it off, rotate to select Normal Play, then
press .
Play Mode Buttons
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 225 ページ ２０１６年８月３１日　水曜日　午後６時５分
226
uuAudio System Basic OperationuPlaying Bluetooth® Audio
Features
Playing Bluetooth® Audio
Your audio system allows you to listen to music from your Bluetooth-compatible
phone.
This function is available when the phone is paired and connected to the vehicle’s
Bluetooth® HandsFreeLink® (HFL) system.
2Phone Setup P. 345
1Playing Bluetooth® Audio
Not all Bluetooth-enabled phones with streaming
audio capabilities are compatible with the system.
For a list of compatible phones:
•U.S.: Visit www.handsfreelink.honda.com, or call
1-888-528-7876.
•Canada: Visit www.handsfreelink.ca, or call 1-888-
528-7876.
In some states, it may be illegal to perform some data
device functions while driving.
Only one phone can be used with HFL at a time.
When there are more than two paired phones in the
vehicle, the first paired phone the system finds is
automatically connected.
If more than one phone is paired to the HFL system,
there will be a delay before the system begins to play.
In some cases, the name of the artist, album, or track
may not appear correctly.
Some functions may not be available on some
devices.
MEDIA Button
Press to select
Bluetooth® Audio.
VOL/
(Volume/
Power) Knob
Press to turn
the audio
system on and
off.
Turn to adjust
the volume.
MENU/CLOCK
Button
Press to
display the
menu items.
Audio/Information Screen
Bluetooth Indicator
Appears when your phone is connected to HFL.
/ (Seek/Skip) Buttons
Press or to change files.
Play Button (Preset 1)
Press to resume a file.
Pause Button (Preset 2)
Press to pause a file.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 226 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 227
uuAudio System Basic OperationuPlaying Bluetooth® Audio
1. Make sure that your phone is paired and
connected to HFL.
2. Press the MEDIA button until the
Bluetooth® Audio Source is selected.
If the phone is not recognized, another HFL-
compatible phone, which is not compatible
for Bluetooth® Audio, may already be
connected.
■To pause or resume a file
Press the Play or Pause button to select a mode.
■To Play Bluetooth® Audio Files
1To Play Bluetooth® Audio Files
To play the audio files, you may need to operate your
phone. If so, follow the phone maker's operating
instructions.
The pause function may not be available on some
phones.
If any audio device is connected to the auxiliary input
jack or USB port, you may need to press the MEDIA
button repeatedly to select the Bluetooth® Audio
system.
Switching to another mode pauses the music playing
from your phone.
Play Button
Pause Button
MEDIA Button
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 227 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuAudio System Basic OperationuPlaying Bluetooth® Audio
228
Features
1. Press to display the music search list.
2. Rotate to select a category.
3. Press to display a list of items in the
category.
4. Rotate to select an item, then press .
uPress and rotate repeatedly until a
desired item you want to listen is
displayed.
■How to Select a Song from the Music Search List with the
Selector Knob
1How to Select a Song from the Music Search List with the Selector
Knob
Depending on the Bluetooth® device you connect,
some or all of the categories may not be displayed.
Item
Selection
Category
Selection
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 228 ページ ２０１６年８月３１日　水曜日　午後６時５分
229
Audio System Basic Operation
To use the audio system function, the ignition switch must be in ACCESSORY (q or
ON (w*1.
: Select to go to the home screen.
2Switching the Display P. 230
: Select to display available options
including Sound, View Radio Text, Music
Search, and playback modes.
: Select to go back to the previous screen
when the icon is illuminated.
button: Press to change the audio/
information screen brightness.
Press once and select (- or (+ to make
an adjustment.
uEach time you press , the mode
switches between daytime, nighttime
and off.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1Audio System Basic Operation
Audio Menu Items
2Station List P. 259, 260
2Music Search List P. 271, 280
2Scan P. 260, 261, 269, 281
2Play Mode P. 272, 281
Models with Display Audio
(Day/Night) Button
(Home) Icon
(Back) Icon
(Menu) Icon
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 229 ページ ２０１６年８月３１日　水曜日　午後６時５分
230
uuAudio System Basic OperationuAudio/Information Screen
Features
Audio/Information Screen
Displays the audio status and wallpaper. From this display, you can go to various
setup options.
■Using the button
Press the (display) button to change the display.
■Switching the Display
1Using the button
You can edit, add, and delete the contents shown on
the driver information interface.
2Customizing the Meter P. 235
Driver Information
Interface
(Display) Button
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 230 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 231
uuAudio System Basic OperationuAudio/Information Screen
■Using the audio/information screen
Select to go to the home screen.
Select Phone, Info, Audio, Settings, Navigation*, HondaLink, Smartphone
Connection (Apple CarPlay, Android Auto), App List, or Instrument Panel.
■Phone
Displays the HFL information.
2Bluetooth® HandsFreeLink®* P. 362
1Using the audio/information screen
Touchscreen operation
•Use simple gestures - including touching, swiping
and scrolling - to operate certain audio functions.
•Some items may be grayed out during driving to
reduce the potential for distraction.
•You can select them when the vehicle is stopped or
use voice commands.
•Wearing gloves may limit or prevent touchscreen
response.
You can change the touchscreen sensitivity setting.
2Customized Features P. 330
Home Screen
Models without navigation system
Models with navigation system
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 231 ページ ２０１６年８月３１日　水曜日　午後６時５分
232
uuAudio System Basic OperationuAudio/Information Screen
Features
■Info
Displays Trip Computer or Clock/Wallpaper. Select on the Info Menu screen
to see all available options: Trip Computer, Voice Info, Clock/Wallpaper and
System/Device Information.
Trip Computer:
•Current Drive tab: Displays the current trip information.
•History of Trip A tab: Displays information for the three previous drives. The
information is stored every time you reset Trip A.
To delete the history manually, select Delete History on the History of Trip A
tab. The confirmation message appears on the screen, then select Yes.
Voice Info: Displays the all commands list.
Clock/Wallpaper: Displays the clock and wallpaper.
System/Device Information:
•System Info: Displays the software version of the audio system.
•USB Info: Displays the memory usage of the USB device.
■Audio
Displays the current audio information.
■Settings
Enters the customizing menu screen.
2Customized Features P. 308
■Navigation*
Displays the navigation screen.
2Refer to the Navigation System Manual
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 232 ページ ２０１６年８月３１日　水曜日　午後６時５分
233
uuAudio System Basic OperationuAudio/Information Screen
Continued
■HondaLink
Connects with your smartphone*1 to play personalized music, information, and
social media streams.
2HondaLink® P. 284
■Smartphone Connection
Connects with your smartphone*1 and allows some apps on your smartphone to be
used on the audio system.
2Apple CarPlay P. 292
2Android Auto P. 295
■App List
Adds or removes apps or widgets on the home screen.
2Home Screen P. 241
■Instrument Panel
Selects from three customizable settings for the driver information interface.
*1: Available on specific phones only. Check handsfreelink.honda.com for U.S. and
www.handsfreelink.ca for Canada for compatible phones and hondalink.com for U.S. and
honda.ca/hondalink for Canada for feature details.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 233 ページ ２０１６年８月３１日　水曜日　午後６時５分
234
uuAudio System Basic OperationuAudio/Information Screen
Features
1. Select .
2. Select and hold an icon.
uThe screen switches to the customization
screen.
3. Drag and drop the icon to where you want
it to be.
4. Select OK.
uThe screen will return to the home
screen.
■Changing the Home Screen Icon Layout
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 234 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 235
uuAudio System Basic OperationuAudio/Information Screen
You can edit, add, or delete the meter contents on the driver information interface.
1.
2. Settings
3. System
4. Configuration of Instrument Panel
■Customizing the Meter
1Customizing the Meter
You can store up to three customized configurations.
To select or customize a configuration, press Swap
Config..
When you select Swap Config. during
customization, the settings you changed will be
saved.
When you select during customization, the
settings you changed will not be saved and you will
be returned to the Configuration of Instrument
Panel screen.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 235 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuAudio System Basic OperationuAudio/Information Screen
236
Features
■Editing order
To change the order of the icons on the driver information interface, first select:
1. Edit Order
2. Select the icon you want to move.
uYou will see arrows on both sides of the
selected icon.
3. Select the left or right arrow repeatedly to
move the icon to your desired position.
4. Select OK.
uThe screen will return to the
Configuration of Instrument Panel
screen.
1Editing order
You can use an alternative method to change the
order of the icons. First select:
1. Edit Order
2. Select and hold the icon you want to move.
3. Drag and drop the icon to where you want it to
be.
4. Select OK.
uThe screen will return to the Configuration of
Instrument Panel screen.
Edit Order
Select
Arrow icons OK
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 236 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 237
uuAudio System Basic OperationuAudio/Information Screen
■Adding contents
You can add up to 10 contents on the driver information interface. To add contents,
first select:
1. Add
2. Select an icon you want to add.
uYou will see a plus mark on the upper
right hand corner of the selected icon.
3. Select OK.
uThe screen will return to the
Configuration of Instrument Panel
screen.
1Adding contents
Icons that are grayed out cannot be selected.
If an icon has a plus mark in the upper-right corner, it
means that the icon has already been added.
Add
Select
OK
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 237 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuAudio System Basic OperationuAudio/Information Screen
238
Features
■Deleting contents
To delete contents on the driver information interface, first select:
1. Delete
2. Select an icon you want to delete.
uThe icon with an X on the upper right
hand corner can be deleted.
3. Select OK.
uThe screen will return to the
Configuration of Instrument Panel
screen.
1Deleting contents
You can also delete contents by selecting:
1. Delete or Edit Order
2. Select and hold an icon you want to delete.
3. Drag and drop the icon to the trash icon.
4. Select OK.
uThe screen will return to the Configuration of
Instrument Panel screen.
Delete
Select
OK
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 238 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 239
uuAudio System Basic OperationuAudio/Information Screen
You can change, store, and delete the wallpaper on the audio/information screen.
■Import wallpaper
You can import up to five images, one at a time, for wallpaper from a USB flash
drive.
1. Connect the USB flash drive to the USB
port.
2USB Port(s) P. 205
2. Select Settings.
3. Select Clock.
4. Select Clock/Wallpaper Type, then open
the Wallpaper tab.
5. Select Add New.
uThe picture name is displayed on the list.
6. Select a desired picture.
uThe preview is displayed on the left side
on the screen.
7. Select Start Import to save the data.
uThe display will return to the wallpaper
list.
■Wallpaper Setup
1Wallpaper Setup
The wallpaper you set up on Clock/Wallpaper Type
cannot be displayed on the driver information
interface.
•When importing wallpaper files, the image must be
in the USB flash drive’s root directory.
Images in a folder cannot be imported.
•The file name must be fewer than 64 characters.
•The file format of the image that can be imported
is BMP (bmp) or JPEG (jpg).
•The individual file size limit is 5 MB.
•The maximum image size is 4,096 × 4,096 pixels. If
the image size is less than 800 × 480 pixels, the
image is displayed in the middle of the screen with
the extra area appearing in black.
•If the USB flash drive does not have any pictures,
the No files detected message appears.
After changing the screen interface design, you can
change the wallpaper by following procedure.
1. Select .
2. Select and hold empty space on the home screen.
The pop-up menu appears on the screen.
3. Select Change Wallpaper.
4. Select Gallery, Live wallpapers, or Wallpapers.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 239 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuAudio System Basic OperationuAudio/Information Screen
240
Features
■Select wallpaper
1. Select Settings.
2. Select Clock.
3. Select Clock/Wallpaper Type, then open the Wallpaper tab.
uThe screen changes to the wallpaper list.
4. Select a desired wallpaper.
uThe preview is displayed on the left side on the screen.
uThe pop-up menu appears on the screen.
5. Select Set.
uThe display will return to the wallpaper list.
■To view wallpaper once it is set
1. Select .
2. Select Info.
3. Select .
4. Select Clock/Wallpaper.
■Delete wallpaper
1. Select Settings.
2. Select Clock.
3. Select Clock/Wallpaper Type, then open the Wallpaper tab.
uThe screen changes to the wallpaper list.
4. Select a wallpaper that you want to delete.
uThe preview is displayed on the left side on the screen.
uThe pop-up menu appears on the screen.
5. Select Delete.
uA confirmation message appears on the screen.
6. Select Yes to delete completely.
uThe display will return to the wallpaper list.
1Wallpaper Setup
From the pop-up menu, select Preview to see a
preview at full-size screen.
To go back to the previous screen, select OK, or
select .
When the file size is large, it takes a while to be
previewed.
To delete all wallpapers you add, select Delete All,
then Yes.
12:34
AM
XX. XX. XXXX(XX.)
12ᾉ34
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 240 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 241
uuAudio System Basic OperationuAudio/Information Screen
■To change to a next screen
Selecting or , or swiping the screen left or right changes to the next screen.
■Home Screen
1Home Screen
The home screen has 5 pages (fixed). You cannot add
any more pages.
Select to go directly back to the first page of the
home screen from any page.
Swipe
Icon Icon Current page position
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 241 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuAudio System Basic OperationuAudio/Information Screen
242
Features
■To use apps or widgets
1. Select .
2. Select .
3. Select App List.
uThe Apps screen appears.
4. Select the app or widget you want to use.
Preinstall app list:
•App Installer: Allows you to install apps.
•Browser: Displays the web browser utilized
by smartphone and Wi-Fi connection.
•Calculator: Displays Calculator.
•Downloads: Displays the data
downloaded from the web browser and so
on.
•Gallery: Displays images.
•Search: Displays various retrieval screen.
1To use apps or widgets
Select and hold a selected app or widget to add that
app’s or widget’s shortcut on the home screen.
Pre-installed apps may not start up normally. If this
occurs, you need to reset the system.
2Defaulting All the Settings P. 338
If you perform Factory Data Reset, it may reset all
the settings to their factory default.
2Defaulting All the Settings P. 338
In case those apps still do not startup normally even
after Factory Data Reset, contact your dealer.
There is a possibility that a browser is shut down in
the situation of the use. In that situation, the screen
will return to before the browser startup.
You can delete user installed apps by the following
procedure.
1. Select .
2. Select Settings.
3. Select System.
4. Select the Others tab.
5. Select Detail Information.
6. Select an app that you want to delete.
7. Select Delete.
Pre-installed apps cannot be deleted.
App List Icon
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 242 ページ ２０１６年８月３１日　水曜日　午後６時５分
243
uuAudio System Basic OperationuAudio/Information Screen
Continued
■To add app or widget icons on the home screen
App or widget icons can be added on the home screen.
1. Select .
2. Select .
3. Select and hold empty space on the home
screen.
uThe pop-up menu appears on the screen.
4. Select Add App or Add Widget.
uThe App/Widget screen appears.
Select and hold.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 243 ページ ２０１６年８月３１日　水曜日　午後６時５分
244
uuAudio System Basic OperationuAudio/Information Screen
Features
5. Select and hold an app or widget icon you
want to add.
uThe screen switches to the customization
screen.
6. Drag and drop the icon to where you want
it to be.
7. Select OK.
uThe screen will return to the home
screen.
Select and hold.
Drag and drop.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 244 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 245
uuAudio System Basic OperationuAudio/Information Screen
■To move icons on the home screen
You can change location on the home screen.
1. Select and hold an icon.
uThe screen switches to the customization
screen.
2. Drag and drop the icon to where you want
it to be.
3. Select OK.
uThe screen will return to the home
screen.
1To move icons on the home screen
You can also move the Phone, Info, Audio,
Settings, Navigation*, HondaLink, Smartphone
Connection, App List, and Instrument Panel icons
in the same manner.
Select and hold.
Drag and drop.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 245 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuAudio System Basic OperationuAudio/Information Screen
246
Features
■To remove icons on the home screen
You can delete the icons on the home screen.
1. Select and hold an icon.
uThe screen switches to the customization
screen.
2. Drag and drop the icon you want to remove
to the trash icon.
uThe icon is removed from the home
screen.
3. Select OK.
uThe screen will return to the home
screen.
1To remove icons on the home screen
You cannot delete the Phone, Info, Audio,
Settings, Navigation*, HondaLink, Smartphone
Connection, App List, and Instrument Panel
icons.
Apps or widgets will not be deleted by deleting the
icon on the home screen.
Select and hold.
Drag and drop to
trash icon.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 246 ページ ２０１６年８月３１日　水曜日　午後６時５分
247
uuAudio System Basic OperationuAudio/Information Screen
Continued
1. Swipe the upper area of the screen.
uThe status area appears.
2. Select an item to see the details.
3. Select or swipe up the bottom bar to
close the area.
■Status Area
Swipe
Status Area Bar
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 247 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuAudio System Basic OperationuAudio/Information Screen
248
Features
You can change the screen interface design.
1. Select .
2. Select Settings.
3. Select System.
4. Select the Others tab.
5. Select Change Skin.
6. A confirmation message appears on the
screen. Select Yes.
■Changing the Screen Interface
1Changing the Screen Interface
After changing the screen interface design, you can
change the wallpaper by following procedure.
1. Select .
2. Select and hold empty space on the home screen.
The pop-up menu appears on the screen.
3. Select Change Wallpaper.
4. Select Gallery, Live wallpapers, or Wallpapers.
If you change the screen interface, some of the
setting items will change.
2Customized Features P. 308
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 248 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 249
uuAudio System Basic OperationuAudio/Information Screen
You can change menu icons on the right side of Audio, Phone, and Info screen.
1. Select and hold menu icon.
2. Select or icon, then Audio, Phone,
or Info from Menu Customize.
3. Select and hold the menu icon you want to
change, then drag and drop the icon to the
bottom.
4. Select and hold the menu icon you want to
add, then drag and drop the icon to above.
5. Select OK.
■Menu Customize
1Menu Customize
You can also use the method below to change menu
icon:
Select Settings System Home tab Menu icon
position
Select and hold
Menu Icons
To change Menu Icon
To add
Drag and drop
Drag and drop
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 249 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuAudio System Basic OperationuAudio/Information Screen
250
Features
You can close specific apps running in the background on the system.
1. Select and hold .
2. Select the Active tab.
uIf you select the Active/History tab, you
can close the apps that are currently
running and delete the app activity
history simultaneously.
3. Select an app you want to close.
4. Select Clear.
uThe display will return to the app list.
■Closing Apps
1Closing Apps
If you have a number of apps running in the
background and something goes wrong with the
audio system, some of those apps may not work
properly. If this happens, close all the apps and re-
launch the app/apps that you want to use.
To close all apps on the system, select Clear All, then
Yes.
You cannot close the HondaLink® and Garmin* apps.
Active Application
Gallery
Navigator
Calculator
Active/History Active
Clear ALL
Task Manager
Task Manager
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 250 ページ ２０１６年８月３１日　水曜日　午後６時５分
251
uuAudio System Basic OperationuAdjusting the Sound
Adjusting the Sound
1. Select .
2. Select Audio.
3. Select .
4. Select Sound.
Select a tab from the following choices:
•BAS-MID-TRE: Bass, Middle, Treble
•FAD-BAL-SUBW*: Fader, Balance,
Subwoofer*
•SVC∙Neural*: Speed Volume
Compensation, DTS Neural SurroundTM*
1Adjusting the Sound
The SVC has four modes: Off, Low, Mid, and High.
SVC adjusts the volume level based on the vehicle
speed. As you go faster, audio volume increases. As
you slow down, audio volume decreases.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 251 ページ ２０１６年８月３１日　水曜日　午後６時５分
252
uuAudio System Basic OperationuDisplay Setup
Features
Display Setup
You can change the brightness or color theme of the audio/information screen.
1. Select .
2. Select Settings.
3. Select System.
4. Select the Display tab.
5. Select Display Settings.
6. Select the setting you want.
7. Select OK.
1. Select .
2. Select Settings.
3. Select System.
4. Select the Display tab.
5. Select Background Color.
6. Select the setting you want.
7. Select OK.
■Changing the Screen Brightness
1Changing the Screen Brightness
You can change the Contrast and Black Level
settings in the same manner.
12ᾉ34
■Changing the Screen’s Color Theme
12ᾉ34
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 252 ページ ２０１６年８月３１日　水曜日　午後６時５分
253
uuAudio System Basic OperationuDisplay Setup
Select the current source icon, then select an icon on the source list to switch the
audio source.
Certain manual functions are disabled or inoperable while the vehicle is in motion.
You cannot select a grayed-out option until the vehicle is stopped.
■Selecting an Audio Source
1Selecting an Audio Source
If you startup preinstalled audio apps, is
displayed on the screen.
These preinstalled apps cannot be displayed on the
source select screen.
You can startup those audio apps from .
Pandora® is available only in the U.S..
■Limitations for Manual Operation
Select the source icon. Source Select Screen
Source List Icons
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 253 ページ ２０１６年８月３１日　水曜日　午後６時５分
254
uuAudio System Basic OperationuVoice Control Operation
Features
Voice Control Operation
Your vehicle has a voice control system that allows hands-free operation.
The voice control system uses the (Talk) and (hang-up/back) buttons on
the steering wheel and a microphone near the map lights on the ceiling.
To achieve optimum voice recognition when using the voice control system:
•Make sure the correct screen is displayed for the voice command that you are
using.
•Close the windows and moonroof*.
•Adjust the dashboard and side vents so air does not blow onto the microphone
on the ceiling.
•Speak clearly in a natural speaking voice without pausing between words.
•Reduce any background noise if possible. The system may misinterpret your
command if more than one person is speaking at the same time.
■Voice Recognition
1Voice Control Operation
When you press the button, a helpful prompt asks
what you would like to do. Press and release the
button again to bypass this prompt and give a
command.
1Voice Recognition
The voice control system can only be used from the
driver’s seat because the microphone unit removes
noises from the front passenger’s side.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 254 ページ ２０１６年８月３１日　水曜日　午後６時５分
255
uuAudio System Basic OperationuVoice Control Operation
Continued
When the (Talk) button is pressed,
available voice commands appear on the
screen.
For a complete list of commands, say “Voice
Help” after the beep or select Voice Help.
You can see the list of commands in Voice
Info on the Info menu screen. Select Info,
then select .
The system only recognizes the commands
on the following pages, at certain screens.
Free form voice commands are not
recognized.
*1: Models with navigation system
■Voice Portal Screen ■Phone Call
This can be only used when the phone is
connected. When the system recognizes the
Phone call command, the screen will
change to the voice recognition screen for
phone commands.
•Dial by number
•Call history
•Redial
•Call <Your Contact Name>
•Call <Phone Number>
•Call Police
•Call 911
Phone Call commands are not available if
using Apple CarPlay.
■Music Search
This can be only used when the iPod or USB
device is connected.
■Climate Control*1
When the system recognizes the Climate
Control command, the screen will change
the dedicated screen to the climate control
voice recognition screen.
2Climate Control Commands*1 P. 257
■Audio*1
When the system recognizes the Audio
command, the screen will change to the
audio voice recognition screen.
•Audio On
•Audio Off
•Radio FM
•Radio AM
•Radio SXM*
•Pandora*
•iPod
•USB
•Other Sources
Pandora* cannot be used with Android
Auto.
■Navigation*1
The screen changes to the navigation
screen.
2Refer to the Navigation System Manual
■HondaLink
This can be only used when the phone is
connected.
■Voice Setting
The screen changes to the Voice Recog tab
on the System settings screen.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 255 ページ ２０１６年８月３１日　水曜日　午後６時５分
256
uuAudio System Basic OperationuVoice Control Operation
Features
■Voice Help
You can see a list of the available
commands on the screen.
•Useful Commands
•Phone Commands
•Audio Commands*1
•On Screen Commands
•Music Search Commands
•General Commands
•Climate Control Commands*1
The system accepts these commands on the
voice portal top screen.
•Call <Phone Number>
•Call <Your Contact Name>
•What time is it?
•What is today’s date?
*1: Models with navigation system
■Useful Commands
The system accepts these commands on the
dedicated screen for the voice recognition
of the phone.
•Call by Number
•Call by Name
•Call <Phone Number>
•Call <Your Contact Name>
The system accepts these commands on the
dedicated screen for the voice recognition
of the audio.
■Radio FM Commands
•Radio tune to <87.7-107.9> FM
•Radio tune to <87.7 -107.9> HD <1-8>
FM
•Radio FM preset <1-12>
■Radio AM Commands
•Radio tune to <530-1710> AM
•Radio AM preset <1-6>
■Radio SXM Commands*
•SXM channel <1-255>
■Phone Commands
■Audio Commands*1
•SXM channel <channel name, category
name, traffic and weather city name,
sports team name>
•Radio SXM preset <1-12>
■Pandora Commands*
•Pandora play
■iPod Commands
•iPod play
•iPod play track <1-30>
•Music Search
•What album is this?
•What am I listening to?
■USB Commands
•USB play
•USB play track <1-30>
•Music Search
•What album is this?
•What am I listening to?
■Bluetooth® Audio Commands
•Bluetooth® Audio play
NOTE:
Bluetooth® Audio commands may not work
on some phones or Bluetooth® Audio
devices.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 256 ページ ２０１６年８月３１日　水曜日　午後６時５分
257
uuAudio System Basic OperationuVoice Control Operation
When On Screen Commands is selected,
the explanation screen is displayed.
The system accepts these commands on the
Music Search screen.
■Using Song By Voice
Song By VoiceTM is a feature that allows you
to select music from your iPod or USB device
using Voice Commands. To activate this
mode, you must push the talk switch and
say: “Music search”.
■Song By Voice Commands
•What am I listening to?
•Who am I listening to?
•Who is this?
•What’s playing?
•Who’s playing?
•What album is this?
*1: Models with navigation system
■On Screen Commands
■Music Search Commands
■Play Commands
•Play artist <Name>
•Play track/song <Name>
•Play album <Name>
•Play genre/category <Name>
•Play playlist <Name>
•Play composer <Name>
■List Commands
•List artist <Name>
•List album <Name>
•List genre/category <Name>
•List playlist <Name>
•List composer <Name>
•What time is it?
•What is today’s date?
■General Commands
•Climate Control on
•Climate Control off
•Fan Speed <1-7>
•Temperature max heat
•Temperature max cool
•Temperature <57-87> degrees
•Defrost on
•Defrost off
•Air conditioner on
•Air conditioner off
•More
•Climate control automatic
•Vent
•Dash and floor
•Fan speed up
•Fan speed down
•Floor vents
•Floor and defrost
•Temperature up
•Temperature down
■Climate Control Commands*1
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 257 ページ ２０１６年８月３１日　水曜日　午後６時５分
258
uuAudio System Basic OperationuPlaying AM/FM Radio
Features
Playing AM/FM Radio
*1:Some or all of the lists may not be displayed.
VOL
HOME
MENU
BACK
AUDIO
VOL (Volume) Icons
Select to adjust the volume.
(Back) Icon
Select to go back to the previous display.
Seek Icons
Select or to search the
selected band up or down for a
station with a strong signal.
/AUDIO (Power/Audio) Icon
Select to turn the audio system
on and off.
Open/Close Icon*1
Displays/hides the detailed
information.
(Menu) Icon
Select to display the menu items.
Tune Icons
Select or to tune the radio frequency.
Audio/Information Screen
Scan Icon
Select to scan each station with a strong signal.
Preset Icons
Tune the preset radio frequency. Select and hold the
preset icon to store that station. Select to display
preset 7 onwards.
Driver Information Interface
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 258 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 259
uuAudio System Basic OperationuPlaying AM/FM Radio
To store a station:
1. Tune to the selected station.
2. Select and hold the preset number for the station you want to store.
You can also store a preset station by the following procedure.
1. Tune to the selected station.
2. Select the open/close icon to display a list.
3. Select the Preset tab.
4. Select and hold the preset number for the station you want to store.
Lists the strongest stations on the selected band.
1. Select the open/close icon to display a list.
2. Select the Station List tab.
3. Select the station.
■Manual update
Updates your available station list at any time.
1. Select the open/close icon to display a list.
2. Select the Station List tab.
3. Select Refresh.
■Preset Memory
■Station List
1Preset Memory
The ST indicator appears on the display indicating
stereo FM broadcasts.
Stereo reproduction in AM is not available.
Switching the Audio Mode
Press the or button on the steering wheel or
select SOURCE on the screen.
2Audio Remote Controls P. 207
You can store 6 AM stations and 12 FM stations into
preset memory.
HD Radio Technology manufactured under license
from iBiquity Digital Corporation. U.S. and Foreign
Patents. HD RadioTM and the HD, HD Radio, and
“Arc” logos are proprietary trademarks of iBiquity
Digital Corp.
3
4
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 259 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuAudio System Basic OperationuPlaying AM/FM Radio
260
Features
Samples each of the strongest stations on the selected band for 10 seconds. To turn
off scan, select Cancel or .
Displays the subchannel list when an HD RadioTM station is selected while listening to
an FM station.
1. Select .
2. Select HD Subchannel.
3. Select the channel number.
Provides text data information related to your selected RDS-capable FM station.
■To find an RDS station from Station List
1. Select the open/close icon to display a list while listening to an FM station.
2. Select the Station List tab.
3. Select the station.
■Manual update
Updates your available station list at any time.
1. Select the open/close icon to display a list while listening to an FM station.
2. Select the Station List tab.
3. Select Refresh.
■Scan
■HD Subchannel
■Radio Data System (RDS)
Models with HD RadioTM
1Radio Data System (RDS)
When you select an RDS-capable FM station, the RDS
automatically turns on, and the frequency display
changes to the station name. However, when the
signals of that station become weak, the display
changes from the station name to the frequency.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 260 ページ ２０１６年８月３１日　水曜日　午後６時５分
261
uuAudio System Basic OperationuPlaying AM/FM Radio
■Radio text
Displays the radio text information of the selected RDS station.
1. Select .
2. Select View Radio Text.
■Scan
Samples each of the strongest stations on the selected band for 10 seconds.
To turn off scan, select Cancel or .
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 261 ページ ２０１６年８月３１日　水曜日　午後６時５分
262
uuAudio System Basic OperationuPlaying SiriusXM® Radio*
Features
Playing SiriusXM® Radio*
*1:Some or all of the lists may not be displayed.
VOL
HOME
MENU
BACK
AUDIO
VOL (Volume) Icons
Select to adjust the volume.
(Back) Icon
Select to go back to the previous display.
Channel Icons
Select or to the previous
or next channel.
Select and hold to rapidly skip 10
channels at a time.
/AUDIO (Power/Audio) Icon
Press to turn the audio system on
and off.
Open/Close Icon*1
Displays/hides the detailed
information.
(Menu) Icon
Select to display the menu items.
Category Icons
Select or to display and select a
SiriusXM® Radio category.
Audio/Information Screen
Scan Icon
Select to scan each channel.
Preset Icons
Tune the preset radio station. Select
and hold the preset icon to store that
station. Select to display preset 7
onwards.
Skip Icons
Select or to change
section in the channel.Select and
hold to move rapidly within the
section.
Driver Information Interface
Album Art
Station Art
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 262 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 263
uuAudio System Basic OperationuPlaying SiriusXM® Radio*
1. Select .
2. Select Tune Mode.
3. Select Channel Mode or Category Mode.
■To Change the Tune Mode
1Playing SiriusXM® Radio*
In the channel mode, all available channels are
selectable. In the category mode, you can select a
channel within a category (Jazz, Rock, Classical, etc.).
There may be instances when SiriusXM® Radio does
not broadcast all the data fields (artist name, title).
This does not indicate a problem with your audio
system.
SiriusXM® Radio stations load in ascending order,
which can take about a minute. Once they have
loaded you will be able to scroll up or down to make
your selections.
Switching the Audio Mode
Press the or button on the steering wheel or
select SOURCE on the screen.
2Audio Remote Controls P. 207
Tune Start:
When you change to a preset channel, a song being
played on that channel restarts from the beginning
with this function. This can be turned on or off from
the Audio settings screen.
2Customized Features P. 308
3
4
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 263 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuAudio System Basic OperationuPlaying SiriusXM® Radio*
264
Features
To store a channel:
1. Tune to the selected channel.
2. Press and hold the preset number for the station you want to store.
3. Select OK.
You can also store a channel by the following procedure.
1. Tune to the selected channel.
2. Select the open/close icon to display a list.
3. Select the Preset tab.
4. Select and hold the preset number for the station you want to store.
■Multi-channel preset (for music channels only)
You can store up to four of your preferred music channels per preset.
1. Tune a station.
2. Select the open/close icon to display a list.
3. Select the Preset tab.
4. Select and hold the preset number you
want to add a music channel.
uA message appears if there are no
available presets.
5. Select Combine.
■Preset Memory
1Playing SiriusXM® Radio*
You can store 12 SiriusXM® channels into the preset
memory.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 264 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 265
uuAudio System Basic OperationuPlaying SiriusXM® Radio*
Suggested channel listing received from SiriusXM® can be displayed and selected.
1. Select the open/close icon to display a channel list.
2. Select the Channel tab.
3. Select the featured channel list title you want to listen to.
uThe selected channel list of the title is displayed.
4. Select the channel.
■Listening to Featured Channels
1Listening to Featured Channels
Up to three featured channels by SiriusXM® can be
displayed.
Featured channel lists are at the top of the channel
list.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 265 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuAudio System Basic OperationuPlaying SiriusXM® Radio*
266
Features
The system can record up to the last 60 minutes of your currently tuned channel’s
broadcast, as well as the last 30 minutes of your preset channel’s broadcast, starting
from the moment you turn the vehicle on. If you tuned to a preset channel, the
system records up to 60 minutes of a broadcast instead of up to 30 minutes. You
can rewind and replay the last 30 or 60 minutes of a broadcast.
1. Select .
2. Select Playback.
3. Move the time marker to the position you want to replay.
The following items are available on the pop-up screen:
(Skip Down): Skips to the previously stored channel. Select and hold to
fastrewind the current selection.
(Skip Up): Skips to the next channel. Select and hold to fast-forward the
current selection.
(15sec Back): Select to skip back 15 seconds in the current selection. Select and
hold to fast-rewind the current selection.
(15sec Skip): Select to skip forward 15 seconds in the current selection. Select
and hold to fast-forward the current selection.
uSelect OK to close the pop-up menu. Replay in playback mode continues.
To play or pause on playback mode:
1. Select .
2. Select Play/Pause.
■Replay Function
1Replay Function
The system starts storing broadcast in memory when
the power mode is turned ON. You can go back to
the program from that point.
You can no longer replay any program once the
power mode is turned off as it erases memory.
You can check how long the program has been
stored in memory from the audio/information screen.
After 30 or 60 minutes of recording the system will
automatically start deleting the oldest data.
(A): Shows how much time the replayed segment is
behind the real-time broadcast
(B): Replayed segment
(C): Length stored in memory
When you listen a multi-channel preset while at the
playback mode, the replayed segment is not
displayed.
Genre AAA
Audio/Information Screen
(C)
(B)
(A)
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 266 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 267
uuAudio System Basic OperationuPlaying SiriusXM® Radio*
■Returning to real-time broadcast
1. Select .
2. Select Go to Live.
While listening to other channels, you can receive sports alerts such as scores from
the games of your favorite teams.
■To set up a favorite team
1. Select .
2. Select Settings.
3. Select Audio.
4. Select Sports Flash Setup.
5. Select Favorite Team.
6. Select a team.
■To set up an alert message
1. Select .
2. Select Settings.
3. Select Audio.
4. Select Sports Flash Setup.
5. Select Interrupt.
6. Select On(one time) or On(continue).
■Live Sports Alert
1Live Sports Alert
The sports alert function is available in SiriusXM®
mode only.
1To set up a favorite team
Sports alerts cut in only when SiriusXM® mode is on.
Selecting On(one time) from the customize settings
disables the alert feature next time you turn the
power mode to ON.
2Customized Features P. 308
You can also set up a favorite team by the following
procedure.
1. Select Audio.
2. Select .
3. Select Setting.
4. Select Sports Flash Setup.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 267 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuAudio System Basic OperationuPlaying SiriusXM® Radio*
268
Features
■To set up an alert beep
1. Select .
2. Select Settings.
3. Select Audio.
4. Select Sports Flash Setup.
5. Select Interrupt Beep.
6. Select On.
■Receiving a sports alert
1. A pop-up appears and notifies you of a sports alert.
2. Select Listen.
uYou can use the same items as the playback mode pop-up screen.
2Replay Function P. 266
To go back to the previous screen, select Back.
■Listening to a missed sports alert
If you have missed a sports alert:
1. Select .
2. Select Sports Flash List.
3. Select alert.
1To set up an alert beep
You can also set up a alert beep by the following
procedure.
1. Select Audio.
2. Select .
3. Select Setting.
4. Select Sports Flash Setup.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 268 ページ ２０１６年８月３１日　水曜日　午後６時５分
269
uuAudio System Basic OperationuPlaying SiriusXM® Radio*
You can receive traffic and weather information.
■To set up a traffic & weather information
1. Select .
2. Select Settings.
3. Select Audio.
4. Select Traffic & Weather Setup.
5. Select the region.
uWhen you do not want to receive the information, select Unregistered.
■Listening a traffic and weather information
1. Select .
2. Select Traffic & Weather.
uPlay mode can also use the any items same as playback mode.
2Replay Function P. 266
To go back to the previous screen, select OK.
Sample each channel on the selected mode for 10 seconds.
1. Select Scan.
2. Select Scan Channels.
uYou can select the desired channel by songs using Scan Songs in Preset.
To turn off scan, select Cancel Scan.
■Traffic and Weather Information
■Scan
1Traffic and Weather Information
The traffic and weather information function at
SiriusXM® mode only.
You can also set up the traffic and weather
information by the following procedure.
1. Select Audio.
2. Select .
3. Select Setting.
4. Select Traffic & Weather Setup.
Traffic & Weather Now are registered trademarks of
SiriusXM® Radio, Inc.
1Scan
The “Scan Songs in Preset” function is based on
TuneScanTM technology of SiriusXM®.
The “Featured Channels” function is based on
Featured FavoritesTM technology of SiriusXM®.
TuneScanTM and Featured FavoritesTM are registered
trademarks of SiriusXM® Radio, Inc.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 269 ページ ２０１６年８月３１日　水曜日　午後６時５分
270
uuAudio System Basic OperationuPlaying an iPod
Features
Playing an iPod
Connect the iPod using your USB connector to the USB port, then select the iPod
mode.
2USB Port(s) P. 205
*1:Some or all of the lists may not be displayed.
VOL
HOME
MENU
BACK
AUDIO
VOL (Volume) Icons
Select to adjust the volume.
(Back) Icon
Select to go back to the previous
display.
Song Icons
Select or to change songs.
Select and hold to move rapidly
within a song.
/AUDIO (Power/Audio) Icon
Select to turn the audio system
on and off.
Open/Close Icon*1
Displays/hides the detailed
information.
(Menu) Icon
Select to display the menu items.
Cover Art
Audio/Information Screen
Play/Pause Icon
Driver Information Interface
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 270 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 271
uuAudio System Basic OperationuPlaying an iPod
1. Select and select Music Search.
2. Select the items on that menu.
■How to Select a Song from the Music Search List
1Playing an iPod
Available operating functions vary on models or
versions. Some functions may not be available on the
vehicle’s audio system.
If there is a problem, you may see an error message
on the audio/information screen.
2iPod/USB Flash Drive P. 299
If you operate any music app on your iPhone/iPod
while the phone is connected to the audio system,
you may no longer be able to operate the same app
on the audio/information screen.
Reconnect the device if necessary.
Select Switch USB Device in the Audio menu
screen to switch to another USB device.
If an iPhone is connected via Apple CarPlay, the iPod/
USB source is unavailable and audio files on the
phone can only be played within Apple CarPlay.
Category
Selection
Item Selection
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 271 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuAudio System Basic OperationuPlaying an iPod
272
Features
You can select shuffle and repeat modes when playing a file.
Select a play mode.
■To turn off a play mode
Select the mode you want to turn off.
■How to Select a Play Mode
1How to Select a Play Mode
Play Mode Menu Items
Shuffle All Songs: Plays all available files in a
selected list (playlists, artists, albums, songs,
podcasts, genres, composers, or audiobooks) in
random order.
Shuffle Albums: Plays all available albums in a
selected list (playlists, artists, albums, songs,
podcasts, genres, composers, or audiobooks) in
random order.
Repeat Song: Repeats the current track.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 272 ページ ２０１６年８月３１日　水曜日　午後６時５分
273
uuAudio System Basic OperationuSong By VoiceTM (SBV)
Continued
Song By VoiceTM (SBV)
Use SBV to search for and play music from your USB flash drive or iPod using voice
commands.
■To enable SBV
1. Select .
2. Select Settings.
3. Select System.
4. Select the Voice Recog. tab.
5. Select Song by Voice.
6. Select On or Off.
1Song By VoiceTM (SBV)
Setting options:
•On (factory default): Song By VoiceTM commands
are available.
•Off: Disable the feature.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 273 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuAudio System Basic OperationuSong By VoiceTM (SBV)
274
Features
■Searching for music using SBV
1. Set the Song by Voice setting to On.
2. Press the (Talk) button and say “Music
Search” to activate the SBV feature for the
USB flash drive and iPod.
3. Then, say a next command.
uExample 1: Say “(List) ‘Artist A’“ to view a
list of songs by that artist. Select the
desired song to start playing.
uExample 2: Say “Play ‘Artist A’“ to start
playing songs by that artist.
4. To cancel SBV, press the (hang-up/
back) button on the steering wheel. The
selected song continues playing.
Once you have canceled this mode, you need
to press the button and say “Music Search”
again to re-activate this mode.
1Searching for music using SBV
Song By VoiceTM Commands List
2Song By Voice Commands P. 257
NOTE:
Song By VoiceTM commands are available for tracks
stored on the USB flash drive or iPod.
You can add phonetic modifications of difficult
words so that it is easier for SBV to recognize artists,
songs, albums, and composers in voice commands.
2Phonetic Modification P. 275
SBV is not available when using Apple CarPlay. Use
Siri Eyes Free instead.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 274 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 275
uuAudio System Basic OperationuSong By VoiceTM (SBV)
Add phonetic modifications of difficult or foreign words so that it is easier for SBV
to recognize artists, songs, albums, and composers in voice commands when
searching for music on the USB flash drive or iPod.
1. Select .
2. Select Settings.
3. Select System.
4. Select the Voice Recog. tab.
5. Select Song by Voice Phonetic
Modification.
6. Select New Modification.
7. Select USB or iPod.
■Phonetic Modification
1Phonetic Modification
Song by Voice Phonetic Modification is grayed
out when Song by Voice is set to Off.
You can store up to 2,000 phonetic modification
items.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 275 ページ ２０１６年８月３１日　水曜日　午後６時５分
276
uuAudio System Basic OperationuSong By VoiceTM (SBV)
Features
8. Select the item to modify (e.g., Artist).
uThe list of the selected item appears on
the screen.
9. Select an entry to modify.
uThe pop-up menu appears on the
screen.
uThe listen to the current phonetic
modification, select Play.
uTo delete the current phonetic
modification, select Delete.
10. Select Modify.
11. Select the phonetic spelling you want to
use (e.g., ”Artist A”) when prompted.
12. Select OK.
uThe artist “No Name” is phonetically
modified to “Artist A.” When in the SBV
mode, you can press the (Talk)
button and use the voice command
“Play ‘Artist A’” to play songs by the
artist “No Name.”
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 276 ページ ２０１６年８月３１日　水曜日　午後６時５分
277
uuAudio System Basic OperationuPlaying Pandora®*
Continued
Playing Pandora®*
Your audio system allows you to listen to music from the Pandora® app on a
compatible smartphone.
This function is available when the phone is paired and connected to the vehicle’s
Bluetooth® HandsFreeLink® (HFL) system, or with an iPhone, you can connect using
your USB cable to the USB port.
2Phone Setup P. 370
2USB Port(s) P. 205
*1:Some or all of the lists may not be displayed.
U.S. models
1Playing Pandora®*
Pandora®, the Pandora logo, and the Pandora trade
dress are trademarks or registered trademarks of
Pandora Media, Inc., used with permission. Pandora
is only available in certain countries. Visit the Pandora
website for more information.
To find out if your phone is compatible with this
feature, visit www.handsfreelink.honda.com, or call
1-888-528-7876.
To use this service in your vehicle, the Pandora® app
must first be installed on your phone. Visit
www.pandora.com for more information.
Pandora® is free, personalized radio that plays music
and comedy you’ll love. Just start with the name of
one of your favorite artists, songs, comedians or
composers and Pandora® will create a custom station
that plays similar tracks. Pandora® also features
hundreds of genre stations ranging from Dubstep to
Smooth Jazz to Power Workout.
If you cannot operate Pandora® through the audio
system, it may be streaming through Bluetooth®
Audio. Make sure Pandora® mode on your audio
system is selected.
If your phone is connected to Android Auto, Pandora
is only available through the Android Auto interface.
Visit the Android Auto website to check
compatibility.
VOL
HOME
MENU
BACK
AUDIO
Audio/Information
Screen
Cover Art
VOL (Volume) Icons
Select to adjust the
volume.
(Back) Icon
Select to go back to the
previous display.
/AUDIO (Power/
Audio) Icon
Select to turn the audio
system on and off.
(Menu) Icon
Select to display the
menu items.
Play/Pause Icon
Select to resume or play a song.
Station Up/Down Icons
Select to change a station.
Skip Icon
Select to skip a song.
Like/Dislike Icons
Select to evaluate a song.
Driver Information
Interface
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 277 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuAudio System Basic OperationuPlaying Pandora®*
278
Features
You can operate some of the Pandora® menu items from your vehicle’s audio
system. The available items are:
•Bookmark
•Station List
•New Station
•Sound
•Setting
■Operating a menu item
1. Select .
2. Select an item.
■Pandora® Menu
1Pandora® Menu
Available operating functions vary on software
versions. Some functions may not be available on the
vehicle’s audio system.
If there is a problem, you may see an error message
on the audio/information screen.
2Pandora®* P. 300
Pandora® may limit the total number of skips allowed
on the service. If you dislike a track after the skip limit
has been reached, your feedback will be saved but
the current track will continue to play.
To change stations, activate the Pandora® menu,
select Station List, and then select a new station. It
also changes stations on the main Pandora® screen.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 278 ページ ２０１６年８月３１日　水曜日　午後６時５分
279
uuAudio System Basic OperationuPlaying a USB Flash Drive
Continued
Playing a USB Flash Drive
Your audio system reads and plays sound files on a USB flash drive in either MP3,
WMA, or AAC*1 format.
Connect your USB flash drive to the USB port, then select the USB mode.
2USB Port(s) P. 205
*1:Only AAC format files recorded with iTunes are playable on this unit.
*2:Some or all of the lists may not be displayed.
VOL
HOME
MENU
BACK
AUDIO
VOL (Volume) Icons
Select to adjust the volume.
(Back) Icon
Select to go back to the previous
display.
Track Icons
Select or to change files.
Select and hold to move rapidly within
a track.
/AUDIO (Power/Audio) Icon
Select to turn the audio system on
and off.
Open/Close Icon*2
Displays/hides the detailed
information.
(Menu) Icon
Select to display the menu items.
Folder Icons
Select to skip to the next folder, and to skip to the beginning of the previous folder.
Audio/Information Screen
Driver Information Interface
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 279 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuAudio System Basic OperationuPlaying a USB Flash Drive
280
Features
1. Select and select Music Search.
2. Select Music.
3. Select a folder.
4. Select a track.
■How to Select a File from the Music Search List
1Playing a USB Flash Drive
Use the recommended USB flash drives.
2General Information on the Audio System
P. 302
WMA files protected by digital rights management
(DRM) cannot be played.
The audio system displays Unplayable File, then
skips to the next file.
If there is a problem, you may see an error message
on the audio/information screen.
2iPod/USB Flash Drive P. 299
Folder Selection
Track Selection
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 280 ページ ２０１６年８月３１日　水曜日　午後６時５分
281
uuAudio System Basic OperationuPlaying a USB Flash Drive
You can select scan, repeat, and random modes when playing a file.
■Scan
1. Select .
2. Select Scan.
3. Select a play mode.
■Random/Repeat
Select a play mode.
■To turn off a play mode
To turn off Scan, select or Cancel.
To turn off Random/Repeat, select the mode again.
■How to Select a Play Mode
1How to Select a Play Mode
Play Mode Menu Items
Scan
Scan Folders: Provides 10-second sampling of the
first file in each of the main folders.
Scan Tracks: Provides 10-second sampling of all files
in the current folder.
Random/Repeat
Random in Folder: Plays all files in the current
folder in random order.
Random All Tracks: Plays all files in random order.
Repeat Folder: Repeats all files in the current folder.
Repeat Track: Repeats the current file.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 281 ページ ２０１６年８月３１日　水曜日　午後６時５分
282
uuAudio System Basic OperationuPlaying Bluetooth® Audio
Features
Playing Bluetooth® Audio
Your audio system allows you to listen to music from your Bluetooth-compatible
phone.
This function is available when the phone is paired and connected to the vehicle’s
Bluetooth® HandsFreeLink® (HFL) system.
2Phone Setup P. 370
*1:Depending on the Bluetooth® device you connect, some or all of the lists may not
be displayed.
1Playing Bluetooth® Audio
Not all Bluetooth-enabled phones with streaming
audio capabilities are compatible.
To check if your phone is compatible, visit
http://www.handsfreelink.com/Honda/.
It may be illegal to perform some data device
functions while driving.
Only one phone can be used with HFL at a time.
When there are more than two paired phones in the
vehicle, the first paired phone the system finds is
automatically connected.
The connected phone for Bluetooth® Audio can be
different.
If more than one phone is paired to the HFL system,
there may be a delay before the system begins to
play.
In some cases, the name of the artist, album, or track
may not appear correctly.
Some functions may not be available on some
devices.
If a phone is currently connected via Apple CarPlay or
Android Auto, Bluetooth® Audio from that phone is
unavailable. However, a second previously paired
phone can stream Bluetooth® Audio by selecting
Connect from the Bluetooth Device List.
2Phone Setup P. 370
VOL
HOME
MENU
BACK
AUDIO
Audio/
Information
Screen
VOL (Volume)
Icons
Select to adjust
the volume.
(Back) Icon
Select to go back to the
previous display.
/AUDIO (Power/
Audio) Icon
Select to turn the
audio system on and
off.
(Menu) Icon
Select to display
the menu items.
Group Icons
Select or to change group.
Pause Icon
Play Icon
Bluetooth
Indicator
Appears when
your phone is
connected to
HFL.
Track Icons
Select or to change tracks.
Open/Close
Icon*1
Displays/hides
the detailed
information.
Driver Information
Interface
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 282 ページ ２０１６年８月３１日　水曜日　午後６時５分
283
uuAudio System Basic OperationuPlaying Bluetooth® Audio
1. Make sure that your phone is paired and
connected to the system.
2Phone Setup P. 370
2. Select the Bluetooth® Audio mode.
If the phone is not recognized, another HFL-
compatible phone, which is not compatible
for Bluetooth® Audio, may already be
connected.
■To pause or resume a file
Select the play icon or pause icon.
1. Select .
2. Select Music Search.
3. Select a search category (e.g., Albums).
4. Select an item.
uThe selection begins playing.
■To Play Bluetooth® Audio Files
1To Play Bluetooth® Audio Files
To play the audio files, you may need to operate your
phone. If so, follow the phone maker’s operating
instructions.
Switching to another mode pauses the music playing
from your phone.
You can change the connected phone in the
Bluetooth® settings on the Audio menu screen by
the following procedure.
1. Select .
2. Select Setting.
■Searching for Music
1Searching for Music
Depending on the Bluetooth® device you connect,
some or all of the lists may not be displayed.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 283 ページ ２０１６年８月３１日　水曜日　午後６時５分
284
uuAudio System Basic OperationuHondaLink®
Features
HondaLink®
HondaLink® connects you to the latest information from Honda. You can connect
your phone wirelessly through Wi-Fi or Bluetooth®.
2Wi-Fi Connection P. 289
2Phone Setup P. 370
■Places*
Displays restaurants, gas stations, Honda dealer, and so on. You can also navigate to
the found locations via the navigation.
■Vehicle
Displays instruction messages when the vehicle needs service.
■Help & Support
Displays tips for vehicle usage, and get support via road side or customer service
center.
■HondaLink® Menu
1HondaLink®
The HondaLink® connect app is compatible with most
iPhone and Android phones.
Some cell phone carriers charge for tethering and
smartphone data use. Check your phone’s data
subscription package.
When Apple CarPlay or Android Auto is connected to
the audio system, HondaLink® can be accessed even
without a Wi-Fi connection.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 284 ページ ２０１６年８月３１日　水曜日　午後６時５分
285
uuAudio System Basic OperationuHondaLink®
Continued
■Messages from Honda
Displays helpful and important information from Honda.
■Weather*
Displays a weekly five-day weather forecast for any location you want. You can
change the ZIP Code at any time.
Use the following procedure to connect to HondaLink® service.
■To enable the HondaLink® service
1. Select .
2. Select Settings.
3. Select Info.
4. Select the HondaLink tab.
5. Select Diagnostics & Location Data.
6. Select On.
You need to allow the consent of the location
service to enable the HondaLink® service.
Enable once: Allows only one time. (Prompt
shows again next time.)
Always Enable: Allows anytime. (Prompt
does not show again.)
Cancel: Does not allow this consent.
■To Set Up to Connect HondaLink® Service
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 285 ページ ２０１６年８月３１日　水曜日　午後６時５分
286
uuAudio System Basic OperationuHondaLink®
Features
■To link with HondaLink®
You can see the Connection Guide screen
after launching HondaLink®. If you do not
need this guide, select check-box and select
OK.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 286 ページ ２０１６年８月３１日　水曜日　午後６時５分
287
uuAudio System Basic OperationuHondaLink®
Continued
You can check the messages that are received quickly in the shortcut operation.
1. A message appears and notifies you of a
new message on the header area.
uWhen the message is received, a
notification ring can be heard.
2. A message icon is continuously displayed in
the header area until the new message is
read.
■Vehicle Information and Message from Honda Tips
Message
Icon
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 287 ページ ２０１６年８月３１日　水曜日　午後６時５分
288
uuAudio System Basic OperationuHondaLink®
Features
3. From the top of the screen, swipe down to
see the messages.
4. Select a new message to open.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 288 ページ ２０１６年８月３１日　水曜日　午後６時５分
289
uuAudio System Basic OperationuWi-Fi Connection
Continued
Wi-Fi Connection
You can connect the audio system to the Internet using Wi-Fi and browse websites
or use online services on the audio/information screen. If your phone has wireless
hotspot capabilities, the system can be tethered to the phone. Use the following
steps to setup.
1. Select .
2. Select Settings.
3. Select Bluetooth/Wi-Fi.
4. Select the Wi-Fi tab.
5. Select Wi-Fi On/Off Status, then On.
6. Select Wi-Fi Device List.
uMake sure your phone’s Wi-Fi setting is
in access point (tethering) mode.
uSelect the phone you want to connect to
the system.
uIf you do not find the phone you want to
connect in the list, select Scan.
7. Select Connect.
uIf needed, enter a password for your
phone and select OK.
uWhen the connection is successful, the
icon is displayed on the top of the
screen.
8. Select to go back to the home screen.
■Wi-Fi mode (setting for the first time)
1Wi-Fi mode (setting for the first time)
You cannot go through the setting procedure while a
vehicle is moving. Park in a safe place to setup the
Wi-Fi connection.
Some cell phone carriers charge for tethering and
smartphone data use. Check your phone’s data
subscription package.
Check your phone manual to find out if the phone
has Wi-Fi connectivity.
You can confirm whether Wi-Fi connection is on or
off with the icon on Wi-Fi Device List. Network
speed will not be displayed on this screen.
12ᾉ34
AAAAA
BBBBB
CCCCC
DDDDD
EEEEE
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 289 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuAudio System Basic OperationuWi-Fi Connection
290
Features
Make sure your phone's Wi-Fi setting is in access point (tethering) mode.
■Wi-Fi mode (after the initial setting has been made)
1Wi-Fi mode (after the initial setting has been made)
You may need to go through an initial setup for Wi-
Fi connection again after you boot your phone.
iPhone users
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 290 ページ ２０１６年８月３１日　水曜日　午後６時５分
291
uuAudio System Basic OperationuSiri Eyes Free
Siri Eyes Free
You can talk to Siri using the (Talk) button on the steering wheel when your
iPhone is paired to the Bluetooth® HandsFreeLink® (HFL) system.
2Phone Setup P. 370
■Using Siri Eyes Free
1Siri Eyes Free
Siri is a trademark of Apple Inc.
Check Apple Inc. website for features available for
Siri.
We recommend against using Siri other than in Siri
Eyes Free mode while operating a vehicle.
1Using Siri Eyes Free
Some commands work only on specific phone
features or apps.
(Talk) Button
Press and hold until the display
changes as shown.
(Hang-up/back) Button
Press to deactivate Siri Eyes Free.
While in Siri Eyes Free:
The display remains the same.
No feedback or commands
appear.
Appears
when Siri is
activated in
Siri Eyes Free
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 291 ページ ２０１６年８月３１日　水曜日　午後６時５分
292
uuAudio System Basic OperationuApple CarPlay
Features
Apple CarPlay
If you connect an Apple CarPlay-compatible iPhone to the system via the front USB,
you can use the audio/information screen, instead of the iPhone display, to make a
phone call, listen to music, view maps (navigation), and access messages.
2USB Port(s) P. 205
■Phone
Access the contact list, make phone calls, or listen to voice mail.
■Messages
Check and reply to text messages, or have messages read to you.
■Music
Play music stored on your iPhone.
■Apple CarPlay Menu
1Apple CarPlay
Only iPhone 5 or newer versions with iOS 8.4 or later
are compatible with Apple CarPlay.
Park in a safe place before connecting your iPhone to
Apple CarPlay and when launching any compatible
apps.
To use Apple CarPlay, connect the USB cable to the
front USB port. The USB port located in the center
console storage will not enable Apple CarPlay
operation.
2USB Port(s) P. 205
To directly access the Apple CarPlay phone function,
select Phone on the home screen. While connected
to Apple CarPlay, calls are only made through Apple
CarPlay. If you want to make a call with
HandsFreeLink, turn Apple CarPlay OFF or detach the
USB cable from your iPhone.
2Setting Up Apple CarPlay P. 293
When your iPhone is connected to Apple CarPlay, it is
not possible to use the Bluetooth® Audio or
Bluetooth® HandsFreeLink®. However, other
previously paired phones can stream audio via
Bluetooth® while Apple CarPlay is connected.
2Phone Setup P. 370
For details on countries and regions where Apple
CarPlay is available, as well as information pertaining
to function, refer to the Apple homepage.
Go back to the
home screen
Home screen
Apple CarPlay icon
Apple CarPlay menu screen
Go back to the Apple
CarPlay menu screen
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 292 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 293
uuAudio System Basic OperationuApple CarPlay
■Maps
Display Apple CarPlay map and use the navigation function just as you would on
your iPhone.
Only one navigation system (pre-installed navigation or Apple CarPlay) can give
directions at a time. When you are using one system, directions to any prior
destination set on the other system will be canceled, and the system you are
currently using will direct you to your destination.
After you have connected your iPhone to the system via the front USB, use the
following procedure to set up Apple CarPlay. Use of Apple CarPlay will result in the
transmission of certain user and vehicle information (such as vehicle location, speed,
and status) to your iPhone to enhance the Apple CarPlay experience. You will need
to consent to the sharing of this information on the audio/information screen.
■Enabling Apple CarPlay
Enable Once: Allows only once. (Prompt
shows again next time.)
Always Enable: Allows anytime. (Prompt
does not show again.)
Cancel: Does not allow this consent.
You may change the consent settings under
the Smartphone settings menu.
■Setting Up Apple CarPlay
1Apple CarPlay
Apple CarPlay Operating Requirements &
Limitations
Apple CarPlay requires a compatible iPhone with an
active cellular connection and data plan. Your
carrier’s rate plans will apply.
Changes in operating systems, hardware, software,
and other technology integral to providing Apple
CarPlay functionality, as well as new or revised
governmental regulations, may result in a decrease or
cessation of Apple CarPlay functionality and services.
Honda cannot and does not provide any warranty or
guarantee of future Apple CarPlay performance or
functionality.
It is possible to use 3rd party apps if they are
compatible with Apple CarPlay. Refer to the Apple
homepage for information on compatible apps.
Models with navigation system
1Setting Up Apple CarPlay
You can also use the method below to set up Apple
CarPlay:
Select HOME Settings Smartphone Apple
CarPlay
Use of user and vehicle information
The use and handling of user and vehicle information
transmitted to/from your iPhone by Apple CarPlay is
governed by the Apple iOS terms and conditions and
Apple’s Privacy Policy.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 293 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuAudio System Basic OperationuApple CarPlay
294
Features
Press and hold the talk button to activate Siri Eyes Free.
■Operating Apple CarPlay with Siri Eyes Free
1Operating Apple CarPlay with Siri Eyes Free
Below are examples of questions and commands for
Siri Eyes Free.
•What movies are playing today?
•Call dad at work.
•What song is this?
•How’s the weather tomorrow?
•Read my latest email.
•Find a table for four tonight in Chicago.
For more information, please visit
www.apple.com/ios/siri.
(Talk) button:
Press and hold to activate Siri Eyes Free.
Press again to deactivate Siri Eyes Free.
Press and release to activate standard voice recognition system.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 294 ページ ２０１６年８月３１日　水曜日　午後６時５分
295
uuAudio System Basic OperationuAndroid Auto
Continued
Android Auto
When you connect an Android phone to the audio system via the front USB,
Android Auto is automatically initiated. When connected via Android Auto, you can
use the audio/information screen to access the Phone, Google Maps (Navigation),
Google Play Music, and Google Now functions. When you first use Android Auto, a
tutorial will appear on the screen.
We recommend that you complete this tutorial while safely parked before using
Android Auto.
2USB Port(s) P. 205
2Auto Pairing Connection P. 297
1Android Auto
To use Android Auto, you need to download the
Android Auto app from Google Play to your
smartphone.
Only Android 5.0 (Lollipop) or later versions are
compatible with Android Auto.
Bluetooth A2DP cannot be used with Android Auto
phone.
Park in a safe place before connecting your Android
phone to Android Auto and when launching any
compatible apps.
To use Android Auto, connect the USB cable to the
front USB port. The USB port in the center console
storage will not enable Android Auto operation.
2USB Port(s) P. 205
When your Android phone is connected to Android
Auto, it is not possible to use the Bluetooth® Audio.
However, other previously paired phones can stream
audio via Bluetooth® while Android Auto is
connected.
2Phone Setup P. 370
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 295 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuAudio System Basic OperationuAndroid Auto
296
Features
a Maps (Navigation)
Display Google Maps and use the navigation function just as you would with your
Android phone. When the vehicle is in motion, it is not possible to make keyboard
entries. Stop the vehicle in a safe location to undertake a search or provide other
inputs.
Only one navigation system (pre-installed navigation or Android Auto) can give
directions at a time. When you are using one system, directions to any prior
destination set on the other system will be canceled, and the system you are
currently using will direct you to your destination.
The audio/information screen shows you turn-by-turn driving directions to your
destination.
b Phone (Communication)
Make and receive phone calls as well as listen to voicemail.
c Google Now (Home screen)
Display useful information organized by Android Auto into simple cards that appear
just when they’re needed.
■Android Auto Menu
1Android Auto
For details on countries and regions where Android
Auto is available, as well as information pertaining to
function, refer to the Android Auto homepage.
Android Auto Operating Requirements &
Limitations
Android Auto requires a compatible Android phone
with an active cellular connection and data plan.
Your carrier’s rate plans will apply.
Changes in operating systems, hardware, software,
and other technology integral to providing Android
Auto functionality, as well as new or revised
governmental regulations, may result in a decrease or
cessation of Android Auto functionality and services.
Honda cannot and does not provide any warranty or
guarantee of future Android Auto performance or
functionality.
It is possible to use 3rd party apps if they are
compatible with Android Auto. Refer to the Android
Auto homepage for information on compatible apps.
: Go back to
the home screen
Android Auto icon
6
Models with navigation system
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 296 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 297
uuAudio System Basic OperationuAndroid Auto
d Music and audio
Play Google Play Music and music apps that are compatible with Android Auto.
To switch between music apps, press this icon.
e Go back to the Home Screen.
f Voice
Operate Android Auto with your voice.
When you connect an Android phone to the unit via the front USB, Android Auto is
automatically initiated.
■Enabling Android Auto
Enable Once: Allows only once. (Prompt
shows again next time.)
Always Enable: Allows anytime. (Prompt
does not show again.)
Cancel: Does not allow this consent.
You may change the consent settings under
the Smartphone settings menu.
■Auto Pairing Connection
1Enabling Android Auto
Only initialize Android Auto when you are safely
parked. When Android Auto first detects your phone,
you will need to set up your phone so that auto
pairing is possible. Refer to the instruction manual
that came with your phone.
You can use the method below to change Android
Auto settings after you have completed the initial
setup:
Select HOME Settings Smartphone Android
Auto
Use of user and vehicle information
The use and handling of user and vehicle information
transmitted to/from your phone by Android Auto is
governed by Google’s Privacy Policy.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 297 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuAudio System Basic OperationuAndroid Auto
298
Features
Press and hold the talk button to operate Android Auto with your voice.
■Operating Android Auto with Voice Recognition
1Operating Android Auto with Voice Recognition
Below are examples of commands you can give with
voice recognition:
•Reply to text.
•Call my wife.
•Navigate to Honda.
•Play my music.
•Send a text message to my wife.
•Call flower shop.
For more information, please refer to the Android
Auto homepage.
You can also activate the voice recognition function
by pressing the icon in the upper-right corner of
the screen.
(Talk) button:
Press and hold to operate Android Auto with your voice.
Press and release to activate standard voice recognition system.
(Hang-up/back) button:
Press to deactivate voice recognition.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 298 ページ ２０１６年８月３１日　水曜日　午後６時５分
299
Audio Error Messages
iPod/USB Flash Drive
If an error occurs while playing an iPod or USB flash drive, you may see the following
error messages. If you cannot clear the error message, contact a dealer.
*1:Models with color audio system
*2:Models with Display Audio
Error Message Solution
USB Error*1, *2 Appears when there is a problem with the audio system. Check if the device is
compatible with the audio system.
Bad USB Device
Please Check Owners Manual*1
The connected USB device has a problem.
See Owner’s Manual*2
Appears when an incompatible device is connected. Disconnect the device. Then turn
the audio system off, and turn it on again. Do not reconnect the device that caused the
error.
Unsupported Ver*1
Unsupported Version*2
Appears when an unsupported iPod is connected. If it appears when a supported iPod
is connected, update the iPod software to the newer version.
Retry Connection*1
Connect Retry*2 Appears when the system does not acknowledge the iPod. Reconnect the iPod.
Unplayable File*1, *2 Appears when the files in the USB flash drive are copyright protected or an unsupported
format. This error message appears for about three seconds, then plays the next song.
USB No Song*1
iPod No Song*1
No Data*2
Appears when the iPod is empty.
Appears when the USB flash drive is empty or there are no MP3, WMA, or AAC files in
the USB flash drive.
Check that compatible files are stored on the device.
Unsupported*1, *2 Appears when an unsupported device is connected. If it appears when a supported
device is connected, reconnect the device.
iPod
USB flash drive
iPod and USB flash drive
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 299 ページ ２０１６年８月３１日　水曜日　午後６時５分
300
uuAudio Error MessagesuPandora®*
Features
Pandora®*
If an error occurs while playing Pandora®, you may see the following error messages.
If you cannot clear the error message, contact a dealer.
Error Message Solution
To begin listening, select a station from the Stations list. Appears when there is no station list on the device. Use the device
to create a station.
Unable to rate track. Please try again.
Skip limit reached.
Appears when you try to skip a song or select Like/Dislike over
the predetermined number of times in an hour.
Unable to play Pandora. Please try again later.
Unable to retrieve a track explanation. Please try again later.
Unable to create bookmark. Please try again later.
Appears when the commanded operation fails. Try again later.
No Data Appears when no data is available with Pandora® activated.
Reboot the app and reconnect the device.
Pandora App version is not supported Appears when Pandora® version is not supported. Update
Pandora® to the latest version.
Unable to complete the operation. Please try again later. Appears when the Pandora® server is in maintenance. Try again
later.
Unable to connect Pandora. When stopped, check your
mobile phone
Appears when Pandora® is unable to play music. Check your
device.
Unable to connect Pandora. When stopped, check your
mobile phone
Appears when Pandora® app is not installed on your device. Install
Pandora® app to your device.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 300 ページ ２０１６年８月３１日　水曜日　午後６時５分
301
uuAudio Error MessagesuAndroid/Apps
Android/Apps
If an error occurs while using the audio system or apps, you may see the following
error messages. If you cannot clear the error message, contact a dealer.
*1:****part is variable characters, and will change depending upon where an error
occurs.
Error Message*1 Solution
Unfortunately, **** has
stopped. Error has occurred within app, select OK on the screen to close the app.
**** is not responding.
Would you like to close it?
App is not responding.
Select Wait if you can wait for a response from app a little longer. If it does not respond even if you keep
waiting, select OK to close the app and start it up. If the error message continues, perform Factory Data
Reset.
2Defaulting All the Settings P. 338
Models with Display Audio
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 301 ページ ２０１６年８月３１日　水曜日　午後６時５分
302
Features
General Information on the Audio System
SiriusXM® Radio Service*
1. You need your radio ID ready before registering for subscription. To see the ID on
the screen, select Channel 0.
2. Have your radio ID ready, and either call SiriusXM® or visit the SiriusXM® website
to subscribe.
Switch to the SiriusXM® mode by using the SOURCE button on the steering wheel,
or through the audio/information screen, and stay in this mode for about 30
minutes until the service is activated. Make sure your vehicle is in an open area with
good reception.
Channel Not Subscribed:
You are not subscribed to the channel selected.
Subscription Update:
SiriusXM® radio is receiving information update from the network.
Channel Not Available:
No such channel exists, or the artist or title information is unavailable.
No Signal:
The signal is too weak in the current location.
Antenna Disconnected:
The SiriusXM® antenna is disconnected. Contact a dealer.
■Subscribing to SiriusXM® Radio
■Receiving SiriusXM® Radio
■SiriusXM® Radio Display Messages
1Subscribing to SiriusXM® Radio
Contact Information for SiriusXM® Radio:
•U.S.: SiriusXM® Radio at www.siriusxm.com or 1-
800-852-9696
•Canada: SiriusXM® Canada at www.siriusxm.ca, or
1-877-209-0079
1Receiving SiriusXM® Radio
The SiriusXM® satellites are in orbit over the equator;
therefore, objects south of the vehicle may cause
satellite reception interruptions. Satellite signals are
more likely to be blocked by tall buildings and
mountains the farther north you travel from the
equator.
You may experience reception problems under the
following circumstances:
•In a location with an obstruction to the south of
your vehicle.
•In tunnels
•On the lower level of a multi-tiered road
•Large items carried on the roof rack
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 302 ページ ２０１６年８月３１日　水曜日　午後６時５分
303
uuGeneral Information on the Audio SystemuCompatible iPod, iPhone, and USB Flash Drives
Compatible iPod, iPhone, and USB Flash Drives
*1:Models with Display Audio
•A USB flash drive of 256 MB or higher is recommended.
•Some digital audio players may not be compatible.
•Some USB flash drives (e.g., a device with security lockout) may not work.
•Some software files may not allow for audio play or text data display.
•Some versions of MP3, WMA, or AAC formats may be unsupported.
■iPod and iPhone Model Compatibility
Model
iPod (5th generation)
iPod classic 80GB/160GB (launch in 2007)
iPod classic 120GB (launch in 2008)
iPod classic 160GB (launch in 2009)
iPod nano (1st to 7th generation) released between 2005 and 2012
iPod touch (1st to 5th generation) released between 2007 and 2012
iPhone 3G/iPhone 3GS/iPhone 4/iPhone 4S/iPhone 5/iPhone 5c*1/iPhone 5s*1/
iPhone 6*1/iPhone 6 Plus*1
■USB Flash Drives
1iPod and iPhone Model Compatibility
This system may not work with all software versions
of these devices.
1USB Flash Drives
Files on the USB flash drive are played in their stored
order. This order may be different from the order
displayed on your PC or device.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 303 ページ ２０１６年８月３１日　水曜日　午後６時５分
304
uuGeneral Information on the Audio SystemuLegal Information on Apple CarPlay/Android Auto
Features
Models with Display Audio
Legal Information on Apple CarPlay/Android Auto
USE OF APPLE CARPLAY IS SUBJECT TO YOUR AGREEMENT TO THE CARPLAY TERMS OF USE, WHICH ARE INCLUDED AS PART OF THE
APPLE iOS TERMS OF USE. IN SUMMARY, THE CARPLAY TERMS OF USE DISCLAIM APPLE AND ITS SERVICE PROVIDERS’ LIABILITY IF THE
SERVICES FAIL TO PERFORM CORRECTLY OR ARE DISCONTINUED, STRICTLY LIMIT APPLE AND ITS SERVICE PROVIDERS’ OTHER
LIABILITIES, DESCRIBE THE KINDS OF USER INFORMATION (INCLUDING, FOR EXAMPLE, VEHICLE LOCATION, VEHICLE SPEED, AND
VEHICLE STATUS) BEING GATHERED AND STORED BY APPLE AND ITS SERVICE PROVIDERS, AND DISCLOSE CERTAIN POSSIBLE RISKS
ASSOCIATED WITH THE USE OF CARPLAY, INCLUDING THE POTENTIAL FOR DRIVER DISTRACTION. SEE APPLE’S PRIVACY POLICY FOR
DETAILS REGARDING APPLE'S USE AND HANDLING OF DATA UPLOADED BY CARPLAY.
USE OF ANDROID AUTO IS SUBJECT TO YOUR AGREEMENT TO THE ANDROID AUTO TERMS OF USE WHICH MUST BE AGREED TO WHEN
THE ANDROID AUTO APPLICATION IS DOWNLOADED TO YOUR ANDROID PHONE. IN SUMMARY, THE ANDROID AUTO TERMS OF USE
DISCLAIM GOOGLE AND ITS SERVICE PROVIDERS’ LIABILITY IF THE SERVICES FAIL TO PERFORM CORRECTLY OR ARE DISCONTINUED,
STRICTLY LIMIT GOOGLE AND ITS SERVICE PROVIDERS’ OTHER LIABILITIES, DESCRIBE THE KINDS OF USER INFORMATION (INCLUDING,
FOR EXAMPLE, VEHICLE LOCATION, VEHICLE SPEED, AND VEHICLE STATUS) BEING GATHERED AND STORED BY GOOGLE AND ITS
SERVICE PROVIDERS, AND DISCLOSE CERTAIN POSSIBLE RISKS ASSOCIATED WITH THE USE OF ANDROID AUTO, INCLUDING THE
POTENTIAL FOR DRIVER DISTRACTION. SEE GOOGLE’S PRIVACY POLICY FOR DETAILS REGARDING GOOGLE’S USE AND HANDLING OF
DATA UPLOADED BY ANDROID AUTO.
■OWNER’S MANUAL LICENSE/LIABILITY STATEMENTS
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 304 ページ ２０１６年８月３１日　水曜日　午後６時５分
305
uuGeneral Information on the Audio SystemuLegal Information on Apple CarPlay/Android Auto
YOU EXPRESSLY ACKNOWLEDGE AND AGREE THAT USE OF APPLE CARPLAY OR ANDROID AUTO (“THE APPLICATIONS”) IS AT YOUR
SOLE RISK AND THAT THE ENTIRE RISK AS TO SATISFACTORY QUALITY, PERFORMANCE, ACCURACY AND EFFORT IS WITH YOU TO THE
MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, AND THAT THE APPLICATIONS AND INFORMATION ON THE APPLICATIONS IS
PROVIDED “AS IS” AND “AS AVAILABLE,” WITH ALL FAULTS AND WITHOUT WARRANTY OF ANY KIND, AND HONDA HEREBY
DISCLAIMS ALL WARRANTIES AND CONDITIONS WITH RESPECT TO THE APPLICATIONS AND INFORMATION ON THE APPLICATIONS,
EITHER EXPRESS, IMPLIED OR STATUTORY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES AND/OR CONDITIONS OF
MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, ACCURACY, QUIET ENJOYMENT, AND NON-
INFRINGEMENT OF THIRD PARTY RIGHTS. NO ORAL OR WRITTEN INFORMATION OR ADVICE GIVEN BY HONDA OR AN AUTHORIZED
REPRESENTATIVE SHALL CREATE A WARRANTY. AS EXAMPLES, AND WITHOUT LIMITATION, HONDA DISCLAIMS ANY WARRANTY
REGARDING THE ACCURACY OF DATA PROVIDED BY THE APPLICATIONS, SUCH AS THE ACCURACY OF DIRECTIONS, ESTIMATED
TRAVEL TIME, SPEED LIMITS, ROAD CONDITIONS, NEWS, WEATHER, TRAFFIC, OR OTHER CONTENT PROVIDED BY APPLE, GOOGLE, THEIR
AFFILIATES, OR THIRD PARTY PROVIDERS; HONDA DOES NOT GUARANTEE AGAINST LOSS OF APPLICATION DATA, WHICH MAY BE LOST
AT ANY TIME; HONDA DOES NOT GUARANTEE THAT THE APPLICATIONS OR ANY SERVICES PROVIDED THROUGH THEM WILL BE
PROVIDED AT ALL TIMES OR THAT ANY OR ALL SERVICES WILL BE AVAILABLE AT ANY PARTICULAR TIME OR LOCATION. FOR EXAMPLE,
SERVICES MAY BE SUSPENDED OR INTERRUPTED WITHOUT NOTICE FOR REPAIR, MAINTENANCE, SECURITY FIXES, UPDATES, ETC.,
SERVICES MAY BE UNAVAILABLE IN YOUR AREA OR LOCATION, ETC. IN ADDITION, YOU UNDERSTAND THAT CHANGES IN THIRD PARTY
TECHNOLOGY OR GOVERNMENT REGULATION MAY RENDER THE SERVICES AND/OR APPLICATIONS OBSOLETE AND/OR UNUSABLE.
TO THE EXTENT NOT PROHIBITED BY LAW, IN NO EVENT SHALL HONDA OR ITS AFFILIATES BE LIABLE FOR PERSONAL INJURY, OR ANY
INCIDENTAL, SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES WHATSOEVER, INCLUDING, WITHOUT LIMITATION, DAMAGES FOR
LOSS OF PROFITS, CORRUPTION OR LOSS OF DATA, FAILURE TO TRANSMIT OR RECEIVE ANY DATA, BUSINESS INTERRUPTION OR ANY
OTHER COMMERCIAL DAMAGES OR LOSSES, ARISING OUT OF OR RELATED TO THE APPLICATIONS OR YOUR USE OF OR INABILITY TO
USE THE APPLICATIONS OR INFORMATION ON THE APPLICATIONS, HOWEVER CAUSED, REGARDLESS OF THE THEORY OF LIABILITY
(CONTRACT, TORT OR OTHERWISE) AND EVEN IF HONDA WERE ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. SOME STATES AND
JURISDICTIONS DISALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR DAMAGES, SO THESE LIMITATIONS AND EXCLUSIONS MAY
NOT APPLY TO YOU. IN NO EVENT SHALL HONDA’S TOTAL LIABILITY TO YOU FOR ALL DAMAGES (OTHER THAN AS MAY BE REQUIRED
BY APPLICABLE LAW IN CASES INVOLVING PERSONAL INJURY) EXCEED THE AMOUNT OF FIVE DOLLARS ($5.00). THE FOREGOING
LIMITATIONS WILL APPLY EVEN IF THE ABOVE STATED REMEDY FAILS OF ITS ESSENTIAL PURPOSE.
■DISCLAIMER OF WARRANTIES; LIMITATION ON LIABILITY
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 305 ページ ２０１６年８月３１日　水曜日　午後６時５分
306
uuGeneral Information on the Audio SystemuAbout Open Source Licenses
Features
About Open Source Licenses
To see the open source license information, follow these steps.
1. Press the MENU/CLOCK button.
2. Rotate to select Settings, then press .
3. Rotate to select OSS Licenses, then press .
1. Select .
2. Select Settings.
3. Select System.
4. Select the Others tab.
5. Select Detail Info.
6. Select About device.
7. Select Legal information.
8. Select Open source licenses.
1About Open Source Licenses
LICENCE: Copyright © 2001 Bob Trower, Trantor
Standard Systems Inc.
Permission is hereby granted, free of charge, to any
person obtaining a copy of this software and
associated documentation files (the “Software”), to
deal in the Software without restriction, including
without limitation the rights to use, copy, modify,
merge, publish, distribute, sublicense, and/or sell
copies of the Software, and to permit persons to
whom the Software is furnished to do so, subject to
the following conditions:
The above copyright notice and this permission
notice shall be included in all copies or substantial
portions of the Software.
THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT
WARRANTY OF ANY KIND, EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE WARRANTIES
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE AND NONINFRINGEMENT. IN NO EVENT
SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE
LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF CONTRACT,
TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN
CONNECTION WITH THE SOFTWARE OR THE USE OR
OTHER DEALINGS IN THE SOFTWARE.
Models with color audio system
Models with Display Audio
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 306 ページ ２０１６年８月３１日　水曜日　午後６時５分
307
uuGeneral Information on the Audio SystemuLicense Information
License Information
Manufactured under license from Dolby Laboratories. Dolby and the double-D
symbol are registered trademarks of Dolby Laboratories.
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS
Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered
trademarks, and DTS Digital Surround and Neural Surround are trademarks of DTS,
Inc. © DTS, Inc. All Rights Reserved.
■DOLBY DIGITAL
■DTS
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 307 ページ ２０１６年８月３１日　水曜日　午後６時５分
308
Features
Customized Features
Use the audio/information screen to customize certain features.
■How to customize
While the vehicle is at a complete stop with the ignition switch in ON (w, press the
MENU/CLOCK button, then select Settings. To customize the phone settings,
press the button, then select Phone Setup.
1Customized Features
When you customize settings:
•Make sure that the vehicle is at a complete stop.
•Shift to (P.
•Set the parking brake.
Continuously variable transmission models
Manual transmission models
1How to customize
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
To customize other features, select Settings, rotate
, then press .
2List of customizable options P. 312
Models with color audio system
Audio/Information Screen
MENU/CLOCK Button
Selector Knob
(Phone) Button
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 308 ページ ２０１６年８月３１日　水曜日　午後６時５分
309
uuCustomized Featuresu
Continued
■Customization Flow
Press the MENU/CLOCK button.
Clock Adjustment
Settings Bluetooth Add New Device
Connect an Audio Device
Display Adjustment Brightness
Contrast
Black Level
Rear Camera Camera Guideline
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 309 ページ ２０１６年８月３１日　水曜日　午後６時５分
310
uuCustomized Featuresu
Features
Display Change Audio
Wallpaper
Wallpaper Select
Import
Delete
Color Theme Blue
Red
Amber
Gray
Language
Clock Format 12h
24h
OSS Licenses
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 310 ページ ２０１６年８月３１日　水曜日　午後６時５分
311
uuCustomized Featuresu
Continued
Press the button and rotate to select Phone Setup, then press .
Ringtone Fixed
Mobile Phone
Bluetooth Setup Add New Device
Connect a Phone
Connect an Audio Device
Disconnect All Devices
Delete Device
Pass-Key
Speed Dial
Caller ID Info Name Priority
Number Priority
System Clear
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 311 ページ ２０１６年８月３１日　水曜日　午後６時５分
312
uuCustomized Featuresu
Features
■List of customizable options
*1:Default Setting
Setup
Group Customizable Features Description Selectable Settings
Clock Adjustment Adjust Clock.
2Clock P. 128 —
Settings
Bluetooth
Add New Device
Pairs a new phone to HFL, edits and deletes a
paired phone, and create a code for a paired
phone.
2Phone Setup P. 345
—
Connect an Audio
Device
Connects, disconnects or pairs a Bluetooth®
Audio device to HFL. —
Display
Adjustment
Brightness Changes the brightness of the audio/
information screen. —
Contrast Changes the contrast of the audio/
information screen. —
Black Level Changes the black level of the audio/
information screen. —
Rear
Camera Camera Guideline Selects whether the guidelines come on the
audio/information screen. On*1/Off
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 312 ページ ２０１６年８月３１日　水曜日　午後６時５分
313
uuCustomized Featuresu
Continued
*1:Default Setting
Setup
Group Customizable Features Description Selectable Settings
Settings
Display Change Changes the display type. Audio*1/Wallpaper
Wallpaper
Select Changes the wallpaper type. Clock*1/Image1/Image2/
Import Imports an image file for a new wallpaper.
2Wallpaper Setup P. 214 —
Delete Deletes an image file for a wallpaper. Image1*1/Image2/Image3
Color Theme Changes the background color of the audio/
information screen. Blue*1/Red/Amber/Gray
Language Changes the display language. English*1/French/Spanish
Clock Format Selects the digital clock display from 12H to
24H. 12H*1/24H
OSS Licenses Shows the legal information. —
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 313 ページ ２０１６年８月３１日　水曜日　午後６時５分
314
uuCustomized Featuresu
Features
*1:Default Setting
Setup
Group Customizable Features Description Selectable Settings
Phone
Setup
Bluetooth
Setup
Add New Device Pairs a new phone to HFL.
2Phone Setup P. 345 —
Connect a Phone
Pairs a new phone or connects a paired phone
to HFL.
2Phone Setup P. 345
—
Connect an Audio
Device Connects a Bluetooth® Audio device to HFL. —
Disconnect All Devices Disconnects a paired phone from HFL. —
Delete Device Deletes a paired phone. —
Pass-Key Inputs and changes a code for a paired phone. —
Speed Dial Edits, adds or deletes a speed dial entry.
2Speed Dial P. 352 —
Ringtone Selects the ring tone. Fixed*1/Mobile Phone
Caller ID Info Prioritizes the caller’s name or phone number
as the caller ID.
Name Priority*1/Number
Priority
System Clear Cancels/Resets all customized items in the
Phone Setup group as default. —
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 314 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 315
uuCustomized Featuresu
■How to customize
While the vehicle is at a complete stop with the ignition switch in ON (w*1, select
, and Settings, then select a setting item.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Models with Display Audio
1Customized Features
When you customize settings:
•Make sure that the vehicle is at a complete stop.
•Shift to (P.
•Set the parking brake.
To customize other features, select Settings.
2List of customizable options P. 323
Continuously variable transmission models
Manual transmission models
Audio/Information Screen
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 315 ページ ２０１６年８月３１日　水曜日　午後６時５分
316
uuCustomized Featuresu
Features
■Customization flow
Models with Display Audio
Select Settings.Clock
Wallpaper
Others
Clock/Wallpaper Type
*1
/
Clock Type
*2
Clock Adjustment
Clock Format
ClockClock
Auto Time Zone*
Manual Time Zone*
Auto Daylight Saving Time
Clock Display
Overlay Clock Location
Clock Reset
Info Screen Preference
Clock
Wallpaper
Others
Clock/Wallpaper Type
*1
/
Clock Type
*2
Clock Adjustment
Clock Format
Clock
Auto Time Zone*
Manual Time Zone*
Auto Daylight Saving Time
Clock Display
Overlay Clock Location
Clock Reset
Info Screen Preference
Info
HondaLink Diagnostic & Location Data
HondaLink Diagnostic & Location Data
*1: Does not appear when you change the screen interface design.
*2: Appears only when you change the screen interface design.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 316 ページ ２０１６年８月３１日　水曜日　午後６時５分
317
uuCustomized Featuresu
Continued
Bluetooth On/Off Status
Bluetooth Device List
Edit Pairing Code
Wi-Fi On/Off Status
Wi-Fi Device List
Wi-Fi
BluetoothBluetooth/Wi-Fi
Wi-Fi Information
Text/Email
Bluetooth Device List
Edit Speed Dial
Ring Tone
Phone
Automatic Phone Sync
HondaLink Assist
Enable Text/Email
Select Account
New Message Notification
Phone
LaneWatch*
Fixed Guideline
Dynamic Guideline
Show with Turn Signal
Rear CameraCamera
Display Time after Turn Signal Off
Reference Line
HD Radio Mode (FM)*
RDS INFO
Audio FM/AM
HD Radio Mode (AM)*
Apple CarPlay
Android Auto
Smartphone
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 317 ページ ２０１６年８月３１日　水曜日　午後６時５分
318
uuCustomized Featuresu
Features
Audio Source Pop-Up
Cover Art
Tune Start
Sports Flash Setup
Traffic & Weather Setup
Other
SXM*
Default
Bluetooth Device List
Bluetooth
Video
Multiple Channel Mix Preset
Home Screen Edit Order
Configuration of Instrument Panel
Tachometer Setting
Display Settings
Background Color*1
Display
System
Touch Panel Sensitivity
Brightness
Contrast
Black Level
Blue
Amber
Red
Violet
BlueGreen
Home
Menu icon position*2
*1: Does not appear when you change the screen interface design.
*2: Appears only when you change the screen interface design.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 318 ページ ２０１６年８月３１日　水曜日　午後６時５分
319
uuCustomized Featuresu
Continued
Guidance Volume*
Text Message Volume
Sound/Beep
Voice Recog. Volume
Verbal Reminder
Beep Volume
Meter Volume - List Reading
Meter Volume - Alphabetic Reading
Voice Prompt
Voice Recog. Volume
Song by Voice
Song by Voice Phonetic Modification
Phonebook Phonetic Modification
Automatic Phone Sync
One Press Voice Operation
Voice Recog.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 319 ページ ２０１６年８月３１日　水曜日　午後６時５分
320
uuCustomized Featuresu
Features
Clock Clock/Wallpaper Type*1/
Clock Type*2
Clock Adjustment
Clock Format
Auto Time Zone*
Manual Time Zone*
Auto Daylight Saving Time
Clock Display
Overlay Clock Location
Clock Reset
Clock
Wallpaper
*1: Does not appear when you change the screen interface design.
*2: Appears only when you change the screen interface design.
Others Language
Voice Command Tips
Remember Last Screen*1
Memory Refresh
Refresh Time Adjustment
Swipe Direction
Change Skin
Factory Data Reset
Climate screen timeout
4way Switch Gesture
Volume Gestures
Detail Information
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 320 ページ ２０１６年８月３１日　水曜日　午後６時５分
321
uuCustomized Featuresu
Continued
Driver Assist System Setup*Forward Collision Warning Distance
ACC Forward Vehicle Detect Beep
Lane Keeping Assist Suspend Beep
Road Departure Mitigation Setting
Adjust Outside Temp. Display
“Trip A” Reset Timing
“Trip B” Reset Timing
Vehicle
Meter Setup
Adjust Alarm Volume
Speed/Distance Units
Fuel Efficiency Backlight
New Message Notifications
Tachometer
Cancel
TPMS Calibration*
Calibrate
Turn By Turn Auto Display
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 321 ページ ２０１６年８月３１日　水曜日　午後６時５分
322
uuCustomized Featuresu
Features
Lighting Setup Interior Light Dimming Time
Headlight Auto Off Timer
Auto Light Sensitivity
Auto Interior Illumination Sensitivity
Auto Door Lock
Key And Remote Unlock Mode
Door/Window Setup
Maintenance Info.
Auto Headlight ON With Wiper ON
Keyless Lock Answer Back
Security Relock Timer
Walk Away Auto Lock*
Keyless Access Setup*
Door Unlock Mode
Keyless Access Light Flash
Keyless Access Beep
Remote Start System ON/OFF*
Auto Door Unlock
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 322 ページ ２０１６年８月３１日　水曜日　午後６時５分
323
uuCustomized Featuresu
Continued
■List of customizable options
*1:Does not appear when you change the screen interface design.
*2:Appears only when you change the screen interface design.
Setup
Group Customizable Features Description Selectable Settings
Clock
Clock
Clock/
Wallpaper
Type*1/
Clock
Type*2
Clock
See Info on P. 324
Wallpaper
Clock Adjustment
Auto Time Zone*
Manual Time Zone*
Auto Daylight Saving Time
Clock Format
Clock Display
Overlay Clock Location
Clock Reset
HondaLink Diagnostic & Location Data
Others Info Screen Preference
Models with Display Audio
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 323 ページ ２０１６年８月３１日　水曜日　午後６時５分
324
uuCustomized Featuresu
Features
*1:Default Setting
*2:Does not appear when you change the screen interface design.
*3:Appears only when you change the screen interface design.
Setup
Group Customizable Features Description Selectable Settings
Info Clock
Clock/
Wallpaper
Type*2/
Clock
Type*3
Clock Changes the clock display type. Analog/Digital*1/
Small Digital/Off
Wallpaper
●Changes the wallpaper type.
●Imports an image file for a new wallpaper.
●Deletes an image file for a wallpaper.
Blank/Galaxy*1/
Metallic/Time Zone
Clock Adjustment Adjusts Clock. —
Auto Time Zone*Automatically adjusts the clock when driving
through different time zones. On*1/Off
Manual Time Zone*Changes the time zone manually. —
Auto Daylight Saving Time
Select On to have the GPS automatically adjust
the clock to daylight savings time. Select Off to
cancel this function.
On*1/Off
Clock Format Selects the digital clock display from 12H to 24H. 12H*1/24H
Clock Display Selects whether the clock display comes on. On*1/Off
Overlay Clock Location Changes the clock display layout.
Upper Right*1/Upper
Left/Lower Right/
Lower Left/Off
Clock Reset Resets the clock settings to the factory default. Yes/No
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 324 ページ ２０１６年８月３１日　水曜日　午後６時５分
325
uuCustomized Featuresu
Continued
*1:Default Setting
Setup
Group Customizable Features Description Selectable Settings
Info
HondaLink Diagnostic & Location
Data Turns HondaLink® on and off. On*1/Off
Others Info Screen Preference
Selects the top menu when the button is
pressed.
●Info Top- A brief menu pops up.
●Info Menu- A full menu pops up.
●Off- A menu does not pop up.
Info Top/Info
Menu*1/Off
Camera
Rear
Camera
Fixed Guideline
Selects whether the fixed guidelines come on the
rear camera monitor.
2Multi-View Rear Camera P. 474
On*1/Off
Dynamic Guideline
Selects whether the guidelines adjust to the
movement of the steering wheel.
2Multi-View Rear Camera P. 474
On*1/Off
Default Cancels/Resets all customized items in the Rear
Camera setting group as default. Yes/No
LaneWatch*
Show with Turn Signal
Selects whether the LaneWatch display comes on
when you move the turn signal lever to indicate a
right turn.
On*1/Off
Display Time after Turn
Signal Off
Changes the length of time the LaneWatch
display stays on after the turn signal lever returns
to the center.
0 second*1/2 seconds
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 325 ページ ２０１６年８月３１日　水曜日　午後６時５分
326
uuCustomized Featuresu
Features
*1:Default Setting
Setup
Group Customizable Features Description Selectable Settings
Camera LaneWatch*
Reference Line Selects whether the reference lines come on the
LaneWatch monitor. On*1/Off
Default Cancels/Resets all customized items in the
LaneWatch group as default. Yes/No
Bluetooth
/Wi-Fi
Bluetooth
Bluetooth On/Off Status Changes the Bluetooth® status. On*1/Off
Bluetooth Device List
Pairs a new phone to HFL, edits or deletes a
paired phone.
2Phone Setup P. 370
—
Edit Pairing Code Edits a pairing code.
2To change the pairing code setting P. 371 Random/Fixed*1
Wi-Fi
Wi-Fi On/Off Status Changes the Wi-Fi mode. On/Off*1
Wi-Fi Device List Connects, disconnects, or deletes the Wi-Fi
device. —
Wi-Fi Information Shows the Wi-Fi information of the head unit. —
Default Cancels/Resets all customized items in the
Bluetooth/Wi-Fi group as default. Yes/No
Smart-
phone
Apple CarPlay Sets up the Apple CarPlay connection. —
Android Auto Sets up the Android Auto connection. —
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 326 ページ ２０１６年８月３１日　水曜日　午後６時５分
327
uuCustomized Featuresu
Continued
*1:Default Setting
Setup
Group Customizable Features Description Selectable Settings
Phone
Phone
Bluetooth Device List
Pairs a new phone to HFL, connects or
disconnects a paired phone.
2Phone Setup P. 370
—
Edit Speed Dial Edits, adds or deletes a speed dial entry.
2Speed Dial P. 376 —
Ring Tone Selects the ring tone. Fixed/Mobile
Phone*1
Automatic Phone Sync
Sets phonebook and call history data to be
automatically imported when a phone is paired
to HFL.
On*1/Off
HondaLink Assist Turns HondaLink Assist on and off. On/Off*1
Text/Email
Enable Text/Email Turns the text/e-mail message function on and
off. On*1/Off
Select Account Selects a text or e-mail message account. —
New Message Notification
Selects whether a pop-up alert comes on the
screen when HFL receives a new text/e-mail
message.
On/Off
Default Cancels/Resets all customized items in the Phone
settings group as default. Yes/No
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 327 ページ ２０１６年８月３１日　水曜日　午後６時５分
328
uuCustomized Featuresu
Features
*1:Default Setting
Setup
Group Customizable Features Description Selectable Settings
Audio
FM/AM
HD Radio Mode*
Selects whether the audio system automatically
switches to the digital radio waves or receives the
analog waves only.
Auto*1/Analog
RDS INFO Turns on and off the RDS information. On*1/Off
SXM*
Tune Start Turns on and off, starts the song from the
beginning as you change preset stations. On*1/Off
Sports
Flash
Setup
Interrupt Turns on and off the sports alert function. Off/On(one time)/
On(continue)*1
Favorite Team Selects your favorite sports teams.
2Live Sports Alert P. 267 —
Interrupt Beep Causes the system to beep when the sports alert
is notified. On*1/Off
Traffic & Weather Setup Selects the region you want to receive the
information. —
Multiple Channel Mix
Preset Turns multiple channel mix preset on and off. On/Off*1
FM/AM mode
SiriusXM
®
mode
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 328 ページ ２０１６年８月３１日　水曜日　午後６時５分
329
uuCustomized Featuresu
Continued
*1:Default Setting
*2:Appears only when you change the screen interface design.
Setup
Group Customizable Features Description Selectable Settings
Audio
Bluetooth Bluetooth Device List
Pairs a new phone to HFL, edits or deletes a
paired phone.
2Phone Setup P. 370
—
Other
[Your selected media]
Cover Art
Turns the cover art display on and off. On*1/Off
Audio Source Pop-Up
Selects whether the list of selectable audio
sources comes on when Audio is selected on the
home screen.
On/Off*1
Default Cancels/Resets all customized items in the Audio
settings group as default. Yes/No
System Home
Home Screen Edit Order Changes the HOME screen icon layout. —
Menu icon position*2 Changes the position of the menu icons on the
Audio, Phone, and Info screen. —
Configuration of
Instrument Panel
Changes the Instrument Panel screen icon
layout. —
Tachometer Setting Turns on and off the tachometer display. On*1/Off
Bluetooth
®
mode
iPod or USB mode
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 329 ページ ２０１６年８月３１日　水曜日　午後６時５分
330
uuCustomized Featuresu
Features
*1:Default Setting
*2:Does not appear when you change the screen interface design.
Setup
Group Customizable Features Description Selectable Settings
System
Display
Display
Settings
Brightness Changes the brightness of the audio/information
screen. —
Contrast Changes the contrast of the audio/information
screen. —
Black Level Changes the black level of the audio/information
screen. —
Background Color*2 Changes the background color of the audio/
information screen.
Blue/Amber/Red/
Violet/BlueGreen*1
Touch Panel Sensitivity Sets the sensitivity of the touch panel screen. High/Low*1
Sound/
Beep
Guidance Volume*
Changes the sound volume.
Adjusts the guidance volume of the navigation
system.
1~6*1~11
Text Message Volume Changes the text/e-mail message reading
volume. 1~6*1~11
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 330 ページ ２０１６年８月３１日　水曜日　午後６時５分
331
uuCustomized Featuresu
Continued
*1:Default Setting
Setup
Group Customizable Features Description Selectable Settings
System
Sound
/Beep
Voice Recog. Volume Changes the volume of the voice prompt. 1~6*1~11
Meter Volume - List
Reading Changes the list reading volume. 1~6*1~11
Meter Volume -
Alphabetic Reading Changes the alphabetic reading volume. 1~6*1~11
Verbal Reminder Turns the verbal reminders on and off. On*1/Off
Beep Volume Changes the beep volume. Off/1/2*1/3
Voice
Recog.
One Press Voice
Operation
Changes the setting of the (Talk) button operation when
using the voice operation. On*1/Off
Voice Prompt Turns the voice prompt on and off. On*1/Off
Voice Recog. Volume Changes the volume of the voice prompt. 1~6*1~11
Song by Voice Turns the Song By VoiceTM on and off. On*1/Off
Song by Voice
Phonetic Modification
Modifies a voice command for music stored in the system or
an iPod/iPhone.
2Phonetic Modification P. 275
—
Phonebook Phonetic
Modification
Modifies a voice command for the phonebook.
2Phonebook Phonetic Modification P. 379 —
Automatic Phone Sync Sets phonebook and call history data to be automatically
imported when a phone is paired to HFL. On/Off
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 331 ページ ２０１６年８月３１日　水曜日　午後６時５分
332
uuCustomized Featuresu
Features
*1:Default Setting
*2:Does not appear when you change the screen interface design.
*3:Appears only when you change the screen interface design.
Setup
Group Customizable Features Description Selectable Settings
System
Clock
Clock/
Wallpaper
Type*2/
Clock
Type*3
Clock
See Info on P. 324
Wallpaper
Clock Adjustment
Auto Time Zone*
Manual Time Zone*
Auto Daylight Saving Time
Clock Format
Clock Display
Overlay Clock Location
Clock Reset
Others Language Change the display language. English*1/Français/
Español
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 332 ページ ２０１６年８月３１日　水曜日　午後６時５分
333
uuCustomized Featuresu
Continued
*1:Default Setting
*2:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
*3:Does not appear when you change the screen interface design.
Setup
Group Customizable Features Description Selectable Settings
System Others
Voice Command Tips
Alerts you when manual control of the system is
disabled to prevent distraction while driving.
Only voice commands are available.
On*1/Off
Remember Last Screen*3 Selects whether the device remembers the last
screen. On/Off*1
Memory Refresh
Turns on the audio system automatically and
restores the fragmentation of a memory when
the ignition switch is LOCK (0*2.
On*1/Off
Refresh Time Adjustment Sets the time for Memory Refresh. —
Swipe Direction Sets the vertical swipe direction on the audio
remote controls. Normal*1/Invert
4way Switch Gesture Turns the vertical swipe direction on the audio
remote controls on or off. On*1/Off
Volume Gestures Turns the volume swipe direction on the audio
remote controls on or off. On*1/Off
Change Skin Changes the screen interface design. Yes/No
Factory Data Reset Resets all the settings to their factory default.
2Defaulting All the Settings P. 338 Yes/No
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 333 ページ ２０１６年８月３１日　水曜日　午後６時５分
334
uuCustomized Featuresu
Features
*1:Default Setting
Setup
Group Customizable Features Description Selectable Settings
System
Others
Climate screen timeout
Changes the length of time the climate control
display stays on when you press the CLIMATE
button.
Never/5 Seconds/10
Seconds*1/20
Seconds
Detail Information Displays the details of the head unit and
operating system information.
Default Cancels/Resets all customized items in the
System group as default. Yes/No
Vehicle
TPMS Calibration*Cancels/Calibrates the TPMS. Cancel/Calibrate
Driver
Assist
System
Setup*
Forward Collision Warning
Distance Changes CMBSTM alert distance. Long/Normal*1/Short
ACC Forward Vehicle
Detect Beep
Causes the system to beep when the system
detects a vehicle, or when the vehicle goes out of
the ACC range.
On/Off*1
Lane Keeping Assist
Suspend Beep
Causes the system to beep when LKAS is
suspended. On/Off*1
Road Departure Mitigation
Setting
Changes the setting for the road departure
mitigation system.
Normal*1/Wide/
Warning Only
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 334 ページ ２０１６年８月３１日　水曜日　午後６時５分
335
uuCustomized Featuresu
Continued
*1:Default Setting
Setup
Group Customizable Features Description Selectable Settings
Vehicle Meter
Setup
Adjust Outside Temp.
Display
Adjusts the temperature reading by a few
degrees.
-5°F ~ ±0°F*1 ~ +5°F
(U.S.)
-3°C ~ ±0°C*1 ~ +3°C
(Canada)
“Trip A” Reset Timing Changes the setting of how to reset trip meter A
and average fuel economy A.
When Refueled/IGN
Off/Manually Reset*1
“Trip B” Reset Timing Changes the setting of how to reset trip meter B
and average fuel economy B.
When Refueled/IGN
Off/Manually Reset*1
Adjust Alarm Volume Changes the alarm volume, such as buzzers,
warnings, turn signal sound, and so on. High/Mid*1/Low
Fuel Efficiency Backlight Turns the ambient meter feature on and off. On*1/Off
Turn By Turn Auto Display Selects whether the turn-by-turn display comes
on during the route guidance. On*1/Off
New Message
Notifications
Used to select whether a pop-up alert comes on
the screen when HFL receives a new text/e-mail
message.
On*1/Off
Speed/Distance Units Selects the trip computer units.
mph∙miles
*1
/
km/h∙km
(U.S.)
mph∙miles
/
km/h∙km
*1
(Canada)
Tachometer Selects whether the tachometer come on the
driver information interface. On*1/Off
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 335 ページ ２０１６年８月３１日　水曜日　午後６時５分
336
uuCustomized Featuresu
Features
*1:Default Setting
Setup
Group Customizable Features Description Selectable Settings
Vehicle
Keyless
Access
Setup*
Remote Start System ON/
OFF*Turns the remote engine start feature on and off. On*1/Off
Door Unlock Mode Changes which doors unlock when you grab the
driver’s door handle.
Driver Door Only*1/
All Doors
Keyless Access Light Flash Causes some exterior lights to flash when you
unlock/lock the doors. On*1/Off
Keyless Access Beep Causes the beeper to sound when you unlock/
lock the doors. On*1/Off
Lighting
Setup
Interior Light Dimming
Time
Changes the length of time the interior lights stay
on after you close the doors.
15seconds/
30seconds*1/
60seconds
Headlight Auto Off Timer Changes the length of time the exterior lights
stay on after you close the driver’s door.
0seconds/
15seconds*1/
30seconds/
60seconds
Auto Light Sensitivity Changes the timing for the headlights to come
on.
Max/High/Mid*1/
Low/Min
Auto Interior Illumination
Sensitivity
Changes the sensitivity of the brightness of the
instrument panel when the headlight switch is in
the AUTO position.
Max/High/Mid*1/
Low/Min
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 336 ページ ２０１６年８月３１日　水曜日　午後６時５分
337
uuCustomized Featuresu
*1:Default Setting
*2:Continuously variable transmission models
Setup
Group Customizable Features Description Selectable Settings
Vehicle
Lighting
Setup
Auto Headlight ON With
Wiper ON
Changes the settings for the wiper operation
when the headlights automatically come on while
the headlight switch is in the AUTO position. On*1/Off
Door/
Window
Setup
Auto Door Lock Used to change the setting for when the doors
automatically lock.
With Vehicle
Speed*1/Shift from
P*2/Off
Auto Door Unlock Changes the setting for when the doors unlock
automatically.
All Doors When
Driver’s Door
Opens*1/All Doors
When Shifted to
Park*2/All Doors
When Ignitions
Switched Off/Off
Key And Remote Unlock
Mode Sets up the driver’s door or all the doors to unlock
on the first push of the remote. Driver Door*1/All
Doors
Keyless Lock Answer Back LOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds. On*1/Off
Security Relock Timer Changes the time it takes for the doors to relock
and the security system to set after you unlock
the vehicle without opening any door.
90seconds/
60seconds/
30seconds*1
Walk Away Auto Lock*Changes the settings for the auto lock function
when you walk away from the vehicle. On/Off*1
Maintenance Info. Used to reset the engine oil life display when the
maintenance service has been performed. —
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 337 ページ ２０１６年８月３１日　水曜日　午後６時５分
338
uuCustomized FeaturesuDefaulting All the Settings
Features
Defaulting All the Settings
Reset all the menu and customized settings as the factory defaults.
1. Select .
2. Select Settings.
3. Select System.
4. Select the Others tab.
5. Select Factory Data Reset.
uA confirmation message appears on the
screen.
6. Select Yes to reset the settings.
7. Select Yes again to reset the settings.
uA confirmation message appears on the
screen. Select OK.
uAfter selecting OK, the system will
reboot.
Models with Display Audio
1Defaulting All the Settings
When you transfer the vehicle to a third party, reset
all settings to default and delete all personal data.
If you perform Factory Data Reset, it will reset the
preinstalled apps to their factory default.
If you perform Factory Data Reset, you cannot use
the HondaLink® because it becomes off line.
2HondaLink® P. 284
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 338 ページ ２０１６年８月３１日　水曜日　午後６時５分
339
Continued
Bluetooth® HandsFreeLink®*
Bluetooth® HandsFreeLink® (HFL) allows you to place and receive phone calls using
your vehicle's audio system, without handling your cell phone.
Using HFL
(Pick-up) button: Press to go directly to the Phone screen or to answer an
incoming call.
(Hang-up/back) button: Press to end a call or to cancel a command.
(Talk) button: Press to call a number with a stored voice tag.
(Phone) button: Press to go directly to the Phone screen.
Selector knob: Rotate to select an item on the screen, then press .
■HFL Buttons
1Bluetooth® HandsFreeLink®*
Place your phone where you can get good reception.
To use HFL, you need a Bluetooth-compatible cell
phone. For a list of compatible phones, pairing
procedures, and special feature capabilities:
•U.S.: Visit www.handsfreelink.honda.com, or call
1-888-528-7876.
•Canada: Visit www.handsfreelink.ca, or call 1-888-
528-7876.
Voice control tips
•Aim the vents away from the ceiling and close the
windows, as noise coming from them may interfere
with the microphone.
•Press and release the button when you want to
call a number using a stored voice tag. Speak
clearly and naturally after a beep.
•If the microphone picks up voices other than yours,
the command may be misinterpreted.
•To change the volume level, use the audio system’s
volume knob or the remote audio controls* on the
steering wheel.
State or local laws may prohibit the operation of
handheld electronic devices while operating a vehicle.
If you receive a call while using the audio system, the
system resumes its operation after ending the call.
Up to 20 speed dial entries can be stored. If there is
no entry in the system, Speed Dial is disabled.
2Speed Dial P. 352
Up to 20 call histories can be stored. If there is no call
history, Call History is disabled.
Models with color audio system
Talk Button
Volume up
Microphone
Hang-up/Back Button
Pick-up Button
Volume down
Selector Knob
Phone Button
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 339 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuBluetooth® HandsFreeLink®*uUsing HFL
340
Features
The audio/information screen notifies you
when there is an incoming call.
Certain manual functions are disabled or inoperable while the vehicle is in motion.
You cannot select a grayed-out option until the vehicle is stopped.
Only previously stored speed dial entries can be called using voice commands while
the vehicle is in motion.
2Speed Dial P. 352
■HFL Status Display
1Bluetooth® HandsFreeLink®*
Bluetooth® Wireless Technology
The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc., and any
use of such marks by Honda Motor Co., Ltd., is under
license. Other trademarks and trade names are those
of their respective owners.
HFL Limitations
An incoming call on HFL will interrupt the audio
system when it is playing. It will resume when the call
is ended.
HFL Mode
Battery Level Status
Signal Strength
Bluetooth Indicator
Appears when your
phone is connected
to HFL.
Roam Status
Call Name
■Limitations for Manual Operation
1HFL Status Display
The information that appears on the audio/
information screen varies between phone models.
You can change the system language to English,
French, or Spanish.
2Customized Features P. 118, 308
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 340 ページ ２０１６年８月３１日　水曜日　午後６時５分
341
uuBluetooth® HandsFreeLink®*uHFL Menus
Continued
HFL Menus
The ignition switch must be in ACCESSORY (q or ON (w to use HFL.
1HFL Menus
To use HFL, you must first pair your Bluetooth-
compatible cell phone to the system while the vehicle
is parked.
Some functions are limited while driving. A message
appears on the screen when the vehicle is moving
and the operation is canceled.
or
Display the last 20 outgoing calls.
Display the last 20 incoming calls.
Display the last 20 missed calls.
*1: Appears only when a phone is connected to HFL.
Phone Speed Dial*1 Add New
Select a phone number from the call history to
store as a speed dial number.
Call History
Phonebook Select a phone number from the phonebook to
store as a speed dial number.
Phone Number Enter a phone number to store as a speed dial
number.
Dialed Calls
Received Calls
Missed Calls
Phonebook*1
Dial*1
Call History*1
Display the paired phones’s phonebook.
Enter a phone number to dial.
(Existing entry list)
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 341 ページ ２０１６年８月３１日　水曜日　午後６時５分
342
uuBluetooth® HandsFreeLink®*uHFL Menus
Features
*1: Appears only when a phone is connected to HFL.
Redial the last number dialed in the phone’s history.
Add New Device
Connect a Phone
Connect an Audio Device
Bluetooth SetupPhone Setup
Redial*1
Pair a phone to the system.
Connect a phone to the system.
Create a code for a paired phone.
Disconnect All Devices
Delete Device
Pass-key
Disconnect a paired phone from the system.
Delete a previously paired phone.
Connect a Bluetooth® Audio device to the
system.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 342 ページ ２０１６年８月３１日　水曜日　午後６時５分
343
uuBluetooth® HandsFreeLink®*uHFL Menus
Continued
*1: Appears only when a phone is connected to HFL.
Call History
Phonebook
Phone Number
Speed Dial*1
Select a phone number from the phonebook
to store as a speed dial number.
Select a phone number from the call history
to store as a speed dial number.
Create a voice tag for a speed dial number.
Change Speed Dial
Delete Speed Dial
Store Voice Tag
Enter a phone number to store as a speed dial
number.
Delete a previously stored speed dial number.
Change Voice Tag
Delete Voice Tag
Change a previously stored speed dial
number.
Change a voice tag for a speed dial number.
Delete a voice tag for a speed dial number.
Add New
Existing entry list
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 343 ページ ２０１６年８月３１日　水曜日　午後６時５分
344
uuBluetooth® HandsFreeLink®*uHFL Menus
Features
Fixed
Mobile Phone
System Clear
Ringtone Select the ring tone stored in the connected
cell phone.
Name Priority
Number Priority
Caller ID Info Prioritize the caller’s name as the caller ID.
Clear the system of all paired phones, phonebook entries,
and security codes.
Prioritize the caller’s phone number as the
caller ID.
Select the ring tone stored in HFL.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 344 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 345
uuBluetooth® HandsFreeLink®*uHFL Menus
■To pair a cell phone (No phone has
been paired to the system)
1. Press the button or the button.
2. Rotate to select Yes, then press .
3. Make sure your phone is in search or
discoverable mode, then press .
uHFL automatically searches for a
Bluetooth® device.
4. When your phone appears on the list, select
it by pressing .
uIf your phone doesn’t appear, select
Phone Not Found? and search for
Bluetooth® devices using your phone.
From your phone, select
HandsFreeLink.
5. The system gives you a pairing code on the
audio/information screen.
uConfirm if the pairing code on the screen
and your phone match.
This may vary by phone.
6. A notification appears on the screen if
pairing is successful.
■Phone Setup
1Phone Setup
Your Bluetooth-compatible phone must be paired to
HFL before you can make and receive hands-free
calls.
Phone Pairing Tips:
•You cannot pair your phone while the vehicle is
moving.
•Up to six phones can be paired.
•Your phone’s battery may drain faster when it is
paired to HFL.
•If your phone is not ready for pairing or not found
by the system within three minutes, the system will
time out and return to idle.
Once you have paired a phone, you can see it
displayed on the screen with one or two icons on the
right side.
These icons indicate the following:
: The phone can be used with HFL.
: The phone is compatible with Bluetooth® Audio.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 345 ページ ２０１６年８月３１日　水曜日　午後６時５分
346
uuBluetooth® HandsFreeLink®*uHFL Menus
Features
■To change the currently paired phone
1. Press the button or the button.
2. Rotate to select Phone Setup, then
press .
3. Rotate to select Bluetooth Setup, then
press .
4. Rotate to select Connect a Phone,
then press .
uThe screen changes to a device list.
5. Rotate to select a desired device name,
then press .
uHFL disconnects the connected phone
and starts searching for another paired
phone.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 346 ページ ２０１６年８月３１日　水曜日　午後６時５分
347
uuBluetooth® HandsFreeLink®*uHFL Menus
Continued
■To change the pairing code setting
1. Press the button or the button.
2. Rotate to select Phone Setup, then
press .
3. Rotate to select Bluetooth Setup, then
press .
4. Rotate to select Pass-Key, then press
.
5. Input a new pairing code, then press .
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 347 ページ ２０１６年８月３１日　水曜日　午後６時５分
348
uuBluetooth® HandsFreeLink®*uHFL Menus
Features
■To delete a paired phone
1. Press the button or the button.
2. Rotate to select Phone Setup, then
press .
3. Rotate to select Bluetooth Setup, then
press .
4. Rotate to select Delete Device, then
press .
uThe screen changes to a device list.
5. Rotate to select a phone you want to
delete, then press .
6. A confirmation message appears on the
screen. Rotate to select Yes, then press
.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 348 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 349
uuBluetooth® HandsFreeLink®*uHFL Menus
You can change the ring tone setting.
1. Press the button or the button.
2. Rotate to select Phone Setup, then
press .
3. Rotate to select Ringtone, then press
.
4. Rotate to select Fixed or Mobile
Phone, then press .
You can select a caller’s information to be displayed when you have an incoming
call.
1. Press the button or the button.
2. Rotate to select Phone Setup, then
press .
3. Rotate to select Caller ID Info, then
press .
4. Rotate to select a mode you want, then
press .
■Ring Tone
1Ring Tone
Fixed: The fixed ring tone sounds from the speakers.
Mobile Phone: For certain connected phones, the
ring tone stored in the phone sounds from the
speakers.
■Caller’s ID Information
1Caller’s ID Information
Name Priority: A caller’s name is displayed if it is
stored in the phonebook.
Number Priority: A caller’s phone number is
displayed.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 349 ページ ２０１６年８月３１日　水曜日　午後６時５分
350
uuBluetooth® HandsFreeLink®*uHFL Menus
Features
Pairing codes, paired phones, all stored voice tags, all speed dial entries, all call
history data, and all imported phonebook data are erased.
1. Press the button or the button.
2. Rotate to select Phone Setup, then
press .
3. Rotate to select System Clear, then
press .
4. Rotate to select Yes, then press .
5. A confirmation message appears on the
screen. Rotate to select Yes, then press
.
6. A notification appears on the screen. Press
.
■To Clear the System
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 350 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 351
uuBluetooth® HandsFreeLink®*uHFL Menus
When your phone is paired, the contents of its phonebook and call history are
automatically imported to HFL.
■Automatic Import of Cellular Phonebook and Call History
1Automatic Import of Cellular Phonebook and Call History
When you select a person from the list in the cellular
phonebook, you can see up to three category icons.
The icons indicate what types of numbers are stored
for that name.
If a name has four or more numbers, ... appears
instead of category icons.
On some phones, it may not be possible to import the
category icons to HFL.
The phonebook is updated after every connection.
Call history is updated after every connection or call.
Pref
Home
Mobile
Pager
Work
Fax
Car
Voice
Other
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 351 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuBluetooth® HandsFreeLink®*uHFL Menus
352
Features
Up to 20 speed dial numbers can be stored per phone.
To store a speed dial number:
1. Press the button or the button.
2. Rotate to select Speed Dial, then press
.
3. Rotate to select Add New, then press
.
4. Rotate to select a place to choose a
number from, then press .
From Call History:
uSelect a number from the call history.
From Phonebook:
uSelect a number from the connected cell
phone’s imported phonebook.
From Phone Number:
uInput the number manually.
5. When the speed dial is successfully stored,
you are asked to create a voice tag for the
number. Rotate to select Yes or No,
then press .
6. Using the button, follow the prompts to
say the name for the speed dial entry.
■Speed Dial
1Speed Dial
You can use the audio preset buttons during a call to
store a speed dial number:
1. Press and hold the desired audio preset button
during a call.
2. The contact information for the active call will be
stored for the corresponding speed dial.
When a voice tag is stored, you can press the
button and call the number using voice commands.
Change Speed Dial
Delete Speed Dial
Cha
Cha
Cha
Cha
ha
Cha
nge
ngenge
nge
ge
nge
Sp
Sp
Sp
Sp
Sp
Sp
eed
eed
eed
eed
eed
eed
Di
a
l
Del
Del
Del
Dl
ete
ete
ete
t
Sp
Sp
Sp
S
eed
eed
eed
d
Di
Di
Di
Di
Di
Di
Di
Di
Di
Di
i
Di
Di
i
Di
i
l
al
a
a
a
a
al
a
a
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 352 ページ ２０１６年８月３１日　水曜日　午後６時５分
353
uuBluetooth® HandsFreeLink®*uHFL Menus
Continued
■To edit a speed dial
1. Press the button or the button.
2. Rotate to select Phone Setup, then
press .
3. Rotate to select Speed Dial, then press
.
4. Select an existing speed dial entry.
5. Rotate to select Change Speed Dial,
then press .
6. Select a new speed dial number, then press
.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 353 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuBluetooth® HandsFreeLink®*uHFL Menus
354
Features
■To add a voice tag to a stored speed
dial number
1. Press the button or the button.
2. Rotate to select Phone Setup, then
press .
3. Rotate to select Speed Dial, then press
.
4. Select an existing speed dial entry.
5. Rotate to select Store Voice Tag, then
press .
6. Using the button, follow the prompts to
complete the voice tag.
■To change a voice tag
1. Press the button or the button.
2. Rotate to select Phone Setup, then
press .
3. Rotate to select Speed Dial, then press
.
4. Select an existing speed dial entry.
5. Rotate to select Change Voice Tag,
then press .
6. Using the button, follow the prompts to
complete the voice tag.
1Speed Dial
Avoid using duplicate voice tags.
Avoid using “home” as a voice tag.
It is easier for HFL to recognize a longer name. For
example, use “John Smith” instead of “John.”
Change Speed Dial
Delete Speed Dial
Store Voice Tag
Change Speed Dial
Delete Speed Dial
Cha
Cha
Cha
Cha
Cha
nge
nge
nge
e
e
Sp
Sp
Sp
Sp
p
eed
eed
eed
ee
ee
Di
Di
Di
Di
Di
al
al
al
al
al
Del
Del
Del
Del
Del
eteeteete
ete
ete
Sp
SpSp
Sp
p
eedeedeed
eed
ee
Di Di
Di
Di
alal
al
al
al
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 354 ページ ２０１６年８月３１日　水曜日　午後６時５分
355
uuBluetooth® HandsFreeLink®*uHFL Menus
Continued
■To delete a voice tag
1. Press the button or the button.
2. Rotate to select Phone Setup, then
press .
3. Rotate to select Speed Dial, then press
.
4. Select an existing speed dial entry.
5. Rotate to select Delete Voice Tag,
then press .
uA confirmation message appears on the
screen. Rotate to select Yes, then
press .
■To delete a speed dial number
1. Press the button or the button.
2. Rotate to select Phone Setup, then
press .
3. Rotate to select Speed Dial, then press
.
4. Select an existing speed dial entry.
5. Rotate to select Delete Speed Dial,
then press .
uA confirmation message appears on the
screen. Rotate to select Yes, then
press .
Change Speed Dial
Delete Speed Dial
Store Voice Tag
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 355 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuBluetooth® HandsFreeLink®*uHFL Menus
356
Features
You can make calls by inputting any phone number, or by using the imported
phonebook, call history, speed dial entries, or redial.
■Making a Call
1Making a Call
Any voice-tagged speed dial entry can be dialed by
voice from any screen.
Press the button and follow the prompts.
The maximum range between your phone and
vehicles is 30 feet (10 meters).
Once a call is connected, you can hear the voice of
the person you are calling through the audio
speakers.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 356 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 357
uuBluetooth® HandsFreeLink®*uHFL Menus
■To make a call using the imported
phonebook
When your phone is paired, the contents of its
phonebook are automatically imported to
HFL.
1. Press the button or the button.
2. Rotate to select Phonebook, then
press .
3. The phonebook is stored alphabetically.
Rotate to select the initial, then press
.
4. Rotate to select a name, then press .
5. Rotate to select a number, then press
.
uDialing starts automatically.
■To make a call using a phone number
1. Press the button or the button.
2. Rotate to select Dial, then press .
3. Rotate to select a number, then press
.
4. Rotate to select , then press .
uDialing starts automatically.
1To make a call using the imported phonebook
This function is disabled while the vehicle is moving.
However, you can call a stored voice-tagged speed
dial number using voice commands.
2Limitations for Manual Operation P. 340
2Speed Dial P. 352
1To make a call using a phone number
This function is disabled while the vehicle is moving.
However, you can call a stored voice-tagged speed
dial number using voice commands.
2Limitations for Manual Operation P. 340
2Speed Dial P. 352
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 357 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuBluetooth® HandsFreeLink®*uHFL Menus
358
Features
■To make a call using redial
1. Press the button or the button.
2. Rotate to select Redial, then press .
uDialing starts automatically.
■To make a call using the call history
Call history is stored by Dialed Calls,
Received Calls, and Missed Calls.
1. Press the button or the button.
2. Rotate to select Call History, then
press .
3. Rotate to select Dialed Calls, Received
Calls, or Missed Calls, then press .
4. Rotate to select a number, then press
.
uDialing starts automatically.
1To make a call using redial
Press and hold the button to redial the last
number dialed in your phone’s call history.
1To make a call using the call history
The call history appears only when a phone is
connected to HFL, and displays the last 20 dialed,
received, or missed calls.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 358 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 359
uuBluetooth® HandsFreeLink®*uHFL Menus
■To make a call using a speed dial entry
1. Press the button or the button.
2. Rotate to select Speed Dial, then press
.
3. Rotate to select a number, then press
.
uDialing starts automatically.
1To make a call using a speed dial entry
On the Phone screen, the first six speed dials on the
list can be directly selected by pressing the
corresponding audio preset buttons (1-6).
Select Others to view another paired phone’s speed
dial list.
When a voice tag is stored, press the button and
call the number using voice commands.
2Speed Dial P. 352
Any voice-tagged speed dial entry can be dialed by
voice from any screen. Press the button and
follow the prompts.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 359 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuBluetooth® HandsFreeLink®*uHFL Menus
360
Features
When there is an incoming call, an audible
notification sounds and the Incoming Call
screen appears.
Press the button to answer the call.
Press the button to decline or end the
call.
■Receiving a Call
1Receiving a Call
Call Waiting
Press the button to put the current call on hold
to answer the incoming call.
Press the button again to return to the current
call.
Select Ignore to ignore the incoming call if you do
not want to answer it.
Press the button if you want to hang up the
current call.
You can select the icons on the audio/information
screen instead of the and buttons. Rotate
to select the icon, then press .
HFL Mode
Caller’s Name
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 360 ページ ２０１６年８月３１日　水曜日　午後６時５分
361
uuBluetooth® HandsFreeLink®*uHFL Menus
The following options are available during a call.
Swap Call: Put the current call on hold to answer the incoming call.
Mute: Mute your voice.
Transfer Call: Transfer a call from HFL to your phone.
Dial Tones: Send numbers during a call. This is useful when you call a menu-driven
phone system.
1. To view the available options, press the
button.
2. Rotate to select the option, then press
.
uThe check box is checked when Mute is
selected. Select Mute again to turn it off.
■Options During a Call
1Options During a Call
Dial Tones: Available on some phones.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 361 ページ ２０１６年８月３１日　水曜日　午後６時５分
362
Features
Bluetooth® HandsFreeLink®*
Bluetooth® HandsFreeLink® (HFL) allows you to place and receive phone calls using
your vehicle’s audio system, without handling your cell phone.
Using HFL
■HFL Buttons
1Bluetooth® HandsFreeLink®*
Place your phone where you can get good reception.
To use HFL, you need a Bluetooth-compatible cell
phone. For a list of compatible phones, pairing
procedures, and special feature capabilities:
•U.S.: Visit www.handsfreelink.honda.com, or call
1-888-528-7876.
•Canada: Visit www.handsfreelink.ca, or call 1-888-
528-7876.
To use the system, the Bluetooth On/Off Status
setting must be On. If there is an active connection to
Apple CarPlay, HFL is unavailable.
2How to customize P. 315
Voice control tips
•Aim the vents away from the ceiling and close the
windows, as noise coming from them may interfere
with the microphone.
•Press the button when you want to call a
number using a stored voice tag. Speak clearly and
naturally after a beep.
•If the microphone picks up voices other than yours,
the command may be misinterpreted.
•To change the volume level, select the audio
system’s VOL (Volume) or use the remote audio
controls on the steering wheel.
Up to five speed dial entries can be displayed among
a total of 20 that can be entered.
2Speed Dial P. 376
Up to five previous calls can be displayed at a time
among a total of 20 that can be entered. If there is no
call history, Call History is disabled.
Models with Display Audio
(Talk) Button
(+ (- Bar
Microphone
(Hang-up/Back) Button
(Pick-up) Button
ENTER Button
Button
Buttons
3
4
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 362 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 363
uuBluetooth® HandsFreeLink®*uUsing HFL
(Pick-up) button: Press to go directly to the phone menu on the driver
information interface, or to answer an incoming call.
(Hang-up/back) button: Press to end a call, go back to the previous
command, or cancel a command.
(Talk) button: Press to access Voice Portal.
buttons: Press to select an item displayed on the phone menu in the driver
information interface.
ENTER button: Press to call a number listed in the selected item on the phone
menu in the driver information interface.
button: Select and press ENTER to display Speed Dial, Call History, or
Phonebook on the phone menu in the driver information interface.
To go to the Phone menu screen:
1. Select .
2. Select Phone to switch the display to the phone screen.
3. Select .
1Bluetooth® HandsFreeLink®*
Bluetooth® Wireless Technology
The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc., and any
use of such marks by Honda Motor Co., Ltd., is under
license. Other trademarks and trade names are those
of their respective owners.
HFL Limitations
An incoming call on HFL will interrupt the audio
system when it is playing. It will resume when the call
is ended.
3
4
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 363 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuBluetooth® HandsFreeLink®*uUsing HFL
364
Features
The audio/information screen notifies you when there is an incoming call.
Certain manual functions are disabled or inoperable while the vehicle is in motion.
You cannot select a grayed-out option until the vehicle is stopped.
Only previously stored speed dial entries with voice tags, phonebook names, or
numbers can be called using voice commands while the vehicle is in motion.
2Speed Dial P. 376
■HFL Status Display
1HFL Status Display
The information that appears on the audio/
information screen varies between phone models.
You can change the system language.
2How to customize P. 315
■Limitations for Manual Operation
Bluetooth Indicator
Appears when your phone is
connected to HFL.
Signal StrengthHFL Mode
Battery Level Status
Caller’s Name
Caller’s Number
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 364 ページ ２０１６年８月３１日　水曜日　午後６時５分
365
uuBluetooth® HandsFreeLink®*uHFL Menus
Continued
HFL Menus
The ignition switch must be in ACCESSORY (q or ON (w*1 to use HFL.
■Phone settings screen
1. Select .
2. Select Settings.
3. Select Phone.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1HFL Menus
To use HFL, you must first pair your Bluetooth-
compatible cell phone to the system while the vehicle
is parked.
Some functions are limited while driving.
Disconnect a paired phone
from the system.
Bluetooth Device List (Existing entry list)
Disconnect
Delete Delete a paired phone.
Add Bluetooth Device Pair a new phone to the system.
Phone
Connect a paired device to
the system.
Connect
Connect
Connect
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 365 ページ ２０１６年８月３１日　水曜日　午後６時５分
366
uuBluetooth® HandsFreeLink®*uHFL Menus
Features
Manual Input
New Entry
Import from Call History
Import from Phonebook
Edit
Delete
(Existing entry list)
Edit Speed Dial
Delete All
Enter a phone number to store as a speed
dial number.
Select a phone number from the call history
to store as a speed dial number.
Delete all of the previously stored speed dial numbers.
Select a phone number from the phonebook
to store as a speed dial number.
Edit a previously stored speed dial number.
●Change a name.
●Change a number.
●Create or delete a voice tag.
Delete a previously stored speed dial number.
Ring Tone Select the fixed or mobile phone.
Automatic Phone Sync Set phonebook and call history data to be automatically imported when a phone is paired to HFL.
Turn HondaLink Assist on and off.
HondaLink Assist
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 366 ページ ２０１６年８月３１日　水曜日　午後６時５分
367
uuBluetooth® HandsFreeLink®*uHFL Menus
Continued
Select Account
Enable Text/Email
Text/Email
New Message Notification Select whether a pop-up alert comes on the screen when HFL
receives a new text/e-mail message.
Turn the text/e-mail message function on and off.
Select a mail or text message account.
Default Cancel/Reset all customized items in the Phone settings group as default.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 367 ページ ２０１６年８月３１日　水曜日　午後６時５分
368
uuBluetooth® HandsFreeLink®*uHFL Menus
Features
■Phone menu screen
1. Select .
2. Select Phone.
3. Select .
Select a phone number from the call history to
store as a speed dial number.
Speed Dial
Manual Input
New Entry
Import from Call History
Import from Phonebook Select a phone number from the phonebook
to store as a speed dial number.
Enter a phone number to store as a speed
dial number.
(Existing entry list) Dial the selected number in the speed dial list.
Select a phone number from the call history to
store as a speed dial number.
Manual Input
New Entry
Import from Call History
Import from Phonebook Select a phone number from the phonebook
to store as a speed dial number.
Enter a phone number to store as a speed
dial number.
(Existing entry list) Dial the selected number in the speed dial list.
Edit Speed Dial
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 368 ページ ２０１６年８月３１日　水曜日　午後６時５分
369
uuBluetooth® HandsFreeLink®*uHFL Menus
Continued
See the previous message.
Text/Email Read/Stop
(Existing message list)
See the next message.
System reads received message aloud, or
stop message from being read.
Select Account Select a mail or text message account.
Reply to a received message using one of six
fixed phrases.
Dial Make a call to the sender.
Reply
Display the last outgoing, incoming and missed calls.
Call History All
Dialed
Received
Display the last outgoing calls.
Display the last incoming calls.
Missed Display the last missed calls.
Dial
Redial
Enter a phone number to dial.
Redial the last number dialed.
Phonebook Display the paired phone’s phonebook.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 369 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuBluetooth® HandsFreeLink®*uHFL Menus
370
Features
■To pair a cell phone (when there is no
phone paired to the system)
1. Select Phone.
2. Select Yes.
3. Make sure your phone is in search or
discoverable mode, then select Continue.
uHFL automatically searches for a
Bluetooth® device.
4. Select your phone when it appears on the
list.
uIf your phone does not appear, you can
select Refresh to search again.
uIf your phone still does not appear, select
Phone Not Found and search for
Bluetooth® devices using your phone.
From your phone, search for
HandsFreeLink.
5. The system gives you a pairing code on the
audio/information screen.
uConfirm if the pairing code on the screen
and your phone match.
This may vary by phone.
■Phone Setup
1Phone Setup
Your Bluetooth-compatible phone must be paired to
the system before you can make and receive hands-
free calls.
Phone Pairing Tips:
•You cannot pair your phone while the vehicle is
moving.
•Up to six phones can be paired.
•Your phone's battery may drain faster when it is
paired to the system.
•If your phone is not ready for pairing or not found
by the system within three minutes, the system will
time out and return to idle.
Once you have paired a phone, you can see it
displayed on the screen with one or two icons on the
right side.
These icons indicate the following:
: The phone can be used with HFL.
: The phone is compatible with Bluetooth® Audio.
If there is an active connection to Apple CarPlay,
pairing of additional Bluetooth-compatible devices is
unavailable and Add Bluetooth Device is grayed
out from the Bluetooth Device List screen.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 370 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 371
uuBluetooth® HandsFreeLink®*uHFL Menus
■To change the currently paired phone
1. Go to the phone settings screen.
2Phone settings screen P. 365
2. Select Bluetooth Device List.
3. Select a phone to connect.
uHFL disconnects the connected phone
and starts searching for another paired
phone.
4. Select Connect , Connect , or
Connect .
■To change the pairing code setting
1. Select .
2. Select Settings.
3. Select Bluetooth/Wi-Fi.
4. Select the Bluetooth tab.
5. Select Edit Pairing Code.
6. Select Random or Fixed.
1To change the currently paired phone
If no other phones are found or paired when trying to
switch to another phone, HFL will inform you that the
original phone is connected again.
To pair other phones, select Add Bluetooth Device
from the Bluetooth device list screen.
1To change the pairing code setting
The default pairing code is 0000 until you change the
setting.
To create your own, select Fixed, and delete the
current code, then enter a new one.
For a randomly generated pairing code each time you
pair a phone, select Random.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 371 ページ ２０１６年８月３１日　水曜日　午後６時５分
372
uuBluetooth® HandsFreeLink®*uHFL Menus
Features
■To delete a paired phone
1. Go to the phone settings screen.
2Phone settings screen P. 365
2. Select Bluetooth Device List.
3. Select a phone you want to delete.
4. Select Delete.
5. A confirmation message appears on the
screen. Select Yes.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 372 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 373
uuBluetooth® HandsFreeLink®*uHFL Menus
■To turn on or off the text/e-mail
function
1. Go to the phone settings screen.
2Phone settings screen P. 365
2. Select the Text/Email tab, then Enable
Text/Email.
uA pop-up menu appears on the screen.
3. Select On or Off.
■To turn on or off the text/e-mail notice
1. Go to the phone settings screen.
2Phone settings screen P. 365
2. Select the Text/Email tab, then New
Message Notification.
uA pop-up menu appears on the screen.
3. Select On or Off.
■To Set Up Text/E-mail Message Options
1To Set Up Text/E-mail Message Options
To use the text/e-mail message function, it may be
necessary to set up on your phone.
1To turn on or off the text/e-mail notice
On: A pop-up notification comes on every time you
receive a new message.
Off: The message you receive is stored in the system
without notification.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 373 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuBluetooth® HandsFreeLink®*uHFL Menus
374
Features
You can change the ring tone setting.
1. Go to the phone settings screen.
2Phone settings screen P. 365
2. Select Ring Tone.
3. Select Fixed or Mobile Phone.
■Ring Tone
1Ring Tone
Fixed: The fixed ring tone sounds from the speakers.
Mobile Phone: For certain connected phones, the
ring tone stored in the phone sounds from the
speakers.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 374 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 375
uuBluetooth® HandsFreeLink®*uHFL Menus
■When Automatic Phone Sync is set to
On:
When your phone is paired, the contents of its
phonebook and call history are automatically
imported to the system.
■Changing the Automatic Phone Sync
setting
1. Go to the phone settings screen.
2Phone settings screen P. 365
2. Select Automatic Phone Sync.
3. Select On or Off.
■Automatic Import of Cellular Phonebook and Call History
1Automatic Import of Cellular Phonebook and Call History
When you select a name from the list in the cellular
phonebook, you can see up to three category icons.
The icons indicate what types of numbers are stored
for that name.
On some phones, it may not be possible to import the
category icons to the system.
The phonebook is updated after every connection.
Call history is updated after every connection or call.
Home
Mobile
Work
Pager
Fax
Car
Other
Voice
Pref
Blank
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 375 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuBluetooth® HandsFreeLink®*uHFL Menus
376
Features
Up to 20 speed dial numbers can be stored per phone.
To store a speed dial number:
1. Go to the Phone menu screen.
2Phone menu screen P. 368
2. Select Speed Dial.
3. Select New Entry.
From Import from Call History:
uSelect a number from the call history.
From Manual Input:
uInput the number manually.
From Import from Phonebook:
uSelect a number from the connected cell
phone’s imported phonebook.
4. When the speed dial is successfully stored,
you are asked to create a voice tag for the
number. Select Yes or No.
5. Select Record, or use the button and
follow the prompts to complete the voice
tag.
■Speed Dial
1Speed Dial
When a voice tag is stored, press the button to
call the number using the voice tag. Say the voice tag
name.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 376 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 377
uuBluetooth® HandsFreeLink®*uHFL Menus
■To add a voice tag to a stored speed
dial number
1. Go to the phone settings screen.
2Phone settings screen P. 365
2. Select Edit Speed Dial.
3. Select an existing speed dial entry.
uFrom the pop-up menu, select Edit.
4. Select Voice Tag.
uFrom the pop-up menu, select Record.
5. Select Record, or use the button and
follow the prompts to complete the voice
tag.
■To delete a voice tag
1. Go to the phone settings screen.
2Phone settings screen P. 365
2. Select Edit Speed Dial.
3. Select an existing speed dial entry.
uFrom the pop-up menu, select Edit.
4. Select Voice Tag.
uFrom the pop-up menu, select Clear.
5. A confirmation message appears on the
screen. Select Yes.
1Speed Dial
Avoid using duplicate voice tags.
Avoid using “home” as a voice tag.
It is easier for the system to recognize a longer name.
For example, use “John Smith” instead of “John.”
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 377 ページ ２０１６年８月３１日　水曜日　午後６時５分
378
uuBluetooth® HandsFreeLink®*uHFL Menus
Features
■To edit a speed dial
1. Go to the phone settings screen.
2Phone settings screen P. 365
2. Select Edit Speed Dial.
3. Select an existing speed dial entry.
uFrom the pop-up menu, select Edit.
4. Select a setting you want.
■To delete a speed dial
1. Go to the phone settings screen.
2Phone settings screen P. 365
2. Select Edit Speed Dial.
3. Select an existing speed dial entry.
uFrom the pop-up menu, select Delete.
4. A confirmation message appears on the
screen. Select Yes.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 378 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 379
uuBluetooth® HandsFreeLink®*uHFL Menus
Add phonetic modifications or a new voice tag to the phone’s contact name so that
it is easier for HFL to recognize voice commands.
■To add a new voice tag
1. Select .
2. Select Settings.
3. Select System.
4. Select the Voice Recog tab.
5. Select Phonebook Phonetic
Modification.
6. Select the phone you want to add
phonetic modification to.
■Phonebook Phonetic Modification
1Phonebook Phonetic Modification
You can store up to 20 phonetic modification items.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 379 ページ ２０１６年８月３１日　水曜日　午後６時５分
380
uuBluetooth® HandsFreeLink®*uHFL Menus
Features
7. Select New Voice Tag.
8. Select a contact name you want to add to.
uThe pop-up menu appears on the
screen.
9. Select Modify.
10. Using Record or the button, follow
the prompts to complete the voice tag.
11. You will receive a confirmation message
on the screen, then select OK.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 380 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 381
uuBluetooth® HandsFreeLink®*uHFL Menus
■To modify a voice tag
1. Select .
2. Select Settings.
3. Select System.
4. Select the Voice Recog tab.
5. Select Phonebook Phonetic
Modification.
6. Select the phone you want to modify
phonetic modification.
7. Select a contact name you want to
modify.
uThe pop-up menu appears on the
screen.
8. Select Modify.
9. Using Record or the button, follow
the prompts to complete the voice tag.
10. You will receive a confirmation message
on the screen, then select OK.
1Phonebook Phonetic Modification
You can only modify or delete contact names for the
currently connected phone.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 381 ページ ２０１６年８月３１日　水曜日　午後６時５分
382
uuBluetooth® HandsFreeLink®*uHFL Menus
Features
■To delete a modified voice tag
1. Select .
2. Select Settings.
3. Select System.
4. Select the Voice Recog tab.
5. Select Phonebook Phonetic
Modification.
6. Select the phone you want to delete
phonetic modification.
7. Select a contact name you want to delete.
uThe pop-up menu appears on the screen.
8. Select Delete.
uThe selected contact name has been
selected.
9. Select OK.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 382 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 383
uuBluetooth® HandsFreeLink®*uHFL Menus
■To delete all modified voice tags
1. Select .
2. Select Settings.
3. Select System.
4. Select the Voice Recog tab.
5. Select Phonebook Phonetic
Modification.
6. Select the phone you want to delete
phonetic modification.
uThe contact name list appears.
7. Select Delete All.
8. You will receive a confirmation message on
the screen, then select Yes.
You can make calls by inputting any phone
number, or by using the imported
phonebook, call history, speed dial entries, or
redial.
■Making a Call
1Making a Call
Any voice-tagged speed dial entry can be dialed by
voice from most screens.
Press the button and say the voice tag name.
Once a call is connected, you can hear the voice of
the person you are calling through the audio
speakers.
While there is an active connection with Apple
CarPlay, phone calls cannot be made with
HandsFreeLink® and are only made from Apple
CarPlay.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 383 ページ ２０１６年８月３１日　水曜日　午後６時５分
384
uuBluetooth® HandsFreeLink®*uHFL Menus
Features
■To make a call using the imported
phonebook
1. Go to the Phone menu screen.
2Phone menu screen P. 368
2. Select Phonebook.
3. Select a name.
uYou can also search by letter. Select
Search.
uUse the keyboard on the touch screen for
entering name, if multiple numbers exist
select a number.
uYou can also swipe up or down to scroll
through the list of contacts alphabetically
on the steering wheel.
2Audio Remote Controls P. 208
4. Select a number.
uDialing starts automatically.
■To make a call using a phone number
1. Go to the Phone menu screen.
2Phone menu screen P. 368
2. Select Dial.
3. Select a number.
uUse the keyboard on the touch screen for
entering numbers.
4. Select .
uDialing starts automatically.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 384 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 385
uuBluetooth® HandsFreeLink®*uHFL Menus
■To make a call using redial
1. Go to the Phone menu screen.
2Phone menu screen P. 368
2. Select Redial.
uDialing starts automatically.
■To make a call using the Call History
Call history is stored by All, Dialed,
Received, and Missed.
1. Go to the Phone menu screen.
2Phone menu screen P. 368
2. Select Call History.
3. Select All, Dialed, Received, or Missed.
4. Select a number.
uDialing starts automatically.
■To make a call using a Speed Dial entry
1. Go to the Phone menu screen.
2Phone menu screen P. 368
2. Select Speed Dial.
3. Select a number.
uDialing starts automatically.
1To make a call using the Call History
The call history displays the last 20 all, dialed,
received, or missed calls.
(Appears only when a phone is connected to the
system.)
1To make a call using a Speed Dial entry
When a voice tag is stored, press the button to
call the number using the voice tag.
2Speed Dial P. 376
Any voice-tagged speed dial entry can be dialed by
voice from any screen.
Press the button and follow the prompts.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 385 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuBluetooth® HandsFreeLink®*uHFL Menus
386
Features
When there is an incoming call, an audible
notification sounds (if activated) and the
Incoming call screen appears.
Press the button to answer the call.
Press the button to decline or end the
call.
The following options are available during a call.
Mute: Mute your voice.
Transfer: Transfer a call from the system to your phone.
Touch Tones: Send numbers during a call. This is useful when you call a menu-
driven phone system.
The available options are shown on the lower
half of the screen.
Select the option.
uThe mute icon appears when Mute is
selected. Select Mute again to turn it off.
■Receiving a Call
1Receiving a Call
Call Waiting
Press the button to put the current call on hold to
answer the incoming call.
Press the button again to return to the current
call.
Select Ignore to ignore the incoming call if you do
not want to answer it.
Press the button if you want to hang up the
current call.
You can select the icons on the audio/information
screen instead of the and buttons.
■Options During a Call
1Options During a Call
Touch Tones: Available on some phones.
You can select the icons on the audio/information
screen.
Mute Icon
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 386 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 387
uuBluetooth® HandsFreeLink®*uHFL Menus
HFL can display newly received text or e-mail messages as well as 20 of the most
recently received messages on a linked cell phone. Each received message can be
read aloud and replied to using a fixed common phrase.
1. A pop-up appears and notifies you of a new
text or e-mail message.
2. Select Read to listen to the message.
uThe text or e-mail message is displayed.
The system automatically starts reading
out the message.
3. To discontinue the message read-out, select
Stop.
■Receiving a Text/E-mail Message
1Receiving a Text/E-mail Message
The system does not display any received messages
while you are driving. You can only hear them read
aloud.
The system can only receive messages that are sent a
text (SMS) messages. The message sent using the
data services will not be displayed in the list.
With some phones, you may be able to display up to
20 most recent text and e-mail messages.
State or local laws may limit your use of the HFL text/
e-mail message feature. Only use the text/e-mail
message feature when conditions allow you to do so
safely.
When you receive a text or e-mail message for the
first time since the phone is paired to HFL, you are
asked to turn the New Message Notification
setting to On.
2To turn on or off the text/e-mail notice
P. 373
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 387 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuBluetooth® HandsFreeLink®*uHFL Menus
388
Features
If a paired phone has text or mail message accounts, you can select one of them to
be active and receive notifications.
1. Go to the phone settings screen.
2Phone settings screen P. 365
2. Select the Text/Email tab, then Select
Account.
uA pop-up menu appears on the screen.
3. Select Text Messages or an e-mail account
you want.
■Selecting a Mail Account
1Selecting a Mail Account
You can also select a mail account from the folder list
screen or the message list screen.
You can only receive notifications from one text or
mail message account at a time.
Select
Account
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 388 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 389
uuBluetooth® HandsFreeLink®*uHFL Menus
■Displaying text messages
1. Go to the Phone menu screen.
2Phone menu screen P. 368
2. Select Text/Email.
uSelect account if necessary.
3. Select a message.
uThe text message is displayed. The
system automatically starts reading the
message aloud.
■Displaying Messages
1Displaying Messages
The icon appears next to an unread message.
If you delete a message on the phone, the message is
also deleted in the system. If you send a message
from the system, the message goes to your phone’s
outbox.
To see the previous or next message, select
(previous) or (next) on the message screen.
Message List
Text Message
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 389 ページ ２０１６年８月３１日　水曜日　午後６時５分
390
uuBluetooth® HandsFreeLink®*uHFL Menus
Features
■Displaying e-mail messages
1. Go to the Phone menu screen.
2Phone menu screen P. 368
2. Select Text/Email.
uSelect Select Account if necessary.
3. Select a folder.
4. Select a message.
uThe e-mail message is displayed. The
system automatically starts reading the
message aloud.
Folder List
Message List
E-mail
Message
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 390 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 391
uuBluetooth® HandsFreeLink®*uHFL Menus
■Read or Stop reading a message
1. Go to the text or e-mail message screen.
uThe system automatically starts reading
the message aloud.
2Displaying Messages P. 389
2. Select Stop to stop reading.
Select Read again to start reading the
message from the beginning.
■Reply to a message
1. Go to the text or e-mail message screen.
uThe system automatically starts reading
the message aloud.
2Displaying Messages P. 389
2. Select Reply.
3. Select the reply message.
uThe pop-up menu appears on the screen.
4. Select Send to send the message.
uComplete appears on the screen when
the reply message was successfully sent.
1Reply to a message
The available fixed reply messages are as follows:
•Talk to you later, I’m driving.
•I’m on my way.
•I’m running late.
•OK
•Yes
•No
You cannot add, edit, or delete reply messages.
Only certain phones receive and send messages when
paired and connected. For a list of compatible
phones:
•U.S.: Visit www.handsfreelink.honda.com, or call
1-888-528-7876.
•Canada: Visit www.handsfreelink.ca, or call 1-888-
528-7876.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 391 ページ ２０１６年８月３１日　水曜日　午後６時５分
392
uuBluetooth® HandsFreeLink®*uHFL Menus
Features
■Making a call to a sender
1. Go to the text message screen.
2. Select Dial.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 392 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 393
uuBluetooth® HandsFreeLink®*uHFL Menus
■Automatic collision notification
If your vehicle’s airbags deploy or if the unit
detects that the vehicle is severely impacted,
your vehicle automatically will attempt to
connect to the HondaLink operator. If
connected, information about your vehicle, its
location, and its condition can be sent to the
operator*1; you also can speak to the operator
when connected.
IMPORTANT: For vehicles equipped with HondaLink Assist, owner activation
constitutes authorization for Honda to collect information from your vehicle needed
to provide the service, and agreement to the Terms of Use at www.hondalink.com/
TermsAndConditions. In a crash, HondaLink Assist will attempt to notify emergency
services but NEITHER Honda-PRO NOR ITS SERVICE PROVIDERS GUARANTEE THAT
SUCH NOTIFICATION WILL OCCUR.
Honda reserves the right to terminate HondaLink Assist services at any time or for
any reason, and in the future may not be able to provide services due to changes in,
or obsolescence of, technology integral to the service or changes in governmental
regulation.
*1: Depending on your phone and adequate cellular coverage, your vehicle’s location may not
be sent to the operator.
■In Case of Emergency
1In Case of Emergency
Your vehicle may not be able to connect to the
operator if the battery level is low, the line is
disconnected, or you do not have adequate cellular
coverage.
You cannot use this emergency service when:
•You travel outside the HondaLink service coverage
areas.
•There is a problem with the connecting devices,
such as the microphones, speakers, or the unit
itself.
You cannot operate other phone-related functions
using the screen while talking to the operator.
Select Hang Up to terminate the connection to your
vehicle.
1Automatic collision notification
If the unit fails to connect to the operator, it
repeatedly tries until it succeeds.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 393 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuBluetooth® HandsFreeLink®*uHFL Menus
394
Features
■To enable notification
1. Go to the phone settings screen.
2Phone settings screen P. 365
2. Select the Phone tab, then HondaLink
Assist.
uA pop-up menu appears on the screen.
3. Select On or Off.
1To enable notification
Setting options:
•On: Notification is available.
•Off: Disable the feature.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 394 ページ ２０１６年８月３１日　水曜日　午後６時５分
395
Driving
This chapter discusses driving, refueling, and information on items such as accessories.
Before Driving
Driving Preparation .......................... 396
Maximum Load Limit........................ 399
Towing a Trailer................................ 401
When Driving
Starting the Engine .................. 402, 404
Precautions While Driving................. 409
Continuously Variable Transmission
*
... 410
Shifting.................................... 411, 413
ECON Button ................................... 416
Cruise Control*................................ 417
Front Sensor Camera*...................... 420
Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF)*....................... 422
Road Departure Mitigation (RDM) System
*
...... 436
Lane Keeping Assist System (LKAS)
*
.... 440
Vehicle Stability Assist (VSA
®
), aka Electronic
Stability Control (ESC), System........... 447
LaneWatchTM*.................................. 450
Tire Pressure Monitoring System (TPMS) ......452
Tire Pressure Monitoring System (TPMS) -
Required Federal Explanation ......... 455
Braking
Brake System ................................... 457
Anti-lock Brake System (ABS) ........... 463
Brake Assist System ......................... 464
Collision Mitigation Braking SystemTM
(CMBSTM)*..................................... 465
Parking Your Vehicle
When Stopped ................................ 473
Multi-View Rear Camera.................. 474
Refueling
Fuel Information .............................. 476
How to Refuel ................................. 477
Fuel Economy and CO2 Emissions
Improving Fuel Economy and Reducing
CO2 Emissions................................ 479
Turbo Engine Vehicle*
Handling Precautions ....................... 480
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 395 ページ ２０１６年８月３１日　水曜日　午後６時５分
396
Driving
Before Driving
Driving Preparation
Check the following items before you start driving.
•Make sure there are no obstructions on the windows, door mirrors, exterior
lights, or other parts of the vehicle.
uRemove any frost, snow, or ice.
uRemove any snow on the roof, as this can slip down and obstruct your field of
vision while driving. If frozen solid, remove ice once it has softened.
uWhen removing ice from around the wheels, be sure not to damage the wheel
or wheel components.
•Make sure the hood is securely closed.
uIf the hood opens while driving, your front view will be blocked.
•Make sure the tires are in good condition.
uCheck air pressure, check for damage and excessive wear.
2Checking and Maintaining Tires P. 522
•Make sure there are no people or objects behind or around the vehicle.
uThere are blind spots from the inside.
■Exterior Checks
1Exterior Checks
NOTICE
When doors are frozen shut, use warm water around
the door edges to melt any ice. Do not try to force
them open, as this can damage the rubber trim
around the doors. When done, wipe dry to avoid
further freezing.
Do not pour warm water into the key cylinder.
You will be unable to insert key if the water freezes in
the hole.
Heat from the engine and exhaust can ignite
flammable materials left under the hood, causing a
fire. If you've parked your vehicle for an extended
period, inspect and remove any debris that may have
collected, such as dried grass and leaves that have
fallen or have been carried in for use as a nest by a
small animal. Also check under the hood for leftover
flammable materials after you or someone else has
performed maintenance on your vehicle.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 396 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 397
uuBefore DrivinguDriving Preparation
•Store or secure all items on board properly.
uCarrying too much cargo, or improperly storing it, can affect your vehicle’s
handling, stability, stopping distance, and tires, and make it unsafe.
2Maximum Load Limit P. 399
•Do not pile items higher than the seat height.
uThey can block your view and may be thrown forward in the event of sudden
braking.
•Do not place anything in the front seat footwells. Make sure to secure the floor
mat.
uAn object or unsecured floor mat can interfere with your brake and accelerator
pedal operation while driving.
•If you have any animals on board, do not let them move around in the vehicle.
uThey may interfere with driving and a crash could occur.
•Securely close and lock all doors and the trunk.
2Locking/Unlocking the Doors from the Inside P. 140
•Adjust your seating position properly.
uAdjust the front head restraint, too.
2Adjusting the Seats P. 173
2Adjusting the Front Head Restraints P. 176
•Adjust the mirrors and steering wheel properly for your driving.
uAdjust them while sitting in the proper driving position.
2Adjusting the Mirrors P. 171
2Adjusting the Steering Wheel P. 170
■Interior Checks
1Interior Checks
The headlight aim is set by the factory, and does not
need to be adjusted. However, if you regularly carry
heavy items in the trunk, have the aiming readjusted
at a dealer or by a qualified technician.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 397 ページ ２０１６年８月３１日　水曜日　午後６時５分
398
uuBefore DrivinguDriving Preparation
Driving
•Be sure items placed on the floor behind the front seats cannot roll under the
seats.
uThey can interfere with the driver's ability to operate the pedals, the operation
of the seats, or the operation of the sensors under the seats.
•Everyone in the vehicle must fasten their seat belt.
2Fastening a Seat Belt P. 42
•Make sure that the indicators in the instrument panel come on when you start the
vehicle, and go off soon after.
uAlways have a dealer check the vehicle if a problem is indicated.
2Indicators P. 76
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 398 ページ ２０１６年８月３１日　水曜日　午後６時５分
399
uuBefore DrivinguMaximum Load Limit
Continued
Maximum Load Limit
The maximum load for your vehicle is 850 lbs (385 kg). See the
Tire and Loading Information label attached to the driver’s
doorjamb.
This figure includes the total weight of all occupants, cargo, and
accessories, and the tongue load if you are towing a trailer.
Steps for Determining Correct Load Limit -
(1) Locate the statement “The combined weight of occupants and
cargo should never exceed XXX kg or XXX lbs.” on your
vehicle’s placard.
(2) Determine the combined weight of the driver and passengers
that will be riding in your vehicle.
(3) Subtract the combined weight of the driver and passengers
from XXX kg or XXX lbs.
(4) The resulting figure equals the available amount of cargo and
luggage load capacity. For example, if the “XXX” amount
equals 1,400 lbs. and there will be five 150 lb. passengers in
your vehicle, the amount of available cargo and luggage load
capacity is 650 lbs. (1,400 - 750 (5 x 150) = 650 lbs.)
1Maximum Load Limit
Gross Vehicle Weight Rating (GVWR):
The maximum allowable weight of the vehicle, all
occupants, all accessories and all cargo.
2Specifications P. 576, 578
Gross Axle Weight Rating (GAWR):
The maximum allowable weight of the vehicle axle.
2Specifications P. 576, 578
3
WARNING
Overloading or improper loading
can affect handling and stability
and cause a crash in which you
can be hurt or killed.
Follow all load limits and other
loading guidelines in this manual.
Label Example
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 399 ページ ２０１６年８月３１日　水曜日　午後６時５分
400
uuBefore DrivinguMaximum Load Limit
Driving
(5) Determine the combined weight of luggage and cargo being
loaded on the vehicle. That weight may not safely exceed the
available cargo and luggage load capacity calculated in step 4.
(6) If your vehicle will be towing a trailer, load from your trailer will
be transferred to your vehicle. Consult this manual to
determine how this reduces the available cargo and luggage
load capacity of your vehicle.
In addition, the total weight of the vehicle, all occupants,
accessories, cargo, and trailer tongue load must not exceed the
Gross Vehicle Weight Rating (GVWR) or the Gross Axle Weight
Rating (GAWR). Both are on a label on the driver’s doorjamb.
Load Limits Example
Example1
Max Load
850 lbs
(385 kg)
Passenger Weight
150 lbs x 2 = 300 lbs
(68 kg x 2 = 136 kg)
Cargo Weight
550 lbs
(249 kg)
Example2
Max Load
850 lbs
(385 kg)
Passenger Weight
150 lbs x 5 = 750 lbs
(68 kg x 5 = 340 kg)
Cargo Weight
100 lbs
(45 kg)
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 400 ページ ２０１６年８月３１日　水曜日　午後６時５分
401
Towing a Trailer
Your vehicle is not designed to tow a trailer. Attempting to do so can void your
warranties.
Towing Your Vehicle
Your vehicle is not designed to be towed behind a motor home. If your vehicle needs
to be towed in an emergency, refer to the emergency towing information.
2Emergency Towing P. 571
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 401 ページ ２０１６年８月３１日　水曜日　午後６時５分
402
Driving
When Driving
Starting the Engine
1. Make sure the parking brake is applied.
uThe electric parking brake indicator
comes on for 15 seconds when you pull
up the electric parking brake switch.
2. Check that the shift lever is in (P, then
depress the brake pedal.
uAlthough it is possible to start the vehicle
in (N, it is safer to start it in (P.
2. Check that the shift lever is in (N. Then
depress the brake pedal with your right
foot, and the clutch pedal with your left
foot.
uThe clutch pedal must be fully depressed
to start the engine.
Models without smart entry system
1Starting the Engine
Keep your foot firmly on the brake pedal when
starting the engine.
The engine is harder to start in cold weather and in
thinner air found at altitudes above 8,000 feet (2,400
meters).
When starting the engine in cold weather, turn off all
electrical accessories such as the lights, heating
system*/climate control system*, and rear defogger in
order to reduce battery drain.
If you live in a region where winter is extremely cold,
an engine block heater will improve starting and
warming of the engine. Consult a dealer for details.
If the exhaust system sounds abnormal or you can
smell exhaust gas inside the vehicle, have your vehicle
checked by a dealer. There may be a problem with
the engine or exhaust system.
Brake Pedal
Continuously variable transmission models
Brake Pedal
Clutch Pedal
Manual transmission models
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 402 ページ ２０１６年８月３１日　水曜日　午後６時５分
403
uuWhen DrivinguStarting the Engine
3. Turn the ignition switch to START (e
without depressing the accelerator pedal.
1. Keeping your right foot on the brake pedal, put the shift lever in (D. Select (R
when reversing.
2. With the parking brake applied, release the brake pedal and gently depress the
accelerator pedal.
uMake sure the parking brake indicator goes off.
2Parking Brake P. 457
■Hill start assist system
Hill start assist keeps the brake engaged briefly to help prevent the vehicle from
rolling on inclines as you move your foot from the brake pedal to the accelerator.
Depress the clutch pedal, and shift to one of the forward gears when facing uphill,
or (R when facing downhill, then release the brake pedal.
Move the shift lever to (D, (S, or (L when facing uphill, or (R when facing
downhill, then release the brake pedal.
1Starting the Engine
Do not hold the key in START (e for more than 10
seconds.
•If the engine does not start right away, wait for at
least 30 seconds before trying again.
•If the engine starts, but then immediately stops,
wait at least 30 seconds before repeating step 3
while gently depressing the accelerator pedal.
Release the accelerator pedal once the engine
starts.
The immobilizer system protects your vehicle from
theft. If an improperly coded key (or other device) is
used, the engine’s fuel system is disabled.
2Immobilizer System P. 150
All models
■Starting to Drive
1Starting to Drive
You can also release the parking brake by pressing
the electric parking brake switch while depressing the
brake pedal.
When facing downhill, you can start your vehicle
more smoothly by manually releasing it with the
electric parking brake switch than by releasing it with
the accelerator pedal.
Continuously variable transmission models
1Hill start assist system
Hill start assist may not prevent the vehicle from
rolling downhill on a very steep or slippery slope, and
does not operate on small inclines.
Hill start assist is not a replacement for the parking
brake.
Manual transmission models
Continuously variable transmission models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 403 ページ ２０１６年８月３１日　水曜日　午後６時５分
404
uuWhen DrivinguStarting the Engine
Driving
Starting the Engine
1. Make sure the parking brake is applied.
uThe electric parking brake indicator
comes on for 15 seconds when you pull
up the electric parking brake switch.
2. Check that the shift lever is in (P, then
depress the brake pedal.
uAlthough it is possible to start the vehicle
in (N, it is safer to start it in (P.
2. Check that the shift lever is in (N. Then
depress the brake pedal with your right
foot, and the clutch pedal with your left
foot.
uThe clutch pedal must be fully depressed
to start the engine.
Models with smart entry system
1Starting the Engine
Keep your foot firmly on the brake pedal when
starting the engine.
The engine is harder to start in cold weather and in
thinner air found at altitudes above 8,000 feet (2,400
meters).
When starting the engine in cold weather, turn off all
electrical accessories such as the lights, climate
control system, and rear defogger in order to reduce
battery drain.
If you live in a region where winter is extremely cold,
an engine block heater will improve starting and
warming of the engine. Consult a dealer for details.
If the exhaust system sounds abnormal or you can
smell exhaust gas inside the vehicle, have your vehicle
checked by a dealer. There may be a problem with
the engine or exhaust system.
The immobilizer system protects your vehicle from
theft.
If an improperly coded device is used, the engine’s
fuel system is disabled.
2Immobilizer System P. 150
Brake Pedal
Continuously variable transmission models
Brake Pedal
Clutch Pedal
Manual transmission models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 404 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 405
uuWhen DrivinguStarting the Engine
3. Press the ENGINE START/STOP button
without depressing the accelerator pedal.
You can turn the engine off when the vehicle is completely stopped.
1. Shift to (P.
2. Press the ENGINE START/STOP button.
•If the shift lever is in (N, press the ENGINE START/STOP button.
•If the shift lever is in any gear other than (N, depress the clutch pedal, then press
the ENGINE START/STOP button.
All models
■Stopping the Engine
1Starting the Engine
Bring the smart entry remote close to the ENGINE
START/STOP button if the battery in the smart entry
remote is weak.
2If the Smart Entry Remote Battery is Weak
P. 553
The engine may not start if the smart entry remote is
subjected to strong radio waves.
Do not hold the ENGINE START/STOP button to
start the engine.
If the engine does not start, wait at least 30 seconds
before trying again.
Continuously variable transmission models
Manual transmission models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 405 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuWhen DrivinguStarting the Engine
406
Driving
You can remotely start the engine using the button on the smart entry remote.
■To start the engine
When started remotely, the engine automatically shuts off after 10 minutes of idling
and the brake pedal and ENGINE START/STOP button have not been pressed
simultaneously.
To extend the run time for another 10 minutes during the first run, press the
button, then press and hold the button.
uSome exterior lights flash six times if a 10-minute extension request was
transmitted successfully.
■Remote Engine Start with Vehicle Feedback*
1Remote Engine Start with Vehicle Feedback*
The remote engine start may violate local laws.
Before using the remote engine start, check your
local laws.
If there are buildings and obstacles between your
vehicle and the remote, the range will be reduced.
The range may be less when the vehicle is running.
This distance may vary by external electrical
interference.
The engine may not start by the remote engine start
if:
•You have disabled a remote engine start setting
using the audio/information screen*.
•The power mode is not in VEHICLE OFF (LOCK).
•The gear is in a position other than (P.
•The hood is open, or any door or the trunk is
unlocked.
3
WARNING
Engine exhaust contains toxic carbon
monoxide.
Breathing carbon monoxide can kill you or
cause unconsciousness.
Never use the remote engine starter when
the vehicle is parked in a garage or other
area with limited ventilation.
Press the button, then press and hold
the button.
Some exterior lights flash once. Go within the range,
and try again.
LED: Blinks when any button is pressed.
Some exterior lights flash six
times if the engine runs
successfully.
Some exterior lights will not
flash if the engine runs
unsuccessfully.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 406 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 407
uuWhen DrivinguStarting the Engine
■To stop the engine
1Remote Engine Start with Vehicle Feedback*
•You have already used the remote twice to start
the engine.
•Another registered smart entry remote is in the
vehicle.
•There is an antenna failure.
•Door is unlocked with the built-in key.
•The engine oil pressure is low.
•The engine coolant temperature is extremely high.
•The security system alarm is not set.
While the engine is running, the vehicle will
automatically activate climate control with a preset
temperature of 72°F (22°C).
When it is warm outside:
•The air conditioning is activated in recirculation
mode.
When it is cold outside:
•The defroster is activated at a moderately warm
temperature.
•The rear defogger, door mirror heaters, and seat
heaters* are activated.
Press and hold the
button for one
second.
Go within the range,
and try again.
The exterior lights flash once if the engine stops successfully.
The exterior lights will not flash when the remote is out of
the smart entry system range.
The engine will not stop.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 407 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuWhen DrivinguStarting the Engine
408
Driving
1. Depress the brake pedal and press the ENGINE START/STOP button
simultaneously.
2. Put the shift lever in (D. Select (R when reversing.
3. With the parking brake is applied, release the brake pedal and gently depress the
accelerator pedal.
uMake sure the parking brake indicator goes off.
4. Gradually release the brake pedal and gently depress the accelerator pedal to pull
away.
■Hill start assist system
Hill start assist keeps the brake engaged briefly to help prevent the vehicle from
rolling on inclines as you move your foot from the brake pedal to the accelerator.
Depress the clutch pedal, and shift to one of the forward gears when facing uphill,
or (R when facing downhill, then release the brake pedal.
Move the shift lever to (D, (S, or (L when facing uphill, or (R when facing
downhill, then release the brake pedal.
■Starting to Drive
1Starting to Drive
The engine stops when the shift lever is moved out of
(P before the ENGINE START/STOP button is
pressed. Follow step 1 when starting to drive.
You can also release the parking brake by pressing
the electric parking brake switch while depressing the
brake pedal.
When facing downhill, you can start your vehicle
more smoothly by manually releasing it with the
electric parking brake switch than by releasing it with
the accelerator pedal.
When the engine was started using the button*
on the smart entry remote
Continuously variable transmission models
When the engine was started using the button* on the smart entry remote
When the engine was started in any case
1Hill start assist system
Hill start assist may not prevent the vehicle from
rolling downhill on a very steep or slippery slope, and
does not operate on small inclines.
Hill start assist is not a replacement for the parking
brake.
Manual transmission models
Continuously variable transmission models
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 408 ページ ２０１６年８月３１日　水曜日　午後６時５分
409
uuWhen DrivinguPrecautions While Driving
Precautions While Driving
Avoid driving in deep water and on flooded roads. This can damage the engine or
driveline, or cause electrical component failure.
If there is a strong impact with something under the vehicle, stop in a safe location.
Check the underside of the vehicle for damage or any fluid leaks.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■In Rain
■Other Precautions
1Precautions While Driving
NOTICE
Do not operate the shift lever while pressing the
accelerator pedal. You could damage the
transmission.
If the ignition switch is turned to ACCESSORY (q*1
while driving, the engine will shut down and all
steering and brake power assist functions will stop,
making it difficult to control the vehicle.
Do not put the shift lever in (N, as you will lose
engine braking (and acceleration) performance.
During the first 600 miles (1,000 km) of operation,
avoid sudden acceleration or full throttle operation so
as not to damage the engine or powertrain.
Avoid hard braking for the first 200 miles (300 km).
You should also follow this when the brake pads are
replaced.
NOTICE
If you repeatedly turn the steering wheel at an
extremely low speed, or hold the steering wheel on
the full left or right position for a while, the electric
power steering (EPS) system heats up. The system
goes into a protective mode, and limits its
performance. The steering wheel becomes harder
and harder to operate. Once the system cools down,
the EPS system is restored.
Repeated operation under these conditions can
eventually damage the system.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 409 ページ ２０１６年８月３１日　水曜日　午後６時５分
410
uuWhen DrivinguContinuously Variable Transmission *
Driving
Continuously Variable Transmission*
The engine runs at a higher idle speed and creeping increases.
Keep the brake pedal firmly depressed when stopped.
Quickly depressing the accelerator pedal while driving uphill may cause the
transmission to drop to a lower ratio, unexpectedly increasing vehicle speed.
Depress the accelerator pedal carefully, especially on slippery roads and curves.
■Creeping
■Kickdown
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 410 ページ ２０１６年８月３１日　水曜日　午後６時５分
411
uuWhen DrivinguShifting
Continued
Shifting
Change the shift position in accordance with your driving needs.
■Shift lever positions
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Continuously variable transmission models
1Shifting
You cannot turn the ignition switch to LOCK (0*1
and remove the key unless the shift lever is in (P.
The vehicle may move forward very slightly even in
(N while the engine is cold.
Depress the brake pedal firmly and, when necessary,
apply the parking brake.
Reverse
Used when reversing
Drive
Used for normal driving
Park
Used when parking or starting the
engine
Neutral
Used when idling
Release Button
Drive (S)
Used:
●For better acceleration
●To increase engine braking
●When going up or down hills
Low
●
Used to further increase engine braking
●Used when going up or down hills
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 411 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuWhen DrivinguShifting
412
Driving
■Shift Lever Operation
1Shift Lever Operation
NOTICE
When you change the shift lever from (D to (R and
vice versa, come to a complete stop and keep the
brake pedal depressed.
Operating the shift lever before the vehicle has come
to a complete standstill can damage the transmission.
Use the shift lever position indicator to check the
lever position before pulling away.
If the transmission indicator blinks when driving, in
any shift position, there is a problem with the
transmission.
Avoid sudden acceleration and have the transmission
checked by a dealer as soon as possible.
The fuel supply may be cut off if you drive at engine
speeds in or over the tachometer’s red zone (engine
speed limit). If this happens, you may experience a
slight jolt.
It may not be possible to operate the shift lever if the
brake pedal is applied while the shift lever release
button is held down.
Depress the brake pedal first.
When shifting positions in extremely low
temperatures (-22°F/-30°C), there may be a short
delay before the shift position is displayed. Always
confirm you are in the correct shift position before
driving.
Shift Lever Position
Indicator
Depress the brake pedal and press the shift lever release
button to shift.
Shift without pressing the shift lever release button.
Press the shift lever release button and shift.
Tachometer’s
red zone
Shift Lever Position
Indicator Tachometer’s
red zone
Models with driver information interface
Models with information display
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 412 ページ ２０１６年８月３１日　水曜日　午後６時５分
413
uuWhen DrivinguShifting
Continued
Shifting
Fully depress the clutch pedal to operate the shift lever and change gears, then
slowly release the pedal.
Depress the clutch pedal, and pause for a few seconds before shifting into (R, or
shift into one of the forward gears for a moment. This stops the gears so they do not
“grind.”
■Shift Lever Operation
Manual transmission models
1Shifting
NOTICE
Do not shift to (R before the vehicle comes to a
complete stop.
Shifting to (R before stopping can damage the
transmission.
NOTICE
Before downshifting, make sure the engine will not
go into the tachometer's red zone. Should this occur,
it can severely damage your engine.
There is a metallic part on the shift lever. If you leave
the vehicle parked outside for a long time on a hot
day, be careful before moving the shift lever. Because
of heat, the shift lever may be extremely hot. If the
outside temperature is low, the shift lever may feel
cold.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 413 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuWhen DrivinguShifting
414
Driving
When you are not shifting, do not rest your
foot on the clutch pedal. This can cause your
clutch to wear out faster.
1Shifting
Recommended Shift Points
Driving in the highest gear that allows the engine to
run and accelerate smoothly helps to optimize fuel
economy and effective emissions control. The
following shift points are recommended:
If you exceed the maximum speed for the gear you
are in, the engine speed will enter into the
tachometer’s red zone. When this happens, you may
experience a slight jolt.
Shift Up Normal Acceleration
1st to 2nd 15 mph (24 km/h)
2nd to 3rd 27 mph (43 km/h)
3rd to 4th 33 mph (52 km/h)
4th to 5th 36 mph (57 km/h)
5th to 6th 39 mph (63 km/h)
Shift Up Normal Acceleration
1st to 2nd 16 mph (25 km/h)
2nd to 3rd 26 mph (42 km/h)
3rd to 4th 35 mph (56 km/h)
4th to 5th 41 mph (66 km/h)
5th to 6th 43 mph (69 km/h)
1.5 L engine models
2.0 L engine models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 414 ページ ２０１６年８月３１日　水曜日　午後６時５分
415
uuWhen DrivinguShifting
The manual transmission has a lockout mechanism that stops you from accidentally
shifting into (R from a forward gear while the vehicle is moving above a certain
speed.
If you cannot shift to (R when the vehicle is stopped, do the following:
1. Depress the clutch pedal, move the shift
lever all the way to the left, and shift to (R.
2. If you still cannot shift into (R, apply the
parking brake, and turn the ignition switch
to ACCESSORY (q or LOCK (0*1.
3. Depress the clutch pedal and shift into (R.
4. Keep depressing the clutch pedal and start
the engine.
Have the vehicle checked by a dealer if you
have to go through this procedure repeatedly.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Reverse Lockout
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 415 ページ ２０１６年８月３１日　水曜日　午後６時５分
416
uuWhen DrivinguECON Button
Driving
ECON Button
The ECON button turns the ECON mode on and off.
The ECON mode helps you improve your fuel economy by adjusting the
performance of the engine, transmission, heating system*/climate control system*,
and cruise control*.
Models with information display
Models with driver information interface
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 416 ページ ２０１６年８月３１日　水曜日　午後６時５分
417
uuWhen DrivinguCruise Control*
Continued
Cruise Control*
Maintains a constant vehicle speed without having to keep your foot on the
accelerator. Use cruise control on freeways or open roads where you can travel at a
constant speed with little acceleration or deceleration.
*1: Models with information display
*2: Models with driver information interface
1Cruise Control*
It may not be possible to maintain a constant speed
when driving uphill or downhill.
When not using cruise control:
Turn off cruise control by pressing the CRUISE
button.
While in ECON mode, it may take relatively more time
to accelerate to maintain the set speed.
When the engine speed slows down, try to
downshift.
You can maintain the set speed if you change gear
within five seconds.
3
WARNING
Improper use of the cruise control can lead
to a crash.
Use the cruise control only when traveling
on open highways in good weather.
Manual transmission models
■Shift positions for cruise control:
In (D or (S
Always keep sufficient distance
between you and the vehicle in
front of you.
Continuously variable transmission models
■Vehicle speed for cruise control:
Desired speed in a range above
roughly 25 mph (40 km/h) ~
When to use
CRUISE MAIN is on in the
instrument panel.
Cruise control is ready to use.
■Press the CRUISE button on the
steering wheel.
How to use
*1 *2
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 417 ページ ２０１６年８月３１日　水曜日　午後６時５分
418
uuWhen DrivinguCruise Control*
Driving
Take your foot off the pedal and press the –/SET button when you reach the desired
speed.
The moment you release the –/SET button, the set speed is fixed, and cruise control
begins. The CRUISE CONTROL indicator comes on.
During cruise control, Straight Driving Assist Function is activated. This control
function is an EPS function and it helps reduce the steering effort to keep the
steering angle on a straight road with cants.
*1: Models with information display
*2: Models with driver information interface
■To Set the Vehicle Speed
–/SET Button
On when cruise control begins
Press and release
*1
*2
*1
*2
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 418 ページ ２０１６年８月３１日　水曜日　午後６時５分
419
uuWhen DrivinguCruise Control*
Increase or decrease the vehicle speed using the RES/+ or –/SET buttons on the
steering wheel.
•Each time you press the button, the vehicle speed is increased or decreased by
about 1 mph (1.6 km/h).
•If you keep the button pressed, the vehicle speed increases or decreases until you
release it. This speed is then set.
To cancel cruise control, do any of the
following:
•Press the CANCEL button.
•Press the CRUISE button.
•Depress the brake pedal.
•Depress the clutch pedal* for five seconds
or more.
The CRUISE CONTROL indicator goes off.
■To Adjust the Vehicle Speed
1To Adjust the Vehicle Speed
You can set the vehicle speed using the –/SET button
on the steering wheel when adjusting the speed with
the accelerator and brake pedals.
■To Cancel
To decrease speed
To increase speed
1To Cancel
Resuming the prior set speed:
After cruise control has been canceled, you can still
resume the prior set speed by pressing the RES/+
button while driving at a speed of at least 25 mph (40
km/h) or more.
You cannot set or resume in the following situations:
•When vehicle speed is less than 25 mph (40 km/h)
•When the CRUISE button is turned on.
At vehicle speeds of 22 mph (35 km/h) or less, cruise
control is canceled automatically.
CRUISE
Button
CANCEL
Button
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 419 ページ ２０１６年８月３１日　水曜日　午後６時５分
420
uuWhen DrivinguFront Sensor Camera*
Driving
Front Sensor Camera*
The camera, used in systems such as LKAS, RDM, ACC with LSF, and CMBSTM, is
designed to detect an object that triggers any of the systems to operate its
functions.
This camera is located behind the rearview
mirror.
To help reduce the likelihood that high interior
temperatures will cause the camera’s sensing
system to shut off, when parking, find a shady
area or face the front of the vehicle away from
the sun. If you use a reflective sun shade, do
not allow it to cover the camera housing.
Covering the camera can concentrate heat on
it.
■Camera Location and Handling Tips
1Front Sensor Camera*
Never apply a film or attach any objects to the
windshield, the hood, or the front grill that could
obstruct the camera’s field of vision and cause the
system to operate abnormally.
Scratches, nicks, and other damage to the windshield
within the camera’s field of vision can cause the
system to operate abnormally. If this occurs, we
recommend that you replace the windshield with a
genuine Honda replacement windshield. Making
even minor repairs within the camera’s field of vision
or installing an aftermarket replacement windshield
may also cause the system to operate abnormally.
After replacing the windshield, have a dealer
recalibrate the camera. Proper calibration of the
camera is necessary for the system to operate
properly.
Do not place an object on the top of the instrument
panel. It may reflect onto the windshield and prevent
the system from detecting lane lines properly.
Front Sensor
Camera
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 420 ページ ２０１６年８月３１日　水曜日　午後６時５分
421
uuWhen DrivinguFront Sensor Camera*
1Front Sensor Camera*
If the Some Driver Assist Systems Cannot
Operate: Camera Temperature Too High message
appears:
•Use the climate control system to cool down the
interior and, if necessary, also use defroster mode
with the airflow directed towards the camera.
•Start driving the vehicle to lower the windshield
temperature, which cools down the area around
the camera.
If the Some Driver Assist Systems Cannot
Operate: Clean Front Windshield message
appears:
•Park your vehicle in a safe place, and clean the
windshield. If the message does not disappear after
you have cleaned the windshield and driven for a
while, have your vehicle checked by a dealer.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 421 ページ ２０１６年８月３１日　水曜日　午後６時５分
422
uuWhen DrivinguAdaptive Cruise Control (ACC) with Low Speed Follow (LSF)*
Driving
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)
*
Helps maintain a constant vehicle speed and a set following interval behind a vehicle
detected ahead of yours and, if the detected vehicle comes to a stop, can decelerate
and stop your vehicle, without you having to keep your foot on the brake or the
accelerator.
When ACC with LSF slows your vehicle by applying the brakes, your vehicle’s brake
lights will illuminate.
1Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)*
Important Reminder
As with any system, there are limits to ACC with LSF.
Use the brake pedal whenever necessary, and always
keep a safe interval between your vehicle and other
vehicles.
3
WARNING
Improper use of ACC with LSF can lead
to a crash.
Use ACC with LSF only when driving on
expressways or freeways and in good
weather conditions.
3
WARNING
ACC with LSF has limited braking
capability and may not stop your vehicle
in time to avoid a collision with a vehicle
that quickly stops in front of you.
Always be prepared to apply the brake
pedal if the conditions require.
When to use
■Vehicle speed for ACC with LSF: A vehicle is detected ahead within ACC with
LSF range – ACC with LSF operates at speeds up to 90 mph (145 km/h).
No vehicle is detected within ACC with LSF range – ACC with LSF operates at
the speed of 25 mph (40 km/h) or above.
■Shift position for ACC with LSF: In (D or (S.
The radar sensor is in
the lower bumper
next to the fog light.
Be careful not to have
the radar sensor cover
strongly impacted.
The camera is
located behind
the rearview
mirror.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 422 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 423
uuWhen DrivinguAdaptive Cruise Control (ACC) with Low Speed Follow (LSF)*
■How to activate the system
1Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)*
When the MAIN button is pressed, both ACC with
LSF and the Lane Keeping Assist System (LKAS) are
either turned on or off.
ACC with LSF may not work properly under certain
conditions.
2ACC with LSF Conditions and Limitations
P. 427
When not using ACC with LSF: Turn off adaptive
cruise by pressing the MAIN button. This also will
turn off the Lane Keeping Assist System (LKAS).
Do not use ACC with LSF under the following
conditions:
•On roads with heavy traffic or while driving in
continuous stop and go traffic.
•On roads with sharp turns.
•On roads with steep downhill sections, as the set
vehicle speed can be exceeded by coasting. In such
cases, ACC with LSF will not apply the brakes to
maintain the set speed.
•On roads with toll collection facilities or other
objects between lanes of traffic, or in parking
areas, or facilities with drive through access.
How to use
■Press the MAIN button on
the steering wheel.
ACC (green) is on in the instrument panel.
ACC with LSF is ready to use.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 423 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuWhen DrivinguAdaptive Cruise Control (ACC) with Low Speed Follow (LSF)*
424
Driving
When driving at 25 mph (40 km/h) or above: Take your foot off the pedal and
press the –/SET button when you reach the desired speed. The moment you release
the button, the set speed is fixed, and ACC with LSF begins.
When driving slower than 25 mph (40 km/h): If the vehicle is moving and the
brake pedal is not depressed, pressing the button fixes the set speed to 25 mph (40
km/h) regardless of current vehicle speed. If your vehicle is stationary and a vehicle
is detected ahead, your vehicle speed can be set, even with the brake pedal
depressed.
When ACC with LSF starts operating, the
vehicle icon, interval bars and set speed
appear on the driver information interface.
■To Set the Vehicle Speed
1To Set the Vehicle Speed
You can switch the displayed set speed
measurements on the driver information interface*/
audio/information screen* between mph and km/h.
2Customized Features P. 118, 308
On when ACC with LSF
begins
Press and release
−/SET button
Set Vehicle Speed
Set Vehicle Interval
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 424 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 425
uuWhen DrivinguAdaptive Cruise Control (ACC) with Low Speed Follow (LSF)*
■There is a vehicle ahead
ACC with LSF monitors if a vehicle ahead of you enters the ACC with LSF range. If a
vehicle is detected doing so, the ACC with LSF system maintains or decelerates your
vehicle’s set speed in order to keep the vehicle’s set following interval from the
vehicle ahead.
2To Set or Change Following Interval P. 430
When a vehicle whose speed is slower than
your set speed is detected in front of you, your
vehicle starts to slow down.
■When in Operation
1When in Operation
If the vehicle ahead of you slows down abruptly, or if
another vehicle cuts in front of you, the beeper
sounds, a message appears on the driver information
interface.
Depress the brake pedal, and keep an appropriate
interval from the vehicle ahead.
Even if the interval between your vehicle and the
vehicle ahead is short, ACC with LSF may start
accelerating your vehicle under the following
circumstances:
•The vehicle ahead of you is going at almost the
same speed as, or faster than, your vehicle.
•A vehicle that cuts in front of you is going faster
than your vehicle, gradually increasing the interval
between the vehicles.
You can also set the system to beep when a vehicle in
front of you comes in and goes out of the ACC with
LSF detecting range. Change the ACC Forward
Vehicle Detect Beep setting.
2Customized Features P. 118, 308
Beep
ACC with LSF Range: 394 ft. (120 m)
A vehicle icon appears on the
driver information interface
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 425 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuWhen DrivinguAdaptive Cruise Control (ACC) with Low Speed Follow (LSF)*
426
Driving
■There is no vehicle ahead
Your vehicle maintains the set speed without
having to keep your foot on the brake or
accelerator pedal.
If there previously was a vehicle detected
ahead that kept your vehicle from traveling at
the set speed, ACC with LSF accelerates your
vehicle to the set speed, and then maintains it.
■When you depress the accelerator pedal
You can temporarily increase the vehicle speed. In this case, there is no audible or
visual alert even if a vehicle is in the ACC with LSF range.
ACC with LSF stays on unless you cancel it. Once you release the accelerator pedal,
the system resumes an appropriate speed for keeping the following interval while a
vehicle ahead is within the ACC with LSF range.
■A vehicle detected ahead is within ACC with LSF range and slows to a stop
Your vehicle also stops, automatically. The
Stopped message appears on the driver
information interface.
When the vehicle ahead of you starts again,
the vehicle icon on the driver information
interface blinks. If you press the RES/+ or –/
SET button, or depress the accelerator pedal,
ACC with LSF operates again within the prior
set speed.
1When in Operation
Limitations
You may need to use the brake to maintain a safe
interval when using ACC with LSF. Additionally, ACC
with LSF may not work properly under certain
conditions.
2ACC with LSF Conditions and Limitations
P. 427
3
WARNING
Exiting a vehicle that has been stopped
while the ACC with LSF system is
operating can result in the vehicle
moving without operator control.
A vehicle that moves without operator
control can cause a crash, resulting in
serious injury or death.
Never exit a vehicle when the vehicle is
stopped by ACC with LSF.
25
A vehicle icon with dotted-line
contour appears on the driver
information interface
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 426 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 427
uuWhen DrivinguAdaptive Cruise Control (ACC) with Low Speed Follow (LSF)*
The system may automatically shut off and the ACC indicator will come on under
certain conditions. Some examples of these conditions are listed below. Other
conditions may reduce some of the ACC functions.
2Front Sensor Camera* P. 420
■Environmental conditions
•Driving in bad weather (rain, fog, snow, etc.).
■Roadway conditions
•Driving on a snowy or wet roadway (obscured lane marking, vehicle tracks,
reflected lights, road spray, high contrast).
■Vehicle conditions
•The outside of the windshield is blocked by dirt, mud, leaves, wet snow, etc.
•An abnormal tire or wheel condition (Wrong size, varied size or construction,
improperly inflated, compact spare tire, etc.).
•The camera temperature gets too high.
•The parking brake is applied.
•When the lower bumper next to the fog light is dirty.
•When the front of the vehicle tilts up due to heavy cargo in the trunk or rear seats.
•When tire chains are installed.
■ACC with LSF Conditions and Limitations
1ACC with LSF Conditions and Limitations
The radar sensor for ACC with LSF is shared with the
collision mitigation braking systemTM (CMBSTM).
2Collision Mitigation Braking SystemTM
(CMBSTM)* P. 465
You can read about handling information for the
camera equipped with this system.
2Front Sensor Camera* P. 420
Do not put a sticker on the radar sensor cover or
replace the radar sensor cover.
Have your vehicle checked by a dealer if you find any
unusual behavior of the system (e.g., the warning
message appears too frequently).
If the front of the vehicle is impacted in any of the
following situations, the radar sensor may not work
properly. Have your vehicle checked by a dealer:
•The vehicle mounted onto a bump, curb, chock,
embankment, etc.
•You drive the vehicle where the water is deep.
•Your vehicle has a frontal collision.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 427 ページ ２０１６年８月３１日　水曜日　午後６時５分
428
uuWhen DrivinguAdaptive Cruise Control (ACC) with Low Speed Follow (LSF)*
Driving
■Detection limitations
•A vehicle or pedestrian suddenly crosses in front of you.
•The interval between your vehicle and the vehicle or pedestrian ahead of you is
too short.
•A vehicle cuts in front of you at a slow speed, and it brakes suddenly.
•When you accelerate rapidly and approach the vehicle or pedestrian ahead of you
at high speed.
•The vehicle ahead of you is a motorcycle, bicycle, mobility scooter, or other small
vehicle.
•When there are animals in front of your vehicle.
•When you drive on a curved or winding or undulating road that makes it difficult
for the sensor to properly detect a vehicle or a pedestrian in front of you.
•The speed difference between your vehicle and a vehicle or pedestrian in front of
you is significantly large.
•An oncoming vehicle suddenly comes in front of you.
•Your vehicle abruptly crosses over in front of an oncoming vehicle.
•When driving through a narrow iron bridge.
•When the vehicle ahead of you brakes suddenly.
•When the vehicle ahead of you has a unique shape.
•When your vehicle or the vehicle ahead of you is driving on one edge of the lane.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 428 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 429
uuWhen DrivinguAdaptive Cruise Control (ACC) with Low Speed Follow (LSF)*
Increase or decrease the vehicle speed using the RES/+ or –/SET button on the
steering wheel.
•Each time you press the RES/+ or –/SET button, the vehicle speed is increased or
decreased by about 1 mph or 1 km/h accordingly.
•If you keep pressing the RES/+ or –/SET button, the vehicle speed increases or
decreases by about 5 mph or 5 km/h accordingly.
■To Adjust the Vehicle Speed
1To Adjust the Vehicle Speed
If a vehicle detected ahead is going at a speed slower
than your increased set speed, ACC with LSF may not
accelerate your vehicle. This is to maintain the set
interval between your vehicle and the vehicle ahead.
To increase speed
To decrease speed
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 429 ページ ２０１６年８月３１日　水曜日　午後６時５分
430
uuWhen DrivinguAdaptive Cruise Control (ACC) with Low Speed Follow (LSF)*
Driving
Press the (interval) button to change the
ACC with LSF following interval.
Each time you press the button, the following-
interval (the interval behind a vehicle detected
ahead of you) setting cycles through extra
long, long, middle, and short following
intervals.
Determine the most appropriate following-
interval setting based on your specific driving
conditions. Be sure to adhere to any
following-interval requirements set by local
regulation.
■To Set or Change Following Interval
Interval Button
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 430 ページ ２０１６年８月３１日　水曜日　午後６時５分
431
uuWhen DrivinguAdaptive Cruise Control (ACC) with Low Speed Follow (LSF)*
Continued
The higher your vehicle’s following-speed is, the longer the short, middle, long or
extra long following interval becomes. See the following examples for your
reference.
When your vehicle stops automatically because a vehicle detected ahead of you has
stopped, the interval between the two vehicles will vary based on the ACC with LSF
interval setting.
Following Interval
When the Set Speed is:
50 mph (80 km/h) 65 mph (104 km/h)
Short
83 feet
25 meters
1.1 sec
100 feet
31 meters
1.1 sec
Middle
110 feet
33 meters
1.5 sec
137 feet
42 meters
1.5 sec
Long
154 feet
47 meters
2.1 sec
200 feet
61 meters
2.1 sec
Extra
Long
204 feet
62 meters
2.8 sec
265 feet
81 meters
2.8 sec
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 431 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuWhen DrivinguAdaptive Cruise Control (ACC) with Low Speed Follow (LSF)*
432
Driving
To cancel ACC with LSF, do any of the
following:
•Press the CANCEL button.
•Press the MAIN button.
uACC with LSF indicator goes off.
•Depress the brake pedal.
uWhen the LSF function has stopped the
vehicle, you cannot cancel ACC with LSF
by depressing the brake pedal.
■To Cancel
1To Cancel
Resuming the prior set speed: After you have
canceled ACC with LSF, you can resume the prior set
speed while it is still displayed. Press the RES/+
button.
The set speed cannot be set or resumed when ACC
with LSF has been turned off using the MAIN button.
Press the MAIN button to activate the system, then
set the desired speed.
CANCEL
Button
MAIN
Button
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 432 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 433
uuWhen DrivinguAdaptive Cruise Control (ACC) with Low Speed Follow (LSF)*
■Automatic cancellation
The beeper sounds and a message appears on the driver information interface when
ACC with LSF is automatically canceled. Any of these conditions may cause the ACC
with LSF to automatically cancel:
•Bad weather (rain, fog, snow, etc.)
•When the radar sensor in the lower bumper next to the fog light gets dirty.
•The vehicle ahead of you cannot be detected.
•An abnormal tire condition is detected, or the tires are skidding.
•Driving on a mountainous road, or driving off road for extended periods.
•Abrupt steering wheel movement.
•When the ABS, VSA® or CMBSTM is activated.
•When the ABS or VSA® system indicator comes on.
•When the vehicle is stopped on a very steep slope.
•When you manually apply the parking brake.
•When the detected vehicle within the ACC with LSF range is too close to your
vehicle.
•The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.
The ACC with LSF automatic cancellation can be also triggered by the following
causes. In these cases, the parking brake will be automatically applied.
•The driver’s seat belt is unfastened when the vehicle is stationary.
•The vehicle stops for more than 10 minutes.
•The engine is turned off.
1Automatic cancellation
Even though ACC with LSF has been automatically
canceled, you can still resume the prior set speed.
Wait until the condition that caused ACC with LSF to
cancel improves, then press the –/SET button.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 433 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuWhen DrivinguAdaptive Cruise Control (ACC) with Low Speed Follow (LSF)*
434
Driving
Press and hold the (interval) button for one
second. Cruise Mode Selected appears on
the driver information interface for two
seconds, and then the mode switches to
Cruise.
To switch back to ACC with LSF, press and
hold the button again for one second. ACC
Mode Selected appears on the driver
information interface for two seconds.
■When to use
Desired speed in a range above roughly 25 mph (40 km/h) ~.
Take your foot off the pedal and press the –/SET button when you reach the desired
speed.
The moment you release the –/SET button, the set speed is fixed, and cruise control
begins. The CRUISE CONTROL indicator comes on.
During cruise control, Straight Driving Assist Function is activated. This control
function is an EPS function and it helps reduce the steering effort to keep the
steering angle on a straight road with cants.
■To Switch ACC with LSF to Cruise Control
1To Switch ACC with LSF to Cruise Control
Always be aware which mode you are in. When you
are driving in Cruise mode, the system will not assist
you to maintain a following interval from a vehicle
ahead of you.
ACC with
LSF ON
Cruise
Control ON
■To Set the Vehicle Speed
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 434 ページ ２０１６年８月３１日　水曜日　午後６時５分
435
uuWhen DrivinguAdaptive Cruise Control (ACC) with Low Speed Follow (LSF)*
Each time you press the RES/+ or –/SET button, the vehicle speed is increased or
decreased by about 1 mph (1.6 km/h).
If you keep the RES/+ or –/SET button pressed, the vehicle speed increases or
decreases until you release it. This speed is then set.
To cancel cruise control, do any of the following:
•Press the CANCEL button.
•Press the MAIN button.
•Depress the brake pedal.
The CRUISE CONTROL indicator goes off.
■To Adjust the Vehicle Speed
■To Cancel
1To Cancel
Resuming the prior set speed:
After cruise control has been canceled, you can still
resume the prior set speed by pressing the RES/+
button while driving at a speed of at least 25 mph (40
km/h) or more.
You cannot set or resume in the following situations:
•When vehicle speed is less than 25 mph (40 km/h)
•When the MAIN button is turned off.
At vehicle speeds of 22 mph (35 km/h) or less, cruise
control canceled automatically.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 435 ページ ２０１６年８月３１日　水曜日　午後６時５分
436
uuWhen DrivinguRoad Departure Mitigation (RDM) System*
Driving
Road Departure Mitigation (RDM) System*
Alerts and helps to assist you when the system detects a possibility of your vehicle
unintentionally crossing over detected lane markings.
The front camera behind the rearview mirror
monitors left and right lane markings (in white
or yellow). If your vehicle is getting too close
to detected lane markings without a turn
signal activated, the system, in addition to a
visual alert, applies steering torque and alerts
you with rapid vibrations on the steering
wheel, to help you remain within the detected
lane.
As a visual alert, the Lane Departure
message appears on the driver information
interface.
If the system determines that its steering input
is insufficient to keep your vehicle on the
roadway, it may apply braking.
uBraking is applied only when the lane
markings are solid continuous lines.
The system cancels assisting operations when you turn the steering wheel to avoid
crossing over detected lane markings.
If the system operates several times without detecting driver response, the system
beeps to alert you.
■How the System Works
1Road Departure Mitigation (RDM) System*
Important Safety Reminder
Like all assistance systems, the RDM system has
limitations.
Over-reliance on the RDM system may result in a
collision. It is always your responsibility to keep the
vehicle within your driving lane.
The RDM system only alerts you when lane drift is
detected without a turn signal in use. The RDM
system may not detect all lane markings or lane
departures; accuracy will vary based on weather,
speed and lane marker condition. It is always your
responsibility to safely operate the vehicle and avoid
collisions.
You can read about handling information for the
camera equipped with this system.
2Front Sensor Camera* P. 420
The RDM system may not work properly or may work
improperly under the certain conditions:
2RDM Conditions and Limitations P. 438
There are times when you may not notice RDM
functions due to your operation of the vehicle, or
road surface conditions. If the Lane Departure
message appears repeatedly and you do not apply
responsive actions, the system beeps and cancels
RDM functions.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 436 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 437
uuWhen DrivinguRoad Departure Mitigation (RDM) System*
The system becomes ready to start searching for lane markings when all the
following conditions are met:
•The vehicle is traveling between about 45 and 90 mph (72 and 145 km/h).
•The vehicle is on a straight or slightly curved road.
•The turn signals are off.
•The brake pedal is not depressed.
•The wipers are not in continuous operation.
•The system makes a determination that the driver is not actively accelerating,
braking or steering.
Press the RDM button to turn the system on
and off.
uThe indicator in the button comes on and
the message appears on the driver
information interface when the system is
on.
■How the System Activates
■RDM On and Off
1How the System Activates
The RDM system may automatically shut off and the
indicator comes and stays on.
2Indicators P. 76
RDM system function can be impacted when the
vehicle is:
•Not driven within a traffic lane.
•Driven on the inside edge of a curve, or outside of
a lane.
•Driven in a narrow lane.
1RDM On and Off
When you have selected Warning Only from the
customized options using the audio/information
screen, the system does not operate the steering
wheel and braking.
RDM ButtonIndicator
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 437 ページ ２０１６年８月３１日　水曜日　午後６時５分
438
uuWhen DrivinguRoad Departure Mitigation (RDM) System*
Driving
The system may not properly detect lane markings and the position of your vehicle
under certain conditions. Some examples of these conditions are listed below.
■Environmental conditions
•Driving in bad weather (rain, fog, snow, etc.).
•Sudden changes between light and dark, such as an entrance or exit of a tunnel.
•There is little contrast between lane lines and the roadway surface.
•Driving into low sunlight (e.g., at dawn or dusk).
•Strong light is reflected onto the roadway.
•Driving in the shadows of trees, buildings, etc.
•Shadows of adjacent objects are parallel to lane markings.
•Roadway objects or structures are misinterpreted as lane markers.
•Reflections on the interior of the front windshield.
■RDM Conditions and Limitations
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 438 ページ ２０１６年８月３１日　水曜日　午後６時５分
439
uuWhen DrivinguRoad Departure Mitigation (RDM) System*
■Roadway conditions
•Driving on a snowy or wet roadway (obscured lane marking, vehicle tracks,
reflected lights, road spray, high contrast).
•Driving on a road with temporary lane markings.
•Faint, multiple, or varied lane markings are visible on the roadway due to road
repairs or old lane markings.
•The roadway has merging, split, or crossing lines (e.g., such as at an intersection
or crosswalk).
•The lane markings are extremely narrow, wide, or changing.
•The vehicle in front of you is driving near the lane lines.
•The road is hilly or the vehicle is approaching the crest of a hill.
•Driving on rough or unpaved roads, or over bumpy surfaces.
•When objects on the road (curb, guard rail, pylons, etc.) are recognized as white
lines (or yellow lines).
•Driving on roads with double lines.
■Vehicle conditions
•Headlight lenses are dirty or the headlights are not properly adjusted.
•The outside of the windshield is streaked or blocked by dirt, mud, leaves, wet
snow, etc.
•The inside of the windshield is fogged.
•The camera temperature gets too high.
•An abnormal tire or wheel condition (wrong sized, varied size or construction,
improperly inflated, compact spare tire, etc.).
•The vehicle is tilted due to a heavy load or suspension modifications.
•When tire chains are installed.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 439 ページ ２０１６年８月３１日　水曜日　午後６時５分
440
uuWhen DrivinguLane Keeping Assist System (LKAS)*
Driving
Lane Keeping Assist System (LKAS)*
Provides steering input to help keep the vehicle in the middle of a detected lane and
provides tactile and visual alerts if the vehicle is detected drifting out of its lane.
1Lane Keeping Assist System (LKAS)*
Important Safety Reminders
The LKAS is for your convenience only. It is not a
substitute for your vehicle control. The system does
not work if you take your hands off the steering
wheel or fail to steer the vehicle.
2Driver Information Interface Warning and
Information Messages* P. 94
Do not place objects on the instrument panel.
Objects may reflect on the front windshield and
prevent correct detection of the traffic lanes.
LKAS only alerts you when lane drift is detected
without a turn signal in use. The LKAS may not detect
all lane markings or lane departures; accuracy will
vary based on weather, speed, and lane marker
condition.
It is always your responsibility to safely operate the
vehicle and avoid collisions.
The LKAS is convenient when it is used on freeways.
The LKAS may not work properly or may work
improperly under the certain conditions:
2LKAS Conditions and Limitations P. 445
You can read about handling information for the
camera equipped with this system.
2Front Sensor Camera* P. 420
When you operate the turn signals to change lanes, the system is suspended, and
resumes after the signals are off.
() If you make a lane change without operating the turn signals, the LKAS
alerts activate, and torque is applied to the steering.
■LKAS camera
Monitors the
lane lines
■Tactile and visual alerts
Rapid vibrations on the steering wheel
and a warning display alert you that
the vehicle is drifting out of a detected
lane.
■Steering input assist
The system applies torque to the steering to keep the vehicle between the left
and right lane lines. The applied torque becomes stronger as the vehicle gets
closer to either of the lane lines.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 440 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 441
uuWhen DrivinguLane Keeping Assist System (LKAS)*
Provides assistance to keep the vehicle in the center of the lane. When the vehicle
nears a white or yellow line, steering force of the electric power steering will become
stronger.
When the vehicle enters the warning area, the LKAS alerts you with slight steering
wheel vibration as well as a warning display.
■Lane Keep Support Function
1Lane Keeping Assist System (LKAS)*
The LKAS may not function as designed while driving
in frequent stop and go traffic, or on roads with
sharp curves.
When it fails to detect lanes, the system will
temporarily be canceled. When lane is detected,
system will recover automatically.
■Lane Departure Warning Function
Warning Area
Warning Area
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 441 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuWhen DrivinguLane Keeping Assist System (LKAS)*
442
Driving
The system can be used when the following conditions are met.
•The lane in which you are driving has detectable lane markers on both sides, and
your vehicle is in the center of the lane.
•The vehicle speed is between 45 and 90 mph (72 and 145 km/h).
•You are driving on a straight or slightly curved road.
•The turn signals are off.
•The brake pedal is not depressed.
•The wipers are not in continuous operation.
■How to activate the system
1. Press the MAIN button.
uThe LKAS is on in the driver information
interface.
The system is ready to use.
2. Press the LKAS button.
uLane outlines appear on the driver
information interface.
The system is activated.
■When the System can be Used
1When the System can be Used
If the vehicle drifts toward either the left or right lane
line due to the system applying torque, turn off the
LKAS and have your vehicle checked by a dealer.
MAIN Button
LKAS Button
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 442 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 443
uuWhen DrivinguLane Keeping Assist System (LKAS)*
3. Keep your vehicle near the center of the
lane while driving.
uThe dotted outer lines change to solid
ones once the system starts operating
after detecting the left and right lane
markings.
To cancel the LKAS:
Press the MAIN or LKAS button.
The LKAS is turned off every time you stop the
engine, even if you turned it on the last time
you drove the vehicle.
■To cancel
1When the System can be Used
The LKAS temporarily deactivates when it fails to
detect lane lines. When the system detects the lines
again, it comes back on automatically.
1To cancel
Pressing the MAIN button also turns ACC with LSF
on and off.
MAIN Button LKAS Button
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 443 ページ ２０１６年８月３１日　水曜日　午後６時５分
444
uuWhen DrivinguLane Keeping Assist System (LKAS)*
Driving
■The system operation is suspended if
you:
•Set the wipers to continuous operation.
uTurning the wipers off resumes the
LKAS.
•Set the wiper switch to AUTO and the
wipers operate continuously.
uThe LKAS resumes when the wipers stop
or operate intermittently.
•Decrease the vehicle speed to 40 mph (64
km/h) or less.
uIncreasing the vehicle speed to 45 mph
(72 km/h) or more resumes the LKAS.
•Depress the brake pedal.
uThe LKAS resumes and starts detecting
the lane lines again once you release the
brake pedal.
■The LKAS may automatically be suspended when:
•The system fails to detect lane lines.
•The steering wheel is quickly turned.
•You fail to steer the vehicle.
•The vehicle runs on a curved road over the speed limit.
Once these conditions no longer exist, the LKAS automatically resumes.
When the LKAS is suspended,
the lane lines on the driver
information interface change to
contour lines, and the beeper
sounds (if activated).
Models with automatic intermittent wipers
All models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 444 ページ ２０１６年８月３１日　水曜日　午後６時５分
445
uuWhen DrivinguLane Keeping Assist System (LKAS)*
Continued
■The LKAS may automatically be canceled when:
•The camera temperature gets extremely high or low.
•The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.
•When driving through a sharp curve.
•When driving at a speed in excess of approximately 90 mph (145 km/h).
•When the ABS or VSA systems engage.
A beeper sounds if the LKAS is automatically canceled.
The system may not detect lane markings and therefore may not keep the vehicle in
the middle of a lane under certain conditions, including the following:
■Environmental conditions
•Driving in bad weather (rain, fog, snow, etc.).
•Sudden changes between light and dark, such as an entrance or exit of a tunnel.
•There is little contrast between lane lines and the roadway surface.
•Driving into low sunlight (e.g., at dawn or dusk).
•Strong light is reflected onto the roadway.
•Driving in the shadows of trees, buildings, etc.
•Shadows of adjacent objects are parallel to lane markings.
•Roadway objects or structures are misinterpreted as lane markers.
•Reflections on the interior of the front windshield.
■LKAS Conditions and Limitations
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 445 ページ ２０１６年８月３１日　水曜日　午後６時５分
446
uuWhen DrivinguLane Keeping Assist System (LKAS)*
Driving
■Roadway conditions
•Driving on a snowy or wet roadway (obscured lane marking, vehicle tracks,
reflected lights, road spray, high contrast).
•Driving on a road with temporary lane markings.
•Faint, multiple, or varied lane markings are visible on the roadway due to road
repairs or old lane markings.
•The roadway has merging, split, or crossing lines (e.g., such as at an intersection
or crosswalk).
•The lane markings are extremely narrow, wide, or changing.
•The vehicle in front of you is driving near the lane lines.
•The road is hilly or the vehicle is approaching the crest of a hill.
•Driving on rough or unpaved roads, or over bumpy surfaces.
•When objects on the road (curb, guard rail, pylons, etc.) are recognized as white
lines (or yellow lines).
•Driving on roads with double lines.
■Vehicle conditions
•Headlight lenses are dirty or the headlights are not properly adjusted.
•The outside of the windshield is streaked or blocked by dirt, mud, leaves, wet
snow, etc.
•The inside of the windshield is fogged.
•The camera temperature gets too high.
•An abnormal tire or wheel condition (wrong size, varied size or construction,
improperly inflated, compact spare tire, etc.).
•The vehicle is tilted due to a heavy load or suspension modifications.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 446 ページ ２０１６年８月３１日　水曜日　午後６時５分
447
uuWhen DrivinguVehicle Stability Assist (VSA®), aka Electronic Stability Control (ESC), System
Continued
Vehicle Stability Assist (VSA®), aka Electronic
Stability Control (ESC), System
Helps to stabilize the vehicle during cornering if the vehicle turns more or less than
what was intended. It also assists in maintaining traction on slippery surfaces. It does
so by regulating engine output and selectively applying the brakes.
When VSA® activates, you may notice that the
engine does not respond to the accelerator.
You may also notice some noise from the
hydraulic system. You will also see the
indicator blink.
■VSA® Operation
1Vehicle Stability Assist (VSA®), aka Electronic Stability Control
(ESC), System
VSA® may not function properly if tire types and sizes
are mixed. Make sure to use the same size and type
of tire, and the air pressures are as specified.
When the VSA® system indicator comes on and stays
on while driving, there may be a problem with the
system. While this may not interfere with normal
driving, have your vehicle checked by a dealer
immediately.
The VSA® indicator may come on after re-connecting
the battery. Drive a short distance at more than 12
mph (20 km/h). The indicator should go off. If it does
not, have your vehicle checked by a dealer.
VSA® cannot enhance stability in all driving situations
and does not control the entire braking system. You
still need to drive and corner at speeds appropriate
for the conditions and always leave a sufficient
margin of safety.
The main function of the VSA® system is generally
known as Electronic Stability Control (ESC). The
system also includes a traction control function.
VSA® System
Indicator
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 447 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuWhen DrivinguVehicle Stability Assist (VSA®), aka Electronic Stability Control (ESC), System
448
Driving
This button is on the driver side control panel.
To partially disable VSA® functionality/
features, press and hold it until you hear a
beep.
The traction control stops fully functioning,
allowing the wheels to spin more freely at low
speed. The VSA® OFF indicator will also come
on and a message on the driver information
interface* informs you that the mode is
changed.
To restore VSA® functionality/features, press
the (VSA® OFF) button until you hear a
beep.
VSA® is turned on every time you start the
engine, even if you turned it off the last time
you drove the vehicle.
■VSA® On and Off
1Vehicle Stability Assist (VSA®), aka Electronic Stability Control
(ESC), System
With the button pressed, your vehicle will have
normal braking and cornering ability, but VSA®
traction and stability enhancement becomes less
effective.
In certain unusual conditions when your vehicle gets
stuck in shallow mud or fresh snow, it may be easier
to free it with the button pressed.
When the button is pressed, the traction control
function becomes less effective. This allows for the
wheels to spin more freely at low speed. You should
only attempt to free your vehicle with the button
pressed if you are not able to free it without.
Immediately after freeing your vehicle, be sure to
press the button again. We do not recommend
driving your vehicle with the button pressed
(indicator on).
You may hear a motor sound coming from the
engine compartment while system checks are being
performed immediately after starting the engine or
while driving. This is normal.
The VSA® OFF indicator may come on after re-
connecting the battery. Drive a short distance at
more than 12 mph (20 km/h). The indicator should
go off. If it does not, have your vehicle checked by a
dealer.
VSA® OFF
Indicator
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 448 ページ ２０１６年８月３１日　水曜日　午後６時５分
449
uuWhen DrivinguAgile Handling Assist
Agile Handling Assist
Lightly brakes selective wheels, as needed, when you turn the steering wheel, and
helps support the vehicle’s stability and performance during cornering.
1Agile Handling Assist
The agile handling assist cannot enhance stability in
all driving situations. You still need to drive and
corner at speeds appropriate for the conditions and
always leave a sufficient margin of safety.
When the VSA® system indicator comes on and stays
on while driving, the agile handling assist does not
activate.
You may hear a sound coming from the engine
compartment while the agile handling assist is
activated. This is normal.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 449 ページ ２０１６年８月３１日　水曜日　午後６時５分
450
uuWhen DrivinguLaneWatchTM *
Driving
LaneWatchTM*
LaneWatch is an assistance system that allows you to check the passenger side rear
areas displayed on the audio/information screen when the turn signal is activated to
the passenger’s side. A camera in the passenger side door mirror monitors these
areas and allows you to check for vehicles, in addition to your visual check and use
of the passenger door mirror. You can also keep the system on for your convenience
while driving.
1LaneWatchTM*
Important Safety Reminder
Like all assistance systems, LaneWatch has
limitations. Over reliance on LaneWatch may result in
a collision.
The LaneWatch function can be affected by weather,
lighting (including headlights and low sun angle),
ambient darkness, camera condition, and loading.
The LaneWatch may not provide the intended display
of traffic to the side and rear under the following
conditions:
•Your vehicle’s suspension has been altered,
changing the height of the vehicle.
•Your tires are over or under inflated.
•Your tires or wheels are of varied size or
construction.
3
WARNING
Failure to visually confirm that it is safe to
change lanes before doing so may result in
a crash and serious injury or death.
Do not rely only on LaneWatch while
driving.
Always look in your mirrors, to either side
of your vehicle, and behind you for other
vehicles before changing lanes.
1 2
Camera
Audio/Information Screen
Move the turn signal
lever to the passenger
side.
Press the LaneWatch
button.
The passenger side view
display appears on the
audio/information screen.
The system activates when you:
The system deactivates when you press
the LaneWatch button again.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 450 ページ ２０１６年８月３１日　水曜日　午後６時５分
451
uuWhen DrivinguLaneWatchTM *
■Customizing the LaneWatch settings
You can customize the following items using the audio/information screen.
•Show with Turn Signal: Selects whether LaneWatch monitor comes on when
you operate the turn signal light lever.
•Display Time after Turn Signal Off: Changes the length of time the LaneWatch
display stays on after you pull the turn signal lever back.
•Reference Lines: Selects whether the reference lines appear on the LaneWatch
monitor.
•Display: Allows for display adjustments of items, such as brightness, contrast and
black level. This setting is part of the System setup group.
2Customized Features P. 308
■Reference Lines
Three lines that appear on the screen can give
an idea of how far the vehicles or objects on
the screen are from your vehicle, respectively.
If an object is near line 1 (in red), it indicates
that it is close to your vehicle whereas an
object near line 3 farther away.
1LaneWatchTM*
The LaneWatch camera view is restricted. Its unique
lens makes objects on the screen look slightly
different from what they are.
LaneWatch display does not come on when the shift
lever is in (R.
For proper LaneWatch operation:
•The camera is located in the passenger side door
mirror. Always keep this area clean. If the camera
lens is covered with dirt or moisture, use a soft,
moist cloth to keep the lens clean and free of debris.
•Do not cover the camera lens with labels or stickers
of any kind.
•Do not touch the camera lens.
2
3
1
1Reference Lines
The area around the reference line 1 (red) is very close to
your vehicle. As always, make sure to visually confirm
the safety of a lane change before changing lanes.
The distance between your vehicle and lines 1, 2 and
3 on the screen vary depending on road conditions
and vehicle loading. For example, the reference lines
on the screen may seem to appear closer than the
actual distances when the rear of your vehicle is more
heavily loaded.
Consult a dealer if:
•The passenger side door mirror, or area around it is
severely impacted, resulting in changing the
camera angle.
•The LaneWatch display does not come on at all.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 451 ページ ２０１６年８月３１日　水曜日　午後６時５分
452
uuWhen DrivinguTire Pressure Monitoring System (TPMS)
Driving
Tire Pressure Monitoring System (TPMS)
Instead of directly measuring the pressure in each tire, the TPMS on this vehicle
monitors and compares the rolling radius and rotational characteristics of each
wheel and tire while you are driving to determine if one or more tires are
significantly under-inflated. This will cause the low tire pressure/TPMS indicator to
come on and a message to appear on the driver information interface*.
You must start TPMS calibration every time you:
•Adjust the pressure in one or more tires.
•Rotate the tires.
•Replace one or more tires.
Before calibrating the TPMS:
•Set the cold tire pressure in all four tires.
2Checking Tires P. 522
Make sure:
•The vehicle is at a complete stop.
•The shift lever is in (N.
•The shift lever is in (P.
•The ignition switch is in ON (w*1.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■TPMS Calibration
U.S. models
1Tire Pressure Monitoring System (TPMS)
The system does not monitor the tires when driving
at low speed.
Conditions such as low ambient temperature and
altitude change directly affect tire pressure and can
trigger the low tire pressure/TPMS indicator to come on.
Tire pressure checked and inflated in:
•Warm weather can become under-inflated in
colder weather.
•Cold weather can become over-inflated in warmer
weather.
The low tire pressure indicator will not come on as a
result of over inflation.
The TPMS may not function properly if tire type and
size are mixed. Make sure to use the same size and
type of tire.
2Checking and Maintaining Tires P. 522
The low tire pressure/TPMS indicator may come on
with a delay or may not come on at all when:
•You rapidly accelerate, decelerate, or turn the
steering wheel.
•You drive on snowy or slippery roads.
•Snow chains are used.
The low tire pressure/TPMS indicator may come on
under the following conditions:
•A compact spare tire is used.
•There is a heavier and uneven load on the tires,
such as when towing a trailer, than the condition at
calibration.
•Snow chains are used.
Manual transmission models
Continuously variable transmission models
All models
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 452 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 453
uuWhen DrivinguTire Pressure Monitoring System (TPMS)
Press and hold the TPMS button until the low
tire pressure/TPMS indicator blinks twice,
indicating the calibration process has begun.
•If the low tire pressure/TPMS indicator does
not blink, confirm the above conditions
then press and hold the TPMS button again.
•The calibration process finishes
automatically.
You can calibrate the system from the customized
features on the driver information interface.
1. Press the then / button to select
(Vehicle Settings), then press the
ENTER button.
uTPMS Calibration appears on the display.
2. Press the ENTER button.
uThe display switches to the
customization setup screen, where you
can select Cancel or Calibrate.
3. Press the / button and select
Calibrate, then press the ENTER button.
uCalibration Started screen appears,
then the display returns to the
customization menu screen.
•If the Calibration Failed to Start message
appears, repeat steps 2-3.
•The calibration process finishes automatically.
1TPMS Calibration
•TPMS cannot be calibrated if a compact spare tire is
installed.
•The calibration process requires approximately 30
minutes of cumulative driving at speeds between
30-65 mph (48-105 km/h).
•During calibration, if the ignition is turned off then
on again, and the vehicle is not moved within 45
seconds, the low tire pressure indicator may come
on briefly. This is normal and indicates that the
calibration process is not yet complete.
If the snow chains are installed, remove them before
calibrating the TPMS.
If the low tire pressure/TPMS indicator comes on even
when the properly inflated specified regular tires are
installed, have your vehicle checked by a dealer.
We recommend that the tires be replaced with the
same brand, model, and size as the originals. Ask a
dealer for details.
The low tire pressure/TPMS indicator may come on
after re-connecting the battery. Drive a short distance
at more than 12 mph (20 km/h). The indicator should
go off. If it does not, have your vehicle checked by a
dealer.
TPMS
Button
Low Tire Pressure/
TPMS Indicator
Models with information display
Models with color audio system
Models with driver information interface
3
4
3
4
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 453 ページ ２０１６年８月３１日　水曜日　午後６時５分
454
uuWhen DrivinguTire Pressure Monitoring System (TPMS)
Driving
You can calibrate the system from the
customized feature on the audio/information
screen.
1. Select .
2. Select Settings.
3. Select Vehicle.
4. Select TPMS Calibration.
5. Select Cancel or Calibrate.
uWhen the calibration is complete, the
display returns to the customization
menu screen.
•If the Calibration Failed To Start.
message appears, repeat steps 3-5.
•The calibration process finishes
automatically.
Models with Display Audio
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 454 ページ ２０１６年８月３１日　水曜日　午後６時５分
455
uuWhen DrivinguTire Pressure Monitoring System (TPMS) - Required Federal Explanation
Continued
Tire Pressure Monitoring System (TPMS) - Required
Federal Explanation
Each tire, including the spare (if provided), should be checked
monthly when cold and inflated to the inflation pressure
recommended by the vehicle manufacturer on the vehicle placard
or tire inflation pressure label.
(If your vehicle has tires of a different size than the size indicated
on the vehicle placard or tire inflation pressure label, you should
determine the proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with
a tire pressure monitoring system (TPMS) that illuminates a low
tire pressure telltale
when one or more of your tires is significantly under-inflated.
Accordingly, when the low tire pressure telltale illuminates, you
should stop and check your tires as soon as possible, and inflate
them to the proper pressure.
Driving on a significantly under-inflated tire causes the tire to
overheat and can lead to tire failure. Under-inflation also reduces
fuel efficiency and tire tread life, and may affect the vehicle's
handling and stopping ability.
U.S. models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 455 ページ ２０１６年８月３１日　水曜日　午後６時５分
456
uuWhen DrivinguTire Pressure Monitoring System (TPMS) - Required Federal Explanation
Driving
Please note that the TPMS is not a substitute for proper tire
maintenance, and it is the driver's responsibility to maintain
correct tire pressure, even if under-inflation has not reached the
level to trigger illumination of the TPMS low tire pressure telltale.
Your vehicle has also been equipped with a TPMS malfunction
indicator to indicate when the system is not operating properly.
The TPMS malfunction indicator is combined with the low tire
pressure telltale. When the system detects a malfunction, the
telltale will flash for approximately one minute and then remain
continuously illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the malfunction exists.
When the malfunction indicator is illuminated, the system may
not be able to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of reasons, including
the installation of replacement or alternate tires or wheels on the
vehicle that prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow the TPMS to
continue to function properly.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 456 ページ ２０１６年８月３１日　水曜日　午後６時５分
457
Continued
Braking
Brake System
Use the parking brake to keep the vehicle stationary when parked. When the
parking brake is applied, you can manually or automatically release it.
■To apply
The electric parking brake can be applied any
time the vehicle has battery, no matter which
position the ignition switch*1 is in.
Pull the electric parking brake switch up gently
and securely.
uThe parking brake indicator comes on.
■To release
The vehicle must be ON (w*1 in order to
release the electric parking brake.
1. Depress the brake pedal.
2. Press the electric parking brake switch.
uThe parking brake indicator goes off.
Manually releasing the parking brake using
the switch helps your vehicle start slowly and
smoothly when facing down hill on steep hills.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Parking Brake
1Parking Brake
You may hear the electric parking brake system
operating from the rear wheel area when you apply
or release the parking brake. This is normal.
The brake pedal may slightly move due to the electric
parking brake system operation when you apply or
release the parking brake. This is normal.
You cannot apply or release the parking brake if the
battery goes dead.
2Jump Starting P. 555
If you pull up and hold the electric parking brake
switch while driving, the brakes on all four wheels
are applied by the VSA system until the vehicle
come to a stop. The electric parking brake then
applies, and the switch should be released.
In the following situations, the parking brake
automatically operates.
•When the vehicle stops with the automatic brake
hold system activated for more than 10 minutes.
•
When the driver’s seat belt is unfastened while your
vehicle is stopped and the brake hold system is applied.
•When the engine is turned off while the brake hold
system is applied.
•When there is a problem with the brake hold
system while brake hold is applied.
•When the vehicle is stops more than 10 minutes
while ACC with LSF is activated.
•
When the driver’s seat belt is unfastened while your
vehicle is stopped automatically by ACC with LSF.
•When the engine is turned off while ACC with LSF
is activated.
•
When there is a problem with the electric parking brake
switch, after you turn the ignition switch to LOCK
(0
*1
.
Models with ACC with LSF
Manual transmission models
Electric Parking
Brake Switch
Electric Parking
Brake Switch
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 457 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuBrakinguBrake System
458
Driving
■To release automatically
Use the accelerator pedal to release the parking brake when you are starting the
vehicle facing uphill, or in a traffic jam.
Depressing the accelerator pedal releases the parking brake.
Depress the accelerator pedal while releasing the clutch pedal releases the parking
brake.
Gently depress the accelerator pedal.
uThe parking brake indicator goes off.
Gently depress the accelerator pedal and
release the clutch pedal.
uThe parking brake indicator goes off.
1Parking Brake
If the parking brake cannot be released
automatically, release it manually.
When the vehicle is travelling uphill, the accelerator
pedal may need to be pressed farther to
automatically release the electric parking brake.
The parking brake cannot be released automatically
while the following indicators are on:
•Malfunction indicator lamp
•Transmission indicator
The parking brake may not be released automatically
while the following indicators are on:
•Brake system indicator
•VSA® system indicator
•ABS indicator
•Supplemental restraint system indicator
The clutch pedal is fully depressed before gently
depress the accelerator pedal and release the clutch
pedal.
Manual transmission models
Continuously variable transmission models
Manual transmission models
Accelerator Pedal
Continuously variable transmission models
Accelerator Pedal
Clutch Pedal
Manual transmission models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 458 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 459
uuBrakinguBrake System
The parking brake automatically releases as you depress the accelerator pedal when:
•You are wearing the driver’s seat belt.
•The engine is running.
•The transmission is not in (P or (N.
•The transmission is not in (N.
Your vehicle is equipped with disc brakes at all four wheels. A vacuum power assist
helps to reduce the effort needed on the brake pedal. The brake assist system
increases the stopping force when you depress the brake pedal hard in an
emergency situation. The anti-lock brake system (ABS) helps you retain steering
control when braking very hard.
2Brake Assist System P. 464
2Anti-lock Brake System (ABS) P. 463
■Foot Brake
Continuously variable transmission models
Manual transmission models
1Foot Brake
Check the brakes after driving through deep water,
or if there is a buildup of road surface water. If
necessary, dry the brakes by lightly depressing the
pedal several times.
If you hear a continuous metallic friction sound when
applying the brakes, this is caused by the brake wear
indicator rubbing on the brake rotor and indicates
that the brake pads need to be replaced. Have the
vehicle checked by a dealer. If you hear only an
occasional squeak or squeal when you initially apply
the brake pedal, this may be normal and caused by
high frequency vibration of the brake pads against
the rotating brake disc.
Constantly using the brake pedal while going down a
long hill builds up heat, which reduces the brake
effectiveness. Apply engine braking by taking your
foot off the accelerator pedal and downshifting to a
lower gear/speed position. With manual transmission
use a lower gear for greater engine braking.
Do not rest your foot on the brake pedal while
driving, as it will lightly apply the brakes and cause
them to lose effectiveness over time and reduce pad
life. It will also confuse drivers behind you.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 459 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuBrakinguBrake System
460
Driving
Keeps the brake applied after releasing the brake pedal until the accelerator pedal is
pressed. You can use this system while the vehicle is temporarily stopped, like at
traffic lights and in heavy traffic.
■Automatic Brake Hold
1Automatic Brake Hold
3
WARNING
Activating the automatic brake hold system
on steep hills or slippery roads may still
allow the vehicle to move if you remove
your foot from the brake pedal.
If a vehicle unexpectedly moves, it may
cause a crash resulting in serious injury or
death.
Never activate the automatic brake hold
system or rely on it to keep a vehicle from
moving when stopped on a steep hill or
slippery roads.
3
WARNING
Using the automatic brake hold system to
park the vehicle may result in the vehicle
unexpectedly moving.
If a vehicle moves unexpectedly, it may
cause a crash, resulting in serious injury or
death.
Never leave the vehicle when braking is
temporarily kept by automatic brake hold
and always park the vehicle by putting the
transmission in (P and applying the parking
brake.
Continuously variable transmission models
■Turning on the system
Fasten your seat belt
properly, then start the
engine. Press the
automatic brake hold
button.
●The automatic brake
hold system indicator
comes on. The system
is turned on.
■Activating the system
Depress the brake pedal
to come to a complete
stop. The shift lever must
not be in (P or (R.
●The automatic brake
hold indicator comes
on. Braking is kept for
up to 10 minutes.
●Release the brake pedal
after the automatic
brake hold indicator
comes on.
■Canceling the system
Depress the accelerator
pedal while the shift
lever is in a position
other than (P or (N. The
brake hold is disengaged
and the vehicle starts to
move.
●The automatic brake
hold indicator goes
off. The system
releases the brake
automatically.
Accelerator PedalBrake PedalAutomatic Brake
Hold Button
Goes
Off
On On On
On
On
U.S.
Canada
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 460 ページ ２０１６年８月３１日　水曜日　午後６時５分
461
uuBrakinguBrake System
Continued
Keeps the brake applied after releasing the brake pedal until you change a gear to a
position other than (N and:
•Release the clutch pedal on a level road or when facing downhill.
•Release the clutch pedal and depress the accelerator pedal when facing uphill.
You can use this system while the vehicle is temporarily stopped, like at traffic lights
and in heavy traffic.
Manual transmission models
■Turning on the system
Fasten your seat belt
properly, then start the
engine. Press the
automatic brake hold
button.
●The automatic brake
hold system indicator
comes on. The system
is turned on.
■Activating the system
Depress the brake pedal
to come to a complete
stop.
●The automatic brake
hold indicator comes
on. Braking is kept for
up to 10 minutes.
●Release the brake pedal
after the automatic
brake hold indicator
comes on.
■Canceling the system
Shift into one of the
gears other than (N and:
●Release the clutch
pedal on a level road
or when facing
downhill.
●Release the clutch
pedal and depress the
accelerator pedal
when facing uphill.
The system is canceled
and the vehicle starts to
move.
●
The automatic brake
hold indicator goes off.
The system releases the
brake automatically.
Accelerator Pedal
Brake PedalAutomatic Brake
Hold Button
Goes
Off
On On
On
On
On
U.S.
Canada
Clutch Pedal
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 461 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuBrakinguBrake System
462
Driving
■The system automatically cancels when:
•You engage the parking brake.
•You depress the brake pedal and move the shift lever to (P or (R.
Under the following conditions, the system automatically cancels, and the parking
brake is applied:
•Braking is kept for more than 10 minutes.
•The driver’s seat belt is unfastened.
•The engine is turned off.
•There is a problem with automatic brake hold system.
•The battery is disconnected.
•The engine stalls.
■Turning off the automatic brake hold system
While the system is on, press the automatic
brake hold button again.
uThe automatic brake hold system
indicator goes off.
If you want to turn off automatic brake hold
while the system is in operation, press the
automatic brake hold button with the brake
pedal depressed.
1Automatic Brake Hold
While the system is activated, you can turn off the
engine or park the vehicle through the same
procedure as you normally do.
2When Stopped P. 473
Whether the system is on, or the system is activated,
the automatic brake hold turns off once the engine is
off.
The system turns off if the engine stalls while
automatic brake hold is active or the system is on.
Manual transmission models
Continuously variable transmission models
All models
Manual transmission models
1Turning on the system
Make sure to turn off the automatic brake hold
system before using an automated car wash.
You may hear an operating noise if the vehicle moves
while the automatic brake hold system is in
operation.
Automatic Brake
Hold Button
Goes
Off
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 462 ページ ２０１６年８月３１日　水曜日　午後６時５分
463
uuBrakinguAnti-lock Brake System (ABS)
Anti-lock Brake System (ABS)
Helps prevent the wheels from locking up, and helps you retain steering control by
pumping the brakes rapidly, much faster than you.
The electronic brake distribution (EBD) system, which is part of the ABS, also
balances the front-to-rear braking distribution according to vehicle loading.
You should never pump the brake pedal. Let the ABS work for you by always
keeping firm, steady pressure on the brake pedal. This is sometimes referred to as
“stomp and steer.”
■ABS operation
The brake pedal may pulsate slightly when the ABS is working. Keep holding the
pedal firmly down. On dry pavement, you will need to press on the brake pedal very
hard before the ABS activates. However, you may feel the ABS activate immediately
if you are trying to stop on snow or ice.
When the vehicle speed goes under 6 mph (10 km/h), the ABS stops.
■ABS
1Anti-lock Brake System (ABS)
NOTICE
The ABS may not function correctly if you use an
incorrect tire type and size.
When the ABS indicator comes on while driving,
there may be a problem with the system.
While normal braking is not affected, there is a
possibility of the ABS not operating. Have the vehicle
checked by a dealer immediately.
The ABS does not reduce the time or distance it takes
to stop the vehicle. It only helps with steering control
during hard braking.
In the following cases, your vehicle may need more
stopping distance than a vehicle without the ABS:
•When driving on rough road surfaces, including
when driving on uneven surfaces, such as gravel or
snow.
•When snow chains are installed.
You may hear a motor sound coming from the
engine compartment while system checks are being
performed immediately after starting the engine or
while driving. This is normal.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 463 ページ ２０１６年８月３１日　水曜日　午後６時５分
464
uuBrakinguBrake Assist System
Driving
Brake Assist System
Designed to assist the driver by generating greater braking force when you depress
the brake pedal hard during emergency braking.
■Brake assist system operation
Press the brake pedal firmly for more powerful braking.
When brake assist operates, the pedal may wiggle slightly and an operating noise
may be heard. This is normal. Keep holding the brake pedal firmly down.
■Brake Assist System
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 464 ページ ２０１６年８月３１日　水曜日　午後６時５分
465
uuBrakinguCollision Mitigation Braking SystemTM (CMBSTM)*
Continued
Collision Mitigation Braking SystemTM (CMBSTM)*
Can assist you when there is a possibility of your vehicle colliding with a vehicle or a
pedestrian detected in front of yours. The CMBSTM is designed to alert you when a
potential collision is determined, as well as to reduce your vehicle speed to help
minimize collision severity when a collision is deemed unavoidable.
■How the system works
1Collision Mitigation Braking SystemTM (CMBSTM)*
Important Safety Reminder
The CMBSTM is designed to reduce the severity of an
unavoidable collision. It does not prevent collision nor
stop the vehicle automatically. It is still your
responsibility to operate the brake pedal and steering
wheel appropriately according to the driving
conditions.
The CMBSTM may not activate or may not detect a
vehicle in front of your vehicle under certain
conditions:
2CMBSTM Conditions and Limitations P. 469
You can read about handling information for the
camera equipped with this system.
2Front Sensor Camera* P. 420
Be careful not to have the radar sensor cover strongly
impacted.
1How the system works
Rapid vibrations on the steering wheel alert you
when your vehicle speed is between 19 and 62 mph
(30 and 100 km/h) with an oncoming vehicle
detected in front of you.
When the CMBSTM activates, it may automatically
apply the brake. It will be canceled when your vehicle
stops or a potential collision is not determined.
The radar sensor is in
the lower bumper
next to the fog light.
The camera is located
behind the rearview
mirror.
The system starts monitoring the roadway ahead when your vehicle speed is about
3 mph (5 km/h) and there is a vehicle in front of you.
When to use
The CMBSTM activates when:
●The speed difference between your vehicle and a vehicle or pedestrian detected
in front of you becomes about 3 mph (5 km/h) and over with a chance of a
collision.
●Your vehicle speed is about 62 mph (100 km/h) or less and there is a chance of a
collision with an oncoming detected vehicle or a pedestrian in front of you.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 465 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuBrakinguCollision Mitigation Braking SystemTM (CMBSTM)*
466
Driving
■When the system activates
At system’s earliest collision alert stage, you can change the distance (Long/
Normal/Short) between vehicles at which alerts will come on through driver
information interface*/audio/information screen* setting options.
2List of customizable options P. 121
■Vibration alert on the steering wheel
When a potential collision to an oncoming detected vehicle is determined, the
system alerts you with rapid vibration on the steering wheel, in addition to visual and
audible alerts.
uTake appropriate action to prevent a collision (apply the brakes, operate the
steering wheel, etc.).
1When the system activates
The camera in the CMBSTM is also designed to detect
pedestrians.
However, this pedestrian detection feature may not
activate or may not detect a pedestrian in front of
your vehicle under certain conditions.
Refer to the ones indicating the pedestrian detection
limitations from the list.
2CMBSTM Conditions and Limitations P. 469
The system provides visual, audible and tactile alerts of a possible collision, and
stops if the collision is avoided.
uTake appropriate action to prevent a collision (apply the brakes, change
lanes, etc.)
Visual Alerts
Beep
Tactile Alert
Audible Alert
1Vibration alert on the steering wheel
Vibration alert function is disabled when the electric
power steering (EPS) system indicator comes on.
2Electric Power Steering (EPS) System
Indicator P. 82
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 466 ページ ２０１６年８月３１日　水曜日　午後６時５分
467
uuBrakinguCollision Mitigation Braking SystemTM (CMBSTM)*
Continued
The system has three alert stages for a possible collision. However, depending on circumstances, the CMBSTM may not go through all of
the stages before initiating the last stage.
■Collision Alert Stages
Distance between vehicles
CMBSTM
The radar sensor
detects a vehicle Audible & Visual WARNINGS Steering Wheel Braking
Stage
one
There is a risk of a
collision with the
vehicle ahead of you.
When in Long, visual and audible alerts
come on at a longer distance from a
vehicle ahead than in Normal setting,
and in Short, at a shorter distance than
in Normal.
In case of an
oncoming vehicle
detected, rapid
vibration is
provided.
—
Stage
two
The risk of a collision
has increased, time to
respond is reduced.
Visual and audible alerts. —
Lightly
applied
Stage
three
The CMBSTM
determines that a
collision is
unavoidable.
Forcefully
applied
Your Vehicle
Vehicle
Ahead
Normal
ShortLong
Your
Vehicle
Vehicle
Ahead
Your
Vehicle
Vehicle
Ahead
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 467 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuBrakinguCollision Mitigation Braking SystemTM (CMBSTM)*
468
Driving
Press this button until the beeper sounds to
switch the system on or off.
When the CMBSTM is off:
•The CMBSTM indicator in the instrument
panel comes on.
•A message on the driver information
interface reminds you that the system is off.
The CMBSTM is in the previously selected ON or
OFF setting each time you start the engine.
■CMBSTM On and Off
1Collision Mitigation Braking SystemTM (CMBSTM)*
The CMBSTM may automatically shut off, and the
CMBSTM indicator will come and stay on under certain
conditions:
2CMBSTM Conditions and Limitations P. 469
The CMBSTM indicator may come on after re-
connecting the battery.
Drive a short distance at more than 12 mph (20 km/
h). The indicator should go off. If it does not, have
your vehicle checked by a dealer.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 468 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 469
uuBrakinguCollision Mitigation Braking SystemTM (CMBSTM)*
The system may automatically shut off and the CMBSTM indicator will come on under
certain conditions. Some examples of these conditions are listed below. Other
conditions may reduce some of the CMBSTM functions.
2Front Sensor Camera* P. 420
■Environmental conditions
•Driving in bad weather (rain, fog, snow, etc.).
•Sudden changes in ambient light, such as an entrance or exit of a tunnel.
•There is little contrast between objects and the background.
•Driving into low sunlight (e.g., at dawn or dusk).
•Strong light is reflected onto the roadway.
•Driving in the shadows of trees, buildings, etc.
•Roadway objects or structures are misinterpreted as vehicles and pedestrians.
•Reflections on the interior of the windshield.
■Roadway conditions
•Driving on a snowy or wet roadway (obscured lane marking, vehicle tracks,
reflected lights, road spray, high contrast on a snowy or wet roadway).
•Driving on curvy, winding, or undulating roads.
•The road is hilly or the vehicle is approaching the crest of a hill.
■CMBSTM Conditions and Limitations
1CMBSTM Conditions and Limitations
Do not put a sticker on the radar sensor cover or
replace the radar sensor cover.
If you need the radar sensor to be repaired, or
removed, or the radar sensor cover is strongly
impacted, turn off the system by pressing the
CMBSTM off button and take your vehicle to a dealer.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 469 ページ ２０１６年８月３１日　水曜日　午後６時５分
470
uuBrakinguCollision Mitigation Braking SystemTM (CMBSTM)*
Driving
■Vehicle conditions
•Headlight lenses are dirty or the headlights are not properly adjusted.
•The outside of the windshield is blocked by dirt, mud, leaves, wet snow, etc.
•The inside of the windshield is fogged.
•An abnormal tire or wheel condition (wrong size, varied size or construction,
improperly inflated, compact spare tire, etc.).
•When tire chains are installed.
•The vehicle is tilted due to a heavy load or suspension modifications.
•The camera temperature gets too high.
•Driving with the parking brake applied.
•When the radar sensor in the lower bumper gets dirty.
■Detection limitations
•A vehicle or pedestrian suddenly crosses in front of you.
•The distance between your vehicle and the vehicle or pedestrian ahead of you is
too short.
•A vehicle cuts in front of you at a slow speed, and it brakes suddenly.
•When you accelerate rapidly and approach the vehicle or pedestrian ahead of you
at high speed.
•The vehicle ahead of you is a motorcycle, bicycle, mobility scooter or other small
vehicle.
•When there are animals in front of your vehicle.
•When you drive on a curved, winding or undulating road that makes it difficult for
the sensor to properly detect a vehicle in front of you.
•The speed difference between your vehicle and a vehicle or pedestrian in front of
you is significantly large.
•An oncoming vehicle suddenly comes in front of you.
•Another vehicle suddenly comes in front of you at an intersection, etc.
•Your vehicle abruptly crosses over in front of an oncoming vehicle.
•When driving through a narrow iron bridge.
•When the lead vehicle suddenly slows down.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 470 ページ ２０１６年８月３１日　水曜日　午後６時５分
471
uuBrakinguCollision Mitigation Braking SystemTM (CMBSTM)*
Continued
•When there is a group of people in front of your vehicle walking together side by
side.
•Surrounding conditions or belongings of the pedestrian alter the pedestrian’s
shape, preventing the system from recognizing that the person is a pedestrian.
•When the pedestrian is shorter than about 3.3 feet (1 meter) or taller than about
6.6 feet (2 meters) in height.
•When a pedestrian blends in with the background.
•When a pedestrian is bent over or squatting, or when their hands are raised or
they are running.
•When several pedestrians are walking ahead in a group.
•When the camera cannot correctly identify that a pedestrian is present due to an
unusual shape (holding luggage, body position, size).
■Automatic shutoff
The CMBS may automatically shut itself off and the CMBS indicator comes and stays
on when:
•The temperature inside the system is high.
•You drive off-road or on a mountain road, or curved and winding road for an
extended period.
•An abnormal tire condition is detected (wrong tire size, flat tire, etc.).
•The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.
Once the conditions that caused the CMBS to shut off improve or are addressed
(e.g., cleaning), the system comes back on.
Limitations applicable to pedestrian detection only
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 471 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuBrakinguCollision Mitigation Braking SystemTM (CMBSTM)*
472
Driving
The CMBSTM may activate even when you are aware of a vehicle ahead of you, or
when there is no vehicle ahead. Some examples of this are:
■When Passing
Your vehicle approaches another vehicle ahead of you and you change lanes to pass.
■At an intersection
Your vehicle approaches or passes another vehicle that is making a left or right turn.
■On a curve
When driving through curves, your vehicle comes to a point where an oncoming
vehicle is right in front of you.
■Through a low bridge at high speed
You drive under a low or narrow bridge at high speed.
■Speed bumps, road work sites, train tracks, roadside objects, etc.
You drive over speed bumps, steel road plates, etc., or your vehicle approaches train
tracks or roadside objects (such as a traffic sign and guard rail) on a curve or, when
parking, stationary vehicles and walls.
■With Little Chance of a Collision
1Collision Mitigation Braking SystemTM (CMBSTM)*
For the CMBSTM to work properly:
Always keep the radar sensor cover clean.
Never use chemical solvents or polishing powder for
cleaning the sensor cover. Clean it with water or a
mild detergent.
Do not paint, or apply any coverings or paint to the
radar sensor area. This can impact CMBS operation.
Have your vehicle checked by a dealer if you find any
unusual behavior of the system (e.g., the warning
message appears too frequently).
If the front of the vehicle is impacted in any of the
following situations, the radar sensor may not work
properly. Have your vehicle checked by a dealer:
•The vehicle mounted onto a bump, curb, chock,
embankment, etc.
•You drive the vehicle where the water is deep.
•Your vehicle has a frontal collision.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 472 ページ ２０１６年８月３１日　水曜日　午後６時５分
473
Parking Your Vehicle
When Stopped
1. Depress the brake pedal firmly.
2. With the brake pedal depressed, pull up the electric parking brake switch slowly,
but fully.
3. Move the shift lever from (D to (P.
3. Move the shift lever to (R or (1.
4. Turn off the engine.
uThe electric parking brake indicator goes off in about 15 seconds.
Always confirm the electric parking brake is set, in particular if you are parked on an
incline.
1Parking Your Vehicle
Do not park your vehicle near flammable objects,
such as dry grass, oil, or timber.
Heat from the exhaust can cause a fire.
1When Stopped
NOTICE
The following can damage the transmission:
•Depressing the accelerator and brake pedals
simultaneously.
•Holding the vehicle in place when facing uphill by
depressing the accelerator pedal.
•Moving the shift lever into (P before the vehicle
stops completely.
In extremely cold temperatures, the parking brake
may freeze up if applied. If such temperatures are
expected, do not apply the parking brake but, if
parking on a slope, either turn the front wheels so
they will contact the curb if the vehicle rolls down the
slope or block the wheels to keep the vehicle from
moving. If you do not take either precaution, the
vehicle may roll unexpectedly, leading to a crash.
Continuously variable transmission models
Continuously variable transmission models
Manual transmission models
All models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 473 ページ ２０１６年８月３１日　水曜日　午後６時５分
474
Driving
Multi-View Rear Camera
About Your Multi-View Rear Camera
The audio/information screen can display your vehicle’s rear view.
The display automatically changes to a rear view when the shift lever is moved to (R.
■Multi-View Rear Camera Display Area
1About Your Multi-View Rear Camera
The rear camera view is restricted. You cannot see
the corner ends of the bumper or what is underneath
the bumper. Its unique lens also makes objects
appear closer or farther than they actually are.
Visually confirm that it is safe to drive before backing
up. Certain conditions (such as weather, lighting, and
high temperatures) may also restrict the rear view. Do
not rely on the rearview display which does not give
you all information about conditions at the back of
your vehicle.
If the camera lens is covered with dirt or moisture,
use a soft, moist cloth to keep the lens clean and free
of debris.
You can change the Fixed Guideline and Dynamic
Guideline settings.
2Customized Features P. 308
Fixed Guideline
On: Guidelines appear when you shift into (R.
Off: Guidelines do not appear.
Dynamic Guidelines
On: Guidelines move according to the steering wheel
direction.
Off: Guidelines do not move.
Models with Display Audio
Guidelines
Bumper
Wide View Mode
Normal View Mode
Top Down View Mode
Camera
Approx. 118 inches (3 m)
Approx. 79 inches (2 m)
Approx. 39 inches (1 m)
Approx. 20 inches (50 cm)
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 474 ページ ２０１６年８月３１日　水曜日　午後６時５分
475
uuMulti-View Rear CamerauAbout Your Multi-View Rear Camera
You can view three different camera angles on the rearview display.
Press the LIST/SELECT (selector) knob to switch the angle.
Touch the appropriate icon to switch the angle.
: Wide view
: Normal view
: Top down view
•If the last used viewing mode was Wide or Normal, the same mode is selected the
next time you shift into (R.
•If Top View was last used before you turned off the engine, Wide mode is
selected next time you turn the ignition switch to ON (w*1 and shift to (R.
•If Top View was last used more than 10 seconds after you shift from (R, Wide
mode is selected the next time you turn the ignition switch to ON (w*1.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Models with color audio system
Models with Display Audio
All models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 475 ページ ２０１６年８月３１日　水曜日　午後６時５分
476
Driving
Refueling
Fuel Information
■Fuel recommendation
Use of a lower octane gasoline can cause a persistent, heavy metallic knocking noise
that can lead to engine damage.
■Top tier detergent gasoline
Because the level of detergency and additives in gasoline vary in the market, Honda
endorses the use of “TOP TIER Detergent Gasoline” where available to help
maintain the performance and reliability of your vehicle. TOP TIER Detergent
Gasoline meets a new gasoline standard jointly established by leading automotive
manufacturers to meet the needs of today’s advanced engines.
Qualifying gasoline retailers will, in most cases, identify their gasoline as having met
“TOP TIER Detergent Gasoline” standards at the retail location. This fuel is
guaranteed to contain the proper level of detergent additives and be free of metallic
additives. The proper level of detergent additives, and absence of harmful metallic
additives in gasoline, help avoid build-up of deposits in your engine and emission
control system.
For further important fuel-related information for your vehicle, or on information on
gasoline that does not contain MMT, visit www.hondacars.com. In Canada, visit
www.honda.ca for additional information on gasoline. For more information on top
tier gasoline, visit www.toptiergas.com.
■Fuel tank capacity: 12.39 US gal (46.9 liters)
Unleaded gasoline, pump octane number 87 or higher
1Fuel Information
NOTICE
We recommend quality gasoline containing
detergent additives that help prevent fuel system and
engine deposits. In addition, in order to maintain
good performance, fuel economy, and emissions
control, we strongly recommend the use of gasoline
that does NOT contain harmful manganese-based
fuel additives such as MMT, if such gasoline is
available.
Use of gasoline with these additives may adversely
affect performance, and cause the malfunction
indicator lamp on your instrument panel to come on.
If this happens, contact a dealer for service.
Some gasoline today is blended with oxygenates such
as ethanol. Your vehicle is designed to operate on
oxygenated gasoline containing up to 15% ethanol
by volume. Do not use gasoline containing methanol.
If you notice any undesirable operating symptoms, try
another service station or switch to another brand of
gasoline.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 476 ページ ２０１６年８月３１日　水曜日　午後６時５分
477
uuRefuelinguHow to Refuel
Continued
How to Refuel
Your fuel tank is not equipped with a fuel filler cap. You can insert the filler nozzle
directly into the filler neck. The tank seals itself again when you pull out the filler
nozzle.
1. Stop your vehicle with the service station
pump on the left side of the vehicle in the
rear.
2. Turn off the engine.
3. Press the area indicated by the arrow to
release the fuel fill door. You will hear a
click.
uDriver’s door must be unlocked.
2Locking/Unlocking the Doors from
the Inside P. 140
1How to Refuel
The fuel filler opening is designed to accept only
service station filler nozzles for refueling. Use of
smaller diameter tubes (e.g., those used to siphon
fuel for other uses) or other non-service station
devices can damage the area in and around the filler
opening.
Use the master door lock switch to unlock the fuel fill
door.
The vehicle doors and fuel fill door automatically
relock if the remote unlock function is used. This can
be deactivated by briefly opening then closing the
driver’s door.
The fuel fill door and its latching mechanism can be
permanently damaged if the fuel fill door is forced
closed when the driver’s door is locked.
3
WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
•Stop the engine, and keep heat, sparks,
and flame away.
•Handle fuel only outdoors.
•Wipe up spills immediately.
Press
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 477 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuRefuelinguHow to Refuel
478
Driving
4. Place the end of the filler nozzle on the
lower part of filler opening, then insert it
slowly and fully.
uMake sure that the end of the filler
nozzle goes down along with the filler
pipe.
uKeep the filler nozzle level.
uWhen the tank is full, the filler nozzle will
click off automatically.
uAfter filling, wait about five seconds
before removing the filler nozzle.
5. Shut the fuel fill door by hand.
1How to Refuel
The filler nozzle automatically stops to leave space in
the fuel tank so that fuel does not overflow as a result
of changes in air temperature.
If the filler nozzle keeps turning off when the tank is
not full, there may be a problem with the pump’s fuel
vapor recovery system. Try filling at another pump. If
this does not fix the problem, consult a dealer.
Do not continue to add fuel after the nozzle has
automatically stopped. Additional fuel can exceed
the full tank capacity.
If you have to refuel your vehicle from a portable
container, use the funnel provided with your vehicle.
2Refueling From a Portable Fuel Container
P. 574
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 478 ページ ２０１６年８月３１日　水曜日　午後６時５分
479
Fuel Economy and CO2 Emissions
Improving Fuel Economy and Reducing CO2
Emissions
Achieving fuel economy and reducing CO2 emissions is dependent on several
factors, including driving conditions, load weight, idling time, driving habits, and
vehicle condition. Depending on these and other factors, you may not achieve the
rated fuel economy of this vehicle.
You can optimize your fuel economy with proper maintenance of your vehicle.
Always maintain your vehicle in accordance with the messages displayed on the
information display*/driver information interface*.
•Use the recommended viscosity engine oil, displaying the API Certification Seal.
•Maintain the specified tire pressure.
•Do not load the vehicle with excess cargo.
•Keep your vehicle clean. A buildup of snow or mud on your vehicle's underside
adds weight and increases wind resistance.
■Maintenance and Fuel Economy
1Improving Fuel Economy and Reducing CO2 Emissions
Direct calculation is the recommended method to
determine actual fuel consumed while driving.
In Canada, posted fuel economy numbers are
established following a simulated test. For more
information on how this test is performed, please visit
http://oee.nrcan.gc.ca/
Miles driven Gallons of
fuel
Miles per
Gallon
100 Liters of
fuel
Kilometers
driven L per 100 km
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 479 ページ ２０１６年８月３１日　水曜日　午後６時５分
480
Driving
Turbo Engine Vehicle*
Handling Precautions
The turbocharger is a high-precision device to obtain greater horsepower by
delivering a large volume of compressed air into the engine using a turbine driven by
the engine’s exhaust gas pressure.
•When the engine is cold just after starting, avoid revving the engine or sudden
acceleration.
•Always replace the engine oil and engine oil filter according to the Maintenance
Minder. The turbine rotates at very high speeds over 100,000 rpm and its
temperature reaches over 1,292°F (700°C). It is lubricated and cooled by engine
oil. If you fail to replace the engine oil and filter at the scheduled distance or
interval, deteriorated engine oil may cause failure such as sticking and abnormal
noise of the turbine bearing.
1Turbo Engine Vehicle*
The scheduled maintenance intervals for replacing
the filter is indicated on the driver information
interface. Follow the information of when to replace
them.
2Maintenance MinderTM P. 485
The temperature gauge pointer is at the mark
when you restart the engine after driving under high
load conditions such as at high speed or in hilly
terrain. This is normal. The gauge goes down after
you idle or drive the vehicle for about one minute.
H
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 480 ページ ２０１６年８月３１日　水曜日　午後６時５分
481
Maintenance
This chapter discusses basic maintenance.
Before Performing Maintenance
Inspection and Maintenance ............ 482
Safety When Performing Maintenance .... 483
Parts and Fluids Used in Maintenance Service...484
Maintenance MinderTM ..................... 485
Maintenance Under the Hood
Maintenance Items Under the Hood ....495
Opening the Hood ........................... 497
Recommended Engine Oil ................ 498
Oil Check......................................... 499
Adding Engine Oil............................ 501
Changing the Engine Oil and Oil Filter..... 502
Engine Coolant ................................ 505
Transmission Fluid............................ 507
Brake/Clutch* Fluid.......................... 508
Refilling Window Washer Fluid......... 509
Replacing Light Bulbs ....................... 510
Checking and Maintaining Wiper Blades
....519
Checking and Maintaining Tires
Checking Tires ................................. 522
Tire and Loading Information Label ..... 523
Tire Labeling .................................... 523
DOT Tire Quality Grading (U.S. Vehicles)...... 525
Wear Indicators................................ 527
Tire Service Life ................................ 527
Tire and Wheel Replacement............ 528
Tire Rotation.................................... 529
Winter Tires ..................................... 530
Battery............................................... 531
Remote Transmitter Care
Replacing the Button Battery ........... 533
Heating System*/Climate Control
System* Maintenance .................... 535
Cleaning
Interior Care .................................... 536
Exterior Care.................................... 538
Accessories and Modifications
Accessories ...................................... 541
Modifications................................... 542
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 481 ページ ２０１６年８月３１日　水曜日　午後６時５分
482
Maintenance
Before Performing Maintenance
Inspection and Maintenance
For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of any abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer.
(Note, however, that service at a dealer is not mandatory to keep your warranties in
effect.)
■Daily inspections
Perform inspections before long distance trips, when washing the vehicle, or when
refueling.
■Periodic inspections
•Check the brake/clutch* fluid level monthly.
2Brake/Clutch* Fluid P. 508
•Check the tire pressure monthly. Examine the tread for wear and foreign objects.
2Checking and Maintaining Tires P. 522
•Check the operation of the exterior lights monthly.
2Replacing Light Bulbs P. 510
•Check the condition of the wiper blades at least every six months.
2Checking and Maintaining Wiper Blades P. 519
■Types of Inspection and Maintenance
1Inspection and Maintenance
Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.
According to state and federal regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all maintenance services should
be performed in accordance with the intervals
indicated by the information display*/driver
information interface*.
2Maintenance Service Items P. 487, 492
If you want to perform complex maintenance tasks
that require more skills and tools, you can purchase a
subscription to the Service Express website at
www.techinfo.honda.com.
2Authorized Manuals P. 587
If you want to perform maintenance yourself, make
sure that you have the necessary tools and skills first.
After performing maintenance, update the records in
the separate maintenance booklet.
U.S. models
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 482 ページ ２０１６年８月３１日　水曜日　午後６時５分
483
uuBefore Performing MaintenanceuSafety When Performing Maintenance
Safety When Performing Maintenance
Some of the most important safety precautions are given here.
However, we cannot warn you of every conceivable hazard that can arise in
performing maintenance. Only you can decide whether or not you should perform
a given task.
•To reduce the possibility of fire or explosion, keep cigarettes, sparks, and flames
away from the battery and all fuel related parts.
•Never leave rags, towels, or other flammable objects under the hood.
uHeat from the engine and exhaust can ignite them causing a fire.
•To clean parts, use a commercially available degreaser or parts cleaner, not
gasoline.
•Wear eye protection and protective clothing when working with the battery or
compressed air.
•Engine exhaust contains carbon monoxide, which is poisonous and can kill you.
uOnly operate the engine if there is sufficient ventilation.
•The vehicle must be in a stationary condition.
uMake sure your vehicle is parked on level ground, the parking brake is set, and
the engine is off.
•Be aware that hot parts can burn you.
uMake sure to let the engine and exhaust system cool thoroughly before
touching vehicle parts.
•Be aware that moving parts can injure you.
uDo not start the engine unless instructed, and keep your hands and limbs away
from moving parts.
■Maintenance Safety
■Vehicle Safety
1Safety When Performing Maintenance
3
WARNING
Improperly maintaining this vehicle or
failing to correct a problem before driving
can cause a crash in which you can be
seriously hurt or killed.
Always follow the inspection and
maintenance recommendations according
to the schedules in this owner’s manual.
3
WARNING
Failure to properly follow maintenance
instructions and precautions can cause you
to be seriously hurt or killed.
Always follow the procedures and
precautions in this owner’s manual.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 483 ページ ２０１６年８月３１日　水曜日　午後６時５分
484
uuBefore Performing MaintenanceuParts and Fluids Used in Maintenance Service
Maintenance
Parts and Fluids Used in Maintenance Service
The use of Honda genuine parts and fluids is recommended when maintaining and
servicing your vehicle. Honda genuine parts are manufactured according to the
same high quality standards used in Honda vehicles.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 484 ページ ２０１６年８月３１日　水曜日　午後６時５分
485
Continued
Maintenance MinderTM
If the engine oil life is less than 15%, you will see the Maintenance Minder messages
appear on the information display* or the driver information interface* every time
you turn the ignition switch to ON (w*1. The messages notify you when to change
the engine oil, or when to bring your vehicle to a dealer for indicated maintenance
services.
To Use Maintenance MinderTM
1. Turn the ignition switch to ON (w.
2. Press the (TRIP) knob repeatedly until
the engine oil life appears on the
information display.
The Maintenance Minder indicator ( ) stays
on in the instrument panel after the engine oil
life becomes 0%. Have the indicated
maintenance done by a dealer immediately.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Displaying the Maintenance Minder Information
Models with information display
1Displaying the Maintenance Minder Information
Based on the engine operating conditions and oil
age, the remaining engine oil life is calculated and
displayed as a percentage.
Displayed Engine Oil
Life (%)
Calculated Engine Oil
Life (%)
100 100 to 91
90 90 to 81
80 80 to 71
70 70 to 61
60 60 to 51
50 50 to 41
40 40 to 31
30 30 to 21
20 20 to 16
15 15 to 11
10 10 to 6
55 to 1
00
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 485 ページ ２０１６年８月３１日　水曜日　午後６時５分
486
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
To switch the display, press the (TRIP) knob.
■Maintenance Minder Messages on the Information Display
Oil Life Display Explanation Information Maintenance Minder Indicator
When you select the Maintenance
Minder screen, it displays codes for
maintenance items due at the next
engine oil change, along with the
percentage of engine oil life
remaining.
Comes on for a few seconds when
you set the ignition switch to ON,
then goes off.
The engine oil life indicator starts
to appear along with other due-
soon maintenance item codes
when the remaining oil life drops
to 15 percent.
The engine oil is approaching the
end of its service life.
Starts to come on when the
remaining engine oil life drops to
15 percent.
It goes off when the display is
switched.
The remaining engine oil has
passed its service life, and a
negative distance appears after
driving over 10 miles (U.S. models)
or 10 km (Canadian models). The
negative distance on the display
blinks.
The engine oil life has passed.
The maintenance items must be
inspected and serviced
immediately. Stays on as a reminder even when
the display is switched.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 486 ページ ２０１６年８月３１日　水曜日　午後６時５分
487
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
■Maintenance Service Items
1Maintenance Service Items
•Inspect idle speed every 160,000 miles (256,000
km).
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
Maintenance
Minder Indicator
Sub ItemsMain Item
U.S. models
*1: If a Maintenance Minder indicator does not appear more than 12 months after the display is reset,
change the engine oil every year.
# : See information on maintenance and emissions warranty.
CODE Maintenance Main Items
A●Replace engine oil*1
B●Replace engine oil*1 and oil filter
●Inspect front and rear brakes
●Inspect these items:
•Tie rod ends, steering gearbox, and boots
•Suspension components
•Driveshaft boots
•Brake hoses and lines (including ABS/VSA)
•All fluid levels and condition of fluids
•Exhaust system#
•Fuel lines and connections#*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures.
This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 25,000 miles (40,000 km).
*5: If a Maintenance Minder Indicator does not appear more than 36 months after the display for item 7 is
reset, change the brake fluid every 3 years.
CODE Maintenance Sub Items
1●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3●Replace transmission fluid*4
4●Replace spark plugs
●Inspect valve clearance
5●Replace engine coolant
7●Replace brake fluid*5
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 487 ページ ２０１６年８月３１日　水曜日　午後６時５分
488
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
1Maintenance Service Items
•Inspect idle speed every 256,000 km (160,000
miles).
•Adjust the valves during services A, 0, 9, 1, 2, or 3
if they are noisy.
Canadian models
*1: If a Maintenance Minder indicator does not appear more than 12 months after the display is reset,
change the engine oil every year.
*2: If you drive in dusty conditions, replace the air cleaner element every 24,000 km (15,000 miles).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 24,000 km (15,000 miles).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures.
This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 40,000 km (25,000 miles).
*5: If a Maintenance Minder Indicator does not appear more than 36 months after the display for item 7 is
reset, change the brake fluid every 3 years.
# : See information on maintenance and emissions warranty.
CODE Maintenance Main Items
A●Replace engine oil*1
0●Replace engine oil*1 and oil filter
CODE Maintenance Sub Items
1●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3●Replace transmission fluid*4
4●Replace spark plugs
●Inspect valve clearance
5●Replace engine coolant
7●Replace brake fluid*5
9●Service front and rear brakes
●Inspect these items:
•Tie rod ends, steering gearbox, and boots
•Suspension components
•Driveshaft boots
•Brake hoses and lines (including ABS/VSA)
•All fluid levels and condition of fluids
•Exhaust system#
•Fuel lines and connections#
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 488 ページ ２０１６年８月３１日　水曜日　午後６時５分
489
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Reset the maintenance minder information display if you have performed the
maintenance service.
1. Turn the ignition switch to ON (w and have
the vehicle at a complete stop.
2. Display the Maintenance Minder by
repeatedly pressing the (TRIP) knob.
3. Press and hold the knob for 10 seconds
or more.
uThe display will blink to show it is in reset
mode.
4. Rotate the knob to select the item you
wish to reset.
uReset the selected item by pushing the
knob for five seconds or more.
■Resetting the Display
1Resetting the Display
NOTICE
Failure to reset the Maintenance MinderTM display
after a maintenance service results in the system
showing incorrect maintenance intervals, which can
lead to serious mechanical problems.
The dealer will reset the Maintenance MinderTM
display after completing the required maintenance
service. If someone other than a dealer performs
maintenance service, reset the Maintenance
MinderTM display yourself.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 489 ページ ２０１６年８月３１日　水曜日　午後６時５分
490
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
To Use Maintenance MinderTM
Maintenance items, which should be serviced at the same time that you replace the
engine oil, appear on the driver information interface.
You can view them on the Maintenance Minder screen at any time.
1. Turn the ignition switch to ON (w*1.
2. Press the button several times until is displayed.
3. Press ENTER to go to the Maintenance Minder screen. The engine oil life
appears on the driver information interface along with maintenance items due
soon.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Displaying the Maintenance Minder Information
Models with driver information interface
1Displaying the Maintenance Minder Information
Based on the engine operating conditions and oil
age, the remaining engine oil life is calculated and
displayed as a percentage.
There is a list of maintenance main and sub items you
can view on the driver information interface.
2Maintenance Service Items P. 492
Displayed Engine Oil
Life (%)
Calculated Engine Oil
Life (%)
100 100 to 91
90 90 to 81
80 80 to 71
70 70 to 61
60 60 to 51
50 50 to 41
40 40 to 31
30 30 to 21
20 20 to 16
15 15 to 11
10 10 to 6
55 to 1
00
Sub Item
Engine Oil Life
Main ItemENTER Button
Button
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 490 ページ ２０１６年８月３１日　水曜日　午後６時５分
491
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
The system message indicator ( ) comes on along with the Maintenance Minder message.
■Maintenance Minder Messages on the Driver Information
Interface
Maintenance Message Oil Life Display Explanation Information
—
When you select the Maintenance
Minder screen, it displays codes for
maintenance items due at the next
engine oil change, along with the
percentage of engine oil life
remaining.
Maintenance Due Soon The engine oil life indicator starts to
appear along with other due-soon
maintenance item codes when the
remaining oil life drops to 15 percent.
The engine oil is approaching the end
of its service life.
Maintenance Due Now The remaining engine oil life is 5 to 1
percent. Press the button to
switch to another display.
The engine oil has almost reached the
end of its service life, and the
maintenance items should be
inspected and serviced as soon as
possible.
Maintenance Past Due The engine oil has passed its service
life, and a negative distance appears
after driving over 10 miles (U.S.
models) or 10 km (Canadian models).
The negative distance on the display
blinks.
The engine oil life has passed.
The maintenance items must be
inspected and serviced immediately.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 491 ページ ２０１６年８月３１日　水曜日　午後６時５分
492
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
■Maintenance Service Items
1Maintenance Service Items
•Inspect idle speed every 160,000 miles (256,000
km).
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
System Message
Indicator
Sub ItemsMain Item
U.S. models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
# : See information on maintenance and emissions warranty.
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
CODE Maintenance Main Items
A●Replace engine oil*1
B●Replace engine oil*1 and oil filter
●Inspect front and rear brakes
●Inspect these items:
•Tie rod ends, steering gearbox, and boots
•Suspension components
•Driveshaft boots
•Brake hoses and lines (including ABS/VSA)
•All fluid levels and condition of fluids
•Exhaust system#
•Fuel lines and connections#*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures.
This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 25,000 miles (40,000 km).
*5: If a Maintenance Minder Indicator does not appear more than 36 months after the display for item 7 is
reset, change the brake fluid every 3 years.
CODE Maintenance Sub Items
1●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3●Replace transmission fluid*4
4●Replace spark plugs
●Inspect valve clearance
5●Replace engine coolant
7●Replace brake fluid*5
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 492 ページ ２０１６年８月３１日　水曜日　午後６時５分
493
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
1Maintenance Service Items
•Inspect idle speed every 256,000 km (160,000
miles).
•Adjust the valves during services A, 0, 9, 1, 2, or 3
if they are noisy.
Canadian models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
*2: If you drive in dusty conditions, replace the air cleaner element every 24,000 km (15,000 miles).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 24,000 km (15,000 miles).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures.
This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 40,000 km (25,000 miles).
*5: If a Maintenance Minder Indicator does not appear more than 36 months after the display for item 7 is
reset, change the brake fluid every 3 years.
# : See information on maintenance and emissions warranty.
CODE Maintenance Main Items
A●Replace engine oil*1
0●Replace engine oil*1 and oil filter
CODE Maintenance Sub Items
1●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3●Replace transmission fluid*4
4●Replace spark plugs
●Inspect valve clearance
5●Replace engine coolant
7●Replace brake fluid*5
9●Service front and rear brakes
●Inspect these items:
•Tie rod ends, steering gearbox, and boots
•Suspension components
•Driveshaft boots
•Brake hoses and lines (including ABS/VSA)
•All fluid levels and condition of fluids
•Exhaust system#
•Fuel lines and connections#
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 493 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuMaintenance MinderTMuTo Use Maintenance MinderTM
494
Maintenance
Reset the maintenance minder information display if you have performed the
maintenance service.
1. Turn the ignition switch to ON (w*1.
2. Press the (display/information) button repeatedly until the appears.
3. Press the ENTER button.
4. Press and hold the ENTER button for about 10 seconds to enter the reset mode.
5. Press / to select a maintenance item to reset, or to select All Due Items
(You can also select Cancel to end the process).
6. Press the ENTER button to reset the selected item.
7. Repeat from step 4 for other items you wish to reset.
■Resetting the Display
1Resetting the Display
NOTICE
Failure to reset the Maintenance MinderTM display
after a maintenance service results in the system
showing incorrect maintenance intervals, which can
lead to serious mechanical problems.
The dealer will reset the Maintenance MinderTM
display after completing the required maintenance
service. If someone other than a dealer performs
maintenance service, reset the Maintenance
MinderTM display yourself.
You can also reset the Maintenance MinderTM display
using the customized features on the driver
information interface.
2Customized Features P. 118
You can also reset the Maintenance MinderTM display
using the audio/information touch screen.
2Customized Features P. 308
Models with color audio system
Models with Display Audio
ENTER Button
(Display/Information) Button
3
4
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 494 ページ ２０１６年８月３１日　水曜日　午後６時５分
495
Continued
Maintenance Under the Hood
Maintenance Items Under the Hood
1.5 L engine models
Brake/Clutch* Fluid
(Black Cap)
Reserve Tank
Washer Fluid
(Blue Cap)
Engine Oil Dipstick
(Orange)
Engine Oil Fill Cap
Battery
Reserve Tank Cap
U.S. models
Washer Fluid
(Blue Cap)
Canadian models
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 495 ページ ２０１６年８月３１日　水曜日　午後６時５分
496
uuMaintenance Under the HooduMaintenance Items Under the Hood
Maintenance
2.0 L engine models
Brake/Clutch* Fluid
(Black Cap)
Reserve Tank
Washer Fluid
(Blue Cap)
Engine Oil Dipstick
(Orange)
Engine Oil Fill Cap
Battery
Reserve Tank Cap
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 496 ページ ２０１６年８月３１日　水曜日　午後６時５分
497
uuMaintenance Under the HooduOpening the Hood
Opening the Hood
1. Park the vehicle on a level surface, and set
the parking brake.
2. Pull the hood release handle under the
driver’s side lower left corner of the
dashboard.
uThe hood will pop up slightly.
3. Pull up the hood latch lever (located under
the front edge of the hood to the center)
and raise the hood. Once you have raised
the hood slightly, you can release the lever.
4. Remove the support rod from the clamp
using the grip. Mount the support rod in
the hood.
When closing, remove the support rod, and
stow it in the clamp, then gently lower the
hood. Remove your hand at a height of
approximately 12 inches (30 cm) and let the
hood close.
1Opening the Hood
NOTICE
Do not open the hood when the wiper arms are
raised.
The hood will strike the wipers, and may damage
either the hood or the wipers.
When closing the hood, check that the hood is
securely latched.
If the hood latch lever moves stiffly, or if you can
open the hood without lifting the lever, the latch
mechanism should be cleaned and lubricated.
Hood Release Handle
Pull
Lever
Support Rod
Grip
Clamp
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 497 ページ ２０１６年８月３１日　水曜日　午後６時５分
498
uuMaintenance Under the HooduRecommended Engine Oil
Maintenance
Recommended Engine Oil
Oil is a major contributor to your engine's
performance and longevity. If you drive the
vehicle with insufficient or deteriorated oil,
the engine may fail or be damaged.
This seal indicates the oil is energy conserving
and that it meets the American Petroleum
Institute’s latest requirements.
Use Genuine Honda Motor Oil or another
commercial engine oil of suitable viscosity for
the ambient temperature as shown.
■Synthetic oil
You may also use synthetic motor oil if it is labeled with the API Certification Seal
and is the specified viscosity grade.
•Genuine Honda Motor Oil
•Premium-grade 0W-20 detergent oil with an API Certification Seal on the
container.
1Recommended Engine Oil
Engine Oil Additives
Your vehicle does not require oil additives. In fact,
they may adversely affect the engine performance
and durability.
Ambient Temperature
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 498 ページ ２０１６年８月３１日　水曜日　午後６時５分
499
uuMaintenance Under the Hood uOil Check
Continued
Oil Check
We recommend that you check the engine oil level every time you refuel.
Park the vehicle on level ground.
Wait approximately three minutes after turning the engine off before you check the
oil.
1. Remove the dipstick (orange).
2. Wipe the dipstick with a clean cloth or
paper towel.
3. Insert the dipstick back all the way into its
hole.
1Oil Check
If the oil level is near or below the lower mark, slowly
add oil being careful not to overfill.
1.5 L engine models
2.0 L engine models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 499 ページ ２０１６年８月３１日　水曜日　午後６時５分
500
uuMaintenance Under the HooduOil Check
Maintenance
4. Remove the dipstick again, and check the
level. It should be between the upper and
lower marks. Add oil if necessary.
Upper Mark
Lower Mark
1.5 L engine models
Upper Mark
Lower Mark
2.0 L engine models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 500 ページ ２０１６年８月３１日　水曜日　午後６時５分
501
uuMaintenance Under the HooduAdding Engine Oil
Adding Engine Oil
1. Unscrew and remove the engine oil fill cap.
2. Add oil slowly.
3. Reinstall the engine oil fill cap, and tighten
it securely.
4. Wait for three minutes and recheck the
engine oil dipstick.
1Adding Engine Oil
NOTICE
Do not fill the engine oil above the upper mark.
Overfilling the engine oil can result in leaks and
engine damage.
If any oil spills, wipe it away immediately. Spilled oil
may damage the engine compartment components.
Engine Oil
Fill Cap
1.5 L engine models
Engine Oil
Fill Cap
2.0 L engine models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 501 ページ ２０１６年８月３１日　水曜日　午後６時５分
502
uuMaintenance Under the HooduChanging the Engine Oil and Oil Filter
Maintenance
Changing the Engine Oil and Oil Filter
You must change the engine oil and oil filter regularly in order to maintain the
engine’s lubrication. The engine may be damaged if they are not changed regularly.
Change the oil and filter in accordance with the maintenance message on the
information display*/driver information interface*.
1. Run the engine until it reaches normal
operating temperature, and then turn the
engine off.
2. Open the hood and remove the engine oil
fill cap.
3. Remove the phillips head screws and
slotted head screws by turning 90°
counterclockwise on the undercarriage
and remove the under cover.
1Changing the Engine Oil and Oil Filter
NOTICE
You may damage the environment if you do not
dispose of the oil in a suitable way. If you are
changing the oil by yourself, appropriately dispose of
the used oil. Put the oil in a sealed container and take
it to a recycling center. Do not throw the oil away
into a garbage can or onto the ground.
Under CoverScrew
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 502 ページ ２０１６年８月３１日　水曜日　午後６時５分
503
uuMaintenance Under the HooduChanging the Engine Oil and Oil Filter
Continued
4. Remove the drain bolt and washer from
the bottom of the engine, and drain the
oil into a suitable container.
1.5 L engine models
Drain Bolt
Washer
2.0 L engine models
Drain Bolt
Washer
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 503 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuMaintenance Under the HooduChanging the Engine Oil and Oil Filter
504
Maintenance
5. Remove the oil filter and dispose of the
remaining oil.
6. Check that the filter gasket is not stuck to
the engine contact surface.
uIf it is stuck, you must detach it.
7. Wipe away dirt and dust adhering to the
contact surface of the engine block, and
install a new oil filter.
uApply a light coat of new engine oil to
the oil filter gasket.
8. Put a new washer on the drain bolt, then
reinstall the drain bolt.
uTightening torque:
30 lbf∙ft (40 N∙m, 4.0 kgf∙m)
9. Pour the recommended engine oil into the
engine.
uEngine oil change capacity (including
filter):
3.7 US qt (3.5 L)
4.4 US qt (4.2 L)
10. Reinstall the engine oil fill cap securely and
start the engine.
11. Run the engine for a few minutes, and
then check that there is no leak from the
drain bolt or oil filter.
12. Stop the engine, wait for three minutes,
and then check the oil level on the
dipstick.
uIf necessary, add more engine oil.
1Changing the Engine Oil and Oil Filter
You will need a special wrench to replace the oil
filter. You can buy this wrench from a dealer.
When installing the new oil filter, follow the
instructions supplied with the oil filter.
Reinstall the engine oil fill cap. Start the engine. The
low oil pressure indicator should go off within five
seconds. If it does not, turn off the engine, and check
your work.
Oil Filter
1.5 L engine models
2.0 L engine models
Oil Filter
1.5 L engine models
2.0 L engine models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 504 ページ ２０１６年８月３１日　水曜日　午後６時５分
505
uuMaintenance Under the HooduEngine Coolant
Continued
Engine Coolant
This coolant is premixed with 50% antifreeze and 50% water. Do not add any
straight antifreeze or water.
We recommend you check the engine coolant level every time you refuel. Check the
reserve tank. Add the engine coolant accordingly.
1. Check the amount of coolant in the reserve
tank.
2. If the coolant level is below the MIN mark,
add the specified coolant until it reaches
the MAX mark.
3. Inspect the cooling system for leaks.
Specified coolant: Honda Long Life Antifreeze/Coolant Type 2
■Checking the Coolant
1Engine Coolant
NOTICE
Genuine Honda engine coolant is a 50/50 mixture of
antifreeze and water that can withstand freezing at
temperatures as low as about −31°F (−35°C). If your
vehicle is consistently subjected to temperatures
below this, the concentration of antifreeze in the
coolant should be increased. Consult a dealer for
details.
If Honda antifreeze/coolant is not available, you may
use another major brand of non-silicate coolant as a
temporary replacement. Check that it is a high quality
coolant recommended for aluminum engines.
Continued use of any non-Honda coolant can result
in corrosion, causing the cooling system to
malfunction or fail. Have the cooling system flushed
and refilled with Honda antifreeze/coolant as soon as
possible.
3
WARNING
Removing the reserve tank cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the reserve tank
cap.
MAX
MIN
Reserve Tank
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 505 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuMaintenance Under the HooduEngine Coolant
506
Maintenance
1. Make sure the engine and radiator are
cool.
2. Turn the reserve tank cap 1/8 of a turn
counterclockwise and relieve any pressure
in the cooling system.
3. Push down and turn the reserve tank cap
counterclockwise to remove it.
4. Pour coolant into the reserve tank until it
reaches the MAX mark.
5. Put the reserve tank cap back on, and
tighten it fully.
■Adding the Coolant
1Engine Coolant
Do not add rust inhibitors or other additives to your
vehicle’s cooling system. They may not be compatible
with the coolant or with the engine components.
1Adding the Coolant
NOTICE
Pour the fluid slowly and carefully so you do not spill
any. Clean up any spills immediately; they can
damage components in the engine compartment.
Reserve Tank
Cap
1.5 L engine models
Reserve Tank
Cap
2.0 L engine models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 506 ページ ２０１６年８月３１日　水曜日　午後６時５分
507
uuMaintenance Under the HooduTransmission Fluid
Transmission Fluid
Have a dealer check the fluid level and replace if necessary.
Do not attempt to check or change the continuously variable transmission fluid
yourself.
Have a dealer check the fluid level and replace if necessary.
Do not attempt to check or change the manual transmission fluid yourself.
■Continuously Variable Transmission (CVT) Fluid
Specified fluid: Honda HCF-2 Transmission Fluid
■Manual Transmission Fluid
Specified fluid: Honda Manual Transmission Fluid (MTF)
Models with continuously variable transmission
1Continuously Variable Transmission (CVT) Fluid
NOTICE
Do not mix HCF-2 with other transmission fluids.
Using a transmission fluid other than HCF-2 may
adversely affect the operation and durability of your
vehicle's transmission, and damage the transmission.
Any damage caused by using a transmission fluid that
is not equivalent to HCF-2 is not covered by Honda's
new vehicle limited warranty.
Models with manual transmission
1Manual Transmission Fluid
If Honda MTF is not available, you may use the API
certificated SAE 0 W-20 or 5 W-20 viscosity motor oil
as a temporary measure.
Replace with MTF as soon as possible. Motor oil does
not contain the proper additives for the transmission
and continued use can cause decreased shifting
performance and lead to transmission damage.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 507 ページ ２０１６年８月３１日　水曜日　午後６時５分
508
uuMaintenance Under the HooduBrake/Clutch* Fluid
Maintenance
Brake/Clutch* Fluid
Use the same fluid for both the brakes and clutch.
The fluid level should be between the MIN
and MAX marks on the side of the reserve
tank.
The brake fluid reserve tank is also used for
your vehicle’s clutch fluid. As long as you keep
the brake fluid level as instructed above, there
is no need for checking the clutch fluid level.
Specified fluid: Honda Heavy Duty Brake Fluid DOT 3
■Checking the Brake Fluid
1Brake/Clutch* Fluid
NOTICE
Brake fluid marked DOT 5 is not compatible with your
vehicle’s braking system and can cause extensive
damage.
If the specified brake fluid is not available, you should
use only DOT 3 or DOT 4 fluid from a sealed
container as a temporary replacement.
Using any non-Honda brake fluid can cause corrosion
and decrease the longevity of the system. Have the
brake system flushed and refilled with Honda Heavy
Duty Brake Fluid DOT 3 as soon as possible.
If the brake fluid level is at or below the MIN mark,
have a dealer inspect the vehicle for leaks or worn
brake pads as soon as possible.
Reserve Tank
MIN
MAX
Manual transmission models
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 508 ページ ２０１６年８月３１日　水曜日　午後６時５分
509
uuMaintenance Under the HooduRefilling Window Washer Fluid
Refilling Window Washer Fluid
Check the amount of window washer fluid by looking at the reservoir.
If the level is low, fill the washer reservoir.
If the washer fluid is low, the washer level
indicator* appears on the instrument panel or
a message appears on the driver information
interface*.
Pour the washer fluid carefully. Do not overflow the reservoir.
1Refilling Window Washer Fluid
NOTICE
Do not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage your vehicle’s paint. A
vinegar/water solution can damage the windshield
washer pump.
Except Canadian 1.5 L engine models
Canadian 1.5 L engine models
Canadian models
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 509 ページ ２０１６年８月３１日　水曜日　午後６時５分
510
Maintenance
Replacing Light Bulbs
Headlight Bulbs
When replacing, use the following bulbs.
1. Push the tab to remove the coupler.
2. Rotate the old bulb counter-clockwise to
remove.
3. Insert a new bulb into the headlight
assembly and turn it clockwise.
4. Insert the coupler into the connector of the
bulb.
High beam headlight: 60 W (HB3 for halogen bulb type)*
High beam headlight: LED type*
Low beam headlight: 55 W (H11 for halogen bulb type)*
Low beam headlight: LED type*
■High Beam Headlight
1Headlight Bulbs
NOTICE
Halogen bulbs get very hot when lit.
Oil, perspiration, or a scratch on the glass can cause
the bulb to overheat and shatter.
The headlight aim is set by the factory, and does not
need to be adjusted. However, if you regularly carry
heavy items in the trunk, have the aiming readjusted
at a dealer or by a qualified technician.
When replacing a halogen bulb, handle it by its base,
and protect the glass from contact with your skin or
hard objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.
Headlights are LED type. Have an authorized Honda
dealer inspect and replace the light assembly.
Models with halogen headlights
Models with LED headlights
Models with halogen headlights
Tab
Coupler
Bulb
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 510 ページ ２０１６年８月３１日　水曜日　午後６時５分
511
uuReplacing Light BulbsuHeadlight Bulbs
1. Push the tab to remove the coupler.
2. Rotate the old bulb counter-clockwise to
remove.
3. Insert a new bulb into the headlight
assembly and turn it clockwise.
4. Insert the coupler into the connector of the
bulb.
■Low Beam Headlights
Models with halogen headlights
Tab Coupler
Bulb
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 511 ページ ２０１６年８月３１日　水曜日　午後６時５分
512
uuReplacing Light BulbsuFog Light Bulbs*
Maintenance
Fog Light Bulbs*
When replacing, use the following bulbs.
1. Remove the clips using a flat-tip
screwdriver, remove the bolt, and push up
the under cover.
Fog Light: 35 W (H8 for halogen bulb type)
1Fog Light Bulbs*
Insert a flat-tip screwdriver, lift and remove the center
pin to remove the clip.
Insert the clip with the center pin raised, and push
until it is flat.
Push until the pin
is flat.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 512 ページ ２０１６年８月３１日　水曜日　午後６時５分
513
uuReplacing Light BulbsuFog Light Bulbs*
2. Push the tab to remove the coupler.
3. Rotate the old bulb counter-clockwise to
remove.
4. Insert a new bulb into the fog light
assembly and turn it clockwise.
5. Insert the coupler into the connector of the
bulb.
1Fog Light Bulbs*
NOTICE
Halogen bulbs get very hot when lit. Oil, perspiration,
or a scratch on the glass can cause the bulb to
overheat and shatter.
When replacing a halogen bulb, handle it by its
plastic case, and protect the glass from contact with
your skin or hard objects. If you touch the glass, clean
it with denatured alcohol and a clean cloth.
Tab
Coupler
Bulb
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 513 ページ ２０１６年８月３１日　水曜日　午後６時５分
514
uuReplacing Light BulbsuFront Turn Signal Light Bulbs
Maintenance
Front Turn Signal Light Bulbs
When replacing, use the following bulbs.
1. Turn the socket counter-clockwise and
remove it.
2. Remove the old bulb and insert a new bulb.
Front Turn Signal Lights
Front turn signal lights are LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
Front Turn Signal Light: 21 W (Amber)
Models with halogen headlights
Socket Bulb
Models with LED headlights
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 514 ページ ２０１６年８月３１日　水曜日　午後６時５分
515
uuReplacing Light BulbsuFront Side Marker Light Bulbs
Continued
Front Side Marker Light Bulbs
When replacing, use the following bulbs.
1. Push the tab to remove the light assembly.
2. Push the tab to remove the coupler.
3. Turn the socket counter-clockwise to
remove it, then remove the old bulb.
4. Insert a new bulb.
Front Side Marker Light: 3 W
Tab
Socket
Bulb
Driver side
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 515 ページ ２０１６年８月３１日　水曜日　午後６時５分
516
uuReplacing Light BulbsuParking/Daytime Running Lights
Maintenance
4. Turn the socket clockwise to remove it,
then remove the old bulb.
5. Insert a new bulb.
Parking/Daytime Running Lights
Parking/daytime running lights are LED type. Have an authorized Honda dealer
inspect and replace the light assembly.
Side Turn Signal/Emergency Indicator Lights*
Door mirror side turn lights are LED type. Have an authorized Honda dealer inspect
and replace the light assembly.
Bulb
Socket
Passenger side
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 516 ページ ２０１６年８月３１日　水曜日　午後６時５分
517
uuReplacing Light BulbsuBrake Light, Tail/Rear Side Marker Light, Rear Turn Signal Light and Back-Up Light Bulbs
Brake Light, Tail/Rear Side Marker Light, Rear Turn
Signal Light and Back-Up Light Bulbs
When replacing, use the following bulbs.
1. Use a Phillip-head screwdriver or socket to
remove the bolts.
2. Pull the light assembly out of the rear pillar.
3. Turn the socket counter-clockwise and
remove it.
4. Remove the old bulb and insert a new bulb.
5. Slide the light assembly onto the guide on
the body.
6. Align the pins with the body grommets,
then push in until they fully seat.
Brake Light: 21 W
Tail/Rear Side Marker Light: LED
Rear Turn Signal Light: 21 W (Amber)
Back-Up Light: 16 W
1Brake Light, Tail/Rear Side Marker Light, Rear Turn Signal Light
and Back-Up Light Bulbs
Tail/rear side marker lights are LED type. Have an
authorized Honda dealer inspect and replace the light
assembly.
Bolt
Bulb Socket
Bulb
Socket
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 517 ページ ２０１６年８月３１日　水曜日　午後６時５分
518
uuReplacing Light BulbsuTaillights
Maintenance
Taillights
Taillights are LED type. Have an authorized Honda dealer inspect and replace the
light assembly.
Rear License Plate Light
Rear license plate light is LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
High-Mount Brake Light Bulb
When replacing, use the following bulb.
1. Open the trunk.
2. Turn the socket counter-clockwise and
remove it.
3. Remove the old bulb and insert a new bulb.
High-Mount Brake Light: 21 W
Bulb
Socket
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 518 ページ ２０１６年８月３１日　水曜日　午後６時５分
519
Continued
Checking and Maintaining Wiper Blades
Checking Wiper Blades
If the wiper blade rubber has deteriorated, it will leave streaks and the hard surfaces
of the blade may scratch the window glass.
Changing the Wiper Blade Rubber
1. Turn the ignition switch to LOCK (0*1.
2. While holding the wiper switch in the MIST
position, turn the ignition switch to ON
(w*1, then to LOCK (0*1.
uBoth wiper arms are set to the
maintenance position as shown in the
image.
3. Lift both wiper arms.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1Changing the Wiper Blade Rubber
NOTICE
Avoid dropping the wiper arm onto the windshield, it
may damage the wiper arm and/or the windscreen.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 519 ページ ２０１６年８月３１日　水曜日　午後６時５分
520
uuChecking and Maintaining Wiper BladesuChanging the Wiper Blade Rubber
Maintenance
4. Press and hold the tab, then slide the
holder off the wiper arm.
5. Pull the end of the wiper blade in the
direction of the arrow in the image until it
is out of the holder’s end cap.
6. Pull the wiper blade in the opposite
direction to slide it out of its holder.
Tab
Blade
End Cap At
The Bottom
Blade
Holder
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 520 ページ ２０１６年８月３１日　水曜日　午後６時５分
521
uuChecking and Maintaining Wiper BladesuChanging the Wiper Blade Rubber
7. Insert the flat side of the new wiper blade
onto the bottom part of the holder. Insert
the blade all the way.
8. Install the end of the wiper blade into the
cap.
9. Slide the holder onto the wiper arm until it
locks.
10. Lower both wiper arms.
11. Turn the ignition switch to ON (w*1 and
hold the wiper switch in the MIST position
until both wiper arms return to the
standard position.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Holder
Blade
Cap
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 521 ページ ２０１６年８月３１日　水曜日　午後６時５分
522
Maintenance
Checking and Maintaining Tires
Checking Tires
To safely operate your vehicle, your tires must be of the proper type and size, in
good condition with adequate tread, and properly inflated.
■Inflation guidelines
Properly inflated tires provide the best combination of handling, tread life, and
comfort. Refer to the driver’s doorjamb label or specification’s page for the specified
pressure.
Underinflated tires wear unevenly, adversely affect handling and fuel economy, and
are more likely to fail from overheating.
Overinflated tires make your vehicle ride harshly, are more prone to road hazards,
and wear unevenly.
Every day before you drive, look at each of the tires. If one looks lower than the
others, check the pressure with a tire gauge.
At least once a month or before long trips, use a gauge to measure the pressure in
all tires, including the spare. Even tires in good condition can lose 1-2 psi (10-20 kPa,
0.1-0.2 kgf/cm2) per month.
■Inspection guidelines
Every time you check inflation, also examine the tires and valve stems. Look for:
•Bumps or bulges on the side or in the tread. Replace the tire if you find any cuts,
splits, or cracks in the side of the tire. Replace it if you see fabric or cord.
•Remove any foreign objects and inspect for air leaks.
•Uneven tread wear. Have a dealer check the wheel alignment.
•Excessive tread wear.
2Wear Indicators P. 527
•Cracks or other damage around valve stem.
1Checking Tires
Measure the air pressure when tires are cold. This
means the vehicle has been parked for at least three
hours, or driven less than 1 mile (1.6 km). If
necessary, add or release air until the specified
pressure is reached.
If checked when hot, tire pressure can be as much as
4–6 psi (30–40 kPa, 0.3–0.4 kgf/cm2) higher than if
checked when cold.
Whenever tire pressure is adjusted, you must
calibrate the TPMS.
2TPMS Calibration P. 452
Have a dealer check the tires if you feel a consistent
vibration while driving. New tires and any that have
been removed and reinstalled should be properly
balanced.
Check the spare tire pressure once a month or before
long trips.
3
WARNING
Using tires that are excessively worn or
improperly inflated can cause a crash in
which you can be seriously hurt or killed.
Follow all instructions in this owner’s
manual regarding tire inflation and
maintenance.
U.S. models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 522 ページ ２０１６年８月３１日　水曜日　午後６時５分
523
uuChecking and Maintaining TiresuTire and Loading Information Label
Continued
Tire and Loading Information Label
The label attached to the driver’s doorjamb provides necessary tire and loading
information.
Tire Labeling
The tires that came on your vehicle have a
number of markings. Those you should be
aware of are described below.
Whenever tires are replaced, they should be replaced with tires of the same size.
1Tire and Loading Information Label
The tire and loading information label attached to the
driver’s doorjamb contains:
aThe number of people your vehicle can carry.
bThe total weight your vehicle can carry. Do not
exceed this weight.
cThe original tire sizes for front, rear, and spare, if
equipped.
dThe proper cold tire pressure for front, rear, and
spare.
Label
Example
Example Tire Size
Tire
Identification
Number (TIN)
Maximum
Tire Load
Maximum
Tire Pressure
Tire Size
■Tire Sizes
1Tire Sizes
Following is an example of tire size with an
explanation of what each component means.
P205/55 R16 89H
P: Vehicle type (P indicates passenger vehicle).
205: Tire width in millimeters.
55: Aspect ratio (the tire’s section height as a
percentage of its width).
R: Tire construction code (R indicates radial).
16: Rim diameter in inches.
89: Load index (a numerical code associated with the
maximum load the tire can carry).
H: Speed symbol (an alphabetical code indicating the
maximum speed rating).
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 523 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuChecking and Maintaining Tires uTire Labeling
524
Maintenance
The tire identification number (TIN) is a group of numbers and letters that look like
the example in the side column. TIN is located on the sidewall of the tire.
Cold Tire Pressure – The tire air pressure when the vehicle has been parked for at
least three hours or driven less than 1 mile (1.6 km).
Load Rating – Means the maximum load that a tire is rated to carry for a given
inflation pressure.
Maximum Inflation Pressure – The maximum tire air pressure that the tire can
hold.
Maximum Load Rating – Means the load rating for a tire at the maximum
permissible inflation pressure for that tire.
Recommended Inflation Pressure – The cold tire inflation pressure recommended
by the manufacturer.
Treadwear Indicators (TWI) – Means the projections within the principal grooves
designed to give a visual indication of the degrees of wear of the tread.
■Tire Identification Number (TIN)
■Glossary of Tire Terminology
1Tire Identification Number (TIN)
DOT B97R FW6X 2209
DOT: This indicates that the tire meets all
requirements of the U.S. Department of
Transportation.
B97R: Manufacturer's identification mark.
FW6X: Tire type code.
22 09: Date of manufacture.
Year
Week
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 524 ページ ２０１６年８月３１日　水曜日　午後６時５分
525
uuChecking and Maintaining TiresuDOT Tire Quality Grading (U.S. Vehicles)
Continued
DOT Tire Quality Grading (U.S. Vehicles)
The tires on your vehicle meet all U.S. Federal Safety
Requirements. All tires are also graded for treadwear, traction,
and temperature performance according to Department of
Transportation (DOT) standards. The following explains these
gradings.
Quality grades can be found where applicable on the tire sidewall
between tread shoulder and maximum section width.
The treadwear grade is a comparative rating based on the wear
rate of the tire when tested under controlled conditions on a
specified government test course. For example, a tire graded 150
would wear one and one-half (1 1/2) times as well on the
government course as a tire graded 100. The relative performance
of tires depends upon the actual conditions of their use, however,
and may depart significantly from the norm due to variations in
driving habits, service practices and differences in road
characteristics and climate.
■Uniform Tire Quality Grading
■Treadwear
1Uniform Tire Quality Grading
For example:
Treadwear 200
Traction AA
Temperature A
All passenger car tires must conform
to Federal Safety Requirements in
addition to these grades.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 525 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuChecking and Maintaining Tires uDOT Tire Quality Grading (U.S. Vehicles)
526
Maintenance
The traction grades, from highest to lowest, are AA, A, B, and C.
Those grades represent the tire's ability to stop on wet pavement
as measured under controlled conditions on specified
government test surfaces of asphalt and concrete. A tire marked
C may have poor traction performance.
The temperature grades are A (the highest), B, and C,
representing the tire's resistance to the generation of heat and its
ability to dissipate heat when tested under controlled conditions
on a specified indoor laboratory test wheel. Sustained high
temperature can cause the material of the tire to degenerate and
reduce tire life, and excessive temperature can lead to sudden tire
failure. The grade C corresponds to a level of performance which
all passenger car tires must meet under the Federal Motor Vehicle
Safety Standard No. 109. Grades B and A represent higher levels
of performance on the laboratory test wheel than the minimum
required by law.
■Traction
■Temperature
1Traction
Warning: The traction grade
assigned to this tire is based on
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
1Temperature
Warning: The temperature grade for
this tire is established for a tire that is
properly inflated and not
overloaded. Excessive speed,
underinflation, or excessive loading,
either separately or in combination,
can cause heat buildup and possible
tire failure.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 526 ページ ２０１６年８月３１日　水曜日　午後６時５分
527
uuChecking and Maintaining Tires uWear Indicators
Wear Indicators
The groove where the wear indicator is
located is 1/16 inch (1.6 mm) shallower than
elsewhere on the tire. If the tread has worn so
that the indicator is exposed, replace the tire.
Worn out tires have poor traction on wet
roads.
Tire Service Life
The life of your tires is dependent on many factors, including driving habits, road
conditions, vehicle loading, inflation pressure, maintenance history, speed, and
environmental conditions (even when the tires are not in use).
In addition to regular inspections and inflation pressure maintenance, it is
recommended that you have annual inspections performed once the tires reach five
years old. All tires, including the spare, should be removed from service after 10
years from the date of manufacture, regardless of their condition or state of wear.
Example of a Wear
Indicator mark
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 527 ページ ２０１６年８月３１日　水曜日　午後６時５分
528
uuChecking and Maintaining Tires uTire and Wheel Replacement
Maintenance
Tire and Wheel Replacement
Replace your tires with radials of the same size, load range, speed rating, and
maximum cold tire pressure rating (as shown on the tire’s sidewall). Using tires of a
different size or construction can cause certain vehicle systems such as the ABS and
Vehicle Stability Assist (VSA®) system to work incorrectly.
It is best to replace all four tires at the same time. If that isn’t possible, replace the
front or rear tires in pairs.
Make sure that the wheel’s specifications match those of the original wheels.
1Tire and Wheel Replacement
3
WARNING
Installing improper tires on your vehicle can
affect handling and stability. This can cause
a crash in which you can be seriously hurt or
killed.
Always use the size and type of tires
recommended in this owner’s manual.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 528 ページ ２０１６年８月３１日　水曜日　午後６時５分
529
uuChecking and Maintaining TiresuTire Rotation
Tire Rotation
Rotating tires according to the maintenance messages on the information display*/
driver information interface* helps to distribute wear more evenly and increase tire
life.
■Tires without rotation marks
Rotate the tires as shown here.
■Tires with rotation marks
Rotate the tires as shown here.
1Tire Rotation
Tires with directional tread patterns should only be
rotated front to back (not from one side to the other).
Directional tires should be mounted with the rotation
indication mark facing forward, as shown below.
Whenever tires are rotated, you must calibrate the
TPMS.
2TPMS Calibration P. 452
Front
Direction Mark
U.S. models
Front
Front
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 529 ページ ２０１６年８月３１日　水曜日　午後６時５分
530
uuChecking and Maintaining Tires uWinter Tires
Maintenance
Winter Tires
If driving on snowy or frozen roads, mount all season marked M+S tires, snow tires,
or tire chains; reduce speed; and maintain sufficient distance between vehicles when
driving.
Be particularly careful when operating the steering wheel or brakes to prevent
skidding.
Use tire chains, snow tires, or all season tires when necessary or according to the
law.
When mounting, refer to the following points.
For winter tires:
•Select the size and load ranges that are the same as the original tires.
•Mount the tires to all four wheels.
For tire chains:
•Install them on the front tires only.
•Because your vehicle has limited tire clearance, we strongly recommend using the
chains listed below:
•Follow the chain manufacturer’s instruction when installing. Mount them as
tightly as you can.
•Check that the chains do not touch the brake lines or suspension.
•Drive slowly.
Cable-type: Autotrac 0154505
Cable-type: Autotrac 0154005
1Winter Tires
NOTICE
Traction devices that are the wrong size or improperly
installed can damage your vehicle’s brake lines,
suspension, body, and wheels. Stop driving if they are
hitting any part of the vehicle.
When tire chains are mounted, follow the chain
manufacturer’s instructions regarding vehicle
operational limits.
If your vehicle is equipped with summer tires, be
aware that these tires are not designed for winter
driving conditions. For more information, contact a
dealer.
3
WARNING
Using the wrong chains, or not properly
installing chains, can damage the brake
lines and cause a crash in which you can be
seriously injured or killed.
Follow all instructions in this owner’s
manual regarding the selection and use of
tire chains.
Models with 215/55R16 tires
Models with 215/50R17 tires
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 530 ページ ２０１６年８月３１日　水曜日　午後６時５分
531
Battery
Checking the Battery
Check the battery terminals for corrosion
monthly.
If your vehicle’s battery is disconnected or goes dead:
•The audio system is disabled.
2Reactivating the audio system P. 206
•The clock* resets.
2Adjusting the Clock P. 128
•The navigation system* is disabled.
2Refer to the Navigation System Manual
•
The immobilizer system needs to be reset.
2Immobilizer System Indicator P. 85
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
3
WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear protective clothing and
a face shield, or have a skilled technician do
it.
Canadian models only
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 531 ページ ２０１６年８月３１日　水曜日　午後６時５分
532
uuBatteryuCharging the Battery
Maintenance
Charging the Battery
Disconnect both battery cables to prevent damaging your vehicle’s electrical system.
Always disconnect the negative (–) cable first, and reconnect it last.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1Battery
When you find corrosion, clean the battery terminals
by applying a baking powder and water solution.
Clean the terminal with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Please consult a dealer for more information.
The VSA® and CMBSTM* indicators may come on
when your turn the ignition switch to ON (w*1 after
re-connecting a battery.
Drive a short distance at 12 mph (20 km/h). Each
indicator should go off. If either or both do not, have
your vehicle checked by a dealer.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 532 ページ ２０１６年８月３１日　水曜日　午後６時５分
533
Continued
Remote Transmitter Care
Replacing the Button Battery
If the indicator does not come on when the button is pressed, replace the battery.
1. Unscrew the cover with a small Phillips-
head screwdriver.
2. Open the remote transmitter.
uWrap the small flat-tip screwdriver with a
cloth to prevent scratching the
transmitter.
3. Remove the button battery with the small
flat-tip screwdriver.
4. Make sure to replace the battery with the
correct polarity.
■Master Keys with Remote Transmitter*
1Replacing the Button Battery
NOTICE
An improperly disposed of battery can damage the
environment. Always confirm local regulations for
battery disposal.
Replacement batteries are commercially available or
at a dealer.
Screw
Battery type: CR1620
Battery
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 533 ページ ２０１６年８月３１日　水曜日　午後６時５分
534
uuRemote Transmitter CareuReplacing the Button Battery
Maintenance
1. Remove the built-in key.
2. Remove the upper half of the cover by
carefully prying on the edge with a coin.
uRemove carefully to avoid losing the
buttons.
uWrap a coin with a cloth to prevent
scratching the smart entry remote.
3. Make sure to replace the battery with the
correct polarity.
■Smart Entry Remote*
Battery type: CR2032
Battery
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 534 ページ ２０１６年８月３１日　水曜日　午後６時５分
535
Heating System
*
/Climate Control System
*
Maintenance
Air Conditioning*
To ensure proper and safe operation, the Society of Automotive Engineers (SAE
J2845) recommends that the refrigerant system only be serviced by trained and
certified technicians.
Never repair or replace the air conditioning evaporator (cooling coil) with one
removed from a used or salvaged vehicle.
New replacement mobile air conditioning evaporators must be certified (and
labeled) as meeting SAE Standard J2842.
Dust and Pollen Filter
The heating system*/climate control system* is equipped with a dust and pollen filter
that collects pollen, dust, and other debris in the air. The Maintenance MinderTM
messages will let you know when to replace the filter.
We recommend that you replace the dust and pollen filter sooner when using your
vehicle in areas with high concentrations of dust.
1Heating System*/Climate Control System* Maintenance
NOTICE
Vented refrigerant is harmful to the environment.
To avoid refrigerant from venting, never replace the
evaporator with one removed from a used or
salvaged vehicle.
Refrigerant in your vehicle’s air conditioning system is
flammable and can be ignited during servicing if
proper procedures are not followed.
The air conditioner label is found under the hood:
2Safety Labels P. 73
2Specifications P. 576, 578
Canadian models
: Caution
: Flammable Refrigerant
: Requires Registered
Technician to Service
: Air Conditioning
System
1Dust and Pollen Filter
If the airflow from the heating system*/climate
control system* deteriorates noticeably, and the
windows fog up easily, the filter may need to be
replaced. Please contact a dealer for replacement.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 535 ページ ２０１６年８月３１日　水曜日　午後６時５分
536
Maintenance
Cleaning
Interior Care
Use a damp cloth with a mixture of mild detergent and warm water to remove dirt.
Use a clean cloth to remove detergent residue.
Use a soft brush with a mixture of mild soap and warm water to clean the seat belts.
Let the belts air dry. Wipe the loops of the seat belt anchors using a clean cloth.
Wipe using a glass cleaner.
■Cleaning Seat Belts
1Interior Care
Do not spill liquids inside the vehicle. Electrical
devices and systems may malfunction if liquids are
splashed on them.
Do not use silicone based sprays on electrical devices
such as audio devices and switches. Doing so may
cause the items to malfunction or cause a fire inside
the vehicle.
If a silicone based spray is inadvertently used on
electrical devices, consult a dealer.
Depending on their composition, chemicals and
liquid aromatics may cause discoloration, wrinkles,
and cracking to resin-based parts and textiles.
Do not use alkali solvents or organic solvents such as
benzene or gasoline.
After using chemicals, make sure to gently wipe them
away using a dry cloth.
Do not place used cloths on top of resin based parts
or textiles for long periods of time without washing.
Loop
■Cleaning the Window
1Cleaning the Window
Wires are mounted to the inside of the rear window.
Wipe along the same direction as the wires with a
soft cloth so as not to damage them.
Be careful not to spill fluids, such as water or glass
cleaner, on or around the cover of both the front
sensor camera and the rainfall/light sensor*.
Models with Front Sensor Camera
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 536 ページ ２０１６年８月３１日　水曜日　午後６時５分
537
uuCleaninguInterior Care
The driver’s floor mat hooks over the floor
anchors, which keep the mat from sliding
forward. To remove a mat for cleaning, turn
the anchor knobs to the unlock position.
When reinstalling the mat after cleaning, turn
the knobs to the lock position.
Do not put additional floor mats on top of
the anchored mat.
To properly clean leather:
1. Use a vacuum or soft dry cloth first to remove any dirt or dust.
2. Clean the leather with a soft cloth dampened with a solution comprised of 90%
water and 10% neutral soap.
3. Wipe away any soap residue with a clean damp cloth.
4. Wipe away residual water and allow leather to air dry in the shade.
■Floor Mats*
1Floor Mats*
If you use any floor mats that were not originally
provided with your vehicle, make sure they are
designed for your specific vehicle, fit correctly, and
are securely anchored by the floor anchors.
Position the rear-seat floor mats properly. If they are
not properly positioned, the floor mats can interfere
with the front seat functions.
Lock
Unlock
■Maintaining Genuine Leather*
1Maintaining Genuine Leather*
It is important to clean or wipe away dirt or dust as
soon as possible. Spills can soak into leather resulting
in stains. Dirt or dust can cause abrasions in the
leather. In addition, please note that some dark
colored clothing can rub onto the leather seats
resulting in discoloration or stains.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 537 ページ ２０１６年８月３１日　水曜日　午後６時５分
538
uuCleaninguExterior Care
Maintenance
Exterior Care
Dust off the vehicle body after you drive. Regularly inspect your vehicle for scratches
on painted surfaces. A scratch on a painted surface can result in body rust. If you
find a scratch, promptly repair it.
Wash the vehicle regularly. Wash more frequently when driving in the following
conditions:
•If driving on roads with road salt.
•If driving in coastal areas.
•If tar, soot, bird droppings, insects, or tree sap are stuck to painted surfaces.
•Make sure to follow the instructions indicated on the automated car wash.
•Fold in the door mirrors.
•Turn off the automatic intermittent wipers*.
•Keep sufficient distance between the cleaning nozzle and the vehicle body.
•Take particular care around the windows. Standing too close may cause water to
enter the vehicle interior.
•Do not spray high pressure water directly into the engine compartment. Instead,
use low pressure water and a mild detergent.
■Washing the Vehicle
■Using an Automated Car Wash
■Using High Pressure Cleaners
1Washing the Vehicle
Do not spray water into the air intake vents. It can
cause a malfunction.
Do not spray water onto the capless unit when the
fuel fill door is open. It can cause damage to the fuel
system or engine.
Air Intake Vents
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 538 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 539
uuCleaninguExterior Care
A good coat of automotive body wax helps protect your vehicle’s paint from the
elements. Wax will wear off over time and expose your vehicle’s paint to the
elements, so reapply as necessary.
If you get gasoline, oil, engine coolant, or battery fluid on resin coated parts, they
may be stained or the coating may peel. Promptly wipe it away using a soft cloth and
clean water.
Wipe using a glass cleaner.
Aluminum is susceptible to deterioration caused by salt and other road
contaminants. When necessary, as early as possible use a sponge and mild detergent
to wipe away these contaminants. Do not use a stiff brush or harsh chemicals
(including some commercial wheel cleaners). These can damage the protective finish
on aluminum alloy wheels, resulting in corrosion. Depending on the type of finish,
the wheels also may lose their luster or appear burnished. To avoid water stains,
wipe the wheels dry with a cloth while they are still wet.
■Applying Wax
■Maintaining the Bumpers and Other Resin Coated Parts
■Cleaning the Window
■Maintaining Aluminum Wheels*
1Applying Wax
NOTICE
Chemical solvents and strong cleaners can damage
the paint, metal, and plastic on your vehicle. Wipe
away spills immediately.
1Maintaining the Bumpers and Other Resin Coated Parts
Ask a dealer about the correct coating material when
you want to repair the painted surface of the parts
made of resin.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 539 ページ ２０１６年８月３１日　水曜日　午後６時５分
540
uuCleaninguExterior Care
Maintenance
The inside lenses of exterior lights (headlights, brake lights, etc.) may fog temporarily
if you have driven in the rain, or after the vehicle has been run through a car wash.
Dew condensation also may build up inside the lenses when there is a significant
enough difference between the ambient and inside-lens temperatures (similar to
vehicle windows fogging up in rainy conditions). These conditions are natural
processes, not structural design problems in the exterior lights.
Lens design characteristics may result in moisture developing on the lens frame
surfaces. This also is not a malfunction. However, if you see large amounts of water
accumulation, or large water drops building up inside the lenses, have your vehicle
inspected by a dealer.
■Fogged Exterior Light Lenses
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 540 ページ ２０１６年８月３１日　水曜日　午後６時５分
541
Accessories and Modifications
Accessories
When installing accessories, check the following:
•Do not install accessories on the windshield. They can obstruct your view and
delay your reaction to driving conditions.
•Do not install accessories over areas marked SRS AIRBAG, on the sides or backs
of the front seats, on front or side pillars, or near the side windows.
Accessories installed in these areas may interfere with proper operation of the
vehicle’s airbags or may be propelled into you or another occupant if the airbags
deploy.
•Be sure electronic accessories do not overload electrical circuits or interfere with
proper operation of your vehicle.
2Fuses P. 567
•Before installing any electronic accessory, have the installer contact a dealer for
assistance. If possible, have a dealer inspect the final installation.
1Accessories and Modifications
Honda Genuine accessories are recommended to
ensure proper operation on your vehicle.
3
WARNING
Improper accessories or modifications can
affect your vehicle's handling, stability, and
performance, and cause a crash in which
you can be seriously hurt or killed.
Follow all instructions in this owner's
manual regarding accessories and
modifications.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 541 ページ ２０１６年８月３１日　水曜日　午後６時５分
542
uuAccessories and ModificationsuModifications
Maintenance
Modifications
Do not modify your vehicle in a manner that may affect its handling, stability, or
reliability, or install non-genuine Honda parts or accessories that may have a similar
effect.
Even minor modifications to vehicle systems can affect overall vehicle performance.
Always make sure all equipment is properly installed and maintained, and do not
make any modification to your vehicle or its systems that might cause your vehicle
to no longer meet federal, state, province, territory, and local regulations.
Do not modify or attempt to repair any of the electrical components.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 542 ページ ２０１６年８月３１日　水曜日　午後６時５分
543
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
Tools
Types of Tools.................................. 544
If a Tire Goes Flat
Changing a Flat Tire......................... 545
Engine Does Not Start
Checking the Engine........................ 552
If the Smart Entry Remote Battery is
Weak..........................................553
Emergency Engine Stop ................... 554
Jump Starting.................................... 555
Shift Lever Does Not Move.............. 558
Overheating
How to Handle Overheating............. 559
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes
On ............................................. 561
If the Charging System Indicator Comes
On ................................................. 561
If the Malfunction Indicator Lamp Comes
On or Blinks ................................... 562
If the Brake System Indicator (Red) Comes
On or Blinks ................................... 563
If the Brake System Indicator (Red) Comes
On or Blinks at the Same Time When the
Brake System Indicator (Amber) Comes
On ................................................. 564
If the Electric Power Steering (EPS) System
Indicator Comes On ....................... 565
If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 566
Fuses
Fuse Locations ................................. 567
Inspecting and Changing Fuses........ 570
Emergency Towing........................... 571
When You Cannot Unlock the Fuel Fill
Door................................................. 572
When You Cannot Open the Trunk
.....573
Refueling........................................... 574
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 543 ページ ２０１６年８月３１日　水曜日　午後６時５分
544
Handling the Unexpected
Tools
Types of Tools
1Types of Tools
The tools are stored in the trunk.
Wheel Nut Wrench/
Jack Handle
Jack
Jack Handle Bar Funnel
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 544 ページ ２０１６年８月３１日　水曜日　午後６時５分
545
Continued
If a Tire Goes Flat
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe place. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possible to have the full-size tire repaired or
replaced.
1. Park the vehicle on firm, level, and non-slippery surface, and apply the parking
brake.
2. Move the shift lever to (P.
2. Move the shift lever to (R.
3. Turn on the hazard warning lights and turn the ignition switch to LOCK (0*1.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1Changing a Flat Tire
Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not use another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
NOTICE
Do not use the jack if it doesn’t work properly. Call
your dealer or a professional towing service.
Continuously variable transmission models
Manual transmission models
All models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 545 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuIf a Tire Goes FlatuChanging a Flat Tire
546
Handling the Unexpected
1. Open the trunk floor lid.
2. Take the tool case out of the trunk. Take
the jack and wheel nut wrench out of the
tool case.
3. Unscrew the wing bolt, and remove the
spacer cone. Then, remove the spare tire.
4. Place a wheel block or rock in front and rear
of the wheel diagonal to the flat tire.
■Getting Ready to Replace the Flat Tire
1Getting Ready to Replace the Flat Tire
The wheel nut wrench supplied with your vehicle is
specially adapted to fit the holder shaft. Do not use
any other tool.
Tool Case
Spare Tire
Wheel
Blocks
The tire to be replaced.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 546 ページ ２０１６年８月３１日　水曜日　午後６時５分
547
uuIf a Tire Goes FlatuChanging a Flat Tire
Continued
5. Place the compact spare tire (wheel side up)
under the vehicle body, near the tire that
needs to be replaced.
6. Put the flat tip of the jack handle bar into
the edge of the wheel cover. Carefully pry
the edge and remove the cover.
uWrap a cloth around the flat tip of the
jack handle bar to prevent scratches on
the cover.
7. Loosen each wheel nut about one turn
using the wheel nut wrench.
Jack Handle Bar
Wheel Nut
Wheel
Cover
Models with wheel cover
All models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 547 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuIf a Tire Goes FlatuChanging a Flat Tire
548
Handling the Unexpected
1. Place the jack under the jacking point
closest to the tire to be changed.
2. Turn the end bracket clockwise as shown in
the image until the top of the jack contacts
the jacking point.
uMake sure that the jacking point tab is
resting in the jack notch.
3. Raise the vehicle, using the jack handle bar
and the jack handle, until the tire is off the
ground.
■How to Set Up the Jack
1How to Set Up the Jack
Do not use the jack with people or luggage in the
vehicle.
Use the jack provided in your vehicle.
Other jacks may not support the weight (“load”) or
their shape may not match.
The following instructions must be followed to use
the jack safely:
•Do not use while the engine is running.
•Use only where the ground is firm and level.
•Use only at the jacking points.
•Do not get in the vehicle while using the jack.
•Do not put anything on top of or underneath the
jack.
3
WARNING
The vehicle can easily roll off the jack,
seriously injuring anyone underneath.
Follow the directions for changing a tire
exactly, and never get under the vehicle
when it is supported only by the jack.
Jacking Points
Jacking Point
Jack
Handle
Bar Wheel Nut
Wrench as Jack Handle
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 548 ページ ２０１６年８月３１日　水曜日　午後６時５分
Continued 549
uuIf a Tire Goes FlatuChanging a Flat Tire
1. Remove the wheel nuts and flat tire.
2. Wipe the mounting surfaces of the wheel
with a clean cloth.
3. Mount the compact spare tire.
4. Screw the wheel nuts until they touch the
lips around the mounting holes, and stop
rotating.
5. Lower the vehicle and remove the jack.
Tighten the wheel nuts in the order
indicated in the image. Go around,
tightening the nuts, two to three times in
this order.
Wheel nut torque:
80 lbf∙ft (108 N∙m, 11 kgf∙m)
■Replacing the Flat Tire
1Replacing the Flat Tire
Do not over tighten the wheel nuts by applying extra
torque using your foot or a pipe.
Make sure the wire support ring is hooked into the
clips around the edge of the wheel cover.
Align the valve mark on the wheel cover to the tire
valve on the wheel, then install the wheel cover.
Models with wheel cover
Clips Clips
Valve Mark
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 549 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuIf a Tire Goes FlatuChanging a Flat Tire
550
Handling the Unexpected
1. Remove the center cap.
2. Place the flat tire face down in the spare tire
well.
3. Remove the spacer cone from the wing
bolt, flip it over, and insert it back on the
bolt. Secure the flat tire with the wing bolt.
4. Securely put the jack and wheel nut wrench
back in the tool case. Store the case in the
trunk.
■Storing the Flat Tire
1Storing the Flat Tire
Make sure the wire support ring is on the outer side
of the tire valve as shown.
3
WARNING
Loose items can fly around the interior in a
crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely
before driving.
Models with wheel cover
Tire Valve
Wire Support Ring
Models with
aluminum
wheels
Models with aluminum wheels
Spacer Cone
Wing Bolt
For
compact
spare tire
For full-
size tire
All models
All models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 550 ページ ２０１６年８月３１日　水曜日　午後６時５分
551
uuIf a Tire Goes FlatuChanging a Flat Tire
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After driving for a few miles (kilometers), the
indicator will start blinking for a short time and then stay on. Tire Pressures Low
appears on the driver information interface*, but this is normal.
Calibrate the TPMS when you replace the tire with a specified regular tire.
2TPMS Calibration P. 452
The system cannot monitor the pressure of the spare tire. Manually check the spare
tire pressure to be sure that it is correct.
■TPMS and the Compact Spare Tire
U.S. models
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 551 ページ ２０１６年８月３１日　水曜日　午後６時５分
552
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter condition Checklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.
Check for a message on the driver information interface.
●If the To Start, Hold Remote Near Start Button message appears
2If the Smart Entry Remote Battery is Weak P. 553
uMake sure the smart entry remote is in its operating range.
2ENGINE START/STOP Button Operating Range P. 158
Check the brightness of the interior lights.
Turn on the interior lights and check the brightness.
●If the interior lights are dim or do not come on at all
2Battery P. 531
●If the interior lights come on normally
2 Fuses P. 567
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly.
Review the engine start procedure.
Follow its instructions, and try to start the engine again.
2 Starting the Engine P. 402
Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2Immobilizer System P. 150
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 109
Check the fuse.
Check all fuses, or have the vehicle checked by a dealer.
2Inspecting and Changing Fuses P. 570
If the problem continues:
2Emergency Towing P. 571
1Checking the Engine
If you must start the vehicle immediately, use an
assisting vehicle to jump start it.
2Jump Starting P. 555
Models with smart entry system
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 552 ページ ２０１６年８月３１日　水曜日　午後６時５分
553
uuEngine Does Not StartuIf the Smart Entry Remote Battery is Weak
If the Smart Entry Remote Battery is Weak
If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the driver information interface, the ENGINE START/STOP button
flashes, and the engine won’t start. Start the engine as follows:
1. Touch the center of the ENGINE START/
STOP button with the H logo on the smart
entry remote while the ENGINE START/
STOP button is flashing. The buttons on
the smart entry remote should be facing
you.
uThe button flashes for about 30 seconds.
2. Depress the brake pedal (continuously
variable transmission) or clutch pedal
(manual transmission) and press the
ENGINE START/STOP button within 10
seconds after the beeper sounds and the
ENGINE START/STOP button changes
from flashing to on.
uIf you don’t depress the pedal, the mode
will change to ACCESSORY.
Models with smart entry system
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 553 ページ ２０１６年８月３１日　水曜日　午後６時５分
554
uu
Engine Does Not Start
u
Emergency Engine Stop
Handling the Unexpected
Emergency Engine Stop
The ENGINE START/STOP button may be used to stop the engine due to an
emergency situation even while driving. If you must stop the engine, do either of the
following operations:
•Press and hold the ENGINE START/STOP button for about two seconds.
•Firmly press the ENGINE START/STOP button twice.
The steering wheel will not lock. However, because turning off the engine disables
the power assist the engine provides to the steering and braking systems, it will
require significantly more physical effort and time to steer and slow the vehicle. Use
both feet on the brake pedal to slow down the vehicle and stop immediately in a
safe place. With manual transmission models you can also downshift the
transmission to utilize engine braking.
The power mode is in ACCESSORY when the engine is stopped.
To change the mode to VEHICLE OFF, move the shift lever to (P after the vehicle
comes to a complete stop.
Then press the ENGINE START/STOP button twice without depressing the brake
pedal.
The power mode changes to VEHICLE OFF.
Models with smart entry system
1Emergency Engine Stop
Do not press the button while driving unless it is
absolutely necessary for the engine to be switched
off.
Continuously variable transmission models
Canadian continuously variable transmission models
Manual transmission models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 554 ページ ２０１６年８月３１日　水曜日　午後６時５分
555
Continued
Jump Starting
Jump Starting Procedure
Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood.
1. Connect the first jumper cable to your
vehicle’s battery + terminal.
2. Connect the other end of the first jumper
cable to the booster battery + terminal.
uUse a 12-volt booster battery only.
uWhen using an automotive battery
charger to boost your 12-volt battery,
select a lower charging voltage than 15-
volt. Check the charger manual for the
proper setting.
3. Connect the second jumper cable to the
booster battery - terminal.
■Jump Starting Procedure
1Jump Starting
Securely attach the jumper cables clips so that they
do not come off when the engine vibrates. Also be
careful not to tangle the jumper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.
3
WARNING
A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the battery.
Booster Battery
1.5 L engine models
2.0 L engine models
Booster Battery
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 555 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuJump StartinguJump Starting Procedure
556
Handling the Unexpected
4. Connect the other end of the second
jumper cable to the engine mounting bolt
as shown. Do not connect this jumper cable
to any other part.
5. If your vehicle is connected to another
vehicle, start the assisting vehicle’s engine
and increase its rpm slightly.
6. Attempt to start your vehicle’s engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.
1Jump Starting
Battery performance degrades in cold conditions and
may prevent the engine from starting.
1.5 L engine models
2.0 L engine models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 556 ページ ２０１６年８月３１日　水曜日　午後６時５分
557
uuJump StartinguJump Starting Procedure
Once your vehicle's engine has started, remove the jumper cables in the following
order.
1. Disconnect the jumper cable from your vehicle's ground.
2. Disconnect the other end of the jumper cable from the booster battery -
terminal.
3. Disconnect the jumper cable from your vehicle's battery + terminal.
4. Disconnect the other end of the jumper cable from the booster battery +
terminal.
Have your vehicle inspected by a nearby service station or a dealer.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■What to Do After the Engine Starts
1What to Do After the Engine Starts
The VSA® and CMBSTM* indicators may come on
when your turn the ignition switch to ON (w*1 after
re-connecting a battery.
Drive a short distance at more than12 mph (20 km/h).
Each indicator should go off. If either or both do not,
have your vehicle checked by a dealer.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 557 ページ ２０１６年８月３１日　水曜日　午後６時５分
558
Handling the Unexpected
Shift Lever Does Not Move
Follow the procedure below if you cannot move the shift lever out of the (P
position.
1. Set the parking brake.
2. Remove the key from the ignition switch.
2. Remove the built-in key from the smart
entry remote.
3. Move the removable beverage holder tray
rearward.
2Front seat beverage holders P. 185
4. Wrap a cloth around the tip of a small flat-
tip screwdriver to remove the cover of the
shift lock release slot. Put the tip of the flat-
tip screwdriver into the slot and remove it
as shown in the image.
5. Insert the key into the shift lock release slot.
6. While pushing the key in, press the shift
lever release button and place the shift lever
into (N.
uThe lock is now released. Have the shift
lever checked by a dealer as soon as
possible.
■Releasing the Lock
Continuously variable transmission models
Slot
Cover
Models without smart entry system
Models with smart entry system
All models
Release
Button
Shift Lock
Release Slot
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 558 ページ ２０１６年８月３１日　水曜日　午後６時５分
559
Continued
Overheating
How to Handle Overheating
Overheating symptoms are as follows:
•The temperature gauge pointer is at the mark or the engine suddenly loses
power.
•Steam or spray comes out of the engine compartment.
■First thing to do
1. Immediately park the vehicle in a safe place.
2. Turn off all accessories and turn on the hazard warning lights.
uNo steam or spray present: Keep the engine running and open the hood.
uSteam or spray is present: Turn off the engine and wait until it subsides.
Then open the hood.
1How to Handle Overheating
NOTICE
Continuing to drive with the temperature gauge
pointer at the mark may damage the engine.
3
WARNING
Steam and spray from an overheated
engine can seriously scald you.
Do not open the hood if steam is coming
out.
H
H
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 559 ページ ２０１６年８月３１日　水曜日　午後６時５分
uuOverheatinguHow to Handle Overheating
560
Handling the Unexpected
■Next thing to do
1. Check that the cooling fan is operating and
stop the engine once the temperature
gauge pointer comes down.
uIf the cooling fan is not operating,
immediately stop the engine.
2. Once the engine has cooled down, inspect
the coolant level and check the cooling
system components for leaks.
uIf the coolant level in the reserve tank is
low, or no coolant in the tank, check that
the radiator is cool. Cover the reserve
tank cap with a heavy cloth and open the
cap. Add coolant until it reaches the
MAX mark, and put the cap back on.
■Last thing to do
Once the engine has cooled sufficiently, restart it and check the temperature gauge.
If the temperature gauge pointer has gone down, resume driving. If it has not gone
down, contact a dealer for repairs.
1How to Handle Overheating
If the coolant is leaking, contact a dealer for repairs.
Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.
3
WARNING
Removing the reserve tank cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the reserve tank
cap.
MAX
Reserve Tank MIN
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 560 ページ ２０１６年８月３１日　水曜日　午後６時５分
561
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On
■Reasons for the indicator to come on
Comes on when the engine oil pressure is low.
■What to do as soon as the indicator comes on
1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the hazard warning lights on.
■What to do after parking the vehicle
1. Stop the engine and let it sit for about three minute.
2. Open the hood and check the oil level.
uAdd oil as necessary.
2Oil Check P. 499
3. Start the engine and check the low oil pressure indicator.
uThe indicator goes off: Start driving again.
uThe indicator does not go off within 10 seconds: Stop the engine
and contact a dealer for repairs immediately.
If the Charging System Indicator Comes On
■Reasons for the indicator to come on
Comes on when the battery is not being charged.
■What to do when the indicator comes on
Turn off the heating system*/climate control system*, rear defogger, and
other electrical systems, and immediately contact a dealer for repairs.
1If the Low Oil Pressure Indicator Comes On
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.
1If the Charging System Indicator Comes On
If you need to stop temporarily, do not turn off the
engine. Restarting the engine may rapidly discharge
the battery.
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 561 ページ ２０１６年８月３１日　水曜日　午後６時５分
562
uu
Indicator, Coming On/Blinking
u
If the Malfunction Indicator Lamp Comes On or Blinks
Handling the Unexpected
If the Malfunction Indicator Lamp Comes On or
Blinks
■Reasons for the indicator lamp to come on or blink
•Comes on when there is a problem with the engine emissions control
system.
•Blinks when engine misfiring is detected.
■What to do when the indicator lamp comes on
Avoid high speeds and immediately get your vehicle inspected at a
dealer.
■What to do when the indicator lamp blinks
Park the vehicle in a safe place with no flammable items and wait at least
10 minutes or more with the engine stopped until it cools.
1If the Malfunction Indicator Lamp Comes On or Blinks
NOTICE
If you drive with the malfunction indicator lamp on,
the emissions control system and the engine could be
damaged.
If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest dealer at
31 mph (50 km/h) or less. Have your vehicle
inspected.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 562 ページ ２０１６年８月３１日　水曜日　午後６時５分
563
uuIndicator, Coming On/BlinkinguIf the Brake System Indicator (Red) Comes On or Blinks
If the Brake System Indicator (Red) Comes On or
Blinks
■Reasons for the indicator to come on
•The brake fluid is low.
•There is a malfunction in the brake system.
■What to do when the indicator comes on while driving
Depress the brake pedal lightly to check pedal pressure.
•If normal, check the brake fluid level the next time you stop.
•If abnormal, take immediate action. If necessary, downshift the
transmission to slow the vehicle using engine braking.
■Reason for the indicator to blink
•There is a problem with the electric parking brake system.
■What to do when the indicator blinks
Avoid using the parking brake and have your vehicle checked by a dealer
immediately.
1If the Brake System Indicator (Red) Comes On or Blinks
Have your vehicle repaired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe place. If necessary downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the electronic brake distribution
system is not working. This can result in vehicle
instability under sudden braking.
Have your vehicle inspected by a dealer immediately.
If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking brake may not work.
Avoid using the parking brake and have your vehicle
checked by a dealer immediately.
2If the Brake System Indicator (Red) Comes
On or Blinks at the Same Time When the
Brake System Indicator (Amber) Comes On
P. 564
If you repeatedly operate the electric parking brake in
a short period of time, the brake stops operating to
prevent heating of the system and the indicator
blinks.
It returns to its original state in approximately 1
minute.
U.S.
Canada
(Red)
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 563 ページ ２０１６年８月３１日　水曜日　午後６時５分
564
uu
Indicator, Coming On/Blinking
u
If the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the Brake System Indicator (Amber) Comes On
Handling the Unexpected
If the Brake System Indicator (Red) Comes On or
Blinks at the Same Time When the Brake System
Indicator (Amber) Comes On
■If the brake system indicator (red) comes on or blinks at the
same time when the brake system indicator (amber) comes on,
release the parking brake manually or automatically.
2Parking Brake P. 457
•If the brake system indicator (red) continuously comes on or blinks at
the same time when the brake system indicator (amber) comes on,
stop the vehicle in a safe place and have it inspected by a dealer
immediately.
uPreventing the vehicle from moving
Move the shift lever to (P.
Move the shift lever to (1 or (R.
•If the brake system indicator (amber) comes on alone, avoid using the
parking brake and have your vehicle checked by a dealer immediately.
1
If the Brake System Indicator (Red) Comes On or Blinks at the Same
Time When the Brake System Indicator (Amber) Comes On
If you apply the parking brake, you may not be able
to release it.
If the brake system indicator (red) and the brake
system indicator (amber) come on at the same time,
the parking brake is working.
If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking brake may not work because it is
checking the system.
U.S.
Canada
(Red)
U.S.
Canada
(Amber)
Continuously variable transmission models
Manual transmission models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 564 ページ ２０１６年８月３１日　水曜日　午後６時５分
565
uuIndicator, Coming On/BlinkinguIf the Electric Power Steering (EPS) System Indicator Comes On
If the Electric Power Steering (EPS) System Indicator
Comes On
■Reasons for the indicator to come on
•Comes on when there is a problem with the EPS system.
•If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
•Comes on when EPS steering angle center point memory is lost. This
could be due to a number of problems to include: battery disconnect,
main fuse blow, low battery causing reset of the EPS system, wire
damage to EPS harness. Vehicle Stability Assist (VSA®), VSA® OFF,
Collision Mitigation Braking SystemTM (CMBSTM)*, and low tire
pressure/TPMS* indicators also come on with EPS indicator.
The Drive Carefully Systems Initializing... message appears on the
driver information interface.
■What to do when the indicator comes on
•Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
•If the EPS indicator, VSA® indicator, VSA® OFF indicator, CMBSTM
indicator*, and low tire pressure/TPMS indicator* come on
simultaneously, you need to calibrate the VSA and EPS systems.
Drive at a speed of more than 12 mph (20 km/h) for less than 10
seconds to calibrate the VSA and EPS systems.
If the indicators come on and stay on, park your vehicle in a safe
place, turn off and restart the engine, then repeat the above
operation.
If the indicators still come on and stay on, immediately have your
vehicle inspected by a dealer.
Models with driver information interface
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 565 ページ ２０１６年８月３１日　水曜日　午後６時５分
566
uu
Indicator, Coming On/Blinking
u
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low, or the TPMS has not been calibrated.
If there is a problem with the TPMS or the compact spare tire is installed,
the indicator blinks for about one minute, and then stays on.
■What to do when the indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Check the tire pressure and adjust the
pressure to the specified level. The specified tire pressure is on a label on
the driver side doorjamb.
uCalibrate the TPMS after the tire pressure is adjusted.
■What to do when the indicator blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire causes the indicator to blink, change the tire to a full-size tire.
The indicator goes off after driving for a few miles (kilometers).
uCalibrate the TPMS after a full-size tire is reinstalled.
U.S. models
1If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 566 ページ ２０１６年８月３１日　水曜日　午後６時５分
567
Continued
Fuses
Fuse Locations
If any electrical devices are not working,
turn the ignition switch to LOCK (0*1 and
check to see if any applicable fuse is blown.
Located near the battery. Push the tabs to
open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
■
Engine Compartment Fuse Box
■Circuit protected and fuse rating
Circuit Protected Amps
1
Passenger’s Power Seat*/
Rear Seat Heaters*(60 A)
Cooling Fan*2 (30 A)
Cooling Fan*3 (50 A)
− −
IG Main*4
−*5
30 A
−
Headlight High Beam Main 30 A
Battery 125 A
2
EPS 70 A
IG Main 30 A*4
50 A*5
Fuse Box Option*(40 A)
Fuse Box 60 A
Front Wiper Motor 30 A
Headlight Low Beam Main 30 A
3
Rear Defroster 40 A
Starter Motor*4
−*5
30 A
−
Fuse Box 40 A
ABS/VSA Motor 40 A
ABS/VSA FSR 40 A
Blower Motor 40 A
*1:Models with the smart entry system have
an ENGINE START/STOP button
instead of an ignition switch.
*2:2.0L engine models
*3:1.5L engine models
*4:Models with smart entry system
*5:Models without smart entry system
*6:Continuously variable transmission
models
4
−−
−−
−−
−−
5Cooling Fan 5A
6Washer 15A
7FI Main 15 A
8FI Sub 15A
9Stop Lights 10 A
10 Injector*3 (15 A)
11 LAF 5A
12 FI ECU 10 A
13 Parking Lights 10 A
14 Hazard 15 A
15 IG Coil 15 A
16 Transmission*6 (15 A)
17 Daytime Running Lights 10 A
18 Back Up 10 A
Circuit Protected Amps
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 567 ページ ２０１６年８月３１日　水曜日　午後６時５分
568
uuFusesuFuse Locations
Handling the Unexpected
*3:1.5L engine models
Circuit Protected Amps
19 Audio 15 A
20 Audio AMP*(30 A)
21 Interior Lights 10 A
22 Front Fog Lights*(15 A)
23 A/C Compressor*(10 A)
24 Horn 10 A
25 Left Headlight Low Beam 10 A
26 Right Headlight Low Beam 10 A
27 VB ACT*3 (10 A)
28 Left Headlight High Beam 10 A
29 Right Headlight High Beam 10 A
30 − −
31 Rear Seat Heaters*(15 A)
32 Passenger’s Power Seat
Sliding*(20 A)
33 Passenger’s Power Seat
Reclining*(20 A)
34 − −
35 − −
36 − −
Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.
■Circuit protected and fuse rating
■Interior Fuse Box
Fuse Label
Circuit Protected Amps
1Accessory 10 A
2−*1
Key Lock*2
−
(5 A)
3 − −
4Front Sensor Camera*1
Transmission*2, *3
(5 A)
(10 A)
5Option 10 A
6SRS Indicator 10 A
7Meter 10 A
8Fuel Pump 15 A
*1:Models with smart entry system
*2:Models without smart entry system
*3:Continuously variable transmission
models
9AIRCON 10 A
10 − −
11 Engine Control 5A
12 Passenger Side Door Lock 10 A
13
Driver Side Rear Door Unlock
(10 A)
14 Rear Driver’s Side Power
Window (20 A)
15 Front Passenger’s Side
Power Window 20 A
16 Door Lock 20 A
17 Transmission*1, *3
Front Sensor Camera*2
(10 A)
(5 A)
18 − −
19 Moonroof*(20 A)
20 − −
21 ACG 10 A
22 Daytime Running Lights 10 A
23 − −
24 Front Sensor Camera*(5 A)
25 Driver’s Door Lock 10 A
26
Passenger Side Door Unlock
10 A
27 Rear Passenger’s Side
Power Window (20 A)
Circuit Protected Amps
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 568 ページ ２０１６年８月３１日　水曜日　午後６時５分
569
uuFusesuFuse Locations
*1:Models with smart entry system
*2:Models without smart entry system
Circuit Protected Amps
28 Driver’s Power Window 20 A
29 Front Accessory Power
Socket 20 A
30 Smart Entry*1
−*2
10 A
−
31 Driver’s Power Seat
Reclining*(20 A)
32 Front Seat Heater*(20 A)
33 Driver’s Power Seat Sliding*(20 A)
34 VSA/ABS 10 A
35 SRS 10 A
36 − −
37 − −
38 Driver Side Rear Door Lock (10 A)
39 Driver’s Door Unlock 10 A
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 569 ページ ２０１６年８月３１日　水曜日　午後６時５分
570
uu
Fuses
u
Inspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK (0*1. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
uIf the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
uIf there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse
Blown Fuse
Fuse Puller
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 570 ページ ２０１６年８月３１日　水曜日　午後６時５分
571
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoting arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.
Make sure the parking brake is released. If you
cannot release the parking brake, your vehicle must
be transported by the flat bed equipment.
2Parking Brake P. 457
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 571 ページ ２０１６年８月３１日　水曜日　午後６時５分
572
Handling the Unexpected
When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.
1. Open the trunk.
2. Pull the green release cord beneath the rear
tray to the right.
uThe release cord unlocks the fuel fill door
when it is pulled.
■What to Do When Unable to Unlock the Fuel Fill Door
1When You Cannot Unlock the Fuel Fill Door
After taking these steps, contact a dealer to have
your vehicle checked.
Release Cord
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 572 ページ ２０１６年８月３１日　水曜日　午後６時５分
573
When You Cannot Open the Trunk
If you cannot open the trunk, use the following procedure.
1. Remove the cover with a key.
uWrap a key with a cloth to prevent
scratching the cover.
2. Pull the release lever.
3. Replace the cover.
■What to Do When Unable to Open the Trunk
1When You Cannot Open the Trunk
Following up:
After taking these steps, contact a dealer to have
your vehicle checked.
Trunk Release Cover
Trunk Release Lever
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 573 ページ ２０１６年８月３１日　水曜日　午後６時５分
574
Handling the Unexpected
Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.
1. Turn off the engine.
2. Press on the edge of the fuel fill door to
make it pop up slightly.
uThe fuel fill door opens.
3. Take the funnel out of the tool case in the
trunk.
2Types of Tools P. 544
4. Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
uMake sure that the end of the funnel
goes down along with the filler pipe.
5. Fill the tank with fuel from the portable fuel
container.
uPour fuel carefully so you do not spill any.
6. Remove the funnel from the filler neck.
uWipe up any fuel from the funnel before
storing it.
7. Shut the fuel fill door by hand.
1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
3
WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
•Stop the engine, and keep heat, sparks,
and flame away.
•Handle fuel only outdoors.
•Wipe up spills immediately.
Funnel
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 574 ページ ２０１６年８月３１日　水曜日　午後６時５分
575
Information
This chapter includes your vehicle's specifications, locations of identification numbers, and other
information required by regulation.
Specifications .................................... 576
Identification Numbers
Vehicle Identification Number (VIN),
Engine Number, and Transmission
Number ......................................... 580
Devices that Emit Radio Waves ....... 581
Reporting Safety Defects ................. 582
Emissions Testing
Testing of Readiness Codes.............. 583
Warranty Coverages ........................ 585
Authorized Manuals......................... 587
Customer Service Information......... 588
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 575 ページ ２０１６年８月３１日　水曜日　午後６時５分
576
Information
Specifications
■Vehicle Specifications
■Air Conditioning*
Model Honda Civic 4-Door
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:
Gross Vehicle
Weight Rating
U.S.: 3,737 lbs (1,695 kg)
Canada: 1,695 kg
Gross Axle Weight
Rating (Front) U.S.: 1,984 lbs (900 kg)
Canada: 900 kg
Gross Axle Weight
Rating (Rear) U.S.: 1,786 lbs (810 kg)
Canada: 810 kg
Refrigerant Type HFO-1234yf (R-1234yf)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant Type RL85HM (POE)
Quantity 4.7 – 6.3 cu-in (77 – 103 cm3)
2.0 L engine models
■Engine Specifications
■Fuel
■Washer Fluid
Displacement 121.76 cu-in (1,996 cm3)
Spark Plugs NGK DILKAR7H11GS
DILKAR7G11GS
DENSO DXE22HQR-D11S
Fuel:
Type
Unleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 12.39 US gal (46.9 L)
Tank Capacity U.S.: 2.6 US qt (2.5 L)
Canada: 4.8 US qt (4.5 L)
■Light Bulbs
Headlights (Low Beam) 55W (H11)
Headlights (High Beam) 60W (HB3)
Parking/Daytime Running Lights LED
Front Side Marker Lights 3W
Front Turn Signal Lights 21W (Amber)
Brake Lights 21W
Rear Turn Signal Lights 21W (Amber)
Tail/Rear Side Marker Lights LED
Back-Up Lights 16W
Taillights LED
High-Mount Brake Light 21W
Rear License Plate Light LED
Interior Lights
Map Lights 8W
Ceiling Light 8W
Vanity Mirror Lights*2W
Trunk Light 5W
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 576 ページ ２０１６年８月３１日　水曜日　午後６時５分
577
uuSpecificationsu
Continued
■Brake/Clutch* Fluid
■Continuously Variable Transmission
Fluid*
■Manual Transmission Fluid*
Specified Honda Heavy Duty Brake Fluid DOT 3
Specified Honda HCF-2 Transmission Fluid
Capacity Change 3.7 US qt (3.5 L)
Specified Honda Manual Transmission Fluid (MTF)
Capacity Change 2.0 US qt (1.9 L)
■Engine Oil
■Engine Coolant
Recommended ·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity
Change 4.2 US qt (4.0 L)
Change
including
filter
4.4 US qt (4.2 L)
Specified Honda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.4 US gal (5.32 L)
(change including the remaining
0.2 US gal (0.75 L) in the reserve tank)
■Tire
Regular
Size 215/55R16 93H
Pressure
psi (kPa [kgf/cm2]) 32 (220 [2.2])
Compact
Spare*
Size T125/80D16 97M
Pressure
psi (kPa [kgf/cm2]) 60 (420 [4.2])
Wheel Size Regular 16 x 7J
Compact Spare 16 x 4T
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 577 ページ ２０１６年８月３１日　水曜日　午後６時５分
578
uuSpecificationsu
Information
■Vehicle Specifications
■Air Conditioning
Model Honda Civic 4-Door
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:
Gross Vehicle
Weight Rating
U.S.: 3,902 lbs (1,770 kg)
Canada: 1,770 kg
Gross Axle Weight
Rating (Front) U.S.: 2,105 lbs (955 kg)
Canada: 955 kg
Gross Axle Weight
Rating (Rear) U.S.: 1,808 lbs (820 kg)
Canada: 820 kg
Refrigerant Type HFO-1234yf (R-1234yf)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant Type RL85HM (POE)
Quantity 4.7 – 6.3 cu-in (77 – 103 cm3)
1.5 L engine models
■Engine Specifications
■Fuel
■Washer Fluid
Displacement 91.26 cu-in (1,496 cm3)
Spark Plugs NGK ILZKAR8H8S
Fuel:
Type
Unleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 12.39 US gal (46.9 L)
Tank Capacity U.S.: 2.6 US qt (2.5 L)
Canada: 4.8 US qt (4.5 L)
■Light Bulbs
*1: Except Tour models
*2: Tour models
Headlights (Low Beam) 55W (H11)*1
LED*2
Headlights (High Beam) 60W (HB3)*1
LED*2
Fog Lights 35W (H8)
Parking/Daytime Running Lights LED
Front Side Marker Lights 3W
Front Turn Signal Lights 21W (Amber)*1
LED*2
Side Turn Signal Lights
(on Door Mirrors)*LED
Brake Lights 21W
Rear Turn Signal Lights 21W (Amber)
Tail/Rear Side Marker Lights LED
Back-Up Lights 16W
Taillights LED
High-Mount Brake Light 21W
Rear License Plate Light LED
Interior Lights
Map Lights 8W
Ceiling Light 8W
Vanity Mirror Lights 2W
Trunk Light 5W
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 578 ページ ２０１６年８月３１日　水曜日　午後６時５分
579
uuSpecificationsu
■Brake/Clutch* Fluid
■Continuously Variable Transmission
Fluid*
■Manual Transmission Fluid*
Specified Honda Heavy Duty Brake Fluid DOT 3
Specified Honda HCF-2 Transmission Fluid
Capacity Change 3.9 US qt (3.7 L)
Specified Honda Manual Transmission Fluid (MTF)
Capacity Change 2.0 US qt (1.9 L)
■Engine Oil
■Engine Coolant
*1: Continuously variable transmission models
*2: Manual transmission models
Recommended ·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity
Change 3.4 US qt (3.2 L)
Change
including
filter
3.7 US qt (3.5 L)
Specified Honda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.34 US gal (5.09 L)*1
(change including the remaining
0.2 US gal (0.75 L) in the reserve tank)
1.32 US gal (5.01 L)*2
(change including the remaining
0.2 US gal (0.75 L) in the reserve tank)
■Tire
Regular
Size 215/50R17 91H
Pressure
psi (kPa [kgf/cm2]) 32 (220 [2.2])
Compact
Spare
Size T125/80D16 97M
Pressure
psi (kPa [kgf/cm2]) 60 (420 [4.2])
Wheel Size Regular 17 x 7J
Compact Spare 16 x 4T
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 579 ページ ２０１６年８月３１日　水曜日　午後６時５分
580
Information
Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
and Transmission Number
Your vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, engine number, and transmission number are
shown as follows.
1Vehicle Identification Number (VIN), Engine Number, and
Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification
Number
2.0 L engine models
1.5 L engine models
Continuously Variable
Transmission Number*
Engine Number
Manual Transmission
Number*
Continuously Variable
Transmission Number*
Manual Transmission
Number*
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 580 ページ ２０１６年８月３１日　水曜日　午後６時５分
581
Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in
operation.
Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Audio System
Bluetooth® Audio
Bluetooth® HandsFreeLink®
Collision Mitigation Braking SystemTM*
Immobilizer System
Keyless Access System*
Remote Transmitter
Wireless charger*
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 581 ページ ２０１６年８月３１日　水曜日　午後６時５分
582
Information
Reporting Safety Defects
In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov; or write to: Administrator, NHTSA, 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain other information about motor vehicle safety from http://
www.safercar.gov.
In Canada
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 582 ページ ２０１６年８月３１日　水曜日　午後６時５分
583
Continued
Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness codes as part of the onboard self diagnostic system.
Some States use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, turn the ignition switch to ON (w*1, without starting the
engine. The malfunction indicator lamp will come on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle tested before the readiness codes are ready,
prepare the vehicle for retesting by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the accelerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in (P (continuously variable transmission) or (N (manual
transmission). Increase the engine speed to 2,000 rpm, and hold it there for about
3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 583 ページ ２０１６年８月３１日　水曜日　午後６時５分
584
uuEmissions TestinguTesting of Readiness Codes
Information
7. Select a nearby, lightly traveled major highway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D (continuously variable transmission) or 5th (manual). Do not use cruise
control. When traffic allows, drive for 90 seconds without moving the accelerator
pedal. (Vehicle speed may vary slightly; this is okay.) If you cannot do this for a
continuous 90 seconds because of traffic conditions, drive for at least 30 seconds,
then repeat it two more times (for a total of 90 seconds).
8. Drive in city or suburban traffic for at least 10 minutes. When traffic conditions
allow, let the vehicle coast for several seconds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 584 ページ ２０１６年８月３１日　水曜日　午後６時５分
585
Continued
Warranty Coverages
■U.S. Owners
Your new vehicle is covered by these warranties:
New Vehicle Limited Warranty – covers your new vehicle, except for the
emissions control systems and accessories, against defects in materials and
workmanship.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty – these two warranties cover your vehicle’s emissions control systems.
Time, mileage, and coverage are conditional. Please read your warranty booklet for
exact information.
Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.
Rust Perforation Limited Warranty – all exterior body panels are covered against
rusting from the inside out for the specified time period, regardless of mileage.
Accessory Limited Warranty – Honda accessories are covered under this
warranty. Time and mileage limits depend on the type of accessory and other
factors. Please read your warranty booklet for details.
Replacement Parts Limited Warranty – covers all Honda replacement parts
against defects in materials and workmanship.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 585 ページ ２０１６年８月３１日　水曜日　午後６時５分
586
uuWarranty Coveragesu
Information
Replacement Battery Limited Warranty – provides prorated coverage for a
replacement battery purchased from a dealer.
Replacement Muffler Lifetime Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.
Restrictions and exclusions apply to all these warranties. Please read the Honda
warranty information booklet that came with your vehicle for precise information on
warranty coverages. Your vehicle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.
■Canadian Owners
Please refer to the warranty manual that came with your vehicle.
■EPA Contact Information
An owner may obtain further information concerning emission warranties or report
violations of the terms of the emission warranties by contacting:
U.S. Environmental Protection Agency
Office of Transportation and Air Quality
Compliance Division, Light-Duty Vehicle Group
Attn: Warranty Complaints
2000 Traverwood Drive
Ann Arbor, MI 48105
Email: complianceinfo@epa.gov
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 586 ページ ２０１６年８月３１日　水曜日　午後６時５分
587
Authorized Manuals
■Service Express
For electronic copies of service publications, you can purchase a subscription to
Service Express. Visit www.techinfo.honda.com for pricing and options.
■For U.S. Owners
Manuals can be purchased from Helm Incorporated. You can order a manual by
phone at 1 (800) 782-4356 (credit card orders only), or online at www.helminc.com.
■For Canadian Owners
Please contact a dealer to order any manuals that you may require.
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 587 ページ ２０１６年８月３１日　水曜日　午後６時５分
588
Information
Customer Service Information
Honda dealership personnel are trained professionals who should be able to deal
with any problems you may encounter with your vehicle. If, however, you are faced
with a problem that they cannot resolve to your satisfaction, contact Honda
Customer Services.
U.S. Owners
American Honda Motor Co., Inc.
Honda Automobile Customer Services
Mail Stop 500-2N-7A
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: 1 (800) 999-1009
Canadian Owners
Honda Canada Inc.
Customer Relations
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-HONDA-9
Fax: 1-877-939-0909
E-mail: Honda_cr@ch.honda.com
In Puerto Rico and the U.S. Virgin
Islands
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: 1 (787) 620-7546
1Customer Service Information
When you call or write, please give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number, and Transmission
Number P. 580
•Date of purchase
•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem
•Name of the dealer who sold the vehicle to you
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 588 ページ ２０１６年８月３１日　水曜日　午後６時５分
Index
589
Index
Index
A
ABS (Anti-lock Brake System).................. 463
Accessories and Modifications ................ 541
Accessory Power Socket........................... 187
Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF) ........................... 89, 422
Adding the Coolant ................................. 506
Additives
Coolant .................................................. 505
Engine Oil ............................................... 498
Washer ................................................... 509
Additives, Engine Oil ............................... 498
Adjusting
Armrest .................................................. 180
Clock ...................................................... 128
Front Head Restraints.............................. 176
Front Seats.............................................. 173
Mirrors.................................................... 171
Rear Seats............................................... 179
Steering Wheel ....................................... 170
Temperature ................................... 112, 116
Adjusting the Clock ................................. 128
Adjusting the Sound........................ 216, 251
Agile Handling Assist............................... 449
Air Conditioning System (Climate Control
System).................................................... 196
Changing the Mode................................ 196
Defrosting the Windshield and
Windows .............................................. 199
Dust and Pollen Filter............................... 535
Recirculation/Fresh Air Mode ................... 198
Sensor ..................................................... 202
Synchronized Mode................................. 201
Using Automatic Climate Control ............ 196
Air Conditioning System (Heating
System) .................................................... 193
Sensor ..................................................... 195
Using Automatic Heating......................... 193
Air Pressure ............................... 523, 577, 579
Airbags ........................................................ 46
Advanced Airbags ..................................... 52
After a Collision......................................... 49
Airbag Care............................................... 59
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 49
Indicator.............................................. 57, 81
Passenger Front Airbag Off Indicator ......... 58
Sensors...................................................... 46
Side Airbags .............................................. 53
Side Curtain Airbags .................................. 55
AM/FM Radio .................................... 218, 258
Android Auto............................................ 295
Anti-lock Brake System (ABS) .................. 463
Indicator.................................................... 81
Apple CarPlay ........................................... 292
Armrest ..................................................... 180
Audio Remote Controls............................ 207
Audio System............................ 204, 211, 229
Adjusting the Sound........................ 216, 251
Audio/Information Screen................ 212, 230
Changing the Home Screen Icon
Layout ................................................... 234
Changing the Screen Interface ................ 248
Closing Apps........................................... 250
Customizing the Meter............................ 235
Display Setup .................................. 217, 252
Error Messages........................................ 299
General Information ................................ 302
Home Screen........................................... 241
iPod ................................................ 220, 270
Limitations for Manual Operation ............ 253
Menu Customize..................................... 249
MP3/WMA/AAC.............................. 223, 279
Reactivating ............................................ 206
Recommended Devices............................ 303
Remote Controls ..................................... 207
Security Code.......................................... 206
Selecting an Audio Source....................... 253
Status Area ............................................. 247
Theft Protection ...................................... 206
USB Flash Drives...................................... 303
USB Port(s) .............................................. 205
Wallpaper Setup.............................. 214, 239
Audio/Information Screen ............... 212, 230
Authorized Manuals ................................ 587
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 589 ページ ２０１６年８月３１日　水曜日　午後６時５分
590
Index
Auto Door Locking/Unlocking ................. 143
Customize ............................... 124, 144, 337
Automatic Brake Hold.............................. 460
Indicator............................................ 78, 460
Automatic Brake Hold System
Indicator............................................ 78, 460
Automatic Lighting .................................. 163
Average Fuel Economy..................... 111, 115
Average Speed.......................................... 115
B
Battery....................................................... 531
Charging System Indicator ................. 79, 561
Jump Starting .......................................... 555
Maintenance (Checking the Battery) ........ 531
Maintenance (Replacing).......................... 533
Belts (Seat) .................................................. 38
Beverage Holders...................................... 185
Bluetooth® Audio ............................. 226, 282
Bluetooth® HandsFreeLink®............. 339, 362
Booster Seats (For Children)....................... 71
Brake System............................................. 457
Anti-lock Brake System (ABS) ................... 463
Automatic Brake Hold.............................. 460
Brake Assist System ................................. 464
Fluid ........................................................ 508
Foot Brake ............................................... 459
Indicator (Red) ........................... 76, 563, 564
Parking Brake .......................................... 457
Brightness Control (Instrument Panel) .... 168
Bulb Replacement .................................... 510
Brake Light, Tail/Rear Side Marker Light, Rear
Turn Signal Lights and Back-Up Lights ... 517
Fog Lights ............................................... 512
Front Side Marker Lights.......................... 515
Front Turn Signal Lights........................... 514
Headlights............................................... 510
High-Mount Brake Light .......................... 518
Parking/Daytime Running Lights .............. 516
Rear License Plate Light ........................... 518
Side Turn Signal/Emergency Indicator
Lights .................................................... 516
Taillights.................................................. 518
Bulb Specifications ........................... 576, 578
C
Carbon Monoxide Gas ............................... 72
Carrying Cargo ................................. 397, 399
Certification Label.................................... 580
Changing Bulbs ........................................ 510
Charging System Indicator................. 79, 561
Child Safety................................................. 60
Childproof Door Locks............................. 142
Emergency Trunk Opener ........................ 149
Child Seat.................................................... 60
Booster Seats ............................................ 71
Child Seat for Infants................................. 62
Child Seat for Small Children..................... 63
Installing a Child Seat with a Lap/Shoulder Seat
Belt ......................................................... 67
Larger Children ......................................... 70
Rear-facing Child Seat............................... 62
Selecting a Child Seat ............................... 64
Using a Tether .......................................... 68
Childproof Door Locks............................. 142
Cleaning the Exterior............................... 538
Cleaning the Interior ............................... 536
Climate Control System ........................... 196
Changing the Mode................................ 196
Defrosting the Windshield and
Windows .............................................. 199
Dust and Pollen Filter .............................. 535
Recirculation/Fresh Air Mode................... 198
Sensors ................................................... 202
Synchronized Mode ................................ 201
Using Automatic Climate Control............ 196
CMBSTM (Collision Mitigation Braking
SystemTM)................................................ 465
Coat Hooks ............................................... 190
Collision Mitigation Braking SystemTM
(CMBSTM)................................................. 465
Compact Spare Tire.................. 545, 577, 579
Console Compartment............................. 184
Continuously Variable Transmission
Creeping................................................. 410
Fluid ....................................................... 507
Kickdown ............................................... 410
Operating the Shift Lever .................. 24, 412
Shift Lever Does Not Move...................... 558
Shifting................................................... 411
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 590 ページ ２０１６年８月３１日　水曜日　午後６時５分
591
Index
Controls .................................................... 127
Coolant (Engine) ...................................... 505
Adding the Coolant ................................ 506
Overheating............................................ 559
Creeping (Continuously Variable
Transmission).......................................... 410
Cruise Control .......................................... 417
Indicator ................................................... 86
Cup Holders.............................................. 185
Customer Service Information ................ 588
Customized Features ....................... 118, 308
D
Daytime Running Lights .......................... 165
Dead Battery ............................................ 555
Defaulting All the Settings...................... 338
Defrosting the Windshield and
Windows......................................... 194, 199
Devices that Emit Radio Waves............... 581
Dimming
Headlights .............................................. 162
Rearview Mirror ...................................... 171
Dipstick (Engine Oil) ................................ 499
Directional Signals (Turn Signal)............. 162
Display Button.......................................... 230
Display Setup.................................... 217, 252
Display/Information Button .................... 113
Door Mirrors............................................. 172
Doors ......................................................... 130
Auto Door Locking .................................. 143
Auto Door Unlocking............................... 143
Door and Trunk Open Indicator ........... 37, 82
Door Open Message............................ 37, 94
Keys ........................................................ 130
Locking/Unlocking the Doors from
the Inside............................................... 140
Locking/Unlocking the Doors from
the Outside............................................ 133
DOT Tire Quality Grading ........................ 525
Driver Information Interface ................... 113
Driving....................................................... 395
Braking.................................................... 457
Continuously Variable Transmission ......... 410
Cruise Control ......................................... 417
Shifting Gear ........................................... 413
Shifting Position ...................................... 411
Starting the Engine .......................... 402, 404
Dust and Pollen Filter............................... 535
E
Eco Assist® System ........................................ 9
ECON Button............................................. 416
Elapsed Time............................................. 115
Electric Power Steering (EPS) System ........ 82
Indicator............................................ 82, 565
Electronic Stability Control (ESC) ............. 447
Emergency ................................................ 571
Emergency Engine Stop ........................... 554
Emergency Trunk Opener................ 149, 573
Emissions Testing (Readiness Codes)....... 583
Engine
Coolant................................................... 505
Jump Starting.......................................... 555
Oil........................................................... 498
Starting........................................... 402, 404
Switch Buzzer.......................................... 157
Engine Coolant......................................... 505
Adding the Coolant................................. 506
Overheating ............................................ 559
Temperature Gauge ................................ 109
Engine Oil ................................................. 498
Adding.................................................... 501
Checking................................................. 499
Displaying Maintenance Minder
Information ................................... 485, 490
Low Oil Pressure Indicator ................. 78, 561
Recommended Engine Oil ....................... 498
ENGINE START/STOP Button .................... 158
EPS (Electric Power Steering) System ...... 565
Exhaust Gas Hazard (Carbon
Monoxide)................................................. 72
Exterior Care (Cleaning)........................... 538
Exterior Mirrors ........................................ 172
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 591 ページ ２０１６年８月３１日　水曜日　午後６時５分
592
Index
F
Features..................................................... 203
Filters
Dust and Pollen ....................................... 535
Oil ........................................................... 502
Flat Tire ..................................................... 545
Floor Mats ................................................. 537
Fluids
Brake/Clutch............................................ 508
Continuously Variable Transmission
(CVT) ..................................................... 507
Engine Coolant........................................ 505
Manual Transmission ............................... 507
Windshield Washer.................................. 509
FM/AM Radio .................................... 218, 258
Fog Light Indicator ..................................... 84
Folding Down the Rear Seats................... 179
Foot Brake................................................. 459
Front Airbags (SRS)..................................... 49
Front Head Restraints............................... 176
Front Seat Heaters.................................... 191
Front Seats ................................................ 173
Adjusting................................................. 173
Front Sensor Camera ................................ 420
Fuel...................................................... 25, 476
Economy ................................................. 479
Gauge ..................................................... 109
Instant Fuel Economy....................... 111, 116
Low Fuel Indicator ..................................... 80
Range ............................................. 111, 115
Recommendation .................................... 476
Refueling......................................... 476, 574
Fuel Economy ........................................... 479
Fuel Fill Door ...................................... 25, 477
Fuses.......................................................... 567
Inspecting and Changing......................... 570
Locations......................................... 567, 568
G
Gasoline (Fuel)
Economy ................................................. 479
Gauge..................................................... 109
Information ............................................. 476
Instant Fuel Economy ...................... 111, 116
Low Fuel Indicator ..................................... 80
Refueling......................................... 476, 574
Gauges ...................................................... 108
Gear Shift Lever Positions
Continuously Variable Transmission......... 411
Manual Transmission............................... 414
Glass (care)........................................ 536, 539
Glove Box.................................................. 183
H
Halogen Bulbs .................................. 510, 513
Handling the Unexpected........................ 543
HandsFreeLink® (HFL) ...................... 339, 362
Automatic Import of Cellular Phonebook and
Call History ................................... 351, 375
Displaying Messages ............................... 389
HFL Buttons .................................... 339, 362
HFL Menus...................................... 341, 365
HFL Status Display........................... 340, 364
In Case of Emergency ............................. 393
Limitations for Manual Operation.... 340, 364
Making a Call ................................. 356, 383
Options During a Call...................... 361, 386
Phone Setup ................................... 345, 370
Phonebook Phonetic Modification........... 379
Receiving a Call............................... 360, 386
Receiving a Text/E-mail Message ............. 387
Ring Tone ....................................... 349, 374
Selecting a Mail Account......................... 388
Speed Dial ...................................... 352, 376
To Set Up Text/E-mail Message
Options................................................. 373
Hazard Warning Button .............................. 4
HD RadioTM ............................................... 259
Headlights ................................................ 162
Aiming.................................................... 510
Automatic Operation .............................. 163
Dimming......................................... 162, 165
Operating ............................................... 162
Heaters (Front Seat)................................. 191
Heaters (Rear Seat) .................................. 192
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 592 ページ ２０１６年８月３１日　水曜日　午後６時５分
593
Index
Heating and Cooling System
Dust and Pollen Filter .............................. 535
Heating System ........................................ 193
Changing the Mode................................ 193
Defrosting the Windshield and
Windows .............................................. 194
Recirculation/Fresh Air Mode................... 194
Sensors ................................................... 195
Using Automatic Heating ........................ 193
HFL (HandsFreeLink®)...................... 339, 362
High Beam Indicator.................................. 84
Hill Start Assist System..................... 403, 408
HondaLink®.............................................. 284
I
Identification Numbers............................ 580
Vehicle Identification............................... 580
Ignition Switch ......................................... 157
Illumination Control ................................ 168
Knob ...................................................... 168
Immobilizer System.................................. 150
Immobilizer System Indicator..................... 85
Indicators.................................................... 76
Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)..................................... 89, 422
Anti-lock Brake System (ABS) .................... 81
Automatic Brake Hold....................... 78, 460
Automatic Brake Hold System ........... 78, 460
Brake Depressing ...................................... 87
Charging System............................... 79, 561
Collision Mitigation Braking SystemTM
(CMBSTM) ........................................... 91, 92
CRUISE CONTROL.............................. 86, 418
CRUISE MAIN .................................... 86, 417
Door and Trunk Open.......................... 37, 82
ECON Mode ...................................... 86, 416
Electric Power Steering (EPS)
System............................................. 82, 565
Fog Light ................................................... 84
High Beam ................................................ 84
Immobilizer System.................................... 85
Lane Keeping Assist System (LKAS) .... 90, 442
Lights On................................................... 84
Low Fuel.................................................... 80
Low Oil Pressure ................................ 78, 561
Low Tire Pressure/TPMS ..... 83, 452, 455, 566
Maintenance Minder ......................... 86, 485
Malfunction Indicator Lamp............... 79, 562
Parking Brake and Brake System
(Amber) ........................................... 77, 564
Parking Brake and Brake System
(Red)........................................ 76, 563, 564
Road Departure Mitigation (RDM).............. 88
Seat Belt Reminder .............................. 40, 80
Security System Alarm ............................... 85
Shift Lever Position .................................... 79
Supplemental Restraint System ............ 57, 81
System Message ........................................ 84
Transmission.............................................. 80
Turn Signal ................................................ 84
Vehicle Stability Assist (VSA®)
System ............................................ 81, 447
VSA® OFF .......................................... 82, 448
Washer Level............................................. 86
Information .............................................. 575
Information Display ................................. 110
Instant Fuel Economy....................... 111, 116
Instrument Panel........................................ 75
Brightness Control................................... 168
Interior Lights........................................... 181
Interior Rearview Mirror.......................... 171
iPod ................................................... 220, 270
J
Jack (Wheel Nut Wrench) ........................ 548
Jump Starting ........................................... 555
K
Key Number Tag....................................... 131
Keys........................................................... 130
Keys........................................................ 130
Number Tag............................................ 131
Rear Door Won’t Open............................ 142
Remote Transmitter................................. 137
Types and Functions................................ 130
Won’t Turn ............................................... 29
Kickdown (Continuously Variable
Transmission) .......................................... 410
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 593 ページ ２０１６年８月３１日　水曜日　午後６時５分
594
Index
L
Lane Keeping Assist System (LKAS) ......... 440
LaneWatchTM ............................................. 450
Language (HFL)................................. 340, 364
LATCH (Child Seats) .................................... 65
Lights ................................................. 162, 510
Automatic ............................................... 163
Bulb Replacement.................................... 510
Daytime Running Lights........................... 165
Fog Lights................................................ 165
High Beam Indicator .................................. 84
Interior .................................................... 181
Light Switches ......................................... 162
Lights On Indicator .................................... 84
Turn Signals............................................. 162
Load Limits................................................ 399
Locking/Unlocking .................................... 130
Auto Door Locking/Unlocking .................. 143
Childproof Door Locks ............................. 142
From Inside.............................................. 140
From Outside........................................... 133
Keys ........................................................ 130
Using a Key ............................................. 139
Low Battery Charge.................................. 561
Low Fuel Indicator...................................... 80
Low Oil Pressure Indicator ................. 78, 561
Low Smart Entry Remote Signal
Strength................................................... 132
Lower Anchors............................................ 65
Lubricant Specifications Chart ......... 576, 578
Luggage (Maximum Load Limit).............. 399
M
Maintenance............................................. 481
Adding the Coolant................................. 506
Battery .................................................... 531
Brake/Clutch Fluid ................................... 508
Cleaning ................................................. 536
Climate Control System........................... 535
Coolant................................................... 505
Heating System ....................................... 535
Maintenance MinderTM ............................ 485
Oil........................................................... 499
Precautions ............................................. 482
Remote Transmitter................................. 533
Replacing Light Bulbs .............................. 510
Safety...................................................... 483
Service Items ................................... 487, 492
Tires ........................................................ 522
Transmission Fluid ................................... 507
Under the Hood ...................................... 495
Malfunction Indicator Lamp.............. 79, 562
Manual Transmission ............................... 413
Map Lights................................................ 182
Maximum Load Limit ............................... 399
Meters, Gauges......................................... 108
Mirrors ...................................................... 171
Adjusting ................................................ 171
Door ....................................................... 172
Exterior ................................................... 172
Interior Rearview ..................................... 171
Modifications (and Accessories) .............. 541
Moonroof ................................................. 156
MP3................................................... 223, 279
Multi-View Rear Camera ......................... 474
N
Numbers (Identification) ......................... 580
O
Odometer ......................................... 110, 114
Oil (Engine) .............................................. 498
Adding ................................................... 501
Checking ................................................ 499
Displaying Maintenance Minder
Information................................... 485, 490
Low Oil Pressure Indicator ................. 78, 561
Recommended Engine Oil ....................... 498
Viscosity.................................................. 498
Open Source Licenses .............................. 306
Opening
Trunk...................................................... 573
Opening/Closing
Hood ...................................................... 497
Moonroof ............................................... 156
Power Windows...................................... 153
Trunk...................................................... 147
Outside Temperature Display ......... 112, 116
Overheating ............................................. 559
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 594 ページ ２０１６年８月３１日　水曜日　午後６時５分
595
Index
P
Pandora®.................................................. 277
Panic Mode............................................... 152
Parking ..................................................... 473
Parking Brake........................................... 457
Parking Brake and Brake System Indicator
(Amber)............................................. 77, 564
Parking Brake and Brake System Indicator
(Red).......................................... 76, 563, 564
Passenger Front Airbag Off Indicator....... 58
Passing Indicators..................................... 162
Playing Bluetooth® Audio ............... 226, 282
Power Windows ....................................... 153
Precautions While Driving....................... 409
Rain ........................................................ 409
Pregnant Women....................................... 44
Puncture (Tire) ......................................... 545
R
Radio (FM/AM) ................................. 218, 258
Radio (SiriusXM®)..................................... 262
Radio Data System (RDS) ................. 219, 260
Range................................................ 111, 115
RDS (Radio Data System) ................. 219, 260
Readiness Codes (Emissions Testing) ...... 583
Rear Defogger/Heated Door Mirror
Button..................................................... 169
Rear Seat Heaters..................................... 192
Rear Seats (Folding Down) ...................... 179
Rearview Mirror ....................................... 171
Refueling................................................... 476
Fuel Gauge.............................................. 109
Gasoline .......................... 476, 574, 576, 578
Low Fuel Indicator ..................................... 80
Regulations ............................... 455, 525, 581
Remote Transmitter ................................. 137
Replacement
Battery .................................................... 533
Bulbs ....................................................... 510
Fuses ............................................... 567, 568
Tires ........................................................ 528
Wiper Blade Rubber................................. 519
Reporting Safety Defects ......................... 582
Resetting a Trip Meter ..................... 110, 114
Road Departure Mitigation (RDM).......... 436
On and Off.............................................. 437
S
Safe Driving ................................................ 33
Safety Check ............................................... 37
Safety Labels ............................................... 73
Safety Message ............................................. 1
Seat Belts..................................................... 38
Adjusting the Shoulder Anchor.................. 43
Automatic Seat Belt Tensioners.................. 41
Checking................................................... 45
Fastening................................................... 42
Installing a Child Seat with a Lap/Shoulder Seat
Belt.......................................................... 67
Pregnant Women ...................................... 44
Reminder .................................................. 40
Warning Indicator ............................... 40, 80
Seat Heaters.............................................. 192
Seats .......................................................... 173
Adjusting ................................................ 173
Front Seat Heaters................................... 191
Front Seats .............................................. 173
Rear Seat Heaters .................................... 192
Rear Seats ............................................... 179
Security System......................................... 150
Security System Alarm Indicator................. 85
Select Lever................................. 24, 411, 413
Operation.................................. 24, 412, 413
Releasing................................................. 558
Won’t Move............................................ 558
Select/Reset Knob............................. 110, 114
Selecting a Child Seat................................. 64
Selector Knob (Audio).............................. 211
Setting the Clock...................................... 128
Shift Lever................................... 24, 411, 413
Shift Lever Position Indicator .................... 79
Shift Position Indicator ............................ 412
Shifting (Transmission)..................... 411, 413
Shoulder Anchor ........................................ 43
Side Airbags................................................ 53
Side Curtain Airbags .................................. 55
Siri Eyes Free............................................. 291
SiriusXM® Radio........................................ 262
Smart Entry with Push Button Start
System ..................................................... 133
Snow Tires................................................. 530
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 595 ページ ２０１６年８月３１日　水曜日　午後６時５分
596
Index
Song By VoiceTM (SBV) .............................. 273
Spare Tire .................................. 545, 577, 579
Spark Plugs........................................ 576, 578
Specifications ............................................ 576
Specified Fuel............................ 476, 576, 578
Speedometer............................................. 108
SRS Airbags (Airbags) ................................. 49
Starting the Engine .......................... 402, 404
Does Not Start ......................................... 552
Engine Switch Buzzer............................... 157
Jump Starting .......................................... 555
Steering Wheel
Adjusting................................................. 170
Stopping.................................................... 473
Summer Tires ............................................ 530
Supplemental Restraint System (SRS) ........ 49
Switches (Around the Steering
Wheel) ............................................. 4, 5, 157
System Message Indicator.......................... 84
T
Tachometer............................................... 108
Temperature
Outside Temperature Display ........... 112, 116
Temperature Sensor ......................... 112, 116
Time (Setting) ........................................... 128
Tire Pressure Monitoring System
(TPMS)...................................................... 452
Indicator............................................ 83, 566
Tires........................................................... 522
Air Pressure ............................. 523, 577, 579
Checking and Maintaining ...................... 522
Inspection ............................................... 522
Labeling .................................................. 523
Puncture (Flat Tire) .................................. 545
Regulations ............................................. 525
Rotation .................................................. 529
Spare Tire................................ 545, 577, 579
Summer .................................................. 530
Tire Chains .............................................. 530
Wear Indicators ....................................... 527
Winter..................................................... 530
Tools.......................................................... 544
Towing Your Vehicle
Emergency .............................................. 571
TPMS (Tire Pressure Monitoring
System) .................................................... 452
Indicator............................................ 83, 566
Transmission ..................................... 411, 413
Continuously Variable Transmission......... 411
Fluid........................................................ 507
Manual ................................................... 413
Shift Lever Position Indicator.............. 79, 412
Trip Meter......................................... 110, 114
Troubleshooting....................................... 543
Blown Fuse...................................... 567, 568
Brake Pedal Vibrates.................................. 29
Buzzer Sounds When Opening Door.......... 30
Emergency Towing.................................. 571
Engine Won’t Start ................................. 552
Noise When Braking ................................. 30
Overheating............................................ 559
Puncture/Flat Tire .................................... 545
Rear Door Won’t Open ..................... 30, 142
Select Lever Won’t Move ........................ 558
Warning Indicators.................................... 76
Trunk ........................................................ 147
Lid .......................................................... 147
Light Bulb ....................................... 576, 578
Release Lever .......................................... 573
Unable to Open ...................................... 573
Turbo Engine Vehicle .............................. 480
Turn Signals.............................................. 162
Indicators (Instrument Panel) ..................... 84
U
Unlocking the Doors ................................ 133
Unlocking the Front Doors from
the Inside ................................................ 140
USB Adapter Cable .................................. 204
USB Flash Drives ....................... 223, 279, 303
USB Port(s)................................................ 205
Using the Smart Entry with Push Button Start
System..................................................... 133
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 596 ページ ２０１６年８月３１日　水曜日　午後６時５分
597
Index
V
Vanity Mirrors .............................................. 7
Vehicle Identification Number................ 580
Vehicle Stability Assist (VSA®)................. 447
Off Button .............................................. 448
Off Indicator ............................................. 82
System Indicator ....................................... 81
Viscosity (Oil)............................ 498, 577, 579
Voice Control Operation ......................... 254
Audio Commands................................... 256
Climate Control Commands.................... 257
General Commands ................................ 257
Music Search Commands........................ 257
On Screen Commands ............................ 257
Phone Commands .................................. 256
Useful Commands .................................. 256
Voice Portal Screen ................................. 255
Voice Recognition ................................... 254
VSA® (Vehicle Stability Assist) ................. 447
W
Wallpaper......................................... 214, 239
Warning and Information
Messages............................................. 93, 94
Warning Indicator On/Blinking ............... 561
Warning Labels .......................................... 73
Warranties (Warranty Manual provided
separately) .............................................. 585
Watts ................................................ 576, 578
Wear Indicators (Tire) .............................. 527
Wheel Nut Wrench (Jack Handle) ........... 548
Wi-Fi Connection ...................................... 289
Window Washers...................................... 166
Adding/Refilling Fluid............................... 509
Switch ..................................................... 166
Windows (Opening and Closing)............. 153
Windshield ................................................ 166
Cleaning.......................................... 536, 539
Defrosting/Defogging ...................... 194, 199
Washer Fluid ........................................... 509
Wiper Blades ........................................... 519
Wipers and Washers................................ 166
Winter Tires .............................................. 530
Snow Tires............................................... 530
Tire Chains .............................................. 530
Wipers and Washers................................. 166
Checking and Replacing Wiper Blades ..... 519
Wireless Charger....................................... 188
WMA ................................................. 223, 279
Worn Tires................................................. 522
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 597 ページ ２０１６年８月３１日　水曜日　午後６時５分
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 598 ページ ２０１６年８月３１日　水曜日　午後６時５分
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 599 ページ ２０１６年８月３１日　水曜日　午後６時５分
17 CIVIC 4D HCM (KA KC KL)-31TBA6100.book 600 ページ ２０１６年８月３１日　水曜日　午後６時５分
