Avaya CMS R3V11 Software Installation, Maintenance, And Troubleshooting Guide Sun Fire V880 215115 3

User Manual: Sun Fire V880

Open the PDF directly: View PDF .
Page Count: 482 [warning: Documents this large are best viewed by clicking the View PDF Link!]

==========
MAIN MENU
GLOSSARY
==========
Avaya™ CMS R3V11 Software Installation, Maintenance, and Troubleshooting Guide
Contents
Preface
Introduction
Installing the Solaris operating system
Installing Avaya CMS and supporting software
Turning the system over to the customer
Maintaining the Avaya CMS software
Troubleshooting
Glossary
Index

Avaya™ CMS

R3V11

Software Installation, Maintenance, and

Troubleshooting Guide

585-215-115

Comcode 700242977

Issue 3.0

October 2002

Compas ID 89411

Notice

Every effort was made to ensure that the information in this document

was complete and accurate at the time of printing. However, information

is subject to change.

Preventing Toll Fraud

“Toll fraud” is the unauthorized use of your telecommunications system

by an unauthorized party (for example, a person who is not a corporate

employee, agent, subcontractor, or working on your company's behalf).

Be aware that there may be a risk of toll fraud associated with your

system and that, if toll fraud occurs, it can result in substantial additional

charges for your telecommunications services.

Avaya Fraud Intervention

If you suspect that you are being victimized by toll fraud and you need

technical assistance or support, call Technical Service Center Toll Fraud

Intervention Hotline at +1 800 643 2353 for the United States and

Canada. For additional support telephone numbers, see the Avaya Web

site:

http://www.avaya.com

Select Support, then select Escalation Lists US and International.

This Web site includes telephone numbers for escalation within the

United States. For escalation telephone numbers outside the United

States, select Global Escalation List.

Providing Telecommunications Security

Telecommunications security (of voice, data, and/or video

communications) is the prevention of any type of intrusion to (that is,

either unauthorized or malicious access to or use of) your company's

telecommunications equipment by some party.

Your company's “telecommunications equipment” includes both this

Avaya product and any other voice/data/video equipment that could be

accessed via this Avaya product (that is, “networked equipment”).

An “outside party” is anyone who is not a corporate employee, agent,

subcontractor, or working on your company's behalf. Whereas, a

“malicious party” is anyone (including someone who may be otherwise

authorized) who accesses your telecommunications equipment with

either malicious or mischievous intent.

Such intrusions may be either to/through synchronous (time-multiplexed

and/or circuit-based) or asynchronous (character-, message-, or packet-

based) equipment or interfaces for reasons of:

• Utilization (of capabilities special to the accessed equipment)

• Theft (such as, of intellectual property, financial assets, or

toll-facility access)

• Eavesdropping (privacy invasions to humans)

• Mischief (troubling, but apparently innocuous, tampering)

• Harm (such as harmful tampering, data loss or alteration,

regardless of motive or intent)

Be aware that there may be a risk of unauthorized intrusions associated

with your system and/or its networked equipment. Also realize that, if

such an intrusion should occur, it could result in a variety of losses to your

company (including but not limited to, human/data privacy, intellectual

property, material assets, financial resources, labor costs, and/or legal

costs).

Your Responsibility for Your Company’s Telecommunications

Security

The final responsibility for securing both this system and its networked

equipment rests with you - an Avaya customer's system administrator,

your telecommunications peers, and your managers. Base the fulfillment

of your responsibility on acquired knowledge and resources from a

variety of sources including but not limited to:

• Installation documents

• System administration documents

• Security documents

• Hardware-/software-based security tools

• Shared information between you and your peers

• Telecommunications security experts

To prevent intrusions to your telecommunications equipment, you and

your peers should carefully program and configure:

• your Avaya-provided telecommunications systems and their

interfaces

• your Avaya-provided software applications, as well as their

underlying hardware/software platforms and interfaces

• any other equipment networked to your Avaya products.

Trademarks

Avaya is a trademark of Avaya, Inc.

Enterprise, Solaris, SPARCserver, Network Terminal Server, Sun,

SunSwift, Solstice, DiskSuite, Openwindows, Sun Blade, Sun Fire, and

Ultra are trademarks or registered trademarks of Sun Microsystems, Inc.

Informix is a registered trademark of Informix Software, Inc.

DEFINITY is a registered trademark of Avaya, Inc.

OpenLink is a trademark of OpenLink Software.

MultiVantage is a trademark of Avaya, Inc.

Ordering Information

Call: Avaya Publications Center

Voice +1 800 457 1235

Fax +1 800 457 1764

International Voice +1 410 568 3680

International Fax+1 410 891 0207

Write: Globalware Solutions

200 Ward Hill Avenue

Haverhill, MA 01835 USA

Attention: Avaya Account Manager

Web: http://www.avayadocs.com

E-mail: totalware@gwsmail.com

Order: Document No. 585-215-115, Issue 3.0

October 2002

Avaya Support

Avaya provides a telephone number for you to use to report problems or

to ask questions about your contact center. The support telephone

number is 1-800-242-2121 in the United States. For additional support

telephone numbers, see the Avaya Web site:

http://www.avaya.com

Select Support, then select Escalation Lists US and International.

This Web site includes telephone numbers for escalation within the

United States. For escalation telephone numbers outside the United

States, select Global Escalation List.

Acknowledgment

This document was written by the CRM Information Development group.

Issue 3.0 October 2002 3

Contents 3

Preface

Organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Reasons for re-issue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Related documents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

CMS software documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Upgrade documents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Hardware documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Switch documents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Administration documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Other documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Documentation Web sites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Introduction

Supported hardware platforms for Release 3 Version 11 . . . . . . . . . . . . . . . . . 21

Software shipped with CMS Release 3 Version 11 . . . . . . . . . . . . . . . . . . . . 22

Intended audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Avaya CMS helplines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Frequently asked questions (FAQs) . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Customer support for the United States. . . . . . . . . . . . . . . . . . . . . . . . . 24

Technician support for the United States . . . . . . . . . . . . . . . . . . . . . . . . 24

Customer and technician support outside the United States . . . . . . . . . . . . . . . 24

Installing the Solaris operating system

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

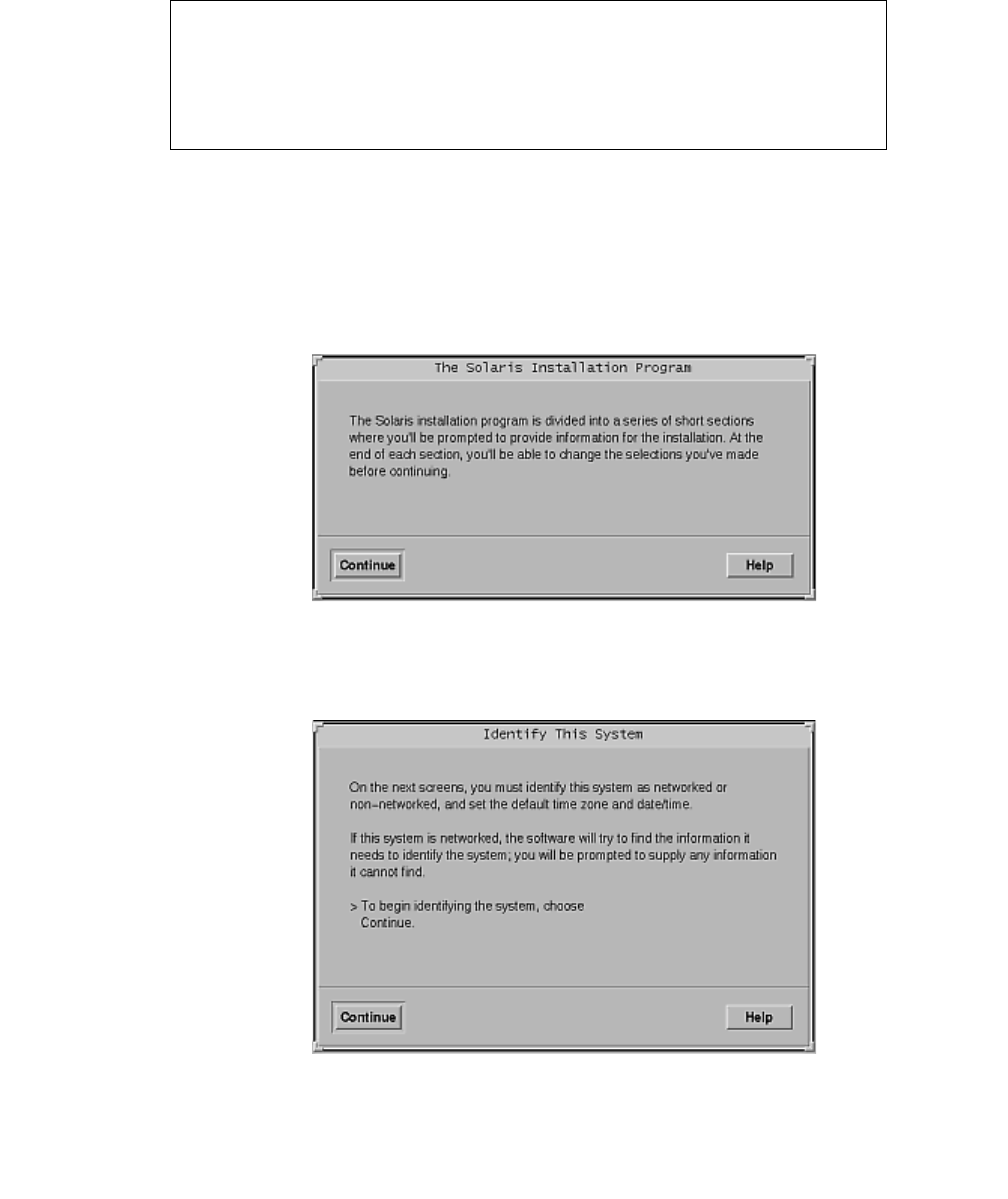

Booting from the Solaris software CD-ROM . . . . . . . . . . . . . . . . . . . . . . . 27

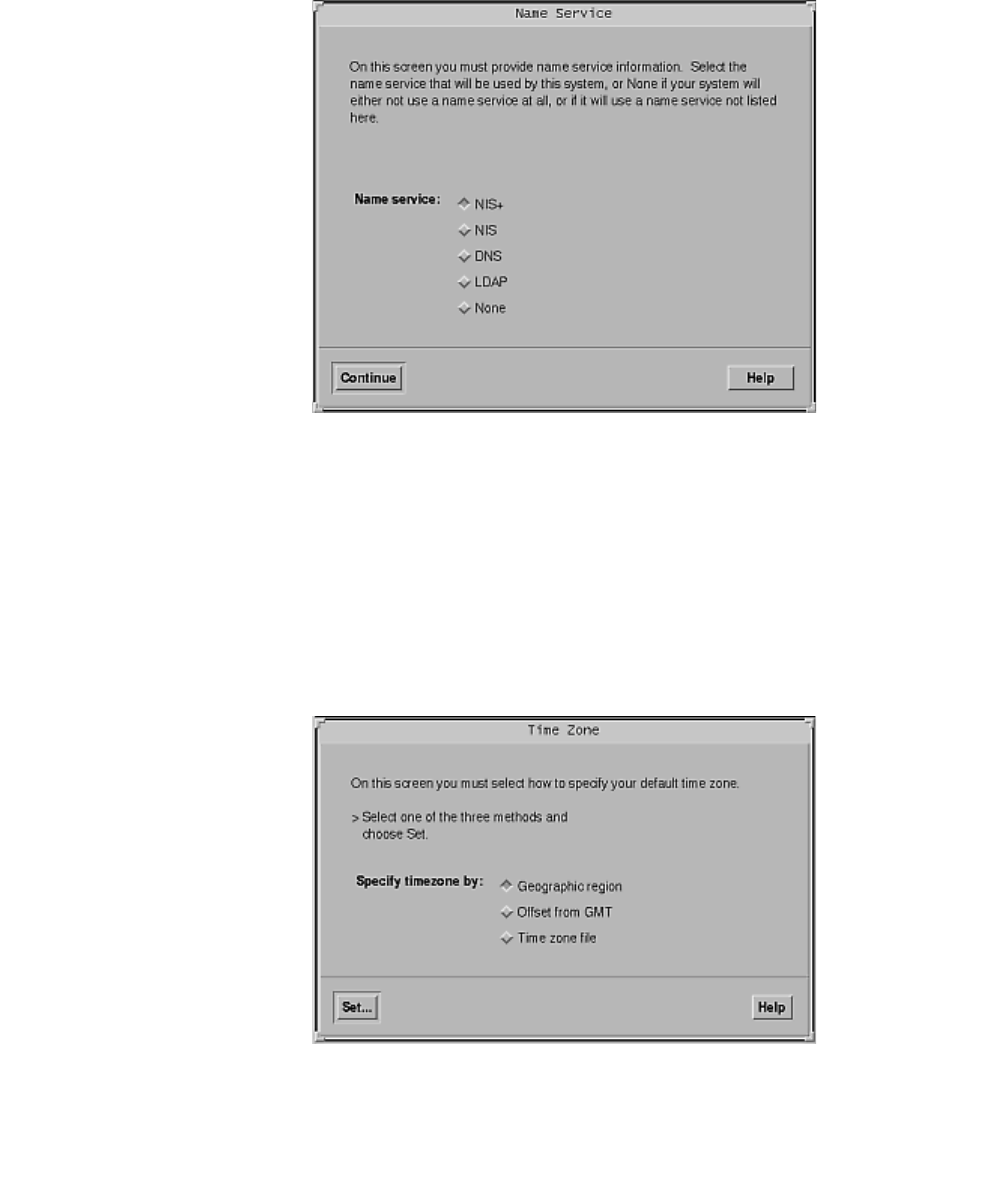

Identifying the system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

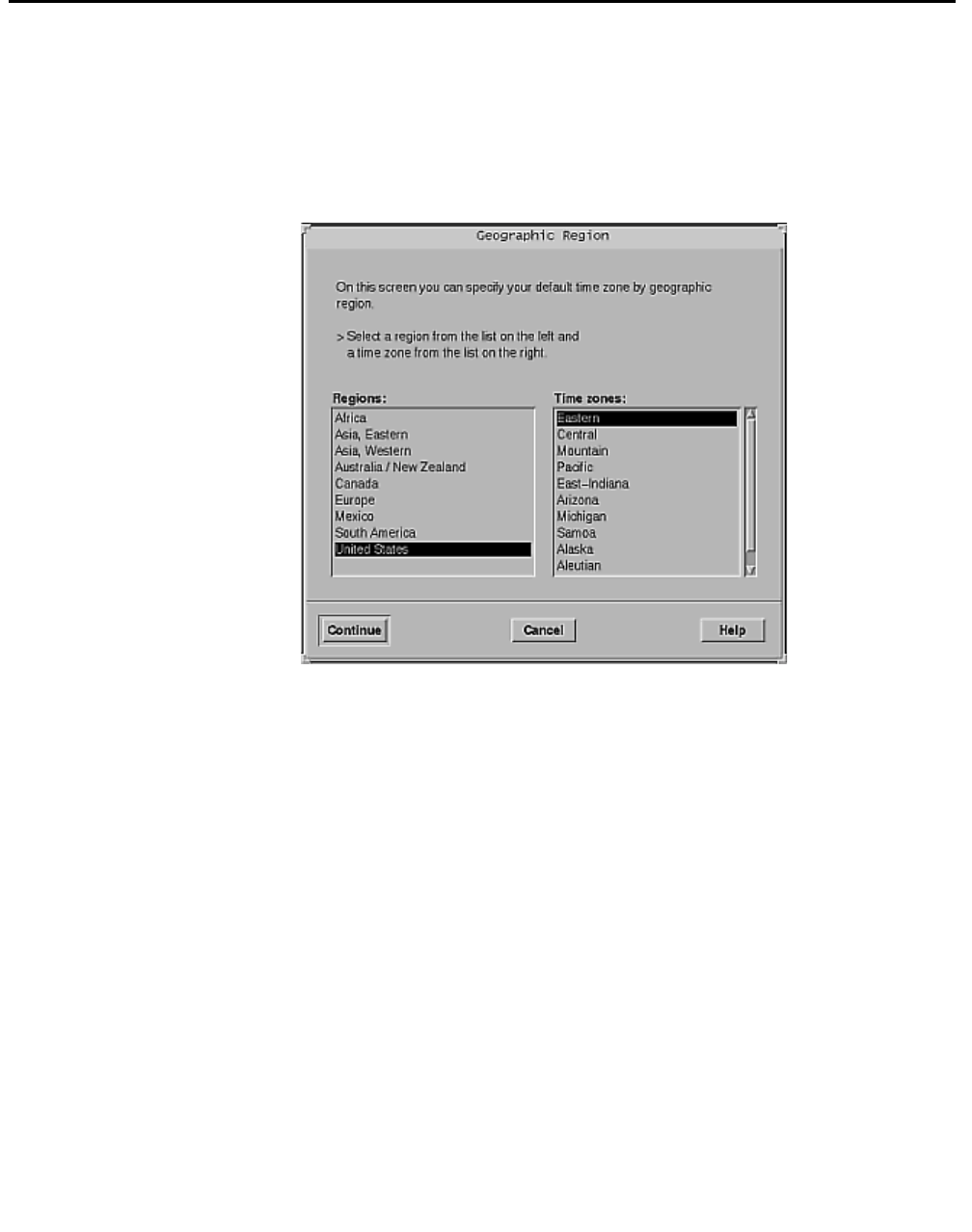

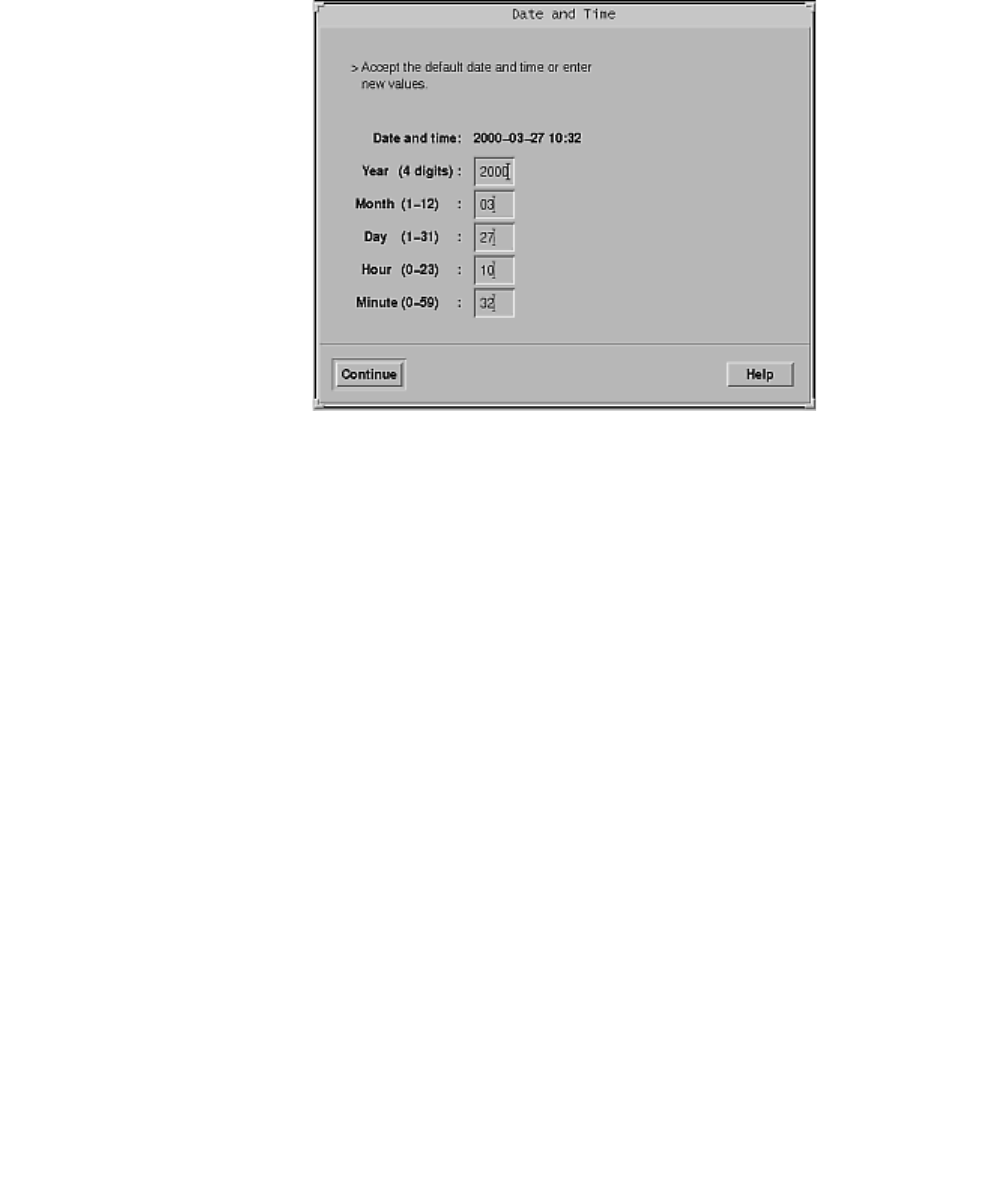

Setting the date and time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Selecting the Solaris system files . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Partitioning the disk drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Assigning a root password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Finalizing the Solaris installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Opening a terminal window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Enabling the Korn shell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Configuring power management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Avaya™ CMS R3V11

Software Installation, Maintenance, and Troubleshooting Guide

Contents

4 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Displaying and setting the EEPROM parameters . . . . . . . . . . . . . . . . . . . . 54

Required EEPROM parameter table . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Creating an alternate boot device . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Resetting a device alias . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Turning on the system activity recorder . . . . . . . . . . . . . . . . . . . . . . . . . 61

Turning off SNMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Installing Avaya CMS and supporting software

Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Remote terminal access tips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Installation rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Installing the Sun Online Validation Test Suite . . . . . . . . . . . . . . . . . . . . . . 68

Setting up the RSC software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Installing the RSC software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Default setup of the RSC software . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Installing the SunLink HSI/S software . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Installing the HSI/P software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Installing the SAI/P adapter drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Setting up the Bay Networks Annex NTS . . . . . . . . . . . . . . . . . . . . . . . . 84

Installing the NTS drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Setting up the NTS start-up files . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Installing the Solstice for Server Connect X.25 package . . . . . . . . . . . . . . . . . 90

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Retrieving system information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Installing the Solstice for Server Connect X.25 drivers . . . . . . . . . . . . . . . . . 91

Setting up the X.25 license . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

X.25 golden key license setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

X.25 manual license setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Installing DiskSuite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Installing the Solaris patches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Installing the Informix software packages . . . . . . . . . . . . . . . . . . . . . . . . 109

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Setting up the Informix environment . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Installing the Informix SQL 7.20 package . . . . . . . . . . . . . . . . . . . . . . . 110

Installing the IDS 9.21 package . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Installing the Informix ESQL 9.40 package . . . . . . . . . . . . . . . . . . . . . . . 116

Installing Informix ILS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Initializing IDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Installing the CMS packages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Installing the CMS Supplemental Services software . . . . . . . . . . . . . . . . . . 132

Installing the CMS software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Setting up CMS authorizations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

Installing the CMS patches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

Configuring the IDS dbspaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

Contents

Issue 3.0 October 2002 5

Installing the Open Database Connectivity server software . . . . . . . . . . . . . . . . 153

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

Installing ODBC version 4.2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

Installing ODBC version 3.2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

Setting up CMS data storage parameters . . . . . . . . . . . . . . . . . . . . . . . . 161

Default CMS data storage parameters table . . . . . . . . . . . . . . . . . . . . . 161

Setting up LAN connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164

Editing the /etc/hosts file. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164

Setting up a second network interface . . . . . . . . . . . . . . . . . . . . . . . . . 165

Editing the /etc/defaultrouter file . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

Setting up the CMS application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169

Setup methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169

Setting up CMS interactively from a terminal . . . . . . . . . . . . . . . . . . . . . . 170

Setting up CMS using a UNIX flat file. . . . . . . . . . . . . . . . . . . . . . . . . . 181

Running setup with a flat file . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186

Installing feature packages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189

Installing the Forecasting package . . . . . . . . . . . . . . . . . . . . . . . . . . . 189

Installing the External Call History package . . . . . . . . . . . . . . . . . . . . . . 191

Installing the Avaya Visual Vectors Server software . . . . . . . . . . . . . . . . . . . 195

Activating chkDisks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198

Setting up a mirrored system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199

Required hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199

Enterprise 3500 rear view diagram . . . . . . . . . . . . . . . . . . . . . . . . . 200

Enterprise 3000 disk configuration. . . . . . . . . . . . . . . . . . . . . . . . . . 201

Enterprise 3500 disk configuration. . . . . . . . . . . . . . . . . . . . . . . . . . 202

Sun Blade disk configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203

Sun Fire V880 disk configuration . . . . . . . . . . . . . . . . . . . . . . . . . . 204

Initiating mirroring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205

Setting up the remote console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208

The remote console access port . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208

Administering the remote console port . . . . . . . . . . . . . . . . . . . . . . . . . 209

Using the remote console port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209

Setting up the Alarm Origination Manager . . . . . . . . . . . . . . . . . . . . . . . . 212

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212

Setting up the AOM config files . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212

Creating an AOM test alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214

Starting the Avaya Visual Vectors Server software . . . . . . . . . . . . . . . . . . . . 215

Setting the Informix configuration parameters for CMS . . . . . . . . . . . . . . . . . . 216

Obtaining system information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217

Setting the physical log configuration parameters . . . . . . . . . . . . . . . . . . . . 217

Setting the system configuration parameters . . . . . . . . . . . . . . . . . . . . . . 218

Setting the shared memory parameters . . . . . . . . . . . . . . . . . . . . . . . . 219

Setting miscellaneous Informix parameters . . . . . . . . . . . . . . . . . . . . . . . 221

Contents

6 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

NTS setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222

Factory system backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222

Turning the system over to the customer

Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224

Verifying the system date and time . . . . . . . . . . . . . . . . . . . . . . . . . . . 224

Checking free space allocation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225

Testing the remote access port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226

Redirecting the console to the remote console . . . . . . . . . . . . . . . . . . . . . 226

Redirecting the console back to the local console . . . . . . . . . . . . . . . . . . . 228

Key position for Enterprise and Sun Fire systems . . . . . . . . . . . . . . . . . . . . 229

Testing the ACD link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230

Testing the alternate boot device . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231

Assigning customer passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232

Customizing the Sun Remote System Control . . . . . . . . . . . . . . . . . . . . . . 233

Customizing the RSC server software . . . . . . . . . . . . . . . . . . . . . . . . . 233

Setting up additional RSC logins. . . . . . . . . . . . . . . . . . . . . . . . . . . . 234

Testing the Sun Remote System Control card . . . . . . . . . . . . . . . . . . . . . . 236

Testing the CMS software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238

Finalizing the on-site installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242

Customer system acceptance worksheet . . . . . . . . . . . . . . . . . . . . . . . . 243

Maintaining the Avaya CMS software

Using the CMSADM menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247

CMSADM menu functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247

Accessing the CMSADM menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248

Using acd_create . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248

Using acd_remove . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250

Using backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251

Using pkg_install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252

Using pkg_remove . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252

Using run_pkg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253

Using run_ids. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253

Using run_cms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253

Using port_admin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254

Using passwd_age . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254

Using the CMSSVC menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257

CMSSVC menu functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257

Accessing the CMSSVC menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258

Using auth_display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259

Using auth_set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260

Using run_ids. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260

Using run_cms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261

Using disk_space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261

Using setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261

Using swinfo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262

Contents

Issue 3.0 October 2002 7

Using swsetup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262

Using patch_inst . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264

Using patch_rmv . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265

Using load_all. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265

Using back_all . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266

The CMS maintenance backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267

The CMSADM backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268

When to perform a CMSADM backup . . . . . . . . . . . . . . . . . . . . . . . . . 268

Tape drives and cartridges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269

Performing a CMSADM backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269

Checking the contents of the CMSADM backup tape . . . . . . . . . . . . . . . . . . . 272

Backing up and restoring the RSC card configuration. . . . . . . . . . . . . . . . . . . 274

Backing up the RSC card configuration. . . . . . . . . . . . . . . . . . . . . . . . . 274

Restoring the RSC card configuration . . . . . . . . . . . . . . . . . . . . . . . . . 274

Performing a CMS maintenance restore . . . . . . . . . . . . . . . . . . . . . . . . . 276

Data restore requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277

Restoring data from a full maintenance backup . . . . . . . . . . . . . . . . . . . . . 277

Restoring data from a full and incremental maintenance backup . . . . . . . . . . . . 278

Verifying Free Space Allocation during a maintenance restore . . . . . . . . . . . . . . 281

Changing the system date and time . . . . . . . . . . . . . . . . . . . . . . . . . . . 285

Checking the Solaris system date and time . . . . . . . . . . . . . . . . . . . . . . . 285

Setting the system date and time . . . . . . . . . . . . . . . . . . . . . . . . . . . 285

Setting the system country and time zones . . . . . . . . . . . . . . . . . . . . . . . 286

Working with Solaris patches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287

Installing Solaris patches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287

Checking installed Solaris patches . . . . . . . . . . . . . . . . . . . . . . . . . . 290

Removing a Solaris patch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290

Working with CMS patches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292

CMS patch requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292

Loading patches after an upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . 292

Loading patches as a bug fix . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292

Listing installed CMS patches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 293

Listing CMS patches on the CD-ROM . . . . . . . . . . . . . . . . . . . . . . . . . 293

Installing CMS patches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 293

Removing CMS patches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295

Adding the Informix SQL package after IDS and ILS have been installed . . . . . . . . . 296

Enabling fail over of the alternate boot device . . . . . . . . . . . . . . . . . . . . . . 300

Maintaining the chkDisks crontab . . . . . . . . . . . . . . . . . . . . . . . . . . . . 301

Verifying chkDisks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 301

Changing the chkDisks run time . . . . . . . . . . . . . . . . . . . . . . . . . . . . 301

Canceling chkDisks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 301

Identifying a faulty disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 302

Identifying down chunks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 302

Identifying the disk from the /var/adm/messages file. . . . . . . . . . . . . . . . . . . 303

Identifying the submirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 305

Recovering a non-mirrored system after data disk failure . . . . . . . . . . . . . . . . . 306

Contents

8 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Recovering a mirrored system after disk failure . . . . . . . . . . . . . . . . . . . . . 314

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 314

Mirrored system disk pairs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 314

Verifying boot disk integrity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 316

Installing a replacement disk on an Enterprise 3500 or Sun Fire V880 . . . . . . . . . . 317

Installing a replacement disk on an Enterprise 3000 or Sun Blade system . . . . . . . . 317

Recovering a mirrored system after the primary boot disk fails. . . . . . . . . . . . . . 318

Recovering a mirrored system after the secondary boot disk fails . . . . . . . . . . . . 324

Recovering a mirrored system after a single data disk fails . . . . . . . . . . . . . . . 329

Recovering a mirrored system after a mirrored pair of data disks fail . . . . . . . . . . . 335

Using the luxadm command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 346

Displaying disk WWN numbers on an Enterprise 3500 . . . . . . . . . . . . . . . . . 346

Displaying disk WWN numbers on a Sun Fire V880. . . . . . . . . . . . . . . . . . . 347

Removing a disk with the luxadm command . . . . . . . . . . . . . . . . . . . . . . 349

Adding a disk with the luxadm command . . . . . . . . . . . . . . . . . . . . . . . . 351

Performing a CMSADM restore of a mirrored or non-mirrored system . . . . . . . . . . . 352

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 352

Mirrored system disk pairs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 352

Choosing your CMSADM restore procedure . . . . . . . . . . . . . . . . . . . . . . 354

Restoring a system with a restore script . . . . . . . . . . . . . . . . . . . . . . . . 354

Restoring a system without a restore script . . . . . . . . . . . . . . . . . . . . . . . 358

Restoring a system without a CMSADM or system backup . . . . . . . . . . . . . . . . 377

Restoring specific files from the CMSADM backup tape . . . . . . . . . . . . . . . . . 378

Upgrading a non-mirrored system to a mirrored system . . . . . . . . . . . . . . . . . 379

Troubleshooting

Determining your CMS version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 382

Solving X.25 installation problems . . . . . . . . . . . . . . . . . . . . . . . . . . . 383

Finding a misplaced X.25 password . . . . . . . . . . . . . . . . . . . . . . . . . . 383

Solutions for X.25 error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . 384

Recognizing new hardware devices . . . . . . . . . . . . . . . . . . . . . . . . . . . 385

Adding and removing users from password aging . . . . . . . . . . . . . . . . . . . . 386

Determining if a password is aged . . . . . . . . . . . . . . . . . . . . . . . . . . . 386

Excluding users from password aging . . . . . . . . . . . . . . . . . . . . . . . . . 387

Removing users from the password aging exclude file . . . . . . . . . . . . . . . . . 388

Aging specific passwords at different rates . . . . . . . . . . . . . . . . . . . . . . . 388

Troubleshooting password aging . . . . . . . . . . . . . . . . . . . . . . . . . . . . 390

Tracking changes to password aging. . . . . . . . . . . . . . . . . . . . . . . . . . 390

Passwords of excluded users age . . . . . . . . . . . . . . . . . . . . . . . . . . . 390

Turning on SNMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 391

CMS error logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 392

Checking installed software packages . . . . . . . . . . . . . . . . . . . . . . . . . 393

Listing pkgchk errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 394

Troubleshooting a system that fails to auto-boot . . . . . . . . . . . . . . . . . . . . . 395

Checking the boot environment variables. . . . . . . . . . . . . . . . . . . . . . . . 395

Changing the boot environment variables . . . . . . . . . . . . . . . . . . . . . . . 395

Contents

Issue 3.0 October 2002 9

Diagnosing a machine panic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 396

Using the Sun Explorer tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 398

Using the remote console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 399

Remote console ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 399

Redirecting the local console to the remote console . . . . . . . . . . . . . . . . . 400

Redirecting the remote console back to the local console . . . . . . . . . . . . . . . 401

Redirecting the console from OpenBoot mode . . . . . . . . . . . . . . . . . . . . . 402

Redirecting the local console to the remote console . . . . . . . . . . . . . . . . . 402

Redirecting the remote console back to the local console . . . . . . . . . . . . . . . 404

Using Sun Remote System Control . . . . . . . . . . . . . . . . . . . . . . . . . . . 406

Redirecting the local console to the RSC . . . . . . . . . . . . . . . . . . . . . . . . 406

Redirecting the RSC to the local console . . . . . . . . . . . . . . . . . . . . . . . . 407

Diagnosing dial-In access problems . . . . . . . . . . . . . . . . . . . . . . . . . . . 408

No ringing and answered responses . . . . . . . . . . . . . . . . . . . . . . . . . . 408

Answered and connected responses do not display . . . . . . . . . . . . . . . . . . . 408

Remote console port will not initialize . . . . . . . . . . . . . . . . . . . . . . . . . 412

Booting Solaris into single-user mode . . . . . . . . . . . . . . . . . . . . . . . . . . 414

Common problems using the CD-ROM drive . . . . . . . . . . . . . . . . . . . . . . 415

CD-ROM drive fails to open . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 415

CD-ROM drive cannot be mounted. . . . . . . . . . . . . . . . . . . . . . . . . . . 415

Removing CMS package fails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 416

CMS installation fails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 416

CMSADM backup problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 417

Disabling power management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 418

Disabling power management from the desktop. . . . . . . . . . . . . . . . . . . . . 418

Disabling power management from the command line. . . . . . . . . . . . . . . . . . 418

System messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 419

Common error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 420

Error message table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 420

CMS disk partition values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 430

Boot disk partition values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 430

Data disk partition values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 432

Soft partitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 433

Numbering scheme for metadevices. . . . . . . . . . . . . . . . . . . . . . . . . 434

Soft partition setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 435

Troubleshooting soft partitioning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 437

About mirrored systems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 443

How CMS implements mirroring . . . . . . . . . . . . . . . . . . . . . . . . . . . . 443

Mirroring through Informix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 443

Chunks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 443

Dbspace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 443

Cooked disk space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 444

Raw disk space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 444

Mirroring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 444

Contents

10 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Mirroring through DiskSuite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 444

State databases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 444

Metadevices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 444

Mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 445

Slices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 445

Mirror layouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 446

Troubleshooting an installation of the DiskSuite software . . . . . . . . . . . . . . . . . 448

Excessively long resync . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 448

Problems with CMS administration scripts . . . . . . . . . . . . . . . . . . . . . . . 449

Disk I/O problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 449

Checking metadevices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 450

Checking the /cms file system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 451

Problems with disk administration . . . . . . . . . . . . . . . . . . . . . . . . . . . 453

Cleaning up a replacement boot disk . . . . . . . . . . . . . . . . . . . . . . . . . . 454

Checking for disk recognition errors . . . . . . . . . . . . . . . . . . . . . . . . . . . 456

Checking disk recognition errors on a Sun Blade or Ultra 5 . . . . . . . . . . . . . . . 456

Disk recognition errors on an Enterprise 3500 . . . . . . . . . . . . . . . . . . . . . 458

Disk recognition errors on an Enterprise 3000 or Sun Fire V880 . . . . . . . . . . . . . 459

Common error messages with mirrored systems . . . . . . . . . . . . . . . . . . . . . 461

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 465

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 475

Issue 3.0 October 2002 11

Preface

Avaya™ CMS R3V11 Software Installation, Maintenance, and Troubleshooting Guide is

written for technicians and call center customers who install, provision, and maintain

Release 3 Version 11 (R3V11) of the Avaya™ Call Management System (CMS) using the

Solaris 8 operating system.

Organization

This document includes the following chapters:

●Introduction

Provides an overview of the supported CMS software, supported hardware platforms

and required software.

●Installing the Solaris operating system

Outlines the Solaris operating system installation procedures. These procedures are

used by technicians at customer sites and personnel at the factory.

●Installing Avaya CMS and supporting software

Outlines the CMS software installation and setup procedures. These procedures are

used by technicians at customer sites and by personnel at the factory.

●Turning the system over to the customer

Provides the procedures that a technician performs before turning the system over to

the customer and a worksheet that the technician fills out for the customer.

●Maintaining the Avaya CMS software

Discusses file system backups and other maintenance procedures.

●Troubleshooting

Discusses how to fix various software - related problems.

Preface

12 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Reasons for re-issue

This book contains the following updates:

●Added information about the new Sun Blade™ 150 platform.

●Added the procedure Default setup of the RSC software on page 73 to the CMS

installation procedures.

●Simplified the procedure, Customizing the RSC server software on page 233.

●Added additional steps for testing E-mail alerts to Testing the Sun Remote System

Control card on page 236.

●Added the procedure, Determining your CMS version on page 382.

●Added additional information for troubleshooting the password aging feature. For more

information, see Troubleshooting password aging on page 390.

Conventions

Issue 3.0 October 2002 13

Conventions

The following conventions are used in this document:

●Unless specified otherwise, all information and procedures in this document apply to the

Sun® Ultra™ 5 computer, Sun Enterprise™ 3000 computer, Sun Blade™ 100 computer,

Sun Blade™ 150 computer, Sun Fire™ V880 computer, and the Sun Enterprise™ 3500

computer.

●Commands you enter from the console are shown in bold courier font.

●Commands that require a line break are broken at a character space and indented on

the next line.

●Keyboard commands are shown in bold text.

●Screens are shown to represent responses from the system. Because of display

constraints in this document, some screen representations are not identical to the

screens on your system.

●Italic text represents variable information.

●Automatic Call Distribution (ACD) is a feature of the Avaya switch. The ACD feature is

used to route incoming calls to groups of agents. When this document refers to

“connecting to an ACD,” it means connecting to a switch that has ACD capabilities.

●Unless specified otherwise, all information and procedures in this document that apply

to the Sun Enterprise 3500 computer also apply to the Enterprise 3501 and Enterprise

3503 computers.

●Unless specified otherwise, all information and procedures in this document that apply

to the Sun Blade 100 computer also apply to the Sun Blade 150 computer.

●Unless specified otherwise, Sun Blade refers to either the Sun Blade 100 computer or

the Sun Blade 150 computer.

●Unless specified otherwise, CMS always implies Avaya Call Management System.

Preface

14 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Other documents

Call Management System Sun Enterprise 3500 Computer Connectivity Diagram 585-215-877

Avaya Call Management System Sun Ultra 5 Computer Hardware Installation,

Maintenance, and Troubleshooting 585-215-871

Call Management System Sun Ultra 5 Computer Connectivity Diagram 585-215-872

Avaya Call Management System Sun Enterprise 3000 and SPARCserver

Computers Hardware Maintenance and Troubleshooting 585-214-016

Avaya Call Management System Terminals, Printers, and Modems 585-215-874

Document title Document

number

Document title Document

number

Avaya Call Management System Switch Connections, Administration, and

Troubleshooting 585-215-876

Document title Document

number

Avaya Call Management System Release 3 Version 11 Administration 585-215-515

CentreVu Call Management System Release 3 Version 9 Administration 585-214-015

Preface

18 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Document title Document

number

Avaya CMS Open Database Connectivity 585-780-701

Avaya CMS R3V11 LAN Backup User Guide 585-215-715

Avaya CMS R3V11 External Call History Interface 585-780-700

CentreVu CMS Release 3 Version 9 External Call History Interface 585-215-952

Avaya CMS Custom Reports 585-215-822

Avaya CMS Forecast 585-215-825

Avaya Visual Vectors Version 11 Installation and Getting Started 585-210-706

Avaya Visual Vectors Version 11 User Guide 585-210-709

Avaya Visual Vectors Version 9 Installation and Getting Started 585-210-947

Avaya Visual Vectors Version 9 User Guide 585-210-944

Documentation Web sites

Issue 3.0 October 2002 19

Documentation Web sites

For product documentation for all Avaya products and related documentation, go to

http://www.avayadocs.com.

!Important:

Additional information about new software or hardware updates will be

contained in future issues of this book. New issues of this book will be

placed on the Web site when available.

Use the following web sites to view related support documentation:

●Information about Avaya products and service

http://www.avaya.com.

●Sun hardware documentation

http://docs.sun.com

●Okidata printer documentation

http://www.okidata.com

●Informix documentation

http://www.informix.com

●Tivoli Storage Manager documentation

http://tivoli.com

Preface

20 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Issue 3.0 October 2002 21

Introduction

Avaya Call Management System (CMS) is a software application that is offered in

association with the Automatic Call Distribution (ACD) feature of Avaya MultiVantage™

switches. The CMS application provides monitoring and recording of ACD calls and agents

handling these calls, and the use of Vector Directory Numbers (VDNs) for these calls to

measure call center performance.

Supported hardware platforms for Release 3

Version 11

CMS is supported on the following platforms:

●Sun Ultra™ 5 computer

●Sun Enterprise™ 3000 computer

●Sun Enterprise™ 3500 computer

●Sun Blade™ 100 computer

●Sun Blade™ 150 computer

●Sun Fire™ V880 computer

Introduction

22 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Software shipped with CMS Release 3 Version 11

CMS requires the following software packages (optional packages are noted):

●Solaris® 8 Software 2/02; CD-ROM disks 1 and 2

—Also contains DiskSuite™

●Software Supplement for the Solaris 8 Operating Environment CD-ROM, contains:

—Sun Online Validation Test Suite (VTS)

●CMS Hardware Drivers CD-ROM, contains:

—High-Speed Serial Interface/Sbus (HSI/S) (required only for systems that have an

HSI/S card)

—High-Speed Serial Interface/PCI (HSI/P) (required only for systems that have an

HSI/P card)

—Serial Asynchronous Interface/PCI (SAI/P) drivers (required only for systems that

have an SAI/P card)

●Annex Communication Server R10.0(B) Annex Host Tools CD-ROM (required only for

systems using Network Terminal Server™ [NTS])

●Solstice™ for Server Connect CD-ROM (required only on systems using an X.25 link to

a switch)

●Informix ® SQL CD-ROM (optional)

●Informix IDS CD-ROM

●Informix ESQL SDK CD-ROM

●Informix ILS CD-ROM

●Call Management System Supplemental Services CD-ROM

●R3V11 Avaya Call Management System (CMS) CD-ROM, also contains:

—Sun Solaris patches

—CMS patches

●Avaya CMS OPENLINK Open Database Connectivity (ODBC) Driver CD-ROM

(optional)

●Avaya Visual Vectors Server Software CD-ROM (optional)

Intended audience

Issue 3.0 October 2002 23

Intended audience

This document is written for:

●On-site technicians

●Technical Service Center (TSC) personnel

●Factory personnel

●CMS customer administrators.

Introduction

24 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Avaya CMS helplines

If a problem arises that requires assistance, use the support information and help lines

presented below.

Frequently asked questions (FAQs)

For solutions to common problems, CMS customers and Avaya technicians can access

the CMS technical support FAQ at:

http://www.avaya.com

Select Support, then Call Center/CRM, then Call Management System (CMS) (formerly

CentreVu), then General Info, and then FAQ.

Please check this information before you call in a trouble ticket. It could save you time and

money.

Customer support for the United States

Customers can report problems and generate trouble tickets by calling:

1-800-242-2121

The customer is prompted to identify the type of problem (that is, Automatic Call

Distribution, hardware, or Avaya CMS) and is then connected to the appropriate service

organization.

Technician support for the United States

Avaya technicians can receive help by calling:

1-800-248-1234

Customer and technician support outside the United States

For customer and technician support outside the United States, see the Avaya Web site:

http://www.avaya.com

Select Support, then Escalation Lists US and International. For escalation telephone

numbers outside the United States, select Global Escalation List.

Issue 3.0 October 2002 25

Installing the Solaris operating system

The Solaris installation program is a menu-driven, interactive program that guides you step

by step through installing the Solaris software. The installation program also has on line

help to answer your questions.

!Important:

If the software was installed at the factory, proceed to Installing Avaya CMS

and supporting software on page 65.

To bring the Avaya CMS computer up to factory standards after a system re-configuration

or repair, use the procedures in Installing the Solaris operating system and Installing Avaya

CMS and supporting software.

Installing the Solaris operating system includes the following topics:

●Prerequisites on page 26

●Booting from the Solaris software CD-ROM on page 27

●Identifying the system on page 29

●Setting the date and time on page 34

●Selecting the Solaris system files on page 36

●Partitioning the disk drives on page 40

●Assigning a root password on page 49

●Finalizing the Solaris installation on page 50

●Opening a terminal window on page 51

●Enabling the Korn shell on page 51

●Configuring power management on page 52

●Displaying and setting the EEPROM parameters on page 54

●Creating an alternate boot device on page 56

●Resetting a device alias on page 58

●Turning on the system activity recorder on page 61

●Turning off SNMP on page 63

Installing the Solaris operating system

26 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Prerequisites

Before you begin the installation procedures, perform the following tasks:

●Obtain the Solaris 8 Software 2/02 disk 1 of 2 and disk 2 of 2 CD-ROMs.

●Identify the host name of the system, which is designated by the Technical Service

Center (TSC).

●Identify the Internet Protocol (IP) address of the system (this may be the factory default

or an address in a customer’s network).

●Identify the number and size of disk drives on the system.

●Verify that all power cords are fully connected to all hardware devices, and that power is

applied to all hardware devices.

●Identify the tape devices on the system.

●Verify that all hardware components of the system, including port cards, external disk

drives, and tape drives, are correctly installed.

Booting from the Solaris software CD-ROM

Issue 3.0 October 2002 27

Booting from the Solaris software CD-ROM

To boot the system from the Solaris 8 Software CD-ROM using the local console:

Note:

The screens in this section are representative of a typical installation. Not all

screens will match your installation.

1. Turn on the power to all of the external devices, such as disk drives and tape drives.

2. Turn on the monitor.

3. Turn on the system.

Note:

Depending on the model, it can take several minutes for the system to boot

up.

4. As the console shows that the system is booting up, press Stop+A

The system displays the following message:

Note:

Stop+A will not work on a Sun Fire V880 if the key switch is in the locked

position. If the key switch is in the locked position, turn the key to the

unlocked position. Press Stop+A again and continue with the remainder of

this procedure.

5. Load the CD-ROM, Solaris 8 Software disk 1 of 2 into the CD-ROM drive.

6. Enter:

boot cdrom

The system boots from the CD-ROM, and displays a list of languages.

0. English

1. French

2. German

3. Italian

4. Japanese

5. Korean

6. Simplified Chinese

7. Spanish

8. Swedish

9. Traditional Chinese

Please make a choice (0 - 9), or press h or ? for help:

Installing the Solaris operating system

28 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

7. Select the language that is appropriate for your location, and press Enter.

The program displays a list of locales.

8. Select:

0. English (C- 7-bit ASCII)

9. Press Enter.

The system displays the Solaris Installation Program window.

10. Select Continue.

The system displays the Identify This System window.

Select a Locale

......

Press Return to show more choices.

Please make a choice (0 - 47), or press h or ? for help:

Identifying the system

Issue 3.0 October 2002 29

Identifying the system

To identify the system:

1. On the Identify This System window, select Continue.

The system displays the Network Connectivity window.

2. Select Yes. Then select Continue.

The system displays the DHCP window.

3. Select No. Then select Continue.

Note:

If the system is equipped with more than one network interface, the system

displays the Primary Network Interface window.

Installing the Solaris operating system

30 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

●If the system is an Ultra 5, Enterprise 3000, or Enterprise 3500, select hme0

●If the system is a Sun Blade or a Sun Fire V880, select eri0

The system displays the Host Name window.

!Important:

The host name for a specific system is designated by TSC provisioning

personnel. Host names are case sensitive and cannot start with a number.

4. In the Host name: field, enter the host name for the system.

5. Select Continue.

The system displays the IP Address window.

6. In the IP address: field, enter the IP address for the system.

The IP address 192.168.2.1 is the factory default. Enter the factory default address

unless there is an actual network address for this site.

Identifying the system

Issue 3.0 October 2002 31

7. Select Continue.

The system displays the Subnets window.

8. If the CMS computer is on a subnet, you will need to select Yes to administer a subnet

mask.

●If you select Yes, continue with Step 9.

●If you select No, continue with Step 10.

If you select Yes, the system displays the Netmask window.

9. In the Netmask: field, enter the desired subnet mask. The default subnet mask is

255.255.255.0.

Installing the Solaris operating system

32 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

10. Select Continue.

The system displays the IPv6 window.

11. Select No. Then select Continue.

The Confirm Information window appears.

12. If the displayed information is correct, select Continue.

The system displays the Configure Security Policy window.

13. Select No. Then select Continue.

The system displays the Confirm Information window.

Identifying the system

Issue 3.0 October 2002 33

14. If the displayed information is correct, select Continue.

The system displays the Name Service window.

15. Select None. Then select Continue.

The system displays the Confirm Information window.

Note:

The system may redisplay the Subnets window if you selected No for Step

8. Verify that No is selected and press Continue.

16. If the displayed information is correct, select Continue.

The system displays the Time Zone window.

Installing the Solaris operating system

34 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Setting the date and time

To set the Solaris date and time:

1. From the Time Zone window select Geographic region. Then select Set.

The system displays the Geographic Region window.

Setting the date and time

Issue 3.0 October 2002 35

2. Select the region and time zone where this system is located. Then select Continue.

The system displays the Date and Time window.

3. If necessary, enter the correct date and time. When all the information is correct, select

Continue.

The system displays the Confirm Information window.

4. If the displayed information is correct, select Continue.

The system date and time are now set, and the system displays the Solaris

Interactive Installation window.

Note:

The Solaris Interactive Installation window may not be displayed on some

systems.

Installing the Solaris operating system

36 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Selecting the Solaris system files

To select the Solaris system files:

Note:

The Solaris Interactive Installation window may not be displayed on some

systems. If the window is not displayed, continue with Step 3.

1. On the Solaris Interactive Installation window, select Initial.

The system displays the second Solaris Interactive Installation window.

2. Select Continue.

The system displays the Select Geographic Regions window.

Selecting the Solaris system files

Issue 3.0 October 2002 37

3. Select North America. Then select Continue.

The system displays the Select Software window.

4. Verify that the Solaris 64 Bit Support box is selected. Some systems may not display

the Solaris 64 Bit Support box. It is selected by default.

5. Select End User System Support. Then select Customize.

The system displays the Customize Software window.

Note:

If you select Continue instead of Customize, the system displays the Disks

window (shown in Partitioning the disk drives on page 40), which is

incorrect. If this happens, select Go Back from the Disks window.

Installing the Solaris operating system

38 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

6. Additional software clusters and packages need to be added. Start at the top of the list

in the Customize Software window and select the packages shown below. When

necessary, select the triangular icons to expand and collapse package clusters. Do not

exclude any packages that are already selected.

●Basic Networking

●On-Line Manual Pages

●open the cluster for Open Windows Version 3 (not Open Windows Version 3 64-bit)

and select:

—X Window system online user man pages

●Point-to-Point Protocol

●Point-to-Point Protocol (64-bit)

●open the cluster for Programming tools and libraries and select:

—CCS tools bundled with SunOS

—Solaris Bundled tools

●System Accounting

●Terminal Information

7. When you have finished making the package selections, select OK.

The system returns to the Select Software window.

Selecting the Solaris system files

Issue 3.0 October 2002 39

8. Select Continue.

The Solaris 8 software packages are now selected and will be installed after the disks

are partitioned. The system displays the Select Disks window.

Installing the Solaris operating system

40 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Partitioning the disk drives

To partition the disk drives:

Note:

The windows shown in this section may differ from those displayed on your

system because of the disk configuration of your system.

1. On the Select Disks window, move all of the available disks into the Selected Disks

column.

Note:

In the Select Disks window, all the disks in the system should be listed as

available. If they are not, you may have a connectivity or power problem.

Check all cables and verify that the power is turned on for the disk drives.

2. After all of the disks have been moved, select Continue.

The system displays the Preserve Data? window.

3. Select Continue.

The system displays the Automatically Layout File Systems? window.

Partitioning the disk drives

Issue 3.0 October 2002 41

4. Select Manual Layout.

The system displays the File System and Disk Layout window.

5. Select Customize. Do NOT select Continue.

The system displays the Customize Disks window.

Installing the Solaris operating system

42 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Note:

If all the disks on your system are not visible in the Customize Disks

window, use the slidebar at the bottom of the window to bring the partition

columns for other system disks into view.

!Important:

Disks are formatted in megabytes. Do not select the cylinders icon.

6. Use the information in the Boot disk partition table on page 43 to partition the boot disk

by entering the slice name, and size of each partition.

Note:

Ignore any rounding error messages.

!Important:

No values are entered for the data disk partitions. If the disk was previously

partitioned, you must unpartition that disk. The data disks and remaining

space on the boot disks will be configured automatically during the CMS

installation.

When setting up disk partitions for mirrored Sun Blade 100, Sun Blade 150, Sun Fire

V880, Enterprise 3000, or Enterprise 3500, the system will use the following disks for

the boot and mirrored boot devices:

●Sun Blade:

—Boot - c0t0d0

—Mirrored boot - c0t2d0

●Sun Fire V880:

—Boot - c1t0d0

—Mirrored boot - c1t3d0

●Enterprise 3000:

—Boot - c0t0d0

—Mirrored boot - c0t11d0

●Enterprise 3500:

—Boot - c0t0d0

—Mirrored boot - c1t4d0

If the disks are not displayed, contact your Avaya authorized service representative.

Partitioning the disk drives

Issue 3.0 October 2002 43

!WARNING:

Do not change the slice 2 value or name. If the slice 2 value or name is

changed, you will have to reinstall Solaris.

Boot disk partition table

Note:

See Supported disk drives on page 45 for more information on currently

supported disk drives.

Slice Slice name Partition size

(MB)

(Leave blank if alternate boot

on mirrored systems)

4096

1swap

(Leave blank if alternate boot

on mirrored systems)

1024

2overlap1

1. The default size of the overlap file system is always

the size of the entire disk. Occasionally, the name

backup will appear instead of overlap. Do not change

the slice 2 value or name.

(Do not

change)

3/cms

(Leave blank if alternate boot

on mirrored systems)

3072

4 (Leave blank) 2048

5 (Leave blank) (Leave blank)

6 (Leave blank) (Leave blank)

7 (Leave blank) (Leave blank)

Installing the Solaris operating system

44 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

!WARNING:

Do not change the slice 2 value or name. If the slice 2 value or name is

changed, you will have to reinstall Solaris.

Data disk partition table

Slice Slice name Partition size

0 (Leave blank) (Leave blank)

1 (Leave blank) (Leave blank)

2overlap1

1. The default size of the overlap file

system is always the size of the

entire disk. Occasionally, the name

backup will appear instead of

overlap. Do not change the slice 2

value or name.

(Do not change)

3 (Leave blank) (Leave blank)

4 (Leave blank) (Leave blank)

5 (Leave blank) (Leave blank)

6 (Leave blank) (Leave blank)

7 (Leave blank) (Leave blank)

Partitioning the disk drives

Issue 3.0 October 2002 45

Supported disk drives

7. Verify that the correct slice name and partition size has been entered for each partition.

Disk description Platforms

Boot disks 18 GB SCSI Enterprise 3000

18 GB FCAL Enterprise 3500

20 GB EIDE Ultra 5

Sun Blade 100

36 GB FCAL Enterprise 3500

40 GB EIDE Sun Blade 100

Sun Blade150

73 GB FCAL Sun Fire V880

Data disks 4.2 GB SCSI Enterprise 3000

8.4 GB EIDE Ultra 5

9.1 GB EIDE Ultra 5

9.1 GB SCSI Ultra 5

Enterprise 3000

9.1 GB FCAL Enterprise 3500

18 GB SCSI Enterprise 3000

Sun Blade 100

Sun Blade 150

18 GB FCAL Enterprise 3500

20 GB EIDE Ultra 5

36 GB FCAL Enterprise 3500

73 GB FCAL Sun Fire V880

Installing the Solaris operating system

46 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

8. Select OK on the Customize Disks window.

The system displays the Unused disk space window.

9. Select OK.

Note:

An Unused disk space window is displayed for every hard drive in the

system. Depending on the number of hard drives installed, it may be

necessary to repeat Step 9 several times.

The system displays the File System and Disk Layout window.

10. Select Continue.

The system displays the Mount Remote File Systems? window.

Partitioning the disk drives

Issue 3.0 October 2002 47

11. Select Continue.

The system displays the Profile window.

12. Select Begin Installation.

The system displays a warning about unused disk space.

Installing the Solaris operating system

48 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

13. Select OK.

The system displays the following window:

14. Select Auto Reboot.

The disk partitioning process begins, and the system displays the Installing Solaris

Software - Progress window.

This process may take approximately one hour, depending on the number of disks

being partitioned, the hardware platform, and the speed of your CD-ROM drive.

The progress window may disappear during the process. However, the Solaris Install

Console window should remain in the upper left corner of your monitor, keeping you

posted on the progress of the installation.

When the installation is finished, the system reboots and displays the following

message:

On this screen you can create a root password.

A root password can contain any number of characters, but only the

first eight characters in the password are significant. (For

example, if you create ‘a1b2c3d4e5f6’ as your root password, you

can use ‘a1b2c3d4’ to gain root access.)

You will be prompted to type the root password twice; for

security, the password will not be displayed on the screen as you

type it.

> If you do not want a root password, press RETURN twice.

Root password:

Press Return to continue.

Assigning a root password

Issue 3.0 October 2002 49

Assigning a root password

To assign the root password:

1. Enter the root password. Until it is time to turn the system over to the customer, it is

recommended that you press Enter to assign a blank password.

The program displays the following message:

2. Re-enter the root password, or press Enter for a blank password.

The program displays a series of messages, which concern power-saving options.

!Important:

The power-saving options may not be displayed on some systems. If the

options are not displayed, continue with Finalizing the Solaris installation on

page 50.

3. Enter: n

The program displays the following message:

4. Enter: n

The system displays the Specify Media window for the installation of the Solaris 8

Software 2 of 2.

> If you do not want a root password, press RETURN twice.

Re-enter your root password.

Press Return to continue.

System identification completed.

..........

After 30 minutes of idle time on the system, your system state

will automatically be saved to disk, and the system will power

off.Later, when you want to use the system again, and you turn the

power back on, you system will be restored to its previous state,

including all the programs you were running. Do you want this

automatic power-saving shutdown? (If this system is used as a

server, answer n) [y,n,?]

Do you want the system to ask about this again, when you next

reboot? (This gives you the chance to try it before deciding

whether to keep it.) [y,n,?]

Installing the Solaris operating system

50 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Finalizing the Solaris installation

To finalize the Solaris installation:

1. In the Specify Media window select CD/DVD. Then select Next>.

The system ejects the Solaris 8 Software disk 1 of 2 CD-ROM. The system then

displays the Insert Disc window.

2. Load the Solaris 8 Software disk 2 of 2 into the CD-ROM drive, and select OK.

The system installs the software. The system then displays the Installation Summary

window.

3. Select Next >.

The system then displays the Specify Media window for the installation of the Solaris

8 Languages.

4. Select Skip.

The system displays a prompt to verify that you want to skip installation of the Solaris 8

Languages.

5. Select Skip installation.

The system displays the Reboot window and ejects the CD-ROM disk.

6. Select Reboot Now.

The system reboots, and the console login appears.

7. Enter root for the user name, followed by your password (if you submitted one to the

system).

The system displays the Solaris Welcome window.

8. Select Common Desktop Environment. Then select OK.

The system displays the Common Desktop Environment (CDE).

Opening a terminal window

Issue 3.0 October 2002 51

Opening a terminal window

Opening a terminal window describes how to open a terminal window. You must open a

terminal window to input keyboard commands at the system prompt.

To open a terminal window:

1. Use the mouse to move the cursor to an empty area of the desktop display and press

the right button on the mouse.

The system displays the Workspace menu.

2. Select the Tools option.

The system displays the Tools menu.

3. Select the Terminal option.

The system displays a terminal window with the active cursor at the command prompt.

Enabling the Korn shell

To enable the Korn shell:

1. Enter:

stty erase Backspace

The system displays the Backspace as ^H. On some systems Backspace will not

work. If this is the case, substitute “^H” for Backspace.

2. Enter:

ksh -o vi

Note:

If you log off and log back on to the system, the Korn shell will not work

unless you re-enter the command. After you install the DiskSuite software

and reboot the system, the Korn shell will work automatically every time you

Installing the Solaris operating system

52 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Configuring power management

Only root should alter power management settings. Power management can accidently

become enabled on a CMS system. This results in the CMS system turning off after a set

amount of time has passed with no input from the mouse or keyboard.

To configure power management:

1. Enter:

cd /

2. Enter:

touch /noautoshutdown

3. Enter:

vi /etc/default/power

The system displays a message similar to the following:

4. Change the PMCHANGEPERM=console-owner setting to:

PMCHANGEPERM=-

5. Change the CPRCHANGEPERM=console-owner setting to:

CPRCHANGEPERM=-

Example:

............

PMCHANGEPERM=console-owner

CPRCHANGEPERM=console-owner

............

PMCHANGEPERM=-

CPRCHANGEPERM=-

Configuring power management

Issue 3.0 October 2002 53

6. Press Esc. Then enter:

:wq!

The system saves and closes the file.

7. Reboot the system by entering:

/usr/sbin/shutdown -y -g0 -i6

The system reboots and disables power management.

Note:

The /noautoshutdown file will be removed when the system reboots.

8. Log into the system as root.

9. Re-enable the Korn shell. See Enabling the Korn shell on page 51.

Installing the Solaris operating system

54 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Displaying and setting the EEPROM parameters

The current EEPROM settings must be displayed to determine if a firmware value must be

changed from a factory setting.

!Important:

If the system is an Enterprise or Sun Fire V880 system, make sure the key is

in the unlocked position. The locked position provides bootrom security.

After setting the EEPROM parameters, return the key switch to its original

position.

To set the firmware EEPROM values for a CMS computer:

1. Enter:

eeprom | sort | more

The system displays the current eeprom settings.

Note:

Not all options are displayed for all CMS computers. In addition, some

options will show “data not available” messages. Ignore those

options.

2. Compare the displayed settings with the Required EEPROM parameter table to

determine if any of the values must be changed from the factory setting.

Required EEPROM parameter table

The following table contains only the required EEPROM settings.

Option name Required setting

ansi-terminal? true

auto-boot? true

boot-command boot

boot-device1disk

If the system is mirrored:

“disk bootdevice2”

Displaying and setting the EEPROM parameters

Issue 3.0 October 2002 55

3. If you must change the setting for an eeprom option, enter:

eeprom option_name=option_value

where option_name is the name of the option, and option_value is the new

setting.

Example:

To change the output device, you would enter:

eeprom output-device=screen

diag-device disk

If the system is mirrored:

“disk bootdevice2”

diag-level min

diag-switch? false

input-device keyboard

local-mac-address? true

output-device screen

scsi-initiator-id 7

tpe-link-test? true

ttya-ignore-cd false

ttya-rts-dtr-off true

ttyb-ignore-cd false

ttyb-rts-dtr-off true

watchdog-reboot? false

1. If you have a Enterprise 3500 system, see Resetting a

device alias on page 58.

Option name Required setting

Installing the Solaris operating system

56 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Creating an alternate boot device

Creating an alternate boot device creates the mirrored boot device for a mirrored system.

This procedure is for mirrored systems only.

To create the alternate boot device:

1. Log in as root and enter:

ls -l /dev/rdsk/newbootdev

where newbootdev is the device name of the mirrored boot disk. The following table

contains the mirrored boot device names.

The system responds, for example:

2. Identify and record the device definition from the output generated in Step 1. The

device definition is the character sequence that starts after “/devices” and ends

before “:a,raw”.

Note:

In the previous example, the device definition is:

/pci@8,600000/SUNW,qlc@2/fp@0,0/ssd@w21000004cf707d9f,0

3. Enter:

/usr/sbin/shutdown -y -g0 -i0

The system displays the ok prompt.

4. Create a device alias for the alternate boot device by entering:

nvalias bootdevice2 device_definition

where device_definition is the character sequence recorded in Step 2.

Hardware platform Mirrored boot device

Enterprise 3000 c0t11d0s0

Enterprise 3500 c1t4d0s0

Sun Blade c0t2d0s0

Sun Fire V880 c1t3d0s0

lrwxrwxrwx 1 root root 74 Apr 30 14:40 /dev/rdsk/c1t3d0s0 ->

../../devices/pci@8,600000/SUNW,qlc@2/fp@0,0/ssd@w21000004cf707d9f,0:a,raw

Creating an alternate boot device

Issue 3.0 October 2002 57

5. At the ok prompt, enter:

devalias

The output includes a line that is similar to the following example:

6. Enter:

boot

When the computer restarts, log in as root at the console login.

Note:

You must set up a cron job for chkDisk after configuring the CMS software.

bootdevice2 /pci@8,600000/SUNW,qlc@2/fp@0,0/ssd@w21000004cf707d9f,0

Installing the Solaris operating system

58 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Resetting a device alias

Resetting a device alias is only for Enterprise 3500 systems and Sun Fire V880 systems. If

a boot disk is replaced, or if the NVRAM chip is ever reset to the Sun factory defaults, the

boot disk and EEPROM values must be reset to the Avaya factory defaults. This can

happen when any of the following occurs:

●The boot disk (primary or alternate) is defective and is replaced with a new disk

●The NVRAM chip on the system clock board is replaced

●The set-defaults or setenv use-nvramrc? false command is run

●A PROM patch is applied

●Stop + N was used to reset the system

To reset the NVRAM to bootable options for the boot disks:

1. Verify the proper boot device alias by entering:

ls -l /dev/rdsk/newbootdev

where newbootdev is the device to be used as the mirrored boot disk.

The system responds, for example:

2. Identify and record the device definition from the output generated.

3. Enter:

/usr/sbin/shutdown -y -i0 -g0

The system displays the ok prompt.

Hardware platform Mirrored boot device

Enterprise 3000 c0t11d0s0

Enterprise 3500 c1t4d0s0

Sun Blade c0t2d0s0

Sun Fire V880 c1t3d0s0

lrwxrwxrwx 1 root root 74 Nov 5 15:41 /dev/dsk/c0t1d0s0 ->

../../devices/sbus@2,0/SUNW,socal@d,10000/sf@0,0/ssd@w2100002037a

82d85,0:a,raw

Resetting a device alias

Issue 3.0 October 2002 59

4. At the ok prompt, enter:

show-disks

The system displays a list of disk drives similar to the following:

5. Select the letter for the proper boot device.

The system saves the device string in the edit clipboard. The system then displays a

message similar to the following:

Note:

The message displayed will vary from platform to platform. To decode the

path, first look at /sbus@3 and divide the number (3) found after the @

symbol by two, and throw away the remainder, which gives you one. This

represents the first slot on your system. An SBus+ I/O or Graphics+ I/O

board will be in your first slot. Next, look at sf@0. The zero represents what

controller that drive is attached to. You should look for sf@0 for your

primary boot device and sf@1 for your secondary boot device if you are

working on a mirrored system. After looking at the paths offered, select the

letter representing that path.

6. Enter:

nvalias disk

Ctrl + Y

(that is, press and hold the Ctrl key. Then press the Y key)

The system displays the disk alias saved in the clipboard and the cursor is at the end

of the line.

a) /sbus@3,0/SUNW,fas@3,8800000/sd

b) /sbus@3,0/SUNW,socal@d,10000/sf@1,0/ssd

c) /sbus@3,0/SUNW,socal@d,10000/sf@0,0/ssd

d) NO SELECTION

Enter selection, q to quit:

/sbus@3,0/SUNW,socal@d,10000/sf@0,0/ssd has been selected

Type ^Y (Control-Y) to insert it in the command line e.g. ok

nvalias mydev ^Y

for creating devalias mydev for

/sbus@3,0/SUNW,socal@d,10000/sf@0,0/ssd

Installing the Solaris operating system

60 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

7. Add @0,0 at the end of the line as shown in the following example:

Adding @0,0 gives the command the target and slice of the primary boot device.

8. If you are working on a mirrored system, repeat the above procedure using

bootdevice2 as your mirror boot device alias, as shown in the following example:

Note:

Adding @4,0 gives the command the target and slice of the mirror boot

device.

9. Enter:

devalias

The system displays the device aliases. Verify that disk and bootdevice2 are set

to the correct alias values.

10. Do one of the following:

●To set the boot environment for a nonmirrored system, enter:

setenv boot-device disk

●To set the boot environment for a mirrored system, enter:

setenv boot-device disk bootdevice2

11. After setting the disk device alias, check the EEPROM values by entering:

printenv

12. At the ok prompt enter:

boot

nvalias disk /sbus@3,0/SUNW,socal@d,10000/sf@0,0/ssd@0,0

nvalias bootdevice2 /sbus@3,0/SUNW,socal@d,10000/sf@1,0/ssd@4,0

Turning on the system activity recorder

Issue 3.0 October 2002 61

Turning on the system activity recorder

To turn on the system activity recorder:

1. Log in with the sys login id by entering:

su - sys

Note:

Be sure to use a space between “-” and “sys”.

The prompt changes to a dollar sign ($).

2. Confirm that you are using the sys id by entering:

The system displays the following message:

3. Enter the following commands to create and edit the cron.sys file:

cd /tmp

crontab -l > cron.sys

vi cron.sys

The cron.sys file looks similar to the following example:

uid=3(sys) gid=3(sys)

#ident "@(#)sys 1.5 92/07/14 SMI" /* SVr4.0 1.2 */

# The sys crontab should be used to do performance collection.

# See cron and performance manual pages for details on startup.

# 0 * * * 0-6 /usr/lib/sa/sa1

# 20,40 8-17 * * 1-5 /usr/lib/sa/sa1

# 5 18 * * 1-5 /usr/lib/sa/sa2 -s 8:00 -e 18:01 -i 1200 -A

Installing the Solaris operating system

62 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

4. Remove the leading pound (#) characters that were used to comment out the last three

lines in the file.

Example:

5. Press Esc. Then enter:

:wq!

The system saves and closes the file.

6. Enter the following commands:

crontab -r

crontab cron.sys

7. Enter the following command to confirm that the changes you made are intact:

crontab -l

The system displays the cron.sys file.

8. Exit superuser mode by entering:

exit

The prompt changes back to a pound (#) prompt.

Note:

You may have to repeat this step twice.

#ident "@(#)sys 1.5 92/07/14 SMI" /* SVr4.0 1.2 */

# The sys crontab should be used to do performance collection.

# See cron and performance manual pages for details on startup.

0 * * * 0-6 /usr/lib/sa/sa1

20,40 8-17 * * 1-5 /usr/lib/sa/sa1

5 18 * * 1-5 /usr/lib/sa/sa2 -s 8:00 -e 18:01 -i 1200 -A

Turning off SNMP

Issue 3.0 October 2002 63

Turning off SNMP

To turn off SNMP:

1. Enter:

cd /etc/rc3.d

2. Enter:

sh S76snmpdx stop

3. Enter:

mv S76snmpdx xS76snmpdx

Installing the Solaris operating system

64 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Issue 3.0 October 2002 65

Installing Avaya CMS and supporting software

Installing Avaya CMS and supporting software contains the procedures used to install and

set up the Avaya Call Management System (CMS) software and other required and

optional software.

Installing Avaya CMS and supporting software includes the following topics:

●Prerequisites on page 66

●Installation rules on page 67

●Installing the Sun Online Validation Test Suite on page 68

●Setting up the RSC software on page 71

●Installing the SunLink HSI/S software on page 77

●Installing the HSI/P software on page 79

●Installing the SAI/P adapter drivers on page 81

●Setting up the Bay Networks Annex NTS on page 84

●Installing the Solstice for Server Connect X.25 package on page 90

●Installing DiskSuite on page 103

●Installing the Solaris patches on page 106

●Installing the Informix software packages on page 109

●Installing the CMS packages on page 132

●Configuring the IDS dbspaces on page 150

●Installing the Open Database Connectivity server software on page 153

●Setting up CMS data storage parameters on page 161

●Setting up LAN connections on page 164

●Setting up the CMS application on page 169

●Installing feature packages on page 189

●Installing the Avaya Visual Vectors Server software on page 195

●Activating chkDisks on page 198

●Setting up a mirrored system on page 199

●Setting up the remote console on page 208

Installing Avaya CMS and supporting software

66 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

●Setting up the Alarm Origination Manager on page 212

●Starting the Avaya Visual Vectors Server software on page 215

●Setting the Informix configuration parameters for CMS on page 216

●NTS setup on page 222

●Factory system backup on page 222

Prerequisites

Before you begin any of the installation procedures:

●Verify that the Solaris 8 operating system has been installed

●Verify that all hardware components of the system, including port cards, external disk

drives, and tape drives, are correctly installed. Otherwise, the system hardware will not

be recognized.

●Verify that you are logged in as root.

Remote terminal access tips

When executing commands that take a long time to complete, (such as cpio

commands), use the nohup command to ensure that the command will complete without

interruption if the data line disconnects. An example of the nohup command is shown

below:

nohup cpio -icmudf -C 10240 -I /dev/rmt/0c “cms” | tee

When system reboots are required, verify that your terminal type is set correctly after the

reboot.

Installation rules

Issue 3.0 October 2002 67

Installation rules

If the software was installed at the factory, the only procedures required at the customer

site are:

●Setting up CMS authorizations on page 141

●Installing feature packages on page 189

●Factory system backup on page 222

If the CMS software was not installed at the factory, use the procedures in Installing the

Solaris operating system on page 25, and this chapter to bring the CMS computer up to

factory standards after a system re-configuration or repair.

Installing Avaya CMS and supporting software

68 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Installing the Sun Online Validation Test Suite

Installing the Sun Online Validation Test Suite describes how to install the Sun Online

Validation Test Suite (VTS) software. The Sun Online VTS software provides test facilities

for the system.

To install the Sun VTS software:

Note:

The screens in this section are representative of a typical installation. Not all

screens will match your installation.

1. Load the CD-ROM, Software Supplement for the Solaris 8 Operating Environment into

the CD-ROM drive.

2. Log into the system as root.

3. Enter:

cd /

4. After about 15 seconds, enter mount to verify the name of the CD-ROM disk.

The system displays a list of devices and file systems currently mounted. The last line

displayed should look similar to the following example:

5. Enter:

/usr/sbin/pkgadd -d /cdrom/cdrom0/SunVTS_4.6/Product

The system displays a list of the VTS software packages that can be installed.

6. Enter the numbers associated with the SUNWvts, SUNWvtsmn, SUNWvtsol, and

SUNWvtsx software packages.

Example:

Enter: 1 2 3 4

The system displays the following message:

/cdrom/solaris8_202_suppcd on /vol/dev/dsk/c0t2d0/solaris8_202_suppcd read

only/nosuid/maplcase/noglobal/rr/traildot/dev=16c0001 on current date and

time

Processing package instance <SUNWvts> from

</cdrom/solaris8_202_suppcd/SunVTS_4.6/Product>

......................

Do you want to enable the Kerberos V5 based security?

Installing the Sun Online Validation Test Suite

Issue 3.0 October 2002 69

7. Enter: n

The system displays a list of files that are already installed.

8. Press Enter.

Note:

It may be necessary to enter y several times in order to continue the

installation.

The system displays the following message:

9. Enter: y

The system displays the following message:

10. Enter: y

The system displays the following message:

11. Enter: y

/opt/SUNWvts/lib/locale/C/LC_MESSAGES/vtstty.help

/opt/SUNWvts/lib/locale/C/LC_MESSAGES/vtstty.msg

/opt/SUNWvts/lib/locale/C/LC_MESSAGES/vtsui.msg

Do you want to install these conflicting files [y,n,?,q]

## Checking for setuid/setgid programs.

..........

Do you want to continue with the installation of <SUNWvts> [y,n,?]

Installing SunVTS as <SUNWvts>

## Installing part 1 of 1.

..........

Do you want to install these conflicting files [y,n,?,q]

## Checking for setuid/setgid programs.

..........

Do you want to install these conflicting files [y,n,?,q]

Installing Avaya CMS and supporting software

70 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

12. Enter: y

13. Enter: y

14. Enter: q

## Checking for setuid/setgid programs.

..........

Do you want to install these conflicting files [y,n,?,q]

## Checking for setuid/setgid programs.

..........

Select package(s) you wish to process (or ’all’ to process

all packages). (default: all) [?,??,q]:

Setting up the RSC software

Issue 3.0 October 2002 71

Setting up the RSC software

Setting up the RSC software describes how to install the Sun Remote System Control

(RSC) software. The RSC software works in conjunction with the RSC card to allow remote

administration of a Sun Fire V880 system.

Setting up the RSC software contains the following procedures:

●Installing the RSC software on page 71

●Default setup of the RSC software on page 73

Installing the RSC software

To install the RSC server software on a Sun Fire V880 platform:

1. Verify that the CD-ROM, Software Supplement for the Solaris 8 Operating

Environment is in the CD-ROM drive.

2. Log into the system as root.

3. Enter:

cd /

4. After about 15 seconds, enter mount to verify the name of the CD-ROM disk.

The system displays a list of devices and file systems currently mounted. The last line

displayed should look similar to the following example:

5. Enter:

cd /cdrom/solaris8_202_suppcd/RSC_2.2/Product

Note:

If the CD-ROM, Software Supplement for the Solaris 8 Operating

Environment is the multilingual version, you will need to enter the following

command:

cd /cdrom/multi_solaris8_202_suppcd/RSC_2.2/Product

6. Enter:

The system displays a list of the RSC packages.

/cdrom/solaris8_202_suppcd on /vol/dev/dsk/c0t2d0/solaris8_202_suppcd read

only/nosuid/maplcase/noglobal/rr/traildot/dev=16c0001 on current date and

time

Installing Avaya CMS and supporting software

72 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

7. Enter:

pkgadd -d .

The system displays a list of the RSC packages.

8. Enter the numbers that are associated with the SUNWrsc, SUNWrscd, and SUNWrscj

packages.

Note:

It may be necessary to press Enter several times to display additional RSC

packages in the installation menu.

The system displays the following message:

9. Enter: y

The system displays the following message:

10. Enter: q

11. Verify that the RSC packages were installed by entering:

ls /usr/platform/*880/rsc

The system displays the following message:

Processing package instance <SUNWrsc> .............

.............

The following files are already installed on the system and are being

used by another package:

/usr/share/man/sman1m <attribute change only>

Do you want to install these conflicting files [y,n,?,q]

## Checking for setuid/setgid programs.

Installing Remote System Control as <SUNWrsc>

.................

Select package(s) you wish to process (or ’all’ to process

all packages). (default: all) [?,??,q]:

rsc-config rsc-initscript rscadm

Setting up the RSC software

Issue 3.0 October 2002 73

Default setup of the RSC software

To set up the RSC server software on a Sun Fire V880 platform:

1. Log into the system as root.

2. Enter:

/usr/platform/*880/rsc/rsc-config

The system displays the following message:

3. Enter: y

The system displays the following message:

4. Enter: y

The system displays the following message:

5. Press Enter.

The system displays the following message:

6. Enter: n

The system displays the following message:

7. Enter: n

The system displays the following message:

Continue with RSC setup (y|n):

Set RSC date/time now (y|n|?) [y]:

Server Hostname [cms1]:

Edit customer info field (y|n|?) [n]:

Enable RSC Ethernet Interface (y|n|s|?) [n]:

Enable RSC Alerts (y|n|s|?) [n]:

Installing Avaya CMS and supporting software

74 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

8. Enter: n

The system displays the following message:

9. Enter: y

The system displays the following message:

10. Enter: 8

The system displays the following message:

11. Enter: none

The system displays the following message:

12. Enter: 1

The system displays the following message:

13. Enter: n

The system displays the following message:

14. Enter: y

The system displays the following message:

Enable RSC Modem Interface (y|n|s|?) [n]:

Modem data bits (7|8) [8]:

Modem parity (even|odd|none) [even]:

Modem stop bits (1|2) [1]:

Enable PPP over modem (y|n) [n]:

Enable RSC Serial Port Interface (y|n|s|?) [n]:

Serial port baud rate (9600|19200|38400|57600|115200) [9600]:

Setting up the RSC software

Issue 3.0 October 2002 75

15. Enter: 9600

The system displays the following message:

16. Enter: 8

The system displays the following message:

17. Enter: none

The system displays the following message:

18. Enter: 1

The system displays the following message:

19. Enter: y

The system displays the following message:

20. Enter:

cmsrsc

The system displays the following message:

21. Enter: cuar

The system displays a series of messages that show the current RSC settings.

22. Choose one of the following steps:

●If the settings are not correct, enter: n

The system will return to that section of the installation.

Serial port data bits (7|8) [8]:

Serial port parity (even|odd|none) [none]:

Serial port stop bits (1|2) [1]:

Setup RSC User Account (y|n|?) [y]:

Username []:

User Permissions (c,u,a,r|none|?) [cuar]:

Installing Avaya CMS and supporting software

76 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

●If the settings are correct, enter: y

The system displays the next set of settings for you to verify. After you have verified

all of the settings, the system displays the following message:

23. Enter: y

The system displays the following message:

24. Enter the cmsrsc password.

!Important:

The CMS services RSC login is used only by services. Do not give out the

CMS RSC password. This login is for accessing only the RSC, not the CMS

software.

The system displays the following message:

25. Re-enter the cmsrsc password.

The system displays the following message:

This script will now update RSC, continue? (y|n):

Updating flash, this takes a few minutes

............................

A valid password is between 6 and 8 characters, has at least two

alphabetic characters, and at least one numeric or special

character.The password must differ from the user’s login name and any

reverse or circular shift of that login name.

Setting User Password Now ...

Password:

Re-enter Password:

User has been added to RSC

............................

*******************************

RSC has been successfully setup

*******************************

Installing the SunLink HSI/S software

Issue 3.0 October 2002 77

Installing the SunLink HSI/S software

The SunLink HSI/S card provides X.25 interface ports to the CMS computer.

!Important:

If your system does not have an HSI/S card, skip this procedure and

continue with Installing the HSI/P software on page 79.

To install the SunLink HSI/S software on a Enterprise 3000 or Enterprise 3500 system:

1. Verify that the HSI/S cards have been installed.

2. Log into the system as root.

3. Load the CD-ROM, CMS Hardware Drivers into the CD-ROM drive.

4. Enter:

cd /

5. After about 15 seconds, enter mount to verify the name of the CD-ROM disk.

The system displays a list of devices and file systems currently mounted. The last line

displayed should look similar to the following example:

6. Enter the following command on a single line at the command prompt:

/usr/sbin/pkgadd -d /cdrom/cdrom0/V9/hsi.sbus.3.0

The system displays the following message:

/cdrom/cms_hardware_drivers on

/vol/dev/dsk/c0t2d0/cms_hardware_drivers read

only/nosuid/maplcase/noglobal/rr/traildot/dev=16c0003 on (current

date and time)

The following packages are available:

1 SUNWhsis SunHSI/S Driver for SBUS

(sparc) 3.0,REV=1998.11.09

2 SUNWhsism SunHSI/S Man Pages for SBUS

(sparc) 3.0,REV=1998.11.09

3 SUNWhsisu SunHSI/S Utilities for SBUS

(sparc) 3.0,REV=1998.11.09

Select package(s) you wish to process (or ‘all’ to process all

packages. (default:all [?,??,q]:

Installing Avaya CMS and supporting software

78 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

7. Press Enter.

The system displays the following message:

8. Enter: y

The program installs the SUNWhsis, SUNWhsism and SUNWhsisu packages, and

displays the following message:

9. Enter: q

10. Enter:

eject cdrom

Processing package instance <SUNWhsis> from

</cdrom/cdrom0/V9/hsi.sbus.3.0>

SunHSI/S Driver for SBus

.........

This package contains scripts which will be executed with super-

userpermission during the process of installing this package.

Do you want to continue with the installation of <SUNWhsis>

[y,n,?]

Installing SunHSI/S Driver for SBus as <SUNWhsis>

## Installing part 1 of 1

..........

Select package(s) you wish to process (or ’all’ to process all

packages). (default: all) [?,??,q]:

Installing the HSI/P software

Issue 3.0 October 2002 79

Installing the HSI/P software

The HSI/P card provides interface ports to the CMS computer.

!Important:

If your system does not have an HSI/P card, skip this procedure. Continue

with Installing the SAI/P adapter drivers on page 81.

To install the HSI/P software on a Ultra 5, Sun Blade, or Sun Fire V880 system:

1. Verify that the HSI/P cards have been installed.

2. Log into the system as root.

3. Load the CD-ROM, CMS Hardware Drivers into the CD-ROM drive.

4. Enter:

cd /

5. After about 15 seconds, enter mount to verify the name of the CD-ROM disk.

The system displays a list of devices and file systems currently mounted. The last line

displayed should look similar to the following example:

6. Enter:

/usr/sbin/pkgadd -d /cdrom/cdrom0/V9/hsi.pci.3.0

The system displays the following message:

/cdrom/cms_hardware_drivers on

/vol/dev/dsk/c0t2d0/cms_hardware_drivers

read only/nosuid/maplcase/noglobal/rr/traildot/dev=16c0003

(current date and time)

The following packages are available:

1 SUNWhsip SunHSI/P Driver for PCI

(sparc) 3.0,REV=1999.09.24

2 SUNWhsipm SunHSI/P Man Pages for PCI

(sparc) 3.0,REV=1999.09.24

3 SUNWhsipu SunHSI/P Utilities for PCI

(sparc) 3.0,REV=1999.09.24

Select package(s) you wish to process (or ’all’ to process

all packages). (default: all) [?,??,q]:

Installing Avaya CMS and supporting software

80 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

7. Press Enter.

The system displays the following message:

8. Enter: y

The program installs the SUNWhsip, SUNWhsipm and SUNWhsipu packages and

returns to the command prompt.

9. Enter:

eject cdrom

Processing package instance <SUNWhsip> from

</cdrom/cdrom0/V9/hsi.pci.3.0>

SunHSI/P Driver for PCI

(sparc) 3.0,REV=1999.09.24

............

This package contains scripts which will be executed with super-

user permission during the process of installing this package.

Do you want to continue with the installation of <SUNWhsip>

[y,n,?]

Installing SunHSI/P Driver for PCI as <SUNWhsip>

## Installing part 1 of 1.

487 blocks

## Executing postinstall script.

............

Installation of <SUNWhsipu> was successful.

Installing the SAI/P adapter drivers

Issue 3.0 October 2002 81

Installing the SAI/P adapter drivers

The SAI/P cards provide serial asynchronous interface ports to the CMS computer.

!Important:

If your system does not have an SAI/P card, skip this procedure. Continue

with Setting up the Bay Networks Annex NTS on page 84.

To install the SAI/P software on a Ultra 5 or Sun Blade system:

1. Verify that the SAI/P cards are installed.

2. Log into the system as root.

3. Load the CD-ROM, CMS Hardware Drivers into the CD-ROM drive.

4. After about 15 seconds, enter mount to verify the name of the CD-ROM disk.

The program responds with a list of devices and file systems currently mounted. The

last line displayed should look similar to the following example:

5. Enter:

/usr/sbin/pkgadd -d /cdrom/cdrom0/V9/sai.pci.3.0

The system displays the following message:

/cdrom/cms_hardware_drivers on

/vol/dev/dsk/c0t2d0/cms_hardware_drivers read

only/nosuid/maplcase/noglobal/rr/traildot/dev=16c0003 on (current

date and time)

The following packages are available:

1 SUNWsaip Serial Asynchronous Interface Driver (PCI)

(sparc) 3.0,REV=2000.01.31

2 SUNWsaipu Serial Asynchronous Interface Utilities (PCI)

(sparc) 3.0,REV=2000.01.31

Select package(s) you wish to process (or ’all’ to process

all packages). (default: all) [?,??,q]:

Installing Avaya CMS and supporting software

82 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

6. Press Enter.

The system displays the following message:

7. Enter: y

The system displays the following message:

8. Enter: y

The system displays the following message:

9. Enter: y

The program installs the SAI/P driver packages and returns to the installation menu.

10. Enter: q

Processing package instance <SUNWsaip> from

</cdrom/cdrom0/V9/sai.pci.3.0>

.....

Do you want to install these conflicting files [y,n,?,q]

## Checking for setuid/setgid programs.

This package contains scripts which will be executed

with super-user permission during the process of

installing this package.

Do you want to continue with the installation of

<SUNWsaip> [y,n,?]

Installing Serial Asynchronous Interface Driver (PCI) as <SUNWsaip>

.........

Do you want to install these conflicting files [y,n,?,q]

Installation of <SUNWsaipu> was successful.

The following packages are available:

.........

Select package(s) you wish to process (or ’all’ to process

all packages). (default: all) [?,??,q]:

Installing the SAI/P adapter drivers

Issue 3.0 October 2002 83

11. Enter:

eject cdrom

Installing Avaya CMS and supporting software

84 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Setting up the Bay Networks Annex NTS

Setting up the Bay Networks Annex NTS describes how to install the NTS drivers and

create symbolic links.

!Important:

If your system is not using an NTS, skip this procedure. Continue with

Installing the Solstice for Server Connect X.25 package on page 90.

Setting up the Bay Networks Annex NTS includes the following procedures:

●Installing the NTS drivers on page 84

●Setting up the NTS start-up files on page 88

Installing the NTS drivers

To install the NTS drivers:

Note:

If you are reinstalling the NTS drivers, the options presented will differ

slightly.

1. Log into the system as root.

2. Load the CD-ROM, Annex Communication Server R10.0(B) Annex Host Tools into the

CD-ROM drive.

3. Enter:

cd /

4. After about 15 seconds, enter mount to verify the name of the CD-ROM disk. The

system displays a list of devices and file systems currently mounted. The last line

displayed should look similar to the following example:

5. Enter:

/cdrom/cdrom0/install

The system displays the following message:

/cdrom/baynet_annex_system on /vol/dev/dsk/c0t2d0/baynet_annex_

system read only on (current date and time)

Do you want to continue (y/n/q=quit) [y]:

Setting up the Bay Networks Annex NTS

Issue 3.0 October 2002 85

6. Press Enter.

The system displays the following message:

7. Press Enter.

The system displays the following message:

8. Press Enter.

The system displays the following message:

9. Press Enter.

The system displays the following message:

10. Press Enter.

The system displays the following message:

After installing one product you will be asked if you want to

install the other product.

Indicate desired action:

1) Install Comm.Server Software

2) Install Annex Manager

3) Quit

Enter desired action [1]:

Enter the name of the Comm. Server Software installation directory.

Directory name [/usr/annex/cs_R10.0B]:

Comm. Server Software Installation Script

This installation shell script will examine your system and

possibly ask you questions to generate the needed configuration to

allow you to compile the Comm. Server host utilities.

Type carriage return to continue. Your cursor should be here-->

Where do you want the Annex utilities installed?

Utility directory [/usr/annex]:

BFS directory [/usr/spool/erpcd/bfs]:

Installing Avaya CMS and supporting software

86 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

11. Press Enter.

The system displays the following message:

12. Press Enter.

The system displays the following message:

13. Press Enter.

The system displays the following message:

14. Press Enter.

The system displays the following message:

15. Press Enter.

The system displays a message similar to the following:

Do you wish to install manual pages at this time? [y]:

On-line manual pages will be installed in the appropriate

subdirectory (i.e., ANNEX and index) of the manual base directory.

What is the manual page base directory? (q=quit) [/usr/man]:

Available installation options are:

1. Install binary images only (7MB)

2. Install source code only, but do not compile (11MB)

3. Get both binary images and source code, but do not compile (13MB)

4. Quit

Enter installation choice [1]:

Are you ready to continue (y/q=quit) [y]:

1) Com-Server Annex 3

2) Com-Server MicroAnnex

3) Install all images

Please select the annex model(s) you will be using.

You can specify a list separated by spaces or ’N’ for none:

Setting up the Bay Networks Annex NTS

Issue 3.0 October 2002 87

16. Enter the number associated with the Install all images option.

The system displays the following message:

17. Enter: y

The system displays a message similar to the following:

18. Enter the number associated with the none option.

The system displays the following message:

19. Press Enter.

The system displays the following message:

20. Enter: n

The system displays the following message:

To save room on your system, the above directories can be removed.

You may want to enter "?" at the prompt below to get more help.

Remove these directories (y/n) [n]:

What is your default security regime:

1) acp

2) native UNIX

3) SecureID

4) safeword

5) kerberos

6) deny (access will be denied)

7) none (access is unconditionally granted)

8) radius

Enter security regime [1]:

Do you want the restrictions to apply to PPP and SLIP? [n]:

Do you want the erpcd daemon to provide access control (y/n) [y]:

Copies of the following files have been updated:

service annex-initd

Do you want to install any of these files (y/n) [y]

Installing Avaya CMS and supporting software

88 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

21. Press Enter.

The system displays the following message:

22. Press Enter.

The system displays the following message:

23. Press Enter.

The system displays the following message:

24. Press Enter.

The system displays the following message:

25. Enter: n

The system displays the command prompt.

If you have problems with NTS installation, see Avaya CMS Terminals, Printers, and

Modems, 585-215-874.

Setting up the NTS start-up files

To set up the NTS start-up files:

1. Enter:

chmod 744 /etc/rc2.d/annex-initd

Copy file save/modified/service to /etc/services

(y/n) [y]:

Copy file save/modified/annex-initd

/etc/rc2.d/annex-initd

(y/n) [y]:

No more system files to create or update

Do you want to start-up the new version of the erpcd

daemon? (y/n) [y]:

Starting-up the new version of the erpcd daemon.

Comm.Server Software Installation Script

Do you wish to install the Annex Manager (y/n/q=quit) [y]:

Setting up the Bay Networks Annex NTS

Issue 3.0 October 2002 89

2. Enter:

ln -s /etc/rc2.d/annex-initd /etc/rc2.d/S99annex-initd

3. Enter:

ls -l /etc/rc2.d/annex-initd

4. Review the first column of the output to verify that file permissions are set correctly. The

correct file permissions will exhibit the following format:

lrwxr--r--

5. Enter:

ls -l /etc/rc2.d/S99annex-initd

The system displays permissions for the linked file similar to the following example:

6. Enter the following commands:

ln -s /usr/annex/na /usr/bin/na

ln -s /usr/annex/rtelnet /usr/bin/rtelnet

ln -s /usr/annex/aprint /usr/bin/aprint

7. Enter the following commands, and review the output to verify that the symbolic links

are set correctly.

ls -l /usr/bin/na

ls -l /usr/bin/rtelnet

ls -l /usr/bin/aprint

If the symbolic links are set correctly, the ls command output will indicate the link at

the end of each line.

Example:

The ls -l /usr/bin/na command generates the following output:

8. Enter:

eject cdrom

lrwxr--r-- 1 root other 2 current date S99annex-initd ->

/etc/rc2.d/annex-initd

lrwxrwxrwx 1 root other 563072 current date usr/bin/na -> usr/annex/na

Installing Avaya CMS and supporting software

90 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Installing the Solstice for Server Connect X.25

package

Installing the Solstice for Server Connect X.25 package describes how to install and set up

the X.25 drivers and software license. The X.25 protocol is sometimes used for creating

network connections to the switch.

!Important:

If the CMS computer is using TCP/IP for LAN connectivity instead of X.25,

skip this section. Continue with Installing DiskSuite on page 103.

Installing the Solstice for Server Connect X.25 package includes the following topics:

●Prerequisiteson page 90

●Retrieving system information on page 90

●Installing the Solstice for Server Connect X.25 drivers on page 91

●Setting up the X.25 license on page 96

Prerequisites

Before you begin the installation procedures, you must obtain the password for your X.25

license.

!Important:

If you do not have the password for the X.25 license installed on the system

and do not have access to the Golden Key password, you must contact Sun

directly to obtain a new license. See the Proof of License Certificate that is

included with the CD-ROM disk for procedures you must follow to obtain

your password. Note that the only way Sun will deliver this password is by

FAX or electronic mail.

Retrieving system information

If you do not have access to the X.25 Golden Key password, you must obtain information

about your CMS system. CMS Provisioning (U.S.A.) or the Center of Excellence

(customers outside the U.S.A.) may use the X.25 Golden Key password if the X.25 license

is not already set up.

If you have the Golden Key password, which is available only to authorized CMS

provisioning personnel, or you already know the hostname, hostid, and X.25 license

password installed on the system, go to Installing the Solstice for Server Connect X.25

drivers on page 91.

Installing the Solstice for Server Connect X.25 package

Issue 3.0 October 2002 91

To retrieve the system information for X.25:

1. Enter:

showrev

The program displays information similar to the following example:

2. Record the Hostname and Hostid in the following table, along with your X.25

password.

Installing the Solstice for Server Connect X.25 drivers

To install the X.25 drivers:

1. Log into the system as root.

2. Load the CD-ROM, Solstice for Server Connect, Version - 9.2 into the CD-ROM drive.

3. Enter:

cd /

4. After about 15 seconds, enter mount to verify the name of the CD-ROM disk.

The system displays a list of devices and file systems currently mounted. The last line

displayed should look similar to the following example:

Hostname: XXXXXXXX

Hostid: XXXXXXX

Release: 5.8

Kernel architecture: sun4u

Application architecture: sparc

Hardware provider: Sun_Microsystems

Domain:

Kernel version: SunOS 5.8 Generic <number & date>

Hostname

Hostid

X.25 Password

/cdrom/x25_9_2 on /vol/dev/dsk/c0t6d0/x25_9_2 read only

/setuid/maplcase/noglobal/rr/traildot/dev=16c0001 on current date

and time)

Installing Avaya CMS and supporting software

92 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

5. Enter:

/usr/sbin/pkgadd -d /cdrom/x25_9_2/sparc

The system displays the following message:

The following packages are available:

1 SUNWlicsw FLEX License Manager Software and Utilites

(sparc) 5.0

2 SUNWlit STE License Installation Tool

(sparc) 5.0

3 SUNWllc LLC2 driver and its initialization programs

(sparc) 11.7.0,REV=1999.08.10.11.14

4 SUNWllcr LLC2 driver configuration and startup files

(sparc) 11.7.0,REV=1999.08.10.11.14

5 SUNWllcx LLC2 64bit driver

(sparc) 11.7.0,REV=1999.08.10.11.14

6 SUNWx25a X.25 kernel modules and include files for Solaris/SPARC

(sparc) 9.2

7 SUNWx25ax 64 bit X.25 kernel modules for Solaris/SPARC

(sparc) 9.2

8 SUNWx25b X.25 user programs and libraries for Solaris/SPARC

(sparc) 9.2

9 SUNWx25bx 64-bit X.25 libraries for Solaris/SPARC

(sparc) 9.2

10 SUNWx25lt Solstice X.25 License Configuration Data

(sparc) 9.2

Select package(s) you wish to process (or ’all’ to process

all packages). (default: all) [?,??,q]:

Installing the Solstice for Server Connect X.25 package

Issue 3.0 October 2002 93

6. Enter the numbers associated with the SUNWlicsw, SUNWlit, SUNWx25a,

SUNWx25ax, SUNWx25b, SUNWx25bx, and SUNWx25lt software packages.

Example:

Enter: 1 2 6 7 8 9 10

The system displays the following message:

!Important:

Solaris 8 installs packages 3 through 5 during the Solaris installation. If the

X.25 software needs to be uninstalled, do not remove SUNWllc,

SUNWllcr, and SUNWllcx.

7. Enter: y

The system displays the following message:

Note:

Additional conflicting file messages may be displayed on some systems.

Enter y to continue.

Processing package instance <SUNWlicsw> from </cdrom/x25_9_2/sparc>

FLEX License Manager Software and Utilites

(sparc) 5.0

Using </opt> as the package base directory.

## Processing package information.

## Processing system information.

1 package pathname is already properly installed.

## Verifying disk space requirements.

## Checking for conflicts with packages already installed.

The following files are already installed on the system and are being

used by another package:

/etc/opt <attribute change only>

/etc/rc2.d <attribute change only>

Do you want to install these conflicting files [y,n,?,q]

## Checking for setuid/setgid programs.

This package contains scripts which will be executed with super-user

permission during the process of installing this package.

Do you want to continue with the installation of <SUNWlicsw> [y,n,?]

Installing Avaya CMS and supporting software

94 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

8. Enter: y

The system displays the following message:

9. Enter: y

The system displays the following message:

10. Enter: y

The system displays the following message:

11. Enter: y

The system displays the following message:

Installing FLEX License Manager Software and Utilites as <SUNWlicsw>

...........

Do you want to continue with the installation of <SUNWx25a> [y,n,?]

Installing X.25 kernel modules and include files for Solaris/SPARC

as <SUNWx25a>

..........

Do you want to continue with the installation of <SUNWx25ax> [y,n,?]

Installing 64 bit X.25 kernel modules for Solaris/SPARC as <SUNWx25ax>

..........

Do you want to install these conflicting files [y,n,?,q]

## Checking for setuid/setgid programs.

..........

Do you want to continue with the installation of <SUNWx25ax> [y,n,?]

Installing the Solstice for Server Connect X.25 package

Issue 3.0 October 2002 95

12. Enter: y

The system displays the following message:

13. Enter: y

The system displays the following message:

14. Enter: y

The system displays the following message:

15. Enter: y

The system displays the following message:

Installing 64 bit X.25 kernel modules for Solaris/SPARC as <SUNWx25ax>

..........

Do you want to install these conflicting files [y,n,?,q]

## Checking for setuid/setgid programs.

..........

Do you want to continue with the installation of <SUNWx25b> [y,n,?]

Installing X.25 user programs and libraries for Solaris/SPARC as <SUNWx25b>

..........

Do you want to install these conflicting files [y,n,?,q]

## Checking for setuid/setgid programs.

Installing 64-bit X.25 libraries for Solaris/SPARC as <SUNWx25bx>

..........

Do you want to continue with the installation of <SUNWx25lt> [y,n,?]

Installing Avaya CMS and supporting software

96 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

16. Enter: y

The system displays the following message:

17. Enter: q

18. Enter:

cd /

19. Enter:

eject cdrom

20. Continue with Setting up the X.25 license on page 96.

Setting up the X.25 license

There are two different ways the X.25 license may be set up.

●X.25 golden key license setup on page 97, which is to be performed only if:

—The system does not currently have the X.25 license set up

●X.25 manual license setup on page 97, which requires the following information:

—The server Hostid, Hostname and X.25 license number, as described in Retrieving

system information on page 90.

Installing Solstice X.25 License Configuration Data as

## Installing part 1 of 1.

/opt/SUNWste/license_tools/LIC_CONFIG_FILE.x25.i386

/opt/SUNWste/license_tools/LIC_CONFIG_FILE.x25.sparc

[ verifying class <none> ]

## Executing postinstall script.

Installation of <SUNWx25lt> was successful.

The following packages are available:

..........

Select package(s) you wish to process (or ’all’ to process

all packages). (default: all) [?,??,q]:

Installing the Solstice for Server Connect X.25 package

Issue 3.0 October 2002 97

X.25 golden key license setup

X.25 golden key license setup uses the golden key password to set up the X.25 software

license.

Note:

If this is an upgrade from a version earlier than 9.2 and the X.25 license is

already set up, perform the X.25 manual license setup on page 97.

To set up the license:

1. Lookup the X.25 golden key password. This password is case sensitive and needs to

be duplicated exactly.

2. Go to the file by entering:

cd /opt/SUNWconn/x25

3. Create and edit the x25_9.1.lic,0 license file by entering:

vi x25_9.1.lic,0

4. Enter the X.25 golden key password (which is input on a single line at the command

prompt), similar to the following example:

INCREMENT solstice_x.25 lic.SUNW 9.100 01-jan-0 0

XXXXXXXXXXXXXXXXXXXX “AVAYA” ANY

where XXXXXXXXXXXXXXXXXXXX represents the license identification number.

5. Save and exit the file by pressing Esc. Then enter:

:wq!

6. Confirm the changes you made by entering:

cat x25_9.1.lic,0

The displayed text should match the password on the CD-ROM, Solstice for Server

Connect.

The X.25 license setup is complete.

!CAUTION:

Do not change the host name of your computer after installing the X.25

license. Changing the system’s host name disables the X.25 software

license.

7. Continue with Installing DiskSuite on page 103.

X.25 manual license setup

Perform this procedure only if you were unable to set up the X.25 license using the golden

key.

Installing Avaya CMS and supporting software

98 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

To set up the license:

1. Enter:

/etc/opt/licenses/lit_tty

The system displays the following message:

2. Press Enter until the cursor moves to the brackets in front of x25.sparc

3. Enter an x in the brackets. Then press Enter.

The system displays the following message:

Select Product to License

[ ] x25.i386

[ ] x25.sparc

[ ] Exit -No License Installation

**x=select product and goto product screen **

Select product to license

Solstice X.25 9.2

9.2 forsparc

Servers: [x] 1 [ ] 3 **x=select. Tab=next count. Return=server name**

SERVER NAME HOSTID

1: xxxx xxxxxxxx

Phone Number List [ ] See the License Certificate for License Center info

Nodelocked to Host ID:

Expiration Date:

Rights to Use (RTU): Data Checksum(DC): 94

Password: Password Checksum (PC): 6b

Vendor String (VS):

Done Setting Up This License [ ] Cancel This License [ ]

Exit - Save Licenses [ ] Exit - Don’t Save Licenses [ ]

** x=select/deselect Return=next field **

Installing the Solstice for Server Connect X.25 package

Issue 3.0 October 2002 99

4. Verify that Servers: [x] 1 is selected, and that the SERVER NAME and HOSTID match

the information that you recorded in Retrieving system information on page 90.

5. Press Enter until the cursor is at the Nodelocked to Host ID: field, and enter:

none

6. Press Enter until the cursor is in the Rights to Use: field and, enter: 1

7. Press Enter until the cursor is in the Password: field and, enter the X.25 password.

8. Press Enter until the cursor is in the Vendor String (VS): field, and enter the Vendor

String variable.

9. Verify that the Data Checksum and Password Checksum values shown on the

screen match the checksum values that are printed in your license information.

Note:

These checksum values are identified in your license as the PC and DC

values. If the Rights to Use, Vendor String, or the X.25 password

were entered incorrectly, these checksum values will not match.

10. Press Enter.

Installing Avaya CMS and supporting software

100 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

11. If the information is correct, enter an x in the brackets of the Done Setting Up This

License: field, and press Enter.

The system displays a pop-up window similar to the following:

12. Press any key to continue.

Installing the Solstice for Server Connect X.25 package

Issue 3.0 October 2002 101

13. Enter an x in the brackets of the Exit - Save Licenses field, and press Enter.

The system displays the following message:

Note:

Ignore the Now Execute the Script statement on this window. This

task has already been done. The licensing of the X.25 software is complete.

14. Verify that the license was installed correctly by entering:

cd /usr/tmp

Installing Avaya CMS and supporting software

102 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

15. Enter:

cat license_log

The system displays the following message:

!CAUTION:

Do not change the host name of your system after installing the X.25

license. Changing the system’s host name disables the X.25 software

license.

16. Continue with Installing DiskSuite on page 103.

If you have problems with the X.25 installation see, Solving X.25 installation

problems on page 383.

12:09:27 (lmgrd) -----------------------------------------------

12:09:27 (lmgrd) Please Note:

12:09:27 (lmgrd)

12:09:27 (lmgrd) This log is intended for debug purposes only.

12:09:27 (lmgrd) There are many details in licensing policies

12:09:27 (lmgrd) that are not reported in the information logged

12:09:27 (lmgrd) here, so if you use this log file for any kind

12:09:27 (lmgrd) of usage reporting you will generally produce

12:09:27 (lmgrd) incorrect results.

12:09:27 (lmgrd)

12:09:27 (lmgrd) -----------------------------------------------

........

12:09:27 (lmgrd) Starting vendor daemons...

12:09:27 (lmgrd) Started lic.SUNW (internet tcp_port 32778 pid 243

12:09:27 (lic.SUNW) FLEXlm version 6.16

12:09:27 (lic.SUNW) Server started on xxxx

12:09:27 (lic.SUNW) OUT: “Solstice_x.25” root@xxxx

Installing DiskSuite

Issue 3.0 October 2002 103

Installing DiskSuite

The DiskSuite software package is used to mirror the disks on a CMS system and to create

any soft partitions.

!Important:

Install the DiskSuite software only from the current version of the Solaris 8

Software disk 2 of 2 CD-ROM. Loading the DiskSuite software from a

different Solaris 8 version can cause serious problems with your CMS

system.

To install the DiskSuite software:

1. Verify that you have partitioned the hard disks for the DiskSuite system as specified in

Partitioning the disk drives on page 40.

2. Verify that all link and port packages (HSI/S, HSI/P, SAI/P, X.25) are installed as

required by your particular system configuration.

3. Log into the system as root.

4. Load the CD-ROM, Solaris 8 Software disk 2 of 2 into the CD-ROM drive.

5. Enter:

cd /

6. After about 15 seconds, enter mount to verify the name of the CD-ROM disk.

The program responds with a list of devices and file systems currently mounted. The

last line displays the installed CD-ROM as shown below:

7. Enter the following command on a single line at the command prompt:

The system displays a list of the DiskSuite packages that can be installed.

/cdrom/sol_8_202_sparc_2 on /vol/dev/dsk/c0t2d0/sol_8_202_sparc_2

read only/nosuid/maplcase/noglobal/rr/traildot/dev=16c0002 on

current date and time

/usr/sbin/pkgadd -d

/cdrom/cdrom0/Solaris_8/EA/products/DiskSuite_4.2.1/sparc/Packages

Installing Avaya CMS and supporting software

104 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

8. Enter the numbers associated with the SUNWmdr, SUNWmdu, and SUNWmdx

packages.

Example:

Enter: 8 9 10

The system displays the following message:

9. Enter: y

10. Enter: y

11. Enter: y

Processing package instance <SUNWmdr> from

</cdrom/sol_8_202_sparc_2/Solaris_8/EA/products/DiskSuite_4.2.1/s

parc/Packages>

.........

Do you want to continue with the installation of <SUNWmdr> [y,n,?]

Installing Solstice DiskSuite Drivers as <SUNWmdr>

.........

Do you want to continue with the installation of <SUNWmdu> [y,n,?]

Installing Solstice DiskSuite Commands as <SUNWmdu>

.........

Do you want to continue with the installation of <SUNWmdx> [y,n,?]

Installing Solstice DiskSuite Drivers(64-bit) as <SUNWmdx>

.........

Select package(s) you wish to process (or ’all’ to process

all packages). (default: all) [?,??,q]:

Installing DiskSuite

Issue 3.0 October 2002 105

12. Enter: q

The system displays the following message:

13. Enter:

/usr/sbin/shutdown -y -i6 -g0

The system reboots.

14. Log into the system as root.

15. Enter:

eject cdrom

*** IMPORTANT NOTICE ***

This machine must now be rebooted in order to ensure

sane operation. Execute

shutdown -y -i6 -g0

and wait for the "Console Login:" prompt.

Installing Avaya CMS and supporting software

106 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Installing the Solaris patches

Sun periodically provides updates for the Solaris operating system. The Solaris patches

are delivered with the CMS software.

To install the Solaris patches:

1. Verify that the DiskSuite software package has been installed.

2. If the system is a Sun Fire V880, Enterprise 3000 or Enterprise 3500 system, record

the original position of the key switch. You must return the key switch to this original

position at the end of this procedure. If the key switch is in the “Locked” or

“Diagnostics” position, move the key switch to the “On” position.

3. Log into the system as root.

4. Load the Avaya Call Management System CD-ROM into the CD-ROM drive.

5. Enter:

cd /

6. Enter:

/cdrom/cdrom0/spatches_conf

The system displays a message similar to the following:

Note:

The system will display the approximate amount of time needed to install the

Solaris patches.

7. Choose one of the following steps:

●To install the Solaris patches:

Warning: you must close all applications before running this script

...................

Solaris patches have been spooled to your machine. The patches will

beinstalled after rebooting. During the installation of patches your

server will not be available.

The estimated time to install all patches is: 15 minutes

Ready to install Patches. Please leave the CD in the drive.

You will need to reboot the server for patches to install.

Do you want to reboot now? [y,n,?]

Installing the Solaris patches

Issue 3.0 October 2002 107

i. Enter: y

The system boots into single user mode and installs the Solaris patches.

Note:

If there are no Solaris patches to install the system displays the following

message.

ii. Choose one of the following steps:

—If Solaris patches were installed, go to Step 8.

—If no Solaris patches were installed, log into the system as root. Then go to

Step 10.

●To cancel installation of the Solaris patches, enter: n

The system displays the following message:

!CAUTION:

If you cancel installation of the Solaris patches, you will have to install them

before installing CMS.

8. Log into the system as root.

9. Verify that all of the Solaris patches have been installed by entering:

tail -10 /var/cms/spatches/spatches.log

The system displays the following message in the log:

There are no Solaris patches to install

Terminating at user’s request.

You will need to run spatches_conf again to install Operating System

patches.

All patches installed successfully.

Installing Avaya CMS and supporting software

108 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Note:

If the installation procedure fails for any of the patches, the following

message is displayed:

If the message shown above is displayed, continue with this procedure and the

remaining CMS base load upgrade procedures. When the upgrade is complete,

notify your CMS support organization as instructed.

10. Enter:

eject cdrom

11. If the system is a Sun Fire V880, Enterprise 3000 or Enterprise 3500 system, return

the key switch to the position it was in at the start of this procedure.

For additional information on Solaris patches, see Working with Solaris patches on

page 287.

Installation failed for one or more Solaris patches.

- Customers in the US should call the CMS Technical Services

Organization at 1-800-242-2121

- Customers outside the US should contact your Avaya

representative or distributor.

Patch installation completed: Fri Jan 18 13:28:19 MST 2002

Installing the Informix software packages

Issue 3.0 October 2002 109

Installing the Informix software packages

Informix provides the relational database management system used to organize CMS

data. CMS works in conjunction with the Informix software.

Installing the Informix software packages includes the following topics:

●Prerequisites on page 109

●Setting up the Informix environment on page 109

●Installing the Informix SQL 7.20 package on page 110

●Installing the IDS 9.21 package on page 112

●Installing the Informix ESQL 9.40 package on page 116

●Installing Informix ILS on page 119

●Initializing IDS on page 129

Prerequisites

Before you begin installing the Informix software packages, perform the following tasks:

●Verify that you are logged in as root at the console.

●If you are using ISQL custom reports, obtain the CD-ROM, Informix SQL Version 7.20,

license serial number (S/N), and the serial number key (required only if using custom

reports).

●Obtain the CD-ROM, Informix IDS 9.21.UC4-1, License S/N, and Serial Number Key.

●Obtain the CD-ROM, Informix ESQL 9.40/2.50.UC2-1 SDK, License S/N, and Serial

Number Key.

●Obtain the CD-ROM, Informix Int’l Language Supplement Version 3.0.

●Obtain the CD-ROM, Avaya Call Management System R3V11.

Setting up the Informix environment

To set up the Informix environment:

1. If you are setting up the Informix environment from the console, enter the following

commands:

TERM=xterm

export TERM

Installing Avaya CMS and supporting software

110 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

2. Add a new group to the system by entering:

groupadd -g 100 informix

3. Add a new user to the system by entering the following command:

useradd -g informix -u 100 -m -d /opt/informix informix

The system displays the following message:

4. Set the environment variables by entering the following commands:

INFORMIXDIR=/opt/informix

export INFORMIXDIR

PATH=$PATH:$INFORMIXDIR/bin

export PATH

The Informix installation environment is now set.

Installing the Informix SQL 7.20 package

To install the Informix SQL package:

!Important:

This software package is required only if you are using ISQL custom reports.

If you do not need this package, skip this section. Continue with Installing

the IDS 9.21 package on page 112.

!CAUTION:

The ISQL software must be installed before the other Informix software

packages. If the ISQL software is installed at a later time, the other Informix

packages will need to be reinstalled. Do NOT reinitialize IDS or else

customer data will be lost.

1. Use the following table to record the serial number and serial number key for this

Informix package.

2. Load the CD-ROM, Informix SQL 7.20 into the CD-ROM drive.

6 blocks

Serial number

Serial number key

Installing the Informix software packages

Issue 3.0 October 2002 111

3. After about 15 seconds, enter mount to verify the name of the CD-ROM disk.

The program displays a list of devices and file systems currently mounted. The last line

displayed should look similar to the following example:

4. Change to the Informix directory by entering:

cd $INFORMIXDIR

5. Verify that you are in the Informix directory by entering:

pwd

The system displays the following message:

6. Enter:

tar xvf /cdrom/cdrom0/sql.tar

The system copies the Informix SQL files from the CD-ROM to the current directory,

and displays:

7. Start the installation of the Informix SQL package by entering:

./installsql

The system displays the following message:

/cdrom/informix on /vol/dev/dsk/c0t2d0/informix read

only/setuid/maplcase/noglobal/rr/traildot/dev=16c0001 on

(current date and time)

/opt/informix

x installsql, XXX bytes, XX tape blocks

x bin/cace, XXX bytes, XX tape blocks

. . . . .

x gls/lc11/os/sv.lc, XXX bytes, XX tape blocks

INFORMIX-SQL Version 7.XX.XXX

Installation Script

. . . . .

Press RETURN to continue,

or the interrupt key (usually CTRL-C or DEL) to abort.

Installing Avaya CMS and supporting software

112 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

8. Press Enter.

The system displays the following message:

9. Enter the 11-character License S/N that is on your license.

The system displays the following message:

10. Enter the 6-character serial number key that is on your license.

The system displays the following message:

11. Press Enter.

The system displays the following message:

12. Enter:

eject cdrom

Installing the IDS 9.21 package

To install the IDS package:

1. Use the following table to record the serial number and serial number key for this

Informix Dynamic Server (IDS) package.

2. Load the CD-ROM, Informix IDS 9.21.UC4-1 into the CD-ROM drive.

Enter your serial number (e.g.,INF#R999999) >

Enter your serial number KEY (uppercase letters only) >

WARNING!

This software, and its authorized use and number of . . .

. . . .

. . . . .

Press RETURN to continue,

or the interrupt key (usually CTRL-C or DEL) to abort.

Installing directory .

. . . . .

Installation of INFORMIX-SQL complete.

Serial number

Serial number key

Installing the Informix software packages

Issue 3.0 October 2002 113

3. After about 15 seconds, enter mount to verify the name of the CD-ROM disk.

The system displays a list of devices and file systems currently mounted. The last line

displayed should look similar to the following example:

4. Enter:

su informix

The prompt changes to $.

5. Change to the Informix directory by entering:

cd $INFORMIXDIR

6. Enter:

pwd

The system displays the following message:

7. Enter:

tar xvf /cdrom/cdrom0/ids2000.tar

The system copies the IDS files from the CD-ROM to the current directory and displays

the following message:

/cdrom/informix on /vol/dev/dsk/c0t6d0/informix read only

/setuid/maplcase/noglobal/rr/traildot/dev=16c0004 on (current

date and time)

/opt/informix

x installserver, 19696 bytes, 39 tape blocks

x aaodir/adtcfg.std, 708 bytes, 2 tape blocks

x aaodir/adtcfg, 945 bytes, 2 tape blocks

. . . . .

x etc/XKeysymDB, 3184 bytes, 7 tape blocks

x msg/en_us/0333/cockpit.iem, 8073 bytes, 16 tape blocks

x msg/en_us/0333/i18n_str.uid, 57344 bytes, 112 tape blocks

Installing Avaya CMS and supporting software

114 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

8. Start the installation of the IDS software package by entering:

./installserver

The system displays the following message:

9. Press Enter.

The system displays the following message:

10. Enter the 11-character License S/N that is on your license.

The system displays the following message:

11. Enter the 6-character serial number key that is on your license.

The system displays the following message:

Informix Dynamic Server 2000 Version X.XX.UCX

Installation Script

. . . . .

Press RETURN to continue,or the interrupt key (usually CTRL-C or

DEL) to abort.

Enter your serial number (for example, INF#X999999) >

Enter your serial number KEY (uppercase letters only) >

WARNING!

This software, and its authorized use and number of . . .

. . . .

. . . . .

Press RETURN to continue, or the interrupt key (usually CTRL-C or

DEL) to abort.

Installing the Informix software packages

Issue 3.0 October 2002 115

12. Press Enter.

The system displays the following message:

13. Enter:

exit

The prompt changes to #.

Note:

Some systems will not default to root the first time the exit command is

run. It may be necessary to enter the exit command a second time. If you

enter id at the command prompt, the system should display a

uid=0(root) message.

14. Enter:

cd /opt/informix

15. Enter:

pwd

The system displays the following message:

16. Enter:

./RUN_AS_ROOT.server

The system displays the following message:

Installing directory .

Installing directory aaodir

Installing directory bin

. . . . .

Informix user portion of installation of Informix Dynamic Server

2000 complete.

/opt/informix

Informix Product: Informix Dynamic Server 2000

Installation Directory: /opt/informix

. . . . .

Installation of Informix Dynamic Server 2000 complete.

Installing Avaya CMS and supporting software

116 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

17. Enter:

eject cdrom

Installing the Informix ESQL 9.40 package

To install the Informix ESQL package:

1. Use the following table to record the serial number and serial number key for this

Informix package.

2. Load the CD-ROM, Informix ESQL 9.40/2.50.UC2-1 SDK into the CD-ROM drive.

3. After about 15 seconds, enter mount to verify the name of the CD-ROM disk.

The program responds with a list of devices and file systems currently mounted. The

last line should display the installed CD-ROM disk, as shown below:

4. Set the environment variables by entering the following commands:

INFORMIXDIR=/opt/informix

export INFORMIXDIR

PATH=$PATH:$INFORMIXDIR/bin

export PATH

5. Enter:

su informix

The prompt changes to $.

6. Change to the Informix directory by entering:

cd $INFORMIXDIR

7. Enter:

pwd

The system displays the following message:

Serial Number

Serial Number Key

/cdrom/informix#1 on /vol/dev/dsk/c0t2d0/informix#1 read

only/nosuid/maplcase/noglobal/rr/traildot/dev=16c0008 on (current

date and time)

/opt/informix

Installing the Informix software packages

Issue 3.0 October 2002 117

8. Enter the following command to copy the Informix Client SDK files from the CD-ROM

to the current directory:

cp /cdrom/cdrom0/CLISDK/* /opt/informix

9. Enter the following to start the installation of the Informix Client SDK software

packages:

./installclientsdk

The system displays the following message:

10. Enter: y

The system displays the following message:

11. Press Enter.

The system displays the following message:

12. Enter the 11-character license S/N that is on your license.

The system displays the following message:

x installesql, 12075 bytes, 24 tape blocks

x bin/esql, 14859 bytes, 30 tape blocks

x bin/esqldemo, 1067 bytes, 3 tape blocks

................

Is ClientSDK being installed along with Informix database server

version 9.x (required to be run as user "informix")?

(yes or no)

Installation Script

. . . . .

Press RETURN to continue,

or the interrupt key (usually CTRL-C or DEL) to abort.

Enter your serial number (for example, INF#X999999) >

Enter your serial number KEY (uppercase letters only) >

Installing Avaya CMS and supporting software

118 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

13. Enter the 6-character serial number key that is on your license.

The system displays the following message:

14. Press Enter.

The system displays the following message:

15. Enter:

exit

The prompt changes to #.

Note:

Some systems will not default to root the first time the exit command is

run. It may be necessary to enter the exit command a second time. If you

enter id at the command prompt the system should display a

uid=0(root) message.

16. Enter:

cd /opt/informix

17. Enter:

pwd

The system displays the following message:

WARNING!

This software, and its authorized use and number of . . .

. . . .

. . . . .

Press RETURN to continue,

or the interrupt key (usually CTRL-C or DEL) to abort.

Installing directory .

Installing directory bin

Installing directory lib

Installing directory lib/client

. . . . .

Informix user portion of installation of INFORMIX-Client SDK

complete.

/opt/informix

Installing the Informix software packages

Issue 3.0 October 2002 119

18. Enter:

./RUN_AS_ROOT.clientsdk

The system displays the following message:

19. Enter:

eject cdrom

Installing Informix ILS

To install Informix ILS:

!CAUTION:

Various steps in the Informix ILS installation require that you select multiple

options. All of the indicated options are required. If the indicated options are

not selected, the software will not function correctly.

1. Load the CD-ROM, Informix ILS Version 3.0 into the CD-ROM drive.

2. After about 15 seconds, enter mount to verify the name of the CD-ROM disk.

The program responds with a list of devices and file systems currently mounted. The

last line displayed should look similar to the following example:

3. Set the environment variables by entering the following commands:

INFORMIXDIR=/opt/informix

export INFORMIXDIR

PATH=$PATH:$INFORMIXDIR/bin

export PATH

4. Enter:

cd $INFORMIXDIR

Informix Product: INFORMIX-Client SDK

Installation Directory: /opt/informix

Performing root portion of installation of INFORMIX-Client SDK...

Installation of INFORMIX-Client SDK complete.

/cdrom/volume_1 on /vol/dev/dsk/c0t2d0/volume_1 read only

on (current date and time)

Installing Avaya CMS and supporting software

120 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

5. Enter:

pwd

The system displays the following message:

6. Enter:

/cdrom/cdrom0/install

The system displays the following message:

7. Enter the number associated with the language that you want to use during the

installation.

Example:

Enter 1 to select English.

/opt/informix

INTERNATIONAL LANGUAGE SUPPLEMENT USER INTERFACE LANGUAGE

(1) English (5) Russian

(2) German (6) Polish

(3) French (7) Czech

(4) Spanish (8) Slovak

(9) Help

(10) Exit

Select installer language?

Installing the Informix software packages

Issue 3.0 October 2002 121

Note:

If you select a language other than English, you must also select a

display character set.

After you select a language, the system displays a message similar to the following:

INFORMIX INTERNATIONAL LANGUAGE SUPPLEMENT (ILS)

INSTALLER FOR ALL UNIX PLATFORMS

Choose install type:

(1) Express Install

Installs everything relating to one or more languages.

(2) Custom Install

You specify exactly what you want to install.

Other options:

(3) Help

Displays information on the contents of this package,

and explains the options on this screen.

(4) Exit

Exit this installer.

(E)nglish (D)eutsch/German (F)rancais/French e(S)panol/Spanish

(R)ussian (P)oliski/Polish (C)ekych/Czech s(L)ovych/Slovak

(K)orean (J)apanese (T)rad Chineese S(I)mp Chinese

Enter one choice, and hit ENTER:

Installing Avaya CMS and supporting software

122 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

8. Enter the number associated with the Custom Install option.

The system displays a message similar to the following:

Custom Install

--------------

(1) User interface

Installs a localised user interface for Servers and Tools.

(2) Locale

Installs locales by language, territory and code page.

(3) Operating System locales

Installs operating system equivalent locales.

(4) Code set conversion

Installs code set conversion files between code pages.

(5) Help (6) GLS source install [Enabled]

(7) Previous Screen (8) Exit

(E)nglish (D)eutsch/German (F)rancais/French e(S)panol/Spanish

(R)ussian (P)oliski/Polish (C)ekych/Czech s(L)ovych/Slovak

(K)orean (J)apanese (T)rad Chineese S(I)mp Chinese

Select the components to install:

Installing the Informix software packages

Issue 3.0 October 2002 123

9. Enter the numbers associated with the Locale and Code set conversion

options.

Example:

Enter: 2 4

The system displays the following message:

LOCALES - LANGUAGES

Install locales and associated character maps for what languages?

(1) Arabic (12) Hebrew (23) Romanian

(2) Bulgarian (13) Hungarian (24) Russian

(3) Czech (14) Icelandic (25) Serbo-Croatian

(4) Danish (15) Italian (26) Simp Chinese

(5) Dutch (16) Japanese (27) Slovak

(6) English (17) Korean (28) Spanish

(7) Estonian (18) Latvian (29) Swedish

(8) Finnish (19) Lithuanian (30) Thai

(9) French (20) Norwegian (31) Trad Chinese

(10) German (21) Polish (32) Turkish

(11) Greek (22) Portuguese (33) Ukrainian

(34) Help (35) All Of The Above

(36) Custom Screen (37) Exit

(E)nglish (D)eutsch/German (F)rancais/French e(S)panol/Spanish

(R)ussian (P)oliski/Polish (C)ekych/Czech s(L)ovych/Slovak

(K)orean (J)apanese (T)rad Chinese S(I)mp Chinese

Enter one or more choices, separated with spaces, and hit ENTER:

Installing Avaya CMS and supporting software

124 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

10. Enter the number associated with the English and Japanese options.

Example:

Enter: 6 16

The system displays the following message:

11. Enter the number associated with the option for United States.

Example:

Enter: 3

The system displays the following message:

LOCALES - TERRITORIES

Install English language locales for what territories?

(1) Australia

(2) United Kingdom

(3) United States

(4) Help (5) All Of The Above

(6) Custom Screen (7) Exit

(E)nglish (D)eutsch/German (F)rancais/French e(S)panol/Spanish

(R)ussian (P)oliski/Polish (C)ekych/Czech s(L)ovych/Slovak

(K)orean (J)apanese (T)rad Chineese S(I)mp Chinese

Enter one or more choices, separated with spaces, and hit ENTER:

LOCALE - CODESETS

Install English language locales for what codesets?

(1) ISO 8859-1

(2) DOS Code Page 850

(3) Windows CP 1252

(4) UNICODE

(5) UTF8

(6) Help (7) All Of The Above

(8) Custom Screen (9) Exit

(E)nglish (D)eutsch/German (F)rancais/French e(S)panol/Spanish

(R)ussian (P)oliski/Polish (C)ekych/Czech s(L)ovych/Slovak

(K)orean (J)apanese (T)rad Chineese S(I)mp Chinese

Enter one or more choices, separated with spaces, and hit ENTER:

Installing the Informix software packages

Issue 3.0 October 2002 125

12. Enter the number associated with the option for UTF8.

The system displays the following message:

13. Enter the number associated with the option for UTF8.

The system displays the following message:

LOCALE - CODESETS

Install Japanese language locales for what codesets?

(1) Standard-Shift-JIS

(2) Shift-JIS+JISX0212

(3) UJIS/EUC

(4) UTF8

(5) Help (6) All Of The Above

(7) Custom Screen (8) Exit

(E)nglish (D)eutsch/German (F)rancais/French e(S)panol/Spanish

(R)ussian (P)oliski/Polish (C)ekych/Czech s(L)ovych/Slovak

(K)orean (J)apanese (T)rad Chineese S(I)mp Chinese

Enter one or more choices, separated with spaces, and hit ENTER:

CODESET CONVERSION REGIONS

Choose the regions for which you require codeset conversion tables.

(1) Arabic (7) Japanese

(2) Baltic (8) Korean

(3) Cyrillic (9) Simplified Chinese

(4) Eastern European (10) Trad. Chinese

(5) Greek (11) Turkish

(6) Hebrew (12) Western European

(13) Help (14) All Of The Above

(15) Custom Screen (16) Exit

(E)nglish (D)eutsch/German (F)rancais/French e(S)panol/Spanish

(R)ussian (P)oliski/Polish (C)ekych/Czech s(L)ovych/Slovak

(K)orean (J)apanese (T)rad Chineese S(I)mp Chinese

Enter one or more choices, separated with spaces, and hit ENTER:

Installing Avaya CMS and supporting software

126 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

14. Enter the numbers associated with the Japanese and Western European

options.

Example:

Enter: 7 12

The system displays the following message:

CODESET CONVERSION TABLES - CODESETS

Install Japanese codeset conversion tables for what codesets?

(1) Shift-JIS+JISX0212

(2) Standard-Shift-JIS

(3) UJIS/EUC

(4) UNICODE

(5) UTF8

(6) Help (7) All Of The Above

(8) Custom Screen (9) Exit

(E)nglish (D)eutsch/German (F)rancais/French e(S)panol/Spanish

(R)ussian (P)oliski/Polish (C)ekych/Czech s(L)ovych/Slovak

(K)orean (J)apanese (T)rad Chineese S(I)mp Chinese

Select two or more options. All available combinations of the

selected options will be installed.

Installing the Informix software packages

Issue 3.0 October 2002 127

15. Enter the numbers associated with the Shift-JIS+JISX0212, Standard-Shift-

JIS, and UTF8 options.

Example:

Enter: 1 2 5

The system displays the following message:

CODESET CONVERSION TABLES - CODESETS

Install Western European codeset conversion tables for what codesets?

(1) ASCII 7-bit (9) IBM CCSID 00273 (17) IBM CCSID 871

(2) DOS Code Page 437 (10) IBM CCSID 00277 (18) ISO-7-Danish

(3) DOS Code Page 850 (11) IBM CCSID 00278 (19) ISO-7-German

(4) DOS Code Page 860 (12) IBM CCSID 00280 (20) ISO 8859-1

(5) DOS Code Page 863 (13) IBM CCSID 00284 (21) ISO 8859-15

(6) DOS Code Page 865 (14) IBM CCSID 00285 (22) UNICODE

(7) EBCDIC (15) IBM CCSID 00297 (23) UTF8

(8) HP-Roman8 (16) IBM CCSID 00500 (24) Windows CP 1252

(25) Help (26) All Of The Above

(27) Custom Screen (28) Exit

(E)nglish (D)eutsch/German (F)rancais/French e(S)panol/Spanish

(R)ussian (P)oliski/Polish (C)ekych/Czech s(L)ovych/Slovak

(K)orean (J)apanese (T)rad Chineese S(I)mp Chinese

Select two or more options. All available combinations of the

selected options will be installed.

Installing Avaya CMS and supporting software

128 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

16. Enter the numbers associated with the ISO 8859-1 and UTF8 options.

Example:

Enter: 20 23

The system displays the following message:

17. Press Enter.

The system displays the following message:

SUMMARY: You have chosen to install the following

-------------------------------------------------------------

Installing locales:

English United States UTF8

Japanese Japan UTF8

Installing codeset conversion tables:

Japanese Shift-JIS+JISX0212

Standard-Shift-JIS

UTF8

Western European ISO 8859-1

UTF8

Hit ENTER to confirm or ‘q‘ to return to main menu.

Installing international software Please wait...

Installing gls...

Installation complete.

See $INFORMIXDIR/ils.log for a list of installed files.

See $INFORMIXDIR/release/README and

$INFORMIXDIR/release/ILS_COMPAT for further information.

Hit ENTER to return to main menu...

Installing the Informix software packages

Issue 3.0 October 2002 129

18. Press Enter.

The system displays the following message:

19. Enter the number associated with the Exit option.

The system displays the following message:

20. Enter:

eject cdrom

Initializing IDS

To initialize Informix Dynamic Server (IDS) for CMS:

1. Load the CD-ROM, Avaya Call Management System R3V11 into the CD-ROM drive.

2. After about 15 seconds, enter mount to verify the name of the CD-ROM disk.

The program displays a list of devices, and file systems that are currently mounted.

The last line should display the installed CD-ROM disk as shown below:

INFORMIX INTERNATIONAL LANGUAGE SUPPLEMENT (ILS)

INSTALLER FOR ALL UNIX PLATFORMS

Choose install type:

(1) Express Install

Installs everything relating to one or more languages.

(2) Custom Install

You specify exactly what you want to install.

Other options:

(3) Help

Displays information on the contents of this package,

and explains the options on this screen.

(4) Exit

Exit this installer.

(E)nglish (D)eutsch/German (F)rancais/French e(S)panol/Spanish

(R)ussian (P)oliski/Polish (C)ekych/Czech s(L)ovych/Slovak

(K)orean (J)apanese (T)rad Chineese S(I)mp Chinese

Enter one choice, and hit ENTER:

Exiting the International Language Supplement installer.

/cdrom/cms on /vol/dev/dsk/c0t2d0/cms read

only/nosuid/maplcase/noglobal/rr/traildot/dev=16c0001 on

(current date and time)

Installing Avaya CMS and supporting software

130 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

3. Enter:

cd /cdrom/cdrom0/postids

Note:

The postids tool is used to automatically configure the IDS software to run

with CMS. The tool will initialize the /etc/system and /opt/informix files.

4. Enter:

./postids_config

The system displays the following message:

Note:

The “This machine must now be rebooted in order to insure

sane operation”, message may not display on some systems. If it does

not display, continue with Step 7.

5. Enter:

/usr/sbin/shutdown -y -i6 -g0

6. Log in as root.

7. Change permissions to partition 4 by entering the following commands:

chown informix:informix /dev/rdsk/cXtXd0s4

chmod 660 /dev/rdsk/cXtXd0s4

where cX is the device controller number, and

where tX is the device target number.

8. Enter:

. /opt/informix/bin/setenv

x ., 0 bytes, 0 tape blocks

x ./opt, 0 bytes, 0 tape blocks

x ./opt/informix, 0 bytes, 0 tape blocks

..............

Installing Informix IDS configuration information for CMS...

Setting UNIX system tunable parameters for Informix IDS.

Postids Configuration successful.

*** IMPORTANT NOTICE ***

This machine must now be rebooted in order to insure sane

operation. Execute:

shutdown -y -i6 -g0

and wait for the Console Login: prompt.

Installing the Informix software packages

Issue 3.0 October 2002 131

9. Enter:

oninit -iy

Note:

This process may take several minutes.

10. Check the IDS software by entering:

onstat

The system displays several sets of data:

11. Enter:

eject cdrom

Informix Dynamic Server 2000 Version X.XX.UCX -- On-Line -- Up 00:00:55 -- 18432

Kbytes

Userthreads

address flags sessid user tty wait tout locks nreads nwrites

a30c018 ---P--D 1 root - 0 0 0 27 37510

a30c608 ---P--F 0 root - 0 0 0 0 1132

....................

ovlock ovuserthread ovbuff usercpu syscpu numckpts flushes

0 0 0 17.64 1.99 2 5

bufwaits lokwaits lockreqs deadlks dltouts ckpwaits compress seqscans

6 0 33350 0 0 1 925 529

ixda-RA idx-RA da-RA RA-pgsused lchwaits

4 0 47 51 0

Installing Avaya CMS and supporting software

132 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Installing the CMS packages

Installing the CMS packages contains procedures for the installation and configuration of

the CMS software.

Installing the CMS packages includes the following topics:

●Prerequisites on page 132

●Installing the CMS Supplemental Services software on page 132

●Installing the CMS software on page 138

●Setting up CMS authorizations on page 141

●Installing the CMS patches on page 147

Prerequisites

Before you install any of the CMS packages, perform the following tasks:

●Verify that you are logged in as root at the console.

●Obtain the CD-ROM, Call Management System Supplemental Services.

●Obtain the CD-ROM, Avaya Call Management System R3V11.

●Obtain the current CMSSVC password.

!Important:

The CMSSVC login is used only by Avaya services personnel. Do not give

out the CMSSVC password.

Installing the CMS Supplemental Services software

To install the Supplemental Services software:

1. Record the CMS Supplemental Services version number printed on the CD-ROM disk,

Call Management System Supplemental Services. You will need this number during

the procedure.

2. Load the CD-ROM, Call Management System Supplemental Services into the

CD-ROM drive.

3. Re-initialize the IDS software by entering:

. /opt/informix/bin/setenv

Version number

Installing the CMS packages

Issue 3.0 October 2002 133

4. Check the IDS software by entering:

onstat

The system displays several sets of data:

5. Enter:

/usr/sbin/pkgadd -d /cdrom/cdrom0 LUim

The system loads the Installation Manager package, and displays the following

message:

6. Enter:

/opt/LUim/bin/install 2>&1|tee -a /opt/LUim.log

The system displays the following message:

Informix Dynamic Server 2000 Version X.XX.UCX -- On-Line -- Up 00:00:55 -- 18432 Kbytes

Userthreads

address flags sessid user tty wait tout locks nreads nwrites

....................

ixda-RA idx-RA da-RA RA-pgsused lchwaits

4 0 47 51 0

Processing package instance <LUim> from </cdrom/cvs>

Avaya Installation Manager

(sparc) 0.XX

.........

Installation of <LUim> was successful.

================================================================

====== Avaya Installation Manager, Version .XX

====== Current date and time

================================================================

.........

Where should this package be installed? [/opt/SUNWexplo]:

Installing Avaya CMS and supporting software

134 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

7. Perform one of the following actions:

●If the system does not display an installation prompt for the SUNWexplo package,

go to Step 22.

●If the system does display an installation prompt for the SUNWexplo package, go to

Step 8.

8. Press Enter.

The system displays the following message:

9. Press Enter.

The system displays the following message:

Note:

The contract ID and system serial number prompts can be left blank if the

information is not available, but should be answered where possible in order

to facilitate customer support. The configuration file /etc/default/explorer

can be updated at a later date.

10. Enter the services contract ID.

The system displays the following message:

11. Enter the serial number for the system.

The system displays the following series of messages:

Company name [Avaya_Inc/Avaya_CMS]:

Contract ID []:

System serial number []:

Contact name [Avaya CMS Tier 3 Maintenance]:

Contact email address [cms-support@avaya.com]:

Phone number [800-242-2121, x15235]:

Address (line 1) [8744 Lucent Blvd]:

Address (line 2) []:

City [Highlands Ranch]:

State [CO]:

Zip [80129]:

Country [USA]:

Installing the CMS packages

Issue 3.0 October 2002 135

12. Perform one of the following actions:

●Press Enter to accept the default settings

●Enter settings that are appropriate for your location.

The system displays a prompt to select a geographic region.

13. Select the appropriate geographic region for the customer.

The system displays the following message:

14. Enter: y

The system displays the following message:

15. Perform one of the following steps:

●Enter any alternate e-mail addresses.

●Press Enter if there are no alternate e-mail addresses.

The system displays the following message:

Geographic Region

1 - AMERICAS - North and South America

2 - EMEA - Europe, Middle-east and Africa

3 - APAC - Asia, Pacific

[AMERICAS]:

Automatic Email Submission

Would you like all explorer output to be sent to:

explorer-database-americas@sun.com

at the completion of explorer when -mail or -e is specified?

[y, n]

Alternate Email Submission

Would you like explorer output to be sent to an alternate email

addresses at the completion of explorer? If not, enter a single -

only for your reply.

To enter multiple addresses, seperate them with a comma (,). []:

Return address for explorer email output [xxxxxxx]

Installing Avaya CMS and supporting software

136 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

16. Press Enter.

The system displays the following message:

17. If the information is correct, enter: y

The system displays the following message:

18. Enter: n

The system displays the following message:

19. Enter: n

The system displays the following message:

You have answered:

Company name: xxxxx

...........

Are these values okay? [y, n]

We recommend running explorer once a week and emailing the results

to the explorer database. If you agree to this the root crontab

will be modified.

Do you wish to run explorer once a week? [y, n]

If this is a new install of explorer, please run explorer and mail

the results to Sun.

.............

Would you like to do this now? [y, n]

Using </opt/SUNWexplo> as the package base directory.

..............

Do you want to install these conflicting files [y,n,?,q]

Installing the CMS packages

Issue 3.0 October 2002 137

20. Enter: y

21. Enter: y

The system displays the following message:

Note:

The system will display a warning message for any default values that were

left blank, for example, the serial # and contract ID. Ignore these warning

messages.

22. Enter:

/opt/cc/install/ahl.XXXXXXX.X/bin/setup

where XXXXXXX.X is the CMS Supplemental Services version number you recorded

earlier in Step 1 of Installing the CMS Supplemental Services software on page 132.

The system displays the following message:

Using </opt/SUNWexplo> as the package base directory.

..............

Do you want to continue with the installation of <SUNWexplo> [y,

Installing Sun(TM) Explorer Data Collector as <SUNWexplo>

.............

Installation of <SUNWexplo> was successful.

====== Installation Completed === current date and time

No previous version is in place.

enable crontab entry...

set up output log configuration...

AHL setup completed successfully.

Installing Avaya CMS and supporting software

138 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

23. Enter:

/opt/cc/install/aot.XXXXXXX.X/bin/setup

where XXXXXXX.X is the CMS Supplemental Services version number you recorded

earlier in Step 1 of Installing the CMS Supplemental Services software on page 132.

The system displays the following message:

24. Enter:

eject cdrom

Installing the CMS software

To install the CMS software:

1. Load the CD-ROM, Avaya Call Management System R3V11 into the CD-ROM drive.

2. Enter:

cd /

3. After about 15 seconds, enter mount to verify the name of the CD-ROM disk.

The program displays a list of devices and file systems that are currently mounted. The

last line should be similar to the following example:

No previous version is in place.

copy previous log files...

no log files exist for tag "LAN_Admin_Log"

linking new version...

registering server with Orbix daemon

.............

[786: New Connection (cms3,IT_daemon,*,root,pid=645,optimised) ]

AOM setup completed successfully.

/cms on /dev/dsk/c0t0d0s3

read/write/setuid/intr/largefiles/onerror=panic/dev=2200003 on

(current date and time)

Installing the CMS packages

Issue 3.0 October 2002 139

4. Add the CMS package by entering:

/usr/sbin/pkgadd -d /cdrom/cdrom0 cms

The system displays the following message:

5. Press Enter.

The system displays the following message:

6. Enter: y

The system displays the following message:

7. Enter: y

The system displays the following message:

Processing package instance <cms> from </cdrom/cms>

............

/usr/openwin/lib/Xdefaults

/usr/openwin/lib/openwin-init

[Hit <RETURN> to continue display]

/usr/openwin/lib/openwin-menu-programs

/usr/openwin/lib/openwin-menu-utilities

...........

/var/spool/cron/crontabs/root

* - conflict with a file which does not belong to any package.

Do you want to install these conflicting files [y,n,?,q]

## Checking for setuid/setgid programs.

...........

Do you want to install these as setuid/setgid files [y,n,?,q]

This package contains scripts which will be executed with super-

user permission during the process of installing this package.

Do you want to continue with the installation of <cms> [y,n,?]

Installing Avaya CMS and supporting software

140 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

8. Enter: y

The system displays the following message:

9. Enter the password for the CMS login.

The system displays the following message:

10. Re-enter the password for the CMS login.

The system displays the following message:

!Important:

The CMSSVC login is used only by services. Do not give out the CMSSVC

password.

11. Enter the password for the CMSSVC login.

The system displays the following message:

Installing Avaya Call Management System as <cms>

## Executing preinstall script.

Creating cms group id

Creating cms user id

6 blocks

Assigning a new password for cms

New password:

Re-enter new password:

passwd (SYSTEM): passwd successfully changed for cms

Creating cmssvc user id

6 blocks

Assigning a new password for cmssvc

New password:

Re-enter new password:

Installing the CMS packages

Issue 3.0 October 2002 141

12. Re-enter the password for CMSSVC.

The system displays the following message:

13. Press Enter.

14. Enter:

/usr/sbin/shutdown -y -i6 -g0

15. When the system reboots, log in as root.

Note:

If you have problems installing the CMS software, see CMS installation

fails on page 416.

Setting up CMS authorizations

Setting up CMS authorizations describes how TSC personnel set authorizations for CMS

features that are purchased by the customer. Authorizations apply to all ACDs that are

administered. You can use the auth_set option in the Avaya Call Management

System Services Menu to:

●Set the purchased version of CMS

●Authorize packages and features

●Change the number of agents, ACDs, or Supervisor logins

To set authorizations for CMS features:

1. TSC personnel should verify that the on-site technicians have completed the following

tasks:

●Connected the console to the CMS computer

●Connected the CMS computer to the TSC’s Remote Maintenance Center (remote

console)

●Connected additional terminals and printers to the NTS ports

passwd (SYSTEM): passwd successfully changed for cmssvc

## Installing part 1 of 1.

/usr/elog <symbolic link>

/cms/db/LogAdmin/ag_log_1

..........

If CMS was installed by choosing cms from the pkgadd menu, type q and press

return to exit.

If cms was installed using pkgadd -d /cdrom/cdrom0 cms, press return.

Installing Avaya CMS and supporting software

142 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

●Connected the link between the CMS computer and the switch

Note:

If the hardware link or the Automatic Call Distribution (ACD) feature and

CMS is not properly administered, the CMS software cannot communicate

with the switch. For switch administration procedures, see CMS Switch

Connections, Administration, and Troubleshooting, 585-215-876.

●Connected the NTS and the CMS computer to the network hub unit

See Avaya CMS Terminals, Printers, and Modems, 585-215-874.

2. Enter:

cmssvc

The system displays a warning that IDS is off. The system then displays the Avaya

Call Management System Services Menu.

3. Enter the number associated with the auth_set option.

The system displays the following message:

4. Enter the appropriate password.

!Important:

The CMSSVC password is available only to authorized personnel. Do not

give out the CMSSVC password.

Select a command from the list below.

1) auth_display Display feature authorizations

2) auth_set Authorize capabilities/capacities

3) run_ids Turn Informix Database on or off

4) run_cms Turn CMS on or off

5) disk_space Format/Assign disk space to Database Server

6) setup Set up the initial configuration

7) swinfo Display switch information

8) swsetup Change switch information

9) patch_inst Install a single CMS patch from CD

10) patch_rmv Backout an installed CMS patch

11) load_all Install all CMS patches found on CD

12) back_all Backout all installed CMS patches from machine

Enter choice (1-12) or q to quit:

Password:

Installing the CMS packages

Issue 3.0 October 2002 143

Note:

Some of the following questions may not be displayed if the authorization

cannot be changed at this time.

The system displays the following message:

Note:

This question occurs the first time you run auth_set on the system.

5. Perform one of the following actions:

●If this is not an upgrade,

i. Enter: n

The system displays the following message:

ii. Enter: y

●If this is an upgrade, enter: y

The system displays the following message:

Note:

The mirroring authorization may not appear if the system is an Ultra 5

because mirroring is not supported on the Ultra 5 platform.

6. Perform one of the following actions:

!WARNING:

Mirroring should only be authorized if it will be configured as a mirrored

system immediately after the system is set up. If the system operates as a

non-mirrored system with mirroring authorized, the database will need to be

rebuilt when the system is mirrored.

●If the customer purchased the disk mirroring package, enter: y

●If the customer did not purchase the disk mirroring package, enter: n

The system displays the following message:

Is this an upgrade? (y/n):

Purchased version is R3V11. Is this correct? (y/n):

Authorize installation of disk mirroring package? (y/n):(default: n)

Authorize installation of forecasting package? (y/n):(default: n)

Installing Avaya CMS and supporting software

144 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

7. Perform one of the following actions:

●If the customer purchased the forecasting package, enter: y

●If the customer did not purchase the forecasting package, enter: n

The system displays the following message:

8. Perform one of the following actions:

●If the customer purchased the vectoring package, enter: y

●If the customer did not purchase the vectoring package, enter: n

The system displays the following message:

9. Perform one of the following actions:

●If the customer purchased the graphics feature, enter: y

●If the customer did not purchase the graphics feature, enter: n

The system displays the following message:

10. Perform one of the following actions:

●If the customer purchased the external call history feature, enter: y

●If the customer did not purchase the external call history feature, enter: n

The program responds (if the vectoring package is authorized):

11. Perform one of the following actions:

●If the customer purchased the expert agent selection feature, enter: y

●If the customer did not purchase the expert agent selection feature, enter: n

The system displays the following message:

12. Perform one of the following actions:

Authorize installation of vectoring package? (y/n):(default: n)

Authorize use of graphics feature? (y/n): (default: n)

Authorize use of external call history feature? (y/n): (default: n)

Authorize use of expert agent selection feature? (y/n): (default: n)

Authorize use of external application feature? (y/n):(default: n)

Installing the CMS packages

Issue 3.0 October 2002 145

●If the customer purchased the external application feature, enter: y

●If the customer did not purchase the external application feature, enter: n

The system displays the following message:

13. Perform one of the following actions:

●If the customer purchased the global dictionary/ACD groups feature, enter: y

●If the customer did not purchase the global dictionary/ACD groups feature, enter: n

The system displays the following message:

14. Enter the number of simultaneous logins purchased by the customer.

The system displays the following message:

15. Perform one of the following actions:

●If the customer purchased the Avaya™ CMS Supervisor Report Designer package,

enter: y

●If the customer did not purchase the Avaya™ CMS Supervisor Report Designer

package, enter: n

The system displays the following message:

For R3V11, “split or skill members” are defined as the number of CMS-measured

agent-split and agent-skill combinations that are logged in at the same time. Each split

Authorize use of global dictionary/ACD groups feature? (y/n):

(default: n)

Enter the number of simultaneous Avaya CMS Supervisor logins the

customer has purchased (2-maximum): (default: 2)

Has the customer purchased Avaya Report Designer? (y/n): (default:

Enter the maximum number of split/skill members that can be

administered (1-maximum):(default: 500)

Installing Avaya CMS and supporting software

146 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

that an agent logs into is an agent-split combination. Each skill that is assigned to an

agent while the agent is logged in is an agent-skill combination.

The recommended numbers for Expert Agent Selection (EAS) and non-EAS systems

are shown in the following table.

Note:

The minimum size configuration for CMS is 0-25. The maximum number of

of split skill members across all ACDs is 100,000. Your platform

configuration and switch interval could change the number of split skill

members you can have on your system.

You can limit the split or skill random access memory (RAM) allocation to the size

that is actually needed for the current configuration of agents and splits or skills.

This is accomplished by the total split/skill members summed over all splits/skills

fields, which is accessed through the setup option of the cmssvc command.

Switch agent

size range

purchased

Number of split or skill

members

Non-EAS EAS

0-12 100 500

0-25 100 500

0-50 200 1000

0-75 300 1500

0-100 400 2000

0-200 800 4000

0-300 1200 6000

0-400 1600 8000

0-500 2000 10,000

0-600 2400 12,000

0-1000 4000 20,000

0-5200 20,800 60,000

Installing the CMS packages

Issue 3.0 October 2002 147

16. Enter the maximum possible number of split or skill members that the customer might

use based on the size of the switch agent purchased.

The system displays the following message:

17. Enter the number of ACDs the customer purchased.

The system displays the following message:

18. Enter the number of authorized agents.

The system displays the command prompt, and all authorizations have been set.

19. Verify that authorizations were set by entering:

tail /cms/install/logdir/admin.log

●The system displays the admin.log file. The admin.log file contains information related

to CMS administration procedures.

Note:

You can also verify the authorizations by using the auth_display option

of the cmssvc command.

Installing the CMS patches

To install CMS patches:

!Important:

The features must be authorized on your system before patches can be

installed. To have authorizations installed, call the Avaya helpline. See

Avaya CMS helplines on page 24 for more information. We recommend that

you always install all available patches. For more information about patch

requirements, see CMS patch requirements on page 292.

If you believe that you should not be installing a particular patch, call the National

Customer Care Center at 1-800-242-2121, or consult with your product

distributor or representative, before you decide not to install it.

Enter the maximum number of ACDs that can be installed (1-8):

(default: 1)

Enter the number of authorized agents(Right To Use):(default: 25)

CMS Version XXXX.XX installation successful<date/time>

Authorization command started <date/time>

Capabilities/capacities authorized <date/time>

Installing Avaya CMS and supporting software

148 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

1. Verify that the CD-ROM, Avaya Call Management System R3V11 is in the CD-ROM

drive.

2. Enter:

cmssvc

The system displays the Avaya Call Management System Services Menu.

3. Choose one of the following actions:

●To load all of the patches, enter the number associated with the load_all option.

●To load one patch at a time, enter the number associated with the patch_inst

option.

The system checks for patches on the CD-ROM.

—If no patches are found on the CD-ROM the system displays the following message:

—If patches are available for installation, the system responds:

4. Choose one of the following actions:

●If no patches are found on the CD-ROM continue with Step 5.

No CMS patches found on the CD.

Please check the CD and try again.

The following patches are available for installation:

.........

Are you sure you want to install all these patches? (y|n)

Installing the CMS packages

Issue 3.0 October 2002 149

●If patches are found on the CD-ROM, enter y to install all of the patches, or enter

the patch number if you are installing only one patch.

The system installs the patch or patches. As it does so, it displays messages similar

to the following for each patch that is installed:

5. Enter:

eject cdrom

@(#) installpatch 1.0 96/04/01

cmspx-s

Generating list of files to be patched...

Creating patch archive area...

Saving a copy of existing files to be patched...

xxxx blocks

File compression used

Installing patch packages...

Doing pkgadd of cmspx-s package:

Installation of <cmspx-s> was successful.

Patch packages installed:

cmspx-s

Patch installation completed.

Installing Avaya CMS and supporting software

150 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Configuring the IDS dbspaces

The CMS Disk_Space Manager tool is used to automatically configure IDS. The tool will

set up the Informix partitions and configure a mirrored system.

To configure the IDS dbspaces:

1. Verify that Informix IDS has been installed and initialized.

2. Verify that CMS has been installed.

3. Log into the system as root.

4. Enter:

cmssvc

The system displays a warning that IDS is off. The system then displays the Avaya

Call Management System Services Menu.

!Important:

The CMSSVC login is used only by services. Do not give out the CMSSVC

password.

5. Enter the number associated with the run_ids option.

The system displays the following message:

6. Enter the number associated with the Turn on IDS option.

The system displays the following message:

7. Enter:

. /opt/informix/bin/setenv

Select one of the following

1) Turn on IDS

2) Turn off IDS

Enter choice (1-2):

IDS is down.

Please wait for initialization

. . . . .

***** IDS is now up *****

Configuring the IDS dbspaces

Issue 3.0 October 2002 151

8. Enter:

cmssvc

The system displays the Avaya Call Management System Services Menu.

9. Enter the number associated with the disk_space option.

The system displays the following message if this is the first time the disk_space

option is selected:

Note:

The system will not display the mirroring options if disk mirroring has not

been authorized.

10. Enter the number associated with the Add New Disks option.

If the system has more than one disk, it displays a list of disks or displays a list of disk

pairs if the system is mirrored.

Note:

The system may display different menu options for mirrored systems.

11. Add the disk. Repeat Steps 8 through 10 for every hard drive installed on the system.

When all disks have been added, the system displays the following message:

Initializing the boot disk (this may take several minutes!) ...

Disk_space_manager options 5) are:

1) Add New Disks

2) Initiate Mirroring

3) Sync Primary and Mirror

Enter choice (1-3) or q to quit:

The choices for primary disks are:

............

Enter choice (X-X) or q to quit:

disk_space command completed.

Installing Avaya CMS and supporting software

152 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Note:

If IDS fails to turn on after the configuration of the IDS dbspaces, the system

displays the following message:

Contact the National Customer Care Center (1-800-242-2121), or consult with

your product distributor or representative.

oninit: Fatal error in shared memory initialization

Installing the Open Database Connectivity server software

Issue 3.0 October 2002 153

Installing the Open Database Connectivity server

software

Open Database Connectivity (ODBC) is an optional Avaya Call Management System

(CMS) feature. It allows you to access data in the CMS database for use in other software

applications such as spreadsheet programs. With ODBC, you can access the CMS data

directly from your application without needing to understand database connectivity or

format. ODBC allows access to data at multiple sites for reports. The following procedures

allow you to install or upgrade your ODBC software. For more information about the ODBC

client software, see Avaya CMS Open Database Connectivity, 585-780-701.

Installing the Open Database Connectivity server software contains the following topics:

●Prerequisites on page 153

●Installing ODBC version 4.2 on page 153

●Installing ODBC version 3.2 on page 157

Prerequisites

Before you install the ODBC software, perform the following tasks:

●Verify that all the preceding factory software installation requirements have been

completed

●Obtain the CD-ROM, Avaya CMS OPENLINK ODBC Driver

●Verify that you are logged in as root at the console

Installing ODBC version 4.2

To install ODBC version 4.2:

!Important:

ODBC version 4.2 can only be installed on CMS systems that are running

CMS version R3V11af or higher.

1. Load the CD-ROM, Avaya CMS OPENLINK ODBC Driver into the CD-ROM drive.

Installing Avaya CMS and supporting software

154 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

2. Wait about 15 seconds. Then enter the following command:

mount

The system displays a list of devices and file systems currently mounted. The last line

displayed should look similar to the following example:

3. Enter:

cd /usr

The system displays the command prompt.

4. Choose one of the following procedures:

●If this is not an upgrade of the ODBC software, go to Step 5.

●If this is an upgrade of the ODBC software, perform the following procedure:

i. Shut down the request broker by entering:

/cms/dc/odbc/odbc_init -r 0

ii. Remove the old /openlink directory by entering:

rm -fr /usr/openlink

5. Enter:

mkdir /usr/openlink

The system creates the OpenLink directory.

6. Enter:

cd /usr/openlink

7. Verify that you are in /usr/openlink by entering:

pwd

8. Copy the server components from the CD-ROM by entering:

cp /cdrom/cdrom0/server/cmsv9v11/* /usr/openlink

9. Install the server components on the system by entering:

./install.sh

The system displays a message similar to the following:

/cdrom/openlink on /vol/dev/dsk/c0t2d0/openlink read only on (current

date and time)

Extracting (srami9zz.taz) ...

.........

Enter the port number the the broker will listen on for

client connections [Enter=Default] :

Installing the Open Database Connectivity server software

Issue 3.0 October 2002 155

Note:

On some systems, the following message may be displayed:

10. Accept the default setting by pressing Enter.

The system displays the following message:

11. Accept the default setting by pressing Enter.

The system displays the following message:

12. Accept the default setting by pressing Enter.

The system displays the following message:

13. Accept the default setting by pressing Enter.

The system displays the following message:

14. Accept the default setting by pressing Enter.

The system displays the following message:

15. Accept the default setting by pressing Enter.

The system displays the following message:

Saving existing CMS odbc settings

Welcome to the OpenLink Admin Assistant Setup.

This program will install the HTTP based OpenLink Admin Assistant,

thereby enabling remote configuration for all OpenLink Server

Components (Rule Book,

Service and Database Agents) from any Web Browser.

TCP/IP Port to use? [ENTER=8000] :

Log File? [ENTER=www_sv.log]

Log all requests (y/n)? [ENTER=n]

Administrator account? [ENTER=admin]

Administrator’s password? [ENTER=admin]

The OpenLink Admin Assistant is now ready for use.

..........

Enter the name of the user that will own the programs [ENTER=Use

Current User Settings] :

Installing Avaya CMS and supporting software

156 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

16. Enter:

root

The system displays the following message:

17. Enter:

root

The system displays the following message:

18. Choose one of the following commands to configure and initiate the ODBC software:

●If this is a new install, enter:

/cms/dc/odbc/odbc_init

The system displays the following message:

●If this is an upgrade or reinstallation, enter:

/cms/dc/odbc/odbc_init -r 1

The system displays the following message:

19. Verify that the ODBC Request Broker is active on the server by entering:

ps -ef | grep oplrqb

The system displays a message similar to the following:

!Important:

At this point, the software is registered, installed, and running. If you do not

see an oplrqb process running in /usr/openlink/bin after completing Step

19, repeat the installation as if it were an upgrade.

20. Enter:

eject cdrom

Enter the name of the group that will own the programs [ENTER=Use

Current Group Settings] :

Changing ownership ...

End of installation.

ODBC driver initialization complete

oplrqb has been activated

root 3446 3443 0 09:57:28 ? 0:03 /usr/openlink/bin/oplrqb -f

+configfile /cms/dc/odbc/cmsrqb4.2_init +loglevel 7

Installing the Open Database Connectivity server software

Issue 3.0 October 2002 157

Installing ODBC version 3.2

To install the ODBC version 3.2 software:

!Important:

If ODBC version 4.2 is already installed on the system, skip this procedure.

1. Load the CD-ROM, Avaya CMS OPENLINK ODBC Driver into the CD-ROM drive.

2. After about 15 seconds, enter mount to verify the name of the CD-ROM.

The program responds with a list of devices and file systems currently mounted. The

last line should display the installed CD-ROM disk as shown below:

3. Enter:

cd /usr

The system displays the command prompt.

4. Choose one of the following actions:

●If this is a new installation, go to Step 5.

●If this is an upgrade or a reinstallation perform the following steps:

i. Enter:

/cms/dc/odbc/odbc_init -r 0

The system shuts down the request broker.

ii. Enter:

rm -fr /usr/openlink

The system removes the old /openlink directory.

5. Enter:

mkdir /usr/openlink

The system creates the OpenLink directory.

6. Change directories to /usr/openlink by entering:

cd /usr/openlink

The system changes directories to /usr/openlink.

7. Enter:

cp /cdrom/cdrom0/server/cmsv6v8/* /usr/openlink

The system copies the server components from the CD-ROM.

/cdrom/openlink on /vol/dev/dsk/c0t2d0/openlink read only on

(current date and time)

Installing Avaya CMS and supporting software

158 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

8. Enter:

./install.sh

The system installs the server components, and displays the following message:

Note:

On some systems, the following message may be displayed:

9. Press Enter.

The system displays the following message:

10. Press Enter.

The system displays the following message:

11. Press Enter.

The system displays the following message:

12. Press Enter.

The system displays the following message:

Extracting (smadi5zz.taz) ...

Extracting (smadi72z.taz) ...

Extracting (smaozzzz.taz) ...

Extracting (smbrzzzz.taz) ...

.........

TCP/IP Port to use? [8000]:

Saving existing CMS odbc settings - This file will be

replaced with a new cmsrqb_init file for use with

Openlink 3.2

Log File? [www_sv.log]

Log all requests (y/n)? [n]

Administrator account? [admin]

Administrator’s password? [admin]

Installing the Open Database Connectivity server software

Issue 3.0 October 2002 159

13. Press Enter.

The system displays the following message:

14. Enter:

root

The system displays the following message:

15. Enter:

root

The system displays the following message:

16. Press Enter.

The system displays the OpenLink Session Rules Book Configuration Utility menu

The OpenLink Admin Assistant is now ready for use.

..........

Enter the name of the user that will own the programs [ENTER=Use

Current User Settings]

Enter the name of the group that will own the programs [ENTER=Use

Current Group Settings]

Changing ownership ...

Press return to proceed to the next phase of the

install process

OpenLink Session Rules Book Configuration Utility

===============================================================

1. Request Broker 11. PostgreSQL

2. Informix 5 12. Progress 6

3. Informix 6 13. Progress 7

4. Informix 7 14. Progress 8

5. Ingres 6 15. Solid

6. Virtuoso 16. Sybase 4

7. OpenIngres 17. Sybase 10

8. Oracle 6 18. Sybase 11

9. Oracle 7 19. Unify 2000

10. Oracle 8 20. Velocis

U. Undo last change V. View the current Rules Book

C. Clear log file L. View log file

B. Backup Rules Book R. Restore Rules Book

I. Verify Rules Book N. Reinitialize running Broker

S. Startup Request Broker D. Shutdown Request Broker

Choose an item or type q to quit :

Installing Avaya CMS and supporting software

160 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

17. Enter: q

The system displays the following message:

18. Perform one of the following actions:

●If this is a new installation, enter:

/cms/dc/odbc/odbc_init

The system displays the following message:

●If this is an upgrade or reinstallation, enter:

/cms/dc/odbc/odbc_init -r 1

The system displays the following message:

19. Enter:

ps -ef | grep oplrqb

The system verifies that the ODBC Request Broker is active on the server. One of the

displayed items should show the oplrqb process running from the /usr/openlink/bin

directory, as shown in the following example:

20. Enter:

eject cdrom

Note:

At this point, the software is registered, installed, and running. If you do not

see an oplrqb process running after you complete Step 19, repeat the

installation.

For more information about the ODBC feature, see Avaya CMS Open Database

Connectivity, 585-780-701.

End of installation.

ODBC driver initialization complete

oplrqb has been activated

root 1462 1459 0 14:41:38 ?

0:00 /usr/openlink/bin/oplrqb -f +configfile

/cms/dc/odbc/cmsrqb_init +loglevel 5 +l

root 1475 1467 1 14:44:48 pts/4

0:00 grep oplrqb

Setting up CMS data storage parameters

Issue 3.0 October 2002 161

Setting up CMS data storage parameters

Setting up CMS data storage parameters describes how TSC personnel modify specific

data storage parameters on the CMS computer. These storage parameters affect the

operation of the CMS application.

!Important:

Throughout the setup, you are prompted to enter values that are specific to

the system being installed. These values differ between switch releases. For

each question, an appropriate range of values is displayed. These values

represent the limits of each range.

To modify CMS data storage parameters:

1. Change to the CMS installation directory by entering:

cd /cms/install/cms_install

2. Enter:

vi storage.def

Note:

The storage.def file contains the data storage parameters. The CMS

system is installed with a set of standard default values. If you delete or

damage the storage.def file, you can find a copy of this file (storage.skl)

in the same directory.

The default storage parameters are listed in the Default CMS data storage parameters

table on page 161 in the order in which they appear in the storage.def file.

Default CMS data storage parameters table

Parameter Default

# Intrahour interval (15, 30, 60 minutes): 30

# Week start day (Sunday, Monday, Tuesday,

Wednesday, Thursday, Friday, Saturday): Sunday

# Week end day (Sunday, Monday, Tuesday,

Wednesday, Thursday, Friday, Saturday): Saturday

# Daily start time (regular time): 12:00 AM

# Daily stop time (data will be collected for

seconds of last minute): 11:59 PM

Installing Avaya CMS and supporting software

162 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

# Number of agent login/logout records (0-

999999): 10000

# Number of agent trace records: 10000

# Number of call records (0-5000 internal or 0-

99999 external): 0

# Number of exceptions records (1-2000): 250

# Days of intrahour for splits (1-62): 31

# Days of daily splits (1-1825): 387

# Weeks of weekly splits (1-520): 53

# Months of monthly splits (1-120): 13

# Days of intrahour for agents (1-62): 31

# Days of daily agents (1-1825): 387

# Weeks of weekly agents (1-520): 53

# Months of monthly agents (1-120): 13

# Days of intrahour for trunk groups (1-62): 31

# Days of daily trunk groups (1-1825): 387

# Weeks of weekly trunk groups (1-520): 53

# Months of monthly trunk groups (1-120): 13

# Days of intrahour for trunks (1-62): 31

# Days of daily trunks (1-1825): 387

# Weeks of weekly trunks (1-520): 53

# Months of monthly trunks (1-120): 13

# Days of intrahour for call work codes (1-62): 0

# Days of daily call work codes (1-1825): 0

# Weeks of weekly call work codes (1-520): 0

# Months of monthly call work codes (1-120): 0

# Days of intrahour for vectors (1-62): 31

# Days of daily vectors (1-1825): 387

Parameter Default

Setting up CMS data storage parameters

Issue 3.0 October 2002 163

3. Review the default data storage values for each authorized ACD. The default values

are found on the line immediately below each storage parameter.

4. Enter the values determined by the account executive, system consultant, and design

center. These values are based on the customer configuration.

5. Press Esc. Then enter:

:wq!

The system saves and closes the file.

Note:

After the CMS application is running, the system administrator can change

the data storage parameters using the Data Storage Allocation window

and the Storage Intervals window. Both windows are accessed from the

CMS System Setup menu.

For more information about changing CMS data storage parameters, see Avaya Call

Management System Release 3 Version 11 Administration, 585-215-515.

# Weeks of weekly vectors (1-520): 53

# Months of monthly vectors (1-120): 13

# Days of intrahour for VDNs (1-62): 31

# Days of daily VDNs (1-1825): 387

# Weeks of weekly VDNs (1-520): 53

# Months of monthly VDNs (1-120): 13

Parameter Default

Installing Avaya CMS and supporting software

164 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Setting up LAN connections

Setting up LAN connections describes how to set up a network connection to a LAN-

enabled switch and other CMS computer peripherals. This procedure is for Release 7 or

later Avaya switches. For more information about LAN switch configurations, see CMS

Switch Connections, Administration, and Troubleshooting, 585-215-876.

Setting up LAN connections includes the following topics:

●Prerequisites on page 164

●Editing the /etc/hosts file on page 164

●Setting up a second network interface on page 165

●Editing the /etc/defaultrouter file on page 167

Prerequisites

Before you begin setting up the network for LAN connections, perform the following tasks:

●Verify that you are logged in as root.

●Verify that CMS is turned off and IDS is on.

●Verify that all file systems are mounted.

●Verify that Release 7 or later Avaya switches are installed.

Editing the /etc/hosts file

To edit the /etc/hosts file:

1. Enter:

vi /etc/hosts

!Important:

The items in this file must be separated by tabs, not spaces, and any

comments must begin with a #. The entry for localhost must remain on

line four and the entry for loghost must remain on line five.

Setting up LAN connections

Issue 3.0 October 2002 165

The loghost line should contain the CMS system:

●IP address

●Host name

●Hostname.fully qualified domain name

●loghost

The fully qualified domain name is either the customer domain name or the

default entry tempdomain.net

Example:

2. Add a new line to this file for each ethernet card that is installed in this computer using

TCP/IP. You must enter the IP address and the host name.

This example shows the recommended default IP addressing scheme for a closed

network. There is one ACD and two NTS units (cmsterm1 and cmsterm2).

Note:

Only the primary network card needs the fully qualified domain name.

3. Press Esc. Then enter:

:wq!

The system saves and closes the file.

Setting up a second network interface

If the CMS computer has two network interfaces (that is, the native ethernet card and a

SunSwift, FSBE, or SunFast Ethernet network card), you must set up the second network

interface. The primary network interface was set up during the Solaris installation.

# Internet host table

127.0.0.1 localhost

192.168.2.1 cms cms.tempdomain.net loghost

# Internet host table

127.0.0.1 localhost

192.168.2.1 cms cms.tempdomain.net loghost

216.25.242.138 cms_1 #2nd network card on seperate subnet

192.168.2.2 switch

192.168.2.101 cmsterm1

192.168.2.102 cmsterm2

192.168.2.103 router

Installing Avaya CMS and supporting software

166 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

To set up a second network interface:

1. Enter:

vi /etc/hosts

2. Add a new line in the /etc/hosts file for each ACD that will connect to this computer

using TCP/IP. You must enter the IP address and the host name.

3. If the system is a Sun Fire V880, add a line for the Remote System Control (RSC)

card. You must enter the IP address and the device name. The device name for the

RSC card is the CMS computer hostname with “-rsc” as a suffix.

The following example shows the recommended default IP addressing scheme for a

second network interface. The host name for the second network interface is the CMS

computer hostname with “_1” as a suffix.

Example:

4. Press Esc. Then enter:

:wq!

The system saves and closes the file.

5. If you are not sure what the second network interface type is, enter the following

command:

/usr/platform/‘uname -m‘/sbin/prtdiag |egrep “SUNW” |more

The system displays a message that is similar to the following example:

# Internet host table

127.0.0.1 localhost

192.168.2.1 cms cms.tempdomain.net loghost

192.168.2.2 switch1

192.168.2.6 switch2

192.168.2.108 cms-rsc

192.168.2.3 cms_1 #2nd network card

192.168.2.101 cmsterm1

192.168.2.102 cmsterm2

192.168.2.103 router

0 pci 33 0 SUNW,hme-pci108e,1001 (network) SUNW,cheerio

0 pci 33 4 SUNW,isptwo-pci1077,1020 (scsi) QLGC,ISP1040B

0 pci 33 12 network-pci108e,1101.1 (network) SUNW,pci-eri

0 pci 33 19 SUNW,m64B (display) ATY,RageXL

Setting up LAN connections

Issue 3.0 October 2002 167

Note:

Depending on the system type, the fourth or fifth column will display the

network card slot number. The system may not display the primary network

interface if the interface is integrated.

6. Create a new host name file for the second network interface by entering:

vi /etc/hostname.network_interfaceX

where network_interface is the type of network interface, and

where X is the instance of the network interface.

Example:

On a Sun Blade 100 with a SunSwift card, enter:

vi /etc/hostname.hme0

7. Add a line to this new file with the host name you added to the /etc/hosts file.

Example:

8. Press Esc. Then enter:

:wq!

The system saves and closes the file.

Editing the /etc/defaultrouter file

If the connection between the CMS computer and the switch is going through a customer’s

network, you will have to set up a default network router.

To edit the /etc/defaultrouter file:

1. Enter:

vi /etc/defaultrouter

The system creates a default router file.

2. Add a line to this new file with the IP address for the default system router on the

customer’s network. This address must be obtained from the customer.

Example:

cms_1

192.168.2.254 router

Installing Avaya CMS and supporting software

168 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

3. Press Esc. Then enter:

:wq!

The system saves and closes the file.

4. Add the router information to the /etc/hosts file. See Editing the /etc/hosts file on

page 164.

Setting up the CMS application

Issue 3.0 October 2002 169

Setting up the CMS application

The CMS application provides monitoring and recording of ACD calls and agents handling

these calls, and the use of Vector Directory Numbers (VDNs) for these calls to measure

call center performance.

Setting up the CMS application contains the following topics:

●Prerequisites on page 169

●Setup methods on page 169

●Setting up CMS interactively from a terminal on page 170

●Setting up CMS using a UNIX flat file on page 181

Prerequisites

Before you set up the CMS application, perform the following tasks:

●Verify that you are logged in as root.

●Verify that if TCP/IP is being used to connect to an ACD, the switch/LAN setup is done.

●Verify that all file systems are mounted.

Setup methods

You can choose either one of two ways to set up the CMS feature package:

●If you use the interactive option, the program prompts you for the necessary information

to set up the CMS application. For example, system type, number of agents, trunks,

vectors, VDNs, and so on. For more information, see Setting up CMS interactively from

a terminal on page 170.

●If you use the flat file option, you edit a UNIX® system flat file that contains the

necessary information to set up the CMS application, for example, system type, number

of agents, trunks, vectors, VDNs, and so on. When you execute the program, it runs in

the background and uses the UNIX system flat file data to set up the CMS application.

For more information, see Setting up CMS using a UNIX flat file on page 181.

Installing Avaya CMS and supporting software

170 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Setting up CMS interactively from a terminal

To set up CMS interactively from a terminal:

1. If you are not sure of the device path for the tape drive:

a. Insert a tape into the tape drive.

b. In another xterm window, enter the following commands:

mt -f /dev/rmt/1c status

mt -f /dev/rmt/0c status

The system will display a message similar to the following for the device that has the

tape inserted:

2. Enter:

cmssvc

The system displays the Avaya Call Management System Services Menu.

3. Enter the number associated with the setup option.

The system displays the following message:

Note:

When the cmssvc setup command is running, no other cmsadm or

cmssvc commands are allowed. Any attempt to run other cmsadm or

cmssvc commands will be rejected, and the system will display the error

message “Please try later, setup is active”.

HP DDS-4 DAT (Sun) tape drive:

sense key(0x0)= No Additional Sense residual= 0 retries= 0

file no= 0 block no= 0

Select the language for this server:

All languages are ISO Latin except Japanese. Selection of the

server language assumes that existing customer data is compatible.

(Upgrade from any ISO Latin language to any ISO Latin language or

from Japanese to Japanese is supported).

1) English

2) Dutch

3) French

4) German

5) Italian

6) Portuguese

7) Spanish

8) Japanese

Enter choice (1-8): (default: 1)

Setting up the CMS application

Issue 3.0 October 2002 171

Note:

If system setup has already been done, the program responds:

If the warning message is displayed, perform one of the following actions:

●Enter n to exit the setup.

●Enter y to continue with the setup.

4. Enter the number for the language to be used on this system.

The system initializes the customer CMS data. This can take up to 30 minutes. When

finished, the system displays the following message:

5. Enter the host name of the computer.

This name was assigned during the factory installation procedures and is used by the

TSC to maintain and identify this specific system.

The system displays a message similar to the following:

Warning!!! Setup has already been performed.

Running this command will remove all CMS data in the database.

Do you wish to proceed and re-configure CMS? (y/n): (default: n)

## Initializing Customer CMS data . . .

.........................

Customer CMS data successfully initialized.

Creating database tables

.......

Enter a name for this UNIX system (up to 256 characters):

(default: cms3)

Select the type of backup device you are using

1) 40.0 Gbyte 4mm or 8mm tape

2) 14.0 Gbyte 8mm tape

3) SCSI 4-8 SLR cartridge tape - 4GB tape (8GB compressed)

Enter choice (1-3):

Installing Avaya CMS and supporting software

172 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

The following table lists the models of tape drives that are supported for CMS Release 3

Version 11.

6. Enter the number to specify the type of tape cartridge you are using as the backup

device.

The system displays the following message:

7. Enter the default backup device path.

The system displays the following message:

8. Enter the number of ACDs to be administered. This number may be less than the

number of ACDs authorized.

The system displays the following message:

Tape drive Tape cartridge CMS computers

DDS-4 DDS compliant 150 meter

20/40-GB DAT cartridge

4mm

Sun Ultra 5

Sun Blade

Sun Enterprise 3000

Sun Enterprise 3500

Sun Fire V880

Mammoth 170-meter AME 20/40-GB

8 mm Sun Enterprise 3500

SLR5 4/8-GB QIC SLR 4/8 Sun Ultra 5

14-GB 8mm 160-meter 8mm Sun Enterprise 3000

Sun Ultra 5

Enter the default backup device path:(default: /dev/rmt/0c)

Enter number of ACDs being administered (1-8):

Information for ACD 1

Enter switch name (up to 20 characters):

Setting up the CMS application

Issue 3.0 October 2002 173

9. Enter the name for the switch that is associated with ACD 1.

The system displays the following message:

10. Enter the number that represents the switch model that is associated with the ACD.

Use the following table to determine the correct switch model. See CMS Switch

Connections, Administration, and Troubleshooting, 585-215-876 for additional

information.

Switch model table

If the switch supports vectoring and vectoring is authorized, the following message

appears; otherwise, go to Step 13.

11. Perform one of the following actions:

●If vectoring is enabled on this switch, enter: y

●If vectoring is not enabled on this switch, enter: n

The following message appears if vectoring is enabled, the switch supports EAS, and

EAS is authorized. If the message does not appear, go to Step 13.

Select the model of switch for this ACD

1) Definity-R6/R7

2) Definity-R8

3) Definity-R9/R10

4) MultiVantage-R11

Enter choice (1-4):

If the switch release is: Then enter this switch

model choice:

Release 6

Release 7

Definity - R6/R7

Release 8 Definity-R8

Release 9

Release 10

Definity-R9/R10

Release 11 MultiVantage-R11

Is Vectoring enabled on the switch? (y/n):

Is Expert Agent Selection enabled on the switch? (y/n):

Installing Avaya CMS and supporting software

174 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

12. Perform one of the following actions:

●If EAS is enabled on this switch, enter: y

●If EAS is not enabled on this switch, enter: n

The system displays the following message:

13. Perform one of the following actions:

●If the Central Office has disconnect supervision, enter: y

●If the Central Office does not have disconnect supervision, enter: n

The system displays the following message:

Note:

The standard CMS provisioning procedure is to set the local and remote port

assignments equal to the switch processor channel assignment. For

example, for switch processor channel 2, the remote and local port

assignments would both be set to a value of 2.

14. Enter the local port or channel number on the switch.

The system displays the following message:

15. Enter the remote port or channel number on the switch.

You must now select how the CMS platform transports messages to the switch.

The system displays the following message:

Does the Central Office have disconnect supervision? (y/n):

(default: y)

Enter the local port assigned to switch. (1-64):

Enter the remote port assigned to switch (1-64):

Select the transport to the switch

1) X.25

2) TCP/IP

Enter choice (1-2):

Setting up the CMS application

Issue 3.0 October 2002 175

16. Perform one of the following actions:

●To select X.25, enter 1

Then continue with Step 19.

●To select TCP/IP, which is available with R7 through and later switch models,

enter 2

Then continue with Step 17.

The system displays the following message:

17. Enter the host name or IP address of the switch that is connected to this ACD.

Note:

If you enter a host name that has not been added to the computer’s

/etc/hosts file, the system displays the following message:

See Editing the /etc/hosts file on page 164 for more information about setting up

the hosts file.

The system displays the following message:

18. Press Enter to use the default TCP port number; the procedure continues with

Step 22.

Note:

This number must match the port number administered on the switch.

Enter DEFINITY or MULTIVANTAGE host name or IP Address:

Switch_name has not been administered in a DNS or

/etc/hosts file. The DNS or /etc/hosts file must be

corrected or the link to the switch will not work.

Enter DEFINITY or MULTIVANTAGE TCP port number (minimum-

maximum):(default: 5001)

Installing Avaya CMS and supporting software

176 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

19. If you selected X.25 transport to the switch at Step 16, continue here.

The system displays the following message:

20. Enter the number that corresponds to the device that is used for X.25 connectivity.

Note:

Except for the loopback links, which are for testing only, the choices on the

menu correspond to the hardware connections that can be made between

the CMS and the switch.

If you choose a serial port, but you have a High-Speed Serial Interface (HSI)

card, the system displays an error message:

If you choose an HSI link but do not have an HSI card, the system displays an

error message:

If you choose a loopback link, the system displays:

Select the device used for x.25 connectivity to the switch

1) Serial Port A

2) Serial Port B

3) HSI link 0

4) HSI link 1

5) HSI link 2

6) HSI link 3

7) HSI link 4

8) HSI link 5

9) HSI link 6

10) HSI link 7

11) Software loopback link 0

12) Software loopback link 1

Enter choice (1-12):

Choose one of the HSI links for your x.25

connectivity.

Re-enter your selection.

Without an HSI card you must use serial port X for

your x.25 connectivity.

Re-enter your selection.

This choice is used for testing only. If you make this selection,

you will not be able to collect data from your ACD. Is this what

you want to do (y/n)?

Setting up the CMS application

Issue 3.0 October 2002 177

21. Perform one of the following actions:

●Enter n to return to the menu.

●Enter y if you want the selection to take effect.

After you have selected an appropriate link transport device, the system displays

the following message:

22. Enter the number of splits/skills in this ACD.

The system displays the following message:

23. Enter the maximum number of split/skill members that will be logged into this ACD

simultaneously, considering shift overlap.

●For non-EAS, sum all agent-split combinations, counting each split an agent will log

into (maximum is 4) as a split member.

●For EAS, sum all agent-skill combinations that will be logged in at the same time.

Count the maximum number of skills the supervisors expect to assign to each agent

(maximum is 20) during a shift.

If it is not possible to sum the number of splits/skills for each agent, you can determine

the capacity that is needed by multiplying the total number of agents by the average

number of splits/skills per agent.

The system displays the following message:

24. Enter the number of shifts.

The system displays the following message:

Number of splits/skills (0-maximum):(default 500)

Total split/skill members, summed over all splits/skills

(0-Maximum):(default 500)

Number of shifts (1-4):(default 1)

Enter the start time for shift 1 (hh:mmXM):(default 8:00 AM)

Installing Avaya CMS and supporting software

178 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

25. Enter the start time for shift 1.

Example:

08:00AM

The system displays the following message:

26. Enter the stop time for shift 1.

Example:

05:00PM

The system displays the following message:

27. Enter the number of agents logged in during the shift.

Note:

Repeat Steps 25 through 27 for the number of shifts entered in Step 24.

When all shifts have been set up, the system displays the following message:

28. Enter the number of trunk groups that are associated with this ACD.

The system displays the following message:

29. Enter the number of trunks associated with this ACD.

The system displays the following message:

30. Enter the number of unmeasured trunk facilities that are associated with this ACD.

Enter the stop time for shift 1 (hh:mmXM) : (default 5:00 PM)

Number of agents logged into all splits/skills during

shift 1 (0-maximum):(default 500)

Number of trunk groups (0-maximum):(default 500)

Number of trunks (0-maximum):(default 1000)

Number of unmeasured facilities (0-maximum):(default 300)

Setting up the CMS application

Issue 3.0 October 2002 179

Note:

The recommended assignment per ACD for unmeasured facilities is 25% of

the measured trunks.

If the switch supports call work codes, the system displays the following message:

31. Enter the number of call work codes.

If vectoring is enabled on the switch, that is if a y was entered in Step 11, the system

displays the following message:

32. Enter the number of vectors.

The system displays the following message:

33. Enter the number of VDNs.

The program repeats Steps 9 through 32 for each ACD that you entered in Step 8.

After you define the last ACD, the system displays the following message:

Number of call work codes (1-maximum):(default 1000)

Enter number of vectors (0-maximum):(default 500)

Enter number of VDNs (0-maximum):(default 4000)

Updating database.

Creating database tables

.......

Computing space requirements and file system space

availability.

Setup completed successfully.

Installing Avaya CMS and supporting software

180 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Note:

If the setup determines that you do not have enough file space, the system

displays the following warning message:

34. To verify that the installation completed successfully, enter:

tail /cms/install/logdir/admin.log

All failure messages are logged in this file. The CMS software is successfully set up

when the system displays a message similar to the following:

You may edit this file and add comments about the packages that were installed or

authorized.

35. Perform one of the following actions:

●If you need to install additional CMS-related feature packages such as Forecasting

or External Call History, go to Installing feature packages on page 189.

●If you are not installing any other feature packages, perform the following

procedure:

i. Enter:

cmssvc

The system displays the Avaya Call Management System Services Menu.

ii. Enter the number associated with the run_cms option.

iii. Enter the number associated with the Turn on CMS option.

Failed to find sufficient file space for CMS data.

WARNING: You do not currently have sufficient file space for your

existing CMS data. At this point you should turn on CMS, go to the

“Data Storage Allocation” screen, and verify/modify the

administration, or go to the “Free Allocation” screen and

verify/modify your existing free space.

Setup completed with warnings.

File systems/space available:

/cms 12994480

File systems/current blocks free:

/cms 12994480

/cms: VDN,TKGRP,VECTOR,TRUNK,AGENT_LOG_REC,

AGENT_TRACE_REC,SPLIT,AGENT,EXCEPTIONS_REC,WORKCODE

Number of calls to fill_fs():12

Setup completed successfully <data/time>

Setting up the CMS application

Issue 3.0 October 2002 181

Setting up CMS using a UNIX flat file

To set up the CMS feature package using a UNIX flat file, you must edit a copy of the

cms.inst.skl file and start the install program.

!Important:

This procedure is not necessary if you already performed the CMS setup

interactively.

To set up CMS with a flat file:

1. Change to the CMS installation directory by entering:

cd /cms/install/cms_install

2. Make a copy of the CMS installation file by entering:

cp cms.inst.skl cms.install

3. Change permissions on the copied CMS installation file by entering:

chmod 644 cms.install

4. Edit the copied CMS installation file by entering:

vi cms.install

The file contains a series of questions and value ranges for the ACD configuration. The

following pages show a sample file with example values in italics.

Note:

When selecting a switch model in the file, refer to the Switch model table on

page 173.

Installing Avaya CMS and supporting software

182 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Example:

# Enter a name for this UNIX system (up to 256 characters):

cms3

# Select the type of backup device you are using

# 1) 40.0 Gbyte 4mm or 8mm tape

# 2) 14.0 Gbyte 8mm tape

# 3) SCSI 4-8 SLR cartridge tape - 4GB tape (8GB compressed)

# Enter choice (1-3):

# Default backup device paths based on device type:

# Device Default backup path

# 40.0 Gbyte 4mm or 8mm tape /dev/rmt/0c

# 14.0 Gbyte 8mm tape /dev/rmt/0c

# SCSI 4-8 SLR cartridge tape - 4GB tape (8GB compressed) /dev/rmt/0c

# Enter the default backup device path:

/dev/rmt/0c

# Enter number of ACDs being administered (1-8):

# The following information is required per ACD:

# Information for ACD 1:

# Enter switch name (up to 20 characters):

acd1

# Select the model of switch for this ACD

# 1) Definity-R6/R7

# 2) Definity-R8

# 3) Definity-R9/R10

# 4) MultiVantage-R11

# Enter choice (1-4):

# Is Vectoring enabled on the switch? (y/n):

# Is Expert Agent Selection enabled on the switch? (y/n):

# Does the Central Office have disconnect supervision? (y/n):

# If the Central Office has disconnect supervision, enter 0. Otherwise,

# ACD calls shorter than the Phantom Abandon Call Timer

# value will be counted as abandoned.

# Enter the Phantom Abandon Call Timer value in seconds (0-10):

Setting up the CMS application

Issue 3.0 October 2002 183

# Enter the local port assigned to switch (1-64):

# Enter the remote port assigned to switch (1-64):

# TCP/IP transport is only available with DEFINITY R7 through R10 and MULTIVANTA

GE R11 and later switch models

# Select the transport to the switch

# 1) X.25

# 2) TCP/IP

# Enter choice (1-2):

# Skip the next question if you did not enter choice 1. These are used

# for X.25 connections only.

# Select the device used for x.25 connectivity to the switch

# 1) Serial port A

# 2) Serial port B

# 3) HSI link 0

# 4) HSI link 1

# 5) HSI link 2

# 6) HSI link 3

# 7) HSI link 4

# 8) HSI link 5

# 9) HSI link 6

# 10) HSI link 7

# 11) Software loopback link 0

# 12) Software loopback link 1

# Enter choice (1-12):

# Skip the next question if you did not enter choices 11 - 12. These are

# used for testing only. If you select one of these, you will not be able

# to collect data from your ACD.

# Are you sure you want to do this? (y/n):

# Skip the next two questions if you did not enter choice 2 (TCP/IP).

# These are used for TCP/IP connections only.

# If a host name is entered, the host name must be administered in a DNS or

# /etc/hosts file or the link to the switch will not work.

# Enter DEFINITY or MULTIVANTAGE host name or IP Address:

192.168.2.2

# Enter DEFINITY or MULTIVANTAGE TCP port number (5001-5999):

5001

# Maximum number of splits/skills based on switch type:

# Release(s) Value

# Definity-R6/R7 600

# Definity-R8/Definity-R9/R10/MultiVantage-R11 999

Installing Avaya CMS and supporting software

184 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

# Number of splits/skills (0-Maximum):

# Maximum number of split/skill members based on switch type:

# Release(s) Value

# Definity-R6/R7/Definity-R8/Definity-R9/R10 10000

# MultiVantage-R11 60000

# Total split/skill members, summed over all splits/skills (0-Maximum):

1000

# Number of shifts (1-4):

# Enter the start time for shift 1 (hh:mmXM):

08:00AM

# Enter the stop time for shift 1 (hh:mmXM):

05:00PM

# Number of agents logged into all splits/skills during shift 1 (1-Maximum):

100

# Enter the start time for shift 2 (hh:mmXM):

# Enter the stop time for shift 2 (hh:mmXM):

# Number of agents logged into all splits/skills during shift 2 (1-Maximum):

# Enter the start time for shift 3 (hh:mmXM):

# Enter the stop time for shift 3 (hh:mmXM):

# Number of agents logged into all splits/skills during shift 3 (1-Maximum):

# Enter the start time for shift 4 (hh:mmXM):

# Enter the stop time for shift 4 (hh:mmXM):

# Number of agents logged into all splits/skills during shift 4 (1-Maximum):

# Maximum number of trunk groups based on switch type:

# Release(s) Value

# Definity-R6/R7/Definity-R8/Definity-R9/R10 666

# MultiVantage-R11 2000

# Number of trunk groups (0-Maximum):

Setting up the CMS application

Issue 3.0 October 2002 185

Note:

The file repeats the preceding statements for ACDs 2 through 8; enter data

for only the required number of ACDs.

5. Enter the appropriate values for your configuration. The entries must be added on the

blank lines after each question.

!CAUTION:

Use the computer’s host name for the UNIX system name. The computer’s

host name was assigned during the factory installation.

# Maximum number of trunks based on switch type:

# Release(s) Value

# Definity-R6/R7/Definity-R8/Definity-R9/R10 4000

# MultiVantage-R11 8000

# Number of trunks (0-Maximum):

100

# Number of unmeasured facilities (0 to (Maximum trunks - Number of trunks)):

# Minimum number of call work codes based on switch type:

# Release(s) Value

# Definity-R6/R7/Definity-R8/Definity-R9/R10 1

# MultiVantage-R11 1

# Maximum number of call work codes based on switch type:

# Release(s) Value

# Definity-R6/R7/Definity-R8/Definity-R9/R10 1999

# MultiVantage-R11 1999

# Number of call work codes (Minimum-Maximum):

100

# Maximum number of vectors based on switch type:

# Release(s) Value

# Definity-R6/R7 512

# Definity-R8/Definity-R9/R10/MultiVantage-R11 999

# Enter number of vectors (0-Maximum):

# Maximum number of VDNs based on switch type:

# Release(s) Value

# Definity-R6/R7 8000

# Definity-R8/Definity-R9/R10/MultiVantage-R11 20000

# Enter number of VDNs (0-Maximum):

# Information for ACD 2: .........

Installing Avaya CMS and supporting software

186 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

6. Press Esc. Then enter:

:wq!

The system saves and closes the file.

Running setup with a flat file

To run setup with a flat file:

1. Enter cd/ to change to the root directory.

2. Enter:

cmssvc

The system displays the Avaya Call Management System Services Menu.

3. Enter the number associated with the setup option.

If setup has been done previously, the system displays the following message:

4. Enter: y

The system displays the following message:

Warning!!! Setup has already been performed.

Running this command will remove all CMS data in the database.

Do you wish to proceed and re-configure CMS? (y/n): (default: n)

Select the language for this server:

All languages are ISO Latin except Japanese. Selection of the

server language assumes that existing customer data is compatible.

(Upgrade from any ISO Latin language to any ISO Latin language or

from Japanese to Japanese is supported).

1) English

2) Dutch

3) French

4) German

5) Italian

6) Portuguese

7) Spanish

8) Japanese

Enter choice (1-8): (default: 1)

Setting up the CMS application

Issue 3.0 October 2002 187

5. Enter the number associated with the language that is used on the system.

The system displays the following message:

6. Enter the number associated with the flat file option.

The system displays the following message:

7. Verify that the installation completed successfully by entering:

tail -f /cms/install/logdir/admin.log

The -f option in the tail command updates the console as messages are written

to the admin.log file. All failure messages are logged in this file. The CMS software is

successfully set up when you see a message similar to the following:

You can edit this file and add comments about the packages that were installed or

authorized.

8. Press Delete to exit the tail -f command.

The input will be read from

1) the terminal

2) a flat file

Enter choice (1-2):

*** The rest of this command is running in the background ***

File systems/space available:

/cms 12994480

File systems/current blocks free:

/cms 12994480

/cms: VDN,TKGRP,VECTOR,TRUNK,AGENT_LOG_REC,

AGENT_TRACE_REC,SPLIT,AGENT,EXCEPTIONS_REC,WORKCODE, CALL_REC,

Number of calls to fill_fs():12

Setup completed successfully <data/time>

Installing Avaya CMS and supporting software

188 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

9. Choose one of the following:

●If you need to install additional CMS-related feature packages (Forecasting or

External Call History), go to Installing feature packages on page 189.

●If you are not installing any other feature packages, do the following to turn on CMS:

i. Enter:

cmssvc

The system displays the Avaya Call Management System Services Menu.

ii. Enter the number associated with the run_cms option.

iii. Enter the number associated with the Turn on CMS option.

!Important:

If no additional configuration of the CMS software is needed, see Setting the

Informix configuration parameters for CMS on page 216.

Installing feature packages

Issue 3.0 October 2002 189

Installing feature packages

Customers can install CMS feature packages if the packages have been authorized during

CMS setup. You can contact the National Customer Care Center (1-800-242-2121), or

consult with your product distributor or representative to additional feature packages, see

Setting up CMS authorizations on page 141 for additional information.

Installing feature packages contains the following procedures:

●Prerequisites on page 189

●Installing the Forecasting package on page 189

●Installing the External Call History package on page 191

Prerequisites

Before you begin the installation procedures, perform the following tasks:

●Verify that you are logged in as root.

●Verify that all file systems are mounted.

Installing the Forecasting package

To install the Forecasting package:

1. Enter:

cmssvc

The system displays the Avaya Call Management System Services Menu.

2. Enter the number associated with the auth_display option.

The system lists the current authorizations.

3. Verify that the system is authorized to install the Forecasting package.

Note:

If Forecasting is not authorized but should be, see Setting up CMS

authorizations on page 141.

4. Enter:

cmsadm

The system displays the Avaya Call Management System Administration Menu.

Installing Avaya CMS and supporting software

190 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Note:

Different options may be displayed in the Avaya Call Management System

Administration Menu depending on the current version of CMS on your

system.

5. Enter the number associated with the pkg_install option.

The system displays the following message:

Note:

The pkg_install option menu displays only those feature packages that

are authorized but not yet installed. The Forecasting package does not

require CMS to be off during the installation. If Forecasting is added at a

later date, CMS can be left on.

6. Enter the number that corresponds to the forecasting package.

The system displays the following message:

If the installation fails, the system displays the following message:

7. If you are not installing any other feature packages, do the following to turn on CMS:

a. Enter: cmssvc

The system displays the Avaya Call Management System Services Menu.

b. Enter the number associated with the run_cms option.

c. Enter the number associated with the Turn on CMS option.

The CMS Features that can be installed are

1) forecasting

2) external call history

Enter choice (1-2) or q to quit:

Installation was successful

At this point you should go to the “Free Space Allocation Screen”

and verify that you have enough space for Forecasting on each ACD.

If there is not enough space allocated, then modify your existing

free space.

Forecasting package installation failed.

Installing feature packages

Issue 3.0 October 2002 191

8. Go to the Free Space Allocation window that is located in the CMS System Setup

subsystem, verify that there is enough space for Forecasting on each ACD, and make

any necessary modifications.

For more information about Free Space Allocation, see Avaya Call Management

System Release 3 Version 11 Administration, 585-215-515.

9. Verify that the installation completed successfully by entering:

tail /cms/install/logdir/admin.log

If the Forecasting package was successfully installed, the system displays the

following message:

You can edit this file in order to add comments about the packages that were installed

or authorized.

Installing the External Call History package

To install the External Call History (ECHI) package:

!Important:

Once the External Call History package is installed, you can no longer

access any call record data from CMS. For more information about

administering the UUCP link port on an NTS, see Avaya CMS R3V11

External Call History Interface, 585-780-700.

1. Verify that:

●A separate computer is available for the storage and reporting of call records.

●The storage computer and the CMS system are administered in UNIX-to-UNIX copy

(UUCP). If the storage machine is not running the UNIX operating system, then the

storage machine must use a DOS version of UUCP.

●CMS is off and IDS is on.

2. Enter:

cmssvc

The system displays the Avaya Call Management System Services Menu.

3. Enter the number associated with the auth_display option.

The system displays the current authorizations. Different authorizations may be

displayed depending on the version of CMS on your system.

Forecasting package installed (date/time)

Installing Avaya CMS and supporting software

192 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

4. Verify that the system is authorized for the ECHI package. If ECHI is not authorized but

should be, see Setting up CMS authorizations on page 141.

5. Enter:

cmsadm

The system displays the Avaya Call Management System Administration Menu.

6. Enter the number associated with the pkg_install option.

The system displays the following message:

Note:

The system displays only feature packages that are authorized but not yet

installed.

7. Enter the number that corresponds to the ECHI package (in this example, 2).

The system displays the following message:

8. Enter the name of the computer where call records will be collected.

The system displays the following message:

9. Press Enter.

The system displays the following message:

10. Press Enter.

The system displays the following message:

The CMS Features that can be installed are

1) forecasting

2) external call history

Enter choice (1-2) or q to quit:

Enter name of computer to which to send call records

(up to 256 characters)

Enter full path of the program to transmit the external call

history files: (default: /cms/dc/chr/uucp_copy)

Enter full path of the program to check the external call history

file transmission: (default: /cms/dc/chr/uucp_check)

Enter password for nuucp login on computer (up to 8 characters)

Installing feature packages

Issue 3.0 October 2002 193

11. Enter the password for nuucp on the receiving computer that was administered in

uucp.

The system displays the following message:

12. Enter the CMS port that is administered for the Call History Reporting machine. For

more information on administering the ports on the NTS, see Avaya CMS Terminals,

Printers, and Modems, 585-215-874.

The system displays the following message:

13. Enter the speed that the connection between the CMS and Call History Reporting

machine will be using.

The system displays the following message:

14. Enter the number of call records to be held in the buffer if the Call History machine

cannot accept the data. Repeat this step for each administered ACD.

Note:

This step reserves disk space; therefore, sufficient disk space must be

available.

15. Select whether ECHI will start in the on or off state (default is off). If the receiving

system has not yet been set up, the recommended state is off. ECHI can be turned on

Enter CMS port for connection to computer (s_pdevxxx):

Select a speed for this connection

1) 19200

2) 38400

Enter choice (1-2):

Number of call segments to buffer for ACD xxxxx (0-99999):

Start ECH in the on or off state: (default off)

Installing Avaya CMS and supporting software

194 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

at a later date with the run_pkg option in the Avaya Call Management System

Administration Menu.

The system displays the following message:

If the setup determines that you do not have enough file space, you will get the

following warning message:

16. Verify that the installation completed successfully by entering:

tail /cms/install/logdir/admin.log

If the ECHI package was installed successfully, the system displays the following

message:

You may edit this file in order to add comments about the packages that were installed

or authorized.

17. If you are not installing any other feature packages, do the following to turn on CMS:

a. Enter:

cmssvc

The system displays the Avaya Call Management System Services Menu.

b. Enter the number associated with the run_cms option.

c. Enter the number associated with the Turn on CMS option.

For more information about the ECHI feature, see Avaya CMS R3V11 External Call

History Interface, 585-780-700.

Computing space requirements and file system space availability.

External Call History package installed.

Failed to find sufficient file space for CMS data.

WARNING: You do not currently have sufficient file space for your

existing CMS data. At this point you should turn on CMS, go to the

“Data Storage Allocation” screen, and verify/modify the

administration, or go to the “Free Allocation” screen and

verify/modify your existing free space.

External call history package installed with warnings.

External Call History package installed (date/time )

Installing the Avaya Visual Vectors Server software

Issue 3.0 October 2002 195

Installing the Avaya Visual Vectors Server software

The Visual Vectors Server software is installed on the same server as the CMS software.

The Visual Vector Server software supports Visual Vectors client software installed on PC

workstations. Using the client software, administrators can change certain properties of call

center entities, as well as create and edit vectors, assign Vector Directory Numbers

(VDNs) to vectors, and set VDN Skill Preferences.

To install the Avaya Visual Vectors Server software:

1. Log into the system as root.

2. Load the CD-ROM, Avaya Visual Vectors Server Software into the CD-ROM drive.

3. Enter:

cd /

4. After about 15 seconds, enter mount to verify the name of the CD-ROM disk.

The program displays a list of devices and file systems currently mounted. The last line

should display the installed CD-ROM similar to the following example:

5. Enter:

pkgadd -d /cdrom/cdrom0 LUfaas

If this is the first time that Visual Vectors has been installed, the system displays the

following message:

/cdrom/untitled on /vol/dev/dsk/c0t2d0/untitled read

only/nosuid/maplcase/noglobal/rr/traildot/dev=16c0001 on (current

date and time)

Processing package instance <LUfaas> from </cdrom/untitled>

Visual Vectors Server Software

(sparc) vvsXX.X

The selected base directory </cms/aas> must exist before

installation is attempted.

Do you want this directory created now [y,n,?,q]

Installing Avaya CMS and supporting software

196 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

6. Enter: y

The system displays the following message:

7. Enter: y

The system displays the following message:

Note:

The system may display a message about creating the user ID aasadmin. If

the system displays this message, enter: y

8. Enter: y

The system displays the following message:

Using </cms/aas> as the package base directory.

## Processing package information.

## Processing system information.

## Verifying package dependencies.

## Verifying disk space requirements.

## Checking for conflicts with packages already installed.

The following files are already installed on the system and are

being used by another package:

* /cms/aas <attribute change only>

* - conflict with a file which does not belong to any package.

Do you want to install these conflicting files [y,n,?,q]

## Checking for setuid/setgid programs.

This package contains scripts which will be executed with super-

user permission during the process of installing this package.

Do you want to continue with the installation of <LUfaas> [y,n,?]

Installing Visual Vectors Server Software as <LUfaas>

## Installing part 1 of 1.

/cms/aas/.odbc.ini

/cms/aas/AAS_README

/cms/aas/Translation/AcdRelease/de_DE

..........

Installation of <LUfaas> was successful.

Installing the Avaya Visual Vectors Server software

Issue 3.0 October 2002 197

9. Enter:

setupaas

The system displays the Avaya Visual Vectors System Services Menu.

10. Enter the number associated with the init_vvs option.

The system displays the following message:

11. Enter the number of allowable concurrent logins. The maximum login number must not

exceed the number of licenses that were purchased.

12. Enter:

eject cdrom

Avaya Visual Vectors Server System Services Menu

Select a command from the list below.

1) init_vvs Setup the initial configuration

2) run_vvs Turn VVS on or off

3) auth_display Display simultaneous VVS logins

4) auth_set Change simultaneous VVS logins

5) backup Backup vector steps and layout files

6) restore Restore vector steps and layout files

Enter choice (1-6) or q to quit:

This version of VVS functions only with CMS.

CMS name used : cms3

Maximum concurrent VVS logins[1-100](q to quit):

Installing Avaya CMS and supporting software

198 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Activating chkDisks

To activate chkDisks:

1. At the # prompt, enter:

crontab -e

The cron file is displayed.

Note:

If the command was entered from the local console, the system will display

the file in the Text Editor window.

2. Add the following line to the end of the cron file:

15 0 * * * /olds/chkDisks>/dev/null 2>&1

3. Save and close the file.

4. Enter:

chmod +x /olds/chkDisks

Setting up a mirrored system

Issue 3.0 October 2002 199

Setting up a mirrored system

Setting up a mirrored system describes how to set up a mirrored system. Mirroring allows

you to create two complete sets of data on separate disk drives. This data redundancy

greatly reduces the risk of data loss in the event of a disk drive failure or a system crash.

For additional information about disk mirroring, see About mirrored systems on page 443.

Setting up a mirrored system contains the following topics:

●Initiating mirroring on page 205

●Required hardware on page 199

●Initiating mirroring on page 205

Prerequisites

Before you initiate mirroring, perform the following tasks:

●Verify that any additional hardware required for disk mirroring has been installed. See

Required hardware on page 199 for more information.

●If you have an Enterprise 3500, Enterprise 3501 or Enterprise 3503 system, verify that

the device alias has been set. See Resetting a device alias on page 58 for more

information.

●Verify that the EEPROM settings are correct for a mirrored system. See Displaying and

setting the EEPROM parameters on page 54 for more information.

●Verify that the alternate boot device is set up. See Creating an alternate boot device on

page 56 for more information.

Required hardware

A CMS system must have additional hardware installed in order to function as a mirrored

system:

●You must have twice the number of disk drives needed for an unmirrored system. Each

disk pair must be the same size. For example, the first pair of data disks could be 18 GB

and the second pair could be 36 GB. For more information on supported disk drives, see

Supported disk drives on page 45.

●For a Sun Blade system, you must have a second internal EIDE hard drive and a

secondary HDD cable.

●Boot disks must be 18 GB minimum.

Installing Avaya CMS and supporting software

200 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

●For a Sun Enterprise 3500 system, you must have four GigaByte Interface Converter

(GBIC) modules. A GBIC is a small hardware insert. One will be installed into the UA

slot 0 on the FC-AL Interface board, and the other will be installed into GBIC Port 0 on

the first I/O board. See the Enterprise 3500 rear view diagram on page 200.

●For a Sun Enterprise 3500 system, you must have two fiber cables to connect the UA

port GBICs to the GBIC ports on the I/O board.

Enterprise 3500 rear view diagram

Fiber cables

Setting up a mirrored system

Issue 3.0 October 2002 201

Enterprise 3000 disk configuration

In an Enterprise 3000 computer, there are 10 slots, allowing up to five disks for each mirror.

Each slot is labeled with a number 0 through 3 and 10 through 15; there are no slots

numbered 4 through 9. All the drive slots are on controller 0.

In a mirrored system, slots 0 through 10 are reserved for the primary disks, and slots 11

through 15 are reserved for the mirror disks.

Installing Avaya CMS and supporting software

202 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Enterprise 3500 disk configuration

In an Enterprise 3500 computer, there are eight disk drive slots, four in each of two bays.

The slots in the lower bay are labeled 0 through 3 and are on controller 0; the slots in the

upper bay are numbered 4 through 7 and are on controller 1.

In a mirrored system, slots 0 through 3 are reserved for the primary disks, and slots 4

through 7 are reserved for the mirror disks.

0123

7654

Primary boot

disk drive

(Boot Disk - Slot 0)

Mirror boot

disk drive

(Disk Mirror - Slot 4)

Blank

nonboot

disk drives

3500_mir.cdr

Setting up a mirrored system

Issue 3.0 October 2002 203

Sun Blade disk configuration

In a Sun Blade computer, there are 2 internal hard drive bays, and a SCSI card that will

allow up to four 18 GB external SCSI drives. This will allow up to 3 disks for each mirror.

The second internal hard drive will not be used for a data disk. The second internal hard

drive will only be used for the mirror boot device.

Primary Mirror

Boot disks: c0t0d0 c0t2d0

Data disks: c1t0d0 c1t2d0

c1t1d0 c1t3d0

Installing Avaya CMS and supporting software

204 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Sun Fire V880 disk configuration

In a Sun Fire V880 computer, there are twelve disk drive slots, three in each of four bays.

The slots are labeled 0 through 11 and are on controller 1. Currently, disk drives are only

put in slots 0, 1, 3, and 4 for a CMS system. The Sun Fire V880 computer is only available

as a mirrored system and is delivered from the factory already mirrored.

Primary disk Mirrored disk

Boot disks: c1t0d0 c1t3d0

Data disks: c1t1d0 c1t4d0

c1t2d0 c1t5d0

910 11

678

345

012

0. c1t0d0

1. c1t1d0

2. c1t2d0

6. c1t8d0

7. c1t9d0

8. c1t10d0

3. c1t3d0

4. c1t4d0

5. c1t5d0

9. c1t11d0

10. c1t12d0

11. c1t13d0

Primary disks

Mirror disks

Not used

Setting up a mirrored system

Issue 3.0 October 2002 205

Initiating mirroring

To initiate mirroring:

1. Turn CMS off, and leave IDS on.

2. Enter:

cmssvc

The system displays the Avaya Call Management System Services Menu.

3. Enter the number associated with the auth_display option.

The system displays the current authorizations.

Note:

Different authorizations may be displayed depending on the current version

of CMS on your system.

4. Verify that the system is authorized for disk mirroring. If disk mirroring is not authorized

but should be, see Setting up CMS authorizations on page 141.

5. Enter:

cmssvc

The system displays the Avaya Call Management System Services Menu.

6. Enter the number associated with the disk_space option.

The system displays the following message:

Note:

The system will not display the mirroring options if disk mirroring has not

been authorized.

Initializing the boot disk (this may take several minutes!) ...

Disk_space_manager options are:

1) Add New Disks

2) Initiate Mirroring

3) Sync Primary and Mirror

Enter choice (1-3) or q to quit:

Installing Avaya CMS and supporting software

206 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

7. Enter the number associated with the Initiate Mirroring option.

The system initiates mirroring. The system then displays a prompt to reboot the

system.

8. Enter:

/usr/sbin/shutdown -i6 -y -g0

The system reboots and begins to resync the disks.

9. Log into the system as root.

10. Set the Informix environment by entering:

. /opt/informix/bin/setenv

11. Enter the following command:

metastat |pg

The system displays the status of the DiskSuite metadevices.

12. Verify that the metadevices d1, d2, and d3 are synced and in an Okay state before

continuing with this procedure.

13. Enter:

onstat -d | egrep “MD|PD|R|X”

You may have to enter this command several times. When the system only displays

the command prompt as output, the mirroring and resync process is complete.

!CAUTION:

Do not reboot the system until the resync is complete. If you reboot the

system before the resync is complete you will have to wait for Solaris to

finish resyncing before resyncing Informix. The Solaris resync can take

several hours to complete.

If the system displays any error messages, see Common error messages with

mirrored systems on page 461.

Mirroring has been started.

You MUST reboot the system for mirroring to take effect. Execute

’/usr/sbin/shutdown -i6 -y -g0’

to shut the system down

disk_space command completed Wed Apr 18 17:12:23 MDT 2001

Proceeding to mirror the IDS dbspaces ...

Archive to tape device ’/dev/null’ is complete.

Program over.

Synchronizing disks in the background.

Setting up a mirrored system

Issue 3.0 October 2002 207

14. Turn on CMS.

Installing Avaya CMS and supporting software

208 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Setting up the remote console

Setting up the remote console describes how to set up and redirect the remote console

port using the Solaris software package. The remote console allows the TSC or COE to

dial in and perform maintenance.

Setting up the remote console includes the following topics:

●The remote console access port on page 208

●Administering the remote console port on page 209

●Using the remote console port on page 209

The remote console access port

The port that is used for remote console access differs, depending on the hardware

platform:

Hardware platform Port A Port B

Sun Fire V880 Remote

console Not used

Sun Enterprise 3000

Sun Enterprise 3500 Remote

console Not used

Sun Blade Remote

console1

1. The Sun Blade 100 and Sun Blade 150 platforms have

only one serial port.

N/A

Sun Ultra 5 Switch link

(optional)

Remote

console

Setting up the remote console

Issue 3.0 October 2002 209

Administering the remote console port

To administer the remote console port on the back of the CMS computer:

1. Remove the current port administration by entering:

/cms/install/bin/abcadm -r ttyX

where X is a or b.

The system displays the following message:

2. Enter: y

The system displays the following message:

3. Enter the following to administer the remote console port:

/cms/install/bin/abcadm -i -b 9600 ttyX

where X is a or b.

The system displays the following message:

The remote console port has been administered.

Using the remote console port

To use the remote console port functions on a CMS computer:

1. Dial in from the remote console to the remote console modem on the CMS computer

and log in as root.

ttyX is currently set to be incoming

Are you sure you want to change it? [y,n,?]

ttyX administration removed

ttyX set to incoming port 9600 baud

Installing Avaya CMS and supporting software

210 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

2. Remove the port monitor by entering:

/cms/install/bin/abcadm -r ttyX

where X is a or b.

The system displays the following message:

3. Enter: y

The system displays the following message:

4. Redirect the console to the remote console port by entering:

/cms/install/bin/abcadm -c -b 9600 ttyX

where X is a or b.

The system displays the following message:

5. Enter: y

The system displays the following message at the remote console:

The system will automatically reboot, and the remote console port will come up as the

console.

The following occurs:

●The system begins to shut down.

●Shut down, reset and reboot messages appear on the local console.

●When the system starts to come back up, the local console goes blank.

●The system boot diagnostics are displayed on the remote console.

●After the system reboots, a console login: prompt is displayed on the remote

console.

6. Log into the remote console as root.

ttyX is currently set to be incoming

Are you sure you want to change it? [y,n,?]

ttyX administration removed

This change requires a reboot to take affect

Are you ready to reboot? [y,n,?]

done

desktop auto-start disabled

Proceding to reboot.

Setting up the remote console

Issue 3.0 October 2002 211

!CAUTION:

You may lock yourself from using the console locally or remotely if you enter

Ctrl+D or exit from the remote console to exit the system without first

redirecting control back to the local console.

7. Redirect the console back to the local console by entering:

/cms/install/bin/abcadm -c local

The system displays the following message:

8. At the remote console, enter: y

The following occurs:

●The system begins to shut down.

●Shutdown, reset, and reboot messages appear on the remote console.

●When the system starts to come back up, the system boot diagnostics are displayed

on the local console.

●After the system reboots, the console login: prompt is displayed on the

remote console.

●The login screen is displayed on the local console.

9. Log into the local console as root.

10. Log into the remote console as root.

Control of the console port is redirected from the remote console back to the local

console.

If you experience problems with the remote console, see Diagnosing dial-In access

problems on page 408 for additional information.

Console set to local

This change requires a reboot to take affect

Are you ready to reboot? [y,n,?]

Installing Avaya CMS and supporting software

212 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Setting up the Alarm Origination Manager

Use Setting up the Alarm Origination Manager to set up the Alarm Origination Manager

(AOM) on the CMS server. The AOM feature is available only for CMS systems in the US

and Canada with a current maintenance warranty agreement in effect.

Setting up the Alarm Origination Manager consists of the following topics:

●Prerequisites on page 212

●Setting up the AOM config files on page 212

●Creating an AOM test alarm on page 214

Prerequisites

Before you set up AOM, perform the following tasks:

●The CMS Supplemental Services packages must be installed and set up.

●A “Product ID” number must be obtained from the CMS database administration group.

(CMS technical support personnel must contact the database group at 800-248-1111,

ext. 07425 and provide them with the customer IL number.)

Setting up the AOM config files

To set up the AOM config files:

1. Use the appropriate password (available only to CMS technical support personnel) to

2. Enter:

pkginfo -x | grep LU

3. Verify that the following packages are installed:

●LUahl

●LUaot

●LUim

●LUorbutil

4. Enter:

pkginfo -x cms

The system displays the version of CMS that is installed.

5. Record the cms version information. The version information is used in Step 9.

Setting up the Alarm Origination Manager

Issue 3.0 October 2002 213

6. Identify the communications port used by the system modem by entering: tty

The system displays the communications port, either /dev/term/a or /dev/term/b.

7. Record the port information. The port information is used in Step 10.

8. Enter the following commands:

cd /opt/cc/aot/data/admin

vi prodSetup.cfg

The system displays the prodSetup.cfg file.

9. Edit the fields in the prodSetup.cfg file to be similar to the following example:

where r3vxxx.x is the cms version number you recorded in Step 4.

10. Enter:

vi sysSetup.cfg

The fields contained in the sysSetup.cfg file are displayed.

Only three fields require revision:

●ProductID - this is the first field in the sysSetup.cfg file. It is a unique system

identifier obtained from the database administration group. See Prerequisites on

page 212.

●TelephoneNum - this is the fifth field in the sysSetup.cfg file. It is the telephone

number of the Initialization and Administration (INADS) alarm receiver: 800-535-

3573. The number must be preceded by the modem “dial tone” command and

followed by all digits required for an outgoing call. For example, if a “9” is required to

gain outside access, the entry in the TelephoneNum field would be:

ATDT918005353573

●ModemPort - this is the eighth field in the sysSetup.cfg file. It is the modem port

that you identified in Step 6, expressed in numeric form (ttya = 1 and ttyb = 2).

11. Set the Test variable by entering:

export PRODUCT_TYPE=TEST

12. Stop and restart AOM by entering the following commands:

aom stop

aom start

Product|NumberInstances|ServiceVehicle|Enabled|

TEST |1 |r1v0 |1 |

CMS |1 |r3vxxx.x |1 |

Installing Avaya CMS and supporting software

214 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Creating an AOM test alarm

To create a test alarm to verify that AOM is properly set up:

1. Log in as root2 or cmssvc

2. Enter:

cd /opt/cc/aot/bin

3. Enter the following commands:

. ./aom_env

env | grep AOM

If the environment is set correctly, the system displays the following line of output:

AOM_SH=/usr/bin/aom

4. Send the test alarm by entering:

./log_error -e 30001

5. Log off the system. Wait about 5 minutes to give the system time to send the alarm

before logging back in.

6. Enter:

cd /opt/cc/aot/data/log

7. Enter:

cat alarm_log

When the test succeeds, The system displays a message at the end of the log file

similar to the following example:

In addition, technical support personnel should find an open case for this test alarm in

the CMSALM folder in the MAESTRO case system.

07/04/00 14:17:30|30001|TEST|1|TEST_ALARM|MINOR|2|Call Attempt(1)|06/28/00

+73935305-5:

07/04/00 14:17:30|30001|TEST|1|TEST_ALARM|MINOR|2|Call Attempt(2)|06/28/00

+74149665-5:

07/04/00 14:17:30|30001|TEST|1|TEST_ALARM|MINOR|2|Positive Acknowledge|

07/04/00 14:17:30|

Starting the Avaya Visual Vectors Server software

Issue 3.0 October 2002 215

Starting the Avaya Visual Vectors Server software

To start the Avaya Visual Vectors Server software:

1. Stop and restart AOM by entering the following commands:

aom stop

aom start

2. Enter:

setupaas

The system displays the Avaya Visual Vectors System Services Menu.

3. Enter the number associated with the run_vvs option.

The system displays the following message:

4. Enter the number associated with the Turn VVS On option.

Avaya Visual Vectors Server System Services Menu

Select a command from the list below.

1) init_vvs Setup the initial configuration

2) run_vvs Turn VVS on or off

3) auth_display Display simultaneous VVS logins

4) auth_set Change simultaneous VVS logins

5) backup Backup vector steps and layout files

6) restore Restore vector steps and layout files

Enter choice (1-6) or q to quit:

1) Turn VVS On

2) Turn VVS Off

Enter choice (1-2) or q to quit:

Installing Avaya CMS and supporting software

216 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Setting the Informix configuration parameters for

CMS

The IDS configuration parameters for CMS can be adjusted to optimize system

performance. Adjusting these parameters allows a system to fully use additional

processors and memory. It may be necessary to adjust these parameters in the future if

additional memory or CPUs are added to a system.

Setting the Informix configuration parameters for CMS contains the following procedures:

●Obtaining system information on page 217

●Setting the physical log configuration parameters on page 217

●Setting the system configuration parameters on page 218

●Setting the shared memory parameters on page 219

●Setting miscellaneous Informix parameters on page 221

Setting the Informix configuration parameters for CMS

Issue 3.0 October 2002 217

Obtaining system information

To obtain system processor and memory information:

1. Enter:

/usr/platform/‘uname -i‘/sbin/prtdiag -v | pg

The system displays information similar to the following:

2. Record the quantity of CPUs for use later.

3. Press Enter to display additional system information.

4. Go to Setting the physical log configuration parameters on page 217.

Setting the physical log configuration parameters

To set the physical log configuration parameters:

1. Scroll through the onconfig.cms file and locate the # Physical Log

Configuration options.

2. Change the value of the PHYSFILE setting according to the Physical log configuration

settings table on page 218.

System Configuration: Sun Microsystems sun4u 5-slot Sun Enterprise E3500

System clock frequency: 84 MHz

Memory size: 256Mb

========================= CPUs =========================

Run Ecache CPU CPU

Brd CPU Module MHz MB Impl. Mask

--- --- ------- ----- ------ ------ ----

3 6 0 336 4.0 US-II 2.0

3 7 1 336 4.0 US-II 2.0

.....................

System Board PROM revisions:

----------------------------

Board 1: FCODE 1.8.26 2000/05/09 19:05 iPOST 3.4.26 2000/05/09 19:11

Board 3: OBP 3.2.26 2000/05/09 19:07 POST 3.9.26 2000/05/09 19:13

(EOF):

Installing Avaya CMS and supporting software

218 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Physical log configuration settings table

Note:

PHYSFILE may reset to the default system value after disk_space has

been run from the CMSSVC menu.

3. Go to Setting the system configuration parameters on page 218.

Setting the system configuration parameters

To set the system configuration parameters:

1. Turn off CMS and IDS.

2. Enter:

cd /opt/informix/etc

3. Enter:

vi onconfig.cms

The system displays the IDS configuration parameters for CMS.

Setting Value

PHYSFILE 65000

#**************************************************************************

# INFORMIX SOFTWARE, INC.

# Title:onconfig.cms

# Description: Informix Dynamic Server Configuration Parameters for CMS

#**************************************************************************

# Root Dbspace Configuration

ROOTNAME rootdbs # Root dbspace name

ROOTPATH /dev/rdsk/c0t0d0s4 # Path for device containing root dbspace

ROOTOFFSET 0 # Offset of root dbspace into device (Kbytes)

ROOTSIZE 190000 # Size of root dbspace (Kbytes)

.....................

VPJAVAVM libjava.so

VPCLASSPATH

Setting the Informix configuration parameters for CMS

Issue 3.0 October 2002 219

4. Scroll through the onconfig.cms file and locate the # System Configuration

settings.

5. Change the value of NETTYPE according to the Informix NETTYPE settings table on

page 219.

Informix NETTYPE settings table

6. Change the values of MULTIPROCESSOR, and NUMCPUVPS according to the

Informix processor settings table on page 219.

Informix processor settings table

7. Go to Setting the shared memory parameters on page 219.

Setting the shared memory parameters

To set the shared memory parameters:

1. Scroll through the onconfig.cms file and locate the # Shared Memory

Parameters settings.

2. Change the value of BUFFERS according to the Informix BUFFERS settings table on

page 220.

System type NETTYPE setting

System with 1 to 3 CPUs ipcshm,1,300,CPU

System with 4 or more

CPUs ipcshm,2,300,CPU

Sun Fire V880 system ipcshm,2,900,CPU

Processor MULTIPROCESSOR NUMCPUVPS

Single processor system 0 1

Multi-processor system

with less than four CPUs

1 Enter the number

of CPUs

Multi-processor system

with four or more CPUs

1 Enter the number

of CPUs minus (-) 1

Installing Avaya CMS and supporting software

220 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Informix BUFFERS settings table

3. Change the value of CLEANERS according to the Informix CLEANERS settings

table on page 220.

Informix CLEANERS settings table

4. Change the value of LRUS according to the Informix LRUS settings table on

page 220.

Informix LRUS settings table

5. Go to Setting miscellaneous Informix parameters on page 221.

Platform BUFFERS setting

Ultra 5 or Sun Blade

system 10000

Enterprise or Sun Fire

V880 system 20000

Platform CLEANERS setting

Ultra 5 or Sun Blade

system 8

Enterprise or Sun Fire

V880 system 16

Platform LRUS setting

Ultra 5 or Sun Blade

system 8

Enterprise or Sun Fire

V880 system 16

Setting the Informix configuration parameters for CMS

Issue 3.0 October 2002 221

Setting miscellaneous Informix parameters

To change the miscellaneous Informix parameters:

1. Scroll through the onconfig.cms file and locate the following settings:

●RESIDENT

●DS_TOTAL_MEMORY

2. Change the value of the RESIDENT setting according to the RESIDENT settings

table on page 221.

RESIDENT settings table

3. Change the value of the DS_TOTAL_MEMORY setting according to the

DS_TOTAL_MEMORY settings table on page 221.

DS_TOTAL_MEMORY settings table

4. After all changes to the file have been made, press Esc and enter:

:wq!

5. Turn on CMS and IDS.

Note:

If the Informix configuration parameters are ever modified after their initial

configuration, you will have to turn IDS off and then turn IDS on in order for

the new settings to take effect.

Setting Value

RESIDENT 0

Platform DS_TOTAL_MEMORY setting

Enterprise 3500 or Sun

Fire V880 system 200000

All other platforms 100000

Installing Avaya CMS and supporting software

222 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

NTS setup

Each Network Terminal Server (NTS) must be set up so that it will be recognized on the

network.

Obtain the network IP address and NTS IP address for each NTS you are administering.

The NTS number depends on the total number of ports that are required for the system

and the type of NTS.

To set up an NTS, see Avaya CMS Terminals, Printers, and Modems, 585-215-874.

Factory system backup

The factory creates a CMSADM backup of the system. The file system backup saves all of

the file systems on the computer onto a tape. To perform a CMSADM backup, see The

CMSADM backup on page 268.

!CAUTION:

You must not use the original set of factory backup tapes or provisioning

backup tapes.This backup contains the default factory configuration. These

tapes must be saved and never reused in case the system needs to be

reinstalled in the field.

Device IP address* Network name

Host computer 192.168.2.1 hostname

First NTS 192.168.2.101 cmsterm1

Second NTS 192.168.2.102 cmsterm2

Third NTS 192.168.2.103 cmsterm3

Nth NTS 192.168.2.1xx cmstermX

* The IP addresses shown here are the factory defaults.

Use the actual system addresses if available.

Issue 3.0 October 2002 223

Turning the system over to the customer

Turning the system over to the customer describes how to test the Avaya Call

Management System (CMS) software to ensure that the application is working properly

before the system is turned over to the customer. Perform these procedures after:

●Completing the initial computer installation and CMS setup

●Completing a CMS software package upgrade

Turning the system over to the customer includes the following topics:

●Prerequisites on page 224

●Verifying the system date and time on page 224

●Checking free space allocation on page 225

●Testing the remote access port on page 226

●Key position for Enterprise and Sun Fire systems on page 229

●Testing the ACD link on page 230

●Testing the alternate boot device on page 231

●Assigning customer passwords on page 232

●Customizing the Sun Remote System Control on page 233

●Testing the Sun Remote System Control card on page 236

●Testing the CMS software on page 238

●Finalizing the on-site installation on page 242

●Customer system acceptance worksheet on page 243

Turning the system over to the customer

224 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Prerequisites

Before you begin the procedures described in Turning the system over to the customer, the

technicians must:

●Locate the two sets of backup tapes (the original set from the factory and the set created

by provisioning) that were delivered with the new system and set these tapes to write-

protect mode

●Connect the CMS computer to the switch

●Translate the switch with the CMS feature enabled]

●Connect the switch to an active link

Verifying the system date and time

Verify that the Solaris operating system time and the current local time are the same.

Follow the procedures in Changing the system date and time on page 285. Then continue

with Checking free space allocation on page 225.

Checking free space allocation

Issue 3.0 October 2002 225

Checking free space allocation

To check free space allocation:

1. Go to the Free Space Allocation window that is located in the CMS System Setup

subsystem.

2. Verify that the amount of available space is positive for each ACD and make any

necessary adjustments.

For more information about free space allocation, see Avaya Call Management

System Release 3 Version 11 Administration, 585-215-515.

Example:

In the following Free Space Allocation window, acd8 has negative space available.

If the Total Free Space: field shows that there is not enough space available to make

the adjustment, you must modify data storage allocation or add an additional hard

drive.

Turning the system over to the customer

226 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Testing the remote access port

You must test the remote access port to verify that the TSC or COE can connect to the

CMS computer. The remote access port allows the TSC or COE to perform remote

maintenance. The port that is used for remote console access differs depending on the

hardware platform. See the following table for more information.

The process of testing the remote access port consists of the following procedures:

●Redirecting the console to the remote console on page 226

●Redirecting the console back to the local console on page 228

Redirecting the console to the remote console

To redirect the console to the remote console:

1. Dial in from the remote console to the remote console modem and log in as root.

Hardware platform Port A Port B

Sun Fire V880 Remote

console Not used

Sun Enterprise 3000

Sun Enterprise 3500 Remote

console Not used

Sun Blade Remote

console1

1. The Sun Blade 100 and Sun Blade 150 platforms have

only one serial port.

N/A

Sun Ultra 5 Switch link

(optional)

Remote

console

Testing the remote access port

Issue 3.0 October 2002 227

2. At the remote console, enter:

/cms/install/bin/abcadm -r ttyX

where X is a or b.

The system displays the following message:

3. At the remote console, enter: y

The system displays the following message:

4. Check the speed of the modem by entering:

/cms/install/bin/abcadm -k

Note:

All remote access ports have a default speed of 9600 bps.

5. Redirect the console to the remote console port by entering:

/cms/install/bin/abcadm -c -b 9600 ttyX

where X is a or b.

The system displays the following message:

6. At the remote console, enter: y

The system displays the following message at the remote console:

The system automatically reboots, and the remote console port comes up as the

console.

The following occurs:

●The system begins to shut down.

ttyX is currently set to be incoming

Are you sure you want to change it? [y,n,?]

ttyX administration removed

This change requires a reboot to take affect

Are you ready to reboot? [y,n,?]

done

desktop auto-start disabled

Proceding to reboot.

Turning the system over to the customer

228 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

●Shut down, reset and reboot messages appear on the local console.

●When the system starts to come back up, the local console goes blank.

●The system boot diagnostics are displayed on the remote console.

●After the system reboots, a console login: prompt is displayed on the remote

console.

7. Log into the remote console as root.

The local console is blank.

!CAUTION:

You may lock yourself from using the console locally or remotely if you enter

Control+D or exit from the remote console to exit the system without first

redirecting control back to the local console.

Redirecting the console back to the local console

To redirect the console back to the local console:

1. Enter:

/cms/install/bin/abcadm -c local

The system displays the following message:

2. Enter: y

The following occurs:

●The system begins to shut down.

●Shutdown, reset, and reboot messages appear on the remote console.

●When the system starts to come back up, the system boot diagnostics are displayed

on the local console.

●After the system reboots, the console login: prompt is displayed on the

remote console.

●The login screen is displayed on the local console.

3. Log into the local console as root.

Console set to local

This change requires a reboot to take affect

Are you ready to reboot? [y,n,?]

Key position for Enterprise and Sun Fire systems

Issue 3.0 October 2002 229

4. Log into the remote console as root.

Control of the console port is redirected from the remote console back to the local

console.

If you have problems with the remote access port, see Diagnosing dial-In access

problems on page 408.

Key position for Enterprise and Sun Fire systems

The Enterprise 3000, Enterprise 3500, and Sun Fire V880 systems have a key switch

which has several settings.

To correctly set the key switch:

1. Locate the key switch on the front panel of the system.

2. Insert the key.

3. Turn the key switch to the “Locked” position.

!Important:

The locked position provides bootrom security. If it is necessary to install

bootrom patches or modify the EEPROMs, the key switch may be moved

temporarily to the “On” position. After the installation process is complete,

the key switch should be moved back to the “Locked” position.

Turning the system over to the customer

230 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Testing the ACD link

After the CMS software has been installed or upgraded, the on-site technician must test

the link from the CMS computer to the switch that is using the Automatic Call Distribution

(ACD) feature.

To test the ACD link:

1. Verify that:

●The Common Desktop Environment (CDE) is active

●CMS is on.

2. In one of the windows at a console, log into the system by using a CMS administrator’s

3. Enter:

cms

4. Enter the correct terminal type.

The CMS Main Menu is displayed.

The CMS Main Menu has indicators that show whether the link to the ACD is active.

The link indicator consists of the carets (∧ and ∨) at the right side of the banner line.

There should be one caret for each ACD, and all should be pointed up (^).

Example:

If you have four ACDs, the link indicator should look like this: ∧∧∧∧, which means that

all four ACDs are up and operating.

5. Select Maintenance from the CMS Main Menu.

The system displays the Maintenance Menu.

6. Select Connection Status from the Maintenance Menu.

The Connection Status window displays the following information:

●The name of the ACD

●Whether the application is in data transfer

●Whether the session is in data transfer

●Whether the connection is operational

●The date, time, and any errors

7. Press the Exit screen-labeled key (SLK) once.

Testing the alternate boot device

Issue 3.0 October 2002 231

Testing the alternate boot device

The alternate boot device on a mirrored system should be tested after system set up is

complete. This procedure is the recommended method for testing the alternate boot

device.

To test the alternate boot device on a mirrored system:

1. From the ok prompt, enter:

boot bootdevice2

The system boots from the mirrored boot device.

2. At the console, log in as root.

3. Enter:

metadb -i

The system displays the status of the database replicas. The master replica tag is

associated with the mirror boot device.

Example:

4. Verify that the system is not displaying any warning messages for the disk.

5. Reboot once again to return system control to the regular boot disk:

/usr/sbin/shutdown -y -g0 -i6

6. Log into the system as root.

flags first blk block count

a p luo 16 1034 /dev/dsk/c0t0d0s1

a p luo 1050 1034 /dev/dsk/c0t0d0s1

a p luo 2084 1034 /dev/dsk/c0t0d0s1

a p luo 3118 1034 /dev/dsk/c0t0d0s1

a m p luo 16 1034 /dev/dsk/c1t4d0s1

a p luo 1050 1034 /dev/dsk/c1t4d0s1

a p luo 2084 1034 /dev/dsk/c1t4d0s1

o - replica active prior to last mddb configuration change

u - replica is up to date

l - locator for this replica was read successfully

c - replica’s location was in /etc/lvm/mddb.cf

p - replica’s location was patched in kernel

m - replica is master, this is replica selected as input

W - replica has device write errors

a - replica is active, commits are occurring to this replica

M - replica had problem with master blocks

D - replica had problem with data blocks

F - replica had format problems

S - replica is too small to hold current data base

R - replica had device read errors

Turning the system over to the customer

232 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Assigning customer passwords

Assigning customer passwords describes how the customer assigns passwords to each of

its logins on the CMS computer. The customer must assign passwords to each of the

following logins:

●root

●cms

●Any other administration logins that have been added for the customer

To assign a password to a customer login:

1. Log in as root.

2. At the system prompt, have the customer enter:

passwd login

where login is root, cms, and so on.

The system displays the following message:

3. Have the customer enter the new password.

The system displays the following message:

4. Have the customer enter the password again.

Note:

Have the customer record the passwords for each login on the provided

Customer system acceptance worksheet on page 243. The technician

should not know these passwords.

5. Repeat this procedure for each customer login.

New password:

Re-enter new password:

Customizing the Sun Remote System Control

Issue 3.0 October 2002 233

Customizing the Sun Remote System Control

Customizing the Sun Remote System Control describes how to configure the Sun Remote

System Control (RSC) software for a specific location. Administrators can monitor and

control the Sun Fire V880 platform from a remote location through the RSC card. The RSC

card has an ethernet port, serial port and a modem port that can be used to access the

system. If additional modem or ethernet connections are added to the RSC card, the card

can be configured to:

●Allow remote access

●Send out E-mail alerts

●Add additional RSC logins

Customizing the Sun Remote System Control contains the following procedures:

●Customizing the RSC server software on page 233

●Setting up additional RSC logins on page 234

!Important:

If a second ethernet interface or phone line will not be connected to the

RSC, go to Testing the CMS software on page 238.

Customizing the RSC server software

To customize the RSC server software on the Sun Fire V880 platform:

1. Log into the system as root.

!Important:

You can modify certain RSC configuration variables without re-running the

RSC setup. For example, E-mail alerts or networking information. To modify

a single variable, enter:

cd /usr/platform/*880/rsc

./rscadm set variable value

where variable is the configuration variable, and

where value is the configuration value.

For more information about the RSC configuration variables and commands, see

Sun Remote System Control (RSC) User’s Guide.

Turning the system over to the customer

234 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

2. Start the RSC installation by entering:

/usr/platform/*880/rsc/rsc-config

The system displays a series of prompts for configuration information.

3. Enter the appropriate information for the location.

!WARNING:

The configuration procedure updates the RSC flash PROM. If the

installation is interrupted, you must repeat this procedure.

At the end of the installation the system displays the following message:

Setting up additional RSC logins

Additional logins can be added to the Sun Fire V880 RSC card for customer use. If no

additional logins are needed, go to Testing the Sun Remote System Control card on

page 236.

To add a new RSC login:

1. Log into the system as root.

2. Access the RSC card from Solaris by entering:

cd /usr/platform/*880/rsc

3. Enter:

./rscadm useradd user_name

where user_name is the name of the customer login.

4. Enter:

./rscadm userperm user_name ua

where user_name is the name of the customer login.

5. Enter:

./rscadm userpassword user_name

where user_name is the name of the customer login.

The system displays the following message:

*******************************

RSC has been successfully setup

*******************************

Password:

Customizing the Sun Remote System Control

Issue 3.0 October 2002 235

6. Have the customer enter the new password.

The system displays the following message:

7. Have the customer re-enter the new password.

8. Have the customer record the password for the login on the provided Customer system

acceptance worksheet on page 243. The technician should not know this password.

Note:

RSC can be accessed by two different user interfaces:

●Command-line interface (CLI) – For information on how to use the CLI

interface, see Using Sun Remote System Control on page 406 and Sun

Remote System Control (RSC) User’s Guide.

●Graphical user interface (GUI) – For information on how to set up and use the

GUI interface, see Sun Remote System Control (RSC) User’s Guide.

Re-enter Password:

Turning the system over to the customer

236 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Testing the Sun Remote System Control card

Testing the Sun Remote System Control card describes how to test the Sun Remote

System Control (RSC) software setup on a Sun Fire V880 platform.

!Important:

If a second ethernet interface or phone line will not be connected to the

RSC, go to Testing the CMS software on page 238.

To test the RSC card on a Sun Fire V880 platform:

1. Enter:

telnet hostname-rsc

where hostname is the host name of the CMS system.

The system displays a message similar to the following:

2. Enter:

cmssvc

The system displays a message similar to the following:

3. Enter the cmssvc RSC password.

The system displays the RSC command prompt.

4. Enter:

logout

5. Choose one of the following options:

●If E-mail alerts are enabled on the system, perform the following procedure:

Trying 135.9.88.166...

Connected to cms1-rsc.

...........

Please login:

Please Enter password:

rsc>

Testing the Sun Remote System Control card

Issue 3.0 October 2002 237

i. Enter the following commands:

cd /usr/platform/*880/rsc

./rscadm send_event -c “Testing RSC alerting”

ii. Verify that the test alert was received by the appropriate personnel.

●If E-mail alerts are not enabled on the system, go to Step 6

6. Create a backup of the RSC card configuration. For more information, see Backing up

and restoring the RSC card configuration on page 274.

Turning the system over to the customer

238 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Testing the CMS software

After the CMS software has been installed or upgraded, the on-site technician must test

the CMS software to verify its sanity.

To test the CMS software:

1. Verify that:

●The Common Desktop Environment (CDE) is active

●CMS is on.

2. Test the Real-Time Reports subsystem.

a. Enter

CMS

The system displays the CMS Main Menu.

b. Select Reports.

c. Select Real-time.

d. Select Split/Skill.

e. Select Split Status or Skill Status.

f. Verify that the Split/Skill Status Report input window is displayed.

g. Enter a valid split number in the Split: or Skill: field.

h. Select the Run action list item, and run the report.

i. Verify that the Split or Skill Status Report window is displayed.

j. If the switch link is not operating, the report fields are blank and the status line reads

Switch link down.

k. Press the Commands SLK.

l. Select Print window to send the report to the printer.

m. Look at the message line near the bottom of the window, and verify that there is a

confirmation message about sending the report to the printer.

n. Verify that the report was printed by checking the printer for the report.

o. Return to the CMS Main Menu screen by pressing the Exit SLK twice.

3. Test the Historical Reports subsystem.

a. On the CMS Main Menu, select Reports.

b. Select Historical.

c. Select Split/Skill.

Testing the CMS software

Issue 3.0 October 2002 239

d. Select Status.

e. Verify that the Split/Skill Status Report Input window is displayed.

f. Enter a valid split number in the Split/Skill: field.

g. Enter -1 in the Date: field.

h. Select the Run action list item, and run the report.

i. Verify that the report window is displayed and that the information is displayed in the

appropriate fields.

Note:

If no historical data exists, the fields in the report window are blank.

j. Return to the CMS Main Menu by pressing the Exit SLK twice.

4. Test the Dictionary subsystem by doing the following from the CMS Main Menu.

a. On the CMS Main Menu select Dictionary.

b. Select Login Identifications.

c. Enter an asterisk (*) in the Login ID: field.

d. Select the List all action list item. The system lists all the login IDs.

e. Verify that the logins are displayed.

Note:

On a new system, the fields are blank.

f. Return to the CMS Main Menu by pressing the Exit SLK twice.

5. Test the Exceptions subsystem.

a. On the CMS Main Menu select Exceptions.

b. Select Real-time Exception Log.

c. Verify that the window is displayed.

Note:

For a new installation, this window may be blank.

d. Return to the CMS Main Menu by pressing the Exit SLK once.

6. Test the Call Center Administration subsystem.

a. On the CMS Main Menu select Call Center Administration.

b. Select the Call Work Codes option.

c. Press Enter.

d. Select the List all action list item, and list all the call work codes currently

defined.

e. Verify that the displayed information is correct.

Turning the system over to the customer

240 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Note:

On a new system, the fields may be blank.

f. Return to the CMS Main Menu by pressing the Exit SLK twice.

7. Test the Custom Reports subsystem.

a. On the CMS Main Menu select Custom Reports.

b. Select Real-time. The system lists the names of the custom reports.

c. Verify that the names of existing custom reports are listed. If there are no reports,

you receive a message saying the submenu is empty.

d. Return to the CMS Main Menu by pressing the Exit SLK once.

8. Test the User Permissions subsystem.

a. On the CMS Main Menu select User Permissions.

b. Select User Data.

c. Verify that the User Data Input window is displayed.

d. Return to the CMS Main Menu by pressing the Exit SLK once.

9. Test the System Setup subsystem.

a. On the CMS Main Menu select System Setup.

b. Select CMS state.

c. Verify that CMS is operating in the Multi-user mode.

d. Return to the CMS Main Menu by pressing the Exit SLK once.

10. Test the Maintenance subsystem.

a. On the CMS Main Menu select Maintenance.

b. Select the Printer Administration option.

c. Enter a valid printer name in the CMS printer name: field.

d. Select the List all action list item. The system lists the printer parameters.

e. Verify that the printer has been administered correctly.

f. Return to the CMS Main Menu by pressing the Exit SLK twice.

11. If the Graphics feature package has been enabled, test the Graphics subsystem.

a. On the CMS Main Menu select Graphics.

b. Verify that a Real-time Graphics screen can be accessed.

c. Return to the CMS Main Menu by pressing the Exit SLK once.

Testing the CMS software

Issue 3.0 October 2002 241

d. At each CMS terminal, log in as cms and enter the correct terminal type to verify

that the terminals are working properly. To log off, select the Logout option from

the CMS Main Menu.

If any of the steps in this test fail, see CMS error logs on page 392, Common error

messages on page 420, or Recognizing new hardware devices on page 385. If you

encounter a problem that you cannot solve, escalate the problem through normal

procedures.

Turning the system over to the customer

242 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Finalizing the on-site installation

Finalizing the on-site installation contains the final steps that the on-site technician must

perform before turning the system over to the customer.

Before turning the system over to the customer, perform the following steps:

1. Back up the system. Follow the procedures outlined in The CMSADM backup on

page 268.

!CAUTION:

Use a new set of backup tapes for this CMSADM file system backup. Do

NOT use the original set of factory backup tapes or provisioning backup

tapes. Make sure that the customer has enough tapes for the new backup.

2. Back up the customer’s historical data by doing a full maintenance backup. You can do

these backups within CMS using the Maintenance: Back Up Data window.

For more information about maintenance backups, see Avaya Call Management

System Release 3 Version 11 Administration, 585-215-515.

3. Copy the Customer system acceptance worksheet on page 243, and record the

indicated printouts.

4. Give the customer all of the CMS documentation, the software CD-ROMs, the tape

backups (including the original set from the factory, and the set created by

provisioning) and the X.25 license information.

5. Have the customer record their logins and passwords. The technician should NOT

know these login passwords.

6. Give the passwords, backup tapes, and software to the customer’s CMS administrator.

!CAUTION:

For system security and recovery, the CMS administrator should store

passwords, Informix serial numbers, key license information, X.25 license

information, and the tape backups in a secure location.

Customer system acceptance worksheet

Issue 3.0 October 2002 243

Customer system acceptance worksheet

❒df -t results (attach printout that shows df -t command results, or record the results

here):

______________________________________________________________________________

❒Printer administration:

Print out the CMS Maintenance > Printer Administration > List all window

❒Free space allocation:

Print out the CMS System Setup > Free Space Allocation window

❒Data storage allocation parameters:

Print out the CMS System Setup > Data Storage Allocation window for each ACD

❒Storage intervals parameters:

Print out the CMS System Setup > Storage Intervals window for each ACD

❒Passwords for system login IDs:

❒CMS administrator login IDs and passwords:

❒X.25 password:

Enter the X.25 password: _____________________________________________________

❒RSC login ID and password:

Turning the system over to the customer

244 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Issue 3.0 October 2002 245

Maintaining the Avaya CMS software

Maintaining the Avaya CMS software provides the procedures used to maintain the Avaya

Call Management System (CMS) software. Personnel at the Technical Service Center

(TSC) will need assistance from an on-site technician or the customer’s CMS administrator

in order to perform most of the procedures in this chapter. For additional information, see

the appropriate computer hardware installation, maintenance, and troubleshooting book for

your platform.

Note:

When executing commands that take a long time to complete, (such as

cpio commands), use the nohup command to ensure that the command

will complete without interruption if the data line disconnects. An example of

the nohup command is:

nohup cpio -icmudf -C 10240 -I /dev/rmt/0c “cms” | tee

When system reboots are required, verify that your terminal type is set correctly

after the reboot.

Maintaining the Avaya CMS software includes the following procedures:

●Using the CMSADM menu on page 247

●Using the CMSSVC menu on page 257

●The CMS maintenance backup on page 267

●The CMSADM backup on page 268

●Checking the contents of the CMSADM backup tape on page 272

●Backing up and restoring the RSC card configuration on page 274

●Performing a CMS maintenance restore on page 276

●Verifying Free Space Allocation during a maintenance restore on page 281

●Changing the system date and time on page 285

●Working with Solaris patches on page 287

●Working with CMS patches on page 292

●Adding the Informix SQL package after IDS and ILS have been installed on page 296

●Enabling fail over of the alternate boot device on page 300

●Maintaining the chkDisks crontab on page 301

Maintaining the Avaya CMS software

246 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

●Identifying a faulty disk on page 302

●Recovering a non-mirrored system after data disk failure on page 306

●Recovering a mirrored system after disk failure on page 314

●Using the luxadm command on page 346

●Performing a CMSADM restore of a mirrored or non-mirrored system on page 352

●Restoring a system without a CMSADM or system backup on page 377

●Restoring specific files from the CMSADM backup tape on page 378

●Upgrading a non-mirrored system to a mirrored system on page 379

Using the CMSADM menu

Issue 3.0 October 2002 247

Using the CMSADM menu

Using the CMSADM menu describes how to use the options of the Avaya Call

Management System Administration Menu (CMSADM menu). The CMSADM menu is

intended for use primarily by the CMS administrator.

Using the CMSADM menu includes the following topics:

●CMSADM menu functions on page 247

●Accessing the CMSADM menu on page 248

●Using acd_create on page 248

●Using acd_remove on page 250

●Using backup on page 251

●Using pkg_install on page 252

●Using pkg_remove on page 252

●Using run_pkg on page 253

●Using run_ids on page 253

●Using run_cms on page 253

●Using port_admin on page 254

●Using passwd_age on page 254

CMSADM menu functions

The following table shows the tasks that can be performed by the CMS administrator from

the CMSADM menu:

Function

Define a new Automatic Call Distribution (ACD) split

Remove an ACD

Back up the file systems to tape

Install or remove a feature package

Turn a feature package on or off

Turn IDS on or off

Maintaining the Avaya CMS software

248 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Accessing the CMSADM menu

To access the CMSADM menu:

1. Log in as root.

2. Enter:

cmsadm

The system displays the CMSADM menu.

Note:

Different options may be displayed in the CMSADM Menu depending on the

current version of CMS on your system.

!Important:

When the cmssvc setup command is running, any attempt to run other

cmsadm or cmssvc commands will be rejected, and the system will

display the error message “Please try later, setup is active”.

Using acd_create

Use the acd_create option to define a new ACD. The information you enter here for

each ACD is the same as the setup option of the CMSSVC menu.

Turn CMS on or off

Administer modems, terminals, and printers

Turn password aging on or off

Function

Select a command from the list below.

1) acd_create Define a new ACD

2) acd_remove Remove all administration and data for an ACD

3) backup Filesystem backup

4) pkg_install Install a feature package

5) pkg_remove Remove a feature package

6) run_pkg Turn a feature package on or off

7) run_ids Turn Informix Database on or off

8) run_cms Turn CMS on or off

9) port_admin Administer Modems, Terminals, and Printers

10)passwd_age Set password aging options

Enter choice (1-10) or q to quit:

Using the CMSADM menu

Issue 3.0 October 2002 249

Note:

The ACD must be authorized, and therefore purchased, before it can be

added to the CMS.

To define a new ACD:

1. Before you define a new ACD, you must turn off CMS:

a. Enter:

cmsadm

The system displays the CMSADM menu.

b. Enter 8 to select run_cms.

c. Enter 2 to turn off CMS but leave IDS running.

CMS turns off and displays the system prompt.

2. Enter:

cmsadm

The system displays the CMSADM menu.

3. Enter 1 to select acd_create.

The next-available ACD is selected for creation. (For example, if there are two ACDs

already active, ACD 3 is selected.)

4. At the prompts, enter the following information for the new ACD:

●Switch name

●Switch model (release)

●Is Vectoring enabled on the switch (if authorized)?

●Is Expert Agent Selection (EAS) enabled on the switch (if authorized)?

●Does the Central Office have disconnect supervision?

●Local port assigned to the switch

●Remote port assigned to the switch

●Transport method used to connect to the switch (X.25 or TCP/IP)

—If X.25, enter the device used for X.25 connectivity (serial port or HSI port).

—If TCP/IP, enter the hostname or IP address and TCP port

●Number of splits/skills

●Total split/skill members, summed over all splits/skills

●Number of shifts

●Start and stop times of all shifts

●Number of agents logged into all splits/skills during all shifts

Maintaining the Avaya CMS software

250 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

●Number of trunk groups

●Number of trunks

●Number of unmeasured (trunk) facilities

●Number of call work codes

●Number of vectors (if Vectoring is enabled on the switch)

●Number of Vector Directory Numbers (VDNs), if Vectoring is enabled on the switch

After you have entered the required information, the program displays the following

message

5. Turn CMS back on:

a. Enter:

cmsadm

The system displays the CMSADM menu.

b. Enter 8 to select run_cms.

c. Enter 1 to turn on CMS.

Using acd_remove

Use the acd_remove option to remove an existing ACD.

Note:

If you are removing the master ACD, you must first designate some other

ACD as the master.

To designate a different ACD as the master:

1. On the main CMS menu, select System Setup - CMS State.

2. Use the Tab key to move to the Master ACD field and enter a new name.

3. Press Enter to move to the action list and select Modify.

4. Return to the main menu and select Logout.

To remove an ACD:

1. Verify that data collection is off for all ACDs.

Updating database.

Computing space requirements and file system space

availability.

ACD <name> (X) created successfully.

Using the CMSADM menu

Issue 3.0 October 2002 251

2. Turn off CMS:

a. Enter:

cmsadm

The system displays the CMSADM menu.

b. Enter 8 to select run_cms.

c. Enter 2 to turn off CMS but leave IDS on.

3. Enter:

cmsadm

The system displays the CMSADM menu.

4. Enter 2 to select acd_remove

5. Enter the number (1-8) that corresponds with the ACD that you want to remove.

The system displays the following message:

6. Enter: y

The system displays the following message:

7. Since the ACD is removed in the background, you can turn CMS back on before the

removal is complete. To turn CMS back on:

a. Enter:

cmsadm

The system displays the CMSADM menu.

b. Enter 8 to select run_cms.

c. Enter 1 to turn on CMS.

Using backup

Use the backup option to back up your file system. This option does not back up CMS

data.

All administration and historical data for this ACD will be

DELETED.

Do you want to continue and delete all data for this ACD? (y/n):

Removal of data for this ACD started in the background.

A completion message will be logged in

/cms/install/logdir/admin.log.

Maintaining the Avaya CMS software

252 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Note:

To back up CMS data, a full maintenance backup must be performed in

addition to the CMSADM backup.

Using pkg_install

Use the pkg_install option to install a feature package.

To use the pkg_install option:

1. Enter:

cmsadm

The system displays the CMSADM menu.

2. Enter 4 to select pkg_install.

The system displays the following message:

Note:

The system displays only feature packages that are authorized and not yet

installed.

3. Enter the number associated with the feature package that you want to install.

Using pkg_remove

Use the pkg_remove option to remove a feature package. This procedure removes all

files and database items associated with the feature package.

!CAUTION:

Be careful when removing a package. All features and data that are

associated with that package will also be removed.

To remove a feature package:

1. Enter:

cmsadm

The system displays the CMSADM menu.

2. Enter 5 to select pkg_remove.

The system displays a list of CMS features that can be removed.

The CMS Features that can be installed are

1) forecasting

2) external call history

Enter choice (1-2) or q to quit:

Using the CMSADM menu

Issue 3.0 October 2002 253

3. Enter the number associated with the feature package that you want to remove.

The system displays a message indicating the feature is removed.

Using run_pkg

Use the run_pkg option to turn a feature package on or off.

To use the run_pkg option:

1. Enter:

cmsadm

The system displays the CMSADM menu.

2. Enter 6 to select run_pkg.

The system displays a list of CMS features.

3. Enter the number associated with the feature package that you want to turn on or off.

The system displays a message telling you the status of the feature.

Using run_ids

Use the run_ids option to turn IDS on or off.

To use the run_ids option:

1. Enter:

cmsadm

The system displays the CMSADM menu.

2. Enter 7 to select run_ids.

3. Perform one of the following actions:

●To turn on IDS, enter: 1

●To turn off IDS, enter: 2

Using run_cms

Use the run_cms option to turn CMS on or off.

To use the run_cms option:

1. Enter:

cmsadm

The system displays the CMSADM menu.

Maintaining the Avaya CMS software

254 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

2. Enter 8 to select run_cms.

3. Perform one of the following actions:

●To turn CMS on, enter: 1

●To turn CMS off, but leave IDS running, enter: 2

●To turn both CMS and IDS off, enter: 3

Using port_admin

Use the port_admin option to administer modems, terminals, and printers. This option

automatically configures external ports to accept specific types of peripheral equipment.

The option configures the following types of ports:

●Built-in parallel port

●NTS ports

●SAI/P expander box ports

The port_admin option does not configure the built-in A and B serial ports.

To administer modems, terminals, or printers:

1. Enter:

cmsadm

The system displays the CMSADM menu.

2. Enter 9 to select port_admin.

For more information about the port_admin tool, see Avaya CMS Terminals,

Printers, and Modems, 585-215-874.

Using passwd_age

The passwd_age option is not available for use with some CMS loads. Use the

passwd_age option to turn password aging on or off. If password aging is on, users will

be prompted to enter a new password after a predetermined time interval has passed.

Password aging is off by default.

!CAUTION:

If you have any third party software or Professional Services offers, do not

turn on password aging. Contact the National Customer Care Center

(1-800-242-2121) or consult with your product distributor or representative

to ensure that password aging will not disrupt any additional applications.

The passwd_age option will effect the passwords of all CMS users and regular UNIX

users. When password aging is on, the Solaris policy file /etc/default/passwd is modified.

The passwords of all CMS users that use the /usr/bin/cms shell and all UNIX users will

Using the CMSADM menu

Issue 3.0 October 2002 255

age. If password aging is on when a new user is added, the user’s password begins to age

as soon as a password is entered for that account.

It is recommended that you exclude specific users before turning password aging on in

order to avoid additional password administration. If you need to prevent the aging of a

specific user’s password, see Adding and removing users from password aging on

page 386 and Troubleshooting password aging on page 390.

!Important:

Non-CMS users such as root, root2, or Informix will not age.

Password aging will not function on a CMS system that uses a NIS, NIS+, or LDAP

directory service. If you are using NIS, NIS+, or LDAP, contact your network administrator.

The passwords will need to be aged from the server running the directory service.

To use the passwd_age option:

1. Enter:

cmsadm

The system displays the CMSADM menu.

2. Enter 10 to select passwd_age.

The system displays the following message:

Note:

The system will also display a message that indicates that password aging

is off or the current password aging schedule. You may enter q at any point

to exit the password aging options.

3. Perform one of the following actions:

●To turn password aging on:

i. Enter: 1

The system displays the following message:

ii. Enter the number of weeks before passwords expire and users are prompted to

enter a new password. The range is from 1 to 52 weeks.

●To turn password aging off:

1) Turn on password aging

2) Turn off password aging

3) Change password aging interval

or q to quit: (default 1)

Enter Maximum number of weeks before passwords expire (9 default):

Maintaining the Avaya CMS software

256 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

i. Enter: 2

The system displays the following message:

ii. Perform one of the following actions:

●To turn password aging off, enter: yes

●To leave password aging on, enter: no

●To change the password aging interval:

i. Enter: 3

The system displays the following message:

ii. Enter the number of weeks before passwords expire and users are prompted to

enter a new password. The range is from 1 to 52 weeks.

Turn off password aging for all CMS users (yes default):

Passwords are currently expiring every x weeks

Enter Maximum number of weeks before passwords expire (9 default):

Using the CMSSVC menu

Issue 3.0 October 2002 257

Using the CMSSVC menu

Using the CMSSVC menu describes how to use the options of the Avaya Call

Management System Services Menu (CMSSVC menu). The CMSSVC menu is for use

primarily by Avaya authorized services personnel.

Using the CMSSVC menu includes the following procedures:

●CMSSVC menu functions on page 257

●Accessing the CMSSVC menu on page 258

●Using auth_display on page 259

●Using auth_set on page 260

●Using run_ids on page 260

●Using run_cms on page 261

●Using disk_space on page 261

●Using setup on page 261

●Using swinfo on page 262

●Using swsetup on page 262

●Using patch_inst on page 264

●Using patch_rmv on page 265

●Using load_all on page 265

●Using back_all on page 266

CMSSVC menu functions

The following table shows the tasks that can be performed by Avaya authorized services

personnel from the CMSSVC menu:

Function

Display CMS authorizations

Authorize CMS feature packages and capacities

Turn IDS on or off

Turn CMS on and off

Maintaining the Avaya CMS software

258 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Accessing the CMSSVC menu

To access the CMSSVC Menu:

1. Log in as root.

2. Enter:

cmssvc

The system displays the CMSSVC menu.

Add disks or set up mirroring

Set up the initial CMS configuration

Display switch information

Change switch information

Install a CMS patch

Back out an installed CMS patch

Install all CMS patches

Back out all installed CMS patches

Function

Select a command from the list below.

1) auth_display Display feature authorizations

2) auth_set Authorize capabilities/capacities

3) run_ids Turn Informix Database on or off

4) run_cms Turn CMS on or off

5) disk_space Format/Assign disk space to Database Server

6) setup Set up the initial configuration

7) swinfo Display switch information

8) swsetup Change switch information

9) patch_inst Install a single CMS patch from CD

10) patch_rmv Backout an installed CMS patch

11) load_all Install all CMS patches found on CD

12) back_all Backout all installed CMS patches from machine

Enter choice (1-12) or q to quit:

Using the CMSSVC menu

Issue 3.0 October 2002 259

Note:

When the CMSSVC setup command is running, any attempt to run other

cmsadm or cmssvc commands will be rejected, and the system will

display the error message:

Note:

Different options may be displayed in the CMSSVC Menu depending on the

current version of CMS on your system.

Using auth_display

To use the auth_display option to display CMS authorizations:

1. Enter:

cmssvc

The system displays the CMSSVC menu.

2. Enter 1 to select auth_display.

The system displays the purchased version of CMS and the current authorization

status for CMS features and capacities.

Note:

Different authorizations may be displayed, depending on the current version

of CMS on your system.

The possibilities for authorization status are as follows:

Please try later, setup is active

Version purchased: R3V11

Capability/Capacity Authorization

------------------- -------------

disk mirroring installed

vectoring authorized

forecasting authorized

graphics authorized

external call history authorized

expert agent selection authorized

external application authorized

global dictionary/ACD groups not authorized

Avaya CMS Supervisor authorized

Avaya CMS Report Designer authorized

Maximum number of split/skill members 32000

Maximum number of ACDs 8

Simultaneous Avaya CMS Supervisor logins 400

Number of authorized agents (RTU) 32000

Maintaining the Avaya CMS software

260 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

●Authorized — The feature is purchased, and authorization is turned on.

●Not authorized — The feature is not purchased, or authorization is not been turned

on.

●Installed — The feature is authorized, and the software to support the feature is

installed. This authorization will indicate a status of on or off with some features.

Note:

The mirroring authorization may not appear if the system is an Ultra 5

because mirroring is not supported on the Ultra 5 platform.

Using auth_set

To use the auth_set option to authorize CMS features and capacities:

1. Enter:

cmssvc

The system displays the CMSSVC menu.

2. Enter 2 to select auth_set.

The system displays the following message:

3. Enter the appropriate password and see Setting up CMS authorizations on page 141

for more information.

This password is available only to authorized personnel.

Using run_ids

To use the run_ids option to turn IDS on and off:

1. Enter:

cmssvc

The system displays the CMSSVC menu.

2. Enter 3 to select run_ids.

3. Perform one of the following actions:

●To turn on IDS, enter: 1

●To turn off IDS, enter: 2

Password:

Using the CMSSVC menu

Issue 3.0 October 2002 261

Using run_cms

To use the run_cms option to turn CMS on and off:

1. Enter:

cmssvc

The system displays the CMSSVC menu.

2. Enter 4 to select run_cms.

3. Perform one of the following actions:

●To turn on CMS, enter: 1

●To turn off CMS, but leave IDS running, enter: 2

●To turn off both CMS and IDS, enter: 3

Using disk_space

Use the disk_space option to set up the initial CMS disk partitions, add additional disks

to the CMS system, and set up disk mirroring.

To use the disk_space option:

1. Enter:

cmssvc

The system displays the CMSSVC menu.

2. Enter 5 to select disk_space.

3. Perform one of the following actions:

●To add new disks, enter: 1

●To initiate mirroring, enter: 2

●To sync primary and mirror, enter: 3

Note:

The system will not display the mirroring options if disk mirroring has not

been authorized. The system may display different menu options for non-

mirrored systems.

Using setup

Use the setup option to set up the initial CMS configuration. When the cmssvc setup

command is running, any attempt to run other cmsadm or cmssvc commands will be

rejected, and the system will display the error message “Please try later, setup

is active”.

Maintaining the Avaya CMS software

262 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Do not confuse this option with the swsetup option, which is used to change the switch

information.

!CAUTION:

Do not run setup on a system that is in service to avoid losing all the

customer data.

Using swinfo

Use the swinfo option to display the switch options that are currently assigned for each

ACD.

To use the swinfo option:

1. Enter:

cmssvc

The system displays the CMSSVC menu.

2. Enter 7 to select swinfo.

The system displays a list of ACDs.

3. Select the ACD for which you want to display the switch options.

The system displays the following information:

●Switch name

●Switch model (release)

●If Vectoring is enabled

●If Expert Agent Selection is enabled

●If the Central Office has disconnect supervision

●Local port

●Remote port

●Link transport method (X.25 or TCP/IP)

Using swsetup

Use the swsetup option to change the switch options for each ACD. Do not confuse this

option with the setup option, which is for setting up CMS.

When you change switch parameters, you should also check the parameters in the CMS

System Setup: Data Storage Allocation window. In particular, if you enable Vectoring,

you will need to allocate space for VDNs and vectors. Changing the switch release may

change the number of measured entities allowed and may also have an impact on the

storage allocation for each entity.

Using the CMSSVC menu

Issue 3.0 October 2002 263

To use the swsetup option:

1. Turn CMS off:

a. Enter:

cmssvc

The system displays the CMSSVC menu.

b. Enter 4 to select run_cms.

c. Enter 2 to turn off CMS but leave IDS running.

2. Enter:

cmssvc

The system displays the CMSSVC menu.

3. Enter 8 to select swsetup.

The system displays a list of ACDs.

4. Select the ACD that you want to change.

5. At the prompts, provide the following information:

●Switch name

●Switch model (release)

●Is Vectoring enabled on the switch (if authorized)?

●Is Expert Agent Selection (EAS) enabled on the switch (if authorized)?

●Does the Central Office have disconnect supervision?

●Local port assigned to the switch (1 is recommended)

●Remote port assigned to the switch (1 is recommended)

●Transport method used to connect to the switch (X.25 or TCP/IP)

—If X.25, enter the device used for X.25 connectivity (serial port or HSI port).

—If TCP/IP, enter the hostname or IP address and TCP port

The system displays all the information. The system then asks if the switch

administration is correct.

6. If the switch information is correct, enter: y

7. Turn on CMS:

a. Enter:

cmssvc

The system displays the CMSSVC menu.

b. Enter 4 to select run_cms.

Maintaining the Avaya CMS software

264 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

c. Enter 1 to turn on CMS.

Using patch_inst

Use the patch_inst option to install one or more CMS patches from the CD-ROM. If

you want to install all patches, use the load_all command.

Note:

Some patches require CMS to be off. Look at the read me file on the CMS

CD-ROM to determine the state of CMS before attempting to install a patch.

To use the patch_inst option:

1. Insert the CD-ROM, Avaya CMS Release 3 Version 11 into the CD-ROM drive.

2. Enter:

cmssvc

The system displays the CMSSVC menu.

3. Enter 9 to select patch_inst.

4. Enter the patch number.

The system installs the patch and displays messages similar to the following:

5. After all of the required patches are installed, enter:

eject cdrom

For more detailed information about CMS patches, see Working with CMS patches on

page 292.

@(#) installpatch 1.0 96/04/01

cmspx-s

Generating list of files to be patched...

Creating patch archive area...

Saving a copy of existing files to be patched...

xxxx blocks

File compression used

Installing patch packages...

Doing pkgadd of cmspx-s package:

Installation of <cmspx-s> was successful.

Patch packages installed:

cmspx-s

Patch installation completed.

Using the CMSSVC menu

Issue 3.0 October 2002 265

Using patch_rmv

Use the patch_rmv option to remove a single CMS patch installed on the machine.

To use the patch_rmv option:

1. Enter:

cmssvc

The system displays the CMSSVC menu.

2. Enter 10 to select patch_rmv.

3. Enter the patch number.

The system removes the patch.

4. Repeat Steps 2 and 3 for each patch that you want to remove.

For more detailed information about CMS patches, see Working with CMS patches on

page 292.

Using load_all

Use the load_all option to install all CMS patches from the CD-ROM.

Note:

Some patches require CMS to be off. Look at the read me file on the CMS

CD-ROM to determine the state of CMS before attempting to install a patch.

To use the load_all option:

1. Insert the CD-ROM, Avaya CMS into the CD-ROM drive.

2. Enter:

cmssvc

The system displays the CMSSVC menu.

3. Enter 11 to select load_all.

Maintaining the Avaya CMS software

266 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

4. Enter: y

The system installs the patches and displays messages similar to the following:

5. After installing all of the patches, enter:

eject cdrom

For more detailed information about CMS patches, see Working with CMS patches on

page 292.

Using back_all

The back_all option allows you to remove all CMS patches installed on the machine.

To use the back_all option:

1. Enter:

cmssvc

The system displays the CMSSVC menu.

2. Enter 12 to select back_all.

The system removes all of the installed patches and displays a conformation message

for each patch that was removed.

For more detailed information about CMS patches, see Working with CMS patches on

page 292.

@(#) installpatch 1.0 <date>

cmspx-s

Generating list of files to be patched...

Creating patch archive area...

Saving a copy of existing files to be patched...

xxxx blocks

File compression used

Installing patch packages...

Doing pkgadd of cmspx-s package:

Installation of <cmspx-s> was successful.

Patch packages installed:

cmspx-s

Patch installation completed.

The CMS maintenance backup

Issue 3.0 October 2002 267

The CMS maintenance backup

CMS maintenance backups save only CMS data (administration and historical). The CMS

data for each Automatic Call Distribution (ACD) should be backed up:

●After the CMS is provisioned

●After the CMS software is upgraded

●On a daily basis.

You can perform these backups within CMS. For more information, see Avaya CMS R3V11

Administration, 585-215-515.

Note:

If you use the CMS LAN backup feature, back up your CMS data according

to Avaya CMS R3V11 LAN Backup User Guide, 585-215-715. The Avaya

CMS R3V11 LAN Backup User Guide, 585-215-715 provides information

about using the CMS LAN backup feature, hardware requirements, software

requirements, and support guidelines.

Maintaining the Avaya CMS software

268 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

The CMSADM backup

The CMSADM file system backup saves all of the file systems on the computer onto a

tape, including:

●Solaris system files and programs

●CMS programs

!Important:

The CMSADM backup does not save CMS data tables. No new users can

log into the CMS system while the CMSADM backup is running.

The CMSADM backup contains the following topics:

●When to perform a CMSADM backup on page 268

●Tape drives and cartridges on page 269

●Performing a CMSADM backup on page 269

Note:

If you use the CMS LAN backup feature, back up your system data

according to Avaya CMS R3V11 LAN Backup User Guide, 585-215-715.

The Avaya CMS R3V11 LAN Backup User Guide, 585-215-715 provides

information about using the CMS LAN backup feature, hardware

requirements, software requirements, and support guidelines.

When to perform a CMSADM backup

Perform the CMSADM file system backup:

●After the system has been set up in the factory.

!Important:

This backup contains the default factory configuration. These tapes must be

saved and never reused in case the system needs to be reinstalled in the

field.

●After the CMS is provisioned

This backup contains the Solaris system files and programs and CMS configuration

data placed on the computer by TSC provisioning personnel. These tapes should also

be saved and not reused.

In addition, field technicians should perform a CMS full maintenance backup before

they turn a new system over to the customer. For more information, see Avaya CMS

Release 3 Version 11 Administration, 585-215-515.

The CMSADM backup

Issue 3.0 October 2002 269

●Before and after the CMS software is upgraded (usually performed by a field technician)

●Once a month (performed by the customer).

Tape drives and cartridges

The following table lists the models of tape drives that are supported for CMS Release 3

Version 11.

!WARNING:

Verify that you are using the correct tape for the tape drive on your system.

Many of the tape cartridges look alike, and using the wrong tape can

damage the tape drive mechanism and tape heads.

Performing a CMSADM backup

To perform a CMSADM backup:

1. Verify that:

●The computer is in a Solaris multi-user state (2 or 3). To check whether you are in

the multi-user state, enter: who -r

●You are using the correct tape for the tape drive on your system.

!CAUTION:

Use a new set of backup tapes for this CMSADM file system backup. Do

NOT use the original set of factory backup tapes or provisioning backup

tapes. Make sure that there are enough tapes for the new backup.

Tape drive Tape cartridge CMS computers

DDS-4 DDS compliant 150 meter

20/40-GB DAT cartridge

4mm

Sun Ultra 5

Sun Blade

Sun Enterprise 3000

Sun Enterprise 3500

Sun Fire V880

Mammoth 170-meter AME 20/40-GB

8 mm Sun Enterprise 3500

SLR5 4/8-GB QIC SLR 4/8 Sun Ultra 5

14-GB 8mm 160-meter 8mm Sun Enterprise 3000

Sun Ultra 5

Maintaining the Avaya CMS software

270 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

2. Log in as root.

3. Enter:

cmsadm

The system displays the Avaya Call Management System Administration Menu.

4. Enter the number associated with the backup option.

Depending on the configuration of your system, the system displays one of the

following options:

● If only one tape drive is available on the system, the system displays the following

message:

Continue with Step 6.

●If more than one tape drive is available for use by the system, the system displays a

message similar to the following example:

5. Enter a tape drive selection from the displayed list.

The system displays the following message:

6. Press Enter.

The backup process begins. If more than one tape is required, the system displays the

following message:

7. If the system displays the message in Step 6, insert the next tape and allow it to

rewind. When it is properly positioned, press Enter.

8. When the backup is completed, the system displays information according to the

number of tapes that are required for the backup:

Please insert the first cartridge tape into <device name>.

Press ENTER when ready or Del to quit:^?

Select the tape drive:

1) Exabyte EXB-8900 8mm Helical Scan tape drive: /dev/rmt/0

2) Exabyte EXB-8500 8mm Helical Scan tape drive: /dev/rmt/1

Enter choice (1-2):

Please insert the first cartridge tape into <device name>.

Press ENTER when ready or Del to quit:^?

End of medium on "output".

Please remove the current tape, number it, insert tape number x,

and press Enter

The CMSADM backup

Issue 3.0 October 2002 271

● If the number of tapes required is one, the system displays the following message:

Continue with Step 11.

●If the number of tapes required is more than one, the system displays the following

message:

9. Insert the first tape to be used in the backup and press Enter. Wait for the LED on the

tape drive to stop blinking before you remove the tape.

10. When prompted, repeat Step 9 for any additional tapes generated by the backup

process. When the final tape is verified, the program displays the following message:

11. Label all tapes with the:

●Tape number

●Date of backup

●Current version of CMS

12. Set the tape write-protect switch to read-only and put the tapes in a safe location.

If you have problems performing a CMSADM backup, see CMSADM backup

problems on page 417.

xxxxxxx blocks

Tape Verification

xxxxxxx blocks

WARNING: A CMS Full Maintenance Backup in addition to this cmsadm

backup must be done to have a complete backup of the system. . .

. .

Please label the backup tape(s) with the date and the current CMS

version (R3Vxxx.x)

xxxxxxx blocks

Tape Verification

Insert the first tape

Press Return to proceed :

xxxxxxx blocks

Tape Verification

xxxxxxx blocks

WARNING: A CMS Full Maintenance Backup in addition to this cmsadm

backup must be done to have a complete backup of the system. . .

. .

Please label the backup tape(s) with the date and the current CMS

version (R3Vxxx.x)

Maintaining the Avaya CMS software

272 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Checking the contents of the CMSADM backup tape

Checking the contents of the CMSADM backup tape is used to check the content on the

backup tape. The system lists the files on the backup tape so you can determine if the

backup has saved the correct information or verify that a particular file has been saved.

Note:

It can take a long time to display the file names on the backup tape.

To check the contents of the CMSADM backup tape:

1. Insert the first backup tape.

2. To list the files on the tape, enter the following command on a single line:

nohup cpio -ivct -C 10240 -I /dev/rmt/dev# -M “Insert tape %d

and press Enter” | tee

where dev# is the device name.

The system displays a list of files.

3. If you are not sure of the device path, enter:

mt -f /dev/rmt/dev# status

where dev# is the device name.

The device name is usually /dev/rmt/0c. However, the device name used depends

on the drive’s SCSI ID. Possible device names are:

The correct device path will show information similar to the following:

/dev/rmt/0 Indicates the first noncompressing tape drive with

the lowest target address

/dev/rmt/1 Indicates the second noncompressing tape drive

with the second lowest target address

/dev/rmt/0c Indicates the first compressed-mode tape drive

with the lowest target address

/dev/rmt/1c Indicates the second compressed-mode tape

drive with the second lowest target address

HP DDS-4 DAT (Sun) tape drive:

sense key(0x0)= No Additional Sense residual= 0 retries= 0

file no= 0 block no= 0

Checking the contents of the CMSADM backup tape

Issue 3.0 October 2002 273

4. After you have seen the files you are looking for or have confirmed that data on the

tape is accurate, press Delete to stop the display.

Maintaining the Avaya CMS software

274 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Backing up and restoring the RSC card

configuration

The Sun Fire V880 platform contains a RSC card. If you do not use your RSC card, there is

no need to back up your card settings. If you do use your RSC card, you should back up

your card settings any time the configuration is changed. You can use this backup to

restore your RSC card settings if you ever replace the RSC card or reinstall the RSC

software.

Backing up and restoring the RSC card configuration contains the following procedures:

●Backing up the RSC card configuration on page 274

●Restoring the RSC card configuration on page 274

Backing up the RSC card configuration

To back up the RSC card configuration on a Sun Fire V880 platform:

1. Log into the system as root.

2. Enter:

cd /usr/platform/*880/rsc

3. Enter:

./rscadm usershow > rscadm.usershow.settings

The system creates a file that contains the settings for the RSC logins.

4. Enter:

./rscadm show > rscadm.show.settings

The system creates a file that contains the RSC settings.

Restoring the RSC card configuration

To restore the RSC card configuration on a Sun Fire V880 platform:

1. If applicable, replace any defective hardware or software.

2. Enter:

cd /usr/platform/*880/rsc

3. Locate and record the information in the following files:

●rscadm.usershow.settings

●rscadm.show.settings

Backing up and restoring the RSC card configuration

Issue 3.0 October 2002 275

4. Enter:

cd /

5. Re-run the RSC card configuration using the information in the backup files. Enter:

/usr/platform/*880/rsc/rsc-config

For more information, see Customizing the Sun Remote System Control on page 233.

Maintaining the Avaya CMS software

276 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Performing a CMS maintenance restore

Performing a CMS maintenance restore describes how to restore all CMS data from a

CMS maintenance backup.

!CAUTION:

If this procedure is being performed because of a disk replacement or crash,

see Recovering a non-mirrored system after data disk failure on page 306

before performing this procedure.

Performing a CMS maintenance restore contains the following topics:

●Data restore requirements on page 277

●Restoring data from a full maintenance backup on page 277

●Restoring data from a full and incremental maintenance backup on page 278

Note:

If you use the CMS LAN backup feature, see Avaya CMS R3V11 LAN

Backup User Guide, 585-215-715. The Avaya CMS R3V11 LAN Backup

User Guide, 585-215-715 provides information about using the CMS LAN

backup feature, hardware requirements, software requirements, and support

guidelines.

Performing a CMS maintenance restore

Issue 3.0 October 2002 277

Data restore requirements

Before you perform a CMS maintenance restore, the following requirements must be met

depending on the type of data you wish to restore:

Restoring data from a full maintenance backup

To restore data from a full maintenance backup:

!CAUTION:

Perform this procedure when only the full CMS maintenance backups are

available. If an incremental maintenance backup is also available, see

Restoring data from a full and incremental maintenance backup on

page 278

1. Load the most recent full maintenance backup tape into the tape drive.

2. From one of the windows at a console, log into the system by using a CMS

administrator’s login ID (for example su - cms). Enter the correct password if

prompted.

3. Enter:

cms

A series of prompts about system status may appear before the system displays the

CMS main menu.

4. Enter the correct terminal type.

5. Select the Maintenance option.

Data to be restored System requirements

Historical

and

non-CMS

●CMS can be in a multi-user state

●Data collection can be on

Local system

administration

●CMS must be in the single-user state

●Data collection must be turned off

ACD -specific

administration

●CMS must be in the single-user state

●Data collection can be on

CMS system

administration

●CMS must be in the single-user state

●Data collection can be on

Maintaining the Avaya CMS software

278 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

6. Select the Restore Data option.

7. In the Restore from last backup (y/n): field, enter: n

The system restores the system administration data, ACD-specific data, historical

data, and non-CMS data.

8. Go to the Free Space Allocation window that is located in the CMS System Setup

subsystem and verify that no adjustments need to be made.

For more information about Free Space Allocation, see Avaya CMS R3V11

Administration, 585-215-515.

Restoring data from a full and incremental maintenance

backup

To restore data from a full and incremental maintenance backup:

!CAUTION:

Perform this procedure only if both full and incremental CMS maintenance

backups are available. If only a full maintenance backup is available go to

Restoring data from a full maintenance backup on page 277.

1. Insert the most recent full maintenance backup tape into the tape drive.

2. From one of the windows at a console, log into the system by using a CMS

administrator’s login ID (for example su - cms). Enter the correct password if

prompted.

3. Enter:

cms

A series of prompts about system status may appear before the system displays the

CMS main menu.

4. Enter the correct terminal type.

5. Depending on the type of data to be restored, it may not be necessary to perform Steps

a or b. See the table in Data restore requirements on page 277 to determine which

steps to perform.

a. Change CMS to single user mode:

i. Select System Setup - CMS State.

The system displays the CMS State window.

ii. Enter an x in the Single-user mode field and press Enter twice.

iii. Press F5 to return to the main menu.

b. Turn off data collection:

Performing a CMS maintenance restore

Issue 3.0 October 2002 279

i. Select System Setup - Data Collection.

The system displays the Data Collection window.

ii. Enter the name of the ACD.

iii. Use Tab to move the Off field and enter: x

iv. Press Enter, select Modify, and press Enter again.

v. Repeat Steps i through iv for each ACD.

vi. Press F5.

The system displays the CMS main menu.

6. Select Maintenance - Restore Data.

7. In the Restore Data window, select the following options:

8. Press Enter, select Run, and press Enter again.

9. When the restore is finished, remove the full backup tape from the drive and insert the

most current incremental backup tape.

10. Repeat Steps 7 and 8 as needed.

11. After the incremental restore is finished, press F5.

The system displays the CMS main menu.

Item Values specified or selected

Device name default

Restore from last

backup?

Restore historical

data from

(leave blank)

ACDs to restore All ACDs

Data to restore Local System

Administration data

ACD-specific

administration data

Historical data

Non-CMS data

Maintaining the Avaya CMS software

280 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

12. Depending on the type of data to be restored, it may not be necessary to perform Steps

a or b. See the table in Data restore requirements on page 277 to determine which

steps to perform.

a. Turn data collection on:

i. Select System Setup - Data Collection.

The system displays the Data Collection window.

ii. Enter the name of the ACD.

iii. Use the Tab key to move to the On field and enter: x

iv. Press Enter, select Modify, and press Enter again.

v. Repeat Steps i through iv for each ACD.

vi. Press F5.

The system displays the CMS main menu.

b. Take CMS out of single user mode:

i. Select System Setup - CMS State.

The CMS State window displays.

ii. Enter an x in the Multi-user mode field and press Enter twice.

iii. Press F5.

The system displays the CMS main menu.

13. Select Logout and press Enter.

14. Go to the Free Space Allocation window that is located in the CMS System Setup

subsystem and verify that no adjustments need to be made.

For more information about Free Space Allocation, see Avaya CMS R3V11

Administration, 585-215-515.

Verifying Free Space Allocation during a maintenance restore

Issue 3.0 October 2002 281

Verifying Free Space Allocation during a

maintenance restore

To verify Free Space Allocation during a maintenance restore:

1. Insert the maintenance backup tape into the tape drive.

Note:

If you use the CMS LAN backup feature, see Avaya CMS R3V11 LAN

Backup User Guide, 585-215-715. The Avaya CMS R3V11 LAN Backup

User Guide, 585-215-715 provides information about using the CMS LAN

backup feature, hardware requirements, software requirements, and support

guidelines.

2. Verify that IDS and CMS are on:

a. Enter:

cmssvc

The system displays the CMSSVC Menu.

b. Enter the number associated with the run_ids option.

c. Enter the number associated with the Turn on IDS option.

d. Enter:

cmssvc

The system displays the CMSSVC Menu.

e. Enter the number associated with the run_cms option.

f. Enter the number associated with the Turn on CMS option.

3. Log into CMS.

4. Verify that CMS is in single user mode and data collection is off for all ACDs.

Maintaining the Avaya CMS software

282 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

5. From the main menu, select Maintenance > Restore Data.

The system displays the Restore Data window.

6. Deselect Historical data and Non-CMS data.

7. Press Enter to access the action list in the upper right corner of the window.

8. Select Run and press Enter.

The system restores the data from tape.

9. Exit the Restore Data window by pressing F5.

Verifying Free Space Allocation during a maintenance restore

Issue 3.0 October 2002 283

10. From the main menu, select System Setup > Free Space Allocation.

The system displays the Free Space Allocation window.

11. In the Enter Dbspace name: field, enter the Dbspace name of the ACD.

12. Press Enter to access the action list in the upper right corner of the window.

13. Select Modify.

14. Press Enter.

15. Perform one of the following actions:

●Answer y to any questions that may be displayed.

●Press Enter if a “Nothing to add/drop” message is displayed.

16. Repeat Steps 11 through 15 for every ACD on the system.

Note:

These steps are performed for every acd on the system in order to adjust

the available space for each ACD. Additional space will be added to acds

with negative space and ACDs with additional space will have the space

reallocated. For more information about Free Space Allocation, see Avaya

CMS R3V11 Administration, 585-215-515.

17. Exit the Free Space Allocation window by pressing F5.

18. From the main menu, select Maintenance > Restore Data.

The system displays the Restore Data window.

Maintaining the Avaya CMS software

284 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

19. Deselect:

●Local system administration data

●CMS system administration data

●ACD-specific administration data

●Non-CMS data

20. Verify that Historical data is selected.

Note:

If the customer has backed up any non-CMS data, it will be necessary to

rebuild any custom tables before restoring the data.

21. Press Enter to access the action list in the upper right corner of the window.

22. Select Run and press Enter.

The system restores the data from tape.

23. Exit the Restore Data window by pressing F5.

24. Put the system in multiuser mode and turn data collection on.

Changing the system date and time

Issue 3.0 October 2002 285

Changing the system date and time

Changing the system date and time describes how to change the UNIX system date and

time. Changing the system time may cause a small distortion in the Avaya CMS data. For

example, a change due to daylight savings time.

Changing the system date and time contains the following procedures:

●Checking the Solaris system date and time on page 285

●Setting the system date and time on page 285

●Setting the system country and time zones on page 286

Checking the Solaris system date and time

To verify that the system time is correct:

1. Enter:

date

2. If the system time is correct there is no need to proceed further with this procedure. If

the system time is not correct, continue with Setting the system date and time.

Setting the system date and time

Do the following steps to change the Solaris system time:

1. Turn off CMS

2. Log in as root.

3. Enter the root password.

4. Set the time and date by entering:

date mmddHHMM[yyyy]

Example:

●mm (month): Enter the month (numeric). Range: 1-12 (1=January, 2=February, and

so on).

●dd (day): Enter the day of the month. Range: 1-31

●HH (hour): Enter the hour of day, military time. Range: 00-23.

●MM (minute): Enter the minute of the hour. Range: 00-59.

●[yyyy] (year): Entering the year is optional. Enter the year, with all four digits (for

example, 2000).

Maintaining the Avaya CMS software

286 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

5. Continue with Setting the system country and time zones.

6. Turn on CMS.

Setting the system country and time zones

To set the country and time zones:

1. Log in as root and enter the root password.

2. Enter:

vi /etc/default/init

3. Edit the /etc/default/init file and set the TZ variable to equal the appropriate value in the

/usr/share/lib/zoneinfo directory.

For example:

You would modify the line with TZ=US/Mountain.

4. Save and quit the file by pressing Esc and entering:

:wq!

5. Reboot the machine by entering:

/usr/sbin/shutdown -i6 -g0 -y

# @(#)init.dfl 1.2 92/11/26

# This file is /etc/default/init. /etc/TIMEZONE is a symlink to this file.

# This file looks like a shell script, but it is not. To maintain

# compatibility with old versions of /etc/TIMEZONE, some shell constructs

# (i.e., export commands) are allowed in this file, but are ignored.

# Lines of this file should be of the form VAR=value, where VAR is one of

# TZ, LANG, or any of the LC_* environment variables.

TZ=US/Mountain

Working with Solaris patches

Issue 3.0 October 2002 287

Working with Solaris patches

When you upgrade your CMS, or administer a new CMS installation, you may need to:

●Verify what Solaris patches are currently installed

●Install a Solaris patch

●Remove one or more Solaris patches.

Working with Solaris patches contains the following procedures:

●Installing Solaris patches on page 287

●Checking installed Solaris patches on page 290

●Removing a Solaris patch on page 290

Installing Solaris patches

To install the Solaris patches:

1. If the system is an E3000 or E3500 system, document the original position of the key

switch. You must return the key switch to this original position at the end of this

procedure. If the key switch is in the “Locked” or “Diagnostics” position, move the key

switch to the vertical “On” position.

2. Insert the CD-ROM, Avaya Call Management System into the CD-ROM drive.

3. Enter:

cd /

4. Enter:

cmssvc

The system displays the Avaya Call Management System Services Menu

(CMSSVC Menu).

5. Enter the number associated with the run_cms option.

6. Enter the number associated with the Turn off CMS but leave IDS running

option.

The system returns to the command prompt.

7. Set the IDS environment by entering:

. /opt/informix/bin/setenv

Maintaining the Avaya CMS software

288 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

8. Enter:

onmode -yuk

Ignore any error messages.

!CAUTION:

CMS must be off in order to install the Solaris patches.

9. Enter:

/cdrom/cdrom0/spatches_conf

The system displays a message similar to the following:

Note:

The system will display the approximate amount of time needed to install the

Solaris patches.

10. Choose one of the following steps:

●To install the Solaris patches:

i. Enter: y

The system boots into single user mode and installs the Solaris patches.

Note:

If there are no Solaris patches to install the system displays the following

message.

ii. Choose one of the following steps:

—If Solaris patches were installed, go to Step 11.

Warning: you must close all applications before running this script

...................

Solaris patches have been spooled to your machine. The patches will

be installed after rebooting. During the installation of patches

your

server will not be available.

The estimated time to install all patches is: 15 minutes

Ready to install Patches. Please leave the CD in the drive.

You will need to reboot the server for patches to install.

Do you want to reboot now? [y,n,?]

There are no Solaris patches to install

Working with Solaris patches

Issue 3.0 October 2002 289

—If no Solaris patches were installed, log into the system as root. Then go to

Step 13.

●To cancel installation of the Solaris patches, enter: n

The system displays the following message:

!CAUTION:

If you cancel installation of the Solaris patches, you will have to install them

before upgrading CMS.

11. Log into the system as root.

12. Verify that all of the Solaris patches have been installed by entering:

tail -10 /var/cms/spatches/spatches.log

The system displays the following message in the log:

Note:

If the installation procedure fails for any of the patches, the following

message is displayed:

If the message shown above is displayed, continue with this procedure and the

remaining CMS base load upgrade procedures. When the upgrade is complete,

notify your CMS support organization as instructed.

13. Enter:

eject cdrom

14. If the system is a Sun Fire V880, Enterprise 3000, or Enterprise 3500 system, return

the key switch to the position it was in at the start of this procedure.

Terminating at user’s request.

You will need to run spatches_conf again to install Operating System

patches.

All patches installed successfully.

Installation failed for one or more Solaris patches.

- Customers in the US should call the CMS Technical Services

Organization at 1-800-242-2121

- Customers outside the US should contact your Avaya

representative or distributor.

Patch installation completed: Fri Jan 18 13:28:19 MST 2002

Maintaining the Avaya CMS software

290 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Checking installed Solaris patches

To check the Solaris patches:

1. Enter:

showrev -p

The system displays the following message:

2. Check the list to verify that all the Solaris patches you need are installed.

Removing a Solaris patch

To remove a Solaris patch:

!CAUTION:

Remove a Solaris patch only when instructed by the TSC or by a release

letter.

1. Enter:

patchrm patch-id

The patch-id is identified by the TSC or in the release letter.

The system removes the patch, and displays the following message:

Patch: 105084-02 Obsoletes: Packages: SUNWx25a.2 9.1,PATCH=02,

SUNWx25b.2 9.1,PATCH=02

Patch: 105256-01 Obsoletes: Packages: SUNWcsu

Patch: 103582-14 Obsoletes: Packages: SUNWcsu, SUNWcsr

Patch: 103594-10 Obsoletes: Packages: SUNWcsu

@(#) backoutpatch 3.5 93/08/11

Doing pkgrm of SUNWcsr.8 package:

Removal of <SUNWcsr.8> was successful.

Restoring previous version of files

XXXX blocks

Making the package database consistent with restored files:

backoutpatch finished.

Working with Solaris patches

Issue 3.0 October 2002 291

2. Enter:

/usr/sbin/shutdown -y -g0 -i6

The system reboots.

Maintaining the Avaya CMS software

292 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Working with CMS patches

Working with CMS patches provides procedures for maintaining patches for CMS on a Sun

platform.

Working with CMS patches contains the following procedures:

●CMS patch requirements on page 292

●Listing installed CMS patches on page 293

●Listing CMS patches on the CD-ROM on page 293

●Installing CMS patches on page 293

●Removing CMS patches on page 295

CMS patch requirements

The three occasions when you may have to install CMS patches are:

●During a factory installation

●Immediately after upgrading CMS

●In the field on an existing system to correct a problem with the original software.

Loading patches after an upgrade

If you are loading patches immediately after upgrading your system, it is best to turn off

CMS until you have the patches installed. The patches have different prerequisites for

installation. Some require that CMS be turned off, others require that data collection be

turned off, and still others require CMS to be in single-user mode. To be absolutely safe,

and to help the upgrade proceed as quickly as possible, turn off CMS.

Loading patches as a bug fix

If you are loading patches as part of a factory installation or on an existing system in the

field without upgrading your base load, you can install the patches without turning CMS off.

The system will display a message if you need to do anything special to accomplish the

load.

The CMS patch read me file for CMS lists the CMS run-level requirements for each patch.

Working with CMS patches

Issue 3.0 October 2002 293

Note:

The auth_set tool must have been run sometime in the past before you

can install patches. Call the National Customer Care Center or your product

distributor to have authorizations installed. For more information, see Avaya

CMS helplines on page 24.

Installation of all available patches is recommended. If you believe that you

should not be installing a particular patch, call the National Customer Care

Center or consult with your product distributor before deciding to omit installation

of a patch.

Listing installed CMS patches

To list CMS patches currently installed on your system:

1. Log in as root.

2. Enter the following command:

/cms/toolsbin/listcmspatches

The system displays a list of cms patches that are installed on the system.

Listing CMS patches on the CD-ROM

To list CMS patches that are on the CD-ROM and available to be installed:

1. Log in as root.

2. Insert the CMS CD-ROM into the CD-ROM drive and wait 15 seconds.

3. Enter:

cmssvc

The system displays the CMSSVC menu.

4. Enter the number associated with the patch_inst option.

The system lists the names of the patches on the CD-ROM.

5. Enter: q

Installing CMS patches

To install the CMS patches:

1. Log in as root and insert the CMS CD-ROM into the CD-ROM drive.

2. Enter:

cd /

Maintaining the Avaya CMS software

294 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

3. Enter:

cmssvc

The system displays the CMSSVC menu.

4. Perform one of the following actions:

●To load all of the patches, enter the number associated with the load_all option.

●To load one patch at a time, enter the number associated with the patch_inst

option.

The system lists the patches on the CD-ROM and asks if you really want to install the

patches.

If no patches are found on the CD-ROM continue to next step.

The system displays the following message:

Perform one of the following actions if patches are found on the CD-ROM:

●If you want to load all of the patches, enter: y

●If you want to load only one patch, enter the patch number.

The system installs the patch or patches. As it does so, it displays messages similar to

the following for each patch installed:

●If no patches are found on the CD-ROM, go to Step 4.

5. Enter:

eject cdrom

No CMS patches found on the CD.

Please check the CD and try again.

@(#) installpatch 1.0 96/04/01

cmspx-s

Generating list of files to be patched...

Creating patch archive area...

Saving a copy of existing files to be patched...

xxxx blocks

File compression used

Installing patch packages...

Doing pkgadd of cmspx-s package:

Installation of <cmspx-s> was successful.

Patch packages installed:

cmspx-s

Patch installation completed.

Working with CMS patches

Issue 3.0 October 2002 295

Removing CMS patches

To remove CMS patches:

1. Log in as root.

2. Enter:

cmssvc

The system displays the CMSSVC menu.

3. Choose one of the following actions:

●If you want to remove all of the CMS patches, enter the number associated with the

back_all option.

The system lists the patches installed on the system and asks for verification of the

removal.

●If you want to remove a single patch:

i. Enter the number associated with the patch_rmv option.

The system lists the patches that are installed on the system and prompts you to

select a patch.

ii. Type the name of the patch that you want to remove exactly as it is displayed in

the list, and press Enter.

The system asks you to verify the removal.

4. Enter: y

The system displays messages similar to the following example for each patch that is

removed:

@(#) backout patch 1.0 96/08/02

Removing patch package for cmspx-s:

. . . ..

Making package database consistent with restored files:

Patch x has been backed out.

Maintaining the Avaya CMS software

296 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Adding the Informix SQL package after IDS and ILS

have been installed

Adding the Informix SQL package after IDS and ILS have been installed installs a new

Informix SQL package on a system where Informix IDS (Informix Dynamic Server) and ILS

(International Language Supplement) packages are already installed.

To add the new Informix SQL package after the other Informix packages have been

installed:

1. Obtain the CD-ROM, Informix SQL 7.20.

2. Record the serial number and serial number key that is printed on the CD-ROM. This

information will be used later in this procedure.

3. Log in as root.

4. Enter:

cd /

5. Set the terminal type by entering the following commands:

TERM=terminal_type

export TERM

where terminal_type is the type of terminal window opened.

Example:

TERM=xterm

export TERM

6. Load the CD-ROM, Informix SQL into the CD-ROM drive.

7. After about 15 seconds, enter mount to verify the name of the CD-ROM.

The program displays a list of devices and file systems currently mounted. The last line

displayed should look similar to the following example:

8. Enter the following commands:

. /opt/informix/bin/cmsenv

9. Enter:

cd $INFORMIXDIR

/cdrom/informix on /vol/dev/dsk/c0t2d0/informix read

only/setuid/maplcase/noglobal/rr/traildot/dev=16c0001 on

(current date and time)

Adding the Informix SQL package after IDS and ILS have been installed

Issue 3.0 October 2002 297

10. Enter:

pwd

The system should display:

If the correct path is not displayed, repeat Steps 8 through 10.

11. Enter:

tar cvf informix.tar .

The system preserves the existing Informix installation and configuration, and displays

a message similar to the following:

12. Enter:

tar xvf /cdrom/unnamed_cdrom*/sql.tar

The system copies the Informix-SQL files from the CD-ROM to the current directory,

and displays a message similar to the following:

13. Enter:

eject cdrom

/opt/informix

a ./ 0K

a ./.profile 1K

a ./local.cshrc 1K

............

a ./console.msgs 2K

a ./jvp.log 0K

tar: ./informix.tar same as archive file

x installsql, XXX bytes, XX tape blocks

x bin/cace, XXX bytes, XX tape blocks

............

x gls/lc11/os/sv.lc, XXX bytes, XX tape blocks

Maintaining the Avaya CMS software

298 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

14. Enter:

./installsql

The system begins to install the Informix-SQL software:

15. Press Enter.

The system displays the following message:

16. Enter the 11-character license serial number you recorded earlier in Step 2.

The system displays the following message:

17. Enter the 6-character serial number key you recorded earlier in Step 2.

The system displays the following message:

18. Press Enter.

The system displays the following message:

INFORMIX-SQL Version XXXX

............

Press RETURN to continue,

or the interrupt key (usually CTRL-C or DEL) to abort.

Enter your serial number (e.g.,INF#R999999) >

Enter your serial number KEY (uppercase letters only) >

WARNING!

.................

Press RETURN to continue,

or the interrupt key (usually CTRL-C or DEL) to abort.

Installing directory .

............

Installation of INFORMIX-SQL complete.

Adding the Informix SQL package after IDS and ILS have been installed

Issue 3.0 October 2002 299

19. Enter:

vi /opt/informix/etc/.snfile

The file contents should be similar to the following example:

If the sequence for the package listings is not the same as that shown in the example

provided above, edit the file to arrange the packages in the proper sequence.

20. Press Esc. Then enter :wq! to save and close the file.

21. Enter:

cp /opt/informix/etc/.snfile /tmp/

22. Enter:

tar xvf informix.tar

The system restores the previous Informix installation and configuration, and displays

the following message:

23. Enter:

rm informix.tar

24. Enter:

cp /tmp/.snfile /opt/informix/etc/

INFORMIX-SQL Serial Number ACN#C325473

Informix Dynamic Server 2000 Serial Number AAC#A865230

INFORMIX-Client SDK Serial Number AAC#A898732

x ., 0 bytes, 0 tape blocks

x ./.profile, 144 bytes, 1 tape blocks

x ./local.cshrc, 124 bytes, 1 tape blocks

............

x ./console.msgs, 1098 bytes, 3 tape blocks

x ./jvp.log, 0 bytes, 0 tape blocks

Maintaining the Avaya CMS software

300 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Enabling fail over of the alternate boot device

The alternate boot device is a fail-safe device on a mirrored system. If for some reason you

are unable to boot from the primary boot disk, you can set the system to boot from the

alternate device until further notice. The alternate boot device can be enabled from either

the boot prompt or from root.

Note:

The alternate boot device must be created before it can be enabled. See

Creating an alternate boot device on page 56 and Resetting a device

alias on page 58.

To enable the alternate boot device on a mirrored system, perform one of the following

actions:

●From the ok prompt, enter:

setenv boot-device disk bootdevice2

●From the # prompt, enter:

eeprom boot-device=”disk bootdevice2”

Note:

For more information on how to enable the alternate boot device on a E3500

system see Resetting a device alias on page 58.

Maintaining the chkDisks crontab

Issue 3.0 October 2002 301

Maintaining the chkDisks crontab

The chkDisks crontab runs each night and checks to see whether any potential or actual

drive problems have been logged. For example, loss of the primary boot drive. The results

of the search are mailed to the root user.

Maintaining the chkDisks crontab contains the following procedures:

●Verifying chkDisks on page 301

●Changing the chkDisks run time on page 301

●Canceling chkDisks on page 301

Verifying chkDisks

To verify that cron is running:

1. Enter at the # prompt:

crontab -l

2. Check the listing to see that there is an entry for chkDisks. If there is no entry for

chkDisks, go to Activating chkDisks on page 198.

Changing the chkDisks run time

The line tells the system to run chkDisks every day at 15 minutes past hour zero (12:15

AM). You can change that schedule by changing the first five fields as necessary. The

fields, in order of appearance, are: minute, hour, day of the month, month of the year, and

day of the week. An asterisk means “all legal values.” The /olds/chkDisks line in the cron

file is generally in the following format:

15 0 * * * /olds/chkDisks > /dev/null 2>&1

For more information, see the manual (man) page for the crontab command.

Canceling chkDisks

To stop cron from running:

1. Enter at the # prompt:

crontab -e

2. With the file loaded in the editor, comment out the entry for chkDisks and write and quit

the file.

Maintaining the Avaya CMS software

302 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Identifying a faulty disk

Identifying a faulty disk contains several procedures that can be used to identify a faulty

disk in a mirrored system.

Identifying a faulty disk contains the following procedures:

●Identifying down chunks on page 302

●Identifying the disk from the /var/adm/messages file on page 303

●Identifying the submirrors on page 305

Identifying down chunks

To identify any down chunks on a faulty disk in a mirrored system:

1. Set the IDS environment by entering:

. /opt/informix/bin/setenv

2. Enter:

onstat -d | grep D

The system displays a list of any down chunks on a faulty disk.

Informix Dynamic Server 2000 Version 9.XX.UCX -- On-Line -- Up 00:52:45 -- s

Dbspaces

bc30018 89 9 512000 128000 0 MD- /dev/rdsk/c1t6d0s1

bc30188 90 9 0 128000 0 MD- /dev/rdsk/c1t6d0s1

bc302f8 91 9 256000 128000 0 MD- /dev/rdsk/c1t6d0s0

bc30468 92 9 384000 128000 0 MD- /dev/rdsk/c1t6d0s1

bc305d8 93 9 512000 128000 0 MD- /dev/rdsk/c1t5d0s4

................

bc32188 112 10 896000 128000 0 MD- /dev/rdsk/c1t6d0s4

bc322f8 113 10 128000 128000 0 MD- /dev/rdsk/c1t6d0s4

bc32468 114 10 256000 128000 0 MD- /dev/rdsk/c1t6d0s4

bc325d8 115 10 512000 128000 0 MD- /dev/rdsk/c1t6d0s4

Identifying a faulty disk

Issue 3.0 October 2002 303

Identifying the disk from the /var/adm/messages file

If a disk problem is not identified with the onstat command, check the

/var/adm/messages file.

Note:

Not all disk failures are identified in the /var/adm/messages file. You must

perform the procedure for Identifying down chunks on page 302 in addition

to this procedure.

To identify a faulty disk in a mirrored system:

1. Enter:

cd /var/adm

2. Enter:

vi messages

The system displays the following file:

Note:

The line shown in bold indicates a disk problem. The sd@2,0 represents

SCSI disk.

3. Enter:

:q!

The system exits the file without making changes.

Jun 12 16:27:08 leopard unix: WARNING:

Jun 12 16:27:08 leopard unix: Error for command ’read(10)’ Error Level: R

Jun 12 16:27:09 leopard unix: retryable

Jun 12 16:27:09 leopard unix: Requested Block 0, Error Block: 0

Jun 12 16:27:09 leopard unix: Sense Key: Media Error

Jun 12 16:27:09 leopard unix: Vendor ’SEAGATE’:

Jun 12 16:27:09 leopard unix: ASC = 0x31 (medium format corrupted), ASCQ

= 0x0, FRU = 0x9

Jun 12 16:27:09 leopard unix: WARNING: /sbus@3,0/SUNW,fas@3,8800000/sd@2,0

Maintaining the Avaya CMS software

304 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

4. Determine which disk has the problem by entering:

ls -l /dev/dsk/c*

The system displays the following message:

5. Search the output for a device description matching that in the warning message.

If the ”sd@2,0:X” information matches the same information in the warning message,

that disk is the faulty disk.

Note:

The X at the end of the device is the partition number. The partition

information may not be displayed in the /var/adm/messages file. The

following table shows which letters correspond to which disk partition.

lrwxrwxrwx 1 root root 50 Apr 24 15:21 /dev/dsk/c0t2d0s0 ->

../../devices/sbus@3,0/SUNW,fas @3,8800000/sd@2,0:a

lrwxrwxrwx 1 root root 50 Apr 24 15:21 /dev/dsk/c0t2d0s1 ->

../../devices/sbus@3,0/SUNW,fas @3,8800000/sd@2,0:b

.......

Letter Disk partition

Identifying a faulty disk

Issue 3.0 October 2002 305

Identifying the submirrors

Perform this procedure only if the failed disk is the primary or secondary boot drive.

To identify the submirrors in a mirrored system:

1. Enter:

metastat

The system displays messages similar to the following:

2. Search the output for the name of the faulty disk.

The faulty disk is usually indicated by a state of Maintenance.

Example:

The following lines indicate that the faulty c0t2d0 disk is in d32:

!Important:

Be sure to check all the submirrors. If the disk is also listed under d11 or

d12, it is a boot disk belonging to two different submirrors.

3. Record the metadevices to which the disk belongs.

Example:

d11 and d31

4. After identifying all of the faulty disks and associated submirrors, see Recovering a

mirrored system after disk failure on page 314.

d32: Submirror of d3

Size: 14960160 blocks

Stripe 0:

Device Start Block Dbase State Hot Spare

c0t2d0s1 0 No Maintenance

Stripe 1:

Device Start Block Dbase State Hot Spare

c0t4d0s3 0 No Okay

d32: Submirror of d3

Size: 14960160 blocks

Stripe 0:

Device Start Block Dbase State Hot Spare

c0t2d0s1 0 No Okay

Stripe 1:

Device Start Block Dbase State Hot Spare

c0t4d0s3 0 No Okay

Maintaining the Avaya CMS software

306 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Recovering a non-mirrored system after data disk

failure

Use Recovering a non-mirrored system after data disk failure to recover a system with a

failed data disk.

!Important:

If the system loses the primary boot disk, the system will need to be rebuilt

to factory standards and any data will need to be restored. See Performing a

CMSADM restore of a mirrored or non-mirrored system on page 352.

Note:

If you use the CMS LAN backup feature, see Avaya CMS R3V11 LAN

Backup User Guide, 585-215-715. The Avaya CMS R3V11 LAN Backup

User Guide, 585-215-715 provides information about using the CMS LAN

backup feature, hardware requirements, software requirements, and support

guidelines.

To recover a non-mirrored system:

1. Obtain the most recent successful maintenance backup tapes.

2. Install and format the replacement disk.

Note:

For more information about installation of hard drives, see the appropriate

hardware installation, maintenance, and troubleshooting book for your

platform.

3. Turn on any external devices. Then turn on the system.

The system boots into multi-user mode.

!Important:

If the system fails to boot after installing the hard drive according to the

appropriate hardware installation, maintenance, and troubleshooting book,

reboot the system from the ok prompt using boot disk. After the system

reboots, log into the system as root.

4. Log on as root.

5. Turn off CMS and IDS.

Recovering a non-mirrored system after data disk failure

Issue 3.0 October 2002 307

6. Verify the file properties for partitions 1, 2, 3, 4, 5, 6, and 7. The group and owner

should be informix, and the permissions should be 660. Enter:

ls -ltL /dev/rdsk/cXtXd0sX

where cX is the device controller number, and

where tX is the device target number, and

where sX is the slice number.

If the file properties are not correct, enter the following commands:

. /olds/olds-funcs

change_perms cXtXd0

where cX is the device controller number, and

where tX is the device target number.

Note:

For more information about hard drive device names, see the appropriate

hardware installation, maintenance, and troubleshooting book for your

platform. The system records the permission change in

/cms/install/logdir/admin.log

7. Set the IDS environment by entering:

. /opt/informix/bin/setenv

8. Enter:

vi /opt/informix/etc/onconfig.cms

The system displays the onconfig.cms file.

9. Change the PHYSDBS setting to:

rootdbs

10. Change the LOGFILES setting to:

11. Press Esc. Then enter:

:wq!

The system saves and exits the file.

12. Verify the file properties for the onconfig.cms file. The group and owner should be

informix, and the permissions should be 644.

Perform the following steps if the file properties are not correct:

a. Enter the following command on a single line at the command prompt:

chown informix:informix /opt/informix/etc/onconfig.cms

Maintaining the Avaya CMS software

308 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

b. Enter:

chmod 644 /opt/informix/etc/onconfig.cms

13. Enter the following commands:

cd /opt/informix/etc

rm onconfig.bak

rm onconfig.def

14. Enter:

onmode -yuk

Ignore any error messages.

15. Enter:

oninit -i

The system displays the following message:

16. Enter: y

17. Verify that all soft partition metadevices have been removed by entering:

metastat -p

18. Record all the device names of any remaining soft partition metadevices. The soft

partition metadevices have the format dXXX. Do not record metadevices with the

format dXX.

19. Enter the following command for every disk with soft partition metadevices:

metaclear -p cXtXd0s7

where cX is the device controller number.

where tX is the device target number.

This action will initialize Informix Dynamic Server 2000;

any existing Informix Dynamic Server 2000 databases will NOT be

accessible -

Do you wish to continue (y/n)?

Recovering a non-mirrored system after data disk failure

Issue 3.0 October 2002 309

Note:

The metaclear -p command may not always remove the soft partition

metadevices on a disk. If soft partition metadevices remain, remove the

individual soft partition metadevices by entering:

metaclear -r dXXX

where dXXX is the soft partition metadevice.

Example:

metaclear -r d100 d101 d102

20. Verify that all soft partition metadevices have been removed by entering:

metastat -p

21. Check the IDS software by entering:

onstat

The system displays several sets of data:

22. Enter:

cmssvc

The system displays the CMSSVC menu.

23. Enter the number associated with the disk_space option.

The system displays the following message:

Informix Dynamic Server 2000 Version X.XX.UCX -- On-Line -- Up 00:00:55 -- 18432

Kbytes

Userthreads

address flags sessid user tty wait tout locks nreads nwrites

a30c018 ---P--D 1 root - 0 0 0 27 37510

a30c608 ---P--F 0 root - 0 0 0 0 1132

....................

ixda-RA idx-RA da-RA RA-pgsused lchwaits

4 0 47 51 0

Initializing the boot disk (this may take several minutes!) ...

Disk_space_manager options 5) are:

1) Add New Disks

Enter choice (1-1) or q to quit:

Maintaining the Avaya CMS software

310 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Note:

If IDS fails to turn on after the configuration of the IDS dbspaces, contact the

National Customer Care Center (1-800-242-2121), or consult with your

product distributor or representative.

24. Enter the number associated with the Add New Disks option.

If the system has more than one disk, it displays a list of disks.

25. Repeat Steps 22 through 24 for every hard drive installed on the system.

When all disks have been added, the system displays the following message:

26. Choose one of the following procedures:

!Important:

It is preferred that CMS be set up from the flat file. The CMS setup

information is found in the UNIX flat file. This information is updated

automatically when a CMSADM backup is performed. If updates have been

made since the last CMSADM backup, it may be necessary to run CMS

setup interactively.

●To set up CMS interactively.

See Setting up CMS interactively from a terminal on page 170.

●To set up CMS from a UNIX flat file.

i. Enter:

uname -n

The system displays the UNIX system name.

ii. Record the UNIX system name for use later.

___________________________________________

oninit: Fatal error in shared memory initialization

The choices for primary disks are:

............

Enter choice (X-X) or q to quit:

All disks are currently administered for the system.

Finished Adding New Disks

Recovering a non-mirrored system after data disk failure

Issue 3.0 October 2002 311

iii. Enter:

vi /cms/install/cms_install/cms.install

iv. Verify that the second line has an entry for the UNIX system name. If it does not,

add the UNIX system name you recorded in Step ii.

Example:

v. Press Esc, and then enter:

:wq!

vi. Verify that IDS is on.

vii. Enter:

cmssvc

The system displays the Avaya Call Management System Services Menu.

viii. Enter the number associated with the setup option.

The system displays the following message:

# Enter a name for this UNIX system (up to 256 characters):

cms3

# Select the type of backup device you are using

............

# Enter number of VDNs (0-Maximum):

Select the language for this server:

All languages are ISO Latin except Japanese. Selection of the

server language assumes that existing customer data is compatible.

(Upgrade from any ISO Latin language to any ISO Latin language or

from Japanese to Japanese is supported).

1) English

2) Dutch

3) French

4) German

5) Italian

6) Portuguese

7) Spanish

8) Japanese

Enter choice (1-8): (default: 1)

Maintaining the Avaya CMS software

312 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

ix. Enter the number for the language used on the system.

The system displays a message similar to the following:

Note:

An additional option for a converter created setup file may be displayed on

some systems

x. Enter the number associated with the flat file option.

The system displays the following message:

xi. Enter:

tail -f /cms/install/logdir/admin.log

Note:

The -f option in the tail command updates the console as messages

are written to the admin.log file. All failure messages are logged in this file.

The system displays the following message:

xii. Press Delete to break out of the tail -f command.

27. Enter:

/usr/sbin/shutdown -y -i6 -g0

The system reboots.

28. Log into the system as root.

29. Set the IDS environment by entering:

. /opt/informix/bin/setenv

The input will be read from

1) the terminal

2) a flat file

Enter choice (1-2):

*** The rest of this command is running in the background ***

01350 Mon Nov 6 12:19:24 2000 SRC_ERR_NUM=-00329

PROCESS=pre_cms_env PID=000482 Sql.c:00071

SEVERITY=INFO ACD=-01 startdb

.................

Setup completed successfully Mon Nov 6 12:24:20 MST 2000

Recovering a non-mirrored system after data disk failure

Issue 3.0 October 2002 313

30. Verify that the recovery process is complete by entering:

onstat -d | egrep “MD|PD|R|X”

Note:

If a MX entry appears for the logdbs dbspace, enter:

ontape -s

The dbspace should be repaired.

31. Restore the CMS data.

For more information, see Verifying Free Space Allocation during a maintenance

restore on page 281.

Maintaining the Avaya CMS software

314 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Recovering a mirrored system after disk failure

Recovering a mirrored system after disk failure contains procedures for the recovery of a

mirrored system after the failure of a hard drive.

!Important:

If the system loses both the primary boot disk and the alternate boot disk,

the system will need to be rebuilt to factory standards and any data will need

to be restored. See Performing a CMSADM restore of a mirrored or non-

mirrored system on page 352.

Recovering a mirrored system after disk failure contains the following topics:

●Prerequisites on page 314

●Mirrored system disk pairs on page 314

●Verifying boot disk integrity on page 316

●Installing a replacement disk on an Enterprise 3500 or Sun Fire V880 on page 317

●Installing a replacement disk on an Enterprise 3000 or Sun Blade system on page 317

●Recovering a mirrored system after the primary boot disk fails on page 318

●Recovering a mirrored system after the secondary boot disk fails on page 324

●Recovering a mirrored system after a single data disk fails on page 329

●Recovering a mirrored system after a mirrored pair of data disks fail on page 335

Prerequisites

Before you recover a mirrored system, perform the following tasks:

●Verify that the alternate boot device is set up. See Enabling fail over of the alternate

boot device on page 300 for more information.

●Identify the faulty disk or disks. See Identifying a faulty disk on page 302 for more

information.

●The system must boot off of a functioning boot disk.

Mirrored system disk pairs

Use the following tables to determine the disk layout for your system.

Note:

A mirrored system may occasionally display controllers that are different

from those shown in the following tables for the mirrored disk.

Recovering a mirrored system after disk failure

Issue 3.0 October 2002 315

Sun Fire V880 mirrored disk pairs

Enterprise 3000 mirrored disk pairs

Enterprise 3500 mirrored disk pairs

Primary disk Mirrored disk

c1t0d0 c1t3d0

c1t1d0 c1t4d0

c1t2d0 c1t5d0

Primary disk Mirrored disk

c0t0d0 c0t11d0

c0t1d0 c0t12d0

c0t2d0 c0t13d0

c0t3d0 c0t14d0

c0t10d0 c0t15d0

Primary disk Mirrored disk

c0t0d0 c1t4d0

c0t1d0 c1t5d0

c0t2d0 c1t6d0

c0t3d0 c1t7d0

Maintaining the Avaya CMS software

316 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Sun Blade mirrored disk pairs

Verifying boot disk integrity

Perform this procedure to verify that the system is capable of a successful recovery from a

primary or secondary boot disk failure. If the failed disk is not a boot disk, skip this

procedure.

To verify boot disk integrity:

1. Set the IDS environment by entering:

. /opt/informix/bin/setenv

2. Enter:

onstat -d | egrep functioning_boot_device

where functioning_boot_device is the device name of the functioning boot

device.

Example:

onstat -d | egrep c0t0d0

3. Enter:

onstat -d | egrep “PD|N|R”

4. Look for any down, resyncing or non-mirrored chunks.

5. Perform one of the following actions:

●If the system does not display any down, resyncing or non-mirrored chunks, go to

either:

—Installing a replacement disk on an Enterprise 3500 or Sun Fire V880 on

page 317

—Installing a replacement disk on an Enterprise 3000 or Sun Blade system on

page 317 or

●If the system displays any down or non-mirrored chunks on the functioning disk,

services can attempt to repair them. If any chunks are resyncing, wait for the sync

Primary disk Mirrored disk

c0t0d0 c0t2d0

c1t0d0 c1t2d0

c1t1d0 c1t3d0

Recovering a mirrored system after disk failure

Issue 3.0 October 2002 317

process to complete. If the chunks cannot be repaired, go to Performing a CMSADM

restore of a mirrored or non-mirrored system on page 352.

Installing a replacement disk on an Enterprise 3500 or

Sun Fire V880

To install the replacement disk on an Enterprise 3500 or Sun Fire V880 system:

!Important:

Do not immediately remove and replace the faulty disk. Remove and

replace the disk only after being instructed to do so by the luxadm

command.

1. Verify that the system is booting from the functioning boot disk.

2. Perform one of the following steps:

●To boot off the primary boot disk, enter:

boot disk

●To boot off the secondary boot disk, enter:

boot bootdevice2

The system boots from the appropriate disk.

3. Log into the system as root.

4. Use the luxadm command to:

a. Remove the defective disk or disks

b. Add the replacement disk or disks

For more information, see Using the luxadm command on page 346.

Installing a replacement disk on an Enterprise 3000 or Sun

Blade system

To install the replacement disk on an Enterprise 3000 or Sun Blade system:

1. Verify that CMS and IDS are off.

2. Enter:

/usr/sbin/shutdown -y -g0 -i0

3. Remove the faulty disk and verify that the system boots from the functioning boot disk.

●To boot off the primary boot disk, enter:

boot disk

Maintaining the Avaya CMS software

318 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

●To boot off the secondary boot disk, enter:

boot bootdevice2

The system boots from the appropriate disk.

4. Install the replacement disk.

Note:

For more information about installation of hard drives, see the appropriate

hardware installation, maintenance, and troubleshooting book for your

platform.

5. As the console shows the system booting up, press Stop + A.

6. Perform one of the following steps:

●If the faulty disk is not a boot disk, go to Step 7.

●To boot off the primary boot disk, enter:

boot disk -r

●To boot off the secondary boot disk, enter:

boot bootdevice2 -r

The system boots from the appropriate disk.

7. Log into the system as root.

8. Choose one of the following procedures, depending on the type of disk that failed:

●Recovering a mirrored system after the primary boot disk fails on page 318

●Recovering a mirrored system after the secondary boot disk fails on page 324

●Recovering a mirrored system after a single data disk fails on page 329

●Recovering a mirrored system after a mirrored pair of data disks fail on page 335

Recovering a mirrored system after the primary boot disk fails

To restore the primary boot device:

1. Enter:

cd /

2. Enter:

. /olds/olds-funcs

Recovering a mirrored system after disk failure

Issue 3.0 October 2002 319

3. Partition the replacement disk by entering:

copy_partition_image mirrored_boot primary_boot

where mirrored_boot is the mirrored boot device, and

where primary_boot is the primary boot device.

Example:

copy_partition_image c0t11d0 c0t0d0

The system records a message in /cms/install/logdir/admin.log that is similar to the

following:

4. Verify the file properties for partitions 4, 5, 6, and 7. The group and owner should be

Informix, and the permissions should be 660. Enter:

ls -ltL /dev/rdsk/cXtXd0sX

where cX is the device controller number, and

where tX is the device target number, and

where sX is partition 4, 5, 6, or 7.

If the file properties are not correct, enter the following commands:

a. Enter:

change_perms primary_boot

where primary_boot is the primary boot device.

Example:

change_perms c0t0d0

The system records the permission change in /cms/install/logdir/admin.log

fmthard: New volume table of contents now in place.

copy_partition_image: Success copying partition image

from c1t3d0 to

c1t0d0

Maintaining the Avaya CMS software

320 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

5. Display the soft partitions for the faulty disk by entering:

metastat -p | grep faulty_disk

where faulty_disk is the device name of the faulty disk.

Example:

metastat -p | grep c0t0d0

The system displays a message similar to the following if soft partitions were present

on the disk.

Note:

Soft partition metadevice names have the format dXXX, not dXX.

6. Perform one of the following actions:

●If soft partition metadevices were not displayed, go to Step 7.

●If soft partition metadevices were displayed, perform the following:

i. Remove the soft partitions on the disk by entering:

metaclear -p faulty_disk

where faulty_disk is the faulty disk device name.

Example:

metaclear -p c0t0d0s7

Note:

Soft partitions are always located on slice 7.

ii. View any remaining soft partitions on the disk by entering:

metastat -p | grep faulty_disk

where faulty_disk is the device name of the faulty disk.

iii. Record any remaining soft partition metadevice names.

d11 1 1 c0t0d0s0

d21 1 1 c0t0d0s1

d31 1 1 c0t0d0s3

d100 -p c0t0d0s7 -o 1 -b 4194304

d101 -p c0t0d0s7 -o 4194306 -b 4194304

d102 -p c0t0d0s7 -o 8388611 -b 524288

d103 -p c0t0d0s7 -o 8912900 -b 524288

d104 -p c0t0d0s7 -o 9437189 -b 524288

Recovering a mirrored system after disk failure

Issue 3.0 October 2002 321

iv. Enter the following command for every remaining soft partition metadevice:

metaclear dXXX

where XXX is the metadevice number.

Example:

metaclear d100

The system displays a message similar to the following:

Note:

If the faulty soft partitions are still present, enter:

metaclear -r dXXX

where XXX is the metadevice number.

v. Set up soft partitions by entering:

/cms/install/bin/softPart faulty_device

where faulty_device is the boot device name.

Example:

/cms/install/bin/softPart c0t0d0

vi. Verify that the soft partitions are set up correctly by entering:

cat /cms/install/logdir/admin.log

The system displays a message similar to the following:

7. Enter:

cmssvc

The system displays the Avaya Call Management System Services Menu

(CMSSVC menu).

8. Enter the number associated with the run_cms option.

d100: Soft Partition is cleared

/cms/install/bin/softPart c0t0d0 run on: Thu Dec 6

10:29:58 MST 2001

Soft partitions on c0t0d0s7:

d100 not found in meta db, can be used

d100: Soft Partition is setup

d101: Soft Partition is setup

d102: Soft Partition is setup

d103: Soft Partition is setup

d104: Soft Partition is setup

Softpartitions on c0t0d0s7 have been setup

Maintaining the Avaya CMS software

322 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

9. Enter the number associated with the Turn off both CMS and IDS option.

10. Enter:

cmssvc

The system displays the CMSSVC menu.

11. Enter the number associated with the select run_ids option.

Note:

This can take a few minutes.

12. Enter the number associated with the Turn on IDS option.

13. Enter:

cmssvc

The system displays the CMSSVC menu.

14. Enter the number associated with the run_cms option.

15. Enter the number associated with the Turn on CMS option.

16. Enter:

cmssvc

The system displays the CMSSVC menu.

17. Enter the number associated with the disk_space option.

The system displays the following message:

18. Enter the number associated with the Sync Primary and Mirror option.

The system begins to resync the disks. This process can take several hours to

complete.

19. Enter:

tail -f /cms/install/logdir/admin.log

Note:

The -f option in the tail command updates the console as messages

are written to the admin.log file. All failure and chunk status messages are

logged in this file.

20. Press Delete to break out of the tail -f command.

Disk_space_manager options are:

1) Add New Disks

2) Initiate Mirroring

3) Sync Primary and Mirror

Enter choice (1-3) or q to quit:

Recovering a mirrored system after disk failure

Issue 3.0 October 2002 323

21. Set the INFORMIX environment by entering:

. /opt/informix/bin/setenv

22. Enter:

metastat | more

23. Verify that the root, swap, and /cms metadevices are either in an Okay or resync state.

24. Enter:

onstat -d | egrep “MD”

25. Verify that the soft partitions were added to the database.

26. Enter:

onstat -d | egrep “MD|PD|R|X|N”

When the system displays only the command prompt as output, the mirroring and

resync process is complete. If chunks are in the PD or MD state, repeat this procedure

from Step 5.

!CAUTION:

Do not reboot the system until the resync is complete. If you reboot the

system before the resync is complete you will have to wait for Solaris to

finish resyncing before resyncing Informix. The Solaris resync can take up to

five hours.

Note:

If a MX entry appears for the logdbs dbspace, enter:

ontape -s

The dbspace should be repaired.

27. Enter:

tail -f /cms/install/logdir/admin.log

28. Verify that no error messages are displayed. Then press Delete to break out of the

tail -f command.

29. When the system finishes syncing the disks, reboot the system when convenient. It is

recommended you perform this step during low busy hours. After the reboot the

system will boot normally from the primary disk.

Maintaining the Avaya CMS software

324 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Recovering a mirrored system after the secondary boot disk

fails

To recover a mirrored system after the secondary boot disk fails:

1. Enter:

cd /

2. Enter:

. /olds/olds-funcs

3. Partition the replacement disk by entering:

copy_partition_image primary_boot mirrored_boot

where primary_boot is the primary boot device, and

where mirrored_boot is the mirror boot device.

Example:

copy_partition_image c0t0d0 c0t11d0

The system records a message similar to the following in

/cms/install/logdir/admin.log

4. Verify the file properties for partitions 4, 5, 6, and 7. The group and owner should be

informix, and the permissions should be 660. Enter:

ls -ltL /dev/rdsk/cXtXd0sX

where cX is the device controller number, and

where tX is the device target number, and

where sX is partition 4, 5, 6, or 7.

If the file properties are not correct, enter the following command:

change_perms mirrored_boot

where mirrored_boot is the mirror boot device.

Example:

change_perms c1t3d0

The system records the permission change in /cms/install/logdir/admin.log

fmthard: New volume table of contents now in place.

copy_partition_image: Success copying partition image

from c1t3d0 to

c1t0d0

Recovering a mirrored system after disk failure

Issue 3.0 October 2002 325

5. Display the soft partitions for the faulty disk by entering:

metastat -p | grep faulty_disk

where faulty_disk is the device name of the faulty disk.

Example:

metastat -p | grep c0t2d0

The system displays a message similar to the following if soft partitions were present

on the disk.

Note:

Soft partition metadevice names have the format dXXX, not dXX.

6. Perform one of the following actions:

●If soft partition metadevices were not displayed, go to Step 7.

●If soft partition metadevices were displayed, perform the following:

i. Remove the soft partitions on the disk by entering:

metaclear -p faulty_disk

where faulty_disk is the faulty disk device name.

Example:

metaclear -p c0t11d0s7

ii. View any remaining soft partitions on the disk by entering:

metastat -p | grep faulty_disk

where faulty_disk is the device name of the faulty disk.

iii. Record any remaining soft partition metadevice names.

d12 1 1 c0t2d0s0

d22 1 1 c0t2d0s1

d32 1 1 c0t2d0s3

d150 -p c0t2d0s7 -o 1 -b 4194304

d151 -p c0t2d0s7 -o 4194306 -b 4194304

d152 -p c0t2d0s7 -o 8388611 -b 524288

d153 -p c0t2d0s7 -o 8912900 -b 524288

d154 -p c0t2d0s7 -o 9437189 -b 524288

Maintaining the Avaya CMS software

326 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

iv. Enter the following command for every remaining soft partition metadevice:

metaclear dXXX

where XXX is the metadevice number.

Example:

metaclear d152

The system displays a message similar to the following:

Note:

If the faulty soft partitions are still present, enter:

metaclear -r dXXX

where XXX is the metadevice number.

v. Create new soft partitions by entering the following command on a single line at

the command prompt:

/cms/install/bin/softPart primary_device faulty_device

where primary_device is the primary boot device name, and

where faulty_device is the faulty boot device name.

Example:

/cms/install/bin/softPart c0t0d0 c0t11d0

vi. Verify that the soft partitions are set up correctly by entering:

cat /cms/install/logdir/admin.log

The system displays a message similar to the following:

d152: Soft Partition is cleared

/cms/install/bin/softPart c0t11d0 run on: Thu Dec 6

10:29:58 MST 2001

Soft partitions on c0t11d0s7:

d150 not found in meta db, can be used

d150: Soft Partition is setup

d151: Soft Partition is setup

d152: Soft Partition is setup

d153: Soft Partition is setup

d154: Soft Partition is setup

Softpartitions on c0t11d0s7 have been setup

Recovering a mirrored system after disk failure

Issue 3.0 October 2002 327

7. Enter:

cmssvc

The system displays the Avaya Call Management System Services Menu

(CMSSVC menu).

8. Enter the number associated with the run_cms option.

9. Enter the number associated with the Turn off both CMS and IDS option.

10. Enter:

cmssvc

The system displays the CMSSVC menu.

11. Enter the number associated with the run_ids option.

Note:

This can take a few minutes.

12. Enter the number associated with the Turn on IDS option.

13. Enter:

cmssvc

The system displays the CMSSVC menu.

14. Enter the number associated with the run_cms option.

15. Enter the number associated with the Turn on CMS option.

16. Enter:

cmssvc

The system displays the CMSSVC menu.

17. Enter the number associated with the disk_space option.

The system displays the following message:

18. Enter the number associated with the Sync Primary and Mirror option.

The system begins to resync the disks. This process can take several hours to

complete.

Disk_space_manager options are:

1) Add New Disks

2) Initiate Mirroring

3) Sync Primary and Mirror

Enter choice (1-3) or q to quit:

Maintaining the Avaya CMS software

328 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

19. Enter:

tail -f /cms/install/logdir/admin.log

Note:

The -f option in the tail command updates the console as messages

are written to the admin.log file. All failure and chunk status messages are

logged in this file.

20. Press Delete to break out of the tail -f command.

21. Set the INFORMIX environment by entering:

. /opt/informix/bin/setenv

22. Enter:

metastat | more

23. Verify that the root, swap, and /cms metadevices are either in an Okay or resync state.

24. Enter:

onstat -d | egrep “MD”

25. Verify that the soft partitions were added to the database.

26. Enter:

onstat -d | egrep “MD|PD|R|X|N”

When the system displays only the command prompt as output, the mirroring and

resync process is complete.

!CAUTION:

Do not reboot the system until the resync is complete. The Solaris and IDS

resync can take up to five hours.

Note:

If a MX entry appears for the logdbs dbspace, enter:

ontape -s

The dbspace should be repaired.

27. Enter:

tail -f /cms/install/logdir/admin.log

28. Verify that no error messages are displayed. Then press Delete to break out of the

tail -f command.

29. When the system finishes syncing the disks, reboot the system when convenient. It is

recommended you perform this step during low busy hours. After the reboot the

system will boot normally from the primary disk.

Recovering a mirrored system after disk failure

Issue 3.0 October 2002 329

Recovering a mirrored system after a single data disk fails

To recover a mirrored system after a single data disk fails:

!CAUTION:

This procedure is only for data disks, not a boot or alternate boot device.

Performing this procedure on the incorrect disk type will result in the system

being rebuilt back to factory standards.

1. Replace the faulty disk. See Installing a replacement disk on an Enterprise 3500 or

Sun Fire V880 on page 317 or Installing a replacement disk on an Enterprise 3000 or

Sun Blade system on page 317 for more information.

Note:

For more information about installation of hard drives, see the appropriate

hardware installation, maintenance, and troubleshooting book for your

platform.

2. Enter:

cd /

3. Enter:

. /olds/olds-funcs

4. Enter one of the following commands to partition the disk:

●If the failed disk is a primary data disk, enter:

copy_partition_image mirrored_disk primary_disk

●If the failed disk is a mirror data disk, enter:

copy_partition_image primary_disk mirrored_disk

where primary_disk is the primary data disk, and

where mirrored_disk is the mirror data disk.

Example:

copy_partition_image c0t1d0 c1t5d0

The system records a message similar to the following in

/cms/install/logdir/admin.log

fmthard: New volume table of contents now in place.

copy_partition_image: Success copying partition image

from c0t1d0 to

c1t5d0

Maintaining the Avaya CMS software

330 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

5. Verify the file properties for partitions 0, 1, 3, 4, 5, 6, and 7. The group and owner

should be informix, and the permissions should be 660. Enter:

ls -ltL /dev/rdsk/cXtXd0sX

where cX is the device controller number, and

where tX is the device target number, and

where sX is the slice number.

If the file properties are not correct, enter the following command:

change_perms cXtXd0

where cX is the device controller number, and

where tX is the device target number.

Note:

For more information about hard drive device names, see the appropriate

hardware installation, maintenance, and troubleshooting book for your

platform. The system records the permission change in

/cms/install/logdir/admin.log

6. Display the soft partitions for the faulty disk by entering:

metastat -p | grep faulty_disk

where faulty_disk is the device name of the faulty disk.

Example:

metastat -p | grep c0t12d0

The system displays a message similar to the following if soft partitions were present

on the disk.

7. Perform one of the following actions:

●If soft partition metadevices were not displayed, go to Step 8.

●If soft partition metadevices were displayed, perform the following:

d250 -p c0t12d0s7 -o 1 -b 4194304

d251 -p c0t12d0s7 -o 4194306 -b 4194304

d252 -p c0t12d0s7 -o 8388611 -b 524288

d253 -p c0t12d0s7 -o 8912900 -b 524288

d254 -p c0t12d0s7 -o 9437189 -b 524288

Recovering a mirrored system after disk failure

Issue 3.0 October 2002 331

i. Remove the soft partitions on the disk by entering:

metaclear -p faulty_disk

where faulty_disk is the faulty disk device name.

Example:

metaclear -p c0t12d0s7

ii. View any remaining soft partitions on the disk by entering:

metastat -p | grep faulty_disk

where faulty_disk is the device name of the faulty disk.

iii. Record the soft partition metadevice names.

iv. Enter the following command for every soft partition metadevice displayed in

Step 6:

metaclear dXXX

where XXX is the metadevice number.

Example:

metaclear d250

The system displays a message similar to the following:

Note:

If the faulty soft partitions are still present, enter:

metaclear -r dXXX

where XXX is the metadevice number.

8. Perform one of the following commands:

●If the failed disk is a primary disk, enter:

/cms/install/bin/softPart faulty_disk

where faulty_disk is the primary disk device name.

Example:

/cms/install/bin/softPart c0t12d0

d250: Soft Partition is cleared

Maintaining the Avaya CMS software

332 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

●If the failed disk is a secondary disk, enter the following command on a single line at

the command prompt:

/cms/install/bin/softPart primary_disk faulty_disk

where primary_disk is the primary disk device name and

where faulty_disk is the mirror disk device name.

Example:

/cms/install/bin/softPart c0t1d0 c0t12d0

9. Verify that the soft partitions were set up by entering:

tail /cms/install/logdir/admin.log

The system displays a message similar to the following:

10. Enter:

cmssvc

The system displays the Avaya Call Management System Services Menu

(CMSSVC menu).

11. Enter the number associated with the run_cms option.

12. Enter the number associated with the Turn off both CMS and IDS option.

13. Enter:

cmssvc

The system displays the CMSSVC menu.

14. Enter the number associated with the run_ids option.

15. Enter the number associated with the Turn on IDS option.

Note:

This can take up to 10 minutes.

Add softpartitions

/cms/install/bin/softPart c0t12d0 run on: Wed Dec 5 14:30:18 MST

2001

Soft partitions on c0t12d0s7:

d250 -p c0t12d0s7 -o 1 -b 4194304

d251 -p c0t12d0s7 -o 4194306 -b 4194304

d252 -p c0t12d0s7 -o 8388611 -b 524288

d253 -p c0t12d0s7 -o 8912900 -b 524288

d254 -p c0t12d0s7 -o 9437189 -b 524288

c0t12d0s7 has been soft partitioned, exiting...

Recovering a mirrored system after disk failure

Issue 3.0 October 2002 333

16. Enter:

cmssvc

The system displays the CMSSVC menu.

17. Enter the number associated with the run_cms option.

18. Enter the number associated with the Turn on CMS option.

19. Enter:

cmssvc

The system displays the CMSSVC menu.

20. Enter the number associated with the disk_space option.

The system displays the following message:

21. Enter the number associated with the Sync Primary and Mirror option.

The system begins to resync the disks. This process can take several hours to

complete.

22. Check the progress of the resync by entering:

tail /cms/install/logdir/admin.log

Disk_space_manager options are:

1) Add New Disks

2) Initiate Mirroring

3) Sync Primary and Mirror

Enter choice (1-3) or q to quit:

disk_space command started Wed Dec 5 14:35:58 MST 2001

The System Type is E3000.

Launching ins_proc to synchronize disks in background

disk_space command completed Wed Dec 5 14:36:04 MST 2001

Synchronizing disks ..

/olds/olds -synch run on: Wed Dec 5 14:36:06 MST 2001

OLDS synch already synchronizing or nothing to synchronize

Synchronizing the IDS chunks.

Maintaining the Avaya CMS software

334 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Note:

More detailed information about the resync progress can be found in

/opt/informix/cmsids.log. Enter:

tail -f /opt/informix/cmsids.log

23. Press Delete to break out of the tail -f command.

24. Set the INFORMIX environment by entering:

. /opt/informix/bin/setenv

25. Enter:

onstat -d | egrep “MD”

26. Verify that the soft partitions were added to the database.

27. Enter:

onstat -d | egrep “MD|PD|R|X|N”

When the system displays only the command prompt as output, the mirroring and

resync process is complete.

!CAUTION:

Do not reboot the system until the resync is complete. The Solaris and IDS

resync can take up to five hours.

28. Enter:

tail -f /cms/install/logdir/admin.log

29. Verify that no error messages are displayed. Then press Delete to break out of the

tail -f command.

Note:

If a MX entry appears for the logdbs dbspace, enter:

ontape -s

The dbspace should be repaired.

14:42:11 Chunk number 59 ’/dev/rdsk/c0t12d0s0’ -- Recovery

Complete(202441064)

14:42:13 Chunk Number 60 - ’/dev/rdsk/c0t12d0s1’ -- Recovery

Begins(202441064)

14:43:10 Chunk Number 60 - ’/dev/rdsk/c0t12d0s1’ -- Online

14:43:11 Checkpoint Completed: duration was 0 seconds.

14:43:11 Checkpoint loguniq 6, logpos 0xfc018

Recovering a mirrored system after disk failure

Issue 3.0 October 2002 335

Recovering a mirrored system after a mirrored pair of data

disks fail

To recover a mirrored system after a mirrored pair of data disks fail:

1. Enter:

cd /

2. Turn off CMS and IDS.

!WARNING:

CMS setup will be re-run in this procedure. Record any current CMS

administration.

3. Replace, format, and partition the replacement pair of disks. See CMS disk partition

values on page 430 for more information.

Note:

For more information about disk drives, see Installing a replacement disk on

an Enterprise 3500 or Sun Fire V880 on page 317, Installing a replacement

disk on an Enterprise 3000 or Sun Blade system on page 317 or the

appropriate hardware installation, maintenance, and troubleshooting book

for your platform.

4. Verify the file properties for partitions 0, 1, 3, 4, 5, 6, and 7. The group and owner

should be informix, and the permissions should be 660. Enter:

ls -ltL /dev/rdsk/cXtXd0sX

where cX is the device controller number, and

where tX is the device target number, and

where sX is the slice number.

If the file properties are not correct, enter the following commands:

. /olds/olds-funcs

change_perms cXtXd0

where cX is the device controller number, and

where tX is the device target number.

Note:

For more information about hard drive device names, see the appropriate

hardware installation, maintenance, and troubleshooting book for your

platform. The system records the permission change in

/cms/install/logdir/admin.log

5. Set the IDS environment by entering:

. /opt/informix/bin/setenv

Maintaining the Avaya CMS software

336 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

6. Enter:

vi /opt/informix/etc/onconfig.cms

The system displays the onconfig.cms file.

7. Change the PHYSDBS setting to:

rootdbs

8. Change the LOGFILES setting to:

9. Press Esc. Then enter:

:wq!

The system saves and exits the file.

10. Verify the file properties for the onconfig.cms file. The group and owner should be

informix, and the permissions should be 644.

If the file properties are not correct, perform the following:

a. Enter the following command on a single line at the command prompt:

chown informix:informix /opt/informix/etc/onconfig.cms

b. Enter:

chmod 644 /opt/informix/etc/onconfig.cms

11. Enter the following commands:

cd /opt/informix/etc

rm onconfig.bak

rm onconfig.def

12. Enter:

onmode -yuk

Ignore any error messages.

13. Enter:

oninit -i

The system displays the following message:

14. Enter: y

This action will initialize Informix Dynamic Server 2000;

any existing Informix Dynamic Server 2000 databases will NOT be

accessible -

Do you wish to continue (y/n)?

Recovering a mirrored system after disk failure

Issue 3.0 October 2002 337

15. Verify that all soft partition metadevices have been removed by entering:

metastat -p

16. Record the device names of any remaining soft partition metadevices.

Note:

Soft partition metadevice names have the format dXXX, not dXX.

17. If any soft partition metadevices remain, enter:

metaclear -p cXtXd0s7

where cX is the device controller number, and

where tX is the device target number.

Note:

To remove individual soft partition metadevices, enter:

metaclear -r dXXX

where dXXX is the soft partition metadevice.

Example:

metaclear -r d100 d101 d102

18. Repeat Step 17 for the secondary mirror disk.

19. Verify that all soft partition metadevices have been removed by entering:

metastat -p

20. Enter:

metastat | more

21. Verify that the root, swap, and /cms metadevices are either in an Okay or resync state.

Note:

If the metadevices are in an incorrect state, enter:

metareplace -e dX cXtXd0sX

where cX is the device controller number, and

where tX is the device target number, and

where cX is the device controller number, and

where sX is the slice number, and

where dX is for d1 for s0, d2 for s1, and d3 for s3.

Maintaining the Avaya CMS software

338 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

22. Check the IDS software by entering:

onstat -

The system displays the following message:

23. Verify that IDS is on.

24. Enter:

cmssvc

The system displays the Avaya Call Management System Services Menu

(CMSSVC menu).

25. Enter the number associated with the auth_display option.

26. Record all of the authorized features. You will need this information later in the

procedure.

27. Enter:

mv /cms/db/backupDevice /cms/db/backupDevice.old

28. Enter:

cmssvc

The system displays the CMSSVC menu.

29. Enter the number associated with the auth_set option.

The system displays a series of prompts to authorize features.

30. Re-set the authorizations to those you recorded in Step 26 except for disk mirroring.

When the disk mirroring option is displayed, enter: n

!Important:

Disk mirroring must not be authorized. If it is repeat Step 27.

31. Enter:

cmssvc

The system displays the CMSSVC menu.

Informix Dynamic Server 2000 Version X.XX.UCX -- On-Line -- Up 00:00:55 -- 18432

Kbytes

Recovering a mirrored system after disk failure

Issue 3.0 October 2002 339

32. Enter the number associated with the disk_space option.

The system displays the following message:

Note:

The system will not display the mirroring options if disk mirroring has not

been authorized.

33. Enter: q

34. Enter:

/olds/olds -cleanup

Note:

The system may display a prompt telling you to reboot the system. If the

system displays this prompt, reboot the system as directed.

35. Enter:

cmssvc

The system displays the CMSSVC menu.

36. Enter the number associated with the auth_set option.

The system displays a series of prompts to authorize features.

37. Authorize disk mirroring.

38. Enter:

cmssvc

The system displays the CMSSVC menu.

Initializing the boot disk (this may take several minutes!) ...

Disk_space_manager options are:

1) Add New Disks

2) Initiate Mirroring

3) Sync Primary and Mirror

Enter choice (1-3) or q to quit:

Maintaining the Avaya CMS software

340 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

39. Enter the number associated with the disk_space option.

The system displays the following message:

40. Enter the number associated with the Initiate Mirroring option.

The system initiates mirroring. The system then displays a prompt to reboot the

system.

41. Enter:

/usr/sbin/shutdown -i6 -y -g0

The system reboots and begins to resync the disks.

42. Log into the system as root.

43. Enter:

cmssvc

The system displays the CMSSVC menu.

Disk_space_manager options are:

1) Add New Disks

2) Initiate Mirroring

3) Sync Primary and Mirror

Enter choice (1-3) or q to quit:

Mirroring has been started.

You MUST reboot the system for mirroring to take effect. Execute

’/usr/sbin/shutdown -i6 -y -g0’

to shut the system down

disk_space command completed Wed Apr 18 17:12:23 MDT 2001

Proceeding to mirror the IDS dbspaces ...

Archive to tape device ’/dev/null’ is complete.

Program over.

Synchronizing disks in the background.

Recovering a mirrored system after disk failure

Issue 3.0 October 2002 341

44. Enter the number associated with the disk_space option.

The system displays the following message:

Note:

If IDS fails to turn on after the configuration of the IDS dbspaces, contact the

National Customer Care Center (1-800-242-2121), or consult with your

product distributor or representative.

45. Enter the number associated with the Add new disks option.

The system displays a list of disk pairs.

46. Repeat Steps 43 through 46 for every disk pair installed on the system.

When all disks have been added, the system displays the following message:

Note:

The system will be slow during the resync. To speed up the resync, reboot

the system and log in as root. From the CMSSVC menu select

disk_space. Then select Sync Primary and Mirror.

47. Choose one of the following procedures:

Disk_space_manager options are:

1) Add New Disks

2) Initiate Mirroring

3) Sync Primary and Mirror

Enter choice (1-3) or q to quit:

oninit: Fatal error in shared memory initialization

The choices for primary/secondary disk pairs are:

............

Enter choice (X-X) or q to quit:

All disks are currently administered for the system.

Finished Adding New Disks

Maintaining the Avaya CMS software

342 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

!Important:

It is preferred that CMS be set up from the flat file. The CMS setup

information is found in the UNIX flat file. This information is updated

automatically when a CMSADM backup is performed. If updates have been

made since the last CMSADM backup, it may be necessary to run CMS

setup interactively.

●To set up CMS interactively.

See Setting up CMS interactively from a terminal on page 170.

●To set up CMS from a UNIX flat file.

i. Enter:

uname -n

The system displays the UNIX system name.

ii. Record the UNIX system name for use later.

___________________________________________

iii. Enter:

vi /cms/install/cms_install/cms.install

iv. Verify that the second line has an entry for the UNIX system name. If it does not,

add the UNIX system name you recorded in Step ii.

Example:

v. Press Esc, and then enter:

:wq!

vi. Verify that IDS is on.

vii. Enter:

cmssvc

The system displays the Avaya Call Management System Services Menu.

# Enter a name for this UNIX system (up to 256 characters):

cms3

# Select the type of backup device you are using

............

# Enter number of VDNs (0-Maximum):

Recovering a mirrored system after disk failure

Issue 3.0 October 2002 343

viii. Enter the number associated with the setup option.

The system displays the following message:

ix. Enter the number for the language used on the system.

The system displays a message similar to the following:

Note:

An additional option for a converter created setup file may be displayed on

some systems

x. Enter the number associated with the flat file option.

The system displays the following message:

xi. Enter:

tail -f /cms/install/logdir/admin.log

Select the language for this server:

All languages are ISO Latin except Japanese. Selection of the

server language assumes that existing customer data is compatible.

(Upgrade from any ISO Latin language to any ISO Latin language or

from Japanese to Japanese is supported).

1) English

2) Dutch

3) French

4) German

5) Italian

6) Portuguese

7) Spanish

8) Japanese

Enter choice (1-8): (default: 1)

The input will be read from

1) the terminal

2) a flat file

Enter choice (1-2):

*** The rest of this command is running in the background ***

Maintaining the Avaya CMS software

344 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Note:

The -f option in the tail command updates the console as messages

are written to the admin.log file. All failure messages are logged in this file.

The system displays the following message:

xii. Press Delete to break out of the tail -f command.

48. Enter:

/usr/sbin/shutdown -y -i6 -g0

The system reboots.

49. Log into the system as root.

50. Set the IDS environment by entering:

. /opt/informix/bin/setenv

51. Enter:

onstat -d | egrep “MD”

52. Verify that the soft partitions were added to the database.

53. Enter:

onstat -d | egrep “MD|PD|R|X”

When the system displays only the command prompt as output, the mirroring and

resync process is complete.

Note:

If a MX entry appears for the logdbs dbspace, enter:

ontape -s

The dbspace should be repaired.

54. Enter:

tail -f /cms/install/logdir/admin.log

55. Verify that no error messages are displayed. Then press Delete to break out of the

tail -f command.

56. Restore the CMS data and verify the Free Space Allocation. See Verifying Free Space

Allocation during a maintenance restore on page 281 for more information.

01350 Mon Nov 6 12:19:24 2000 SRC_ERR_NUM=-00329

PROCESS=pre_cms_env PID=000482 Sql.c:00071

SEVERITY=INFO ACD=-01 startdb

.................

Setup completed successfully Mon Nov 6 12:24:20 MST 2000

Recovering a mirrored system after disk failure

Issue 3.0 October 2002 345

!WARNING:

If the system is rebooted, enter:

onstat -d | egrep “MD|PD|R|X”

To verify that the resync process is complete. If the resync process is not

complete, select Sync Primary and Mirror from the disk_space option in the

CMSSVC menu.

Maintaining the Avaya CMS software

346 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Using the luxadm command

The luxadm command can be used to manage the FC-AL disk drives in Enterprise 3500

or Sun Fire V880 systems. The luxadm command allows you to:

●Query the system for the world wide number (WWN) of a disk drive

●Remove and add disks without turning off the system

Using the luxadm command contains the following procedures:

●Displaying disk WWN numbers on an Enterprise 3500 on page 346

●Displaying disk WWN numbers on a Sun Fire V880 on page 347

●Removing a disk with the luxadm command on page 349

●Adding a disk with the luxadm command on page 351

Displaying disk WWN numbers on an Enterprise 3500

To display the WWN number of a disk drive on an Enterprise 3500:

1. Enter:

cd /

2. Enter:

luxadm probe

The system displays the WWN number of every disk drive in the system.

Example:

3. Record the WWN number.

Note:

If a problem is detected with the disk drives, the luxadm command

generates the message, “No Network Array enclosures found in

/dev/es” and provides disk drive information. To determine which disk

drive is faulty, use the procedures in Identifying a faulty disk on page 302.

Found Fibre Channel device(s):

Node WWN:2000002037f88f26 Device Type:Disk device

Logical Path:/dev/rdsk/c0t0d0s2

Node WWN:20000004cf441548 Device Type:Disk device

Logical Path:/dev/rdsk/c2t4d0s2

Using the luxadm command

Issue 3.0 October 2002 347

Displaying disk WWN numbers on a Sun Fire V880

To display the WWN number of a disk drive on a Sun Fire V880:

1. Enter:

cd /

2. Enter:

luxadm probe

The system displays the name of the fiber channel loop.

Example:

3. Record the name of the fiber channel loop.

Found Enclosure:

SUNWGS INT FCBPL Name:FCloop Node WWN:508002000017d2b0 Logical

Path:/dev/es/ses1

Maintaining the Avaya CMS software

348 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

4. Enter:

luxadm display loop_name

where loop_name is the name of the fiber channel loop.

Example:

luxadm display FCloop

The system displays the slot and WWN number for every disk in the system.

Example:

Note:

The system displays a warning if a problem is detected with any of the disk

drives.

5. Record the faulty disk number.

SUNWGS INT FCBPL

DISK STATUS

SLOT DISKS (Node WWN)

0 On (O.K.) 20000004cf4cf5c1

1 On (O.K.) 20000004cf4cf448

2 On (O.K.) 20000004cf4cf2d8

3 On (O.K.) 20000004cf4cf51d

4 On (O.K.) 20000004cf4cf541

5 On (O.K.) 20000004cf4cbef1

6 On (Login failed)

7 On (Login failed)

8 On (Login failed)

9 On (Login failed)

10 On (Login failed)

11 On (Login failed)

SUBSYSTEM STATUS

FW Revision:9222 Box ID:0

Node WWN:508002000017d2b0 Enclosure Name:FCloop

SSC100’s - 0=Base Bkpln, 1=Base LoopB, 2=Exp Bkpln, 3=Exp LoopB

SSC100 #0: O.K.(9222/ 120A)

SSC100 #1: O.K.(9222/ 120A)

SSC100 #2: Not Installed

SSC100 #3: Not Installed

Temperature Sensors - 0 Base, 1 Expansion

0:27ºC

1Not Installed

Default Language is USA English, ASCII

Using the luxadm command

Issue 3.0 October 2002 349

Removing a disk with the luxadm command

To remove a disk from an Enterprise 3500 or Sun Fire V880 system:

1. Determine which disk device is faulty. For more information, see Identifying a faulty

disk on page 302.

2. Determine the WWN number and location of the faulty disk. For more information

about displaying WWN numbers with the luxadm command, see Displaying disk

WWN numbers on an Enterprise 3500 on page 346 or Displaying disk WWN numbers

on a Sun Fire V880 on page 347.

3. Choose one of the following commands to remove the WWN number of the faulty disk:

●If the system is an Enterprise 3500, enter:

luxadm remove number

where number is the WWN number of the faulty disk.

Example:

luxadm remove 2000002037f8a684

●If the system is a Sun Fire V880, enter:

luxadm remove loop_name,snumber

where loop_name is the name of the fiber channel loop, and

where number is the slot number for the disk drive.

Example:

luxadm remove FCloop,s0

The system displays a message similar to the following:

4. Verify that the disk you want to remove is displayed.

WARNING!!! Please ensure that no filesystems are mounted on these device(s).

All data on these devices should have been backed up.

The list of devices which will be removed is:

1: Device name: 2000002037f8a684

Node WWN: 2000002037f8a684

Device Type:Disk device

Device Paths:

/dev/rdsk/c2t6d0s2

Please verify the above list of devices and

then enter ’c’ or <CR> to Continue or ’q’ to Quit. [Default: c]:

Maintaining the Avaya CMS software

350 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Note:

The system may display a device is busy message. If the system displays

this message, verify that the correct device is being removed. Repeat the

luxadm remove command with a -F option. For example, enter:

luxadm remove -F FCloop,s0

5. Choose one of the following steps:

●If the correct device is displayed, enter: c

●If the correct device is not displayed, enter: q

If you removed the device, the system displays a message similar to the following:

Note:

If the system is a Sun Fire V880, an amber LED will light when the disk can

be safely removed.

!Important:

Do not insert the replacement disk. (You will be instructed when to insert the

replacement disk in Adding a disk with the luxadm command on page 351.)

6. Physically remove the faulty disk from the system.

Note:

For more information about removing a disk drive, see the appropriate

hardware installation, maintenance and troubleshooting book for your

platform.

7. Press Enter.

The system displays a message similar to the following:

stopping: /dev/rdsk/c2t6d0s2....Done

offlining: /dev/rdsk/c2t6d0s2....Done

Hit <Return> after removing the device(s).

Device: /dev/rdsk/c2t6d0s2

Logical Nodes being removed under /dev/dsk/ and /dev/rdsk:

c2t6d0s0

c2t6d0s1

c2t6d0s2

c2t6d0s3

c2t6d0s4

c2t6d0s5

c2t6d0s6

c2t6d0s7

Using the luxadm command

Issue 3.0 October 2002 351

Adding a disk with the luxadm command

To add a disk to an Enterprise 3500 or Sun Fire V880 system:

1. Enter:

luxadm insert

The system displays the following message:

2. Insert the new disk.

3. Press Enter.

The system displays a message similar to the following:

Note:

Ignore the message, “No new enclosure(s) were added!!”.

4. Verify that there are no problems with the replacement disk. If any files that may

interfere with the system booting are present on a replacement boot disk, go to

Cleaning up a replacement boot disk on page 454.

5. Choose one of the following:

●If the disk was added to the system because additional disk space was needed, see

the appropriate hardware, installation, maintenance and troubleshooting book for

instructions on maintaining disk drives.

●If the disk was added to the system because of a disk failure, perform one of the

following procedures:

●Recovering a mirrored system after the primary boot disk fails on page 318

●Recovering a mirrored system after the secondary boot disk fails on page 324

●Recovering a mirrored system after a single data disk fails on page 329

●Recovering a mirrored system after a mirrored pair of data disks fail on page 335

Please hit <RETURN> when you have finished adding Fibre Channel

Enclosure(s)/Device(s):

Waiting for Loop Initialization to complete...

New Logical Nodes under /dev/dsk and /dev/rdsk :

c2t6d0s0

c2t6d0s1

c2t6d0s2

c2t6d0s3

c2t6d0s4

c2t6d0s5

c2t6d0s6

c2t6d0s7

No new enclosure(s) were added!!

Maintaining the Avaya CMS software

352 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Performing a CMSADM restore of a mirrored or non-

mirrored system

Performing a CMSADM restore of a mirrored or non-mirrored system describes how to

restore an entire system. You must re-enable the system to boot. Then restore the system

software from the CMSADM backup tape. A system restore will be required if:

●The boot disk fails or becomes corrupt on a non-mirrored system

●The boot disk pair fails or becomes corrupt on a mirrored system

Performing a CMSADM restore of a mirrored or non-mirrored system contains the

following topics:

●Prerequisites on page 352

●Mirrored system disk pairs on page 352

●Choosing your CMSADM restore procedure on page 354

●Restoring a system with a restore script on page 354

●Restoring a system without a restore script on page 358

Prerequisites

Before you begin restoring the system, perform the following tasks:

●If the system is mirrored, verify that the system cannot boot from either the primary or

secondary boot device.

●Obtain the CMSADM file system backup tapes.

●Obtain the most recent maintenance backup tapes.

●Replace any defective hardware.

Mirrored system disk pairs

Use the following tables to determine the disk layout for your system.

Note:

A mirrored system may occasionally display controllers that differ from those

shown in the following tables for the mirrored disk.

Performing a CMSADM restore of a mirrored or non-mirrored system

Issue 3.0 October 2002 353

Sun Fire V880 mirrored disk pairs

Sun Blade mirrored disk pairs

Enterprise 3000 mirrored disk pairs

Enterprise 3500 mirrored disk pairs

Primary disk Mirrored disk

c1t0d0 c1t3d0

c1t1d0 c1t4d0

c1t2d0 c1t5d0

Primary disk Mirrored disk

c0t0d0 c0t2d0

c1t0d0 c1t2d0

c1t1d0 c1t3d0

Primary disk Mirrored disk

c0t0d0 c0t11d0

c0t1d0 c0t12d0

c0t2d0 c0t13d0

c0t3d0 c0t14d0

c0t10d0 c0t15d0

Primary disk Mirrored disk

c0t0d0 c1t4d0

c0t1d0 c1t5d0

Maintaining the Avaya CMS software

354 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Choosing your CMSADM restore procedure

There are two ways to perform a CMSADM restore:

●Restoring a system with a restore script on page 354

The restore script automates most of the restore process and takes the least amount of

time. The restore script may not be present in all R3V11 CMS loads. Contact the

National Customer Care Center, or consult with your product distributor or

representative for instructions on how to obtain the restore script.

●Restoring a system without a restore script on page 358

Restoring the system manually can take some time. If the restore script is not available

for your system, you must use the manual procedure.

Restoring a system with a restore script

To restore a system with a restore script:

1. Perform one of the following actions:

●If the system is non-mirrored, replace the defective boot disk and any other

defective disks.

●If the system is mirrored, replace the defective boot disk pair and any other

defective disks.

Note:

For more information about installing hard drives, see the appropriate

hardware installation, maintenance, and troubleshooting book for your

platform.

2. As the console shows that the system is booting up, press Stop+A

The system displays the ok prompt.

Note:

Stop+A will not work on a Sun Fire V880 if the key switch is in the locked

position. If the key switch is in the locked position, turn the key to the

unlocked position. Press Stop+A again and continue with the remainder of

this procedure.

3. Insert the CD-ROM, Solaris 8 Software disk 1 of 2 into the CD-ROM drive.

c0t2d0 c1t6d0

c0t3d0 c1t7d0

Primary disk Mirrored disk

Performing a CMSADM restore of a mirrored or non-mirrored system

Issue 3.0 October 2002 355

4. Enter:

boot cdrom -sw

The system boots from the CD-ROM.

5. Enter the following commands:

stty erase Backspace

ksh -o vi

The system will display Backspace as ^H. On some systems Backspace will not

work. If this is the case, substitute “^H” for Backspace.

6. Enter:

format

The system displays a list of disks.

7. Verify that the system detects all of the disk drives in the system.

Note:

If the system does not detect a disk, re-seat the disk drives. If the system

still does not detect the disk drives, repeat this procedure from Step 4.

8. Enter the number associated with one of the disks.

The system displays the format command menu.

9. Enter:

quit

10. Enter:

pwd

The system displays the following message:

Note:

If the system does not display /tmp/root, enter:

cd /tmp/root

11. Insert the CMSADM backup tape into the tape drive.

/tmp/root

Maintaining the Avaya CMS software

356 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

12. Enter the following command on a single line at the command prompt:

cpio -icmudv -C 10240 -I /dev/rmt/dev#

“cms/install/bin/restore”

where dev# is replaced with the tape device name.

The system retrieves the file and displays the following message within a couple of

minutes:

!Important:

The restore script should be one of the first files on the tape backup. If the

system does not display cms/install/bin/restore within a couple of minutes,

the restore script is not on the tape. Press Ctrl+C

Contact the National Customer Care Center, or consult with your product

distributor or representative about obtaining the script.

Note:

The “cms/install/bin/restore” message may be displayed a second

time.

13. Press Ctrl+C

The system stops searching the CMSADM backup tape.

Note:

If you do not press Ctrl+C, the system will continue to search the entire

backup tape. This search could take several hours to complete.

14. Verify that the restore script has the correct permissions by entering:

chmod +x cms/install/bin/restore

The system sets the correct permissions to execute the script. If the permissions for

the script are not correct, the restore will fail.

cms/install/bin/restore

Performing a CMSADM restore of a mirrored or non-mirrored system

Issue 3.0 October 2002 357

15. Restore the system by entering:

cms/install/bin/restore /dev/rmt/dev#

where dev# is replaced with the tape device name.

The system displays the following message:

The system restores the files on the tape backup. The system will automatically reboot

after all the files on the tape have been transferred.

Note:

If a problem occurs during the restore process, the system will display

prompts indicating a problem. Follow the instructions displayed by the

system.

16. Log in to the system as root.

!Important:

The system may reboot several times during the restore process. The

reboots can occur at random intervals throughout the restore process. You

may have to repeat this step several times.

17. After the system reboots, you can monitor the progress of the restore by entering:

tail -f /cms/install/logdir/restore/restorecms.log

Note:

In order to monitor the restore progress. You must enter this command each

time the system reboots.

When the restore process is complete, the system displays the following message at

the end of restorecms.log:

18. Enter:

ps -ef|egrep S99

19. Choose one of the following steps:

●If a S99restorecms process is not running, go to Step 20.

Attempting to set System timezone from tape. This can take up to

60 seconds. Please wait...

...................

Starting to restore from tape. This process can take a long time.

Please wait...

CMS Restore Completed Successfully

Maintaining the Avaya CMS software

358 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

●If a S99restorecms process is running, enter the following commands:

pkill -9 tee

pkill -9 S99restorecms

20. Verify that IDS is on.

21. Enter:

cmssvc

The system displays the CMSSVC menu.

22. Enter the number associated with the run_cms option.

23. Enter the number associated with The turn on CMS option.

24. Verify the Free Space Allocation and restore the CMS data. See Verifying Free Space

Allocation during a maintenance restore on page 281 for more information.

25. If the system has the AOM or Visual Vectors Server software installed, verify that the

software is on.

Restoring a system without a restore script

To restore a system:

!Important:

If you have successfully completed the procedure Restoring a system with a

restore script on page 354, do not perform this procedure.

1. Perform one of the following actions:

●If the system is non-mirrored, replace the defective boot disk and any other

defective disks.

●If the system is mirrored, replace the defective boot disk pair and any other

defective disks.

Note:

For more information about installing hard drives, see the appropriate

hardware installation, maintenance, and troubleshooting book for your

platform.

2. As the console shows that the system is booting up, press Stop+A

The system displays the ok prompt.

3. Insert the CD-ROM, Solaris 8 Software 1 of 2 into the CD-ROM drive.

4. Enter:

boot cdrom -sw

The system boots from the CD-ROM.

Performing a CMSADM restore of a mirrored or non-mirrored system

Issue 3.0 October 2002 359

5. Enter the following commands:

stty erase Backspace

ksh -o vi

The system will display Backspace as ^H. On some systems Backspace will not

work. If this is the case, substitute “^H” for Backspace.

6. Set the terminal environment by entering:

export TERM=sun

7. Format the boot disk according to the following partition table.

●If the system is a mirrored system, partition only the primary boot disk.

●If the system is not mirrored, partition the boot disk.

Note:

For more information about using the format command to partition the disk

or the label command to save the changes, see the appropriate hardware

installation, maintenance, and troubleshooting book for your platform.

8. Add a file system to partition 0 on the disk by entering the following command:

newfs /dev/rdsk/cXtXd0s0

where cX is the device controller number, and

where tX is the device target number.

9. Enter: y

Partition number Size Name

0 4 GB root

11 GBswap

3 3 GB unassigned

4 2 GB unassigned

5 2 GB unassigned

6 2 GB unassigned

7 Remaining

disk space

unassigned

Maintaining the Avaya CMS software

360 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

10. Add a file system to partition 3 on the disk by entering the following command:

newfs /dev/rdsk/cXtXd0s3

where cX is the device controller number, and

where tX is the device target number.

11. Enter: y

12. Enter the following command on a single line at the command prompt:

/usr/sbin/installboot

/usr/platform/‘uname -i‘/lib/fs/ufs/bootblk

/dev/rdsk/cXtXd0s0

where cX is the device controller number, and

where tX is the device target number.

Note:

On most Sun keyboards, the accent grave (‘) is located with the tilde (~)

key.

13. Enter:

mount /dev/dsk/cXtXd0s0 /mnt

where cX is the device controller number, and

where tX is the device target number.

14. Enter:

cd /mnt

15. Enter:

mkdir /mnt/cms

16. Enter:

mount /dev/dsk/cXtXd0s3 /mnt/cms

where cX is the device controller number, and

where tX is the device target number.

17. Verify that you are in the root directory by entering:

pwd

The system displays the following message:

18. Perform one of the following steps:

/mnt

Performing a CMSADM restore of a mirrored or non-mirrored system

Issue 3.0 October 2002 361

●If the CMS system is not backing up data to a TANDBERG SLR5 tape drive or an

EXABYTE EXB-8900 tape drive, go to Step 19.

●If the CMS system is backing up data to a TANDBERG SLR5 tape drive or an

EXABYTE EXB-8900 tape drive, perform the following procedure:

i. Obtain the SCSI tape ID by entering:

modinfo|grep “SCSI tape”

The system displays a message similar to the following:

ii. Locate the SCSI tape ID. It is the first entry on the left.

In the previous example, 99 is the SCSI tape module ID.

iii. Remove the tape drive module from the kernel by entering:

modunload -i id

where id is the SCSI tape st module ID.

iv. Enter:

cd /kernel

v. Copy the tape drives to the /tmp directory by entering:

find drv | cpio -pdm /tmp

vi. Enter:

vi /tmp/drv/st.conf

The system displays the st.conf file.

vii. Depending on the model tape drive being used, locate or create either the TAND-

8G-FIXED line or the EXB-8900 line in the file.

viii. Modify or create the appropriate tape drive entry it so it matches the example

shown below. The modifications for existing entries are shown in bold.

Example:

ix. If you modify a line be sure to uncomment that line.

99 78046000 10E85 33 1 st (SCSI tape Driver 1.202)

# Begin CMS tape configuration list.

#tape-config-list=

"EXABYTE EXB-8900", "Mammoth EXB-8900 8mm Helical Scan", "EXB-8900",

"TANDBERG SLR5", "Tandberg 8 Gig QIC", "TAND-8G-FIXED";

EXB-8900 = 1,0x29,0,0xce39,4,0x7f,0x7f,0x7f,0x7f,0;

TAND-8G-FIXED = 1,0x37,512,0x963a,4,0xA0,0xD0,0xD0,0xD0,3;

# End CMS Tape configuration list.

Maintaining the Avaya CMS software

362 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

x. Press Esc and enter:

:wq!

xi. Enter:

cd /

xii. Enter:

mount -F lofs /tmp/drv /kernel/drv

xiii. Enter:

cd /kernel/drv

xiv. Enter:

modload ./st

xv. Enter:

cd /mnt

19. Insert the most recent CMSADM backup tape into the tape drive.

20. Enter the following command on a single line at the command prompt:

cpio -icmudvf -C 10240 -I /dev/rmt/dev# "dev/dsk" "dev/rdsk"

"dev/dsk/*" "dev/rdsk/*" "etc/path_to_inst" "dev/md"

"dev/md/*" "devices" "devices/*" "cms/db/gem/c_custom/*"

"cms/db/gem/h_custom/*" "cms/db/gem/r_custom/*"

where dev# is the tape device name.

Performing a CMSADM restore of a mirrored or non-mirrored system

Issue 3.0 October 2002 363

Note:

If you do not know the device path, enter:

mt -f /dev/rmt/dev# status

where dev# is the device name.

The device name is usually /dev/rmt/0c. However, the device name used

depends on the drive’s SCSI ID. Possible device names are:

If you enter an incorrect device path, the system displays a “No such file or

directory” message; the correct device path displays information similar to the

following:

21. Create the files and directories that were not restored from tape:

Note:

Ignore any messages about the file already existing on the system.

a. Create and modify the permissions for the initpipe file by entering the following

commands:

mkfifo /mnt/etc/initpipe

chmod 600 /mnt/etc/initpipe

chgrp root /mnt/etc/initpipe

b. Verify the changes by entering:

ls -ld /mnt/etc/initpipe

/dev/rmt/0 Indicates the first noncompressing tape drive with

the lowest target address

/dev/rmt/1 Indicates the second noncompressing tape drive

with the second lowest target address

/dev/rmt/0c Indicates the first compressed-mode tape drive

with the lowest target address

/dev/rmt/1c Indicates the second compressed-mode tape

drive with the second lowest target address

HP DDS-4 DAT (Sun) tape drive:

sense key(0x0)= No Additional Sense residual= 0 retries= 0

file no= 0 block no= 0

Maintaining the Avaya CMS software

364 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

c. Create and modify the permissions for the utmppipe file by entering the following

commands:

mkfifo /mnt/etc/utmppipe

chmod 600 /mnt/etc/utmppipe

chgrp root /mnt/etc/utmppipe

d. Verify the changes by entering:

ls -ld /mnt/etc/utmppipe

e. Create and modify the permissions for /proc, /var/tmp, and /lvm by entering the

following commands:

mkdir /mnt/proc /mnt/var/tmp /mnt/etc/lvm

chgrp sys /mnt/etc/lvm

chmod 1777 /mnt/var/tmp

chown root:sys /mnt/var/tmp

f. Verify the changes by entering the following commands:

ls -ld /mnt/etc/lvm

ls -ld /mnt/var/tmp

22. Enter:

vi /mnt/etc/system

Performing a CMSADM restore of a mirrored or non-mirrored system

Issue 3.0 October 2002 365

23. Place an asterisk (*) in front of rootdev entry if it exists.

Example:

24. Press Esc. Then enter:

:wq!

The system saves and exits the file.

*ident "@(#)system 1.18 97/06/27 SMI" /* SVR4 1.5 */

* SYSTEM SPECIFICATION FILE

* moddir:

* Set the search path for modules. This has a format similar to the

* csh path variable. If the module isn’t found in the first directory

* it tries the second and so on. The default is /kernel /usr/kernel

* Example:

* moddir: /kernel /usr/kernel /other/modules

* root device and root filesystem configuration:

* The following may be used to override the defaults provided by

* the boot program:

* rootfs: Set the filesystem type of the root.

* rootdev: Set the root device. This should be a fully

* expanded physical pathname. The default is the

* physical pathname of the device where the boot

* program resides. The physical pathname is

* highly platform and configuration dependent.

..............

rootdev:/pseudo/md@0:0,1,blk

set msgsys:msginfo_msgmnb=24000

set msgsys:msginfo_msgssz=32

set msgsys:msginfo_msgtql=500

set msgsys:msginfo_msgseg=4096

set msgsys:msginfo_msgmni=150

* Begin MDD database info (do not edit)

set md:mddb_bootlist1="dad:1:16 dad:1:1050 dad:1:2084 dad:1:3118"

* End MDD database info (do not edit)

Maintaining the Avaya CMS software

366 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

25. Enter:

vi /mnt/etc/vfstab

The system displays a file similar to the following:

26. Change all metadevice entries to physical devices.

a. If there is an entry for /dev/md/dsk/d2, change it to:

/dev/dsk/cXtXd0s1

where cX is the device controller number for the boot device, and

where tX is the device target number for the boot device.

b. If there are entries for /dev/md/dsk/d1 and /dev/md/rdsk/d1, change them

to:

/dev/dsk/cXtXd0s0 /dev/rdsk/cXtXd0s0

where cX is the device controller number for the boot device, and

where tX is the device target number for the boot device.

c. If there are entries for /dev/md/dsk/d3 and /dev/md/rdsk/d3, change them

to:

/dev/dsk/cXtXd0s3 /dev/rdsk/cXtXd0s3

where cX is the device controller number for the boot device, and

where tX is the device target number for the boot device.

!Important:

If incorrect physical device entries are made, the system will fail to operate

correctly.

27. Press Esc. Then enter:

:wq!

The system saves and exits the file.

#device device mount FS fsck mount mount

#to mount to fsck point type pass at boot options

#/dev/dsk/c1d0s2 /dev/rdsk/c1d0s2 /usr ufs 1 yes -

fd - /dev/fd fd - no -

/proc - /proc proc - no -

/dev/md/dsk/d2 - - swap - no -

/dev/md/dsk/d1 /dev/md/rdsk/d1 / ufs 1 no -

/dev/md/dsk/d3 /dev/md/rdsk/d3 /cms ufs 2 yes -

swap - /tmp tmpfs - yes -

Performing a CMSADM restore of a mirrored or non-mirrored system

Issue 3.0 October 2002 367

28. Enter:

vi /mnt/etc/inittab

The system displays a file similar to the following:

29. Look for a cm: entry in the file. If a cm: entry is present, remove it.

30. Look for an id: entry in the file. If an id: entry is present, remove it.

Note:

The cm: or id: entry may not always be located at the end of the file.

31. Press Esc. Then enter:

:wq!

The system saves and exits the file.

32. Enter:

cd /

33. Verify that you are in the root directory by entering:

pwd

The system displays the following message:

34. Enter:

devfsadm -r /mnt -p /mnt/etc/path_to_inst

35. Unmount the file system and reboot by entering the following commands:

umount /mnt/cms

umount /mnt

reboot -- -r

The system displays a series of prompts.

36. Log into the system as root.

ap::sysinit:/sbin/autopush -f /etc/iu.ap

ap::sysinit:/sbin/soconfig -f /etc/sock2path

.............

od:234:respawn:/cms/dc/odbc/rqb_start

as:0236:respawn:/opt/cc/aas/bin/faasdb.sh </dev/null >/dev/null 2>&1

cm:0236:respawn:/cms/bin/cms_mon /cms </dev/null >/dev/null 2>&1

Maintaining the Avaya CMS software

368 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

37. Enter:

cd /dev/rdsk

38. Change permissions for partition 4 of the boot device by entering the following

commands:

chmod 660 cXtXd0s4

chown informix:informix cXtXd0s4

where cX is the device controller number, and

where tX is the device target number.

39. Enter:

vi /opt/informix/etc/onconfig.cms

The system displays the onconfig.cms file:

40. Look for a device path in MIRRORPATH. If a device path entry is present, remove it.

41. Change the PHYSDBS setting to:

rootdbs

42. Change the LOGFILES setting to:

43. Press Esc. Then enter:

:wq!

The system saves and exits the file.

44. Verify the file properties for the onconfig.cms file. The group and owner should be

informix, and the permissions should be 644.

45. Set the IDS environment by entering:

. /opt/informix/bin/setenv

46. Initialize Informix by entering:

oninit -iy

47. Verify that IDS is on-line by entering:

onstat -

IDS displays an “On-Line” message.

48. Move swap from cXtXd0s1 to d2 by entering:

/olds/olds -soft_part_mdbs

49. Verify the swap partition by entering:

swap -l

The system displays the swap file as /dev/md/dsk/d2.

Performing a CMSADM restore of a mirrored or non-mirrored system

Issue 3.0 October 2002 369

50. Enter:

mv /cms/db/backupDevice /cms/db/backupDevice.old

51. Perform one of the following actions:

●If the system was non-mirrored, perform the following procedure:

i. Enter:

cmssvc

The system displays the CMSSVC menu.

ii. Enter the number associated with the disk_space option.

The system displays the Disk_space_manager options.

iii. Enter the number associated with the Add New Disks option.

iv. Enter the number associated with the disk you want to add to the system.

v. Repeat Steps i through iv for every disk displayed by the system.

When all disks have been added, the system displays a All disks are

currently administered for the system message.

●If the system was mirrored, perform the following procedure:

i. Enter:

cmssvc

The system displays the CMSSVC menu.

ii. Enter the number associated with the auth_set option.

The system displays a series of prompts to authorize features.

iii. Authorize disk mirroring and any other features.

iv. Enter:

cmssvc

The system displays the CMSSVC menu.

v. Enter the number associated with the disk_space option.

The system displays the Disk_space_manager options.

Maintaining the Avaya CMS software

370 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

vi. Enter the number associated with the Initiate Mirroring option.

The system initiates mirroring. The system then displays a prompt to reboot the

system. Do not reboot the system.

!CAUTION:

Do not reboot the system. The system will become corrupt and will need to

be rebuilt if it is rebooted while the disks are still syncing.

vii. Enter:

cmssvc

The system displays the CMSSVC menu.

viii. Enter the number associated with the disk_space option.

The system displays the Disk_space_manager options.

ix. Enter the number associated with the Add New Disks option.

x. Enter the number associated with the disk you want to add to the system.

xi. Repeat Steps vii through x for every disk pair displayed by the system.

When all disks have been added, the system displays a All disks are

currently administered for the system message:

52. Enter:

mv /cms/db/backupDevice.old /cms/db/backupDevice

53. Choose one of the following procedures:

!Important:

It is preferred that CMS be set up from the flat file. The CMS setup

information is found in the UNIX flat file. This information is updated

automatically when a CMSADM backup is performed. If updates have been

made since the last CMSADM backup, it may be necessary to run CMS

setup interactively.

●To set up CMS interactively.

See Setting up CMS interactively from a terminal on page 170.

●To set up CMS from a UNIX flat file.

Mirroring has been started.

You MUST reboot the system for mirroring to take effect. Execute

’/usr/sbin/shutdown -i6 -y -g0’

to shut the system down

disk_space command completed Wed Apr 18 17:12:23 MDT 2001

Performing a CMSADM restore of a mirrored or non-mirrored system

Issue 3.0 October 2002 371

i. Enter:

uname -n

The system displays the UNIX system name.

ii. Record the UNIX system name for use later.

___________________________________________

iii. Enter:

vi /cms/install/cms_install/cms.install

iv. Verify that the second line has an entry for the UNIX system name. If it does not,

add the UNIX system name you recorded in Step ii.

Example:

v. Press Esc. Then enter:

:wq!

vi. Verify that IDS is on.

vii. Enter:

cmssvc

The system displays the Avaya Call Management System Services Menu.

# Enter a name for this UNIX system (up to 256 characters):

cms3

# Select the type of backup device you are using

............

# Enter number of VDNs (0-Maximum):

Maintaining the Avaya CMS software

372 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

viii. Enter the number associated with the setup option.

The system displays the following message:

ix. Enter the number for the language used on the system.

The system displays a message similar to the following:

Note:

An additional option for a converter created setup file may be displayed on

some systems

x. Enter the number associated with the flat file option.

The system displays the following message:

xi. Enter:

tail -f /cms/install/logdir/admin.log

Select the language for this server:

All languages are ISO Latin except Japanese. Selection of the

server language assumes that existing customer data is compatible.

(Upgrade from any ISO Latin language to any ISO Latin language or

from Japanese to Japanese is supported).

1) English

2) Dutch

3) French

4) German

5) Italian

6) Portuguese

7) Spanish

8) Japanese

Enter choice (1-8): (default: 1)

The input will be read from

1) the terminal

2) a flat file

Enter choice (1-2):

*** The rest of this command is running in the background ***

Performing a CMSADM restore of a mirrored or non-mirrored system

Issue 3.0 October 2002 373

Note:

The -f option in the tail command updates the console as messages

are written to the admin.log file. All failure messages are logged in this file.

The system displays the following message:

xii. Press Delete to break out of the tail -f command.

54. Choose one of the following steps:

●If the system is not mirrored, go to Step 55.

●If the system is mirrored, perform the following procedure:

i. Set the Informix environment by entering:

. /opt/informix/bin/setenv

ii. Enter:

onstat -d | egrep “MD|PD|R|X”

When the system displays only the command prompt as output, the mirroring and

resync process is complete.

Note:

If a MX entry appears for the logdbs dbspace, enter:

ontape -s

The dbspace should be repaired.

!CAUTION:

Do not reboot the system while the disks are still syncing. The system will

become corrupt and will need to be rebuilt if it is rebooted.

55. Enter:

/usr/sbin/shutdown -y -i6 -g0

The system reboots.

56. Log into the system as root.

57. Verify that the Informix parameters are set correctly. See Setting the Informix

configuration parameters for CMS on page 216 for more information.

01350 Mon Nov 6 12:19:24 2000 SRC_ERR_NUM=-00329

PROCESS=pre_cms_env PID=000482 Sql.c:00071

SEVERITY=INFO ACD=-01 startdb

.................

Setup completed successfully Mon Nov 6 12:24:20 MST 2000

Maintaining the Avaya CMS software

374 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

58. Enter:

cp /cms/install/cms_install/fp.install /cms/db

The system will display one of two possible messages:

●If feature packages were installed on the system, the system displays the command

prompt (#).

●If no feature packages were installed on the system, the system displays the

following message:

Note:

The fp.install file will be present on the tape backup if feature packages

were installed. If the system cannot access the file, must manually set up the

feature packages that were previously authorized and installed on the

system. For more information, see Installing feature packages on page 189.

59. Choose one of the following procedures:

●If no feature packages were installed on the system, go to Step 60.

●If feature packages were installed on the system, perform the following procedure:

i. Enter:

. /opt/informix/bin/setenv

ii. Enter:

export PATH=$PATH:/cms/install/bin

iii. Enter the following command on a single line at the command prompt:

cp -p /cms/install/cms_install/fp.install

/cms/db/fp.install

iv. Enter the following command to install the feature packages that were present on

the system before the restore:

/cms/install/bin/ins_proc -f

The system displays a message similar to the following:

cp: cannot access /cms/install/cms_install/fp.install

Feature package installation begun Mon Apr 8 13:45:40 MDT 2002

Feature package installation begun.

Forecasting package begin installation Mon Apr 8 13:45:43 MDT

2002

Installation was successful

Performing a CMSADM restore of a mirrored or non-mirrored system

Issue 3.0 October 2002 375

60. Enter:

cd /cms

61. Enter:

mkdir cmstables

62. Verify that IDS is on.

63. Enter:

cmssvc

The system displays the CMSSVC menu.

64. Enter the number associated with the run_cms option.

65. Enter the number associated with The turn on CMS option.

66. Perform one of the following steps:

●If the CMS system is not backing up data to a TANDBERG SLR5 tape drive or an

EXABYTE EXB-8900 tape drive, go to Step 67.

●If the CMS system is backing up data to a TANDBERG SLR5 tape drive or an

EXABYTE EXB-8900 tape drive, perform the following procedure:

i. Enter:

cd /kernel/drv

ii. Enter:

vi st.conf

The system displays the st.conf file.

iii. Depending on the model tape drive being used, locate or create either the TAND-

8G-FIXED line or the EXB-8900 line in the file.

iv. Modify or create the appropriate tape drive entry it so it matches the example

shown below. The modifications for existing entries are shown in bold.

Example:

v. Press Esc and enter:

:wq!

# Begin CMS tape configuration list.

#tape-config-list=

"EXABYTE EXB-8900", "Mammoth EXB-8900 8mm Helical Scan", "EXB-8900",

"TANDBERG SLR5", "Tandberg 8 Gig QIC", "TAND-8G-FIXED";

EXB-8900 = 1,0x29,0,0xce39,4,0x7f,0x7f,0x7f,0x7f,0;

TAND-8G-FIXED = 1,0x37,512,0x963a,4,0xA0,0xD0,0xD0,0xD0,3;

# End CMS Tape configuration list.

Maintaining the Avaya CMS software

376 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

vi. Enter:

cd /

67. Verify the Free Space Allocation and restore the CMS data. See Verifying Free Space

Allocation during a maintenance restore on page 281 for more information.

68. If the system has the AOM or Visual Vectors Server software installed, verify that the

software is on.

Restoring a system without a CMSADM or system backup

Issue 3.0 October 2002 377

Restoring a system without a CMSADM or system

backup

If a CMSADM backup or system backup is not available, the system must be reinstalled

with all software back to factory standards.

To restore a system without a CMSADM backup or system backup:

1. Re-install the entire operating system according to Installing the Solaris operating

system on page 25.

2. Re-install CMS and supporting software according to Installing Avaya CMS and

supporting software on page 65.

3. Restore any available Avaya CMS data from the most recent CMS maintenance

backup. See Verifying Free Space Allocation during a maintenance restore on

page 281 for more information.

4. Re-administer terminals, printers, modems, and other peripheral devices as needed.

For more information, see Avaya CMS Terminals, Printers, and Modems, 585-215-

874.

5. Contact Professional Services for any previously installed customization.

Maintaining the Avaya CMS software

378 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Restoring specific files from the CMSADM backup

tape

Sometimes only specific files on a system become corrupted. Use this procedure if only

specific files need to be restored from a CMSADM backup tape.

Note:

If you use the CMS LAN backup feature, see Avaya CMS R3V11 LAN

Backup User Guide, 585-215-715. The Avaya CMS R3V11 LAN Backup

User Guide, 585-215-715 provides information about using the CMS LAN

backup feature, hardware requirements, software requirements, and support

guidelines.

To restore specific files from a CMSADM backup:

1. Enter:

cd /

2. Enter the following command on a single line at the command prompt:

cpio -icmudv -C 10240 -I /dev/rmt/dev# -M “Please remove the

current tape, insert tape number %d,and press ENTER”

“full_path_name”

where dev# is replaced with the device name and full_path_name is replaced

with the path of the files to be restored.

Example:

cpio -icmudv -C 10240 -I /dev/rmt/0 -M “Please remove the

current tape, insert tape number %d,and press ENTER” “dev/dsk”

Upgrading a non-mirrored system to a mirrored system

Issue 3.0 October 2002 379

Upgrading a non-mirrored system to a mirrored

system

To upgrade a non-mirrored system to a mirrored system, see Setting up a mirrored

system on page 199. Before upgrading a system for mirroring, verify that all the hardware

requirements and prerequisites have been met. Depending on your current CMS load and

system configuration, a hardware or software upgrade may be required.

!WARNING:

After disk mirroring is authorized, the CMS system needs to be immediately

configured as a mirrored system. If the system operates as a non-mirrored

system with mirroring authorized, the database will need to be rebuilt when

the system is mirrored.

Maintaining the Avaya CMS software

380 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Issue 3.0 October 2002 381

Troubleshooting

Troubleshooting provides solutions for common software-related problems. Use these

procedures to troubleshoot the Avaya Call Management System (CMS) software.

Troubleshooting includes the following topics:

●Determining your CMS version on page 382

●Solving X.25 installation problems on page 383

●Recognizing new hardware devices on page 385

●Adding and removing users from password aging on page 386

●Troubleshooting password aging on page 390

●Turning on SNMP on page 391

●CMS error logs on page 392

●Checking installed software packages on page 393

●Listing pkgchk errors on page 394

●Troubleshooting a system that fails to auto-boot on page 395

●Diagnosing a machine panic on page 396

●Using the Sun Explorer tool on page 398

●Using the remote console on page 399

●Using Sun Remote System Control on page 406

●Diagnosing dial-In access problems on page 408

●Booting Solaris into single-user mode on page 414

●Common problems using the CD-ROM drive on page 415

●Removing CMS package fails on page 416

●CMS installation fails on page 416

●CMSADM backup problems on page 417

●Disabling power management on page 418

●System messages on page 419

●Common error messages on page 420

Troubleshooting

382 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

●CMS disk partition values on page 430

●Troubleshooting soft partitioning on page 437

●About mirrored systems on page 443

●Troubleshooting an installation of the DiskSuite software on page 448

●Cleaning up a replacement boot disk on page 454

●Checking for disk recognition errors on page 456

●Common error messages with mirrored systems on page 461

Note:

When executing commands that take a long time to complete (such as

cpio commands), use the nohup command to ensure that the command

will complete without interruption if the data line disconnects. An example of

the nohup command is shown below:

nohup cpio -icmudf -C 10240 -I /dev/rmt/0c “cms” | tee

When system reboots are required, verify that your terminal type is set correctly

after the reboot.

Determining your CMS version

To determine the version of CMS installed on your system:

1. Enter:

pkginfo -x cms

The system displays the CMS version.

Solving X.25 installation problems

Issue 3.0 October 2002 383

Solving X.25 installation problems

Solving X.25 installation problems contains procedures that will help you solve common

installation problems with the X.25 software.

Solving X.25 installation problems includes the following procedures:

●Finding a misplaced X.25 password on page 383

●Solutions for X.25 error messages on page 384

Finding a misplaced X.25 password

If you are reinstalling the X.25 software and license, and have misplaced your X.25

password:

!Important:

Solaris 8 installs SUNWllc, SUNWllcr, and SUNWllcx packages during the

Solaris installation. If the X.25 software needs to be uninstalled, do not

remove SUNWllc, SUNWllcr, and SUNWllcx.

1. Enter the following command to display the password:

cat /etc/opt/licenses/licenses_combined

If this file no longer exists, check the customer acceptance worksheet in Turning the

system over to the customer on page 223. If you still cannot find the password, call

Sun license support to obtain your X.25 password again.

Troubleshooting

384 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Solutions for X.25 error messages

The following table contains error messages that are generated by the license system if

you have problems during the installation.

Message Cause Solution

DEMO mode supports only one

SERVER host!

An attempt was made to

configure a demonstration

version of the software for

more than one server.

Call Sun license support

to obtain a permanent

version of the X.25

license.

hostname: Wrong hostid,

exiting

The hostid is wrong for the

host name. This can happen

if the boot ROM or

motherboard is replaced.

Call Sun license support

to obtain a new X.25

license key for this new

hostid name.

Starting the X.25 software -

please wait

X.25 : Creating link XX....

X.25 : link XX has been

started

Unable to get license, X.25

exiting

The network failed to come up

correctly.

- The X.25 license password

was entered incorrectly

- The password was

generated for the wrong

hostid or hostname

- The license manager

process (lmgrd) did not start

when you started CMS.

- Enter the password

correctly

- Call Sun to reissue the

password for the correct

hostid or hostname

- Check the license

manager with the

ps - ef | grep

lmgrd command. If the

lmgrd process is not

running, restart the license

manager with the

/etc/rc2.d/S85lmgrd

start command.

Recognizing new hardware devices

Issue 3.0 October 2002 385

Recognizing new hardware devices

Use Recognizing new hardware devices if externally powered devices, such as disk drives

and tape drives, are not recognized during a Solaris installation. This problem may occur if:

●The devices are not connected to power

●The devices are not turned on

●If you add a new port board to the computer as part of an upgrade or addition

If you discover that a hardware device is not being recognized, you must either reboot from

the CD-ROM and reinstall Solaris, or do the following:

1. Reboot the system by entering:

init 0

2. Force the system to recognize the new components by entering:

boot -r

The system reboots.

3. Log in as root.

Troubleshooting

386 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Adding and removing users from password aging

If a password is aged, the user will be forced to change their password after a specified

amount of time. All CMS and UNIX users are effected by the passwd_age option in the

CMSADM menu unless they are added to the password aging exclude file. For more

information about using the passwd_age option in the CMSADM menu, see Using

passwd_age on page 254.

!CAUTION:

Do not manually edit password files. Modify the password files using the

procedures in this section. Incorrectly editing password files can result in the

system having to be rebuilt back to factory standards.

Adding and removing users from password aging contains the following procedures:

●Determining if a password is aged on page 386

●Excluding users from password aging on page 387

●Removing users from the password aging exclude file on page 388

●Aging specific passwords at different rates on page 388

Determining if a password is aged

To determine if a password is being aged:

1. Enter:

passwd -s user_name

where user_name is the name of the user.

The system will display one of the following messages:

●If a new user has not created their password, the system displays the following

message:

Note:

The user’s password will not age unless it is created.

●If the user’s password is not aged, the system displays the following message:

user1 NP

user1 PS

Adding and removing users from password aging

Issue 3.0 October 2002 387

●If the user’s password is being aged, the system displays the following message:

Note:

The message includes the user name, the password status, the date the

password was last changed, the minimum numbers of days required

between password changes, the maximum number of days the password is

valid, and the number of days the user will be warned before the password

expires.

●If the user’s password is locked, the system displays the following message:

Excluding users from password aging

It is recommended that you exclude specific users before turning password aging on in

order to avoid additional password administration. You may need to exclude specific CMS

or UNIX users from password aging. Some custom applications use CMS logins.

To exclude a specific password from being aged:

1. Log into the system as root.

2. Determine the password status of the user by entering:

passwd -s user_name

where user_name is the name of the user. For more information, see Determining if a

password is aged on page 386.

3. Enter:

cd /cms/db

4. Enter:

vi age_pw_exclude

5. Add the user name you want to exclude from password aging.

6. Save and close the file by pressing Esc. Then enter:

:wq!

7. If password aging was previously in effect for the user, enter:

passwd -x -1 user_name

where user_name is the name of the user, and

where 1 is the number one.

user1 PS 05/20/02 0 14 7

user1 LK

Troubleshooting

388 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Removing users from the password aging exclude file

Users that have been added to the exclude file will not age.You can remove a specific user

from the password aging exclude file. Users that are removed from the exclude file will age

normally.

To remove a specific user from the exclude file:

1. Log into the system as root.

2. Determine the password status of the user by entering:

passwd -s user_name

where user_name is the name of the user. For more information, see Determining if a

password is aged on page 386.

3. Enter:

cd /cms/db

4. Enter:

vi age_pw_exclude

5. Remove the user name for the password you want to age.

6. Save and close the file by pressing Esc. Then enter:

:wq!

7. Enter:

passwd -x maxdays -w 7 user_name

where maxdays is the number of days before the password expires, and

where user_name is the name of the user you want to age.

Aging specific passwords at different rates

The password aging option in the CMSADM menu globally effects users. Individual users

can have their passwords aged at different rates.

To age a specific user:

1. Log into the system as root.

2. Determine the password status of the user by entering:

passwd -s user_name

where user_name is the name of the user. For more information, see Determining if a

password is aged on page 386.

Adding and removing users from password aging

Issue 3.0 October 2002 389

3. Enter:

passwd -x maxdays -w warning user_name

where maxdays is the number of days before the password expires, and

where warning is the number of days a password aging warning is displayed before

the password expires, and

where user_name is the name of the user you want to age.

Note:

A password aging warning will not be displayed for user’s who only

accesses CMS through Supervisor. Supervisor users will be prompted to

enter a new password when their current password expires. Only users who

access CMS through the command line will receive a warning message

before their password expires.

Troubleshooting

390 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Troubleshooting password aging

Troubleshooting password aging provides options to help solve password aging problems.

Troubleshooting password aging contains the following topics:

●Tracking changes to password aging on page 390

●Passwords of excluded users age on page 390

Tracking changes to password aging

The Admin log keeps a record of any administrative changes made to password aging.

The system updates the Admin log when the aging interval is changed or if password aging

is turned on or off. The Admin log can be found at /cms/install/logdir/admin.log

Passwords of excluded users age

If a user was added to the password aging exclude list and their password is continuing to

age or has begun to age:

1. Log into the system as root.

2. Enter:

passwd -x -1 user_name

where user_name is the name of the user, and

where 1 is the number one.

Turning on SNMP

Issue 3.0 October 2002 391

Turning on SNMP

Custom software or performance packages may require SNMP to be turned on. The CMS

software does not use SNMP so it should be off by default.

To turn on SNMP:

1. Enter:

cd /etc/rc3.d

2. Enter:

mv xS76snmpdx S76snmpdx

3. Enter:

sh S76snmpdx start

Troubleshooting

392 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

CMS error logs

The administrative data for each error log file contains specific information about itself,

including defaults, administration information, a description of the contents, and general

information about how to interpret the contents of the logs. The log provides:

●Default location — The file name of the primary file where log information can be found

if no administrative changes have been made.

●Default maximum file size — The approximate size of each of the log files (primary and

historical) that will be saved if no administrative changes have been made.

●Default number of older files retained — The number of historical files that are kept, in

addition to the primary file, if no administrative changes have been made.

●Administration file — If the log is controlled by the general purpose file wrapping

technique, the location of the file where administrative changes can be made affecting

the location of the log file, the size of the logs, and/or the number of historical log files.

●Starting/stopping — Describes the conditions necessary for the log to be running,

including any appropriate commands.

●Writing process — Indicates all processes that write to the log.

●Intended audience — Customer (for log information that is useful to the customer, easy

to read, and documented) or services (for log information that is intended to aid

troubleshooting). Almost all error logs are used exclusively by services personnel.

●First implemented in load — Indicates the first load when the log is available. The

system uses an internal load numbering (such as 3.1z).

Checking installed software packages

Issue 3.0 October 2002 393

Checking installed software packages

Use Checking installed software packages to check for previously installed software

packages. The rules for specifying package names are as follows:

●You may omit pkgname, in which case the command lists the name, description, and

version number of every software package installed on the system.

●If you list only one package name, the command lists the name, description, and version

number of only that software package.

●You may list several package names separated by spaces. In that case, the command

lists the name, description, and version number of every software package you name.

To check what software packages are installed on your system:

1. From the root prompt, enter:

pkginfo -x pkgname

where pkgname is the name of the software package you are checking for.

Troubleshooting

394 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Listing pkgchk errors

The pkgchk -n cms command lists some common error messages that do not indicate

an actual problem. The error messages in the following table can be ignored.

Location Error message Occurs

/cms/install/logdir/admin.log group name <root>

expected <cms> actual After the installation and

before setup.

/usr/lib/cms/pbxtrcflags pathname does not exist After the installation and

before setup.

/cms/env/cms_mon/State_tbl group name <bin>

expected <other>actual After the setup and

before running CMS.

/cms/install/logdir/admin.log group name <root>

expected <cms>actual After the setup and

before running CMS.

/usr/lib/cms/pbxtrcflags pathname does not exist After the setup and

before running CMS.

/cms/env/cms_mon/State_tbl group name <bin>

expected <cms> actual After running CMS.

/cms/install/logdir/admin.log group name <root>

expected <cms> actual After running CMS.

/usr/lib/cms/pbxtrcflags group name <bin>

expected <cms> actual After running CMS.

Troubleshooting a system that fails to auto-boot

Issue 3.0 October 2002 395

Troubleshooting a system that fails to auto-boot

Use Troubleshooting a system that fails to auto-boot if the system fails to automatically

pass the boot prompt (stops at the ok prompt). When the system reboots, a boot

environment variable may be set incorrectly.

Troubleshooting a system that fails to auto-boot contains the following procedures:

●Checking the boot environment variables on page 395

●Changing the boot environment variables on page 395

Checking the boot environment variables

To check the boot environment variables:

1. Enter:

/usr/sbin/shutdown -y -g0 -i0

2. At the ok prompt enter:

printenv

3. Scroll down the list and check the settings on the following variables:

●The auto-boot? variable should be set to true.

●The boot device should be set to disk or for the alternate boot device on a

mirrored system bootdevice2.

Changing the boot environment variables

To change the boot environment variables:

1. Enter:

setenv variable_name variable_setting

Example:

To change the auto-boot? variable to true, enter:

setenv auto-boot? true

2. Enter:

boot

Troubleshooting

396 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Diagnosing a machine panic

If a machine panic is detected on your system, you must call the TSC (domestic) or remote

(international) support personnel. The TSC may request that you deliver the following

information on a tape:

●Crash dump from /var/crash/hostname/vmcore.n.

●Namelist from /var/crash/hostname/unix.n.

●Output of the showrev -p command. For details, see the hardware installation

document for your platform.

●Output of the prtconf -pv command.

●Possibly output from the /var/adm/messages file.

To put all of the files on one tape, do the following procedures:

1. Log in as root.

2. Enter:

cd /var/crash/hostname

The system changes to the dump directory.

3. Verify that unix.n and vmcore.n are present and match the date for the crash in

question.

4. Enter:

showrev -p > showrev.out

The system retrieves the output from the showrev -p buffer.

5. Enter:

dmesg > dmesg.out

The system creates a dmesg.out file.

6. Enter:

prtconf -pv>prtconf.out

The system retrieves the output from the prtconf -pv buffer.

7. Enter:

cp /var/adm/messages messages

The system copies the output from the /var/adm/messages file.

8. Insert a tape into the default backup tape drive.

Diagnosing a machine panic

Issue 3.0 October 2002 397

9. Enter the following command on a single line at the command prompt:

tar cvf /dev/rmt/0 unix.X vmcore.X dmesg.out showrev.out

prtconf.out messages

where the letter X represents the number of the crashdump.

The system displays a list of all of the files.

10. Enter the following command on a single line at the command prompt:

rm unix.X vmcore.X dmesg.out showrev.out prtconf.out messages

where the letter X represents the number of the crashdump.

The system removes the temporary files.

11. Log out of the system.

12. Remove the tape from the disk drive and send the tape to the TSC.

Troubleshooting

398 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Using the Sun Explorer tool

The Sun Explorer tool runs a series of tests on the system and saves the information in a

tar file. This file can be sent to Sun for analysis.

!Important:

Only TSC PERSONNEL should use the Sun Explorer tool. You may be

directed to use this tool per request by support personnel.

To run Sun Explorer:

1. Log in as root.

2. Enter the following commands:

cd /opt/SUNWexplo

./explorer

The tool runs the tests and collates the information. The tar file is located in the

/opt/SUNWexplo/output directory.

3. Support personnel will provide you with instructions on how to send the file to Sun

support for analysis. This file is usually sent to Sun support by FTP. In order for Sun to

analyze the file, Avaya support personnel must create a trouble ticket that includes the

file name.

Using the remote console

Issue 3.0 October 2002 399

Using the remote console

If your system will not boot, the TSC personnel could ask you to redirect the console to the

remote console so that they can identify a problem. Redirecting the console allows the

TSC to dial in and do remote maintenance. You can redirect the console using either:

●The Solaris operating system

●OpenBoot diagnostics.

Using the remote console includes the following topics:

●Remote console portson page 399

●Redirecting the console using Solaris on page 399

●Redirecting the console from OpenBoot mode on page 402

Remote console ports

The port used for remote console access differs, depending on the hardware platform:

Redirecting the console using Solaris

Redirecting the console using Solaris describes how to use the Solaris operating system to

redirect the console to serial port ttya or ttyb on a CMS server. This procedure is usually

done from a remote console that has dialed in to the system.

!CAUTION:

Use this procedure only when absolutely necessary. If the console redirects

and the modem line drops, you may not be able to get back into the system.

Hardware platform Port A Port B

Sun Fire V880 Remote

console Not used

Sun Enterprise 3000

Sun Enterprise 3500 Remote

console Not used

Sun Blade Remote

console1

1. The Sun Blade 100 and Sun Blade 150 platforms have

only one serial port.

N/A

Sun Ultra 5 Switch link

(optional)

Remote

console

Troubleshooting

400 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Redirecting the local console to the remote

console

To redirect the local console to the remote console:

1. Dial in from the remote console to the remote console modem.

2. Log in as root.

3. Remove the port monitor by entering the following command at the remote console:

/cms/install/bin/abcadm -r ttyX

where X is a or b.

The system displays the following message:

4. At the remote console, enter: y

The system displays the following message:

5. Check the speed of the modem by entering:

/cms/install/bin/abcadm -k

Note:

All remote access ports have a default speed of 9600 bps.

6. At the remote console, enter:

/cms/install/bin/abcadm -c -b 9600 ttyX

where X is a or b.

The system displays the following message:

ttyX is currently set to be incoming

Are you sure you want to change it? [y,n,?]

ttyX administration removed

This change requires a reboot to take affect

Are you ready to reboot? [y,n,?]

Using the remote console

Issue 3.0 October 2002 401

7. At the remote console, enter: y

The system displays the following message at the remote console:

The system will automatically reboot, and the remote console port will come up as the

console.

The following occurs:

●The system begins to shut down.

●Shut down, reset, and reboot messages appear on the local console.

●When the system starts to come back up, the local console goes blank.

●The system boot diagnostics are displayed on the remote console.

After the system reboots, a console login: prompt is displayed on the remote

console.

8. Log into the remote console as root.

The local console is blank.

!CAUTION:

Do not press Control+D or Exit from the remote console to exit the system

without first redirecting control back to the local console. You may lock

yourself from using the console locally or remotely.

Redirecting the remote console back to the

local console

To redirect the console back to the local console:

1. At the remote console, enter:

/cms/install/bin/abcadm -c local

The system displays the following message:

done

desktop auto-start disabled

Proceding to reboot.

Console set to local

This change requires a reboot to take affect

Are you ready to reboot? [y,n,?]

Troubleshooting

402 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

2. At the remote console, enter: y

The following occurs:

●The system begins to shut down.

●Shutdown, reset, and reboot messages appear on the remote console.

●When the system starts to come back up, the system boot diagnostics are displayed

on the local console.

●After the system reboots, the console login: prompt is displayed on the

remote console.

●The login screen is displayed on the local console.

3. Log into the local console as root.

4. Log into the remote console as root.

Control of the console port is redirected from the remote console back to the local

console.

Redirecting the console from OpenBoot mode

Redirecting the console from OpenBoot mode describes how to use the OpenBoot mode

to redirect the local console to a serial port. Use the OpenBoot mode to redirect the remote

console port when the Solaris method does not work. This typically occurs when the

system will not boot.

Redirecting the local console to the remote

console

To redirect control of the console port from the local console to a dialed-in remote console:

1. If the system is not already at the ok prompt, enter:

/usr/sbin/shutdown -y -i0 -g0

The system shuts down and displays the ok prompt.

Note:

If the shutdown command fails, press the Stop + A keys simultaneously

after the display console banner is displayed, but before the operating

system starts booting.

Using the remote console

Issue 3.0 October 2002 403

2. At the local console, enter the following commands to set the remote console

configuration parameters:

setenv input-device ttyX

setenv output-device ttyX

setenv ttyX-rts-dtr-off true

setenv ttyX-ignore-cd true

setenv ttyX-mode 9600,8,n,1,-

where X is a or b.

3. Verify the parameter changes by entering:

printenv

The system displays the following message:

4. If you are not already dialed in, dial in to the system from the remote console.

5. Log into the system as root.

6. At the local console, enter: boot

The following occurs:

●The system begins to shut down.

●Shutdown, reset, and reboot messages appear on the local console.

●When the system starts to come back up, the local console goes blank.

●The system boot diagnostics are displayed on the remote console.

●After the system reboots, a console login: prompt is displayed on the remote

console.

7. Log into the remote console as root.

!CAUTION:

Do not press Ctrl + D or exit from the remote console to exit the system

without first redirecting control back to the local console. If you do, you may

lock yourself from using the console locally or remotely.

Parameter Name Value Default Value

output-device ttya screen

input-device ttya keyboard

Troubleshooting

404 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Redirecting the remote console back to the

local console

Using OpenBoot mode, there are two ways to redirect control of the console port from the

remote console back to the local console:

●From the remote console (recommended)

●From the local site (not recommended)

Method 1: from the remote console

To redirect control of the console port from the remote console back to the local console:

1. Do one of the following:

●At the remote console, if the system is in UNIX, enter the following commands:

eeprom output-device=screen

eeprom input-device=keyboard

eeprom ttyX-rts-dtr-off=true

eeprom ttyX-ignore-cd=false

/usr/sbin/shutdown -y -i6 -g0

where X is a or b.

●At the remote console, if the system is in OpenBoot mode, enter the following

commands:

setenv output-device screen

setenv input-device keyboard

setenv ttyX-rts-dtr-off true

setenv ttyX-ignore-cd false

reset

where X is a or b.

The following occurs:

●The system begins to shut down.

●Shutdown, reset, and reboot messages appear on the remote console.

●When the system starts to come back up, the system boot diagnostics are displayed

on the local console.

●The login screen is displayed on the local console.

2. At the remote console, hang up the modem connection.

3. Log into the system as root at the local console.

Using the remote console

Issue 3.0 October 2002 405

4. To see what is on the ttyX port, enter:

/cms/install/bin/abcadm -k

5. Start a port monitor on ttyX by entering:

/cms/install/bin/abcadm -i -b 9600 ttyX

where X is a or b.

Method 2: from the local site

The onsite technician will use this procedure from the local site. Use this method only

when Method 1 will not work.

!CAUTION:

This method of redirecting the console port should only be done as a last

resort. This procedure resets the NVRAM defaults to the Sun factory

settings.

To redirect control of the console port from the remote console back to the local console:

1. Cycle power on the CMS computer.

2. As the computer begins to boot up, choose one of the following steps:

●For a Sun Blade system, press the power button twice. A prompt appears on the

local console.

●For any platform that is not a Sun Blade system, press the Stop + N keys

simultaneously. Continue to press the Stop + N keys until a prompt appears on the

local console.

3. At the ok prompt, enter: boot

4. When the system boots up, log into the system as root at the local console.

5. To see what is on the ttya port, enter:

/cms/install/bin/abcadm -k

6. Start a port monitor on ttyX by entering:

/cms/install/bin/abcadm -i -b 9600 ttyX

where X is a or b.

The system displays the following message:

7. See the appropriate hardware installation, maintenance, and troubleshooting book for

information on how to reset the NVRAM to the correct factory defaults.

ttyX set to incoming port 9600 baud

Troubleshooting

406 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Using Sun Remote System Control

The Sun Remote System Control (RSC) software works in conjunction with the RSC card

to allow remote administration of a Sun Fire V880 system. You will be able to access the

Solaris and OpenBoot console functions and control the power-on self-test (POST) and

OpenBoot diagnostics. For more information about the RSC card and software, see Sun

Remote System Control (RSC) User’s Guide.

Using Sun Remote System Control contains the following procedures:

●Redirecting the local console to the RSC on page 406

●Redirecting the RSC to the local console on page 407

Redirecting the local console to the RSC

To redirect the local console to the RSC on a Sun Fire V880 system:

!Important:

Do not redirect the console to the RSC unless the RSC card has as been

configured for a second ethernet interface or phone line. If you redirect the

console to an incorrectly configured RSC card, you will not be able to

access the system through the local console or the RSC card.

1. Enter from the local console:

/usr/sbin/shutdown -y -i0 -g0

The system displays the ok prompt.

!CAUTION:

If the shutdown command fails, press the Stop + A keys simultaneously

after the display console banner is displayed, but before the operating

system starts booting.

2. Enter the following commands to set the RSC environment:

setenv diag-console rsc

setenv input-device rsc-console

setenv output-device rsc-console

3. Enter:

reset-all

The system reboots and the local console is directed to the RSC.

Using Sun Remote System Control

Issue 3.0 October 2002 407

Redirecting the RSC to the local console

To redirect the RSC to the local console on a Sun Fire V880 system:

1. Enter from the RSC:

/usr/sbin/shutdown -y -i0 -g0

The system displays the ok prompt.

!CAUTION:

If the shutdown command fails, press the Stop + A keys simultaneously

after the display console banner is displayed, but before the operating

system starts booting.

2. Enter the following commands to set the local console environment:

setenv diag-console ttya

setenv input-device keyboard

setenv output-device screen

3. Enter:

reset-all

The system reboots and the RSC is directed to the local console.

Troubleshooting

408 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Diagnosing dial-In access problems

Diagnosing dial-In access problems describes the scenarios where the console is local

and you are attempting to dial-in. It often takes a person on-site to look at the dial-in access

problems.

Diagnosing dial-In access problems contains the following topics:

●No ringing and answered responses on page 408

●Answered and connected responses do not display on page 408

●Login prompt does not display on page 409

●Login prompt is scrambled on page 411

●Remote console port will not initialize on page 412

No ringing and answered responses

Problem:

You do not get the RINGING and ANSWERED responses displayed on the screen.

Solution:

Check the following:

●Port connectivity – Refer to the hardware installation document for your platform for

more details.

●Modem setup – Refer to the hardware installation document for your platform for more

details.

●Serial port administration – Refer to the hardware installation document for your

platform for more details.

Answered and connected responses do not display

Problem 1:

The remote dial-in does not get the Answered and Connected responses displayed on

the screen.

Solution:

At the on-site location, make sure the modem is on, and check the following cabling

connections:

●Phone line to the modem

●Modem to a serial port, including:

Diagnosing dial-In access problems

Issue 3.0 October 2002 409

—Port A to the Sun Fire V880, Sun Enterprise 3000, Sun Blade 100, Sun Blade 150,

and Enterprise 3500

—Port B to the Sun Ultra 5 platform

Problem 2:

The remote user gets Answered and Connected responses displayed on the screen,

but no login.

Solution:

1. Enter one of the following commands to make sure that a monitor is running:

●pmadm -l; sacadm -l

●/cms/install/bin/abcadm -k

2. If no port monitor is running, start a port monitor by entering:

/cms/install/bin/abcadm -i -b baud ttyX

where X is a or b.

3. If a port monitor is running, make sure that the port monitor is set up at the correct

baud rate relative to the local modem.

●If the baud rate is not correct, remove the current port monitor and start a new port

monitor at the correct baud rate. Enter the following commands:

/cms/install/bin/abcadm -r ttyX

/cms/install/bin/abcadm -i -b baud ttyX

where X is a or b.

●If the port monitor is running and is at the correct baud rate, try to fix the problem by

disabling and enabling the port monitor. Enter the following commands:

pmadm -d -p ttymona -s ttyX

pmadm -e -p ttymona -s ttyX

where X is a or b.

Problem:

The remote user gets Answered and Connected responses displayed on the screen,

but no login.

Troubleshooting

410 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Solution:

1. Enter the following command:

sacadm -l

The system displays a message similar to the following example:

2. If NO_SAC displays in the STATUS column, do the following:

a. Enter:

ps -ef | grep sac

The system displays a message similar to the following example:

The first number listed in the first line of the display (278 in the example above) is

the process ID (PID) of the sac process.

b. Kill the sac process by entering:

kill -9 pid

where pid is the process ID of sac.

Example:

To kill the sac process shown in a., above, you would enter:

kill -9 278

3. Verify that a port monitor is running by entering:

pmadm -l

The system displays the following message:

4. Check the baud rate of the port monitor (n9600 in the example above) to make sure it

is the same rate as the local modem.

PMTAG PMTYPE FLGS RCNT STATUS COMMAND

ttymona ttymon - 0 NO_SAC

/usr/lib/saf/ttymon #Port monitor for ttya port

root 278 1 0 Jan 23 ? 0:00 /usr/lib/saf/sac -t 300

root 2440 2359 0 15:27:01 pts/2 0:00 grep sac

cms2# pmadm -l

PMTAG PMTYPE SVCTAG FLGS ID

ttymona ttymon ttya u root

/dev/term/a b - /usr/bin/login - n9600 ldterm,ttcompat login:

Port monitor disabled - n #CMS ttya port device

Diagnosing dial-In access problems

Issue 3.0 October 2002 411

5. If the baud rate is correct, go to Step 6. If the baud rate is incorrect, start a new port

monitor at the correct baud rate by entering:

/cms/install/bin/abcadm -i -b baud ttyX

where X is a or b.

6. If the port monitor is running and is at the correct baud rate, try to fix the problem by

disabling and then reenabling the port monitor. Enter the following commands:

pmadm -d -p ttymona -s ttyX/* disables */

pmadm -e -p ttymona -s ttyX/* reenables */

where X is a or b.

Problem:

The dial-in gives you scrambled characters instead of a login prompt.

Solution 1:

Try pressing a few keys to see if the problem corrects itself.

Solution 2:

If the dial-in continues to display scrambled characters instead of a login prompt, check the

baud rate of the remote console by doing the following:

1. Have an on-site person run the following command:

/cms/install/bin/abcadm -k

2. Make sure the baud rate is consistent with the modem connected on-site and the

modem and console at the remote site.

3. If there is a baud rate inconsistency on-site, reconfigure the machine with the

appropriate baud rate for the modem with the following command:

/cms/install/bin/abcadm -c -b baud ttyX

where X is a or b.

The system reboots.

4. If there is a baud rate inconsistency with the remote site, reconfigure the remote site

and redial.

Solution 3:

If the dial-in continues to display garbage characters instead of a login prompt, set the

console back to local by switching to the local console via the OpenBoot method. See

Using the remote console on page 399 for details.

Troubleshooting

412 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Remote console port will not initialize

Problem:

The remote console port will not initialize for dialing in or dialing out.

Solution:

1. Enter:

sacadm -l

If the system status reports NO_SAC, the port is not working properly.

2. Enter:

/cms/install/bin/abcadm -i -b 9600 ttyX

where X is a or b.

This should initialize the port. If the port does not initialize, continue with Step 3.

3. Enter:

/cms/install/bin/abcadm -r ttyX

where X is a or b.

This removes the port administration.

4. Enter:

ps -ef | grep sac

This finds any SAC processes that are running. If any processes are found, continue

with Step 5. Otherwise, continue with Step 6.

5. Enter:

kill -9 pid

Use this command to kill any SAC processes still running. Process numbers are

represented by pid.

6. Enter:

/usr/lib/saf/sac -t 300

SAC restarts.

7. Enter:

sacadm -l

Confirm that SAC is running. The system should show ENABLED.

Diagnosing dial-In access problems

Issue 3.0 October 2002 413

8. Enter:

/cms/install/bin/abcadm -i -b 9600 ttyX

where X is a or b.

This should initialize the port.

Troubleshooting

414 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Booting Solaris into single-user mode

Booting Solaris into single-user mode describes how to place Solaris into single-user

mode.

To boot Solaris into single user mode:

1. Log into the system through the remote console interface.

2. At the remote console, enter:

/usr/sbin/shutdown -y -is -g0

Note:

The system will not successfully enter single-user mode if you execute the

shutdown command from the local console while the console is redirected.

When this occurs, the local console will not respond if you try to enter data.

The remote console will also be unresponsive.

To recover from the situation, put the system into single-user mode by performing the

following procedure:

a. Select a new window on the local console.

b. In the new window, enter:

/usr/sbin/shutdown -y -i0 -g0

c. On the remote console, enter:

boot -s

Common problems using the CD-ROM drive

Issue 3.0 October 2002 415

Common problems using the CD-ROM drive

Use the following procedures if you experience problems with the CD-ROM drive.

Common problems using the CD-ROM drive contains the following procedures:

●CD-ROM drive fails to open on page 415

●CD-ROM drive cannot be mounted on page 415

CD-ROM drive fails to open

If the CD-ROM drive fails to open when you press the eject button:

●Enter:

eject cdrom

Note:

If the CD-ROM drive still will not open, use the pwd command to verify that

you are not currently in /cdrom. If you are, cd to / and repeat the eject

cdrom command.

CD-ROM drive cannot be mounted

If the CD-ROM drive does not respond to the mount command, the driver pointers may

have been altered by the preceding cpio command.

To repair the driver pointers:

1. Restart the initial operating system installation.

2. When you reach the “Restore the CMSADM Backup” step, add the following to the

cpio command:

“/dev*” “/dev*/*”

3. Continue with the installation as you normally would.

Troubleshooting

416 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Removing CMS package fails

Problem:

If you exited the system when removing a Avaya CMS package (cms or /cms.2), you may

have:

●Logged in as cmssvc

●Switched users — su’d to root or root2

●Run cmssvc

Solution:

1. Log in directly as root or root2

2. Remove package(s) as instructed by the system.

CMS installation fails

If the CMS installation fails and the system displays the cannot add another

instance of CMS message, either the CMS package was not removed or the removal

was not completely successful.

To continue with the installation:

1. Enter:

pkgrm cms

2. Enter:

cd /

3. Restart the CMS installation.

CMSADM backup problems

Issue 3.0 October 2002 417

CMSADM backup problems

If you receive an error message during a backup or recovery, refer to Common error

messages on page 420.

As the backup progresses, the program displays a series of dots, one dot per file, to

indicate it is writing files to tape. You may have a problem if you notice one of the following:

●Dots are not displaying (wait 10 minutes or longer to make certain the software is not

just copying a very large table).

●The tape is not spinning.

●The system has not displayed messages prompting you to change tapes or informing

you that the backup has completed.

Perform the following

●Clean the tape drive with the appropriate tape cleaning kit. It may be necessary to

repeat this process several times.

●If the tape drive is new, clean the drive several times with the appropriate tape cleaning

kit before use.

If you still encounter problems, call the National Customer Care Center or your product

representative. For more information, see Avaya CMS helplines on page 24.

Troubleshooting

418 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Disabling power management

Power management is installed in an inactive state when CMS is initially set up. If power

management becomes enabled on a CMS system, the system will turn off after a set

amount of time has passed with no input from the mouse or keyboard. Power management

can be disabled from either the desktop or the command line.

Disabling power management contains the following procedures:

●Disabling power management from the desktop on page 418

●Disabling power management from the command line on page 418

Disabling power management from the desktop

To disable power management from the desktop:

1. Use the mouse to move the cursor to an empty area of the desktop display and press

the right button on the mouse.

The system displays the Workspace menu.

2. Select the Tools option.

The system displays the Tools menu.

3. Select the Power Manager option.

The system displays the Dtpower window.

4. In the Current Power Saving Scheme drop down menu, select Disabled.

5. Press OK.

Disabling power management from the command line

To disable power management from the command line:

1. Enter:

cd /

2. Enter:

touch /noautoshutdown

3. Reboot the system by entering:

/usr/sbin/shutdown -y -g0 -i6

The system reboots and disables power management. The system removes the

/noautoshutdown file during the reboot.

System messages

Issue 3.0 October 2002 419

System messages

System messages can alert you to system problems, such as a device that is about to fail.

By default, many of the messages are displayed on the system console and are stored in

/var/adm.

To display system messages:

1. Enter:

dmesg

The system displays the most recent messages as shown in the following example:

The /var/adm directory contains several message files. The most recent messages are in

/var/adm/messages and in /var/adm/messages.0; the oldest are in

/var/adm/messages.3. Periodically a new file is created, and the messages.3 file is

deleted, messages.2 is renamed messages.3, messages.1 is renamed messages.2, and

messages.0 is renamed messages.1.

The message files may contain not only system messages, but also crash dumps and

other data, which can cause /var/adm to grow quite large. To keep the directory to a

reasonable size and ensure that future crash dumps can be saved, you should remove

unneeded files periodically. You can automate the task by using crontab. See your Sun

system documentation for information on crontab.

Wed Feb 14 11:01:59 MST 2001

Feb 14 08:19:20 tern pseudo: [ID 129642 kern.info] pseudo-device: tod0

Feb 14 08:19:20 tern genunix: [ID 936769 kern.info] tod0 is /pseudo/tod@0

Feb 14 08:19:22 tern syslogd: going down on signal 15

...........

Feb 16 14:24:08 tern scsi: [ID 365881 kern.info] /pci@1f,0/pci@1/scsi@1,1/st@5,:

Feb 16 14:24:08 tern <HP DDS-4 DAT (Sun)>

Feb 16 14:24:08 tern scsi: [ID 193665 kern.info] st12 at glm1: target 5 lun 0

Feb 16 14:24:08 tern genunix: [ID 936769 kern.info] st12 is /pci@1f,0/pci@1/scs0

Feb 19 10:17:59 tern automountd[198]: [ID 784820 daemon.error] server cortex nog

Feb 19 10:18:27 tern last message repeated 6 times

Troubleshooting

420 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Common error messages

Common error messages lists and explains messages you may encounter during an

upgrade, including messages from CMS and DiskSuite, as well as messages printed to the

migration logs.

Error message table

Message: ERROR: Password aging cannot be implemented on systems using NIS, NIS+

or LDAP.

Cause: The system is using either NIS, NIS+ or LDAP.

Resolution: Contact your network administrator. The passwords will have to be aged from the

server running the directory service.

Message: ** WARNING:

** Only one user may run age_pw at one time.

Cause: More than one person is attempting to use the passwd_age option in the CMSADM

menu.

Resolution: Attempt to run the command after a few minutes have passed. If you still receive the

warning message, contact CMS services.

Message: synonym name begins with non-alpha character. Change name after

migration. Look for synonym in synonym group

Cause: Synonym names must begin with a letter in CMS R3V8 or later. The synonym

synonym name does not begin with a letter and was migrated to CMS R3V11.

Resolution: List the synonym in the R3V11 Dictionary subsystem, and modify synonym name to

begin with a letter.

Message: Cannot find database item in dictionary: name

Cause: The database item item name was not found in the R3V11 Dictionary.

Resolution: If you need the database item in a custom report, manually add it to the R3V11

Dictionary.

Message: Collision in user login: username. All ownerships are

transferred to user ’cms’.

Common error messages

Issue 3.0 October 2002 421

Cause: There is already a login ID established for this user name. The user name being

migrated is causing the conflict. The CMS administrator (cms) becomes the owner of

custom reports, timetables, shortcuts, etc. that were previously owned by the migrated

user name.

Resolution: If the migrating user is different from the user already established, the system

administrator should create a different user name for the migrating user and transfer

the ownerships after the migration. If the migrating user and the existing user are the

same, the administrator should consult with the user about the disposition of

ownerships.

Message: Constant name, value: already exists as an R3 constant.

Cause: The constant constant name already existed in the R3V11 dictionary database

when this migration was done. The R2 constant, therefore, was not migrated.

Resolution: Verify that the R3 constant is appropriate for your reports, and modify it if necessary. If

you modify the constant, be careful that this constant is not being used in any new

R3V11 custom reports, because the new value will affect those reports as well. If you

migrate the administration data more than once, this message will appear for all the

constants that were migrated the first time.

Message: calculation name contains items not found in R3 database.

Cause: The calculation calculation name has items in its formula that cannot be found in

the R3V11 Dictionary database. These items can be database items or other

calculations.

Resolution: Verify the calculation’s formula in the Dictionary subsystem, and either modify the

formula or add back any calculations used in the formula.

Message: Date field being deleted because it goes beyond the width of

report: row=row col=col width=width

Cause: The length of the date field in the migrated real-time report exceeds 132 columns and

cannot be migrated.

Resolution: Use the editor to add the field to the migrated report.

Message: device: devicename cannot be setup, or does not exist...

Cause: The disk you are trying to attach is turned off, does not exist, or was removed from the

system.

Resolution: Power-up the disk drive, or verify the correct name for the disk (Stop+A, probe-

scsi), or attach the disk to the system and reboot with a boot -r command from

the open boot prompt.

Troubleshooting

422 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Message: Dictionary collision: name=’name’ item_type=’cust_def’

Cause: There is already the same custom table with the same item name already defined in

the dictionary subsystem.

Resolution: Verify that the migrating table is the same as the existing one. If they are different, you

must rename one table and reenter its database items.

Message: Dictionary collision: name=’name’ item_type=’const’

formula=’value’

Cause: There is already a constant with the name but a different value.

Resolution: You need to enter the constant again and rename it.

Message: Dictionary collision: name=’name’ item_type=’calc’

formula=’calculation’

Cause: There is already a calculation with ’name’ as the name but with different contents.

Resolution: You need to enter the formula again and rename it.

Message: Dictionary collision: name=’column name’ table= ’table name’

Cause: There is already a dictionary item for this column in the same table.

Resolution: Verify that the migrating table is the same as the existing one. If they are different, one

table has to be renamed and database items must be reentered for the renamed table.

Message: Disk devicename already attached, exiting...

Cause: You are trying to attach a disk that is already attached.

Resolution: Verify the name of the disk by doing a Stop+A, probe-scsi-all. If it’s an external

disk, check the target number on the back of the drive. Consult the device

documentation.

Message: Due to name collision, item type ’name’ (username) has been

changed to tempname

Cause: The name of the migrated historical report, real-time report, timetable, or shortcut

belonging to user username has been renamed tempname because of a collision

with an already existing, identically named item in R3V11.

Resolution: Rename the report to something more meaningful than tempname.

Message: Error in adding directory.

Cause The migration program could not add the home directory to the UNIX system.

Common error messages

Issue 3.0 October 2002 423

Resolution: Use the FACE program to add the login to the UNIX system.

Message: Error in adding login ID to UNIX.

Cause: The migration program could not add login ID to the password file.

Resolution: Use the FACE program to add the login to the UNIX system.

Message: Error in adding synonym name to table.

Cause: The migration program could not add the synonym synonym name to the R3V11

Dictionary database.

Resolution: List the names (synonyms) in the R3V11 Dictionary subsystem, and add this name if

necessary. The name type is whatever type that was being migrated at the time of the

message; that is split/skill, vector, VDN, or trunk group. See the previous log entry for

the name type.

Message: Error in adding member mbrnum to group grpname.

Cause: The migration program could not add group member mbrnum to group grpname.

Resolution: Display the contents of the group in the R3V11 Dictionary subsystem, and add the

member if necessary.

Message: Error in creating UNIX login for user ’username’. The user may

have already had UNIX log...

Cause: The user already has a UNIX system login in Avaya CMS R3V11.

Resolution: If the user username already has a UNIX system login, ignore this message.

Otherwise, verify that this user can log on and report any problems to Services.

Message: Expression field being deleted because it goes beyond the width

of report: row=row col=col width=width R3 expression: expression

Cause: This field in the migrated real-time custom report exceeded the allowable length of 132

columns and was not migrated.

Resolution: You need to add the field to the real-time custom report in R3V11 using the editor.

Message: Expression (row=row number,col=column number) exceeds maximum

length and has been truncated: expression

Cause: During migration, the expression expression changed and is too long for the Select

field of the Field window.

Troubleshooting

424 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Resolution: Delete spaces from the expression. If this does not decrease the length of the

expression enough, then create a custom calculation in the dictionary for

expression. Edit the report and substitute the custom calculation for the expression

in the Select field of the Field window.

Message: Getting user input...

Cause: This is an informational CMS migration processing message.

Resolution: No action required.

Message: login ID has no default printer. Assign default printer via User

Data.

Cause: No default printer was assigned to login ID in the User Data window.

Resolution: Use the User Data window and assign a default printer to <login ID>.

Message: Initializing temporary database tables...

Cause: This is an informational CMS migration processing message.

Resolution: No action required.

Message: Insufficient number of free blocks (#-of-blocks) in system name

for temporary database tables.

Cause: The file system does not contain enough free blocks for CMS R3V11 to create the

temporary tables needed for the migration.

Resolution: Call services to resolve this situation.

Message: *** INTERNAL ERROR: contact services (error#, timestamp) ***

Cause: An internal error occurred during processing of the table listed above this message.

Resolution: Contact services immediately. Do not remove the migration log file. Services needs the

errornum and time stamp to find more information in their error log.

Message: Invalid user logname. Permissions not migrated.

Cause: This is informational. The CMS R3V11 system found permission information for a

deleted user, so did not migrate the permissions.

Resolution: No action required.

Message: metadb: system: device: has a metadevice database replica

Cause: There are already state database replicas existing on the indicated system and device.

Common error messages

Issue 3.0 October 2002 425

Resolution: No action required.

Message: Multiple repeat statements on different rows in this report.

Can’t swap.

Cause: CMS R3V11 does not allow a vertically-repeated field to appear above another

repeated field.

Resolution: Use the R3V11 Custom Reports: Screen Painter to redesign the report so that all

vertically-repeated fields are on the same row. Or, create multiple reports, where each

report has a single row of vertically-repeated fields.

Message: calculation name not found in the R3 database.

Cause: One of the following conditions may cause this message to occur:

1. The formula for calculation name has items that cannot be found in the

R3V11 Dictionary. Usually this occurs when a calculation contains a nested

calculation, and the original calculation is migrated before the nested one.

2. The calculation or database item is misspelled, in which case the calculation fails.

Resolution: Perform the following:

1. Migrating an original calculation before the nested one is not a problem. No action

needs to be taken. Verify that they are both in the dictionary.

2. If the calculation or database item is misspelled, use the R3V11 dictionary

subsystem to correct the spelling. If you correct the spelling, the calculation or

database item may work in R3V11.

Message: — Request failed. See /cms/install/logdir/backup.log for more

information.

Cause: The tape is improperly seated in the drive, or was removed from the drive during the

backup, or is write protected, or the medium is corrupted.

Resolution: Check the console terminal. If you see a message like WARNING: ST01: HA 0 TC 3

LU 0: Err 60503005 CMD 0000000A Sense Key 00000004 Ext Sense

00000000, the tape is corrupted. Discard it and replace it with a new tape.

Otherwise, remove the tape from the drive and make sure it is not write protected (the

black arrow in the upper left corner should be pointing away from “safe”).

Finally, reinsert the tape into the drive, making certain it is properly seated, and restart

the backup.

Message: Row Search rownumber: where clause contains too many characters,

length, maximum is 468.

Troubleshooting

426 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Cause: When the criteria for row search ID rownumber was migrated to R3V11, it was too

long for the “select rows where” field.

Resolution: Edit the row search ID. Remove any unnecessary information in the select rows

where field, such as table name, or change the variable to allow a range and

decrease the number of “and” clauses or “or” clauses, or both.

Message: Terminated by user request?

User not administered on UNIX: user login

Cause: The login user login was migrated to CMS R3V11 but does not exist as a login on

the UNIX system.

Resolution: Users will be unable to log into Avaya CMS R3V11 until they are added to the UNIX

system. To add the user login, access User Permissions: User Data window. Press

Ctrl+Z simultaneously to clear all fields. Type user login in the first field, select

“Find one,” and then select “Add.” This procedure adds user login to the UNIX

system and allows the user to log into Avaya CMS R3V11. Follow the same steps for

every user login that was not administered on the UNIX system.

Message: Text truncated after column 132: row=row col=col

Cause: A text field for a migrated real-time report either straddled or exceeded the allowable

R3V11 line length of 132 columns. If the field exceeded 132 columns, it was not

migrated. If it straddled 132 columns, it was truncated.

Resolution: Use the editor to add or modify the report text field in R3V11.

Message: The expression expression could not be resolved in the

dictionary. You must fix the expression expression for the

report to work.

Cause: There is a calculation in the custom report that contains an invalid database item, and

the calculation cannot be resolved in R3V11. The most likely causes for this message

are that a referenced database item or another calculation cannot be found in the

dictionary subsystem or did not migrate.

Resolution: Review previous comments in the migration log for references to the same expression.

If there are other comments, this will help you define exactly what the problem is.

Message: This report goes beyond the maximum number of rows (25).

Cause: This is a quad report, which R3V11 does not allow. Only the first quadrant is migrated.

Resolution: To regain the other quadrants, you must create an R3V11 custom report for each

quadrant.

Message: Too many date display fields, now adding: date prompt.

Common error messages

Issue 3.0 October 2002 427

Cause: Migrated custom reports can have only one hard-coded date selection. For example, if

the report is for yesterday’s data, the R2 custom report should designate the date as

“ –1.” This error indicates that the custom report referenced different days among its

select statements. For example, –1 and –3.

Resolution: Use the Screen Painter to edit the report and correct the date.

Message: Unable to move scroll region to bottom of report. You must do

this manually.

Cause: Not enough rows were available to move the repeated portion of the R2 report to the

bottom of the R3V11 report.

Resolution: Edit the custom report via the R3V11 Custom Reports: Screen Painter and move the

repeated row to the bottom of the report.

Message: UNRECOVERABLE ERROR READING TAPE, errno= Failed to open tape: no

entry in the device directory. Make sure the Maintenance:

Backup/Restore Devices screen has the correct Path.

Cause: The migration program could not open the tape drive to read the CMS data.

Resolution: Check that the specified tape drive is set up with the correct path in the Maintenance:

Backup/Restore Devices window. If you cannot resolve this problem, contact services

for additional help. You may have a tape drive hardware problem or need a corrected

tape device path.

Message: UNRECOVERABLE ERROR READING TAPE, errno= Tape drive not ready:

there is no tape in the drive.

Cause: The migration program could not open the tape drive to read the CMS data.

Resolution: Verify that the tape is positioned in the drive correctly, and restart the migration.

Contact services if problems persist.

Message: User user name: access permissions already existed for table

name.

Cause: A specific CMS user login user name already had access permissions for a certain

table name (splits/skills, VDNs, vectors, or trunk groups).

Resolution: Check that the access permissions for user login are correct. If not, manually

change them using the R3V11 User Data windows.

Message: VDN Synonym VDN synonym name, VDN number already exists as R3

synonym.

Troubleshooting

428 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Cause: A VDN synonym VDN synonym name already existed in the R3V11 Dictionary

database when this migration was done.

Resolution: Modify the R2 VDN synonym name, and manually add it to the R3V11 Dictionary

subsystem if necessary.

Message: WARNING: custom report ’report name’ (username) contains

obsolete column ’column name’

Cause: One of the columns used directly in this custom report (owned by username) is no

longer valid in R3V11.

Resolution: You must delete/change the obsolete column from the report in order to use it. Note

that the only obsolete column likely to be used by the customer is I_AUXTIME for

‘agent’ tables because it was one of the columns made available to the customer. Its

R3V11 equivalent is TI_AUXTIME.

!CAUTION:

Migration program will not be able to detect the use of I_AUXTIME

indirectly through table-independent formulas because I_AUXTIME is

no longer valid with ‘agent’ tables but still valid with other historical

tables.

Message: WARNING: Dictionary: calculation ’calculation name’ contains

obsolete column: COLUMN NAME

Cause: The COLUMN NAME is no longer valid with CMS R3V11.

Resolution: You need to modify the formula to use a different column or stop using the formula

altogether. The following columns are no longer valid:

ABNRINGTIMEO_ABNRINGCALLS

ADJROUTETIMEO_ABNVECCALLS

BH_OBUSYCALLSO_BACKUPCALLS

BH_ODISCCALLSO_BUSYCALLS

HOLDABNTIMEO_CONNECTCALLS

INTERFLOWTIMEO_DISCCALLS

LOOKFLOWTIMEO_TRANSFERRED

O_ABNQUECALLS

Message: Warnings during this compile. Make sure the report works

correctly. Warnings at bottom of file: source file

Cause: During compilation of the custom report, the compiler detected problems. The report

was migrated, but may not run in R3V11.

Resolution: Before trying to run the custom report, review and edit it to ensure accuracy.

Common error messages

Issue 3.0 October 2002 429

Message: You must be root in order to run this command

Cause: Superuser privileges are necessary to run this script because most of the commands

are related to system administration.

Resolution: Log in as the root user and rerun the command.

Troubleshooting

430 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

CMS disk partition values

The following partition information is provided for troubleshooting purposes. In most cases,

the disk_space option will automatically partition the disks. See Installing the Solaris

operating system on page 25 for specific instructions on setting up the Solaris boot disk

partitions. See Supported disk drives on page 45 for more information on currently

supported disk drives.

CMS disk partition values contains the following topics:

●Boot disk partition values on page 430

●Data disk partition values on page 432

●Soft partitions on page 433

Boot disk partition values

The following Boot disk partition table on page 430 is for CMS R3V11 systems only.

Boot disk partition table

Disk

slice 01234567

Slice

name

/ or (leave

blank)

if alternate

boot on

mirrored

systems

swap

or (leave

blank)

if alternate

boot on

mirrored

systems

overlap1/cms

if using

format leave

unassigned

(Leave blank) (Leave blank) (Leave blank) (Leave blank)

Flag wm wu wm wm wm wm wm wm

Partition size

18-GB

18-GB FC-AL or SCSI

starting cylinders

4096 MB

4.0 GB

1024 MB

1.0 GB

(Do not

change)

3072 MB

3.0 GB

2048 MB

2.0 GB

2048 MB

2.0 GB

2048 MB

2.0 GB (Remainder2)

01781

(Do not

change)

2227 3563 4454 5345

CMS disk partition values

Issue 3.0 October 2002 431

20-GB

20-GB EIDE starting

cylinders

(Models ST320420A,

ST320414A, or

ST320011A)

4096 MB

4.0 GB

1024 MB

1.0 GB

(Do not

change)

3072 MB

3.0 GB

2048 MB

2.0 GB

2048 MB

2.0 GB

2048 MB

2.0 GB (Remainder)

08323

(Do not

change)

10404 16646 20808 24970

36-GB

36-GB FC-AL starting

cylinders

4096 MB

4.0 GB

1024 MB

1.0 GB

(Do not

change)

3072 MB

3.0 GB

2048 MB

2.0 GB

2048 MB

2.0 GB

2048 MB

2.0 GB (Remainder)

02904

(Do not

change)

3630 5808 7260 8712

40-GB

40-GB EIDE starting

cylinders

4096 MB

4.0 GB

1024 MB

1.0 GB

(Do not

change)

3072 MB

3.0 GB

2048 MB

2.0 GB

2048 MB

2.0 GB

2048 MB

2.0 GB (Remainder)

02057

(Do not

change)

2572 4115 5144 6173

73-GB

73-GB FC-AL starting

cylinders

4096 MB

4.0 GB

1024 MB

1.0 GB

(Do not

change)

3072 MB

3.0 GB

2048 MB

2.0 GB

2048 MB

2.0 GB

2048 MB

2.0 GB (Remainder)

0 825 (Do not

change)

1032 1651 2064 2477

1. Occasionally the system displays the name of the overlap partition as backup. Do not change the slice 2 partition

size or slice name. If the disk drive you are partitioning does not match one of these values, you have a non-

standard disk. Report the issue to technical support personnel.

2. To calculate the remaining cylinders, take the total number of cylinders on the disk and subtract the starting

cylinders for the last partition. This last partition is usually automatically configured by CMS.

Disk

slice 01234567

Slice

name

/ or (leave

blank)

if alternate

boot on

mirrored

systems

swap

or (leave

blank)

if alternate

boot on

mirrored

systems

overlap1/cms

if using

format leave

unassigned

(Leave blank) (Leave blank) (Leave blank) (Leave blank)

Flag wm wu wm wm wm wm wm wm

Partition size

Troubleshooting

432 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Data disk partition values

The following Data disk partition table on page 432 is for CMS R3V11 systems only.

Data disk partition table

Disk

Slice 01234567

Slice

name

(Leave blank) (Leave blank) overlap1(Leave blank) (Leave blank) (Leave blank) (Leave blank) (Leave blank)

Flag wm wm wm wm wm wm wm wm

Partition size

4.2-GB

4.2-GB SCSI starting

cylinders

2048 MB

2.0 GB

2048 MB

2.0 GB

(Do not

change)

00000

0 1942 (Do not

change)

00000

9.1-GB

9.1-GB FC-AL or

SCSI starting

cylinders

9.1-GB EIDE starting

cylinders

2048 MB

2.0 GB

2048 MB

2.0 GB

(Do not

change)

2048 MB

2.0 GB

2048 MB

2.0 GB

(Remainder)2

0 1169 (Do not

change)

2338 3507 0 0

0 4162 (Do not

change)

8324 12486 0 0

18-GB

18-GB FC-AL or

SCSI starting

cylinders

2048 MB

2.0 GB

2048 MB

2.0 GB

(Do not

change)

2048 MB

2.0 GB

2048 MB

2.0 GB

2048 MB

2.0 GB

2048 MB

2.0 GB (Remainder)

0 891 (Do not

change)

1782 2673 3564 4455

CMS disk partition values

Issue 3.0 October 2002 433

Soft partitions

Soft partitioning is managed through DiskSuite as metadevices on partition 7. The soft

partitions are automatically created through the disk_space option in the CMSSVC

menu. Disk sizes smaller than 12 GB do not require soft partitions so only 18 GB and

larger disks will contain any soft partitions.

20-GB

20-GB EIDE starting

cylinders

(Models ST320420A,

ST320414A, or

ST320011A)

2048 MB

2.0 GB

2048 MB

2.0 GB

(Do not

change)

2048 MB

2.0 GB

2048 MB

2.0 GB

2048 MB

2.0 GB

2048 MB

2.0 GB (Remainder)

0 4162 (Do not

change)

8324 12486 16648 20810

36-GB

36-GB FC-AL

starting cylinders

2048 MB

2.0 GB

2048 MB

2.0 GB

(Do not

change)

2048 MB

2.0 GB

2048 MB

2.0 GB

2048 MB

2.0 GB

2048 MB

2.0 GB (Remainder)

0 1452 (Do not

change)

2904 4356 5808 7260

73-GB

73-GB FC-AL

starting cylinders

2048 MB

2.0 GB

2048 MB

2.0 GB

(Do not

change)

2048 MB

2.0 GB

2048 MB

2.0 GB

2048 MB

2.0 GB

2048 MB

2.0 GB (Remainder)

0 413 (Do not

change)

826 1239 1652 2065

1. Occasionally the system displays the name of the overlap partition as backup. Do not change the slice 2 partition

size or slice name. If the disk drive you are partitioning does not match one of these values, you have a non-

standard disk. Report the issue to technical support personnel.

2. To calculate the remaining cylinders, take the total number of cylinders on the disk and subtract the starting cylinders

for the last partition. This last partition is usually automatically configured by CMS.

Disk

Slice 01234567

Slice

name

(Leave blank) (Leave blank) overlap1(Leave blank) (Leave blank) (Leave blank) (Leave blank) (Leave blank)

Flag wm wm wm wm wm wm wm wm

Partition size

Troubleshooting

434 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Numbering scheme for metadevices

The metadevice numbering scheme is represented as dmnk.

●Where d designates a meta device.

●Where m is the numeric designation for the meta device.

—m = 1, 2, 3, 4, 5, or 6.

●Where nk is the number of the soft partition on the disk.

—n indicates the type of disk

—On a primary disk n = 0, 1, 2, 3, or 4

—On a mirror disk n = 5, 6, 7, 8, or 9

—k = 0, 1, 2, 3, 4, 5, 6, 7, 8, or 9.

Note:

Disk sizes smaller than 18 GB do not require soft partitions.

Examples:

Non-mirrored E3000 with 18-GB disks

Disk Slices 0 -

6 do not

contain

soft

partitions

Slice 7 meta devices

(c0t0d0) d100 d101

(c0t1d0) d200 d201

(c0t2d0) d300 d301

CMS disk partition values

Issue 3.0 October 2002 435

Mirrored E3000 with 18-GB disks

Soft partition setup

Soft partitions are placed only on slice 7, the following tables show how slice 7 is

partitioned on a boot and data disk. The disk space on slice 7 is added in 2 GB soft

partitions. Any disk space that is less than 2.0 GB is added as 256 MB soft partitions. Any

remaining space that is less than 256 MB is not added.

Examples of soft partitions on a boot disk

Disk Slices 0 -

6 do not

contain

soft

partitions

Slice 7 meta devices

Primary 1

(c0t0d0) d100 d101

Mirror 1

(c0t11d0) d150 d151

Primary 2

(c0t1d0) d200 d201

Mirror 2

(c0t12d0) d250 d251

Primary 3

(c0t2d0) d300 d301

Mirror 3

(c0t13d0) d350 d351

Metadevice

(dmnk)dmn0dmn1dmn2dmn3dmn4

18-GB 2.0 GB 256 MB 256 MB 256 MB

20-GB 2.0 GB 2.0 GB 256 MB 256 MB 256 MB

Troubleshooting

436 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Examples of soft partitions on a data disk

Meta device

(dmnk)dmn0dmn1dmn2dmn3dmn4dmn5

18-GB 2.0 GB 2.0 GB 256 MB 256 MB 256 MB

20-GB 2.0 GB 2.0 GB 2.0 GB 256 MB 256 MB 256 MB

Troubleshooting soft partitioning

Issue 3.0 October 2002 437

Troubleshooting soft partitioning

Use the procedures in Troubleshooting soft partitioning to help determine any problems

during the creation of soft partitions.

Note:

The screens in this section are representative of the typical output you

would see on your system. The screens will vary depending on the type of

platform and system configuration.

1. Determine if any soft partitions were set up by entering:

cat /cms/install/disk_mgr/mirror/softpartition

The system displays one of the following messages:

●For a non-mirrored system:

●For a mirrored system:

d100 2097152

d101 2097152

d102 262144

d103 262144

d104 262144

d105 262144

d200 2097152

d201 2097152

d202 2097152

d203 262144

d204 262144

d205 262144

d100 d150 2097152

d101 d151 2097152

d102 d152 262144

d103 d153 262144

d104 d154 262144

d200 d250 2097152

d201 d251 2097152

d202 d252 262144

d203 d253 262144

d204 d254 262144

Troubleshooting

438 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

2. Verify that erroneous soft partitions were not created, and that all soft partitions on a

mirrored system are correctly matched up.

Example of an erroneous file:

If errors are found, check the appropriate platform file for any inconsistencies (for

example, extra lines or characters). The platform files are found at

/cms/install/disk_mgr/mirror/platform

Where platform is the model of your CMS system.

3. Determine what metadevices exist by entering:

metastat -p

The system displays one of the following messages:

●For a non-mirrored system:

d100 d150 2097152

d101 d151 2097152

d102 d152 262144

d103 d153 262144

d104 d154 262144

d200 d250 2097152

d201 d251 2097152

d202 d252 262144

d203 d253 262144

d204 d254 262144

d205 2097152

d206 2097152

d207 2097152

d203 262144

d300 262144

d301 262144

d2 -m d21 2

d21 1 1 c0t0d0s1

d100 -p c0t0d0s7 -o 1 -b 4194304

d101 -p c0t0d0s7 -o 4194306 -b 4194304

d102 -p c0t0d0s7 -o 8388611 -b 524288

d103 -p c0t0d0s7 -o 8912900 -b 524288

d104 -p c0t0d0s7 -o 9437189 -b 524288

d105 -p c0t0d0s7 -o 9961478 -b 524288

d200 -p c0t1d0s7 -o 1 -b 4194304

d201 -p c0t1d0s7 -o 4194306 -b 4194304

d202 -p c0t1d0s7 -o 8388611 -b 4194304

d203 -p c0t1d0s7 -o 12582916 -b 524288

d204 -p c0t1d0s7 -o 13107205 -b 524288

d205 -p c0t1d0s7 -o 13631494 -b 524288

Troubleshooting soft partitioning

Issue 3.0 October 2002 439

●For a mirrored system:

4. Verify that the system recognizes all the soft partitions as metadevices.

5. Determine what metadevices are in use by entering the following commands:

. /opt/informix/bin/setenv

onstat -d | egrep “MD” | more

The system displays one of the following messages:

Note:

The 2 GB partitions are configured as eight 256 MB chunks.

d1 -m d11 d12 1

d11 1 1 c0t0d0s0

d12 1 1 c0t2d0s0

d2 -m d21 d22 2

d21 1 1 c0t0d0s1

d22 1 1 c0t2d0s1

d3 -m d31 d32 1

d31 1 1 c0t0d0s3

d32 1 1 c0t2d0s3

d100 -p c0t0d0s7 -o 1 -b 4194304

d101 -p c0t0d0s7 -o 4194306 -b 4194304

d102 -p c0t0d0s7 -o 8388611 -b 524288

d103 -p c0t0d0s7 -o 8912900 -b 524288

d104 -p c0t0d0s7 -o 9437189 -b 524288

d150 -p c0t2d0s7 -o 1 -b 4194304

d151 -p c0t2d0s7 -o 4194306 -b 4194304

d152 -p c0t2d0s7 -o 8388611 -b 524288

d153 -p c0t2d0s7 -o 8912900 -b 524288

d154 -p c0t2d0s7 -o 9437189 -b 524288

d200 -p c1t0d0s7 -o 1 -b 4194304

d201 -p c1t0d0s7 -o 4194306 -b 4194304

d202 -p c1t0d0s7 -o 8388611 -b 524288

d203 -p c1t0d0s7 -o 8912900 -b 524288

d204 -p c1t0d0s7 -o 9437189 -b 524288

d250 -p c1t2d0s7 -o 1 -b 4194304

d251 -p c1t2d0s7 -o 4194306 -b 4194304

d252 -p c1t2d0s7 -o 8388611 -b 524288

d253 -p c1t2d0s7 -o 8912900 -b 524288

d254 -p c1t2d0s7 -o 9437189 -b 524288

Troubleshooting

440 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

●For a non-mirrored system:

cc18a28 166 4 0 1000000 999997 PO- /dev/md/rdsk/d100

cc18b98 167 7 128000 128000 127997 PO- /dev/md/rdsk/d101

cc18d08 168 7 0 128000 127997 PO- /dev/md/rdsk/d101

cc18e78 169 33 256000 128000 127997 PO- /dev/md/rdsk/d101

cc19018 170 33 384000 128000 127997 PO- /dev/md/rdsk/d101

cc19188 171 7 512000 128000 127997 PO- /dev/md/rdsk/d101

cc192f8 172 7 640000 128000 127997 PO- /dev/md/rdsk/d101

cc19468 173 7 768000 128000 127997 PO- /dev/md/rdsk/d101

cc195d8 174 7 896000 128000 127997 PO- /dev/md/rdsk/d101

cc19748 175 7 0 128000 127997 PO- /dev/md/rdsk/d102

cc198b8 176 7 0 128000 127997 PO- /dev/md/rdsk/d103

cc19a28 177 7 0 128000 127997 PO- /dev/md/rdsk/d104

cc19b98 178 7 0 128000 127997 PO- /dev/md/rdsk/d105

cc19d08 179 7 0 128000 127997 PO- /dev/md/rdsk/d200

cc19e78 180 7 128000 128000 127997 PO- /dev/md/rdsk/d200

cc1a018 181 7 256000 128000 127997 PO- /dev/md/rdsk/d200

cc1a188 182 7 384000 128000 127997 PO- /dev/md/rdsk/d200

cc1a2f8 183 7 512000 128000 127997 PO- /dev/md/rdsk/d200

cc1a468 184 7 640000 128000 127997 PO- /dev/md/rdsk/d200

cc1a5d8 185 7 768000 128000 127997 PO- /dev/md/rdsk/d200

cc1a748 186 7 896000 128000 127997 PO- /dev/md/rdsk/d200

cc1a8b8 187 7 0 128000 127997 PO- /dev/md/rdsk/d201

cc1aa28 188 7 128000 128000 127997 PO- /dev/md/rdsk/d201

cc1ab98 189 7 256000 128000 127997 PO- /dev/md/rdsk/d201

cc1ad08 190 7 384000 128000 127997 PO- /dev/md/rdsk/d201

cc1ae78 191 7 512000 128000 127997 PO- /dev/md/rdsk/d201

cc1b018 192 7 640000 128000 127997 PO- /dev/md/rdsk/d201

cc1b188 193 7 768000 128000 127997 PO- /dev/md/rdsk/d201

cc1b2f8 194 7 896000 128000 127997 PO- /dev/md/rdsk/d201

cc1b468 195 7 0 128000 127997 PO- /dev/md/rdsk/d202

cc1b5d8 196 7 128000 128000 127997 PO- /dev/md/rdsk/d202

cc1b748 197 7 256000 128000 127997 PO- /dev/md/rdsk/d202

cc1b8b8 198 7 384000 128000 127997 PO- /dev/md/rdsk/d202

cc1ba28 199 7 512000 128000 127997 PO- /dev/md/rdsk/d202

cc1bb98 200 7 640000 128000 127997 PO- /dev/md/rdsk/d202

cc1bd08 201 7 768000 128000 127997 PO- /dev/md/rdsk/d202

cc1be78 202 7 896000 128000 127997 PO- /dev/md/rdsk/d202

cc1f018 203 7 0 128000 127997 PO- /dev/md/rdsk/d203

cc1f188 204 7 0 128000 127997 PO- /dev/md/rdsk/d204

cc1f2f8 205 7 0 128000 127997 PO- /dev/md/rdsk/d205

Troubleshooting soft partitioning

Issue 3.0 October 2002 441

●For a mirrored system:

Note:

On a non-mirrored system, d100 is assigned to dbtemp. On a mirrored

system d100 and d150 are assigned to dbtemp.

6. Verify that IDS recognizes all the soft partitions.

cc02a28 34 10 384000 128000 127997 PO- /dev/md/rdsk/d200

cc142f8 34 10 384000 128000 0 MO- /dev/md/rdsk/d250

cc02b98 35 10 256000 128000 127997 PO- /dev/md/rdsk/d201

cc14468 35 10 256000 128000 0 MO- /dev/md/rdsk/d251

cc02d08 36 10 512000 128000 127997 PO- /dev/md/rdsk/d201

cc145d8 36 10 512000 128000 0 MO- /dev/md/rdsk/d251

cc02e78 37 10 128000 128000 127997 PO- /dev/md/rdsk/d200

cc14748 37 10 128000 128000 0 MO- /dev/md/rdsk/d250

cc03018 38 10 768000 128000 127997 PO- /dev/md/rdsk/d200

cc148b8 38 10 768000 128000 0 MO- /dev/md/rdsk/d250

cc03188 39 10 512000 128000 127997 PO- /dev/md/rdsk/d200

cc14a28 39 10 512000 128000 0 MO- /dev/md/rdsk/d250

cc032f8 40 10 640000 128000 127997 PO- /dev/md/rdsk/d201

cc14b98 40 10 640000 128000 0 MO- /dev/md/rdsk/d251

cc03468 41 10 768000 128000 127997 PO- /dev/md/rdsk/d201

cc14d08 41 10 768000 128000 0 MO- /dev/md/rdsk/d251

.....................

cc15e78 53 9 640000 128000 0 MO- /dev/md/rdsk/d151

cc04748 54 8 0 128000 119977 PO- /dev/md/rdsk/d101

cc16018 54 8 0 128000 0 MO- /dev/md/rdsk/d151

cc048b8 55 8 512000 128000 127997 PO- /dev/md/rdsk/d101

cc16188 55 8 512000 128000 0 MO- /dev/md/rdsk/d151

cc04a28 56 9 768000 128000 127997 PO- /dev/md/rdsk/d101

cc162f8 56 9 768000 128000 0 MO- /dev/md/rdsk/d151

cc04b98 57 9 896000 128000 127997 PO- /dev/md/rdsk/d101

cc16468 57 9 896000 128000 0 MO- /dev/md/rdsk/d151

cc04d08 58 9 0 128000 127997 PO- /dev/md/rdsk/d102

cc165d8 58 9 0 128000 0 MO- /dev/md/rdsk/d152

cc04e78 59 8 128000 128000 127997 PO- /dev/md/rdsk/d101

cc16748 59 8 128000 128000 0 MO- /dev/md/rdsk/d151

cc05018 60 9 0 128000 127997 PO- /dev/md/rdsk/d104

cc168b8 60 9 0 128000 0 MO- /dev/md/rdsk/d154

cc05188 61 9 0 128000 127997 PO- /dev/md/rdsk/d103

cc16a28 61 9 0 128000 0 MO- /dev/md/rdsk/d153

cc05b98 68 10 0 128000 127997 PO- /dev/md/rdsk/d202

cc1a468 68 10 0 128000 0 MO- /dev/md/rdsk/d252

cc05d08 69 10 0 128000 127997 PO- /dev/md/rdsk/d203

cc1a5d8 69 10 0 128000 0 MO- /dev/md/rdsk/d253

cc0c8b8 110 10 0 128000 127997 PO- /dev/md/rdsk/d200

cc1e188 110 10 0 128000 0 MO- /dev/md/rdsk/d250

Troubleshooting

442 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

7. The metastat command will not always detect a problem with soft partition

metadevices.

Enter:

dd if=/dev/md/dsk/dXXX of=/dev/null count=10

where dXXX is the soft partition metadevice name.

If there are problems with the soft partition, the system displays a message similar to

the following:

If there are no problems with the soft partition, the system displays a message similar

to the following:

dd: /dev/md/dsk/d204: open: I/O error

10+0 records in

10+0 records out

About mirrored systems

Issue 3.0 October 2002 443

About mirrored systems

The CMS system allows you to build a hard disk system containing two complete sets of

data. Having such data redundancy greatly reduces the risk of data loss should a hard disk

drive fail or your system crash.

While mirrors greatly reduce the risk of losing data, they are not meant to be a substitute

for regular backups. Data can still become corrupt, and the corruption is then duplicated on

the mirror. Mirrored systems must be backed up just as often as unmirrored systems.

About mirrored systems contains the following topics:

●How CMS implements mirroring on page 443

●Mirroring through Informix on page 443

●Mirroring through DiskSuite on page 444

How CMS implements mirroring

CMS disk mirroring is done by using a combination of the DiskSuite and Informix software.

DiskSuite is used to mirror the root, /cms, and swap partitions. The remaining data is

mirrored through Informix.

Mirroring through Informix

Chunks

A chunk is a unit of physical disk space used to store database data that is managed by

IDS.

Dbspace

A dbspace is a logical unit that overlays the chunks. A dbspace can consist of one or more

chunks.

A CMS system contains the following dbspaces:

●rootdbs

●physdbs

●logdbs

●dbtemp

●aasdbs

Troubleshooting

444 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

●cmsdbs

●freedbs

●acd1 through acd26

Cooked disk space

Cooked disk space contains regular operating system files. These files are organized and

managed by the Solaris operating system. On a CMS system, the root, /cms, and swap

partitions are cooked partitions. All other partitions are raw.

Raw disk space

Raw disk space contains data that is organized and managed by Informix, not the Solaris

operating system.

Mirroring

When mirroring is initiated on a CMS system, Informix creates duplicate sets of data on the

primary and mirror disks. All of the dbspaces and associated chunks are duplicated in their

exact relative position on the mirror disk.

Mirroring through DiskSuite

State databases

The DiskSuite software tracks which disk partitions belong to which metadevices in a state

database. A state database stores information on disk about the state of your DiskSuite

configuration.

The state database consists of multiple copies of the basic database. The copies, referred

to as state database replicas, ensure that the data in the database is always valid. Multiple

copies of the state database will protect against data loss from single points-of-failure. The

state database tracks the location and status of all state database replicas.

DiskSuite cannot operate until you have created the state database and its replicas. The

software must have an operating state database.

Metadevices

A metadevice is a logical device that consists of a set of physical disk partitions. A system

controlled by DiskSuite software can contain any number of metadevices. The state

database contains a record of which disk partitions belong to which metadevices. Once a

About mirrored systems

Issue 3.0 October 2002 445

metadevice has been set up, the underlying slices can be accessed only through the

metadevice.

Mirrors

A mirror is a metadevice that can copy data from one metadevice to another. The

metadevices containing the data are called submirrors. The process of copying the data

between submirrors is called mirroring.

Slices

DiskSuite metadevices are built from slices (disk partitions). A system controlled by

DiskSuite may contain any number of metadevices, each of which may comprise any

combination of slices.

To implement disk mirroring, the system creates a metadevice d32 as a duplicate of d31.

The system then configures the two metadevices as submirrors of d3, as shown in the

following example:

In a CMS computer system with /cms mirrored, root is also mirrored. The root mirror is d1;

its submirrors are d11 and d12. If your CMS system is running CMS R3V11, your swap

partition is also mirrored. The swap mirror is d2; its submirrors are d21 and d22.

CMS supports only two-way mirrors. Disk concatenation is not supported.

d31

/cms

d32

c0t11d0s3 - Enterprise 3000

c1t4d0s3 - Enterprise 3500

c0t2d0s3 - Sun Blade

c0t0d0s3 - Sun Blade

Enterprise 3000

Enterprise 3500

Troubleshooting

446 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Mirror layouts

Mirror layouts differ depending upon the hardware platform.

Note:

A hard drive device name can be represented as cXtXdXsX.

●Where cX is the device controller number

●Where tX is the device target number

●Where dX is the device disk list number

●Where sX is the device partition slice number for the hard drive

Mirror layout on a Sun Fire V880

Mirror layout on a Sun Blade computer

Mirror layout on a Sun Enterprise 3000 computer

mirror d1

(/ (root) filesystem) mirror d2

(swap partition) mirror d3

(/cms filesystem)

submirror

d11 submirror

d12 submirror

d21 submirror

d22 submirror

d31 submirror

d32

c1t0d0s0 c1t3d0s0 c1t0d0s1 c1t3d0s1 c1t0d0s3 c1t3d0s3

mirror d1

(/ (root) filesystem) mirror d2

(swap partition) mirror d3

(/cms filesystem)

submirror

d11 submirror

d12 submirror

d21 submirror

d22 submirror

d31 submirror

d32

c0t0d0s0 c0t2d0s0 c0t0d0s1 c0t2d0s1 c0t0d0s3 c0t2d0s3

mirror d1

(/ (root) filesystem) mirror d2

(swap partition) mirror d3

(/cms filesystem)

submirror

d11 submirror

d12 submirror

d21 submirror

d22 submirror

d31 submirror

d32

About mirrored systems

Issue 3.0 October 2002 447

Mirror layout on a Sun Enterprise 3500 computer

c0t0d0s0 c0t11d0s0 c0t0d0s1 c0t11d0s1 c0t0d0s3 c0t11d0s3

mirror d1

/ (root) filesystem mirror d2

swap partition mirror d3

/cms filesystem

submirror

d11 submirror

d12 submirror

d21 submirror

d22 submirror

d31 submirror

d32

c0t0d0s0 c1t4d0s0 c0t0d0s1 c1t4d0s1 c0t0d0s3 c1t4d0s3

mirror d1

(/ (root) filesystem) mirror d2

(swap partition) mirror d3

(/cms filesystem)

Troubleshooting

448 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Troubleshooting an installation of the DiskSuite

software

Use the procedures and tips in Troubleshooting an installation of the DiskSuite software to

help you identify and resolve problems with:

●CMS scripts that administer DiskSuite software

●Physical disks

●Metadevices

●/cms file system

Checking for disk recognition errors includes the following topics:

●Excessively long resync on page 448

●Problems with CMS administration scripts on page 449

●Disk I/O problems on page 449

●Checking metadevices on page 450

●Checking the /cms file system on page 451

●Problems with disk administration on page 453

Excessively long resync

When using metadetach and metattach to detach and then reattach a submirror, it may

take a long time—sometimes hours—for resync to complete. You cannot do any

maintenance (adding or replacing disks and so on) while the resync is in progress. That

behavior is normal. Try again later.

Troubleshooting an installation of the DiskSuite software

Issue 3.0 October 2002 449

Problems with CMS administration scripts

To verify that the DiskSuite software is installed:

1. Enter:

pkginfo -x|grep SUNWmd

The system displays a message similar to the following:

2. If the DiskSuite software has not been installed, you will have to reinstall DiskSuite.

3. Once the software has been installed, you must use the olds script to set up the

environment so CMS can access the disks. For a step-by-step description of installing

DiskSuite software and using the olds script, see Installing Avaya CMS and

supporting software on page 65.

If you receive an error message from the olds script, see Problems with disk

administration on page 453.

Disk I/O problems

Check the system console and the /var/adm/messages log for messages that indicate

problems with a specific hard disk.

If a disk is generating errors, it may need to be replaced. For procedures related to

recovering from disk crashes and replacing hard disk drives, see the following documents:

●Avaya CMS Sun Fire V880 Computer Hardware Installation, Maintenance, and

Troubleshooting, 585-215-116

●Avaya CMS Sun Blade 100/150 Workstation Hardware Installation, Maintenance, and

Troubleshooting, 585-310-783

●Avaya CMS Sun Enterprise 3500 Computer Hardware Installation, Maintenance and

Troubleshooting, 585-215-873

●Avaya CMS Sun Ultra 5 Computer Hardware Installation, Maintenance and

Troubleshooting, 585-215-871

●Avaya CMS Sun Enterprise 3000 and SPARCserver Computer Hardware, Maintenance

and Troubleshooting, 585-214-016

SUNWmdg Solstice DiskSuite Tool

SUNWmdja Solstice DiskSuite Japanese localization

SUNWmdnr Solstice DiskSuite Log Daemon Configuration Files

SUNWmdnu Solstice DiskSuite Log Daemon

SUNWmdr Solstice DiskSuite Drivers

SUNWmdu Solstice DiskSuite Commands

SUNWmdx Solstice DiskSuite Drivers(64-bit)

Troubleshooting

450 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Checking metadevices

To verify that a metadevice is set up properly, perform the following procedure:

1. Enter:

metastat

The system displays the following message:

2. Verify the metadevice setup by examining the response to the metastat command.

You are looking for two things:

●All your disk drives must be accounted for. You can verify that by checking the Size

figure (it should roughly equal the total capacity of all your disks). Counting the

number of devices listed, there should be a Stripe section for every drive.

If some drives seem to be missing, check to make sure all the drives are plugged in

and turned on, and that each external drive has a unique target number.

●The device names must reflect the appropriate slice numbers. The slice numbers

are represented by the final two characters of the device name. A properly set-up

/cms file system uses slice 3 of the first internal disk, and slice 1 of all the remaining

disk drives. Consequently, the device name of the first internal disk drive must end

in s3; all other device names must end in s1.

d3: Concat/Stripe

Size: 1819440 blocks

Stripe 0:

Device Start Block Dbase

c0t3d0s3 0 No

Troubleshooting an installation of the DiskSuite software

Issue 3.0 October 2002 451

3. The metastat command will not always detect a problem with soft partition

metadevices.

Enter:

dd if=/dev/md/dsk/dXXX of=/dev/null count=10

where dXXX is the soft partition metadevice name.

If there are problems with the soft partition, the system displays a message similar to

the following:

If there are no problems with the soft partition, the system displays a message similar

to the following:

Checking the /cms file system

To check the /cms file system for errors:

1. Log in as root.

2. Enter the following:

vi /etc/vfstab

The system displays a message, that is similar to the following example:

3. Add a pound sign (#) at the beginning of the /dev/md/dsk/d3 line. This “comments

out” that line.

4. Press Esc and enter:

:wq!

dd: /dev/md/dsk/d204: open: I/O error

10+0 records in

10+0 records out

#device device mount FS fsck mount mount

#to mount to fsck point type pass at boot options

#/dev/dsk/c1d0s2 /dev/rdsk/c1d0s2 /usr ufs 1 yes -

fd - /dev/fd fd - no -

/proc - /proc proc - no -

/dev/dsk/c0t3d0s4 - - swap - no -

/dev/dsk/c0t3d0s0 /dev/rdsk/c0t3d0s0 / ufs 1 no -

/dev/md/dsk/d3 /dev/md/rdsk/d3 /cms ufs 2 yes -

Troubleshooting

452 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

5. Enter:

init 6

The system reboots.

6. When the system is back up, log in as root.

7. Check the /cms file system by entering:

fsck -y /dev/md/rdsk/d3

The system displays a message, that is similar to the following example:

8. Enter:

vi /etc/vfstab

The system displays a message, that is similar to the following example:

9. Delete the pound sign (#) at the beginning of the /dev/md/dsk/d3 line. This

“uncomments” that line.

10. Press Esc, and enter:

:wq!

11. Enter:

mount /cms

The system mounts the CMS file system.

12. If you have trouble mounting /cms:

** /dev/md/rdsk/d3

** Last Mounted on /cms

** Phase 1 - Check Blocks and Sizes

** Phase 2 - Check Pathnames

** Phase 3 - Check Connectivity

** Phase 4 - Check Reference Counts

** Phase 5 - Check Cyl groups

1952 files, 156146 used, 698956 free (516 frags, 87305 blocks,

0.0% fragmentation)

#device device mount FS fsck mount mount

#to mount to fsck point type pass at boot options

#/dev/dsk/c1d0s2 /dev/rdsk/c1d0s2 /usr ufs 1 yes -

fd - /dev/fd fd - no -

/proc - /proc proc - no -

/dev/dsk/c0t3d0s4 - - swap - no -

/dev/dsk/c0t3d0s0 /dev/rdsk/c0t3d0s0 / ufs 1 no -

#/dev/md/dsk/d3 /dev/md/rdsk/d3 /cms ufs 2 yes -

Troubleshooting an installation of the DiskSuite software

Issue 3.0 October 2002 453

a. Verify that the /cms directory exists by entering:

ls -ld /cms

b. If /cms does not exist, enter the following command to create it:

mkdir /cms

c. Use the metastat command to determine the metadevice being used. Then

verify that the entry for /cms in the /etc/vfstab file is correct. If you find any

errors, correct them.

Problems with disk administration

In a system with the DiskSuite software installed, the total amount of disk space available

to /cms should be about the same as the total amount of space provided by all the disk

drives in the system. If there appears to be a problem, you can check the files /etc/vfstab

and /etc/lvm/md.cf to verify that the DiskSuite software recognizes all the drives on your

system. This applies to mirrored systems only.

●/etc/vfstab should name the d3 metadevice (/dev/md/rdsk/d3) as the /cms file system.

Old /cms entries (in the form /cms0 through /cms12) should not exist or, if they do exist,

should be commented out by pound signs at the beginnings of the lines.

●/etc/lvm/SUNWmd/md.tab should account for all the disk drives. Check the /cms

section of the file to make sure it names all existing disk devices. The following example

shows two disks being administered by DiskSuite software:

If there is any discrepancy between either file and the configuration required to run CMS,

go to Checking for disk recognition errors on page 456.

. . .

#/cms d3 3 1 /dev/dsk/c0t1d0s1 1 /dev/dsk/c0t3d0s3

Troubleshooting

454 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Cleaning up a replacement boot disk

If the failed disk is a boot disk, and there are any pre-installed files on the replacement disk

that may interfere with the system booting, perform the following procedure to clean up the

replacement disk:

!Important:

If the system is booting off of a functioning boot disk, skip this procedure.

1. Insert the Solaris disk 1 of 2 CD-ROM into the CD-ROM drive.

2. Enter the following command from the ok prompt:

boot cdrom -sw

3. Enable the Korn shell by entering:

stty erase Backspace

ksh -o vi

Note:

The system will display Backspace as ^H. On some systems Backspace

will not work. If this is the case, substitute “^H” for Backspace.

4. Enter:

dd if=/dev/zero of=/dev/rdsk/cXtXd0s2 bs=128k

where cX is the device controller number, and

where tX is the device target number.

!Important:

It could take up to an hour for this command to complete. Do not continue

with this procedure until the dd command completes.

5. Enter:

format

The system displays a list of disks.

6. Enter the option number for the appropriate disk.

The system prompts you to label the disk.

7. Enter: y

8. Enter:

partition

Cleaning up a replacement boot disk

Issue 3.0 October 2002 455

9. Enter:

10. Verify that the disk is partitioned correctly. See CMS disk partition values on page 430

for more information.

11. Enter:

quit

12. Install a file system on the disk by entering:

newfs /dev/rdsk/cXtXd0s0

where cX is the device controller number, and

where tX is the device target number.

13. Enter: y

14. Verify that there are no problems with the replacement disk.

15. Choose one of the following procedures depending on the type of disk that failed:

●Recovering a mirrored system after the primary boot disk fails on page 318

●Recovering a mirrored system after the secondary boot disk fails on page 324

●Recovering a mirrored system after a single data disk fails on page 329

●Recovering a mirrored system after a mirrored pair of data disks fail on page 335

newfs: Construct a new file system /dev/rdsk/cXtXd0s0:

(y/n)?

Troubleshooting

456 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Checking for disk recognition errors

Use procedures Checking for disk recognition errors to help you diagnose problems with

unrecognized disk drives. This procedure differs for the different hardware platforms.

!CAUTION:

Use this procedure only if the DiskSuite scripts indicate there is a disk

recognition error.

Checking for disk recognition errors includes the following procedures:

●Checking disk recognition errors on a Sun Blade or Ultra 5 on page 456

●Disk recognition errors on an Enterprise 3500 on page 458

●Disk recognition errors on an Enterprise 3000 or Sun Fire V880 on page 459

Checking disk recognition errors on a Sun Blade or Ultra 5

To check for disk recognition errors:

1. Reboot the system with an init 0 command.

The system reboots and displays the ok prompt.

2. Turn off the system.

3. Turn on the system.

When you power on the system unit, the system begins to boot.

4. Interrupt the boot by pressing Stop + A.

The system displays the ok prompt.

5. Enter:

setenv auto-boot? false

This keeps the system from rebooting when you do a reset.

6. Enter:

reset-all

The system resets and responds with the ok prompt.

Checking for disk recognition errors

Issue 3.0 October 2002 457

7. Verify that the system sees all IDE devices by entering:

probe-ide

The system displays a message that is similar to the following:

8. Verify that the system sees all SCSI devices by entering:

probe-scsi-all

The system displays a message that is similar to the following:

9. Verify that all of the disk drives are recognized.

If the devices are still not recognized, see the appropriate hardware installation,

maintenance and troubleshooting book for more information.

10. When you have verified that the system is recognizing all of its disk drives, enter:

setenv auto-boot? true

!CAUTION:

If you fail to enter this command, future reboots will stop at the boot prompt

instead of proceeding through the normal boot-up.

11. Enter:

boot -r

The system reboots.

12. Log in as root.

Device 0 ( Primary Master )

ATA Model: ST34342A

Device 1 ( Primary Slave )

Removeable ATAPI Model: CRD-8240B

Device 2 ( Secondary Master )

Not present

Device 3 ( Secondary Slave )

Not present

/pci@1f,0/pci@1/pci@5/scsi@2,1

Target 0

Unit 0 Disk QUANTUM VK4550J SUN18G8610

Target 4

Unit 0 Removeable Tape HP C56P3A C005

Troubleshooting

458 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Disk recognition errors on an Enterprise 3500

To check for disk recognition errors:

1. Enter:

init 0

The system reboots and displays the ok prompt.

2. Turn off the system.

3. Turn on the system.

The system begins to boot.

4. Interrupt the boot by pressing Stop + A.

The system responds with the ok prompt.

5. Enter:

setenv auto-boot? false

This prevents the system from rebooting when you do a reset.

6. Enter:

reset-all

The system resets and responds with the ok prompt.

7. Enter:

probe-scsi-all

The system verifies all available SCSI devices, and displays a message, that is similar

to the following example:

8. Verify that all of the SCSI devices are recognized.

If the devices are still not recognized, see the appropriate hardware installation,

maintenance and troubleshooting book for more information.

/sbus@3,0/SUNW,fas@3,8800000

Target 5

Unit 0 Removeable Tape EXABYTE EXB-89008E030203V37f

0060055614

Target 6

Unit 0 Removeable Read Only device TOSHIBA

XM6201TASUN32XCD110312/12/97

Checking for disk recognition errors

Issue 3.0 October 2002 459

9. Enter:

probe-fcal-all

The system verifies all available fiber channel disk drives, and displays a message that

is similar to the following example:

10. Verify that all of the fiber channel disk drives are recognized.

If the disk drives are still not recognized, see the appropriate computer hardware

installation, maintenance and troubleshooting book for more information.

11. Enter:

setenv auto-boot? true

!CAUTION:

If you fail to enter this command, future reboots will stop at the boot prompt

instead of proceeding through the normal boot-up.

12. Enter:

boot -r

The system reboots.

13. Log in as root.

Disk recognition errors on an Enterprise 3000 or

Sun Fire V880

To check for disk recognition errors:

1. Enter:

init 0

The system reboots and displays the ok prompt.

2. Turn off the system.

3. Turn on the system.

The system begins to boot.

/sbus@2,0/SUNW,socal@d,10000/sf@1,0

/sbus@2,0/SUNW,socal@d,10000/sf@0,0

WWN 20050800209a80fe Loopid 1

WWN 21000020370e7255 Loopid ef

Disk SEAGATE ST19171FCSUN9.06117E9822U939

Troubleshooting

460 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

4. Interrupt the boot by pressing Stop + A.

The system responds with the ok prompt.

5. Enter:

setenv auto-boot? false

This keeps the system from rebooting when you do a reset.

6. Enter:

reset-all

The system resets and responds with the ok prompt.

7. Verify that the system sees all SCSI devices by entering:

probe-scsi-all

The system verifies all available SCSI devices, and displays a message, that is similar

to the following example:

8. Verify that all of the disk drives are recognized.

If the devices are still not recognized, see the appropriate hardware installation,

maintenance and troubleshooting book for more information.

9. When you have verified that the system recognizes all of its disk drives, enter:

setenv auto-boot? true

!CAUTION:

If you fail to enter this command, future reboots will stop at the boot prompt

instead of proceeding through the normal boot-up.

10. Enter:

boot -r

The system reboots.

11. Log in as root.

/iommu@f,e0000000/sbus@f.e0001000/esp@3,200000

Target 1

Target 3

. . . . .

Target 6

Unit 0 Disk Removable Read Only Device SONY CD-ROM CDU-8012

Common error messages with mirrored systems

Issue 3.0 October 2002 461

Common error messages with mirrored systems

Common error messages with mirrored systems presents, in alphabetical order, the

messages commonly associated with DiskSuite and disk mirroring on a CMS system.

Each message is accompanied by its probable cause and the likely solution.

Message: DiskSuite must be installed

Explanation: You must install the DiskSuite software package.

Response: See Installing DiskSuite on page 103.

Message: /etc/system has been updated since the

last reboot. CMS cannot run without an up-

to-date /etc/system file.

Explanation: /etc/system can change when a particular Solaris patch

is applied to the system or when state database replicas

are removed and re-added during a boot disk

replacement.

Response: Reboot the system.

Message: metadetach: systemname: d21: resync in

progress

Explanation: You cannot detach a metadevice while a resync is in

progress.

Response: Try again later. To find out how far along the resync has

progressed, enter a metastat command.

Message: panic: vfs_mountroot: cannot mount root

rebooting...

resetting....

Explanation: The system is misconfigured.

Response: There are two possible causes:

1. You attempted to boot from a nonbootable device.

Check the device name and try again. The alternate

boot device may be set up incorrectly.

Troubleshooting

462 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

2. You failed to reboot after initiating mirroring

(olds -mirrored), leaving the system unstable.

In that case, do the following:

a. Boot from the CD-ROM.

b. Mount /dev/dsk/c0t0d0s0 /a (or whatever partition

is your root partition).

c. Remove DiskSuite entries from /a/etc/system

(that is, everything between tags “mddb...”)

d. Remove /a/etc/lvm/md* files, that is:

rm /a/etc/opt/SUNWmd/md*

e. Replace /dev/md/rdsk/d1 entries with

/dev/rdsk/c0t3d0s0 (or whatever your boot device

name is).

f. Boot: /usr/sbin/shutdown -y -g0 -i6

g. If the system still refuses to reboot, reload Solaris.

Message: filename restored from filebackup

Explanation: The action failed, and the md.tab file was restored from

the previous version. Consequently, the configuration files

reflect the previous system setup.

Response: Determine the cause of the problem and try again.

Message: resync in progress

Explanation: The command entered cannot be executed because the

mirrors are currently being resynched.

Response: Try again later. You can tell whether a resync is in

progress by entering a metastat command.

Message: stale databases

Explanation: The state database contains old information.

Response: Recreate the database.

Message: syntax error

Explanation: The syntax and usage of the command may be incorrect.

Response: Reenter the command, correcting syntax errors you have

made.

Common error messages with mirrored systems

Issue 3.0 October 2002 463

Message: The DiskSuite Software must be installed

to run this script.

Explanation: The DiskSuite software is not installed.

Response: Install DiskSuite software before attempting to run this

script.

Message: The file filename could not be restored.

Explanation: The previous action failed, and the md.tab or vfstab

file could not be copied back. The existing files may not

accurately reflect the system environment.

Response: Check the file and repair it if necessary.

Message: The /cms filesystem needs to be mounted

Explanation: /cms must be mounted for the command to work.

Response: Mount /cms with the command: mount /cms

Message: This command may hang the system if a

Stop+A or halt command has been executed.

Please type reset-all to reset the system

before executing this command. Do you wish

to continue?

Response: Perform the following:

1. Enter: N (to prevent the probe from continuing).

2. Enter: setenv auto-boot? false

(to keep the system from rebooting)

3. Enter: reset-all

The reset may take a minute to complete. Once it

does, you may do the probe-scsi or probe-scsi-all

and perform any other boot prom level diagnostics.

4. Before you reboot again, enter:

setenv auto-boot? true

Failure to do so will cause the reboot to stop at the

boot prompt.

Troubleshooting

464 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Message: touch: /cms/db/unix_start cannot create

Explanation: A CMSADM backup was done when CMS was still

running. An attempt is made to restart cms, but cms files

are not yet available.

Response: No response required. The message will disappear after

you have restored and migrated CMS.

Message: Unbalanced configurations not supported.

Explanation: You tried to set up a system with an odd number of disk

drives, or you tried to add disks without having rebooted

via a “boot -r” command.

Response: If necessary, add another disk drive to make the drive

count even. Then reboot the system with “boot -r”.

Message: Warning: inode blocks/cyl group (230 >=

data blocks (135) in lost cylinder group.

This implies 2160 sector(s) cannot be

allocated.

Explanation: Some sectors will not be used by the filesystem. This is

just a warning; the filesystem should be fine.

Message: You must be root in order to run this

command.

Explanation: You are not logged in as the root user, but you must be in

order to run the command.

Response: Log in as root and retry the command.

Issue 3.0 October 2002 465

Glossary

Access permissions Permissions assigned to a Call Management System (CMS) user so that the user

can access different subsystems in CMS or administer specific elements

(splits/skills, trunks, vectors, and so on) of Automatic Call Distribution (ACD). Access

permissions are specified as read or write permission. Read permission allows the

CMS user to access and view data (for example, run reports or view the Dictionary

subsystem). Write permission allows the CMS user to add, modify, or delete data

and execute processes.

ACD See Automatic Call Distribution (ACD)

Acknowledgment A window that requires the user to confirm an action or to acknowledge a system

message (for example, system going down, warning, or fatal error for the user

window). This window cannot be moved, sized, or scrolled and disappears only

when the user confirms the message.

Action list A menu in the upper right corner of most user windows. The menu lists the actions

available for that particular user window (for example, add, modify, delete, and so

on). The user selects an action after entering necessary data in the window.

Add package A Solaris operating system command (pkgadd) that allows you to add an additional

software package.

ADU See Asynchronous Data Unit (ADU)

Agent A person who answers calls to an extension in an ACD split. This person is known to

CMS by a login identification keyed into a voice terminal.

Agent login ID A 1- to 4-digit number (Generic 2) or a 1- to 9-digit number (Generic 3) entered by

the agent at the ACD extension to activate the position. Agent logins are required for

all CMS-measured ACD agents.

Agent skill The different types of calls a particular agent can handle. An agent can be assigned

up to four skills. These skills are assigned as either primary or secondary skills. See

“Primary Skill” or “Secondary Skill” definitions in this Glossary.

Agent state A feature of agent call handling that allows agents to change their availability to the

system (for example, ACW, AVAIL, ACD).

Automatic call

distribution (ACD) A switch feature. ACD is software that channels high-volume incoming call traffic to

agent groups (splits or skills).

Also an agent state where the extension is engaged in an ACD call (with the agent

either talking to the caller or the call waiting on hold).

Avaya CMS

466 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Avaya CMS Avaya Call Management System (CMS). A software product used by business

customers that have a Lucent Technologies telecommunications switch and receive

a large volume of telephone calls that are processed through the Automatic Call

Distribution (ACD) feature of the switch.

Backup The process of protecting data by writing the contents of the disk to a tape that can

be removed from the computer and stored safely. A spare copy of data or software

that you keep in case the original is damaged or lost. CMS provides three different

types of backups: CMSADM File System Backup, CMS Full Maintenance Backup,

and CMS Incremental Maintenance Backup.

Boot To load the system software into memory and start it running.

Bus A signal route to which several items of a computer system may be connected in

parallel so that signals can be passed between them.

In general, a multiconductor electrical path used to transfer information over a

common connection from any of several sources to any of several destinations.

Cables Wires or bundles of wires configured with adapters or connectors at each end and

used to connect two or more hardware devices.

CLI

Call level interface A database programming interface from the Structured Query Language (SQL)

Access Group, an SQL membership organization. Under CLI, SQL statements are

passed directly to the server without being recompiled.

Call Management

System query language

(CMS-QL)

A relational database management (operating) system used to organize most of

CMS’s data. Automatically comes with CMS and runs in the background.

Call Vectoring A highly flexible method for processing ACD calls using Vector Directory Numbers

(VDNs) and vectors as processing points between trunk groups and splits or skills.

Call vectoring permits treatment of calls that is independent of splits or skills.

Cartridge tape A 0.25-inch (6.35-mm) magnetic tape used in the tape drive of the Desktop Backup

Pack and External Storage Module to read and write data.

CMS Call Management System. See Avaya CMS.

CMSADM Call Management System Administration. The part of the CMS software that allows a

user to administer features of CMS. See also “CMSSVC.”

CMSADM file system

backup A backup that saves all the file systems on the machine which includes Solaris 8

system and programs, CMS programs and data, and non-CMS data you place on

the computer in addition to the CMS data. See the “Backup” definition for more

details.

EAD

Issue 3.0 October 2002 467

CMSSVC Call Management System Services. The part of the CMS software product that

allows a user to manage CMS system services. See also “CMSADM.”

Command A command is an instruction used to tell the computer to perform a function or to

carry out an activity.

Common Desktop

Environment A desktop user interface for Solaris. This replaces OpenWindows.

Configuration Configuration is the way that the computer is set up to allow for particular uses or

situations.

Copy Copy means to duplicate information.

Custom reports Real-time or historical reports that have been customized from standard reports or

created from original design.

Daemon Pronounced “demon.” A UNIX program that executes in the background ready to

perform an operation when required. Usually unattended processes initiated at start-

up, such as print spoolers, e-mail handlers or schedulers.

Data collection off CMS is not collecting ACD data. If you turn off data collection, CMS will not collect

data on current call activity.

Data Backup The backup that uses ON-Bar to backup the CMS Informix data. This is used with

the CMS LAN backup feature.

Database A group of files that store ACD data according to a specific time frame: current and

previous intrahour real-time data and intrahour, daily, weekly, and monthly historical

data.

Database item A name for a specific type of data stored in one of the CMS databases. A database

item may store ACD identifiers (split numbers or names, login IDs, VDNs, and so on)

or statistical data on ACD performance (number of ACD calls, wait time for calls in

queue, current states of individual agents, and so on).

Database tables Tables that CMS uses to collect, store, and retrieve ACD data. Standard CMS items

(database items) are names of columns in the CMS database tables.

Device The term used to refer to the peripheral itself; for example, a hard disk or a tape

drive. A peripheral is sometimes referred to as a subdevice or an Logical Unit (LU).

Disk A round platter, or set of platters, coated with magnetic medium and organized into

concentric tracks for storing data.

EAD See Expert Agent Distribution (EAD)

EAS

468 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

EAS See Expert Agent Selection (EAS)

ECC See Error Correction Codes (ECC)

EIA Electronic Industries Association. An organization that sets standards for consumer

products and electronic components.

Error correction code

(ECC) A code that protects the customer’s system and data from single bit soft errors that

can occur frequently depending on the environment.

Error message An error message is a response from a program indicating that a problem has arisen

or something unexpected has happened, requiring your attention.

Ethernet A type of network hardware that allows communication between systems connected

directly together by transceiver taps, transceiver cables, and a coaxial cable. Also

implemented using twisted-pair telecommunications wire and cable.

Ethernet address A unique number assigned to each system when it is manufactured. The Ethernet

address of your system is displayed on the banner screen that appears when you

power on your system.

Exception A type of activity on the ACD which falls outside of the limits the customer has

defined. An exceptional condition is defined in the CMS Exceptions subsystem, and

usually indicates abnormal or unacceptable performance on the ACD (by agents,

splits or skills, VDNs, vectors, trunks, or trunk groups).

Expert Agent

Distribution (EAD) A call queued for a skill will go to the most idle agent (primary skill agent). Agents

who are idle and have secondary agent skills will receive the call queued for a skill if

there are no primary agents available.

Expert Agent Selection

(EAS) An optional feature that bases call distribution on agent skill (such as language

capability). EAS matches the skills required to handle a call to an agent who has at

least one of the skills required.

Forecast reports These reports display expected call traffic and agent or trunk group requirements for

the customer’s call center for a particular day or period in the future.

Gigabyte (GB) One gigabyte equals 230 bytes (1073741824 bytes).

Hand-shaking logic A format used to initiate a data connection between two data module devices.

Hard disk A device that stores operating systems, programs, and data files.

High speed serial

interface (HSI) The HSI controller card is a 4-port serial communications card. Each of the four ports

is used for a single physical X.25 link. It is an add-on package that is needed by

CMS for multiple ACDs.

Log out

Issue 3.0 October 2002 469

Historical database Contains intrahour records for up to 62 days in the past, daily records for up to 5

years in the past, and weekly or monthly records for up to 10 years for each CMS-

measured agent, split or skill, trunk, trunk group, vector, and VDN.

Historical reports Reports that display past ACD data for various agent, split or skill, trunk, trunk group,

vector, or VDN activities.

Host computer A computer that is attached to a network and provides services other than simply

acting as a store-and-forward processor or communication switch. The Sun

SPARCserver or Sun Enterprise 3000 computer is your host computer and hosts the

CMS application software.

Host name A name that you (or your system administrator) assign to your system unit to

uniquely identify it to the Solaris 8 operating system (and also to the network).

Hung system A system that does not respond to input from the keyboard or mouse.

IDS See Informix Dynamic Server (IDS)

ITU See International Telecommunications Union (ITU)

Informix A relational database management system used to organize CMS data. An add-on

software package needed by CMS.

Informix Dynamic Server The relational database management system used with CMS Release 3 Version 9.

Install The procedures used to set up the hardware and software of a computer, terminal,

printer, and modem so that they can be used. Installing often includes customizing

the system for a particular situation or user.

Interface A common boundary between two systems or pieces of equipment.

Internet protocol (IP) An integral part of the internet communication protocol system (see Transmission

Control Protocol/Internet Protocol [TCP/IP]). The IP provides the routing mechanism

of the TCP/IP. See also Network Address.

LAPB See Link Access Procedure Balanced (LAPB)

Link access procedure

balanced (LAPB) The ITU standard error correction protocol used on most current X.25 packet

switching networks.

Link A transmitter-receiver channel or system that connects two locations.

a password.

Log out The process of exiting from a system.

Logical unit

470 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

Logical unit The term used to refer to a peripheral device such as a disk drive.

Measured A term that means an ACD element (agent, split or skill, trunk, trunk group, vector,

VDN) has been identified to CMS for collection of data.

Megabyte (MB) One megabyte equals 220 bytes (1048576 bytes).

Menu A list of items from which the user can select one. A menu cannot be moved or sized

and does not count in the user window count.

Multi-user mode A mode of CMS in which any administered CMS user can log into CMS. Data

continues to be collected if data collection is “on.”

Network address A unique number assigned to each system on a network, consisting of the network

number and the system number. Also known as Internet Address or Internet Protocol

(IP) address.

Network hub Hardware that connects a computer to a Network Terminal Server (NTS).

Network terminal server

(NTS) A hardware terminal that connects to the Network Hub via cabling. The NTS

provides 50-pin switch champ connectors used to attach 64 serial devices using the

patch panel cables and patch panels.

Network terminal server

patch panel Hardware that has ports for connecting serial peripheral devices (for example,

printers, terminals and modems). The NTS patch panel connects to the NTS via

PBX-Champ cabling.

Non-Volatile random

access memory

(NVRAM)

A random access memory (RAM) system that holds its contents when external

power is lost.

NTS See Network Terminal Server (NTS)

NVRAM See Non-Volatile Random Access Memory (NVRAM)

Open window A window that remains open because the user has not yet closed it with the “Exit”

Screen Label Key (SLK). An open window becomes the current window when it

initially appears on the screen or when the user makes it the current window using

the “Current” SLK.

Operating system (OS) The software that controls and allocates the resources, such as memory, disk

storage, and the screen display for the computer.

Partitions Sections of the hard disk that are used to store an operating system and data files or

programs. By dividing the disk into partitions, you can use the space allocated in a

more efficient and organized manner.

SBus

Issue 3.0 October 2002 471

Password A character string that is associated with a user name. Provides security for a user

account. Desktop computers require you to type a password when you log into the

system, so that no unauthorized person can use your system.

Port (I/O Port) A designation of the location of a circuit that provides an interface between the

system and lines and/or trunks.

Primary skill An agent will handle calls to many skills before calls to secondary skills. See “Agent

Skill” in this Glossary.

Primary window The first window opened in response to a menu selection. A primary window may

also generate another user window (secondary window). A primary window can be

moved, sized, or scrolled, and counts in the window count.

Printer A physical device that takes electronic signals, interprets them, and prints them on

paper.

Processor interface (PI) A hardware device on the Generic 3i switches that prepares and sends architecture

messages to other switches or application adjuncts.

QIC Quarter-Inch Cartridge

Recommended standard

(RS) Any one of several Electronic Industries Association (EIA) standards commonly used

in U.S. electronic applications.

Refresh rate The number of seconds CMS should wait for each update of the real-time report

data. A user’s fastest allowable refresh rate is defined in the User Permissions —

User Data window as a minimum refresh rate. The default refresh rate when a user

brings up the report input window is the administered minimum refresh rate plus 15

seconds.

RISC Reduced Instruction Set Computer. A computer architecture that reduces chip

complexity by using a simpler instruction set. RISC keeps instruction size constant,

bans the indirect addressing mode, and retains only those instructions that can be

overlapped and made to execute in one machine cycle or less.

RS See Recommended Standard (RS)

RS-422 A balanced electrical interface (for example, RS-422 has a positive and a negative

voltage). This interface is used by the HSI card.

RS-449 A 37-pin physical interface used by the HSI card.

RSC See Sun Remote System Control (RSC)

SBus The Input/Output bus for the Sun SPARCserver and Enterprise computers. Provides

slots for additional cards (for example, HSI Controller Card).

SBus expansion subsystem

472 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

SBus expansion

subsystem A peripheral device attached to a computer system. The SBus expansion subsystem

provides three additional SBus slots and space for two optional SCSI hard disk

drives. The SBus expansion subsystem consists of the following: the SBus

expansion chassis, the expansion adapter card (in the computer system), and the

SBus expansion subsystem cable.

Screen labeled key (SLK) The first eight function keys at the top of the keyboard that correspond to the screen

labels at the bottom of the terminal screen. The screen labels indicate the function

each key performs.

SCSI See Small Computer System Interface

SCSI bus An industry standard peripheral bus that is used to connect intelligent peripherals to

a computer. It uses a daisy-chained cabling arrangement that originates at the Host

Adapter to interconnect up to seven intelligent peripheral controllers on the bus. The

Sun SPARCserver computer uses a fast SCSI-2 implementation.

SCSI ID Each tap on the SCSI bus is required to have a unique identification or address,

which is the SCSI ID. The ID is set by a switch located on each controller. In a

Lucent Technologies’ implementation, the Host Adapter card (with a SCSI ID of 7) is

preset. The remainder can be set with external devices “push buttons.” Users never

have to open a chassis or touch a circuit-board switch.

SCSI single-ended bus A version of the SCSI bus designed to minimize cost and space. Cable lengths up to

6 meters are supported. It is not compatible with the differential version of the SCSI

bus.

Secondary skill An agent will handle secondary skill calls after primary skill calls. See “Agent Skill” in

this Glossary.

Secondary window A user window that is generated from a primary window. Secondary windows can be

moved, sized, or scrolled and do not count in the user window count.

Serial asynchronous

interface/PCI A card that provides access to eight serial ports by connecting to an eight-port patch

panel.

Single-user mode A CMS mode in which only one person can log into CMS. Data collection continues if

data collection is “on.” This mode is required to change some CMS administration.

Skill In relationship to the call center, think of skill as a specific customer need or

requirement, or perhaps a business need of the call center.

SQL See Structured Query Language (SQL)

Slot An electronic connection designed to receive a module or a printed circuit board

(such as a Single In-line Memory Module [SIMM] or a frame buffer board).

Tape cartridge

Issue 3.0 October 2002 473

Small computer system

interface (SCSI) A hardware interface that allows the connection of peripheral devices (such as hard

disks, tape drives and CD-ROM drives) to a computer system.

Soft partitions DiskSuite metadevices on partition 7 that allow disk sizes larger than 14 GB to be

fully utilized by CMS.

Split A group of extensions that receive special-purpose calls in an efficient, cost-effective

manner. Normally, calls to a split arrive over one or a few trunk groups.

Storage device A hardware device that can receive data and retain it for subsequent retrieval. Such

devices cover a wide range of capacities and speeds of access.

Structured Query

Language (SQL) A language used to interrogate and process data in a relational database. SQL

commands can be used to interactively work with a database or can be embedded

within a programming language to interface to a database.

Submenu A menu that appears as a result of a menu selection. All menu selections followed by

a “>” have submenus.

Subsystem Each CMS main menu selection (for example, Reports, Dictionary, System Setup,

Exceptions, and so on), along with Timetable and Shortcut, is referred to as a

subsystem of the Call Management System throughout this document.

Sun Enterprise system A series of host computer systems manufactured by Sun Microsystems Inc. The Sun

Enterprise 3000 or 3500 computer is a platform used to support Avaya CMS R3V6

and later versions as a replacement for the discontinued Sun SPARCserver 10/20

platforms.

Sun Remote System

Control (RSC) A server management tool that provides remote system administration.

Super-user A user with full access privileges on a system, unlike a regular user whose access to

files and accounts is limited.

Switch A private switch system providing voice-only or voice and data communications

services (including access to public and private networks) for a group of terminals

within a customer’s premises.

Syntax The format of a command line.

System A general term for a computer and its software and data.

System Backup The backup that uses a storage manager to backup the UNIX files. This is used with

the CMS LAN backup feature.

Tape cartridge A magnetic piece of hardware that is used as a storage unit for data.

TCP/IP

474 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

TCP/IP See Transmission Control Protocol/Internet Protocol (TCP/IP)

TSC Technical Service Center. The Avaya organization that provides technical support for

Avaya products.

Transmission control

protocol/internet

protocol (TCP/IP)

A communications protocol that provides interworking between dissimilar systems. It

is the de facto standard for UNIX systems.

Trunk A telephone line that carries calls between two switches, between a Central Office

(CO) and a switch, or between a CO and a phone.

Trunk group A group of trunks that are assigned the same dialing digits — either a phone number

or a Direct Inward Dialing (DID) prefix.

UNIX system The operating system on the computer on which CMS runs. A user can access the

UNIX system from the “Commands” SLK. SUN uses Solaris as its UNIX operating

system.

User ID The login ID for a CMS user.

User name A combination of letters, and possibly numbers, that identifies a user to the system.

User window A window the user can move, size, or scroll. It may contain input fields, reports, or

help information.

VDN See Vector Directory Number (VDN)

Vector A list of steps that process calls in a user-defined manner. The steps in a vector can

send calls to splits, play announcements and/or music, disconnect calls, give calls a

busy signal, or route calls to other destinations. Calls enter vector processing by way

of VDNs, which may have received calls from assigned trunk groups, from other

vectors, or from extensions connected to the switch.

Vector directory number

(VDN) An extension number that is used in ACD software to permit calls to connect to a

vector for processing. A VDN is not assigned an equipment location; it is assigned to

a vector. A VDN can connect calls to a vector when the calls arrive over an assigned

automatic-in trunk group or when calls arrive over a dial-repeating (DID) trunk group,

and the final digits match the VDN. The VDN by itself may be dialed to access the

vector from any extension connected to the switch.

Write permission A mode of CMS that allows the CMS user to add, modify, or delete data and execute

processes. Write permission is granted from the User Permissions subsystem.

X.25 An ITU communications protocol standard for packet switching networks that

typically operates at 56 Kbps or less. An add-on software package that allows CMS

to communicate with the switch using X.25 protocol.

Issue 3.0 October 2002 475

Index

ACD

creating . . . . . . . . . . . . . . . . . . . . 248

defining . . . . . . . . . . . . . . . . . . . . 248

removing . . . . . . . . . . . . . . . . . . . 250

testing link . . . . . . . . . . . . . . . . . . . 230

acd_create . . . . . . . . . . . . . . . . . . . . 248

acd_remove. . . . . . . . . . . . . . . . . . . . 250

adding disk drives . . . . . . . . . . . . . . . . . 346

administer

remote console port . . . . . . . . . . . . . . 209

switch LAN . . . . . . . . . . . . . . . . . . 164

TCP/IP . . . . . . . . . . . . . . . . . . . . 164

terminals modems and printers . . . . . . . . . 254

administration log . . . . . . . . . . . . . . . . . 147

Alarm Origination Manager

alarm test . . . . . . . . . . . . . . . . . . . 214

config file set up . . . . . . . . . . . . . . . . 212

set up . . . . . . . . . . . . . . . . . . . . . 212

alternate boot device

creating . . . . . . . . . . . . . . . . . . . . 56

enabling . . . . . . . . . . . . . . . . . . . . 300

NVRAM . . . . . . . . . . . . . . . . . . . . 58

testing . . . . . . . . . . . . . . . . . . . . . 231

AOM . . . . . . . . . . . . . . . . . . . . . . . 212

assigning customer passwords . . . . . . . . . . . 232

auth_display . . . . . . . . . . . . . . . . . . . 259

auth_set . . . . . . . . . . . . . . . . . . . . . 260

authorizations

CMS . . . . . . . . . . . . . . . . . . . . . 141

displaying . . . . . . . . . . . . . . . . . . . 259

EAS . . . . . . . . . . . . . . . . . . . . . . 141

External Call History . . . . . . . . . . . . . . 141

Feature Packages . . . . . . . . . . . . . . . 141

graphics . . . . . . . . . . . . . . . . . . . . 141

setting . . . . . . . . . . . . . . . . . . . . . 260

auto-boot failures . . . . . . . . . . . . . . . . . 395

back_all. . . . . . . . . . . . . . . . . . . . . . 266

backing out a Solaris patch. . . . . . . . . . . . . 290

backup . . . . . . . . . . . . . . . . . . . . . . 251

CMS maintenance backup . . . . . . . . . . . 267

CMSADM . . . . . . . . . . . . . . . . 222, 268

CMSADM checking. . . . . . . . . . . . . . . 272

CMSADM troubleshooting . . . . . . . . . . . 417

system . . . . . . . . . . . . . . . . . . . . 222

backup restoring without . . . . . . . . . . . . . 377

Bay Networks Annex NTS

driver installation . . . . . . . . . . . . . . . . 84

set up . . . . . . . . . . . . . . . . . . . . . 84

start-up files . . . . . . . . . . . . . . . . . . 88

boot device

creating the alternate . . . . . . . . . . . . . . 56

enabling the alternate . . . . . . . . . . . . . 300

boot problems

system fails to auto-boot. . . . . . . . . . . . 395

booting Solaris into single-user mode . . . . . . . 414

CD-ROM

drive does not mount . . . . . . . . . . . . . 415

drive fails to open . . . . . . . . . . . . . . . 415

ejecting . . . . . . . . . . . . . . . . . . . 415

changing

date or time. . . . . . . . . . . . . . . . . . 285

checking

/cms file system. . . . . . . . . . . . . . . . 451

CMSADM backup. . . . . . . . . . . . . . . 272

installed software packages . . . . . . . . . . 393

installed Solaris patches. . . . . . . . . . . . 290

chkDisks. . . . . . . . . . . . . . . . . . . . . 301

chunks . . . . . . . . . . . . . . . . . . . . . 443

CMS

administration menu . . . . . . . . . . . . . 247

authorizations . . . . . . . . . . . . . . . . 141

checking installed Solaris patches . . . . . . . 290

configuration . . . . . . . . . . . . . . . . . 261

data storage parameters . . . . . . . . . . . 161

disk_space . . . . . . . . . . . . . . . . . . 261

error logs. . . . . . . . . . . . . . . . . . . 392

installation fails . . . . . . . . . . . . . . . . 416

installing patches . . . . . . . . . . . . . 264, 265

maintenance backup . . . . . . . . . . . . . 267

passwords . . . . . . . . . . . . . . . . . . 232

patch installation . . . . . . . . . . . . . . . 147

patches . . . . . . . . . . . . . . . . . . . 147

patches, removing . . . . . . . . . . . . . . 295

removal fails . . . . . . . . . . . . . . . . . 416

removing patches . . . . . . . . . . . . . 265, 266

required software . . . . . . . . . . . . . . . . 22

services menu . . . . . . . . . . . . . . . . 257

set up . . . . . . . . . . . . . . . 169, 170, 181

software installation . . . . . . . . . . . . . . 138

Supplemental Services . . . . . . . . . . . . 132

476 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

testing . . . . . . . . . . . . . . . . . . . . 238

turning on and off . . . . . . . . . . . . . 253, 261

CMS patches

installing . . . . . . . . . . . . . . . . . . . 293

listing available patches . . . . . . . . . . . . 293

listing installed patches . . . . . . . . . . . . 293

requirements . . . . . . . . . . . . . . . . . 292

CMS setup methods

from a terminal . . . . . . . . . . . . . . . . 170

using a UNIX system flat file . . . . . . . . 181, 186

CMSADM

acd_create . . . . . . . . . . . . . . . . . . 248

acd_remove . . . . . . . . . . . . . . . . . 250

administering modems terminals and printers. . 254

backup . . . . . . . . . . . . . . . 222, 251, 268

checking backup . . . . . . . . . . . . . . . 272

creating ACDs . . . . . . . . . . . . . . . . 248

file system backup . . . . . . . . . . . . . . 251

installing packages . . . . . . . . . . . . . . 252

menu . . . . . . . . . . . . . . . . . . . . 247

passwd_age . . . . . . . . . . . . . . . . . 254

pkg_install . . . . . . . . . . . . . . . . . . 252

pkg_remove . . . . . . . . . . . . . . . 252, 253

port_admin . . . . . . . . . . . . . . . . . . 254

removing ACDs. . . . . . . . . . . . . . . . 250

removing packages . . . . . . . . . . . . 252, 253

restoring from full and incremental backup . . . 278

restoring specific files . . . . . . . . . . . . . 378

run_cms . . . . . . . . . . . . . . . . . . . 253

run_ids. . . . . . . . . . . . . . . . . . . . 253

troubleshooting . . . . . . . . . . . . . . . . 417

CMSADM restore . . . . . . . . . . . . . . . . 352

CMSSVC

auth_display . . . . . . . . . . . . . . . . . 259

auth_set . . . . . . . . . . . . . . . . . . . 260

back_all . . . . . . . . . . . . . . . . . . . 266

changing switch options . . . . . . . . . . . . 262

CMS

turning on and off . . . . . . . . . . . . . 261

disk_space . . . . . . . . . . . . . . . . . . 261

displaying authorizations . . . . . . . . . . . 259

displaying switch options . . . . . . . . . . . 262

IDS

turning on and off . . . . . . . . . . . . . 260

installing patches . . . . . . . . . . . . . 264, 265

load_all . . . . . . . . . . . . . . . . . . . 265

menu . . . . . . . . . . . . . . . . . . . . 257

patch_inst . . . . . . . . . . . . . . . . . . 264

patch_rmv . . . . . . . . . . . . . . . . . . 265

removing

CMS patches . . . . . . . . . . . . . . . 266

removing patches . . . . . . . . . . . . . . . 265

run_cms . . . . . . . . . . . . . . . . . . . 261

run_ids . . . . . . . . . . . . . . . . . . . . 260

setting authorizations . . . . . . . . . . . . . 260

setup . . . . . . . . . . . . . . . . . . . . . 261

swinfo . . . . . . . . . . . . . . . . . . . . 262

swsetup. . . . . . . . . . . . . . . . . . . . 262

configure, CMS . . . . . . . . . . . . . . . . . . 261

console, redirecting

in OpenBoot mode. . . . . . . . . . . . . . . 402

with Solaris . . . . . . . . . . . . . . . . . . 399

creating

ACDs . . . . . . . . . . . . . . . . . . . . . 248

customer acceptance

procedures . . . . . . . . . . . . . . . . . . 242

worksheet. . . . . . . . . . . . . . . . . . . 243

customer passwords . . . . . . . . . . . . . . . 232

customer support . . . . . . . . . . . . . . . . . . 24

data storage parameters

storage.def file . . . . . . . . . . . . . . . . 161

vector.def file . . . . . . . . . . . . . . . . . 161

date and time

checking . . . . . . . . . . . . . . . . . . . 224

dbspace . . . . . . . . . . . . . . . . . . . . . 443

default router file . . . . . . . . . . . . . . . . . 167

defining a new ACD. . . . . . . . . . . . . . . . 248

determining

CMS version . . . . . . . . . . . . . . . . . 382

devices, not recognized . . . . . . . . . . . . . . 385

dial-in access problems . . . . . . . . . . . . . . 408

disk

I/O problems . . . . . . . . . . . . . . . . . 449

partitioning . . . . . . . . . . . . . . . . . . . 40

recognition errors . . . . . . . . . . . . . . . 456

disk drives

device alias . . . . . . . . . . . . . . . . . . . 58

resetting the device alias. . . . . . . . . . . . . 58

disk failure

recovery . . . . . . . . . . . . . . . . . . . 314

disk space

cooked . . . . . . . . . . . . . . . . . . . . 444

raw . . . . . . . . . . . . . . . . . . . . . . 444

disk_space . . . . . . . . . . . . . . . . . . . . 261

DiskSuite

error messages . . . . . . . . . . . . . . . . 461

installing . . . . . . . . . . . . . . . . . . . 103

troubleshooting . . . . . . . . . . . . . . . . 448

displaying

switch options . . . . . . . . . . . . . . . . . 262

Issue 3.0 October 2002 477

drivers

HSI/P . . . . . . . . . . . . . . . . . . . . . 79

HSI/S . . . . . . . . . . . . . . . . . . . . . 77

NTS . . . . . . . . . . . . . . . . . . . . . . 84

SAI/P . . . . . . . . . . . . . . . . . . . . . 81

X.25. . . . . . . . . . . . . . . . . . . . 90, 91

EAS . . . . . . . . . . . . . . . . . . . . . . . 141

editing /etc/defaultrouter file . . . . . . . . . . . . 167

editing /etc/hosts file . . . . . . . . . . . . . . . . 164

EEPROM parameters . . . . . . . . . . . . . . . 54

error logs . . . . . . . . . . . . . . . . . . . . . 392

error messages . . . . . . . . . . . . . . . . . . 420

ESQL. . . . . . . . . . . . . . . . . . . . . . . 116

External Call History

authorize . . . . . . . . . . . . . . . . . . . 141

installing . . . . . . . . . . . . . . . . . . . . 191

faulty disk

identifying . . . . . . . . . . . . . . . . . . . 303

Feature Packages . . . . . . . . . . . . . . . . . 191

External Call History . . . . . . . . . . . . . . 191

Forecasting . . . . . . . . . . . . . . . . . . 189

installing . . . . . . . . . . . . . . . . . . . . 189

set authorizations . . . . . . . . . . . . . . . 141

file system backup. . . . . . . . . . . . . . . . . 251

finding misplaced X.25 password . . . . . . . . . . 383

flat file

CMS setup. . . . . . . . . . . . . . . . . . . 181

Forecasting

authorize . . . . . . . . . . . . . . . . . . . 141

installing . . . . . . . . . . . . . . . . . . . . 189

graphics . . . . . . . . . . . . . . . . . . . . . 141

hard drive partition values

boot disk. . . . . . . . . . . . . . . . . . . . 430

data disk. . . . . . . . . . . . . . . . . . 44, 432

hardware, required . . . . . . . . . . . . . . . . 199

hosts file . . . . . . . . . . . . . . . . . . . . . 164

HSI/P driver installation . . . . . . . . . . . . . . 79

HSI/S driver installation . . . . . . . . . . . . . . 77

identify down chunks . . . . . . . . . . . . . . . 302

IDS . . . . . . . . . . . . . . . . . . . . . . . .112

turning on and off . . . . . . . . . . . . . 253, 260

ILS . . . . . . . . . . . . . . . . . . . . . . . .119

Informix

environment set up . . . . . . . . . . . . . . 109

IDS installation . . . . . . . . . . . . . . . . .112

ILS installation . . . . . . . . . . . . . . . . .119

initializing. . . . . . . . . . . . . . . . . . . 129

Runtime ESQL installation. . . . . . . . . . . .116

SQL installation. . . . . . . . . . . . . . . . .110

tunables . . . . . . . . . . . . . . . . . . . 216

initializing

Informix IDS . . . . . . . . . . . . . . . . . 129

installation related problems . . . . . . . . . . . 381

checking installed Solaris patches . . . . . . . 290

using pkgchk command . . . . . . . . . . . . 394

installing

Bay Networks Annex NTS drivers . . . . . . . . 84

CMS patches . . . . . . . . . . . . . . . 264, 265

DiskSuite. . . . . . . . . . . . . . . . . . . 103

External Call History . . . . . . . . . . . . . 191

Feature Packages . . . . . . . . . . . . . . 191

Forecasting. . . . . . . . . . . . . . . . . . 189

IP addresses for NTS. . . . . . . . . . . . . . . 222

Korn shell . . . . . . . . . . . . . . . . . . . . . 51

LAN . . . . . . . . . . . . . . . . . . . . . . . 164

link . . . . . . . . . . . . . . . . . . . . . . . 230

load_all . . . . . . . . . . . . . . . . . . . . . 265

local console. . . . . . . . . . . . . . . . . 228, 401

luxadm command . . . . . . . . . . . . . . . . 346

machine panics . . . . . . . . . . . . . . . . . 396

maintenance

backup . . . . . . . . . . . . . . . . . . . . 267

restore . . . . . . . . . . . . . . . . . . . . 276

metadevice

troubleshooting . . . . . . . . . . . . . . . . 450

metadevices . . . . . . . . . . . . . . . . . . . 444

mirror layouts . . . . . . . . . . . . . . . . . . 446

mirrored system

about. . . . . . . . . . . . . . . . . . . . . 443

478 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

DiskSuite. . . . . . . . . . . . . . . . . . . 444

Informix . . . . . . . . . . . . . . . . . . . 443

mirrors

error messages . . . . . . . . . . . . . . . . 461

layout . . . . . . . . . . . . . . . . . . . . 446

required hardware . . . . . . . . . . . . . . 199

missing devices . . . . . . . . . . . . . . . . . 385

network interface set up . . . . . . . . . . . . . 165

nohup command . . . . . . . . . . . . . . . . . . 66

NTS

driver installation . . . . . . . . . . . . . . . . 84

set up . . . . . . . . . . . . . . . . . . . . 222

setting up start up files . . . . . . . . . . . . . 88

NVRAM . . . . . . . . . . . . . . . . . . . . . . 58

ODBC installation . . . . . . . . . . . . . . . . 153

Open Database Connectivity . . . . . . . . . . . 153

OpenBoot mode

redirecting the console . . . . . . . . . . . . 402

partitioning

hard drives . . . . . . . . . . . . . . . . . . . 40

passwd_age . . . . . . . . . . . . . . . . . . . 254

password

CMS . . . . . . . . . . . . . . . . . . . . . 232

customer . . . . . . . . . . . . . . . . . . . 232

finding misplaced X.25 . . . . . . . . . . . . 383

root . . . . . . . . . . . . . . . . . . . . . . 49

password aging . . . . . . . . . . . . . . . . . 254

exclude file . . . . . . . . . . . . . . . . . . 386

patch_inst . . . . . . . . . . . . . . . . . . . . 264

patch_rmv . . . . . . . . . . . . . . . . . . . . 265

patches

CMS . . . . . . . . . . . . . . . . . . . . . 147

installing CMS . . . . . . . . . . . . . . 265, 293

listing installed CMS . . . . . . . . . . . . . 293

removing CMS . . . . . . . . . . . . . . 266, 295

requirements for CMS. . . . . . . . . . . . . 292

Solaris . . . . . . . . . . . . . . . . . . . . 287

Solaris . . . . . . . . . . . . . . . . . . . . 106

pkg_install . . . . . . . . . . . . . . . . . . . . 252

pkg_remove . . . . . . . . . . . . . . . . . 252, 253

pkgchk

command . . . . . . . . . . . . . . . . . . 394

errors . . . . . . . . . . . . . . . . . . . . 394

pkgname

command . . . . . . . . . . . . . . . . . . . 393

port_admin . . . . . . . . . . . . . . . . . . . . 254

power management. . . . . . . . . . . . . . . . . 52

publications center . . . . . . . . . . . . . . . . . 14

recognition errors on disk . . . . . . . . . . . . . 456

recognizing new hardware devices. . . . . . . . . 385

recovering a system. . . . . . . . . . . . . . . . 314

recovery procedures

NVRAM chip . . . . . . . . . . . . . . . . . . 58

redirect remote console port . . . . . . . 226, 228, 400

redirecting the console

in OpenBoot mode. . . . . . . . . . . . . . . 402

with Solaris . . . . . . . . . . . . . . . . . . 399

remote access port

redirecting to local . . . . . . . . . . . . 228, 401

redirecting to remote. . . . . . . . . . . . . . 226

testing . . . . . . . . . . . . . . . . . . . . 226

remote console

administering the port . . . . . . . . . . . . . 209

redirecting the port. . . . . . . . . . 226, 228, 400

single-user mode . . . . . . . . . . . . . . . 414

using . . . . . . . . . . . . . . . . . . 209, 399

Remote System Control . . . . . . . . . . . 233, 236

remote system control. . . . . . . . . . . . . . . 406

Remote System Control software . . . . . . . . . . 71

removing

ACDs . . . . . . . . . . . . . . . . . . . . . 250

CMS package fails. . . . . . . . . . . . . . . 416

feature packages . . . . . . . . . . . . 252, 253

patches . . . . . . . . . . . . . . . . . . . . 265

removing disk drives . . . . . . . . . . . . . . . 346

restoring a system . . . . . . . . . . . . . . . . 352

restoring data

disk failure . . . . . . . . . . . . . . . 306, 314

disk replacement . . . . . . . . . . . . 306, 314

full and incremental backup . . . . . . . . . . 278

maintenance backup. . . . . . . . . . . . . . 276

specific files . . . . . . . . . . . . . . . . . . 378

without backup . . . . . . . . . . . . . . . . 377

resync problem . . . . . . . . . . . . . . . . . . 448

root password . . . . . . . . . . . . . . . . . . . 49

RSC . . . . . . . . . . . . . . . . 71, 233, 236, 406

run_cms . . . . . . . . . . . . . . . . . . 253, 261

run_ids. . . . . . . . . . . . . . . . . . . 253, 260

SAI/P driver installation . . . . . . . . . . . . . . . 81

set up

Issue 3.0 October 2002 479

Alarm Origination Manager . . . . . . . . . . . 212

CMS . . . . . . . . . . . . . . . 169, 170, 181

CMS authorizations . . . . . . . . . . . . . . 141

data storage parameters . . . . . . . . . . . . 161

Informix environment . . . . . . . . . . . . . . 109

LAN for switch connections . . . . . . . . . . . 164

network interface. . . . . . . . . . . . . . . . 165

networking . . . . . . . . . . . . . . . . . . . 164

NTS . . . . . . . . . . . . . . . . . . . . . . 222

NTS start-up files. . . . . . . . . . . . . . . . 88

remote console. . . . . . . . . . . . . . . . . 208

TCP/IP . . . . . . . . . . . . . . . . . . . . 164

Visual Vectors . . . . . . . . . . . . . . . . . 195

single-user mode . . . . . . . . . . . . . . . . . 414

slices . . . . . . . . . . . . . . . . . . . . . . . 445

SNMP . . . . . . . . . . . . . . . . . . . . 63, 391

soft partitions . . . . . . . . . . . . . . . . . . . 433

software installation

Bay Networks Annex NTS . . . . . . . . . . . 84

booting from the Solaris software CD-ROM . . . 27

CMS . . . . . . . . . . . . . . . . . . . 65, 138

CMS patches . . . . . . . . . . . . . . 147, 293

CMS Supplemental Services . . . . . . . . . . 132

DiskSuite . . . . . . . . . . . . . . . . . . . 103

Feature Packages . . . . . . . . . . . . . . . 189

HSI/P . . . . . . . . . . . . . . . . . . . . . 79

Informix IDS . . . . . . . . . . . . . . . . . . 112

Informix Runtime ESQL. . . . . . . . . . 116, 119

Informix software packages . . . . . . . . . . . 109

Informix SQL. . . . . . . . . . . . . . . . . . 110

ODBC . . . . . . . . . . . . . . . . . . . . . 153

SAI/P . . . . . . . . . . . . . . . . . . . . . 81

Solaris. . . . . . . . . . . . . . . . . . . . . 25

Solaris patches. . . . . . . . . . . . . . 106, 287

Sun Online Validation Test Suite . . . . . . . . 68

SunLink HSI/S . . . . . . . . . . . . . . . . . 77

Visual Vectors . . . . . . . . . . . . . . . . . 195

X.25 driver . . . . . . . . . . . . . . . . . . . 90

X.25 license . . . . . . . . . . . . . . . . . . 96

software maintanence . . . . . . . . . . . . . . . 245

Solaris

assigning root password . . . . . . . . . . . . 49

backing out a patch. . . . . . . . . . . . . . . 290

booting from CD-ROM . . . . . . . . . . . . . 27

checking installed patches . . . . . . . . . . . 290

EEPROM parameters . . . . . . . . . . . . . 54

enabling Korn shell . . . . . . . . . . . . . . . 51

finalizing the installation . . . . . . . . . . . . 50

identifying the system. . . . . . . . . . . . . . 29

installing . . . . . . . . . . . . . . . . . . . . 25

opening a terminal window . . . . . . . . . . . 51

partitioning disk drives. . . . . . . . . . . . . . 40

patches . . . . . . . . . . . . . . . . . 106, 287

redirecting the console . . . . . . . . . . . . 399

selecting the system files . . . . . . . . . . . . 36

setting date and time . . . . . . . . . . . . . . 34

system activity recorder . . . . . . . . . . . . . 61

Solstice for Server Connect

installing, X.25 package . . . . . . . . . . . . . 90

X.25 drivers . . . . . . . . . . . . . . . . . . 91

spatches, backing out . . . . . . . . . . . . . . 290

SQL installation . . . . . . . . . . . . . . . . . .110

starting CMS. . . . . . . . . . . . . . . . . 253, 261

starting IDS . . . . . . . . . . . . . . . . . 253, 260

state databases . . . . . . . . . . . . . . . . . 444

stopping CMS . . . . . . . . . . . . . . . . 253, 261

stopping IDS . . . . . . . . . . . . . . . . . 253, 260

Sun Online Validation Test Suite (VTS) . . . . . . . 68

Supplemental Services installation . . . . . . . . 132

swinfo . . . . . . . . . . . . . . . . . . . . . . 262

switch

link. . . . . . . . . . . . . . . . . . . . 164, 230

options . . . . . . . . . . . . . . . . . . . . 262

setup. . . . . . . . . . . . . . . . . . . . . 262

TCP/IP . . . . . . . . . . . . . . . . . . . . 164

swsetup . . . . . . . . . . . . . . . . . . . . . 262

system

backup . . . . . . . . . . . . . . . . . . . . 222

checking date and time . . . . . . . . . . . . 285

country and time zones . . . . . . . . . . . . 286

date and time. . . . . . . . . . . . . . . 224, 285

messages . . . . . . . . . . . . . . . . . . 419

restoring specific files . . . . . . . . . . . . . 378

restoring without backup. . . . . . . . . . . . 377

system activity recorder. . . . . . . . . . . . . . . 61

system fails to auto-boot . . . . . . . . . . . . . 395

system fails to boot properly . . . . . . . . . . . 414

tape drives and cartridges . . . . . . . . . . . . 269

TCP/IP . . . . . . . . . . . . . . . . . . . . . 164

technician support . . . . . . . . . . . . . . . . . 24

testing

ACD link . . . . . . . . . . . . . . . . . . . 230

CMS software . . . . . . . . . . . . . . . . 238

connection to TSC . . . . . . . . . . . . . . 226

remote access port . . . . . . . . . . . . . . 226

time zones. . . . . . . . . . . . . . . . . . . . 286

troubleshooting . . . . . . . . . . . . . . . . . 381

/cms file system. . . . . . . . . . . . . . . . 451

CD-ROM drive . . . . . . . . . . . . . . . . 415

checking installed software packages . . . . . 393

480 CMS R3V11 Software Installation, Maintenance, and Troubleshooting

CMS installation fails . . . . . . . . . . . . . 416

CMSADM . . . . . . . . . . . . . . . . . . 417

common error messages . . . . . . . . . . . 420

dial-In access problems . . . . . . . . . . . . 408

disk I/O problems . . . . . . . . . . . . . . . 449

DiskSuite error messages . . . . . . . . . . . 461

DiskSuite software . . . . . . . . . . . . . . 448

error logs. . . . . . . . . . . . . . . . . . . 392

machine panics. . . . . . . . . . . . . . . . 396

metadevices . . . . . . . . . . . . . . . . . 450

mirrored system . . . . . . . . . . . . . . . 448

no power on peripherals. . . . . . . . . . . . 385

password aging. . . . . . . . . . . . . . . . 390

pkgchk errors. . . . . . . . . . . . . . . . . 394

problems with CMS administration scripts . . . 449

recognizing new hardware. . . . . . . . . . . 385

soft partitions . . . . . . . . . . . . . . . . . 437

solutions for X.25 error messages . . . . . . . 384

system fails to auto-boot. . . . . . . . . . . . 395

X.25 license installation problems . . . . . . . 383

turnover system to customer . . . . . . . . . . . 223

upgrading a mirrored system . . . . . . . . . . . 379

using the remote console . . . . . . . . . . . . . 399

verifying system date and time . . . . . . . . . . 224

Visual Vectors

set up . . . . . . . . . . . . . . . . . . . . 195

start up. . . . . . . . . . . . . . . . . . . . 215

VTS . . . . . . . . . . . . . . . . . . . . . . . . 68

WWN number . . . . . . . . . . . . . . . . . . 346

X.25

driver . . . . . . . . . . . . . . . . . . . 90, 91

error messages . . . . . . . . . . . . . . . . 384

finding license password . . . . . . . . . . . 383

Golden Key. . . . . . . . . . . . . . . . . . . 97

license installation problems . . . . . . . . . . 383

license password . . . . . . . . . . . . . . . . 90

manual license . . . . . . . . . . . . . . . . . 97

retrieving system information . . . . . . . . . . 90

Avaya CMS R3V11 Software Installation, Maintenance, And Troubleshooting Guide Sun Fire V880 215115 3
