INSTALLATION INSTRUCTIONS

Item#2258 (New. 06/08/2013)

READ AND SAVE THESE INSTRUCTIONS

WAR N I N G ! S H U T P O W E R O F F AT F U S E O R C I R C U I T B RE AK E R .

AVERTISSEMENT! COUPER LE COURANT AU NIVEAU DES FUSIBLES OU DU DISJONCTEUR.

Page: 1/2

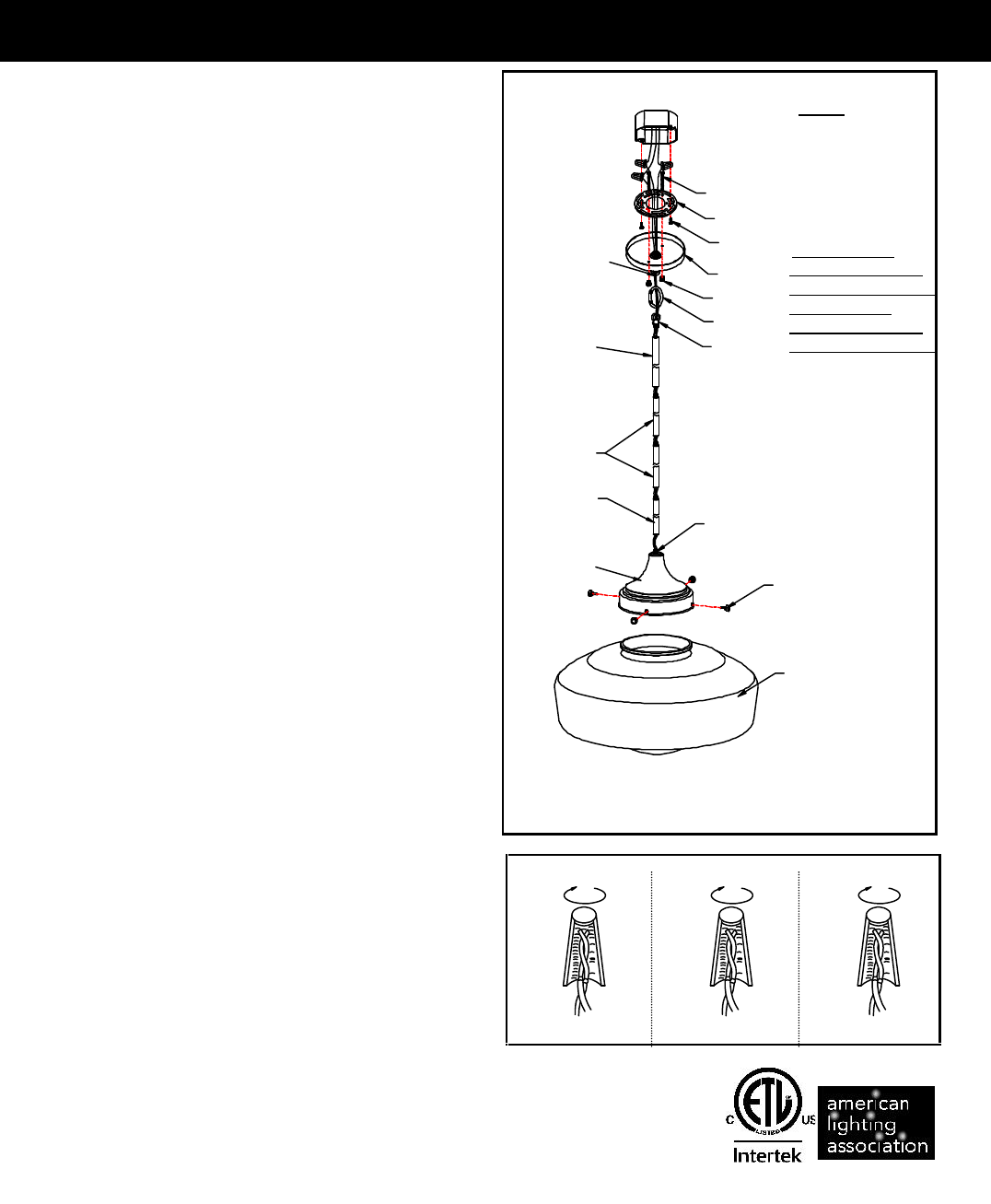

Fig. 1

Fig.3

LA-2341E

PREPARATION (Fig. 1)

1. Shut off the power at the fuse box or circuit breaker. If

necessary, remove the old fixture including the

mounting hardware.

2. Carefully remove the fixture from the carton and

check that all parts are included as shown in the

illustration.

ASSEMBLING THE FIXTURE WITH CHAIN LOOP (Fig. 2)

3. Determine the desired hanging height and thread rods

(F1, F2 and F3) to the nipple (I) of the fixture body (L).

Then attach loop (H1) by screwing in to rod (F1).

Note: remove the nipple if installing with one 6” rod

only.

4. Attach the quick link (G) to loop (H1) and loop (H2) on

the canopy (D). Carefully feed the wires over loop

(H1), quick link (G) and loop (H2).

5. Thread screws (A) into the pre-drilled holes in the

circular strap (B) spaced the same distance apart as

the holes in the canopy (D).

6. Attach the circular strap (B) to the Junction box using

mounting screws (C) (Size: #8-32N*L0.5”). The side

of the circular strap marked “GND” must face out.

CONNECTING THE WIRES (Fig. 3)

7. At this point, connect the electrical wires as shown in

figure 3, making sure that all wire connectors are

secured. If your outlet has a ground wire (green or

bare copper), connect the fixture’s ground wire to it.

Otherwise, connect the fixture’s ground wire directly

to the circular strap using the green screw provided.

8. Tuck the wire connectors neatly into the ceiling

Junction Box and then raise the canopy all the way to

the ceiling.

COMPLETING THE INSTALLATION (Fig. 1)

9. Thread screws (A) into canopy (D), and secure with

knurled knobs (E).

10. Install the light bulb(s) (not included) in accordance

with the fixture’s specifications. (DO NOT EXCEED

THE MAXIMUM WATTAGE RATING!) (NE PAS

DEPASSER LA PUISSANCE NOMINALE

MAXIMALE!).

11. Secure glass shade (K) to fixture body (L) with ball

nuts (J).

Your installation is now complete. Return power to the

junction box and test the fixture.

Note: Illustration (Fig. 1) on this manual is for

installation purposes only. It may or may not be

identical to the fixture purchased.

FIXTURE

WIRES

Black or

Smooth

HOUSE

WIRES

Black

(Hot)

FIXTURE

WIRES

White or

Ribbed

HOUSE

WIRES

White

(Neutral)

FIXTURE

WIRES

Bare

Copper

(Ground)

HOUSE

WIRES

Green

(Ground)

Set# A-020

-Circular Strap

-Ground screw

-Mounting Screw*2

L

I

F3

F2

F1

D

G

B

C

E

H1

J

K

A

H2

Rod# W39-2-576*1(F1)

W39-2-576*2(F2)

W39-2H-576*1(F3)

Or: # W39-2-613*1(F1)

W39-2-613*2(F2)

W39-2H-613*1(F3)

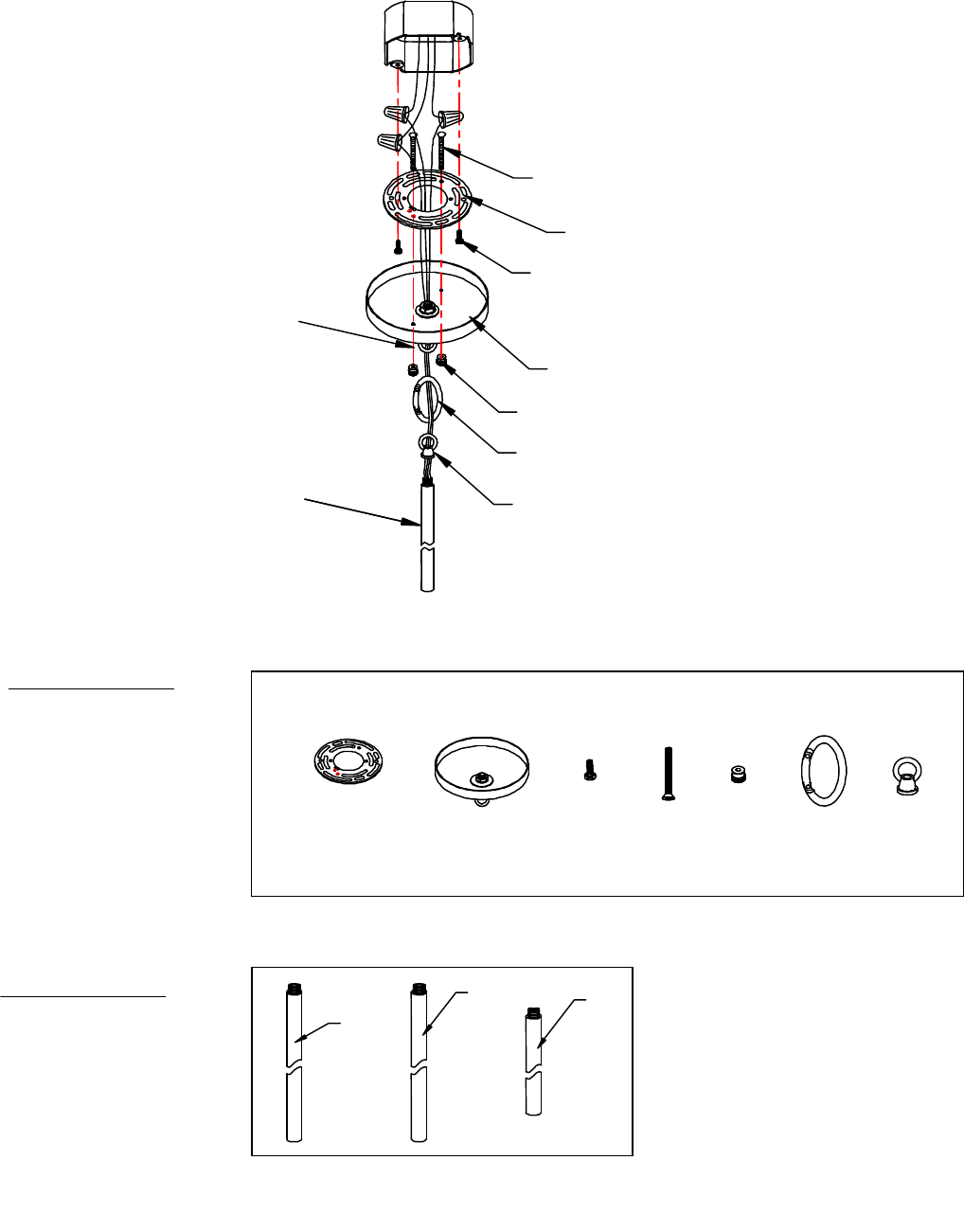

Fig.2

Page: 2/2

LA-2341E

F1

C

E

D

H1

A

B

G

H2

b. Hardware Bag:

F1. ROD 12"*1

F2. ROD 12"*2

F3. ROD 6"*1

F1

F2

F3

A

E

C

D

B

G

H

a. Hardware Bag:

A. Screw*2

B. Circular Strap*1

D. Canopy *1

C. Mounting Screw*2

E. Knurled Knob*2

H. Loop*2

G. Quick Link*1
