CQR is one of the major manufacturers of security products in the UK, and as a
leading supplier to the European security industry, has consistently been at the
forefront of traditional and new product development since opening for business
way back in the early eighties.
The CQR brand is recognised worldwide and has become synonymous with quality
and reliability. CQR branded products are all designed with ease of installation and
use in mind and meet many product standards worldwide, including also full
compliance to ISO 9001:2000.
Now part of the OSL Group, CQR continues to bring new products to market, backed
up by a sales and support service, we believe is second to none.
This Technical Data Sheet reflects our ‘modern’ approach to our industry and provides
you with all the information you need on this section of our
extensive range.
All CQR’s detection products are designed for
Consistency, Quality and Reliability. Their proven
track record over many years means they can be
fitted as part of any installation with confidence,
ensuring that top quality, reliable products are
consistent throughout the system.
The useful ‘at a glance’ tables on the back of this
leaflet gives you all the performance data you need
to choose the right products for the job. This includes
our unique range of mass inertia shock sensors and
TRAPPER, the intellegent shock detector & analyser.
All of CQR Detection products are available from a
wide range of specialist security Distributors who,
together with our own technical back up, provide an
excellent after-sales service as and when required.
However, should you require further information on
any product in this leaflet, please give our Technical
Support Team a call on +44(0)151 606 6311.

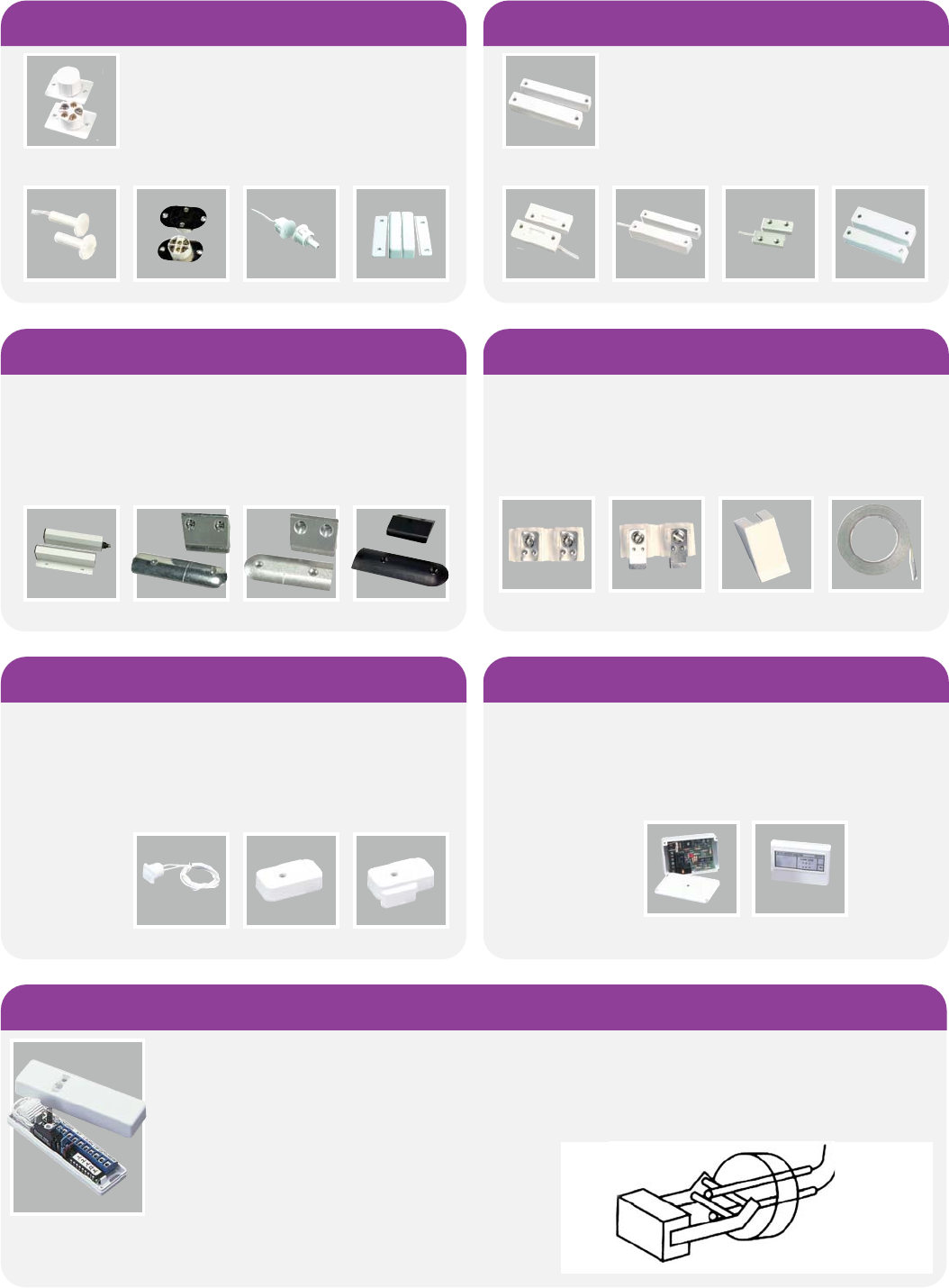

A range of contacts in plastic and aluminium
which can be surface mounted and which will
suit most domestic and commercial
installations.
SC525/WH/4C SC513/WH/4C
SC516/WH -
SC517/WH
SC550/WH
SC555/AL/4C
Magnetic contacts which can be flush fitted for
maximum discretion. The range includes plastic
and metal fronted types, some of which are pre-
wired for easy installation.
FLUSH CONTACTS
A range of aluminium pre-wired contacts some
of which are fitted with two reeds for
additional security.
HEAVY DUTY CONTACTS
A range of mass inertia shock sensors which can
be used either with the TRAPPER or with other
separate analysers or those integrated into
control panels.
SD1/WH - Flush mounted sensor, requiring a 13mm hole
SD3/WH - Surface sensor in tampered junction box can be
mounted in any place
SD4/WH - As above, with the addition of a reed switch
and magnet
SHOCK SENSORS
CEQMET EXTERNAL SIREN
SURFACE CONTACTS
TRAPPER
A range of analysers designed to work with CQR
shock sensors. They use the well-proven
Time/Pulse integrator type of system, designed
to match various forced-entry modes but
without complex setting
ANALYSERS
A range of self adhesive aluminium foil and
terminal blocks for use on windows.
WINDOW FOIL
Trapper uses the well proven mass inertia shock sensor
module giving superior stability and performance over all
building materials.
The unique crow bar leverage action in the design of the CQR
sensor means that the moving mass weight is lighter than that
of other sensors, thus making it less sensitive to wind and traffic
generated vibrations.
The wiping action of the hard gold crosspoint bars makes the
sensor self cleaning and highly resistant to contact degradation.
Features:
• PIC microchip controller
• Auto learn sensitivity control
• Tri-colour LED status
indication
• Time window pulse count
• Sequential alarm memory for
units 1-10
• Digital sensitivity adjustment
using jumpers
• Slave sensor facility
FC503/WH FC509/MT/2
FC504/WH -
FC505/WH
FS610/WH
FC620/WH
GP001 - GP002 RS002/ALI RS005/ALI
SD1/WH SD4/WH
SD3/WH
short plate
FB722
extended plate
FB724
foil
FB725/50
foil block cover
FB726
MA350MA100T
RS001 /BK
Illustration simplified to demonstrate principle
Connections
ReedSwitches
Pull-in gap
Material
Size mm
Contact form
Voltage range
Switching
current
Contact
Material
Colours
FC5
0
34 wire 115mm Polystyrene 9.5 Dia x 25 SPST
form A 1-50vDC 500mA Rhodium White
FC5
0
45 1 18mm Polystyrene 19 Dia
x 15
35 x 22
SPST
form A 1-50vDC 500mA Rhodium White
FC5
0
55 1 23mm Polystyrene 19 Dia
x 15
35 x 22
SPST
form A 1-50vDC 500mA Rhodium White
/ Brown
FC5
0
9/MT/26 2 25mm Polystyrene
/ Metal
25 Dia
x 13
57 x 32
SPST
form A 1-50vDC 500mA Rhodium White
FS6
10
3m 4 core 115mm Polystyrene 6 Dia x 26 SPST
form A 1-50vDC 500mA Rhodium White
FC6
20
3m 4 core 115mm Polystyrene
Contact:
9.5 Dia x 33
Adaptor:
25 Dia x 20
SPST
form A 1-50vDC 500mA Rhodium White

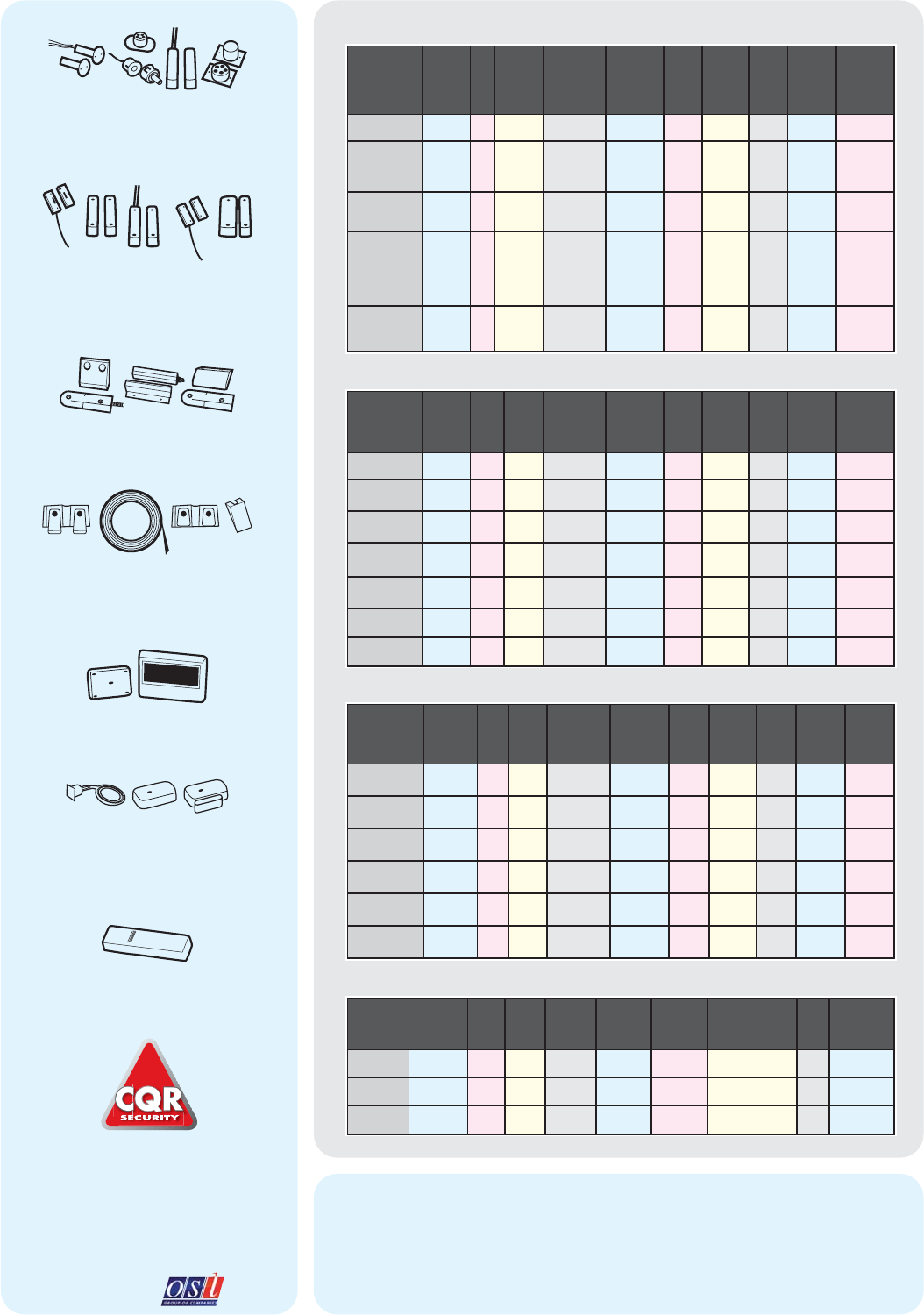

FLUSH CONTACTS AT A GLANCE
Connections
Reed
Switches
Pull-in gap
Material
Size mm
Contact
form
Voltage
range
Switching
current
Contact
Material
Colours
SC5
1
31m 4 core 120mm Polystyrene 65 x 13.5 x 13 SPST
form A 1-50vDC 500mA Rhodium White
SC5
1
65 1 15mm Polystyrene 65 x 13.5 x 13 SPST
form A 1-50vDC 500mA Rhodium White/
Brown
SC5
1
75 1 20mm Polystyrene 65 x 13.5 x 13 SPST
form A 1-50vDC 500mA Rhodium White/
Brown
SC5
2
51m 4 core 120mm Polystyrene 38 x 15 x 8 SPST
form A 1-50vDC 500mA Rhodium White/
Brown
SC55
0
6 1 30mm Polystyrene 85 x 25 x 20 SPST
form A 1-50vDC 500mA Rhodium White/
Brown
SC555 1m 4 core 120mm Aluminium 43 x 17 x 10 SPST
form A 1-50vDC 500mA Rhodium Aluminium
FS6
10
3m 4 core 115mm Polystyrene 6 Dia x 26 SPST
form A 1-50vDC 500mA Rhodium White
SURFACE CONTACTS AT A GLANCE
Connections
Reed
Switches
Pull-in gap
Material
Size mm
Contact
form
Voltage
range
Switching
current
Contact
Material
Colours
RS
001
0.5m
armoured
cable 130mm Polystyrene 150 x 50 x 10 SPST
form A 1-50vDC 500mA Rhodium Black
RS
002
0.5m flexible
armoured
cable 165mm Aluminium 175 x 50 x 15 SPST
form A 1-50vDC 500mA Rhodium Aluminium
RS
002 1
M1m flexible
armoured
cable 165mm Aluminium 175 x 50 x 15 SPST
form A 1-50vDC 500mA Rhodium Aluminium
RS
002
0.5m flexible
armoured
cable 150mm Aluminium 130 x 10 x 45 SPST
form A 1-50vDC 500mA Rhodium Aluminium
GP
001
0.5m flexible
armoured
cable 150mm Aluminium 80 x 15 x 27 SPST
form A 1-50vDC 500mA Rhodium Aluminium
GP
002
0.5m flexible
armoured
cable 250mm Aluminium 80 x 15 x 27 SPST
form A 1-50vDC 500mA Rhodium Aluminium
HEAVY DUTY CONTACTS AT A GLANCE
Supply
Voltage
Supply
Current
Sensor
loops
Indicators
Sensitivity
Reset
Alarm
relay
Tamper
Switch
Size mm
MA
100
10.5 - 15 vdc 30mA 1 1 1 Auto open on alarm,
1 amp, 60v 250 v
1A 80 x 53 x 25
MA35
0
10.5 - 15 vdc 85mA 3 3 3 Auto open on alarm,
1 amp, 60v 250 v
1A 127 x 89 x 25
TRAPPER 10.5 - 15 vdc 17mA 1tri colour Auto/ manual Auto/ manual open on alarm,
1 amp, 60v 250 v
1A 21 x 25 x 92
ANALYSERS AT A GLANCE
distributed by:
FLUSH CONTACTS
SURFACE CONTACTS
HEAVY DUTY CONTACTS
TRAPPER
W: 21mm H: 25mm D: 92mm
SHOCK SENSORS
SD1/WH W: 15mm H: 15mm D: 18mm
SD3/WH W: 29mm H: 51mm D: 17mm
SD4/WH W: 29mm H: 51mm D: 17mm
magnet W: 10mm H: 50mm D: 12mm
ANALYSERS
WINDOW FOIL
CQR Security
125 Pasture Road, Moreton, Wirral
United Kingdom, CH46 4TH
Tel: +44(0)151 606 1000
Fax: +44(0)151 606 1122
Email: info@cqr.co.uk
www.cqr.co.uk
A member of nnkgnkng

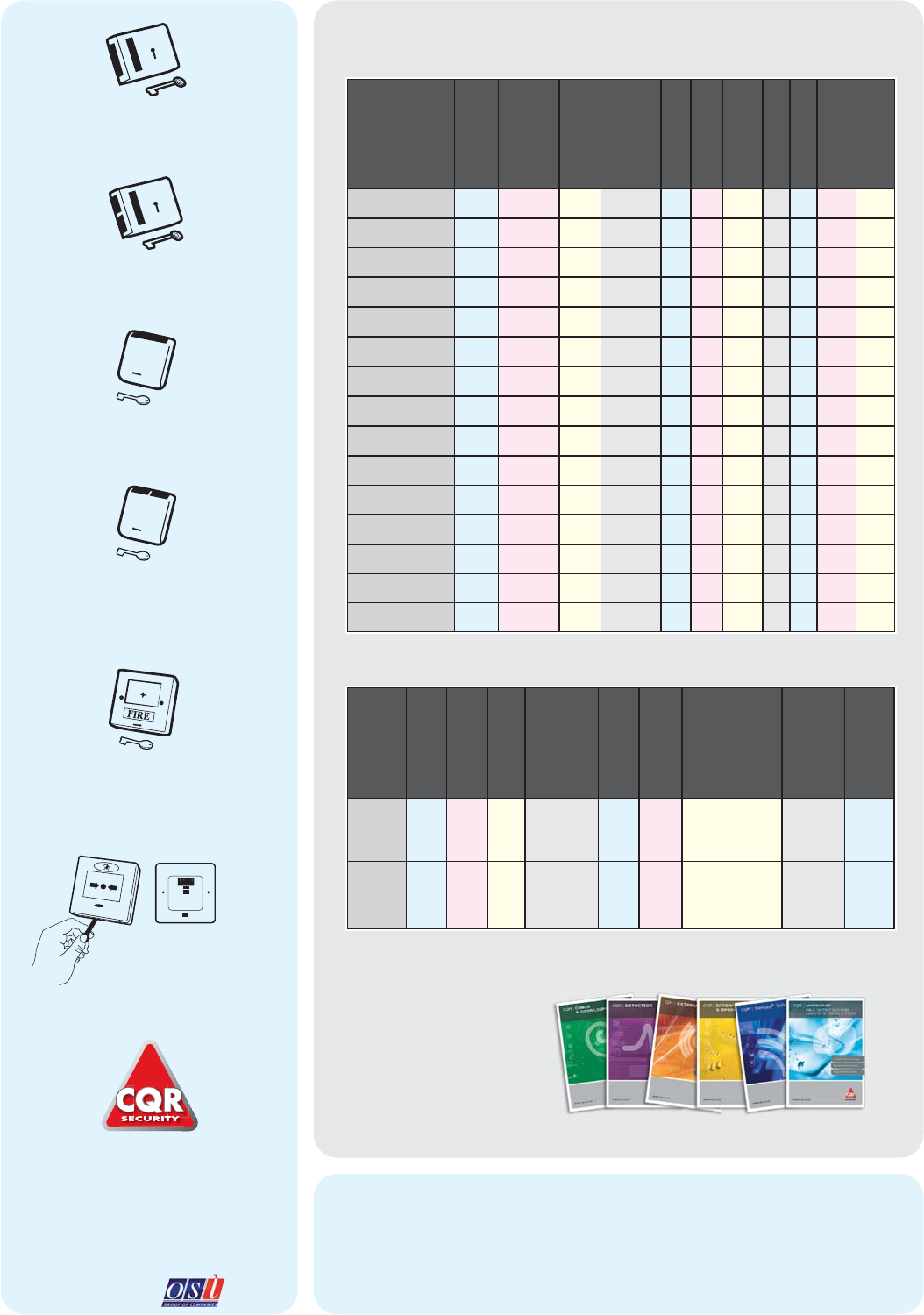

PERSONAL ATTACK POINTS AT A GLANCE
distributed by:
SINGLE PUSH PERSONAL ATTACK BUTTON
W: 180mm H: 306mm D: 58mm
DOUBLE PUSH PERSONAL ATTACK BUTTON
W: 180mm H: 306mm D: 58mm
PA PLUS
SINGLE PUSH PERSONAL ATTACK BUTTON
W: 180mm H: 306mm D: 58mm
PA PLUS
DOUBLE PUSH PERSONAL ATTACK BUTTON
W: 180mm H: 306mm D: 58mm
FP2RESETTABLE CALL POINTS
W: 87mm H: 87mm D: 55mm
FP3MANUAL CALL POINT
W: 180mm H: 306mm D: 55mm
Operation
Material
Switch
Configuration
(open/closed)
terminals
Tamper
Reset
Indicator
Backlit
max Voltage
Max Current
PASP
1
Single polystyrene Reed Selectable 5Latch Yes 50vdc 500mA
PASP
1
/BS Single ABS Reed Selectable 5Latch Yes 50vdc 500mA
PASP
1
/SS Single ABS Reed Selectable 5Latch Yes 50vdc 500mA
PA6
1
4/SS Single ABS Reed/
Contact Selectable 5Latch Yes 50vdc 500mA
PADP
2
/WH Double ABS Reed Selectable 5Latch Yes 50vdc 500mA
PADP
2
/SS Double ABS Reed Selectable 5Yes Latch Yes 50vdc 500mA
EPA/STD Double ABS Reed Selectable 7Yes Latch Yes 50vdc 500mA
PAPLUSSP/WH Single ABS Reed Selectable 5Latch Yes 50vdc 500mA
PAPLUSSP/WH/LED Single ABS Reed Selectable 5Latch Yes Yes 50vdc 500mA
PAPLUSSP/SS Single ABS Reed Selectable 5Latch Yes 50vdc 500mA
PAPLUSSP/SS/LED Single ABS Reed Selectable 5Latch Yes Yes 50vdc 500mA
PAPLUSDP/WH Double ABS Reed Selectable 5Latch Yes 50vdc 500mA
PAPLUSDP/WH/LED Double ABS Reed Selectable 5Latch Yes Yes 50vdc 500mA
PAPLUSDP/SS Double ABS Reed Selectable 5Yes Latch Yes 50vdc 500mA
PAPLUSDP/SS/LED Double ABS Reed Selectable 5Yes Latch Yes Yes 50vdc 500mA
CALL POINTS AT A GLANCE
External dimensions
(mm)
Surface mounted depth
with backbox (mm)
Flush mounted depth
without backbax (mm)
Monitoring resistors
Blocking diode
Microswitch rating
Activation indicator
Material
Complies with
FP287x87 55 20 470, 680 ohm IN4001 5A
30 vdc
Fluorescent yellow
indicator in window
optional LED
Housing ABS,
window
polycarbonate IP-44
FP385x85 55 20 470, 680 ohm IN4001 12A
50V
Window displacement,
fluorescent yellow
indicator in window,
high visibility 180° LED
Housing ABS,
window glass
or
polycarbonate
EN54-11
CQR Security
125 Pasture Road, Moreton, Wirral
United Kingdom, CH46 4TH
Tel: +44(0)151 606 1000
Fax: +44(0)151 606 1122
Email: info@cqr.co.uk
www.cqr.co.uk
A member of nnkgnkng
DATA SHEETS ALSO AVAILABLE:
Cable & door loops
Detection
External sounders
Internal sounders & speakers
Freewave - wirefree system
Hydrosure - fall detection
for swimming pools & ponds
Panic Buttons
Manual Call Points
Junction Boxes
CQR | EMERGENCY SWITCHES
& ACCESSORIES
INNOVATIVE SOLUTIONS
www.cqr.co.uk
CQR | EMERGENCY SWITCHES
& ACCESSORIES
CQR is one of the major manufacturers of security products in the UK, and as a
leading supplier to the European security industry, has consistently been at the
forefront of traditional and new product development since opening for business
way back in the early eighties.
The CQR brand is recognised worldwide and has become synonymous with quality
and reliability. CQR branded products are all designed with ease of installation and
use in mind and meet many product standards worldwide, including also full
compliance to ISO 9001:2000.
Now part of the OSL Group, CQR continues to bring new products to market, backed
up by a sales and support service, we believe is second to none.
This Technical Data Sheet reflects our ‘modern’ approach to our industry and provides
you with all the information you need on this section of our
extensive range.
All CQR’s Emergency Switches are designed for
Consistency, Quality and Reliability. Their proven
track record over many years means they can be
fitted as part of any installation with confidence,
ensuring that top quality,reliable products are
consistent throughout the system.
The useful ‘at a glance’ tables on the back of this
leaflet gives you all the performance data you need
to choose the right products for the job.
All of CQR’s Emergency Switches are available from a
wide range of specialist security Distributors who,
together with our own technical back up, provide an
excellent after-sales service as and when required.
However, should you require further information on
any product in this leaflet, please give our Technical
Support Team a call on +44(0)151 606 6311.

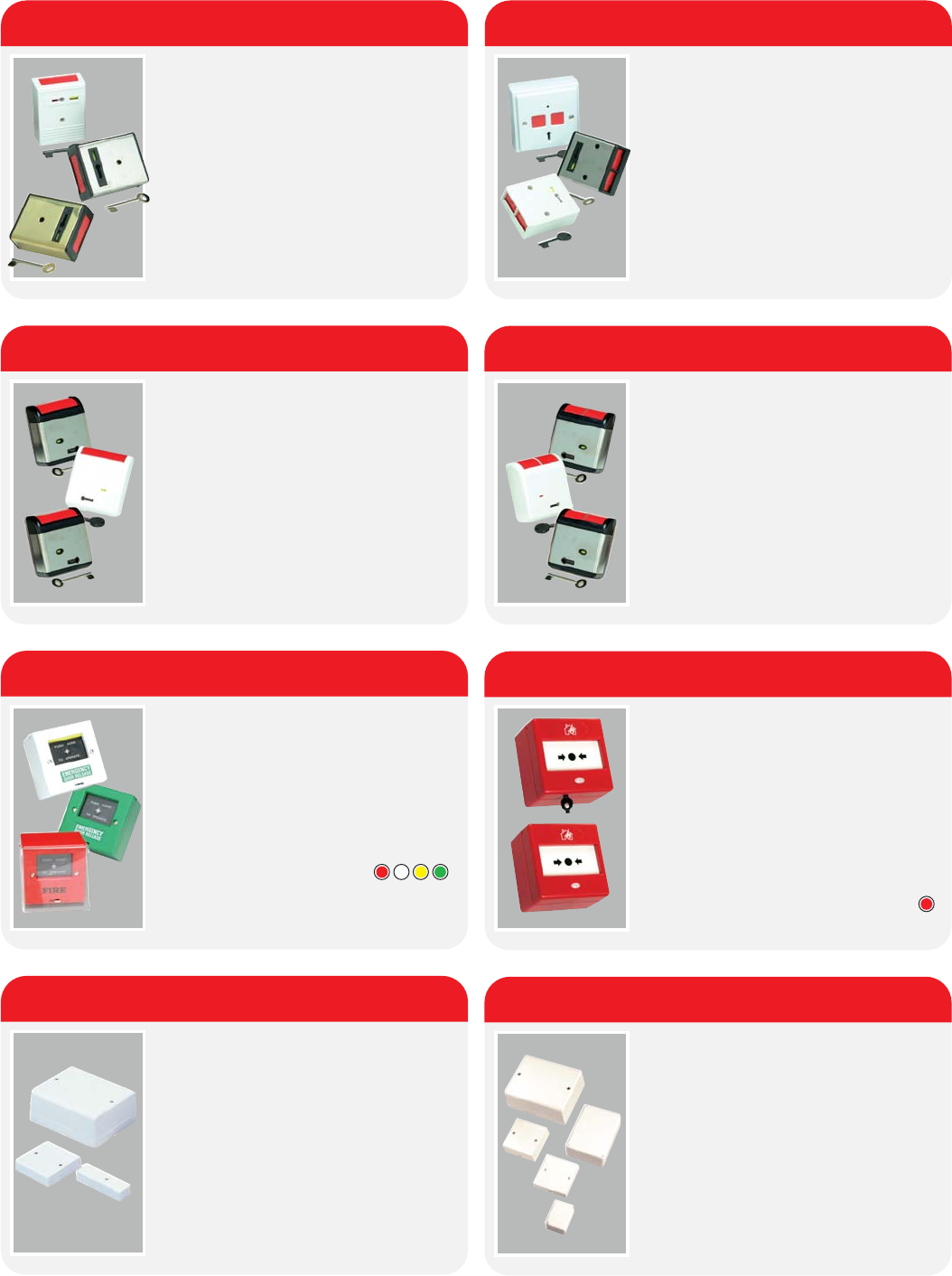

A range of single push buttons in plastic,
stainless steel or brass with silent operation.
SINGLE PUSH PERSONAL ATTACK BUTTON
Options:
White PASP1
Brass PASP1/BS
Stainless Steel PASP1/SS
Stainless Steel with bell/siren PA614/SS
direct drive
Spare metal key KEYPAM
Spare plastic key MOUKEY/BK
A range of single push plastic and stainless steel
personal attack buttons, also available with the
addition of a LED which illuminates the button
area enabling easy identification in the dark.
SINGLE PUSH PA PLUS RANGE
A unique manual call point, with high visibility
LED, and which includes both frangible and
resettable windows. It also offers user-friendly
selection of the usual monitoring resistors.
Complies with EN54-
11
FP3MANUAL CALL POINT
A range of white empty polystyrene plastic boxes
suitable for both security and
non-security applications.
EMPTY BOXES
The double push range, in plastic and stainless
steel, includes an electronic flush fitting unit
with LED indication.
DOUBLE PUSH PERSONAL ATTACK BUTTON
Fully key resettable red manual fire call point
which offers almost all commonly used switch
monitoring configurations in the one device.
Available in white, yellow and green for use in
other applications such as Emergency
Door Release.
FP2RESETTABLE CALL POINTS
A range of junction boxes manufactured in high
impact polystyrene and fitted with
anti tamper device.
JUNCTION BOXES
Options:
White PADP2/WH
Stainless Steel with tamper PADP2/SS
Electronic self latching PAB EPA/STD
Spare metal key KEYPAM
Spare plastic key MOUKEY/BK
Options:
65x65x18mm EB820
65X65X23mm EB821
50x37x25mm EB823
75x50x25mm EB824
100x75x37mm EB825
130x103x55m EB830
Available colours:
Options: Double Pole Version
Protective Lift up Cover
Options:
Rectangular, 5 terminal & 2 tamper JB720
Square, 8 terminal & 2 tamper JB730
24 terminal & 2 tamper JB730
Available colours:
white, brown JB701/JB720
white JB730
product code: FP3/RD
Available colours:
options: Protective Lift up Cover
The double push PAPLUS range, also in plastic
and stainless steel, and with the same LED
option as single push versions.
DOUBLE PUSH PA PLUS RANGE
Options:
white plastic PAPLUSSP/WH
white plastic with LED PAPLUSSP/WH/LED
stainless steel PAPLUSSP/SS
Stainless steel with LED PAPLUSSP/SS/LED
Options:
white plastic PAPLUSDP/WH
white plastic with LED PAPLUSDP/WH/LED
stainless steel with tamper PAPLUSDP/SS
Stainless steel with tamper PAPLUSDP/SS/LED
and LED
PERSONAL ATTACK POINTS AT A GLANCE
distributed by:
SINGLE PUSH PERSONAL ATTACK BUTTON
W: 180mm H: 306mm D: 58mm
DOUBLE PUSH PERSONAL ATTACK BUTTON
W: 180mm H: 306mm D: 58mm
PA PLUS
SINGLE PUSH PERSONAL ATTACK BUTTON
W: 180mm H: 306mm D: 58mm
PA PLUS
DOUBLE PUSH PERSONAL ATTACK BUTTON
W: 180mm H: 306mm D: 58mm
FP2RESETTABLE CALL POINTS
W: 87mm H: 87mm D: 55mm
FP3MANUAL CALL POINT
W: 180mm H: 306mm D: 55mm
Operation
Material
Switch
Configuration
(open/closed)
terminals
Tamper
Reset
Indicator
Backlit
max Voltage
Max Current
PASP
1
Single polystyrene Reed Selectable 5Latch Yes 50vdc 500mA
PASP
1
/BS Single ABS Reed Selectable 5Latch Yes 50vdc 500mA
PASP
1
/SS Single ABS Reed Selectable 5Latch Yes 50vdc 500mA
PA6
1
4/SS Single ABS Reed/
Contact Selectable 5Latch Yes 50vdc 500mA
PADP
2
/WH Double ABS Reed Selectable 5Latch Yes 50vdc 500mA
PADP
2
/SS Double ABS Reed Selectable 5Yes Latch Yes 50vdc 500mA
EPA/STD Double ABS Reed Selectable 7Yes Latch Yes 50vdc 500mA
PAPLUSSP/WH Single ABS Reed Selectable 5Latch Yes 50vdc 500mA
PAPLUSSP/WH/LED Single ABS Reed Selectable 5Latch Yes Yes 50vdc 500mA
PAPLUSSP/SS Single ABS Reed Selectable 5Latch Yes 50vdc 500mA
PAPLUSSP/SS/LED Single ABS Reed Selectable 5Latch Yes Yes 50vdc 500mA
PAPLUSDP/WH Double ABS Reed Selectable 5Latch Yes 50vdc 500mA
PAPLUSDP/WH/LED Double ABS Reed Selectable 5Latch Yes Yes 50vdc 500mA
PAPLUSDP/SS Double ABS Reed Selectable 5Yes Latch Yes 50vdc 500mA
PAPLUSDP/SS/LED Double ABS Reed Selectable 5Yes Latch Yes Yes 50vdc 500mA
CALL POINTS AT A GLANCE
External dimensions
(mm)
Surface mounted depth
with backbox (mm)
Flush mounted depth
without backbax (mm)
Monitoring resistors
Blocking diode
Microswitch rating
Activation indicator
Material
Complies with
FP287x87 55 20 470, 680 ohm IN4001 5A
30 vdc
Fluorescent yellow
indicator in window
optional LED
Housing ABS,
window
polycarbonate IP-44
FP385x85 55 20 470, 680 ohm IN4001 12A
50V
Window displacement,
fluorescent yellow
indicator in window,
high visibility 180° LED
Housing ABS,
window glass
or
polycarbonate
EN54-11
CQR Security
125 Pasture Road, Moreton, Wirral
United Kingdom, CH46 4TH
Tel: +44(0)151 606 1000
Fax: +44(0)151 606 1122
Email: info@cqr.co.uk
www.cqr.co.uk
A member of nnkgnkng
DATA SHEETS ALSO AVAILABLE:
Cable & door loops
Detection
External sounders
Internal sounders & speakers
Freewave - wirefree system
Hydrosure - fall detection
for swimming pools & ponds
Panic Buttons
Manual Call Points
Junction Boxes
CQR | EMERGENCY SWITCHES
& ACCESSORIES
INNOVATIVE SOLUTIONS
www.cqr.co.uk
CQR | EMERGENCY SWITCHES
& ACCESSORIES
CQR is one of the major manufacturers of security products in the UK, and as a
leading supplier to the European security industry, has consistently been at the
forefront of traditional and new product development since opening for business
way back in the early eighties.
The CQR brand is recognised worldwide and has become synonymous with quality
and reliability. CQR branded products are all designed with ease of installation and
use in mind and meet many product standards worldwide, including also full
compliance to ISO 9001:2000.
Now part of the OSL Group, CQR continues to bring new products to market, backed
up by a sales and support service, we believe is second to none.
This Technical Data Sheet reflects our ‘modern’ approach to our industry and provides
you with all the information you need on this section of our
extensive range.
All CQR’s Emergency Switches are designed for
Consistency, Quality and Reliability. Their proven
track record over many years means they can be
fitted as part of any installation with confidence,
ensuring that top quality,reliable products are
consistent throughout the system.
The useful ‘at a glance’ tables on the back of this
leaflet gives you all the performance data you need
to choose the right products for the job.
All of CQR’s Emergency Switches are available from a
wide range of specialist security Distributors who,
together with our own technical back up, provide an
excellent after-sales service as and when required.
However, should you require further information on
any product in this leaflet, please give our Technical
Support Team a call on +44(0)151 606 6311.
A range of single push buttons in plastic,
stainless steel or brass with silent operation.
SINGLE PUSH PERSONAL ATTACK BUTTON
Options:
White PASP1
Brass PASP1/BS
Stainless Steel PASP1/SS
Stainless Steel with bell/siren PA614/SS
direct drive
Spare metal key KEYPAM
Spare plastic key MOUKEY/BK
A range of single push plastic and stainless steel
personal attack buttons, also available with the
addition of a LED which illuminates the button
area enabling easy identification in the dark.
SINGLE PUSH PA PLUS RANGE
A unique manual call point, with high visibility
LED, and which includes both frangible and
resettable windows. It also offers user-friendly
selection of the usual monitoring resistors.
Complies with EN54-
11
FP3MANUAL CALL POINT
A range of white empty polystyrene plastic boxes
suitable for both security and
non-security applications.
EMPTY BOXES
The double push range, in plastic and stainless
steel, includes an electronic flush fitting unit
with LED indication.
DOUBLE PUSH PERSONAL ATTACK BUTTON
Fully key resettable red manual fire call point
which offers almost all commonly used switch
monitoring configurations in the one device.
Available in white, yellow and green for use in
other applications such as Emergency
Door Release.
FP2RESETTABLE CALL POINTS
A range of junction boxes manufactured in high
impact polystyrene and fitted with
anti tamper device.
JUNCTION BOXES
Options:
White PADP2/WH
Stainless Steel with tamper PADP2/SS
Electronic self latching PAB EPA/STD
Spare metal key KEYPAM
Spare plastic key MOUKEY/BK
Options:
65x65x18mm EB820
65X65X23mm EB821
50x37x25mm EB823
75x50x25mm EB824
100x75x37mm EB825
130x103x55m EB830
Available colours:
Options: Double Pole Version
Protective Lift up Cover
Options:
Rectangular, 5 terminal & 2 tamper JB720
Square, 8 terminal & 2 tamper JB730
24 terminal & 2 tamper JB730
Available colours:
white, brown JB701/JB720
white JB730
product code: FP3/RD
Available colours:
options: Protective Lift up Cover
The double push PAPLUS range, also in plastic
and stainless steel, and with the same LED
option as single push versions.
DOUBLE PUSH PA PLUS RANGE
Options:
white plastic PAPLUSSP/WH
white plastic with LED PAPLUSSP/WH/LED
stainless steel PAPLUSSP/SS
Stainless steel with LED PAPLUSSP/SS/LED
Options:
white plastic PAPLUSDP/WH
white plastic with LED PAPLUSDP/WH/LED
stainless steel with tamper PAPLUSDP/SS
Stainless steel with tamper PAPLUSDP/SS/LED
and LED
INNOVATIVE SOLUTIONS
20 Years experience of alarm cable
manufacturing in the United Kingdom
Wide range of cable types; standard,
screened, low smoke & fume
User friendly, easy to strip
& pliable in use
CQR | CABLE
& DOOR LOOPS
www.cqr.co.uk
CQR Security
125 Pasture Road, Moreton, Wirral
United Kingdom, CH46 4TH
Tel: +44(0)151 606 1000
Fax: +44(0)151 606 1122
email: info@cqr.co.uk
www.cqr.co.uk
A member of nnkgnkng

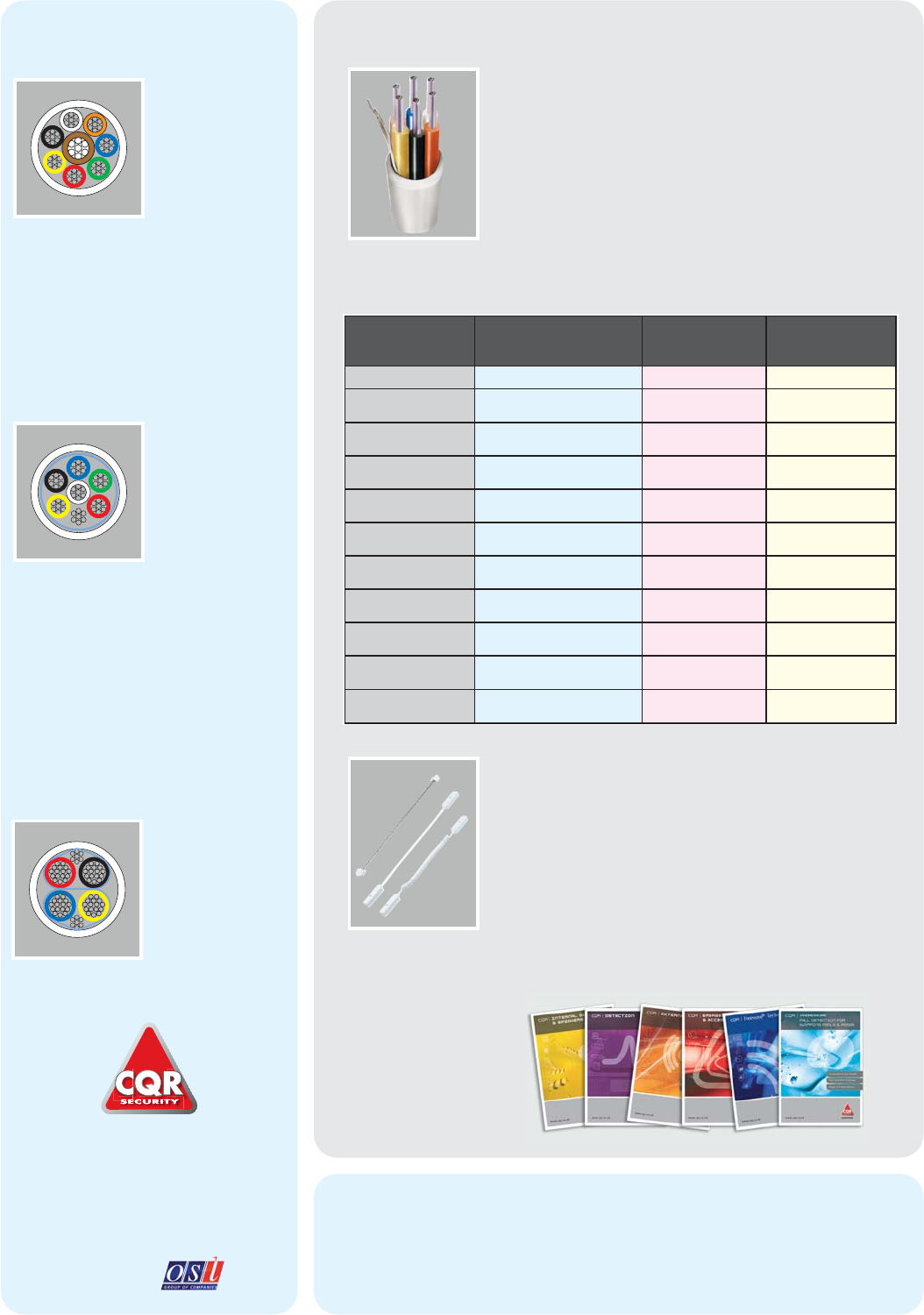

CABLE CONSTRUCTION
CABLE AT A GLANCE
distributed by:
CABLE COMPOSITION
STANDARD CABLE.
This cable is based on
cores made from 7 strands
of 0.2mm annealed tinned
copper wire & is sheathed
in Type 1 PVC. These cables
are available in white or
brown.
LOW SMOKE &
FUME CABLE.The
standard security cable can also be specified with a
special low emission PVC outer sheathing. Using this
sheathing, the compound oxygen index level is greater
than 32%. This means it will require more than 32% of
the volume of air to be oxygen for it to catch fire.
‘Normal’ air contains around 19% oxygen. The acid
emission level is less than 10%. A normal PVC sheathing
compound would give a figure of 20%.
14 STRAND CABLE. This is similar to the
standard cable except that each core is made up of 14
strands of 0.2mm cable. This gives a Nominal conductor
area of 0.44mm”. (This is often used in areas where
0.5mm”wire is required).
SCREENED CABLE.
This uses the same cores
as standard cable. In
addition, an aluminium
foil is wrapped around the
cores. Screened cable
offers significant
advantages in situations
where RF interference or
spurious signals may lead
to false alarms or erosion of data. An earth drain wire is
present along the entire length of the cable providing
shield continuity and a convenient earthing point at the
control panel.
TWIN POWER & DATA. Tw o
different conductor types are used. A power pair
(red/blue) is provided in 16 strands x 0.2mm (0.5mm”)
for use where higher than normal current carrying
capacity or lower voltage drop is required
The data cores consist of the standard
7 strands x 0.2mm tinned copper wire.The data cores
are aluminium foil wrap screened (with an earth drain
wire) to give added protection against induced
transients that may be carried via the power cores or
outside influences.
TWISTED PAIR
CABLE. Each core
consists of 24
strands of 0.2mm
(0.75mm”) copper wire.
Each pair of cores is
twisted and aluminium foil
wrap screened. A bare 7
strands x 0.2mm earth
drain wire is included.
Twisted pair cable is
particularly useful for bus
systems or for installations requiring longer lengths of
cabling such as access control and CCTV.
CORES. Cores are prepared using Type 1 PVC insulation to cover the
tinned copper wire. In order to ensure a constant diameter, a laser is used
which is accurate to 0.0001mm. The PVC insulation is tested by passing
the core through a high voltage (5kV) curtain which eliminates all
possibility of inadequate insulation.
LAYING UP (BUNCHING). This process puts a “slow twist” on the
cores which gives them their own natural circumference. This combined
with the sheathing process, produces round flexible cable.
SHEATHING. The bunched core is chalk dusted & a rip cord inserted for
easier stripping of insulation. The bunched cores are then sheathed with
Type 1 PVC. The quality of this material is critical to the flexibility of the
finished cable.
DOOR LOOPS
A range of door loops are available in 4or 6 cores, in fixed or
extendible lengths and come with junction boxes included. They are
constructed from braided copper cores with crimped spade connectors for
ease of connection.
ORDER CODE:
Single door loops & junction boxes
500mm armoured flexi-tube C/W end caps (no cable) DLT 103/WH
300mm 4 way cable DLA 704/WH
300mm 6 way cable DLA 706/WH
Extendible door loops including junction boxes
250mm extending to 1000mm 4 way cable DLA 708/WH
250mm extending to 1000mm 6 way cable DLA 709/WH
Standard cables in white (WH) other colours available to special order.
Standard cable, Screened
cable, low smoke & fume
Twin power
& data Twisted pair
Core Type: Annealed tin copper Annealed tin copper Copper
Strand Diameter 0.2mm 0.2mm 0.2mm
Strands per core 716 Power 7 Data 24
Nom.
Conductor Area 0.22mm20.50mm2 - power
0.22mm2 - data 0.75mm2
Core Gauge 24 AWG 22 AWG 20 AWG
Insulation Thickness 0.3mm 0.4mm 0.3mm
Max. Operating
Voltage 50v RMS 50v RMS 50v RMS
Current Rating: Per
Core @ 70°C 1 AMP 3 AMP 4.5 AMP
Max. operating Temp 70°C 70°C 70°C
Nom Core Resistance @
20°C 92 OHMS/KM 40 OHMS/KM 25 OHMS/KM
BS Standards BS4737, section 3.30 BS4737, section 3.30 BS4737, section 3.30
DATA SHEETS
ALSO AVAILABLE:
Internal sounders & speakers
Detection
External sounders
Emergency switches
& accessories
Freewave - wirefree system
Hydrosure - fall detection
for swimming pools & ponds
