003
2015 -16 PRODUCT
lightbars
Defender
World Class LED Lightbar
Code 3,® Inc. engineers, manufactures and markets a complete line of lighting and sound-based warning
products used by professionals in the police and fire markets. Code 3 has been in business since 1974. Its
primary goal is to design products that enhance customer safety, including law enforcement officers,
firemen and EMT personnel.
Based in St. Louis, Missouri, Code 3 employs approximately 200 employees dedicated to finding solutions
for the varying needs of its customers. We distribute products to over 70 countries through a network of
manufacturer’s representatives and distributors serving the public safety market. Our ISO 9001-certified
facility uses Lean Six Sigma manufacturing processes and houses a world-class testing facility.
Our employees are dedicated to providing innovative warning products and exceptional customer
satisfaction. We are grateful for the opportunity to earn your business, and look forward to hearing your
feedback and suggestions. Visit our website, Facebook, Twitter or YouTube for up-to-date product news
and application videos.
Code 3 is a division of ECCO Safety Group (ESG). Headquartered in Boise, Idaho, ESG is a worldwide leader
in commercial and emergency vehicle warning and safety products. With seven manufacturing facilities on
four continents: North America, Europe, Asia, and Australia, ESG markets a portfolio of the most respected
brands in the industry. ESG serves more than 500 OEMs and thousands more private label, fleet and
aftermarket customers in a range of industries including heavy construction, material handling, utilities and
emergency services.
Web: code3esg.com
Email: cs-c3@code3esg.com
Phone: 314-426-2700
www.code3esg.com phone 1-314-426-2700 1
table of contents
VEHICLE PRODUCTS
Ford Interceptor® Sedan ...................2
Ford Interceptor® Utility & Explorer® ..........3
Ford® F150 ..............................4
Dodge® Charger Pursuit ....................5
Dodge® Durango .........................6
Dodge® RAM 1500 ........................7
Chevrolet® Impala ........................8
Chevrolet® Tahoe .........................9
Chevrolet® Silverado .....................10
International Vehicles ....................11
MOTORCYCLE PRODUCT
Harley-Davidson® ........................12
BMW® ................................14
Victory® ...............................15
LIGHTBARS
Pursuit™ ...............................16
Defender® & Defender®TC2 ................18
RX 2700™CC & RX 2700™CC MC ............21

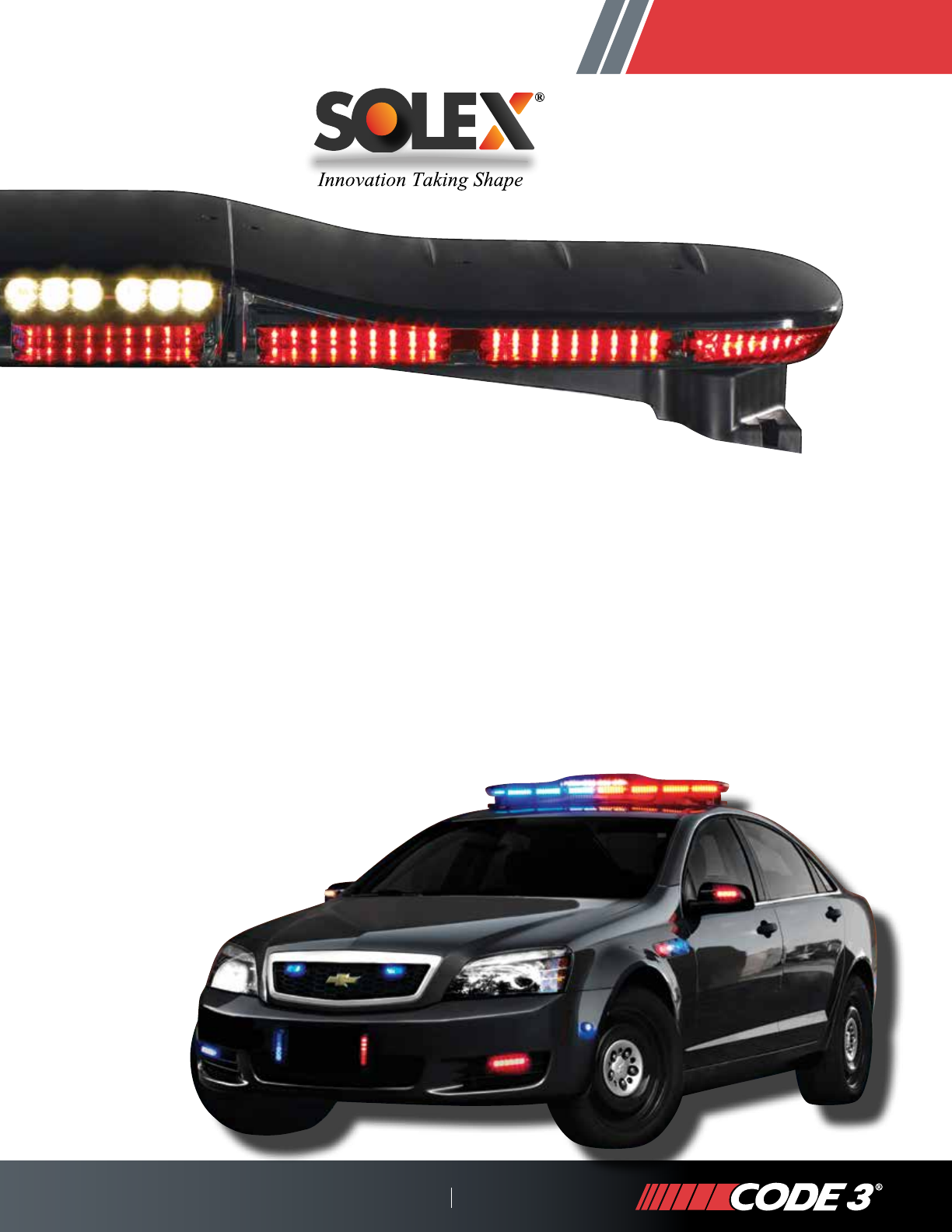

Solex® ................................24

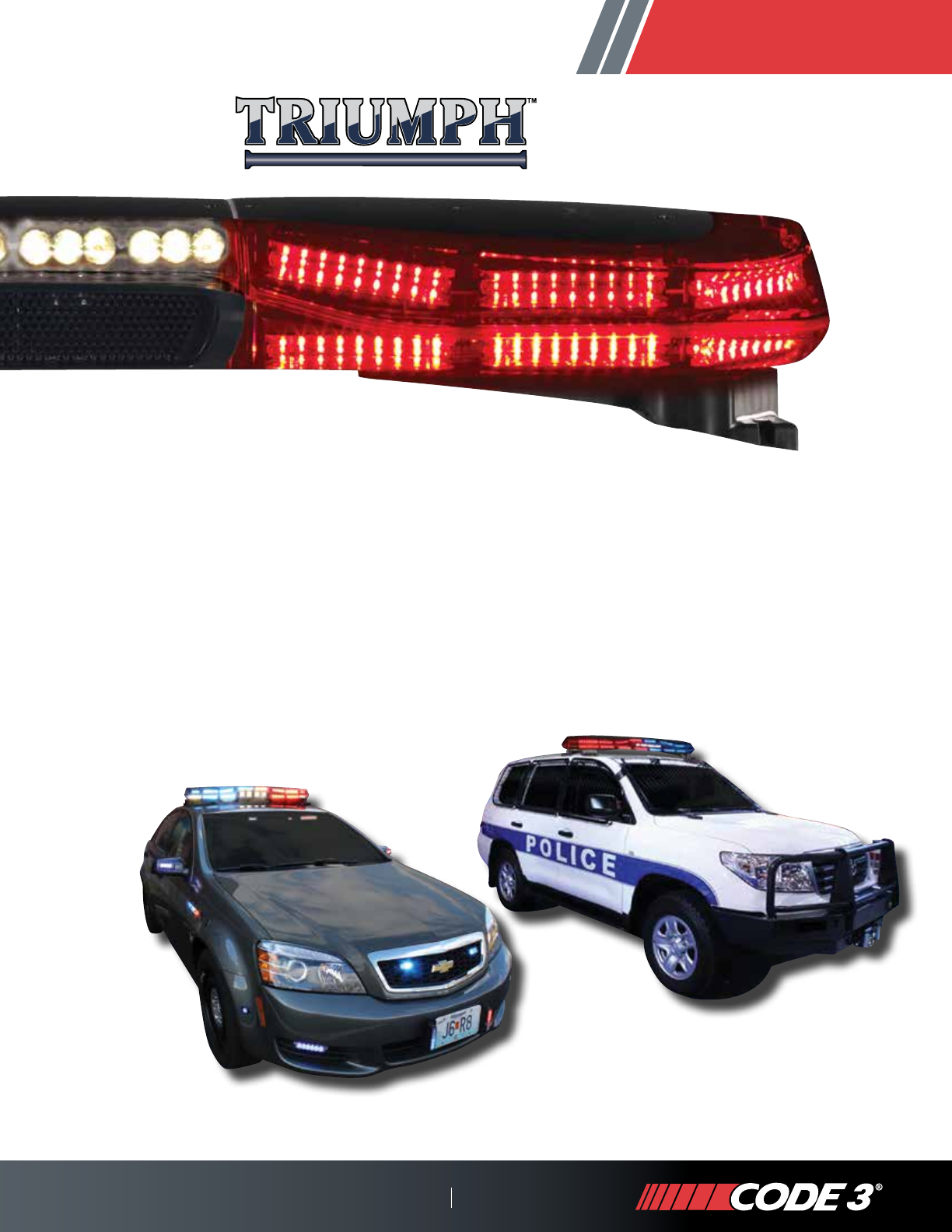

Triumph™ ..............................26
21TR™Plus/21TR & 21IF™ ..................28
MX 7000® .............................30
Excalibur®. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Lightbar Options ........................31
INTERIOR VEHICLE LIGHTING
SuperVisor® Series .......................34
Essex™ Deck Lights ......................36
Warrior™ Deck Lights .....................36
XT4/XT6 Interior Lights ...................37
Compartment Lights .....................38
Custom Interior Lights ....................39
Visor Flip Light ..........................39
REAR VEHICLE LIGHTING
WingMan™ Series ........................40
Message Board .........................41
Citadel™ LED Lighting System ..............42
CommandStik™ Interior LED Light ...........42
Torus® NarrowStik™ ......................43
LED X NarrowStik® ......................43
VEHICLE SYSTEMS
CELS
(Coordinated Emergency Lighting System) ......
44
EXTERIOR VEHICLE LIGHTING
T-Rex Series ............................46
Universal Mirror Mounting System ..........46
XT3 Series .............................47
XT4 Series .............................48
XT6 Series .............................49
MR6 LED Light ..........................50
Chase™ LED Light ........................51
Torus® 3-Up/6-Up LED Lights ...............51
Mounting Brackets .......................52
Mega Thin LED Light .....................53
SD24 LED Light .........................53
Forge™ LED Light ........................54
Par36 LEDs ............................54
VigiLED II™ .............................55
Independent LED Takedowns ...............55
Work Lights ............................56
Portable Work Light ......................57
Utility LED Bars .........................58
Side Marker Lights .......................59
9 LED Hide-A-Blast™ .....................60
Zenith™ 6 LED Hide-A-Blast™ ...............60
6 Pack LED Hide-A-Blast™ .................61
Vibrant™ 6 LED Hide-A-Blast™ ..............62
Wildcat™ 4 LED Hide-A-Blast™ ..............62
4 Pack LED Hide-A-Blast™ .................63
2 Pack Bullet LED Hide-A-Blast™ ............63
MINI BARS/BEACONS
Defender® Mini Bar ......................64
2722 Mini Bar ..........................64
21IF Mini Bar ...........................64
Reflex Mini Bars .........................65
Quadrant™ .............................65
LED Beacons (LSS222, CL199, CL299) ........66
SIRENS AND SPEAKERS
Z3™ and Z3 Swif/ HUB ....................67
Remote Lighted Siren (RLS) ................69
Banshee™ ..............................70
Xcel™ .................................71
Sprinter™ ..............................72
H2Covert™ ............................... 73
MasterCom™ B .........................73
V-Con® .................................. 74
Scorpion™ ............................... 74
Speakers ..............................75
ACCESSORIES
Strobe Power Supplies ....................76
Switches ...............................77
Series 900/700 Flashers ...................78
Portable Self-Contained Kits ...............79
Dash Emitter ...........................80
Lens Refresh Kit .........................81
Backup Cameras ........................82
LED Lighting Technology .................84
NEW!
NEW!
NEW!
NEW!
For a complete listing of all products visit
the Code 3 website at www.code3esg.com
NEW!
NEW!
NEW!
NEW!
NEW!
NEW!
NEW!
NEW!
NEW!
NEW!
NEW!
NEW!
NEW!
NEW!
NEW!
NEW!
2

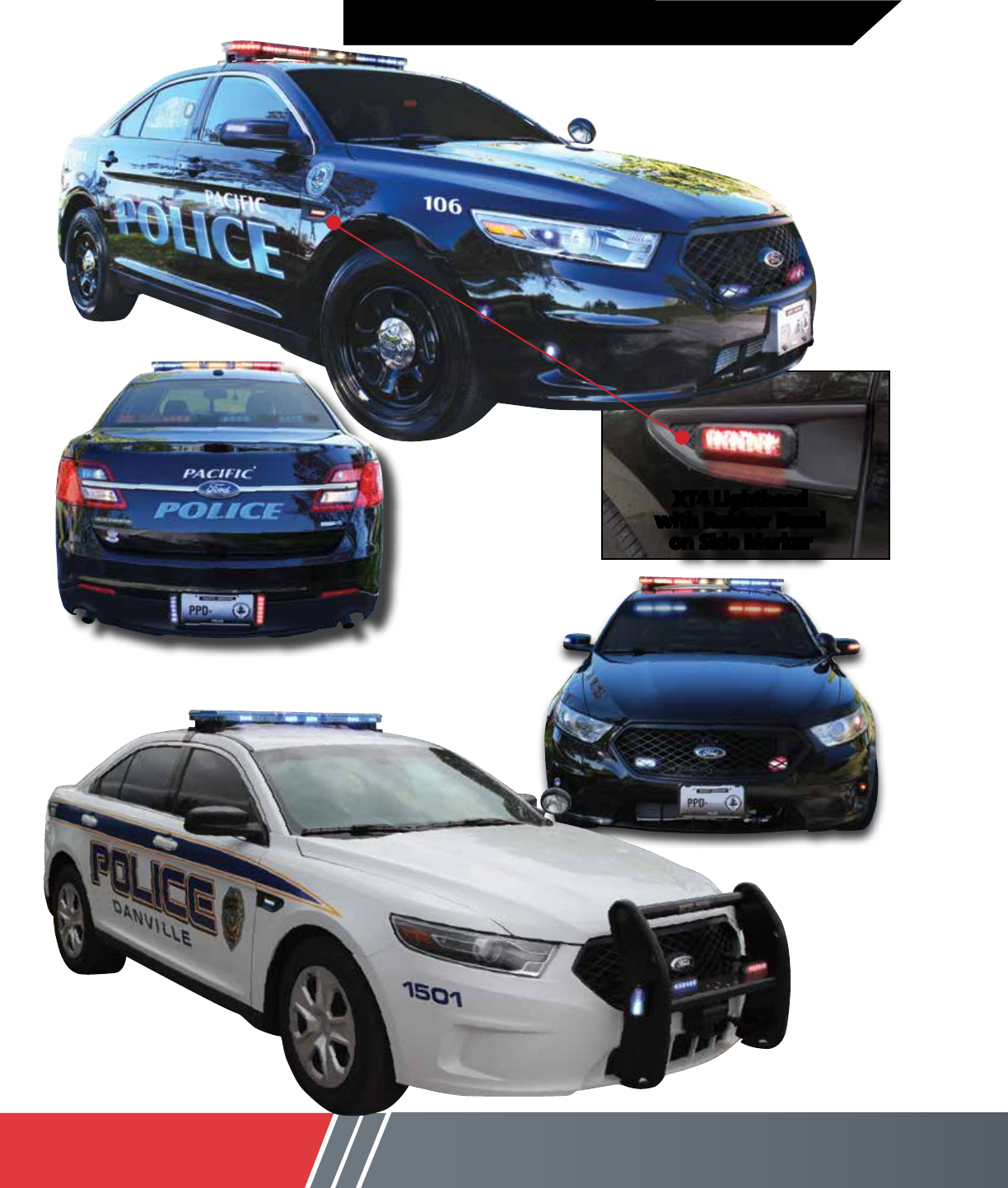

XT4 Lighthead
with Rubber Bezel
on Side Marker
vehicles
21TR™ Lightbar XT4 on grille and on Side Marker
Lights, 6 Pack H-A-B near wheels
and in fog light area

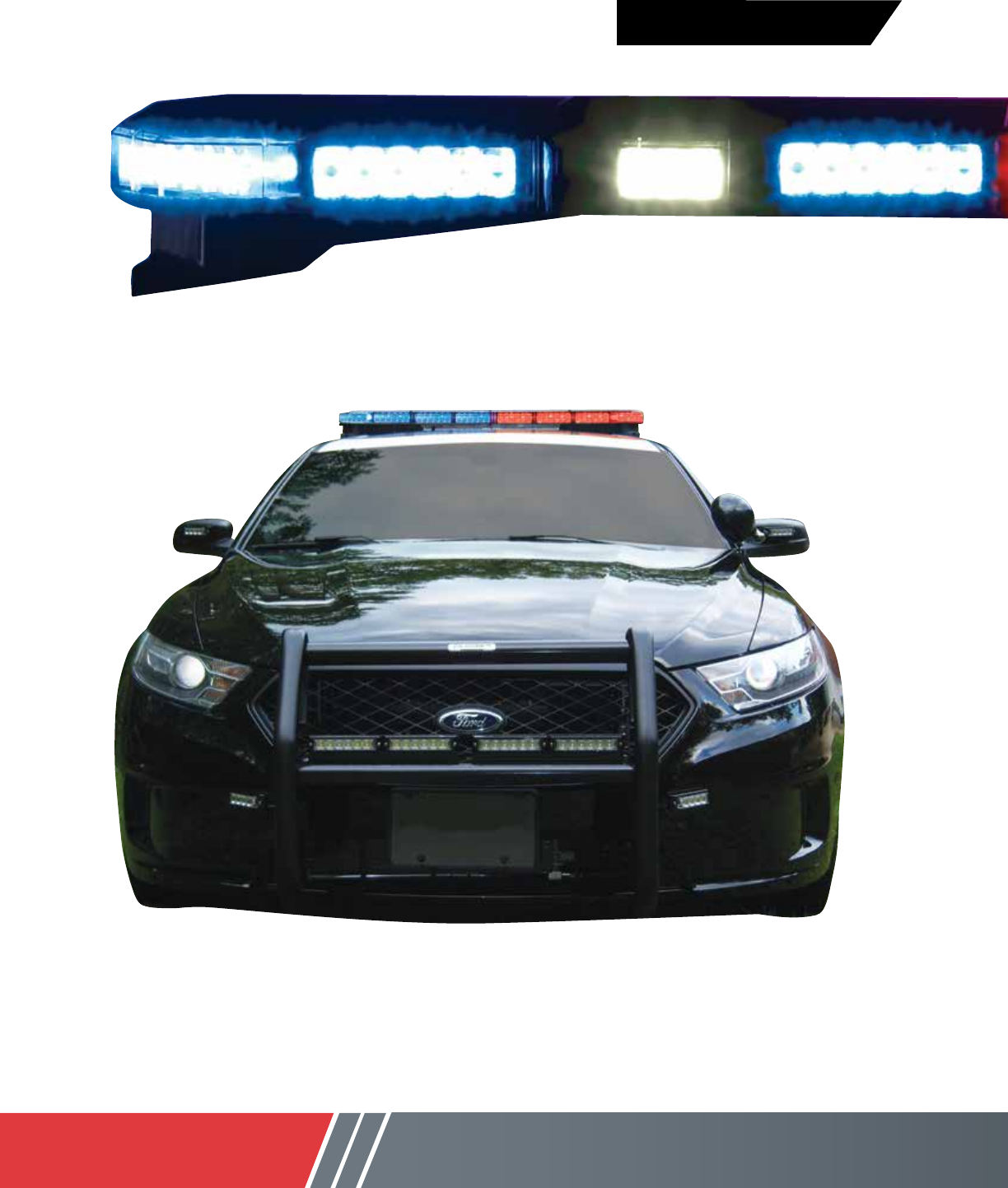

Ford Interceptor
®
Sedan
SuperVisor Flex
Interior Windshield &
Hide-A-Blasts in
headlights
MR6 on license
plate bracket
XT6s on
pushbumper
21TR Plus Lightbar
and XT4 Side
Marker Light
www.code3esg.com phone 1-314-426-2700 3

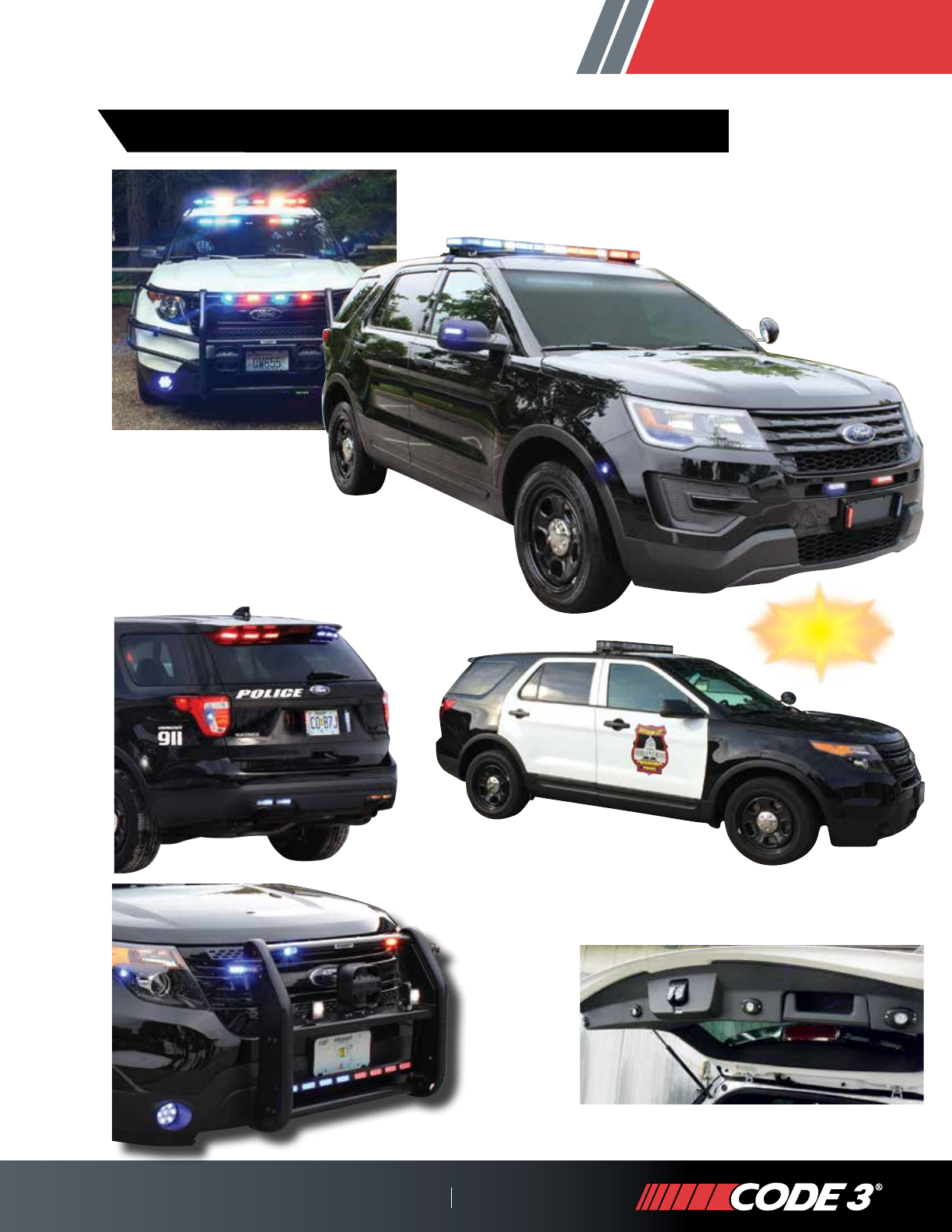

vehicles
6 Pack LED Hide-A-Blast lights on
inside of rear gate
SuperVisor® Flex
Interior Windshield
Light and XT4 grille,
XT6 license

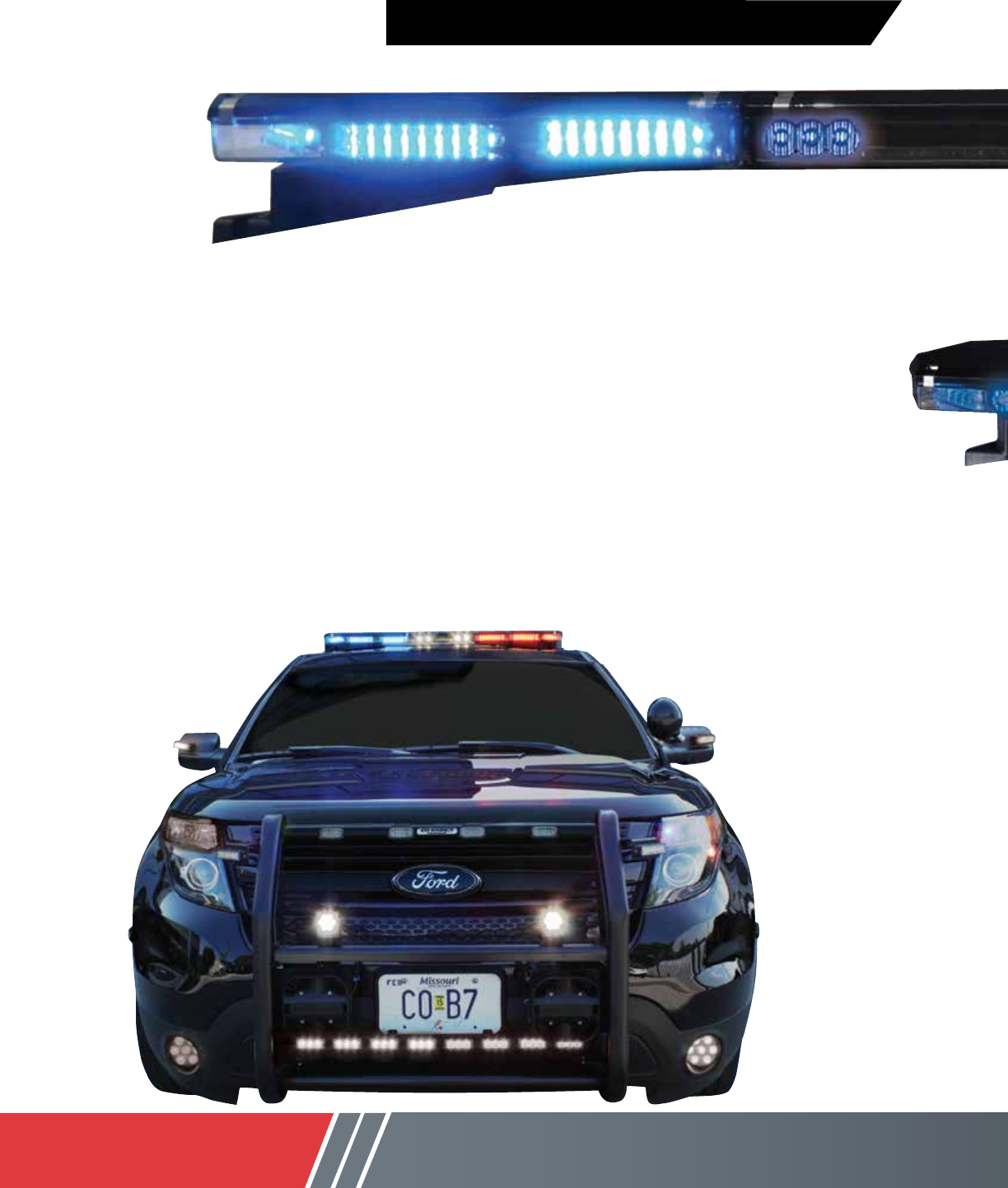

Ford Interceptor Utility®/Explorer®
XT308,
LTD901,
MR6 &
T-Rex on
push
bumper
plus Par36
foglights
NEW!
Defender® Lightbar
Defender®
Lightbar, Torus
SuperVisor,
T-Rex lights on
pushbumper &
Par36 foglights
Citadel Rear Light,
6 Pack H-A-B near wheel well,
XT6 on license plate and MR6 on
lower bumper
RX 2700 Lightbar
2015 PI Utility
2016 PI Utility
2015 PI Utility
2016 PI Utility
4

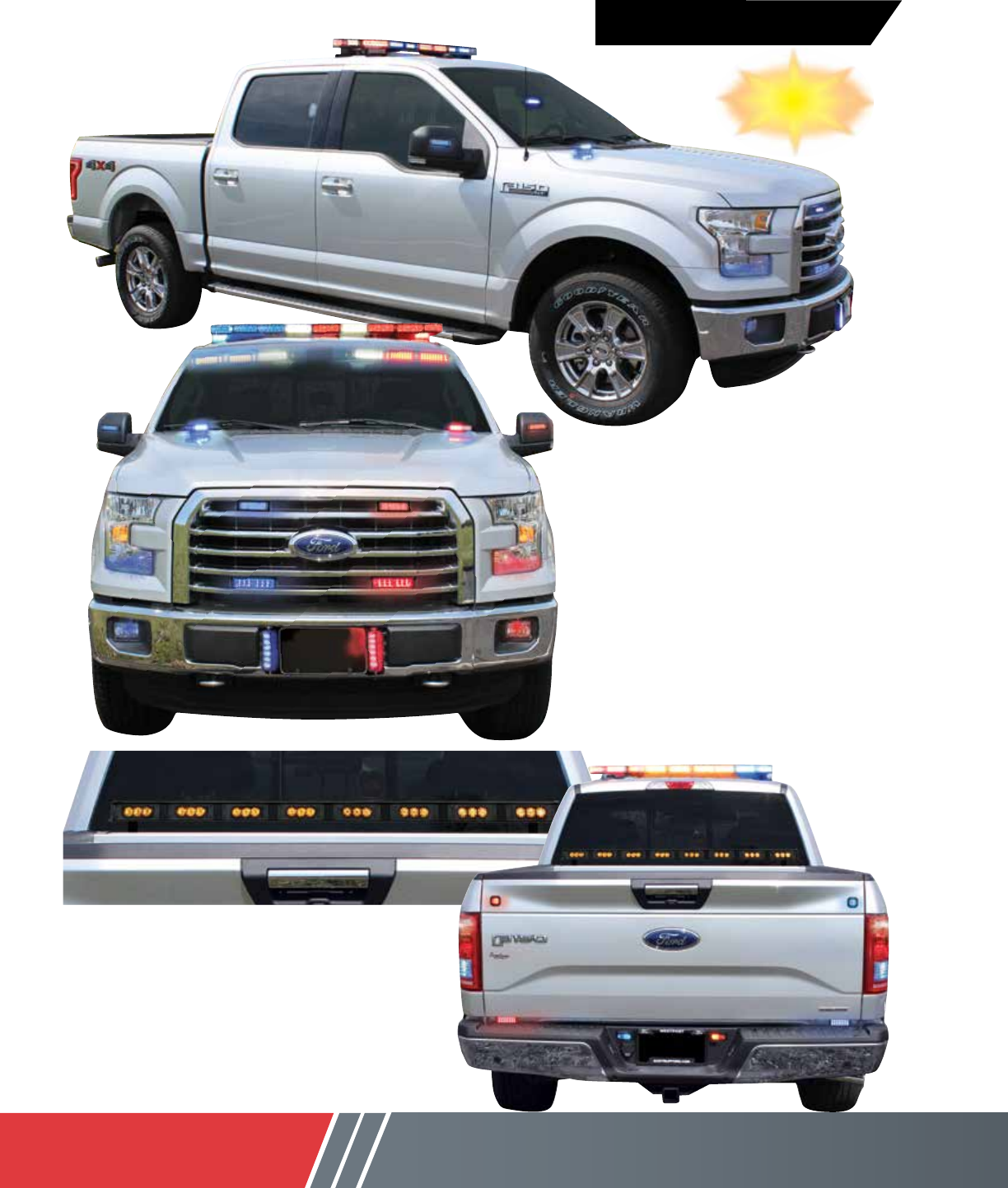

Ford® F150
vehicles
T-Rex rear
view mirror
light & Side
Pillar Light
XT4 & Chase on grille,
MR6 hood mounted,
Bullet Hide-A-Blast in
fog light, XT6 on
license plate
SuperVisor® Flex Interior
Windshield Light
Defender® Lightbar
NEW!
Vibrant, Zenith, Wildcat,
Bullet and more
Hide-A-Blasts will fit in
the head & tail lights
Torus NarrowStik
(LTBRMNT bracket needed)
4 Pack H-A-B on top of tail gate
with SD24 under tail gate,
T-Rex lights on license plate
www.code3esg.com phone 1-314-426-2700 5

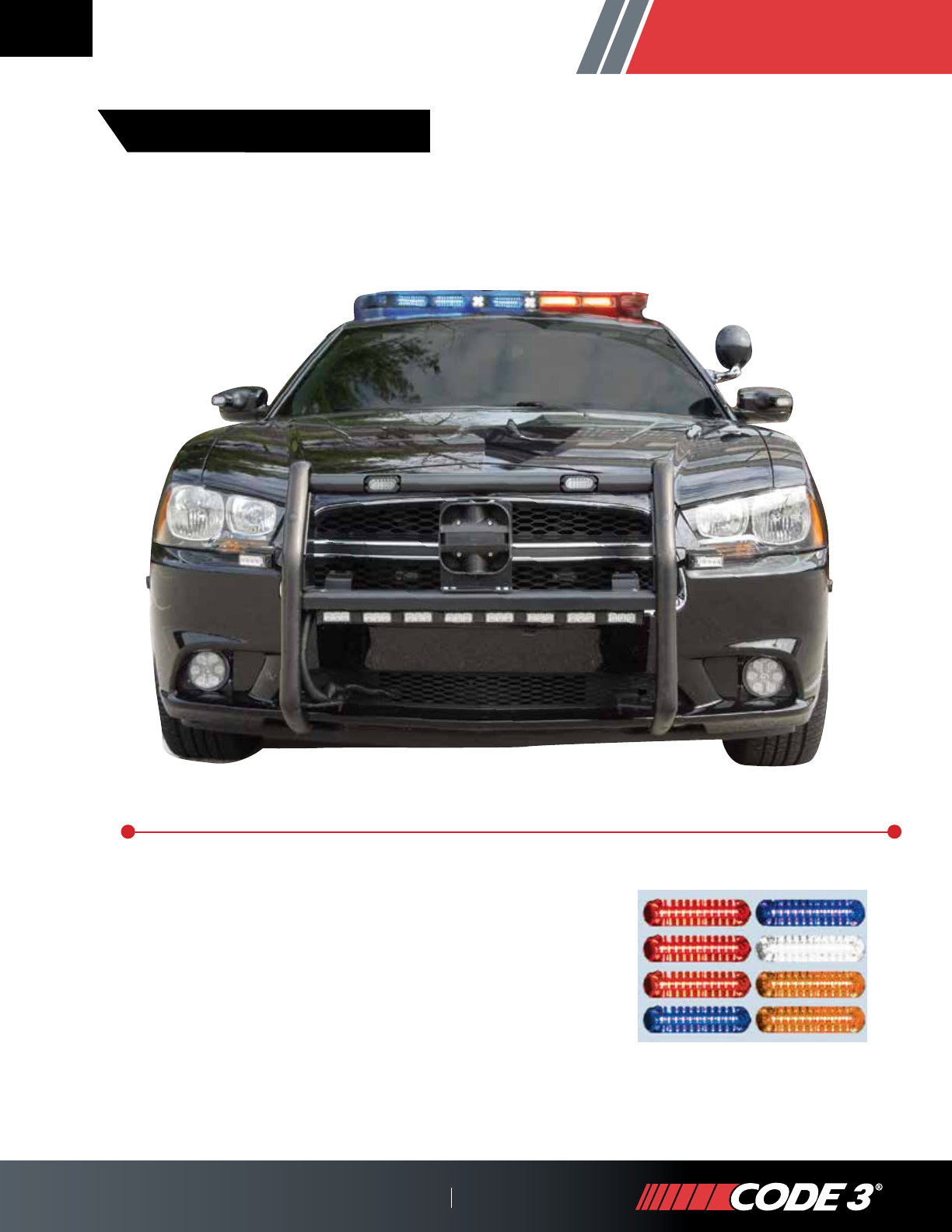

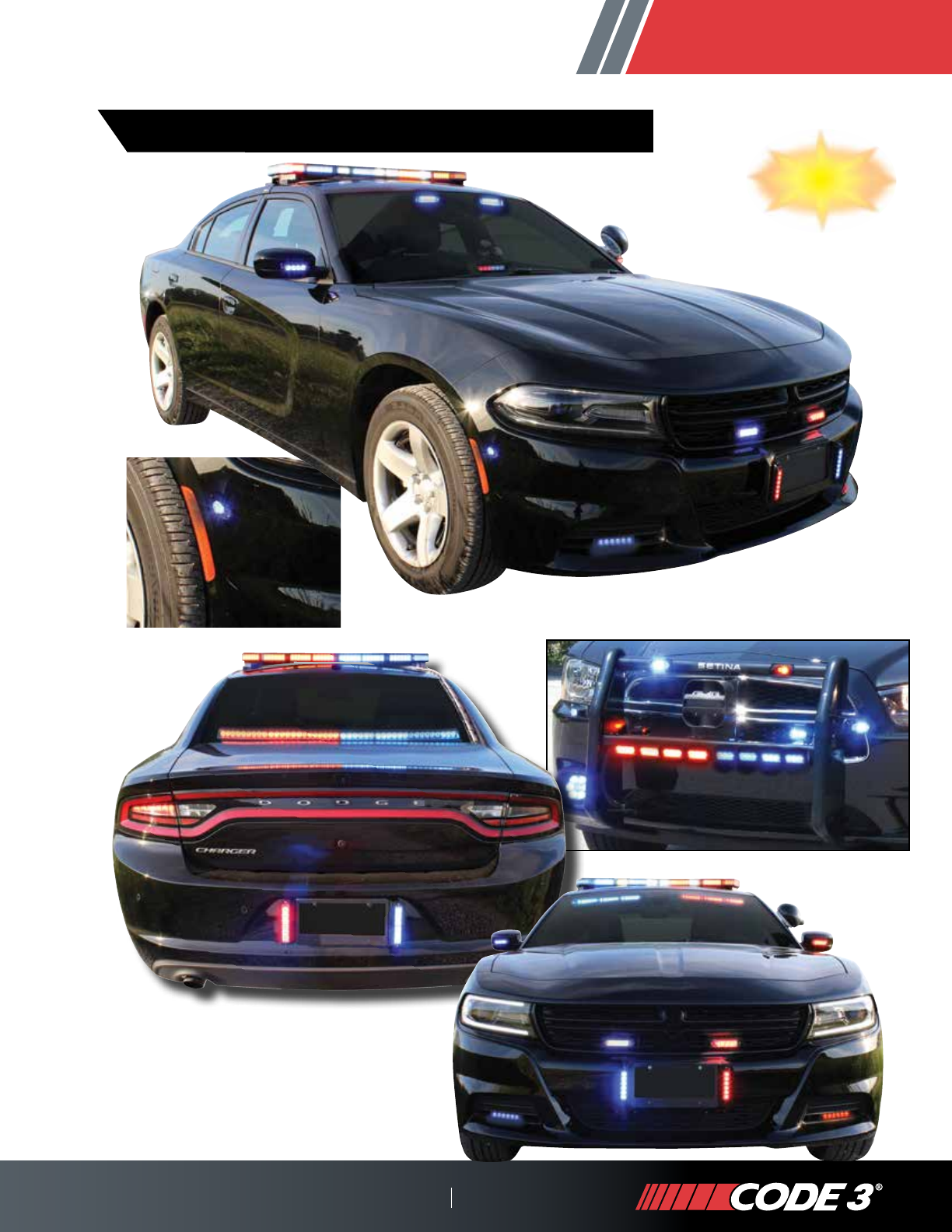

Dodge® Charger Pursuit
vehicles
MR6 on grille & fog light area,
XT6 on license plate plus 6 Pack
H-A-B near wheel well
Defender® Lightbar
Torus™ Wingman and XT6 on
license plate
Headliner MR6 light plus
XT6 dash lights
NEW!
XT4 mirror
lights
6 Pack
Hide-A-Blast
MR6 fog lights
2014 Charger
2015 Charger
2015 Charger
2015 Charger
6

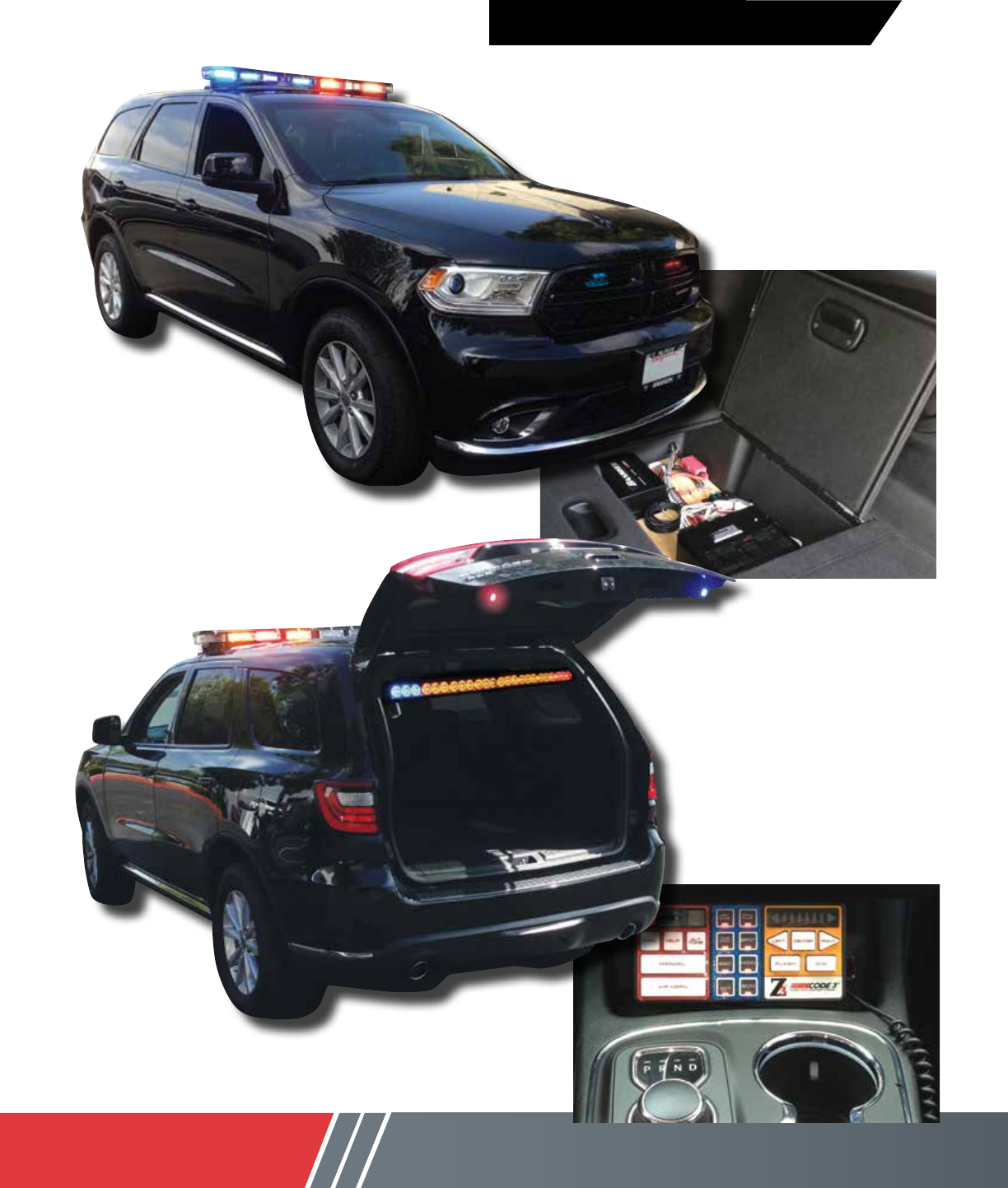

Dodge® Durango
vehicles
Commandstik™
Interior Rear Light and
6 Pack H-A-B LEDs on
edge of rear door
RX 2700 Lightbar, MR6
Lights on grille and
C3100 speaker
Z3 Siren Controller
Z3 Siren and
Banshee Amp installed
www.code3esg.com phone 1-314-426-2700 7

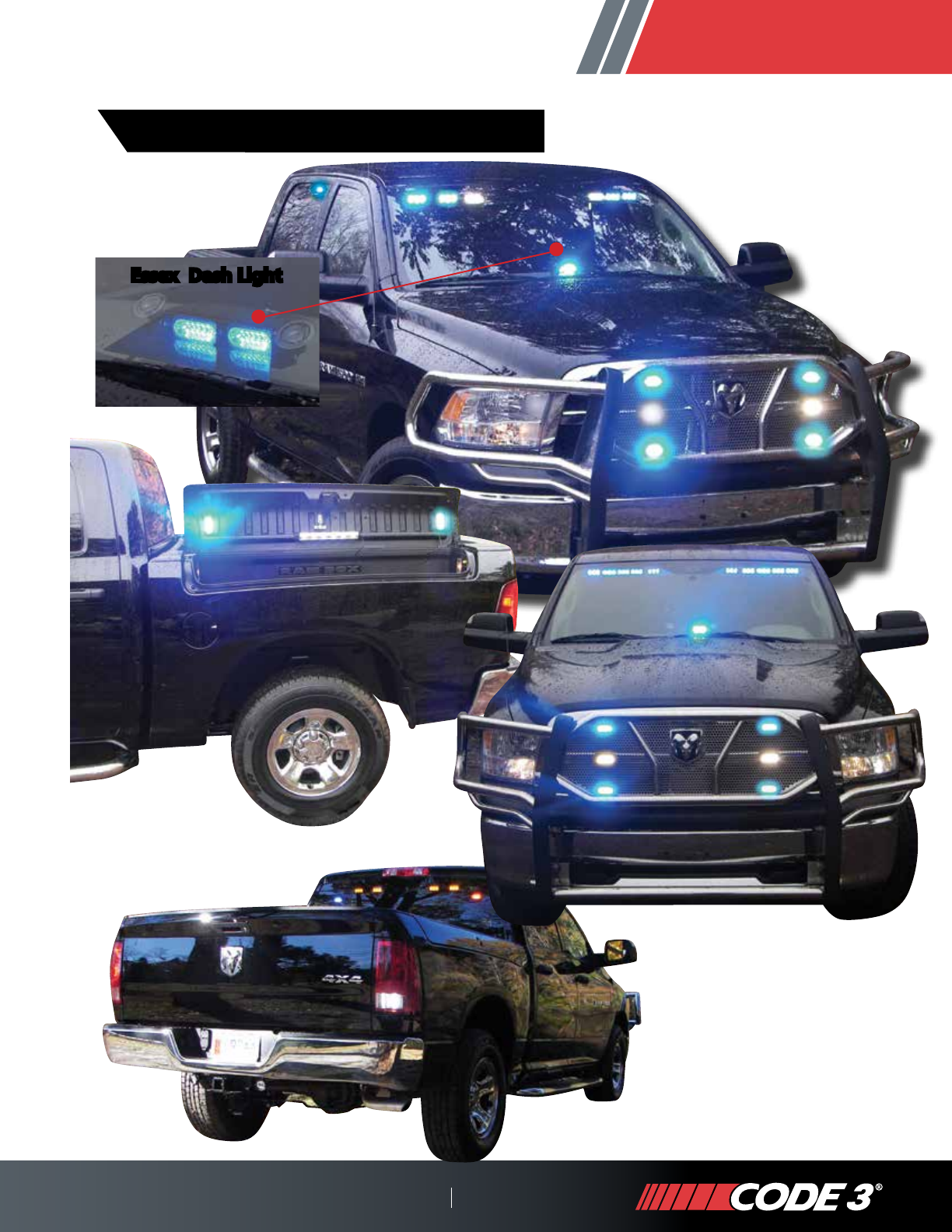

Dodge® Ram 1500
vehicles
SuperVisor®U Interior
Windshield Light and
T-Rex™ lightheads
inside side window
Six T-Rex lightheads
on grille
Two T-Rex lightheads on
side compartment
NarrowStik with two T-Rex
lightheads and
6 Pack LEDs in tail lights
Essex Dash Light
8

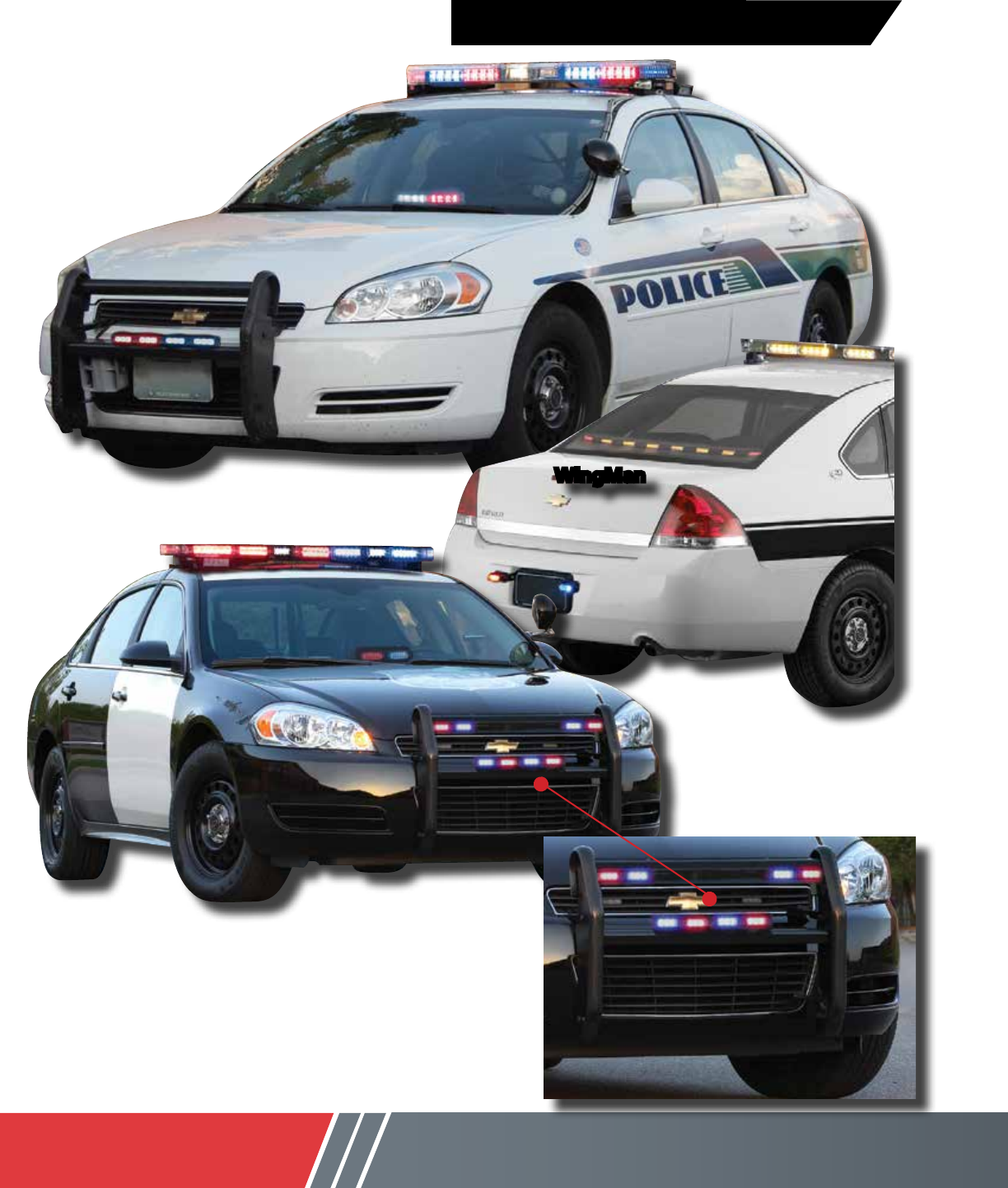

Chevrolet® Impala
vehicles
Defender® Lightbar
and Dual Essex dash light
RX 2700CC™ Lightbar
WingMan
T-Rex lightheads with
license plate bracket
XT302 and XT304
on pushbumper
www.code3esg.com phone 1-314-426-2700 9

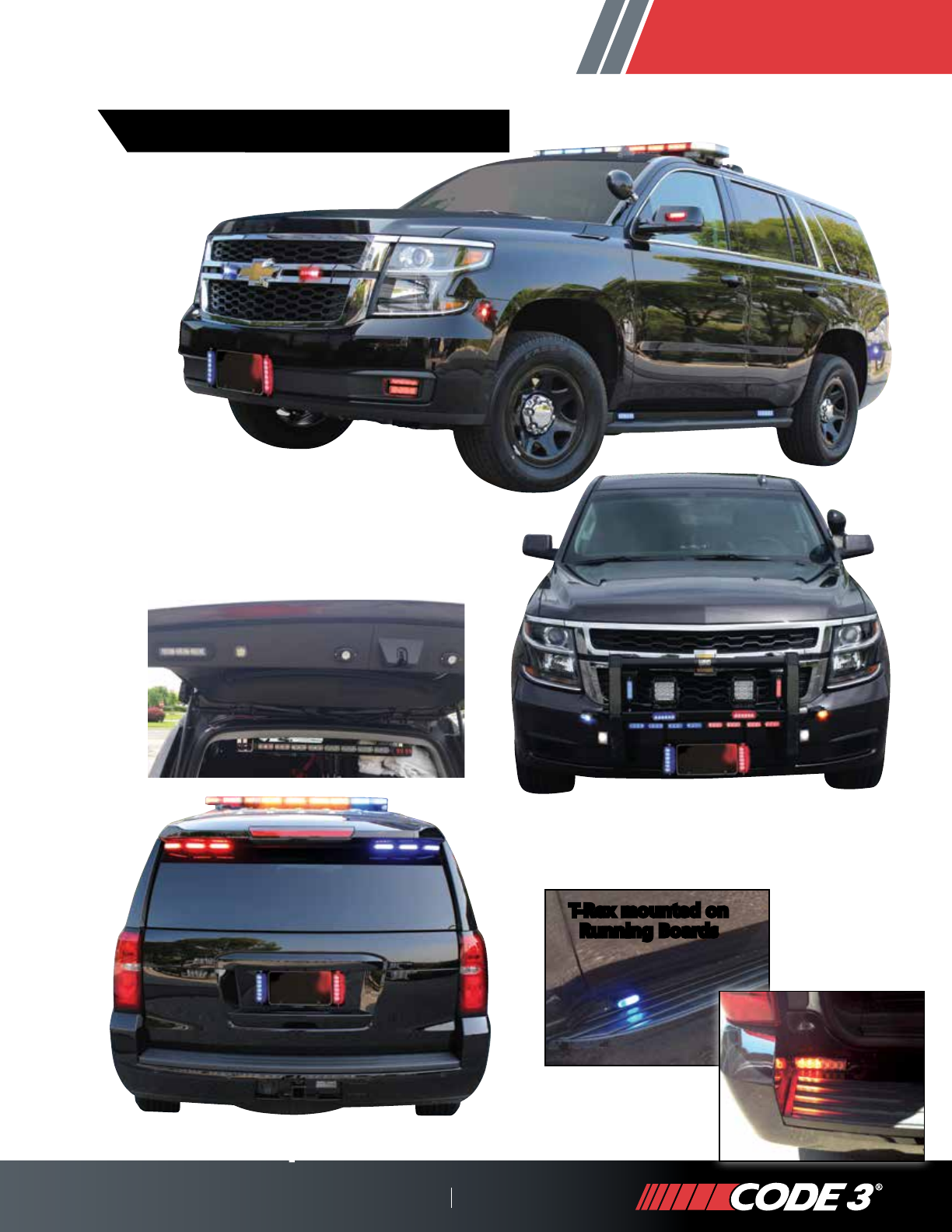

T-Rex mounted on
Running Boards
Chevrolet® Tahoe
vehicles
XT6 Lightheads
under rear
door
XT4 Lightheads on grille fog
light area and license plate
bracket
Citadel XT6 lighthead with bracket
mounted top of rear door
XT4, MR6, Square Worklights
T-Rex, LTD901 and XT308 on
pushbumper. MR6 on license
Defender® Lightbar
XT6, 4 Pack & 6 Pack Hide-A-Blast
fits inside the rear lift gate
10

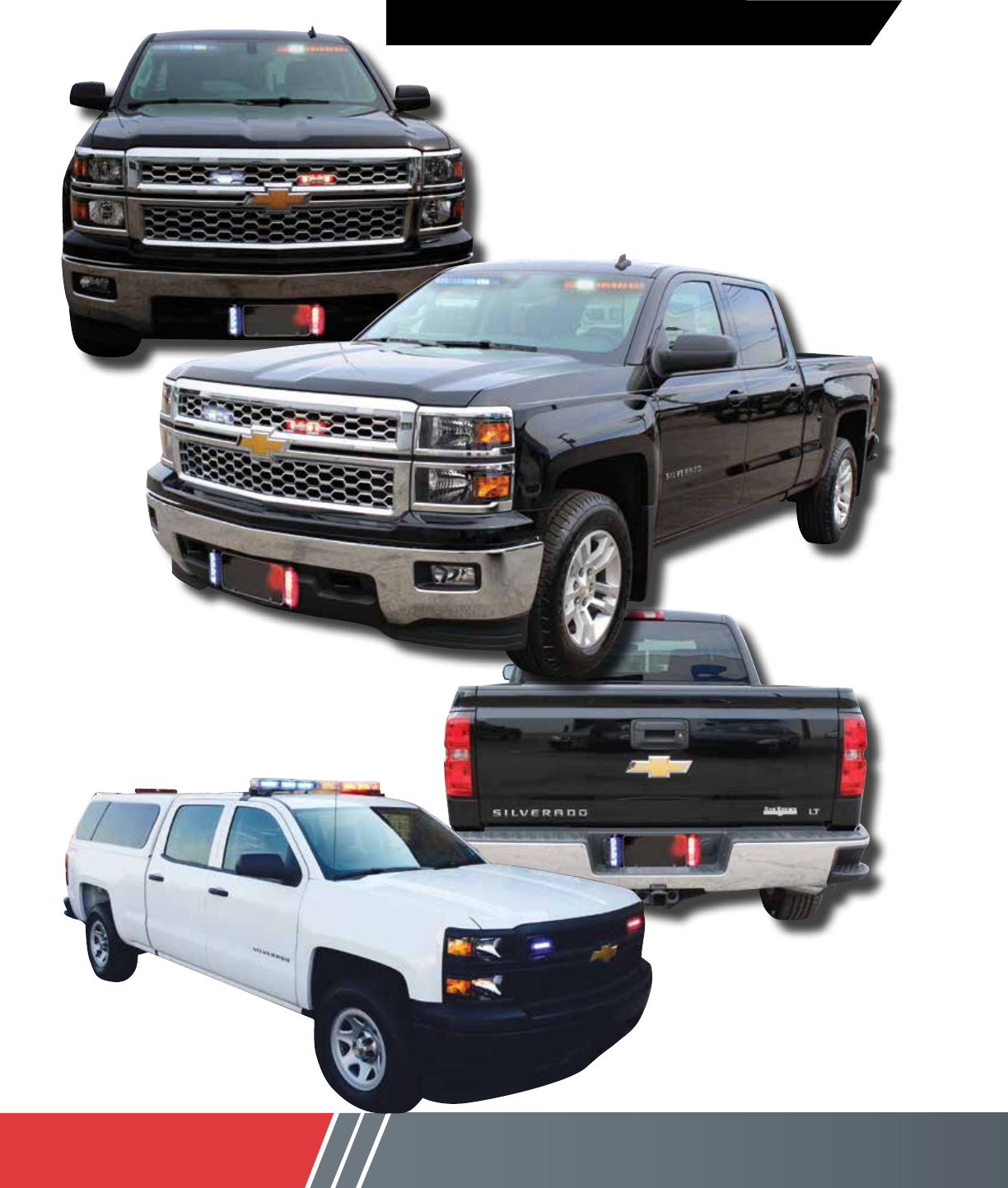

Chevrolet® Silverado
vehicles
SuperVisor®U Interior Wind-
shield Light and XT4
lightheads on grille and
license plate
RX 2700 Lightbar and
XT4 lights on grille
SuperVisor®U Interior
Windshield Light and XT4
lightheads on grille and
license plate
www.code3esg.com phone 1-314-426-2700 11

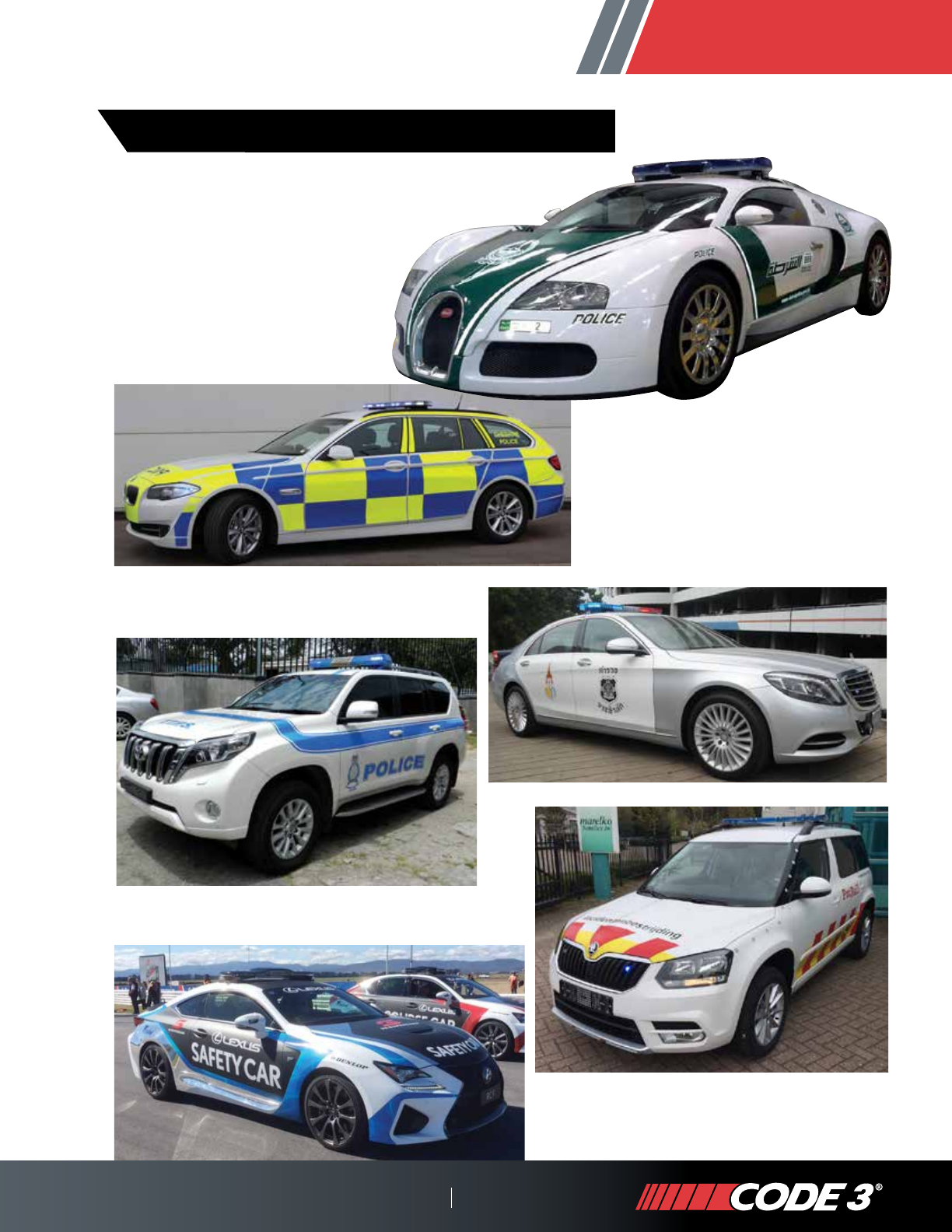

International Vehicles
vehicles
Code 3
Lighting on
Vehicles Around
the World!
12

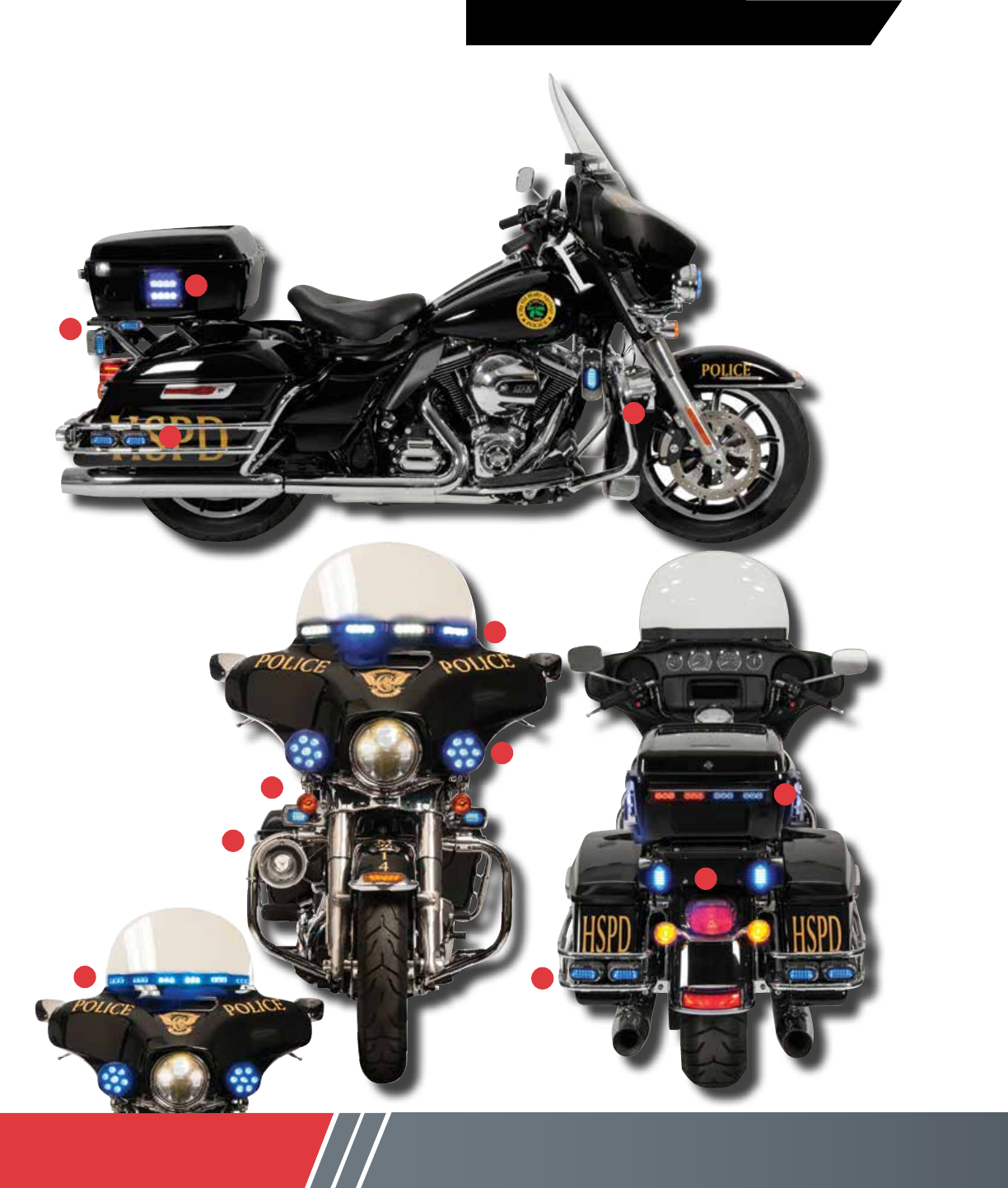

Electra Glide® (FLHTP) &
Road King® (FLHP)
motorcycles
Harley-Davidson®
5
10
7
8
Code 3 Harley
Davidson Brackets
are all Chrome
(except the Visor & license
plate brackets)
1
26
8
9
12
13
10
www.code3esg.com phone 1-314-426-2700 13
motorcycles
Electra Glide® (FLHTP) &
Road King® (FLHP)
Harley-Davidson®
Electra Glide MC Supervisor
(FLHTP) (4) Multi-Color XT4’s
(Internal Windshield)
- Bracket Included
Electra Glide SuperVisor (6 XT3’s)
(FLHTP) (Single Color - Internal
Windshield)
-Bracket included
Road King* External Visor (5 XT4’s)
(FLHP) (External Windshield)
-Bracket included
Build Your Own Bracket
Lighthead Sold Separately
Road King* Side Fork Bracket
(FLHP)
HD9MCRB
HD9MCRW
HD9MCBW
HD9MCRBW
HD9MCBRW
HD96B
HD96R
HD93R3B
HD93B3R
HD9XRB
HD9XBR
HD94R2B
HD94B2R
HD83R2B
HD82R3B
HD85B
HD85R
HD82R2B
HD8MCBW
HD8MCRW
HD8MCRB
XT4
Electra Glide Side Guard Rail Mount
& Road King
(with rails)
Electra Glide Rear Guard Rail Mount
& Road King
(with rails)
Electra Glide Under Radio Box Side Mount
&Road King
Radio Box Surface Mount
(Side & Rear)
Front Par 36 Lights
Engine Guard
Siren
** (order Harley bracket 69200597)
License Plate
Speaker
(kit includes mounting hardware
and wiring harness)
HD1243
HD1246
HD1244
HD1233
HD1543
HD1546
HD1544
HD1533
HD1153
HD1154
HD1102
HD1104
HXT-MHC2
&
LED-MHC2
LED-MHC2
3955
HDLPBKT2-
TP
HDSPKT
XT3/Trex
XT6/MR6
XT4
2-XT3
XT3/Trex
XT6/MR6
XT4
2-XT3
XT3/Trex
XT4/MR6
XT4DS
XT302
XT304
36ParX
XT3/Trex
LXEX125
XT3/TRex
1
2
5
6
7
8
9
10
11
11
12
13
HD813
XT3/LEDX
Blue indicates MultiColor Lightheads, all other lightheads are single color.
LIGHTHEAD BRACKET
* Older model products are still available. See the Code 3 website for the
Road King and more product information.
** Order siren bracket from Harley-Davidson at www.surdyke.com. The
part number is 69200597.
***Indicate (L)left or (R)right when ordering.
LIGHTHEAD BRACKET
HD513
3
4
3
4
NEW!
Included
w/lights
Included
w/lights
Included
w/lights
14
BMW®
motorcycles
Customized Code 3 Lighting
available directly from BMW
To obtain Code 3 equipment contact your
nearest authorized BMW Motorcycle Retailer
or call (800) 345-4BMW for the location of
the retailer nearest you. You may also e-mail
BMW Motorrad USA, Authority Sales at
frstevens59@gmail.com, or visit their police
web site at www.bmwmc.net.
Front Pod
Warning Lights Blue/Red/
Amber/White
Takedown/Alley Lights White
Rear Pod
Warning Lights Blue/Red/
Amber/White
Stop/Tail Red
Turn Signals Amber
ID Lights Red/Blue
Saddle Bag Lights White
Rear Pod Central Controller
BMW Lightheads & Products
R 1200 RT-P COLOR
(2015 Model)
F 800 GT-P
2015
R 1200 RT-P
Front Pod
Warning Lights Blue/Red/
Amber/White
Flasher
Rear Pod
Warning Lights Blue/Red/
Amber/White
Flasher
F 800 GT-P COLOR
(2006-09 R 1200 RT-P)
2015
R 1200 RT-P
2015
R 1200 RT-P
www.code3esg.com phone 1-314-426-2700 15
Victory®
motorcycles
Lighting brackets for the Victory are
provided by motorcycle installers. XT
Lights are shown on bike above.
T-Rex Lights Red TRX6R
Blue TRX6B
XT3 Lights Red XT3R
Blue XT3B
XT4 Lights Red XT4R
Blue XT4B
MR6 Red MR6FM-R
Blue MR6FM-B
MR6MC Red/Blue MR6MC-RB
Par36 Lights Red 36PARCR
Blue 36PARCB
LEDX Lights Red LXEX1F-R
Blue LXEX1F-B
White LXEX1F-W
Motorcycle Siren 3955
Victory Lightheads & Products
PRODUCT COLOR MODEL #
lightbars
16
Pursuit™
Best in Class LED Lightbar
NEW!
The next generation of LED Technology meets spectacular
industrial design to create the all-new Pursuit lightbar from
Code 3.
This brand new lightbar was designed from the ground up,
completely reimagining what an emergency lightbar should
be.
• Acompletetwolevellightbarwithinasinglelevelheight
profile!
• All-new,uniquelydesignedLEDlightheadsforboththe
upper and lower levels that deliver light output unmatched
in the emergency warning industry today!
• Lowerlevellightheadsthatcanbeutilizedfortakedown,
alley, rear traffic direction, flashing, and intersection
protection!
• Theupperandlowerlevellightheadscanbeprogrammed
 foruniquelydifferentflashpatternsandfunctionalityfora
variety of user applications and needs.
• Acurvedformfactorthatallowsthelightbartomatchthe
curved roofs of today’s emergency vehicles.
TheCode3Pursuitalsooffersotheruniquefeaturesthatsetit
apart from all other lightbars on the market today.
• Aserialnetworkcontrolsystemallowsforeasycontrolover
settings, configurations, flash patterns, and more while still
 allowingtheusertoutilizeexistingcontrolorswitching
systems.
• PCbasedsoftwareincludedwitheachPursuitlightbar
allowing easy configuration of the lightbar to the specific
needs of the user.
• Anintegratedlenssealingsystem,inconjunctionwith
membrane vents, protects the Pursuit from moisture, dirt,
and dust.
• Wiringchannelsandconnectorretainingclipsalongwitha
specifically designed cable gland keep all internal wiring
 neat,organized,andsecure.
• Auniquetopprotectionsystemmountedbeneaththe
lightbar lenses secures internal components from
damaging UV sunlight while helping the lightbar run
cooler and more efficiently.
• Optionalsolarpanelsintegratedintothetopprotection
system to help with vehicle battery life.
lightbars
www.code3esg.com phone 1-314-426-2700 17
45º warning 90º warning
LED alley light
Upper:
•warning
Lower:
•reararrowstik
•ashing
45º warning
Features
• 2levelsoflighting:
- Single Color Upper Lightheads in Red, Blue or Amber
- Powerful Lower Level lightheads for use as Takedowns, Alley,
Rear Arrowstik, Flashing & Intersection Lights
•IntegratedLensSealingSystem
•EncapsulatedControlElectronics
•SerialNetworkControl:thin,exiblewiringharness
• PCProgrammingSoftware
• InternalWiringChannels
Options
• AutoDimming
• LowerLevelTrafficDirector
• IntegratedSolarPanelforVehicleBatteryMaintenance
• InternalIlluminatedSignModule(protectedfromweathering)
Specifications
•30”to72”L(762mmto182.8mm)13.5”Wx3”H(343mmx
76mm)
•Multi-voltage(10–30V)OperationwithClass-leading
EMC Performance
•DesignedtomeetSAEClass1,Caltitle13,ECE65when
properly configured. Also meets R10, IP65, CISPR 25
• 5-YearWarrantyonLEDModules
Coming
2016!
Lower:
•takedowns
•ashing
•intersection
2 Full Levels
of Lighting
& only 3” High
lightbars
18
Defender
World Class LED Lightbar
More Function,
More Performance,
More Light!
lightbars
www.code3esg.com phone 1-314-426-2700 19
Increased Officer Safety
• Extraordinary visibility to approaching traffic gives drivers extra time to move over or slow down.
• Powerful scene coverage with TriCore® takedowns and alleys for traffic stops and searches, especially at night.
• Improved confidence when entering intersections or areas with limited off-angle visibility.
• Continuous lightbar operation if an individual lighthead should go out.
• Better lightbar signal control in any situation with Dimming mode and independent front and back light operation.
Improved Operation Efficiency
• Substantiallyreducedoperatingdowntimewithrapidreplacementoflensesandquickaccesstolightheads.
• Streamlinedinventoryrequirementswithindividuallightheadsthatcanbeusedinvariouslightbarpositions.
• Quiet operation with no bowing or fluttering of the lightbar at high speeds.
• Water,dirtandinsectskeptoutsidethelightbarthroughauniquegasketsealingsystem.
• Significantly extended lightbar life with improved thermal management and reduced UV degradation of wiring and lightheads.
MultiColor Benefits of TC2
•
Twofullsignalsoutofonelighthead—NomorecompromisingsignalstrengthandsizebysplittinganLEDlightheadtoget
two colors.
•
Turn a red/blue, red/white or blue/white lighthead into a clear takedown or alley light. This provides increased takedown or
alley lighting at no additional cost or loss of emergency warning positions by adding standard LED takedown or alley lights. See
color chart on next page.
•
FullSizedNarrowStik® in your bar — No longer give up emergency warning colors to have an amber ArrowStik. Now you can
have both.
•
Greater color and flash combinations now possible. Creates more flash patterns and color activity to alert motorists to
your presence.
•
Flash a dual color lighthead in a single color only, to meet state and local code.
®
lightbars
20
Defender
World Class LED Lightbar
Brighter
•InnovativePatentedLightheadDesign
•2–2.5TimesBrighterthananyLightbar
at Key 45° and 60° Intersection Angles
•FarBrighterAlleyandTakedownLights
than Traditional Halogen or LEDs
•2TimesBrighterSignalfromRearofthe
Lightbar
Safer
•AdvancedCentralControlCircuitry
•ImprovedControlofSignal
Brightness—Dimming Mode Meets
SAE Safety Standards
•SuperiorThermalManagementRuns
Cooler Than Other Lightbars
Smarter
•UniversalLightheadDesign
•NewModularLensSystemfor
Creating Lightbars of Virtually Any
Length
•EfficientInvertedLensDesignfor
Quick Access to Interior
•BlackIntermoldedSolarBarrier(top
of lens)
•2TimesStrongerFrame
•PatentedGasketSealingSystem
Features for TC2
(MultiColor)
•Dual Color TC6
2
Modules (Red/Blue,
Red/White, Blue/White, Amber/White, Red/
Amber, Blue/Amber)
•DualColorTC6
2
Modules in each Corner
Position (all dual colors available)
• Red/Blue: flashes all red and all blue, mixes
to steady white or selectable single flashing of
each color
•950FlashPatternSoftware
• Red/White: flashes all red and all white, turns to
steady white or
single flashing red
•Blue/White: flashes all blue
and all white, turns to steady
white or single flashing blue
•Amber/White: flashes all
amber and all white, turns to
steady white or single flashing
amber or turns to NarrowStik
™
Traffic Advisor
• Red/Amber: flashes all red and all amber,
turns to selectable single flashing of each color
or turns to NarrowStik Traffic Advisor
•Blue/Amber: flashes all blue and all amber,
turns to selectable single flashing of each color
or turns to NarrowStik Traffic Advisor
• Availablein36”lengthsandlonger
Features for Single Color
•TC6orTC3ModulesinRed,Blue,Whiteor
Amber LEDs
•TC6ineachCornerPosition
•600or800FlashPattern
Software
Features for Both
Single and TC2
Lightheads
•OneTouchSetting/ChangingofFlashPatterns
•Flasher/SteadyBurnFeatureforTakedownand
Alley Lights
•TriCore
®
Dimming Feature
•CornerCruiseLights
•Built-InNarrowStikFunction
•TriCoreTakedownLights
•TriCoreAlleyLights
•EasytoInstallLIT3MountingPlatform
•5-yearWarrantyontheTriCoreLighthead
Modules and the Central Controller
Options
•2.7”or5.2”TriCoreLightheadsAvailablein
Red, Blue, Amber, or White
•Multicolormodules
•Red,Blue,orAmberIntermoldedSolarBarrier
(top of lens)
•TriCoreTakedownsandAlleys
•Opticom™795HInfraredLEDEmitter(E795LP)
•SerialInterface
•NASCCArrowStik
®
Controller
shows emulation patterns
•QuickDisconnectSwitch
•AutoDimmingw/photocell
•LightedLIT3MountingKits
•SolarPanelwithBatteryCharger
Specifications
•StandardLengths:23”(584mm),
35”(889mm),36”(914mm),
44”(1118mm),47”(1194mm),
48”(1219mm),52”(1321mm),
58”(1473mm),70”(1778mm),
82”(2083mm),94”(2388mm)
•13.5”Wx2.25”H(343x57mm)
•5-YearWarrantyonTriCoreLightheads
•12Volt
•MeetsApplicableSAEJ845,NFPA,California
Title 13 and ECE65 Specifications when Properly
Configured.
•U.S.PatentNos.7,153,015&7,300,175
TC6 Red/Blue
TC6 Red/White
TC6 Blue/White
TC6 Amber/White
TC6 Red/Amber
TC6 Blue/Amber
Flash
Full Color
Flash
Full Color
Steady Burn
White
Flash
Single
Flash Other
Single Color Only
Amber Traffic
Advisor
The color chart
demonstrates the
versatility of the
lightbar for all these
combinations:
R/B, R/W, B/W,
A/W, R/A, B/A
Modularity
•Modulardesignallowsstandardlightbarstobecreatedfrom
threeuniquelenslengths.
•Modulescanbecombinedtobuildmanylightbarlengths
(23”,35”,36”,44”,47”,48”,50”,52”,58”,70”,82”,94”).
11.5” 11.6” 6.75”
Outboard
(OB)
Long Center
(LC)
Short Center
(SC)
lightbars
www.code3esg.com phone 1-314-426-2700 21
RX 2700™MC
Premier LED Lightbar
This lightbar uses the
latest LED dual color
technology to provide
intense colors. Choose
the MultiColor combina-
tion you desire and let
the lightbar do the rest.
Color combinations
available are: R/B, R/A,
B/A, B/W, R/W, A/W
lightbars
22
Premier LED Lightbar
RX 2700CC™
MultiColor Benefits
• Twofullsignalsoutofonelighthead—NomorecompromisingsignalstrengthandsizebysplittingaLEDlightheadtogettwocolors.
• Turnared/white,red/blueorblue/whitelightheadcombinationintoawhitetakedownoralleylight.Thisprovidesincreasedtakedownor
alley lighting at no additional cost or loss of emergency warning positions by adding standard LED takedown or alley lights.
• FullsizedArrowStik® in your bar — No longer give up emergency warning colors to have an amber Arrowstik also. Now you can have both.
• Greatercolorandflashcombinationsnowpossible—Createsmoreflashpatternsandcoloractivitytoalertmotoriststoyourpresence.
Benefits
• AdvanceddualreflectorLEDtechnologyprovidesabrightersignalforsuperiorvisibilityandsafety.
• Easytooperatecentralcontrollerchangessettingsorflashpatternswithasingletouch.
• Multicoloroptionavailable.
• Aerodynamicdesignimprovesfuelefficiency.
• Fullrangeofoptionsallowsyoutocustomizethelightbartomeetyourspecificrequirements.
Features for MultiColor
•MultiColorLEDModules(Red/Blue,Red/
White, Red/Amber, Blue/Amber)
•22LEDPriZmIILightheadsineachCorner
Position
•22LEDor16LEDDirectionalPriZmII
Lightheads in Front & Rear Positions
•Red/BlueLEDsturntoWhiteTakedowns
•950FlashPatternSoftware
Features for Single
Color
•Red,Blue,White,AmberorGreenLEDs
•12LEDPriZmIILightheadsineachCorner
Position
•12LED,8LEDor3LEDDirectionalPriZmII
Lightheads in Front and Rear Positions
•600(default)or800FlashPatternSoftware
Features for Both
Single and MultiColor
•OneTouchSetting/ChangingofFlash
Patterns
•LEDDimmingFeature
•Flasher/SteadyBurnFeatureforTakedown
and Alley Lights
•CornerCruiseLights
•Built-InNarrowStik™Function
•LEDor55wHalogenTakedownLights
•LEDor35wMR-11AlleyLights
•SmallGaugeMulti-conductorCableProvides
Easy Installation
•EasytoInstallLIT3MountingPlatform
•5-yearWarrantyontheLEDModulesand
the Central Controller
Options
•VariousLengthNarrowStik
™
•UpperLensesAvailableinRed,Blue,
Amber, Clear or Black
•LightedLIT3MountingKit
(LED and/or 55W Halogen)
•795HOpticom
™
LP, N-3 Emitter
•LEDStop/Turn/TailLights
•SerialInterface(CCbarsonly)
•NarrowStikController(CCbarsonly)
•SolarPanelwithBatteryConditioner
•QuickDisconnectCable
•AutoDimming(CCbarsonly)
Specifications
•18”(457mm),
22.5”(572mm),
36”(914mm),
44”(1118mm),
47”(1194mm),
52”(1321mm),
58”(1473mm),
69”(1753mm),
80”(2032mm)and
91”(2311mm)Lengths
•12.2”Wx2.7”H
(310 mm x 69 mm)
•12Volt
•MeetsallApplicableSAE,NFPA,ECE65and
California Title 13 Specifications when prop-
erly configured.
• 5-YearWarrantyonLEDModules
lightbars
www.code3esg.com phone 1-314-426-2700 23
Technology
lightbars
24
Meet the New Shape of Emergency Lighting!
Solex®
Solex with Speaker
Solex with Emitter
Cutting-Edge
• Aerodynamicshapeandstylingmaximizevehicleperformance
as well as match the contours of today’s and tomorrow’s
vehicles.
• Thesecond-levelcentersectionprovidesmultipleoptions,
including additional massive takedown lighting, additional
flashing or steady burn warning lights, a 100-watt speaker
with no loss of rear warning light capability, traffic emitters,
and other potential warning or add-on devices.
Dynamic Features
• TheSolexisonly2.5inchestall(63.5mm),providinganover
 alllowprofile.Thecentersection,measuring3.9”(99mm),is
designed specifically to maintain the single-level low-profile
look demanded by modern emergency vehicles.
• OtherSoIexfeaturesincludesingle-ormulti-colorSIRIS™ LED
lightheads designed for maximum straight-on or off-angle
lighting performance. The lightheads are designed for usage
with a central controller board or can flash independently,
 dependingonyourrequirements.
Rugged Construction
• Aluminumframeandlightheadmountingplatformare
designed for heavy duty use and vibration, exceeding the
 requirementsforSAE,CATitle13orEuropeantesting
standards.
• LenscapsprotectinternalcomponentsfromUVdegradation,
easily shed water, ice or snow and provide aerodynamic shape.
• Thick,heavydutylowerlensesaredesignedforexceptional
wear life.
MultiColor Benefits
• MultiColortechnologyprovidestwofullsignalsoutofonelighthead–Nocompromisingofsignalstrengthorsizeby
splitting an LED in half to get two colors
• Greater signal strength allows for increased safety by alerting motorists of your presence especially at intersections
• Turn your Red/White or Blue/White lightheads in the front into all white high visibility takedowns
•TurntheflashingRed/AmberorBlue/AmberlightheadsintherearintoafullsizeallAmberNarrowStik™whenactivated
(Traffic Directing Flash Pattern)
•Now Available: Cruise Lights remain on when other lighting functions are activated such as NarrowStik.
•Takedowns and Alleys are now MultiColor providing the ability to change from MultiColor to steady burn white whenever
activated.
Watch the
Solex Video and
more here!
lightbars
www.code3esg.com phone 1-314-426-2700 25
Design Features
• Fullfeaturedandcustomizedlightbarwith9-UpSIRIS™LEDsinglecolor
or 18-Up SIRIS LED MultiColor lightheads
• 5-UpLEDTakedownandAlleylightsinMultiColorRed/White,Blue/White,
Amber/White lightheads
• CornerR/W,B/WMultiColorLightheadscanbeprogrammedtosteadyburn
white providing additional scene lighting
•
New 951 Flash Pattern Software provides new field programmable
cruise capabilities such as Flicker, MultiColor and Safety
• TwoFullSignalsoutofoneLighthead
•DeluxeCentralControllerwith49FlashPatternSelections,NarrowStik,
Cruise Function
•
Flash/Steady Burn Feature for Takedown and Alley Lights
• Built-InNarrowStikFunction
•OneTouchSetting/ChangingofFlashPatterns
•LEDDimmingFeatureforCCbars
•UserSelectableFlashPatternsChangeableoneachpairof
Lighthead
• Lightheadsareselectedinmatchingpairs
• ChoosebetweenCentralControllerdrivenlightheadsorindependent
flashing lightheads
• Red,Blue,Amber,GreenorWhiteLEDs
• Blacklenscapsstandard
• Dimmingmode
Specifications
• 47”length(53”coming4thquarter2015)
• Averageheightis2.5”,Max.height3.9”
• 12Volt
• MeetsallapplicableSAE,NFPA,CaliforniaTitle13andECE65
specifications when properly configured
• 5-YearWarrantyonLEDModules
lightbars
26
Capable and modern
2-Level lightbar
Triumph™
Benefits
• 2levelsofstate-of-the-artSIRIS™LEDtechnologyprovides360˚ofuninterruptedlighting.Whenyourfleethasa
 strongneedtobe“seen”,thislightbardoesthejob.
•Modern curves that match modern vehicle lines make this a solid and attractive addition to any police vehicle!
•Center section provides an additional row of lights on both the front and rear of the lightbar--up to 3 levels of light
possible! This section can also be used for a combination of products: insert massive takedowns or a traffic emitter
or 100 watt speaker.
•Whenaspeakerisbuiltinthemiddleofthelightbar,thereisstillenoughroomforasoliddisplayoflights(see
above) to provide 360° of lighting.
Back of Lightbar
Lightbar with Three Levels of Lighting
See more about
the Triumph here!
MultiColor
Coming Soon!
lightbars
www.code3esg.com phone 1-314-426-2700 27
Design Features
•Fullfeaturedandcustomizedlightbarwith9-UpSIRIS™LED
lightheads
•Code3’smostexiblelightbarforsettingupyourlightingsystem
•Topcoloredlenseasilyidentifyyouasapolicevehicleandbottom
clear lens for TDs and alleys
•CentralControllerdrivenlightheadsorindependentashinglight
heads
•Red,Blue,Amber,orWhiteLEDsandMultiColorLEDscoming
soon
•Blackunder-moldedtoplenspreventsUVdegradation–keeps
interior cooler and protects it from UV degradation
•Dimmingmode
•2levelsof360˚oflight,evenontheendsofthebar,3levels
possible in center section, both front and rear
•Trafcadvisorinreareitherstand-aloneordoubledupproviding
two levels of warning
*Speaker version not recommended for US applications
Specifications
•47”,60”,73”,86”length
•4.57”tall,lowestheightis3.9”
•12Volt
•MeetsallapplicableSAE,NFPA,ECE65andCaliforniaTitle13
specifications when properly configured
•5-YearWarrantyonLEDModules
lightbars
28
Superior LED Lightbar
21TR™ Plus & 21TR
Benefits
•21TRPlus18-upMultiColorLEDLightheadwith5-UpMultiColorLEDtakedownandAlleysavailable.
•Standard21TRdeliversallthequalitiesthe2100hasbeenknownforwithnewTorusLEDtechnologycorner
and directional lightheads that provide far superior directional and off-angle performance. Economical,
yet advanced, this lightbar offers standard features providing the brightest basic lightbar on the market.
•21TRPlusisafullfeatured,economicallightbarwithnewTorusLEDtechnology.Centralcontrollerfeatures
and options are the same as the Defender® and RX 2700™CC. Features include the NarrowStik™, flashing
takedowns and alleys, and corner cruise lights.
21TR Plus
lightbars
www.code3esg.com phone 1-314-426-2700 29
21TR Plus Design
Features
•MultiColor Torus® LED Modules (Red/
Blue, Red/White, Red/Amber,
Blue/White, Blue/Amber, Amber/White
• TwoFullSignalsoutofoneLighthead
• LEDTakedownandAlleylightsinSingle
or MultiColor Red/White, Blue/White,
Amber/White lightheads
• CornerMultiColorLightheadscanbe
programmed to be steady burn provid-
ing additional scene lighting
• NewCruisecapabilitiesincludingFlicker,
MultiColor Selection and Safety Cruise
Functionality
•DeluxeCentralControllerwith23-49Flash
Pattern Selections, NarrowStik™ Function,
Corner Cruise
• DimMode
21IF Design Features
• IndependentFlashingLEDlightbar
•AvailableinaVarietyofConfigurations—
includes 3-up, 4-up and 9-up Directional
Torus Lightheads, 6-up or 9-up LED Corners
•FlashingTakedownsandAlleysAvailable
with Optional 940 Flasher (both Halogen
and LED)
• EachLightheadFlashesIndependently
• UserSelectableFlashPatterns
Changeable on each Lighthead
21TR Design Features
•AvailableinaVarietyofConfigurations—
includes 3-up, 4-up and 9-up Directional
Torus Lightheads and 6-up Torus Style LED
Corners
•FlashingTakedownsandAlleysAvailable
with Optional 940 Flasher (both Halogen
and LED)
•BasicCentralControllerOperationswith
user selectable 12 Flash Patterns (No
NarrowStik functionality)
Common Features
•Red,Blue,Amber,GreenorWhiteLEDs
•ClearLensesStandard(Top&Lower)
•35wHalogenandLEDTakedowns&Alleys
Available
•DimmingMode
•5-YearWarrantyonLEDModules
Options for the 21TR
Plus & 21IF
•LEDStop/Turn/TailLights
•LightedLIT3MountingFoot
•795HOpticomorN-3Emitter
•SolarPanelBatteryConditioner
Options for All
• Red,Blue,Amber,orBlackTopLenses
(with black lens clips)
• Nowavailablein44”length
Specifications
•22.5”(572mm),36”(914mm),44”(1118
mm),47”(1194mm),58”(1473mm),69”
(1753mm),80”(2032mm)and91”(2311mm)
Lengths
•12.25”Wx2.1”H(311mmx53mm)
•12Volt
•MeetsallApplicableSAE,NFPA,ECE65and
California Title 13 Specifications when properly
configured.
•5-YearLEDmodulewarranty
An incredibly bright signal in a compact package
21IF or 21TR
(see features below)
LED TECHNOLOGY
lightbars
30
MX7000®
Design Features
•LED,Strobe,HalogenorCombination
•50W/55WStandardorFastRotators
(Upper Level)
•120°SweepingIntersectionLights
(Lower Level)
•AllLightorSpeakerSection
•EasytoInstallLIT3MountingPlatform
Options
•Build-Your-OwnBaseModels
•LEDorHalogenArrowStik
®
•LightedLIT3MountingKit(LEDand/or
55W Halogen)
Specifications
•18”(457mm),36”(914mm),
47”(1194mm),52”(1321mm),
58”(1473mm),69”(1753mm),
80”(2032mm)and91”(2311mm)
Lengths
•12”Wx5.75”H(305x146mm)
•12Volt(24VoltOption)
•MeetsallapplicableSAE,NFPA,ECE
65 and California Title 13 specifications
when properly configured.
Benefits
• Patenteddual-deckdesignprovidesrotatorpowerontheupperdeck
and flexibility for special function lights on the lower deck
•Sweepingintersectionlightformaximumsafetyinhigh-risksituations
•Easymaintenancewithfieldreplaceablestrobecomponents
Range of features in a 4 1/2” tall lightbar
Design Features
•50W/55WStandardorFastRotators
(Upper Levels)
•HighGlossStrobeReflectors
•EasytoInstallLIT3MountingPlatform
Options
•Build-Your-OwnBaseModels
•LEDorHalogenArrowStik
®
•LightedLIT3MountingKit(LEDand/or
Halogen)
•CompactCycloneSpeakerfitsinthe47”
and52”Excalibur.MeetsSAE1849.
Specifications
•18”(457mm),22.5”(572mm),
36”(914mm),47”(1194mm),
52”(1321mm),58”(1473mm),
69”(1753mm),80”(2032mm)and
91”(2311mm)Lengths
•12.25”Wx4.5”H(311x114mm)
•12Volt(24VoltOption)
•MeetsallapplicableSAE,NFPA,ECE65
and California Title 13 specifications
when properly configured.
Benefits
•
Select an LED, strobe, halogen or combination bar to suit your application
Halogen/Strobe/LED Lightbars
Excalibur®
Two Level, Versatile Design
lightbars
www.code3esg.com phone 1-314-426-2700 31
Energy Saving Solar Panel
Lightbar Options
Design Features
•DesignedtoFitintheExcalibur
®
 4 7 ” 
and52”Lightbar
•Compact,LowProfileDesign
•HighEfficiency
•MeetsSAEJ1849
•Material:GlassFilledNylon
• Color:Black
Specifications
• 4”Hx10.875”Wx10.375”D
(10 x 28 x 26 cm)
(Excluding Mounting Plate)
• Impedance:11ohms
• PowerRating:100W@11ohm
• SPL:118dB@3meters
• 6.2lbs(ExcludingMountingPlate)
• 5-YearWarranty
Design Features
• Providessafeemergencyvehiclepreemp-
tion at all Opticom Infrared System inter-
sections
• Secure,codedsignalpreventsunauthor-
izeduse.
• Availableinallnewlow-profilelightbars
(2100, RX 2700CC, Defender
™
) and can
be retrofitted into existing low-profile
bars.
Specifications
• 1.25”Hx5.75”Lx0.75”D
(32 x 146 x 19 mm)
• 3–5wAmp
• 2,500FootRange
• 2-YearWarranty
Design Features
•AvailableinDefender®, RX 2700
™
CC
and 21TR Provides Battery Conditioning
which helps extend battery life up to
3 times longer.
•Industrial-strength5-wattpanelis
almosthalfthesizeofother5-watt
solar
chargers.
•Providescleanquietenergyforall
12-volt lead-acid batteries over 20 amp
hours.
•Lowprofilepanelmountsflat(noframe
required)soit’svirtuallyindestructible.
•CircuitboxincludesblinkingredLEDto
indicate the unit is pulsing.
Specifications
•8.75”x8.75”x.125”
(222 x 222 x 32 mm)
•350mAOperatingCurrent
•HeavyDutyConstruction
•Paneliscomposedofhigh-gradesub-
strate and bonding.
•Panelutilizesprovensilicon
technology.
•17FootCord
•HeavyDutyLugConnectors
•QuickDisconnectforEasyInstall
•5-YearLimitedWarranty
795H Opticom™ LED Emitter - Available in most lightbars
Cyclone Speaker
Design Features
• Highorlowprioritytransmissionis
selected via a single wire in the lightbar
• Emitter/StrobePowersupplyincluded
•Simpletwowirecontrolschemecanbe
used to enable or disable the emitter
using either a 12 volt source or ground.
Specifications
• 1.456”Hx5.5”Lx1.9”D
(36.98 x 139.7 x 48.26 mm)
• 1.35amp
• 12Volt
• 2-YearWarranty
N-3 Emitter
lightbars
32
LIT3 Lighted Mounting Kits
Lightbar Options
Design Features
•AvailableinWhite,Red,Blue,Amberwithflashpatternsthatmatch 
the lightbar
• Whitesteadyburntakedown/alley/worklightstillavailable
• Sleek,stylishdesignmakesthemountingkitappearpartofthelightbar
•DurableandWeatherResistant
•CompatiblewithCode3mountingadapterbrackets
• Canbeinstalledoncurrentlightbars
Options
•DeluxeModelLightheads:
- 3-up LED Torus Takedown and Alley (flashing)
- 3-up LED Torus (flashing)
•Halogen55wLightheadsusedasAlleyorTakedowns
LIT3KIT-TT
Available for Defender, RX 2700CC, RX 2700 (non CC), Solex, 21TR/21IF, Excalibur, MX7000,
Triumph lightbars
Models Description
LIT3KIT-XX One pair Torus LED front and one pair Torus LED rear
LIT3KIT-X One pair Torus LED modules either front or rear
LIT3KIT-A 1-pr 55w TD/Alley either Front or Rear
LIT3KIT-AA 1-pr 55w TD/Alley Front, 1-pr 55w TD/Alley Rear
LIT3KIT-XA One pair Torus LED and 1 pair 55w WL/Alley
Models Description
LIT3KIT-XT One pair Torus LED and 1 pair Torus WL/Alley
LIT3KIT-TT 1 pr Torus (flashing) LED TD Front, 1-pr Torus LED WL/Alley Rear
LIT3KIT-T 1-pr Torus (flashing) LED TD/Alley either Front or Rear
*Upgrade to White or Green LED in LIT3Kit (each)
• ThiscontrollercanbeusedontheDefender,RX2700CC,21TRPlus,Solex,Triumph,
WingmanandtheCommandstik.(notrequiredforoperationofarrowstik)
Benefits
• AutomaticdimmingofboththeDefenderandtheRX
2700CC lightbars gives maximum flexibility of
light output based on ambient light level.
•Manualinterventionisavailableatanytimetoturn
dimming on or off so officers can control the light out-
put at any time.
Field
Upgradable
for Existing
Fleet
NASCC
Design Features
•
Auto Dimming is based on ambient light level
•ManualDimmingoperatesnormally
•Allowscruiselightstooperatewhen 
bar is set to DIM — does not change
brightness of the cruise light.
•AvailableonlyonDefenderwithblack 
lenses and RX 2700CC with clear lenses.
Options
•2700CCFieldUpgradeKitS15243m
• DefenderFieldUpgradeKitS15242m
Specifications
Specifications
•Defendertopoutboardlensmusthavea
photo cell window for photocell to work.
• Forfieldupgrades,thelatestversionof
the CC bar software is needed—Series
600 Version 6.0 or Series 800 Version 2.0
(also includes lens with photocell
window).
Auto Dimming
Photo Cell for Auto
Dimming with
Protective Shielding
NarrowStik Control Head
www.code3esg.com phone 1-314-426-2700 33
Adjustable Mounting Feet
Lightbar Options
lightbars
Benefits
•
With the touch of a button easily configure the Defender, RX 2700CC, Solex and 21TR single/multicolor lightbars
• Upto9pairsofheadscanbeprogrammedwith13patternsforvirtuallyunlimitedconfigurations
• Portableforprogrammingalightbaronavehicle
• Usedwith800,950&951SeriesSoftware
Smart Pro™ Software Flash Pattern Controller Box
950FPP
Benefits
• Angularadjustmentforvaried
roof surfaces
• Pursuitspeedtested
• Onemountingboltsystemperside
• Lowriseforbetterfit
NEW!
Design Features
• Rated100,000HoursLife
• 0.2AmpDrawversus2.5Ampsfor
Incandescent Modules
• RedLEDswithClearLens
Specifications
• 4.52”Wx1.3”Hx1.0”D
(115 x 33 x 25 mm)
• 0.1lb
• 0.2Amps
• 12/24VDC
• 5-YearWarranty
LED Stop/Turn/Tail - Available in all LED
Preciselyadjustthelightbarhere!
34
NEW!
Benefits:
• Contouredfornodrillinstallationagainsttheupperinteriorofwindshieldbetweenthesunvisorsandglass.
• *FitsonFordInterceptorSedan,DodgeCharger,Chrysler300,DodgeDurango,ToyotaTundra,ChevyCobalt,ChevyTahoe,
Dodge Challenger, Ford Interceptor Utility, Explorer, Crown Vic, Dodge Ram Pickup, Toyota Prius (plus many more)
• Ifyourvehicleschange,youcanstillusetheSuperVisorUsimplybytransferringittoanothervehicle.
Windshield Mounted Interior Light
interior
SVFSD-6MC
SuperVisor™U
Design Features
•
Torus LEDs available in red, blue, amber, and white.
•
Independent flash patterns on each head
•
WhenorderedwithTakedowns,theTDsareeasilyadjustabletothe
desired position.
•
Can be wired to external flasher to flash takedown lights only
•
Draws less than 6 amps on average
Specifications
•TorusLightheadDimensions:1.075”Hx3.0”Wx1.69”D(27.305mmx
76.2 mm x 42.93 mm)
•Weight:7.5lbs
•12VDCoperation
•ReversePolarityProtected
•5-YearWarrantyonLEDs
A sample of the brackets included in the Flex & Universal SuperVisor Kit
*Some vehicle applications may require additional installer modifications.
SV999U
Benefits:
• DesignedtofitallPolicePursuitVehiclesandSpecialServiceVehicles,plusmanyothers!
•QuickDisconnectallowsuserstoinstalldriverandpassengersideseparatelyandthenconnecttogetherinasnap!
•Minimizeslightflashbackwithexpertlydesignedgaskets.Theadjustablesidelight-blockingshieldshavebeendesigned
 specificallytoblockoutflashbacklight.Nodrillingrequired.
Design Features
• SingleTorusLEDsavailableinRed,Blue,Amber,andWhite
• FullsizeMultiColorhas(6)18-TorusLEDLightheadsinRed/White,Blue/
White, Amber/White and Red/Blue,
•FullsizeSingleColorcomeswiththese4configurations:
- (6) 9-up Torus lightheads
- (4) 9-ups and up to (4) Takedowns
- (4) 9-ups and up to (4) 3-up Torus IF (Independent Flashing) Light Heads
- (4) 9-ups and (2) Takedowns & (2) 3-up Torus IFs (Independent
Flashing) Lightheads
•The3LEDTorusLightheadsaredesignedforforwarddirectionoflight
•The9LEDSingleColorand18LEDMultiColorTorusLightHeadsare
 designedtospreadlightsotheydonotrequireaiming!
•
Takedownsonthefullsizesinglecolorversionhasseveraloptions:(1)or
(2) takedowns on each side, or (1) or (2) 3-up LED lights, single on each side
• Cablelengthbetweenthedriverandpassengersideis18”
•19FlashPatternsAvailableforSingleColorVersion
•32FlashSequencesand12FlashPatternsareAvailableforMultiColor
Version
•Abilitytowiretoexternalflashertoflashtakedownlightsonly
(single color only).
Specifications
•IndividualPassengerandDriverModulesare18.75”Wandcanbe
extendedto55.5”Wat1.34”tall
•Weight7.5lbs
•12VDCoperaton
•Drawslessthan6ampsonaverage
•ReversePolarityProtected
•PassengerOnlyVersion4.0Weigh
•5-YearWarrantyonLEDs
SuperVisor® Flex
LED TECHNOLOGY
www.code3esg.com phone 1-314-426-2700 35
Windshield Mounted Interior Light
Torus SuperVisor®
interior
Benefits
•  The Torus Lighthead uses internal reflection technology in a compact lighthead with superior straight-on performance for
the SuperVisor windshield mounted interior lighting system. Thin design keeps you undercover -- remains unseen until
 energized.Specialhousingpreventsthelightsfromreflectingbackintothedriver’seyes.
Features
•Avarietyofflashpatterns
•DirectionalTorusLightheads
• AvailableinSingleandMultiColor
•Red,Blue,AmberorWhiteToruslightheads
Specifications
•CustomDesignedfortheChevroletCaprice
•5-YearWarrantyonLEDModules
LED TECHNOLOGY
See Page 40 for the Wingman Interior Rear Light with Torus Lightheads.
SUPERVISOR® TS
CAPRICE CHARGER PPV CROWN VICTORIA DURANGO EXPEDITION
(2011+ Detective & Patrol Models) 2011-15 2004-11 2012-13 2007+
PRODUCT Model No. Model No. Model No. Model No. Model No.
SuperVisor TS w/(8) 3-up Torus LEDs SV777CP
(upgrade 2 LEDs to White) SV777CP-2W
SuperVisor TS w/(10) 3-up Torus LEDs SV770CH11 SV770CV SV777DR SV770EN07
(with factory installed dome light) SV070CH11 SV777DR-2W
SuperVisor TS w/(6)18-up MulitColor Torus LEDs
SV77MCCP SV77MCCH11
(with factory installed dome light) SV07MCCH11
IMPALA TAHOE F150 FORD PI SEDAN
FORD PI UTILITY
2006-13 & 14+ Limited 2015 2011-15 2012+ 2012-16
PRODUCT Model No. Model No. Model No. Model No. Model No.
SuperVisor TS w/(8) 3-up Torus LEDs SV77OIMP06 SV770F150
(upgrade 2 LEDs to White)
SuperVisor TS w/(10) 3-up Torus LEDs SV707TH15 SV770PI SV770EXI
(with factory installed dome light) SV707TH15-2W
SuperVisor TS w/(6)18-up MulitColor Torus LEDs
SV77MCTH15 SV77MCPIS SV77MCPIU
Passenger Side Only (5) 3-Up IF Heads SV007TH15
Passenger side (4) 3 Up IF Heads , 1 White TD
SV007TH15-1W
SuperVisor Flex
Shown Here
36
Windshield & Deck Lights
Essex™
interior
Benefits
• Compactsizetakeslessspaceonthedashordeck
• Uniquedesignpreventslightsignalfromflashingintodriver’seyes
Design Features
•Updated with Torus Lightheads
•21UserSelectableFlashPatternson6-upModels
•5UserSelectableFlashPatternson3-upModels
•FlashPatternMemory
•9’LighterPlugPowerCord
•LessThan0.6AmpDraw
•ReversePolarityProtectionFeature
•5-yearWarrantyonLEDs
Options
•DirectionalTorusalsoAvailable
•SuctionCuporL-BracketMounting
•Red,Blue,AmberorWhiteLEDs
•BezelorShroudHousing
WA3VS-R
WA6BL-RB
LED TECHNOLOGY
ESX1VS-R
ESX2RD-RB
with Torus Technology
LENS
Design Features
•TwoSizesAvailable:SingleandDualHead
•SingleHeadR,A,B,W,RB,RA
Dual Head: RR, AA, BB, RB, BA, RA, RW, AW, BW, WW
•27UserSelectableFlashPatternsforSingleHead,53forDual
•5-yearWarrantyonLEDs
Options
•Multiplemountingoptionsincludingreardeckbracket
Specifications
•Single:3.7”Wx2”Hx2.5”D(94”Wx50.8”Hx63.5”Dmm)
 Double:7”Wx2”Hx2.5”D(177.8”Wx50.8”Hx63.5”Dmm)
•MeetsallapplicableSAE,CaliforniaTitle13andECE65
specifications when properly configured.
Benefits
• Torus LED technology provides an exceptionally bright straight-on and off-angle signal
• Newlockingswivelfeatureallowsuniversalmountingtofittothecurveofanywindshield
• Compactsizemeansasmallfootprint
Windshield Mounted Deck Lights
Warrior™
www.code3esg.com phone 1-314-426-2700 37
XT4 Interior Light
interior
Design Features
•Retractableguards(withthepushofabutton)oneitherendoftheunitprovideanextralevelofprotection
against re flected light flashing into driver’s eyes.
•Visor(shroud)fitssnuglyagainstwindshield&ZBracketswithSuctionCupsComeStandard
•XT601SS,XT602SS:22FlashPatterns
•12’LighterPlugCablewithOn/OffButton
•ZBracketswithSuctionCupsComeStandard
Specifications
•XT601SS:6.625”Lx1.75”Hx4.75”D(168Lx45Wx121Dmm)
•XT602SS:12.875”Lx1.75”Hx4.75”D(327Lx45Wx121Dmm)
•SAEJ595andCaliforniaTitle13whenproperlyconfigured
• CertainmodelsareECE65Compliant
Benefits
• Retractablesideguardsandavisorpreventlightfromflashinginto
driver’s eyes.
XT401RBSS
XT602RBSS
XT601RBSS XT602RBSS
Benefits
• Retractablesideguardsandavisorpreventlightfromflashinginto
driver’s eyes.
Design Features
•Retractableguards(withthepushofabutton)oneither
end of the unit provide an extra level of protection
against reflected light flashing into driver’s eyes.
•Visor(shroud)allowsunittofitsnuglyagainstwind-
shield.
•XT401SS,XT402SS:22FlashPatterns
•12’LighterPlugCablewithOn/OffButton
•ZBracketswithSuctionCupsComeStandard
Specifications
•XT401SS:5.125”Lx1.75”Hx4.75”D
(130L x 45W x 121D mm)
XT402SS:9.75”Lx1.75”Hx4.75”D
(248L x 45W x 121D mm)
•SAEJ595
•CertainmodelsareECE65Compliant
XT6 Interior Light
XT601RBSS
XT402RBSS
38
Compartment Lights
interior
400 Series - Interior Narrow Strip Lights
Benefits
• Space-savinginteriorvehiclelighting,providesadditionalbrightlightwhereneeded.
• Affordableandeasytoinstall,theselightscomein3lengthsandareonly2”wide.
•Twotypesofon/offswitchingisavailabletomeetavarietyofneeds.
•Whenadditionallightingisneeded,theselightsfitinavarietyoflocations,includingroof,sidepanels,andbackpanels.
Design Features
•Compactandsliminteriorvehiclecompartmentlightsaredesigned
for flush mount with bright white LED lighting
•Only0.5”(12mm)highwhenmounted
•Threelengthsareavailable—5.4”,11.8”,and17.7”
•BrightLEDlightingwith360lumensforthe5.4”,770lumensfor
 the11.8”,and1130lumensforthe17.7”
•Twomodelsareavailableforeachlength—withswitchorwithout
(auto on/off when vehicle door opens/closes).
Specifications
•2”Wx5.4”L(small),2”Wx11.8”L(medium)and2”Wx17.7”L
(large)
•51mmWx136mmL,51mmWx300mmL,and51mmWx450mmL
•12-24VDC
•IP65Rated,R10Certified
•2YearWarranty
Prod. No. # LEDs Dims Volts Current Current Lumens
CW0400 10 5.4”x2” 12-24V 0.41a@12V 0.23a@24V 360
CW0410(switches) 10 5.4”x2” 12-24V 0.41a@12V 0.23a@24V 360
CW0401 22 11.8”x2” 12-24V 0.73a@12V 0.38a@24V 770
CW0411(switches) 22 11.8”x2” 12-24V 0.73a@12V 0.38a@24V 770
CW0402 32 17.7”x2” 12-24V 1.17a@12V 0.62a@24V 1130
CW0412(switches) 32 17.7”x2” 12-24V 1.17a@12V 0.62a@24V 1130
CW0402
CW0411 (includes switches)
400 Series
Compartment
Lights for
your Mobile
Command
Station, SWAT
Truck, Bomb
Detonation
Truck and
more . . .
NEW!
CW0410 (includes switches)
www.code3esg.com phone 1-314-426-2700 39
interior
Benefits
• Highfunctioning,lowcostundercoverLEDemergencylight.
• Fitsmostvisors
Design Features
•26FlashPatterns
•RedorBlueLEDswithColoredorClearOuterLens
•NoBulbReplacementEverRequiredandLessThan0.5ampper 
Module
•BlackPolycarbonateHousing
•9footLighterPlugwithOn/OffSwitch
•MountswithTwoVelcro® Straps
Specifications
•Dimensions:53/8”Hx11”Wx1”D
•Weight:1.4lbs,12Volt
•5-YearWarranty
•MeetsallapplicableSAEandCaliforniaTitle13specificationswhen
properly configured.
VFP36RB
Custom Interior Lights
Headliner Bracket with MR6
Lightheads for the 2015 Charger
Features
• Code3hasavarietyofRVM(RearViewMirror)and
Headliner brackets for our interior/exterior lights.
• Bracketsareavailableasanindividualorapairof
lightheads
• Sideguardsandavisorpreventslightfrom
flashing into driver’s eyes.
•SeetheCode3pricebookorwebsiteMounting 
Bracket section under the XT3, XT4, MR6, Torus or
T-Rex Lights for specific models
• SidewindowandB-Pillarbracketsarealsoavailable.
Visor Flip Light
Headliner and Rear View Mirror Lights
NEW!
HDLNBKT-CH15
Easy to Install and Portable Light
40
rear vehicle lighting
Wingman™
Perfect Partner
to the SuperVisor®
Benefits
• ThisTorusLightheadhasinternalreflectiontechnologyandisundetectablefromtheoutsideofthevehicle.Withsuperior
straight-on performance the WingMan rear deck mounted interior lighting system with not block the drivers view. The
Perfect Partner for the SuperVisor®.
Design Features
•Fitsintherearwindow
•Easytoinstall
•Mountingbracketsincluded
Specifications
•5-YearWarrantyonLEDModules
LED TECHNOLOGY
See vehicles above for specifics models and the pricebook or website for more details.
Wingman™ TS (Torus)
CAPRICE CHARGER CROWN VIC IMPALA PI Sedan
2011+ 2011+ 2004-11 2006-14* 2012+
WingMan w/ (8) Torus LEDs WM777CP WM822CV
- with Arrowstik WM777CPAS WM822CV-AS
WingMan w/ (4) Torus LEDs WM477CP WM488CV
WingMan w/(6) Torus LEDs WM888CP WM888CH11 WM888CV WM888IMP06 WM888PI
- with Arrowstik WM888CPAS WM888CH11AS WM888CV-AS WM888I06AS WM888PIAS
Wingman (2) Torus LEDs WM288CH11 WM288CV WM288CV WM288PI
- with Arrowstik
Wingman w/ (6) Torus LEDs
upper window
WM988CV
- with Arrowstik WM988CV-AS
*Impala Limited 2014 +
MultiColor
coming
4th Quarter
www.code3esg.com phone 1-314-426-2700 41
Message Board
rear vehicle lighting
Fixed Display
Design Features
Message Board
•AvailableinRedorAmberLEDs
• Suitableforvehiclemountingaswellasportable
applications
• Flexiblemountingoptionswithautotextrotation
for mounting upside down
• Weatherproof–idealforinteriorandexterior
applications
• Mountonreardecks,roofracks,lightbars,
canopies, etc…
• Junctionboxreduceswiringtothedisplay
Digital Message Controller
•OLEDgraphictouchscreendisplay
• MicroSDslotformessagestorageandfirmware
update
• Programupto99messagesviaPCmessage
programmer
• Userconfigurablestart-upscreen
• Scrollingmessagesupport
• Adhesivetapemountingoroptionalswivelmount
kit
Specifications:
• Dimensions-23”(590mm)Lx5.7”(145mm)H
 x1.5”(40mm)W
• 10-30VDC
• MeetsECER10,IP67(displayonly),RoHSand
C-Tick when properly configured
• Ratedfrom-4°Fto147°F
• 1-YearWarrant
C850-HD0012R
C889-010
M4 Digital Message Controller
Benefits
• Innovativeopticaldesignimproveslegibilityandreduceswashoutduetosunlightallowingthemessage
to be clearly seen by on-coming vehicles
• Easilyreadablefrom328feet(100m).Allowsmaximumsafetyforthemessageboardoperatorand
on-coming motorists because the message can be seen from far-off distances
• Programupto99messagesviaPCmessageprogrammertoallowforuseinalmostanysituation
NEW!
42
LED Lighting System
rear vehicle lighting
Design Features
• Enhance rear-of-vehicle visibility on the Ford Interceptor Utility
(Explorer), GM Tahoe and Suburban
• Easy to Install—No Drilling of Holes Needed and Installs in Less than 30
Minutes!
• SleekBracketingforRearSpoiler(spoilernotincluded)
• (6)CitadelDesignedXT4Lightheads(withsnapinplugs)in
any XT4 Color Combination (Order separately)
• MultiColor:Red/White,Red/Blue,Blue/White,Blue/Amber,
Red/Amber
•SingleColor:Red,Blue,Amber,White,orGreenLEDs
•BlackOxideScrews—RustResistant
•FlashingHeadsOnly
Specifications
•MeetsSAEJ595,Class1specificationswhenproperlyconfigured
•MeetsCaliforniaTitle13specificationswhenproperlyconfigured
•5-YearWarrantyonLEDModules
Designed For Police SUVs
& Sedans
Design Features
•EightTorus3upLEDlightheadsinsinglecolorsofRed,Blue, 
Amber or White
•DrivenbyaCentralControllerBoardwhichincludes
numerous standard flash patterns and Arrow Flash
• 11/4”x31/4”fronttobackx271/2”length
• UniversalMountingforInteriorApplicationsOnly
Interior LED Light
Citadel™
CommandStik™
Available for the 2015 Tahoe and
2016 Ford Police Interceptor Utility!
CITTH15-RB
CITEXI-RB
C-STIK-ARB
www.code3esg.com phone 1-314-426-2700 43
LED NarrowStiks™
rear vehicle lighting
Torus® NarrowStik
NASLCH2
NASLTS847
Design Features
•5,6or8TorusHeadVersions
•Amber,Red,Blue,GreenandWhiteTorusLightheads
(White & Green is an additional charge)
•DimMode(Reduceslightintensity)
•ControlHeadIncluded
•Flexiblemountingsystem
•WeatherProtectedforInterior&ExteriorUse
•18’Cable(Upgradelengthsavailable)
•4TrafficDirectingPatternsand19TrafficWarningFlashPatterns
Options/Upgrades
•SplitStikDesign(2)24”Modulesor(2)15.75”Modules
•35’,50’or70’CableUpgradeAvailable
•AvailableasFlashingHeads
•OperatethroughtheRLSArrowStik
®
Control Head or the Z3 Siren
Specifications
•30”,40.5”and47”Lengths
•5YearWarrantyonLEDs
•MeetsandExceedsJ595,Class1andCaliforniaTitle13Standards
Benefits
• TorusLEDtechnologysupersedesOptixprovidingsuperiorlight
output
• Economical,yetadvanced,thisLEDNarrowStikprovides
extraordinary visibility allowing approaching traffic extra time to
move over or slow down
NASL847
Design Features
•Choosefrom5,6or8LEDXHeads
•Red,BlueandAmberLEDs
•SplitStikDesign(2-24”Modules)
•18’LengthCable(Upgradeto35’,50’or70’)
•NASLCH2ControlHeadIncluded
•UniqueRearDeckMountingBarAvailable
Specifications
•30.5”,40.5”or47.38”LengthsAvailable
•5-YearWarrantyonLEDs
LED X™ NarrowStik
LED TECHNOLOGY
44
Coordinated Emergency
Lighting Systems (CELS)
CELS Product Packages
vehicle systems
Design Features CELS*
•Packages1-4includes4typesoflightingequipmentandacontrolbox
•Package5hasonly3typesoflightingequipmentandacontrolbox
• Controlboxcanbewiredtoanyswitchingsystemcurrentlyonthemarket
today
• ArrowStik™functionalitywithexteriorrearwindowlight(Citadel)
• Dimmingcapabilityforalllightingequipment
• MultipleFlashPatternsAvailable
• Synchronouscapabilityofalllightingequipment
• ForuseonFordPIUtilityandChevyTahoevehicles
• 6packageoptionsandmorepackagescoming!
•
CELS Flash Patterns work independently of a lightbar, if one is installed on
your vehicle.
CELS Package
LED Lighting Components
• SuperVisorU® with bright Torus LEDS mounts inside your windshield with no drilling
• Citadel™LEDExteriorLightingSystemsfitsundertheRearSpoilerwithnodrilling
• Par36FogLightisa4.25diameterwith7LEDsperHead
• XT4SLEDLightheadsare4.52”wide,versatileandweatherprotectedforexterioruse
Specifications
•ControlBoxDimensions:4¾”Wx8½”Lx17/8”H
• 15footcable
• WeightofControlBox1lbs.
• 12Volts
• 5YearLEDWarranty
• 5YearCEL’sControlBoxWarranty
Complete Vehicle
Lighting Package
for the Ford
PI Utility* and
Chevy Tahoe
(2016 PI Utility Fog Light
Coming Soon)
A
B
C
D
F
E
F
F
F
D
*XT4 Stacked only
for 2015 Tahoe
www.code3esg.com phone 1-314-426-2700 45
vehicle systems
Package #1
A
Full SuperVisor U®: (2) Torus 3 LED
White Takedown lightheads, (8) 3
LED Single Color Torus lightheads
available in R, B, A, W
B
Multi-Color Citadel™: (6) XT4S LED
Lightheads with NarrowStik func-
tionality and available in RA, BA, RB,
RW, BW
C
Two Multi-Color Mirror Mount XT4S:
(2)XT4S lightheads with XT4-MMNT
brackets available in RW, BW, RB,
RA, BA
D
Two Multi-Color PAR36 Fog Lights:
(2) PAR36 Steady Burn lamps with
PAR36 Fog Light Bracket available in
RW, BW, RB, RA, BA
E
CELS Control Box with all Harnesses
Package #2
A
Half SuperVisor U: (1) Torus 3 LED
White Takedown lightheads, (4) 3
LED Single Color Torus lightheads
available in R, B, A, W (Full version
shown on vehicle)
B
Multi-Color Citadel: (6) XT4S LED
Lightheads with NarrowStik func-
tionality and available in RA, BA, RB,
RW, BW
C
Two Multi-Color Mirror Mount XT4S:
(2)XT4S lightheads with XT4-MMNT
brackets available in RW, BW, RB,
RA, BA
D
Two Multi-Color PAR36 Fog Lights:
(2) PAR36 Steady Burn lamps with
PAR36 Fog Light Bracket available in
RW, BW, RB, RA, BA
E
CELS Control Box with all Harnesses
Package #3
A
Full SuperVisor U: (2) Torus 3 LED
White Takedown lightheads, (8) 3
LED Single Color Torus lightheads
available in R, B, A, W
B
Single-Color Citadel: (6) XT4S LED
Light- heads available in RR, BB, AA,
WW
C
Two Multi-Color Mirror Mount XT4S:
(2)XT4S lightheads with XT4-MMNT
brackets available in RW, BW, RB,
RA, BA
D
Two Multi-Color PAR36 Fog Lights:
(2) PAR36 Steady Burn lamps with
PAR36 Fog Light Bracket available in
RW, BW, RB, RA, BA
E
CELS Control Box with all Harnesses
Package #4
A
Half SuperVisor U: (1) Torus 3 LED
White Takedown lightheads, (4) 3
LED Single Color Torus lightheads
available in R, B, A, W
B
Single-Color Citadel: (6) XT4S LED
Light- heads available in RR, BB, AA,
WW
C
Two Multi-Color Mirror Mount XT4S:
(2)XT4S lightheads with TX4-MMNT
brackets available in RW, BW, RB,
RA, BA
D
Two Multi-Color PAR36 Fog Lights:
(2) PAR36 Steady Burn lamps with
PAR36 Fog Light Bracket available in
RW, BW, RB, RA, BA
E
CELS Control Box with all Harnesses
Package #5
C
Two Multi-Color Mirror Mount XT4S:
(2)XT4S lightheads with XT4-MMNT
brackets available in RW, BW, RB,
RA, BA
D
Two Multi-Color PAR36 Fog Lights:
(2) PAR36 Steady Burn lamps with
PAR36 Fog Light Bracket available in
RW, BW, RB, RA, BA
F
Six Front Multi-Color XT4S Light-
heads: can be used in the Grille,
License Plate or other areas. Avail-
able in RW, BW, RB, RA, BA (brackets
not included)
E
CELS Control Box with all Harnesses
Package #6
A
Multi-Color Citadel: (6) XT4S LED
Lightheads with NarrowStik func-
tionality and available in RA, BA,
RB, RW, BW
E
CELS Control Box with all Harnesses
*XT4 option for 2015
Tahoe see page 44
*XT4 option for 2015
Tahoe see page 44
*XT4 option for 2015
Tahoe see page 44
*XT4 option
for 2015 Tahoe
see page 44
*XT4 option for 2015
Tahoe see page 44
46
T-Rex Series
exterior
Benefits
• Torus LED technology delivers an exceptionally bright straight-on and off-
angle signal
• Mounting pattern matches our existing XT3 series—no new drilling holes
are needed
• Installingtheselightsisasnapwithjusttwoscrews!Easilymountsto
license plate, side mirrors or grille
• Compactsizewithawideanglesignal
TRX6R with
XTOMMNT
Bracket
TRX6R with
XT3LPBKT
Bracket
T-Rex Torus LEDs will draw
attention wherever you go!
They are the Light with a Bite™!
TRX6R
Benefits
•
One mounting system fits all Police package vehicles on the market
• Provides Fleet Interchangeability without duplication of inventory
• Noadhesivesorspecialtoolsrequiredforinstallation
Design Features
•CustomFitforCode3T-RexSeriesLights
•NoDriver&PassengerSideVariationsRequired
•DurableWeatherCoverProvidesContouredFit
•Mountingsystemmadefrom100%RecyclableMaterials
Options:
•Onebracketusedinbothmountingandpivotpositionsonmost 
 applicationsofmirrorsrequiringlessthan32degrees
 ofhorizontalattitude.
• Extendedmountingbracketprovidedinstandardkitfor
 mirrorsrequiringgreaterthat32degreesofhorizontal
correction (i.e. Ford Expedition).
Specifications
•  L ow maintenance all weather cover made from Santoprene™
material.
•NonCompressedCoverDimensions:
 5.40”Wx3.5”Hx2.2”D(Max)to1.6”D(Min)andAngle:
21.80 degrees (137.15 W x 90.02 H x 55.58 D (Max) to 40.36
mm D (Min)
TRXOMMNT
Design Features
•
Red,Blue,Amber,orWhiteLEDsAvailablewithBlackBezel
•AlsoAvailable:SplitColorCombinations–Amber/Red,Blue/Red,
White/Red, Blue/White
•27UserSelectableFlashPatternsandSynchronousCapability
•Synchupto20T-RexLightheadsusingXT-basedSoftware
•5-yearWarrantyonLEDs
Options
• ChromeBezel(TRXCBZ)
Specifications
•
3.85”Lx1.8”Wx1.34”D(withbezel)(97.8Lx45.7Wx34Dmm)
•MeetsallapplicableSAEandCaliforniaTitle13specifications
when properly configured
• CertainmodelsareECE65Compliant
with Torus Technology
LENS
Universal Mirror Mounting System
www.code3esg.com phone 1-314-426-2700 47
XT3 Series™
exterior
Design Features
•ClearLenswithRed,Blue,Amber,Green*orWhiteLEDs
•BlackBezelStandard.ChromeOptional(soldseparately).
•ShockandWaterResistant,PottedCircuitBoard
•DirectionalOptics
•AttachedMountingBracketonXT302,XT304
•SynchronizedFlashPatternStandard
•XT3:12FlashPatterns
•XT302:22FlashPatterns
•XT304:31FlashPatterns
•XT302,XT304:AvailableinOneandTwoColor
Combinations
*XT3 only
Specifications
•XT3:3.5”Lx1.25”Hx1”D
(89L x 32W x 25D mm)
•XT302:7.13”Lx1.25”Hx1.875”D
(181L x 32W x 48D mm)
•XT304:14”Lx1.25”Hx1.875”D
(356L x 32W x 48D mm)
•12Volt/24Volt
•5-YearWarrantyontheLEDs
•AmberandRedLEDsmeetSAEJ595,ClassI
•BlueLEDmeetsSAEJ595,ClassII
XT3RXT3B
XT302RB
XT304AAAA
XT3 shown
with XT3LPBKT
license plate
XT3 shown on
Crown Vic
48
XT4 Series™
exterior
XT4 MultiColor Features
• 
Single Head XT4 lights now have MultiColor capability. Flash one solid
color and then another solid color instead of having either a single color
or split colors
• Blue,Red,AmberorWhiteLEDs(SolidColorModulesOnly)with 
Clear Lens
•Selectanytwocolors(above)forMultiColorFunction
•MultipleHeadscanbeSynchronizedtootherMultiColorLights
•30FlashPatterns
Design Features
•ClearLenswithRed,Blue,AmberorWhiteLEDs
•BlackBezel/Housing
• SteadyBurn
•ShockResistantandWeatherProtectedforInteriorandExterior
Use
•PottedCircuitBoard
•SynchronizedFlashPatternBetweenXTSeriesLightheadsand
LED Hide-A-Blasts
•XT4,XT402:22FlashPatterns
•XT404:31FlashPatterns
•Availableinoneandtwocolorcombinations.Singleheadmod-
ule is available in dual colors. Call for availability.
•XT402,XT404:Attachedmountingbracketcomesstandard
Specifications
•XT4:4.52”Lx1.3”Hx1.0”D
(115L x 33W x 25D mm)
XT402:9.875”L(withoutbracket**)x1.25”Hx2.0”D
(251L x 32W x 51D mm)
XT404:19”L(withoutbracket**)x1.25”Hx2.0”D
(483L x 32W x 51D mm)
**Add1.75”tolengthforbrackets
•12/24Volt
•5-YearWarrantyonLEDModules
•AmberandRedLEDsmeetSAEJ595,Class1
•Blue/BlueXT4LEDsmeetSAEJ595,Class1whenoperatingin
simultaneous flash mode.
• CertainmodelsareECE65Compliant
XT404RRBB
XT4MCRW (Red/White)
MultiColor
Lightheads!!
XT4MMNT Mirror Mount
Bracket
XT4DS
www.code3esg.com phone 1-314-426-2700 49
XT6 Series™
exterior
XT6 MultiColor Features
•SingleHeadXT6lightsnowhaveMultiColorcapability.Flashonesolid
color and then another solid color instead of having either a single color
or split colors
•Blue,Red,AmberorWhiteLEDs(SolidColorModulesOnly) 
with Clear Lens
•Selectanytwocolors(above)forMultiColorFunction
•MultipleHeadscanbeSynchronizedtootherMultiColorLights
•30FlashPatterns
Design Features
•ClearLenswithRed,Blue,AmberorWhiteLEDs
•BlackBezel/Housing
•ShockResistantandWeatherProtectedforInteriorandExteriorUse
•PottedCircuitBoard
•SynchronizedFlashPatternBetweenXTSeriesLightheadsandLEDHide-
A-Blasts
•XT6,XT602:22FlashPatterns
XT604: 31 Flash Patterns
•Availableinoneandtwocolorcombinations.Singleheadmoduleis
available in dual colors. Call for availability.
Specifications
•XT6,XT601SS:6.2”Lx1.3”Hx1.0”D
XT602(SS):13”L(withoutbracket**)x1.25”Hx2.0”D
(330L x 32W x 51 D mm)
XT604:25”L(withoutbracket**)x1.25”Hx2.0”D(635Lx32Wx51D
mm)
**Add1.75”tolengthforbrackets
•XT602,XT604:Attachedmountingbracketcomesstandard.
•12/24Volt
•5-YearWarrantyonLEDModules
•AmberandRedLEDsmeetSAEJ595,ClassIspecifications.
•Blue/BlueXT6LEDsmeetSAEJ595,Class1whenoperatingin
simultaneous flash mode.
• CertainmodelsareECE65Compliant
XT602RB
XT604RRBB
XT6MCBA (Blue/Amber)
MultiColor
Lightheads!!
50
Now in
MultiColor! A low profile LED light for
Interior and Exterior Mounts
MR6 LED Lighting
exterior
MR6-B with Flush Mount (Included)
Design Features
• (6)SingleorSplitLightheadsTIROpticLEDLightheads
• (6)MR6MultiColorhasLinearOpticLEDLightheads
• Multi-ColoravailableinAmber/White,Blue/White,Red/Blue,Red/White,
Amber/Green
• SingleColorLEDsinRed,Blue,Amber,orWhite
• SplitModelsavailableinR/B,R/W,B/W,B/A,A/Wcolors
• MR6comeswithamulti-mountsolutionthateliminatesthe
need for separate parts for hood and flush mounting
• 13UserSelectableFlashPatternsincludingSteadyBurn
• MultipleFlashPatternswithsynchronizedcapabilitiesallowingUltimateFlash
Pattern Flexibility
Options
•AvailableinSurfaceMount(withgrommet)comingsoon.
Specifications
•0.9”Hx4.5”Lx0.75”D(22.86mmx114.3mmx19.05mm)
•12/24Volt
•MeetsSAEJ595,CaliforniaTitle13whenproperlyconfigured
• ECE65SpecificationsforInternationalRequirements
•5-YearWarrantyonLEDs
Benefits
• The economical MR6 exterior light is now available in MultiColor
• MR6MultiColorcomeswithamulti-mountsolutionthateliminatestheneedforseparatepartsforsurface,hoodand
flush mounting.
• High powered, water resistant, compact LEDs with TIR Optic Technology provide exceptional straight on and off-angle
lighting.
MR6MC-RB MultiColor Flush Mount
MR6 Hood
Mount Bracket (Included)
MR6-R
www.code3esg.com phone 1-314-426-2700 51
Chase™ LED Light
exterior
A low profile multicolor LED light
for Interior and Exterior Mounts CD3766RB
Benefits
• MultiColordirectionalLEDwarninglightthatcanbeprogrammedtoflasheithercolorindividuallyoralternately
Design Features
• 12highintensityLEDs(6LEDsofeachcolor)
• Red/Blue,Blue/Amber,Red/Amber,Amber/White,Amber/GreenColors
Available
• SteadyBurnWhiteavailable
• 12flashpatternswith62modes
• Synchronizable
• Aluminumhousing,polycarbonatelens
• Encapsulatedelectronics
Options
•ChromeBezel
Specifications
• 12/24Volt
• 0.9Amps
• Dimensions:1.446”Hx6.417”Wx1.186”D(36.74mmx163mmx
30.14 mm)
• MeetsSAEJ595ClassI,CaliforniaTitle13,R65,andR10whenproperly
configured
• TemperatureRange:-22°Fto+122°F(-30°Cto+50°C)
• 3-YearWarranty
Torus™ 3-Up & 6-Up LED Lighting
Featuring Torus™ LEDs for Interior and Exterior Mounts
Torus 3-up LED Torus 6-up LED
3-up LED Models
• 5flashpatterns
• Clearlensstandard.Alsoavailableinred,blueoramberlens
(must specify).
• ChromeorBlackABSBezel
6-up LED Models
• 21flashpatterns,includingwig-wagandsteadyburncapability.
• SplitColorsavailableinAB,AR,AW,BR,BW,RW
• Clearlensstandard.Alsoavailableinred,blueoramberlens
(must specify).
• ChromeorBlackABSBezel
Design Features
•5FlashPatternsin3-up
•21FlashPatternsin6-up
•Amber,Red,BlueorWhiteLEDswithClearLens
•HybridOptics
Options
•BlackABSorChromeFinishBezel
•Red,BlueorAmberLenses
•DirectionalandWideOpticsalsoAvailable
•WaterproofPlug
Specifications
•3-UpModule:4.7”Lx1.8”Wx1.75”D
(119L x 46W x 45D mm)
•6-UpModule:7.5”Lx1.8”Wx1.75”D
(191L x 46W x 45D mm)
• 5YearWarrantyonLEDmodules
LED TECHNOLOGY
52
- See the Code 3 Pricebook or Bracket button on the
Code 3 home page for more bracket information.
T-Rex/XT3
Bezels:
TRXCBZ T-RexChromeBezel
XT3CHMBZ XT3ChromeBezel
XT3RUBZ XT3BlackRubberBezel
L Shaped Brackets:
XT3LBKT 90° ‘L’ shaped Bracket (XT3/T-REX)
XT3-DL 90° ‘L’ shaped Bracket Universal Single Deck Light (XT3/T-REX)
XT3-DL2 90° ‘L’ shaped Bracket Universal Stacked Deck Light
(2-XT3/2-T-REX)
GMBCH11 90° ‘L’ shaped/Grille Bracket (pair), Charger (2011+)
(XT3/T-REX/TRS3/LEDX/XT6/TRS6)
GMBEN07 90° ‘L’ shaped/Grille Bracket (pair), Expedition (2007+)
(XT3/T-REX/TRS3/LEDX/TRS6)
GMBEXI 90° ‘L’ shaped/Grille Bracket (pair), Explorer ONLY (2011+)
(XT3/T-REX/TRS3/LEDX/XT6/TRS6)
GMBPI 90° ‘L’ shaped/Grille Bracket (pair), PI Sedan (2012+)
(XT3/T-REX/TRS3)
GMBPIU Grille Bracket (pair), PI Utility (2012+)
(XT3/T-REX/TRS3/XT4/LEDX/MR6/XT6/TRS6)
Grille Brackets:
XT3GRL Universal Bolt-on Grille Bracket (single) (XT3/T-REX)
GMBPIU-15 Grille Light Bracket (XT3, TRX6, XT4, XT6, MR6, Chase)
GMBCH11 90° ‘L’ shaped/Grille Bracket (pair), Charger (2011-14) (XT3/T-
REX/TRS3/LED X/XT6/TRS6)
GMBPIU Grille Bracket (pair), PI Utility (2012-15) (XT3/T-REX/
TRS3/XT4/LED X/MR6/XT6/TRS6)
GMBCH11 90° ‘L’ shaped/Grille Bracket (pair), Charger (2011+)
(XT3/T-REX/TRS3/LEDX/XT6/TRS6)
GMBEN07 90° ‘L’ shaped/Grille Bracket (pair), Expedition (2007+)
(XT3/T-REX/TRS3/LEDX/TRS6)
GMBEXI 90° ‘L’ shaped/Grille Bracket (pair), Explorer ONLY (2011+)
(XT3/T-REX/TRS3/LEDX/XT6/TRS6)
GMBIMP06 Grille Bracket (pair), Impala (2006-13) & Impala Limited (2014+)
(XT3/T-REX/TRS3/LEDX/TRS6)
GMBPI 90° ‘L’ shaped/Grille Bracket (pair), PI Sedan (2012+)
(XT3/T-REX/TRS3)
GMBPIU Grille Bracket (pair), PI Utility (2012+)
(XT3/T-REX/TRS3/XT4/LEDX/MR6/XT6/TRS6)
GMBTH Grille Bracket (pair), Tahoe (2007+)
(XT3/T-REX/TRS3/LEDX/TRS6)
GMB-F150 Grille Mount Bracket - 2015+ F150
License Plate Brackets:
XT3LPBKT Universal License Plate Bracket (XT3/T-REX)
LXEXLPBKT-CH15
LicensePlateBracketw/2”OffsetofVerticalLighthead
Mounting, Charger (2015+) (XT3/T-REX/MR6/LED X)
LXEXLPBKT-IMP06 License Plate Bracket, Impala (2006-13) & Impala Limited
(2014+) (XT3/T-REX/MR6/LED X)
LXEXLPBKTRTH
Rear License Plate Bracket, Tahoe (2007+) (XT3/T-REX/LED X)
LXEXLPBKTR-PIU
Rear License Plate Bracket (XT3, TRX6, XT4, XT6, MR6, Chase)
LXEXLPBKT-PIU
Front License Plate Bracket (XT3, TRX6, XT4, XT6, MR6, Chase)
Push Bumper:
PBH45 Bracket,PushBumper,Horizontal45°Angle(XT3/T-REX/XT4/
MR6) (pair)
PBV45 Bracket, Push Bumper, Vertical 45° Angle (XT3/T-REX/TRS3/
MR6/ TRS6)(pair)
XT4
Bezels:
XT4CHMBZ XT4ChromeBezel
XT4RUBZ XT4BlackRubberBezel
License Plate Brackets:
LPBKT-TH15 Tahoe License Bracket (XT4)
(see T-Rex/XT3 license brackets)
L Shaped Brackets:
XT4LBKT 90° ‘L’ shaped Bracket (XT4)
XT4-DL2 90° ‘L’ shaped Bracket Universal Stacked Deck Light (2-XT4)
(See T-Rex/XT3 L Shaped GMB model brackets)
Grille Brackets:
GMBXT4-F150
Grille Mount Bracket - 2015+ F150 for XT4
XT4GRL Universal Bolt-on Grille Bracket (single) (XT4)
GMBPIU Grille Bracket (pair), PI Utility (2012+)
(XT3/T-REX/TRS3/XT4/LEDX/MR6/XT6/TRS6)
(see T-Rex/XT3 grille brackets)
Push Bumper:
PBH45 Bracket,PushBumper,Horizontal45°Angle
(XT3/T-REX/XT4/MR6) (pair)
XT4MMNT XT4 Mirror and/or Bumper Mount Bracket (XT4) & Universal
Fog Light:
FOGBKT-TH15
Tahoe Bracket, Fog Light, pairs 4 attachments points
XT6
Bezels:
XT6CHMBZ XT6ChromeBezel
XT6RUBZ BlackRubberBezelforXT6Lighthead
L Shaped Brackets:
XT6LBKT 90° ‘L’ shaped Bracket XT6 (MR6/XT6)
(See T-Rex/XT3 L Shaped GMB model brackets)
Grille Brackets:
XT6GRL Universal Bolt-on Grille Bracket (single) (XT6)
(see T-Rex/XT3 grille brackets)
MR6 Series
Grommet:
MR6FMKIT *GROMMET FOR FLUSH MOUNT KIT
L Shaped Brackets:
XT6LBKT 90° ‘L’ shaped Bracket XT6 (MR6/XT6)
(See T-Rex/XT3 L Shaped GMB model brackets)
Grille Brackets:
GMBPIU Grille Bracket (pair), PI Utility (2012+) (XT3/T-REX/TRS3/XT4/
LEDX/MR6/XT6/TRS6)
GMBTH15 Grille Bracket (pair), Tahoe
(see T-Rex/XT3 grille brackets)
License Plate Brackets:
LXEXLPBKT-IMP06 License Plate Bracket, Impala (2006-13) & Impala
Limited (2014+) (XT3/T-REX/MR6/LED X)
Push Bumper:
PBH45 Bracket,PushBumper,Horizontal45°Angle(XT3/T-REX/XT4/
MR6) (pair)
PBV45 Bracket, Push Bumper, Vertical 45° Angle (XT3/T-REX/TRS3/
MR6/ TRS6) (pair)
Torus Exterior LED
Light Shield:
TRS6HOOD Light Shield for Torus™ 6-up Exterior
TRS6HOOD-CH11 Light Shield for Torus™ 6-up Exterior for Charger (2011+)
L Shaped Brackets:
OPX390 90° ‘L’ shaped Bracket for Torus™ 3-up Lighthead (TRS3)
OPX690 90° ‘L’ shaped Bracket for Torus™ 6-up Lighthead (TRS6)
OPX690-EXT 90° ‘L’ shaped Bracket for Torus™ 6-up Lighthead w/Extended
Base (TRS6)
(See T-Rex/XT3 L Shaped GMB model brackets)
Grille Brackets:
(see T-Rex/XT3 grille brackets)
Push Bumper:
PBV45 Bracket, Push Bumper, Vertical 45° Angle
(XT3/T-REX/TRS3/MR6/TRS6) (pair)
Chase LED
Grille Brackets:
CHSGRL Chase™ Bolt-On Grille Bracket
Mounting Brackets
www.code3esg.com phone 1-314-426-2700 53
SD24
NEW!
Benefits
• ThisSurfacemountLEDwarninglightoffersmaximum
 performancewithminimumsize(3”Wx1”Hx.4”D)
• Smallfootprintallowsformountinginalmostany
location on the vehicle while its slim design keeps a low
profile look
• Lowcurrentdrawandlongmaintenance-freeservicelife
Design Features
• 24(1)WattHigh-IntensityLEDs
• 16FlashPatterns
• Red,Blue,Amber,WhiteandGreenLEDsAvailable
• SynchronizablewithadditionalHide-A-Blasts
• In-linewaterproofdrivermodule
• UVstabilizedpolycarbonatelens
• Pre-wired9’cable
• Colorlesswhennotilluminated
Options
• Chromebezel
• Lbracket
• Multi-anglebracket
Specifications
• Dimensionswithoutgrommet:3.3”Wx1.1”Hx0.4”D(83.8mmx
27.9 mm x 10.2 mm)
• Dimensionswithgrommet:3.67”Wx1.45”Hx0.46”D(93mmx
37 mm x 12 mm)
• 12/24Volt
• 0.75Amps
• ClassI(Amber,Blue,White&Red)whenproperlyconfigured
• MeetsCAT13(Amber,Blue&Red)whenproperlyconfiguredCE
• TemperatureRange:-22°Fto122°F(-30°Cto+50°C)
• 5-YearWarranty
Use the SD24 to light up running boards on
your SUV and for many other exterior uses!
Thin Surface Mount LED Light
exterior
Mega Thin LED
Design Features
• 6LEDSingleColorFeaturing29FlashPatterns
• 12LEDMultiColorFeaturing62FlashPatterns
• Amber,Blue,White,GreenandRedLEDsavailableinSolid,Split
and MultiColor Configurations
• ElectronicsareFullyEncapsulatedtoMeetIP67Standards
• BlackDieCastBase
Specifications
• Dimensions:.46”DX4.73”DX1.23”W(12mmx120mmx31mm)
• 12-24Volt
• SAEJ595Class1,CaliforniaTitle13,ECER65Class1and
ECE R10 certified
• 3-YearWarranty
ULT6-XX
Benefits
• TheMegaThinLEDisa6LEDultra-thinmount
lighthead with multiple flash patterns and
 synchronization(max8lightheads)
• Curvedendopticsforbetteroff-angleperformance
• TheMegaThinLEDisavailableinsolidandsplitcolors
as well as a 12 LED MultiColor
Coming
4th Quarter
Ultra Thin Surface
Mount LED Light
SD24 LED
54
exterior Forge™
Benefits
• 20highintensityLEDswithindividualreflectorsprovidetrulyoutstandinglightoutputinaverycost-effectivepackage
• Offersfit-and-forgetmaintenance-freeoperationandlowampdraw
Design Features
• Tough,clearpolycarbonatehousingwithencapsulatedelectronics
• Red,Blue,White,andAmberLEDsAvailable
• 7FlashPatterns
• Discreteunitsarecolorlesswhennotilluminated
• Grommetmountversionsfitstandardovalrearlightinggrommet
Options
• Grommetmountavailabletoconverttosurfacemountlight
Specifications
• 5.9”Wx2.1”Hx1.2”D(151mmx53mmx30mm)
• 12/24Volt
• 0.4Amps
• MeetsSAEJ595ClassI
• CE,ECE,R10,CATItle13(Red,Blue)
• TemperatureRange:-22°Fto122°F(-30°Cto+50°C)
• 3-YearWarranty
C3811
(Unlit Angled View)
Available with Swivel and
Fog Light Mount
Design Features
• 26FlashPatterns
• Single:RedLEDswithRedLens,BlueLEDswithBlueLensStandard
• MultiColor:Red/White,Red/Blue,Blue/WhiteorAmber/Blue
LEDs with Clear Lens
•SynchronizationbetweenMultiColorLightheadsorbetweenSingle
lightheads and with other Code 3 XT Lights
• 7LEDsperHead
• Weather-ProtectedDesign
• ShockResistant
Specifications
• Diameter:4.25”(107.95mm)**
• Height:5.75”(146.05mm)**
• Depth:2.25”(57.15mm)**
• Lessthan0.9AmpDraw&13.8VDC
• SAEJ595,Class1andmeetsCaliforniaTitle13
• 5-YearWarranty
Benefits
•MultiolorPar36flashes one solid color and then another solid color instead of
having only one single color.
•Attach to push-bumpers or brushguards for additional focused light
•Rust resistant U-bracket and heavy duty rubber
•Durable metal U-bracket attached to base of lighthead allows the lighthead to
swivel forward and backward up to 180° or swivel either right or left up
36PARB-SWVL
PAR36 Swivel
PAR36 Fog Light
Par 36 LEDs
www.code3esg.com phone 1-314-426-2700 55
VigiLED II™
exterior
CD0001X
Design Features
• Clearpolycarbonatelenswith4highpoweredLEDs
• Red,Blue,Amber,andWhiteLEDsavailable
• 18flashpatterns
• Sychronizablewithmultipleunits
• Die-castaluminumhousing
• Surfaceorbracketmountingoptions
Specifications
• Dimensions:2.87”Wx2.91”Hx1.22”D(73mmx74mmx31mm)
• 12/24Volt
• 0.7Amps
• MeetsSAEJ595ClassIwhenproperlyconfigured
• CE,R10,R65(amberonly),IP67,CATitle13(Red,Blue,Amber)
• TemperatureRange:-22°Fto+122°F(-30°Cto+50°C)
• 1YearWarrantyonLEDModules
High Impact Bright Light!
Benefits
• Thisversatilelightcanbeusedasadditionalfront-endlight
ing, including on the push bumper of any police vehicle. It
has high impact when used as an additional alley light, take
down, spot light or scene light. With universal bracketry this
light can be mounted in many locations on the vehicle.
Two LTD901s are installed on
the bottom of a push bumper
LTD901
Benefits
• Offers long life, low-maintenance operation with no moving parts or flashtubes to break or replace
Design Features
•HighImpactBlackAluminumDieCastforMaximumDurability
• HighIntensityLEDswithClearLens
•KitincludesOneLight,Brackets,andScrews
• SteadyBurnWhiteLight
• WaterResistant
Specifications
• 2¼"Wx2½"Hx3"D
• 1.5AmpAverage
•5-YearWarrantyonLEDModules
High powered surface or bracket
mounted light
Independent LEDs Steady Burn
56
exterior
LED Worklights
NEW!
Design Features
• Six(3)WattLEDs
• CompactDesign
• Aluminumheatsinkhousing
• Polycarbonatelens
Specifications
• Dimensions:6.3”Wx1.9”Hx2.5”D
(160 mm x 47 mm x 63 mm)
• 12/24Volt
• 1.2Amps
• Rawlumens:1150
• Effectivelumens:950
CW2440
(Spot Beam)
6 LED Rectangular Lamp
Design Features
• Nine10-WattLEDs
• High-intensitybeam
• Aluminumheatsinkhousing
• Heavydutystainlesssteelarticulating
bracket
• Polycarbonatelens
Specifications:
• Dimensions:5.7”Wx6.2”Hx4.6”D
(145 mm x 157.5 mm x 116.8 mm)
• 12/24Volt
• 5.3Amps
• IP69K,CISPR25
• Lumens:5050Raw(Lightatfirst
startup)
• Lumens:3600Effective(Lightafter
30 mins. of operation)
• 3-Yearwarranty
CW2310
(Spot Beam)
High Powered, Heavy Duty Lights
Benefits
• Offering the latest technology and the very brightest white light, these heavy duty work
lamps are excellent for push bumpers where additional scene lighting is needed
• Offersover80,000hoursofmaintenancefreelifeexpectancycoupledwith
extremely low amp draw
CW2570
(Spot Beam)
Benefits
• Worklightcomeswitha180degreeforward/backwardshiftcapabilityallowingthelightto
be positioned to point down to the ground, straight out or upward, at a precise angle
• Thesecompactworklampsofferthelatesttechnologyandverybrightestwhitelightfor your
application.
• Availableinspotandoodbeampatternstheseunobtrusiveworklampsprovideextremely
 highlightintensitydespitetheirsmallsize.
• TheseLEDmodelsofferover80,000hoursofmaintenancefreelifeexpectancycoupledwith
extremely low amp draw.
Design Features
•Five3-wattLEDs
•12-24VDC
•Compactdesignformanylocations
•Aluminumheatsinkhousing
•Polycarbonatelens
•StainlessSteelmountingbracket
Specifications
• 3.3”Wx3.9”Hx1.6“D(85mmx98mmx42mm)
(Height from bottom of black light casing to top)
•12-24VDC
•0.8Amps
•RawLumens650forFloodand750forSpot
•EffectiveLumens600Floodand700forSpot
•CE,R10
•3YearWarranty
9 LED Square Lamp
Mini LED Worklight
www.code3esg.com phone 1-314-426-2700 57
Portable LED Worklight
exterior
Magnetic and Rechargeable
Benefits
• Featuringahighintensity600lumensfloodbeamand5operatingmodes
• 100%and30%floodwithsteadyburnredandwhite,quadred,anddoublered
in every light
• Highintensitybatterypoweredworklightwithmagneticbaseallowsyouto
position the light anywhere on the outside of the vehicle to light up a work area
 orsceneveryquickly.
• Long-lifelithiumrechargeablebatteryallowstheworklighttooperate3-4hours
before recharging
Design Features
• Five3-wattLEDs
• RechargeableLithiumBatterywithchargetimelessthan7hours
• Runtimeonbatteryis3to4hours
• CigarettePlug(CW4003)andACPlugCharger(CW4002-NA)Included
• 650RawLumens,600EffectiveLumens
• Aluminumheatsinkhousing(Black)
• Stainlesssteelmountingbracket
• Polycarbonatelens
Specifications
• 4.5”Wx9.1”Hx3.9”D(115mmx230mmx100mm)
• IPRating67
• CE
• 1YearWarranty
DISCLAIMER: Product performance and specifications are based upon
evaluation of a fully-charged new battery. It is normal for all batteries to
degrade and lose capacity over time.
Extra light for on or
around the vehicle
at your emergency
scene.
Plug & AC Wall Charger Included
CW2461CWR
NEW!
58
Utility LED Bars
exterior
Spot/Flood Beams
Design Features
•
Single and double row LED models
• Heavy-dutyaluminumheatsinkhousing
• PolycarbonateLens
• SpotandFloodmodelsavailableaswellasSpot/Floodcombomodels
• Lengthsfrom8”to49”
Specifications
• Lengthsof8”,12”,14”,24”,25”,33”,36”,42”,and49”.
• Depthis3.3”forallbars
• Singlerowmodelsare2”inheight
• Doublerowmodelsare3”inheight
• 12/24Volt
• IP67Rating
• 3-YearWarranty
Benefits
•
High-powered, heavy duty worklight bars available in a variety of lengths
• Ultimatemountingflexibilityusingatiltingpedestalmountortiltingsurfacemount
• Manylengthsavailablewithsingleordoublerowhigh-poweredLEDs
Prod No Description Lumens Raw/Effective
UTLY08-SF LEDBAR,8”,SINGLE,FLOOD,12-56V 2100/1402
UTLY08-SS LEDBAR,8”,SINGLE,SPOT,12-56V 2100/1373
UTLY08-DF LEDBAR,8”,DOUBLE,FLOOD,12-56V 4200/2588
UTLY08-DS LEDBAR,8”,DOUBLE,SPOT,12-56V 4200/2588
UTLY12-SC LEDBAR,12”,SINGLE,COMBO,12-56V 4200/2880
UTLY14-SC LEDBAR,14”,SINGLE,COMBO,12-56V 4200/2588
UTLY14-DC LEDBAR,14”,DOUBLE,COMBO,12-56V 8400/4800
UTLY24-SC LEDBAR,24”,SINGLE,COMBO,12-56V 8400/5400
UTLY25-DC LEDBAR,25”,DOUBLE,COMBO,12-56V 15400/8800
UTLY33-DC LEDBAR,33”,DOUBLE,COMBO,12-56V 21000/12000
UTLY36-SC LEDBAR,36”,SINGLE,COMBO,12-56V 11550/6600
UTLY42-DC LEDBAR,42”,DOUBLE,COMBO,12-56V 26600/15200
UTLY49-SC LEDBAR,49”,SINGLE,COMBO,12-56V 15750/9000
UTLY33-DC
UTLY24-SC
UTLY08-SS
(8”,SingleRow,Spot)
UTLY08-DF
(8”,DoubleRow,
Flood)
NEW!
www.code3esg.com phone 1-314-426-2700 59
Side Marker Lights
exterior
Designed Specifically for the Chevrolet Caprice
Design Features
•HighImpactPolycarbonateConstruction
•StandardGMStylewater-tightwireandcableconnections 
included with connecting components for your vehicle wiring harness.
•3T-Rex™lightheadsineachunit.AvailableinRed,Blue, 
White and Amber, Red/Blue, Red/White, Red/Amber,
Blue/White, Blue/Amber, Amber/White. Three lens colors:
Red, Blue and Clear
•Easyplugandsnapintoplaceinstallation–nomeasuring, 
drilling or cutting.
•SelectableColorPlacementofeachT-RexLighthead
•KitincludesBothDriverandPassengerLightUnits
•27UserSelectableFlashPatternsandSynchronous 
Capability
Options
•T-Rexlightheadcolors&lenscolorcanbespecifiedforeach 
side of vehicle.
Specifications
• 14”Lx2.75”H
• 1.8lbsperset
• 12volt
SML-CAPRICE
Design Features
• XT4withGrommetinsingle/splitcolorsandtheMR6Singleand
MultiColor Lightheads
•Additionalsafetyespeciallyatintersections
•RubbergrommetsfortheXT4&MR6arealsoorderedinpairs.
•EasytoinstallwithapairofCode3’smodifiedFordsidemoldings
designed to fit the XT4 & MR6 lightheads.
•XT4scanbeSynchronizedwithanyotherXTSeriesandHide-A-Blasts
products and feature 30 Flash Patterns
with Torus Technology
LENS
Ford Interceptor Sedan Side Marker Light
Benefits
• TheCapriceFlushMountSideMarkerLightisapracticalandattractiveadditionforside-vehiclelighting.Thissmall
addition has big impact with three Code 3 T-Rex™ LED lightheads in each unit. The side marker light gives you
additional safety.
The XT4 is shown on vehicle to the left
MR6MC
60
Hide-A-Blast™ Series 9-LED
exterior
Original World Class Light
Design Features
•9LEDsPerLighthead
•Amber,Blue,RedorWhiteLEDs(SolidColorModulesOnly)
•PolycarbonateClearLens
•30FlashPatterns&MultipleHeadscanbeSynchronized
•MountingcanbeVerticalorHorizontal
•Self-containedandSealedControlModule—NoNeedforaSeparate
Flasher Module
•UniversalFitforAllVehicles
•15’Cable
•Mountsina1”Hole(samesizeasastrobetube)
Specifications
•0.875”Lx1.5”W(22mmx38mm)
•11-30VoltDC,NegativeorPositiveGround
•0.6AmpDrawat13.8VDC
•5-YearWarranty
HB915R HB915A HB915B
Benefits
•LEDlightshavealongeroperatinglifethanstrobes,reducingthefrequencyofreplacement
•
Easymountingsimplifiesinstallationandreturnsvehiclestothefieldquickly
•
30 flash patterns provide more options for department use
•
Multiple colored LEDs allow use of the lights in both head light and tail light locations
Hide-A-Blast with Control Module
and 15’ Cable
LEDs
Emit Color
Through Clear
Outer Lenses
Z1XX
Design Features
• 6NextGenerationLEDs
• Red,Blue,Amber,andWhiteLEDsAvailable
• SplitColorsAvailable:Amber/Red,Amber/White,
Blue/Red, Blue/White, Red/White
• 16FlashPatterns
• UVStabilizedPolycarbonateLens
• NickelPlatedHousing
• HighCurrentLEDDriver
• Self-Contained&In-LinePowerModule
• 9’pre-wiredcable
• Mountsinto1”hole
Specifications
• Dimensions:1.3”Hx0.96”D(33mmx24.4mm)
• 5-YearLEDWarranty
Solid Color Models:
• 10-30VDC
• 1.25A@12.8V,0.6A@25.6V
• Amber358+Lumens
• Blue240+Lumens
• Red358+Lumens
• White1,100+Lumens
Split Color Models:
• 10-30VDC
• 0.5A@12.8V,0.3A@25.6V
• Amber180+Lumens*
• Blue120+Lumens*
• Red180+Lumens*
• White550+Lumens*
*For Each 3 LED Segment
Benefits
• Designedtobeinstalledinsideofheadandtaillightswherespaceislimited
Zenith™ 6 LED Light (H-A-B)
www.code3esg.com phone 1-314-426-2700 61
exterior
6 Pack-LED (H-A-B)
Twist Lock 6 Pack LED Hide-A-Blast for Ford
Police Interceptor Sedan Head Light and
PI Utility Tail Light
Benefits:
• High performance at a low cost provide very economical corner LED lighting for head and tail lamps
• Blackandchromebezelsallowattractivemountingaroundtheperimeterofthevehicleforadditionalauxiliary
lighting
• Advanced design provides efficient operation, superior performance, reliability and long life
• WideVarietyofApplications:Compactsizemakesiteasytoinstallinawidevarietyofheadandtaillampreflectors
• Easyinstallation!Noinstallscrewsneeded,justpopitina1”mountinghole
Design Features
•20ashpatterns(19ashing,1offpattern)
•6LEDsinPolycarbonateClearLens
•LEDsAvailableinRed,Blue,Amber,White,Amber/White,Blue/Red,Red/
White, Blue/White LED
•ComeswithBlackBezel.ChromeBezelsoldseparately.
•MultipleH-A-BSeriesLEDLightscanbeConnected
Together and Operated from the Same Control Switch.
•15’Cable
Specifications
•Lighthead0.984”Dx0.591”H(24.99mmx15.01mm)tothetopof
thelightheadbase,overall1.181”H(29.99mm)
• Lightheadbaseis1.366”D(34.69mm)
• Controllermodule1.035”Wx5.597”Lx0.579”H
(26.28 mm x 142.16 mm x 14.70 mm)
•0.8lbunboxed
•12or24VDCoperation
• ReversePolarityProtected
Standard Black Bezel Optional Chrome Bezel:
6PKBZCHM
Key Benefits:
• DesignedtoworkwiththeFordFactoryPrep
Option (Headlight Assembly) 86P
•Rubbergasketeliminateswateringress
HB6PAK-PI-W
Twist Lock 6 Pack (H-A-B)
62
Vibrant™ 6 LED (H-A-B)
exterior
LED lightheads for auxiliary or under-
cover warning in head and tail light
VX
Design Features
• 6 Next-Generation LEDs
• Red, Blue, Amber, White LEDs Available
• UVStabilizedPolycarbonateLens
• 16 Flash Patterns
• Nickel Plated Housing
• LowProleMountingFlangeandBlackBezel
• Self-Contained and In-Line Power Module
• Synchronizabletoadditionalheads
• 9’ Pre-Wired Cable
• Mountsinto1”Hole
Specifications
• 12/24Volt
• Dimensions:0.87”Hx1.51”D(22.1mmx38.35mm)
• 0.7AMaxCurrentDraw
• OperatingTemperature:-22°Fto122°F(-30°Cto50°C)
• Amber200Lumens,Blue100Lumens,Red200Lumens
and White 460 Lumens
• 2YearWarrantyonLEDmodules
W6XX
Single
DW6XX
(Pairs)
Design Features
Single Head Models:
• 4 Next-Generation LEDs
• Red, Blue, Amber, White LEDs Available
• Split Colors Available: Amber/Blue, Amber/Red, Amber/White, Blue/Red,
Blue/White, Red/White
• 16 Flash Patterns
• UVStabilizedPolycarbonateLens
• Nickel Plated Housing
• Low Profile Mounting Flange
• High Current LED Driver
• Self-Contained and In-Line Power Module
• 9’ pre-wired cable
• Mountsinto1”hole
Two Head Models (same as above except):
• Split Colors Available: Blue/Red
• Pre-wired cable; 7 ft module, 7 ft head A,
4 ft head B
*Note; Single and Two head models have same specs except two head
models come in a pair and share a power module
Specifications
• Dimensions:1.50”Wx0.875”D(38.1mmx22.2mm)
• 5 Year Warranty on LED Modules
Blue and White LED Modules
• 10-30 VDC
• 0.5A@12.8V,0.2A@25.6V
• Blue 155+ Lumens
• White 660+ Lumens
Red and Amber LED Modules
• 10-16 VDC
• 0.25 Amps
• Amber 160+ Lumens
• Red 123+ Lumens
Split Color LED Modules
• 10-30 VDC
• 0.5 Amps
Wildcat™ 4 LED (H-A-B)
www.code3esg.com phone 1-314-426-2700 63
NEW!
exterior
Benefits:
• Ultra-slim,lowprofileandflushmountdesignmaketheunitsperfectforcovertapplicationsenablingyoutotransform
your low profile vehicle into a high impact police cruiser at the flick of a switch.
• WeatherandvibrationprooftheHB4PAKiseasytoinstall,andcomeswith14pre-loadedflash
patterns to help you warn drivers and pedestrians.
Design Features
• 13FlashPatternsand1Steady,SimultaneousorAlternating
• 4LEDsinaPolycarbonateLens
• AvailableinRed,Blue,White,AmberandRed/Blue
• 9’cablewithYconnectors
• Rubbergasketseliminateswateringress
• Flushmountwithsuppliedgrommet
• L-shapedBracketMountavailable
• Lightheadssoldinpairs
• DimmingCapability
• SynchronousCapability
Specifications
• Lightheaddimensions:1.575”Hx1.045”D(40mm
x 26.5 mm)
• Controllermodule:1.075”Wx5.39”Lx.593”H(27.3mmx
136.9 mm x 15 mm)
• 12or24Volt
• MeetsReg65inBlueandAmberwhenproperly
configured
• MeetsSAE,CaliforniaTitle13requirementsinRed,
Blue, and Amber when properly configured
• 5yearLEDwarranty
HB4PAK-R
Sold in Pairs
4-Pack LED (H-A-B)
ND0010X
Benefits
• The2-PackBullet™Hide-A-Blast™hastwohigh-intensity3-wattLEDstodeliver
an exceptionally bright warning signal.
•Overcomesdifficultinstallations,duetotheshapeoftheBulletH-A-B’s,inthe
highly compact, double wall design of modern vehicle light casings, such as the
Chevy Tahoe.
•Self-adhesiveandrequiresnomountinghardware(canalsobesecuredwith
 screws)forquickinstallation.
Design Features
•(2)High-Intensity,3-wattLEDsinRed,White,Blue,andAmber
•Comesin2Lengths:3/4”Shaftor2”Shaft
•16FlashPatterns
•Single1/2”HoleforInstallation
•Self-adhesive--nomountinghardwarerequired(canbesecuredwith
screws, if desired).
•SynchronizeswithAdditionalUnits(simultaneousoralternating)
•In-linewaterproofdrivemoduleeliminatestheneedforaremote
power supply.
•Nickel-platedAluminumHousingand9’Cable
Specifications
•Dimensions:¾”ShaftModule:1.3”Hx1.0”atbaseonly,
 shaftis0.5”wide
•33mmHx25mmatbaseonly,shaftis13mmwide
•2”ShaftModule:2.3”Hx1.0”atbaseonly,shaftis0.5”wide
•60mmHx25mmatbaseonly,shaftis13mmwide
•Lumens:Red=200.White=460.Blue=100.Amber=200.
•10-30VDC
•0.5Amps
•Approval:IP67,CE,R10
•3-YearWarranty
ND0011X
Compact housing HB4PAK provides a
high intensity output.
2-Pack Bullet™ LED (H-A-B)
64
Defender® Mini Bar
minibars & beacons
Extraordinary visibility with
TriCore® technology in a mini bar!
DF23A2
Design Features
•ClearLensStandard
•ExtrudedAluminumFrame
•Standard15’CableforPermanentMount
Options
•Red,Blue,orAmberIntermoldedSolarBarrier
•PermanentorMagneticMount
•TriCoreavailableinTR3orTR6Lightheads
Specifications
•Length:23”Lx2.5”Hx13.5”D(584Lx64Hx343Dmm)
•Weight:14lbs
•12VoltDC
•1.0AverageAmpDrawperModule
•5-YearWarrantyontheTriCoreLightheads
•MeetsApplicableSAEJ845,NFPA,CaliforniaTitle13andECE65
Specifications when Properly Configured.
•U.S.PatentNos.7,153,015&7,300,175
Design Features
•22.5”(572mm)Length
•LEDPriZm
™
II Lightheads are available in 3, 8 or 12 LED modules.
•ExtrudedAluminumFrame
•PermanentorMagneticMountwith12’LighterPlugwithOn/OffSwitch
•Optixlowprofile(OLP)LEDscanbedualstackedinallpositions.
Design Features
• AvailableinStandardConfigurations—
includes 3-up and 4-up Directional
Torus Lightheads and 6-up Corners
•Independentflashinglightheads
• 35wHalogenandLEDTakedowns&Alleys
Available
• FlashingTakedownsandAlleysAvailablewithOptional940Flasher(bothHalogenandLED)
• DimmingModeStandard
• MeetsallApplicableSAE,NFPAandCaliforniaTitle13Specificationswhenproperlyconfigured
• 22.5”(572mm),12.25”Wx2.1”H(311mmx53mm)
• 12Volt
•5-YearWarrantyonLEDModules
2122A
2722A
Technology
The power of an LED lightbar the versatility of a beacon.
This mini bar provides the brightest
basic mini bar on the market
2722™ PriZm II LED Mini Bar
21IF Torus™ LED Mini Bar
www.code3esg.com phone 1-314-426-2700 65
minibars & beacons
Reflex
C5590
Benefits
• 4TorusstyleopticLEDlightheadswhichprovideoutstandingsignalstrengthand360°lightspread
• NewMagneticMountingSystemallowsminibartoconformtounevenmountingsurfacesprovidingmorefittingoptions.Greatfor
volunteer vehicles!
• EasytoInstall!9footcordwithplug-inlighterswitchthatallowsyoutoselectamong19flashpatterns
Design Features
• AvailableinRed,BlueorAmberLens(orClearLenswithAmberLEDs)
• Polycarbonatelensesandbase
•Magnetic/suctioncupmountandPermmountstandard
• Magnetsspringloadedtoallowminibartoconformtouneven
mounting surfaces
• Comeswith9footstraightcordwithpluginlightercordwith
flash pattern selection switch built in
• 4LEDsperLighthead
• 19selectableflashpatternstochoosefrom
Specifications
•11.04”Lx2.441”H(withoutmountingfeet)x7.261”D
 (280.416mmx61.976mmx184.429mm)3.117”Hor
79.172 mm (with mounting feet)
•10–30VoltDC
•12VAverageAmpDrawislessthan1.0Amp
• 24VAverageAmpDrawislessthan0.5Amp
• Shippingweight:4lbs
• MeetsSAEJ845andCaliforniaTitle13photometricrequirements
•5YearLEDWarranty
Quad-R
Benefits:
• CombinesReflectiveandTIROpticLEDmodulestoprovidesuperior360°warning.
• TheTIROpticmodulesproduceahighlyintense,focusedandlongdistancebeamtothefrontandrearofthevehicle
while the Reflective modules ensure optimum 360° coverage by producing a dispersed, wide-angle beam to the sides
and corners.
Design Features
• EightLEDreflectormodules,eachcomprisingthree
LEDs provide high intensity light output
• AmberorClearLenswithRed,Blue,Amber,White,
Green or Amber/White LEDs
• 18flashpatterns
• Cigaretteplugwithon/offandflashpattern
selection switch (vacuum-magnet only)
• Polycarbonatebaseandlowprofilelens
• PermanentorVacuum-Magnetmount
Specifications
• Dimensions:2.5”(63mm)Hx15”(381mm)Wx9”
(229 mm) D
• 12/24Volt
• AmpDraw:2.7
• MeetsSAEJ845ClassII
• CE,R10,IP65(permanentmountonly)
• 3-YearWarrantyonLEDs
• TemperatureRange:-22°Fto+122°F(-30°Cto
 +50°C)
Quadrant™
66
LSS222
minibars & beacons
CL199B
Design Features
• NEWECE65CLASSIIinBlueorAmberfortheCL199&CL299
• NEWClassIIversionincludesthreecompliantflashpatterns:
single, double and rotate
•CL199:ClearPolycarbonateLenswithTwelveColoredLEDs
Available in Red, Blue, Amber
•CL299:ColoredPolycarbonateLenswithTwelveColoredLEDs.Lens
and LEDs Available in Red, Blue, Amber
•12AuxiliaryLEDsintheTopoftheBeaconProvide360°Verticaland
HorizontalCoverage
•Waterproof,ShockResistant,PottedCircuitBoard
•Amber,Red,BlueorGreenandWhiteLEDs
•PermanentMountStandard.AlsoAvailableinMagneticMountwith
9’ Straight Cord.
•BlackPowderCoatedDie-CastBase
•1”PipeMountAvailable(LLPMK-1H)
•30Built-inFlashPatterns,Including4SimulatedRotatingPatterns
• ECE65-Class1version(singleflash-Blue)certifiedwhenproperly
configured
LSS222R
Design Features
•TwoLevelsofUniqueLEDReflectorsprovideaFocused 
Signal
•PolycarbonateLenswithSixteenLEDs(8perlevel)
•Amber,Red,Clear,andBlueLenses
•Provide360°ofCoverage
•Waterproof,ShockResistant,PottedCircuitBoard
•Amber,Red,BlueorGreenandWhiteLEDs
•PermanentMountStandard.AlsoAvailableinMagnetic
Mount with 9’ Straight Cord.
•BlackPowderCoatedDie-CastBase
•1”PipeMountAvailable(LLPMK-1H)
•39Built-inFlashPatterns,Including4SimulatedRotating
Patterns
•NotforsaleinEurope
A LED Beacon that truly meets strobe and
halogen performance
Bright LEDs for both side
and top lighting
CL199 & CL299™
NEW!
Coming
4th Quarter
Class II
www.code3esg.com phone 1-314-426-2700 67
Z3™
sirens/speakers
Z™
Benefits
• Backlitbrightnessisnowofficeradjustablejustlikethedashboarddimmerswitchgivingyoutheappropriatelightingfor
your eyes!
• PAstuckmicsensorautomaticallyreturnsthesirentonormalfunctionshouldthemicrophoneswitchgetstuckinPAmode
 andmicrophonevolumeisadjustable.
• Builtin“BatteryVoltageCheck”Sensorshutsdownlightsandsirenswhenvoltagerunsbelowaprogrammedsetting.Nomore
dead batteries after a call!
• SleepModeTimertoshutthelightsandsirenoffafteraspecificpresettimeiftheignitionisturnedoff.
• Horn-ringtransferallowsyoutoeffortlesslyscrollthroughsirenfunctionsonthesteeringwheelwithouthavingtotakeyour
eyes off the road.
• BuiltinParkKilltoautomaticallyturnlightsandsirenfunctionsoffwhenthevehicleisputinpark.Thisfeatureisalsodesignedfor
positive or ground inputs so that park kill can also be activated by other inputs.
• BuiltInSirenlockfunctionthatdoesnotallowsirentonestocomeonuntilemergencylightingisactivated.
Design Features/Options
•Easytooperatewith3distinctzones:sirens&primarylighting 
(red),auxiliarylightingandotherequipment(blue),andtrafficor 
warning function (yellow)
•Differentsizeandshapebuttonsarequicklyfoundallowingyoutooper-
ate all the light and siren functions without taking your eyes off the road.
Buttons are also backlit and change color.
•Programmable3levelslideswitchwithaprogrammable4th
position!
•8programmableauxiliarybuttons(2canbeprogrammedfor
positive or ground switching)
•5programmablesirenbuttons(programdifferenttonesforeachone)
•ArrowStik® can be programmed for different flash patterns and speeds, as
well as the warning flash pattern itself.
•Z3amplifierspecialserialportneedsonlyasimpledatacableto
connect to the Defender and RX2700CC lightbars.
Specifications
•ControlHead:6.80”Lx3.30”Hx1.07”D(Switchwillincreasedepth
 dimensionto1.95”D)
•Amplifier:9.750”Lx6.83”Wx3.94”H
•LightControlCurrentLoad
•3-LevelSwitch,4Outputs,50AmpsMaximumCombinedTotal
•AuxiliarySwitchesAthruD:5AmpsMaximumEachAux
•AuxiliarySwitchesEthruH:10AmpMaximumEachAux
•TotalSirenOutputCapacity:200Watts(candrivetwo100Wattspeakers)
•OperatingVoltage:10-15VDC(negativeground)
•OperatingTemperature:-22Fto+149F(-30Cto+65C)
•MeetsSAEJ1849,CaliforniaTitle13,Reg10compliantand2004/104/EC
when properly configured
•5-YearWarranty
Z3
Banshee
Compatible
World Class Siren - Easy to Operate
Control Head
68
sirens & speakers
2014 + Ford PI Sedan and Utility
Steering Wheel Interface (SWIF)
Z3 Swif & Hub
Benefits:
• TheFordSteeringWheelRemappableSwitchesaretransformedintoaZ3Control
Head allowing you to easily program each one of the (4) numbered switches,
providing any lighting or siren functions that you need.
• Providesatrue“Hands-Free”CapabilityforLightingandSirenFunctionsonyour 
Ford PI Sedan or Utility.
• EasilyProgrammultipleSWIFsthroughtheZ3controlheadformultiplevehicle
installations in a matter of seconds!
• Smallandcompactinsize–TheSWIFcanbeinstalledvirtuallyanywhereinthe
vehicle.
• TheSWIFModulealsocomeswith(2)additionalinputsthatcanbeusedforother
remote switching capabilities.
Specifications
•DesignedforuseonlywiththeZ3sirenandtheoptionalcontrolbuttonsontheFordPISedan
(Option 47K) or Utility (Option 61S) Steering Wheel
•4.25”L(withmountingplate)x2”Wx0.75”D
Benefits:
• TheZ3Hubisdesignedwith(6)inputports*
allowing you to operate multiple devices through
your siren amplifier.
• ConnectallofyourCode3sirenrelatedproducts
with the Z3 Hub allowing each product to
communicate with every other connected product.
• TheZ3HubiseasilyinstallednexttotheZ3
amplifier box.
Design Features
•Z3Hubboxwith(6)inputports*
• 2footlongCAT5cable
Specifications
• 4”Lx2”Wx<1”H
• Lessthan0.5lbs
• 6inputs(oneconnectstosirenamplifier)
*Allows for installation of other Z3 products.
Z3 Hub plugs
into the
Z3 Amplifier
Z3 HUB
Open for Z3
products
Z3
HUB
Z3
Control
Head
Z3
Swift
Z3
Amplifier
Open for Z3
products
Open for Z3
products
Z3 SWIF Module is about the
size of a credit card
The HUB connects the Siren
Amplifier, Siren Control Head, Z3
SWIF™ and (3) additional devices!
www.code3esg.com phone 1-314-426-2700 69
sirens & speakers
Remote Lighted
Design Features
•InstantOn
•Wail,Yelp,HyperYelp,Hi-Lo,Hyper-LoTones
•ManualWailwithHoldFeature
•AirHorn
•SelectableHit&GoorHornRingScrollModes
•OutputShortCircuitProtection
•HornRingTransfer
•NoiseCancellingMicrophonewith20’Cable
•InterClear
•LightAlert
•SirenLock
•ParkKill
•TimedOutput
•RotarySwitch
3997R
3998R
All the best features of Code 3 sirens
in a small, efficient control head
Banshee
Compatible
Remote Lighted Siren
BASE MODELS
FEATURES 3997R 3998R 3997RCC
Basic Siren x x x
Deluxe Siren
200w Output x x x
Rotary Switch (R) x x x
ArrowStik® Control x x
70
Banshee™
Revolutionary Amp Siren System
sirens & speakers
Benefits
• Theonlysirenamplifiersystemonthemarkettodaywiththe
ability to upgrade your siren into a dual tone siren delivering
twice the warning sound at intersections and high risk areas!
•TheBansheecomeswithdualtonecapability,lowfrequency,
electronic air horn, plus additional built in specialty tones all
in one box
•Special tones for specific emergency situations that call for
added attention: Command Alert, Yelp Stop, Wail Stop and
Air Horn.
•Workswithonesetofstandardsizespeakers–noneedtoinstallspeciallargespeakers–savingyoutimeon 
installation and space inside of your vehicle.
•Best of all, the Banshee can work with virtually any siren system already on the market and can be retrofitted to
any emergency vehicle already on the road.
Model
3450
Design Features/Options
• EightUniversalDualTones(Wail,Yelp,Hyper-Yelp1,Hyper-Yelp2,Hi-Lo
1, Hi-Lo 2, Hyper-Lo 1, Hyper-Lo 2).
• ThreeLowFrequencyTones(Synchronized1/2Frequency,LowFrequency
 YelpandLowFrequencyWail).
• EightLowFrequencyTimeOutsettings(7.5,15,22.5,30,37.5,45,52.5
and 60 seconds).
• EightindividualtonesforeachoftheCode3Z3sirentonepush-button
(Wail, Yelp, Hyper-Yelp 1, Hyper-Yelp 2, Hi-Lo 1, Hi-Lo 2, Hyper-Lo 1,
Hyper-Lo 2).
• OperatetheelectronicAirhornindependentlyoftheprimarysiren(by
itself as an alert) or while the primary siren is in full operation.
• UniqueCommandAlertandYelpStoptones.
• AdditionaltonesareavailablewhentheBansheeoperateswithaCode3
Z3 siren.
• UniversalDualToneoperationwithmostindustrystandardsirens.
• Allinputscanbeconfiguredforpositiveornegativeactivation.
• ComeswithBansheeamplifierbox,thepowercontrolharnessbag,anda
CAT5 cable
• Banshee is very economically priced and comes with a full 5 year warranty.
• Boxdimensions:8½”Lx2.8”Hx5.7”W(215.9mmx71.12mmx
144.78mm)
• 10-16VDC
• 100W:8Amps@13.6Vwith11-ohmload(100WattSpeaker)
• 200W:14Amps@13.6Vwith5.5-ohmload(2-100WattSpeakers)
• Boxweight:3.2pounds
• SAEJ1849,CATitle13whenproperlyconfigured
www.code3esg.com phone 1-314-426-2700 71
Programmable Siren
Xcel™
sirens & speakers
Benefits
XCEL at Programming:
• 3-Levelslideswitchcanbeprogrammedasindependent,semi-progressive,orprogressivegivingyou
more options when configuring your siren
• UniqueprogrammingfeaturesincludinglatchingofAuxiliarybuttonstoleveloutputsallowtheofficertokeeptheireyesonroad
for longer periods of time
• Backlightingonbuttonscanbeadjustedtotheofficer’spreference
• ProgramCAT13compliancewiththeflipofaswitch
XCEL at Installing:
• PositiveorNegativePark-KillandHorn-RingTransfertriggersallowforeasyinstallationonallvehicletypes
• Visualnotificationofswitchingandprogrammingfunctionsmakesforeasyinstallationandservice
• Plug‘nPlayfusesandconnectionsmakeforeasyinstallationandservice
XCEL at Troubleshooting:
• Constantvisualidentificationtestofspeakerintegrityandlightingfunctionsmakeforthefastestsirendiagnosticsonthemarket
Design Features
5 Rotary Switch Positions: Standby (STBY) Wail, Yelp, Alt Tone, Radio
Rebroadcast
 OversizedManualWailandAirHornButtons
3) 6 Programmable Auxiliary Switches
4) 11 Built-In Automotive Style Fuses
5) 12 Dip Switches for Configuring
6) Plug ‘n Play Input/Output Connectors
•Wail,Yelp,andAltTone(AltTonecanbeHyper-YelporHi-Lo)
•AuxButtonFcanbe8secondtimedoron/off
•AuxButtonEcanbeconfiguredasHands-FreeandworkswithHorn-Ring
Transfer
•3-LevelSwitchcanbesplitinto3Aand3BforPark-KillApplication
•HornRingTransfer,HornRingAlways,andHandsFreeMode
•LightAlert-LowVolumeAudiowhenbuttonsareactivated
•SirenMustbeUsedwithIgnition
Options
• Hardwiredormicjackversion
• Sirenwithnolightfunctionsavailable
Specifications
•Size:6½”Wx2¾”Hx59/16”D
•Weight:3.5lbs
•OperatingVoltage:10-16VDC
•OutputCapacity:100Wor200W
•Compliance:SAEJ1849,2004/104/EC,andCaliforniaT13
•3LevelSwitchCurrent:Level1,Level2,Level3A,Level3B,capableof15
Amp each for a combined total of 50 Amp
•AuxiliarySwitches:AuxA-AuxFcapableof10Ampeach
• 5YearWarranty
1
2
3
45
6
1
2
3
4
5
6
So many
Features in a
very Affordable
Siren!
Banshee
Compatible
72
sirens/speaker
Sprinter™
3750
Benefits
•TheSprintercontrolheadisergonomicallydesignedandeasytouse,especiallyin“quick-response”situations.The
backlit control head allows the officer to easily select the light and siren functions.
•Thepocketsizedcontrolhead(samesizeasasmartphone)canbemountedeasilywherespace
is limited.
•The amplifier is also compact with a small footprint and low profile—also ideal where space is limited.
•The entire unit is solidly constructed with the amplifier and control head passing environmental
EMC testing.
•AsanaddedbonusthepowerfulSprinterisbothSAEJ1849,CaliforniaTitle13compliantand12or24Volt.
•The Sprinter also has increased cooling capabilities and power surge protection ensuring long life!
Design Features/Options
Siren Capabilities:
•Full100WOutputandSAESoundPressureTested/Certified
•PrimaryTones:Wail,Yelp,Hi-Lo,Manual
•PAwithBuilt-InNoiseCancellingMicrophonewithIntegrated 
Volume Control
•PasswordProtectedVolumeandProgrammingFunctions
•ProgrammableSirenControlsincludingAirHorn
Control Head:
•VehicleLightControlButtons
•RadioRebroadcast
•ParkLightFunction
•HornRingOption
•BacklitButtonswithOn/OffIntensityChange
Physical Design:
•Built-In4PointScrewMountingSystem
•InternalREICoatedControlHead
•ExternallyAccessible15AFuse
•ControlHeadcomeswithExtensionCable
•BlackPowderCoatPaintedAluminumExtrusion
NEW International Tones available in Models 3760(12V)
or 3764(24V):
• Austrian,Dutch,Finnish,German,Italy,MartinHorn,
Norwegian, Swedish, Swiss, UK
Specifications
•ControlHead:3.7”L(93.98mm)x2.0”H(50.8mm)
 x0.65”D(16.51mm)
•Amplifier:7.6”L(193.04mm)x3.6”W(91.44mm)x2.0”H 
(50.8 mm)
•InputVoltageavailableinboth12and24VDC(negativeground)
•InputCurrent10Amps@13.6VDC
•OutputVoltageMaximum100W@12/24VDC
•OperatingTemperature-30°Cto+65°C
•Siren(approx):4.0lbs
•Controller(approx):0.5lbs
•Compliance:SAEJ1849,CaliforniaTitle13,EMCapprovedand
Reg 10 Compliant
•5-Year Warranty
Banshee
Compatible
International Siren Tones Coming Soon
Coming
4th Quarter
New Tones
NEW!
www.code3esg.com phone 1-314-426-2700 73
Remote Siren System with easy to operate
Hand-Held Controller
H2Covert™
sirens/speaker
Design Features
• SirenTones:Wail,Yelp,Hi-Lo,Hyper-Lo,
Hyper-Yelp, Whoop, Manual Wail, Air
Horn
• PAwithBuilt-inNoiseCancellingMic
• RadioRebroadcast
• InstantOnandStand-by
• SirenScroll
• SirenParkKillwithLevel3Drop-Out
Option*
• HornRingTransfer*
• VehicleLightControlButtons;
3 Progressive (Semi-Progressive also
available), 4 Auxiliary
• AllButtonsareBacklitwithOn/OffColor
Change
• PushButtonProgrammableSirenTones*
• (2)ProgrammableAirhornPitchTones*
• 25’ExtensionCable
• VolumeControlThumbwheelonHand-
Held Controller
• SirenLock–Level3*
• TimedOutputFunctionsforGunLock
Operations*
• MomentarySwitchAvailable*
• AdditionalDipSwitchesfor
Optional Functions via Special
Order*
• EU(EuropeanUnion)Lockto
Any Level*
• Reg10Compliant
3599L5
* User Selectable Features
Design Features
•InstantOn
•AdjustableBacklighting
•InsertableLegendsforLightControls
•SelectableHit-N-GoorHornRingScrollMode
•MountingBail
•AutomaticShortCircuitProtection
•200WOutput
Options
•InterClear
•LightAlert
•Plug-inMicrophone
•QuickDisconnect 3892L6
Electronic sirens designed to meet
the needs of emergency vehicles
MasterCom™B
Banshee
Compatible
Banshee
Compatible
74
V-Con®
sirens/speakers
Design Features
•SirenToneSelectionattheTouchofa
Button
•InstantOn
•Wail,YeIp,HiLoandHyperYelpTones
•AirHorn
•PublicAddress
•RadioRebroadcast
•OutputShortCircuitProtection
•12Volt(24VoltOption)
•100WOutput
3930
Banshee
Compatible
3692
Design Features
•Compact,EasytoUseandReliable
•Energy-Efficient
•Solid-StateTechnology
•Wail,YeIpandHiLoorHyperYelpTones
•PublicAddress
•RadioRebroadcast
•Hit-N-Go
•AirHorn
•BackLighting
•200WOutput
3692L4
Banshee
Compatible
Scorpion™
www.code3esg.com phone 1-314-426-2700 75
Speakers with are
lightweight, yet rugged and
weather-resistant.
sirens/speakers
3500
Design Features
•6”(152mm)Wx3.25”D(82.55mm)x6”(152mm)H
• Compact,LowProfileDesign
•HighEfficiency
•EasytoInstall,GrilleMount
•VehicleSpecificMountingBracket
•MeetsSAEJ1849andCaliforniaTitle13requirementswhen
used with Code 3 sirens.
C3100
Design Features
• 6.25”(158.75mm)Wx3.25”(82.55mm)Dx6.25”
(158.75mm) H
• Compact,LowProfileDesign
•ProducesLowFrequencytonewithBansheeAmp
•HighEfficiency
•EasytoInstall,GrilleMount
•UniversalMountingBracket
•MadeofCastAluminum
•100Watt
•5YearWarrantyonDriver
•MeetsSAEJ1849andCaliforniaTitle 
13requirementswhenusedwithCode3sirens.
C3500
Interceptor Interceptor
Caprice Charger PPV Charger Crown Vic Sedan Utility/Explorer Expedition Explorer Impala Tahoe Tahoe
2011 + 2011-14 2015 2006-2011 2011 + 2011 + 2007+ 2006-2010 2006+ 2007-14 2015+
Universal C3500U C3500U C3500U C3500U C3500U C3500U C3500U C3500U C3500U C3500U
Behind the Grille Speaker
C3100CP C3100CH11 C3100CH15 C3100CV2 C3100PIU C3100FX2 C3100EN07 C3100FX1 C3100IM3 C3100TH1 C3100TH15
C3100CH15-2 C3100PIU-2
C3100TH15-2
See website for other accessories and more details.
Z100LPA
Design Features
•7.5”(190.5)Wx6.5”(165mm)Dx4.5”
(114mm) H
•WorkswiththeExcaliburandMX7000lightbars
• LowProfileDesign
•UniversalMountingBracket
•100Watt
Z100LPA
C3100
76
accessories
Strobe Power Supplies
Outlets Watts Volts Amps Joules Warranty
XPAK604X 4 60 10-30 5.5 52
XPAK604X 4 60 12-24 5.5 52 5 Years
XPAK754 4 75 12-24 7.0 64 5 Years
MICROPAK-404X 4 40 12-24 3.75 34 5 Years
CPS690 6 90 12-24 3 85 3 Years
Design Features
• 15flashpatterns
• Hi/Lointensity
• Input/outputLEDdiagnosticindicators-XPAK604X&Micropak-404Xonly
• AMP™connectors
XPAK604X
XPAK754
MICROPAK-404X CPS690
NEW!
Coming
4th Quarter
XPAK & MicroPack
In Stock Now!
www.code3esg.com phone 1-314-426-2700 77
accessories
Design Features
•440-L6 3-LevelProgressiveSlideSwitch.SixRocker
Switches and Pre-Installed Legends.
•ProgressiveSlideSwitchOff/Level1/Level2/Level3Rated
for 40 amps.
•Switches1–5On/OffRated15ampseach.
•Switch6CenterOffwithOninUpPositionandMomentary
in the Down Position. This switch is rated for 15 amps.
440-L6
Design Features
• 415Series-One30AmpandFour20
Amp On/Off Switches.
415PR
Quick Disconnect with 22’
Cable LBQD15
Rocker Max Pak™
Rocker Pak™
Design Features
• MountonYourVehiclesRooffor
 quickLightbardisconnect
• 22”Cable(LBQD15)
Quick Disconnect
Switches
All of Your Lighting Control in
One Switch Box
78
Flashers
Rugged dependable flashers are suitable for use
in headlights, grille lights or lightbars.
Design Features
•SolidStateConstruction
•EasyInstallation
•ExtendedBulbLife
940
920-06
950
Description Product No.
Plug-in Headlight Flashers
Caprice (2011 +) 920-10CP
Crown Vic (2006 - 2011) 900-06
Expedition (2006 +) 950
Explorer (2006 - 2010) 950
Impala (2006 - 2009) 920-06
(2010 - 2011) 920-10
Tahoe (2007 - 2009) 920-07TH
(2010 - 2011) 920-10TH
Wig-Wag Flasher
Alley/Take-Down 940
Headlight Flashers
PositiveOutput–Wired 950
700
Design Features
•Model700isanalternatingwigwag,that 
can handle (2) 100 watt loads of 8 amps each
•Model710isamultipurposeflasher,thatis 
programmable
•Model711isaprogrammableflasher,itissimilarto
the 710 with more varied flash patterns, it can
handle 2100 watt loads of up to 8 amps each
•Heavyduty
•EpoxysealedandWeatherresistant
Series 900
Series 700
accessories
www.code3esg.com phone 1-314-426-2700 79
Portable Self-Contained Kits
accessories
Kit One Contains:
• One3599L5handheld100wattsirenandlightcontrolunitwithquickdisconnectplugs
for LED lighting and speaker with a cigarette power supply plug
•ThreeXT302RBLEDdualheadlightswithmountingbracketsandsuctioncupmounts
for rear and side windows
•OneXT402RBSSLEDdualheadwithshroud,suctioncupmounts,with22selectable
flash patterns
•OneC3500U100wattspeakerwithuniversalmountingbracket
•Oneheavydutywaterprooftravelcasewithacustomdesignedfoaminsertandsiren
amplifier mounted to case lid
•Fourredandblackwireswithquickdisconnects2’inlengthforLEDlightsmountedin
windows
•Onebrown30’speakerwirewithquickdisconnect
•One“C”clamptomountspeakerunderthehood
Kit Two Contains:
• OneSprinterSiren(3750)handheld100wattsirenandlightcontrolunitwith
quickdisconnectplugsforLEDlightingandspeakerwithacigarettepower
supply plug
• ThreeXT302RBLEDdualheadlightswithmountingbracketsandsuctioncup
mounts for rear and side windows
•OneXT402RBSSLEDdualheadwithshroud,suctioncupmounts,with22 
selectable flash patterns
•OneC3500U100wattspeakerwithuniversalmountingbracket
•Oneheavydutywaterproofcarryontravelcasewithacustomdesignedfoam 
insert and siren amplifier mounted inside the case
•Fourredandblackwireswithquickdisconnects2’inlengthforLEDlights 
mounted in windows
• Onebrown30’speakerwirewithquickdisconnect
• One“C”clamptomountspeakerunderthehood
Light & Siren Kits - Turn Any Vehicle
Temporarily Into An Emergency Vehicle
CLSLK-1
CLSLK-2
80
accessories
Dash Emitter
NEW!
MDASHCPE
Benefits:
• TheCode3DashEmitterprovidessafetrafficmanagementforemergencyvehiclestravellingthroughanintersection.
• TheCode3DashEmitterisaversatiletrafficsignalingunitthatisfullycompatiblewithallnon-codedtrafficpre-emption
 systemstoprovideright-of-wayatnon-codedsignalizedintersections.
Design Features
• HighandLowpriorityemitterinasingleunit
• Low1.35ampscurrentdrain
• Flashbackshieldandwindshieldbracketincluded
• Compatiblewithallnon-codedemitters
• Compactsizewillfitaboveorbehindrearviewmirror
Specifications
• 6”Lx6.2”Dx1.75”H
• 12.8VDC
• 2-YearWarranty
www.code3esg.com phone 1-314-426-2700 81
Lens Refresh Kit
s
Damaged?
Clouded?
Weathered?
Mounting Kit Special Offer:
Lightbar mounting kit (LIT3) with adapter brackets with each Lens Refresh Kit purchase
Problems With Cloudy,
Weather-Worn Lightbars?
New Upper Lenses
New Lens Clips
Choose your lens top color(s): Red,
Blue, Black, Amber, Clear
Looks as Good as New!
Kit 1 Lens Refresh Kits include:
3
Lightbar models are 2100 and RX 2700™ in 47”, 52” & 58” lengths.
New Upper Lenses
New Lower Lenses (clear only)
New Lens Seals
New Lens Clips
Choose your lens top color(s): Red,
Blue, Black, Amber, Clear
Kit 2
In 47”, 52” & 58” lengths.
Be ready to specify the following to order your Refresh
• Kit Number 1 or 2
• Lightbar Series/Name
• Lightbar Length
• Vehicle Model/Year (when ordering mounting kit)
• Color of Top Lenses
UPPER LENSES
ONLY
UPPER & LOWER
LENSES
accessories
Refresh Your Lightbar! Look as good
as new at a FRACTION of the cost of a
new lightbar!
3
3
3
3
3
3
3
Kit 2 Lens Refresh Kits include:
Kit 1
82
accessories
Backup Cameras
Benefits
• 7.0”LCDhigh-resolutioncolormonitorprovidesoptimalviewingarea
for mobile CCTV applications
• Excellentpicturequalityisassuredeveninlow-lightconditionsusing
a CMOS color infrared camera
• Flat,widescreenmonitorallowsunobtrusivemountingwitha
large, easily viewable screen area
Design Features/Options
• Internalcontroller
• Expandableupto2cameras
• Includesmonitorsunshade
• 4PinTransmissionCableat
65’ (20 m) (CCTC20-4)
• OneYearWarranty
Expansion Options:
• CM7000B(Monitor)
• CC2013B(Camera)
• CCTC20-4(65ftCable)
Kit includes a short Y-type wiring harness. An additional camera (CC2013B)
andtransmissioncable(CCTC20-4)arerequiredtoexpandthekittotwo
cameras.
CK7000B
Benefits
• The7”LCDhighresolutiontouchscreencolormonitorandCMOScolor
 infraredcameradeliversexcellentpicturequalityeveninlow-light
conditions
• Compactmonitorallowsforunobtrusiveinstallationwithout
compromising viewable screen area
Design Features/Options
• Touchscreenmenucontrol
• Internalcontroller
• CMOS11LEDinfraredcamera
• Includesmonitorsunshade
• Includesanti-glarescreenprotector
• Threecameraexpandable
• OneYearWarranty
Expansion Options
• CC7003-M(Monitor)
• CC2014-C(Camera)
• CCTC20-4(65ft.Cable)
CC7003-K
Dimensions:7.28”Wx5.07”Hx1.06”D
(160.5 mm x 114.8 mm x 27.2 mm)
Approvals: FCC, CE, C-TICK, ROHS
Color: Yes
Voltage: 12/24
Power consumption (W): 6
Audio: Yes
Day/night light sensor: Yes
Weight: 3.34 lbs
Temperature: -4°F to +158°F (-20°C
to 70°C)
Screensize:7”
Mirror image: Yes
Remote control: Yes
Sunshade: Yes
Max cameras: 3
4 pin camera connection: Yes
Dimensions:2.87”Wx2.99”Hx
2.60”D(72.9mmx75.9mmx66
mm) Approvals: IP69K, FCC, CE, C-Tick
Power Consumption (W): 3
Microphone: Yes
Day/night light sensor: Yes
Weight: 0.74 lbs
Temperature: -22°F to 158°F (-30°C
to 70°C)
Lens Angle: 120°
LensSize:1/3”
Infrared LEDs: 11
Mechanical vibration: 10G
4 pin camera connection: Yes
(threaded connection)
Dimensions:6.85”Wx4.49”Hx0.94”
D (174 mm x 114 mm x 23.9 mm)
Approvals: FCC, CE, RoHS
Voltage: 12/24
Power Consumption (W): 5
Audio: No
Day/night light sensor: Yes
Weight: 0.88 lbs
Temperature: -4°F to 158°F (-20°C to
70°C)
ScreenSize:7.0”(177.8mm)
Mirror Image: Yes
Sunshade: Yes
Max Cameras: 2
Dimensions:2.92”Wx3.01”Hx
2.62”D(74.2mmx76.5mmx66.5mm)
Approvals: FCC, CE, IP69K, RoHS
Power Consumption (W): 1
Microphone: No
Day/night light sensor: Yes
Weight: 0.6 lbs
Temperature: -22°F to 158°F (-30°C
to 70°C)
Lens Angle: 120°
LensSize:¼”
Infrared LEDs: 18
Mechanical vibration: BG
4 pin camera connection: Yes
(threaded connection)
Specifications for Monitor - CM7000B Specifications for Camera - CC2013B
Specifications for Monitor - CC7003-M Specifications for Camera - CC2014-C
www.code3esg.com phone 1-314-426-2700 83
accessories
Dimensions:11.03”Wx3.6”Hx
1.2”D(280mmx91mmx30mm)
Approvals: FCC, CE, ROHS
Voltage: 12/24
Power consumption (W): 3
Audio: Yes (compatible)
Day/night light sensor: Yes
Weight: 1.32 lbs
Temperature: -4°F to +158°F (-20°C
to 70°C)
Screensize:4.3”(109mm)
Mirror image: Yes
Max cameras: 2
4 pin camera connection: Yes
4 pin camera connection: Yes
Dimensions:1.69”Wx1.24”Hx
1.1”D(43mmx31mmx30mm)
Approvals: IP69K, FCC, CE, RoHS
Power Consumption (W): 1
Microphone: No
Day/night light sensor: Yes
Weight: 0.6 lbs
Temperature: -22°F to 158°F (-30°C
to 70°C)
Lens Angle: 120°
LensSize:¼”
Infrared LEDs: 10
Mechanical vibration: 10G
4 pin camera connection: Yes (threaded
connection)
4 pin camera connection: Yes
Benefits
• The4.3”LCDcolormonitorisembeddedintherearviewmirrorhousing
and provides a clear, easily viewable image without compromising space.
• Thehigh-resolutionmonitorandflushmountcameradeliverexcellent
 picturequality.
Design Features/Options
• Non-commercialapplications
• Mirrorintegratedmonitor
• Internalcontroller
• Flushmountcamera
• Cable(CCTC20-4)
• Twocameraexpandable
• Oneyearwarranty
Expansion Options
• CC4204-M(Monitor)
• CC2015-C(Camera)
• CCTC20-4(65ftCable)
CK4200M
Specifications for Mirror/Monitor CC4204-M
Specifications for Camera - CC2015-C
Backup Cameras
84
LED X™
PriZm™ II
Based on a proprietary design technology, this is the brightest lighthead on the market today offering the most uniform fill
and a world class signal strength both straight on and at any off-angle. Available in 3 and 6 module configurations.
All Code 3 LED Lightheads Have a 5 Year Warranty
Acustomdesigned,full-sizeparabolicreflectorofferingapremierfill,straightonandoff-angleperformanceandutilizing
the latest state-of-the-art LED technology. Available in single and multicolor 3, 8 or 12 LED configurations.
TriCore®
Torususestotalinternalreflection(TIR)technologyinacompact,yetpowerfullightheaddesignrequiringonlyoneopticalcon-
figurationtooffersuperiorstraight-onandoff-angleperformance.Thislightheadutilizesthelateststate-of-the-artLED
technology. Available in 3, 4, 6 and 9 LED configurations.
Torus™
Designed for auxiliary or secondary warning lights, these compact yet powerful lights are available in 3, 4 & 6 LED
configurations.
XT Series
Availablewithanopticthatprovidessuperiorperformancebothstraight-onandoff-angle.Theuniquedesigncomeswith
two rows of 4 LEDs, offering an exceptionally bright signal. It has also been upgraded to the latest LED technology.
Structured Internal Reflector Illumination System. Available in single and multicolor with 9 & 18 LED configurations.
T-Rex Lens
with Torus
Technology
3-Up Lens
with Torus
Technology
SIRIS
™
LED Lighting Technology
accessories
Coming Soon; a revolutionary design technology. Bright, more efficient than ever, and a uniform fill
arejustafewofthebenefitstolookforwardto.Availablein3and6LEDmoduleconfigurations.
QuadCore®NEW!
www.code3esg.com phone 1-314-426-2700 85
• GMandtheGMLogo;(ii)Chevroletandtheirrespectivelogos,emblems,slogansandvehiclemodelnamesandbodydesigns;and(iii)othermarkssuchasGMFleetand
Commercial are trademarks and/or service marks of General Motors, its subsidiaries, affiliates or licensors.
• ChryslerGroupLLC,includingeachofChryslerGroupLLC’sprimarybrands(Chrysler,Dodge,Jeep®,Ram,andMopar),itsmodelnameplates,anditscorporatelogosand
emblems are registered trademarks.
• Fordanditsrespectivelogos,emblems,slogansandvehiclemodelnamesandbodydesignsareregisteredtrademarksofFordMotorCompany.
• Harley-Davidson® and Harley® are registered trademarks of Harley-Davidson, Inc.
• BMW® is registered trademarks of BMW of North America, LLC.
• Victory® is registered trademarks of Polaris Industries Inc.
© 2015, Code 3, Inc. U.S. Patent Nos. 7,153,015 & 7,300,175
Code 3®, Inc. 2015
Patents see https://secure.code3pse.com/patents/
Designed and manufactured by Code 3, Inc. in St. Louis, Missouri, USA.
ECCO is a division of ECCO Safety Group (ESG). Headquartered in Boise, Idaho, ESG is a
worldwide leader in commercial and emergency vehicle warning and safety products. With
seven manufacturing facilities on four continents: North America, Europe, Asia, and Australia,
ESG markets a portfolio of the most respected brands in the industry. ESG serves more than 500
OEMs and thousands more private label, fleet and aftermarket customers in a range of industries
including heavy construction, material handling, utilities and emergency services.
002
Worldwide leader in
commercial and emergency
vehicle warning and safety products
www.eccosafetygroup.com
For a complete listing of all products visit the
Code 3 website at www.code3esg.com
ISO 9001:2008
U.S. Designed and
Manufactured!
Download digital copy
Worldwide leader in
commercial and emergency
vehicle warning and safety products
www.eccosafetygroup.com
10986 North Warson Road, St. Louis, MO 63114
(314) 426-2700 │cs-c3@code3esg.com │ www.code3esg.com
A Division of ESG │ www.eccosafetygroup.com
© 2015 Code 3, Inc.
C3POLICE15 (715 - 20K)
Distributed by:

Navigation menu
