DataFAX

SPEC: 2741

MANUAL: 27496

C741 / REVISED 2-03

International Organization

for Standardization;

Registered ISO 9001

PRODUCT SPECIFICATION camera site

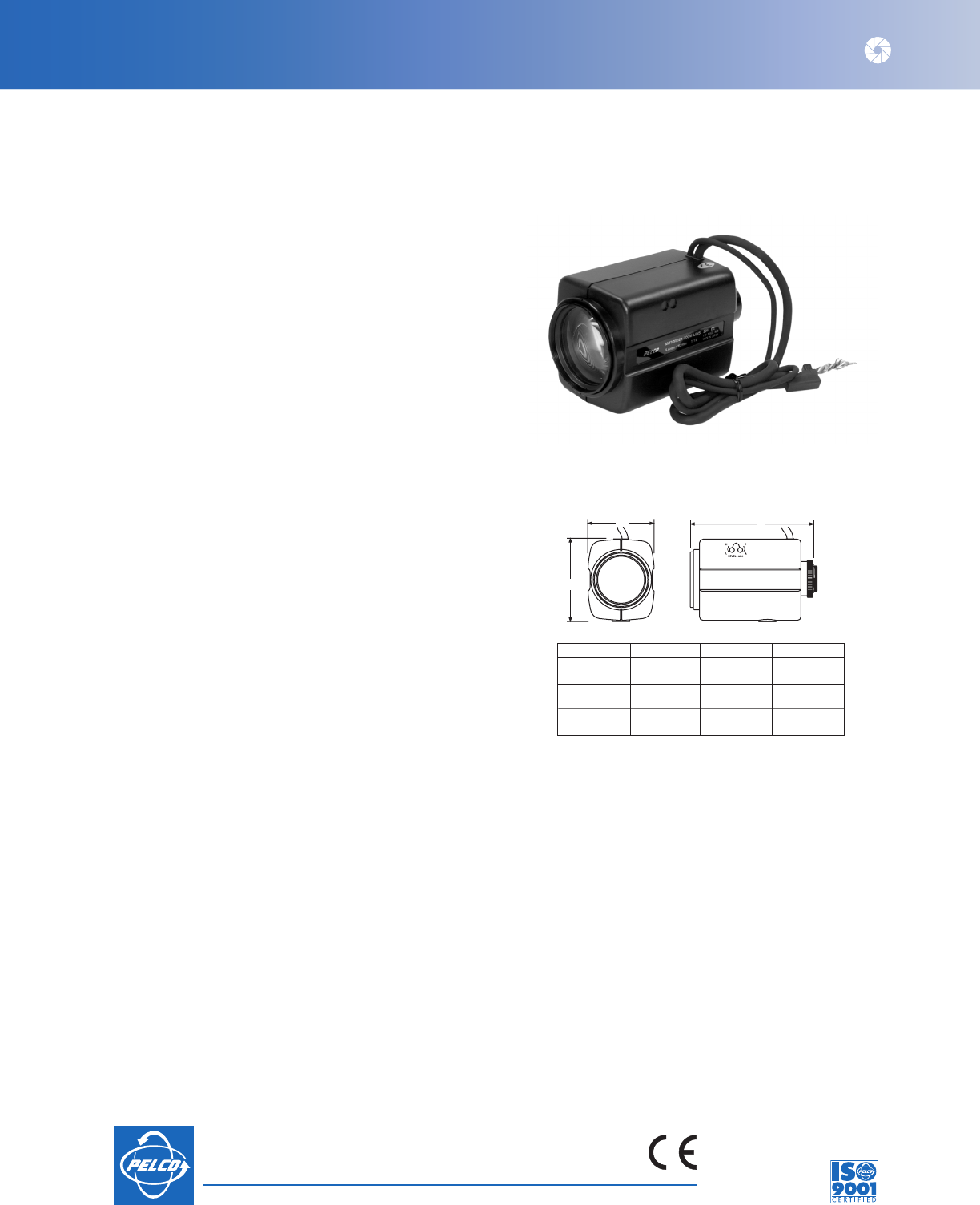

13ZD*X* Series Motorized Zoom Lens

1/3-INCH FORMAT, AUTO IRIS (DIRECT DRIVE)

Product Features

•CS Mount

•Spot Filter

•For Use with 1/3-Inch Format Cameras

•Auto Iris (Direct Drive, No Amplifier), Motorized Focus and Zoom

(with or without Presets)

•High Resolution Power in Compact Body

Pelco’s 13ZD*X* Series of 1/3-inch motorized zoom lenses cover a

wide range of applications from wide angle to telephoto. Each auto

iris lens in this series covers a specific range of focal lengths and is

available with or without preset positioning.

Appropriate for indoor and outdoor lighting situations, the 13ZD*X*

Series lenses will fit all 1/3-inch CS-mount cameras requiring

DC-drive auto iris lenses. In addition, all auto-iris lenses include a

spot filter. A factory-installed, square four-pin auto iris connector is

standard.

Lenses in this series are available in 6X, 8X, 10X, 15X, 20X, and

30X zoom with varying focal lengths.

Various maximum apertures of f0.95 (for difficult low-light applications)

to f1.8 and a minimum aperture of f360 allow excellent performance

characteristics across a wide range of lighting conditions.

Select the model lens that best suits your needs from the Technical

Specifications section of this product specification sheet.

13ZD5.6X20

HW

13ZD6X6(P) 3.15 (8.00) 2.57 (6.53) 3.47 (8.81)

13ZD6X8(P) 3.15 (8.00) 2.57 (6.53) 4.23 (10.74)

13ZD6X10(P) 3.15 (8.00) 2.73 (6.93) 4.77 (12.12)

13ZD6X15(P) 3.15 (8.00) 2.73 (6.93) 4.77 (12.12)

13ZD5.6X20(P)

13ZD5.5X30(P)

3.15

3.15

(8.00)

(8.00)

2.73

3.43

(6.93)

(8.71)

4.84

6.57

(12.29)

(16.69)

L

NOTE: ALL MEASUREMENTS ARE WITH LENSES FULLY

EXTENDED (FOCUS-NEAR MODE).

VALUES IN PARENTHESES ARE CENTIMETERS;

ALL OTHERS ARE INCHES.

L

W

H

®

Pelco Worldwide Headquarters:

3500 Pelco Way, Clovis, California 93612-5699 USA

USA & Canada Tel: (800) 289-9100 • FAX (800) 289-9150 • DataFAX (800) 289-9108

International Tel: (559) 292-1981 • FAX (559) 348-1120 • DataFAX (559) 292-0435

www.pelco.com

TECHNICAL SPECIFICATIONS

MODELS

*Model numbers with P suffix are motorized with preset capability.

CERTIFICATIONS

• CE, Class B (all models)

OPTIONAL ACCESSORIES

LDC100 Auto iris drive converter. Converts a DC-drive

auto iris lens to a video drive auto iris lens.

Compatible with all lens size formats.

13ZD6X6/ 13ZD6X8/ 13ZD6X10/ 13ZD6X15/

13ZD6X6P 13ZD6X8P 13ZD6X10P 13ZD6X15P

Type Motorized Zoom Motorized Zoom Motorized Zoom Motorized Zoom

Format Size 1/3-inch 1/3-inch 1/3-inch 1/3-inch

Mount Type CS CS CS CS

Focal Length 6~36 mm 6~48 mm 6~60 mm 6~90 mm

Zoom Ratio 6X 8X 10X 15X

Relative Aperture (F) 0.95~360 1.4~360 1.6~360 1.6~360

Operation

Iris Auto (Direct Drive) Auto (Direct Drive) Auto (Direct Drive) Auto (Direct Drive)

Focus Motorized* Motorized* Motorized* Motorized*

Zoom Motorized* Motorized* Motorized* Motorized*

Angle of View

Diagonal 9.7°~53.7° 7.3°~54.4° 5.8°~54.3° 3.9°~54.3°

Horizontal 7.8°~43.7° 5.8°~44.2° 4.7°~44.2° 3.1°~44.2°

Vertical 5.9°~33.0° 4.4°~33.5° 3.5°~33.5° 2.4°~33.5°

Minimum Object Distance 1.0 m 1.0 m 1.0 m 1.0 m

Back Focal Length 8.66 mm 10.10 mm 9.55 mm 9.55 mm

Filter Size (mm) 46P0.75 46P0.75 55P0.75 55P0.75

Unit Weight 0.88 lb (0.40 kg) 0.92 lb (0.42 kg) 1.19 lb (0.54 kg) 1.43 lb (0.65 kg)

Shipping Weight 2 lb (0.90 kg) 2 lb (0.90 kg) 3 lb (1.36 kg) 3 lb (1.36 kg)

13ZD5.6X20/

13ZD5.6X20P

13ZD5.5X30/

13ZD5.5X30P

Type Motorized Zoom Motorized Zoom

Format Size 1/3-inch 1/3-inch

Mount Type CS CS

Focal Length 5.6~112 mm 5.5~165 mm

Zoom Ratio 20X 30X

Relative Aperture (F) 1.6~360 1.8~360

Operation

Iris Auto (Direct Drive) Auto (Direct Drive)

Focus Motorized* Motorized*

Zoom Motorized* Motorized*

Angle of View

Diagonal 3.2°~59.4° 2.1°~58.7°

Horizontal 2.6°~47.6° 1.7°~47.6°

Vertical 1.9°~35.7° 1.3°~33.9°

Minimum Object Distance 1.5 m 1.8 m

Back Focal Length 8.97 mm 15.5 mm

Filter Size (mm) 55P0.75 72P0.75

Unit Weight 1.23 lb (0.56 kg) 1.84 lb (0.83 kg)

Shipping Weight 3 lb (1.36 kg) 3 lb (1.36 kg)

Specifications subject to change without notice.
