29FL94

SHARP CORPORATION This document has been published to be used for after

sales service only.

The contents are subject to change without notice.

In the interests of user-safety (Required by safety regulations in some countries ) the set should be restored to its

original condition and only parts identical to those specified should be used.

COLOR TELEVISION

Chassis No. GB-3U

Page

» ELECTRICAL SPECIFICATIONS .........................................................................................................1

» IMPORTANT SERVICE SAFETY PRECAUTION .................................................................................2

» LOCATION OF USER'S CONTROL .....................................................................................................4

» INSTALLATION AND SERVICE INSTRUCTIONS................................................................................5

» SERVICE ADJUSTMENT .....................................................................................................................9

» CHASSIS LAYOUT .............................................................................................................................12

» BLOCK DIAGRAM ..............................................................................................................................13

» DESCRIPTION OF SCHEMATIC DIAGRAMS & WAVEFORMS ........................................................14

» SCHEMATIC DIAGRAMS ...................................................................................................................15

» PRINTED WIRING BOARD ASSEMBLIES ........................................................................................24

» PARTS LIST........................................................................................................................................30

» PACKING OF THE SET ......................................................................................................................39

CONTENTS

SPEAKER

SIZE ........................................................ 12 x 6 cm oval (2 pcs.)

VOICE COIL IMPEDANCE............................... 8 ohm at 400 Hz

ANTENNA INPUT IMPEDANCE

VHF/UHF .....................................................75 ohm Unbalanced

TUNING RANGES

VHF-Channels ...............................................................2 thru 13

UHF-Channels ............................................................14 thru 69

CATV Channels ...........................................................1 thru 125

(EIA, Channel Plan U.S.A.)

POWER INPUT ........................................ 110~220V AC, 50/60 Hz

POWER RATING .................................................................. 145W

PICTURE SIZE ....................................... 2,193.5 cm2 (339sq inch)

CONVERGENCE ............................................................. Magnetic

SWEEP DEFLECTION .................................................... Magnetic

FOCUS ............................................... Hi-Bi-Potential Electrostatic

INTERMEDIATE FREQUENCIES

Picture IF Carrier Frequency ..................................... 45.75 MHz

Sound IF Carrier Frequency ...................................... 41.25 MHz

Color Sub-Carrier Frequency .................................... 42.17 MHz

(Nominal)

AUDIO POWER

OUTPUT RATING .............. 7.5W + 7.5W (at 10% distortion and

Dual CH Operate)

Specifications are subject to change without

prior notice.

ELECTRICAL SPECIFICATIONS

MODEL

SERVICE MANUAL

29FL94

S34Q129FL94//

29FL94

IMPORTANT SERVICE SAFETY PRECAUTION

ËService work should be performed only by qualified service technicians who are

thoroughly familiar with all safety checks and the servicing guidelines which follow:

X-RADIATION AND HIGH VOLTAGE LIMITS

1. Be sure all service personnel are aware of the

procedures and instructions covering X-radiation. The

only potential source of X-ray in current solid state

TV receivers is the picture tube. However, the picture

tube does not emit measurable X-Ray radiation, if

the high voltage is as specified in the "High Voltage

Check" instructions.

It is only when high voltage is excessive that X-

radiation is capable of penetrating the shell of the

picture tube including the lead in the glass material.

The important precaution is to keep the high voltage

below the maximum level specified.

2. It is essential that servicemen have available at all

times an accurate high voltage meter.

The calibration of this meter should be checked

periodically.

3. High voltage should always be kept at the rated value

−no higher. Operation at higher voltages may cause

a failure of the picture tube or high voltage circuitry

and;also, under certain conditions, may produce

radiation in exceeding of desirable levels.

4. When the high voltage regulator is operating properly

there is no possibility of an X-radiation problem. Every

time a color chassis is serviced, the brightness should

be tested while monitoring the high voltage with a

meter to be certain that the high voltage does not

exceed the specified value and that it is regulating

correctly.

5. Do not use a picture tube other than that specified or

make unrecommended circuit modifications to the

high voltage circuitry.

6. When trouble shooting and taking test measurements

on a receiver with excessive high voltage, avoid being

unnecessarily close to the receiver.

Do not operate the receiver longer than is necessary

to locate the cause of excessive voltage.

WARNING

1. For continued safety, no modification of any circuit

should be attempted.

2. Disconnect AC power before servicing.

3. Semiconductor heat sinks are potential shock hazards

when the chassis is operating.

4. The chassis in this receiver has two ground systems

which are separated by insulating material. The non-

isolated (hot) ground system is for the B+ voltage

regulator circuit. The isolated ground system is for

the low B+ DC voltages and the secondary circuit of

the high voltage transformer.

To prevent electrical shock use an isolation

transformer between the line cord and power

receptacle, when servicing this chassis.

SERVICING OF HIGH VOLTAGE SYSTEM

AND PICTURE TUBE

When servicing the high voltage system,

remove the static charge by connecting a

10k ohm resistor in series with an insulated

wire (such as a test probe) between the pic-

ture tube ground and the anode lead. (AC

line cord should be disconnected from AC

outlet.)

1. Picture tube in this receiver employs integral

implosion protection.

2. Replace with tube of the same type number for

continued safety.

3. Do not lift picture tube by the neck.

4. Handle the picture tube only when wearing

shatterproof goggles and after discharging the high

voltage anode completely.

29FL94

SAFETY NOTICE

Many electrical and mechanical parts in television

receivers have special safety-related characteristics.

These characteristics are often not evident from visual

inspection, nor can protection afforded by them be

necessarily increased by using replacement components

rated for higher voltage, wattage, etc.

Replacement parts which have these special safety

characteristics are identified in this manual; electrical

components having such features are identified by "å"

and shaded areas in the Replacement Parts Lists and

Schematic Diagrams.

IMPORTANT SERVICE SAFETY PRECAUTION

(Continued)

1. Inspect all lead dress to make certain that leads are

not pinched or that hardware is not lodged between

the chassis and other metal parts in the receiver.

2. Inspect all protective devices such as non-metallic

control knobs, insulating materials, cabinet backs,

adjustment and compartment covers or shields,

isolation resistor-capacity networks, mechanical

insulators, etc.

3. To be sure that no shock hazard exists, check for

leakage current in the following manner.

•Plug the AC cord directly into a 110~220 volt AC outlet,

(Do not use an isolation transformer for this test).

•Using two clip leads, connect a 1.5k ohm, 10 watt

resistor paralleled by a 0.15µF capacitor in series with

all exposed metal cabinet parts and a known earth

ground, such as electrical conduit or electrical ground

connected to earth ground.

•Use an AC voltmeter having with 5000 ohm per volt,

or higher, sensitivity to measure the AC voltage drop

across the resistor.

BEFORE RETURNING THE RECEIVER

(Fire & Shock Hazard)

Before returning the receiver to the user, perform

the following safety checks.

•Connect the resistor connection to all exposed metal

parts having a return to the chassis (antenna, metal

cabinet, screw heads, knobs and control shafts,

escutcheon, etc.) and measure the AC voltage drop

across the resistor.

AII checks must be repeated with the AC line cord

plug connection reversed. (If necessary, a non-

polarized adapter plug must be used only for the

purpose of completing these check.)

Any current measured must not exceed 0.5 milliamp.

Any measurements not within the limits outlined

above indicate of a potential shock hazard and

corrective action must be taken before returning the

instrument to the customer.

For continued protection, replacement parts must be

identical to those used in the original circuit. The use of

substitute replacement parts which do not have the same

safety characteristics as the factory recommended

replacement parts shown in this service manual, may

create shock, fire, X-radiation or other hazards.

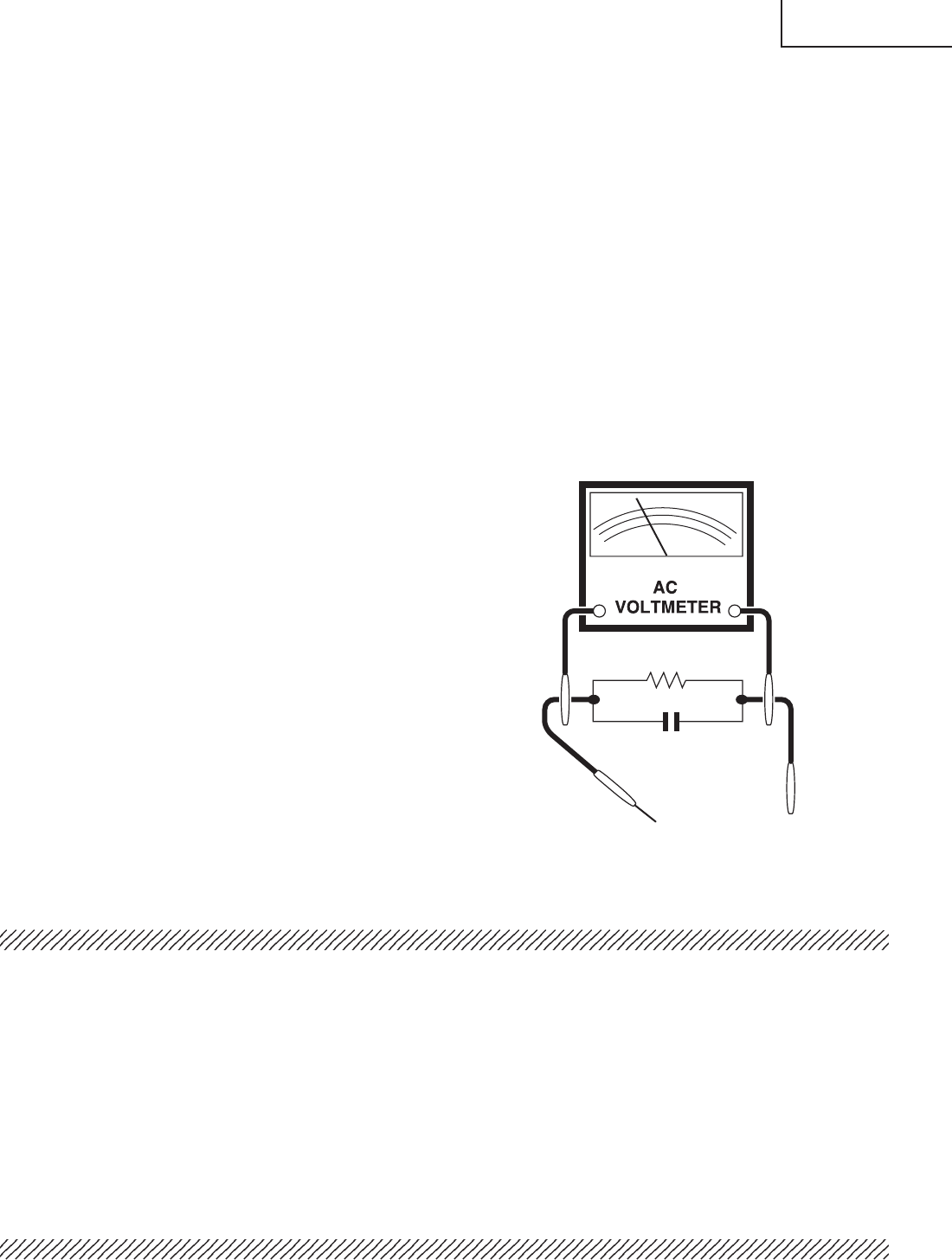

1.5k ohm

10W

0.15µF

TEST PROBE

TO EXPOSED

METAL PARTS CONNECT TO

KNOWN EARTH

GROUND

29FL94

LOCATION OF USER'S CONTROL

Note:

•The above shaded buttons on the Remote Control glow in the dark. To use the glow-in-the-dark display on the

remote control, place it under a fluorescent light or other lighting.

•The phosphorescent material contains no radioactive or toxic material, so it is safe to use.

•The degree of illumination will vary depending on the strength of lighting used.

•The degree of illumination will decrease with time and depending on the temperature.

•The time needed to charge the phosphorescent display will vary depending on the surrounding lighting.

•Sunlight and fluorescent lighting are the most effective when charging the display.

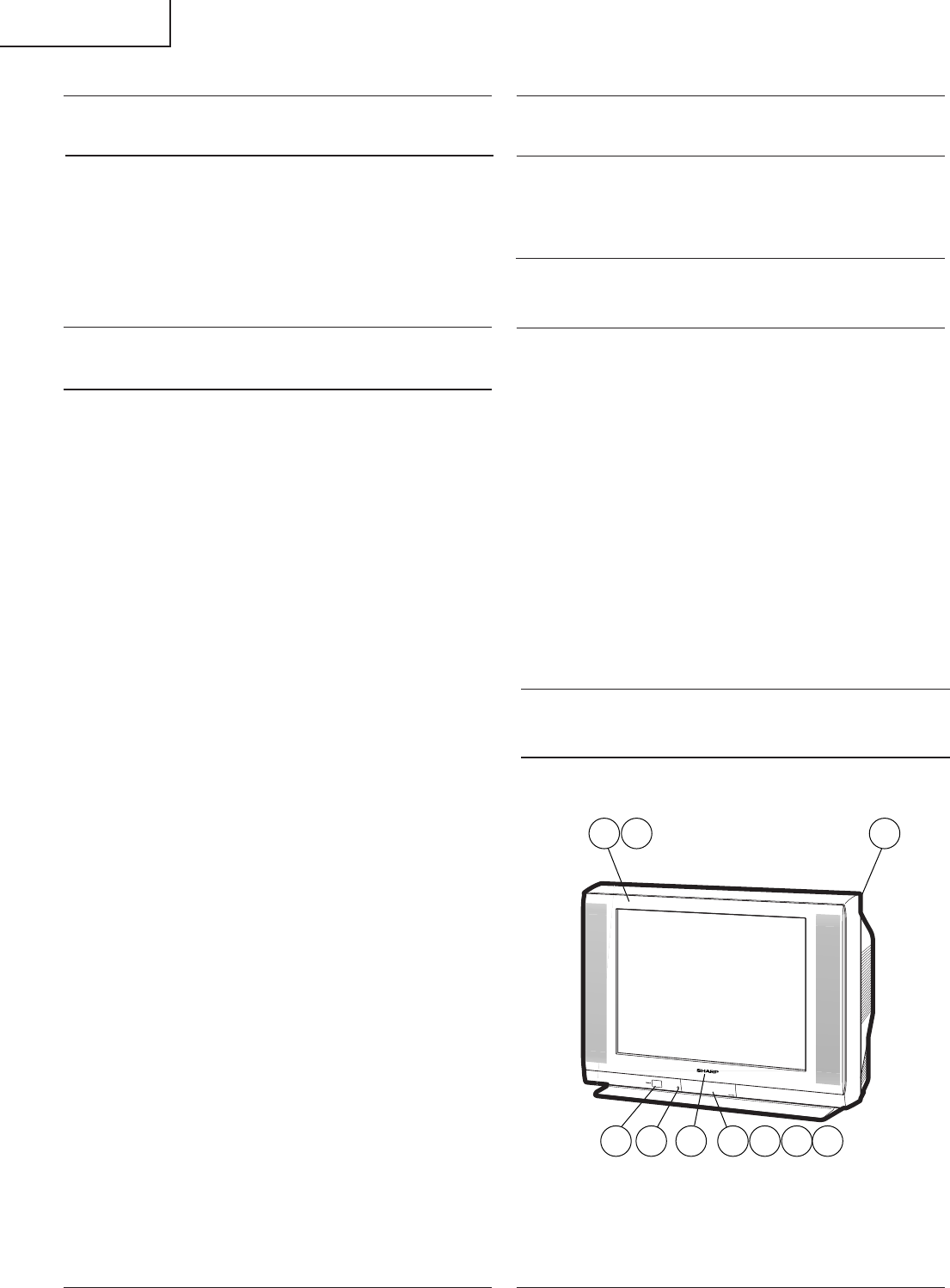

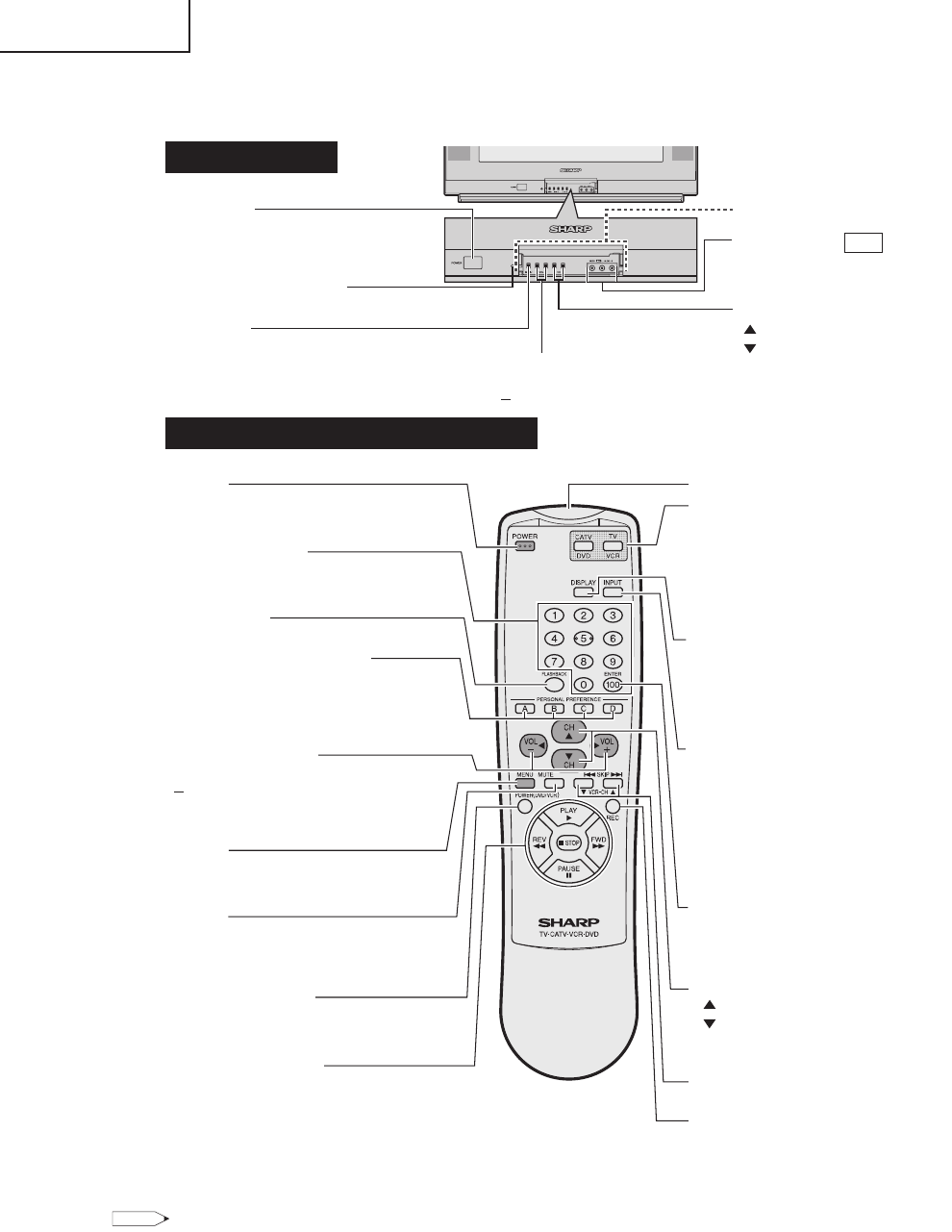

Front Panel

Basic Remote Control Functions

VOLUME UP/DOWN

(

) Increases sound.

() Decreases sound.

POWER

Press → On.

Press again → Off.

Infrared Transmitter Window

MUTE

Press → Mutes sound.

Press again → Restores sound.

*When sound is muted, CLOSED

CAPTION appears if available.

SKIP/VCR-CH

VOLUME UP/DOWN

(

) Increases sound.

() Decreases sound.

*Changes or selects the TV

adjustments on On-Screen Display.

Press → Accesses MAIN MENU.

Press again → Exits MAIN MENU.

POWER (DVD/VCR)

Press → On.

Press again → Off.

CATV / DVD-TV/VCR MODE buttons

Press TV/VCR → Signals sent will be for

TV and VCR control.

Press CATV/DVD → Signals sent will be

for cable TV converter and DVD control.

DISPLAY

Press → Displays receiving channel for

4 seconds.

Press again → Removes display.

*Temporarily displays receiving channel

when in Closed Caption mode.

INPUT

Press → Switches to external video

INPUT 1 mode.

Press twice → Switches to external video

INPUT 2 mode.

Press 3 times → Switches to external

video INPUT 3 mode or COMPONENT

mode.

Press 4 times → Switches back to the

original TV mode.

ENTER

Used in some instances where a Cable

Converter Box requires an “enter” command

after selecting channels, when using the

REMOTE KEYPAD button.

CHANNEL UP/DOWN

() Selects next higher channel.

() Selects next lower channel.

* Moves the " +

" mark on the MENU

screens.

REC

VIDEO/AUDIO

TERMINALSIN 2

CHANNEL UP/DOWN

()Selects next higher channel

()Selects next lower channel

REMOTE KEYPAD

Accesses any channel from keypad.

FLASHBACK

Returns to previous channel.

PERSONAL PREFERENCE

With the Personal Preference buttons, you

can program your favorite programs by

using the 4 categories A, B, C and D. The

channels can be accessed quickly by using

these buttons.

DVD/VCR CONTROL

POWER

Press → On.

Press again → Off.

Press → Accesses MAIN MENU.

Press again → Exits MAIN MENU.

REMOTE CONTROL

SENSOR

INSIDE DOOR

29FL94

CIRCUIT PROTECTION

The receiver is protected by a 5.0A fuse (F1701),

mounted on PWB-G, wired into one side of the AC

line input.

X-RADIATION PROTECTOR CIRCUIT TEST

After service has been performed on the horizontal

deflection system, high voltage system, B+ system,

test the X-Radiation protection circuit to ascertain

proper operation as follows:

1. Apply 110~220V AC using a variac transformer for

accurate input voltage.

2. Allow for warm up and adjust all customer controls

for normal picture and sound.

3. Receive a good local channel.

4. Connect a digital voltmeter to TP653 (P651 Pin3) and

make sure that the voltmeter reads 13.85 ±0.6V DC.

5. Apply external 17.3V DC at TP653 by using an

external DC supply, TV must be shut off.

6. To reset the protector, unplug the AC cord and plug

the AC cord power on. Now make sure that normal

picture appears on the screen.

7. If the operation of the horizontal oscillator does not

stop in step 5, the circuit must be repaired before the

set is returned to the customer.

HIGH VOLTAGE CHECK

High voltage is not adjustable but must be checked

to verify that the receiver is operating within safe

and efficient design limitations as specified checks

should be as follows:

1. Connect an accurate high voltage meter between

ground and anode of picture tube.

2. Operate receiver for at least 15 minutes at 110~220V

AC line voltage, with a strong air signal or a properly

tuned in test signal.

3. Enter the service mode and select the service

adjustment "V11" and Bus data "01" (Y-mute on, CRT

Cut Off).

4. The voltage should be below 31.5kV (at zero beam).

If a correct reading cannot be obtained, check circuitry

for malfunctioning components. After the voltage test,

make Y-mute off to the normal mode.

INSTALLATION AND SERVICE INSTRUCTIONS

Note: (1) When performing any adjustments to resistor controls and transformers use non-metallic

screwdrivers or TV alignment tools.

(2) Before performing adjustments, the TV set must be on at least 15 minutes.

29FL94

Figure A.

V05 2

CHANNEL

SERVICE ADJUSTMENT NUMBER

DATA NUMBER

For adjustments of this model, the bus data is converted to various analog signals by the D/A converter

circuit.

Note: There are still a few analog adjustments in this series such as focus and master screen voltage.

Follow the steps below whenever the service adjustment is required. See "Table-B" to determine, if serv-

ice adjustments are required.

1. Service mode

Before putting unit into the service mode, check that

customer adjustments are in the normal mode. Use

the reset function in the video adjustment menu to

ensure customer controls are in their proper (reset)

position.

2. Service number selection

Once in the service mode, press the Ch-up or Ch-

down button on the remote controller or at the set.

The service adjustment number will vary in

increments of one, from "V01" to "M20". Select the

item you wish to adjust.

3. Data number selection

Press the Vol-up or Vol-down button to adjust the data

number.

To enter the service mode and exit serv-

ice mode.

To enter the service mode manually just press and hold

the Vol-down and Ch-up buttons at the same time, plug

the AC cord into a wall socket.

Now the TV set is switched on and enters the service

mode.

To exit the service mode, turn the television off by

pressing the power button.

3F(063)

29FL94

V01 PICTURE 0-15 (00h-0Fh) 8 (08h)

V02 TINT 0-127 (00h-7Fh) 66 (42h)

V03 COLOR 0-127 (00h-7Fh) 56 (38h)

V05 BRIGHT 0-127 (00h-7Fh) 64 (40h)

V06 R CUT-OFF 64-255 (40h-FFh) 64 (40h)

V07 G CUT-OFF 64-255 (40h-FFh) 64 (40h)

V08 B CUT-OFF 64-255 (40h-FFh) 64 (40h)

V09 G/R DRIVE 0-127 (00h-7Fh) 64 (40h)

V10 B DRIVE 0-127 (00h-7Fh) 64 (40h)

V11 Y-MUTE/V-STOP 0-2 0 (00h) Y-Mute / Holizontal “—”

V12 SHARP 0-63 (00h-3Fh) 50 (32h) 32

V13 DC RESTORATION 0-3 (00h-03h) 2 (02h) 02

V14 BLACK STRETCH 0-3 (00h-03h) 2 (02h) 02

V15 ABL START POINT 0-3 (00h-03h) 3 (03h) 03

V16 ABL GAIN 0-3 (00h-03h) 2 (02h) 02

V17 γ POINT 0-3 (00h-03h) 0 (00h) 00

V19 ENERGY SAVE 0-63 (00h-3Fh) 63 (3Fh) Offset 3F

V24 LOW-G 0-255 (00h-FFh) 12 (0Ch) Color Temp. F4

V25 LOW-B 0-255 (00h-FFh) 241 (F1h) Color Temp. E6

V26 ML-G 0-255 (00h-FFh) 0 (00h) Color Temp. FD

V27 ML-B 0-255 (00h-FFh) 247 (F7h) Color Temp. F8

V28 HIGH-G 0-255 (00h-FFh) 2 (02h) Color Temp. 01

V29 HIGH-B 0-255 (00h-FFh) 8 (08h) Color Temp. 06

V30 WPL 0-1 1 (01h) 01

V31 RGB CONTRAST 0-63 (00h-3Fh) 59 (3Bh) 3B

V34 VSM GAIN 0-3 (00h-03h) 1 (01h) 01

V36 BPF/TOF-INPUT 0-1 0 (00h) External Input 00

V37 CORING 0-1 0 (00h) 00

V38 VSM PHASE 0-1 0 (00h) 00

V39 COLOR γ0-1 0 (00h) 00

V40 SHARP-INPUT 0-63 (00h-3Fh) 44 (2Ch) External Input 2C

V41 TINT-INPUT 0-127 (00h-7Fh) 62 (3Eh) External Input 3E

V42 PICTURE-COMPONENT 0-15 (00h-0Fh) 6 (06h) Component Input

V43 TINT-COMPONENT 0-127 (00h-7Fh) 62 (3Eh) Component Input 3E

V44 COLOR-COMPONENT 0-127 (00h-7Fh) 72 (48h) Component Input 48

V45 BRIGHT-COMPONENT 0-127 (00h-7Fh) 84 (54h) Component Input

V46 R CUT OFF-COMPONENT 64-255 (00h-FFh) 64 (40h) Component Input

V47 G CUT OFF-COMPONENT 64-255 (00h-FFh) 64 (40h) Component Input

V48 B CUT OFF-COMPONENT 64-255 (00h-FFh) 64 (40h) Component Input

V49 G/R DRIVE-COMPONENT 0-127 (00h-7Fh) 64 (40h) Component Input

V50 B DRIVE-COMPONENT 0-127 (00h-7Fh) 64 (40h) Component Input

V51 SHARP-COMPONENT 0-63 (00h-3Fh) 44 (2Ch) Component Input 2C

V52 TINT-S 0-127 (00h-7Fh) 62 (3Eh) Component Input 3E

V53 C-TRAP 0-1 (00h-01h) 0 (00h) 00

V59 AUTO FRESH 0-1 (00h-01h) 0 (00h) 00

V60 SHARP P F 0-1 (00h-01h) 1 (01h) 01

V61 CD MATRIX 0-3 (00h-03h) 2 (02h) 02

V62 B-Y ATT 0-1 (00h-01h) 0 (00h) 00

V63 R-Y ATT 0-1 (00h-01h) 0 (00h) 00

V64 CD MATRIX COMPONENT 0-3 (00h-03h) 0 (00h) Component Input 00

V65 B-Y ATT-COMPONENT 0-1 (00h-01h) 0 (00h) Component Input 00

V66 R-Y ATT-COMPONENT 0-1 (00h-01h) 0 (00h) Component Input 00

V67 BUZZ 0-1 (00h-01h) 1 (01h) 01

V68 RGB ABCL 0-1 (00h-01h) 1 (01h) 01

V69 PICTURE-VCOMP 0-100 (00h-64h) 47 (2Fh) 16:9 Format (Offset) 2F

V70 COLOR-VCOMP 0-100 (00h-64h) 50 (32h) 16:9 Format (Offset) 32

V71 BRIGHT-VCOMP 0-100 (00h-64h) 51 (33h) 16:9 Format (Offset) 33

R01 RF-AGC 0-63 (00h-3Fh) 36 (24h)

R03 RF-AGC REF 0-255 (00h-FFh) 170 (AAh)

Standard value for the self-adjustment

D01 V POSITION 0-7 (00h-07h) 0 (00h) 00

D02 H POSITION 0-31 (00h-1Fh) 15 (0Fh)

D03 V SIZE 0-127 (00h-7Fh) 89 (59h)

D04 H SIZE 0-63 (00h-3Fh) 36 (24h)

D05 V-LINEARITY 0-15 (00h-0Fh) 8 (08h)

D06 V-S CORRECTION 0-15 (00h-0Fh) 12 (0Ch) 0C

D07 EW PARABOLA 0-63 (00h-3Fh) 43 (2Bh)

D08 EW TRAPEZIUM 0-63 (00h-3Fh) 36 (24h)

D10 AFC GAIN 0-3 (00h-03h) 2 (02h) 02

D11 V EHT 0-7 (00h-07h) 6 (06h) 06

D12 H EHT 0-7 (00h-07h) 6 (06h) 06

D13 EW CORNER 0-31 (00h-1Fh) 8(08h) 08

A. VCJ IC ADJUSTMENT

SERVICE

NUMBER

DATA

ADJUSTMENT ITEM

INITIAL VALUE

FIXED VALUE

(HEX)

RANGE NOTES

29FL94

SERVICE

NUMBER

DATA

ADJUSTMENT ITEM

INITIAL VALUE

NOTES FIXED VALUE

(HEX)

RANGE

EX1 FAO VOLUME 0-50 (00h-32h) 36 (24h) 24

EX2 CC-POSITION 0-127 (00h-7Fh) 27 (1Bh)

EX3 INT 0-255 (00h-FFh) 122 (7Ah) Interrupt period adjustment. 7A

EX4 A-ATT 0-127 (00h-7Fh) 90 (5Ah) 5A

EX5 TUNER data 0-3 (00h-03h) 0 (00h) 00

EX6 Think chip-Slice LEVEL 0-255 (00h-FFh) 54 (36h) 12

EX7 RLY DELAY TIME 0-255 (00h-FFh) 0 (00h) For the power control 00

EX8 ADG ON TIME 0-255 (00h-FFh) 10 (0Ah) For the power control 0A

B. SPECIAL SETTING

SERVICE

NUMBER

DATA

ADJUSTMENT ITEM

INITIAL VALUE

NOTES FIXED VALUE

(HEX)

RANGE

C. OPTION SETTING

OP1 OPTION1 0-255 (00h-FFh) 245 (F5h) C5

OP2 OPTION2 0-255 (00h-FFh) 188 (BCh) BE

OP3 OPTION3 0-255 (00h-FFh) 15 (0Fh) 07

SERVICE

NUMBER

DATA

ADJUSTMENT ITEM

INITIAL VALUE

NOTES FIXED VALUE

(HEX)

RANGE

D. SOUND ADJUSTMENT

M01 INPUT LEVEL 0-15 (00h-0Fh) 7 (07h)

M02 MTS VCO 0-63 (00h-3Fh) 38 (26h)

M03 FILTER 0-63 (00h-3Fh) 36 (24h)

M04 WIDEBAND 0-63 (00h-3Fh) 28 (1Ch)

M05 SPECTRAL 0-63 (00h-3Fh) 23 (17h)

M09 SRS LEVEL 0-255 (00h-FFh) 224 (E0h) E0

M10 BBE LEVEL 0-255 (00h-FFh) 217 (D9h) D9

M11 SRS & BBE LEVEL 0-255 (00h-FFh) 208 (D0h) D0

M12 SRS & BBE OFF LEVEL 0-255 (00h-FFh) 228 (E4h) E4

M13 SRS Effect 2-3 (02h-03h) 2 (02h) 02

M14 BBE-L Effect 0-15 (00h-0Fh) 15 (0Fh) 0F

M15 BBE-H Effect 0-15 (00h-0Fh) 15 (0Fh) 0F

M16 AGC Level 0-7 (00h-07h) 1 (01h) 01

M17 BASS Offset 0-31 (00h-1Fh) 15 (0Fh) 0F

M18 TREBLE Offset 0-31 (00h-1Fh) 15 (0Fh) 0F

M19 BASS Offset-BBE 0-31 (00h-1Fh) 17 (11h) 11

M20 TREBLE Offset-BBE 0-31 (00h-1Fh) 16 (10h) 10

D14 EW CORNER BOTTOM 19-81 (13h-51h) 50 (32h) Offset toward D13. 32

D15 NOISE DET LEVEL 0-3 (00h-03h) 0 (00h) 00

D18 V CENTERING 0-63 (00-3Fh) 36 (24h)

D19 V-AGC 0-1 (00h-01h) 0 (00h) 00

D20 V POSITION-VCOMP 0-7 (00h-07h) 0 (00h) 16:9 Format 00

D21 H POSITION-VCOMP 0-31 (00h-1Fh) 15 (0Fh) 16:9 Format

D22 V SIZE-VCOMP 0-127 (00h-7Fh) 52 (34h) 16:9 Format

D23 H SIZE-VCOMP 0-63 (00h-3Fh) 36 (24h) 16:9 Format

D24 V-LINEARITY-VCOMP 0-15 (00h-0Fh) 8 (08h) 16:9 Format

D25 V-C CORRECTION-VCOMP 0-15 (00h-0Fh) 10 (0Ah) 16:9 Format 0A

D26 EW PARABOLA-VCOMP 0-63 (00h-3Fh) 22 (16h) 16:9 Format

D27 EW TRAPEZIUM-VCOMP 0-63 (00h-3Fh) 35 (23h) 16:9 Format

D28 V EHT-VCOMP 0-7 (00h-07h) 6 (06h) 16:9 Format 06

D29 H EHT-VCOMP 0-7 (00h-07h) 6 (06h) 16:9 Format 06

D30 EW CORNER-VCOMP 0-31 (00h-1Fh) 12 (0Ch) 16:9 Format 0C

D31

EW CORNER BOTTOM-VCOMP

19-81 (13h-51h) 50 (32h) Offset toward D30. 32

D32 V BLK UPPER-VCOMP 0-3 (00h-03h) 2 (02h) 16:9 Format 02

D33 V BLK LOWER-VCOMP 0-3 (00h-03h) 2 (02h) 16:9 Format 02

D34 V CENTERING-VCOMP 0-63 (00h-3Fh) 36 (24h) 16:9 Format

SERVICE

NUMBER

DATA

ADJUSTMENT ITEM

INITIAL VALUE

NOTES FIXED VALUE

(HEX)

RANGE

29FL94

SERVICE ADJUSTMENT

RF AGC Adjustment

1. Receive a good local channel.

2. Enter the service mode and select the service

adjustment "R01".

3. Set the data value to point where no noise or beat

appears.

4. Select another channel to confirm that no noise or

beat appears.

Note 1 : You will have to come out of the service

mode to select another channel.

Note 2 : Setting the data to "00" will produce a black

raster.

Screen Adjustment

1. Receive a good local channel.

2. Enter the service mode and select the service

adjustment "V03" and set the data value to "00" to

set the color level to minimum. (Record original data

code under adjustment "V03" before changing) You

may skip this step, if you selected a B/W picture or

monoscope pattern.

3. Select the service adjustment "V11" and adjust the

data value to "01", this turn off the luminance signal

(Y-mute).

4. Adjust the master screen control until the raster

darkens to the point where raster is barely seen.

5. Adjust the service adjustments "V06" red, "V07" green

and "V08" blue to obtain a good grey scale with

normal whites at low brightness level.

6. Select the service adjustment "V11" and reset data

to "00". Select the service adjustment "V03" and reset

data to obtain normal color level.

7. For component input, the data value of "V46" red,

"V47" green and "V48" blue is adjusted to follow the

data value of "V06", "V07" and "V08" respectively.

8. Reset the master screen control to obtain normal

brightness range.

White Balance Adjustment

1. Receive a good local channel.

2. Enter the service mode and select the service

adjustment "V03" and set to "00" (minimum

color)(Record original data code under adjustment

"V03" before changing). "V03" does not have to be

adjusted, if you selected a B/W picture or monoscope

pattern.

3. Alternately adjust the service adjustment data of

"V09" and "V10" until a good grey scale with normal

whites is obtained. (RF Input)

4. For component input, the data value of "V49" and

"V50" is adjusted to follow the data value of "V09"

and "V10" respectively.

5. Select the service adjustment "V03" and reset data

to obtain normal color level.

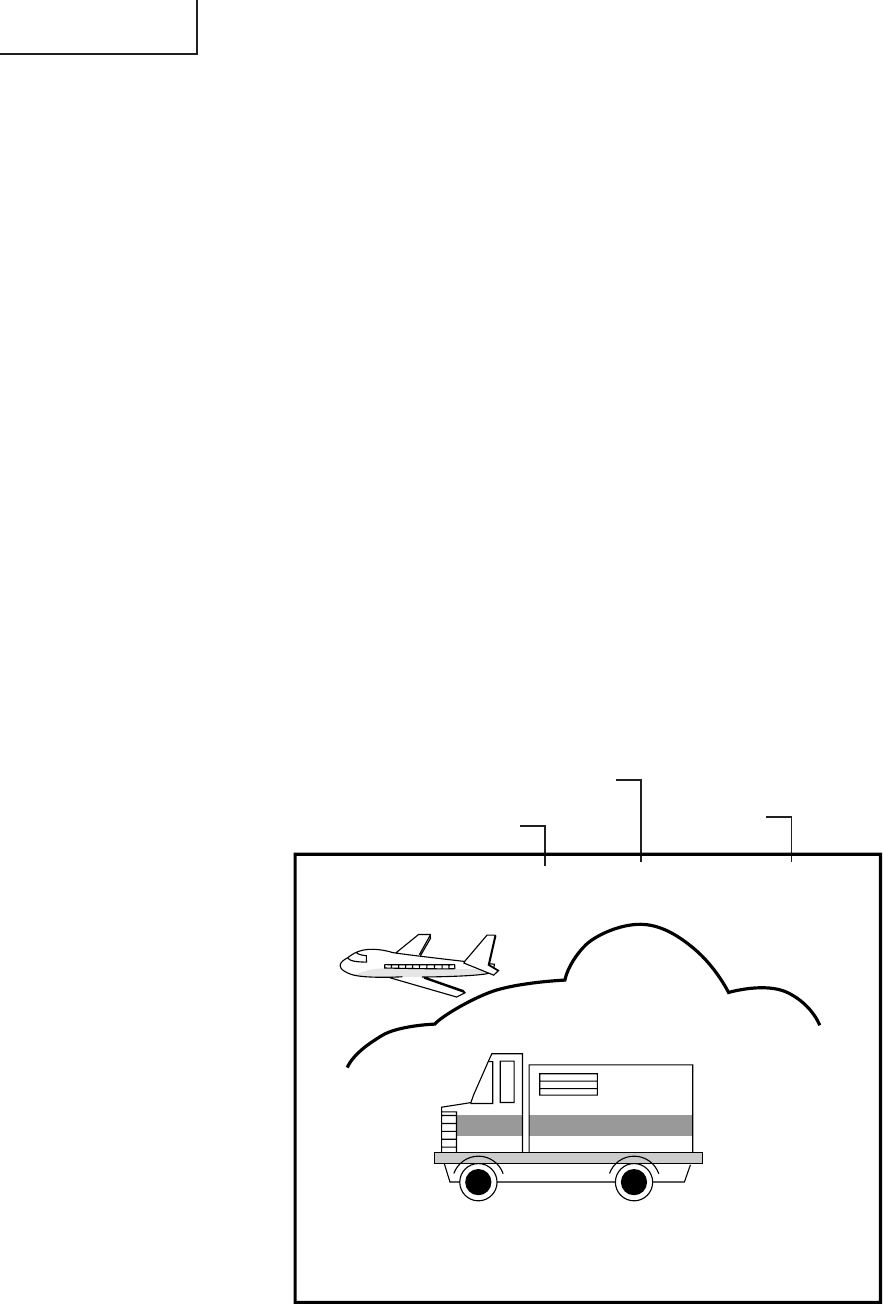

Sub-picture and Sub-Bright Adjustments

1. Receive the window pattern signal.

• RF INPUT (TU51)

2. Get into service adjustment data "V01" and "V05" and

set the luminance as shown in figure "A" and "B" as

below respectively.

• COMPONENT INPUT

3. Get in service adjustment data "V42" and "V45" and

set the luminance as shown in figure "A" and "B" as

below respectively.

LUMINESCENCE CONFIRMATION

A: 120±10cd/m2

B: 1.5±0.5cd/m2

NECESSARY UNNECESSARY

ADJUSTMENT

PART REPLACED

IC2001

IC201

XData is stored in IC2101.

The adjustment is needed to compensate for characteristics of parts

including IC201 and MTS level (M01).

Holding down both the VOL-up and CH-up buttons on the TV set at service mode for more than 2 seconds will

automatically write the above initial values into IC2101.

NOTES

IC2101

IC3001

CRT

Holding down both the VOL-up and CH-up buttons on the TV set in

the service mode for more than 2 seconds will automatically write the

above initial values into IC2101 Then perform a complete adjustment.

Adjust items related to picture tube only.

Adjust items related to MTS only (M01~M20).

29FL94

Sub-Tint Adjustment

1. Receive the half color bar signal.

• RF INPUT (TU51)

2. Get into Y-Mute by R/C, or by setting the "V11" bus

data to "01".

3. Vary the "V02" bus data until the waveform becomes

as stated below.

Sub-Color Adjustment

1. Receive a good local channel.

2. Make sure the customer color control is set to center

position .

• RF INPUT (TU51)

3. Enter the service mode and select service adjustment

"V03".

4. Adjust "V03" data value to obtain a normal color level.

Focus Adjustment

1. Receive a good local channel.

2. Adjust the FOCUS VR of the flyback transformer to

make the image as fine as possible.

C. C Display Position Adjustment

1. Receive the lion head pattern signal.

2. Select "EX2" to display the text box.

3. Adjust the "EX2" bus data to let the text box displayed

in the center.

Vertical-Size and Linearity Adjustments

1. Receive a good local channel.

(SCREEN FORMAT 4:3)

2. Enter the service mode and select the service

adjustment "D03" for V-size.

3. Adjust the "D03" bus data to get the proper V-size.

4. For V-linearity adjustment, select data bus "D05" and

adjust to get the proper vertical linearity.

(SCREEN FORMAT 16:9)

5. Input data of "D22" to mines 38 step from "D03” data.

(V-SIZE)

6. Input data of "D24" same as "D05" data. (V-LIN)

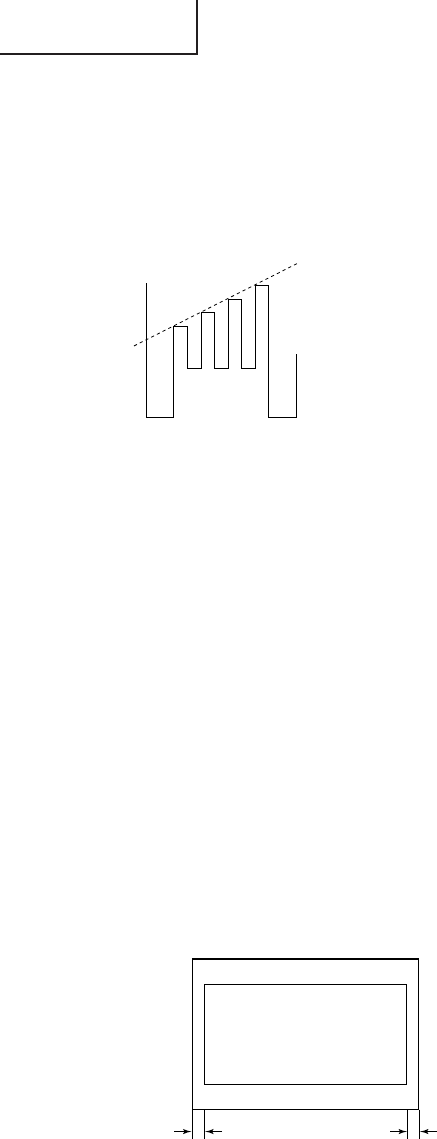

DISPLAY OF TEXT BOX

TEXT BOX

| A-B | / 2

SPEC INSPECTION:| A-B | / 2 <

= 5mm

B-AMP Base waveform in step

(TP47B)

LEVEL

Note: Aging for 10 min before adjustment. After the

adjustment of V-center and V-size, re-

adjustment for this V-line.

Vertical Phase Adjustment

(SCREEN FORMAT 4:3)

1. Enter the service mode and input data of “00h” on

"D01".

2. Adjust "D18" data value so that picture is centered.

(SCREEN FORMAT 16:9)

3. Input data of "00h" on "D20".

4. Input data of "D34" same as "D18" data.

Horizontal Position Adjustment

1. Receive a good local channel.

(SCREEN FORMAT 4:3)

2. Enter the service mode and select the service

adjustment "D02".

3. Adjust "D02" data value so that picture is centered.

(SCREEN FORMAT 16:9)

4. Input data of "D21" same as "D02" data.

Horizontal-Size Adjustment

1. Receive a good local channel.

(SCREEN FORMAT 4:3)

2. Enter the service mode and select the service

adjustment "D04" for H-size.

3. Adjust the "D04" bus data to get the proper H-size.

(SCREEN FORMAT 16:9)

4. Input data of "D23" same as "D04" data.

EW-Parabola

1. Receive a good local channel.

(SCREEN FORMAT 4:3)

2. Enter the service mode and select the service

adjustment "D07" for EW parabola.

3. Adjust the "D07" bus data to get the proper vertical

straight line for both left and right side.

(SCREEN FORMAT 16:9)

4. Input data of "D26" to mines 21 step from "D07" data.

EW-Trapezium

1. Receive a good local channel.

(SCREEN FORMAT 4:3)

2. Enter the service mode and select the service

adjustment "D08" for EW-Trapezium.

3. Adjust the "D08" bus data to get the best position

display.

(SCREEN FORMAT 16:9)

4. Input data of "D27" same as "D08" data.

29FL94

ËMTS ADJUSTMENT

MTS Level Adjustment

1. Set the sound volume above 1.

Monoral signal: 400Hz, 100% modulation

2. Confirm "EX4" data is "5Ah".

3. Vary the "M01" bus data until the voltage to pin (39)

of IC3001 to become the value as stated below.

SETTING VOLTAGE

ADJ spec : 490±10mVrms

CHK spec: 490±20mVrms

Separation Adjustment

1. Input "SIGNAL 1" and vary the "M04" bus data to get

the minimun AC voltage to pin (39) of IC3001.

2. Input "SIGNAL 2" and vary the "M05" bus data to get

the minimun AC voltage to pin (39) of IC3001.

SIGNAL 1:

300Hz, 30% modulation, Lch only, NR-ON

SIGNAL 2: 3kHz, 30% modulation, Lch only, NR-ON

Note: SIGNAL 1 Adj. for wideband

SIGNAL 2 Adj. for spectral

Check the output of the speaker at the maximum

volume as stated below.

Confirmation spec:

ADJ spec: above 25 dB

CHK spec: above 20 dB

29FL94

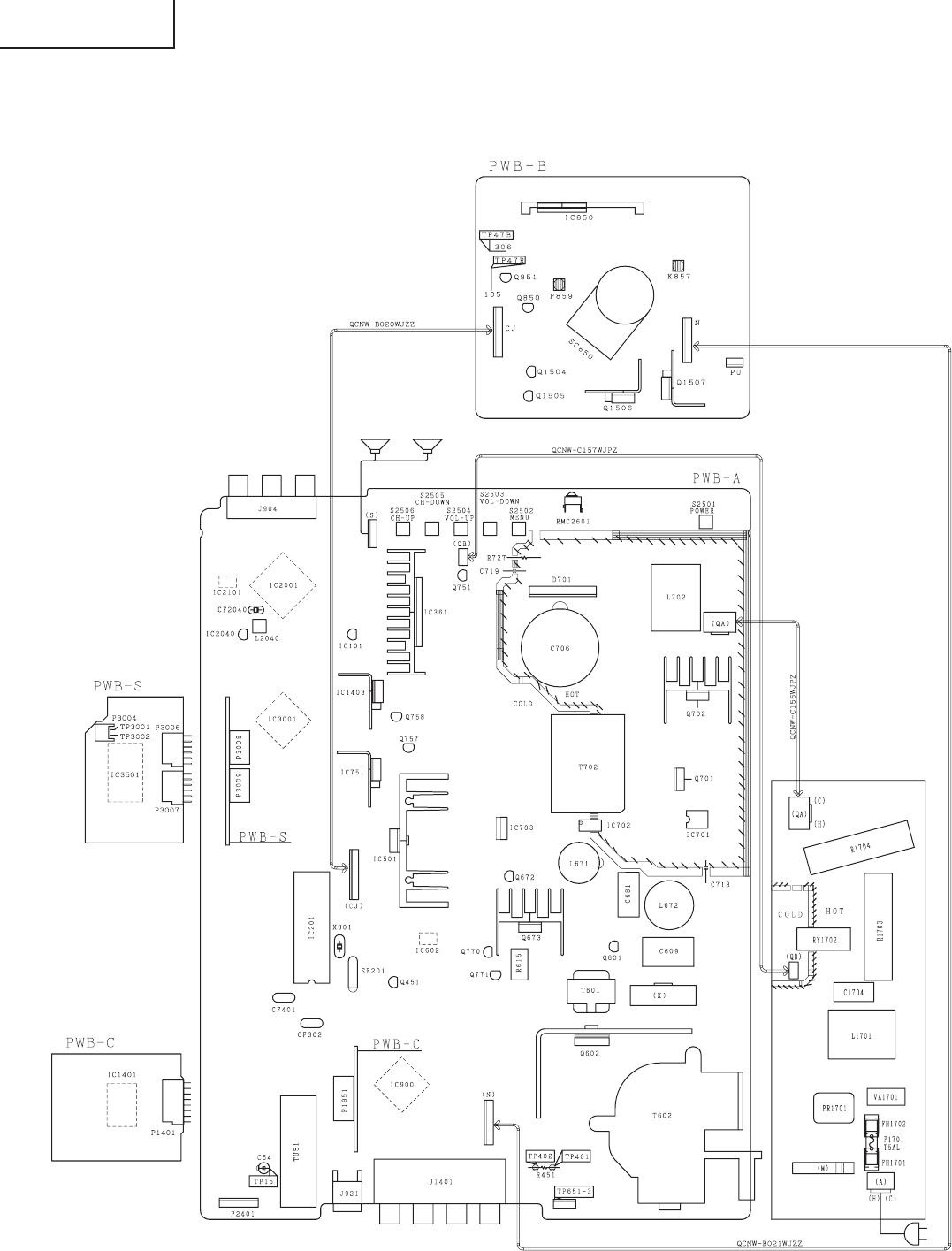

CHASSIS LAYOUT

29FL94

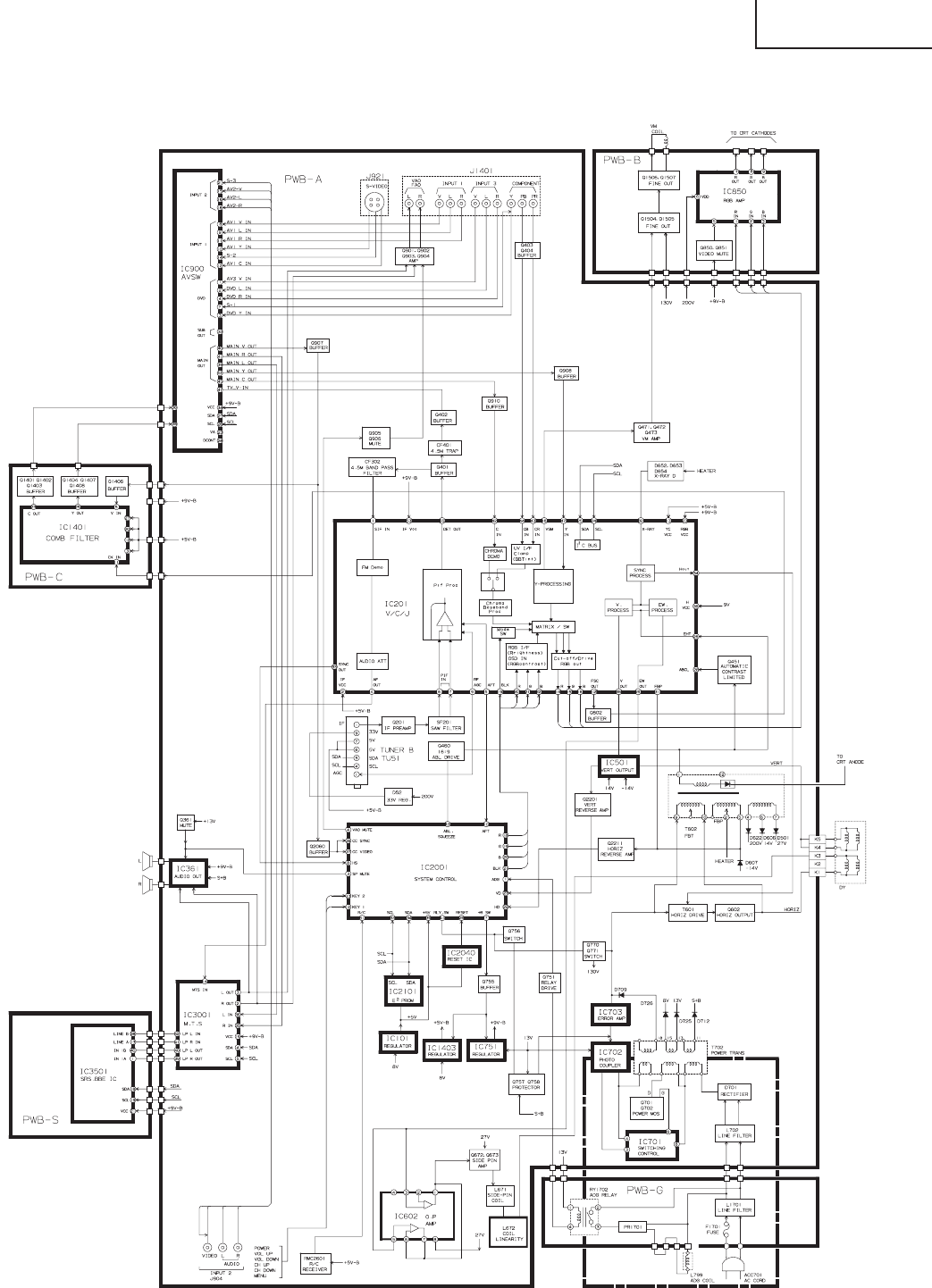

BLOCK DIAGRAM

29FL94

DESCRIPTION OF SCHEMATIC DIAGRAM

NOTES:

1. The unit of resistance "ohm" is omitted.

(K=kW=1000W, M=MW)

2. All resistors are 1/16 watt, unless otherwise noted.

3. All capacitors are µ F, unless otherwise noted.

(P=pF=µµF)

4. (G) indicates ±2% tolerance may be used.

5. indicates line isolated ground.

VOLTAGE MEASUREMENT CONDITIONS:

1. All DC voltages are measured with DVM connected

between points indicated and chassis ground, line

voltage set at 110~220V AC and all controls set for

normal picture unless otherwise indicated.

2. All voltages measured with 1000µ V B & W or Color

signal.

WAVEFORM MEASUREMENT CONDITIONS:

1. Photographs taken on a standard gated color bar

signal, the tint setting adjusted for proper color. The

wave shapes at the red, green and blue cathodes of

the picture tube depend on the tint, color level and

picture control.

2. indicates waveform check points (See chart,

waveforms are measured from point indicated to

chassis ground.)

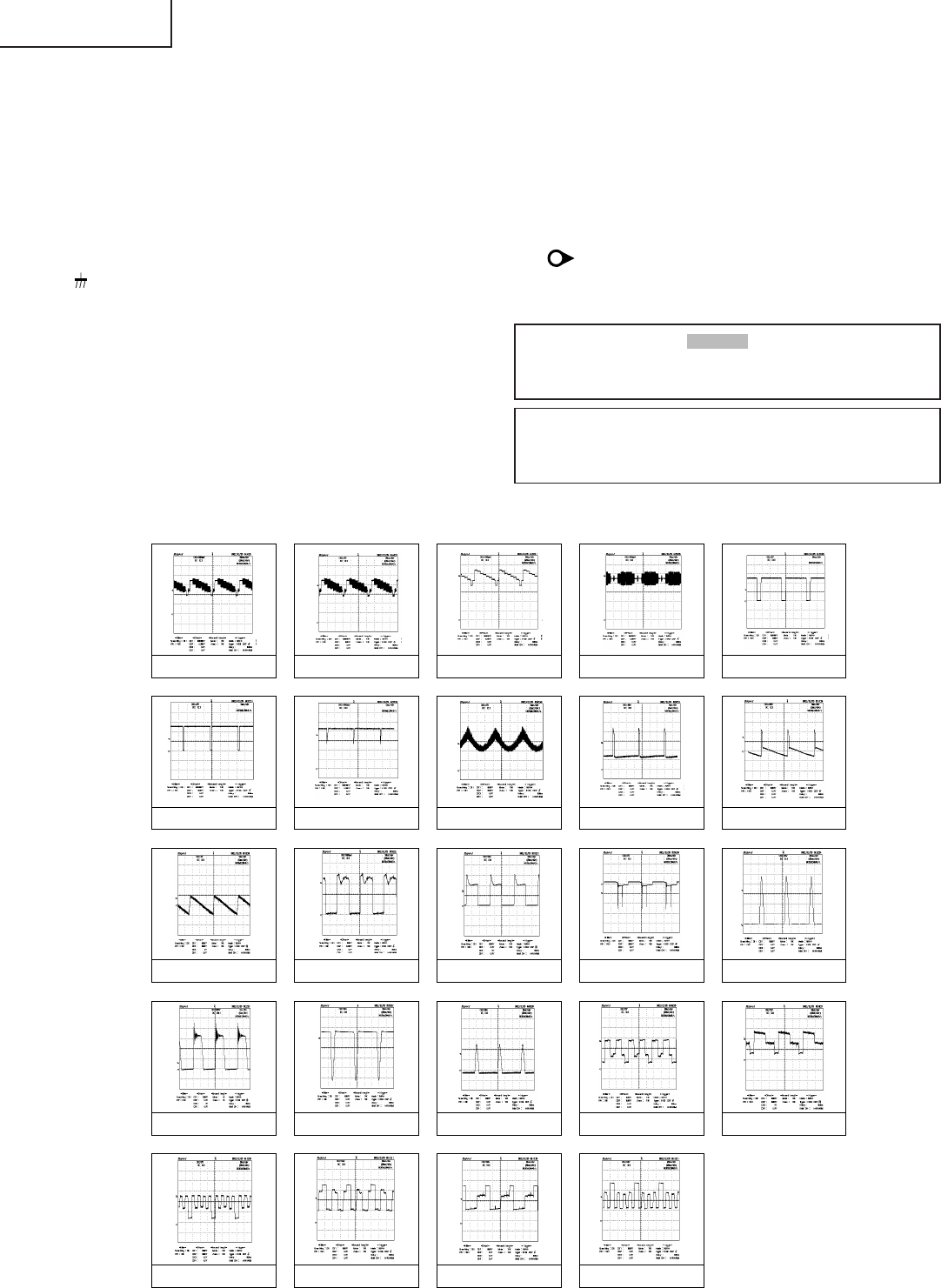

WAVEFORMS

AND SHADED ( ) COMPONENTS

= SAFETY RELATED PARTS.

MARK= X-RAY RELATED PARTS.

This circuit diagram is a standard one, printed circuits

may be subject to change for product improvement

without prior notice.

11.0 Vp-p 22.1 Vp-p 3 1.0Vp-p 40.75 Vp-p 55.0 Vp-p

65.0 Vp-p 70.85 Vp-p 812.5 Vp-p 932 Vp-p 056 Vp-p

q2.0 Vp-p w0.8 Vp-p e160 Vp-p r14 Vp-p t1150 Vp-p

y450 Vp-p u250 Vp-p i29.5 Vp-p o3.0 Vp-p p3.0 Vp-p

a3.0 Vp-p s130 Vp-p d125 Vp-p f130 Vp-p

29FL94

12345678910

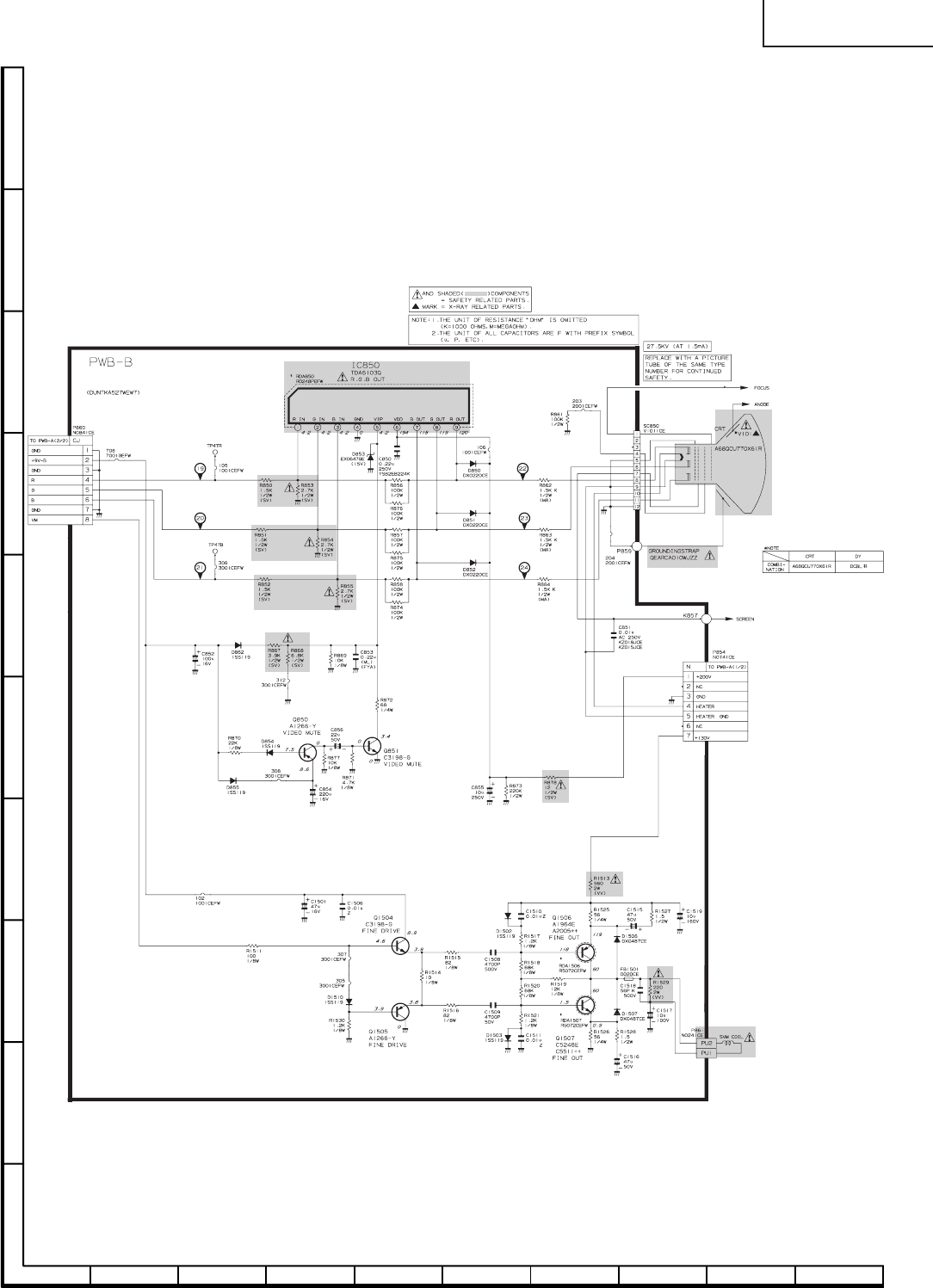

SCHEMATIC DIAGRAM: CRT Unit

29FL94

12345678910

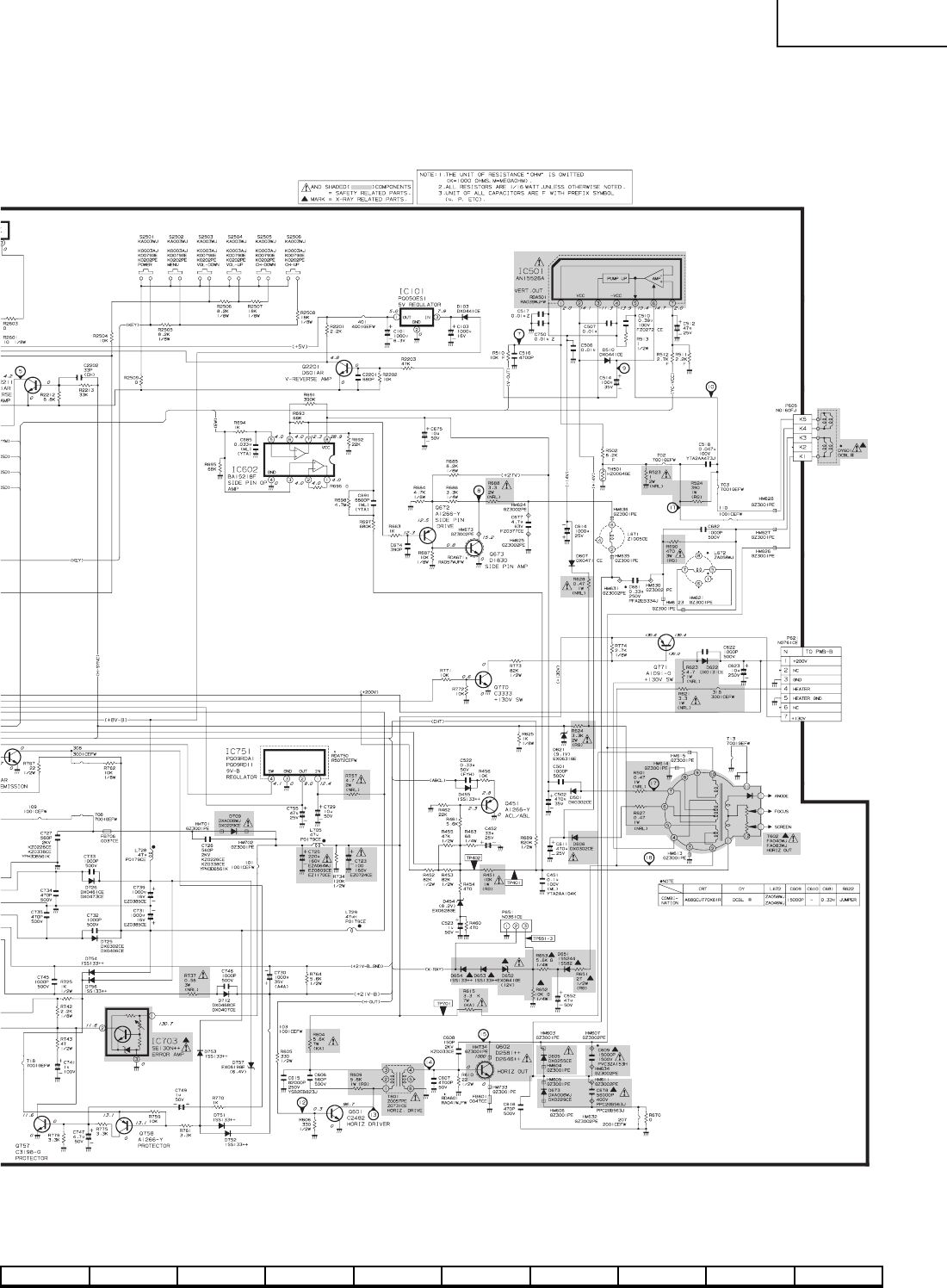

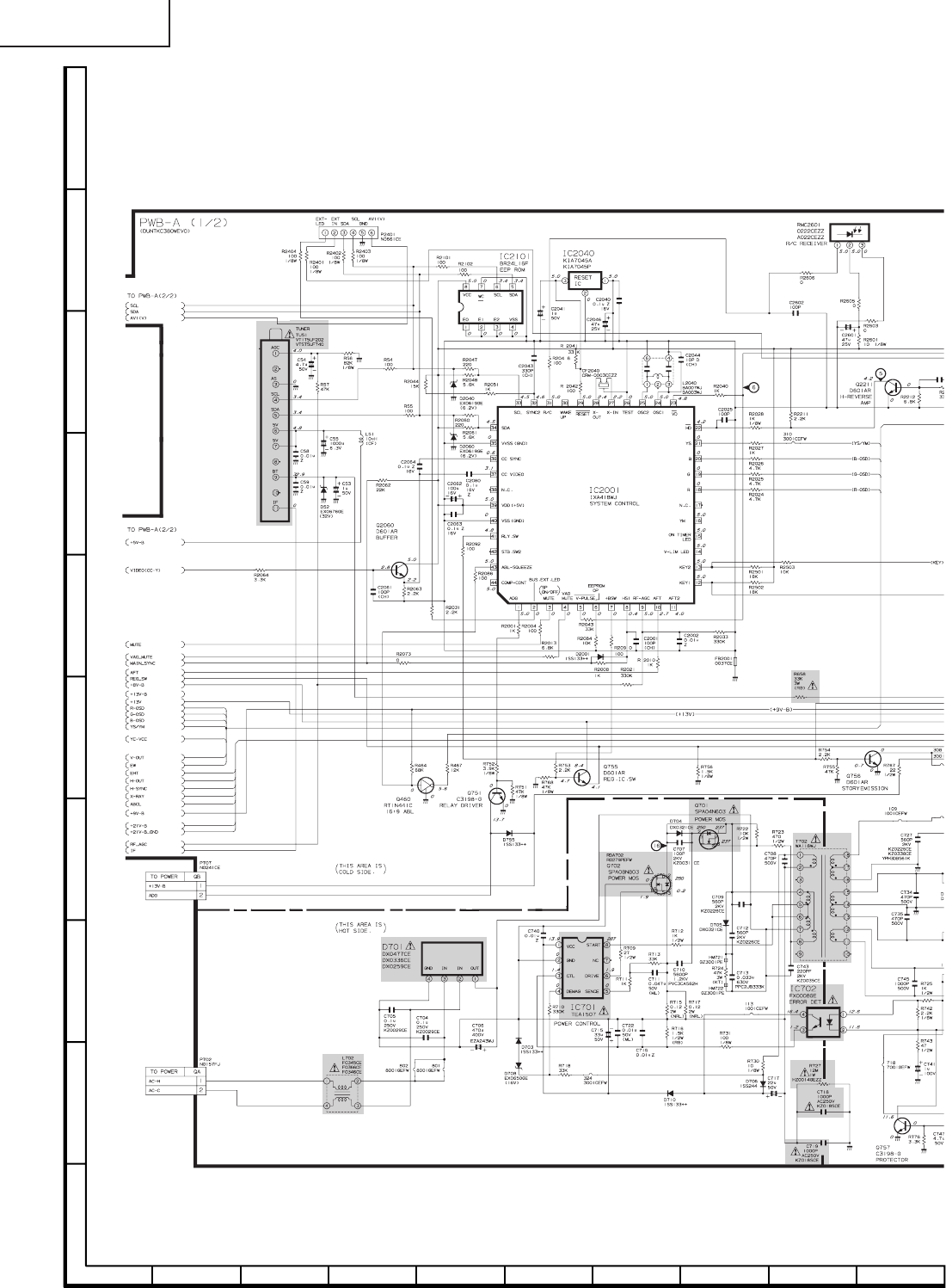

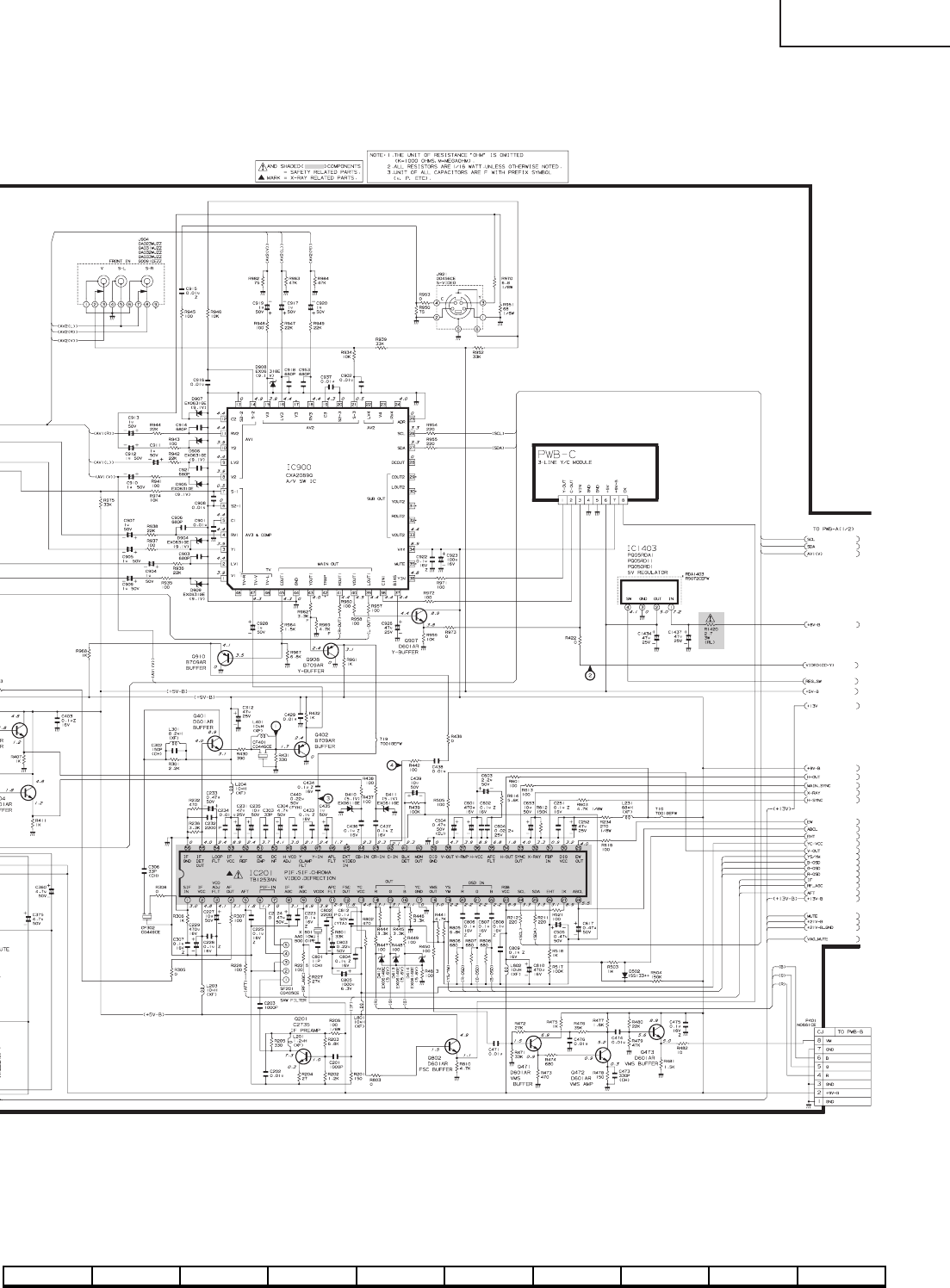

SCHEMATIC DIAGRAM: MAIN-1 Unit

29FL94

10 11 12 13 14 15 16 17 18 19

29FL94

12345678910

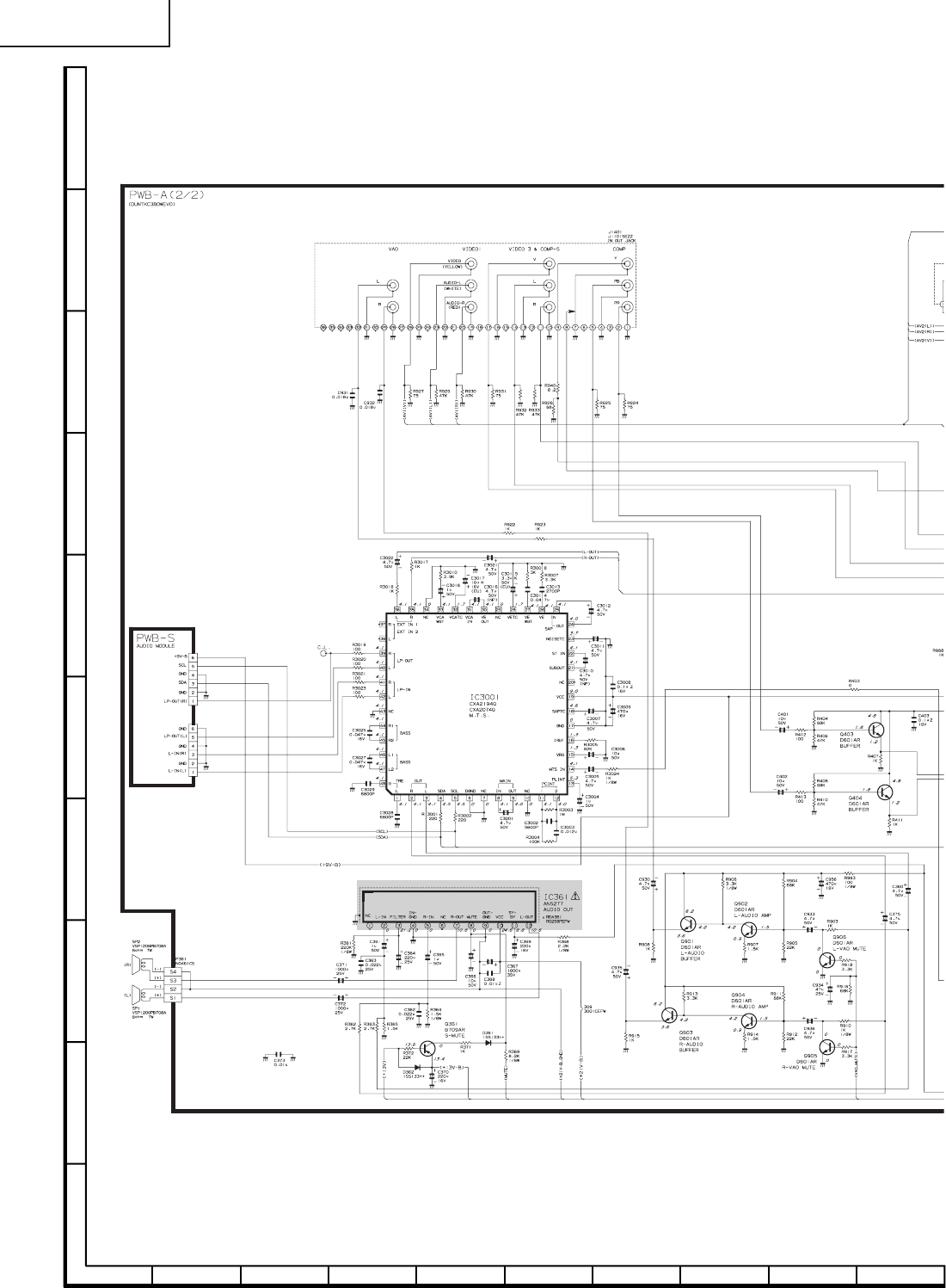

SCHEMATIC DIAGRAM: MAIN-2 Unit

29FL94

10 11 12 13 14 15 16 17 18 19

29FL94

12345678910

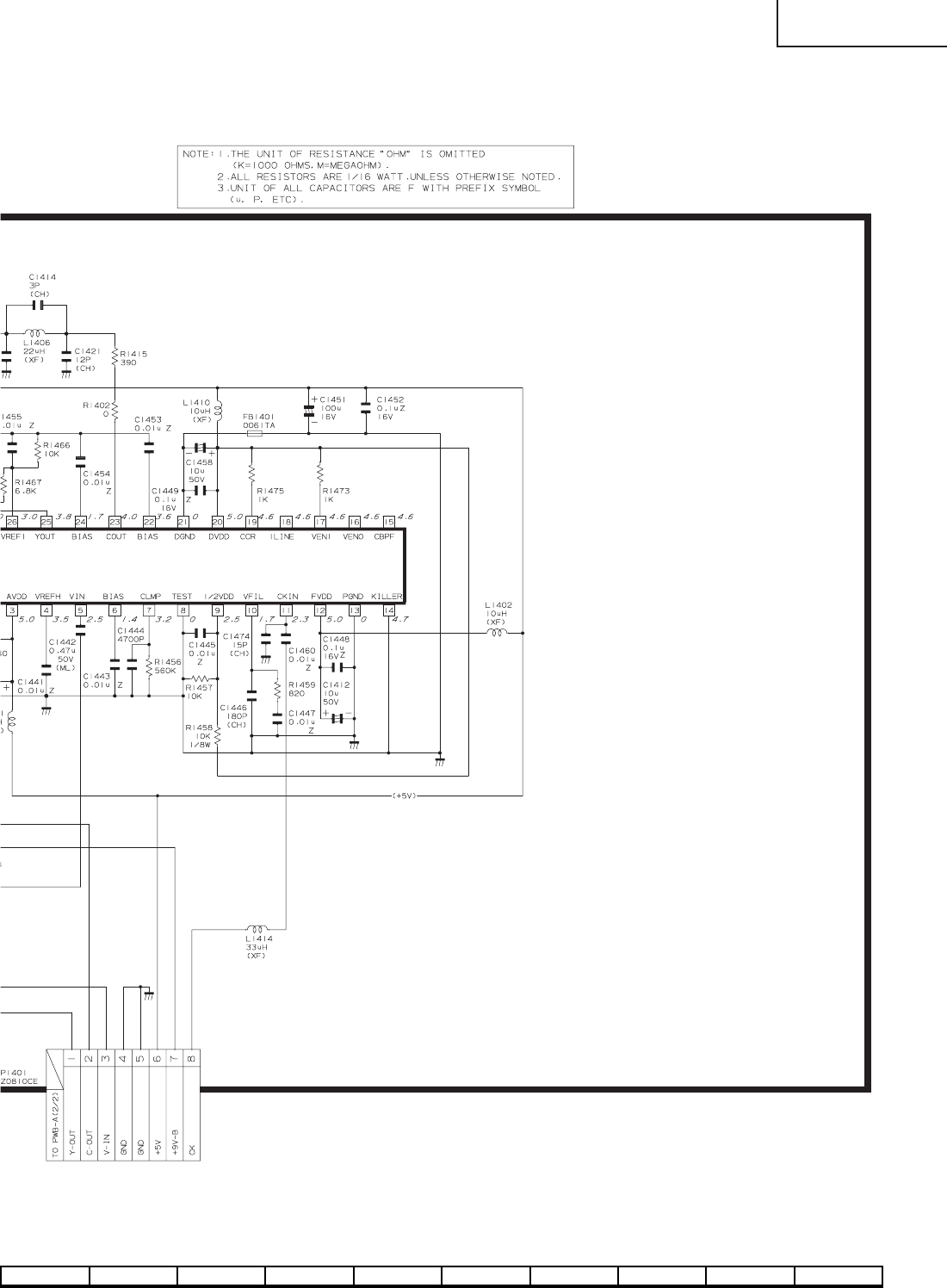

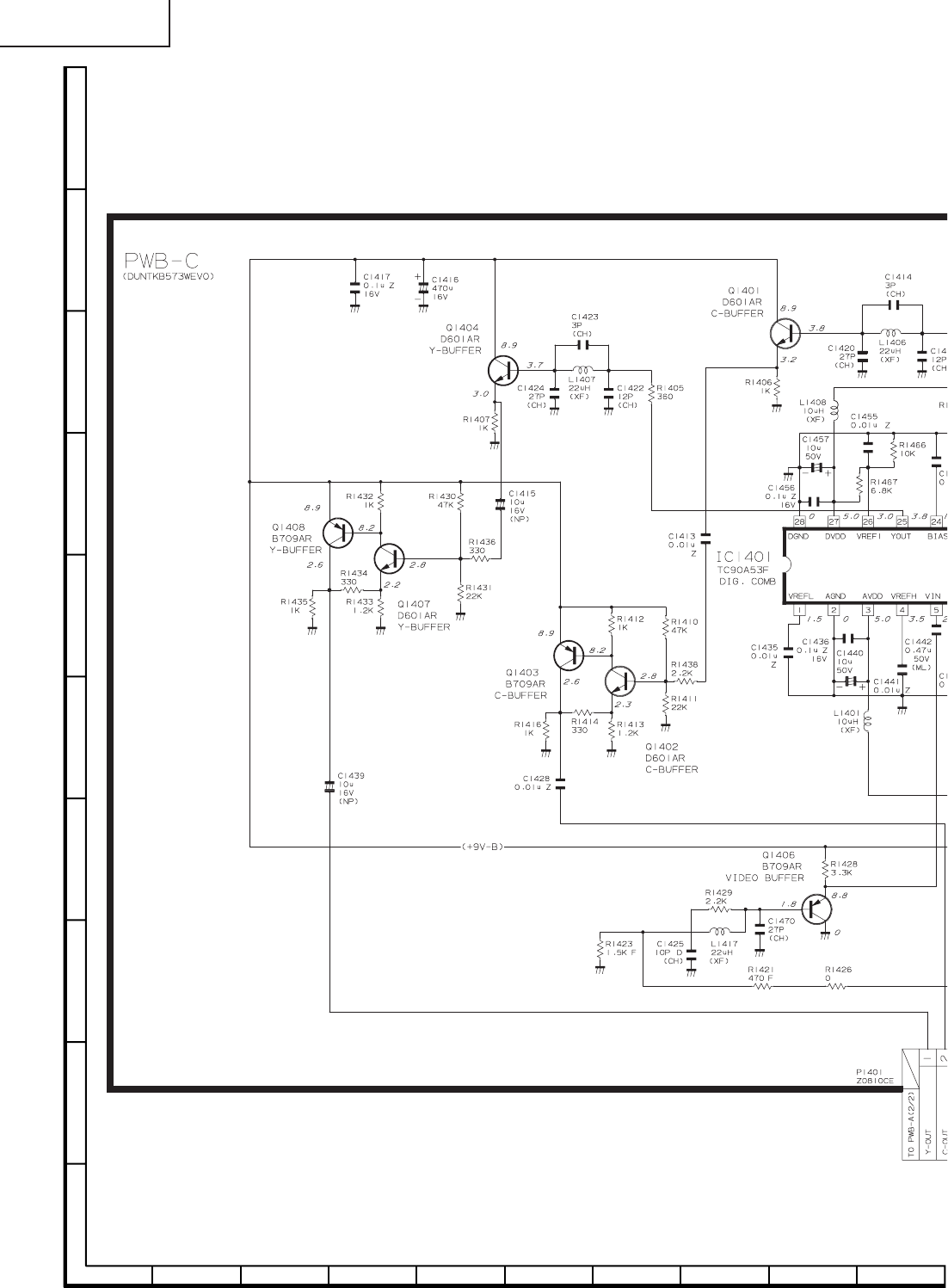

SCHEMATIC DIAGRAM: 3-LINE Y/C Unit

29FL94

10 11 12 13 14 15 16 17 18 19

29FL94

12345678910

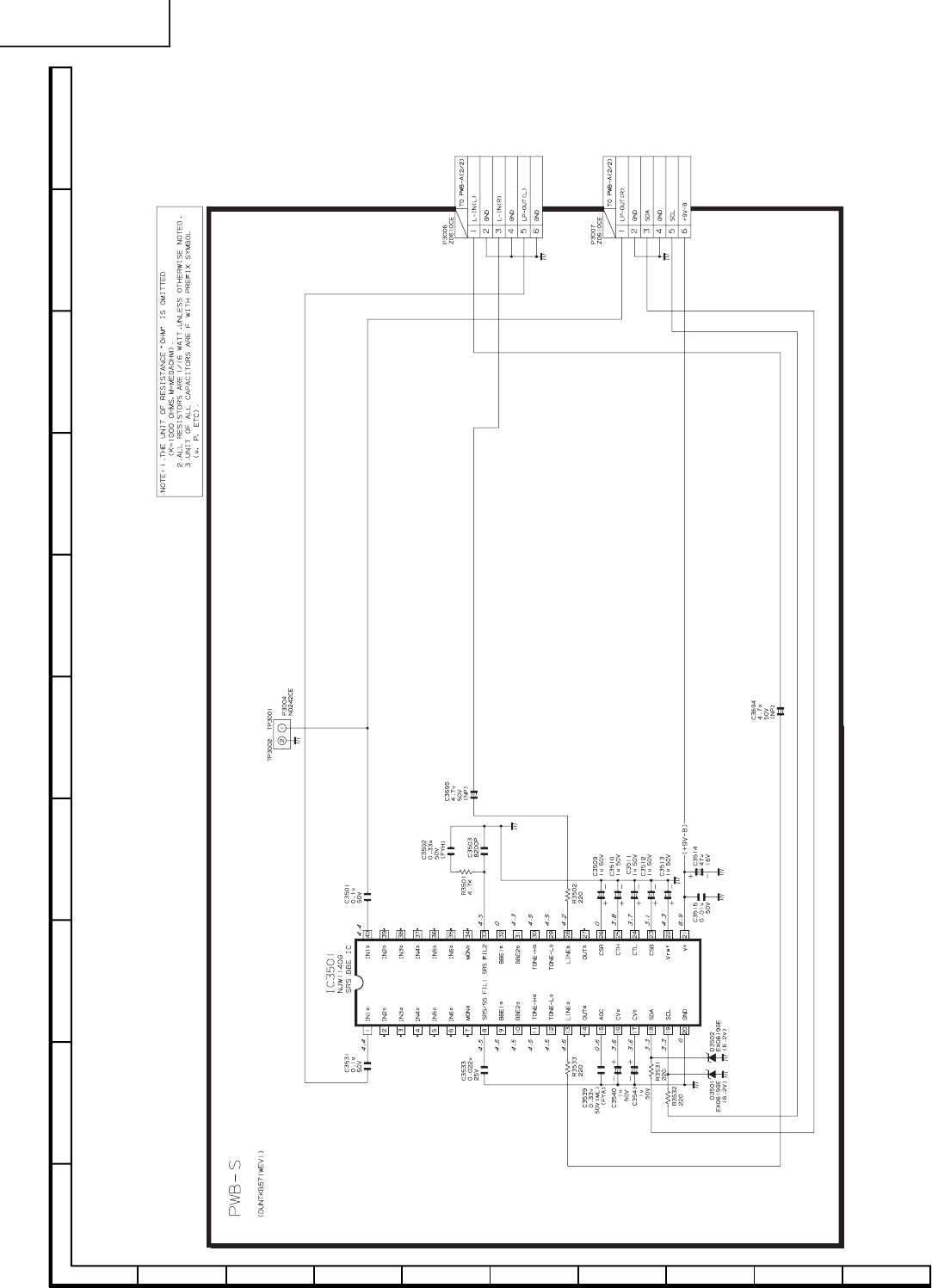

SCHEMATIC DIAGRAM: AUDIO Unit

29FL94

12345678910

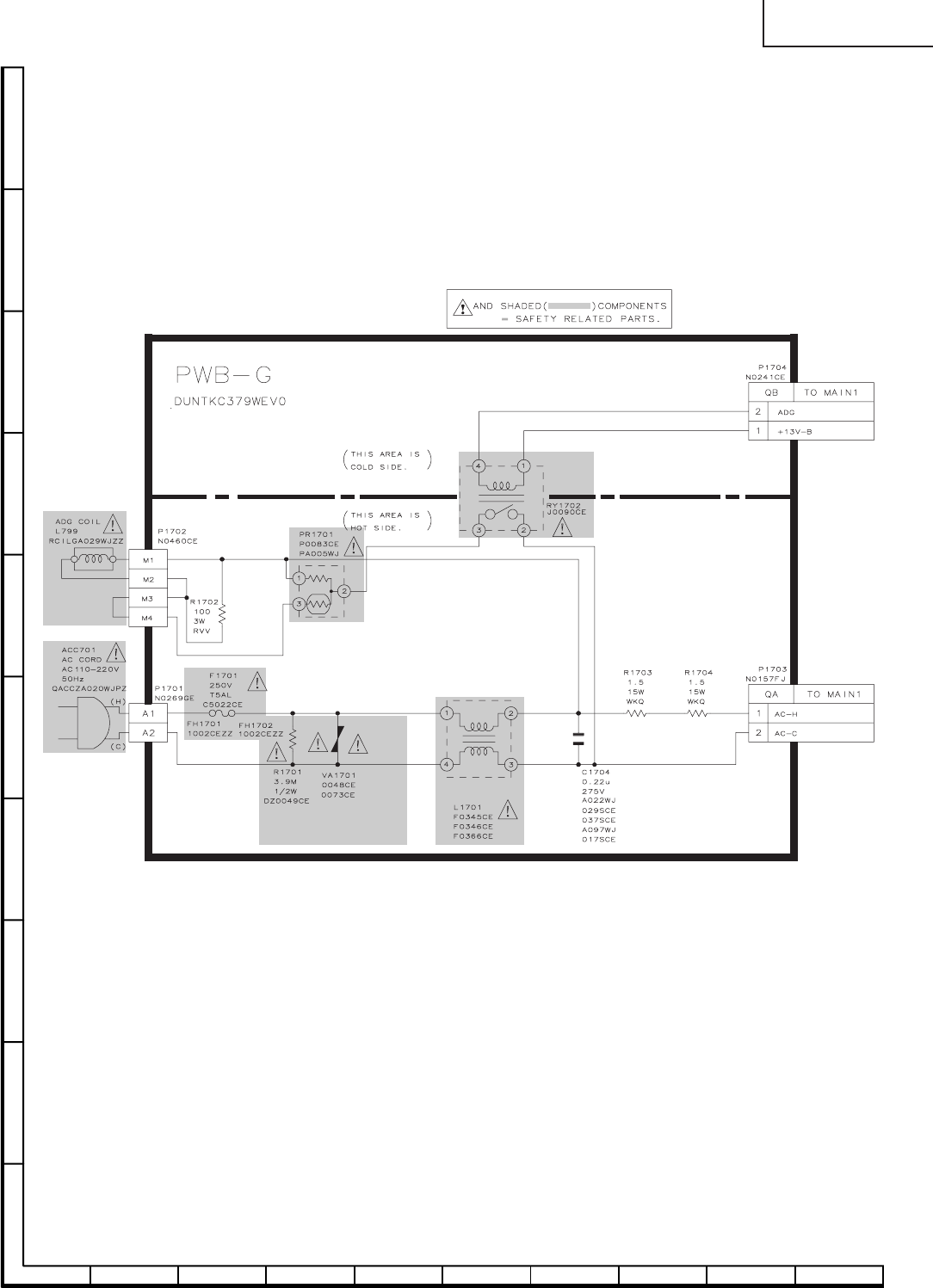

SCHEMATIC DIAGRAM: POWER Unit

29FL94

12345678910

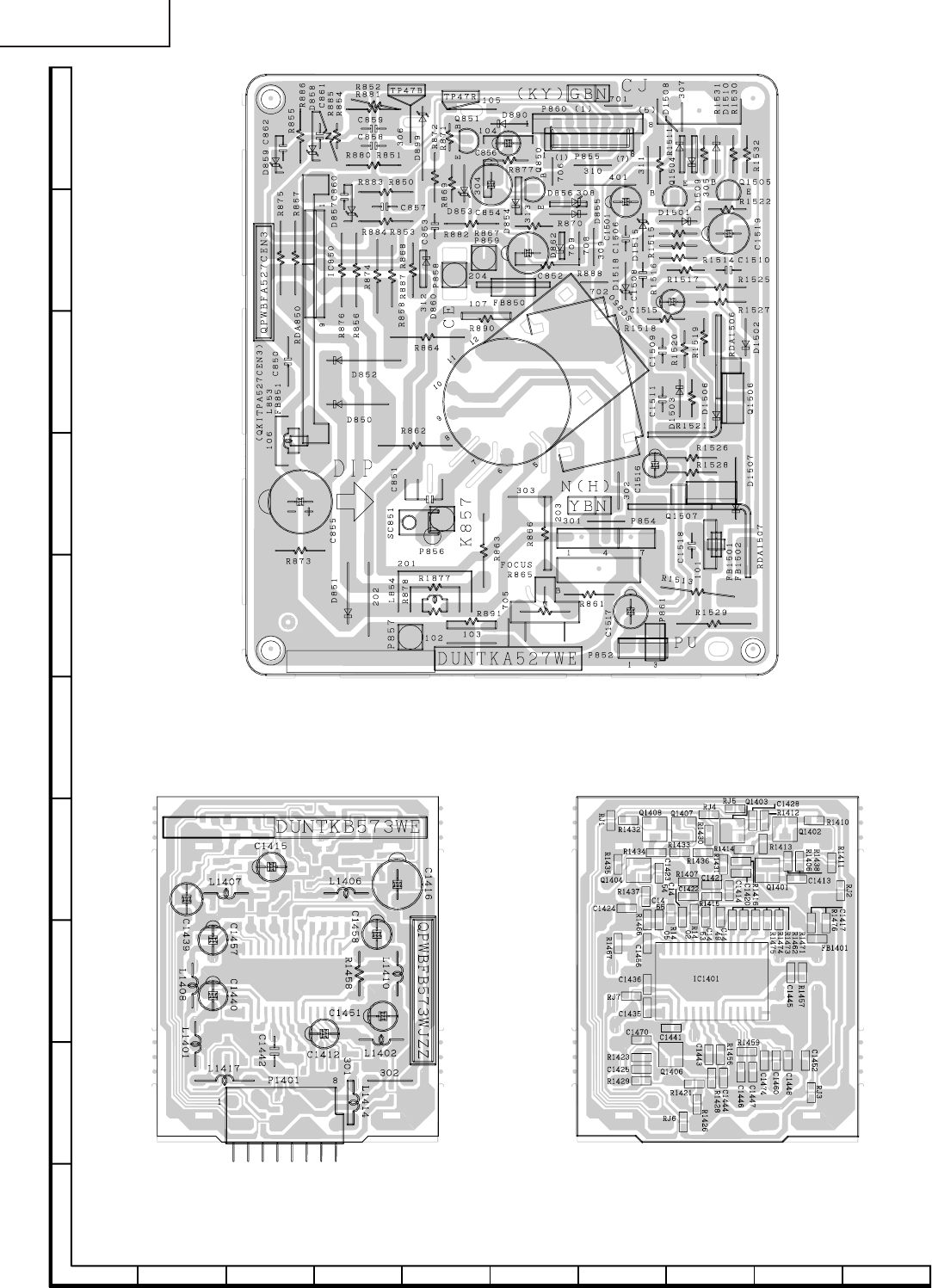

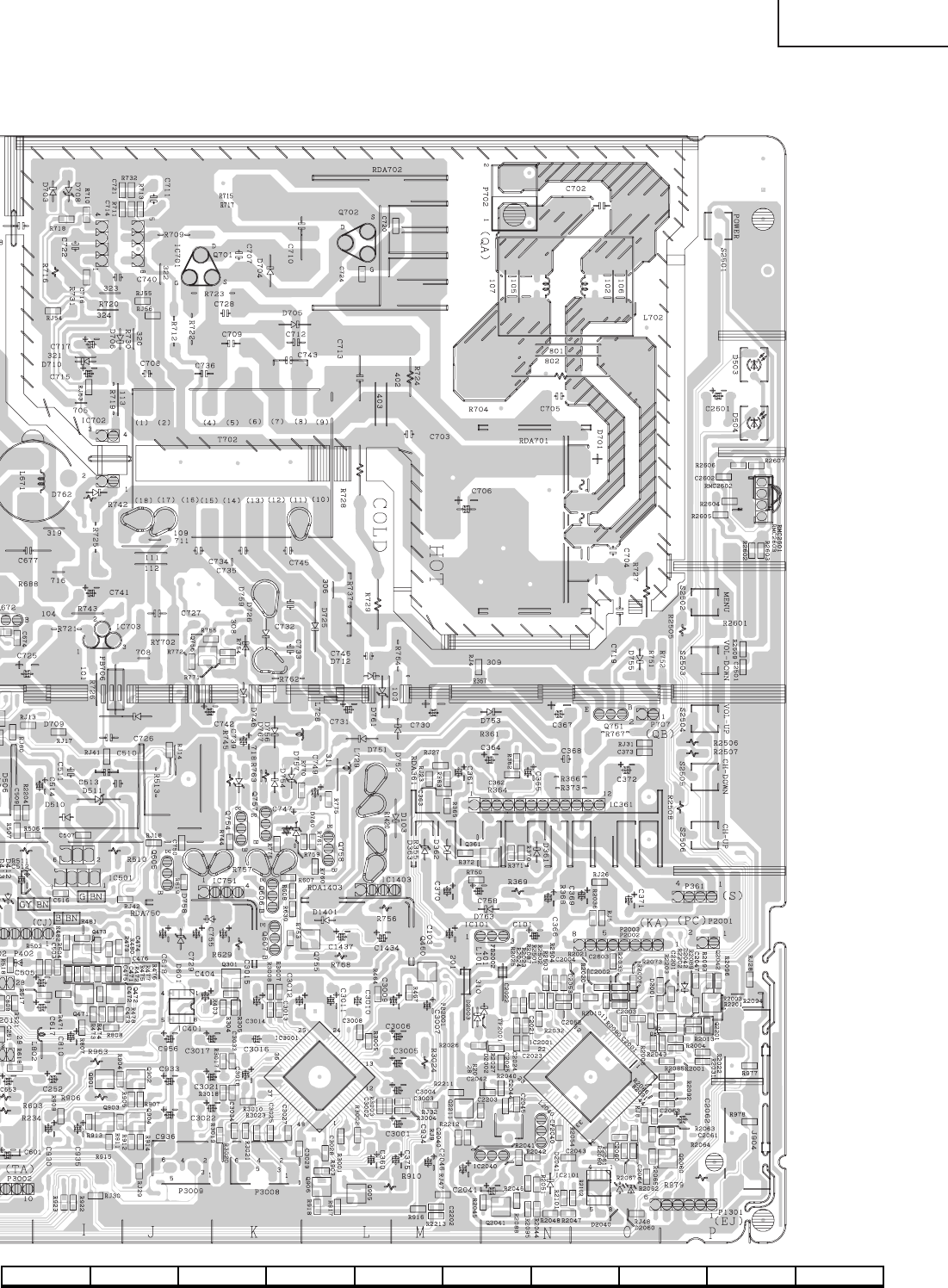

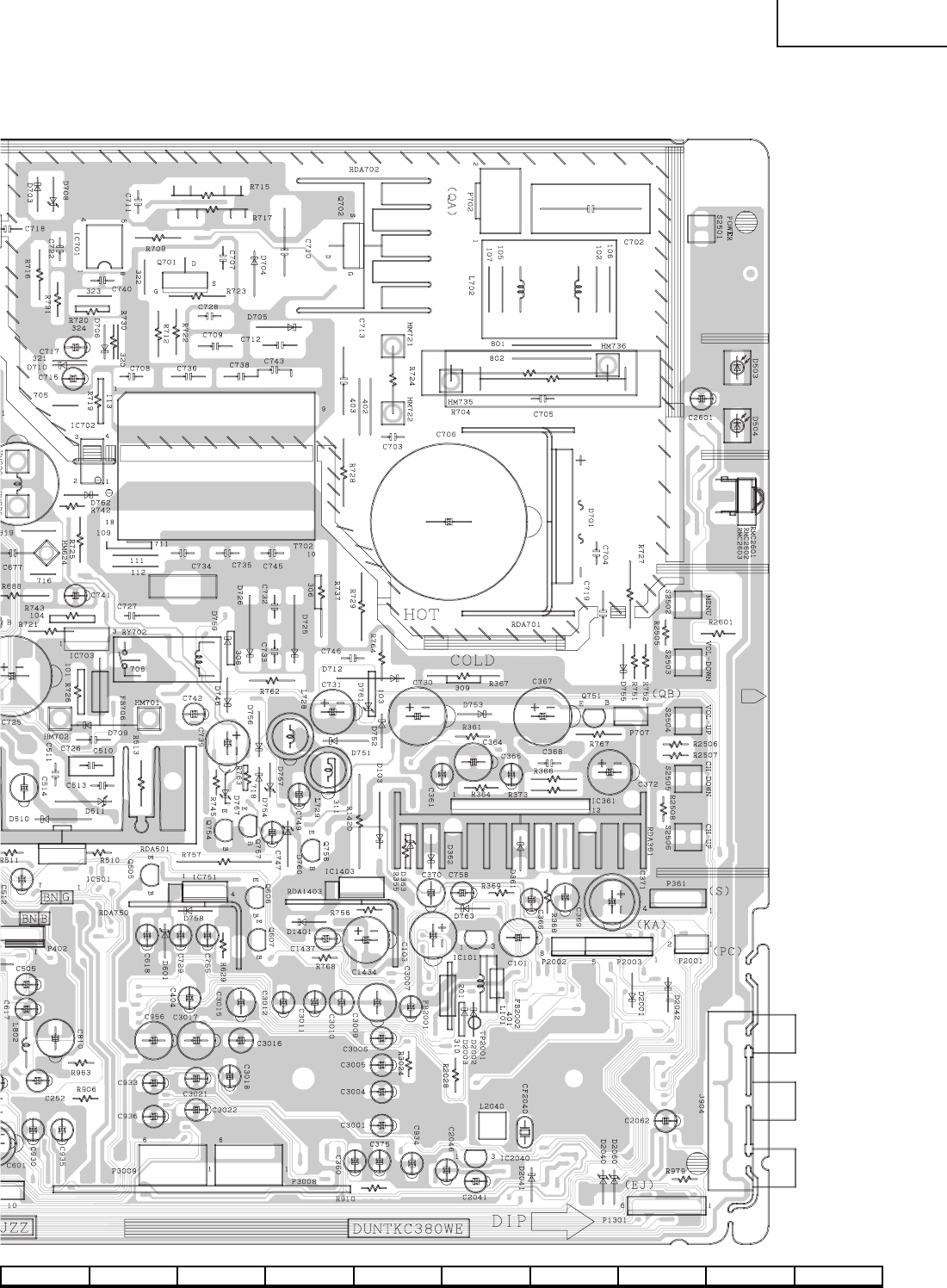

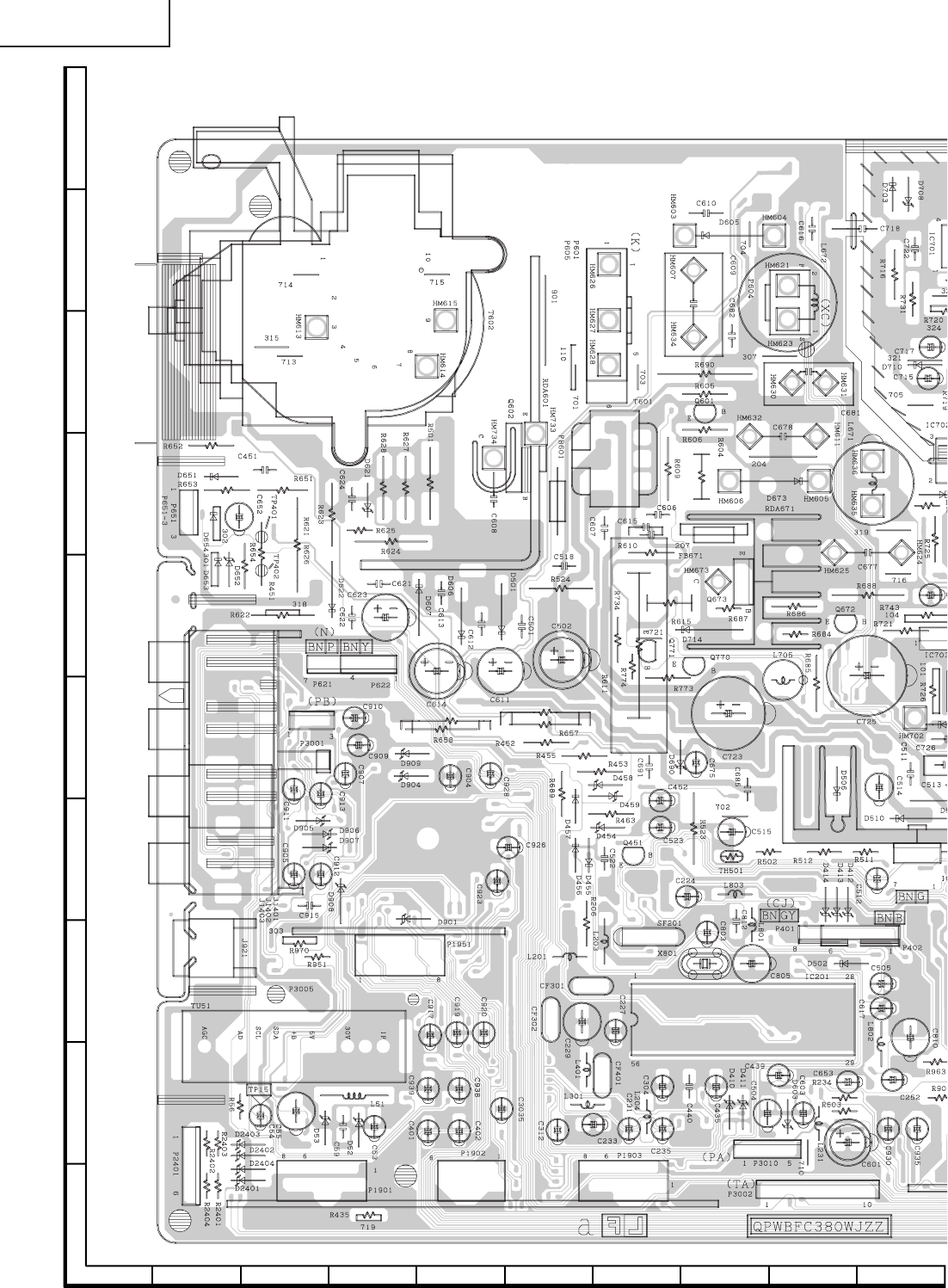

PWB-A: MAIN Unit (A side)

29FL94

10 11 12 13 14 15 16 17 18 19

29FL94

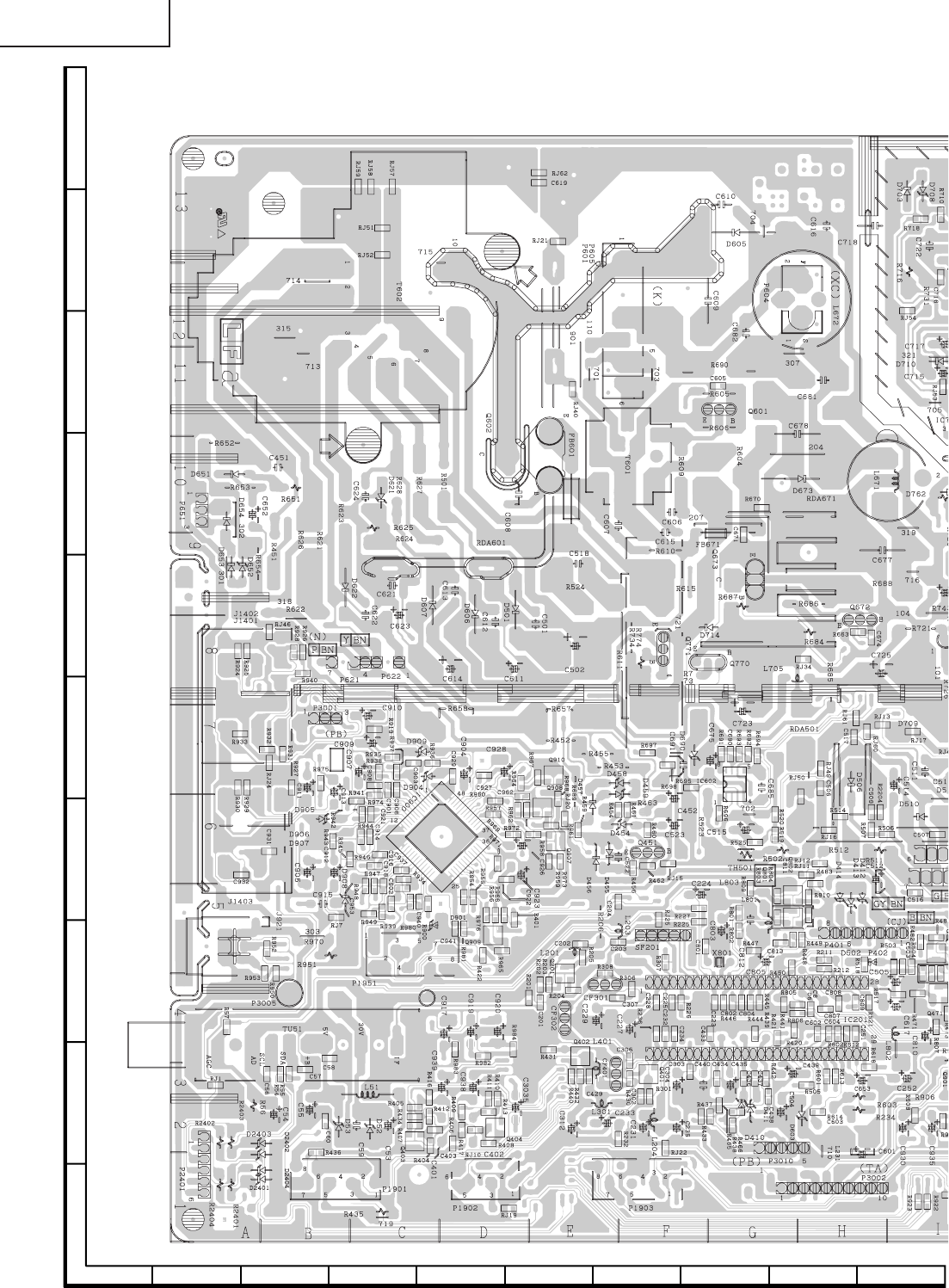

12345678910

PWB-A: MAIN Unit (B side)

29FL94

10 11 12 13 14 15 16 17 18 19

29FL94

12345678910

PWB-B: CRT Unit (Wiring side)

PWB-C: 3-LINE Y/C Unit (Wiring side) PWB-C: 3-LINE Y/C Unit (Chip Parts side)

29FL94

12345678910

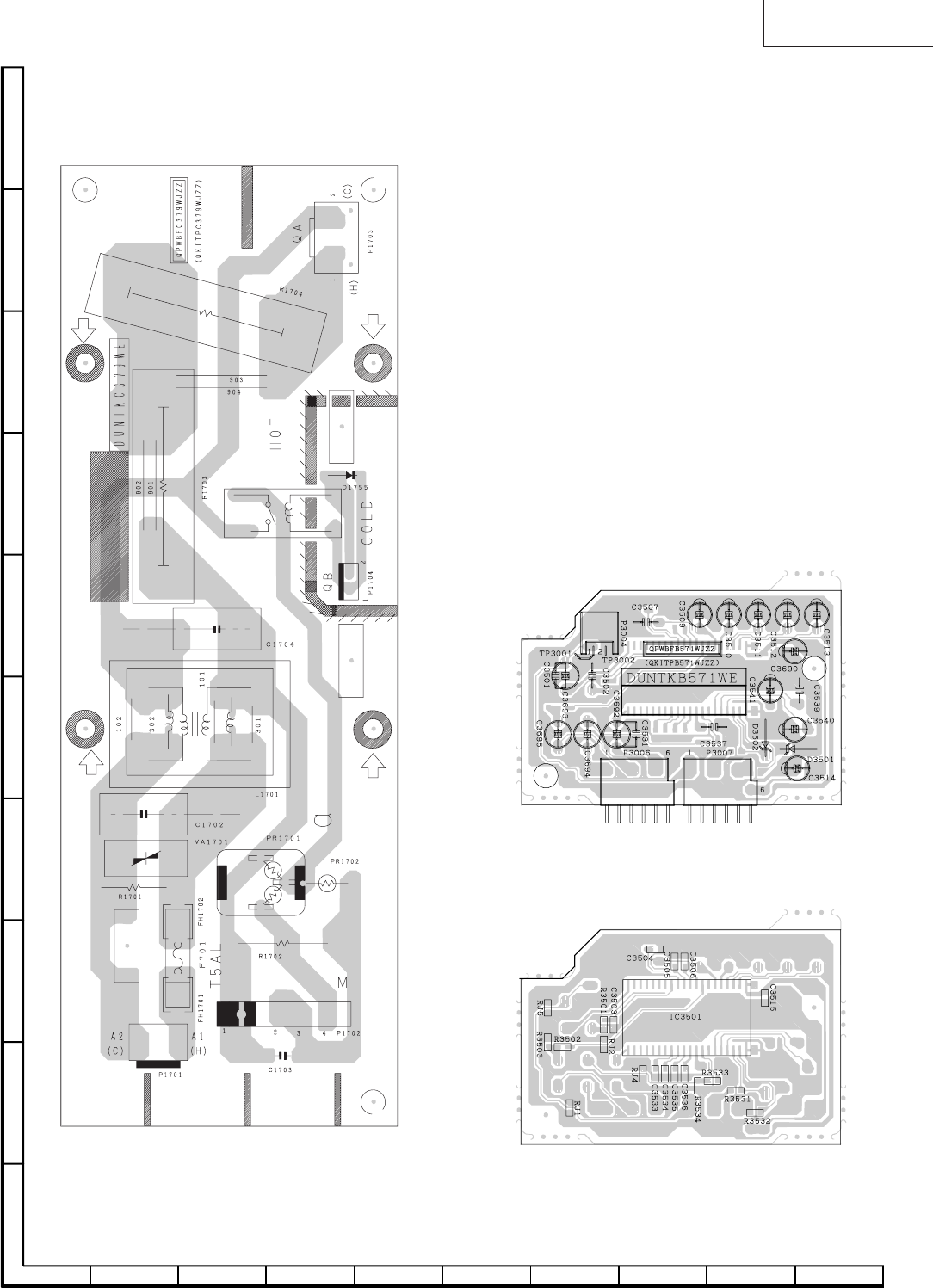

PWB-G: POWER Unit (Wiring side)

PWB-S: AUDIO Unit (Wiring side)

PWB-S: AUDIO Unit (Chip Parts side)

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

29FL94

PICTURE TUBE

★ MARK: SPARE PARTS-DELIVERY SECTION

' MARK: X-RAY RELATED PARTS

PARTS LIST

PARTS REPLACEMENT

Replacement parts which have these special safety characteristics iden-

tified in this manual ; electrical components having such features are

identified by å and shaded areas in the Replacement Parts Lists and

Schematic Diagrams. The use of a substitute replacement part which

does no have the same safety characteristic as the factory recom-

mended replacement parts shown in this service manual may create

shock, fire or other hazards.

"HOW TO ORDER REPLACEMENT PARTS"

To have your order filled promptly and correctly, please furnish the fol-

lowing informations.

1. MODEL NUMBER 2. REF. NO.

3. PART NO. 4. DESCRIPTION

in USA: Contact your nearest SHARP Parts Distributor to order. For

location of SHARP Parts Distributor, Please call Toll-Free; 1-

800-BE-SHARP

Ref. No. Part No. ★ Description Code

åV101 VB68QCU770X5E X Picture Tube CD

åL799 RCiLGA029WJZZ X Degaussing Coil AP

åQEARCA010WJZZ X Ground-Part AD

PRINTED WIRING BOARD ASSEMBLIES

(NOT REPLACEMENT ITEM)

PWB-A DUNTKC380WEV0 - MAIN Unit —

PWB-B DUNTKA527WEW7 - CRT Unit —

PWB-C DUNTKB573WEV0 - 3-LINE Y/C Unit —

PWB-G DUNTKC379WEV0 - POWER Unit —

PWB-S DUNTKB571WEV1 - AUDIO Unit —

DUNTKC380WEV0

PWB-A MAIN UNIT

TUNER

NOTE: THE PARTS HERES SHOWN ARE SUPPLIED AS AN

ASSEMBLY BUT NOT INDEPENDENTLY.

NER

åTU51 VTUVT1T5UF202 X VHF Tuner AP

INTEGRATED CIRCUITS

IC101 VHiPQ050ES1-1+ X PQ050ES1MXP AP

çå IC201 VHiTB1253AN-1 X TB1253AN AP

åIC361 VHiAN5277//-1 X AN5277 AG

åIC501 VHiAN15526A-1 X AN15526A AE

IC602 VHiBA15218F2EY X BA15218F-E2 AB

åIC701 VHiTEA1507/-1 X TEA1507P/N1 AE

åIC702 RH-FX0008GEZZ X PC123FY8 AB

çå IC703 VHiSE130N++-F X SE130N AD

IC751 VHiPQ09RDA1-1 X PQ090RDA1SZ AD

IC900 VHiCXA2089Q-2Y X CXA2089Q-6T AK

IC1403 VHiPQ05RDA1-1 X PQ050RDA1SZ AD

IC2001 RH-iXA418WJZZQ X TMP88CS38BFG AN

IC2040 VHiKiA7045A-1+ X KIA7045AP AB

IC2101 VHiBR24L16F-1Y X BR24L16F-WE2 AC

IC3001 VHiCXA2194Q-1Y X CXA2194Q/-T6 AP

TRANSISTORS

Q201 VS2SC2735//1EY X 2SC2735 AB

Q361 VS2SB709AR/-1Y X 2SB709AR AB

Q401 VS2SD601AR/-1Y X 2SD601AR AB

Q402 VS2SB709AR/-1Y X 2SB709AR AB

Q403 VS2SD601AR/-1Y X 2SD601AR AB

Q404 VS2SD601AR/-1Y X 2SD601AR AB

Q451 VS2SA1266-Y-1+ X 2SA1266-Y AB

Q460 VSRT1N441C/-1Y X RT1N441C AB

Q471 VS2SD601AR/-1Y X 2SD601AR AB

Q472 VS2SD601AR/-1Y X 2SD601AR AB

Q473 VS2SD601AR/-1Y X 2SD601AR AB

Q601 VS2SC2482//-1+ X 2SC2482 AB

åQ602 VS2SD2581++2E X 2SD2581 AG

Q672 VS2SA1266-Y-1+ X 2SA1266-Y AB

Q673 VS2SD1830//1E X 2SD1830 AD

åQ701 VSSPA04N603-1 X SPA04N603 AF

åQ702 VSSPA08N803-1 X SPA08N803 AL

Q751 VS2SC3198-G-1+ X 2SC3198-G AB

Q755 VS2SD601AR/-1Y X 2SD601AR AB

Q756 VS2SD601AR/-1Y X 2SD601AR AB

Q757 VS2SC3198-G-1+ X 2SC3198-G AB

Q758 VS2SA1266-Y-1+ X 2SA1266-Y AB

Q770 VS2SC3333//-1+ X 2SC3333 AB

Q771 VS2SA1091-O1A+ X 2SA1091-O AC

Q802 VS2SD601AR/-1Y X 2SD601AR AB

Q901 VS2SD601AR/-1Y X 2SD601AR AB

Q902 VS2SD601AR/-1Y X 2SD601AR AB

Q903 VS2SD601AR/-1Y X 2SD601AR AB

Q904 VS2SD601AR/-1Y X 2SD601AR AB

Q905 VS2SD601AR/-1Y X 2SD601AR AB

Q906 VS2SD601AR/-1Y X 2SD601AR AB

Q907 VS2SD601AR/-1Y X 2SD601AR AB

Q908 VS2SB709AR/-1Y X 2SB709AR AB

Q910 VS2SB709AR/-1Y X 2SB709AR AB

Q2060 VS2SD601AR/-1Y X 2SD601AR AB

Q2201 VS2SD601AR/-1Y X 2SD601AR AB

Q2211 VS2SD601AR/-1Y X 2SD601AR AB

DIODES

D52 RH-EX0676GEZZY X Zener Diode, 32V AB

D103 RH-DX0441CEZZY X AB

D361 VHD1SS133++-1Y X 1SS133 AA

D362 VHD1SS133++-1Y X 1SS133 AA

D410 RH-EX0611GEZZY X Zener Diode, 5.1V AB

D411 RH-EX0611GEZZY X Zener Diode, 5.1V AB

D412 RH-EX0614GEZZY X Zener Diode, 5.6V AB

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

29FL94

D413 RH-EX0614GEZZY X Zener Diode, 5.6V AB

D414 RH-EX0614GEZZY X Zener Diode, 5.6V AB

D454 RH-EX0628GEZZY X Zener Diode, 8.2V AB

D455 VHD1SS133++-1Y X 1SS133 AA

D501 RH-DX0302CEZZY X AB

D502 VHD1SS133++-1Y X 1SS133 AA

D510 RH-DX0441CEZZY X AB

åD605 RH-DX0255CEZZ X AD

åD606 RH-DX0302CEZZY X AB

D607 RH-DX0471CEZZY X AB

D621 RH-EX0631GEZZY X Zener Diode, 9.1V AB

åD622 RH-DX0131CEZZY X AB

çå D651 VHD1SS244//-1Y X 1SS244 AB

çå D652 RH-EX0641GEZZY X Zener Diode, 12V AB

çå D653 VHD1SS133++-1Y X 1SS133 AA

çå D654 VHD1SS133++-1Y X 1SS133 AA

åD673 RH-DXA006WJZZ X AB

åD701 RH-DX0477CEZZ X AD

D703 VHD1SS133++-1Y X 1SS133 AA

D704 RH-DX0321CEZZY X AB

D705 RH-DX0321CEZZY X AB

D706 VHD1SS244//-1Y X 1SS244 AB

D708 RH-EX0650GEZZY X Zener Diode, 16V AB

åD709 RH-DXA006WJZZ X AB

D710 VHD1SS133++-1Y X 1SS133 AA

D712 RH-DX0468CEZZ X AB

D725 RH-DX0302CEZZY X AB

D726 RH-DX0461CEZZ X AB

D751 VHD1SS133++-1Y X 1SS133 AA

D752 VHD1SS133++-1Y X 1SS133 AA

D753 VHD1SS133++-1Y X 1SS133 AA

D754 VHD1SS133++-1Y X 1SS133 AA

D755 VHD1SS133++-1Y X 1SS133 AA

D756 VHD1SS133++-1Y X 1SS133 AA

D757 RH-EX0619GEZZY X Zener Diode, 6.4V AB

D904 RH-EX0631GEZZY X Zener Diode, 9.1V AB

D905 RH-EX0631GEZZY X Zener Diode, 9.1V AB

D906 RH-EX0631GEZZY X Zener Diode, 9.1V AB

D907 RH-EX0631GEZZY X Zener Diode, 9.1V AB

D908 RH-EX0631GEZZY X Zener Diode, 9.1V AB

D909 RH-EX0631GEZZY X Zener Diode, 9.1V AB

D2001 VHD1SS133++-1Y X 1SS133 AA

D2040 RH-EX0619GEZZY X Zener Diode, 6.2V AB

D2060 RH-EX0619GEZZY X Zener Diode, 6.2V AB

PACKAGED CIRCUITS

TH501 RH-HZ0004GEZZ+ X Thermistor AB

X801 RCRSAA010WJZZ X Crystal AC

FILTERS AND COILS

CF302 RFiLC0449CEZZ+ X Filter AB

CF401 RFiLC0446CEZZ+ X Filter AB

L51 VP-CF100K0000Y X Peaking 10µHAB

L201 VP-XF1R2K0000Y X Peaking 1.2µHAB

L203 VP-XF100K0000Y X Peaking 10µHAB

L204 VP-XF100K0000Y X Peaking 10µHAB

L231 VP-XF680K0000Y X Peaking 68µHAB

L301 VP-XF8R2K0000Y X Peaking 8.2µHAB

L401 VP-XF100K0000Y X Peaking 10µHAB

L671 RCiLZ1005CEZZ X Coil AD

L672 RCiLZA058WJZZ X Coil AE

åL702 RCiLF0345CEZZ X Coil AC

L705 RCiLP0179CEZZ+ X Coil 47µHAB

L728 RCiLP0179CEZZ+ X Coil 47µHAB

L729 RCiLP0179CEZZ+ X Coil 47µHAB

L801 VP-XF100K0000Y X Peaking 10µHAB

L802 VP-XF100K0000Y X Peaking 10µHAB

L2040 RCiLBA007WJZZ X Oscillation Coil AB

SF201 RFiLC0405CEZZ X Filter AD

TRANSFORMERS

åT601 RTRNZ0057PEZZ X Transformer AD

çå T602 RTRNFA040WJZZ X H-Volt Transformer AT

åT702 RTRNWA118WJZZ X Transformer AH

CAPACITORS

C53 VCEA0A1HW105M+X 1 50V Electrolytic AB

C54 VCEA0A1HW475M+X 4.7 50V Electrolytic AB

C55 VCEA0A0JW108M+ X 1000 6.3V Electrolytic AB

C58 VCKYCY1HF103ZY X 0.01 50V Ceramic AA

C59 VCKYPA1HF103Z+ X 0.01 50V Ceramic AA

C101 VCEA0A0JW108M+ X 1000 6.3V Electrolytic AB

C103 VCEA0A1CW108M+X 1000 16V Electrolytic AB

C201 VCKYCY1HB102KY X 1000p 50V Ceramic AA

C202 VCKYCY1HB103KY X 0.01 50V Ceramic AA

C203 VCKYCY1HB102KY X 1000p 50V Ceramic AA

C223 VCKYCY1CF104ZY X 0.1 16V Ceramic AA

C224 VCEA0A1HW474M+X 0.47 50V Electrolytic AB

C225 VCKYCY1CF104ZY X 0.1 16V Ceramic AA

C227 VCEA0A1HW106M+X 10 50V Electrolytic AB

C228 VCKYCY1CF104ZY X 0.1 16V Ceramic AA

C229 VCEA0A1CW477M+X 470 16V Electrolytic AB

C231 VCEA0A1EW476M+X 47 25V Electrolytic AB

C232 VCKYCY1HB222KY X 2200p 50V Ceramic AA

C233 VCEA0A1HW474M+X 0.47 50V Electrolytic AB

C234 VCKYCY1HB103KY X 0.01 50V Ceramic AA

C235 VCEA0A1HW106M+X 10 50V Electrolytic AB

C251 VCKYCY1CF104ZY X 0.1 16V Ceramic AA

C252 VCEA0A1EW476M+X 47 25V Electrolytic AB

C302 VCCCCY1HH151JY X 150p 50V Ceramic AA

C303 VCCCCY1HH330JY X 33p 50V Ceramic AA

C304 VCEA0A1HW475M+X 4.7 50V Electrolytic AB

C306 VCCCCY1HH330JY X 33p 50V Ceramic AA

C307 VCKYCY1CF104ZY X 0.1 16V Ceramic AA

C312 VCEA0A1EW476M+X 47 25V Electrolytic AB

C360 VCEA0A1HW475M+X 4.7 50V Electrolytic AB

C361 VCEA0A1HW105M+X 1 50V Electrolytic AB

C362 VCKYCY1EB223KY X 0.022 25V Ceramic AA

C363 VCKYCY1EB223KY X 0.022 25V Ceramic AA

C364 VCEA0A1EW227M+X 220 25V Electrolytic AB

C365 VCEA0A1HW105M+X 1 50V Electrolytic AB

C366 VCEA0A1HW106M+X 10 50V Electrolytic AB

C367 VCEA0A1VW108M+X 1000 35V Electrolytic AB

C368 VCKYPA1HF103Z+ X 0.01 50V Ceramic AA

C369 VCEA0A1CW227M+X 220 16V Electrolytic AB

C370 VCEA0A1CW227M+X 220 16V Electrolytic AB

C371 VCEA0A1EW108M+X 1000 25V Electrolytic AB

C372 VCEA0A1EW108M+X 1000 25V Electrolytic AB

C373 VCKYCY1HB103KY X 0.01 50V Ceramic AA

C375 VCEA0A1HW475M+X 4.7 50V Electrolytic AB

C401 VCEA0A1HW106M+X 10 50V Electrolytic AB

C402 VCEA0A1HW106M+X 10 50V Electrolytic AB

C403 VCKYCY1CF104ZY X 0.1 16V Ceramic AA

C429 VCKYCY1HB103KY X 0.01 50V Ceramic AA

C433 VCKYCY1CF104ZY X 0.1 16V Ceramic AA

C434 VCKYCY1CF104ZY X 0.1 16V Ceramic AA

C435 VCEA0A1HW105M+X 1 50V Electrolytic AB

C436 VCKYCY1CF104ZY X 0.1 16V Ceramic AA

C437 VCKYCY1CF104ZY X 0.1 16V Ceramic AA

C438 VCKYCY1HB103KY X 0.01 50V Ceramic AA

C439 VCEA0A1HW106M+X 10 50V Electrolytic AB

C440 VCFYFA1HA224J+ X 0.22 50V Mylar AB

C451 VCQYTA2AA104K+ X 0.1 100V Mylar AB

C452 VCEA0A1EW336M+X 33 25V Electrolytic AB

C471 VCKYCY1HB103KY X 0.01 50V Ceramic AA

C473 VCCCCY1HH331JY X 330p 50V Ceramic AB

C474 VCKYCY1HB103KY X 0.01 50V Ceramic AA

C475 VCKYCY1CF104ZY X 0.1 16V Ceramic AA

C476 VCKYCY1HB103KY X 0.01 50V Ceramic AA

C501 VCKYPA2HB102K+ X 1000p 500V Ceramic AB

C502 VCEA0A1VW477M+X 470 35V Electrolytic AB

C504 VCEACA1HC474M+X 0.47 50V Electrolytic AB

C505 VCEA0A1HW474M+X 0.47 50V Electrolytic AB

C506 VCKYCY1HB103KY X 0.01 50V Ceramic AA

C507 VCKYCY1HB103KY X 0.01 50V Ceramic AA

C510 RC-FZ0272CEZZ+ X 0.39 100V Mylar AB

C512 VCEA0A1EW476M+X 47 25V Electrolytic AB

C514 VCEA0A1VW107M+X 100 35V Electrolytic AB

C516 VCKYCY1HB472KY X 4700p 50V Ceramic AA

C517 VCKYCY1HF103ZY X 0.01 50V Ceramic AA

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

29FL94

C518 VCQYTA2AA473J+ X 0.047 100V Mylar AB

C522 VCFYFA1HA334J+ X 0.33 50V Mylar AB

C523 VCEA0A1HW105M+X 1 50V Electrolytic AB

C601 VCEA0A1CW477M+X 470 16V Electrolytic AB

C602 VCKYCY1CF104ZY X 0.1 16V Ceramic AA

C603 VCEA0A1HW225M+X 2.2 50V Electrolytic AB

C604 VCKYCY1EB223KY X 0.022 25V Ceramic AA

C606 VCKYPA2HB561K+ X 560p 500V Ceramic AB

C607 VCKYPA1HB472K+ X 4700p 50V Ceramic AB

C608 RC-KZ0033CEZZ X 150p 2kV Ceramic AB

çå C609 VCFPVC3ZA153H X 0.015 1500V AB

MetalIzed Polypro Film

C611 VCEA0A1EW477M+X 470 25V Electrolytic AB

C614 VCEA0A1EW108M+X 1000 25V Electrolytic AB

C615 VCFYSB2EB823J X 0.082 250V Mylar AB

C616 VCKYPA2HB471K+ X 470p 500V Ceramic AB

C617 VCEA0A1HW474M+X 0.47 50V Electrolytic AB

C622 VCKYPA2HB102K+ X 1000p 500V Ceramic AB

C623 VCEA4A2EN106M+ X 10 250V Electrolytic AB

C652 VCEA0A1HW476M+X 47 50V Electrolytic AB

C653 VCEA0A1HW106M+X 10 50V Electrolytic AB

C674 VCKYCY1HB391KY X 390p 50V Ceramic AA

C675 VCEA0A1HW106M+X 10 50V Electrolytic AB

C677 RC-FZ0377CEZZ X 4.7 63V Mylar AC

çå C678 VCQPCU2GA563J X 0.056 400V AB

C681 VCFPFA2EB334J X 0.33 250V AB

MetalIized Polypro Film

C682 VCKYPA2HB102K+ X 1000p 500V Ceramic AB

C685 VCQYTA1HM333J+ X 0.033 50V Mylar AB

C691 VCQYTA1HM682J+ X 6800p 50V Mylar AB

C704 RC-KZ0029CEZZ+ X 0.1 250V Ceramic AB

C705 RC-KZ0029CEZZ+ X 0.1 250V Ceramic AB

C706 RC-EZA243WJZZ X 470 400V AM

C707 RC-KZ0031CEZZ+ X 100p 2kV AB

C708 VCKYPA2HB471K+ X 470p 500V Ceramic AB

C709 RC-KZ0226CEZZ+ X 560P 2kV Ceramic AB

C710 VCFPVC3CA562H X 5600p 1.2kV AB

MetalIized Polypro Film

C711 VCQYTA1HM473J+ X 0.047 50V Mylar AA

C712 RC-KZ0226CEZZ+ X 560p 2kV AB

C713 VCQPPC2JB333K X 0.033 630V AB

C715 VCEA0A1HW336M+X 33 50V Electrolytic AB

C716 VCKYCY1HF103ZY X 0.01 50V Ceramic AA

C717 VCEA0A1HW226M+X 22 50V Electrolytic AB

åC718 RC-KZ018SCEZZ X 1000p

AC250V

åC719 RC-KZ018SCEZZ X 1000p

AC250V

C722 VCQYTA1HM103J+ X 0.01 50V Mylar AB

åC723 RC-EZ0724CEZZ X 100 160V Electrolytic AC

åC725 RC-EZA064WJZZ X 220 160V Electrolytic AD

C726 RC-KZ0226CEZZ+ X 560P 2kV Ceramic AB

C727 RC-KZ0226CEZZ+ X 560P 2kV Ceramic AB

C729 VCEA0A1HW106M+X 10 50V Electrolytic AB

C730 VCEA4A1VN108M+ X 1000 35V Electrolytic AC

C731 RC-EZ0385CEZZ+ X 1000 16V Electrolytic AB

C732 VCKYPA2HB102K+ X 1000p 500V Ceramic AB

C733 VCKYPA2HB102K+ X 1000p 500V Ceramic AB

C734 VCKYPA2HB471K+ X 470p 500V Ceramic AB

C735 VCKYPA2HB471K+ X 470p 500V Ceramic AB

C739 RC-EZ0385CEZZ+ X 1000 16V Electrolytic AB

C740 VCKYPA1HF103Z+ X 0.01 50V Ceramic AA

C741 VCEA4A2AN105M+ X 1 100V Electrolytic AB

C743 RC-KZ0035CEZZ+ X 220p 2kV AB

C745 VCKYPA2HB102K+ X 1000p 500V Ceramic AB

C746 VCKYPA2HB102K+ X 1000p 500V Ceramic AB

C747 VCEA0A1HW475M+X 4.7 50V Electrolytic AB

C749 VCEA0A1HW105M+X 1 50V Electrolytic AB

C750 VCKYCY1HF103ZY X 0.01 50V Ceramic AA

C755 VCEA0A1EW476M+X 47 25V Electrolytic AB

C801 VCCCCY1HH110JY X 11p 50V Ceramic AA

C802 VCKYCY1HB222KY X 2200p 50V Ceramic AA

C803 VCEA0A1HW224M+X 0.22 50V Electrolytic AB

C804 VCKYCY1CF104ZY X 0.1 16V Ceramic AA

C805 VCEA0A0JW108M+ X 1000 6.3V Electrolytic AB

C806 VCKYCY1CF104ZY X 0.1 16V Ceramic AA

C807 VCKYCY1CF104ZY X 0.1 16V Ceramic AA

C808 VCKYCY1CF104ZY X 0.1 16V Ceramic AA

C809 VCKYCY1CF104ZY X 0.1 16V Ceramic AA

C810 VCEA0A1CW477M+X 470 16V Electrolytic AB

C812 VCQYTA1HM104J+ X 0.1 50V Mylar AB

C901 VCKYCY1HB103KY X 0.01 50V Ceramic AA

C902 VCKYCY1HB103KY X 0.01 50V Ceramic AA

C903 VCKYCY1HB681KY X 680p 50V Ceramic AA

C904 VCEA0A1HW105M+X 1 50V Electrolytic AB

C905 VCEA0A1HW105M+X 1 50V Electrolytic AB

C906 VCKYCY1HB681KY X 680p 50V Ceramic AA

C907 VCEA0A1HW105M+X 1 50V Electrolytic AB

C908 VCKYCY1HB103KY X 0.01 50V Ceramic AA

C909 VCEA0A1HW105M+X 1 50V Electrolytic AB

C910 VCEA0A1HW105M+X 1 50V Electrolytic AB

C911 VCEA0A1HW105M+X 1 50V Electrolytic AB

C912 VCEA0A1HW105M+X 1 50V Electrolytic AB

C913 VCEA0A1HW105M+X 1 50V Electrolytic AB

C914 VCKYCY1HB681KY X 680p 50V Ceramic AA

C915 VCKYPA1HF103Z+ X 0.01 50V Ceramic AA

C916 VCKYCY1HB103KY X 0.01 50V Ceramic AA

C917 VCEA0A1HW105M+X 1 50V Electrolytic AB

C918 VCKYCY1HB681KY X 680p 50V Ceramic AA

C919 VCEA0A1HW105M+X 1 50V Electrolytic AB

C920 VCEA0A1HW105M+X 1 50V Electrolytic AB

C921 VCKYCY1HB681KY X 680p 50V Ceramic AA

C922 VCKYCY1CF104ZY X 0.1 16V Ceramic AA

C923 VCEA0A1CW107M+X 100 16V Electrolytic AB

C926 VCEA0A1EW476M+X 47 25V Electrolytic AB

C928 VCEA0A1HW105M+X 1 50V Electrolytic AB

C930 VCEA0A1HW475M+X 4.7 50V Electrolytic AB

C931 VCKYCY1HB183KY X 0.018 50V Ceramic AA

C932 VCKYCY1HB183KY X 0.018 50V Ceramic AA

C933 VCEA0A1HW475M+X 4.7 50V Electrolytic AB

C934 VCEA0A1EW476M+X 47 25V Electrolytic AB

C935 VCEA0A1HW475M+X 4.7 50V Electrolytic AB

C936 VCEA0A1HW475M+X 4.7 50V Electrolytic AB

C937 VCKYCY1HB103KY X 0.01 50V Ceramic AA

C953 VCKYCY1HB681KY X 680p 50V Ceramic AA

C956 VCEA0A1CW477M+X 470 16V Electrolytic AB

C1434 VCEA0A1EW476M+X 47 25V Electrolytic AB

C1437 VCEA0A1EW476M+X 47 25V Electrolytic AB

C2001 VCCCCY1HH101JY X 100p 50V Ceramic AA

C2002 VCKYCY1HF103ZY X 0.01 50V Ceramic AA

C2025 VCCCCY1HH101JY X 100p 50V Ceramic AA

C2040 VCKYCY1CF104ZY X 0.1 16V Ceramic AA

C2041 VCEA0A1HW105M+X 1 50V Electrolytic AB

C2043 VCCCCY1HH331JY X 330p 50V Ceramic AB

C2044 VCCCCY1HH100DYX 10p 50V Ceramic AA

C2046 VCEA0A1EW476M+X 47 25V Electrolytic AB

C2060 VCKYCY1CF104ZY X 0.1 16V Ceramic AA

C2061 VCCCCY1HH101JY X 100p 50V Ceramic AA

C2062 VCEA0A1CW107M+X 100 16V Electrolytic AB

C2063 VCKYCY1CF104ZY X 0.1 16V Ceramic AA

C2064 VCKYCY1CF104ZY X 0.1 16V Ceramic AA

C2201 VCKYCY1HB681KY X 680p 50V Ceramic AA

C2202 VCCCCY1HH330JY X 33p 50V Ceramic AA

C2601 VCEA0A1EW476M+X 47 25V Electrolytic AB

C2602 VCCCCY1HH101JY X 100p 50V Ceramic AA

C3001 VCEA0A1HW475M+X 4.7 50V Electrolytic AB

C3002 VCKYCY1HB562KY X 5600p 50V Ceramic AA

C3003 VCKYCY1EB123KY X 0.012 25V Ceramic AA

C3004 VCEA0A1HW105M+X 1 50V Electrolytic AB

C3005 VCEA0A1HW475M+X 4.7 50V Electrolytic AB

C3006 VCEA0A1HW106M+X 10 50V Electrolytic AB

C3007 VCEA0A1HW475M+X 4.7 50V Electrolytic AB

C3008 VCKYCY1CF104ZY X 0.1 16V Ceramic AA

C3009 VCEA0A1CW477M+X 470 16V Electrolytic AB

C3010 VCE9GA1HW475M+X 4.7 50V Electrolytic, AB

(N.P)

C3011 VCEA0A1HW475M+X 4.7 50V Electrolytic AB

C3012 VCEA0A1HW475M+X 4.7 50V Electrolytic AB

C3013 VCKYCY1HB272KY X 2700p 50V Ceramic AA

C3014 VCKYCY1CB473KY X 0.047 16V Ceramic AA

C3015 VCEACA1HC335K+ X 3.3 50V Electrolytic AB

C3016 VCE9GA1HW475M+X 4.7 50V Electrolytic, AB

(N.P)

C3017 VCEACA1CC106K+ X 10 16V Electrolytic AB

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

29FL94

C3018 VCEA0A1HW105M+X 1 50V Electrolytic AB

C3021 VCEA0A1HW475M+X 4.7 50V Electrolytic AB

C3022 VCEA0A1HW475M+X 4.7 50V Electrolytic AB

C3025 VCKYCY1CB473KY X 0.047 16V Ceramic AA

C3027 VCKYCY1CB473KY X 0.047 16V Ceramic AA

C3028 VCKYCY1HB682KY X 6800p 50V Ceramic AA

C3029 VCKYCY1HB682KY X 6800p 50V Ceramic AA

RESISTORS

RJ1 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

RJ8 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

RJ9 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

RJ10 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

RJ11 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

RJ12 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

RJ14 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

RJ15 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

RJ16 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

RJ17 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

RJ19 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

RJ20 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

RJ21 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

RJ22 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

RJ23 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

RJ24 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

RJ25 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

RJ30 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

RJ40 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

RJ42 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

RJ47 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

RJ48 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

RJ49 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

RJ50 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

RJ55 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

RJ56 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

RJ60 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

RJ61 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

R54 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R55 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R56 VRD-RA2BE823JY X 82k 1/8W Carbon AA

R57 VRS-CY1JF473JY X 47k 1/16W Metal Oxide AA

R201 VRS-CY1JF151JY X 150 1/16W Metal Oxide AA

R202 VRS-CY1JF122JY X 1.2k 1/16W Metal Oxide AA

R203 VRS-CY1JF682JY X 6.8k 1/16W Metal Oxide AA

R204 VRS-CY1JF270JY X 27 1/16W Metal Oxide AA

R205 VRS-CY1JF331JY X 330 1/16W Metal Oxide AA

R206 VRD-RA2BE101JY X 100 1/8W Carbon AA

R211 VRS-CY1JF221JY X 220 1/16W Metal Oxide AA

R212 VRS-CY1JF221JY X 220 1/16W Metal Oxide AA

R225 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R226 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R227 VRS-CY1JF273JY X 27k 1/16W Metal Oxide AA

R232 VRS-CY1JF471JY X 470 1/16W Metal Oxide AA

R234 VRD-RA2BE271JY X 270 1/8W Carbon AA

R236 VRS-CY1JF332JY X 3.3k 1/16W Metal Oxide AA

R301 VRS-CY1JF222JY X 2.2k 1/16W Metal Oxide AA

R305 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

R306 VRS-CY1JF102JY X 1k 1/16W Metal Oxide AA

R307 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R308 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

R361 VRD-RA2BE224JY X 220k 1/8W Carbon AA

R362 VRS-CY1JF272JY X 2.7k 1/16W Metal Oxide AA

R363 VRS-CY1JF272JY X 2.7k 1/16W Metal Oxide AA

R364 VRD-RA2BE152JY X 1.5k 1/8W Carbon AA

R365 VRS-CY1JF152JY X 1.5k 1/16W Metal Oxide AA

R368 VRD-RA2BE222JY X 2.2k 1/8W Carbon AA

R369 VRD-RA2BE822JY X 8.2k 1/8W Carbon AA

R371 VRS-CY1JF102JY X 1k 1/16W Metal Oxide AA

R372 VRS-CY1JF223JY X 22k 1/16W Metal Oxide AA

R403 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

R404 VRS-CY1JF683JY X 68k 1/16W Metal Oxide AA

R406 VRS-CY1JF473JY X 47k 1/16W Metal Oxide AA

R407 VRS-CY1JF102JY X 1k 1/16W Metal Oxide AA

R408 VRS-CY1JF683JY X 68k 1/16W Metal Oxide AA

R410 VRS-CY1JF473JY X 47k 1/16W Metal Oxide AA

R411 VRS-CY1JF102JY X 1k 1/16W Metal Oxide AA

R412 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R413 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R422 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

R430 VRS-CY1JF391JY X 390 1/16W Metal Oxide AA

R431 VRS-CY1JF331JY X 330 1/16W Metal Oxide AA

R432 VRS-CY1JF102JY X 1k 1/16W Metal Oxide AA

R436 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

R437 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R438 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R439 VRS-CY1JF104JY X 100k 1/16W Metal Oxide AA

R441 VRS-CY1JF472JY X 4.7k 1/16W Metal Oxide AA

R442 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R444 VRS-CY1JF332JY X 3.3k 1/16W Metal Oxide AA

R445 VRS-CY1JF332JY X 3.3k 1/16W Metal Oxide AA

R446 VRS-CY1JF332JY X 3.3k 1/16W Metal Oxide AA

R447 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R448 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R449 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R450 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

åR451 VRS-RG3AB103J+ X 10k 1W Metal Oxide AB

R452 VRD-RM2HD823JY X 82k 1/2W Carbon AA

R453 VRD-RM2HD823JY X 82k 1/2W Carbon AA

R454 VRS-CY1JF471JY X 470 1/16W Metal Oxide AA

R455 VRD-RM2HD473JY X 47k 1/2W Carbon AA

R456 VRS-CY1JF103JY X 10k 1/16W Metal Oxide AA

R460 VRS-CY1JF471JY X 470 1/16W Metal Oxide AA

R461 VRS-CY1JF562JY X 5.6k 1/16W Metal Oxide AA

R462 VRS-CY1JF223JY X 22k 1/16W Metal Oxide AA

R463 VRD-RA2EE680JY X 68 1/4W Carbon AA

R464 VRS-CY1JF683JY X 68k 1/16W Metal Oxide AA

R467 VRS-CY1JF123JY X 12k 1/16W Metal Oxide AA

R471 VRS-CY1JF333JY X 33k 1/16W Metal Oxide AA

R472 VRS-CY1JF273JY X 27k 1/16W Metal Oxide AA

R473 VRS-CY1JF471JY X 470 1/16W Metal Oxide AA

R474 VRS-CY1JF681JY X 680 1/16W Metal Oxide AA

R475 VRS-CY1JF102JY X 1k 1/16W Metal Oxide AA

R476 VRS-CY1JF393JY X 39k 1/16W Metal Oxide AA

R477 VRS-CY1JF182JY X 1.8k 1/16W Metal Oxide AA

R478 VRS-CY1JF151JY X 150 1/16W Metal Oxide AA

R479 VRS-CY1JF473JY X 47k 1/16W Metal Oxide AA

R480 VRS-CY1JF223JY X 22k 1/16W Metal Oxide AA

R481 VRS-CY1JF152JY X 1.5k 1/16W Metal Oxide AA

R482 VRS-CY1JF100JY X 10 1/16W Metal Oxide AA

R483 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

åR501 VRN-RL3ABR47J+ X 0.47 1W Metal Film AB

R502 VRN-RA2BK822FY X 8.2k 1/8W Metal Film AB

R503 VRS-CY1JF105JY X 1M 1/16W Metal Oxide AA

R504 VRS-CY1JF154JY X 150k 1/16W Metal Oxide AA

R505 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R510 VRN-RA2BK103FY X 10k 1/8W Metal Film AB

R511 VRN-RA2BK222FY X 2.2k 1/8W Metal Film AB

R512 VRN-RA2BK272FY X 2.7k 1/8W Metal Film AB

R513 VRD-RM2HD1R0JY X 1 1/2W Carbon AA

R517 VRS-CY1JF104JY X 100k 1/16W Metal Oxide AA

R518 VRS-CY1JF102JY X 1k 1/16W Metal Oxide AA

R521 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

åR523 VRN-RL3DB1R0J+ X 1 2W Metal Film AB

åR524 VRS-RG3AB391J+ X 390 1W Metal Oxide AB

R601 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R603 VRD-RA2BE472JY X 4.7k 1/8W Carbon AA

åR604 VRS-KA3NG562J X 5.6k 7W Metal Oxide AB

R605 VRD-RM2HD331JY X 330 1/2W Carbon AA

R606 VRD-RM2HD331JY X 330 1/2W Carbon AA

R609 VRS-RG3AB562J+ X 5.6k 1W Metal Oxide AB

R610 VRD-RM2HD220JY X 22 1/2W Carbon AA

R612 VRS-CY1JF154JY X 150k 1/16W Metal Oxide AA

R613 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R614 VRS-CY1JF562JY X 5.6k 1/16W Metal Oxide AA

åR615 VRS-KA3NG3R3K X 3.3 7W Metal Oxide AB

R618 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

åR621 VRN-RL3AB3R3J+ X 3.3 1W Metal Film AB

åR623 VRN-RL3AB4R7J+ X 4.7 1W Metal Film AB

åR624 VRS-RG3DB332J+ X 3.3k 2W Metal Oxide AB

R625 VRD-RA2BE102JY X 1k 1/8W Carbon AA

åR627 VRN-RL3ABR47J+ X 0.47 1W Metal Film AB

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

29FL94

åR628 VRN-RL3ABR47J+ X 0.47 1W Metal Film AB

çå R651 VRS-RG2HC270J+ X 27 1/2W Metal Oxide AB

çå R652 VRD-RA2EE103GY X 10k 1/4W Carbon AA

çå R653 VRD-RA2EE562GY X 5.6k 1/4W Carbon AA

åR658 VRS-RG3LB333J+ X 33k 3W Metal Oxide AB

R663 VRS-CY1JF102JY X 1k 1/16W Metal Oxide AA

R670 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

R684 VRD-RA2BE472JY X 4.7k 1/8W Carbon AA

R685 VRD-RA2BE822JY X 8.2k 1/8W Carbon AA

R686 VRD-RA2EE332JY X 3.3k 1/4W Carbon AA

R687 VRD-RA2BE103JY X 10k 1/8W Carbon AA

åR688 VRN-RL3DB3R3J+ X 3.3 2W Metal Film AB

R689 VRD-RM2HD824JY X 820k 1/2W Carbon AA

åR690 VRS-RG3LB471J+ X 470 3W Metal Oxide AB

R691 VRS-CY1JF394JY X 390k 1/16W Metal Oxide AA

R692 VRS-CY1JF223JY X 22k 1/16W Metal Oxide AA

R693 VRS-CY1JF683JY X 68k 1/16W Metal Oxide AA

R694 VRS-CY1JF102JY X 1k 1/16W Metal Oxide AA

R695 VRS-CY1JF683JY X 68k 1/16W Metal Oxide AA

R696 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

R697 VRS-CY1JF684JY X 680k 1/16W Metal Oxide AA

R698 VRS-CY1JF475JY X 4.7M 1/16W Metal Oxide AA

R709 VRD-RM2HD270JY X 27 1/2W Carbon AA

R710 VRS-CY1JF334JY X 330k 1/16W Metal Oxide AA

R711 VRS-CY1JF102JY X 1k 1/16W Metal Oxide AA

R712 VRD-RM2HD102JY X 1k 1/2W Carbon AA

R713 VRS-CY1JF333JY X 33k 1/16W Metal Oxide AA

R715 VRN-RL3DBR12J+ X 0.12 2W Metal Film AB

R716 VRS-RG2HC152J+ X 1.5k 1/2W Metal Oxide AB

R717 VRN-RL3DBR12J+ X 0.12 2W Metal Film AB

R718 VRS-CY1JF333JY X 33k 1/16W Metal Oxide AA

R722 VRD-RM2HD103JY X 10k 1/2W Carbon AA

R723 VRD-RM2HD471JY X 470 1/2W Carbon AA

R724 VRS-KT3LB473J X 47k 3W Metal Oxide AB

R725 VRD-RM2HD102JY X 1k 1/2W Carbon AA

åR727 RR-HZ0014GEZZY X 12M 1W AB

R730 VRD-RA2BE100JY X 10 1/8W Carbon AA

R731 VRD-RA2BE101JY X 100 1/8W Carbon AA

R734 VRD-RM2HD124JY X 120k 1/2W Carbon AA

åR737 VRN-RL3LBR56J+ X 0.56 3W Metal Film AB

R742 VRD-RA2BE222JY X 2.2k 1/8W Carbon AA

R743 VRD-RM2HD470JY X 47 1/2W Carbon AA

R751 VRD-RA2BE473JY X 47k 1/8W Carbon AA

R752 VRD-RA2BE392JY X 3.9k 1/8W Carbon AA

R753 VRS-CY1JF222JY X 2.2k 1/16W Metal Oxide AA

R754 VRS-CY1JF222JY X 2.2k 1/16W Metal Oxide AA

R755 VRS-CY1JF473JY X 47k 1/16W Metal Oxide AA

R756 VRD-RA2BE152JY X 1.5k 1/8W Carbon AA

åR757 VRN-RL3DB4R7J+ X 4.7 2W Metal Film AB

R759 VRS-CY1JF103JY X 10k 1/16W Metal Oxide AA

R761 VRS-CY1JF332JY X 3.3k 1/16W Metal Oxide AA

R762 VRD-RA2BE103JY X 10k 1/8W Carbon AA

R764 VRD-RM2HD562JY X 5.6k 1/2W Carbon AA

R767 VRD-RM2HD220JY X 22 1/2W Carbon AA

R768 VRD-RA2BE473JY X 47k 1/8W Carbon AA

R770 VRS-CY1JF102JY X 1k 1/16W Metal Oxide AA

R771 VRS-CY1JF103JY X 10k 1/16W Metal Oxide AA

R772 VRS-CY1JF103JY X 10k 1/16W Metal Oxide AA

R773 VRD-RM2HD823JY X 82k 1/2W Carbon AA

R774 VRD-RA2BE272JY X 2.7k 1/8W Carbon AA

R775 VRS-CY1JF332JY X 3.3k 1/16W Metal Oxide AA

R776 VRS-CY1JF332JY X 3.3k 1/16W Metal Oxide AA

R801 VRS-CY1JF333JY X 33k 1/16W Metal Oxide AA

R802 VRS-CY1JF471JY X 470 1/16W Metal Oxide AA

R803 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

R805 VRS-CY1JF682JY X 6.8k 1/16W Metal Oxide AA

R806 VRS-CY1JF681JY X 680 1/16W Metal Oxide AA

R807 VRS-CY1JF681JY X 680 1/16W Metal Oxide AA

R808 VRS-CY1JF681JY X 680 1/16W Metal Oxide AA

R810 VRS-CY1JF472JY X 4.7k 1/16W Metal Oxide AA

R903 VRS-CY1JF102JY X 1k 1/16W Metal Oxide AA

R904 VRS-CY1JF683JY X 68k 1/16W Metal Oxide AA

R905 VRS-CY1JF223JY X 22k 1/16W Metal Oxide AA

R906 VRD-RA2BE332JY X 3.3k 1/8W Carbon AA

R907 VRS-CY1JF152JY X 1.5k 1/16W Metal Oxide AA

R908 VRS-CY1JF102JY X 1k 1/16W Metal Oxide AA

R910 VRD-RA2BE102JY X 1k 1/8W Carbon AA

R911 VRS-CY1JF683JY X 68k 1/16W Metal Oxide AA

R912 VRS-CY1JF223JY X 22k 1/16W Metal Oxide AA

R913 VRS-CY1JF332JY X 3.3k 1/16W Metal Oxide AA

R914 VRS-CY1JF152JY X 1.5k 1/16W Metal Oxide AA

R915 VRS-CY1JF102JY X 1k 1/16W Metal Oxide AA

R916 VRS-CY1JF683JY X 68k 1/16W Metal Oxide AA

R917 VRS-CY1JF332JY X 3.3k 1/16W Metal Oxide AA

R918 VRS-CY1JF332JY X 3.3k 1/16W Metal Oxide AA

R922 VRS-CY1JF102JY X 1k 1/16W Metal Oxide AA

R923 VRS-CY1JF102JY X 1k 1/16W Metal Oxide AA

R924 VRS-CY1JF750JY X 75 1/16W Metal Oxide AA

R925 VRS-CY1JF750JY X 75 1/16W Metal Oxide AA

R926 VRS-CY1JF680JY X 68 1/16W Metal Oxide AA

R927 VRS-CY1JF750JY X 75 1/16W Metal Oxide AA

R929 VRS-CY1JF473JY X 47k 1/16W Metal Oxide AA

R930 VRS-CY1JF473JY X 47k 1/16W Metal Oxide AA

R931 VRS-CY1JF750JY X 75 1/16W Metal Oxide AA

R932 VRS-CY1JF473JY X 47k 1/16W Metal Oxide AA

R933 VRS-CY1JF473JY X 47k 1/16W Metal Oxide AA

R934 VRS-CY1JF103JY X 10k 1/16W Metal Oxide AA

R935 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R936 VRS-CY1JF223JY X 22k 1/16W Metal Oxide AA

R937 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R938 VRS-CY1JF223JY X 22k 1/16W Metal Oxide AA

R939 VRS-CY1JF333JY X 33k 1/16W Metal Oxide AA

R940 VRS-CY1JF8R2JY X 8.2 1/16W Metal Oxide AA

R941 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R942 VRS-CY1JF223JY X 22k 1/16W Metal Oxide AA

R943 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R944 VRS-CY1JF223JY X 22k 1/16W Metal Oxide AA

R945 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R946 VRS-CY1JF103JY X 10k 1/16W Metal Oxide AA

R947 VRS-CY1JF223JY X 22k 1/16W Metal Oxide AA

R948 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R949 VRS-CY1JF223JY X 22k 1/16W Metal Oxide AA

R950 VRS-CY1JF750JY X 75 1/16W Metal Oxide AA

R951 VRD-RA2BE680JY X 68 1/8W Carbon AA

R952 VRS-CY1JF333JY X 33k 1/16W Metal Oxide AA

R953 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

R954 VRS-CY1JF221JY X 220 1/16W Metal Oxide AA

R955 VRS-CY1JF221JY X 220 1/16W Metal Oxide AA

R957 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R958 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R959 VRS-CY1JF103JY X 10k 1/16W Metal Oxide AA

R960 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R961 VRS-CY1JF102JY X 1k 1/16W Metal Oxide AA

R962 VRS-CY1JF332FY X 3.3k 1/16W Metal Oxide AA

R963 VRD-RA2BE101JY X 100 1/8W Carbon AA

R964 VRS-CY1JF152JY X 1.5k 1/16W Metal Oxide AA

R967 VRS-CY1JF682JY X 6.8k 1/16W Metal Oxide AA

R968 VRS-CY1JF102JY X 1k 1/16W Metal Oxide AA

R969 VRS-CY1JF472FY X 4.7k 1/16W Metal Oxide AA

R970 VRD-RA2BE6R8JY X 6.8 1/8W Carbon AA

R971 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R972 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R973 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

R974 VRS-CY1JF103JY X 10k 1/16W Metal Oxide AA

R975 VRS-CY1JF333JY X 33k 1/16W Metal Oxide AA

R982 VRS-CY1JF750JY X 75 1/16W Metal Oxide AA

R983 VRS-CY1JF473JY X 47k 1/16W Metal Oxide AA

R984 VRS-CY1JF473JY X 47k 1/16W Metal Oxide AA

åR1420 VRN-RL3LB2R7J+ X 2.7 3W Metal Film AB

R2001 VRS-CY1JF102JY X 1k 1/16W Metal Oxide AA

R2004 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R2008 VRS-CY1JF102JY X 1k 1/16W Metal Oxide AA

R2010 VRS-CY1JF102JY X 1k 1/16W Metal Oxide AA

R2013 VRS-CY1JF682JY X 6.8k 1/16W Metal Oxide AA

R2021 VRS-CY1JF334JY X 330k 1/16W Metal Oxide AA

R2024 VRS-CY1JF472JY X 4.7k 1/16W Metal Oxide AA

R2025 VRS-CY1JF472JY X 4.7k 1/16W Metal Oxide AA

R2026 VRS-CY1JF472JY X 4.7k 1/16W Metal Oxide AA

R2027 VRS-CY1JF102JY X 1k 1/16W Metal Oxide AA

R2028 VRD-RA2BE102JY X 1k 1/8W Carbon AA

R2031 VRS-CY1JF222JY X 2.2k 1/16W Metal Oxide AA

R2033 VRS-CY1JF334JY X 330k 1/16W Metal Oxide AA

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

29FL94

R2040 VRS-CY1JF102JY X 1k 1/16W Metal Oxide AA

R2041 VRS-CY1JF333JY X 33k 1/16W Metal Oxide AA

R2042 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R2043 VRS-CY1JF333JY X 33k 1/16W Metal Oxide AA

R2044 VRS-CY1JF153JY X 15k 1/16W Metal Oxide AA

R2046 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R2047 VRS-CY1JF221JY X 220 1/16W Metal Oxide AA

R2048 VRS-CY1JF562JY X 5.6k 1/16W Metal Oxide AA

R2051 VRS-CY1JF102JY X 1k 1/16W Metal Oxide AA

R2060 VRS-CY1JF221JY X 220 1/16W Metal Oxide AA

R2061 VRS-CY1JF562JY X 5.6k 1/16W Metal Oxide AA

R2062 VRS-CY1JF223JY X 22k 1/16W Metal Oxide AA

R2063 VRS-CY1JF222JY X 2.2k 1/16W Metal Oxide AA

R2064 VRS-CY1JF332JY X 3.3k 1/16W Metal Oxide AA

R2073 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

R2084 VRS-CY1JF103JY X 10k 1/16W Metal Oxide AA

R2086 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R2090 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R2092 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R2101 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R2102 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R2201 VRS-CY1JF222JY X 2.2k 1/16W Metal Oxide AA

R2202 VRS-CY1JF103JY X 10k 1/16W Metal Oxide AA

R2203 VRS-CY1JF473JY X 47k 1/16W Metal Oxide AA

R2211 VRS-CY1JF222JY X 2.2k 1/16W Metal Oxide AA

R2212 VRS-CY1JF682JY X 6.8k 1/16W Metal Oxide AA

R2213 VRS-CY1JF333JY X 33k 1/16W Metal Oxide AA

R2401 VRD-RA2BE101JY X 100 1/8W Carbon AA

R2402 VRD-RA2BE101JY X 100 1/8W Carbon AA

R2403 VRD-RA2BE101JY X 100 1/8W Carbon AA

R2404 VRD-RA2BE101JY X 100 1/8W Carbon AA

R2501 VRS-CY1JF183JY X 18k 1/16W Metal Oxide AA

R2502 VRS-CY1JF183JY X 18k 1/16W Metal Oxide AA

R2503 VRS-CY1JF103JY X 10k 1/16W Metal Oxide AA

R2504 VRS-CY1JF103JY X 10k 1/16W Metal Oxide AA

R2505 VRD-RA2BE822JY X 8.2k 1/8W Carbon AA

R2506 VRD-RA2BE822JY X 8.2k 1/8W Carbon AA

R2507 VRD-RA2BE183JY X 18k 1/8W Carbon AA

R2508 VRD-RA2BE183JY X 18k 1/8W Carbon AA

R2509 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

R2601 VRD-RA2BE100JY X 10 1/8W Carbon AA

R2603 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

R2605 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

R2606 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

R3001 VRS-CY1JF221JY X 220 1/16W Metal Oxide AA

R3002 VRS-CY1JF221JY X 220 1/16W Metal Oxide AA

R3003 VRS-CY1JF105JY X 1M 1/16W Metal Oxide AA

R3004 VRS-CY1JF104JY X 100k 1/16W Metal Oxide AA

R3005 VRS-CY1JF623JY X 62k 1/16W Metal Oxide AA

R3007 VRS-CY1JF332JY X 3.3k 1/16W Metal Oxide AA

R3008 VRS-CY1JF302JY X 3k 1/16W Metal Oxide AA

R3010 VRS-CY1JF392JY X 3.9k 1/16W Metal Oxide AA

R3017 VRS-CY1JF102JY X 1k 1/16W Metal Oxide AA

R3018 VRS-CY1JF102JY X 1k 1/16W Metal Oxide AA

R3019 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R3020 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R3021 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R3023 VRS-CY1JF101JY X 100 1/16W Metal Oxide AA

R3024 VRD-RA2BE102JY X 1k 1/8W Carbon AA

SWITCHES

S2501 QSW-KA003WJZZ+ X Switch, POWER AB

S2502 QSW-KA003WJZZ+ X Switch, MENU AB

S2503 QSW-KA003WJZZ+ X Switch, VOL-DOWN AB

S2504 QSW-KA003WJZZ+ X Switch, VOL-UP AB

S2505 QSW-KA003WJZZ+ X Switch, CH-DOWN AB

S2506 QSW-KA003WJZZ+ X Switch, CH-UP AB

BALUNES

FB601 RBLN-0047CEZZY X Balun AB

FB706 RBLN-0037CEZZY X Balun AB

FB2001RBLN-0037CEZZY X Balun AB

MISCELLANEOUS PARTS

CF2040

RCRM-0003CEZZ+ X Ceramic Vibrator AC

J904 QJAKGA023WJZZ X Jack, Front AV IN AC

J921 QSOCD0456CEZZ X Socket, S-Video AC

J1401 QTANJ1101SEZZ X Terminal, AV IN/OUT AF

P361 QPLGN0461CEZZA X Plug, 4Pin(S1-4) AB

P401 QPLGN0861CEZZA X Plug, 8Pin(CJ) AB

P605 QPLGN0160FJZZ X Plug, 5Pin(K1-5) AB

P621 QPLGN0761CEZZA X Plug, 7Pin(N) AB

P651 QPLGN0361CEZZA X Plug, 3Pin AB

P702 QPLGN0157FJZZ X Plug, 2Pin(QA) AB

P707 QPLGN0241CEZZ X Plug, 2Pin(QB) AB

P2401 QPLGN0661CEZZA X Plug, 6Pin AB

RDA361

PRDAR0258PEFW X Heat Sink for IC361 AC

RDA501

PRDARA039WJFW X Heat Sink for IC501 AD

RDA601

PRDARA041WJFW X Heat Sink for Q602 AD

RDA671

PRDARA057WJFW X Heat Sink for Q673 AC

RDA702

PRDAR0279PEFW X Heat Sink for Q702 AB

RDA750

PRDAR5072CEFW X Heat Sink for IC751 AB

RDA1403

PRDAR5072CEFW X Heat Sink for IC1403 AB

RMC2601

RRMCU0222CEZZ X Remote Receiver AD

DUNTKA527WEW7

PWB-B CRT UNIT

INTEGRATED CIRCUIT

åIC850 VHiTDA6103Q-1 X TDA6103Q/N3 AG

TRANSISTORS

Q850 VS2SA1266-Y-1+ X 2SA1266-Y AB

Q851 VS2SC3198-G-1+ X 2SC3198-G AB

Q1504 VS2SC3198-G-1+ X 2SC3198-G AB

Q1505 VS2SA1266-Y-1+ X 2SA1266-Y AB

Q1506 VS2SA1964E/-1 X 2SA1964E AC

Q1507 VS2SC5248E/-1 X 2SC5248E AC

DIODES

D850 RH-DX0220CEZZY X DX0220CE AB

D851 RH-DX0220CEZZY X DX0220CE AB

D852 RH-DX0220CEZZY X DX0220CE AB

D853 RH-EX0647GEZZY X Zener Diode,15V AB

D854 VHD1SS119//-1Y X 1SS119 AA

D855 VHD1SS119//-1Y X 1SS119 AA

D862 VHD1SS119//-1Y X 1SS119 AA

D1502 VHD1SS119//-1Y X 1SS119 AA

D1503 VHD1SS119//-1Y X 1SS119 AA

D1506 RH-DX0487CEZZY X DX0487CE AB

D1507 RH-DX0487CEZZY X DX0487CE AB

D1510 VHD1SS119//-1Y X 1SS119 AA

CAPACITORS

C850 VCFYSB2EB224K X 0.22 250V AB

C851 RC-KZ018JCEZZ X 0.01

AC250V

C852 VCEA0A1CW107M+X 100 16V Electrolytic AB

C853 VCFYFA1HA224J+ X 0.22 50V Mylar AB

C854 VCEA0A1CW227M+X 220 16V Electrolytic AB

C855 VCEA0A2EW106M+X 10 250V Electrolytic AB

C856 VCEA0A1HW226M+X 22 50V Electrolytic AB

C1501 VCEA0A1CW476M+X 47 16V Electrolytic AB

C1506 VCKYPA1HF103Z+ X 0.01 50V Ceramic AA

C1508 VCKYPA2HB472K+ X 4700p 500V Ceramic AB

C1509 VCKYPA1HB472K+ X 4700p 50V Ceramic AB

C1510 VCKYPA1HF103Z+ X 0.01 50V Ceramic AA

C1511 VCKYPA1HF103Z+ X 0.01 50V Ceramic AA

C1515 VCEA0A1HW476M+X 47 50V Electrolytic AB

C1516 VCEA0A1HW476M+X 47 50V Electrolytic AB

C1517 VCEA0A2AW106M+X 10 100V Electrolytic AB

C1518 VCCSPA2HL560K+ X 56p 500V Ceramic AB

C1519 VCEA0A2CW106M+X 10 160V Electrolytic AB

RESISTORS

åR850 VRS-SV2HC152J X 1.5k 1/2W Metal Oxide AB

åR851 VRS-SV2HC152J X 1.5k 1/2W Metal Oxide AB

åR852 VRS-SV2HC152J X 1.5k 1/2W Metal Oxide AB

åR853 VRS-SV2HC272J X 2.7k 1/2W Metal Oxide AB

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

29FL94

åR854 VRS-SV2HC272J X 2.7k 1/2W Metal Oxide AB

åR855 VRS-SV2HC272J X 2.7k 1/2W Metal Oxide AB

R856 VRD-RM2HD104JY X 100k 1/2W Carbon AA

R857 VRD-RM2HD104JY X 100k 1/2W Carbon AA

R858 VRD-RM2HD104JY X 100k 1/2W Carbon AA

R861 VRD-RM2HD104JY X 100k 1/2W Carbon AA

R862 VRC-MA2HG152KY X 1.5k 1/2W Solid AB

R863 VRC-MA2HG152KY X 1.5k 1/2W Solid AB

R864 VRC-MA2HG152KY X 1.5k 1/2W Solid AB

åR867 VRS-SV2HC392J X 3.9k 1/2W Metal Oxide AB

åR868 VRS-SV2HC682J X 6.8k 1/2W Metal Oxide AB

R869 VRD-RA2BE103JY X 10k 1/8W Carbon AA

R870 VRD-RA2BE223JY X 22k 1/8W Carbon AA

R871 VRD-RA2BE472JY X 4.7k 1/8W Carbon AA

R872 VRD-RA2EE680JY X 68 1/4W Carbon AA

R873 VRD-RM2HD224JY X 220k 1/2W Carbon AA

R874 VRD-RM2HD104JY X 100k 1/2W Carbon AA

R875 VRD-RM2HD104JY X 100k 1/2W Carbon AA

R876 VRD-RM2HD104JY X 100k 1/2W Carbon AA

R877 VRD-RA2BE103JY X 10k 1/8W Carbon AA

åR878 VRS-SV2HC120J X 12 1/2W Metal Oxide AB

R1511 VRD-RA2BE101JY X 100 1/8W Carbon AA

åR1513 VRS-VV3DB561J X 560 2W Metal Oxide AB

R1514 VRD-RA2BE100JY X 10 1/8W Carbon AA

R1515 VRD-RA2BE820JY X 82 1/8W Carbon AA

R1516 VRD-RA2BE820JY X 82 1/8W Carbon AA

R1517 VRD-RA2BE122JY X 1.2k 1/8W Carbon AA

R1518 VRD-RA2BE683JY X 68k 1/8W Carbon AA

R1519 VRD-RA2BE123JY X 12k 1/8W Carbon AA

R1520 VRD-RA2BE683JY X 68k 1/8W Carbon AA

R1521 VRD-RA2BE122JY X 1.2k 1/8W Carbon AA

R1525 VRD-RA2EE560JY X 56 1/4W Carbon AA

R1526 VRD-RA2EE560JY X 56 1/4W Carbon AA

R1527 VRD-RM2HD1R5JY X 1.5 1/2W Carbon AA

R1528 VRD-RM2HD1R5JY X 1.5 1/2W Carbon AA

åR1529 VRS-VV3DB221J X 220 2W Metal Oxide AB

R1530 VRD-RA2BE122JY X 1.2k 1/8W Carbon AA

MISCELLANEOUS PARTS

FB1501RBLN-0020CEZZ+ X Balun AB

P854 QPLGN0741CEZZ X Plug, 7Pin(N) AB

P860 QPLGN0841CEZZ X Plug, 8Pin(CJ) AB

å P861 QPLGN0241CEZZ X Plug, 2Pin(PU1-2) AB

RDA850

PRDAR0248PEFW X Heat Sink for IC850 AB

RDA1506

PRDAR5072CEFW X Heat Sink for Q1506 AB

RDA1507

PRDAR5072CEFW X Heat Sink for Q1507 AB

SC850 QSOCV1011CEZZ X CRT Socket, 12Pin AC

DUNTKB573WEV0

PWB-C 3-LINE Y/C UNIT

INTEGRATED CIRCUIT

IC1401 VHiTC90A53F-1Y X TC90A53F AP

TRANSISTORS

Q1401 VS2SD601AR/-1Y X 2SD601AR AB

Q1402 VS2SD601AR/-1Y X 2SD601AR AB

Q1403 VS2SB709AR/-1Y X 2SB709AR AB

Q1404 VS2SD601AR/-1Y X 2SD601AR AB

Q1406 VS2SB709AR/-1Y X 2SB709AR AB

Q1407 VS2SD601AR/-1Y X 2SD601AR AB

Q1408 VS2SB709AR/-1Y X 2SB709AR AB

COILS

L1401 VP-XF100K0000Y X Peaking 10µHAB

L1402 VP-XF100K0000Y X Peaking 10µHAB

L1406 VP-XF220K0000Y X Peaking 22µHAB

L1407 VP-XF220K0000Y X Peaking 22µHAB

L1408 VP-XF100K0000Y X Peaking 10µHAB

L1410 VP-XF100K0000Y X Peaking 10µHAB

L1414 VP-XF330K0000Y X Peaking 33µHAB

L1417 VP-XF220K0000Y X Peaking 22µHAB

CAPACITORS

C1412 VCEA0A1HW106M+X 10 50V Electrolytic AB

C1413 VCKYCY1HF103ZY X 0.01 50V Ceramic AA

C1414 VCCCCY1HH3R0CYX 3p 50V Ceramic AA

C1415 VCE9GA1CW106M+X 10 16V Electrolytic, AB

(N.P)

C1416 VCEA0A1CW477M+X 470 16V Electrolytic AB

C1417 VCKYCY1CF104ZY X 0.1 16V Ceramic AA

C1420 VCCCCY1HH270JY X 27p 50V Ceramic AA

C1421 VCCCCY1HH120JY X 12p 50V Ceramic AA

C1422 VCCCCY1HH120JY X 12p 50V Ceramic AA

C1423 VCCCCY1HH3R0CYX 3p 50V Ceramic AA

C1424 VCCCCY1HH270JY X 27p 50V Ceramic AA

C1425 VCCCCY1HH100DYX 10p 50V Ceramic AA

C1428 VCKYCY1HF103ZY X 0.01 50V Ceramic AA

C1435 VCKYCY1HF103ZY X 0.01 50V Ceramic AA

C1436 VCKYCY1CF104ZY X 0.1 16V Ceramic AA

C1439 VCE9GA1CW106M+X 10 16V Electrolytic, AB

(N.P)

C1440 VCEA0A1HW106M+X 10 50V Electrolytic AB

C1441 VCKYCY1HF103ZY X 0.01 50V Ceramic AA

C1442 VCFYFA1HA474J+ X 0.47 50V Mylar AB

C1443 VCKYCY1HF103ZY X 0.01 50V Ceramic AA

C1444 VCKYCY1HB472KY X 4700p 50V Ceramic AA

C1445 VCKYCY1HF103ZY X 0.01 50V Ceramic AA

C1446 VCCCCY1HH181JY X 180p 50V Ceramic AB

C1447 VCKYCY1HF103ZY X 0.01 50V Ceramic AA

C1448 VCKYCY1CF104ZY X 0.1 16V Ceramic AA

C1449 VCKYCY1CF104ZY X 0.1 16V Ceramic AA

C1451 VCEA0A1CW107M+X 100 16V Electrolytic AB

C1452 VCKYCY1CF104ZY X 0.1 16V Ceramic AA

C1453 VCKYCY1HF103ZY X 0.01 50V Ceramic AA

C1454 VCKYCY1HF103ZY X 0.01 50V Ceramic AA

C1455 VCKYCY1HF103ZY X 0.01 50V Ceramic AA

C1456 VCKYCY1CF104ZY X 0.1 16V Ceramic AA

C1457 VCEA0A1HW106M+X 10 50V Electrolytic AB

C1458 VCEA0A1HW106M+X 10 50V Electrolytic AB

C1460 VCKYCY1HF103ZY X 0.01 50V Ceramic AA

C1470 VCCCCY1HH270JY X 27p 50V Ceramic AA

C1474 VCCCCY1HH150JY X 15p 50V Ceramic AA

RESISTORS

RJ1 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

RJ2 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

RJ3 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

RJ4 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

RJ5 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

RJ6 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

RJ7 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

R1402 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

R1405 VRS-CY1JF361JY X 360 1/16W Metal Oxide AA

R1406 VRS-CY1JF102JY X 1k 1/16W Metal Oxide AA

R1407 VRS-CY1JF102JY X 1k 1/16W Metal Oxide AA

R1410 VRS-CY1JF473JY X 47k 1/16W Metal Oxide AA

R1411 VRS-CY1JF223JY X 22k 1/16W Metal Oxide AA

R1412 VRS-CY1JF102JY X 1k 1/16W Metal Oxide AA

R1413 VRS-CY1JF122JY X 1.2k 1/16W Metal Oxide AA

R1414 VRS-CY1JF331JY X 330 1/16W Metal Oxide AA

R1415 VRS-CY1JF391JY X 390 1/16W Metal Oxide AA

R1416 VRS-CY1JF102JY X 1k 1/16W Metal Oxide AA

R1421 VRS-CY1JF471FY X 470 1/16W Metal Oxide AA

R1423 VRS-CY1JF152FY X 1.5k 1/16W Metal Oxide AA

R1426 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

R1428 VRS-CY1JF332JY X 3.3k 1/16W Metal Oxide AA

R1429 VRS-CY1JF222JY X 2.2k 1/16W Metal Oxide AA

R1430 VRS-CY1JF473JY X 47k 1/16W Metal Oxide AA

R1431 VRS-CY1JF223JY X 22k 1/16W Metal Oxide AA

R1432 VRS-CY1JF102JY X 1k 1/16W Metal Oxide AA

R1433 VRS-CY1JF122JY X 1.2k 1/16W Metal Oxide AA

R1434 VRS-CY1JF331JY X 330 1/16W Metal Oxide AA

R1435 VRS-CY1JF102JY X 1k 1/16W Metal Oxide AA

R1436 VRS-CY1JF331JY X 330 1/16W Metal Oxide AA

R1438 VRS-CY1JF222JY X 2.2k 1/16W Metal Oxide AA

R1456 VRS-CY1JF564JY X 560k 1/16W Metal Oxide AA

R1457 VRS-CY1JF103JY X 10k 1/16W Metal Oxide AA

R1458 VRD-RA2BE103JY X 10k 1/8W Carbon AA

R1459 VRS-CY1JF821JY X 820 1/16W Metal Oxide AA

R1466 VRS-CY1JF103JY X 10k 1/16W Metal Oxide AA

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

29FL94

R1467 VRS-CY1JF682JY X 6.8k 1/16W Metal Oxide AA

R1473 VRS-CY1JF102JY X 1k 1/16W Metal Oxide AA

R1475 VRS-CY1JF102JY X 1k 1/16W Metal Oxide AA

MISCELLANEOUS PARTS

FB1401

RBLN-0061TAZZY X Balun AB

P1401 QPLGZ0810CEZZ X Plug, 8Pin AB

DUNTKC379WEV0

PWB-G POWER UNIT

PACKGED CIRCUITS

VA1701

RH-VX0048CEZZ X Varistor AB

PR1701

RMPTP0083CEZZ X Packaged Circuit AG

COIL

åL1701 RCiLF0345CEZZ X Coil AC

CAPACITOR

C1704 RC-FZA022WJZZ X 0.22 275V AB

RESISTORS

åR1701 RR-DZ0049CEZZY X 3.9M 1/2W AB

R1702 VRS-VV3LB101J X 100 3W Metal Oxide AB

R1703 VRW-KQ41C1R5K X 1.5 15W Cement AB

R1704 VRW-KQ41C1R5K X 1.5 15W Cement AB

MISCELLANEOUS PARTS

ACC701

QACCZA020WJPZ X AC Cord AC

åF1701 QFS-C5022CEZZ X Fuse, T5AL/250V AC

FH1701

QFSHD1002CEZZ X Fuse Holder AB

FH1702

QFSHD1002CEZZ X Fuse Holder AB

P1701 QPLGN0269GEZZ X Plug, 2Pin(A1-2) AB

P1702 QPLGN0460CEZZ X Plug, 4Pin(M1-4) AB

P1703 QPLGN0157FJZZ X Plug, 2Pin(QA) AB

P1704 QPLGN0241CEZZ X Plug, 2Pin(QB) AB

RY1702

RRLYJ0090CEZZ X Relay AC

LHLDW1002PEZZ X Holder AB

DUNTKB571WEV1

PWB-S AUDIO UNIT

INTEGRATED CIRCUIT

IC3501 VHiNJW1140G-1Y X NJW1140GK1 AM

DIODES

D3501 RH-EX0619GEZZY X Zener Diode, 6.2V AB

D3502 RH-EX0619GEZZY X Zener Diode, 6.2V AB

CAPACITORS

C3501 VCQYTA1HM104J+ X 0.1 50V Mylar AB

C3502 VCFYFA1HA334J+ X 0.33 50V Mylar AB

C3503 VCKYCY1HB822KY X 8200p 50V Ceramic AA

C3509 VCEA0A1HW105M+X 1 50V Electrolytic AB

C3510 VCEA0A1HW105M+X 1 50V Electrolytic AB

C3511 VCEA0A1HW105M+X 1 50V Electrolytic AB

C3512 VCEA0A1HW105M+X 1 50V Electrolytic AB

C3513 VCEA0A1HW105M+X 1 50V Electrolytic AB

C3514 VCEA0A1CW476M+X 47 16V Electrolytic AB

C3515 VCKYCY1HB103KY X 0.01 50V Ceramic AA

C3531 VCQYTA1HM104J+ X 0.1 50V Mylar AB

C3533 VCKYCY1EB223KY X 0.022 25V Ceramic AA

C3539 VCFYFA1HA334J+ X 0.33 50V Mylar AB

C3540 VCEA0A1HW105M+X 1 50V Electrolytic AB

C3541 VCEA0A1HW105M+X 1 50V Electrolytic AB

C3694 VCE9GA1HW475M+X 4.7 50V Electrolytic, AB

(N.P)

C3695 VCE9GA1HW475M+X 4.7 50V Electrolytic, AB

(N.P)

RESISTORS

RJ1 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

RJ2 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

RJ4 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

RJ5 VRS-CY1JF000JY X 0 1/16W Metal Oxide AA

R3501 VRS-CY1JF472JY X 4.7k 1/16W Metal Oxide AA

R3502 VRS-CY1JF221JY X 220 1/16W Metal Oxide AA

R3531 VRS-CY1JF221JY X 220 1/16W Metal Oxide AA

R3532 VRS-CY1JF221JY X 220 1/16W Metal Oxide AA

R3533 VRS-CY1JF221JY X 220 1/16W Metal Oxide AA

MISCELLANEOUS PARTS

P3004 QPLGN0242CEZZ X Plug, 2Pin(TP3001-2) AA

P3006 QPLGZ0610CEZZ X Plug, 6Pin AB

P3007 QPLGZ0610CEZZ X Plug, 6Pin AB

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

29FL94

PACKING PARTS

(NOT REPLACEMENT ITEM)

CABINET PARTS LOCATION

1 1-1 2

1-8 1-71-2 1-4 1-5 1-61-3

CABINET PARTS

1 CCABAA543WEH0 X Front Cabinet Ass’y

1-1

Not Available

– Front Cabinet —

1-2 HBDGB3141CESA X SHARP Badge AD

1-3 GCOVAA282WJKA X LED/RC Cover AC

1-4 GCOVHA017WJKZ X Cover AC

1-5 GDORFA027WJKB X Door

1-6 HiNDPA278WJSA X Indication Plate AC

1-7 MSPRPA012WJFW X Spring AB

1-8 JBTN-A106WJKB X Power Button

2 GCABBA153WJKA X REAR Cabinet AZ

SPAKCB224WJZZ - Packing Case —

SPAKP0109GJZZ - Wrapping Paper —

SPAKXA180WJZZ - Buffer Material —

SSAKA0101GJZZ - Polyethylene Bag —

RRMCGA108WJSA X Infrared R-C AT

TiNS-B123WJZZ X Instruction Book AE

UBATU0247AJZZ X Battery

SUPPLIED ACCESSORIES

SP1 VSP1206PB708A X Speaker(L) AG

SP2 VSP1206PB708A X Speaker(R) AG

QCNW-B020WJZZ X Connecting Cord AC

QCNW-B021WJZZ X Connecting Cord AC

QCNW-B022WJZZ X Connecting Cord AC

QCNW-C156WJPZ X Connecting Cord AC

QCNW-C157WJPZ X Connecting Cord AB

QPLGA0017CEZZ X Plug AC

MISCELLANEOUS PARTS

29FL94

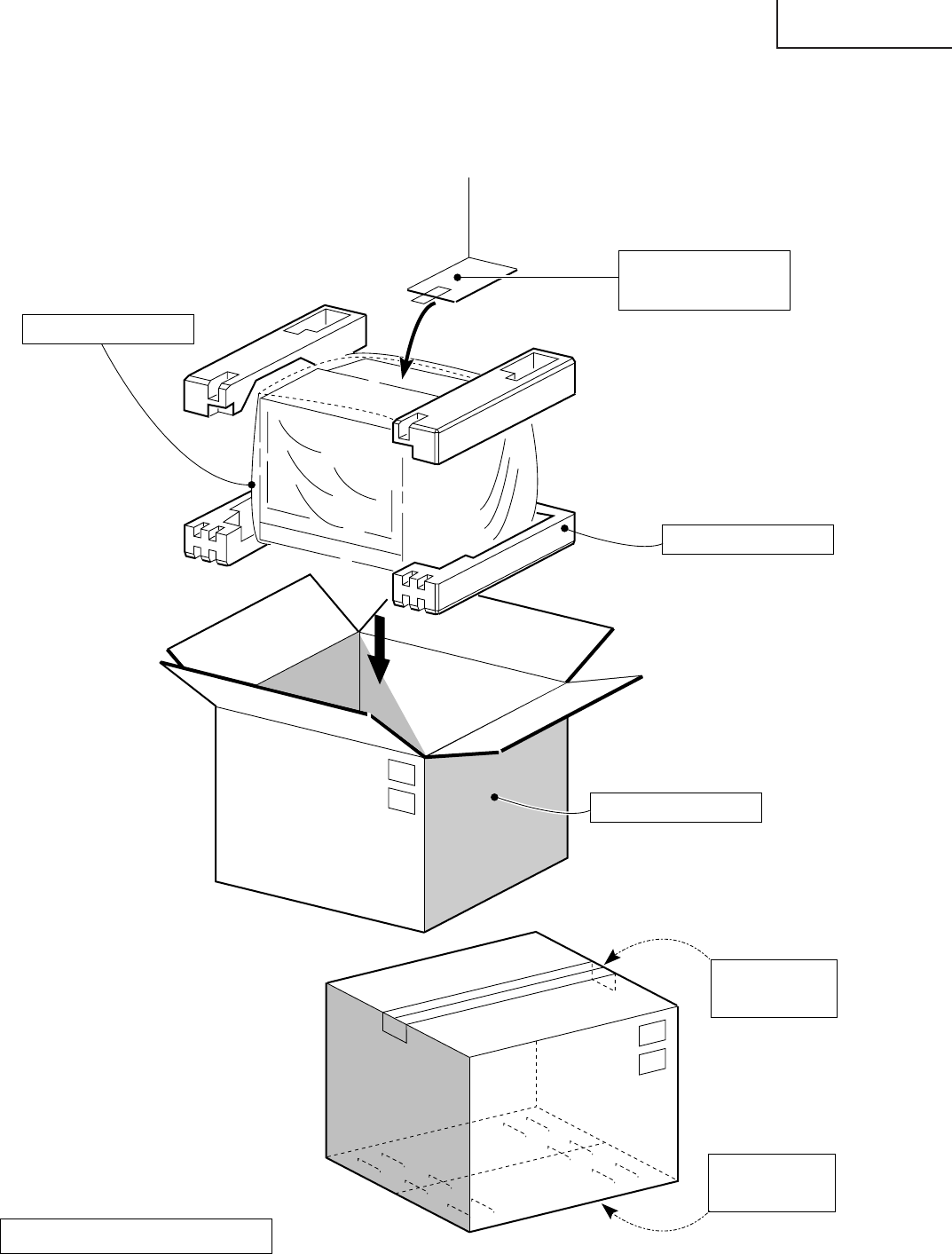

PACKING OF THE SET

★ Packing Case

★ MARK : Not replacement items.

FRONT

★Buffer Material

★ Polyethylene Sheet

★ Polyethylene Bag

Operation Manual

Infrared R/C Unit

Batteries

★

REAR

Use tape to

fix the top side of

packing case.

Use 12 staples to

fix the bottom side

of packing case.

29FL94

No part of this publication may be reproduced,

stored in a retrieval system, or transmitted in

any form or by any means, electronic, mechanical,

photocopying, recording, or otherwise, without

prior written permission of the publisher.

SHARP CORPORATION

AV Systems Group

Quality & Reliability Control Center

Yaita, Tochigi 329-2193, Japan

TQ1717-S

Mar. 2004 Printed in Japan

MY. DS

Design and Production Information

Design : JAPAN

Production : SEMEX

SEMEX

29FL94 Service Manual GB

Navigation menu

Versions of this User Manual:

Views

Navigation
