VIDEO SURVEILLANCE
CATALOGUE
2014
|surveillance
Security systems and technologies form an integral part
of Comelit’s experience. Over the course of its history,
Comelit has attained the highest levels of know-how in a
range of areas, including video entry, video surveillance,
anti-intrusion, home automation and access control fields.
VIDEO SURVEILLANCE
COMELIT: TOP
PERFORMANCE
FOR YOUR SECURITY
THE COMPANY | 1
|surveillance
COMELIT I VIDEO SURVEILLANCE
THE COMPANY | 3
United States
of America
Germany
Belgium
Greece
Republic of Singapore
France
Spain
Great Britain
United Arab Emirates
China
NetherlandsIreland
Comelit video surveillance systems are reliable and durable. They meet the highest quality standards, which is why they are chosen by the
leading industry professionals for installation in a wide variety of applications: civil, residential, public and commercial.
COMELIT R&D, the driving force behind our innovation
COMELIT I VIDEO SURVEILLANCE
Integration
of Comelit systems
Video surveillance
SimpleCCTV, a comprehensive range of products for video
surveillance. Analogue, IP, HD-SDI.
|surveillance
Access control
SimpleKey access control system featuring Mifare technology.
simple
access control |
THE COMPANY | 5
Anti-intrusion
SimpleSafe, a complete system capable of fulfilling all security
requirements with wired systems or via radio.
simple
|
S af
intruder alarm
Home automation
SimpleHome, an automation system for complete management
which helps to reduce consumption while increasing security and
comfort.
|
Hom
simple
home automation
Video entry
SimpleVideo: 2-wire and digital IP systems, the best technical
solution for responding to all application requirements.
simple
|video door entry system
COMELIT I VIDEO SURVEILLANCE
Comelit’s website provides a comprehensive resource for consultation,
with technical and commercial information to assist installers. A point
of reference active 24h/24h, 365 days a year, to obtain practical
answers, request assistance and receive advice, etc.
Responding to market dynamics and installer feedback,
anticipating and interpreting users expectations: at Comelit
these factors are just as important and strategic as the
technological innovation and reliability of our products. That’s
why Comelit has set up and activated a network of services
that confirm our role as a proactive partner capable of going
beyond the standard solutions that make up our product
range.
Web
Professional telephone assistance to solve all types of
problems.
Technical Support
Support given to installers for testing and assistance with problem-
solving of all kinds. Expert professionals covering dierent
geographical areas and specialising in Comelit products.
SATCO Assisted Programming
An operative division entirely dedicated to providing customers
with ideal solutions for non-standard system requirements. This
division develops turnkey projects, primarily for large residential,
business and industrial complexes.
www.comelitgroup.com
Services
THE COMPANY | 7
Training
Comelit Training School is the initiative dedicated to training and
refresher courses created by the company, aimed at the constant
development of the professional culture within the electrical
installation sector.
WHAT IS IT?
Training at the Comelit Training School includes courses,
seminars and other activities that combine theoretical content
with the practical application thereof, with the following aims:
specialising in areas of home automation, video entry
systems, anti-intrusion and video surveillance - increasing
familiarity with Comelit systems and their application, as
well as allowing independent management of the planning
and installation phases
providing information on the most up-to-date system
solutions, capable of optimising energy savings and
bringing additional value to property and buildings
developing sales communication skills for eective
handling of customer relations
WHAT DOES IT OFFER?
Installers, architects, specifiers and electronics professionals.
WHO IS IT AIMED AT?
Training activities are grouped into Basic and Advanced
courses. Basic courses largely revolve around theoretical
notions and the introduction of Comelit products/systems.
Advanced courses, on the other hand, focus on the practical
application of installation/programming methods and exercises
for identifying/resolving faults. Advanced courses, for most
of their duration, also oer enjoyable occasions for social
involvement and relaxation outside course hours.
HOW ARE THE COURSES RUN?
COMELIT I VIDEO SURVEILLANCE
Comelit oers systems, products and technologies that can be
used to create versatile and modular video surveillance solutions
capable of satisfying any installation or performance-related
requirements: large public areas assigned to strategic services,
shopping centres and small private locations that require a high
level of protection.
The strength of Comelit’s oering lies in its high technological
eciency and the wide range of solutions available. This is also
proven and demonstrated by the products in the CCTV sector, with
a range capable of meeting all requirements in terms of residential
and commercial construction, as well as highly specialised
scenarios such as museums, hospitals and industrial complexes.
Professional solutions, for every
installation.
RESIDENTIAL
HOSPITAL
MUSEUM
AIRPORT
INDUSTRY
RAILWAY
THE COMPANY | 9
CITIZEN MONITORING
SHOP
PARKING
SHOPPING CENTRE
SERVICE STATION
MOTORWAY
COMELIT I VIDEO SURVEILLANCE
YOU ARE ALWAYS AT
HOME, WHEREVER
YOU GO.
Remote
management.
Total control
and easy configuration.

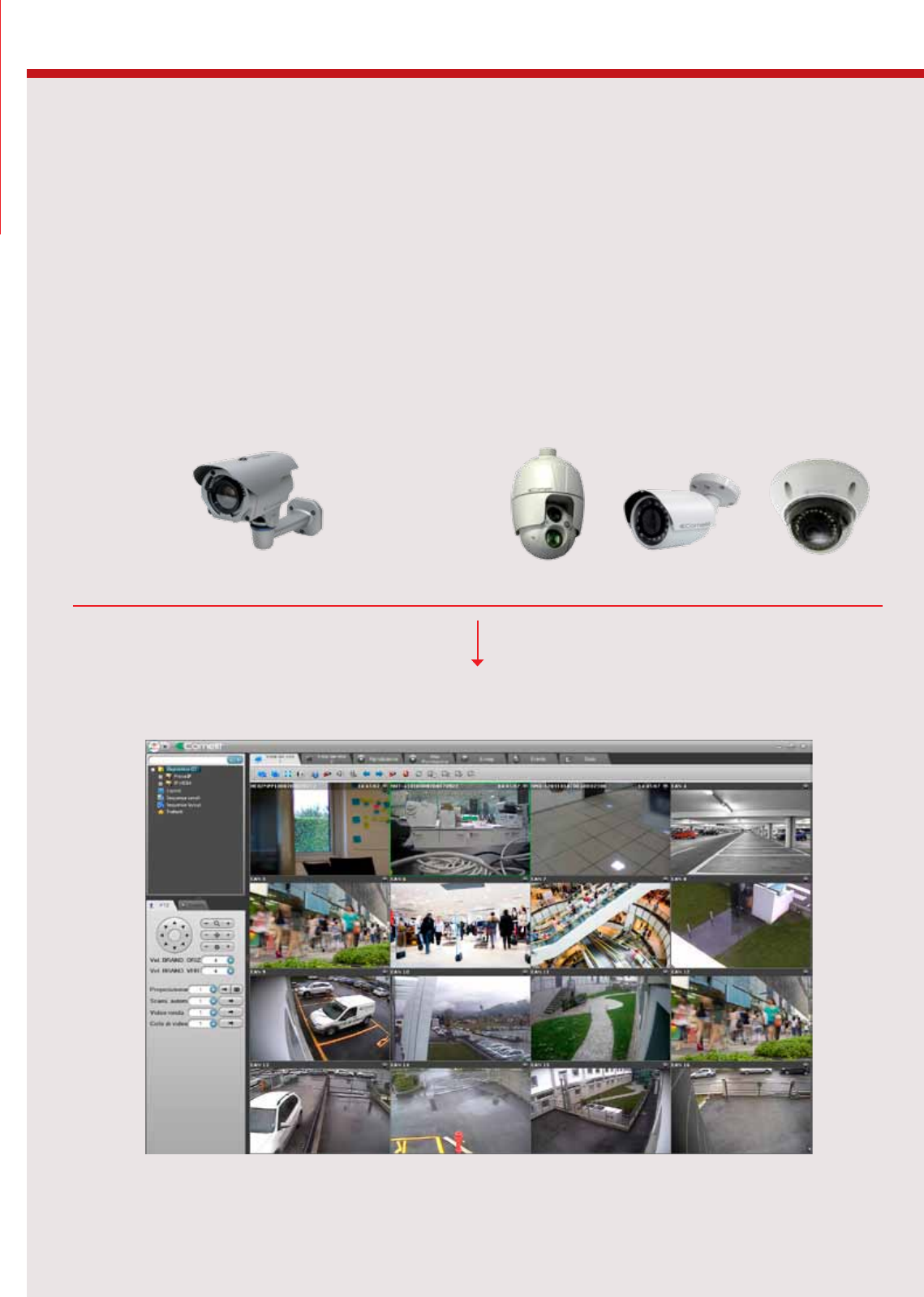

Innovative Comelit technology
for remote management allows
you to simply and eciently
control what the cameras see.
THE COMPANY | 11
Simply connect the video recorder to the ADSL line (modem) to establish
an instant connection.
PLUG & PLAY
Automatic system
configuration
COMELIT I VIDEO SURVEILLANCE
HD-SDI
The Comelit range spans the entire world of video surveillance:
from the more consolidated solutions which use Analog
technology to innovative DIGITAL, IP and HD-SDI solutions.
A variety of
high-quality solutions
OUR SYSTEMS
ANALOG
IP
IP
SDI
THE COMPANY | 13
EXTENSIVE RANGE
HD-SDI
START
MIDDLE
HIGH
Ideal products for scenarios which require easy operation and
quick installation, with particular emphasis on costing.
Reliability and flexibility: products oering an excellent quality /
price ratio, which are capable of satisfying most requirements.
High-end products for the most demanding and technologically
advanced installations.
COMELIT I VIDEO SURVEILLANCE
CAMERAS
AND LENSES
34
DISCRETE
Cameras
COMPACT
Cameras 36
MINIDOME
Cameras 42
47
BOX
Cameras
PTZ
Cameras 52
56
AFCAM
LENSES 58
DVR
START MIDDLE
ANALOG
HIGH
GENERAL CONTENTS
EXTENSIVE RANGE AVAILABLE:
START
series 64
MIDDLE
series 67
HIGH
series 71
HARD DISK 73
CONTROL
KEYBOARDS,
MATRICES
KEYBOARDS 76
MATRICES 77
THE COMPANY | 15
HOUSINGS AND
ILLUMINATORS
STANDARD
series 80
UNICA
series 81
EXTREME
series 84
EXTREME
accessories 91
INFRARED
ILLUMINATORS 93
TRANSMISSION AND
ACCESSORIES
WIRELESS
transmission 96
FIBER OPTIC
transmission 97
UTP
transmission 101
MISCELLANEOUS 103
COAX
transmission 106
POWER SUPPLY UNITS 109
ANALOG
COMELIT I VIDEO SURVEILLANCE
GENERAL CONTENTS
IP
START HIGH
EXTENSIVE RANGE AVAILABLE:
IP
130 146
Cameras Cameras
Housings and
accessories
Housings and
accessories
Encoders
and Decoders
Aspherical
lenses
Aspherical
lenses
Recording
Units
Software
Recording
Units
Switch
and transmission Software
Keyboards
Switch
and transmission
133
154
153
135
157
136
137 158
138 160
161
162
THE COMPANY | 17
MIDDLE
HD-SDI MONITORS
EXTENSIVE RANGE AVAILABLE:
SDI
STANDARD
monitors 178
HI-RES
monitors 179
172
Cameras
Aspherical
lenses
Encoders
and Decoders
DVR
Software
173
174
174
175
COMELIT I VIDEO SURVEILLANCE
SELECTION GUIDE
DISTANCE (m)
120%
IDENTIFICATION
50%
RECOGNITION
10%
INTRUSION DETECTION
5%
MONITORING
2
SCAM604A
SCAM606A
SCAM627A
MCAM630B
MCAM672B
IPCAM101B
IPCAM102A
IPCAM166A
IPCAM701A
IPCAM721A
HDCAM601A
HDCAM651A
5
SCAM604A
SCAM606A
SCAM627A
MCAM630B
MCAM672B
IPCAM101B
IPCAM102A
IPCAM701A
IPCAM721A
HDCAM601A
HDCAM651A
FIXED CAMERAS
THE COMPANY | 19
DISTANCE (m)
120%
IDENTIFICATION
50%
RECOGNITION
10%
INTRUSION DETECTION
5%
MONITORING
10
SCAM604A
SCAM606A
SCAM627A
MCAM630B
MCAM672B
IPCAM101B
IPCAM102A
IPCAM701A
IPCAM721A
HDCAM601A
HDCAM651A
20
IPCAM101B
IPCAM102A
IPCAM701A
IPCAM721A
HDCAM601A
HDCAM651A
50 IPCAM102A
COMELIT I VIDEO SURVEILLANCE
SELECTION GUIDE
DISTANCE (m)
120%
IDENTIFICATION
50%
RECOGNITION
10%
INTRUSION DETECTION
5%
MONITORING
2-5
SCAM616A - SCAM617A
SCAM637A - SCAM642A
MCAM631B
MCAM671B - MCAM697C
HCAM633B - HCAM634B - HCAM635B
HCAM675B
IPCAM162A - IPCAM168A
IPCAM702A - IPCAM727A
IPCAM752A - IPCAM767A
HDCAM602A - HDCAM652A
5-10
SCAM616A - SCAM617A
SCAM637A -SCAM642A
MCAM631B
MCAM671B - MCAM697A
MCAM696C
MCAM699C
MPTZ766B - MPTZ767B - MPTZ768B - MPTZ801B
HCAM633B - HCAM634B - HCAM635B
HCAM675B
HCAM676B
HPTZ752B - HPTZ756B
IPCAM162A - IPCAM168A
IPCAM702A - IPCAM727A
IPCAM752A - IPCAM767A
IPPTZ772A - IPPTZ773A - IPPTZ779A
HDCAM602A - HDCAM652A
VARIFOCAL CAMERAS
THE COMPANY | 21
DISTANCE (m)
120%
IDENTIFICATION
50%
RECOGNITION
10%
INTRUSION DETECTION
5%
MONITORING
10-20
SCAM616A - SCAM617A
SCAM637A
SCAM642A
MCAM631B - MCAM671B - MCAM696C - MCAM697C
MCAM699C
MPTZ766B - MPTZ767B - MPTZ768B - MPTZ801B
HCAM633B - HCAM634B
HCAM635B
HCAM675B
HCAM676B
HPTZ752B - HPTZ756B
IPCAM162A - IPCAM168A
IPCAM702A - IPCAM727A
IPCAM752A - IPCAM767A
IPPTZ772A - IPPTZ773A - IPPTZ779A
HDCAM602A - HDCAM652A
20-50
MCAM696C
MCAM699C
MPTZ766B - MPTZ767B - MPTZ768B - MPTZ801B
HCAM676B
HPTZ752B - HPTZ756B
IPCAM162A - IPCAM168A
IPCAM702A - IPCAM727A
IPCAM752A - IPCAM767A
IPPTZ772A - IPPTZ773A - IPPTZ779A
HDCAM602A - HDCAM652A
50-80
MCAM696C
MPTZ766B - MPTZ767B - MPTZ768B - MPTZ801B
HCAM676B
HPTZ752B - HPTZ756B
IPCAM162A - IPCAM168A
IPCAM702A - IPCAM727A
IPCAM752A - IPCAM767A
IPPTZ772A - IPPTZ773A - IPPTZ779A
HDCAM602A - HDCAM652A
COMELIT I VIDEO SURVEILLANCE
960H technology
and 1000 TVL cameras.
352X288 CIF
4:3 VIDEO
720X576 D1
4:3 VIDEO
THE COMPANY | 23
33% MORE DETAIL.
960X576 960H
16:9 VIDEO
Comelit analogue cameras and video recorders
support new 960H technology. The 960x576
format oers a clear and detailed view.
Comelit 960H analogue DVRs are backwards
compatible with all existing analogue cameras
and all recording formats (CIF, 2CIF, D1), which
prevents systems which are still in use from
becoming obsolete. In this case you can simply
use Comelit 960H DVRs and 960H cameras
where required.
COMELIT I VIDEO SURVEILLANCE
New management software for Ras series DVRs, with advanced,
easy and intuitive functions and a modern design.
Comelit iRas.
NEW
THE COMPANY | 25
SEARCH / PLAY IMAGES
Search Date / Time. Time-based search of the recordings made by the devices, with graphical view of the
type of recording
Search Event. Search Motion recording can be viewed by clicking on the type of event.
It can be used to select the area of an image on which to perform the Motion search in relation to the
reference image. Parameters such as Sensitivity, Number of locks activated, Variation percentage in relation to
the reference image and Variation time
SEARCH EVENT SEARCH DATE, TIME AND MOTION
GRAPHICS MAPS
A powerful and versatile tool for graphical management of alarms and videos.
Monitoring Event Autofocus
AUTOFOCUS FUNCTION
Cameras Alarms Outputs for activation
EXAMPLES OF OBJECTS THAT CAN BE POSITIONED ON THE MAP,
WITH INTERACTION OPTION
USER
MANAGEMENT
The system makes it
possible to add new
users easily, with the
option of choosing
whether to access specific functions only from
specific devices.
COMELIT I VIDEO SURVEILLANCE
EVENT MANAGEMENT
Event spot function. The image of the device which generated the event appears in the selected box, highlighted
with a blue frame
List of Events in real time. Can be used to check the events generated by the connected devices in real time
SPOT EVENTS FUNCTION
In Standby In Alarm
MONITORING / DIAGNOSTICS
Diagnostics. Checks the status of the connected devices to identify any
Status problems. Checks the events generated by the devices
Report. Monitoring the procedures carried out via iRAS linked to the user who generated them
DIAGNOSTICS STATUS REPORT
IMAGE EXPORT
Images can be exported by using the mouse pointer to select the relevant period directly on the timetable,
or by entering the desired date and time manually. Generation of an executable file that cannot be modified
incorporating the playback program and Watermarking, or an AVI file that can be played with the most common
commercially-available players.
THE COMPANY | 27
LIST OF EVENTS IN REAL TIME
COMELIT I VIDEO SURVEILLANCE
ANALOG | 29
ANALOG
CAMERAS
AND LENSES 30
DVR 60
CONTROL KEYBOARDS,
MATRICES 74
HOUSINGS AND
ILLUMINATORS 78
TRANSMISSION AND
ACCESSORIES 94
• wide range of applications
• unparalleled image quality 1000TVL, 960H
• reliable solutions
• dierent application levels
CAMERAS
AND LENSES
ANALOG
COMELIT I VIDEO SURVEILLANCE
ANALOG | 31
ANALOG
CAMERAS
AND LENSES
DVR
KEYBOARDS
MATRICES
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
ANALOG
CAMERAS AND LENSES
TELECAMERE E OBIETTIVI
DISCRETE
CAMERAS 34
COMPACT
CAMERAS 36
MINIDOME
CAMERAS 42
BOX
CAMERAS 47
PTZ
CAMERAS 52
AFCAM 56
LENSES 58
COMELIT I VIDEO SURVEILLANCE
Art. SCAM616A Art. SCAM617A Art. SCAM108A Art. SCAM118A Art. SCAM618A
Lens Varifocal, 2.8 ÷ 12 mm Varifocal, 2.8 ÷ 12 mm Fixed, 3.6 mm Varifocal, 2.8 ÷ 12 mm Varifocal, 2.8 ÷ 12 mm
System Day & Night Day & Night Day & Night Day & Night Day & Night
Image sensor 1/3" CCD Sony Super HAD 1/3" CCD Sony Super HAD II 1/3" CMOS HDIS 1/3" CMOS HDIS 1/3" CMOS Sony Exmor
Horizontal resolution (colour) 600 TVL 700 TVL - 960H 800 TVL 800 TVL 1000 TVL - 720p
IR lter mechanical removal Yes Yes Yes Yes Yes
Integrated infrared illumination Yes, 36 leds Yes, 36 leds Yes, 23 leds Yes, 36 leds Yes, 36 leds
Maximum distance infrared illumination (m) 30 30 20 30 30
Minimum Illumination (lux) 0.01 with IR leds ON 0 with IR leds ON 0 with IR leds ON 0 with IR leds ON 0 with IR leds ON
Backlight compensation No No No No No
Wide Dynamic Range (WDR) No No No No No
Digital Noise Reduction (DNR) No No No No No
Video output BNC, 1 Vp-p, 75 ohm BNC, 1 Vp-p, 75 ohm BNC, 1 Vp-p, 75 ohm BNC, 1 Vp-p, 75 ohm BNC, 1 Vp-p, 75 ohm
Serial No No No No No
Case All-in-one, anodized aluminum All-in-one, anodized aluminum All-in-one, anodized aluminum All-in-one, anodized aluminum All-in-one, anodized aluminum
IP degree protection IP66 IP66 IP66 IP66 IP66
Power supply 12 VDC 12 VDC 12 VDC 12 VDC 12 VDC
START
Art. MCAM697C Art. MCAM699C Art. MCAM696C Art. MCAM672B MCAM671B
Lens Varifocal, 2.8 ÷ 12 mm Varifocal, 6 ÷ 22 mm Varifocal, 6 ÷ 50 mm Fixed, 3.6 mm Varifocal, 2.8 ÷ 12 mm
System Day & Night Day & Night Day & Night Day & Night Day & Night
Image sensor 1/3" CCD 960H 1/3" CCD 960H 1/3" CCD 960H 1/3" CCD Sony EXview HAD II 1/3" CCD Sony EXview HAD II
Horizontal resolution (colour) 700 TVL - 960H 700 TVL - 960H 700 TVL - 960H 700 TVL - 960H 700 TVL - 960H
IR lter mechanical removal Yes Yes Yes No Yes
Integrated infrared illumination Yes, 40 leds Yes, 40 leds Yes, 40 leds Yes, 24 leds Yes, 30 leds
Maximum distance infrared illumination (m) Smart Smart Smart 20 30
Minimum Illumination (lux) 0.15 colour / 0 with IR leds ON 0.15 colour / 0 with IR leds ON 0.15 colour / 0 with IR leds ON 0.15 colour / 0 with IR leds ON 0.15 colour / 0 with IR leds ON
Backlight compensation No No No No No
Wide Dynamic Range (WDR) No No No No No
Digital Noise Reduction (DNR) No No No 2D-DNR 2D-DNR
Video output BNC, 1 Vp-p, 75 ohm BNC, 1 Vp-p, 75 ohm BNC, 1 Vp-p, 75 ohm BNC, 1 Vp-p, 75 ohm BNC, 1 Vp-p, 75 ohm
Serial No No No No No
Case All-in-one, aluminum All-in-one, aluminum All-in-one, aluminum All-in-one, anodized aluminum All-in-one, anodized aluminum
IP degree protection IP66 IP66 IP66 IP67 IP67
Power supply 12 VDC 12 VDC 12 VDC 12 VDC 12 VDC
MIDDLE
Art. HCAM675B Art. HCAM676B
Lens Varifocal, 2,8 ÷ 12 mm Varifocal, 5 ÷ 50 mm
System Day & Night Day & Night
Image sensor
1/3" CCD Sony EXview HAD II 960H 1/3" CCD Sony EXview HAD II 960H
Horizontal resolution (colour) 700 TVL - 960H 700 TVL - 960H
IR lter mechanical removal Yes Yes
Integrated infrared illumination Yes, 45 leds Yes, 45 leds
Maximum distance infrared illumination (m) 40 40
Minimum Illumination (lux) 0.15 colour / 0 with IR leds ON 0.15 colour / 0 with IR leds ON
Backlight compensation BLC - HLC BLC - HLC
Wide Dynamic Range (WDR) No No
Digital Noise Reduction (DNR) 2D-DNR 2D-DNR
Video output BNC, 1 Vp-p, 75 ohm BNC, 1 Vp-p, 75 ohm
Serial No No
Case All-in-one, anodized aluminum All-in-one, anodized aluminum
IP degree protection IP67 IP67
Power supply 12 VDC / 24 VAC 12 VDC / 24 VAC
HIGH
ANALOG | 33
ANALOG
CAMERAS
AND LENSES
DVR
KEYBOARDS
MATRICES
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
ANALOG
CAMERAS AND LENSES
Art. SCAM616A Art. SCAM617A Art. SCAM108A Art. SCAM118A Art. SCAM618A
Lens Varifocal, 2.8 ÷ 12 mm Varifocal, 2.8 ÷ 12 mm Fixed, 3.6 mm Varifocal, 2.8 ÷ 12 mm Varifocal, 2.8 ÷ 12 mm
System Day & Night Day & Night Day & Night Day & Night Day & Night
Image sensor 1/3" CCD Sony Super HAD 1/3" CCD Sony Super HAD II 1/3" CMOS HDIS 1/3" CMOS HDIS 1/3" CMOS Sony Exmor
Horizontal resolution (colour) 600 TVL 700 TVL - 960H 800 TVL 800 TVL 1000 TVL - 720p
IR lter mechanical removal Yes Yes Yes Yes Yes
Integrated infrared illumination Yes, 36 leds Yes, 36 leds Yes, 23 leds Yes, 36 leds Yes, 36 leds
Maximum distance infrared illumination (m) 30 30 20 30 30
Minimum Illumination (lux) 0.01 with IR leds ON 0 with IR leds ON 0 with IR leds ON 0 with IR leds ON 0 with IR leds ON
Backlight compensation No No No No No
Wide Dynamic Range (WDR) No No No No No
Digital Noise Reduction (DNR) No No No No No
Video output BNC, 1 Vp-p, 75 ohm BNC, 1 Vp-p, 75 ohm BNC, 1 Vp-p, 75 ohm BNC, 1 Vp-p, 75 ohm BNC, 1 Vp-p, 75 ohm
Serial No No No No No
Case All-in-one, anodized aluminum All-in-one, anodized aluminum All-in-one, anodized aluminum All-in-one, anodized aluminum All-in-one, anodized aluminum
IP degree protection IP66 IP66 IP66 IP66 IP66
Power supply 12 VDC 12 VDC 12 VDC 12 VDC 12 VDC
Art. MCAM697C Art. MCAM699C Art. MCAM696C Art. MCAM672B MCAM671B
Lens Varifocal, 2.8 ÷ 12 mm Varifocal, 6 ÷ 22 mm Varifocal, 6 ÷ 50 mm Fixed, 3.6 mm Varifocal, 2.8 ÷ 12 mm
System Day & Night Day & Night Day & Night Day & Night Day & Night
Image sensor 1/3" CCD 960H 1/3" CCD 960H 1/3" CCD 960H 1/3" CCD Sony EXview HAD II 1/3" CCD Sony EXview HAD II
Horizontal resolution (colour) 700 TVL - 960H 700 TVL - 960H 700 TVL - 960H 700 TVL - 960H 700 TVL - 960H
IR lter mechanical removal Yes Yes Yes No Yes
Integrated infrared illumination Yes, 40 leds Yes, 40 leds Yes, 40 leds Yes, 24 leds Yes, 30 leds
Maximum distance infrared illumination (m) Smart Smart Smart 20 30
Minimum Illumination (lux) 0.15 colour / 0 with IR leds ON 0.15 colour / 0 with IR leds ON 0.15 colour / 0 with IR leds ON 0.15 colour / 0 with IR leds ON 0.15 colour / 0 with IR leds ON
Backlight compensation No No No No No
Wide Dynamic Range (WDR) No No No No No
Digital Noise Reduction (DNR) No No No 2D-DNR 2D-DNR
Video output BNC, 1 Vp-p, 75 ohm BNC, 1 Vp-p, 75 ohm BNC, 1 Vp-p, 75 ohm BNC, 1 Vp-p, 75 ohm BNC, 1 Vp-p, 75 ohm
Serial No No No No No
Case All-in-one, aluminum All-in-one, aluminum All-in-one, aluminum All-in-one, anodized aluminum All-in-one, anodized aluminum
IP degree protection IP66 IP66 IP66 IP67 IP67
Power supply 12 VDC 12 VDC 12 VDC 12 VDC 12 VDC
COMPACT CAMERAS
ANALOG
Cameras and lenses
COMELIT I VIDEO SURVEILLANCE
DISCRETE CAMERAS
SCAM688B Miniaturized colour all-in-one camera, DISCRETE series, 3.7 mm fixed
lens, 650 TVL resolution, case suitable for indoor use.
Camera sensor : 1/3'' CCD
Camera lens : Pinhole
Sensitivity (lux) : 0.01 (colour)
DC supply voltage : 12 V
Absorption : 1.44 W
Product width (mm) : 37
Product height (mm) : 37
Product depth (mm) : 22
SCAM683B Colour all-in-one camera, DISCRETE series, 3.7 mm fixed lens, 650 TVL
resolution, PIR case suitable for indoor use.
Camera sensor : 1/3'' CCD
Sensitivity (lux) : 0.8 (colour)
DC supply voltage : 12 V
Absorption : 1.44 W
Product width (mm) : 70
Product height (mm) : 120
Product depth (mm) : 48
SCAM685B Colour all-in-one camera, DISCRETE series, 3.7 mm fixed lens, 600 TVL
resolution, SMOKE DETECTOR case suitable for indoor use.
Camera sensor : 1/3'' CCD Super HAD
Sensitivity (lux) : 0.26 (colour)
DC supply voltage : 12 V
Absorption : 1.2 W
Diameter (mm) : 120
Product height (mm) : 56.5
40686 Colour all-in-one camera, DISCRETE series, 3.7 mm fixed lens, 420 TVL
resolution, SPRINKLER case suitable for indoor use.
Camera sensor : 1/4'' CMOS
Sensitivity (lux) : 1.5 (colour)
DC supply voltage : 12 V
Absorption : 0.48 W
Diameter (mm) : 84
Product height (mm) : 95
ANALOG
Cameras and lenses
CAMERAS
AND LENSES
DVR
KEYBOARDS
MATRICES
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
ANALOG
ANALOG | 35
DISCRETE CAMERAS
HCAM613A All-in-one Day & Night colour camera, DISCRETE series, 3.6 mm fixed lens,
700 TVL resolution, 960H, case waterproof IP66.
Camera sensor : 1/3'' CCD Sony EXview HAD II 960H
Sensitivity (lux) : 0.005 (colour)
Electronic removal of IR filter : Yes
Main functions : ATR-Lite, 2D-NR
DC supply voltage : 12 V
Absorption : 0.78 W
Diameter (mm) : 19
Product depth (mm) : 71
HCAM614A All-in-one Day & Night colour camera, DISCRETE series, 4-9 mm varifocal
lens, 700 TVL resolution, 960H, case waterproof IP66.
Camera sensor : 1/3'' CCD Sony EXview HAD II 960H
Sensitivity (lux) : 0.005 (colour)
Electronic removal of IR filter : Yes
Main functions : ATR-Lite, 2D-NR
DC supply voltage : 12 V
Absorption : 0.78 W
Diameter (mm) : 26
Product depth (mm) : 106
ANALOG
Cameras and lenses
COMELIT I VIDEO SURVEILLANCE
COMPACT CAMERAS
SCAM616A All-in-one Day & Night colour camera, 2.8-12 mm varifocal lens, 600 TVL
resolution, case waterproof IP66, 36 infrared leds with a range of up to
30 meters.
Camera sensor : 1/3’’ CCD Sony
Sensitivity (lux) : 0 (leds IR ON)
Mechanical removal of IR filter : Yes
Main functions : AGC, AES
DC supply voltage : 12 V
Absorption : 4.8 W
Product width (mm) : 228
Product height (mm) : 97
Product depth (mm) : 84
SCAM617A All-in-one Day & Night colour camera, 2.8-12 mm varifocal lens, 700 TVL
resolution, 960H, case waterproof IP66, 36 infrared leds with a range of
up to 30 meters.
Camera sensor : 1/3'' CCD Sony Super HAD II
Horizontal resolution (TVL) : 700
Sensitivity (lux) : 0 (leds IR ON)
Mechanical removal of IR filter : Yes
DC supply voltage : 12 V
Absorption : 4.8 W
Product width (mm) : 228
Product height (mm) : 97
Product depth (mm) : 84
SCAM108A All-in-one Day & Night colour camera, 3.6 mm fixed lens, 800 TVL
resolution, case waterproof IP66, 23 infrared leds with a range of up to
20 meters.
Camera sensor : 1/3'' CMOS HDIS
Sensitivity (lux) : 0 (leds IR ON)
Mechanical removal of IR filter : Yes
Main functions : AGC, AES
DC supply voltage : 12 V
Absorption : 3.6 W
Product width (mm) : 184
Product height (mm) : 72
Product depth (mm) : 70
ANALOG
Cameras and lenses
CAMERAS
AND LENSES
DVR
KEYBOARDS
MATRICES
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
ANALOG
ANALOG | 37
COMPACT CAMERAS
SCAM118A All-in-one Day & Night colour camera, 2.8-12 mm varifocal lens, 800 TVL
resolution, case waterproof IP66, 36 infrared leds with a range of up to
30 meters.
Camera sensor : 1/3'' CMOS HDIS
Sensitivity (lux) : 0 (leds IR ON)
Mechanical removal of IR filter : Yes
Main functions : AGC, AES
DC supply voltage : 12 V
Absorption : 4.8 W
Product width (mm) : 228
Product height (mm) : 97
Product depth (mm) : 84
SCAM618A All-in-one Day & Night colour camera, 2.8-12 mm varifocal lens, 1000 TVL
resolution, 720p, case waterproof IP66, 36 infrared leds with a range of
up to 30 meters.
Camera sensor : 1/3'' CMOS Sony Exmor
Horizontal resolution (TVL) : 1000
Sensitivity (lux) : 0 (leds IR ON)
Mechanical removal of IR filter : Yes
DC supply voltage : 12 V
Absorption : 4.8 W
Product width (mm) : 228
Product height (mm) : 97
Product depth (mm) : 84
MCAM697C All-in-one Day & Night colour camera, 2.8 - 12 mm varifocal lens, 700 TVL
resolution, 960H, case IP66 waterproof, 40 infrared leds with a range of
up to 35 meters.
Camera sensor : 1/3'' CCD 960H
Sensitivity (lux) : 0.1 (colour) / 0 (B&W - leds IR ON)
Mechanical removal of IR filter : Yes
Main functions : SMART 2DNR, SMART IR
DC supply voltage : 12 V
Absorption : 5 W
Product width (mm) : 75
Product height (mm) : 98.4
Product depth (mm) : 300
ANALOG
Cameras and lenses
COMELIT I VIDEO SURVEILLANCE
COMPACT CAMERAS
MCAM699C All-in-one Day & Night colour camera, 6-22 mm varifocal lens, 700 TVL
resolution, 960H, case IP66 waterproof, 40 infrared leds with a range of
up to 35 meters.
Camera sensor : 1/3'' CCD 960H
Sensitivity (lux) : 0.1 (colour) / 0 (B&W - leds IR ON)
Mechanical removal of IR filter : Yes
Main functions : SMART 2DNR, SMART IR
DC supply voltage : 12 V
Absorption : 5 W
Product width (mm) : 75
Product height (mm) : 98.4
Product depth (mm) : 300
MCAM696C All-in-one Day & Night colour camera, 6-50 mm varifocal lens, 700 TVL
resolution, 960H, case IP66 waterproof, 40 infrared leds with a range of
up to 35 meters.
Camera sensor : 1/3'' CCD 960H
Sensitivity (lux) : 0.1 (colour) / 0 (B&W - leds IR ON)
Mechanical removal of IR filter : Yes
Main functions : SMART 2DNR, SMART IR
DC supply voltage : 12 V
Absorption : 5 W
Product width (mm) : 75
Product height (mm) : 98.4
Product depth (mm) : 300
MCAM672B All-in-one Day & Night colour camera, 3.6 mm fixed lens, 700 TVL
resolution, 960H, case waterproof IP67, 24 infrared leds with a range of
up to 25 meters (SMART led function).
Camera sensor : 1/3'' CCD Sony EXview HAD II
Sensitivity (lux) : 0.15 (colour)
Electronic removal of IR filter : Yes
Main functions : 2D-DNR
DC supply voltage : 12 V
Absorption : 4 W
Diameter (mm) : 50
Product depth (mm) : 139.5
ANALOG
Cameras and lenses
CAMERAS
AND LENSES
DVR
KEYBOARDS
MATRICES
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
ANALOG
ANALOG | 39
COMPACT CAMERAS
MCAM671B All-in-one Day & Night colour camera, 2.8-12 mm varifocal autoiris Day &
Night lens, 700 TVL resolution, 960H, case waterproof IP67, 30 infrared
leds with a range of up to 30 meters (SMART led function).
Camera sensor : 1/3'' CCD Sony EXview HAD II
Sensitivity (lux) : 0.15 (colour)
Mechanical removal of IR filter : Yes
Main functions : 2D-DNR
DC supply voltage : 12 V
Absorption : 4.5 W
Diameter (mm) : 66
Product depth (mm) : 171
HCAM675B All-in-one Day & Night colour camera, 2.8-12 mm varifocal autoiris lens,
700 TVL resolution, 960H, case waterproof IP67, 45 infrared leds with a
range of up to 40 meters.
Camera sensor : 1/3'' CCD Sony EXview HAD II
Sensitivity (lux) : 0.15 (colour) / 0 (B&W)
Mechanical removal of IR filter : Yes
Main functions : HLC, 2D-DNR, ATR, Motion, Privacy mask, Mirror
AC supply voltage : 24 V
DC supply voltage : 12 V
Absorption : 5 W
Product width (mm) : 98.4
Product height (mm) : 177.5
Product depth (mm) : 263.5
HCAM676B All-in-one Day & Night colour camera, 5-50 mm varifocal autoiris lens,
700 TVL resolution, 960H, case waterproof IP67, 45 infrared leds with a
range of up to 40 meters.
Camera sensor : 1/3'' CCD Sony EXview HAD II
Sensitivity (lux) : 0.15 (colour) / 0 (B&W)
Mechanical removal of IR filter : Yes
Main functions : HLC, 2D-DNR, ATR, Motion, Privacy mask, Mirror
AC supply voltage : 24 V
DC supply voltage : 12 V
Absorption : 5 W
Product width (mm) : 98.4
Product height (mm) : 177.5
Product depth (mm) : 263.5
COMELIT I VIDEO SURVEILLANCE
Art. SCAM637A-SCAM637A/G Art. SCAM128A-SCAM128A/G Art. SCAM138A-SCAM138A/G Art. SCAM638A-SCAM638A/G
Lens Varifocal, 2.8 ÷ 12 mm Fixed, 3.6 mm Varifocal, 2.8 ÷ 12 mm Varifocal, 2.8 ÷ 12 mm
System Day & Night Day & Night Day & Night Day & Night
Image sensor 1/3" CCD Sony Super HAD II 1/3" CMOS HDIS 1/3" CMOS HDIS 1/3" CMOS Sony Exmor
Horizontal resolution (colour) 700 TVL - 960H 800 TVL 800 TVL 1000 TVL - 720p
IR lter mechanical removal Yes Yes Yes Yes
Integrated infrared illumination Yes, 36 leds Yes, 23 leds Yes, 36 leds Yes, 36 leds
Maximum distance infrared illumination (m) 30 20 30 30
Minimum Illumination (lux) 0 with IR leds ON 0 with IR leds ON 0 with IR leds ON 0 with IR leds ON
Backlight compensation No No No No
Wide Dynamic Range (WDR) No No No No
Digital Noise Reduction (DNR) No No No No
Video output BNC, 1 Vp-p, 75 ohm BNC, 1 Vp-p, 75 ohm BNC, 1 Vp-p, 75 ohm BNC, 1 Vp-p, 75 ohm
Serial No No No No
Case Minidome Minidome Minidome Minidome
IP degree protection IP66 IP66 IP66 IP66
Power supply 12 VDC 12 VDC 12 VDC 12 VDC
START
Art. MCAM630B Art. MCAM631B
Lens Fixed, 3.6 mm Varifocal, 2.8 ÷ 12 mm
System Day & Night Day & Night
Image sensor 1/3" CCD Sony Super HAD II 1/3" CCD Sony Super HAD II
Horizontal resolution (colour) 700 TVL - 960H 700 TVL - 960H
IR lter mechanical removal No Yes
Integrated infrared illumination No Yes, 21 leds
Maximum distance infrared illumination (m) -15
Minimum Illumination (lux) 0.1 colour 0 with IR leds ON
Backlight compensation No No
Wide Dynamic Range (WDR) No No
Digital Noise Reduction (DNR) No No
Video output BNC, 1 Vp-p, 75 ohm BNC, 1 Vp-p, 75 ohm
Serial No No
Case Minidome Minidome
IP degree protection IP65 IP66
Power supply 12 VDC 12 VDC
MIDDLE
Art. HCAM635B Art. HCAM633B Art. HCAM634B
Lens Varifocal, 2,8 ÷ 12 mm D&N Varifocal, 2,8 ÷ 11 mm D&N Varifocal, 2,8 ÷ 11 mm D&N
System Day & Night Day & Night Day & Night
Image sensor 1/3" CCD Sony EXview HAD II 1/3" CCD Sony EXview II 960H 1/3" CCD Sony Super HAD II PS 960H
Horizontal resolution (colour) 700 TVL - 960H 700 TVL - 960H 700 TVL - 960H
IR lter mechanical removal Yes Yes Yes
Integrated infrared illumination Yes, 30 leds No No
Maximum distance infrared illumination (m) 30 - -
Minimum Illumination (lux) 0.15 colour / 0 with IR leds ON
0.1 colour / 0.01 B&W / 0.0001 Sens-up
0.1 colour / 0.01 B&W / 0.0001
Sens-up
Backlight compensation BLC, HLC EHLC EHLC
Wide Dynamic Range (WDR) D-WDR (ATR) WDR-Lite WDR
Digital Noise Reduction (DNR) 2D-DNR 3DNR 3DNR
Video output BNC, 1 Vp-p, 75 ohm BNC, 1 Vp-p, 75 ohm BNC (1 Vp-p, 75 ohm) / UTP
Serial No RS485 RS485
Case Minidome, vandalproof Minidome, vandalproof Minidome, vandalproof
IP degree protection IP66 IP66 IP66
Power supply 12 VDC / 24 VAC 12 VDC / 24 VAC 12 VDC / 24 VAC
Case Minidome Box All-in-one
IP degree protection - - 67
Power supply 12 VDC 12 VDC 12 VDC
HIGH
ANALOG | 41
ANALOG
Cameras and lenses
CAMERAS
AND LENSES
DVR
KEYBOARDS
MATRICES
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
ANALOG
Art. SCAM637A-SCAM637A/G Art. SCAM128A-SCAM128A/G Art. SCAM138A-SCAM138A/G Art. SCAM638A-SCAM638A/G
Lens Varifocal, 2.8 ÷ 12 mm Fixed, 3.6 mm Varifocal, 2.8 ÷ 12 mm Varifocal, 2.8 ÷ 12 mm
System Day & Night Day & Night Day & Night Day & Night
Image sensor 1/3" CCD Sony Super HAD II 1/3" CMOS HDIS 1/3" CMOS HDIS 1/3" CMOS Sony Exmor
Horizontal resolution (colour) 700 TVL - 960H 800 TVL 800 TVL 1000 TVL - 720p
IR lter mechanical removal Yes Yes Yes Yes
Integrated infrared illumination Yes, 36 leds Yes, 23 leds Yes, 36 leds Yes, 36 leds
Maximum distance infrared illumination (m) 30 20 30 30
Minimum Illumination (lux) 0 with IR leds ON 0 with IR leds ON 0 with IR leds ON 0 with IR leds ON
Backlight compensation No No No No
Wide Dynamic Range (WDR) No No No No
Digital Noise Reduction (DNR) No No No No
Video output BNC, 1 Vp-p, 75 ohm BNC, 1 Vp-p, 75 ohm BNC, 1 Vp-p, 75 ohm BNC, 1 Vp-p, 75 ohm
Serial No No No No
Case Minidome Minidome Minidome Minidome
IP degree protection IP66 IP66 IP66 IP66
Power supply 12 VDC 12 VDC 12 VDC 12 VDC
Art. HCAM635B Art. HCAM633B Art. HCAM634B
Lens Varifocal, 2,8 ÷ 12 mm D&N Varifocal, 2,8 ÷ 11 mm D&N Varifocal, 2,8 ÷ 11 mm D&N
System Day & Night Day & Night Day & Night
Image sensor 1/3" CCD Sony EXview HAD II 1/3" CCD Sony EXview II 960H 1/3" CCD Sony Super HAD II PS 960H
Horizontal resolution (colour) 700 TVL - 960H 700 TVL - 960H 700 TVL - 960H
IR lter mechanical removal Yes Yes Yes
Integrated infrared illumination Yes, 30 leds No No
Maximum distance infrared illumination (m) 30 - -
Minimum Illumination (lux) 0.15 colour / 0 with IR leds ON
0.1 colour / 0.01 B&W / 0.0001 Sens-up
0.1 colour / 0.01 B&W / 0.0001
Sens-up
Backlight compensation BLC, HLC EHLC EHLC
Wide Dynamic Range (WDR) D-WDR (ATR) WDR-Lite WDR
Digital Noise Reduction (DNR) 2D-DNR 3DNR 3DNR
Video output BNC, 1 Vp-p, 75 ohm BNC, 1 Vp-p, 75 ohm BNC (1 Vp-p, 75 ohm) / UTP
Serial No RS485 RS485
Case Minidome, vandalproof Minidome, vandalproof Minidome, vandalproof
IP degree protection IP66 IP66 IP66
Power supply 12 VDC / 24 VAC 12 VDC / 24 VAC 12 VDC / 24 VAC
Case Minidome Box All-in-one
IP degree protection - - 67
Power supply 12 VDC 12 VDC 12 VDC
MINIDOME CAMERAS
ANALOG
Cameras and lenses
COMELIT I VIDEO SURVEILLANCE
MINIDOME CAMERAS
SCAM637A Minidome Day & Night colour camera, 2.8-12 mm varifocal lens, 700 TVL
resolution, 960H, case waterproof IP66, 36 infrared illuminators with a
range of up to 30 meters.
Camera sensor : 1/3'' CCD Sony Super HAD II
Horizontal resolution (TVL) : 700
Sensitivity (lux) : 0 (leds IR ON)
Mechanical removal of IR filter : Yes
DC supply voltage : 12 V
Absorption : 4.8 W
Diameter (mm) : 119
Product height (mm) : 82.5
SCAM637A/G Minidome Day & Night colour camera, 2.8-12 mm varifocal lens, 700 TVL
resolution, 960H, case waterproof IP66, 36 infrared illuminators with a
range of up to 30 meters.
Camera sensor : 1/3'' CCD Sony Super HAD II
Horizontal resolution (TVL) : 700
Sensitivity (lux) : 0 (leds IR ON)
Mechanical removal of IR filter : Yes
DC supply voltage : 12 V
Absorption : 4.8 W
Diameter (mm) : 119
Product height (mm) : 82.5
SCAM128A Minidome Day & Night colour camera, 3.6 mm fixed lens, 800 TVL
resolution, case waterproof IP66, 23 infrared illuminators with a range of
up to 20 meters.
Camera sensor : 1/3'' CMOS HDIS
Sensitivity (lux) : 0 (leds IR ON)
Mechanical removal of IR filter : Yes
Main functions : AGC, AES
DC supply voltage : 12 V
Absorption : 3.6 W
Diameter (mm) : 94
Product height (mm) : 68.5
SCAM128A/G Minidome Day & Night colour camera, 3.6 mm fixed lens, 800 TVL
resolution, case waterproof IP66, 23 infrared illuminators with a range of
up to 20 meters.
Camera sensor : 1/3'' CMOS HDIS
Sensitivity (lux) : 0 (leds IR ON)
Mechanical removal of IR filter : Yes
Main functions : AGC, AES
DC supply voltage : 12 V
Absorption : 3.6 W
Diameter (mm) : 94
Product height (mm) : 68.5
ANALOG
Cameras and lenses
CAMERAS
AND LENSES
DVR
KEYBOARDS
MATRICES
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
ANALOG
ANALOG | 43
MINIDOME CAMERAS
SCAM138A Minidome Day & Night colour camera, 2.8-12 mm varifocal lens, 800 TVL
resolution, case waterproof IP66, 36 infrared illuminators with a range of
up to 30 meters.
Camera sensor : 1/3'' CMOS HDIS
Sensitivity (lux) : 0 (leds IR ON)
Electronic removal of IR filter : Yes
Main functions : AGC, AES
DC supply voltage : 12
Absorption : 4.8 W
Diameter (mm) : 119
Product height (mm) : 82.5
SCAM138A/G Minidome Day & Night colour camera, 2.8-12 mm varifocal lens, 800 TVL
resolution, case waterproof IP66, 36 infrared illuminators with a range of
up to 30 meters.
Camera sensor : 1/3'' CMOS HDIS
Sensitivity (lux) : 0 (leds IR ON)
Mechanical removal of IR filter : Yes
Main functions : AGC, AES
DC supply voltage : 12 V
Absorption : 4.8 W
Diameter (mm) : 119
Product height (mm) : 82.5
SCAM638A Minidome Day & Night colour camera, 2.8-12 mm varifocal lens, 1000 TVL
resolution, 720p, case waterproof IP66, 36 infrared illuminators with a
range of up to 30 meters.
Camera sensor : 1/3'' CMOS Sony Exmor
Horizontal resolution (TVL) : 1000
Sensitivity (lux) : 0 (leds IR ON)
Mechanical removal of IR filter : Yes
DC supply voltage : 12 V
Absorption : 4.8 W
Diameter (mm) : 119
Product height (mm) : 82.5
SCAM638A/G Minidome Day & Night colour camera, 2.8-12 mm varifocal lens, 1000 TVL
resolution, 720p, case waterproof IP66, 36 infrared illuminators with a
range of up to 30 meters.
Camera sensor : 1/3'' CMOS Sony Exmor
Horizontal resolution (TVL) : 1000
Sensitivity (lux) : 0 (leds IR ON)
Mechanical removal of IR filter : Yes
DC supply voltage : 12 V
Absorption : 4.8 W
Diameter (mm) : 119
Product height (mm) : 82.5
ANALOG
Cameras and lenses
COMELIT I VIDEO SURVEILLANCE
MINIDOME CAMERAS
MCAM630B Minidome Day & Night colour camera, 3.6 mm fixed lens, 700 TVL
resolution, 960H, case IP65 waterproof and vandalresistant.
Camera sensor : 1/3'' CCD Sony Effio-E
Sensitivity (lux) : 0.1 (colour)
Electronic removal of IR filter : Yes
Main functions : AGC, AES
DC supply voltage : 12 V
Absorption : 1.44 W
Diameter (mm) : 117
Product height (mm) : 92
MCAM631B Minidome Day & Night colour camera, 2.8-12 mm varifocal autoiris lens,
700 TVL resolution, 960H, case IP66 waterproof and vandalresistant, 21
infrared leds with a range of up to 15 meters.
Camera sensor : 1/3'' CCD Sony Effio-E
Horizontal resolution (TVL) : 700
Sensitivity (lux) : 0 (leds IR ON))
Mechanical removal of IR filter : Yes
Main functions : AGC, AES
DC supply voltage : 12 V
Absorption : 3.6 W
Diameter (mm) : 138
Product height (mm) : 96.5
MBRK631B Wall bracket for minidome cameras art. MCAM631B.
HCAM635B All-in-one Day & Night colour minidome camera, 2.8-12 mm varifocal
autoiris Day & Night lens, 700 TVL resolution, 960H, case IP66 waterproof
and vandalresistant, 30 infrared leds with a range of up to 30 meters,
3-axis camera unit adjustment.
Camera sensor : 1/3'' CCD Sony EXview HAD II
Sensitivity (lux) : 0.15 (colour) / 0 (B&W)
Mechanical removal of IR filter : Yes
Main functions : BLC, HLC, D-WDR, 2D-DNR, ATR-Lite, Motion, Privacy mask,
Mirror
AC supply voltage : 24 V
DC supply voltage : 12 V
Absorption : 5 W
Diameter (mm) : 146.3
Product height (mm) : 113.7
ANALOG
Cameras and lenses
CAMERAS
AND LENSES
DVR
KEYBOARDS
MATRICES
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
ANALOG
ANALOG | 45
MINIDOME CAMERAS
HCAM633B All-in-one Day & Night colour minidome camera, 2.8-11 mm varifocal
autoiris Day & Night lens, 700 TVL resolution, 960H, case IP66 waterproof
and vandalresistant, 3-axis camera unit adjustment.
Camera sensor : 1/3'' CCD Sony EXview II 960H
Sensitivity (lux) : 0.1 (colour) / 0.01 (B&W) / 0.0001 (sens-up)
Mechanical removal of IR filter : Yes
Main functions : EHLC, WDR-Lite, 3DNR, Analytics, Privacy mask, Mirror
AC supply voltage : 24 V
DC supply voltage : 12 V
Absorption : 3.5 W
Diameter (mm) : 145.6
Product height (mm) : 113
HCAM634B All-in-one Day & Night colour minidome camera, 2.8-11 mm varifocal
autoiris Day & Night lens, 700 TVL resolution, 960H, case IP66 waterproof
and vandalresistant, 3-axis camera unit adjustment.
Camera sensor : 1/3'' CCD Sony EXview HAD II PS 960H
Sensitivity (lux) : 0.1 (colour) / 0.01 (B&W) / 0.0001 (sens-up)
Mechanical removal of IR filter : Yes
Main functions : EHLC, WDR, 3DNR, Analytics, Privacy mask, Mirror
AC supply voltage : 24 V
DC supply voltage : 12 V
Absorption : 3.5 W
Diameter (mm) : 145.6
Product height (mm) : 113
COMELIT I VIDEO SURVEILLANCE
ANALOG
Cameras and lenses
Art. HCAM433B /
HCAM533B
Art. HCAM434B /
HCAM534B
ANALITICS ANALITICS
Lens DC Drive / Video Drive DC Drive / Video Drive
System Day & Night Day & Night
Image sensor 1/3" CCD Sony EXview 960H 1/3" CCD Sony Super HAD II PS 960H
Horizontal resolution (colour) 700 TVL - 960H 700 TVL - 960H
IR lter mechanical removal Yes Yes
Minimum Illumination (lux) 0.1 colour / 0.01 B&W / 0.0001
sens-up
0.1 colour / 0.01 B&W / 0.0001
sens-up
Backlight compensation EHLC EHLC
Wide Dynamic Range (WDR) WDR-Lite
WDR
Digital Noise Reduction (DNR) 3DNR 3DNR
Video output BNC (1 Vp-p, 75 ohm) / UTP BNC (1 Vp-p, 75 ohm) / UTP
Serial RS485 RS485
Case Box Box
Power supply 12 VDC / 24 VAC (art.HCAM433B)
-100÷240 VAC (art.HCAM533B)
12 VDC / 24 VAC (art.HCAM434B)
-100÷240 VAC (art.HCAM534B)
HIGH
Art. MCAM437B /
MCAM537B
Art. MCAM438B /
MCAM538B
SENSE MOSAIC
Lens DC Drive / Video Drive / Manual DC Drive / Video Drive / Manual
System Day & Night Day & Night
Image sensor 1/3" CCD Sony EXview HAD II 1/3" CCD Sony EXview HAD II
Horizontal resolution (colour) 700 TVL - 960H 700 TVL - 960H
IR lter mechanical removal No Yes
Minimum Illumination (lux) 0.15 colour / 0.01 B&W 0.15 colour / 0.01 B&W
Backlight compensation BLC, HLC BLC, HLC
Wide Dynamic Range (WDR) D-WDR D-WDR
Digital Noise Reduction (DNR) DNR DNR
Video output BNC, 1 Vp-p, 75 ohm BNC, 1 Vp-p, 75 ohm
Serial No No
Case Box Box
Power supply 12 VDC / 24 VAC (art.MCAM437B)
-100÷240 VAC (art.MCAM537B)
12 VDC / 24 VAC (art.MCAM438B)
-100÷240 VAC (art.MCAM538B)
MIDDLE
BOX CAMERAS
ANALOG | 47
ANALOG
Cameras and lenses
CAMERAS
AND LENSES
DVR
KEYBOARDS
MATRICES
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
ANALOG
MCAM437B Day & Night colour box camera, 700 TVL resolution, 960H.
Camera sensor : 1/3'' CCD Sony EXview HAD II
Sensitivity (lux) : 0.15 (colour) / 0.01 (B&W)
Electronic removal of IR filter : Yes
Main functions : DNR, D-WDR, BLC, HLC, Privacy mask, Motion
AC supply voltage : 24 V
DC supply voltage : 12 V
Absorption : 3.5 W
Product width (mm) : 66
Product height (mm) : 56
Product depth (mm) : 120
MCAM537B Day & Night colour box camera, 700 TVL resolution, 960H.
Camera sensor : 1/3'' CCD Sony EXview HAD II
Sensitivity (lux) : 0.15 (colour) / 0.01 (B&W)
Electronic removal of IR filter : Yes
Main functions : DNR, D-WDR, BLC, HLC, Privacy mask, Motion
AC supply voltage : 100 - 240 V
Absorption : 4 W
Product width (mm) : 66
Product height (mm) : 56
Product depth (mm) : 120
MCAM438B Day & Night colour box camera, 700 TVL resolution, 960H.
Camera sensor : 1/3'' CCD Sony EXview HAD II
Sensitivity (lux) : 0.15 (colour) / 0.01 (B&W)
Mechanical removal of IR filter : Yes
Main functions : DNR, D-WDR, BLC, HLC, Privacy mask, Motion
AC supply voltage : 24 V
DC supply voltage : 12 V
Absorption : 3.5 W
Product width (mm) : 66
Product height (mm) : 56
Product depth (mm) : 120
MCAM538B Day & Night colour box camera, 700 TVL resolution, 960H.
Camera sensor : 1/3'' CCD Sony EXview HAD II
Sensitivity (lux) : 0.15 (colour) / 0.01 (B&W)
Mechanical removal of IR filter : Yes
Main functions : DNR, D-WDR, BLC, HLC, Privacy mask, Motion
AC supply voltage : 100 - 240 V
Absorption : 4 W
Product width (mm) : 66
Product height (mm) : 56
Product depth (mm) : 120
BOX CAMERAS
COMELIT I VIDEO SURVEILLANCE
ANALOG
Cameras and lenses
BOX CAMERAS
ANALOG | 48
HCAM433B Day & Night colour box camera, 700 TVL resolution, 960H.
Camera sensor : 1/3'' CCD Sony EXview 960H
Sensitivity (lux) : 0.1 (colour) / 0.01 (B&W) / 0.0001 (sens-up)
Mechanical removal of IR filter : Yes
Main functions : EHLC, WDR-Lite, 3DNR, DIS, Analytics, Privacy Mask, Digital
Zoom, Mirror, RS485
AC supply voltage : 24 V
DC supply voltage : 12 V
Absorption : 3.5 W
Product width (mm) : 66
Product height (mm) : 56
Product depth (mm) : 120
HCAM533B Day & Night colour box camera, 700 TVL resolution, 960H.
Camera sensor : 1/3'' CCD Sony EXview 960H
Sensitivity (lux) : 0.1 (colour) / 0.01 (B&W) / 0.0001 (sens-up)
Mechanical removal of IR filter : Yes
Main functions : EHLC, WDR-lite, 3DNR, DIS, Analytics, Privacy mask, Digital Zoom,
Mirror, RS485
AC supply voltage : 100 - 240 V
Absorption : 4 W
Product width (mm) : 66
Product height (mm) : 56
Product depth (mm) : 120
HCAM434B Day & Night colour box camera, 700 TVL resolution, 960H.
Camera sensor : 1/3'' CCD Sony Super HAD II 960H PS
Sensitivity (lux) : 0.1 (colour) / 0.01 (B&W) / 0.0001 (sense-up)
Mechanical removal of IR filter : Yes
Main functions : EHLC, WDR, 3DNR, DIS, Analysis, Privacy mask, Digital Zoom,
Mirror, RS485
AC supply voltage : 24 V
DC supply voltage : 12 V
Absorption : 3.5 W
Product width (mm) : 78.8
Product height (mm) : 64
Product depth (mm) : 118.4
ANALOG
ANALOG | 49
ANALOG
Cameras and lenses
BOX CAMERAS
HCAM534B Day & Night colour box camera, 700 TVL resolution, 960H.
Camera sensor : 1/3'' CCD Sony Super HAD II 960H PS
Sensitivity (lux) : 0.1 (colour) / 0.01 (B&W) / 0.0001 (sense-up)
Mechanical removal of IR filter : Yes
Main functions : EHLC, WDR, 3DNR, DIS, ATR-EX, Analytics, Privacy mask, Digital
Zoom, Mirror, RS485
AC supply voltage : 100 - 240 V
Absorption : 4 W
Product width (mm) : 78.8
Product height (mm) : 64
Product depth (mm) : 118.4
CAMERAS
AND LENSES
DVR
KEYBOARDS
MATRICES
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
ANALOG
COMELIT I VIDEO SURVEILLANCE
Art. MPTZ801B Art. HPTZ752B Art. HPTZ756B
Lens Varifocal, 3.9 ÷ 85.8 mm, True Night
Shot
Varifocal, 3.9 ÷ 85.8 mm, True Night
Shot
Varifocal, 3.4 ÷ 122.4 mm, True Night
Shot
System Day & Night Day & Night Day & Night
Image sensor 1/4" CCD Sony EXview HAD 1/4" CCD Sony Super HAD II 1/4" CCD Sony EXview HAD 960H
Horizontal resolution (colour) 700 TVL - 960H 700 TVL - 960H 700 TVL - 960H
Zoom 22x optical / 16x digital, autofocus 22x optical / 16x digital, autofocus 36x optical / 16x digital, autofocus
Alarm Input/Output 4 / 1 8 / 4 8 / 4
Privacy zone 8 8 8
Basic functions 160 Preset, 4 Tour, 4 Pattern, 4
Autoscan
240 Preset, 8 Tour, 8 Pattern, 16
Autoscan, Autotracking, Video Analytics
240 Preset, 8 Tour, 8 Pattern, 16
Autoscan, Autotracking, Video Analytics
IR lter mechanical removal Yes Yes Yes
Minimum Illumination (lux) 1 colour / 0.02 low shutter / 0.002
low shutter + ICR
0.1 colour / 0.00001 low shutter +
ICR
0.1 colour / 0.00001 low shutter +
ICR
Backlight compensation BLC BLC BLC
Wide Dynamic Range (WDR) Yes Yes Yes
Digital Noise Reduction (DNR) DNR 2DNR, 3DNR 2DNR, 3DNR
Video output BNC, 1 Vp-p, 75 ohm BNC, 1 Vp-p, 75 ohm BNC, 1 Vp-p, 75 ohm
Serial RS485 RS485 RS485
Case Dome all-in-one vandalproof
(WITHOUT bracket) - -
IP degree protection IP66 - -
Power supply 24 VAC 24 VAC 24 VAC
Art. MPTZ766A Art. MPTZ767B Art. MPTZ768B
Lens Varifocal, 3.9 ÷ 85.8 mm Varifocal, 3.9 ÷ 85.8 mm Varifocal, 3.9 ÷ 85.8 mm
System Day & Night Day & Night Day & Night
Image sensor 1/4" CCD Sony Super HAD II 1/4" CCD Sony Super HAD II 1/4" CCD Sony Super HAD II
Horizontal resolution (colour) 580 TVL 700 TVL - 960H 700 TVL - 960H
Zoom 22x optical, autofocus 22x optical / 16x digital, autofocus 22x optical / 16x digital, autofocus
Alarm Input/Output 1 / 1 4 / 1 4 / 1
Privacy zone No 8 8
Basic functions 120 Preset, 4 Tour, 4 Autoscan 240 Preset, 8 Tour, 8 Pattern, 16
Autoscan
240 Preset, 8 Tour, 8 Pattern, 16
Autoscan
IR lter mechanical removal Yes Yes Yes
Minimum Illumination (lux) 0.5 colour 0.1 colour / 0.00001 low shutter +
ICR
0.1 colour / 0.00001 low shutter +
ICR
Backlight compensation BLC, HLC BLC, HLC BLC, HLC
Wide Dynamic Range (WDR) No Yes Yes
Digital Noise Reduction (DNR) DNR 2DNR, 3DNR 2DNR, 3DNR
Video output BNC, 1 Vp-p, 75 ohm BNC, 1 Vp-p, 75 ohm BNC, 1 Vp-p, 75 ohm
Serial RS485 RS485 RS485
Case Minidome, indoor environment Minidome vandalproof Minidome vandalproof
IP degree protection IP66 IP66
Power supply 12 VDC 24 VAC 24 VAC
MIDDLE
HIGH
ANALOG | 51
CAMERAS
AND LENSES
DVR
KEYBOARDS
MATRICES
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
ANALOG
Art. MPTZ801B Art. HPTZ752B Art. HPTZ756B
Lens Varifocal, 3.9 ÷ 85.8 mm, True Night
Shot
Varifocal, 3.9 ÷ 85.8 mm, True Night
Shot
Varifocal, 3.4 ÷ 122.4 mm, True Night
Shot
System Day & Night Day & Night Day & Night
Image sensor 1/4" CCD Sony EXview HAD 1/4" CCD Sony Super HAD II 1/4" CCD Sony EXview HAD 960H
Horizontal resolution (colour) 700 TVL - 960H 700 TVL - 960H 700 TVL - 960H
Zoom 22x optical / 16x digital, autofocus 22x optical / 16x digital, autofocus 36x optical / 16x digital, autofocus
Alarm Input/Output 4 / 1 8 / 4 8 / 4
Privacy zone 8 8 8
Basic functions 160 Preset, 4 Tour, 4 Pattern, 4
Autoscan
240 Preset, 8 Tour, 8 Pattern, 16
Autoscan, Autotracking, Video Analytics
240 Preset, 8 Tour, 8 Pattern, 16
Autoscan, Autotracking, Video Analytics
IR lter mechanical removal Yes Yes Yes
Minimum Illumination (lux) 1 colour / 0.02 low shutter / 0.002
low shutter + ICR
0.1 colour / 0.00001 low shutter +
ICR
0.1 colour / 0.00001 low shutter +
ICR
Backlight compensation BLC BLC BLC
Wide Dynamic Range (WDR) Yes Yes Yes
Digital Noise Reduction (DNR) DNR 2DNR, 3DNR 2DNR, 3DNR
Video output BNC, 1 Vp-p, 75 ohm BNC, 1 Vp-p, 75 ohm BNC, 1 Vp-p, 75 ohm
Serial RS485 RS485 RS485
Case Dome all-in-one vandalproof
(WITHOUT bracket) - -
IP degree protection IP66 - -
Power supply 24 VAC 24 VAC 24 VAC
Art. MPTZ766A Art. MPTZ767B Art. MPTZ768B
Lens Varifocal, 3.9 ÷ 85.8 mm Varifocal, 3.9 ÷ 85.8 mm Varifocal, 3.9 ÷ 85.8 mm
System Day & Night Day & Night Day & Night
Image sensor 1/4" CCD Sony Super HAD II 1/4" CCD Sony Super HAD II 1/4" CCD Sony Super HAD II
Horizontal resolution (colour) 580 TVL 700 TVL - 960H 700 TVL - 960H
Zoom 22x optical, autofocus 22x optical / 16x digital, autofocus 22x optical / 16x digital, autofocus
Alarm Input/Output 1 / 1 4 / 1 4 / 1
Privacy zone No 8 8
Basic functions 120 Preset, 4 Tour, 4 Autoscan 240 Preset, 8 Tour, 8 Pattern, 16
Autoscan
240 Preset, 8 Tour, 8 Pattern, 16
Autoscan
IR lter mechanical removal Yes Yes Yes
Minimum Illumination (lux) 0.5 colour 0.1 colour / 0.00001 low shutter +
ICR
0.1 colour / 0.00001 low shutter +
ICR
Backlight compensation BLC, HLC BLC, HLC BLC, HLC
Wide Dynamic Range (WDR) No Yes Yes
Digital Noise Reduction (DNR) DNR 2DNR, 3DNR 2DNR, 3DNR
Video output BNC, 1 Vp-p, 75 ohm BNC, 1 Vp-p, 75 ohm BNC, 1 Vp-p, 75 ohm
Serial RS485 RS485 RS485
Case Minidome, indoor environment Minidome vandalproof Minidome vandalproof
IP degree protection IP66 IP66
Power supply 12 VDC 24 VAC 24 VAC
ANALOG
Cameras and lenses
PTZ CAMERAS
COMELIT I VIDEO SURVEILLANCE
ANALOG
Cameras and lenses
PTZ CAMERAS
MPTZ766A PTZ Day & Night colour minidome camera, MINITRAX series, optical zoom
22x with True Night Shot, 580 TVL resolution, case flush-mount suitable
for indoor use.
Camera sensor : 1/4 '' CCD Sony Super HAD II
Camera lens : Varifocal autoiris 3.9 - 85.8 mm Autofocus
Sensitivity (lux) : 0.5 (colour)
Mechanical removal of IR filter : Yes
Main functions : 120 Preset, 4 Pattern, 4 Tour, 4 Autoscan, 1 Alarm input/output,
DNR, OSD
DC supply voltage : 12 V
Absorption : 8 W
Diameter (mm) : 154
Product height (mm) : 151
MPTZ767B PTZ Day & Night colour minidome camera, MINITRAX series, optical zoom
22x, 700 TVL
resolution, 960H, case IP66 waterproof and vandalresistant.
Camera sensor : 1/4'' CCD Sony Super HAD II
Camera lens : Varifocal autoiris 3.9 - 85.8 Autofocus
Camera digital zoom : 16x
Sensitivity (lux) : 0.5 (colour) / 0.00001 (B&W + low shutter)
Mechanical removal of IR filter : Yes
Main functions : 240 Preset, 8 Pattern, 8 Tour, 16 Autoscan, 4 Alarm inputs/1
output, WDR, 2/3DNR, 8 Privacy zones, Motion detection
AC supply voltage : 24 V
DC supply voltage : 12 V
Absorption : 12 W
Diameter (mm) : 154
Product height (mm) : 140
MPTZ768B PTZ Day & Night colour minidome camera, MINITRAX series, optical zoom
22x, 700 TVL
resolution, 960H, case IP66 waterproof and vandalproof.
Camera sensor : 1/4'' CCD Sony Super HAD II
Camera lens : Varifocal autoiris 3.9 - 85.8 Autofocus
Camera digital zoom : 16x
Sensitivity (lux) : 0.5 (colour) / 0.00001 (B&W + low shutter)
Mechanical removal of IR filter : Yes
Main functions : 240 Preset, 8 Pattern, 8 Tour, 16 Autoscan, 4 alarm inputs/1
output, WDR, 2/3DNR, 8 Privacy zones, Motion detection
AC supply voltage : 24 V
DC supply voltage : 12 V
Absorption : 57 W max
Diameter (mm) : 186
Product height (mm) : 239
ANALOG | 53
ANALOG
Cameras and lenses
PTZ CAMERAS
MPTZ801B PTZ Day & Night colour all-in-one dome camera, BIGTRAX series, optical
zoom 22x, 700 TVL resolution, 960H, case IP66 waterproof and vandalproof
(without bracket), complete of connection cables.
Camera sensor : 1/4'' CCD EXview HAD
Camera lens : Varifocal autoiris 3.9-85.8 Autofocus True Night Shot
Camera digital zoom : 16x
Sensitivity (lux) : 1 (colour) / 0.02 (low shutter) / 0.002 (low shutter + ICR)
Mechanical removal of IR filter : Yes
Main functions : 160 Preset, 4 Pattern, 4 Tour, 4 Autoscan, 4 alarm inputs, 1 alarm
outupt, DNR, WDR, OSD, 8 Privacy zones
AC supply voltage : 24 V
Absorption : 42.4 W
Optional accessories (art.) : 40722, 40725, 40726, 40728, 40729
Diameter (mm) : 220
Product height (mm) : 250
HPTZ752B PTZ Day & Night colour dome camera, NAKEDTRAX series, optical zoom
22x True Night Shot, 700 TVL resolution, 960H.
Camera sensor : 1/4'' CCD Sony Super HAD II
Camera lens : Varifocal autoiris 3.9 - 85.8 mm Autofocus
Camera digital zoom : 16x
Sensitivity (lux) : 0.1 (colour) / 0.00001 (B&W + low shutter)
Mechanical removal of IR filter : Yes
Main functions : 240 Preset, 8 Pattern, 8 Tour, 8 alarm inputs/4 outputs, DNR, DIS,
WDR, 8 Privacy zones, Video Analytics
AC supply voltage : 24 V
Absorption : 20 W
Diameter (mm) : 125
Product height (mm) : 202
HPTZ756B PTZ Day & Night colour dome camera, NAKEDTRAX series, optical zoom
36x True Night Shot, 700 TVL resolution, 960H.
Camera sensor : 1/4'' CCD Sony EXview HAD II
Camera lens : Varifocal autoiris 3.4 - 122.4 mm Autofocus
Camera digital zoom : 16x
Sensitivity (lux) : 0.1 (colour) / 0.00001 (B&W + low shutter)
Mechanical removal of IR filter : Yes
Main functions : 240 Preset, 8 Pattern, 8 Tour, 8 alarm inputs/4 outputs, DNR, DIS,
WDR, 8 Privacy zones, Video Analytics
AC supply voltage : 24 V
Absorption : 20 W
Diameter (mm) : 125
Product height (mm) : 202
CAMERAS
AND LENSES
DVR
KEYBOARDS
MATRICES
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
ANALOG
COMELIT I VIDEO SURVEILLANCE
ANALOG
Cameras and lenses
PTZ ACCESSORIES
40720 False-ceiling installation accessory for dome cameras NAKEDTRAX series
art. 40752, 40756, HPTZ752B, HPTZ756B and IPPTZ777A.
40722 Corner installation accessory for universal dome housing, compatible
with art. 40728, 40729 (with adapter art. 40725) and 40734, and with
AFCAM series cameras (with adapter art. 40723).
40725 Fixing/anchoring plate for art. 40729 to be used in combination with art.
40722 and 40726.
40726 Pole-mounting accessory (pole diameter from 80 to 140 mm) for universal
dome housing, can be used for art. 40728 , 40729 (with adapter art.
40725) and 40734 and AFCAM series cameras (with adapter art. 40723).
40727 Ceiling bracket for dome housing art. 40731.
40728 Wall mount bracket for dome housing art. 40731 and dome cameras art.
40768, 40801, MPTZ768B, MPTZ801B and IPPTZ779A.
40729 Wall bracket, with transformer and quick-fit connection, for dome
cameras art. 40768, 40801, MPTZ768B, MPTZ801B and for dome housing
art. 40731.
ANALOG | 55
ANALOG
Cameras and lenses
PTZ ACCESSORIES CAMERAS
AND LENSES
DVR
KEYBOARDS
MATRICES
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
ANALOG
40731 Dome housing for outdoor use without bracket, thermostat-controlled and
fan-cooled, power supply 24 VAC, for dome cameras NAKEDTRAX series
art. 40752, 40756, HPTZ752B, HPTZ756B and dome IP art. IPPTZ777A.
40732 Ceiling mount bracket for dome cameras MINITRAX series art. 40767,
MPTZ767B, HCAM633B, HCAM634B, HCAM635B, 40762 and minidome IP
art. IPCAM722A, IPCAM727A and IPPTZ773A.
40734 Wall mount bracket for dome cameras MINITRAX series art. 40767,
MPTZ767B, HCAM633B, HCAM634B, HCAM635B, 40762 and minidome IP
art. IPCAM722A, IPCAM727A and IPPTZ773A.
40735 Cables kit to connect dome cameras NAKEDTRAX series (with housing art.
40731) with the wall bracket with transformer and quick-fit connection
art. 40729.
COMELIT I VIDEO SURVEILLANCE
ANALOG
Cameras and lenses
AFCAM
40761 AFZ Day & Night colour camera, AFCAM series, optical zoom 22x, 580 TVL
resolution.
Camera sensor : 1/4'' CCD EX-view HAD 760H
Camera lens : Varifocal autoiris 3.9 - 85.8 mm Autofocus
Camera digital zoom : 16x
Sensitivity (lux) : 0.5 (colour) / 0.05 (B&W) / 0.001 (low shutter)
Mechanical removal of IR filter : Yes
Main functions : 10 Preset (zoom only), 1 Tour (zoom only), 2D/3D-DNR, WDR, OSD,
16 Privacy mask, Face detection, Motion
DC supply voltage : 12 V
Absorption : 4.5 W
Product width (mm) : 62
Product height (mm) : 62
Product depth (mm) : 105
40762 AFZ Day & Night minidome colour camera, AFCAM series, optical zoom
22x, 580TVL resolution, case IP66 waterproof and vandalresistant.
Camera sensor : 1/4'' CCD EX-view HAD 760H
Camera lens : Varifocal autoiris 3.9 - 85.8 mm Autofocus
Camera digital zoom : 16x
Sensitivity (lux) : 0.5 (colour) / 0.05 (B&W) / 0.001 (low shutter)
Mechanical removal of IR filter : Yes
Main functions : 10 Preset (zoom only), 1 Tour (zoom only), 2D/3D-DNR, WDR, OSD,
16 Privacy mask, Face detection, Motion
DC supply voltage : 12 V
Absorption : 4.5 W
Diameter (mm) : 152
Product height (mm) : 120
HAFZ763B AFZ Day & Night all-in-one colour camera, AFCAM series, optical zoom
22x, 700TVL resolution, 960H, case IP66 waterproof and vandalresistant,
70 infrared leds with a range of up to 80 meters.
Camera sensor : 1/4'' CCD Super HAD II 960H
Camera lens : Varifocal autoiris 3.9 - 85.8 mm Autofocus
Camera digital zoom : 16x
Sensitivity (lux) : 0.1 (colour) / 0.01 (B&W) / 0 (leds IR ON)
Mechanical removal of IR filter : Yes
Main functions : 10 Preset (zoom), 1 Tour (zoom), 2D-DNR, 3D-DNR, WDR, DIS,
DSS, OSD, 16 privacy zones, Motion detection
AC supply voltage : 24 V
DC supply voltage : 12 V
Absorption : 24 W max
Product width (mm) : 120
Product height (mm) : 131
Product depth (mm) : 339
ANALOG | 57
ANALOG
Cameras and lenses
CAMERAS
AND LENSES
DVR
KEYBOARDS
MATRICES
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
ANALOG
40722 Corner installation accessory for universal dome housing, compatible
with art. 40728, 40729 (with adapter art. 40725) and 40734, and with
AFCAM series cameras (with adapter art. 40723).
40723 Adapter plate between art. 40722 and 40726 and AFCAM camera art.
40763 and HAFZ763B.
40726 Pole-mounting accessory (pole diameter from 80 to 140 mm) for universal
dome housing, can be used for art. 40728 , 40729 (with adapter art.
40725) and 40734 and AFCAM series cameras (with adapter art. 40723).
40732 Ceiling mount bracket for dome cameras MINITRAX series art. 40767,
MPTZ767B, HCAM633B, HCAM634B, HCAM635B, 40762 and minidome IP
art. IPCAM722A, IPCAM727A and IPPTZ773A.
40734 Wall mount bracket for dome cameras MINITRAX series art. 40767,
MPTZ767B, HCAM633B, HCAM634B, HCAM635B, 40762 and minidome IP
art. IPCAM722A, IPCAM727A and IPPTZ773A.
AFCAM ACCESSORIES
ANALOG
Cameras and lenses
COMELIT I VIDEO SURVEILLANCE
LENSES
42282 IR varifocal auto-iris DC-Drive lens from 2.7 to 12 mm, F1.3-360, dimension
1/3'', CS mount, manual zoom and focus, iris adjustable on the camera,
mininum distance from object being filmed of 0.3 m, pre-fitted connector.
42651 Varifocal auto-iris DC-Drive lens from 5 to 60 mm, F1.6-360, dimension
1/3'', CS mount, manual zoom and focus, iris adjustable on the camera,
mininum distance from object being filmed of 0.3 m, pre-fitted connector.
42246 Megapixel varifocal autoiris ASPHERICAL TAMRON DC-Drive lens from 2.4
to 6 mm, F1.2-360, dimension 1/3'', CS mount, manual zoom and focus,
iris adjustable on the camera, mininum distance from object being filmed
of 0.3 m, pre-fitted connector.
42308 Megapixel varifocal autoiris ASPHERICAL TAMRON DC-Drive lens from 3
to 8 mm, F1-360, dimension 1/3'', CS mount, manual zoom and focus, iris
adjustable on the camera, mininum distance from object being filmed of
0.3 m, pre-fitted connector.
42412 Megapixel varifocal autoiris ASPHERICAL TAMRON DC Drive lens from 4 to
12 mm, F1.4-360, dimension 1/3'', CS mount, manual zoom and focus, iris
adjustable on the camera, mininum distance from object being filmed of
0.3 m, pre-fitted connector.
42550 Megapixel varifocal autoiris ASPHERICAL TAMRON DC Drive lens from 5 to
50 mm, F1.4-360, dimension 1/3'', CS mount, manual zoom and focus, iris
adjustable on the camera, mininum distance from object being filmed of
0.3 m, pre-fitted connector.
ANALOG | 59
ANALOG
Cameras and lenses
CAMERAS
AND LENSES
DVR
KEYBOARDS
MATRICES
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
ANALOG
NOTES
NOTES
COMELIT I VIDEO SURVEILLANCE
• codec H264, HDD S.M.A.R.T self-diagnostics, SSL encrypted transmission, WATERMARKING function, USB connectors for rmware
updating, exporting of recorded images and PTZ camera management.
• high construction quality and recording quality for security purposes
• management with iRAS, for all DVR solutions: START, MIDDLE & HIGH and Networking
• control of storage devices with a vast range of management consoles which can be connected via RS232,
RS485 and IP
• maximum exibility with both digital and ANALOG matrixes
DVR
ANALOG
ANALOG | 61
ANALOG
CAMERAS
AND LENSES
DVR
KEYBOARDS
MATRICES
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
START
SERIES 64
MIDDLE
SERIES 67
HIGH
SERIES 71
HARD DISK 73
COMELIT I VIDEO SURVEILLANCE
Art. HDVR836B
IPS in recording (PAL) 400@D1 / 960H
Video compression H264 - Watermarking
Video inputs 16 with loop
Main video outputs 1 VGA, 1 HDMI
Secondary video outputs No
Spot video outputs 1
Audio inputs 4
Audio outputs 1
Alarm inputs 16
Alarm outputs 2 relay
HDD (SATA) in equipment 500 GB
Additional HDD (SATA) 3
Burner DVD-RW
Ethernet 10/100/1000 network 1 RJ45
Serial ports RS232, RS485
Interfaces 2 USB, 1 eSATA
Local control Front panel, remote controller
Remote control
Web browser, proprietary software,
iPhone, iPAD, mobile devices with OS
Android
Art. MDVR804B Art. MDVR824B Art. MDVR828B Art. MDVR826B Art. MDVR808C Art. MDVR816C
IPS in recording (PAL) 100@CIF / 50@HALF-D1 / 25@D1 100@D1 / 960H 200@D1 / 960H
400@D1 / 960H
200@D1 / 960H 400@D1 / 960H
Video compression H264 - Watermarking H264 - Watermarking H264 - Watermarking H264 - Watermarking H264 - Watermarking H264 - Watermarking
Video inputs 4 4 8 16 8 with loop 16 with loop
Main video outputs 1 BNC, 1 VGA 1 VGA, 1 HDMI 1 VGA, 1 HDMI 1 VGA, 1 HDMI 1 VGA, 1 HDMI 1 VGA, 1 HDMI
Spot video outputs No No No No 1 1
Audio inputs No 4 4444
Audio outputs No 1 1 1 1 1
Alarm inputs No 4 8 16 816
Alarm outputs No 1 relay 1 relay 1 relay 2 relay 2 relay
HDD (SATA) in equipment 500 GB 500 GB 500 GB 500 GB 500 GB 500 GB
Additional HDD (SATA) No No No 1 3 3
Burner No No No No No No
Ethernet 10/100 network 1 RJ45 1 RJ45 1 RJ45 1 RJ45 1 RJ45 1 RJ45
Serial ports No RS232, RS485 RS232, RS485 RS232, RS485 RS232, RS485 RS232, RS485
Interfaces 1 USB 2 USB 2 USB 2 USB 2 USB 2 USB
Local control Remote controller Front panel, remote controller Front panel, remote controller Front panel, remote controller Front panel, remote controller Front panel, remote controller
Remote control
Web browser, proprietary software,
iPhone, iPAD, mobile devices with OS
Android
Web browser, proprietary software,
iPhone, iPAD, mobile devices with OS
Android
Web browser, proprietary software, iPhone,
iPAD, mobile devices with OS Android
Web browser, proprietary software, iPhone,
iPAD, mobile devices with OS Android
Web browser, proprietary software, iPhone,
iPAD, mobile devices with OS Android
Web browser, proprietary software, iPhone,
iPAD, mobile devices with OS Android
Art. SDVR040A Art. SDVR080A Art. SDVR160A
IPS in recording (PAL) 100@D1 / 960H 200@D1 / 960H 400@D1 / 960H
Video compression H264 H264 H264
Video inputs 4 8 16
Main video outputs 1 BNC, 1 VGA, 1 HDMI 1 BNC, 1 VGA, 1 HDMI 1 BNC, 1 VGA, 1 HDMI
Spot video outputs No No No
Audio inputs 2 2 16
Audio outputs 1 1 1
Alarm inputs 4 4 4
Alarm outputs 1 1 1
HDD (SATA) in equipment 1 (500 GB) 1 (500 GB) 1 (500 GB)
Additional HDD (SATA) No 1 1
Burner No No No
Ethernet 10/100 network 1 RJ45 1 RJ45 1 RJ45
Serial ports RS485 RS485 RS485
Interfaces 2 USB 2 USB 2 USB
Local control Front panel, remote controller Front panel, remote controller Front panel, remote controller
Plug & Play Remote control
Web browser, proprietary software,
iPhone, iPAD, mobile devices with OS
Android
Web browser, proprietary software,
iPhone, iPAD, mobile devices with OS
Android
Web browser, proprietary software, iPhone,
iPAD, mobile devices with OS Android
HIGH
MIDDLE
START
ANALOG | 63
ANALOG
CAMERAS
AND LENSES
DVR
KEYBOARDS
MATRICES
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
Art. MDVR804B Art. MDVR824B Art. MDVR828B Art. MDVR826B Art. MDVR808C Art. MDVR816C
IPS in recording (PAL) 100@CIF / 50@HALF-D1 / 25@D1 100@D1 / 960H 200@D1 / 960H
400@D1 / 960H
200@D1 / 960H 400@D1 / 960H
Video compression H264 - Watermarking H264 - Watermarking H264 - Watermarking H264 - Watermarking H264 - Watermarking H264 - Watermarking
Video inputs 4 4 8 16 8 with loop 16 with loop
Main video outputs 1 BNC, 1 VGA 1 VGA, 1 HDMI 1 VGA, 1 HDMI 1 VGA, 1 HDMI 1 VGA, 1 HDMI 1 VGA, 1 HDMI
Spot video outputs No No No No 1 1
Audio inputs No 4 4444
Audio outputs No 1 1 1 1 1
Alarm inputs No 4 8 16 816
Alarm outputs No 1 relay 1 relay 1 relay 2 relay 2 relay
HDD (SATA) in equipment 500 GB 500 GB 500 GB 500 GB 500 GB 500 GB
Additional HDD (SATA) No No No 1 3 3
Burner No No No No No No
Ethernet 10/100 network 1 RJ45 1 RJ45 1 RJ45 1 RJ45 1 RJ45 1 RJ45
Serial ports No RS232, RS485 RS232, RS485 RS232, RS485 RS232, RS485 RS232, RS485
Interfaces 1 USB 2 USB 2 USB 2 USB 2 USB 2 USB
Local control Remote controller Front panel, remote controller Front panel, remote controller Front panel, remote controller Front panel, remote controller Front panel, remote controller
Remote control
Web browser, proprietary software,
iPhone, iPAD, mobile devices with OS
Android
Web browser, proprietary software,
iPhone, iPAD, mobile devices with OS
Android
Web browser, proprietary software, iPhone,
iPAD, mobile devices with OS Android
Web browser, proprietary software, iPhone,
iPAD, mobile devices with OS Android
Web browser, proprietary software, iPhone,
iPAD, mobile devices with OS Android
Web browser, proprietary software, iPhone,
iPAD, mobile devices with OS Android
Art. SDVR040A Art. SDVR080A Art. SDVR160A
IPS in recording (PAL) 100@D1 / 960H 200@D1 / 960H 400@D1 / 960H
Video compression H264 H264 H264
Video inputs 4 8 16
Main video outputs 1 BNC, 1 VGA, 1 HDMI 1 BNC, 1 VGA, 1 HDMI 1 BNC, 1 VGA, 1 HDMI
Spot video outputs No No No
Audio inputs 2 2 16
Audio outputs 1 1 1
Alarm inputs 4 4 4
Alarm outputs 1 1 1
HDD (SATA) in equipment 1 (500 GB) 1 (500 GB) 1 (500 GB)
Additional HDD (SATA) No 1 1
Burner No No No
Ethernet 10/100 network 1 RJ45 1 RJ45 1 RJ45
Serial ports RS485 RS485 RS485
Interfaces 2 USB 2 USB 2 USB
Local control Front panel, remote controller Front panel, remote controller Front panel, remote controller
Plug & Play Remote control
Web browser, proprietary software,
iPhone, iPAD, mobile devices with OS
Android
Web browser, proprietary software,
iPhone, iPAD, mobile devices with OS
Android
Web browser, proprietary software, iPhone,
iPAD, mobile devices with OS Android
ANALOG
dVr
ANALOG
COMELIT I VIDEO SURVEILLANCE
SDVR040A Stand-alone digital video recorder with 4 inputs, START series, 960H.
Video compression : H264
Operating system : Linux Embedded
Video inputs : 4 (BNC)
Main video output : 1 (BNC), 1 (VGA), 1 (HDMI)
Audio inputs/outputs : 2 (RCA) / 1 (RCA)
Alarm Inputs/Outputs : 4/1
Display / recording frame rate : 100 ips @ D1 / 960H Real Time
Hard disk capacity supplied : 500 GB (2 TB max)
Recording methods : Auto at start up, manual, scheduled, motion
Protocols supported : TCP/IP, DHCP, DDNS, PPPoE, SMTP, UPnP
Remote control via browser : Internet Explorer, Firefox, Chrome
Remote control by software : Yes
Remote control by mobile : App ESEENET+
Type of connections/ports : 2 x USB 2.0, 1 x Ethernet 10/100, 1 x RS485
AC supply voltage : 100 - 240 V
Absorption : 15 W
Product width (mm) : 270
Product height (mm) : 52
Product depth (mm) : 213
SDVR080A Stand-alone digital video recorder with 8 inputs, START series, 960H.
Video compression : H264
Operating system : Linux Embedded
Video inputs : 8 (BNC)
Main video output : 1 (BNC), 1 (VGA), 1 (HDMI)
Audio inputs/outputs : 2 (RCA) / 1 (RCA)
Alarm Inputs/Outputs : 4/1
Display / recording frame rate : 200 ips @ D1 / 960H Real Time
Hard disk capacity supplied : 500 GB (2 TB max)
Additional hard disks (SATA) : 1 (2 TB max)
Recording methods : Auto at start up, manual, scheduled, motion
Protocols supported : TCP/IP, DHCP, DDNS, PPPoE, SMTP, UPnP
Remote control via browser : Internet Explorer, Firefox, Chrome
Remote control by software : Yes
Remote control by mobile : App ESEENET+
Type of connections/ports : 2 x USB 2.0, 1 x Ethernet 10/100, 1 x RS485
AC supply voltage : 100 - 240 V
Absorption : 15 W
Product width (mm) : 325
Product height (mm) : 52
Product depth (mm) : 253
START SERIES
dVr
ANALOG | 65
SDVR160A Stand-alone digital video recorder with 16 inputs, START series, 960H.
Video compression : H264
Operating system : Linux Embedded
Video inputs : 16 (BNC)
Main video output : 1 (BNC), 1 (VGA), 1 (HDMI)
Audio inputs/outputs : 16 (RCA) / 1 (RCA)
Alarm Inputs/Outputs : 4/1
Display / recording frame rate : 400 ips @ D1 / 960H Real Time
Hard disk capacity supplied : 500 GB (2 TB max)
Additional hard disks (SATA) : 1 (2 TB max)
Recording methods : Auto at start up, manual, scheduled, motion
Protocols supported : TCP/IP, DHCP, DDNS, PPPoE, SMTP, UPnP
Remote control via browser : Internet Explorer, Firefox, Chrome
Remote control by software : Yes
Remote control by mobile : App ESEENET+
Type of connections/ports : 2 x USB 2.0, 1 x Ethernet 10/100, 1 x RS485
AC supply voltage : 100 - 240 V
Absorption : 15 W
Product width (mm) : 423
Product height (mm) : 70
Product depth (mm) : 325
START SERIES
ANALOG
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
ANALOG
KEYBOARDS
MATRICES
CAMERAS
AND LENSES
DVR
dVr
COMELIT I VIDEO SURVEILLANCE
COMELIT_
CMS
COMELIT CMS management software for DVR START series.
Main functions:
• Multilingual GUI
• Viewing the images in live and the images recorded on the DVR
• DVR remote configuration
• Local recording and playback
• Can be connected via a unique code
ESEENET Mobile devices software "ESEENET+" for DVR START series.
Main functions:
• Graphical interface
• Viewing images in live
• Recording and playing in local
• Can be connected via a unique code
• Available for iOS and Android
ANALOG
START SERIES SOFTWARE
dVr
ANALOG | 67
MDVR804B Stand-alone digital video recorder with 4 inputs, RAS system, MIDDLE
series, full-duplex function.
Video compression : H264
Operating system : Linux Embedded
Video inputs : 4 (BNC)
Main video output : 1 (BNC), 1 (VGA)
Display / recording frame rate : 100 ips @ CIF
Hard disk capacity supplied : 500 GB (2 TB max)
Recording methods : Auto at start up, manual, scheduled, event
Protocols supported : TCP/IP, DHCP, DVRNS, PPPoE, SMTP
Remote control via browser : Internet Explorer
Remote control by software : Yes
Remote control by mobile : Yes
Type of connections/ports : 1 x USB 2.0, 1 x Ethernet 10 /100
Main functions : HDD monitoring via S.M.A.R.T., Watermarking, SSL
AC supply voltage : 100 - 240 V
Absorption : 15 W
Product width (mm) : 260
Product height (mm) : 45
Product depth (mm) : 187
MDVR824B Stand-alone digital video recorder with 4 inputs, RAS system, MIDDLE
series, Pentaplex function, 960H.
Video compression : H264
Operating system : Linux Embedded
Video inputs : 4 (BNC)
Main video output : 1 (HDMI), 1 (VGA)
Audio inputs/outputs : 4/1
Alarm Inputs/Outputs : 4/1
Display / recording frame rate : 100 ips @ D1 / 960H Real Time
Hard disk capacity supplied : 500 GB (3 TB max)
Recording methods : Auto at start up, manual, scheduled, event
Protocols supported : TCP/IP, DHCP, DVRNS, PPPoE, SMTP, UPnP
Remote control via browser : Internet Explorer
Remote control by software : Yes
Remote control by mobile : Yes
Type of connections/ports : 2 x USB 2.0, Ethernet 10/100/1000, RS485, RS232
Main functions : HDD monitoring via S.M.A.R.T., Watermarking, SSL
AC supply voltage : 100 - 240 V
Absorption : 25W
Product width (mm) : 265
Product height (mm) : 52
Product depth (mm) : 188
ANALOG
MIDDLE SERIES
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
ANALOG
KEYBOARDS
MATRICES
CAMERAS
AND LENSES
DVR
dVr
COMELIT I VIDEO SURVEILLANCE
MIDDLE SERIES
MDVR828B Stand-alone digital video recorder with 8 inputs, RAS system, MIDDLE
series, Pentaplex function, 960H.
Video compression : H264
Operating system : linux Embedded
Video inputs : 8 (BNC)
Main video output : 1 (HDMI), 1 (VGA)
Audio inputs/outputs : 4/1
Alarm Inputs/Outputs : 8/1
Display / recording frame rate : 200 ips @ D1 / 960H Real Time
Hard disk capacity supplied : 500 GB (3 TB max)
Recording methods : Auto at start up, manual, scheduled, event
Protocols supported : TCP/IP, DHCP, DVRNS, PPPoE, SMTP, UPnP
Remote control via browser : Internet Explorer
Remote control by software : Yes
Remote control by mobile : Yes
Type of connections/ports : 2 x USB 2.0, Ethernet 10/100/1000, RS485, RS232
Main functions : HDD monitoring via S.M.A.R.T., Watermarking, SSL
AC supply voltage : 100 - 240 V
Absorption : 25W
Product width (mm) : 265
Product height (mm) : 52
Product depth (mm) : 188
MDVR826B Stand-alone digital video recorder with 16 inputs, RAS system, MIDDLE
series, Pentaplex function, 960H.
Video compression : H264
Operating system : Linux Embedded
Video inputs : 16 (BNC)
Main video output : 1 (HDMI), 1 (VGA)
Audio inputs/outputs : 4/1
Alarm Inputs/Outputs : 16/1
Display / recording frame rate : 400 ips @ D1 / 960H Real Time
Hard disk capacity supplied : 500 GB (3 TB max)
Additional hard disks (SATA) : 1 (3 TB max)
Recording methods : Auto at start up, manual, scheduled, event
Protocols supported : TCP/IP, DHCP, DVRNS, PPPoE, SMTP, UPnP
Remote control via browser : Internet Explorer
Remote control by software : Yes
Remote control by mobile : Yes
Type of connections/ports : 2 x USB 2.0, Ethernet 10/100/1000, RS485, RS232
Main functions : HDD monitoring via S.M.A.R.T., Watermarking, SSL
AC supply voltage : 100 - 240 V
Absorption : 70W
Product width (mm) : 300
Product height (mm) : 62
Product depth (mm) : 231
ANALOG
dVr
ANALOG | 69
MIDDLE SERIES
MDVR808C Stand-alone digital video recorder with 8 inputs, RAS system, MIDDLE
series, Pentaplex function, 960H.
Video compression : H264
Operating system : Linux
Video inputs : 8 (BNC) (+8 loop)
Main video output : 1 (VGA), 1 (HDMI)
Spot video output : 1 (BNC)
Audio inputs/outputs : 4/1 (RCA)
Alarm Inputs/Outputs : 8/2
Display / recording frame rate : 200 ips @ D1 / 960H Real Time
Hard disk capacity supplied : 500 GB
Additional hard disks (SATA) : 2 + eSATA
Recording methods : Auto at start up, Manual, Scheduled, Event
Protocols supported : TCP/IP, DHCP, DVRNS, PPPoE, SMTP
Remote control via browser : Internet Explorer
Remote control by software : Yes
Remote control by mobile : Yes
Type of connections/ports : 2 x USB 2.0, Ethernet 10/100/1000, RS485, RS232
Main functions : HDD monitoring via S.M.A.R.T., Watermarking, SSL, Support 960H
resolution
AC supply voltage : 100 - 240 V
Absorption : 70 W
Product width (mm) : 430
Product height (mm) : 88
Product depth (mm) : 405
ANALOG
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
ANALOG
KEYBOARDS
MATRICES
CAMERAS
AND LENSES
DVR
dVr
COMELIT I VIDEO SURVEILLANCE
MDVR816C Stand-alone digital video recorder with 16 inputs, RAS system, MIDDLE
series, Pentaplex function, 960H.
Video compression : H264
Operating system : Linux
Video inputs : 16 (BNC) (+16 loop)
Main video output : 1 (VGA), 1 (HDMI)
Spot video output : 1 (BNC)
Audio inputs/outputs : 4/1 (RCA)
Alarm Inputs/Outputs : 16/2
Display / recording frame rate : 400 ips @ D1 / 960H Real Time
Hard disk capacity supplied : 500 GB
Additional hard disks (SATA) : 2 + eSATA
Recording methods : Auto at start up, manual, scheduled, event
Protocols supported : TCP/IP, DHCP, DVRNS, PPPoE, SMTP
Remote control via browser : Yes
Remote control by software : Yes
Remote control by mobile : iPhone, Android
Type of connections/ports : 2 x USB 2.0, Ethernet 10/100/1000, RS485, RS232
Main functions : HDD monitoring via S.M.A.R.T., Watermarking, SSL
AC supply voltage : 100 - 240 V
Absorption : 70 W
Product width (mm) : 430
Product height (mm) : 88
Product depth (mm) : 405
ANALOG
MIDDLE SERIES
dVr
ANALOG | 71
HDVR836B Stand-alone digital video recorder, 16 analog inputs, RAS system, HIGH
series, Pentaplex function, DVD burner included, 960H.
Video compression : H264
Operating system : Linux
Video inputs : 16 (BNC) (+16 loop)
Main video output : 1 (VGA), 1 (HDMI)
Spot video output : 1 (BNC)
Audio inputs/outputs : 4 (RCA) / 1 (RCA)
Alarm Inputs/Outputs : 16/2
Display / recording frame rate : 400 ips @ D1 / 960H (Analog) Real Time
Hard disk capacity supplied : 500 GB
Additional hard disks (SATA) : 2 + eSATA
Recording methods : Auto at start up, Manual, Scheduled, Event
Protocols supported : TCP/IP, DHCP, DVRNS, PPPoE, SMTP
Remote control via browser : Internet Explorer
Remote control by software : Yes
Remote control by mobile : Yes
Type of connections/ports : 2 x USB 2.0, Ethernet 10/100/1000, RS485, RS232
Main functions : HDD monitoring via S.M.A.R.T., Watermarking, SSL
AC supply voltage : 100 - 240 V
Absorption : 46 W
Product width (mm) : 430
Product height (mm) : 88
Product depth (mm) : 400
ANALOG
HIGH SERIES
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
ANALOG
KEYBOARDS
MATRICES
CAMERAS
AND LENSES
DVR
dVr
IRAS The iRAS (Remote Administration System) is a software designed and
developed for use with DVRs, IP encoders and decoders and IP cameras.
iRAS controls the system management, video monitoring and playback of
images from multiple remote sites.
Main functions:
• Multilingual menu
• Bidirectional audio
• Checking and reporting on status of DVRs remotely
• Notification of events recorded from remote sites
• Remote monitoring of direct images from cameras by means of
programmable layout and checking of pivot action for PTZ cameras
• 'Panic' recording of images under surveillance
• Search for recorded images based on the date/time and/or the event
• Updating of software and programming of system remotely
• Viewing and information system of the DVR event log remotely
• Viewing of the status of the system
• Remote monitoring of multiple sites, also with 3D graphics cards
• Simultaneous connection with up to 256 images (128 for the searching
of remote images)
• Backups of film footage
• Operating system Microsoft Windows Xp or higher
RASMOBILE The RasMobile platform enables the user to access remote sites at any
time and from virtually anywhere and to view images directly using a PDA
with the Windows Mobile operating system (5.0 or higher) or Android.
RASMOBILE/
IPHONE
The RasMobile platform for iPhone® enables the user to access remote
sites at any time and from virtually anywhere and to view images directly
using an iPod Touch® or an iPhone® (OS 4.0 or higher) from Apple®.
DVRNS The use of static IP addresses on LAN/WLAN networks requires higher
management charges and this increases costs. It is essential that
digital video recorders (DVRs) are able to support dynamic IP addresses
on networks that use the DHCP protocol (Dynamic Host Configuration
Protocol). This reduces costs and increases the benefits to users of the
system.
RAS SERIES SOFTWARE
ANALOG
dVr
COMELIT I VIDEO SURVEILLANCE
ANALOG | 73
49323 500 GB SATA Hard Disk, specific for video surveillance.
49324 1 TB SATA Hard Disk, specific for video surveillance.
HARD DISK
ANALOG
dVr
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
ANALOG
KEYBOARDS
MATRICES
CAMERAS
AND LENSES
DVR
COMELIT I VIDEO SURVEILLANCE
• exible installation
• easy system operation and conguration
• standalone and multipoint applications, plus full integration into the iRAS
platform
KEYBOARDS, MATRICES
ANALOG
ANALOG | 75
KEYBOARDS AND MATRICES
ANALOG ANALOG
CAMERAS
AND LENSES
DVR
KEYBOARDS
MATRICES
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
KEYBOARDS 76
MATRICES 77
COMELIT I VIDEO SURVEILLANCE
40705 RS485 keyboard, CONTROLLER series.
Type of display : LCD
Type of joystick : Movement on 3 axes, variable-speed
Backlighting colour : Green
Type of connections/ports : 2 x RS485, 1 x RS232
Main functions : Management of slave keyboards, PTZ cameras, DVR
DC supply voltage : 12 V
Absorption : 6 W
Product width (mm) : 405
Product height (mm) : 107
Product depth (mm) : 176
40707 RS485 keyboard for analog matrix, CONTROLLER series.
Type of display : LCD
Type of joystick : Movement on 3 axes, variable-speed
Backlighting colour : Green
Type of connections/ports : 2 x RS485, 1 x RS232
Main functions : Management of slave keyboards, PTZ cameras, DVR, matrix art.
45332
DC supply voltage : 12 V
Absorption : 6 W
Product width (mm) : 405
Product height (mm) : 176
Product depth (mm) : 107
KEYBOARDS
ANALOG
KEYBOARDS AND MATRICES
ANALOG | 77
KEYBOARDS AND MATRICES
ANALOG ANALOG
CAMERAS
AND LENSES
DVR
KEYBOARDS
MATRICES
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
45316 Digital video matrix with 16 inputs, MATRIX series.
Video input : 16 (BNC) + loop
Video output : 9 (BNC - 1 multiscreen, 4 quad/full-screen, 4 full-screen)
Ports : RS485, Ethernet 10/100
Alarm Inputs/Outputs : 16/2
Main functions : Motion Detection, Video Loss
AC supply voltage : 100 - 240 V
Absorption : 30 W
Product width (mm) : 430
Product height (mm) : 88
Product depth (mm) : 400
45332 ANALOG video matrix with 32 inputs, MATRIX series.
Power supply in equipment.
Video input : 32 (BNC)
Video output : 8 (BNC)
Ports : RS485, RS232
Alarm Inputs/Outputs : 16/2
Main functions : Programming of 80 sequences, 80 Groups, 80 Macro, access via
Password
DC supply voltage : 12 V
Absorption : 15 W
Product width (mm) : 432
Product height (mm) : 88
Product depth (mm) : 310
MATRICES
COMELIT I VIDEO SURVEILLANCE
• vast range for all applications
• perfect recording, even in poor light
• LED lighting
HOUSINGS AND
LIGHTING SYSTEMS
ANALOG
ANALOG | 79
HOUSINGS AND ILLUMINATORS
ANALOG ANALOG
CAMERAS
AND LENSES
DVR
KEYBOARDS
MATRICES
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
STANDARD
SERIES 80
UNICA
SERIES 81
EXTREME
SERIES 84
EXTREME
ACCESSORIES 91
INFRARED ILLUMINATORS 93
COMELIT I VIDEO SURVEILLANCE
HOUsInGs and IllUmInaTOrs
ANALOG
STANDARD SERIES
44030 Short wall/ceiling bracket for cameras, maximum load 2 kg, length
140 mm, made of aluminium painted with epoxy-polyester powders,
aluminium colour.
44130 Waterproof outdoor/indoor housing with sunshield, thermostat-controlled
heating, power supply 230 VAC, sliding opening action, case in ABS and
die-cast aluminium, IP66 waterproof, RAL9002 colour, useful dimensions
(W x H x D) 76 x 76 x 270 mm, weight 2.13 kg. Bracket included.
44131 Pole mount accessory for housing art. 44130, pole diameter from 50 to
110 mm.
ANALOG | 81
HOUSINGS AND ILLUMINATORS
ANALOG ANALOG
CAMERAS
AND LENSES
DVR
KEYBOARDS
MATRICES
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
UNICA SERIES
44120 Waterproof outdoor/indoor housing with sunshield, UNICA series,
protected cable passage, thermostat-controlled heater, power supply
230 VAC, back opening, die-case aluminium housing, IP66 waterproof,
RAL9002 colour, useful dimensions (W x H x D) 100 x 75 x 270 mm, weight
4 kg. Bracket included.
Product width (mm) : 135,42
Product height (mm) : 226,67
Product depth (mm) : 468,1
44122 Waterproof outdoor/indoor housing with sunshield, UNICA series,
vandalproof, protected cable passage, thermostat-controlled heater and
ventilation, power supply 24 VAC, back opening, die-case aluminium
housing, IP66 waterproof, RAL9002 colour, useful dimensions (W x H x D)
100 x 75 x 270 mm, weight 4 kg. Bracket included.
Product width (mm) : 135,42
Product height (mm) : 226,67
Product depth (mm) : 468,1
44124 Waterproof outdoor/indoor housing with sunshield, UNICA series,
vandalproof with unbreakable glass, protected cable passage, thermostat-
controlled heater and ventilation, power supply 24 VAC, back opening,
die-case aluminium housing, IP66 waterproof, RAL9002 colour, useful
dimensions (W x H x D) 100 x 75 x 270 mm, weight 4 kg. Bracket included.
Product width (mm) : 135,42
Product height (mm) : 226,67
Product depth (mm) : 468,1
COMELIT I VIDEO SURVEILLANCE
HOUsInGs and IllUmInaTOrs
ANALOG
ACCESSORIES UNICA SERIES
44102 Medium ceiling bracket for housing UNICA series, maximum load 15 kg,
length 450 mm, made of die-cast aluminium painted with epoxy-polyester
powders, RAL9002 colour.
44103 Pole mount accessory for housing bracket UNICA series, maximum load 20
kg, made of aluminium painted with epoxy-polyester powders, RAL9002
colour, integrated cable passage, pole diameter from 50 to 140 mm.
44104 Pole mount accessory for housing bracket UNICA series, maximum
load 40 kg, made of aluminium painted with epoxy-polyester powders,
RAL9002 colour, integrated cable passage, pole diameter from 50 to 140
mm. Possibility to install two housings.
44106 Corner accessory for housing brackets UNICA series, maximum load 20
kg, made of aluminium painted with epoxy-polyester powders, RAL9002
colour.
44194 Power supply unit for housing, input 230 VAC / 50-60 Hz, output 12 VDC /
0.4A, suitable for housing art. 44120, 44122.
44195 Transformer unit for housing, input 230 VAC / 50-60 Hz, output 24 VAC /
0.4A, suitable for housing art. 44120, 44122.
44121 Ventilation kit for UNICA series housing art. 44120, power supply 230 VAC.
ANALOG | 83
HOUSINGS AND ILLUMINATORS
ANALOG ANALOG
CAMERAS
AND LENSES
DVR
KEYBOARDS
MATRICES
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
ACCESSORIES UNICA SERIES
44129 Adapter to mount the infrared led illuminators art. 44671, 44672, 44673
and 44674 on housings UNICA series.
COMELIT I VIDEO SURVEILLANCE
HOUsInGs and IllUmInaTOrs
ANALOG
EXTREME 1 SERIES
44180 Waterproof housing, EXTREME series, for outdoor/indoor environment
with sunshield, thermostat-controlled heater, temperature from -40°C to
+50°C, AISI 316L stainless steel case, waterproof IP66, power supply from
100 to 240 VAC, useful dimensions (W x H x D) 85 x 92 x 251 mm, weight
6 kg.
Wall bracket art. 44160 NOT included.
44181 Waterproof housing, EXTREME series, for outdoor/indoor environment
with sunshield, thermostat-controlled heater, temperature from -40°C to
+50°C, AISI 316L stainless steel case, waterproof IP66, power supply 24
VAC, useful dimensions (W x H x D) 85 x 92 x 251 mm, weight 6 kg.
Wall bracket art. 44160 NOT included.
44183 Waterproof housing, EXTREME series, for outdoor/indoor environment
with sunshield, thermostat-controlled heater, temperature from -40°C to
+50°C, AISI 316L stainless steel case, waterproof IP66, germanium glass,
spacer for camera, power supply from 100 to 240 VAC, useful dimensions
(W x H x D) 85 x 92 x 251 mm, weight 6 kg.
Wall bracket art. 44160 NOT included.
44184 Waterproof housing, EXTREME series, for outdoor/indoor environment
with sunshield, thermostat-controlled heater, temperature from -40°C
to +50°C, AISI 316L stainless steel case, waterproof IP66, wiper, power
supply from 100 to 240 VAC, useful dimensions (W x H x D) 85 x 92 x 251
mm, weight 6 kg.
Wall bracket art. 44160 NOT included.
ANALOG | 85
HOUSINGS AND ILLUMINATORS
ANALOG ANALOG
CAMERAS
AND LENSES
DVR
KEYBOARDS
MATRICES
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
ACCESSORIES EXTREME 1 SERIES
44186 25-liters tank for housing EXTREME series art. 44184.
COMELIT I VIDEO SURVEILLANCE
HOUsInGs and IllUmInaTOrs
ANALOG
EXTREME 2 SERIES
44140 Waterproof housing, EXTREME series, for outdoor/indoor environment
with sunshield, liquid cooled, thermostat-controlled heater, maximum
temperature 130°C (400°C with Vycor glass art. 44145), power supply
from 100 to 240 VAC, AISI 316L stainless steel case, waterproof IP68 for
immersion up to 10 meters, 2 cable glands M16x1.5, useful dimensions (W
x H x D) 85 x 85 x 282 mm, weight 11.9 kg.
Wall bracket art. 44160 NOT included.
44141 Waterproof housing, EXTREME series, for outdoor/indoor environment
with sunshield, liquid cooled, thermostat-controlled heater, maximum
temperature 130°C (400°C with Vycor glass art. 44145), power supply 24
VAC, AISI 316L stainless steel case, waterproof IP68 for immersion up to
10 meters, 2 cable glands M16x1.5, useful dimensions (W x H x D) 85 x 85
x 282 mm, weight 11.9 kg.
Wall bracket art. 44160 NOT included.
ANALOG | 87
HOUSINGS AND ILLUMINATORS
ANALOG ANALOG
CAMERAS
AND LENSES
DVR
KEYBOARDS
MATRICES
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
ACCESSORIES EXTREME 2 SERIES
44143 Flange with air barrier to clean the glass on housing EXTREME series art.
44140 and 44141.
44144 Group of filters compressed air with pressure gauge for air barrier
EXTREME series art. 44143.
44145 Vycor glass for high temperatures (only available in combination with art.
44143) for EXTREME series housing art. 44140 and 44141.
44146 Infrared filter (only available in combination with art. 44147) for EXTREME
series housing art. 44140 and 44141.
44147 Infrared filter holder (only available in combination with art. 44146) for
EXTREME series housing art. 44140 and 44141.
COMELIT I VIDEO SURVEILLANCE
HOUsInGs and IllUmInaTOrs
ANALOG
EXTREME 3 SERIES
44150 Waterproof housing, EXTREME series, ATEX and IECEX certified, for
indoor/outdoor environment classified 1-21 and areas in which potentially
explosive atmospheres may form, thermostat-controlled heating, cable
glands for gas categories IIA (propane) and IIB (ethylene), cable glands
size 1/2'' or 3/4'' on request, temperature from -20°C to +50°C, anticorodal
aluminium case IP66/67, useful dimensions (W x H x D) 110 x 84 x 220 mm,
weight 11 kg.
Wall bracket art. 44160 NOT included.
44151 Waterproof housing, EXTREME series, ATEX and IECEX certified, for
indoor/outdoor environment classified 1-21 and areas in which potentially
explosive atmospheres may form, thermostat-controlled heating, cable
glands for gas categories IIA (propane) and IIB (ethylene), cable glands
size 1/2'' or 3/4'' on request, temperature from -20°C to +50°C, anticorodal
aluminium case IP66/67, germanium glass and grid, useful dimensions (W
x H x D) 110 x 84 x 220 mm, weight 11 kg.
Wall bracket art. 44160 NOT included.
44152 Waterproof housing, EXTREME series, ATEX and IECEX certified, for
indoor/outdoor environment classified 1-21 and areas in which potentially
explosive atmospheres may form, thermostat-controlled heating, cable
glands for gas categories IIC (acetylene and hydrogen), cable glands size
1/2'' or 3/4'' on request, temperature from -20°C to +50°C, anticorodal
aluminium case IP66/67, useful dimensions (W x H x D) 110 x 84 x 220
mm, weight 11 kg.
Wall bracket art. 44160 NOT included.
44153 Waterproof housing, EXTREME series, ATEX and IECEX certified, for
indoor/outdoor environment classified 1-21 and areas in which potentially
explosive atmospheres may form, thermostat-controlled heating, cable
glands for gas categories IIC (acetylene and hydrogen), cable glands size
1/2'' or 3/4'' on request, temperature from -20°C to +50°C, anticorodal
aluminium case IP66/67, germanium glass with grid, useful dimensions
(W x H x D) 110 x 84 x 220 mm, weight 11 kg.
Wall bracket art. 44160 NOT included.
44154 Waterproof housing, EXTREME series, ATEX and IECEX certified, for
indoor/outdoor environment classified 1-21 and areas in which potentially
explosive atmospheres may form, thermostat-controlled triple-heating,
cable glands for gas categories IIA (propane), IIB (ethylene) and IIC
(acetylene and hydrogen), cable glands size 1/2'' or 3/4'' on request,
temperature from -50°C to +50°C, anticorodal aluminium case IP66/67,
useful dimensions (W x H x D) 110 x 84 x 220 mm, weight 11 kg.
Wall bracket art. 44160 NOT included.
ANALOG | 89
HOUSINGS AND ILLUMINATORS
ANALOG ANALOG
CAMERAS
AND LENSES
DVR
KEYBOARDS
MATRICES
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
EXTREME 3 SERIES
44155 Waterproof housing, EXTREME series, ATEX and IECEX certified, for
indoor/outdoor environment classified 1-21 and areas in which potentially
explosive atmospheres may form, thermostat-controlled triple-heating,
cable glands for gas categories IIC (acetylene and hydrogen), cable
glands size 1/2'' or 3/4'' on request, temperature from -50°C to +50°C,
anticorodal aluminium case IP66/67, useful dimensions (W x H x D) 110 x
84 x 220 mm, weight 11 kg.
Wall bracket art. 44160 NOT included.
44156 Waterproof housing, EXTREME series, ATEX and IECEX certified, for mines
(firedump gas), thermostat-controlled heating, cable glands for gas
categories IIC (acetylene and hydrogen), cable glands size 1/2'' or 3/4''
on request, temperature from -20°C to +50°C, stainless steel AISI316L or
brass B14 case, protection degree IP66/67, useful dimensions (W x H x D)
110 x 84 x 220 mm, weight 11 kg.
Wall bracket art. 44160 NOT included.
COMELIT I VIDEO SURVEILLANCE
HOUsInGs and IllUmInaTOrs
ANALOG
ACCESSORIES EXTREME 3 SERIES
44159 Protective glass grid for housing EXTREME series art. 44150, 44151,
44152, 44153, 44154, 44155, 44156.
ANALOG | 91
HOUSINGS AND ILLUMINATORS
ANALOG ANALOG
CAMERAS
AND LENSES
DVR
KEYBOARDS
MATRICES
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
ACCESSORIES EXTREME 1-2-3 SERIES
44160 Stainless steel INOX 316L wall bracket for all housings EXTREME series,
weight 2.9 kg.
44161 Sunshield in stainless steel INOX 316L for EXTREME series housings art.
44150, 44151, 44152, 44153, 44154, 44155, 44156.
44162 Stainless steel INOX 316L angle adapter, for all EXTREME series housings.
44163 Stainless steel INOX 316L pole adapter for all EXTREME series housings.
44164 Stainless steel INOX 316L ceiling adapter for all EXTREME series housings.
44173 Thermostat-controlled heating powered at 100/230 VAC, suitable for
EXTREME series housings.
44174 Thermostat-controlled heating powered at 12 VDC, suitable for EXTREME
series housings.
COMELIT I VIDEO SURVEILLANCE
HOUsInGs and IllUmInaTOrs
ANALOG
ACCESSORIES EXTREME 1-2-3 SERIES
44175 Thermostat-controlled heating powered at 24 VAC, suitable for EXTREME
series housings.
44176 Thermostat-controlled triple-heating powered at 100/230 VAC, suitable
for EXTREME series housings.
44177 Thermostat-controlled triple-heating powered at 12 VDC, suitable for
EXTREME series housings.
44178 Thermostat-controlled triple-heating powered at 24 VAC, suitable for
EXTREME series housings.
ANALOG | 93
HOUSINGS AND ILLUMINATORS
ANALOG ANALOG
CAMERAS
AND LENSES
DVR
KEYBOARDS
MATRICES
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
INFRARED ILLUMINATORS
44671 Infrared LED illuminator, power supply 230 VAC, twilight switch built-
in, angle of illumination 15°, distance of illumination 150 m, wavelength
850nm, absorption 16W, dimensions (W x H x D) 192 x 195 x 83 mm, weight
2,160 Kg.
44672 Infrared LED illuminator, power supply 230 VAC, twilight switch built-
in, angle of illumination 30°, distance of illumination 100 m, wavelength
850nm, absorption 16W, dimensions (W x H x D) 192 x 195 x 83 mm, weight
2,160 Kg.
44673 Infrared LED illuminator, power supply 230 VAC, twilight switch built-
in, angle of illumination 60°, distance of illumination 70 m, wavelength
850nm, absorption 16W, dimensions (W x H x D) 192 x 195 x 83 mm, weight
2,160 Kg.
44674 Infrared LED illuminator, power supply 230 VAC, twilight switch built-
in, angle of illumination 120°, distance of illumination 35 m, wavelength
850nm, absorption 16W, dimensions (W x H x D) 192 x 195 x 83 mm, weight
2,160 Kg.
44129 Adapter to mount the infrared led illuminators art. 44671, 44672, 44673
and 44674 on housings UNICA series.
44660 Photoelectric cell-operated twilight switch, contact load 5A (1200W at
230 VAC), switch-on delay 10 seconds, switch-off delay 240 seconds, IP66
waterproof polycarbonate case.
COMELIT I VIDEO SURVEILLANCE
TransmIssIOn and aCCessOrIes
ANALOG
• video signal distribution and transmission
• transporting the images over various distances.
ANALOG
TRANSMISSION AND
ACCESSORIES
ANALOG | 95
TRANSMISSION AND ACCESSORIES
ANALOG ANALOG
CAMERAS
AND LENSES
DVR
KEYBOARDS
MATRICES
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
TRASMISSIONE E ACCESSORI
WIRELESS TRANSMISSION 96
FIBER OPTIC
TRANSMISSION 97
UTP
TRANSMISSION 101
MISCELLANEOUS 103
COAX
TRANSMISSION 106
POWER SUPPLY UNITS 109
COMELIT I VIDEO SURVEILLANCE
TransmIssIOn and aCCessOrIes
ANALOG
WIRELESS TRANSMISION
48086 Multifunctional all-in-one data transceiver 5GHz, built-in 13dBi antenna,
IEEE 802.11a (compatible 808.11h), interface by LAN 10/100, configurable
as Access Point, Client, WDS Bridge, Repeater, router WISP or router
AP, PoE power supply (power supply in equipment), waterproof plastic
housing.
48087 Wall/pole metallic mounting kit for video transceiver art. 48086.
ANALOG | 97
TRANSMISSION AND ACCESSORIES
ANALOG ANALOG
CAMERAS
AND LENSES
DVR
KEYBOARDS
MATRICES
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
FIBER OPTIC TRANSMISSION
48201 Miniaturised video transmitter (PAL/SECAM/NTSC) via multimodal optical
fiber, wavelength 850 nm, BNC-type video input connector, ST-type optical
connector, power supply 12 VDC, aluminium case, aluminium colour.
48211 19'' rack (1 slot) video transmitter (PAL/SECAM/NTSC) via multimode
optical fiber, wavelength 850 nm, BNC-type video input connector, ST-
type optical connector, power supply 12 VDC, aluminium case, aluminium
colour.
48212 19'' rack (1 slot) video transmitter (PAL/SECAM/NTSC) via 2 multimode
optical fibers, 2 video inputs, wavelength 850 nm, BNC-type video input
connectors, ST-type optical connectors, power supply 12 VDC, aluminium
case, aluminium colour.
48221 Stand-alone video transmitter (PAL/SECAM/NTSC) via multimode optical
fiber, wavelength 850 nm, BNC-type video input connector, ST-type optical
connector, power supply 12 VDC, aluminium case, aluminium colour.
48222 Stand-alone video transmitter (PAL/SECAM/NTSC) via 2 multimode
optical fibers, 2 video inputs, wavelength 850 nm, BNC-type video input
connectors, ST-type optical connectors, power supply 12 VDC, aluminium
case, aluminium colour.
48291 Stand-alone RS485 data transmitter via multimode optical fiber,
wavelength 850 nm, Mini DIN-type data input connector, ST-type optical
connector, power supply 12 VDC, aluminium case, aluminium colour.
48311 19'' rack (1 slot) video receiver (PAL/SECAM/NTSC) via multimode optical
fiber, wavelength 850 nm, BNC-type video output connector, ST-type
optical connector, power supply 12 VDC, aluminium case, aluminium
colour.
COMELIT I VIDEO SURVEILLANCE
TransmIssIOn and aCCessOrIes
ANALOG
FIBER OPTIC TRANSMISSION
48312 19'' rack (1 slot) video receiver (PAL/SECAM/NTSC) via 2 multimode
optical fibers, 2 video outputs, wavelength 850 nm, BNC-type video output
connectors, ST-type optical connectors, power supply 12 VDC, aluminium
case, aluminium colour.
48321 Stand-alone video receiver (PAL/SECAM/NTSC) via multimode optical
fiber, wavelength 850 nm, BNC-type video output connector, ST-type
optical connector, power supply 12 VDC, aluminium case, aluminium
colour.
48322 Stand-alone video receiver (PAL/SECAM/NTSC) via 2 multimode optical
fibers, 2 video outputs, wavelength 850 nm, BNC-type video output
connectors, ST-type optical connectors, power supply 12 VDC, aluminium
case, aluminium colour.
48391 Stand-alone RS485 data receiver via multimode optical fiber, wavelength
850 nm, Mini DIN-type data output connector, ST-type optical connector,
power supply 12 VDC, aluminium case, aluminium colour.
48400 Stand-alone transceiver via 2 multimode optical fibers, video transmitter,
data transceiver (RS232/RS485/RS422), wavelength 850 nm, BNC-type
video input connector, Mini DIN-type data connector, 2 ST-type optical
connectors, power supply 12 VDC, aluminium case, aluminium colour.
48401 Stand-alone transceiver via 2 multimode optical fibers, video receiver,
data transceiver (RS232/RS485/RS422), wavelength 850 nm, BNC-type
video output connector, Mini DIN-type data connector, 2 ST-type optical
connectors, power supply 12 VDC, aluminium case, aluminium colour.
48410 19'' rack (1 slot) transceiver via 2 multimode optical fibers, video
transmitter, data transceiver (RS232/RS485/RS422), wavelength 850 nm,
BNC-type video input connector, Mini DIN-type data connector, 2 ST-type
optical connectors, power supply 12 VDC, aluminium case, aluminium
colour.
ANALOG | 99
TRANSMISSION AND ACCESSORIES
ANALOG ANALOG
CAMERAS
AND LENSES
DVR
KEYBOARDS
MATRICES
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
FIBER OPTIC TRANSMISSION
48411 19'' rack (1 slot) transceiver via 2 multimode optical fibers, video receiver,
data transceiver (RS232/RS485/RS422), wavelength 850 nm, BNC-type
video output connector, Mini DIN-type data connector, 2 ST-type optical
connectors, power supply 12 VDC, aluminium case, aluminium colour.
48442 Active converter from LAN 10/100 Base to multimode optical fiber and
from multimode optical fiber to LAN 10/100 Base, RJ45-type connector for
LAN, 2 ST-type optical connectors, half/full duplex, power supply 5 VDC,
plastic case, anthracite colour, power supply included.
48501 19'' rack (3 units) case for transmitters/receivers via optical fibers,
14 slots (10 for the transmission/reception modules), front-loading,
aluminium case, aluminium colour.
48502 19'' rack (3 units) case for transceivers via optical fiber, 10 slots available
for the transmission/reception modules, front-loading, aluminium case,
aluminium colour, power supply included.
48506 Blank panel for 19'' rack case (1 slot), made in aluminium, aluminium
colour, suitable for art. 48501 and 48502.
48511 Power supply unit for 19'' rack case (4 slots), power supply from 85 to 264
VAC / 50-60 Hz, output voltage 12 VDC, protected against short-circuits
and overloads, aluminium case, aluminium colour, suitable for art. 48501.
48650 19” rack case (2.5 units) for converters from LAN 10/100 Base to multimode
optical fiber / from multimode optical fiber to LAN 10/100 Base, 15 slots,
front-loading, power supply 230 VAC, metallic case, black colour, suitable
for art. 48442.
COMELIT I VIDEO SURVEILLANCE
TransmIssIOn and aCCessOrIes
ANALOG
FIBER OPTIC TRANSMISSION
48652 19'' rack (1 unit) optical box, 24 empty positions for ST-ST dowels, painted
sheet metal case, colour gray RAL7035.
48654 Pass-through connector type ST-ST for multimode optical fiber, panel
mount, suitable for art. 48652.
48656 Bi-fiber strap for 50/125 multimode optical fiber, length 2 metres,
terminated at both ends with ST-ST connectors.
ANALOG | 101
TRANSMISSION AND ACCESSORIES
ANALOG ANALOG
CAMERAS
AND LENSES
DVR
KEYBOARDS
MATRICES
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
UTP TRANSMISSION
SUTP610C Passive kit for the conversion of the video signal on the cable CAT5/UTP
and vice-versa, BNC connectors for video signal input/output, screw
terminals for connecting the cable CAT5/UTP, maximum distance 300 m
(colour) / 600 m (black and white), plastic cases, black color.
48611 Passive transmitter/receiver of video signal on CAT5/UTP cable and
vice-versa, BNC-type connectors for video signal input/output, terminal
screws for the connection of UTP/CAT 5 cable, maximum distance 300
metres (colour) / 600 metres (black & white), plastic case, black colour.
48613 Active video signal transmitter on UTP/CAT5 cable, BNC-type connector
for video input, screw terminals for connection of UTP/CAT5 cable and
power supply, maximum distance 1200 metres (colour) / 2000 metres
(black & white) with active video signal receiver art. 48615, plastic case,
black colour, power supply included.
48615 Active video signal receiver on UTP/CAT5 cable, BNC-type connector for
video signal output, screw terminals for connection of UTP/CAT5 cable
and power supply, maximum distance 1200 metres (colour) / 2000 metres
(black & white) with active video signal transmitter art. 48613, plastic
case, black colour, power supply included.
48621 19'' rack (1 unit) video signal passive receiver on UTP/CAT5 cable, 16 BNC-
type connectors for video signal output, terminal screws for UTP/CAT5
cable connection, maximum distance 300 metres (colour) / 600 metres
(black & white) with passive transmitter, metallic case, black colour.
48623 19'' rack (1 unit) video signal active receiver on UTP/CAT5 cable, 16 BNC-
type connectors for video signal output, terminal screws for UTP/CAT5
cable connection, maximum distance 1200 metres (colour) / 2000 metres
(black & white) with active transmitter, power supply 12 VDC, metallic
case, black colour.
48752 Passive converter from RS232 to RS485 (PTZ and Dome cameras), 1 DB9-
type connector for RS232 input, 1 screw terminal for RS485 output (32 ID
max), half duplex, baud rate auto-configuration, plastic case, gray colour.
COMELIT I VIDEO SURVEILLANCE
TransmIssIOn and aCCessOrIes
ANALOG
UTP TRANSMISSION
SCON752B Active converter from RS232 to RS485 (PTZ and Dome cameras), 1 DB9-
type connector for RS232 input, 1 screw terminal for RS485 output (32
ID max), half duplex, baud rate auto-configuration, 5 VDC power supply
(power supply included), plastic case, gray colour.
ANALOG | 103
TRANSMISSION AND ACCESSORIES
ANALOG ANALOG
CAMERAS
AND LENSES
DVR
KEYBOARDS
MATRICES
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
MISCELLANEOUS
48758 19'' rack (1 unit) serial active distributor from RS232/RS485 to 8 x RS485,1
DB9-type connector for RS232 input, two screw terminals for RS485 input,
8 screw terminals for RS485 outputs, maximum distance 1200 metres, 12
VDC power supply, metallic case, black colour, power supply included.
43012 Converter voltage-stabilised, input from 20 to 28 VAC / from 16 to 30 VDC,
output 12 VDC / 0.5 A.
43202 Protection against electrostatic discharge on the coaxial cable, metal
case.
43208 Protection against electrostatic discharge on the coaxial cable, on the
data cable and on the low-voltage power cable, black metal case.
43212 Passive filter corrector, eliminates the interference caused by different
earth/ground potentials (ground loop).
4555/A video distributor, 1 input, 4 outputs, 12 VDC power supply, din plastic
cladding (4 modules), white colour scheme.
43112 Amplified video distributor, 1 video input, 2 video outputs, maximum
distance using RG59 cable 1000 metres, 12 VDC power supply, plastic
case, power supply included.
COMELIT I VIDEO SURVEILLANCE
TransmIssIOn and aCCessOrIes
ANALOG
MISCELLANEOUS
43116 19'' rack amplified video distributor, 8 video inputs, 16 video outputs,
maximum distance using RG59 cable 1000 metres, 12 VDC power supply,
metal case, power supply included.
43117 19” rack video distributor, 8 video inputs, 16 video-programmable outputs,
12 VDC power supply, metal case, power supply included.
43132 19'' rack amplified video distributor, 16 inputs, 32 outputs, maximum
distance using RG59 cable 1000 metres, 12 VDC power supply, metal case,
power supply included.
43528 Programmable video distributor, 2 inputs, 8 outputs, PAL/NTSC, 12 VDC
power supply, metal case, colour grey, power supply included.
43600 3.5'' LCD video tester, resolution 320x240, power supply with rechargeable
batteries, plastic case, 1 video input, 1 video output. Additional functions:
measuring video signal level, AC & DC tester, PTZ test, test monitor.
Battery charger included.
43610 Ultra-sensitive microphone with 45 cm of cable, 12 VDC power supply.
44950 Audio/video modulator, bands S and III, audio/video inputs with RCA
connectors, modulated output available with TV connector, 230 VAC
power supply, plastic case, black colour.
ANALOG | 105
TRANSMISSION AND ACCESSORIES
ANALOG ANALOG
CAMERAS
AND LENSES
DVR
KEYBOARDS
MATRICES
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
MISCELLANEOUS
SVGA671B Active converter from composite video signal (PAL/NTSC) to VGA signal, 1
BNC connector for video input, 1 VGA connector for video output, built-in
ESD protection, 5 VDC power supply, metallic case, black colour, power
supply included.
COMELIT I VIDEO SURVEILLANCE
TransmIssIOn and aCCessOrIes
ANALOG
COAX TRANSMISSION
43660 BNC connector to be welded and screwed, body of nickel-plated brass
with teflon insulation, appropriate for cable item 43751-RG/59U (box of
50 units).
43661 BNC connector to be crimped, body of nickel-plated brass with teflon
insulation, appropriate for cable item 43751-RG59/U (box of 50 units).
43662 Adapter from socket BNC to socket BNC, body of nickel-plated brass with
polyester insulation, appropriate for connectors art. 43660, 43661, 43663
and art. 43665 (box of 10 units).
43663 BNC connector to be crimped, body of nickel-plated brass with teflon
insulation, appropriate for cable art. 43753-RG174, 43754 (box of 50
units).
43665 BNC plug with right-angle bracket to be screwed, body of nickel-
plated brass with polypropylene insulation, appropriate for cable art.
43751-RG59/U, 43753-RG174 and art. 43754 (box of 50 units).
43668 T adapter from BNC plug to dual BNC socket, body of nickel-plated brass
with polyester insulation, appropriate for connectors art. 43660, 43661,
43663 and art. 43665 (box of 10 units).
43950 Adapter for RCA male connector to BNC female connector, body of nickel-
plated brass with PTFE insulation.
ANALOG | 107
TRANSMISSION AND ACCESSORIES
ANALOG ANALOG
CAMERAS
AND LENSES
DVR
KEYBOARDS
MATRICES
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
COAX TRANSMISSION
43952 BNC connector to be welded and screwed, body of nickel-plated brass
with Teflon insulation, appropriate for Comelit cable art. 43752-RG11.
43960 RCA male connector, body of nickel-plated brass with bakelite insulation,
terminals to be welded, cable clamp to crimp.
43970 Female jack connector, body of nickel-plated brass, cable clamp to crimp.
43971 Male jack connector, body of nickel-plated brass, cable clamp to crimp,
diameter of central pin: 2.1 mm.
43751 RG59/U coaxial cable, impedance 75 ohm, 0.6 mm wire, copper shielding,
solid polythene insulation, PVC sheath, black colour, suitable for medium
lengths (300 m max at colour).
43752 RG11 coaxial cable, impedance 75 ohm, 0.6 mm wire, copper shielding,
solid polythene insulation, PVC sheath, black colour, suitable for long
lengths (600 m max at colour).
43753 RG174 miniaturized coaxial cable, impedance 75 ohm, 0.6 mm wire,
copper shielding, solid polythene insulation, PVC sheath, black colour,
suitable for short lengths (15 m max at colour).
COMELIT I VIDEO SURVEILLANCE
TransmIssIOn and aCCessOrIes
ANALOG
COAX TRANSMISSION
43754 RG174 miniaturised coaxial cable + 4 conductors (2x0.5 mm², 2x0.25
mm²), impedance 75 ohm, conductor of 0.64 mm, copper screen, cellular
polyethylene insulation, PVC sheath, black colour, appropriate for short
lengths.
43670 Gripper for BNC connectors, funicular action, appropriate for connectors
art. 43661.
ANALOG | 109
TRANSMISSION AND ACCESSORIES
ANALOG ANALOG
CAMERAS
AND LENSES
DVR
KEYBOARDS
MATRICES
HOUSINGS AND
ILLUMINATORS
TRANSMISSION AND
ACCESSORIES
POWER SUPPLY UNITS
1195 transformer applicable to din rail (6 modules), input 230v ac/50-60 hz,
output 12v/24v ac with terminal strip.
43015 Power supply applicable to din rail (2 modules), input from 110 to 240
VAC/50-60 Hz, output 12 VDC / 1.5 A with screw terminals.
43025 Power supply applicable to din rail (6 modules), input from 110 to 254
VAC/50-60 Hz, output 12 VDC/2.5 A with screw terminals.
43081 Power supply, input from 100 to 240 VAC/50-60 Hz, output 12 VDC/2.5A
with jack connector.
43082 Plug power supply, input from 100 to 240 VAC/50-60 Hz, output 12
VDC/1.33A with jack connector.
43084 Plug power supply, input 230 VAC/50 Hz, output 12 VDC/0.5 A with jack
connector.
• solutions for FULL IP systems
• simplicity, scalability, exibility
IP VIDEO SURVEILLANCE:
HIGH-RESOLUTION
IMAGES ALWAYS ALLOW YOU
TO SEE EVERY DETAIL.
COMELIT I VIDEO SURVEILLANCE
IP | 111
IP
CAMERAS 130
HOUSINGS
AND ACCESSORIES 133
ASPHERICAL LENSES 135
RECORDING UNITS 136
SOFTWARE 137
SWITCH
AND TRANSMISSION 138
IP
CAMERAS 146
ENCODERS
AND DECODERS 153
HOUSINGS AND
ACCESSORIES 154
ASPHERICAL LENSES 157
RECORDING UNITS 158
SOFTWARE 160
KEYBOARDS 161
SWITCH
AND TRANSMISSION 162
START
HIGH
IP
SERIE HIGH
TELECAMERE COMPACT
COMELIT I VIDEO SURVEILLANCE
CAMERAS
IP
HIGH serIes
High resolutions make it possible to see more detail. No more grainy enlarged images, but FULL HD details which
allow you to optimise your video surveillance system usage.
Megapixel, FULL HD
and HD:
resolutions: superior image quality
D1
IP
START
SERIES
HIGH
SERIES
IP | 113
1280x720 HD
720x576
1920X1080 FULL HD
The actual image displayed depends on the type of camera selected
and the distance of the item being lmed. Refer to the table “Guide
to choosing a camera”
720x576
1280x720 HD
1920x1080 FULL HD
DISCRETE CamERaS
COMELIT I VIDEO SURVEILLANCE
IP
HIGH serIes
The high performance IP cameras are “intelligent” devices
which can perform numerous procedures independently. They
compress video signals, send emails when an event occurs and
record locally.
Intelligent
cameras
D1
IP
IP | 115
Unlimited distances and easy transmission; with the minimum guaranteed bandwidth it is easy to view / record images
at any point of the network.
“Network” power
serving surveillance
The network cable is the only wiring needed. This cable can
carry data and supply power. PoE devices require less wiring
and make the process easier.
POE: easy
installation
START
SERIES
HIGH
SERIES
COMELIT I VIDEO SURVEILLANCE
CAMERAS
IP
HIGH serIes
IPCAM101B
HD resolution (720p), 3.6 mm xed lens, Motion detection,
Privacy zones, IR LEDs with range of 15 metres, Waterproof
IP66, PoE
IPCAM102A
FULL-HD resolution (1080p), 4.2 mm xed lens, Motion
detection, Privacy zones, IR LEDs with range of 15 metres,
Waterproof IP66, PoE
IPCAM152A FULL-HD resolution (1080p), Motion detection, Privacy
zones, two-way audio, PoE
IPCAM162A
FULL-HD resolution (1080p), 2.8-12 mm varifocal lens,
Motion detection, Privacy zones, IR LEDs with range of 50
metres, Waterproof IP66, PoE
IPCAM168A
FULL-HD resolution (1080p), 2.8-12 mm varifocal lens,
Motion detection, Privacy zones, IR LEDs with range of 15
metres, Waterproof IP66, PoE
IPPTZ773A
IPPTZ779A
FULL-HD resolution (1080p), 20x optical zoom / 12x digital
zoom, Preset, Scan, Tour, Pattern, Wide Dynamic Range,
Privacy zones, with or without IR LEDs with range up to 100
metres, pan/tilt, waterproof IP66 or IP67
This solution uses the NVR recording unit, which records and manages the IP cameras. The Comelit Video Surveillance Client software
manages the NVR devices (live and recorded viewing) from any point of the network.
IP solutions:
START START
CAMerAs
IP | 117
IP
IP
NVR MANAGEMENT SOFTWARE
Displays LIVE and recorded images; can be used to search
for and export les, as well as manage and monitor PTZ
cameras and graphic maps
MOBILE VIEWING
Allows viewing and management via connection with Android devices,
iPhones and iPADs
IPNVR109A
IPNVR116A
9 / 16 FULL-HD network inputs (1080p),
4 inputs / 2 alarm outputs, HDMI and VGA
video outputs, USB and RS485 ports, 1
TB Hard Disk included, ONVIF compatible
5 / 8 / 24 ports
LAN 10 / 100 / 1000
IPSWP005A
IPSWP008A
IPSWP009A
IPSWC005A
IPSWC008A
IPSWC024A
SWITCH
5 / 8 / 9 ports
LAN 10 / 100 / 1000,
PoE
NVR
START
SERIES
HIGH
SERIES
DISCRETE CamERaS
COMELIT I VIDEO SURVEILLANCE
IP
HIGH serIes
Comelit Ras Solution, the Video Management Software from Comelit, completely scalable, with advanced video streaming recording
and management functions available directly from PC workstations or via NVR.
IP solutions:
HIGH HIGH
IPCAM700A
Day & Night all-in-one colour IP camera, 3.7 mm xed lens, FULL-HD resolution
(1080p) @30 ips, waterproof IP67 housing, 24 infrared lights with a range of 20
metres, ONVIF 2.2.1 compatible.
IPCAM720A
Day & Night minidome colour IP camera, 3.7 mm xed lens, FULL-HD resolution
(1080p) @30 ips, housing suitable for use in indoor environments, 24 infrared
lights with a range of 20 metres, ONVIF 2.2.1 compatible.
IPCAM722A
Day & Night minidome colour IP camera, 3.7 mm xed lens, FULL-HD resolution
(1080p) @30 ips, anti-vandal waterproof IP66 housing, 24 infrared lights with a
range of 20 metres, ONVIF 2.2.1 compatible.
IPCAM702A
Day & Night minidome colour IP camera, 3.5-16 mm varifocal lens, FULL-HD
resolution (1080p) @30 ips, anti-vandal waterproof IP66 housing, 36 infrared lights
with a range of 20 metres, ONVIF 2.2.1 compatible.
IPCAM727A
Day & Night minidome colour IP camera, 3.5-16 mm varifocal lens, FULL-HD
resolution (1080p) @30 ips, anti-vandal waterproof IP66 housing, 36 infrared lights
with a range of 20 metres, ONVIF 2.2.1 compatible.
IPCAM742A Day & Night box colour IP camera, FULL-HD resolution (1080p) @30 ips,
ONVIF 2.2.1 compatible.
IPCAM752A
Day & Night all-in-one colour IP camera, 3-9 mm motorised varifocal lens, FULL-HD
resolution (1080p) @30 ips, waterproof IP66 housing, 32 infrared lights with a
range of 25 metres, ONVIF 2.2.1 compatible.
IPCAM767A
Day & Night minidome colour IP camera, 3-9 mm motorised varifocal lens, FULL-
HD resolution (1080p) @30 ips, anti-vandal waterproof IP66 housing, 24 infrared
lights with a range of 20 metres, ONVIF 2.2.1 compatible.
IPPTZ773A Day & Night PTZ minidome colour IP camera, 12x optical zoom, FULL-HD resolution
(1080p) @60 ips, waterproof IP66 housing, ONVIF 2.2.1 compatible.
IPPTZ777A Day & Night PTZ dome colour IP camera, 30x optical zoom, FULL-HD resolution
(1080p) @60 ips, ONVIF 2.2.1 compatible.
IPPTZ779A
Day & Night PTZ dome all-in-one colour IP camera, 30x optical zoom, FULL-HD
resolution (1080p) @60 ips, waterproof IP66 housing, synchronised infrared lights
with a range of up to 150 metres, ONVIF 2.2.1 compatible.
CAMerAs
SMART
FOCUS
IP | 119
IP
IP
VIDEO MANAGEMENT SOFTWARE
MOBILE VIEWING
Allows viewing and management via connection with Android
devices, iPhones and iPADs.
IPNVR704A
IPNVR708A
IPNVR746A
4 / 8 / 16 FULL-HD network inputs
(1080p), 4 alarm outputs, HDMI and VGA
video outputs, USB ports, 1 TB Hard Disk
included
NVR
START
SERIES
HIGH
SERIES
COMELIT I VIDEO SURVEILLANCE
CAMERAS
IP
HIGH serIes
IP HIGH:
Wi-Fi solution HIGH
WPS FUNCTION.
AUTOMATIC CAMERA
CONFIGURATION
USING WPS BUTTON.
IPCAM791A
HD resolution (720p), 2.6 mm xed lens, two-way audio, micro-
SD card slot, Motion detection, Privacy zones, integrated motion
detector, infrared light
IPCAM794A
FULL-HD resolution (1080p), 3.7 mm xed lens, two-way audio,
micro-SD card slot, Motion detection, Privacy zones, PoE
IP | 121
IP
IP
Features
• MJPEG, H.264, G.711
• Two-way audio
• Local recording
• Simultaneous viewing of up to 24 cameras
• Remote camera setting
COMELIT RAS SOLUTION MANAGEMENT SOFTWARE
IPNVR700A
FULL-HD network inputs (1080p), Wi-Fi Access
Point, USB ports, 1 TB Hard Disk included
IP
MOBILE VIEWING
Allows viewing and management via connection with Android devices,
iPhones and iPADs
START
SERIES
HIGH
SERIES
COMELIT I VIDEO SURVEILLANCE
CAMERAS
IP
HIGH serIes
IP solutions:
Comelit RAS Solution
VMS solution / Video Management Software - Recording of up to 64 cameras @2Mbps connected directly - Direct NVR management.
IP | 123
IP
IP EVENT MANAGEMENT
Via event log and display window
GRAPHICS MAPS
With Synoptic function on event
PTZ CONTROL
From control panel or directly through
the image
SMART FOCUS
Function available
with IPCAM752A and
IPCAM767A cameras
Monitoring Event Cameras Alarms Outputs for activation
EXAMPLES OF OBJECTS THAT CAN BE POSITIONED ON THE MAP,
WITH INTERACTION OPTION
START
SERIES
HIGH
SERIES
COMELIT I VIDEO SURVEILLANCE
CAMERAS
IP
HIGH serIes
MONITORING / DIAGNOSTICS
Device status. Displays the connection status of the devices, information relating to audio/video, resolution
and registration status
System status. Displays bar charts with the indication of the use of system resources and system logs
System log / Event and Diagnostics log. Can be used to obtain and export the system log and event
log of the devices
DEVICE STATUS SYSTEM STATUS SYSTEM LOG
EVENT AND DIAGNOSTICS LOG
USER MANAGEMENT
The system makes it possible to add new users easily, with the option of choosing whether to access specic
functions only from specic devices.
IMAGE MANAGEMENT
Quick and intuitive search and export
IP | 125
IP
START
SERIES
HIGH
SERIES
COMELIT I VIDEO SURVEILLANCE
CAMERAS
IP
HIGH serIes
• Full HD recording in real time over all inputs
• Automatic conguration of IP addresses
START
SERIES
IP
IP
HIGH
SERIES
START
SERIES
IP
IP | 127
TRASMISSIONE E ACCESSORI
CAMERAS 130
HOUSINGS
AND ACCESSORIES 133
ASPHERICAL LENSES 135
RECORDING UNITS 136
SOFTWARE 137
SWITCH
AND TRANSMISSION 138
COMELIT I VIDEO SURVEILLANCE
Art. IPCAM101B Art. IPCAM102A Art. IPCAM162A Art. IPCAM152A Art. IPCAM168A
Lens Fixed, 2.8 mm Fixed, 4.2 mm Varifocal, 2.8 ÷ 12 mm
-
Varifocal, 2.8 ÷ 12 mm
Image sensor 1/4" OV CMOS Progressive Scan 1/2.8" CMOS Sony 1/2.8" CMOS Sony 1/2.8" CMOS Sony 1/2.8" CMOS Sony
Resolution 720p (HD) 1080p (FULL-HD) 1080p (FULL-HD) 1080p (FULL-HD) 1080p (FULL-HD)
IR lter mechanical removal Yes Yes Yes Yes Yes
Integrated infrared illumination Yes, 30 led Yes, 30 led Yes, 66 led - Yes, 18 led
Maximum distance infrared illumination (m) 15 15 50 - 15
Minimum Illumination (lux) 0 (led IR ON) 0 (led IR ON) 0 (led IR ON) 0.2 (color) / 0.02 (b&w) 0 (led IR ON)
Main/Special functions Privacy Zones, Motion Detection Privacy Zones, Motion Detection Privacy Zones, Motion Detection Privacy Zones, Motion Detection,
bidirectional Audio Privacy Zones, Motion Detection
Micro-SD Card Slot - - - - -
Digital Noise Reduction (DNR) - - - - -
Case All-in-one All-in-one All-in-one Box Minidome
IP degree protection 66 66 66 - 66
Power supply 12 VDC, PoE 12 VDC, PoE 12 VDC, PoE 12 VDC, PoE 12 VDC, PoE
START
Art. IPNVR109A Art.IPNVR116A
IP inputs 9 (FULL-HD), 16 (HD) 16 (FULL-HD), 20 (HD)
Main video outputs 1 VGA, 1 HDMI 1 VGA, 1 HDMI
Ethernet Switch onboard - -
Hard Disk in equipment (SATA) 1 TB 1 TB
Additional Hard Disk (SATA) 1 1
Alarm inputs 4 4
Alarm outputs 2 2
Audio inputs 1 1
Audio outputs 1 1
IPS in recording 225@FULL-HD (1080p) Real Time 400@FULL-HD (1080p) Real Time
Recording mode Manual, Scheduled, Event Manual, Scheduled, Event
Remote access Web, Viewer Web, Viewer
Remote access via mobile device iPhone, iPAD, Android (owner Viewer) iPhone, iPAD, Android (owner Viewer)
Ports Ethernet, RS485, 2 x USB Ethernet, RS485, 2 x USB
Backup USB, Network USB, Network
START
Art. IPPTZ773A Art. IPPTZ779A
Lens Varifocal, 5.32 ÷ 62.61 mm Varifocal, 4.3 ÷ 129 mm
Image sensor 1/2.8" CMOS Sony Progressive Scan 1/2.8" CMOS Sony Progressive Scan
Resolution 1080p (FULL-HD) 1080p (FULL-HD)
IR lter mechanical removal Yes Yes
Integrated infrared illumination - Yes
Maximum distance infrared illumination (m) - 150
Minimum Illumination (lux) 0.5 (color) / 0.1 (b&w) 0.5 (color) / 0.1 (b&w)
Main/Special functions
PTZ, optical Zoom 12x, digital Zoom 16x,
240 Preset, 8 Tour, WDR, DIS, Privacy
Zones, Motion Detection, Video analytics,
bidirectional audio, local audio message,
ONVIF
PTZ, optical Zoom 30x, digital Zoom 16x,
240 Preset, 8 Tour, WDR, DIS, Privacy
Zones, Motion Detection, Video analytics,
bidirectional audio, local audio message,
ONVIF
Micro-SD Card Slot - -
Digital Noise Reduction (DNR) Yes Yes
Case Minidome Dome all-in-one
IP degree protection 66 66
Power supply 12 VDC, 24 VAC, PoE 12 VDC (power supply included)
HIGH
sTArT serIes
IP
IP | 129
IP
Art. IPCAM101B Art. IPCAM102A Art. IPCAM162A Art. IPCAM152A Art. IPCAM168A
Lens Fixed, 2.8 mm Fixed, 4.2 mm Varifocal, 2.8 ÷ 12 mm
-
Varifocal, 2.8 ÷ 12 mm
Image sensor 1/4" OV CMOS Progressive Scan 1/2.8" CMOS Sony 1/2.8" CMOS Sony 1/2.8" CMOS Sony 1/2.8" CMOS Sony
Resolution 720p (HD) 1080p (FULL-HD) 1080p (FULL-HD) 1080p (FULL-HD) 1080p (FULL-HD)
IR lter mechanical removal Yes Yes Yes Yes Yes
Integrated infrared illumination Yes, 30 led Yes, 30 led Yes, 66 led - Yes, 18 led
Maximum distance infrared illumination (m) 15 15 50 - 15
Minimum Illumination (lux) 0 (led IR ON) 0 (led IR ON) 0 (led IR ON) 0.2 (color) / 0.02 (b&w) 0 (led IR ON)
Main/Special functions Privacy Zones, Motion Detection Privacy Zones, Motion Detection Privacy Zones, Motion Detection Privacy Zones, Motion Detection,
bidirectional Audio Privacy Zones, Motion Detection
Micro-SD Card Slot - - - - -
Digital Noise Reduction (DNR) - - - - -
Case All-in-one All-in-one All-in-one Box Minidome
IP degree protection 66 66 66 - 66
Power supply 12 VDC, PoE 12 VDC, PoE 12 VDC, PoE 12 VDC, PoE 12 VDC, PoE
HIGH
SERIES
START
SERIES
IP
START SeRieS
CAMERAS
IPCAM101B All-in-one Day & Night colour IP camera, 2.8 mm fixed lens, HD (720p)@30
ips resolution, case IP66 waterproof, 30 infrared leds with range of up to
15 meters.
Camera sensor : 1/4'' OV CMOS Progressive Scan
Video trasmission : Dual streaming (H264, MJPEG)
Sensitivity (lux) : 0 (leds IR ON)
Mechanical removal of IR filter : Yes
Main functions : Privacy zone, Motion detection, Web browser
POE power supply camera : Yes
DC supply voltage : 12 V
Absorption : 7.2 W
Diameter (mm) : 66
Product depth (mm) : 167.7
IPCAM102A All-in-one Day & Night colour IP camera, 4.2 mm fixed lens, FULL-HD
(1080p)@30 ips resolution, case IP66 waterproof, 30 infrared leds with
range of up to 15 meters.
Camera sensor : 1/2.8'' CMOS Sony
Video trasmission : Dual streaming (H264, MJPEG)
Sensitivity (lux) : 0 (leds IR ON)
Mechanical removal of IR filter : Yes
Main functions : Privacy zone, Motion detection, Web browser
POE power supply camera : Yes
DC supply voltage : 12 V
Absorption : 6 W
Diameter (mm) : 66
Product depth (mm) : 167.7
IPCAM162A All-in-one Day & Night colour IP camera, 2.8-12 mm varifocal lens, FULL-
HD (1080p)@30 ips resolution, case IP66 waterproof, 66 infrared leds with
range of up to 50 meters.
Camera sensor : 1/2.8'' CMOS Sony
Video trasmission : Dual streaming (H264, MJPEG)
Sensitivity (lux) : 0 (leds IR ON)
Mechanical removal of IR filter : Yes
Main functions : Privacy zone, Motion detection, Web browser
POE power supply camera : Yes
DC supply voltage : 12 V
Absorption : 8 W
Product width (mm) : 121
Product height (mm) : 83
Product depth (mm) : 241
COMELIT I VIDEO SURVEILLANCE
START SeRieS
IP | 131
IP
IP
start
sErIEs
hIgh
sErIEs
CAMERAS
IPCAM152A Box Day & Night colour IP camera, FULL-HD (1080p)@30 ips resolution.
Camera sensor : 1/2.8'' CMOS Sony
Video trasmission : Dual streaming (H264, JPEG)
Sensitivity (lux) : 0.1 (colour) / 0.01 (B/W)
Mechanical removal of IR filter : Yes
Type of audio signal : Bidirectional
Main functions : Privacy mask, Motion detection, Web browser
POE power supply camera : Yes
DC supply voltage : 12 V
Absorption : 5 W
Product width (mm) : 58
Product height (mm) : 62
Product depth (mm) : 138
IPCAM168A Minidome Day & Night colour IP camera, 2.8-12 mm varifocal lens, FULL-
HD (1080p)@30 ips resolution, case IP66 waterproof, 18 infrared leds with
a range of up to 15 meters.
Camera sensor : 1/2.8'' CMOS Sony
Horizontal resolution (TVL) : FULL-HD (1080p)@30 ips
Video trasmission : Dual streaming (H264, MJPEG)
Sensitivity (lux) : 0 (leds IR ON)
Mechanical removal of IR filter : Yes
Vandal Resistant IK : 10
Main functions : Privacy mask, Motion detection, Web browser
POE power supply camera : Yes
DC supply voltage : 12 V
Absorption : 6 W
Diameter (mm) : 150
Product height (mm) : 112
IP
START SeRieS
CAMERAS
COMELIT I VIDEO SURVEILLANCE
IPPTZ773A PTZ minidome Day & Night colour IP camera, optical zoom 12x, FULL-HD
(1080p)@60 ips resolution, case IP66 waterproof, 2.2.1 ONVIF compatible.
Camera sensor : 1/2.8'' CMOS Sony Exmor Progressive Scan
Camera lens : 5.32 - 62.61 mm, autofocus
Camera digital zoom : 16x
Video trasmission : Triple streaming
Sensitivity (lux) : 0.5 (color) / 0.1 (B&W)
Mechanical removal of IR filter : Yes
Alarm Input / Output : 1 / 1
Type of audio signal : Bidirectional, Local audio alarm message
Main functions : 240 Preset, 8 Tour, WDR, DNR, DIS, Privacy mask, Motion
detection, Video analytics, Web browser
Additional functions : RS485
Network security : Multi-user authorization, IP filtering, HTTPS, SSL
AC supply voltage : 24 V
POE power supply camera : Yes
DC supply voltage : 12 V
Absorption : 12 W
Diameter (mm) : 154
Product height (mm) : 150
IPPTZ779A PTZ dome Day & Night all-in-one colour IP camera, optical zoom 30x,
FULL-HD (1080p)@60 ips resolution, case IP66 waterproof, synchronized
infrared leds with a range up to 150 meters, 2.2.1 ONVIF compatible.
Power supply included.
Camera sensor : 1/2.8'' CMOS Sony Progressive Scan
Camera lens : Varifocal, 4.3-129
Camera digital zoom : 16x
Sensitivity (lux) : 0.5 (colour) / 0.1 (B&W)
Mechanical removal of IR filter : Yes
Alarm Input / Output : 1 / 1
Type of audio signal : Bidirectional, Local audio alarm message
Main functions : 240 Preset, 8 Tour, WDR, DNR, DIS, Privacy mask, Motion
detection, Video analytics, Web browser
Additional functions : RS485
Network security : Multi-user authorization, IP filtering, HTTPS, SSL
DC supply voltage : 12 V
Absorption : 36 W
Diameter (mm) : 202
Product height (mm) : 371
Product depth (mm) : 349
START SeRieS
IP | 133
IP
IP
start
sErIEs
hIgh
sErIEs
HOUSINGS AND ACCESSORIES
44126 Waterproof housing, UNICA series, for indoor/outdoor with sunshield,
PoE technology (standard IEEE802.3at draft - 30 W), protected cable
passage, back opening, power splitter integrated compatible with 1
Gigabit networks with waterproof RJ45 connector, heating and ventilation
thermostated, die-cast aluminum housing, IP66 waterproof, RAL9002
colour, dimensions (W x H x D) 100 x 75 x 270, weight 4 kg. Bracket
included.
Product width (mm) : 135.42
Product height (mm) : 226.67
Product depth (mm) : 468.1
44128 Waterproof housing, UNICA series, for indoor/outdoor with sunshield,
vandalproof with shatterproof glass, PoE technology (standard
IEEE802.3at draft - 30 W), protected cable passage, back opening, power
splitter integrated compatible with 1 Gigabit networks with waterproof
RJ45 connector, heating and ventilation thermostated, die-cast aluminum
housing, IP66 waterproof, RAL9002 colour, dimensions (W x H x D) 100 x
75 x 270, weight 4 kg. Bracket included.
Product width (mm) : 135.42
Product height (mm) : 226.67
Product depth (mm) : 468.1
44125 PoE injector (standard IEEE802.3at - 33.6 W) for UNICA series housing art.
44126 and 44128.
AC supply voltage : 100-240 V
Product width (mm) : 65
Product height (mm) : 36
Product depth (mm) : 155
44103 Pole mount accessory for housing bracket UNICA series, maximum load 20
kg, made of aluminium painted with epoxy-polyester powders, RAL9002
colour, integrated cable passage, pole diameter from 50 to 140 mm.
40722 Corner installation accessory for universal dome housing, compatible
with art. 40728, 40729 (with adapter art. 40725) and 40734, and with
AFCAM series cameras (with adapter art. 40723).
40726 Pole-mounting accessory (pole diameter from 80 to 140 mm) for universal
dome housing, can be used for art. 40728 , 40729 (with adapter art.
40725) and 40734 and AFCAM series cameras (with adapter art. 40723).
IP
START SeRieS
HOUSINGS AND ACCESSORIES
COMELIT I VIDEO SURVEILLANCE
40728 Wall mount bracket for dome housing art. 40731 and dome cameras art.
40768, 40801, MPTZ768B, MPTZ801B and IPPTZ779A.
40732 Ceiling mount bracket for dome cameras MINITRAX series art. 40767,
MPTZ767B, HCAM633B, HCAM634B, HCAM635B, 40762 and minidome IP
art. IPCAM722A, IPCAM727A and IPPTZ773A.
40734 Wall mount bracket for dome cameras MINITRAX series art. 40767,
MPTZ767B, HCAM633B, HCAM634B, HCAM635B, 40762 and minidome IP
art. IPCAM722A, IPCAM727A and IPPTZ773A.
START SeRieS
IP | 135
IP
IP
start
sErIEs
hIgh
sErIEs
ASPHERICAL LENSES
42246 Megapixel varifocal autoiris ASPHERICAL TAMRON DC-Drive lens from 2.4
to 6 mm, F1.2-360, dimension 1/3'', CS mount, manual zoom and focus,
iris adjustable on the camera, mininum distance from object being filmed
of 0.3 m, pre-fitted connector.
42308 Megapixel varifocal autoiris ASPHERICAL TAMRON DC-Drive lens from 3
to 8 mm, F1-360, dimension 1/3'', CS mount, manual zoom and focus, iris
adjustable on the camera, mininum distance from object being filmed of
0.3 m, pre-fitted connector.
42412 Megapixel varifocal autoiris ASPHERICAL TAMRON DC Drive lens from 4 to
12 mm, F1.4-360, dimension 1/3'', CS mount, manual zoom and focus, iris
adjustable on the camera, mininum distance from object being filmed of
0.3 m, pre-fitted connector.
42550 Megapixel varifocal autoiris ASPHERICAL TAMRON DC Drive lens from 5 to
50 mm, F1.4-360, dimension 1/3'', CS mount, manual zoom and focus, iris
adjustable on the camera, mininum distance from object being filmed of
0.3 m, pre-fitted connector.
IP
START SeRieS
RECORDING UNITS
IPNVR109A Stand-alone NVR with 9 IP inputs FULL-HD (1080p) or 16 IP inputs HD
(720p), ONVIF 2.2.1 compatible.
Video compression : H264, MJPEG
Operating system : Linux Embedded
Video inputs : 9 (FULL-HD) / 16 (HD)
Main video output : 1 (VGA), 1 (HDMI)
Audio inputs/outputs : 1/1
Alarm Inputs/Outputs : 4/2
Display / recording frame rate : 225 ips @ FULL-HD Real Time / 400 ips @ HD
Hard disk capacity supplied : 1 TB (3 TB max)
Additional hard disks (SATA) : 1 (3 TB max)
Recording methods : Manual, Scheduled, Event
Protocols supported : HTTP, TCP/IP, UPnP, SMTP, DHCP, DDNS, IP Filtering
Remote control via browser : Internet Explorer
Remote control by software : Yes
Remote control by mobile : Yes
Type of connections/ports : 2 x USB, RS485, Ethernet 10/100
DC supply voltage : 12 V
Absorption : 20 W
Product width (mm) : 360
Product height (mm) : 44
Product depth (mm) : 250
IPNVR116A Stand-alone NVR with 16 IP inputs FULL-HD (1080p) or 20 IP inputs HD
(720p), ONVIF 2.2.1 compatible.
Video compression : H264, MJPEG
Operating system : Linux Embedded
Video inputs : 16 (FULL-HD) / 20 (HD)
Main video output : 1 (VGA), 1 (HDMI)
Audio inputs/outputs : 1/1
Alarm Inputs/Outputs : 4/2
Display / recording frame rate : 400 ips @ FULL-HD Real Time / 500 ips @ HD
Hard disk capacity supplied : 1 TB (3 TB max)
Additional hard disks (SATA) : 1 (3 TB max)
Recording methods : Manual, Scheduled, Event
Protocols supported : HTTP, TCP/IP, UPnP, SMTP, DHCP, DDNS, IP Filtering
Remote control via browser : Internet Explorer
Remote control by software : Yes
Remote control by mobile : Yes
Type of connections/ports : 2 x USB, RS485, Ethernet 10/100
DC supply voltage : 12 V
Absorption : 20 W
Product width (mm) : 360
Product height (mm) : 44
Product depth (mm) : 250
COMELIT I VIDEO SURVEILLANCE
START SeRieS
IP | 137
IP
IP
start
sErIEs
hIgh
sErIEs
SOFTWARE
COMELIT_VSC COMELIT VIDEO SURVEILLANCE CLIENT management software for IP
devices START series.
Main functions:
• Monitoring windows for live viewing and playback
• Viewing E-map (electronic map)
• Support NVR
• Multiple recording modes
• Multiple search modes
• Remote configuration of network devices
• Easy control of PTZ functions, digital zoom and alarms
• Users and permission levels management
MEYE Mobile device software "MEYE" for IP devices START series.
Main functions:
• Viewing images
• PTZ control
• Support NVR
• Available for iOS and Android
IP
START SeRieS
SWITCH AND TRANSMISSION
IPSWP005A Network switch, 5 ports (4 PoE, 15 W each).
Power supply included.
LAN ports number : 1 (10/100)
LAN PoE ports number : 4 (10/100) x 48 VDC (60 W max)
DC supply voltage : 48 V
IPSWP008A Network switch, 8 PoE ports (15 W each).
Power supply included.
LAN PoE ports number : 8 (10/100) x 48 VDC (120 W max)
DC supply voltage : 48 V
IPSWP009A Network switch, 9 ports (8 PoE, 15 W each).
Power supply included.
LAN ports number : 1 (10/100/1000)
LAN PoE ports number : 8 (10/100) x 48 VDC (120 W max)
DC supply voltage : 48 V
IPSWC005A Network switch, 5 Gigabit ports.
Power supply included.
LAN ports number : 5 (10/100/1000)
DC supply voltage : 5 V
IPSWC008A Network switch, 8 Gigabit ports.
Power supply included.
LAN ports number : 8 (10/100/1000)
DC supply voltage : 5 V
IPSWC024A Network switch, 24 Gigabit ports, designed for 19'' rack mount (1 unit,
adapter included).
LAN ports number : 24 (10/100/1000)
AC supply voltage : 230 V
IPEOC001A Active converter from LAN 10/100 Base/T to coaxial cable RG59 75 ohm
and viceversa for signal transmission of IP equipment, included the PoE
power supply. Maximum distance 125 metres, RJ45 connector for LAN,
BNC connector for coaxial cable, power supply 48 VDC (power supply
included).
Tx dimensions (W x H x D): 130 x 27 x 67 mm.
Rx dimensions (W x H x D): 117 x 33 x 75 mm.
COMELIT I VIDEO SURVEILLANCE
START SeRieS
IP | 139
IP
IP
start
sErIEs
hIgh
sErIEs
SWITCH AND TRANSMISSION
48086 Multifunctional all-in-one data transceiver 5GHz, built-in 13dBi antenna,
IEEE 802.11a (compatible 808.11h), interface by LAN 10/100, configurable
as Access Point, Client, WDS Bridge, Repeater, router WISP or router
AP, PoE power supply (power supply in equipment), waterproof plastic
housing.
48087 Wall/pole metallic mounting kit for video transceiver art. 48086.
DISCRETE CamERaS
COMELIT I VIDEO SURVEILLANCE
IP
HIGH serIes
• FULL HD recording in real time over all inputs.
• NVR with integrated POE switches.
• Smart Focus, for remote focus adjustment control
(available with cameras IPCAM 752A -IPCAM 767A).
HIGH
SERIES
IP
IP | 141
IP
DISCRETE CamERaS
STaRT
SERIES
hIgh
SERIES
HIGH serIes
IP
IP
CAMERAS 146
ENCODERS
AND DECODERS 153
HOUSINGS AND
ACCESSORIES 154
ASPHERICAL LENSES 157
RECORDING UNITS 158
SOFTWARE 160
KEYBOARDS 161
SWITCH
AND TRANSMISSION 162
START
SERIES
HIGH
SERIES
COMELIT I VIDEO SURVEILLANCE
Art. IPCAM791A Art. IPCAM794A Art. IPCAM700A Art. IPCAM702A Art. IPCAM720A
Lens Fixed, 2.6 mm Fixed, 3.7 mm Fixed, 2.8 mm
Varifocal, 3.5 ÷ 16 mm Fixed, 2.8 mm
Image sensor 1/4" CMOS Progressive Scan 1/2.8" CMOS Progressive Scan 1/2.8" CMOS Progressive Scan 1/2.8" CMOS Progressive Scan 1/2.8" CMOS Progressive Scan
Resolution 720p (HD) 1080p (FULL-HD) 1080p (FULL-HD) 1080p (FULL-HD) 1080p (FULL-HD)
IR lter mechanical removal - - Yes Yes Yes
Integrated infrared illumination - - Yes, 24 led Yes, 36 led Yes, 24 led
Maximum distance infrared illumination (m) - - 20 20 20
Minimum Illumination (lux) 1 (color - led OFF) / 0 (color - led ON) 0.2 (color) 0.2 (color) / 0 (led IR ON) 1 (color) / 0 (led IR ON) 0.2 (color) / 0 (led IR ON)
Main/Special functions
Privacy Zones, Motion Detection, MAT,
bidirectional audio, local audio message,
PIR, Led lighting, WPS button for Wi-Fi auto-
conguration, ONVIF
Privacy Zones, Motion Detection, MAT,
bidirectional audio, WPS button for Wi-Fi
auto-conguration, ONVIF
Privacy Zones, Motion Detection, MAT,
ONVIF
Privacy Zones, Motion Detection, MAT,
ONVIF
Privacy Zones, Motion Detection, MAT,
ONVIF
Micro-SD Card Slot Yes Yes Yes Yes Yes
Digital Noise Reduction (DNR) 2DNR 2DNR 2DNR 2DNR 2DNR
Case Cube Minidome All-in-one All-in-one Minidome
IP degree protection - 65 67 66 -
Power supply 5 VDC (power supply in equipment) 12 VDC, PoE 12 VDC, PoE 12 VDC, PoE 12 VDC, PoE
HIGH
Art. IPCAM722A Art. IPCAM727A Art. IPCAM742A Art. IPCAM752A Art. IPCAM767A
Lens Fixed, 3.7 mm Varifocal, 3.5 ÷ 16 mm -
Varifocal 3 ÷ 9 mm, Smart Focus Varifocal 3 ÷ 9 mm, Smart Focus
Image sensor 1/2.8" CMOS Progressive Scan 1/2.8" CMOS Progressive Scan 1/2.7" CMOS Progressive Scan 1/2.8" CMOS Progressive Scan 1/2.8" CMOS Progressive Scan
Resolution 1080p (FULL-HD) 1080p (FULL-HD) 1080p (FULL-HD) 1080p (FULL-HD) 1080p (FULL-HD)
IR lter mechanical removal Yes Yes Yes Yes Yes
Integrated infrared illumination Yes, 24 led Yes, 36 led - Yes, 32 led Yes, 24 led
Maximum distance infrared illumination (m) 20 20 - 25 20
Minimum Illumination (lux) 0.2 (color) / 0 (b&w - leds IR ON) 1 (color) / 0 (led IR ON) 0.9 (color) / 0.2 (b&w) 0.2 (color) / 0 (led IR ON) 0.2 (color) / 0 (led IR ON)
Main/Special functions Privacy Zones, Motion Detection, MAT, ONVIF Privacy Zones, Motion Detection, MAT, ONVIF
Privacy Zones, Motion Detection, MAT,
bidirectional audio, local audio message,
ONVIF
Privacy Zones, Motion Detection, MAT,
ONVIF
Privacy Zones, Motion Detection, MAT,
bidirectional audio, local audio message,
ONVIF
Micro-SD Card Slot Yes Yes Yes Yes Yes
Digital Noise Reduction (DNR) 2DNR 2DNR 2DNR 2DNR 2DNR
Case Minidome Minidome Box All-in-one Minidome
IP degree protection 66 66 - 66 66
Power supply 12 VDC, PoE 12 VDC, PoE 12 VDC, 24 VAC, PoE 12 VDC, PoE 12 VDC, 24 VAC, PoE
HIGH
HIGH serIes
IP
IP | 143
IP
START
SERIES
HIGH
SERIES
Art. IPCAM791A Art. IPCAM794A Art. IPCAM700A Art. IPCAM702A Art. IPCAM720A
Lens Fixed, 2.6 mm Fixed, 3.7 mm Fixed, 2.8 mm
Varifocal, 3.5 ÷ 16 mm Fixed, 2.8 mm
Image sensor 1/4" CMOS Progressive Scan 1/2.8" CMOS Progressive Scan 1/2.8" CMOS Progressive Scan 1/2.8" CMOS Progressive Scan 1/2.8" CMOS Progressive Scan
Resolution 720p (HD) 1080p (FULL-HD) 1080p (FULL-HD) 1080p (FULL-HD) 1080p (FULL-HD)
IR lter mechanical removal - - Yes Yes Yes
Integrated infrared illumination - - Yes, 24 led Yes, 36 led Yes, 24 led
Maximum distance infrared illumination (m) - - 20 20 20
Minimum Illumination (lux) 1 (color - led OFF) / 0 (color - led ON) 0.2 (color) 0.2 (color) / 0 (led IR ON) 1 (color) / 0 (led IR ON) 0.2 (color) / 0 (led IR ON)
Main/Special functions
Privacy Zones, Motion Detection, MAT,
bidirectional audio, local audio message,
PIR, Led lighting, WPS button for Wi-Fi auto-
conguration, ONVIF
Privacy Zones, Motion Detection, MAT,
bidirectional audio, WPS button for Wi-Fi
auto-conguration, ONVIF
Privacy Zones, Motion Detection, MAT,
ONVIF
Privacy Zones, Motion Detection, MAT,
ONVIF
Privacy Zones, Motion Detection, MAT,
ONVIF
Micro-SD Card Slot Yes Yes Yes Yes Yes
Digital Noise Reduction (DNR) 2DNR 2DNR 2DNR 2DNR 2DNR
Case Cube Minidome All-in-one All-in-one Minidome
IP degree protection - 65 67 66 -
Power supply 5 VDC (power supply in equipment) 12 VDC, PoE 12 VDC, PoE 12 VDC, PoE 12 VDC, PoE
Art. IPCAM722A Art. IPCAM727A Art. IPCAM742A Art. IPCAM752A Art. IPCAM767A
Lens Fixed, 3.7 mm Varifocal, 3.5 ÷ 16 mm -
Varifocal 3 ÷ 9 mm, Smart Focus Varifocal 3 ÷ 9 mm, Smart Focus
Image sensor 1/2.8" CMOS Progressive Scan 1/2.8" CMOS Progressive Scan 1/2.7" CMOS Progressive Scan 1/2.8" CMOS Progressive Scan 1/2.8" CMOS Progressive Scan
Resolution 1080p (FULL-HD) 1080p (FULL-HD) 1080p (FULL-HD) 1080p (FULL-HD) 1080p (FULL-HD)
IR lter mechanical removal Yes Yes Yes Yes Yes
Integrated infrared illumination Yes, 24 led Yes, 36 led - Yes, 32 led Yes, 24 led
Maximum distance infrared illumination (m) 20 20 - 25 20
Minimum Illumination (lux) 0.2 (color) / 0 (b&w - leds IR ON) 1 (color) / 0 (led IR ON) 0.9 (color) / 0.2 (b&w) 0.2 (color) / 0 (led IR ON) 0.2 (color) / 0 (led IR ON)
Main/Special functions Privacy Zones, Motion Detection, MAT, ONVIF Privacy Zones, Motion Detection, MAT, ONVIF
Privacy Zones, Motion Detection, MAT,
bidirectional audio, local audio message,
ONVIF
Privacy Zones, Motion Detection, MAT,
ONVIF
Privacy Zones, Motion Detection, MAT,
bidirectional audio, local audio message,
ONVIF
Micro-SD Card Slot Yes Yes Yes Yes Yes
Digital Noise Reduction (DNR) 2DNR 2DNR 2DNR 2DNR 2DNR
Case Minidome Minidome Box All-in-one Minidome
IP degree protection 66 66 - 66 66
Power supply 12 VDC, PoE 12 VDC, PoE 12 VDC, 24 VAC, PoE 12 VDC, PoE 12 VDC, 24 VAC, PoE
COMELIT I VIDEO SURVEILLANCE
Art. IPNVR700A Art. IPNVR704A Art.IPNVR708A Art.IPNVR746A
Ingressi IP 4 (FULL-HD lari o 2 Wi-Fi) 4 (FULL-HD) 8 (FULL-HD)
16 (FULL-HD)
Uscite video principali - 1 VGA, 1 HDMI 1 VGA, 1 HDMI 1 VGA, 1 HDMI
Switch Ethernet a bordo - PoE PoE (4 ingressi) PoE
Hard Disk in dotazione (SATA) 1 TB 1 TB 1 TB 1 TB
Hard Disk aggiuntivi (SATA) eSATA 1 + eSATA 1 + eSATA 3 + eSATA
Ingressi di allarme 8 4 4 16
Uscite di allarme 8 4 4 4
Ingressi audio - - - -
Uscite audio - 1 1 1
Frame rate in registrazione 100@FULL-HD (1080p) Real Time 100@FULL-HD (1080p) Real Time 200@FULL-HD (1080p) Real Time 400@FULL-HD (1080p) Real Time
Modalità di registrazione Programmata, Evento Automatica, Manuale, Programmata,
Evento
Automatica, Manuale, Programmata,
Evento
Automatica, Manuale, Programmata,
Evento
Accesso da remoto Web, Viewer Web, Viewer Web, Viewer Web, Viewer
Accesso da remoto tramite dispositivo mobile iPhone, iPAD, Android (Viewer
proprietario)
iPhone, iPAD, Android (Viewer
proprietario)
iPhone, iPAD, Android (Viewer
proprietario)
iPhone, iPAD, Android (Viewer
proprietario)
Wi-Fi Sì, pulsante WPS per la congurazione
automatica ---
Porte Ethernet, 2 x USB 5 x Ethernet (4 PoE), 2 x USB 5 x Ethernet (4 PoE), 2 x USB 17 x Ethernet (16 PoE), 2 x USB
Backup USB, Network USB, Network USB, Network USB, Network
HIGH
Art. IPPTZ777A Art. IPPTZ773A Art. IPPTZ779A
Lens Varifocal, 4.3 ÷ 129 mm Varifocal, 5.32 ÷ 62.61 mm Varifocal, 4.3 ÷ 129 mm
Image sensor 1/2.8" CMOS Sony Progressive Scan 1/2.8" CMOS Sony Progressive Scan 1/2.8" CMOS Sony Progressive Scan
Resolution 1080p (FULL-HD) 1080p (FULL-HD) 1080p (FULL-HD)
IR lter mechanical removal Sì Sì Sì
Integrated infrared illumination - - Sì
Maximum distance infrared illumination (m) - - 150
Minimum Illumination (lux) 0.5 (colori) / 0.1 (bianco e nero) 0.5 (colori) / 0.1 (bianco e nero) 0.5 (colori) / 0.1 (bianco e nero)
Main/Special functions
PTZ, Zoom ottico 30x, Zoom digitale 16x, 240
Preset, 8 Tour, WDR, DIS, Zone di Privacy,
Motion Detection, MAT, Analisi video, audio
bidirezionale, messaggio audio locale, ONVIF
PTZ, Zoom ottico 12x, Zoom digitale 16x,
240 Preset, 8 Tour, WDR, DIS, Zone di
Privacy, Motion Detection, Analisi video,
audio bidirezionale, messaggio audio locale,
ONVIF
PTZ, Zoom ottico 30x, Zoom digitale 16x,
240 Preset, 8 Tour, WDR, DIS, Zone di
Privacy, Motion Detection, Analisi video,
audio bidirezionale, messaggio audio
locale, ONVIF
Micro-SD Card Slot - - -
Digital Noise Reduction (DNR) Sì Sì Sì
Case Dome Minidome Dome all-in-one
IP degree protection - 66 66
Power supply 12 Vcc, 24 Vca, PoE 12 Vcc, 24 Vca, PoE 12 Vcc (alimentatore incluso)
HIGH
HIGH serIes
IP
IP | 145
IP
START
SERIES
HIGH
SERIES
Art. IPNVR700A Art. IPNVR704A Art.IPNVR708A Art.IPNVR746A
Ingressi IP 4 (FULL-HD lari o 2 Wi-Fi) 4 (FULL-HD) 8 (FULL-HD)
16 (FULL-HD)
Uscite video principali - 1 VGA, 1 HDMI 1 VGA, 1 HDMI 1 VGA, 1 HDMI
Switch Ethernet a bordo - PoE PoE (4 ingressi) PoE
Hard Disk in dotazione (SATA) 1 TB 1 TB 1 TB 1 TB
Hard Disk aggiuntivi (SATA) eSATA 1 + eSATA 1 + eSATA 3 + eSATA
Ingressi di allarme 8 4 4 16
Uscite di allarme 8 4 4 4
Ingressi audio - - - -
Uscite audio - 1 1 1
Frame rate in registrazione 100@FULL-HD (1080p) Real Time 100@FULL-HD (1080p) Real Time 200@FULL-HD (1080p) Real Time 400@FULL-HD (1080p) Real Time
Modalità di registrazione Programmata, Evento Automatica, Manuale, Programmata,
Evento
Automatica, Manuale, Programmata,
Evento
Automatica, Manuale, Programmata,
Evento
Accesso da remoto Web, Viewer Web, Viewer Web, Viewer Web, Viewer
Accesso da remoto tramite dispositivo mobile iPhone, iPAD, Android (Viewer
proprietario)
iPhone, iPAD, Android (Viewer
proprietario)
iPhone, iPAD, Android (Viewer
proprietario)
iPhone, iPAD, Android (Viewer
proprietario)
Wi-Fi Sì, pulsante WPS per la congurazione
automatica ---
Porte Ethernet, 2 x USB 5 x Ethernet (4 PoE), 2 x USB 5 x Ethernet (4 PoE), 2 x USB 17 x Ethernet (16 PoE), 2 x USB
Backup USB, Network USB, Network USB, Network USB, Network
Art. IPPTZ777A Art. IPPTZ773A Art. IPPTZ779A
Lens Varifocal, 4.3 ÷ 129 mm Varifocal, 5.32 ÷ 62.61 mm Varifocal, 4.3 ÷ 129 mm
Image sensor 1/2.8" CMOS Sony Progressive Scan 1/2.8" CMOS Sony Progressive Scan 1/2.8" CMOS Sony Progressive Scan
Resolution 1080p (FULL-HD) 1080p (FULL-HD) 1080p (FULL-HD)
IR lter mechanical removal Sì Sì Sì
Integrated infrared illumination - - Sì
Maximum distance infrared illumination (m) - - 150
Minimum Illumination (lux) 0.5 (colori) / 0.1 (bianco e nero) 0.5 (colori) / 0.1 (bianco e nero) 0.5 (colori) / 0.1 (bianco e nero)
Main/Special functions
PTZ, Zoom ottico 30x, Zoom digitale 16x, 240
Preset, 8 Tour, WDR, DIS, Zone di Privacy,
Motion Detection, MAT, Analisi video, audio
bidirezionale, messaggio audio locale, ONVIF
PTZ, Zoom ottico 12x, Zoom digitale 16x,
240 Preset, 8 Tour, WDR, DIS, Zone di
Privacy, Motion Detection, Analisi video,
audio bidirezionale, messaggio audio locale,
ONVIF
PTZ, Zoom ottico 30x, Zoom digitale 16x,
240 Preset, 8 Tour, WDR, DIS, Zone di
Privacy, Motion Detection, Analisi video,
audio bidirezionale, messaggio audio
locale, ONVIF
Micro-SD Card Slot - - -
Digital Noise Reduction (DNR) Sì Sì Sì
Case Dome Minidome Dome all-in-one
IP degree protection - 66 66
Power supply 12 Vcc, 24 Vca, PoE 12 Vcc, 24 Vca, PoE 12 Vcc (alimentatore incluso)
IP
HIGH serIes
COMELIT I VIDEO SURVEILLANCE
CAMERAS
IPCAM791A All-in-one colour IP camera, wireless and wired connections, 2.6 mm
fixel lens, HD (720p)@30 ips or 2 Megapixel@15 ips resolution, CUBE
case suitable for indoor use, WPS button for automatic configuration, PIR
sensor, white led with range of up to 5 meters, microphone, loudspeaker,
2.2.1 ONVIF compatible.
Power supply included.
Camera sensor : 1/4'' CMOS Progressive Scan
Video trasmission : Triple streaming
Sensitivity (lux) : 1 (led OFF) / 0 (led ON)
Type of audio signal : Bidirectional, Local audio alarm message
Main functions : 2DNR, Privacy mask, Motion detection, Event recording on micro-
SD, Web browser
Additional functions : MAT
Network security : Multi-user authorization, IP filtering, HTTPS, SSL
DC supply voltage : 5
Absorption : 3.5 W
Product width (mm) : 62
Product height (mm) : 97
Product depth (mm) : 38.5
IPCAM794A All-in-one colour Day & Night IP camera, wireless and wired connections,
3.7 mm fixel lens, FULL-HD (1080p)@30 ips resolution, case IP65
waterproof and vandalresistant, WPS button for automatic configuration,
microphone, 2.2.1 ONVIF compatible.
Camera sensor : 1/2.8'' CMOS Progressive Scan
Video trasmission : Triple streaming
Sensitivity (lux) : 0.2 (colour)
Mechanical removal of IR filter : Yes
Type of audio signal : Bidirectional
Main functions : 2DNR, Privacy mask, Motion detection, Event recording on micro-
SD, Web browser
Additional functions : MAT
Network security : Multi-user authorization, IP filtering, HTTPS, SSL
POE power supply camera : Yes
DC supply voltage : 12
Absorption : 4.5 W
Diameter (mm) : 140
Product height (mm) : 68
IP | 147
IP
IP
HIGH serIes
start
sErIEs
hIgh
sErIEs
CAMERAS
IPCAM700A All-in-one Day & Night colour IP camera, 3.7 mm fixed lens, FULL-HD
(1080p)@30 ips resolution, case IP67 waterproof, 24 infrared leds with
range of up to 20 meters, 2.2.1 ONVIF compatible.
Camera sensor : 1/2.8'' CMOS Progressive Scan
Video trasmission : Triple streaming
Sensitivity (lux) : 1 (B&W) / 0 (leds IR ON)
Mechanical removal of IR filter : Yes
Main functions : 2DNR, Privacy mask, Motion detection, Event recording on micro-
SD, Web browser
Additional functions : MAT
Network security : Multi-user authorization, IP filtering, HTTPS, SSL
POE power supply camera : Yes
DC supply voltage : 12 V
Absorption : 6 W
Diameter (mm) : 66
Product depth (mm) : 173
IPCAM702A All-in-one Day & Night colour IP camera, 3.5-16 mm varifocal lens, FULL-
HD (1080P)@30 ips resolution, case IP66 waterproof, 36 infrared lens with
a range of up to 20 meters, 2.2.1 ONVIF compatible.
Camera sensor : 1/2.8'' CMOS Progressive Scan
Video trasmission : Triple streaming
Sensitivity (lux) : 1 (colour)
Mechanical removal of IR filter : Yes
Main functions : 2DNR, Privacy mask, Motion detection, Event recording on micro-
SD, Web browser
Additional functions : MAT
Network security : Multi-user authorization, IP filtering, HTTPS, SSL
POE power supply camera : Yes
DC supply voltage : 12 V
Absorption : 6 W
Product width (mm) : 87
Product height (mm) : 98.4
Product depth (mm) : 300
IP
HIGH serIes
IPCAM720A Minidome Day & Night colour IP camera, 3.7 mm fixed lens, FULL-HD
(1080p)@30 ips resolution, case suitable for indoor use, 24 infrared leds
with a range of up to 20 meters, 2.2.1 ONVIF compatible.
Camera sensor : 1/2.8'' CMOS Progressive Scan
Video trasmission : Triple streaming
Sensitivity (lux) : 0.2 (colour) / 0 (B&W - leds IR ON)
Mechanical removal of IR filter : Yes
Main functions : 2DNR, Privacy mask, Motion detection, Event recording on micro-
SD, Web browser
Additional functions : MAT
Network security : Multi-user authorization, IP filtering, HTTPS, SSL
POE power supply camera : Yes
DC supply voltage : 12 V
Absorption : 6 W
Diameter (mm) : 120
Product height (mm) : 87.9
IPCAM722A Minidome Day & Night colour IP camera, 3.7 mm fixed lens, FULL-HD
(1080p)@30 ips resolution, case IP66 waterproof and vandalresistant, 24
infrared leds with a range of up to 20 meters, 2.2.1 ONVIF compatible.
Camera sensor : 1/2.8'' CMOS Progressive Scan
Video trasmission : Triple streaming
Sensitivity (lux) : 0.2 (colour) / 0 (B&W - leds IR ON)
Mechanical removal of IR filter : Yes
Main functions : 2DNR, Privacy mask, Motion detection, Event recording on micro-
SD, Web browser
Additional functions : MAT
Network security : Multi-user authorization, IP filtering, HTTPS, SSL
POE power supply camera : Yes
DC supply voltage : 12 V
Absorption : 6 W
Diameter (mm) : 144
Product height (mm) : 98
CAMERAS
COMELIT I VIDEO SURVEILLANCE
IP | 149
IP
IP
HIGH serIes
start
sErIEs
hIgh
sErIEs
IPCAM727A Minidome Day & Night colour IP camera, 3.5-16 mm varifocal lens, FULL-
HD (1080p)@30 ips resolution, case IP66 waterproof and vandalresistant,
36 infrared leds with a range of up to 20 meters, 2.2.1 ONVIF compatible.
Camera sensor : 1/2.8'' CMOS Progressive Scan
Video trasmission : Triple streaming
Sensitivity (lux) : 1 (colour)
Mechanical removal of IR filter : Yes
Main functions : 2DNR, Privacy mask, Motion detection, Event recording on micro-
SD, Web browser
Additional functions : MAT
Network security : Multi-user authorization, IP filtering, HTTPS, SSL
POE power supply camera : Yes
DC supply voltage : 12 V
Absorption : 6 W
Diameter (mm) : 146
Product height (mm) : 106
IPCAM742A Box colour Day & Night IP camera, FULL-HD (1080p)@30 ips resolution,
2.2.1 ONVIF compatible.
Camera sensor : 1/2.7'' CMOS Progressive Scan
Video trasmission : Dual streaming
Sensitivity (lux) : 0.9 (colour) / 0.2 (B&W)
Mechanical removal of IR filter : Yes
Alarm Input / Output : 1 / 1
Type of audio signal : Bidirectional, Local audio alarm message
Main functions : 2DNR, Privacy mask, Motion detection, Event recording on micro-
SD, Web browser
Additional functions : MAT
Network security : Multi-user authorization, IP filtering, HTTPS, SSL
AC supply voltage : 24 V
POE power supply camera : Yes
DC supply voltage : 12 V
Absorption : 3.5 W
Product width (mm) : 81.6
Product height (mm) : 68
Product depth (mm) : 123.1
CAMERAS
IP
HIGH serIes
IPCAM752A All-in-one Day & Night colour IP camera, 3-9 mm varifocal lens with
Smart Focus function, FULL-HD (1080P)@30 ips resolution, case IP66
waterproof, 32 infrared lens with a range of up to 25 meters, 2.2.1 ONVIF
compatible.
Camera sensor : 1/2.8'' CMOS Progressive Scan
Camera optical zoom : 3x
Video trasmission : Triple streaming
Sensitivity (lux) : 0.2 (colour) / 0 (B&W - leds IR ON)
Mechanical removal of IR filter : Yes
Main functions : 2DNR, Privacy mask, Motion detection, Event recording on micro-
SD, Web browser
Additional functions : MAT
Network security : Multi-user authorization, IP filtering, HTTPS, SSL
POE power supply camera : Yes
DC supply voltage : 12 V
Absorption : 24 W
Product width (mm) : 98.4
Product height (mm) : 168.5
Product depth (mm) : 284
IPCAM767A Minidome Day & Night colour IP camera, 3-9 mm varifocal lens with Smart
Focus function, FULL-HD (1080p)@30 ips resolution, case IP66 waterproof
and vandalresistant, 24 infrared leds with a range of up to 20 meters, 2.2.1
ONVIF compatible.
Camera sensor : 1/2.8'' CMOS Progressive Scan
Camera optical zoom : 3x
Video trasmission : Triple streaming
Sensitivity (lux) : 0.2 (colour) / 0 (B&W - leds IR ON)
Mechanical removal of IR filter : Yes
Alarm Input / Output : 1 / 1
Type of audio signal : Bidirectional, Local audio alarm message
Main functions : 2DNR, Privacy mask, Motion detection, Event recording on micro-
SD, Web browser
Additional functions : MAT
Network security : Multi-user authorization, IP filtering, HTTPS, SSL
AC supply voltage : 24 V
POE power supply camera : Yes
DC supply voltage : 12 V
Absorption : 6.5 W
Diameter (mm) : 152
Product height (mm) : 120
CAMERAS
COMELIT I VIDEO SURVEILLANCE
IP | 151
IP
IP
HIGH serIes
start
sErIEs
hIgh
sErIEs
IPPTZ773A PTZ minidome Day & Night colour IP camera, optical zoom 12x, FULL-HD
(1080p)@60 ips resolution, case IP66 waterproof, 2.2.1 ONVIF compatible.
Camera sensor : 1/2.8'' CMOS Sony Exmor Progressive Scan
Camera lens : 5.32 - 62.61 mm, autofocus
Camera digital zoom : 16x
Video trasmission : Triple streaming
Sensitivity (lux) : 0.5 (color) / 0.1 (B&W)
Mechanical removal of IR filter : Yes
Alarm Input / Output : 1 / 1
Type of audio signal : Bidirectional, Local audio alarm message
Main functions : 240 Preset, 8 Tour, WDR, DNR, DIS, Privacy mask, Motion
detection, Video analytics, Web browser
Additional functions : RS485
Network security : Multi-user authorization, IP filtering, HTTPS, SSL
AC supply voltage : 24 V
POE power supply camera : Yes
DC supply voltage : 12 V
Absorption : 12 W
Diameter (mm) : 154
Product height (mm) : 150
IPPTZ777A PTZ dome Day & Night colour IP camera, optical zoom 30x, FULL-HD
(1080p)@60 ips resolution, 2.2.1 ONVIF compatible.
Camera sensor : 1/2.8'' CMOS Sony Exmor Progressive Scan
Camera lens : 4.3 - 129 mm, autofocus
Camera digital zoom : 16x
Video trasmission : Triple streaming
Sensitivity (lux) : 0.5 (color) / 0.1 (B&W)
Mechanical removal of IR filter : Yes
Alarm Input / Output : 2 / 1
Type of audio signal : Bidirectional, Local audio alarm message
Main functions : 240 Preset, 8 Tour, WDR, DNR, DIS, Privacy mask, Motion
detection, Video analytics, Web browser
Additional functions : RS485
Network security : Multi-user authorization, IP filtering, HTTPS, SSL
AC supply voltage : 24 V
POE power supply camera : Yes
DC supply voltage : 12 V
Absorption : 16 W
Diameter (mm) : 125
Product height (mm) : 202
CAMERAS
IP
HIGH serIes
IPPTZ779A PTZ dome Day & Night all-in-one colour IP camera, optical zoom 30x,
FULL-HD (1080p)@60 ips resolution, case IP66 waterproof, synchronized
infrared leds with a range up to 150 meters, 2.2.1 ONVIF compatible.
Power supply included.
Camera sensor : 1/2.8'' CMOS Sony Progressive Scan
Camera lens : Varifocal, 4.3-129
Camera digital zoom : 16x
Sensitivity (lux) : 0.5 (colour) / 0.1 (B&W)
Mechanical removal of IR filter : Yes
Alarm Input / Output : 1 / 1
Type of audio signal : Bidirectional, Local audio alarm message
Main functions : 240 Preset, 8 Tour, WDR, DNR, DIS, Privacy mask, Motion
detection, Video analytics, Web browser
Additional functions : RS485
Network security : Multi-user authorization, IP filtering, HTTPS, SSL
DC supply voltage : 12 V
Absorption : 36 W
Diameter (mm) : 202
Product height (mm) : 371
Product depth (mm) : 349
CAMERAS
COMELIT I VIDEO SURVEILLANCE
IP | 153
IP
IP
HIGH serIes
start
sErIEs
hIgh
sErIEs
IPCOD691A IP encoder with 1 video input, IPCONVERTER series.
Video input : 1 (BNC)
Video compression : H264, MPEG4, MJPEG
Frame rate : 25 ips @ 4CIF
Ports : USB, RS485, Ethernet 10/100
Audio inputs/outputs : 1/1
Alarm Inputs/Outputs : 2/1
Main functions : Multi-user authorization, IP filtering, Web browser, Privacy mask,
Motion detection, Mail notification, ONVIF compatible
AC supply voltage : 24 V
DC supply voltage : 12 V
PoE power supply : Yes
Absorption : 5 W
Product width (mm) : 155
Product height (mm) : 40
Product depth (mm) : 102.4
ENCODERS AND DECODERS
IP
HIGH serIes
44126 Waterproof housing, UNICA series, for indoor/outdoor with sunshield,
PoE technology (standard IEEE802.3at draft - 30 W), protected cable
passage, back opening, power splitter integrated compatible with 1
Gigabit networks with waterproof RJ45 connector, heating and ventilation
thermostated, die-cast aluminum housing, IP66 waterproof, RAL9002
colour, dimensions (W x H x D) 100 x 75 x 270, weight 4 kg. Bracket
included.
Product width (mm) : 135.42
Product height (mm) : 226.67
Product depth (mm) : 468.1
44128 Waterproof housing, UNICA series, for indoor/outdoor with sunshield,
vandalproof with shatterproof glass, PoE technology (standard
IEEE802.3at draft - 30 W), protected cable passage, back opening, power
splitter integrated compatible with 1 Gigabit networks with waterproof
RJ45 connector, heating and ventilation thermostated, die-cast aluminum
housing, IP66 waterproof, RAL9002 colour, dimensions (W x H x D) 100 x
75 x 270, weight 4 kg. Bracket included.
Product width (mm) : 135.42
Product height (mm) : 226.67
Product depth (mm) : 468.1
44125 PoE injector (standard IEEE802.3at - 33.6 W) for UNICA series housing art.
44126 and 44128.
AC supply voltage : 100-240 V
Product width (mm) : 65
Product height (mm) : 36
Product depth (mm) : 155
44103 Pole mount accessory for housing bracket UNICA series, maximum load 20
kg, made of aluminium painted with epoxy-polyester powders, RAL9002
colour, integrated cable passage, pole diameter from 50 to 140 mm.
40720 False-ceiling installation accessory for dome cameras NAKEDTRAX series
art. 40752, 40756, HPTZ752B, HPTZ756B and IPPTZ777A.
40722 Corner installation accessory for universal dome housing, compatible
with art. 40728, 40729 (with adapter art. 40725) and 40734, and with
AFCAM series cameras (with adapter art. 40723).
HOUSINGS AND ACCESSORIES
COMELIT I VIDEO SURVEILLANCE
IP | 155
IP
IP
HIGH serIes
start
sErIEs
hIgh
sErIEs
40725 Fixing/anchoring plate for art. 40729 to be used in combination with art.
40722 and 40726.
40726 Pole-mounting accessory (pole diameter from 80 to 140 mm) for universal
dome housing, can be used for art. 40728 , 40729 (with adapter art.
40725) and 40734 and AFCAM series cameras (with adapter art. 40723).
40727 Ceiling bracket for dome housing art. 40731.
40728 Wall mount bracket for dome housing art. 40731 and dome cameras art.
40768, 40801, MPTZ768B, MPTZ801B and IPPTZ779A.
40729 Wall bracket, with transformer and quick-fit connection, for dome
cameras art. 40768, 40801, MPTZ768B, MPTZ801B and for dome housing
art. 40731.
40731 Dome housing for outdoor use without bracket, thermostat-controlled and
fan-cooled, power supply 24 VAC, for dome cameras NAKEDTRAX series
art. 40752, 40756, HPTZ752B, HPTZ756B and dome IP art. IPPTZ777A.
40732 Ceiling mount bracket for dome cameras MINITRAX series art. 40767,
MPTZ767B, HCAM633B, HCAM634B, HCAM635B, 40762 and minidome IP
art. IPCAM722A, IPCAM727A and IPPTZ773A.
HOUSINGS AND ACCESSORIES
IP
HIGH serIes
40734 Wall mount bracket for dome cameras MINITRAX series art. 40767,
MPTZ767B, HCAM633B, HCAM634B, HCAM635B, 40762 and minidome IP
art. IPCAM722A, IPCAM727A and IPPTZ773A.
HOUSINGS AND ACCESSORIES
COMELIT I VIDEO SURVEILLANCE
IP | 157
IP
IP
HIGH serIes
start
sErIEs
hIgh
sErIEs
42246 Megapixel varifocal autoiris ASPHERICAL TAMRON DC-Drive lens from 2.4
to 6 mm, F1.2-360, dimension 1/3'', CS mount, manual zoom and focus,
iris adjustable on the camera, mininum distance from object being filmed
of 0.3 m, pre-fitted connector.
42308 Megapixel varifocal autoiris ASPHERICAL TAMRON DC-Drive lens from 3
to 8 mm, F1-360, dimension 1/3'', CS mount, manual zoom and focus, iris
adjustable on the camera, mininum distance from object being filmed of
0.3 m, pre-fitted connector.
42412 Megapixel varifocal autoiris ASPHERICAL TAMRON DC Drive lens from 4 to
12 mm, F1.4-360, dimension 1/3'', CS mount, manual zoom and focus, iris
adjustable on the camera, mininum distance from object being filmed of
0.3 m, pre-fitted connector.
42550 Megapixel varifocal autoiris ASPHERICAL TAMRON DC Drive lens from 5 to
50 mm, F1.4-360, dimension 1/3'', CS mount, manual zoom and focus, iris
adjustable on the camera, mininum distance from object being filmed of
0.3 m, pre-fitted connector.
ASPHERICAL LENSES
IP
HIGH serIes
IPNVR700A Stand-alone NAS with 4 IP inputs D1 or 2 IP inputs FULL-HD (1080p),
wireless, WPS button for automatic configuration, 2.2.1 ONVIF compatible.
Video compression : H264
Video inputs : 4 (D1) / 2 (FULL-HD)
Alarm Inputs/Outputs : 8 / 8
Display / recording frame rate : 120 ips@D1 (4 CH) / 120 ips@FULL-HD (2CH)
Real Time
Hard disk capacity supplied : 1 TB (3 TB max)
Additional hard disks (SATA) : 1 (ext)
Recording methods : Scheduled, Event
Protocols supported : HTTP, TCP/IP, DHCP, DDNS, ONVIF
Remote control via browser : Yes
Remote control by software : Yes
Remote control by mobile : Yes
Type of connections/ports : 2 x USB, RS232, Ethernet 10/100/1000
Main functions : Web server, HDD monitoring via S.M.A.R.T., Watermarking
DC supply voltage : 12 V
Absorption : 36 W
Product width (mm) : 60
Product height (mm) : 190
Product depth (mm) : 218
IPNVR704A Stand-alone NVR with 4 IP inputs FULL-HD (1080p), 2.2.1 ONVIF compatible.
Video compression : H264
Video inputs : 4 (FULL-HD, PoE-82.5 W max)
Main video output : 1 (VGA), 1 (HDMI)
Audio inputs/outputs : - / 1 (RCA)
Alarm Inputs/Outputs : 4 / 4
Display / recording frame rate : 120 ips @ FULL-HD Real Time
Hard disk capacity supplied : 1 TB (3 TB max)
Additional hard disks (SATA) : 1 (3 TB max) + eSATA
Recording methods : Auto at start up, Manual, Scheduled, Event
Protocols supported : HTTP, TCP/IP, DHCP, DDNS, ONVIF
Remote control via browser : Yes
Remote control by software : Yes
Remote control by mobile : Yes
Type of connections/ports : 2 x USB, Ethernet 10/100/1000
Main functions : Auto IP, PiP, Zoom, e-Map, Web server, HDD monitoring via
S.M.A.R.T., Watermarking
DC supply voltage : 48 V
Absorption : 150 W
Product width (mm) : 272
Product height (mm) : 85
Product depth (mm) : 265
RECORDING UNITS
COMELIT I VIDEO SURVEILLANCE
IP | 159
IP
IP
HIGH serIes
start
sErIEs
hIgh
sErIEs
IPNVR708A Stand-alone NVR with 8 IP inputs FULL-HD (1080p), 2.2.1 ONVIF compatible.
Video compression : H264
Video inputs : 8 (FULL-HD, 4 PoE-82.5 W max)
Main video output : 1 (VGA), 1 (HDMI)
Audio inputs/outputs : - / 1 (RCA)
Alarm Inputs/Outputs : 4 / 4
Display / recording frame rate : 240 ips @ FULL-HD Real Time
Hard disk capacity supplied : 1 TB (3 TB max)
Additional hard disks (SATA) : 1 (3 TB max) + eSATA
Recording methods : Auto at start up, Manual, Scheduled, Event
Protocols supported : HTTP, TCP/IP, DHCP, DDNS, ONVIF
Remote control via browser : Yes
Remote control by software : Yes
Remote control by mobile : Yes
Type of connections/ports : 2 x USB, Ethernet 10/100/1000
Main functions : Auto IP, PiP, Zoom, e-Map, Web server, HDD monitoring via
S.M.A.R.T., Watermarking
DC supply voltage : 48 V
Absorption : 150 W
Product width (mm) : 272
Product height (mm) : 85
Product depth (mm) : 265
IPNVR746A Stand-alone NVR with 16 IP inputs FULL-HD (1080p), 2.2.1 ONVIF
compatible.
Video compression : H264
Video inputs : 16 (FULL-HD, PoE-100 W max)
Main video output : 1 (VGA), 1 (HDMI)
Audio inputs/outputs : - / 1 (RCA)
Alarm Inputs/Outputs : 16 / 4
Display / recording frame rate : 480 ips @ FULL-HD Real Time
Hard disk capacity supplied : 1 TB (3 TB max)
Additional hard disks (SATA) : 3 (9 TB max) + eSATA
Recording methods : Auto at start up, Manual, Scheduled, Event
Protocols supported : HTTP, TCP/IP, DHCP, DDNS, ONVIF
Remote control via browser : Yes
Remote control by software : Yes
Remote control by mobile : Yes
Type of connections/ports : 2 x USB, Ethernet 10/100/1000
Main functions : Auto IP, PiP, Zoom, e-Map, Web server, HDD monitoring via
S.M.A.R.T., Watermarking
DC supply voltage : 48 V
Absorption : 160 W
Product width (mm) : 435
Product height (mm) : 85
Product depth (mm) : 350
RECORDING UNITS
IP
HIGH serIes
COMELIT_
RAS_SOLU-
TION
COMELIT RAS SOLUTION management software for 64 network inputs for
IP devices HIGH series.
Main functions:
• Various monitoring windows for live viewing, playback and system
status
• Multi-level E-map (electronic map) viewing
• NVR support
• Unlimited disk recording space and assigning devices and configurable
multiple disks
• Multiple recording modes
• Various search methods
• Remote configuration of network devices
• Easy control of PTZ functions, Smart Focus and alarms
• Users and permission levels management
• Auto / manual control of updates and update online
• Reporting, search and event notification
COMELIT_IP_
RAS
Mobile device software "COMELIT IP RAS" for devices IP HIGH series.
Main functions:
• Viewing of 24 video streams
• Cameras setup
• Search / Playback
• PTZ control
• Bidirectional audio
• Supports network cameras and NVR
• Available for iOS and Android
SOFTWARE
COMELIT I VIDEO SURVEILLANCE
IP | 161
IP
IP
HIGH serIes
start
sErIEs
hIgh
sErIEs
USBKY700A USB control keyboard for IPNVR704A, IPNVR708A, IPNVR746A and Comelit
RAS Solution management software.
Type of display : LCD
Type of joystick : Movement on 3 axes, variable-speed
Backlighting colour : Green
Type of connections/ports : USB / RS485 / RS232
DC supply voltage : 12 V
Absorption : 6 W
Product width (mm) : 405
Product height (mm) : 107
Product depth (mm) : 176
KEYBOARDS
IP
SwItch and tranSmISSIon
COMELIT I VIDEO SURVEILLANCE
HIGH serIes
IPSWP005A Network switch, 5 ports (4 PoE, 15 W each).
Power supply included.
LAN ports number : 1 (10/100)
LAN PoE ports number : 4 (10/100) x 48 VDC (60 W max)
DC supply voltage : 48 V
IPSWP008A Network switch, 8 PoE ports (15 W each).
Power supply included.
LAN PoE ports number : 8 (10/100) x 48 VDC (120 W max)
DC supply voltage : 48 V
IPSWP009A Network switch, 9 ports (8 PoE, 15 W each).
Power supply included.
LAN ports number : 1 (10/100/1000)
LAN PoE ports number : 8 (10/100) x 48 VDC (120 W max)
DC supply voltage : 48 V
IPSWC005A Network switch, 5 Gigabit ports.
Power supply included.
LAN ports number : 5 (10/100/1000)
DC supply voltage : 5 V
IPSWC008A Network switch, 8 Gigabit ports.
Power supply included.
LAN ports number : 8 (10/100/1000)
DC supply voltage : 5 V
IPSWC024A Network switch, 24 Gigabit ports, designed for 19'' rack mount (1 unit,
adapter included).
LAN ports number : 24 (10/100/1000)
AC supply voltage : 230 V
IPEOC001A Active converter from LAN 10/100 Base/T to coaxial cable RG59 75 ohm
and viceversa for signal transmission of IP equipment, included the PoE
power supply. Maximum distance 125 metres, RJ45 connector for LAN,
BNC connector for coaxial cable, power supply 48 VDC (power supply
included).
Tx dimensions (W x H x D): 130 x 27 x 67 mm.
Rx dimensions (W x H x D): 117 x 33 x 75 mm.
Switch and tranSmiSSion
IP | 163
IP
IP
HIGH serIes
start
sErIEs
hIgh
sErIEs
48086 Multifunctional all-in-one data transceiver 5GHz, built-in 13dBi antenna,
IEEE 802.11a (compatible 808.11h), interface by LAN 10/100, configurable
as Access Point, Client, WDS Bridge, Repeater, router WISP or router
AP, PoE power supply (power supply in equipment), waterproof plastic
housing.
48087 Wall/pole metallic mounting kit for video transceiver art. 48086.
COMELIT I VIDEO SURVEILLANCE
HD-SDI
SDI
|
COMELIT I VIDEO SURVEILLANCE
CAMERAS AND LENSES
COAX
over a 1080p coaxial cable
COAX
|
HD-SDI
CAMERAS AND LENSES
ENCoDERS AND
DECoDERS
DVR
CAMERAS AND LENSES
Cameras
NO DELAY - IMAGES IN REAL TIME
FULL HD
SDI
COMELIT I VIDEO SURVEILLANCE
CAMERAS AND LENSES
ON OFF
HD-SDI
|
HD-SDI
CAMERAS AND LENSES
ENCoDERS AND
DECoDERS
DVR
CAMERAS AND LENSES
Cameras
HDMI
SDI
A BELDEN COMPANY
COMELIT I VIDEO SURVEILLANCE
Art. HDCAM360A Art. HDCAM502A Art. HDCAM601A Art. HDCAM602A Art. HDCAM651A Art. HDCAM652A
Art. HDDVR040A Art. HDDVR080A Art. HDDVR160A
HD-SDI
Cameras
HD-SDI | 171
HD-SDI
Art. HDCAM360A Art. HDCAM502A Art. HDCAM601A Art. HDCAM602A Art. HDCAM651A Art. HDCAM652A
Art. HDDVR040A Art. HDDVR080A Art. HDDVR160A
HD-SDI
Cameras
COMELIT I VIDEO SURVEILLANCE
CAMERAS
HDCAM360A Minidome HD-SDI colour camera, 1.19 mm fixed lens, 1080p / 1080i/ 720p
resolution, 5 megapixel, case suitable for indoor use.
Camera sensor : 1/3.2'' color CMOS QSXGA
Camera digital zoom : Yes
Main functions : 360° and 180° panorama view, Virtual PTZ, Auto Pan function,
Privacy mask, Multi-screen display, Microphone, Autotracking
DC supply voltage : 12 V
Absorption : 6.6 W
Diameter (mm) : 145
Product height (mm) : 80
HDCAM502A Box HD-SDI Day & Night colour camera, FULL-HD (1080P)@25 ips
resolution, 2 megapixel.
Camera sensor : 1/3'' CMOS
Sensitivity (lux) : 0.02 (colour)
Electronic removal of IR filter : Yes
Main functions : Defog, ACCE (WDR), AGC, BLC, HSBLC, Smart NR, 2DNR, 3DNR
DC supply voltage : 12 V
Absorption : 5.6 W
Product width (mm) : 56
Product height (mm) : 50
Product depth (mm) : 125.7
HDCAM601A All-in-one HD-SDI Day & Night colour camera, 3.6 mm fixed lens, FULL-HD
(1080p)@25 ips resolution, 2 megapixel, case IP67 waterproof, 42 infrared
leds with range of up to 20 meters.
Camera sensor : 1/3'' CMOS
Sensitivity (lux) : 0.02 (colour)
Mechanical removal of IR filter : Yes
Main functions : 2DNR, 3DNR
DC supply voltage : 12 V
Absorption : 5.88 W
Product width (mm) : 77.3
Product height (mm) : 173
Product depth (mm) : 158
HDCAM602A All-in-one HD-SDI Day & Night colour camera, 2.8-12 mm varifocal lens,
FULL-HD (1080p)@25 ips resolution, 2 megapixel, case IP66 waterproof,
56 infrared leds with range of up to 30 meters.
Camera sensor : 1/3'' CMOS
Sensitivity (lux) : 0.02 (colour)
Mechanical removal of IR filter : Yes
Main functions : 2DNR, 3DNR
DC supply voltage : 12 V
Absorption : 8.28 W
Product width (mm) : 85
Product height (mm) : 176
Product depth (mm) : 188.5
HD-SDI
Cameras
HD-SDI | 173
HD-SDI
CAMERAS
ENCODERS AND
DECODERS
DVR
CAMERAS
HDCAM651A Minidome HD-SDI Day & Night colour camera, 3.6 mm fixed lens, FULL-HD
(1080p)@25 ips resolution, 2 megapixel, case IP65 waterproof.
Camera sensor : 1/3'' CMOS
Sensitivity (lux) : 0.02 (colour)
Mechanical removal of IR filter : Yes
Main functions : 2DNR, 3DNR
DC supply voltage : 12 V
Absorption : 4.68 W
Diameter (mm) : 110
Product height (mm) : 80.2
HDCAM652A Minidome HD-SDI Day & Night colour camera, 2.8-12 mm varifocal lens,
FULL-HD (1080p)@25 ips resolution, 2 megapixel, case IP65 waterproof,
21 infrared leds with range of up to 15 meters.
Camera sensor : 1/3'' CMOS
Sensitivity (lux) : 0.02 (colour)
Mechanical removal of IR filter : Yes
Main functions : 2DNR, 3DNR
DC supply voltage : 12 V
Absorption : 4.68 W
Diameter (mm) : 140
Product height (mm) : 99.6
ASPHERICAL LENSES
42246 Megapixel varifocal autoiris ASPHERICAL TAMRON DC-Drive lens from 2.4
to 6 mm, F1.2-360, dimension 1/3'', CS mount, manual zoom and focus,
iris adjustable on the camera, mininum distance from object being filmed
of 0.3 m, pre-fitted connector.
42308 Megapixel varifocal autoiris ASPHERICAL TAMRON DC-Drive lens from 3
to 8 mm, F1-360, dimension 1/3'', CS mount, manual zoom and focus, iris
adjustable on the camera, mininum distance from object being filmed of
0.3 m, pre-fitted connector.
42412 Megapixel varifocal autoiris ASPHERICAL TAMRON DC Drive lens from 4 to
12 mm, F1.4-360, dimension 1/3'', CS mount, manual zoom and focus, iris
adjustable on the camera, mininum distance from object being filmed of
0.3 m, pre-fitted connector.
42550 Megapixel varifocal autoiris ASPHERICAL TAMRON DC Drive lens from 5 to
50 mm, F1.4-360, dimension 1/3'', CS mount, manual zoom and focus, iris
adjustable on the camera, mininum distance from object being filmed of
0.3 m, pre-fitted connector.
HD-SDI
Cameras
COMELIT I VIDEO SURVEILLANCE
ENCODERS AND DECODERS
HDREP001A HD-SDI video signal repeater/splitter, 1 HD-SDI input, 1 HD-SDI output, 1
HDMI output, supported formats 1080p - 1080i - 720p, maximum distance
100 meters with RG6/U cable, power supply 12 VDC, metallic case, black
colour. Dimensions (W x H x D) 71.5 x 115.39 x 25 mm, weight 180 g.
DVR
HDDVR040A Stand-alone HD-SDI DVR with 4 inputs, Pentaplex function.
Video compression : H264
Operating system : Linux Embedded
Video inputs : 4 (HD-SDI)
Main video output : 1 (BNC), 1 (VGA), 1 (HDMI)
Audio inputs/outputs : 4 (RCA) / 1 (RCA)
Alarm Inputs/Outputs : 4/4
Display / recording frame rate : 25 ips@1080p
Hard disk capacity supplied : 1 TB
Additional hard disks (SATA) : 1
Recording methods : Auto at start up. Manual, Scheduled, Event
Protocols supported : TCP/IP, PPPoE, DHCP, DDNS
Remote control via browser : Internet Explorer
Remote control by software : Yes
Remote control by mobile : Yes
Type of connections/ports : 1 x RS485, 2 x USB 2.0
DC supply voltage : 12
Absorption : 30 W
Product width (mm) : 430
Product height (mm) : 65
Product depth (mm) : 30
HDDVR080A Stand-alone HD-SDI DVR with 8 inputs, Pentaplex function.
Video compression : H264
Operating system : Linux Embedded
Video inputs : 8 (HD-SDI)
Main video output : 1 (BNC), 1 (VGA), 1 (HDMI)
Audio inputs/outputs : 8 (RCA) / 1 (RCA)
Alarm Inputs/Outputs : 8/4
Display / recording frame rate : 100 ips@1080p
Hard disk capacity supplied : 1 TB
Additional hard disks (SATA) : 7 + eSATA
Recording methods : Auto at start up. Manual, Scheduled, Event
Protocols supported : TCP/IP, PPPoE, DHCP, DDNS
Remote control via browser : Internet Explorer
Remote control by software : Yes
Remote control by mobile : Yes
Type of connections/ports : 1 x RS485, 2 x USB 2.0
AC supply voltage : 110 - 220
Absorption : 40 W
Product width (mm) : 430
Product height (mm) : 89
Product depth (mm) : 450
HD-SDI
Cameras
HD-SDI | 175
HD-SDI
CAMERAS
ENCODERS AND
DECODERS
DVR
DVR
HDDVR160A Stand-alone HD-SDI DVR with 16 inputs, Pentaplex function.
Video compression : H264
Operating system : Linux Embedded
Video inputs : 16 (HD-SDI)
Main video output : 1 (BNC), 1 (VGA), 1 (HDMI)
Audio inputs/outputs : 16 (RCA) / 1 (RCA)
Alarm Inputs/Outputs : 16/4
Display / recording frame rate : 200 ips@1080p
Hard disk capacity supplied : 1 TB
Additional hard disks (SATA) : 7 + eSATA
Recording methods : Auto at start up. Manual, Scheduled, Event
Protocols supported : TCP/IP, PPPoE, DHCP, DDNS
Remote control via browser : Internet Explorer
Remote control by software : Yes
Remote control by mobile : Yes
Type of connections/ports : 1 x RS485, 2 x USB 2.0
AC supply voltage : 110 - 220
Absorption : 40 W
Product width (mm) : 430
Product height (mm) : 89
Product depth (mm) : 450
SOFTWARE
CMS CMS software management for DVR HD-SDI series.
Main functions:
• Graphical interface
• Viewing images in live and recorded images on the DVR
• Management of graphical maps
• DVR remote configuration
• Recording and playing in local
SUPERLI-
VE_PRO
Management software for mobile devices SUPERLIVE PRO for DVR HD-SDI
series.
Main functions:
• Viewing Live images
• Search / Playback of images recorded on the DVR or locally
• PTZ control
• Available for iOS and Android
• colour monitor
• dierent sizes for all requirements
• standard and hi-res, for maximum image quality
MONITORS:
TOTAL CONTROL.
MonitorS
STANDARD 178
HI-RES 179
MONITORS | 177
MONITOR
Monitor
COMELIT I VIDEO SURVEILLANCE
STANDARD
SMON156A Colour monitor with 15.6'' LED display, display ratio 16:9, HD resolution.
Type of display : 15.6" LED
Displayable colours (million) : 16.7
Display contrast ratio : 5000000:1 (DCR)
Display brightness (cd/m2) : 220
Angle of view (°, right / left / high / low) : 150 / 150 / 135 / 135
Response time (Tr/Td -ms) : 3
Video inputs : 1 (VGA)
Audio inputs/outputs : 1/2 (speakers, 2W)
AC supply voltage : 100 - 240 V (50-60 Hz)
Absorption : 20 W max
Product width (mm) : 378.53
Product height (mm) : 295.91
SMON185A Colour monitor with 18.5'' LED display, display ratio 16:9, HD resolution.
Type of display : 18.5'' LED
Displayable colours (million) : 16.7
Display contrast ratio : 5000000:1 (DCR)
Display brightness (cd/m2) : 250
Angle of view (°, right / left / high / low) : 170 / 170 / 160 / 160
Response time (Tr/Td -ms) : 3
Video inputs : 1 (VGA)
Audio inputs/outputs : 1/2 (speakers, 2 W)
AC supply voltage : 100 - 240 V (50 - 60 Hz)
Absorption : 20 W max
Product width (mm) : 444.13
Product height (mm) : 334.16
MONITOR
Monitor
MONITORS
MONITORS | 179
HI-RES
MMON185A Colour monitor with 18.5'' LED display, display ratio 16:9, HD resolution.
Type of display : 18.5'' LED
Displayable colours (million) : 16.7
Display contrast ratio : 10000:1 (DCR)
Display brightness (cd/m2) : 250
Angle of view (°, right / left / high / low) : 178 / 178 / 178 / 178
Response time (Tr/Td -ms) : 3
Video inputs : 1 (VGA), 1 (BNC + 1 loop), 1 (HDMI), 1 (S-Video)
Audio inputs/outputs : 1/2 (speakers, 2 W)
AC supply voltage : 100 - 240 V (50 - 60 Hz)
Absorption : 30 W max
Product width (mm) : 452.14
Product height (mm) : 340.97
MMON215A Colour monitor with 21.5'' LED display, display ratio 16:9, FULL-HD
resolution.
Type of display : 21.5'' LED
Displayable colours (million) : 16.7
Display contrast ratio : 5000000:1 (DCR)
Display brightness (cd/m2) : 250
Angle of view (°, right / left / high / low) : 170 / 170 / 160 / 160
Response time (Tr/Td -ms) : 3
Video inputs : 1 (VGA), 1 (HDMI)
Audio inputs/outputs : 1/2 (speakers, 2 W)
AC supply voltage : 100 - 240 V (50 - 60 Hz)
Absorption : 25 W max
Product width (mm) : 516.60
Product height (mm) : 376.10
Available on demand following monitors:
32” - HMON032B
42” - HMON042B
55” - HMON055B
COMELIT I VIDEO SURVEILLANCE
COMELIT
WORLDWIDE
United States
of America
With over fifty years’ experience and
commitment to constant innovation, Comelit
designs and manufactures the world’s best
video door entry, CCTV, security and home
automation systems. Despite its international
stature, Comelit retains the entrepreneurial
vibrancy and customer focus of a truly glocal
business. Comelit products are available in
more than 70 countries worldwide via the
company’s local technical and sales networks,
and feature the guaranteed quality resulting
from our field-leading technological research,
continual process and application optimisation
and our hallmark Italian design.
[ FR ]
Comelit Group Belgium
Doornveld 170
1731 Zellik ( Asse)
Tel. +32 24115099
Fax +32 24115097
www.comelit.be - info@comelit.be
Comelit Group S.p.A. Deutschland
Konrad-Zuse-Ring 12c - 41179
Mönchengladbach - Deutschland
tel. 0 2161/54959-0 - fax: 02161/54959-10
info@comelit.de
Comelit Group Spa
Via Don Arrigoni 5
24020 Rovetta S. Lorenzo
Bergamo Italy
Tel. +39 (0) 346 750011
Fax +39 (0) 346 71436
www.comelitgroup.com - info@comelit.it
[ BE ] [ ES ]
[ DE ]
[ IT ] Comelit Group Spa
Sucursal en Espana
Calle Pintor Roig i Soler, 28
08916 - Badalona (Barcelona)
Tel. +34 932 430 376
Fax +34 934 084 683
www.comelit.es - info@comelit.es
Comelit Immotec
18, rue Séjourné- 94000 CRETEIL CEDEX
Tél. +33 (0) 1 43 53 97 97
Fax +33 (0) 1 43 53 97 87
www.comelit.fr
contact@comelit-immotec.fr
THE COMPANY | 181
Germany
Belgium
Greece
Republic of Singapore
France
Spain
Great Britain
United Arab Emirates
China
NetherlandsIreland
[ NL ]
[ IE ]
[ GR ]
[ SG ]
[ AE ]
[ GB ]
Comelit Hellas - Telergo Security Ltd
Roumelis, 59
16451 Argiroupoli - Athens Greece
Tel. +30 210 99 68 605-6
Fax +30 210 99 45 560
www.comelit.gr - telergo@otenet.gr
Comelit Ireland
Ground Floor
14 Herbert Street - Dublin 2
Tel. +353 (0) 1 619 0204
Fax +353 (0) 1 619 0298
www.comelit.ie - info@comelit.ie
Comelit Nederland BV
Buitendijks 1-3356 LX Papendrecht
Tel. +31 786511201
Fax +31 786170955
www.comelit.nl - info@comelit.nl
Comelit South East Asia Pte Ltd
Blk 69, #05-27
Oxley Bizhub 1, Ubi Road 1
408731 Singapore
Tel. +6567024780
Email: office@comelit.sg
www.comelit.sg/sg
Comelit Group U.A.E.
Middle East Office
P.O. Box 54433
Dubai U.A.E.
Tel. +971 4 299 7533
Fax +971 4 299 7534
www.comelit.ae - info@comelit.ae
Comelit Group UK Ltd
Unit 4 Mallow Park Watchmead
Welwyn Garden City Herts AL7 1GX
Tel: +44 (0)1707377203
Fax: +44 (0)1707377204
www.comelitgroup.co.uk
info@comelitgroup.co.uk
Comelit Usa
2021 S. Myrtle Avenue
Monrovia, CA 91016
Tel. +1 626 930 0388
Fax +1 626 930 0488
www.comelitusa.com
sales@comelitusa.com
[ US ]
COMELIT I VIDEO SURVEILLANCE
START CAMERAS
AND DVRS
COAX
COAX
HDMI
LAN
INTERNET
LAN
COMPUTER
LAN
MOBILE APP
SCHEMES | 183
schemes
COAX
RS485
COAX
COAX
HDMI
LAN
INTERNET
LAN
COMPUTER
LAN
MOBILE APP
START CAMERAS
AND DVRS WITH PTZ
COMELIT I VIDEO SURVEILLANCE
MIDDLE / HIGH CAMERAS
AND DVRS WITH PTZ
RS485
SCON752B
COAX
RS485
RS232
COAX
COAX
LAN
INTERNET
LAN
COMPUTER
LAN
MOBILE APP
HDMI
SCHEMES | 185
schemes
SWITCH POE
LAN
LAN+PoE
LAN+PoE
LAN+PoE
LAN
START IP SERIES CAMERAS
AND NVRS
LAN
INTERNET
LAN
COMPUTER
LAN
MOBILE APP
HDMI
COMELIT I VIDEO SURVEILLANCE
LAN
INTERNET
COMELIT RAS SOLUTION
LAN
COMPUTER
LAN
MOBILE APP
LAN
HIGH IP SERIES CAMERAS
WITH NVR
LAN+PoE
LAN+PoE
LAN+PoE
HDMI
SCHEMES | 187
schemes
LAN
INTERNET
LAN
COMPUTER
COMELIT RAS SOLUTION
LAN
MOBILE APP
LAN
LAN
HIGH IP SERIES CAMERAS
WITHOUT NVR
LAN+PoE
LAN+PoE
LAN+PoE
LAN+PoE
SWITCH POE
RS485
COAX
COAX
LAN
~
INTERNET
LAN
COMPUTER
LAN
MOBILE APP
HD-SDI
HDMI
COMELIT I VIDEO SURVEILLANCE
SCHEMES | 189
NOTES
NOTES
INDEX
Code Description Page
1195 TRANSFORMER 60V 0-230/0-12-24V 109
40686 420TVL COLOUR CAMERA, 3.7MM, SPRINKLER CASE 34
40705 RS485 CONTROL KEYBOARD FOR PTZ CAMERAS 76
40707 RS485 CONTROL KEYBOARD FOR PTZ CAMERAS AND MATRICES 76
40720 FALSE CEILING-MOUNTING ACC. FOR DOME CAMERAS 54-154
40722 CORNER-MOUNTING ACC. FOR DOME HOUSINGS 54-57-133-154
40723 ADAPTER PLATE BETWEEN 40722, 40726 AND CAMERAS 40763 57
40725 PLATE ADAPTER BETWEEN 40729 AND 40722/40726 54-155
40726 POLE-MOUNTING ACC. FOR DOME HOUSINGS 54-57-133-155
40727 CEILING BRACKET FOR DOME HOUSINGS ART. 40731 54-155
40728 WALL MOUNT BRACKET FOR DOME HOUSING ART. 40731 54-134-155
40729 WALL BRACKET WITH POWER SUPPLY FOR DOME HOUSINGS 54-155
40731 UNIVERSAL EXTERNAL HOUSING FOR DOME CAMERAS 55-155
40732 CEILING MOUNT BRACKET FOR MINIDOME 55-57-134-155
40734 WALL MOUNT BRACKET FOR MINIDOME 55-57-134-156
40735 CABLES KIT FOR SPEED DOME AND 40729 WITH HOUSING 40731 55
40761 580TVL AFZ BOX CAMERA, ZOOM 22X 56
40762 580TVL AFZ MINIDOME CAMERA, ZOOM 22X, IP66 56
42246 2.4-6MM VARIFOCAL AUTOIRIS DC-DRIVE ASPHERICAL LENS 58-135-157-173
42282 2.7-12MM VARIFOCAL AUTOIRIS DC-DRIVE LENS 58
42308 3-8MM VARIFOCAL AUTOIRIS DC-DRIVE ASPHERICAL LENS 58-135-157-173
42412 4-12MM VARIFOCAL AUTOIRIS DC-DRIVE ASPHERICAL LENS 58-135-157-173
42550 5-50MM VARIFOCAL AUTOIRIS DC-DRIVE ASPHERICAL LENS 58-135-157-173
42651 5-60MM VARIFOCAL AUTOIRIS DC-DRIVE LENS 58
43012 VOLTAGE CONVERTER FROM 24VAC TO 12VDC/0.5A 103
43015 POWER SUPPLY FOR DIN RAIL, INPUT 230VAC, OUTPUT 12VDC/1.5A 109
43025 POWER SUPPLY FOR DIN RAIL, INPUT 230VAC, OUTPUT 12VDC/2.5A 109
43081 POWER SUPPLY, JACK CONN., INPUT 230VAC, OUTPUT 12VDC/2.5A 109
43082 POWER SUPPLY, JACK CONN., INPUT 230VAC, OUTPUT 12VDC/1.33A 109
43084 POWER SUPPLY, JACK CONN., INPUT 230VAC, OUTPUT 12VDC/0.5A 109
43112 VIDEO DISTRIBUTOR, 1 INPUT, 2 OUTPUTS 103
43116 RACK VIDEO DISTRIBUTOR, 8 INPUTS, 16 OUTPUTS 104
43117 RACK VIDEO DISTRIBUTOR, 8 INPUTS, 16 PROGRAMMABLE OUTPUTS 104
43132 RACK VIDEO DISTRIBUTOR, 16 INPUTS, 32 OUTPUTS 104
43202 PROTECTION AGAINST ELECTROSTATIC DISCHARGE ON COAX CABLE 103
43208 PROT. ELECTROSTATIC DISCHARGE ON COAX CABLE, DATA AND POWER 103
43212 PASSIVE CORRECTION FILTER FOR GROUND LOOP 103
43528 VIDEO DISTRIBUTOR, 2 INPUTS, 8 PROGRAMMABLE OUTPUTS 104
43600 3.5'' LCD VIDEO TESTER 104
43610 ULTRA-SENSITIVE MICROPHONE, 45 CM OF CABLE, 12VDC 104
43660 BNC CONNECTOR TO BE WELDED AND SCREWED 106
43661 BNC CONNECTOR TO BE CRIMPED 106
43662 ADAPTER FROM SOCKET BNC TO SOCKET BNC 106
43663 BNC CONNECTOR TO BE CRIMPED 106
43665 BNC PLUG WITH RIGHT-ANGLE BRACKET TO BE SCREWED. 106
43668 T ADAPTER FROM BNC PLUG TO DUAL BNC SOCKET 106
43670 GRIPPER FOR BNC CONNECTORS 108
43751 RG59/U COAXIAL CABLE, IMPEDANCE 75 OHM 107
COMELIT I VIDEO SURVEILLANCE
INDEX | 191
43752 RG11 COAXIAL CABLE, IMPEDANCE 75 OHM 107
43753 RG174 MINIATURIZED COAXIAL CABLE, IMPEDANCE 75 OHM 107
43754 RG174 MINIATURISED COAXIAL CABLE + 4 CONDUCTORS 108
43950 ADAPTER FOR RCA MALE CONNECTOR TO BNC FEMALE CONNECTOR 106
43952 BNC CONNECTOR TO BE WELDED AND SCREWED, BODY OF NICKEL. 107
43960 RCA CONNECTOR TO BE WELDED 107
43970 FEMALE JACK CONNECTOR 107
43971 MALE JACK CONNECTOR 107
44030 SHORT BRACKET FOR CAMERAS 80
44102 CEILING BRACKET FOR HOUSINGS UNICA SERIES 82
44103 POLE MOUNT ACC. FOR HOUSINGS UNICA SERIES 82-133-154
44104 POLE MOUNT ACC. FOR 2 HOUSINGS UNICA SERIES 82
44106 CORNER MOUNT ACC. FOR HOUSINGS UNICA SERIES 82
44120 WATERPROOF HOUSING, UNICA SERIES, IP66, 230VAC 81
44121 VENTILATION KIT FOR HOUSING ART. 44120, 230VAC 82
44122 WATERPROOF HOUSING, UNICA SERIES, IP66, 24VAC 81
44124 WATERPROOF HOUSING, UNICA SERIES, IP66, VANDALPROOF, 24VAC 81
44125 POE INJECTOR FOR HOUSINGS UNICA SERIES ART. 44126 AND 44128 133-154
44126 POE WATERPROOF HOUSING, UNICA SERIES, IP66 133-154
44128 POE WATERPROOF HOUSING, UNICA SERIES, IP66, VANDALPROOF 133-154
44129 ADAPTER FOR IR LAMPS ART. 44671, 44672, 44673, 44674 83-93
44130 WATERPROOF OUTDOOR/INDOOR HOUSING WITH SUNSHIELD 80
44131 POLE MOUNT ACC. FOR HOUSING ART. 44130 80
44140 STEEL WATERPROOF HOUSING, EXTREME SERIES, IP66, 230VAC 86
44141 STEEL WATERPROOF HOUSING, EXTREME SERIES, IP66, 24VAC 86
44143 AIR BARRIER TO CLEAN GLASS ON HOUSINGS EXTREME2 SERIES 87
44144 FILTERS FOR AIR BARRIER ART. 44143 87
44145 HIGH TEMPERATURES VYCOR GLASS FOR HOUSINGS EXTREME2 SERIES 87
44146 INFRARED FILTERS FOR ART. 44147 FOR HOUSINGS EXTREME2 SERIES 87
44147 INFRARED FILTER HOLDER FOR ART. 44146 87
44150 ATEX & IECEX IIA/IIB WATERPROOF HOUSING, EXTREME SERIES, IP6 88
44151 ATEX & IECEX IIA/IIB WATERPROOF HOUSING, EXTREME SERIES, IP6 88
44152 ATEX & IECEX IIC WATERPROOF HOUSING, EXTREME SERIES, IP66/67 88
44153 ATEX & IECEX IIC WATERPROOF HOUSING, EXTREME SERIES, IP66/67 88
44154 ATEX & IECEX IIA/B/C WATERPROOF HOUSING, EXTREME SERIES, IP6 88
44155 ATEX & IECEX IIC WATERPROOF HOUSING, EXTREME SERIES, IP66/67 89
44156 ATEX & IECEX IIC WATERPROOF HOUSING, EXTREME SERIES, IP66/67 89
44159 PROTECTIVE GRID FOR HOUSINGS EXTREME3 SERIES 90
44160 316L STAINLESS STEEL WALL BRACKET FOR HOUSINGS EXTREME SERIE 91
44161 316L STAINLESS STEEL SUNSHIELD FOR HOUSINGS EXTREME3 SERIES 91
44162 CORNER MOUNT ACC. FOR HOUSINGS EXTREME SERIES 91
44163 POLE MOUNT ACC. FOR HOUSINGS EXTREME SERIES 91
44164 CEILING MOUNT ACC. FOR HOUSINGS EXTREME SERIES 91
44173 HEATING FOR HOUSINGS EXTREME SERIES, 230VAC 91
44174 HEATING FOR HOUSINGS EXTREME SERIES, 12VDC 91
44175 HEATING FOR HOUSINGS EXTREME SERIES, 24VAC 92
44176 TRIPLE HEATING FOR HOUSINGS EXTREME SERIES, 230VAC 92
44177 TRIPLE HEATING FOR HOUSINGS EXTREME SERIES, 12VDC 92
Code Description Page
COMELIT I VIDEO SURVEILLANCE
44178 TRIPLE HEATING FOR HOUSINGS EXTREME SERIES, 24VAC 92
44180 STEEL WATERPROOF HOUSING, EXTREME SERIES, IP66, 230VAC 84
44181 STEEL WATERPROOF HOUSING, EXTREME SERIES, IP66, 24VAC 84
44183 STEEL WATERPROOF HOUSING, EXTREME SERIES, IP66, 230VAC 84
44184 STEEL WATERPROOF HOUSING, EXTREME SERIES, IP66, WIPER,230VAC 84
44186 25-LITERS TANK FOR EXTREME SERIES HOUSING ART. 44184 85
44194 POWER SUPPLY FOR HOUSINGS, IN 230VAC, OUT 12VDC/0.4A 82
44195 POWER SUPPLY FOR HOUSINGS, IN 230VAC, OUT 12VAC/0.4A 82
44660 PHOTOELECTRIC CELL-OPERATED TWILIGHT SWITCH 93
44671 IR LEDS LAMP, RANGE 150M, ANGLE 15 DEGREES, 230VAC 93
44672 IR LEDS LAMP, RANGE 100M, ANGLE 30 DEGREES, 230VAC 93
44673 IR LEDS LAMP, RANGE 70M, ANGLE 60 DEGREES, 230VAC 93
44674 IR LEDS LAMP, RANGE 35M, ANGLE 120 DEGREES, 230VAC 93
44950 TV MODULATOR, BANDS S AND III 104
45316 DIGITAL VIDEO MATRIX, 16 VIDEO INPUTS 77
45332 ANALOG VIDEO MATRIX, 32 VIDEO INPUTS 77
4555/A VIDEO DISTRIBUTOR, 1 INPUT, 4 OUTPUTS, 12V DC POWER SUPPLY,. 103
48086 DATA TRANSCEIVER FULL DUPLEX VIA RADIO 96-139-163
48087 POLE MOUNT ACC. FOR ART. 48086 96-139-163
48201 MINIATURIZED VIDEO TRANSMITTER FOR OPTICAL FIBER 97
48211 RACK VIDEO TRANSMITTER FOR OPTICAL FIBER, 1 FIBER 97
48212 RACK VIDEO TRANSMITTER FOR OPTICAL FIBER, 2 FIBERS 97
48221 STAND-ALONE VIDEO TRANSMITTER FOR OPTICAL FIBER, 1 FIBER 97
48222 STAND-ALONE VIDEO TRANSMITTER FOR OPTICAL FIBER, 2 FIBERS 97
48291 STAND-ALONE DATA TRANSMITTER FOR OPTICAL FIBER, 1 FIBER 97
48311 RACK VIDEO RECEIVER FOR OPTICAL FIBER, 1 FIBER 97
48312 RACK VIDEO RECEIVER FOR OPTICAL FIBER, 2 FIBERS 98
48321 STAND-ALONE VIDEO RECEIVER FOR OPTICAL FIBER, 1 FIBER 98
48322 STAND-ALONE VIDEO RECEIVER FOR OPTICAL FIBER, 2 FIBERS 98
48391 STAND-ALONE DATA RECEIVER FOR OPTICAL FIBER, 1 FIBER 98
48400 STAND-ALONE DATA RTX, VIDEO TX FOR OPTICAL FIBER, 2 FIBERS 98
48401 STAND-ALONE DATA RTX, VIDEO RX FOR OPTICAL FIBER, 2 FIBERS 98
48410 RACK DATA RTX, VIDEO TX FOR OPTICAL FIBER, 2 FIBERS 98
48411 RACK DATA RTX, VIDEO RX FOR OPTICAL FIBER, 2 FIBERS 99
48442 LAN/OPTICAL FIBER AND VICE VERSA CONVERTER 99
48501 RACK CASE FOR OPTICAL FIBER MODULES 99
48502 RACK CASE FOR OPTICAL FIBER MODULES WITH POWER SUPPLY 99
48506 BLANK PANEL FOR RACK CASE FOR OPTICAL FIBER 99
48511 POWER SUPPLY FOR RACK CASE ART. 48501 99
48611 PASSIVE TRANSCEIVERS FOR UTP CABLE 101
48613 ACTIVE TRANSMITTER FOR UTP CABLE 101
48615 ACTIVE RECEIVER FOR UTP CABLE 101
48621 RACK MULTIPLE PASSIVE RECEIVER FOR UTP CABLE 101
48623 RACK MULTIPLE ACTIVE RECEIVER FOR UTP CABLE 101
48650 RACK CASE FOR MEDIA CONVERTERS ART. 48442, 230VAC 99
48652 RACK OPTICAL BOX FOR ST-ST DOWELS 100
48654 PASS-THROUGH CONNECTOR TYPE ST-ST FOR OPTICAL FIBERS 100
48656 PRE-FITTED BI-FIBER STRAP, 2M 100
INDEX
Code Description Page
INDEX | 193
48752 PASSIVE CONVERTER FROM RS232 TO RS485 101
48758 RS485 ACTIVE DISTRIBUTOR, 1 INPUT, 8 OUTPUTS 103
49323 VIDEO SURVEILLANCE SATA HARD DISK, CAPACITY OF 500 GB 73
49324 VIDEO SURVEILLANCE SATA HARD DISK, CAPACITY OF 1 TB 73
CMS CMS SOFTWARE MANAGEMENT 175
COMELIT_CMS COMELIT CMS MANAGEMENT SOFTWARE 66
COMELIT_IP_RAS COMELIT IP RAS SOFTWARE MANAGEMENT 160
COMELIT_RAS_SOLUTION COMELIT RAS SOLUTION MANAGEMENT SOFTWARE 160
COMELIT_VSC COMELIT VIDEO SURVEILLANCE CLIENT MANAGEMENT SOFTWARE 137
DVRNS DVRNS SERVICE 72
ESEENET ESEENET+ MANAGEMENT SOFTWARE 66
HAFZ763B 700 TVL AFZ ALL-IN-ONE CAMERA, ZOOM 22X, IR 80M, IP66 56
HCAM433B 700TVL BOX CAMERA, ICR, ANALITICS, 12VDC/24VAC 48
HCAM434B 700TVL BOX CAMERA, ICR, ANALITICS, 12VDC/24VAC 48
HCAM533B 700TVL BOX CAMERA, ICR, 230VAC 48
HCAM534B 700TVL BOX CAMERA, ICR, ANALITICS, 230VAC 49
HCAM613A 700TVL ALL-IN-ONE CAMERA, 3.6MM, IP66 35
HCAM614A 700TVL ALL-IN-ONE CAMERA, 4-9MM, IP66 35
HCAM633B 700TVL MINIDOME CAMERA, 2.8-11MM, IP66 45
HCAM634B 700TVL MINIDOME CAMERA, 2.8-11MM, IP66 45
HCAM635B 700TVL MINIDOME CAMERA, 2.8-12MM, IR 30M, IP66 44
HCAM675B 700TVL ALL-IN-ONE CAMERA, 2.8-12MM, IR 40M, IP67 39
HCAM676B 700TVL ALL-IN-ONE CAMERA, 5-50MM, IR 40M, IP67 39
HDCAM360A 5 MP HD-SDI FISH-EYE CAMERA , 1.19MM 172
HDCAM502A FULL-HD/2 MP BOX HD-SDI CAMERA 172
HDCAM601A FULL-HD ALL-IN-ONE HD-SDI CAMERA, 3.6MM, IR 20M, IP67 172
HDCAM602A FULL-HD ALL-IN-ONE HD-SDI CAMERA, 2.8-12MM, IR 30M, IP66 172
HDCAM651A FULL-HD MINIDOME HD-SDI CAMERA, 3.6MM, IP65 173
HDCAM652A FULL-HD MINIDOME HD-SDI CAMERA, 2.8-12MM, IR 15M, IP65 173
HDDVR040A HD-SDI DVR, 4 VIDEO INPUTS, 25 IPS, HDD 1TB 174
HDDVR080A HD-SDI DVR, 8 VIDEO INPUTS, 100 IPS, HDD 1TB 174
HDDVR160A HD-SDI DVR, 16 VIDEO INPUTS, 200 IPS, HDD 1TB 175
HDREP001A HD-SDI REPEATER - SPLITTER , 1 INPUT/1 OUTPUT HD-SDI+1 HDMI 174
HDVR836B H264 DVR, 16 VIDEO INPUTS, RAS SERIES, HDD 500GB 71
HPTZ752B 700TVL PTZ CAMERA, ZOOM 22X 53
HPTZ756B 700TVL PTZ CAMERA, ZOOM 36X 53
IPCAM101B ALL-IN-ONE HD IP CAMERA, 2.8MM, IR 15M, IP66 130
IPCAM102A FULL-HD ALL-IN-ONE IP CAMERA, 4.2MM, IR 15M, IP66 130
IPCAM152A FULL-HD BOX IP CAMERA 131
IPCAM162A FULL-HD ALL-IN-ONE IP CAMERA, 2.8-12MM, IR 50M, IP66 130
IPCAM168A FULL-HD MINIDOME IP CAMERA, 2.8-12MM, IR 15M, IP66 131
IPCAM700A ALL-IN-ONE FULL-HD IP CAMERA, 3.7MM, IR 20M, IP67 147
IPCAM702A FULL-HD ALL-IN-ONE IP CAMERA, 3.5-16MM, IR 20M, IP66 147
IPCAM720A MINIDOME FULL-HD IP CAMERA, 3.7MM, IR 20M 148
IPCAM722A FULL-HD MINIDOME IP CAMERA, 3.7MM, IR 20M, IP66 148
IPCAM727A FULL-HD MINIDOME IP CAMERA, 3.5-16MM, IR 20M, IP66 149
IPCAM742A FULL-HD BOX IP CAMERA 149
IPCAM752A FULL-HD ALL-IN-ONE IP CAMERA, 3-9MM, IR 25M, IP66 150
Code Description Page
COMELIT I VIDEO SURVEILLANCE
IPCAM767A FULL-HD MINIDOME IP CAMERA, 3-9MM, IR 20M, IP66 150
IPCAM791A HD IP CUBE CAMERA, 2.6MM, WIRELESS 146
IPCAM794A MINIDOME FULL-HD IP CAMERA, 3.7MM, WIRELESS 146
IPCOD691A IP ENCODER 1 VIDEO INPUT 153
IPEOC001A LAN/COAX AND VICE VERSA CONVERTER 138-162
IPNVR109A NVR WITH 9 IP INPUTS FULL-HD, HDD 1TB 136
IPNVR116A NVR WITH 16 IP INPUTS FULL-HD, HDD 1TB 136
IPNVR700A NAS WITH 4 IP INPUTS D1, WIRELESS, 1TB HDD 158
IPNVR704A NVR WITH 4 IP INPUTS FULL-HD, HDD 1TB 158
IPNVR708A NVR WITH 8 IP INPUTS FULL-HD, HDD 1TB 159
IPNVR746A NVR WITH 16 IP INPUTS FULL-HD, HDD 1TB 159
IPPTZ773A FULL-HD MINIDOME PTZ IP CAMERA, ZOOM 12X, IP66 132-151
IPPTZ777A PTZ IP CAMERA, FULL-HD, 30X ZOOM 151
IPPTZ779A FULL-HD ALL-IN-ONE PTZ IP CAMERA, ZOOM 30X, IR 150M, IP66 132-152
IPSWC005A NETWORK SWITCH, 5 PORTS 138-162
IPSWC008A NETWORK SWITCH, 8 PORTS 138-162
IPSWC024A NETWORK SWITCH, 24 PORTS 138-162
IPSWP005A NETWORK SWITCH, 5 PORTS (4 POE) 138-162
IPSWP008A NETWORK SWITCH, 8 POE PORTS 138-162
IPSWP009A NETWORK SWITCH, 9 PORTS (8 POE) 138-162
IRAS IRAS MANAGEMENT SOFTWARE 72
MBRK631B ACCESSORY WALL MOUNT CAMERAS ART. MCAM631B 44
MCAM437B 700TVL BOX CAMERA, 12VDC/24VAC 47
MCAM438B 700TVL BOX CAMERA, ICR, 12VDC/24VAC 47
MCAM537B 700TVL BOX CAMERA, 230VAC 47
MCAM538B 700TVL BOX CAMERA, ICR, 230VAC 47
MCAM630B 700TVL MINIDOME CAMERA, 3.6MM, IP65 44
MCAM631B 700TVL MINIDOME CAMERA, 2.8-12MM, IR 15M, IP66 44
MCAM671B 700TVL ALL-IN-ONE CAMERA, 2.8-12MM, IR 30M, IP67 39
MCAM672B 700TVL ALL-IN-ONE CAMERA, 3.6MM, IR 25M, IP67 38
MCAM696C 700TVL ALL-IN-ONE CAMERA, 6-50MM, IR 35, IP66 38
MCAM697C 700TVL ALL-IN-ONE CAMERA, 2.8-12MM, IR 35M, IP66 37
MCAM699C 700TVL ALL-IN-ONE CAMERA, 6-22MM, IR 35M, IP66 38
MDVR804B H264 DVR, 4 VIDEO INPUTS, RAS SERIES, 100 IPS, HDD 500GB 67
MDVR808C H264 DVR, 8 VIDEO INPUTS, RAS SERIES, 200 IPS, HDD 500GB 69
MDVR816C H264 DVR, 16 VIDEO INPUTS, RAS SERIES, 400 IPS, HDD 500GB 70
MDVR824B H264 DVR, 4 VIDEO INPUTS, RAS SERIES, 100 IPS, HDD 500GB 67
MDVR826B H264 DVR, 16 VIDEO INPUTS, RAS SERIES, 400 IPS, HDD 500GB 68
MDVR828B H264 DVR, 8 VIDEO INPUTS, RAS SERIES, 200 IPS, HDD 500GB 68
MEYE MEYE SOFTWARE MANAGEMENT 137
MMON185A 18.5" LED MONITOR, VGA, BNC, HDMI, AUDIO, HD 179
MMON215A 21.5" LED MONITOR, VGA, HDMI, AUDIO, FULL-HD 179
MPTZ766A 580TVL PTZ ALL-IN-ONE CAMERA, ZOOM 22X 52
MPTZ767B 700TVL PTZ ALL-IN-ONE CAMERA, ZOOM 22X, IP66 52
MPTZ768B 700TVL PTZ ALL-IN-ONE CAMERA, ZOOM 22X, IP66 EXTREME 52
MPTZ801B 700TVL PTZ ALL-IN-ONE CAMERA, ZOOM 22X, IP66 53
RASMOBILE RASMOBILE 72
RASMOBILE/IPHONE RASMOBILE FOR IPHONE® 72
INDEX
Code Description Page
INDEX | 195
SCAM108A 800TVL ALL-IN-ONE CAMERA, 3.6MM, IR 20M, IP66 36
SCAM118A 800TVL ALL-IN-ONE CAMERA, 2.8-12MM, IR 30M, IP66 37
SCAM128A 800TVL MINIDOME CAMERA, 3.6MM, IR 20M, IP66 42
SCAM128A/G 800TVL MINIDOME CAMERA, 3.6MM, IR 20M, IP66, GREY 42
SCAM138A 800TVL MINIDOME CAMERA, 2.8-12MM, IR 30M, IP66 43
SCAM138A/G 800TVL MINIDOME CAMERA, 2.8-12MM, IR 30M, IP66, GREY 43
SCAM616A 600TVL ALL-IN-ONE CAMERA, 2.8-12MM, IR 30M, IP66 36
SCAM617A 700TVL ALL-IN-ONE CAMERA, 2.8-12MM, IR 30M, IP66 36
SCAM618A 1000TVL ALL-IN-ONE CAMERA, 2.8-12MM, IR 30M, IP66 37
SCAM637A 700TVL MINIDOME CAMERA, 2.8-12MM, IR 30M, IP66 42
SCAM637A/G 700TVL MINIDOME CAMERA, 2.8-12MM, IR 30M, IP66, GREY 42
SCAM638A 1000TVL MINIDOME CAMERA, 2.8-12MM, IR 30M, IP66 43
SCAM638A/G 1000TVL MINIDOME CAMERA, 2.8-12MM, IR 30M, IP66, GREY 43
SCAM683B 650TVL COLOUR CAMERA, 3.7MM, PIR CASE 34
SCAM685B 600TVL COLOUR CAMERA, 3.7MM FIXED LENS, SMOKE DETECTOR CASE 34
SCAM688B 650TVL COLOUR MINI-CAMERA, 3.7MM 34
SCON752B ACTIVE CONVERTER FROM RS232 TO RS485 102
SDVR040A H264 DVR, 4 VIDEO INPUTS, 100 IPS, HDD 500GB 64
SDVR080A H264 DVR, 8 VIDEO INPUTS, 200 IPS, HDD 500GB 64
SDVR160A H264 DVR, 16 VIDEO INPUTS, 400 IPS, HDD 500GB 65
SMON156A 15.6" LED MONITOR, VGA, AUDIO, HD 178
SMON185A 18.5" LED MONITOR, VGA, AUDIO, HD 178
SUPERLIVE_PRO SUPERLIVE PRO SOFTWARE MANAGEMENT 175
SUTP610C PASSIVE TRANSCEIVERS KIT FOR UTP CABLE 101
SVGA671B ACTIVE CONVERTER FOR VIDEO SIGNAL FROM BNC TO VGA 105
USBKY700A IP HIGH SERIES USB CONTROL KEYPAD 161
Code Description Page
NOTES
COMELIT I VIDEO SURVEILLANCE
NOTES | 197
NOTES
NOTES
|surveillance
welcomeadv.it
www.comelitgroup.com
cod.
2G31000317
