ViP SYSTEM

PRODUCT CATALOGUE

Passion.Technology.Design.

The Company

ViP System

New features of the ViP System

Advantages of the ViP System

Application diagrams

Product catalogue

Deep roots, global vision.

Founded in 1956, Comelit Group SpA is an industrial company operating on a worldwide scale

and specialising in the design and manufacture of video entry, video surveillance, anti-intrusion,

home automation and access control systems. The company has a strong international vocation

thanks to its close ties with the area in which it was created and in which its headquarters are

still located today.

An international group.

Comelit exports to over 70 countries worldwide and, in addition to its Italian headquarters,

has 13 branches located in strategic areas in which the company operates: from Europe to

the Far East, the United States and the Middle East. This articulated sales structure integrates

shared know-how with the awareness of speciﬁc requirements in each market.

Passion.Technology.Design.

Constant innovation, friendly technology.

Comelit makes constantly looking to the future its mission. Innovation through continuous

investment in manpower and technology ﬁnds an outlet in the design of new solutions

dedicated to improving the quality of everyday life by maximising simplicity and

functionality.

Design: style, passion, art.

Besides placing technology at the service of mankind, Comelit is also a byword for design.

Its unique and original style combines the most hi-tech materials with simple lines, clean

shapes and cutting-edge colours. Every Comelit product therefore conveys a new concept

for living in a space, in harmony with modern architectural trends.

DESIGN

MILANO

VIP SYSTEM

THE COMPANY

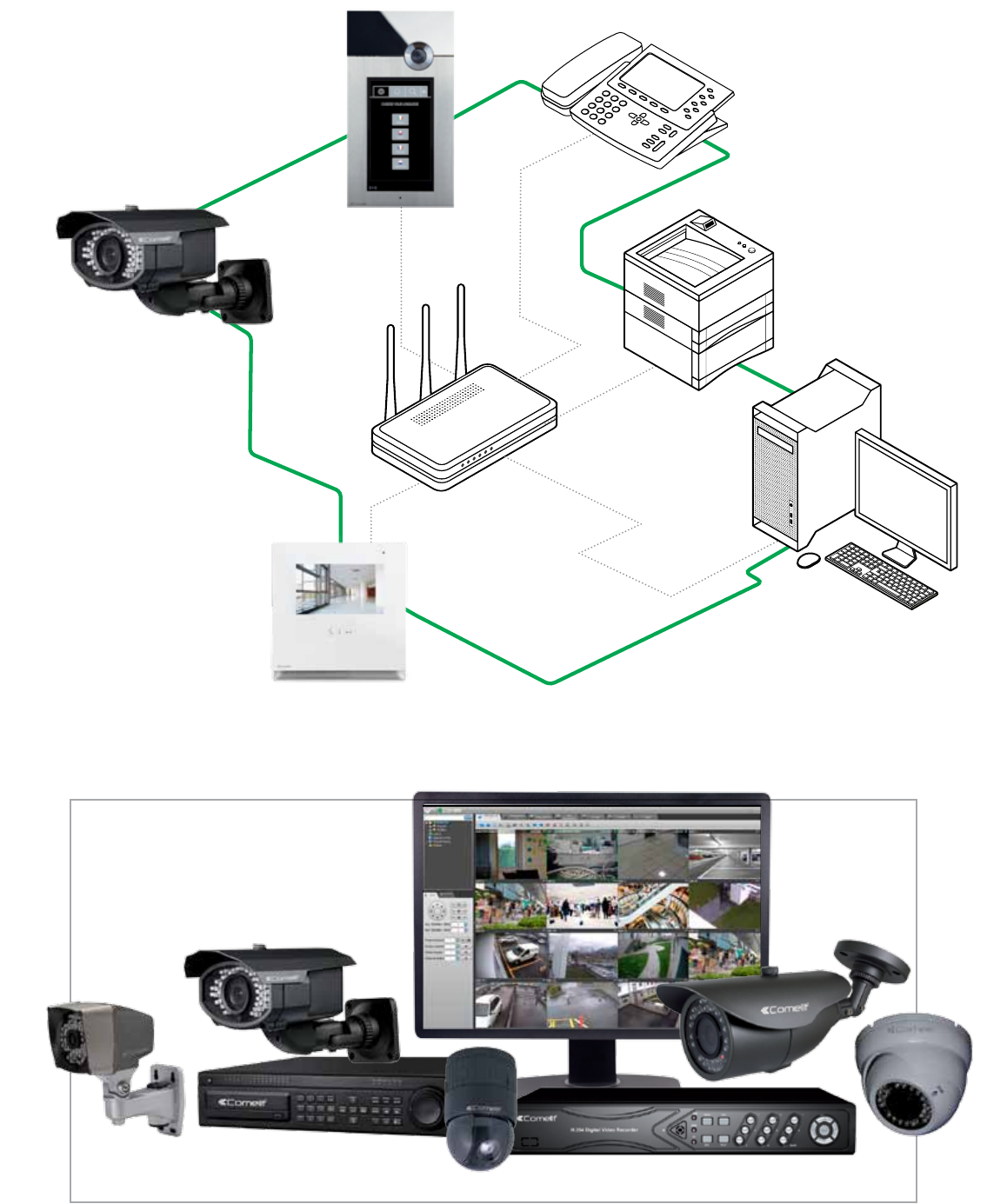

Systems that integrate with one another.

The technological evolution championed by Comelit in recent years has broken down the

barriers between the various systems used to adjust and manage dierent functions within

home and work environments.

VIDEO SURVEILLANCE

SimpleCCTV, a comprehensive range of products for video surveillance. Analogue, IP and HD

over coaxial cable.

ANTI-INTRUSION

SimpleSafe, a complete system capable of fulﬁlling all security requirements with wired systems

or via radio.

HOME AUTOMATION

SimpleHome, home automation system oering full control of your own space for optimum

confort and security.

ACCESS CONTROL

SimpleKey, Basic or Advanced access control system featuring Mifare technology.

VIDEO ENTRY

SimpleVideo: 2-wire and digital IP systems, the best technical solution for responding to all

application requirements.

| 3

A SYSTEM FOR ALL

SETTINGS, EVEN THE

MOST COMPLEX

VARIATIONS

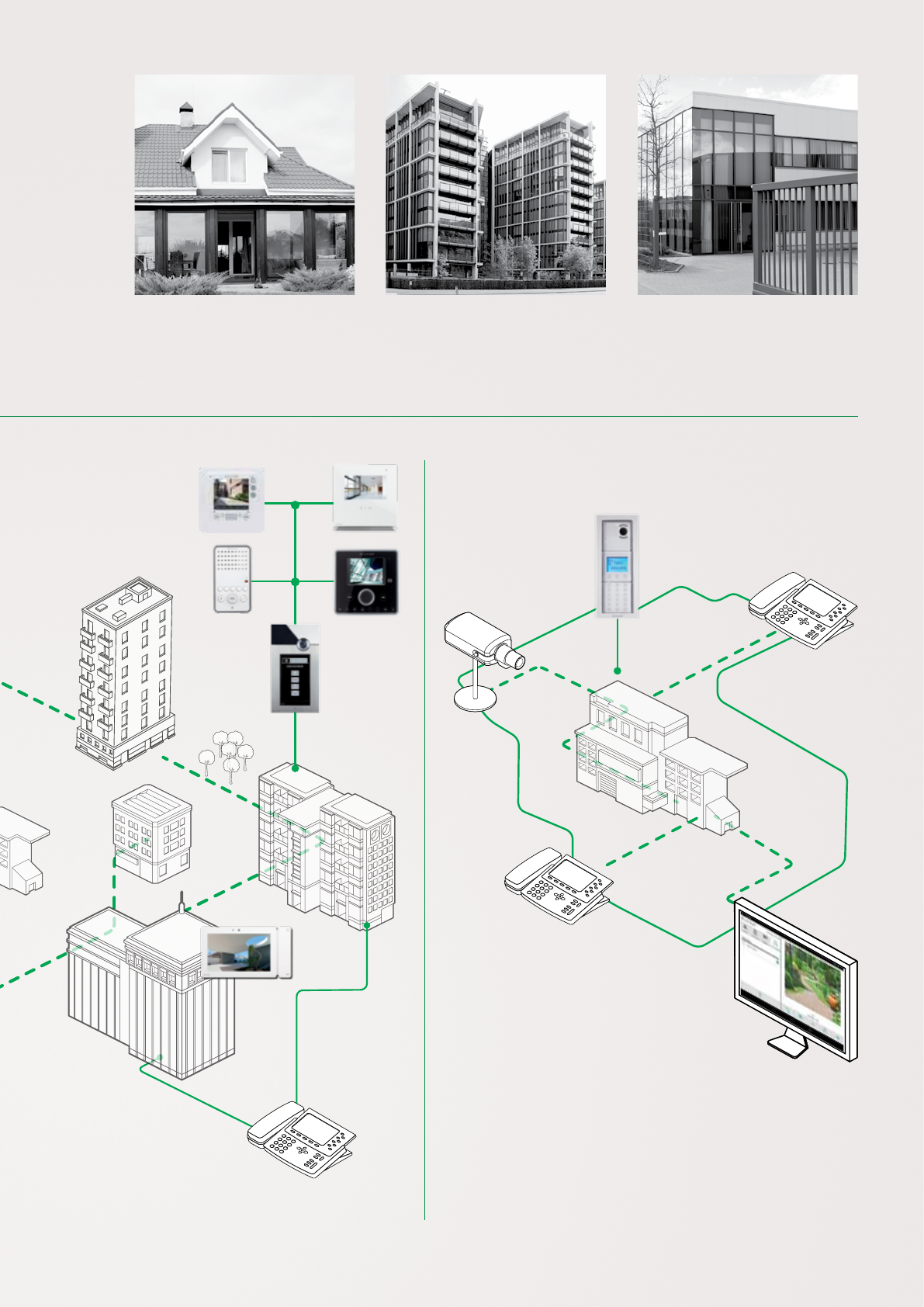

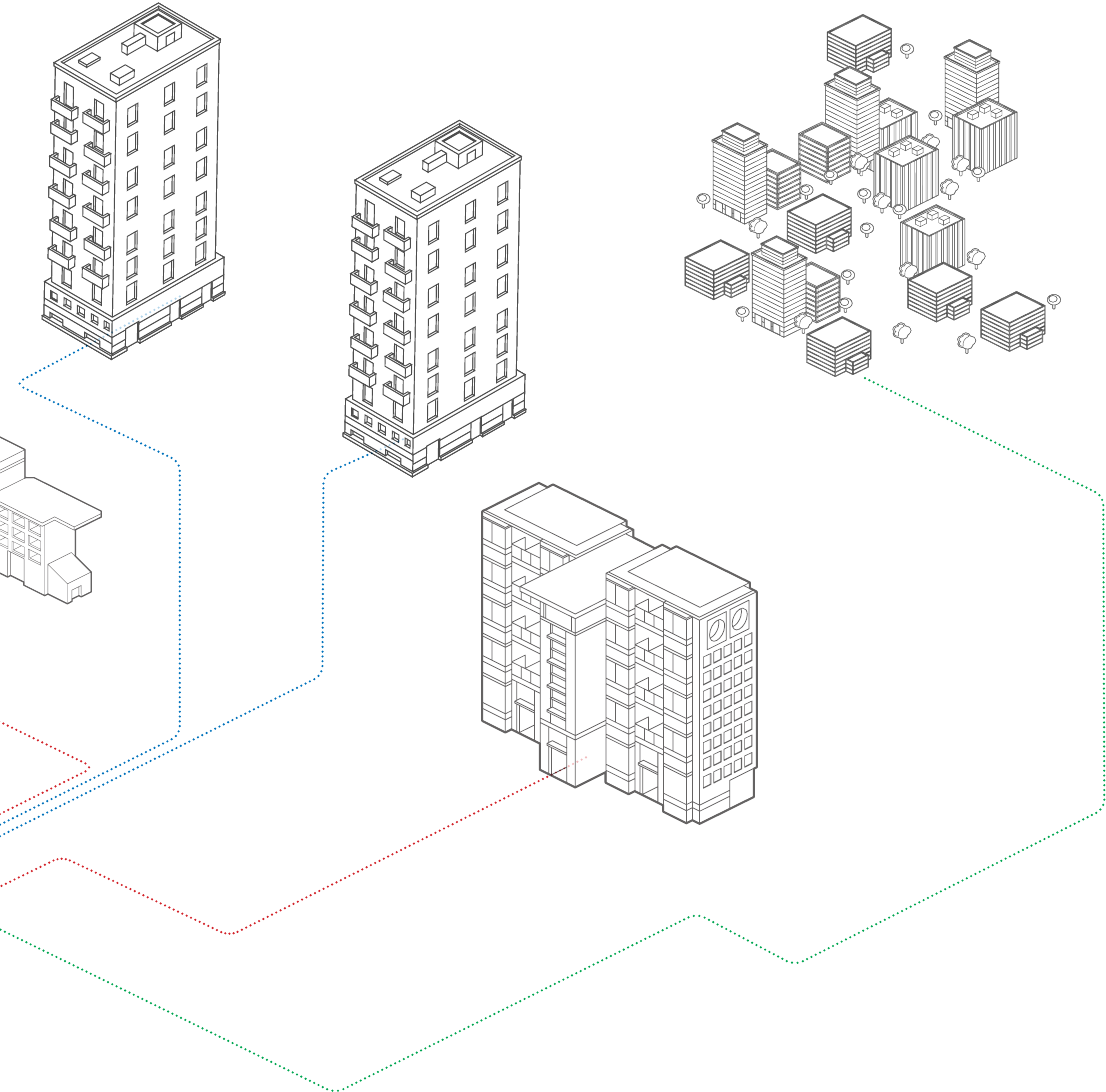

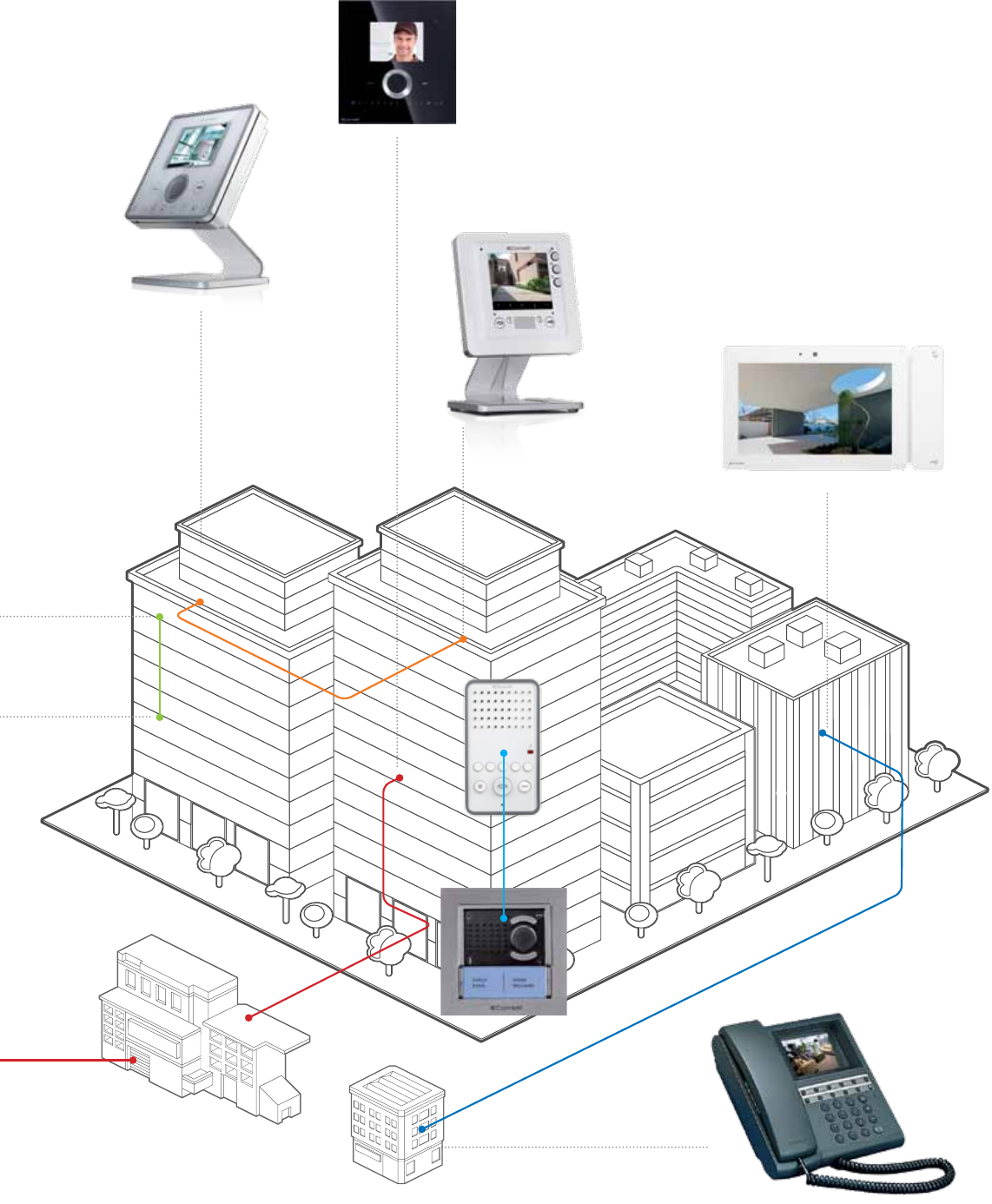

ViP System represents the evolution of video entry technology and the

services connected to it, with a new dimension linked to data transmission

oering performance suited to modern residential, commercial, industrial and

advanced tertiary scenarios: from individual residences to large complexes,

in new constructions, renovated buildings and modernised systems and

structures alike. Serves an unlimited number of users, with simultaneous

conversations and no distance limitations. A single backbone on a

LAN (speciﬁc or using existing networks), to which the devices are

connected via an RJ45 plug.

SMALL RESIDENTIAL MEDIUM/LARGE RESIDENTIAL SYSTEMS

INTEGRATION WITH SMARTPHONE AND TABLET

LOCAL AND REMOTE ANSWER

AVAILABLE IN KIT FORM

EASY INSTALLATION AND PROGRAMMING

UNLIMITED DISTANCES

SYSTEM NEVER BUSY

UNLIMITED USERS

EXTENDIBLE NETWORK

CENTRAL AND REMOTE PORTER SWITCHBOARD

Comelit

ViP remote

Comelit

ViP remote

VIP SYSTEM

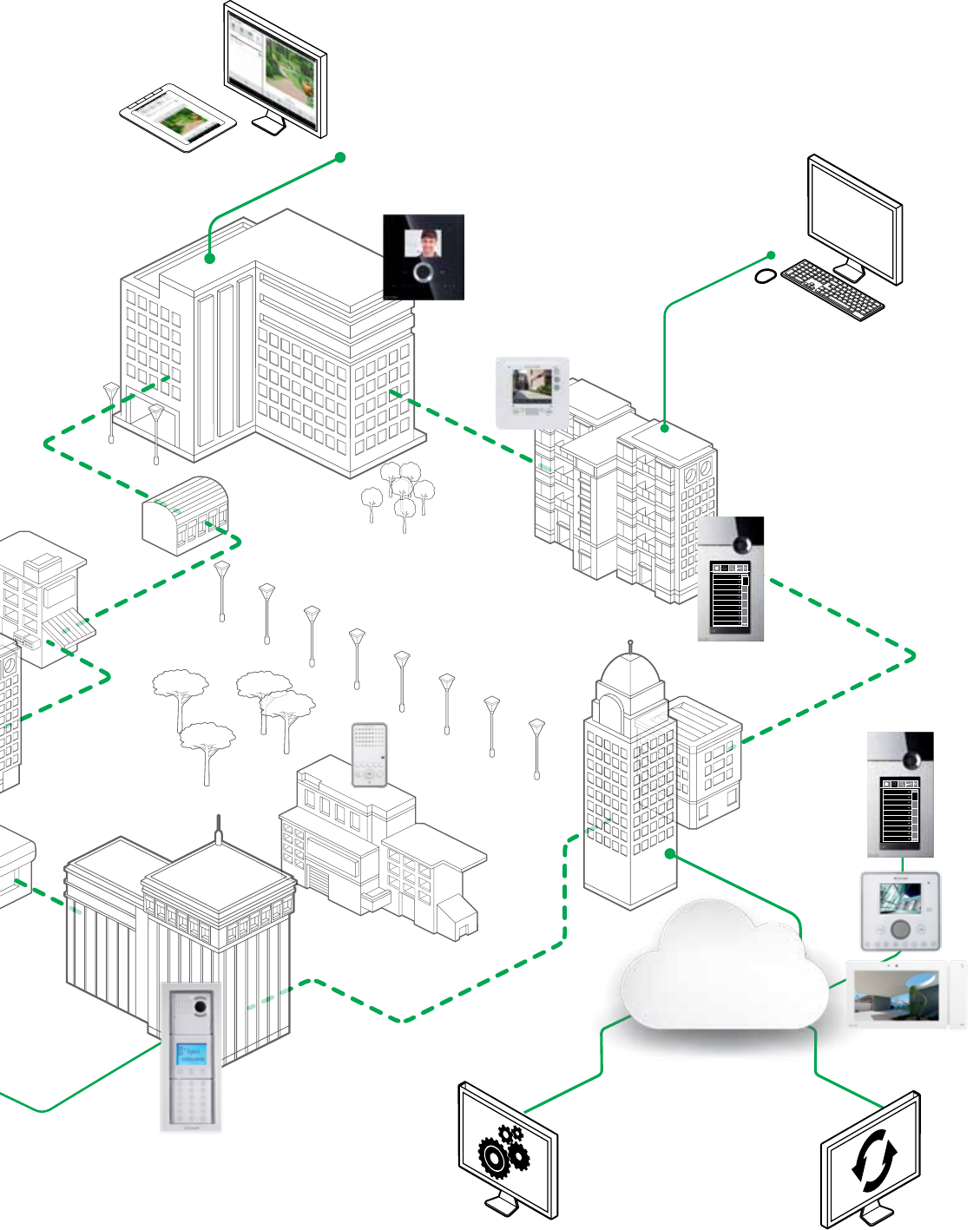

MEDIUM/LARGE RESIDENTIAL SYSTEMS TERTIARY (INDUSTRIAL/COMMERCIAL)

INTEGRATION WITH SIP DEVICES

INTEGRATION WITH CCTV AND ACCESS CONTROL

INTEGRATION WITH EXISTING NETWORKS

CENTRAL AND REMOTE PORTER SWITCHBOARD

MEDIUM/LARGE

RESIDENTIAL SYSTEMS TERTIARY

SMALL

RESIDENTIAL

| 5

1456B

Multi-user

gateway for

apartment

blocks

NEW FEATURES OF THE ViP SYSTEM

FROM DOOR

ENTRY MONITOR

FROM LAND LINE

OR GSM

ANSWER CALLS AS YOU LIKE.

The 1456B is a Multi-user Gateway for apartment blocks.

An innovative solution using the Comelit ViP digital system

for apartment blocks. Used to answer calls from an external

unit via a ViP door entry monitor, Smartphone/Tablet via the

Comelit ViP APP or GSM telephone or land line.

FROM

SMARTPHONE/

TABLET

APP

ViP ENTRANCE PANEL

VIP SYSTEM

NEW FEATURES OF THE VIP SYSTEM

1456B can manage 3 types of license: Master, Slave and Phone. Each license

can be purchased in 5 dierent sizes (1, 10, 50, 100, 200 users) and can be

increased at any time.

3 TYPES

OF LICENSE AVAILABLE

SIP PROVIDER

INTERNET

APP

APP ACTIVE AND

DATA NETWORK

AVAILABLE?

YES

AUDIO TELEPHONE BACKUP

VIP

SIP PROVIDER

INTERNET

APP

APP ACTIVE AND

DATA NETWORK

AVAILABLE?

YES

SLAVE

MASTER

AUDIO TELEPHONE BACKUP

GSM PSTN

PHONE

GSM PSTN

| 7

FLOOR

DISTRIBUTOR

art. 1440

MULTI-USER

GATEWAY

art. 1456B

ViP ENTRANCE

PANEL

SMARTPHONE

TABLET

GSM (AUDIO)

LAND LINE

(AUDIO)

SIP

ALL SYSTEMS CAN

BE ADMINISTERED

REMOTELY

SLAVE LICENSE MASTER LICENSE

MULTI-USER

GATEWAY

art. 1456B

ViP ENTRANCE

PANEL

SMARTPHONE

TABLET

GSM (AUDIO)

LAND LINE

(AUDIO)

SIP

ALL SYSTEMS CAN

BE ADMINISTERED

REMOTELY

1456B, TECHNICAL DETAILS

Answer video calls remotely via Smarpthone or Tablet

Answer audio calls on land lines or Gsm telephones

Telephone backup if data line is unavailable

Manage up to 15 devices per license

Smartphone, Tablet, GSM telephone or land line

Answer video calls remotely via Smarpthone or Tablet

Answer audio calls on land lines or Gsm telephones

Audio telephone backup if data line is unavailable

Manage up to 15 devices per single license

Door entry monitor, Smartphone, Tablet, GSM telephone or

land line

NEW FEATURES OF THE ViP SYSTEM

VIP SYSTEM

MULTI-USER

GATEWAY

art. 1456B

ViP ENTRANCE

PANEL

GSM (AUDIO)

LAND LINE

(AUDIO)

SIP

ALL SYSTEMS CAN

BE ADMINISTERED

REMOTELY

SCALABILITY

200

USERS

MULTI-USER

GATEWAY

art. 1456B

MULTI-USER

GATEWAY

art. 1456B

MULTI-USER

GATEWAY

1456B

MULTI-USER

GATEWAY

1456B

200

USERS

200

USERS

200

USERS

ViP ENTRANCE

PANEL

NEW FEATURES OF THE VIP SYSTEM

PHONE LICENSE

Answer audio calls on land lines or GSM telephones

Every Multi-User Gateway can manage up to maximum of

200 users. In the case of more than 200 users, more than

one Gateway can be implemented. This can also be done

subsequently to the initial installation.

LICENCE FEATURES

3 TYPES OF LICENSE, 5 USER PACKAGES (in any

combination)

110 50 100 200

EVERY SINGLE USER CAN ASSOCIATE UP TO 15

DEVICES

FLOOR

DISTRIBUTOR

art. 1440

| 9

COMELIT VIP REMOTE

A DOOR ENTRY

MONITOR

WHEREVER YOU ARE

The Comelit App manages door entry and other advanced functions even from

3G or higher networks. The Comelit App is available for both smartphones

and tablets. The APP can be downloaded free of charge from the App Store

or Google Play

Remote door entry monitor

management also via Wi-Fi/3G

Comelit ViP RemoteFree download

NEW FEATURES OF THE ViP SYSTEM

VIP SYSTEM

Same functions as the APP

for PC/Mac.

PC Intercom

All door entry monitor functions can also be managed and implemented on a

PC/MAC using the special PC-Intercom software (code 1454K). The software

is available on USB memory stick.

NEW FEATURES OF THE VIP SYSTEM

ANSWERING FROM

PC/MAC

Comelit ViP Remote allows

Answer calls from external units

View and manage cameras

Make and receive calls from other internal units (in the contacts list) and from

other devices

view of videos recorded from external units and CCTV cameras (VIDEO

MEMORY)

control actuators to manage lights, gates, barriers, etc.

| 11

Call Log

Server device for recording,

playing, storing video door entry

and con cierge calls to increase

the security of your ViP system.

art. 1459 COMELIT CLIENT SOFTWARE

Record the video stream from external units when a

call is made to switchboards and/or apartments (audio

recording may also be available as an option).

RECORD VIDEO

Play and manage recordings via

Play/Stop commands.

PLAY RECORDINGS

Export recordings to removable

storage (e.g. USB).

EXPORT RECORDINGS

This function can be used to set the following parameters:

maximum duration of each automatic recording;

single or grouped selection of the external units to be recorded;

single or grouped selection of the internal units and/or

switchboards to be recorded;

storage period (1-60 days).

SYSTEM CONFIGURATION

password protection for access to software

password protection for system conﬁguration

SYSTEM SECURITY

The FILTER function can be used to select the saved video clips and play them

according to the following parameters:

date

time

external unit making the call

internal unit

switchboard receiving the call

FILTER FUNCTION

NEW FEATURES OF THE ViP SYSTEM

VIP SYSTEM

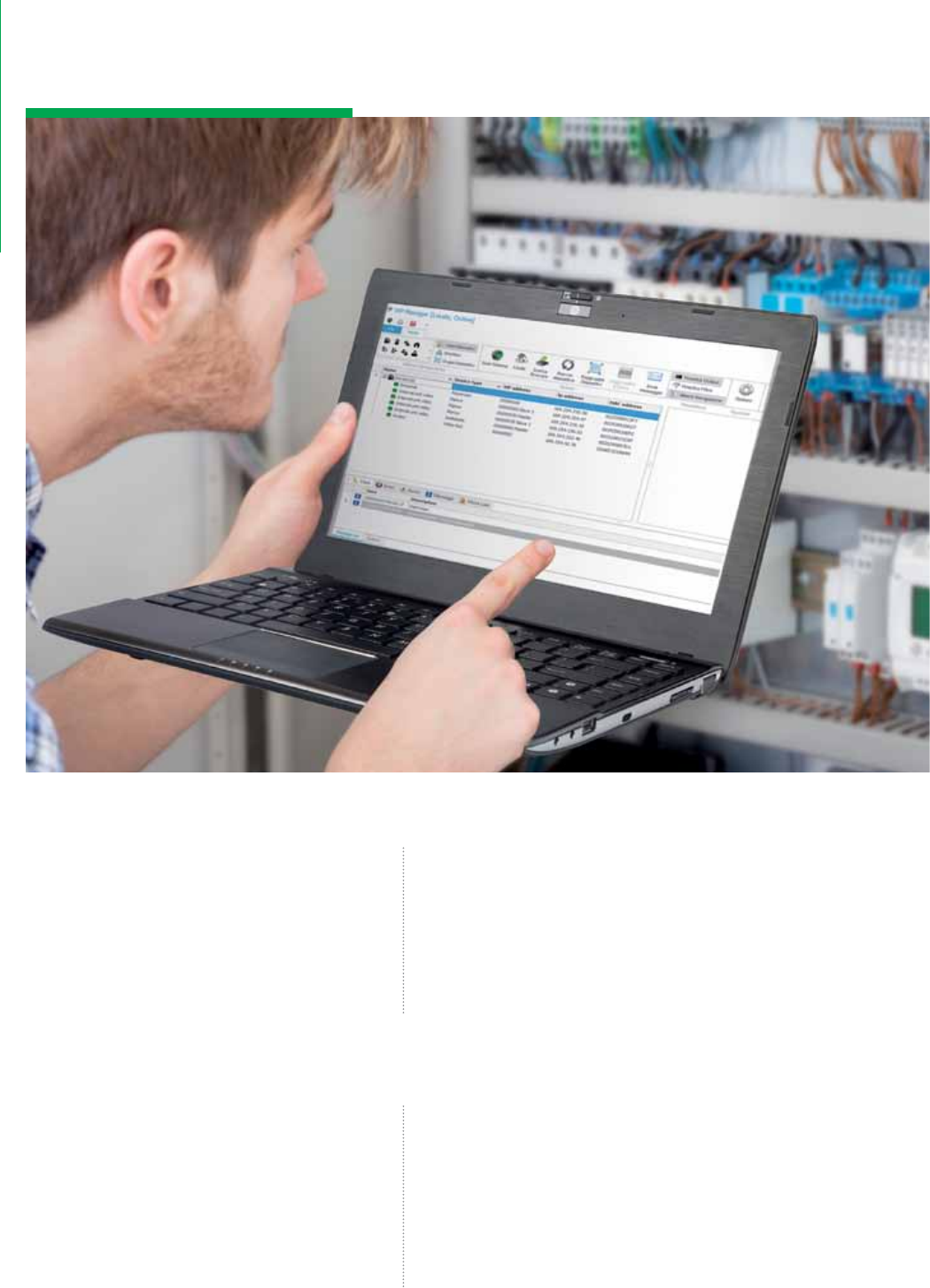

Switchboard

software for PC

RECORDING ARCHIVE FOR CALLS

USER DIRECTORY

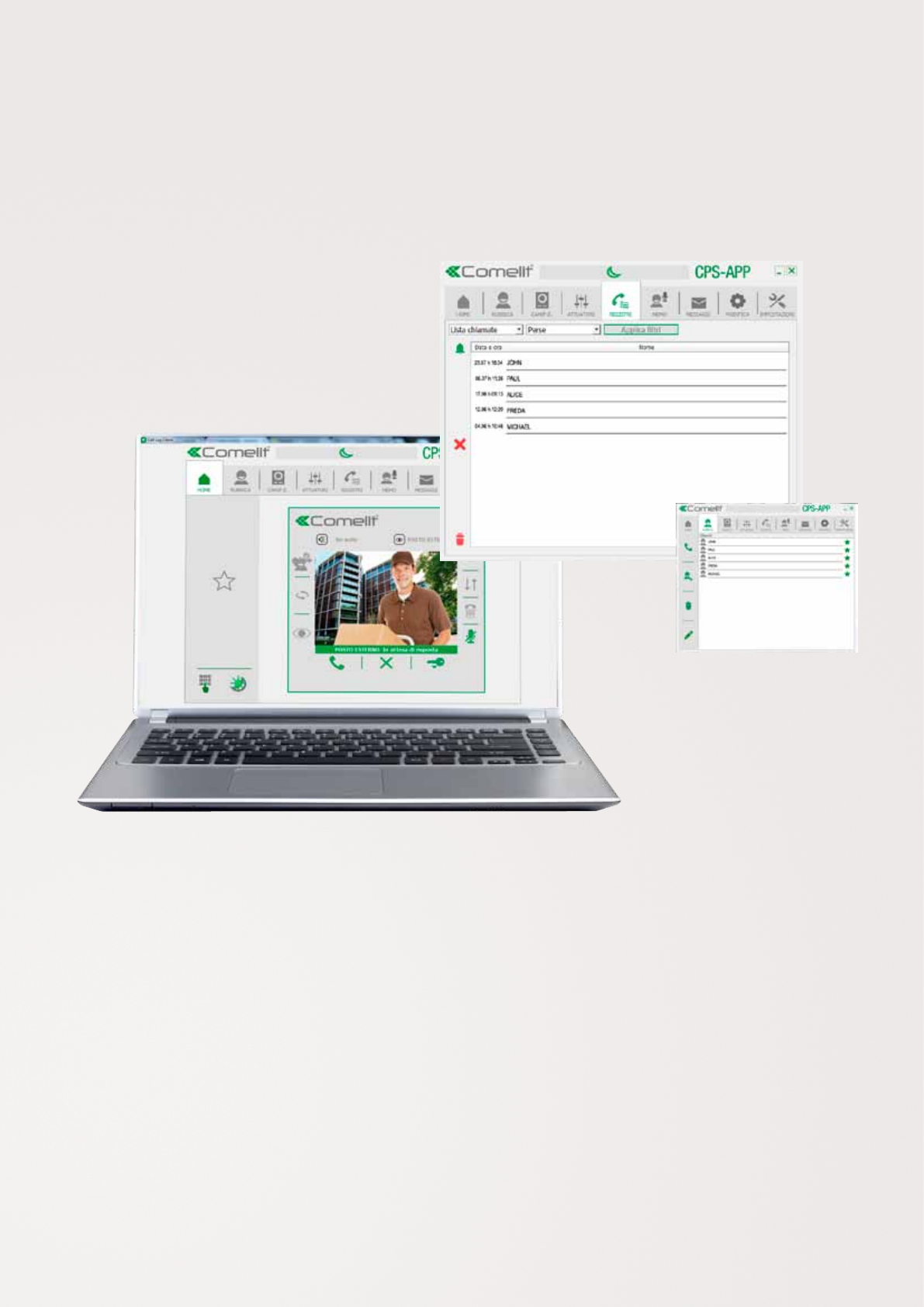

SWITCHBOARD SOFTWARE FOR PC FOR VIP SYSTEM

Software on USB micro-key for simple management and control of all the typical functions of the

porter switchboard. In addition to the classic functions of ViP video door entry monitors, it receives

and forwards audio/video calls and manages alarms in the apartments; it has a directory of actuators,

internal and external units which, when programmed, easily identify the apartment and the external unit

which made the call. It also has a recordings archive which stores all calls (made, managed, lost and

forwarded) from internal/external units and alarms. It can also send messages to internal units. The

software comes with a user license. To work correctly, the USB micro-key must always be inserted in

the computer.

1448

NEW FEATURES OF THE VIP SYSTEM | 13

WI-FI / 3G APP VIP KIT

The kit allows use of the video entry phone system via a door entry monitor

as well as tablets and smartphones on the Wi-Fi network, or remotely on

3G (or higher) networks. The gateway in the pack allows connection of

other devices (Comelit VIP door entry monitors or PCs) besides the door

entry monitor supplied. In all cases, the gateway should be connected to

an ADSL router or another device guaranteeing local Wi-Fi and mobile 3G

connectivity. Depending on bandwidth limitations, the gateway can serve

up to 15 appliances (including door entry monitors, smartphones, tablets

and PCs) with 4 simultaneous door entry monitor streams. It also allows

“intercom” communication between all of the 16 devices served. For

mobile devices, whenever both modes are available and enabled, the APP

automatically switches connection, from Wi-Fi to 3G and vice-versa.

*COMPATIBLE WITH H264 FORMAT, FOR INFORMATION ON AVAILABILITY, CONTACT YOUR LOCAL AGENT.

VIP KIT FOR WI-FI / 3G APP WITH

ICONA DOOR ENTRY MONITOR

ART. 8531

IKALL METAL AND ICONA KIT, GATEWAY SLAVE. H264

REMOTELOCAL REMOTELOCAL

The kit allows use of the video entry phone system via tablets and

smartphones on the Wi-Fi network, or remotely on 3G (or higher) networks.

The gateway in the pack allows connection of a further 2 devices (Comelit VIP

door entry monitors or PCs). In all cases, the gateway should be connected

to an ADSL router or another device guaranteeing local Wi-Fi and mobile 3G

connectivity. Depending on bandwidth limitations, the gateway can serve up

to 16 appliances (including door entry monitors, smartphones, tablets and

PCs) with 4 simultaneous door entry monitor streams.

It also allows “intercom” communication between all of the 16 devices

served. For mobile devices, whenever both modes are available and enabled,

the APP automatically switches connection, from Wi-Fi to 3G and vice-versa.

ART. 8513IM / 8513HIM*

SINGLE-FAM. KIT W/IKALL METAL AND MASTER GATEWAY. VIP SYST.

Comelit ViP

Remote

Comelit ViP

Remote

FOR FURTHER INFORMATION SEE PAGE 38 FOR FURTHER INFORMATION SEE PAGE 38

NEW FEATURES OF THE ViP SYSTEM

VIP SYSTEM

NEW FEATURES OF THE VIP SYSTEM

Legend

APP MANAGEMENT VIA PC

AND MAC

VIDEO CALL ON

SMARTPHONE AND TABLET

VIP KIT FOR WI-FI APP KIT WITH PC-INTERCOM

The kit allows use of the video entry phone system via a door entry monitor

as well as tablets and smartphones on the Wi-Fi network. The door entry

monitor system should nevertheless be connected to an ADSL router or

another device guaranteeing Wi-Fi connectivity. Depending on bandwidth

limitations, up to 16 devices (including door entry monitors, smartphones,

tablets and PCs) with 4 simultaneous door entry monitor streams can be

connected to the system. It also allows “intercom” communication between

all of the 16 devices served. Mobile devices can only connect to the system

via the Wi-Fi network.

ART. 8521

IKALL METAL AND ICONA KIT.VIP H264 SYSTEM

LOCAL

ART. 8501I / 8501HI*

PC INTERCOM KIT WITH IKALL ENTRANCE PANEL - SINGLE USER

ART. 8501IM / 8501HIM*

PC INTERCOM KIT WITH IKALL METAL PANEL

ART. 8504 / 8504H*

PC INTERCOM KIT WITH VANDALCOM ENTRANCE PANEL - SINGLE USER

The kit can be used to fully manage video entry phone calls via LAN (Ethernet

or Wi-Fi). Simply insert the USB stick provided into the computer and install

the software to receive calls and communicate with the external unit. This

software comes complete with a user license and is available for both PC

and MAC systems. The key must always be plugged into the computer to

ensure correct operation.

PC/MAC

*COMPATIBLE WITH H264 FORMAT, FOR INFORMATION ON AVAILABILITY, CONTACT YOUR LOCAL AGENT.

Comelit ViP

Remote

FOR FURTHER INFORMATION SEE PAGE 37FOR FURTHER INFORMATION SEE PAGE 37

| 15

ADVANTAGES OF THE ViP SYSTEM

THE NETWORK In the ViP system, all devices are connected to a LAN (speciﬁc or

shared), from the external unit to the furthest internal unit.

In comparison with traditional analogue video entry technology, the network

using digital protocol allows easier system conﬁguration without laborious or

unusual procedures, even in the case of updates, which become extremely

ﬂexible and convenient. Installation, commissioning and reconﬁguration can

be carried out easily, in complete safety, while the network is enabled.

MULTISITE FUNCTION

VIP SYSTEM

ADVANTAGES OF THE VIP SYSTEM

EASY PROGRAMMING

CAN BE UPDATEDREMOTE MANAGEMENT

INTEGRATION WITH

SMARTPHONE AND TABLET

INTEGRATION WITH PC

WWW

ROBERT ARMSTRONG

HERLBY CO.

JHONNY C.

ANDERS FRIDEN

ANNA LLORENT

ARTICK KELLER

BASIC EXPO

BRANDON S.

B.W.C. & CO.

CARLO ROSSI

CECILLE BLANC

CIME R.

COLTER JACK

AN...C

DI...F

GA...L

MC...P

RC...T

VI...Z

1 2 3

4 5 6

7 8 9

CIME R.

COLTER JACK

FIND NAME CODE

A Z

QWE R T YUI O P

123 4 5 678 9 0

#*.

ASD F G HJK L

ZXC V B NM

call forwarded

ROELL & CO.

0001

ROELL & CO.

ENTER PERSONAL CODE

1 2 3

4 5 6

7 8 9

CHOOSE YOUR LANGUAGE

Italiano

English

Français

Nederlands

MESSAGES

Message 1:

8/9/2013

STREET CLEANING - DO NOT PARK

ALONG BLOCK B SIDE

Message 2:

Message 3:

TOUCH THE DISPLAY

ROELL & CO.

ROBERT ARMSTRONG

HERLBY CO.

JHONNY C.

ANDERS FRIDEN

ANNA LLORENT

ARTICK KELLER

BASIC EXPO

BRANDON S.

B.W.C. & CO.

CARLO ROSSI

CECILLE BLANC

CIME R.

COLTER JACK

AN...C

DI...F

GA...L

MC...P

RC...T

VI...Z

1 2 3

4 5 6

7 8 9

CIME R.

COLTER JACK

FIND NAME CODE

A Z

QWE R T YUI O P

123 4 5 678 9 0

#*.

ASD F G HJK L

ZXC V B NM

call forwarded

ROELL & CO.

0001

ROELL & CO.

ENTER PERSONAL CODE

1 2 3

4 5 6

7 8 9

CHOOSE YOUR LANGUAGE

Italiano

English

Français

Nederlands

MESSAGES

Message 1:

8/9/2013

STREET CLEANING - DO NOT PARK

ALONG BLOCK B SIDE

Message 2:

Message 3:

TOUCH THE DISPLAY

ROELL & CO.

| 17

CITY - CITY

COMPANY - RESIDENCE

BUILDING-BUILDING

Company

City A

Central Porter Switchboard

MULTISITE Comelit also oers a response to the requirements of multisite installations

in which several ViP systems are interconnected via the Internet, for

example, for the remote control of communications between several company

oces or between several scattered sites and central porter switchboard

stations. Comelit is capable of designing and supplying the infrastructures

required for correct operation of this type of system, with ad hoc solutions

agreed with system managers.

WWW

ADVANTAGES OF THE ViP SYSTEM

VIP SYSTEM

City BBlock B

Block A

ADVANTAGES OF THE VIP SYSTEM | 19

APARTMENT - APARTMENT

SECONDARY UNIT - APARTMENT

MAIN UNIT - APARTMENT

BUILDING - BUILDING

SWITCHBOARD - APARTMENT

NO LIMIT The ViP system oers maximum freedom of conﬁguration and

extraordinary ﬂexibility in the connection of devices without speciﬁc

technical or installation constraints. VIP surpasses the limits of traditional

video entry technology: distance between devices, network extension and

number of switchboards and external units. Furthermore, the technology with

digital protocol allows simultaneous audio-video conversations to take place

without the system ever being “busy”.

ADVANTAGES OF THE ViP SYSTEM

VIP SYSTEM

ADVANTAGES OF THE VIP SYSTEM | 21

“PEER TO PEER”

ARCHITECTURE

The ViP system is based on “peer to peer” architecture which does not

require the presence of a network server: each device can communicate

directly with any of the other elements in the network independently. All users

can communicate with each other via their own internal units or with the

switchboards.

This means there are no “critical” devices or structural hubs that could

cause a total blackout. Any breakdown of an individual device does not

aect the other network components.

EASY

TO PROGRAM

ViP system programming does not require speciﬁc I.T. skills and is

carried out by means of the special ViP Manager software, a tool created

speciﬁcally to make system conﬁguration quicker and easier.

All connected devices can automatically assume the network address

(Auto IP) without having to work selectively on each individual user. Plus,

once they are connected to the network, all devices can be fully conﬁgured

without physical access to those devices being necessary.

VIP also oers the option of remotely sending text or image messages to

all users registered on the network, or to individual recipients.

ADVANTAGES OF THE ViP SYSTEM

VIP SYSTEM

REMOTE MANAGEMENT All system conﬁguration functions can be implemented remotely via the

Internet.

This means device programming changes do not require direct action on

the system itself,which reduces costs while increasing the quality of the

service provided.

EASY TO UPDATE All devices can be reconﬁgured without direct action being taken on

those pieces of equipment. The innovative ViP Manager software can, in

fact, be used to change the original programming and add new functions to

VIP devices without having to access the rooms in which they are installed.

The list of user names can also be entered, saved and updated from a

remote station.

WWW

ADVANTAGES OF THE VIP SYSTEM | 23

INTEGRATION WITH

EXISTING NETWORKS

ViP devices can also be connected to existing LANs, which means the

functions of the digital video entry system can be added without the need

for special wiring.

In this case the ViP monitors and external units coexist and operate on the

same LAN with other equipment.

Device addressing can take place through DHCP or with a static IP.

INTEGRATION WITH

CCTV AND ACCESS

CONTROL

The potential applications of the ViP system allow the use of the same IP

network for integrating security and video surveillance functions into the

video entry phone system, such as viewing CCTV cameras and access

control.

INTEGRATION WITH VOIP

DEVICES

VoIP devices with Sip protocol can also be integrated into the ViP system

by means of the ViP2Sip interface, which can be used to make a direct call

from a ViP external unit to Voip telephones connected to Sip switchboards: in

practice the Voip telephone placed on a desk or anywhere in the home

or oce becomes an internal unit for answering calls and, for example,

opening gates, doors, entrances, etc.

ADVANTAGES OF THE ViP SYSTEM

VIP SYSTEM

ADVANTAGES OF THE VIP SYSTEM | 25

ADVANTAGES OF THE ViP SYSTEM

VIP SYSTEM

ADVANTAGES FOR THE MANAGING

AGENT AND SYSTEM MANAGER

DYNAMISM

ViP can be used to oer a system with

innovative functions, for an excellent

quality video entry service

INTEGRATION

Network infrastructures installed for

other services can easily be used, no

need for special infrastructures

SCALABILITY

The ﬂexible features of digital

technology allow easy system

expansion in accordance with speciﬁc

requirements

USABILITY

ViP oers the option of remotely

sending informative text and/or image

messages directly to internal units in

the apartments

EASY TO UPDATE

The system can be updated without

the need for structural work: this

guarantees function development and

excellent performance, and ensures the

system holds its value over time

COMPETITIVENESS

VIP minimises wiring, commissioning

and maintenance costs

ADVANTAGES OF THE VIP SYSTEM | 27

ADVANTAGES OF THE ViP SYSTEM

VIP SYSTEM

ADVANTAGES FOR THE INSTALLER

SIMPLICITY

In system planning and costing

PROGRAMMABLE

Entirely using the PC software, without

directly working on the devices

PRACTICAL

Thanks to fewer references plus easy

installation and connection

CONVENIENCE

With the use of standard wires which

are easy to source

FLEXIBILITY

With a system structure which is easy

to reconﬁgure

SIMPLICITY

Device automatic addressing means

that no indepth knowledge of

communication networks is required

FLEXIBILITY

Includes access control and lift call

management functions

INTEGRATION

With the option of interfacing with

other technological services for

communication, security and comfort

RELIABILITY

Each device can operate independently

(guaranteeing greater sturdiness)

ACCESSIBILITY

System maintenance and management

can also be carried out remotely

USABILITY

Device FW updating can also take

place remotely

ADVANTAGES OF THE VIP SYSTEM | 29

ADVANTAGES OF THE ViP SYSTEM

VIP SYSTEM

ADVANTAGES FOR THE USER

QUALITY

Cutting-edge technology for an

excellent video entry service, ensuring

optimal intercommunication between

outdoors and indoors and vice-versa

SERVICE

ViP can be used to record messages

for playback at the external unit if you

are away

FREEDOM

Answering video entry phone calls from

a smartphone/ tablet

SECURITY

Connection with porter switchboards

allows the transmission of intervention

requests in case of alarm or panic

events. VIP also oers viewing of

rooms from internal units using security

cameras connected to the system

AVAILABILITY

With its integrated video entry

answering service, messages can be

saved to an SD card

ADVANTAGES OF THE VIP SYSTEM | 31

APPLICATION DIAGRAMS

APPLICATION EXAMPLE 1 Colour video entry phone system consisting of:

- 1 audio/video input with digital entrance panel

- 2 audio/video inputs with analogue entrance panel

- 1 porter switchboard

- 1 audio/video riser with intercom users

APPLICATION EXAMPLE 2 Colour video entry phone system consisting of:

- 4 main digital audio/video inputs

- 2 audio/video porter switchboards

- 2 audio/video risers

- system can be expanded with ﬁbre optic

APPLICATION EXAMPLE 1

6203W 6202HB/C

1440

6602W

6802W

1952

1441

1440

1395

* *

1395

* See External Units section in the product catalogue

VIP SYSTEM

LAN/FIBER

CONVERTER

FIBER OPTIC

LAN/FIBER

CONVERTER

APPLICATION DIAGRAMS

APPLICATION EXAMPLE 2

6304

6602W

1440

6202B

6203W 6202HB/C

1440

6304

6203W

6602W

1440

1395

1952

1440

1441

1395

1441

1440

1952

6203W

6203W 6202B

1440

6304

6202HB/C

6304

1440

6304

6203W

6602W

1440

1441

1395

1440

1952

1441

* See External Units section in the product catalogue

6802W

| 33

VIP SYSTEM

Product Catalogue

KIT

INTERNAL UNITS

EXTERNAL UNITS

ACCESSORIES

PRODUCT CATALOGUE

Passion.Technology.Design.

| 35

Kit

VIP SYSTEM

Kit

| 37KIT

ViP KIT

*Compatible with H264 format, for information on availability, contact your local agent.

Kit Vip

8501I

8501HI*

PC INTERCOM KIT WITH IKALL ENTRANCE PANEL - SINGLE USER

The kit consists of 1 colour audio/video unit art. 4682KC, 1 module with 1 button art.

33411, 1 ﬂush-mounted box art. 3110/1, 1 frame complete with ﬁnishing frame art.

3311/1S, 1 power supply unit art. 1595 and 1 PC Intercom software art. 1454K. The

kit is pre-programmed and ready to use. The kit can be expanded with other products

from the VIP catalogue.

8501IM

8501HIM*

PC INTERCOM KIT WITH IKALL METAL PANEL

The kit consists of 1 colour audio/video unit art. 4682KC, 1 module with 1 button art.

33411M, 1 ﬂush-mounted box art. 3110/1, 1 frame complete with ﬁnishing frame

art. 3311/1S, 1 power supply unit art. 1595 and 1 PC Intercom software art. 1454K.

The kit is pre-programmed and ready to use. The kit can be expanded with other

products from the VIP catalogue.

8504

8504H*

PC INTERCOM KIT WITH VANDALCOM ENTRANCE PANEL - SINGLE USER

The kit consists of 1 colour audio/video unit art. 4682KC, 1 module with 1 button art.

3268I/1, 1 ﬂush-mounted box art. 3160/1, 1 frame complete with ﬁnishing frame

art. 3161/1, 1 power supply unit art. 1595 and 1 PC Intercom software art. 1454K.

The kit is pre-programmed and ready to use. The kit can be expanded with other

products from the VIP catalogue.

8521

IKALL METAL AND ICONA KIT.VIP H264 SYSTEM

The kit consists of 1 ViP kit external panel 4894HIM, 1 power supply unit art. 1595,

1 power supply unit art. 1441B, 1 switch art. 1440, 1 Icona monitor art. 6602WK,

1 ﬂush-mounted box art. 6117, 1 wall-mounted bracket art. 6620. The kit is pre-

programmed and ready to use. The kit can be expanded with other products from the

VIP catalogue. Compatible with H.264 video format.

SIMPLEVIDEO

ViP KIT

*Compatible with H264 format, for information on availability, contact your local agent.

8531

IKALL METAL AND ICONA KIT, GATEWAY SLAVE. H264

The kit consists of 1 colour audio/video unit art. 4682HKC, 1 ViP kit external panel

4894HIM, 1 power supply unit art. 1595, 1 power supply unit art. 1441B, 1 slave

gateway art. 1456S, 1 Icona monitor art. 6602WK, 1 ﬂush-mounted box art. 6117, 1

wall-mounted bracket art. 6620. The kit is pre-programmed and ready to use, except

for 1456S gateway conﬁguration which must be carried out via internal web server.

The kit can be expanded with other products from the VIP catalogue. Compatible

with H.264 video format.

8513IM

8513HIM*

SINGLE-FAM. KIT W/IKALL METAL AND MASTER GATEWAY. VIP SYST

The kit consists of 1 ViP kit external panel 4894IM, 1 power supply unit art. 1595, 1

power supply unit art. 1441B and 1 master gateway 1456. The kit is pre-programmed

and ready to use, except for 1456 gateway conﬁguration which must be carried out

via internal web server. The kit can be expanded with other products from the VIP

catalogue.

Kit

| 39KIT

KIT ACCESSORIES

Kit ACCESSORiES

4895IM

4895HIM*

ADDITIONAL EXTERNAL UNIT FOR VIP KIT - IKALL METAL

External single-family video door entry unit for ViP system with Ikall Metal entrance

panel. The kit comprises: 1 ﬂush-mounted box art. 3110/1, 1 silver coloured frame

art. 3311/1S, 1 module with 1 button art. 33411 and 1 colour audio/video unit art.

4682KE. The external unit is coded with ViP address 101 and the module button art.

33411M sends the call to the address ViP 1

4682KC

4682HKC*

COLOUR AUDIO/VIDEO UNIT FOR VIP KIT SYSTEM, IKALL SERIES

VIP KIT audio-video unit, with mini lens colour camera which is adjustable from

the front and LED camera lighting. Complete with terminal block and digital audio

management system with Echo-cancelling, watertight loudspeaker and electret

microphone; loudspeaker volume can be adjusted from the front. Dimensions:

102x55x38 mm.

4682KE

4682HKE*

COLOUR AUDIO/VIDEO UNIT FOR VIP KIT SYSTEM, IKALL SERIES

ViP KIT system audio-video unit, complete with mini lens colour camera which is

adjustable from the front and LED camera lighting. Complete with terminal block and

digital audio management system with Echo-cancelling, watertight loudspeaker and

electret microphone, loudspeaker volume adjustable from the front. Audio/video unit

already programmed with ViP 101 address. Dimensions: 102x55x38 mm.

*Compatible with H264 format, for information on availability, contact your local agent.

INTERNAL UNITS

Internal Units

VIP SYSTEM

EASYCOM

6203B

EASYCOM VIP UNIT - BLACK

Full duplex hands-free intercom with electronic calling, call volume adjustment, privacy,

loud speaker volume adjustment and privacy of conversation. Fitted as standard with

audio activation push button with active audio LED signalling, door lock command and

6 conﬁgurable push buttons. Black colour. Dimensions: 90 x 160 x 28 mm

6203W

EASYCOM VIP UNIT - WHITE

Full duplex hands-free intercom with electronic calling, call volume adjustment, privacy,

loud speaker volume adjustment and privacy of conversation. Fitted as standard with

audio activation push button with active audio LED signalling, door lock command and

6 conﬁgurable buttons. White colour. Dimensions: 90 x 160 x 28 mm

StYLE

2633

ELEGANCE DOOR-ENTRY PHONE, VIP SYSTEM. STYLE SERIES

Entry phone with electronic call, conversation button on base, call volume control,

privacy function, and conversation privacy. Equipped with a series of key buttons

and a further 8 buttons for intercom function or various services (2 of the buttons

can be used as a C/N.O contact). Equipped with LED that may be used for various

signals (busy, doctor function). Complete with 8-position dip switch for selection of the

desired user code. Allows management of ﬂoor door call, call repeat, sending of alarm

signals to the porter switchboard, call to main switchboard, secondary switchboard

and guardian door entry-phone. Allows direct intercom calls between users with the

use of an interface or porter switchboard and the use of a number of relay actuators;

programming of buttons does not require dedicated programmers. Fitted with terminal

art. 1214/2C. The fascia can be changed on this model. Dimensions: 95x215x58 mm.

MAXi

6802W

MONITOR 7” MAXI SERIES. VIP SYSTEM. H264

7” 16:9 colour touch-screen monitor with hands-free audio, full duplex. Manages audio

diusion and consumption management as standard. Allows adjustment of brightness

level, contrast, audio volume and ringtone volume. Slot for mini SD card. Ringtones

can be customised by selecting from the various melodies provided.Video memory

function and internal directory for intercom call management.Allows management of

ﬂoor door call and call repeat. Panic and alarm input. Sensitive Touch controls with led

backlit. Audio-in and audio lock-release key are always visible, other controls can be

viewed simply by swiping a ﬁnger across the screen or by tapping the screen. Fitted as

standard with a key for self-ignition, privacy service and/or doctor function (with active

red privacy indicator) and 2 buttons for various uses. “Door open” and “New Message”

indicator lights. Flush-mounted, wall-mounted or desk base installation. Dimensions

230x168x28mm. Compatible with H264 video format.

6812

DESK BASE FOR MAXI MONITOR

Adjustable tilt desk base converts the Maxi monitor into a desktop version. Complete

with 1 x 2 m labelled RJ45 cable for connecting the monitor terminals to the clasp or

to a residential series jack.

INTERNAL UNITS | 41

EASYCOM

INTERNAL UNITS

*Compatible with H264 format, for information on availability, contact your local agent.

6817 FLUSH-MOUNTED BOX FOR MAXI MONITOR

Flush-mounted box in black ABS. Dimensions: 212x115x50mm

6820 SBC & VIP MAXI MONITOR WALL SUPPORT

Wall support for Maxi monitor. White. Dimensions: 216x117x16 mm.

7 StELLE

6501

6501H*

7STELLE COLOUR MONITOR

7’’ colour touch-screen monitor with hands-free audio. Audio, ringtone, colour and

contrast adjustment. Slot for mini SD card. Ringtone customisation. Video memory

function and internal directory for intercom call management. Manages door bell calls

and call repetition as standard. Panic and alarm input. Backlit control panel consisting

of: 1 key button, 1 enable/disable audio button, 1 privacy or doctor selection button

(with red privacy enabled LED indicator), 1 self-ignition button, 2 buttons for various

uses. ‘’Door open’’ and ‘’messages’’ indicator light - Also equipped with a special

panic call button. No backplate required. Wall-mounted or ﬂush-mounted installation.

Dimensions 230x168x28 mm

6517 7STELLE FLUSH BACK BOX

Metal ﬂush-mounting box for 7Stelle monitor. Also equipped with accessories for

installation in plasterboard walls.

pLANUX LUX

6202B/C

6202HB/C*

PLANUX BLACK LUX VIP MONITOR

3.5’’ color display with On-Screen Display and a glass fascia. Features sensitive touch

technology, hands-free function and audio, ringtone, color and contrast controls.

Ringtones can be customised, selecting from the variety of polyphonic tones provided.

Full-duplex voice function. Monitor with SD card slot. Memovideo function and internal

directory for intercom call management. To be completed with backplate art. 6231.

Dimensions 160x167x14mm.

6202W/C

6202HW/C*

PLANUX BLACK LUX VIP MONITOR

3.5’’ color display with On-Screen Display and a glass fascia. Features sensitive touch

technology, hands-free function and audio, ringtone, color and contrast controls.

Ringtones can be customised, selecting from the variety of polyphonic tones provided.

Full-duplex voice function. Monitor with SD card slot. Memovideo function and internal

directory for intercom call management. To be completed with backplate art. 6231.

Dimensions 160x167x14mm.

VIP SYSTEM

7 STELLE

*Compatible with H264 format, for information on availability, contact your local agent.

INTERNAL UNITS | 43

6231 PLANUX VIP BACKPLATE

VIP backplate required to complete the Planux monitor. Alarm and panic input.

Dimensions: 116 x 110 x 19 mm

6117 PLANUX FLUSH BACKBOX

Flush mounted box for Planux and Smart monitors Dimensions: 132x132x50mm

6118 PLANUX CLIPS FOR DRY LINED WALLS

Installation kit for plasterboard walls.

iCONA

6602W

ICON SERIES HANDS-FREE COLOUR MONITOR. VIP SYSTEM. H264

Flush-mounted (on box Art. 6117) or surface-mounted (with bracket Art. 6620)

colour monitor with 4.3’’ 16/9 touch screen and hands-free full-duplex audio. Allows

adjustment of brightness level, contrast, audio volume and ringtone volume. Equipped

as standard with sensitive touch controls for lock-release, audio activation, self-ignition,

privacy service and 3 other controls for programmable functions, and door open and

new message indicator LEDs. Standard ﬂoor door call and call repetition management,

with alarm and panic inputs and micro SD Card slot. You can customise the ringtone

and video memory function with an absent message. Can also be used on standard

POE systems. Dimensions 142.5x147x23mm. Compatible with H.264 video format.

6612

DESK BASE FOR ICONA MONITOR

Adjustable tilt desk base converts the Smart monitor into a desktop version. Complete

with 1 x 2 m labelled RJ45 cable for connecting the monitor terminals to the clasp or

to a residential series jack. Dimensions: 145x190x120 mm.

PLANUX LUX / ICONA

INTERNAL UNITS

6620 WALL BRACKET FOR ICONA MONITOR

Wall bracket for Icona monitor. Colour: White. Dimensions: 137X142X12.5 mm.

pLANUX

6202B

6202HB

PLANUX VIP SYSTEM HANDS-FREE COLOUR MONITOR - BLACK

3.5’’ color display with On-Screen Display. Features sensitive touch technology,

hands-free function and audio, ringtone, color and contrast controls. Ringtones can

be customised, selecting from the variety of polyphonic tones provided. Full-duplex

voice function. Monitor with SD card slot. Memovideo function and internal directory

for intercom call management. To be completed with backplate art. 6231. Dimensions

160x167x4mm.

6202W

6202HW*

VIP SYSTEM PLANUX SERIES HANDS-FREE COLOUR MONITOR - WHITE

3.5’’ color display with On-Screen Display. Features sensitive touch technology,

hands-free function and audio, ringtone, color and contrast controls. Ringtones can

be customised, selecting from the variety of polyphonic tones provided. Full-duplex

voice function. Monitor with SD card slot. Memovideo function and internal directory

for intercom call management. To be completed with backplate art. 6231. Dimensions

160x167x4mm.

6231 PLANUX VIP BACKPLATE

VIP backplate required to complete the Planux monitor. Alarm and panic input.

Dimensions: 116 x 110 x 19 mm

6112

PLANUX DESK BASE - 8 WIRES

Desk base allowing the Planux monitor to be converted for desk use, complete with two

2m RJ45 terminated cables: one for connection to the VIP network, the other to connect

the extra terminals to the junction box. Dimensions: 145 x 190 x 120 mm

6117 PLANUX FLUSH BACKBOX

Flush mounted box for Planux and Smart monitors Dimensions: 132x132x50mm

6118 PLANUX CLIPS FOR DRY LINED WALLS

Installation kit for plasterboard walls.

6120 PLANUX SURFACE BACKBOX

Short surface mount for Planux monitor. Cannot be used in conjunction with part 6122.

Dimensions: 145 x 145 x 26 mm

VIP SYSTEM

PLANUX

*Compatible with H264 format, for information on availability, contact your local agent.

INTERNAL UNITS | 45

6121 PLANUX SURFACE BACKBOX

Long support for Planux monitor wall mounting Accessory art. 6122 can be used for

tilting. Dimensions: 145 x 145 x 45 mm

6122 PLANUX TILT ACCESSSORY

Accessory for tilting Planux monitors. To be used in conjunction with the long support,

part.6121 and the ﬂush-mounted box part. 6117. Dimensions: 136 x 136 x 40 mm

SMARt

6304

6304H*

SMART SERIES VIP SYSTEM HANDS-FREECOLOUR MONITOR

Colour monitor with 3.5” screen and Full-Duplex hands-free audio. Allows audio

volume adjustment, ringtone volume adjustment with privacy activation indicator

light and brightness control. Fitted with key button, audio enabling/disabling button

with corresponding indication LEDs and 2 other buttons pre-set for self-ignition and

switchboard call (these can, however, be programmed for various uses). It is normally

used for door bell management and call repetition. Inclusion of the button card part.

6332 enables access to On-Screen Display functions. The monitor is compatible with

all ViP products. Dimensions 138x138x24 mm.

6117 PLANUX FLUSH BACKBOX

Flush mounted box for Planux and Smart monitors Dimensions: 132x132x50mm

6118 PLANUX CLIPS FOR DRY LINED WALLS

Installation kit for plasterboard walls.

6320 SMART SURFACE BOX

Coloured plastic bracket for surface mounting of the Smart monitor. Dimensions:

138X138X19 mm.

6332

SMART VIP MONITOR ADDITIONAL BUTTONS ACCESSORY

Accessory for Smart VIP monitor, part 6304 to add ﬁve function buttons to access

the On-Screen display menu of the monitor for programming and the use of various

functions such as intercom calls, self-ignition, ringtone adjustment, control actuators,

video memory, system messages etc..

SMART

*Compatible with H264 format, for information on availability, contact your local agent.

INTERNAL UNITS

External Units

EXTERNAL UNITS

VIP SYSTEM

EXTERNAL UNITS | 47

3ONE6 TOUCH

3454

3454H*

316 TOUCH VIP DIGITAL PANEL

Stainless steel ﬂush-mounted entrance panel with 7’’ capacitive touch screen with

impact-proof glass. IK08 certiﬁed. Conﬁgurable graphics (list of names with search, up

to 60 virtual buttons (or 10 with images, name directory, access codes up to 8 digits).

Integrated RFID reader which can be used in conjunction with Simplekey. Users and

settings are simple to program using VIP Manager part. 1449. It is compatible with

all VIP products and functions. Pre-assembed with VIP a/v unit part. 4682C for audio/

video/door lock management, and ﬂush-mounted box with concealed ﬁxing screws.

Dimensions 342x182x3 mm.

1596A

POWER SUPPLY UNIT 33 VDC 60W INPUT 110-240 VAC 316 ENTR. PAN

Power supply unit with 110-230V primary and 33Vdc 1.8A continuous output for 316

range entrance panels. Equipped with internal protection against current overload and

short circuits. Dimensions: 71.7x90x62 mm (4 DIN modules).

3ONE6 SENSE

3452

DIGITAL CAP SENS STAINLESS STEEL A/V ENTRANCE PANEL - VIP

Flush-mounted entrance panel with 3 mm thick stainless steel plate. Complete with

128x64 dot LCD graphic display and 15 buttons integrated into the plate, with no

mechanical movement. Also works as access control keypad. Two search buttons are

used to scroll though the names; alternatively, the ﬁrst letter of the required name

can be entered. Once the desired username is displayed, simply press the call button.

The call can also be made by directly entering the user code. It can also be used to

customise an initial welcome message and can operate with a dual user interface

language. Integrated RFID reader which can be used in conjunction with Simplekey.

Complete with VIP a/v unit part. 4682C for audio/video/door lock management, and

ﬂush-mounted box with concealed ﬁxing screws. Dimensions 342x182x3 mm. IK08

certiﬁed.

3459 RAINSHIELD WITH LEDS FOR 316 SENSE ST. STEEL ENT. PANEL

Rain shield for 316 series panels.

1595

IKALL POWER SUPPLY

Power supply unit 110-230V input and 33Vdc 500 mA continuous output, and 1.2A

inrush current for external unit with IKALL entrance panel. Equipped with internal

protection against overcurrent and short circuits. Dimensions: 71.7x90x62 mm (4 DIN

modules).

3ONE6TOUCH / 3ONE6SENSE

EXTERNAL UNITS

*Compatible with H264 format, for information on availability, contact your local agent.

VIP SYSTEM

3ONE6 ANALOG

316 ANALOG AUDIO PANEL, VIP SYSTEM

Flush-mounted entrance panel with 3 mm thick stainless steel plate; buttons integrated

into the plate, with no mechanical movement. Name card holders with LED lighting and

front access for name replacement. Complete with VIP audio unit part. 1682 for audio/

door lock management, and ﬂush-mounted box with concealed ﬁxing screws. To be

powered at 33 Vdc using part. 1595. IK08 certiﬁed.

code N.Buttons Dimensions

3201XA 1 247x182x3 mm

3202XA 2 247x182x3 mm

3203XA 3 293x182x3 mm

3204XA 4 293x182x3 mm

3205XA 5 342x182x3 mm

3206XA 6 342x182x3 mm

3207XA 7 408x182x3 mm

3208XA 8 408x182x3 mm

3209XA 9 408x182x3 mm

3211XA 10 477x182x3 mm

3212XA 11 477x182x3 mm

3212XA 12 477x182x3 mm

316 ANALOG A/V PANEL VIP

Flush-mounted entrance panel with 3 mm thick stainless steel plate; buttons integrated

into the plate, with no mechanical movement. Name card holders with LED lighting and

front access for name replacement. Allows management of visual call, conversation

and door lock status indications. Complete with VIP a/v unit part. 4682C for audio/

video/door lock management, and ﬂush-mounted box with concealed ﬁxing screws. To

be powered at 33 Vdc using part. 1595. IK08 certiﬁed.

code code N.Buttons Dimensions

3201XV 3201HXV* 1 247x182x3 mm

3202XV 3202XHV* 2 247x182x3 mm

3203XV 3203HXV* 3 293x182x3 mm

3204XV 3204HXV* 4 293x182x3 mm

3205XV 3205HXV* 5 342x182x3 mm

3206XV 3206HXV* 6 342x182x3 mm

3207XV 3207HXV* 7 408x182x3 mm

3208XV 3208HXV* 8 408x182x3 mm

3209XV 3209HXV* 9 408x182x3 mm

3210XV 3210HXV* 10 477x182x3 mm

3211XV 3211HXV* 11 477x182x3 mm

3212XV 3212HXV* 12 477x182x3 mm

3ONE6 ANALOG

*Compatible with H264 format, for information on availability, contact your local agent.

EXTERNAL UNITS | 49

3ONE6 ACCESSORiES

3458

ACCESS CONTROL ACCESSORY MODULE FOR EXTERNAL UNITS, 316

Flush-mounted 3 mm thick stainless steel plate for housing the access control module.

Can be used in conjunction with all entrance panels in the 316 range. Dimensions

88x182x3 mm

FLUSH-MOUNTED BOX ENT.PANELS. 316 SERIES

Flush-mounted box ent.panels. 316 Series

Code N.Buttons Dimensions

3460/2 1 - 2 164x227,5x56 mm

3460/4 3 - 4 164x273,5x56 mm

3460/6 5 - 6 164x323x56 mm

3460/9 7 - 8 - 9 164x388,5x56 mm

3460/12 10 - 11 - 12 164x457,5x56 mm

3462/6 WALL HOUSING FOR TOUCH-SENSE & 5-6 BUTT.ENT.PAN. 316 SERIES

Stainless steel accessory for wall-mounted ent. panels Art. 3451, 3451/A, 3452, 3453,

3454. Dimensions: 340x180x57 mm

3ONE6 ACCESSORiES

EXTERNAL UNITS

VANDALCOM

3159

VANDALCOM SERIES STAINLESS STEEL SURFACE-MOUNTED HOUSING

Code Modules Dimensions

3159/1 1 142x142x58mm

3159/2 2 142x254x58mm

3159/3 3 142x366x58mm

3160

FLUSH-MOUNTED BOX FOR VANDALCOM ENTRANCE PANEL

Code Modules Dimensions

3160/1 1 130x130x58mm

3160/2 2 130x242x58mm

3160/3 3 130x354x58mm

3161

VANDALCOM SERIES FRAME. DARK GREY COLOUR

Code Modules Dimensions

3161/1 1 143x143x18mm

3161/2 2 143x255x18mm

3161/3 3 143x367x18mm

3161/A

VANDALCOM SERIES FRAME. STEEL GREY COLOUR

Code Modules Dimensions

3161/1A 1 143x143x18mm

3161/2A 2 143x255x18mm

3161/3A 3 143x367x18mm

3262I

MODULE FOR AUDIO UNITS, IKALL SERIES

Speaker module faceplate. Made using double 2.5 mm stainless steel plate. To be

equipped with an audio unit depending on the cabling system used.

Fitted with a voltage reducer for powering festoon lamps if used with power supply

unit 1595 or 1207.

Code Modules Dimensions

3262I/0 0 106x106x5,6mm

3262I/1 1 106x106x5,6mm

3262I/2 2 106x106x5,6mm

VIP SYSTEM

VANDALCOM

3268I

VANDALCOM MODULE FOR POWERCOM AUDIO/VIDEO UNIT

Audio/Video module faceplate made of double 2.5 mm stainless steel plate. To be

ﬁtted with audio/video unit which depends on the cabling system used. Dimensions

106X106X5.6 mm

Code Modules Dimensions

3268I/0 0 106x106x5,6mm

3268I/1 1 106x106x5,6mm

3268I/2 2 106x106x5,6mm

3064/C SIMPLEBUS 4 BUTTON MODULE SB2 & VIP

4 Pushbutton module compatible with Simplebus and ViP systems

3070B

SIMPLEBUS/VIP DIGITAL CALL MODULE, VANDALCOM

Digital call module made of double 2.5 mm stainless steel plate, complete with 12

stainless steel pushbutton back-lit keypad, 16-character alphanumerical display.

Access control function with 300 possible 6 digit codes. With software part. 1249/A,

it is possible to download codes (up to 6 digits) for calls with indirect addressing.

Compatible with all SBTOP functions and products. Dimensions: 106X106X56 mm.

3072B

SIMPLEBUS/VIP DIGITAL DIRECTORY MODULEVANDALCOM SERIES

Digital name directory module made of double 2.5 mm stainless steel plate, complete

with 4 back-lit stainless steel pushbuttons and 32-character display. Up to 400 user

names can be stored. Name scrolling is carried out using 2 search pushbuttons. Once

the name is displayed, simply press the call button. User programming is simple by

means of software part. 1249/B. Compatible with all SBTOP and ViP products and

functions. Dimensions: 106X106X56 mm.

3176 VANDALCOM BLANK MODULE

Vandalcom series blank module. Dimensions: 106 x 106 x 9 mm

3179 VANDALCOM SERIES PRE-SET MODULE FOR SIMPLEKEY READER

Module for housing the SimpleKey unit SK9000-SK9001-SK9030. Dimensions: 106 x

106 x 9 mm

SK9001I

SIMPLEKEY ADVANCED READER IKALL

Simplekey Advanced access control unit, complete with Mifare proximity reader +

control unit. Hermetic PVC case to be ﬁtted to various entrance panels. Capacity:1500

keys. System programming through USB Encoder and Simplekey Advanced SK9091

software. LED for system status indication. Recording of the previous 1,400 events.

Option to create complex building systems without the need for a physical connection.

Relay closing timer: from 1 to 60 seconds, 5 second default. 12-24 V DC/AC or 33V DC

power supply unit from part. 1595.

EXTERNAL UNITS | 51

VANDALCOM

EXTERNAL UNITS

3186

VANDALCOM NAME PLATE

Name plate made of 2.5 mm double stainless steel plates, complete with blank card for

generic information (street number etc.) and pre-printed card with spaces for 12 user

names to be inserted. Dimensions: 106 x 106 x 9 mm

3188A

VANDALCOM ELECT. KEY FOR PW AND IKALL UNITS

Module designed with 2.5 mm dual stainless steel plates, complete with backlit keypad.

With 300 dierent 8-letter codes programmable from the keypad to command two

(10A) relays, operation conﬁrmation buzzer and relay actuation LED . Time-scale for

relay closing programmable from the key pad. 12V AC/DC power supply. Dimensions:

106 x 106 x 56 mm

1172 VANDALCOM 12/24V BULBS

24V/3W festoon bulb for illuminating name labels. Pack of 10.

1682

IKALL VIP AUDIO ONLY SPEAKER

Audio speaker unit complete with terminal block and digital audio management system

with Echo-cancelling, watertight loudspeaker and electret microphone, loudspeaker

volume can be adjusted from the front. Complete with microprocessor and DIP switch

with 8 positions for programming user calls. 33Vdc from power supply unit part. 1595.

On-board electronic lock-release function (3A), plus a 10A relay. Timed lock-release

inputs and door open indication.. For use in modules part. 33400, 33401 and 33402.

Compatible with all ViP functions and products. Dimensions: 102x55x38 mm.

1682/VC

1682HVC*

IKALL SPEAKER MODULE WITH COAX INPUT VIP

Module which allows modulation and transmission of a composite video signal from an

external Colour CCTV camera. Power supply: 33vDC. Compatible with all VIP functions

and products.Dimensions: 102X55X35 mm

4682C

4682HC*

VIP IKALL COLOUR CAMERA

Audio-video unit for ViP system including terminal block complete with front-adjustable

mini lens colour camera, LED camera lighting. Complete with terminal block and digital

audio management system with Echo-cancelling, watertight loudspeaker and electret

microphone, loudspeaker volume adjustable from the front. For ﬁtting in modules: part.

33410, 33411 and 33412. Dimensions: 102x55x38 mm.

4682CW

4682HCW*

DAY/NIGHT WIDE COLOUR A/V UNIT. VIP SYSTEM. IKALL SERIES

ViP system audio-video unit with terminal block, complete with wide-angle lens day/

night camera and IR camera illumination. Complete with terminal block and digital

audio management system with Echo-cancelling, watertight loudspeaker and electret

microphone, loudspeaker volume adjustable from the front. For installation in audio-

video modules with 0 - 1 - 2 buttons. Dimensions: 102x55x38 mm.

VIP SYSTEM

VANDALCOM

*Compatible with H264 format, for information on availability, contact your local agent.

iKALL MEtAL

3110

MODULE BACK BOX

Code Modules Dimensions

3110/1 1 118x118x45mm

3110/2 2 118x207x45mm

3110/3 3 118x297x45mm

3110/4 4 118x387x45mm

3311

IKALL SERIES 1-MODULE HOLDER FRAME W/ WHITE FINISHING FRAME

White Grey Anthracite Silver Mod. Dimensions

3311/1W 3311/1G 3311/1A 3311/1S 1 125x125x37,5mm

3311/2W 3311/2G 3311/2A 3311/2S 2 125x215x37,5mm

3311/3W 3311/3G 3311/3A 3311/3S 3 125x305x37,5mm

3311/4W 3311/4G 3311/4A 3311/4S 4 125x395x37,5mm

3311/AL

MODULE SURROUND WITH ANODISED ALUMINIUM FRAME

Module anodized aluminum frame ideal for installation in extreme situations such as

the marine environment. Dimensions 125x215x37.5mm

Code Modules Dimensions

3311/1AL 1 125x125x37,5mm

3311/2AL 2 125x215x37,5mm

3311/3AL 3 125x305x37,5mm

3311/4AL 4 125x395x37,5mm

RAIN SHIELD FOR ENTRANCE PANEL

Natural anodised aluminium rain shield.

Code Modules Dimensions

31121 1 154x152x44mm

31122 2 154x242x44mm

31123 3 154x332x44mm

31124 4 281x242x44mm

31124L 4L* 154x422x44mm

31126 6 281x332x44mm

31129 9 408x332x44mm

*4 vertically-aligned modules

3313 VANDALPROOF SCREW KIT WITH KEY INCLUDED

KIT containing 2 tamper-proof screws for ﬁxing the entrance panel ﬁnishing frame in

place. Installation key included.

EXTERNAL UNITS | 53

iKALL MEtAL

EXTERNAL UNITS

VIP SYSTEM

IKALL CORNICE FOR PANEL

Natural anodised aluminium ﬁnishing frame.

Code Modules Dimensions

31141 1 149x149x3mm

31142 2 149x239x3mm

31143 3 149x329x3mm

31144 4 276x239x3mm

31144L 4L* 419x419x3mm

31146 6 276x329x3mm

31149 9 403x329x3mm

*4 vertically-aligned modules

IKALL HOUSING WITH RAINSHIELD

Natural anodised aluminium housing with rain shield.

Code Modules Dimensions

31161 1 154x152x85mm

31162 2 154x242x85mm

31163 3 154x332x85mm

31164 4 281x242x85mm

31164L 4L* 154x422x85mm

31166 6 281x332x85mm

31169 9 408x332x85mm

*4 vertically-aligned modules

PILLAR FOR ENTRANCE PANEL, HEIGHT 170 CM

Code Modules Dimensions

3639/1 1 18x170x7,5cm

3639/2 2 18x170x7,5cm

3639/3 3 18x170x7,5cm

PILLAR FOR ENTRANCE PANEL, HEIGHT 117 CM

Code Modules Dimensions

3640/1 1 18x117x7,5cm

3640/2 2 18x117x7,5cm

3640/3 3 18x117x7,5cm

3649

45° ANGLED ENTRANCE PANEL HOUSING

Code Modules Dimensions

3649/1 1 183x130x100mm

3649/2 2 183x242x100mm

3649/3 3 183x354x100mm

iKALL MEtAL

33400M

IKALL METAL AUDIO MODULE - 0 BUTTONS

Module designed for audio speaker unit, with stainless steel ﬁnish. To be ﬁtted with an

audio speaker unit depending on the cabling system used. Dimensions 112x89.5x32

mm.

33401M

IKALL METAL AUDIO MODULE - 1 BUTTON

Module designed for audio speaker unit, with stainless steel ﬁnish. Nameplates

with LED lighting (options: blue, white or o). To be ﬁtted with an audio speaker unit

depending on the cabling system used. Dimensions 112x89.5x32 mm.

33402M

IKALL METAL AUDIO MODULE - 2 BUTTONS

Module designed for audio speaker unit, with stainless steel ﬁnish. Nameplates

with LED lighting (options: blue, white or o). To be ﬁtted with an audio speaker unit

depending on the cabling system used. Dimensions 112x89.5x32 mm.

33410M IKALL METAL VIDEO MODULE - 0 BUTTONS

Audio/video module with stainless steel ﬁnish. Combine with matching Audio/Video

module, depending on applied cabling. Dimensions 112x89, 5x32 mm.

33411M

IKALL METAL VIDEO MODULE - 1 BUTTON

Audio/video module with stainless steel ﬁnish. Name plate with LED backlight, a choice

of blue, white or o. Combine with matching Audio/Video module, depending on applied

cabling. Dimensions 112x89, 5x32 mm.

33412M

IKALL METAL VIDEO MODULE - 2 BUTTONS

Audio/video module with stainless steel ﬁnish. Name plate with LED backlight, a choice

of blue, white or o. Combine with matching Audio/Video module, depending on applied

cabling. Dimensions 112x89, 5x32 mm.

33433M IKALL METAL SB2 3 BUTTON MODULE

IKALL entrance panel 3-button module for Simplebus and VIP systems, with stainless

steel ﬁnish. Nameplate lighting options: blue/white/o. Dimensions 112x89.5x40 mm.

33434M IKALL METAL SB2 4 BUTTON MODULE

IKALL entrance panel 4-button module for Simplebus and VIP systems, with stainless

steel ﬁnish. Nameplate lighting options: blue/white/o. Dimensions 112x89.5x40 mm.

33436M IKALL METAL SB2 6 BUTTON MODULE

IKALL entrance panel 6-button module for Simplebus and VIP systems, with stainless

steel ﬁnish. Nameplate lighting options: blue/white/o. Dimensions 112x89.5x40 mm.

EXTERNAL UNITS | 55

iKALL MEtAL

EXTERNAL UNITS

VIP SYSTEM

3334M IKALL METAL BLANK MODULE

Blank module with stainless steel ﬁnish. Dimensions 112x89.5x22 mm.

3336M IKALL METAL INDICATOR MODULE

LED-backlit module providing various indications, with stainless steel ﬁnish. Nameplate

lighting options: blue/white/o. Dimensions 112x89.5x39.

3339M IKALL METAL NAME PLATE

LED-backlit module displaying a list of names or user codes (max. 12). Stainless steel

ﬁnish; blue/white/o nameplate lighting options. Dimensions 112x89.5x39.

3348M

IKALL METAL CODED ACCESS MODULE

Digital electronic key module with LED keypad backlighting. Blue, white and o lighting

options; stainless steel ﬁnish. When a number with between 1 and 8 digits is entered

on the keypad, two relays (10A) are activated, allowing electric door locks or other

devices to be operated. 12 V AC/DC power supply. Dimensions 112x89.5x40 mm.

3349M IKALL METAL SIMPLEKEY CUT-OUT

Module set up for use with Simplekey reader Art. SK9000I. Stainless steel ﬁnish.

Dimensions 112x89.5x22 mm

3360AM

IKALL METAL SERIES SBTOP & VIP DIGITALCALL MODULE

Complete with 128x64 graphic LCD display and 21-button backlit keypad with blue

LEDs, stainless steel ﬁnish. Functions as a coded electronic key module. It has an

electronic directory module which can store up to 3800 user names and 6400 lock-

release passwords. Names can be scrolled using the two search buttons or by entering

the initial letter of the required name. Once the right name has been found, simply

press the call button. The user code can also be entered directly to make the call.

User programming is simple with software part. 1249B, via the USB and RS485 ports.

Compatible with all SBTOP and VIP functions and products. Welcome message and

dual language user interface operation. Can be used in conjunction with Simplekey

electronic keys for automatic updating of names in the directory. Includes the CD-ROM

with SW part. 1249B for installation on a PC, in addition to the USB connection cable.

Can be used to quickly program the directory of names in dierent calling modes,

or to enter the lock-release password and initial welcome message. Allows archive

management on PC. Dimensions: 112x180x40 mm.

iKALL MEtAL

1682

IKALL VIP AUDIO ONLY SPEAKER

Audio speaker unit complete with terminal block and digital audio management system

with Echo-cancelling, watertight loudspeaker and electret microphone, loudspeaker

volume can be adjusted from the front. Complete with microprocessor and DIP switch

with 8 positions for programming user calls. 33Vdc from power supply unit part. 1595.

On-board electronic lock-release function (3A), plus a 10A relay. Timed lock-release

inputs and door open indication.. For use in modules part. 33400, 33401 and 33402.

Compatible with all ViP functions and products. Dimensions: 102x55x38 mm.

1682/VC

1682HVC*

IKALL SPEAKER MODULE WITH COAX INPUT VIP

Module which allows modulation and transmission of a composite video signal from an

external Colour CCTV camera. Power supply: 33vDC. Compatible with all VIP functions

and products.Dimensions: 102X55X35 mm

4682C

4682HC*

VIP IKALL COLOUR CAMERA

Audio-video unit for ViP system including terminal block complete with front-adjustable

mini lens colour camera, LED camera lighting. Complete with terminal block and digital

audio management system with Echo-cancelling, watertight loudspeaker and electret

microphone, loudspeaker volume adjustable from the front. For ﬁtting in modules: part.

33410, 33411 and 33412. Dimensions: 102x55x38 mm.

4682CW

4682HCW*

DAY/NIGHT WIDE COLOUR A/V UNIT. VIP SYSTEM. IKALL SERIES

ViP system audio-video unit with terminal block, complete with wide-angle lens day/

night camera and IR camera illumination. Complete with terminal block and digital

audio management system with Echo-cancelling, watertight loudspeaker and electret

microphone, loudspeaker volume adjustable from the front. For installation in audio-

video modules with 0 - 1 - 2 buttons. Dimensions: 102x55x38 mm.

1595

IKALL POWER SUPPLY

Power supply unit 110-230V input and 33Vdc 500 mA continuous output, and 1.2A

inrush current for external unit with IKALL entrance panel. Equipped with internal

protection against overcurrent and short circuits. Dimensions: 71.7x90x62 mm (4 DIN

modules).

EXTERNAL UNITS | 57

iKALL MEtAL

EXTERNAL UNITS

*Compatible with H264 format, for information on availability, contact your local agent.

VIP SYSTEM

iKALL

3110

IKALL BACK BOX

Code Modules Dimensions

3110/1 1 118x118x45mm

3110/2 2 118x207x45mm

3110/3 3 118x297x45mm

3110/4 4 118x387x45mm

3311

IKALL SERIES HOLDER FRAME

White Grey Anthracite Silver Mod. Dimensions

3311/1W 3311/1G 3311/1A 3311/1S 1 125x125x37,5mm

3311/2W 3311/2G 3311/2A 3311/2S 2 125x215x37,5mm

3311/3W 3311/3G 3311/3A 3311/3S 3 125x305x37,5mm

3311/4W 3311/4G 3311/4A 3311/4S 4 125x395x37,5mm

3311/AL

MODULE SURROUND WITH ANODISED ALUMINIUM FRAME

Module anodized aluminum frame ideal for installation in extreme situations such as

the marine environment.

Code Modules Dimensions

3311/1AL 1 125x125x37,5mm

3311/2AL 2 125x215x37,5mm

3311/3AL 3 125x305x37,5mm

3311/4AL 4 125x395x37,5mm

RAIN SHIELD FOR ENTRANCE IKALL PANEL.

Natural anodised aluminum rain shield for Ikall panel.

Code Modules Dimensions

31121 1 154x152x44mm

31122 2 154x242x44mm

31123 3 154x332x44mm

31124 4 281x242x44mm

31124L 4L* 154x422x44mm

31126 6 281x332x44mm

31129 9 408x332x44mm

*4 vertically-aligned modules.

3313 VANDALPROOF SCREW KIT WITH KEY INCLUDED

KIT containing 2 tamper-proof screws for ﬁxing the entrance panel ﬁnishing frame in

place. Installation key included.

iKALL

IKALL CORNICE FOR MODULE PANEL

Natural anodised aluminium ﬁnishing frame.

Code Modules Dimensions

31141 1 149x149x3mm

31142 2 149x239x3mm

31143 3 149x329x3mm

31144 4 276x239x3mm

31144L 4L* 419x419x3mm

31146 6 276x329x3mm

31149 9 403x329x3mm

*4 vertically-aligned modules.

IKALL MODULE HOUSING WITH RAINSHIELD

Natural anodised aluminium housing with rain shield.

Code Modules Dimensions

31161 1 154x152x85mm

31162 2 154x242x85mm

31163 3 154x332x85mm

31164 4 281x242x85mm

31164L 4L* 154x422x85mm

31166 6 281x332x85mm

31169 9 408x332x85mm

*4 vertically-aligned modules.

3639

PILLAR FOR ENTRANCE PANEL, HEIGHT 170 CM

Code Modules Dimensions

3639/1 1 18x170x7,5cm

3639/2 2 18x170x7,5cm

3639/3 3 18x170x7,5cm

3640

PILLAR FOR ENTRANCE PANEL, HEIGHT 117 CM

Code Modules Dimensions

3640/1 1 18x117x7,5cm

3640/2 2 18x117x7,5cm

3640/3 3 18x117x7,5cm

EXTERNAL UNITS | 59

iKALL

EXTERNAL UNITS

VIP SYSTEM

3649

45° ANGLED ENTRANCE PANEL HOUSING

Code Modules Dimensions

3649/1 1 183x130x100mm

3649/2 2 183x242x100mm

3649/3 3 183x354x100mm

33400

ZERO-BUTTON AUDIO MODULE WITH BLACK FACEPLATE

Module designed for audio speaker unit, with black screen-printed faceplate. To be

ﬁtted with an audio speaker unit depending on the cabling system used. Dimensions

112x89.5x32 mm.

33400W/A 0-BUTTON MODULE FOR IKALL SERIES AUDIO UNIT - WHITE

Module designed for audio speaker unit, with white screen-printed faceplate. To be

ﬁtted with an audio speaker unit depending on the cabling system used. Dimensions

112x89.5x32 mm.

33401

IKALL AUDIO MODULE - 1 BUTTON - BLACK

Module designed for audio speaker unit, with black screen-printed faceplate.

Nameplates with LED lighting (options: blue, white or o). To be ﬁtted with an audio

speaker unit depending on the cabling system used. Dimensions 112x89.5x32 mm.

33401A

IKALL SERIES 1-BUTTON MODULE FOR AUDIO UNIT - METAL

Module designed for audio speaker unit, with stainless steel ﬁnish faceplate.

Nameplates with LED lighting (options: blue, white or o). To be ﬁtted with an audio

speaker unit depending on the cabling system used. Dimensions 112x89.5x32 mm.

33401W/A

1-BUTTON MODULE FOR IKALL SERIES AUDIO UNIT - WHITE

Module designed for audio speaker unit, with white screen-printed faceplate.

Nameplates with LED lighting (options: blue, white or o). To be ﬁtted with an audio

speaker unit depending on the cabling system used. Dimensions 112x89.5x32 mm.

33402

IKALL AUDIO MODULE - 2 BUTTONS

Module designed for audio speaker unit, with black screen-printed faceplate.

Nameplates with LED lighting (options: blue, white or o). To be ﬁtted with an audio

speaker unit depending on the cabling system used. Dimensions 112x89.5x32 mm.

33402A

IKALL SERIES 2-BUTTON MODULE FOR AUDIO UNIT - METAL

Module designed for audio speaker unit, with stainless steel ﬁnish faceplate.

Nameplates with LED lighting (options: blue, white or o). To be ﬁtted with an audio

speaker unit depending on the cabling system used. Dimensions 112x89.5x32 mm.

iKALL

33402W/A

TWO-BUTTON AUDIO MODULE WITH WHITE FACEPLATE

Module designed for audio speaker unit, with white screen-printed faceplate.

Nameplates with LED lighting (options: blue, white or o). To be ﬁtted with an audio

speaker unit depending on the cabling system used. Dimensions 112x89.5x32 mm.

33410

IKALL VIDEO MODULE - 0 BUTTONS

Module designed for audio/video speaker unit, with black screen-printed faceplate.

To be ﬁtted with a suitable video entry speaker unit depending on the cabling system

used. Dimensions 112x89.5x32 mm.

33410W/A

0-BUTTON MODULE FOR IKALL SERIES AUDIO/VIDEO UNIT - WHITE

Module designed for audio/video speaker unit, with black screen-printed faceplate.

To be ﬁtted with a suitable video entry speaker unit depending on the cabling system

used. Dimensions 112x89.5x32 mm.

33411

IKALL VIDEO MODULE - 1 BUTTON

Module designed for audio/video speaker unit, with black screen-printed faceplate.

Nameplates with LED lighting (options: blue, white or o). To be ﬁtted with a suitable

video entry speaker unit depending on the cabling system used. Dimensions

112x89.5x32 mm.

33411A

IKALL SERIES 1-BUTTON MODULE FOR AUDIO/VIDEO UNIT - METAL

Module designed for audio/video speaker unit, with stainless steel ﬁnish faceplate.

Nameplates with LED lighting (options: blue, white or o). To be ﬁtted with a suitable door

entry speaker unit depending on the cabling system used. Dimensions 112x89.5x32

mm.

33411W/A

1-BUTTON MODULE FOR IKALL SERIES AUDIO/VIDEO UNIT - WHITE

Module designed for audio/video speaker unit, with black screen-printed faceplate.

Nameplates with LED lighting (options: blue, white or o). To be ﬁtted with a suitable

video entry speaker unit depending on the cabling system used. Dimensions

112x89.5x32 mm.

33412

IKALL VIDEO MODULE - 2 BUTTONS

Module designed for audio/video speaker unit, with black screen-printed faceplate.

Nameplates with LED lighting (options: blue, white or o). To be ﬁtted with a suitable

video entry speaker unit depending on the cabling system used. Dimensions

112x89.5x32 mm.

EXTERNAL UNITS | 61

iKALL

EXTERNAL UNITS

VIP SYSTEM

33412A

IKALL SERIES 2-BUTTON MODULE FOR AUDIO/VIDEO UNIT - METAL

Module designed for audio/video speaker unit, with stainless steel ﬁnish faceplate.

Nameplates with LED lighting (options: blue, white or o). To be ﬁtted with a suitable door

entry speaker unit depending on the cabling system used. Dimensions 112x89.5x32

mm.

33412W/A

TWO-BUTTON AUDIO/VIDEO MODULE WITH WHITE FACEPLATE

Module designed for audio/video speaker unit, with black screen-printed faceplate.

Nameplates with LED lighting (options: blue, white or o). To be ﬁtted with a suitable

video entry speaker unit depending on the cabling system used. Dimensions

112x89.5x32 mm.

33433 IKALL SIMPLEBUS 3 BUTTON MODULE

3-button IKALL entrance panel module for Simplebus system. Nameplate lighting

options: blue/white/o. Dimensions 112x89.5x40 mm.

33434 IKALL SIMPLEBUS 4 BUTTON MODULE

4-button IKALL entrance panel module for Simplebus system. Nameplate lighting

options: blue/white/o. Dimensions 112x89.5x40 mm.

33436 IKALL SIMPLEBUS 6 BUTTON MODULE

6-button IKALL entrance panel module for Simplebus system. Nameplate lighting

options: blue/white/o. Dimensions 112x89.5x40 mm.

3334 PLAIN MODULE WITH BLACK FACEPLATE

Plain module with black faceplate. Dimensions 112x89.5x22 mm.

3334W/A PLAIN MODULE WITH WHITE FACEPLATE

Plain module with white faceplate. Dimensions 112x89.5x22 mm.

3336

IKALL ILLUMINATION MODULE

LED backlight module for various indications. Nameplate lighting options: blue/white/

o. Contains card for writing names and user codes (max. 12). Dimensions 112x89,5x39

mm).

3348

IKALL CODED ACCESS MODULE

Access control keypad with LED backlighting. Options: blue, white and o. When a

number with between 1 and 8 digits is entered on the keypad, two relays (10A) are

activated, allowing electric door locks or other devices to be operated. 12 V AC/DC

power supply. Dimensions: 112x89,5x40 mm.

3349 IKALL SIMPLEKEY CUT-OUT

Module set up for use with Simplekey reader part. SK9000I, SK9001I and SK9030I.

Dimensions 112x89,5x22 mm.

iKALL

EXTERNAL UNITS | 63

3349W/A SIMPLEKEY MODULE WITH WHITE FACEPLATE

Module set up for use with Simplekey reader part. SK9000I, SK9001I and SK9030I.

Dimensions 112x89,5x22 mm.

3360A

IKALL SERIES SBTOP & VIP DIGITAL CALLMODULE BLACK

Complete with 128x64 graphic LCD display and 21-button backlit keypad with blue

LEDs, Black ﬁnish. Functions as a coded electronic key module. It has an electronic

directory module which can store up to 3800 user names and 6400 lock-release

passwords. Names can be scrolled using the two search buttons or by entering the

initial letter of the required name. Once the right name has been found, simply press

the call button. The user code can also be entered directly to make the call. User

programming is simple with software part. 1249B, via the USB and RS485 ports.

Compatible with all SBTOP and VIP functions and products. Welcome message and

dual language user interface operation. Can be used in conjunction with Simplekey

electronic keys for automatic updating of names in the directory. Includes the CD-ROM

with SW part. 1249B for installation on a PC, in addition to the USB connection cable.

Can be used to quickly program the directory of names in dierent calling modes,

or to enter the lock-release password and initial welcome message. Allows archive

management on PC. Dimensions: 112x180x40 mm.

3360AW

IKALL SERIES SBTOP & VIP DIGITAL CALLMODULE -WHITE

Complete with 128x64 graphic LCD display and 21-button backlit keypad with blue

LEDs, White ﬁnish. Functions as a coded electronic key module. It has an electronic
