2N5484, 2N5485, 2N5486, MMBF5484, MMBF5485, MMBF5486 Datasheet. Www.s Manuals.com. Fairchild
User Manual: Marking of electronic components, SMD Codes 6B, 6B**, 6B***, 6B-, 6B., 6BW, 6Bp, 6Bt. Datasheets BC817-25, BC817-25W, MM1Z47, MMBF5484, PDTA115EEF, SMZ253D, ST6206BS23RG, ST6206BS32RG, Si3456BDV.
Open the PDF directly: View PDF .
Page Count: 15
![](asset-1.png)
G
D
S
2N5484
2N5485
2N5486
MMBF5484
MMBF5485
MMBF5486

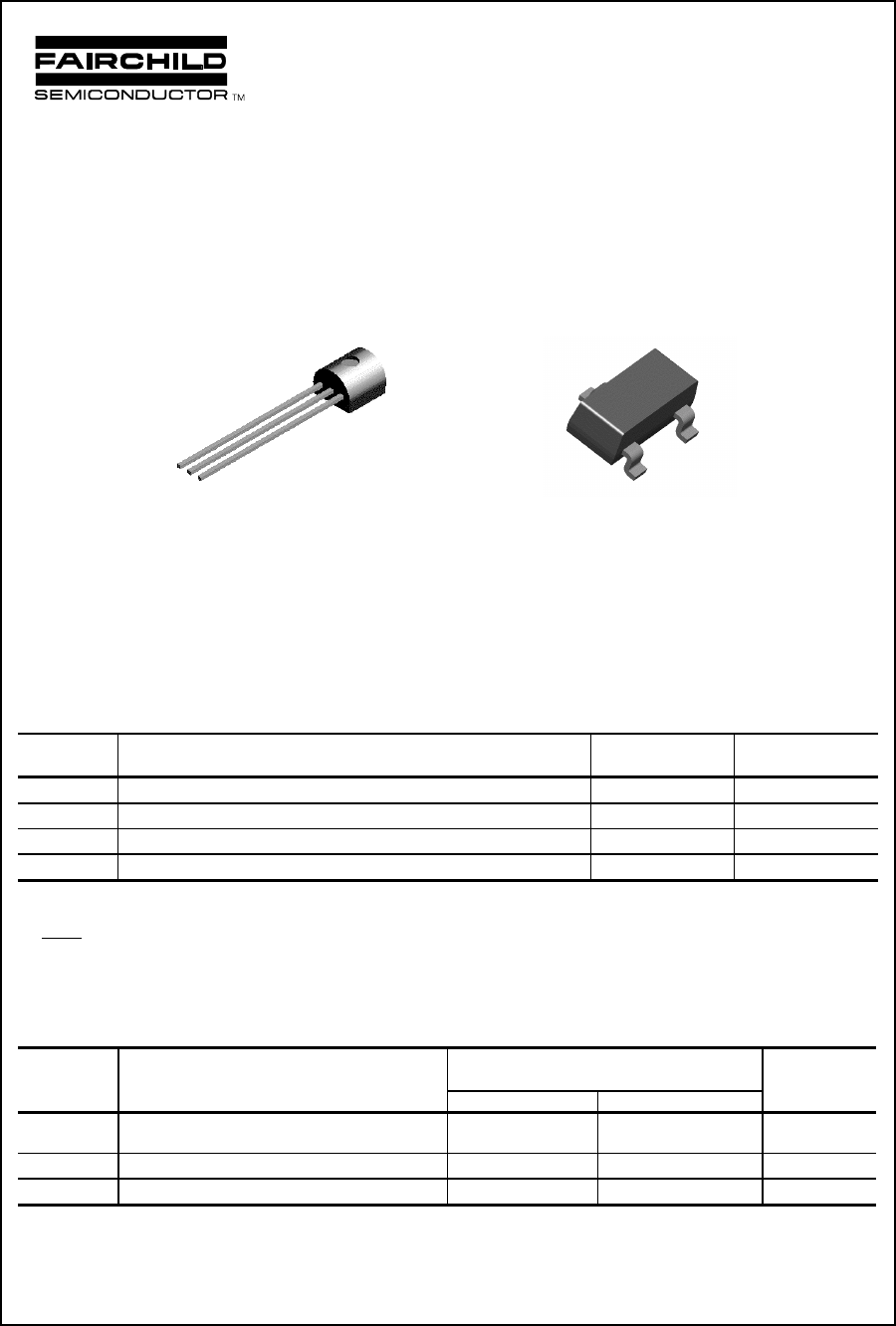

N-Channel RF Amplifier
This device is designed primarily for electronic switching
applications such as low On Resistance analog switching.
Sourced from Process 50.
Absolute Maximum Ratings* TA = 25°C unless otherwise noted
Symbol Parameter Value Units
VDG Drain-Gate Voltage 25 V
VGS Gate-Source Voltage - 25 V
IGF Forward Gate Current 10 mA
TJ ,Tstg Operating and Storage Junction Temperature Range -55 to +150 °C
GSD

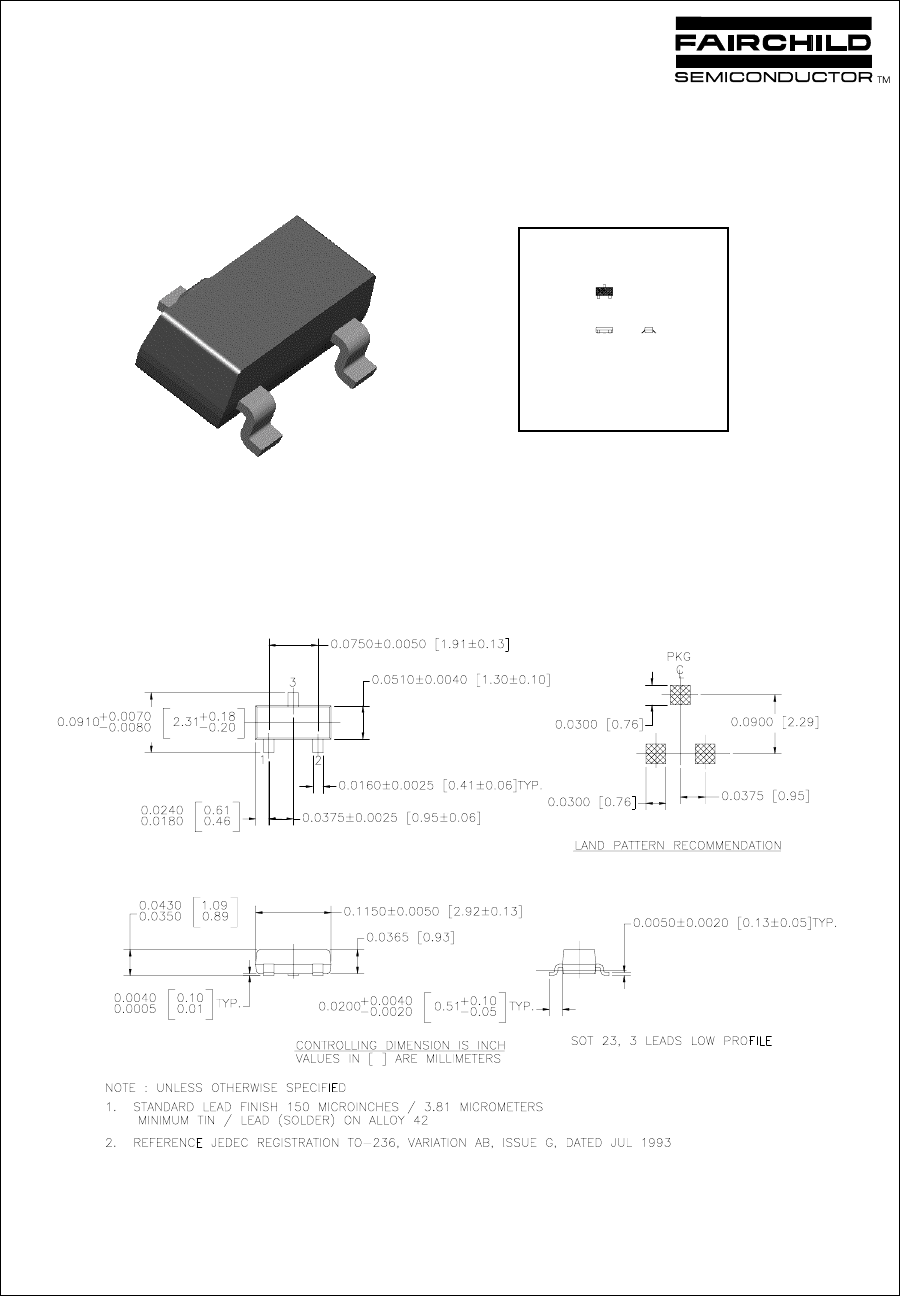

TO-92 SOT-23
Mark: 6B / 6M / 6H
*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
NOTES:
1) These ratings are based on a maximum junction temperature of 150 degrees C.
2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
Thermal Characteristics TA = 25°C unless otherwise noted
*Device mounted on FR-4 PCB 1.6" X 1.6" X 0.06."
1997 Fairchild Semiconductor Corporation
NOTE: Source & Drain
are interchangeable
2N5484 / 5485 / 5486 / MMBF5484 / 5485 / 5486
Symbol Characteristic Max Units
2N5484-5486 *MMBF5484-5486
PDTotal Device Dissipation
Derate above 25°C350
2.8 225
1.8 mW
mW/°C
RθJC Thermal Resistance, Junction to Case 125 °C/W
RθJA Thermal Resistance, Junction to Ambient 357 556 °C/W
![](asset-2.png)
5
Electrical Characteristics TA = 25°C unless otherwise noted
OFF CHARACTERISTICS
Symbol Parameter Test Conditions Min Typ Max Units
ON CHARACTERISTICS
V(BR)GSS Gate-Source Breakdown Voltage IG = - 1.0 µA, VDS = 0 - 25 V
IGSS Gate Reverse Current VGS = - 20 V, VDS = 0
VGS= - 20 V, VDS= 0, TA= 100°C- 1.0
- 0.2 nA
µA
VGS(off) Gate-Source Cutoff Voltage VDS = 15 V, ID = 10 nA 5484
5485
5486
- 0.3
- 0.5
- 2.0
- 3.0
- 4.0
- 6.0
V
V
V
IDSS Zero-Gate Voltage Drain Current* VDS = 15 V, VGS = 0 5484
5485
5486
1.0
4.0
8.0
5.0
10
20
mA
mA
mA
SMALL SIGNAL CHARACTERISTICS
gfs Forward Transfer Conductance VDS = 15 V, VGS = 0, f = 1.0 kHz
5484
5485
5486
3000
3500
4000
6000
7000
8000
µ
mhos
µ
mhos
µ
mhos
Re(yis) Input Conductance VDS = 15 V, VGS = 0, f = 100 MHz
5484
VDS = 15 V, VGS = 0, f = 400 MHz
5485 / 5486
100
1000
µ
mhos
µ
mhos
gos Output Conductance VDS = 15 V, VGS = 0, f = 1.0 kHz
5484
5485
5486
50
60
75
µ
mhos
µ
mhos
µ
mhos
Re(yos) Output Conductance VDS = 15 V, VGS = 0, f = 100 MHz
5484
VDS = 15 V, VGS = 0, f = 400 MHz
5485 / 5486
75
100
µ
mhos
µ
mhos
Re(yfs) Forward Transconductance VDS = 15 V, VGS = 0, f = 100 MHz
5484
VDS = 15 V, VGS = 0, f = 400 MHz
5485
5486
2500
3000
3500
µ
mhos
µ
mhos
µ
mhos
Ciss Input Capacitance VDS = 15 V, VGS = 0, f = 1.0 MHz 5.0 pF
Crss Reverse Transfer Capacitance VDS = 15 V, VGS = 0, f = 1.0 MHz 1.0 pF
Coss Output Capacitance VDS = 15 V, VGS = 0, f = 1.0 MHz 2.0 pF
NF Noise Figure VDS= 15 V, RG = 1.0 kΩ,
f = 100 MHz 5484
VDS= 15 V, RG = 1.0 kΩ,
f = 400 MHz 5484
VDS= 15 V , RG = 1.0 kΩ,
f = 100 MHz 5485 / 5486
VDS= 15 V, RG = 1.0 kΩ,
f = 400 MHz 5485 / 5486
4.0
3.0
2.0
4.0
dB
dB
dB
dB
*Pulse Test: Pulse Width ≤ 300 ms, Duty Cycle ≤ 2%
2N5484 / 5485 / 5486 / MMBF5484 / 5485 / 5486
N-Channel RF Amplifier
(continued)
![](asset-3.png)
2N5484 / 5485 / 5486 / MMBF5484 / 5485 / 5486

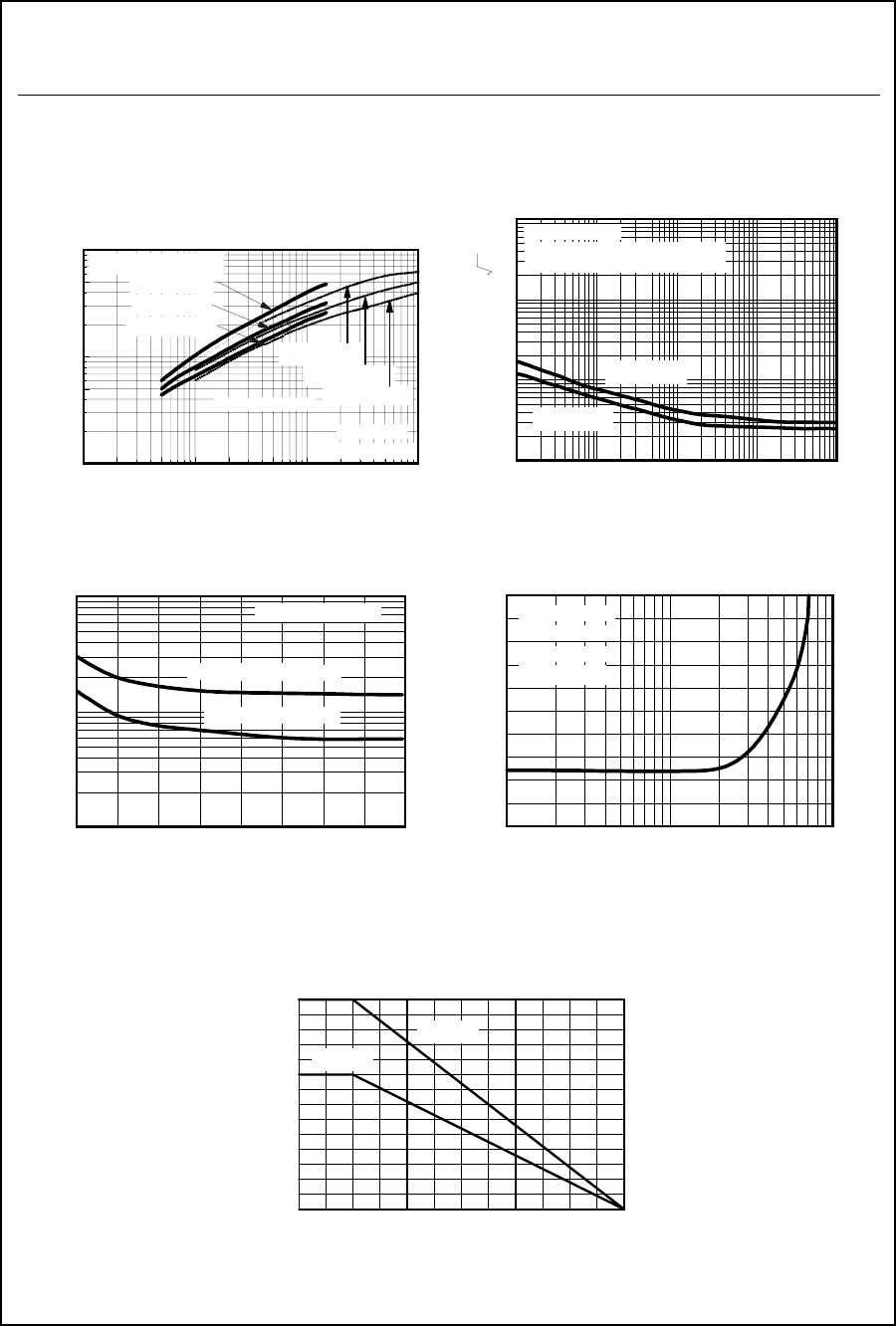

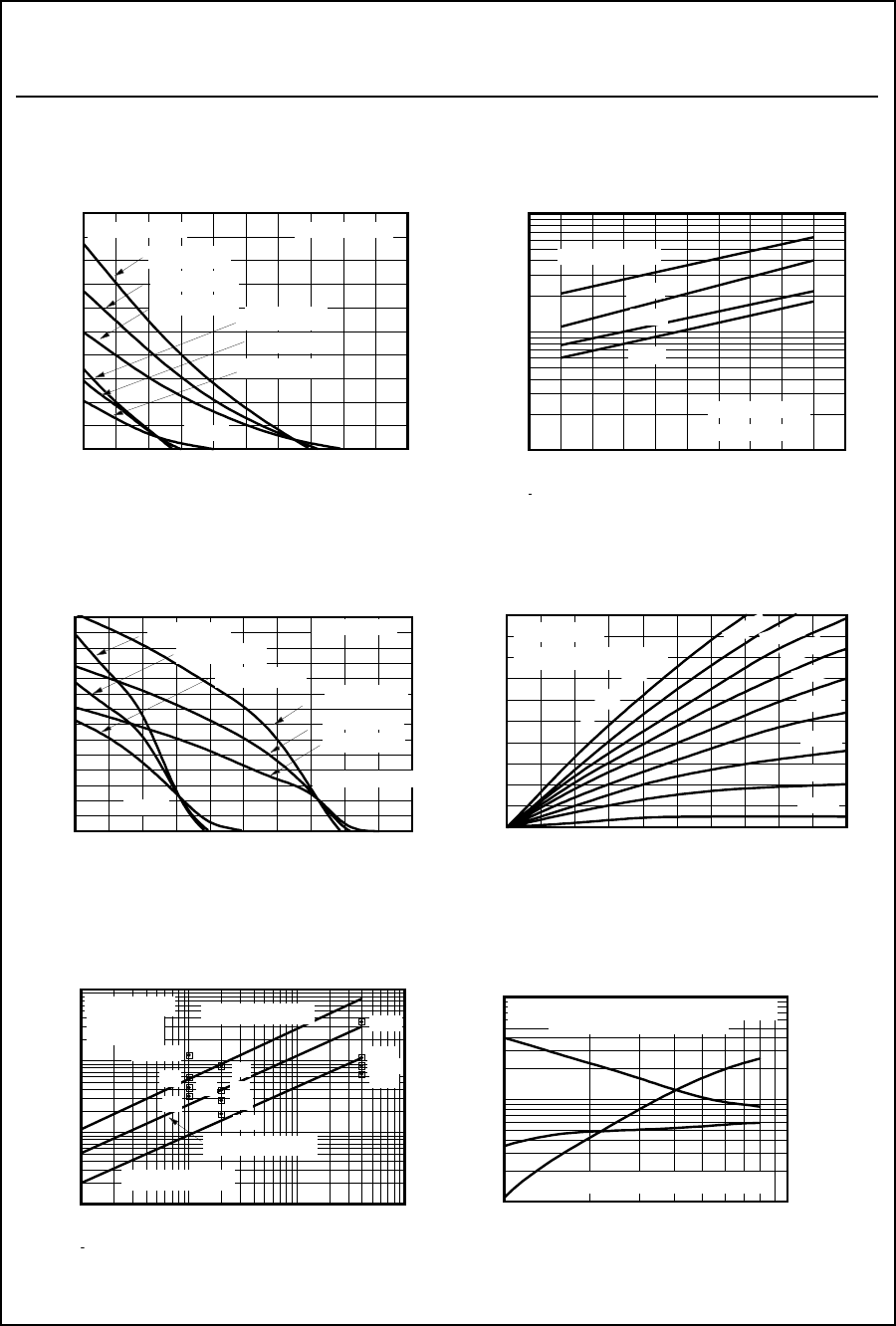

Typical Characteristics
°°
°°
°
Transfer Characteristics
-5-4-3-2-10
0
4
8
12
16
20
V - GATE-SOURCE VOLTAGE(V)
I - DRAIN CURRENT (mA)
D
GS(OFF)
V = -4.5V V = 15V
DS
T = +25 C
A
O
-2.5 V
T = -55 C
O
A
T = +125 C
A
O
T = -55 C
O
A
T = +25 C
A
O
T = +125 C
A
O
GS
Channel Resistance vs Temperature
-50 0 50 100 150
10
20
30
50
100
200
300
500
1000
T - AMBIENT TEMPERATURE ( C)
r - DRAIN ON RESISTANCE ( )
Ω
V = -1.0V
GS(OFF)
-2.5 V
-5.0V
-8.0 V
V = 100mV
DS
V = 0 V
GS
DS
A
Transconductance
Characteristics
-5-4-3-2-10
0
1
2
3
4
5
6
7
V - GATE-SOURCE VOLTAGE(V)
gfs -- TRANSCONDUCTANCE (mmhos)
V = -4.5V
GS(OFF)
V = 15V
DS
T = +25 C
A
O
-2.5 V
T = -55 C
O
A
T = +125 C
A
O
T = -55 C
O
A
T = +25 C
A
O
T = +125 C
A
O
GS
Common Drain-Source
Characteristics
0 0.2 0.4 0.6 0.8 1
0
1
2
3
4
5
V - DRAIN-SOURCE VOLTAGE(V)
I -- DRAIN CURRENT (mA)
V = 0V
GS
-2.5V
DS
-0.5V
-4.0V
-2.0V
-1.0V
-3.5V
-3.0V
-1.5V
T = +25 C
A
O
TYP V = -5.0V
GS(OFF)
D
Transconductance
Parameter Interactions
1235710
10
20
1
2
3
5
10
20
30
50
100
V - GATE-SOURCE VOLTAGE(V)
r -- DRAIN "ON" RESISTANCE ( )
gfs --- TRANSCONDUCTANCE ( mmhos )
GS
I -- DRAIN CURRENT ( mA )
DSS
DS Ω
gfs, I @ V = 15 V, V = 0 PULSE
GS
DSDSS
r @ V = 100mV, V = 0
GS
DS
DS
V @ V = 15V, I = 1nA
GS(OFF) GS D
--
--
--
Output Conductance vs
Drain Current
0.01 0.02 0.05 0.1 0.2 0.5 1 2 5 10
0.1
0.5
1
5
10
20
I -- DRAIN CURRENT (mA)
gos -- OUTPUT CONDUCTANCE (u mhos)
D
15
10
T = +25 C
A
O
f = 1.0 kHz
15
10
5
20
15V
10V
5.0V
20V
20
V = 5v
DG
V = -5.5V
GS(OFF)
V = -3.5V
GS(OFF)
V = -1.5V
GS(OFF)
N-Channel RF Amplifier
(continued)
![](asset-4.png)
5

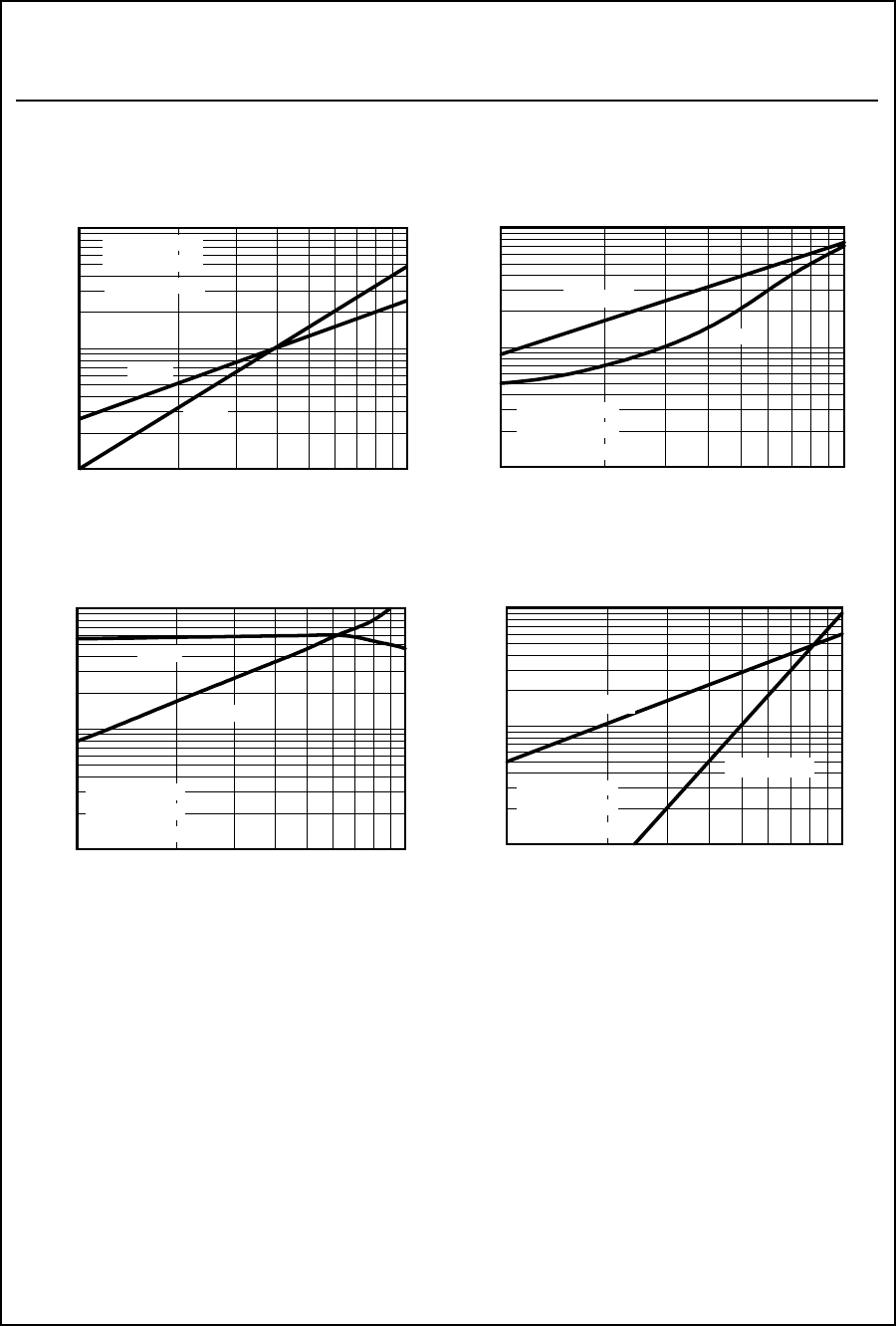

Noise Voltage vs Frequency
0.01 0.03 0.1 0.3 1 3 10 30 100
1
5
10
f -- FREQUENCY (kHz)
e - NOISE VOLTAGE ( nV/ Hz )
V = 15V
DG
BW = 6.0 Hz @ f = 10 Hz, 100 Hz
= 0.2 f @ f > 1.0 kHz
I = 0.5 mA
D
I = 3 mA
D
n
Noise Figure Frequency
10 20 30 50 100 200 300 500 1000
0
1
2
3
4
5
f -- FREQUENCY (MHz)
NF -- NOISE FIGURE (dB)
V = 15V
DS
I = 5.0 mA
R = 1.0 k
T = +25 C
A
O
Ω
D
g
Typical Characteristics (continued)
Power Dissipation vs.
Ambient Temperature
0 255075100125150
0
50
100
150
200
250
300
350
TEMPERATURE ( C)
P - POWER DISSIPATION (mW)
º
D
SOT-23
TO-92
Capacitance vs Voltage
-20-15-10-50
1
5
10
V -- GATE-SOURCE VOLTAGE(V)
C ( C ) -- CAPACITANCE (pF)
GS
is
rs
C ( V = 0 V)
C ( V = 15 V)
DS
DS
is
rs
f = 0.1 - 1.0 MHz
Transconductance vs
Drain Current
0.1
0.5
1
5
10
gfs -- TRANSCONDUCTANCE (mmhos)
0.01 0.02 0.05 0.1 0.2 0.5 1 2 5 10
I - DRAIN CURRENT (mA)
D
V = - 5V
GS(OFF)
V = - 1.5V
GS(OFF)
T = -55 C
O
A
T = +25 C
A
O
T = +125 C
A
O
T = -55 C
O
A
T = +25 C
A
O
T = +125 C
A
O
V = 15V
f = 1.0 kHz
DG
2N5484 / 5485 / 5486 / MMBF5484 / 5485 / 5486
N-Channel RF Amplifier
(continued)
![](asset-5.png)
2N5484 / 5485 / 5486 / MMBF5484 / 5485 / 5486
Common Source Characteristics
Input Admittance
100 200 300 500 700 1000
1
5
10
f -- FREQUENCY (MHz)
Y -- INPUT ADMITTANCE (mmhos)
V = 15V
V = 0
GS
DS
(CS)
giss
iss
biss
Output Admittance
100 200 300 500 700 1000
1
f -- FREQUENCY (MHz)
Y -- OUTPUT CONDUCTANCE (mmhos)
V = 15V
V = 0
GS
DS
(CS)
OSS
b (x 10)
OSS
gOSS
Forward Transadmittance
100 200 300 500 700 1000
1
5
10
f -- FREQUENCY (MHz)
Y -- FORWARD TRANSFER (mmhos)
V = 15V
V = 0
GS
DS
(CS)
-b fss
fss
+g fss
Reverse Transadmittance
100 200 300 500 700 1000
1
5
10
f -- FREQUENCY (MHz)
Y -- REVERSE TRANSFER (mmhos)
rss
V = 15V
V = 0
GS
DS
(CS)
- b
-g ( X 0.1)
rss
rss
N-Channel RF Amplifier
(continued)
![](asset-6.png)
5

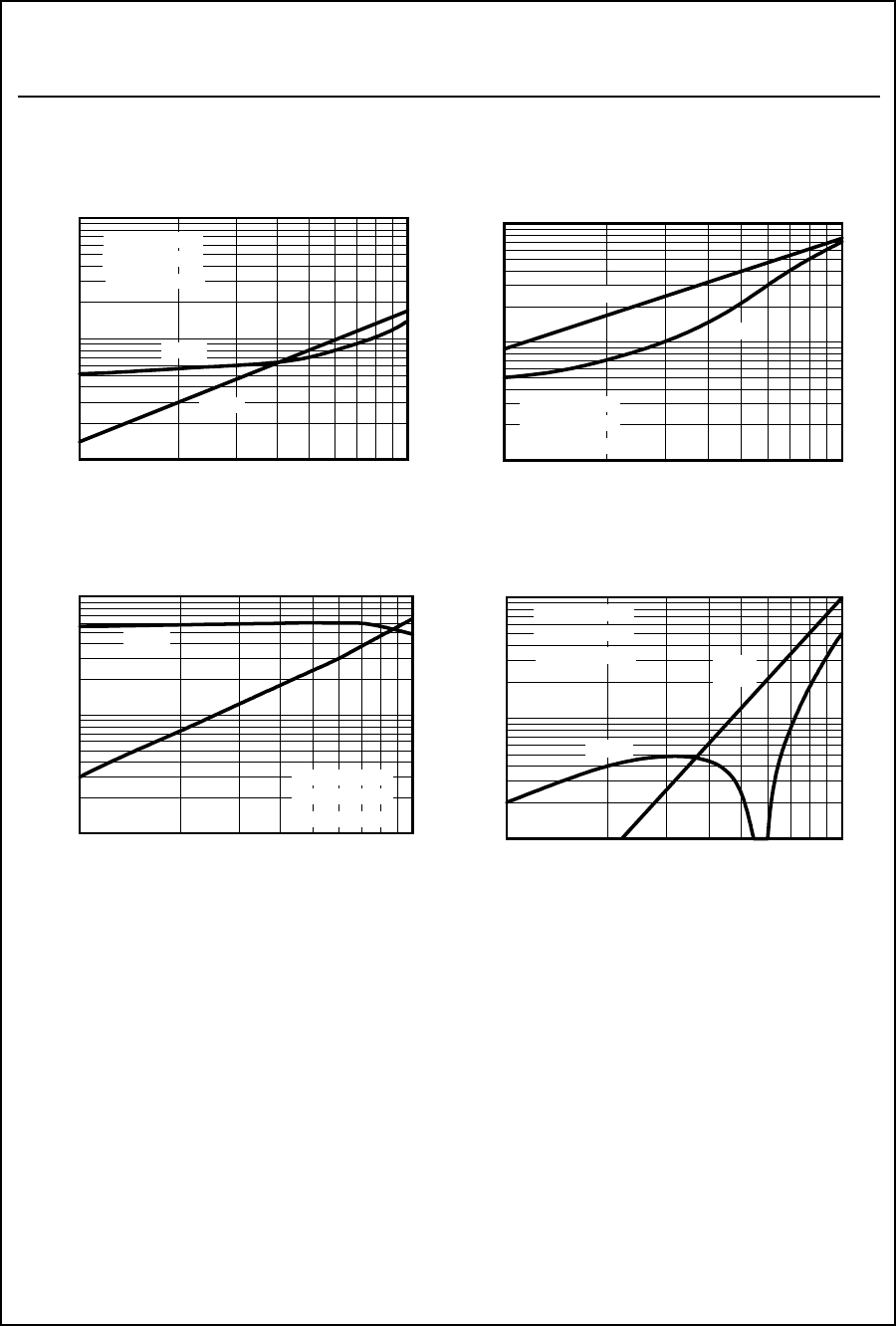

Common Gate Characteristics
Input Admittance
100 200 300 500 700 1000
1
5
10
f -- FREQUENCY (MHz)
Y -- INPUT ADMITTANCE (mmhos)
V = 15V
V = 0
GS
DS
(CG)
gigs
igs
bigs
Forward Transadmittance
100 200 300 500 700 1000
1
5
10
f -- FREQUENCY (MHz)
Y -- FORWARD TRANSFER (mmhos)
V = 15V
V = 0
GS
DS
(CG)
-b fgs
fgs
+gfgs
Reverse Transadmittance
100 200 300 500 700 1000
1
f -- FREQUENCY (MHz)
Y -- REVERSE TRANSFER (mmhos)
rgs
V = 15V
V = 0
GS
DS
(CG) grgs
- brgs
Output Admittance
100 200 300 500 700 1000
1
f -- FREQUENCY (MHz)
Y -- OUTPUT CONDUCTANCE (mmhos)
V = 15V
V = 0
GS
DS
(CG)
ogs
b (x 10)
OgS
gOgs
2N5484 / 5485 / 5486 / MMBF5484 / 5485 / 5486
N-Channel RF Amplifier
(continued)
![](asset-7.png)
TO-92 Tape and Reel Data
March 2001, Rev. B1
©2001 Fairchild Semiconductor Corporation

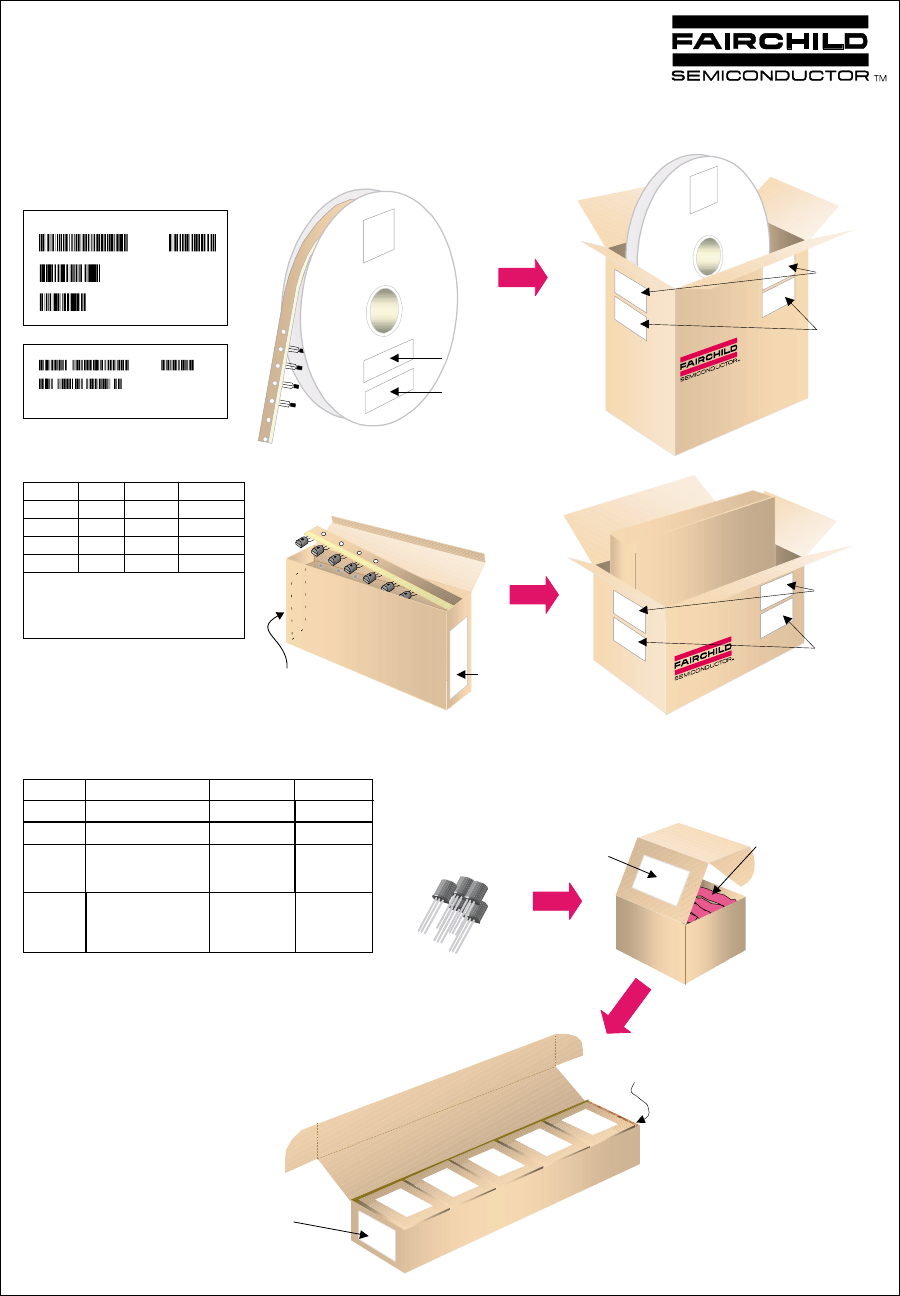

TO-92 Packaging
Configuration: Figure 1.0
AMMO PACK OPTION
See Fig 3.0 for 2 Ammo
Pack Options
2000 units per
EO70 box for
std option
FSCINT Label
530mm x 130mm x
83mm
Intermediate box
10,000 units maximum
per
intermediate box
for std option
FSCINT Label
114mm x 102mm x 51mm
Immediate Box
Anti-static
Bubble Sheets
(TO-92) BULK PACKING INFORMATION
EOL
CODE DESCRIPTION LEADCLIP
DIMENSION QUANTITY
J18Z TO-18 OPTION STD NO LEAD CLIP 2.0 K / BOX
J05Z TO-5 OPTION STD NO LEAD CLIP 1.5 K / BOX
NO EOL
CODE TO-92 STANDARD
STRAIGHT FOR: PKG 92, NO LEADCLIP 2.0 K / BOX
BULK OPTION
See Bulk Packing
Information table
375mm x 267mm x 375mm
Intermediate Box
FSCINT
Label
Customized
Label
333mm x 231mm x 183mm
Intermediate Box
FSCINT
Label
Customized
Label
TO-92 TNR/AMMO PACKING INFROMATION
Packing Style Quantity EOL code
Reel A 2,000 D26Z
E2,000 D27Z
Ammo M 2,000 D74Z
P2,000 D75Z
Unit weight = 0.22 gm
Reel weight with components = 1.04 kg
Ammo weight with components = 1.02 kg
Max quantity per intermediate box = 10,000 units
F63TNR
Label
5 Ammo boxes per
Intermediate Box
Customized
Label
327mm x 158mm x 135mm
Immediate Box
LOT:
CBVK741B019
NSID:
PN2222N
D/C1:
D9842
SPEC REV:
B2
SPEC:
QTY:
10000
QA REV:
FAIRCHILD SEMICONDUCTOR CORPORATION
HTB:B
(FSCINT)
F63TNR
Label
Customized
Label
5 Reels per
Intermediate Box
TAPE and REEL OPTION
See Fig 2.0 for various
Reeling Styles
LOT: CBVK741B019
FSID: PN222N
D/C1: D9842 QTY1: SPEC REV:
SPEC:
QTY: 2000
D/C2: QTY2: CPN: N/F: F (F63TNR)3
F63TNR Label sample
FSCINT Label sample
C
5 EO70 boxes per
intermediate Box
ustomized
Label
94 (NON PROELECTRON
SERIES), 96
L34Z TO-92 STANDARD
STRAIGHT FOR: PKG 94 NO LEADCLIP 2.0 K / BOX
(PROELECTRON SERIES
BCXXX, BFXXX, BSRXXX),
97, 98
![](asset-8.png)
TO-92 Tape and Reel Data, continued
September 1999, Rev. B

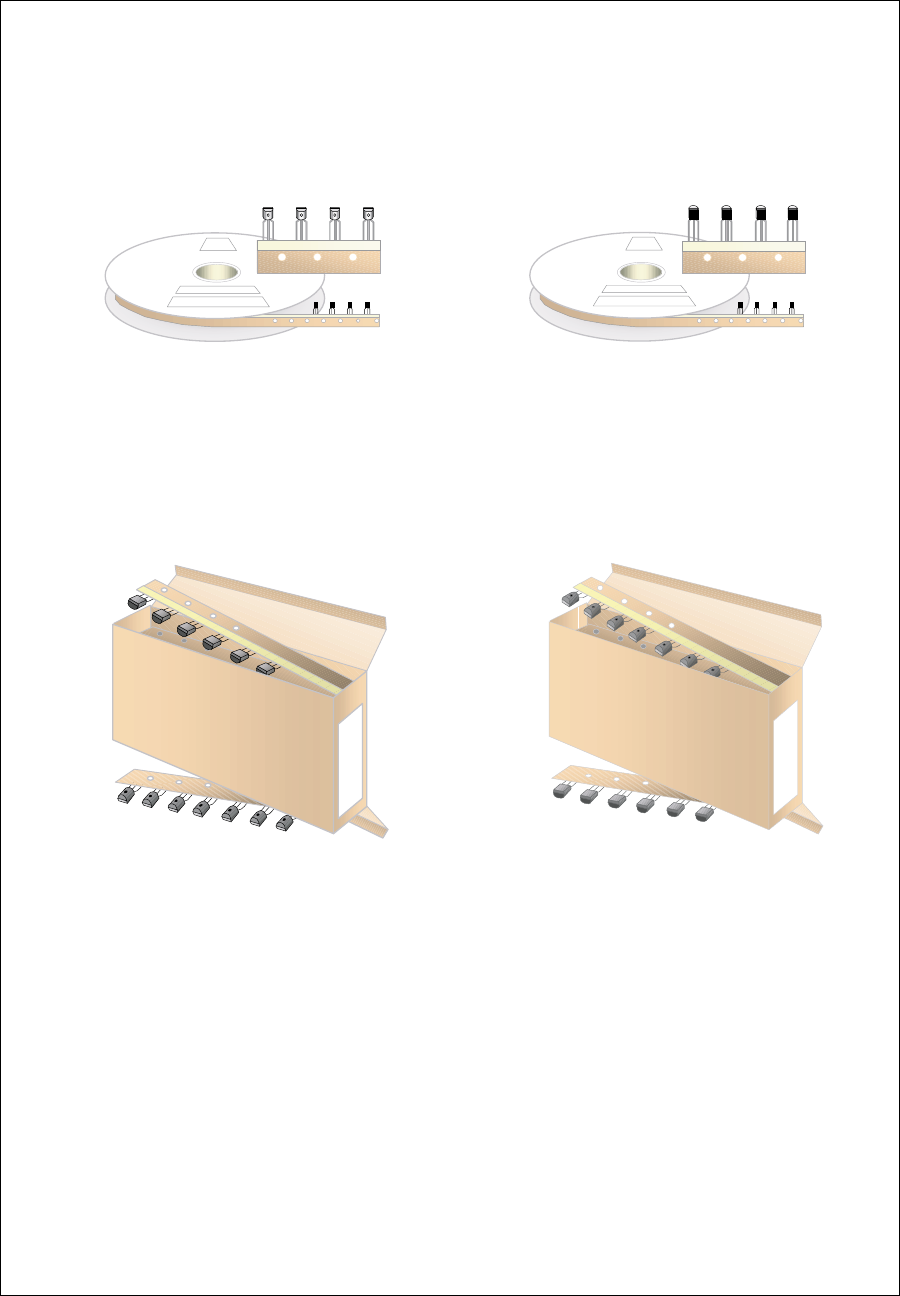

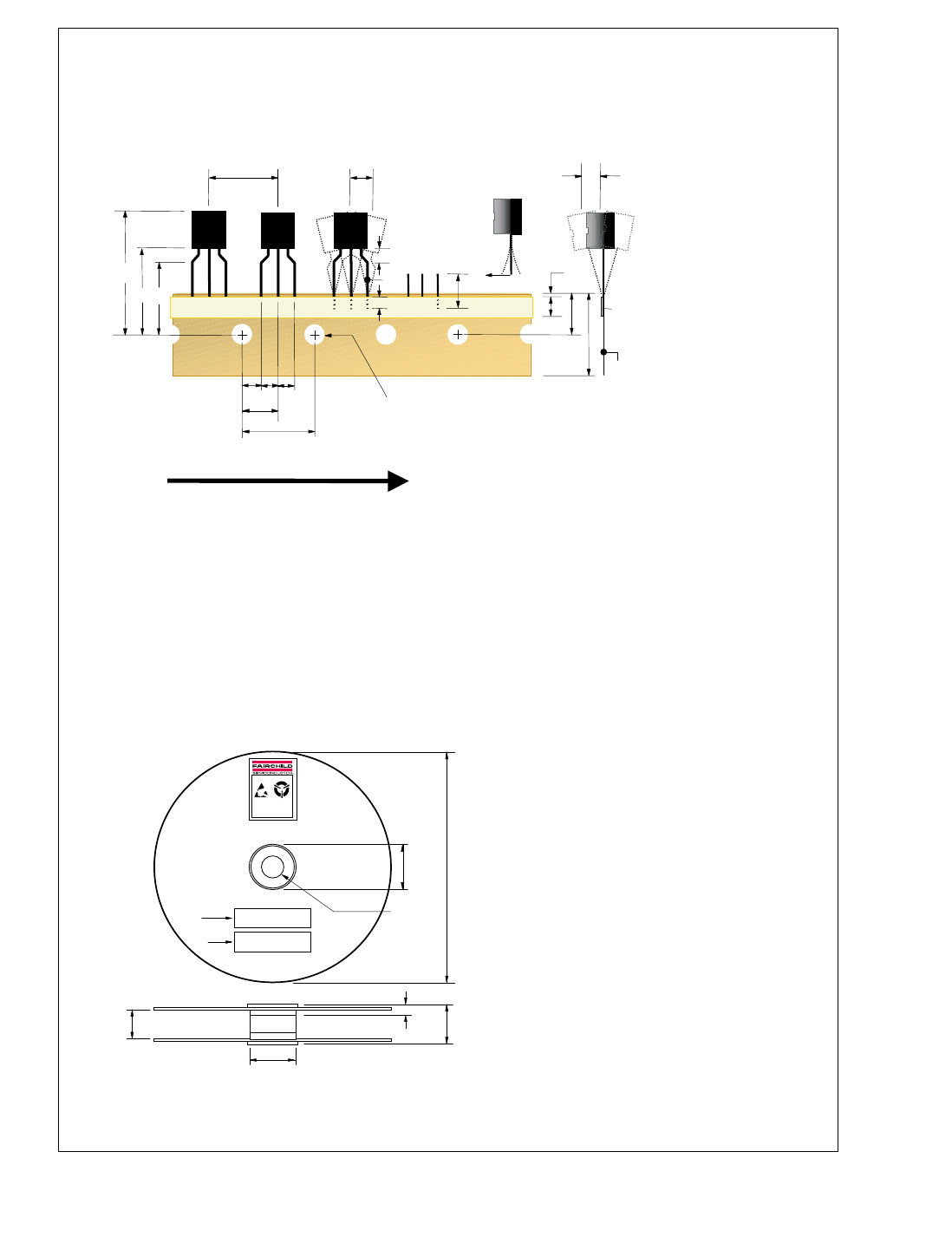

TO-92 Reeling Style
Configuration: Figure 2.0
Style “A”, D26Z, D70Z (s/h)
Machine Option “A” (H)
Style “E”, D27Z, D71Z (s/h)
Machine Option “E” (J)
FIRST WIRE OFF IS EMITTER
ADHESIVE TAPE IS ON THE TOP SIDE
FLAT OF TRANSISTOR IS ON BOTTOM
ORDER STYLE
D75Z (P)
FIRST WIRE OFF IS COLLECTOR
ADHESIVE TAPE IS ON THE TOP SIDE
FLAT OF TRANSISTOR IS ON TOP
ORDER STYLE
D74Z (M)
TO-92 Radial Ammo Packaging
Configuration: Figure 3.0
FIRST WIRE OFF IS EMITTER (ON PKG. 92)
ADHESIVE TAPE IS ON BOTTOM SIDE
FLAT OF TRANSISTOR IS ON BOTTOM
FIRST WIRE OFF IS COLLECTOR (ON PKG. 92)
ADHESIVE TAPE IS ON BOTTOM SIDE
FLAT OF TRANSISTOR IS ON TOP
![](asset-9.png)
ITEM DESCRIPTION
Base of Package to Lead Bend
Component Height
Lead Clinch Height
Component Base Height
Component Alignment ( side/side )
Component Alignment ( front/back )
Component Pitch
Feed Hole Pitch
Hole Center to First Lead
Hole Center to Component Center
Lead Spread
Lead Thickness
Cut Lead Length
Taped Lead Length
Taped Lead Thickness
Carrier Tape Thickness
Carrier Tape Width
Hold - down Tape Width
Hold - down Tape position
Feed Hole Position
Sprocket Hole Diameter
Lead Spring Out
SYMBOL
b
Ha
HO
H1
Pd
Hd
P
PO
P1
P2
F1/F2
d
L
L1
t
t1
W
WO
W1
W2
DO
S
DIMENSION
0.098 (max)
0.928 (+/- 0.025)
0.630 (+/- 0.020)
0.748 (+/- 0.020)
0.040 (max)
0.031 (max)
0.500 (+/- 0.020)
0.500 (+/- 0.008)
0.150 (+0.009, -0.010)
0.247 (+/- 0.007)
0.104 (+/- 0 .010)
0.018 (+0.002, -0.003)
0.429 (max)
0.209 (+0.051, -0.052)
0.032 (+/- 0.006)
0.021 (+/- 0.006)
0.708 (+0.020, -0.019)
0.236 (+/- 0.012)
0.035 (max)
0.360 (+/- 0.025)
0.157 (+0.008, -0.007)
0.004 (max)
Note : All dimensions are in inches.
ITEM DESCRIPTION SYSMBOL MINIMUM MAXIMUM
Reel Diameter D1 13.975 14.025
Arbor Hole Diameter (Standard) D2 1.160 1.200
(Small Hole) D2 0.650 0.700
Core Diameter D3 3.100 3.300
Hub Recess Inner Diameter D4 2.700 3.100
Hub Recess Depth W1 0.370 0.570
Flange to Flange Inner Width W2 1.630 1.690
Hub to Hub Center Width W3 2.090
Note: All dimensions are inches
TO-92 Tape and Reel Taping
Dimension Configuration: Figure 4.0
Ha
H1 HO
PO
P2
P1 F1
DO
P Pd
b
d
L1
LS
WO W2
W
t
t1
Hd
W1
TO-92 Reel
Configuration: Figure 5.0
User Direction of Feed
SENSITIVE DEVICES
ELECTROSTATIC
D1
D3
Customized Label
W2
W1
W3
F63TNR Label
D4
D2
TO-92 Tape and Reel Data, continued
July 1999, Rev. A
![](asset-a.png)

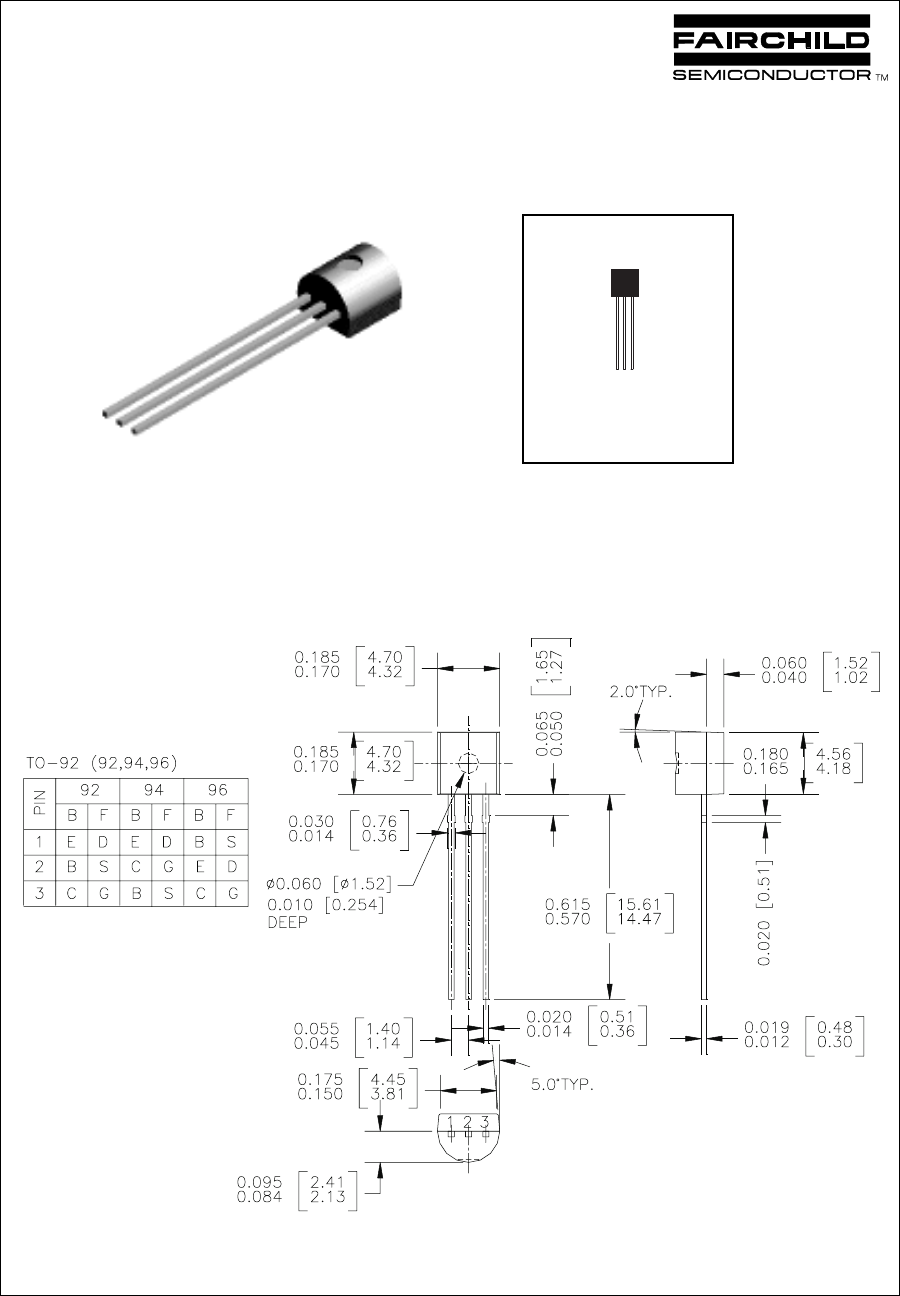

TO-92 (FS PKG Code 92, 94, 96)
TO-92 Package Dimensions
January 2000, Rev. B
1:1
Scale 1:1 on letter size paper
Dimensions shown below are in:
inches [millimeters]
Part Weight per unit (gram): 0.1977
©2000 Fairchild Semiconductor International
![](asset-b.png)

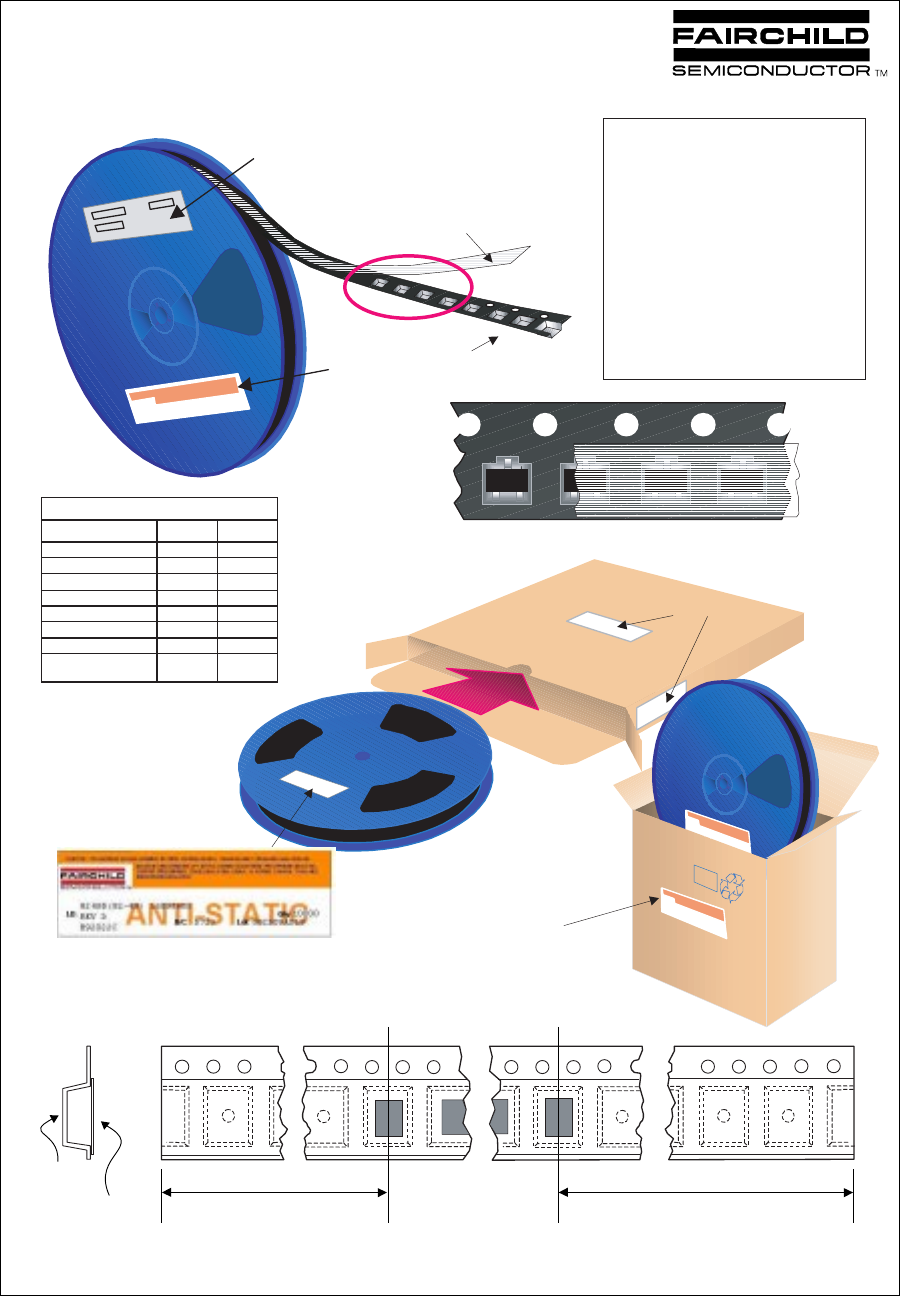

SOT-23 Packaging
Configuration: Figure 1.0
Components Leader Tape
500mm minimum or
125 empty pockets
Trailer Tape
300mm minimum or
75 empty pockets
SOT-23 Tape Leader and Trailer
Configuration: Figure 2.0
Cover Tape
Carrier Tape
Note/Comments
Packaging Option
SOT-23 Packaging Information
Standard
(no flow code) D87Z
Packaging type
Reel Size
TNR
7" Dia
TNR
13"
Qty per Reel/Tube/Bag 3,000 10,000
Box Dimension (mm) 187x107x183 343x343x64
Max qty per Box 24,000 30,000
Weight per unit (gm) 0.0082 0.0082
Weight per Reel (kg) 0.1175 0.4006
Human readable
Label
Human Readable Label
Human Readable Label sample
343mm x 342mm x 64mm
Intermediate box for L87Z Option
187mm x 107mm x 183mm
Intermediate Box for Standard Option
SOT-23 Unit Orientation
3P 3P 3P 3P
Human Readable
Label
Customized Label
Embossed
Carrier Tape
Antistatic Cover Tape
Packaging Description:
SOT-23
made from a dissipative (carbon filled) polycarbonate
resin. The cover tape is a multilayer film (Heat Activated
Adhesive in nature) primarily composed of polyester film,
adhesive layer, sealant, and anti-static sprayed agent.
These reeled parts in standard option are shipped with
3,000 units per 7" or 177cm diameter reel. The reels are
dark blue in color and is made of polystyrene plastic (anti-
static coated). Other option comes in 10,000 units per 13"
or 330cm diameter reel. This and some other options are
described in the Packaging Information table.
These full reels are individually labeled and placed inside
a standard intermediate made of recyclable corrugated
brown paper with a Fairchil d logo printing. One pizza box
contains eight reels maximum. And these intermediate
boxes are placed inside a labeled shipping box which
comes in different sizes depending on the number of parts
shipped.
parts are shipped in tape. The carrier tape is
SOT-23 Tape and Reel Data
September 1999, Rev. C
©2000 Fairchild Semiconductor International
![](asset-c.png)
Dimensions are in millimeter
Pkg type
A0 B0 W D0 D1 E1 E2 F P1 P0 K0 T Wc Tc
SOT-23
(8mm)
3.15
+/-0.10 2.77
+/-0.10 8.0
+/-0.3 1.55
+/-0.05 1.125
+/-0.125 1.75
+/-0.10 6.25
min 3.50
+/-0.05 4.0
+/-0.1 4.0
+/-0.1 1.30
+/-0.10 0.228
+/-0.013 5.2
+/-0.3 0.06
+/-0.02
Dimensions are in inches and millimeters
Tape Size Reel
Option Dim A Dim B Dim C Dim D Dim N Dim W1 Dim W2 Dim W3 (LSL-USL)
8mm 7" Dia 7.00
177.8 0.059
1.5 512 +0.020/-0.008
13 +0.5/-0.2 0.795
20.2 2.165
55 0.331 +0.059/-0.000
8.4 +1.5/0 0.567
14.4 0.311 – 0.429
7.9 – 10.9
8mm 13" Dia 13.00
330 0.059
1.5 512 +0.020/-0.008
13 +0.5/-0.2 0.795
20.2 4.00
100 0.331 +0.059/-0.000
8.4 +1.5/0 0.567
14.4 0.311 – 0.429
7.9 – 10.9
See detail AA
Dim A
max
13" Diameter Option
7" Diameter Option
Dim A
Max
See detail AA
W3
W2 max Measured at Hub
W1 Measured at Hub
Dim N
Dim D
min
Dim C
B Min
DETAIL AA
Notes: A0, B0, and K0 dimensions are determined with respect to the EIA/Jedec RS-481
rotational and lateral movement requirements (see sketches A, B, and C).
20 deg maximum component rotation
0.5mm
maximum
0.5mm
maximum
Sketch C (Top View)
Component lateral movement
Typical
component
cavity
center line
20 deg maximum
Typical
component
center line
B0
A0
Sketch B (Top View)
Component Rotation
Sketch A (Side or Front Sectional View)
Component Rotation
User Direction of Feed

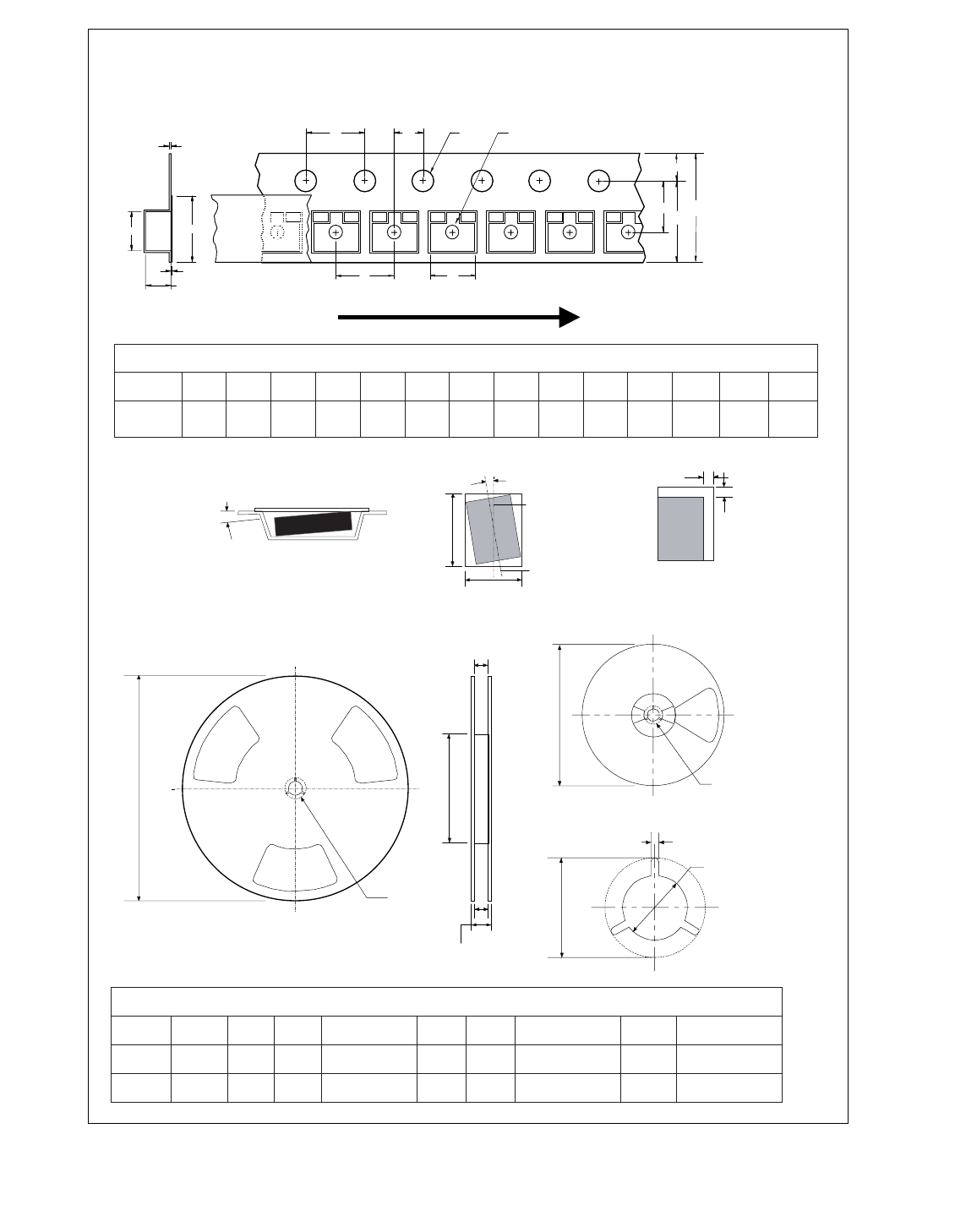

SOT-23 Embossed Carrier Tape
Configuration: Figure 3.0
SOT-23 Reel Configuration: Figure 4.0
P1 A0
D1
FW
E1
E2
Tc
Wc
K0
T
B0
D0P0 P2
SOT-23 Tape and Reel Data, continued
September 1999, Rev. C
![](asset-d.png)
SOT-23 (FS PKG Code 49)
SOT-23 Package Dimensions
September 1998, Rev. A1
1:1
Scale 1:1 on letter size paper
Dimensions shown below are in:
inches [millimeters]
Part Weight per unit (gram): 0.0082
©2000 Fairchild Semiconductor International
![](asset-e.png)
TRADEMARKS
The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is
not intended to be an exhaustive list of all such trademarks.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF FAIRCHILD SEMICONDUCTOR CORPORATION.
As used herein:
1. Life support devices or systems are devices or
systems which, (a) are intended for surgical implant into
the body, or (b) support or sustain life, or (c) whose
failure to perform when properly used in accordance
with instructions for use provided in the labeling, can be
reasonably expected to result in significant injury to the
user.
2. A critical component is any component of a life
support device or system whose failure to perform can
be reasonably expected to cause the failure of the life
support device or system, or to affect its safety or
effectiveness.
PRODUCT STATUS DEFINITIONS
Definition of Terms
Datasheet Identification Product Status Definition
Advance Information
Preliminary
No Identification Needed
Obsolete
This datasheet contains the design specifications for
product development. Specifications may change in
any manner without notice.
This datasheet contains preliminary data, and
supplementary data will be published at a later date.
Fairchild Semiconductor reserves the right to make
changes at any time without notice in order to improve
design.
This datasheet contains final specifications. Fairchild
Semiconductor reserves the right to make changes at
any time without notice in order to improve design.
This datasheet contains specifications on a product
that has been discontinued by Fairchild semiconductor.
The datasheet is printed for reference information only.
Formative or
In Design
First Production
Full Production
Not In Production
DISCLAIMER
FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER
NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. FAIRCHILD
DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT
OR CIRCUIT DESCRIBED HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT
RIGHTS, NOR THE RIGHTS OF OTHERS.
PowerTrench
QFET™
QS™
QT Optoelectronics™
Quiet Series™
SILENT SWITCHER
SMART START™
SuperSOT™-3
SuperSOT™-6
SuperSOT™-8
FASTr™
GlobalOptoisolator™
GTO™
HiSeC™
ISOPLANAR™
MICROWIRE™
OPTOLOGIC™
OPTOPLANAR™
PACMAN™
POP™
Rev. G
ACEx™
Bottomless™
CoolFET™
CROSSVOLT™
DOME™
E2CMOSTM
EnSignaTM
FACT™
FACT Quiet Series™
FAST
SyncFET™
TinyLogic™
UHC™
VCX™
