| 305
GRINDING MACHINES
Safe eye protection
The large protective perspex
guards provide effective protec-
tion against flying sparks.
Fatigue-free working
The workpiece supports can be
adjusted without tools, allowing
you to work accurately without
tiring.
Long service life
Grinding wheels of 200 mm diameter
last 50% longer than grinding wheels
of 175 mm diameter; grinding wheels
with a diameter of 250 last even
145 % longer.
ESSENTIAL FOR EVERY WORKSHOP.
Good tools are worth their weight in gold and should
always be in perfect working order. Rust needs to be
removed for example, or the screw driver needs to be
ground. Whether you want to clean, grind, deburr or
polish: Metabo has the right grinding machine for every
task.
Large eye shield guards
for optimum protection
from flying sparks.

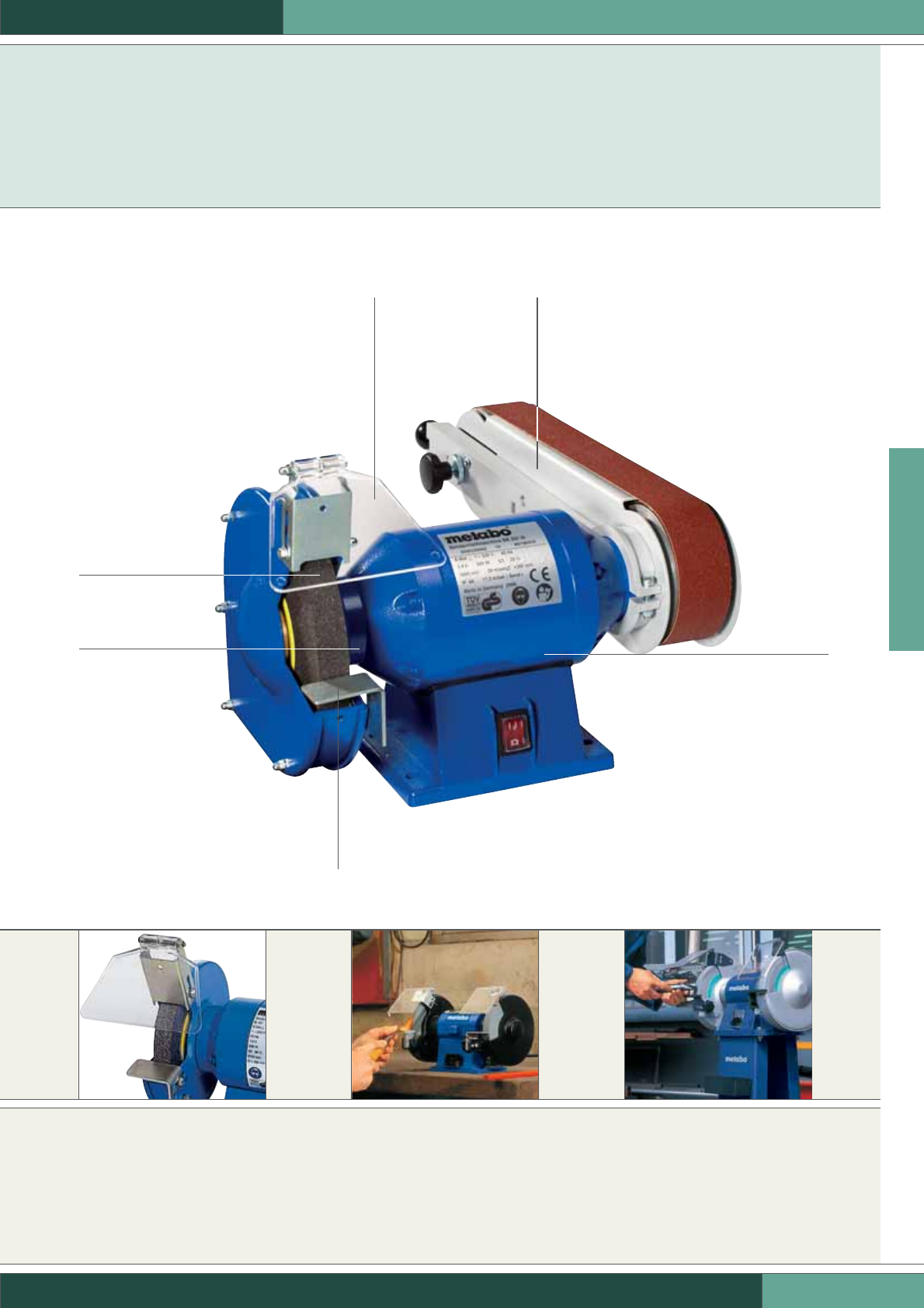

e.g. BS 200
Powerful induction
motor
for low-noise, mainte-
nance-free operation.
Rotor shaft mounted
on ball bearings
for long service life
of the machine.
Fully closed protective
cover.
450 mm adjustable
grinding arm.
Workpiece support can be
readjusted without tools.
WOOD PROCESSING
TECHNOLOGY
GRINDING MACHINES
COMPRESSED AIR SYSTEMSWATER AND PUMP TECHNOLOGY WELDING TECHNOLOGY
306 |
DS 125 W
DS 150 W
DS 175 DDS 175 W
GRINDING MACHINES
Special advantages
For single phase alternating
current
yyy
For three phase current y
Comparative device characteristics
Grinding wheels
(diameter x thickness x bore)
125 x 20 x 20 mm 150 x 20 x 20 mm 175 x 25 x 20 mm 175 x 25 x 20 mm
Bore with distance sleeve (Ø) 12 mm 13 mm 17 mm 17 mm
Rated input power 200 W 330 W 450 W 570 W
Maximum speed 2.950 /min 2.950 /min 2.950 /min 2.950 /min
Dimensions L x W x H 265 x 180 x 185 mm 325 x 190 x 200 mm 395 x 220 x 250 mm 395 x 220 x 250 mm
Base plate 137 x 147 mm 137 x 147 mm 147 x 187 mm 147 x 187 mm
Weight 5,5 kg 7,5 kg 12,5 kg 12,5 kg
Standard equipment Normal corundum grin-
ding wheels 36 P and
60 N, spark protection
glasses, workpiece
support
Normal corundum grin-
ding wheels 36 P and
60 N, spark protection
glasses, workpiece
support
Normal corundum grin-
ding wheels 36 P and
60 N, spark protection
glasses, workpiece
support
Normal corundum grin-
ding wheels 36 P and
60 N, spark protection
glasses, workpiece
support
Type DS 125 W DS 150 W DS 175 W DS 175 D
Order no. 0300012540 0300015034 0300017533 0300017541
EQUIPMENT FEATURES
For grinding, sharpening, deburring and removing rust on steel
and metal, kitchen appliances, tools and garden tools
Quiet, maintenance-free induction motor
Large spark protection guards for optimum protection from
flying sparks

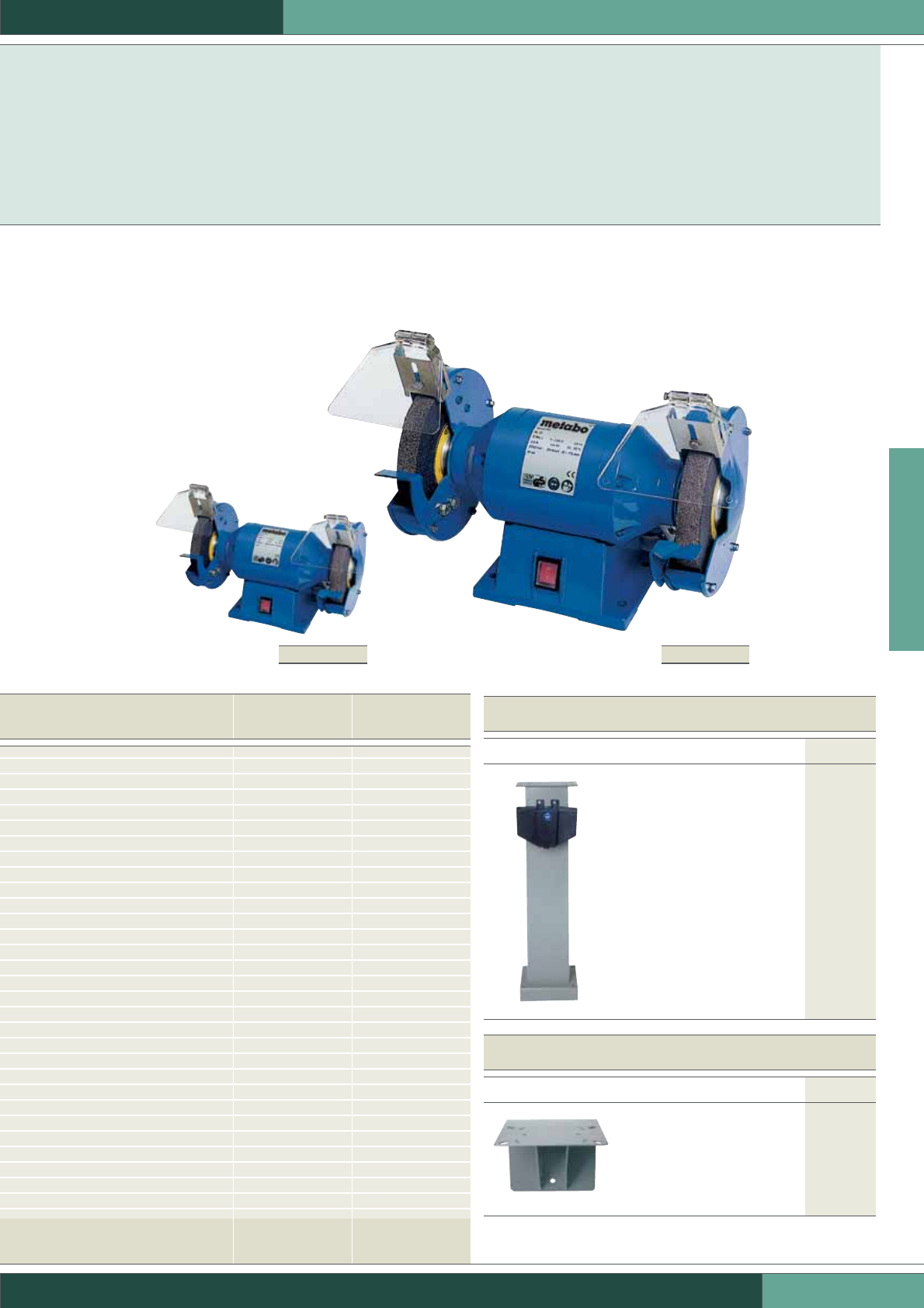

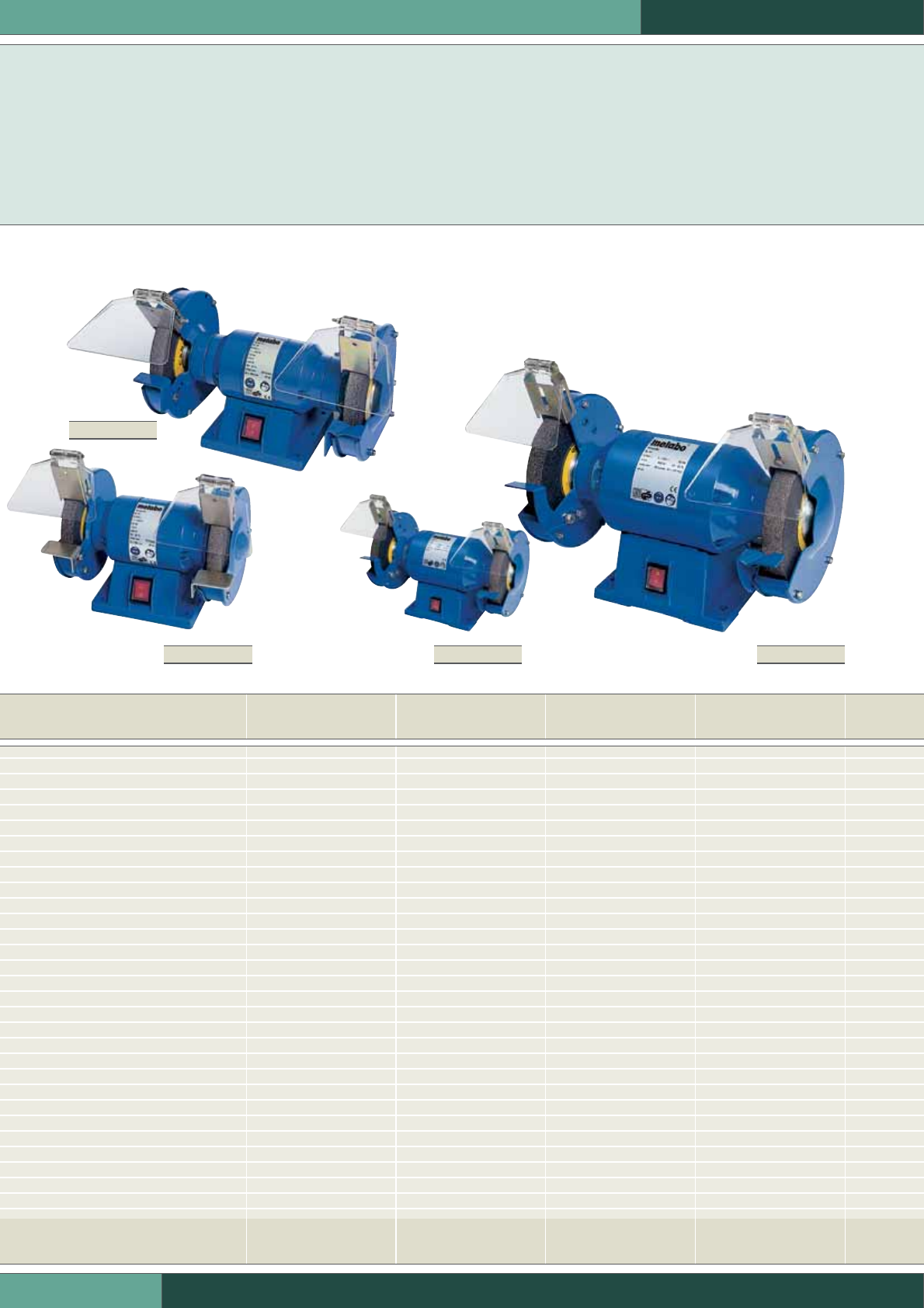

Bench grinder
DS 125 W
Bench grinder
DS 150 W
Bench grinder
DS 175 W
Bench grinder
DS 175 D
| 307
DS 200/25 W DS 200/25 D
GRINDING MACHINES
Special advantages
For single phase
alternating current
y
For three phase current y
Comparative device
characteristics
Grinding wheels (dia-
meter x thickness x bore)
200 x 25 x 20 mm 200 x 25 x 20 mm
Bore with distance sleeve (Ø)
17 mm 17 mm
Rated input power 580 W 740 W
Maximum speed 2.950 /min 2.950 /min
Dimensions L x W x H 420 x 255 x 265 mm 420 x 255 x 265 mm
Base plate 147 x 187 mm 147 x 187 mm
Weight 16 kg 16 kg
Standard equipment Normal corundum
grinding wheels
36 P and 60 N,
spark protection
glasses, workpiece
support
Normal corundum
grinding wheels
36 P and 60 N,
spark protection
glasses, workpiece
support
Type DS 200/25 W DS 200/25 D
Order no. 0300020003 0300020011
EQUIPMENT FEATURES
For grinding, sharpening, deburring and removing rust on steel
and metal, kitchen appliances, tools and garden tools
Quiet, maintenance-free induction motor
Large spark protection guards for optimum protection from
flying sparks
Bench grinder
DS 200/25 W
Bench grinder
DS 200/25 D Grinder stands
Order no.
Grinder stands
For all double, belt and wet
or dry grinding machines
Made of robust sheet steel
with water container
0900051204
Grinder bracket
Order no.
Grinder bracket
For all double, belt and wet
or dry grinding machines
Made of robust sheet steel
(wall mounting)
0900051212
WOOD PROCESSING
TECHNOLOGY
GRINDING MACHINES
COMPRESSED AIR SYSTEMSWATER AND PUMP TECHNOLOGY WELDING TECHNOLOGY
308 |
TNS 150 W
TNS 175 W
BS 200 W BS 200 D
Comparative device
characteristics
Grinding wheels (diameter x
Thickness x bore)
150 / 200 x 20 / 40
x 20 / 20 mm
175 / 200 x 25 / 40
x 20 / 20 mm
Bore with distance sleeve (Ø) 13/12 mm 17/12 mm
Rated input power 330 W 450 W
Maximum speed 2.750/126 /min 2.750/126 /min
Dimensions L x W x H 420 x 255 x
260 mm
490 x 260 x
285 mm
Base plate 137 x 147 mm 147 x 187 mm
Weight 8 kg 14 kg
Standard equipment Normal corundum
grinding wheels
60 N and wet
grinding disc,
workpiece sup-
port, spark protec-
tion glass
Normal corundum
grinding wheels
60 N and wet
grinding disc,
workpiece sup-
port, spark protec-
tion glass
Type TNS 150 W TNS 175 W
Order no. 0000415014 0000517526
EQUIPMENT FEATURES
For single phase alternating current
For grinding, sharpening, deburring and removing rust on steel
and metal, kitchen appliances, tools and garden tools
Quiet, maintenance-free induction motor
Large spark protection guards for optimum protection from flying
sparks
Corrosion-proof water bath container
Slow running, fine grained wet grinding disc and quick running
dry grinding disc

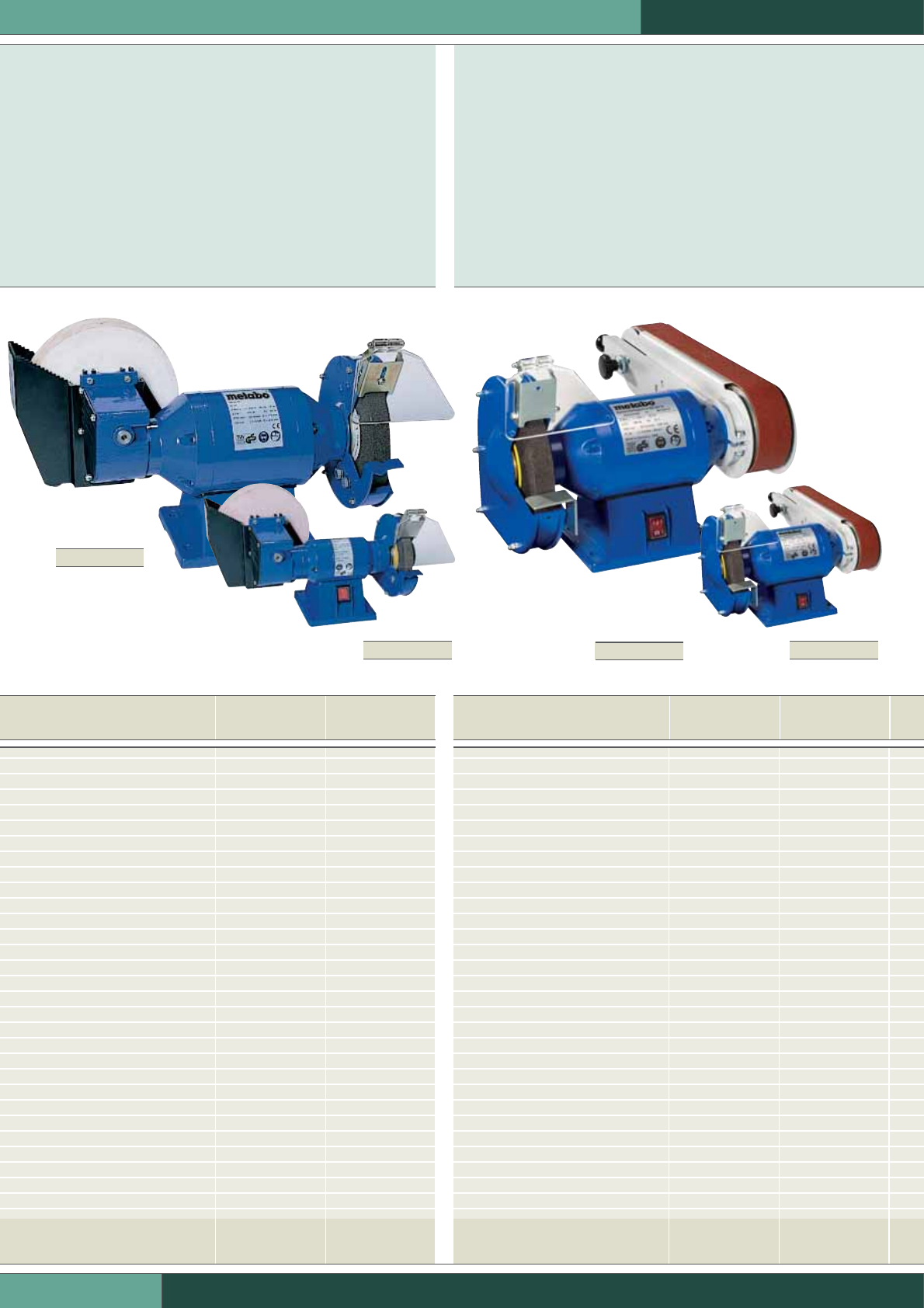

Dry-wet grinder
TNS 150 W
Dry-wet grinder
TNS 175 W
GRINDING MACHINES
Special advantages
For single phase alterna-
ting current
y
For three phase current y
Comparative device
characteristics
Grinding wheels (diameter x
thickness x bore)
200 x 25 x 20 mm 200 x 25 x 20 mm
Bore with distance sleeve (Ø) 17 mm 17 mm
Rated input power 580 W 740 W
Maximum speed 2.650 /min 2.950 /min
Belt length 450 mm 450 mm
Grinding belt 1.020 x 50 mm 1.020 x 50 mm
Dimensions L x W x H 420 x 255 x
265 mm
420 x 255 x
265 mm
Base plate 147 x 187 mm 147 x 187 mm
Weight 16 kg 16 kg
Standard equipment Normal corundum
grinding wheels
60 N and fabric
grinding belt K 60,
work piece sup-
port, spark protec-
tion glass
Normal corundum
grinding wheels
60 N and fabric
grinding belt K 60,
work piece sup-
port, spark protec-
tion glass
Type BS 200 W BS 200 D
Order no. 0000320005 0000320013
EQUIPMENT FEATURES
For grinding, sharpening, deburring and removing rust on
steel and metal, kitchen appliances, tools and garden tools
Quiet, maintenance-free induction motor
Large spark protection guards for optimum protection from
flying sparks
For finishing wood and metal workpieces
The belt sanding attachment can be operated in horizontal
and vertical positions
Belt sander
BS 200 W
Belt sander
BS 200 D
| 309
GRINDING DISCS
ACCESSORIES FOR GRINDING MACHINES
Grinding wheel, coarse
Suitable for: Pre-grinding,
Screwdrivers, Chisel, Splitting tools,
Unhardened metals
Diameter x thickness x bore
mm
Grit and
hardness
Order no.
120 x 20 x 20 36 P 0900025181
150 x 20 x 20 36 P 0900025262
175 x 25 x 20 36 P 0900025408
200 x 25 x 20 36 P 0900025513
Grinding wheels, fine
Suitable for: Finish grinding,
Screwdrivers, Chisel, Firmer chisels,
Turning chisels, Carving tools,
Splitting tools, Unhardened metals
Diameter x thickness x bore
mm
Grit and
hardness
Order no.
120 x 20 x 12 60 N 0900025254
120 x 20 x 20 60 N 0900025190
150 x 20 x 20 60 N 0900025270
175 x 25 x 20 60 N 0900025416
200 x 25 x 20 60 N 0900025521
Tungsten grinding wheels
Suitable for: Finish grinding, Hard metals, Grey cast iron, Copper,
Aluminium, Glass, Ceramic
Diameter x thickness x bore Grit and hard-
ness
Order no.
120 x 20 x 20 80 J 0900025203
150 x 20 x 20 80 M 0900025289
175 x 25 x 20 80 J 0900025424
200 x 25 x 20 80 J 0900025556
ACCESSORIES FOR DRY-WET GRINDERS
Wet grinding wheels
Suitable for: Finish grinding, Knife blades, Firmer
chisels, Turning chisels, Carving tools, Splitting tools,
Shears, Unhardened metals
Diameter x thickness x bore Order no.
150 x 30 x 20 0900025386
200 x 40 x 20 0900025653
ACCESSORIES FOR BELT GRINDING MACHINES
Sanding belts
Dimensions Grit Packing unit Order no.
50 x 650 P 60 3 0900025718
50 x 650 P 100 3 0900025726
50 x 650 P 150 3 0900025734
50 x 650 P 220 3 0900025742
50 x 650 P 400 3 0900025769
50 x 1.020 P 40 3 0900025777
50 x 1.020 P 60 3 0900025688
50 x 1.020 P 80 3 0900025696
50 x 1.020 P 100 3 0900025785
50 x 1.020 P 120 3 0900025700
50 x 1.020 P 180 3 0900025807
50 x 1.020 P 240 3 0900025823
50 x 1.020 P 400 3 0900025840
Dressing stick
Order no.
Dressing stick 100 x 25 x 13 mm
For the dressing of grinding wheels: blunt grinding
abrasives are removed
0900025858
Which grinding disc is suitable for which application?
Grinding disc, coarse Grinding disc, fine Tungsten grinding disc
Wet grinding disc
(natural stone, ceramics)
Rough sanding z
Finishing zzz
Screwdriver zz
Chisel zz
Knife blade z
Firmer chisel zz
Turning chisel zz
Carving knife zz
Splitting tool zz z
Shears z
Unhardened metals zz z
Hard metals z
Grey cast iron z
Copper z
Aluminium z
Glass z
Ceramics z
