REPAIR PARTSMODEL 30540x20E
1
BODY CHASSIS
2
3
4
5
6
7
8
9
10
11
12
13
14
13
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
32
19
35 37
35
38
39
33
41
42
43
43
44
45
46
47
42
48
3349
50
51
53
54
55
28
1
30
29
34
31
58
60
62
62
40
59
www.ersatzteil-service.de www.ersatzteilplan.de
Ihr Ersatzteilspezialist im Internet

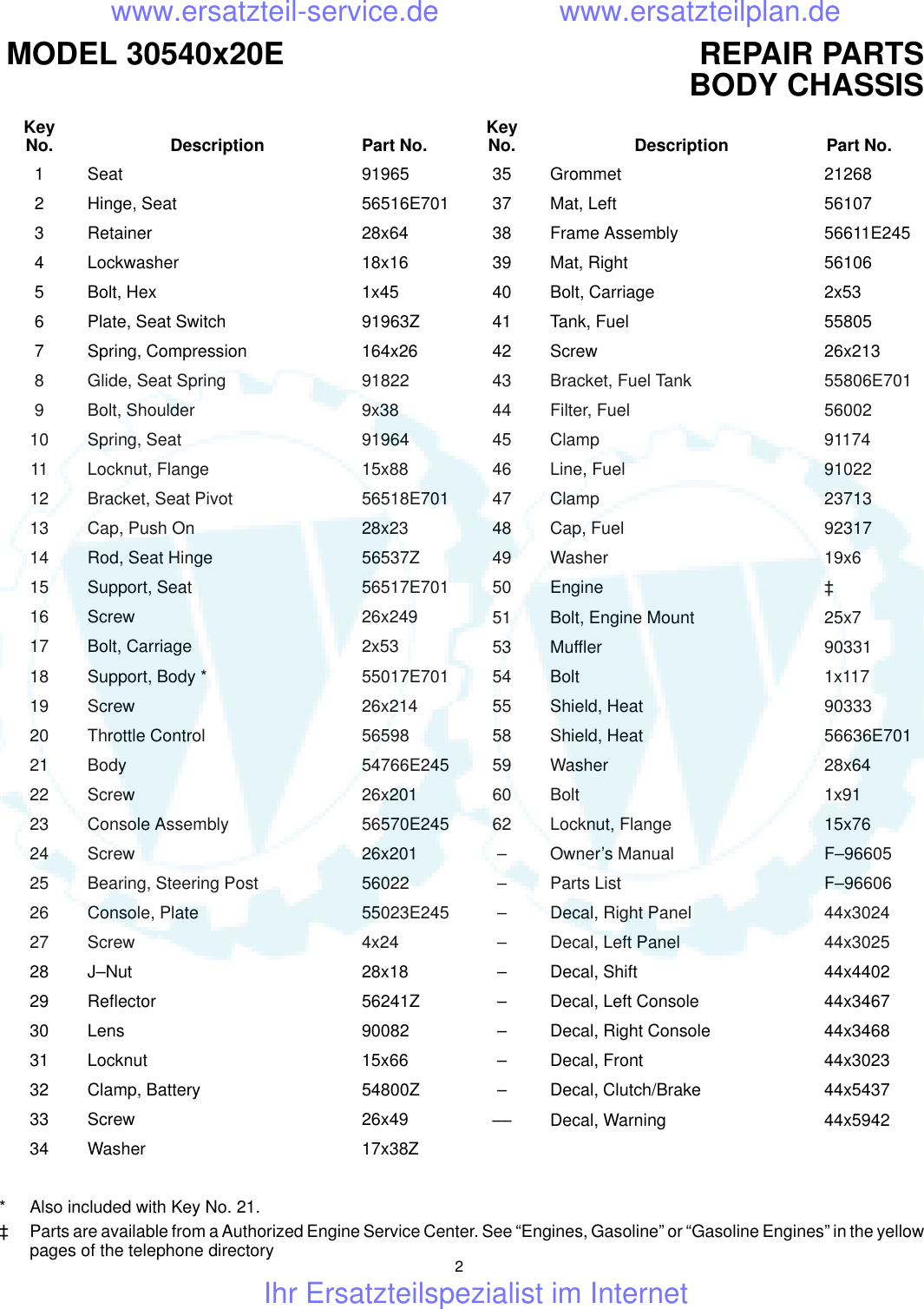

REPAIR PARTSMODEL 30540x20E
2
BODY CHASSIS
Key
No. Description Part No. Key
No. Description Part No.
1 Seat 91965
2 Hinge, Seat 56516E701
3 Retainer 28x64
4 Lockwasher 18x16
5 Bolt, Hex 1x45
6 Plate, Seat Switch 91963Z
7 Spring, Compression 164x26
8 Glide, Seat Spring 91822
9 Bolt, Shoulder 9x38
10 Spring, Seat 91964
11 Locknut, Flange 15x88
12 Bracket, Seat Pivot 56518E701
13 Cap, Push On 28x23
14 Rod, Seat Hinge 56537Z
15 Support, Seat 56517E701
16 Screw 26x249
17 Bolt, Carriage 2x53
18 Support, Body * 55017E701
19 Screw 26x214
20 Throttle Control 56598
21 Body 54766E245
22 Screw 26x201
23 Console Assembly 56570E245
24 Screw 26x201
25 Bearing, Steering Post 56022
26 Console, Plate 55023E245
27 Screw 4x24
28 J–Nut 28x18
29 Reflector 56241Z
30 Lens 90082
31 Locknut 15x66
32 Clamp, Battery 54800Z
33 Screw 26x49
34 Washer 17x38Z
35 Grommet 21268
37 Mat, Left 56107
38 Frame Assembly 56611E245
39 Mat, Right 56106
40 Bolt, Carriage 2x53
41 Tank, Fuel 55805
42 Screw 26x213
43 Bracket, Fuel Tank 55806E701
44 Filter, Fuel 56002
45 Clamp 91174
46 Line, Fuel 91022
47 Clamp 23713
48 Cap, Fuel 92317
49 Washer 19x6
50 Engine ‡
51 Bolt, Engine Mount 25x7
53 Muffler 90331
54 Bolt 1x117
55 Shield, Heat 90333
58 Shield, Heat 56636E701
59 Washer 28x64
60 Bolt 1x91
62 Locknut, Flange 15x76
– Owner’s Manual F–96605
– Parts List F–96606
– Decal, Right Panel 44x3024
– Decal, Left Panel 44x3025
– Decal, Shift 44x4402
– Decal, Left Console 44x3467
– Decal, Right Console 44x3468
– Decal, Front 44x3023
– Decal, Clutch/Brake 44x5437
–– Decal, Warning 44x5942
* Also included with Key No. 21.
‡ Parts are available from a Authorized Engine Service Center. See “Engines, Gasoline” or “Gasoline Engines” in the yellow
pages of the telephone directory
www.ersatzteil-service.de www.ersatzteilplan.de
Ihr Ersatzteilspezialist im Internet

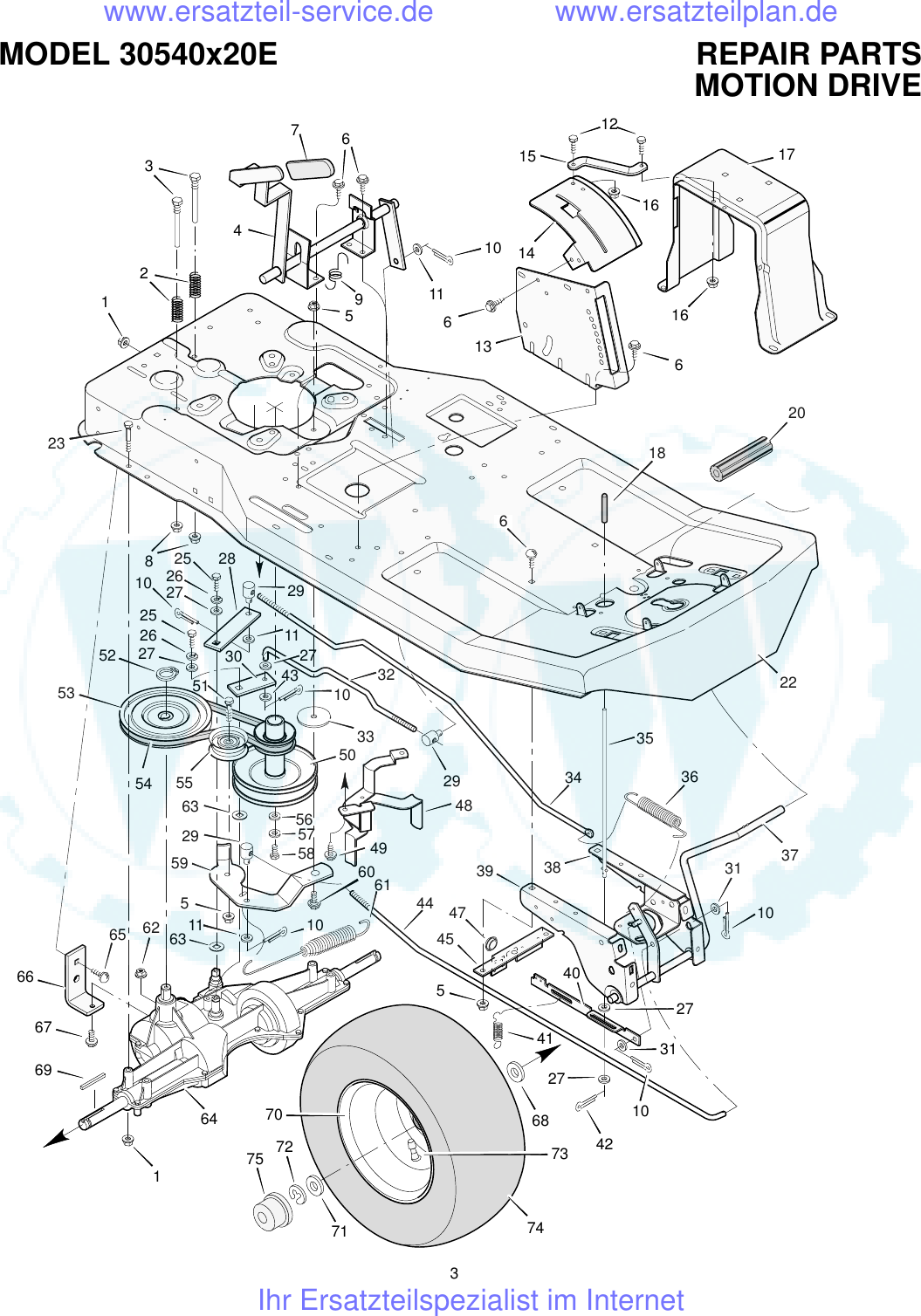

REPAIR PARTSMODEL 30540x20E
3
MOTION DRIVE
1
2
3
4
76
5
11
10
6
8
6
14
13
15
12
23
29
2825
26
27
10
25
26
27 11
10
52
53
54 55
51
30 32
33
50
29
48
34
49
6061 44
56
57
58
29
63
6311 10
5
59
66
67
65 62
64
1
69
75 72
70
71
73
74
68
42
27
41
10
31
27
40
45
47
31
10
37
36
35
22
39 38
20
18
6
16
17
16
43
27
5
9
www.ersatzteil-service.de www.ersatzteilplan.de
Ihr Ersatzteilspezialist im Internet

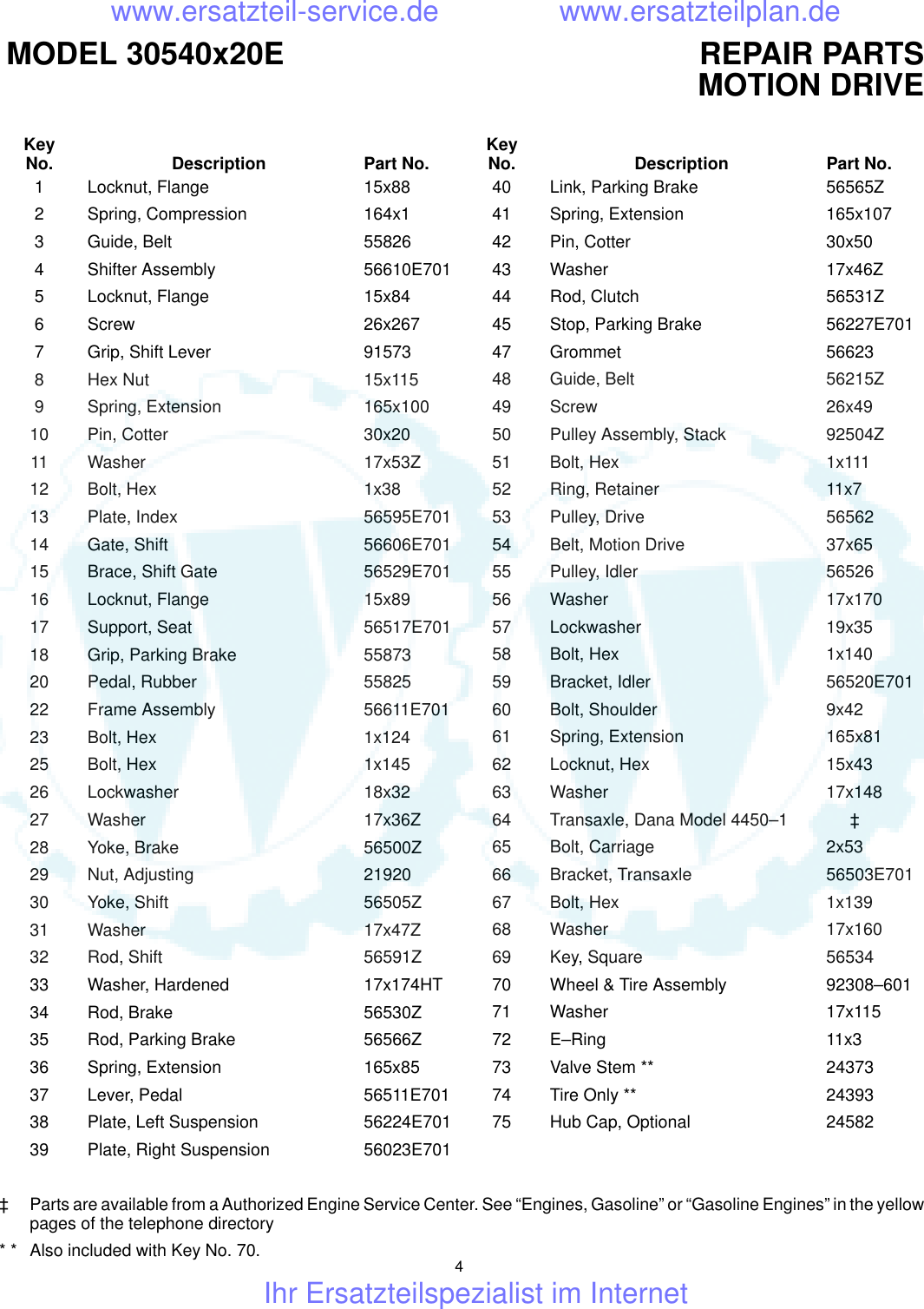

REPAIR PARTSMODEL 30540x20E
4
MOTION DRIVE
Key
No. Description Part No. Key
No. Description Part No.
1 Locknut, Flange 15x88
2 Spring, Compression 164x1
3 Guide, Belt 55826
4 Shifter Assembly 56610E701
5 Locknut, Flange 15x84
6 Screw 26x267
7 Grip, Shift Lever 91573
8 Hex Nut 15x115
9 Spring, Extension 165x100
10 Pin, Cotter 30x20
11 Washer 17x53Z
12 Bolt, Hex 1x38
13 Plate, Index 56595E701
14 Gate, Shift 56606E701
15 Brace, Shift Gate 56529E701
16 Locknut, Flange 15x89
17 Support, Seat 56517E701
18 Grip, Parking Brake 55873
20 Pedal, Rubber 55825
22 Frame Assembly 56611E701
23 Bolt, Hex 1x124
25 Bolt, Hex 1x145
26 Lockwasher 18x32
27 Washer 17x36Z
28 Yoke, Brake 56500Z
29 Nut, Adjusting 21920
30 Yoke, Shift 56505Z
31 Washer 17x47Z
32 Rod, Shift 56591Z
33 Washer, Hardened 17x174HT
34 Rod, Brake 56530Z
35 Rod, Parking Brake 56566Z
36 Spring, Extension 165x85
37 Lever, Pedal 56511E701
38 Plate, Left Suspension 56224E701
39 Plate, Right Suspension 56023E701
40 Link, Parking Brake 56565Z
41 Spring, Extension 165x107
42 Pin, Cotter 30x50
43 Washer 17x46Z
44 Rod, Clutch 56531Z
45 Stop, Parking Brake 56227E701
47 Grommet 56623
48 Guide, Belt 56215Z
49 Screw 26x49
50 Pulley Assembly, Stack 92504Z
51 Bolt, Hex 1x111
52 Ring, Retainer 11x7
53 Pulley, Drive 56562
54 Belt, Motion Drive 37x65
55 Pulley, Idler 56526
56 Washer 17x170
57 Lockwasher 19x35
58 Bolt, Hex 1x140
59 Bracket, Idler 56520E701
60 Bolt, Shoulder 9x42
61 Spring, Extension 165x81
62 Locknut, Hex 15x43
63 Washer 17x148
64 Transaxle, Dana Model 4450–1 ‡
65 Bolt, Carriage 2x53
66 Bracket, Transaxle 56503E701
67 Bolt, Hex 1x139
68 Washer 17x160
69 Key, Square 56534
70 Wheel & Tire Assembly 92308–601
71 Washer 17x115
72 E–Ring 11x3
73 Valve Stem ** 24373
74 Tire Only ** 24393
75 Hub Cap, Optional 24582
‡ Parts are available from a Authorized Engine Service Center. See “Engines, Gasoline” or “Gasoline Engines” in the yellow
pages of the telephone directory
* * Also included with Key No. 70.
www.ersatzteil-service.de www.ersatzteilplan.de
Ihr Ersatzteilspezialist im Internet

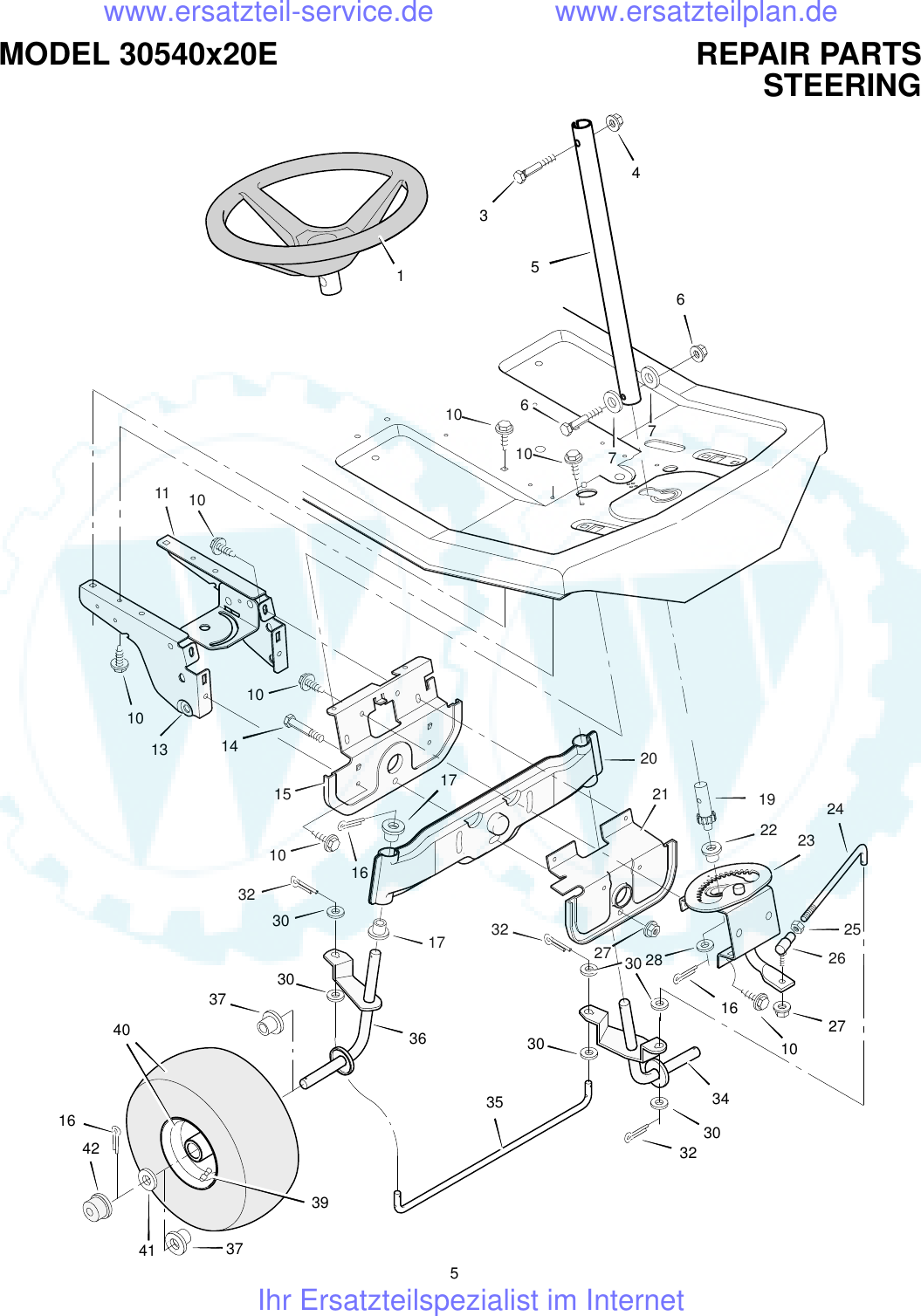

REPAIR PARTSMODEL 30540x20E
5
STEERING
1
3
4
6
6
5
10
10
11
19
22 23
24
25
26
27
10
34
16
28
30
30
32
32
30
27
21
20
17
17
32
30
30
36
35
10 16
15
14
10
10
10
13
37
37
40
39
16
41
42
7
7
www.ersatzteil-service.de www.ersatzteilplan.de
Ihr Ersatzteilspezialist im Internet

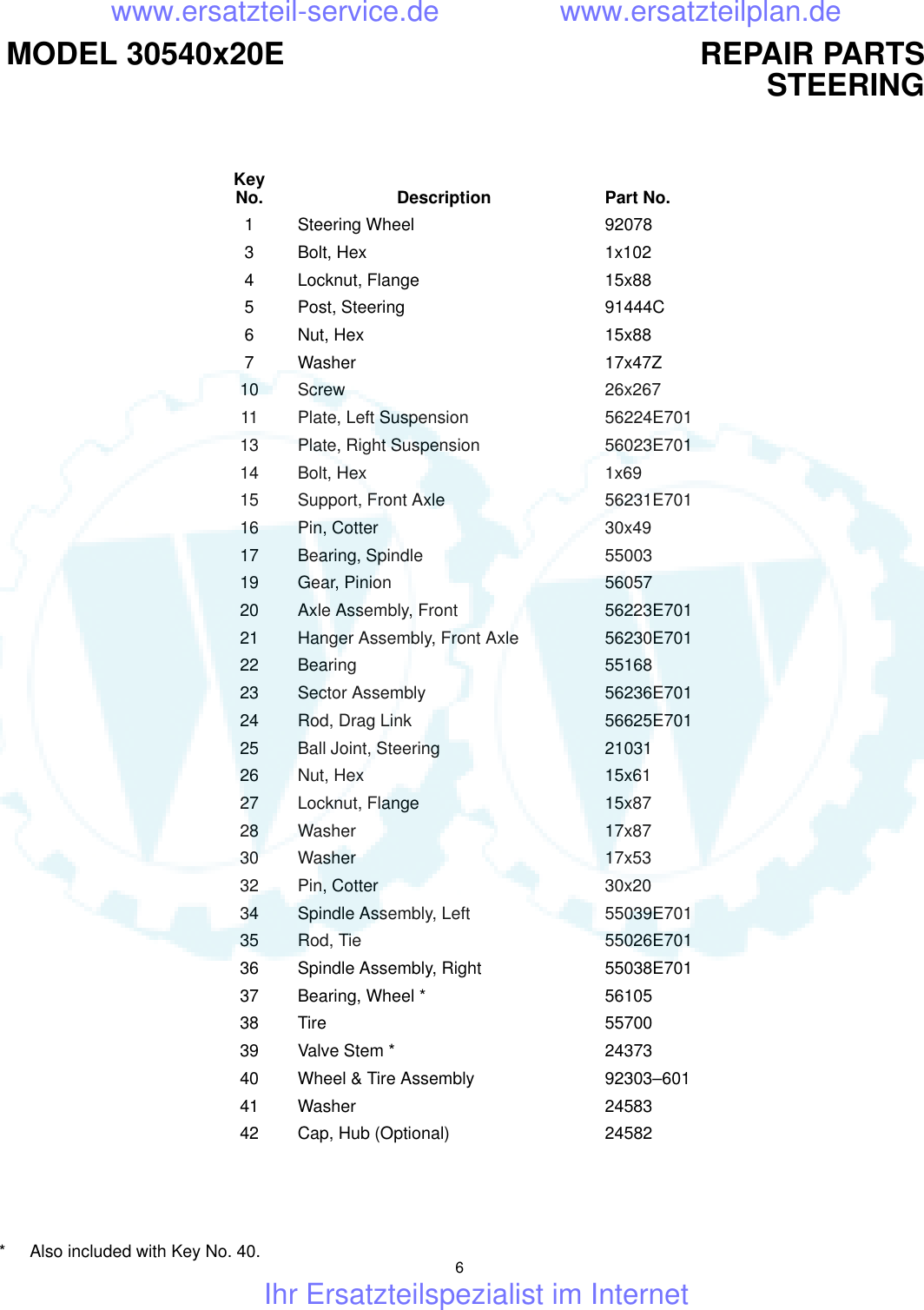

REPAIR PARTSMODEL 30540x20E
6
STEERING
Key
No. Description Part No.
1 Steering Wheel 92078
3 Bolt, Hex 1x102
4 Locknut, Flange 15x88
5 Post, Steering 91444C
6 Nut, Hex 15x88
7 Washer 17x47Z
10 Screw 26x267
11 Plate, Left Suspension 56224E701
13 Plate, Right Suspension 56023E701
14 Bolt, Hex 1x69
15 Support, Front Axle 56231E701
16 Pin, Cotter 30x49
17 Bearing, Spindle 55003
19 Gear, Pinion 56057
20 Axle Assembly, Front 56223E701
21 Hanger Assembly, Front Axle 56230E701
22 Bearing 55168
23 Sector Assembly 56236E701
24 Rod, Drag Link 56625E701
25 Ball Joint, Steering 21031
26 Nut, Hex 15x61
27 Locknut, Flange 15x87
28 Washer 17x87
30 Washer 17x53
32 Pin, Cotter 30x20
34 Spindle Assembly, Left 55039E701
35 Rod, Tie 55026E701
36 Spindle Assembly, Right 55038E701
37 Bearing, Wheel * 56105
38 Tire 55700
39 Valve Stem * 24373
40 Wheel & Tire Assembly 92303–601
41 Washer 24583
42 Cap, Hub (Optional) 24582
* Also included with Key No. 40.
www.ersatzteil-service.de www.ersatzteilplan.de
Ihr Ersatzteilspezialist im Internet

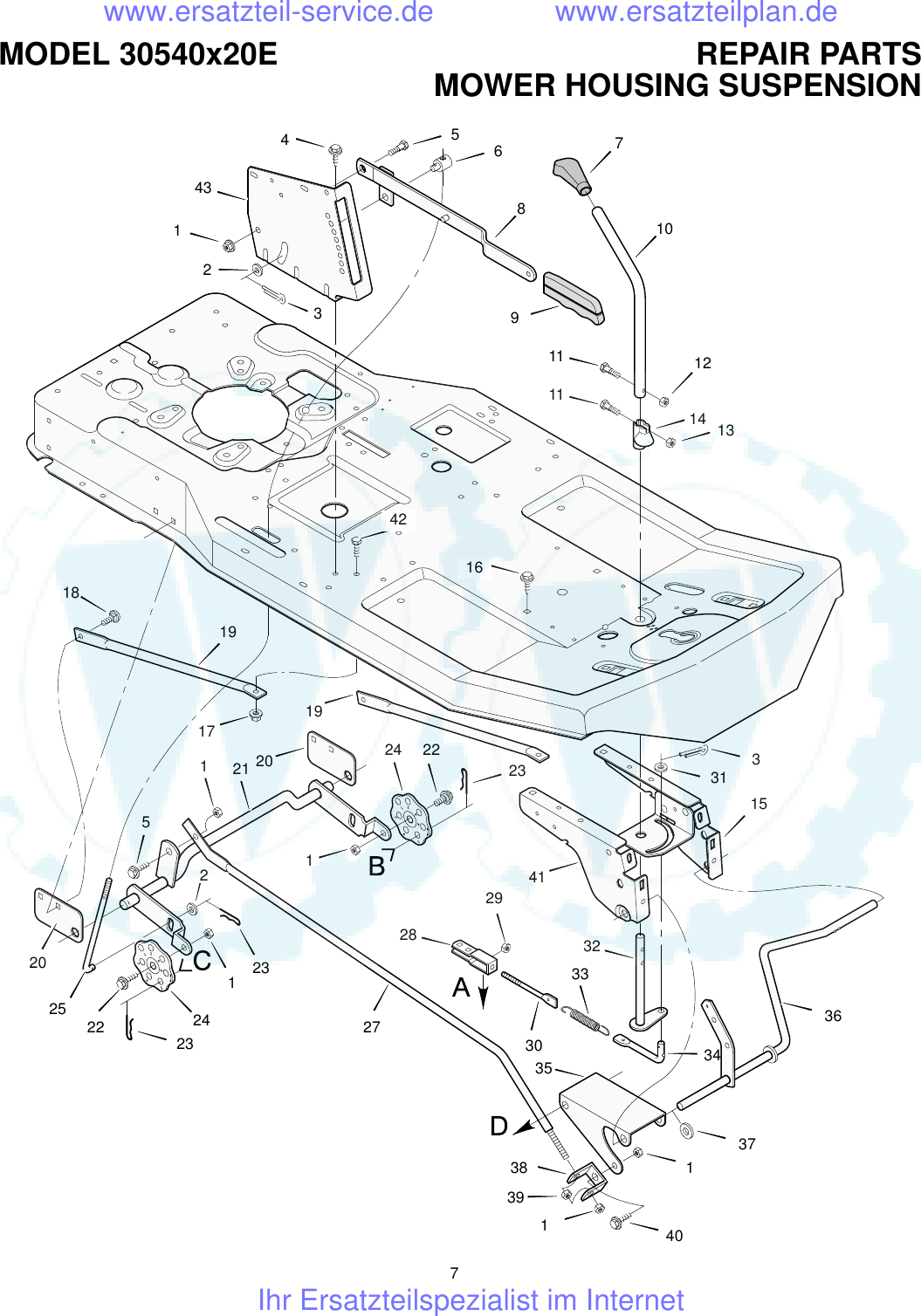

REPAIR PARTSMODEL 30540x20E
7
MOWER HOUSING SUSPENSION
1
2
3
456
8
9
7
10
11
11
12
13
3
31
15
41
32
16
42
36
37
34
35
38
39
140
1
30
33
28
29
2722 23
24
1
2
23
23
2224
1
25
20
20
21
1
17
18
19
19
43
5
14
www.ersatzteil-service.de www.ersatzteilplan.de
Ihr Ersatzteilspezialist im Internet

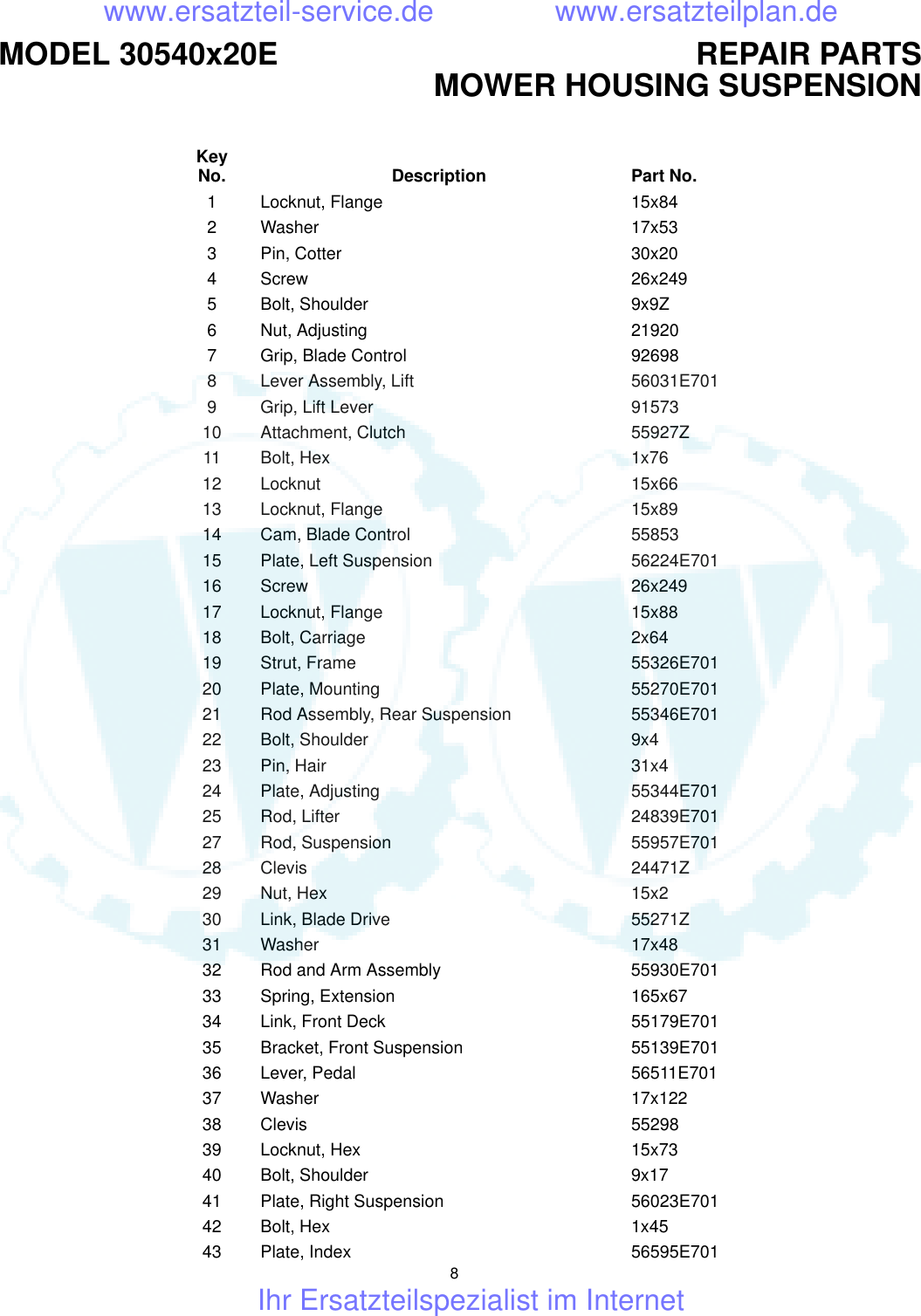

REPAIR PARTSMODEL 30540x20E
8
MOWER HOUSING SUSPENSION
Key
No. Description Part No.
1 Locknut, Flange 15x84
2 Washer 17x53
3 Pin, Cotter 30x20
4 Screw 26x249
5 Bolt, Shoulder 9x9Z
6 Nut, Adjusting 21920
7 Grip, Blade Control 92698
8 Lever Assembly, Lift 56031E701
9 Grip, Lift Lever 91573
10 Attachment, Clutch 55927Z
11 Bolt, Hex 1x76
12 Locknut 15x66
13 Locknut, Flange 15x89
14 Cam, Blade Control 55853
15 Plate, Left Suspension 56224E701
16 Screw 26x249
17 Locknut, Flange 15x88
18 Bolt, Carriage 2x64
19 Strut, Frame 55326E701
20 Plate, Mounting 55270E701
21 Rod Assembly, Rear Suspension 55346E701
22 Bolt, Shoulder 9x4
23 Pin, Hair 31x4
24 Plate, Adjusting 55344E701
25 Rod, Lifter 24839E701
27 Rod, Suspension 55957E701
28 Clevis 24471Z
29 Nut, Hex 15x2
30 Link, Blade Drive 55271Z
31 Washer 17x48
32 Rod and Arm Assembly 55930E701
33 Spring, Extension 165x67
34 Link, Front Deck 55179E701
35 Bracket, Front Suspension 55139E701
36 Lever, Pedal 56511E701
37 Washer 17x122
38 Clevis 55298
39 Locknut, Hex 15x73
40 Bolt, Shoulder 9x17
41 Plate, Right Suspension 56023E701
42 Bolt, Hex 1x45
43 Plate, Index 56595E701
www.ersatzteil-service.de www.ersatzteilplan.de
Ihr Ersatzteilspezialist im Internet

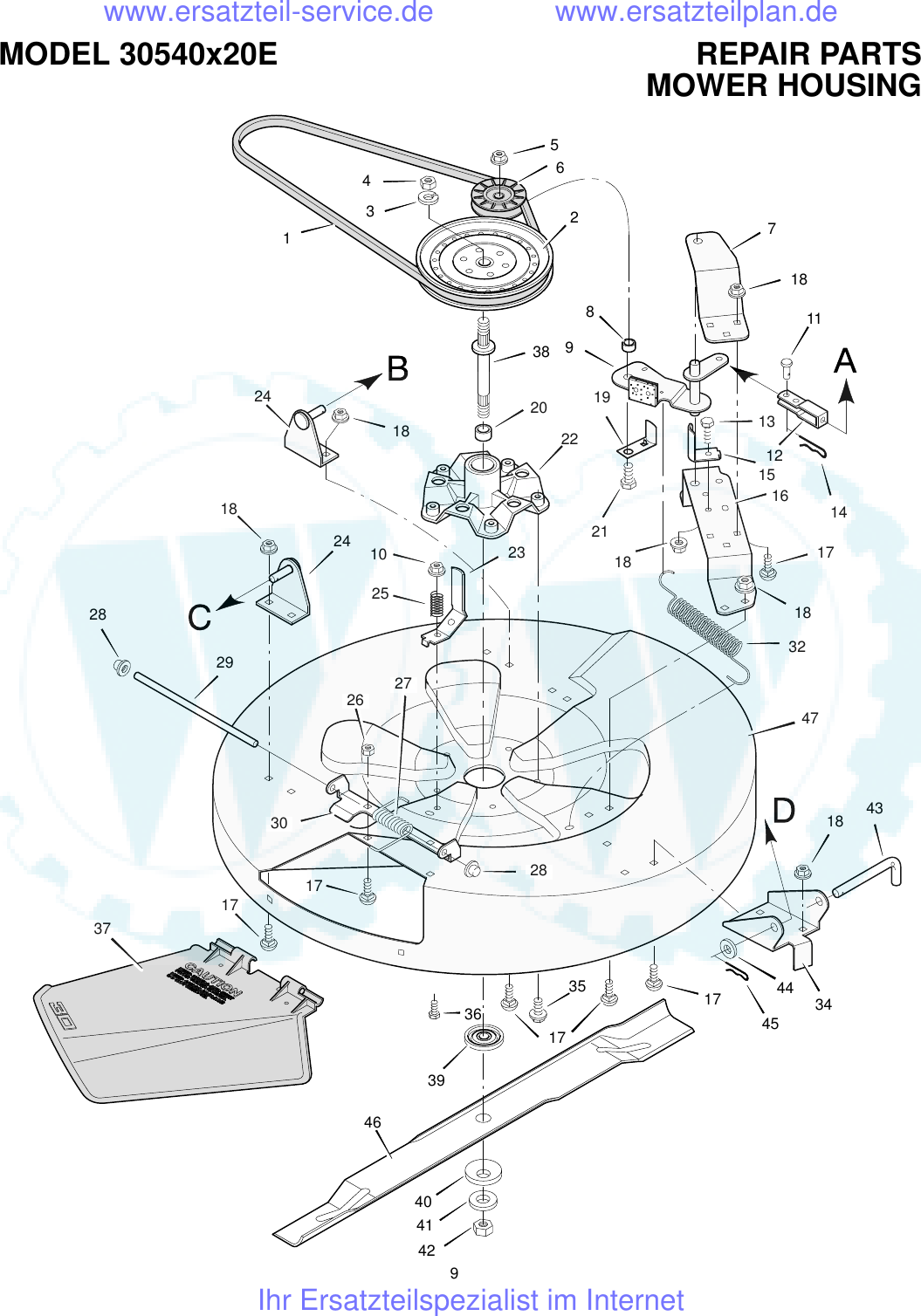

REPAIR PARTSMODEL 30540x20E
9
MOWER HOUSING
1
4
32
6
5
7
8
18
11
14
12
15
13
9
19
21
20
38
16
17
18
18
17
17
32
47
22
23
18
24
24
18
10
25
28
29
43
18
34
45
44
35
42
41
40
46
39
37
17
17
26 27
30
28
36
www.ersatzteil-service.de www.ersatzteilplan.de
Ihr Ersatzteilspezialist im Internet

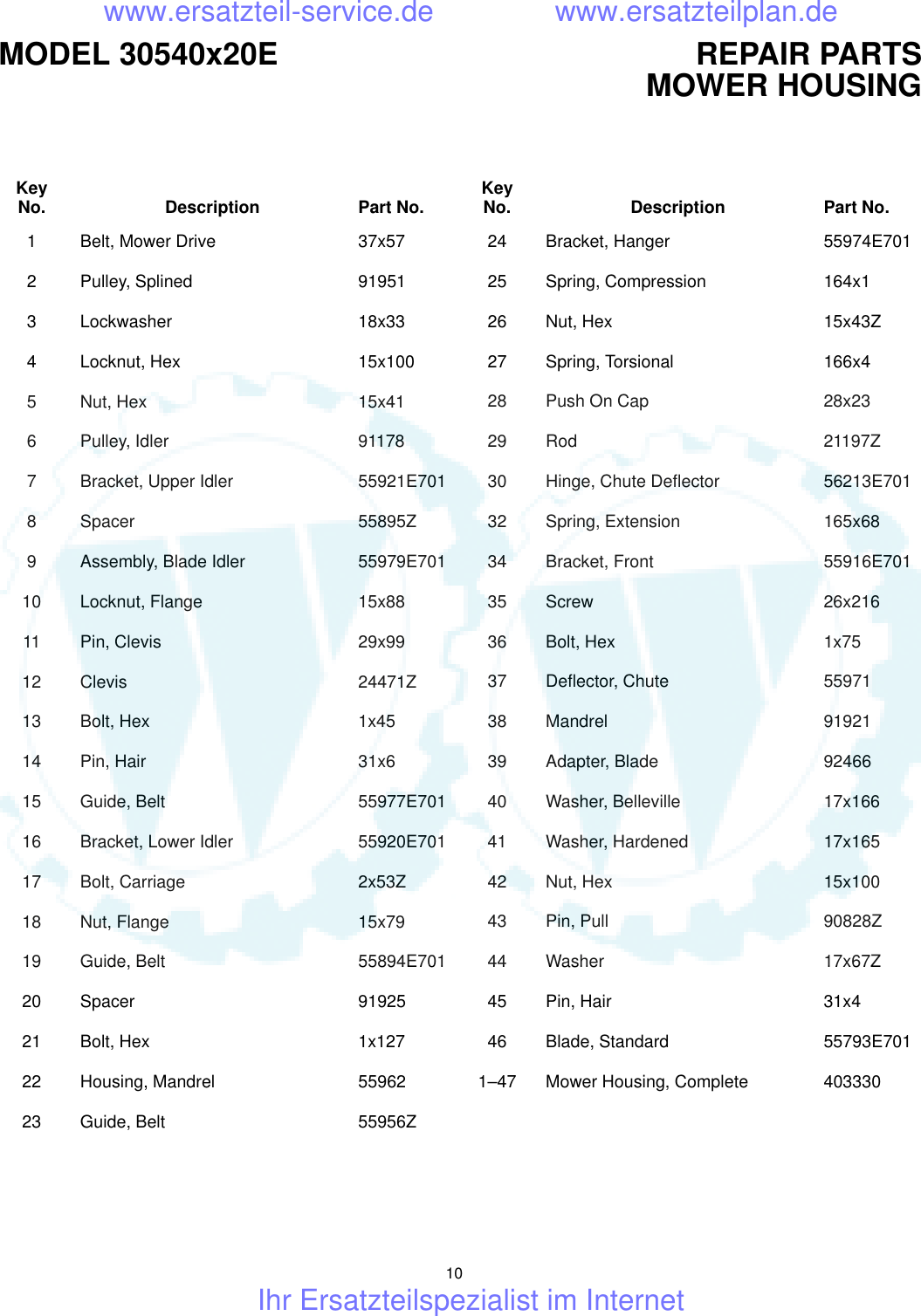

REPAIR PARTSMODEL 30540x20E
10
MOWER HOUSING
Key
No. Description Part No. Key
No. Description Part No.
1 Belt, Mower Drive 37x57
2 Pulley, Splined 91951
3 Lockwasher 18x33
4 Locknut, Hex 15x100
5 Nut, Hex 15x41
6 Pulley, Idler 91178
7 Bracket, Upper Idler 55921E701
8 Spacer 55895Z
9 Assembly, Blade Idler 55979E701
10 Locknut, Flange 15x88
11 Pin, Clevis 29x99
12 Clevis 24471Z
13 Bolt, Hex 1x45
14 Pin, Hair 31x6
15 Guide, Belt 55977E701
16 Bracket, Lower Idler 55920E701
17 Bolt, Carriage 2x53Z
18 Nut, Flange 15x79
19 Guide, Belt 55894E701
20 Spacer 91925
21 Bolt, Hex 1x127
22 Housing, Mandrel 55962
23 Guide, Belt 55956Z
24 Bracket, Hanger 55974E701
25 Spring, Compression 164x1
26 Nut, Hex 15x43Z
27 Spring, Torsional 166x4
28 Push On Cap 28x23
29 Rod 21197Z
30 Hinge, Chute Deflector 56213E701
32 Spring, Extension 165x68
34 Bracket, Front 55916E701
35 Screw 26x216
36 Bolt, Hex 1x75
37 Deflector, Chute 55971
38 Mandrel 91921
39 Adapter, Blade 92466
40 Washer, Belleville 17x166
41 Washer, Hardened 17x165
42 Nut, Hex 15x100
43 Pin, Pull 90828Z
44 Washer 17x67Z
45 Pin, Hair 31x4
46 Blade, Standard 55793E701
1–47 Mower Housing, Complete 403330
www.ersatzteil-service.de www.ersatzteilplan.de
Ihr Ersatzteilspezialist im Internet

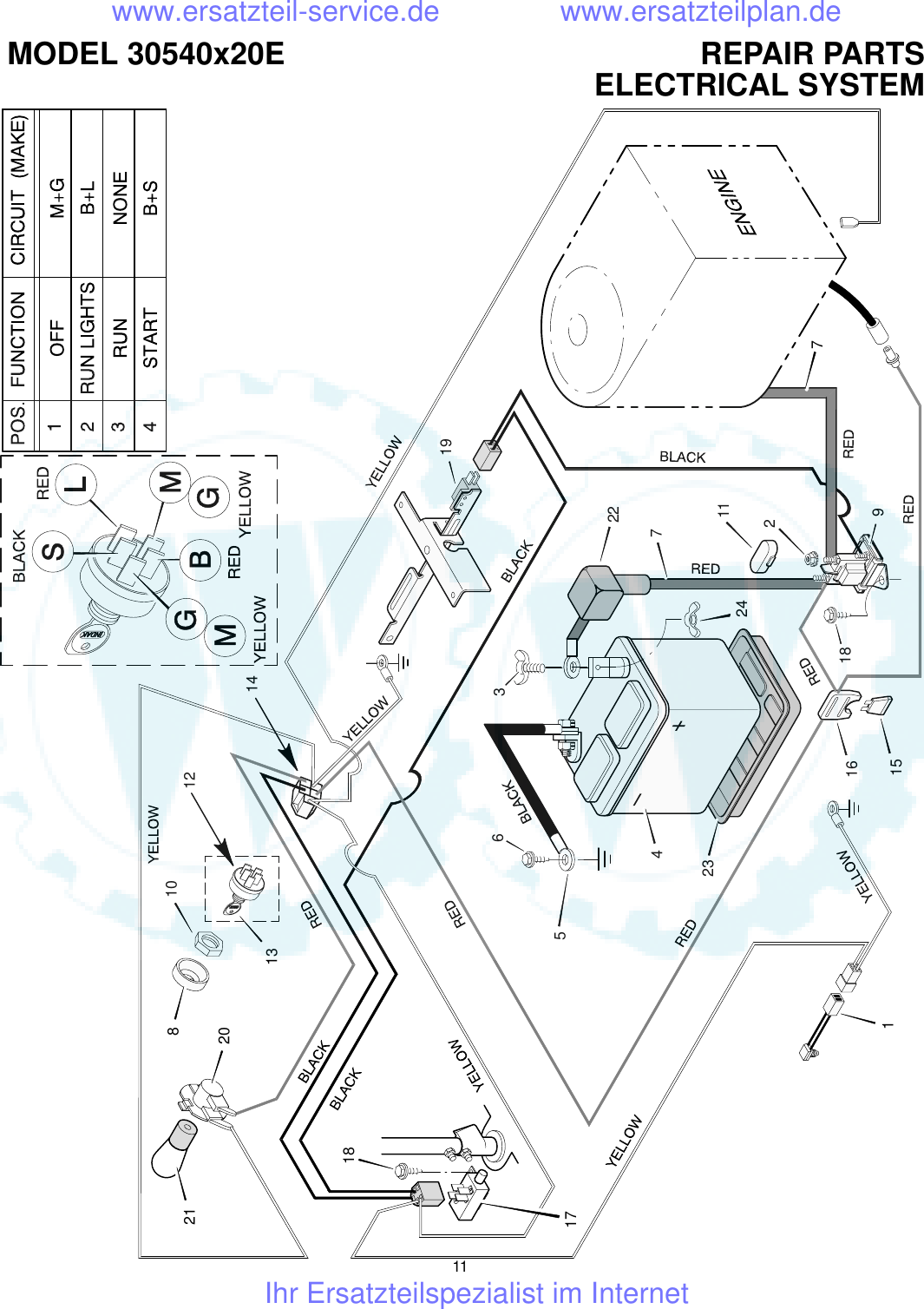

REPAIR PARTSMODEL 30540x20E
11
ELECTRICAL SYSTEM
1
2
4
5
6
7
8
9
23
7
12
13
14
15
16
17
18
19
20
21
22
18
10
11
3
24
www.ersatzteil-service.de www.ersatzteilplan.de
Ihr Ersatzteilspezialist im Internet

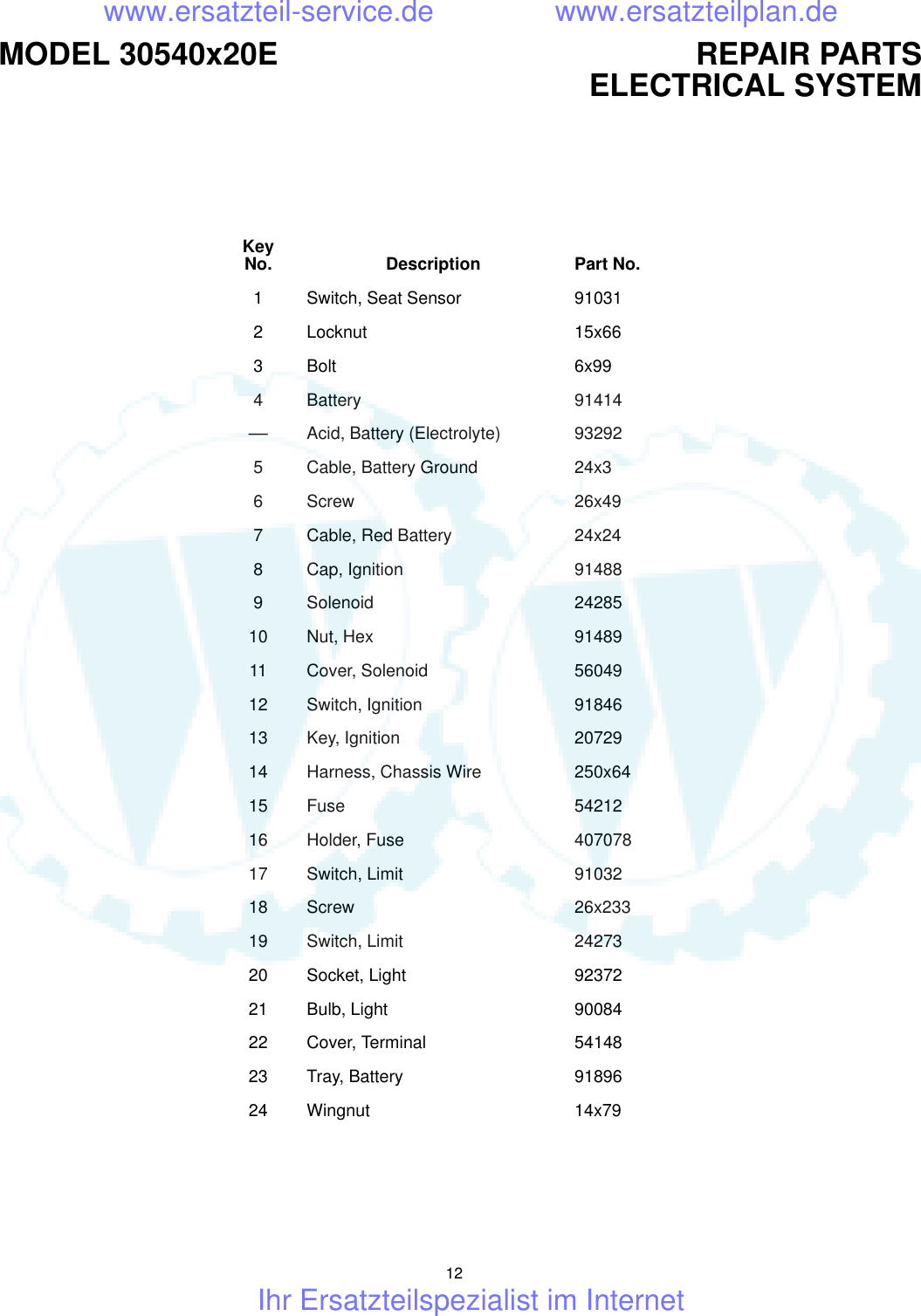

REPAIR PARTSMODEL 30540x20E
12
ELECTRICAL SYSTEM
Key
No. Description Part No.
1 Switch, Seat Sensor 91031
2 Locknut 15x66
3 Bolt 6x99
4 Battery 91414
–– Acid, Battery (Electrolyte) 93292
5 Cable, Battery Ground 24x3
6 Screw 26x49
7 Cable, Red Battery 24x24
8 Cap, Ignition 91488
9 Solenoid 24285
10 Nut, Hex 91489
11 Cover, Solenoid 56049
12 Switch, Ignition 91846
13 Key, Ignition 20729
14 Harness, Chassis Wire 250x64
15 Fuse 54212
16 Holder, Fuse 407078
17 Switch, Limit 91032
18 Screw 26x233
19 Switch, Limit 24273
20 Socket, Light 92372
21 Bulb, Light 90084
22 Cover, Terminal 54148
23 Tray, Battery 91896
24 Wingnut 14x79
www.ersatzteil-service.de www.ersatzteilplan.de
Ihr Ersatzteilspezialist im Internet
