For portable Airless Spraying of Architectural Coatings and Paints. Not approved for use in
European explosive atmosphere locations. For professional use only.
3300 psi (22.8 MPa, 228 bar) Maximum Working Pressure
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions.
Model Series Description
248691 A Standard
248692 A Premium
248693 A Standard, with electric motor kit
248694 A Same as 248693 except with ETL
approval to CSA and UL standards
248695 A Standard, with Lo-Boy suction set kit
248696 A Premium, same as 248890 except with
ETL approval to CSA and UL standards
248697 A Standard, with Lo-Boy suction set kit and
electric motor kit
248889 A Premium, same as 248692 except with
electric motor kit
248890 A Premium, with Lo-Boy suction set kit
255630 A TexSpray 5900HD convertible with texture
gun and hose
255631 A Same as 255630 with electric motor kit
255954 A Same as 255630 except with electric
motor kit that is ETL approved to CSA and
UL standards
245096 A KIT, electric motor, CSA
245095 A KIT, electric motor, Non-CSA
ti11417a
311046L
EN
Repair
GMAX™ II 5900 Convertible
TexSpray™ 5900 HD Airless Sprayers
Related Manuals
310892 311861
308491 309469
310894 309640
Table of Contents
2311046L
Table of Contents
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Pressure Relief Procedure . . . . . . . . . . . . . . . . . 5
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Bearing Housing and Connecting Rod . . . . . . . . . 8
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Drive Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

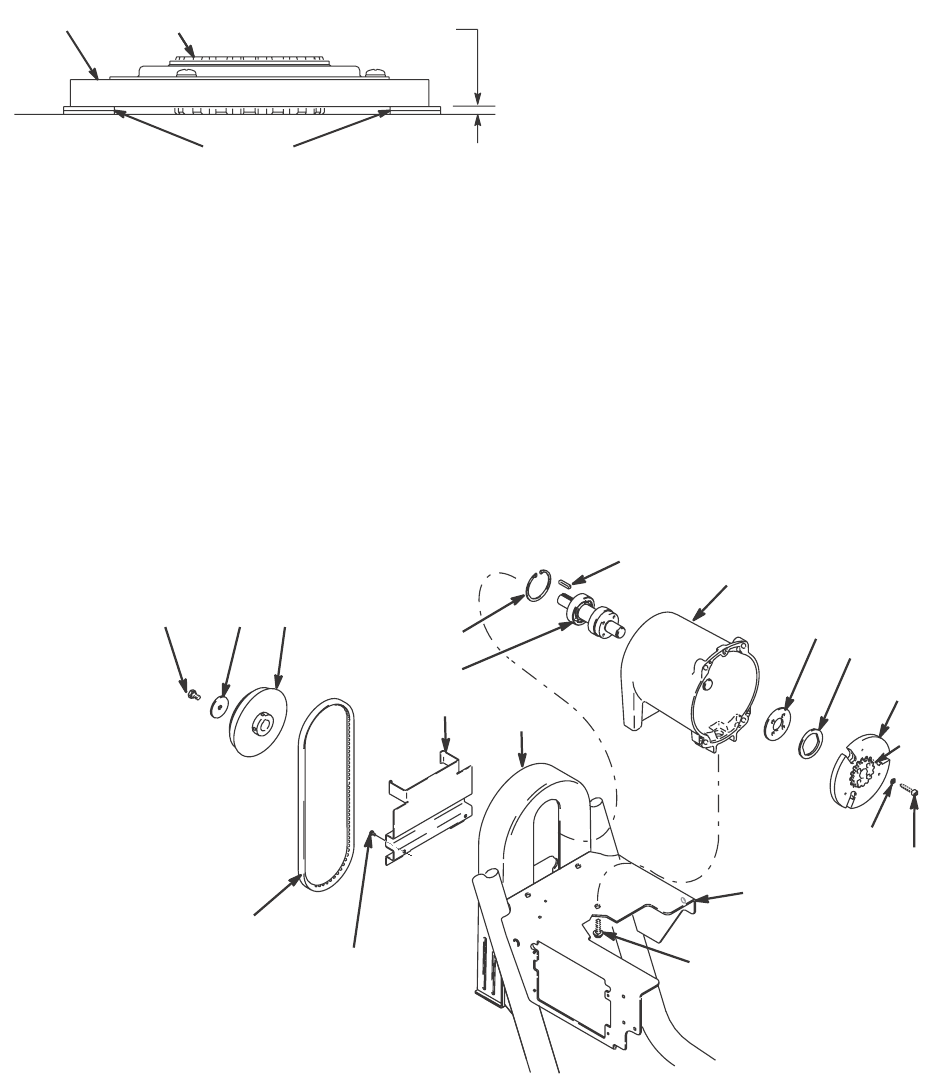

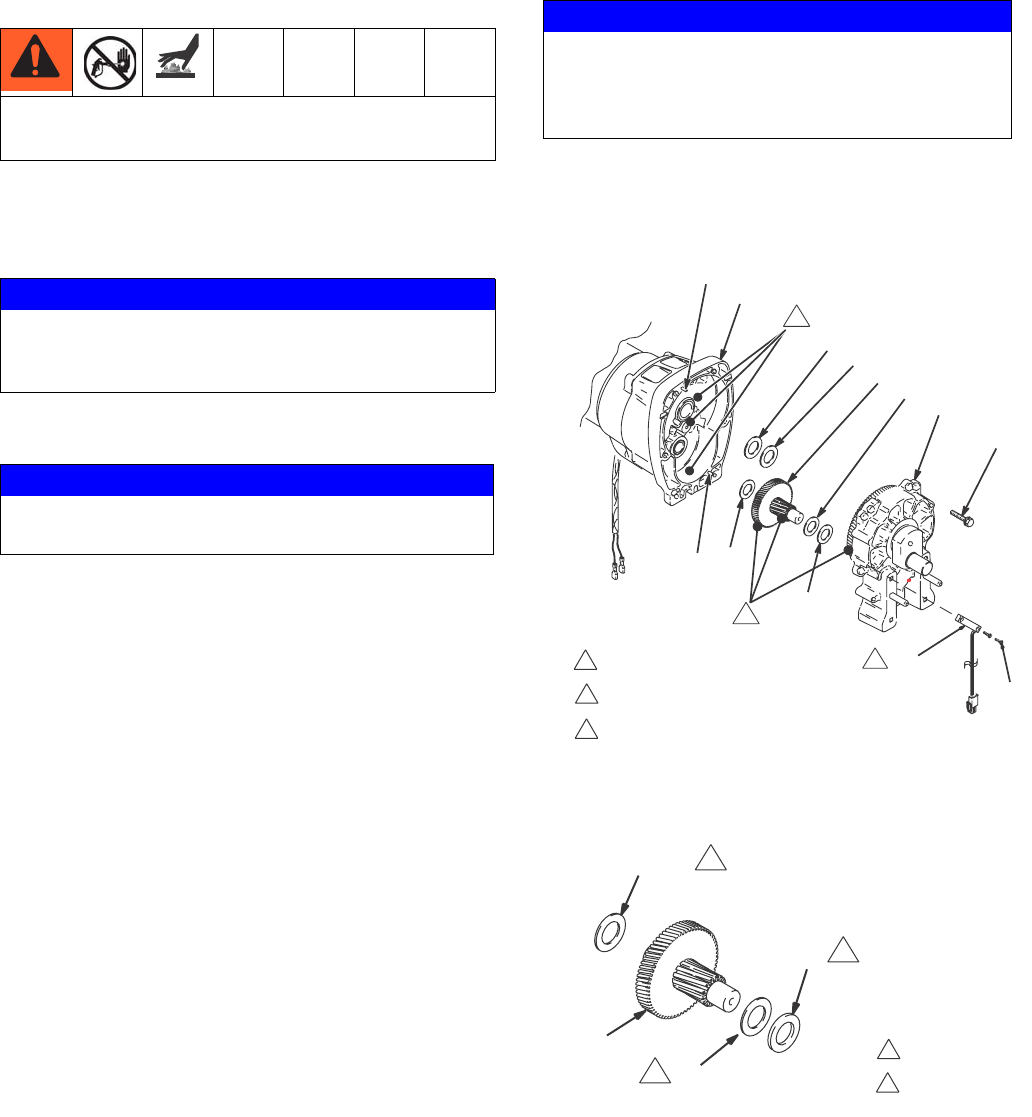

Pinion Housing/Rotor/Shaft/Clutch/Pulley . . . . . 10
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

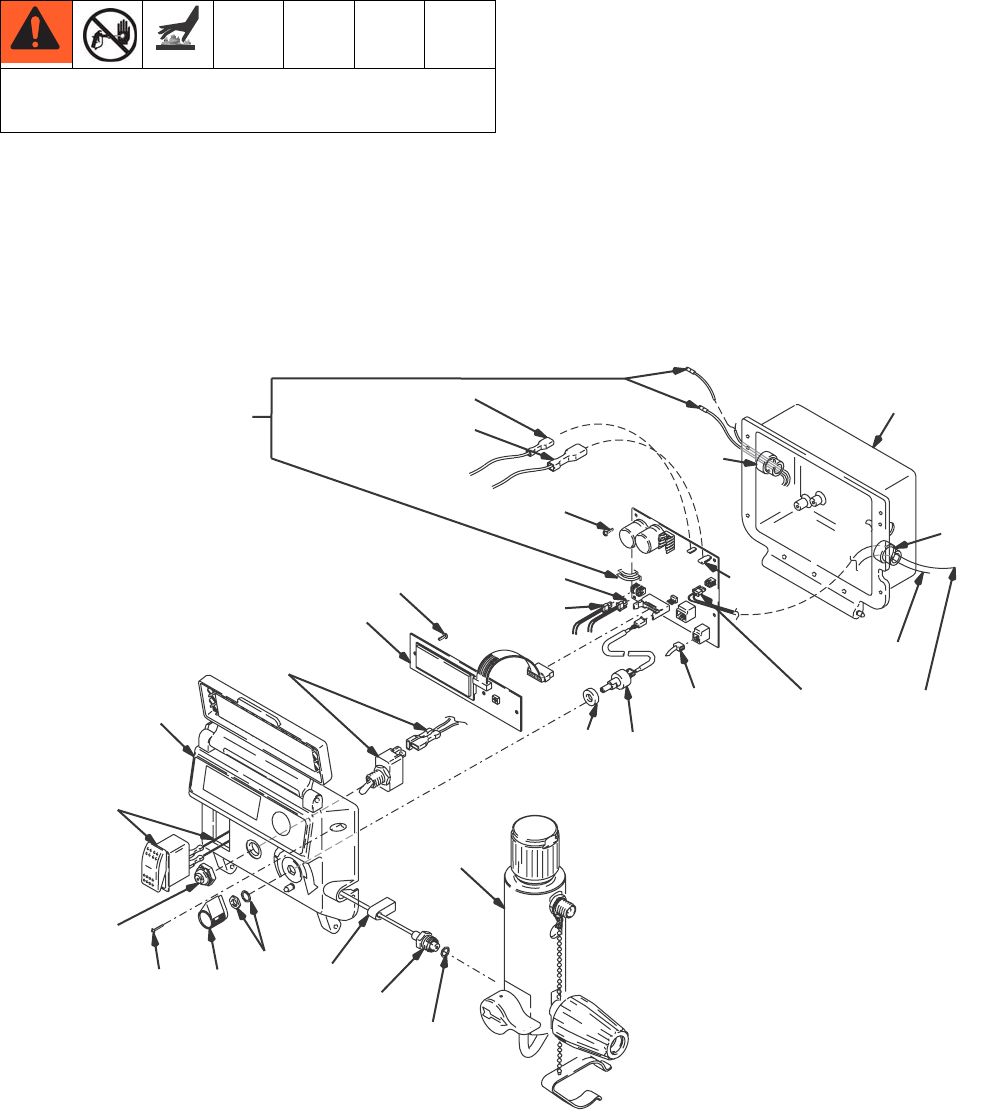

Pressure Control . . . . . . . . . . . . . . . . . . . . . . . . . . 12
On/Off Switch . . . . . . . . . . . . . . . . . . . . . . . . . . 12

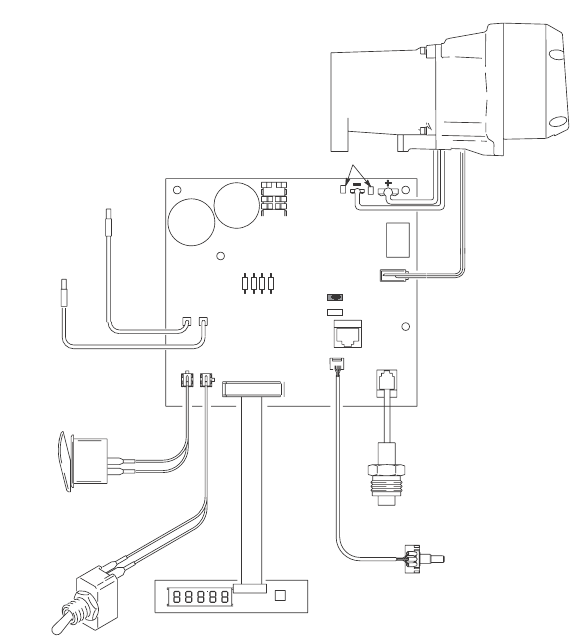

Control Board . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Pressure Control Transducer . . . . . . . . . . . . . . 13
Pressure Adjust Potentiometer . . . . . . . . . . . . . 13

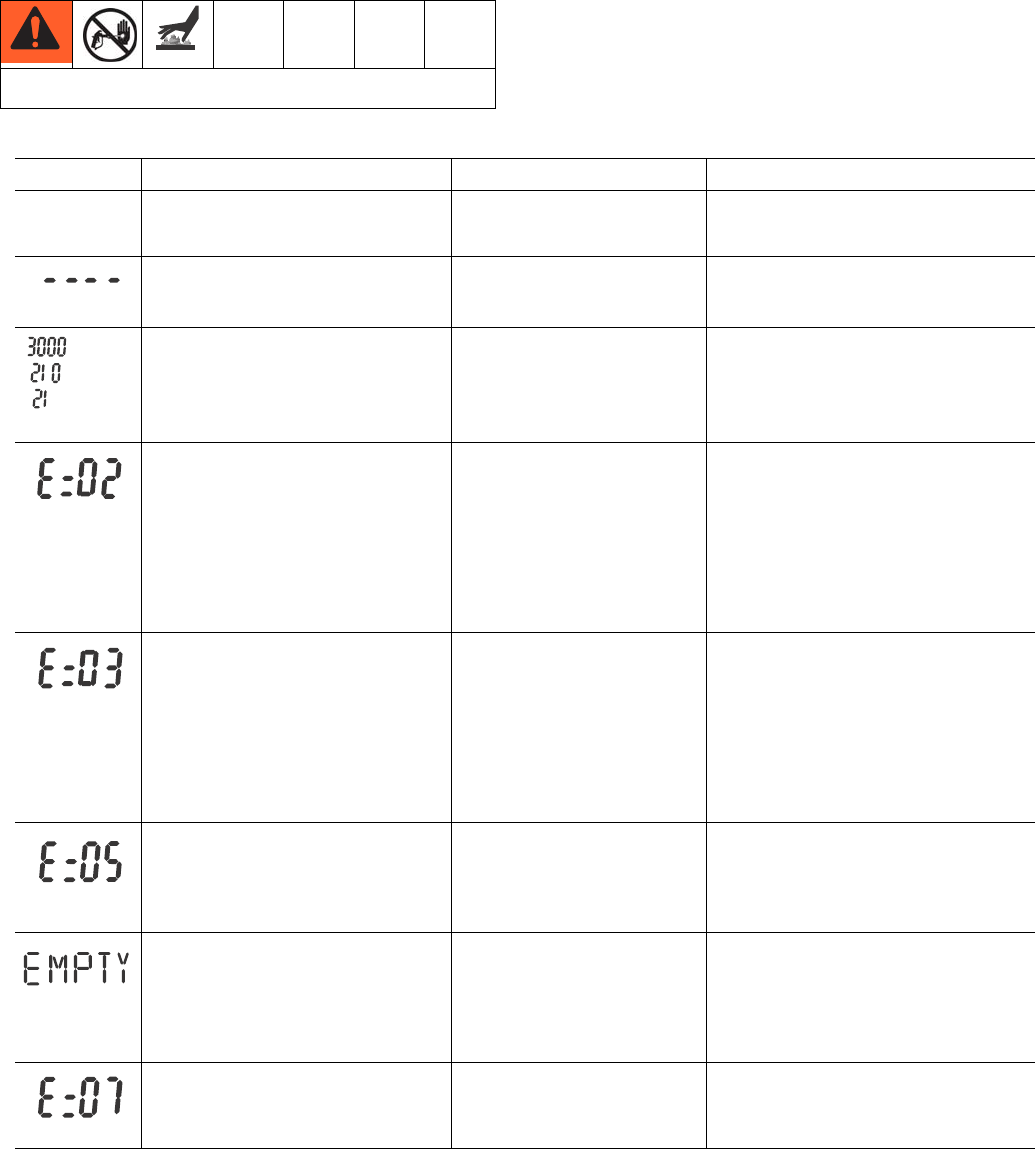

Digital Display Messages . . . . . . . . . . . . . . . . . 14

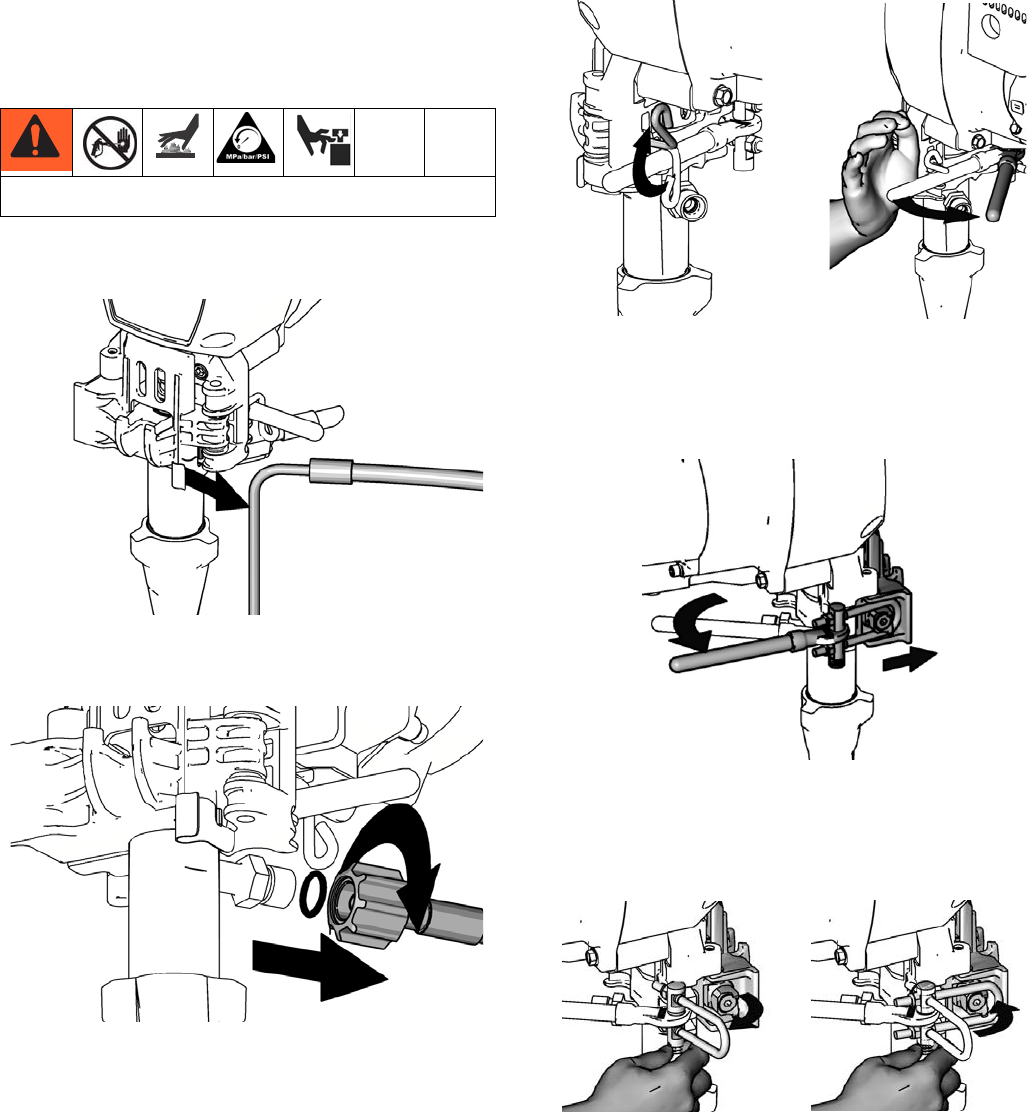

Displacement Pump . . . . . . . . . . . . . . . . . . . . . . . 15
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Standard Sprayer - Parts Drawing . . . . . . . . . . . 18
Standard Sprayer - Parts List . . . . . . . . . . . . . . 19

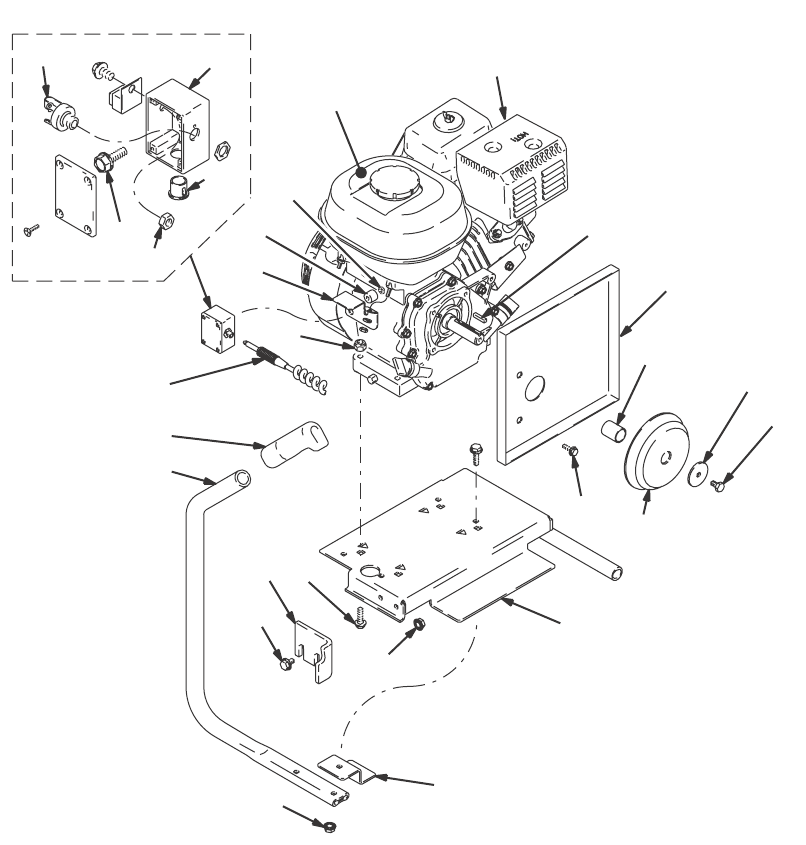

Engine Detail . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Engine Detail - Parts List . . . . . . . . . . . . . . . . . . 20
Pinion and Drive Housing - Parts Drawing and List
21
Pressure Control and Filter - Parts Drawing . . . 22
Pressure Control and Filter - Parts List . . . . . . . 23
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . 28
Warning
311046L 3
Warning
The following are general warnings related to the setup, use, maintenance and repair of this equipment. Additional,
more specific, warnings may be found throughout the text of this manual, where applicable.
WARNINGWARNINGWARNING
WARNING
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent fire
and explosion:
• Use equipment only in well ventilated area.
• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic drop
cloths (potential static arc).
• Keep work area free of debris, including solvent, rags and gasoline.
• Do not plug or unplug power cords, or turn power or light switches on or off when flammable fumes are
present.
• Ground all equipment in the work area. See Operation Manual 310892 for instructions.
• Use only grounded hoses.
• Hold gun firmly to side of grounded pail when triggering into pail.
• If there is static sparking or you feel a shock, stop operation immediately. Do not use equipment until
you identify and correct the problem.
• Keep a working fire extinguisher in the work area.
SKIN INJECTION HAZARD
High-pressure fluid from gun, hose leaks, or ruptured components will pierce skin. This may look like just
a cut, but it is a serious injury that can result in amputation. Get immediate surgical treatment.
• Do not point gun at anyone or at any part of the body.
• Do not put your hand over the spray tip.
• Do not stop or deflect leaks with your hand, body, glove, or rag.
• Do not spray without tip guard and trigger guard installed.
• Engage trigger lock when not spraying.
• Follow Pressure Relief Procedure in this manual, when you stop spraying and before cleaning,
checking, or servicing equipment.
PRESSURIZED EQUIPMENT HAZARD
Fluid from the gun/dispense valve, leaks, or ruptured components can splash in the eyes or on skin and
cause serious injury.
• Follow Pressure Relief Procedure in this manual, when you stop spraying and before cleaning,
checking, or servicing equipment.
• Tighten all fluid connections before operating the equipment.
• Check hoses, tubes, and couplings daily. Replace worn or damaged parts immediately.
MOVING PARTS HAZARD
Moving parts can pinch or amputate fingers and other body parts.
• Keep clear of moving parts.
• Do not operate equipment with protective guards or covers removed.
• Pressurized equipment can start without warning. Before checking, moving, or servicing equipment,
follow the Pressure Relief Procedure in this manual. Disconnect power or air supply.
Warning
4311046L
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated system
component. See Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all
equipment manuals. Read fluid and solvent manufacturer’s warnings.
• Check equipment daily. Repair or replace worn or damaged parts immediately.
• Do not alter or modify equipment.
• Use equipment only for its intended purpose. Call your Graco distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not use hoses to pull equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
PRESSURIZED ALUMINUM PARTS HAZARD
Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or fluids
containing such solvents in pressurized aluminum equipment. Such use can cause serious chemical
reaction and equipment rupture, and result in death, serious injury, and property damage.
SUCTION HAZARD
Never place hands near the pump fluid inlet when pump is operating or pressurized. Powerful suction
could cause serious injury.
CARBON MONOXIDE HAZARD
Exhaust contains poisonous carbon monoxide, which is colorless and odorless. Breathing carbon
monoxide can cause death. Do not operate in an enclosed area.
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or
swallowed.
• Read MSDS’s to know the specific hazards of the fluids you are using.
• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.
BURN HAZARD
Equipment surfaces and fluid that’s heated can become very hot during operation. To avoid severe burns,
do not touch hot fluid or equipment. Wait until equipment/fluid has cooled completely.
PERSONAL PROTECTIVE EQUIPMENT
You must wear appropriate protective equipment when operating, servicing, or when in the operating area
of the equipment to help protect you from serious injury, including eye injury, inhalation of toxic fumes,
burns, and hearing loss. This equipment includes but is not limited to:
• Protective eyewear
• Clothing and respirator as recommended by the fluid and solvent manufacturer
•Gloves
• Hearing protection
RECOIL HAZARD
Gun may recoil when triggered. If you are not standing securely, you could fall and be seriously injured.
WARNINGWARNINGWARNING
WARNING
Maintenance
311046L 5
Maintenance
Pressure Relief Procedure
1. Lock gun trigger safety.
2. Turn engine ON/OFF switch to OFF.
3. Move pump switch to OFF and turn pressure control
knob fully counterclockwise.
4. Unlock trigger safety. Hold metal part of gun firmly to
side of grounded metal pail, and trigger gun to relieve
pressure.
5. Lock gun trigger safety.
6. Open pressure drain valve. Leave valve open until
ready to spray again.
If you suspect that the spray tip or hose is completely
clogged, or that pressure has not been fully relieved after
following the steps above, VERY SLOWLY loosen tip
guard retaining nut or hose end coupling to relieve pres-
sure gradually, then loosen completely. Now clear tip or
hose.
DAILY: Check engine oil level and fill as necessary.
DAILY: Check hoses for wear and damage.
DAILY: Check gun safety for proper operation.
DAILY: Check pressure drain valve for proper operation.
DAILY: Check and fill the gas tank.
DAILY: Check that V-belt (147) is centered on pulley and
is not inverted. Replace if worn or damaged.
AFTER THE FIRST 20 HOURS OF OPERATION:
Drain engine oil and refill with clean oil. Reference Honda
Engines Owner's Manual for correct oil viscosity.
WEEKLY: Remove engine air filter cover and clean ele-
ment. Replace element, if necessary. If operating in an
unusually dusty environment: check filter daily and
replace, if necessary.
Replacement elements can be purchased from your local
HONDA dealer.
WEEKLY: Check level of TSL in displacement pump
packing nut. Fill nut, if necessary. Keep TSL in nut to help
prevent fluid buildup on piston rod and premature wear of
packings and pump corrosion.
AFTER EACH 100 HOURS OF OPERATION:
Change engine oil. Reference Honda Engines Owner's
Manual for correct oil viscosity.
SPARK PLUG: Use only BPR6ES (NGK) or W20EPR-U
(NIPPONDENSO) plug. Gap plug to 0.028 to 0.031 in.
(0.7 to 0.8 mm). Use spark plug wrench when installing
and removing plug.
Read Skin Injection Hazard, page 3; Burn Hazard,
page 4
NOTICE
For detailed engine maintenance and specifica-
tions, refer to separate Honda Engines Owner's
Manual, supplied.
Troubleshooting
6311046L
Troubleshooting
Problem Cause Solution
E=XX is displayed Fault condition exists Determine fault correction from table, page
14
Engine will not start Engine switch is OFF Turn engine switch ON
Engine is out of gasoline Refill gas tank. Honda Engines Owner's Man-
ual.
Engine oil level is low Try to start engine. Replenish oil, if neces-
sary. Honda Engines Owner's Manual.
Spark plug is disconnected of dam-
aged
Connect spark plug cable or replace spark
plug
Cold engine Use choke
Fuel shutoff lever is OFF Move lever to ON position
Oil is seeping into combustion cham-
ber
Remove spark plug. Pull starter 3 to 4 times.
Clean or replace spark plug. Start engine.
Keep sprayer upright to avoid oil seepage
False tripping of WatchDog system.
EMPTY is displayed. Pump does not
run.
Operating conditions out of WatchDog
parameters
Pump output is low, page 7.
Turn pressure down. Contact Graco Technical
Assistance to adjust WatchDog parameters.
Operate without WatchDog active; Manual
310892.
Engine operates, but displacement
pump does not operate
Error code displayed Reference Pressure Control repair, page 14
Pump switch is OFF Turn pump switch ON
Pressure setting too low Turn pressure adjusting knob clockwise to
increase pressure.
Fluid filter (29) is dirty Clean filter. Page 21.
Tip or tip filter is clogged
Clean tip or tip filter. Manual 309639.
Displacement pump piston rod is
stuck due to dried paint
Repair pump. Manual 310894.
Connecting rod is worn or damaged
Replace connecting rod. Page 8.
Drive housing is worn or damaged Replace drive housing. Page 9.
Electrical power is not energizing
clutch field
Check wiring connections. Page 12.
Reference pressure control repair. Page
14
.
Reference wiring diagram. Page 22.
With pump switch ON and pressure turned to MAXI-
MUM, use a test light to check for power between
clutch test points on control board.
Remove clutch wires from control board and
measure resistance across clutch coil. At 70°
F, the resistance must be between 1.2 +0.2Ω;
if not, replace pinion housing.
Have pressure control checked by authorized Graco
dealer
Clutch is worn, damaged, or incor-
rectly positioned
Adjust or replace clutch. Page 10.
Pinion housing is worn or damaged Repair or replace pinion housing. Page10.
Troubleshooting
311046L 7
Problem Cause Solution
Pump output is low Strainer (82) is clogged Clean strainer.
Piston ball (206) is not seating Service piston ball. Manual 310894.
Piston packings are worn or damaged
Replace packings. Manual 310894.
O-ring (227) in pump is worn or damaged
Replace o-ring. Manual 310894.
Intake valve ball is not seating properly
Clean intake valve. Manual 310894.
Intake valve ball is packed with material
Clean intake valve. Manual 310894.
Engine speed is too low
Increase throttle setting. Manual 310892.
V-belt slipping
Tighten V-belt with tension bar (132). Adjust
bracket until it takes 15 lb of force to lock ten-
sion bar down
Clutch is worn or damaged Adjust or replace clutch. Page 10.
Pressure setting is too low Increase pressure. Manual 310892.
Fluid filter (56), tip filter or tip is clogged
or dirty
Clean filter. Manual 310892 or 309639.
Large pressure drop in hose with heavy
materials
Use larger diameter hose and/or reduce
overall length of hose. Use of more than
100 ft of 1/4 in. hose significantly reduces
performance of sprayer. Use 3/8 in. hose
for optimum performance (50 ft minimum).
Excessive paint leakage into throat
packing nut
Throat packing nut is loose Remove throat packing nut spacer.
Tighten throat packing nut just enough to
stop leakage.
Throat packings are worn or damaged
Replace packings. Manual 310894.
Displacement rod is worn or damaged
Replace rod. Manual 310894.
Fluid is spitting from gun Air in pump or hose
Check and tighten all fluid connections.
Reprime pump. Manual 310892.
Tip is partially clogged Clear tip. Manual 309639.
Fluid supply is low or empty Refill fluid supply. Prime pump. Manual
310892. Check fluid supply often to pre-
vent running pump dry.
Pump is difficult to prime Air in pump or hose
Check and tighten all fluid connections.
Reduce engine speed and cycle pump as
slowly as possible during priming.
Intake valve is leaking Clean intake valve. Be sure ball seat is
not nicked or worn and that ball seats
well. Reassemble valve.
Pump packings are worn
Replace pump packings. Manual 310894.
Paint is too thick Thin the paint according to the supplier's
recommendations
Engine speed is too high Decrease throttle setting before priming
pump. Manual 310892.
Clutch squeaks each time clutch
engages
Clutch surfaces are not matched to each
other when new and may cause noise
Clutch surfaces need to wear into each
other. Noise will dissipate after a day of run
time.
High engine speed at no load Misadjusted throttle setting
Reset throttle to 3700 engine rpm at no
load
Worn engine governor Replace or service engine governor
Gallon counter not working Bad sensor, broken or disconnected
wire. Displaced or missing magnet.
Check connections. Replace sensor or
wire. Reposition or replace magnet.
No display, sprayer operates Display damaged or has bad connection Check connections. Replace display.
Bearing Housing and Connecting Rod
8311046L
Bearing Housing and Connecting Rod
Removal
1. Relieve pressure; page 5.
2. Remove four screws (45) and front cover (44)
3. Remove pump. Refer to Displacement Pump,
Removal, page 14.
4. Remove four screws (41) and washers (42) from
bearing housing (40).
5. Pull connecting rod (43) and lightly tap lower rear of
bearing housing with plastic mallet to loosen from
drive housing (33). Pull bearing housing and connect-
ing rod assembly off drive housing.
6. Inspect crank (B) and connecting rod (43) for exces-
sive wear and replace parts as needed.
Installation
1. Evenly lubricate inside of bronze bearing (C) in bear-
ing housing (40) with high-quality motor oil. Liberally
pack top roller bearing (E), lower bearing (D) inside
connecting rod (43) with bearing grease.
2. Assemble connecting rod (43) to bearing housing
(40). Rotate connecting rod to lowest position.
3. Clean mating surfaces of bearing and drive housings.
4. Align connecting rod with crank (B) and carefully align
locating pins in drive housing (33) with holes in bear-
ing housing (40). Push bearing housing onto drive
housing or tap into place with plastic mallet.
5. Install screws (41) and washers (42) in bearing hous-
ing. Torque evenly to note 3 value below.
6. Install pump. Refer to Displacement Pump, Installa-
tion, page 14.
Read Skin Injection Hazard, page 3; Burn Hazard,
page 4
NOTICE
DO NOT use bearing housing screws (41) to align or
seat bearing housing with drive housing. Align these
parts with locating pins, to avoid premature bearing
wear.
F
B
38
E
D
43
1
2
3
C
2
44
45
41
42
40
A
88
33
87
68
ti5739b
3
2
1Oil
Pack with bearing grease 114819
Torque to 25 ft-lb (34 N.m)
Drive Housing
311046L 9
Drive Housing
Removal
1. Relieve pressure; page 5.
2. Remove bearing housing. Refer to Bearing Housing
and Connecting Rod, Removal, page 8.
3. Premium sprayers: Remove two screws (108) and
gallon counter sensor (39).
4. Remove six screws (38).
5. Lightly tap around drive housing (33) to loosen drive
housing. Pull drive housing straight off pinion hous-
ing. Be prepared to support combination gear (32)
which may also come out.
Installation
1. Apply all grease supplied with replacement gear clus-
ter to gear cluster (32) and to areas called out by note
3.
2. Ensure thrust washers are on combination gear (32)
as shown.
3. Clean mating surfaces of pinion and drive housings.
4. Align gears and push new drive housing straight onto
pinion housing (29) and locating pins (B).
5. Install six screws (38).
6. Install gallon counter sensor (39) with two screws
(108).
7. Install bearing housing. Refer to Bearing Housing
and Connecting Rod, Installation, page 8.
8. Install screws (18) in drive housing. Torque evenly to
note 3 value below.
9. Install pump. Refer to Displacement Pump, Installa-
tion, page14
Read Skin Injection Hazard, page 3; Burn Hazard,
page 4
NOTICE
Gallon counter sensor is connected to control board in
pressure control. Pulling on the sensor wires could cause
damage.
NOTICE
Thrust washers may stick to grease inside of drive
housing. Do not lose or misplace.
NOTICE
DO NOT use drive housing screws (18) to align or
seat bearing housing with drive housing. Align these
parts with locating pins, to avoid premature bearing
wear.
B
29
3
B
33
38
30
ti5740a
239
22
32
31
33b
33a
3
30
3
2
1
Gallon counter sensor
Pack with grease 114819
Torque to 25 ft-lb (34 N.m)
32
1
2
30
31
30,30a1
ti6252a
1
2
Steel
Copper
Pinion Housing/Rotor/Shaft/Clutch/Pulley
10 311046L
Pinion Housing/Rotor/Shaft/Clutch/Pulley
Removal
1. If pinion housing (29) is not removed from clutch
housing (19), perform steps 2. through 5. Otherwise,
perform step 2 and then start at 6.
2. Perform Pressure Relief Procedure, page 5.
3. Disconnect clutch cable connectors.
a. Remove two screws (71) and swing down cover
(130a).
b. Remove strain relief (171).
c. Disconnect clutch cable connectors (X)
4. Remove four screws (36), lock washers (37) and pin-
ion housing (29).
5. Place pinion housing (29) on bench with rotor side up.
6. Remove four screws (28) and lock washers (24).
Install two screws in threaded holes (E) in rotor. Alter-
nately tighten screws until rotor comes off.
7. Remove retaining ring (29e).
8. Turn pinion housing over and tap pinion shaft (29d)
out with plastic mallet.
9. Remove belt guide bracket (146), belt guard (148)
and Vee belt (147), page 11.
10. Hold pulley (62) and remove four screws (23) and
washers (24) from hub (26). Remove armature (25)
and spacer (19f).
11. Engine Detail, page 18. Remove screw (20) and
washer (61) from engine drive shaft. Remove pulley
(62) and motor shaft sleeve (144). Remove pulley and
key (18).
12. Remove three screws (35) from beneath cart frame
(1), page 11.
13. Lift off clutch housing (19e).
14. Remove retaining ring (19b). Pull drive shaft assem-
bly (19c) out.
Read Skin Injection Hazard, page 3; Burn Hazard,
page 4
X
Bottom View
ti6293a
CLUTCH (+)
CLUTCH (-)
29
36
37
36
37
ti5742a
E
28
24
ti5743a
ti5987b
E
29e
29d
ti5482a
Pinion Housing/Rotor/Shaft/Clutch/Pulley
311046L 11
Installation
1. Install drive shaft assembly (19c). Install retaining
ring (19b), page 12.
2. Lay two stacks of two dimes on smooth bench sur-
face.
3. Lay armature (25) on two stacks of dimes.
4. Press center of hub (26) down to bench surface.
5. Place spacer (19f) and armature (26, 25) on drive
shaft assembly (19c), page11.
6. Install three screws (35) through cart frame (1) and
into clutch housing (19).
7. Apply Loctite® to screw (20). Install screw, washer
(61), key (18) and pulley (62) in end of drive shaft
assembly (19c). End of driveshaft (19c) must be
0.090 in. below flush with end of bushing.
8. Hold pulley (62) and install four screws (23) and
washers (24) in hub (26). Torque to 125 in-lb (14 Nm).
9. Install belt guard (146), belt guide bracket (148) and
Vee belt (147).
10. Tap pinion shaft (19c) in with plastic mallet, page 10.
11. Install retaining ring (19b).
12. Place pinion housing on bench with rotor side up,
page 10.
13. Apply locktite to screws. Install four screws (28) and
lockwashers (24). Alternately torque screws to 125
in-lb until rotor is secure.
14. Push pinion housing (29) assembly onto clutch hous-
ing (19e). Tap lightly on front of bearing housing (40)
with a plastic mallet to push drive housing and pinion
housing assembly onto clutch housing.
15. Install pinion housing with five screws (36) and lock-
washers (37).
16. Connect clutch cable connectors (X) to board, page .
17. Perform Drive Housing, Installation, page 9.
0.12+01 in (3.0+.25 mm)
25 26
dimes
ti6321a
E
B
C
$
F
TIA
Pressure Control
12 311046L
Pressure Control
On/Off Switch
Removal
1. Remove two screws (71) and swing down cover
(169a).
2. Disconnect ON/OFF switch (169f) connector from
control board.
3. Press in on two retaining tabs on each side of
ON/OFF switch (169f) and remove switch from cover.
Installation
1. Install new ON/OFF switch (169f) so tabs of switch
snap into place on inside of cover.
2. Connect ON/OFF switch connector to control board.
3. Swing up cover (169a) and secure with two screws
(71)
Read Skin Injection Hazard, page 3; Burn Hazard,
page 4
#,54#(
#,54#(
F
A
B
J
TIA
R
4/%.').%
#,54#(
'!,,/.#/5.4%2
C
D
M
E
G
H
D
C
A
F
G
ti6291a1
Pressure Control
311046L 13
Control Board
Removal
1. Remove two screws (71) and swing down cover
(169a), page 12.
2. Remove strain relief bushings (123a and 123b).
3. Disconnect at control board (169b):
• Lead from potentiometer (169d)
• Lead from transducer (66)
• Lead from WatchDog switch (169g)
• Lead from ON/OFF switch (169f)
• Lead from gallon counter sensor (pump stroke)
• Display connector
• Engine, ground and clutch wires
4. Remove four screws (169c) and control board (169b).
Installation
1. Install control board (169b) with four screws (169c),
page 12.
2. Connect engine wires to control board (169b).
3. Install control box (169a) with four screws (71).
4. Connect at control board (169b):
• Ground and clutch wires
• Display connector
• Lead from gallon counter sensor (pump stroke)
• Lead from ON/OFF switch (169f)
• Lead from WatchDog switch (169g)
• Lead from transducer (66)
• Lead from potentiometer (169d)
5. Install new strain relief bushings (123a and 123b).
6. Swing up cover (169a) and secure with two screws
(71).
Pressure Control Transducer
Removal
1. Remove two screws (71) and swing down cover
(169a), page 12.
2. Disconnect transducer (66) lead from control board
(169b).
3. Pull transducer connector through rubber grommet
(113).
4. Remove pressure control transducer (66) and o-ring
(67) from filter housing (72).
Installation
1. Install o-ring (67) and pressure control transducer
(66) in filter housing (72), page 12. Torque to 35 - 45
ft-lb.
2. Install transducer connector and rubber grommet in
control housing.
3. Connect transducer (66) lead to control board (169b).
4. Swing up cover (169a) and secure with two screws
(71).
Pressure Adjust Potentiometer
Removal
1. Remove two screws (71) and swing down cover
(169a), page 15.
2. Disconnect potentiometer (169d) lead from control
board (169b).
3. Loosen set screws on potentiometer knob (169h) and
remove knob, shaft nut, lock washer and potentiome-
ter (169d).
4. Remove shaft spacer (169e) from potentiometer.
Installation
1. Install shaft spacer (169e) on potentiometer (169d).
2. Install potentiometer, shaft nut, lock washer and
potentiometer knob (169h), page 12.
a. Turn potentiometer shaft clockwise to internal
stop. Assemble potentiometer knob (169h) to
strike pin on cover (169a).
b. After adjustment of step a., tighten both set
screws in knob 1/4 to 3/8 turn after contact with
shaft.
3. Connect potentiometer lead to control board (169b).
4. Swing up cover (169a) and secure with two screws
(71).
Read Skin Injection Hazard, page 3; Burn Hazard,
page 4
Read Skin Injection Hazard, page 3; Burn Hazard,
page 4
Read Skin Injection Hazard, page 3; Burn Hazard,
page 4
Pressure Control
14 311046L
Digital Display Messages
* Error codes also appear on control board as a blinking
red LED. LED is an alternate to digital messages.
1 Remove two screws (71) and swing down cover
(130).
2 Start engine. Blink count is the same as error
code(E=0X).
After a fault, follow these steps to restart sprayer:
1 Correct fault condition
2 Turn sprayer OFF
3 Turn sprayer ON
Relieve pressure before repair, page 5.
• Digital messages are not available on all sprayers
• Blinking LED total count equals digital error code
i.e., two blinks is the same as E=02
DISPLAY* SPRAYER OPERATION INDICATION ACTION
No Display Sprayer may be pressurized Loss of power or display not
connected Check power source. Relieve pressure
before repair or disassembly. Verify display
is connected.
Sprayer may be pressurized Pressure less than
200 psi (14 bar, 1.4 MPa) Increase pressure as needed
Sprayer is pressurized. Power is applied.
(Pressure varies with tip size and
pressure control setting.)
Normal operation Spray
Sprayer stops. Engine is running. Exceeded pressure limit 1 Check fluid path for clogs, such as
clogged filter.
2 Open prime valve and gun if running
AutoClean.
3 Use Graco paint hose, 1/4 in. x 50 ft
minimum. Smaller hose or metal braid
hose may result in pressure spikes.
4 Replace transducer if fluid path is not
clogged and proper hose is used.
Sprayer stops. Engine is running. Pressure transducer faulty, bad
connection or broken wire 1 Check transducer connection.
2 Disconnect and reconnect transducer
plug to ensure good connection with
control board socket.
3 Open prime valve. Replace sprayer
transducer with known good
transducer and run sprayer. Replace
transducer if sprayer runs or control
board if sprayer does not run.
Sprayer stops. Engine is running. High clutch current 1 Check wiring connections.
2
Measure: 1.2 +0.2
Ω
(GMAX II 3900);
1.7 +0.2Ω (GMAX II 5900/ 7900)
across clutch field at 70°F.
3 Replace clutch field assembly.
Sprayer stops. Engine is running. Loss of paint to pump or severe
pressure loss
1 Check for empty paint condition, clogged
inlet strainer, failed pump or severe leak.
2 Reduce pressure and turn pump
switch OFF and ON to restart pump.
3 Watch dog function can be deactivated
by turning WatchDog switch OFF.
Sprayer stops. Engine is running. Pressure greater than
2000 psi (138 bar, 14 MPa) while
in Flush Timer Mode
1 Open prime valve and gun.
2 Verify no flow obstructions or clogged
filter.
ti6314a
psi
bar
MPa
ti6315a
ti6316a
ti6317a
ti6318a
(with constant
green LED)
ti6320a
Displacement Pump
311046L 15
Displacement Pump
Removal
1. Flush pump.
2. Stop pump with piston rod in its lowest position, page
16.
3. Do Pressure Relief, page 5.
4. Separate drain hose from sprayer.
5. Disconnect material hose from pump.
6. Raise latch lock. Push latch open.
7. Ratchet open pump door.
a. Ratchet pump door forward
b. Twist latch u-bolt out of pump door recess.
c. Place u-bolt on pump door outer edge.
d. If pump door is stuck, perform steps e., f. and 8.,
otherwise go to step 9.
Relieve pressure before repair, page 5.
ti11420a
ti11421a
ti11422a ti11423a
ti11424a
ti11425a ti11426a
Displacement Pump
16 311046L
e. Twist latch u-bolt back from pump door outer
edge.
f. Place u-bolt on pump door protrusion.
8. Ratchet pump door forward.
9. Open pump door.
10. Pull out pump pin and place in pin holder.
Installation
1. Adjust piston rod with pin holder to pull out piston rod.
Tap piston rod on hard surface to push in piston rod.
2. Push pump collar flush with bearing housing ledge to
be able to close pump door.
3. Slide pump into connecting rod. Push pump pin until
it is fully retained.
NOTE: Pin will snap into position.
4. Close pump door and rotate latch into position. Do
not tighten latch.
5. Rotate pump to align with material hose. Connect
ti11427a ti11428a
ti11429a
ti11430a ti11431a
ti11432a ti11433a
ti6325a
ti11434a
ti6378a
ti11435a
ti11436a ti11437a
Displacement Pump
311046L 17
material hose and hand tighten to 70 in-lb.
6.
Tig hten latch and rotate latch lock into locked position.
7. Attach drain hose to sprayer.
8. Fill pump with Graco TSL until fluid flows onto top of
seal.
ti11438a
ti11440a
ti11439a
ti11441a
ti11442a
Parts
18 311046L
Parts
Standard Sprayer - Parts Drawing
!"
#"$
#"$
%
#"$
TexSprayer 5900HD
Convertible
ti5737c
Parts
311046L 19
Standard Sprayer - Parts List
Ref Part Description Qty
1 287423 FRAME, cart 1
2 156306 WASHER, flat 2
3 119509 WHEEL, pneumatic 2
4 15E891 CLIP, retaining 2
8 108795 SCREW, mach, pnh 4
10 24A250 HANDLE, cart 1
11 237686 WIRE, ground assembly w/ clamp 1
12 112798 SCREW, thread forming, hex hd 1
14 276974 CAP, leg 2
18 183401 KEY, parallel 1
19 287519 HOUSING, clutch 1
20 121727 SCREW, cap, hex hd 1
22 114528 SCREW, mach, phillips, pnhd 2
23* 108803 SCREW, hex, socket head
(see page 24)
4
24* 105510 WASHER, lock, spring (hi-collar) 8
26* 193510 HUB, armature (see page 24) 1
27* ROTOR, clutch, 5 in. 1
28* 101682 SCREW, cap, sch 4
29 287465 HOUSING, pinion, 5900 1
30 114672 WASHER, thrust 2
31 114699 WASHER, thrust 1
32 287460 GEAR, combination 1
33 287700 HOUSING, drive, convert 1
34 116618 MAGNET 1
35 112395 SCREW, cap, flnghd 3
36 102962 SCREW, cap sch 4
37 104008 WASHER, lock, spring 4
38 15C753 SCREW, mach, torx, hex wash hd 6
39 119562 SWITCH, reed w/connector 1
40 289274 HOUSING, bearing 1
41 114666 SCREW, cap, socket hd 4
42 106115 WASHER, lock spring (hi-collar) 4
43 287472 ROD, connecting (5900) 1
44 287511 COVER, front, 5900; includes 45 1
45 118444 SCREW, machine hex washer head 4
47 287513 PUMP, displacement (5900) 1
includes 86, 89, 90; Manual 310894
287579 PUMP, displacement (TexSpray
5900HD convertible) includes 86
1
61 112717 WASHER 1
62 198688 PULLEY, engine 1
63 114425 BUSHING, strain relief 1
67 111457 O-RING 1
68 243993 HOSE, coupled 1
69 241920 DEFLECTOR, threaded 1
72 15E284 HOUSING, filter 1
82 189920 STRAINER, (1-11 1/2 npsm) 1
86 15E802 FITTING, pump, quick disconnect 1
87 287543 HOSE, coupled 1
88 15F110 PIN, pump 1
89† 248215 TUBE, intake 1
90† 118494 O-RING 1
91 287162 VALVE, auto clean 1
93† 287253 TOOL BOX 1
94† 118852 SCREW, machine, hex washer hd 3
98 113161 SCREW, flange, hex hd 3
99 15E918 BRACKET, holder, manual 1
100 15E736 BRACKET, holder, manual 1
101 119510 HOLDER, manual 1
102† 15E902 PLATE 1
103† 100270 SCREW, cap, hex hd 2
104† 102040 NUT, lock, hex 3
110 LABEL, identification
15F755 Premium & TexSpray 5900HD
Convertible
1
15E854 Standard 1
114 15E979 LABEL, identification 1
15E980 LABEL, identification (TexSpray
5900HD convertible)
1
116▲15F638 LABEL, warning 1
117▲290228 LABEL, caution 1
118▲804495 LABEL, warning 1
119 195098 LABEL, instruction (English) 1
132 245688 BAR, torsion; includes 133, 134 1
133 114808 CAP, vinyl 1
134 198772 COLLAR, torsion bar 2
142 119584 CORD, power, convertible 1
145 100078 SCREW, thd forming, hex hd 6
146 198996 BRACKET, belt guide 1
147 193547 BELT, Vee, 30 1
148 198691 GUARD, belt 1
151 116038 WASHER, wave spring 2
164 15F947 SHIELD, magnetic 1
169 BOX, control (see pages 22-23)
287648 Premium 1
287649 Standard 1
172 114271 STRAP, retaining 1
173 119569 BUSHING, strain relief 1
174 119677 SPRING, retaining 1
185 15F584 LABEL, ProConnect 1
190 114687 CLIP, retainer 1
191 119790 O-RING 1
195▲195119 LABEL, warning 1
▲ Replacement Danger and Warning labels, tags, and
cards are availabel at no cost.
* Included in Clutch Repair Kit 241113
† Not used on TexSpray 5900HD Convertible
Ref Part Description Qty
Parts
20 311046L
Engine Detail
Engine Detail - Parts List
129
143
17
17
128
131 124
126
127
18
130
140
141
139
138
135 137
115
15
144
125
20
61
142 Ref
16
17
136
ti5750a
135
(Ref)
Ref Part Description Qty
15 114530 ENGINE, gas, 5.5 Honda 1
16 114653 SCREW, cap, flange hd 4
17 110996 NUT, flng hd, hex 6
18 183401 KEY, parallel 1
20 119717 SCREW, cap, hex hd 1
61 112717 WASHER 1
115 194126 LABEL, warning 1
124 245272 BASE, mounting 1
125 116139 GRIP, handle 2
126 198689 BRACKET, belt guard (motor) 1
127 112406 SCREW 3
128 198997 BRACKET, tension 1
129 198693 HANDLE, slide, engine 2
130 198695 BRACKET, torsion bar 1
131 110963 SCREW, cap, hex hd, flange 2
135 114816 NUT, hex 1
136 116149 SPACER 1
137 194414 BRACKET, J-box 1
138 114813 SCREW, mach, hex washer hd 1
139 114678 BUSHING, snap 1
140 194181 BOX, junction, engine 1
141 114805 JACK, 1/4 engine 1
143 15E896 PULLEY, engine 1
144 15B314 SLEEVE, motor shaft 1
Ref Part Description Qty
Parts
311046L 21
Pinion and Drive Housing - Parts Drawing and List
Ref No. 29: Pinion Housing 287465 Ref No. 33: Drive Housing 287700
Ref Part Description Qty
29 287476 PINION HOUSING & COIL 1
29a 241114 PINION SHAFT 1
29b 112770 RETAINING RING, large 1
29c 105489 PIN 2
29d 114683 O-RING 1
Ref Part Description Qty
33 HOUSING, drive 1
33a 194173 WASHER 1
33b 116192 WASHER 1
* Premium models and TexSpray 5900HD convertible.
2EF
2EF
2EF
2EF
2EF
C
A
B
2EF
2EF
2EF
2EF
2EF
D 2EF
B
A
2EF
ti5757b
Pinion Housing (29) includes Clutch Field
Parts
22 311046L
Pressure Control and Filter - Parts Drawing
TIB
3TANDARD
-ODELS
F
A
A
H
J
B
C
C
M
G
D
E
D
K
R
N
P
A
0REMIUM
-ODELS
F
A
A
H
J
B
C
G
D
E
D
K
R
#ONTROL3TANDARD#OMPLETE
0ART.UMBER
#ONTROL0REMIUM4EX3PRAY($
#ONVERTIBLE#OMPLETE
0ART.UMBER
0REMIUM
MODELS
4EX3PRAY($
#ONVERTIBLE
0ART.UMBER
Parts
311046L 23
Pressure Control and Filter - Parts List
★ Premium & TexSpray 5900HD Convertible models only
* Included in Filter Base Repair Kit 287510
REF PART DESCRIPTION QTY
53* 15C765 CAP, filter 1
54* 117285 O-RING 1
55* 15C766 TUBE, diffusion 1
56* 243984 FILTER, fluid 1
57* 15C780 HANDLE 1
58* 15C972 PIN, grooved 1
59* 224807 BASE, valve 1
60* 235014 VALVE, drain 1
64 15E925 GASKET, transducer 1
65 164672 ADAPTER 1
162485 ADAPTER, nipple
(TexSpray 5900HD Convertible)
1
66* 241732 TRANSDUCER, pressure contl 1
67* 111457 O-RING 1
71 116585 SCREW, mach, pnh, sems 6
72* 15E284 HOUSING, filter 1
73* 15E022 SEAT, valve 1
74* 111699 GASKET, seat, valve 1
91★287293 VALVE, auto clean, includes 91a 1
91a★115524 GASKET 1
92★244346 KIT, repair, clamp, trigger 1
96* 104813 PLUG, pipe 1
122 248314 PLUG, includes 123 1
123 15D541 O-RING 1
154 116756 FITTING, elbow, 45 degrees 1
169a★249583 BOX, control, premium 1
169a 249584 BOX, control, standard 1
169b 287516 CONTROL, board 1
169c 117317 SCREW, plastite, pan hd 7
169d 240925 POTENTIOMETER 1
169e 198650 SPACER, shaft 1
169f 116752 SWITCH, rocker 1
169g 119541 SWITCH, toggle 1
169h 116167 KNOB, potentiometer 1
169j 195428 BOOT, toggle 1
169k 15E857 LABEL, identification 1
169m★287515 DISPLAY, LCD, GMAX 1
169n★15E855 LABEL, identification 1
169p★15E858 LABEL, identification 1
169r 119545 BUSHING, strain, relief 1
171 119545 BUSHING, strain, relief 1
175★287648 CONTROL. premium, complete 1
(includes 169b-169r)
176 287649 CONTROL, standard, complete 1
(includes 169b-169r)
REF PART DESCRIPTION QTY
Pressure Control
Wiring Diagram
ti5753a
TO ENGINE
TO GROUND
PINON
DRIVE
TRANSDUCER
POTENTIOMETER
DISPLAY BOARD
ON/ OFF SWITCH
WATCHDOG
PUMP STROKE
COUNTER
CLUTCH TEST POINTS
CONTROL
BOARD
D12
LED
J9
J5J4J3
J1
J2
J10
ti5753a
Parts
24 311046L
Clutch Housing - Parts Drawing and List
Ref Part Description Qty
19 287519 HOUSING, clutch 1
Includes 19b, 19c, 19e, 19j & 19k
19b 114962 RING, retaining, internal 1
19c 287422 SHAFT, drive, input 1
19e 15E887 HOUSING, clutch 1
19j 115078 O-RING 1
19k 115079 O-RING 1
21 15E894 STOP, armature 1
23 108803* SCREW, hex, socket head 4
24 105510* WASHER, lock, spring (hi-collar) 8
25 * ARMATURE, clutch, 5 in. 1
26 193510* HUB, armature 1
27 * ROTOR, clutch, 5 in. 1
28 101682* SCREW, cap, sch 4
* Included in Clutch Repair Kit 241113
Ref Part Description Qty
19c
19b
23
24
19e
25
26
24
28
27
21
19j
19k
ti5754a
Parts
311046L 25

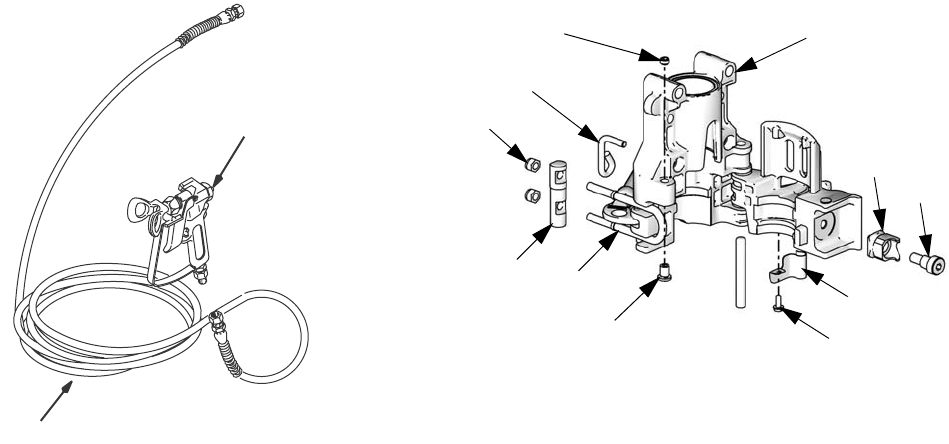

Premium Sprayers - Parts Drawing and List
Ref 40: Bearing Housing
Ref. Part Description Qty.
201 Hi-Boy Sprayers 1
See parts, page 18
Lo-Boy Sprayers 1
See parts, page 18
Includes Lo-Boy Suction Set Kit,
See parts, page 26
202 240794 HOSE, grounded, nylon; 1/4 in. ID; 1
cpld 1/4 npsm(fbe); 50 foot (15 m);
spring guards both ends
3300 psi (227 bar, 27.7 MPa)
240797 HOSE, grounded 3/8 in. x 50 ft
(TexSpray 5900HD Convertible)
1
204 288420 CONTRACTOR II SPRAY GUN 1
Includes RAC X 517-size SwitchTip
and HandTite Guard
See 311861 for parts
241705 TEXTURE SPRAY GUN, see
308491 for parts (TexSpray
5900HD Convertible)
1
205 241735 HOSE, whip 1/4 in. x 3 ft
(TexSpray 5900HD Convertible)
1
ti6429a
204
202
Ref. Part Description Qty.
40 289274 HOUSING, bearing, complete 1
45 118444 SCREW, mach hex wash hd 1
50 15E625 PIN, housing, bearing 1
51 15G890 LATCH, housing, bearing 1
52 111040 NUT, lock hex 2
150 15E975 CLIP, spring 1
180 15F498 SCREW, adjustment 1
181 15F503 SCREW, set, socket hd 1
182 15F116 LATCH 1
196 15G584 RECEIVER, clamp 1
197 116942 SCREW, shoulder, socket head 1
181
182
52
50 51
180 45
150
40
196
197
ti11443a
Parts
26 311046L
Lo-Boy Suction Set - Parts Drawing and List
Models 248695, 248697, 248890
Ref Part Description Qty
287631 KIT, repair, tube suction
401 287537
HOSE, suction, GMAX II 3900/5900
1
402 287536 HOSE, drain,
GMAX II 3900/5900
1
403 189920 STRAINER, 1-11 1/2 npsm 1
404 241920 DEFLECTOR, threaded 1
405 15D000 CLIP, drain line 1
406 15C980 NUT, jam 1
407 15C981 WASHER, suction, swivel 1
408 118505 RING, retaining, external 1
409 117559 O-RING 2
410 115099 WASHER, garden hose 1
TIA
Technical Data
311046L 27
Technical Data
Dimensions
Power
Honda GX160 Engine (ANSI Power Rating @ 3600 rpm) 5.5 Horsepower (4.1 kW)
Electric Motor 2.0 HP (1.5 kW)
Maximum working pressure 3300 psi
(227 bar, 22.7 MPa)
Noise Level
Sound power 100 dBa
per ISO 3744
Sound pressure 86 dBa
measured at 3.1 feet (1 m)
Cycles/gallon (liter) 93 (25)
Maximum delivery
Gas Engine 1.6 gpm (6.0 liter/min)
Electric Motor 1.1 gpm (4.2 liter/min)
Maximum tip size
Gas Engine
1 gun with 0.043 in. tip
2 gun with 0.029 in. tip
3 gun with 0.023 in. tip
4 gun with 0.019 in. tip
Electric Motor 1 gun with 0.031 in. tip
2 gun with 0.017 in. tip
Inlet paint strainer 16 mesh (1190 micron)
stainless steel screen, reusable
Outlet paint filter 60 mesh (250 micron)
stainless steel screen, reusable
Pump inlet size 1-5/16–12 UN-2A
Fluid outlet size ¼ npsm from fluid filter
Wetted parts zinc-plated carbon steel, PTFE, Nylon, polyurethane,
UHMW polyethylene, fluoroelastomer, acetal, leather,
aluminum, tungsten carbide, nickel- and zinc-plated
carbon steel, stainless steel, chrome plating
Sprayer
(without hose and gun)
Weight lb (kg) Height in. (cm) Width in. (cm) Length in. (cm)
248691 Hi-Boy 168 (76) 34.5 (87.6) 24.5 (62.2) 33.5 (85.1)
255630 HD, 248695 Lo-Boy 173 (78) 34.5 (87.6) 24.5 (62.2) 33.5 (85.1)
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
For patent information, see www.graco.com/patents.
Original instructions. This manual contains English. MM 311046
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 2005, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
www.graco.com
Revised July 2012
Graco Standard Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in material
and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty published by
Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty
installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of non-Graco
component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with structures,
accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or maintenance of structures,
accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of the
claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned to the
original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs will be made
at a reasonable charge, which charges may include the costs of parts, labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO
WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy
(including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or
consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT MANUFACTURED BY
GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to the warranty, if any, of their
manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or the
furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the negligence of
Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into,
given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la
rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite de
ou en rapport, directement ou indirectement, avec les procédures concernées.
ADDITIONAL WARRANTY COVERAGE
Graco does provide extended warranty and wear warranty for products described in the “Graco Contractor Equipment Warranty Program”.
Graco Information
For the latest information about Graco products, visit www.graco.com.
TO PLACE AN ORDER, contact your Graco distributor or call 1-800-690-2894 to identify the nearest distributor.
