eProposal Jan-2009

CALL NO. 311

CONTRACT ID. 122908

BELL COUNTY

FED/STATE PROJECT NUMBER FE02 007 2133 B00016N

DESCRIPTION KY 2133 OVER LEFT FORK OF STRAIGHT CREEK

WORK TYPE BRIDGE DECK RESTORATION & WATERPROOFING

PRIMARY COMPLETION DATE 11/15/2012

LETTING DATE: January 27, 2012

Sealed Bids will be received electronically through the Bid Express bidding service until

10:00 AM EASTERN STANDARD TIME January 27, 2012. Bids will be publicly

announced at 10:00 AM EASTERN STANDARD TIME.

REQUIRED BID PROPOSAL GUARANTY: Not less than 5% of the total bid.

TABLE OF CONTENTS

PART I SCOPE OF WORK

•PROJECT(S), COMPLETION DATE(S), & LIQUIDATED DAMAGES

•CONTRACT NOTES

•STATE CONTRACT NOTES

•SPECIAL NOTE(S) APPLICABLE TO PROJECT

•LIQUIDATED DAMAGES

•TRAFFIC CONTROL PLAN

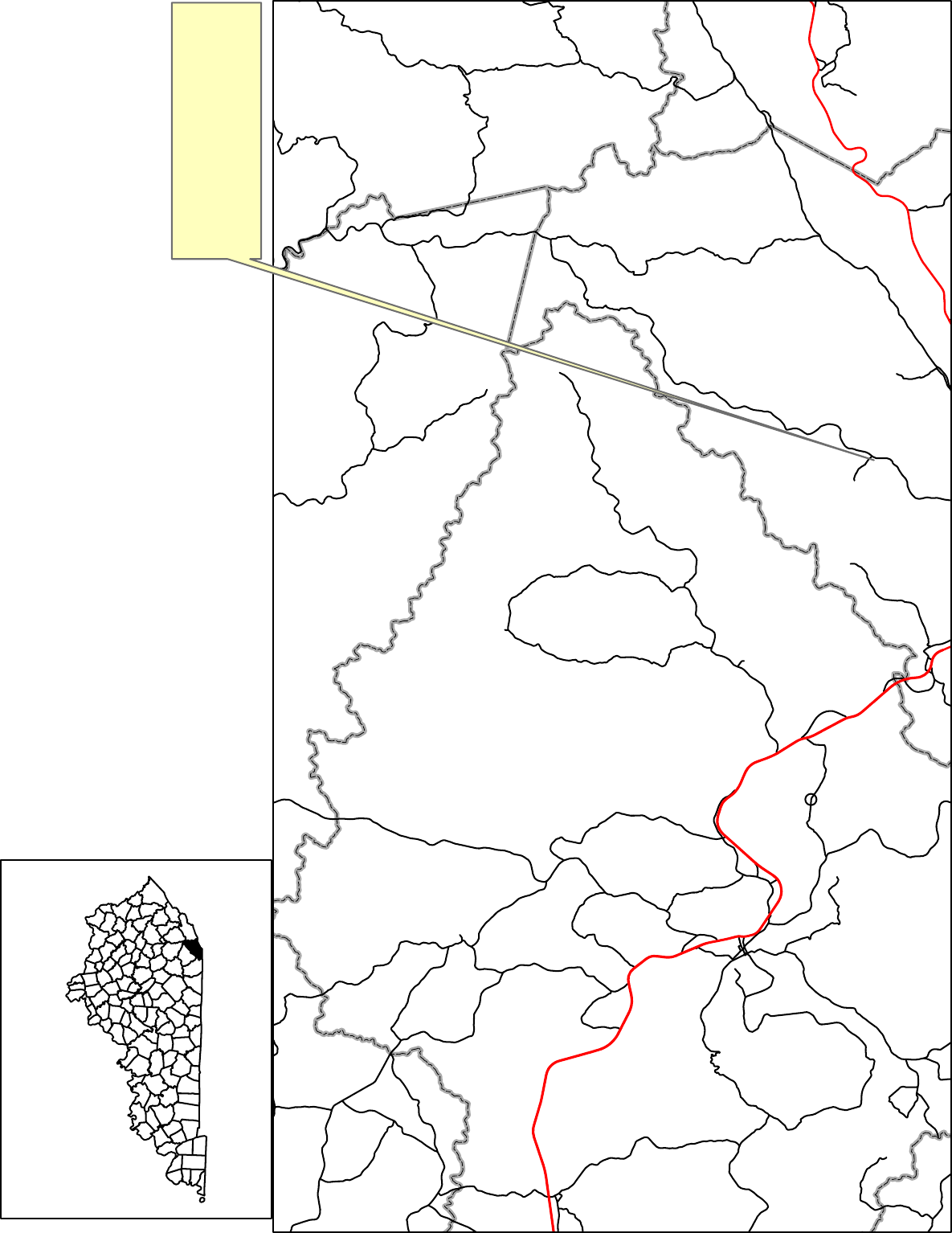

•SKETCH MAP(S)

•BRIDGE DRAWINGS

•PRE-BID CONFERENCE

PART II SPECIFICATIONS AND STANDARD DRAWINGS

•SPECIFICATIONS REFERENCE

•SUPPLEMENTAL SPECIFICATIONS

•STANDARD DRAWINGS THAT APPLY

PART III EMPLOYMENT, WAGE AND RECORD REQUIREMENTS

•LABOR AND WAGE REQUIREMENTS

•EXECUTIVE BRANCH CODE OF ETHICS

•KENTUCKY EQUAL EMPLOYMENT OPPORTUNITY ACT OF 1978

•PROJECT WAGE RATES

PART IV INSURANCE

PART V BID ITEMS

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 2 of 74

PART I

SCOPE OF WORK

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 3 of 74

CONTRACT ID - 122908 ADMINISTRATIVE DISTRICT - 11

PROJECT(S) IDENTIFICATION AND DESCRIPTION:

COUNTY - BELL PCN - MB00721331201

FE02 007 2133 B00016N

KY 2133 (MP 0.80) BRIDGE OVER LEFT FORK OF STRAIGHT CREEK 0.5 MILES NW OF JCT KY 66.

BRIDGE DECK RESTORATION & WATERPROOFING.

GEOGRAPHIC COORDINATES LATITUDE 36^48'44" LONGITUDE 83^38'44"

COMPLETION DATE(S):

COMPLETION DATE - November 15, 2012

APPLIES TO ENTIRE CONTRACT

30 CALENDAR DAYS

APPLIES TO B00016N

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 4 of 74

CONTRACT NOTES

PROPOSAL ADDENDA

All addenda to this proposal must be applied when calculating bid and certified in the bid

packet submitted to the Kentucky Department of Highways. Failure to use the correct

and most recent addenda may result in the bid being rejected.

BID SUBMITTAL

Bidder must use the Department’s Expedite Bidding Program available on the Internet

web site of the Department of Highways, Division of Construction Procurement.

(www.transportation.ky.gov/contract)

The Bidder must download the bid file located on the Bid Express website

(www.bidx.com) to prepare a bid packet for submission to the Department. The bidder

must submit electronically using Bid Express.

JOINT VENTURE BIDDING

Joint venture bidding is permissible. All companies in the joint venture must be

prequalified in one of the work types in the Qualifications for Bidders for the project.

The bidders must get a vendor ID for the joint venture from the Division of Construction

Procurement and register the joint venture as a bidder on the project. Also, the joint

venture must obtain a digital ID from Bid Express to submit a bid. A joint bid bond of

5% may be submitted for both companies or each company may submit a separate bond

of 5%.

UNDERGROUND FACILITY DAMAGE PROTECTION

The contractor is advised that the Underground Facility Damage Protection Act of 1994,

became law January 1, 1995. It is the contractor’s responsibility to determine the impact

of the act regarding this project, and take all steps necessary to be in compliance with the

provision of the act.

REGISTRATION WITH THE SECRETARY OF STATE BY A FOREIGN

ENTITY

Pursuant to KRS 176.085(1)(b), an agency, department, office, or political subdivision of

the Commonwealth of Kentucky shall not award a state contract to a person that is a

foreign entity required by KRS 14A.9-010 to obtain a certificate of authority to transact

business in the Commonwealth (“certificate”) from the Secretary of State under KRS

14A.9-030 unless the person produces the certificate within fourteen (14) days of the bid

or proposal opening. If the foreign entity is not required to obtain a certificate as

provided in KRS 14A.9-010, the foreign entity should identify the applicable exception.

Foreign entity is defined within KRS 14A.1-070.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 5 of 74

For all foreign entities required to obtain a certificate of authority to transact

business in the Commonwealth, if a copy of the certificate is not received by the

contracting agency within the time frame identified above, the foreign entity’s

solicitation response shall be deemed non-responsive or the awarded contract shall

be cancelled.

Businesses can register with the Secretary of State at

https://secure.kentucky.gov/sos/ftbr/welcome.aspx .

SPECIAL NOTE FOR PROJECT QUESTIONS DURING ADVERTISEMENT

Questions about projects during the advertisement should be submitted in writing to the

Division of Construction Procurement. This may be done by fax (502) 564-7299 or

email to kytc.projectquestions@ky.gov. The Department will attempt to answer all

submitted questions. The Department reserves the right not to answer if the question is

not pertinent or does not aid in clarifying the project intent.

The deadline for posting answers will be 3:00 pm Eastern Daylight Time, the day

preceding the Letting. Questions may be submitted until this deadline with the

understanding that the later a question is submitted, the less likely an answer will be able

to be provided.

The questions and answers will be posted for each Letting under the heading “Questions

& Answers” on the Construction Procurement website

(www.transportation.ky.gov/contract). The answers provided shall be considered part of

this Special Note and, in case of a discrepancy, will govern over all other bidding

documents.

ACCESS TO RECORDS

The contractor, as defined in KRS 45A.030 (9) agrees that the contracting agency, the

Finance and Administration Cabinet, the Auditor of Public Accounts, and the Legislative

Research Commission, or their duly authorized representatives, shall have access to any

books, documents, papers, records, or other evidence, which are directly pertinent to this

contract for the purpose of financial audit or program review. Records and other

prequalification information confidentially disclosed as part of the bid process shall not

be deemed as directly pertinent to the contract and shall be exempt from disclosure as

provided in KRS 61.878(1)(c). The contractor also recognizes that any books, documents,

papers, records, or other evidence, received during a financial audit or program review

shall be subject to the Kentucky Open Records Act, KRS 61.870 to 61.884.

In the event of a dispute between the contractor and the contracting agency, Attorney

General, or the Auditor of Public Accounts over documents that are eligible for

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 6 of 74

production and review, the Finance and Administration Cabinet shall review the dispute

and issue a determination, in accordance with Secretary's Order 11-004. (See attachment)

10/18/2011

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 7 of 74

Steven L. Beshear

Governor

Commonwealth of Kentuck

Finance and Administration Cabinet

OFFICE OF THE SECRETARY

Room 383, Capitol Annex

702 Capital Avenue

Frankfort, KY 40601-3462

(502) 564-4240

Fax (502) 564-6785

Lori H. Flanery

Secretary

KentuckyUnbridledSpirit.com An Equal Opportunity Employer M/F/D

SECRETARY’S ORDER 11-004

FINANCE AND ADMINISTRATION CABINET

Vendor Document Disclosure

WHEREAS, in order to promote accountability and transparency in governmental operations, the

Finance and Administration Cabinet believes that a mechanism should be created which would provide

for review and assistance to an Executive Branch agency if said agency cannot obtain access to

documents that it deems necessary to conduct a review of the records of a private vendor that holds a

contract to provide goods and/or services to the Commonwealth; and

WHEREAS, in order to promote accountability and transparency in governmental operations, the

Finance and Administration Cabinet believes that a mechanism should be created which would provide

for review and assistance to an Executive Branch agency if said agency cannot obtain access to

documents that it deems necessary during the course of an audit, investigation or any other inquiry by an

Executive Branch agency that involves the review of documents; and

WHEREAS, KRS 42.014 and KRS 12.270 authorizes the Secretary of the Finance and

Administration Cabinet to establish the internal organization and assignment of functions which are not

established by statute relating to the Finance and Administration Cabinet; further, KRS Chapter 45A.050

and 45A.230 authorizes the Secretary of the Finance and Administration Cabinet to procure, manage and

control all supplies and services that are procured by the Commonwealth and to intervene in controversies

among vendors and state agencies; and

NOW, THEREFORE, pursuant to the authority vested in me by KRS 42.014, KRS 12.270, KRS

45A.050, and 45A.230, I, Lori H. Flanery, Secretary of the Finance and Administration Cabinet, do

hereby order and direct the following:

I. Upon the request of an Executive Branch agency, the Finance and Administration Cabinet

(“FAC”) shall formally review any dispute arising where the agency has requested

documents from a private vendor that holds a state contract and the vendor has refused

access to said documents under a claim that said documents are not directly pertinent or

relevant to the agency’s inquiry upon which the document request was predicated.

II. Upon the request of an Executive Branch agency, the FAC shall formally review any

situation where the agency has requested documents that the agency deems necessary to

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 8 of 74

conduct audits, investigations or any other formal inquiry where a dispute has arisen as to

what documents are necessary to conclude the inquiry.

III. Upon receipt of a request by a state agency pursuant to Sections I & II, the FAC shall

consider the request from the Executive Branch agency and the position of the vendor or

party opposing the disclosure of the documents, applying any and all relevant law to the

facts and circumstances of the matter in controversy. After FAC’s review is complete,

FAC shall issue a Determination which sets out FAC’s position as to what documents

and/or records, if any, should be disclosed to the requesting agency. The Determination

shall be issued within 30 days of receipt of the request from the agency. This time period

may be extended for good cause.

IV. If the Determination concludes that documents are being wrongfully withheld by the

private vendor or other party opposing the disclosure from the state agency, the private

vendor shall immediately comply with the FAC’s Determination. Should the private

vendor or other party refuse to comply with FAC’s Determination, then the FAC, in

concert with the requesting agency, shall effectuate any and all options that it possesses to

obtain the documents in question, including, but not limited to, jointly initiating an action

in the appropriate court for relief.

V. Any provisions of any prior Order that conflicts with the provisions of this Order shall be

deemed null and void.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 9 of 74

SPECIAL NOTE FOR RECIPROCAL PREFERENCE

Reciprocal preference to be given by public agencies to resident bidders

By reference, KRS 45A.490 to 45A.494 are incorporated herein and in compliance

regarding the bidders residency. Bidders who want to claim resident bidder status

should complete the Affidavit for Claiming Resident Bidder Status along with their

bid in the Expedite Bidding Program. Submittal of the Affidavit should be done

along with the bid in Bid Express.

03/01/2011

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 10 of 74

SPECIAL NOTE FOR BRIDGE RESTORATION AND WATERPROOFING

WITH CONCRETE OVERLAYS

I. DESCRIPTION. Perform all work in accordance with the Kentucky Transportation

Cabinet, Department of Highway’s 2008Standard Specifications for Road and Bridge

Construction and applicable Supplemental Specifications, the Standard Drawings, this

Note, and the attached detail drawings. Section references are to the Standard

Specifications.

This work consists of the following: (1) Furnish all labor, materials, tools, and

equipment; (2) Remove the existing overlay or machine prep the existing slab; (3)

Complete full-depth and partial depth repairs as directed by the Engineer; (4)

Repair/replace damaged and corroded reinforcing bars; (5) Place new concrete overlay

and epoxy-sand slurry in accordance with Section 606; (6) Complete asphalt approach

pavement; (7) Maintain and control traffic; and (8) Any other work specified as part of

this contract.

All construction will be in accordance with Section 606 unless otherwise

specified.

II. MATERIALS.

A. Latex Concrete. See Section 606.03.17.

B. Class “M” Concrete. Use either “M1” or “M2”. See Section 601.

C. Bituminous Asphalt. Use CL2ASPH SURF 0.38D PG64-22.

D. Epoxy-Sand Slurry. See Section 606.03.10.

III. CONSTRUCTION.

A. Machine prep of existing slab. Remove concrete from existing slab to a depth of at

least ¼” below the existing surface, and remove all patches completely,in accordance

with the requirements of Section 606.03.03. See Special Note for Use of

Hydrodemolition Method.

B. Partial Depth Slab Repair. Remove areas determined to be unsound by the Engineer

via Hydrodemolition or via hand held jackhammers weighing less than 40lbs. No

wrecking balls, drop hammers, or rig-mounted breakers are allowed. Repair/Replace

all damaged or severely corroded reinforcing bars prior to partial depth repair

operation. The Department will not measure material removal and will consider this

work incidental to the bid item “PARTIAL DEPTH PATCHING”.

C. Asphalt Approach Pavement. Mill the NW existing asphalt approach for a distance

of 100’ from the bridge end. Mill the SE existing asphalt approach from the bridge

end to the edge of pavement of KY 66. Remove the bituminous material uniformly by

making an edge key, so as to provide a smooth transition to the finished bridge when a

new bituminous overlay of compacted depth of approximately 1½” is added to the

approaches. The grinding depth may vary depending of the condition of the existing

approach and final elevation of bridge end. Dispose of all removed material away

from the site.

E. Surface Texturing. Texture the concrete surface of the overlay in accordance with

Section 609.03.10.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 11 of 74

IV. MEASUREMENT. See Section 606 and the following:

A. Latex Modified Concrete (1 1/2inches thick). The Department will measure the

quantity in cubic yards using the theoretical volume as follows for each bridge:

007B00016N ((66’x22’)+ 33’x0.5(30’+22’))x1.50” = 10.7 cuyd

B. Latex Modified Concrete for Partial Depth Patching. The Department will

measure the quantity in cubic yards by deducting the theoretical volume of bridge deck

overlay (LMC) from the total volume (as indicated by the batch quantity tickets) of

Concrete required to obtain the finished grade shown on the Plans or established by

the Engineer.

C. Machine Prep of Slab. The Department will measure the maching preparation of the

existing bridge deck in square yards, which shall include all labor, equipment, and

material needed to complete this work.

D. Steel Reinforcement. The Department will measure any reinforcing steel necessary

for the partial or full depth patch in pounds, which shall include all labor, equipment,

and material needed to complete this work.

E. Asphalt Approach Pavement. The Department will measure the quantity in square

yards, which shall include all labor, equipment, and material needed to complete this

work.

V. PAYMENT. See Section 606 and the following:

A. Latex Modified Concrete (1 1/2 inches thick). The Department will make payment

for the Latex Modified Concrete under bid item #08534 “CONCRETE OVERLAY –

LATEX” for the quantity in cubic yards complete in place.

B. Latex Modified Concrete for Partial Depth Patching. The Department will make

payment for the Partial Depth Patching under bid item #24094EC “PARTIAL DEPTH

PATCHING”. Payment will be for the quantity per cubic yard complete in place.

C. Machine Prep of Slab. The Department will make payment for the removal of the

existing overlay under bid item #08510 “MACHINE PREP OF SLAB”. Payment will

be for the square yard complete.

D. Steel Reinforcement. The Department will make payment for steel reinforcement, if

necessary, under bid item #08150 “STEEL REINFORCEMENT”. Payment will be at

the unit price per pound.

E. Asphalt Approach Pavement. The Department will make payment for the

completed and accepted quantity of this work under the bid item #03304 “BRIDGE

OVERLAY APPROACH PAVEMENT”.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 12 of 74

SPECIAL NOTE FOR REPLACING EXPANSION DAMS AND/OR

INSTALLING ARMORED EDGES FOR CONCRETE ON BRIDGES

1. DESCRIPTION. Perform all work in accordance with the Kentucky Transportation

Cabinet, Department of Highway’s 2008Standard Specifications for Road and Bridge

Construction and applicable Supplemental Specifications, the Standard Drawings, this Note, and

the attached detail drawings. Section references are to the Standard Specifications.

This work consists of the following: (1) Furnish all labor, materials, tools, and

equipment; (2) Remove existing concrete and expansion device(s) and/or bridge ends; (3) Install

armored edges and new concrete as specified and in accordance with the attached detail

drawings; (4) Maintain and control traffic; and (5) Any other work specified as part of this

contract.

2. MATERIALS.

A. Class “M” Concrete. Use either “M1” or “M2”. See Section 601.

B. Structural Steel. Use new, commercial grade steel suitable for welding. The

Engineer will base acceptance on visual inspection. See Standard Drawing BJE-001,

current edition.

C. Stud Anchors. The armored edge stud anchors are ¾” x 6” embedded stud shear

connectors conforming to ASTM A108, Grade 1015 (Nelson Studs or equal).

D. Steel Reinforcement. Use Grade 60. See Section 602.

E. Epoxy Bond Coat. See Section 511.

3. EQUIPMENT.

A. Hammer. Provide Power driven Hammers lighter than nominal 45 lb. class.

B. Sawing Equipment. Sawing equipment shall be a concrete saw capable of sawing

concrete to the specified depth.

C. Hydraulic Impact Equipment. Hydraulic Impact/Skid Steer Type Equipment with a

maximum rated striking Energy of 360 ft-lbs are permitted only in areas of concrete removal

more than 6 inches away from boundaries of surface areas to remain in service. The

Contractor is to provide data information to the engineer on the equipment they wish to

utilize to ensure compliance with this note.

4. CONSTRUCTION.

A. Remove Existing Materials. Remove existing Expansion Dam, Bridge End,

Armored Edges and specified areas of concrete as shown on the attached sketches.

Remove debris and/or expansion joint filler as directed by the Engineer. . Clean and

leave all existing steel reinforcement encountered in place. Damaged steel reinforcement will

be repaired/replaced as directed by the Engineer at no additional cost to the Department.

Dispose of all removed material entirely away from the job site. This work is incidental to

the contract unit price for "Expansion Joint Replacement" or “Armored Edge for

Concrete”.

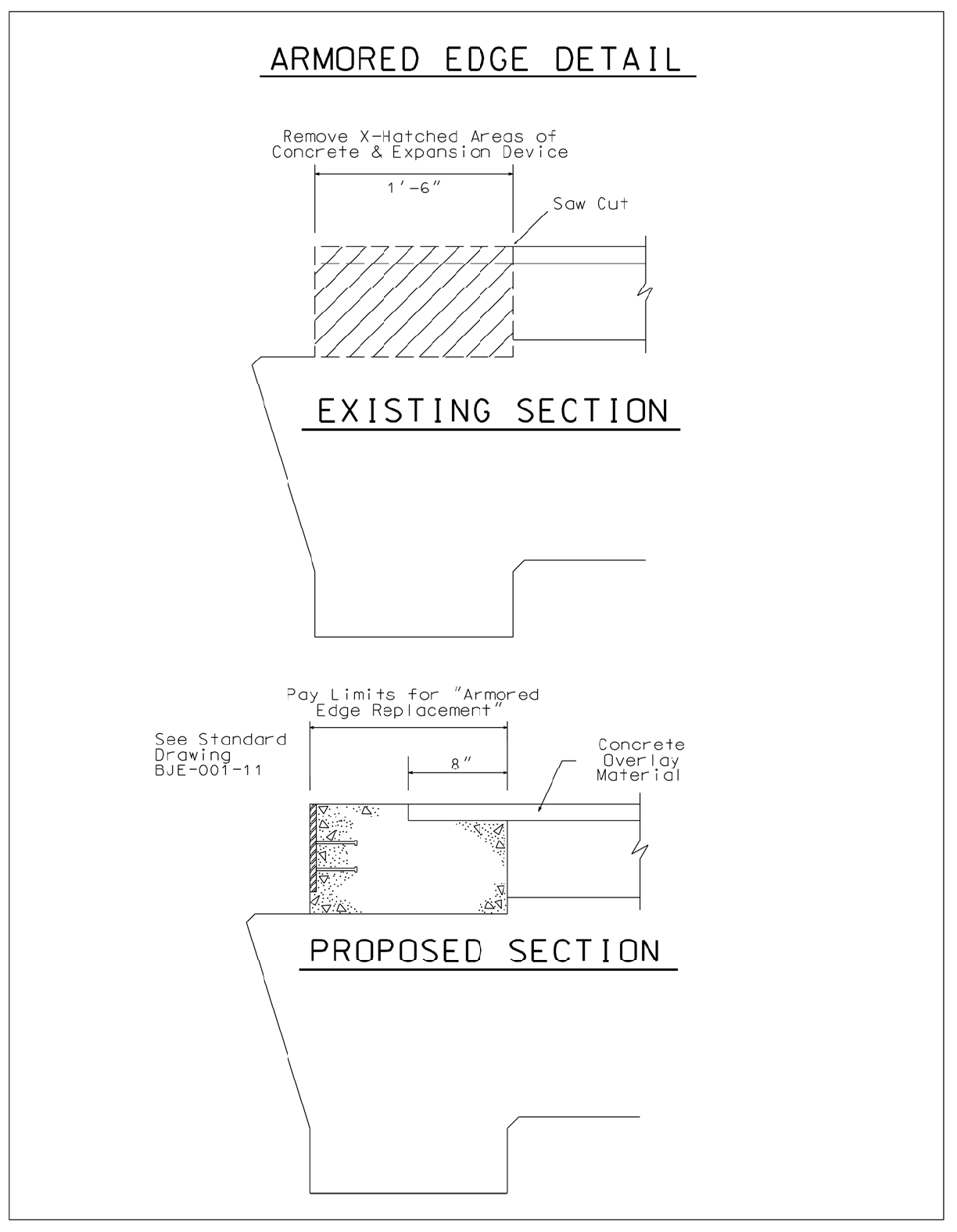

B. Place New Concrete and Armored Edges. After all specified existing materials

have been removed; place new armored edges to match the grade of the proposed

overlay or to match the original grade (See attached detail drawings). Place the new

Class “M” concrete to the scarified grade and finish to receive the new overlay or

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 13 of 74

place the new Class “M” concrete to the original grade and finish with broom strokes

drawn transversely from curb to curb.

All new structural steel shall be cleaned and painted in accordance with

requirements of Section 607.03.23, except that surfaces to come in contact with

concrete are not to be painted.

Blast clean all areas of existing concrete and structural steel to come in contact

with new concrete until free of all laitance and deleterious substances immediately

prior to the placement of the Class "M" Concrete. The surface areas of existing

concrete to come in contact with the new Class "M" Concrete are to be coated with an

epoxy bond coat immediately prior to placing new concrete in accordance with

Section 511. The interfaces of the new and old concrete shall be as nearly vertical

and horizontal as possible.

C. Additional Steel Reinforcement. Furnish for replacement, as directed by the

Engineer, 1300 linear feetof #4 steel reinforcing bars in 20’ lengths. Place these

bars in areas deemed by the Engineer to require additional reinforcement. Field

cutting and bending is permitted. Do not place any additional steel reinforcement

above the height of the top row of Nelson Studs on the armored edges. Ensure that all

exposed steel reinforcement is tied in accordance with Section 602.03.04 prior to

pouring the new Class “M” concrete. Deliver unused bars to the Local County

Maintenance Barn. Payment will be made in accordance with Section 602.

D. Stage Construction. Installation of concrete and armored edges in two (or more if

specified) stages is necessary. Join the armored edges at or near the centerline of the

roadway or lane line, field weld and grind smooth.

E. Shop Plans. Shop plans will not be required. The Contractor is responsible for

obtaining field measurements and supplying properly sized materials to complete the

work.

IV MEASUREMENT.

A. Armored Edge for Concrete. The Department will measure the quantity in linear

feet from gutterline to gutterline along the face of the bridge end.

B. Steel Reinforcement. See Section 602.

V. PAYMENT.

A. Armored Edge for Concrete. Payment at the contract unit price per linear foot is

full compensation for removing specified existing materials, furnishing and installing

the new armored edges, concrete and all incidental items necessary to complete the

work (except the overlay material) within the specified pay limits as specified by this

note and as shown on the attached detail drawings.

B. Steel Reinforcement. See Section 602.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 14 of 74

SPECIAL NOTE FOR ELIMINATING TRANSVERSE JOINTS ON BRIDGES

This Special Note will apply where indicated on the plans or in the proposal. Section references herein

are to the Department’s 2008 Standard Specifications for Road and Bridge Construction.

1.0.DESCRIPTION. Remove existing concrete and existing joint material to eliminate the

transverse joint. Install additional reinforcing steel and place concrete.

2.0 MATERIALS.

A. Class “M” Concrete. Use either “M1” or “M2”. See Section 601.

B. Steel Reinforcement. Use Grade 60. See Section 602.

C. Epoxy Bond Coat. See Section 511.

3.0 EQUIPMENT.

A. Hammer. Provide Power driven Hammers lighter than nominal 45 lb. class.

B. Sawing Equipment. Sawing equipment shall be a concrete saw capable of sawing

concrete to the specified depth.

C. Hydraulic Impact Equipment. Hydraulic Impact/Skid Steer Type Equipment with a

maximum rated striking Energy of 360 ft-lbs are permitted only in areas of concrete removal

more than 6 inches away from boundaries of surface areas to remain in service. The

Contractor is to provide data information to the engineer on the equipment they wish to

utilize to ensure compliance with this note.

4.0 CONSTRUCTION.

A. Remove Existing Materials. Remove the existing transverse joints, joint filler, and specified

areas of concrete as shown on the plans or as directed by the Engineer. Clean and leave all

existing steel reinforcement encountered in place. Damaged steel reinforcement will be

repaired/replaced as directed by the Engineer at no additional cost to the Department.

Dispose of all removed material entirely away from the job site. This work is incidental to the

contract unit price for "Eliminate Transverse Joint".

B. Additional Steel Reinforcement. Furnish for this work steel reinforcing bars as shown on

the plans. Splice these bars to the existing longitudinal reinforcement in the deck and

curb/sidewalk in the areas of removed concrete to tie the slabs together as shown on the

plans. Ensure that all exposed steel reinforcement is tied in accordance with Section

602.03.04 prior to pouring the new Class “M” concrete.

C. Place New Concrete. Blast clean all areas of existing concrete and structural steel to come

in contact with new concrete until free of all laitance and deleterious substances immediately

prior to the placement of the Class "M" Concrete. The surface areas of existing concrete to

come in contact with the new Class "M" Concrete are to be coated with an epoxy bond coat

immediately prior to placing new concrete in accordance with Section 511. The interfaces of

the new and old concrete shall be as nearly vertical and horizontal as possible.

Place new Class "M" Concrete to the specified grade and finish to receive the new overlay or

as shown on the plans. On the sidewalk and curb, place the new concrete to original grade

and finish to match the existing curb/sidewalk.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 15 of 74

5.0 MEASUREMENT.

A. Eliminate Transverse Joint. The Department will measure the quantity in linear feet from

plinth to plinth perpendicular to the centerline of the bridge.

B. Steel Reinforcement. See Section 602.

6.0 PAYMENT.

A. Eliminate Transverse Joint. Payment at the contract unit price per linear foot is full

compensation for furnishing equipment, labor, tools and materials needed to complete

removal and disposal of the specified existing materials, cleaning and straighting of existing

steel reinforcement, furnishing and installing the concrete, and all incidental items necessary

to complete the work (except the overlay material if specified elsewhere in the contract)

within the specified pay limits as indicated on the drawings.

B. Steel Reinforcement. See Section 602.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 16 of 74

NOTES FOR BRIDGE PIER AND EXTERIOR BEAM CONCRETE PATCHING

These Notes or designated portions thereof, apply where so indicated on the plans,

proposals or bidding instruction.

I. DESCRIPTION. Perform all work in accordance with the Department's 2008Standard

Specifications, and applicable Supplemental Specifications, the attached sketches, and

these Notes. Section references are to the Standard Specifications.

This work consists of: (1) Furnish all labor, materials, tools, and equipment; (2) Remove

existing spalled/delaminated concrete; (3) Prepare the existing surface for concrete

patching; (4) Place hook fasteners and welded wire fabric over surfaces to be repaired

(where applicable); (5) Apply concrete patching as specified by this note and as shown on

the attached detail drawings; (6) Finish and cure the new Concrete Patches; (7) Maintain

& control traffic; and, (8) Any other work specified as part of this contract.

II. MATERIALS.

A. Concrete. Approved Concrete Product for Vertical and Overhead Repair Patch.

B. Steel Reinforcement. Use Grade 60. See Section 602

C. Welded Steel Wire Fabric (WWF). Conform to Section 811

D. Hook Fasteners. Use commercial grade galvanized hook fasteners. Minimum

3/16” diameter.

III. CONSTRUCTION.

A. Concrete Removal and Preparation. The Contractor, as directed by the

Engineer shall locate and remove all loose, spalled, deteriorated and delaminated

concrete. Sounding shall be used to locate delaminated areas. Care shall be

exercised not to damage areas of sound concrete or reinforcing steel during

concrete removal operations. Unless specifically directed by the Engineer, depth

of removal shall not exceed 6 inches. Concrete removal shall be in accordance

with a sequence approved by the Engineer.

Concrete removal shall be accomplished by chipping with hand picks, chisels or

light duty pneumatic or electric chipping hammers (not to exceed 15 lbs.). If

sound concrete is encountered before existing reinforcing steel is exposed, the

surface shall be prepared and repaired without further removal of the concrete.

When corroded reinforcing steel is exposed, concrete removal shall continue until

there is a minimum ¾ inch clearance around the exposed, corroded reinforcing bar.

Care shall be taken to not damage bond to adjacent non-exposed reinforcing steel

during concrete removal processes.

The perimeter of all areas where concrete is removed shall be tapered at an

approximately 45° angle, except that the outer edges of all chipped areas shall be

saw cut to minimum depth of ¾ inch to prevent featheredging unless otherwise

approved by the Engineer.

After all deteriorated concrete has been removed; the repair surface to receive

concrete patching shall be prepared by abrasive blast cleaning. Abrasive blast

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 17 of 74

cleaning shall remove all fractured surface concrete and all traces of any unsound

material or contaminants such as oil, grease, dirt, slurry, or any materials which

could interfere with the bond of freshly placed concrete.

The Contractor shall dispose all removed material off State Right Of Way in an

approved site.

B. Steel Reinforcement. All corroded reinforcing steel exposed during concrete

removal shall have corrosion products removed by abrasive grit blasting or wire

brush whichever is more appropriate. Furnish for replacement steel reinforcing bars

½” diameter by 20-foot lengths. Place these bars in areas deemed by the Engineer

to require additional reinforcement. Field cutting and bending is permitted.

Deliver unused bars to the nearest County Maintenance Barn. Payment will be

made in accordance with Section 602.

Reinforcing steel displaying deep pitting or loss of more than 20 percent of cross-

sectional area shall be removed and replaced. Such bars shall be placed in

accordance with the recommendations of ACI 506R, Sections 5.4 and 5.5. In

particular, bars shall not be bundled in lapped splices, but shall be placed such that

the minimum spacing around each bar is three times the maximum aggregate size

to allow for proper encapsulation with concrete patching.

Intersecting reinforcing bars shall be tightly secured to each other using tie wire

and adequately supported to minimize movement during concrete placement.

Welded wire fabric (WWF) shall be provided as shown on the attached sketches

and at each repair area larger than 1 square foot if the depth of the repair exceeds

3 inches from the original dimension of the repaired member. Sheets of adjoining

WWF shall be lapped by at least one and one-half spaces at all intersections, in

both directions, and be securely fastened. WWF fabric shall be supported no

closer than ½ inch to the prepared concrete surface and shall have a minimum

concrete cover of 1.5 inches.

WWF shall be fastened to preset anchors on a grid not more than 12 inches square.

Large knots of tie wire which could result in sand pockets and voids during

patching shall be avoided.

C. Hook Fasteners. Hook fasteners shall be positioned at the spacing as stated

above or as directed by the Engineer. Any given area shall have a minimum of

four anchors. The WWF shall not move or deform excessively during concrete

patching. Maximum hook fastener spacing shall not exceed 2 feet on a grid

pattern over the entire repair area.

Hook fasteners shall be of commercial grade galvanized steel with a minimum

diameter of 3/16”. They may be mechanically set or grouted, as approved by the

Engineer.

The Department will randomly select hook fasteners to be tested to verify pullout

force is sufficient. If any anchors fail to meet the minimum acceptable pullout

value, corrective measures shall be taken by the Contractor and further testing will

be conducted.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 18 of 74

D. Concrete Patching. Place and finish the new concrete for the patching area in

accordance with the manufacturer’s recommendations, as shown on the attached

detail drawings, or as directed by the Engineer. The Engineer shall approve the

Contractor’s method of placing and consolidating the concrete prior to the

beginning of this operation.

E.Curing. On completion of finishing operation, patching concrete shall immediately

be prevented from drying out and cracking by fogging, wetting, and/or any

appropriate method approved by the Engineer. Curing shall continue for duration

recommended by the product manufacturer.

Each Contractor submitting a bid for this work shall make a thorough inspection of the site prior to

submitting his bid and shall thoroughly familiarize himself with existing conditions so that the work can

be expeditiously performed after a contract is awarded. Submission of a bid will be considered evidence

of this inspection having been made. Any claims resulting from site conditions will not be honored by

the Department.

Quantities given are approximate. The quantity for “Concrete Patching Repair” shall be bid with

the contingency that quantities may be increased, decreased, or eliminated by the Engineer.

Dispose of all removed material entirely away from the job site as approved by the Engineer. This

work is incidental to the contract unit price for “Concrete Patching Repair”.

IV. MEASUREMENT

A. Concrete Patching. The Department will measure the quantity per cubic feet of

each area restored.

B. Steel Reinforcement. See Section 602.

C. Welded Wire Fabric & Hook Fasteners. Welded Wire Fabric and Hook

Fasteners will not be measured for payment, but shall be considered incidental to

“Concrete Patching Repair”.

V. PAYMENT

A. Concrete Patching Repair. Payment at the contract unit price per cubic feet is

full compensation for the following: (1) Furnish all labor, materials, tools,

equipment; (2) preparation of specified bents including removing and disposing of

specified existing materials; (3) place, finish and cure new concrete patches; and

(4) all incidentals necessary to complete the work as specified by this note and as

shown on the attached detail drawings.

B. Steel Reinforcement. See Section 602.

The Department will consider payment as full compensation for all work required by these

notes and detail drawings.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 19 of 74

SPECIAL NOTE FOR USE OF HYDRODEMOLITION METHOD

To be used if the Contractor chooses to use Hydrodemolition method to complete partial and full

depth removal. Also see Section 606.03.03.

Description

This work consists of bridge surface deck preparation using Hydrodemolition to provide a uniform

depth, highly bondable surface and to remove all variable depth, unsound material. This item also

includes the removal and disposal of all concrete and debris, vacuuming, shielding, water control,

additional jack hammering and all other aspects of work necessary to prepare the deck for the

placement of the new latex modified concrete overlay.

Equipment

Sawing Equipment. Sawing equipment shall be a concrete saw capable of sawing concrete to the

specified depth.

Mechanical Scarifying Equipment. The scarifying equipment shall be a power operated

mechanical scarifier capable of uniformly scarifying or removing the old concrete or asphalt wearing

surface from the bridge deck to the depths required in the plans or as directed by the Engineer. The

equipment shall be self-propelled with sufficient power, traction and stability to maintain accurate

depth of cut and slope. The equipment shall be capable of accurately and automatically establishing

profile grades along each edge of the machine by referencing the existing bridge deck by means of a ski

or matching shoe, or from an independent grade control; in addition, it shall be equipped with an

integral loading means to remove the material being cut from the bridge deck and to discharge the

cuttings into a truck all in a single operation.

Hydro-Demolition Equipment. The Hydrodemolition equipment shall consist of a filtering and

pumping unit operating with a self-propelled computerized robot that utilizes a high pressure water jet

capable of removing concrete to the depth specified on the plans or as directed by the Engineer and be

capable of removing rust and concrete particles from reinforcing steel. The equipment shall provide a

rough and bondable surface and remove all unsound concrete during the initial pass. The minimum

water usage shall be 43 gal/min operating at 13,000 psi minimum.

Vacuum Cleanup Equipment. The vacuum cleanup equipment shall be equipped with fugitive

dust control devices and be capable of removing wet debris and water all in the same pass. Provide

equipment capable of washing the deck with pressurized water prior to the vacuum operation to

dislodge all debris and slurry from the deck surface.

Hand Held Blast Cleaning Equipment. Hand held blast shall be either sand or water as

necessary to expose fine and coarse aggregates; thoroughly clean all exposed reinforcing steel; and

remove any unsound concrete or laitance layers from the proposed concrete overlay surface. If sand

blasting equipment is utilized, the equipment shall have oil traps. If water blasting equipment is utilized,

the equipment must be capable of delivering a minimum of 5,000 psi.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 20 of 74

Power Driven Hand Tools. Power driven hand tools and jackhammers will be permitted, but

shall not be heavier than the nominal 35 lb class. Chipping hammers shall not be heavier than the

nominal 15 lb class. Only hand chipping tools shall be used when removing concrete within 1 in. of

reinforcing steel. Mechanically driven tools shall be operated at a maximum angle of 45 degrees from

the bridge floor surface.

Construction Methods

General:Perform Hydrodemolition surface preparation over the entire top surface of the

reinforced concrete bridge deck to provide a rough and bondable surface and to remove all unsound

concrete during the initial Hydrodemolition surface preparation pass. The use of hand chipping tools,

either hand or mechanically driven, shall be limited to trim work and areas inaccessible or inconvenient

for the hydro-demolition equipment.

Description:This work shall consist of furnishing the necessary labor, materials and equipment to

completely remove the top surface of the Portland cement concrete bridge deck surface in accordance

with these Specifications and in reasonably close conformity with the grades, thickness, or sections

shown on the Plans or as directed by the Engineer. This work shall include the removal of patches other

than sound Portland cement concrete and all loose and unsound concrete by Hydrodemolition;

preparation of the sound existing concrete surface; removal, forming and concrete for full depth repairs;

blast cleaning or high pressure water cleaning the existing deck prior to placement of the modified

concrete overlay; and all other operations necessary to complete this work according to these

specifications and to the satisfaction of the Engineer.

Preparation of Existing Deck

No operations without reasonably available engineering controls that limit fugitive dust will be

acceptable.

The Contractor shall be aware that there are federal, state, regional, and local government agencies

that have requirements regarding the control of fugitive dust generated by concrete removal and

blasting operations.

The Contractor is responsible for protecting traffic traveling adjacent to and under the work zone

while removing bridge deck concrete.

Where the deck is sound for less than one third of its original depth, the concrete shall be removed

full depth for limited areas as designated by the Engineer. Full depth repairs shall be completed as

specified for Full Depth Repair.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 21 of 74

Removal of Existing Asphaltic Concrete Overlays

If an existing asphaltic concrete overlay is present upon the original bridge deck surface to be

prepared by Hydrodemolition, the overlay and any waterproofing material that was part of the deck

must be removed, and the bridge deck cleaned, prior to commencement of the Hydrodemolition

operation. The Contractor may utilize conventional scarifying equipment conforming to these

specifications to remove the existing bituminous overlay and waterproofing material from the original

bridge deck. Acceptable depth of scarification shall be the overlay and waterproofing material thickness

plus ¼“ below the original bridge deck surface. Additional removal depth of existing deck concrete is

permitted by mechanical scarification provided. Total surface Hydrodemolition is used to provide a

highly bondable surface and to remove partial depth deteriorated concrete.

If the use of mechanical scarifying equipment results in the snagging of the top mat of steel

reinforcement, the scarifying equipment shall be immediately stopped and the depth of removal

adjusted. Damaged or dislodged reinforcing steel shall be repaired or replaced at the Contractor's

expense. Replacement shall include the removal of any additional concrete required to position the new

reinforcing steel at the correct height and required lap splice lengths.

Removal of Existing Modified Concrete Overlays

If an existing modified concrete overlay is present upon the original bridge deck surface to be

prepared by Hydrodemolition, the overlay material that was part of the deck must be removed, and the

bridge deck cleaned, prior to commencement of the Hydrodemolition operation. The Contractor may

utilize conventional scarifying equipment conforming to these specifications to remove the existing

concrete overlay from the original bridge deck. Acceptable depth of scarification shall be the overlay

thickness plus ¼” below the original bridge deck surface. Additional removal depth of existing deck

concrete is permitted by mechanical scarification provided. Total surface Hydrodemolition is used to

provide a highly bondable surface and to remove partial depth deteriorated concrete.

Existing overlay material which is sound and bonded may be left in patch areas with approval of the

Project Engineer. If determined the existing patches are to be removed, jackhammers, not to be heavier

than the nominal 35 lb class shall be used to remove debonded areas.

If the use of mechanical scarifying equipment results in the snagging of the top mat of steel

reinforcement, the scarifying equipment shall be immediately stopped and the depth of removal

adjusted. Damaged or dislodged reinforcing steel shall be repaired or replaced at the Contractor's

expense. Replacement shall include the removal of any additional concrete.

Bridge Decks with No Existing Concrete Overlay

If Hydrodemolition is to be performed on an original bridge deck surface without a bituminous or

concrete bridge deck overlay, the Contractor may use mechanical scarification equipment conforming to

these specifications to remove an initial portion of the hydro-demolition depth. The scarification depth

shall be ¼”. Total surface Hydrodemolition is used to provide a highly bondable surface and to remove

partial depth deteriorated concrete.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 22 of 74

If the use of mechanical scarifying equipment results in the snagging of the top mat of steel

reinforcement, the scarifying equipment shall be immediately stopped and the depth of removal

adjusted. Damaged or dislodged reinforcing steel shall be repaired or replaced at the Contractor's

expense. Replacement shall include the removal of any additional concrete required to position the new

reinforcing steel at the correct height and required lap splice lengths.

Concrete Removal by Hydro-Demolition

General:The total surface area of the reinforced concrete bridge deck shall be completely

prepared by Hydrodemolition as necessary to provide a highly roughened and bondable surface prior to

placement of the proposed bridge deck overlay while removing any deteriorated and unsound concrete

in the initial pass. Unsound concrete is defined as existing bridge deck concrete that is deteriorated,

spalled, or determined by the engineer to be unsound.

With the use of Hydrodemolition surface preparation, the requirement to provide a minimum ¼”

clearance around all reinforcing bars that are more than ½” diameter exposed is waived, providing that

the existing concrete is sound. The amount of steel exposed shall be kept to a minimum.

Damaged or dislodged reinforcing steel shall be repaired or replaced at the Contractor's expense.

Replacement shall include the removal of any additional concrete required to position the new

reinforcing steel at the correct height and to provide the required lap splice lengths as required.

Calibration:Prior to commencement of the Hydrodemolition removal operation, the

Hydrodemolition equipment shall be calibrated on an existing sound concrete surface as designated by

the Engineer. The calibration area shall be a minimum of 7 feet wide by 7 feet long to demonstrate the

desired result of this specification.

Move the Hydrodemolition equipment to a second area (7’x7’) that is unsound as designated by the

Engineer to demonstrate the desired result of this specification which is providing a highly rough and

bondable surface and removing all unsound concrete during the initial pass is being achieved.

The Engineer shall verify the following settings:

1. Water pressure gauge (13,000 psi minimum)

2. Machine staging control (step)

3. Nozzle size

4. Nozzle speed (travel)

5. Depth of removal

6. Minimum water usage (43 gallons per minute)

During the Hydrodemolition operations of any or all of the above settings may be modified in order

to achieve removal of all unsound concrete and to provide a highly bondable surface. The settings may

be changed by the Contractor to achieve total removal of unsound concrete, but the Engineer must be

notified of all changes. The Engineer may change any or all of the settings in order to achieve the desired

results with Hydrodemolition. The removals and depth shall be verified, as necessary, and at least every

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 23 of 74

30 feet along the cutting path. The readings shall be documented and, if necessary, the equipment re-

calibrated to insure the Hydrodemolition process achieves the desired results and removal of unsound

concrete.

Calibration shall be required on each structure; each time Hydrodemolition is performed and as

required to achieve the results specified by the plan.

Debris and Fluid Containment:Prior to commencement of the Hydrodemolition operation, the

Contractor shall submit a plan for approval to the engineer for control and filtering of all water

discharged during operation. The Contractor, at a minimum, shall block all drains on the deck and install

aggregate dams every 150 feet; 6 inches high by 1 foot wide minimum, to strain runoff. The deck shall

be used as a settlement basin within itself unless an alternate method of water control, satisfactory to

the Engineer and meeting the environmental requirements of any associated Regulatory Agency, is

required.

The Contractor shall provide shielding, as necessary, to insure containment of all dislodged concrete

within the removal area in order to protect the public from flying debris both on and under the work

site.

Cleaning

Cleaning shall be performed with a vacuum system capable of removing wet debris and water all in

the same pass. The vacuum equipment shall be capable of washing the deck with pressurized water

prior to the vacuum operation to dislodge all debris and slurry from the deck surface. Cleaning shall be

done in a timely manner, before debris and water is allowed to dry on the deck surface.

Resounding

After the Hydrodemolition operation has completed the removal, and the deck is cleaned and

allowed to dry, the deck shall be resounded to assure that the all unsound concrete deck material has

been removed. The final sounding of the deck shall be done by the Engineer and shall be performed

only when the entire deck is completely dry.In no case shall the final sounding be made unless the deck

is dry and frost-free. Final sounding shall consist of as many successive resounding as required to ensure

that all deteriorated and fractured concrete has been removed. Additional removal shall be performed

with 35 lb maximum weight jackhammers operated at an angle of no more than 45 degrees from

horizontal. Aerosol spray paint for outlining and sounding chains shall be provided by the Contractor.

Full Depth Repair

Where the deck is sound for less than one third of its original depth, the concrete shall be removed

full depth except for limited areas as may be designated by the Engineer. Forms shall be provided to

support concrete placed in full depth repair areas. The forms for areas of up to 4 square feet may be

suspended from wires from the reinforcing steel. For areas greater than 4 square feet, the forms shall be

suspended from the primary members of the superstructure or by shoring below. Areas of full depth

repair shall have the concrete faces and reinforcing steel cleaned. Only those areas marked in the field

by the Engineer as full depth repair will be paid for as full depth repair.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 24 of 74

Preparation Prior to Overlay Placement

Vehicles other than approved construction equipment will not be permitted on those sections of the

deck where Hydrodemolition has begun. Contamination of the deck by construction equipment or from

any other source shall be prevented.

Method of Measurement

Wearing Course Removed Asphalt shall be measured as the actual square yards of the existing

asphalt wearing course and waterproofing material removed and shall include all labor, materials and

equipment required to complete the work.

Existing Modified Concrete Overlay Removed shall be measured as the actual square yards of the

existing concrete overlay removed and shall include all labor, materials and equipment required to

complete the work.

Surface Preparation Using Hydrodemolition shall be measured as the actual deck area in square

yards overlaid and shall include the costs of surface preparation, Hydrodemolition, ¼” (min.) milling into

the original concrete bridge deck surface, removal of the surface preparation debris, cleaning, any

incidental materials, and all labor and equipment as necessary to complete the work as described in this

specification, but not specifically included in other items for payment.

Full Depth Repair when encountered on a bridge deck and marked in the field by the Engineer, full

depth repair shall be paid for per Cubic Yard of Class M Concrete used.

Basis of Payment

Payment for completed and accepted quantities as measured above will be made at the contract

price for one of the following:

Item Unit Description

24094EC Cubic Yard Partial Depth Patching

08551 Square yard Machine Prep of Slab

Removal of existing flexible (asphalt) concrete overlays and rigid modified concrete overlays are

included as parts of this work if the above bid items are part of the project plans:

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 25 of 74

SPECIAL NOTE FOR CONTRACT COMPLETION DATE AND

LIQUIDATED DAMAGES ON BRIDGE REPAIR CONTRACTS

I. COMPLETION DATE. The Contractor has the option of selecting the starting date for

this Contract. Once selected, notify the Department in writing of the date selected at least

two weeks prior to beginning work. All work is to be completed by November 15, 2012.

An allotted number of Calendar days are assigned to each structure in this contract as

shown below.

STRUCTURE NO. OF CALENDAR DAYS COMPLETION DATE

007B00016N 30 November 15, 2012

Contrary to Section 108.07.02, the Engineer will begin charging calendar days for a

structure on the day the Contractor starts work or sets up traffic control on that particular

structure.

II. LIQUIDATED DAMAGES. Liquidated damages will be assessed the Contractor in

accordance with the Transportation Cabinet, Department of Highway’s 2008Standard

Specifications for Road and Bridge Construction, Section 108.09, when either the allotted

number of calendar days or the November 15, 2012date isexceeded.

Contrary to the Standard Specifications, liquidated damages will be assessed the

Contractor during the months of December, January, February and March when the

contract time has expired on any individual bridge or bridges. Contract time will be

charged during these months.

All construction must be completed in accordance with the weather limitations specified in

Section 606 and/or Section 601 as applicable. No extension of Contract time will be

granted due to inclement weather or temperature limitations that occur due to starting

work on the Contract or a structure late in the construction season.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 26 of 74

SPECIAL NOTE FOR TRAFFIC CONTROL ON BRIDGE REPAIR CONTRACTS

I. TRAFFIC CONTROL GENERAL

Except as provided herein, traffic shall be maintained in accordance with the 2008Standard

Specifications, Section 112. Except for the roadway and traffic control bid items listed, all items

of work necessary to maintain and control traffic will be paid at the lump sum bid price to

“Maintain and Control Traffic”.

Contrary to Section 106.01, traffic control devices used on this project may be new or used in

new condition, at the beginning of the work and maintained in like new condition until

completion of the work.

II. TRAFFIC COORDINATOR

Furnish a Traffic Coordinator as per Section 112. The Traffic Coordinator shall inspect the

project maintenance of traffic, at least three times daily, or as directed by the Engineer, during

the Contractor’s operations and at any time a lane closure is in place. The personnel shall have

access on the project to a radio or telephone to be used in case of emergencies or accidents.

The Traffic Coordinator shall report all incidents throughout the work zone to the Engineer on

the project. The Contractor shall furnish the name and telephone number where the Traffic

Coordinator can be contacted at all times.

III. SIGNS

Contrary to Section 112.04.02, only long term signs (sign intended to be continuously in place

for more than 3 days) will be measured for payment; short term signs (signs intended to be left in

place for 3 days or less) will not be measured for payment but will be incidental to Maintain and

Control Traffic.

The contractor is to install warning signs for wide loads in advance of the bridge under the

direction of the Engineer. The Department will not measure installation, maintenance, or

removal for payment, and will consider these incidentals to Maintain and Control Traffic.

IV. TEMPORARY PAVEMENT STRIPING

Skip lines and/or solid lines through the length of the tapers for lane closures and other striping

as directed by the Engineer shall be temporarily covered with 6” black removable tape.

Permanent removal of all other pavement striping for traffic control shall be considered

incidental to Maintain and Control Traffic. Temporary pavement striping shall be paid only once

per course in accordance with Section 112.04.07. The Contractor shall replace any temporary

striping that becomes damaged or fails to adhere to the pavement before dark on the day of the

notification. Liquidated damages shall be assessed to the Contractor at a rate of $500 per day for

failing to replace temporary striping within this time limit.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 27 of 74

V. PROJECT PHASING & CONSTRUCTION PROCEDURES

Maintain one lane of traffic during construction in accordance with Standard Drawing No. TTC-

110 for lane closures, and the attached detail drawing. The minimum clear lane width required

is 10’-6”.

VI. TEMPORARY SIGNAL

Provide, install, and maintain a temporary multi phase traffic signal. The Contractor must

provide a 24-hour contact person and number available to maintain the temporary signals as

needed.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 28 of 74

(

1524

1850

1780

233

2011

459

1304

718

2014

2058

830

3441

3442

223

229

406

3085

1023

1418

2467

3438

221

1530

225

1803

3449

930

2015

3440

3439

2007

1630

2423

3437

1527

2418

1223

1487

3153

3448

2133

2409

2414

2406

1304

830

3085

1803

BELL COUNTY

BRIDGE 007B00016N

KY 2133 (MP 0.80)

0.05 MILES NW OF JCT KY 66

LatDD=36.8122 LonDD=-83.6455

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 29 of 74

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 30 of 74

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 31 of 74

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 32 of 74

BELL COUNTY

FE02 007 2133 B00016N Contract ID: 122908

Page 33 of 74

COMPLETELY REPLACE SECTION OF CONCRETE HANDRAIL.

ADD STEEL REINFORCEMENT AS DIRECTED

BID ITEM #03301 "REPAIR CONCRETE HANDRAIL"

12 LF TOTAL

SPECIAL NOTE FOR PRE-BID CONFERENCE

BELL COUNTY

KY 2133 (MP 0.8) OVER LEFT FORK OF STRAIGHT CREEK

CID 122908

The Department will conduct a Non-mandatory Pre-Bid Conference forthe subject

project January 23, 2012 at 9:00 AM. at;

Transportation Cabinet Building

200 Mero Street

Frankfort, Ky 40622

Any company that is interested in bidding on the subject project or being part of a joint

venture is encouraged to attend.

Meeting minutes will be provided on the Department’s website for those unable to attend.

The purpose of the conference is to familiarize all prospective bidders with the contract

requirements.

Department of Highways officials present at the conference will answer questions

concerning the projects.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 34 of 74

PART II

SPECIFICATIONS AND STANDARD DRAWINGS

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 35 of 74

SPECIFICATIONS REFERENCE

Any reference in the plans or proposal to the Standard Specifications for Road and

Bridge Construction, Edition of 2004, and Standard Drawings, Edition of 2000 are

superseded by Standard Specifications for Road and Bridge Construction, Edition of

2008 and Standard Drawings, Edition of 2003 with the 2008 Revision.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 36 of 74

Supplemental Specifications to The Standard Specifications

for Road and Bridge Construction, 2008 Edition

(Effective with the July15, 2011 Letting)

SUBSECTION:

REVISION:

101.02 Abbreviations.

Insert the following abbreviation and text into the section:

KEPSC Kentucky Erosion Prevention and Sediment Control

SUBSECTION:

101.03 Definitions.

REVISION:

Replace the definition for Specifications – Special Provisions with the following:

Additions and revisions to the Standard and Supplemental Specifications covering conditions

peculiar to an individual project.

SUBSECTION:

REVISION:

102.03 Contents of the Bid Proposal Form.

Replace the first sentence of the first paragraph with the following:

The Bid Proposal form will be available on the

Department internet website

(http://transportation.ky.gov/contract/

Delete the second paragraph.

Delete the last paragraph.

SUBSECTION:

REVISION:

102.04 Issuance of Bid Proposal Form.

Replace Heading with the following:

102.04 Bidder Registration.

Replace the first sentence of

the first paragraph with the following:

The Department reserves the right to disqualify or refuse to place a bidder on the eligible bidder’s

list for a project for any of the following reasons:

Replace the last sentence of the subsection with the follow

ing:

The Department will resume placing the bidder on the eligible bidder’s list for projects after the

bidder improves his operations to the satisfaction of the State Highway Engineer.

SUBSECTION:

REVISION:

102.06 Examination of Plans, Specifications, Special Provisions, Special Notes, and Site of Work.

Replace the first paragraph with the following:

Examine the site of the proposed work, the Bid Proposal, Plans, specifications, contract forms, and

bulletins and addendums posted to the Department’s website and the Bid Express Bidding Service

Website before submitting the Bid Proposal. The Department considers the submission of a Bid

Proposal prima facie evidence that the bidder has made such examination and is satisfied as to the

condit

ions to be encountered in performing the work and as to the requirements of the Contract.

SUBSECTION:

REVISION:

102.07.01 General.

Replace the first sentence with the following:

Submit the Bid Proposal on forms furnished on the

Bid Express Bidding Service website

(www.bidx.com

Replace

the first sentence of the third paragraph with the following:

Bid proposals submitted shall use an eligible Digital ID issued by Bid Express.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 37 of 74

Supplemental Specifications to The Standard Specifications

for Road and Bridge Construction, 2008 Edition

(Effective with the July15, 2011 Letting)

SUBSECTION:

102.07.02 Computer Bidding.

REVISION:

Replace the first paragraph with the following:

Subsequent to

registering

for a specific project, use the Department’s Expedite Bidding Program on

the internet website of the Department of Highways, Division of Construction Procurement

(http://transportation.ky.gov/contract/

). Download the bid file from the Bid Express Bidding

Service

Website to prepare a Bid Proposal for submission to the Department. Submit

Bid Proposal

electronically through Bid Express Bidding Service.

Delete

the second and third paragraph.

SUBSECTION:

102.08 Irregular Bid Proposals.

REVISION:

Delete the following from the first paragraph: 4) fails to submit a disk created from the Highway

Bid Program.

Replace the second paragraph with the following:

The Department will consider Bid Proposals

irregular and may reject them for the following

reasons:

when there are unauthorized additions, conditional or alternate bids, or irregularities of any

kind which may tend to make the Bid Proposal incomplete, indefinite, or ambiguous as to its

meaning; or

when the bidder adds any provisions reserving the right to accept or reject an award, or to enter

into a Contract pursuant to an award; or

any failure to comply with the provisions of Subsection 102.07; or

Bid Proposals in which the Department determines that the prices are unbalanced; or

when the sum of the total amount of the Bid Proposal under cons

ideration exceeds the bidder’s

Current Capacity Rating.

SUBSECTION:

REVISION:

102.09 Bid Proposal Guaranty.

Insert the following after the first sentence:

Bid Proposals must have a bid proposal guaranty in the amount indicated in the bid proposal form

accompany the submittal. A guaranty in the form of a paper bid bond

, cashier’s check,

or certified

heck in an amount no less than the amount

indicated on the submitted electronic bid is required

when the

electronic bid bond was not utilized with the Bid Express Bidding Service. Paper bid

bonds

must be delivered to the Division of Construction Procurement prior to the time of the

letting.

SUBSECTION:

REVISION:

102.10 Delivery of Bid Proposals.

Replace paragraph with the following:

Submit all Bid Proposals prior to the time specified in the Notice to Contractors.

All bids

shall be

submitted electronically using Bid Express Bidding Services.

Electronically submitted bids

must

be done in accordance with the requirements of the Bid Express Bidding Service.

SUBSECTION:

REVISION:

102.11 Withdrawal or Revision of Bid Proposals.

Replace

the paragraph with the following:

Bid Proposals can be

withdrawn in accordance the requirements of the

Bid Express Bidding Service

prior to the time of the Letting

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 38 of 74

Supplemental Specifications to The Standard Specifications

for Road and Bridge Construction, 2008 Edition

(Effective with the July15, 2011 Letting)

SUBSECTION:

REVISION:

102.13 Public Opening of Bid Proposals.

Replace Heading with the

following:

102.13 Public Announcement of Bid Proposals.

Replace the paragraph with the following:

The Department will publicly announce all Bid Proposals at the time indicated in the Notice to

Contractors.

SUBSECTION:

103.02 Award of Contract.

REVISION:

Replace the first sentence of the third paragraph with the following:

The Department will normally award the Contract within 10 working days after the date of

receiving Bid Proposals unless the Department deems it best to hold the Bid Proposals of any or all

bidders for a period not to exceed 60 calendar days for final disposition of award.

SUBSECTION:

REVISION:

105.02 Plans and Working Drawings.

Insert the following after the fourth paragraph:

Submit

electrical shop

drawings, design data, and descriptive literature for materials in electronic

format to the Division of Traffic Operations for approval.

Drawings and literature shall be

submitted for lighting and signal components.

Notify the Engineer when submitting i

nformation to

the Division of Traffic Operations

. Do not begin work until shop drawings are approved.

Submit shop drawings for traffic counting equipment and materials in electronic format to the

Engineer or the Division of Planning. Notify the Engineer when submitting information directly to

the Division of Planning.

Do not begin work until shop drawings are reviewed and approved.

SUBSECTION:

REVISION:

105.03 Record Plans.

Replace the section with the following:

Record Plans are those reproductions of the original Plans on which the accepted Bid Proposal was

based

and,

and signed by a duly authorized representative of the Department. The Department will

make these plans available for inspection in the Central Office at least 24 hours prior to the time of

opening bids and up to the time of letting of a project or projects. The quantities appearing on the

Record Plans are the same as those on which Bid Proposals are received. The Department will use

these Record Plans as the controlling plans in the prosecution of the Contract. The Department will

not make any changes on Record Plans subsequent to their issue

unless done so by an approved

contract modification

. The Department will make 2 sets of Record Plans for e

ach project, and will

maintain one on file in the Central Office and one of file in the District Office. The Department

will furnish the Contractor with

the following:

1 full size, 2 half size and an electronic file copy of

the Record Plans at the Pre

-Construction conference.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 39 of 74

Supplemental Specifications to The Standard Specifications

for Road and Bridge Construction, 2008 Edition

(Effective with the July15, 2011 Letting)

SUBSECTION:

105.12 Final Inspection and Acceptance of Work.

REVISION:

Insert the following paragraphs after the first paragraph:

Notify the Engineer when all electrical items are complete. A notice of the electrical work

completion shall be made in writing to the Contractor. Electrical items will be inspected when the

electrical work is complete and are not subject to waiting until the project as a whole has been

completed. The Engineer will notify the Division of Traffic Operations within 3 days that all

electrical items are complete and ready for a final inspection. A final inspection will be completed

within 90 days after the Engineer notifies the Division of Traffic Operations of the electrical work

completion.

Energize all electrical items prior to notifying the Engineer that all electrical items are complete.

Electrical items must remain operational until the

Division of Traffic Operations has inspected and

accepted the electrical portion of the project. Payment for the electrical service is the responsibility

of the Contractor from the time the electrical items are energized until the Division of Traffic

Ope

rations has accepted the work.

Complete all corrective work within 90 calendar days of receiving the original electrical

inspection report. Notify the Engineer when all corrective work is complete. The Engineer will

notify the Division of Traffic Operations that the corrective work has been completed and the

project is ready for a follow

-up inspection. Upon re-

inspection, if additional corrective work is

required, complete within the same 90 calendar day allowance. The Department will not include

time

between completion of the corrective work and the follow up electrical inspection(s). The 90

calendar day allowance is cumulative regardless of the number of follow

up electrical inspections

required.

The Department will assume responsibility for th

e electrical service on a project once the

Division of Traffic Operations gives final acceptance of the electrical items on the project. The

Department will also assume routine maintenance of those items. Any damage done to accepted

electrical work items

by other Contractors shall be the responsibility of the Prime Contractor. The

Department will not be responsible for repairing damage done by other contractors during the

construction of the remaining project.

Failure to complete the electrical cor

rective work within the 90 calendar day allowance will

result in penalties assessed to the project. Penalties will be assessed at ½ the rate of liquidated

damages established for the contract.

Replace the following in the second sentence of the second pa

ragraph:

Replace Section 213 with Section 212.

Delete the f

ifth paragraph from the section.

SUBSECTION:

105.13 Claim Resolution Process.

REVISION:

Replace the last sentence of the 3. Bullet with the following:

If the Contractor did not submit an as

-bid schedule at the Pre-Construction Meeting

or a written

narrative

in accordance with Subsection 108.02, the Cabinet will not consider the claim for delay.

Delete the last paragraph from the section.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 40 of 74

Supplemental Specifications to The Standard Specifications

for Road and Bridge Construction, 2008 Edition

(Effective with the July15, 2011 Letting)

SUBSECTION:

REVISION:

106.04 Buy America Requirement.

Replace the section with the following:

106.04 Buy America Requirement.

Follow the “Buy America” provisions as required by Title 23

Code of Federal Regulations § 635.410. Except as expressly provided herein all manufacturing

processes of steel or iron materials including but not limited to structural steel, guardrail materials,

corrugated steel, culvert pipe, structural plate, prestressing strands, and steel reinforcing bars shall

occur in the United States of Am

erica, including the application of:

Coating,

Galvanizing,

Painting, and

Other coating that protects or enhances the value of steel or iron products.

The following are exempt, unless processed or refined to include substantial amounts of steel

or iron material, and may be used regardless of source in the domestic manufacturing process for

steel or iron material:

Pig iron,

Processed, pelletized, and reduced iron ore material, or

Processed alloys.

The Contractor shall submit a certification stating that all

manufacturing processes involved

with the production of steel or iron materials occurred in the United States.

Produce, mill, fabricate, and manufacture in the United States of America all aluminum

components of bridges, tunnels, and large sign support systems, for which either shop fabrication,

shop inspection, or certified mill test reports are required as the basis of acceptance by the

Department.

Use foreign materials only under the following conditions:

When the materials are not permanently incorporated into the project; or

When the delivered cost of such materials used does not exceed 0.1 percent of the total

Contract amount or $2,500.00, whichever is greater.

The Contractor shall submit to the Engineer the origin and value of any

foreign material used.

SUBSECTION:

106.10 Field Welder Certification Requirements.

REVISION:

Insert the following sentence before the first sentence of the first paragraph:

All field welding must be performed by a certified welder unless otherwise

noted.

SUBSECTION:

REVISION:

108.02 Progress Schedule.

Insert the following prior to the first paragraph:

Specification 108.02 applies to all Cabinet projects except the following project types:

tion

Right of Way Mowing and/or Litter Removal

Waterborne Paint Striping

Projects that contain Special Provision 82

Projects that contain the Special Note for CPM Scheduling

Insert the following paragraph after paragraph two:

Working without the submittal of a Written Narrative is violation of this specification and

additionally voids the Contractor’s right to delay claims.

Insert the following paragraph after paragraph six:

The submittal of bar chart or Critical Path Method schedule does not relieve the Contractor’s

requirement to submit a Written Narrative schedu

le.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 41 of 74

Supplemental Specifications to The Standard Specifications

for Road and Bridge Construction, 2008 Edition

(Effective with the July15, 2011 Letting)

Insert the following at the beginning of the first paragraph of A) Written Narrative.:

Submit the Written Narrative Schedule using form TC 63

-50 available at the Division of

Construction’s website (

http://www.transportation.ky.gov/construction/ResCenter/ResCenter.htm

Replace Part A) Written Narrative 1. And 2. with the following:

1. Provide a description that includes how the Contractor will sequence and stage

the work,

how the Contractor plans to maintain and control traffic being specific and detailed, and

what equipment and crew sizes are planned to execute the work.

2. Provide a list of project milestones including, if applicable, winter shut-

downs, holidays,

or special events. The Contractor shall describe how these milestones and other dates

effect the prosecution of the work. Also, include start date and completion date

milestones for the contract, each project if the contract entails multiple projects, each

phase of work, site of work, or segment of work as divided in the project plans, proposal,

or as subdivided by the Contractor.

SUBSECTION:

REVISION:

109.07.01 Liquid Asphalt.

Add the following to the Adjustable Contract Items:

Stone Matrix Asphalt for Base

Stone Matrix Asphalt for Surface

SUBSECTION:

REVISION:

110.01 Mobilization.

Replace paragraph three with the following:

Do not bid an amount for Mobilization that exceeds 5 percent of the sum of the total amounts bid

for all items in the Bid Proposal, excluding Mobilization, Demobilization, and contingent amounts

established for adjustments and incentives. The Department will automatically adjust any Bid

Proposals that are in excess of this amount down to 5 percent to compare Bid Proposals and

award

the Contract. The Department will award a Contract for the actual amount bid when the amount bid

for Mobilization is less than 5 percent, or the Department will award the Contract for the adjusted

bid amount of 5 percent when the amount bid for Mob

ilization is greater than 5 percent. If any

errors in unit bid prices for other Contract items in a Contractor’s Bid Proposal are discovered after

bid opening and such errors reduce the total amount bid for all other items, excluding Mobilization,

Demobili

zation, and contingent amounts established for adjustments and incentives, so that the

percent bid for Mobilization is larger than 5 percent, the Department will adjust the amount bid for

Mobilization to 5 percent of the sum of the corrected total bid amou

nts.

SUBSECTION:

REVISION:

110.02 Demobilization.

Replace the third paragraph with the following:

Bid an amount for Demobilization that is a minimum of $1,000 or 1.5 percent of the sum of the

total amounts bid for all other items in the Bid Proposal, excluding Mobilization, Demobilization,

and contingent amounts established for adjustments and incentives. The Department will

automatically adjust any Bid Proposal that is less than this amount up to $1,000 or 1.5 percent to

compare Bid Proposals and award the Contract. The Department will award a Contract for the

actual amount bid when the amount bid for demobilization exceeds 1.5 percent, or the Department

will award the Contract for the adjusted bid amount when the amount bid for demobilization is less

than the minimum of $1,000 or less than 1.5 percent of the sum of the total amounts bid for all

other items in the Bid Proposal, excluding Mobilization, Demobilization, and contingent amounts

established for adjustments and incentives.

SUBSECTION:

REVI

SION:

110.04 Payment.

Insert the following paragraph following the demobilization payment schedule (4

th paragraph):

The Department will withhold an amount equal to $1,000 for demobilization, regardless of the

schedule listed above. The $1,000 withheld for demobilization will be paid when the final estimate

is paid.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 42 of 74

Supplemental Specifications to The Standard Specifications

for Road and Bridge Construction, 2008 Edition

(Effective with the July15, 2011 Letting)

SUBSECTION:

REVISION:

112.03.01 General Traffic Control.

Replace paragraph three with the following:

All flaggers shall be trained in current MUTCD flagging procedures. Proof of training

must be

available for review at the Department’s request. Flagging credentials must be current within the

last 5 years.

SUBSECTION:

112.03.11 Temporary Pavement Markings.

PART:

B) Placement and Removal of Temporary Striping.

REVISION:

Replace the 2nd sentence of the first paragraph with the following:

On interstates and parkways, and other roadways approved by the State Highway Engineer, install

pavement striping that is 6 inches in width.

SUBSECTION:

112.03.12 Project Traffic Coordinator (PTC).

REVISION:

Add the following at the end of the subsection:

After October 1, 2008 the Department will require the PTC to have successfully completed the

applicable

qualification courses. Personnel that have not successfully completed the applicable

courses by that date will not be considered qualified. Prior to October 1, 2008, conform to

Subsection 108.06 A) and ensure the designated PTC has sufficient skill and experience to properly

perform the task.

SUBSECTION:

REVISION:

112.03.15 Non-Compliance of Maintain and Control of Traffic.

Add the following section:

112.03.15 Non

-Compliance of Maintain and Control of Traffic. It is the Contractor’s

responsibility to conform to the traffic control requirements in the TCP, Proposal, plan sheets,

specifications, and the Manual on Uniform Traffic Control Devices.

Unless specified elsewhere in the contract, a penalty will be a

ssessed in the event of non-

compliance with Maintain and Control of Traffic requirements. These penalties will be assessed

when the Contractor fails to correct a situation or condition of non

compliance with the contract

traffic control requirements after

being notified by the Engineer. The calculation of accrued

penalties for non

-compliance will be based upon the date/time of notification by the Engineer.

The amount of the penalty assessed for non

compliance will be determined based upon the work

zone

duration, as defined by the MUTCD, and will be the greatest of the different calculation

methods indicated below:

A) Long-term stationary work that occupies a location more than 3 days.

Correct the non-compliant issue within 24 hours from initial notifi

cation by the Engineer.

If the issue is not corrected within 24 hours from the initial notification, a penalty for non-

compliance will be assessed on a daily basis beginning from the initial notification of non-

compliance. The Contractor will be assessed

a $1,000 daily penalty or the amount equal

to the contract liquidated damages in Section 108.09, whichever of the 2 is greater. The

penalty for non-compliance will escalate as follows for continued non-

compliance after

the initial notification.

3 Days after Notification

$1,500 daily penalty or 1.5 times the contract liquidated damages daily charge rate in

Section 108.09, whichever is greater.

7 Days after Notification

$2,000 daily penalty or double the contract liquidated damages daily charge rate in

Section 108.09, whichever is greater.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 43 of 74

Supplemental Specifications to The Standard Specifications

for Road and Bridge Construction, 2008 Edition

(Effective with the July15, 2011 Letting)

B) Intermediate-term stationary work that occupies a location more than one daylight

period up to 3 days, or nighttime work lasting more than 1 hour.

Correct the non-compliant issue within 4 hours from initial notific

ation by the Engineer.

If the issue is not corrected within 4 hours from notification, a penalty for non-

compliance

will be assessed on an hourly basis beginning from the initial notification of non-

compliance. The penalty for non-compliance will be assessed at $200 per hour.

C) Short-

term stationary is work that occupies a location for more than 1 hour within a

single 24-hour period.

Correct the non-

compliant issue within 1 hour from initial notification by the Engineer. If

the issue is not corrected within 1 hour from notification, a penalty for non-

compliance

will be assessed on an hourly basis beginning from the initial notification of non-

compliance. The penalty for non-compliance will be assessed at $200 per hour.

If the Contractor remains in violation of the Maintain and Control of Traffic requirements, or if the

Department determines it to be in the public’s interest, work will be suspended in accordance with

Section 108.08 until the deficiencies are corrected. The Department reserves the right to correct

deficiencies by any means available and charge the Contractor for labor, equipment, and material

costs incurred in emergenc

y situations.

SUBSECTION:

REVISION:

206.03.02 Embankment

Replace the last paragraph with the following:

When rock roadbed is specified, construct the upper 2 feet of the embankment according to

Subsection 204.03.09 A).

SUBSECTION:

213.03.03 Inspection and Maintenance.

REVISION:

Replace the last sentence of the second paragraph with the following:

Initiate corrective action within 24 hours of any noted deficiency and complete the work within 7

calendar

days of receipt of the report. The Contractor shall make a

concentrated effort to complete

any corrective action required prior to the next

predicted rainfall event.

Insert the following paragraph after the second paragraph:

When the Contractor is requ

ired to obtain the KPDES permit, it is their responsibility to ensure

compliance with the inspection and maintenance requirements of the permit. The Engineer will

perform verification inspections a minimum of once per month and within 7 days of a ½ inch or

greater rainfall event. The Engineer will document these inspections using Form TC 63

61 A. The

Engineer will provide copies of the inspection only when improvements to the BMP’s are required.

Verification inspections performed by the Engineer do not

relieve the Contractor of any

responsibility for compliance with the KPDES permit. Initiate corrective action within 24 hours of

any noted deficiency and complete the work within

7calendar

days of receipt of the report. The

Contractor shall make a concentrated effort to complete any corrective action required prior to the

predicted rainfall event.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 44 of 74

Supplemental Specifications to The Standard Specifications

for Road and Bridge Construction, 2008 Edition

(Effective with the July15, 2011 Letting)

SUBSECTION:

PART:

REVISION:

213.03.05 Temporary Control Measures.

E) Temporary Seeding and Protection.

Replace the first paragraph with the following:

Apply an Annual Rye seed mix at a rate of 100 pounds per acre during the months of March

through August. In addition to the Annual Rye, add 10 pounds of German Foxtail

Millet (Setaria

italica), when performing temporary seeding during the months of June through August. During

the months of September through February, apply Winter Wheat or Rye Grain at a rate of 100

pounds per acre. Obtain the Engineer’s approval prior to the application of the seed mixture.

SUBSECTION:

213.03.05 Temporary Control Measures.

PART:

F) Temporary Mulch.

REVISION:

Replace the last sentence with the following:

Place temporary mulch to an approximate 2

inch loose depth (2 tons per acre) and anchor it into the

soil by mechanically crimping it into the soil surface or applying tackifier to provide a protective

cover. Regardless of the anchoring method used, ensure the protective cover holds until disturbance

is required or permanent controls are in installed.

SUBSECTION:

303.05 Payment.

REVISION:

Replace the second paragraph of the section with the following:

The Department will make payment for Drainage Blanket

Type II (ATDB) according to the Lot

Pay Adjustment Schedule for Specialty Mixtures in Section 402.

SUBSECTION:

401.02.04 Special Requirements for Dryer Drum Plants.

PART:

F) Production Quality Control.

REVISION:

Replace the first sentence with the following:

Stop mixing operations immediately if, at any time, a failure of the automatic electronic weighing

system of the aggregate feed, asphalt binder

feed, or water injection system control occurs.

SUBSECTION:

401.02.04 Special Requirements for Dryer Drum Plants.

REVISION:

Add the following:

Part G)

Water Injection System. Provided each system has prior approval as specified in

Subsection 402.01.01, the Department will allow the use of water injection systems for purposes of

foaming the asphalt binder and lowering the mixture temperature for production of Warm Mix

Asphalt (WMA).

Ensure the equipment for water injection meets the following requirements:

Injection equipment computer controls are automatically coupled to the plants controls

(manual operation is not permitted);

Injection equipment has variable controls that introduce water ratios based on production

rates of mixtures;

3) Injects water into the flow of asphalt binder prior to contacting the aggregate;

4) Provides alarms on the water injection system that operate when the flow of water is

interrupted or deviates from the prescribed water rate.

SUBSECTION:

401.03.01 Preparation of Mixtures.

REVISION:

Replace the last sentence of the second paragraph with the following:

Do not use asphalt binder while it is foaming in a storage tank.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 45 of 74

Supplemental Specifications to The Standard Specifications

for Road and Bridge Construction, 2008 Edition

(Effective with the July15, 2011 Letting)

SUBSECTION:

401.03.01 Preparation of Mixtures.

REVISION:

Replace the third paragraph and Mixing and Laying Temperature table with the following:

Maintain the temperature of the component materials and asphalt mixture within the ranges listed in

the following table:

MIXING AND LAYING TEMPERATURES ( F)

Material

Minimum

Maximum

Aggregates

240

330

Aggregates used with Recycled Asphalt Pavement

(RAP)

240

Asphalt Binders

PG 64-22

230

330

PG 76-22

285

350

Asphalt Mixtures at Plant

PG 64-22 HMA

250

330

(Measured in Truck)

PG 76-22 HMA

PG 64

-22 WMA

PG 76-22 WMA

310

230

250

350

275

300

Asphalt Mixtures at Project

PG 64-22 HMA

230

330

(Measured in Truck

PG 76-22 HMA

300

350

When Discharging)

PG 64-22 WMA

PG 76-22 WMA

210

240

275

300

SUBSECTION:

402.01 Description.

REVISION:

Replace the paragraph with the following:

Provide the

process control and acceptance testing of all classes and types of asphalt mixtures

which may be furnished either as hot mix asphalt (HMA) or warm mix asphalt (WMA) produced

with water injection systems.

SUBSECTION

REVISION:

402.01.01 Warm Mix Asphalt (WMA) Evaluation and Approval.

Add the following subsection:

402.01.01 Warm Mix Asphalt (WMA) Evaluation and Approval.

The Department will evaluate trial production of WMA by use of a water injection system provided

the system is installed according to the manufacturer’s requirements and satisfies the requirements

of Section 401. Evaluation will include production and placement of WMA to demonstrate

adequate mixture quality including volumetric properties and density by Option A as specified in

Subsection 402.03.02 D). Do not place WMA for evaluation on Department projects. Provided

production and placement operations satisfy the applicable quality levels, the Department will

approve WMA production on Department projects using the water injection system as

installed on

the specific asphalt mixing plant evaluated.

SUBSECTION:

402.05.02 Asphalt Mixtures and Mixtures With RAP.

REVISION:

Replace Subsection Title as below:

402.05.02 Asphalt Mixtures, HMA and WMA, Including Mixtures With RAP.

SUBSECTION:

402.05.02 Asphalt Mixtures, HMA and WMA, Including Mixtures With RAP.

REVISION:

Replace the paragraph with the following:

The Department will pay for the mixture at the Contract unit bid price and apply a Lot Pay

Adjustment for each lot placed based on the degree of compliance with the specified tolerances.

Using the appropriate Lot Pay Adjustment Schedule, the Department will assign a pay value for the

applicable properties within each sublot and average the sublot pay values to determine the pay

value for a given property for each lot. The Department will apply the Lot Pay Adjustment for each

lot to a defined unit price of $50.00 per ton. The Department will calculate the Lot Pay Adjustment

using all possible incentives and disincentives but will not allow the overall pay value for a lot to

exceed 1.00.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 46 of 74

Supplemental Specifications to The Standard Specifications

for Road and Bridge Construction, 2008 Edition

(Effective with the July15, 2011 Letting)

SUBSECTION:

402.05.02 Asphalt Mixtures, HMA and WMA, Including Mixtures With RAP.

PART:

C) Conventional and RAP Mixtures Placed on Shoulders.

REVISION:

Replace Title and Text with the following:

C) HMA, WMA and RAP Mixtures Placed on Shoulders or Placed as Asphalt Pavement Wedge.

1) Placed monolithically with the Mainline –

Width of 4 feet or less. The Department will

pay as mainline mixture.

2) Placed monolithically with the Mainline – Width of greater

than 4 feet. The Department

will pay as mainline mixture but use 1.00 for the Lane and Joint Density Pay Value for

shoulder or Asphalt Pavement Wedge quantities.

3) Placed Separately. The Department will use 1.00 for the Lane and Joint Density Pay

Value.

SUBSECTION:

402.05.02 Asphalt Mixtures, HMA and WMA, Including Mixtures With RAP.

PART:

D) Conventional and RAP Mixtures Placed Monolithically as Asphalt Pavement Wedge.

REVISION:

Replace the title with the following:

D) HMA, WMA, and RAP Mixtures Placed

Monolithically as Asphalt Pavement Wedge.

Delete the following:

D) HMA, WMA, and RAP Mixtures Placed Monolithically as Asphalt Pavement Wedge. The

Department will pay as mainline mixture but use a 1.00 pay value for all properties.

SUBSECTION:

PART:

REVISION:

402.05.02 Asphalt Mixtures for Temporary Pavement.

E) Asphalt Mixtures for Temporary Pavement.

Replace E) Asphalt Mixtures for Temporary Pavement with the following:

D) Asphalt Mixtures for Temporary Pavement.

SUBSECTION:

402.05.02 Asphalt Mixtures, HMA and WMA, Including Mixtures With RAP.

PART:

Lot Pay Adjustment Schedule, Compaction Option A, Base and Binder Mixtures

TABLES:

VMA

REVISION:

Replace the VMA table with the following:

VMA

Pay Value

Deviation

From Minimum

1.00

≥min. VMA

0.95

0.1-0.5 below min.

0.90

0.6-1 0 below min.

(1)

> 1.0 below min.

SUBSECTION:

402.05.02 Asphalt Mixtures, HMA and WMA, Including Mixtures With RAP.

PART:

Lot Pay Adjustment Schedule, Compaction Option A, Surface Mixtures

TABLES:

VMA

REVISION:

Replace the VMA table with the following:

VMA

Pay Value

Deviation

From Minimum

1.00

≥ min. VMA

0.95

0.1-0.5 below min.

0.90

0.6-1.0 below min.

(1)

> 1.0 below min.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 47 of 74

Supplemental Specifications to The Standard Specifications

for Road and Bridge Construction, 2008 Edition

(Effective with the July15, 2011 Letting)

SUBSECTION:

402.05.02 Asphalt Mixtures, HMA and WMA, Including Mixtures With RAP.

PART:

Lot Pay Adjustment Schedule, Compaction Option B Mixtures

TABLE:

VMA

REVISION:

Replace the VMA table with the following:

VMA

Pay Value

Deviation

From Minimum

1.00

≥min. VMA

0.95

0 1-0.5 bel w

min.

0.9

0.6-1.0 below min.

(2)

> 1.0 below min.

SUBSECTION:

403.03.03 Preparation of Mixture.

PART:

C) Mix Design Criteria.

NUMBER:

1) Preliminary Mix Design.

REVISION:

Replace the last two sentences of the paragraph and table with the following:

Complete the volumetric mix design at the appropriate number of gyrations as given in the table

below for the number of 20-year ESAL’s. The Department will define the relat

ionship

between ESAL classes, as given in the bid items for Superpave mixtures, and 20-

year ESAL

ranges as follows:

Number of Gyrations

Class

ESAL’s (millions)

Ninitial

Ndesign

Nmax

< 3.0

3.0 to < 30.0

115

> 30.0

100

160

SUBSECTION:

403.03.09 Leveling and Wedging, and Scratch Course.

PART:

A) Leveling and Wedging.

REVISION:

Replace the first sentence of the first paragraph with the following:

Conform to the gradation requirements (control points) of AASHTO M 323 for

base, binder, or

surface as the Engineer directs.

SUBSECTION:

403.03.09 Leveling and Wedging, and Scratch Course.

PART:

B) Scratch Course.

REVISION:

Replace the second sentence of the first paragraph with the following:

Conform to the gradation

requirements (control points) of AASHTO M 323 for base, binder, or

surface as the Engineer directs.

SUBSECTION:

407.01 DESCRIPTION.

REVISION:

Replace the first sentence of the paragraph with the following:

Construct a pavement wedge composed of a

hot-mixed or warm-mixed asphalt mixture.

SUBSECTION:

409.01 DESCRIPTION.

REVISION:

Replace the first sentence of the paragraph with the following:

Use reclaimed asphalt pavement (RAP) from Department projects or other approved sources in hot

mix

asphalt (HMA) or warm mix asphalt (WMA) provided mixture requirements are satisfied.

SUBSECTION:

410.01 DESCRIPTION.

REVISION:

Delete the second sentence of the paragraph.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 48 of 74

Supplemental Specifications to The Standard Specifications

for Road and Bridge Construction, 2008 Edition

(Effective with the July15, 2011 Letting)

SUBSECTION:

410.03.01 Corrective Work.

REVISION:

Replace the last sentence of the paragraph with the following:

Provide a final surface comparable to the adjacent pavement that does not require corrective work

in respect to texture, appearance, and skid resistance.

SUBSECTION:

410.03.02 Ride Quality.

PART:

B) Requirements.

NUMBER:

1) Category A.

REVISION:

Replace the last sentence of the first paragraph with the following:

At the Department’s discretion, a pay deduction of $1200 per 0.1

-lane-

mile section may be applied

in lieu of corrective work.

SUBSECTION:

410.03.02 Ride Quality.

PART:

B) Requirements.

NUMBER:

2) Category B.

REVISION:

Replace the second and third sentence of the first paragraph with the following:

When the IRI is greater than 90 for a 0.1

-mile section, perform corrective work, or remove and

replace the pavement to achieve the specified IRI. At the Department’s discretion, a pay deduction

of $750 per 0.1

-lane-mile section may be applied in lieu of corrective work.

SUBSECTION:

410.05 PAYMENT.

REVISION:

Add the following sentence to the end of the first paragraph:

The sum of the pay value adjustments for ride quality shall not exceed $0 for the project as a whole.

SUBSECTION:

413.05.02 CL3 SMA BASE 1.00D PG76-22.

REVISION:

Insert the following sentence between the first and second sentence of the first paragraph:

The Department will calculate the Lot Pay Adjustment using all possible incentives and

disincentives but will not allow the overall pay value for a lot to exceed 1.00.

SUBSECTION:

413.05.02 CL3 SMA BASE 1.00D PG 76-22.

TABLE:

JOINT DENSITY TABLE

REVISION:

Replace the joint density table with the following:

LANE DENSITY

Pay Value

Test Result (%)

1.05

95.0-96.5

1.00

93.0-94.9

0.95

92.0-92.9 or 96.6-97.0

0.90

91.0-91.9 or 97.1-97.5

(1)

< 91.0 or > 97.5

SUBSECTION:

413.05.03 CL3 SMA SURF 0.50A PG76-22 and CL3 SMA SURF 0.38A PG76-22.

REVISION:

Insert the following sentence between the first and second sentence of the first paragraph:

The Department will calculate the Lot Pay Adjustment using all possible incentives

and

disinc

entives but will not allow the overall pay value for a lot to exceed 1.00.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 49 of 74

Supplemental Specifications to The Standard Specifications

for Road and Bridge Construction, 2008 Edition

(Effective with the July15, 2011 Letting)

SUBSECTION:

413.05.03 CL3 SMA SURF 0.50A PG76-22 and CL3 SMA SURF 0.38A PG76-22.

TABLE:

JOINT DENSITY TABLE

REVISION:

Replace the joint density table with the following:

DENSITY

Pay Value

Lane Density

Test Result (%)

Joint Density

Test Result (%)

1.05

95.0-96.5

92.0-96.0

1.00

93.0-94.9

90.0-91.9

0.95

92.0-92.9 or 96.6-97.0

89.0-89.9 or 96.1-96.5

0.90

91.0-91.9 or 97.1-97.5

88.0-88.9 or 96.6-97.0

0.75

----

< 88.0 or > 97.0

(1)

< 91.0 or > 97.5

----

SUBSECTION:

501.05.02 Ride Quality.

REVISION:

Add the following sentence to the end of the first paragraph:

The sum of the pay value adjustments for the ride quality shall not exceed $0 for the project as a

whole.

SUBSECTION:

505.03.04 Detectable Warnings.

REVISION:

Replace the first sentence with the following:

Install detectable warning pavers at all sidewalk ramps and on all commercial entrances according to the

Standard Drawings.

SUBSECTION:

REVISION:

505.04.04 Detectable Warnings.

Replace the paragraph with the following:

The Department will measure the quantity in square feet. All retrofit applications for maintenance

projects will require the removal of existing sidewalks to meet the requirements of the standard drawings

applicable to the project. The cost associated with the removal of the existing sidewalk will be

incidental to the detectable warnings bid item or incidental to the bid item for the construction of the

concre

te sidewalk unless otherwise noted.

SUBSECTION:

505.05 PAYMENT.

REVISION:

Add the following to the bid item table:

Code

Pay Item Pay Unit

23158ES505 Detectable Warnings Square Fo

SUBSECTION:

509.01 DESCRIPTION.

REVISION:

Replace the second paragraph with the following:

The Department may allow the use of similar units that conform to the National Cooperative Highway

Research Program (NCHRP) 350 Test Level 3 (TL

3) requirements and the typical features depicted by

the Standard Drawings. Obtain the Engineers approval prio

r to use. Ensure the barrier wall shape,

length, material, drain slot dimensions and locations typical features are met and the reported maximum

deflection is 3 feet or less from the NCHRP 350 TL

-3 for Test 3 –

11 (pickup truck impacting at 60 mph

at a 25

-degree angle.)

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 50 of 74

Supplemental Specifications to The Standard Specifications

for Road and Bridge Construction, 2008 Edition

(Effective with the July15, 2011 Letting)

SUBSECTION:

601.03.02 Concrete Producer Responsibilities.

REVISION:

Replace the first sentence with the following:

Obtain the concrete from producers that are in compliance with KM 64

323 and on the Department’s

List of Approved

Materials.

Add the following to the first paragraph:

If a concrete plant becomes unqualified during a project and there are no other qualified plants in the

region, the Department will provide qualified personnel to witness and ensure the producer follows the

required specifications. The Department will assess the Contractor a $100 per hour charge for this

service.

SUBSECTION:

PART:

REVISION:

601.03.02 Concrete Producer Responsibilities.

B) Certified Personnel.

Replace the second sentence with th

e following:

Ensure that the concrete technicians are certified as ACI Level I (Level I) and KRMCA Level II (Level

II).

SUBSECTION:

PART:

REVISION:

601.03.02 Concrete Producer Responsibilities.

C) Quality Control.

Replace the second sentence with the

following:

Ensure that the Level II concrete technician is present when work is in progress and is responsible for

inspecting trucks, batch weight calculations, monitoring batching, making mixture adjustments,

reviewing the slump, air content, unit weight, temperature, and aggregate tests, all to provide conforming

concrete to the project.

SUBSECTION:

PART:

REVISION:

601.03.02 Concrete Producer Responsibilities.

D) Producer Testing.

Replace with the following:

When producing for state work, have a Qualified Concrete Aggregate Technician or KYTC Qualified

Aggregate Technician perform, at a minimum, weekly gradations and minus 200 wash tests and daily

moisture contents of coarse and fine aggregate (Fine aggregates will not require a minus 200 wash test).

Using the daily moisture contents, adjust the approved mix design accordingly prior to production.

Ensure that the Level II concrete technician is present when work is in progress and is responsible for

inspecting trucks, batch weight calculations, mo

nitoring batching, making mixture adjustments,

reviewing the slump, air content, unit weight, temperature, and aggregate tests, all to provide conforming

concrete to the project.

SUBSECTION:

PART:

REVISION:

601.03.02 Concrete Producer Responsibilities.

) Trip Tickets.

Replace the second sentence with the following:

Include on the trip ticket the Sample ID for the approved mix design and a statement certifying that the

data on the ticket is correct and that the mixture conforms to the mix design.

SUBSECTION:

PART:

NUMBER:

REVISION:

601.03.03 Proportioning and Requirements.

C) Mixtures Using Type IP, IS, and I(SM) Cement or Mineral Admixtures

2) Mineral Admixtures.

Replace the second sentence with the following:

Reduction of the total cement content by a combination of mineral admixtures will be allowed, up to a

maximum of 40 percent.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 51 of 74

Supplemental Specifications to The Standard Specifications

for Road and Bridge Construction, 2008 Edition

(Effective with the July15, 2011 Letting)

SUBSECTION:

PART:

NUMBER:

LETTER:

REVISION:

601.03.03 Proportioning and Requirements.

C) Mixtures Using Type IP, IS, and I(SM) Cement or Mineral Admixtures

2) Mineral

Admixtures.

a) Fly Ash.

Delete the last sentence of the third paragraph.

SUBSECTION:

PART:

NUMBER:

LETTER:

REVISION:

601.03.03 Proportioning and Requirements.

C) Mixtures Using Type IP, IS, and I(SM) Cement or Mineral Admixtures

2) Mineral Admixtures.

b) Ground Granulated Blast Furnace Slag (GGBF Slag).

Delete the second sentence of the third paragraph.

SUBSECTION:

PART:

REVISION:

601.03.03 Proportioning and Requirements.

E) Measuring.

Add the following sentence:

Conform to the individual

ingredient material batching tolerances in Appendix A.

SUBSECTION:

PART:

REVISION:

601.03.09 Placing Concrete.

A) General.

Replace the last sentence of the fourth paragraph with the following:

Do not use aluminum or aluminum alloy troughs, pipes, or

chutes that have surface damage or for

lengths greater than 20 feet.

Replace the second sentence of the fifth paragraph with the following:

When pumping, equip the delivery pipe with a nozzle, having a minimum of 2 right angles, at the

discharge end. Alt

ernate nozzles or restriction devices may be allowed with prior approval by the

Engineer.

SUBSECTION:

REVISION:

605.02.05 Forms.

Delete the last sentence.

SUBSECTION:

REVISION:

605.03.04 Tack Welding.

Replace with the following:

The Department does

not allow tack welding.

SUBSECTION:

606.02.11 Coarse Aggregate.

REVISION:

Replace with the following:

Conform to Section 805, size No. 8 or 9

-M.

SUBSECTION:

PART:

REVISION:

609.03.04 Expansion and Fixed Joints.

D) Preformed Neoprene Joint Seals.

Replace the last sentence of paragraph seven with the following:

Field splices will not be allowed during partial width construction. It is Contractor’s responsibility to

determine and install the length of seal required for the joint to barrier wall as per the standard drawing.

SUBSECTION:

REVISION:

609.03.09 Finish with Burlap Drag.

Delete the entire section.

SUBSECTION:

609.04.06 Joint Sealing.

REVISION:

Replace Subsection 601.04 with the following:

Subsection 606.04.08.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 52 of 74

Supplemental Specifications to The Standard Specifications

for Road and Bridge Construction, 2008 Edition

(Effective with the July15, 2011 Letting)

SUBSECTION:

609.05 Payment.

REVISION:

Replace the Pay Unit for Joint Sealing with the following:

See Subsection 606.05.

SUBSECTION:

701.03.06 Initial Backfill.

REVISION:

Replace the first sentence of the last paragraph with the following:

When the Contract specifies, perform quality control testing to verify compaction according to KM 64-

512

SUBSECTION:

701.03.08 Testing of Pipe.

REVISION:

Replace and rename the subsection with the following:

701.03.08 Inspection of Pipe. The engineer will visually inspect all pipe.

The Department will

require camera/video inspection on a minimum of 50 percent of the linear feet of all installed pipe

structures.

Conduct camera/video inspection according to KM 64-

114. The pipe to be installed under

pavement will be selected first. If the total linear feet of pipe under pavement is less than 50 percent of

the linear feet of all pipe installed, the Engineer will randomly select installations from the remaining

pipe structures on the project to provide for the minimum inspection requirement. The pipe will be

selected in complete runs (junction

-junction or headwall-

headwall) until the total linear feet of pipe to be

inspected is at least 50 percent of the total linear feet of all installed pipe on the project.

Unless the Engineer directs otherwise, schedule the inspections no sooner than 30 days after

completing the installation and completion of earthwork to within 1 foot of the finished subgrade. When

final surfacing conflicts with the 30

-day minimum, conduct the inspections prior to placement of the

final surface. The contractor must ensure that all pipe are free and clear of any debris so that a complete

inspection is possible.

Notify the Engineer immediately if distresses or locations of improper installation are discovered.

When camera testing shows distresses or improper installation in the installed pipe, the Engineer may

require addit

ional sections to be tested. Provide the video and report to the Engineer when testing is

complete in accordance with KM 64

-114.

Pipes that exhibit distress or signs of improper installation may necessitate repair or removal as the

Engineer directs. These signs include, but are not limited to: deflection, cracking, joint separation,

sagging or other interior damage. If corrugated metal or thermoplastic pipes exceed the deflection and

installation thresholds indicated in the table below, provide the Department with an evaluation of each

location conducted by a Professional Engineer addressing the severity of the deflection

, structural

integrity, environmental conditions, design service life, and an evaluation of the factor of safety using

Section 12, “Buried Structures and Tunnel Liners,” of the AASHTO LRFD Bridge Design

Specifications. Based on the evaluation, the Departme

nt may allow the pipe to remain in place at a

reduced unit price as shown in the table below. Provide 5 business days for the Department to review the

evaluation. When the pipe shows deflection of 10 percent or greater, remove and replace the pipe. When

the camera/video or laser inspection results are called into question, the Department may require direct

measurements or mandrel testing.

The Cabinet may elect to conduct Quality Assurance verifications of any pipe inspections.

SUBSECTION:

701.04.07 Testing.

REVISION:

Replace and rename the subsection with the following:

701.04.07 Pipeline Video Inspection.

The Department will measure the quantity in linear feet

along the pipe invert of the structure inspected. When inspection a

bove the specified 50 percent is

performed due to a disagreement or suspicion of additional distresses and the Department is found in

error, the Department will measure the quantity as Extra Work according to Subsection 104.03.

However, if additional dist

resses or non-conformance is found, the Department will not measure the

additional inspection for payment.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 53 of 74

Supplemental Specifications to The Standard Specifications

for Road and Bridge Construction, 2008 Edition

(Effective with the July15, 2011 Letting)

SUBSECTION:

701.05 PAYMENT.

REVISION:

Add the following pay item to the list of pay items:

Code

Pay Item Pay Unit

23131ER701

Pipeline Video Inspection Linear Foot

SUBSECTION:

701.05 PAYMENT

TABLE:

PIPE DEFLECTION DETERMINED BY CAMERA TESTING

REVISION:

Replace this table with the following table and note:

PIPE DEFLECTION

Amount of Deflection (%)

Payment

0.0 to 5.0

100% of the Unit Bid Price

5.1 to 9.9

50% of the Unit Bid Price (1)

10 or greater

Remove and Replace

(1) Provide Structural Analysis as indicated

above. Based on the structural analysis, pipe may be

allowed to remain in place at the reduced unit price.

SUBSECTION:

701.05 PAYMENT

TABLE:

PIPE DEFLECTION DETERMINED BY MANDREL TESTING

REVISION:

Delete this table.

SUBSECTION:

713.02.01 Paint.

REVISION:

Replace with the following:

Conform to Section 842 and Section 846.

SUBSECTION:

713.03 CONSTRUCTION.

REVISION:

Replace the first sentence of the second paragraph with the following:

On interstates and parkways, and other routes approved by the State Highway Engineer, install pavement

striping that is 6 inches in width.

SUBSECTION:

713.03.03 Paint Application.

REVISION:

Replace the second paragraph with the following table:

Material

Paint Application Rate

Glass Beads Application Rate

4 inch waterborne paint

Min. of 16.5 gallons/mile

Min. of 6 pounds/gallon

6 inch waterborne paint

Min. of 24.8 gallons/mile

Min. of 6 pounds/gallon

6 inch durable waterborne paint

Min. of 36 gallons/mile

Min. of 6 pounds/gallon

SUBSECTION:

713.03.04 Marking Removal.

REVISION:

Replace the last sentence of the paragraph with the following:

Vacuum all marking material and removal debris concurrently with the marking removal operation.

SUBSECTION:

713.05 PAYMENT.

REVISION:

Insert the following codes and pay items below the Pavement Striping – Permanent Paint:

Code

Pay Item Pay Unit

24189ER

Durable Waterborne Marking – 6 IN W Linear Foot

24190ER

Durable Waterborne Marking – 6 IN Y Linear Foot

24191ER Durable Waterborne Marking

– 12 IN W Linear Foot

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 54 of 74

Supplemental Specifications to The Standard Specifications

for Road and Bridge Construction, 2008 Edition

(Effective with the July15, 2011 Letting)

SUBSECTION:

714.03 CONSTRUCTION.

REVISION:

Insert the following paragraph at the end of the third paragraph:

Use Type I Tape for markings on bridge decks, JPC pavement and JPC intersections. Thermoplastic

should only be used

for markings on asphalt pavement.

SUBSECTION:

714.03.07 Marking Removal.

REVISION:

Replace the third sentence of the paragraph with the following:

Vacuum all marking material and removal debris concurrently with the marking removal operation.

SUBSECTION:

716.01 DESCRIPTION.

REVISION:

Insert the following after the first sentence:

Energize lighting as soon

as it is fully functional and ready for inspection. Ensure that lighting remains

operational until the Division of Traffic Operations has provided written acceptance of the electrical

work.

SUBSECTION:

716.02.01 Roadway Lighting Materials.

REVISION:

Replace the last two sentences of the paragraph with the following:

Submit for material approval an electronic file of descriptive literature, drawings, and any requested

design data

to the Division of Traffic Operations. Do not begin work until shop draw

ings are approved.

Notify the Engineer when submitting any information to the Division of Traffic Operations. Do not

make substitutions for approved materials without written permission as described above.

SECTION:

717 – THERMOPLASTIC INTERSECTION MARKINGS.

REVISION:

Replace the section name with the following:

INTERSECTION MARKINGS.

SUBSECTION:

717.01 DESCRIPTION:

REVISION:

Replace the paragraph with the following:

Furnish and install thermoplastic or Type I tape intersection markings (Stop Bars,

Crosswalks, Turn

Arrows, etc.) Thermoplastic markings may be installed b

either a machine applied, screed extrusion

process or by applying preformed thermoplastic intersection marking material.

SUBSECTION:

717.02 MATERIALS AND EQUIPMENT.

REVISION:

Insert the following subsection:

717.02.06 Type I Tape. Conform to Section 836.

SUBSECTION:

717.03.03 Application.

REVISION:

Insert the following part to the subsection:

B) Type I Tape Intersection Markings. Apply according to the manufacturer’s recommendations. Cut

all tape

at pavement joints when applied to concrete surfaces.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 55 of 74

Supplemental Specifications to The Standard Specifications

for Road and Bridge Construction, 2008 Edition

(Effective with the July15, 2011 Letting)

SUBSECTION:

717.03.05 Proving Period.

PART:

A) Requirements.

REVISION:

Insert the following to this section:

2) Type I Tape. During the proving period, ensure that the pavement marking material shows no signs

of failure due to blistering, excessive cracking, bleeding, staining, discoloration, oil content of the

pavement materials, drippings, chipping, spalling, poor adhesion to the pavement, loss of

retro

reflectivity, vehicular damage, and normal wear. Type I Tape is manufactured off site and

warranted by the manufacturer to meet certain retroreflective requirements. As long as the material is

adequately bonded to the surface and shows no signs of failur

e due to the other items listed in

Subsection 714.03.06 A) 1), retroreflectivity readings will not be required. In the absence of readings,

the Department will accept tape based on a nighttime visual observation.

SUBSECTION:

717.03.06 Marking Removal.

REVISION:

Replace the third sentence of the paragraph with the following:

Vacuum all marking material and removal debris concurrently with the marking removal operation.

SUBSECTION:

717.05 PAYMENT.

REVISION:

Insert the following bid item codes:

Code

Pay Unit

Pay Item

06563

Pave Marking – R/R X Bucks 16 IN Linear Foot

20782NS714

Pave Marking Thermo – Bike Each

23251ES717

, 23264ES717 Pave Mark TY I Tape X-Walk, Size Linear Foot

2325

2ES717, 23265ES717 Pave Mark TY I Tape Stop Bar, Size Linear Foot

2325

3ES717 Pave Mark TY I Tape Cross Hatch

Square Foot

2325

4ES717 Pave Mark TY I Tape Dotted Lane Extension Linear Foot

2325

5ES717

Pave Mark TY I Tape Arrow, Type Each

23268ES717

-23270ES717

2325

6ES717 Pave Mark TY I Tape- ONLY Each

2325

7ES717 Pave Mark TY I Tape- SCHOOL Each

23266ES717

Pave Mark TY 1 Tape R/R X Bucks-16 IN Linear Foot

23267ES717

Pave Mark TY 1 Tape-Bike Each

SUBSECTION:

REVISION:

725.02.02 Type VI Class C & CT.

Replace bullet 2) with

the following:

2) The SCI100GM System as developed by SCI Products, Inc. of St. Charles, Illinois. For all

miscellaneous metal work conform to ASTM A 36 and galvanize according to ASTM A 123.

For the SCI100GM fender panels conform to AASHTO 180. Galvanize th

e SCI100GM fender

panels and SCI100GM -beam connectors after fabrication according to ASTM A 123.

SUBSECTION:

REVISION:

725.02.04 Type VII Class C.

Replace bullet 2) with the following:

2) The SCI100GM System as developed by SCI Products, Inc. of St. Charles, Illinois. For all

miscellaneous metal work conform to ASTM A 36 and galvanize according to ASTM A 123.

For the SCI100GM fender panels conform to AASHTO 180. Galvanize the SCI100GM fender

panels and SCI100GM-beam connectors after fabrication according to ASTM A 123.

SUBSECTION:

REVISION:

801.01 REQUIREMENTS.

Delete the fourth sentence of the first paragraph and add the following to the second paragraph.

When supplying cement with a SO

3 content above the value in table I of ASTM C 150, include

pportive ASTM C 1038 14-day expansion test data for the supplied SO3

content on the certification.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 56 of 74

Supplemental Specifications to The Standard Specifications

for Road and Bridge Construction, 2008 Edition

(Effective with the July15, 2011 Letting)

SUBSECTION:

805.01 GENERAL.

REVISION:

Replace the second paragraph with the following:

The Department’s List of Approved Materials includes the Aggregate Source List, the list of Class A and

Class B Polish

-Resistant Aggregate Sources, and the Concrete Restriction List.

SUBSECTION:

REVISION:

805.04 CONCRETE.

Delete

footnote (1) The permissible lightweight particle content of gravel coarse

aggregate for reinforced

concrete box culvert sections, concrete pipe, pipe arches, or for use only in concrete that will be

permanently protected from freezing by 2 feet or more of cover is 10.0 percent.

SUBSECTION:

805.04 CONCRETE.

REVISION:

Replace the “AASHTO T 160” reference in first sentence of the third paragraph with “KM 64-629”

SUBSECTION:

805.15 GRADATION ACCEPTANCE OF NON-SPECIFICATION COARSE AGGREGATE.

TABLE:

AGGREGATE SIZE USE

PART:

Cement Concrete Structures and Incidental Construction

REVISION:

Replace “9-M for Waterproofing Overlays” with “8 or 9-M for Waterproofing Overlays”

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 57 of 74

Supplemental Specifications to The Standard Specifications

for Road and Bridge Construction, 2008 Edition

(Effective with the July15, 2011 Letting)

SUBSECTION: 805.15 GRADATION ACCEPTANCE OF NON-SPECIFICATION COARSE AGGREGATE.

REVISION: Replace the “SIZES OF COARSE AGGREGATES” table in with the following:

(1) Gradation performed by wet sieve KM 64-620 or AASHTO T 11/T 27.

(2) Sizes shown for convenience and are not to be considered as coarse aggregates.

(3) Nominal Maximum Size is the largest sieve on the gradation table for an aggregate size on which any material may be retained.

Note: The Department will allow blending of same source/same type aggregate when precise procedures are used such as cold feed, belt, or equivalent and

combining of sizes or types of aggregate using the weigh hopper at concrete plants or controlled feed belts at the pugmill to obtain designated sizes.

SIZES OF COARSE AGGREGATES

Sieve AMOUNTS FINER THAN EACH LABORATORY SIEVE (SQUARE OPENINGS) PERCENTAGE BY WEIGHT

Aggregate Size

Nominal (3)

Maximum

Aggregate Size

4 inch

3 1/2 inch

3 inch

2 1/2 inch

2 inch

1 1/2 inch

1 inch

3/4 inch

1/2 inch

3/8 inch

No. 4

No. 8

No. 16

No. 30

No. 100

No. 200

1 3 ½ inch

100

90-

100

25-

-5

2 2 ½ inch

100

90-

100

35-70

-5

23 2 inch

100

40-90

0-15

-5

3 2 inch

100

90-100

35-

0-15

-5

357 2 inch

100

95-100

35-70

-30

-5

4 1 ½ inch

100

90-

100

20-55

-5

467 1 ½ inch

100

95-

100

-70

-30

-5

5 1 inch

100

90-100

-55

-5

57 1 inch

100

95-100

-60

610 1 inch

100

85-100

-75

-40

67 3/4 inch

100

-55

68 3/4 inch

100

-65

0-5

710 3/4 inch

100

-75

78 1/2 inch

100

-75

0-5

8 3/8 inch

100

-30

0-5

9-M 3/8 inch

100

10(2) No. 4

100

-30

11(2) No. 4

100

-90

10-

-5

DENSE GRADED

AGGREGATE (1)

3/4 inch

100

-80

-65

-40

CRUSHED

STONE BASE (1)

1 ½ inch

100

90-

100

-95

-70

-55

-8

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 58 of 74

Supplemental Specifications to The Standard Specifications

for Road and Bridge Construction, 2008 Edition

(Effective with the July15, 2011 Letting)

SUBSECTION:

805.16 SAMPLING AND TESTING.

REVISION:

Replace the “AASHTO T 160” method with the “KM 64-629” method for the Concrete Beam Expansion

Test.

Replace the “

ASTM D 3042” method with the “KM 64-625” method for Insoluble Residue.

SUBSECTION:

810.04.01 Coating Requirements.

REVISION:

Replace the “Subsection 806.07” references with “Subsection 806.06”

SUBSECTION:

810.06.01 Polyvinyl Chloride (PVC) Pipe.

PART:

B) Culvert and Entrance Pipe.

REVISION:

Replace the title with the following:

B) Culvert Pipe, Storm Sewer, and Entrance Pipe.

SUBSECTION:

REVISION:

823.02 LIQUID MEMBRANE FORMING COMPOUNDS.

Add the following:

Effective July 1, 2011, to remain on or

be added to the Department’s approved list, products must have

completed testing or been submitted for testing through the National Transportation Product Evaluation

Program (NTPEP) for Concrete Curing Compounds.

SUBSECTION:

837.03 APPROVAL.

REVISION:

Replace the last sentence with the following:

The Department will sample and evaluate for approval each lot of thermoplastic material delivered for

use per contract prior to installation of the thermoplastic material. Do not allow the installation of

thermoplastic material until it has been approved by the Division of Materials. Allow the Department a

minimum of 10 working days to evaluate and approve thermoplastic material.

SUBSECTION:

837.03.01 Composition.

REVISION:

COMPOSITION Table:

SUBSECTION:

TABLE:

REVISION:

842.02 APPROVAL.

PAINT COMPOSITION

Revise the following in the table:

Replace the 2.0

∆E* values in the table with 4.0∆E* for both Yellow and White Paint on both the

Daytime and Nighttime Color Spectrophotometer.

SECTION:

DIVISION 800 MATERIAL DETAILS

REVISION:

Add the following section in Division 800

SECTION 846 – DURABLE WATERBORNE PAINT

846.01 DESCRIPTION

. This section covers quick-

drying durable waterborne pavement striping paint

for permanent

applications. The paint shall be ready-mixed, one-

component, 100% acrylic waterborne

striping paint suitable for application on such traffic

bearing surfaces as Portland cement concrete,

bituminous cement concrete, asphalt, tar, and previously painted area

s of these surfaces.

846.02 Approval.

Select materials that conform to the composition requirements below. Provide

independent analysis data and certification for each formulation stating the total concentration of each

heavy metal present, the test met

hod used for each determination, and compliance to 40 CFR 261 for

leachable heavy metals content. Submit initial samples for approval before beginning striping

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 59 of 74

Supplemental Specifications to The Standard Specifications

for Road and Bridge Construction, 2008 Edition

(Effective with the July15, 2011 Letting)

operations. The initial sample may be sent from the manufacture of the paint. The Department will

randomly sample and evaluate the paint each week that the striping operations are in progress.

The non-volatile portion of the vehicle shall be composed of a 100% acrylic polymer as

determined by infrared spectral analysis. The acrylic resin used sha

ll be a 100% cross-

linking acrylic as

evidenced by infrared peaks at wavelengths 1568, 1624, and 1672 cm

1 with intensities equal to those

produced by an acrylic resin known to be 100% cross-linking.

PAINT COMPOSITION

Property and Test Method

Yellow

White

Daytime Color (CIELAB)

Spectrophotometer using

illuminant D65 at 45º

illumination and 0º viewing with

a 2º observer

L* 81.76

a* 19.79

b* 89.89

Maximum allowa

variation 4.0∆E*

L* 93.51

a* -1.01

b* 0.70

Maximum allowable variation

4.0∆E*

Nighttime Color (CIELAB)

Spectrophotometer using

illuminant A at 45º illumination

and 0º viewing with a 2º observer

L* 86.90

a* 24.80

b* 95.45

Maximum allowable variation

4.0∆E*

L* 93.45

a* -0.79

b* 0.43

Maximum allowable variation

4.0∆E*

Heavy Metals Content

Comply with 40 CFR 261

Titanium Dioxide

ASTM D 4764

10% by weight of pigment

min.

VOC

ASTM D 2369 and D 4017

1.25 lb/gal max.

1.25 l /gal ma .

Contrast Ratio

(at 15 mils wft)

0.97

0.99

846.02.01 Manufacturers Certification. Provide a certification of analysis for each lot of

traffic paint produced stating conformance to the requirements of this section. Report the formulation

identification, traffic paint trade name, color, date of manufacturer, total quantity of lot produced, actual

quantity of traffic paint represented, sampling method utilized to obtain the samples, and data for each

sample tested to represent each lot produced.

846.03 ACCEPTANCE PR

OCEDURES FOR NON-

SPECIFICATION DURABLE

WATERBORNE PAVEMENT

STRIPING PAINT. When non-

specification paint is inadvertently

incorporated into the work the Department will accept the material with a reduction in pay. The

percentage deduction is cumulative based on its compositional properties, but will not exceed 60 percent.

The Department will calculate the payment reduction on the unit bid price for the routes where the non-

specification paint was used.

DURABLE WATERBORNE PAVEMENT STRIPING PAINT REDUCTION SCHEDULE

Non-

conforming

Property

Resin

Color

Contrast

TiO

VOC

Heavy

Metals

Content

Reduction

Rate

60%

10%

60%

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 60 of 74

Supplemental Specifications to The Standard Specifications

for Road and Bridge Construction, 2008 Edition

(Effective with the July15, 2011 Letting)

APPENDIX A:

PART:

REVISION:

APPENDIX A:

PART:

REVISION:

TABLUATION OF CONSTRUCTION TOLERANCES.

601.03.03

Replace with the following:

Concrete

accuracy of individual ingredient material for each batch.

± 2.0

% for aggregates

± 1.0

% for water

± 1.0

% for cement in batches of 4 cubic yards or greater

± 1.0

% for total cementitious materials in batches of 4 cubic yards or greater

0.0%

to + 4.0% for cement in batches less than 4 cubic yards

0.0

% to + 4.0% for total cementitious materials in batches less than 4 cubic yards

± 3.0

% for admixtures

TABLUATION OF CONSTRUCTION TOLERANCES.

601.03.03 C) 2)

Delete

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 61 of 74

STANDARD DRAWINGS THAT APPLY

TRAFFIC

~ TEMPORARY ~

TRAFFIC CONTROL

LANE CLOSURE USING TRAFFIC SIGNALS TTC-110

DEVICES

POST SPLICING DETAIL TTD-110

BRIDGES

MISCELLANEOUS STANDARDS

BRIDGE RESTORATION AND WATERPROOFING WITH CONCRETE OVERLAYS BGX-009-04

JOINTS

NEOPRENE EXPANSION DAMS AND ARMORED EDGES BJE-001-11

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 62 of 74

PART III

EMPLOYMENT, WAGE AND RECORD REQUIREMENTS

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 63 of 74

TRANSPORTATION CABINET

DEPARTMENT OF HIGHWAYS

LABOR AND WAGE REQUIREMENTS

APPLICABLE TO OTHER THAN FEDERAL-AID SYSTEM PROJECTS

I. Application

II. Nondiscrimination of Employees (KRS 344)

III. Payment of Predetermined Minimum Wages

IV. Statements and Payrolls

I. APPLICATION

1. These contract provisions shall apply to all work

performed on the contract by the contractor with his own

organization and with the assistance of workmen under his

immediate superintendence and to all work performed on the

contract by piecework, station work or by subcontract. The

contractor's organization shall be construed to include only

workmen employed and paid directly by the contractor and

equipment owned or rented by him, with or without operators.

2. The contractor shall insert in each of his

subcontracts all of the stipulations contained in these Required

Provisions and such other stipulations as may be required.

3. A breach of any of the stipulations contained in

these Required Provisions may be grounds for termination of

the contract.

II. NONDISCRIMINATION OF EMPLOYEES

AN ACT OF THE KENTUCKY

GENERAL ASSEMBLY TO PREVENT

DISCRIMINATION IN EMPLOYMENT

KRS CHAPTER 344

EFFECTIVE JUNE 16, 1972

The contract on this project, in accordance with KRS

Chapter 344, provides that during the performance of this

contract, the contractor agrees as follows:

1. The contractor shall not fail or refuse to hire, or

shall not discharge any individual, or otherwise discriminate

against an individual with respect to his compensation, terms,

conditions, or privileges of employment, because of such

individual's race, color, religion, national origin, sex, disability

or age (between forty and seventy); or limit, segregate, or

classify his employees in any way which would deprive or

tend to deprive an individual of employment opportunities or

otherwise adversely affect his status as an employee, because

of such individual's race, color, religion, national origin, sex,

disability or age (between forty and seventy). The contractor

agrees to post in conspicuous places, available to employees

and applicants for employment, notices to be provided setting

forth the provisions of this nondiscrimination clause.

2. The contractor shall not print or publish or cause

to be printed or published a notice or advertisement relating to

employment by such an employer or membership in or any

classification or referral for employment by the employment

agency, indicating any preference, limitation, specification, or

discrimination, based on race, color, religion, national origin,

sex, disability or age (between forty and seventy), except that

such notice or advertisement may indicate a preference,

limitation, or specification based on religion, or national origin

when religion, or national origin is a bona fide occupational

qualification for employment.

3. If the contractor is in control of apprenticeship or

other training or retraining, including on-the-job training

programs, he shall not discriminate against an individual

because of his race, color, religion, national origin, sex,

disability or age (between forty and seventy), in admission to,

or employment in any program established to provide

apprenticeship or other training.

4. The contractor will send to each labor union or

representative of workers with which he has a collective

bargaining agreement or other contract or understanding, a

notice to be provided advising the said labor union or workers'

representative of the contractor's commitments under this

section, and shall post copies of the notice in conspicuous

places available to employees and applicants for employment.

The contractor will take such action with respect to any

subcontract or purchase order as the administrating agency

may direct as a means of enforcing such provisions, including

sanctions for non-compliance.

III. PAYMENT OF PREDETERMINED MINIMUM

WAGES

1. These special provisions are supplemented

elsewhere in the contract by special provisions which set forth

certain predetermined minimum wage rates. The contractor

shall pay not less than those rates.

2. The minimum wage determination schedule shall

be posted by the contractor, in a manner prescribed by the

Department of Highways, at the site of the work in prominent

places where it can be easily seen by the workers.

IV. STATEMENTS AND PAYROLLS

1. All contractors and subcontractors affected by the

terms of KRS 337.505 to 337.550 shall keep full and accurate

payroll records covering all disbursements of wages to their

employees to whom they are required to pay not less than the

prevailing rate of wages. Payrolls and basic records relating

thereto will be maintained during the course of the work and

preserved for a period of one (1) year from the date of

completion of this contract.

2. The payroll records shall contain the name,

address and social security number of each employee, his

correct classification, rate of pay, daily and weekly number of

hours worked, itemized deductions made and actual wages

paid. 3. The contractor shall make his daily records

available at the project site for inspection by the State

Department of Highways contracting office or his authorized

representative.

Periodic investigations shall be conducted as required

to assure compliance with the labor provisions of the contract.

Interrogation of employees and officials of the contractor shall

be permitted during working hours.

Aggrieved workers, Highway Managers, Assistant

District Engineers, Resident Engineers and Project Engineers

shall report all complaints and violations to the Division of

Contract Procurement.

The contractor shall be notified in writing of apparent

violations. The contractor may correct the reported violations

and notify the Department of Highways of the action taken or

may request an informal hearing. The request for hearing

shall be in writing within ten (10) days after receipt of the

notice of the reported violation. The contractor may submit

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 64 of 74

records and information which will aid in determining the true

facts relating to the reported violations.

Any person or organization aggrieved by the action

taken or the findings established as a result of an informal

hearing by the Division of Contract Procurement may request

a formal hearing.

4. The wages of labor shall be paid in legal tender of

the United States, except that this condition will be considered

satisfied if payment is made by a negotiable check, on a

solvent bank, which may be cashed readily by the employee in

the local community for the full amount, without discount or

collection charges of any kind. Where checks are used for

payments, the contractor shall make all necessary

arrangements for them to be cashed and shall give information

regarding such arrangements.

5. No fee of any kind shall be asked or accepted by

the contractor or any of his agents from any person as a

condition of employment on the project.

6. No laborers shall be charged for any tools used in

performing their respective duties except for reasonably

avoidable loss or damage thereto.

7. Every employee on the work covered by this

contract shall be permitted to lodge, board, and trade where

and with whom he elects and neither the contractor nor his

agents, nor his employees shall directly or indirectly require as

a condition of employment that an employee shall lodge,

board or trade at a particular place or with a particular person.

8. Every employee on the project covered by this

contract shall be an employee of either the prime contractor or

an approved subcontractor.

9. No charge shall be made for any transportation

furnished by the contractor or his agents to any person

employed on the work.

10. No individual shall be employed as a laborer or

mechanic on this contract except on a wage basis, but this

shall not be construed to prohibit the rental of teams, trucks or

other equipment from individuals.

No Covered employee may be employed on the work

except in accordance with the classification set forth in the

schedule mentioned above; provided, however, that in the

event additional classifications are required, application shall

be made by the contractor to the Department of Highways and

(1) the Department shall request appropriate classifications

and rates from the proper agency, or (2) if there is urgent need

for additional classification to avoid undue delay in the work,

the contractor may employ such workmen at rates deemed

comparable to rates established for similar classifications

provided he has made written application through the

Department of Highways, addressed to the proper agency, for

the supplemental rates. The contractor shall retroactively

adjust, upon receipt of the supplemental rates schedule, the

wages of any employee paid less than the established rate and

may adjust the wages of any employee overpaid.

11. No contractor or subcontractor contracting for any

part of the contract work which may require or involve the

employment of laborers or mechanics shall require or permit

any laborer or mechanic in any work-week in which he is

employed on such work, to work in excess of eight hours in

any calendar day or in excess of forty hours in such work-

week unless such laborer or mechanic receives compensation

at a rate not less than one and one half times his basic rate of

pay for all hours worked in excess of eight hours in any

calendar day or in excess of forty hours in such work-week. A

laborer, workman or mechanic and an employer may enter

into a written agreement or a collective bargaining agreement

to work more than eight (8) hours a calendar day but not more

than ten (10) hours a calendar day for the straight time hourly

rate. This agreement shall be in writing and shall be executed

prior to the employee working in excess of eight (8) hours, but

not more than ten (10) hours, in any one (1) calendar day.

12. Payments to the contractor may be suspended or

withheld due to failure of the contractor to pay any laborer or

mechanic employed or working on the site of the work, all or

part of the wages required under the terms of the contract.

The Department may suspend or withhold payments only after

the contractor has been given written notice of the alleged

violation and the contractor has failed to comply with the

wage determination of the Department of Highways.

13. Contractors and subcontractors shall comply

with the sections of Kentucky Revised Statutes, Chapter 337

relating to contracts for Public Works.

Revised 2-16-95

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 65 of 74

EXECUTIVE BRANCH CODE OF ETHICS

In the 1992 regular legislative session, the General Assembly passed and Governor Brereton Jones signed

Senate Bill 63 (codified as KRS 11A), the Executive Branch Code of Ethics, which states, in part:

KRS 11A.040 (6) provides:

No present or former public servant shall, within six (6) months of following termination of his office or

employment, accept employment, compensation or other economic benefit from any person or business

that contracts or does business with the state in matters in which he was directly involved during his

tenure. This provision shall not prohibit an individual from returning to the same business, firm,

occupation, or profession in which he was involved prior to taking office or beginning his term of

employment, provided that, for a period of six (6) months, he personally refrains from working on any

matter in which he was directly involved in state government. This subsection shall not prohibit the

performance of ministerial functions, including, but not limited to, filing tax returns, filing applications

for permits or licenses, or filing incorporation papers.

KRS 11A.040 (8) states:

A former public servant shall not represent a person in a matter before a state agency in which the

former public servant was directly involved, for a period of one (1) year after the latter of:

a) The date of leaving office or termination of employment; or

b) The date the term of office expires to which the public servant was elected.

This law is intended to promote public confidence in the integrity of state government and to declare as public

policy the idea that state employees should view their work as a public trust and not as a way to obtain private

benefits.

If you have worked for the executive branch of state government within the past six months, you may be subject

to the law's prohibitions. The law's applicability may be different if you hold elected office or are

contemplating representation of another before a state agency.

Also, if you are affiliated with a firm which does business with the state and which employs former state

executive-branch employees, you should be aware that the law may apply to them.

In case of doubt, the law permits you to request an advisory opinion from the Executive Branch Ethics

Commission, Room 136, Capitol Building, 700 Capitol Avenue, Frankfort, Kentucky 40601; telephone (502)

564-7954.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 66 of 74

Kentucky Equal Employment Opportunity Act of 1978

The requirements of the Kentucky Equal Employment Opportunity Act of 1978 (KRS 45.560-

45.640) shall not apply to this Contract.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 67 of 74

TRANSPORTATION CABINET

DIVISION OF CONSTRUCTION PROCUREMENT

COMPLIANCE SECTION

PROJECT WAGE RATES

Federal-State Sheet 1of 1

WORKERS……………………………………………………..MINIMUM HOURLY

RATE…..$7.25

Note: Parts III and IV of “Labor and Wage Requirements Applicable to Other Than Federal-

Aid System Projects” do not apply to this project.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 68 of 74

EMPLOYEE RIGHTS

UNDER THE FAIR LABOR STANDARDS ACT

THE UNITED STATES DEPARTMENT OF LABOR WAGE AND HOUR DIVISION

FEDERAL MINIMUM WAGE

At least 1 times your regular rate of pay for all hours worked over 40 in a workweek.

An employee must be at least 16 years old to work in most non-farm jobs and at least

18 to work in non-farm jobs declared hazardous by the Secretary of Labor.

Youths 14 and 15 years old may work outside school hours in various non-manufactur-

ing, non-mining, non-hazardous jobs under the following conditions:

No more than

• 3hours on a school day or 18 hours in a school week;

• 8hours on a non-school day or 40 hours in a non-school week.

Also, work may not begin before 7 a.m. or end after 7 p.m., except from June 1

through Labor Day, when evening hours are extended to 9 p.m. Different rules

apply in agricultural employment.

Employers of “tipped employees” must pay a cash wage of at least $2.13 per hour if

they claim a tip credit against their minimum wage obligation. If an employee's tips

combined with the employer's cash wage of at least $2.13 per hour do not equal the

minimum hourly wage, the employer must make up the difference. Certain other

conditions must also be met.

The Department of Labor may recover back wages either administratively or through

court action, for the employees that have been underpaid in violation of the law.

Violations may result in civil or criminal action.

Employers may be assessed civil money penalties of up to $1,100 for each willful or

repeated violation of the minimum wage or overtime pay provisions of the law and up

to $11,000 for each employee who is the subject of a violation of the Act’s child labor

provisions. In addition, a civil money penalty of up to $50,000 may be assessed for each

child labor violation that causes the death or serious injury of any minor employee, and

such assessments may be doubled, up to $100,000, when the violations are determined

to be willful or repeated. The law also prohibits discriminating against or discharging

workers who file a complaint or participate in any proceeding under the Act.

• Certain occupations and establishments are exempt from the minimum wage and/or

overtime pay provisions.

• Special provisions apply to workers in American Samoa and the Commonwealth of the

Northern Mariana Islands.

• Some state laws provide greater employee protections; employers must comply with both.

• The law requires employers to display this poster where employees can readily see it.

• Employees under 20 years of age may be paid $4.25 per hour during their first 90

consecutive calendar days of employment with an employer.

• Certain full-time students, student learners, apprentices, and workers with disabilities

may be paid less than the minimum wage under special certificates issued by the

Department of Labor.

For additional information:

1-866-4-USWAGE

(1-866-487-9243) TTY: 1-877-889-5627

WWW.WAGEHOUR.DOL.GOV

U.S. Department of Labor Wage and Hour Division

OVERTIME PAY

CHILD LABOR

TIP CREDIT

ENFORCEMENT

ADDITIONAL

INFORMATION

WHD Publication 1088 (Revised July 2009)

$7.25 PER HOUR

BEGINNING JULY 24, 2009

ELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 69 of 74

BELL COUNTY

FE02 007 2133 B00016N Contract ID: 122908

Page 69 of 74

PART IV

INSURANCE

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 70 of 74

INSURANCE

The Contractor shall procure and maintain the following insurance in addition to the insurance required by law:

1) Commercial General Liability-Occurrence form – not less than $2,000,000 General aggregate,

$2,000,000 Products & Completed Aggregate, $1,000,000 Personal & Advertising, $1,000,000 each

occurrence.

2) Automobile Liability- $1,000,000 per accident

3) Employers Liability:

a) $100,000 Each Accident Bodily Injury

b) $500,000 Policy limit Bodily Injury by Disease

c) $100,000 Each Employee Bodily Injury by Disease

4) The insurance required above must be evidenced by a Certificate of Insurance and this Certificate of

Insurance must contain one of the following statements:

a) "policy contains no deductible clauses."

b) "policy contains _________________ (amount) deductible property damage clause but company

will pay claim and collect the deductible from the insured."

5) KENTUCKY WORKMEN'S COMPENSATION INSURANCE. The contractor shall furnish evidence

of coverage of all his employees or give evidence of self-insurance by submitting a copy of a certificate

issued by the Workmen's Compensation Board.

The cost of insurance is incidental to all contract items. All subcontractors must meet the same minimum

insurance requirements.

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 71 of 74

PART V

BID ITEMS

BELL COUNTY

FE02 007 2133 B00016N

Contract ID: 122908

Page 72 of 74

KENTUCKY TRANSPORTATION CABINET

DEPARTMENT OF HIGHWAYS

FRANKFORT, KY 40622

CONTRACT ID: 122908 PAGE: 1

COUNTY: BELL LETTING: 01/27/12

PROPOSAL: FE02 007 2133 B00016N CALL NO: 311

----------------------------------------------------------------------------------------------------------

LINE |ITEM DESCRIPTION | APPROXIMATE UNIT | UNIT | AMOUNT

NO | | QUANTITY | PRICE |

----------------------------------------------------------------------------------------------------------

SECTION 0001 BRIDGE

----------------------------------------------------------------------------------------------------------

0010 |02562 SIGNS | 149.000 SQFT| |

| | | |

----------------------------------------------------------------------------------------------------------

0020 |02650 MAINTAIN & CONTROL TRAFFIC | ( 1.00) LS | |

| APPLIES TO 007B00016N | | |

----------------------------------------------------------------------------------------------------------

0030 |02653 LANE CLOSURE | 2.000 EACH| |

| | | |

----------------------------------------------------------------------------------------------------------

0040 |03299 ARMORED EDGE FOR CONCRETE | 44.000 LF | |

| | | |

----------------------------------------------------------------------------------------------------------

0050 |03300 ELIMINATE TRANSVERSE JOINT | 52.000 LF | |

| | | |

----------------------------------------------------------------------------------------------------------

0060 |03301 REPAIR CONCRETE HANDRAIL | 12.000 LF | |

| | | |

----------------------------------------------------------------------------------------------------------

0070 |03304 BRIDGE OVERLAY APPROACH PAVEMENT | 489.000 SQYD| |

| | | |

----------------------------------------------------------------------------------------------------------

0080 |04934 TEMP SIGNAL MULTI PHASE | 1.000 EACH| |

| | | |

----------------------------------------------------------------------------------------------------------

0090 |06549 PAVE STRIPING-TEMP REM TAPE-B | 500.000 LF | |

| | | |

----------------------------------------------------------------------------------------------------------

0100 |06550 PAVE STRIPING-TEMP REM TAPE-W | 1,000.000 LF | |

| | | |

----------------------------------------------------------------------------------------------------------

0110 |06551 PAVE STRIPING-TEMP REM TAPE-Y | 2,000.000 LF | |

| | | |

----------------------------------------------------------------------------------------------------------

0120 |06557 PAVE STRIPING-DUR TY 1-6 IN Y | 598.000 LF | |

| | | |

----------------------------------------------------------------------------------------------------------

0130 |08150 STEEL REINFORCEMENT | 868.000 LB | |

| | | |

----------------------------------------------------------------------------------------------------------

0140 |08504 EPOXY SAND SLURRY | 84.300 SQYD| |

| | | |

----------------------------------------------------------------------------------------------------------

0150 |08534 CONCRETE OVERLAY-LATEX | 10.700 CUYD| |

| | | |

----------------------------------------------------------------------------------------------------------

0160 |08549 BLAST CLEANING | 326.000 SQYD| |

| | | |

----------------------------------------------------------------------------------------------------------

0170 |08551 MACHINE PREP OF SLAB | 242.000 SQYD| |

| | | |

----------------------------------------------------------------------------------------------------------

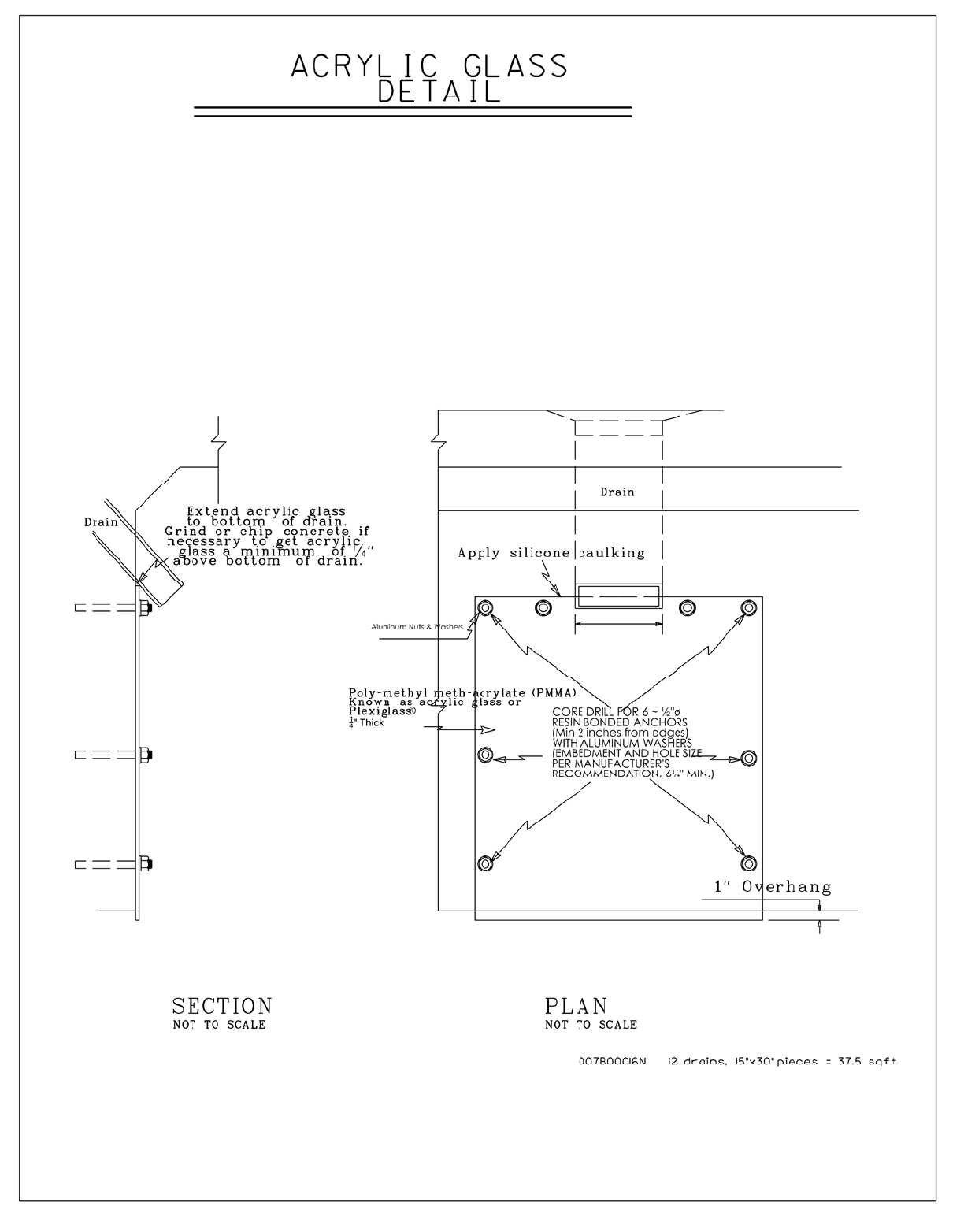

0180 |23879EC ACRYLIC GLASS | 37.500 SQFT| |

| | | |

----------------------------------------------------------------------------------------------------------

0190 |24094EC PARTIAL DEPTH PATCHING | 6.700 CUYD| |

| | | |

----------------------------------------------------------------------------------------------------------

SECTION 0002 DEMOBILIZATION

----------------------------------------------------------------------------------------------------------

BELL COUNTY

FE02 007 2133 B00016N Contract ID: 122908

Page 73 of 74

KENTUCKY TRANSPORTATION CABINET

DEPARTMENT OF HIGHWAYS

FRANKFORT, KY 40622

CONTRACT ID: 122908 PAGE: 2

COUNTY: BELL LETTING: 01/27/12

PROPOSAL: FE02 007 2133 B00016N CALL NO: 311

----------------------------------------------------------------------------------------------------------

LINE |ITEM DESCRIPTION | APPROXIMATE UNIT | UNIT | AMOUNT

NO | | QUANTITY | PRICE |

----------------------------------------------------------------------------------------------------------

0200 |02569 DEMOBILIZATION (AT LEAST 1.5%) | LUMP | |

| | | |

----------------------------------------------------------------------------------------------------------

| |

| TOTAL BID |

----------------------------------------------------------------------------------------------------------

BELL COUNTY

FE02 007 2133 B00016N Contract ID: 122908

Page 74 of 74
