LCD TV 26LD345H 32ld340h Commercial Mode Setup Guide

37LD325H to the manual b0ecb658-4b66-440e-8ce6-98e6c1bea8d7

LCD TV 37LD345H 37ld340h-commercial-mode-setup-guide

User Manual: LCD TV 26LD345H

Open the PDF directly: View PDF .
Page Count: 59

Master TV Setup

pages 11 – 14

Cloning Information

pages 23 – 29

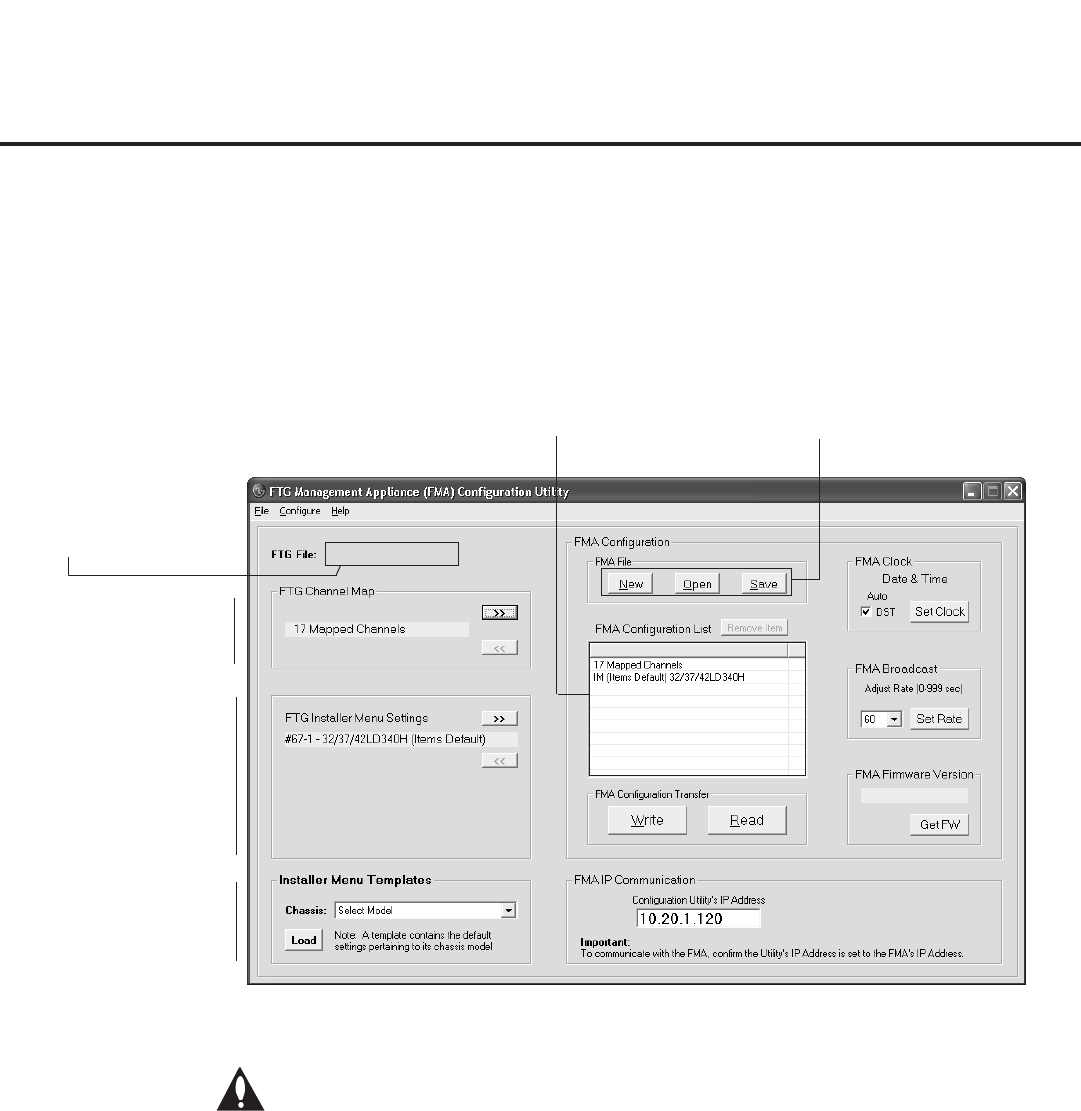

FTG Mode of Operation

pages 30 – 40

EXPERIENCED INSTALLER

Commercial Mode Setup Guide

Note: Selected features shown in this guide may not be available on all models.

Lodging Guest Interactive Pro:Centric™ TVs

26LD320H 32LD320H 37LD320H 42LD320H

32LD325H 37LD325H

26LD340H 32LD340H 37LD340H 42LD340H

26LD345H 32LD345H 37LD345H 42LD345H

2206-4186

MODEL and SERIAL NUMBER

The model and serial numbers of this TV are located on the

back of the cabinet. For future reference, LG suggests that

you record those numbers here:

Model No._________________ Serial No._______________

WARNING:

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER-

SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to

the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient

magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

POWER CORD POLARIZATION:

This product is equipped with a 3-wire grounding-type alternating current power plug. This plug will fit into the

power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, contact

your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the 3-wire grounding-type plug.

NOTE TO CABLE/TV INSTALLER:

This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the National Electric

Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground

shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.

REGULATORY INFORMATION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of

the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the

equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular installation. If this equip-

ment does cause harmful interference to radio or television reception, which can be determined by turning the equip-

ment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

CAUTION:

Do not attempt to modify this product in any way without written authorization from LG Electronics U.S.A., Inc.

Unauthorized modification could void the user’s authority to operate this product.

COMPLIANCE:

The responsible party for this product’s compliance is: LG Electronics U.S.A., Inc.

1000 Sylvan Avenue, Englewood Cliffs, NJ 07632, USA • Phone: 1-201-816-2000

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

For Customer Support/Service, please call:

1-888-865-3026

The latest product information and documentation is

available online at:

www.LGsolutions.com/products

Marketed and Distributed in the United States by LG Electronics U.S.A., Inc.

1000 Sylvan Avenue, Englewood Cliffs, NJ 07632

206-4186

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accor-

dance with the manufacturer’s instructions.

8. Do not install near any heat sources, such as radiators,

heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades

with one wider than the other. A grounding-type plug

has two blades and a third grounding prong. The wide

blade or the third prong are provided for your safety. If

the provided plug does not fit into your outlet, consult

an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched,

particularly at plugs, convenience receptacles, and the

point where it exits from the apparatus.

11. Only use attachments/accessories specified by the

manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table

specified by the manufacturer or sold with the appara-

tus. When a cart is used, use caution when moving the

cart/apparatus combination in order to avoid injury from

tip-over.

13.

Refer all servicing to qualied service personnel.

Servicing is required when the apparatus has been dam-

aged in any way, such as power-supply cord or plug is

damaged, liquid has been spilled or objects have fallen

into the apparatus, the apparatus has been exposed to

rain or moisture, does not operate normally, or has been

dropped.

14. Never touch this apparatus or antenna during a thunder or

lighting storm.

15. When mounting a TV on the wall, make sure not to install

the TV by the hanging power and signal cables on the back

of the TV.

16. Do not allow an impact shock or any objects to fall into the

product, and do not drop objects onto the screen.

17. Power Cord

Caution: It is recommended that appliances be placed

upon a dedicated circuit; that is, a single outlet circuit

which powers only that appliance and has no additional

outlets or branch circuits. Check the specification page

in the Owner’s Manual to be certain.

Periodically examine the cord of your appliance, and if its

appearance indicates damage or deterioration, unplug it,

discontinue use of the appliance, and have the cord replaced

with an exact replacement part by an authorized servicer.

Protect the power cord from physical or mechanical abuse,

such as twisting, kinking, or pinching or being closed in a

door or walked upon. Pay particular attention to plugs, wall

outlets, and the point where the cord exits the appliance.

Do not use a damaged or loose power cord. Be sure to grasp

the plug when unplugging the power cord. Do not pull on the

power cord to unplug the TV.

18. Overloading

Do not connect too many appliances to the same AC power

outlet as this could result in fire or electric shock. Do not

overload wall outlets. Overloaded wall outlets, loose or dam-

aged wall outlets, extension cords, frayed power cords, or

damaged or cracked wire insulation are dangerous. Any of

these conditions could result in re or electric shock.

19. Outdoor Use/Wet Location

Warning: To reduce the risk of re or electrical

shock, do not expose this product to rain,

moisture or other liquids.

Do not touch the TV with wet hands. Do not install this prod-

uct near ammable objects such as gasoline or candles or

expose the TV to direct air conditioning.

Do not expose to dripping or splashing and do not place

objects lled with liquids, such as vases, cups, etc., on or over

the apparatus (e.g., on shelves above the unit).

20. Grounding

Ensure that you connect the earth ground wire to prevent

possible electric shock (i.e., a TV with a three-prong grounded

AC plug must be connected to a three-prong grounded AC

outlet). If grounding methods are not possible, have a quali-

ed electrician install a separate circuit breaker. Do not try to

ground the unit by connecting it to telephone wires, lightning

rods, or gas pipes.

21. Disconnect Device

The mains plug is the disconnecting device. The plug must

remain readily operable.

As long as this unit is connected to the AC wall outlet, it is not

disconnected from the AC power source even if you turn off

this unit by SWITCH.

(Continued on next page)

PORTABLE CART WARNING

4206-4186

IMPORTANT SAFETY INSTRUCTIONS

(Continued from previous page)

22. Outdoor Antenna Grounding

If an outside antenna or cable system is connected to the

product, follow the precautions below.

An outdoor antenna system should not be located in the

vicinity of overhead power lines or other electric light or

power circuits or where it can come into contact with such

power lines or circuits as death or serious injury can occur.

Be sure the antenna system is grounded so as to provide

some protection against voltage surges and built-up static

charges.

Article 810 of the National Electrical Code (NEC) in the U.S.A.

provides information with respect to proper grounding of the

mast and supporting structure, grounding of the lead-in wire

to an antenna-discharge unit, size of grounding conductors,

location of antenna-discharge unit, connection to grounding

electrodes, and requirements for the grounding electrode.

Antenna Grounding According to NEC, ANSI/NFPA 70

23. Cleaning

When cleaning, unplug the power cord and wipe gently with

a soft cloth to prevent scratching. Do not spray water or other

liquids directly on the TV as electric shock may occur. Do not

clean with chemicals such as alcohol, thinners or benzene.

24. Transporting Product

Make sure the TV is turned Off and unplugged and that all

cables have been removed. It may take two or more people

to carry larger TVs. Do not press against or put stress on the

front panel of the TV during transport.

25. Ventilation

Install the TV where there is proper ventilation. Do not install

in a conned space such as a bookcase. Do not cover the TV

with cloth or other materials (e.g., plastic) while it is plugged

in. Do not install in excessively dusty places.

26. Do not touch the ventilation openings, as they may become

hot while the TV is operating.

27. If you smell smoke or other odors coming from the TV or

hear strange sounds, unplug the power cord, and contact an

authorized service center.

28. Do not press against the front panel of the TV with your

hand or a sharp object (e.g., a nail, pencil, or pen) or make a

scratch on it.

29. Keep the product away from direct sunlight.

30. Dot Defect

The LCD panel is a high technology product with resolution

of two million to six million pixels. In a very few cases, you

could see ne dots on the screen while you are viewing the

TV. Those dots are deactivated pixels and do not affect the

performance and reliability of the TV.

31. Generated Sound

“Cracking”: A cracking noise that occurs while the TV is

On or when it is turned Off is generated by plastic thermal

contraction due to temperature and humidity. This noise is

common for products where thermal deformation is required.

Electrical circuit humming/panel buzzing: A low level noise is

generated from a high-speed switching circuit, which supplies

a large amount of current to operate a product. It varies

depending on the product. This generated sound does not

affect the performance and reliability of the product.

32. For LCD TV

If the TV feels cold to the touch, there may be a small “flicker”

when it is turned On. This is normal; there is nothing wrong

with TV. Some minute dot defects may be visible on the

screen, appearing as tiny red, green, or blue spots. However,

they have no adverse effect on the TV’s performance. Avoid

touching the LCD screen or holding your finger(s) against

it for long periods of time. Doing so may produce some

temporary distortion effects on the screen.

Antenna Lead in Wire

Antenna Discharge Unit

(NEC Section 810-20)

Grounding Conductor

(NEC Section 810-21)

Ground Clamps

Power Service Grounding

Electrode System (NEC

Art 250, Part H)

Ground Clamp

Electric Service

Equipment

206-4186

Table of Contents

Safety Warnings................................2

Important Safety Instructions . . . . . . . . . . . . . . . . . . . .3

–

Table of Contents...............................5

Commercial Mode Overview. . . . . . . . . . . . . . . . . . . . .6

–

Setup Checklist...............................6

Pass-through Mode............................6

FTG Mode...................................7

Remote Management in FTG Mode . . . . . . . . . . . . . . . 7

External MPI Control...........................7

Pro:Centric Operation..........................8

–

Pro:Centric TV Interactive Menu Features . . . . . . . . . . 8

Pro:Centric Setup .............................9

Installer Remote Control Typical Key Functions . . . . . 10

Master TV Setup ...........................11

–

Before You Begin ............................11

Cloning Methods.............................11

Clonable TV Setup Menu Features. . . . . . . . . . . . . . . 11

Master TV Setup Procedure . . . . . . . . . . . . . . . . . . . . 12

Installer Menu .............................15

–

Accessing the Installer Menu . . . . . . . . . . . . . . . . . . . 15

Using the Installer Menu . . . . . . . . . . . . . . . . . . . . . . . 15

Exiting the Installer Menu and Activating Updates . . . 15

Channel Icons / Custom Text Labels

(2-5-4 + MENU Mode) ..........................22

Cloning Overview .............................23

USB Cloning Procedure.....................24

–

Learning / Teaching a Master TV Setup using

a USB Memory Device . . . . . . . . . . . . . . . . . . . . . . 24

Clone Programmer Cloning Procedures .......26

–

Learning / Teaching a Master TV Setup using

a TLL-1100A Clone Programmer . . . . . . . . . . . . . . . . 26

Learning / Teaching a Master TV Setup using

an LT2002 Clone Programmer . . . . . . . . . . . . . . . . . . 28

FTG Mode of Operation Overview ............30

–

FTG Mode via CPU or EBL. . . . . . . . . . . . . . . . . . . . . 30

Determining the TV Operating Mode . . . . . . . . . . . . . 31

FTG Mode via CPU .........................32

–

Creating an FMA Configuration File using the FTG

Device Configuration Application . . . . . . . . . . . . . . . . 32

Teaching FMA Configuration to a TV . . . . . . . . . . . . . 33

Learning an FMA Configuration File from a TV . . . . . 34

Optional Manual Configuration / TV Setup . . . . . . . . . 35

FTG Mode via EBL ............................36

FTG Device Configuration Application Utilities

Overview..................................37

–

FTG Channel Map Configuration Utility . . . . . . . . . . . 37

FTG Channel Map Editor . . . . . . . . . . . . . . . . . . . . . . 38

FTG Installer Menu Configuration Utility. . . . . . . . . . . 39

FMA Configuration Utility . . . . . . . . . . . . . . . . . . . . . . 40

Remote Jack Pack / TV Connections & Setup . . . . . . . 41

References

Upgrading TV/PTC Software using a USB Memory

Device.......................................42

Downloading a Splash Screen using a USB Memory

Device.......................................43

Power Consumption Settings . . . . . . . . . . . . . . . . . .44

–

TV Camport Auto Sense Operation . . . . . . . . . . . . . . . . 46

TV Aux Input Configuration . . . . . . . . . . . . . . . . . . . . . . 47

b-LAN Setup & Overview . . . . . . . . . . . . . . . . . . . . . . . . 48

RJP Model List and Input Auto-sensing Hierarchy. . . . . 49

Resetting Factory Defaults on the TV(s) . . . . . . . . . . . . 50

LD320H/LD325H & LD340H/LD345H Rear Jack Panel . 51

Side Connections Panel / RF Antenna & MPI

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Troubleshooting ............................53

–

General Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . 53

Troubleshooting Flow Chart . . . . . . . . . . . . . . . . . . . . 54

Commercial Mode Check / FTG Operating

Troubleshooting..............................55

Clone Programmer Troubleshooting . . . . . . . . . . . . . . 56

Glossary of Terms .............................57

Document Revision History / Notes . . . . . . . . . . . . . . . . 58

Back Cover...................................59

Notes

• Installer Menu content is intended for use primarily by qualied TV electronics technicians.

• Refer to the Owner’s Manual for additional information on TV installation, features, specications, maintenance, and safety

instructions.

• Design and specifications subject to change without prior notice.

6206-4186

Installation and Setup Checklist

__ Unpack TV and all accessories.

__ Install batteries in remote control.

__ Install TV on VESA mount or stand.

Note: It may be advisable to make all cable

connections before installing on VESA mount

or stand, as appropriate.

Hardware Connections

__ Install any additional hardware as

appropriate to your institution, LAN, etc.

Cable Connections

__ Make all rear jack panel and MPI card slot

connections, as appropriate.

Commercial Mode Setup

__ Complete appropriate procedures as described

in this document for Commercial Mode operation.

See “Pass-through Mode” and “FTG Mode”

sections below for further information.

Commercial Mode Overview

This document describes how to set up LD320H/LD325H and LD340H/LD345H Pro:Centric™ TVs for

Commercial Mode operation. LG commercial TV functionality is based on “ownership” of the Channel

Map; that is, the Channel Map resides in the TV’s CPU, Protocol Translator Card (PTC), or embedded

b-LAN™ (EBL) module, or it resides externally from the TV (i.e., in a device from the solution provider).

Each of these TV models has an EBL module that can be configured either for Pass-through Mode

(default) or Free-To-Guest (FTG) Mode. In addition, each of these TVs is capable of FTG Mode operation

via the TV CPU when the EBL is in Pass-through Mode.

Setup Checklist

Note: This document provides information specific to Commercial Mode operation. Refer to the Owner’s

Manual for detailed information on TV installation and hardware and cable connections.

Typical Installer Menu

Installer Menu

To set up a Master TV for cloning purposes, you will

need to know how to enter the commercial controller

(PTC) Installer Menu and make changes to the

default values as required. If necessary, familiarize

yourself with the Installer Menu and how to make

and save changes. Refer to pages 15 to 21 for

information on accessing the Installer Menu in Pass-

through Mode and for detailed descriptions of the

Installer Menu items.

TV Setup Menus

On-screen setup menus control the features of the

TV. Use the Installer Remote to access the TV setup

menus, and set the TV features to the desired

configuration for the end user. Refer to the Owner’s

Manual for detailed information on the TV setup

menus.

Pass-through Mode

This mode allows you to create a Master TV Setup for cloning purposes for TVs that are to remain in

Pass-through Mode. This mode also allows external control via the TV’s GAME CONTROL/MPI port. Use

the Installer Remote to congure Installer Menu items as required for TV operation and set up TV features

(Channel, Picture, Audio, etc.). See “Master TV Setup” on pages 11 to 14 for detailed information.

TV Setup Menus

PICTURE AUDIO

INPUT

OPTION

TIME

MY MEDIA

CHANNEL

LOCK

xxLD340H PTC INSTALLER MENU

000 INSTALLER SEQ 000

UPN 000-000-000-000 ASIC 20E7

PTC V1.00.001 CPU V3.25.00

206-4186

Commercial Mode Overview (Cont.)

Cloning

Cloning refers to the process of capturing a Master TV Setup and transferring it to a Target TV (both TVs

must be in Pass-through Mode). The Master TV’s clonable setup menu options should be configured as

part of the Master TV Setup. If there are features in the Master TV’s setup—channel icons or labels, digital

font options, etc.—that are not set or that are set incorrectly, those features also will not be set or will be

set incorrectly in the Target TVs. Pages 23 to 29 provide detailed information on cloning requirements and

procedures.

FTG Mode

This mode enables Pro:Idiom

® decryption and also allows logical channel mapping of physical channels

to remove the need for dash tuning. TV operation in FTG Mode is based on which element of the TV owns

the FTG Logical Channel Map—the CPU or the EBL. Understanding the application in which the TV will be

used is vital in determining the owner.

As indicated above, FTG mode operation in the LD320H/LD325H and LD340H/LD345H models can be

provided either by the TV CPU or EBL (see note below). These are two separate and distinct FTG Modes

of operation, each with its own unique advantages and requirements as described later in this document.

When the TV CPU is configured with an FTG Channel Map, the CPU controls the operation of the TV,

and when the EBL is configured with an FTG Channel Map, the EBL controls the operation of the TV.

Once it is determined whether the TV CPU or the EBL will own the FTG Channel Map, conguration can

begin. Conguration of either requires the LG FTG Device Conguration Application. This application pro-

vides utilities that enable you to create/edit an FTG Channel Map and congure Installer Menu settings.

See pages 30 to 40 for further information on FTG Mode operation and conguration.

Note: LD320H/LD325H TVs must have the following minimum software loads in order to support FTG

Mode via CPU: CPU version 3.61 or later and PTC version 1.01.008 or later. If necessary, contact LG to

obtain LD320H/LD325H CPU and PTC software files, and perform the software updates as described in

Reference section, “Upgrading TV/PTC Software using a USB Memory Device.”

Remote Management in FTG Mode

When the TV is configured for FTG Mode via CPU, remote management of the FTG Channel Map and

FTG Installer Menu settings is provided by a Pro:Centric server. Refer to the Pro:Centric™ Server

Admin Client User Guide for further information.

When the TV is configured for FTG Mode via EBL, the b-LAN module, which is internal to the TV, allows

hotel/institution head end equipment (for example, an FMA-LG101) with b-LAN technology to communi-

cate with the TV to provide remote management of the FTG Channel Map and FTG Installer Menu set-

tings. See Reference section, “b-LAN Setup & Overview,” for further information.

External MPI Control

To control the TV using an external MPI control device, you must use the TV’s GAME CONTROL/MPI port

for communication purposes. In these TVs, Installer Menu item 118 POWER SAVINGS controls the power

circuitry for both the embedded b-LAN module and the GAME CONTROL/MPI port; therefore, to ensure

that the GAME CONTROL/MPI port circuitry is powered, thus enabling MPI communication, Installer Menu

item 118 POWER SAVINGS must be set appropriately. See Installer Menu item descriptions as well as

reference section, “b-LAN Setup & Overview,” for further information.

8206-4186

Pro:Centric TV Interactive Menu Features

Important: Pro:Centric operation requires that Installer Menu items 098

PRO:CENTRIC and 119 DATA CHANNEL be set appropriately and that the TV be

in PPV or FTG Mode.

The interactive Pro:Centric TV enables guests—from the comfort of their hotel

rooms—to view and select from a complete listing of hotel services and amenities.

The Pro:Centric TV is connected to the hotel's billing computer, and service/amenities

charges are billed at the time of order.

Interactive amenities may include:

• Hotel information, news, and events

• Directory services (tourist attractions, restaurants, etc.)

• Reservation services (business meetings, tness, spa, etc.)

• Weather and trafc information

• Shopping services (delivery to guest room)

• Room service (menu ordering, memo service, morning wake up call, laundry, etc.)

• Ticketing and gaming services

• Check-out service (in the guest room)

• E-mail resources/account access

Use the Installer Remote to operate both interactive menus and regular TV features.

Press PORTAL on the Installer Remote to access the interactive menus.

Note: Interactive menu options may vary, depending on Pro:Centric features enabled

for the site. The following are default interactive menus.

Channel Guide

Shows available TV networks and logical channels. When available, electronic

program guide (EPG) data provides additional channel and program information.

Information

Typically displays hotel information, for example, photos of guest rooms, dining rooms,

business centers, facilities, etc., as well as information on local weather and attractions.

Information may also include resources, such as local school programs, run in coopera-

tion with the hotel.

Help

Provides help for navigating the interactive menus.

Watch TV

Removes the interactive menu from the screen and returns to the previously tuned TV

channel.

MUTE

VOL

RETURN

INPUT

ALARM TIMER

1 2 3

4 5 6

7 8

FLASHBK

PORTAL

ENTER

GUIDE

EXIT

INFO

EJECT

SAP

RATIO

Pro:Centric Operation

206-4186

Pro:Centric Operation (Cont.)

Pro:Centric Setup

The Pro:Centric server provides the following functionality:

• Remote management/administration (TV E-Z Installation): The Pro:Centric server Admin Client provides

remote management/administration facilities for downloading splash screens and software/firmware

updates as well as facilities for downloading FTG Channel Map and FTG Installer Menu settings for TVs

that are in FTG Mode via CPU (see also “Remote Management in FTG Mode” on page 7).

The Data Channel must be set appropriately in the Installer Menu (item 119 DATA CHANNEL) to enable

Pro:Centric remote management/administration facilities.

• Pro:Centric application: The application comprises the Pro:Centric interactive menus/features described

on the previous page. Pro:Centric application settings are managed via the Pro:Centric server Admin

Client.

In addition to the Data Channel, the Pro:Centric Application Mode must be set appropriately in the

Installer Menu (item 098 PRO:CENTRIC) to enable the Pro:Centric application.

Administration and management options for the Pro:Centric server are described in detail in the

Pro:Centric™ Server Admin Client User Guide. This document describes only those settings that must

be specied on the TVs.

10 206-4186

Installer Remote Control Typical Key Functions

MUTE

VOL

RETURN

INPUT

ALARM TIMER

1 2 3

4 5 6

7 8

FLASHBK

PORTAL

ENTER

GUIDE

EXIT

INFO

EJECT

SAP

RATIO

NUMBER Buttons (0 - 9) & DASH

Use to enter a program number or channel.

Dash is used for sub-channel numbers such

as 2-1, 2-2, 9-1, 9-2, 100-3, 100-4, etc.

FLASHBK (FLASHBACK)

Returns to the previously tuned channel.

The LG Installer Remote is supplied with and dedicated to operate the TV. The LG Installer Remote illustrated below

and throughout this document shows typical remote control functions and is provided for reference only. This

Installer Remote may vary from the Installer Remote supplied with the TV.

Color buttons access special functions

in some menus.

USB BUTTONS

Use to view/navigate USB memory

device content.

EJECT

Ejects a USB memory device.

VOLUME UP/DOWN

Increases/decreases sound level.

INFO

Displays channel information.

PORTAL

Displays and removes the interactive

menu.

MUTE

Switches sound ON or OFF.

CHANNEL/PAGE UP/DOWN

Changes the channel. Moves from

one full set of screen information to

the next.

Arrows (Up/Down/Left/Right) & ENTER

Use to navigate on-screen menus and

adjust TV settings to your requirements.

Displays the TV setup menus on the screen.

Also exits the on-screen menu system and

returns to TV viewing.

GUIDE

Displays and removes the electronic

program guide.

Press to activate subtitles.

RETURN

Returns one level to the previous menu/

display.

SAP

Analog Mode: Selects MTS sound (Mono,

Stereo, or SAP). DTV Mode: Changes

audio language, if additional languages are

available. *

EXIT

Clears all on-screen displays and returns to

TV viewing.

POWER

Turns TV ON or OFF.

ALARM

Sets the time when the TV

will automatically turn itself ON.

TIMER

Sets the amount of time before the TV

automatically turns itself OFF.

INPUT

Selects RGB, HDMI/DVI1, HDMI2,

Component Input, AV1, and AV2 sources.

Returns to the last TV channel

(from an Aux input).

SAP notes:

• If SAP is selected and no SAP is provided, sound

may not be heard on channel.

• Each analog channel may have its own SAP setting.

• Digital channels will reset to default audio language

with a power off/on.

RATIO

Adjusts the picture aspect ratio.

206-4186

Master TV Setup

This section describes how to set up a Master TV for cloning purposes when the TV is in Pass-through

Mode.

Note: Refer to FTG Mode information on pages 30 to 40 for details on entering FTG Mode and

conguring/editing FTG Channel Map and FTG Installer Menu settings.

Before You Begin

• Disconnect all Aux inputs if you intend to run Auto Tuning (Channel Search). Under certain conditions,

Auto Tuning is disabled if there is an Aux input active.

• Determine which cloning tool—USB memory device or clone programmer—is appropriate for your

application. See “Cloning Methods” below for further information.

Cloning Methods

Using a USB Memory Device / .tll File

The .tll le format clones the contents of the commercial controller (PTC) memory, including an auto-tuned/

edited Channel Map, Installer Menu settings, and one TV source’s (analog, digital, or Aux) clonable setup

menu settings. See “Clonable TV Setup Menu Features” list below.

Using a Clone Programmer (TLL-1100A or LT2002)

Both the TLL-1100A and LT2002 clone the contents of the commercial controller (PTC) memory, including

an auto-tuned/edited Channel Map, Installer Menu settings, and one TV source’s (analog or Aux) clonable

setup menu settings. See “Clonable TV Setup Menu Features” list below.

Clonable TV Setup Menu Features

Channel

Auto Tuning (Channel Lineup)

Manual Tuning

Channel Edit

Channel Label


Aspect Ratio

Picture Mode

Audio

Auto Volume

Clear Voice

Sound Mode

Balance

TV Speaker

Time

Auto Clock

Auto Off (Sleep Timer)

Option

Menu Language

Audio Language

Caption

Lock

Movie Rating

TV Rating – Children

TV Rating – General

Note: Some menu options vary between analog and digital channels and Aux inputs.

12 206-4186

Master TV Setup (Cont.)

Typical Installer Menu

Note: The Installer Menu header will vary

depending on the TV you are setting up.

Adjust the settings for these

Installer Menu items.

(Continued on next page)

Use the TV setup menus to set the TV

features to the desired configuration

for the end user.

PICTURE AUDIO

INPUT

OPTION

TIME

MY MEDIA

CHANNEL

LOCK

xxLD340H PTC INSTALLER MENU

000 INSTALLER SEQ 000

UPN 000-000-000-000 ASIC 20E7

PTC V1.00.001 CPU V3.25.00

117 FACT DEFAULT 001

003 BAND/AFC 00X

Master TV Setup Procedure

1. Set Installer Menu items.

This step provides specic instruction only on the Installer Menu

items that should be set on a Master TV. Refer to pages 15 to 21

for detailed information on all Installer Menu items.

a) Make sure the TV is ON. Then, use the Installer Remote to

enter the PTC Installer Menu: Press MENU repeatedly until

the on-screen display of the TV setup menus no longer

toggles, and then press 9-8-7-6 + ENTER.

b) Set Installer Menu item 117 FACT DEFAULT to 001 and press

ENTER on the Installer Remote.

This clears all Installer Menu custom settings, channel lineup,

etc. and reloads the factory default settings. The value will

change back to 0 after the PTC has been restored to factory

default condition. This step ensures that the TV Channel

Memory will be the active channel lineup.

c) Set Installer Menu item 003 BAND/AFC, as appropriate.

• Broadcast: Set to 000. • HRC: Set to 002.

• CATV: Set to 001 (default). • IRC: Set to 003.

d) Set any other Installer Menu items that affect your TV pro-

gramming network to the required conguration. For example,

enable/disable Aux inputs, set a Start Channel, etc.

e) After you have adjusted all required Installer Menu item

settings, press ENTER once on the Installer Remote to save

your changes; then, press ENTER again to exit the menu.

2. Set up TV features.

On-screen setup menus control the features of the TV. Press

MENU on the Installer Remote to access the TV setup menus,

and then set Channel, Picture, Audio, Lock, Time, etc. options to

the desired configurations. See also the Clonable TV Setup Menu

Features list on page 11.

Note: Remember that only one TV source’s clonable setup menu

settings will be cloned. Thus, for a clone programmer, the TV

setup menu settings should be applicable to either an analog

channel or Aux input, while for a USB memory device, the TV

setup menu settings should be applicable to the analog or digital

channel or Aux input to which the Target TV will be set during the

Teaching process.

Note: If desired, you can run Auto Tuning (see step 3) prior to

completing this step.

206-4186

Master TV Setup (Cont.)

CHANNEL Enter

Move

(Continued from previous page)

3. Run Auto Tuning.

a) To search for all available analog and digital channels, go to the

Channel Menu, select the Auto Tuning option, and follow the

on-screen instructions.

b) Use the Channel Edit option in the Channel Menu to edit the

channel lineup, as necessary, to include only free to guest

(non-encrypted) channels.

• Add/delete channels per your system requirements.

• Use the Channel Label option in the Channel Menu to select

the appropriate trademark/icon for each channel’s Channel-Time

on-screen display. Icons are available for familiar channels,

such as ABC, CBS, NBC, etc. Identiable labels (icons) should

enable the end user to readily know what common networks are

available.

Use Channel Menu options to

run Auto Tuning, edit channels,

and select channel icons.

Auto Tuning

Manual Tuning

Channel Edit

Channel Label

(Continued on next page)

Note: If Installer Menu item 103 ATSC TUNE MODE is set for Physical Channel

tuning (default and recommended setting), channels with minor channel numbers

higher than 255 will not transfer correctly in step 5. If item 103 is set for Virtual

Channel tuning and either the major or minor channel numbers are higher than

255, the channel(s) will not transfer correctly in step 4.

Note: You can add the channel icons in this step or as described in step 6. Also in

step 6, you can add custom text labels for channels without icons.

4. Transfer the TV setup menu settings to the commercial controller (PTC):

2-5-5 + MENU Mode

Important: This step is essential for successful cloning. Without this step, the

PTC will not contain any of the TV setup menu settings.

a) After the TV channel lineup has been edited and channel label icons added, tune to

the channel (source) for which you wish to transfer TV setup menu settings.

Note: If you intend to use a clone programmer for cloning purposes, this must be

either an analog channel or Aux input.

b) Enter the Installer Menu, and press 2-5-5 + MENU on the Installer Remote to

initiate the transfer of the Master TV Setup to the PTC. The TV exits the Installer

Menu and then tunes through the channels in the channel lineup during the

transfer. When the transfer is complete, the TV tunes back to the channel that

was tuned before the transfer began.

Note: The maximum number of channels that can be transferred is 141. An attempt

to transfer more than 141 channels will result in erratic TV tuning operation.

14 206-4186

(Continued from previous page)

5. (Optional) Add Custom Channel and Aux Input Labels:

2-5-4 + MENU Mode

Note: 2-5-4 + MENU Mode enables you to add/edit channel icons

and custom text labels in the PTC once the Master TV Setup has

been transferred as described in the previous step.

Enter the Installer Menu, and press 2-5-4 + MENU on the Installer

Remote. Add/edit custom text labels and/or change icons for the

Channel-Time on-screen displays (see 2-5-4 + MENU procedural

information on page 22). Note that broadcast digital channels often

already have a broadcaster generated label. When you are finished,

press MENU to exit 2-5-4 + MENU Mode.

6. Verify the TV setup.

Verify that the channel lineup, channel icons, and custom text labels are

correct. Also, make sure the TV features are set per your requirements.

7. Lock the channel lineup.

Enter the Installer Menu. Set item 028 CH. OVERIDE to 000 and

press ENTER to lock the channel lineup and restrict access to the TV

setup menus. Press ENTER again to save your changes and exit the

Installer Menu.*

The Master TV Setup is now ready to be copied to the predetermined

cloning tool—a USB memory device or a clone programmer. See cloning

procedures in this document.

After verifying the TV Setup, set Installer

Menu item 028 CH. OVERIDE to 000.*

DIGITAL 19-3

WXYZ

MONO STEREO SAP

Custom text label “WXYZ” created

in 2-5-4 + MENU Mode.

* This step prevents end users from

accessing channel settings (i.e., the

Channel Menu will be inaccessible/

grayed out).

028 CH. OVERIDE 000

Master TV Setup (Cont.)

206-4186

Installer Menu

Typical Installer Menu

Use the Installer Menu to set up or change operational settings.

Refer to the table starting on the next page for brief descriptions of Installer Menu items.

More detailed descriptions follow the table listing.

xxLD340H PTC INSTALLER MENU

000 INSTALLER SEQ 000

UPN 000-000-000-000 ASIC 20E7

PTC V1.00.001 CPU V3.25.00

Accessing the Installer Menu

1. Make sure the TV is ON.

2. Using an Installer Remote, press MENU repeatedly until the on-

screen display of the TV setup menus (if the TV is in Pass-through

Mode) or the Function Menu (if the TV is not in Pass-through Mode)

no longer toggles, and then press 9-8-7-6 + ENTER to access the

Installer Menu.

The Installer Menu opens with item 000 INSTALLER SEQ 000.

Note: If the password is not entered or registered correctly, you will see

the message “ENTER PASSWORD 0000” at the top of the screen instead

of the Installer Menu header. Once you re-enter the correct password

(i.e., press 9-8-7-6 + ENTER), the Installer Menu will display.

Note: If the TV is in FTG Mode, the Installer Menu is accessible as read-

only. Refer to pages 30 to 40 for information on FTG Mode configuration.

Using the Installer Menu

Refer to the table on pages 16 and 17 for an overview of the available Installer Menu items,

including their item numbers, functions, value ranges, and default values. Installer Menu items

not relevant to this TV series are not present in the Installer Menu; therefore, some numbers are

missing. For example, item 006 will not appear.

Navigation within the Installer Menu

Use the Up/Down arrow keys on the Installer Remote to sequence through the available menu

items, or access an item directly by keying in the line number and then pressing MENU. For

example, to access the SLEEP TIMER option, which is item 015, press 0-1-5 + MENU.

Changing Installer Menu Settings

To change an Installer Menu item value, use the Left/Right arrow keys on the Installer Remote,

or enter a valid value directly. To save the new setting, press ENTER, or use the Up/Down

arrow keys to navigate to a new Installer Menu item if you have additional items to edit. Note

that invalid values will not be saved.

Exiting the Installer Menu and Activating Updates

After you have adjusted all required Installer Menu item settings, press ENTER once on the

Installer Remote to save your changes; then, press ENTER again to exit the Installer Menu. Any

changes you make will be stored in non-volatile memory.

Note: Each time you exit the Installer Menu in Pass-through Mode, all V-Chip (Parental Control)

settings in the TV are reset to their default values; that is, the Lock System, if previously enabled

from the Lock setup menu (see the Owner’s Manual for additional information), will now be

disabled, and the individual Parental Control settings will be restored to default values.

16 206-4186

Installer Menu (Cont.)

Installer Menu Items 000 through 071

Item Function Value Range Default Value Brief Description of Function and Comments

000 INSTALLER SEQ 0 ~ 3 0 Leave default set to 0.

001 POWER MANAGE 0 ~ 7 0 Sets number of hours of no activity before automatic shutoff.

002 AC ON 0 / 1 0 Set to 1 to enable Auto Turn ON when AC power is applied.

003 BAND/AFC 0 ~ 3 1 Selects Tuning Band: 0=Broadcast, 1=CATV, 2=HRC, 3=IRC

004 STRT CHANNEL 0 ~ 127, 255 255

Channel tuned when TV is turned ON. (Set to 255 to tune to channel

tuned before TV turned OFF.)

005 CHAN LOCK 0 / 1 0 If set to 1, cannot tune from current channel.

007 STRT VOLUME 0 ~ 63, 255 255 Volume level when TV is turned ON. (Set to 255 to use volume level

before TV turned OFF.)

008 MIN VOLUME 0 ~ 63 0 Sets minimum allowable volume setting.

009 MAX VOLUME 0 ~ 63 63 Sets maximum allowable volume setting.

010 MUTE DISABLE 0 / 1 0 Set to 1 to disable Mute Function.

011 KEY DEFEAT 0 / 1 0 Set to 1 to disable menu navigation keys on display panel.

015 SLEEP TIMER 0 / 1 1 Set to 1 to enable Sleep Timer.

016 EN TIMER 0 / 1 0 Set to 1 to enable On/Off Timers.

017 ALARM 0 / 1 1 Set to 1 to enable Alarm.

020 FEATURE LEVEL 0 ~ 1, 16 ~ 24 1 Determines an additional IR code scheme to which the TV will respond.

021 V-CHIP 0 / 1 1 Set to 1 to enable V-Chip (Parental Control) functions.

022 MAX BLK HRS 0 ~ 99 12 Sets number of V-Chip blocking hours.

023 CAPTION LOCK 0 / 1 0 Set to 1 to retain caption setting set before TV turned OFF.

028 CH. OVERIDE 0 / 1 1 If set to 0, limits direct access to favorite channels.

029 OLD OCV 0 / 1 0 Set to 1 to change MPI operation to OCV.

030 ACK MASK 0 / 1 0 If set to 1, enables ACK feature of MPI.

031 POLL RATE 20 ~ 169 94 Selects poll rate for MPI.

032 TIMING PULSE 186 ~ 227 207 Sets baud rate for MPI.

034 CAMPORT EN 0 / 1 1 Set to 1 to enable Video 2 input.

035 COMPPORT EN. 0 / 1 1 Set to 0 to disable HDMI 1. Set to 1 enable HDMI 1.

038 YPrPb EN. 0 / 1 1 Set to 1 to enable display panel Component Video 1 input jacks.

039 REAR AUX EN 0 / 1 1 Set to 1 to enable display panel Video 1 input jack.

040 AUTO CAMPORT 0 / 1 1 Set to 1 to automatically switch to Camport. If set to 1, STRT AUX SRCE

cannot be set to 2.

046 STRT AUX SRCE 1 ~ 6, 255 6 Sets the starting Aux source (if item 004 STRT CHANNEL is set to 0).

047 AUX STATUS 0 / 1 0 Set to 1 for MPI Aux source to be reported as a channel number instead of

Channel 0.

053 DIS. CH-TIME 0 / 1 0 Set to 1 to disable Channel-Time display.

069 EN. CH-T COL. 0 / 1 1 Set to 1 to enable custom color for the Channel-Time display.

070 FOR. CH-TIME 0 ~ 7 2 Chooses custom foreground color for the Channel-Time display.

071 BCK. CH-TIME 0 ~ 7 2 Chooses custom background color for the Channel-Time display.

206-4186

Installer Menu Items 073 through 119

Item Function Value Range Default Value Brief Description of Function and Comments

073 CH NOT AVBLE 0 / 1 0 If set to 1 and item 028 CH. OVERIDE is set to 0, “NOT AVAILABLE” message

is displayed if user direct tunes a channel that is not in the favorite channel list.

075 REVERT CH 0 / 1 0 If set to 1 and loss of MPI communication occurs, TV tunes to Start Channel.

078 UPN MSB 0 ~ 255 0 User programmable number, most significant byte.

079 UPN MSB-1 0 ~ 255 0 User programmable number, most significant byte - 1.

080 UPN MSB-2 0 ~ 255 0 User programmable number, most significant byte - 2.

081 UPN LSB 0 ~ 255 0 User programmable number, least significant byte.

082 CHKSM ERROR 0 / 1 1 Enforces rigid MPI checksum.

083 HANDSHK TIME 0 ~ 5 5 Relaxes MPI timing to be compatible with PC-based Windows-

controlled systems.

084 PERMANENT BLK 0 / 1 0 Removes block hours setting for Parental Control and makes block permanent.

087 REAR RGB EN.

1Dependent on item 093 RJP AVAILABLE setting. Set to 0 to disable RGB input.

Set to 1 to enable RGB input. Set to 17 for Auto Configure.

088 EN NOISE MUTE 0 / 1 1 If set to 1, audio is muted if no signal is present.

090 KEY LOCK 0 / 1 0 If set to 1, keyboard is locked out, IR is still functional.

091 YPrPb2 EN 0 / 1 1 Set to 1 to enable HDMI 2 input.

093 RJP AVAILABLE 0, 1, 2, 5, 6 0 Set to 0 to disable. Set to 1, 2, 5, or 6 for HDMI or DVI Mode. (See

detailed descriptions.)

094 SAP MENU EN 0 / 1 1 Set to 0 to disable feature on Function Menu. Set to 1 to enable feature on

Function Menu.

096 DEF. ASP. RATIO 0 ~ 4 2 Sets default aspect ratio at power up. See detailed descriptions and item 106.

098 PRO:CENTRIC

0 ~ 2

Set to 0 to disable Pro:Centric operation. Set to 1 for Flash Mode. Set to 2 for

GEM (Java Application) Mode.

099 BACK LIGHTING

1 ~ 100,

101 ~ 200, 255

100

Sets the level of the TV picture back lighting. (See detailed descriptions.)

102 ATSC BAND 0 ~ 4 4 Selects ATSC band.

103 ATSC TUNE MODE 0 / 1 1 Set to 1 (default) for Physical Channel scan. Set to 0 for Virtual Channel scan.

104 START MINOR CH 0 ~ 255 0 Selects Minor Start Channel. Set to 0 for NTSC.

106 ASP RATIO LOCK 0 / 1 0 To retain set aspect ratio on power cycle, set to 1. Set to 0 for default ratio on

power cycle.

116 VIDEO MUTE EN 0 / 1 0 Set to 0 for Normal. Set to 1 for Blank.

117 FACT DEFAULT 0 / 1 0 Set to 0 for Normal. Set to 1 to load presets for all Installer Menu settings.

118 POWER SAVINGS 1 / 3 3 Set to 3 (default—b-LAN module only powered when TV is turned ON), or set

to 1 (b-LAN module is always powered). (See detailed descriptions.)

119 DATA CHANNEL 0 ~ 135 0 Set to 0 to disable. Set to the RF channel number of the Data Channel for

Pro:Centric or TV E-Z Installation data. (See detailed descriptions.)

Installer Menu (Cont.)

Caution: Installer Menu settings may affect options available

from the TV setup menus or the Function Menu.

18 206-4186

Installer Menu (Cont.)

Detailed Descriptions of Installer Menu Items

000 - INSTALLER SEQUENCE

Species entry sequence to the Installer Menu.

0 = 9876 1 = 4321

2 = 1478 3 = 3698

001 - POWER MANAGE (Power Management)

Determines hours of no activity before automatic shutoff. The

Power Management function is for saving energy. If set to 0,

Power Manage is Off. Settings range from 0 ~ 7, with 1 ~ 7

representing the hours that the unit will remain ON, unless there

has been activity from either the control panel or remote control.

002 - AC ON (AC Power Switchable)

If set to 1, this allows the TV to turn ON when AC power is applied.

Pressing the ON button is not necessary. This is desirable if the TV

is plugged into a cable box or a power outlet controlled by a wall

switch. Use the Left/Right arrow keys to choose 0 or 1, where 0 is

the default (OFF), and 1 is ON.

Note: If set to 1 (ON), the TV does not respond to ON/OFF

commands from either the remote or the display panel, and the

SLEEP TIMER is also nonfunctional.

003 - BAND/AFC (Band/Automatic Frequency Control)

There are four possible settings for this option:

0 = Broadcast 1 = CATV (default)

2 = HRC 3 = IRC

If some channels were not found by Auto Tuning (Channel

Search), select the appropriate Band setting here, and add the

channels using the Channel Edit option in the Channel Menu.

004 - STRT CHANNEL (Start Channel)

If active, this function allows you to determine the initial Major

Start Channel number when the TV is turned ON. This feature is

useful for an in-house information channel, since the TV would

always select that channel when it is turned ON. Setting this item

to 255 causes the last channel viewed when the TV was turned

OFF, to be the tuned to channel when the TV is turned ON again.

Note: For a digital Start Channel, always remember to set item

104 to the Minor Start Channel number.

255 = Last channel 1 ~ 125 = Major Ch. # 0 = Aux

126 = Map to Channel 3 127 = Map to Channel 4

005 - CHAN LOCK (Channel Lock)

Channel Lock is ideal if the system must always be on the same

channel. Changing channels with the Channel Up/Down or keypad

numbers is impossible. Channel Lock is inactive if set to 0 (default).

Generally, this feature is used in connection with item 004 STRT

CHANNEL where the Start Channel may, for example, be set to

3 or 4. If the Start Channel is 3, then the TV will remain locked on

channel 3.

NOTE: For items 007, 008, and 009

For legacy reasons, the scale used is 0 – 63. The PTC software

will translate this to the 0 – 100 scale used by the TV.

To translate a TV volume level to the Installer Menu value, use

the following formula:

Installer Value = TV Value x 63

100

Enter only the whole number (disregard fractions).

007 - STRT VOLUME (Start Volume)

This function allows the Installer to determine the initial volume

level setting when the TV is turned ON. This feature is useful

for an in-house information channel, since the TV would always

select that volume level when it is turned ON. The range of values

are 0 - 63, 255. If 255 is selected, the current volume level will be

retained in memory when the TV is turned OFF; at turn ON, the

volume level will be automatically set at the previous or last level.

008 - MIN VOLUME (Minimum Volume)

This function determines the minimum volume level allowable

with the Volume (VOL) Up/Down control. In this way, for example,

someone cannot set the volume too low to hear. The value range

is from 0 to 63. Use the Left/Right arrow keys to change values.

The factory default is 0, which provides the full range of volume

control, if item 009 MAX VOLUME is also set to 63. It may be best

to set the same value on every TV.

Note: The minimum volume level cannot have a value setting

higher than the maximum volume level (described below).

009 - MAX VOLUME (Maximum Volume)

This function determines the maximum volume level allowable

with the Volume (VOL) Up/Down control. In this way, for example,

someone cannot set the volume level high enough to disturb

others. The value range is 0 to 63, with 63 as the default, which

gives the user the full range of volume control, if item 008 MIN

VOLUME is also set at 0. Use the Left/Right arrow keys to change

values. It may be best to set the same value on every TV.

Note: The maximum volume level cannot have a value setting

lower than the minimum volume level (described above).

010 - MUTE DISABLE

Enables or disables sound mute function. If set to 1, sound cannot

be muted. If set to 0, sound can be muted.

011 - KEY DEFEAT (Keyboard Defeat)

If set to 1, KEY DEFEAT prevents the end user from accessing

the on-screen menu(s) from the display panel—MENU, ENTER,

and menu navigation keys do not function. If set to 0, those keys

do function.

Note: Users can always access the menu(s) by pressing MENU

on the remote.

206-4186

Installer Menu (Cont.)

015 - SLEEP TIMER

If set to 1, the Sleep Timer feature may be used. If set to 0, the

Sleep Timer is not available.

016 - EN TIMER (Enable On/Off Timers)

If set to 1, the Timer function is available to the end user and

enabled continuously. Set to 0 to disable On/Off timers.

Note: Clock must be set in order for timers to be used.

017 - ALARM

Gives the installer the option of making the Alarm function avail-

able to the end user. If set to 1, the Alarm function is available to

the end user. Set to 0 to disable the Alarm function.

Note: Clock must be set before the Alarm function will work.

020 - FEATURE LEVEL

Determines an additional IR code scheme to which the TV will

respond, allowing for the use of unique IR codes based on “bed

number” in a multi-TV single room installation. First determine the

IR mode; then select the bed number.

IR Mode Bed # Values

Legacy (Hospital) 1 – 2 0 – 1

Multi-code Remote 1 – 9 16 – 24

Note: For further information, see documentation for the accessory

package that includes the multi-code remote.

021 - V-CHIP (Parental Control)

Set to 1 to activate V-Chip (Parental Control) and have it available

to the end user to lter and control or otherwise restrict program-

ming content that can appear. Set to 0 to turn the V-Chip feature

Off (not available to user); no programming restrictions can be set.

022 - MAX BLK HRS (Maximum Block Hours)

Sets hours from 0 to 99 for the maximum V-Chip (Parental Control)

block hours. Default setting is for 12 blocking hours.

023 - CAPTION LOCK

If set to 0, captions are OFF when the TV is turned ON. Set to 1 to

use the caption setting congured before the TV was turned OFF

when the TV is turned ON.

028 - CH. OVERIDE (Channel Override)

If set to 1, the user can select channels with either Channel Up/

Down or by direct keypad entry. If set to 0, only those channels

that are active in the TV’s memory can be selected.

029 - OLD OCV (On Command Video™)

Set to 1 for operation with systems from On Command Corporation.

030 - ACK MASK

MPI Communication Parameter. When set to 1, enables ACK

feature of MPI.

031 - POLL RATE

MPI Communication Parameter. Selects poll rate for MPI. Step

size of 16 ms. Changing from default may affect communication

via MPI.

032 - TIMING PULSE

MPI Communication Parameter. Sets baud rate for MPI. Step size

of 4.3 uS. Changing from default may affect communication via

MPI.

034 - CAMPORT EN. (Camera Port Enable)

Set to 1 to enable Video 2 input on display panel. If set to 0, Video

2 input on display panel is not functional.

035 - COMPPORT EN. (Computer Port Enable)

Enable/disable TV display panel HDMI 1 input jack. Set to 0 to

disable HDMI1. Set to 1 to enable HDMI1.

Note: This setting is ignored if item 093 RJP AVAILABLE is set to 1.

038 - YPrPb EN. (Rear Component Video Enable)

Set to 1 to enable display panel rear Component Video input jacks.

Set to 0 to disable display panel rear Component Video input jacks.

039 - REAR AUX EN. (Rear Aux Enable)

Set to 1 to enable display panel rear Aux (Video 1) input. Set to 0

to disable display panel rear Aux (Video 1) input.

040 - AUTO CAMPORT

Set to 1 to automatically switch to Camport when equipment is

connected to side Video input. Set to 0 to disable side Video

automatic source selection. If set to 1, STRT AUX SRCE cannot

be set to 2.

Note: If set to 1, item 093 RJP AVAILABLE is automatically set to 0.

046 - STRT AUX SRCE (Start Aux Source)

Sets the starting Aux source. When turned ON, the TV will tune to

starting Aux source if item 004 STRT CHANNEL is set to 0.

If item 093 RJP AVAILABLE is set to 0 and item 040 AUTO

CAMPORT is set to 0:

1 = Video 1 4 = RGB 255 = Last Aux

2 = Video 2 5 = HDMI 2

3 = HDMI 1 6 = Component

If item 093 RJP AVAILABLE is set to 1:

2 = Video 2 5 = HDMI 2 6 = Component

If item 040 AUTO CAMPORT is set to 1:

1 = Video 1 4 = RGB 6 = Component

3 = HDMI 1 5 = HDMI 2

047 - AUX STATUS

Set to 1 for MPI Aux source to be reported as a channel number

instead of channel 0. Set to 0 to disable Aux identication change.

Controls MPI status channel response for Aux inputs.

20 206-4186

Installer Menu (Cont.)

053 - DIS. CH-TIME (Disable Channel-Time)

Set to 1 to disable the Channel-Time display; Channel-Time

display will not appear. Set to 0 to enable the Channel-Time

display.

069 - EN. CH-T COL. (Enable Channel-Time Custom Color)

Set to 1 to enable custom color for the Channel-Time display. Set

to 0 to disable custom color for the Channel-Time display.

070 - FOR. CH-TIME (Channel-Time Display Foreground Color)

Set according to Color Chart:

0 = Black 3 = Cyan 6 = Yellow

1 = Blue 4 = Red 7 = White

2 = Green 5 = Violet

Note: If foreground color and background color are the same, the

menu background will be transparent.

Note: Applies only to “Channel Not Available” message if item

073 CH NOT AVBLE is set to 1 (enabled).

071 - BCK. CH-TIME (Channel-Time Display Background Color)

See description for item 070 FOR. CH-TIME above. The color

chart is the same for both items.

073 - CH NOT AVBLE (Channel Not Available)

If set to 1 and item 028 CH. OVERIDE is set to 0, a “NOT AVAIL-

ABLE” message is displayed when a user direct tunes a channel

that is not in the channel scan list available in memory.

075 - REVERT CH (Revert to Start Channel)

If set to 1 and loss of MPI communication occurs, TV automatically

tunes to the specied Start Channel.

078 - UPN MSB (UPN Most Signicant Byte)

User programmable number, most signicant byte readable by

MPI command. Note: Not linked to serial number.

079 - UPN MSB-1 (UPN Most Signicant Byte-1)

User programmable number, most signicant byte-1 readable by

MPI command. Note: Not linked to serial number.

080 - UPN MSB-2 (UPN Most Signicant Byte-2)

User programmable number, most signicant byte-2 readable by

MPI command. Note: Not linked to serial number.

081 - UPN LSB (UPN Least Signicant Byte)

User programmable number, least signicant byte readable by

MPI command. Note: Not linked to serial number.

082 - CHKSM ERROR (Checksum Error)

Enforces rigid MPI checksum validation. Set to 1 for validation.

Set to 0 to disable (does not check checksum on MPI async port).

SPI is always checked.

083 - HANDSHK TIME (Handshake Time)

Adds an additional delay to the handshake time which is 64 msec,

thus relaxing MPI timing requirements to be compatible with PC-

based Windows controlled systems. Range is 0 - 5.

(Timeout = 25.5MS + [25.5 MS* Handshake time].)

084 - PERMANENT BLK (Permanent Block)

Allows Lock (Parental Control) blocking schemes to be permanent

by disabling the blocking hours function. Set to 1 to install Parental

Control restrictions permanently. Set to 0 for user-specied hours

control of blocking schemes.

087 - REAR RGB EN. (Rear RGB Enable)

Controls access to rear RGB input on TV. Set to 0 to disable RGB

input. Set to 1 to enable RGB input. Set to 17 to initiate a one-

time automatic conguration after an AC power cycle; otherwise,

automatic adjustment will be performed each time the RGB input

is accessed.

088 - EN NOISE MUTE (Enable Noise Mute)

If set to 1, audio mutes if no signal is present.

090 - KEY LOCK

If set to 1, display panel Channel, Volume, and Caption buttons

are disabled, Power button remains enabled. If set to 0, Channel,

Volume, Caption, and Power buttons are all enabled.

091 - YPrPb2 EN. (HDMI2 Enable)

Set to 1 to enable display panel HDMI 2 input. Set to 0 to disable

display panel HDMI 2 input.

093 - RJP AVAILABLE (Remote Jack Pack Available)

• 0 = Remote jack pack is not available or disabled.

• 1 = Legacy Model RJPs: HDMI Mode

Enables RJP feature for use with full cable bundle models. In

this mode, when an HDMI source is connected to the RJP, both

digital video and audio are expected via the HDMI cable. If no

digital audio is present, no audio will be heard.

• 2 = Legacy Model RJPs: DVI Mode

Enables RJP feature for use with full cable bundle models. In

this mode, when an HDMI/DVI source is connected to the RJP,

only digital video is expected via the HDMI cable. Analog audio

is provided via a separate cable, from the source, connected to

an RJP AUDIO IN. If no analog audio cable is connected, tuner

audio will be heard.

• 5 = Scaler Model RJPs: HDMI Mode

Enables RJP feature for use with reduced cable bundle models.

In this mode, when an HDMI source is connected to the RJP,

both digital video and audio are expected via the HDMI cable. If

no digital audio is present, no audio will be heard.

206-4186

• 6 = Scaler Model RJPs: DVI Mode

Enables RJP feature for use with reduced cable bundle models.

In this mode, when an HDMI/DVI source is connected to the

RJP, only digital video is expected via the HDMI cable. Analog

audio is provided via separate cable, from the source, connect-

ed to an RJP AUDIO IN. If no analog audio cable is connected,

tuner audio will be heard.

Notes:

See Reference section, “RJP Model List and Input Auto-sensing

Hierarchy.” If RJP AVAILABLE is set to 1, 2, 5, or 6, item 040

AUTO CAMPORT is automatically set to 0. Settings 1, 2, 5, and 6

allow the lodge staff to customize each TV’s RJP setup based on

customer requirements.

094 - SAP MENU EN (2nd Audio Program)

Set to 1 to enable SAP feature on Function Menu, if Function

Menu is available (i.e., TV is not in Pass-through Mode). Set to

0 to disable SAP feature on Function Menu, if Function Menu is

available.

096 - DEF. ASP. RATIO (Default Aspect Ratio)

Selects default aspect ratio at power up.

• Set to 0 for Set By System.

• Set to 1 for 4:3.

• Set to 2 for 16:9 (Factory Default).

• Set to 3 for Just Scan.

• Set to 4 for Zoom.

Note: Only applies if item 106 ASP RATIO LOCK is disabled, i.e.,

set to 0.

098 - PRO:CENTRIC

Selects the Pro:Centric Application Mode. Set to 0 (default) to

disable Pro:Centric operation. Set to 1 for Flash Mode. Set to 2

for GEM (Java Application) Mode.

099 - BACK LIGHTING

Sets the TV screen brightness at power up. Default setting is 100.

• 1 - 100 Static Back Lighting

(1 = Dimmest picture, 100 = Brightest picture)

• 101 - 200 Dynamic Back Lighting

(101 = Dimmest picture, 200 = Brightest picture)

If set between 101 and 200, the TV automatically controls back

lighting depending upon the picture level of the current program. If

set to 255, back lighting is controlled via the Picture settings in the

TV’s setup menus.

102 - ATSC BAND

Sets up TV to receive different types of incoming signals:

0 = Broadcast, 1 = CATV, 2 = HRC, 3 = IRC, 4 = Same as NTSC.

103 - ATSC TUNE MODE

Sets ATSC tuning mode. Default set to 1 for Physical Channel

scan. Set to 0 for Virtual Channel scan.

104 - START MINOR CHANNEL

Sets Minor Start Channel number at power up. 0 = NTSC. If not

0, number selected is the digital channel’s Minor Start Channel

number.

106 - ASP RATIO LOCK (Aspect Ratio Lock)

Set to 1 to retain previous aspect ratio with power off. Set to 0 to

retain default aspect ratio with power off. See item 096 DEF. ASP.

RATIO above.

116 - VIDEO MUTE EN (Video Mute Enable)

Set to 0 for Normal. Set to 1 for Blank.

117 - FACT DEFAULT (Factory Default)

Set to 0 for normal. Set to 1 to load presets of all Installer Menu

item settings.

Caution: If set to 1, this will reload the factory

defaults and clear the channel lineup, including any

assigned channel icons and custom text labels.

Note: See also Reference section, “Resetting Factory Defaults on

the TV(s),” for further information.

118 - POWER SAVINGS

Default set to 3—the power circuitry for both the embedded b-LAN

module and the GAME CONTROL/MPI port is only powered when

the TV is turned ON. When the TV is in Standby Mode, the MPI

card slot is powered by the Standby power supply and both the

embedded b-LAN and the GAME CONTROL/MPI port are not

powered. When the TV is in Power On Mode, the MPI card slot is

b-LAN and GAME CONTROL/MPI port are powered.

Note that the TV must be turned ON in order to communicate with

the embedded b-LAN module for conguration and control when

POWER SAVINGS is set to 3. If set to 1, the b-LAN module is

always powered.

Similarly, if MPI communication is required for external MPI

control, POWER SAVINGS should be set to 1 so that the GAME

CONTROL/MPI port circuitry is always powered.

Note: MPI cards with b-LAN technology—LMT7Z5, LMT7Z7,

LMT7Z9—are NOT supported in TVs in which b-LAN technology

is already integrated.

Note: See Reference section, “b-LAN Setup & Overview,” for

further information.

119 - DATA CHANNEL

Set to 0 (default) to disable. Set to the RF channel number of the

data channel for Pro:Centric or TV E-Z Installation (splash screen,

configuration, or firmware) data.

Note: Pro:Centric updates are downloaded from the Pro:Centric

server to the TV when the TV is turned OFF. Also, while

Pro:Centric updates are in progress, it is not possible to turn the

TV ON. The TV may take several minutes to load EPG data after

the initial download of the Pro:Centric application. Subsequent

updates generally will take less than one minute.

Installer Menu (Cont.)

22 206-4186

Channel Icons / Custom Text Labels (2-5-4 + MENU Mode)

Changing a Channel’s Icon on

the Master TV

1. Use Channel Up/Down to select

the desired channel.

2. Use the Left/Right arrow keys

to select the thin letter “I” on the

Channel-Time display.

3. Use the Up/Down arrow keys to

select the icon with which you want

to identify the channel. (If you know

the icon number, enter the number,

and press ENTER.)

4. Proceed to add/edit custom text

labels, or go to the next channel.

Adding/Editing Channel Labels

on the Master TV

1. Use Channel Up/Down to select

the desired channel.

2. Press the Left or Right arrow

repeatedly until the numbers 1 to 7

appear on the display. The number

shows the position of the character

that can be changed. Number 1 is

the rst character, number 2 the

second character, etc.

3. Use the Up/Down arrow keys to

select the desired character.

4. Proceed to the next number posi-

tion, or go to the next channel.

Adding/Editing Source Labels

on the Master TV

1. Press INPUT to select the desired

Aux input source: AV1, AV2, RGB,

Component, HDMI, or HDMI2.

2. Press the Left or Right arrow

repeatedly until the numbers 0 to 9

appear on the display. The number

shows the position of the character

that can be changed.

3. Use the Up/Down arrow keys to

select the desired character.

4. Press INPUT for the next Aux input,

or use Channel Up/Down to return

to channels.

• Channel Up/Down: Tunes to the next channel in scan.

• Left/Right Arrows: Select the item to change. If “I” is

shown, the icon can be changed. If a number is shown, it

indicates the position of the character that can be changed.

• Up/Down Arrows: Select the icon or the character to be

displayed. Tip: Arrows can be held down for fast scrolling.

• 0 – 9: Use to enter the index number of the icon, if

known.

• ENTER: Changes the icon after the icon number has

been entered.

• INPUT: Changes the Aux input label.

• MENU: Exits the editing process.

Installer Remote Control Key Functions for Master TV Channel Label Editing Menu

Changing Channel Icons and/or Adding or Editing

Custom Text Labels in the Channel-Time Display

If there is no pre-assigned icon for a channel, you can add

a custom text label of up to seven (7) characters to help

identify the channel or network. Also, if desired, a custom

text label can be added to the Channel-Time display in

addition to a pre-assigned icon. You may also add text

labels for the Aux input sources to clearly identify the

devices that are connected to the Aux inputs.

Changing icons and/or adding or editing custom text labels

can only be done if there are channels that have been

transferred to the TV’s PTC either during Master TV Setup

(see pages 11 to 14) or by cloning.

Note: A blank letter space is available between “Z” and “!”.

To perform channel editing/labeling:

1. Enter the Installer Menu: Press MENU repeatedly until

the on-screen display of the TV setup menus no longer

toggles, and then press 9-8-7-6 + ENTER.

2. Press 2-5-4 + MENU on the Installer Remote to enter

the Channel Label Editing Menu.

3. Change channel icons and/or add or edit custom text

labels as described in the procedures below. (You can

do this more than once.)

4. To exit the menu when you are done, press MENU.

1234567

XYZ

XYZ XYZ

NETWORK

(Icon)

(Custom Text Label)

206-4186

Cloning Overview

IMPORTANT CLONING INFORMATION

There are three different procedures for cloning a Master TV Setup, each with its own advantages and

limitations (see also “Cloning Methods” on page 11):

• Using a USB memory device

• Using a TLL-1100A clone programmer

• Using a LT2002 clone programmer

Each cloning method is described in further detail on the pages that follow. As you perform cloning

procedures, be sure to complete each task as indicated. If a procedure or step is omitted or not

performed completely, cloning may not work. At each step, pay attention to ensure the TV screen shows

the proper message when cloning. If the message indicated does not appear, there is a problem with that

step, and cloning may not be successful.

Caution: Copying a blank or incorrect memory into a TV from a clone programmer will

cause the TV to operate erratically or become inoperable.

Caution: Do not connect a clone programmer to a PPV card installed in the Master or

Target TVs. Also, if the TV is in LodgeNet PPV Mode (check with the site administrator if

you are not certain), do not connect a clone programmer to the GAME CONTROL/MPI port.

Either of these actions will damage the clone programmer and, if applicable, the PPV card.

Before you begin cloning:

• Complete the Master TV Setup procedure (see pages 11 to 14).

• All equipment should be connected to power and turned ON.

• Both the Master and Target TVs must be in Pass-through Mode.

• Learning and Teaching is only possible between identical model TVs.

• If using a USB memory device, ensure the USB device has been formatted with FAT format.

• For both Master and Target TVs—If using a clone programmer, ensure the TV is tuned to either an Aux

input or an analog (not a digital) channel.

• LT2002 only—Make sure the batteries in the clone programmer are fresh. If batteries are removed, the

clone programmer clock time (if set) will be lost (see page 29 for information on the clone programmer

clock).

Caution: Do not unplug the TV power cord or remove/disconnect the USB memory device/

clone programmer while Learning or Teaching, as doing so may cause the TV to malfunction

or harm the USB device/clone programmer, respectively.

24 206-4186

USB Cloning Procedure

Learning / Teaching a Master TV Setup using a USB Memory Device

USB Cloning Notes

• Read the IMPORTANT CLONING INFORMATION on page 23 before beginning any cloning procedures.

• You may edit a lename as part of the Learning procedure; however, a le with edited contents will not

be recognized.

• It is not possible to clone a Master TV’s clock using a USB memory device. Either set a Target TV’s clock

manually, or use the Auto Clock setting in the TV setup menus.

Learn From TV (TLL)

Select the le name and press OK to start

xxLD340H-UA00001.TLL

Return

Enter

►

USB Download Menu

Upgrade TV Software

Upgrade PTC Software

Teach To TV (TLL)

Teach To TV (FMA)

Learn From TV (TLL)

Learn From TV (FMA)

Return Enter

Learn From TV

UPDATING...

Do not remove the USB from the port!

Do not unplug!

25%

Learn Setup from Master TV

1. Ensure the Master TV is set up completely and in Pass-through

Mode.

2. Plug the USB memory device into the USB IN port on the Master

TV.

3. Press MENU on the Installer Remote to display the TV setup

menus. Use the arrow navigation keys to select/highlight the

Option menu icon, and then press the number “7” key a total of

seven times to display the USB Download Menu.

4. To gain access to the “Learn From TV” option in the USB

Download Menu, key in the password used to enter the Installer

Menu (Example: Press 9-8-7-6).

5. Use the Up/Down arrow keys to select Learn From TV (TLL),

and then press ENTER.

6. To differentiate this .tll le from others, you can use the Up/Down

arrow keys to change the last ve digits of the lename. Press

ENTER when you are ready to initiate Learning.

Learning status will be shown on the progress bar. When the

Learning process is complete, the USB Download menu will

reappear on screen.

7. When Learning is done, remove the USB memory device from the

Master TV.

206-4186

Teach To TV (TLL)

xxLD340H-UA00001.TLL

Return Enter

USB Download Menu

Upgrade TV Software

Upgrade PTC Software

Teach To TV (TLL)

Teach To TV (FMA)

Return Enter

Teach To TV

UPDATING...

Do not remove the USB from the port!

Do not unplug!

50%

Teach Master TV Setup to Target TV

1. Ensure the Target TV is in Pass-through Mode, and then use the

Installer Remote to enter the Target TV Installer Menu: Press

MENU repeatedly until the on-screen display of the TV setup

menus no longer toggles, and then press 9-8-7-6 + ENTER.

2. Set Installer Menu item 117 FACT DEFAULT to 001, and press

ENTER. When the value changes back to 0, press ENTER again to

exit the Installer Menu.

3. Tune/set the TV to an analog or digital channel or Aux input, (ideally

the same source tuned for 2-5-5 + MENU Mode during the Master

TV Setup procedure).

4. Plug the USB memory device with the .tll le into the Target TV

USB IN port.

5. Press MENU on the Installer Remote to display the TV setup

menus. Use the arrow navigation keys to select/highlight the

Option menu icon, and then press the number “7” key a total of

seven times to display the USB Download Menu.

6. Use the Up/Down arrow keys to select Teach To TV (TLL), and

then press ENTER.

7. Use the Up/Down arrow keys to select the Master TV Setup you

want to install, and then press ENTER. Note: Filenames identify

the TV and the TLL version (see example at right).

Teaching status will be shown on the progress bar. When the

Teaching process is complete, the USB Download menu will

reappear on screen.

8. When Teaching is done, remove the USB memory device from

the Target TV, turn OFF the TV, and unplug the TV power cord for

15 seconds.

9. Reconnect the TV power cord, and turn ON the TV. The Master

TV Setup should be resident on the Target TV.

USB Cloning Procedure (Cont.)

Learning / Teaching a Master TV Setup using a USB Memory Device (Cont.)

26 206-4186

Clone Programmer Cloning Procedures (Cont.)

Learning / Teaching a Master TV Setup using a TLL-1100A Clone Programmer

Learn Setup from Master TV

1. Ensure the Master TV is set up completely and in Pass-through Mode.

2. Tune/set the TV to an analog channel or Aux input, and then, plug one

end of the MPI cable into the TV MPI port.

3. Turn ON the TLL-1100A.

4. Use the MODE button on the TLL-1100A to select Clone Mode.

5. Use the Left/Right arrows on the TLL-1100A to select the Memory CBank

(1 to 8) in which to store the Master TV Setup.

6. Plug the other end of the MPI cable into the MPI port on the bottom of the

TLL-1100A. The Clone Selection Menu will display on the TV screen.

7. Press 1 on the Installer Remote to select LEARN FROM TV from the

Clone Selection Menu. Then, press ENTER to transfer the Master TV

Setup into CBankX on the TLL-1100A.

Learning usually takes about 90 seconds. “LEARNING IN PROGRESS”

will be displayed on the screen while the TLL-1100A copies the Master

Setup. When the Learning process is complete, a “LEARNING COM-

PLETE” message will be displayed.

8. When Learning is complete, disconnect the MPI cable from the Master TV.

Cloning is accomplished using the

TV/clone programmer MPI ports for

communication (see figure).

TLL-1100A Cloning Notes

• Read the IMPORTANT CLONING

INFORMATION on page 23 before

beginning any cloning procedures.

• Ensure the TLL-1100A is either fully

charged or connected to AC power.

• Learning and Teaching is only

possible between identical model

TVs; however, the TLL-1100A can

store up to eight different Master

TV Setups.

Caution: Do not connect a clone programmer to a PPV card installed in the Master or Target

TVs. Also, if the TV is in LodgeNet PPV Mode (check with the site administrator if you are

not certain), do not connect a clone programmer to the GAME CONTROL/MPI port. Either of

these actions will damage the clone programmer and, if applicable, the PPV card.

Antenna

or CATV

CLONE SELECTION MENU

Selected Bank: CBankX Saved

(1) LEARN FROM TV

(2) TEACH TO TV

(3) SET CLONE CLOCK FROM TV

(4) SET TV CLOCK FROM CLONE

(5) DISPLAY TV SETUP

(6) DISPLAY CLONE SETUP

TV Link

Loader

TLL1100A

Ready

TLL-1100A

ENTER

RECEIVE SEND

MODE

CHARGE

MPI

Cable

TLL-1100A Clone

Programmer

CLONE SELECTION MENU

Selected Bank: CBankX Saved

(1) LEARN FROM TV

(2) TEACH TO TV

(3) SET CLONE CLOCK FROM TV

(4) SET TV CLOCK FROM CLONE

(5) DISPLAY TV SETUP

(6) DISPLAY CLONE SETUP

CLONE CLOCK = XX:XX

TV CLOCK = XX:XX

THE CLONE IS VERSION VX.X.X

To change menu items, press

channel keys or digits.

To execute item, press Enter.

206-4186

(Optional) Set the Clock

Set the time on a Master TV’s clock. (If the time has already been copied

from a TV into the TLL-1100A clone programmer, you can set the Master

TV’s clock by copying the time from the clone programmer.) The TLL-1100A

can copy the current time to both a Master TV and to the clone’s internal

clock—accurate to within one minute.

Since the TLL-1100A’s time cannot be set directly, the current time needs

to be copied from an LG TV equipped with an enabled MPI port.

After the time is copied to the TLL-1100A clone programmer, the current

time will be maintained and can then be transferred to another TV. (This

can be a Master TV or another TV which has already had the features set

up.)

Teach Master TV Setup to Target TV

1. Ensure the Target TV is in Pass-through Mode, and then use the Installer

Remote to enter the Target TV Installer Menu: Press MENU repeatedly

until the on-screen display of the TV setup menus no longer toggles, and

then press 9-8-7-6 + ENTER.

2. Set Installer Menu item 117 FACT DEFAULT to 001, and press ENTER.

When the value changes back to 0, press ENTER again to exit the

Installer Menu.

3. Tune/set the TV to an analog channel or Aux input (ideally the same

source tuned for 2-5-5 + MENU Mode during the Master TV Setup

procedure), and then connect the MPI cable to the MPI port on the Target

TV. The Clone Selection Menu will display on the TV screen.

4. Ensure the correct Memory CBank(X) is selected on the TLL-1100A.

5. Press 2 on the Installer Remote to select TEACH TO TV from the Clone

Selection Menu. Then, press ENTER to transfer the Master TV Setup to

the Target TV.

Teaching usually takes 3 to 4 minutes. “TEACHING IN PROGRESS” will

be displayed on the screen during Teaching. When the Teaching process

is complete, a “TEACHING COMPLETE” message will be displayed.

6. When Teaching is done, disconnect the MPI cable from the Target TV,

turn OFF the TV, and unplug the TV power cord for 15 seconds.

7. Reconnect the TV power cord, and turn ON the TV. The Master TV

Setup should be resident on the Target TV.

CLONE SELECTION MENU

Selected Bank: CBankX Saved

(1) LEARN FROM TV

(2) TEACH TO TV

(3) SET CLONE CLOCK FROM TV

(4) SET TV CLOCK FROM CLONE

(5) DISPLAY TV SETUP

(6) DISPLAY CLONE SETUP

CLONE CLOCK = XX:XX

TV CLOCK = XX:XX

THE CLONE IS VERSION VX.X.X

To change menu items, press

channel keys or digits.

To execute item, press Enter.

Clone Programmer Cloning Procedures (Cont.)

Learning / Teaching a Master TV Setup using a TLL-1100A Clone Programmer (Cont.)

CLONE SELECTION MENU

Selected Bank: CBankX Saved

(1) LEARN FROM TV

(2) TEACH TO TV

(3) SET CLONE CLOCK FROM TV

(4) SET TV CLOCK FROM CLONE

(5) DISPLAY TV SETUP

(6) DISPLAY CLONE SETUP

CLONE CLOCK = XX:XX

TV CLOCK = XX:XX

THE CLONE IS VERSION VX.X.X

To change menu items, press

channel keys or digits.

To execute item, press Enter.

28 206-4186

Learn Setup from Master TV

1. Ensure the Master TV is set up completely and in Pass-through Mode.

2. Tune/set the TV to an analog channel or Aux input, and then plug one end

of the MPI cable into the TV MPI port.

3. If there is a good connection after the LT2002 is connected to the TV MPI

port, “THE CLONE HAS CONTROL OF THE TV” message will appear

on the TV screen. Press any key on the Installer Remote to access the

LT2002 Clone Selection Menu.

4. Press 1 on the Installer Remote to select LEARN FROM TV from the

Clone Selection Menu; then press ENTER to proceed to the Memory Bank

Selection Menu.

5. Press 1, 2, or 3 on the Installer Remote to select the clone Memory Bank in

which to store the Master Setup. Then, press ENTER.

Note: If you choose a Memory Bank that already has a Master device’s

setup programmed into it, that setup will be overwritten by the new Master

TV Setup.

6. Verify the Learning setup information on the next screen, and then press

POWER to transfer the Master TV Setup into the selected Memory Bank

on the LT2002.

Clone Programmer Cloning Procedures (Cont.)

Learning / Teaching a Master TV Setup using an LT2002 Clone Programmer

LT2002 Cloning Notes

• Read the IMPORTANT CLONING

INFORMATION on page 23 before

beginning any cloning procedures.

• A slow ashing green light indicates

that there are communication

problems between the TV and the

LT2002. If this is the case, check for

a damaged cable, poor contacts, or

other connection troubles.

• If the status indicator is red, the

LT2002 batteries are low and should

be replaced. Install four (4) high-

quality alkaline AA batteries.

• Learning and Teaching is only

possible between identical model TVs;

however, the LT2002 can store up to

three different Master TV Setups.

Caution: Do not connect a clone programmer to a PPV card installed in the Master or Target

TVs. Also, if the TV is in LodgeNet PPV Mode (check with the site administrator if you are

not certain), do not connect a clone programmer to the GAME CONTROL/MPI port. Either of

these actions will damage the clone programmer and, if applicable, the PPV card.

Ferrite Core

(TDK, ZCAT

2035-0930)

Antenna

or CATV

QuickSet II Programmer

LT2002

ZENITH ELECTRONICS CORPORATION, LINCOLNSHIRE, ILLINOIS, USA

• heartbeat power on

communications ok

• slow power on

no communications

• green battery ok

• red battery low

Blink pattern

Color Reset

Status

Indicator

Connect cable to

TV MPI Jack and

follow on screen

instructions

MPI

THE CLONE HAS CONTROL OF THE TV

THE CLONE IS VERSION XX

THE TV IS VERSION XX

THE SW IS REVISION XX

CLONE CLOCK = XX:XX

TV CLOCK = XX:XX

- PRESS ANY KEY TO CONTINUE.

- DISCONNECT CLONE WHEN DONE.

MPI

Cable

LT2002 Clone

Programmer

(Continued on next page)

SAVE TV SETUP IN SELECTED

CLONE MEMORY

(1) MEMORY 1 VER XX REV XX

(2) MEMORY 2 VER XX REV XX

(3) MEMORY 3 VER XX REV XX

(4) RETURN TO CLONE MENU

TO CHANGE MENU ITEMS, PRESS

CHANNEL KEYS OR DIGITS.

TO EXECUTE ITEM, PRESS ON/OFF,

POWER, OR ENTER.

COPY SELECTED CLONE MEMORY

TO TV

(1) MEMORY 1 VER XX REV XX

(2) MEMORY 2 VER XX REV XX

(3) MEMORY 3 VER XX REV XX

(4) RETURN TO CLONE MENU

TO CHANGE MENU ITEMS, PRESS

CHANNEL KEYS OR DIGITS.

TO EXECUTE ITEM, PRESS ON/OFF,

POWER, OR ENTER.

Cloning is accomplished using the TV/clone programmer MPI ports for communication (see figure).

CLONE SELECTION MENU

(1) LEARN FROM TV

(2) TEACH TO TV

(3) SET CLONE CLOCK FROM TV

(4) SET TV CLOCK FROM CLONE

(5) DISPLAY TV SETUP

(6) DISPLAY CLONE SETUP

TO CHANGE MENU ITEMS, PRESS

CHANNEL KEYS OR DIGITS.

TO EXECUTE ITEM, PRESS ON/OFF,

POWER, OR ENTER.

206-4186

Clone Programmer Cloning Procedures (Cont.)

Learning / Teaching a Master TV Setup using an LT2002 Clone Programmer (Cont.)

(Continued from previous page)

Learning usually takes about 90 seconds. “LEARNING IN PROGRESS”

will be displayed on the screen while the LT2002 copies the Master Setup.

When the Learning process is complete, a “LEARNING COMPLETE”

message will be displayed.

7. When Learning is complete, disconnect the MPI cable from the Master TV.

(Optional) Set the Clock

Set the time on a Master TV’s clock. (If the time has already been copied from a

TV into the LT2002 clone programmer, you can set the Master TV’s clock by

copying the time from the clone programmer.) The LT2002 can copy the current

time to both a Master TV and to the clone’s internal clock—accurate to within

one minute. (Another reason that the LT2002 should be equipped with fresh,

high-quality alkaline batteries, is for it to keep the time as accurately as possible.)

Since the LT2002’s time cannot be set directly, the current time needs to be

copied from an LG TV equipped with an enabled MPI port.

After the time is copied to the LT2002 clone programmer, the current time will

be maintained and can then be transferred to another TV. (This can be a

Master TV or another TV which has already had the features set up.)

Teach Master TV Setup to Target TV

1. Ensure the Target TV is in Pass-through Mode, and then use the Installer

Remote to enter the Target TV Installer Menu: Press MENU repeatedly until

the on-screen display of the TV setup menus no longer toggles, and then

press 9-8-7-6 + ENTER.

2. Set Installer Menu item 117 FACT DEFAULT to 001, and press ENTER.

When the value changes back to 0, press ENTER again to exit the Installer

Menu.

3. Tune/set the TV to an analog channel or Aux input (ideally the same source

tuned for 2-5-5 + MENU Mode during the Master TV Setup procedure), and

then connect the MPI cable to the MPI port on the Target TV.

4. With “THE CLONE HAS CONTROL OF TV” message on display, press 2

on the Installer Remote to select TEACH TO TV from the LT2002 Clone

Selection Menu. Then, press ENTER.

5. Select the LT2002 Memory Bank in which the new Master TV Setup is

located, and press ENTER.

6. Verify the Teaching setup information on the next screen, and then press

POWER to transfer the Master TV Setup to the Target TV.

Teaching usually takes 3 to 4 minutes. “TEACHING IN PROGRESS” will

be displayed on-screen during Teaching. When the Teaching process is

complete, a “TEACHING COMPLETE” message will be displayed.

7. When Teaching is done, disconnect the MPI cable from the Target TV, turn

OFF the TV, and unplug the TV power cord for 15 seconds.

8. Reconnect the TV power cord, and turn ON the TV. The Master TV Setup

should be resident on the Target TV.

CLONE SELECTION MENU

(1) LEARN FROM TV

(2) TEACH TO TV

(3) SET CLONE CLOCK FROM TV

(4) SET TV CLOCK FROM CLONE

(5) DISPLAY TV SETUP

(6) DISPLAY CLONE SETUP

TO CHANGE MENU ITEMS, PRESS

CHANNEL KEYS OR DIGITS.

TO EXECUTE ITEM, PRESS ON/OFF,

POWER, OR ENTER.

CLONE SELECTION MENU

(1) LEARN FROM TV

(2) TEACH TO TV

(3) SET CLONE CLOCK FROM TV

(4) SET TV CLOCK FROM CLONE

(5) DISPLAY TV SETUP

(6) DISPLAY CLONE SETUP

TO CHANGE MENU ITEMS, PRESS

CHANNEL KEYS OR DIGITS.

TO EXECUTE ITEM, PRESS ON/OFF,

POWER, OR ENTER.

SAVE TV SETUP IN SELECTED

CLONE MEMORY

(1) MEMORY 1 VER XX REV XX

(2) MEMORY 2 VER XX REV XX

(3) MEMORY 3 VER XX REV XX

(4) RETURN TO CLONE MENU

TO CHANGE MENU ITEMS, PRESS

CHANNEL KEYS OR DIGITS.

TO EXECUTE ITEM, PRESS ON/OFF,

POWER, OR ENTER.

COPY SELECTED CLONE MEMORY

TO TV

(1) MEMORY 1 VER XX REV XX

(2) MEMORY 2 VER XX REV XX

(3) MEMORY 3 VER XX REV XX

(4) RETURN TO CLONE MENU

TO CHANGE MENU ITEMS, PRESS

CHANNEL KEYS OR DIGITS.

TO EXECUTE ITEM, PRESS ON/OFF,

POWER, OR ENTER.

30 206-4186

FTG Mode of Operation Overview

FTG Mode via CPU or EBL

FTG Mode enables Pro:Idiom decryption and also allows logical channel mapping of physical channels.

As indicated in the introduction to this document, there are two separate and distinct methods for

configuring LD320H/LD325H and LD340H/LD345H TVs for FTG Mode of operation: one (new) method is

to configure the TV CPU for FTG Mode operation, while the other is to configure the TV EBL for FTG

Mode operation. FROM A LOCAL CONFIGURATION STANDPOINT, EACH OF THESE METHODS IS

MUTUALLY EXCLUSIVE. IF THE CPU IS IN FTG MODE, THE EBL CANNOT BE SWITCHED TO FTG

MODE. LIKEWISE, IF THE EBL IS IN FTG MODE, THE CPU CANNOT BE SWITCHED TO FTG MODE.

Note: LD320H/LD325H TVs must have the following minimum software loads in order to support FTG

Mode via CPU: CPU version 3.61 or later and PTC version 1.01.008 or later. If necessary, contact LG to

obtain LD320H/LD325H CPU and PTC software files, and perform the software updates as described in

Reference section, “Upgrading TV/PTC Software using a USB Memory Device.” If a Pro:Centric server is

installed in the institution head end, you will also have the option to remotely reconfigure LD320H/LD325H

TVs that are currently in FTG Mode via EBL for FTG Mode via CPU. Refer to the Pro:Centric™ Server

Admin Client User Guide for further information.

Both FTG Mode via CPU and FTG Mode via EBL provide the following features:

• Logical channels mapped to either RF delivered content.

• Digital RF channel minor (program) numbers up to 255.

• FTG Channel Map of up to 141 logical channels.

• Start Channel set for RF or Aux input delivered content.

• Pro:Centric data delivery over RF.

In addition, both FTG Mode via CPU and FTG Mode via EBL require LG FTG Device Conguration

Application PC software to create an FMA Conguration (.fma) le. However, the conguration processes

then diverge as follows:

FTG Mode via CPU

In this mode, the CPU is the owner of the FTG Channel

Map and must be congured with an FTG Channel Map

and FTG Installer Menu settings using one of the following

processes:

• Local: Congure an individual LD320H/LD325H or

LD340H/LD345H TV via its USB port using an FMA

Conguration (.fma) le on a USB memory device. The

“Teach to TV (FMA)” process, along with associated

procedures, is described on pages 32 to 35.

• Remote: Congure all LD320H/LD325H or LD340H/

LD345H TVs at the site using a Pro:Centric server head

end device (Example: PCS150R). Load an FMA Congu-

ration (.fma) le on the Pro:Centric server using the TV

E-Z Installation “Conguration” option in the Pro:Centric

Server Admin Client. Refer to the Pro:Centric™ Server

Admin Client User Guide for further information.

FTG Mode via EBL

In this mode, the EBL is the owner of the FTG Channel

Map and must be congured with an FTG Channel Map

and FTG Installer Menu settings using one of the following

processes:

• Local: Congure an individual LD320H/LD325H or

LD340H/LD345H TV’s EBL via its TV-LINK CFG jack

using a direct PC-to-TV connection and the FTG Device

Conguration Application. The “Write” process for an

FTG Channel Map and FTG Installer Menu settings is

described on page 36.

• Remote: Congure all LD320H/LD325H or LD340H/

LD345H TV EBLs at the site using a Free-To-Guest Man-

agement Appliance (FMA) head end device (Example:

FMA-LG101). Refer to the Free-To-Guest (FTG) Con-

figuration Application manual and/or the Installation &

Setup manual for the FMA device for further information.

206-4186

FTG Mode of Operation Overview (Cont.)

PICTURE AUDIO

INPUT

OPTION

TIME

MY MEDIA

CHANNEL

LOCK

TV Setup Menus

Shows that the TV is in

Pass-through Mode .

Function Menu

Indicates the TV (CPU or EBL) is not

in Pass-through Mode . While the TV is

in FTG Mode, Installer Menu settings

can be accessed as read-only.

ABC

ASPECT RATIO

Enter

Move

Set By Program

4:3

16:9

Zoom

Just Scan

While the TV is in FTG Mode:

• Users can still access the Installer Menu using an LG Installer Remote; however, all Installer Menu

items will be read-only.

• Any FTG conguration changes must be made using the FTG Device Conguration Application. FTG

Channel Map Conguration and FTG Installer Menu Conguration Utilities enable you to make changes,

respectively, to the FTG Channel Map and FTG Installer Menu settings as necessary. Based on the initial

method used to congure the TV for FTG Mode operation (via CPU or EBL), all subsequent changes

must be transferred to either the TV or the EBL via a process that is in accordance or compatible with that

method (see information on local conguration in this document or refer to documentation for the head

end device/server for information on remote management).

• If it becomes necessary to reset the TV to Pass-through Mode, there are several options that will enable

you to do so. Refer to Reference section, “Resetting Factory Defaults on the TV(s),” for further information.

Pages 37 to 40 provide overviews of the FTG Channel Map, FTG Installer Menu, and FMA Configuration

Utilities that comprise the FTG Device Configuration Application. Refer to the Free-To-Guest (FTG)

Configuration Application manual for further information on the FTG Device Configuration Application.

Determining the TV Operating Mode

To determine the operating mode of the TV, press MENU on the Installer Remote. The menu display

alternates based on the operating mode. See examples below.

If the end user Function Menu appears, typically the TV is in FTG Mode. If the TV setup menus appear,

the TV is in Pass-through Mode.

32 206-4186

FTG Mode via CPU

Creating an FMA Conguration File using the FTG Device Conguration Application

This section describes how to create an FMA Conguration (.fma) le that can be saved to a USB

memory device. In order to enable Pro:Idiom decryption, it is recommended that you create an FMA

Conguration le using the FTG Device Conguration Application. However, if you do not know the RF

channels at the site, there is an option to save (Learn) an FMA Conguration le from a TV (see

“

Learning an FMA Configuration File from a TV” on

page 34).

The procedure below provides an overview of the steps required to create an FMA Configuration file.

Refer to the Free-To-Guest (FTG) Configuration Application manual for further information. See also

FTG Device Configuration Application sample screens on pages 37 to 40.

Note: FTG Device Configuration Application software is available online at: www.LGcommercial.com/

FTGsoftware.

1. Install (if necessary) and launch the FTG Device Configuration Application (v5.0.0 or higher) on the

PC that will be used to create the FMA Configuration file.

2. Either:

• Open an existing FTG Conguration (.rml) le, if applicable, to use its FTG Channel Map and/or FTG

Installer Menu settings. Otherwise, create a new FTG Channel Map using the FTG Channel Map

Editor in the FTG Channel Map Conguration Utility. Then, continue with step 3.

Note: Up to 141 logical channels can be defined in the FTG Channel Map.

• To view and/or base a new FMA Conguration le on an existing LD320H/LD325H or LD340H/LD345H

FMA Conguration le, click Congure in the FTG Device Configuration Application menu bar, and

select FMA to access the FMA Configuration Utility. Then, click the Open button above the FMA

Configuration List, and double-click the desired (.fma) file. A list of the file’s contents will be displayed

in the FMA Configuration List window, and you can edit the FMA Configuration List as necessary to

create a new file. Proceed to step 4 when you are ready to continue.

3. Click Configure in the FTG Device Configuration Application menu bar, and select FMA to access the

FMA Configuration Utility.

4. To add an FTG Channel Map, click >> under FTG Channel Map to copy the current FTG Channel

Map to the FMA Configuration List.

Note: If you make any change(s) in the FTG Channel Map Configuration Utility to the current data to

be included in the FMA Configuration List, you will need to recopy the FTG Channel Map to the FMA

Configuration List.

5. (Optional) Load default Installer Menu settings for the TV:

• Click the down arrow at the right of the Chassis eld under Installer Menu Templates, and select the

appropriate option (depending on the TV type) from the drop-down list of available models.

• Click the Load button.

• Use the FTG Installer Menu Conguration Utility to modify settings, if necessary. Then, return to the

FMA Conguration Utility.

6. To add FTG Installer Menu settings, click >> under FTG Installer Menu Settings to copy the current

settings to the FMA Conguration List.

Note: If you make any change(s) in the FTG Installer Menu Configuration Utility to the current data to

be included in the FMA Configuration List, you will need to recopy the FTG Installer Menu settings to

the FMA Configuration List.

(Continued on next page)

206-4186

FTG Mode via CPU (Cont.)

1. Plug the USB memory device that contains the FMA Conguration

le into the Target LD320H/LD325H or LD340H/LD345H TV USB IN

port.

2. Press MENU on the Installer Remote to display the TV setup

menus (TV is in Pass-through Mode) or the Function Menu (TV is

already in FTG Mode).

3. Use the arrow navigation keys to select/highlight either the Option

menu icon from the TV setup menus or the Lock menu icon from

the Function Menu. Then, press the number “7” key a total of seven

times to display the USB Download Menu.

4. Use the Up/Down arrow keys to select Teach To TV (FMA), and

then press ENTER.

5. Use the Up/Down arrow keys to select the FMA Conguration le

you want to install, and then press ENTER.

The TV will show Teaching completion progress in a new window.

Do NOT remove the USB device until Teaching is complete. When

Teaching is complete, the TV will tune to the rst logical channel in

the FTG Channel Map.

6. When Teaching is done, remove the USB memory device. The

FMA Configuration should be resident on the Target TV. Also, the

Target TV CPU is now in FTG Mode (if it was previously in Pass-

through Mode).

Teach To TV (FMA)

xx0BAL-PLAT200001.FMA

Return Enter

USB Download Menu

Upgrade TV Software

Upgrade PTC Software

Teach To TV (TLL)

Teach To TV (FMA)

Return Enter

Teach To TV

UPDATING...

Do not unplug!

50%

Teaching FMA Conguration to a TV

This procedure describes how to “Teach” an FMA Conguration le from a USB memory device to a TV.

Ensure you have completed the procedure above to create the FMA Conguration le before proceeding

with the steps below.

Note: If the TV EBL is already in FTG Mode, you cannot use this procedure to make changes to the FTG

Channel Map and FTG Installer Menu settings. You must use a direct PC-to-TV connection as described

on page 36 or an FMA head end device to recongure the EBL.

Note: If you wish to switch the TV from FTG Mode via EBL to FTG Mode via CPU, refer to Reference

section, “Resetting Factory Defaults on the TV(s),” for further information before proceeding.

(Continued from previous page)

7. Click the Save button above the FMA Configuration List to save its contents to an FMA Configuration

(.fma) file on the PC’s hard drive for later use (default folder path is C:\Program Files\Zenith\Widget\

FMA).

8. Transfer the FMA Configuration file to a USB memory device, and proceed to “Teaching FMA

Configuration to a TV” below to transfer the FMA Configuration file to an LD320H/LD325H or LD340H/

LD345H TV.

34 206-4186

Learn From TV (FMA)

Select the le name and press OK to start

xx0BAL-PLAT200001.FMA

Return

Enter

►

USB Download Menu

Upgrade TV Software

Upgrade PTC Software

Teach To TV (TLL)

Teach To TV (FMA)

Learn From TV (TLL)

Learn From TV (FMA)

Return Enter

Learn From TV

UPDATING...

Do not unplug!

!25%

Note: It is highly recommended that you open this FMA Configuration

file in the FTG Device Configuration Application—BEFORE transferring

(Teaching) the file to any TVs—to verify FTG Channel Map and FTG

Installer Menu settings and enable Pro:Idiom decryption by marking

Encrypted channels. This will also enable you to confirm and add

channel attributes, labels, etc.

Learning an FMA Conguration File from a TV

To ensure that Pro:Idiom decryption is enabled, it is recommended that you create an FMA Configuration

file using the FTG Device Configuration Application as described on pages 32 to 33. However, if necessary,

this option enables you to save (Learn) an FMA Configuration file from an LD320H/LD325H or LD340H/

LD345H TV to a USB memory device.

Note: If the TV is NOT already in FTG Mode, you may need to perform some manual configuration on

the TV before you start this procedure (see “Optional Manual Conguration / TV Setup” on following

page).

FTG Mode via CPU (Cont.)

1. Plug a USB memory device into the USB IN port on the TV.

2. Press MENU on the Installer Remote to display the TV setup

menus (TV is in Pass-through Mode) or the Function Menu (TV is

already in FTG Mode).

3. Use the arrow navigation keys to select/highlight either the Option

menu icon from the TV setup menus or the Lock menu icon from

the Function Menu. Then, press the number “7” key a total of seven

times to display the USB Download Menu.

4. To gain access to the Learn From TV options in the USB Down-

load Menu, key in the password used to enter the Installer Menu

(Example: Press 9-8-7-6).

5. Use the Up/Down arrow keys to select Learn From TV (FMA), and

then press ENTER.

6. To differentiate this .fma le from others, you can use the Up/Down

arrow keys to change the last ve digits of the lename. Press

ENTER when you are ready to initiate Learning.

The TV will show Learning completion progress in a new window.

Do NOT remove the USB device until Learning is complete. When

Learning is complete, the USB Download Menu will reappear on

screen.

7. When you are nished, remove the USB memory device.

206-4186

FTG Mode via CPU (Cont.)

Typical Installer Menu

Note: The Installer Menu header will vary

depending on the TV you are setting up.

Use Channel Menu options to run

Auto Tuning and edit the channel

lineup, as necessary.

Adjust the settings for these

Installer Menu items.

117 FACT DEFAULT 001

003 BAND/AFC 00X

xxLD340H PTC INSTALLER MENU

000 INSTALLER SEQ 000

UPN 000-000-000-000 ASIC 20E7

PTC V1.00.001 CPU V3.25.00

Set Installer Menu Items

These steps provide specic instruction only on the Installer Menu items

that should be set on an LD320H/LD325H or

LD340H/LD345H

TV. Refer to

pages 15 to 21 for detailed information on all Installer Menu items.

1. Make sure the TV is ON. Then, use the Installer Remote to enter the

Installer Menu: Press MENU repeatedly until the on-screen display of the

TV setup menus no longer toggles, and then press 9-8-7-6 + ENTER.

2. Set Installer Menu item 117 FACT DEFAULT to 001 and press ENTER

on the Installer Remote.

This clears all Installer Menu custom settings, the channel lineup, etc.

and reloads the factory default settings. The value will change back to

0 after the commercial controller (PTC) has been restored to factory

default condition. This step ensures that the TV Channel Memory will be

the active channel lineup.

3. Set Installer Menu item 003 BAND/AFC, as appropriate.

• Broadcast: Set to 000. • HRC: Set to 002.

• CATV: Set to 001 (default). • IRC: Set to 003.

4. Set any other Installer Menu items that affect your TV programming

network to the required conguration. For example, enable/disable Aux

inputs, set a Start Channel, etc.

5. After you have adjusted all required Installer Menu item settings, press

ENTER once on the Installer Remote to save your changes; then, press

ENTER again to exit the menu.

Run Auto Tuning (Channel Search)

Note: In the FMA Conguration le, Logical Channel numbers will automati-

cally be assigned in ascending order, starting with 0 (zero), to the Physical

Channels from the TV Channel Map.

Note: Pro:Idiom decryption for encrypted channels will not be enabled unless

you use the FTG Device Conguration Application to set channel attributes.

1. Search for all available analog and digital channels: Use the Installer

Remote to go to the Channel Menu, select the Auto Tuning option, and

follow the on-screen instructions.

2. Use the Channel Edit option in the Channel Menu to edit the channel

lineup, as necessary, to include free to guest channels only. Add/delete

channels per your system requirements.

Optional Manual Conguration / TV Setup

The manual configuration procedures below should only be performed if you do not know the RF channels

at the site and need to “Learn” an FMA Configuration file from an

LD320H/LD325H or

LD340H/LD345H TV

as described on the previous page. Ensure the TV is in Pass-through Mode before you begin.

Once you have completed these procedures, return to “Learning an FMA

Conguration File from a TV” on the previous page to complete the Learn

sequence.

CHANNEL Enter

Move

Auto Tuning

Manual Tuning

Channel Edit

Channel Label

36 206-4186

AUDIO IN

(RGB/DVI)

RS-232C IN

(SERVICE ONLY)

.....

....

VIDEO

L/MONO-AUD

IO-R

AV IN 1

TV-LINK

CFG

GAME

CONTROL/

MPI

REMOTE

CONTROL

OUT

COMPONENT IN

YPR

VIDEO

AUDIO

ANTENNA IN

Laptop

The following steps outline local FTG configuration of individual TV EBLs using a direct PC-to-TV connection.

Refer to the Free-To-Guest (FTG) Configuration Application manual for further information. See also FTG

Device Configuration Application sample screens on pages 37 to 40.

Notes: • FTG Device Conguration Application software is available online at: www.LGcommercial.com/

FTGsoftware.

• If the TV CPU is already in FTG Mode, you cannot use this procedure to make changes to the

FTG Channel Map and FTG Installer Menu settings. Instead, refer to and use the processes

described on pages 32 and 33 to recongure the TV CPU.

• If the preceding condition applies, but you wish to switch the TV to FTG Mode via EBL, refer

to Reference section, “Resetting Factory Defaults on the TV(s),” for further information before

proceeding.

TV-LINK CFG

Use for direct PC-to-TV

FTG configuration.

USB-to-TTL Serial Cable

Required for direct PC-to-TV

FTG configuration.

FTG Mode via EBL

Notes:

• ANTENNA IN connector located on jack panel on

26LD320H, 26LD340H, and 26LD345H only.

• Dual-purpose GAME CONTROL/MPI port on

26LD320H and LD340H/LD345H TVs only. On

32/37/42LD320H and 32/37LD325H TVs, the MPI port

is located on the same plate as the RF Antenna jack.

1. Install (if necessary) and launch the FTG Device

Configuration Application (v5.0.0 or higher) on the

PC that will be used to configure the EBL.

2. Build an FTG Channel Map using the FTG Channel

Map Editor in the FTG Channel Map Configuration

Utility (or, if applicable, open an existing FTG

Configuration [.rml] file).

Note: Up to 141 logical channels can be defined in the

FTG Channel Map.

3. Connect the PC to the TV-LINK CFG jack on the TV’s

rear connections panel using a USB-to-TTL serial

cable (TTL-232R-5V-AJ). If necessary, install the

device driver on the PC.

4. Turn ON the TV.

Note: If Installer Menu item 118 POWER SAVINGS is

set to 3 (default), the TV must be ON in order for steps

5 and 6 below to be successful.

5. “Write” the FTG Channel Map to the EBL (switches the

EBL from Pass-through Mode to FTG Mode).

Note: After a “Write” of new data, the TV will briefly

display a green text banner that shows the EBL firm-

ware version and release date.

6. “Read” the current FTG Installer Menu settings from

the EBL using the FTG Installer Menu Configuration

Utility. If necessary to make changes to Installer Menu

items, “Write” them back to the EBL in FTG Mode.

7. Save the FTG Channel Map and FTG Installer Menu

settings to an FTG Configuration (.rml) file for future

use.

8. Tune the TV to a Logical Channel in the FTG Channel

Map.

Rear Jack Panel

206-4186

FTG Channel Map Conguration Utility

The FTG Channel Map Configuration Utility enables you to build a Channel Map with logical channel

numbers.

Note: Write, Read, and Learn functions in the FTG Channel Map Configuration Utility are used for direct

PC-to-TV FTG configuration of LD320H/LD325H and LD340H/LD345H TVs (FTG Mode via EBL). These

functions are not applicable to the process of creating an FMA Configuration file to be saved to a USB

memory device (FTG Mode via CPU).

PRINT MAP

Click to display a printable

FTG Channel Map Report. The

report can also be exported as

an HTML or Text file.

EDIT/ADD MAP

Click to open the FTG Channel Map

Editor to create or edit an FTG

Channel Map (see next page).

FTG Device Conguration Application Utilities Overview

WRITE

Click to transfer the FTG Channel

Map to the EBL. This will switch the

EBL from Pass-through Mode to

FTG Mode.

READ

Click to transfer the FTG Channel

Map from the EBL to the FTG Device

Configuration Application.

LEARN

Click to transfer the TV Channel Map from

the PTC to the EBL and the FTG Device

Configuration Application. (Requires that

2-5-5 + MENU was performed to transfer

TV Channel Map to PTC.) *

* Logical Channel numbers will automatically be assigned in ascending order,

starting with 0 (zero), to the Physical Channels from the TV Channel Map.

Filename of opened FTG

Configuration (.rml) file.

38 206-4186

FTG Device Conguration Application Utilities Overview (Cont.)

DELETE

Click to remove highlighted

channel from FTG Channel

Map.

ADD

After defining a new Logical

Channel, click to add channel

to the FTG Channel Map.

FTG Channel Map Editor

The FTG Channel Map Editor shows a single Logical Channel’s Data and the FTG Channel Map.

EXIT

Click to exit editor and

return to FTG Channel

Map Configuration Utility.

LOGICAL CHANNEL MAPPING

Select a Logical Channel number, then

assign it the RF, Major, and Minor chan-

nel numbers to complete the mapping.

CUSTOM CHANNEL LABELS/ICONS

Enter custom labels and select icons by

name on menu or by number.

SET CHANNEL ATTRIBUTES

Check/select Encrypted, OSD,

or Blank Video.

UPDATE

After editing an existing

Logical Channel’s data, click

to commit the changes in the

FTG Channel Map.

206-4186

WRITE

Click to transfer the FTG Installer

Menu settings to the EBL.

FTG Device Conguration Application Utilities Overview (Cont.)

CONFIGURATION SETTINGS

Select tabs for categories of Installer

Menu items to set up TV.

HOSPITAL-GRADE TV ONLY

Set Hospital items on Installer Menu

for hospital-grade TV models.

FTG Installer Menu Conguration Utility

Note: Write, Read, Learn, and IR Remote Access functions in the FTG Installer Menu Configuration

Utility are used for direct PC-to-TV FTG configuration of LD320H/LD325H and LD340H/LD345H TVs

(FTG Mode via EBL). These functions are not applicable to the process of creating an FMA Configuration

file to be saved to a USB memory device (FTG Mode via CPU).

LEARN

Click to transfer Installer Menu settings

from the PTC to the EBL and FTG

Device Configuration Application. *

INSTALLER DEFAULTS

Click to reset FTG Installer Menu

items shown in the FTG Device

Configuration Application to defaults. READ

Click to transfer the Installer Menu

settings in the EBL to the FTG

Device Configuration Application.

IR REMOTE ACCESS

Toggle IR Remote Access to ON to

obtain access to TV setup menus

and Installer Menu.

* Logical Channel numbers will automatically be

assigned in ascending order, starting with 0 (zero), to

the Physical Channels from the TV Channel Map.

Filename of opened FTG

Configuration (.rml) file.

40 206-4186

Note: The data referenced in the FMA Conguration List is only a snap-

shot of the current FTG Channel Map and FTG Installer Menu settings

when copied to the list. If you make any change(s) to the current data

to be included in the FMA Conguration List, you will need to recopy

Channel Map and Installer Menu settings to the FMA Conguration List.

FTG Device Conguration Application Utilities Overview (Cont.)

Load default FTG Installer

Menu for LD320H/LD325H

or LD340H/LD345H.

Copy FTG Installer Menu

settings to and from FMA

Configuration List.

Copy FTG Channel Map

to and from FMA

Configuration List.

FMA CONFIGURATION LIST

(data to be saved or already

saved in FMA Configuration file)

FMA Conguration Utility

Note: FMA Write, Read, Clock, Broadcast, Firmware, and IP Communication functions in the FMA

Configuration Utility are used to configure b-LAN enabled equipment (Example: FMA-LG101) at the hotel/

institution head end. These functions are not applicable to the process of creating an FMA Configuration file

to be used with LD320H/LD325H and LD340H/LD345H TVs (FTG Mode via CPU).

NEW/OPEN/SAVE

FMA File options

Filename of opened FTG

Configuration (.rml) file.

206-4186

Remote Jack Pack Setup

RJP Available? If you will use a Remote Jack Pack (RJP) in your system, set Installer Menu item 093

RJP AVAILABLE appropriately (for example, on a legacy model RJP: HDMI Mode, set RJP AVAILABLE

to 001). See Installer Menu detailed descriptions for further information.

TV Connections

Make these connections ONLY after Master TV Setup and TV cloning procedures are

complete.

Refer to the figure below, and connect the RJ-45 Control cable from the RJP cable bundle to the RJP

INTERFACE port on the TV’s jack panel. Then, connect HDMI, RGB, and Composite Video/Audio

connectors, as applicable, for the cable bundle.

Remote Jack Pack / TV Connections & Setup

UPDATE

RESET

AUDIO IN

(RGB/DVI)

RS-232C IN

(SERVICE ONLY)

.....

....

..........

HDMI

/DVI IN

RJP

VIDEO

L/MONO-AUD

IO-R

AV IN 1

RGB IN (PC)

.....

TV-LINK

CFG

GAME

CONTROL/

MPI

..........

REMOTE

CONTROL

OUT

SPEAKER

OUT

HDMI

COMPONENT IN

YPR

VIDEO

AUDIO

( )

ANTENNA IN

HDMI/DVI IN 1

Connect HDMI connector

from RJP cable bundle.

RJP

Connect RJ-45 Control cable

from RJP cable bundle.

RGB IN (PC)

Connect RGB connector from RJP

cable bundle (legacy RJP only).

AUDIO/VIDEO IN 1

Connect Composite Video/

Audio connectors from RJP

cable bundle. (Composite

Video on legacy RJP only.)

093 RJP AVAILABLE 001

Notes:

• ANTENNA IN connector located on jack panel on 26LD320H, 26LD340H, and 26LD345H only.

• Dual-purpose GAME CONTROL/MPI port on 26LD320H and LD340H/LD345H TVs only. On

32/37/42LD320H and 32/37LD325H TVs, the MPI port is located on the same plate as the RF

Antenna jack.

42 206-4186

Reference: Upgrading TV/PTC Software using a USB Memory Device

Upgrading TV/PTC Software

Before you begin, note that the software upgrade les must be stored in a folder

named “LG_DTV” in the root directory of the USB memory device. Also, ensure

the USB device has been formatted with FAT format.

Note for TV Software Upgrade only: If the TV detects a later version of software

on the USB device, it will automatically display a dialog from which you can start the

software upgrade immediately. Otherwise, you can close the dialog, and access the

USB Download Menu as described below.

1. Turn the TV ON.

Plug the USB memory device into the USB IN port on the TV.

Press MENU on the Installer Remote to display the TV setup menus (TV is in

Pass-through Mode) or the Function Menu (TV is not in Pass-through Mode).

4. Use the arrow navigation keys to select/highlight either the Option menu icon

from the TV setup menus or the Lock menu icon from the Function Menu.

Then, press the number “7” key a total of seven times to display the USB

Download Menu.

5. Use the Up/Down arrow keys to select Upgrade TV Software or Upgrade

PTC Software, as applicable, and press ENTER.

6. Select the appropriate option(s), depending on the type of upgrade:

• TV Software Upgrade: (See screen samples at right.) Select TV Software

Update from the rst TV Software Update window. In the second TV Software

Update window, select/highlight the update le to install and press ENTER.

Note: Do not select Forced Update options unless you have been specically

instructed to do so or have previous experience with Expert Software Updates.

• PTC Software Upgrade: In the PTC Software Update window, select/highlight

the update le to install and press ENTER.

Note: The PTC Software Update window is similar to the second TV Soft-

ware Update window, though there are no Forced Update options. Current

software version information is shown at the top and update les on the USB

device are listed at the bottom of the window.

Checking the Software Versions

You can check the software versions of the TV by

accessing the Installer Menu with the Installer

Remote: Press MENU repeatedly until the on-screen

menu display no longer toggles, and then press

9-8-7-6 + ENTER.

When you are finished, press ENTER again to exit

the Installer Menu.

Typical Installer

CPU VersionPTC Version

TV Software Update (Expert)

TV Software Update

LOGO Image Download

TV Software Update (Expert)

[ Current TV Software Version Information ]

EPK : 03.03.00

xxLD340H_v1_00_RevNo1000_USB

The following software files are found in the memory card.

Select the file you want to download to this TV

or press EXIT to cancel the update.

EPK : 03.05.00

[ Forced Update Option ]

Ext. MICOM SPI Boot

LOGO Image

[ Current PTC Software Version Information ]

TXT : 03.03.00

xxLD340H_v1.01.00

The following software files are found in the memory card.

TV Software Update (Expert)

Splash Image 1366 X 768 ProCentric

The following software files are found in the memory card.

Select the file you want to download to this TV

or press EXIT to cancel the update.

TV Software Update (Expert)

TV Software Update

LOGO Image Download

Upgrade PTC Software

TV Software Update (Expert)

TV Software Update

LOGO Image Download

TV Software Update (Expert)

[ Current TV Software Version Information ]

EPK : 03.03.00

xxLD340H_v1_00_RevNo1000_USB

The following software files are found in the memory card.

Select the file you want to download to this TV

or press EXIT to cancel the update.

EPK : 03.05.00

[ Forced Update Option ]

Ext. MICOM SPI Boot

LOGO Image

[ Current PTC Software Version Information ]

TXT : 03.03.00

xxLD340H_v1.01.00

The following software files are found in the memory card.

TV Software Update (Expert)

Splash Image 1366 X 768 ProCentric

The following software files are found in the memory card.

Select the file you want to download to this TV

or press EXIT to cancel the update.

TV Software Update (Expert)

TV Software Update

LOGO Image Download

Upgrade PTC Software

The TV will show update completion progress in a new window. Do NOT remove the USB device

until the software upgrade is complete. When a TV software upgrade is complete, the TV will reset

itself with an automatic restart. When a PTC upgrade is complete, the TV will turn OFF.

xxLD340H PTC INSTALLER MENU

000 INSTALLER SEQ 000

UPN 000-000-000-000 ASIC 20E7

PTC V1.00.001 CPU V3.25.00

USB Download Menu

Upgrade TV Software

Upgrade PTC Software

Teach To TV (TLL)

Teach To TV (FMA)

Return Enter

206-4186

Reference: Downloading a Splash Screen using a USB Memory Device

Splash Screen Image File Guidelines

• The splash screen image must be a baseline (not progressive) JPEG.

• The image should be no larger than 1 MB.

• The ideal size for the image is 1366 x 768 pixels or under.

• The image le must be stored in a folder named “LG_DTV” in the root

directory of USB memory device.

• Ensure the USB device has been formatted with FAT format.

Downloading a Splash Screen Image

1. Turn the TV ON.

Plug the USB memory device into the USB IN port on the TV.

Press MENU on the Installer Remote to display the TV setup menus (TV is in

Pass-through Mode) or the Function Menu (TV is not in Pass-through Mode).

4. Use the arrow navigation keys to select/highlight either the Option menu icon

from the TV setup menus or the Lock menu icon from the Function Menu.

Then, press the number “7” key a total of seven times to display the USB

Download Menu.

5. Use the Up/Down arrow keys to select Upgrade TV Software, and then press

ENTER.

6. Select LOGO Image Download from the rst TV Software Update window.

7. In the second TV Software Update window, use the Up/Down arrow keys to

select the image le to download, and then press ENTER.

The TV will show download completion progress in a new window. Do NOT

remove the USB device until the image download is complete. When the image

download is complete, the TV will reset itself with an automatic restart. Upon the

restart, you should see the new splash screen.

TV Software Update (Expert)

TV Software Update

LOGO Image Download

TV Software Update (Expert)

[ Current TV Software Version Information ]

EPK : 03.03.00

xxLD340H_v1_00_RevNo1000_USB

The following software files are found in the memory card.

Select the file you want to download to this TV

or press EXIT to cancel the update.

EPK : 03.05.00

[ Forced Update Option ]

Ext. MICOM SPI Boot

LOGO Image

[ Current PTC Software Version Information ]

TXT : 03.03.00

xxLD340H_v1.01.00

The following software files are found in the memory card.

TV Software Update (Expert)

Splash Image 1366 X 768 ProCentric

The following software files are found in the memory card.

Select the file you want to download to this TV

or press EXIT to cancel the update.

TV Software Update (Expert)

TV Software Update

LOGO Image Download

Upgrade PTC Software

TV Software Update (Expert)

TV Software Update

LOGO Image Download

TV Software Update (Expert)

[ Current TV Software Version Information ]

EPK : 03.03.00

xxLD340H_v1_00_RevNo1000_USB

The following software files are found in the memory card.

Select the file you want to download to this TV

or press EXIT to cancel the update.

EPK : 03.05.00

[ Forced Update Option ]

Ext. MICOM SPI Boot

LOGO Image

[ Current PTC Software Version Information ]

TXT : 03.03.00

xxLD340H_v1.01.00

The following software files are found in the memory card.

TV Software Update (Expert)

Splash Image 1366 X 768 ProCentric

The following software files are found in the memory card.

Select the file you want to download to this TV

or press EXIT to cancel the update.

TV Software Update (Expert)

TV Software Update

LOGO Image Download

Upgrade PTC Software

USB Download Menu

Upgrade TV Software

Upgrade PTC Software

Teach To TV (TLL)

Teach To TV (FMA)

Return Enter

44 206-4186

Reference: Power Consumption Settings

26/32/37/42LD320H & 32/37LD325H

The following tables assume that Installer Menu item 118 POWER SAVINGS is set to 003 (default) and

Installer Menu item 099 BACK LIGHTING is set as shown below (default value is 100).

Item 099

Back Lighting

(Static)

26LD320H 32LD320H / 32LD325H 37LD320H / 37LD325H 42LD320H

Power

Consumption

(Watts)

Percent

Savings

Power

Consumption

(Watts)

Percent

Savings

Power

Consumption

(Watts)

Percent

Savings

Power

Consumption

(Watts)

Percent

Savings

100 56.82 0.00% 72.97 0.00% 88.92 0.00% 107.53 0.00%

90 51.98 8.52% 63.82 12.54% 84.19 5.32% 86.68 19.39%

80 47.09 17.13% 58.53 19.78% 77.84 12.46% 78.79 26.73%

70 42.06 25.97% 53.58 26.57% 72.19 18.81% 72.81 32.29%

60 39.71 30.12% 44.24 39.38% 66.28 25.46% 66.78 37.89%

50 37.36 34.25% 41.27 43.45% 60.90 31.51% 60.61 43.63%

40 36.31 36.10% 38.71 46.95% 56.58 36.37% 56.35 47.60%

30 35.12 38.19% 36.20 50.39% 52.35 41.13% 52.90 50.81%

20 32.59 42.64% 33.51 54.07% 47.75 46.30% 47.71 55.63%

10 30.23 46.80% 31.01 57.51% 43.68 50.88% 43.04 59.98%

1 27.95 50.82% 28.55 60.87% 39.62 55.44% 38.86 63.86%

Item 099

Back Lighting

(Dynamic)

26LD320H 32LD320H / 32LD325H 37LD320H / 37LD325H 42LD320H

Power

Consumption

(Watts)

Percent

Savings

Power

Consumption

(Watts)

Percent

Savings

Power

Consumption

(Watts)

Percent

Savings

Power

Consumption

(Watts)

Percent

Savings

200 72.19 0.00% 75.45 0.00% 110.86 0.00% 125.41 0.00%

190 68.21 5.51% 69.23 8.25% 99.05 10.65% 111.41 11.16%

180 63.72 11.74% 65.26 13.51% 92.33 16.72% 103.30 17.63%

170 59.21 17.99% 60.72 19.53% 85.39 22.98% 95.29 24.02%

160 55.04 23.76% 56.29 25.40% 78.61 29.10% 87.64 30.11%

150 50.81 29.62% 51.82 31.33% 71.70 35.32% 79.71 36.44%

140 46.03 36.24% 46.62 38.21% 63.53 42.69% 70.73 43.60%

130 41.49 42.53% 41.67 44.78% 55.65 49.80% 61.80 50.72%

120 36.32 49.69% 36.14 52.10% 47.34 57.30% 51.86 58.65%

110 31.52 56.34% 31.11 58.76% 39.90 64.01% 42.90 65.79%

101 26.95 62.67% 26.41 65.00% 33.00 70.24% 34.52 72.47%

Note: Values are results of controlled experiments under laboratory conditions.

206-4186

Reference: Power Consumption Settings (Cont.)

26/32/37/42LD340H & 26/32/37/42LD345H

Item 099

Back Lighting

(Static)

26LD340H / 26LD345H 32LD340H / 32LD345H 37LD340H / 37LD345H 42LD340H / 42LD345H

Power

Consumption

(Watts)

Percent

Savings

Power

Consumption

(Watts)

Percent

Savings

Power

Consumption

(Watts)

Percent

Savings

Power

Consumption

(Watts)

Percent

Savings

100 56.82 0.00% 72.97 0.00% 88.92 0.00% 107.53 0.00%

90 51.98 8.52% 63.82 12.54% 84.19 5.32% 86.68 19.39%

80 47.09 17.13% 58.53 19.78% 77.84 12.46% 78.79 26.73%

70 42.06 25.97% 53.58 26.57% 72.19 18.81% 72.81 32.29%

60 39.71 30.12% 44.24 39.38% 66.28 25.46% 66.78 37.89%

50 37.36 34.25% 41.27 43.45% 60.90 31.51% 60.61 43.63%

40 36.31 36.10% 38.71 46.95% 56.58 36.37% 56.35 47.60%

30 35.12 38.19% 36.20 50.39% 52.35 41.13% 52.90 50.81%

20 32.59 42.64% 33.51 54.07% 47.75 46.30% 47.71 55.63%

10 30.23 46.80% 31.01 57.51% 43.68 50.88% 43.04 59.98%

1 27.95 50.82% 28.55 60.87% 39.62 55.44% 38.86 63.86%

Item 099

Back Lighting

(Dynamic)

26LD340H / 26LD345H 32LD340H / 32LD345H 37LD340H / 37LD345H 42LD340H / 42LD345H

Power

Consumption

(Watts)

Percent

Savings

Power

Consumption

(Watts)

Percent

Savings

Power

Consumption

(Watts)

Percent

Savings

Power

Consumption

(Watts)

Percent

Savings

200 72.19 0.00% 75.45 0.00% 110.86 0.00% 125.41 0.00%

190 68.21 5.51% 69.23 8.25% 99.05 10.65% 111.41 11.16%

180 63.72 11.74% 65.26 13.51% 92.33 16.72% 103.30 17.63%

170 59.21 17.99% 60.72 19.53% 85.39 22.98% 95.29 24.02%

160 55.04 23.76% 56.29 25.40% 78.61 29.10% 87.64 30.11%

150 50.81 29.62% 51.82 31.33% 71.70 35.32% 79.71 36.44%

140 46.03 36.24% 46.62 38.21% 63.53 42.69% 70.73 43.60%

130 41.49 42.53% 41.67 44.78% 55.65 49.80% 61.80 50.72%

120 36.32 49.69% 36.14 52.10% 47.34 57.30% 51.86 58.65%

110 31.52 56.34% 31.11 58.76% 39.90 64.01% 42.90 65.79%

101 26.95 62.67% 26.41 65.00% 33.00 70.24% 34.52 72.47%

Note: Values are results of controlled experiments under laboratory conditions.

46 206-4186

Reference: TV Camport Auto Sense Operation

The Camport Auto Sense function is enabled when:

1. Installer Menu item 034 CAMPORT EN is set to 1 AND

2. Installer Menu item 040 AUTO CAMPORT is enabled (1).

Selectable: Can be accessed with INPUT key, direct

access, etc.

Auto Sense: TV switches to this input when connector is

inserted. The Camport (Side [AV IN 2] Video) has the

highest priority and will override any commands including

tuning to the Start Channel.

CAMPORT (Side Video) Functionality Control

Item 034

CAMPORT EN

Item 040

AUTO CAMPORT

Side (AV IN 2)

Video Operation

0 0 Disabled

0 1 Disabled

1 0 Selectable

1 1 Auto Sense

Camport Operation (Stand-alone)

When Camport Auto Sense is enabled as above, the TV

will switch from its current source to the Side (AV IN 2)

Video input whenever a plug is inserted into the AV IN 2

Video input.

When the video plug is removed, the TV will switch back to

the previous source that was being displayed before the

plug was inserted. However, if any direct access to an Aux

channel or RF channel is requested while the Camport is

active, then, when the video plug is removed, the TV will

switch to the last requested channel. Source changes

using any Source keys (INPUT) are ignored. Channel Up/

Down and Flashback commands are not Direct Access

tuning commands, and they are also ignored.

Previous State

Before Inserting

CAMPORT

Operation While

CAMPORT is

Active

State Upon

Removal of

CAMPORT

Aux or RF

Channel None Previous Aux

or RF Channel

Aux or RF

Channel Direct Access Last Requested

Aux or RF Channel

Aux or RF

Channel

Ch Up/Down,

Flashback, and

Input Keys

Previous Aux

or RF Channel

Camport Operation (FTG or PPV)

The operation will be similar to that of the Pass-through

Mode. However, when the Channel Map is maintained

external to the PTC (i.e., FTG and PPV), Channel Up/

Down or Flashback keys are sent as Direct Access tuning

commands to the PTC/TV.

Previous State

Before Inserting

CAMPORT

Operation While

CAMPORT is

Active

State Upon

Removal of

CAMPORT

Aux or RF

Channel None Previous Aux

or RF Channel

Aux or RF

Channel Direct Access Last Requested

Aux or RF Channel

Aux or RF

Channel

Ch Up/Down,

Flashback, and

Input Keys

Last Requested Aux

or RF Channel

206-4186

Reference: TV Aux Input Configuration

DIRECT ACCESS

Tuning TV

ENABLE MPI DATA

START AUX

SOURCE

ASSIGN-

MENT

Installer Menu

MPI DATA

STATUS TYPE

0x41 SOURCES

ENABLED (R/W)

DATA STATUS

TYPE 0xD2

CURRENT AV

SOURCE (R)

DATA STATUS

TYPE 0x0D

AUX

SOURCE (R)

OLD_

OCV = 0

OLD_

OCV = 1

Source

Input

Source

Mode

Number Labeling Value Labeling Value Labeling

130 90 Video2

(Side)

CV 34 CAMPORT_EN 0x01 Video Front

(Camport)

0 Video Front

(Camport)

0 (VIDEO) 2

131 91 Video1

(Rear)

CV 39 REAR_AUX_EN 0x02 Rear Video

(Aux)

1 Rear Video

(Aux)

0 (VIDEO) 1

132 92 HDMI2 DTV/PC 91 YPrPb2 EN = 1 0x04 S-Video Rear 2 S-Video Rear 0 (VIDEO) 5

133 93 HDMI1/DVI DTV/PC 35 COMPPORT_EN

= 1

0x08 Front

Computer

3 Front

Computer

0 (VIDEO) 3

134 94 RGB PC 87 REAR RGB EN

= 2

0x10 SVGA Rear

Computer

4 SVGA Rear

Computer

(COMPUTER)

136 96

Component

38 YPrPb EN 0x40 Y/UV

Component

6 Rear Y/PrPb

Component

Video

0 (VIDEO) 6

48 206-4186

Reference: b-LAN Setup & Overview

A b-LAN enabled head end device, such as an LG FMA-LG101, broadcasts over the RF distribution system to

communicate to multiple TVs. When the TV is first installed, it must be turned ON in order for its embedded

b-LAN module to receive communication from the head end device. At this point, if it is desired for the b-LAN

module to always be powered, including while the TV is in Standby, set Installer Menu item 118 POWER

SAVINGS to 001.

Also, if MPI communication is required for external MPI control, set Installer Menu item 118 POWER SAVINGS to

001 so that the GAME CONTROL/MPI port circuitry is always powered.

The b-LAN module is internal to the TV. It allows hotel/institution head end equipment with b-LAN technology

to communicate, via the institution’s RF distribution system, with the TV for configuration and control.

Note: MPI cards with b-LAN technology—LMT7Z5, LMT7Z7, LMT7Z9—are NOT supported in TVs in which

b-LAN technology is already integrated.

Installer Menu item 118 POWER SAVINGS controls the power circuitry for both the embedded b-LAN module and

the GAME CONTROL/MPI port (see note below). The default value is 003—the b-LAN module is only powered

when the TV is turned ON. See chart below.

Note: 26LD320H and all LD340H/LD345H TVs have a dual-purpose GAME CONTROL/MPI port on the TV rear

jack panel. On 32/37/42LD320H and 32/37LD325H TVs, the MPI port is located on the same plate as the RF

Antenna jack.

POWER

SAVINGS

001 On On

003 (default) Off On

TV Power On State

TV Standby State

b-LAN & GAME

CONTROL/MPI Port

Power

b-LAN & GAME

CONTROL/MPI Port

Power

206-4186

Reference: RJP Model List and Input Auto-sensing Hierarchy

RJP Model List

Legacy Models Scaler Models

RJP-101M N/A

RJP-101ML N/A

RJP-110F RJP-210F

RJP-110FW RJP-210FW

RJP-110W RJP-210W

RJP-110WBR RJP-210WBR

RJP-110S RJP-210S

RJP-120G RJP-220G

RJP-120T RJP-220T

RJP-201B RJP-301B

RJP-202B RJP-302B

RJP Input Auto-sensing Hierarchy

Priority Video Audio

1st (Highest) Digital Video In Audio In (3.5mm)

2nd PC Video In Audio In (L/R)

3rd Video In Digital Video In

50 206-4186

This section describes how to reset factory defaults either on a single TV that is currently in Pass-through

Mode or on multiple TVs that are currently in FTG Mode.

Note: If the TV(s) is/are currently in FTG Mode, restoring the factory defaults also resets the TV to Pass-

through Mode.

Installer Menu Item 117 FACT DEFAULT

If the TV is currently in Pass-through Mode, you can set Installer Menu item 117 FACT DEFAULT to 001 to

reload the factory defaults and clear the channel lineup, including any assigned channel icons and custom

text labels.

Factory “IN-STOP”

If the TV is currently in FTG Mode, a predened value for Installer Menu item 117 FACT DEFAULT

enables access to initiate a factory “IN-STOP” process that will reset the TV to Pass-through Mode in

addition to restoring all factory defaults. Contact technical support for the required value for Installer Menu

item 117 and for additional information on performing the IN-STOP from the Installer Menu.

Additional FTG Mode via CPU Options

There are two additional options for resetting Pass-through Mode/factory defaults on TVs that are in FTG

Mode via the CPU. The rst enables you to reset a single TV to Pass-through Mode, while the second

enables you to reset multiple TVs to Pass-through Mode at one time.

• Using a USB memory device, “Teach” an FMA Conguration le that only contains a “0 Mapped

Channels” FTG Channel Map to the TV. Refer to “Creating an FMA Conguration File using the FTG

Device Conguration Application” and “Teaching FMA Conguration to a TV” on pages 32 and 33,

respectively, for further information.

• If your system uses a Pro:Centric server for remote management/administration, use the Pro:Centric

Admin Client to load an FMA Conguration le that only contains a “0 Mapped Channels” FTG Channel

Map on the Pro:Centric server. Refer to the Pro:Centric™ Server Admin Client User Guide for further

information.

Additional FTG Mode via EBL Options

There are two additional options for resetting Pass-through Mode/factory defaults on TVs that are in FTG

Mode via the EBL. The rst enables you to reset a single TV to Pass-through Mode, while the second

enables you to reset multiple TVs to Pass-through Mode at one time.

Note: While the IN-STOP process described above will clear both the PTC and the CPU, both

options below only clear the PTC. Thus, the current Channel Map and TV setup menu settings

will remain in the CPU after the reset is completed.

• Using a direct PC-to-TV connection, “Write” an unpopulated Channel Map—that is, a Channel Map with

zero channels—to the TV. Refer to the “FTG Mode via EBL” procedure on page 36 and/or the Free-To-

Guest (FTG) Configuration Application manual for further information.

• If your system uses an FMA for remote management/broadcast conguration, congure the FMA device

with an FMA Conguration le that only contains a “0 Mapped Channels” FTG Channel Map to broad-

cast to the TV EBL(s). Refer to the Free-To-Guest (FTG) Configuration Application manual and/or the

Installation & Setup manual for the FMA device for further information.

Reference: Resetting Factory Defaults on the TV(s)

206-4186

UPDATE

RESET

AUDIO IN

(RGB/DVI)

RS-232C IN

(SERVICE ONLY)

.....

....

..........

HDMI

/DVI IN

RJP

VIDEO

L/MONO-AUD

IO-R

AV IN 1

RGB IN (PC)

.....

TV-LINK

CFG

GAME

CONTROL/

MPI

..........

REMOTE

CONTROL

OUT

SPEAKER

OUT

HDMI

COMPONENT IN

YPR

VIDEO

AUDIO

(

)

ANTENNA IN

Reference: LD320H/LD325H & LD340H/LD345H Rear Jack Panel

RGB IN (PC)

Connection for RGB

output from PC.

TV-LINK CFG

Use for direct PC-to-TV

FTG configuration.

UPDATE

Restricted to

software updates.

RESET

Initiates a hardware

reset and switches the

TV to standby.

GAME CONTROL/MPI **

When the TV/EBL is in Pass-through Mode,

the MPI function enables an external MPI

control device (i.e., clone programmer, VOD/

PPV STB, etc.) to control the TV. Game

Control—EBL in LodgeNet PPV Mode only.

AUDIO/VIDEO IN 1

Connection for composite audio/

video output from external device.

SPEAKER OUT (8Ω)

Connect to 8 ohm self-powered

speaker input. Intended for special

applications, such as a powered bath-

room speaker with volume control.

REMOTE CONTROL OUT

IR output for controlling an

auxiliary device.

RS-232C IN

Use for downloading

software updates, etc.

COMPONENT IN

Connection for component

output from external device.

AUDIO IN (RGB/DVI)

Audio connection for

RGB or DVI device.

RJP

Connection for Remote Jack

Pack (RJP) Control cable.

HDMI/DVI IN

Connection for HDMI/DVI

output from external device.

ANTENNA IN

26LD320H, 26LD340H, &

26LD345H only. Connect

to Antenna/CATV.

* This stereo jack provides a mono speaker fixed-level, 1 watt output (audio +, audio -, w/ground shield).

Do NOT plug in a mono connector, as this may damage the TV.

** On 32/37/42LD320H and 32/37LD325H TVs, this is a GAME CONTROL port only. GAME CONTROL

function as described above. On these TVs, the MPI port is located on the same plate as the RF Antenna

jack (see next page).

52 206-4186

Reference: Side Connections Panel / RF Antenna & MPI Connections

AV IN 2

L/MONO -AUDIO- R

VIDEO USB IN

USB IN

Insert USB memory device

for software updates, cloning

purposes, FTG Mode via CPU

configuration, picture/music

entertainment, etc., as applicable.

Antenna

or CATV

ANTENNA IN MP I

RF Antenna & MPI Connections

Side Connections Panel

VIDEO IN

Connect to video output port on

external device (see Reference

section, “TV Camport Auto Sense

Operation,” for further information).

L/MONO-AUDIO-R IN

Connect to audio output jacks

on external device. For only

mono audio output, connect to

Left audio input.

A/V 2 Input

ANTENNA IN

Connect to Antenna/

CATV.

Notes:

• On 26LD320H, 26LD340H, and 26LD345H

TVs, the RF Antenna jack is on the rear jack

panel (see previous page).

• On 26LD320H and all LD340H and LD345H

TVs, the MPI port is located on the rear jack

panel (dual-purpose GAME CONTROL/MPI

port).

MPI

Enables an external MPI control

device (i.e., clone programmer, VOD/

PPV STB, etc.) to control the TV when

the EBL is in Pass-through Mode.

206-4186

Troubleshooting

General Troubleshooting

Some Quick and Easy Tips for Resolving Problems

Symptom Possible Cause(s) Possible Solution(s)

Installation

Cannot direct enter

channel number.

(TV in Pass-through Mode) Installer Menu

item 028 CH. OVERIDE is set to 0, i.e.,

disabled (recommended setting).

If Installer Menu item 028 CH. OVERIDE is set to 0, only

channels that are active in the TV’s channel lineup can be

selected. Set CH. OVERIDE to 1 to allow access for direct

keypad entry to all channels.

(TV in FTG Mode) The channel entered is

not part of the FTG Channel Map.

Channel access is restricted to channels included in the FTG

Channel Map. If necessary, make changes to the FTG

Channel Map using the FTG Device Configuration Application.

Power

No power. See troubleshooting flow chart on following page.

Display Panel Picture

No picture. Display panel is turned off. • Turn TV ON.

• Power failure?

Antenna/cable not connected. Connect antenna/cable signal to TV

Connections incorrect. Check connections on TV

MPI not connected. If applicable, connect MPI cable to MPI device.

Encrypted program. Try another channel.

Wrong tuning band. Adjust Installer Menu settings.

Erratic Operation

Installer Menu setup. Wrong Installer Menu settings. Adjust Installer Menu settings as required.

Installer Remote

Remote doesn’t work. Remote not in TV Mode. Use MODE key to select “TV”; puts remote into TV Mode.

Not aimed at IR remote sensor. Point remote at IR receiver on TV.

Remote too far from IR sensor. Move remote closer to IR receiver on TV or darken room.

MPI not connected. If applicable, connect MPI cable to MPI device.

IR path to TV’s receiver obstructed. Remove obstructions.

Weak batteries. Replace batteries.

Wrong battery polarity. Check that “+” and “-” match in battery compartment.

Too much light in room. Dim room light.

Wrong Installer Remote. Requires compatible Installer Remote. Contact your LG

dealer.

Picture Reception

Normal picture,

poor or no sound.

Audio muted. Press MUTE or use Volume Up key to increase sound level.

Broadcast problem. Try a different channel.

Note: For other problems not caused by the TV, refer to the other devices’ operating guide(s).

54 206-4186

Controller

Quick Check

STATUS

LED on PTC

Board

blinking?

Plug into AC

Power outlet.

connected

to AC

Power?

Bad

Yes

No No

Yes

Cycle the power by

removing and reconnecting

the AC Power cord. Then,

observe POWER LED

on front of TV.

POWER

LED lit?

Yes

Press POWER on

LG Installer Remote.

responded?

Yes

responded?

Yes

End

Bad

Contact system

integrator for additional

troubleshooting

assistance.

Bad Digital

Board

turned ON?

Yes

Press VOLUME UP/

DOWN or MUTE key

on LG Installer Remote.

Bad

Press VOLUME UP/

DOWN or MUTE key on

in-room or system

integrator-supplied remote.

Troubleshooting (Cont.)

Troubleshooting Flow Chart

206-4186

Troubleshooting (Cont.)

Commercial Mode Check / FTG Operation Troubleshooting

TV turned

ON?

Yes

Press POWER on

Installer Remote.

TV is not in Commercial

Mode. Call Technical

Support for assistance.

TV is in

Commercial Mode.

On-screen

menu display

no longer

toggles?

Yes

Press MENU repeatedly

as if to access the

Installer Menu.

Function

on display?

Leave the TV set ON,

and press MENU on the

Installer Remote.

TV is in

Commercial Mode.

Yes

Plug into AC

Power outlet.

connected

to AC

Power?

Bad

Yes

Commercial Mode Check

Use this flowchart to determine whether the TV is currently in Commercial Mode.

FTG Operation Troubleshooting

The following table provides troubleshooting information for when the EBL is configured in the FTG Mode of operation.

Symptom Possible Cause(s) Solution(s)

Communication Error

(“Communications

Timeout”)

Cable(s) not connected. Check and connect communication cables.

TV not powered. Check/connect the TV power cord.

TV not turned ON. TV needs to be turned ON (default FTG Mode).

Wrong COM

(communication) port.

In the FTG Device Configuration Application, select the

correct COM port for the cable being used.

56 206-4186

Caution: Do not connect

a clone programmer to a

PPV card installed in the

Master or Target TVs. Also, if

the TV is in LodgeNet PPV Mode

(check with the site administrator

if you are not certain), do not

connect a clone programmer to

the GAME CONTROL/MPI port.

Either of these actions will

damage the clone programmer

and, if applicable, the PPV card.

• After cloning operations are complete, unplug the TLL-1100A/LT2002 from the TV.

• If the TV does not display a picture (blank screen) after a few seconds, just change channels.

Troubleshooting (Cont.)

Clone Programmer Troubleshooting

Reset Clone Programmer After Static Shock

After replacing exhausted batteries (LT2002 only), or if the clone programmer

behaves strangely after a static shock:

• TLL-1100A: Turn the TLL-1100A OFF and then ON.

• LT2002: Use a paper clip or similar instrument inserted through the small hole

marked RESET to activate the internal reset switch and restore normal operation.

After a reset, check the real-time clock setting. It may be necessary to set the

clone programmer clock from a TV containing the correct time.

Note: Both the Master and Target TVs must be in Pass-through Mode for cloning

purposes. See also IMPORTANT CLONING INFORMATION on page 23.

Clone Programmer

Symptom Possible Cause(s) Possible Solution(s)

Clone copies setup in less

than 30 seconds.

Not enough time to copy entire

TV setup.

TLL-1100A: Turn the TLL-1100A OFF and then ON.

LT2002: Press RESET on clone programmer.

Then redo Learn/Teach. (Learning usually takes about 90 seconds;

Teaching usually takes 3 to 4 minutes.)

Remote does not operate

clone programmer.

Wrong Installer Remote. Only use an LG Installer Remote to operate clone programmer

with TV.

Clone menu does not dis-

play on TV screen, TLL-

1100A shows error mes-

sage, or LT2002 LED does

not blink.

MPI cord not connected. Connect MPI cord properly, and ensure good connection.

TV not turned ON. TV must be powered ON for clone programmer to work.

(LT2002 only) Weak batteries. Install four (4) fresh AA high-quality alkaline batteries.

(TLL-1100A only) No charge. Ensure the TLL-1100A is fully charged or connected to AC power.

Clone menu hard to read. Weak signal. Connect TV to a reliable analog channel signal source.

No time set. Time not available. Set time on a TV, and copy time to clone programmer.

Clone not working. Clone programmer problem. • Try a different clone programmer.

• Reset the clone programmer.

Clone scans channels

more than once.

Clone should only scan channels

once.

Ensure TV is set up correctly, and try cloning again.

Master and Target TVs

Symptom Possible Cause(s) Possible Solution(s)

Cloning did not work. Procedure interrupted. Wait until procedure complete message is displayed.

Different TV models. Cloning is only possible with identical model TVs.

Step(s) omitted or not performed. Refer to the applicable cloning procedure(s), and make sure all

tasks were performed.

(LT2002 only) Clone time

disappeared.

Batteries were removed. Batteries must remain installed to retain time settings.

New setup not present. Target TV not reset. Disconnect Target TV from AC power for 15 seconds.

206-4186

75 OHM RF CABLE

The wire that comes from an off-air

antenna or cable service provider. The

end looks like a hex-shaped nut with a

wire through the middle. It screws onto

the Antenna/Cable threaded jack on the

back of the TV.

300 TO 75 OHM ADAPTER

A small device that connects a 2-wire

300 ohm antenna to a 75 ohm RF jack.

It is usually about an inch long with two

screws on one end and a round opening

with a wire extending out the other end.

A/V CABLES

Audio/Video cables. Three cables

bunched together —right audio (red), left

audio (white), and video (yellow). A/V

cables are used for stereo playback of

videocassettes and for higher quality pic-

ture and sound from other A/V devices.

A/V DEVICE

Any device that produces video or sound

(VCR, DVD, cable box, or television).

AMPLIFIER

An electronic device that amplies sound

from a television, CD player, VCR, DVD

player, or other Audio/Video device.

ANTENNA

The physical receiver of television signals

sent over the air. A large metal piece of

equipment does not always have to be

visible to be using an antenna.

b-LAN

LodgeNet Interactive Corporation

proprietary RF communication system

used to congure/control TV via RF

distribution system.

CABLE

Cable service box. Refers to the

descrambler box cable subscribers use

to receive cable programming signals.

CATV

Programming provided by a cable

service.

COMPONENT VIDEO

Uses three wires for transporting three-

color video signals. The end result is

usually better video quality.

COMPOSITE VIDEO

Typical video jack, uses one wire for

transporting three-color video signals.

DELETE

Lets you remove channels from the list

that the end user can scroll through

using Channel Up/Down.

DIGITAL TELEVISION

High-resolution, cinema-quality television

signals transmitted digitally.

DVI

Digital Video Interface. Accommodates

analog and digital interfaces with a

single connector.

HDMI

High-denition multi-media interface.

HDSTB

High-denition set top box. Refers to a

tuner device that receives high-denition

television signals which have higher res-

olution than ordinary analog TV signals.

HDTV

High-denition television. Refers to tele-

vision signals that have higher resolu-

tion than ordinary analog TV signals.

INPUT

Refers to the input jack that receives a

signal from a TV, VCR, DVD Player, or

other Audio/Video device.

JACK

An input or output connector on the

back of a TV, VCR, DVD Player, or other

Audio/Video device.

MONO SOUND

Mono (monaural) sound is one channel

of sound. On more than one speaker, all

the speakers play the same audio.

OUTPUT

Refers to the output jack that sends a

signal out of a VCR, DVD, or other A/V

device.

PHYSICAL CHANNEL NUMBER

The actual channel number. Analog

channels use the Physical Channel

number and digital channels can use a

Virtual Channel number.

RGB (RED, GREEN, BLUE)

Connection input or output port available

for producing a video image using three

separate colors: Red, Green, and Blue.

RS-232

Serial communication port through

which rmware is downloaded.

2ND AUDIO PROGRAMMING/SAP

Second Audio Programming (SAP) is

another, separate audio channel avail-

able with some programming. Choosing

SAP often refers to listening to audio in

another language, such as Spanish or

French.

SIGNAL

Picture and sound traveling through a

cable, or over the air, to the TV.

STEREO SOUND

Stereo (Stereophonic) sound refers to

audio that’s divided into right and left

sides.

TUNER

Device that picks up the broadcast sig-

nal and turns it into picture and sound.

VIRTUAL CHANNEL NUMBER

A re-mapped channel number. Analog

channels use the Physical Channel

number; however digital channels use a

Virtual (or false) Channel number.

XDS

Extended Data Service. Additional

program information included on the

signal provided at the discretion of the

broadcaster.

Glossary of Terms

A list of denitions for some of the words found in this guide.

Note: Refer to www.atsc.org for further

information.

58 206-4186

Document Revision History / Notes

Notes

Document Revision History

Date Description

May 2011 Revision A: New document

November 2011 Revision B: LD320H/LD325H models added to document, also updates for external

MPI control

Product documentation is available online at: www.LGsolutions.com/products. From the Products page,

select TVs, Systems & Solutions, then LCD TVs, then the applicable TV. Click the Literature & Downloads

tab at the bottom of the TV page, and select the required document(s) from the Downloads list.

206-4186

Revision B

For Customer Support/Service, please call:

1-888-865-3026

www.LGsolutions.com

Pro:Idiom is a registered trademark of Zenith Electronics LLC. Pro:Centric is a trademark of LG

Electronics U.S.A., Inc. b-LAN is a trademark of LodgeNet Interactive Corporation. All other

trademarks or registered trademarks are the property of their respective owners.
