Keysight 33503A
BenchLink Waveform Builder Pro
and Basic Software
For Keysight Function/Arbitrary/Pulse Waveform Generators
and InfiniiVision Oscilloscopes
Data Sheet
02 | Keysight | 33503A BenchLink Waveform Builder Pro and Basic Software - Data Sheet
Create Custom Waveforms Faster
Fast and easy analysis tools for more insight
– Standard waveform library provides quick access to common signals (DC, half-sine, noise,
sine, square, triangle, ramp, pulse, exponential)
– Comprehensive library of built-in signals provides fast, easy access to complex signals
– Free-hand, point and line-draw modes to create custom shapes
– Equation editor enables creation of waveforms with exact polynomials
– Advanced math functions provide additional flexibility for more complex signals
– Sequencing editor to build and arrange composite waveforms for design optimization
– Filtering and windowing functions allow smooth transitions between waveforms
– Fast Fourier Transform (FFT) capability enables viewing of signal frequency characteristics
– Complimentary Cumulative Distribution Function (CCDF) curves enables viewing of signal
power characteristics
03 | Keysight | 33503A BenchLink Waveform Builder Pro and Basic Software - Data Sheet
The Keysight 33503A BenchLink Waveform Builder Pro is the rst full-featured waveform
creation software for waveform generators. The software enables engineers to take full
advantage of Keysight signal generation capabilities and makes custom waveform creation fast
and simple. It is ideal for R&D engineers characterizing new designs and test system engineers
validating production units.
BenchLink Waveform Builder Pro is a Microsoft Windows-based program that provides easy-
to-use creation tools, such as an equation editor, waveform math and drawing tools, which can
be used to create custom signals. It features a standard function library, waveform sequencer;
as well as lters and windowing functions that allow you to easily modify and further rene your
waveform. A library of built-in signals supports fast creation of more complex waveforms such
as multi-tone, serial data, trapezoid and Gaussian.
With BenchLink Waveform Builder Pro, you gain access to advanced signal creation and editing
capabilities, without requiring hours of programming. The result is quicker, easier creation of
custom waveforms, coupled with deeper analysis insight into your signals.
Download Keysight’s free 30-day trial version and create custom
waveforms faster
The free 30-day demo version of the BenchLink Waveform Builder Pro Software is the fully
functional Pro version. After the 30-day trial period the full version of the software will revert to
the basic free version. If you choose to continue to utilize the full Pro version, you may purchase
a license to retain the Pro version’s full functionality and benets.
For more information and to download your free copy today visit:
www.keysight.com/nd/33503
Key applications
– Electronic controls, baseband wire less communications
– Linear amplifiers, DC brushless motors, switching power supplies
– Medical devices, digital audio
– Clock signals, modulation source
Fast, Efcient Custom Waveform Creation

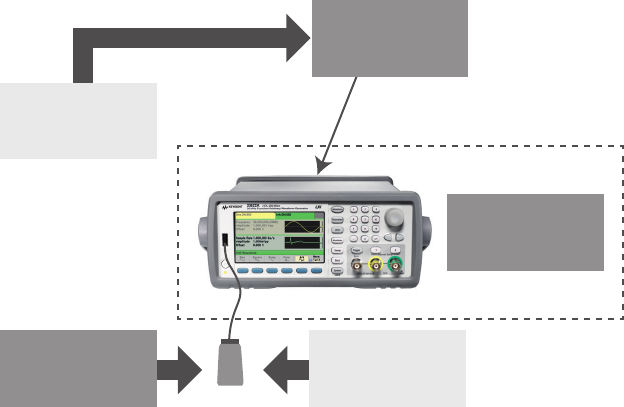

Figure 1. Multiple methods to create and import waveforms into the new 33500B and 33600A Series
Trueform waveform generators.
Waveform
Builder Basic
MATLAB, Excel
and others
Oscilloscope
waveforms
Embedded basic
waveform editor
Direct link or USB drive,
CSV or ARB file
USB drive, CSV file
Waveform
Builder Pro
04 | Keysight | 33503A BenchLink Waveform Builder Pro and Basic Software - Data Sheet
Exceptional Functionality
The BenchLink Waveform Builder Pro software features a range of functionality designed to make common and custom waveform
creation a fast and simple process. This functionality is summarized in Table 1.
Table 1. 33503A BenchLink Waveform Builder Pro and Basic version functionality.
Category Description
Waveform types
Basic waveforms DC
Sine
Triangle
Square (with transition)
Pulse (with transition)
Ramp
Noise
Half-sine
Line
Advance waveforms (Pro version only) Exponential rise
Exponential fall
Noise
Sinc
Sweep
Multi-tone
Lorentz
Stair step
Haversine
Gaussian
Logarithmic
Trapezoid
Serial data
Damped oscillation
Distorted sine
Surge pulse
05 | Keysight | 33503A BenchLink Waveform Builder Pro and Basic Software - Data Sheet
Single-channel waveform
View Segment markers
X and Y cursors
Pin cursors
Edit Multi-level undo/redo for all basic waveform editing operations
Paste options such as at beginning, end, cursor, or replacement selection
Copy/paste options with excel sheet
Copy/paste options with text le
Insert options such as at beginning, end, cursor, or replacement selection
Edit/add/remove waveform points via table
Math Addition
Subtraction
Multiplication
Math operation with waveform library
Math operation with constants
Math operation with clipboard
Division by constant
Dual-channel waveforms (Pro version only)
View Segment markers
X and Y cursors
Pin cursors
Blinking cursor
Edit Multi-level undo/redo for all basic waveform editing operations
Paste options such as at beginning, end, cursor, or replacement selection
Copy/paste options with Excel sheet
Copy/paste options with text le
Insert options such as at beginning, end, cursor, or replacement selection
Edit/add/remove waveform points via table
Synchronize and un-synchronize editing of dual-channel waveform
Math Addition
Subtraction
Multiplication
Math operation with waveform library
Math operation with constants
Math operation with clipboard
Sequencing (Pro version only)
Drag/drop sequence thumbnails
Sequence editing via grid
Simple undo/redo support
Samples information
Time duration
Scrolling
Repeat
Waveform generators that support sequencing Create and save sequence
Send and play sequence
06 | Keysight | 33503A BenchLink Waveform Builder Pro and Basic Software - Data Sheet
Common math operations (Single and dual-channel)
Math Clip
Absolute
Invert
Mirror
Resize
Shift/rotate -> horizontal
Normalize waveform
Trim
Scale
Re-sampling of waveform (sinc, linear, add points with zero amplitude)
Filters (Pro version only) Low pass (F)
High pass (F)
Band pass (F,F)
Low pass (second order) (F)
Raised cosine
Root-raised cosine
Butterworth
Chebyshev
Bessel
Elliptical
User FIR (16 coefcients)
Windowing (Pro version only) Hann
Hamming
Rectangular (uniform)
Triangular
Smooth (circular)
Gaussian
Blackman
Flat top
Equation editor
Build equations to create more advanced waveforms
Arithmetic operators + , — , *, / , x^y, ( , )
Function library ABS, ARCTAN, COS, EXP, FACT, LN, NOISE (uniform), NOISE (normal), POINT, SIN, SQRT, STEP,
TAN
View operations
View View individual data points/connect dots
Panoramic view
Time scale
Scrolling
Flexibility in editing the application display properties
View FFT of waveform
View CCDF of waveform
View constellation (X vs. Y) of waveform
Edit Set total samples/total time duration/sampling rate
Freehand draw
Line draw
Point draw (with interpolation as linear, smooth, staircase)
Zooming Horizontal zoom
Vertical zoom
Area zoom
Zoom out
Zoom with mouse wheel
07 | Keysight | 33503A BenchLink Waveform Builder Pro and Basic Software - Data Sheet

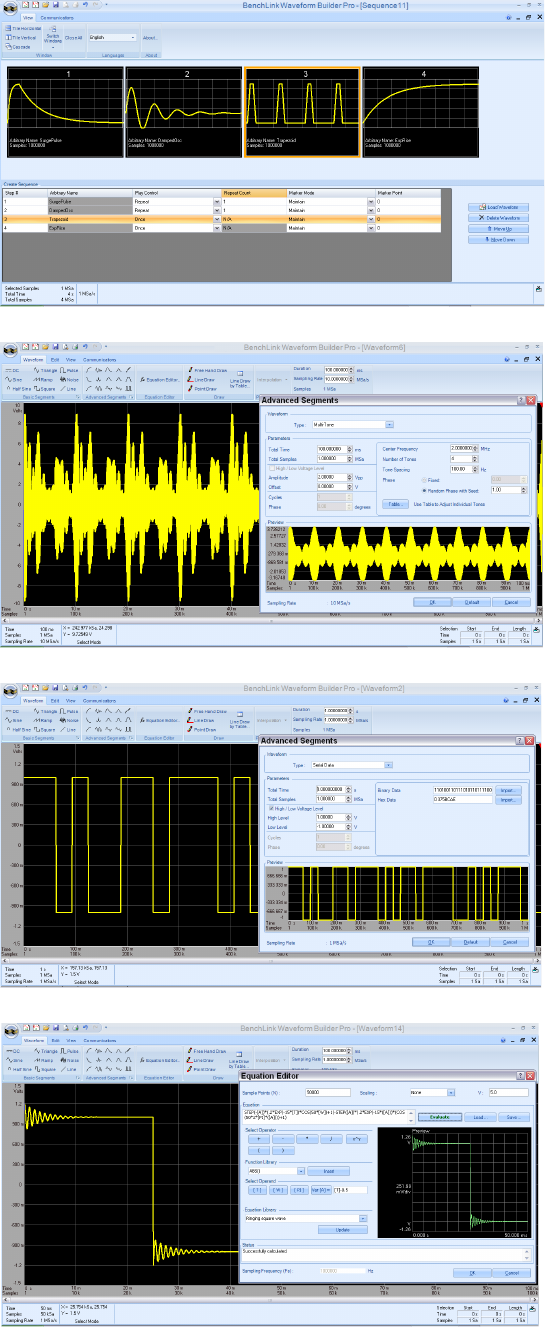

Waveform Creation Examples
Figure 2.
Arbitrary Waveform Sequences: Use the Waveform Sequence Tool
to create longer custom waveforms by linking multiple waveforms
together.
Figure 3.
Multi-tone Signals: Use the Multi-tone Segment Tool to create a
multi-tone signal, up to 64 tones, to analyze a communications
device.
Figure 4.
Serial Data Stream: Use the Serial Data Segment Tool to create a
digital bit stream to simulate the data flow of a serial link in your
device.
Figure 5.
Equation Editor: Use the Equation Editor Tool to create more
advanced waveforms by writing equations that simulate your
specific applications.
08 | Keysight | 33503A BenchLink Waveform Builder Pro and Basic Software - Data Sheet
Comparing BenchLink Waveform Builder Basic and Waveform Builder Pro
Table 2. Functionality comparison between BenchLink Waveform Builder
Pro versus Basic
Features Waveform Builder Basic Waveform Builder Pro
Basic waveform library √ √
Cut, copy, paste with Excel √ √
Waveform math √ √
Free hand √ √
Line draw √ √
Advanced waveform library √
Equation editor √
Point draw √
FFT, CCDF, and constellation diagram √
Filters √
Windowing functions √
Dual-channel operation √
Supported waveform generators and oscilloscopes
The BenchLink Waveform Builder Pro software supports the following Keysight waveform
generators:
– 33210A, 33220A, 33250A function/arbitrary waveform generators
– 33500 Series, 33600 Series waveform generators
– 81150A, 81160A, 81180A pulse/function/arbitrary noise generators
– M8190A arbitrary waveform generator
– 2000 X-Series
– DSO/MSO-X InfiniiVision 3000, 4000 X-Series oscilloscopes
– 3000 T-Series
– U2761A USB modular function generator
Compatible software
Keysight’s BenchVue software can be used with Waveform Builder Pro software. Create signals
using Waveform Builder Pro, then use BenchVue to control the waveform generator signal
outputs, modulation, and other parameters. These two software tools are built to work together
for a more complete solution for controlling your waveform generator 1.
1. BenchVue has different supported instrument models than Waveform Builder Pro. Please see
www.keysight.com/find/BenchVueInstruments for the latest list of BenchVue supported instruments.
09 | Keysight | 33503A BenchLink Waveform Builder Pro and Basic Software - Data Sheet
Comparing BenchLink Waveform Builder Basic and Waveform Builder Pro
(Continued)
Instrument connectivity
– Keysight I/O support
– National instruments I/O support
Supported interfaces
– USB
– LAN
– GPIB
File operations for signal and dual channel waveforms (both open and
save les)
File format:
– IntuiLink (.wvf)
– CSV (.csv)
– Binary
– Text (.txt)
– 33500 Series ASCII (.arb)
– 33500 Series binary (.barb)
– 33500 Series sequence (.seq)
– 33600 Series ASCII (.arb)
– 33600 Series binary (.barb)
– 33600 Series sequece (.seq)
– 81100 Series sequence (.dseq)
– Dual-channel operation
10 | Keysight | 33503A BenchLink Waveform Builder Pro and Basic Software - Data Sheet
Ordering options and licensing information
Model number Product name
33503A BenchLink Waveform Builder Pro software
1. Order the software and download directly from the Keysight web site for immediate use.
2. Order CD containing the software from the Keysight web site and it will be shipped to
you.
To order your copy or download a free 30-day trial version and start gaining insights into your
measurements today, visit www.keysight.com/nd/33503.
The free 30-day demo version of the BenchLink Waveform Builder Pro Software is the fully
functional Pro version. After the 30-day trial period the full version of the software will revert to
the basic free version. If you choose to continue to utilize the full Pro version, you may purchase
a license and retain the Pro version’s full functionality and benets.
System and Ordering Information
System and installation requirements
System Installation requirements
Operating system Windows 7 Pro, Windows Vista (64- and 32-bit)
Processor Recommend Intel CORETM, Minimum Pentium 5
RAM Recommend 3 GB or greater
Disk space Recommend 300 MB, min 200 MB
Display 1024 x 768 resolution, 256 colors
PC administrator access Must login PC with a user password or have administrative access
(soft-ware does not run in “guest mode”)
Keysight IO Libraries version 17.2
or later installed on your machine
The IO libraries are included with instrument on CD or can be
downloaded from the ADN web site: www.keysight.com/nd/adn
33521A, 33522A models Firmware revision 1.12 or greater
11 | Keysight | 33503A BenchLink Waveform Builder Pro and Basic Software - Data Sheet
This information is subject to change without notice.
© Keysight Technologies, 2012 - 2016
Published in USA, July 28, 2016
5990-7569EN
www.keysight.com
Evolving
Our unique combination of hardware, software, support, and people can help
you reach your next breakthrough. We are unlocking the future of technology.
From Hewlett-Packard to Agilent to Keysight
myKeysight
www.keysight.com/find/mykeysight
A personalized view into the information most relevant to you.
Keysight Channel Partners
www.keysight.com/find/channelpartners
Get the best of both worlds: Keysight’s measurement expertise and product
breadth, combined with channel partner convenience.
www.keysight.com/find/33503A
For more information on Keysight
Technologies’ products, applications or
services, please contact your local Keysight
office. The complete list is available at:
www.keysight.com/find/contactus
Americas
Canada (877) 894 4414
Brazil 55 11 3351 7010
Mexico 001 800 254 2440
United States (800) 829 4444
Asia Pacic
Australia 1 800 629 485
China 800 810 0189
Hong Kong 800 938 693
India 1 800 11 2626
Japan 0120 (421) 345
Korea 080 769 0800
Malaysia 1 800 888 848
Singapore 1 800 375 8100
Taiwan 0800 047 866
Other AP Countries (65) 6375 8100
Europe & Middle East
Austria 0800 001122
Belgium 0800 58580
Finland 0800 523252
France 0805 980333
Germany 0800 6270999
Ireland 1800 832700
Israel 1 809 343051
Italy 800 599100
Luxembourg +32 800 58580
Netherlands 0800 0233200
Russia 8800 5009286
Spain 800 000154
Sweden 0200 882255
Switzerland 0800 805353
Opt. 1 (DE)
Opt. 2 (FR)
Opt. 3 (IT)
United Kingdom 0800 0260637
For other unlisted countries:
www.keysight.com/find/contactus
(BP-06-08-16)
Learn more at
www.keysight.com/nd/software
Start with a 30-day free trial.
www.keysight.com/nd/free_trials
Download your next insight
Keysight software is downloadable
expertise. From rst simulation through
rst customer shipment, we deliver the
tools your team needs to accelerate from
data to information to actionable insight.
– Electronic design automation (EDA)
software
– Application software
– Programming environments
– Productivity software
