Network Video Recorder
User Manual
UD04699B
Network Video Recorder User Manual
1
User Manual
COPYRIGHT © 2017 Hangzhou Hikvision Digital Technology Co., Ltd.
ALL RIGHTS RESERVED.
Any and all information, including, among others, wordings, pictures, graphs are the properties of
Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be
“Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced,
changed, translated, or distributed, partially or wholly, by any means, without the prior written
permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties,
guarantees or representations, express or implied, regarding to the Manual.
About this Manual
This Manual is applicable to Network Video Recorder (NVR).
The Manual includes instructions for using and managing the product. Pictures, charts, images and
all other information hereinafter are for description and explanation only. The information
contained in the Manual is subject to change, without notice, due to firmware updates or other
reasons. Please find the latest version in the company website
(http://overseas.hikvision.com/en/).
Please use this user manual under the guidance of professionals.
Trademarks Acknowledgement
and other Hikvision’s trademarks and logos are the properties of Hikvision in various
jurisdictions. Other trademarks and logos mentioned below are the properties of their respective
owners.
Legal Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS
HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS,
AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,
MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND
NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS,
EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR
INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS,
BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE
USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY
AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL
OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER
ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL
PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR
JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS
THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS
USED WITH ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER
PREVAILS.
Network Video Recorder User Manual
2
Regulatory Information
FCC Information
Please take attention that changes or modification not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
FCC compliance: This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at his
own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with "CE" and
comply therefore with the applicable harmonized European standards listed under the
EMC Directive 2014/30/EU, the LVD Directive 2014/35/EU, the RoHS Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as
unsorted municipal waste in the European Union. For proper recycling, return this
product to your local supplier upon the purchase of equivalent new equipment, or
dispose of it at designated collection points. For more information see: www.recyclethis.info
2006/66/EC (battery directive): This product contains a battery that cannot be disposed of
as unsorted municipal waste in the European Union. See the product documentation for
specific battery information. The battery is marked with this symbol, which may include
lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the
battery to your supplier or to a designated collection point. For more information see:
www.recyclethis.info
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.
Network Video Recorder User Manual
3
Applicable Models
This manual is applicable to the models listed in the following table.
Series
Model
DS-9600NI-I8
DS-9608NI-I8
DS-9616NI-I8
DS-9632NI-I8
DS-9664NI-I8
DS-9600NI-I16
DS-9616NI-I16
DS-9632NI-I16
DS-9664NI-I16
DS-8600NI-I8
DS-8608NI-I8
DS-8616NI-I8
DS-8632NI-I8
DS-8664NI-I8
DS-7600NI-I2
DS-7608NI-I2
DS-7616NI-I2
DS-7632NI-I2
DS-7600NI-I2/P
DS-7608NI-I2/8P
DS-7616NI-I2/16P
DS-7632NI-I2/16P
DS-7700NI-I4
DS-7708NI-I4
DS-7716NI-I4
DS-7732NI-I4
DS-7700NI-I4/P
DS-7708NI-I4/8P
DS-7716NI-I4/16P
DS-7732NI-I4/16P
DS-8600NI-K8
DS-8608NI-K8
DS-8616NI-K8
DS-8632NI-K8
DS-7700NI-K4
DS-7708NI-K4
DS-7716NI-K4
DS-7732NI-K4
DS-7700NI-K4/P
DS-7708NI-K4/8P
DS-7716NI-K4/16P
Network Video Recorder User Manual
4
Symbol Conventions
The symbols that may be found in this document are defined as follows.
DS-7732NI-K4/16P
DS-7600NI-K2
DS-7608NI-K2
DS-7616NI-K2
DS-7632NI-K2
DS-7600NI-K2/P
DS-7608NI-K2/8P
DS-7616NI-K2/16P
DS-7632NI-K2/16P
DS-7600NI-K1
DS-7604NI-K1
DS-7608NI-K1
DS-7616NI-K1
DS-7600NI-K1/4P
DS-7604NI-K1/4P
Symbol
Description
Provides additional information to emphasize or supplement
important points of the main text.
Indicates a potentially hazardous situation, which if not avoided,
could result in equipment damage, data loss, performance
degradation, or unexpected results.
Indicates a hazard with a high level of risk, which if not avoided, will
result in death or serious injury.
Network Video Recorder User Manual
5
Safety Instructions
- Proper configuration of all passwords and other security settings is the responsibility of the
installer and/or end-user.
- In the use of the product, you must be in strict compliance with the electrical safety
regulations of the nation and region. Please refer to technical specifications for detailed
information.
- Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power
Source with 100~240 VAC or 12 VDC according to the IEC60950-1 standard. Please refer to
technical specifications for detailed information.
- Do not connect several devices to one power adapter as adapter overload may cause
over-heating or a fire hazard.
- Please make sure that the plug is firmly connected to the power socket.
- If smoke, odor or noise rise from the device, turn off the power at once and unplug the power
cable, and then please contact the service center.
Preventive and Cautionary Tips
Before connecting and operating your device, please be advised of the following tips:
- Ensure unit is installed in a well-ventilated, dust-free environment.
- Unit is designed for indoor use only.
- Keep all liquids away from the device.
- Ensure environmental conditions meet factory specifications.
- Ensure unit is properly secured to a rack or shelf. Major shocks or jolts to the unit as a result of
dropping it may cause damage to the sensitive electronics within the unit.
- Use the device in conjunction with an UPS if possible.
- Power down the unit before connecting and disconnecting accessories and peripherals.
- A factory recommended HDD should be used for this device.
- Improper use or replacement of the battery may result in hazard of explosion. Replace with
the same or equivalent type only. Dispose of used batteries according to the instructions
provided by the battery manufacturer.
Network Video Recorder User Manual
6
Product Key Features
General
- Connectable to network cameras, network dome and encoders.
- Connectable to the third-party network cameras like ACTI, Arecont, AXIS, Bosch, Brickcom,
Canon, PANASONIC, Pelco, SAMSUNG, SANYO, SONY, Vivotek and ZAVIO, and cameras that
adopt ONVIF or PSIA protocol.
- Connectable to the smart IP cameras.
- H.265+/H.265/ H.264+/H.264/MPEG4 video formats
- PAL/NTSC adaptive video inputs.
- Each channel supports dual-stream.
- Up to 8/16/32/64 network cameras can be added according to different models.
- Independent configuration for each channel, including resolution, frame rate, bit rate, image
quality, etc.
- The quality of the input and output record is configurable.
Local Monitoring
- HDMI/VGA1 and HDMI2/VGA2 outputs provided for DS-9600NI and DS-8600NI series NVR.
- HDMI and VGA outputs provided for DS-7600NI and DS-7700NI series NVR.
- HDMI Video output at up to 4K resolution and VGA video output at up to 2K resolution.
- Multiple screen display in live view is supported, and the display sequence of channels is
adjustable.
- Live view screen can be switched in group. Manual switch and auto-switch are provided and
the auto-switch interval is configurable.
- 3D positioning supported by I series NVR in live view.
- Configurable main stream and sub-stream for the live view.
- Quick setting menu is provided for live view.
- POS information overlay on live view by I series NVR.

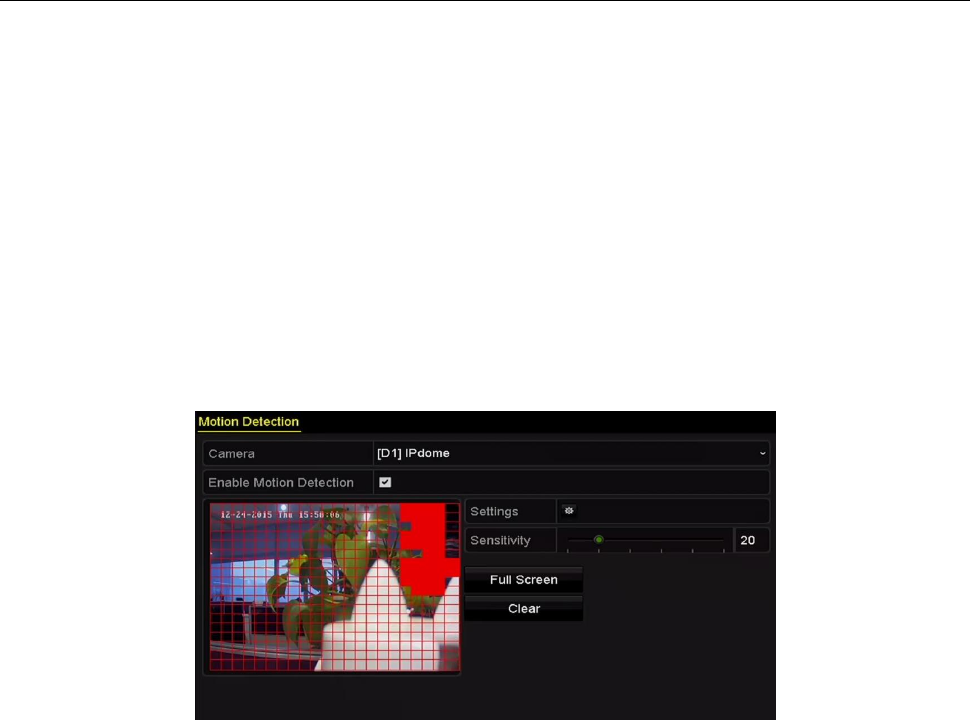

- Motion detection, video tampering, video exception alert and video loss alert functions.

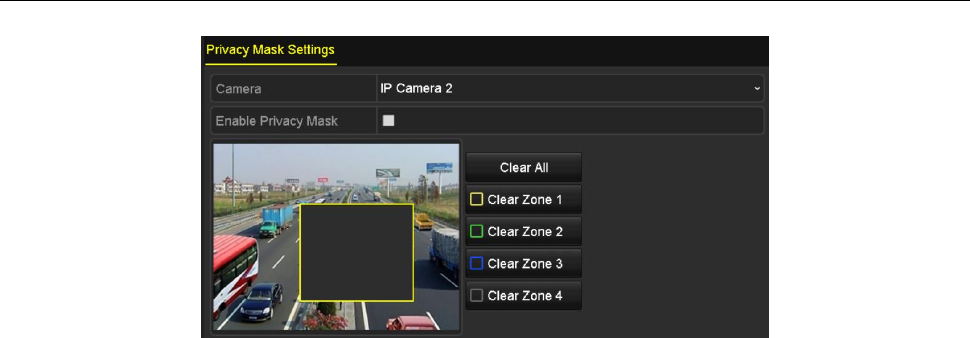

- Privacy mask.

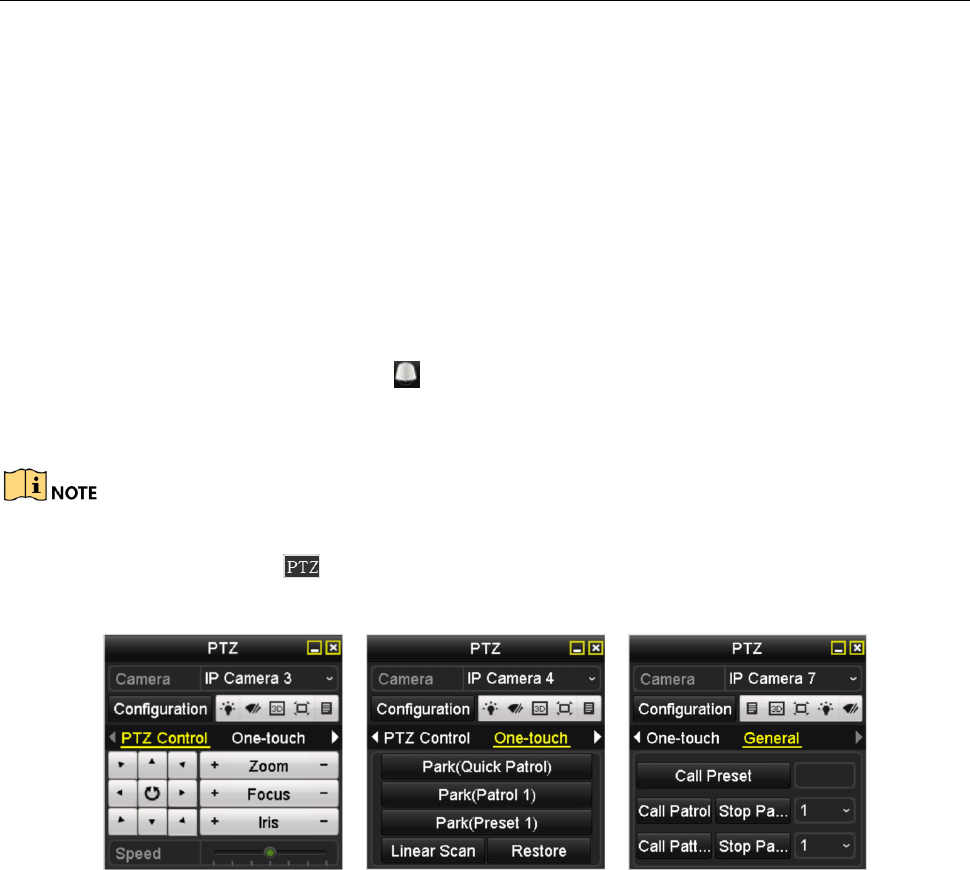

- Multiple PTZ protocols supported; PTZ preset, patrol and pattern.
- Zooming in by clicking the mouse and PTZ tracing by dragging mouse.
HDD Management
- Up to 16 SATA hard disks and 1 eSATA disk can be connected for DS-9600NI-I16, up to 8 SATA
hard disks and 1 eSATA disk can be connected for DS-9600NI-I8, DS-8600NI-I8 and
DS-8600NI-K8, 4 SATA hard disks for DS-7700NI, 2 SATA hard disks for DS-7600NI-I2/K2 (/P),
and 1 SATA hard disk for DS-7600NI-K1 (/P) series NVR.
Network Video Recorder User Manual
7
- Up to 6TB storage capacity for each disk supported.
- Supports 8 network disks (NAS/IP SAN disk).
- Supports S.M.A.R.T. and bad sector detection.
- HDD group management.
- Supports HDD standby function.
- HDD property: redundancy, read-only, read/write (R/W).
- HDD quota management; different capacity can be assigned to different channel.
- For DS-9600NI-I8 and DS-9600NI-I16 series, RAID0, RAID1, RAID5, RAID6 and RAID 10 are
supported.
- Hot-swappable RAID storage scheme, and can be enabled and disabled on your demand. And
16 arrays can be configured.
- DS-9600NI-I8, DS-8600NI-I8 and DS-9600NI-I16 series NVR support disk clone to the eSATA
disk.
Recording, Capture and Playback
The capture is supported by I series NVR only.
- Holiday recording schedule configuration.
- Continuous and event video recording parameters.
- Multiple recording types: manual, continuous, alarm, motion, motion | alarm, motion & alarm
VCA, and POS (for I series NVR only).
- 8 recording time periods with separated recording types.
- POS information overlay on image by I series NVR.
- Pre-record and post-record for alarm, motion detection for recording, and pre-record time for
schedule and manual recording.

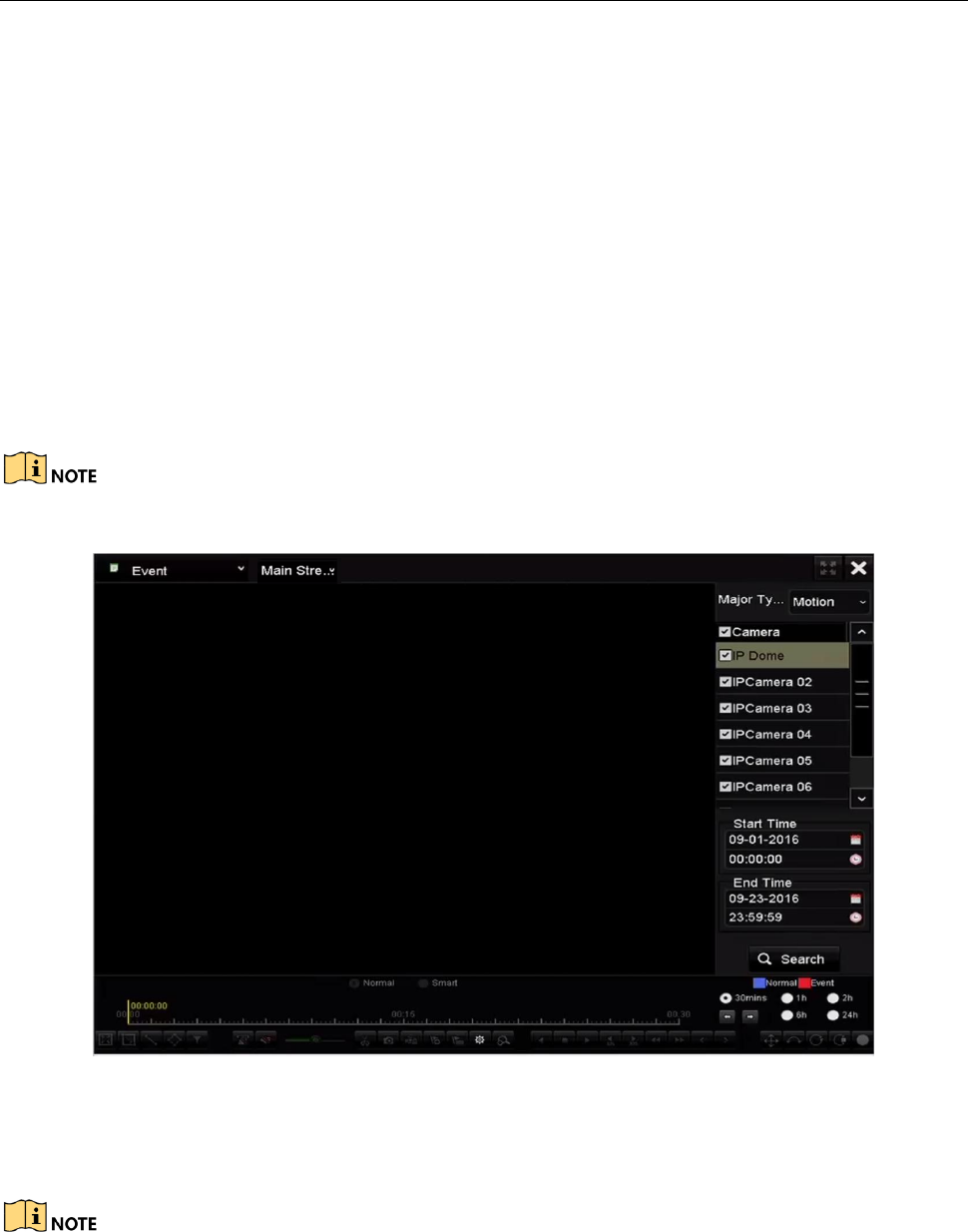

- Searching record files and captured pictures by events (alarm input/motion detection).
- Tag adding for record files, searching and playing back by tags.
- Locking and unlocking record files.
- Local redundant recording and capture.
- Provide new playback interface with easy and flexible operation.
- Searching and playing back record files by channel number, recording type, start time, end
time, etc.
- Supports the playback by main stream or sub stream. ( I series NVR)
- Smart search for the selected area in the video.
- Zooming in when playback.
- Reverse playback of multi-channel.
Network Video Recorder User Manual
8
- Supports pause, play reverse, speed up, speed down, skip forward, and skip backward when
playback, and locating by dragging the mouse.
- Supports thumbnails view and fast view during playback.
- Up to 16-ch synchronous playback at 1080p real time.
- Supports playback by transcoded stream.
- Manual capture, continuous capture of video images and playback of captured pictures.
- Supports enabling H.264+ to ensure high video quality with lowered bitrate.
Backup
- Export video data by USB, SATA or eSATA device (for DS-9600NI-I8, DS-8600NI-I8 and
DS-9600NI-I16 only).
- Export video clips when playback.
- Management and maintenance of backup devices.
- Either Normal or Hot Spare working mode is configurable to constitute an N+1 hot spare
system.
Alarm and Exception
- Configurable arming time of alarm input/output.
- Alarm for video loss, motion detection, tampering, abnormal signal, video input/output
standard mismatch, illegal login, network disconnected, IP confliction, abnormal
record/capture, HDD error, and HDD full, etc.
- POS triggered alarm supported by I series NVR.
- VCA detection alarm is supported.
- VCA search for face detection, vehicle plate, behavior analysis, people counting and heat map.
- Connectable to the thermal network camera. (I series NVR)
- Supports the advanced search for fire/ship/temperature/temperature difference detection
triggered alarm and the recorded video files and pictures (I series NVR)
- Alarm triggers full screen monitoring, audio alarm, notifying surveillance center, sending email
and alarm output.
- Automatic restore when system is abnormal.
Other Local Functions
- Operable by front panel, mouse, remote control, or control keyboard.
- Three-level user management; admin user is allowed to create many operating accounts and
define their operating permission, which includes the limit to access any channel.
- Admin password resetting by exporting/importing the GUID file.
- Operation, alarm, exceptions and log recording and searching.
- Manually triggering and clearing alarms.
- Import and export of device configuration information.
Network Video Recorder User Manual
9
Network Functions
- Two self-adaptive 10M/100M/1000Mbps network interfaces for DS-9600NI, DS-8600NI,
DS-7700NI-I4 and DS-7700NI-K4, and the multi-address and network fault tolerance working
modes are configurable.
- One self-adaptive 10M/100M/1000Mbps network interface for DS-7600NI-K2/I2 (/P),
DS-7700NI-I4/P and DS-7700NI-K4/P.
- One self-adaptive 10M/100Mbps network interface for DS-7600NI-K1 (/P).
- Four independent PoE network interfaces are provided for /4P models, eight independent PoE
network interfaces for the /8P models, and sixteen independent PoE network interfaces for the
/16P models.
- Long distance (100-300 m) network transmission via PoE (for /P models).
- IPv6 is supported.
- TCP/IP protocol, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, and iSCSI are supported.
- TCP, UDP and RTP for unicast.
- Auto/Manual port mapping by UPnPTM.
- Support access by Hik-Connect.
- Remote web browser access by HTTPS ensures high security.
- The ANR (Automatic Network Replenishment) function is supported, it enables the IP camera
save the recording files in the local storage when the network is disconnected, and
synchronizes the files to the NVR when the network is resumed.
- Remote reverse playback via RTSP.
- Supports accessing by the platform via ONVIF.
- Remote search, playback, download, locking and unlocking of the record files, and support
downloading files broken transfer resume.
- Remote parameters setup; remote import/export of device parameters.
- Remote viewing of the device status, system logs and alarm status.
- Remote keyboard operation.
- Remote HDD formatting and program upgrading.
- Remote system restart and shutdown.
- RS-232, RS-485 transparent channel transmission.
- Alarm and exception information can be sent to the remote host
- Remotely start/stop recording.
- Remotely start/stop alarm output.
- Remote PTZ control.
- Remote JPEG capture.

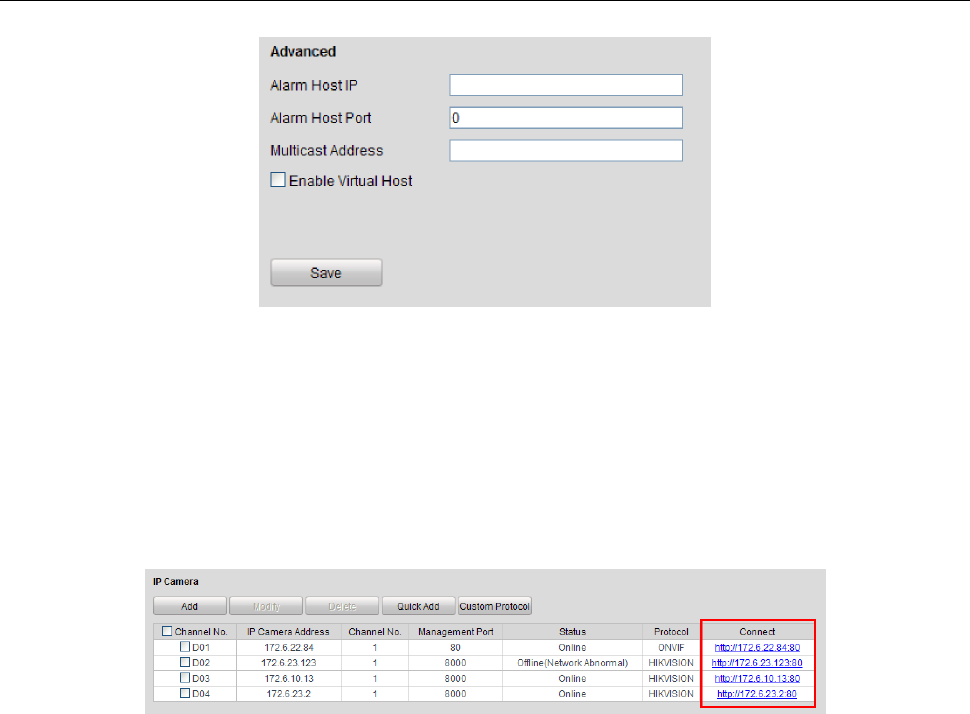

- Virtual host function is provided to get access and manage the IP camera directly.
- Two-way audio and voice broadcasting.
Network Video Recorder User Manual
10
- Embedded WEB server.
Development Scalability:
- SDK for Windows system.
- Source code of application software for demo.
- Development support and training for application system.
Network Video Recorder User Manual
11
TABLE OF CONTENTS
Chapter 1 Introduction ................................................................................................................... 18
1.1 Front Panel ....................................................................................................................... 18
1.1.1 DS-9600NI Series ..................................................................................................... 18
1.1.2 DS-8600NI-I8 Series ................................................................................................. 22
1.1.3 DS-8600NI-K8 and DS-7700NI Series ...................................................................... 26
1.1.4 DS-7600NI Series ..................................................................................................... 28
1.2 IR Remote Control Operations ......................................................................................... 28
1.3 USB Mouse Operation ...................................................................................................... 34
1.4 Input Method Description ................................................................................................ 35
1.5 Rear Panel ........................................................................................................................ 36
1.5.1 DS-9600NI and DS-8600NI Series ............................................................................ 36
1.5.2 DS-7600NI Series ..................................................................................................... 37
1.5.3 DS-7700NI Series ..................................................................................................... 40
Chapter 2 Getting Started .............................................................................................................. 42
2.1 Device Startup and Activation .......................................................................................... 42
2.1.1 Starting Up and Shutting Down the NVR ................................................................ 42
2.1.2 Activating Your Device ............................................................................................. 43

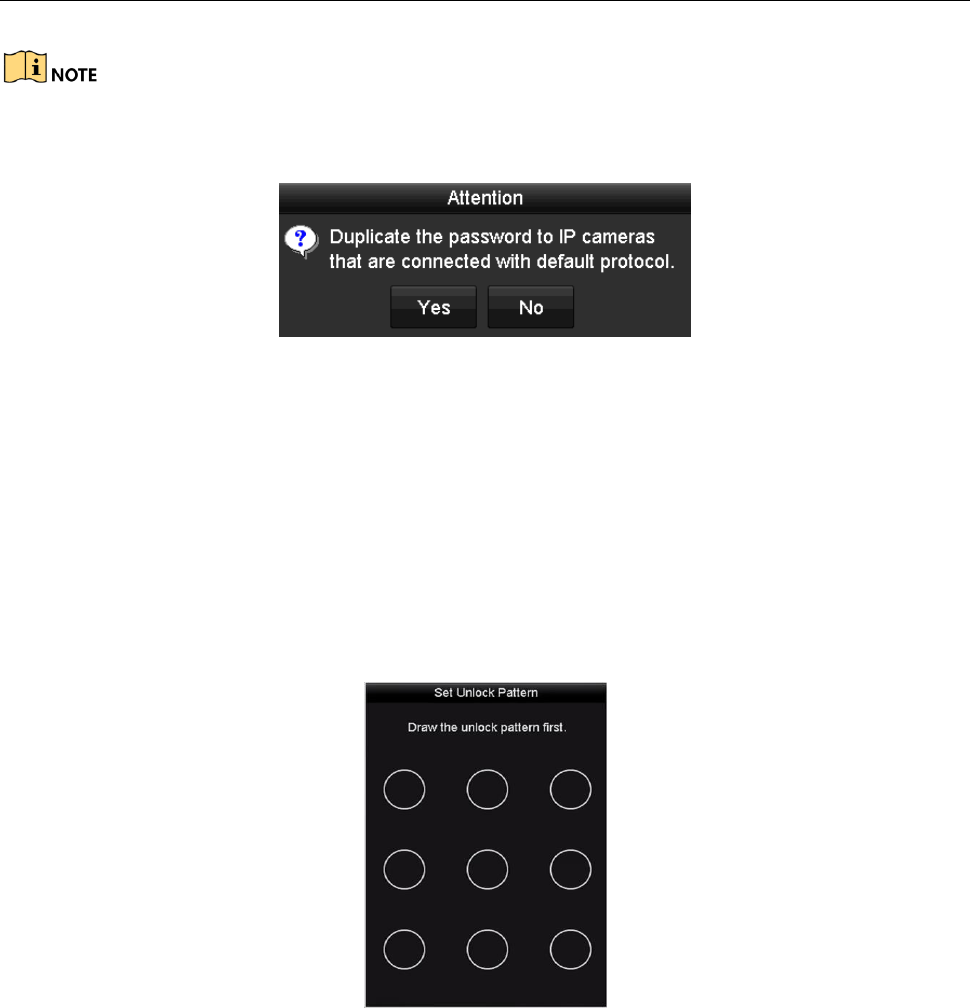

2.1.3 Using the Unlock Pattern for Login ......................................................................... 45
2.1.4 Login and Logout ..................................................................................................... 48
2.1.5 Resetting Your Password ......................................................................................... 49
2.2 Using Wizard for Basic Configuration ............................................................................... 50
2.3 Adding and Connecting the IP Cameras ........................................................................... 56
2.3.1 Activating the IP Camera ......................................................................................... 56
2.3.2 Adding the Online IP Cameras ................................................................................. 57
2.3.3 Editing the Connected IP Cameras and Configuring Customized Protocols ........... 62
2.3.4 Editing IP Cameras Connected to the PoE Interfaces .............................................. 66
2.3.5 Configuring PoE Interface ........................................................................................ 68
Chapter 3 Live View ....................................................................................................................... 70
3.1 Introduction of Live View ................................................................................................. 70
3.2 Operations in Live View Mode ......................................................................................... 71
3.2.1 Front Panel Operation on Live View ....................................................................... 72
3.2.2 Using the Mouse in Live View ................................................................................. 72
Network Video Recorder User Manual
12
3.2.3 Using an Auxiliary Monitor ...................................................................................... 73
3.2.4 Quick Setting Toolbar in Live View Mode ............................................................... 74
3.2.5 Fisheye Expansion View .......................................................................................... 76
3.3 Adjusting Live View Settings ............................................................................................ 78
3.4 Channel-zero Encoding..................................................................................................... 80
Chapter 4 PTZ Controls ................................................................................................................. 81
4.1 Configuring PTZ Settings .................................................................................................. 81
4.2 Setting PTZ Presets, Patrols & Patterns ............................................................................ 83
4.2.1 Customizing Presets ................................................................................................ 83
4.2.2 Calling Presets ......................................................................................................... 83
4.2.3 Customizing Patrols ................................................................................................. 84
4.2.4 Calling Patrols .......................................................................................................... 85
4.2.5 Customizing Patterns .............................................................................................. 86
4.2.6 Calling Patterns ....................................................................................................... 87
4.2.7 Customizing Linear Scan Limit ................................................................................. 87
4.2.8 Calling Linear Scan ................................................................................................... 88
4.2.9 One-touch Park ....................................................................................................... 89
4.3 PTZ Control Panel ............................................................................................................. 91
Chapter 5 Recording and Capture Settings ................................................................................. 93
5.1 Configuring Parameters .................................................................................................... 93
5.2 Configuring Recording and Capture Schedule ................................................................. 97
5.3 Configuring Motion Detection Recording and Capture ................................................. 101
5.4 Configuring Alarm Triggered Recording and Capture .................................................... 103
5.5 Configuring VCA Event Recording .................................................................................. 105
5.6 Manual Recording and Continuous Capture .................................................................. 107
5.7 Configuring Holiday Recording and Capture .................................................................. 109
5.8 Configuring Redundant Recording and Capture ............................................................ 111
5.9 Configuring HDD Group for Recording and Capture ...................................................... 113
5.10 Files Protection ............................................................................................................ 114
5.10.1 Locking the Recording Files ................................................................................. 114
5.10.2 Setting HDD Property to Read-only .................................................................... 116
Chapter 6 Playback ....................................................................................................................... 118
6.1 Playing Back Record Files ............................................................................................... 118
6.1.1 Instant Playback .................................................................................................... 118
6.1.2 Playing Back by Normal Search ............................................................................. 118
Network Video Recorder User Manual
13
6.1.3 Playing back by Smart Search................................................................................ 122
6.1.4 Playing Back by Event Search ................................................................................ 125
6.1.5 Playing Back by Tag ............................................................................................... 127
6.1.6 Playing Back by Sub-periods ................................................................................. 129
6.1.7 Playing Back by System Logs ................................................................................. 130
6.1.8 Playing Back External File ...................................................................................... 132
6.1.9 Playing Back Pictures ............................................................................................. 133
6.2 Auxiliary Functions of Playback ...................................................................................... 134
6.2.1 Playing Back Frame by Frame ............................................................................... 134
6.2.2 Thumbnails View................................................................................................... 134
6.2.3 Fast View ............................................................................................................... 135
6.2.4 Digital Zoom .......................................................................................................... 135
6.2.5 File Management .................................................................................................. 136
Chapter 7 Backup .......................................................................................................................... 137
7.1 Backing up Record Files .................................................................................................. 137
7.1.1 Quick Export .......................................................................................................... 137
7.1.2 Backing up by Normal Video/Picture Search ........................................................ 139
7.1.3 Backing up by Event Search ................................................................................... 142
7.1.4 Backing up Video Clips or Captured Playback Pictures ......................................... 143
7.2 Managing Backup Devices .............................................................................................. 144
7.3 Hot Spare Device Backup ............................................................................................... 145
7.3.2 Setting Hot Spare Device ....................................................................................... 145
7.3.3 Setting Working Device ......................................................................................... 146
7.3.4 Managing Hot Spare System ................................................................................. 146
Chapter 8 Alarm Settings ............................................................................................................. 149
8.1 Setting Motion Detection Alarm .................................................................................... 149
8.2 Setting Sensor Alarms .................................................................................................... 151
8.3 Detecting Video Loss Alarm ........................................................................................... 154
8.4 Detecting Video Tampering Alarm ................................................................................. 156
8.5 Handling Exceptions Alarm ............................................................................................ 158
8.6 Setting Alarm Response Actions .................................................................................... 159
8.7 Triggering or Clearing Alarm Output Manually .............................................................. 163
Chapter 9 POS Configuration ...................................................................................................... 164
9.1 Configuring POS Settings ................................................................................................ 164
9.2 Configuring Overlay Channel .......................................................................................... 169
Network Video Recorder User Manual
14
9.3 Configuring POS Privacy Information Filtering............................................................... 170
9.4 Configuring POS Alarm ................................................................................................... 170
Chapter 10 VCA Alarm ................................................................................................................ 173
10.1 Face Detection.............................................................................................................. 173
10.2 Vehicle Detection ......................................................................................................... 175
10.3 Line Crossing Detection ................................................................................................ 176
10.4 Intrusion Detection ...................................................................................................... 179
10.5 Region Entrance Detection .......................................................................................... 181
10.6 Region Exiting Detection .............................................................................................. 182
10.7 Unattended Baggage Detection ................................................................................... 182
10.8 Object Removal Detection ........................................................................................... 183
10.9 Audio Exception Detection ........................................................................................... 183
10.10 Sudden Scene Change Detection ............................................................................... 184
10.11 Defocus Detection ...................................................................................................... 185
10.12 PIR Alarm .................................................................................................................... 185
Chapter 11 VCA Search ................................................................................................................ 186
11.1 Face Search ................................................................................................................... 186
11.2 Behavior Search ............................................................................................................ 187
11.3 Plate Search .................................................................................................................. 189
11.4 People Counting ........................................................................................................... 190
11.5 Heat Map ...................................................................................................................... 191
11.6 Advanced Search .......................................................................................................... 193
Chapter 12 Network Settings ...................................................................................................... 195
12.1 Configuring General Settings ....................................................................................... 195
12.2 Configuring Advanced Settings .................................................................................... 197
12.2.1 Configuring Hik-Connect ..................................................................................... 197
12.2.2 Configuring DDNS ................................................................................................ 199
12.2.3 Configuring NTP Server ....................................................................................... 200
12.2.4 Configuring SNMP ............................................................................................... 201
12.2.5 Configuring More Settings .................................................................................. 202
12.2.6 Configuring HTTPS Port ....................................................................................... 203
12.2.7 Configuring Email ................................................................................................ 205
12.2.8 Configuring NAT .................................................................................................. 207
12.2.9 Configuring Virtual Host ..................................................................................... 209
12.3 Checking Network Traffic ............................................................................................. 210
Network Video Recorder User Manual
15
12.4 Configuring Network Detection ................................................................................... 212
12.4.1 Testing Network Delay and Packet Loss .............................................................. 212
12.4.2 Exporting Network Packet ................................................................................... 212
12.4.3 Checking the Network Status .............................................................................. 213
12.4.4 Checking Network Statistics ................................................................................ 214
Chapter 13 RAID ........................................................................................................................... 216
13.1 Configuring Array ......................................................................................................... 216
13.1.2 Enable RAID ......................................................................................................... 217
13.1.3 One-touch Configuration .................................................................................... 218
13.1.4 Manually Creating Array ..................................................................................... 219
13.2 Rebuilding Array ........................................................................................................... 222
13.2.2 Automatically Rebuilding Array ........................................................................... 222
13.2.3 Manually Rebuilding Array .................................................................................. 223
13.3 Deleting Array .............................................................................................................. 225
13.4 Checking and Editing Firmware ................................................................................... 226
Chapter 14 HDD Management ................................................................................................... 227
14.1 Initializing HDDs ........................................................................................................... 227
14.2 Managing Network HDD .............................................................................................. 229
14.3 Managing eSATA ........................................................................................................... 231
14.4 Managing HDD Group .................................................................................................. 232
14.4.1 Setting HDD Groups ............................................................................................ 232
14.4.2 Setting HDD Property .......................................................................................... 233
14.5 Configuring Quota Mode ............................................................................................. 235
14.6 Configuring Disk Clone ................................................................................................. 237
14.7 Checking HDD Status .................................................................................................... 239
14.8 HDD Detection ............................................................................................................. 241
14.9 Configuring HDD Error Alarms ..................................................................................... 243
Chapter 15 Camera Settings ........................................................................................................ 244
15.1 Configuring OSD Settings ............................................................................................. 244
15.2 Configuring Privacy Mask ............................................................................................. 245
15.3 Configuring Video Parameters ..................................................................................... 247
Chapter 16 NVR Management and Maintenance .................................................................... 248
16.1 Viewing System Information ........................................................................................ 248
16.2 Searching & Exporting Log Files ................................................................................... 249
16.3 Importing/Exporting IP Camera Info ............................................................................ 251
Network Video Recorder User Manual
16
16.4 Importing/Exporting Configuration Files ..................................................................... 252
16.5 Upgrading System ......................................................................................................... 253
16.5.1 Upgrading by Local Backup Device ...................................................................... 253
16.5.2 Upgrading by FTP ................................................................................................ 253
16.6 Restoring Default Settings ............................................................................................ 255
Chapter 17 Others ......................................................................................................................... 256
17.1 Configuring RS-232 Serial Port ..................................................................................... 256
17.2 Configuring General Settings ....................................................................................... 257
17.3 Configuring DST Settings .............................................................................................. 259
17.4 Configuring More Settings ........................................................................................... 260
17.5 Managing User Accounts .............................................................................................. 261
17.5.1 Adding a User ...................................................................................................... 261
17.5.2 Deleting a User .................................................................................................... 264
17.5.3 Editing a User ...................................................................................................... 264
Chapter 18 Appendix ................................................................................................................... 267
18.1 Specifications ............................................................................................................... 267
18.1.1 DS-9600NI-I8 ....................................................................................................... 267
18.1.2 DS-9600NI-I16 ..................................................................................................... 269
18.1.3 DS-8600NI-I8 ....................................................................................................... 271
18.1.4 DS-7600NI-I2 ....................................................................................................... 273
18.1.5 DS-7600NI-I2/P .................................................................................................... 275
18.1.6 DS-7700NI-I4 ....................................................................................................... 277
18.1.7 DS-7700NI-I4/P .................................................................................................... 279
18.1.8 DS-8600NI-K8 ...................................................................................................... 280
18.1.9 DS-7700NI-K4 ...................................................................................................... 283
18.1.10 DS-7700NI-K4/P ................................................................................................. 285
18.1.11 DS-7600NI-K2 .................................................................................................... 287
18.1.12 DS-7600NI-K2/P ................................................................................................. 289
18.1.13 DS-7600NI-K1 .................................................................................................... 291
18.1.14 DS-7604NI-K1/4P ................................................................................................ 293
18.2 Glossary ........................................................................................................................ 295
18.3 Troubleshooting ........................................................................................................... 296
18.4 Summary of Changes ................................................................................................... 304
Version 3.4.92 ................................................................................................................. 304
Version 3.4.91................................................................................................................. 304
Network Video Recorder User Manual
17
Version 3.4.90................................................................................................................. 304
Version 3.4.80................................................................................................................. 304
Version 3.4.70 ................................................................................................................. 305
Version 3.4.6 ................................................................................................................... 305
Version 3.4.2 ................................................................................................................... 305
Version 3.3.9 ................................................................................................................... 306
Version 3.3.7 ................................................................................................................... 306
Version 3.3.6 ................................................................................................................... 306
Version 3.3.4 ................................................................................................................... 307
18.5 List of Compatible IP Cameras...................................................................................... 308
18.5.1 List of Hikvision IP Cameras ................................................................................ 308
18.5.2 List of Third-party IP Cameras ............................................................................. 318
18.5.3 List of IP Cameras Connected to PoE by Long Network Cable (100 - 300 m) ..... 322
Network Video Recorder User Manual
18
Chapter 1 Introduction
1.1 Front Panel
1.1.1 DS-9600NI Series
Figure 1-1 DS-9600NI-I8 Series
Figure 1-2 DS-9600NI-I16 Series
Network Video Recorder User Manual
19
Table 1-1 Panel Description
No.
Name
Function Description
1
Status
Indicators
ALARM
Turns red when a sensor alarm is detected.
READY
Turns blue when the device is functioning
properly.
STATUS
Turns blue when device is controlled by an IR
remote.
Turns red when controlled by a keyboard and
purple when IR remote and keyboard is used at
the same time.
HDD
Flickers red when data is being read from or
written to HDD.
MODEM
Reserved for future usage.
Tx/Rx
Flickers blue when network connection is
functioning properly.
GUARD
Turns blue when the device is in armed status;
at this time, an alarm is enabled when an event
is detected.
Turns off when the device is unarmed. The
arm/disarm status can be changed by pressing
and holding on the ESC button for more than 3
seconds in live view mode.
2
IR Receiver
Receiver for IR remote control.
3
Front Panel Lock
Locks or unlocks the panel by the key.
4
DVD-R/W
Slot for DVD-R/W disk.
5
Alphanumeric Buttons
Switches to the corresponding channel in live
view or PTZ control mode.
Inputs numbers and characters in edit mode.
Switches between different channels in
playback mode.
Turns blue when the corresponding channel is
recording; turns red when the channel is in
network transmission status; turns pink when
the channel is recording and transmitting.
Network Video Recorder User Manual
20
No.
Name
Function Description
6
USB Interfaces
Universal Serial Bus (USB) ports for additional
devices such as USB mouse and USB Hard Disk
Drive (HDD).
7
Composite
Keys
ESC
Returns to the previous menu.
Presses for arming/disarming the device in live
view mode.
REC/SHOT
Enters the Manual Record settings menu.
Presses this button followed by a numeric
button to call a PTZ preset in PTZ control
settings.
Turns audio on/off in the playback mode.
PLAY/AUTO
Enters the playback mode.
Automatically scans in the PTZ control menu.
ZOOM+
Zooms in the PTZ camera in the PTZ control
setting.
A/FOCUS+
Adjusts focus in the PTZ Control menu.
Switches between input methods (upper and
lower case alphabet, symbols and numeric
input).
EDIT/IRIS+
Edits text fields. When editing text fields, it also
deletes the character in front of the cursor.
Checks the checkbox in the checkbox fields.
Adjusts the iris of the camera in PTZ control
mode.
Generates video clips for backup in playback
mode.
Enters/exits the folder of USB device and eSATA
HDD.
MAIN/SPOT/Z
OOM-
Switches between main and spot output.
Zooms out the image in PTZ control mode.
F1/ LIGHT
Selects all items on the list when used in a list
field.
Network Video Recorder User Manual
21
No.
Name
Function Description
Turns on/off PTZ light (if applicable) in PTZ
control mode.
Switches between play and reverse play in
playback mode.
F2/ AUX
Cycles through tab pages.
Switches between channels in synchronous
playback mode.
MENU/WIPER
Returns to the Main menu (after successful
login).
Presses and holds the button for five seconds to
turn off audible key beep.
Starts wiper (if applicable) in PTZ control mode.
Shows/hides the control interface in playback
mode.
PREV/FOCUS-
Switches between single screen and
multi-screen mode.
Adjusts the focus in conjunction with the
A/FOCUS+ button in PTZ control mode.
PTZ/IRIS-
Enters the PTZ Control mode.
Adjusts the iris of the PTZ camera in PTZ control
mode.
8
Control
Buttons
DIRECTION
Navigates between different fields and items in
menus.
In the playback mode, use the Up and Down
buttons to speed up and slow down recorded
video. Use the Left and Right buttons to select
the next and previous video files.
Cycles through channels in live view mode.
Controls the movement of the PTZ camera in
PTZ control mode.
ENTER
Confirms selection in any of the menu modes.
Checks the checkbox fields.
Plays or pauses the video playing in playback
Network Video Recorder User Manual
22
No.
Name
Function Description
mode.
Advances the video by a single frame in
single-frame playback mode.
Stops/starts auto switch in auto-switch mode.
9
JOG SHUTTLE Control
Moves the active selection up and down in a
menu.
Cycles through different channels in live view
mode.
Jumps 30s forward/backward in video files in
the playback mode.
Controls the movement of the PTZ camera in
PTZ control mode.
10
POWER ON/OFF
Long press the button for more than 3 seconds
to turn on/off the NVR.
1.1.2 DS-8600NI-I8 Series
Figure 1-3 DS-8600NI-I8 Series
Network Video Recorder User Manual
23
Table 1-2 Description of Control Panel Buttons
No.
Name
Function Description
1
Status
Indicators
ALARM
Turns red when a sensor alarm is detected.
READY
Turs blue when the device is functioning
properly.
STATUS
Turns blue when device is controlled by an IR
remote.
Turns red when controlled by a keyboard and
purple when IR remote and keyboard is used at
the same time.
HDD
Flickers red when data is being read from or
written to HDD.
MODEM
Reserved for future usage.
Tx/Rx
Flickers blue when network connection is
functioning properly.
GUARD
Turns blue when the device is in armed status; at
this time, an alarm is enabled when an event is
detected.
Turns off when the device is unarmed. The
arm/disarm status can be changed by pressing
and holding on the ESC button for more than 3
seconds in live view mode.
2
IR Receiver
Receiver for IR remote
3
DVD-R/W
Slot for DVD-R/W.
4
Alphanumeric Buttons
Switches to the corresponding channel in live
view or PTZ control mode.
Inputs numbers and characters in edit mode.
Switches between different channels in playback
mode.
Turns blue when the corresponding channel is
recording; turns red when the channel is in
network transmission status; turns pink when the
channel is recording and transmitting.
5
USB Interfaces
Universal Serial Bus (USB) ports for additional
devices such as USB mouse and USB Hard Disk
Network Video Recorder User Manual
24
No.
Name
Function Description
Drive (HDD).
6
Composite
Keys
ESC
Returns to the previous menu.
Presses for arming/disarming the device in live
view mode.
REC/SHOT
Enters the Manual Record settings menu.
Presses this button followed by a numeric button
to call a PTZ preset in PTZ control settings.
Turns audio on/off in the playback mode.
PLAY/AUTO
Enters the playback mode.
Automatically scans in the PTZ control menu.
ZOOM+
Zooms in the PTZ camera in the PTZ control
setting.
A/FOCUS+
Adjusts focus in the PTZ Control menu.
Switches between input methods (upper and
lower case alphabet, symbols and numeric
input).
EDIT/IRIS+
Edits text fields. When editing text fields, it also
deletes the character in front of the cursor.
Checks the checkbox in the checkbox fields.
Adjusts the iris of the camera in PTZ control
mode.
Generates video clips for backup in playback
mode.
Enters/exits the folder of USB device and eSATA
HDD.
MAIN/SPOT/ZO
OM-
Switches between main and spot output.
Zooms out the image in PTZ control mode.
F1/ LIGHT
Selects all items on the list when used in a list
field.
Turns on/off PTZ light (if applicable) in PTZ
control mode.
Switches between play and reverse play in
Network Video Recorder User Manual
25
No.
Name
Function Description
playback mode.
F2/ AUX
Cycles through tab pages.
Switches between channels in synchronous
playback mode.
MENU/WIPER
Returns to the Main menu (after successful
login).
Presses and holds the button for five seconds to
turn off audible key beep.
Starts wiper (if applicable) in PTZ control mode.
Shows/hides the control interface in playback
mode.
PREV/FOCUS-
Switches between single screen and multi-screen
mode.
Adjusts the focus in conjunction with the
A/FOCUS+ button in PTZ control mode.
PTZ/IRIS-
Enters the PTZ Control mode.
Adjusts the iris of the PTZ camera in PTZ control
mode.
7
Control
Buttons
DIRECTION
Navigates between different fields and items in
menus.
In the playback mode, use the Up and Down
buttons to speed up and slow down recorded
video. Use the Left and Right buttons to select
the next and previous video files.
Cycles through channels in live view mode.
Controls the movement of the PTZ camera in PTZ
control mode.
ENTER
Confirms selection in any of the menu modes.
Checks the checkbox fields.
Plays or pauses the video playing in playback
mode.
Advances the video by a single frame in
single-frame playback mode.
Network Video Recorder User Manual
26
No.
Name
Function Description
Stops/starts auto switch in auto-switch mode.
8
JOG SHUTTLE Control
Moves the active selection up and down in a
menu.
Cycles through different channels in live view
mode.
Jumps 30s forward/backward in video files in the
playback mode.
Controls the movement of the PTZ camera in PTZ
control mode.
9
POWER ON/OFF
Power on/off switch.
1.1.3 DS-8600NI-K8 and DS-7700NI Series
Figure 1-4 DS-8600NI-K8 Series
Figure 1-5 DS-7700NI Series
Network Video Recorder User Manual
27
Table 1-3 Panel Description
No.
Name
Function Description
1
Status
Indicators
POWER
Turns green when NVR is powered up.
HDD
Blinks red when HDD is reading/writing.
Tx/Rx
Blinks green when network connection is functioning
normally.
2
ENTER
The Enter button is used to confirm selection in menu
mode; or used to check checkbox fields and ON/OFF
switch.
In playback mode, it can be used to play or pause the
video.
In single-frame play mode, pressing the Enter button
will play the video by a single frame.
In auto sequence view mode, the buttons can be used
to pause or resume auto sequence.
The Enter button is used to confirm selection in menu
mode; or used to check checkbox fields and ON/OFF
switch.
3
DIRECTION
In menu mode, the direction buttons are used to
navigate between different fields and items and select
setting parameters.
In playback mode, the Up and Down buttons are used
to speed up and slow down record playing, and the
Left and Right buttons are used to move the recording
30s forwards or backwards.
In the image setting interface, the up and down
button can adjust the level bar of the image
parameters.
In live view mode, these buttons can be used to switch
channels.
4
Back
Back to the previous menu.
5
POWER ON/OFF
Power on/off switch.
6
MENU
Access the main menu interface.
7
USB Interface
Universal Serial Bus (USB) ports for additional devices
such as USB mouse and USB Hard Disk Drive (HDD).
Network Video Recorder User Manual
28
1.1.4 DS-7600NI Series
Figure 1-6 DS-7600NI Series
Table 1-4 Panel Description
1.2 IR Remote Control Operations
The NVR may also be controlled with the included IR remote control, shown in Figure 1-7.
Batteries (2×AAA) must be installed before operation.
The IR Remote is set at the factory to control the NVR (using default Device ID# 255) without any
additional steps. Device ID# 255 is the default universal device identification number shared by the
NVRs. You may also pair an IR Remote to a specific NVR by changing the Device ID#, as follows:
Pairing (Enabling) the IR Remote to a Specific NVR (optional)
You can pair an IR Remote to a specific Hikvision NVR by creating a user-defined Device ID#. This
feature is useful when using multiple IR Remotes and NVRs.
On the NVR:
Step 1 Go to General > More Settings.
Step 2 Type a number (255 digits maximum) into the Device No. field.
Step 3 On the IR Remote:
No.
Name
Connections
1
POWER
Turns green when NVR is powered up.
2
HDD
Flickers red when data is being read from or written to HDD.
3
Tx/Rx
Flickers blue when network connection is functioning
properly.
4
USB Interface
Universal Serial Bus (USB) port for additional devices such as
USB mouse and USB Hard Disk Drive (HDD).
Network Video Recorder User Manual
29
Step 4 Press the DEV button.
Step 5 Use the Number buttons to enter the Device ID# that was entered into the NVR.
Step 6 Press Enter button to accept the new Device ID#.
Figure 1-7 Remote Control
Unpairing (Disabling) an IR Remote from a NVR
To unpair an IR Remote from a NVR so that the unit cannot control any NVR functions, proceed as
follows:
Press the DEV key on the IR Remote. Any existing Device ID# will be erased from the unit’s memory
and it will no longer function with the NVR.
(Re)-enabling the IR Remote requires pairing to a NVR. See “Pairing the IR Remote to a Specific
NVR (optional),” above.
The keys on the remote control closely resemble the ones on the front panel. See the table 1.4.
Network Video Recorder User Manual
30
Table 1-5 IR Remote Functions
No.
Name
Function Description
1
POWER
ON/OFF
• To Turn Power On:
- If User Has Not Changed the Default NVR Device ID# (255):
1. Press Power On/Off button (1).
- If User Has Changed the NVR Device ID#:
1. Press DEV button.
2. Press Number buttons to enter user-defined Device ID#.
3. Press Enter button.
4. Press Power button to start device.
• To Turn NVR Off:
- If User Is Logged On:
1. Hold Power On/Off button (1) down for five seconds to
display the “Yes/No” verification prompt.
2. Use Up/Down Arrow buttons (12) to highlight desired
selection.
3. Press Enter button (12) to accept selection.
- If User Is Not Logged On:
1. Hold Power On/Off button (1) down for five seconds to
display the user name/password prompt.
2. Press the Enter button (12) to display the on-screen keyboard.
3. Input the user name.
4. Press the Enter button (12) to accept input and dismiss the
on-screen keyboard.
5. Use the Down Arrow button (12) to move to the “Password”
field.
6. Input password (use on-screen keyboard or numeric buttons
(3) for numbers).
7. Press the Enter button (12) to accept input and dismiss the
on-screen keyboard.
8. Press the OK button on the screen to accept input and display
the Yes/No” verification prompt (use Up/Down Arrow buttons
(12) to move between fields)
9. Press Enter button (12) to accept selection.
Network Video Recorder User Manual
31
User name/password prompt depends on NVR is configuration.
See “System Configuration” section.
2
DEV
Enable IR Remote: Press DEV button, enter NVR Device ID# with
number keys, press Enter to pair unit with the NVR
Disable IR Remote: Press DEV button to clear Device ID#; unit will
no longer be paired with the NVR
3
Numerals
Switch to the corresponding channel in Live View or PTZ Control
mode
Input numbers in Edit mode
4
EDIT
Delete characters before cursor
Check the checkbox and select the ON/OFF switch
5
A
Adjust focus in the PTZ Control menu
Switch on-screen keyboards (upper and lower case alphabet,
symbols, and numerals)
6
REC
Enter Manual Record setting menu
Call a PTZ preset by using the numeric buttons in PTZ control
settings
Turn audio on/off in Playback mode
7
PLAY
Go to Playback mode
Auto scan in the PTZ Control menu
8
INFO
Reserved
9
VOIP
Switches between main and spot output
Zooms out the image in PTZ control mode
10
MENU
Return to Main menu (after successful login)
N/A
Show/hide full screen in Playback mode
12
DIRECTION
Navigate between fields and menu items
Use Up/Down buttons to speed up/slow down recorded video,
and Left/Right buttons to advance/rewind 30 secs in Playback
mode
Cycle through channels in Live View mode
Network Video Recorder User Manual
32
Control PTZ camera movement in PTZ control mode
ENTER
Confirm selection in any menu mode
Checks checkbox
Play or pause video in Playback mode
Advance video a single frame in single-frame Playback mode
Stop/start auto switch in auto-switch mode
13
PTZ
Enter PTZ Control mode
14
ESC
Go back to previous screen
N/A
15
RESERVED
Reserved
16
F1
Select all items on a list
N/A
Switch between play and reverse play in Playback mode
17
PTZ Control
Adjust PTZ camera iris, focus, and zoom
18
F2
Cycle through tab pages
Switch between channels in Synchronous Playback mode
Troubleshooting Remote Control:
Make sure you have installed batteries properly in the remote control. And you have to aim the
remote control at the IR receiver in the front panel.
If there is no response after you press any button on the remote, follow the procedure below to
troubleshoot.
Step 1 Go to Menu > Settings > General > More Settings by operating the front control panel or the
mouse.
Step 2 Check and remember NVR ID#. The default ID# is 255. This ID# is valid for all the IR remote
controls.
Step 3 Press the DEV button on the remote control.
Step 4 Enter the NVR ID# you set in step 2.
Step 5 Press the ENTER button on the remote.
Network Video Recorder User Manual
33
If the Status indicator on the front panel turns blue, the remote control is operating properly. If
the Status indicator does not turn blue and there is still no response from the remote, please
check the following:
- Batteries are installed correctly and the polarities of the batteries are not reversed.
- Batteries are fresh and not out of charge.
- IR receiver is not obstructed.
- No fluorescent lamp is used nearby
If the remote still can’t function properly, please change a remote and try again, or contact the
device provider.
Network Video Recorder User Manual
34
1.3 USB Mouse Operation
A regular 3-button (Left/Right/Scroll-wheel) USB mouse can also be used with this NVR. To use a
USB mouse:
Step 1 Plug USB mouse into one of the USB interfaces on the front panel of the NVR.
Step 2 The mouse should automatically be detected. If in a rare case that the mouse is not detected,
the possible reason may be that the two devices are not compatible, please refer to the
recommended the device list from your provider.
The operation of the mouse:
Table 1-6 Description of the Mouse Control
Name
Action
Description
Left-Click
Single-Click
Live view: Select channel and show the quick set
menu.
Menu: Select and enter.
Double-Click
Live view: Switch between single-screen and
multi-screen.
Click and Drag
PTZ control: pan, tilt and zoom.
Video tampering, privacy mask and motion detection:
Select target area.
Digital zoom-in: Drag and select target area.
Live view: Drag channel/time bar.
Right-Click
Single-Click
Live view: Show menu.
Menu: Exit current menu to upper level menu.
Scroll-Wheel
Scrolling up
Live view: Previous screen.
Menu: Previous item.
Scrolling
down
Live view: Next screen.
Menu: Next item.
Network Video Recorder User Manual
35
1.4 Input Method Description
Figure 1-8 Soft Keyboard (1)
Figure 1-9 Soft Keyboard (2)
Description of the buttons on the soft keyboard:
Table 1-7 Description of the Soft Keyboard Icons
Icon
Description
Icon
Description
…
Number
…
English letter
Lowercase/Uppercase
Backspace
Switch the keyboard
Space
Positioning the cursor
Exit
Symbols
Reserved
Network Video Recorder User Manual
36
1.5 Rear Panel
1.5.1 DS-9600NI and DS-8600NI Series
Figure 1-10 DS-9600NI-I8 and DS-8600NI Series
Figure 1-11 DS-9600NI-I16 Series
Network Video Recorder User Manual
37
Table 1-8 Panel Description
No.
Name
Description
1
LAN1/LAN2
Interface
2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet
interfaces provided.
2
LINE IN
RCA connector for audio input.
3
AUDIO OUT
2 RCA connectors for audio output.
4
HDMI1/HDMI2
HDMI video output connector.
5
VGA1/VGA2
DB9 connector for VGA output. Display local video
output and menu.
6
USB 3.0 interface
Universal Serial Bus (USB) ports for additional
devices such as USB mouse and USB Hard Disk Drive
(HDD).
7
RS-232 Interface
Connector for RS-232 devices.
8
eSATA
Connects external SATA HDD, CD/DVD-RM.
9
Controller Port
D+, D- pin connects to Ta, Tb pin of controller. For
cascading devices, the first NVR’s D+, D- pin should
be connected with the D+, D- pin of the next NVR.
ALARM IN
Connector for alarm input.
ALARM OUT
Connector for alarm output.
10
100 to 240 VAC
100 to 240 VAC power supply.
11
Power Switch
Switch for turning on/off the device.
12
GROUND
Ground (needs to be connected when NVR starts
up).
1.5.2 DS-7600NI Series
DS-7600NI-I2 (/P) and DS-7600NI-K2 (/P)
Figure 1-12 DS-7600NI-I2 and DS-7600NI-K2 Series
Network Video Recorder User Manual
38
Figure 1-13 DS-7600NI-I2/8 P and DS-7600NI-K2/8 P Series
The DS-7616NI-I2/16P and DS-7632NI-I2/16P provide 16 network Interfaces with PoE function.
Table 1-9 Panel Description
No.
Name
Description
1
Audio In
RCA connector for audio input.
2
Audio Out
RCA connector for audio output.
3
VGA Interface
DB9 connector for VGA output. Display local video
output and menu.
4
HDMI Interface
HDMI video output connector.
5
ALARM IN
Connector for alarm input.
ALARM OUT
Connector for alarm output.
6
LAN Network Interface
1 10/100/1000 Mbps self-adaptive Ethernet
interface
7
USB Interface
Universal Serial Bus (USB 3.0) ports for additional
devices such as USB mouse and USB Hard Disk
Drive (HDD).
8
Ground
Ground (needs to be connected when NVR starts
up).
9
Power Supply
12 VDC power supply for DS-7600NI-I4 and
DS-7600NI-K4, and 100 to 240 VAC for
DS-7600NI-I4/P and DS-7600NI-K4/P.
10
Power Switch
Switch for turning on/off the device.
11
Network Interfaces
with PoE function
Network interfaces for the cameras and to provide
power over Ethernet.
Network Video Recorder User Manual
39
DS-7600NI-K1 and DS-7600NI-K1/4P
Figure 1-14 DS-7600NI-K1 Series
Figure 1-15 DS-7604NI-K1/4P Series
Table 1-10 Panel Description
(supported by
DS-7600NI-I2/P)
No.
Name
Description
1
Network Interfaces
with PoE function
Network interfaces for the cameras and to provide
power over Ethernet.
2
Audio In
RCA connector for audio input.
3
Audio Out
RCA connector for audio output.
4
VGA Interface
DB9 connector for VGA output. Display local video
output and menu.
5
HDMI Interface
HDMI video output connector.
6
LAN Network
Interface
1 10/100/1000 Mbps self-adaptive Ethernet
interface for DS-7600NI-K1;
1 100 Mbps full-duplex Ethernet interface for
DS-7600NI-K1/4P.
7
USB Interface
Universal Serial Bus (USB) ports for additional
devices such as USB mouse and USB Hard Disk Drive
(HDD).
9
Power Supply
12VDC power supply for DS-7600NI-K1 and 48 VDC
power supply for DS-7600NI-K1/4P
Network Video Recorder User Manual
40
1.5.3 DS-7700NI Series
Figure 1-16 DS-7700NI-I4 and DS-7700NI-K4 Series
Figure 1-17 DS-7700NI-I4/16P and DS-7700NI-K4/16P Series
The DS-7708NI-I4/8P and DS-7708NI-K4/8P provides 8 network Interfaces with PoE function.
Table 1-11 Panel Description
10
Ground
Ground (needs to be connected when NVR starts
up).
No.
Name
Description
1
LAN Interface
1 network interface provided for DS-7700NI-I4/P and
DS-7700NI-K4/P, and 2 network interfaces for
DS-7700NI-I4 and DS-7700NI-K4.
2
AUDIO OUT
RCA connector for audio output.
3
LINE IN
RCA connector for audio input.
4
HDMI
HDMI video output connector.
5
USB 3.0 interface
Universal Serial Bus (USB) ports for additional
devices such as USB mouse and USB Hard Disk Drive
(HDD).
6
RS-232 Interface
Connector for RS-232 devices.
Network Video Recorder User Manual
41
7
VGA
DB9 connector for VGA output. Display local video
output and menu.
8
RS-485 Interface
Half-duplex connector for RS-485 devices.
9
ALARM IN
Connector for alarm input.
ALARM OUT
Connector for alarm output.
10
GROUND
Ground (needs to be connected when NVR starts
up).
11
AC 100V ~ 240V
100V to 240VAC power supply.
12
Power Switch
Switch for turning on/off the device.
13
Network Interfaces
with PoE function
(supported by
DS-7700NI-I4/P and
DS-7700NI-K4/P)
Network interfaces for the cameras and to provide
power over Ethernet.
Network Video Recorder User Manual
42
Chapter 2 Getting Started
2.1 Device Startup and Activation
2.1.1 Starting Up and Shutting Down the NVR
Purpose:
Proper startup and shutdown procedures are crucial to expanding the life of the NVR.
Before you start:
Check that the voltage of the extra power supply is the same with the NVR’s requirement, and the
ground connection is working properly.
Starting up the NVR:
Step 1 Check the power supply is plugged into an electrical outlet. It is HIGHLY recommended that
an Uninterruptible Power Supply (UPS) be used in conjunction with the device. The Power
indicator LED on the front panel should be red, indicating the device gets the power supply.
Step 2 Press the POWER button on the front panel. The Power indicator LED should turn blue
indicating that the unit begins to start up.
Step 3 After startup, the Power indicator LED remains blue. A splash screen with the status of the
HDD appears on the monitor. The row of icons at the bottom of the screen shows the HDD
status. ‘X’ means that the HDD is not installed or cannot be detected.
Shutting down the NVR
Steps:
There are two proper ways to shut down the NVR.
OPTION 1: Standard shutdown
Step 1 Enter the Shutdown menu.
Menu > Shutdown
Figure 2-1 Shutdown Menu
Step 2 Click the Shutdown button.
Network Video Recorder User Manual
43
Step 3 Click the Yes button.
- OPTION 2: By operating the front panel
Step 1 Press and hold the POWER button on the front panel for 3 seconds.
Step 2 Enter the administrator’s username and password in the dialog box for authentication.
Step 3 Click the Yes button.
Do not press the POWER button again when the system is shutting down.
Rebooting the NVR
In the Shutdown menu, you can also reboot the NVR.
Step 1 Enter the Shutdown menu by clicking Menu > Shutdown.
Step 2 Click the Logout button to lock the NVR or the Reboot button to reboot the NVR.
2.1.2 Activating Your Device
Purpose:
For the first-time access, you need to activate the device by setting an admin password. No
operation is allowed before activation. You can also activate the device via Web Browser, SADP or
Client Software.
Step 1 Input the same password in the text field of Create New Password and Confirm New
Password.
Figure 2-2 Settings Admin Password
Network Video Recorder User Manual
44
We highly recommend you create a strong password of your own choosing (Using a minimum of 8
characters, including at least three of the following categories: upper case letters, lower case
letters, numbers, and special characters.) in order to increase the security of your product. And we
recommend you reset your password regularly, especially in the high security system, resetting the
password monthly or weekly can better protect your product.
Step 2 Click OK to save the password and activate the device.
Step 3 When the device is activated, the system pops up the message box to remind you to
remember the password. And you can click Yes to continue to export the GUID file for the
future password resetting.
Figure 2-3 Export GUID File Remind
Step 4 Insert the U flash disk to your device, and export the GUID file to the U flash disk in the Reset
Password interface. Please refer to Chapter2.1.5 Resetting Your Password for the
instructions of password resetting.
Figure 2-4 Export GUID File
Please keep your GUID file properly for future password resetting.
Network Video Recorder User Manual
45
If Admin’s password is modified, the following menu pops up. Optionally, click the Yes button to
duplicate the password to IP cameras that are connected with default protocol.
Figure 2-5 Attention Interface
2.1.3 Using the Unlock Pattern for Login
For the Admin user, you can configure the unlock pattern for device login.
Configuring the Unlock Pattern
Step 1 After the device is activated, you can enter the following interface to configure the device
unlock pattern.
Figure 2-6 Set Unlock Pattern
Step 2 Use the mouse to draw a pattern among the 9 dots on the screen. Release the mouse when
the pattern is done.
Network Video Recorder User Manual
46
Figure 2-7 Draw the Pattern
Connect at least 4 dots to draw the pattern.
Each dot can be connected for once only.
Step 3 Draw the same pattern again to confirm it. When the two patterns match, the pattern is
configured successfully.
Figure 2-8 Confirm the Pattern
If the two patterns are different, you must set the pattern again.
Network Video Recorder User Manual
47
Figure 2-9 Re-set the Pattern
Logging in via Unlock Pattern
- Only the admin user has the permission to unlock the device.
- Please configure the pattern first before unlocking. Please refer to Configuring the Unlock
Pattern
Step 1 Right click the mouse on the screen and select the menu to enter the interface as shown in
Figure 2.8.
Figure 2-10 Draw the Unlock Pattern
Step 2 Draw the pre-defined pattern to unlock to enter the menu operation.
Network Video Recorder User Manual
48
- If you have forgotten your pattern, you can select the Forget My Pattern or Switch User
option to enter the normal login dialog box.
- When the pattern you draw is different from the pattern you have configured, you should
try again.
- If you have drawn the wrong pattern for more than 5 times, the system will switch to the
normal login mode automatically.
Figure 2-11 Normal Login Dialog Box
2.1.4 Login and Logout
User Login
Purpose:
If NVR has logged out, you must login the device before operating the menu and other functions.
Step 1 Select the User Name in the dropdown list.
Figure 2-12 Login Interface
Step 2 Input password.
Step 3 Click OK to log in.
When you forget the password of the admin, you can click Forget Password to reset the password.
Please refer to Chapter 2.1.5 Resetting Your Password for details.
Network Video Recorder User Manual
49
In the Login dialog box, if you enter the wrong password 7 times, the current user account will be
locked for 60 seconds.
User Logout
Purpose:
After logging out, the monitor turns to the live view mode and if you want to perform any
operations, you need to enter user name and password log in again.
Step 1 Enter the Shutdown menu.
Menu > Shutdown
Figure 2-13 Logout
Step 2 Click Logout.
After you have logged out the system, menu operation on the screen is invalid. It is required to
input a user name and password to unlock the system.
2.1.5 Resetting Your Password
When you forget the password of the admin, you can reset the password by importing the GUID
file. The GUID file must be exported and saved in the local U flash disk after you have activated the
device (refer to Chapter 2.1.2 Activating Your Device).
Step 1 On the user login interface, click Forget Password to enter the Reset Password interface.
Please insert the U flash disk stored with the GUID file to the NVR before resetting password.
Network Video Recorder User Manual
50
Figure 2-14 Reset Password
Step 2 Select the GUID file from the U flash disk and click Import to import the file to the device.
If you have imported the wrong GUIE file for 7 times, you will be not allowed to reset the password
for 30 minutes.
Step 3 After the GUID file is successfully imported, enter the reset password interface to set the
new admin password. Refer to Chapter 2.1.2 Activating Your Device for details.
Step 4 Click OK to set the new password. You can export the new GUID file to the U flash disk for
future password resetting.
When the new password is set, the original GUID file will be invalid. The new GUID file should be
exported for future password resetting. You can also enter the User>User Management interface to
edit the admin user and export the GUID file.
2.2 Using Wizard for Basic Configuration
By default, the Setup Wizard starts once the NVR has loaded, as shown in Figure 2-15.
Network Video Recorder User Manual
51
Figure 2-15 Start Wizard Interface
Operating the Setup Wizard:
Step 1 The Setup Wizard can walk you through some important settings of the NVR. If you don’t
want to use the Setup Wizard at that moment, click the Cancel button. You can also choose
to use the Setup Wizard next time by leaving the “Start wizard when the device starts?”
checkbox checked.
Step 2 Click Next button to enter the date and time settings window, as shown in Figure 2-16.
Figure 2-16 Date and Time Settings
Step 3 After the time settings, click Next button which takes you back to the Network Setup Wizard
window, as shown in the following figure.
Network Video Recorder User Manual
52
Figure 2-17 Network Settings
Two self-adaptive 10M/100M/1000M network interfaces provided for DS-9600NI, DS-8600NI,
DS-7700NI-I4 and DS-7700NI-K4, and two working modes are configurable: multi-address and
network fault tolerance. And one self-adaptive 10M/100M/1000M network interface for DS-7600NI,
DS-7700NI-I4/P and DS-7700NI-K4/P.
Step 4 Click Next button after you configured the basic network parameters. Enter the Hik-Connect
interface to configure the parameters. Please refer to Chapter 12.2.1 Configuring
Hik-Connect12.2.1 for detailed instructions.
Figure 2-18 Hik-Connect Settings
Step 5 Click Next button after you configured the basic network parameters. Then you will enter
the Advanced Network Parameter interface. You can enable UPnP, DDNS and set other
ports according to your need.
Network Video Recorder User Manual
53
Figure 2-19 Advanced Network Parameters
Step 6 Click Next button after you configured the network parameters, which takes you to the RAID
configuration window.
The RAID is supported by DS-9600NI-I8 and DS-9600NI-I16 series NVR only.
Figure 2-20 Array Management
Step 7 Click Next button to enter the Array Management window.
Network Video Recorder User Manual
54
Figure 2-21 Array Management
Step 8 Click Next button after you configured the network parameters, which takes you to the HDD
Management window, shown in Figure 2-22.
Figure 2-22 HDD Management
Step 9 To initialize the HDD, click the Init button. Initialization removes all the data saved in the
HDD.
Step 10 Click Next button. You enter the Adding IP Camera interface.
Step 11 Click Search to search the online IP Camera and the Security status shows whether it is
active or inactive. Before adding the camera, make sure the IP camera to be added is in
active status.
If the camera is in inactive status, you can click the inactive icon of the camera to set the
password to activate it. You can also select multiple cameras from the list and click the
One-touch Activate to activate the cameras in batch.
Click the Add to add the camera.
Network Video Recorder User Manual
55
Figure 2-23 Search for IP Cameras
When you check the checkbox of Enable H.265, the NVR can automatically switch to the H.265
stream of IP camera (which supports H.265 video format) for the initial access.
Step 12 Click Next button. Configure the recording for the added IP Cameras.
Figure 2-24 Record Settings
Step 13 Click OK to complete the startup Setup Wizard.
Network Video Recorder User Manual
56
2.3 Adding and Connecting the IP Cameras
2.3.1 Activating the IP Camera
Purpose:
Before adding the camera, make sure the IP camera to be added is in active status.
Step 1 Select the Add IP Camera option from the right-click menu in live view mode or click Menu>
Camera> Camera to enter the IP camera management interface.
For the IP camera detected online in the same network segment, the Password status shows
whether it is active or inactive.
Figure 2-25 IP Camera Management Interface
Step 2 Click the inactive icon of the camera to enter the following interface to activate it. You can
also select multiple cameras from the list and click the One-touch Activate to activate the
cameras in batch.
Figure 2-26 Activate the Camera
Network Video Recorder User Manual
57
Step 3 Set the password of the camera to activate it.
Use Admin Password: when you check the checkbox, the camera (s) will be configured with
the same admin password of the operating NVR.
Figure 2-27 Set New Password
Create New Password: If the admin password is not used, you must create the new password
for the camera and confirm it.
Strong Password recommended–We highly recommend you create a strong password of your own
choosing (Using a minimum of 8 characters, including at least three of the following categories:
upper case letters, lower case letters, numbers, and special characters.) in order to increase the
security of your product. And we recommend you reset your password regularly, especially in the
high security system, resetting the password monthly or weekly can better protect your product.
Step 4 Click OK to finish the acitavting of the IP camera. And the security status of camera will be
changed to Active.
2.3.2 Adding the Online IP Cameras
Purpose:
The main function of the NVR is to connect the network cameras and record the video got from it.
So before you can get a live view or record of the video, you should add the network cameras to
the connection list of the device.
Before you start:
Ensure the network connection is valid and correct. For detailed checking and configuring of the
network, please see Chapter Checking Network Traffic and Chapter Configuring Network Detection.
Adding the IP Cameras
OPTION 1:
Step 1 Click to select an idle window in the live view mode.
Network Video Recorder User Manual
58
Step 2 Click the icon in the center of the windw to pop up the adding IP camera interface.
Figure 2-28 Icon of Adding IP Camera
Step 3 Select the detected IP camera and click the Add button to add it directly, and you can click
the Search button to refresh the online IP camera manually.
Figure 2-29 Quick Adding IP Camera Interface
Or you can choose to custom add the IP camera by editing the parameters in the
corresponding textfiled and then click the Add button to add it.
OPTION 2:
Step 1 Select the Add IP Camera option from the right-click menu in live view mode or click Menu>
Camera> Camera to enter the IP camera management interface.
Network Video Recorder User Manual
59
Figure 2-30 Adding IP Camera Interface
Step 2 The online cameras with same network segment will be detected and displayed in the
camera list.
Step 3 Select the IP camera from the list and click the button to add the camera. Or you can
click the One-touch Adding button to add all cameras (with the same login password) from
the list.
Make sure the camera to add has already been activated.
Step 4 (For the encoders with multiple channels only) check the Channel Port checkbox in the pop-up
window, as shown in the following figure, and click OK to add multiple channels.
Figure 2-31 Selecting Multiple Channels
Network Video Recorder User Manual
60
OPTION 3:
Step 1 On the IP Camera Management interface, click the Custom Adding button to pop up the Add
IP Camera (Custom) interface.
Figure 2-32 Custom Adding IP Camera Interface
Step 2 You can edit the IP address, protocol, management port, and other information of the IP
camera to be added.
If the IP camera to add has not been actiavated, you can activate it from the IP camera list on the
camera management interface.
Step 3 (Optional) Check the checkbox of Continue to Add to add other IP cameras.
Step 4 Click Add to add the camera. The successfully added cameras are listed in the interface.
Refer to the following table for the description of the icons
Network Video Recorder User Manual
61
Table 2-1 Description of Icons
Icon
Explanation
Icon
Explanation
Edit basic parameters of the
camera
Add the detected IP camera.
The camera is disconnected;
you can click the icon to get
the exception information of
camera.
Delete the IP camera
Play the live video of the
connected camera.
Advanced settings of the
camera.
Upgrade the connected IP
camera.
Security
Show the security status of
the camera to be
active/inactive or the
password strength
(strong/medium/weak/risk)
For the added IP cameras, the Security status shows the security level of the password of camera:
strong password, weak password and risk password.
Figure 2-33 Security Level of IP Camera’s Password
Enabling the Password of IP Camera Visible
For the admin login user account, you can check the checkbox of Show Password of IP Camera to
enable the show the passwords of the successfully added IP cameras in the list.
You must enter the admin password to confirm permission.
Network Video Recorder User Manual
62
Figure 2-34 List of Added IP Cameras
Enabling the H.265 Stream Access
You can check the checkbox of Enable H.265, the NVR can automatically switch to the H.265 stream
of IP camera (which supports H.265 video format) for the initial access.
2.3.3 Editing the Connected IP Cameras and Configuring
Customized Protocols
After the adding of the IP cameras, the basic information of the camera lists in the page, you can
configure the basic setting of the IP cameras.
Step 1 Click the icon to edit the parameters; you can edit the IP address, protocol and other
parameters.
Network Video Recorder User Manual
63
Figure 2-35 Edit the Parameters
Channel Port: If the connected device is an encoding device with multiple channels, you can
choose the channel to connect by selecting the channel port No. in the dropdown list.
Step 2 Click OK to save the settings and exit the editing interface.
- To edit advanced parameters:
Step 1 Drag the horizontal scroll bar to the right side and click the icon.
Figure 2-36 Network Configuration of the Camera
Step 2 You can edit the network information and the password of the camera.
Network Video Recorder User Manual
64
Figure 2-37 Password Configuration of the Camera
Step 3 Click OK to save the settings and exit the interface.
- Configuring the customized protocols
Purpose:
To connect the network cameras which are not configured with the standard protocols, you can
configure the customized protocols for them.
Step 1 Click the Protocol button in the custom adding IP camera interface to enter the protocol
management interface.
Figure 2-38 Protocol Management Interface
There are 16 customized protocols provided in the system, you can edit the protocol name;
and choose whether to enable the sub-stream.
Step 2 Choose the protocol type of transmission and choose the transfer protocols.
Network Video Recorder User Manual
65
Before customizing the protocol for the network camera, you have to contact the manufacturer of
the network camera to consult the URL (uniform resource locator) for getting main stream and
sub-stream.
The format of the URL is: [Type]://[IP Address of the network camera]:[Port]/[Path].
Example: rtsp://192.168.1.55:554/ch1/main/av_stream.
- Protocol Name: Edit the name for the custom protocol.
- Enable Substream: If the network camera does not support sub-stream or the sub-stream is
not needed leave the checkbox empty.
- Type: The network camera adopting custom protocol must support getting stream through
standard RTSP.
- Transfer Protocol: Select the transfer protocol for the custom protocol.
- Port: Set the port No. for the custom protocol.
- Path: Set the resource path for the custom protocol. E.g., ch1/main/av_stream.
The protocol type and the transfer protocols must be supported by the connected network
camera.
After adding the customized protocols, you can see the protocol name is listed in the dropdown
list, please refer to Figure 2-39.
Figure 2-39 Protocol Setting
Step 3 Choose the protocols you just added to validate the connection of the network camera.
Network Video Recorder User Manual
66
2.3.4 Editing IP Cameras Connected to the PoE Interfaces
This chapter is only applicable for the following models: DS-7600NI-I2/P, DS-7700NI-I4/P,
DS-7600NI-K2/P, DS-7700NI-K4/P and DS-7600NI-K1/4P series NVR.
The PoE interfaces enables the NVR system to pass electrical power safely, along with data, on
Ethernet cabling to the connected network cameras.
Up to 4 network cameras can be connected to /4P models, 8 network cameras to /8P models, and
16 network cameras to /16P models. If you disable the PoE interface, you can also connect to the
online network cameras. And the PoE interface supports the Plug-and-Play function.
Example:
For DS-7608NI-I2/8P, if you want to connect 6 network cameras via PoE interfaces and 2 online
cameras, you must disable 2 PoE interfaces in the Edit IP Camera menu.
- To add Cameras for NVR supporting PoE function:
Before you start:
Connect the network cameras via the PoE interfaces.
Step 1 Enter the Camera Management interface.
Menu> Camera> IP Camera
Figure 2-40 List of Connected Cameras
The cameras connecting to the PoE interface cannot be deleted in this menu.
Step 2 Click the button, and select the Adding Method in the drop-down list.
• Plug-and-Play: It means that the camera is connected to the PoE interface, so in this case,
the parameters of the camera can’t be edited. The IP address of the camera can only be
Network Video Recorder User Manual
67
edited in the Network Configuration interface, see Chapter 11.1 Configuring General
Settings for detailed information.
Figure 2-41 Edit IP Camera Interface - Plug-and-Play
• Manual: You can disable the PoE interface by selecting the manual while the current
channel can be used as a normal channel and the parameters can also be edited.
Input the IP address, the user name and password of administrator manually, and click OK
to add the IP camera.
Figure 2-42 Edit IP Camera Interface - Manual
Network Video Recorder User Manual
68
2.3.5 Configuring PoE Interface
When it requires long-distance PoE transmission (100 to 300 m), you can configure the PoE
channel to the long network cable mode.
Step 1 Enter the PoE Configuration interface.
Menu> Camera> Camera>PoE Configuration
Step 2 Click the radio button of each POE channel to switch and . You can click the radio
button of PoE Channel to enable or disable the long network cable mode.
ON: Long-distance (100 - 300 meters) network transmissions via POE interface.
OFF: Short-distance (< 100 meters) network transmission via POE interface.
Figure 2-43 Configure PoE Interface
Network Video Recorder User Manual
69
- The PoE is enabled with the short network cable mode (OFF) by default.
- The bandwidth of IP camera connected to the PoE via long network cable (100 - 300 meters)
cannot exceed 6 MP.
- The allowed max. long network cable may be less than 300 meters depending on different
IP camera models and cable materials.
- When the transmission distance reaches 100 to 250 meters, you must use the CAT5E or
CAT6 network cable to connect with the PoE interface.
- When the transmission distance reaches 250 to 300 meters, you must use the CAT6
network cable to connect with the PoE interface.
- Refer to the Appendix 18.5.3 List of IP Cameras Connected to PoE by Long Network Cable
(100 - 300 m) for the list of IP cameras.
You can check the connecting status and power information of POE channel on the interface.
Step 3 Click Back to finish the settings.
Network Video Recorder User Manual
70
Chapter 3 Live View
3.1 Introduction of Live View
Live view shows you the video image getting from each camera in real time. The NVR
automatically enters Live View mode when powered on. It is also at the very top of the menu
hierarchy, thus pressing the ESC many times (depending on which menu you’re on) brings you to
the Live View mode.
Live View Icons
In the live view mode, there are icons at the upper-right of the screen for each channel, showing
the status of the record and alarm in the channel, so that you can know whether the channel is
recorded, or whether there are alarms occur as soon as possible.
Table 3-1 Description of Live View Icons
Icons
Description
Alarm (video loss, video tampering, motion detection, VCA and
sensor alarm)
Record (manual record, schedule record, motion detection, VCA
and alarm triggered record)
Alarm and Record
Event/Exception (motion detection, VCA, sensor alarm or
exception information, appears at the lower-left corner of the
screen. Please refer to Chapter 8.6 Setting Alarm Response Actions
for details.)
Network Video Recorder User Manual
71
3.2 Operations in Live View Mode
In live view mode, there are many functions provided. The functions are listed below.
• Single Screen: showing only one screen on the monitor.
• Multi-screen: showing multiple screens on the monitor simultaneously.
• Auto-switch: the screen is auto switched to the next one. And you must set the dwell time for
each screen on the configuration menu before enabling the auto-switch.
Menu>Configuration>Live View>Dwell Time.
• Start Recording: continuous record and motion detection record are supported.
• Output Mode: select the output mode to Standard, Bright, Gentle or Vivid.
• Add IP Camera: the shortcut to the IP camera management interface.
• Playback: playback the recorded videos for current day.
• Aux Monitor: the NVR checks the connection of the output interfaces to define the main and
auxiliary output interfaces. The priority level for the main and aux output is HDMI1/VGA1>
HDMI2/VGA2 (for DS-9600NI-I8, DS-8600NI-I8 and DS-9600NI-I16) and HDMI > VGA (for
DS-7600NI and DS-7700NI).
DS-9600NI-I8, DS-8600NI-I8 and DS-9600NI-I16: When the HDMI1, HDMI2, VGA1 and VGA2 are
all connected, the HDMI1/VGA1 is used as main output and the HDMI2/VGA2 is used as the aux
output.
DS-7600NI and DS-7700NI: When both the HDMI and VGA are connected, the HDMI is used as
main output and the VGA is used as the aux output.
When the aux output is enabled, the main output cannot perform any operation, and you can do
some basic operation on the live view mode for the Aux output.
Network Video Recorder User Manual
72
3.2.1 Front Panel Operation on Live View
Table 3-2 Front Panel Operation in Live View
Functions
Front Panel Operation
Show single screen
Press the corresponding Alphanumeric button. E.g. Press 2 to
display only the screen for channel 2.
Show multi-screen
Press the PREV/FOCUS- button.
Manually switch
screens
Next screen: right/down direction button.
Previous screen: left/up direction button.
Auto-switch
Press Enter button.
Playback
Press Play button.
Switch between
main and aux
output
Press Main/Aux button.
3.2.2 Using the Mouse in Live View
Table 3-3 Mouse Operation in Live View
Name
Description
Common Menu
Quick access to the sub-menus which you frequently visit.
Menu
Enter the main menu of the system by right clicking the
mouse.
Single Screen
Switch to the single full screen by choosing channel number
from the dropdown list.
Multi-screen
Adjust the screen layout by choosing from the dropdown list.
Previous Screen
Switch to the previous screen.
Next Screen
Switch to the next screen.
Start/Stop
Auto-switch
Enable/disable the auto-switch of the screens.
Start Recording
Start continuous recording or motion detection recording of
all channels.
Add IP Camera
Enter the IP Camera Management interface, and manage the
cameras.
Playback
Enter the playback interface and start playing back the video
of the selected channel immediately.
Network Video Recorder User Manual
73
PTZ
Enter the PTZ control interface.
Output Mode
Four modes of output supported, including Standard, Bright,
Gentle and Vivid.
Aux Monitor
Switch to the auxiliary output mode and the operation for
the main output is disabled.
- The dwell time of the live view configuration must be set before using Start Auto-switch.
- If you enter Aux monitor mode and the Aux monitor is not connected, the mouse operation
is disabled; you need to switch back to the Main output with the MAIN/AUX button on the
front panel or remote.
- If the corresponding camera supports intelligent function, the Reboot Intelligence option is
included when right-clicking mouse on this camera.

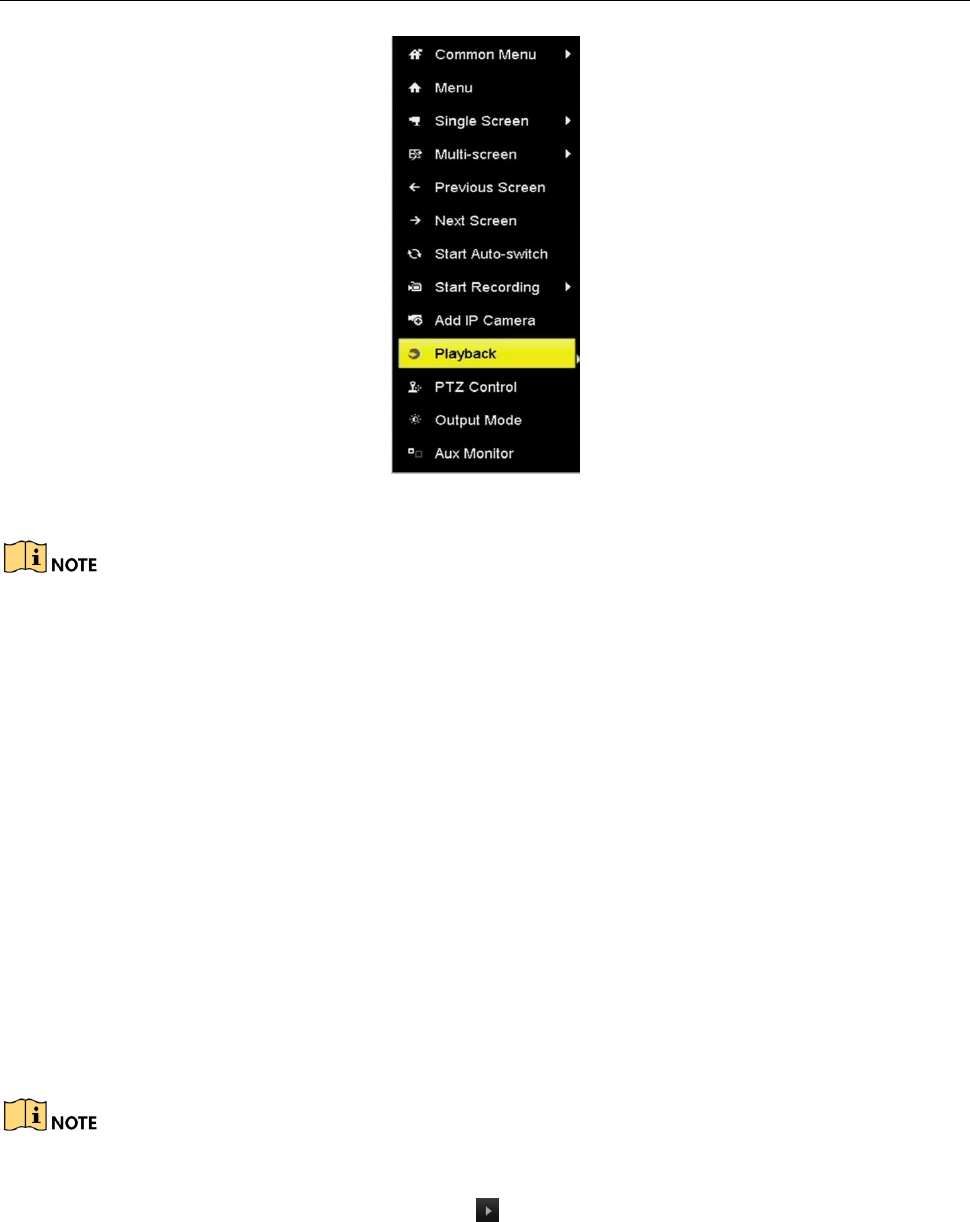

Figure 3-1 Right-click Menu
3.2.3 Using an Auxiliary Monitor
Certain features of the Live View are also available while in an Aux monitor. These features
include:
- Single Screen: Switch to a full screen display of the selected camera. Camera can be selected
from a dropdown list.
- Multi-screen: Switch between different display layout options. Layout options can be selected
from a dropdown list.
- Next Screen: When displaying less than the maximum number of cameras in Live View, clicking
this feature will switch to the next set of displays.
- Playback: Enter into Playback mode.
- PTZ Control: Enter PTZ Control mode.
Network Video Recorder User Manual
74
- Main Monitor: Enter Main operation mode.
In the live view mode of the main output monitor, the menu operation is not available while Aux
output mode is enabled.
3.2.4 Quick Setting Toolbar in Live View Mode
On the screen of each channel, there is a quick setting toolbar which shows when you single click
the mouse in the corresponding screen.
Figure 3-2 Quick Setting Toolbar
The fisheye expansion view feature is supported by the DS-7600/7700/8600/9600-I (/P) series NVR
only.
Table 3-4 Description of Quick Setting Toolbar Icons
Icon
Description
Icon
Description
Icon
Description
/
Enable/Disable
Manual Record
Instant
Playback
/
Mute/Audio
on
Capture
PTZ Control
Digital Zoom
Image Settings
Face
Detection
Live View
Strategy
Information
Fisheye
Expansion
3D
Positioning
Main/Sub-Stre
am
Close
Instant Playback only shows the record in last five minutes. If no record is found, it means
there is no record during the last five minutes.
3D Positioning (for I series NVR) is for zooming in/out the specific area of live image.
Use the left key of mouse to click on the desired position in the video image and drag a rectangle
area in the lower right direction, the camera will move the position to the center and enable the
rectangle area to zoom in. Use the left key of mouse to drag a rectangle area in the upper left
direction to move the position to the center and enable the rectangle area to zoom out.
Network Video Recorder User Manual
75
Digital Zoom is for zooming in the live image. You can zoom in the image to different
proportions (1 to16X) by moving the sliding bar from to . You can also scroll the mouse
wheel to control the zoom in/out.
Figure 3-3 Digital Zoom
Image Settings icon can be selected to enter the Image Settings menu.
You can set the image parameters like brightness, contrast, saturation and hue according to the
actual demand.
Figure 3-4 Image Settings- Customize
Live View Strategy can be selected to set strategy, including Real-time, Balanced, Fluency.
Network Video Recorder User Manual
76
Figure 3-5 Live View Strategy
Face detection function can be used to detect the human faces in live view mode and save in
HDD. When there are human faces with the specified size detected in the front of the camera, the
device will capture the human face and save in HDD.
Move the mouse onto the icon to show the real-time stream information, including the frame
rate, bitrate, resolution and stream type.
Figure 3-6 Information
3.2.5 Fisheye Expansion View
The device supports the fisheye expansion for the connected fisheye camera in live view or
playback mode.
Click the to enter the fisheye expansion mode.
The fisheye expansion view feature is supported by the DS-7600/7700/8600/9600-I (/P) series NVR
only.
Network Video Recorder User Manual
77
Table 3-5 Fisheye Display Mode
Fisheye
expansion
Button
Operation
180° panorama
360° panorama
PTZ expansion
Fisheye
Four different display modes are available. You can select a display mode as demand.
- 180° Panorama: Switch the live view image to the 180° panorama view.
- 360° Panorama: Switch the live view image to the 360° panorama view.
- PTZ Expansion: The PTZ Expansion is the close-up view of some defined area in the
fisheye view or panorama expansion, and it supports the electronic PTZ function, which is
also called e-PTZ.
- Fisheye: In the Fisheye mode, the whole wide-angle view of the fisheye camera is
displayed. This view mode is called Fisheye View because it approximates the vision of a
fish’s convex eye. The lens produces curvilinear images of a large area, while distorting
the perspective and angles of objects in the image.
Network Video Recorder User Manual
78
3.3 Adjusting Live View Settings
Purpose:
Live View settings can be customized according to different needs. You can configure the output
interface, dwell time for screen to be shown, mute or turning on the audio, the screen number for
each channel, etc.
Step 1 Enter the Live View Settings interface.
Menu> Configuration> Live View
Figure 3-7 Live View-General
The settings available in this menu include:
- Video Output Interface: Designates the output to configure the settings for. The DS-9600NI
and DS-8600NI provide VGA/HDMI and VGA2/HDMI2, and DS-7600NI and DS-7700NI
provide the HDMI and VGA video outputs.
- Live View Mode: Designates the display mode to be used for Live View.
- Dwell Time: The time in seconds to dwell between switching of channels when enabling
auto-switch in Live View.
- Enable Audio Output: Enables/disables audio output for the selected video output.
- Volume: Adjust the volume of live view, playback and two-way audio for the selected output
interface.
- Event Output: Designates the output to show event video.
- Full Screen Monitoring Dwell Time: The time in seconds to show alarm event screen.
Step 2 Set cameras order.
Network Video Recorder User Manual
79
Figure 3-8 Live View- Camera Order
1) Select a View mode in , including 1/4/6/8/16/25/32/36/64-window
division modes are supported depending on different models.
2) Select the small window, and double-click on the channel number to display the channel
on the window.
3) You can click button to start live view for all the channels and click to stop all the
live view.
4) Click the Apply button to save the setting.
You can also click-and-drag the camera to the desired window on the live view interface to set
the camera order.
Step 3 Set the stream type for live view of camera.
1) Click the More Settings to enter the more settings interface.
2) Select the camera to configure from the list.
3) Select the stream type to main stream, sub-stream or Auto.
Figure 3-9 Stream Type Settings
4) Click Apply to save the settings.
5) (Optional) You can click the Copy button to copy the stream type settings of the current
camera to other camera (s).
Network Video Recorder User Manual
80
3.4 Channel-zero Encoding
Purpose:
Sometimes you need to get a remote view of many channels in real time from web browser or
CMS (Client Management System) software, in order to decrease the bandwidth requirement
without affecting the image quality, channel-zero encoding is supported as an option for you.
Step 1 Enter the Live View Settings interface.
Menu > Configuration> Live View
Step 2 Select the Channel-Zero Encoding tab.
Figure 3-10 Live View- Channel-Zero Encoding
Step 3 Check the checkbox after Enable Channel Zero Encoding.
Step 4 Configure the Frame Rate, Max. Bitrate Mode and Max. Bitrate.
After you set the Channel-Zero encoding, you can get a view in the remote client or web
browser of 16 channels in one screen.
Network Video Recorder User Manual
81
Chapter 4 PTZ Controls
4.1 Configuring PTZ Settings
Purpose:
Follow the procedure to set the parameters for PTZ. The configuring of the PTZ parameters should
be done before you control the PTZ camera.
Step 1 Enter the PTZ Settings interface.
Menu >Camera> PTZ
Figure 4-1 PTZ Settings
Step 2 Click the PTZ Parameters button to set the PTZ parameters.
Figure 4-2 PTZ- General
Network Video Recorder User Manual
82
Step 3 Choose the camera for PTZ setting in the Camera dropdown list.
Step 4 Enter the parameters of the PTZ camera.
All the parameters should be exactly the same as the PTZ camera parameters.
Step 5 Click Apply button to save the settings.
Network Video Recorder User Manual
83
4.2 Setting PTZ Presets, Patrols & Patterns
Before you start:
Please make sure that the presets, patrols and patterns should be supported by PTZ protocols.
4.2.1 Customizing Presets
Purpose:
Follow the steps to set the Preset location which you want the PTZ camera to point to when an
event takes place.
Step 1 Enter the PTZ Control interface.
Menu>Camera>PTZ
Figure 4-3 PTZ Settings
Step 2 Use the directional button to wheel the camera to the location where you want to set preset;
and the zoom and focus operations can be recorded in the preset as well.
Step 3 Enter the preset No. (1~255) in the preset text field, and click the Set button to link the
location to the preset.
Repeat the steps2-3 to save more presets.
You can click the Clear button to clear the location information of the preset, or click the
Clear All button to clear the location information of all the presets.
4.2.2 Calling Presets
Purpose:
Network Video Recorder User Manual
84
This feature enables the camera to point to a specified position such as a window when an event
takes place.
Step 1 Click the button PTZ in the lower-right corner of the PTZ setting interface;
Or press the PTZ button on the front panel or click the PTZ Control icon in the quick
setting bar, or select the PTZ option in the right-click menu to show the PTZ control panel.
Step 2 Choose Camera in the dropdown list.
Step 3 Click the button to show the general settings of the PTZ control.
Figure 4-4 PTZ Panel - General
Step 4 Click to enter the preset No. in the corresponding text field.
Step 5 Click the Call Preset button to call it.
4.2.3 Customizing Patrols
Purpose:
Patrols can be set to move the PTZ to different key points and have it stay there for a set duration
before moving on to the next key point. The key points are corresponding to the presets. The
presets can be set following the steps above in Customizing Presets.
Step 1 Enter the PTZ Control interface.
Menu>Camera>PTZ
Network Video Recorder User Manual
85
Figure 4-5 PTZ Settings
Step 2 Select patrol No. in the drop-down list of patrol.
Step 3 Click the Set button to add key points for the patrol.
Figure 4-6 Key point Configuration
Step 4 Configure key point parameters, such as the key point No., duration of staying for one key
point and speed of patrol. The key point is corresponding to the preset. The Key Point No.
determines the order at which the PTZ will follow while cycling through the patrol. The
Duration refers to the time span to stay at the corresponding key point. The Speed defines
the speed at which the PTZ will move from one key point to the next.
Step 5 Click the Add button to add the next key point to the patrol, or you can click the OK button
to save the key point to the patrol.
You can delete all the key points by clicking the Clear button for the selected patrol, or click
the Clear All button to delete all the key pints for all patrols.
4.2.4 Calling Patrols
Purpose:
Calling a patrol makes the PTZ to move according the predefined patrol path.
Step 1 Click the button PTZ in the lower-right corner of the PTZ setting interface;
Network Video Recorder User Manual
86
Or press the PTZ button on the front panel or click the PTZ Control icon in the quick
setting bar, or select the PTZ option in the right-click menu to show the PTZ control panel.
Step 2 Click the button to show the general settings of the PTZ control.
Figure 4-7 PTZ Panel - General
Step 3 Select a patrol in the dropdown list and click the Call Patrol button to call it.
Step 4 You can click the Stop Patrol button to stop calling it.
4.2.5 Customizing Patterns
Purpose:
Patterns can be set by recording the movement of the PTZ. You can call the pattern to make the
PTZ movement according to the predefined path.
Step 1 Enter the PTZ Control interface.
Menu > Camera > PTZ
Figure 4-8 PTZ Settings
Step 2 Choose pattern number in the dropdown list.
Network Video Recorder User Manual
87
Step 3 Click the Start button and click corresponding buttons in the control panel to move the PTZ
camera, and click the Stop button to stop it.
The movement of the PTZ is recorded as the pattern.
4.2.6 Calling Patterns
Purpose:
Follow the procedure to move the PTZ camera according to the predefined patterns.
Step 1 Click the button PTZ in the lower-right corner of the PTZ setting interface;
Or press the PTZ button on the front panel or click the PTZ Control icon in the quick
setting bar, or select the PTZ option in the right-click menu to show the PTZ control panel.
Step 2 Click the button to show the general settings of the PTZ control.
Figure 4-9 PTZ Panel - General
Step 3 Click the Call Pattern button to call it.
Step 4 Click the Stop Pattern button to stop calling it.
4.2.7 Customizing Linear Scan Limit
Purpose:
The Linear Scan can be enabled to trigger the scan in the horizantal direction in the predefined
range.
This function is supported by some certain models.
Step 1 Enter the PTZ Control interface.
Menu > Camera > PTZ
Network Video Recorder User Manual
88
Figure 4-10 PTZ Settings
Step 2 Use the directional button to wheel the camera to the location where you want to set the
limit, and click the Left Limit or Right Limit button to link the location to the corresponding
limit.
The speed dome starts linear scan from the left limit to the right limit, and you must set the left
limit on the left side of the right limit, as well the angle from the left limit to the right limit should
be no more than 180º.
4.2.8 Calling Linear Scan
Before operating this function, make sure the connected camera supports the linear scan and is in
HIKVISION protocol.
Purpose:
Follow the procedure to call the linear scan in the predefined scan range.
Step 1 Click the button PTZ in the lower-right corner of the PTZ setting interface;
Or press the PTZ button on the front panel or click the PTZ Control icon in the quick
setting bar to enter the PTZ setting menu in live view mode.
Step 2 Click the button to show the one-touch function of the PTZ control.
Network Video Recorder User Manual
89
Figure 4-11 PTZ Panel - One-touch
Step 3 Click Linear Scan button to start the linear scan and click the Linear Scan button again to
stop it.
You can click the Restore button to clear the defined left limit and right limit data and the
dome needs to reboot to make settings take effect.
4.2.9 One-touch Park
Before operating this function, make sure the connected camera supports the linear scan and is in
HIKVISION protocol.
Purpose:
For some certain model of the speed dome, it can be configured to start a predefined park action
(scan, preset, patrol and etc.) automatically after a period of inactivity (park time).
Step 1 Click the button PTZ in the lower-right corner of the PTZ setting interface;
Or press the PTZ button on the front panel or click the PTZ Control icon in the quick
setting bar to enter the PTZ setting menu in live view mode.
Step 2 Click the button to show the one-touch function of the PTZ control.
Figure 4-12 PTZ Panel - One-touch
Network Video Recorder User Manual
90
Step 3 There are 3 one-touch park types selectable, click the corresponding button to activate the
park action.
Park (Quick Patrol): The dome starts patrol from the predefined preset 1 to preset 32 in
order after the park time. The undefined preset will be skipped.
Park (Patrol 1): The dome starts move according to the predefined patrol 1 path after the
park time.
Park (Preset 1): The dome moves to the predefined preset 1 location after the park time.
The park time can only be set through the speed dome configuration interface, by default the
value is 5s.
Step 4 Click the button again to inactivate it.
Network Video Recorder User Manual
91
4.3 PTZ Control Panel
To enter the PTZ control panel, there are two ways supported.
OPTION 1:
In the PTZ settings interface, click the PTZ button on the lower-right corner which is next to the
Back button.
OPTION 2:
In the Live View mode, you can press the PTZ Control button on the front panel or on the remote
control, or choose the PTZ Control icon , or select the PTZ option in the right-click menu.
Click the Configuration button on the control panel, and you can enter the PTZ Settings interface.
In PTZ control mode, the PTZ panel will be displayed when a mouse is connected with the device. If
no mouse is connected, the icon appears in the lower-left corner of the window, indicating
that this camera is in PTZ control mode.
Figure 4-13 PTZ Panel
Network Video Recorder User Manual
92
Table 4-1 Description of the PTZ panel icons
Icon
Description
Icon
Description
Icon
Description
Direction
button and the
auto-cycle
button
Zoom+, Focus+,
Iris+
Zoom-, Focus-,
Iris-
The speed of
the PTZ
movement
Light on/off
Wiper on/off
3D Positioning
Centralization
Menu
Switch to the
PTZ control
interface
Switch to the
one-touch
control
interface
Switch to the
general
settings
interface
Previous item
Next item
Start pattern /
patrol
Stop the patrol
/ pattern
movement
Exit
Minimize
windows
Network Video Recorder User Manual
93
Chapter 5 Recording and Capture Settings
The picture capture is supported by the DS-7600/7700/8600/9600-I (/P) series NVR only.
5.1 Configuring Parameters
Purpose:
By configuring the parameters you can define the parameters which affect the image quality, such
as the transmission stream type, the resolution and so on.
Before you start:
1) Make sure that the HDD has already been installed. If not, please install a HDD and
initialize it. (Menu>HDD>General)
Figure 5-1 HDD- General
2) Check the storage mode of the HDD
Click Advanced to check the storage mode of the HDD.
If the HDD mode is Quota, please set the maximum record capacity and maximum picture
capacity. For detailed information, see Chapter Configuring Quota Mode.
If the HDD mode is Group, you should set the HDD group. For detailed information, see
Chapter Configuring HDD Group for Recording and Capture.
Figure 5-2 HDD- Advanced
Step 1 Enter the Record settings interface to configure the recording parameters:
Menu > Record > Parameters
Network Video Recorder User Manual
94
Figure 5-3 Recording Parameters
Step 2 Parameters Setting for Recording
1) Select Record tab page to configure. You can configure the stream type, the resolution,
and other parameters on your demand.
Video Encode: select the video encoding to H.265 or H.264.
Enable H.264+ Mode: check the checkbox to enable. Once enabled, the Max. Bitrate
Mode, Max. Bitrate(Kbps) and Max. Bitrate Range Recommend are not configurable.
Enabling it helps to ensure the high video quality with a lowered bitrate.
The H.265 and H.264+ should be supported by the connected IP camera.
2) Click the More Settings button to set the advanced parameters for recording and then
click OK button to finish editing.
Figure 5-4 More Settings
Network Video Recorder User Manual
95
Pre-record: The time you set to record before the scheduled time or event. For example,
when an alarm triggers the recording at 10:00, and if you set the pre-record time as 5
seconds, the camera records at 9:59:55.
Post-record: The time you set to record after the event or the scheduled time. For
example, when an alarm triggered recording ends at 11:00, and if you set the post-record
time as 5 seconds, it records till 11:00:05.
Expired Time: The expired time is period for a recorded file to be kept in the HDD. When
the deadline is reached, the file will be deleted. If you set the expired time to 0, the file
will not be deleted. The actual keeping time for the file should be determined by the
capacity of the HDD.
Redundant Record/Capture: By enabling redundant record or capture you save the record
and captured picture in the redundant HDD. See Chapter Configuring Redundant
Recording and Capture.
Record Audio: Check the checkbox to enable or disable audio recording.
Video Stream: Main stream and sub-stream are selectable for recording. When you select
sub-stream, you can record for a longer time with the same storage space.
3) Click Apply to save the settings.
You can enable the ANR (Automatic Network Replenishment) function via the web browser
(Configuration > Storage > Schedule Settings > Advanced) to save the video files in the IP camera
when the network is disconnected, and synchronize the files to the NVR when the network is
resumed.
- The redundant record/capture is used when you want to save the record files or captured
pictures in the redundant HDD. You must configure the redundant HDD in HDD settings. For
detailed information, see Chapter 14.4.2 .
- The parameters of Main Stream (Event) are read-only.
Step 3 Parameters Settings for Sub-stream
1) Enter the Sub-stream tab page.
Network Video Recorder User Manual
96
Figure 5-5 Sub-stream Parameters
2) Configure the parameters of the camera.
3) Click Apply to save the settings.
Step 4 Parameters Settings for Capture
1) Select the Capture tab.
Figure 5-6 Capture Parameters
2) Configure the parameters.
3) Click Apply to save the settings.
The interval is the time period between two capturing actions. You can configure all the
parameters on this menu on your demand.
Network Video Recorder User Manual
97
5.2 Configuring Recording and Capture Schedule
Purpose:
Set the record schedule, and then the camera automatically starts/stops recording according to the
configured schedule.
In this chapter, we take the record schedule procedure as an example, and the same procedure can
be applied to configure schedule for both recording and capture. To schedule the automatic
capture, you need to choose the Capture tab in the Schedule interface.
Step 1 Enter the Record Schedule interface.
Menu>Record/Capture>Schedule
Step 2 Configure Record Schedule
1) Select Record/Capture Schedule.
Figure 5-7 Record Schedule
Different recording types are marked in different color icons.
Continuous: scheduled recording.
Event: recording triggered by all event triggered alarm.
Motion: recording triggered by motion detection.
Alarm: recording triggered by alarm.
M/A: recording triggered by either motion detection or alarm.
Network Video Recorder User Manual
98
M&A: recording triggered by motion detection and alarm.
POS: recording triggered by POS and alarm. (Supported by I series NVR only)
You can delete the set schedule by clicking the None icon.
2) Choose the camera you want to configure.
3) Select the check box after the Enable Schedule item.
4) Click Edit button or click on the color icon under the edit button and draw the schedule
line on the panel.
Edit the schedule:
The all-day continuous recording is configured for the device by factory default.
I. In the message box, you can choose the day to which you want to set schedule.
Figure 5-8 Recording Schedule Interface
You can click the button to set the accurate time of the schedule.
II. To schedule an all-day recording, check the checkbox after the All Day item.
Figure 5-9 Edit Schedule
III. To arrange other schedule, set the Start/End time for each period.
Up to 8 periods can be configured for each day. And the time periods can’t be overlapped each
other.
Network Video Recorder User Manual
99
IV. Select the record type in the dropdown list.
- To enable Motion, Alarm, M | A (motion or alarm), M & A (motion and alarm) and VCA
(Video Content Analysis) triggered recording and capture, you must configure the motion
detection settings, alarm input settings or VCA settings as well. For detailed information,
refer to Chapter 8.1 and Chapter 9.
- The VCA settings are only available to the smart IP cameras.
Repeat the above edit schedule steps to schedule recording or capture for other days in
the week. If the schedule can also be applied to other days, click Copy.
Figure 1. 1 Copy Schedule to Other Days
V. Click OK to save setting and back to upper level menu.
VI. Click Apply in the Record Schedule interface to save the settings.
Draw the schedule:
I. Click on the color icons, you can choose the schedule type as continuous or event.
Network Video Recorder User Manual
100
Figure 5-10 Draw the Schedule
II. Click the Apply button to validate the settings.
Step 3 (Optional) If the settings can also be used to other channels, click Copy, and then choose the
channel to which you want to copy.
Step 4 Click Apply to save the settings.
Figure 5-11 Copy Schedule to Other Channels
Network Video Recorder User Manual
101
5.3 Configuring Motion Detection Recording and Capture
Purpose:
Follow the steps to set the motion detection parameters. In the live view mode, once a motion
detection event takes place, the NVR can analyze it and do many actions to handle it. Enabling
motion detection function can trigger certain channels to start recording, or trigger full screen
monitoring, audio warning, notify the surveillance center and so on. In this chapter, you can follow
the steps to schedule a record which triggered by the detected motion.
Step 1 Enter the Motion Detection interface.
Menu>Camera>Motion
Figure 5-12 Motion Detection
Step 2 Configure Motion Detection:
1) Choose camera you want to configure.
2) Check the checkbox after Enable Motion Detection.
3) Drag and draw the area for motion detection by mouse. If you want to set the motion
detection for all the area shot by the camera, click Full Screen. To clear the motion
detection area, click Clear.
4) Click Settings, and the message box for channel information pops up.
Network Video Recorder User Manual
102
Figure 5-13 Motion Detection Handling
1) Select the channels which you want the motion detection event to trigger recording.
2) Click Apply to save the settings.
3) Click OK to back to the upper level menu.
4) Exit the Motion Detection menu.
Step 3 Edit the Motion Detection Record Schedule. For the detailed information of schedule
configuration, see Chapter Configuring Recording and Capture Schedule.
Network Video Recorder User Manual
103
5.4 Configuring Alarm Triggered Recording and Capture
Purpose:
Follow the procedure to configure alarm triggered recording or capture.
Step 1 Enter the Alarm settings interface.
Menu> Configuration> Alarm
Figure 5-14 Alarm Settings
Step 2 Click Alarm Input.
Figure 5-15 Alarm Settings- Alarm Input
1) Select Alarm Input number and configure alarm parameters.
2) Choose N.O (normally open) or N.C (normally closed) for alarm type.
3) Check the checkbox for Setting .
4) Click Settings.
Network Video Recorder User Manual
104
Figure 5-16 Alarm Settings
5) Choose the alarm triggered recording channel.
6) Check the checkbox to select channel.
7) Click Apply to save settings.
8) Click OK to back to the upper level menu.
Repeat the above steps to configure other alarm input parameters.
If the settings can also be applied to other alarm inputs, click Copy and choose the alarm input
number.
Figure 5-17 Copy Alarm Input
Step 3 Edit the Alarm triggered record in the Record/Capture Schedule setting interface. For the
detailed information of schedule configuration, see Chapter Configuring Recording and
Capture Schedule.
Network Video Recorder User Manual
105
5.5 Configuring VCA Event Recording
Purpose:
The event triggered recording can be configured through the menu. Then events include the
motion detection, alarm and VCA events (face detection/face capture, line crossing detection,
intrusion detection, region entrance detection, region exiting detection, loitering detection, people
gathering detection, fast moving detection, parking detection, unattended baggage detection,
object removal detection, audio loss exception detection, sudden change of sound intensity
detection, and defocus detection).
Step 1 Enter the VCA settings interface and select a camera for the VCA settings.
Menu > Camera > VCA
Figure 5-18 VCA Settings
Step 2 Configure the detection rules for VCA events. For details, please refer to Chapter 10 VCA
Alarm.
Step 3 Click the icon to configure the alarm linkage actions for the VCA events.
Step 4 Select Trigger Channel tab and select one or more channels which will start to record when
VCA alarm is triggered.
Step 5 Click Apply to save the settings
Network Video Recorder User Manual
106
Figure 5-19 Set Trigger Camera of VCA Alarm
The PTZ Linking function is only available for the VCA settings of IP cameras.
Step 6 Enter Record Schedule settings interface (Menu > Record > Schedule > Record Schedule),
and then set VCA as the record type. For details, see step 2 in Chapter 5.2 Configuring
Recording and Capture Schedule.
Network Video Recorder User Manual
107
5.6 Manual Recording and Continuous Capture
Purpose:
Follow the steps to set parameters for the manual recording and continuous capture. Using manual
recording and continuous capture, you need to manually cancel the record and capture. The
manual recording and manual continuous capture is prior to the scheduled recording and capture.
Step 1 Enter the Manual settings interface.
Menu> Manual
Or press the REC/SHOT button on the front panel.
Figure 5-20 Manual Record
Step 2 Enable the Manual Recording.
1) Select Record on the left bar.
2) Click the status button before camera number to change to .
Step 3 Disable manual record.
Click the status button to change to .
Green icon means that the channel is configured the record schedule. After rebooting, all the
manual records enabled will be canceled.
Step 4 Enabling and disabling the continuous capture
1) Select Continuous Capture on the left bar.
Figure 5-21 Continuous Capture
2) Click the status button before camera number to change to .
3) Disable continuous capture.
4) Click the status button to change to .
Network Video Recorder User Manual
108
Green icon means that the channel is configured the capture schedule. After rebooting, all the
continuous capture will be canceled.
Network Video Recorder User Manual
109
5.7 Configuring Holiday Recording and Capture
Purpose:
Follow the steps to configure the record or capture schedule on holiday for that year. You may
want to have different plan for recording and capture on holiday.
Step 1 Enter the Record setting interface.
Menu > Record > Holiday
Figure 5-22 Holiday Settings
Step 2 Enable Edit Holiday schedule.
1) Click to enter the Edit interface.
Figure 5-23 Edit Holiday Settings
Network Video Recorder User Manual
110
2) Check the checkbox after Enable Holiday.
3) Select Mode from the dropdown list.
4) There are three different modes for the date format to configure holiday schedule.
5) Set the start and end date.
6) Click Apply to save settings.
7) Click OK to exit the Edit interface.
Step 3 Enter Record/Capture Schedule settings interface to edit the holiday recording schedule. See
Chapter 6.2 Configuring Recording and Capture Schedule.
Network Video Recorder User Manual
111
5.8 Configuring Redundant Recording and Capture
Purpose:
Enabling redundant recording and capture, which means saving the record files and captured
pictures not only in the R/W HDD but also in the redundant HDD, will effectively enhance the data
safety and reliability. .
Step 1 Enter HDD Information interface.
Menu> HDD

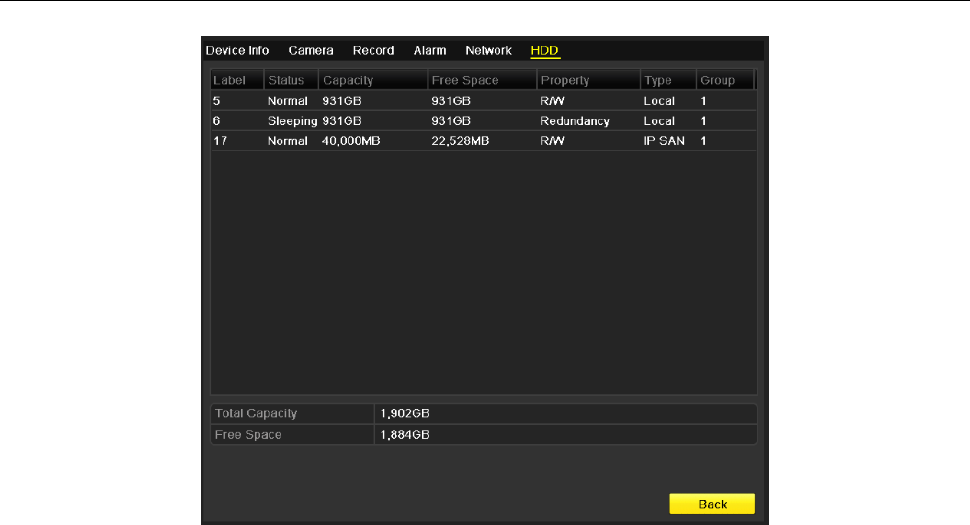

Figure 5-24 HDD General
Step 2 Select the HDD and click to enter the Local HDD Settings interface.
1) Set the HDD property to Redundancy.
Figure 5-25 HDD General-Editing
2) Click Apply to save the settings.
3) Click OK to back to the upper level menu.
You must set the Storage mode in the HDD advanced settings to Group before you set the HDD
property to Redundant. For detailed information, please refer to Chapter 11.4.1 Setting HDD
Property. There should be at least another HDD which is in Read/Write status.
Step 3 Enter the Record setting interface.
Menu> Record> Parameters
1) Select Record tab.
Network Video Recorder User Manual
112
2) Click More Settings to enter the following interface.
Figure 5-26 Record Parameters
3) Select Camera you want to configure in the drop-down list.
4) Check the checkbox of Redundant Record/Capture.
5) Click OK to save settings and back to the upper level menu.
Repeat the above steps for configuring other channels.
Network Video Recorder User Manual
113
5.9 Configuring HDD Group for Recording and Capture
Purpose:
You can group the HDDs and save the record files and captured pictures in certain HDD group.
Step 1 Enter HDD setting interface.
Menu>HDD
Figure 5-27 HDD General
Step 2 Select Advanced on the left side menu.
Figure 5-28 Storage Mode
Check whether the storage mode of the HDD is Group. If not, set it to Group. For detailed
information, please refer to Chapter 14.4 Managing HDD Group.
Step 3 Select General in the left side menu
Step 4 Click to enter editing interface.
Step 5 Configuring HDD group.
1) Choose a group number for the HDD group.
2) Click Apply and then in the pop-up message box, click Yes to save your settings.
3) Click OK to back to the upper level menu.
4) Repeat the above steps to configure more HDD groups.
Step 6 Choose the Channels which you want to save the record files and captured pictures in the
HDD group.
1) Select Advanced on the left bar.
2) Choose Group number in the dropdown list of Record on HDD Group
3) Check the channels you want to save in this group.
4) Click Apply to save settings.
After having configured the HDD groups, you can configure the Recording and Capture settings
following the procedure provided in Chapter 5.2-5.7.
Network Video Recorder User Manual
114
5.10 Files Protection
Purpose:
You can lock the recording files or set the HDD property to Read-only to protect the record files
from being overwritten.
5.10.1 Locking the Recording Files
- Lock File when Playback
Step 1 Enter Playback interface.
Menu> Playback
Step 2 Check the checkbox of channel(s) in the channel list and then double-click to select a date on
the calendar.
Figure 5-29 Normal/Smart Playback
Step 3 During playback, click the button to lock the current recording file.
In the multi-channel playback mde, clicking the button will lock all the record files related to
the playback channels.
Step 4 You can click the button to pop up the file management interface. Click the Locked File
tab to check and export the locked files.
Network Video Recorder User Manual
115
Figure 5-30 Locked File Management
In the File Management interface, you can also click to change it to to unlock the file
and the file is not protected.
- Lock File when Export
Step 1 Enter Export setting interface.
Menu> Export
Figure 5-31 Export
Step 2 Select the channels you want to search by checking the checkbox to .
Step 3 Configure the record type, file type start/end time.
Step 4 Click Search to show the results.
Figure 5-32 Export- Search Result
Network Video Recorder User Manual
116
Step 5 Protect the record files.
1) Find the record files you want to protect, and then click the icon which will turn to , indicating
that the file is locked.
The record files of which the recording is still not completed cannot be locked.
2) Click to change it to to unlock the file and the file is not protected.
Figure 5-33 Unlocking Attention
5.10.2 Setting HDD Property to Read-only
Step 1 Enter HDD setting interface.
Menu> HDD
Figure 5-34 HDD General
Step 2 Click to edit the HDD you want to protect.
Figure 5-35 HDD General- Editing
To edit HDD property, you need to set the storage mode of the HDD to Group. See Chapter
Managing HDD Group.
Step 3 Set the HDD property to Read-only.
Network Video Recorder User Manual
117
Step 4 Click OK to save settings and back to the upper level menu.
- You cannot save any files in a Read-only HDD. If you want to save files in the HDD, change
the property to R/W.
- If there is only one HDD and is set to Read-only, the NVR can’t record any files. Only live
view mode is available.
- If you set the HDD to Read-only when the NVR is saving files in it, then the file will be saved
in next R/W HDD. If there is only one HDD, the recording will be stopped.
Network Video Recorder User Manual
118
Chapter 6 Playback
6.1 Playing Back Record Files
6.1.1 Instant Playback
Purpose
Play back the recorded video files of a specific channel in the live view mode. Channel switch is
supported.
Instant playback by channel
Choose a channel in live view mode and click the button in the quick setting toolbar.
In the instant playback mode, only record files recorded during the last five minutes on this
channel will be played back.
Figure 6-1 Instant Playback Interface
6.1.2 Playing Back by Normal Search
Playback by Channel
Enter the Playback interface.
Right click a channel in live view mode and select Playback from the menu, as shown in Figure 6-2.
Network Video Recorder User Manual
119
Figure 6-2 Right-click Menu under Live View
Pressing numerical buttons will switch playback to the corresponding channels during playback
process.
Playback by Time
Purpose
Play back video files recorded in specified time duration. Multi-channel simultaneous playback and
channel switch are supported.
Step 1 Enter playback interface.
Menu>Playback
Step 2 Select the Normal/Smart in the drop-down list on the top-left side.
Step 3 Select the stream to Main Stream or Sub Stream. (for I series NVR only)
Step 4 Select a camera in the camera list.
The main stream or sub stream for recording is configurable in Menu>Record>Parameters.
Step 5 Select a date in the calendar and click the button on the left toolbar to play the video
file.
Network Video Recorder User Manual
120
Figure 6-3 Playback Calendar
If there are record files for that camera in that day, in the calendar, the icon for that day is
displayed in different colors for different recording types: blue for continuous recording and red for
event recording.
Step 6 Click the radio button to start playing the continuous recorded files.
Playback Interface
You can use the toolbar in the bottom part of Playback interface to control playing progress, as
shown in Figure 6-4.
Figure 6-4 Playback Interface
Figure 6-5 Toolbar of Playback
You can click the channel(s) to execute simultaneous playback of multiple channels.
Network Video Recorder User Manual
121
- The indicates the start/end time of the recorded video files.
- Playback progress bar: use the mouse to click any point of the progress bar or drag the
progress bar to locate specific frames.
Table 6-1 Detailed Explanation of Playback Toolbar
Item
Button
Operation
Button
Operation
Smart
Search
Draw quadrilateral
for the motion
detection
Search the matched
video
Set full screen for
motion detection
Draw line for the line
crossing detection
Draw quadrilateral
for the intrusion
detection
Filter video files by
setting the target
characters
Operations
/
Audio on/Mute
/
Start/Stop clipping
Capture Picture
Lock File
Add default tag
Add customized tag
File management
for video clips,
captured pictures,
locked files and tags
Digital Zoom
Playing
Control
/
Pause/Play
/
Reverse play/ Pause
Slow forward
Stop
30s forward
30s reverse
Next day
Fast forward
Previous day
Time Bar
Scaling
Previous/Next
period
Play the time bar in
30 minutes (default)
Play the time bar in
1 hour
Play the time bar in 2
hours
Play the time bar in
6 hours
Play the time bar in
24 hours
Fisheye
180° panorama
360° panorama
Network Video Recorder User Manual
122
Item
Button
Operation
Button
Operation
Expansion
PTZ expansion
Fisheye
POS
Enable/Disable POS
information overlay
(Supported by I
series NVR only)
- The fisheye expansion view feature is supported by the DS-7600/7700/8600/9600-I (/P)
series NVR only.
- Please refer to the Chapter 3.2.5 Fisheye Expansion for the description and operation of the
fisheye expansion.
- The playing speed of 256X is supported.
- When the playing speed is higher than 2X, the POS information cannot be overlain on the
video.
6.1.3 Playing back by Smart Search
Purpose
The smart playback function provides an easy way to get through the less effective information.
When you select the smart playback mode, the system will analyze the video containing the
motion, line or intrusion detection information, mark it with green color and play it in the normal
speed while the video without motion will be played in the 16-time speed. The smart playback
rules and areas are configurable.
Step 1 Enter Playback interface.
Menu>Playback
Step 2 Select the Normal/Smart in the drop-down list on the top-left side.
Step 3 Select the stream to Main Stream or Sub Stream. (for I series NVR only)
The main stream or sub stream for recording is configurable in Menu>Record>Parameters.
Step 4 Select a camera in the camera list.
Step 5 Select a date in the calendar and click the button on the left toolbar to play the video
file.
Network Video Recorder User Manual
123
Figure 6-6 Playback by Smart Search
Step 6 Click the radio button to switch to the playback by smart search.
Step 7 Set the rules and areas for smart search of line crossing detection, intrusion detection or
motion detection event triggered recording.
- Line Crossing Detection
Select the button, and click on the image to specify the start point and end point of the
line.
- Intrusion Detection
Click the button, and specify 4 points to set a quadrilateral region for intrusion detection.
Only one region can be set.
- Motion Detection
Click the button, and then hold the mouse on the image to draw the detection area
manually. You can also click the button to set the full screen as the detection area.
Step 8 (Optional) You can click to filter the searched video files by setting the target
characters, including the gender and age of the human and whether he/she wears glasses.
Network Video Recorder User Manual
124
Figure 6-7 Set Result Filter
Step 9 (Optional) Click to enter the Smart Settings to configure the related parameters.
Skip the Non-Related Video: check the checkbox to enable the device to skip non-related
video files.
Play Non-Related Video: set the playing speed to 8X/4X/2X/1X when playing the non-related
video files.
Play Related Video: set the playing speed to 4X/2X/1X when playing the non-related video
files.
Figure 6-8 Smart Settings
Network Video Recorder User Manual
125
6.1.4 Playing Back by Event Search
Purpose
Play back record files on one or several channels searched out by event type (e.g., alarm input,
motion detection and VCA).
Step 1 Enter the Playback interface.
Menu>Playback
Step 2 Select the Event in the drop-down list on the top-left side.
Step 3 Select the stream to Main Stream or Sub Stream. (for I series NVR only)
Step 4 Select the major type to Alarm Input, Motion, POS or VCA as the event type.
We take playback by VCA as the example in the following instructions.
Figure 6-9 Event Search Interface
Step 5 Select the minor type of VCA from the drop-down list. (Please refer to Chapter 9 VCA Alarm
for the details of VCA detection types).
For configuring the VCA recording, please refer to Chapter 5.4 Configuring VCA Event Recording
and Capture; and for details of VCA detection types, please refer to Chapter 9 VCA Alarm.
Step 6 Select the camera (s) for searching, and set the Start time and End time.
Network Video Recorder User Manual
126
Step 7 Click Search button to get the search result information. You may refer to the right-side bar
for the result.
For the POS event type (supported by I series NVR), you can enter the Keyword and enable the
Case Sensitivity (upper case and lower case) to search the video files with the keyword contained
POS information.
Step 8 Select a result item and click button to play back the file.
Pre-play and post-play can be configured.
Step 9 (Optional) Enter the Synch Playback interface to select the camera (s) for synchronous
playback.
Figure 6-10 Synch Playback Interface
Step 10 Enter the playback interface.
The toolbar in the bottom part of playback interface can be used to control playing process.
Network Video Recorder User Manual
127
Figure 6-11 Interface of Playback by Event
You can click or button to select the previous or next event. Please refer to Table 6.1 for
the description of buttons on the toolbar.
6.1.5 Playing Back by Tag
Purpose:
Video tag allows you to record related information like people and location of a certain time point
during playback. You can use video tag(s) to search for record files and position time point.
Before playing back by tag:
Step 1 Enter Playback interface.
Menu>Playback
Step 2 Search and play back the record file(s). Refer to Chapter 6.1.1 for the detailed information
about searching and playback of the record files.
Network Video Recorder User Manual
128
Figure 6-12 Interface of Playback by Time
Click button to add default tag.
Click button to add customized tag and input tag name.
Max. 64 tags can be added to a single video file.
Step 3 Tag management.
Click button to enter the File Management interface and click Tag to manage the tags.
You can check, edit, and delete tag(s).
Figure 6-13 Tag Management Interface
Network Video Recorder User Manual
129
Playing back by Tag
Step 1 Select the Tag from the drop-down list in the Playback interface.
Step 2 Select the stream to Main Stream or Sub Stream.
Step 3 Choose channels, edit start time and end time, and then click Search to enter Search Result
interface.
You can enter keyword in the textbox to search the tag on your command.
Step 4 Click button to play back the selected tag file.
Figure 6-14 Interface of Playback by Tag
Pre-play and post-play can be configured.
You can click or button to select the previous or next tag. Please refer to Table 6.1 for the
description of buttons on the toolbar.
6.1.6 Playing Back by Sub-periods
Purpose:
The video files can be played in multiple sub-periods simultaneously on the screens.
Step 1 Enter Playback interface.
Network Video Recorder User Manual
130
Step 2 Menu>Playback
Step 3 Select Sub-periods from the drop-down list in the upper-left corner of the page to enter the
Sub-periods Playback interface.
Step 4 Select the stream to Main Stream or Sub Stream.
Step 5 Select a date and start playing the video file.
Step 6 Select the Split-screen Number from the dropdown list. Up to 16 screens are configurable.
Figure 6-15 Interface of Sub-periods Playback
According to the defined number of split-screens, the video files on the selected date can be
divided into average segments for playback. E.g., if there are video files existing between 16:00 and
22:00, and the 6-screen display mode is selected, then it can play the video files for 1 hour on each
screen simultaneously.
6.1.7 Playing Back by System Logs
Purpose:
Play back record file(s) associated with channels after searching system logs.
Step 1 Enter Log Information interface.
Menu>Maintenance>Log Information
Step 2 Click Log Search tab to enter Playback by System Logs.
Step 3 Set search time and type and click Search button.
Network Video Recorder User Manual
131
Figure 6-16 System Log Search Interface
Step 4 Choose a log with record file and click button to enter Playback interface.
If there is no record file at the time point of the log, the message box “No result found” will pop
up.
Figure 6-17 Result of System Log Search
Step 5 Playback interface.
The toolbar in the bottom part of Playback interface can be used to control playing process.
Network Video Recorder User Manual
132
Figure 6-18 Interface of Playback by Log
6.1.8 Playing Back External File
Purpose:
Perform the following steps to look up and play back files in the external devices.
Step 1 Enter Tag Search interface.
Menu>Playback
Step 2 Select the External File in the drop-down list on the top-left side.
The files are listed in the right-side list.
You can click the button to refresh the file list.
Step 3 Select and click the button to play back it. And you can adjust the playback speed by
clicking and .
Figure 6-19 Interface of External File Playback
Network Video Recorder User Manual
133
6.1.9 Playing Back Pictures
The playback by picture is supported by the DS-9600/8600/7700/7600NI-I (/P) series NVR only.
Purpose:
The captured pictures stored in the HDDs of the device can be searched and viewed.
Step 1 Enter Playback interface.
Menu>Playback
Step 2 Select Picture from the drop-down list in the upper-left corner of the page to enter the
Picture Playback interface.
Step 3 Check checkbox to select the channel(s) and specify the start time and end time for
search.
Step 4 Click Search to enter Search Result interface.
Up to 4000 pictures can be displayed each time.
Step 5 Choose a picture you want to view and click button.
You can click Back to return to the search interface.
Figure 6-20 Result of Picture Playback
Step 6 The toolbar in the bottom part of Playback interface can be used to control playing process.
Network Video Recorder User Manual
134
Figure 6-21 Picture Playback Toolbar
Table 6-2 Detailed Explanation of Picture-playback Toolbar
Button
Function
Button
Function
Button
Function
Button
Function
Play reverse
Play
Previous
Next picture
6.2 Auxiliary Functions of Playback
6.2.1 Playing Back Frame by Frame
Purpose:
Play video files frame by frame, in case of checking image details of the video when abnormal
events happen.
• Using a Mouse:
Go to Playback interface.
If you choose playback of the record file: click button until the speed changes to Single frame
and one click on the playback screen represents playback of one frame.
If you choose reverse playback of the record file: click button until the speed changes to
Single frame and one click on the playback screen represents reverse playback of one frame. It is
also feasible to use button in toolbar.
• Using the Front Panel:
Click the button to set the speed to Single frame. One click on button, one click on the
playback screen or Enter button on the front panel represents playback or reverse playback of one
frame.
6.2.2 Thumbnails View
With the thumbnails view on the playback interface, you can conveniently locate the required
video files on the time bar.
Step 1 Enter the playback interface and start to play the video files.
Step 2 Move the mouse to the time bar to get the preview thumbnails of the video files. Select and
double click on a required thumbnail to enter the full-screen playback.
Network Video Recorder User Manual
135
Figure 6-22 Thumbnails View
The thumbnail view is supported only in the 1X single-camera playback mode.
6.2.3 Fast View
You can hold the mouse to drag on the time bar to get the fast view of the video files.
Step 1 Enter the playback interface and start to play the video files.
Step 2 Use the mouse to hold and drag through the playing time bar to fast view the video files.
Step 3 Release the mouse to the required time point to enter the full-screen playback.
The fast view is supported only in the 1X single-camera playback mode.
6.2.4 Digital Zoom
Step 1 Click the button on the playback control bar to enter Digital Zoom interface.
Step 2 You can zoom in the image to different proportions (1 to16X) by moving the sliding bar from
to . You can also scroll the mouse wheel to control the zoom in/out.
Network Video Recorder User Manual
136
Figure 6-23 Draw Area for Digital Zoom
Step 3 Right-click the image to exit the digital zoom interface.
6.2.5 File Management
You can manage the video clips, captured pictures in playback, locked files and tags you have
added in the playback mode.
Step 1 Enter the playback interface.
Step 2 Click on the toolbar to enter the file management interface.
Figure 6-24 File Management
Step 3 You can view the saved video clips, captured playback pictures, lock/unlock the files and edit
the tags which you added in the playback mode.
Step 4 If required, select the items and click Export All or Export to export the
clips/pictures/files/tags to local storage device.
Network Video Recorder User Manual
137
Chapter 7 Backup
7.1 Backing up Record Files
7.1.1 Quick Export
Purpose:
Export record files to backup device(s) quickly.
Step 1 Enter Video Export interface.
Menu>Export>Normal
Choose the channel(s) you want to back up and click Quick Export button.
The time duration of record files on a specified channel cannot exceed one day. Otherwise, the
message box “Max. 24 hours are allowed for quick export.” will pop up.
Figure 7-1 Quick Export Interface
Step 2 Select the format of the log files to be exported. Up to 15 formats are selectable.
Step 3 Click the Export to start exporting.
Network Video Recorder User Manual
138
Here we use USB Flash Drive and please refer to the next section Normal Backup for more backup
devices supported by the NVR.
Figure 7-2 Quick Export using USB1-1
Stay in the Exporting interface until all record files are exported.
Figure 7-3 Export Finished
Step 4 Check backup result.
Choose the record file in Export interface and click button to check it.
The Player player.exe will be exported automatically during record file export.
Network Video Recorder User Manual
139
Figure 7-4 Checkup of Quick Export Result Using USB1-1
7.1.2 Backing up by Normal Video/Picture Search
Purpose:
The record files can be backup to various devices, such as USB devices (USB flash drives, USB HDDs,
USB writer), SATA writer and e-SATA HDD.
The eSATA HDD is supported by DS-9600NI-I8 and DS-9600NI-I16 series NVR only.
Backup using USB flash drives and USB HDDs
Step 1 Enter Export interface.
Menu>Export>Normal/Picture
Step 2 Select the cameras to search.
Step 3 Set search condition and click Search button to enter the search result interface. The
matched video files or pictures are displayed in Chart or List display mode.
Network Video Recorder User Manual
140
Figure 7-5 Normal Video Search for Backup
Step 4 Select video files or pictures from the Chart or List to export.
Click to play the record file if you want to check it.
Check the checkbox before the record files you want to back up.
The size of the currently selected files is displayed in the lower-left corner of the window.
Figure 7-6 Result of Normal Video Search for Backup
Step 5 Export the video files or picture files.
Click Export All button to export all the files.
Network Video Recorder User Manual
141
Or you can select recording files you want to back up, and click Export button to enter
Export interface.
If the inserted USB device is not recognized:
- Click the Refresh button.
- Reconnect device.
- Check for compatibility from vendor.
You can also format USB flash drives or USB HDDs via the device.
Figure 7-7 Export by Normal Video Search using USB Flash Drive
Stay in the Exporting interface until all record files are exported with pop-up message box
“Export finished”.
Figure 7-8 Export Finished
The backup of video files using USB writer or SATA writer has the same operating instructions.
Please refer to steps described above.
Network Video Recorder User Manual
142
7.1.3 Backing up by Event Search
Purpose:
Back up event-related record files using USB devices (USB flash drives, USB HDDs, USB writer),
SATA writer or eSATA HDD. Quick Backup and Normal Backup are supported.
Step 1 Enter Export interface.
Menu>Export>Event
Step 2 Select the cameras to search.
Step 3 Select the event type to alarm input, motion, VCA or POS.
Figure 7-9 Event Search for Backup
The POS event type is supported by the DS-7600/7700/8600/9600-I (/P) series NVR only.
Step 4 Set the search conditions and click Search button to enter the search result interface. For the
POS event type, you can also set the Keyword and enable the Case Sensitivity (upper case
and lower case) to search the video files with the key word contained POS information.
Step 5 The matched video files are displayed in Chart or List display mode. Select video files from
the Chart or List interface to export.
Network Video Recorder User Manual
143
Figure 7-10 Result of Event Search
Step 6 Export the video files. Please refer to step5 of Chapter 7.1.2 Backing up by Normal Video
Search for details.
7.1.4 Backing up Video Clips or Captured Playback Pictures
Purpose:
You may also select video clips or captured pictures in playback mode to export directly during
Playback, using USB devices (USB flash drives, USB HDDs, USB writer), SATA writer or eSATA HDD.
Step 1 Enter Playback interface.
Please refer to Chapter 6.1 Playing Back Record Files.
Step 2 During playback, use buttons or in the playback toolbar to start or stop clipping
record file (s); or use the button to capture pitcures.
Step 3 Click the to enter the file management interface.
Figure 7-11 Video Clips or Captured Pictures Export Interface
Step 4 Export the video clips or captured pictures in playback. Please refer to step5 of Chapter 7.1.2
Backing up by Normal Video Search for details.
Network Video Recorder User Manual
144
7.2 Managing Backup Devices
Management of USB flash drives, USB HDDs and eSATA HDDs
Step 1 Enter the Export interface.
Figure 7-12 Storage Device Management
Step 2 Backup device management.
Click New Folder button if you want to create a new folder in the backup device.
Select a record file or folder in the backup device and click button if you want to delete
it.
Click Erase button if you want to erase the files from a re-writable CD/DVD.
Click Format button to format the backup device.
If the inserted storage device is not recognized:
- Click the Refresh button.
- Reconnect device.
- Check for compatibility from vendor.
Network Video Recorder User Manual
145
7.3 Hot Spare Device Backup
Purpose:
The device can form an N+1 hot spare system. The system consists of several working devices and a
hot spare device; when the working device fails, the hot spare device switches into operation, thus
increasing the reliability of the system.
Please contact dealer for details of models which support the hot spare function.
Before you start:
At least 2 devices are online.
A bidirectional connection shown in the figure below is required to be built between the hot spare
device and each working device.
Set a hot spare
device
Add a hot spare
device on normal
device
Add the normal
device on the hot
spare device
Start Finish
Figure 7-13 Building Hot Spare System
7.3.2 Setting Hot Spare Device
- The camera connection will be disabled when the device works in the hot spare mode.
- It’s highly recommended to restore the defaults of the device after switching the working
mode of the hot spare device to normal mode to ensure the normal operation afterwards.
Step 1 Enter the Hot Spare settings interface.
Menu > Configuration > Hot Spare
Step 2 Set the Work Mode as Hot Spare Mode and click the Apply button to confirm the settings.
Step 3 Reboot the device to make the change take effect.
Network Video Recorder User Manual
146
Figure 7-14 Reboot Attention
Step 4 Click the Yes button in the pop-up attention box.
7.3.3 Setting Working Device
Step 1 Enter the Hot Spare settings interface.
Step 2 Menu > Configuration > Hot Spare
Step 3 Set the Work Mode as Normal Mode (default).
Step 4 Check the checkbox of Enable to enable the hot spare function.
Step 5 Enter the IP address and admin password of hot spare device.
Figure 7-15 Setting Working Mode for Working device
Step 6 Click the Apply button to save the settings.
7.3.4 Managing Hot Spare System
Step 1 Enter the Hot Spare Settings interface of the hot spare device.
Menu > Configuration > Hot Spare
The connected working device is displayed on the device list.
Step 2 Check the checkbox to select the working device from the device list, and click the Add
button to link the working device to the hot spare device.
A hot spare device can connect up to 32 working devices.
Network Video Recorder User Manual
147
Figure 7-16 Add Working Device
Step 3 You can view the working status of the hot spare device on the Working Status list.
When the working device works properly, the working status of the hot spare device is displayed as
No record.
Figure 7-17 No Recording
When the working device gets offline, the hot spare device will record the video of the IP Camera
connected to the working device for backup, and the working status of the hot spare device is
displayed as Backing up.
The record backing up can be functioned for 1 working device at a time.
Figure 7-18 Backing up
When the working device comes online, the lost video files will be restored by the record
synchronization function, and the working status of the hot spare device is displayed as
Synchronizing.
Network Video Recorder User Manual
148
The record synchronization function can be enabled for 1 working device at a time.
Figure 7-19 Synchronizing
Network Video Recorder User Manual
149
Chapter 8 Alarm Settings
8.1 Setting Motion Detection Alarm
Step 1 Enter Motion Detection interface of Camera Management and choose a camera you want to
set up motion detection.
Menu> Camera> Motion
Figure 8-1 Motion Detection Setup Interface
Step 2 Set up detection area and sensitivity.
Tick “Enable Motion Detection”, use the mouse to draw detection area(s) and drag the
sensitivity bar to set sensitivity.
Click button and set alarm response actions.
Step 3 Click Trigger Channel tab and select one or more channels which will start to record/capture
or become full-screen monitoring when motion alarm is triggered, and click Apply to save
the settings.
Figure 8-2 Set Trigger Camera of Motion Detection
Network Video Recorder User Manual
150
Step 4 Set up arming schedule of the channel.
1) Select Arming Schedule tab to set the arming schedule of handling actions for the motion
detection.
2) Choose one day of a week and up to eight time periods can be set within each day.
3) Click Apply to save the settings
Time periods shall not be repeated or overlapped.
Figure 8-3 Set Arming Schedule of Motion Detection
Step 5 Click Handling tab to set up alarm response actions of motion alarm (please refer to Chapter
Setting Alarm Response Actions).
Step 6 If you want to set motion detection for another channel, repeat the above steps or just click
Copy in the Motion Detection interface to copy the above settings to it.
Network Video Recorder User Manual
151
8.2 Setting Sensor Alarms
Purpose:
Set the handling action of an external sensor alarm.
Step 1 Enter Alarm Settings of System Configuration and select an alarm input.
Menu> Configuration> Alarm
Select Alarm Input tab to enter Alarm Input Settings interface.
Figure 8-4 Alarm Status Interface of System Configuration
Step 2 Set up the handling action of the selected alarm input.
Check the Enable checkbox and click Settings button to set up its alarm response actions.
Figure 8-5 Alarm Input Setup Interface
Step 3 (Optional) Enable the one-key disarming for local alarm input 1 (Local<-1).
1) Check the checkbox of Enable One-Key Disarming.
2) Click the Settings button to enter the linkage action settings interface.
3) Select the alarm linkage action (s) you want to disarm for the local alarm input1. The selected linkage
actions include the Full Screen Monitoring, Audible Warning, Notify Surveillance Center, Send Email
and Trigger Alarm Output.
Network Video Recorder User Manual
152
When the alarm input 1 (Local<-1) is enabled with one-key disarming, the other alarm input
settings are not configurable.
Step 4 Select Trigger Channel tab and select one or more channels which will start to
record/capture or become full-screen monitoring when an external alarm is input, and click
Apply to save the settings.
Step 5 Select Arming Schedule tab to set the arming schedule of handling actions.
Figure 8-6 Set Arming Schedule of Alarm Input
Choose one day of a week and Max. eight time periods can be set within each day, and click
Apply to save the settings.
Time periods shall not be repeated or overlapped.
Repeat the above steps to set up arming schedule of other days of a week. You can also use
Copy button to copy an arming schedule to other days.
Step 6 Select Linkage Action tab to set up alarm response actions of the alarm input (please refer to
Chapter Setting Alarm Response Actions).
Step 7 If necessary, select PTZ Linking tab and set PTZ linkage of the alarm input.
Set PTZ linking parameters and click OK to complete the settings of the alarm input.
Make sure the PTZ or speed dome connected supports PTZ linkage.
Network Video Recorder User Manual
153
Figure 8-7 Set PTZ Linking of Alarm Input
Step 8 If you want to set handling action of another alarm input, repeat the above steps.
Or you can click the Copy button on the Alarm Input Setup interface and check the checkbox
of alarm inputs to copy the settings to them.
Figure 8-8 Copy Settings of Alarm Input
Network Video Recorder User Manual
154
8.3 Detecting Video Loss Alarm
Purpose:
Detect video loss of a channel and take alarm response action(s).
Step 1 Enter Video Loss interface of Camera Management and select a channel you want to detect.
Menu> Camera> Video Loss
Figure 8-9 Video Loss Setup Interface
Step 2 Set up handling action of video loss.
Check the checkbox of “Enable Video Loss Alarm”, and click button to set up handling
action of video loss.
Step 3 Set up arming schedule of the handling actions.
1) Select Arming Schedule tab to set the channel’s arming schedule.
2) Choose one day of a week and up to eight time periods can be set within each day.
3) Click Apply button to save the settings.
Time periods shall not be repeated or overlapped.
Network Video Recorder User Manual
155
Figure 8-10 Set Arming Schedule of Video Loss
Step 4 Select Linkage Action tab to set up alarm response action of video loss (please refer to
Chapter Setting Alarm Response Actions).
Step 5 Click the OK button to complete the video loss settings of the channel.
Network Video Recorder User Manual
156
8.4 Detecting Video Tampering Alarm
Purpose:
Trigger alarm when the lens is covered and take alarm response action(s).
Step 1 Enter Video Tampering interface of Camera Management and select a channel you want to
detect video tampering.
Menu> Camera> Video Tampering
Figure 8-11 Video Tampering Setting Interface
Step 2 Set the video tampering handling action of the channel.
1) Check the checkbox of “Enable Video Tampering Detection”.
2) Drag the sensitivity bar to set a proper sensitivity level. Use the mouse to draw an area
you want to detect video tampering.
3) Click button to set up handling action of video tampering.
Step 3 Set arming schedule and alarm response actions of the channel.
1) Click Arming Schedule tab to set the arming schedule of handling actions.
2) Choose one day of a week and Max. eight time periods can be set within each day.
3) Click Apply button to save the settings.
Time periods shall not be repeated or overlapped.
Network Video Recorder User Manual
157
Figure 8-12 Set Arming Schedule of Video Tampering
Step 4 Select Linkage Action tab to set up alarm response actions of video tampering alarm (please
refer to Chapter Setting Alarm Response Actions).
Step 5 Click the OK button to complete the video tampering settings of the channel.
Network Video Recorder User Manual
158
8.5 Handling Exceptions Alarm
Purpose:
Exception settings refer to the handling action of various exceptions, e.g.
- HDD Full: The HDD is full.
- HDD Error: Writing HDD error or unformatted HDD.
- Network Disconnected: Disconnected network cable.
- IP Conflicted: Duplicated IP address.
- Illegal Login: Incorrect user ID or password.
- Record/Capture Exception: No space for saving recorded files or captured images.
- Hot Spare Exception: Disconnected with the working device.
Steps:
Enter Exception interface of System Configuration and handle various exceptions.
Menu> Configuration> Exceptions
Please refer to Chapter Setting Alarm Response Actions for detailed alarm response actions.
Figure 8-13 Exceptions Setup Interface
Network Video Recorder User Manual
159
8.6 Setting Alarm Response Actions
Purpose:
Alarm response actions will be activated when an alarm or exception occurs, including Event Hint
Display, Full Screen Monitoring, Audible Warning (buzzer), Notify Surveillance Center, Trigger
Alarm Output and Send Email.
Event Hint Display
When an event or exception happens, a hint can be displayed on the lower-left corner of live view
image. And you can click the hint icon to check the details. Besides, the event to be displayed is
configurable.
Step 1 Enter the Exception settings interface.
Menu > Configuration > Exceptions
Step 2 Check the checkbox of Enable Event Hint.
Figure 8-14 Event Hint Settings Interface
Step 3 Click the to set the type of event to be displayed on the image.
Figure 8-15 Event Hint Settings Interface
Step 4 Click the OK button to finish settings.
Full Screen Monitoring
When an alarm is triggered, the local monitor (VGA, HDMI or BNC monitor) display in full screen
the video image from the alarming channel configured for full screen monitoring.
Network Video Recorder User Manual
160
If alarms are triggered simultaneously in several channels, their full-screen images will be switched
at an interval of 10 seconds (default dwell time). A different dwell time can be set by going to
Menu >Configuration>Live View > Full Screen Monitoring Dwell Time.
Auto-switch will terminate once the alarm stops and you will be taken back to the Live View
interface.
You must select during “Trigger Channel” settings the channel(s) you want to make full screen
monitoring.
Audible Warning
Trigger an audible beep when an alarm is detected.
Notify Surveillance Center
Sends an exception or alarm signal to remote alarm host when an event occurs. The alarm host
refers to the PC installed with Remote Client.
The alarm signal will be transmitted automatically at detection mode when remote alarm host is
configured. Please refer to Chapter 11.2.6 Configuring More Settings for details of alarm host
configuration.
Email Linkage
Send an email with alarm information to a user or users when an alarm is detected.
Please refer to Chapter 11.2.8 Configuring Email for details of Email configuration.
Trigger Alarm Output
Trigger an alarm output when an alarm is triggered.
Step 1 Enter Alarm Output interface.
Menu> Configuration> Alarm> Alarm Output
Step 2 Select an alarm output and set alarm name and dwell time. Click Schedule button to set the
arming schedule of alarm output.
Network Video Recorder User Manual
161
If “Manually Clear” is selected in the dropdown list of Dwell Time, you can clear it only by going to
Menu> Manual> Alarm.
Figure 8-16 Alarm Output Setup Interface
Step 3 Set up arming schedule of the alarm output.
Choose one day of a week and up to 8 time periods can be set within each day.
Time periods shall not be repeated or overlapped.
Figure 8-17 Set Arming Schedule of Alarm Output
Step 4 Repeat the above steps to set up arming schedule of other days of a week. You can also use
Copy button to copy an arming schedule to other days.
Click the OK button to complete the video tampering settings of the alarm output No..
Step 5 You can also copy the above settings to another channel.
Network Video Recorder User Manual
162
Figure 8-18 Copy Settings of Alarm Output
Network Video Recorder User Manual
163
8.7 Triggering or Clearing Alarm Output Manually
Purpose:
Sensor alarm can be triggered or cleared manually. If “Manually Clear” is selected in the dropdown
list of dwell time of an alarm output, the alarm can be cleared only by clicking Clear button in the
following interface.
Step 1 Select the alarm output you want to trigger or clear and make related operations.
Menu> Manual> Alarm
Step 2 Click Trigger/Clear button if you want to trigger or clear an alarm output.
Click Trigger All button if you want to trigger all alarm outputs.
Click Clear All button if you want to clear all alarm output.
Figure 8-19 Clear or Trigger Alarm Output Manually
Network Video Recorder User Manual
164
Chapter 9 POS Configuration
The POS feature is supported by DS-9600/8600/7700/7600-I (/P) series NVR only.
9.1 Configuring POS Settings
Step 1 Enter the POS settings interface.
Menu > Configuration > POS> POS Settings
Step 2 Select the POS from the drop-down list.
The amount of POS devices supported for each device is the half of its channel amount, e.g., 8 POS
devices are supported for the DS-9616NI-I8 model.
Step 3 Check the checkbox to enable the POS feature.
Figure 9-1 POS Settings
Step 4 Select the POS protocol to Universal Protocol, EPSON, AVE or NUCLEUS.
Network Video Recorder User Manual
165
When the new protocol is selected, you should reboot the device to activate the new settings.
- Universal Protocol
Click the Advanced button to expand more settings when selecting the universal protocol.
You can set the start line tag, line break tag and end line tag for the POS overlay characters,
and the case-sensitive property of the characters.
Figure 9-2 Universal Protocol Settings
- EPSON
The fixed start and end line tag are used for EPSON protocol.
- AVE
The fixed start and end line tag are used for AVE protocol. And the serial port and virtual
serial port connection types are supported.
1) Click the Set to configure the AVE settings.
2) Se the rule to VSI-ADD or VNET.
3) Set the address bit of the POS message to send.
4) Click OK to save the settings.
Figure 9-3 AVE Settings
- NUCLEUS
1) Click the Set to configure the NUCLEUS settings.
2) Enter the employee No. shift No. and the terminal No. in the field. The matching message sent from
the POS device will be used as the valid POS data.
Figure 9-4 NUCLEUS Settings
Network Video Recorder User Manual
166
The NUCLEUS protocol must be used in the RS-232 connection communication.
Step 5 Select the connection mode to TCP, UDP, Multicast, RS-232, USB->RS-232 or Sniff, and click
Set to configure the parameters for each connection mode.
- TCP Connection
1) When using TCP connection, the port must be set from 1 to 65535, and the port for each POS machine
must be unique.
2) Set the Allowed Remote IP Address of the device sending the POS message.
Figure 9-5 TCP Connection Settings
- UDP Connection
3) When using UDP connection, the port must be set from 1 to 65535, and the port for each POS machine
must be unique.
4) Set the Allowed Remote IP Address of the device sending the POS message.
Figure 9-6 UDP Connection Settings
- USB->RS-232 Connection
Configure the port parameters of USB-to-RS-232 convertor, including the serial number of
port, baud rate, data bit, stop bit, parity and flow ctrl.
Figure 9-7 USB-to-RS-232 Settings
Network Video Recorder User Manual
167
- RS-232 Connection
Connect the NVR and the POS machine via RS-232. The RS-232 settings can be configured in
Menu>Configuration>RS-232. The Usage must be set to Transparent Channel.
Figure 9-8 RS-232 Settings
- Multicast Connection
When connecting the NVR and the POS machine via Multicast protocol, set the multicast
address and port.
Figure 9-9 Multicast Settings
- Sniff Connection
Connect the NVR and the POS machine via Sniff. Configure the source address and
destination address settings.
Figure 9-10 Sniff Settings
Step 6 Set other parameters of characters overly.
1) Select the character encoding format from the drop-down list.
2) Select the overlay mode of the characters to display in scrolling or page mode.
Network Video Recorder User Manual
168
3) Select the font size to small, medium or large.
4) Set the overlay time of the characters. The value ranges 5 -3600 sec.
5) Set the delay time of POS event. The value ranges 5 -3600 sec. When the device has not
received the POS message over the defined delay time, the transaction is finished.
6) (optional) Check the checkbox to enable the POS Overlay in Live View. When this
feature is enabled, the POS information can be overlain on the live view image.
7) Select the font color for the characters.
Figure 9-11 Overlay Character Settings
You can adjust the size and position of textbox on the preview screen of POS settings interface by
dragging the frame.
Step 7 Click Apply to activate the settings.
Step 8 (Optional) You can click the Copy button to copy the current settings to other POS (s).
Figure 9-12 Copy POS Settings
Network Video Recorder User Manual
169
9.2 Configuring Overlay Channel
Purpose:
You can assign the POS machine to corresponding channel on which you want to overlay.
Step 1 Enter the POS settings interface.
Menu > Configuration > POS> Overlay Channel
Step 2 Click to select the IP camera from the camera list on the right, and then click a POS item
from the POS device list you want to overlay the POS information on the selected camera.
Click or to go to the previous or next page of cameras.
Each POS device can be selected for one camera only.
Figure 9-13 Overlay Channel Settings
Step 3 You can also click to overlay all POS items to the first 8 channels in order. And the is
used to clear all POS overlay settings.
Step 4 Click the Apply button to save the settings.
Network Video Recorder User Manual
170
9.3 Configuring POS Privacy Information Filtering
Purpose:
You can set the POS privacy information to not display on the image.
Step 1 Enter the POS settings interface.
Menu > Configuration > POS> POS Settings
Step 2 Click the button of the Privacy Settings to enter the POS privacy information filtering
settings interface.
Figure 9-14 POS Privacy information filtering settings
Step 3 Edit three information text (1 to 32 characters) types in the field.
Step 4 Click OK to save the settings. The defined privacy information will be displayed in ***on the
image instead.
9.4 Configuring POS Alarm
Purpose:
Set the POS alarm parameters to trigger certain channels to start recording, or trigger full screen
monitoring, audio warning, notifying the surveillance center, sending email and so on.
Step 1 Enter the POS settings interface.
Menu > Configuration > POS> POS Settings
Step 2 Follow the steps in Chapter 9.1-9.2 to configure the POS settings.
Step 3 Click to enter the alarm settings interface.
Network Video Recorder User Manual
171
Figure 9-15 Set Trigger Cameras of POS
Step 4 Click Trigger Channel tab and select one or more channels to record or become full-screen
monitoring when POS alarm is triggered.
Step 5 Set arming schedule of the channel.
Select Arming Schedule tab to set the channel’s arming schedule.
Choose one day of a week and up to eight time periods can be set within each day. Or you
can click the Copy button to copy the time period settings to other day(s).
Time periods shall not be repeated or overlapped.
Figure 9-16 Set Arming Schedule
Step 6 Click the Handling tab to set up alarm response actions of POS alarm.
Repeat the above steps to set up arming schedule of other days of a week.
Click the OK button to complete the POS settings of the channel.
Step 7 Select PTZ Linking tab and set PTZ linkage of the POS alarm.
Network Video Recorder User Manual
172
Set PTZ linking parameters and click the OK button to complete the settings of the alarm
input.
Please check whether the PTZ or speed dome supports PTZ linkage.
Figure 9-17 Set PTZ Linking
Step 8 Click OK to save the settings.
Network Video Recorder User Manual
173
Chapter 10 VCA Alarm
The NVR supports the VCA detection alarm (face detection, vehicle detection, line crossing
detection and intrusion detection, region entrance detection, region exiting detection, unattended
baggage detection, object removal detection, audio loss exception detection, sudden change of
sound intensity detection, and defocus detection) sent by IP camera. The VCA detection must be
enabled and configured on the IP camera settings interface first.
- All VCA detection must be supported by the connected IP camera.
- Please refer to the User Manual of Network Camera for the detailed instructions for the all
VCA detection types.
10.1 Face Detection
Purpose:
Face detection function detects the face appears in the surveillance scene, and some certain
actions can be taken when the alarm is triggered.
Step 1 Enter the VCA settings interface.
Menu> Camera> VCA
Step 2 Select the camera to configure the VCA.
You can click the checkbox of Save VCA Picture to save the captured pictures of VCA
detection.
Network Video Recorder User Manual
174
Figure 10-1 Face Detection
Step 3 Select the VCA detection type to Face Detection.
Step 4 Check the Enable checkbox to enable this function.
Step 5 Click to enter the face detection settings interface. Configure the trigger channel,
arming schedule and linkage action for the face detection alarm. Please refer to step3~step5
of Chapter 8.1 Setting Motion Detection Alarm for detailed instructions.
Step 6 Click the Rule Settings button to set the face detection rules. You can click-and-drag the
slider to set the detection sensitivity.
Sensitivity: Range [1-5]. The higher the value is, the more easily the face can be detected.
Figure 10-2 Set Face Detection Sensitivity
Step 7 Click Apply to activate the settings.
Network Video Recorder User Manual
175
10.2 Vehicle Detection
Purpose:
Vehicle Detection is available for the road traffic monitoring. In Vehicle Detection, the passed
vehicle can be detected and the picture of its license plate can be captured. You can send alarm
signal to notify the surveillance center and upload the captured picture to FTP server.
Step 1 Enter the VCA settings interface.
Menu> Camera> VCA
Step 2 Select the camera to configure the VCA.
Step 3 You can click the checkbox of Save VCA Picture to save the captured pictures of VCA
detection.
Step 4 Select the VCA detection type to Vehicle Detection.
Step 5 Check the Enable checkbox to enable this function.
Figure 10-3 Set Vehicle Detection
Step 6 Click to configure the trigger channel, arming schedule and linkage actions for the
Blacklist, Whitelist and Others.
Up to 2, 048 backlists or whitelists are supported for import and export.
Network Video Recorder User Manual
176
Step 7 Click the Rule Settings to enter the rule settings interface. Configure the lane, upload picture
and overlay content settings. Up to 4 lanes are selectable.
Figure 10-4 Rule Settings
Step 8 Click Save to save the settings.
Please refer to the User Manual of Network Camera for the detailed instructions for the vehicle
detection.
10.3 Line Crossing Detection
Purpose:
This function can be used for detecting people, vehicles and objects cross a set virtual line. The line
crossing direction can be set as bidirectional, from left to right or from right to left. And you can set
the duration for the alarm response actions, such as full screen monitoring, audible warning, etc.
Step 1 Enter the VCA settings interface.
Menu> Camera> VCA
Step 2 Select the camera to configure the VCA.
You can click the checkbox of Save VCA Picture to save the captured pictures of VCA
detection.
Step 3 Select the VCA detection type to Line Crossing Detection.
Step 4 Check the Enable checkbox to enable this function.
Step 5 Click to configure the trigger channel, arming schedule and linkage actions for the line
crossing detection alarm.
Network Video Recorder User Manual
177
Step 6 Click the Rule Settings button to set the line crossing detection rules.
1) Select the direction to A<->B, A->B or A<-B.
A<->B: Only the arrow on the B side shows; when an object going across the configured
line with both direction can be detected and alarms are triggered.
A->B: Only the object crossing the configured line from the A side to the B side can be
detected.
B->A: Only the object crossing the configured line from the B side to the A side can be
detected.
2) Click-and-drag the slider to set the detection sensitivity.
Sensitivity: Range [1-100]. The higher the value is, the more easily the detection alarm
can be triggered.
3) Click-OK to save the rule settings and back to the line crossing detection settings
interface.
Figure 10-5 Set Line Crossing Detection Rules
Step 7 Click and set two points in the preview window to draw a virtual line.
You can use the to clear the existing virtual line and re-draw it.
Up to 4 rules can be configured.
Network Video Recorder User Manual
178
Figure 10-6 Draw Line for Line Crossing Detection
Step 8 Click Apply to activate the settings.
Network Video Recorder User Manual
179
10.4 Intrusion Detection
Purpose:
Intrusion detection function detects people, vehicle or other objects which enter and loiter in a
pre-defined virtual region, and some certain actions can be taken when the alarm is triggered.
Step 1 Enter the VCA settings interface.
Menu> Camera> VCA
Step 2 Select the camera to configure the VCA.
You can click the checkbox of Save VCA Picture to save the captured pictures of VCA
detection.
Step 3 Select the VCA detection type to Intrusion Detection.
Step 4 Check the Enable checkbox to enable this function.
Step 5 Click to configure the trigger channel, arming schedule and linkage actions for the line
crossing detection alarm.
Step 6 Click the Rule Settings button to set the intrusion detection rules. Set the following
parameters.
1) Threshold: Range [1s-10s], the threshold for the time of the object loitering in the region.
When the duration of the object in the defined detection area is longer than the set time,
the alarm will be triggered.
2) Click-and-drag the slider to set the detection sensitivity.
3) Sensitivity: Range [1-100]. The value of the sensitivity defines the size of the object which
can trigger the alarm. The higher the value is, the more easily the detection alarm can be
triggered.
4) Percentage: Range [1-100]. Percentage defines the ratio of the in-region part of the
object which can trigger the alarm. For example, if the percentage is set as 50%, when
the object enters the region and occupies half of the whole region, the alarm is
triggered.
Figure 10-7 Set Intrusion Crossing Detection Rules
Network Video Recorder User Manual
180
5) Click-OK to save the rule settings and back to the line crossing detection settings
interface.
Step 7 Click and draw a quadrilateral in the preview window by specifying four vertexes of
the detection region, and right click to complete drawing. Only one region can be
configured.
You can use the to clear the existing virtual line and re-draw it.
Up to 4 rules can be configured.
Figure 10-8 Draw Area for Intrusion Detection
Step 8 Click Apply to save the settings.
Network Video Recorder User Manual
181
10.5 Region Entrance Detection
Purpose:
Region entrance detection function detects people, vehicle or other objects which enter a
pre-defined virtual region from the outside place, and some certain actions can be taken when the
alarm is triggered.
Step 1 Enter the VCA settings interface.
Menu> Camera> VCA
Step 2 Select the camera to configure the VCA.
You can click the checkbox of Save VCA Picture to save the captured pictures of VCA
detection.
Step 3 Select the VCA detection type to Region Entrance Detection.
Step 4 Check the Enable checkbox to enable this function.
Step 5 Click to configure the trigger channel, arming schedule and linkage actions for the line
crossing detection alarm.
Step 6 Click the Rule Settings button to set the sensitivity of the region entrance detection.
Sensitivity: Range [0-100]. The higher the value is, the more easily the detection alarm can
be triggered.
Step 7 Click and draw a quadrilateral in the preview window by specifying four vertexes of
the detection region, and right click to complete drawing. Only one region can be
configured.
You can use the to clear the existing virtual line and re-draw it.
Network Video Recorder User Manual
182
Figure 10-9 Set Region Entrance Detection
Up to 4 rules can be configured.
Step 8 Click Apply to save the settings.
10.6 Region Exiting Detection
Purpose:
Region exiting detection function detects people, vehicle or other objects which exit from a
pre-defined virtual region, and some certain actions can be taken when the alarm is triggered.
- Please refer to the Chapter 9.5 Region Entrance Detection for operating steps to configure
the region exiting detection.
- Up to 4 rules can be configured.
10.7 Unattended Baggage Detection
Purpose:
Unattended baggage detection function detects the objects left over in the pre-defined region
such as the baggage, purse, dangerous materials, etc., and a series of actions can be taken when
the alarm is triggered.
Network Video Recorder User Manual
183
- Please refer to the Chapter 9.4 Intrusion Detection for operating steps to configure the
unattended baggage detection.
- The Threshold[5s-20s] in the Rule Settings defines the time of the objects left over in the
region. If you set the value as 10, alarm is triggered after the object is left and stay in the
region for 10s. And the Sensitivity defines the similarity degree of the background image.
Usually, when the sensitivity is high, a very small object left in the region can trigger the
alarm.
- Up to 4 rules can be configured.
10.8 Object Removal Detection
Purpose:
Object removal detection function detects the objects removed from the pre-defined region, such
as the exhibits on display, and a series of actions can be taken when the alarm is triggered.
- Please refer to the Chapter 9.4 Intrusion Detection for operating steps to configure the
object removal detection.
- The Threshold [5s-20s] in the Rule Settings defines the time of the objects removed from
the region. If you set the value as 10, alarm is triggered after the object disappears from
the region for 10s. And the Sensitivity defines the similarity degree of the background
image. Usually, when the sensitivity is high, a very small object taken from the region can
trigger the alarm.
- Up to 4 rules can be configured.
10.9 Audio Exception Detection
Purpose:
Audio exception detection function detects the abnormal sounds in the surveillance scene, such as
the sudden increase / decrease of the sound intensity, and some certain actions can be taken when
the alarm is triggered.
Step 1 Enter the VCA settings interface.
Menu> Camera> VCA
Step 2 Select the camera to configure the VCA.
You can click the checkbox of Save VCA Picture to save the captured pictures of VCA
detection.
Network Video Recorder User Manual
184
Step 3 Select the VCA detection type to Audio Exception Detection.
Step 4 Click to configure the trigger channel, arming schedule and linkage action for the face
detection alarm.
Step 5 Click the Rule Settings button to set the audio exception rules.
Figure 10-10 Set Audio Exception Detection Rules
1) Check the checkbox of Audio Input Exception to enable the audio loss detection function.
2) Check the checkbox of Sudden Increase of Sound Intensity Detection to detect the sound
steep rise in the surveillance scene. You can set the detection sensitivity and threshold for
sound steep rise.
Sensitivity: Range [1-100], the smaller the value is, the more severe the change should be
to trigger the detection.
Sound Intensity Threshold: Range [1-100], it can filter the sound in the environment, the
louder the environment sound, the higher the value should be. You can adjust it according
to the real environment.
3) Check the checkbox of Sudden Decrease of Sound Intensity Detection to detect the sound
steep drop in the surveillance scene. You can set the detection sensitivity[1-100] for sound
steep drop.
Step 6 Click Apply to activate the settings.
10.10 Sudden Scene Change Detection
Purpose:
Scene change detection function detects the change of surveillance environment affected by the
external factors; such as the intentional rotation of the camera, and some certain actions can be
taken when the alarm is triggered.
Network Video Recorder User Manual
185
- Please refer to the Chapter 9.2 Face Detection for operating steps to configure the scene
change detection.
- The Sensitivity in the Rule Settings ranges from 1 to 100, and the higher the value is, the
more easily the change of scene can trigger the alarm.
10.11 Defocus Detection
Purpose:
The image blur caused by defocus of the lens can be detected, and some certain actions can be
taken when the alarm is triggered.
- Please refer to the Chapter 9.2 Face Detection for operating steps to configure the defocus
detection.
- The Sensitivity in the Rule Settings ranges from 1 to 100, and the higher the value is, the
more easily the defocus image can trigger the alarm.
10.12 PIR Alarm
Purpose:
A PIR (Passive Infrared) alarm is triggered when an intruder moves within the detector's field of
view. The heat energy dissipated by a person, or any other warm blooded creature such as dogs,
cats, etc., can be detected.
Step 1 Enter the VCA settings interface.
Menu> Camera> VCA
Step 2 Select the camera to configure the VCA.
You can click the checkbox of Save VCA Picture to save the captured pictures of VCA
detection.
Step 3 Select the VCA detection type to PIR Alarm.
Step 4 Click to configure the trigger channel, arming schedule and linkage action for the PIR
alarm.
Step 5 Click the Rule Settings button to set the rules. Please refer to the Chapter 9.2 Face Detection
for instructions.
Step 6 Click Apply to activate the settings.
Network Video Recorder User Manual
186
Chapter 11 VCA Search
With the configured VCA detection, the NVR supports the VCA search for the behavior analysis,
face capture, people counting and heat map results.
11.1 Face Search
Purpose:
When there are detected face picture captured and saved in HDD, you can enter the Face Search
interface to search the picture and play the picture related video file according to the specified
conditions.
Before you start:
Please refer to Chapter 10.1 Face Detection for configuring the face detection.
Step 1 Enter the Face Search interface.
Menu >VCA Search > Face Search
Step 2 Select the camera (s) for the face search.
Figure 11-1 Face Search
Step 3 Specify the start time and end time for search the captured face pictures or video files.
Step 4 Click Search to start searching. The search results of face detection pictures are displayed in
list or in chart.
Network Video Recorder User Manual
187
Figure 11-2 Face Search Interface
Step 5 Play the face picture related video file.
You can double click on a face picture to play its related video file in the view window on the
top right, or select a picture item and click to play it.
You can also click to stop the playing, or click / to play the previous/next file.
Step 6 If you want to export the captured face pictures to local storage device, connect the storage
device to the device and click Export All to enter the Export interface.
Click Export to export all face pictures to the storage device.
Please refer to Chapter7 Backup for the operation of exporting files.
Figure 11-3 Export Files
11.2 Behavior Search
Purpose:
Network Video Recorder User Manual
188
The behavior analysis detects a series of suspicious behavior based on VCA detection, and certain
linkage methods will be enabled if the alarm is triggered.
Step 1 Enter the Behavior Search interface.
Menu>VCA Search> Behavior Search
Step 2 Select the camera (s) for the behavior search.
Step 3 Specify the start time and end time for searching the matched pictures.
Figure 11-4 Behavior Search Interface
Step 4 Select the VCA detection type from the dropdown list, including the line crossing detection,
intrusion detection, unattended baggage detection, object removal detection, region
entrance detection, region exiting detection, parking detection, loitering detection, people
gathering detection and fast moving detection.
Step 5 Click Search to start searching. The search results of pictures are displayed in list or in chart.
Network Video Recorder User Manual
189
Figure 11-5 Behavior Search Results
Step 6 Play the behavior analysis picture related video file.
You can double click on a picture from the list to play its related video file in the view window
on the top right, or select a picture item and click to play it.
You can also click to stop the playing, or click / to play the previous/next file.
Step 7 If you want to export the captured pictures to local storage device, connect the storage
device to the device and click Export All to enter the Export interface.
Click Export to export all pictures to the storage device.
11.3 Plate Search
Purpose:
You can search and view the matched captured vehicle plate picture and related information
according to the plate searching conditions including the start time/end time, country and plate
No..
Step 1 Enter the Plate Search interface.
Menu>VCA Search> Plate Search
Step 2 Select the camera (s) for the plate search.
Step 3 Specify the start time and end time for searching the matched plate pictures.
Network Video Recorder User Manual
190
Figure 11-6 Plate Search
Step 4 Select the country from the drop-down list for searching the location of the vehicle plate.
Step 5 Input the plate No. in the field for search.
Step 6 Click Search to start searching. The search results of detected vehicle plate pictures are
displayed in list or in chart.
Please refer to the Step7-Step8 of Section 10.1 Face Search for the operation of the search results.
11.4 People Counting
Purpose:
The Counting is used to calculate the number of people entered or left a certain configured area
and form in daily/weekly/monthly/annual reports for analysis.
Step 1 Enter the Counting interface.
Step 2 Menu>VCA Search>Counting
Step 3 Select the camera for the people counting.
Step 4 Select the report type to Daily Report, Weekly Report, Monthly Report or Annual Report.
Step 5 Set the statistics time.
Step 6 Click the Counting button to start people counting statistics.
Network Video Recorder User Manual
191
Figure 11-7 People Counting Interface
Step 7 You can click the Export button to export the statistics report in excel format.
11.5 Heat Map
Purpose:
Heat map is a graphical representation of data represented by colors. The heat map function is
usually used to analyze the visit times and dwell time of customers in a configured area.
The heat map function must be supported by the connected IP camera and the corresponding
configuration must be set.
Step 1 Enter the Heat Map interface.
Menu > VCA Search > Heat Map
Step 2 Select the camera for the heat map processing.
Step 3 Select the report type to Daily Report, Weekly Report, Monthly Report or Annual Report.
Step 4 Set the statistics time.
Network Video Recorder User Manual
192
Figure 11-8 Heat Map Interface
Step 5 Click the Counting button to export the report data and start heat map statistics, and the
results are displayed in graphics marked in different colors.
As shown in the figure above, red color block (255, 0, 0) indicates the most welcome area, and blue
color block (0, 0, 255) indicates the less-popular area.
Step 6 You can click the Export button to export the statistics report in excel format.
Network Video Recorder User Manual
193
11.6 Advanced Search
The DS-7600/7700/8600/9600-I (/P) series NVR supports the advanced search for
fire/ship/temperature/temperature difference detection triggered alarm and the recorded video
files and pictures.
Before you start
To get the smart search result, the corresponding fire/ship temperature/temperature difference
type must be enabled and configured on the connected thermal network camera (Configuration >
Advanced Configuration> Smart Event). Please refer to the user manual of the thermal network
camera for details.
Step 1 Enter the Advanced Search interface.
Menu > VCA Search > Advanced Search
Step 2 Select the camera (s) for the advanced search.
Figure 11-9 Advanced Search
Step 3 Specify the start time and end time for searching the thermal imaging detection results.
Step 4 Select the type to fire detection, ship detection, temperature detection and temperature
difference detection.
Step 5 Click Search to start searching. The search results are displayed in list or in chart.
Network Video Recorder User Manual
194
Figure 11-10 Search Results
Step 6 You can click the Export button to export the statistics report in excel format.
Network Video Recorder User Manual
195
Chapter 12 Network Settings
12.1 Configuring General Settings
Purpose:
Network settings must be properly configured before you operate NVR over network.
Step 1 Enter the Network Settings interface.
Menu >Configuration>Network
Step 2 Select the General tab.
Figure 12-1 Network Settings Interface
Step 3 In the General Settings interface, you can configure the following settings: Working Mode,
NIC Type, IPv4 Address, IPv4 Gateway, MTU, DNS DHCP and DNS Server.
The valid value range of MTU is 500 - 9676.
If the DHCP server is available, you can click the checkbox of DHCP to automatically obtain an
IP address and other network settings from that server.
Network Video Recorder User Manual
196
- Two self-adaptive 10M/100M/1000M network interfaces for DS-9600NI-I8, DS-9600NI-I16,
DS-8600NI-K8, DS-7700NI-I4 and DS-7700NI-K4, and the multi-address and network fault
tolerance working modes are configurable.
- One self-adaptive 10M/100M/1000M network interface for DS-7600NI-K2/I2(/P),
DS-7700NI-I4/P and DS-7700NI-K4/P.
- One self-adaptive 10M/100M network interface for DS-7600NI-K1 (/P).
- For the DS-7600NI-I(K)/P and DS-7700NI-I(I)/P series NVR, you need to configure the
internal NIC address, so that IP addresses are assigned to the cameras connected to the PoE
interfaces.
Step 4 After having configured the general settings, click Apply button to save the settings.
Working Mode
Two 10M/100M/1000M NIC cards are provided and it allows the device to work in the
Multi-address and Net-fault Tolerance modes.
Multi-address Mode: The parameters of the two NIC cards can be configured independently.
You can select LAN1 or LAN2 in the NIC type field for parameter settings.
You can select one NIC card as default route. And then the system is connecting with the
extranet the data will be forwarded through the default route.
Net-fault Tolerance Mode: The two NIC cards use the same IP address, and you can select the
Main NIC to LAN1 or LAN2. By this way, in case of one NIC card failure, the device will
automatically enable the other standby NIC card so as to ensure the normal running of the
whole system.
Network Video Recorder User Manual
197
12.2 Configuring Advanced Settings
12.2.1 Configuring Hik-Connect
Purpose
Hik-Connect enables the mobile phone application and the service platform page
(www.hik-connect.com) to access and manage your connected NVR, providing a convenient
remote access to the surveillance system.
The Hik-Connect can be enabled via operation on SADP software, GUI and Web browser. We
introduce the operation steps on GUI in this section.
Step 1 Enter the Network Settings interface.
Menu > Configuration > Network
Step 2 Select the Platform Access tab to enter the Hik-Connect Settings interface.
Figure 12-2 Hik-Connect Settings
Step 3 Check the Enable checkbox to activate the function. The Service Terms interface pops up as
below.
Network Video Recorder User Manual
198
Figure 12-3 Service Terms
1) Create the verification code and enter the code in the Verification Code text field.
2) Check the checkbox of The Hik-Connect service will require internet access. Please
read Service Terms and Privacy Statement before enabling the service.
3) Scan the QR code on the interface to read the Service Terms and the Privacy
Statement.
4) Click OK to save the settings and return to the Hik-Connect interface.
- Hik-Connect is disabled by default.
- The verification code is empty when the device leaves factory.
- The verification code must contain 6 to 12 letters or numbers and is case sensitive.
- Every time you enable Hik-Connect, the Service Terms interface pops up and you should
check the checkbox before enabling it.
Step 4 (Optional) Check the checkbox of Custom and input the Server Address.
Step 5 (Optional) Check the checkbox of Enable Stream Encryption. After this feature is enabled,
the verification code is required for remote access and live view.
You can use the scanning tool of your phone to quickly get the code by scanning the QR code
below.
Network Video Recorder User Manual
199
Figure 12-4 Hik-Connect Settings Interface
Step 6 Click the Apply button to save the settings.
After configuration, you can access and manage the NVR by your mobile phone on which the
Hik-Connect application is installed or by the website (www.hik-connect.com).
Please refer to the help file on the official website (www.hik-connect.com) and the Hik-Connect
Mobile Client User Manual for adding the device to Hik-Connect and more operation instructions.
12.2.2 Configuring DDNS
Purpose:
You can set the Dynamic DNS (DDNS) for network access.
Prior registration with your ISP is required before configuring the system to use DDNS.
Step 1 Enter the Network Settings interface.
Menu > Configuration > Network
Step 2 Select the DDNS tab to enter the DDNS Settings interface.
Step 3 Check the DDNS checkbox to enable this feature.
Step 4 Select DDNS Type. Three DDNS types are selectable: DynDNS, PeanutHull, and NO-IP.
• DynDNS:
1) Enter Server Address for DynDNS (i.e. members.dyndns.org).
2) In the Device Domain Name text field, enter the domain obtained from the DynDNS
website.
3) Enter the User Name and Password registered in the DynDNS website.
Network Video Recorder User Manual
200
Figure 12-5 DynDNS Settings Interface
• PeanutHull: Enter the User Name and Password obtained from the PeanutHull website.
Figure 12-6 PeanutHull Settings Interface
• NO-IP:
Enter the account information in the corresponding fields. Refer to the DynDNS
settings.
5) Enter Server Address for NO-IP.
6) In the Device Domain Name text field, enter the domain obtained from the NO-IP
website (www.no-ip.com).
7) Enter the User Name and Password registered in the NO-IP website.
Figure 12-7 NO-IP Settings Interface
Step 5 Click the Apply button to save and exit the interface.
12.2.3 Configuring NTP Server
Purpose:
Network Video Recorder User Manual
201
A Network Time Protocol (NTP) Server can be configured on your NVR to ensure the accuracy of
system date/time.
Step 1 Enter the Network Settings interface.
Menu >Configuration> Network
Step 2 Select the NTP tab to enter the NTP Settings interface, as shown in Figure 12-8.
Figure 12-8 NTP Settings Interface
Step 3 Check the Enable NTP checkbox to enable this feature.
Step 4 Configure the following NTP settings:
Interval: Time interval between the two synchronizing actions with NTP server. The unit is
minute.
NTP Server: IP address of NTP server.
NTP Port: Port of NTP server.
Step 5 Click the Apply button to save and exit the interface.
The time synchronization interval can be set from1 to 10080min, and the default value is 60min. If
the NVR is connected to a public network, you should use a NTP server that has a time
synchronization function, such as the server at the National Time Center (IP Address:
210.72.145.44). If the NVR is setup in a more customized network, NTP software can be used to
establish a NTP server used for time synchronization.
12.2.4 Configuring SNMP
Purpose:
You can use SNMP protocol to get device status and parameters related information.
Step 1 Enter the Network Settings interface.
Menu >Configuration> Network
Step 2 Select the SNMP tab to enter the SNMP Settings interface, as shown in Figure 12-9.
Network Video Recorder User Manual
202
Figure 12-9 SNMP Settings Interface
Step 3 Check the SNMP checkbox to enable this feature.
Step 4 The enabling of SNMP may cause security problems. Click Yes to continue or No to cancel
the operation.
Figure 12-10 SNMP Settings Interface
Step 5 When you choose the Yes option in step4, configure the following SNMP settings:
Trap Address: IP Address of SNMP host.
Trap Port: Port of SNMP host.
Step 6 Click the Apply button to save and exit the interface.
Before setting the SNMP, please download the SNMP software and manage to receive the device
information via SNMP port. By setting the Trap Address, the NVR is allowed to send the alarm
event and exception message to the surveillance center.
12.2.5 Configuring More Settings
Step 1 Enter the Network Settings interface.
Menu > Configuration > Network
Step 2 Select the More Settings tab to enter the More Settings interface.
Figure 12-11 More Settings Interface
Step 3 Configure the remote alarm host, server port, HTTP port, multicast, RTSP port.
Network Video Recorder User Manual
203
- Alarm Host IP/Port: With a remote alarm host configured, the device will send the alarm
event or exception message to the host when an alarm is triggered. The remote alarm
host must have the CMS (Client Management System) software installed.
The Alarm Host IP refers to the IP address of the remote PC on which the CMS (Client
Management System) software (e.g., iVMS-4200) is installed, and the Alarm Host Port
must be the same as the alarm monitoring port configured in the software (default port is
7200).
- Multicast IP: The multicast can be configured to realize live view for more than the
maximum number of cameras through network. A multicast address spans the Class-D IP
range of 224.0.0.0 to 239.255.255.255. It is recommended to use the IP address ranging
from 239.252.0.0 to 239.255.255.255.
When adding a device to the CMS (Client Management System) software, the multicast
address must be the same as the device’s multicast IP.
- RTSP Port: The RTSP (Real Time Streaming Protocol) is a network control protocol
designed for use in entertainment and communications systems to control streaming
media servers.
Enter the RTSP port in the text field of RTSP Port. The default RTSP port is 554, and you
can change it according to different requirements.
- Server Port and HTTP Port: Enter the Server Port and HTTP Port in the text fields. The
default Server Port is 8000 and the HTTP Port is 80, and you can change them according
to different requirements.
The Server Port should be set to the range of 2000-65535 and it is used for remote client software
access. The HTTP port is used for remote IE access.
Figure 12-12 Configure More Settings
Step 4 Click the Apply button to save and exit the interface.
12.2.6 Configuring HTTPS Port
Purpose:
HTTPS provides authentication of the web site and associated web server that one is
communicating with, which protects against Man-in-the-middle attacks. Perform the following
steps to set the port number of https.
Example:
Network Video Recorder User Manual
204
If you set the port number as 443 and the IP address is 192.0.0.64, you may access the device by
inputting https://192.0.0.64:443 via the web browser.
The HTTPS port can be only configured through the web browser.
Step 1 Open web browser, input the IP address of device, and the web server will select the
language automatically according to the system language and maximize the web browser.
Step 2 Input the correct user name and password, and click Login button to log in the device.
Step 3 Enter the HTTPS settings interface.
Step 4 Configuration > Remote Configuration > Network Settings > HTTPS
Step 5 Create the self-signed certificate or authorized certificate.
Figure 12-13 HTTPS Settings
OPTION 1: Create the self-signed certificate
1) Click the Create button to create the following dialog box.
Figure 12-14 Create Self-signed Certificate
2) Enter the country, host name/IP, validity and other information.
Network Video Recorder User Manual
205
3) Click OK to save the settings.
OPTION 2: Create the authorized certificate
1) Click the Create button to create the certificate request.
2) Download the certificate request and submit it to the trusted certificate authority for
signature.
3) After receiving the signed valid certificate, import the certificate to the device.
Step 6 There will be the certificate information after you successfully create and install the
certificate.
Figure 12-15 Installed Certificate Property
Step 7 Check the checkbox to enable the HTTPS function.
Step 8 Click the Save button to save the settings.
12.2.7 Configuring Email
Purpose:
The system can be configured to send an Email notification to all designated users if an alarm
event is detected, etc., an alarm or motion event is detected or the administrator password is
changed.
Before configuring the Email settings, the NVR must be connected to a local area network (LAN)
that maintains an SMTP mail server. The network must also be connected to either an intranet or
the Internet depending on the location of the e-mail accounts to which you want to send
notification.
Step 1 Enter the Network Settings interface.
Menu >Configuration> Network
Step 2 Set the IPv4 Address, IPv4 Subnet Mask, IPv4 Gateway and the Preferred DNS Server in the
Network Settings menu, as shown in Figure 12-16.
Network Video Recorder User Manual
206
Figure 12-16 Network Settings Interface
Step 3 Click Apply to save the settings.
Step 4 Select the Email tab to enter the Email Settings interface.
Figure 12-17 Email Settings Interface
Step 5 Configure the following Email settings:
Enable Server Authentication (optional): Check the checkbox to enable the server
authentication feature.
User Name: The user name of sender’s account registered on the SMTP server.
Password: The password of sender’s account registered on the SMTP server.
SMTP Server: The SMTP Server IP address or host name (e.g., smtp.263xmail.com).
SMTP Port: The SMTP port. The default TCP/IP port used for SMTP is 25.
Enable SSL/TLS (optional): Click the checkbox to enable SSL/TLS if required by the SMTP
server.
Sender: The name of sender.
Sender’s Address: The Email address of sender.
Select Receivers: Select the receiver. Up to 3 receivers can be configured.
Network Video Recorder User Manual
207
Receiver: The name of user to be notified.
Receiver’s Address: The Email address of user to be notified.
Enable Attached Picture: Check the checkbox of Enable Attached Picture if you want to send
email with attached alarm images. The interval is the time of two adjacent alarm images. You
can also set SMTP port and enable SSL here.
Interval: The interval refers to the time between two actions of sending attached pictures.
Step 6 Click Apply button to save the Email settings.
Step 7 You can click Test button to test whether your Email settings work.
12.2.8 Configuring NAT
Purpose:
Two ways are provided for port mapping to realize the remote access via the cross-segment
network, UPnP™ and manual mapping.
- UPnPTM
Universal Plug and Play (UPnP™) can permit the device seamlessly discover the presence of other
network devices on the network and establish functional network services for data sharing,
communications, etc. You can use the UPnP™ function to enable the fast connection of the device
to the WAN via a router without port mapping.
Before you start:
If you want to enable the UPnP™ function of the device, you must enable the UPnP™ function of
the router to which your device is connected. When the network working mode of the device is set
as multi-address, the Default Route of the device should be in the same network segment as that
of the LAN IP address of the router.
Step 1 Enter the Network Settings interface.
Menu > Configuration > Network
Step 2 Select the NAT tab to enter the port mapping interface.
Figure 12-18 UPnP™ Settings Interface
Step 3 Check checkbox to enable UPnP™.
Step 4 Select the Mapping Type as Manual or Auto in the drop-down list.
Network Video Recorder User Manual
208
OPTION 1: Auto
If you select Auto, the Port Mapping items are read-only, and the external ports are set by the
router automatically.
1) Select Auto in the drop-down list of Mapping Type.
2) Click Apply button to save the settings.
3) You can click Refresh button to get the latest status of the port mapping.
Figure 12-19 UPnP™ Settings Finished-Auto
OPTION 2: Manual
If you select Manual as the mapping type, you can edit the external port on your demand by
clicking to activate the External Port Settings dialog box.
Steps:
1) Select Manual in the drop-down list of Mapping Type.
2) Click to activate the External Port Settings dialog box. Configure the external port No.
for server port, http port, RTSP port and https port respectively.
- You can use the default port No., or change it according to actual requirements.
- External Port indicates the port No. for port mapping in the router.
- The value of the RTSP port No. should be 554 or between 1024 and 65535, while the value
of the other ports should be between 1 and 65535 and the value must be different from
each other. If multiple devices are configured for the UPnP™ settings under the same router,
the value of the port No. for each device should be unique.
Figure 12-20 External Port Settings Dialog Box
Network Video Recorder User Manual
209
3) Click Apply button to save the settings.
4) You can click Refresh button to get the latest status of the port mapping.
Figure 12-21 UPnP™ Settings Finished-Manual
Step 5 Enter the virtual server setting page of router; fill in the blank of Internal Source Port with
the internal port value, the blank of External Source Port with the external port value, and
other required contents.
Each item should be corresponding with the device port, including server port, http port, RTSP port
and https port.
Figure 12-22 Setting Virtual Server Item
The above virtual server setting interface is for reference only, it may be different due to different
router manufactures. Please contact the manufacture of router if you have any problems with
setting virtual server.
12.2.9 Configuring Virtual Host
Purpose:
You can directly get access to the IP camera management interface after enabling this function.
The Virtual host function can be only configured through the web browser.
Step 1 Enter the Advanced settings interface, as shown in the Figure 12-23.
Configuration > Network > Advanced Settings > Other
Network Video Recorder User Manual
210
Figure 12-23 Advanced Settings Interface
Step 2 Check the checkbox of the Enable Virtual Host.
Step 3 Click the Save button to save the setting.
Step 4 Enter the IP camera management interface of NVR. The Connect column appears on the
right-most side of the camera list, as shown in the Figure 12-24.
Configuration > Remote Configuration > Camera Management > IP Camera
Figure 12-24 Connect to IP Camera
Step 5 Click the link and the page of IP camera management appears.
12.3 Checking Network Traffic
Purpose:
You can check the network traffic to obtain real-time information of NVR such as linking status,
MTU, sending/receiving rate, etc.
Step 1 Enter the Network Traffic interface.
Menu > Maintenance > Net Detect
Network Video Recorder User Manual
211
Figure 12-25 Network Traffic Interface
Step 2 You can view the sending rate and receiving rate information on the interface. The traffic
data is refreshed every 1 second.
Network Video Recorder User Manual
212
12.4 Configuring Network Detection
Purpose:
You can obtain network connecting status of NVR through the network detection function,
including network delay, packet loss, etc.
12.4.1 Testing Network Delay and Packet Loss
Step 1 Enter the Network Traffic interface.
Menu >Maintenance>Net Detect
Step 2 Click the Network Detection tab to enter the Network Detection menu, as shown in Figure
12-26.
Figure 12-26 Network Detection Interface
Step 3 Enter the destination address in the text field of Destination Address.
Step 4 Click Test button to start testing network delay and packet loss. The testing result pops up
on the window. If the testing is failed, the error message box will pop up as well. Refer to
Figure 12-27.
Figure 12-27 Testing Result of Network Delay and Packet Loss
12.4.2 Exporting Network Packet
Purpose:
By connecting the NVR to network, the captured network data packet can be exported to USB-flash
disk, SATA/eSATA, DVD-R/W and other local backup devices.
Step 1 Enter the Network Traffic interface.
Menu >Maintenance>Net Detect
Step 2 Click the Network Detection tab to enter the Network Detection interface.
Step 3 Select the backup device from the dropdown list of Device Name, as shown in Figure 12-28.
Network Video Recorder User Manual
213
Click Refresh button if the connected local backup device cannot be displayed. When it fails to
detect the backup device, please check whether it is compatible with the NVR. You can format the
backup device if the format is incorrect.
Figure 12-28 Export Network Packet
Step 4 Click Export button to start exporting.
Step 5 After the exporting is complete, click OK to finish the packet export, as shown in Figure
12-29.
Figure 12-29 Packet Export Attention
Up to 1M data can be exported each time.
12.4.3 Checking the Network Status
Purpose:
You can also check the network status and quick set the network parameters in this interface.
Steps:
Click the Status button on the lower- right corner of the page.
Network Video Recorder User Manual
214
Figure 12-30 Network Status Checking
If the network is normal the following message box pops out.
Figure 12-31 Network Status Checking Result
If the message box pops out with other information instead of this one, you can click
Network button to show the quick setting interface of the network parameters.
12.4.4 Checking Network Statistics
Purpose:
You can check the network status to obtain the real-time information of NVR.
Step 1 Enter the Network Detection interface.
Menu>Maintenance>Net Detect
Step 2 Choose the Network Stat. tab.
Network Video Recorder User Manual
215
Figure 12-32 Network Stat. Interface
Step 3 Check the bandwidth of IP Camera, bandwidth of Remote Live View, bandwidth of Remote
Playback, bandwidth of Net Receive Idle and bandwidth of Net Send Idle.
Step 4 You can click Refresh to get the newest status.
Network Video Recorder User Manual
216
Chapter 13 RAID
This chapter is applicable for DS-9600NI-I8 and DS-9600NI-I16 series NVR.
13.1 Configuring Array
Purpose:
RAID (redundant array of independent disks) is a storage technology that combines multiple disk
drive components into a logical unit. A RAID setup stores data over multiple hard disk drives to
provide enough redundancy so that data can be recovered if one disk fails. Data is distributed
across the drives in one of several ways called "RAID levels", depending on what level of
redundancy and performance is required.
The NVR supports the disk array that is realized by software. You can enable the RAID function on
your demand.
The DS-9600NI-I8 and DS-9600NI-I16 series NVR support the RAID0, RAID1, RAID5, RAID6 and RAID
10 array types.
Before you start:
Please install the HDD(s) properly and it is recommended to use the same enterprise-level HDDs
(including model and capacity) for array creation and configuration so as to maintain reliable and
stable running of the disks.
Introduction:
The NVR can store the data (such as record, picture, log information) in the HDD only after you
have created the array or you have configured network HDD (refer to Chapter14.2 Managing
Network HDD). Our device provides two ways for creating array, including one-touch configuration
and manual configuration. The following flow chart shows the process of creating array.
Network Video Recorder User Manual
217
Figure 13-1 RAID Working Flow
13.1.2 Enable RAID
Purpose:
Perform the following steps to enable the RAID function, or the disk array cannot be created.
Use the enterprise-level HDDs to create the array.
- OPTION 1:
Enable the RAID function in the Wizard when the device startup, please refer to step 7 of Chapter
2.2.
- OPTION 2:
Enable the RAID function in the HDD Management Interface.
Step 1 Enter the disk mode configuration interface.
Menu > HDD > Advanced
Network Video Recorder User Manual
218
Figure 13-2 Enable RAID Interface
Step 2 Check the checkbox of Enable RAID.
Step 3 Click the Apply button to save the settings.
13.1.3 One-touch Configuration
Purpose:
Through one-touch configuration, you can quickly create the disk array. By default, the array type
to be created is RAID 5.
Before you start:
- The RAID function should be enabled, please refer to the Chapter 13.1.1 for details.
- As the default array type is RAID 5, please install at least 3 HDDs in you device.
- If more than 10 HDDs are installed, 2 arrays can be configured.
Step 1 Enter the RAID configuration interface.
Menu > HDD > RAID
Figure 13-3 Physical Disk Interface
Step 2 Check the checkbox of corresponding HDD No. to select it.
Step 3 Click the One-touch Create button to enter the One-touch Array Configuration interface.
Network Video Recorder User Manual
219
Figure 13-4 One-touch Array Configuration
Step 4 Edit the array name in the Array Name text filed and click OK button to start configuring
array.
If you install 4 HDDs or above for one-touch configuration, a hot spare disk will be set by default. It
is recommended to set hot spare disk for automatically rebuilding the array when the array is
abnormal.
Step 5 When the array configuration is completed, click OK button in the pop-up message box to
finish the settings.
Step 6 You can click Array tab to view the information of the successfully created array.
By default, one-touch configuration creates an array and a virtual disk.
Figure 13-5 Array Settings Interface
Step 7 A created array displays as an HDD in the HDD information interface.
Figure 13-6 HDD Information Interface
13.1.4 Manually Creating Array
Purpose:
You can manually create the array of RAID 0, RAID 1, RAID 5, RAID6 and RAID 10.
Network Video Recorder User Manual
220
In this section, we take RAID 5 as an example to describe the manual configuration of array and
virtual disk.
Step 1 Enter the Physical Disk Settings interface.
Menu > HDD > RAID > Physical Disk
Figure 13-7 Physical Disk Settings Interface
Step 2 Click Creat button to enter the Create Array interface.
Table 13-1 Create Array Interface
Step 3 Edit the Array Name; set the RAID Level to RAID 0, RAID 1, RAID 5, RAID6 or RAID 10; select
the Physical Disk that you want to configure array.
Network Video Recorder User Manual
221
- If you choose RAID 0, at least 2 HDDs must be installed.
- If you choose RAID 1, 2 HDDs need to be configured for RAID 1.
- If you choose RAID 5, at least 3 HDDs must be installed.
- If you choose RAID 6, at least 4 HDDs must be installed.
- If you choose RAID 10, the number of HDDs installed should be even in the range of 4 to 16.
Step 4 Click OK button to create array.
If the number of HDDs you select is not compatible with the requirement of the RAID level, the
error message box will pop up.
Figure 13-8 Error Message Box
Step 5 You can click Array tab to view the successfully created array.
Figure 13-9 Array Settings Interface
Network Video Recorder User Manual
222
13.2 Rebuilding Array
Purpose:
The working status of array includes Functional, Degraded and Offline. By viewing the array status,
you can take immediate and proper maintenance for the disks so as to ensure the high security
and reliability of the data stored in the disk array.
When there is no disk loss in the array, the working status of array will change to Functional; when
the number of lost disks has exceeded the limit, the working status of array will change to Offline;
in other conditions, the working status is Degraded.
When the virtual disk is in Degraded status, you can restore it to Functional by array rebuilding.
Before you start:
Please make sure the hot spare disk is configured.
Step 1 Enter the Physical Disk Settings interface to configure the hot spare disk.
Figure 13-10 Physical Disk Settings Interface
Step 2 Select a disk and click to set it as the hot spare disk.
Only global hot spare mode is supported.
13.2.2 Automatically Rebuilding Array
Purpose:
When the virtual disk is in Degraded status, the device can start rebuilding the array automatically
with the hot spare disk to ensure the high security and reliability of the data.
Enter the Array Settings interface( Menu > HDD > RAID > Array). The status of the array is Degraded.
Since the hot spare disk is configured, the system will automatically start rebuilding using it.
Network Video Recorder User Manual
223
Figure 1. 2 Array Settings Interface
If there is no hot spare disk after rebuilding, it is recommended to install a HDD into the device and
set is as a hot spare disk to ensure the high security and reliability of the array.
13.2.3 Manually Rebuilding Array
Purpose:
If the hot spare disk has not been configured, you can rebuild the array manually to restore the
array when the virtual disk is in Degraded status.
Step 1 Enter the Array Settings interface. The disk 3 is lost.
Menu > HDD > RAID > Array
Figure 13-11 Array Settings Interface
Step 2 Click Array tab to back to the Array Settings interface and click to configure the array
rebuild.
At least one available physical disk should exist for rebuilding the array.
Network Video Recorder User Manual
224
Figure 13-12 Rebuild Array Interface
Step 3 Select the available physical disk and click OK button to confirm to rebuild the array.
Step 4 The “Do not unplug the physical disk when it is under rebuilding” message box pops up. Click
OK button to start rebuilding.
Step 5 You can enter the Array Settings interface to view the rebuilding status.
Step 6 After rebuilding successfully, the array and virtual disk will restore to Functional.
Network Video Recorder User Manual
225
13.3 Deleting Array
Deleting array will cause to delete all the data saved in the disk.
Step 1 Enter the Array Settings interface.
Menu>HDD>RAID>Array
Figure 13-13 Array Settings Interface
Step 2 Select an array and click to delete the array.
Figure 13-14 Confirm Array Deletion
Step 3 In the pop-up message box, click Yes button to confirm the array deletion.
Deleting array will cause to delete all the data in the array.
Network Video Recorder User Manual
226
13.4 Checking and Editing Firmware
Purpose:
You can view the information of the firmware and set the background task speed on the Firmware
interface.
Step 1 Enter the Firmware interface to check the information of the firmware, including the version,
maximum physical disk quantity, maximum array quantity, auto-rebuild status, etc.
Figure 13-15 Firmware Interface
Step 2 You can set the Background Task Speed in the drop-down list.
Step 3 Click the Apply button to save the settings.
Network Video Recorder User Manual
227
Chapter 14 HDD Management
14.1 Initializing HDDs
Purpose:
A newly installed hard disk drive (HDD) must be initialized before it can be used with your NVR.
A message box pops up when the NVR starts up if there exits any uninitialized HDD.
Figure 14-1 Message Box of Uninitialized HDD
Click Yes button to initialize it immediately or you can perform the following steps to initialize the
HDD.
Step 2 Enter the HDD Information interface.
Menu > HDD> General
Figure 14-2 HDD Information Interface
Step 3 Select HDD to be initialized.
Step 4 Click the Init button.
Figure 14-3 Confirm Initialization
Network Video Recorder User Manual
228
Step 5 Select the OK button to start initialization.
Figure 14-4 Status changes to Initializing
Step 6 After the HDD has been initialized, the status of the HDD will change from Uninitialized to
Normal.
Figure 14-5 HDD Status Changes to Normal
Initializing the HDD will erase all data on it.
Network Video Recorder User Manual
229
14.2 Managing Network HDD
Purpose:
You can add the allocated NAS or disk of IP SAN to NVR, and use it as network HDD. Up to 8
network disks can be added.
Step 1 Enter the HDD Information interface.
Menu > HDD>General
Figure 14-6 HDD Information Interface
Step 2 Click the Add button to enter the Add NetHDD interface, as shown in Figure 14-7.
Figure 14-7 HDD Information Interface
Step 3 Add the allocated NetHDD.
Step 4 Select the type to NAS or IP SAN.
Step 5 Configure the NAS or IP SAN settings.
- Add NAS disk:
1) Enter the NetHDD IP address in the text field.
2) Click the Search button to search the available NAS disks.
3) Select the NAS disk from the list shown below.
4) Or you can just manually enter the directory in the text field of NetHDD Directory.
5) Click the OK button to add the configured NAS disk.
Network Video Recorder User Manual
230
Figure 14-8 Add NAS Disk
- Add IP SAN:
1) Enter the NetHDD IP address in the text field.
2) Click the Search button to search the available IP SAN disks.
3) Select the IP SAN disk from the list shown below.
4) Click the OK button to add the selected IP SAN disk.
Up to 1 IP SAN disk can be added.
Figure 14-9 Add IP SAN Disk
Step 6 After having successfully added the NAS or IP SAN disk, return to the HDD Information menu.
The added NetHDD will be displayed in the list.
If the added NetHDD is uninitialized, please select it and click the Init button for initialization.
Network Video Recorder User Manual
231
Figure 14-10 Initialize Added NetHDD
14.3 Managing eSATA
Purpose:
When there is an external eSATA device connected to NVR, you can configure eSATA for the use of
Record/Capture or Export, and you can manage the eSATA in the NVR.
Step 1 Enter the Advanced Record Settings interface.
Menu >Record>Advanced
Step 2 Select the eSATA type to Export or Record/Capture from the dropdown list of eSATA.
Export: use the eSATA for backup. Refer to Backup using eSATA HDDs in Chapter Backing up
by Normal Video/Picture Search for operating instructions.
Record/Capture: use the eSATA for record/capture. Refer to the following steps for
operating instructions.
Figure 14-11 Set eSATA Mode
Step 3 When the eSATA type is selected to Record/Capture, enter the HDD Information interface.
Menu > HDD>General
Step 4 Edit the property of the selected eSATA, or initialize it is required.
Two storage modes can be configured for the eSATA when it is used for Record/Capture. Please
refer to Chapter Managing HDD Group and Chapter Configuring Quota Mode for details.
Figure 14-12 Initialize Added eSATA
Network Video Recorder User Manual
232
14.4 Managing HDD Group
14.4.1 Setting HDD Groups
Purpose:
Multiple HDDs can be managed in groups. Video from specified channels can be recorded onto a
particular HDD group through HDD settings.
Step 1 Enter the Storage Mode interface.
Menu > HDD > Advanced > Storage Mode
Step 2 Set the Mode to Group, as shown in Figure 14-13.
Figure 14-13 Storage Mode Interface
Step 3 Click the Apply button and the following Attention box will pop up.
Figure 14-14 Attention for Reboot
Step 4 Click the Yes button to reboot the device to activate the changes.
Step 5 After reboot of device, enter the HDD Information interface.
Menu > HDD> General
Step 6 Select HDD from the list and click icon to enter the Local HDD Settings interface, as
shown in Figure 14-15.
Network Video Recorder User Manual
233
Figure 14-15 Local HDD Settings Interface
Step 7 Select the Group number for the current HDD.
The default group No. for each HDD is 1.
Step 8 Click the OK button to confirm the settings.
Figure 14-16 Confirm HDD Group Settings
Step 9 In the pop-up Attention box, click the Yes button to finish the settings.
14.4.2 Setting HDD Property
Purpose:
The HDD property can be set to redundancy, read-only or read/write (R/W). Before setting the
HDD property, please set the storage mode to Group (refer to step1-4 of Chapter Setting HDD
Groups ).
A HDD can be set to read-only to prevent important recorded files from being overwritten when
the HDD becomes full in overwrite recording mode.
When the HDD property is set to redundancy, the video can be recorded both onto the redundancy
HDD and the R/W HDD simultaneously so as to ensure high security and reliability of video data.
Step 1 Enter the HDD Information interface.
Menu > HDD> General
Step 2 Select HDD from the list and click the icon to enter the Local HDD Settings interface, as
shown in Figure 14-17.
Network Video Recorder User Manual
234
Figure 14-17 Set HDD Property
Step 3 Set the HDD property to R/W, Read-only or Redundancy.
Step 4 Click the OK button to save the settings and exit the interface.
Step 5 In the HDD Information menu, the HDD property will be displayed in the list.
At least 2 hard disks must be installed on your NVR when you want to set a HDD to Redundancy,
and there is one HDD with R/W property.
Network Video Recorder User Manual
235
14.5 Configuring Quota Mode
Purpose:
Each camera can be configured with allocated quota for the storage of recorded files or captured
pictures.
Step 1 Enter the Storage Mode interface.
Menu > HDD > Advanced
Step 2 Set the Mode to Quota, as shown in Figure 14-18.
The NVR must be rebooted to enable the changes to take effect.
Figure 14-18 Storage Mode Settings Interface
Step 3 Select a camera for which you want to configure quota.
Step 4 Enter the storage capacity in the text fields of Max. Record Capacity (GB) and Max. Picture
Capacity (GB), as shown in Figure 14-19.
Figure 14-19 Configure Record/Picture Quota
Step 5 You can copy the quota settings of the current camera to other cameras if required. Click the
Copy button to enter the Copy Camera menu, as shown in Figure 14-20.
Network Video Recorder User Manual
236
Figure 14-20 Copy Settings to Other Camera(s)
Step 6 Select the camera (s) to be configured with the same quota settings. You can also click the
checkbox of IP Camera to select all cameras.
Step 7 Click the OK button to finish the Copy settings and back to the Storage Mode interface.
Step 8 Click the Apply button to apply the settings.
If the quota capacity is set to 0, then all cameras will use the total capacity of HDD for record and
picture capture.
Network Video Recorder User Manual
237
14.6 Configuring Disk Clone
Purpose:
If the S.M.A.R.T. detection result declares the HDD is abnormal, you can choose to clone all the
data on the HDD to an inserted eSATA disk manually. Refer to Chapter 12.8 HDD Detection for
details of S.M.A.R.T detection.
Before you start:
An eSATA disk should be connected to the device.
Step 1 Enter the HDD Advanced Setting interface:
Menu > HDD > Advanced
Step 2 Click the Disk Clone tab to enter the disk clone configuring interface.
Figure 14-21 Disk Clone Configuration Interface
Step 3 Make sure the usage of the eSATA disk is set as Export.
If not, click the Set button to set it. Choose Export and click the OK button.
Figure 14-22 Setting eSATA Usage
Network Video Recorder User Manual
238
The capacity of destination disk must be the same as that of the clone source disk.
Step 4 Check the checkbox of the HDD to be cloned in the Clone Source list.
Step 5 Click the Clone button and a message box pops up.
Figure 14-23 Message Box for Disk Clone
Step 6 Click the Yes button to continue.
You can check the clone progress in the HDD status.
Figure 14-24 Check Disk Clone Progress
Network Video Recorder User Manual
239
14.7 Checking HDD Status
Purpose:
You may check the status of the installed HDDs on NVR so as to take immediate check and
maintenance in case of HDD failure.
Checking HDD Status in HDD Information Interface
Step 1 Enter the HDD Information interface.
Menu > HDD>General
Step 2 Check the status of each HDD which is displayed on the list, as shown in Figure 14-25.
Figure 14-25 View HDD Status (1)
If the status of HDD is Normal or Sleeping, it works normally. If the status is Uninitialized or
Abnormal, please initialize the HDD before use. And if the HDD initialization is failed, please
replace it with a new one.
Checking HDD Status in HDD Information Interface
Step 3 Enter the System Information interface.
Menu >Maintenance > System Info
Step 4 Click the HDD tab to view the status of each HDD displayed on the list, as shown in Figure
14-26.
Network Video Recorder User Manual
240
Figure 14-26 View HDD Status (2)
Network Video Recorder User Manual
241
14.8 HDD Detection
Purpose:
The device provides the HDD detection function such as the adopting of the S.M.A.R.T. and the Bad
Sector Detection technique. The S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) is
a monitoring system for HDD to detect and report on various indicators of reliability in the hopes
of anticipating failures.
S.M.A.R.T. Settings
Step 1 Enter the S.M.A.R.T Settings interface.
Menu > Maintenance >HDD Detect
Step 2 Select the HDD to view its S.M.A.R.T information list, as shown in Figure 14-27.
Figure 14-27 S.M.A.R.T Settings Interface
The related information of the S.M.A.R.T. is shown on the interface.
You can choose the self-test types as Short Test, Expanded Test or the Conveyance Test.
Click the start button to start the S.M.A.R.T. HDD self-evaluation.
If you want to use the HDD even when the S.M.A.R.T. checking is failed, you can check the
checkbox of the Continue to use the disk when self-evaluation is failed item.
Bad Sector Detection
Step 3 Click the Bad Sector Detection tab.
Network Video Recorder User Manual
242
Step 4 Select the HDD No. in the dropdown list you want to configure, and choose All Detection or
Key Area Detection as the detection type.
Step 5 Click the Detect button to start the detection.
Figure 14-28 Bad Sector Detection
And you can click Error info button to see the detailed damage information.
And you can also pause/resume or cancel the detection.
Network Video Recorder User Manual
243
14.9 Configuring HDD Error Alarms
Purpose:
You can configure the HDD error alarms when the HDD status is Uninitialized or Abnormal.
Step 1 Enter the Exception interface.
Menu > Configuration > Exceptions
Step 2 Select the Exception Type to HDD Error from the dropdown list.
Step 3 Click the checkbox(s) below to select the HDD error alarm type (s), as shown in Figure 14-29.
The alarm type can be selected to: Audible Warning, Notify Surveillance Center, Send Email and
Trigger Alarm Output. Please refer to Chapter Setting Alarm Response Actions.
Figure 14-29 Configure HDD Error Alarm
Step 4 When the Trigger Alarm Output is selected, you can also select the alarm output to be
triggered from the list below.
Step 5 Click the Apply button to save the settings
Network Video Recorder User Manual
244
Chapter 15 Camera Settings
15.1 Configuring OSD Settings
Purpose:
You can configure the OSD (On-screen Display) settings for the camera, including date /time,
camera name, etc.
Step 1 Enter the OSD Configuration interface.
Menu > Camera > OSD
Step 2 Select the camera to configure OSD settings.
Step 3 Edit the Camera Name in the text field.
Step 4 Configure the Display Name, Display Date and Display Week by clicking the checkbox.
Step 5 Select the Date Format, Time Format and Display Mode.
Figure 15-1 OSD Configuration Interface
Step 6 You can use the mouse to click and drag the text frame on the preview window to adjust the
OSD position.
Step 7 Click the Apply button to apply the settings.
Network Video Recorder User Manual
245
15.2 Configuring Privacy Mask
Purpose:
You are allowed to configure the four-sided privacy mask zones that cannot be viewed by the
operator. The privacy mask can prevent certain surveillance areas to be viewed or recorded.
Step 1 Enter the Privacy Mask Settings interface.
Menu > Camera >Privacy Mask
Step 2 Select the camera to set privacy mask.
Step 3 Click the checkbox of Enable Privacy Mask to enable this feature.
Figure 15-2 Privacy Mask Settings Interface
Step 4 Use the mouse to draw a zone on the window. The zones will be marked with different
frame colors.
Up to 4 privacy masks zones can be configured and the size of each area can be adjusted.
Step 5 The configured privacy mask zones on the window can be cleared by clicking the
corresponding Clear Zone1-4 icons on the right side of the window, or click Clear All to clear
all zones.
Network Video Recorder User Manual
246
Figure 15-3 Set Privacy Mask Area
Step 6 Click the Apply button to save the settings.
Network Video Recorder User Manual
247
15.3 Configuring Video Parameters
Purpose:
You can customize the image parameters including the brightness, contrast, saturation, image
rotate and mirror for the live view and recording effect.
Step 1 Enter the Image Settings interface.
Menu > Camera >Image
Figure 15-4 Image Settings Interface
Step 2 Select the camera to set image parameters.
Step 3 Adjust the slider or click on the up/down arrow to set the value of the brightness, contrast or
saturation.
Step 4 Select the Enable Rotate function to Clockwise 270 degrees or OFF. When OFF is selected,
the image is restored to original.
Step 5 Select the Mirror Mode to Left-Right, Up-Down, Center or OFF. When OFF is selected, the
image is restored to original.
- The Rotate and Mirror functions must be supported by the connected IP camera.
- The image parameters adjustment can affect both the live view and the recording quality.
Step 6 Click the Apply button to save the settings.
Network Video Recorder User Manual
248
Chapter 16 NVR Management and Maintenance
16.1 Viewing System Information
Step 1 Enter the System Information interface.
Menu >Maintenance>System Info
Step 2 You can click the Device Info, Camera, Record, Alarm, Network and HDD tabs to view the
system information of the device.
XXXXXXXXXXX
XXXXXXXXXXXXXXXXX
XXXXXXXXXXX
Figure 16-1 Device Information Interface
You can add the device to your mobile client software (iVMS-4500) via scanning the QR Code.
Network Video Recorder User Manual
249
16.2 Searching & Exporting Log Files
Purpose:
The operation, alarm, exception and information of the NVR can be stored in log files, which can
be viewed and exported at any time.
Step 1 Enter the Log Search interface.
Menu > Maintenance > Log Information
Figure 16-2 Log Search Interface
Step 2 Set the log search conditions to refine your search, including the Start Time, End Time, Major
Type and Minor Type.
Step 3 Click the Search button to start search log files.
Step 4 The matched log files will be displayed on the list shown below.
Network Video Recorder User Manual
250
Figure 16-3 Log Search Results
Up to 2000 log files can be displayed each time.
Step 5 You can click the button of each log or double click it to view its detailed information, as
shown in Figure 16-4. And you can also click the button to view the related video files if
available.
Figure 16-4 Log Details
Step 6 If you want to export the log files, click the Export button to enter the Export menu, as
shown in Figure 16-4 Log Details.
You can also click Export All on the Log Search interface (Figure 15.2) to enter the Export
interface (Figure 15.5), and all the system logs will be exported to the backup device.
Network Video Recorder User Manual
251
Figure 16-5 Export Log Files
Step 7 Select the backup device from the dropdown list of Device Name.
Step 8 Select the format of the log files to be exported. Up to 15 formats are selectable.
Step 9 Click the Export to export the log files to the selected backup device.
You can click the New Folder button to create new folder in the backup device, or click the
Format button to format the backup device before log export.
Please connect the backup device to NVR before operating log export.
16.3 Importing/Exporting IP Camera Info
Purpose:
The information of added IP camera can be generated into an excel file and exported to the local
device for backup, including the IP address, manage port, password of admin, etc.. And the
exported file can be edited on your PC, like adding or deleting the content, and copy the setting to
other devices by importing the excel file to it.
Step 1 Enter the camera management interface.
Menu > Camera > IP Camera Import/Export
Step 2 Click the IP Camera Import/Export tab, the content of detected plugged external device
appears.
Step 3 Click the Export button to export configuration files to the selected local backup device.
Step 4 To import a configuration file, select the file from the selected backup device and click the
Import button. After the importing process is completed, you must reboot the NVR.
Network Video Recorder User Manual
252
16.4 Importing/Exporting Configuration Files
Purpose:
The configuration files of the NVR can be exported to local device for backup; and the
configuration files of one NVR can be imported to multiple NVR devices if they are to be
configured with the same parameters.
Step 1 Enter the Import/Export Configuration File interface.
Menu > Maintenance >Import/Export
Figure 16-6 Import/Export Config File
Step 2 Click the Export button to export configuration files to the selected local backup device.
Step 3 To import a configuration file, select the file from the selected backup device and click the
Import button. After the import process is completed, you must reboot the NVR.
After having finished the import of configuration files, the device will reboot automatically.
Network Video Recorder User Manual
253
16.5 Upgrading System
Purpose:
The firmware on your NVR can be upgraded by local backup device or remote FTP server.
16.5.1 Upgrading by Local Backup Device
Step 1 Connect your NVR with a local backup device where the update firmware file is located.
Step 2 Enter the Upgrade interface.
Step 3 Menu >Maintenance>Upgrade
Step 4 Click the Local Upgrade tab to enter the local upgrade menu, as shown in Figure 16-7.
Figure 16-7 Local Upgrade Interface
Step 5 Select the update file from the backup device.
Step 6 Click the Upgrade button to start upgrading.
Step 7 After the upgrading is complete, reboot the NVR to activate the new firmware.
16.5.2 Upgrading by FTP
Before you start:
Ensure the network connection of the PC (running FTP server) and the device is valid and correct.
Run the FTP server on the PC and copy the firmware into the corresponding directory of your PC.
Step 1 Enter the Upgrade interface.
Menu >Maintenance>Upgrade
Network Video Recorder User Manual
254
Step 2 Click the FTP tab to enter the local upgrade interface, as shown in Figure 16-8.
Figure 16-8 FTP Upgrade Interface
Step 3 Enter the FTP Server Address in the text field.
Step 4 Click the Upgrade button to start upgrading.
Step 5 After the upgrading is complete, reboot the NVR to activate the new firmware.
Network Video Recorder User Manual
255
16.6 Restoring Default Settings
Step 1 Enter the Default interface.
Menu > Maintenance > Default
Figure 16-9 Restore Defaults
Step 2 Select the restoring type from the following three options.
Restore Defaults: Restore all parameters, except the network (including IP address, subnet
mask, gateway, MTU, NIC working mode, default route, server port, etc.) and user account
parameters, to the factory default settings.
Factory Defaults: Restore all parameters to the factory default settings.
Restore to Inactive: Restore the device to the inactive status.
Step 3 Click the OK button to restore the default settings.
The device will reboot automatically after restoring to the default settings.
Network Video Recorder User Manual
256
Chapter 17 Others
17.1 Configuring RS-232 Serial Port
The RS-232 serial port is not supported by DS-7600NI series NVR.
Purpose:
The RS-232 port can be used in two ways:
- Parameters Configuration: Connect a PC to the NVR through the PC serial port. Device
parameters can be configured by using software such as HyperTerminal. The serial port
parameters must be the same as the NVR’s when connecting with the PC serial port.
- Transparent Channel: Connect a serial device directly to the NVR. The serial device will be
controlled remotely by the PC through the network and the protocol of the serial device.
Step 1 Enter the RS-232 Settings interface.
Menu >Configuration> RS-232
Figure 17-1 RS-232 Settings Interface
Step 2 Configure RS-232 parameters, including baud rate, data bit, stop bit, parity, flow control and
usage.
Step 3 Click the Apply button to save the settings.
Network Video Recorder User Manual
257
17.2 Configuring General Settings
Purpose:
You can configure the BNC output standard, VGA output resolution, mouse pointer speed through
the Menu > Configuration > General interface.
Step 1 Enter the General Settings interface.
Menu >Configuration> General
Step 2 Select the General tab.
Figure 17-2 General Settings Interface (DS-9600NI and DS-8600NI)
Figure 17-3 General Settings Interface (DS-7600NI and DS-7700NI)
Step 3 Configure the following settings:
Language: The default language used is English.
Network Video Recorder User Manual
258
Output Standard: Select the output standard to NTSC or PAL, which must be the same with
the video input standard.
Resolution: For the DS-9600NI and DS-8600NI series NVR, you can configure the VGA/HDMI
resolution and VGA2/HDMI 2 resolution. And up to 4K (3840 × 2160) resolution is selectable
for the VGA/HDMI output.
For the DS-7600NI and DS-7700NI series NVR, you can configure the VGA resolution and
HDMI resolution respectively. And up to 4K (3840 × 2160) resolution is selectable for the
HDMI output.
Time Zone: Select the time zone.
Date Format: Select the date format.
System Date: Select the system date.
System Time: Select the system time.
Mouse Pointer Speed: Set the speed of mouse pointer; 4 levels are configurable.
Enable Wizard: Enable/disable the Wizard when the device starts up.
Enable Password: Enable/disable the use of the login password.
Step 4 Click the Apply button to save the settings.
Network Video Recorder User Manual
259
17.3 Configuring DST Settings
Step 1 Enter the General Settings interface.
Menu >Configuration>General
Step 2 Choose DST Settings tab.
Figure 17-4 DST Settings Interface
You can check the checkbox before the Auto DST Adjustment item.
Or you can manually check the Enable DST checkbox, and then you choose the date of the
DST period.
Network Video Recorder User Manual
260
17.4 Configuring More Settings
Step 1 Enter the General Settings interface.
Menu >Configuration>General
Step 2 Click the More Settings tab to enter the More Settings interface.
Figure 17-5 More Settings Interface
Step 3 Configure the following settings:
Device Name: Edit the name of NVR.
Device No.: Edit the serial number of NVR. The Device No. can be set in the range of 1~255,
and the default No. is 255. The number is used for the remote and keyboard control.
Auto Logout: Set timeout time for menu inactivity. E.g., when the timeout time is set to 5
Minutes, then the system will exit from the current operation menu to live view screen after
5 minutes of menu inactivity.
Enable HDMI/VGA Simultaneous Output (for DS-9600NI and DS-8600NI only): By default,
the video outputs from HDMI and VGA interfaces can be operated separately. You can set the
simultaneous output for the HDMI and VGA by checking the checkbox of the option.
Menu Output Mode: You can choose the menu display on different video output.
For the DS-9600NI and DS-8600NI series NVR, you can select the menu output mode to
VGA/HDMI, VGA2/HDMI2.
And for the DS-7600NI and DS-7600NI series NVR, you can select the menu output mode to
VGA, HDMI or Auto. When the Auto option is selected and both HDMI and VGA outputs are
connected, the device will detect and set the HDMI as the menu output.
Step 4 Click the Apply button to save the settings.
Network Video Recorder User Manual
261
17.5 Managing User Accounts
Purpose:
There is a default account in the NVR: Administrator. The Administrator user name is admin and
the password is set when you start the device for the first time. The Administrator has the
permission to add and delete user and configure user parameters.
17.5.1 Adding a User
Step 1 Enter the User Management interface.
Menu >Configuration>User
Figure 17-6 User Management Interface
Step 2 Click the Add button to enter the Add User interface.
Figure 17-7 Add User Menu
Network Video Recorder User Manual
262
Step 3 Enter the information for new user, including User Name, Admin Password, Password,
Confirm, Level and User’s MAC Address.
Password: Set the password for the user account.
Strong Password recommended–We highly recommend you create a strong password of your own
choosing (Using a minimum of 8 characters, including at least three of the following categories:
upper case letters, lower case letters, numbers, and special characters.) in order to increase the
security of your product. And we recommend you reset your password regularly, especially in the
high security system, resetting the password monthly or weekly can better protect your product.
- Level: Set the user level to Operator or Guest. Different user levels have different operating
permission.
Operator: The Operator user level has permission of Two-way Audio in Remote Configuration
and all operating permission in Camera Configuration by default.
Guest: The Guest user has no permission of Two-way Audio in Remote Configuration and
only has the local/remote playback in the Camera Configuration by default.
- User’s MAC Address: The MAC address of the remote PC which logs onto the NVR. If it is
configured and enabled, it only allows the remote user with this MAC address to access
the NVR.
Step 4 Click the OK button to save the settings and go back to the User Management interface. The
added new user will be displayed on the list, as shown in Figure 17-8.
Figure 17-8 Added User Listed in User Management Interface
Step 5 Select the user from the list and then click the button to enter the Permission settings
interface, as shown in Figure 17-9.
Network Video Recorder User Manual
263
Figure 17-9 User Permission Settings Interface
Step 6 Set the operating permission of Local Configuration, Remote Configuration and Camera
Configuration for the user.
- Local Configuration
Local Log Search: Searching and viewing logs and system information of NVR.
Local Parameters Settings: Configuring parameters, restoring factory default parameters and
importing/exporting configuration files.
Local Camera Management: The adding, deleting and editing of IP cameras.
Local Advanced Operation: Operating HDD management (initializing HDD, setting HDD
property), upgrading system firmware, clearing I/O alarm output.
Local Shutdown Reboot: Shutting down or rebooting the NVR.
- Remote Configuration
Remote Log Search: Remotely viewing logs that are saved on the NVR.
Remote Parameters Settings: Remotely configuring parameters, restoring factory default
parameters and importing/exporting configuration files.
Remote Camera Management: Remote adding, deleting and editing of the IP cameras.
Remote Serial Port Control: Configuring settings for RS-232 and RS-485 ports.
Remote Video Output Control: Sending remote button control signal.
Two-Way Audio: Realizing two-way radio between the remote client and the NVR.
• Remote Alarm Control: Remotely arming (notify alarm and exception message to the
remote client) and controlling the alarm output.
• Remote Advanced Operation: Remotely operating HDD management (initializing HDD,
setting HDD property), upgrading system firmware, clearing I/O alarm output.
• Remote Shutdown/Reboot: Remotely shutting down or rebooting the NVR.
- Camera Configuration
Remote Live View: Remotely viewing live video of the selected camera (s).
Network Video Recorder User Manual
264
Local Manual Operation: Locally starting/stopping manual recording and alarm output of the
selected camera (s).
Remote Manual Operation: Remotely starting/stopping manual recording and alarm output
of the selected camera (s).
Local Playback: Locally playing back recorded files of the selected camera (s).
Remote Playback: Remotely playing back recorded files of the selected camera (s).
Local PTZ Control: Locally controlling PTZ movement of the selected camera (s).
Remote PTZ Control: Remotely controlling PTZ movement of the selected camera (s).
Local Video Export: Locally exporting recorded files of the selected camera (s).
Step 7 Click the OK button to save the settings and exit interface.
Only the admin user account has the permission of restoring factory default parameters.
17.5.2 Deleting a User
Step 1 Enter the User Management interface.
Menu >Configuration>User
Step 2 Select the user to be deleted from the list, as shown in Figure 17-10.
Figure 17-10 User List
Step 3 Click the icon to delete the selected user account.
17.5.3 Editing a User
For the added user accounts, you can edit the parameters.
Step 1 Enter the User Management interface.
Menu >Configuration>User
Step 2 Select the user to be edited from the list, as shown in Figure 17-10.
Network Video Recorder User Manual
265
Step 3 Click the icon to enter the Edit User interface, as shown in Figure 17-12.
Figure 17-11 Edit User (Operator/Guest)
Figure 17-12 Edit User (admin)
Step 4 Edit the password for the user
• Operator and Guest
You can edit the user information, including user name, password, permission level and
MAC address. Check the checkbox of Change Password if you want to change the password,
and input the new password in the text field of Password and Confirm. A strong password
is recommended.
• Admin
You are only allowed to edit the password and MAC address. Check the checkbox of
Change Password if you want to change the password, and the input the correct old
password, and the new password in the text field of Password and Confirm.
Network Video Recorder User Manual
266
Strong Password recommended–We highly recommend you create a strong password of your own
choosing (Using a minimum of 8 characters, including at least three of the following categories:
upper case letters, lower case letters, numbers, and special characters.) in order to increase the
security of your product. And we recommend you reset your password regularly, especially in the
high security system, resetting the password monthly or weekly can better protect your product.
Step 5 Edit the unlock pattern for the admin user account.
1) Check the checkbox of Enable Unlock Pattern to enable the use of unlock pattern when
logging in to the device.
2) Use the mouse to draw a pattern among the 9 dots on the screen. Release the mouse
when the pattern is done.
Please refer to Chapter 2.3.1 Configuring the Unlock Pattern for detailed instructions.
Figure 17-13 Set Unlock Patter for Admin User
Step 6 Click the of Export GUID to enter the reset password interface to export the GUID file
for the admin user account.
When the admin password is changed, you can re-export the GUID file to the connected U
flash disk for the future password resetting. Please refer to Chapter 2.1.5 Resetting Your
Password for details.
Step 7 Click the OK button to save the settings and exit the menu.
Step 8 For the Operator or Guest user account, you can also click the button on the user
management interface to edit the permission.
Network Video Recorder User Manual
267
Chapter 18 Appendix
18.1 Specifications
18.1.1 DS-9600NI-I8
Model
DS-9608NI-I8
DS-9616NI-I8
DS-9632NI-I8
DS-9664NI-I8
Video/Audio
input
IP video input
8-ch
16-ch
32-ch
64-ch
Up to 12 MP resolution
Two-way audio
1-ch, RCA (2.0 Vp-p, 1 k Ω)
Network
Incoming
bandwidth
128 Mbps
256 Mbps,
320 Mbps
320 Mbps
or 200 Mbps (when RAID is enabled)
Outgoing
bandwidth
256 Mbps, or 200 Mbps (when RAID is enabled)
Remote
connection
128
Video/Audio
output
Recording
resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA
/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
VGA1 /HDMI1
output
resolution
HDMI1: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560
× 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 ×
1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 ×
1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 ×
768/60Hz
VGA2 /HDMI2
output
resolution
1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 ×
768/60Hz
Audio output
2-ch, RCA (2.0Vp-p, 1 KΩ)
Decoding
Decoding
format
H.265/H.265+/H.264/H.264+/MPEG4
Live
view/Playback
resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA
/4CIF/DCIF/2CIF/CIF/QCIF
Network Video Recorder User Manual
268
Synchronous
playback
8-ch
16-ch
Capability
12-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP
(30fps) / 16-ch @ 1080p (30fps)
Network
management
Network
protocols
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS,
iSCSI, UPnP™, HTTPS
Hard disk
SATA
8 SATA interfaces
eSATA
1 eSATA interface
Capacity
Up to 6 TB capacity for each disk
Disk array
Array type
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Number of
arrays
4
External
interface
Network
interface
2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Serial interface
RS-232; RS-485; Keyboard
USB interface
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm in/out
16/4
General
Power supply
100 to 240 VAC, 50 to 60 Hz
Max. Power
200 W
Consumption
(without hard
disk)
≤ 30 W
Working
temperature
-10 to +55º C (+14 to +131º F)
Working
humidity
10 to 90 %
Chassis
19-inch rack-mounted 2U chassis
Dimensions(W
× D × H)
445 × 470 ×90 mm (17.5"× 18.5" × 3.5")
Weight(without
hard disk)
≤ 10 kg (22 lb)
Network Video Recorder User Manual
269
18.1.2 DS-9600NI-I16
Model
DS-9616NI-I16
DS-9632NI-I16
DS-9664NI-I16
Video/Aud
io input
IP video input
16-ch
32-ch
64-ch
Incoming
bandwidth
256 Mbps
320 Mbps
320 Mbps
Or 200 Mbps (when RAID is enabled)
Outgoing
bandwidth
256 Mbps, or 200 Mbps (when RAID is enabled)
Video/Aud
io output
VGA1 /HDMI1
output
resolution
VGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 ×
1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI1: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K
(2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz,
1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA2 /HDMI2
output
resolution
VGA2: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 ×
720/60Hz, 1024 × 768/60Hz
HDMI2: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 ×
720/60Hz, 1024 × 768/60Hz
Audio output
2-ch, RCA (Linear, 1 KΩ)
Decoding
Decoding format
H.265/H.265+/H.264/H.264+/MPEG4
Recording
resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA
/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous
playback
16-ch
Capability
12-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP
(30fps) / 16-ch @ 1080p (30fps)
Network
managem
ent
Network
protocols
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,
NFS, iSCSI, UPnP™, HTTPS
Hard disk
SATA
16 SATA interfaces
eSATA
1 eSATA interface
Capacity
Up to 6 TB capacity for each disk
Disk array
Array type
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
External
interface
Two-way audio
1-ch, RCA (2.0 Vp-p, 1 k Ω)
Network
2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Network Video Recorder User Manual
270
interface
Serial interface
RS-232; RS-485; Keyboard
USB interface
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm in/out
16/8
General
Power supply
100 to 240 VAC, 50 to 60 Hz
Max. Power
300 W
Consumption
(without hard
disk)
≤ 45 W
Working
temperature
-10 to +55° C (+14 to +131° F)
Working humidity
10 to 90 %
Chassis
19-inch rack-mounted 3U chassis
Dimensions (W ×
D × H)
445 × 496 × 146 mm (17.5 × 19.5 × 5.7")
Weight (without
hard disk)
≤ 12.5 kg (27.6 lb)
Network Video Recorder User Manual
271
18.1.3 DS-8600NI-I8
Model
DS-8608NI-I8
DS-8616NI-I8
DS-8632NI-I8
DS-8664NI-I8
Video/Au
dio input
IP video input
8-ch
16-ch
32-ch
64-ch
Up to 12 MP resolution
Two-way audio
1-ch, RCA (2.0 Vp-p, 1 k Ω)
Network
Incoming
bandwidth
128 Mbps
256 Mbps
320 Mbps
320 Mbps
or 200 Mbps (when RAID is enabled)
Outgoing
bandwidth
256 Mbps, or 200 Mbps (when RAID is enabled)
Remote
connection
128
Video/Au
dio
output
Recording
resolution
12 MP/8 MP/6 MP/5 MP/4 MP/
3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
VGA1/HDMI1
output
resolution
HDMI1: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560
× 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 ×
1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 ×
1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 ×
768/60Hz
VGA2/HDMI2
output
resolution
1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 ×
768/60Hz
Audio output
2-ch, RCA (2.0Vp-p, 1 KΩ)
Decoding
Decoding format
H.265/H.265+/H.264/H.264+/MPEG4
Live
view/Playback
resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA
/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous
playback
8-ch
16-ch
Capability
12-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP
(30fps) / 16-ch @ 1080p (30fps)
Network
managem
Network
protocols
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS,
iSCSI, UPnP™, HTTPS
Network Video Recorder User Manual
272
ent
Hard disk
SATA
8 SATA interfaces
eSATA
1 eSATA interface
Capacity
Up to 6TB capacity for each disk
External
interface
Network
interface
2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Serial interface
RS-232; RS-485; Keyboard
USB interface
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm in/out
16/4
General
Power supply
100 to 240 VAC, 50 to 60 Hz
Max. Power
200 W
Consumption
(without hard
disk)
≤ 30 W
Working
temperature
-10 to +55º C (+14 to +131º F)
Working humidity
10 to 90 %
Chassis
19-inch rack-mounted 2U chassis
Dimensions
(W × D × H)
445 × 470 ×90 mm (17.5"× 18.5" × 3.5")
Weight
(without hard
disk)
≤ 8 kg (17.6 lb)
Network Video Recorder User Manual
273
18.1.4 DS-7600NI-I2
Model
DS-7608NI-I2
DS-7616NI-I2
DS-7632NI-I2
Video/Audio
input
IP video input
8-ch
16-ch
32-ch
Up to 12 MP resolution
Two-way audio
1-ch, RCA (2.0 Vp-p, 1 k Ω)
Network
Incoming
bandwidth
80 Mbps
160 Mbps
256Mbps
Outgoing
bandwidth
256 Mbps
Remote
connection
32
128
Video/Audio
output
Recording
resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA
/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
HDMI output
resolution
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 ×
1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz,
1280 × 720/60Hz, 1024 × 768/60Hz
VGA output
resolution
1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 ×
720/60Hz, 1024 × 768/60Hz
Audio output
1-ch, RCA (Linear, 1 KΩ)
Decoding
Decoding format
H.265/H.265+/H.264/H.264+/MPEG4
Live view /
Playback
resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3MP/1080p/UXGA
/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous
playback
8-ch
16-ch
16-ch
Capability
12-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @
4MP (30fps) / 16-ch @ 1080p (30fps)
Network
management
Network
protocols
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP,
SMTP, NFS, iSCSI, UPnP™, HTTPS
Hard disk
SATA
2 SATA interfaces
Capacity
Up to 6TB capacity for each disk
External
interface
Network interface
1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet
interface
Network Video Recorder User Manual
274
USB interface
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm in/out
4/1
General
Power supply
12 VDC
Power
≤40 W
Consumption
(without hard
disk)
≤15 W
Working
temperature
-10 to +55º C (+14 to +131º F)
Working humidity
10 to 90 %
Chassis
385 mm chassis
Dimensions
(W × D × H)
385 × 315× 52 mm (15.2" × 12.4" × 2.0")
Weight(without
hard disk)
≤ 1 kg (2.2 lb)
Network Video Recorder User Manual
275
18.1.5 DS-7600NI-I2/P
Model
DS-7608NI-I2/
8P
DS-7616NI-I2/
16P
DS-7632NI-I2/
16P
Video/
Audio
input
IP video input
8-ch
16-ch
32-ch
Up to 12 MP resolution
Two-way
audio
1-ch, RCA (2.0 Vp-p, 1 k Ω)
Network
Incoming
bandwidth
80 Mbps
160 Mbps
256Mbps
Outgoing
bandwidth
256 Mbps
Remote
connection
32
128
Video/Au
dio
output
Recording
resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA
/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
HDMI output
resolution
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 ×
1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 ×
1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA output
resolution
1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,
1024 × 768/60Hz
Audio output
1-ch, RCA (Linear, 1 KΩ)
Decoding
Decoding
format
H.265/H.265+/H.264/H.264+/MPEG4
Live
view/Playback
resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA
/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous
playback
8-ch
16-ch
16-ch
Capability
12-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP
(30fps) / 16-ch @ 1080p (30fps)
Network
manage
ment
Network
protocols
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,
NFS, iSCSI, UPnP™, HTTPS
Hard disk
SATA
2 SATA interfaces
Network Video Recorder User Manual
276
Capacity
Up to 6TB capacity for each disk
External
interface
Network
interface
1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
USB interface
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm in/out
4/1
POE
Interface
Interface
8, RJ-45 10/100
Mbps
self-adaptive
Ethernet interface
16, RJ-45 10/100 Mbps self-adaptive
Ethernet interface
Power
≤ 120W
≤ 200W
Supported
standard
IEEE 802.3 af/at
General
Power supply
100 to 240 VAC, 50 to 60 Hz
Power
≤ 180 W
≤ 280 W
Consumption
(without hard
disk)
≤15 W (without enabling PoE)
Working
temperature
-10 to +55º C (+14 to +131º F)
Working
humidity
10 to 90 %
Chassis
385 mm chassis
Dimensions(W
× D × H)
385 × 315× 52 mm (15.2" × 12.4" × 2.0")
Weight(witho
ut hard disk)
≤ 3 kg (6.6 lb)
Network Video Recorder User Manual
277
18.1.6 DS-7700NI-I4
Model
DS-7708NI-I4
DS-7716NI-I4
DS-7732NI-I4
Video/Audio
input
IP video input
8-ch
16-ch
32-ch
Up to 12 MP resolution
Two-way
audio
1-ch, RCA (2.0 Vp-p, 1 k Ω)
Network
Incoming
bandwidth
80 Mbps
160 Mbps
256 Mbps
Outgoing
bandwidth
256 Mbps
Remote
connection
32
128
Video/Audio
output
Recording
resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA
/720p/VGA/4CIF/DCIF/2CIF /CIF/QCIF
HDMI output
resolution
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 ×
1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280
× 720/60Hz, 1024 × 768/60Hz
VGA output
resolution
1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,
1024 × 768/60Hz
Audio output
1-ch, RCA (Linear, 1 KΩ)
Decoding
Decoding
format
H.265/H.265+/H.264/H.264+/MPEG4
Live view /
Playback
resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA
/720p/VGA/4CIF/DCIF/2CIF /CIF/QCIF
Synchronous
playback
8-ch
16-ch
16-ch
Capability
12-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @
4MP (30fps) / 16-ch @ 1080p (30fps)
Network
management
Network
protocols
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP,
SMTP, NFS, iSCSI, UPnP™, HTTPS
Hard disk
SATA
4 SATA interfaces
Capacity
Up to 6TB capacity for each disk
Network Video Recorder User Manual
278
External
interface
Network
interface
2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet
interface
Serial
interface
1 RS-485 (half-duplex), 1 RS-232
USB interface
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm in/out
16/4
General
Power supply
100 to 240 VAC
Power
≤80 W
Consumption
(without hard
disk)
≤20 W
Working
temperature
-10 to +55º C (+14 to +131º F)
Working
humidity
10 to 90 %
Chassis
19-inch rack-mounted 1.5U chassis
Dimensions
(W × D × H)
445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8")
Weight
(without hard
disk)
≤ 5 kg (11 lb)
Network Video Recorder User Manual
279
18.1.7 DS-7700NI-I4/P
Model
DS-7708NI-I4/8P
DS-7716NI-I4/16P
DS-7732NI-I4/16P
Video/Audio
input
IP video input
8-ch
16-ch
32-ch
Up to 12 MP resolution
Two-way audio
1-ch, RCA (2.0 Vp-p, 1 k Ω)
Network
Incoming
bandwidth
80 Mbps
160 Mbps
256 Mbps
Outgoing
bandwidth
256 Mbps
Remote
connection
32
128
Video/Audio
output
Recording
resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA
/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
HDMI output
resolution
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 ×
1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 ×
720/60Hz, 1024 × 768/60Hz
VGA output
resolution
1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024
× 768/60Hz
Audio output
1-ch, RCA (Linear, 1 KΩ)
Decoding
Decoding
format
H.265/H.265+/H.264/H.264+/MPEG4
Live view /
Playback
resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA
/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous
playback
8-ch
16-ch
16-ch
Capability
12-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP
(30fps) / 16-ch @ 1080p (30fps)
Network
management
Network
protocols
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS,
iSCSI, UPnP™, HTTPS
Hard disk
SATA
4 SATA interfaces
Capacity
Up to 6TB capacity for each disk
External
Network
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Network Video Recorder User Manual
280
interface
interface
Serial interface
RS-485 (half-duplex), RS-232
USB interface
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm in/out
16/4
POE
Interface
Interface
8, RJ-45 10/100
Mbps
self-adaptive
Ethernet interface
16, RJ-45 10/100 Mbps self-adaptive
Ethernet interface
Power
≤200W
Supported
standard
IEEE 802.3 af/at
General
Power supply
100 to 240 VAC
Power
≤300 W
Consumption
(without hard
disk)
≤20 W (without enabling PoE)
Working
temperature
-10 to +55º C (+14 to +131º F)
Working
humidity
10 to 90 %
Chassis
19-inch rack-mounted 1.5U chassis
Dimensions
(W × D × H)
445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8")
Weight(without
hard disk)
≤ 5 kg (11 lb)
18.1.8 DS-8600NI-K8
Model
DS-8608NI-K8
DS-8616NI-K8
DS-8632NI-K8
Video/
Audio
input
IP video input
8-ch
16-ch
32-ch
Incoming
bandwidth
80 Mbps
160 Mbps
256 Mbps
Outgoing
bandwidth
160 Mbps
Network Video Recorder User Manual
281
Video/
Audio
output
VGA1/HDMI1
output
resolution
HDMI1: 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz,
1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz,
1280 × 720/60Hz, 1024 × 768/60Hz
HDMI2: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 ×
720/60Hz, 1024 × 768/60Hz
VGA2/HDMI2
output
resolution
VGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 ×
1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 ×
768/60Hz
VGA2: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 ×
720/60Hz, 1024 × 768/60Hz
Audio output
2-ch, RCA (Linear, 1 K Ω)
Decoding
Decoding
format
H.265/H.265+/H.264/H.264+/MPEG4
Recording
resolution
8MP/6MP/5MP/4MP/3MP/1080p/UXGA
/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous
playback
8-ch
16-ch
16-ch
Capability
2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p
(30fps)
Network
managem
ent
Network
protocols
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,
NFS, iSCSI, UPnP™, HTTPS
Hard disk
SATA
8 SATA interfaces
eSATA
1 eSATA interface
Capacity
Up to 6TB capacity for each disk
External
interface
Two-way audio
1-ch, RCA (2.0 Vp-p, 1 kΩ)
Network
interface
2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Serial interface
RS-232; RS-485; Keyboard
USB interface
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm in/out
16/4
General
Power supply
100 to 240 VAC, 50 to 60 Hz
Max. Power
200 W
Network Video Recorder User Manual
282
Consumption
(without hard
disk)
≤ 30 W
Working
temperature
-10 to +55° C (14 to 131° F)
Working
humidity
10 to 90 %
Chassis
19-inch rack-mounted 2U chassis
Dimensions
(W × D × H)
445 × 470 × 90 mm (17.5" × 18.5" × 3.5")
Weight
(without hard
disk)
≤ 8 kg (17.6 lb)
Network Video Recorder User Manual
283
18.1.9 DS-7700NI-K4
Model
DS-7708NI-K4
DS-7716NI-K4
DS-7732NI-K4
Video/
Audio
input
IP video
input
8-ch
16-ch
32-ch
Incoming
bandwidth
80 Mbps
160 Mbps
256 Mbps
Outgoing
bandwidth
160 Mbps
Video/
Audio
output
HDMI
output
resolution
4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 ×
1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 ×
720/60Hz, 1024 × 768/60Hz
VGA output
resolution
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,
1024 × 768/60Hz
Audio
output
1-ch, RCA (Linear, 1 KΩ)
Decoding
Decoding
format
H.265/H.265+/H.264+/H.264/MPEG4
Recording
resolution
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/
DCIF/2CIF/CIF/QCIF
Synchronou
s playback
8-ch
16-ch
16-ch
Capability
2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p
(30fps)
Network
manageme
nt
Network
protocols
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,
NFS, iSCSI, UPnP™, HTTPS
Hard disk
SATA
4 SATA interfaces
Capacity
Up to 6TB capacity for each disk
External
interface
Two-way
audio
1-ch, RCA (2.0 Vp-p, 1kΩ)
Network
interface
2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet
interface
Serial
RS-485 (half-duplex), RS-232, Keyboard (optional)
Network Video Recorder User Manual
284
interface
USB
interface
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm in/out
16/4
General
Power
supply
100 to 240 VAC
Power
≤ 80 W
Consumptio
n
(without
hard disk)
≤ 20 W
Working
temperature
-10 to +55ºC (14 to 131ºF)
Working
humidity
10 to 90 %
Chassis
19-inch rack-mounted 1.5U chassis
Dimensions
(W × D × H)
445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8")
Weight
(without
hard disk)
≤ 5 kg (11. lb)
Network Video Recorder User Manual
285
18.1.10 DS-7700NI-K4/P
Model
DS-7708NI-K4
/8P
DS-7716NI-K
4/16P
DS-7732NI-K4/1
6P
Video/
Audio
input
IP video input
8-ch
16-ch
32-ch
Incoming
bandwidth
80 Mbps
160 Mbps
256 Mbps
Outgoing
bandwidth
160 Mbps
Video/
Audio
output
HDMI output
resolution
4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 ×
1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz,
1280 × 720/60Hz, 1024 × 768/60Hz
VGA output
resolution
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 ×
720/60Hz, 1024 × 768/60Hz
Audio output
1-ch, RCA (Linear, 1 KΩ)
Decoding
Decoding
format
H.265/H.265+/H.264/H.264+/MPEG4
Recording
resolution
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4C
IF/DCIF/2CIF/CIF/QCIF
Synchronous
playback
8-ch
16-ch
16-ch
Capability
2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @
1080p (30fps)
Network
managem
ent
Network
protocols
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP,
SMTP, NFS, iSCSI, UPnP™, HTTPS
Hard disk
SATA
4 SATA interfaces
Capacity
Up to 6TB capacity for each disk
External
interface
Two-way
audio
1-ch, RCA (2.0 Vp-p, 1kΩ)
Network
interface
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet
interface
Serial interface
RS-485 (half-duplex), RS-232, Keyboard
USB interface
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Network Video Recorder User Manual
286
Alarm in/out
16/4
POE
Interface
Interface
8, RJ-45 10/100
Mbps
self-adaptive
Ethernet
interface
16, RJ-45 10/100 Mbps self-adaptive
Ethernet interface
Power
≤ 200 W
Supported
standard
IEEE 802.3 af/at
General
Power supply
100 to 240 VAC
Power
≤ 300 W
Consumption
(without hard
disk)
≤ 20 W (without enabling PoE)
Working
temperature
-10 to +55ºC (14 to 131ºF)
Working
humidity
10 to 90 %
Chassis
19-inch rack-mounted 1.5U chassis
Dimensions
(W × D × H)
445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8")
Weight
(without hard
disk)
≤ 5 kg (11. lb)
Network Video Recorder User Manual
287
18.1.11 DS-7600NI-K2
Model
DS-7608NI-K2
DS-7616NI-K2
DS-7632NI-K2
Video/
Audio
input
IP video input
8-ch
16-ch
32-ch
Incoming
bandwidth
80 Mbps
160 Mbps
256 Mbps
Outgoing
bandwidth
160 Mbps
Video/
Audio
output
HDMI output
resolution
4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920
× 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz,
1280 × 720/60Hz, 1024 × 768/60Hz
VGA output
resolution
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 ×
720/60Hz, 1024 × 768/60Hz
Audio output
1-ch, RCA (Linear, 1 KΩ)
Decoding
Decoding
format
H.265/H.265+/H.264/H.264+/MPEG4
Recording
resolution
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4
CIF/DCIF/2CIF/CIF/QCIF
Synchronous
playback
8-ch
16-ch
16-ch
Capability
2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @
1080p (30fps)
Network
managem
ent
Network
protocols
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP,
SMTP, NFS, iSCSI, UPnP™, HTTPS
Hard disk
SATA
2 SATA interfaces
Capacity
Up to 6TB capacity for each disk
External
interface
Two-way
audio
1-ch, RCA (2.0 Vp-p, 1kΩ)
Network
interface
1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet
interface
USB interface
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm in/out
4/1
Network Video Recorder User Manual
288
General
Power supply
12 VDC
Power
≤ 40 W
Consumption
(without hard
disk)
≤15 W
Working
temperature
-10 to +55ºC (14 to 131ºF )
Working
humidity
10 to 90 %
Chassis
385 mm chassis
Dimensions
(W × D × H)
385 × 315× 52 mm (15.2" × 12.4" × 2.0")
Weight
(without hard
disk)
≤ 1 kg (2.2 lb)
Network Video Recorder User Manual
289
18.1.12 DS-7600NI-K2/P
Model
DS-7608NI-K2
/8P
DS-7616NI-K
2/16P
DS-7632NI-K2/
16P
Video/
Audio
input
IP video input
8-ch
16-ch
32-ch
Incoming
bandwidth
80 Mbps
160 Mbps
256 Mbps
Outgoing
bandwidth
160 Mbps
Video/
Audio
output
HDMI output
resolution
4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920
× 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz,
1280 × 720/60Hz, 1024 × 768/60Hz
VGA output
resolution
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 ×
720/60Hz, 1024 × 768/60Hz
Audio output
1-ch, RCA (Linear, 1 KΩ)
Decoding
Decoding
format
H.265/H.265+/H.264/H.264+/MPEG4
Recording
resolution
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4
CIF/DCIF/2CIF/CIF/QCIF
Synchronous
playback
8-ch
16-ch
16-ch
Capability
2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @
1080p (30fps)
Network
managem
ent
Network
protocols
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP,
SMTP, NFS, iSCSI, UPnP™, HTTPS
Hard disk
SATA
2 SATA interfaces
Capacity
Up to 6TB capacity for each disk
External
interface
Two-way audio
1-ch, RCA (2.0 Vp-p, 1kΩ)
Network
interface
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet
interface
USB interface
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm in/out
4/1
Network Video Recorder User Manual
290
POE
Interface
Interface
8, RJ-45 10/100
Mbps
self-adaptive
Ethernet
interface
16, RJ-45 10/100 Mbps
self-adaptive Ethernet interface
Power
≤ 120 W
≤ 200 W
Supported
standard
IEEE 802.3 af/at
General
Power supply
100 to 240 VAC
Power
≤ 180 W
≤ 280 W
Consumption
(without hard
disk)
≤ 15 W
Working
temperature
-10 to +55° C (14 to 131° F)
Working
humidity
10 to 90 %
Chassis
385 mm chassis
Dimensions
(W × D × H)
385 × 315× 52 mm (15.2" × 12.4" × 2.0")
Weight
(without hard
disk)
≤ 3 kg (6.6 lb)
Network Video Recorder User Manual
291
18.1.13 DS-7600NI-K1
Model
DS-7604NI-K1
DS-7608NI-K1
DS-7616NI-K1
Video/
Audio
input
IP video input
4-ch
8-ch
16-ch
Incoming
bandwidth
40 Mbps
60 Mbps
80 Mbps
Outgoing
bandwidth
80 Mbps
Video/
Audio
output
HDMI/VGA
output
resolution
HDMI:
4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 ×
1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024
× 768/60Hz
VGA:
1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 ×
1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio output
1-ch, RCA (Linear, 1 KΩ)
Decoding
Decoding
format
H.265/H.264/H.264+
Recording
resolution
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4C
IF/DCIF/2CIF/CIF/QCIF
Synchronous
playback
4-ch
8-ch
16-ch
Capability
2-ch @ 4 MP (30fps)
Network
manageme
nt
Network
protocols
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP,
SMTP, NFS, iSCSI, UPnP™, HTTPS
Hard disk
SATA
1 SATA interface
Capacity
Up to 6TB capacity for each disk
External
interface
Two-way
audio
1-ch, RCA (2.0 Vp-p, 1kΩ)
Network
interface
1, RJ-45 10 M/100 Mbps self-adaptive Ethernet
interface
USB interface
2 × USB 2.0
Network Video Recorder User Manual
292
General
Power supply
12 VDC
Consumption
(without hard
disk)
≤ 10 W
Working
temperature
-10 to +55° C (14 to 131° F)
Working
humidity
10 to 90 %
Chassis
260 mm chassis
Dimensions
(W × D × H)
260 × 225 × 48 mm (10.2" × 8.9" × 1.9")
Weight
(without hard
disk)
≤ 1 kg (2.2 lb)
Network Video Recorder User Manual
293
18.1.14 DS-7604NI-K1/4P
Model
DS-7604NI-K1/4P
Video/
Audio
input
IP video input
4-ch
Incoming
bandwidth
40 Mbps
Outgoing
bandwidth
80 Mbps
Video/
Audio
output
HDMI/VGA
output
resolution
HDMI:
4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 ×
1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,
1024 × 768/60Hz
VGA:
1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 ×
1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio output
1-ch, RCA (Linear, 1 KΩ)
Decoding
Decoding
format
H.265/H.264/H.264+
Recording
resolution
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/
4CIF/DCIF/2CIF/CIF/QCIF
Synchronous
playback
4-ch
Capability
2-ch @ 4 MP (30fps)
Hard disk
SATA
1 SATA interface for 1HDD
Capacity
Up to 6TB capacity for each disk
Network
managem
ent
Network
protocols
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP,
SMTP, NFS, iSCSI, UPnP™, HTTPS
External
interface
Two-way audio
1-ch, RCA (2.0 Vp-p, 1kΩ)
Network
interface
1, RJ-45 100 Mbps full-duplex Ethernet interface
USB interface
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
POE
Interface
4, RJ-45 100 Mbps full-duplex Ethernet interface
Network Video Recorder User Manual
294
Interface
Power
≤ 40 W
Supported
standard
IEEE 802.3 af/at
General
Power supply
48 VDC
Power
≤ 65 W
Consumption
(without hard
disk)
≤ 10 W (not enabling PoE)
Working
temperature
-10 to +55° C (14 to 131° F)
Working
humidity
10 to 90 %
Chassis
1U chassis
Dimensions
(W × D × H)
315 × 240 × 48 mm (12.4" × 9.4" × 1.9")
Weight
(without hard
disk)
≤ 1 kg (2.2 lb)
Network Video Recorder User Manual
295
18.2 Glossary
• Dual Stream: Dual stream is a technology used to record high resolution video locally while
transmitting a lower resolution stream over the network. The two streams are generated by
the NVR, with the main stream having a maximum resolution of 4CIF and the sub-stream
having a maximum resolution of CIF.
• HDD: Acronym for Hard Disk Drive. A storage medium which stores digitally encoded data on
platters with magnetic surfaces.
• DHCP: Dynamic Host Configuration Protocol (DHCP) is a network application protocol used
by devices (DHCP clients) to obtain configuration information for operation in an Internet
Protocol network.
• HTTP: Acronym for Hypertext Transfer Protocol. A protocol to transfer hypertext request
and information between servers and browsers over a network
• DDNS: Dynamic DNS is a method, protocol, or network service that provides the capability
for a networked device, such as a router or computer system using the Internet Protocol
Suite, to notify a domain name server to change, in real time (ad-hoc) the active DNS
configuration of its configured hostnames, addresses or other information stored in DNS.
• Hybrid NVR: A hybrid NVR is a combination of a NVR and NVR.
• NTP: Acronym for Network Time Protocol. A protocol designed to synchronize the clocks of
computers over a network.
• NTSC: Acronym for National Television System Committee. NTSC is an analog television
standard used in such countries as the United States and Japan. Each frame of an NTSC
signal contains 525 scan lines at 60Hz.
• NVR: Acronym for Network Video Recorder. An NVR can be a PC-based or embedded system
used for centralized management and storage for IP cameras, IP Domes and other NVRs.
• PAL: Acronym for Phase Alternating Line. PAL is also another video standard used in
broadcast televisions systems in large parts of the world. PAL signal contains 625 scan lines
at 50Hz.
• PTZ: Acronym for Pan, Tilt, Zoom. PTZ cameras are motor driven systems that allow the
camera to pan left and right, tilt up and down and zoom in and out.
• USB: Acronym for Universal Serial Bus. USB is a plug-and-play serial bus standard to interface
devices to a host computer.
Network Video Recorder User Manual
296
18.3 Troubleshooting
- No image displayed on the monitor after starting up normally.
Possible Reasons:
− No VGA or HDMI connections.
− Connection cable is damaged.
− Input mode of the monitor is incorrect.
Step 1 Verify the device is connected with the monitor via HDMI or VGA cable.
Step 2 If not, please connect the device with the monitor and reboot.
Step 3 Verify the connection cable is good.
Step 4 If there is still no image display on the monitor after rebooting, please check if the
connection cable is good, and change a cable to connect again.
Step 5 Verify Input mode of the monitor is correct.
Step 6 Please check the input mode of the monitor matches with the output mode of the device
(e.g. if the output mode of NVR is HDMI output, then the input mode of monitor must be the
HDMI input). And if not, please modify the input mode of monitor.
Step 7 Check if the fault is solved by the step 1 to step 3.
Step 8 If it is solved, finish the process.
If not, please contact the engineer from Hikvision to do the further process.
- There is an audible warning sound “Di-Di-Di-DiDi” after a new bought NVR starts up.
Possible Reasons:
− No HDD is installed in the device.
− The installed HDD has not been initialized.
− The installed HDD is not compatible with the NVR or is broken-down.
Step 9 Verify at least one HDD is installed in the NVR.
− If not, please install the compatible HDD.
Please refer to the “Quick Operation Guide” for the HDD installation steps.
− If you don’t want to install a HDD, select “Menu>Configuration > Exceptions”, and uncheck the
Audible Warning checkbox of “HDD Error”.
Step 10 Verify the HDD is initialized.
Network Video Recorder User Manual
297
1) Select “Menu>HDD>General”.
2) If the status of the HDD is “Uninitialized”, please check the checkbox of corresponding
HDD and click the “Init” button.
Step 11 Verify the HDD is detected or is in good condition.
3) Select “Menu>HDD>General”.
4) If the HDD is not detected or the status is “Abnormal”, please replace the dedicated HDD
according to the requirement.
Step 12 Check if the fault is solved by the step 1 to step 3.
If it is solved, finish the process.
If not, please contact the engineer from Hikvision to do the further process.
- The status of the added IP camera displays as “Disconnected” when it is connected through
Private Protocol. Select “Menu>Camera>Camera>IP Camera” to get the camera status.
Possible Reasons:
− Network failure, and the NVR and IP camera lost connections.
− The configured parameters are incorrect when adding the IP camera.
− Insufficient bandwidth.
Step 1 Verify the network is connected.
1) Connect the NVR and PC with the RS-232 cable.
2) Open the Super Terminal software, and execute the ping command. Input “ping IP” (e.g.
ping 172.6.22.131).
Simultaneously press Ctrl and C to exit the ping command.
If there exists return information and the time value is little, the network is normal.
Step 2 Verify the configuration parameters are correct.
1) Select “Menu>Camera>Camera>IP Camera”.
2) Verify the following parameters are the same with those of the connected IP devices,
including IP address, protocol, management port, user name and password.
Step 3 Verify the whether the bandwidth is enough.
1) Select “Menu >Maintenance > Net Detect > Network Stat.”.
2) Check the usage of the access bandwidth, and see if the total bandwidth has reached its
limit.
Step 4 Check if the fault is solved by the step 1 to step 3.
If it is solved, finish the process.
Network Video Recorder User Manual
298
If not, please contact the engineer from Hikvision to do the further process.
The IP camera frequently goes online and offline and the status of it displays as
“Disconnected”.
Possible Reasons:
− The IP camera and the NVR versions are not compatible.
− Unstable power supply of IP camera.
− Unstable network between IP camera and NVR.
− Limited flow by the switch connected with IP camera and NVR.
Step 1 Verify the IP camera and the NVR versions are compatible.
1) Enter the IP camera Management interface “Menu > Camera > Camera>IP Camera”, and
view the firmware version of connected IP camera.
2) Enter the System Info interface “Menu>Maintenance>System Info>Device Info”, and view
the firmware version of NVR.
Step 2 Verify power supply of IP camera is stable.
1) Verify the power indicator is normal.
2) When the IP camera is offline, please try the ping command on PC to check if the PC
connects with the IP camera.
Step 3 Verify the network between IP camera and NVR is stable.
3) When the IP camera is offline, connect PC and NVR with the RS-232 cable.
4) Open the Super Terminal, use the ping command and keep sending large data packages to
the connected IP camera, and check if there exists packet loss.
Simultaneously press Ctrl and C to exit the ping command.
Example: Input ping 172.6.22.131 –l 1472 –f.
Step 1 Verify the switch is not flow control.
Check the brand, model of the switch connecting IP camera and NVR, and contact with the
manufacturer of the switch to check if it has the function of flow control. If so, please turn it
down.
Step 2 Check if the fault is solved by the step 1 to step 4.
If it is solved, finish the process.
If not, please contact the engineer from Hikvision to do the further process.
Network Video Recorder User Manual
299
- No monitor connected with the NVR locally and when you manage the IP camera to connect
with the device by web browser remotely, of which the status displays as Connected. And
then you connect the device with the monitor via VGA or HDMI interface and reboot the
device, there is black screen with the mouse cursor.
Connect the NVR with the monitor before startup via VGA or HDMI interface, and manage the
IP camera to connect with the device locally or remotely, the status of IP camera displays as
Connect. And then connect the device with the CVBS, and there is black screen either.
Possible Reasons:
After connecting the IP camera to the NVR, the image is output via the main spot interface by
default.
Step 1 Enable the output channel.
Step 2 Select “Menu > Configuration > Live View > View”, and select video output interface in the
drop-down list and configure the window you want to view.
- The view settings can only be configured by the local operation of NVR.
- Different camera orders and window-division modes can be set for different output
interfaces separately, and digits like “D1”and “D2” stands for the channel number, and “X”
means the selected window has no image output.
Step 3 Check if the fault is solved by the above steps.
If it is solved, finish the process.
If not, please contact the engineer from Hikvision to do the further process.
- Live view stuck when video output locally.
Possible Reasons:
− Poor network between NVR and IP camera, and there exists packet loss during the
transmission.
− The frame rate has not reached the real-time frame rate.
Step 1 Verify the network between NVR and IP camera is connected.
- When image is stuck, connect the RS-232 ports on PC and the rear panel of NVR with the
RS-232 cable.
- Open the Super Terminal, and execute the command of “ping 192.168.0.0 –l 1472 –f” (the
IP address may change according to the real condition), and check if there exists packet
loss.
Network Video Recorder User Manual
300
Simultaneously press Ctrl and C to exit the ping command.
Step 2 Verify the frame rate is real-time frame rate.
Select “Menu > Record > Parameters > Record”, and set the Frame rate to Full Frame.
Step 3 Check if the fault is solved by the above steps.
If it is solved, finish the process.
If not, please contact the engineer from Hikvision to do the further process.
- Live view stuck when video output remotely via the Internet Explorer or platform software.
Possible Reasons:
− Poor network between NVR and IP camera, and there exists packet loss during the
transmission.
− Poor network between NVR and PC, and there exists packet loss during the transmission.
− The performances of hardware are not good enough, including CPU, memory, etc..
Step 4 Verify the network between NVR and IP camera is connected.
1) When image is stuck, connect the RS-232 ports on PC and the rear panel of NVR with the
RS-232 cable.
2) Open the Super Terminal, and execute the command of “ping 192.168.0.0 –l 1472 –f” (the
IP address may change according to the real condition), and check if there exists packet
loss.
Simultaneously press Ctrl and C to exit the ping command.
Step 5 Verify the network between NVR and PC is connected.
1) Open the cmd window in the Start menu, or you can press “windows+R” shortcut key
to open it.
2) Use the ping command to send large packet to the NVR, execute the command of “ping
192.168.0.0 –l 1472 –f” (the IP address may change according to the real condition),
and check if there exists packet loss.
Simultaneously press Ctrl and C to exit the ping command.
Step 6 Verify the hardware of the PC is good enough.
Network Video Recorder User Manual
301
Simultaneously press Ctrl, Alt and Delete to enter the windows task management interface,
as shown in the following figure.
Figure 18-1 Windows task management interface
- Select the “Performance” tab; check the status of the CPU and Memory.
- If the resource is not enough, please end some unnecessary processes.
Step 7 Check if the fault is solved by the above steps.
If it is solved, finish the process.
If not, please contact the engineer from Hikvision to do the further process.
- When using the NVR to get the live view audio, there is no sound or there is too much noise,
or the volume is too low.
Possible Reasons:
− Cable between the pickup and IP camera is not connected well; impedance mismatches or
incompatible.
− The stream type is not set as “Video & Audio”.
− The encoding standard is not supported with NVR.
Step 1 Verify the cable between the pickup and IP camera is connected well; impedance matches
and compatible.
Log in the IP camera directly, and turn the audio on, check if the sound is normal. If not,
please contact the manufacturer of the IP camera.
Step 2 Verify the setting parameters are correct.
Select “Menu > Record > Parameters > Record”, and set the Stream Type as “Audio & Video”.
Step 3 Verify the audio encoding standard of the IP camera is supported by the NVR.
Network Video Recorder User Manual
302
NVR supports G722.1 and G711 standards, and if the encoding parameter of the input audio
is not one of the previous two standards, you can log in the IP camera to configure it to the
supported standard.
Step 4 Check if the fault is solved by the above steps.
If it is solved, finish the process.
If not, please contact the engineer from Hikvision to do the further process.
- The image gets stuck when NVR is playing back by single or multi-channel.
Possible Reasons:
− Poor network between NVR and IP camera, and there exists packet loss during the
transmission.
− The frame rate is not the real-time frame rate.
− The NVR supports up to 16-channel synchronize playback at the resolution of 4CIF, if you
want a 16-channel synchronize playback at the resolution of 720p, the frame extracting may
occur, which leads to a slight stuck.
Step 5 Verify the network between NVR and IP camera is connected.
1) When image is stuck, connect the RS-232 ports on PC and the rear panel of NVR with the
RS-232 cable.
2) Open the Super Terminal, and execute the command of “ping 192.168.0.0 –l 1472 –f”
(the IP address may change according to the real condition), and check if there exists
packet loss.
Simultaneously press the Ctrl and C to exit the ping command.
Step 6 Verify the frame rate is real-time frame rate.
Select “Menu > Record > Parameters > Record”, and set the Frame Rate to “Full Frame”.
Step 7 Verify the hardware can afford the playback.
Reduce the channel number of playback.
Select “Menu > Record > Encoding > Record”, and set the resolution and bitrate to a lower
level.
Step 8 Reduce the number of local playback channel.
Select “Menu > Playback”, and uncheck the checkbox of unnecessary channels.
Step 9 Check if the fault is solved by the above steps.
If it is solved, finish the process.
Network Video Recorder User Manual
303
If not, please contact the engineer from Hikvision to do the further process.
- No record file found in the NVR local HDD, and prompt “No record file found”.
Possible Reasons:
− The time setting of system is incorrect.
− The search condition is incorrect.
− The HDD is error or not detected.
Step 1 Verify the system time setting is correct.
Select “Menu > Configuration > General > General”, and verify the “Device Time” is correct.
Step 2 Verify the search condition is correct.
Select “Playback”, and verify the channel and time are correct.
Step 3 Verify the HDD status is normal.
Select “Menu > HDD > General” to view the HDD status, and verify the HDD is detected and
can be read and written normally.
Step 4 Check if the fault is solved by the above steps.
If it is solved, finish the process.
If not, please contact the engineer from Hikvision to do the further process.
Network Video Recorder User Manual
304
18.4 Summary of Changes
Version 3.4.92
Added:
- Easy network access by Hik-Connect. (Chapter 2.2 Using the Wizard for Basic Configuration,
Chapter 12.2.1 Configuring Hik-Connect)
Deleted:
- Delete two DDNS types: IP sever and HiDDNS. (Chapter 2.2 Using the Wizard for Basic
Configuration, Chapter 12.2.2 Configuring DDNS)
Version 3.4.91
Added:
- Support long distance (max.: 250-300 m) network transmission via PoE for /P models. (Chapter
2.3.5 Configuring PoE Interface)
- Add prompt of using enterprise-level HDD to create array on GUI. (Chapter 13.1.2 Enable RAID)
Version 3.4.90
Added:
- Reset the admin password by exporting/importing the GUID file. (Chapter 2.1.2, Chapter 2.1.4,
Chapter 2.1.5, Chapter 17.5.3)
- DS-7600/7700/8600/9600-I (/P) series NVR support 3D positioning in live view. (Chapter 3.1)
- Configurable main stream and sub-stream for the live view. (Chapter 3.1, Chapter 3.3)
- All-day continuous recording is configured by factory default. (Chapter 5.2)
Updated:
- Optimize the playback interface and add the configurable motion detection area for smart
playback. (Chapter 6 Playback)
- Up to 2048 LRP lists supported in vehicle detection.
Version 3.4.80
Added:
- Add the new models of DS-8600NI-I8. (Chapter 1.1 Front Panel, Chapter 1.5 Rear Panel and
Chapter 18.1 Specifications)
Network Video Recorder User Manual
305
- DS-7600/7700/8600/9600-I (/P) series NVR is accessible by the thermal network camera, and
supports the advanced search for fire/ship/temperature/temperature difference detection
triggered alarm and the recorded video files and pictures (Chapter 11.6 Advanced Search)
- DS-7600/7700/8600/9600-I (/P) series NVR supports the playback by main stream or sub stream.
(Chapter 6 Playback)
- Remind user to remember the password after the device is activated. (Chapter 2.3 Activating
Your Device)
- One-key alarm disarming for the local alarm input 1. (Chapter 8.2 Setting Sensor Alarms)
Updated:
- Optimize the playback by normal/smart interface. (Chapter 6 Playback)
- Admin Password changed to Password when adding the IP camera. (Chapter 2.6 Adding and
Connecting the IP Cameras)
Deleted:
- Delete four VCA detection types: people gathering, fast movement, parking and loitering
(Chapter 10 VCA Alarm)
Version 3.4.70
Added:
- Add the POS function supported by I series NVR. (Chapter 5 Recording and Capture Settings,
Chapter 6 Playback, Chapter 6 Backup, Chapter 9 POS Configuration)
Version 3.4.6
Updated:
- Update the description of IR remote control operation. (Chapter 1.2 IR Remote Control
Operations)
- Change the EZVIZ Cloud P2P to HIK Cloud P2P. (Chapter 2.4 Using Wizard for Basic
Configuration, Chapter 11.2.1 Configuring HIK Cloud P2P )
Version 3.4.2
Added:
- Add the new models of DS-7600NI-K1, and DS-7600NI-K1/4P. (Chapter 1.1 Front Panel and
Chapter 1.5 Rear Panel)
- Support the display of IP camera’s password on the IP camera management interface. (Chapter
2.4 Adding and Connecting the IP Cameras; Chapter 16.5.2 Editing a User)
Network Video Recorder User Manual
306
- Add the configuration and use of unlock pattern for fast login. (Chapter 2.3 Using the Unlock
Pattern for Login)
- Add the fisheye expansion view for the connected fisheye camera in the live view and playback.
(Chapter 3.2.5 Fisheye Expansion View)
- Add the scaling display (30min/1h/2h/6h/24h) of time bar in the playback mode. (Chapter 6
Playback)
- Add the thumbnails view and fast view during playback. (Chapter Key Features, Chapter 6.2.2
Thumbnails View, Chapter 6.2.3 Fast View)
Updated:
- Optimize the playback interface. (Chapter 6 Playback)
- Update the digital zoom operation in image. (Chapter 3.2.3 Quick Setting Toolbar in Live View
Mode, Chapter 6.2.2 Digital Zoom)
Version 3.3.9
Updated:
- Support H.265 video encoding format. (Product Key Features, Chapter 5.1 Configuring
Parameters)
Deleted:
- Delete the PPPoE settings. (Delete Chapter 11.2.1 Configuring PPPoE Settings)
Version 3.3.7
Added:
- Add the new models of DS-8600NI-K8, DS-7700NI-K4(/P) and DS-7600NI-K2(/P).
- Add the front panel and rear panel of the new models. (Chapter 1.1 Front Panel and Chapter
1.5 Rear Panel)
- Add the specifications of the new models (Chapter 17.1 Specifications)
Version 3.3.6
Added:
- Add front panel and rear panel of DS-9600NI-I16. (Chapter 1.1 Front Panel and Chapter 1.5
Rear Panel)
Updated:
- DS-9600NI-I16 supports RAID6, capture, picture playback, eSATA HDD and eSATA backup, two
self-adaptive 10M/100M/1000M network interfaces. (Product Main Features, 2.3 Using Wizard
for Basic Configuration, Chapter 5 Recording and Capture Settings, Chapter 6.1.9 Playing Back
Network Video Recorder User Manual
307
Pictures, Chapter 7 Backup, Chapter 11 Network Settings, Chapter 12 RAID, Chapter 17
Specifications)
Version 3.3.4
Added:
- Add the new models of DS-7600NI-I2 (/P) and DS-7700NI-I4 (/P).
- Add the support of Cloud P2P (Step 4 in Chapter 2.3 Using the Wizard for Basic Configuration,
Chapter 11.2.2 Configuring EZVIZ Cloud P2P)
Network Video Recorder User Manual
308
18.5 List of Compatible IP Cameras
18.5.1 List of Hikvision IP Cameras
For the list, our company holds right to interpret.
Network Video Recorder User Manual
309
Type
Model
Version
Max.
Resolution
Sub-
stream
Audio
SD
Network
Camera
DS-2CD7133F-E
V5.2.0 build 140721
640*480
√
×
DS-2CD793NFWD-EI
V5.2.0 build 140721
704*576
√
√
DS-2CD802NF
V2.0 build 090522
704*576
√
√
V2.0 build 090715
V2.0 build 110301
DS-2CD833F-E
V5.2.0 build 140721
640*480
√
√
DS-2CD893PF-E
V5.2.0 build 140721
704*576
√
√
HD
Network
Camera
DS-2CD2012-I
V5.3.0 build150327
1280*960
√
×
DS-2CD2132-I
V5.3.0 build150327
2048*1536
√
×
DS-2CD2410FD-I(W)
V5.3.0 build150327
1920*1080
√
√
DS-2CD2612F-I
V5.3.0 build150327
1280*960
√
×
DS-2CD2612F-IS
V5.3.0 build150327
1280*960
√
√
DS-2CD2632F-I
V5.3.0 build150327
2048*1536
√
×
DS-2CD2632F-IS
V5.3.0 build150327
2048*1536
√
√
DS-2CD2710F-I
V5.3.0 build150327
1920*1080
√
×
DS-2CD2720F-I
V5.3.0 build150327
1920*1080
√
×
DS-2CD4010F
V5.3.0 build150327
1920*1080
√
√
DS-2CD4012F
V5.3.0 build150327
1280*1024
√
√
DS-2CD4026FWD
V5.3.0 build150327
1920*1080
√
√
DS-2CD4026FWD-SDI
V5.3.0 build150327
1920*1080
√
√
DS-2CD4032FWD
V5.3.0 build150327
2048*1536
√
√
DS-2CD4065F
V5.3.0 build150327
3072*2048
√
√
DS-2CD4124F-I(2.8-12mm)
V5.3.0 build150327
1920*1080
√
√
DS-2CD4132FWD-I(2.8-12m
m)
V5.3.0 build150327
2048*1536
√
√
DS-2CD4212F-I(2.8-12mm)
V5.3.0 build150327
1280*1024
√
×
DS-2CD4212F-IS(2.8-12mm)
V5.3.0 build150327
1280*1024
√
√
DS-2CD4212FWD-I
V5.3.0 build150327
1280*960
√
×
DS-2CD4212FWD-IS
V5.3.0 build150327
1280*960
√
√
DS-2CD4224F-I
V5.3.0 build150327
1920*1080
√
×
DS-2CD4232FWD-I
V5.3.0 build150327
2048*1536
√
×
Network Video Recorder User Manual
310
Type
Model
Version
Max.
Resolution
Sub-
stream
Audio
DS-2CD4232FWD-IS(2.8-12m
m)
V5.3.0 build150327
2048*1536
√
√
DS-2CD4312F-I
V5.3.0 build150327
1280*1024
√
×
DS-2CD4312FWD-I
V5.3.0 build150327
1280*960
√
×
DS-2CD4324F-I
V5.3.0 build150327
1920*1080
√
×
DS-2CD4332FHWD-IS
V5.3.0 build150327
2048*1536
√
√
DS-2CD4332FHWD-I
V5.3.0 build150327
2048*1536
√
×
DS-2CD4332FWD-I
V5.3.0 build150327
2048*1536
√
×
DS-2CD6213F
V5.2.6 build 141218
1280*960
√
×
DS-2CD6223F
V5.2.6 build 141218
1920*1080
√
×
DS-2CD6233F
V5.2.6 build 141218
2048*1536
√
×
DS-2CD7153-E
V5.2.0 build 140721
1600*1200
√
×
DS-2CD7164-E
V5.2.0 build 140721
1280*720
√
×
DS_2CD754F-EI
V5.2.0 build 140721
2048*1536
√
√
DS-2CD754FWD-E
V5.2.0 build 140721
1920*1080
√
√
DS-2CD754FWD-EIZ
V5.2.0 build 140721
2048*1536
√
√
DS_2CD783F-EI
V5.2.0 build 140721
2560*1920
√
√
DS-2CD8153F-E
V5.2.0 build 140721
1600*1200
√
√
DS-2CD8464F-EI
V5.2.0 build 140721
1280*960
√
√
DS-2CD852MF-E
V2.0 build 110614
1600*1200
√
√
V2.0 build 110426
V2.0 build 100521
DS-2CD855F-E
V5.2.0 build 140721
1920*1080
√
√
DS-2CD862MF-E
V2.0 build 110614
1280*960
√
√
V2.0 build 110426
V2.0 build 100521
DS-2CD863PF/NF-E
V5.2.0 build 140721
1280*960
√
√
DS-2CD864FWD-E
V5.2.0 build 140721
1280*720
√
√
DS-2CD876MF/BF-E
V4.0.3 build120913
1600*1200
√
√
DS-2CD877BF
V4.0.3 build120913
1920*1080
√
√
DS-2CD886MF-E
V4.0.3 build 120913
2560*1920
√
√
Network Video Recorder User Manual
311
Type
Model
Version
Max.
Resolution
Sub-
stream
Audio
DS-2CD966(B)
V3.1 build 120423
1360*1024
×
×
DS-2CD966-V(B)
V3.1 build 120423
1360*1024
×
×
DS-2CD976(C)
V3.1 build 120423
1600*1200
×
×
DS-2CD976-V(C)
V3.1 build 120423
1600*1200
×
×
DS-2CD977(C)
V3.1 build 120423
1920*1080
×
×
DS-2CD986A(C)
V3.1 build 120423
2448*2048
×
×
DS-2CD986C（B）
V2.3.6 build 120401
2560*1920
×
×
HD
Network
Camera
DS-2CD9122
V3.7.1 build140417
1920*1080
√
×
DS-2CD9152
V3.7.1 build140417
2560*1920
√
×
iDS-2CD9152
V3.7.1 build140417
2560*1920
√
×
DS-2CD9122-H
V3.7.1 build140417
1920*1080
√
×
DS-2CD9182-H
V3.8.1 build140815
3296*2472
√
×
DS-2CD9121
V3.7.1 build140417
1600*1200
√
×
iDS-2CD9121
V3.7.1 build140417
1600*1200
√
×
DS-2CD9131
V4.0.0 build150213
2048*1536
√
×
iDS-2CD9131
V4.0.0 build150213
2048*1536
√
×
DS-2CD9121A
V3.8.2 build141121
1600*1200
√
×
iDS-2CD9121A
V3.8.2 build141121
1600*1200
√
×
DS-2CD9111(B)
V3.7.1 build140417
1360*1024
√
×
DS-2CD9151A
V3.8.2 build141121
2448*2048
√
×
DS-2CD9152-H
V3.8.2 build141121
2592*2048
√
×
iDS-2CD9282
V3.8.2 build141121
3296*2472
√
×
DS-2CD9131-K
V4.0.0 build150213
2048*1536
√
√
DS-2CD9152-HK
V3.8.2 build141121
2592*2048
√
√
iDS-2CD9131-E
V3.8.2 build141121
2048*1536
√
×
iDS-2CD9151A-E
V3.8.2 build141121
2448*2048
√
×
iDS-2CD9151A
V3.8.2 build141121
2448*2048
√
×
iDS-2CD9152-EH
V3.8.2 build141121
2592*2048
√
×
iDS-2CD9152-H
V3.8.2 build141121
2592*2048
√
×
DS-2CD9120-H
V3.7.1 build140417
1600*1200
√
×
Network Video Recorder User Manual
312
Type
Model
Version
Max.
Resolution
Sub-
stream
Audio
iDS-2CD9361
V4.0.0 build150213
2752*2208
√
×
iDS-2CD9022
V4.0.0 build150213
1920*1080
√
√
iDS-2CD9025
V3.8.2 build141114
1920*1080
√
×
iDS-2CD9022-SZ
V4.0.0 build150213
1920*1080
√
×
DS-2CD9125-KS
V3.8.1 build150113
1920*1080
√
×
SD
Encoder
DS-6501HCI
V1.0.1 build130607
352*288
√
√
DS-6501HCI-SATA
V1.0.1 build130607
352*288
√
√
DS-6501HFI
V1.0.1 build130607
704*576
√
√
DS-6501HFI- SATA
V1.0.1 build130607
704*576
√
√
DS-6502HCI
V1.0.1 build130607
352*288
√
√
DS-6502HCI- SATA
V1.0.1 build130607
352*288
√
√
DS-6502HFI
V1.0.1 build130607
704*576
√
√
DS-6502HFI- SATA
V1.0.1 build130607
704*576
√
√
DS-6504HCI
V1.0.1 build130607
352*288
√
√
DS-6504HCI- SATA
V1.0.1 build130607
352*288
√
√
DS-6504HFI
V1.0.1 build130607
704*576
√
√
DS-6504HFI- SATA
V1.0.1 build130607
704*576
√
√
DS-6508HCI
V1.0.1 build130607
352*288
√
√
DS-6508HCI- SATA
V1.0.1 build130607
352*288
√
√
DS-6508HFI
V1.0.1 build130607
704*576
√
√
DS-6508HFI- SATA
V1.0.1 build130607
704*576
√
√
DS-6516HCI
V1.0.1 build130607
352*288
√
√
DS-6516HCI- SATA
V1.0.1 build130607
352*288
√
√
DS-6516HFI
V1.0.1 build130607
704*576
√
√
DS-6516HFI- SATA
V1.0.1 build130607
704*576
√
√
DS-6601HCI
V1.2.1 build131202
352*288
√
√
DS-6602HCI
V1.2.1 build131202
352*288
√
√
DS-6604HCI
V1.2.1 build131202
352*288
√
√
DS-6601HFI(-SATA)
V1.2.1 build131202
704*576
√
√
DS-6602HFI(SATA)
V1.2.1 build131202
704*576
√
√
Network Video Recorder User Manual
313
Type
Model
Version
Max.
Resolution
Sub-
stream
Audio
DS-6604HFI(-SATA)
V1.2.1 build131202
704*576
√
√
DS-6701HWI
V1.2.3 build141202
960*576
√
√
DS-6701HWI-SATA
V1.2.3 build141202
960*576
√
√
DS-6704HWI
V1.2.3 build141202
960*576
√
√
DS-6704HWI-SATA
V1.2.3 build141202
960*576
√
√
DS-6708HWI
V1.2.3 build141202
960*576
√
√
DS-6708HWI-SATA
V1.2.3 build141202
960*576
√
√
DS-6716HWI
V1.2.3 build141202
960*576
√
√
DS-6716HWI-SATA
V1.2.3 build141202
960*576
√
√
HD
Encoder
DS-6601HFHI
V1.1.0 build150123
1920*1080
√
√
DS-6601HFHI/L
V1.1.0 build150123
1920*1080
√
√
Network
Speed
Dome
DS-2DF7274-A/D/AF
V5.2.8 build150124
1280*960
√
√
iDS-2DF7274-A/D/AF
V5.2.8 build150124
1280*960
√
√
DS-2DM7274-A
V5.2.8 build150124
1280*960
√
√
DS-2DF5274-A/D/A3/D3/AF/
A3F
V5.2.8 build150124
1280*960
√
√
iDS-2DF5274-A/D/A3/D3/AF
/A3F
V5.2.8 build150124
1280*960
√
√
DS-2DM5274-A/A3
V5.2.8 build150124
1280*960
√
√
DS-2DF7276-A/D/AF
V5.2.8 build150124
1280*960
√
√
iDS-2DF7276-A/D/AF
V5.2.8 build150124
1280*960
√
√
DS-2DF5276-A/D/A3/D3/AF/
A3F
V5.2.8 build150124
1280*960
√
√
iDS-2DF5276-A/D/A3/D3/AF
/A3F
V5.2.8 build150124
1280*960
√
√
DS-2DF7274-AH/DH/AFH
V5.2.8 build150124
1280*960
√
√
iDS-2DF7274-AH/DH/AFH
V5.2.8 build150124
1280*960
√
√
DS-2DF5274-AH/DH/A3H/D3
H/AFH/A3FH
V5.2.8 build150124
1280*960
√
√
iDS-2DF5274-AH/DH/A3H/D
3H/AFH/A3FH
V5.2.8 build150124
1280*960
√
√
DS-2DF7276-AH/DH/AFH
V5.2.8 build150124
1280*960
√
√
iDS-2DF7276-AH/DH/AFH
V5.2.8 build150124
1280*960
√
√
Network Video Recorder User Manual
314
Type
Model
Version
Max.
Resolution
Sub-
stream
Audio
DS-2DF5276-AH/DH/A3H/D3
H/AFH/A3FH
V5.2.8 build150124
1280*960
√
√
iDS-2DF5276-AH/DH/A3H/D
3H/AFH/A3FH
V5.2.8 build150124
1280*960
√
√
DS_2DF7130I5-AW
V5.2.8 build150124
1280*960
√
√
DS-2DF7285-AH
V5.2.8 build150124
1920*1080
√
√
DS-2DF5285-AH
V5.2.8 build150124
1920*1080
√
√
DS-2DF7294-A/D/AF
V5.2.8 build150124
2048*1536
√
√
iDS-2DF7294-A/D/AF
V5.2.8 build150124
2048*1536
√
√
DS-2DF5294-A/D/A3/D3/AF/
A3F
V5.2.8 build150124
2048*1536
√
√
iDS-2DF5294-A/D/A3/D3/AF
/A3F
V5.2.8 build150124
2048*1536
√
√
DS-2DF7296-A/D/AF
V5.2.8 build150124
2048*1536
√
√
iDS-2DF7296-A/D/AF
V5.2.8 build150124
2048*1536
√
√
DS-2DF5296-A/D/A3/D3/AF/
A3F
V5.2.8 build150124
2048*1536
√
√
iDS-2DF5296-A/D/A3/D3/AF
/A3F
V5.2.8 build150124
2048*1536
√
√
DS-2DF6223-A
V5.2.8 build150124
1920*1080
√
√
iDS-2DF6223-A
V5.2.8 build150124
1920*1080
√
√
DS-2DF8223i-A
V5.2.8 build150124
1920*1080
√
√
iDS-2DF8223i-A
V5.2.8 build150124
1920*1080
√
√
DS-2DF7284-A/D/AF
V5.2.8 build150124
1920*1080
√
√
iDS-2DF7284-A/D/AF
V5.2.8 build150124
1920*1080
√
√
DS-2DF7286-A/D/AF
V5.2.8 build150124
1920*1080
√
√
iDS-2DF7286-A/D/AF
V5.2.8 build150124
1920*1080
√
√
DS-2DF5284-A/D/A3/D3/AF/
A3F
V5.2.8 build150124
1920*1080
√
√
iDS-2DF5284-A/D/A3/D3/AF
/A3F
V5.2.8 build150124
1920*1080
√
√
DS-2DF5286-A/D/A3/D3/AF/
A3F
V5.2.8 build150124
1920*1080
√
√
Network Video Recorder User Manual
315
Type
Model
Version
Max.
Resolution
Sub-
stream
Audio
iDS-2DF5286-A/D/A3/D3/AF
/A3F
V5.2.8 build150124
1920*1080
√
√
DS_2DF7230I5-AW
V5.2.8 build150124
1920*1080
√
√
DS-2AF7220-A/D
V5.2.8 build150124
1920*1080
√
√
DS-2AF7230-A/D
V5.2.8 build150124
1920*1080
√
√
DS-2AF5220-A/D
V5.2.8 build150124
1920*1080
√
√
DS-2AF5230-A/D
V5.2.8 build150124
1920*1080
√
√
iDS-2DF5220S-D4/JY
V5.2.8 build150124
1920*1080
√
√
DS-2DF7268-A
V5.2.8 build150124
704*576
√
√
DS-2DF5268-A
V5.2.8 build150124
704*576
√
√
DS-2DF7264-A
V5.2.8 build150124
704*576
√
√
DS-2DF5264-A
V5.2.8 build150124
704*576
√
√
DS-2DE5172-A/A3
V5.2.10 build150128
1280*960
√
√
DS-2DE5174-A/AE/AE3/A3/D
/D3
V5.2.10 build150128
1280*960
√
√
DS-2DE5176-A/AE
V5.2.10 build150128
1280*960
√
√
DS-2DE7172-A
V5.2.10 build150128
1280*960
√
√
DS-2DE7174-A/AE/D
V5.2.10 build150128
1280*960
√
√
DS-2DE7176-A/AE
V5.2.10 build150128
1280*960
√
√
DS-2DE7120i-A/AE
V5.2.10 build150128
1280*960
√
√
DS-2DM7130i-A
V5.2.10 build150128
1280*960
√
√
DS-2DM4120-A
V5.2.10 build150128
1280*960
√
√
DS-2DE5120I-A
V5.2.10 build150128
1280*960
√
√
DS-2DM5120-A
V5.2.10 build150128
1280*960
√
√
DS-2DM5130-A
V5.2.10 build150128
1280*960
√
√
DS-2DE2103-DE3/W
V5.2.10 build150128
1280*960
√
√
DS-2DE2103I-DE3/W
V5.2.10 build150128
1280*960
√
√
DS-2DE7184-A/AE/D
V5.2.10 build150128
1920*1080
√
√
DS-2DE5182-A/A3
V5.2.10 build150128
1920*1080
√
√
DS-2DE5184-A/AE/AE3/A3/D
/D3
V5.2.10 build150128
1920*1080
√
√
Network Video Recorder User Manual
316
Type
Model
Version
Max.
Resolution
Sub-
stream
Audio
DS-2DE5186-A/AE
V5.2.10 build150128
1920*1080
√
√
DS-2DE7182-A
V5.2.10 build150128
1920*1080
√
√
DS-2DE4582-A
V5.2.10 build150128
1920*1080
√
√
DS-2DE4220-A
V5.2.10 build150128
1920*1080
√
√
DS-2DE4182-A
V5.2.10 build150128
1920*1080
√
√
DS-2DM7230i-A
V5.2.10 build150128
1920*1080
√
√
DS-2DM7220i-A
V5.2.10 build150128
1920*1080
√
√
DS-2DE7186-A/AE
V5.2.10 build150128
1920*1080
√
√
DS-2DE5220I-A
V5.2.10 build150128
1920*1080
√
√
DS-2DM5220-A
V5.2.10 build150128
1920*1080
√
√
DS-2DM5230-A
V5.2.10 build150128
1920*1080
√
√
DS-2DE2202-DE3/W
V5.2.10 build150128
1920*1080
√
√
DS-2DE2202I-DE3/W
V5.2.10 build150128
1920*1080
√
√
DS-2DE4572-A
V5.2.10 build150128
1280*720
√
√
DS-2DE4172-A
V5.2.10 build150128
1280*720
√
√
DS-2DE7194-A/A3
V5.2.10 build150128
2048*1536
√
√
DS-2DE5194-A/A3
V5.2.10 build150128
2048*1536
√
√
DS-2DF1-518
V3.2.0 build131223
704*576
√
√
DS-2DM1-718
V3.2.0 build131223
704*576
√
√
DS-2DM1-518
V3.2.0 build131223
704*576
√
√
DS-2DF1-718
V3.2.0 build131223
704*576
√
√
DS-2DF1-514
V3.2.0 build131223
704*576
√
√
DS-2DF1-714
V3.2.0 build131223
704*576
√
√
DS-2DY9174-A
V5.2.8 build150124
1280*960
√
√
DS-2DY9176-A
V5.2.8 build150124
1280*960
√
√
DS-2DY9194-A
V5.2.8 build150124
2048*1536
√
√
DS-2DY9196-A
V5.2.8 build150124
2048*1536
√
√
DS-2DY9184-A
V5.2.8 build150124
1920*1080
√
√
DS-2DY9186-A
V5.2.8 build150124
1920*1080
√
√
DS-2DY9185-A
V5.2.8 build150124
1920*1080
√
√
Network Video Recorder User Manual
317
Type
Model
Version
Max.
Resolution
Sub-
stream
Audio
DS-2DY9187-A
V5.2.8 build150124
1920*1080
√
√
DS-2DF8223IV-A
V5.3.0 build150304
1920*1080
√
√
DS-2DF8623IV-A
V5.3.0 build150304
3072*1728
√
√
DS-2DF6623V-A
V5.3.0 build150304
3072*1728
√
√
DS-2DF8823IV-A
V5.3.0 build150304
4096*2160
√
√
Network
Zoom
Camera
Module
DS-2ZCN2006
V5.2.7 build141107
1280*960
√
√
DS-2ZCN2006(B)
V5.2.7 build141107
1280*960
√
√
DS-2ZCN3006
V5.2.7 build141107
1280*960
√
√
DS-2ZCN3006(B)
V5.2.7 build141107
1280*960
√
√
DS-2ZMN2006
V5.2.7 build141107
1280*960
√
√
DS-2ZMN2006(B)
V5.2.7 build141107
1280*960
√
√
DS-2ZMN3006
V5.2.7 build141107
1280*960
√
√
DS-2ZMN3006(B)
V5.2.7 build141107
1280*960
√
√
DS-2ZCN2007
V5.2.7 build141107
1920*1080
√
√
DS-2ZCN3007
V5.2.7 build141107
1920*1080
√
√
DS-2ZCN3007(B)
V5.2.7 build141107
1920*1080
√
√
DS-2ZMN2007
V5.2.7 build141107
1920*1080
√
√
DS-2ZMN3007
V5.2.7 build141107
1920*1080
√
√
DS-2ZMN3007(B)
V5.2.7 build141107
1920*1080
√
√
DS-2ZMN0407
V5.2.7 build141107
1920*1080
√
√
DS-2ZMN3207
V5.2.7 build141107
1920*1080
√
√
DS-2ZMN2008
V5.2.7 build141107
2048*1536
√
√
DS-2ZCN2008
V5.2.7 build141107
2048*1536
√
√
DS-2ZMN3007(S)
V5.2.2 build141113
1920*1080
√
√
DS-2ZCN3007(S)
V5.2.2 build141113
1920*1080
√
√
DS-2ZMN2307
V5.2.2 build141113
1920*1080
√
√
DS-2CN2307
V5.2.2 build141113
1920*1080
√
√
DS-2ZMN2309
V5.2.2 build141113
3072*2048
√
√
DS-2ZCN2309
V5.2.2 build141113
3072*2048
√
√
Network Video Recorder User Manual
318
18.5.2 List of Third-party IP Cameras
ONVIF compatibility refers to the camera can be supported both when it uses the ONVIF protocol
and its private protocols. Only ONVIF is supported refers to the camera can only be supported
when it uses the ONVIF protocol. Only AXIS is supported refers to the function can only be
supported when it uses the AXIS protocol.
Network Video Recorder User Manual
319
IP Camera
Manufacturer
or Protocol
Model
Version
Max.
Resolution
Sub-
stream
Audio
ACTi
ACM3401-09L-X-002
27
A1D-220-V3.13.16-AC
1208*1024
×
×
TCM4301-10D-X-00
083
A1D-310-V4.12.09-AC
1208*1024
×
√
TCM5311-11D-X-00
023
A1D-310-V4.12.09-AC
1208*960
×
√
Arecont
AV1305 M
65175
1208*1024
√
×
AV2815
65220
1920*1080
√
×
AV3105M
65175
1920*1080
√
×
AV8185DN
65172
1600*1200
×
×
Axis
M1114
5.09.1
1024*640
√
×
M3011(ONVIF
compatibility)
5.21
640*480
(704*576)
√ (×)
×
M3014(ONVIF
compatibility)
5.21.1
1280*800
√
×
P1346
5.40.9.2
2048*1536
√
√
P3301(ONVIF
compatibility)
5.11.2
640*480
(768*576)
√
√ (×)
P3304(ONVIF
compatibility)
5.20
1280*800
(1440*900)
√
√ (×)
P3343(ONVIF
compatibility)
5.20.1
800*600
√
√ (×)
P3344(ONVIF
compatibility)
5.20.1
1280*800
(1440*900)
√
√ (×)
P5532
5.15
720*576
√
×
Q7404
5.02
720*576
√
√
Bosch
AutoDome Jr 800
HD (ONVIF
compatibility)
39500450
1920*1080
×
√ (×)
Dinion NBN-921-P
(ONVIF
compatibility)
10500453
1280*720
×
√ (×)
Network Video Recorder User Manual
320
NBC 265 P
(ONVIF
compatibility)
07500452
1280*720
×
√ (×)
Brickcom
CB-500Ap(Brickcom-
50xA)
(ONVIF
compatibility)
v3.2.1.3
1920*1080
×
√ (×)
Canon
VB-H410(ONVIF
compatibility)
Ver.+1.0.0
1920*1080
(1280*960)
×
√
VB-S9000F
Ver. 1.0.0
1920*1080
×
×
VB-S300D
Ver. 1.0.0
1920*1080
×
×
VB-H6100D
Ver. 1.0.0
1920*1080
×
×
VB-H7100F
Ver. 1.0.0
1920*1080
×
√
VB-S8000
Ver. 1.0.0
1920*1080
×
×
Panasonic
SP306H
(ONVIF
compatibility)
Application:1.34
Image data:1.06
1280*960
√ (×)
√
SF336H
Application:1.06
Image data: 1.06
1280*960
√
√
Pelco
D5118
(ONVIF
compatibility)
1.8.2-20120327-2.93
10-A1.7852
1280*960
√
×
IX30DN-ACFZHB3
(ONVIF
compatibility)
1.8.2-20120327-2.90
80-A1.7852
2048*1536
√
×
IXE20DN-AAXVUU2
(ONVIF
compatibility)
1.8.2-20120327-2.90
81-A1.7852
1920*1080
√
×
Sanyo
2300P(with lens)
2.03-02 (110318-00)
1920*1080
×
×
2500P(with lens)
2.02-02 (110208-00)
1920*1080
×
√
4600P
2.03-02 (110315-00)
1920*1080
×
√
SONY
SNC-CH220
1.50.00
1920*1080
×
×
SNCDH220T
(ONVIF only)
1.50.00
2048*1536
×
×
SNC-EP580
(ONVIF
compatibility)
1.53.00
1920*1080
√
√
Network Video Recorder User Manual
321
SNC-RH124
(ONVIF
compatibility)
1.79.00
1280*720
√
√
SUMSUNG
SND-5080
(ONVIF
compatibility)
3.10_130416
1280*1024
√
√
Vivotek
IP7133
0203a
640*480
×
×
FD8134
(ONVIF
compatibility)
0107a
1280*800
×
×
IP8161
(ONVIF
compatibility)
0104a
1600*1200
×
√ (×)
IP8331
(ONVIF
compatibility)
0102a
640*480
×
×
IP8332
(ONVIF
compatibility)
0105b
1280*800
×
×
Zavio
D5110 (ONVIF
compatibility)
MG.1.6.03P8
1280*1024
√ (×)
×
F3106 (ONVIF
compatibility)
M2.1.6.03P8
1280*1024
√ (×)
√
F3110 (ONVIF
compatibility)
M2.1.6.01
1280*720
√ (×)
√
F3206 (ONVIF
compatibility)
MG.1.6.02c045
1920*1080
√ (×)
√
F531E (ONVIF
compatibility)
LM.1.6.18P10
640*480
√ (×)
√
Network Video Recorder User Manual
322
18.5.3 List of IP Cameras Connected to PoE by Long Network Cable
(100 - 300 m)
Index
Model
1
DS-2CD4665F-IZHS
2
DS-2CD4026FWD-AP
3
DS-2CD4A35FWD-IZHS
4
DS-2CD2642FWD-IZS
5
DS-2CD2F42FWD-IWS
6
DS-2CD2942F-IWS
7
DS-2CD2510F
8
DS-2CD2342WD-I
9
DS-2CD2322WD-I
10
DS-2CD2352-I
11
DS-2CD2642FWD-IZS
12
DS-2CD2642FWD-I
13
DS-2CD2642FWD-IS
14
DS-2CD2642FWD-IZ
15
DS-2CD2742FWD-IZS
16
DS-2CD2742FWD-I
17
DS-2CD2742FWD-IS
18
DS-2CD2742FWD-IZ
19
DS-2CD2T42WD-I8
20
DS-2CD2T42WD-I5
030492170208
Network Video Recorder User Manual
323
