36-L31, 36-L31X, 36-L51, 36-L51X,
36-L51L, & 36-L53L
UNISAW®
10” LEFT TILTING ARBOR SAW
CS-4K-17-2
PART NO. 422-40-651-0019
Dat e: 06-03-0
4

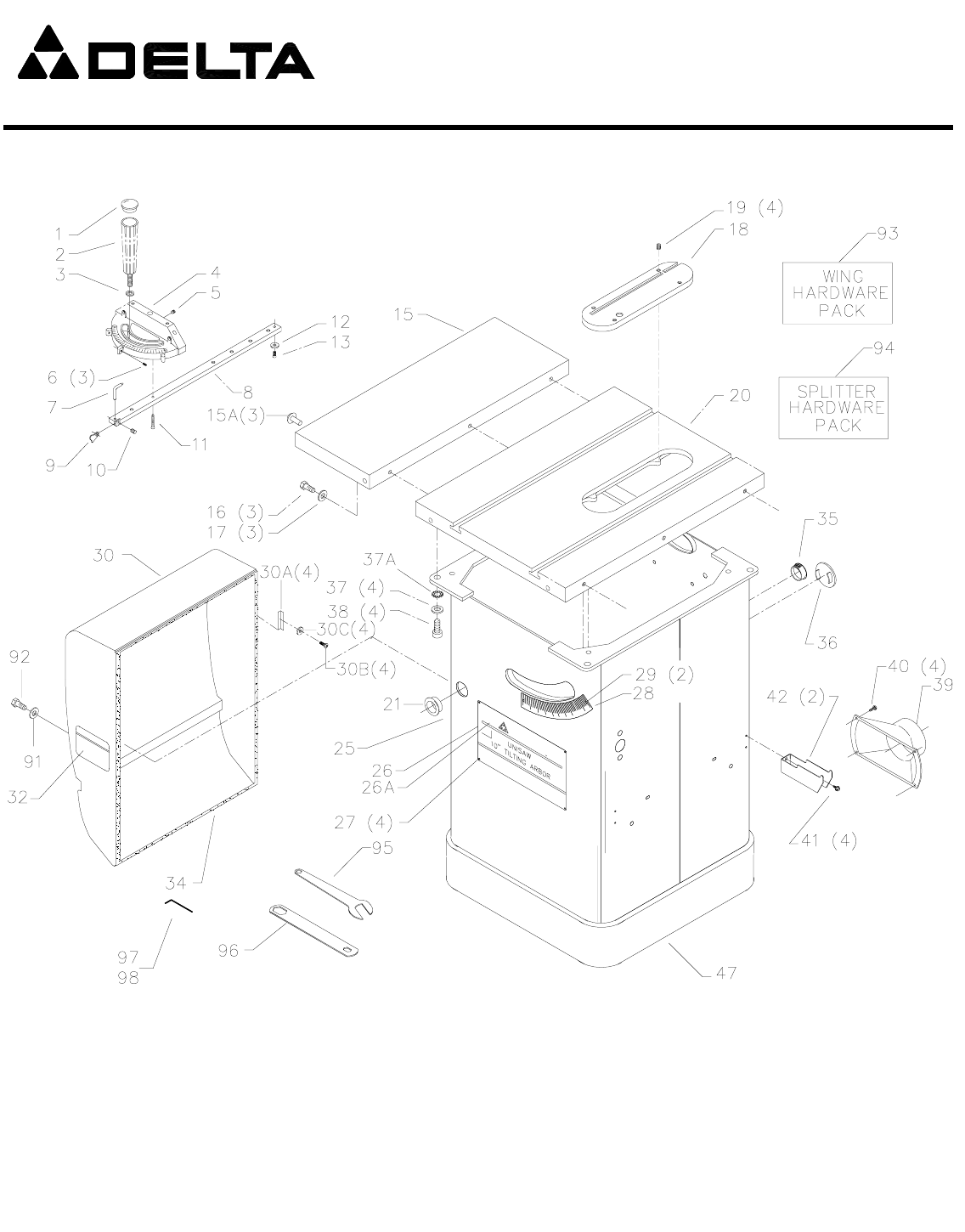

Page1/ CS-4K-17-2/DEB
* 34-895 MITER GAGE
,
INCL.:
1 422-02-074-0001 PLUG
,
36-L31
,
36-L51
,
36-L51L
,
& 36-L53L
2 422-02-060-0003 HANDLE
,
36-L31
,
36-L51
,
36-L51L
,
& 36-L53L
422-02-060-0004 HANDLE
,
36-L31X
,
36-L51
X
3 904-07-010-5555 1/4" FIBER WASHER
4 422-01-355-0004 MITER GAGE BODY
,
INCL:
5 901-04-150-1181 1/4-28 X 3/16" HEX SOC SET SCREW
6 901-04-150-9428 #08-32 X 1/2" HEX SOC SET SCREW
7 422-01-075-0001 POINTER
8 422-04-004-0001 BAR
,
INCL:
9 422-01-088-0004 STOP LINK
10 901-04-150-1181 1/4-28 X 3/16" HEX SOC SET SCREW
11 422-01-112-0001 SCREW
12 422-04-072-0001 PLATE
13 901-02-030-5750 1/4-28 X 5/16" FLAT HD SCREW
15 36-937 EXTENSION TABLE
INCL:
15
A
438-01-011-0077 PLUG
16 901-01-060-9964 7/16-20 X 1 1/4" HEX HD SCREW
17 904-10-031-2097 7/16" FLAT WASHER
18 36-861 STANDARD INSERT
,
INCL:
19 901-04-461-5297 1/4-28 X 3/8" HEX SOC SET SCREW
20 422-40-391-0001 TABLE
21 438-01-011-0021 INSULATOR
25 422-40-318-0010 CABINET ASSY
,
INCL:
26 422-04-137-0012 NAMEPLATE
,
36-L31
,
36-L51
,
36-L51L
,
& 36-L53L
422-04-137-0014 NAMEPLATE
,
36-L31X
,
36-L51
X
26
A
422-04-137-0013 WARNING LABEL
27 1087794 RIVET
28 422-40-132-0002 TILT SCALE
29 1087794 RIVET
30 422-04-331-0014 MOTOR COVER
,
INCL:
30
A
422-04-122-0005 SPRING CLIP
30B 901-02-453-1123 10-32 X ½" PAN HD SCREW
30C 904-01-013-1868 #10 FLAT WASHER
32 422-04-752-0184 WARNING LABEL
34 400-06-416-0003 GASKET
35 438-01-011-0065 PLUG
36 438-01-011-0074 HOLE PLUG
37 904-10-031-2097 WASHER
37
A
904-03-030-1771 7/16" EXT. TOOTH K24WASHER
38 901-03-010-1487 7/16-20 X 3/4" HEX SOC HD SCREW
39 406-12-026-0001 DUST CHUTE
40 901-05-213-1498 #10 X 1/2" HEX WASHER HD SCREW
41 901-05-213-1498 #10 X 1/2" HEX WASHER HD SCREW
42 422-35-014-0002 RIP FENCE HOLDER
91 904-01-013-1885 1/4" FLAT WASHER
92 901-03-010-3309 1/4-20 X 5/8" SOC HD CAP SCREW
93 422-04-725-0006 WING HDWE PACK
94 422-04-725-0002 SPLITTER HDWE PACK
47 422-04-305-0001 SUB BASE
95 955-01-050-1472 WRENCH
96 422-39-101-0001 7/8 X 1/2" WRENCH
97 955-03-010-0001 1/8" HEX WRENCH
98 955-03-010-2155 5/64" HEX WRENCH
USE ITEMS LISTED BELOW TO MOUNT CABINET TO SUB-BASE
** 901-11-020-0834 5/16-18 X 3/4" CARRAGE HD SCREW
** 902-01-503-1514 5/16-18 FLANGE NUT
* NOT SHOWN ASSEMBLED
** NOT SHOWN
Page 2/ CS-4K-17-2/DEB
Ref.
No.Part No.Description
REPLACEMENT PARTS
Page3/ CS-4K-17-2/DEB
100 422-04-014-0042 REAR TRUNNION BRACKET
101 901-01-060-0682 3/8-24 X 1 1/2" HEX HD SCREW
102 904-02-020-1704 3/8" LOCK WASHER
103 902-01-010-1207 3/8-24 HEX NUT
104 901-03-010-0775 3/8-16 X 1" HEX SOC HD SCREW
105 904-02-020-1704 3/8" LOCK WASHER
106 905-01-010-2734 5/16" X 1" SPRING PIN
107 422-40-395-0002 REAR TRUNNION
,
INCL:
108 920-75-011-3934 BEARING
* 422-04-406-5002 RAISING SHAFT ASSY
,
INCL.:
109 422-04-406-0001 SHAFT W/WORM
,
INCL:
110 902-01-210-1036 3/4-16 LOCK NUT
111 904-01-021-3577 3/4" FIBER WASHER
112 904-01-021-3577 3/4" FIBER WASHER
113 422-04-074-0001 PLUG
114 905-01-010-2706 3/16" X 1" SPRING PIN
115 422-04-412-0009 LOCK KNOB
,
36-L31
,
36-L51
,
36-L51L
,
& 36-L53L
422-04-412-0011 LOCK KNOB
,
36-L31X
,
36-L51
X
116 434-01-404-0001 COLLAR
,
INCL:
117 901-04-190-0201 5/16-18 X 5/16" HEX SOC SET SCREW
118 927-03-010-2650 1 3/8" KEY
119 422-40-102-0001 YOKE
120 901-01-060-0613 5/16-18 X 1 3/4" HEX HD SCREW
121 422-40-036-0001 DUST DEFLECTOR
122 422-04-104-5005 SLEEVE
123 901-01-060-5769 5/16-24 X 1" HEX HD SCREW
124 902-01-020-1228 5/16-24 JAM NUT
125 904-02-020-1704 3/8" LOCK WASHER
126 901-03-010-0775 3/8-16 X 1" HEX SOC HD SCREW
127 905-01-010-2734 5/16" X 1" SPRING PIN
128 422-40-395-0001 FRONT TRUNNION
,
INCL:
129 920-75-011-3935 BUSHING
130 902-01-020-1228 5/16-24 JAM NUT
131 901-01-060-5769 5/16-24 X 1" HEX HD SCREW
132 901-01-060-0664 7/16-20 X 1" HEX HD SCREW
133 904-10-031-2097 WASHER
133
A
904-03-030-1771 7/16" EXT. TOOTH LOCK WASHER
134 422-40-314-0004 MOTOR BRACKET W/SHAFT
,
INCL:
135 905-01-010-5072 1/4" X 2" SPRING PIN
136 928-06-011-4128 1 1/4" WAVE WASHER
137 927-03-010-2657 2.937" KEY
138 422-04-071-5001 STEEL PIN
139 422-04-079-5001 SPRING CLIP
* 422-40-314-0002
A
RBOR BRACKET
,
INCL.:
140 902-01-200-9847 SPECIAL NUT
141 902-07-020-7176 BEARING CLOSURE NUT
142 1086894 BALL BEARING
143 422-04-104-0002 SPACER
144 422-40-314-0003
A
RBOR BRACKET
,
INCL:
145 901-01-060-3102 3/8-16 X 1 3/4" HEX HD SCREW
146 904-02-020-1704 3/8" LOCK WASHER
147 904-15-101-7147 INTERNAL RETAINING RING
148 928-06-020-7382 LOAD SPRING
149 926-03-991-2328
A
RBOR PULLEY
,
INCL:
150 0908653 5/16-18 X 3/8" HEX SOC HD SCREW
151 927-03-020-2660 1 1/2" KEY
152 422-40-303-0002
A
RBOR W/FLANGE
153 422-04-103-5001 FLANGE
154 902-01-201-2571 .656-12 JAM NUT
155 927-03-010-2653 1 15/16" KEY
156 41-644 MOTOR PULLEY
,
INCL:
157 0908653 5/16-18 X 3/8" HEX SOC HD SCREW
158 49-124 V-BELTS - MATCHED SET OF THREE
160 422-04-406-5001 TILT SHAFT W/WORM
,
INCL:
161 905-01-010-2706 3/16" X 1" SPRING PIN
162 904-01-021-3577 3/4" FIBER WASHER
163 904-10-031-4509 COLLAR
164 422-04-074-0001 PLUG
165 422-04-412-0009 LOCK KNOB
,
36-L31
,
36-L51
,
36-L51L
,
& 36-L53L
422-04-412-0011 LOCK KNOB
,
36-L31X
,
36-L51
X
166 927-03-010-2650 1 3/8" KEY
167 422-40-014-0001 FRONT TRUNNION BRACKET
168 901-01-060-0682 3/8-24 X 1 1/2" HEX HD SCREW
169 904-02-020-1704 3/8" LOCK WASHER
170 902-01-010-1207 3/8-24 HEX NUT
172 901-03-040-8016 5/16-18 X ¾" HEX SOC HD SCREW
173 904-07-010-5569 3/4" FIBER WASHER
174 n 422-04-400-0005 HANDWHEEL
,
INCL:
,
36-L31
,
36-L51
,
36-L51L
,
& 36-L53L
n 422-04-400-0007 HANDWHEEL
,
INCL:
,
36-L31X
,
36-L51
X
175 901-04-190-0201 5/16-18 X 5/16" HEX SOC SET SCREW
176 422-04-055-0006 GUIDE BLOCK
177 904-10-031-2097 WASHER
178 901-01-060-0681 7/16-20 X 1 1/2" HEX HD SCREW
179 422-04-014-2008 POINTER BRACKET
180 0919714 #08-32 X 2" FILL HD SCREW
181 422-40-075-0001 POINTER
182 901-06-110-3036 1/4-20 X 3/8" ROUND HD SCREW
183 904-07-010-5569 3/4" FIBER WASHER
184 n 422-04-400-0005 HANDWHEEL
,
INCL:
,
36-L31
,
36-L51
,
36-L51L
,
& 36-L53L
n 422-04-400-0007 HANDWHEEL
,
INCL:
,
36-L31X
,
36-L51
X
185 901-04-190-0201 5/16-18 X 5/16" HEX SOC SET SCREW
* NOT SHOWN ASSEMBLED
** NOT SHOWN
Page4/ CS-4K-17-2/DEB
Ref.
No.Part No.Description
REPLACEMENT PARTS
Ref.
No.Part No.Description

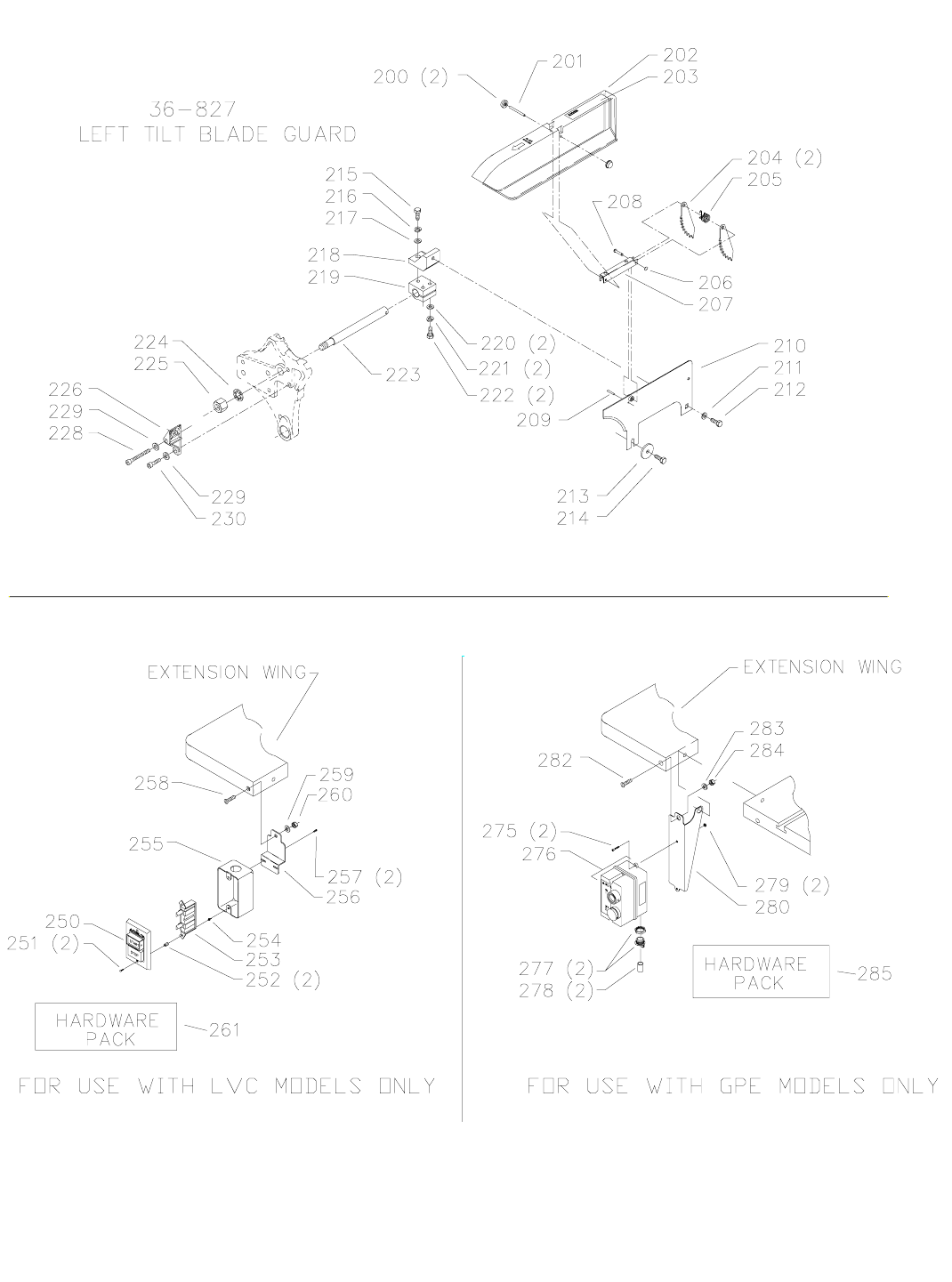

Page 5/ CS-4K-17-2/DEB
* 736827 LEFT TILT BLADE GUARD COMP
,
INCL.:
* 422-40-354-0003 LEFT TILT BLADE GUARD ASSY
,
INCL.:
200 1086388 PUSH NUT CAP
201 1087811 PIN
202 422-40-354-0004 LEFT TILT BLADE GUARD
,
INCL:
203 422-40-754-0002 WARNING LABEL
204 422-16-047-0001 KICK BACK FINGER
205 1086353 SPRING
206 1086387 PUSH NUT
207 1086337 PIVOT BRACKET
208 422-04-071-0007 PIN
209 905-01-010-6729 5/32" X 11/16" SPRING PIN
210 422-04-086-0002 SPLITTER W/BUSHING
211 904-01-010-1620 5/16" FLAT WASHER
212 901-01-060-0649 5/16-18 X 1" HEX HD SCREW
213 422-03-072-0001 PLATE
214 901-01-060-0649 5/16-18 X 1" HEX HD SCREW
215 901-01-060-0649 5/16-18 X 1" HEX HD SCREW
216 904-02-010-1703 5/16" LOCK WASHER
217 904-01-010-1620 5/16" FLAT WASHER
218 422-04-014-0018 BRACKET
219 422-04-014-0019 BRACKET
220 904-01-010-1620 5/16" FLAT WASHER
221 904-02-010-1703 5/16" LOCK WASHER
222 901-01-060-0649 5/16-18 X 1" HEX HD SCREW
223 422-04-089-0003 SUPPORT ROD
224 904-03-020-1751 5/8" INT TOOTH WASHER
225 902-01-020-1226 5/8-18 JAM NUT
226 422-40-014-0005 SPLITTER MOUNTING BRACKET
228 901-03-013-1698 5/16-18 X 2" HEX SOC HD SCREW
229 904-01-010-1620 5/16" FLAT WASHER
230 901-03-010-0757 5/16-18 X 3/4" HEX SOC HD SCREW
250 1340100 SWITCH COVER ASSY
251 901-02-010-0567 #06-32 X 1/4" ROUND HD SCREW
252 402-07-104-5007 SPACER
253 438-01-017-0101 MAGNETIC SWITCH
254 402-07-111-5002 STUD
255 438-01-001-0036 SWITCH BO
X
256 422-40-014-0006 LVC MOUNTING BRACKET
257 901-05-163-1126 #08-32 X 5/16" PAN HD SCREW
258 901-03-033-1881 5/16-18 X 1 1/4" FLAT HD SCREW
259 904-01-010-1620 FLAT WASHER
260 902-01-010-1300 5/16-18 HEX NUT
261 422-04-725-0003 MTG. HARDWARE PACK
275 901-02-453-1123 #10-32 X 1/2" PAN HD SCREW
276 438-01-016-0199 STARTER
,
GPE
,
10 - 14 AMP
,
1PH
,
230V
,
INCL:
438-01-016-0204 STARTER
,
GPE
,
1PH
,
230V
,
18 - 25 AMP
,
INCL:
277 438-01-004-0007 CORD CLAMP
278 438-01-011-0054 INSULATOR SLEEVE
279 902-01-293-1513 #10-32 KEPS NUT
280 n 422-40-014-0014 MOUNTING BRACKET
282 901-03-033-1881 5/16-18 X 1 1/4" FLAT HD SCREW
283 904-01-010-1620 FLAT WASHER
284 902-01-010-1300 5/16-18 HEX NUT
285 422-40-725-0001 MTG. HARDWARE PACK
** 438-01-302-0381 8' #14-3 1PH 230V 15A CORD
** 438-01-302-2004 9' #12-3 1PH 230V 20A CORD
** 438-02-314-6204 1PH
,
3HP
,
230V MOTOR - WEG
** 83-653 1PH
,
3HP
,
230V MOTOR - MARATHON
** 438-02-314-6203 1PH
,
5HP
,
230V MOTOR - WEG
** 83-672 1PH
,
5HP
,
230V MOTOR - MARATHON
** 438-02-314-6205 3PH
,
5HP
,
230/460V MOTOR - WEG
** 87-372 3PH
,
5HP
,
230/460V MOTOR - MARATHON
* NOT SHOWN ASSEMBLED
** NOT SHOWN
Page 6/ CS-4K-17-2/DEB
Ref.
No.Part No.Description
REPLACEMENT PARTS
______________________________________________________________
STANDARD SAFETY EQUIPMENT
In order to promote tool safety, Delta Machinery strictly enforces the policy of repairing or replacing any damaged or missing
standard safety equipment on machines presented to Delta Authorized Service Centers for service/repairs. Any product that is
presented to a Delta Authorized Service Centers for repairs which contains missing or damaged standard safety equipment will
have that equipment repaired or replaced and the customer will be charged for any such service/repairs. Customers can avoid such
charges only if the missing safety component is supplied to the service center at the time of repair.
This parts list is provided to aid in obtaining service parts. Copies of the instruction and maintenance literature can be obtained through the
Delta Technical Publications Department or through your service outlet.
