© Copyright 1989, 1996 National Instruments Corporation.
All Rights Reserved.
SC-206X Series
User Manual
Optically Isolated and Electromechanical Relay Boards
December 1996 Edition
Part Number 371167A-01
Limited Warranty
The SC-206X Series boards are warranted against defects in materials and workmanship for a period of one year
from the date of shipment, as evidenced by receipts or other documentation. National Instruments will, at its option,
repair or replace equipment that proves to be defective during the warranty period. This warranty includes parts and
labor.
A Return Material Authorization (RMA) number must be obtained from the factory and clearly marked on the
outside of the package before any equipment will be accepted for warranty work. National Instruments will pay the
shipping costs of returning to the owner parts which are covered by warranty.
National Instruments believes that the information in this manual is accurate. The document has been carefully
reviewed for technical accuracy. In the event that technical or typographical errors exist, National Instruments
reserves the right to make changes to subsequent editions of this document without prior notice to holders of this
edition. The reader should consult National Instruments if errors are suspected. In no event shall National
Instruments be liable for any damages arising out of or related to this document or the information contained in it.
EXCEPT AS SPECIFIED HEREIN, NATIONAL INSTRUMENTS MAKES NO WARRANTIES, EXPRESS OR IMPLIED,
AND SPECIFICALLY DISCLAIMS ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. CUSTOMER'S RIGHT TO RECOVER DAMAGES CAUSED BY FAULT OR NEGLIGENCE ON THE PART
OF NATIONAL INSTRUMENTS SHALL BE LIMITED TO THE AMOUNT THERETOFORE PAID BY THE CUSTOMER.
NATIONAL INSTRUMENTS WILL NOT BE LIABLE FOR DAMAGES RESULTING FROM LOSS OF DATA, PROFITS,
USE OF PRODUCTS, OR INCIDENTAL OR CONSEQUENTIAL DAMAGES, EVEN IF ADVISED OF THE POSSIBILITY
THEREOF. This limitation of the liability of National Instruments will apply regardless of the form of action,
whether in contract or tort, including negligence. Any action against National Instruments must be brought within
one year after the cause of action accrues. National Instruments shall not be liable for any delay in performance due
to causes beyond its reasonable control. The warranty provided herein does not cover damages, defects,
malfunctions, or service failures caused by owner's failure to follow the National Instruments installation, operation,
or maintenance instructions; owner's modification of the product; owner's abuse, misuse, or negligent acts; and
power failure or surges, fire, flood, accident, actions of third parties, or other events outside reasonable control.
Copyright
Under the copyright laws, this publication may not be reproduced or transmitted in any form, electronic or
mechanical, including photocopying, recording, storing in an information retrieval system, or translating, in whole
or in part, without the prior written consent of National Instruments Corporation.
Trademarks
LabVIEW®, NI-DAQ®, and RTSI® are trademarks of National Instruments Corporation.
Product and company names listed are trademarks or trade names of their respective companies.
WARNING REGARDING MEDICAL AND CLINICAL USE
OF NATIONAL INSTRUMENTS PRODUCTS
National Instruments products are not designed with components and testing intended to ensure a
level of reliability suitable for use in treatment and diagnosis of humans. Applications of
National Instruments products involving medical or clinical treatment can create a potential for
accidental injury caused by product failure, or by errors on the part of the user or application
designer. Any use or application of National Instruments products for or involving medical or
clinical treatment must be performed by properly trained and qualified medical personnel, and all
traditional medical safeguards, equipment, and procedures that are appropriate in the particular
situation to prevent serious injury or death should always continue to be used when National
Instruments products are being used. National Instruments products are NOT intended to be a
substitute for any form of established process, procedure, or equipment used to monitor or
safeguard human health and safety in medical or clinical treatment.
Operator's Safety Summary
The general safety information in this summary is for both operating and servicing personnel.
Specific warnings are found throughout the manual where they apply but may not appear in this
summary.
Terms
In this manual, Warning statements identify conditions or practices that could result in personal
injury, loss of life, or damage to equipment or other property.
1. Heed all warnings and safety instructions.
2. Never make any signal or cable connection or disconnection when devices are powered on.
All connections must be made with devices powered off. Failure to do so can result in a
shock hazard.
3. If any voltage potentials can possibly exceed 30 V–particularly potentials across the
optocouplers or relays–the SC-206X Series board must be completely enclosed in order to
protect the operator from shock when devices are powered on. Do not leave the SC-206X
Series boards uncovered under these circumstances.
© National Instruments Corporation v SC-206X Series User Manual
Contents
About This Manual ..............................................................................................................ix
Organization of This Manual...........................................................................................ix
Conventions Used in This Manual...................................................................................x
Related Documentation....................................................................................................x
Customer Communication ...............................................................................................xi
Chapter 1
Introduction.......................................................................................................................... 1-1
What Your Kit Should Contain...................................................................................... 1-3
Software......................................................................................................................... 1-3
Optional Equipment....................................................................................................... 1-4
Unpacking...................................................................................................................... 1-4
Chapter 2
SC-2060 Board..................................................................................................................... 2-1
Specifications................................................................................................................. 2-3
Optically Isolated Digital Input.......................................................................... 2-3
Power Requirement (from Host Board or External Power Supply)................... 2-3
Physical.............................................................................................................. 2-4
Operating Environment...................................................................................... 2-4
Storage Environment.......................................................................................... 2-4
Mounting and Connection to Data Acquisition Boards................................................. 2-4
Chapter 3
SC-2061 Board..................................................................................................................... 3-1
Specifications................................................................................................................. 3-3
Optically Isolated Digital Output....................................................................... 3-3
Power Requirement (from Host Board or External Power Supply)................... 3-3
Physical.............................................................................................................. 3-4
Operating Environment...................................................................................... 3-4
Storage Environment.......................................................................................... 3-4
Mounting and Connection to Data Acquisition Boards................................................. 3-4
Chapter 4
SC-2062 Board..................................................................................................................... 4-1
Specifications................................................................................................................. 4-3
Electromechanical Relay Digital Output ........................................................... 4-3
Power Requirement (from Host Board or External Power Supply)................... 4-4
Physical.............................................................................................................. 4-4
Operating Environment...................................................................................... 4-4
Storage Environment.......................................................................................... 4-4
Mounting and Connection to Data Acquisition Boards................................................. 4-4
Contents
SC-206X Series User Manual vi © National Instruments Corporation
Chapter 5
Installation and Operation.............................................................................................. 5-1
Hardware Installation..................................................................................................... 5-1
Internal or External Power Selection................................................................. 5-4
SC-206X Series Board Connection.................................................................... 5-5
Operation........................................................................................................................ 5-8
Safety Information ......................................................................................................... 5-9
Appendix A

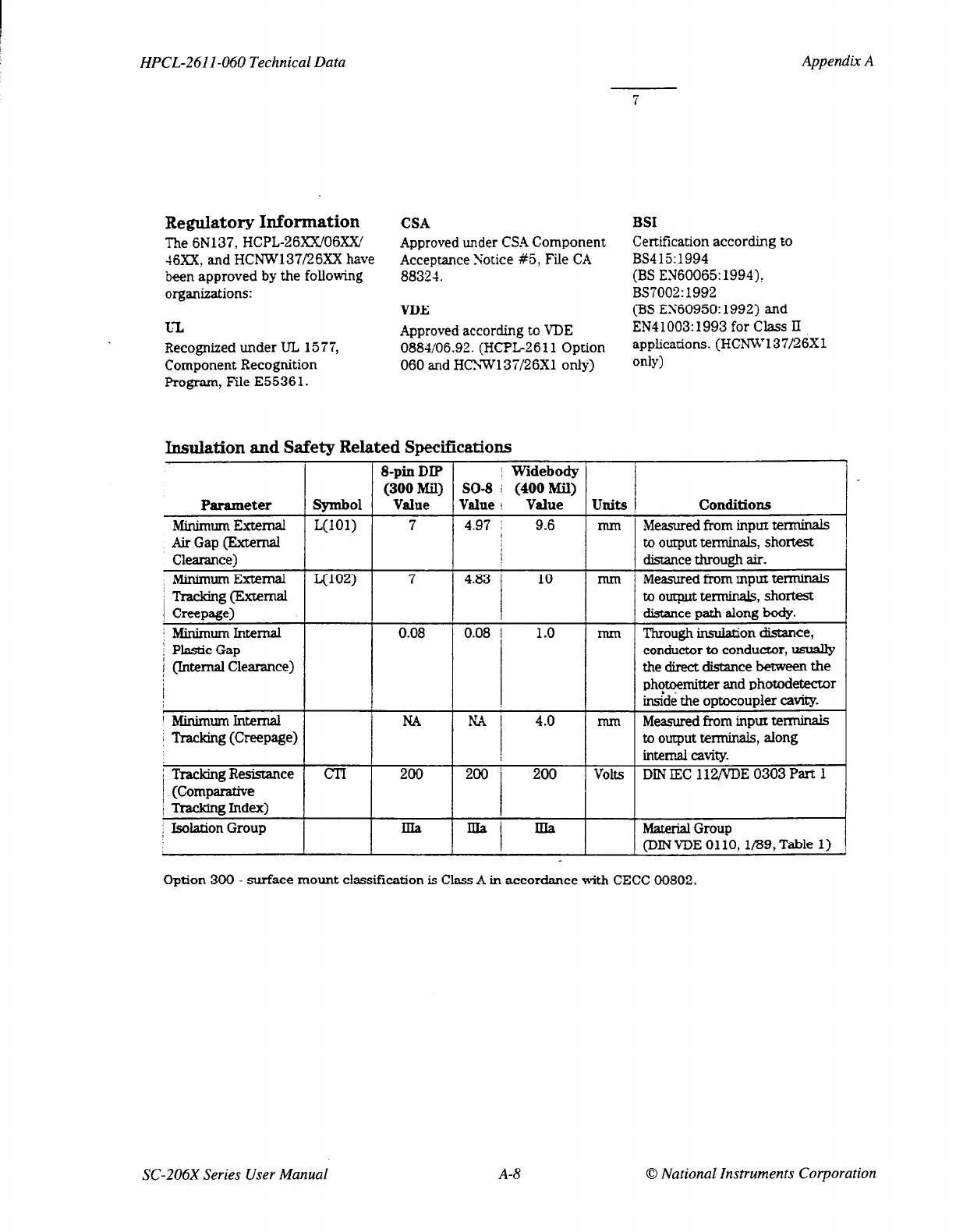

HCPL-2611-060 Technical Data...................................................................................A-1
Appendix B
Motorola Array Technical Data...................................................................................B-1
Appendix C
American Zettler Relay Technical Data....................................................................C-1
Appendix D
Customer Communication..............................................................................................D-1
Glossary......................................................................................................................Glossary-1
Index.................................................................................................................................Index-1
Contents
© National Instruments Corporation vii SC-206X Series User Manual
Figures

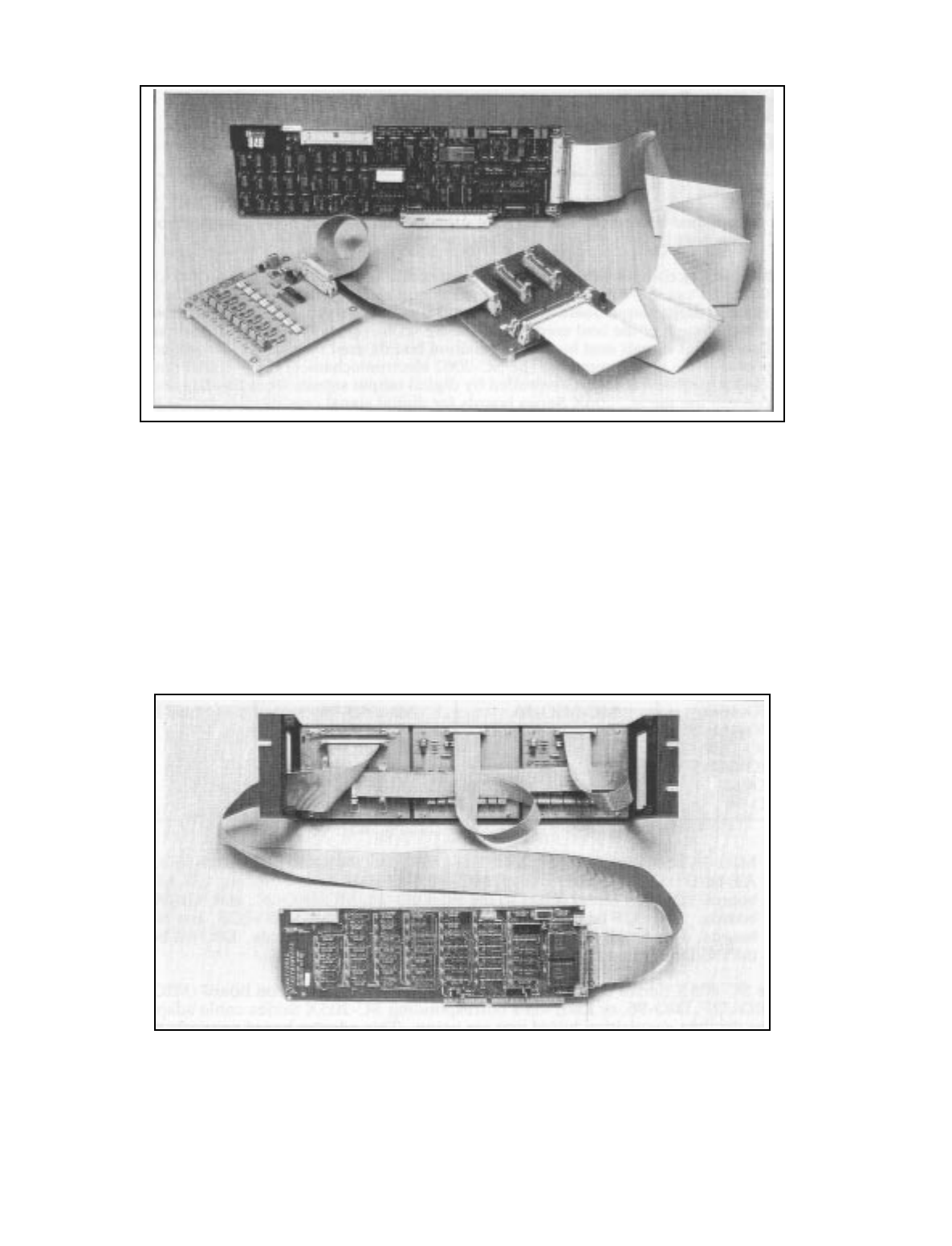

Figure 1-1. SC-2060 Board Connected to Host Data Acquisition Board
Via an SC-2050 Board....................................................................................... 1-2
Figure 1-2. SC-2060 Boards and SC-2050 Board Mounted in 19 in. Rack Mount
with Connection to Host Data Acquisition Board ............................................. 1-2

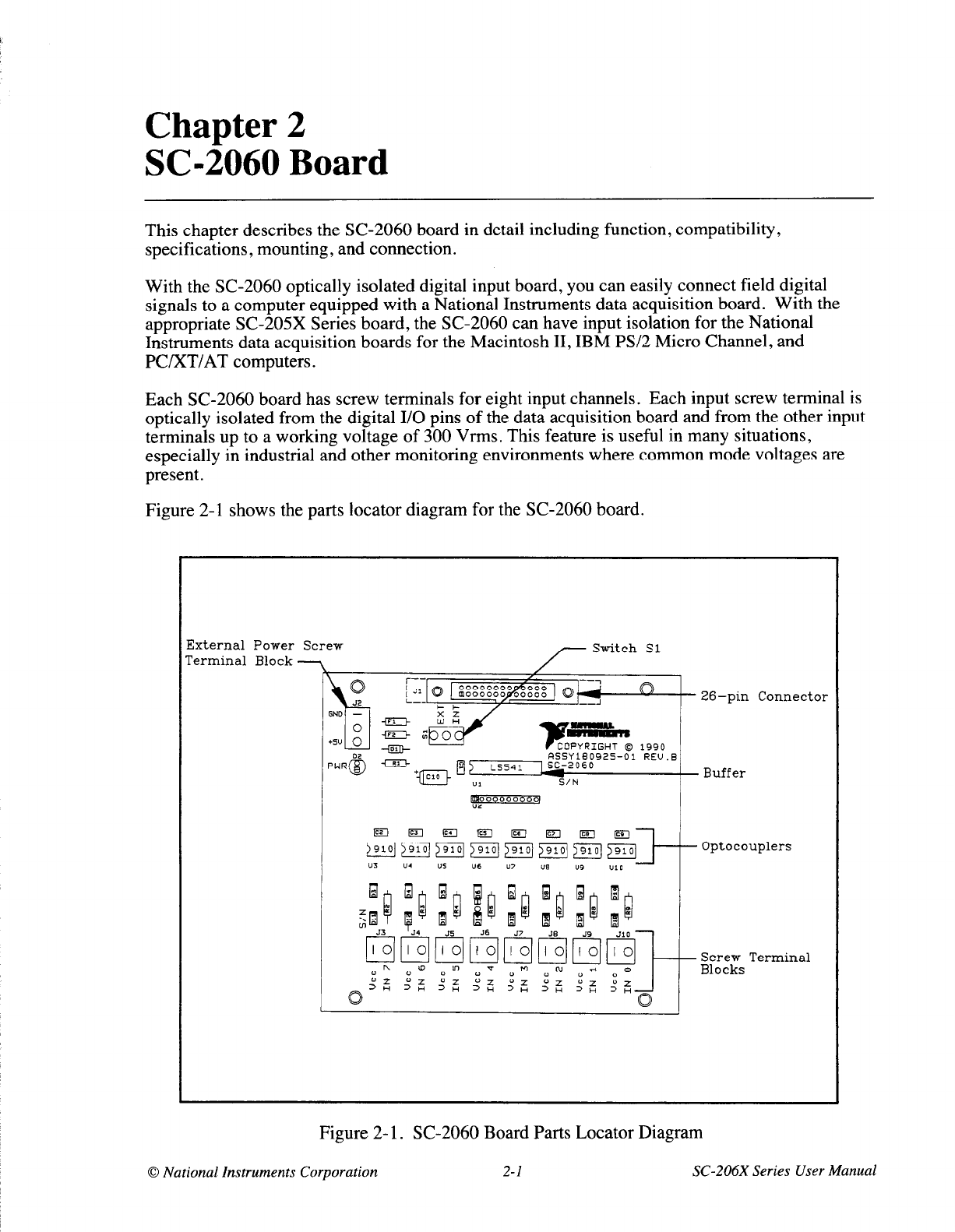

Figure 2-1. SC-2060 Board Parts Locator Diagram............................................................. 2-1
Figure 2-2. SC-2060 Power Circuit...................................................................................... 2-2
Figure 2-3. Onboard Equivalent Circuit............................................................................... 2-2
Figure 3-1. SC-2061 Board Parts Locator Diagram............................................................. 3-1
Figure 3-2. SC-2061 Onboard Equivalent Power Circuit..................................................... 3-2

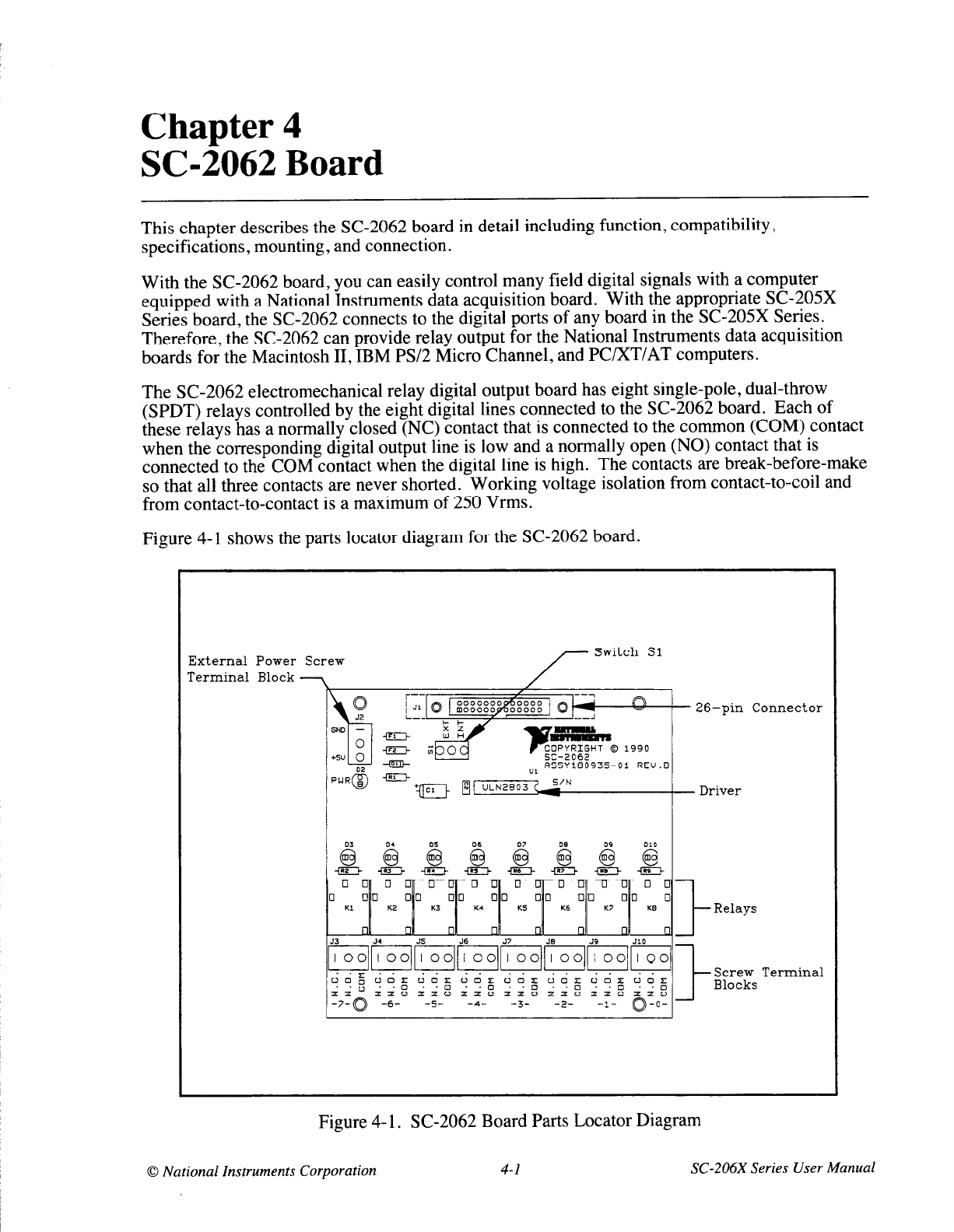

Figure 4-1. SC-2062 Board Parts Locator Diagram............................................................. 4-1
Figure 4-2. SC-2062 5 V Onboard Equivalent Circuit......................................................... 4-2
Figure 5-1. Mounting Locations for SC-205X and SC-206X Series Boards ....................... 5-2
Figure 5-2. Attaching a Mountable Board to the Chassis..................................................... 5-2

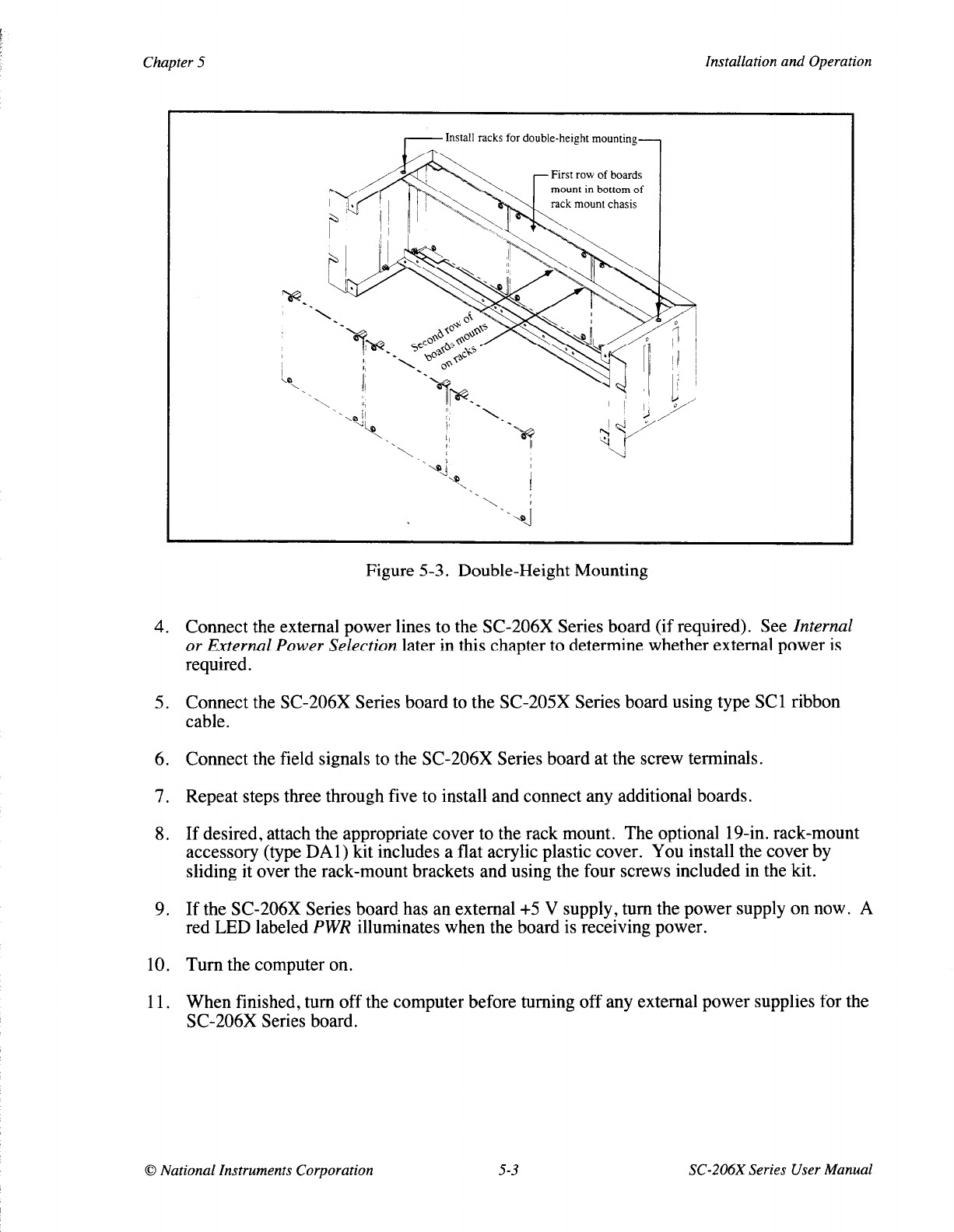

Figure 5-3. Double-Height Mounting................................................................................... 5-3

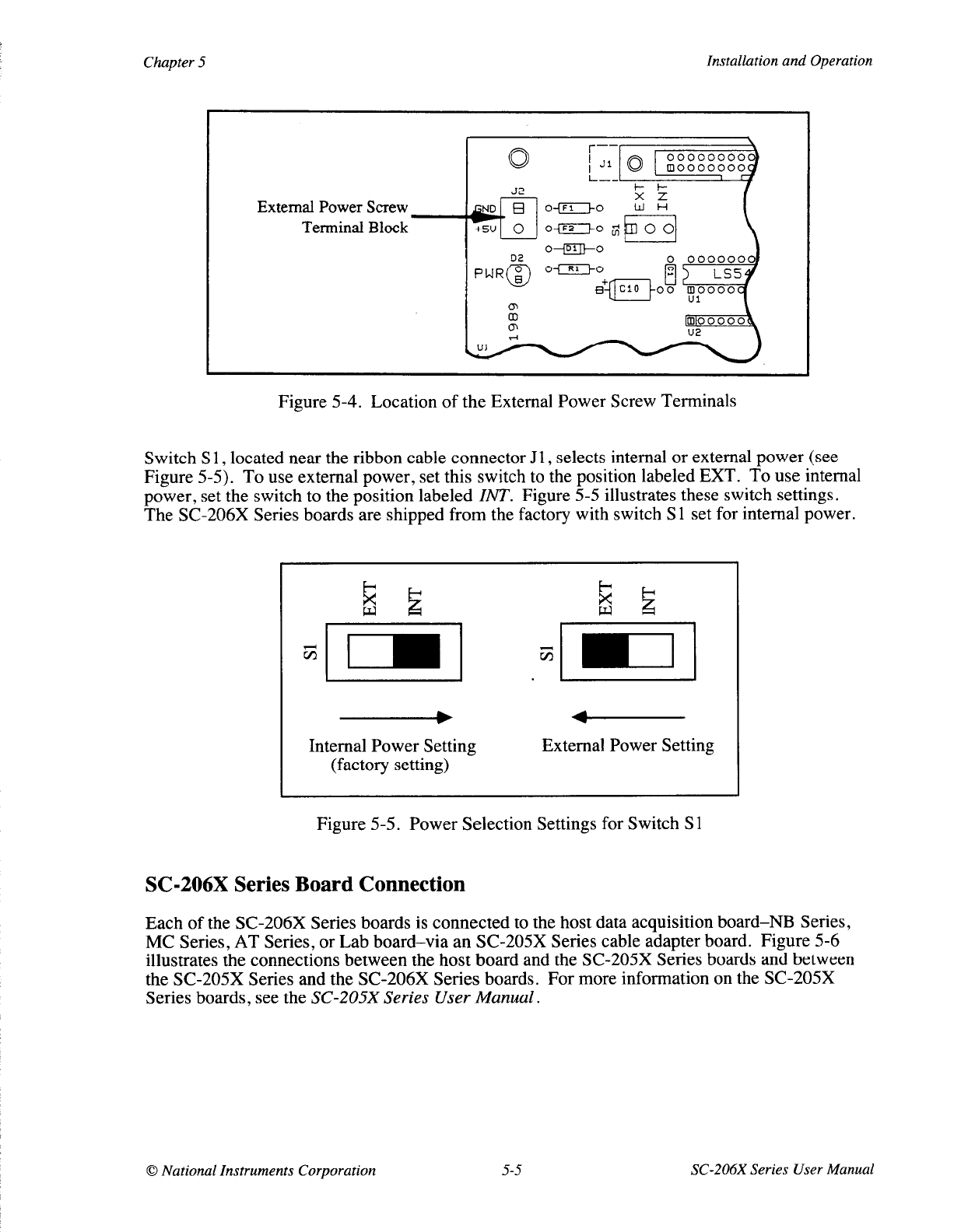

Figure 5-4. Location of the External Power Screw Terminals............................................. 5-5
Figure 5-5. Power Selection Settings for Switch S1............................................................. 5-5
Figure 5-6. Connecting SC-206X Series Boards to Data Acquisition Boards
via the SC-205X Series Cable Adapter Boards ................................................. 5-6
Figure 5-7. Pinout for I/O Connector J1............................................................................... 5-7
Tables
Table 1-1. Data Acquisition Boards for Use with SC-206X Series Boards........................ 1-1
Table 2-1. Data Acquisition Boards for Use with the SC-2060 Board............................... 2-4
Table 3-1. Data Acquisition Boards for Use with the SC-2061 Board............................... 3-4
Table 4-1. Data Acquisition Boards for Use with the SC-2062 Board............................... 4-5
Table 5-1. Amount of Power Data Acquisition Boards Supply.......................................... 5-4
Table 5-2. SC-205X Series Connectors Compatible with SC-206X Series........................ 5-8
© National Instruments Corporation ix SC-206X Series User Manual
About This Manual
This manual describes the mechanical and electrical aspects of the SC-206X Series boards and
contains information about installing and operating the boards. The SC-206X Series consists of
three digital signal conditioning boards you can use with National Instruments data acquisition
boards–the SC-2060 optically isolated digital input board, the SC-2061 optically isolated digital
output board, and the SC-2062 electromechanical relay digital output board. You can use the
SC-206X Series boards for digital signal conditioning on the Macintosh NuBus computers with
the NB Series and Lab-NB boards, the IBM Personal System/2 (PS/2) Micro Channel computers
with the MC Series boards, and IBM PC/XT/AT and compatible computers with the AT Series
and Lab-PC+ boards. Each of the SC-206X Series boards is described in detail in this manual.
Organization of This Manual
The SC-206X Series User Manual is organized as follows:
• Chapter 1, Introduction, describes the SC-206X Series boards; lists the contents of your
SC-206X Series kit; describes the optional equipment and software support; and explains
how to unpack your SC-206X Series board.
• Chapter 2, SC-2060 Board, describes the SC-2060 board in detail including function,
compatibility, specifications, mounting, and connection.
• Chapter 3, SC-2061 Board, describes the SC-2061 board in detail including function,
compatibility, specifications, mounting, and connection.
• Chapter 4, SC-2062 Board, describes the SC-2062 board in detail including function,
compatibility, specifications, mounting, and connection.
• Chapter 5, Installation and Operation, describes the installation and operation of the
SC-206X Series boards. Hardware installation, signal connections to the boards, and
operation are discussed.

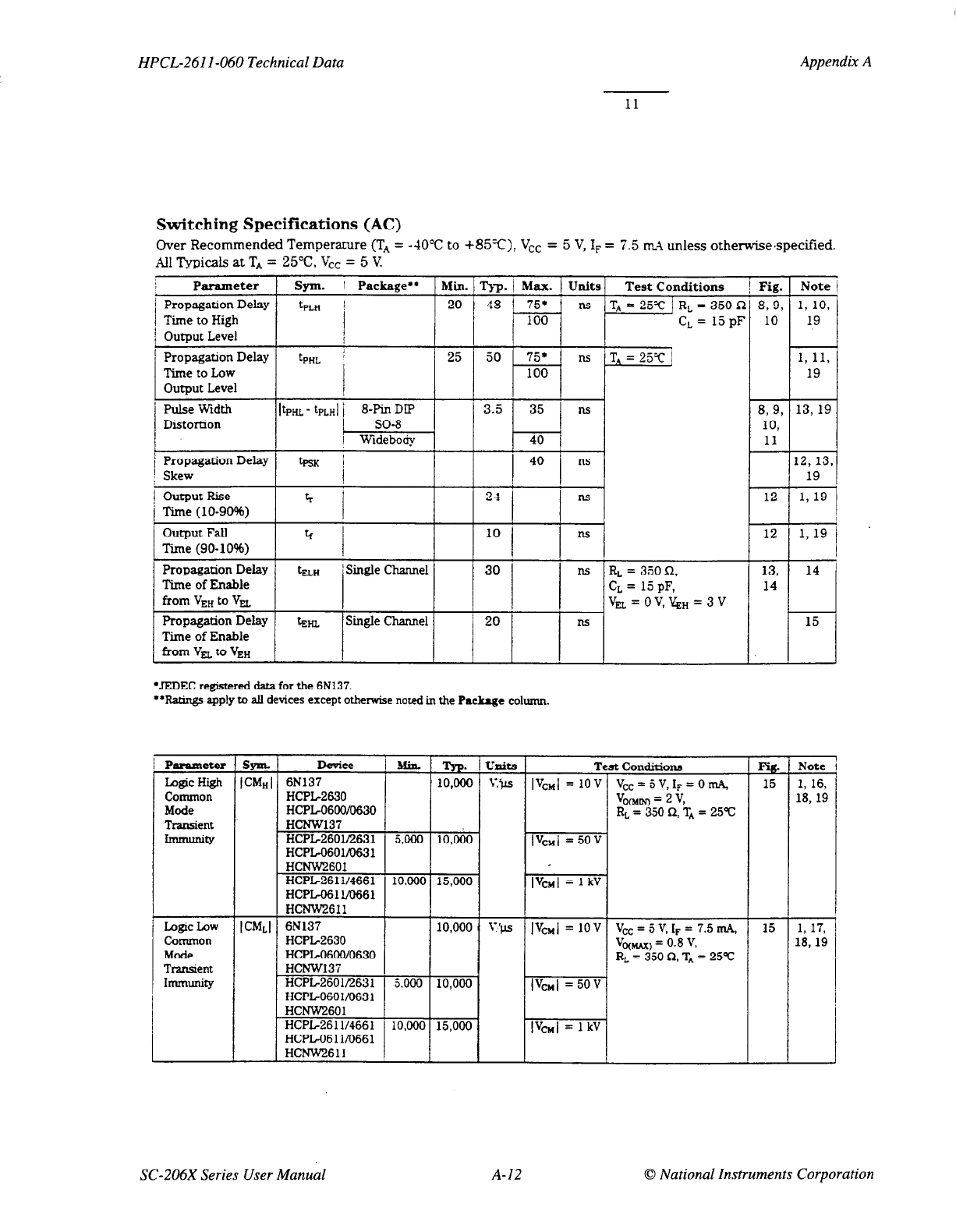

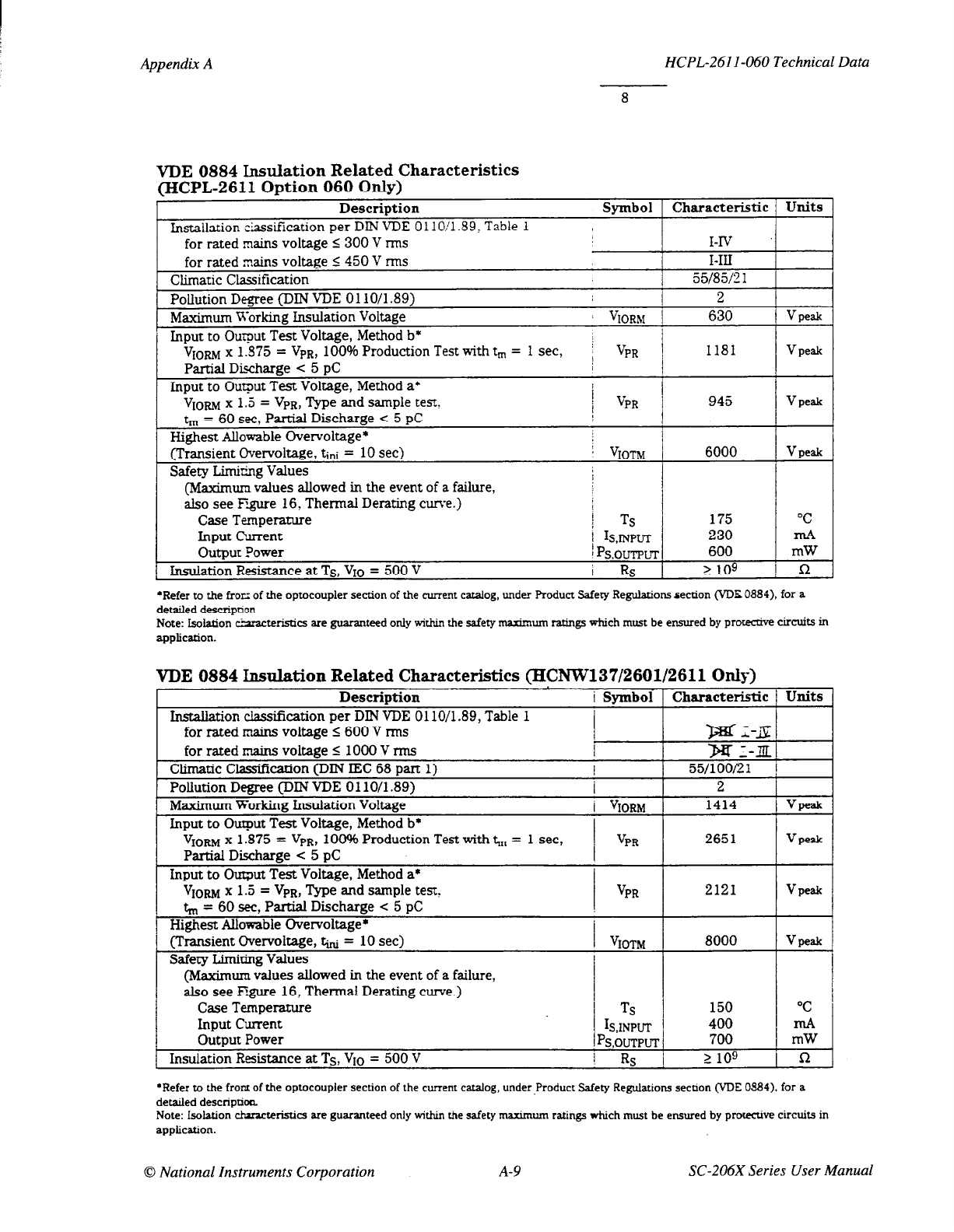

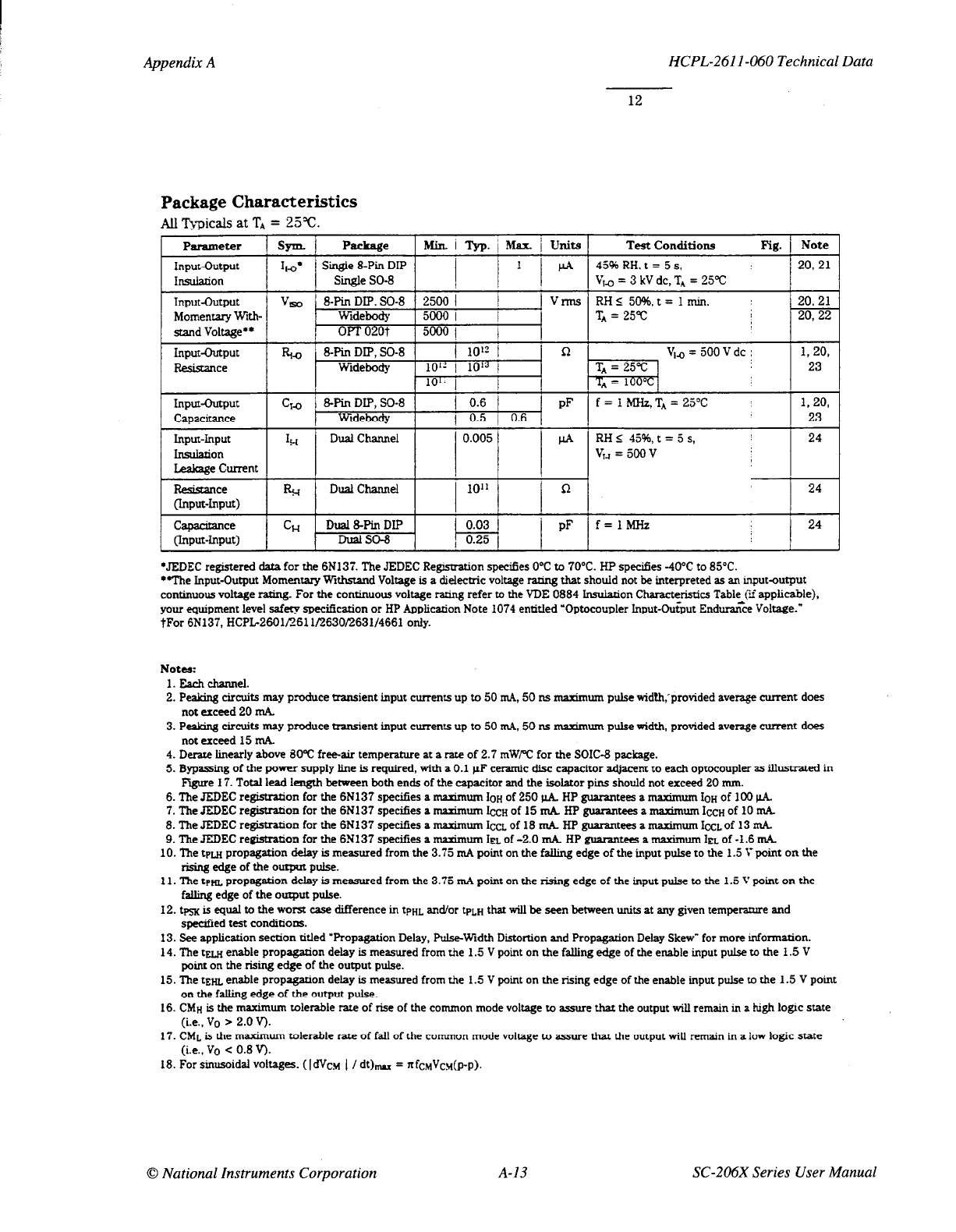

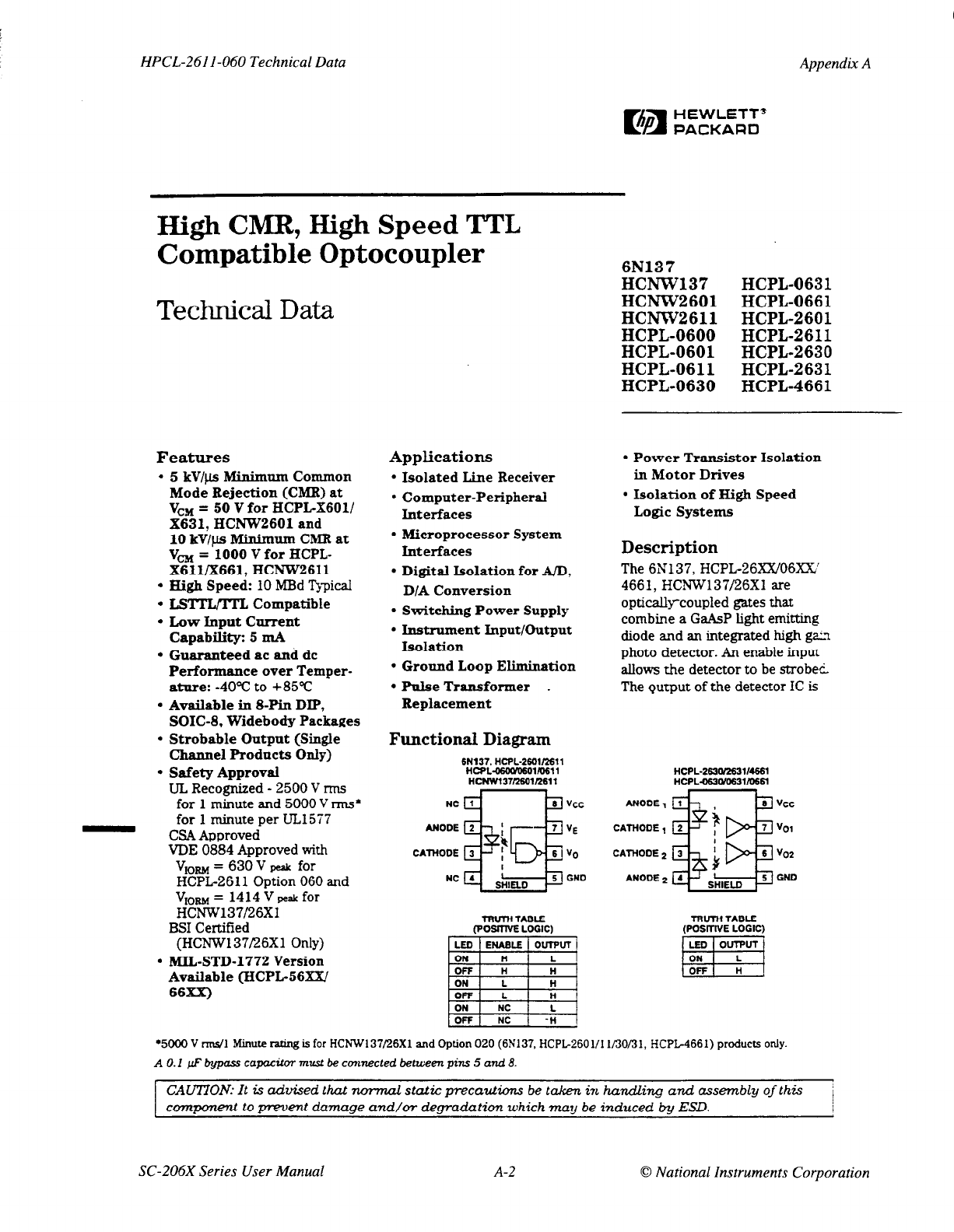

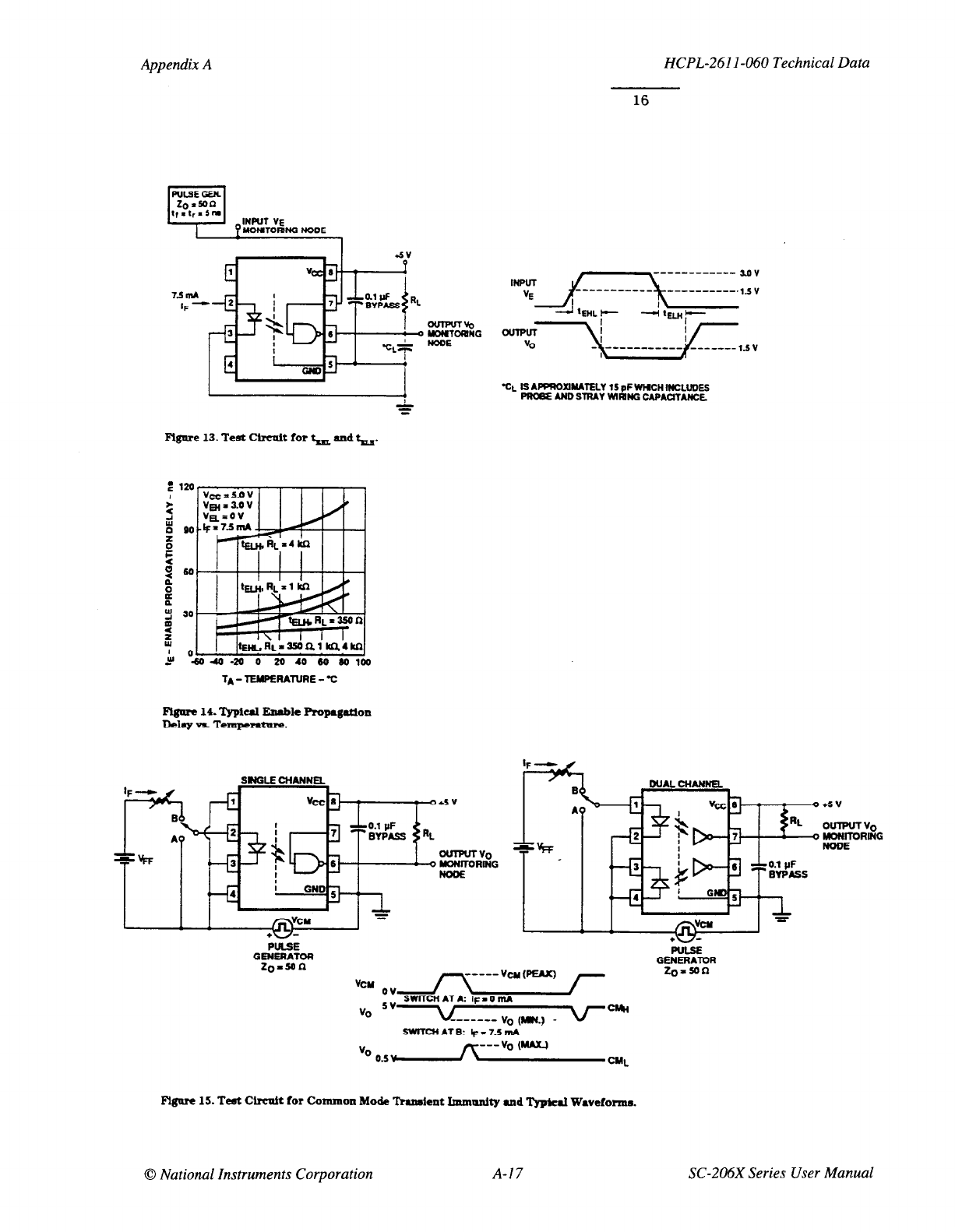

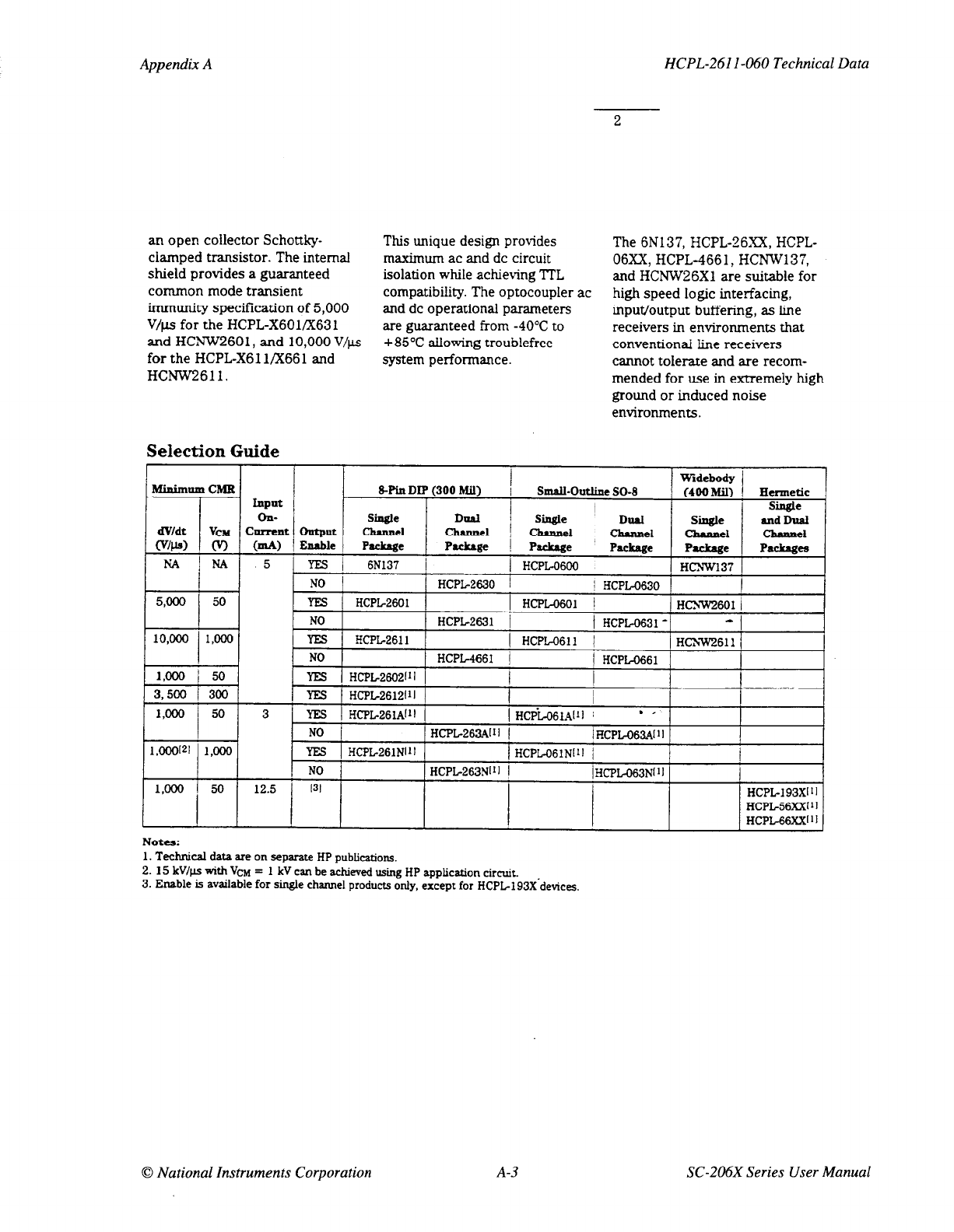

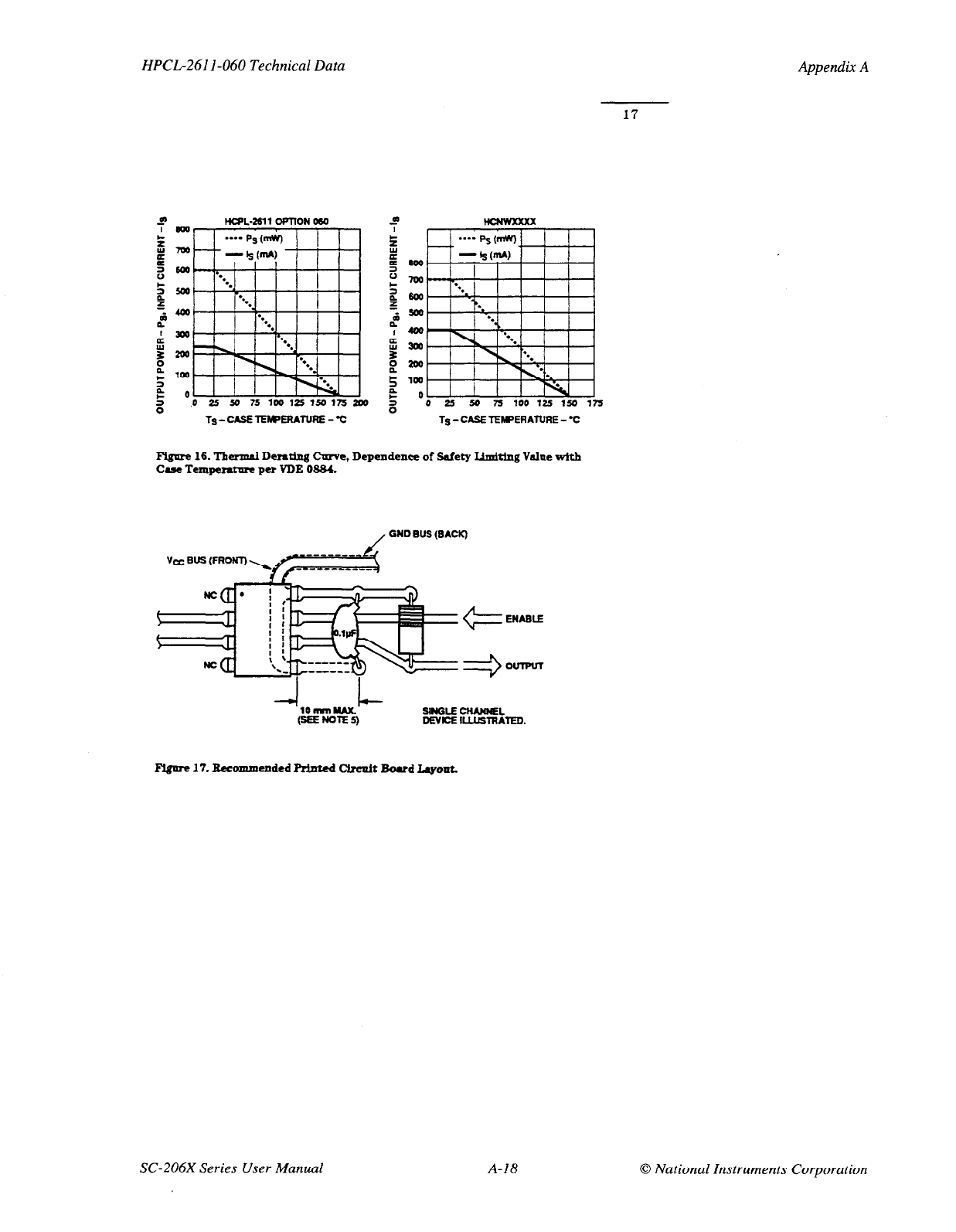

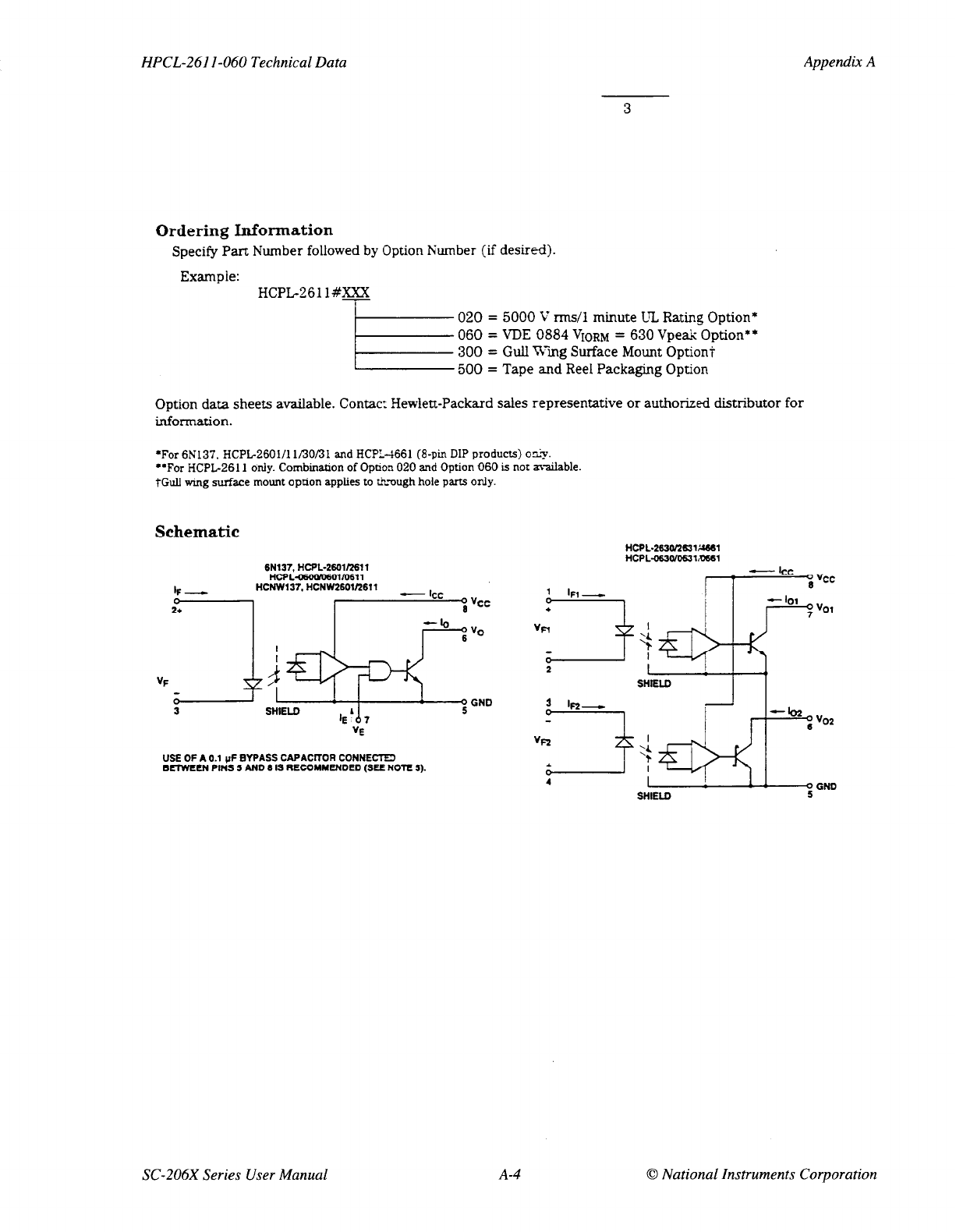

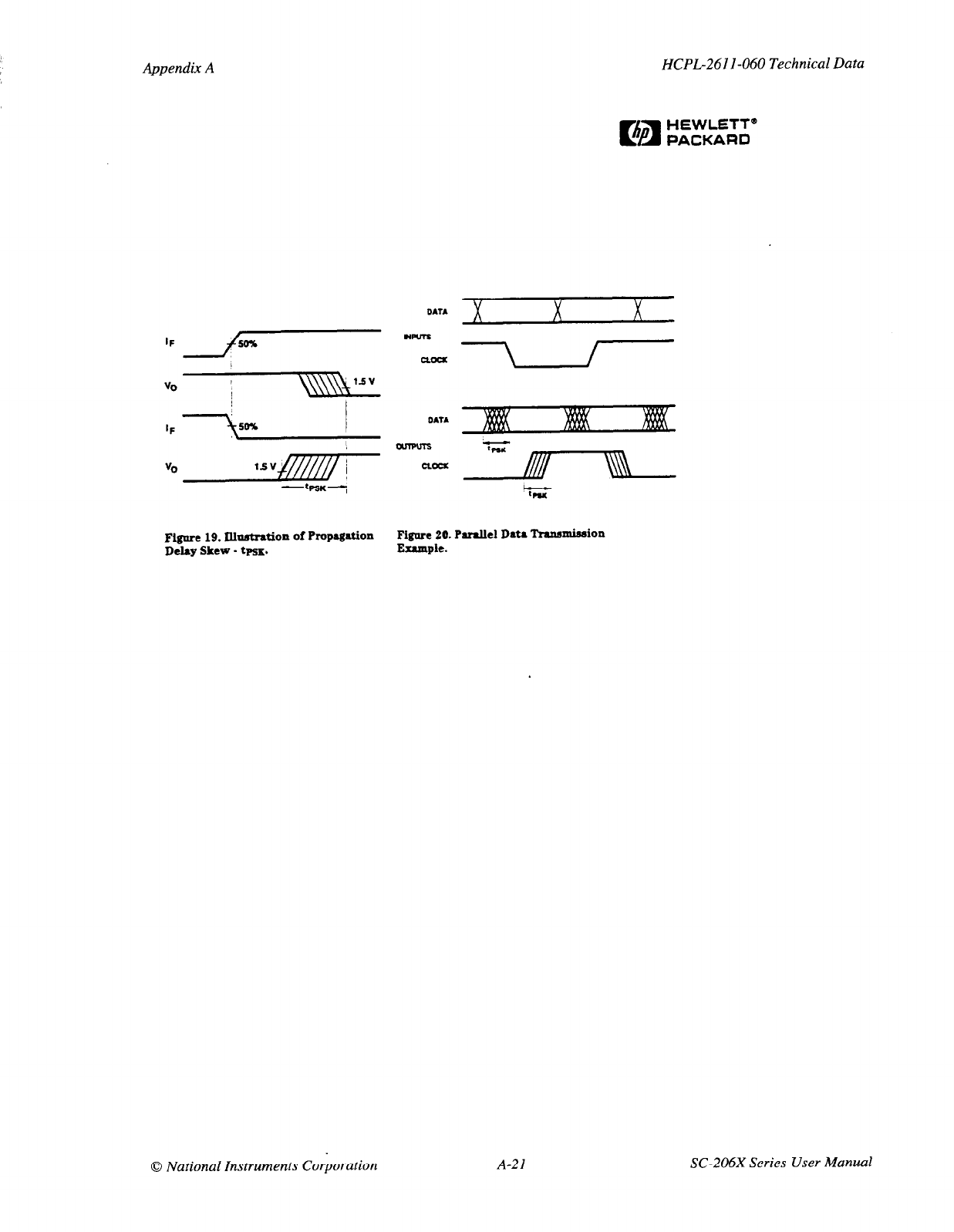

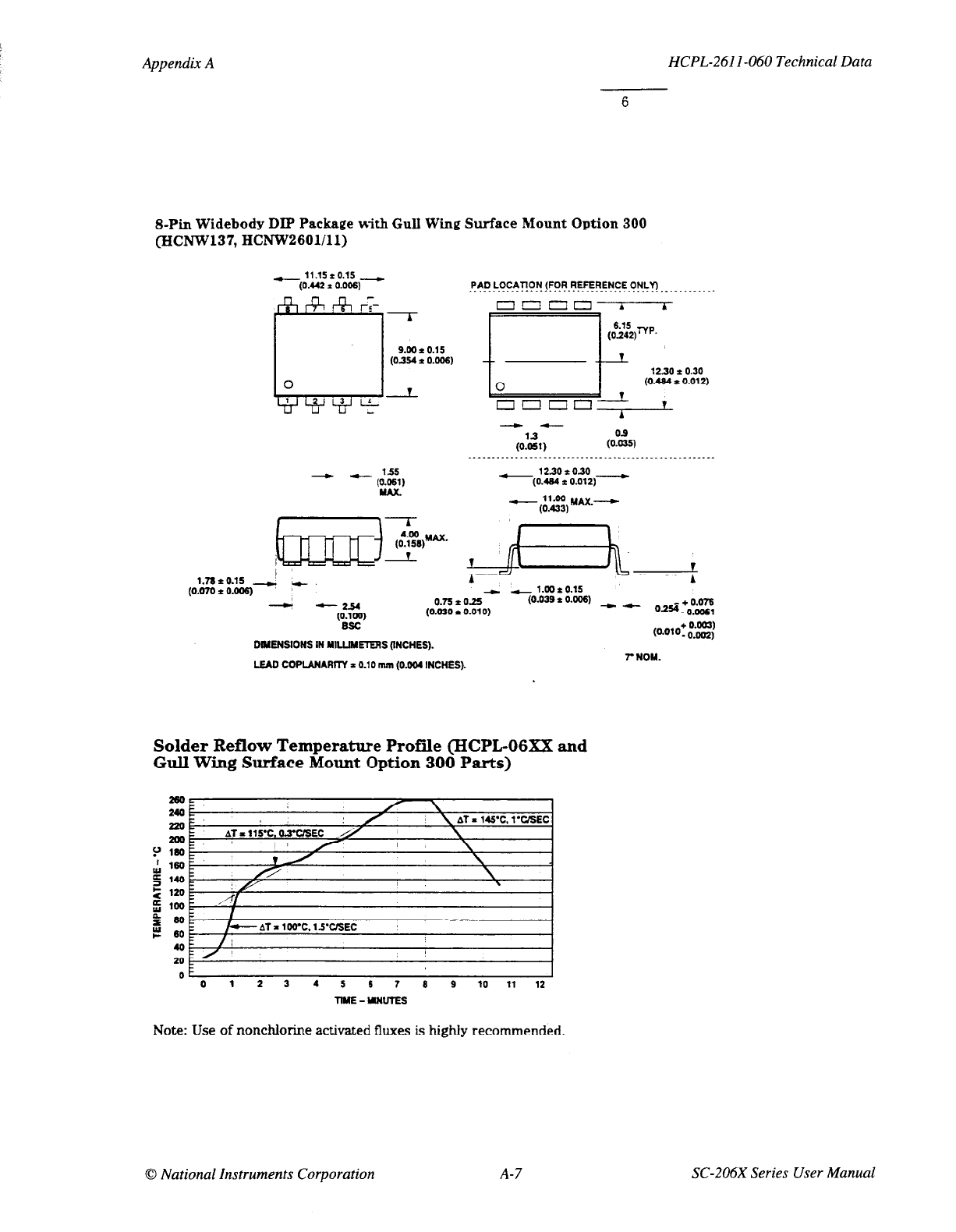

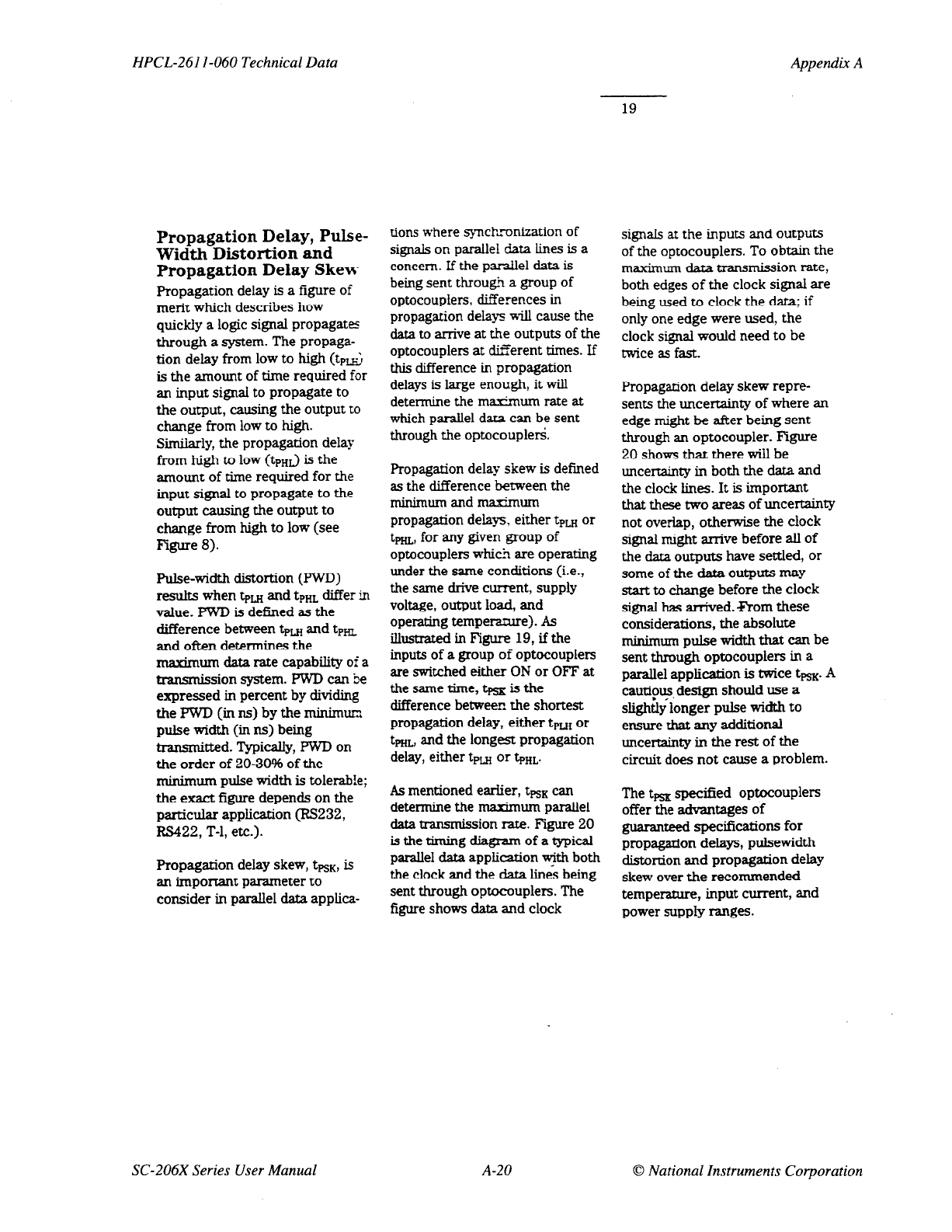

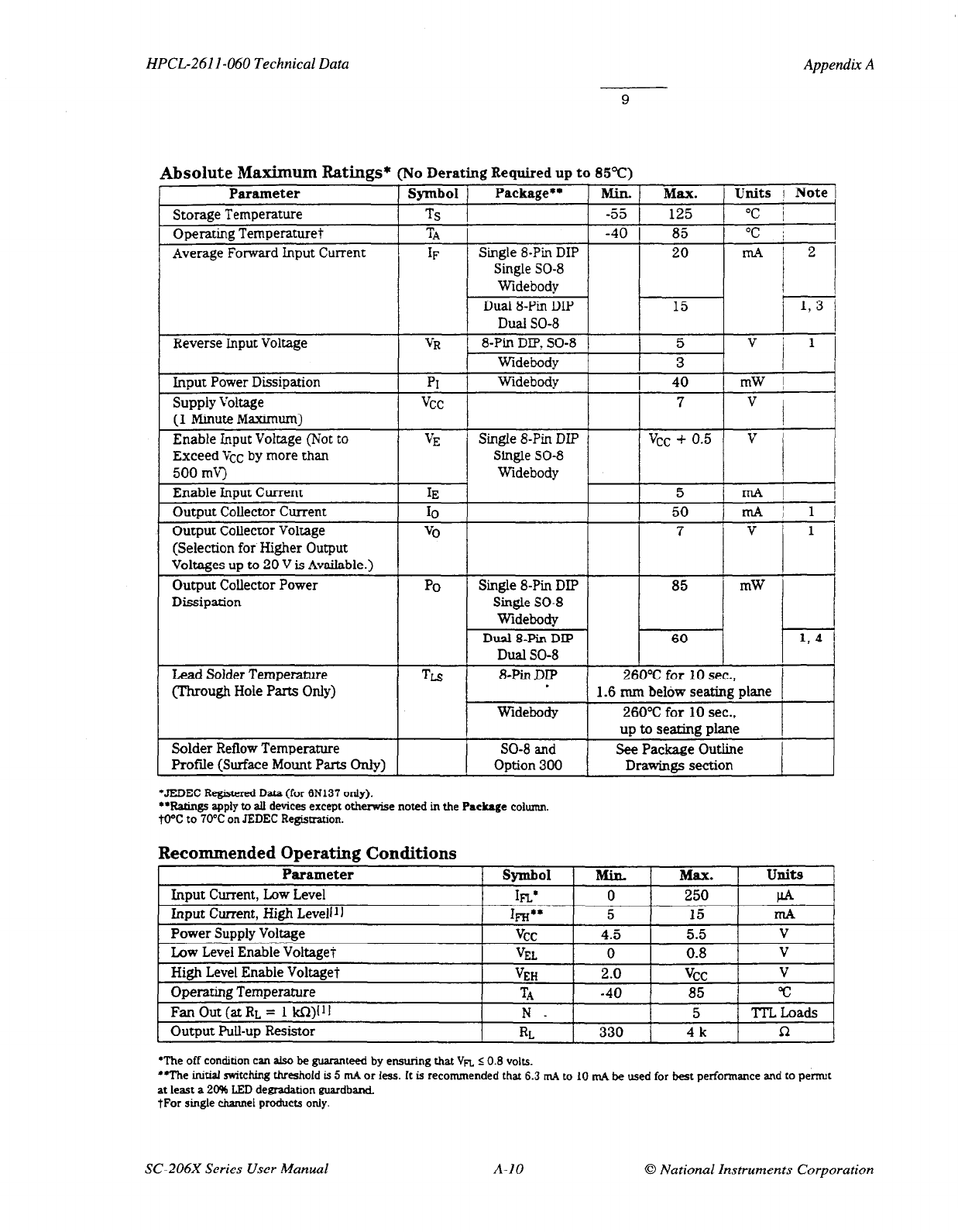

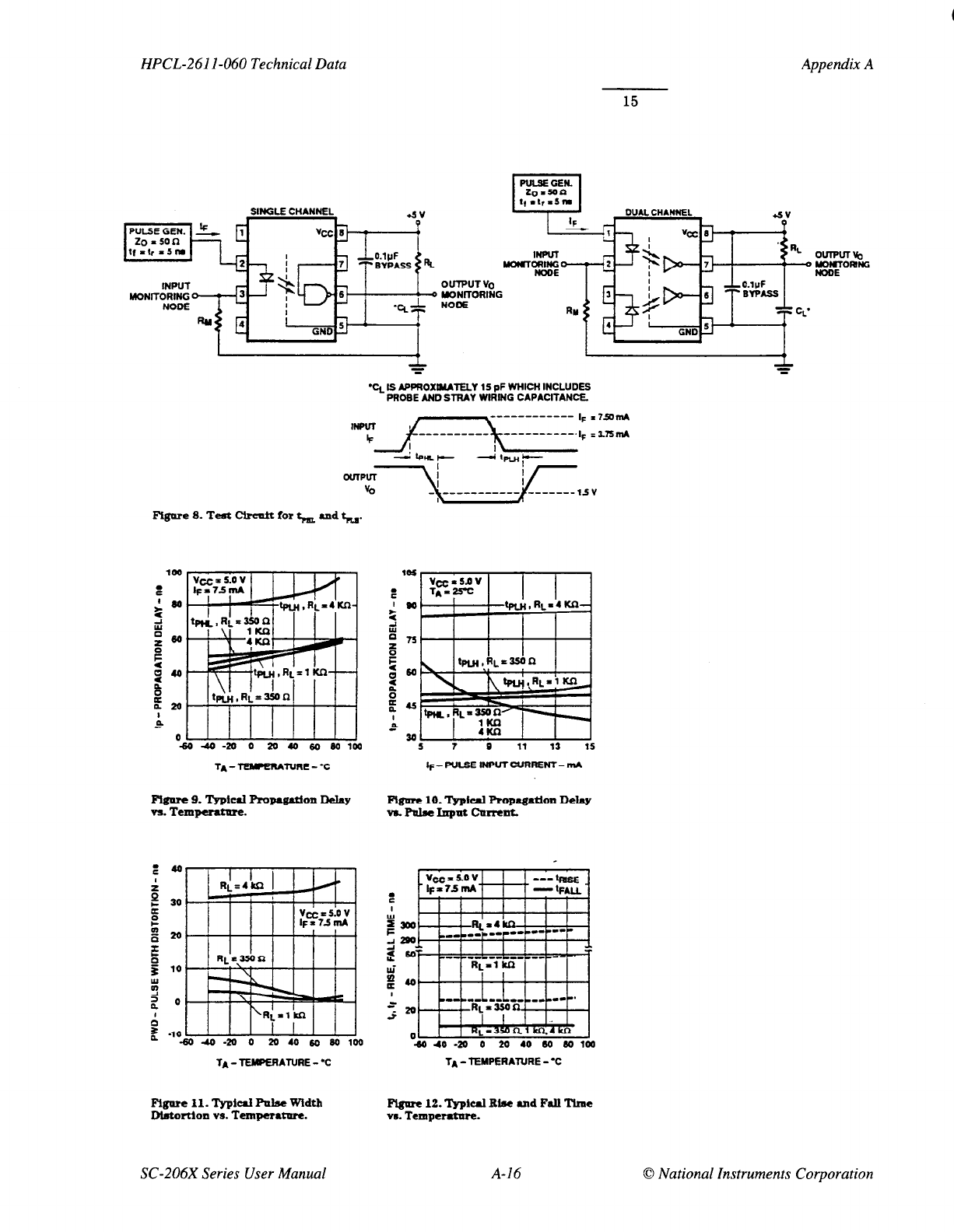

• Appendix A, HCPL-2611-060 Technical Data, contains technical data on the
Hewlett-Packard Company high-speed TTL compatible optocoupler.

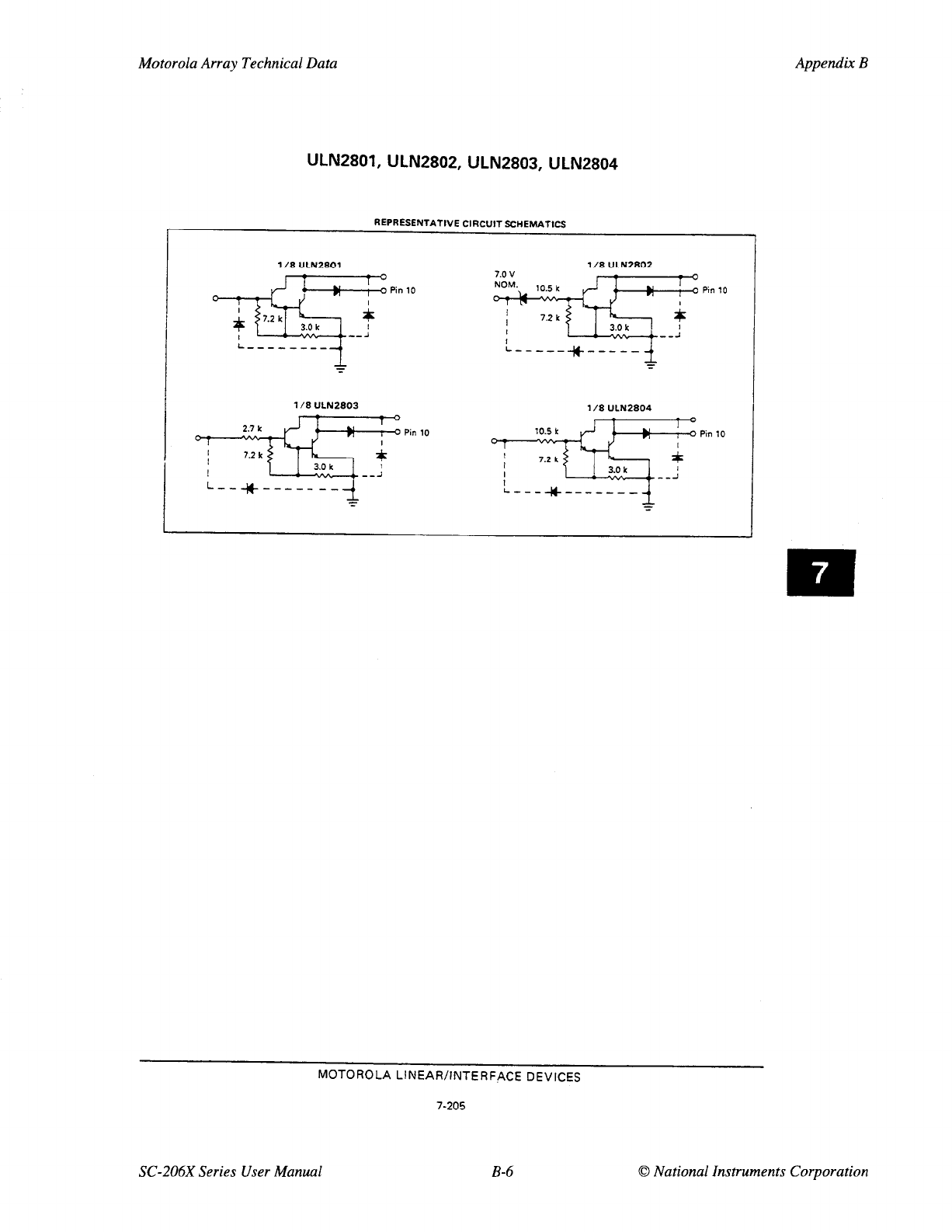

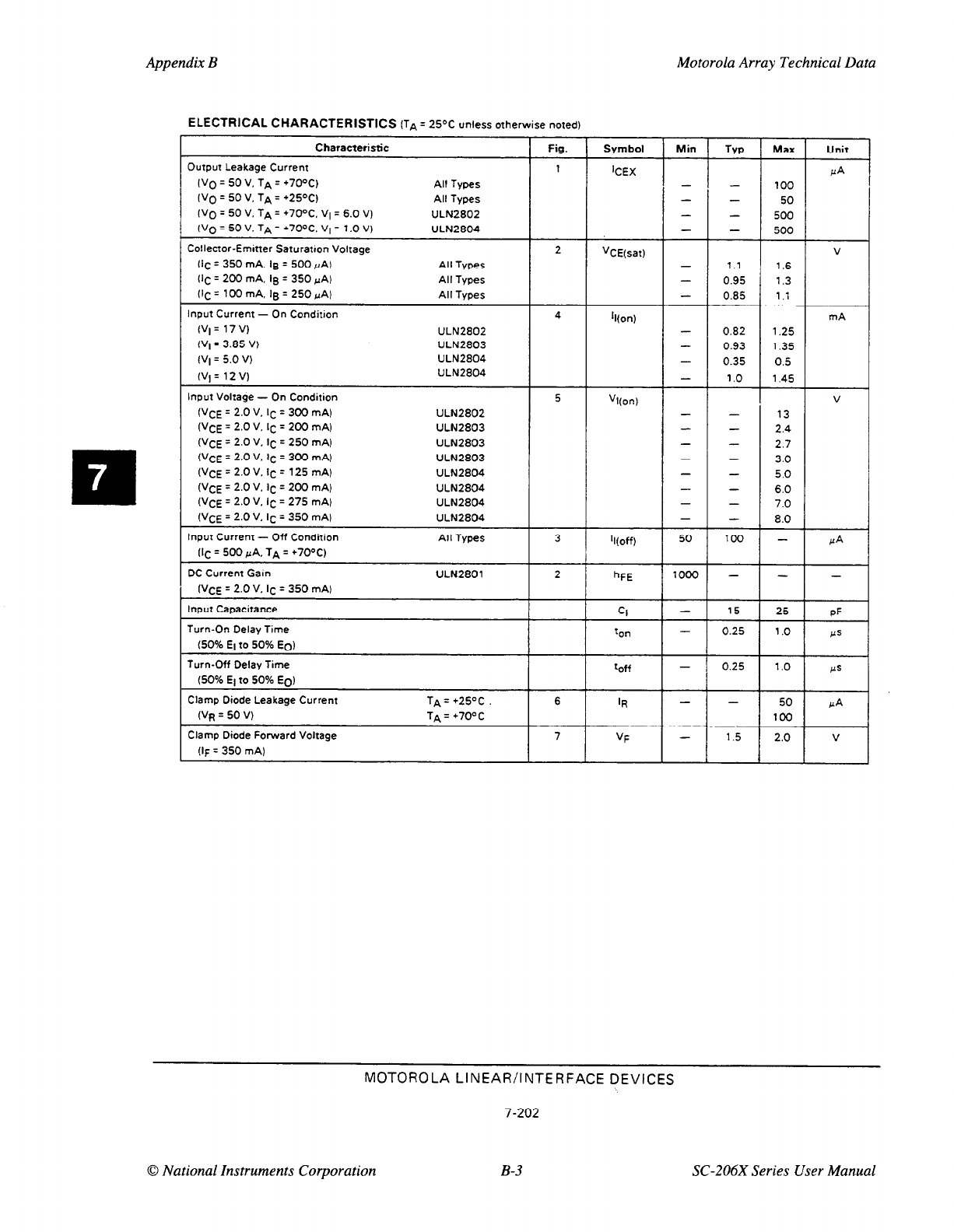

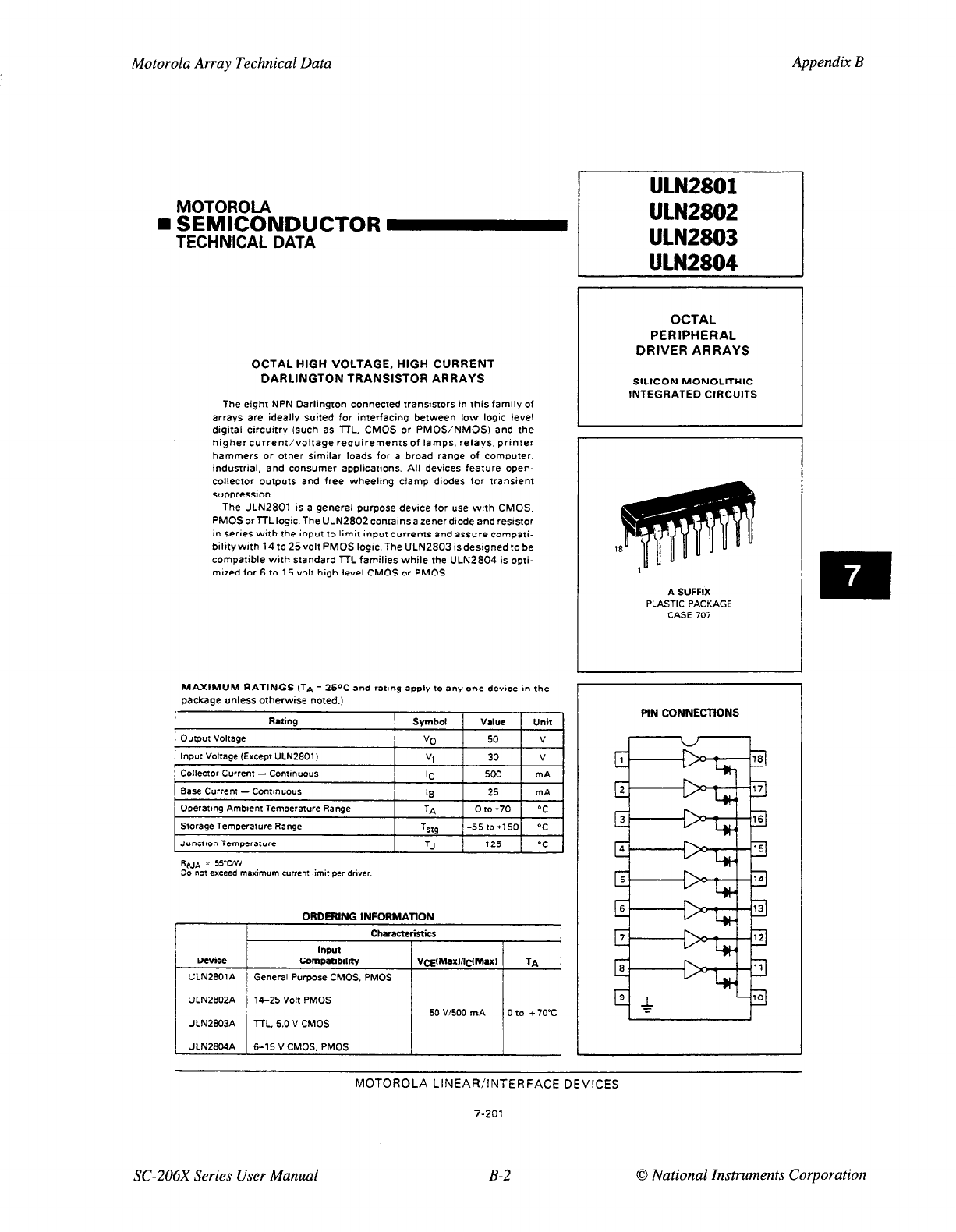

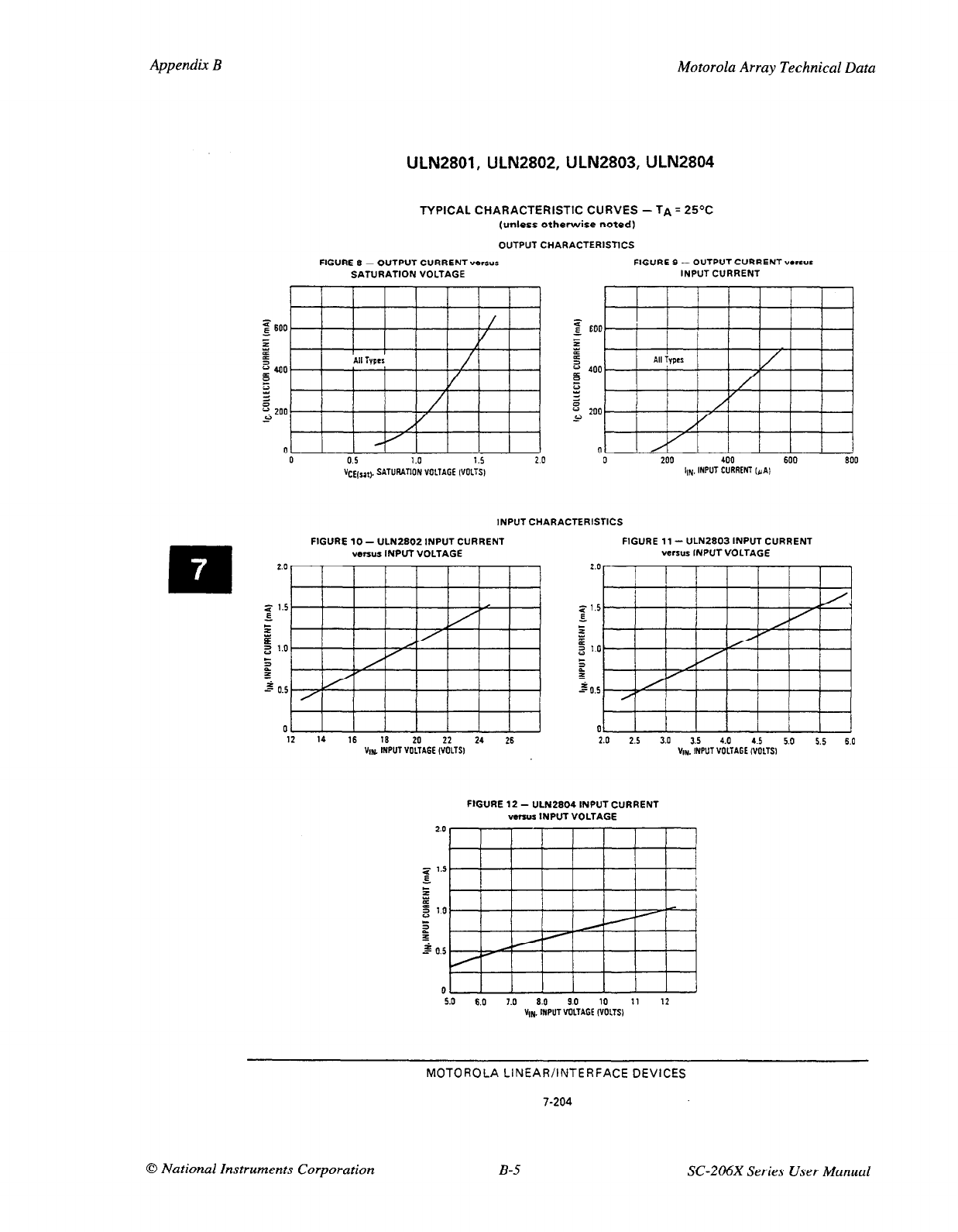

• Appendix B, Motorola Array Technical Data, contains technical data on the Motorola
Corporation ULN2801 array.

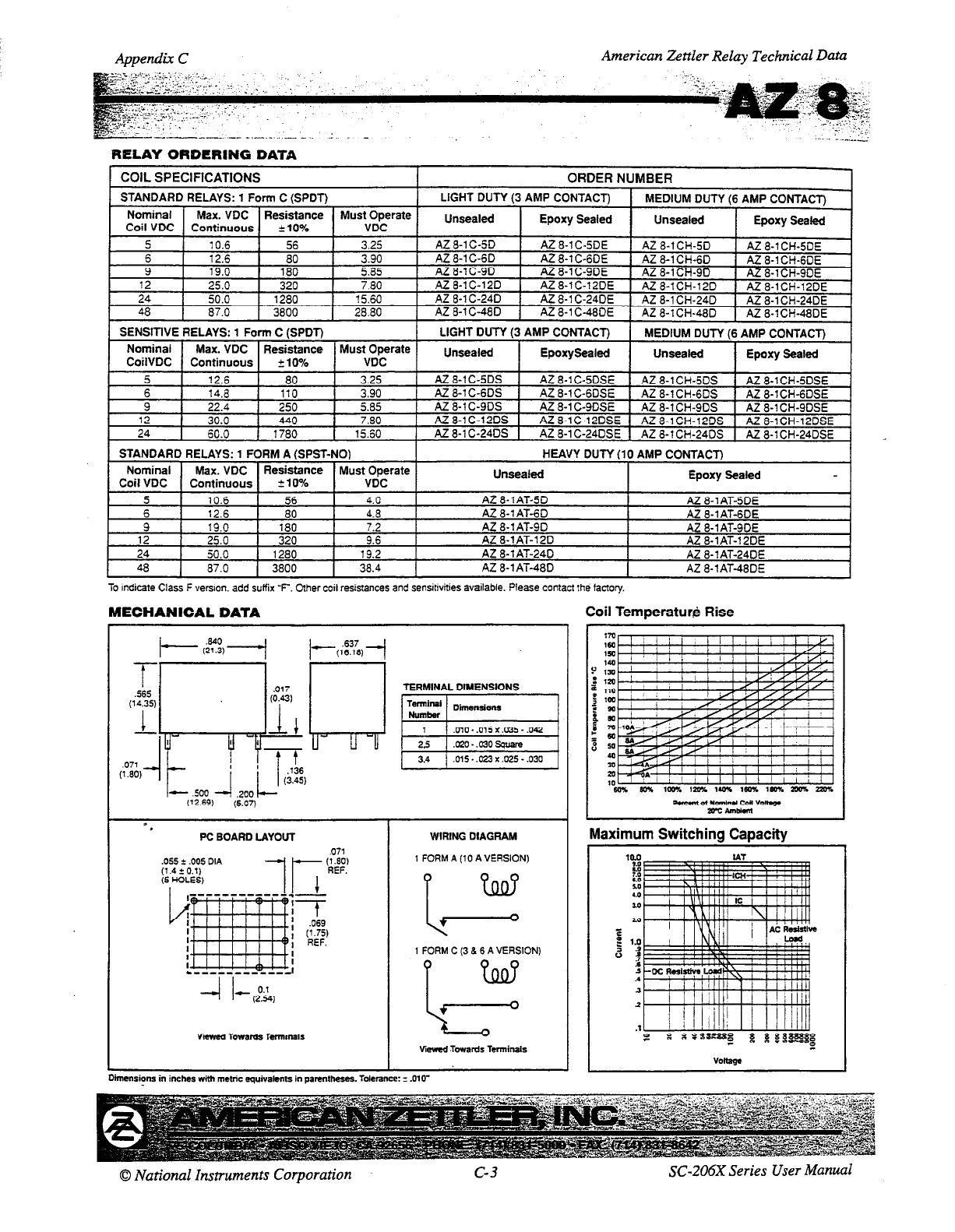

• Appendix C, American Zettler Relay Technical Data, contains technical data on American
Zettler Corporation relays.
• Appendix D, Customer Communication, contains forms you can use to request help from
National Instruments or to comment on our products and manuals.
• The Glossary contains an alphabetical list and description of terms used in this manual,
including abbreviations, acronyms, metric prefixes, mnemonics, and symbols.
• The Index contains an alphabetical list and description of terms in this manual, including the
page where you can find each one.
About This Manual
SC-206X Series User Manual x © National Instruments Corporation
Conventions Used in This Manual
The following conventions are used in this manual:
italic Italic text denotes emphasis or a cross reference.
MIO-16 MIO-16 refers to the AT-MIO-16, AT-MIO-16D, AT-MIO-16F-5,
AT-MIO-16X, AT-MIO-64F-5, MC-MIO-16, NB-MIO-16, and
NB-MIO-16X boards.
DIO-24 DIO-24 refers to the PC-DIO-24, MC-DIO-24, and NB-DIO-24 boards.
DIO-32F DIO-32F refers to the AT-DIO-32F, MC-DIO-32F, and NB-DIO-32F
boards.
DIO-96 DIO-96 refers to the PC-DIO-96 and NB-DIO-96 boards.
Lab boards Lab boards refers to the Lab-PC+ and Lab-NB boards.
PS/2 PS/2 refers to IBM Personal System/2 computers.
PC/XT/AT PC/XT/AT refers to IBM PC/XT, PC AT, and compatible computers.
Abbreviations, acronyms, metric prefixes, mnemonics, symbols, and terms are listed in the
Glossary.
Related Documentation
The following National Instruments document contains information that may be helpful as you
read this manual:
•SC-205X Series User Manual (part number 320385-01)
The following National Instruments documents may also be helpful to you depending on the type
of system you are using with your SC-206X Series boards.
• Macintosh NuBus users
-Lab-NB User Manual (part number 320174-01)
-NB-DIO-24 User Manual (part number 320094-01)
-NB-DIO-32F User Manual (part number 320095-01)
-NB-MIO-16 User Manual (part number 320295-01)
-NB-MIO-16X User Manual (part number 320157-01)
About This Manual
© National Instruments Corporation xi SC-206X Series User Manual
• IBM PC/XT and PC AT users
-AT-DIO-32F User Manual (part number 320147-01)
-AT-MIO-16 User Manual (part number 320146-01)
-AT-MIO-16D User Manual (part number 320489-01)
-AT-MIO-16F-5 User Manual (part number 320266-01)
-AT-MIO-16X User Manual (part number 320488-01)
-AT-MIO-64F-5 User Manual (part number 320487-01)
-Lab-PC+ User Manual (part number 320502-01)
-PC-DIO-24 User Manual (part number 320288-01)
-PC-DIO-96 User Manual (part number 320289-01)
• IBM PS/2 Micro Channel users
-MC-DIO-24 User Manual (part number 320129-01)
-MC-DIO-32F User Manual (part number 320128-01)
-MC-MIO-16 User Manual (part number 320130-01)
Customer Communication
National Instruments wants to receive your comments on our products and manuals. We are
interested in the applications you develop with our products, and we want to help if you have
problems with them. To make it easy for you to contact us, this manual contains comment and
configuration forms for you to complete. These forms are in Appendix D, Customer
Communication.
© National Instruments Corporation 1-1 SC-206X Series User Manual
Chapter 1
Introduction
This chapter describes the SC-206X Series boards; lists the contents of your SC-206X Series kit;
describes the optional equipment and software support; and explains how to unpack your SC-206X
Series board.
The SC-206X Series consists of three digital signal conditioning boards (the SC-2060, SC-2061, and
SC-2062) you can use with the National Instruments data acquisition boards. The SC-2060 optically
isolated digital input board isolates digital signals received by data acquisition boards from the power
system of the host computer. The SC-2061 optically isolated digital output board isolates digital
signals sent by data acquisition boards used in systems that are isolated from the power of the host
computer. The SC-2062 electromechanical relay digital output board has eight electromechanical
relays controlled by digital output signals from the data acquisition boards. You can use the SC-206X
Series boards for digital signal conditioning on the Macintosh NuBus computers with the NB Series
and Lab-NB boards, the IBM Personal System/2 (PS/2) Micro Channel computers with the MC Series
boards, and IBM PC/XT/AT and compatible computers with the AT Series and Lab-PC+ boards.
Table 1-1 lists the data acquisition host boards that you can use with the SC-206X Series boards.
Table 1-1. Data Acquisition Boards for Use with SC-206X Series Boards
AT Series Boards
(PC AT) MC Series Boards
(IBM PS/2) NB Series Boards
(Macintosh II) Lab Series Boards
(PC/XT and
Macintosh NuBus)
AT-DIO-32F MC-DIO-24 NB-DIO-24 Lab-LC
AT-MIO-16 MC-DIO-32F NB-DIO-32F Lab-NB
AT-MIO-16D MC-MIO-16 NB-DIO-96 Lab-PC+
AT-MIO-16F-5 NB-MIO-16
AT-MIO-16X NB-MIO-16X
AT-MIO-64F-5
PC-DIO-24
PC-DIO-96
Note: MIO-16 board refers to the AT-MIO-16F-5, AT-MIO-16, AT-MIO-16D, AT-MIO-16X,
AT-MIO-64F-5, MC-MIO-16, NB-MIO-16X, and NB-MIO-16 boards. DIO-24 board
refers to the PC-DIO-24, MC-DIO-24, and NB-DIO-24 boards. DIO-32F board refers to
the AT-DIO-32F, MC-DIO-32F, and NB-DIO-32F boards. Lab board refers to the Lab-
PC+ and Lab-NB boards. DIO-96 board refers to the PC-DIO-96 and NB-DIO-96 boards.
Each of the SC-206X Series boards connects to the host data acquisition board (MIO-16, DIO-24,
DIO-32F, DIO-96, or Lab) via a corresponding SC-205X Series cable adapter board designed for the
data acquisition board you are using. This adapter board connects the specified SC-206X Series board
to the desired 8-bit digital port of the host board. Figure 1-1 illustrates an SC-2060 board connection.
Introduction Chapter 1
SC-206X Series User Manual 1-2 © National Instruments Corporation
Figure 1-1. SC-2060 Board Connected to Host Data Acquisition Board
Via an SC-2050 Board
The SC-206X Series boards are circuit board assemblies that are external to the host computer.
Standoffs are attached to the boards so they can sit on a workbench near the host computer.
Alternatively, you can mount the SC-206X Series boards in a 19 in. metal chassis for rack mounting.
You can attach a flat acrylic plastic cover or a metal wraparound cover to the chassis. Input signals are
attached at screw terminals along one edge of the SC-206X Series boards.
Figure 1-2 shows the SC-2060 mounted in a 19 in. rack mount with an SC-2050 mounted alongside it.
Figure 1-2. SC-2060 Boards and SC-2050 Board Mounted in 19 in. Rack Mount
with Connection to Host Data Acquisition Board
Chapter 1 Introduction
© National Instruments Corporation 1-3 SC-206X Series User Manual
What Your Kit Should Contain
The contents of the SC-206X Series kits are as follows. Notice that there are two versions of each
board kit. One version contains a 0.2 m cable, and the other version contains a 0.4 m cable.
Kit Name Kit Components Part Number
SC-2060 kit SC-2060 board 180925-01
(776336-00) SC-206X Series User Manual 320200-01
with 0.2 m cable Type NB7 0.2 m cable 180924-02
SC-2060 kit SC-2060 board 180925-01
(776336-10) SC-206X Series User Manual 320200-01
with 0.4 m cable Type NB7 0.4 m cable 180924-04
SC-2061 kit SC-2061 board 180930-01
(776336-01) SC-206X Series User Manual 320200-01
with 0.2 m cable Type NB7 0.2 m cable 180924-02
SC-2061 kit SC-2061 board 180930-01
(776336-11) SC-206X Series User Manual 320200-01
with 0.4 m cable Type NB7 0.4 m cable 180924-04
SC-2062 kit SC-2062 board 180935-01
(776336-02) SC-206X Series User Manual 320200-01
with 0.2 m cable Type NB7 0.2 m cable 180924-02
SC-2062 kit SC-2062 board 180935-01
(776336-12) SC-206X Series User Manual 320200-01
with 0.4 m cable Type NB7 0.4 m cable 180924-04
Contact National Instruments if your kit is missing any of its components or if you received the wrong
version.
Software
The SC-206X Series boards require no additional software beyond that you are using for your data
acquisition board. The digital I/O lines of the host board control all the SC-206X Series functions.
Introduction Chapter 1
SC-206X Series User Manual 1-4 © National Instruments Corporation
Optional Equipment
Equipment Part Number
Rack-mount kit with acrylic plastic cover
Single-height 180636-01
Double-height 180636-02
Rack-mount kit with metal wraparound cover
Single-height 181080-01
Double-height 181080-02
Unpacking
Your SC-206X Series board is shipped in an antistatic package to prevent electrostatic damage to the
board. Electrostatic discharge can damage several components on the board. To avoid such damage
when handling the board, take the following precautions:
• When handling the board, use a ground strap or touch the antistatic package to a metal chassis that
is connected to each ground before removing the board from the package.
• Remove the board from the package and inspect the board for loose components or any other sign
of damage. Notify National Instruments if the board appears damaged in any way. Do not connect
a damaged board to your computer.
Chapter 2
SC-2060 Board
This chapter describes the SC-2060 board in detail including function, compatibility,
specifications, mounting, and connection.
With the SC-2060 optically isolated digital input board, you can easily connect field digital
signals to a computer equipped with a National Instruments data acquisition board. With the
appropriate SC-205X Series board, the SC-2060 can have input isolation for the National
Instruments data acquisition boards for the Macintosh II, IBM PS/2 Micro Channel, and
PC/XT/AT computers.
Each SC-2060 board has screw terminals for eight input channels. Each input screw terminal is
optically isolated from the digital I/O pins of the data acquisition board and from the other input
terminals up to a working voltage of 300 Vrms. This feature is useful in many situations,
especially in industrial and other monitoring environments where common mode voltages are
present.
Figure 2-1 shows the parts locator diagram for the SC-2060 board.
External Power Screw
rerminal Block - Switch Sl
26-pin Connector
PWR
Buffer
Screw Terminal
Blocks
Figure 2-l. SC-2060 Board Parts Locator Diagram
0 National Instruments Corporation 2-1 SC-206X Series User Manual
SC-2060 Board Chapter 2
SC-206X Series User Manual 2-2 © National Instruments Corporation
The 26-pin connector (J1) attaches to the appropriate SC-205X Series board via a 26-pin conductor
cable. You can connect an external +5 V power supply to the external power screw terminal block (J2)
if required. To determine if an external +5 V supply is necessary, refer to Internal or External Power
Selection in Chapter 5. Switch S1 selects either internal or external power. The buffer improves the
logic levels of the outputs from the optocouplers to the host data acquisition board. The optocouplers
isolate digital input signals connected to screw terminals IN0 through IN7 (on J3 through J10) from the
computer. The Vcc terminal of each pair (J3 through J10) of the contacts connects to the power
reference (Vcc) for the digital signal at the corresponding INx, where x represents any channel number
from zero through seven.
The digital input circuitry is positive logic; that is, a high input signal produces a high input state at the
host data acquisition board. The SC-2060 has eight channels of optocoupler input. For each channel,
the digital signal must connect to the channel screw terminals along with its voltage reference signal
(Vcc). The SC-2060 accepts many types of digital signals, including TTL, CMOS logic, and even
voltage references other than +5 V. However, the SC-2060 input circuitry must not carry more than 20
mA (that is, the difference between the voltage reference and the input signal at the terminals must not
exceed 8.4 V) to avoid damage to the board. You can add additional resistance in series with the input
circuitry to keep the current below 20 mA for voltage differences greater than 8.4 V. Figure 2-2 shows
the 5 V power circuit for the SC-2060 board. Figure 2-3 shows an equivalent circuit for the input
channels.
1
2
3
1 K
D2
+5 V
Jumper
S1
Conn 5 V
From DAQ Board Connector (J1)
F2
F1
J2
5 V
External
Power
GND
0.5 A
0.5 A IN4001 INT
EXT
Figure 2-2. SC-2060 Power Circuit
INx
+Vccx
J3 through J10
IIL
1/4 W
IN4148 IN4148
L5541
20
AX
10
YX
DIOX
TO J1
(DAQ Board)
300
HCPL-2611-060
Opto-coupler
+5 V
4.7 k
Ω
Figure 2-3. Onboard Equivalent Circuit
Chapter 2 SC-2060 Board
© National Instruments Corporation 2-3 SC-206X Series User Manual
Warnings: When connecting or disconnecting signal lines to the screw terminals, you must power off
the lines. Potential differences between the lines and the SC-2060 ground create a shock
hazard while connecting the lines.
Connections, including power signals to ground and vice versa, that exceed any of the
maximum input or output signal ratings on the SC-2060 board can result in damage to any
or all of the boards connected to the SC-206X Series, to the host computer, and to the SC-
2060 board. National Instruments is not liable for any damages resulting from incorrect
signal connections.
Specifications
The following sections list the specifications of the SC-2060 digital signal conditioning accessory
board. These ratings are typical at 25° C unless otherwise stated. The operating temperature range for
this board is 0° to 70° C.
Optically Isolated Digital Input
Number of channels Eight
Isolation
Working voltage 300 Vrms (minimum) channel-to-channel or
channel-to-ground
Note: This product complies with IEC-1010 for Voltage Installation Category II Pollution Degree 2.
Common-mode rejection
Typical 500 V/µs
Minimum 100 V/µs
Data rate Up to maximum speed of host board (500 kHz)
Propagation delay tPLH = 75 ns (typical) with IIL = 7 mA
tPHL = 45 ns (typical) with IIL = 7 mA
Input
Compatibility Most TTL and CMOS logic
Input impedance 300 Ω ± 10%, 0.25 W (maximum)
Maximum current IIL = 20 mA (maximum)
Field connections Two screw terminals per channel
SC-2060 Board Chapter 2
SC-206X Series User Manual 2-4 © National Instruments Corporation
Power Requirement (from Host Board or External Power Supply)
Power consumption (at +5 VDC)
Typical 71 mA ±5% with all inputs low
111 mA ±5% with all inputs high
Maximum 210 mA
Note: The power specifications pertain to the power supply of the host computer when using
internal power or to the external supply connected at screw terminal J2 when using external
power.
Physical
Board dimensions (including standoffs) 5.2 by 4.9 by 1.8 in.
I/O connectors 18 screw terminals
One 26-pin male ribbon-cable connector
Operating Environment
Temperature 0° to 70° C
Relative humidity 5% to 90% noncondensing
Storage Environment
Temperature -55° to 125° C
Relative humidity 5% to 90% noncondensing
Mounting and Connection to Data Acquisition Boards
The SC-2060 has metal standoffs so the board can sit on a workbench near the host computer. You
can use an optional rack-mount chassis, which can be fitted with a flat acrylic plastic cover. The SC-
2060 grounds to its metal standoffs, and thus to the rack, when it is mounted in the chassis.
Warning: The SC-2060 must be completely enclosed if any onboard voltages or voltage differences
across the optoisolators can exceed 30 V.
The SC-2060 connects to the data acquisition boards listed in Table 2-1 via the appropriate
SC-205X Series cable adapter board.
Chapter 2 SC-2060 Board
© National Instruments Corporation 2-5 SC-206X Series User Manual
Table 2-1. Data Acquisition Boards for Use with the SC-2060 Board
SC-205X Series Boards
SC-2050 SC-2051 SC-2052 SC-2053 SC-2054
Host Data
Acquisition
Boards
AT-MIO-16
AT-MIO-16D
AT-MIO-16F-5
AT-MIO-16X
AT-MIO-64F-5
MC-MIO-16
NB-MIO-16
NB-MIO-16X
AT-MIO-16D
MC-DIO-24
NB-DIO-24
PC-DIO-24
AT-DIO-32F
MC-DIO-32F
NB-DIO-32F
Lab-LC
Lab-NB
Lab-PC+
PC-DIO-96
A 26-pin ribbon cable connector connects the SC-2060 board to a digital I/O connector on an
SC-205X Series cable adapter board. The SC-205X Series board connects to the data acquisition
board with a 50-conductor or 100-conductor ribbon cable. You can connect the SC-2060 to any digital
I/O port on any SC-205X Series board. The digital I/O port that is connected to the
SC-2060 must be configured and operated on the data acquisition board as input only. For more
information on mounting and connection, see Chapter 5, Installation and Operation.
Chapter 3
SC-2061 Board
This chapter describes the SC-2061 board in detail including function, compatibility,
specifications, mounting, and connection.
With the SC-2061 optically isolated digital output board, you can easily control field digital
signals from a computer equipped with a National Instruments data acquisition board. With the
appropriate SC-205X Series board, the SC-2061 can have input isolation for the National
Instruments data acquisition boards for the Macintosh II, IBM PS/2 Micro Channel, and
PC/XT/AT computers.
The SC-2061 board has eight output channels at its screw terminals that are optically isolated
from the computer up to a working voltage of 300 Vrms. You can use these boards in many
situations, especially in industrial and other control environments where common mode voltages
are present. The SC-2061 accommodates output signals that switch at rates up to 500 kHz.
Figure 3-l shows the parts locator diagram for the SC-2061 board.
External Power Screw - Switch Sl
rerminal Block - /
26-pin Connector
Screw Terminal
Blocks
Figure 3- 1. SC-2061 Board Parts Locator Diagram
The 26-pin connector (Jl) attaches to the appropriate SC-205X Series board via a 26-pin
conductor cable. You can connect an external +5 V power supply to the external power screw
terminal block (J2) if required. To determine if an external +5 V supply is necessary, refer to
Znternal or External Power Selection in Chapter 5. Switch S 1 selects between internal and
external power. The buffer improves the logic levels of the inputs from the optocouplers to the
0 National Instruments Corporation 3-1 SC-206X Series User Manual
SC-2061 Board Chapter 3
SC-206X Series User Manual 3-2 © National Instruments Corporation
The output channels are labeled OUT0 through OUT7 at the screw terminals. The SC-2061 has
three screw terminals per channel–GND, OUTx , where x is any channel number (0 through 7), and
+5 V. The lines between +5 V and GND indicate the boundary between channels.
The digital output of the SC-2061 is positive logic; that is, high output states from the data
acquisition board create high output at the screw terminals. The SC-2061 has eight channels of
optocoupler output. The digital output signal and its reference ground must connect at the screw
terminals. A +5 VDC power supply must also connect at the screw terminals. The digital output
signal must be pulled up. National Instruments recommends using a 4.7 kΩ resistor to the
+5 VDC line for the SC-2061. Because the output lines are open-collector lines, you must use
pullup resistors to obtain valid output from the board. Figure 3-2 shows the 5 V onboard
equivalent circuit for the SC-2061 board.
GND (isolated)
Recommended pullup
resistor to be installed
by user to get valid
TTL levels at OUT
L5541
20
AX
From
plug-in
board
YX
HPCL-2611-060
Opto-coupler
270
OUT (isolated)
+5 V (isolated)
SC-2061 Field Connections
(single channel is shown)
DIOX
Ω
IN4148 IN4148
+5 V
GND (isolated)
4.7 k
OUT (isolated)
+5 V (isolated)
Ω
Figure 3-2. SC-2061 Onboard Equivalent Circuit
Warnings: When connecting or disconnecting signal lines to the screw terminals, you must power
off the lines. Potential differences between the lines and the SC-2061 ground create a
shock hazard while connecting the lines.
Connections, including power signals to ground and vice versa, that exceed any of the
maximum input or output signal ratings on the SC-2061 board can result in damage to
any or all of the boards connected to the SC-206X Series, to the host computer, and to
the SC-2061 board. National Instruments is not liable for any damages resulting from
incorrect signal connections.
Chapter 3 SC-2061 Board
© National Instruments Corporation 3-3 SC-206X Series User Manual
Specifications
The following sections list the specifications of the SC-2061 digital signal conditioning accessory
board. These ratings are typical at 25° C unless otherwise stated. The operating temperature range
for this board is 0° to 70° C.
Optically Isolated Digital Output
Number of channels Eight
Isolation
Working voltage 250 Vrms channel-to-channel
300 Vrms channel-to-ground
Note: This product complies with IEC-1010 for Voltage Installation Category II Pollution
Degree 2.
Common-mode rejection
Typical 500 V/µs
Minimum 100 V/µs
Data rate Up to maximum speed of host board (500 kHz)
Propagation delay
Typical (with 4.7 kΩ pullup to +5 VDC) tPLH = 110 ns
tPHL = 45 ns
Output
Type Open-collector
Compatibility TTL-compatible
Fan-out 10 (using 4.7 kΩ pullup resistor at +5 VDC)
Voltage Must pull up to +5 VDC only
Low level output current 15 mA (using 350 Ω pullup resistor at +5 VDC)
Field connections Three screw terminals per channel
Power Requirement (from Host Board or External Power Supply)
Power consumption (at +5 VDC)
Typical 21 mA ±5% with all outputs low
77 mA ±5% with all outputs high
Maximum 130 mA
Note: The power specifications pertain to the power supply of the host computer when using
internal power or to the external supply connected at screw terminal J2 when using
external power.
SC-2061 Board Chapter 3
SC-206X Series User Manual 3-4 © National Instruments Corporation
Physical
Board dimensions (including standoffs) 5.2 by 4.9 by 1.8 in.
I/O connectors One 26-pin male ribbon-cable connector
26 screw terminals
Operating Environment
Temperature 0° to 70° C
Relative humidity 5% to 90% noncondensing
Storage Environment
Temperature -55° to 125° C
Relative humidity 5% to 90% noncondensing
Mounting and Connection to Data Acquisition Boards
The SC-2061 has metal standoffs so the board can sit on a workbench near the host computer. You
can use an optional rack-mount chassis, which can be fitted with a flat acrylic plastic cover. The
SC-2061 grounds to its metal standoffs, and thus to the rack, when it is mounted in the chassis.
Warning: The SC-2061 must be completely enclosed if any onboard voltages or voltage
differences across the optoisolators can exceed 30 V.
The SC-2061 connects to the data acquisition boards listed in Table 3-1 via the appropriate
SC-205X Series cable adapter board.
Table 3-1. Data Acquisition Boards for Use with the SC-2061 Board
SC-205X SeriesBoards
SC-2050 SC-2051 SC-2052 SC-2053 SC-2054
Host Data
Acquisition
Boards
AT-MIO-16
AT-MIO-16D
AT-MIO-16F-5
AT-MIO-16X
AT-MIO-64F-5
MC-MIO-16
NB-MIO-16
NB-MIO-16X
AT-MIO-16D
MC-DIO-24
NB-DIO-24
PC-DIO-24
AT-DIO-32F
MC-DIO-32F
NB-DIO-32F
Lab-LC
Lab-NB
Lab-PC+
PC-DIO-96
A 26-pin ribbon cable connector connects the SC-2061 board to a digital I/O connector on an
SC-205X Series cable adapter board. The SC-205X Series board connects to the data acquisition
board with a 50-conductor or 100- conductor ribbon cable. You can connect the SC-2061 to any
digital I/O port on any SC-205X Series board. The digital I/O port that is connected to the
SC-2061 must be configured and operated on the data acquisition board as output only. For more
information on mounting and connection, see Chapter 5, Installation and Operation.
SC-2062 Board Chapter 4
SC-206X Series User Manual 4-2 © National Instruments Corporation
The 26-pin connector (J1) attaches to the appropriate SC-205X Series board via a 26-pin
conductor cable. You can connect an external +5 V power supply to the external power screw
terminal block (J2) if required. To determine if an external +5 V supply is necessary, refer to
Internal or External Power Selection in Chapter 5. Switch S1 selects between internal and
external power. The driver amplifies the logic-level signals from the host data acquisition board
to levels sufficient to drive the relays. The relays open and close connections made at the screw
terminals (J3 through J10).
There are three connections per channel–NC, NO, and COM. There is a small gap between
screw terminal blocks of adjacent channels. Figure 4-1 shows the locations of the screw
terminals and other major board components.
The SC-2062 has eight sets of relay contacts. While a channel receives a low output signal, the
relay for that channel remains unenergized and the NC contact shorts to COM while the NO
contact remains open. When a high output signal is present on a channel, the relay for that
channel is energized, and the NO contact shorts to COM while the NC contact is open. A green
indicator LED just above each relay illuminates when the relay is energized. Each energized
relay requires about 60 mA, so power consumption goes up dramatically as the number of
energized relays increases. To reduce power consumption and to help extend relay life, control
the signals so that relays are energized for only the shortest periods of time and simultaneously a
minimal number of relays are energized. Figure 4-2 shows the 5 V onboard equivalent circuit
for the SC-2062 board.
NC (normally closed)
NO (normally open)
COM (common)
+5 V
1 k
Ω
LED
10
ULN2803
High-Current Buffer
9
(From
plug-in
board)
DIOX
J1
J
Figure 4-2. SC-2062 5 V Onboard Equivalent Circuit
Warnings: When connecting or disconnecting signal lines to the screw terminals, you must
power off the lines. Potential differences between the lines and the SC-2062
ground create a shock hazard while connecting the lines.
Connections, including power signals to ground and vice versa, that exceed any of
the maximum input or output signal ratings on the SC-2062 can result in damage to
any or all of the boards connected to the SC-206X Series, to the host computer, and
to the SC-2062 board. National Instruments is not liable for any damages resulting
from incorrect signal connections.
Chapter 4 SC-2062 Board
© National Instruments Corporation 4-3 SC-206X Series User Manual
Specifications
The following sections list the specifications of the SC-2062 digital signal conditioning
accessory board. These ratings are typical at 25° C unless otherwise stated. The operating
temperature range for this board is 0° to 70° C.
Electromechanical Relay Digital Output
Digital Input
Iin (ON) 0.93 mA at 3.85 V
Iin (OFF) 65 µA
Number of channels Eight
Relay type SPDT (1 Form C)
Break-before-make
Contact material Gold-plated silver nickel
Contact rating
Noninductive load 6 A at 30 VDC or 250 VAC
170 W or 1,800 VA maximum
Contact life
Mechanical 2 x 107 operations
Electrical 1 x 105 operations (at 6 A, 24 VDC, or 120 VAC)
Contact resistance
Initially 100 mΩ maximum
At end of life 200 mΩ maximum
Working voltage 250 Vrms contact-to-contact
250 Vrms contact-to-ground
Note: This product complies with IEC-1010 for Voltage Installation Category II Pollution
Degree 2.
Turn-on delay (operate time)
Typical 5 ms
Maximum 6 ms
Turn-off delay (release time)
Typical 3 ms
Maximum 3 ms
SC-2062 Board Chapter 4
SC-206X Series User Manual 4-4 © National Instruments Corporation
Power Requirement (from Host Board or External Power Supply)
Field connections 3 screw terminals per channel
Power consumption (at +5 VDC)
All relays energized (typical) 490 mA ±5%
No relays energized (typical) 10 mA ±5%
Maximum 630 mA
Note: The power specifications pertain to the power supply of the host computer when using
internal power or to the external supply connected at screw terminal J2 when using
external power.
Physical
Board dimensions (including standoffs) 5.2 by 4.9 by 1.8 in.
I/O connectors One 26-pin male ribbon-cable connector
26 screw terminals
Operating Environment
Temperature 0° to 70° C
Relative humidity 5% to 90% noncondensing
Storage Environment
Temperature -55° to 130° C
Relative humidity 5% to 90% noncondensing
Mounting and Connection to Data Acquisition Boards
The SC-2062 has metal standoffs so the board can sit on a workbench near the host computer.
You can use an optional rack-mount chassis, which can be fitted with a flat acrylic plastic cover.
The SC-2062 grounds to its metal standoffs, and thus to the rack, when it is mounted in the
chassis.
Warning: The SC-2062 must be completely enclosed if any onboard voltages or any voltages
connected to the relays can exceed 30 V.
Chapter 4 SC-2062 Board
© National Instruments Corporation 4-5 SC-206X Series User Manual
The SC-2062 connects to the data acquisition boards listed in Table 4-1 via the appropriate
SC-205X Series cable adapter board.
Table 4-1. Data Acquisition Boards for Use with the SC-2062 Board
SC-205X SeriesBoards
SC-2050 SC-2051 SC-2052 SC-2053 SC-2054
Host Data
Acquisition
Boards
AT-MIO-16
AT-MIO-16D
AT-MIO-16F-5
AT-MIO-16X
AT-MIO-64F-5
MC-MIO-16
NB-MIO-16
NB-MIO-16X
AT-MIO-16D
MC-DIO-24
NB-DIO-24
PC-DIO-24
AT-DIO-32F
MC-DIO-32F
NB-DIO-32F
Lab-LC
Lab-NB
Lab-PC+
PC-DIO-96
A 26-pin ribbon cable connector connects the SC-2062 board to a digital I/O connector on an
SC-205X Series cable adapter board. The SC-205X Series board connects to the data acquisition
board with a 50-conductor or 100-conductor ribbon cable. You can connect the SC-2062 to any
digital I/O port on any SC-205X Series board. The digital I/O port that is connected to the
SC-2062 must be configured and operated on the data acquisition board as output only. For
more information on mounting and connection, see Chapter 5, Installation and Operation.
© National Instruments Corporation 5-1 SC-206X Series User Manual
Chapter 5
Installation and Operation
This chapter describes the hardware installation, signal connections, and operation of the SC-206X
Series boards.
Hardware Installation
The following are general instructions for installing your SC-206X Series board in your computer data
acquisition system. Consult your computer user manual or technical reference manual for specific
instructions and warnings. Notice that the installation instructions are the same for each SC-206X
Series board.
1. Turn the host computer off before making any connections.
2. Install the SC-205X Series cable adapter board that is compatible with the host data acquisition
board you are using. Consult the SC-205X Series User Manual for instructions on the installation
of your SC-2050, SC-2051, SC-2052, SC-2053, or SC-2054 board.
3. It is advisable to use a 19 in. mounting rack or some other protective enclosure if you are using
the SC-206X Series board with high voltage. If you are not using high voltage, skip to Step 4.
Warning: The SC-206X Series boards are for use where high-voltage isolation is necessary or
desired. To ensure operator safety, these boards must be mounted in a suitable enclosure
if they are connected to circuits that may have high voltages (greater than 42 V peak).
The rack-mount kit alone with the acrylic plastic cover does not provide adequate
operator protection unless additional coverage is provided on the top and bottom.
Remember to turn the power off when making any connections to any of these boards,
unless the top and bottom are also covered to prevent unintentional contact with high
voltage wiring.
a. Your SC-206X Series board mounts on one-third of a 19-in. rack chassis. You can mount
two SC-206X Series boards alongside any SC-205X Series cable adapter board except the
SC-2054 board, which occupies half of the rack chassis. You can mount your SC-206X
Series board on the left side, in the center, or on the right side of the 19-in. rack mount as
shown in Figure 5-1.
Installation and Operation Chapter 5
SC-206X Series User Manual 5-2 © National Instruments Corporation
Left
Mounting
Position
Middle
Mounting
Position
Right
Mounting
Position
Figure 5-1. Mounting Locations for SC-205X and SC-206X Series Boards
b. Remove the screws on the bottoms of the four standoffs attached to the board. Use the same
screws to mount your SC-206X Series board to the rack chassis as shown in Figure 5-2. Put
the washers around the screws before you screw them to the rack.
Washer
Screw
Top Washers and Screw
Metal Standoff
Rack Mount
Circuit Board
Lock Washer
Figure 5-2. Attaching a Mountable Board to the Chassis
Notice that the ground for the SC-206X Series board is connected to the metal standoffs
attached to the board. Rack mounting automatically grounds the board to the metal chassis.
• If you are planning to use more than two SC-206X Series boards with one SC-205X Series
board, double-height mounting within one rack-mount chassis is possible. You need a
hardware kit for double-height mounting (see Optional Equipment in Chapter 1). which
consists of two brackets that mount in the rack mount. You can mount a second row of SC-
205X Series and SC-206X Series boards on these brackets the same way you mount the first
row. Figure 5-3 illustrates double-height mounting.
Chapter 5 Installation and Operation
,- Install racks for double-height mounting,
r
First row of boards
mount in bottom of
nount chasis
Figure 5-3. Double-Height Mounting
4. Connect the external power lines to the SC-206X Series board (if required). See Internal
OY External Power Selection later in this chapter to determine whether external power is
required.
5. Connect the SC-206X Series board to the SC-205X Series board using type SC1 ribbon
cable.
6. Connect the field signals to the SC-206X Series board at the screw terminals.
7. Repeat steps three through five to install and connect any additional boards.
8. If desired, attach the appropriate cover to the rack mount. The optional 19-in. rack-mount
accessory (type DAl) kit includes a flat acrylic plastic cover. You install the cover by
sliding it over the rack-mount brackets and using the four screws included in the kit.
9. If the SC-206X Series board has an external +5 V supply, turn the power supply on now. A
red LED labeled PWR illuminates when the board is receiving power.
10. Turn the computer on.
11. When finished, turn off the computer before turning off any external power supplies for the
SC-206X Series board.
0 National Instruments Corporation 5-3 SC-206X Series User Manual
Installation and Operation Chapter 5
SC-206X Series User Manual 5-4 © National Instruments Corporation
Internal or External Power Selection
Switch S1 on each SC-206X Series board selects internal or external +5 V power for that board. If you
set S1 to the position labeled INT, the host computer powers the SC-206X Series board via the host
data acquisition board. If you set S1 to the position labeled EXT, the SC-206X Series board is powered
from an external +5 V source connected to the J2 connector located near the J1 26-pin header.
In many cases, the host data acquisition board can supply enough power to run the SC-206X Series
boards. If the total +5 V power drawn by external accessories (such as the SC-206X Series boards, the
SC-2070 or SC-2071 boards, the AMUX-64T board, and SSR Series boards) exceeds the power
remaining, then some of these accessories must be powered by an external +5 V supply. Also, any
accessories connected to a DIO-32F board must be powered externally because this board does not
supply +5 V power. Table 5-1 shows the amount of power that each data acquisition board can supply
to external accessories.
Table 5-1. Amount of Power Data Acquisition Boards Supply
Board Allotted Power
by Slot Power Used by
Board Power from Board Available
for Accessories
Lab-NB 2.0 A 0.8 A 1A1
NB-DIO-24 2.0 A 0.8 A 1.0 A1
NB-DIO-32F 2.0 A 1.6 A 0 A2
NB-MIO-16 2.0 A 1.5 A 0.5 A
NB-MIO-16X 2.0 A 1.4 A 0.25 A1
AT-DIO-32F No Restriction 1.28 A 0 A2
AT-MIO-16 No Restriction 1.5 A 1 A1
AT-MIO-16D No Restriction 1.7 A 1 A1
AT-MIO-16F-5 No Restriction 1.7 A 1 A1
AT-MIO-16X No Restriction 1.6 A 1 A1
Lab-PC No Restriction 0.6 A 1 A1
Lab-PC+ No Restriction 0.15 A 1 A1
PC-DIO-24 No Restriction 0.16 A 1 A1
PC-DIO-96 No Restriction 0.45 A 1 A1
MC-DIO-24 1.6 A 0.8 A 0.8 A
MC-DIO-32F 1.6 A 1.4 A 0 A2
MC-MIO-16 1.6 A 1.4 A 0.2 A
1These limitations are caused by a series fuse on the +5 V out on these boards, rather than
the remaining power per slot.
2DIO-32F boards do not supply +5 V power.
Chapter 5 Installation and Operation
External Power Screw
Terminal Block
Figure 5-4. Location of the External Power Screw Terminals
Switch S 1, located near the ribbon cable connector J 1, selects internal or external power (see
Figure 5-5). To use external power, set this switch to the position labeled EXT. To use internal
power, set the switch to the position labeled IZV. Figure 5-5 illustrates these switch settings.
The SC-206X Series boards are shipped from the factory with switch S 1 set for internal power.
Internal Power Setting
(factory setting) External Power Setting
Figure 5-5. Power Selection Settings for Switch S 1
SC-206X Series Board Connection
Each of the SC-206X Series boards is connected to the host data acquisition board-NB Series,
MC Series, AT Series, or Lab board-via an SC-205X Series cable adapter board. Figure 5-6
illustrates the connections between the host board and the SC-205X Series boards and between
the SC-205X Series and the SC-206X Series boards. For more information on the SC-205X
Series boards, see the SC-205X
Series User Manual.
0 National Instruments Corporation 5-5 SC-206X Series User Manual
Installation and Operation Chapter 5
SC-206X Series User Manual 5-6 © National Instruments Corporation
MIO-16 SC-2050 SC-206X Series
Digital I/O
DIO-24 SC-2051
DIO-32F SC-2052
SC-206X Series
SC-206X Series
SC-206X Series
SC-206X Series
Digital I/O
Lab Board SC-2053
DIO-96
PORT
-B-
SC-206X Series
SC-206X Series
SC-206X Series
PORT
-C-
PORT
-A-
SC-206X Series
SC-206X Series
SC-206X Series
PORT
-A-
PORT
-C-
PORT
-B-
Digital I/O
SC-2054
PORT
-B-
SC-206X Series
SC-206X Series
SC-206X Series
SC-206X Series
SC-206X Series
SC-206X Series
PORT
-C-
PORT
-A-
PORT
-A-
PORT
-C-
PORT
-B-
Digital I/O
SC-2054
Digital I/O SC-206X Series
SC-206X Series
SC-206X Series
PORT
-A-
PORT
-C-
PORT
-B-
Digital I/O SC-206X Series
SC-206X Series
SC-206X Series
PORT
-A-
PORT
-C-
PORT
-B-
PORT
-A-
PORT
-B-
PORT
-D-
PORT
-C-
Figure 5-6. Connecting SC-206X Series Boards to Data Acquisition Boards
via the SC-205X Series Cable Adapter Boards
Chapter 5 Installation and Operation
© National Instruments Corporation 5-7 SC-206X Series User Manual
For more detailed information about the SC-206X Series boards, see Chapter 2, SC-2060 Board,
Chapter 3, SC-2061 Board, or Chapter 4, SC-2062 Board.
A 26-pin ribbon cable (type SC1) connects your SC-206X Series board to an SC-205X Series board.
Remember to turn the computer or any other device off before making any connections. One end of
the ribbon cable connects to the SC-206X Series board at connector J1.
Figure 5-7 shows the pinouts for cable connector J1 on your SC-206X Series boards.
1
23
21
19
17
15
13
11
9
7
5
3
24
22
20
18
16
14
12
10
8
6
4
2
DIO1
DIO4
DIO5
DIO2
DIO0
DIO3
DIO6
DIO7
+5 V
+5 V
+5 V
+5 V
+5 V 25 26
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
Figure 5-7. Pinout for I/O Connector J1
Pins Signal Names Description
9, 11, 13, 15, DIO<0..7> Digital data lines–DIO7 is the most significant bit;
17, 19, 21, 23 DIO0 is the least significant bit.
1, 3, 5 ,7, 25 +5 V Power from host computer–When you set switch S1 to the
position labeled INT, these pins are connected to power
connections on the SC-206X Series. When you set switch
S1 to the position labeled EXT, these pins are
disconnected from parts on the SC-206X Series.
2, 4, 6, 8, 10, GND Ground–These pins are connected to the ground
12, 14, 16, 18, signal of the SC-206X Series board.
20, 22, 24, 26
Connector J1 is for connection only to an SC-205X Series board at a 26-pin connector labeled Digital
I/O (see Table 5-2). Incorrect connection can result in damage to the SC-206X Series board and all
components connected to the SC-206X Series board, including the host computer. Remember to turn
the host computer off before making any connections. For further information concerning the signal
connections on the SC-205X Series cable adapter boards, consult your SC-205X Series User Manual.
Installation and Operation Chapter 5
SC-206X Series User Manual 5-8 © National Instruments Corporation
The other end of the ribbon cable connects to the SC-205X Series board that you have installed for use
with the host data acquisition board. You should connect your SC-206X Series board only to the 26-
pin connector labeled DIGITAL I/O on your SC-205X Series board. Table 5-2 lists these connectors.
Table 5-2. SC-205X Series Connectors Compatible with SC-206X Series
Board Connector
SC-2050
(for MIO-16 boards) Connector J5, DIGITAL I/O
SC-2051
(for DIO-24 boards) Connector J3, DIGITAL I/O, PORT -C-
Connector J4, DIGITAL I/O, PORT -B-
Connector J5, DIGITAL I/O, PORT -A-
SC-2052
(for DIO-32F boards) Connector J3, DIGITAL I/O, PORT -D-
Connector J4, DIGITAL I/O, PORT -C-
Connector J5, DIGITAL I/O, PORT -B-
Connector J6, DIGITAL I/O, PORT -A-
SC-2053
(for Lab-NB, Lab-PC, and
Lab-PC+ boards)
Connector J4, DIGITAL I/O, PORT -C-
Connector J5, DIGITAL I/O, PORT -B-
Connector J6, DIGITAL I/O, PORT -A-
SC-2054
(for DIO-96 boards) Connector J4, DIGITAL I/O, PPI A/C PORT -C-
Connector J5, DIGITAL I/O, PPI A/C PORT -B-
Connector J6, DIGITAL I/O, PPI A/C PORT -A-
Connector J8, DIGITAL I/O, PPI B/D PORT -C-
Connector J9, DIGITAL I/O, PPI B/D PORT -B-
Connector J10, DIGITAL I/O, PPI B/D PORT -A-
Warning: Do not attempt to connect an SC-206X Series board to any connector
for which it is not designed. Incorrect connection can result in damage
to the SC-206X Series board and all components connected to the SC-
206X Series board, including the host computer. National Instruments
is not liable for any damages resulting from incorrect connections.
The SC-206X Series board operates on the digital port to which it is connected. For example, if you
want digital input isolation on Port B of a DIO-24 board, connect an SC-2060 board to an SC-2051
board at connector J4, labeled DIGITAL I/O, PORT -B-.
Operation
An SC-206X Series board operates on the 8-bit digital port corresponding to the label on its SC-205X
Series connection. To change the digital port that is being conditioned, simply disconnect the SC-
206X Series board from the current port on the SC-205X Series board and reconnect it to the desired
port. Power to the host computer and all external circuitry must be off while disconnecting and
connecting an SC-206X Series board.
Chapter 5 Installation and Operation
© National Instruments Corporation 5-9 SC-206X Series User Manual
Notice that the SC-2060 board has only input capability. Therefore, you must configure and operate
the digital port used with the SC-2060 board as only an input port. Likewise, the SC-2061 and SC-
2062 boards have only output capability. You must configure the digital ports used with either the SC-
2061 board or the SC-2062 board for only digital output.
When using an SC-206X Series board with an MIO-16 and SC-205X Series board, the 8-bit digital
port connected to the signal conditioning board consists of both port A and port B (4-bit ports) from
the MIO-16.
Note: For the MIO-16 boards, both port A and port B are used together as a single 8-bit port. Port A
bits 0 through 3 correspond to SC-206X Series channels 0 through 3 and Port B bits 0 through
3 correspond to SC-206X Series channels 4 through 7.
In this case, you must configure both 4-bit ports to match the operation of the SC-206X Series, that is,
input for the SC-2060 board or output for either the SC-2061 or SC-2062 boards.
Safety Information
! Caution: DO NOT OPERATE THE DEVICE IN AN EXPLOSIVE ATMOSPHERE OR WHERE
THERE MAY BE FLAMMABLE GASES OR FUMES.
Equipment described in this document must be used in an Installation Category
II environment per IEC 664. This category requires local level supply mains-
connected installation.
DO NOT OPERATE DAMAGED EQUIPMENT. The safety protection features built
into this device can become impaired if the device becomes damaged in any
way. If the device is damaged, turn the device off and do not use until service-
trained personnel can check its safety. If necessary, return the device to
National Instruments for service and repair to ensure that its safety is not
compromised.
Do not operate this equipment in a manner that contradicts the information
specified in this document. Misuse of this equipment could result in a shock
hazard.
Terminals are for use only with equipment that has no accessible live parts.
DO NOT SUBSTITUTE PARTS OR MODIFY EQUIPMENT. Because of the danger of
introducing additional hazards, do not install unauthorized parts or modify the
device. Return the device to National Instruments for service and repair to
ensure that its safety features are not compromised.
Installation and Operation Chapter 5
SC-206X Series User Manual 5-10 © National Instruments Corporation
When using the device with high common-mode voltages, you MUST insulate
your signal wires for the highest input voltage. National instruments is NOT
liable for any damages or injuries resulting from inadequate signal wire
insulation. Use only 26-14 AWG wire with a voltage rating of 300 V and 60˚ C
for controlling 250 V. Prepare your signal wire by stripping the insulation no
more than 7 mm.
KEEP AWAY FROM LIVE CIRCUITS. When connecting or disconnecting signal
lines to the terminal block screw terminals, make sure the lines are powered off.
Potential differences between the lines and ground create a shock hazard while
you connect the lines.
Connect the signal wires to the screw terminals by inserting the stripped end of
the wire fully into the terminals. Tighten the terminals to a torque of 5-7 in.-lb.
Connections, including power signals to ground and vice versa, that exceed any
of the maximum signal ratings on the device can create a shock or fire hazard
or can damage any or all of the boards connected to the device and the host
computer, and the device itself. National Instruments is NOT LIABLE FOR ANY
DAMAGES OR INJURIES resulting from incorrect signal connections.
Clean devices and terminal blocks by brushing off light dust with a soft,
nonmetallic brush. Remove other contaminants with deionized water and a
stiff nonmetallic brush. The unit must be completely dry and free from
contaminants before returning to service.
© National Instruments Corporation A-1 SC-206X Series User Manual
Appendix A
HCPL-2611-060 Technical Data*
This appendix contains technical data on the Hewlett-Packard Company HPCL-2611-060 high-
speed TTL compatible optocoupler. The HCPL-2611-060 is used on the SC-2060 and the
SC-2061.
* Copyright © Hewlett-Packard Company. Reprinted with permission of copyright owner. All rights reserved.
HPCL-261 I-060 Technical Data Appendix A
HEWLETT”
PACKARD
High CMR, High Speed TTL
Compatible Optocoupler
Technical Data
6N137
HCNWl37
HCNW2601
HCNW2611
HCPL-0600
HCPL-0601
HCPL-0611
HCPL-0630
HCPL-063 1
HCPL-066 1
HCPL-260 1
HCPL-2611
HCPL-2630
HCPL-263 1
HCPL-4661
Features
l
5 kV/w Minimum Common
Mode Rejection (CMR) at
v&f = 50 V for HCPL-X601/
X631, HCNW2601
and
10 kV&s Minimum ClKR at
v,= 1000 V for HCPL-
X611/X661, HCNW2611
l
High Speed: 10
MBd Typical
l
LSTTIJlTL Compatible
l
Low Input Current
Capability: 5 mA
l
Guaranteed ac and dc
Performance over Temper-
ature:
-40°C to +85”c
l
Available in S-Pin DIP,
SOIC-8, Widebody Packages
l
Strobable Output (Single
Channel Products Only)
l
Safety Approval
UL Recognized - 2500 V rms
for 1 minute and 5000 V rm.s*
for 1 minute per UL1577
CSA Approved
VDE 0884 Approved with
V,, = 630 V w for
HCPL-2611 Option 060 and
V Iom = 1414 V pear for
HCNW137/26Xl
BSI Certified
(HCNW137/26Xl Only)
l
MIL-STD-1772 Version
Available (HCPL-56xX/
66xX>
Applications
l
Isolated Line Receiver
l
Computer-Peripheral
Interfaces
l
Microprocessor System
Interfaces
l
Digital Isolation for A/D,
D/A Conversion
l
Switching Power Supply
l
Instrument Input/Output
Isolation
l
Ground Loop
Elimination
l
Pulse Transformer .
Replacement
Functional Diagram
bN137, HCPL-260112611
HCPL-666GW0110611
HC?W1371Z661/2611
NC -kc
TRUTH TABLE
(T’OSlllVE LOGIC)
l
Power Transistor Isolation
in Motor Drives
l
Isolation of High Speed
Logic Systems
Description
The 6x137, HCPL-26XX/O6XX
4661, HCNW137/26Xl are
optical&coupled gates that
combine a GaAsP light emitting
diode and an integrated high gti
photo detector. An enable input
allows the detector to be strobe&.
The output of the detector IC is
HCPL-263W2631M66l
HCPL-D63WD631/066l
ANODE, “CC
CATHODE, “01
CATHODE 2 “02
ANODE
2
GND
lRlJlH TAEILE
(POSrllVE LOGIC)
5000 V rms/l Minute rating is for HChW137/26Xl and Option 020 (6N137, HCPL260M l/30/31, HCPL4661) products only.
A 0. I pF bypass capacitor must be cmmected between
pins
5 and 8.
CAUlllON: It is advised that normal staiic precauhms be taken in handling and assembly of this
component to prevat damage and/or degradation which may be induced by ESD. 1
SC-206X Series User Manual A-2 0 National Instruments Corporation
HPCL-261 I-060 Technical Data Appendix A
3
Ordering Information
Specify Part Number followed by Option Number (if desired).
Example: HCPL-261 l#XX+
020 = 5000 V rms/l minute UL Rating Option*
060 = VDE 0884 VIORM = 630 Vpeak Option**
300 = Gull Wig Surface Mount Option?
500 = Tape and Reel Packaging Option
Option data sheets available. Contac: Hewlett-Packard sales representative or authorized distributor for
information.
*For 6N137. HCPL-2601/l l/30/31 and HCPL-1661 (8-pin DIP products) O&T-.
**For HCPL2611 only. Combimaaon of Ophoa 020 and Option 060 is not mailable.
tGull wmg suface mount
option applies to tinugh hole parts only.
Schematic
HCPL-263W263W661
HCPL-o63wc631fc661
6N137. HCPL-2661/2611
HCPL-o6w6601/0611
HCNW137. HCNW26OlR611
USE OF A 0.1 MF BYPASS CAPACITOR CONNEC?D
BEfWEEN PINS 5 AND 6 IS RECOMMENDED (SEE NOTE 5).
SHIELD 5
SC-206X Series User Manual A-4 0 National Instruments Corporation
Appendix A HCPL-261 I-060 Technical Data
4
PackageChdine Drawings
&phDIP Pa&age+* (6N137,HCPL-2601/11/30/31, HCPL-4661)
RECOONVlON
I L-I ~1.7w1)m)-
1.16 (0.047) MAX.-
4.76 (0.109 MAX.
-i
m* 4
1
t
0.51 (0220) MN.
262 (0.115) MK
:.:
OPllON NUMBERS 306 AND 506 NOT MARKED.
“JEDEC Regiscred Da& (for 6Nl37 only).
&pinDIPPackagewithGullWmgSnrfaceMountOption300
(6N137,HCPG2601/11/30/31,HCPG4661)
PM LOCATION [FOR REFERENCE ONLY1
,______--_--_- _--__--_--__---.------- ___*_______
t
6356 5 025
(0250 f 0.010)
1
; 3!4fO&- L 0.361
fo.ms)
1 .ne (0:om)
0.635 (0.025)
,____________-______-------------.-------------------
-9 t--3,::%, 6.65 f 0.25
t- -I
(0.300 t 0.010)
‘BSC’
DIKNSIONS N MlUIMEfERS (INCHES).
LEAD mPlANmrm = 0.10 m (0.664 INCHES).
0 National Instruments Corporation A-5 SC-206X Series User Manual
Appendix A HCPL-261 I-060 Technical Data
6
S-Pin Widebody DIP Package with Gull Wing Surface Mount Option 300
@CNw137, HCNW2601/11)
--
1.55
‘OE’
4
4.00 MAX.
itlJLLL~-
(0.155)
J fi
A
1.76*0.15 4 y- w
(0.070*0.006) ~ - - 1.00t0.15
- - 254 0.75 t 0.25 (0.039 t 0.006) + 0.076
%2
(O.rnO t 0.010) --cc 02a- 0.0051
(o.olo:gy
DlW3JSIONS IN YlLLlYmRS (INCHES).
LEAD COPLANARrrY = 0.10 mm (0.004 INCHES). 7-NOM.
Solder Reflow Temperature Profile (HCPL-06xX and
Gull Wing Surface Mount Option 300 Parts)
260
240
220
200
y 180
’ g 160
2 140
( 120
3 loo
g 60
2 60
40
m
0 1 2 3 4 5 6 7 6 9 10 11 12
TIME-UNulES
Note: Use of nonchlorine activated fluxes is highly recommended.
0 National Instruments Corporation A-7 SC-206X Series User Manual
HPCL-261 l-060 Technical Data Appendix A
7
Regulatory Information
The 6N137, HCPL-26XX/OGXX/
46xX, and HCNW137l26XX have
been approved by the following
organizations:
Recognized under UL 15 77,
Component Recognition
Program, Pile E55361.
CSA
Approved under CS.4 Component
Acceptance Notice #5, File CA
88324.
VDE
Approved according to VDE
0884/06.92. (HCPL2611 Option
060 and HC?W137/26Xl only)
BSI
Certification according to
BS415:1994
(BS EN60065: 1994):
BS7002:1992
(BS ES60950: 1992) and
EN41003:1993 for Class Ii
applications. (HCNU’137/26Xl
onb9
Insulation and Safety Related Specifkations
S-pin DIP / Widebody
(300 Ma) so-8 i (400 MB)
Parameter Symbol
Value
VaIue ! Value units Conditions
Minimum External L(101) 7 4.97 j 9.6 nun Measured from input terminais
Air Gap (External to output terminals, shortest
Clearance) ! distance through air.
Minimum External L(102) 7 4.83 10 mm Measured from input terminals
1 Tlacldng(Extemal to output terminals, shortest
! CrefxwiN distance path along body.
/ MinimumIntemal 0.08 0.08 I 1.0 mm Through insukion distance,
/ PlasticGap conductor to conductor, usually
j (Internal Clearance) the direct distance between the
I photoemitter and photodetector
h&de the optocoupler cavity
’ Minimum Intelnal NA M ; 4.0 mm Measured from input terminals
j Tracking (Creepage) to output terminals, along
intelnai cavity.
/ Tracking Resistance CTI 200 200 : 200 Volts DIN lEC 112/VDE 0303 Part 1
/ (Comparative
, Tracking Index)
I Isolation Group ma ma I ILIa Material Group
(DINVDE 0110,1/89, Table 1)
Option 300 - surface mount classification is Class A in accordance with CECC 00802.
SC-206X Series User Manual A-8 0 National Instruments Corporation
Appendix A
VDE 0884 Lnsulation Related Characteristics
HCPL-261 l-060 Technical Data
8
(
r
HCPL-2611 Option 060 Only)
Description
Installation ctisification per DIN VDE 0 11 O/l .89! Table 1
for rated mains voltage 5 300 V rms
for rated rxins voltage 5 450 V rms
Climatic Classification
Pollution Degree (DIN VDE 0110/1.89)
Maximum Working Insulation Voltage
Input to Ouqut Test Voltage, Method b*
Symbol Characteristic Units
, I-IV
VORM
I-IIl
55/85/f! 1
2
630 V peak
VIOL x 1.575 = VPR, 100% Production Test with tm = 1 set,
VPR
1181 V peak
Partial Discharge < 5 pC j
I
Input to Ouqut Test Voltage, Method a*
VIOL x 1.3 = VPR, Type and sample test,
t,.,, = 60 set, Partial Discharge c 5 pC
Highest Allowable Overvoltage*
(Transient Overvoltage, tifi = 10 set)
Safety Limidng Values
(Maximum values allowed in the event of a failure,
also see Fgure 16, Thermal Derating c-e.)
Case Temperature
Input Cxrenc
Output Power
Insulation Resistance at Ts, VIO = 500 V
I
1 VPR
’
%OTM
I
/
j Ts
1 ISJNPLT
1 ps.ouTFm
i Rs
945 V peak
6000 V peak
175 “C
230 mA
600 mW
2 109 L-2
*Refer to the fror; of the optocoupler section of the current catalog, under Product Safety Regulations section (VDK 0884),
for a
detailed descripnon.
Note: Isolation ckaracteristics are guaranteed only witbin the ssfety maximum ratings which must be
ensured by pro-e circuits in
application.
VDE 0884 Insulation Related Characteristics (HCNW137/2601/2611 Only)
VIOL x 1.5 = VPR, Type and sample test,
Safety Limiring Values
(Maximum values allowed in the event of a failure,
also see Figure 16, Thermal Derating curve.)
Case Temperature Ts 150 “C
Input Current
kINPUT
400 mA
Output Power
I %OuTPuT
700 mW
Insulation Resistance at Ts, VI, = 500 V ! Rs 2 109 L-2
*Refer
to the front of the optocoupler section of the current catalog, under
,Producr Safety Regulations
secnon
(VDE 0584). for
a
detailed description
Note: Isdation ctwactmistics are guaranteed only within the safety
maximum ratings which must be ensured
by procecuve circuits in
application.
0 National Instruments Corporation A-9 SC-206X Series User Manual
HPCL-261 I-060 Technical Data Appendix A
9
Absolute Maximum Ratings*
(No Derating Required up to 85T)
Parameter Symbol Package** Mix~ Max. Units ! Note 1
Storage Temperature TS -55 125 “C i
Operating Temperature?
TA
-40 85 “C I
Average Forward Input Current
IF
Single &Pin DIP 20 n-L4 2
Single SO-8
Widebody I I
Dual &Pin DIP 15 1, 3
Dual SO-8 l-l
Reverse Input Voltage
VR
8-Pin DIP. SO-8 5 v I 1
Wrdebody 3
Input Power Dissipation PI Widebody 1 40 mW ~
Suppiy Voltage VCC 7 V
(1 Minute Maximum)
Enable Input Voltage (Not to
VE
Single 8-Pin DIP vcc 4- 0.5 V
Exceed Vcc by more than Single SO-8
500
mV)
Widebody
Enable Input Current
IE
5 ITA !
Output Collector Current IO 50 l-l-A I 1 I
Output Collector Voltage vo 7 v 1
(Selection for Higher Output
Voltages up to 20 V is Available.)
Output Collector Power PO Single 8-Pin DIP 85 mW
Dissipation Single SO-8
Widebody
Dual 8-Pin DIP 60 1, 4
Dual SO-8
Lead Solder Temperature TLS d-Pin DIP 260°C for 10 sec.,
(Through Hole Parts Only) . 1.6 mm below seating plane I
Widebody 260°C for 10 sec.,
up to seating plane
Solder Reflow Temperature SO-8 and See Package Outline
Profile (Surface Mount Parts Only) Option 300 Drawings section
l JEDEC Registered Data (for 6N137 only).
**Ratings apply to alI devices except otherwise noted in the Package cohunn.
tO”C
to 70°C on JEDEC Registration.
Recommended Operating Conditions
*The off condition can also be guarsnteed by ensuring that Vn < 0.8 volts.
**The initial Jwitching threshold is 5 mA or less. It is recommended that 6.3 mA to 10 mu be used for best performance and to pemut
at least a 2096 LED degradation guardband.
tFor single channel products only.
SC-206X Series User Manual A-IO 0 National Instruments
Corporation
Appendix A
10
HCPL-261 l-060 Technical Data
Electrical Specifications
Over recommended temperature (T.\ = -40°C to +85”C) unless otherwise specified. AU Typicals at Vcc = 5 V,
TA = 25°C. All enable test conditions apply to single channel products only. See note 5.
Parameter I Sym.1
Package Min. / Typ. 1 Max. / Units / Test Conditions 1 Fig. / Note
Input Threshold
Current
Low Level Output
Voltage VOL* / 8-P-Z ) “o”,”
0.6
V
~~+=5.5&~~,‘2-0~,
;,“; 1, 19
High Level Supply ICCH ’ Single Channel i 7.0 10.08 mA v, = 0.5 v ! v,, = 5.5 v 7
Current 6.5
vE = vCC i IF=omA
Dual Channel :
! lo l5 Both i
/ Channels I
Low Level Supply L-a i SingleChannel.! 9.0
Current 8.5
I DualChannel I 13 21
I
Channels !
High Level Enable IEH Single Channel -0.7 -1.6 mA v,=5.5\:vv,=2.ov
Current
Low Level Enable Ia,,* -0.9 -1.6 mA vcc = 5.5 v, v, = 0.5 v 9
Current
High Level Enable
vEH
2.0 V 19
Voltage
Low Level Enable V,
Voltage
Input Forward =25=C; Ir=lOmA 6,7 1
Voltage
Input Reverse BVa* 8-PinDIP i 5 V IR= lOpA 1
Breakdown SO-8 t
Voltage Wtdebody 1 3 1, = 100 j& TA = 25’C
Input Diode
AVF/
8-PinDIP I -1.6 mv/“c IF= loti 7 1
Temperature ATA SO-8
Coefficient Widebody i -1.9 .
Input Capacitance CM Win DIP / lj” PF f=lMti,b’~=OV 1
SO-8
Widebody 70
1
*J?ZDEC registered data for the 6N137. The JEDEC Regiamion specifies OT to +7OT. HP spxifm -4OT to +8SC.
0 National Instruments Corporation A-11 SC-206X Series User Manual
HPCL-261 I-060 Technical Data Appendix A
11
Switching Specifications (AC)
Over Recommended Temperature Cr, = -10°C to +85C), Vcc = 5 V, I, = 7.5 mi unless otherwisespecified.
Al1 Qpicals at TA = 25”C, Vcc = 5 V
Parameter Sym. I Package** Min. Typ. / Max. Units Test Conditions j Fig. Note /
1 Propagation Delay
tPLH !
20 48 75* ns TA = 25% j
R, = 350 R 8,9, 1,10,
/ Tune to High 100 CL = 15 pF 10 19
I Output Level I
’ Propagation Delay
tPHL
25 50 75*
t-l ns
.
TA = 25% j 1, 11,
Time to Low 100 19
Output Level
’ Pulse Width ltpm
-
tpLHl
/ S-Pin
DIP
3.5 35 ns 8, 9, 13,
19
Distortion I
SO-8 10,
I Wtdebociy
40
11
1 Propagation Delay bsK !
40
ns 12,13,
1 Skew 19
I Output Rise
2-I ns 12
’ k 1, 19
Time (10-9096)
Output Fall tr 10 ns 12 1, 19
Time (90-10%)
Propagation Delay
kLH
‘Single Channel
30
Time of Enable
from vEH to va
! I
ns RL=350R,
CL = 15 pF,
VEL = 0 v, &, = 3 v
Propagation Delay km Single Channel
20 ns
Time
of Enable
from Vxt, to Vxu
l
JEDEC registered data for the 6N137.
**Ratings apply to all devices except otherwise noted in the
Package column.
I Parameter Sym. Device !wn Tyy units Test Conditions
Logic High
jCMHl
6N137 10,OoO V,@s IV,,1 = 1ov Vc,=5V,Ir=Om4
common HCPL2630
Mode
HCPL0600/0630 VO(Mw, =
2
Y
RL = 350 R, TA = 259:
Transient HCNW137
Immunity HCPL260l12631 woo 10,ooO IV&l = 5ov
HCPM601/0631
HCNW2601
HCPL2611/4661 IO.000 15,000 IV&l = 1 kV
HCPLMll/O661
HCNW2611
Logic Low lCMLl 6N137 10,000 V’tB IV,] = 10 v vcc = 5 v, IF = 7.5 mA,
Common
SC-206X Series User Manual A-12 0 National instruments Corporation
Fig. Note 1
15 1,
1%
18,19
15
1, 17,
18,19
Appendix A HCPL-261 I-060 Technical Data
12
Package Characteristics
Au Typicals at TA = 25?c.
Psnuneter SP- Package
M.~L i Qp. i Max. /
Units Test Conditions Fig. / Note
Input-output ho* Siie d-Pin DIP 1 I.4 45% RH. t = 5 s, 20,21
InsulaciOll
Single SO-8 1 Vw=3kVdc,T,=25’=C
Input-Output VFKl 8-Pin DIP, SO-8 2500 / Vrms RHc5O%,t=lmin, 20,21
Momentary With- Widebody 5000
I I
TA =
259: 20,22
stand Voltage** OPT 0207 5000
! I
Input-output &I &Pin DIP, SO-8 I 10’2 I R
1,m
RdStZlce
Wldebody 10” I 101” / TA = 25°C V,, = 500Vdc i 23
10’1 1 TA = 100°C
Input-output %J 8-Pin DIP, SO-8 ( 1 0.6
1
PF f = 1 MHz, TA = 25°C
Capacitance Widebody 1 1 0.5
1 0.6
Input-Input IH Dual Channel 0.005
Insukuion
Leakage Current I I
M-4 RH I 45%, t = 5 s, 24
v, = 500 v
Resbmnce
(Input-Input) %I Dual Channel 10” R 24
Capadrance
CH
Dual 8-Pin DIP 0.03 PF f=lMHz 24
(Input-InPut) DlASO-8 , 0.25
l JEDEC registered data for the 6N13i. The JEDEC Regumation specifies 0°C to 7O’C. HP specifies -4O’C to 85’C.
l Crhe Input-Output Momentary Withstand Voltage is a dielectric voltage ratsng that should not be interpreted as an input-output
continuous voltage rating. For the continuous voltage raring refer to the VDE 0884 Insularion Chamcteristics Table (ii applicable),
your equipment level safety specification or HP Application Note 1074 entitled ‘Optocoupler Input-Output End&e Voltage.”
tFor 6N137, HCPL26OlR611/2630L2631/4661 only.
Notes:
1. EachcharmeI.
2. Peaking circuits may produce Uansient input currents up to 50 mA, 50 ns maximum pulse width,‘provided average
current
does
not exceed 20 mk
3. Peaking circuits may produce transient input currents up to 50 mA, 50 ns maximum pulse width, provided average current does
not exceed 15 mk
4. Derate linearly above 8OYJ free-air temperature at a rate of 2.7 mWK for the SOIC-8 package.
5. Byparsing of the power supply line is required, with a 0.1 pF ceramic disc capacitor adjacent to each optocoupler as iIlustrated in
Figure 17. Total lead length between both ends of the capacitor and the isolator pins should not exceed 20 mm.
6. The JEDEC registrAon for the 6N137 specifies a rnakwm IOH of 250 nA HP guarantees a maximum Ion of 100 ir.A.
7. The JEDEC registrauon for the 6N137 specifies a
~~~CHOf15~~~~a~~ICCHOf10~
8. The JEDEC registration for the 6N137 specifies a ~~Icc~ofl8mAHPguaranteesa~~Icc~of13mk
9. The J’EDEC registration for the 6Nl37 speci8es a maximum IEL of -2.0 rrA HP guarantees a maximum IEL of -1.6 in4
10. The tpm propagation delay is measured from the 3.75 mA point on the fding edge of the input pulse to the 1.5 V point on the
rising edge of the output pulse.
11. The tptq, propagation delay is m-ed from the 3.75 mA
point
on the rising edge of the input pulse to the 1.5 V point on the
faIlbug edge of the ollrput pulse.
12. tpg( is equal to the womt case difference in tpm and/or tpLB that will be seen between units at any given tempeiarure and
specified test conditions.
13. See application section titled “Propagation Delay, P&e-Width Distortion and Propagation Delay Skew” for more mformtion.
14. The tm enable propagation delay is measured from the 1.5 V point on the falling edge
of
the enable input pulse to the 1.5 V
point on the rising edge of the output pulse.
15. The
tEm
enable propagation delay is measured from the I.5 V point on the rising edge
of
the enable input puIse co the 1.5 V point
on
the faIIing edge
of
the output pulse.
16. CMn is the maximum tolerable rate of rise of the common mode voltage to assure that the output wiU remain in a high logic state
(i.e., Vo > 2.0 V).
17. CMt is the maximum tolerable iate of fall
of
the common mode voltage to assure that the output wiU remain in a low logic state
(i.e., Vo
c
0.8 v).
18. For sinusoidal voltages. (Idvc.~ 1 / dt)- = nfcMVcM(p-p).
0 National Instruments Corporation A-13 SC-206X Series User Manual
Appendix A HCPL-261 l-060 Technical Data
14
7 0.8
g 0.7
;!
$ 0.6
3 05
5 0.4
E-PIN DIP. SO-6 :: WIDEBODY 0.8~ < E 70
z pm;.=“” I
0.7
2 l~~zs-6.0 mA 5
vCt = 6.0 V ~
VE I 2.0 V’ ‘c’Wt?a~E
z VO“O.6”~ PRODUCTS ONLY
0 60
a e---w- IF f W-15 mA
-I 0.1
I 4 I
i
$ 0
20
>
-60 40 -20 0 20 40 60 60 loo z? -80-40-20 0 204Q6060106 I,
= a -40 -20 0 20 40 60 60 l?Q
TA -TEMPERATURE - ‘C 7A -TEMPERATURE -‘C TA - TEMPERATURE - ‘C
Figure 4. Apical Low Level Output Voltage vs. Temperature. Figure 6- Typical Low Level Output
Current vs. Temperature.
N-PIN DIP. SO-6 WIDEBODY
0.001 I-' 1
1.1 12 1.3 1.4 I5 1.6
VF - FORWARD VOLTAGE - V
.-
! TAI26’C
12 1.2 1.4 15 1.6 1.7
VF - FORWARD VOLTAGE - V
Figure 6. Typical Input Diode Forward Characteristic.
N-PIN DIP. SOd WlDEBODY .
IF - PULSE INPUT CURREhT - mA IF -PULSE INPUT CURRENT - mA
Figure 7. Typical Tempemturc Coefficient of Forward Voltage vs. Input Current.
0 National Instruments Corporation A-15 SC-206X Series User Manual
HPCL-261 I-060 Technical Data Appendix A
OulPuT~
NoN7oRlNc
uowfomm
NODE
OUTPUT Vo
YONITORING
NODE
‘q IS 4JVflOXlUAlELY 15 pF WHICH INCLUDES
PROBE AND SlRAY WIRING CAPACITANCE
--------- IF =,sw
----- -----., F =LJsM
Figure 8. Teat cireptt for & and h.
I40400 204060801w I40400 204060801w
TA-WlURE-‘C
Figfue 9. Typical Pmpagauon Delay
vs. Temperature.
: 40
8
g k 30
e
g20
E
0
L ‘0
3
: 0
I
;
-10
-6040-20 0 20 40 60 80 loo
TA - TEMPERATURE - ‘c
Figure 11. Typial P&e Width
Dlatortion vs. Temperature.
SC-206X Series User Manual
FIgme 10. Typiul Propagation Delay
vu. Fdae hput current
TA -TEMPERATURE - ‘C
FIgare 12. -ical Blae and Fall Time
vs. Temperatnre-
A-16 0 National Instruments Corporation
Appendix A HCPL-261 l-060 Technical Data
16
Flgnre 13. Test Circuit for & and &.
: 120
I
2
ii
0 60
B
f
2 60
b
E
y 30
p:
z
5 0 404-20 0 20 40 66 60100
Flgnre 14. Typical Enabk hpagation
Delay vs. Temperatmre.
CHANNEL, SWGLE e DUAL CHANNEL
A
GENERATOR
zG=6On
SWITCHATB: l~.7Jm*
“O 0.5 v
fi--- “0 WAX-l
=yL
Figan 15. Teat Ckaait for Common Mode Traamient Immnity and Typkal Wavefonne.
0 National Instruments Corporation A-17
PULSE
GENERATOR
2C.6oR
OUTPUT “0
MGRITGRING
NGDE
SC-206X Series User Manual
HPCL-261 I-060 Technical Data
3 IUY’L-26ll OPTlON 060
Appendix A
17
ooo
700
600
so0
400
300
230
loo
0 0 25 w 7s 100 125 150 ’17s
1s -CASE TEwBtATuRE - F Ts - CASE TEWERATURE - ‘C
FIgme 16. Thermal Deratlng Curve, Dependence of Safety Ihdthg Value with
Cue Temperature per ME 0884.
GND BUS (BACK)
Vm BUS (FRONT)
c= ENABLE
=+ OUTPUT
1omuAx. SINGLE CHUOEL
(BEE NolE 5) DEVICE ILLUSTRATED.
&jwe 17. Remamended Printed Clrcnit
Board hyomt
SC-206X Series User Manual A-18 0 National Instruments
Corporation
Appendix A HCPL-261 l-060 Technical Data
18
SINGLE CHANNEL DEVICE
---------------------
Vat Iv I
4mn
w
L’
m* ,i /
!a _
GND 2
-0lODE Dl (lN916 OR EGUIVALEHT) Is NOT REGUIRED FOR UNITS WITH OPEN COLLECTOR OUfPUl.
DUAL CHANNEL DEVICE
CHANNEL 1 SHOWN
c----------_----_
GND 2
i------,-,-,-----l
Figure 18. Recommended TWlSlTL to TTuLslTL Intelface circnit.
0 National Instruments Corporation A-19 SC-206X Series User Manual
HPCL-261 I-060 Technical Data Appendix A
19
Propagation Delay, Pulse-
Width Distortion and
Propagation Delay Skew
Propagation delay is a figure of
merit
which describes how
quickly a logic signal propagates
through a system. The propaga-
tion delay from low to high (t&l
is the amount of time required for
an input signal to propagate to
the output, causing the output to
change from low to high.
Similarly, the propagation delay
from high to low (t& is the
amount of time required for the
input signal to propagate to the
output causing the output to
change from high to low (see
Figure 8).
tions where synchronization of
signals on parallel data lines is a
concern. If the parallel data is
being sent
through
a group of
optocouplers, differences in
propagation delays will cause the
data to arrive at the outputs of the
optocouplers at different times. If
this difference in propagation
delays is large enough, it will
determine the maz&num rate at
which parallel data can be sent
through the optocoupleti.
Pulse-width distortion (PWD)
results when tpm and tpnL differ ti
value. PWD is defined as the
difference between tpLH and trm
and often determines the
maximum data rate capability of a
trammission system. IWD can be
expressed in percent by dividing
the PWD (in ns) by the minimum
pulse width (in ns) being
transmitted. Typically, PWD on
the order of 20-30% of the
minimum pulse width is tolerable;
the exact figure depends on the
particular application (RS232,
RS422, T-l, etc.).
Propagation delay skew is defined
as the difference between the
mlnimumand~um
propagation delays, either tpm or
tPHL, for any given group of
optocouplers which are operating
under the same conditions (i.e.,
the same drive current, supply
voltage, output load, and
operating temperature). As
WstmtedinFigure19,ifthe
inputs of a group of optocouplers
are switched either ON or OFF at
the same time, tpss is the
difference between the shortest
propagation delay. either tPr,n or
tmL, and the longest propagation
delay,
either tpm or tpnk
As mentioned earlier, tBK can
determine the maximum parabel
data uammission rate. Figure 20
isthetimingdlagramofatypical
pamlIe data application wjth both
the clock and the data lines being
sent through optocouplers. The
figure shows data
and
clock
Propagation delay skew, tpsk, is
an important parameter to
consider in pamlIe data applica-
SC-206X Series User Manual A-20
signals at the inputs and outputs
of the optocouplers. To
obtain
the
maximum data transmission rate,
both
edges
of the clock signal are
being used to clock the data; if
only one edge were used, the
clock signal would need to be
twice as fast.
Propagation delay skew repre-
sents the uncertainty of where an
edge might be after being sent
through an optocoupler. Figure
20 shows that there will be
uncertainty in both the data and
the clock lines. It is important
that these two areas of uncertainty
not overlap, otherwise the clock
signal might arrive before aU of
the dam outputs have settled, or
some of the dam outputs may
start to change before the clock
signal IIS arrived. From these
considerations, the absolute
minimumpulsewidththatcanbe
sent through optocouplers in a
paraM application is twice trsK- A
cauti?~,
design should use a
slightly longer pulse width to
ensure that any additional
uncertainty in the rest of the
circuit does
not
cause a problem.
The trsir specified optocouplers
offer the mtages of
guaranteed specifications for
propagation delays, pulsewidth
distortion and propagation delay
skew over the recommended
temperature, input current, and
power supply ranges.
0 National Instruments Corporation
Appendix A HCPL-261 I-060 Technical Data
m
HEWLETT’
PACKARD
Figare 19. Dhatration of Propylation Figare 20. Parallel Data lbnsmission
Delay Skew - tpsp. Example.
0 National Instruments Corporation A-21 SC-206X Series User Manual
© National Instruments Corporation B-1 SC-206X Series User Manual
Appendix B
Motorola Array Technical Data*
This appendix contains technical data on the Motorola Corporation ULN2801 array. Motorola
arrays are used on the SC-206X.
* Copyright © Motorola Corporation, 1990. Reprinted with permission of copyright owner. All rights reserved.
Motorola Corporation. 1990 Linear and Interface integrated Circuits.
Motorola Array Technical Data Appendix B
MOTOROLA
n
SEMICONDUCTOR -
TECHNICAL DATA
OCTAL HIGH VOLTAGE, HIGH CURRENT
DARLINGTON TRANSISTOR ARRAYS
The eighl NPN Darlington connected transistors m rhisfamily of
arrays are ideally suited for mterfacing between low logx level
dngctal cvcwtry (such as TTL, CMOS or PMOS/NMOS) and the
higher current/voltage requirementsof lamps, relays. printer
hammers or other similar loads for a broad range
of computer,
mdustrlal, and consumer applications. All devices feature open-
collector putputs and free wheeling clamp diodes for transient
suppressm.
The ULN2801 is a general purpose device for use with CMOS,
PMOS orlTL logtc The ULN2802 containsa zener dmde and resrstor
!n series with the input to limit input currents and assure compati-
bility wth 14 to 25 volt PMOS logic. The ULN2803 IS designed tp
be
compatible wth standard lTL families while the ULN2804 is opti-
mired for 6 to 15 volr high level CMOS or PMOS.
MAXIMUM RATINGS
(TA = 25°C and rating apply to any one device m the
package unless otherwse noted.)
I Ratins 1 Svmbol 1 Value 1 unit
1
I OuIpu1 Voltage I vn I 50 I v I
Input
Volrage (Except ULN2801)
CollecwJr current - Continuous
Base Current - Continuous
Operartng Ambml Temperawe Range
Storage Temperature Range
Junctton Temperature
VI 30 V
Ic 500 m*
‘B 25 rnA
TA 0 to ‘70 OC
Tslg -55 to +150 oc
TI 125 OC
ORDERING INFORMATION
Characteristics
Input
Device Compatibility
ULN2801A 1 General Purpose CMOS, PMOS
V&MaxVlC(Max) TA
ULN2802A i 14-25 Volt PMOS
ULN2803A 1TL. 5.0 V CMOS 50 Vi500 mA 0 to l 70’C
ULN2804A 6-15 V CMOS, PMOS I
OCTAL
PERIPHERAL
DRIVER ARRAYS
SILICON
MONOLITHIC
INTEGRATED CIRCUITS
A SUFFlX
PLASTIC PACKAGE
CASE 707
PIN CONNECTIONS
SC-206X Series User Manual
MOTOROLA LINEAR/INTERFACE DEVICES
7-201
B-2 0 National Instruments Corporation
Motorola Array Technical Data Appendix B
ULN2801, ULN2802, ULN2803, ULN2804
TEST
nGURES
(SEE FIGURE NUMBERS IN ELECTRICALCHARACTERISTICS TABLES)
FIGURE 1 FIGURE 2
open
OP.3 VCE
*A
Open
+P
‘CEX
DUT
Open VCE
FIGURE 3
FIGURE S
Open
P
FlGURE 7
Open
FIGURE 4 P
FIGURE 6
VR
MOTOROLA LINEAR/INTERFACE DEVICES
7-203
SC-206X Series User Manual B-4 0 National Instruments Corporation
Appendix B Motorola Array Technical Data
ULN2801, ULN2802, ULN2803, ULN2804
TYPICAL CHARACTERISTIC CURVES - TA = 25%
(unless otherwise noted)
OUTPUT CHARACTERISTICS
FIGURE 8 - OUTPUT CURRENT versus
SATURATION VOLTAGE
2
y
200
01 I I 1 I I I I 1
0 0.5 1.0 1s 20
VCE,rrt) SAllJ!+4TION VOLTAGE (VOLTS)
FIGURE 9 - OUTPUT CURRENT VC,SUS
INPUT CURRENT
0 0 200 400 600 600
i,N. INPUT CURRENT (“A,
INPUT CHARACTERISTICS
FIGURE 10 - ULN2802 INPUT CURRENT
“onus INPUT VOLTAGE
FIGURE 1, - LJLNZ803 INPUT CURRENT
versus [NPUT VOLTAGE
12 12 I4 I4 lb lb 16 16 20 20 22 22 24 24 26 26
V,w INPUT VOLTAGE IVOLTSI V,w INPUT VOLTAGE IVOLTSI
= 1.5
5 1.0
-.
3 0.5
2.0, I I r
; 1.5
E
z
s 10
5
h
20,s
0
2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0
VI,,. INPUT VOLTAGE (VOLTS)
FIGURE 12 - ULN2804 INPUT CURRENT
~rsus INPUT VOLTAGE
5.0
6.0 7.0 6.0 9.0 10 11 12
41. INPUT VOLTAGE IVOLTSI
MOTOROLA
LINEAR/INTERFACE DEVICES
7-204
0 National Instruments Corporation B-5 SC-206X Series User Manual
Motorola Array Technical Data Appendix B
ULN2801, ULN2802, ULN2803, ULN2804
REPRESENTATIVE CIRCUITSCHEMATICS
I 1
1/8ULN2801
l/8 ULN2803
I I 0
L---j+ ------ -
i =
l/8 ULN2802
Pin 10
l/8 ULN2804
*Tpinlo
-;
MOTOROLA LINEAR/INTERFACE DEVICES
7-205
SC-206X Series User Manual B-6 0 National Instruments Corporation
© National Instruments Corporation C-1 SC-206X Series User Manual
Appendix C
American Zettler Relay Technical Data*
This appendix contains technical data on an American Zettler Corporation relay. American
Zettler relays are used on the SC-2062.
* Copyright © American Zettler Corporation, 1992-93. Reprinted with permission of copyright owner. All rights
reserved. American Zettler Corporation, 1992-93 Relay Technical Data Book.
American Zettler Relay Technical Data Appendix C
*?2* . ,. ./, _I
;$.a
3, - 3,:.
J*
MINIATURE
PC BOARD RELAY
FEATURES
l
Subminiature Size
l
High Sensitivity, 110 mW Pick Up
l
Coils to 48 VDC
l
Epoxy Sealed for Automatic Wave Soldering
l
Contacts Rated at 3, 6 or 10 Amps
l
Life Expectancy to 20 Million Operations
l
Extremely Low Cost
l
Class B Insulation (130°C) Standard
l
Class F Insulation (155°C) Version Available
l
UL, CUR File E44211
l
VDE Approved Versions Available
CONTACTS
Arrangement
Rating
Light Duty
Medium Duty
Heavy Duty
Material
Resstance
SPDT (1 Form C) 3 or 6 A Version
SPST (1 Form A) 10 A Version
Noninductive load
Max. switched power: 100 W or 600 VA
Max. switched current: 3 Amps
Max. switched voltage 150’ VDC or 300 VAC
UL Rating: 2 A @ 28 VDC or 300 VAC
118 HP @ 120 VAC
1’10 HP @ 1201240 VAC (100,000 cyc)
1.210.6 A @ 120/240 VAC. Ptlot Duty 100,000 cyc
3.011.5 A @ 1201240 VAC General Use 100,000 cyc
Max. switched power: 180 W or 1800 VA
Max. swltched current: 6 Amps
Max. switched voltage: 150’ VDC or 300 VAC
UL Rating: 6 A @ 28 VDC or 300 VAC
1!8 HP @ 1201240 VAC (100,000 cyc)
1 S10.8 A @ 120/240 VAC, Pilot Duty 100,000 cyc
3.811.9 A @ 120/240 VAC General Use 100.000 cyc
Max. switched power: 300 W or 2400 VA
Max. switched current: 10 Amps
Max. switched voltage: 150’ VDC or 300 VAC
UL Rating: 10 A @ 30 VDC or 120 VAC
l/4 HP@120VAC
l/2 HP @ 250 VAC
‘Note It swltchlng voltage IS greater than 30 VDC special
precautions must be taken Please contact the factory.
Light Duty: Stlver
Medium Duty: Silver nickel
Heavy Duty: Silver cadmtum oxide
100 milliohms inittally
NOTES
2 Relay may pull I” with less than
“Must
Operate” value
3 Other co11 reststances and sensltlvlties avaIlable upon request
4 Unsealed relays should not be dip cleaned
5 Spec!flcatlons subject to change wllhout nollce
Power
At Pick Up Voltage
(typical)
Max. Continous
Dissipation
Temperature Rise
I
1 emperature
GENERAL DATA
Standard coil: 210 mW
Sensitive coil: 140 mW
Heavy duty: 228 mW
(110 mW available)
Class B: 2.0 W @ 20°C (68°F) ambient
1.6 W @ 40°C (104’F) ambient
Class F: 2.5 W @ 20°C (68°F) ambient
2.1 W @ 40°C (104’F) ambient
At nominal coil voltage
Standard coil: 38°C (68°F)
Sensitive coil: 28°C (50°F)
Max. 130°C (266°F) Class B
Max. 155°C (31 1°F) Class F
Life Expectancy Mmimum operations
Mechanical 100 million operations
Electrical
Light Duty 3x105 Q 3 A, 120 VAC
Medium Duty 1.8x105 @ 6 A, 120 VAC
Heavy Duty 1x105 Q 10 A, 120VAC
Operate Time 5 ms at nominal coil voltage
(typical)
I
Release Time
I
2 ms at nominal coil voltage
(typical)
(with no coil suppression)
Dielectric Strength
(at sea level) 750 Vrms contact to contact
3000 Vrms contact to coil VDE
2000 Vrms contact to coil standard
I
Insulation 1000 megohms min. Q 20°C. 500 VDC,
Resistance 50% RH
Greater than 5% of nominal coil voltage
55°C (-67°F) to 90°C (194°F) Class B
-55°C (-67°F) to 115°C (239°F) Class F
-55°C (-67°F) to 130°C (266°F) Class B
-55°C (-67°F) to 155°C (311 “F) Class F
1 Vibration 10.062” DA, 5-55 Hz. log at 55-110 Hz
1 Shock
P.E.T. polyester
Tinned copper alloy, P.C.
270°C (518°F)
5 seconds
80°C (176’F)
30 seconds
18 grams
SC-206X Series User Manual 0 National Instruments Corporation
Appendix C American Zettler Relay Technical Data
- __-__ __ _.- ._. .-.. - .: -
RELAY ORDERING DATA
5 12.6
6
i4.a
9 22.4
12 30.0
24
60.0
80 3.25
110 3.90
250 5.85
440 7.80
i 780 15.60
AZ 8-1 C-SDS AZ 8-IC-SDSE AZ 8-l CH-5DS AZ 8-lCH-SDSE
AZ 8-l C-BDS AZ 8-lC-6DSE AZ 8-1 CH-GDS AZ 8-lCH-6DSE
AZ 8-IC-9DS AZ 8-l C-SD% AZ 8-l CH-SDS AZ 8-1 CH-9DSE
AZ 8-lC-12DS AZ 8-lC-12DSE AZ 8-lCH-12DS AZ 8-lCH-12DSE
AZ 8-l
C-24DS AZ 8-I C-24DSE AZ 0-1 CH-24DS AZ 8-l CH-24DSE _
STANDARD RELAYS: 1 FORM A (SPST-NO)
Nominal Max. VDC Resistance 1 Must Ooerate 1
Coil VDC Continuous k 10%
5 10.6 56
6 12.6 80 I -.u
9 19.0 180 7.2
12 25.0 320 9.6
24 50.0 1280 19.2
48 87.0 3800 38.4
HEAVY DUTY (10 AMP CONTACT)
I hesr‘arl Epoxy Sealed
w”-I”I-“u mL O-In8-OYE.
AZ 8-IAT-9D AZ 8-l AT-9DE
AZ 8-lAT-12D AZ 8.lAT-12DE
AZ 8.lAT-24D AZ 8-lAT-24DE
AZ 8-lAT-48D AZ 8-1AT-48DE
To indicate Class F version. add suffix “F. Other coil resistances and sensitkties available. Please contact the factory.
MECHANICAL DATA
Coil Temperaturb Rise
TERMINAL DIMENSIONS
=* PC BOARD LAYOUT
WIRING DIAGRAM
,071
,055 ? .OOS DIA
(1.4ZO.l)
t-
($) 1 FORM A (10 A VERSION)
(5 HOLES) 1
: 1 FORM C (3 & 6 A VERSION)
*------------I
- (2%
mensions in inches with metric equivaknts in parentheses. lolcrance: J .OlO”
Maximum Switching Capacity
0 National Instruments Corporation
SC-206X
Series User Manual
© National Instruments Corporation D-1 SC-206X Series User Manual
Appendix D
Customer Communication
For your convenience, this appendix contains forms to help you gather the information necessary
to help us solve technical problems you might have as well as a form you can use to comment on
the product documentation. Filling out a copy of the Technical Support Form before contacting
National Instruments helps us help you better and faster.
National Instruments provides comprehensive technical assistance around the world. In the U.S.
and Canada, applications engineers are available Monday through Friday from 8:00 a.m. to
6:00 p.m. (central time). In other countries, contact the nearest branch office. You may fax
questions to us at any time.
Corporate Headquarters
(512) 795-8248
Technical support fax: (800) 328-2203
(512) 794-5678
Branch Offices Phone Number Fax Number
Australia 03 9879 5166 03 9879 6277
Austria 0662 45 79 90 0 0662 45 79 90 19
Belgium 02 757 00 20 02 757 03 11
Canada (Ontario) 905 785 0085 905 785 0086
Canada (Quebec) 514 694 8521 514 694 4399
Denmark 45 76 26 00 45 76 26 02
Finland 09 527 2321 09 502 2930
France 01 48 14 24 24 01 48 14 24 14
Germany 089 741 31 30 089 714 60 35
Hong Kong 2645 3186 2686 8505
Israel 03 5734815 03 5734816
Italy 02 413091 02 41309215
Japan 03 5472 2970 03 5472 2977
Korea 02 596 7456 02 596 7455
Mexico 5 520 2635 5 520 3282
Netherlands 0348 433466 0348 430673
Norway 32 84 84 00 32 84 86 00
Singapore 2265886 2265887
Spain 91 640 0085 91 640 0533
Sweden 08 730 49 70 08 730 43 70
Switzerland 056 200 51 51 056 200 51 55
Taiwan 02 377 1200 02 737 4644
U.K. 01635 523545 01635 523154
Technical Support Form
___________________________________________________
Photocopy this form and update it each time you make changes to your software or hardware, and use the completed
copy of this form as a reference for your current configuration. Completing this form accurately before contacting
National Instruments for technical support helps our applications engineers answer your questions more efficiently.
If you are using any National Instruments hardware or software products related to this problem, include the
configuration forms from their user manuals. Include additional pages if necessary.
Name
Company
Address
Fax ( ) Phone ( )
Computer brand Model Processor
Operating system
Speed MHz RAM MB Display adapter
Mouse yes no Other adapters installed
Hard disk capacity MB Brand
Instruments used
National Instruments hardware product model Revision
Configuration
National Instruments software product Version
Configuration
The problem is
List any error messages
The following steps will reproduce the problem
SC-206X Hardware and Software
Configuration Form
___________________________________________________
Record the settings and revisions of your hardware and software on the line to the right of each item. Complete a
new copy of this form each time you revise your software or hardware configuration, and use this form as a
reference for your current configuration. Completing this form accurately before contacting National Instruments
for technical support helps our applications engineers answer your questions more efficiently.
National Instruments Products
• Data Acquisition Hardware __________________________________________________
• Interrupt Level of Hardware __________________________________________________
• DMA Channels of Hardware
• Base I/O Address of Hardware __________________________________________________
• NI-DAQ Version __________________________________________________
Other Products
• Computer Make and Model __________________________________________________
• Microprocessor __________________________________________________
• Clock Frequency __________________________________________________
• Type of Video Board Installed
• Operating System Version __________________________________________________
• Operating System Mode __________________________________________________
• Programming Language __________________________________________________
• Programming Language Version __________________________________________________
• Other Boards in System __________________________________________________
• Base I/O Address of Other Boards __________________________________________________
• DMA Channels of Other Boards __________________________________________________
• Interrupt Level of Other Boards __________________________________________________
Documentation Comment Form
National Instruments encourages you to comment on the documentation supplied with our products. This
information helps us provide quality products to meet your needs.
Title: SC-206X Series User Manual
Edition Date: December 1996
Part Number:371167A-01
Please comment on the completeness, clarity, and organization of the manual.
If you find errors in the manual, please record the page numbers and describe the errors.
Thank you for your help.
Name
Title
Company
Address
Phone ( )
Mail to: Technical Publications Fax to: Technical Publications
National Instruments Corporation National Instruments Corporation
6504 Bridge Point Parkway, MS 53-02 (512) 794-5678
Austin, TX 78730-5039
© National Instruments Corporation Glossary-1 SC-206X Series User Manual
Glossary
Prefix Meaning Value
n- nano- 10-9
µ- micro- 10-6
m- milli- 10-3
k- kilo- 103
M- mega- 106
+5V power supply
°degrees
Ωohms
% percent
A amperes
C Celsius
CMOS complementary metallic oxide semiconductor
COM common
GND ground
Hz hertz
IIL current, input low
Iin input current
in. inches
I/O input/output
LED light-emitting diode
m meters
MB megabytes
NC normally closed
NO normally open
R resistance
s seconds
SPDT single-pole dual-throw
tPHL propagation delay, high-to-low
tPLH propagation delay, low-to-high
TTL transistor-transistor logic
V volts
VA volt-ampere
VAC volts alternating current
Vcc positive voltage supply
VDC volts direct current
Vin volts in
Vrms volts, root mean square
W watts
© National Instruments Corporation Index-1 SC-206X Series User Manual
Index
Numbers
+5 V signal, 5-7
26-pin connector. See connector J1.
A
American Zettler relays, C-1 to C-3
C
COM connection, SC-2062 board, 4-1, 4-2
computers supported by SC-206X Series
boards
data acquisition boards for SC-206X
Series boards (table), 1-1
SC-2060 board, 2-1
SC-2061 board, 3-1
SC-2062 board, 4-1
connecting or disconnecting signal lines
SC-2060 board, 2-3
SC-2061 board, 3-2
SC-2062 board, 4-2
connector J1, 5-7 to 5-8
damage caused by incorrect
connection, 5-7
pinout (illustration), 5-7
SC-2060 board, 2-2
SC-2061 board, 3-1 to 3-2
SC-2062 board, 4-2
signal descriptions, 5-7
connectors for SC-205X Series cable adapter
boards (table), 5-8
customer communication, xi, D-1
D
damage resulting from incorrect signal
connections
connector J1, 5-7
SC-2060 board, 2-3
SC-2061 board, 3-2
SC-2062 board, 4-2
data acquisition boards
connection to SC-206X Series boards
SC-2060 board, 2-4
SC-2061 board, 3-4
SC-2062 board, 4-4 to 4-5
via SC-205X Series cable adapter
board, 1-1, 5-5 to 5-8
for use with SC-206X Series boards
(table), 1-1
illustration, 1-2, 5-6
power supplied by data acquisition
boards (table), 5-4
digital input circuitry, SC-2060 board
description, 2-2
specifications for optically isolated digital
input, 2-3
digital output circuitry, SC-2061 board, 3-3
digital port operation of SC-206X Series
boards, 5-8 to 5-9
DIO<0..7> signal, 5-7
documentation
conventions used, x
organization of manual, ix
related documentation, x-xi
double-height mounting of SC-206X Series
boards, 5-2 to 5-3
E
electromechanical relay digital output
specifications, SC-2062 board, 4-3
equipment, optional, 1-4
external power supply selection. See internal
or external power selection.
G
GND signal, 5-7
grounding of mounting for SC-206X Series
boards, 5-2
H
hardware installation. See installation.
HCPL-2611-060 optocoupler, A-1 to A-21
Index
SC-206X Series User Manual Index-2 © National Instruments Corporation
I
IBM PC compatible computers. See
computers supported by SC-206X
Series boards.
input screw terminals, SC-2060 board, 2-1
installation, 5-1 to 5-10
internal or external power selection, 5-4
to 5-5
operation of SC-206X Series boards, 5-8
to 5-9
procedure for installation, 5-1 to 5-3
safety information, 5-9 to 5-10
SC-206X Series boards connection via
SC-205X Series boards, 5-5 to 5-8
unpacking, 1-4
internal or external power selection, 5-4
to 5-5
location of external power screw
terminals (illustration), 5-5
power requirements, 5-4
power selection settings for switch S1
(illustration), 5-5
power supplied by data acquisition
boards (table), 5-4
SC-2060 board, 2-2
SC-2061 board, 3-1 to 3-2
SC-2062 board, 4-2
switch S1, 5-4, 5-5
J
J1 connector. See connector J1.
M
Macintosh computers. See computers
supported by SC-206X Series boards.
manual. See documentation.
Motorola ULN2801 array. See ULN2801
array.
mounting of SC-206X Series boards
alternative methods, 1-2
attaching mountable board to chassis
(illustration), 5-2
cover for rack mount, 5-3
double-height mounting (illustration), 5-2
to 5-3
grounding, 5-2
illustration, 1-2
installation instructions, 5-1 to 5-3
locations for SC-205X and SC-206X
Series boards (illustration), 5-2
SC-2060 board, 2-4
SC-2061 board, 3-4
SC-2062 board, 4-4 to 4-5
N
NC connection, SC-2062 board, 4-1, 4-2
NO connection, SC-2062 board, 4-1, 4-2
O
onboard equivalent circuit (illustration)
SC-2060 board, 2-2
SC-2061 board, 3-2
SC-2062 board, 4-2
operating environment specifications
SC-2060 board, 2-4
SC-2061 board, 3-4
SC-2062 board, 4-4
operation of SC-206X Series boards, 5-8
to 5-9
optically isolated digital input, SC-2060
board, 2-3
optically isolated digital output, SC-2061
board, 3-3
optional equipment, 1-4
optocoupler input, SC-2060 board, 2-2
optocoupler output, SC-2061 board, 3-3
P
physical specifications
SC-2060 board, 2-4
SC-2061 board, 3-4
SC-2062 board, 4-4
pinout for connector J1 (illustration), 5-7
ports. See digital port operation of SC-206X
Series boards.
power requirement specifications
SC-2060 board, 2-3
SC-2061 board, 3-3
SC-2062 board, 4-4
power selection. See internal or external
power selection.
Index
© National Instruments Corporation Index-3 SC-206X Series User Manual
R
relay contacts, SC-2062 board, 4-2. See also
American Zettler relays.
relay digital output, SC-2062 board, 4-3
S
S1 switch. See switch S1.
safety information, 5-9 to 5-10
SC-205X Series cable adapter board
connections, 5-5 to 5-8
cable connector J1, 5-7 to 5-8
damage caused by incorrect
connection, 5-7
pinout (illustration), 5-7
signal descriptions, 5-7
connectors compatible with SC-206X
Series boards (table), 5-8
damage caused by incorrect
connection, 5-8
illustration, 5-6
installation of SC-205X Series cable
adapter board, 5-1
overview, 1-1
rack mounting (illustration), 1-2
SC-2060 board, 2-4
connected to data acquisition board
(illustration), 1-2
SC-2061 board, 3-4
SC-2062 board, 4-5
SC-206X Series boards. See also
installation.
additional software not required, 1-3
component boards, 1-1
contents of kit, 1-3
external mounting
alternative methods, 1-2
illustration, 1-2
optional equipment, 1-4
purpose, ix, 1-1
unpacking, 1-4
SC-2060 board, 2-1 to 2-4
computers supported, 2-1
connected to data acquisition board via
SC-2050 board (illustration), 1-2
connector J1, 2-2
damage resulting from incorrect signal
connections, 2-3
digital input circuitry, 2-2
features, 2-1
mounting and connection to data
acquisition boards, 2-4
onboard equivalent circuit
(illustration), 2-2
parts locator diagram, 2-1
power circuit (illustration), 2-2
power selection, 2-2
screw terminals, 2-1
shock hazard when connecting or
disconnecting signal lines, 2-3
specifications, 2-3 to 2-4
operating environment, 2-4
optically isolated digital input, 2-3
physical, 2-4
power requirements, 2-3
storage environment, 2-4
SC-2061 board, 3-1 to 3-4
computers supported, 3-1
connecting to data acquisition board via
SC-2050 board, 3-4
connector J1, 3-1 to 3-2
damage resulting from incorrect signal
connections, 3-2
digital output channels, 3-2
features, 3-1
mounting and connection to data
acquisition boards, 3-4
onboard equivalent circuit
(illustration), 3-2
parts locator diagram, 3-1
power selection, 3-1 to 3-2
purpose, 3-1
screw terminals, 3-1, 3-2
shock hazard when connecting or
disconnecting signal lines, 3-2
specifications, 3-3 to 3-4
operating environment, 3-4
optically isolated digital output, 3-3
physical, 3-4
power requirements, 3-3
storage environment, 3-4
SC-2062 board, 4-1 to 4-5
COM connection, 4-1, 4-2
computers supported, 4-1
connector J1, 4-2
damage resulting from incorrect signal
connections, 4-2
features, 4-1
mounting and connection to data
acquisition boards, 4-4 to 4-5
Index
SC-206X Series User Manual Index-4 © National Instruments Corporation
NC connection, 4-1, 4-2
NO connection, 4-1, 4-2
onboard equivalent circuit
(illustration), 4-2
parts locator diagram, 4-1
power selection, 4-2
purpose, 4-1
relay contacts, 4-2
shock hazard when connecting or
disconnecting signal lines, 4-2
specifications, 4-3 to 4-4
electromechanical relay digital
output, 4-3
operating environment, 4-4
physical, 4-4
power requirements, 4-4
storage environment, 4-4
screw terminals
SC-2060 board, 2-1
SC-2061 board, 3-1, 3-2
shock hazard when connecting or
disconnecting signal lines
SC-2060 board, 2-3
SC-2061 board, 3-2
SC-2062 board, 4-2
signal description for connection J1, 5-7
signal lines. See connecting or disconnecting
signal lines.
single-pole, dual-throw (SPDT) relays, 4-1
specifications
SC-2060 board, 2-3 to 2-4
SC-2061 board, 3-3 to 3-4
SC-2062 board, 4-3 to 4-4
storage environment specifications
SC-2060 board, 2-4
SC-2061 board, 3-4
SC-2062 board, 4-4
switch S1
power selection settings (illustration), 5-5
selecting internal or external power, 5-4
T
technical support, D-1
U
ULN2801 array, B-1 to B-6
circuit schematics, B-6
electrical characteristics, B-3
electrical characteristics curves, B-5
illustration, B-2
maximum ratings, B-2
overview, B-2
pin connections, B-2
test figures, B-4
unpacking SC-206X Series boards, 1-4

Navigation menu
