37GT-27S

MODEL

37GT-27SES/ESS/IT/ITS/GG

SHARP CORPORATION

CONTENTS

PAL SYSTEM COLOUR TELEVISION

SE0037GT27S00

SQUAD-T CHASSIS

SERVICE MANUAL

In the interests of user safety (required by safety

regulations in some countries) the set should restored

to its original condition and only parts identical to

those specified should be used.

Issued: 9th May 2002

This document has been published to

be used for after sales service only.

ELECTRICAL SPECIFICATION.......................3

IMPORTANT SERVICING NOTES.......................4

SERVICE ADJUSTMENTS...............................5

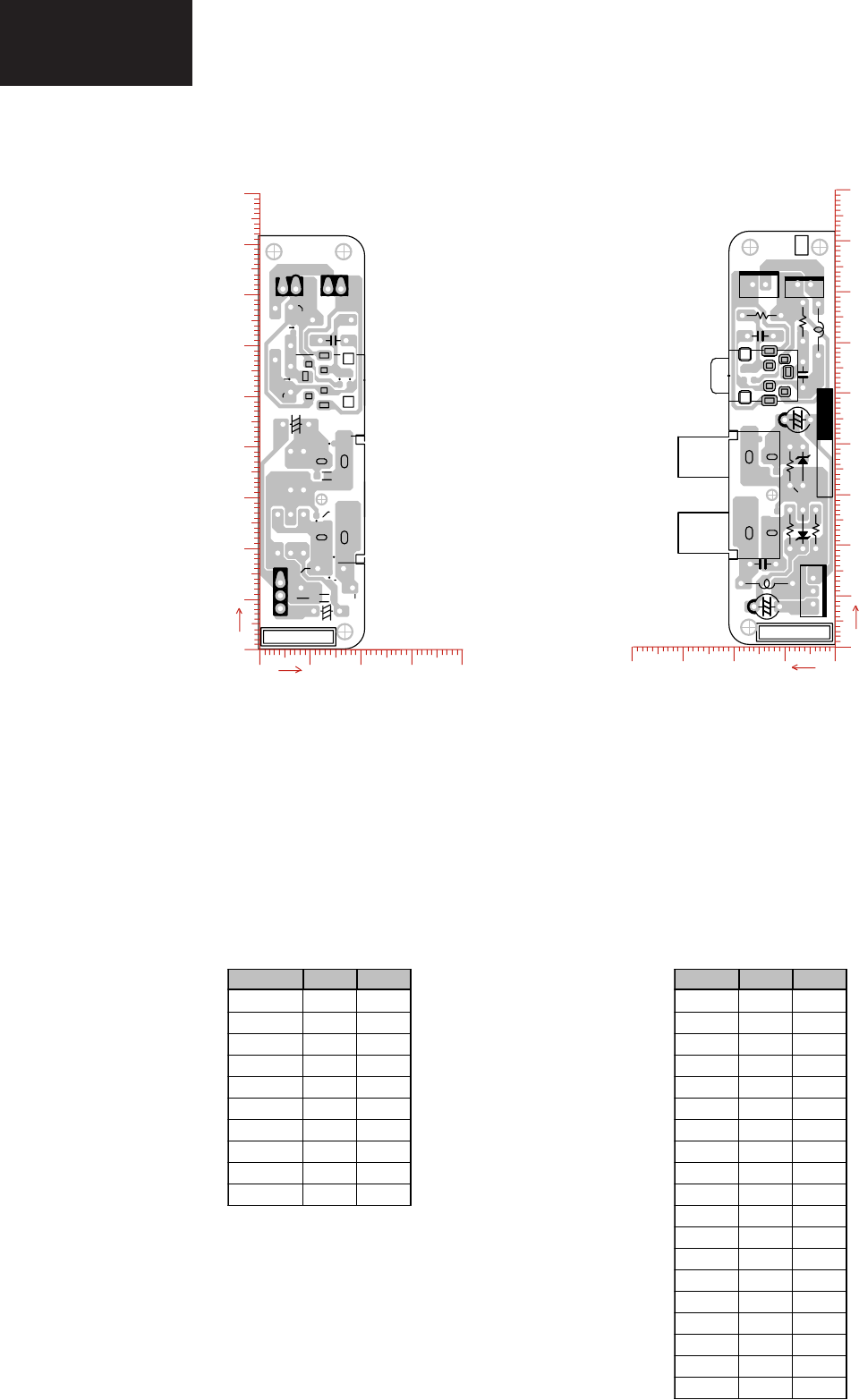

PRINTED WIRING BOARDS..........................12

COMPONENT LOCATION TABLES................14

ICs ADDITIONAL INFORMATION..................17

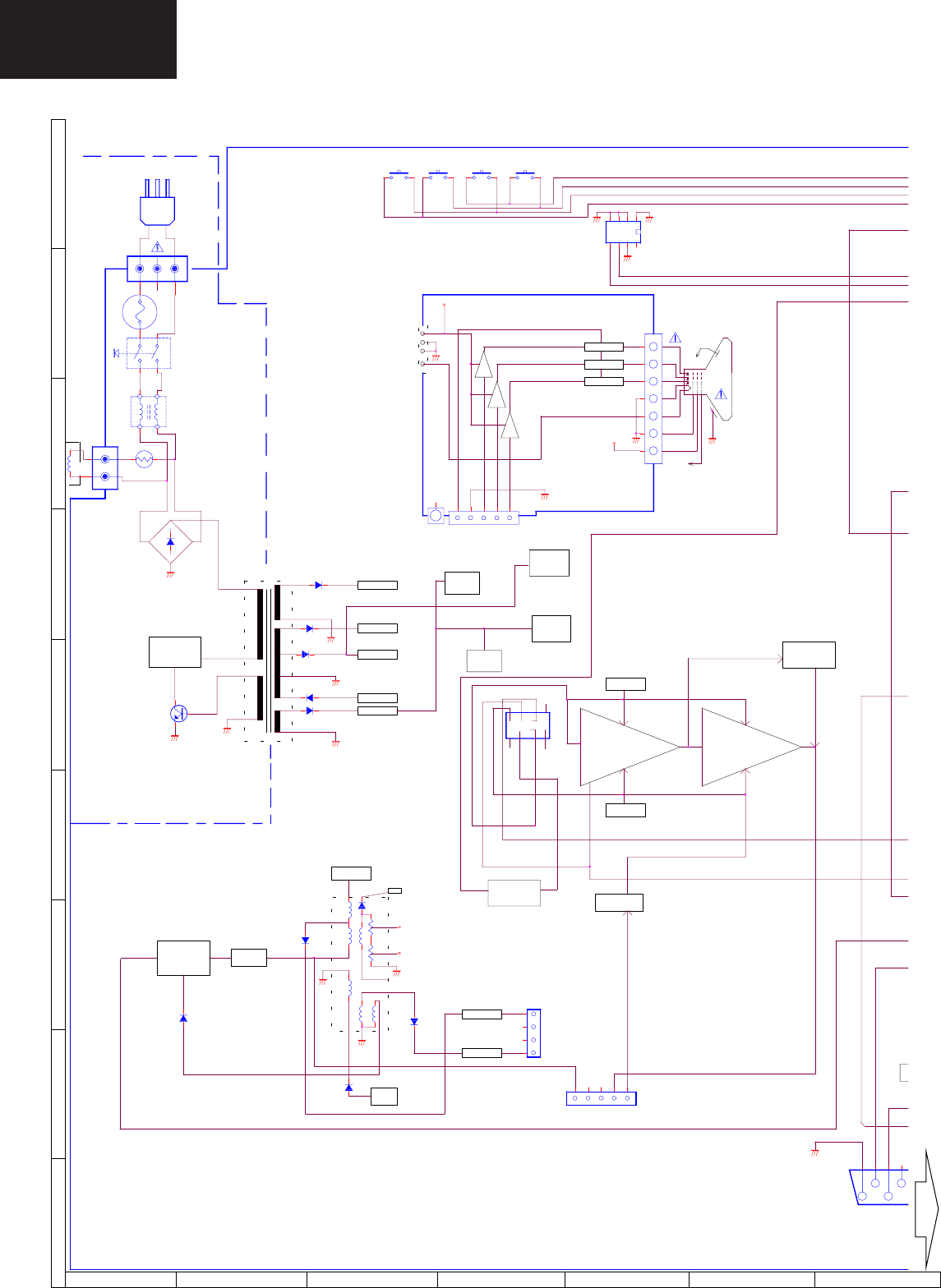

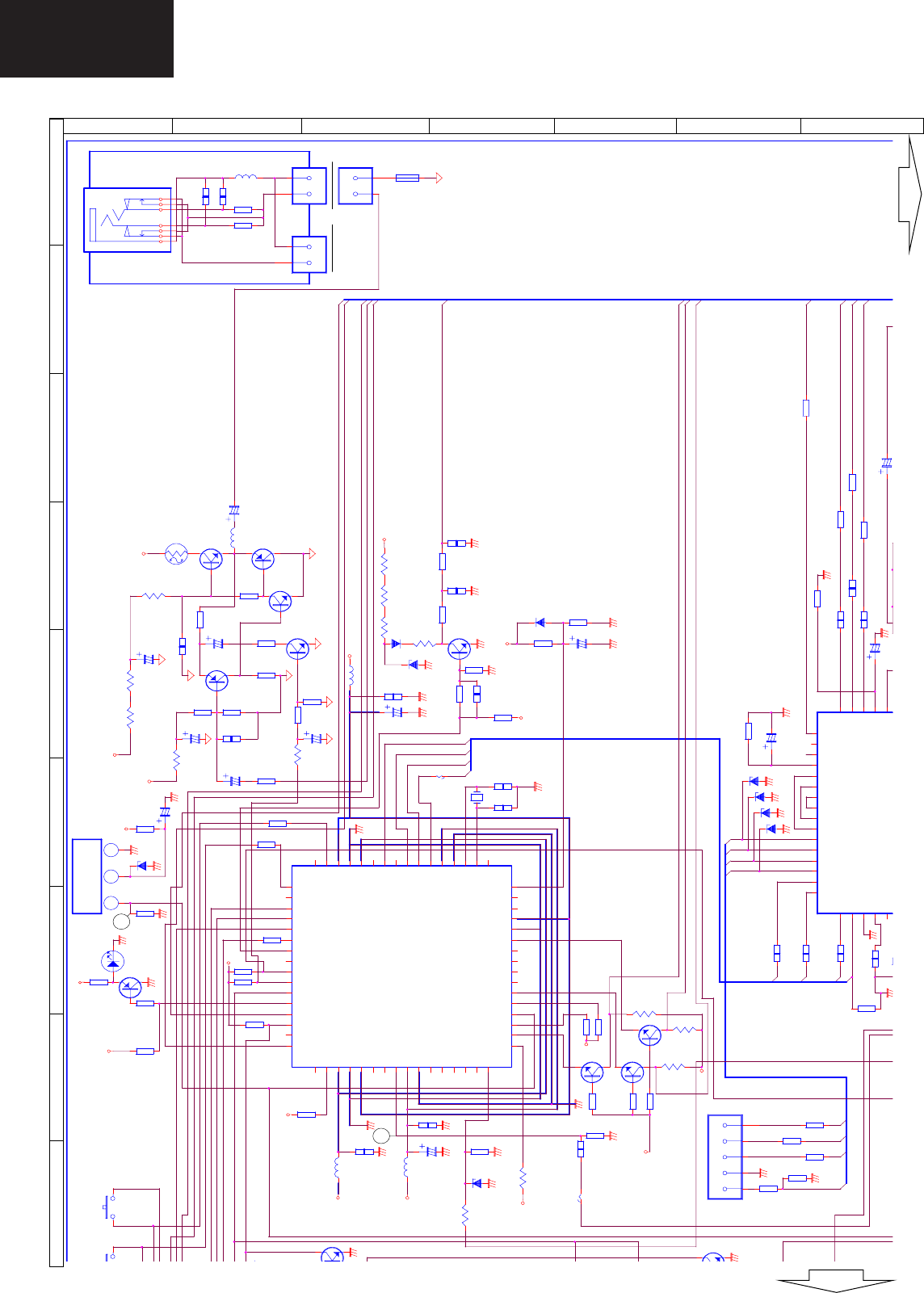

SCHEMATIC DIAGRAM, WAVE FORMS.......24

BLOCK DIAGRAM..........................................30

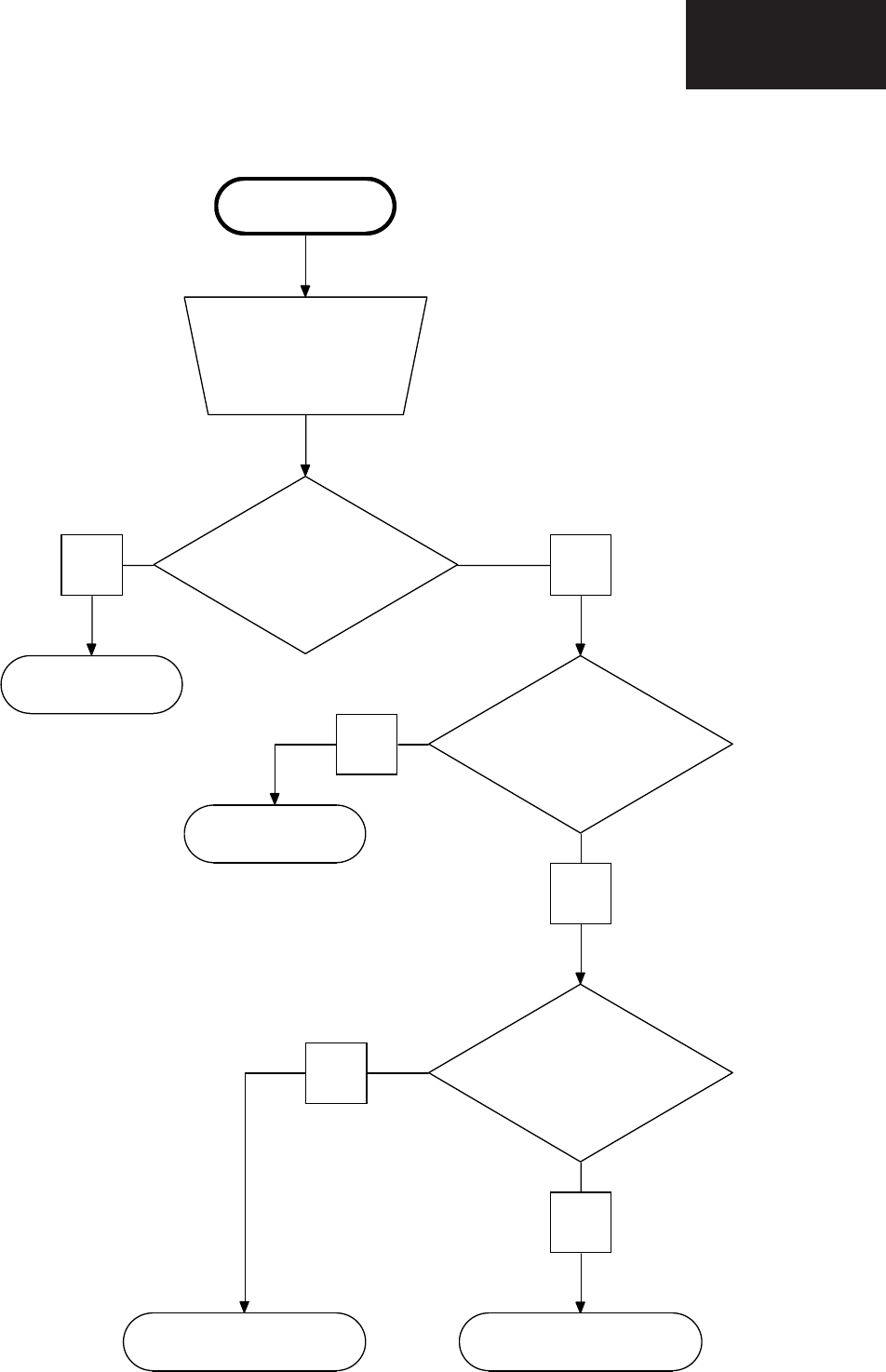

TROUBLESHOOTING TABLES......................32

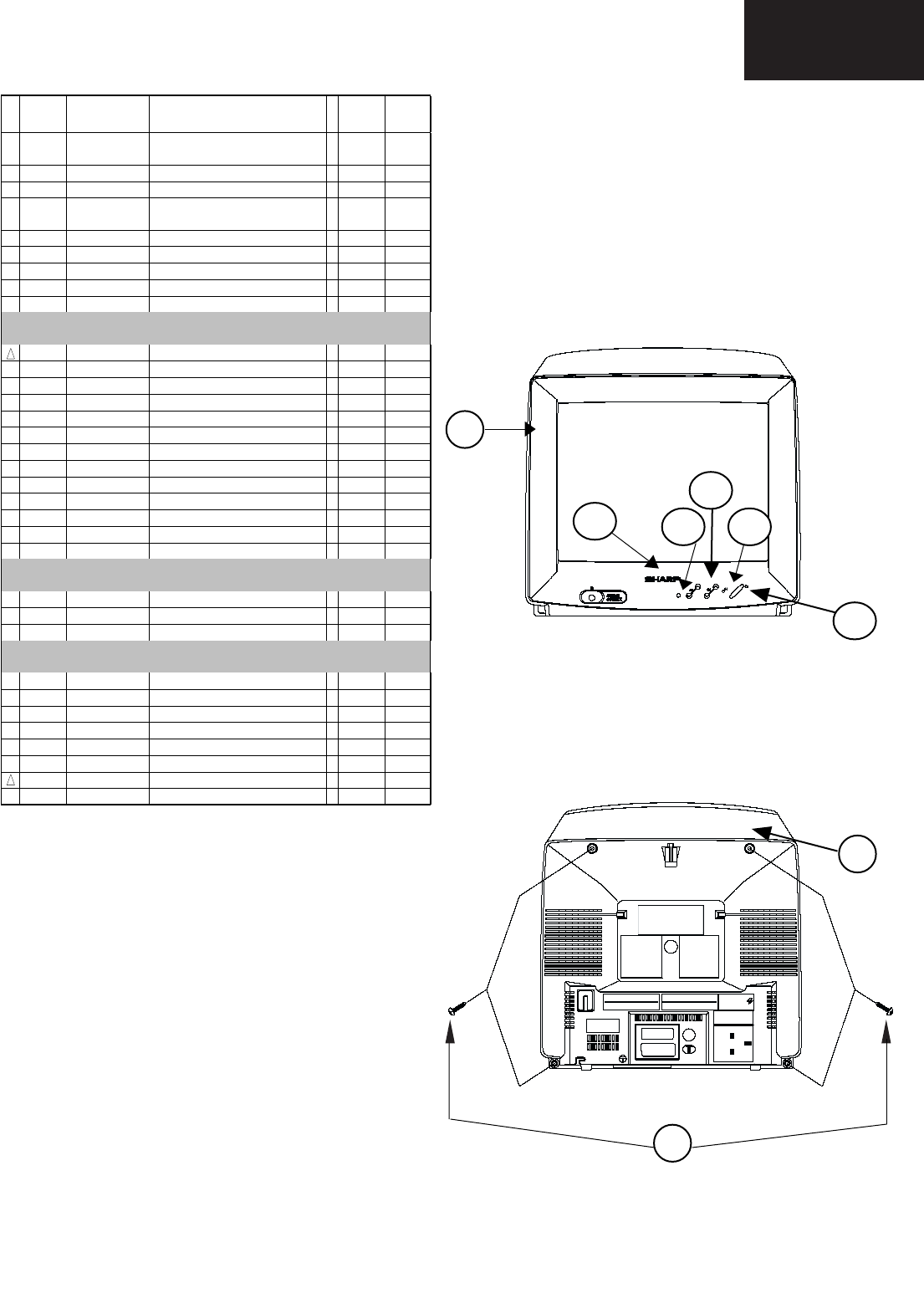

PARTS LISTING..................................................37

PACKING OF THE SET...................................42

REMOTE CONTROL DESCRIPTION..............43

37GT-27S

Use this page to keep any special servicing information as Technical Report (Bulletin), Technical Information, etc.

If only part number changes are required, just change part number directly the part number in the Parts Listing Section.

If you need more information, please refer to the Technical Report (Bulletin).

SERVICE MANUAL UPDATE LOG SHEET

Part No.

Technical Report No.

Technical Bulletin No. Cause / Solution Page No. Application

Data /Serial No.

37GT-27S

37GT-27S: Germany, Austria, Switzerland, Netherlands, Belgium. Particular Operation

Manual.

37GT-27SES: Spain, Portugal. Particular Operation Manual.

37GT-27SESS: Spain, Portugal. Silver Cabinet. Particular Operation Manual.

37GT-27SGG: Greece. No Operation Manual from Factory.

Greek Teletext (NVM: Page 00, Position 55, Value: 00 04).

37GT-27SIT: Italy. Particular Operation Manual.

37GT-27ITS: Italy. Silver cabinet. Particular Operation Manual.

ELECTRICAL SPECIFICATIONS

•Focus ....................... High Bi-Potential Electrostatic

•Picture Intermediate frequency...................38.9MHz

•Sound Carrier Trap................................... 33.4MHz

•Adjacent Sound Carrier Trap ................... 40.4MHz

•Adjacent Picture Carrier Trap.................. 31.9MHz

•Aerial Input Impedance

VHF/UHF ...................... 75 ohm Unbalanced

•Tuning Ranges........... 48.25 MHz thru 855.25 MHz

VHF: E2 -E12

S1 - S41 CH (Hyperband)

UHF: E21 - E69 CH

CATV Special Channels

•White Level

Set brightness control to get total picture tube cathode current of 600 µA under no signal condition.

Maximum necessary correction of each picture tube cathode current to get 8550 degrees K+1 MPCD

screen temperature should not exceed 15% of its original value.

X=0.290 ± 0.015 Y=0.300 ± 0.015

WARNING

The chassis in this receiver is partially hot. Use an isolation transformer between the line cord plug

and power receptacle, when servicing this chassis.

To prevent electric shock, do not remove cover. No user-serviceable parts inside. Refer servicing to

qualified service personnel.

Specifications are subject to change without prior notice.

•Power Input .................... 220V-240 Volts AC 50Hz

•Power Consumption

Normal Operation (Method IEC60107) ............ 30W

Stand-by Operation ..........................................7.5W

•Audio Power Output Rating (MPO) / Impedance

Speaker...................................................... 2W, 32Ω

•Speaker.............................................................8cm Round

•Convergence (Maximum Misconvergence)

Static (Centre) between any two colours ... 0.08 cm

Dynamic after static equals zero

Within 10cm (4”) circle ....................... 0.12cm

10-25cm (4-10” ) circle ...................... 0.20 cm

Everywhere else ................................ 0.28 cm

MODEL DESTINATION & DIFFERENCES:

37GT-27S

IMPORTANT SERVICING NOTES

Only qualified service personnel are allowed to carry out maintenance and repair of this receiver.

Servicing of High Voltage System and CRT

It is important that the static charge is removed from the high voltage system when carrying out work on the

receiver. This can be achieved by connecting a 10K resistor (with a suitably insulated lead) from the CRT

cavity connector to the CRT ground tag. This must be carried out with the AC supply disconnected from the

receiver.

Note the following:

• The CRT in this receiver employs Integral Implosion Protection.

• If the CRT has to be changed it MUST be replaced with the correct type for continued safe working.

• DO NOT lift the CRT by its neck.

• When handing the CRT, ensure that shatterproof goggles are worn.

• Ensure that the CRT is discharge before handling.

X-Ray

This receiver is designed to keep any x-ray emission to an absolute minimum. Some fault conditions and

servicing procedures may produce potentially hazardous x-ray radiation levels. This is a problem when in

close proximity to the receiver for long periods of time. To reduce any risks associated with this, please

observe the following precautions:

1. When undertaking any servicing on this chassis, DO NOT increase the EHT to more than 30KV, (at a

instantaneous beam current of 300µA).

2. Ensure that during normal operation the EHT does not exceed 27.5KV (at a beam current of 800µA). This

level has been preset in the factory. Always check that this level has not been exceeded after carrying out

any repair on the receiver.

3. DO NOT replace the CRT with any other type than that specified in the parts listing as this may cause

excessive x-ray radiation.

Before returning the receiver to the customer

In addition to the above checks, the following should also be carried out before returning the receiver to the

customer.

1. Inspect all the leads to ensure that they are dressed correctly and that they are not obstructed or pinched

by any other parts.

2. Ensure that all protective devices are in good condition. These will include nonmetallic control knobs,

insulating fish papers, cabinets backs, compartment covers or shields, mechanical insulators, etc.

37GT-27S

Indicates operative Service Mode

Auto Gain Control

Auto Frecquency Control Fine

Auto Frecquency Control Coarse

Auto Frecquency Control Fine Not available in

Auto Frecquency Control Coarse this model

Horizontal Shift

Vertical Shift

Verical Amplitud

Red Gain

Green Gain

Blue Gain

Red Cut Off

Green Cut Off

NVM Data Change

SERVICE ADJUSTMENTS

Service Mode Function

XXXX

POS (Green)

VALUE (Red)

-SERV-

AGC

AFT F

AFT C

AFT FL

AFT CL

H-SHFT

V-SHFT

V-AMPL

GAIN R

GAIN G

GAIN B

CUT R

CUT G

NVM

Displayed

on screen

Hexadecimal /

Decim. Range Function

00∼ 3F

02∼ FE

00∼ 0F

02∼ FE

00∼ 0F

00∼ FF

00∼ 3F

00∼ 0F

00∼ 3F

00∼ FF

1. Turn the receiver on and ensure that it is tuned into a test pattern.

2. Turn the receiver off using the mains switch.

3. Press the volume down and channel up buttons together. See Figure 1.

4. Continue pressing the volume down and channel up buttons while turning

the mains on using the mains switch. See Fig. 1.

5. Keep pressing the volume down and channel up buttons until the picture appears.

6. Release the two buttons and the receiver is now in the Service Mode.

To move between the various service mode functions, use the channel up and down buttons.

Use the volume buttons to change the data to the desired value.

The data will be stored automatically when exiting the Service Mode.

To exit the service mode, press the stand-by button on the remote control or turn the receiver off

with the mains switch.

On Screen

Display

(Blue)

}

All required adjustments for servicing this TV set, may be done in «Service Mode», excepting G2 and FOCUS.

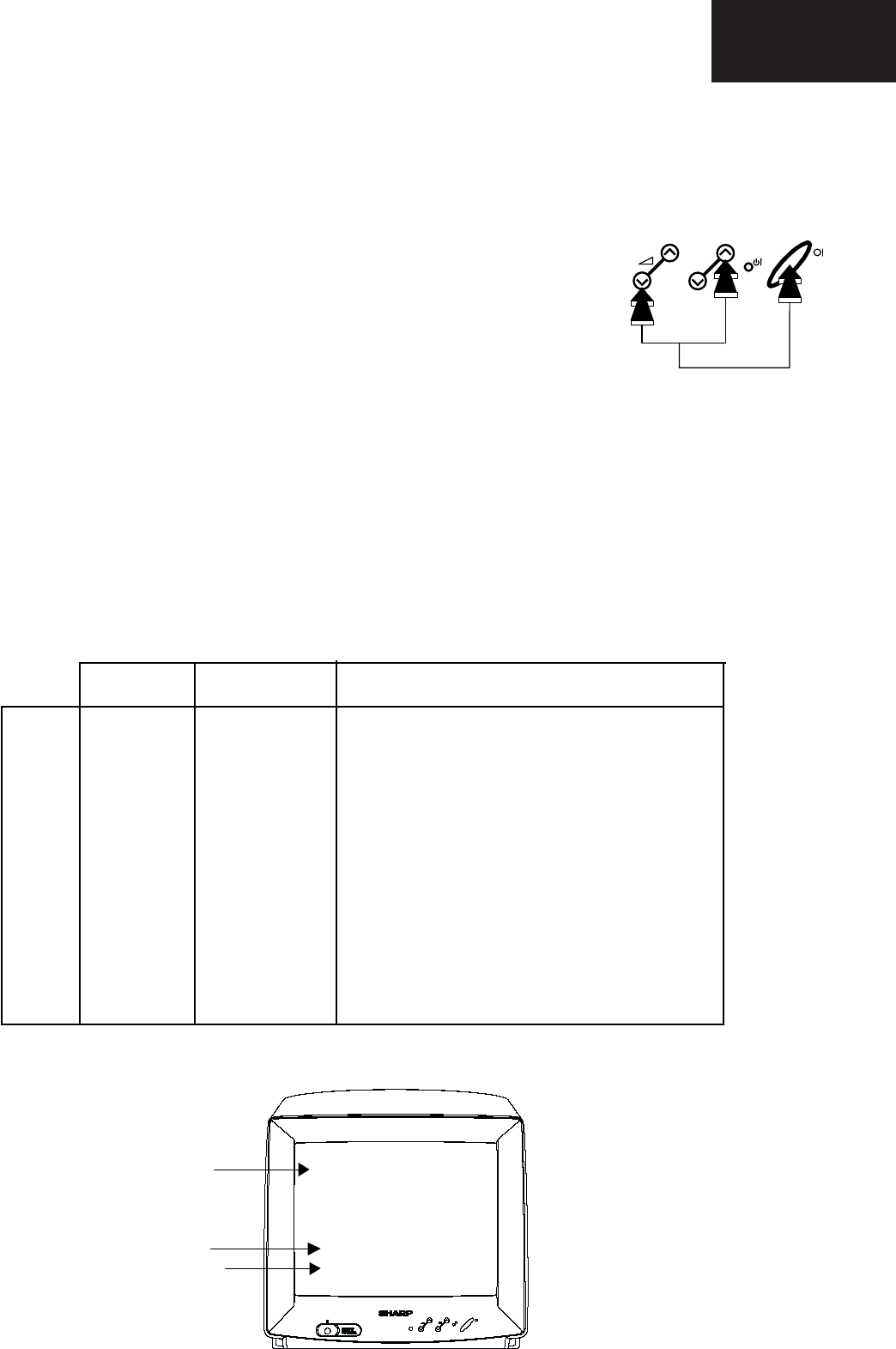

How to access the Service Mode

Figure 1

37GT-27S

Adjustment of Data within the NVM memory

To access the NVM memory, press the channel up button on the remote control until the NVM setting is reached. Note that

the NVM address is shown in green and the NVM value is shown in red. Each of the NVM values are stored as a

hexadecimal code, each code comprises of two hexadecimal numbers. Each of these numbers will break down into a four

bit binary code as in the example below.

Hex code A 5

Binary code 1010 0101

Button on remote to toggle Bit 7654 3210

In the example given above, the hexadecimal code is A5, the binary equivalent is 1010 0101. The remote control button to

toggle each bit on or off (1 or a 0) is shown below the binary code. Therefore to change this to A6, remote control buttons

1 then 0 would have to be pressed.

Note: In the tables below appear b0, b1, b2,.........,b7, whose indicate the bit number:

b0 is the Least Significant Bit (LSB).

b7 is the Most Significant Bit (MSB).

VALUE DESCRIPTION ADDRESS

45 RESERVED

b7: x

b6: CO_BLK

b5: SVHS

b4: FRAME_BLK

b3: BLACK_ST_REF

b2: S_STD2

b1: S_STD1

b0: QSS

00 RESERVED

b7: BLACK_ST

b6: COR

b5: CK_ON

b6: COR

b5: CK_ON

b4: VID_ST2

b3: VID_ST1

b2: CK_1

b1: CK_2

b0: CK_3

A5 SIGNATURE VALUE 11

32 TEMPERATURE RED 12

32 TEMPERATURE GREEN 13

32 TEMPERATURE BLUE 14

26 VERTICAL SHIFT 15

32 RED CUTOFF 16

32 GREEN CUTOFF 17

1F HORIZONTAL SHIFT 18

37 VERTICAL AMPLITUDE 19

08 LUMA DELAY

b6-b5:AUDIO OUT

b4-b5: 00

b3: LUMA DELAY SHIFT

b1-b2:00

b0: V OUT INHIBITION

1 A

VALUE DESCRIPTION ADDRESS

32 TEMPERATURE RED 00

32 TEMPERATURE GREEN 01

32 TEMPERATURE BLUE 02

26 VERTICAL SHIFT 50HZ 03

32 RED CUTOFF 04

32 GREEN CUTOFF 05

1F HORIZONTAL SHIFT 50HZ 06

37 VERTICAL AMPLITUDE 07

08 LUMA DELAY

b6-b5:AUDIO OUT

b4-b5: 00

b3: LUMA DELAY SHIFT

b1-b2:00

b0: V OUT INHIBITION

2E CAG ADJUSTEMENT VALUE 09

60 TV OPTIONS

b7: ENGLISH OSD

b6: AUTOINSTALLATION FIRST

OPTION

b5: CHILD LOCK ENABLED

b4: X

b3: UHF BAND ONLY

b2: BASIC HOTEL MODE

b1: AV FRONT ENABLED

b0: FP VERSION

3A AFT COARSE FOR B/G AND L

SYSTEMS 0B

4C AFT FINE FOR B/G AND L

SYSTEMS 0C

C2 AFT FINE FOR L' SYSTEMS 0D

FF VOLUME LIMIT (MAXIMUM) 0E

NVM List Description

37GT-27S

VALUE DESCRIPTION ADDRESS

2E CAG ADJUSTEMENT VALUE 1B

60 TV OPTIONS

b7:

ENGLISH OSD

b6: AUTOINSTALLATION FIRST

OPTION

b5: CHILD LOCK ENABLED

b4: X

b3:

UHF BAND ONLY

b2:

BASIC HOTEL MODE

b1: AV FRONT ENABLED

b0: FP VERSION

3A AFT COARSE FOR B/G AND L

SYSTEMS 1D

4C AFT FINE FOR B/G AND L

SYSTEMS 1E

C2 AFT FINE FOR L' SYSTEMS 1F

FF VOLUME LIMIT (MAXIMUM) 20

45 RESERVED

b7: X

b6: CO_BLK

b5: SVHS

b4: FRAME_BLK

b3: BLACK_ST_REF

b2: S_STD2

b1: S_STD1

b0: QSS

00 RESERVED

b7: BLACK_ST

b6: COR

b5: CK_ON

b6: COR

b5: CK_ON

b4: VID_ST2

b3: VID_ST1

b2: CK_1

b1: CK_2

b0: CK_3

A5 SIGNATURE VALUE 23

32 TEMPERATURE RED 24

32 TEMPERATURE GREEN 25

32 TEMPERATURE BLUE 26

26 VERTICAL SHIFT 27

32 RED CUTOFF 28

32 GREEN CUTOFF 29

1F HORIZONTAL SHIFT 2 A

37 VERTICAL AMPLITUDE 2B

08 LUMA DELAY

b6-b5:AUDIO OUT

b4-b5: 00

b3: LUMA DELAY SHIFT

b1-b2:00

b0: V OUT INHIBITION

2E CAG ADJUSTEMENT VALUE 2D

60 TV OPTIONS

b7:

ENGLISH OSD

b6: AUTOINSTALLATION FIRST

OPTION

b5: CHILD LOCK ENABLED

b4: X

b3:

UHF BAND ONLY

b2:

BASIC HOTEL MODE

b1: AV FRONT ENABLED

b0: FP VERSION

3A AFT COARSE FOR B/G AND L

SYSTEMS 2F

VALUE DESCRIPTION ADDRESS

40 AFT FINE FOR B/G AND L

SYSTEMS 30

C2 AFT FINE FOR L' SYSTEMS 31

FF VOLUME LIMIT (MAXIMUM) 32

45 RESERVED

b7: X

b6: CO_BLK

b5: SVHS

b4: FRAME_BLK

b3: BLACK_ST_REF

b2: S_STD2

b1: S_STD1

b0: QSS

00 RESERVED

b7: BLACK_ST

b6: COR

b5: CK_ON

b6: COR

b5: CK_ON

b4: VID_ST2

b3: VID_ST1

b2: CK_1

b1: CK_2

b0: CK_3

A5 SIGNATURE VALUE 35

A5 SIGNATURE VALUE 37

20 NVM SATURATION 38

05 OFFSET FOR VOLUME CURVE 39

1F VOLUME VALUE (DECIMAL) 3A

31 CONTRAST 3B

19 COLOR SATURATION 3C

20 BRIGHTNESS 3D

07 0,0,P5,P4,P3,P2,P1,P0

LUMA PEAKING VALUE LUPK 3E

02 CURRENT PROGRAM 3F

00 TV STATUS: 00H TV ON

FFH TV STBY 40

36 FACTORY CONTRAST 41

19 FACTORY COLOR SATURATION 42

20 FACTORY BRIGHTNESS 43

06 FACTORY PEAKING

b5-b0: LUMA PEAKING VALUE 44

16 END OF HORIZONTAL CLAMP

PULSE 45

19 OSD STATUS

b6: X

b5: PIN ENABLED

b4: CLOCK

b3 R8/30

b2: FRONT LOCK

b1: AV LOCK

b0: E_NORMALIZED PICTURE

06 TXT AND OSD OPTIONS

b7: X

b6: ROW 8/30 (TXT)

PREPROCESSING FOR UK

b5: PASSWORD ON/OFF

b4: OSD REMAINING TIME

b3: SIZE OSD PROG: 0= 14”

1= 21”

b2: VPS LOCK ON / OFF

b1: FLOF

b0: TOP

37GT-27S

VALUE DESCRIPTION ADDRESS

00 BEGINING OF HORIZONTAL

CLAMP PULSE. 48

1F VOLTAGE TO CHANGE TO L-L'

SYSTEM 49

1F VOLTAGE TO CHANGE TO L-L'

SYSTEM 4A

1A VERTICAL SYNC DELAY FOR TXT. 4B

69 SLICER CONTROL TTX ->

NIBBLE_UP = /NIBBLE_DOWN 4C

0F CHANNEL SEARCH SPEED [UHF] 4D

0F CHANNEL SEARCH SPEED [VHL] 4E

0F CHANNEL SEARCH SPEED [VHH] 4F

AA HORIZONTAL SYNC DELAY 50

00 PASSWORD 1st DIGIT 51

00 PASSWORD 2nd DIGIT 52

00 PASSWORD 3rd DIGIT 53

00 PASSWORD 4th DIGIT 54

00 CHARACTER SET (LANGUAGE

TXT) 55

40 MAXIMUM TUNNING VOLTAGE

DECREASE DURING PROG.

CHANGE (IN CASE IT IS NOT

FOUND THE SYNCHRO)

VALUE DESCRIPTION ADDRESS

00 b0: HOTEL MODE: DEACTIVATE

THE TV PANEL FRONTAL KEY.

IT STARTS UP IN SCART

MODE

WHEN SSW SIGNAL IS GIVEN

b1: SPECIAL HOTEL MODE FOR

S.E.I.S. THE TIME CONSTANT

TO VCR MODE

b2: OPTION FOR DK_SYSTEM.

b3: AUTOINSTALL ON.

b4: COUNTRY SELECTION

MENU.

b5-b6: RGB DACs LEVEL.

b7: VPS_LOCK_SET

0F TIMING PACKET SEARCH, VPS. 58

20 VERTICAL SHIFT FOR 60HZ 59

BB ONE STEP DOWN WHEN THE

FIRST SYNCHRO LOOSING IS

PRODUCED

00 UP MAXIMUM STEP No DURING

SEARCHING ( ). 5B

00 CORRECTION VALUE OF V-SHIFT

IN ORDER TO BE INDEPENDENT

TO V-AMP BAND OFFSET SPEED

DURING SEARCHING

15 AUTOMATIC PEAK RGB

REGULATION: PIC REGULATOR 5D

F0 BAND OFFSET SPEED DURING

SEARCHING ( )

NIBBLE_UP=/ NIBBLE_DOWN

00 FREE 5F

10 TIMING PACKET SEARCH, 8/30. 60

---- RESERVED 61 FF

PIF/AGC Adjustment

1. “AFT C” should not be adjusted. The value should be fixed to 0A.

2. “AFT F” Adjustment

2.1. Connect the output of SSG (Standard Signal Generator) to the tuner IF output terminal.

·SSG output 38.9 MHz (CW) ± 5 KHz.

·SSG output level: approx. 90 dB/uV.

2.2. Enter into Service Mode.

2.3. Select parameter AFT F.

2.4. Push «CALL» button on R/C, see Page 43. «AFT OK» will appear in On Screen Display (OSD).

2.5. Switch set OFF and ON again, setting is now memorized.

3. RF-AGC Adjustment

3.1. Receive the “ COLOUR Bar” Signal (Channel E-10). Signal strength: 53dB/µV.

3.2. Enter into Service Mode.

3.3. Select parameter AGC.

3.4. Push “CALL” button on R/C, see Page 43. “BUS STOP” will appear in OSD.

3.5. Push “GREEN” button on R/C (to exit Bus Stop Mode).

3.6. Switch set OFF and ON again, setting is now memorized.

37GT-27S

3. Vertical Amplifier

3.1. Receive Philips pattern signal.

3.2. Select V-AMPL with channel up or channel down buttons.

3.3. When volume up button is pressed, vertical size of picture decreases.

3.4. When volume down button is pressed, vertical size of picture increases.

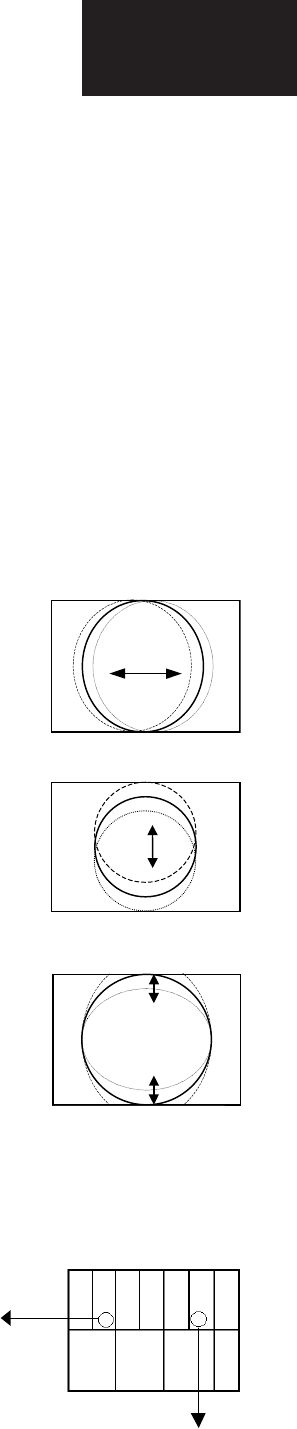

3.5. Adjust the vertical size to obtain picture overscan (Figure 4).

2. Vertical Shift

2.1. Receive Philips pattern signal.

2.2. Select V-SHFT with channel up or channel down buttons.

2.3. When volume up button is pressed, picture moves up.

2.4. When volume down button is pressed, picture moves down.

2.5. Adjust the vertical location to obtain picture centering (Figure 3).

1. Horizontal Shift

1.1. Receive Philips pattern signal.

1.2 Select H-SHFT with channel up or channel down buttons.

1.3. When volume up button is pressed, picture moves to the left.

1.4. When volume down button is pressed, picture moves to the right.

1.5. Adjust the horizontal location to obtain picture centering (Figure 2).

Screen Adjustment

1. Focus Adjustment

1.1. Apply mains voltage of 220V AC/50HZ to TV.

1.2. Receive Philips pattern signal to a level between 60 and 80 dB/µV.

1.3. Set contrast to 10/10, brightness to 5/10 and colour 0/10.

1.4. Adjust focus potentiometer to obtain maximum definition.

2.G2 Adjustment

2.1. Apply mains voltage of 220V AC/50HZ to TV.

2.2. Receive the “Cross Hatch” pattern signal to a level between 60 and 80 dB/µV.

2.3. Apply High Voltage Probe to Pin 8 of CRT socket

2.4. Adjust G2 potentiometer until obtaining 525V ±10%.

2.5. Check BKGD. If it is necessary adjust BKGD according to instructions detailed below.

Geometry Adjustment Procedure

Figure 2

Figure 3

The following adjustments are required when the Picture Tube or IC801 are replaced, or may be nec-

essary after adjustment of the G2 voltage.

Colour Adjustment (BKGD) Procedures

1. «GAIN B», «GAIN G»

1.1. Adjust G2.

1.2. Tune a grey scale pattern.

1.3. Adjust colour to minimum.

1.4. Fix R-GAIN value to 32.

1.5. Position colorimeter in the left point of Figure 5.

1.6. Using brightness and contrast buttons, select a luminance of »120 nits.

1.7. Operate again in Service Mode and select location B-GAIN and G-GAIN to obtain colour coordinates:

X = 0.290 ± 0.015

Y = 0.300 ± 0.015

6 5 4 3 2 1 0

Gain point

DC point

Figure 5

Figure 4

37GT-27S

Procedure to Program Functions of Hotel Mode

Below listed can be found the procedure to carry out in the above TV Sets functions called HOTEL MODE as follows:

Consider that HOTEL MODE is implemented by means of HOTEL MODE 1. The HOTEL MODE 2 or HOTEL MODE 3

can be used at the same time than HOTEL MODE 1.

HOTEL 1 Blockade of tuning functions Restriction of sound

HOTEL 2 Blockade of tuning functions Start on SCART mode + SW when

SCART IS ACTIVE (Front Panel inactive)

HOTEL 3 Blockade of tuning functions VCR constant changed

Hotel 1 Mode: blockade of the TUNING function by modifying the value in 0A address of the NVM.

-This change besides blocking the tuning function, makes the TV always starts to operate in program 1.

Procedure:

A) Press the volume up or volume down buttons (RC) as far as the NVM address (green colour) displays “0A” location.

Check the NVM value (red colour) displays the NORMAL VALUE .

B) Pay Attention: Press the button 2 (RC) only once. The NORMAL VALUE has been changed to the HOTEL 1 MODE

VALUE now. If the button 2 (RC) is pressed again the NORMAL VALUE is recovered. For the same reason, if a wrong

button has been pressed, NORMAL VALUE can be recovered by pressing the same button again. See NVM table on

page 6.

Restriction of Sound Volume: by modifying the R314 value.

Change R314 value from 1K (VRS-TVIJD102J part code) to 39K (VRS-TV1JD393J part code), so the maximum level of

sound can be limited from 100% to 50%.

1.8. Exit Service Mode and check colour coordinates «X» and «Y» at 20 and 120 nits. It may be necessary to repeat the

same procedure or readjust the cuts as show the be below one.

2. «CUT R», «CUT G»

2.1. Adjust G2, in the case that it has not been made previously.

2.2. Tune a grey scale pattern.

2.3. Adjust colour to minimum.

2.4. Position colorimeter in the right point of Fig.4.

2.5. Using brightness and contrast buttons, select a luminance of »20 nits.

2.6. Operate again in Service Mode and select location CUT-G and CUT-R to obtain colour coordinates:

X = 0.290 ± 0.015

Y = 0.300 ± 0.015

2.7. Exit Service Mode and check colour coordinates «X» and «Y» at 20 and 120 nits. It may be necessary to repeat

the same procedure or the previous one.

Cancel password (PIN)

The following process describes how to cancel actual password (PIN) when the customer forgets the code.

1. Press channel up or down to select the channel, wich you locked with input PIN number.

2. The TV picture will be blue and the key appear on screen.

3. Press and hold volume down on the TV and simultaneously press CHILD LOCK button (see Page.43) on the remote

control several times until the key disappears.

37GT-27S

Hotel 2 Mode: by modifying the value in 57 address of the NVM .

-When the TV set is switched on by main it starts working in SCART mode.

-When the TV is in STAND-BY mode and it is connected to a VCR through a 21 pins wire, it may be switched on simply

by SLOW SWITCH (VCR in PLAY mode).

-In these circumstances the Front Panel Control Keys does not work.

Procedure:

A) Press the volume up or volume down buttons (RC) as far as the NVM address (green Colour) displays “57” location.

Check the NVM value (red colour) displays the NORMAL VALUE . See NVM Table on page 8.

B) Pay Attention: Press the button 0 (RC) only once. The NORMAL VALUE has been changed to the HOTEL 2 MODE

VALUE now. If the button 0 (RC) is pressed again the NORMAL VALUE is recovered. For the same reason, if a wrong

button has been pressed, NORMAL VALUE can be recovered by pressing the same button again.

Hotel 3 Mode: by modifying the value 57 address of the NVM.

-When this it is activated VCR mode is set in all programs.

Procedure:

A) Press the volume up or volume down buttons (RC) as far as the NVM address (green colour) displays “57” location.

Check the NVM value (red colour) displays the NORMAL VALUE.

B) Pay Attention: Press the button 1 (RC) only once. The NORMAL VALUE has been changed to the HOTEL 3 MODE

VALUE now. If the button 1 (RC) is pressed again the NORMAL VALUE is recovered. For the same reason, if a wrong

button has been pressed, NORMAL VALUE can be recovered by pressing the same button again. See NVM Table on

page 8.

Finally press the Mains Power Button to switch OFF the TV SET . The changes made are stored automatically when the

TV SET is switched OFF.

Check the Hotel Functions work OK.

37GT-27S

J105

C605

R615

D704

R714

L802

C406

J64

C408

C815

J42

J86

C817

C878

C607

D603

R604

C603

C717

C722

R701R702

C707

R716

C718

J94

JL10

FB401

J101

R862

IC1003

C1018

C1016

C1015

J95

R1046

J18 C1020

C1019

C730

C726

C714 J85

F7323BMN3

K7323BM

J83

J11

R530

R1028

R819

R820

R536

Q704

J81

R1044

R1025

R1022

R1024

R1023

C503

X1001

J23

J34

J35

L801

J13

R223

R224

R1034

R1037

R1036

C1017

R612

J66

J65

C801

(FV)

J63

J60

C822

C401

R402

C819

J67

L206

C209

Q501

R502

R511

J22

R529

C216

J58

J57

J39

Q503

JL1,

JF12

L701

JF15

GND

SDA

SCL

(SERVICE)

TP701 C509

JL1

C725

R703

L861C879

R887

(L2)

C701

C705

JF10

D709

R510

D503

FB601

D708

C874

(H)

R885

Q883

C876

R883

Q872

Q887

D710

C713

R611

TP602

TP601

C608

R616

C609

C601

(A)

PR701

C702

C604

(H).

X801

C301

J32

R608

ESPA¥A

F7324BMN3

C1001

D1001

KS1001 S1002 S1003 S1004

RMC001

C207

C820

C215

R606

L601

Q603

R609

R605

EQ602

SC401

IF2

IF1

33V

B+

AGC

TU201

T601

R607

R603

R610

SF201

SF202

C208

C205

(L3)

R866

CRT

T701

T3.15AH

5432

(F)

D606

C602

Q601

C508

C711

S701

(G)

F701

Q885

J71

J87

C803

Q502

D717

J89

J82

JL1.

JL2.

JF13 JF14

(K)

Q871

D201

L205

L204

R305

R302

C812

JL2

JL10.

J55

CF201

C223 L202

J40

J50

(K).

C805

J15

R537

R1048

J14

J16

D301

R315

L301

C304

FB301

Q302

Q301C

R304

R303

R710

R1018

J33

R717

J12

J31

Q702

C728

C712

C727

C729

L1001

L1002

J26

L1005

BCE

Q708

Q707

J61

J62

J69

J73

J19

J20

J30

J72

R1063

J48

J47

J45

D801

R516

J79

J91

J92

J78

R523

J84

C312

J88

FB701

J70

J46

J54

D602

R816

J52

D605

R617

D604

R613

L602

R614

D608

R1001

R1004

J41

C302

C307

C308

C303

Q1001

R1012

R1011

J36

R301

J38

J37

J100

R1013

Q870

K7324BM

J44

J43

C814

C710

C709

R708

C734

D707

Q703

D711

FB405

J29

J76

R718

(S)

R864

J28

J99

D703

C704

D702

C731

R707

D701

J108

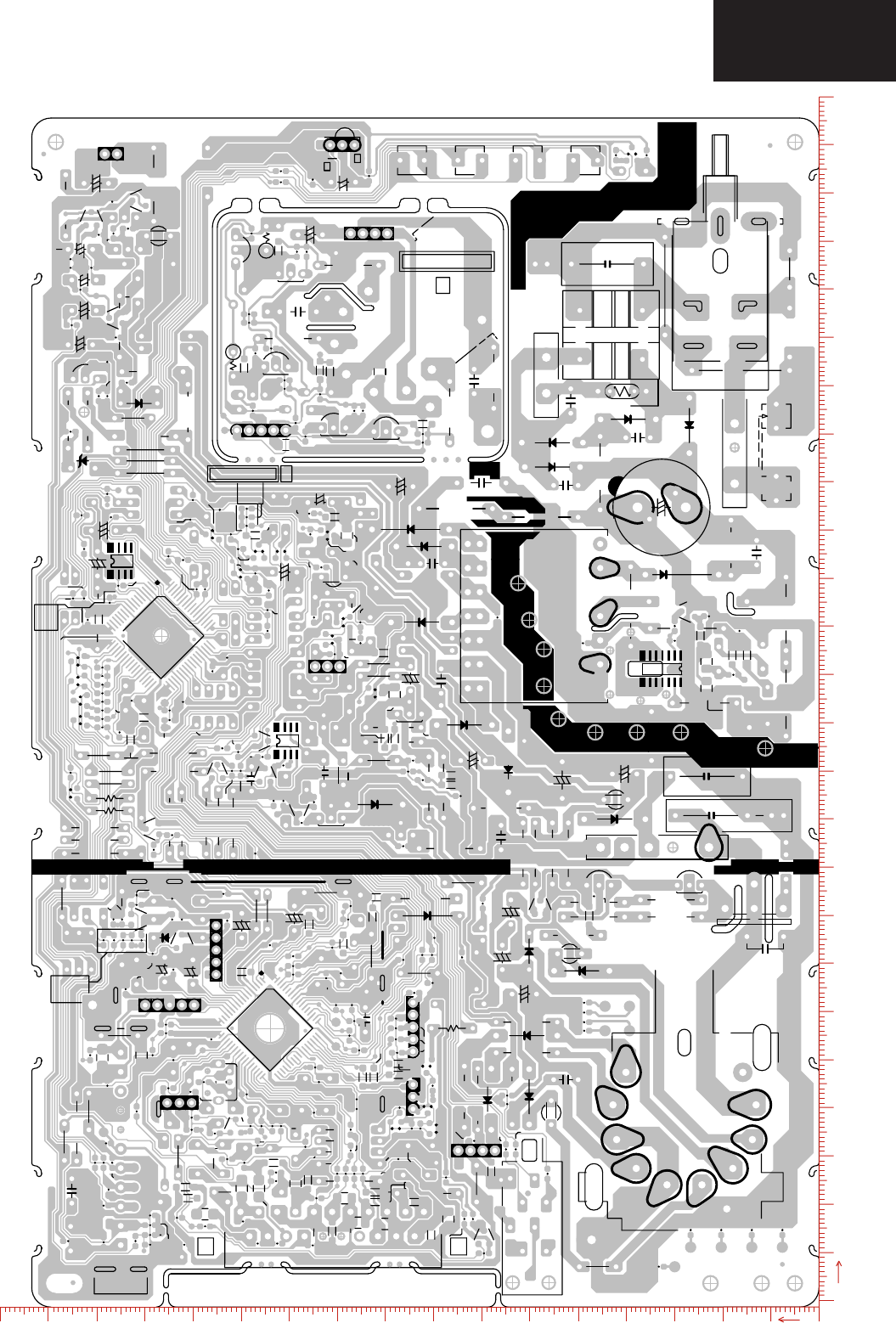

F7323N3 MOTHER BOARD UNIT PWB. Component side.

010 11 12 13 14 15 16 171234 56 789

37GT-27S

J105

C605

R615

R715

D704

R210

R215

R218

C809

C810

R421

R1076

Q1011

R1058

R714

R1071

L802

JF16

C406

D411

J64

R412

C408

D808

D1009

R1073

C815

J42

C816

J86

C817

C878

C861

R893

C607

D603

R604

C603

R705

C723

D705

D716

C717

C722

R701

R702

C707

R716

C718

R312

R321

Q1010 J90

J106

R205

J94

KD410

FB401

R411

R406

R407

D407

R826

R823

R824

R825

C808

J101

R409 R408

R414

C405 C404

C872

R880

D861

R862

R888

IC1003 C1010

R1042

C1018

C1016

C1015

R1050

J95

R1046

J18

Q1009

R1033

R1039

R1040

Q1006

Q1008

D1008

R1041

R1072

C1020

R1067

R1068

R1069 R538

R1070

Q1018

R1007

Q1003

Q1002

C1019

D1006

J80

R1002

R1003

R1006

C730

D714 K

R711

C726

C714

J85

R1005

R305

C606

Q704

D706

IC701

R812

R811

R1054

R1064

R1017

R802

R801

R804

R803

R1032

J83

J11

R530

R1028

R819

R820

R536 Q705

Q706

R727

R720

R721

J81

R1044

R1025

R1022

R1024

R1023

C503

Q507

Q505

IC1001

R1035

R1065

C1002

C1003

X1001

J23

R1038

J21

J17

Q1007

J34

J35

L801

J13

R223

R224

R1053

R1052

Q1004

R1014

R1034

R1037

R1036

J25

J24

R1066

C1017

L201

R1062

Q1015

R612

Q1013

R1061

R1059

R1060

Q1014

J66

J65

C801

KD804

D805

(FV)

J63

J60

C822

C401

R402 D401

D404

KD405

D406

C819

J67

L206

C209

R401

Q501

R502 R511

D505

KD506

J22

R529

C225

C216

J58

J57

J39

J98

D811

J96

Q503

GND

SER

SCL

SDA

JF12

L701

JF15

Q401 D607

Q506

C725

R703

L861

C879

R887

C701

C705

JF10

D709

R510

C509

D503

FB601

(H)

R885

Q883

C876

R883

D812

KC874

Q872 BE

Q887

D710

C713

R611

C608

R616

C609

C601

(A)

PR701

C702

C604

(H).

X801

F7324BMN3

C301

J32

R608

SF201

C207

C1001

D1001

S1001S1002S1003S1004

RMC001

C820

C215

IC801

R606

L601

Q603

R609

R605

Q602 E

SC401

TU201

AGC

33V

IF1

IF2

T601

Q604

R607

R603

R610

L203

SF202

C208

C205

R866

D860

CRT

T701

5432 1

(F)

D606

C602

Q601

C508

C711

S701

(G)

F701

D601

D708

Q885

D806

J71

J87

C803

Q502 E

D717

J89

J82

JF13 JF14

(K)

Q871 E

Q202

D201

L205

L204

R302

C812

J56

J55

CF201 C223

L202

Q204

J40

J50

(K).

D807

C805

R404

R405

J10

J15

Q305

R537

R1048

J14

J16

D301

R315

L301

C304

FB301

Q302

ECQ301

R304

R303

C312

R710

R1018

J33

R1016

R717

J12

J31

Q702

C728

C712

C727

C729

L1001

L1002

J26

L1005

Q708

Q707

J61

R719

J62

J69

R1051

J73

J19

J20

J30

C1012

J72

Q1016

R1063

J48

J47

J45

D801

R516

Q1005

D1005

J79

J91

J92

J78

IC1002

C1005

C1007 C1008

C201

C203 C204

C206

C210

C211

C212

C213

C214

C217

C218

C219

C220

C221

C222

C315

C409

C507

C610

C611

C715

C724

C802

C804

C806

C807

C811

C813

C818

C860

C862

C871

C873

C901

J103

J51

J59

J93

J97

JF1

JF17

JF2

JF3

JF4

JF5

JF7

JF8

R1015

R1019

R1020

R1021

R1029

R1030

R1031

R1055

R201

R202

R204

R206

R207

R211

R212

R213

R214

R216

R217

R219

R220

R203

R221

R222

R310

R311

R318

R403

R410

R416

R418

R420

R509

R512

R513

R515

R517

R524

R525

R533

R534

R601

R602

R535

R722

R808

R809

R810

R813

R814

R822

R879

R881

R892

R894R899

R523

J84

R519

Q509

C1013

C510

IC501

Q701

J88

R704

FB701

C708

R1049

C1014

J70

J46

J54

D602

R816

R815

J52

D605

R617

D604

R613 L602

R614 JF9

JF6

D608

R1001

R1004

R1056

J41 Q1017

J77

R1008

Q304

Q303

R307

C302

C309 R306

C307

R313

C308

R314

C303

R1026

Q1001

R1009

C1006

R1012

R1011

R1010

J36

R301

J38

J37

J100

R1013

Q870

R898

D715

D721

F7323BMN3

R706

J44

J43

C814

R818

R817

C202

J104

C710

C709

R708

C734

D707

Q703

D711

D863

D402

D1004

R1074

D802

D610

D803

R821

JF11

FB405

R415

C410

R413

R417

D403

Q203

R1045

R1075

D609

J29

J76

R718

Q1012

(S)

R864

D862

C1009

J28

J99

R1043

R1077

D703

C704

D702

C731

R707

D701

J108

F7323N3 MOTHER BOARD UNIT PWB. Copper side.

10 9876 54317 16 15 14 13 12 11

37GT-27S

F7325N1 FRONT A / V UNIT PWB.

Copper side.

D1321

D1320

R1420

R1337

R1336

C1330

R1300

R1301

R1317

C1311

L1302

J1301 J1401

(S)

(SH)

C1400

R1316

C1310

(FV)

C1300

L1300

C1301

D1300

R1400

D1301

C1320

C1331

R1320

R1321

F7325BMN1

01234

K7325BM

R1300

R1301 R1317

C1311

L1302

J1301

5317

J1401

(S)

(SH)

C1400

R1316

C1310

(FV)

C1300

L1300

C1301

D1300

R1400

D1301

F7325BMN1

4321

Component side.

F7325N1 FRONT A / V PWB COMPONENT LOCATION TABLES

Copper side. Component side.

Ref_No Xum Yum

C1320 18135 14859

C1330 53187 18034

C1331 53187 6096

D1320 10007 12954

D1321 34137 13462

R1320 25247 11430

R1321 14071 13970

R1336 53187 16002

R1337 63347 6858

R1420 40487 13970

Ref_No Xum Yum

(FV) 10515 4318

(S) 70967 14986

(SH) 70967 6096

C1300 15849 14224

C1301 7467 13462

C1310 60807 14732

C1311 53187 6350

C1400 44297 7366

D1300 22707 6350

D1301 35153 6350

J1301 52984 20929

J1401 29489 20929

L1300 12039 13462

L1302 62077 3302

R1300 22707 3810

R1301 22707 8890

R1316 64871 14478

R1317 63601 6350

R1400 35153 8890

COMPONENT LOCATION TABLES

37GT-27S

MOTHER UNIT F7323N3 PWB COMPONENT LOCATION TABLES.

Component Side.

Ref_No Xum Yum

(A) 17526 178562

(F) 22860 95504

(FV) 84328 43688

(G) 56642 193548

(H) 93472 223012

(H). 71120 32512

(K) 115824 182118

(K). 84328 58166

(L2) 80772 186944

(L3) 68834 181864

(S) 147066 239522

C1 32512 166370

C1001 98806 233680

C1015 149860 154432

C1016 148590 161290

C1017 126492 33782

C1018 148082 167132

C1019 110998 152654

C1020 144018 126492

C205 141732 69596

C207 135890 70104

C208 130048 69596

C209 134112 51308

C215 155448 14224

C216 155194 24130

C223 124206 41148

C301 119888 79248

C302 153416 219710

C303 153416 199898

C304 150114 233426

C307 152654 213360

C308 152654 207010

C312 141478 211074

C401 83820 27432

C406 116586 33020

C408 126492 27686

C503 117856 109728

C508 66040 97536

C509 102870 110998

C601 22352 102108

C602 11176 76962

C603 64008 82042

C604 65786 72644

C605 52578 47244

C607 61214 65024

C608 40386 110744

C609 23368 110236

C701 43942 216662

C702 51562 188214

C704 37592 180594

C705 32765 166116

C707 14478 122936

C709 70104 171196

C710 86868 170434

C711 53340 109474

C712 97536 126238

C713 71882 113538

Ref_No Xum Yum

C714 91948 151892

C717 20828 134620

C718 12954 156718

C722 11684 135128

C725 34798 118618

C726 103632 167132

C727 84836 130555

C728 78486 130048

C729 93218 140716

C730 103632 156718

C731 52578 170688

C734 80264 154432

C801 108712 33274

C803 101600 67056

C805 104902 40894

C812 94234 59690

C814 96520 73152

C815 95250 83058

C817 108966 80772

C819 104140 47498

C820 114554 40894

C822 82804 33528

C874 103886 189992

C876 108204 206756

C878 105664 222758

C879 71628 192278

CF201 132842 42418

CRT 89408 200660

D1001 38506 235991

D201 133096 76708

D301 141224 187706

D503 92202 104394

D602 49276 69850

D603 60198 73914

D604 68072 43180

D605 60198 43688

D606 42418 101346

D608 60706 56388

D701 55372 179578

D702 55372 174498

D703 39624 184404

D704 26924 183134

D707 82042 157988

D708 64516 113284

D709 82550 142240

D710 73660 120904

D711 84836 161544

D717 28448 152146

D801 81280 81280

F701 8890 177546

FB301 138176 233172

FB401 118618 23876

FB405 129794 21844

FB601 6858 91440

FB701 27432 140970

G2 102108 209550

IC1003 152908 174244

Ref_No Xum Yum

IC801 114046 57912

J1 135636 201676

J100 139954 178054

J101 97536 26162

J105 45974 8382

J108 45466 173228

J11 121666 100584

J12 81280 138938

J13 157226 84836

J14 147320 108712

J15 134112 115062

J16 147320 111252

J18 148590 84836

J19 137922 164592

J2 135636 199136

J20 137922 167132

J22 81026 107950

J23 140208 122174

J26 113030 133350

J28 154432 147320

J29 91440 131063

J3 25146 146558

J30 137922 169672

J31 81280 136398

J32 61468 94234

J33 129794 156464

J34 150368 99568

J35 150368 97028

J36 142494 184658

J37 139954 175768

J38 139954 173228

J39 156718 34290

J40 81788 84836

J41 127254 158496

J42 103378 77470

J43 114554 82296

J44 116840 82296

J45 78994 78740

J46 123698 135128

J47 78740 76200

J48 92964 72898

J5 127000 235712

J50 83058 69342

J52 74676 62992

J54 121158 135128

J55 130809 50800

J57 154178 37338

J58 151638 40640

J60 97536 29718

J61 121158 146050

J62 113030 143510

J63 97536 32258

J64 133096 31242

J65 97536 34544

J66 97536 36830

J67 71120 25654

J69 113030 141224

Ref_No Xum Yum

J7 81534 152146

J70 113030 138684

J71 76708 95250

J72 110744 105156

J73 138176 161544

J76 91440 133604

J78 64135 21640

J79 56642 16687

J81 104648 141732

J82 91440 113538

J83 73914 88138

J84 113030 124714

J85 113030 149098

J86 102616 86106

J87 144780 78740

J88 39116 145542

J89 23774 125476

J91 59055 21640

J92 61595 16687

J94 145288 56388

J95 149606 114554

J99 156718 147320

JF10 6858 91440

JF12 16256 194564

JF13 6096 202438

JF14 6096 215646

JF15 32004 212090

JL1 66040 26416

JL1, 100330 218948

JL1. 61214 117602

JL10 79502 29972

JL10. 93980 65531

JL2 93980 65531

JL2. 132334 10414

KK1 75438 165862

KK4 6858 126238

KK5 6858 144018

L1001 113030 127762

L1002 113030 130809

L1005 113030 135890

L202 129794 38100

L204 133096 84328

L205 133096 80518

L206 124714 46736

L301 156464 228854

L4 47244 13970

L5 150876 62738

L601 46736 81026

L602 60706 52832

L701 43180 201930

L801 150368 94234

L802 135890 29972

L861 67564 193040

PR701 40894 190246

Q1001 152400 192786

Q301 143510 219710

Q302 144272 226314

Ref_No Xum Yum

Q501 102870 120396

Q502 86868 98044

Q503 101346 101600

Q601 13462 82804

Q602 26924 87630

Q603 45720 87630

Q702 85090 123190

Q703 95250 164846

Q704 102108 145796

Q707 104648 130555

Q708 102108 133096

Q870 121158 219710

Q871 117602 189484

Q872 100838 182626

Q883 112776 195326

Q885 109728 214630

Q887 89916 181864

R1001 110744 164592

R1004 113284 164592

R1011 155956 184150

R1012 151892 184150

R1013 139954 180848

R1018 123698 146050

R1022 124206 124714

R1023 129286 124714

R1024 126746 124714

R1025 121666 124714

R1028 140716 97790

R1034 156210 73914

R1036 151130 73914

R1037 153670 73914

R1044 147320 103124

R1046 149860 143002

R1048 147320 105664

R1063 76200 57912

R223 154686 84836

R224 152146 84836

R301 131063 185928

R302 138430 194310

R303 139192 216662

R304 137160 222504

R305 145288 203708

R315 141224 190246

R402 81280 23622

R502 102362 117602

R510 98806 110998

R511 88392 117348

R516 127254 100838

R523 106426 111252

R529 77978 107950

R530 124714 100838

R536 113030 146558

R537 133858 111252

R603 52070 94234

R604 51054 77216

R605 30734 84582

R606 46736 84074

Ref_No Xum Yum

R607 51816 73406

R608 58928 94234

R609 30734 81026

R610 55372 94234

R611 66040 103632

R612 73660 43688

R613 70866 43180

R614 60706 59182

R615 55626 40386

R616 42164 105410

R617 63754 43688

R701 6858 144018

R702 6858 126238

R703 10668 124968

R707 57658 164084

R708 75438 165862

R710 88392 120396

R714 98044 160782

R716 18288 157734

R717 100838 151638

R718 97028 141986

R816 71120 69850

R819 132334 100584

R820 134874 100584

R862 121666 195834

R864 114808 221996

R866 107950 186436

R883 110236 201168

R885 97790 216408

R887 76708 185928

RMC001 98501 244983

S1 20497 243484

S1001 48488 238201

S1002 60502 238201

S1003 72491 238201

S1004 84505 238201

S701 20497 243484

SC401 101117 17246

SF201 134874 62738

SF202 125222 74168

T601 27940 10414

T701 59182 143510

TU201 145034 7874

X1001 135890 122936

X801 100330 56642

37GT-27S

MOTHER UNIT F7323N3 PWB COMPONENT LOCATION TABLES.

Copper Side.

Ref_No Xum Yum

C1002 134874 123952

C1003 134874 121920

C1005 134366 98044

C1006 149606 189230

C1007 138938 12954

C1008 138938 19050

C1009 152654 157480

C1010 147828 168910

C1012 132080 125730

C1013 122936 134874

C1014 125984 132080

C201 127762 46736

C202 126238 55626

C203 138430 52324

C204 134366 80518

C206 134112 70104

C210 134112 51308

C211 148082 34036

C212 146812 29972

C213 147574 24384

C214 148590 21082

C217 134366 84836

C218 142748 76200

C219 151384 52324

C220 146558 80518

C221 130301 36830

C222 130301 39370

C225 148844 17272

C309 155448 215900

C315 143510 224028

C404 112522 13208

C405 116586 13208

C409 119634 17780

C410 112776 26162

C507 111252 105156

C510 111252 112522

C606 71628 34544

C610 69850 83820

C611 46736 85344

C708 29972 138430

C715 66802 143256

C723 16510 140462

C724 49022 137922

C802 118872 44196

C804 102362 68326

C806 97282 36830

C807 97282 32512

C808 100076 27686

C809 80391 73152

C810 82423 73152

C811 95504 53340

C813 100330 62738

C816 97282 83312

C818 114046 75184

C860 82296 181356

C861 108458 219202

C862 117094 198120

Ref_No Xum Yum

C871 110998 190754

C872 118364 204470

C873 96520 186182

C901 97536 56388

D1004 149606 142875

D1005 101092 239268

D1006 117094 160274

D1008 140208 122428

D1009 143002 117856

D401 84074 21844

D402 80518 14986

D403 131063 22606

D404 92202 23876

D405 92202 21844

D406 101092 15748

D407 106172 26416

D410 113284 29972

D411 131572 24892

D505 76454 108458

D506 76454 110490

D601 47752 81280

D607 68072 28194

D609 90424 135890

D610 92710 81026

D705 14986 135382

D706 24638 139446

D714 100584 164084

D715 88138 118110

D716 18034 135382

D721 90170 118110

D802 98806 75438

D803 91948 85090

D804 87376 48260

D805 87376 50546

D806 94742 47752

D807 92456 47752

D808 119888 69596

D811 103632 194564

D812 101600 194310

D860 82296 183388

D861 119380 195072

D862 112268 219456

D863 105918 79502

IC1001 136652 139446

IC1002 144780 154940

IC501 110363 117602

IC701 32512 132588

J10 96012 43180

J103 103632 189611

J104 135636 58674

J106 144018 66040

J17 148844 127508

J21 148844 122174

J24 148590 29972

J25 150368 29972

J4 104648 49784

J51 86360 72136

Ref_No Xum Yum

J56 140716 52324

J59 77470 26924

J6 87376 30734

J77 124460 165608

J8 106680 33274

J80 122174 160528

J9 96012 41148

J90 155448 110998

J93 123698 85852

J96 91186 194310

J97 108712 183642

J98 110744 179070

JF1 147828 45974

JF11 33274 8382

JF16 116586 33528

JF17 131826 12954

JF2 26670 16002

JF3 20320 16002

JF4 13970 16002

JF5 7620 16002

JF6 48768 57404

JF7 48768 63246

JF8 48768 61214

JF9 48768 59182

L201 124206 46736

L203 148844 51816

Q1002 111760 156972

Q1003 116332 156972

Q1004 38862 239522

Q1005 138430 99314

Q1006 153416 125984

Q1007 153416 121920

Q1008 153924 130048

Q1009 153924 134112

Q1010 155448 106680

Q1011 102108 160274

Q1012 92202 127508

Q1013 79502 37084

Q1014 87884 37084

Q1015 81280 41656

Q1016 81534 50038

Q1017 125984 160528

Q1018 120142 152400

Q202 132334 75946

Q203 141478 80518

Q204 121158 37592

Q303 151130 226060

Q304 141224 229870

Q305 146050 205486

Q401 69596 14478

Q505 124968 111252

Q506 107950 103886

Q507 115062 110490

Q509 115824 117602

Q604 57912 83058

Q701 27178 144526

Q705 98806 142240

Ref_No Xum Yum

Q706 101092 138684

R1002 118872 162306

R1003 118872 164084

R1005 120650 157480

R1006 118872 165862

R1007 114554 144780

R1008 130048 167640

R1009 147828 189230

R1010 155448 181864

R1014 141986 13716

R1015 138938 14986

R1016 132080 155194

R1017 129286 149098

R1019 111760 233680

R1020 114554 140462

R1021 111760 235966

R1026 147828 196342

R1029 138176 94996

R1030 62992 32765

R1031 65024 32765

R1032 56388 27686

R1033 148844 123952

R1035 148844 132842

R1038 148844 120396

R1039 148844 125730

R1040 148844 129286

R1041 147320 146304

R1042 153162 164465

R1043 152654 147193

R1045 103378 153670

R1049 145542 149860

R1050 147066 164084

R1051 135128 155956

R1052 42164 239268

R1053 35814 239268

R1054 105156 234188

R1055 93472 234950

R1056 130555 163576

R1058 105664 160528

R1059 82804 37084

R1060 84582 37084

R1061 87122 41402

R1062 80264 45974

R1064 127508 149098

R1065 148844 131063

R1066 148590 76200

R1067 64770 42164

R1068 64770 43942

R1069 123952 116078

R1070 117094 152400

R1071 114300 148844

R1072 142748 125984

R1073 145288 119380

R1074 151892 142748

R1075 88138 127254

R1076 98044 160274

R1077 154940 147193

Ref_No Xum Yum

R201 135128 45466

R202 118110 37592

R203 113538 37592

R204 135636 56896

R205 122936 80264

R206 132334 80518

R207 138430 73406

R210 146431 76200

R211 138938 17018

R212 155956 13716

R213 148590 13462

R214 141732 83566

R215 140716 76200

R216 144526 76200

R217 144780 80518

R218 141732 85598

R219 130555 44704

R220 125476 36068

R221 115824 37592

R222 104902 40386

R306 151130 215900

R307 149606 222758

R310 146558 223012

R311 155448 217678

R312 146812 229616

R313 153416 211328

R314 155194 203962

R318 146050 201422

R321 143764 192024

R401 76962 18288

R403 69596 11176

R404 90170 17272

R405 95758 17526

R406 98552 22606

R407 108712 25654

R408 127508 16764

R409 133350 18542

R410 111760 37592

R411 119380 29972

R412 122936 30734

R413 116332 24638

R414 127508 19304

R415 112776 27940

R416 141732 40640

R417 119888 24638

R418 71882 18288

R420 73660 18288

R421 105156 12827

R509 86360 95758

R512 74422 106172

R513 82296 109474

R515 85344 111252

R517 121920 111379

R519 115570 114300

R524 107442 100584

R525 104902 104902

R533 84328 113538

Ref_No Xum Yum

R534 113284 105156

R535 120142 111379

R538 120650 115316

R601 109220 70866

R602 109220 69088

R704 29972 141478

R705 23368 134112

R706 23368 128524

R711 105918 164846

R715 17780 131318

R719 104902 143256

R720 95250 137922

R721 100584 135636

R722 22860 143510

R727 95250 142240

R801 79883 76708

R802 117094 94234

R803 80264 67310

R804 97028 62738

R808 84074 65277

R809 87884 59944

R810 87884 57912

R811 87884 55626

R812 87630 52832

R813 96520 59436

R814 99314 69342

R815 74168 72644

R817 109220 72898

R818 97790 80518

R821 101092 74676

R822 103886 46736

R823 94742 27686

R824 96520 27686

R825 98298 27686

R826 104394 22606

R879 110998 192532

R880 118364 206248

R881 94742 186182

R888 117602 186182

R892 113792 199136

R893 106426 219202

R894 82296 179578

R898 117856 223012

R899 106680 180848

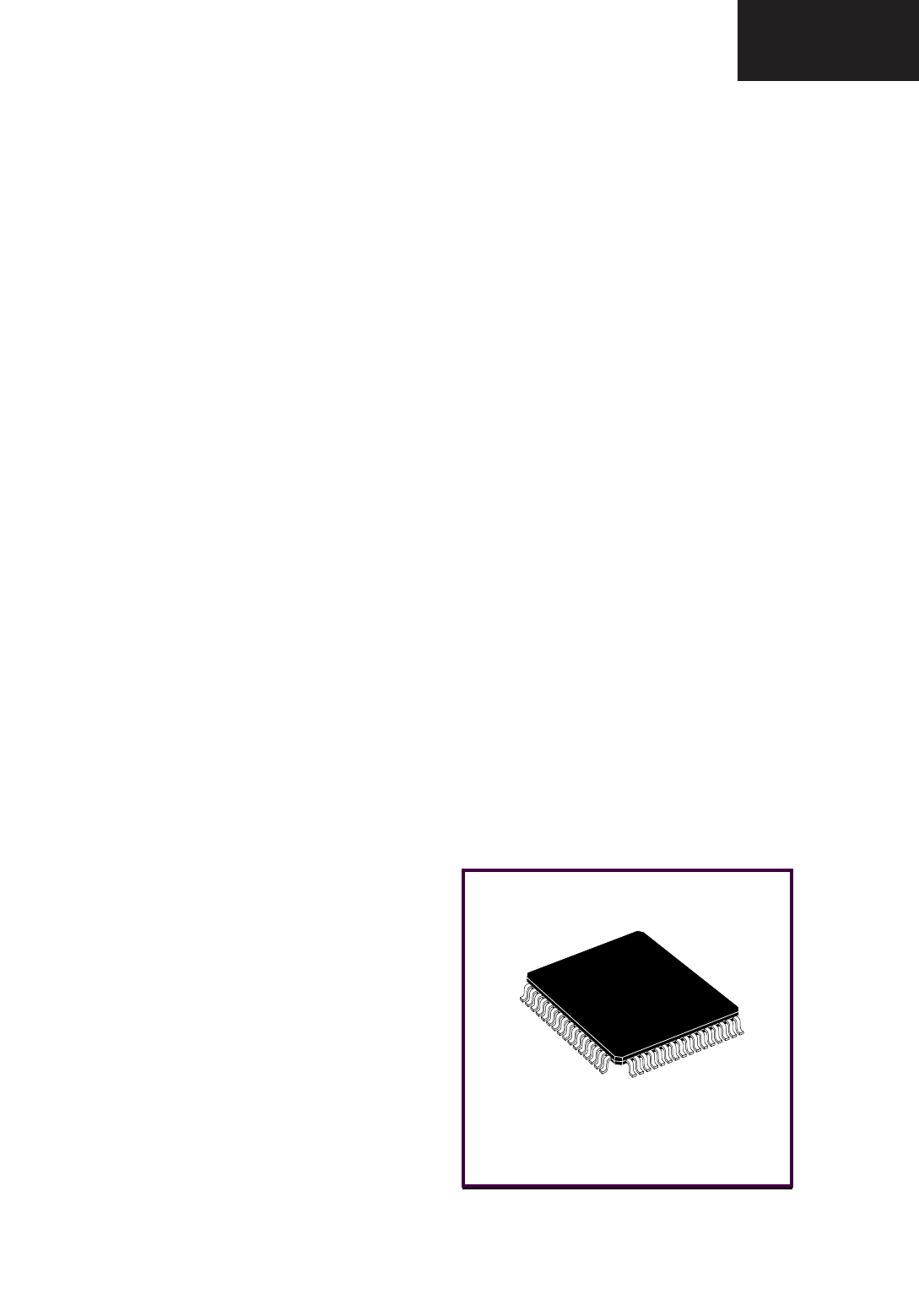

37GT-27S

STV2236 (IC 801)

FEATURES

■I2C BUS CONTROL.

■PIF CIRCUIT WITH PLL DEMODULATION

(Positive and Negative Video).

■SIF CIRCUIT WITH QSS STRUCTURE, FM

DEMODULATION AND AM DEMODULATION

FOR FRANCE.

■INTERCARRIER CAPABILITY.

■BUILT IN SOUND BANDPASS.

■SOUND SUB CARRIERS OUTPUT FOR

STEREO CHASSIS (FM, Nicam).

■AUDIO SWITCH AND VOLUME CONTROL

(Mono Chassis).

■INTEGRATED CHROMA FILTERS AND LUMA

DELAY LINE.

■INTEGRATED CHROMA DELAY LINE.

■VIDEO SWITCH (3 CVBS IN, 1 or 2 CVBS

OUT).

■SVHS SWITCH

(Y combined with CVBS3 input).

■OSD RGB INPUTS.

■EXTERNAL RGB/YUV INPUTS or YUV

INTERFACE.

■PAL / SECAM / NTSC CHROMA

DEMODULATORS.

■AUTO FLESH CONTROL CAPABILITY IN

NTSC.

■SOUTH AMERICA CAPABILITY (PALM/PALN/

NTSC).

■CHROMA SUBCARRIER OUTPUT.

■BLACK STRETCH CIRCUIT.

■PEAKING CIRCUIT.

■AUTOMATIC CUT-OFF CURRENT LOOP.

■MANUAL CUT-OFF POSSIBLE FOR LOW

COST APPLICATIONS.

■TWO PLLs HORIZONTAL DEFLECTION.

■VERTICAL COUNT DOWN.

■HALF CONTRAST (optional).

■APR (Automatic RGB peak regulation)

FUNCTION (optional).

■SAW FILTER SWITCH CONTROL (optional).

■VERY FEW EXTERNAL COMPONENTS.

DESCRIPTION

The STV223XD/223X/224X are fully bus con-

trolled ICs for TV including PIF, SIF, luma, chroma

and deflection processing. Used with a vertical

frame booster (TDA1771 or TDA8174 for 90°

chassis, STV9306 for 110° chassis), they allow

the design of multistandard (BGDKIMNLL, PAL/

SECAM/NTSC) sets with very few external com-

ponents and no manual adjustments.

TQFP64 (14 x 14 x 1.4 mm)

(Full Thin Plastic Quad Flat Pack)

ORDER CODE: STV223XD

SHRINK56

(Plastic Package)

ORDER CODE: STV223X/4X/8X

ICs ADDITIONAL INFORMATION

SDA 5552 (IC 1001)

Micronas Intermetall Data Sheet: “SDA55XX TVText Pro”

http://www.micronas.com/products/documentation/consumer/sda555x/downloads/sda55xx_1ds.pdf

37GT-27S

STV 22XX FAMILY CHARACTERISTICS

STV 22XX IC VERSIONS

Package

Application

PAL/SECAM/NTSC

QSS/INTERCARRIER

PAL/NTSC

QSS/INTERCARRIER PAL/NTSC

INTERCARRIER

SHRINK56 STV2238/48 STV2237/47 STV2236/46/86

TQFP64 STV2238D STV2237D STV2236D

IC Version

SHRINK56 TQFP64

Function 2236 2237 2238 2246 2247 2248 2286 2236D 2237D 2238D

PAL/SECAM/NTSC XX X

PAL/NTSC XX XX XXX

QSS/INTERCARRIER XX XX XX

INTERCARRIER ONLY XXXX

AM XX X

1 CVBS OUTPUT XXXXXXX

2 CVBS OUTPUTS XXX

1 EXT RGB INPUT XXX X

OSD RGB INPUTS &

RGBEXT/YUVEXT

INPUTS XXX XXX

YUV INTERFACE XX XX

APR XXXXXXX

HALF CONTRAST XXX

SAW FILTER CONTROL XXX

STV2236 (IC 801)

37GT-27S

Pin N°

Symbol DescriptionSTV224X/8X STV223X STV223XD

SDIP56 SDIP56 TQFP64

1 1 8 SIFIN1 SIF Input

2 2 9 SIFIN2 SIF Input

3 3 10 AGCSIFCAP AGC SIF Capacitor

4411VREF IF Voltage Reference Filtering

5 5 12 AGCPIFCAP AGC PIF Capacitor

6 6 13 PIFIN1 PIF Input

7 7 14 PIFIN2 PIF Input

8 8 16 TUNERAGCOUT AGC Tuner Output

9 9 17 IFPLL IF PLL Filter

10 10 18 GND IF IF Ground

11 11 19 AM/FMOUT/SC AM/FM Mono Sound or Stereo Carriers Output

12 12 20 VCC IF 5 V IF Supply

13 13 21 INTCVBSOUT Internal CVBS Output

14 14 22 EXTAUDIOIN External Audio Input

15 15 23 PIFLC1 LC Input

16 16 24 PIFLC2 LC Input

17 17 25 VCC2Video/Luma Supply Voltage (8 V)

18 18 26 CVBSIN1 Internal Video Input

19 19 27 GND2 Video/Luma Ground

20 20 28 CVBSIN2 External Video Input

21 21 29 BS Black Stretch Capacitor

22 22 34 Y/CVBSIN3 Y(SVHS) or CVBS3 External Input

23 23 35 CHR Chroma (SVHS) Input

- 24 37 UIN B-Y Input (Note 1)

- 25 38 VIN R-Y Input (Note 1)

- 26 39 YIN Y Input (Note 1)

- 27 40 YOUT Y Output (Note 1)

- 28 41 VOUT R-Y Output (Note 1)

- 29 42 UOUT B-Y Output (Note 1)

30 30 43 BOUT Blue Output

31 31 44 GOUT Green Output

32 32 45 ROUT Red Output

33 33 46 ICATH Cathode Current Measurement Input

34 34 47 BOSD OSD Blue Input

35 35 48 GOSD OSD Green Input

36 36 49 ROSD OSD Red Input

37 37 50 FBOSD OSD Fast Blanking

38 38 52 XTAL3/BTUN 3.5X MHz Crystal or Cloche Filter Tuning

Capacitor

39 39 53 XTAL2 3.5X MHz Crystal

40 40 54 XTAL1 4.43/3.5X MHz Crystal

41 41 55 CLPF Chroma PLL Filter

42 42 56 X1/VAMP/CHROUT XTAL1 Control Pin, Vertical Amplitude DAC

Output and Chroma Reference Signal Output.

43 43 57 GND1 Chroma/Scanning Ground

STV2236 (IC 801)

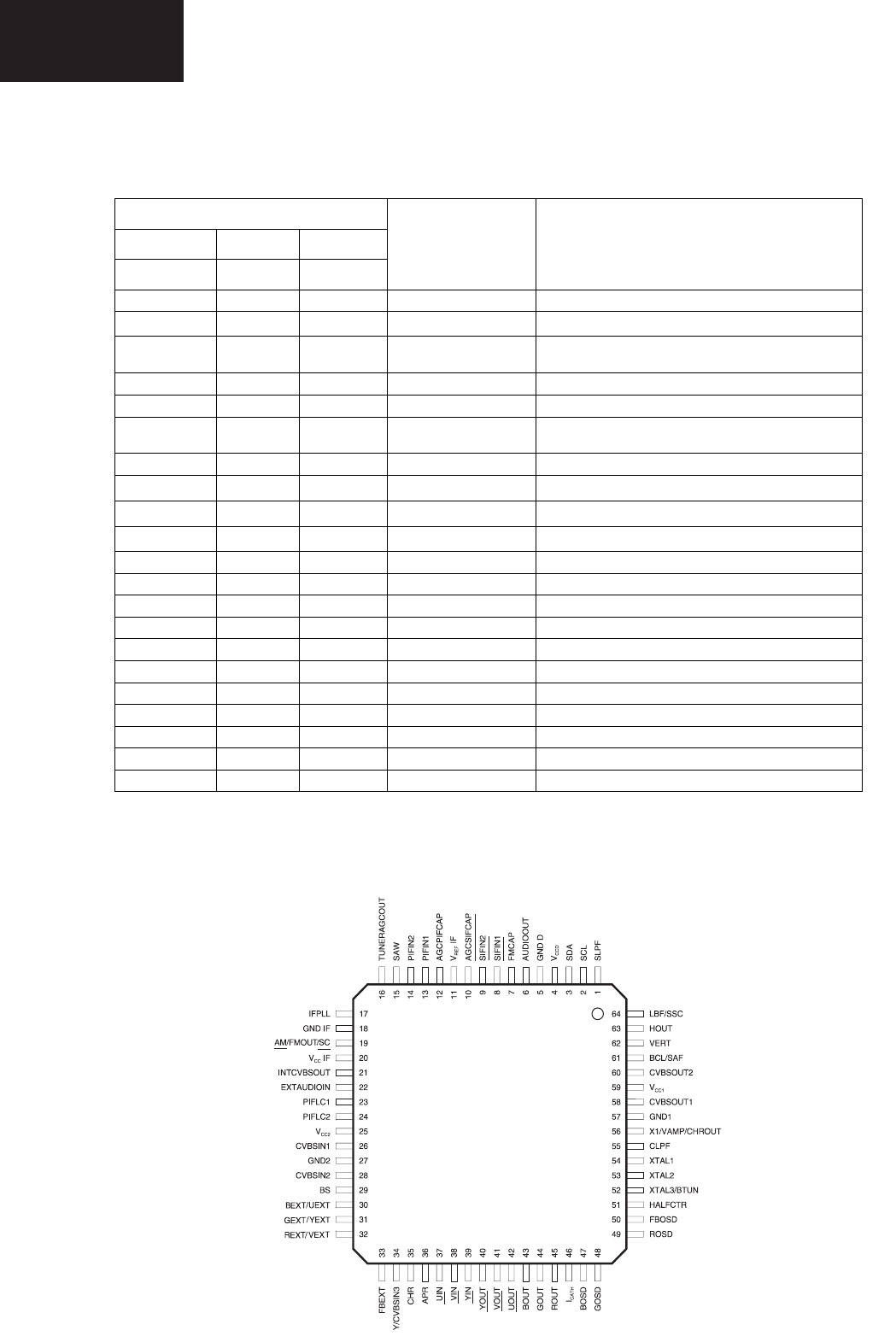

37GT-27S

Note:

1. Input/Output not available in STV2236 and STV2236D versions.

- 44 58 CVBSOUT1 Main Video Switch Output

45 45 59 VCC1Chroma/Scanning Power Supply (8 V)

46 46 61 BCL/SAF Beam Current Limiter Control Voltage and

Safety Input (XRAY)

47 47 62 VERT Vertical Output Pulse

48 48 63 HOUT Horizontal Output Pulse

49 49 64 LFB/SSC Line Flyback Input and Super-sandcastle Out-

put

50 50 1 SLPF Scanning PLL Filter

51 51 2 SCL I2C Bus Clock Input

52 52 3 SDA I2C Bus Data Input

53 53 4 VCCDDigital Supply Voltage (5 V)

54 54 5 GND D Digital Ground

55 55 6 AUDIOOUT Main Audio Output

56 56 7 FMCAP FM Demodulation Capacitor

- - 15 SAW Filter Switch Control

25 - 30 BEXT/UEXT External Blue Input or external U input

26 - 31 GEXT/YEXT External Green Input or external Y input

27 - 32 REXT/VEXT External Red Input or external V input

28 - 33 FBEXT External Fast Blanking Input

24 - 36 APR Automatic RGB Peak Regulation

- - 51 HALFCTR Half Contrast Input

44 - 60 CVBSOUT2 Second Video Switch Output

Pin N°

Symbol DescriptionSTV224X/8X STV223X STV223XD

SDIP56 SDIP56 TQFP64

STV2236 (IC 801)

PIN CONNECTIONS STV223XD (TQFP64)

37GT-27S

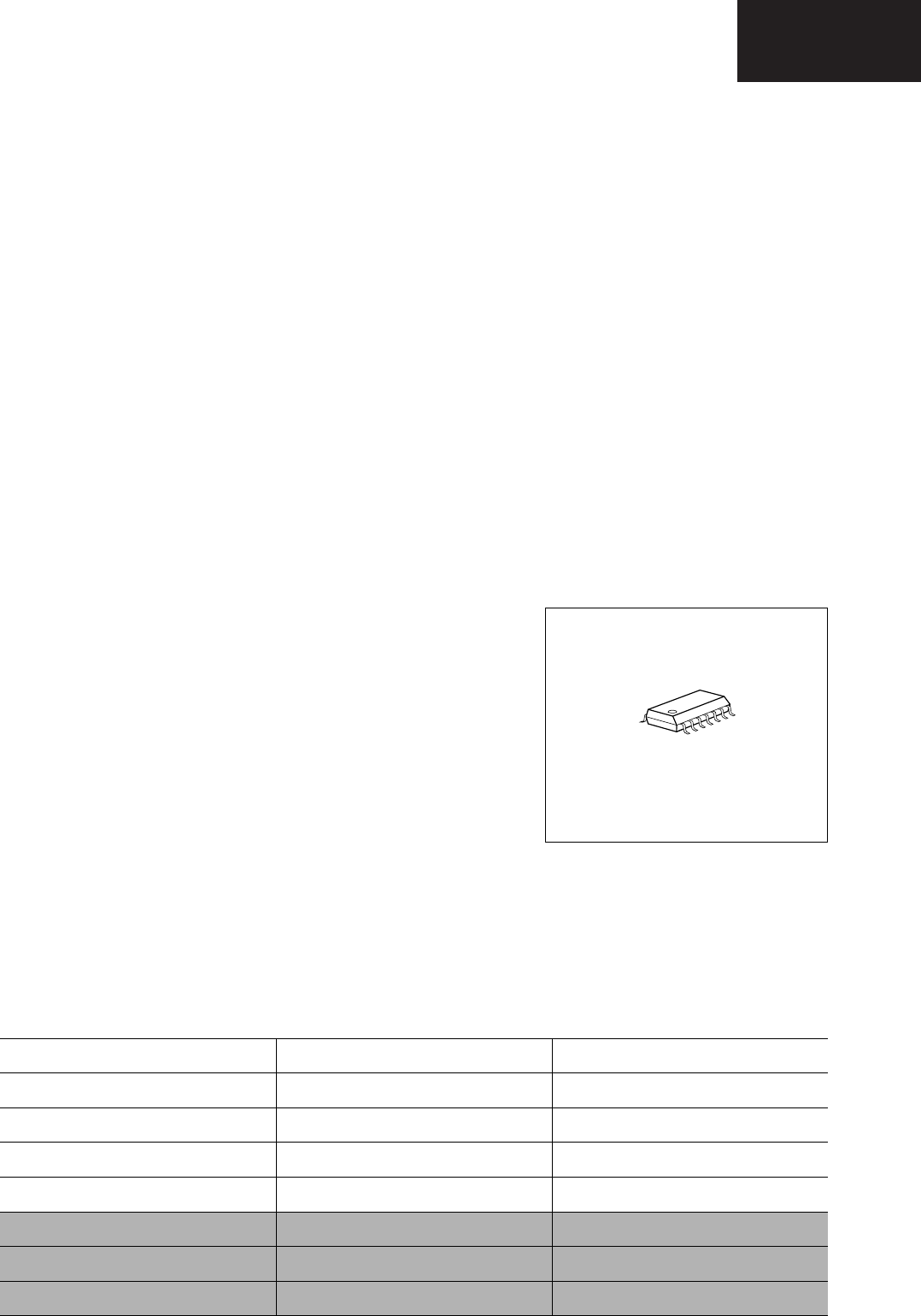

TDA16833 (IC 701)

P-DIP-8-6

Off-line SMPS Controller with

600 V Sense CoolMOS on Board TDA16831-4

Preliminary Data CoolSET

P-DSO-14-11

Overview

Features

•PWM controller + sense CoolMOS

attached in one compact package

•600 V avalanche rugged CoolMOS

•Typical

DSon = 0.5 ... 3.5

Ω

j = 25 °C

•Only 4 active Pins

•Standard DIP-8 Package for

Output Power ≤40 W

•Only few external components required

•Low start up current

•Current mode control

•Input Undervoltage Lockout

•Max. Duty Cycle limitation

•Thermal Shutdown

•Modulated Gate Drive for low EMI

Type Ordering Code Package

TDA 16831 Q67000-A9420 P-DIP-8-6

TDA 16832 Q67000-A9422 P-DIP-8-6

TDA 16833 Q67000-A9389 P-DIP-8-6

TDA 16834 samples P-DIP-8-6

TDA 16831G Q67000-A9421 P-DSO-14-11

TDA 16832G Q67000-A9423 P-DSO-14-11

TDA 16833G Q67000-A9419 P-DSO-14-11

37GT-27S

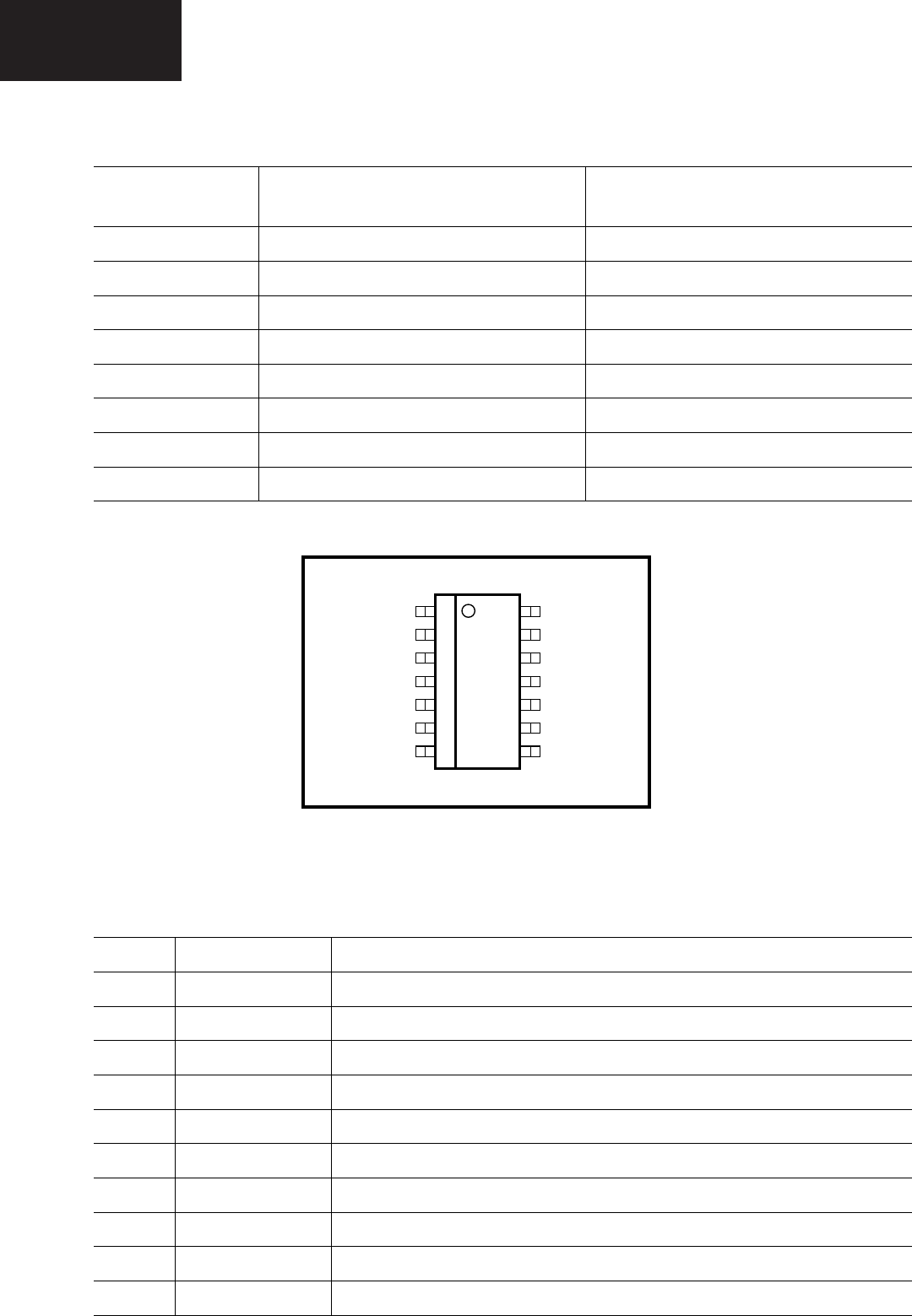

TDA16833 (IC 701)

= 70 °C

Device Output Power Range/

Required Heatsink1) Output Power Range/

Required Heatsink1)

in = 85-270 VAC

in = 190-265 VAC

TDA 16831 10 W / no heatsink 10 W / no heatsink

TDA 16832 20 W / 6 cm220 W / no heatsink

TDA 16833 30 W / 3 cm240 W / no heatsink

TDA 16834 40 W / 3 cm240 W / no heatsink

TDA 16831G 10 W / no heatsink 10 W / no heatsink

TDA 16832G 20 W / 8 cm220 W / no heatsink

TDA 16833G 20 W / no heatsink 40 W / 3 cm2

P-DSO-14-11 for Applications with Pout ≤ 20 W: TDA 16831G/2G/3G

Pin Symbol Function

1 GND PWM GND and CoolMOS Source

2 FB PWM Feedback Input

3 N.C. Not Connected

4 N.C. Not Connected

5, 6, 7 D 600 V Drain CoolMOS

8, 9, 10 D 600 V Drain CoolMOS

11 N.C. Not Connected

12 N.C. Not Connected

13 VCC PWM Supply Voltage

14 GND PWM GND and Source of CoolMOS

GND

N.C.

GND

AEP02783

VCC

TDA16831G/2G/3G

37GT-27S

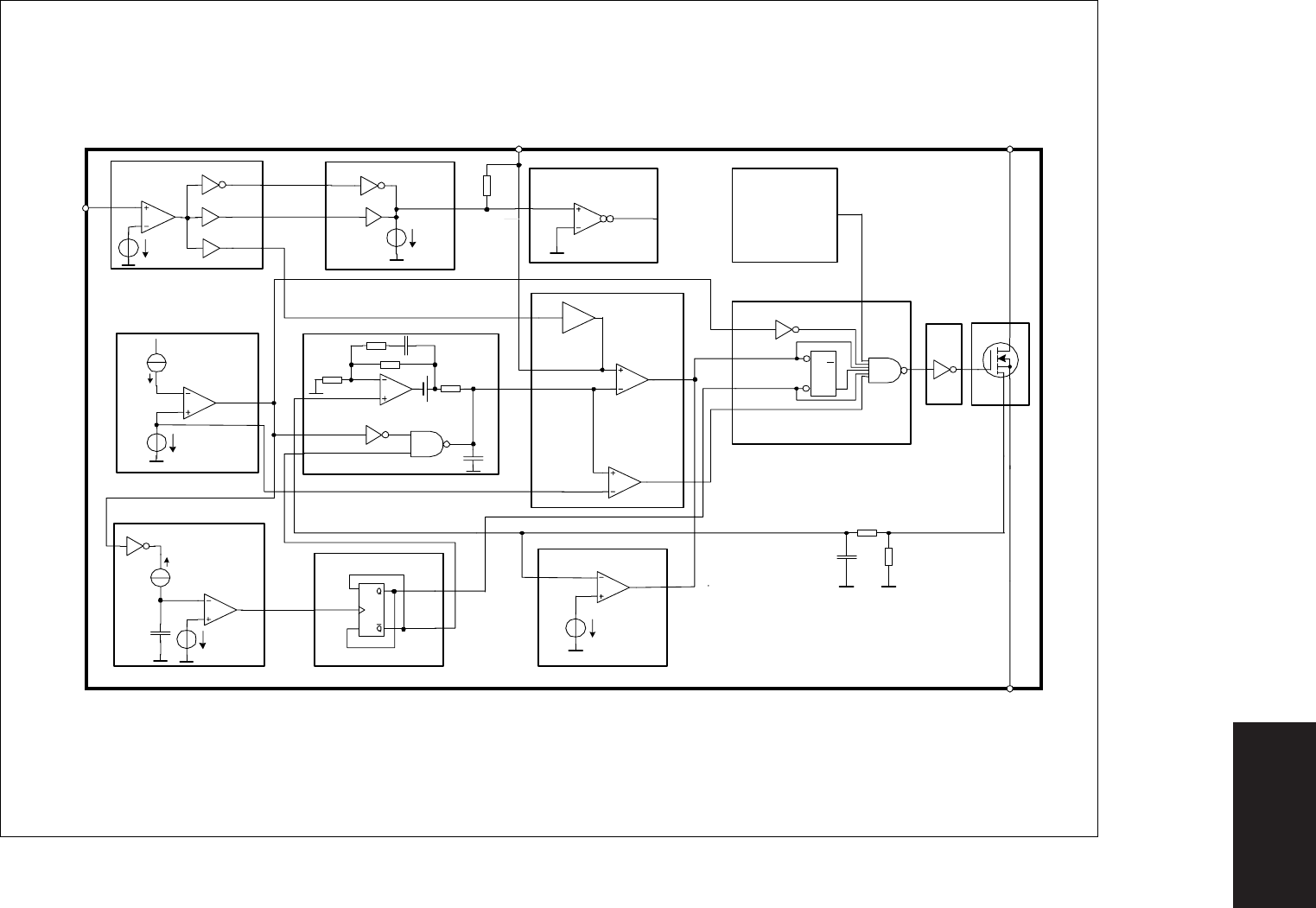

pwmcomp

bandgap

kippl

tff

pwmop

v04sst

biaspwm

sst

logpwm

gtdrv

csshutdown

tempshutdown

osc

Rsense

biaspwm

uvlo bias

Vcc

Drain

GND

pwmpls

slogpwm

v04sst

pwmrmp

rlogpwm

alogpwm

slogpwm

RFB

Vref

pwmss

TDA16833 (IC 701)

Block Diagram

37GT-27S

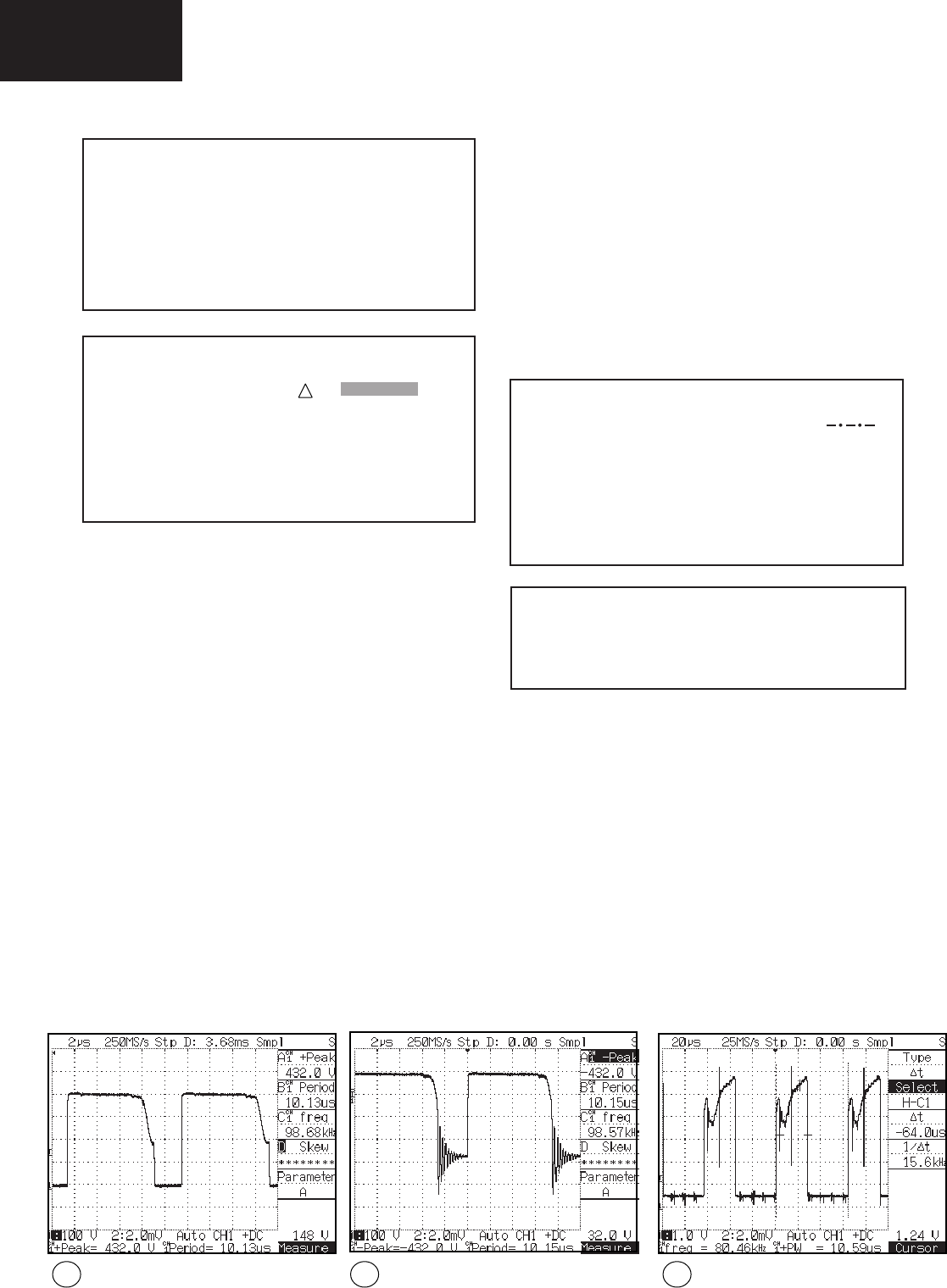

Waveform Measurement Condition:

1. Test Equipment: DIGITAL SLPE LECROY.

2. Test Conditions: CH-12; COLOUR BARS; 70dB FROM RF INPUT

3. TV Condition: PICTURE AND AUDIO : SETTINGS à FACTORY PRESETS

1. The unit of resistance «ohm»is omitted (K=1000

ohms. M= Megaohm).

2. All resistors are 1/8 watt. unless otherwise noted.

3. All capacitors are µF, unless otherwise noted (P=

µµF).

4. The capacitor with Part No. RC-FZ9XXXBMNJ is

designed to with stand 63V.

5. The capacitor with Part No. RC-FZ4XXXBMNJ is

designed to with stand 50V.

NOTE:

SERVICE PRECAUTION:

DESCRIPTION OF SCHEMATIC DIAGRAMS

SAFETY NOTE:

1. DISCONNECT THE AC PLUG FROM THE AC

OUTLET BEFORE REPLACING PARTS.

2. SEMICONDUCTOR HEAT SINKS SHOULD BE

REGARDED AS POTENTIAL SHOCK HAZARDS

WHEN THE CHASSIS IS OPERATING.

IMPOTANT SAFETY NOTE:

PARTS MARKED WITH «» ( ) ARE

IMPORTANT FOR MAINTAINING THE SAFETY

OF THE SET. BE SURE TO REPLACE THESE

PARTS WITH SPECIFIED ONES FOR

MAINTAINING THE SAFETY AND PERFORMAN-

CE OF THE SET.

CAUTION

This circuit diagram is original one,

therefore there may be slight difference

from yours.

THE AREA ENCLOSED BY THIS LINE ( )

IS DIRECTLY CONNECTED WITH AC MAINS

VOLTAGE.

WHEN SERVICING THE AREA, CONNECT AN

ISOLATING TRANSFORMER BETWEEN TV

RECEIVER AND AC LINE TO ELIMINATE

HAZARD OF ELECTRIC SHOCK.

Vp PRIMARY Vp SECUNDARY1 2 3

Waveform:

H-CONTROL

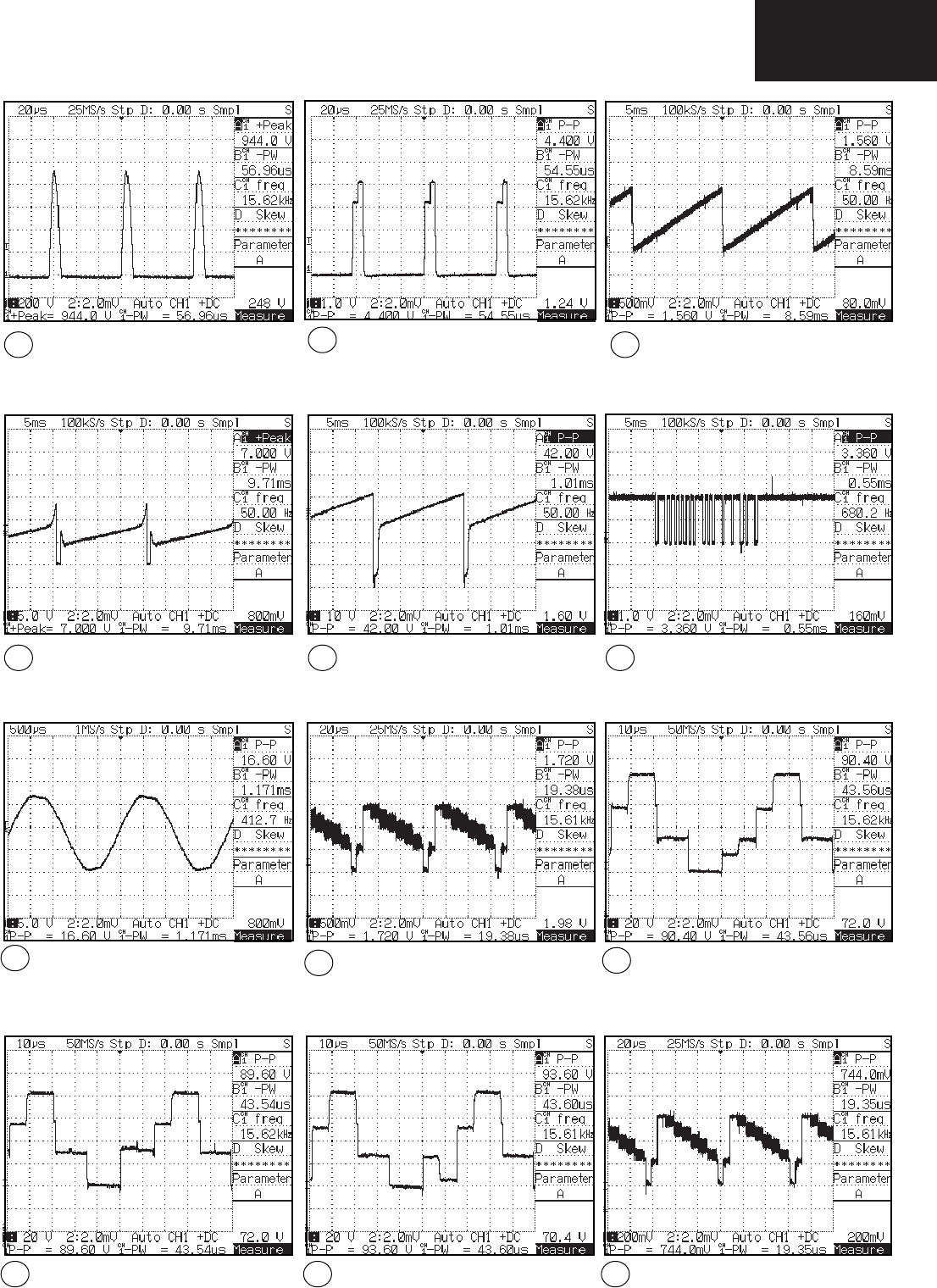

37GT-27S

Vc HORIZONTAL SANDCASTLE VERTICAL INPUT

VERTICAL VERTICAL OUTPUT REMOTE CONTROL

OUT SPEAKER IF VIDEO OUT RED OUT

GREEN OUT VIDEO INPUT TXT uC

13 14 15

456

7 8 9

10 11 12

BLUE OUT

37GT-27S

SCHEMATIC DIAGRAM (00 Version)

234567

Page 27

Page 28

FOCUS

JF15

JF13

QPWBF7324BMN2

+5VA

+3.3V

+2.

+20V

+104V

+10V

-10V

+8V

+10V

-25V

+3.3

+3.3V

DUNTK7324BM__

S1001

K0079GE

S1002

K0079GE

S1003

K0079GE

C703

10nF

(250V)

KZ0029

C704

10nF

(250V)

KZ0029

C711

100uF

(160V)

D701

DX0571

1N4005 D702

DX0571

1N4005

D703

DX0571

1N4005

D704

DX0571

1N4005

D716

DX0551

R702

470K

(1/2W)

D707

DX0505

1N4935

D709

DX0590BM

MBR1100RL

D710

DX0590BM

MBR1100RL

IC701

D10

D11

12 12

VCC 13

GND 14

L701

CILF0160BM

(G)

N0207CE

(

C507

220nF

R524

3K9

D717

1N4937

DX0507 D705

DX0551

R880

470

C862

470pF

(L2)

QTIPM0017CEFM

R888

Q870

TX0181

BF422

F701

T3.15

R879

470

Q872

TX0181

BF422

(H)

N0461CE

C874

1nF

(500V)

CRT

VB34EAC0136*N

R894

R885

2K7

(1/2W)

R883

2K7

(1/2W)

L861

12uH

C860

470pF

R866

15K

(2W)

R862

15K

(2W)

R899

R887

2K7

(1/2W)

Q885

TX0180BM

C701

470nF

(275V)

FZ0160BM

C871

470pF

R892

C876

4.7nF

(2KV)

R864

15K

(2W)

D811

DX0551

D862

DX0551

(A)

N0304CE

R893

R881

470

C861

470pF

D861

DX0551

Q883

TX0180BM

C872

470pF

(L3)

QTIPM0017CEFM

R898

S701

P0612

C873

470pF

Q871

TX0181

BF422

D860

DX0551

Q887

TX0180BM

(K)

N0561

D812

DX0551

C878

10uF

(200V)

C715

100nF

1K5

(1/2W)

R710

C707

10uF

(16V)

C710

220uF

(25V)

C705

47uF

(400V)

EZ0148BM

C879

1nF

R716

47K

(1/2W)

C718

47nF

400V

R701

470K

(1/2W)

FB701

BLN-0037

R502

R703

Q503

TX0108BM

BC635

C702

10nF

(250V)

KZ0029

PR701

P0028

R1007

4K7

R1045

2K7

Q702

TX0218

BC337-40

F/50V

IC1002

24C04

R1002

4K7

R1001

27K

D1006

DX0551BM

4K7

R1005

T701

Z0584BM

R1058

2K7

10uF

(10V)

C1016

R1048

4K7

R1050

3K3

R1071

22K

Q1018

BC847B

TX0232BM

22uF

C1019

R1069

47K

C729

10nF

(250V)

Q1002

BC847B

TX0232BM

Q1017

BC847B

TX0232BM

R1075

(JUMPER)

R1076

100.

(TQ)

C731

10nF

4K7

R1008

Q1003

BC847B

TX0232BM

C713

220uF

(16V)

R1018

100

C712

220uF

(16V)

Q1011

BC847B

TX0232BM

R1004

27K

R1070

10K

R1068

100K

Q1012

BC847B

TX0232BM

5V6

D721

J32

BLN-0037

D723

DX0622

C735

220pF

(2KV)

D708

DX0622

C728

220pF

(2KV)

37GT-27S

SCHEMATIC DIAGRAM (00 Version)

8 9 10 11 12 13 14

Page 26

Page 29

H.V.

FOCO

1234

-10V

+5VA+7V

+7V

+104V

+3.3V

+2.5V

+8V

-10V

+104V

-25V

+10V

-25V

+5VA

+3.3V

C708

15nF

C709

2n2

(4Kv)

(160V)

C603

220uF

(10V)

C604

220uF

(10V)

D716

DX0551

D706

C6V2

EX0547

R704

100

R705

270

(TQ)

(1%)

R707

8M2

(1/2W)

(UA)

R708

8M2

(1/2W)

(UA)

D709

DX0590BM

MBR1100RL

D711

DX0505

1N4935

D710

DX0590BM

MBR1100RL

D714

C5V6

Q703

TX0218

BC337-40

R512

10K

R513

68K

D505

DX0551

D506

DX0551

Q501

BC636

TX0112BM

R604

470

(1/2W)

R606

6.8

(1/2W)

R607

(1/2W)

R610

(1/2W)

R611

(1/2W)

R612

.22

(1W)

R615

(1/2W)

R616

3K3

(1/2W)

C608

1uF

(160V)

C609

470nF

(250V)

FZ0174BM

Q601

TX0132

BU508D

L601

4.7uF

(CF)

L602

22uH

(CF)

D601

DX0551

D602

DX0505

1N4935

D604

DX0506

1N4936

D606

DX0505

1N4935

R614

560

IC701

TDA16833

GND

7D8

D10

D11

12 12

VCC 13

GND 14

(H)

N0461CE

(F)

N0505CE

R714

820

(1/2W)

C503

330nF

Q505

2SA1037

R525

120

+VS

-VS

IC501

UA741

C507

220nF

R519

8K2

(1/2

R524

3K9

R617

Q502

BC635

D503

1N4933

C508

330nF

R715

C717

100uF

(16V)

R603

330

(1/2W)

R609

2.2

(1/2W)

Q603

TX0112

BC636

R605

6.8

(1/2W)

Q602

BC635

TX0108BM

R523

560

R516

D605

DX0504

1N4934

R613

15K

C606

22nF

C715

100nF

R706

680

(TQ)

1K5

(1/2W)

R710

C707

10uF

(16V)

FB701

BLN-0037

C722

100uF

(16V)

R722

120

C610

22nF

(HB)

D607

EX0549BM

7V5

R510

(1/2W)

Q509

2SA1037

R535

82K

R502

C510

100pF

C723

100pF

C724

100pF

R509

R703

R537

15K

C726

2.2uF

Q503

TX0108BM

BC635

R533

120K

T601

NF2072BM

R608

18K

R517

220K

R538

2K2

C725

3n3

(4Kv)

C727

10uF/50V

Q704

BC327

330

R719

560

(1/2W)

R718

2K4

R720

Q707

BC327

330

R721

3V9

D609

R717

1 Ohm

C607

100uF

(35V)

R711

R102

10K

C1005

100nF

R1067

4K7

R536

4K7

D608

DX0504

1N4934

D603

DX0045

R515

100

R1028

4K7

(1/2W)

C730

1uF

(50V)

Q701

BC847B

TX0232BM

Q705

BC847B

TX0232BM

Q1007

BC847B

TX0232BM

Q507

BC847B

TX0232BM

Q706

BC847B

TX0232BM

Q506

2SA1037

C714

470uF

(10V)

C713

220uF

(16V)

C712

220uF

(16V)

10K

R727

C729

10uF

(16V)

C605

100nF

R534

1K2

Q1005

BC847B

TX0232BM

4V7

D715

EX0581

5V6

D721

EX0583

C601

5n6

(1,5KV)

C602

820pF

(2KV)

R530

270K

(2KV) (2KV)

37GT-27S

1234567

SCHEMATIC DIAGRAM (00 Version)

Page 29

Page 26

RMC001

12345

+3.3V

+7V

+3.3V

+7V

+20V

+104V

+20V

+104V

+3.3V

+2.5V

+5VA

+3.3V

QPWBF7325BMN1

DUNTK7325BMV1

AUDIO

SDA

SCL

AGC

CU0222CE

S1004

K0079GE

C805

1uF

C806

100nF

C807

100nF

C808

100nF

C809

100nF

C810

100nF

C811

100nF

C901

100nF

X801

B0243

R804

R810

100

R811

100

R812

100

R822

330K

C819

1uF

R301

4K7

(1/2W)

R304

2.2

(1/2W)

R305

4K7

(1/2W)

R306

100K

R307

10K

R310

100

R311

100K

R313

560

R314

C302

1uF

C304

100uF

(16V)

C307

47uF

(16V)

Q301

BC337

TX0217

Q302

BC327

TX0216

Q303

2SA1037

L301

3.3uH

(DF)

C820

1uF

R1009

12K

R1011

4K7

(1/2W)

R1012

4K7

(1/2W)

R1013

4K7

(1/2W)

R1014

22K

C1006

22pF

C309

10nF

C308

1uF

R1015

22K

(K)

N0561

R302

4K7

(1/2W)

R808

FB301

BLN0037

R303

33K

R221

R222

220K

R321

R318

15K

R312

10K

C303

1uF

(160V)

C312

47uF

(10V)

C315

100pF

8BM

R823

R824

75 R825

R826

R315

R1064

10K

CVBSIN2 28

BS 29

BEXT 30

GEXT 31

REXT 32

XTAL

BTUN

HALFCTR

FBOSD

ROSD

FB 33

Y/C 34

CHR 35

APR 36

UIN 37

VIN 38

YIN 39

YOUT 40

VOUT 41

UOUT 42

BOUT 43

GOUT 44

ROUT 45

ISENS 46

BOSD 47

GOSD 48

C1001

47uF

(10V)

C1002

33pF

L1005

12uH

C1013

100nF

R1051

3K3

D1001

R1040

10K

R1035

4K7

(S)

GN0241CE

C1015

10uF

R1034

2K7

(1/2W)

R1037

2K7

(1/2W)

R1048

4K7

R1054

10K

D805

C5V6

C1007

22nF

D807

C5V6

C1008

47nF

R1026

10K

D1005

5V1

R1053

330

IC1003

IX10037

R1072

10K 1N4148

D1008

R1022

R1042

C1310

.047

R1316

470

C1311

.047

L1302

3.3uH

J1301

J0047CE

R1317

470

(SH)

(S)

Q304

BC847B

TX0232BM

Q305

BC847B

TX0232BM

Q1007

BC847B

TX0232BM

Q1009

BC847B

TX0232BM

L1001

12uH

XF120K

10K

R1017

R1039

10K

L1002

12uH

R1074

10K

C1003

33pF

R1065 10K

2K7

R1016

R1036

2K7

(1/2W)

R1046

3K3

R1073

22K

Q1008

BC847B

TX0232BM

C1020

2,2uF

(50V)

X1001

6MHz

R1021

100

R1020

100

R1019

R1038

10K

R1052

3K3

C1009

220nF

10K

R1056

C1012

100nF

D1004

3V3

Q1001

PH2369

C222

IC1001

SDA5552

IX1886BM

BG/L

R/C

L/L'

N.C.

VSS

VDD 3.3

N.C.

/RST

HS/SSC

N.C.

VSSA

VDDA 2.5

CVBS

N.C.

VDD 3.3

VSS

VDD 2.5

OUT FRONT

N.C.

AGC 64

N.C. 63

PROT 62

SS 61

SBY 60

POWER 59

SMUTE 58

50/60 Hz 57

N.C. 56

VT 55

K54

SCL 53

SDA 52

K51

N.C. 50

K49

N.C. 33

XTAL2 34

XTAL1 35

VSSA 36

VDDA 2.5 37

R38

G39

B40

N.C. 41

BLANK/COR 42

N.C. 43

VDD 2.5 44

VSS 45

VDD 3.3 46

K47

N.C. 48

10uF

(10V)

C1018

C1014

100nF

Q1004

2SA1037

D806

C5V6

R1041

680K

R1055

470

R809

47K

R1049

3K3

D804

C5V6

1N4148

D1011

R1010

27K

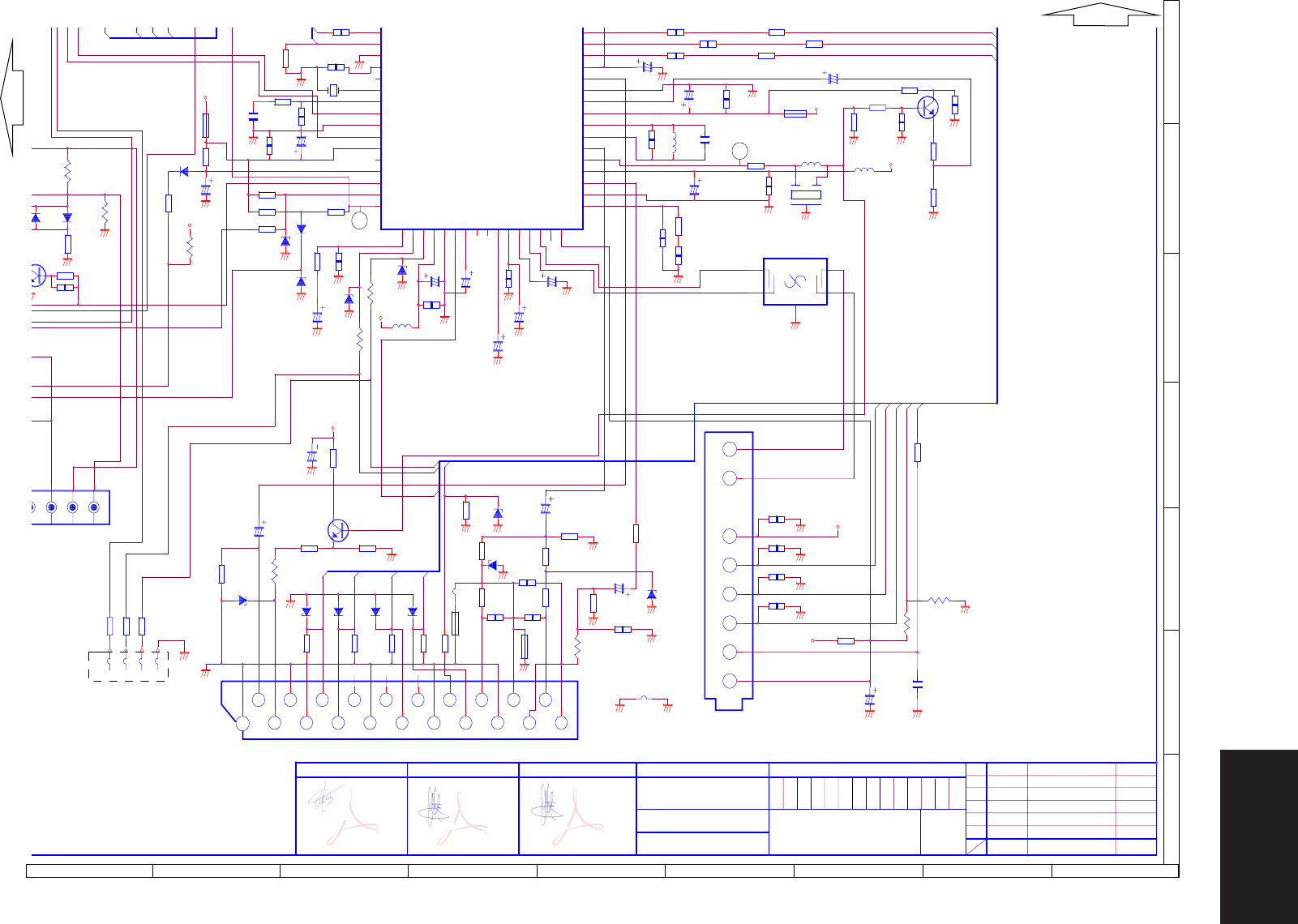

37GT-27S

891011121314

SCHEMATIC DIAGRAM (00 Version)

Page 28

Page 27

R OUT

RIN

L OUT

LIN

V OUT

VIN

IFOUT

IF OUT

AGC

RGB

345

TU201

RTUNH0138BMZZ

(SERVICE)

SCL SDA GND

J91

J78

J92

JF17

JF18

SCART TUNER

SHARP

ELECTRONICA ESPANA S.A.

NOMBRE CODIGO

ESCALA

MODELO

FECHA REVISIONES N

FECHA

KITP7 BMN23 3

REALIZADO VERIFICADO APROBADO

A-2

+8V

+5VA

+8V

37GT27S

+5VA

+8V

J79

SQUAD-TXT

17-04-2002

11-03-2002 Hasta INFO 43 18

16-04-2002 Hasta INFO 52 23

12-03-2002

15-03-2002

18-03-2002

18-03-2002 Hasta INFO 48

Hasta INFO 47

Hasta INFO 46

Hasta INFO 45 19

AUDIO

SDA

SCL

AGC

. . ..

C202

1nF

L801

3.3uH

(DF)

C805

1uF

C807

100nF

C808

100nF

C901

100nF

X801

B0243

4.43MHz

C211

220nF

C212

10nF

C213

10nF

C214

10nF

R201

220

R204

150

R212

3K3

R804

R813

27K

R815

22K R817

2K2

R818

15K

R601

2K2

R602

470

R821

8K2

C301

3.3uF

C820

1uF

D801

DX0045BM

D802

DX0551

R211

47K

505

X0551

D506

DX0551

R403

220

R408

8K2

R413

220

(TQ)

R414

220

(TQ)

FB401

LN0037

C401

1uF

C404

330pF

C405

330pF

C408

47uF

(16V)

D401

C7V5

SC401

CZ2109BM

R529

150

(1/2W)

D404

C7V5

D405

C7V5

D406

C7V5

D407

C7V5

C205

1uF

R416

R401

(TQ)

R221

(0)

R202

R814

R402

(1/2W)

R420

R418

C409

82pF

D410

EX549BM

7V5

R1030

100

R1031

100

8BM

R220

100

75 R825

R826

R819

100

R820

100

J47

LN0037

FB801

LN0037

C201

22pF L201

390mH

IC801

STV2238

IX1792BM

IFPLL 17

GND IF 18

AM/FMOUT 19

VCC 20

CVBS 21

AUDIN 22

IF1 23

IF2 24

VCC 25

CVBSIN1 26

GND 27

CVBSIN2 28

BS 29

BEXT 30

GEXT 31

REXT

AGC

SAW

PIFIN

AGC

VIF

AGC

SIFIN

FMCAP

AUDIO

GND

VCC

SDA

SCL

SLPF

SSC

HOUT

VERT

BCL

CVBOUT2

VCC

CVBSOUT1

GND

VAMP

CLPF

XTAL

BTUN

HALFCTR

FBOSD

ROSD

C207

10uF

(50V)

C223

8.2pF

(500V)

R816

2K7

R511

1.8

(1/2W)

R405

(TQ)

C216

470nF

R1032

100

R1029

10K

C1005

100nF

R223

39K

R224

82K

D411

EX0549BM

7V5

C816

4n7

C814

1uF

C206

22nF

R203

R515

100

C215

47uF

(10V)

C208

1uF

C221

100pF

L202

12uH

(DF)

CF301

C0020CE

R219

2K2

R417

220

C410

680pF

R412

6K8

R411

6K8

R410

100K

C406

22uF

D808

EX0545BM

L802

3.3uH

XF3R3

Q204

BC847B

TX0232BM

Q401

BC847B

TX0232BM

FB405

LN0037

C812

1uF

C818

100nF

C813

4n7

C801

470uF

(10V)

R407

(TQ)

C210

100nF

C803

470uF

(10V)

C817

1000uF

(6.3V)

R404

(TQ)

C209

100uF

(6.3V)

C203

330nF

(25V)

R406

C804

100nF

C802

100nF

D403

C5V6

C222

100nF

R409

3K3

R415

100K

C815

2.2uF

D610

C6V8

EX0548BM

D863

C5V1

EX0545

SF201

G1984

RFILC0274BM

C822

100uF

(16V)

D803

C5V1

EX0545BM

Digitally signed by Adolfo Fernandez

cn=Adolfo Fernandez, ou=CAD GLOBAL NETWORK, o=SHARP, c=ES

Date: 2002.04.26 12:08:05 +01'00'

Reason: This document is ready for approval

Miguel Alcoba

2002.04.26 12:08:57 +01'00'

I am approving this document

Miguel Alcoba

2002.04.26 12:09:24 +01'00'

I am approving this document

37GT-27S

123

T700

68 3

H.V

FOCUS

CH+ CH- VOL+ VOL-

321

IC501

+150V

FOCUS PWB-B

DUNTK7284BMN2

CRT

H.V.

GND RGB

HEATER

(H)

150V

T601

IC701

+10V

110V

20V

-10V

3.3V

Q705

2.5V

Q707

+10V

-10V

Vertical

Driver

Q505, Q506

OUTPUT

AMP

Q502, Q501

Feed back

150V

6.3V

-25V

Q601

Q602

Q604

Q603

105V

Q883

Q885

Q887

Q870

Q871

Q872

Q503, Q504, Q505

Fly Back

Pulse

Q703

Focus

Q702

50 / 60Hz

Q509

(G)

ADG COIL

S1001 S1002 S1003 S1004

L701

PR701

S701

F701

T3.15A

(A)

P701

N0304CE

IC1002

SC881

VD842CE

P881A

(L2)

(K)

P601

(F)

(H)

V-IN

V-OUT

.18

.19

.20

.21

D605

D604

AC 220-240V

50HZ

D608

Q701

BLOCK DIAGRAM

234567

Page 31

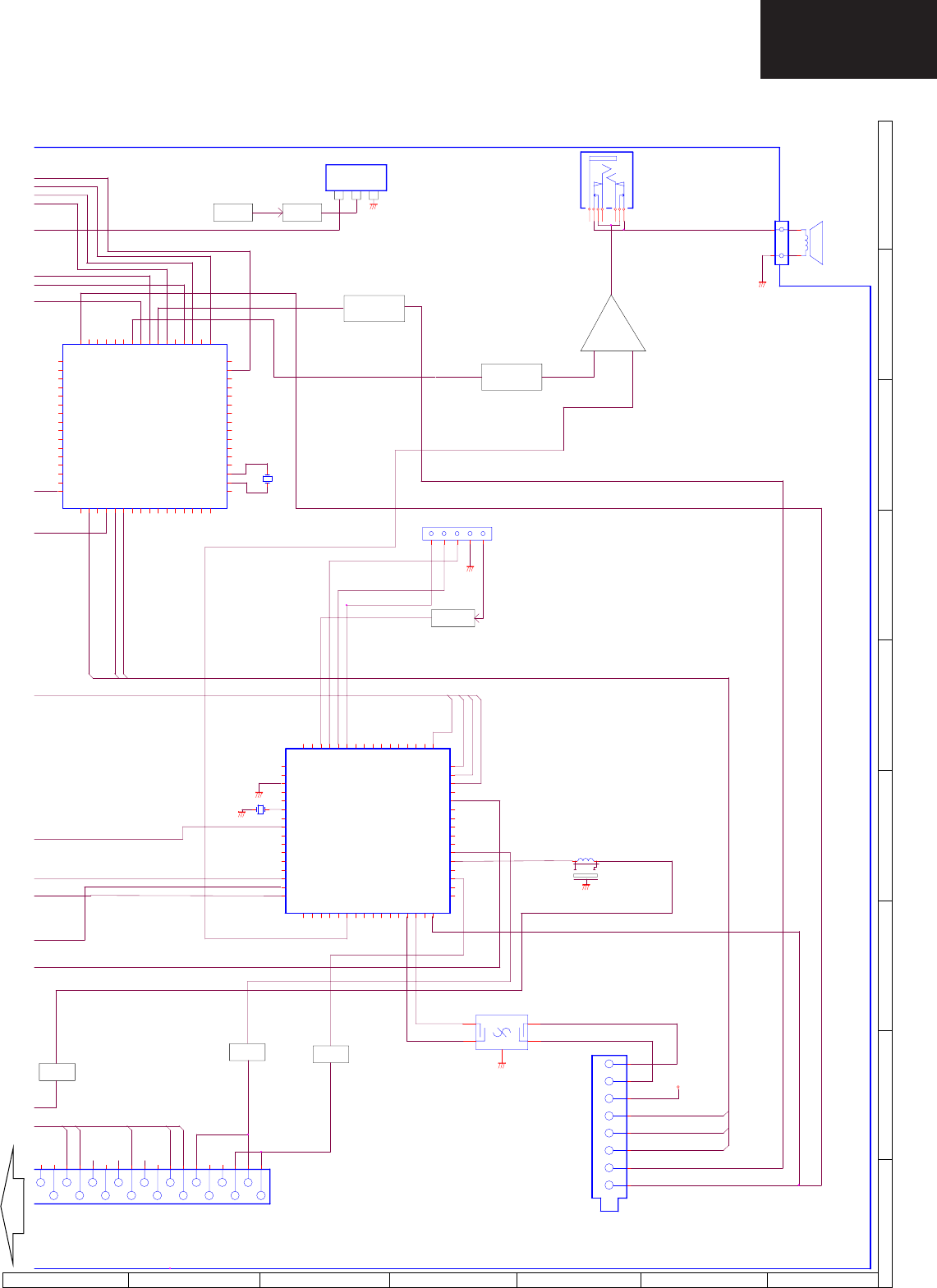

37GT-27S

321

RMC0001

RMCU0222CE

OUT 5V

BGR

Feed back

Q305

Mute

AMP

Audio

7V D1005

AUDIO

IN AUDIO

OUT

Q401

Q1001

J301

P301

SP301

SLOW

L-IN

L-OUT

R-IN

R-OUT

SC401

Z2107BM

.10

.11

.12

.13

.14

.15

.16

.17

.18

(K)

IF O2

IF O1

+5V

AGC

TU201

.11

.10

IC1001

SDA5552

BG/L

R/C

L/L'

N.C.

VSS

VDD 3.3

N.C.

/RST

HS/SSC

N.C.

VSSA

VDDA 2.5

CVBS

N.C.

VDD 3.3

VSS

VDD 2.5

OUT FRONT

N.C.

AGC 64

N.C. 63

PROT 62

SS 61

SBY 60

POWER 59

SMUTE 58

50/60 Hz 57

N.C. 56

VT 55

K54

SCL 53

SDA 52

K51

N.C. 50

K49

N.C. 33

XTAL2 34

XTAL1 35

VSSA 36

VDDA 2.5 37

R38

G39

B40

N.C. 41

BLANK/COR 42

N.C. 43

VDD 2.5 44

VSS 45

VDD 3.3 46

K47

N.C. 48

X801

4,43MHz

X1001

6 MHz

IC801

STV223X

IFPLL 17

GND IF 18

AM/FMOUT 19

VCC 20

CVBS 21

AUDIN 22

IF1 23

IF2 24

VCC 25

CVBSIN1 26

GND 27

CVBSIN2 28

BS 29

BEXT 30

GEXT 31

REXT 32

AGC

SAW

PIFIN

AGC

VIF

AGC

SIFIN

FMCAP

AUDIO

GND

VCC

SDA

SCL

SLPF

SSC

HOUT

VERT

BCL

CVBOUT2

VCC

CVBSOUT1

GND

VAMP

CLPF

XTAL

BTUN

HALFCTR

FBOSD

ROSD

FB 33

Y/C 34

CHR 35

APR 36

UIN 37

VIN 38

YIN 39

YOUT 40

VOUT 41

UOUT 42

BOUT 43

GOUT 44

ROUT 45

ISENS 46

BOSD 47

GOSD 48

SAW FILTER

SOUND TRAP

BLOCK DIAGRAM

8 9 10 11 12 13 14

Page 30

37GT-27S

NO PICTURE

Check Q1001,

IC1001, IC1003

Check the tuner supply

and band biases. Both

must be approx. 5V DC

Normal

YES

Is tuning voltage

normal at

Pin (2) of Tuner?

Check Picture

setting by R/C. Signal

should be received.

-Check the AGC Voltage:

Pin (1) of Tuner.

-Check the SAW Filter: SF201

TROUBLESHOOTING TABLES

37GT-27S

NO SOUND

Check Sound setting by

R/C. Signal should be

received.

NO YES

Check D707, C710

Audio Amplifier

muted?

Check R304, Q301, Q302

Check IC801, C301

YES

Check IC1001, Q305

Does

Sound Signal

appear at Pin(6)

of IC801?

Does

approx. 20V DC

appear on

C710?

37GT-27S

NO RASTER

Check F701 NormalFuse Blown

Normal

Replace Fuse

Fuse Blown

again

Check IC701

Normal

Abnormal

Check Q601,

C711

Check D708, D717

Normal

Check R705, R706,

R715, D706

Normal

Check CRT connector

K1... K5 bias

Normal Abnormal

Check C878 Check IC801Check Q601, C711

Check Voltage on C705

(Approx. 325V DC)

Check D701, D702, D703,

D704, C705.

Check Voltage on C711

(Approx. 105V DC)

Approx. 0V

37GT-27S

NO VERTICAL SCAN

YES NO

Check D709, D710, IC501

DEFECTIVE VERTICAL AMP.

AND VERTICAL LINEARITY

Readjust Vertical Size.

Check D505, D506Check Q505, Q507, Q509

NEITHER VERTICAL NOR

HORIZONTAL SYNCHRONIZATION

Check IC801, C815, C816, R818

Vertical size is abnormal Vertical linearity is abnormal

Is IC501

bias normal?

Check R510, Q501,

Q502, Q503

37GT-27S

NO SPECIFIC COLOUR

some colour

produced in B/W Broadcast

reception?

YESNO

Check IC801, C812,

C813, R813, X801

the white

balance properly

adjusted?

YES NO

Readjust The White

Balance.

The Picture Colour is

Blue or Yellow.

The Picture Colour is

green or magenta.

The Picture Colour is

Red or cyan.

Check Q871, Q883 and

their adjacent circuits.

Check Q870, Q885 and

their adjacent circuits.

Check Q872, Q887 and

their adjacent circuits.

UNLOCKED COLOUR

(NO COLOUR SYNCHRONIZATION)

Check setting of Colour

Standard in Service

Mode.

Normal

Check IC801, C812,

C813, R813, X801

37GT-27S

MARK *: SPARE PARTS DELIVERY SECTION

REF No. PARTS DESCRIPTION * SN CODE EX CODE

PICTURE TUBE

VB34AGT1401*N TRC 14" A34AGT14X01 CHUNGWA PUSH/T S BK CB

RCILG0415BMZZ DEGUSSING COIL 14" S AF AM

PRINTED WIRING BOARDS (Not replacement item)

PWB-A DUNTK7323CJV1 ADJUST CHASSIS 37GT27S S BE BV

PWB-B DUNTK7324BMV1 UNIT CRT INS HAND 37GT27S S AG AT

PWB-C DUNTK7325BMV1 HEADPHONE INS A S AG AS

PWB-A MOTHER UNIT

TUNER

TU 0201 RTUNH0138BMZZ TUNER VST CTT5045 THOMSON HYP S AL AX

INTEGRATED CIRCUITS

IC 0501 RH-IX1783BMZZ IC UA741CDR TEXAS INSTRUMENTS S AA AD

IC 0701 RH-IX1782BMZZ IC TDA16833 SIEMENS S AD AL

IC 0801 RH-IX1792BMZZ IC STV2236 SGS-THOMSON -PAL S AM AX

IC 1001 RH-IX1886BMZZ IC SDA5552-A007-TVTPRO-1 TXT PAGE S AK AW

IC 1002 RH-IX1812BMZZ EEPROM M24C04-WMN6T ST MICROELEC. S AB AF

IC 1003 RH-IX0037CEZZ IC UPC574J 33V NEC S AF AD

TRANSISTORS

Q 0204 RH-TX0232BMZZ TRT BC847B SMD PHILIPS S AA AA

Q 0301 RH-TX0217BMZZ TRT BC337 PHILIPS S AA AB

Q 0302 RH-TX0216BMZZ TRT BC327 S AA AA

Q 0303 VS2SA1037KQ-1 TRT BC807 SMD S AA AA

Q 0304 RH-TX0232BMZZ TRT BC847B SMD PHILIPS S AA AA

Q 0305 RH-TX0232BMZZ TRT BC847B SMD PHILIPS S AA AA

Q 0401 RH-TX0232BMZZ TRT BC847B SMD PHILIPS S AA AA

Q 0501 RH-TX0108BMZZ TRT BC635 S AA AC

Q 0501 RH-TX0112BMZZ TRT BC636 S AA AB

Q 0502 RH-TX0108BMZZ TRT BC635 S AA AC

Q 0505 VS2SA1037KQ-1 TRT BC807 SMD S AA AA

Q 0506 VS2SA1037KQ-1 TRT BC807 SMD S AA AA

Q 0507 RH-TX0232BMZZ TRT BC847B SMD PHILIPS S AA AA

Q 0509 VS2SA1037KQ-1 TRT BC807 SMD S AA AA

Q 0601 RH-TX0132BMZZ TRT BU508DFI S AF AM

Q 0602 RH-TX0108BMZZ TRT BC635 S AA AC

Q 0603 RH-TX0112BMZZ TRT BC636 S AA AB

Q 0604 RH-TX0232BMZZ TRT BC847B SMD PHILIPS S AA AA

Q 0701 RH-TX0232BMZZ TRT BC847B SMD PHILIPS S AA AA

Q 0702 RH-TX0218BMZZ TRT BC337-40 PHILIPS S AA AA

Q 0703 RH-TX0218BMZZ TRT BC337-40 PHILIPS S AA AA

Q 0704 RH-TX0216BMZZ TRT BC327 S AA AA

Q 0705 RH-TX0232BMZZ TRT BC847B SMD PHILIPS S AA AA

Q 0706 RH-TX0232BMZZ TRT BC847B SMD PHILIPS S AA AA

Q 0707 RH-TX0216BMZZ TRT BC327 S AA AA

Q 1001 RH-TX0111BMZZ TRT PH-2369 PHILIPS S AA AB

Q 1002 RH-TX0232BMZZ TRT BC847B SMD PHILIPS S AA AA

Q 1003 RH-TX0232BMZZ TRT BC847B SMD PHILIPS S AA AA

PARTS LISTING

REPLACEMENT PARTS

Replacement parts which have special safety characteristics are identi-

fied in this manual. Electrical components having such features are iden-

tified by in the Replacement Part List.

The use of a substitute replacement part which does not have the same

safety characteristics as the factory recommended is not permitted.

Replacement parts not shown in this service manual may create shock

fire, or other hazards.

HOW TO ORDER REPLACEMENT PARTS

To have your order completed promplty and corretly please supply the

following information.

1. MODEL NUMBER

3. PART NO.

5. CODE

2. REF. NO.

4. DESCRIPTION

6. QUANTITY

REF No. PARTS DESCRIPTION * SN CODE EX CODE

Q 1004 VS2SA1037KQ-1 TRT BC807 SMD S AA AA

Q 1005 RH-TX0232BMZZ TRT BC847B SMD PHILIPS S AA AA

Q 1007 RH-TX0232BMZZ TRT BC847B SMD PHILIPS S AA AA

Q 1008 RH-TX0232BMZZ TRT BC847B SMD PHILIPS S AA AA

Q 1009 RH-TX0232BMZZ TRT BC847B SMD PHILIPS S AA AA

Q 1010 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA

Q 1011 RH-TX0232BMZZ TRT BC847B SMD PHILIPS S AA AA

Q 1012 RH-TX0232BMZZ TRT BC847B SMD PHILIPS S AA AA

Q 1017 RH-TX0232BMZZ TRT BC847B SMD PHILIPS S AA AA

Q 1018 RH-TX0232BMZZ TRT BC847B SMD PHILIPS S AA AA

DIODES

D 0401 RH-EX0549BMZZ ZENER DIODE TZMC7V5 TFK SMD S AA AA

D 0402 RH-EX0549BMZZ ZENER DIODE TZMC7V5 TFK SMD S AA AA

D 0403 RH-EX0546BMZZ ZENER DIODE TZMC5V6 TFK SMD S AA AA

D 0404 RH-EX0549BMZZ ZENER DIODE TZMC7V5 TFK SMD S AA AA

D 0405 RH-EX0549BMZZ ZENER DIODE TZMC7V5 TFK SMD S AA AA

D 0406 RH-EX0549BMZZ ZENER DIODE TZMC7V5 TFK SMD S AA AA

D 0407 RH-EX0549BMZZ ZENER DIODE TZMC7V5 TFK SMD S AA AA

D 0410 RH-EX0549BMZZ ZENER DIODE TZMC7V5 TFK SMD S AA AA

D 0411 RH-EX0549BMZZ ZENER DIODE TZMC7V5 TFK SMD S AA AA

D 0503 RH-DX0503BMZZ DIODE 1N4933 S AB AB

D 0505 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA

D 0506 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA

D 0601 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA

D 0602 RH-DX0577BMZZ DIODE 1N4935 ACPA S AB AE

D 0603 RH-DX0045BMZZ DIODE 1N4148 S AA AA

D 0604 RH-DX0506BMZZ DIODE 1N4936 S AB AB

D 0605 RH-DX0504BMZZ DIODE 1N4934 S AB AB

D 0606 RH-DX0577BMZZ DIODE 1N4935 ACPA S AB AE

D 0607 RH-EX0549BMZZ ZENER DIODE TZMC7V5 TFK SMD S AA AA

D 0608 RH-DX0504BMZZ DIODE 1N4934 S AB AB

D 0609 RH-EX0542BMZZ ZENER DIODE TZMC3V9 TFK SMD S AA AA

D 0610 RH-EX0548BMZZ ZENER DIODE TZMC6V8 TFK SMD S AA AA

D 0701 RH-DX0571BMZZ DIODE 1N4005 ACPA S AA AA

D 0702 RH-DX0571BMZZ DIODE 1N4005 ACPA S AA AA

D 0703 RH-DX0571BMZZ DIODE 1N4005 ACPA S AA AA

D 0704 RH-DX0571BMZZ DIODE 1N4005 ACPA S AA AA

D 0705 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA

D 0706 RH-EX0584BMZZ ZENER DIODE TZMB6V2 TFK SMD 2% S AA AA

D 0707 RH-DX0577BMZZ DIODE 1N4935 ACPA S AB AE

D 0708 RH-DX0622BMZZ DIODE BYV27/600 VISHAY S AA AD

D 0709 RH-DX0590BMZZ DIODE MBR1100RL MOTOROLA S AD AE

D 0710 RH-DX0590BMZZ DIODE MBR1100RL MOTOROLA S AD AE

D 0711 RH-DX0577BMZZ DIODE 1N4935 ACPA S AB AE

D 0714 RH-EX0546BMZZ ZENER DIODE TZMC5V6 TFK SMD S AA AA

D 0715 RH-EX0581BMZZ ZENER DIODE TZMB4V7 TFK SMD 2% S AA AA

D 0716 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA

D 0717 RH-DX0507BMZZ DIODE 1N4937 S AA AB

D 0721 RH-EX0583BMZZ ZENER DIODE TZMB5V6 TFK SMD 2% S AA AA

D 0723 RH-DX0622BMZZ DIODE BYV27/600 VISHAY S AA AD

D 0801 RH-DX0045BMZZ DIODE 1N4148 S AA AA

D 0802 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA

D 0803 RH-EX0545BMZZ ZENER DIODE TZMC5V1 TFK SMD S AA AA

D 0804 RH-EX0546BMZZ ZENER DIODE TZMC5V6 TFK SMD S AA AA

D 0805 RH-EX0546BMZZ ZENER DIODE TZMC5V6 TFK SMD S AA AA

D 0806 RH-EX0546BMZZ ZENER DIODE TZMC5V6 TFK SMD S AA AA

D 0807 RH-EX0546BMZZ ZENER DIODE TZMC5V6 TFK SMD S AA AA

D 0808 RH-EX0545BMZZ ZENER DIODE TZMC5V1 TFK SMD S AA AA

D 0863 RH-EX0545BMZZ ZENER DIODE TZMC5V1 TFK SMD S AA AA

D 1001 RH-PX0104BMZZ LED ROJO S AB AC

D 1004 RH-EX0540BMZZ ZENER DIODE TZMC3V3 TFK SMD S AA AA

D 1005 RH-EX0545BMZZ ZENER DIODE TZMC5V1 TFK SMD S AA AA

D 1006 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA

D 1008 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA

D 1011 RH-DX0045BMZZ DIODE 1N4148 S AA AA

PACKAGED CIRCUITS

PR 0701 RMPTP0028CEZZ PTC RESISTOR S AB AD

X 0801 RCRSB0243BMZZ CRYSTAL 473.000.6835 (4,43 MHZ) ACAL S AA AE

X 1001 RCRSB0100BMZZ CRYSTAL 6,00 MHZ S AD AG

37GT-27S

REF No. PARTS DESCRIPTION *

SN CODE EX CODE

COILS

L 0201 RCILP0227BMZZ COIL SMD 390NH LQN1HR39J S AC AE

L 0202 VP-DF120K0000 PEAK COIL 12UH 10% S AA AA

L 0301 VP-DF3R3K0000 PEAK COIL 3,3UH 10% S AB AB

L 0601 VP-CF4R7K0000 PEAK COIL 4,7UH 10% S AB AB

L 0602 VP-CF220K0000 PEAK COIL 22UH 10% S AA AA

L 0701 RCILF0160BMZZ AC.FILTER 30MH MURATA S AB AF

L 0801 VP-DF3R3K0000 PEAK COIL 3,3UH 10% S AB AB

L 0802 VP-XF3R3K0000 PEAK COIL 3.3UH 10% 1/8W S AA AB

L 1001 VP-XF120K0000 PEAK COIL 12UH 10% 1/8W S AA AA

L 1002 VP-XF120K0000 PEAK COIL 12UH 10% 1/8W S AA AA

L 1005 VP-XF120K0000 PEAK COIL 12UH 10% 1/8W S AA AA

CERAMIC FILTERS

SF 0201 RFILC0274BMZZ SAW FILTER G1984 SIEMENS S AF AK

CF 0201 RFILC0020CEZZ FILTER SIF TRAP (TAPED) S AE AE

TRANSFORMERS

T 0601 RTRNF2072BMZZ SMT 8228 001 3493 PHILIPS 14" S AK AW

T 0701 RTRNZ0584BMZZ SMT 14" 8228 001 35002 PHILIPS S AD AL

CAPACITORS

C 0201 VCCCTV1HH220J CERAM C 22PF 50V 2125SMD S AA AA

C 0202 VCKYTV1HB102K CERAM C 1NF 50V 2125SMD S AA AA

C 0203 VCKYTV1EF334Z CERAM C 330NF 25V 2125SMD S AA AB

C 0205 VCEA0A1HW105M ELEC C 1UF 20% 50V S AA AA

C 0206 VCKYTV1HF223Z CERAM C 22NF 50V 2125SMD S AA AA

C 0207 VCEA0A1HW106M ELEC C 10UF 20% 50V S AA AA

C 0208 VCEA0A1HW105M ELEC C 1UF 20% 50V S AA AA

C 0209 VCEAGA0JW107M ELEC C 100UF 20% 6,3V S AA AA

C 0210 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA

C 0211 VCKYTV1EF224Z CERAM C 220NF 25V 2125SMD S AA AA

C 0212 VCKYTV1HF103Z CERAM C 10NF 50V 2125SMD S AA AA

C 0213 VCKYTV1HF103Z CERAM C 10NF 50V 2125SMD S AA AA

C 0214 VCKYTV1HF103Z CERAM C 10NF 50V 2125SMD S AA AA

C 0215 VCEA0A1AW476M ELEC C 47UF 20% 10V S AA AA

C 0216 VCFYFA1HA474J FILM CAPACITOR 474 MAT S AA AB

C 0221 VCCCTV1HH101J CERAM C 100PF 50V 2125SMD S AA AA

C 0222 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA

C 0223 VCCWPA2HL8R2C C 8,2PF 0,25 N1500 500V S AA AB

C 0301 VCEA0A1HW335M ELEC C 3,3UF 20% 50V S AA AA

C 0302 VCEA0A1HW105M ELEC C 1UF 20% 50V S AA AA

C 0303 VCEAGA2CW105M ELEC C 1UF 20% 160V S AA AB

C 0304 VCEA0A1CW107M ELEC C 100UF 20% 16V S AA AA

C 0307 VCEA0A1CW476M ELEC C 47UF 20% 16V S AA AA

C 0308 VCEA0A1HW105M ELEC C 1UF 20% 50V S AA AA

C 0309 VCKYTV1HF103Z CERAM C 10NF 50V 2125SMD S AA AA

C 0312 VCEA0A1AW476M ELEC C 47UF 20% 10V S AA AA

C 0315 VCCCTV1HH101J CERAM C 100PF 50V 2125SMD S AA AA

C 0401 VCEA0A1HW105M ELEC C 1UF 20% 50V S AA AA

C 0404 VCCCTV1HH331J CERAM C 330PF 50V 2125SMD S AA AA

C 0405 VCCCTV1HH331J CERAM C 330PF 50V 2125SMD S AA AA

C 0406 VCEA0A1HW226M ELEC C 22UF 20% 50V S AA AA

C 0408 VCEA0A1CW476M ELEC C 47UF 20% 16V S AA AA

C 0409 VCCCTV1HH820J CERAM C 82PF 50V 2125SMD S AA AA

C 0410 VCKYTV1HB681K CERAM C 680PF 50V 2125SMD S AA AA

C 0503 VCFYFA1HA334J POL FILM C 330NF 5% 50V S AA AB

C 0507 VCKYTV1EF224Z CERAM C 220NF 25V 2125SMD S AA AA

C 0508 VCFYFA1HA334J POL FILM C 330NF 5% 50V S AA AB

C 0510 VCCCTV1HH101J CERAM C 100PF 50V 2125SMD S AA AA

C 0601 RC-FZ0144BMZZ POL C B32650 5N6 1,5KV S AE AE

C 0602 RC-KZ0040CEZZ CERAM C 820PF 2KV S AD AD

C 0603 VCEA0A1AW227M ELEC C 220UF 20% 10V S AA AA

C 0604 VCEA0A1AW227M ELEC C 220UF 20% 10V S AA AA

C 0605 VCFYFA1HA104J POL FILM C 100NF 5% 50V S AA AA

C 0606 VCKYTV1HF223Z CERAM C 22NF 50V 2125SMD S AA AA

C 0607 VCEA0A1VW107M ELEC C 100UF 35V S AA AA

C 0608 VCEAGA2CW105M ELEC C 1UF 20% 160V S AA AB

C 0609 RC-FZ0174BMZZ POL C B32652 470NF 250V S AA AC

C 0610 VCKYTV1HB223K CERAM C 22NF 50V 2125SMD S AA AA

C 0701 RC-FZ0219BMZZ C 470NF 275V X2 B81130-C1474-M SIEMENS S AA AD

REF No. PARTS DESCRIPTION *

SN CODE EX CODE

C 0702 RC-KZ0029CEZZ CERAM C 10NF 80,20% 250V S AC AC

C 0704 RC-KZ0029CEZZ CERAM C 10NF 80,20% 250V S AC AC

C 0705 RC-EZ0148BMZZ ELEC C 47uF 400V LPN470M2GN JAMICON S AD AK

C 0707 VCEA0A1CW106M ELEC C 10UF 20% 16V S AA AA

C 0708 VCKYTV1HF153Z CERAM C 15NF 50V 2125SMD S AA AA

C 0709 RC-KZ0160BMZZ CERAM C 2,2NF 4KV X1Y1 S AA AD

C 0710 VCEA0A1EW227M ELEC C 220UF 20% 25V S AA AA

C 0711 VCEAGH2CW107M ELEC C 100MF 20% 160V S AB AE

C 0712 VCEA0A1CW227M E CAPACITOR 220UF 16V 6.3x11 S AA AA

C 0713 VCEA0A1CW227M E CAPACITOR 220UF 16V 6.3x11 S AA AA

C 0714 VCEA0A1AW477M E.CAPACITOR 470UF 10V 6.3x11 S AA AA

C 0715 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA

C 0717 VCEA0A1CW107M ELEC C 100UF 20% 16V S AA AA

C 0718 RC-FZ0156BMZZ C B32529-B6473K 47nF 400V SIEMENS S AD AE

C 0722 VCEA0A1CW107M ELEC C 100UF 20% 16V S AA AA

C 0723 VCCCTV1HH101J CERAM C 100PF 50V 2125SMD S AA AA

C 0724 VCCCTV1HH101J CERAM C 100PF 50V 2125SMD S AA AA

C 0725 RC-KZ0106GEZZ CERAM C DE1410 E332M-KX S AB AC

C 0726 VCEA0A1HW225M ELEC C 2,2UF 20% 50V S AA AA

C 0727 VCEA0A1HW106M ELEC C 10UF 20% 50V S AA AA

C 0728 RC-KZ0035CEZZ CERAM C 220PF 2KV S AA AC

C 0729 VCEA0A1CW106M ELEC C 10UF 20% 16V S AA AA

C 0730 VCEA0A1HW105M ELEC C 1UF 20% 50V S AA AA

C 0731 RC-KZ0029CEZZ CERAM C 10NF 80,20% 250V S AC AC

C 0735 RC-KZ0035CEZZ CERAM C 220PF 2KV S AA AC

C 0801 VCEA0A1AW477M E.CAPACITOR 470UF 10V 6.3x11 S AA AA

C 0802 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA

C 0803 VCEA0A1AW477M E.CAPACITOR 470UF 10V 6.3x11 S AA AA

C 0804 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA

C 0805 VCEA0A1HW105M ELEC C 1UF 20% 50V S AA AA

C 0806 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA

C 0807 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA

C 0808 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA

C 0809 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA

C 0810 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA

C 0811 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA

C 0812 VCEA0A1HW105M ELEC C 1UF 20% 50V S AA AA

C 0813 VCKYTV1HB472K CERAM C 4,7NF 50V 2125SMD S AA AA

C 0814 VCEA0A1HW105M ELEC C 1UF 20% 50V S AA AA

C 0815 VCEA0A1HW225M ELEC C 2,2UF 20% 50V S AA AA

C 0816 VCKYTV1HB472K CERAM C 4,7NF 50V 2125SMD S AA AA

C 0817 VCEAGA0JW108M ELEC C 1000UF 20% 6,3V S AA AB

C 0818 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA

C 0819 VCEA0A1HW105M ELEC C 1UF 20% 50V S AA AA

C 0820 VCEA0A1HW105M ELEC C 1UF 20% 50V S AA AA

C 0822 VCEA0A1CW107M ELEC C 100UF 20% 16V S AA AA

C 0901 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA

C 1001 VCEA0A1AW476M ELEC C 47UF 20% 10V S AA AA

C 1002 VCCCTV1HH330J CERAM C 33PF 50V 2125SMD S AA AA

C 1003 VCCCTV1HH330J CERAM C 33PF 50V 2125SMD S AA AA

C 1005 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA

C 1006 VCCCTV1HH220J CERAM C 22PF 50V 2125SMD S AA AA

C 1007 VCKYTV1HF223Z CERAM C 22NF 50V 2125SMD S AA AA

C 1008 VCKYTV1HF473Z CERAM C 47NF 50V 2125SMD S AA AA

C 1009 VCKYTV1EF224Z CERAM C 220NF 25V 2125SMD S AA AA

C 1012 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA

C 1013 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA

C 1014 VCKYTV1HF104Z CERAM C 100NF 50V 2125SMD S AA AA

C 1015 VCEA0A1CW106M ELEC C 10UF 20% 16V S AA AA

C 1016 VCEA0A1CW106M ELEC C 10UF 20% 16V S AA AA

C 1017 VCEA0A1HW106M ELEC C 10UF 20% 50V S AA AA

C 1018 VCEA0A1CW106M ELEC C 10UF 20% 16V S AA AA

C 1019 VCEA0A1HW226M ELEC C 22UF 20% 50V S AA AA

C 1020 VCEA0A1HW225M ELEC C 2,2UF 20% 50V S AA AA

RESISTORS

R 0201 VRS-TV1JD221J 2125 220 OHM 5% 1/10W SMD S AA AA

R 0202 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA

R 0203 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA

R 0204 VRS-TV1JD151J 2125 150 OHM 5% 1/10W SMD S AA AA

R 0211 VRS-TV1JD473J 2125 47KOHM 5% 1/10W SMD S AA AA

R 0212 VRS-TV1JD332J 2125 3.3KOHM 5% 1/10W SMD S AA AA

37GT-27S

REF No. PARTS DESCRIPTION * SN CODE EX CODE

R 0219 VRS-TV1JD222J 2125 2,2KOHM 5% 1/10W SMD S AA AA

R 0220 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA

R 0221 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA

R 0222 VRS-TV1JD224J 2125 220KOHM 5% 1/10W SMD S AA AA

R 0223 VRD-RA2BE393J RES 39KOHM 5% 1/8W S AA AA

R 0224 VRD-RA2BE823J RES 82KOHM 5% 1/8W S AA AA

R 0301 VRD-RA2HD472J RES 4.7KOHM 5% 1/2W S AA AA

R 0302 VRD-RA2HD472J RES 4.7KOHM 5% 1/2W S AA AA

R 0303 VRD-RA2BE333J RES 33KOHM 5% 1/8W S AA AA

R 0304 RR-XZ0204BMZZ FUS RES 2R2 TAP 5% 1/2W S AA AB

R 0305 VRD-RA2HD472J RES 4.7KOHM 5% 1/2W S AA AA

R 0306 VRS-TV1JD104J 2125 100KOHM 5% 1/10W SMD S AA AA

R 0307 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA

R 0310 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA

R 0311 VRS-TV1JD104J 2125 100KOHM 5% 1/10W SMD S AA AA

R 0312 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA

R 0313 VRS-TV1JD561J 2125 560 OHM 5% 1/10W SMD S AA AA

R 0314 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA

R 0315 VRD-RA2BE102J RES 1KOHM 5% 1/8W S AA AA

R 0318 VRS-TV1JD153J 2125 15KOHM 5% 1/10W SMD S AA AA

R 0321 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA

R 0401 VRS-TQ2BD750J OX RE 75 OHM 5% 1/8W SMD S AA AA

R 0402 VRD-RA2HD680J RES 68 OHM 5% 1/2W S AA AA

R 0403 VRS-TV1JD221J 2125 220 OHM 5% 1/10W SMD S AA AA

R 0404 VRS-TQ2BD750J OX RE 75 OHM 5% 1/8W SMD S AA AA

R 0405 VRS-TQ2BD750J OX RE 75 OHM 5% 1/8W SMD S AA AA

R 0406 VRS-TQ2BD750J OX RE 75 OHM 5% 1/8W SMD S AA AA

R 0407 VRS-TQ2BD750J OX RE 75 OHM 5% 1/8W SMD S AA AA

R 0408 VRS-TV1JD822J 2125 8,2KOHM 5% 1/10W SMD S AA AA

R 0409 VRS-TV1JD332J 2125 3.3KOHM 5% 1/10W SMD S AA AA

R 0410 VRS-TV1JD104J 2125 100KOHM 5% 1/10W SMD S AA AA

R 0411 VRS-TV1JD682J 2125 6.8KOHM 5% 1/10W SMD S AA AA

R 0412 VRS-TV1JD682J 2125 6.8KOHM 5% 1/10W SMD S AA AA

R 0413 VRS-TQ2BD221J OX RE 220 OHM 5% 1/8W SMD S AA AA

R 0414 VRS-TQ2BD221J OX RE 220 OHM 5% 1/8W SMD S AA AA

R 0415 VRS-TV1JD104J 2125 100KOHM 5% 1/10W SMD S AA AA

R 0416 VRS-TV1JD470J 2125 47 OHM 5% 1/10W SMD S AA AA

R 0417 VRS-TQ2BD221J OX RE 220 OHM 5% 1/8W SMD S AA AA

R 0418 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA

R 0420 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA

R 0502 VRD-RA2BE102J RES 1KOHM 5% 1/8W S AA AA

R 0509 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA

R 0510 RR-XZ0200BMZZ FUS RES 1R0 TAP 5% 1/2W S AA AB

R 0511 VRD-RA2HD1R8J RES 1,8 OHM 5% 1/2W S AA AA

R 0512 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA

R 0513 VRS-TV1JD683J 2125 68KOHM 5% 1/10W SMD S AA AA

R 0515 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA

R 0516 VRD-RA2BE102J RES 1KOHM 5% 1/8W S AA AA

R 0517 VRS-TV1JD224J 2125 220KOHM 5% 1/10W SMD S AA AA

R 0519 VRS-TV1JD822J 2125 8,2KOHM 5% 1/10W SMD S AA AA

R 0523 VRD-RA2BE561J RES 560 OHM 5% 1/8W S AA AA

R 0524 VRS-TV1JD392J 2125 3.9KOHM 5% 1/10W SMD S AA AA

R 0525 VRS-TV1JD121J 2125 120 OHM 5% 1/10W SMD S AA AA

R 0529 VRD-RA2HD151J RES 150 OHM 5% 1/2W S AA AA

R 0530 VRD-RA2BE274J RES 270KOHM 5% 1/8W S AA AA

R 0533 VRS-TV1JD124J 2125 120KOHM 5% 1/10W SMD S AA AA

R 0534 VRS-TV1JD122J 2125 1,2KOHM 5% 1/10W SMD S AA AA

R 0535 VRS-TV1JD823J 2125 82KOHM 5% 1/10W SMD S AA AA

R 0536 VRD-RA2BE472J RES 4,7KOHM 5% 1/8W S AA AA

R 0537 VRD-RA2BE153J RES 15KOHM 5% 1/8W S AA AA

R 0538 VRS-TV1JD222J 2125 2,2KOHM 5% 1/10W SMD S AA AA

R 0601 VRS-TV1JD222J 2125 2,2KOHM 5% 1/10W SMD S AA AA

R 0602 VRS-TV1JD471J 2125 470 OHM 5% 1/10W SMD S AA AA

R 0603 VRD-RA2HD331J RES 330 OHM 5% 1/2W S AA AA

R 0604 VRD-RA2HD471J RES 470 OHM 5% 1/2W S AA AA

R 0605 VRD-RA2HD6R8J RES 6,8 OHM 5% 1/2W S AA AA

R 0606 VRD-RA2HD6R8J RES 6,8 OHM 5% 1/2W S AA AA

R 0607 RR-XZ0200BMZZ FUS RES 1R0 TAP 5% 1/2W S AA AB

R 0608 VRD-RA2BE183J RES 18KOHM 5% 1/8W S AA AA

R 0609 VRD-RA2HD2R2J RES 2.2 OHM 5% 1/2W S AA AA

R 0610 VRD-RA2HD270J RES 27 OHM 5% 1/2W S AA AA

R 0611 VRD-RA2HD270J RES 27 OHM 5% 1/2W S AA AA

REF No. PARTS DESCRIPTION * SN CODE EX CODE

R 0612 VRN-VV3ABR22J MET FILM R .22 OHM 5% 1W S AB AA

R 0613 VRD-RA2BE153J RES 15KOHM 5% 1/8W S AA AA

R 0614 VRD-RA2BE561J RES 560 OHM 5% 1/8W S AA AA

R 0615 RR-XZ0200BMZZ FUS RES 1R0 TAP 5% 1/2W S AA AB

R 0616 RR-XZ0242BMZZ FUS RES 3K3 TAP 5% 1/2W S AA AB

R 0617 VRD-RA2BE102J RES 1KOHM 5% 1/8W S AA AA

R 0701 VRC-MA2HG474J SOLID R 470KOHM 5% 1/2W KAMAYA S AA AB

R 0702 VRC-MA2HG474J SOLID R 470KOHM 5% 1/2W KAMAYA S AA AB

R 0703 VRD-RA2BE100J RES 10 OHM 5% 1/8W S AA AA

R 0704 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA

R 0705 VRS-TQ2BD271F OX RE 270 OHM 1% 1/8W SMD S AA AA

R 0706 VRS-TQ2BD681F OX RE 680 OHM 1% 1/8W SMD S AA AA

R 0707 VRC-UA2HG825K SOLID R 8,2MOHM 10% 1/2W S AA AA

R 0708 VRC-UA2HG825K SOLID R 8,2MOHM 10% 1/2W S AA AA

R 0710 VRD-RA2HD152J RES 1,5KOHM 5% 1/2W S AA AA

R 0711 VRS-TV1JD220J 2125 22 OHM 5% 1/10W SMD S AA AA

R 0714 VRD-RA2HD821J RES 820 OHM 5% 1/2W S AA AA

R 0715 VRS-TV1JD100J 2125 10 OHM 5% 1/10W SMD S AA AA

R 0716 VRD-RA2HD473J RES 47KOHM 5% 1/2W S AA AA

R 0717 RR-XZ0200BMZZ FUS RES 1R0 TAP 5% 1/2W S AA AB

R 0718 VRD-RA2HD561J RES 560 OHM 5% 1/2W S AA AA

R 0719 VRS-TV1JD331J 2125 330 OHM 5% 1/10W SMD S AA AA

R 0720 VRS-TV1JD242J 2125 2,4KOHM 5% 1/10W SMD S AA AA

R 0721 VRS-TV1JD331J 2125 330 OHM 5% 1/10W SMD S AA AA

R 0722 VRS-TV1JD121J 2125 120 OHM 5% 1/10W SMD S AA AA

R 0727 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA

R 0804 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA

R 0808 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA

R 0809 VRS-TV1JD473J 2125 47KOHM 5% 1/10W SMD S AA AA

R 0810 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA

R 0811 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA

R 0812 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA

R 0813 VRS-TV1JD273J 2125 27KOHM 5% 1/10W SMD S AA AA

R 0814 VRS-TV1JD105J 2125 1MOHM 5% 1/10W SMD S AA AA

R 0815 VRS-TV1JD223J 2125 22KOHM 5% 1/10W SMD S AA AA

R 0816 VRD-RA2BE272J RES 2,7KOHM 5% 1/8W S AA AA

R 0817 VRS-TV1JD222J 2125 2,2KOHM 5% 1/10W SMD S AA AA

R 0818 VRS-TV1JD153J 2125 15KOHM 5% 1/10W SMD S AA AA

R 0819 VRD-RA2BE101J RES 100 OHM 5% 1/8W S AA AA

R 0820 VRD-RA2BE101J RES 100 OHM 5% 1/8W S AA AA

R 0821 VRS-TV1JD822J 2125 8,2KOHM 5% 1/10W SMD S AA AA

R 0822 VRS-TV1JD334J 2125 330KOHM 5% 1/10W SMD S AA AA

R 0823 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA

R 0824 VRS-TV1JD750J 2125 75 OHM 5% 1/10W SMD S AA AA

R 0825 VRS-TV1JD750J 2125 75 OHM 5% 1/10W SMD S AA AA

R 0826 VRS-TV1JD750J 2125 75 OHM 5% 1/10W SMD S AA AA

R 1001 VRD-RA2BE273J RES 27KOHM 5% 1/8W S AA AA

R 1002 VRS-TV1JD472J 2125 4.7KOHM 5% 1/10W SMD S AA AA

R 1004 VRD-RA2BE273J RES 27KOHM 5% 1/8W S AA AA

R 1005 VRS-TV1JD472J 2125 4.7KOHM 5% 1/10W SMD S AA AA

R 1007 VRS-TV1JD472J 2125 4.7KOHM 5% 1/10W SMD S AA AA

R 1008 VRS-TV1JD472J 2125 4.7KOHM 5% 1/10W SMD S AA AA

R 1009 VRS-TV1JD123J 2125 12KOHM 5% 1/10W SMD S AA AA

R 1010 VRD-RA2BE273J RES 27KOHM 5% 1/8W S AA AA

R 1011 VRD-RA2HD472J RES 4.7KOHM 5% 1/2W S AA AA

R 1012 VRD-RA2HD472J RES 4.7KOHM 5% 1/2W S AA AA

R 1013 VRD-RA2HD472J RES 4.7KOHM 5% 1/2W S AA AA

R 1014 VRS-TV1JD223J 2125 22KOHM 5% 1/10W SMD S AA AA

R 1015 VRS-TV1JD223J 2125 22KOHM 5% 1/10W SMD S AA AA

R 1016 VRS-TV1JD272J 2125 2,7KOHM 5% 1/10W SMD S AA AA

R 1017 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA

R 1018 VRD-RA2BE101J RES 100 OHM 5% 1/8W S AA AA

R 1019 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA

R 1020 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA

R 1021 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA

R 1025 VRD-RA2BE272J RES 2,7KOHM 5% 1/8W S AA AA

R 1026 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA

R 1028 VRD-RA2BE472J RES 4,7KOHM 5% 1/8W S AA AA

R 1029 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA

R 1030 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA

R 1031 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA

R 1032 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA

37GT-27S

REF No. PARTS DESCRIPTION * SN CODE EX CODE

R 1033 VRS-TV1JD472J 2125 4.7KOHM 5% 1/10W SMD S AA AA

R 1034 VRD-RA2BE272J RES 2,7KOHM 5% 1/8W S AA AA

R 1035 VRS-TV1JD472J 2125 4.7KOHM 5% 1/10W SMD S AA AA

R 1036 VRD-RA2BE272J RES 2,7KOHM 5% 1/8W S AA AA

R 1037 VRD-RA2BE272J RES 2,7KOHM 5% 1/8W S AA AA

R 1038 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA

R 1039 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA

R 1040 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA

R 1041 VRS-TV1JD684J 2125 680KOHM 5% 1/10W SMD S AA AA

R 1042 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA

R 1045 VRS-TV1JD272J 2125 2,7KOHM 5% 1/10W SMD S AA AA

R 1046 VRD-RA2BE332J RES 3,3KOHM 5% 1/8W S AA AA

R 1048 VRD-RA2BE472J RES 4,7KOHM 5% 1/8W S AA AA

R 1049 VRS-TV1JD332J 2125 3.3KOHM 5% 1/10W SMD S AA AA

R 1050 VRS-TV1JD332J 2125 3.3KOHM 5% 1/10W SMD S AA AA

R 1051 VRS-TV1JD332J 2125 3.3KOHM 5% 1/10W SMD S AA AA

R 1052 VRS-TV1JD332J 2125 3.3KOHM 5% 1/10W SMD S AA AA

R 1053 VRS-TV1JD331J 2125 330 OHM 5% 1/10W SMD S AA AA

R 1054 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA

R 1055 VRS-TV1JD471J 2125 470 OHM 5% 1/10W SMD S AA AA

R 1056 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA

R 1058 VRS-TV1JD272J 2125 2,7KOHM 5% 1/10W SMD S AA AA

R 1063 VRD-RA2BE103J RES 10KOHM 5% 1/8W S AA AA

R 1064 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA

R 1065 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA

R 1066 VRS-TV1JD222J 2125 2,2KOHM 5% 1/10W SMD S AA AA

R 1067 VRS-TV1JD472J 2125 4.7KOHM 5% 1/10W SMD S AA AA

R 1068 VRS-TV1JD104J 2125 100KOHM 5% 1/10W SMD S AA AA

R 1069 VRS-TV1JD473J 2125 47KOHM 5% 1/10W SMD S AA AA

R 1070 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA

R 1071 VRS-TV1JD223J 2125 22KOHM 5% 1/10W SMD S AA AA

R 1072 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA

R 1073 VRS-TV1JD223J 2125 22KOHM 5% 1/10W SMD S AA AA

R 1074 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA

R 1075 VRS-TQ2BD000J 3216 0 OHM 5% 1/8W SMD S AA AA

R 1076 VRS-TQ2BD101J OX RE 100 0HM 5% 1/8W SMD S AA AA

MISCELLANEOUS PARTS

F 0701 QFS-C3226CEZZ FUSE T3.15AH 250V S AC AE

FB 0301 RBLN-0037CEZZ BALUN FBA04HA90088-00 T/Y S AB AB

FB 0401 RBLN-0037CEZZ BALUN FBA04HA90088-00 T/Y S AB AB

FB 0405 RBLN-0037CEZZ BALUN FBA04HA90088-00 T/Y S AB AB

FB 0701 RBLN-0037CEZZ BALUN FBA04HA90088-00 T/Y S AB AB

J 0006 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA

J 0008 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA

J 0009 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA

J 0010 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA

J 0017 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA

J 0021 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA

J 0024 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA

J 0025 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA

J 0026 VCQYTA1HM104J F. CAPACITOR 0.1 UF 50 V S AA AA

J 0032 RBLN-0037CEZZ BALUN FBA04HA90088-00 T/Y S AB AB

J 0056 VRS-TQ2BD000J 3216 0 OHM 5% 1/8W SMD S AA AA

J 0059 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA

J 0077 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA

J 0080 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA

J 0090 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA

J 0093 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA

J 0106 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA

JF 0002 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA

JF 0016 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA

JF 0017 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA

RMC0001 RRMCU0222CEZZ R/C RECEIVER S AD AG

S 0701 QSW-P0612CEZZ POWER SWITCH ESB92D41B PANASONIC S AC AH

S 1001 QSW-K0079GEZZ TACTILE SWITCH S AA AA

S 1002 QSW-K0079GEZZ TACTILE SWITCH S AA AA

S 1003 QSW-K0079GEZZ TACTILE SWITCH S AA AA

S 1004 QSW-K0079GEZZ TACTILE SWITCH S AA AA

SC 0401 QSOCZ2107BMZZ SOCKET S AF AE

QFSHD1001BMZZ FUSE HOLD.EYF52BC=PANASON S AA AA

QFSHD1002BMZZ FUSE HOLD.EYF52BC=PANASON S AA AA

REF No. PARTS DESCRIPTION * SN CODE EX CODE

(A) QPLGN0360CEZZ CONNECTOR 3 PIN TV-50P-03-V2 A TAIKO S AA AA

(F) QPLGN0560CEZZ CONNECTOR 5 PIN TV-50P-05-V2 A TAIKO S AA AB

(G) QPLGN0260CEZZ CONNECTOR 2 PIN TV-50P-02-V2 A TAIKO S AA AA

(H) QCNW-2834BMZZ WIRE (H) 14" S AA AD

(K) QCNW-2835BMZZ WIRE (K) 14" S AB AD

(L5) QCNW-3055BMZZ WIRE BETWEEN GNDS CA-1 S AA AB

(S) QPLGN0241CEZZ PLUG S AA AA

PWB-B SOCKET UNIT

TRANSISTORS

Q 0870 RH-TX0181BMZZ TRT BF422 TOSHIBA S AA AC

Q 0871 RH-TX0181BMZZ TRT BF422 TOSHIBA S AA AC

Q 0872 RH-TX0181BMZZ TRT BF422 TOSHIBA S AA AC

Q 0883 RH-TX0180BMZZ TRT BF421 TOSHIBA S AA AB

Q 0885 RH-TX0180BMZZ TRT BF421 TOSHIBA S AA AB

Q 0887 RH-TX0180BMZZ TRT BF421 TOSHIBA S AA AB

DIODES

D 0811 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA

D 0812 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA

D 0860 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA

D 0861 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA

D 0862 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA

COILS

L 0861 VP-CF120K0000 PEAK COIL 12UH 10% S AB AC

CAPACITORS

C 0860 VCCCTV1HH471J CERAM C 470PF 50V 2125SMD S AA AA

C 0861 VCCCTV1HH471J CERAM C 470PF 50V 2125SMD S AA AA

C 0862 VCCCTV1HH471J CERAM C 470PF 50V 2125SMD S AA AA

C 0871 VCCCTV1HH471J CERAM C 470PF 50V 2125SMD S AA AA

C 0872 VCCCTV1HH471J CERAM C 470PF 50V 2125SMD S AA AA

C 0873 VCCCTV1HH471J CERAM C 470PF 50V 2125SMD S AA AA

C 0874 VCKYPA2HB102K CERAM C 1NF 10% 500V S AA AA

C 0876 VCKYPB3DE472Z C DE1110-1E472Z2K MURATA S AA AC

C 0878 VCEAGA2DW106M ELEC C 10UF 20% 200V S AA AB

C 0879 VCKZPA1HF103Z CERAM C 10NF % 50V S AA AA

RESISTORS

R 0862 VRS-PU3DB153J MET OX RES 15 KOHM 5% 2W S AA AC

R 0864 VRS-PU3DB153J MET OX RES 15 KOHM 5% 2W S AA AC

R 0866 VRS-PU3DB153J MET OX RES 15 KOHM 5% 2W S AA AC

R 0879 VRS-TV1JD471J 2125 470 OHM 5% 1/10W SMD S AA AA

R 0880 VRS-TV1JD471J 2125 470 OHM 5% 1/10W SMD S AA AA

R 0881 VRS-TV1JD471J 2125 470 OHM 5% 1/10W SMD S AA AA

R 0883 VRD-RA2HD272J RES 2,7KOHM 5% 1/2W S AA AA

R 0885 VRD-RA2HD272J RES 2,7KOHM 5% 1/2W S AA AA

R 0887 VRD-RA2HD272J RES 2,7KOHM 5% 1/2W S AA AA

R 0888 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA

R 0892 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA

R 0893 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA

R 0894 VRS-TV1JD102J 2125 1KOHM 5% 1/10W SMD S AA AA

R 0898 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA

R 0899 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA

MISCELLANEOUS PARTS

J 0097 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA

J 0098 VRS-TQ2BD000J 3216 0 OHM 5% 1/8W SMD S AA AA

J 0103 VRS-TV1JD000J 2125 0 OHM 5% 1/10W SMD S AA AA

L 0003 QTIPM0017CEFM TIP S AA AA

SC 0881 QSOCV0842CEZZ CRT SOCKET S AD AG

PWB-C FRONT A/V UNIT

COILS

L 1302 VP-DF3R3K0000 PEAK COIL 3,3UH 10% S AB AB

CAPACITORS

C 1310 RC-FZ9473BMNJ POL FILM C 47NF 5% 63V S AA AC

C 1311 RC-FZ9473BMNJ POL FILM C 47NF 5% 63V S AA AC

37GT-27S

REF No. PARTS DESCRIPTION * SN CODE EX CODE

RESISTORS

R 1316 VRD-RA2BE471J RES 470 OHM 5% 1/8W S AA AA

R 1317 VRD-RA2BE471J RES 470 OHM 5% 1/8W S AA AA

MISCELLANEOUS PARTS

(S) QCNW-2676BMZZ SPEAKER WIRE S AC AE

(S) QPLGN0241CEZZ PLUG S AA AA

(SH) QCNW-2761BMZZ WIRE (AB) 2WAYS 32" 16:9 S AA AD

(SH) QPLGN0241CEZZ PLUG S AA AA

J 1301 QJAKJ0101SEZZ MINIATURE PHONE JACK MORNING STAR S AA AD

MISCELLANEOUS PARTS

QACCZ2100BMSA AC CORD S AH AR

RRMCG1060BMSA R/C 37DT25S S AM AU

GCOVHA009WJSA BATERY COVER FOR R/C S ** **

SPAKR500A1500 WRAPPER BOBINE 0.75M2 S AA AD

UBATU0013TAZZ BATTERY R6(X2) TOSHIBA S AA AD

VSP0080PBR1YA SPAEAKER 32 OHM 2W 80MM SEA TRADE ELS AB AG

LHLDW1523BM00 HOLDER S AA AB

LHLDK1501BM00 HOLDER S AA AB

LHLDW1009CEZZ HOLDER S AA AA

QCNW-2859BMZZ EHT CABLE FBT PHILIPS 14" S AC AH

LHLDW1033CE00 HOLDER S AA AA

SPAKC5476BMZZ PACKING CASE S AE AP

SPAKX4051BMZZ PACKING AD(37EM-24S) S AC AK

OWNERS MANUAL

TINS-7200BMN0 OWNERS MANUAL 37GT27S S AB AE

TINS-7214BMN0 OWNERS MANUAL 37GT27SES/SESS S AC AH

TINS-7219BMN0 OWNERS MANUAL 37GT27SIT/SITS S AB AP

CABINET PARTS

1 CCABA1382BMV0 CABINET SET 37GT27 S AM AY

1.1 HBDGB1018BMSB SILVER SHARP BADGE S AA AC

1.2 HDECQ0036BMSA R/C DECORATION S AA AB

1.3 HDECQ0035BMSA LED DECORATION S AA AB

1.4 JBTN-1047BMSA UP/DOWN BUTTON(37EM-24S) S AA AD

1.5 JBTN-1046BMSA POWER BUTTON(37EM-24S) S AA AB

2 GCABB1107BMKA REAR CAB. 37GQ-20S S AH AU

3 XTASB40P20000 SCREW S AA AA

1.5

1.31.2

1.1

1.4

37GT-27S

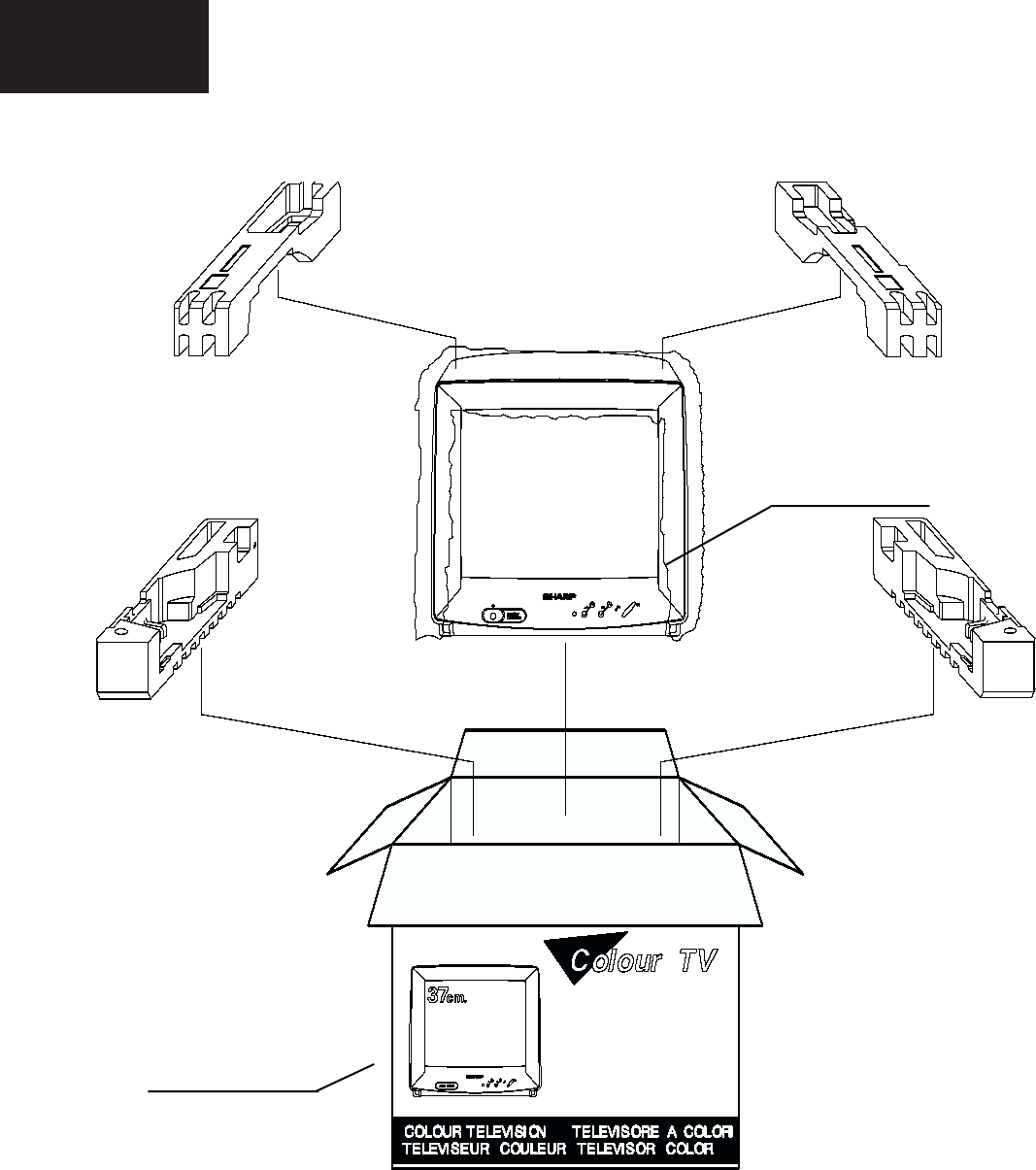

PACKING OF THE SET

SPAKX4051BMZZ

Pack-ad

SPAKR500A1500

Wrapper

FRONT

SPAKC5476BMZZ

Carton Box

37GT-27S

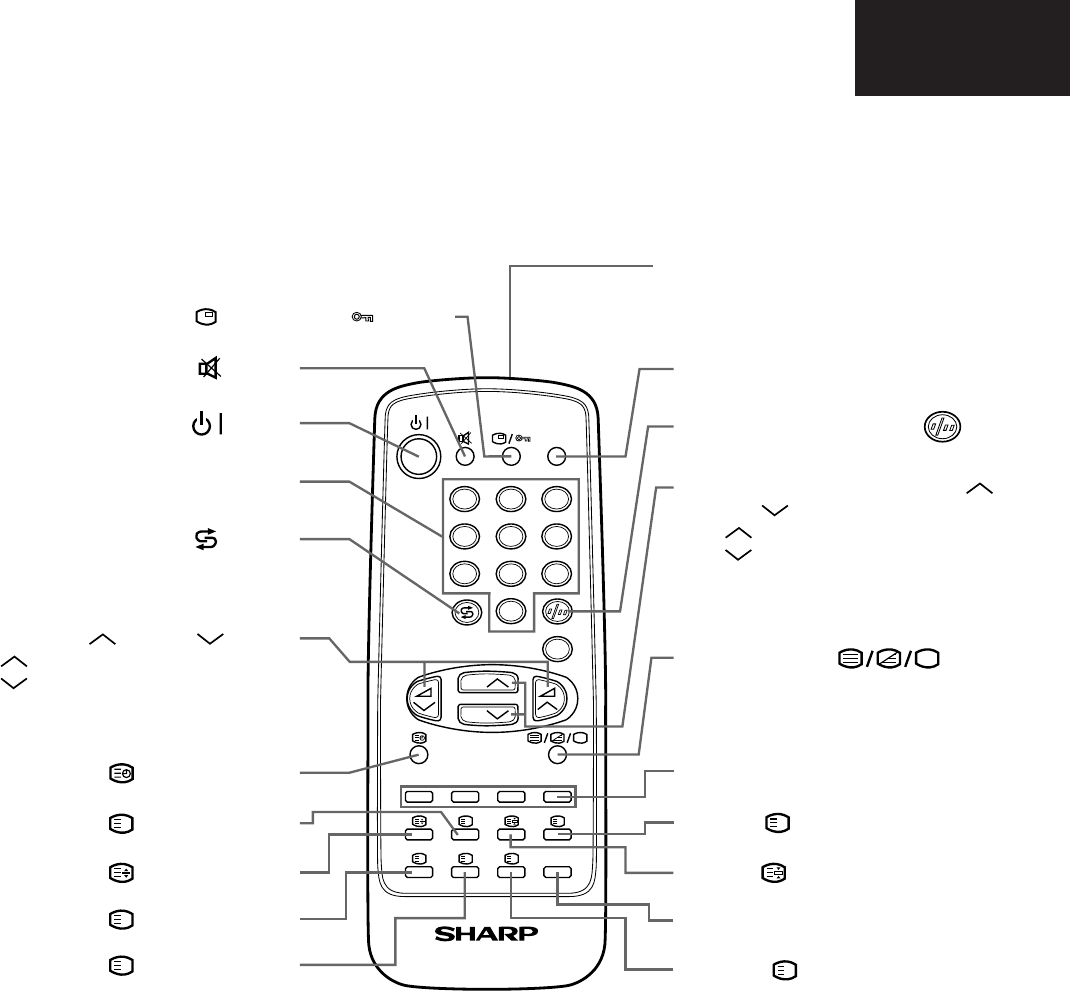

1 2 3

4 5 6

7 8 9

LIST

XiS

TV/VIDEO

TV/TEXT REMOTE CONTROL

CALL ( )/CHILD LOCK ( ) button

Infrared Transmitter Window

Aim this window at the infrared sensor

on your TV set

FLASHBACK ( ) button

Returns to previously viewed

programme

TV/VIDEO Select button

SOUND MUTE ( ) button

POWER/STANDBY ( ) button

Programme Select buttons

REVEAL ( ) button (Teletext)

HALF PAGE ( ) button (Teletext)

CLOCK ( ) button (Teletext)

VOLUME UP ( )/DOWN ( ) button

( ) Increases sound

( ) Decreases sound

(These are also used for menu set up)

CANCEL ( ) button (Teletext)

RESET ( ) button (Teletext)

Single/Double Entry button ( )

Text/Mix/Picture ( )

Select button (Teletext)

COLOUR buttons

LIST Select button (Teletext)

INDEX ( ) button (Teletext)

HOLD ( ) button (Teletext)

STORE ( ) button (Teletext)

CHANNEL (PROGRAMME) UP ( )/

DOWN ( ) button

( ) Selects next higher programme

( ) Selects next lower programme

(These are also used for menu

set up)

REMOTE CONTROL DESCRIPTION

1. STV 2238, ST Microelectronics Data Sheet:

“STV223XD/3X/4X BUS CONTROLLED MULTISTANDARD”. August 1999-V4.2.

2. TDA 16833, Infineon Technologies Data Sheet:

Preliminary data sheet: “TDA16831-4 650V CoolMOS Power MOSFET integrated”. Edition 1999-12-10.

http://www.infineon.com/cmc_upload/0/000/018/177/tda16831.pdf

SOURCE OF DOCUMENTATION.

37GT-27S

PRINTED BY: ON:

No part of this publication may be reproduced,

stored in a retrieval system, or transmitted in any

form or by any means, electronic, mechanical,

photocopying, recording, or otherwise, without

prior written permission of the publisher.

SHARP ELECTRONICA ESPAÑA S.A.

TV Division

Engineering Dept.

Polígono Industrial Can Sant Joan

Sant Cugat del Vallès

Barcelona

Spain

Think Ecology, please use

RECYCLED PAPER

37GT 27S SM 00 Vers 37GT27S

Navigation menu

Versions of this User Manual:

Views

Navigation
