38CKC (60 Hz)
10 SEER Air Conditioner
Sizes 018 thru 060
Model 38CKC Energy-Efficient Air
Conditioner incorporates innovative
technology to provide reliable summer
cooling performance. Built into these
units are the features most desired by
homeowners today, including SEER
ratings of up to 11.5 when used
with components designated by
manufacturer. All models are listed
with UL (U.S. and Canada), ARI, and
CEC.
FEATURES
Electrical Range
— All units are
offered in 208–230v single phase.
Three-phase units are available from
030 through 060 sizes in 208/230v and
from 036 through 060 sizes in 460v.
Wide Range of Sizes
— The 38CKC
is available in 8 nominal sizes from
018 through 060 to meet the needs of
residential and light commercial
applications.
WeatherArmor™ Cabinet
— The
steel is protected with a galvanized
coating and treated with a layer of zinc
phosphate. A modified polyester
powder coating is then applied and
baked on, providing each unit with a
hard, smooth finish that will last for
many years.
All screws on cabinet exterior are
coated for a long-lasting, rust-resistant,
quality appearance.
Totally Enclosed Fan Motor
—
Provides greater reliability under
adverse conditions and dependable
performance for many years. The
permanent-split-capacitor-type motor
was designed for optimum efficiency.
The motor was then qualified under
extreme conditions to help ensure a
long, reliable life.
2
Unit Design
— Copper tube, enhanced
sine wave aluminum fin coil is
designed for optimum heat transfer.
Vertical air discharge carries sound and
hot condenser air up and away from
adjacent patio areas and foliage. Heat
pump style drain pan allows for easy
removal of water, dirt, and leaves.
Application Versatility
— The unit
can be combined with a wide variety of
evaporator coils and blower packages
to provide quiet, dependable comfort.
Unit can be installed on a roof or at
ground level.
External Service Valves
— Service
valves are brass, front seating type. The
38CKC has sweat field connections.
Valves are externally located so
refrigerant tube connections can be made
quickly and easily. Each valve has a
service port for ease of checking
operating refrigerant pressures.
Easy Serviceability
— One panel
provides access to electrical controls.
Removal of wire dome gives access to
fan motor and removal of the top gives
access to the coil and compressor. All
models are equipped with a compressor
terminal plug.
Compressor Protection
— Each
compressor is protected with internal
temperature- and current-sensitive
overloads.
Limited Warranty
— Standard 5-year
limited warranty on parts and 5-year
limited warranty on compressor.
M
A
N
U
F
A
C
T
U
R
E
R
C
E
R
T
I
F
I
E
D
T
O
A
R
I
A
S
C
O
M
P
L
Y
I
N
G
W
I
T
H
A
R
I
S
T
A
N
D
A
R
D
2
1
0
U
N
I
T
A
R
Y
A
I
R
C
O
N
D
I
T
I
O
N
I
N
G
E
Q
U
I
P
M
E
N
T
REGISTERED QUALITY SYSTEM
CERTIFICATION APPLIES ONLY
WHEN THE COMPLETE SYSTEM
IS LISTED WITH ARI.
M
o
d
e
l
num
b
er nomenc
l
a
t
ure
The data in this publication is displayed for all series; however, every series may not be available from manufacturer.
38CKC 018 3 1 1
10 SEER Electric Air Conditioner Packaging
Nominal Capacity
018 — 18,000 Btuh 042 — 42,000 Btuh
024 — 24,000 Btuh 047 — 47,000 Btuh
030 — 30,000 Btuh 048 — 48,000 Btuh
036 — 36,000 Btuh 060 — 60,000 Btuh
Series
Electrical
3 — 208-230-1
5 — 208/230-3
6 — 460-3
3
Physical data
* For tubing sets between 50 and 175 ft horizontal and/or 20 ft vertical differential, consult Residential Split Systems Long-Line Application Guideline.
NOTE:
See unit Installation Instructions for proper installation.
METERING DEVICE
* Piston listed is for any approved non-capillary tube coil combination.
Piston is shipped with outdoor unit and must be installed in an approved
indoor coil.
A-WEIGHTED SOUND POWER
(dBA)
NOTE: Tested in accordance with ARI standard 270.95. (Not listed with ARI. )
UNIT SIZE 018-34 024-34 030-52/34
036-55,
63/35
042-35,
55, 62 048-37, 57, 67
060-37,
57, 67
OPERATING WT (Lb)
115 117 124/122 129/138 142 175 231
COMPRESSOR
Type
Reciprocating Recip Scroll
REFRIGERANT
Control
Charge (Lb) @ 15 Ft
R22
AccuRater® (Bypass Type)
3.30 3.65 4.19/4.25 5.00/4.60 5.13 6.25 8.31
COND FAN
Air Discharge
Air Qty (CFM)
Motor HP
Motor RPM
Propeller Type, Direct Drive
Ver tical
1500 1600 2000 2500 2500 2500 3400
1/8 1/6 1/10 1/4 1/4 1/4 1/4
1500 1500 1100
1100
1100 1100 1100
COND COIL
Face Area (Sq Ft)
Fins per In.
Rows
Circuits
Copper Tube, Aluminum Plate Fin
6.18 6.8 7.4 9.1/8.3 10.7 12.4 18.5
20 22 20 25/25 22/25 25 25
11 11111
11 22334
VALVE CONNECTION (In. ID)
Vapor
Liquid
Sweat
5/8 5/8 3/4 3/4 7/8 7/8 7/8
3/8
REFRIG TUBES* (In. OD)
Vapor (0–50 Ft Tube Length)
5/8 5/8 3/4 3/4 7/8 7/8 1-1/8
Vapor (Max Diameter for
Long-Line Applications)
3/4 3/4 7/8 7/8 1-1/8 1-1/8 1-1/8
Liquid (0–50 Ft Tube Length)
3/8
Liquid (For Long-Line
Applications)
3/8
UNIT SIZE
AND SERIES
PISTON
IDENTIFICATION NO.
018-34
52
024-34
59
030-34
65
030-52
67
036-35
73
036-55, 63
70
042-35, 55, 62
82
048-37, 57, 67
82
060-37, 57, 67
93
UNIT
SIZE-SERIES
STANDARD
RATING
TYPICAL OCTAVE BAND SPECTRUM (without tone adjustment)
125 250 500 1000 2000 4000 8000
018-34
80 58.0 64.0 68.5 72.5 71.5 68.0 60.0
024-34
80 59.5 65.5 70.0 74.0 71.0 69.5 60.5
030-34
80 55.0 64.5 71.0 72.0 70.5 69.0 62.5
030-52
80 55.0 62.5 73.5 74.0 71.0 67.5 59.5
036-55, 63
82 57.0 64.5 73.0 74.0 72.0 73.0 65.5
036-35
82 55.5 66.5 70.5 74.5 73.5 70.0 63.5
042-35, 55, 62
82 59.0 66.5 68.5 75.5 71.5 73.0 65.5
048-37, 57, 67
82 61.9 67.5 71.8 77.1 76.5 72.9 66.9
060-37, 57, 67
82 58.0 67.5 72.0 76.0 76.0 73.0 67.0
CHARGING SUBCOOLING
(TXV-TYPE EXPANSION DEVICE*)
UNIT SIZE REQUIRED SUBCOOLING (°F)
018
15
024
15
030
15
036
15
042
12
048
15
060
15
4
Accessories
See notes on page 5.
PART NO. DESCRIPTION
KAATD0101TDR
Time-Delay Relay — All Sizes
KSALA0401AAA
MotorMaster®—Low-Ambient Controller — Sizes 030-060 230v
KSALA0501AAA
MotorMaster®—Low-Ambient Controller — Sizes 036-060 460v
N/A
MotorMaster®—Low-Ambient Controller — Sizes 018–024
KSALA0201R22
Low Ambient Pressure Switch— All Sizes
HC34GE232 (RCD)
Ball Bearing Fan Motor — Size 030 230v
HC40GE232(RCD)
Ball Bearing Fan Motor — Sizes 036–060 230v
HC40GE462 (RCD)
Ball Bearing Fan Motor — Sizes 036–060 460v
N/A
Ball Bearing Fan Motor — Sizes 018, 024
KAAFT0101AAA
Evaporator Freeze Thermostat — All Sizes
KAAWS0101AAA
Winter Start Control — All Sizes
KSACG0105CMC
Inlet Grille Kit — Size 018
KSACG0205CMC
Inlet Grille Kit — Size 024
KSACG0604CSM
Inlet Grille Kit — Size 030
KSACG0704CSM
Inlet Grille Kit — Size 036 (35)
KSACG0804CSM
Inlet Grille Kit — Size 036 (55, 63)
KSACG1004CSM
Inlet Grille Kit — Size 042
KSACG1204CSM
Inlet Grille Kit — Size 048
KSACG2004CMD
Inlet Grille Kit — Size 060
KSACY0101AAA
Cycle Protector — All Sizes
KSAHS2001AAA
Start Assist — Capacitor and Relay — Sizes 018, 024
KSAHS0901AAA
Start Assist — Capacitor and Relay — Size 030
KSAHS1901AAA
Start Assist — Capacitor and Relay — Size 036
KSAHS1501AAA
Start Assist — Capacitor and Relay — Size 048
KSAHS1601AAA
Start Assist — Capacitor and Relay — Size 060
KSAHS2201AAA
Start Assist — Capacitor and Relay — Size 042
N/A
Start Assist — Capacitor and Relay — All 3 Phase
KAACS0201PTC
Start Assist — PTC — All 1 Phase
N/A
Start Assist — PTC — All 3 Phase
KAACH1001AAA
Crankcase Heater — Sizes 018–030; 036 (35, 55); 042 (35, 55)
KAACH1101AAA
Crankcase Heater — Sizes 036 (63); 042 (62)
KAACH1201AAA
Crankcase Heater — Sizes 048 (37, 57); 060 (37, 57)
KAACH1301AAA
Crankcase Heater — Sizes 048 (67); 060 (67)
KSASH1201COP
Sound Hood — Sizes 036 (55, 63); 042
KSASH2001BRL
Sound Hood — Size 036 (35)
KSASH2001CYL
Sound Hood — Sizes 048, 060
N/A
Sound Hood — Sizes 018–030
KAATX0201RPB
Thermostatic Expansion Valve (RPB) — Size 018
KAATX0301RPB
Thermostatic Expansion Valve (RPB) — Size 024
KAATX0401RPB
Thermostatic Expansion Valve (RPB) — Size 030
KAATX0501RPB
Thermostatic Expansion Valve (RPB) — Sizes 036, 042
KAATX0601RPB
Thermostatic Expansion Valve (RPB) — Size 048
KAATX0701RPB
Thermostatic Expansion Valve (RPB) — Size 060
KSATX0601HSO
Thermostatic Expansion Valve (Hard Shutoff) — Sizes 018–042
KSATX0701HSO
Thermostatic Expansion Valve (Hard Shutoff) — Size 048
KSATX1001HSO
Thermostatic Expansion Valve (Hard Shutoff) — Size 060
KAALP0101LPS
Low-Pressure Switch — All Sizes
KSAHI0101HPS
High-Pressure Switch — All Sizes
P502-8083S (RCD)
Filter Drier — Sizes 018–036
P502-8163S (RCD)
Filter Drier — Sizes 042–060
KAALS0101LLS†
Liquid-Line Solenoid Valve — All Sizes
KAACF0701SML
Coastal Filter — Sizes 018, 024
KAACF1001MED
Coastal Filter — Sizes 030–048
KAACF1101LRG
Coastal Filter — Size 060
5
*Fan motor with ball bearings required.
†Start assist capacitor and relay required when using liquid solenoid valve or hard shutoff TXV (except 036 and 042, Series 30; 048, 060 Series 30,
31 single phase; and all 3-phase units). Do not use hard shutoff TXV with liquid solenoid valve.
N/A — Not Applicable
Accessory usage guideline
*For tubing line sets between 50 and 175 ft and/or 20 ft vertical differential, refer to Residential’s Split Systems Long-Line Application Guideline.
† Only when low-pressure switch is used.
‡ Required for Low-Ambient Controller (full modulation feature) and MotorMaster® Control only.
Accessory description and usage (Listed alphabetically)
1.
Ball-Bearing Fan Motor
A fan motor with ball bearings, which permits speed reduction while maintaining bearing lubrication.
Usage Guideline:
Required on all units when Motor Master®—Low-Ambient Controller is installed.
2.
Coastal Filter
A mesh screen inserted under the top cover and inside the base pan to protect the condenser coil from salt damage without restricting airflow.
3. Compressor Start Assist – Capacitor and Relay
Start capacitor and relay gives a "hard" boost to compressor motor at each start up.
Usage Guideline:
Required for reciprocating compressors in the following applications:
Long line
Low ambient
Hard shut off expansion valve on indoor coil
Liquid line solenoid on indoor coil
Required for scroll compressors in the following applications:
Long line
Low ambient
Suggested for all compressors in areas with a history of low voltage problems.
4. Compressor Start Assist – PTC Type
Solid-state electrical device which gives a "soft" boost to the compressor motor at each start up.
Usage Guideline:
Suggested when compressor power supply is marginal
Suggested in reciprocating compressor applications with rapid pressure balance (RPB) expansion valve on indoor coil.
THERMOSTAT PKG. DESCRIPTION
TSTATCCPAC01-B Thermostat, Auto Changeover, 7-Day Programmable, °F/°C, 1-Stage Heat, 1-Stage Cool
TSTATCCNAC01-B Thermostat, Auto Changeover, Non-Programmable, °F/°C, 1-Stage Heat, 1-Stage Cool
TSTATCCBAC01-B Builder’s Thermostat, Manual Changeover, Non-Programmable, °F/°C, 1-Stage Heat, 1-Stage Cool
TSTATCCSEN01-B Outdoor Air Temperature Sensor
TSTATXXNBP01 Backplate for Non-Programmable Thermostat
TSTATXXPBP01 Backplate for Programmable Thermostat
TSTATXXBBP01 Backplate for Builder’s Thermostat
TSTATXXCNV10 Thermostat Conversion Kit (4 to 5 wire) — 10 Pack
ACCESSORY
REQUIRED FOR
LOW-AMBIENT
APPLICATIONS
(Below 55°F)
REQUIRED FOR
LONG-LINE
APPLICATIONS*
(Over 50 Ft)
REQUIRED FOR
SEA COAST
APPLICATIONS
(Within 2 Miles)
Crankcase Heater Ye s Yes No
Evaporator Freeze Thermostat Ye s N o N o
Winter Start Control Yes† No No
Accumulator No No No
Compressor Start Assist
Capacitor and Relay Ye s Yes No
MotorMaster—Low-Ambient
Controller or
Low-Ambient Pressure Switch Ye s N o N o
Wind Baffle
See low-ambient
instructions No No
Coastal Filter No No Yes
Unit Risers Recommended No Recommended
Liquid-Line Solenoid Valve
or
Hard Shutoff TXV No
See
Long-Line
Application Guideline No
Ball Bearing Fan Motor Yes‡ No No
6
Accessory description and usage (continued)
5. Crankcase Heater
An electric resistance heater which mounts to the base of the compressor to keep the lubricant warm during off cycles. Improves compressor lubrication on
restart and minimizes the chance of liquid slugging.
Usage Guideline:
Required in low ambient applications.
Required in long line applications.
Suggested in all commercial applications.
6. Evaporator Freeze Thermostat
An SPST temperature-actuated switch that stops unit operation when evaporator reaches freeze-up conditions.
Usage Guideline:
Required when low ambient kit has been added.
7. Filter Drier—Bi-Flow
A device for removing contaminants from refrigerant circulating in an air conditioning system: single-direction flow.
Usage Guideline:
Suggested in all field-connected split-system air conditioners.
8. High-Pressure Switch
Auto reset SPST switch activated by refrigerant pressure on high side of refrigerant circuit. Cycles compressor off if refrigerant pressure rises to 426 ± 10 psig
and resets at 320 ± 20 psig. Provides protection against compressor damage due to loss of outdoor airflow.
Usage Guideline:
Suggested in installations exposed to "very dirty" outdoor air.
Suggested in installations where condenser inlet air temperature exceeds 125°F. (51.7°C)
9. Liquid-Line Solenoid Valve (LLS)
This device serves two purposes. It is an electrically operated shutoff valve which stops and starts refrigerant liquid flow in response to compressor operation.
It maintains a column of refrigerant liquid ready for action at next compressor operation cycle. It also provides system protection against off-cycle refrigerant
migration.
NOTE: When LLS is used with reciprocating compressors, Compressor Start Assist — Capacitor and Relay is required.
Usage Guideline:
Required in air conditioner long line applications with a piston indoor metering device to prevent off cycle refrigerant migration. A hard shut
off TXV can be used instead of LLS in single flow air conditioner applications. See Long Line Application Guideline.
10. Low-Ambient Pressure Switch
A long life pressure switch which is mounted to outdoor unit service valve. It is designed to cycle the outdoor fan motor in order to maintain head pressure
within normal operating limits (approximately 100 psig to 225 psig). The control will maintain working head pressure at low-ambient temperatures down to 0°F
(–17.8°C) when properly installed.
Usage Guideline:
A Low-Ambient Pressure Switch or Motor Master ®—Low-Ambient Controller must be used when cooling operation is used at outdoor tem-
peratures below 55°F (12.8°C).
11. MotorMaster®-Low-Ambient Controller
A fan speed control device activated by a temperature sensor, designed to control condenser fan motor speed in response to the saturated, condensing temperature
during operation in cooling mode only. For outdoor temperatures down to –20°F (–28.9°C), it maintains condensing temperature at 100°F ± 10°F (37.8°C ± –
12°C).
Usage Guideline:
A Motor Master ®—Low-Ambient Controller or Low-Ambient Pressure Switch must be used when cooling operation is used at outdoor tem-
peratures below 55°F (12.8°C).
Suggested for all commercial applications.
12. Outdoor Air Temperature Sensor
Designed for use with Carrier Thermostats listed in this publication. The device enables the thermostat to display the outdoor temperature. This device also is
required to enable special thermostat features such as auxiliary heat lock out.
Usage Guideline:
Suggested for all Carrier thermostats listed in this publication.
13. Sound Hood
Wraparound sound reducing cover for the compressor. Reduces the sound level by about 2 dBA.
Usage Guideline:
Suggested when unit is installed closer than 15 ft to quiet areas—bedrooms, etc.
Suggested when unit is installed between two houses less than 10 ft apart.
14. Thermostatic Expansion Valve (TXV) Single-Flow
A modulating flow-control valve which meters refrigerant liquid flow rate into the evaporator in response to the superheat of the refrigerant gas leaving the
evaporator. Kit includes valve, adapter tubes, and external equalizer tube. Both hard shutoff and RPB valves are available.
NOTE: When using a hard shut off TXV with single phase reciprocating compressors, a Compressor Start Assist — Capacitor and Relay is required.
Usage Guideline:
Required to achieve ARI ratings in certain equipment combinations. Refer to combination ratings.
Hard shut off TXV or LLS required in air conditioner long line applications.
Required for use on all zoning systems.
15. Time-Delay Relay
An SPST delay relay which briefly continues operation of indoor blower motor to provide additional cooling after the compressor cycles off.
NOTE: Most indoor unit controls include this feature. For those that do not, use the guideline below.
Usage Guideline:
For improved efficiency ratings for certain combinations of indoor and outdoor units. Refer to ARI Unitary Directory.
7
Electrical data
*Permissible limits of the voltage range at which unit will operate satisfactorily. Operation outside these limits may result in unit failure.
† If wire is applied at ambient greater than 30°C (86°F), consult Table 310-16 of the NEC (ANSI/NFPA 70).
The ampacity of nonmetallic-sheathed cable (NM), trade name ROMEX, shall be that of 60°C (140°F) conductors, per the NEC (ANSI/NFPA 70)
Article 336-26. If other than uncoated (non-plated), 60 or 75°C (140 or 167°F) insulation, copper wire (solid wire for 10 AWG and smaller, stranded
wire for larger than 10 AWG) is used, consult applicable tables of the NEC (ANSI/NFPA 70).
‡ Length shown is as measured 1 way along wire path between the unit and service panel for a voltage drop not to exceed 2%.
** Time-delay fuse.
FLA — Full Load Amps
LRA — Locked Rotor Amps
MCA — Minimum Circuit Amps
RLA — Rated Load Amps
NOTES: 1. Control circuit is 24v on all units and requires external power source.
2. Copper wire must be used from service disconnect to unit.
3. All motors/compressors contain internal overload protection.
UNIT
SIZE V/PH
OPER VOLTS* COMPRESSOR FAN
FLA MCA
60°C
MIN
WIRE
SIZE†
75°C
MIN
WIRE
SIZE†
60°C
MAX
LENGTH
(Ft)‡
75°C
MAX
LENGTH
(Ft)‡
MAX FUSE** OR
CKT BKR AMPS
Max Min LRA RLA
018-34
208-230-1 253 197
48.0 9.0 0.8 12.1 14 14 61 58 20
024-34 60.0 11.6 1.0 15.5 14 14 49 47 20
030-34 73.0 14.1 0.8 18.4 14 14 41 39 30
036-35 82.0 16.0 1.4 21.4 12 12 58 55 30
042-35 102.0 19.7 1.4 26.0 10 10 75 73 40
048-37 131.0 22.5 1.4 29.5 8 10 104 63 50
060-37 165.0 28.9 1.4 37.5 8 8 82 78 60
030-52
208/230-3 253 187
68.0 9.4 0.8 12.6 14 14 70 65 15
036-55 70.0 10.0 1.4 13.9 14 14 65 62 20
042-55 91.0 13.6 1.4 18.4 14 14 49 47 25
048-57 91.0 12.8 1.4 17.4 14 14 52 49 30
060-57 125.0 16.0 1.4 21.4 12 12 66 63 30
036-63
460-3 506 414
33.0 5.1 0.8 7.2 14 14 250 238 15
042-62 42.0 6.2 0.8 8.6 14 14 210 200 15
048-67 46.0 6.4 0.7 8.7 14 14 202 192 15
060-67 66.5 8.0 0.8 10.8 14 14 165 157 20
8

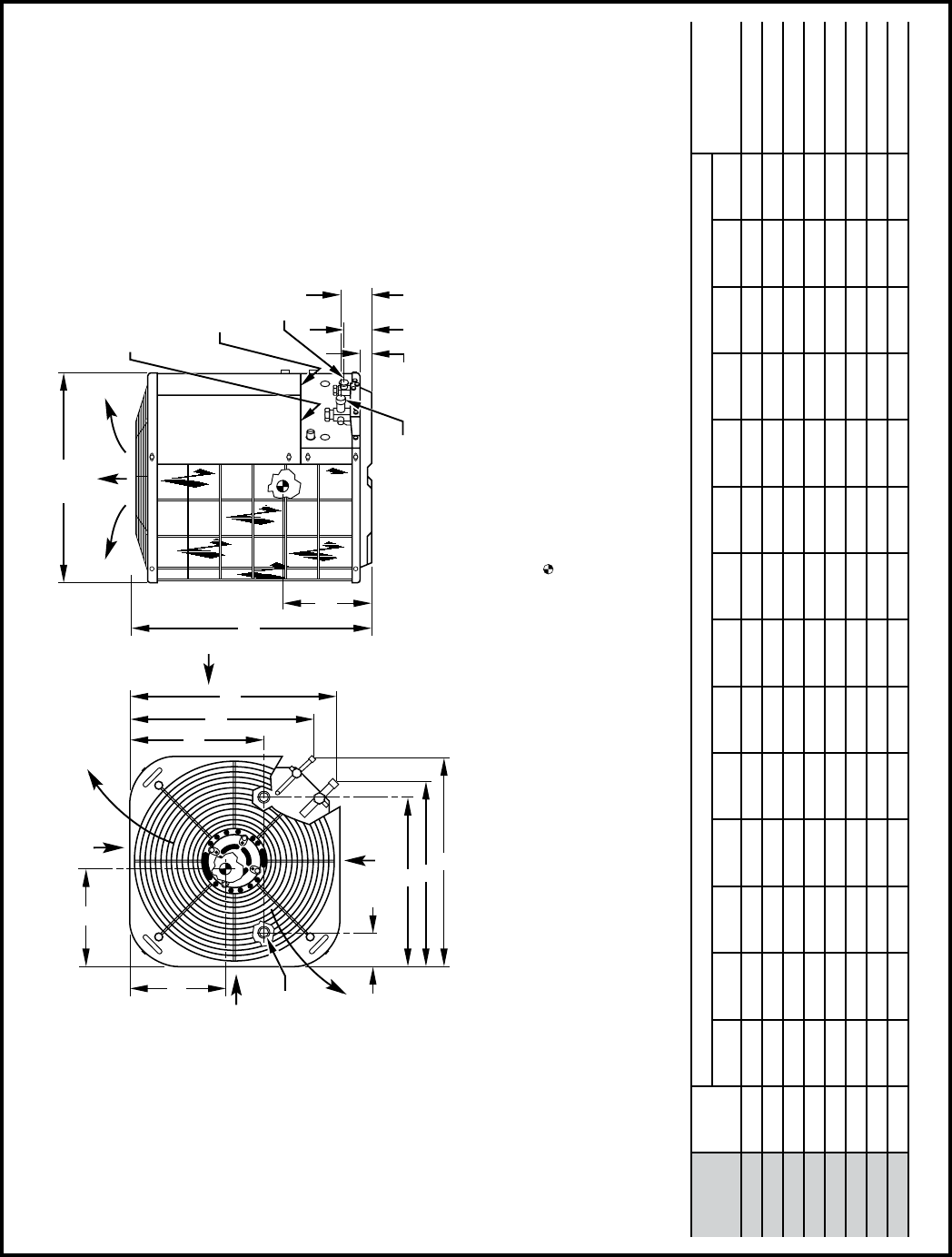

Dimensions — 38CKC
AIR DISCHARGE
AIR IN
A SQ
B
P
C
3/8 -IN. DIA
TIEDOWN
KNOCKOUTS
(2) PLACES
2 7/8″
1 1/4″
H
G
F
E
FIELD CONTROL SUPPLY
CONN
7/8 -IN. DIA
HOLE
FIELD POWER SUPPLY CONN
7/8 -IN. DIA HOLE WITH
1 1/8 -IN. DIA KNOCKOUT
AND 1
3/8 -IN. DIA
KNOCKOUT
3/8 -IN. DIA LIQUID
LINE CONN
D DIA VAPOR LINE CONN
L
K
J
AIR IN
M
N
AIR DISCHARGE
AIR IN
AIR IN
AIR DISCHARGE
NOTES:
1. Allow 30 in. clearance to service side of
unit, 48 in. above unit, 6 in. on one side, 12 in.
on remaining side, and 24 in. between units for proper airflow.
2. Minimum outdoor operating ambient in cooling mode is
55°F, max. 125°F.
3. Series designation is the 13th position of the unit
model number.
4. Center of gravity .
A97043
DIMENSIONS (IN.)
UNIT
SIZE SERIES
UNIT DIMENSIONS MINIMUM
MOUNTING PAD
DIMENSIONSABCDEFGHJKLMNP
018 34 18 21-15/16 3-3/16 5/8 3 15 16-5/16 17-3/4 10-3/16 16-1/8 17-3/4 7-7/8 8-3/8 9-3/8 18 X 18
024 34 18 23-15/16 3-3/16 5/8 3 15 16-5/16 17-3/4 10-3/16 16-1/8 17-3/4 7-7/8 8-3/8 9-1/2 18 X 18
030 34, 52 22-1/2 21-15/16 3-3/16 3/4 3-11/16 18-1/8 19-3/4 22-1/4 14-3/8 19-9/16 22-1/16 10-3/8 10-3/4 10-3/4 22-1/2 X 22-1/2
036 35 22-1/2 23-15/16 3-3/16 3/4 3-11/16 18-1/8 19-3/4 22-1/4 14-3/8 19-9/16 22-1/16 10-3/8 10-3/4 11 22-1/2 X 22-1/2
036 55, 63 22-1/2 25-15/16 3-3/16 3/4 3-11/16 18-1/8 19-3/4 22-1/4 14-3/8 19-9/16 22-1/16 10-1/4 9-1/2 11-1/4 22-1/2 X 22-1/2
042 35, 55 22-1/2 29-15/16 3-1/4 7/8 3-11/16 18-1/8 19-13/16 22-1/4 14-3/8 19-9/16 22-1/16 10-3/8 10-3/4 11-1/8 22-1/2 X 22-1/2
048 37, 57, 67 22-1/2 33-15/16 3-1/4 7/8 3-11/16 18-1/8 19-13/16 22-1/4 14-3/8 19-9/16 22-1/16 10-3/8 10-3/4 15-1/2 22-1/2 X 22-1/2
060 37, 57, 67 30 33-15/16 3-1/4 7/8 6-1/2 23-1/2 27-1/4 29-3/4 20 27-1/16 29-9/16 15-1/2 14 15 30 X 30
9
Combination ratings
UNIT
SIZE-SERIES
INDOOR
MODEL
TOTAL
CAPACITY
BTUH
FACTORY-
SUPPLIED
ENHANCE-
MENT
SEER
EER
STANDARD
RATING
ACCESSORY
TXV‡
CARRIER GAS
FURNACE OR
TDR†
018-34
*CC5A/CD5AA018 17,200 NONE — 10.00 10.00 9.15
CC5A/CD5AA024 17,800 NONE — 10.00 10.00 9.40
CC5A/CD5AW024 17,800 NONE — 10.00 10.00 9.40
CE3AA024 17,800 NONE — 10.00 10.00 9.45
CF5AA024 17,900 NONE — 10.00 10.00 9.50
CK3BA024 17,800 NONE — 10.00 10.00 9.55
CK5A/CK5BA018 17,200 NONE — 10.00 10.00 9.35
CK5A/CK5BA024 17,800 NONE — 10.00 10.00 9.55
CK5A/CK5BW024 17,800 NONE — 10.00 10.00 9.55
F(A,B)4(A,B)N(F,C)018 17,200 TDR 10.00 10.00 — 9.25
F(A,B)4(A,B)N(F,C)024 17,800 TDR 10.50 10.50 — 9.60
FC4(B,C)NF024 17,800 TDR&TXV 10.50 — — 9.65
FF1DNA018 17,200 TDR 10.00 10.00 — 9.45
FF1DNA024 17,800 TDR 10.50 10.50 — 9.50
FG3AAA024 17,800 NONE 10.00 — — 9.35
FK4(C,D)NF001 17,800 TDR&TXV 11.00 — — 10.60
FK4(C,D)NF002 18,000 TDR&TXV 11.50 — — 10.70
COILS + 58CV(A,X)070-12 VARIABLE-SPEED FURNACE
CC5A/CD5AA018 17,200 TDR 10.50 10.50 — 10.00
CC5A/CD5AA024 17,800 TDR 11.00 11.00 — 10.30
CC5A/CD5AW024 17,800 TDR 11.00 11.00 — 10.30
CE3AA024 17,800 TDR 11.00 11.00 — 10.30
CK3BA024 17,800 TDR 11.00 11.00 — 10.50
CK5A/CK5BA018 17,200 TDR 10.50 10.50 — 10.20
CK5A/CK5BA024 17,800 TDR 11.00 11.00 — 10.50
CK5A/CK5BW024 17,800 TDR 11.00 11.00 — 10.50
COILS + 58MVP060-14 VARIABLE-SPEED FURNACE
CC5A/CD5AW024 17,800 TDR 10.50 10.50 — 10.25
CE3AA024 17,800 TDR 10.50 10.50 — 10.25
CK5A/CK5BW024 17,800 TDR 10.50 10.50 — 10.40
COILS + 58MVP080-14 VARIABLE-SPEED FURNACE
CC5A/CD5AW024 17,800 TDR 10.50 10.50 — 10.30
CE3AA024 17,800 TDR 10.50 10.50 — 10.25
024-34
*CC5A/CD5AA024 23,600 NONE — 10.00 10.00 9.05
CC5A/CD5AA030 23,800 NONE — 10.00 10.00 9.05
CC5A/CD5AW024 23,600 NONE — 10.00 10.00 9.05
CC5A/CD5AW030 23,800 NONE — 10.00 10.00 9.05
CE3AA024 23,600 NONE — 10.00 10.00 9.10
CE3AA030 23,800 NONE — 10.00 10.00 9.20
CF5AA024 23,600 NONE — 10.00 10.00 9.10
CK3BA024 23,600 NONE — 10.00 10.00 9.15
CK3BA030 23,800 NONE — 10.00 10.00 9.15
CK5A/CK5BA024 23,600 NONE — 10.00 10.00 9.15
CK5A/CK5BA030 23,800 NONE — 10.00 10.00 9.15
CK5A/CK5BW024 23,600 NONE — 10.00 10.00 9.15
CK5A/CK5BW030 23,800 NONE — 10.00 10.00 9.15
F(A,B)4(A,B)N(F,C)024 23,600 TDR 10.00 10.00 — 9.20
F(A,B)4(A,B)N(F,C)030 23,800 TDR 10.00 10.00 — 9.35
FC4(B,C)NF024 23,600 TDR&TXV 10.00 — — 9.20
FC4(B,C)NF030 23,800 TDR&TXV 10.00 — — 9.30
FF1DNA024 23,600 TDR 10.00 10.00 — 9.05
FF1DNA030 23,800 TDR 10.00 10.00 — 9.20
FG3AAA024 23,000 NONE 10.00 — — 8.95
FK4(C,D)NF001 24,000 TDR&TXV 11.00 — — 10.05
FK4(C,D)NF002 24,400 TDR&TXV 11.00 — — 10.15
FK4(C,D)NF003 24,400 TDR&TXV 11.00 — — 10.30
COILS + 58CV(A,X)070-12 VARIABLE-SPEED FURNACE
CC5A/CD5AA024 23,600 TDR 10.50 10.50 — 9.80
CC5A/CD5AA030 23,800 TDR 11.00 11.00 — 9.90
CC5A/CD5AW024 23,600 TDR 10.50 10.50 — 9.80
CC5A/CD5AW030 23,800 TDR 11.00 11.00 — 9.90
CE3AA024 23,600 TDR 10.50 10.50 — 9.85
CE3AA030 23,800 TDR 11.00 11.00 — 10.00
CK3BA024 23,600 TDR 10.50 10.50 — 9.90
CK3BA030 23,800 TDR 11.00 11.00 — 9.95
CK5A/CK5BA024 23,600 TDR 10.50 10.50 — 9.90
CK5A/CK5BA030 23,800 TDR 11.00 11.00 — 9.95
CK5A/CK5BW024 23,600 TDR 10.50 10.50 — 9.90
CK5A/CK5BW030 23,800 TDR 11.00 11.00 — 9.95
COILS + 58MVP060-14 VARIABLE-SPEED FURNACE
CC5A/CD5AW024 23,000 TDR 10.50 10.50 — 9.65
CC5A/CD5AW030 23,400 TDR 10.50 10.50 — 9.80
CE3AA024 23,000 TDR 10.50 10.50 — 9.70
CE3AA030 23,400 TDR 10.50 10.50 — 9.85
CK3BA024 23,000 TDR 10.50 10.50 — 9.75
CK3BA030 23,400 TDR 10.50 10.50 — 9.80
CK5A/CK5BW024 23,000 TDR 10.50 10.50 — 9.75
CK5A/CK5BW030 23,400 TDR 10.50 10.50 — 9.80
COILS + 58MVP080-14 VARIABLE-SPEED FURNACE
CC5A/CD5AW024 23,000 TDR 10.50 10.50 — 9.75
See notes on pg. 18.
10
024-34
CC5A/CD5AW030 23,400 TDR 10.50 10.50 — 9.90
CE3AA024 23,000 TDR 10.50 10.50 — 9.80
CE3AA030 23,400 TDR 10.50 10.50 — 9.95
CK3BA024 23,000 TDR 10.50 10.50 — 9.95
CK3BA030 23,400 TDR 10.50 10.50 — 9.95
CK5A/CK5BW024 23,000 TDR 10.50 10.50 — 9.90
CK5A/CK5BW030 23,400 TDR 10.50 10.50 — 9.95
030-52
(3 Phase)
*CC5A/CD5AA030 28,000 NONE 10.00 10.10 10.10 9.10
CC5A/CD5AA036 29,000 NONE 10.00 10.10 10.10 9.60
CC5A/CD5AW030 28,000 NONE 10.00 10.10 10.10 9.40
CC5A/CD5AW036 29,000 NONE 10.00 10.10 10.10 9.60
CE3AA030 27,800 NONE 10.00 10.10 10.10 9.15
CE3AA036 28,600 NONE 10.00 10.10 10.10 9.25
CF5AA036 28,800 NONE 10.00 10.20 10.20 9.60
CK3BA030 28,000 NONE 10.00 10.10 10.10 9.40
CK3BA036 29,000 NONE 10.00 10.10 10.10 9.65
CK5A/CK5BA030 28,000 NONE 10.00 10.10 10.10 9.40
CK5A/CK5BA036 29,000 NONE 10.00 10.10 10.10 9.65
CK5A/CK5BT036 29,000 NONE 10.00 10.10 10.10 9.65
CK5A/CK5BW030 28,000 NONE 10.00 10.10 10.10 9.40
CK5A/CK5BW036 29,000 NONE 10.10 10.10 10.10 9.65
F(A,B)4(A,B)N(F,C)030 27,600 TDR 10.00 10.00 — 9.20
F(A,B)4(A,B)N(F,C)036 28,200 TDR 10.00 10.00 — 9.10
FC4(B,C)NF030 27,600 TDR&TXV 10.00 — — 9.20
FC4(B,C)NF036 28,200 TDR&TXV 10.00 — — 9.10
FF1DNA030 28,000 TDR 10.00 10.00 — 9.15
FG3AAA036 28,000 NONE 10.00 10.10 10.10 9.20
FK4(C,D)NF001 29,000 TDR&TXV 11.00 — — 9.95
FK4(C,D)NF002 29,200 TDR&TXV 11.00 — — 9.95
FK4(C,D)NF003 29,400 TDR&TXV 11.50 — — 10.25
FK4(C,D)NF005 29,600 TDR&TXV 11.50 — — 10.50
COILS + 58CV(A,X)070-12 VARIABLE-SPEED FURNACE
CC5A/CD5AA030 28,000 TDR 10.50 10.50 — 9.55
CC5A/CD5AA036 29,000 TDR 11.00 11.00 — 9.85
CC5A/CD5AW030 28,000 TDR 10.50 10.50 — 9.55
CE3AA030 28,000 TDR 10.50 10.50 — 9.65
CE3AA036 29,000 TDR 10.50 10.50 — 9.70
CK3BA030 28,000 TDR 10.50 10.50 — 9.60
CK3BA036 29,000 TDR 11.00 11.00 — 9.85
CK5A/CK5BA030 28,000 TDR 10.50 10.50 — 9.60
CK5A/CK5BA036 29,000 TDR 11.00 11.00 — 9.85
CK5A/CK5BT036 29,000 TDR 11.00 11.00 — 9.85
CK5A/CK5BW030 28,000 TDR 10.50 10.50 — 9.60
COILS + 58CV(A,X)090-16 VARIABLE-SPEED FURNACE
CC5A/CD5AA030 28,000 TDR 10.50 10.50 — 9.70
CC5A/CD5AA036 29,000 TDR 11.00 11.00 — 9.95
CC5A/CD5AW030 28,000 TDR 10.50 10.50 — 9.70
CC5A/CD5AW036 29,000 TDR 11.00 11.00 — 9.95
CE3AA030 28,000 TDR 10.50 10.50 — 9.80
CE3AA036 29,000 TDR 10.50 10.50 — 9.85
CK3BA030 28,000 TDR 10.50 10.50 — 9.70
CK3BA036 29,000 TDR 11.00 11.00 — 9.95
CK5A/CK5BA030 28,000 TDR 10.50 10.50 — 9.70
CK5A/CK5BA036 29,000 TDR 11.00 11.00 — 9.95
CK5A/CK5BW030 28,000 TDR 10.50 10.50 — 9.70
CK5A/CK5BW036 29,000 TDR 11.00 11.00 — 9.95
COILS + 58MVP040-14 VARIABLE-SPEED FURNACE
CC5A/CD5AW030 28,000 TDR 10.50 10.50 — 9.90
CC5A/CD5AW036 29,000 TDR 11.00 11.00 — 10.15
CK3BA030 28,000 TDR 10.50 10.50 — 9.80
CK3BA036 29,000 TDR 11.00 11.00 — 10.15
CK5A/CK5BA036 29,000 TDR 11.00 11.00 — 10.15
CK5A/CK5BT036 29,000 TDR 11.00 11.00 — 10.15
CK5A/CK5BW030 28,000 TDR 10.50 10.50 — 9.80
CK5A/CK5BW036 29,000 TDR 11.00 11.00 — 10.15
COILS + 58MVP060-14 VARIABLE-SPEED FURNACE
CC5A/CD5AA036 29,000 TDR 11.00 11.00 — 10.15
CC5A/CD5AW030 28,000 TDR 10.50 10.50 — 9.90
CK3BA030 28,000 TDR 10.50 10.50 — 9.85
CK3BA036 29,000 TDR 11.00 11.00 — 10.15
CK5A/CK5BA036 29,000 TDR 11.00 11.00 — 10.15
CK5A/CK5BT036 29,000 TDR 11.00 11.00 — 10.15
CK5A/CK5BW030 28,000 TDR 10.50 10.50 — 9.85
COILS + 58MVP080-14 VARIABLE-SPEED FURNACE
CC5A/CD5AA036 29,000 TDR 11.00 11.00 — 10.15
CC5A/CD5AW030 28,000 TDR 10.50 10.50 — 9.90
CC5A/CD5AW036 29,000 TDR 11.00 11.00 — 10.15
CK3BA030 28,000 TDR 10.50 10.50 — 9.90
CK3BA036 29,000 TDR 11.00 11.00 — 10.25
CK5A/CK5BW030 28,000 TDR 10.50 10.50 — 9.90
UNIT
SIZE-SERIES
INDOOR
MODEL
TOTAL
CAPACITY
BTUH
FACTORY-
SUPPLIED
ENHANCE-
MENT
SEER
EER
STANDARD
RATING
ACCESSORY
TXV‡
CARRIER GAS
FURNACE OR
TDR†
Combination ratings
See notes on page 18.
11
030-52
(3 Phase)
CK5A/CK5BW036 29,000 TDR 11.00 11.00 — 10.25
COILS + 58MVP080-20 VARIABLE-SPEED FURNACE
CK3BA030 28,000 TDR 10.50 10.50 — 9.80
CK3BA036 29,000 TDR 11.00 11.00 — 10.15
CK5A/CK5BW030 28,000 TDR 10.50 10.50 — 9.80
CK5A/CK5BW036 29,000 TDR 11.00 11.00 — 10.15
COILS + 58MVP100-20 VARIABLE-SPEED FURNACE
CK3BA030 28,000 TDR 10.50 10.50 — 10.10
CK3BA036 29,000 TDR 11.00 11.00 — 10.45
CK5A/CK5BW030 28,000 TDR 10.50 10.50 — 10.10
CK5A/CK5BW036 29,000 TDR 11.00 11.00 — 10.45
COILS + 58MVP120-20 VARIABLE-SPEED FURNACE
CK3BA030 28,000 TDR 10.50 10.50 — 10.05
CK3BA036 29,000 TDR 11.00 11.00 — 10.40
CK5A/CK5BW036 29,000 TDR 11.00 11.00 — 10.40
030-34
(1 Phase)
*CC5A/CD5AA030 28,000 NONE — 10.00 10.00 8.80
CC5A/CD5AA036 29,000 NONE — 10.00 10.00 9.00
CC5A/CD5AW030 28,000 NONE — 10.00 10.00 8.80
CC5A/CD5AW036 28,000 NONE — 10.00 10.00 9.00
CE3AA030 28,600 NONE — 10.00 10.00 8.90
CE3AA036 28,600 NONE — 10.00 10.00 8.95
CF5AA036 28,000 NONE 10.00 — — 9.00
CK3BA030 28,000 NONE — 10.00 10.00 8.85
CK3BA036 29,000 NONE — 10.00 10.00 9.05
CK5A/CK5BA030 28,000 NONE — 10.00 10.00 8.85
CK5A/CK5BA036 29,000 NONE — 10.00 10.00 9.05
CK5A/CK5BT036 28,000 NONE — 10.00 10.00 9.05
CK5A/CK5BW030 29,000 NONE — 10.00 10.00 8.85
CK5A/CK5BW036 29,000 NONE — 10.00 10.00 9.05
F(A,B)4(A,B)N(F,C)030 28,400 TDR 10.00 10.00 — 8.95
F(A,B)4(A,B)N(F,C)036 28,000 TDR 10.00 10.00 — 8.85
FC4(B,C)NF030 28,400 TDR&TXV 10.00 — — 8.95
FC4(B,C)NF036 28,000 TDR&TXV 10.00 — — 8.85
FF1DNA030 28,400 TDR 10.00 10.00 — 8.90
FG3AAA036 29,000 NONE 11.00 — — 8.90
FK4(C,D)NF001 28,800 TDR&TXV 11.00 — — 9.60
FK4(C,D)NF002 29,600 TDR&TXV 11.00 — — 9.65
FK4(C,D)NF003 28,400 TDR&TXV 11.00 — — 9.90
FK4(C,D)NF005 27,600 TDR&TXV 10.50 — — 10.10
COILS + 58CV(A,X)070-12 VARIABLE-SPEED FURNACE
CC5A/CD5AA030 27,600 TDR 10.50 10.50 — 9.45
CC5A/CD5AA036 28,600 TDR 11.00 11.00 — 9.70
CC5A/CD5AW030 27,600 TDR 10.50 10.50 — 9.45
CE3AA030 27,600 TDR 10.50 10.50 — 9.50
CE3AA036 28,600 TDR 10.50 10.50 — 9.55
CK3BA030 27,600 TDR 10.50 10.50 — 9.45
CK3BA036 28,600 TDR 11.00 11.00 — 9.70
CK5A/CK5BA030 27,600 TDR 10.50 10.50 — 9.45
CK5A/CK5BA036 28,600 TDR 11.00 11.00 — 9.70
CK5A/CK5BT036 28,600 TDR 11.00 11.00 — 9.70
CK5A/CK5BW030 27,600 TDR 10.50 10.50 — 9.45
COILS + 58CV(A,X)090-16 VARIABLE-SPEED FURNACE
CC5A/CD5AA030 27,600 TDR 10.50 10.50 — 9.55
CC5A/CD5AA036 28,600 TDR 11.00 11.00 — 9.80
CC5A/CD5AW030 27,600 TDR 10.50 10.50 — 9.55
CC5A/CD5AW036 28,600 TDR 11.00 11.00 — 9.80
CE3AA030 27,600 TDR 10.50 10.50 — 9.65
CE3AA036 28,600 TDR 10.50 10.50 — 9.70
CK3BA030 27,600 TDR 10.50 10.50 — 9.55
CK3BA036 28,600 TDR 11.00 11.00 — 9.85
CK5A/CK5BA030 27,600 TDR 10.50 10.50 — 9.55
CK5A/CK5BA036 28,600 TDR 11.00 11.00 — 9.85
CK5A/CK5BW030 27,600 TDR 10.50 10.50 — 9.55
CK5A/CK5BW036 28,600 TDR 11.00 11.00 — 9.85
COILS + 58MVP060-14 VARIABLE-SPEED FURNACE
CC5A/CD5AA036 27,600 TDR 10.50 10.50 — 9.50
CC5A/CD5AW030 28,600 TDR 10.50 10.50 — 9.25
CE3AA030 28,000 TDR 10.50 10.50 — 9.35
CE3AA036 27,600 TDR 10.50 10.50 — 9.40
CK3BA036 28,600 TDR 10.50 10.50 — 9.50
CK5A/CK5BA036 28,600 TDR 10.50 10.50 — 9.50
CK5A/CK5BT036 27,600 TDR 10.50 10.50 — 9.50
CK5A/CK5BW030 28,600 TDR 10.50 10.50 — 9.20
COILS + 58MVP080-14 VARIABLE-SPEED FURNACE
CC5A/CD5AW030 28,600 TDR 10.50 10.50 — 9.35
CC5A/CD5AW036 27,600 TDR 10.50 10.50 — 9.60
CE3AA030 28,000 TDR 10.50 10.50 — 9.45
CE3AA036 27,600 TDR 10.50 10.50 — 9.50
CK3BA036 28,600 TDR 10.50 10.50 — 9.60
UNIT
SIZE-SERIES
INDOOR
MODEL
TOTAL
CAPACITY
BTUH
FACTORY-
SUPPLIED
ENHANCE-
MENT
SEER
EER
STANDARD
RATING
ACCESSORY
TXV‡
CARRIER GAS
FURNACE OR
TDR†
Combination ratings
See notes on page 18.
12
030-34
(1 Phase)
CK5A/CK5BW030 28,600 TDR 10.50 10.50 — 9.25
CK5A/CK5BW036 27,600 TDR 10.50 10.50 — 9.60
COILS + 58MVP100-20 VARIABLE-SPEED FURNACE
CC5A/CD5AA036 28,600 TDR 10.50 10.50 — 9.60
CC5A/CD5AW030 28,600 TDR 10.50 10.50 — 9.35
CC5A/CD5AW036 28,600 TDR 10.50 10.50 — 9.60
CE3AA030 28,000 TDR 10.50 10.50 — 9.45
CE3AA036 27,600 TDR 10.50 10.50 — 9.50
CK3BA030 27,600 TDR 10.50 10.50 — 9.45
CK3BA036 29,800 TDR 10.50 10.50 — 9.75
CK5A/CK5BA036 28,600 TDR 10.50 10.50 — 9.75
CK5A/CK5BT036 28,600 TDR 10.50 10.50 — 9.75
CK5A/CK5BW030 28,600 TDR 10.50 10.50 — 9.45
CK5A/CK5BW036 28,600 TDR 10.50 10.50 — 9.75
COILS + 58MVP120-20 VARIABLE-SPEED FURNACE
CC5A/CD5AW036 27,600 TDR 10.50 10.50 — 9.60
CE3AA030 28,000 TDR 10.50 10.50 — 9.45
CK5A/CK5BW036 27,600 TDR 10.50 10.50 — 9.70
036-55, 63
(3 Phase)
*CC5A/CD5AA036 33,800 NONE 10.00 10.20 10.20 9.15
CC5A/CD5AA042 33,800 NONE 10.00 10.20 10.20 9.45
CC5A/CD5AW036 33,800 NONE 10.00 10.20 10.20 9.45
CE3AA036 33,400 NONE 10.00 10.20 10.20 9.10
CE3AA042 33,600 NONE 10.00 10.20 10.20 9.20
CF5AA036 33,600 NONE 10.00 10.20 10.20 9.40
CK3BA036 33,800 NONE 10.00 10.20 10.20 9.45
CK3BA042 33,800 NONE 10.00 10.20 10.20 9.45
CK5A/CK5BA036 33,800 NONE 10.00 10.20 10.20 9.45
CK5A/CK5BA042 33,800 NONE 10.00 10.20 10.20 9.45
CK5A/CK5BT036 33,800 NONE 10.00 10.20 10.20 9.45
CK5A/CK5BT042 33,800 NONE 10.00 10.20 10.20 9.45
CK5A/CK5BW036 33,800 NONE 10.00 10.20 10.20 9.45
F(A,B)4(A,B)N(F,B,C)042 33,800 TDR 10.00 10.00 — 9.10
F(A,B)4(A,B)N(F,C)036 33,000 TDR 10.00 10.00 — 8.90
FC4(B,C)N(F,B)042 33,800 TDR&TXV 10.00 — — 9.10
FC4(B,C)NB054 34,800 TDR&TXV 10.50 — — 9.65
FC4(B,C)NF036 33,000 TDR&TXV 10.00 — — 8.90
FG3AAA036 32,600 NONE — 10.00 10.00 9.00
FK4(C,D)NB006 35,200 TDR&TXV 11.00 — — 10.45
FK4(C,D)NF001 33,000 TDR&TXV 10.00 — — 9.50
FK4(C,D)NF002 33,000 TDR&TXV 10.00 — — 9.50
FK4(C,D)NF003 33,600 TDR&TXV 10.50 — — 9.95
FK4(C,D)NF005 35,000 TDR&TXV 11.00 — — 10.25
COILS + 58CV(A,X)070-12 VARIABLE-SPEED FURNACE
CC5A/CD5AA036 33,400 TDR 10.50 10.50 — 9.60
CE3AA036 33,000 TDR 10.50 10.50 — 9.55
CE3AA042 33,400 TDR 10.50 10.50 — 9.70
CK3BA036 33,400 TDR 10.50 10.50 — 9.65
CK5A/CK5BA036 33,400 TDR 10.50 10.50 — 9.65
CK5A/CK5BE042 33,400 TDR 11.00 11.00 — 9.75
CK5A/CK5BT036 33,400 TDR 10.50 10.50 — 9.65
COILS + 58CV(A,X)090-16 VARIABLE-SPEED FURNACE
CC5A/CD5AA036 33,400 TDR 10.50 10.50 — 9.75
CC5A/CD5AA042 33,400 TDR 11.00 11.00 — 9.85
CC5A/CD5AW036 33,400 TDR 10.50 10.50 — 9.75
CE3AA036 33,000 TDR 10.50 10.50 — 9.70
CE3AA042 33,800 TDR 10.50 10.50 — 9.85
CK3BA036 33,400 TDR 10.50 10.50 — 9.80
CK3BA042 33,400 TDR 11.00 11.00 — 9.85
CK5A/CK5BA036 33,400 TDR 10.50 10.50 — 9.80
CK5A/CK5BA042 33,400 TDR 11.00 11.00 — 9.85
CK5A/CK5BE042 33,400 TDR 11.00 11.00 — 9.90
CK5A/CK5BT036 33,400 TDR 10.50 10.50 — 9.80
CK5A/CK5BT042 33,400 TDR 11.00 11.00 — 9.85
CK5A/CK5BW036 33,400 TDR 10.50 10.50 — 9.80
COILS + 58CV(A,X)110-22 VARIABLE-SPEED FURNACE
CC5A/CD5AA036 33,400 TDR 10.50 10.50 — 9.85
CC5A/CD5AA042 33,400 TDR 11.00 11.00 — 9.95
CC5A/CD5AW036 33,400 TDR 10.50 10.50 — 9.85
CC5A/CD5AW042 33,400 TDR 11.00 11.00 — 9.90
CE3AA036 33,000 TDR 10.50 10.50 — 9.75
CE3AA042 33,400 TDR 10.50 10.50 — 9.95
CK3BA036 33,400 TDR 10.50 10.50 — 9.85
CK3BA042 33,400 TDR 11.00 11.00 — 9.90
CK5A/CK5BA036 33,400 TDR 10.50 10.50 — 9.85
CK5A/CK5BA042 33,400 TDR 11.00 11.00 — 9.90
CK5A/CK5BT036 33,400 TDR 10.50 10.50 — 9.85
CK5A/CK5BT042 33,400 TDR 11.00 11.00 — 9.90
CK5A/CK5BW036 33,400 TDR 10.50 10.50 — 9.85
UNIT
SIZE-SERIES
INDOOR
MODEL
TOTAL
CAPACITY
BTUH
FACTORY-
SUPPLIED
ENHANCE-
MENT
SEER
EER
STANDARD
RATING
ACCESSORY
TXV‡
CARRIER GAS
FURNACE OR
TDR†
Combination ratings
See notes on page 18.
13
036-55, 63
(3 Phase)
COILS + 58CV(A,X)135-22 VARIABLE-SPEED FURNACE
CC5A/CD5AA042 33,400 TDR 11.00 11.00 — 9.90
CC5A/CD5AW036 33,400 TDR 10.50 10.50 — 9.80
CC5A/CD5AW042 33,200 TDR 11.00 11.00 — 9.85
CE3AA036 33,000 TDR 10.50 10.50 — 9.70
CE3AA042 33,400 TDR 10.50 10.50 — 9.90
CK3BA042 33,400 TDR 11.00 11.00 — 9.85
CK5A/CK5BA042 33,400 TDR 11.00 11.00 — 9.85
CK5A/CK5BT042 33,400 TDR 11.00 11.00 — 9.85
CK5A/CK5BW036 33,400 TDR 10.50 10.50 — 9.80
COILS + 58CV(A,X)155-22 VARIABLE-SPEED FURNACE
CC5A/CD5AA042 33,400 TDR 11.00 11.00 — 10.00
CC5A/CD5AW036 33,400 TDR 10.50 10.50 — 9.85
CC5A/CD5AW042 33,400 TDR 11.00 11.00 — 9.95
CE3AA036 33,000 TDR 10.50 10.50 — 9.75
CE3AA042 33,400 TDR 10.50 10.50 — 9.95
CK3BA042 33,400 TDR 11.00 11.00 — 9.95
CK5A/CK5BA042 33,400 TDR 11.00 11.00 — 9.95
CK5A/CK5BT042 33,400 TDR 11.00 11.00 — 9.95
CK5A/CK5BW036 33,400 TDR 10.50 10.50 — 9.85
COILS + 58MVP040-14 VARIABLE-SPEED FURNACE
CC5A/CD5AA042 33,400 TDR 11.00 11.00 — 10.05
CC5A/CD5AW036 33,400 TDR 10.50 10.50 — 10.00
CK3BA036 33,400 TDR 10.50 10.50 — 10.00
CK3BA042 33,400 TDR 10.80 10.80 — 10.10
CK5A/CK5BA042 33,400 TDR 10.80 10.80 — 10.10
CK5A/CK5BT042 33,400 TDR 10.80 10.80 — 10.10
CK5A/CK5BW036 33,400 TDR 10.50 10.50 — 10.00
COILS + 58MVP060-14 VARIABLE-SPEED FURNACE
CC5A/CD5AA036 33,400 TDR 10.50 10.50 — 10.00
CK3BA036 33,400 TDR 10.50 10.50 — 10.00
CK3BA042 33,400 TDR 10.80 10.80 — 10.05
CK5A/CK5BA036 33,400 TDR 10.50 10.50 — 10.00
CK5A/CK5BT036 33,400 TDR 10.50 10.50 — 10.00
COILS + 58MVP080-14 VARIABLE-SPEED FURNACE
CC5A/CD5AA042 33,400 TDR 11.00 11.00 — 10.05
CC5A/CD5AW036 33,400 TDR 10.50 10.50 — 10.00
CK3BA036 33,400 TDR 10.50 10.50 — 10.10
CK3BA042 33,400 TDR 10.80 10.80 — 10.15
CK5A/CK5BA042 33,400 TDR 10.80 10.80 — 10.15
CK5A/CK5BT042 33,400 TDR 10.80 10.80 — 10.15
CK5A/CK5BW036 33,400 TDR 10.50 10.50 — 10.10
COILS + 58MVP080-20 VARIABLE-SPEED FURNACE
CK3BA036 33,400 TDR 10.50 10.50 — 10.00
CK3BA042 33,400 TDR 10.80 10.80 — 10.05
CK5A/CK5BA042 33,400 TDR 10.80 10.80 — 10.05
CK5A/CK5BT042 33,400 TDR 10.80 10.80 — 10.05
CK5A/CK5BW036 33,400 TDR 10.50 10.50 — 10.00
COILS + 58MVP100-20 VARIABLE-SPEED FURNACE
CC5A/CD5AA042 33,400 TDR 11.00 11.00 — 10.05
CC5A/CD5AW036 33,400 TDR 10.50 10.50 — 10.00
CK3BA036 33,400 TDR 10.50 10.50 — 10.25
CK3BA042 33,400 TDR 10.80 10.80 — 10.30
CK5A/CK5BA042 33,400 TDR 10.80 10.80 — 10.30
CK5A/CK5BT042 33,400 TDR 10.80 10.80 — 10.30
CK5A/CK5BW036 33,400 TDR 10.50 10.50 — 10.25
COILS + 58MVP120-20 VARIABLE-SPEED FURNACE
CK3BA036 33,400 TDR 10.50 10.50 — 10.20
CK3BA042 33,400 TDR 10.80 10.80 — 10.25
CK5A/CK5BA042 33,400 TDR 10.80 10.80 — 10.25
CK5A/CK5BT042 33,400 TDR 10.80 10.80 — 10.25
CK5A/CK5BW036 33,400 TDR 10.50 10.50 — 10.20
036-35
(1 Phase)
*CC5A/CD5AA036 33,800 NONE — 10.00 10.00 9.00
CC5A/CD5AA042 33,800 NONE — 10.00 10.00 9.00
CC5A/CD5AW036 33,800 NONE — 10.00 10.00 9.00
CC5A/CD5AW042 33,800 NONE — 10.00 10.00 8.95
CE3AA036 33,400 NONE — 10.00 10.00 8.90
CE3AA042 33,800 NONE — 10.00 10.00 9.05
CF5AA036 33,800 NONE — 10.00 10.00 8.95
CK3BA036 33,800 NONE — 10.00 10.00 9.00
CK3BA042 33,800 NONE — 10.00 10.00 9.00
CK5A/CK5BA036 33,800 NONE — 10.00 10.00 9.00
CK5A/CK5BA042 33,800 NONE — 10.00 10.00 9.00
CK5A/CK5BT036 33,800 NONE — 10.00 10.00 9.00
CK5A/CK5BT042 33,800 NONE — 10.00 10.00 9.00
CK5A/CK5BW036 33,800 NONE — 10.00 10.00 9.00
F(A,B)4(A,B)N(F,B,C)042 33,800 TDR 10.00 10.00 — 8.95
F(A,B)4(A,B)N(F,C)036 33,400 TDR 10.00 10.00 — 8.75
FC4(B,C)N(F,B)042 33,800 TDR&TXV 10.00 — — 8.95
UNIT
SIZE-SERIES
INDOOR
MODEL
TOTAL
CAPACITY
BTUH
FACTORY-
SUPPLIED
ENHANCE-
MENT
SEER
EER
STANDARD
RATING
ACCESSORY
TXV‡
CARRIER GAS
FURNACE OR
TDR†
Combination ratings
See notes on page 18.
14
036-35
(1 Phase)
FC4(B,C)NF036 33,400 TDR&TXV 10.00 — — 8.75
FG3AAA036 33,000 NONE 10.00 — — 8.85
FK4(C,D)NB006 35,400 TDR&TXV 11.00 — — 10.25
FK4(C,D)NF001 33,000 TDR&TXV 10.50 — — 9.40
FK4(C,D)NF002 33,000 TDR&TXV 10.50 — — 9.35
FK4(C,D)NF003 33,600 TDR&TXV 11.00 — — 9.75
FK4(C,D)NF005 35,000 TDR&TXV 11.00 — — 10.05
COILS + 58CV(A,X)070-12 VARIABLE-SPEED FURNACE
CC5A/CD5AA036 33,400 TDR 10.50 10.50 — 9.45
CE3AA036 33,000 TDR 10.50 10.50 — 9.40
CE3AA042 33,400 TDR 10.50 10.50 — 9.55
CK3BA036 33,400 TDR 10.50 10.50 — 9.50
CK5A/CK5BA036 33,400 TDR 10.50 10.50 — 9.50
CK5A/CK5BE042 33,400 TDR 11.00 11.00 — 9.60
CK5A/CK5BT036 33,400 TDR 10.50 10.50 — 9.50
COILS + 58CV(A,X)090-16 VARIABLE-SPEED FURNACE
CC5A/CD5AA036 33,400 TDR 10.50 10.50 — 9.60
CC5A/CD5AA042 33,400 TDR 11.00 11.00 — 9.70
CC5A/CD5AW036 33,400 TDR 10.50 10.50 — 9.60
CE3AA036 33,000 TDR 10.50 10.50 — 9.55
CE3AA042 33,400 TDR 10.50 10.50 — 9.70
CK3BA036 33,400 TDR 10.50 10.50 — 9.65
CK3BA042 33,400 TDR 11.00 11.00 — 9.70
CK5A/CK5BA036 33,400 TDR 10.50 10.50 — 9.65
CK5A/CK5BA042 33,400 TDR 11.00 11.00 — 9.70
CK5A/CK5BE042 33,400 TDR 11.00 11.00 — 9.75
CK5A/CK5BT036 33,400 TDR 10.50 10.50 — 9.65
CK5A/CK5BT042 33,400 TDR 11.00 11.00 — 9.70
CK5A/CK5BW036 33,400 TDR 10.50 10.50 — 9.65
COILS + 58CV(A,X)110-22 VARIABLE-SPEED FURNACE
CC5A/CD5AA036 33,400 TDR 10.50 10.50 — 9.70
CC5A/CD5AA042 33,400 TDR 11.00 11.00 — 9.80
CC5A/CD5AW036 33,400 TDR 10.50 10.50 — 9.70
CC5A/CD5AW042 33,400 TDR 11.00 11.00 — 9.75
CE3AA036 33,000 TDR 10.50 10.50 — 9.60
CE3AA042 33,400 TDR 10.50 10.50 — 9.80
CK3BA036 33,400 TDR 10.50 10.50 — 9.70
CK3BA042 33,400 TDR 11.00 11.00 — 9.75
CK5A/CK5BA036 33,400 TDR 10.50 10.50 — 9.70
CK5A/CK5BA042 33,400 TDR 11.00 11.00 — 9.75
CK5A/CK5BT036 33,400 TDR 10.50 10.50 — 9.70
CK5A/CK5BT042 33,400 TDR 11.00 11.00 — 9.75
CK5A/CK5BW036 33,400 TDR 10.50 10.50 — 9.70
COILS + 58CV(A,X)135-22 VARIABLE-SPEED FURNACE
CC5A/CD5AA042 33,400 TDR 11.00 11.00 — 9.75
CC5A/CD5AW036 33,400 TDR 10.50 10.50 — 9.65
CC5A/CD5AW042 33,400 TDR 11.00 11.00 — 9.70
CE3AA036 33,000 TDR 10.50 10.50 — 9.55
CE3AA042 33,400 TDR 10.50 10.50 — 9.75
CK3BA042 33,400 TDR 11.00 11.00 — 9.70
CK5A/CK5BA042 33,400 TDR 11.00 11.00 — 9.70
CK5A/CK5BT042 33,400 TDR 11.00 11.00 — 9.70
CK5A/CK5BW036 33,400 TDR 10.50 10.50 — 9.65
COILS + 58CV(A,X)155-22 VARIABLE-SPEED FURNACE
CC5A/CD5AA042 33,400 TDR 11.00 11.00 — 9.85
CC5A/CD5AW036 33,400 TDR 10.50 10.50 — 9.70
CC5A/CD5AW042 33,400 TDR 11.00 11.00 — 9.80
CE3AA036 33,000 TDR 10.50 10.50 — 9.60
CE3AA042 33,400 TDR 10.50 10.50 — 9.80
CK3BA042 33,400 TDR 11.00 11.00 — 9.80
CK5A/CK5BA042 33,400 TDR 11.00 11.00 — 9.80
CK5A/CK5BT042 33,400 TDR 11.00 11.00 — 9.80
CK5A/CK5BW036 33,400 TDR 10.50 10.50 — 9.70
COILS + 58MVP060-14 VARIABLE-SPEED FURNACE
CC5A/CD5AA036 33,400 TDR 10.50 10.50 — 9.45
CE3AA036 32,800 TDR 10.50 10.50 — 9.35
CE3AA042 33,400 TDR 10.50 10.50 — 9.55
CK3BA036 33,400 TDR 10.50 10.50 — 9.45
CK5A/CK5BA036 33,400 TDR 10.50 10.50 — 9.45
CK5A/CK5BT036 33,400 TDR 10.50 10.50 — 9.45
COILS + 58MVP080-14 VARIABLE-SPEED FURNACE
CC5A/CD5AA042 33,400 TDR 10.50 10.50 — 9.60
CC5A/CD5AW036 33,400 TDR 10.50 10.50 — 9.55
CC5A/CD5AW042 33,200 TDR 10.50 10.50 — 9.55
CE3AA036 32,800 TDR 10.50 10.50 — 9.45
CE3AA042 32,400 TDR 10.50 10.50 — 9.65
CK3BA042 33,400 TDR 10.50 10.50 — 9.60
CK5A/CK5BA042 33,400 TDR 10.50 10.50 — 9.60
CK5A/CK5BT042 33,400 TDR 10.50 10.50 — 9.60
CK5A/CK5BW036 33,400 TDR 10.50 10.50 — 9.55
UNIT
SIZE-SERIES
INDOOR
MODEL
TOTAL
CAPACITY
BTUH
FACTORY-
SUPPLIED
ENHANCE-
MENT
SEER
EER
STANDARD
RATING
ACCESSORY
TXV‡
CARRIER GAS
FURNACE OR
TDR†
Combination ratings
See notes on page 18.
15
036-35
(1 Phase)
COILS + 58MVP080-20 VARIABLE-SPEED FURNACE
CC5A/CD5AA042 33,400 TDR 10.50 10.50 — 9.50
CC5A/CD5AW036 33,400 TDR 10.50 10.50 — 9.55
CC5A/CD5AW042 33,200 TDR 10.50 10.50 — 9.60
CE3AA036 32,800 TDR 10.50 10.50 — 9.45
CE3AA042 33,400 TDR 10.50 10.50 — 9.70
CK3BA042 33,400 TDR 10.50 10.50 — 9.50
CK5A/CK5BA042 33,400 TDR 10.50 10.50 — 9.50
CK5A/CK5BT042 33,400 TDR 10.50 10.50 — 9.50
CK5A/CK5BW036 33,400 TDR 10.50 10.50 — 9.45
COILS + 58MVP100-20 VARIABLE-SPEED FURNACE
CC5A/CD5AA042 33,400 TDR 10.50 10.50 — 9.65
CC5A/CD5AW036 33,400 TDR 10.50 10.50 — 9.55
CC5A/CD5AW042 33,200 TDR 10.50 10.50 — 9.60
CE3AA036 32,800 TDR 10.50 10.50 — 9.45
CE3AA042 33,400 TDR 10.50 10.50 — 9.70
CK3BA042 33,400 TDR 10.50 10.50 — 9.70
CK5A/CK5BA042 33,400 TDR 10.50 10.50 — 9.70
CK5A/CK5BT042 33,400 TDR 10.50 10.50 — 9.70
CK5A/CK5BW036 33,400 TDR 10.50 10.50 — 9.70
COILS + 58MVP120-20 VARIABLE-SPEED FURNACE
CC5A/CD5AA042 33,400 TDR 10.50 10.50 — 9.65
CC5A/CD5AW036 33,400 TDR 10.50 10.50 — 9.55
CC5A/CD5AW042 33,200 TDR 10.50 10.50 — 9.60
CE3AA036 33,000 TDR 10.50 10.50 — 9.45
CE3AA042 33,400 TDR 10.50 10.50 — 9.70
CK5A/CK5BA042 33,400 TDR 10.50 10.50 — 9.70
CK5A/CK5BT042 33,400 TDR 10.50 10.50 — 9.70
CK5A/CK5BW036 33,400 TDR 10.50 10.50 — 9.65
042-35, 55, 62
(1 & 3 Phase)
*CC5A/CD5AA042 40,000 NONE 10.00 10.10 10.10 9.00
CC5A/CD5AC048 39,500 NONE 10.00 10.10 10.10 8.95
CC5A/CD5AW048 40,000 NONE 10.00 10.10 10.10 9.00
CD5AA048 40,000 NONE 10.00 10.10 10.10 9.00
CE3AA042 39,500 NONE 10.00 10.10 10.10 9.05
CE3AA048 40,500 NONE 10.00 10.10 10.10 9.10
CK3BA042 40,000 NONE 10.00 10.10 10.10 9.00
CK3BA048 40,000 NONE 10.00 10.10 10.10 9.05
CK5A/CK5BA042 40,000 NONE 10.00 10.10 10.10 9.00
CK5A/CK5BA048 40,000 NONE 10.00 10.10 10.10 9.50
CK5A/CK5BE042 39,000 NONE 10.00 10.10 10.10 9.05
CK5A/CK5BT042 40,000 NONE 10.00 10.10 10.10 9.00
CK5A/CK5BT048 40,000 NONE 10.00 10.10 10.10 9.50
CK5A/CK5BW048 40,000 NONE 10.00 10.10 10.10 9.05
F(A,B)4(A,B)N(F,B,C)042 40,000 TDR 10.00 10.00 — 8.90
F(A,B)4(A,B)N(F,B,C)048 41,000 TDR 10.00 10.00 — 9.00
FC4(B,C)N(F,B)042 40,000 TDR&TXV 10.00 — — 8.90
FC4(B,C)N(F,B)048 41,000 TDR&TXV 10.10 — — 9.00
FC4(B,C)NB054 41,500 TDR&TXV 10.50 — — 9.45
FG3AAA048 40,000 NONE 10.00 10.10 10.10 9.00
FK4(C,D)NB006 41,500 TDR&TXV 11.00 — — 10.15
FK4(C,D)NF003 40,000 TDR&TXV 10.50 — — 9.60
FK4(C,D)NF005 41,000 TDR&TXV 11.00 — — 9.95
COILS + 58CV(A,X)090-16 VARIABLE-SPEED FURNACE
CC5A/CD5AA042 40,000 TDR 10.50 10.50 — 9.45
CC5A/CD5AC048 39,500 TDR 10.50 10.50 — 9.50
CD5AA048 40,000 TDR 10.50 10.50 — 9.60
CE3AA042 40,000 TDR 10.50 10.50 — 9.50
CE3AA048 40,500 TDR 10.50 10.50 — 9.55
CK3BA042 40,000 TDR 10.50 10.50 — 9.50
CK3BA048 40,500 TDR 10.50 10.50 — 9.55
CK5A/CK5BA042 40,000 TDR 10.50 10.50 — 9.50
CK5A/CK5BA048 40,500 TDR 10.50 10.50 — 9.55
CK5A/CK5BE042 40,000 TDR 10.50 10.50 — 9.55
CK5A/CK5BT042 40,000 TDR 10.50 10.50 — 9.50
CK5A/CK5BT048 40,500 TDR 10.50 10.50 — 9.55
COILS + 58CV(A,X)110-22 VARIABLE-SPEED FURNACE
CC5A/CD5AA042 40,000 TDR 10.50 10.50 — 9.55
CC5A/CD5AC048 39,500 TDR 10.50 10.50 — 9.60
CC5A/CD5AW042 40,000 TDR 10.50 10.50 — 9.50
CC5A/CD5AW048 40,500 TDR 10.50 10.50 — 9.65
CD5AA048 40,500 TDR 10.50 10.50 — 9.65
CE3AA042 40,000 TDR 10.50 10.50 — 9.60
CE3AA048 40,500 TDR 10.50 10.50 — 9.65
CK3BA042 40,000 TDR 10.50 10.50 — 9.60
CK3BA048 40,500 TDR 10.50 10.50 — 9.65
CK5A/CK5BA042 40,000 TDR 10.50 10.50 — 9.60
CK5A/CK5BA048 40,500 TDR 10.50 10.50 — 9.65
CK5A/CK5BT042 40,000 TDR 10.50 10.50 — 9.60
CK5A/CK5BT048 40,500 TDR 10.50 10.50 — 9.65
CK5A/CK5BW048 40,500 TDR 10.50 10.50 — 9.65
UNIT
SIZE-SERIES
INDOOR
MODEL
TOTAL
CAPACITY
BTUH
FACTORY-
SUPPLIED
ENHANCE-
MENT
SEER
EER
STANDARD
RATING
ACCESSORY
TXV‡
CARRIER GAS
FURNACE OR
TDR†
Combination ratings
See notes on page 18.
16
042-35, 55, 62
(1 & 3 Phase)
COILS + 58CV(A,X)135-22 VARIABLE-SPEED FURNACE
CC5A/CD5AA042 40,000 TDR 10.50 10.50 — 9.55
CC5A/CD5AC048 39,500 TDR 10.50 10.50 — 9.60
CC5A/CD5AW042 40,000 TDR 10.50 10.50 — 9.50
CC5A/CD5AW048 40,500 TDR 10.50 10.50 — 9.70
CD5AA048 40,500 TDR 10.50 10.50 — 9.70
CE3AA042 40,000 TDR 10.50 10.50 — 9.60
CE3AA048 40,500 TDR 10.50 10.50 — 9.60
CK3BA042 40,000 TDR 10.50 10.50 — 9.60
CK3BA048 40,500 TDR 10.50 10.50 — 9.70
CK5A/CK5BA042 40,000 TDR 10.50 10.50 — 9.60
CK5A/CK5BA048 40,500 TDR 10.50 10.50 — 9.70
CK5A/CK5BT042 40,000 TDR 10.50 10.50 — 9.60
CK5A/CK5BT048 40,500 TDR 10.50 10.50 — 9.70
CK5A/CK5BW048 40,500 TDR 10.50 10.50 — 9.70
COILS + 58CV(A,X)155-22 VARIABLE-SPEED FURNACE
CC5A/CD5AA042 40,000 TDR 10.50 10.50 — 9.60
CC5A/CD5AC048 39,500 TDR 10.50 10.50 — 9.60
CC5A/CD5AW042 40,000 TDR 10.50 10.50 — 9.55
CC5A/CD5AW048 40,500 TDR 10.50 10.50 — 9.70
CD5AA048 40,500 TDR 10.50 10.50 — 9.70
CE3AA042 40,000 TDR 10.50 10.50 — 9.65
CE3AA048 40,500 TDR 10.50 10.50 — 9.65
CK3BA042 40,000 TDR 10.50 10.50 — 9.60
CK3BA048 40,500 TDR 10.50 10.50 — 9.70
CK5A/CK5BA042 40,000 TDR 10.50 10.50 — 9.60
CK5A/CK5BA048 40,500 TDR 10.50 10.50 — 9.70
CK5A/CK5BT042 40,000 TDR 10.50 10.50 — 9.60
CK5A/CK5BT048 40,500 TDR 10.50 10.50 — 9.70
CK5A/CK5BW048 40,500 TDR 10.50 10.50 — 9.70
COILS + 58MVP060-14 VARIABLE-SPEED FURNACE
CK3BA042 40,000 TDR 10.50 10.50 — 9.30
COILS + 58MVP080-14 VARIABLE-SPEED FURNACE
CC5A/CD5AA042 40,000 TDR 10.50 10.50 — 9.30
CC5A/CD5AC048 40,000 TDR 10.70 10.70 — 9.45
CK3BA042 40,000 TDR 10.50 10.50 — 9.40
CK3BA048 40,000 TDR 10.70 10.70 — 9.50
CK5A/CK5BA042 40,000 TDR 10.50 10.50 — 9.40
CK5A/CK5BA048 40,000 TDR 10.70 10.70 — 9.50
CK5A/CK5BT042 40,000 TDR 10.50 10.50 — 9.40
CK5A/CK5BT048 40,000 TDR 10.70 10.70 — 9.50
COILS + 58MVP080-20 VARIABLE-SPEED FURNACE
CK3BA042 40,000 TDR 10.50 10.50 — 9.30
CK3BA048 40,000 TDR 10.70 10.70 — 9.40
CK5A/CK5BA042 40,000 TDR 10.50 10.50 — 9.30
CK5A/CK5BA048 40,000 TDR 10.70 10.70 — 9.40
CK5A/CK5BT042 40,000 TDR 10.50 10.50 — 9.30
CK5A/CK5BT048 40,000 TDR 10.70 10.70 — 9.40
COILS + 58MVP100-20 VARIABLE-SPEED FURNACE
CC5A/CD5AA042 40,000 TDR 10.50 10.50 — 9.45
CC5A/CD5AC048 40,000 TDR 10.70 10.70 — 9.45
CK3BA042 40,000 TDR 10.50 10.50 — 9.55
CK3BA048 40,000 TDR 10.70 10.70 — 9.65
CK5A/CK5BA042 40,000 TDR 10.50 10.50 — 9.55
CK5A/CK5BA048 40,000 TDR 10.70 10.70 — 9.65
CK5A/CK5BT042 40,000 TDR 10.50 10.50 — 9.55
CK5A/CK5BT048 40,000 TDR 10.70 10.70 — 9.65
COILS + 58MVP120-20 VARIABLE-SPEED FURNACE
CK3BA042 40,000 TDR 10.50 10.50 — 9.55
CK3BA048 40,000 TDR 10.70 10.70 — 9.60
CK5A/CK5BA042 40,000 TDR 10.50 10.50 — 9.55
CK5A/CK5BT042 40,000 TDR 10.50 10.50 — 9.55
CK5A/CK5BW048 40,000 TDR 10.70 10.70 — 9.60
048-37, 57, 67
*CD5AA048 46,000 NONE 10.00 10.20 10.20 9.25
CC5A/CD5AA060 46,500 NONE 10.00 10.20 10.20 9.25
CC5A/CD5AC048 45,000 NONE — 10.00 10.00 9.20
CC5A/CD5AW048 46,000 NONE 10.00 10.20 10.20 9.25
CC5A/CD5AW060 47,000 NONE 10.00 10.50 10.50 9.40
CE3AA048 46,000 NONE 10.00 10.20 10.20 9.35
CE3AA060 47,000 NONE 10.00 10.50 10.50 9.45
CF5AA048 46,000 NONE 10.00 10.20 10.20 9.30
CK3BA048 46,000 NONE 10.00 10.20 10.20 9.25
CK3BA060 47,000 NONE 10.00 10.50 10.50 9.45
CK5A/CK5BA048 46,000 NONE 10.00 10.20 10.20 9.25
CK5A/CK5BA060 47,000 NONE 10.00 10.50 10.50 9.45
CK5A/CK5BT048 46,000 NONE 10.00 10.20 10.20 9.25
CK5A/CK5BT060 47,000 NONE 10.00 10.50 10.50 9.45
CK5A/CK5BW048 46,000 NONE 10.00 10.20 10.20 9.25
CK5A/CK5BX060 47,000 NONE 10.00 10.50 10.50 9.55
UNIT
SIZE-SERIES
INDOOR
MODEL
TOTAL
CAPACITY
BTUH
FACTORY-
SUPPLIED
ENHANCE-
MENT
SEER
EER
STANDARD
RATING
ACCESSORY
TXV‡
CARRIER GAS
FURNACE OR
TDR†
Combination ratings
See notes on page 18.
17
048-37, 57, 67
F(A,B)4BN(F,B,C)048 46,500 TDR 10.00 10.00 — 9.20
F(A,B)4BN(F,B,C)060 48,000 TDR 10.00 10.00 — 9.20
FB4BNB070 49,000 TDR 10.50 10.50 — 9.50
FC4CN(F,B)048 46,500 TDR&TXV 10.00 — — 9.25
FC4CN(F,B)060 48,000 TDR&TXV 10.00 — — 9.30
FC4CNB054 48,500 TDR&TXV 10.50 — — 9.60
FC4CNB070 49,000 TDR&TXV 10.50 — — 9.55
FG3AAA048 46,000 NONE — 10.00 10.00 9.20
FG3AAA060 47,000 NONE — 10.00 10.00 9.35
FK4DNB006 48,500 TDR&TXV 11.50 — — 10.40
FK4DNF005 47,500 TDR&TXV 11.00 — — 10.15
COILS + 58CV(A,X)090-16 VARIABLE-SPEED FURNACE
CC5A/CD5AC048 45,000 TDR 10.50 10.50 — 9.45
CD5AA048 45,500 TDR 10.50 10.50 — 9.60
CE3AA048 45,500 TDR 10.50 10.50 — 9.60
CE3AA060 46,500 TDR 10.50 10.50 — 9.80
CK3BA048 45,500 TDR 10.50 10.50 — 9.60
CK5A/CK5BA048 45,500 TDR 10.50 10.50 — 9.60
CK5A/CK5BT048 45,500 TDR 10.50 10.50 — 9.60
COILS + 58CV(A,X)110-20 VARIABLE-SPEED FURNACE
CC5A/CD5AA060 46,000 TDR 10.50 10.50 — 9.65
CC5A/CD5AC048 45,000 TDR 10.50 10.50 — 9.50
CC5A/CD5AW048 45,500 TDR 10.50 10.50 — 9.65
CD5AA048 45,500 TDR 10.50 10.50 — 9.60
CE3AA048 45,500 TDR 10.50 10.50 — 9.65
CE3AA060 46,500 TDR 10.50 10.50 — 9.85
CK3BA048 45,500 TDR 10.50 10.50 — 9.65
CK3BA060 46,500 TDR 11.00 11.00 — 9.90
CK5A/CK5BA048 45,500 TDR 10.50 10.50 — 9.65
CK5A/CK5BA060 46,500 TDR 11.00 11.00 — 9.90
CK5A/CK5BT048 45,500 TDR 10.50 10.50 — 9.65
CK5A/CK5BT060 46,500 TDR 11.00 11.00 — 9.90
CK5A/CK5BW048 45,500 TDR 10.50 10.50 — 9.70
CK5A/CK5BX060 47,000 TDR 11.00 11.00 — 9.95
COILS + 58CV(A,X)135-22 VARIABLE-SPEED FURNACE
CC5A/CD5AA060 46,000 TDR 10.50 10.50 — 9.75
CC5A/CD5AC048 45,000 TDR 10.50 10.50 — 9.60
CC5A/CD5AW048 45,500 TDR 10.50 10.50 — 9.75
CD5AA048 45,500 TDR 10.50 10.50 — 9.70
CE3AA048 45,500 TDR 10.50 10.50 — 9.75
CE3AA060 46,500 TDR 10.50 10.50 — 10.00
CK3BA048 45,500 TDR 10.50 10.50 — 9.75
CK3BA060 46,500 TDR 11.00 11.00 — 10.00
CK5A/CK5BA048 45,500 TDR 10.50 10.50 — 9.75
CK5A/CK5BA060 46,500 TDR 11.00 11.00 — 10.00
CK5A/CK5BT048 45,500 TDR 10.50 10.50 — 9.75
CK5A/CK5BT060 46,500 TDR 11.00 11.00 — 10.00
CK5A/CK5BW048 45,500 TDR 10.50 10.50 — 9.80
CK5A/CK5BX060 47,000 TDR 11.00 11.00 — 10.05
COILS + 58CV(A,X)155-22 VARIABLE-SPEED FURNACE
CC5A/CD5AA060 46,000 TDR 10.50 10.50 — 9.85
CC5A/CD5AC048 45,000 TDR 10.50 10.50 — 9.65
CC5A/CD5AW048 45,500 TDR 10.50 10.50 — 9.80
CD5AA048 45,500 TDR 10.50 10.50 — 9.80
CE3AA048 45,500 TDR 10.50 10.50 — 9.80
CE3AA060 46,500 TDR 10.50 10.50 — 10.05
CK3BA048 45,500 TDR 10.50 10.50 — 9.85
CK3BA060 46,500 TDR 11.00 11.00 — 10.05
CK5A/CK5BA048 45,500 TDR 10.50 10.50 — 9.80
CK5A/CK5BA060 46,500 TDR 11.00 11.00 — 10.05
CK5A/CK5BT048 45,500 TDR 10.50 10.50 — 9.80
CK5A/CK5BT060 46,500 TDR 11.00 11.00 — 10.05
CK5A/CK5BW048 45,500 TDR 10.50 10.50 — 9.90
CK5A/CK5BX060 47,000 TDR 11.00 11.00 — 10.15
COILS + 58MVP080-20 VARIABLE-SPEED FURNACE
CC5A/CD5AA060 45,500 TDR 10.50 10.50 — 9.50
CC5A/CD5AC048 44,500 TDR 10.50 10.50 — 9.35
CC5A/CD5AW048 45,500 TDR 10.50 10.50 — 9.50
CD5AA048 45,500 TDR 10.50 10.50 — 9.50
CE3AA048 45,500 TDR 10.50 10.50 — 9.50
CE3AA060 46,500 TDR 10.50 10.50 — 9.70
CK3BA048 45,000 TDR 10.50 10.50 — 9.50
CK3BA060 46,500 TDR 10.50 10.50 — 9.75
CK5A/CK5BA048 45,500 TDR 10.50 10.50 — 9.50
CK5A/CK5BA060 46,500 TDR 10.50 10.50 — 9.75
CK5A/CK5BT048 45,500 TDR 10.50 10.50 — 9.50
CK5A/CK5BT060 46,500 TDR 10.50 10.50 — 9.75
CK5A/CK5BW048 45,500 TDR 10.50 10.50 — 9.55
CK5A/CK5BX060 47,000 TDR 10.50 10.50 — 9.80
UNIT
SIZE-SERIES
INDOOR
MODEL
TOTAL
CAPACITY
BTUH
FACTORY-
SUPPLIED
ENHANCE-
MENT
SEER
EER
STANDARD
RATING
ACCESSORY
TXV‡
CARRIER GAS
FURNACE OR
TDR†
Combination ratings
See notes on page 18.
18
*Tested combination.
† In most cases, only 1 method should be used to achieve TDR function. Using more than 1 method in a system may cause degradation in perfor-
mance. Use either the accessory Time-Delay Relay KAATD0101TDR or a furnace equipped with TDR. Most Carrier furnaces are equipped with
TDR.
‡ TXV must be hard shutoff type, based on computer simulation.
NOTES: 1. Ratings are net values reflecting the effects of circulating fan motor heat. Supplemental electric heat is not included.
2. Tested outdoor/indoor combinations have been tested in accordance with DOE test procedures for central air conditioners. Ratings for
other combinations are determined under DOE computer simulation procedures.
3. Determine actual CFM values obtainable for your system by referring to fan performance data in fan coil or furnace coil literature.
4. Minimum outdoor operating ambient in cooling mode is 55°F (12.8°C), maximum 125°F (51.7°C).
048-37, 57, 67
COILS + 58MVP100-20 VARIABLE-SPEED FURNACE
CC5A/CD5AA060 45,500 TDR 10.50 10.50 — 9.55
CC5A/CD5AC048 44,500 TDR 10.50 10.50 — 9.40
CC5A/CD5AW048 45,500 TDR 10.50 10.50 — 9.55
CD5AA048 45,500 TDR 10.50 10.50 — 9.55
CE3AA048 45,500 TDR 10.50 10.50 — 9.55
CE3AA060 46,500 TDR 10.50 10.50 — 9.80
CK3BA048 45,000 TDR 10.50 10.50 — 9.55
CK3BA060 46,500 TDR 10.50 10.50 — 9.80
CK5A/CK5BA048 45,500 TDR 10.50 10.50 — 9.55
CK5A/CK5BA060 46,500 TDR 10.50 10.50 — 9.80
CK5A/CK5BT048 45,500 TDR 10.50 10.50 — 9.55
CK5A/CK5BT060 46,500 TDR 10.50 10.50 — 9.80
CK5A/CK5BW048 45,500 TDR 10.50 10.50 — 9.60
CK5A/CK5BX060 47,000 TDR 10.50 10.50 — 9.85
COILS + 58MVP120-20 VARIABLE-SPEED FURNACE
CC5A/CD5AA060 45,500 TDR 10.50 10.50 — 9.60
CC5A/CD5AC048 44,500 TDR 10.50 10.50 — 9.45
CC5A/CD5AW048 45,500 TDR 10.50 10.50 — 9.55
CD5AA048 45,500 TDR 10.50 10.50 — 9.55
CE3AA048 45,500 TDR 10.50 10.50 — 9.60
CE3AA060 46,500 TDR 10.50 10.50 — 9.80
CK3BA048 45,000 TDR 10.50 10.50 — 9.60
CK3BA060 46,500 TDR 10.50 10.50 — 9.80
CK5A/CK5BA048 45,500 TDR 10.50 10.50 — 9.60
CK5A/CK5BA060 46,500 TDR 10.50 10.50 — 9.80
CK5A/CK5BT048 45,500 TDR 10.50 10.50 — 9.60
CK5A/CK5BT060 46,500 TDR 10.50 10.50 — 9.80
CK5A/CK5BW048 45,500 TDR 10.50 10.50 — 9.65
CK5A/CK5BX060 47,000 TDR 10.50 10.50 — 9.90
060-37, 57, 67
*CC5A/CD5AW060 57,000 NONE 10.00 10.20 10.20 9.20
CC5A/CD5AA060 55,000 NONE 10.00 10.20 10.20 9.05
CE3AA060 57,000 NONE 10.20 10.50 10.50 9.30
CK3BA060 56,000 NONE 10.00 10.20 10.20 9.15
CK5A/CK5BA060 56,000 NONE 10.00 10.20 10.20 9.15
CK5A/CK5BT060 56,000 NONE 10.00 10.20 10.20 9.15
CK5A/CK5BX060 58,000 NONE 10.20 10.50 10.50 9.35
F(A,B)4(A,B)N(F,B,C)060 57,500 TDR 10.00 10.00 — 8.95
FB4(A,B)NB070 58,000 TDR 10.50 10.50 — 9.30
FC4(B,C)N(F,B)060 57,500 TDR&TXV 10.00 — — 8.95
FC4(B,C)NB070 58,000 TDR&TXV 10.50 — — 9.30
FG3AAA060 56,500 NONE 10.00 — — 9.15
FK4(C,D)NB006 58,000 TDR&TXV 11.00 — — 9.75
COILS + 58CV(A,X)110-22 VARIABLE-SPEED FURNACE
CC5A/CD5AA060 55,000 TDR 10.50 10.50 — 9.30
CE3AA060 56,000 TDR 10.50 10.50 — 9.55
CK3BA060 56,000 TDR 10.50 10.50 — 9.40
CK5A/CK5BA060 56,000 TDR 10.50 10.50 — 9.40
CK5A/CK5BT060 56,000 TDR 10.50 10.50 — 9.40
CK5A/CK5BX060 57,000 TDR 10.50 10.50 — 9.70
COILS + 58CV(A,X)135-22 VARIABLE-SPEED FURNACE
CC5A/CD5AA060 55,000 TDR 10.50 10.50 — 9.25
CC5A/CD5AW060 56,000 TDR 10.50 10.50 — 9.50
CE3AA060 56,000 TDR 10.50 10.50 — 9.55
CK3BA060 56,000 TDR 10.50 10.50 — 9.40
CK5A/CK5BA060 56,000 TDR 10.50 10.50 — 9.40
CK5A/CK5BT060 56,000 TDR 10.50 10.50 — 9.40
CK5A/CK5BX060 57,000 TDR 10.50 10.50 — 9.70
COILS + 58CV(A,X)155-22 VARIABLE-SPEED FURNACE
CC5A/CD5AA060 55,000 TDR 10.50 10.50 — 9.35
CC5A/CD5AW060 56,000 TDR 10.50 10.50 — 9.50
CE3AA060 56,000 TDR 10.50 10.50 — 9.60
CK3BA060 56,000 TDR 10.50 10.50 — 9.45
CK5A/CK5BA060 56,000 TDR 10.50 10.50 — 9.45
CK5A/CK5BT060 56,000 TDR 10.50 10.50 — 9.45
CK5A/CK5BX060 57,000 TDR 10.50 10.50 — 9.75
UNIT
SIZE-SERIES
INDOOR
MODEL
TOTAL
CAPACITY
BTUH
FACTORY-
SUPPLIED
ENHANCE-
MENT
SEER
EER
STANDARD
RATING
ACCESSORY
TXV‡
CARRIER GAS
FURNACE OR
TDR†
Combination ratings
19
Detailed cooling capacities*
See notes on pg. 31.
EVAPORATOR
AIR
CONDENSER ENTERING AIR TEMPERATURES °F
75 85 95 105 115 125
CFM EWB
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
38CKC018-34 Outdoor Section With CC5A/CD5AA018 Indoor Section
525
72 20.25 10.25 1.72 19.55 9.99 1.82 18.70 9.68 1.91 17.66 9.28 2.01 16.52 8.85 2.12 15.29 8.38 2.23
67 18.76 12.50 1.69 17.85 12.14 1.78 16.78 11.71 1.87 15.63 11.22 1.96 14.49 10.74 2.03 13.30 10.25 2.11
62 16.92 14.58 1.66 15.86 14.07 1.74 14.80 13.55 1.80 13.74 13.00 1.87 12.67 12.40 1.94 11.62 11.62 2.02
57 15.57 15.57 1.63 14.83 14.83 1.70 14.06 14.06 1.77 13.27 13.27 1.85 12.47 12.47 1.93 11.63 11.63 2.02
600
72 20.51 10.51 1.76 19.85 10.31 1.85 19.04 10.05 1.95 18.02 9.70 2.05 16.87 9.29 2.16 15.62 8.83 2.27
67 19.17 13.10 1.73 18.26 12.79 1.82 17.20 12.41 1.91 16.02 11.93 2.01 14.82 11.44 2.08 13.58 10.95 2.16
62 17.38 15.51 1.69 16.29 15.01 1.78 15.20 14.44 1.85 14.12 13.82 1.92 13.06 13.06 1.99 12.18 12.18 2.08
57 16.33 16.33 1.68 15.55 15.55 1.76 14.73 14.73 1.83 13.91 13.91 1.91 13.06 13.06 1.99 12.18 12.18 2.08
675
72 20.68 10.74 1.79 20.07 10.58 1.89 19.22 10.34 1.99 18.30 10.08 2.09 17.14 9.69 2.20 15.88 9.26 2.31
67 19.46 13.63 1.77 18.57 13.39 1.85 17.54 13.08 1.95 16.35 12.64 2.05 15.08 12.13 2.13 13.80 11.61 2.21
62 17.74 16.35 1.73 16.67 15.86 1.82 15.57 15.24 1.90 14.48 14.48 1.97 13.57 13.57 2.05 12.67 12.67 2.14
57 17.00 17.00 1.72 16.18 16.18 1.81 15.34 15.34 1.89 14.46 14.46 1.97 13.58 13.58 2.05 12.68 12.68 2.14
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Cooling Indoor
Section Size
Cooling
Capacity Power Capacity Power
CC5A/CD5AA 018 1.00 1.00 COILS + 58CV(A,X)070-12 VARIABLE SPEED FURNACE
024 1.03 1.01 CC5A/CD5AA 018 1.00 0.92
CC5A/CD5AW 024 1.03 1.01 024 1.03 0.92
CE3AA 024 1.03 1.00 CC5A/CD5AW 024 1.03 0.92
CF5AA 024 1.04 1.00 CE3AA 024 1.03 0.92
CK3BA 024 1.03 0.99 CK3BA 024 1.03 0.90
CK5A/CK5BA 018 1.00 0.98 CK5A/CK5BA 018 1.00 0.90
024 1.03 0.99 024 1.03 0.90
CK5A/CK5BW 024 1.03 0.99 CK5A/CK5BW 024 1.03 0.90
F(A,B)4(A,B)N(F,C) 018 1.00 0.99 COILS + 58MVP060-14 VARIABLE SPEED FURNACE
024 1.03 0.99 CC5A/CD5AW 024 1.03 0.92
FC4(B,C)NF 024 1.03 0.98 CE3AA 024 1.03 0.92
FF1DNA 018 1.00 0.97 CK5A/CK5BW 024 1.03 0.91
024 1.03 1.00 COILS + 58MVP080-14 VARIABLE SPEED FURNACE
FG3AAA 024 1.03 1.01 CC5A/CD5AW 024 1.03 0.92
FK4(C,D)NF 001 1.03 0.89 CE3AA 024 1.03 0.92
002 1.05 0.89 — — —
20
Detailed cooling capacities* continued
See notes on pg. 31.
EVAPORATOR
AIR
CONDENSER ENTERING AIR TEMPERATURES °F
75 85 95 105 115 125
CFM EWB
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
38CKC024-34 Outdoor Section With CC5A/CD5AA024 Indoor Section
700
72 27.56 13.98 2.36 26.79 13.73 2.50 25.66 13.32 2.63 24.29 12.81 2.77 22.79 12.23 2.92 21.18 11.61 3.06
67 25.58 17.14 2.31 24.41 16.70 2.44 22.96 16.11 2.57 21.42 15.44 2.67 19.89 14.81 2.77 18.36 14.19 2.88
62 23.04 20.01 2.26 21.61 19.33 2.36 20.18 18.62 2.45 18.74 17.87 2.54 17.29 17.12 2.64 16.06 16.06 2.76
57 21.28 21.28 2.21 20.30 20.30 2.31 19.24 19.24 2.41 18.17 18.17 2.51 17.12 17.12 2.63 16.06 16.06 2.76
800
72 27.93 14.38 2.41 27.24 14.21 2.55 26.16 13.87 2.69 24.83 13.41 2.83 23.34 12.89 2.98 21.69 12.28 3.13
67 26.14 18.01 2.37 25.01 17.68 2.49 23.60 17.15 2.62 22.02 16.51 2.75 20.39 15.85 2.85 18.80 15.22 2.96
62 23.70 21.37 2.31 22.24 20.69 2.43 20.80 19.92 2.52 19.25 19.25 2.61 17.98 17.98 2.72 16.89 16.89 2.85
57 22.42 22.42 2.29 21.35 21.35 2.39 20.25 20.25 2.49 19.13 19.13 2.60 17.99 17.99 2.72 16.90 16.90 2.85
900
72 28.17 14.71 2.46 27.53 14.61 2.60 26.50 14.35 2.74 25.21 13.96 2.89 23.73 13.48 3.04 22.08 12.92 3.19
67 26.51 18.75 2.42 25.45 18.56 2.54 24.08 18.11 2.67 22.45 17.51 2.81 20.78 16.84 2.92 19.13 16.17 3.03
62 24.21 22.56 2.36 22.82 21.92 2.48 21.25 21.25 2.58 19.92 19.92 2.69 18.74 18.74 2.80 17.59 17.59 2.93
57 23.35 23.35 2.34 22.25 22.25 2.47 21.12 21.12 2.58 19.93 19.93 2.69 18.75 18.75 2.81 17.60 17.60 2.93
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Cooling Indoor
Section Size
Cooling
Capacity Power Capacity Power
CC5A/CD5AA 024 1.00 1.00 CE3AA 024 1.00 0.92
030 1.01 1.01 030 1.01 0.91
CC5A/CD5AW 024 1.00 1.00 CK3BA 024 1.00 0.91
030 1.01 1.01 030 1.01 0.92
CE3AA 024 1.00 0.99 CK5A/CK5BA 024 1.00 0.91
030 1.01 0.99 030 1.01 0.92
CF5AA 024 1.00 0.99 CK5A/CK5BW 024 1.00 0.91
CK3BA 024 1.00 0.99 030 1.01 0.92
030 1.01 1.00 COILS + 58CV(A,X)060-14 VARIABLE SPEED FURNACE
CK5A/CK5BA 024 1.00 0.99 CC5A/CD5AW 024 0.97 0.91
030 1.01 1.00 030 0.99 0.92
CK5A/CK5BW 024 1.00 0.99 CE3AA 024 0.97 0.91
030 1.01 1.00 030 0.99 0.91
F(A,B)4(A,B)N(F,C) 024 1.00 0.98 CK3BA 024 0.97 0.90
030 1.01 0.98 030 0.99 0.92
FC4(B,C)NF 024 1.00 0.98 CK5A/CK5BW 024 0.97 0.90
030 1.01 0.98 030 0.99 0.92
FF1DNA 024 1.00 1.00 COILS + 58CV(A,X)080-14 VARIABLE SPEED FURNACE
030 1.01 0.99 CC5A/CD5AW 024 0.97 0.90
FG3AAA 024 0.97 0.99 030 0.99 0.91
FK4(C,D)NF 001 1.02 0.92 CE3AA 024 0.97 0.90
002 1.03 0.92 030 0.99 0.90
003 1.03 0.91 CK3BA 024 0.97 0.89
COILS + 58CV(A,X)070-12 VARIABLE SPEED FURNACE 030 0.99 0.90
CC5A/CD5AA 024 1.00 0.92 CK5A/CK5BW 024 0.97 0.89
030 1.01 0.92 030 0.99 0.90
CC5A/CD5AW 024 1.00 0.92 — — —
030 1.01 0.92
21
Detailed cooling capacities* continued
See notes on pg. 31.
EVAPORATOR
AIR
CONDENSER ENTERING AIR TEMPERATURES °F
75 85 95 105 115 125
CFM EWB
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
38CKC030-34 Outdoor Section With CC5A/CD5AA030 Indoor Section
875
72 33.12 17.04 2.80 31.80 16.56 3.00 30.32 16.05 3.20 28.66 15.45 3.40 26.96 14.83 3.61 25.15 14.18 3.81
67 30.61 21.02 2.74 29.09 20.45 2.92 27.43 19.80 3.11 25.72 19.09 3.29 24.01 18.39 3.45 22.20 17.66 3.60
62 27.70 24.74 2.66 26.08 23.95 2.82 24.48 23.12 2.96 22.95 22.28 3.11 21.36 21.36 3.26 19.98 19.98 3.42
57 26.12 26.12 2.61 24.97 24.97 2.77 23.73 23.73 2.92 22.53 22.53 3.09 21.30 21.30 3.25 19.99 19.99 3.42
1000
72 33.58 17.60 2.87 32.26 17.18 3.07 30.80 16.72 3.27 29.15 16.17 3.48 27.39 15.56 3.68 25.53 14.92 3.89
67 31.21 22.14 2.80 29.67 21.62 2.99 28.00 21.03 3.18 26.27 20.38 3.37 24.45 19.64 3.54 22.57 18.88 3.69
62 28.35 26.34 2.73 26.73 25.54 2.91 25.14 24.62 3.06 23.56 23.56 3.21 22.18 22.18 3.37 20.86 20.86 3.55
57 27.35 27.35 2.70 26.07 26.07 2.88 24.80 24.80 3.03 23.53 23.53 3.20 22.19 22.19 3.37 20.87 20.87 3.55
1125
72 33.89 18.07 2.93 32.57 17.70 3.13 31.10 17.30 3.34 29.50 16.82 3.55 27.68 16.23 3.75 25.79 15.61 3.96
67 31.61 23.13 2.87 30.07 22.69 3.06 28.44 22.19 3.25 26.63 21.55 3.44 24.76 20.80 3.62 22.85 20.01 3.77
62 28.88 27.72 2.79 27.25 27.09 2.97 25.72 25.72 3.15 24.33 24.33 3.32 22.97 22.97 3.49 21.56 21.56 3.67
57 28.28 28.28 2.78 27.03 27.03 2.97 25.70 25.70 3.15 24.34 24.34 3.32 22.99 22.99 3.49 21.57 21.57 3.67
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Cooling Indoor
Section Size
Cooling
Capacity Power Capacity Power
CC5A/CD5AA 030 1.00 1.00 CE3AA 030 0.99 0.90
036 1.04 1.01 036 1.02 0.93
CC5A/CD5AW 030 1.00 1.00 CK3BA 030 0.99 0.91
036 1.00 0.98 036 1.02 0.91
CE3AA 030 1.02 1.01 CK5A/CK5BA 030 0.99 0.91
036 1.02 1.00 036 1.02 0.91
CF5AA 036 1.00 0.98 CK5A/CK5BW 030 0.99 0.91
CK3BA 030 1.00 0.99 036 1.02 0.91
036 1.04 1.01 COILS + 58MVP060-14 VARIABLE SPEED FURNACE
CK5A/CK5BA 030 1.00 0.99 CC5A/CD5AA 036 0.99 0.91
036 1.04 1.01 CC5A/CD5AW 030 1.02 0.97
CK5A/CK5BT 036 1.00 0.97 CE3AA 030 1.00 0.94
CK5A/CK5BW 030 1.04 1.03 036 0.99 0.92
036 1.04 1.01 CK3BA 036 1.02 0.95
F(A,B)4(A,B)N(F,C) 030 1.01 1.00 CK5A/CK5BA 036 1.02 0.95
036 1.00 0.99 CK5A/CK5BT 036 0.99 0.91
FC4(B,C)NF 030 1.01 1.00 CK5A/CK5BW 030 1.02 0.98
036 1.00 0.99 COILS + 58MVP080-14 VARIABLE SPEED FURNACE
FF1DNA 030 1.01 1.00 CC5A/CD5AW 030 1.02 0.96
FG3AAA 036 1.04 1.02 036 0.99 0.90
FK4(C,D)NF 001 1.03 0.94 CE3AA 030 1.00 0.93
002 1.06 0.96 036 0.99 0.91
003 1.01 0.90 CK3BA 036 1.02 0.94
005 0.99 0.86 CK5A/CK5BW 030 1.02 0.97
COILS + 58CV(A,X)070-12 VARIABLE SPEED FURNACE 036 0.99 0.90
CC5A/CD5AA 030 0.99 0.92 COILS + 58MVP100-20 VARIABLE SPEED FURNACE
036 1.02 0.93 CC5A/CD5AA 036 1.02 0.94
CC5A/CD5AW 030 0.99 0.92 CC5A/CD5AW 030 1.02 0.96
CE3AA 030 0.99 0.91 036 1.02 0.94
036 1.02 0.94 CE3AA 030 1.00 0.93
CK3BA 030 0.99 0.92 036 0.99 0.91
036 1.02 0.93 CK3BA 030 0.99 0.92
CK5A/CK5BA 030 0.99 0.92 036 1.06 0.96
036 1.02 0.93 CK5A/CK5BA 036 1.02 0.92
CK5A/CK5BT 036 1.02 0.93 CK5A/CK5BT 036 1.02 0.92
CK5A/CK5BW 030 0.99 0.92 CK5A/CK5BW 030 1.02 0.95
COILS + 58CV(A,X)090-16 VARIABLE SPEED FURNACE 036 1.02 0.92
CC5A/CD5AA 030 0.99 0.91 COILS + 58MVP120-20 VARIABLE SPEED FURNACE
036 1.02 0.92 CC5A/CD5AW 036 0.99 0.90
CC5A/CD5AW 030 0.99 0.91 CE3AA 030 1.00 0.93
036 1.02 0.92 CK5A/CK5BW 036 0.99 0.89
22
Detailed cooling capacities* continued
See notes on pg. 31.
EVAPORATOR
AIR
CONDENSER ENTERING AIR TEMPERATURES °F
75 85 95 105 115 125
CFM EWB
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
38CKC030-52 Outdoor Section With CC5A/CD5AA030 Indoor Section
875
72 33.12 17.04 2.80 31.80 16.56 3.00 30.32 16.05 3.20 28.66 15.45 3.40 26.96 14.83 3.61 25.15 14.18 3.81
67 30.61 21.02 2.74 29.09 20.45 2.92 27.43 19.80 3.11 25.72 19.09 3.29 24.01 18.39 3.45 22.20 17.66 3.60
62 27.70 24.74 2.66 26.08 23.95 2.82 24.48 23.12 2.96 22.95 22.28 3.11 21.36 21.36 3.26 19.98 19.98 3.42
57 26.12 26.12 2.61 24.97 24.97 2.77 23.73 23.73 2.92 22.53 22.53 3.09 21.30 21.30 3.25 19.99 19.99 3.42
1000
72 33.58 17.60 2.87 32.26 17.18 3.07 30.80 16.72 3.27 29.15 16.17 3.48 27.39 15.56 3.68 25.53 14.92 3.89
67 31.21 22.14 2.80 29.67 21.62 2.99 28.00 21.03 3.18 26.27 20.38 3.37 24.45 19.64 3.54 22.57 18.88 3.69
62 28.35 26.34 2.73 26.73 25.54 2.91 25.14 24.62 3.06 23.56 23.56 3.21 22.18 22.18 3.37 20.86 20.86 3.55
57 27.35 27.35 2.70 26.07 26.07 2.88 24.80 24.80 3.03 23.53 23.53 3.20 22.19 22.19 3.37 20.87 20.87 3.55
1125
72 33.89 18.07 2.93 32.57 17.70 3.13 31.10 17.30 3.34 29.50 16.82 3.55 27.68 16.23 3.75 25.79 15.61 3.96
67 31.61 23.13 2.87 30.07 22.69 3.06 28.44 22.19 3.25 26.63 21.55 3.44 24.76 20.80 3.62 22.85 20.01 3.77
62 28.88 27.72 2.79 27.25 27.09 2.97 25.72 25.72 3.15 24.33 24.33 3.32 22.97 22.97 3.49 21.56 21.56 3.67
57 28.28 28.28 2.78 27.03 27.03 2.97 25.70 25.70 3.15 24.34 24.34 3.32 22.99 22.99 3.49 21.57 21.57 3.67
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Cooling Indoor
Section Size
Cooling
Capacity Power Capacity Power
CC5A/CD5AA 030 1.00 1.00 CK5A/CK5BA 030 1.00 0.94
036 1.04 0.98 036 1.04 0.95
CC5A/CD5AW 030 1.00 0.97 CK5A/CK5BW 030 1.00 0.94
036 1.04 0.98 036 1.04 0.95
CE3AA 030 0.99 0.99 COILS + 58MVP040-14 VARIABLE SPEED FURNACE
036 1.02 1.00 CC5A/CD5AW 030 1.00 0.92
CF5AA 036 1.03 0.98 036 1.04 0.93
CK3BA 030 1.00 0.97 CK3BA 030 1.00 0.93
036 1.04 0.98 036 1.04 0.93
CK5A/CK5BA 030 1.00 0.97 CK5A/CK5BA 036 1.04 0.93
036 1.04 0.98 CK5A/CK5BT 036 1.04 0.93
CK5A/CK5BT 036 1.04 0.98 CK5A/CK5BW 030 1.00 0.93
CK5A/CK5BW 030 1.00 0.97 036 1.04 0.93
036 1.04 0.98 COILS + 58MVP060-14 VARIABLE SPEED FURNACE
F(A,B)4(A,B)N(F,C) 030 0.99 0.98 CC5A/CD5AA 036 1.04 0.93
036 1.01 1.01 CC5A/CD5AW 030 1.00 0.92
FC4(B,C)NF 030 0.99 0.98 CK3BA 030 1.00 0.92
036 1.01 1.01 036 1.04 0.93
FF1DNA 030 1.00 0.99 CK5A/CK5BA 036 1.04 0.93
FG3AAA 036 1.00 0.99 CK5A/CK5BT 036 1.04 0.93
FK4(C,D)NF 001 1.04 0.95 CK5A/CK5BW 030 1.00 0.92
002 1.04 0.95 COILS + 58MVP080-14 VARIABLE SPEED FURNACE
003 1.05 0.93 CC5A/CD5AA 036 1.04 0.93
005 1.06 0.92 CC5A/CD5AW 030 1.00 0.92
COILS + 58CV(A,X)070-12 VARIABLE SPEED FURNACE 036 1.04 0.93
CC5A/CD5AA 030 1.00 0.95 CK3BA 030 1.00 0.92
036 1.04 0.96 036 1.04 0.92
CC5A/CD5AW 030 1.00 0.95 CK5A/CK5BW 030 1.00 0.92
CE3AA 030 1.00 0.94 036 1.04 0.92
036 1.04 0.97 COILS + 58MVP080-20 VARIABLE SPEED FURNACE
CK3BA 030 1.00 0.95 CK3BA 030 1.00 0.93
036 1.04 0.96 036 1.04 0.93
CK5A/CK5BA 030 1.00 0.95 CK5A/CK5BW 030 1.00 0.93
036 1.04 0.96 036 1.04 0.93
CK5A/CK5BT 036 1.04 0.96 COILS + 58MVP100-20 VARIABLE SPEED FURNACE
CK5A/CK5BW 030 1.00 0.95 CK3BA 030 1.00 0.90
COILS + 58CV(A,X)090-16 VARIABLE SPEED FURNACE 036 1.04 0.90
CC5A/CD5AA 030 1.00 0.94 CK5A/CK5BW 030 1.00 0.90
036 1.04 0.95 036 1.04 0.90
CC5A/CD5AW 030 1.00 0.94 COILS + 58MVP120-20 VARIABLE SPEED FURNACE
036 1.04 0.95 CK3BA 030 1.00 0.91
CE3AA 030 1.00 0.93 036 1.04 0.91
036 1.04 0.96 CK5A/CK5BW 036 1.04 0.91
CK3BA 030 1.00 0.94 — — —
036 1.04 0.95
23
Detailed cooling capacities* continued
See notes on pg. 31.
EVAPORATOR
AIR
CONDENSER ENTERING AIR TEMPERATURES °F
75 85 95 105 115 125
CFM EWB
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
38CKC036-35 Outdoor Section With CC5A/CD5AA036 Indoor Section
1050
72 39.94 20.66 3.29 38.53 20.20 3.54 36.68 19.57 3.78 34.63 18.84 4.04 32.35 18.02 4.31 29.79 17.05 4.56
67 36.96 25.64 3.21 35.15 24.98 3.44 33.06 24.16 3.67 30.86 23.24 3.90 28.56 22.31 4.10 26.07 21.30 4.29
62 33.41 30.21 3.12 31.45 29.25 3.32 29.49 28.24 3.51 27.50 27.12 3.70 25.53 25.53 3.91 23.78 23.78 4.13
57 31.78 31.78 3.08 30.35 30.35 3.28 28.81 28.81 3.47 27.26 27.26 3.69 25.54 25.54 3.91 23.78 23.78 4.13
1200
72 40.47 21.36 3.37 39.07 20.98 3.61 37.28 20.43 3.86 35.27 19.80 4.13 32.89 18.99 4.39 30.32 18.09 4.66
67 37.64 27.06 3.29 35.86 26.50 3.52 33.80 25.78 3.76 31.50 24.87 4.01 29.08 23.89 4.20 26.55 22.86 4.40
62 34.23 32.25 3.20 32.30 31.27 3.42 30.27 30.27 3.61 28.45 28.45 3.82 26.71 26.71 4.04 24.86 24.86 4.27
57 33.28 33.28 3.17 31.73 31.73 3.40 30.16 30.16 3.61 28.46 28.46 3.82 26.72 26.72 4.04 24.86 24.86 4.27
1350
72 40.83 21.96 3.45 39.43 21.67 3.69 37.69 21.21 3.94 35.71 20.68 4.21 33.29 19.90 4.48 30.70 19.04 4.75
67 38.11 28.35 3.37 36.38 27.91 3.59 34.36 27.29 3.84 31.96 26.41 4.08 29.49 25.38 4.30 26.94 24.30 4.50
62 34.91 34.01 3.28 33.08 33.08 3.50 31.24 31.24 3.74 29.49 29.49 3.95 27.70 27.70 4.18 25.73 25.73 4.41
57 34.44 34.44 3.26 32.96 32.96 3.50 31.25 31.25 3.74 29.50 29.50 3.95 27.71 27.71 4.18 25.73 25.73 4.41
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Cooling Indoor
Section Size
Cooling
Capacity Power Capacity Power
CC5A/CD5AA 036 1.00 1.00 CK5A/CK5BA 036 0.99 0.92
042 1.00 1.00 042 0.99 0.92
CC5A/CD5AW 036 1.00 1.00 CK5A/CK5BE 042 0.99 0.91
042 1.00 1.01 CK5A/CK5BT 036 0.99 0.92
CE3AA 036 0.99 1.00 042 0.99 0.92
042 1.00 0.99 CK5A/CK5BW 036 0.99 0.92
CF5AA 036 1.00 1.01 COILS + 58CV(A,X)110-22 VARIABLE SPEED FURNACE
CK3BA 036 1.00 1.00 CC5A/CD5AA 036 0.99 0.92
042 1.00 1.00 042 0.99 0.91
CK5A/CK5BA 036 1.00 1.00 CC5A/CD5AW 036 0.99 0.92
042 1.00 1.00 042 0.99 0.91
CK5A/CK5BT 036 1.00 1.00 CE3AA 036 0.98 0.92
042 1.00 1.00 042 0.99 0.91
CK5A/CK5BW 036 1.00 1.00 CK3BA 036 0.99 0.92
F(A,B)4(A,B)N(F,B,C) 042 1.00 1.01 042 0.99 0.91
F(A,B)4(A,B)N(F,C) 036 0.99 1.02 CK5A/CK5BA 036 0.99 0.92
FC4(B,C)N(F,B) 042 1.00 1.01 042 0.99 0.91
FC4(B,C)NF 036 0.99 1.02 CK5A/CK5BT 036 0.99 0.92
FG3AAA 036 0.98 0.99 042 0.99 0.91
FK4(C,D)NB 006 1.05 0.92 CK5A/CK5BW 036 0.99 0.92
FK4(C,D)NF 001 0.98 0.93 COILS + 58CV(A,X)135-22 VARIABLE SPEED FURNACE
002 0.98 0.94 CC5A/CD5AA 042 0.99 0.91
003 0.99 0.92 CC5A/CD5AW 036 0.99 0.92
005 1.04 0.93 042 0.99 0.92
COILS + 58CV(A,X)070-12 VARIABLE SPEED FURNACE CE3AA 036 0.98 0.92
CC5A/CD5AA 036 0.99 0.94 042 0.99 0.91
CE3AA 036 0.98 0.93 CK3BA 042 0.99 0.92
042 0.99 0.93 CK5A/CK5BA 042 0.99 0.92
CK3BA 036 0.99 0.94 CK5A/CK5BT 042 0.99 0.92
CK5A/CK5BA 036 0.99 0.94 CK5A/CK5BW 036 0.99 0.92
CK5A/CK5BE 042 0.99 0.93 COILS + 58CV(A,X)155-22 VARIABLE SPEED FURNACE
CK5A/CK5BT 036 0.99 0.94 CC5A/CD5AA 042 0.99 0.90
COILS + 58CV(A,X)090-16 VARIABLE SPEED FURNACE CC5A/CD5AW 036 0.99 0.92
CC5A/CD5AA 036 0.99 0.93 042 0.99 0.91
042 0.99 0.92 CE3AA 036 0.98 0.92
CC5A/CD5AW 036 0.99 0.93 042 0.99 0.91
CE3AA 036 0.98 0.92 CK3BA 042 0.99 0.91
042 0.99 0.92 CK5A/CK5BA 042 0.99 0.91
CK3BA 036 0.99 0.92 CK5A/CK5BT 042 0.99 0.91
042 0.99 0.92 CK5A/CK5BW 036 0.99 0.92
24
Detailed cooling capacities* continued
See notes on pg. 31.
EVAPORATOR
AIR
CONDENSER ENTERING AIR TEMPERATURES °F
75 85 95 105 115 125
CFM EWB
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
38CKC036-35 Outdoor Section With CC5A/CD5AA036 Indoor Section continued
1050
72 39.94 20.66 3.29 38.53 20.20 3.54 36.68 19.57 3.78 34.63 18.84 4.04 32.35 18.02 4.31 29.79 17.05 4.56
67 36.96 25.64 3.21 35.15 24.98 3.44 33.06 24.16 3.67 30.86 23.24 3.90 28.56 22.31 4.10 26.07 21.30 4.29
62 33.41 30.21 3.12 31.45 29.25 3.32 29.49 28.24 3.51 27.50 27.12 3.70 25.53 25.53 3.91 23.78 23.78 4.13
57 31.78 31.78 3.08 30.35 30.35 3.28 28.81 28.81 3.47 27.26 27.26 3.69 25.54 25.54 3.91 23.78 23.78 4.13
1200
72 40.47 21.36 3.37 39.07 20.98 3.61 37.28 20.43 3.86 35.27 19.80 4.13 32.89 18.99 4.39 30.32 18.09 4.66
67 37.64 27.06 3.29 35.86 26.50 3.52 33.80 25.78 3.76 31.50 24.87 4.01 29.08 23.89 4.20 26.55 22.86 4.40
62 34.23 32.25 3.20 32.30 31.27 3.42 30.27 30.27 3.61 28.45 28.45 3.82 26.71 26.71 4.04 24.86 24.86 4.27
57 33.28 33.28 3.17 31.73 31.73 3.40 30.16 30.16 3.61 28.46 28.46 3.82 26.72 26.72 4.04 24.86 24.86 4.27
1350
72 40.83 21.96 3.45 39.43 21.67 3.69 37.69 21.21 3.94 35.71 20.68 4.21 33.29 19.90 4.48 30.70 19.04 4.75
67 38.11 28.35 3.37 36.38 27.91 3.59 34.36 27.29 3.84 31.96 26.41 4.08 29.49 25.38 4.30 26.94 24.30 4.50
62 34.91 34.01 3.28 33.08 33.08 3.50 31.24 31.24 3.74 29.49 29.49 3.95 27.70 27.70 4.18 25.73 25.73 4.41
57 34.44 34.44 3.26 32.96 32.96 3.50 31.25 31.25 3.74 29.50 29.50 3.95 27.71 27.71 4.18 25.73 25.73 4.41
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Cooling Indoor
Section Size
Cooling
Capacity Power Capacity Power
COILS + 58MVP060-14 VARIABLE SPEED FURNACE CK3BA 042 0.99 0.94
CC5A/CD5AA 036 0.99 0.94 CK5A/CK5BA 042 0.99 0.94
CE3AA 036 0.97 0.93 CK5A/CK5BT 042 0.99 0.94
042 0.99 0.93 CK5A/CK5BW 036 0.99 0.94
CK3BA 036 0.99 0.94 COILS + 58MVP100-20 VARIABLE SPEED FURNACE
CK5A/CK5BA 036 0.99 0.94 CC5A/CD5AA 042 0.99 0.92
CK5A/CK5BT 036 0.99 0.94 CC5A/CD5AW 036 0.99 0.93
COILS + 58MVP080-14 VARIABLE SPEED FURNACE 042 0.98 0.92
CC5A/CD5AA 042 0.99 0.93 CE3AA 036 0.97 0.92
CC5A/CD5AW 036 0.99 0.93 042 0.99 0.92
042 0.98 0.93 CK3BA 042 0.99 0.92
CE3AA 036 0.97 0.92 CK5A/CK5BA 042 0.99 0.92
042 0.96 0.89 CK5A/CK5BT 042 0.99 0.92
CK3BA 042 0.99 0.93 CK5A/CK5BW 036 0.99 0.92
CK5A/CK5BA 042 0.99 0.93 COILS + 58MVP120-20 VARIABLE SPEED FURNACE
CK5A/CK5BT 042 0.99 0.93 CC5A/CD5AA 042 0.99 0.92
CK5A/CK5BW 036 0.99 0.93 CC5A/CD5AW 036 0.99 0.93
COILS + 58MVP080-20 VARIABLE SPEED FURNACE 042 0.98 0.92
CC5A/CD5AA 042 0.99 0.94 CE3AA 036 0.98 0.93
CC5A/CD5AW 036 0.99 0.93 042 0.99 0.92
042 0.98 0.92 CK5A/CK5BA 042 0.99 0.92
CE3AA 036 0.97 0.92 CK5A/CK5BT 042 0.99 0.92
042 0.99 0.92 CK5A/CK5BW 036 0.99 0.92
25
Detailed cooling capacities* continued
See notes on pg. 31.
EVAPORATOR
AIR
CONDENSER ENTERING AIR TEMPERATURES °F
75 85 95 105 115 125
CFM EWB
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
38CKC036-55, 63 Outdoor Section With CC5A/CD5AA036 Indoor Section
1050
72 39.94 20.66 3.29 38.53 20.20 3.54 36.68 19.57 3.78 34.63 18.84 4.04 32.35 18.02 4.31 29.79 17.05 4.56
67 36.96 25.64 3.21 35.15 24.98 3.44 33.06 24.16 3.67 30.86 23.24 3.90 28.56 22.31 4.10 26.07 21.30 4.29
62 33.41 30.21 3.12 31.45 29.25 3.32 29.49 28.24 3.51 27.50 27.12 3.70 25.53 25.53 3.91 23.78 23.78 4.13
57 31.78 31.78 3.08 30.35 30.35 3.28 28.81 28.81 3.47 27.26 27.26 3.69 25.54 25.54 3.91 23.78 23.78 4.13
1200
72 40.47 21.36 3.37 39.07 20.98 3.61 37.28 20.43 3.86 35.27 19.80 4.13 32.89 18.99 4.39 30.32 18.09 4.66
67 37.64 27.06 3.29 35.86 26.50 3.52 33.80 25.78 3.76 31.50 24.87 4.01 29.08 23.89 4.20 26.55 22.86 4.40
62 34.23 32.25 3.20 32.30 31.27 3.42 30.27 30.27 3.61 28.45 28.45 3.82 26.71 26.71 4.04 24.86 24.86 4.27
57 33.28 33.28 3.17 31.73 31.73 3.40 30.16 30.16 3.61 28.46 28.46 3.82 26.72 26.72 4.04 24.86 24.86 4.27
1350
72 40.83 21.96 3.45 39.43 21.67 3.69 37.69 21.21 3.94 35.71 20.68 4.21 33.29 19.90 4.48 30.70 19.04 4.75
67 38.11 28.35 3.37 36.38 27.91 3.59 34.36 27.29 3.84 31.96 26.41 4.08 29.49 25.38 4.30 26.94 24.30 4.50
62 34.91 34.01 3.28 33.08 33.08 3.50 31.24 31.24 3.74 29.49 29.49 3.95 27.70 27.70 4.18 25.73 25.73 4.41
57 34.44 34.44 3.26 32.96 32.96 3.50 31.25 31.25 3.74 29.50 29.50 3.95 27.71 27.71 4.18 25.73 25.73 4.41
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Cooling Indoor
Section Size
Cooling
Capacity Power Capacity Power
CC5A/CD5AA 036 1.00 1.00 CK5A/CK5BA 036 0.99 0.92
042 1.00 0.97 042 0.99 0.92
CC5A/CD5AW 036 1.00 0.97 CK5A/CK5BE 042 0.99 0.91
CE3AA 036 0.99 0.99 CK5A/CK5BT 036 0.99 0.92
042 0.99 0.99 042 0.99 0.92
CF5AA 036 0.99 0.97 CK5A/CK5BW 036 0.99 0.92
CK3BA 036 1.00 0.97 COILS + 58CV(A,X)110-22 VARIABLE SPEED FURNACE
042 1.00 0.97 CC5A/CD5AA 036 0.99 0.92
CK5A/CK5BA 036 1.00 0.97 042 0.99 0.91
042 1.00 0.97 CC5A/CD5AW 036 0.99 0.92
CK5A/CK5BT 036 1.00 0.97 042 0.99 0.91
042 1.00 0.97 CE3AA 036 0.98 0.92
CK5A/CK5BW 036 1.00 0.97 042 0.99 0.91
F(A,B)4(A,B)N(F,B,C) 042 1.00 1.01 CK3BA 036 0.99 0.92
F(A,B)4(A,B)N(F,C) 036 0.98 1.00 042 0.99 0.91
FC4(B,C)N(F,B) 042 1.00 1.01 CK5A/CK5BA 036 0.99 0.92
FC4(B,C)NB 054 1.03 0.98 042 0.99 0.91
FC4(B,C)NF 036 0.98 1.00 CK5A/CK5BT 036 0.99 0.92
FG3AAA 036 0.96 0.98 042 0.99 0.91
FK4(C,D)NB 006 1.04 0.91 CK5A/CK5BW 036 0.99 0.92
FK4(C,D)NF 001 0.98 0.94 COILS + 58CV(A,X)135-22 VARIABLE SPEED FURNACE
002 0.98 0.94 CC5A/CD5AA 042 0.99 0.91
003 0.99 0.91 CC5A/CD5AW 036 0.99 0.92
005 1.04 0.92 042 0.98 0.91
COILS + 58CV(A,X)070-12 VARIABLE SPEED FURNACE CE3AA 036 0.98 0.92
CC5A/CD5AA 036 0.99 0.94 042 0.99 0.91
CE3AA 036 0.98 0.94 CK3BA 042 0.99 0.92
042 0.99 0.93 CK5A/CK5BA 042 0.99 0.92
CK3BA 036 0.99 0.94 CK5A/CK5BT 042 0.99 0.92
CK5A/CK5BA 036 0.99 0.94 CK5A/CK5BW 036 0.99 0.92
CK5A/CK5BE 042 0.99 0.93 COILS + 58CV(A,X)155-22 VARIABLE SPEED FURNACE
CK5A/CK5BT 036 0.99 0.94 CC5A/CD5AA 042 0.99 0.90
COILS + 58CV(A,X)090-16 VARIABLE SPEED FURNACE CC5A/CD5AW 036 0.99 0.92
CC5A/CD5AA 036 0.99 0.93 042 0.99 0.91
042 0.99 0.92 CE3AA 036 0.98 0.92
CC5A/CD5AW 036 0.99 0.93 042 0.99 0.91
CE3AA 036 0.98 0.92 CK3BA 042 0.99 0.91
042 1.00 0.93 CK5A/CK5BA 042 0.99 0.91
CK3BA 036 0.99 0.92 CK5A/CK5BT 042 0.99 0.91
042 0.99 0.92 CK5A/CK5BW 036 0.99 0.92
26
Detailed cooling capacities* continued
See notes on pg. 31.
EVAPORATOR
AIR
CONDENSER ENTERING AIR TEMPERATURES °F
75 85 95 105 115 125
CFM EWB
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
38CKC036-55, 63 Outdoor Section With CC5A/CD5AA036 Indoor Section continued
1050
72 39.94 20.66 3.29 38.53 20.20 3.54 36.68 19.57 3.78 34.63 18.84 4.04 32.35 18.02 4.31 29.79 17.05 4.56
67 36.96 25.64 3.21 35.15 24.98 3.44 33.06 24.16 3.67 30.86 23.24 3.90 28.56 22.31 4.10 26.07 21.30 4.29
62 33.41 30.21 3.12 31.45 29.25 3.32 29.49 28.24 3.51 27.50 27.12 3.70 25.53 25.53 3.91 23.78 23.78 4.13
57 31.78 31.78 3.08 30.35 30.35 3.28 28.81 28.81 3.47 27.26 27.26 3.69 25.54 25.54 3.91 23.78 23.78 4.13
1200
72 40.47 21.36 3.37 39.07 20.98 3.61 37.28 20.43 3.86 35.27 19.80 4.13 32.89 18.99 4.39 30.32 18.09 4.66
67 37.64 27.06 3.29 35.86 26.50 3.52 33.80 25.78 3.76 31.50 24.87 4.01 29.08 23.89 4.20 26.55 22.86 4.40
62 34.23 32.25 3.20 32.30 31.27 3.42 30.27 30.27 3.61 28.45 28.45 3.82 26.71 26.71 4.04 24.86 24.86 4.27
57 33.28 33.28 3.17 31.73 31.73 3.40 30.16 30.16 3.61 28.46 28.46 3.82 26.72 26.72 4.04 24.86 24.86 4.27
1350
72 40.83 21.96 3.45 39.43 21.67 3.69 37.69 21.21 3.94 35.71 20.68 4.21 33.29 19.90 4.48 30.70 19.04 4.75
67 38.11 28.35 3.37 36.38 27.91 3.59 34.36 27.29 3.84 31.96 26.41 4.08 29.49 25.38 4.30 26.94 24.30 4.50
62 34.91 34.01 3.28 33.08 33.08 3.50 31.24 31.24 3.74 29.49 29.49 3.95 27.70 27.70 4.18 25.73 25.73 4.41
57 34.44 34.44 3.26 32.96 32.96 3.50 31.25 31.25 3.74 29.50 29.50 3.95 27.71 27.71 4.18 25.73 25.73 4.41
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Cooling Indoor
Section Size
Cooling
Capacity Power Capacity Power
COILS + 58MVP040-14 VARIABLE SPEED FURNACE CK5A/CK5BW 036 0.99 0.90
CC5A/CD5AA 042 0.99 0.90 COILS + 58MVP080-20 VARIABLE SPEED FURNACE
CC5A/CD5AW 036 0.99 0.90 CK3BA 036 0.99 0.90
CK3BA 036 0.99 0.90 042 0.99 0.90
042 0.99 0.90 CK5A/CK5BA 042 0.99 0.90
CK5A/CK5BA 042 0.99 0.90 CK5A/CK5BT 042 0.99 0.90
CK5A/CK5BT 042 0.99 0.90 CK5A/CK5BW 036 0.99 0.90
CK5A/CK5BW 036 0.99 0.90 COILS + 58MVP100-20 VARIABLE SPEED FURNACE
COILS + 58MVP060-14 VARIABLE SPEED FURNACE CC5A/CD5AA 042 0.99 0.90
CC5A/CD5AA 036 0.99 0.90 CC5A/CD5AW 036 0.99 0.90
CK3BA 036 0.99 0.90 CK3BA 036 0.99 0.88
042 0.99 0.90 042 0.99 0.88
CK5A/CK5BA 036 0.99 0.90 CK5A/CK5BA 042 0.99 0.88
CK5A/CK5BT 036 0.99 0.90 CK5A/CK5BT 042 0.99 0.88
COILS + 58MVP080-14 VARIABLE SPEED FURNACE CK5A/CK5BW 036 0.99 0.88
CC5A/CD5AA 042 0.99 0.90 COILS + 58MVP120-20 VARIABLE SPEED FURNACE
CC5A/CD5AW 036 0.99 0.90 CK3BA 036 0.99 0.89
CK3BA 036 0.99 0.90 042 0.99 0.88
042 0.99 0.89 CK5A/CK5BA 042 0.99 0.88
CK5A/CK5BA 042 0.99 0.89 CK5A/CK5BT 042 0.99 0.88
CK5A/CK5BT 042 0.99 0.89 CK5A/CK5BW 036 0.99 0.89
27
Detailed cooling capacities* continued
See notes on pg. 31.
EVAPORATOR
AIR
CONDENSER ENTERING AIR TEMPERATURES °F
75 85 95 105 115 125
CFM EWB
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
38CKC042-35, 55, 62 Outdoor Section With CC5A/CD5AA042 Indoor Section
1225
72 46.29 23.66 3.77 45.13 23.29 4.12 43.60 22.76 4.50 41.68 22.03 4.89 39.58 21.23 5.28 37.31 20.36 5.69
67 42.99 29.14 3.68 41.55 28.63 4.04 39.71 27.86 4.42 37.62 26.97 4.77 35.39 26.03 5.09 32.98 25.04 5.41
62 39.32 34.41 3.62 37.52 33.55 3.95 35.54 32.58 4.25 33.52 31.56 4.56 31.37 30.43 4.87 29.04 29.04 5.16
57 36.80 36.80 3.57 35.42 35.42 3.87 33.95 33.95 4.19 32.40 32.40 4.51 30.77 30.77 4.83 28.98 28.98 5.16
1400
72 46.92 24.37 3.85 45.80 24.09 4.22 44.25 23.63 4.59 42.37 23.00 4.98 40.25 22.23 5.38 37.94 21.40 5.78
67 43.78 30.57 3.77 42.31 30.16 4.12 40.50 29.51 4.50 38.44 28.66 4.89 36.16 27.73 5.22 33.63 26.72 5.54
62 40.13 36.56 3.70 38.39 35.75 4.06 36.39 34.71 4.36 34.34 33.58 4.68 32.18 32.18 4.99 30.24 30.24 5.31
57 38.41 38.41 3.67 37.00 37.00 4.00 35.43 35.43 4.32 33.84 33.84 4.65 32.13 32.13 4.99 30.25 30.25 5.31
1575
72 47.40 25.02 3.94 46.26 24.82 4.30 44.69 24.40 4.68 42.90 23.90 5.07 40.76 23.19 5.47 38.37 22.36 5.86
67 44.32 31.89 3.85 42.90 31.61 4.20 41.12 31.09 4.58 39.04 30.33 4.97 36.74 29.40 5.33 34.16 28.37 5.65
62 40.78 38.51 3.78 39.10 37.73 4.14 37.02 37.02 4.47 35.14 35.14 4.79 33.31 33.31 5.13 31.39 31.39 5.47
57 39.71 39.71 3.76 38.36 38.36 4.12 36.78 36.78 4.45 35.12 35.12 4.79 33.32 33.32 5.13 31.41 31.41 5.47
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Cooling Indoor
Section Size
Cooling
Capacity Power Capacity Power
CC5A/CD5AA 042 1.00 1.00 CD5AA 048 1.01 0.94
CC5A/CD5AC 048 0.99 0.99 CE3AA 042 1.00 0.94
CC5A/CD5AW 048 1.00 1.00 048 1.01 0.94
CD5AA 048 1.00 1.00 CK3BA 042 1.00 0.94
CE3AA 042 0.99 0.98 048 1.01 0.94
048 1.01 1.00 CK5A/CK5BA 042 1.00 0.94
CK3BA 042 1.00 1.00 048 1.01 0.94
048 1.00 0.99 CK5A/CK5BT 042 1.00 0.94
CK5A/CK5BA 042 1.00 1.00 048 1.01 0.94
048 1.00 0.95 CK5A/CK5BW 048 1.01 0.94
CK5A/CK5BE 042 0.98 0.97 COILS + 58CV(A,X)135-22 VARIABLE SPEED FURNACE
CK5A/CK5BT 042 1.00 1.00 CC5A/CD5AA 042 1.00 0.94
048 1.00 0.99 CC5A/CD5AC 048 0.99 0.93
CK5A/CK5BW 048 1.00 0.99 CC5A/CD5AW 042 1.00 0.95
F(A,B)4(A,B)N(F,B,C) 042 1.00 1.01 048 1.01 0.94
048 1.03 1.03 CD5AA 048 1.01 0.94
FC4(B,C)N(F,B) 042 1.00 1.01 CE3AA 042 1.00 0.94
048 1.03 1.03 048 1.01 0.95
FC4(B,C)NB 054 1.04 0.99 CK3BA 042 1.00 0.94
FG3AAA 048 1.00 1.00 048 1.01 0.94
FK4(C,D)NB 006 1.04 0.92 CK5A/CK5BA 042 1.00 0.94
FK4(C,D)NF 003 1.00 0.94 048 1.01 0.94
005 1.03 0.93 CK5A/CK5BT 042 1.00 0.94
COILS + 58CV(A,X)090-16 VARIABLE SPEED FURNACE 048 1.01 0.94
CC5A/CD5AA 042 1.00 0.95 CK5A/CK5BW 048 1.01 0.94
CC5A/CD5AC 048 0.99 0.94 COILS + 58CV(A,X)155-22 VARIABLE SPEED FURNACE
CD5AA 048 1.00 0.94 CC5A/CD5AA 042 1.00 0.94
CE3AA 042 1.00 0.95 CC5A/CD5AC 048 0.99 0.93
048 1.01 0.95 CC5A/CD5AW 042 1.00 0.94
CK3BA 042 1.00 0.95 048 1.01 0.94
048 1.01 0.95 CD5AA 048 1.01 0.94
CK5A/CK5BA 042 1.00 0.95 CE3AA 042 1.00 0.93
048 1.01 0.95 048 1.01 0.94
CK5A/CK5BE 042 1.00 0.94 CK3BA 042 1.00 0.94
CK5A/CK5BT 042 1.00 0.95 048 1.01 0.94
048 1.01 0.95 CK5A/CK5BA 042 1.00 0.94
COILS + 58CV(A,X)110-22 VARIABLE SPEED FURNACE 048 1.01 0.94
CC5A/CD5AA 042 1.00 0.94 CK5A/CK5BT 042 1.00 0.94
CC5A/CD5AC 048 0.99 0.93 048 1.01 0.94
CC5A/CD5AW 042 1.00 0.95 — — —
048 1.01 0.94
28
Detailed cooling capacities* continued
See notes on pg. 31.
EVAPORATOR
AIR
CONDENSER ENTERING AIR TEMPERATURES °F
75 85 95 105 115 125
CFM EWB
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
38CKC042-35, 55, 62 Outdoor Section With CC5A/CD5AA042 Indoor Section continued
1225
72 46.29 23.66 3.77 45.13 23.29 4.12 43.60 22.76 4.50 41.68 22.03 4.89 39.58 21.23 5.28 37.31 20.36 5.69
67 42.99 29.14 3.68 41.55 28.63 4.04 39.71 27.86 4.42 37.62 26.97 4.77 35.39 26.03 5.09 32.98 25.04 5.41
62 39.32 34.41 3.62 37.52 33.55 3.95 35.54 32.58 4.25 33.52 31.56 4.56 31.37 30.43 4.87 29.04 29.04 5.16
57 36.80 36.80 3.57 35.42 35.42 3.87 33.95 33.95 4.19 32.40 32.40 4.51 30.77 30.77 4.83 28.98 28.98 5.16
1400
72 46.92 24.37 3.85 45.80 24.09 4.22 44.25 23.63 4.59 42.37 23.00 4.98 40.25 22.23 5.38 37.94 21.40 5.78
67 43.78 30.57 3.77 42.31 30.16 4.12 40.50 29.51 4.50 38.44 28.66 4.89 36.16 27.73 5.22 33.63 26.72 5.54
62 40.13 36.56 3.70 38.39 35.75 4.06 36.39 34.71 4.36 34.34 33.58 4.68 32.18 32.18 4.99 30.24 30.24 5.31
57 38.41 38.41 3.67 37.00 37.00 4.00 35.43 35.43 4.32 33.84 33.84 4.65 32.13 32.13 4.99 30.25 30.25 5.31
1575
72 47.40 25.02 3.94 46.26 24.82 4.30 44.69 24.40 4.68 42.90 23.90 5.07 40.76 23.19 5.47 38.37 22.36 5.86
67 44.32 31.89 3.85 42.90 31.61 4.20 41.12 31.09 4.58 39.04 30.33 4.97 36.74 29.40 5.33 34.16 28.37 5.65
62 40.78 38.51 3.78 39.10 37.73 4.14 37.02 37.02 4.47 35.14 35.14 4.79 33.31 33.31 5.13 31.39 31.39 5.47
57 39.71 39.71 3.76 38.36 38.36 4.12 36.78 36.78 4.45 35.12 35.12 4.79 33.32 33.32 5.13 31.41 31.41 5.47
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Cooling Indoor
Section Size
Cooling
Capacity Power Capacity Power
CK5A/CK5BW 048 1.01 0.94 CK5A/CK5BT 042 1.00 0.97
COILS + 58MVP060-14 VARIABLE SPEED FURNACE 048 1.00 0.96
CK3BA 042 1.00 0.97 COILS + 58MVP100-20 VARIABLE SPEED FURNACE
COILS + 58MVP080-14 VARIABLE SPEED FURNACE CC5A/CD5AA 042 1.00 0.95
CC5A/CD5AA 042 1.00 0.97 CC5A/CD5AC 048 1.00 0.95
CC5A/CD5AC 048 1.00 0.95 CK3BA 042 1.00 0.94
CK3BA 042 1.00 0.96 048 1.00 0.93
048 1.00 0.95 CK5A/CK5BA 042 1.00 0.94
CK5A/CK5BA 042 1.00 0.96 048 1.00 0.93
048 1.00 0.95 CK5A/CK5BT 042 1.00 0.94
CK5A/CK5BT 042 1.00 0.96 048 1.00 0.93
048 1.00 0.95 COILS + 58MVP120-20 VARIABLE SPEED FURNACE
COILS + 58MVP080-20 VARIABLE SPEED FURNACE CK3BA 042 1.00 0.94
CK3BA 042 1.00 0.97 048 1.00 0.94
048 1.00 0.96 CK5A/CK5BA 042 1.00 0.94
CK5A/CK5BA 042 1.00 0.97 CK5A/CK5BT 042 1.00 0.94
048 1.00 0.96 CK5A/CK5BW 048 1.00 0.94
29
Detailed cooling capacities* continued
See notes on pg. 31.
EVAPORATOR
AIR
CONDENSER ENTERING AIR TEMPERATURES °F
75 85 95 105 115 125
CFM EWB
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
38CKC048-37, 57, 67 Outdoor Section With CD5AA048 Indoor Section
1400
72 52.15 26.71 4.28 50.93 26.32 4.65 49.35 25.76 5.07 47.45 25.07 5.53 45.28 24.23 6.02 42.93 23.34 6.56
67 48.54 32.98 4.22 47.00 32.42 4.60 45.12 31.66 5.03 42.92 30.69 5.46 40.62 29.73 5.90 38.12 28.70 6.36
62 44.42 38.98 4.17 42.53 38.06 4.53 40.48 37.04 4.89 38.33 35.96 5.29 36.07 34.76 5.71 33.59 33.59 6.15
57 41.62 41.62 4.13 40.15 40.15 4.46 38.59 38.59 4.83 37.00 37.00 5.25 35.27 35.27 5.68 33.41 33.41 6.14
1600
72 52.80 27.51 4.38 51.66 27.24 4.75 50.11 26.78 5.16 48.22 26.17 5.62 46.02 25.37 6.11 43.64 24.51 6.65
67 49.41 34.64 4.31 47.91 34.23 4.69 46.00 33.55 5.11 43.84 32.65 5.58 41.50 31.69 6.03 38.93 30.67 6.49
62 45.41 41.50 4.26 43.55 40.60 4.65 41.42 39.49 5.01 39.24 38.27 5.40 36.98 36.98 5.83 34.93 34.93 6.30
57 43.46 43.46 4.24 41.95 41.95 4.60 40.33 40.33 4.97 38.63 38.63 5.38 36.85 36.85 5.83 34.95 34.95 6.30
1800
72 53.25 28.20 4.47 52.20 28.04 4.85 50.61 27.66 5.26 48.77 27.15 5.71 46.55 26.42 6.21 44.15 25.60 6.73
67 50.03 36.13 4.40 48.53 35.85 4.77 46.65 35.31 5.19 44.49 34.51 5.66 42.17 33.57 6.15 39.57 32.54 6.61
62 46.11 43.67 4.34 44.33 42.80 4.73 42.08 42.08 5.11 40.08 40.08 5.52 38.20 38.20 5.97 36.19 36.19 6.45
57 44.93 44.93 4.33 43.48 43.48 4.73 41.78 41.78 5.10 40.02 40.02 5.51 38.21 38.21 5.97 36.21 36.21 6.45
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Cooling Indoor
Section Size
Cooling
Capacity Power Capacity Power
CC5A/CD5AA 060 1.01 1.01 CD5AA 048 0.99 0.95
CC5A/CD5AC 048 0.98 0.98 CE3AA 048 0.99 0.95
CC5A/CD5AW 048 1.00 1.00 060 1.01 0.95
060 1.02 1.01 CK3BA 048 0.99 0.95
CD5AA 048 1.00 1.00 060 1.01 0.94
CE3AA 048 1.00 0.99 CK5A/CK5BA 048 0.99 0.95
060 1.02 1.00 060 1.01 0.94
CF5AA 048 1.00 0.99 CK5A/CK5BT 048 0.99 0.95
CK3BA 048 1.00 1.00 060 1.01 0.94
060 1.02 1.00 CK5A/CK5BW 048 0.99 0.94
CK5A/CK5BA 048 1.00 1.00 CK5A/CK5BX 060 1.02 0.95
060 1.02 1.00 COILS + 58CV(A,X)135-22 VARIABLE SPEED FURNACE
CK5A/CK5BT 048 1.00 1.00 CC5A/CD5AA 060 1.00 0.95
060 1.02 1.00 CC5A/CD5AC 048 0.98 0.94
CK5A/CK5BW 048 1.00 1.00 CC5A/CD5AW 048 0.99 0.94
CK5A/CK5BX 060 1.02 0.99 CD5AA 048 0.99 0.94
F(A,B)4BN(F,B,C) 048 1.01 1.02 CE3AA 048 0.99 0.94
060 1.04 1.05 060 1.01 0.94
FB4BNB 070 1.07 1.04 CK3BA 048 0.99 0.94
FC4CN(F,B) 048 1.01 1.01 060 1.01 0.94
060 1.04 1.04 CK5A/CK5BA 048 0.99 0.94
FC4CNB 054 1.05 1.02 060 1.01 0.94
070 1.07 1.03 CK5A/CK5BT 048 0.99 0.94
FG3AAA 048 1.00 1.01 060 1.01 0.94
060 1.02 1.01 CK5A/CK5BW 048 0.99 0.93
FK4DNB 006 1.05 0.94 CK5A/CK5BX 060 1.02 0.94
FK4DNF 005 1.03 0.94 COILS + 58CV(A,X)155-22 VARIABLE SPEED FURNACE
COILS + 58CV(A,X)090-16 VARIABLE SPEED FURNACE CC5A/CD5AA 060 1.00 0.94
CC5A/CD5AC 048 0.98 0.96 CC5A/CD5AC 048 0.98 0.94
CD5AA 048 0.99 0.95 CC5A/CD5AW 048 0.99 0.93
CE3AA 048 0.99 0.95 CD5AA 048 0.99 0.93
060 1.01 0.95 CE3AA 048 0.99 0.93
CK3BA 048 0.99 0.95 060 1.01 0.93
CK5A/CK5BA 048 0.99 0.95 CK3BA 048 0.99 0.93
CK5A/CK5BT 048 0.99 0.95 060 1.01 0.93
COILS + 58CV(A,X)110-22 VARIABLE SPEED FURNACE CK5A/CK5BA 048 0.99 0.93
CC5A/CD5AA 060 1.00 0.96 060 1.01 0.93
CC5A/CD5AC 048 0.98 0.95 CK5A/CK5BT 048 0.99 0.93
CC5A/CD5AW 048 0.99 0.95 060 1.01 0.93
—— —CK5A/CK5BW 048 0.99 0.92
30
Detailed cooling capacities* continued
See notes on pg. 31.
EVAPORATOR
AIR
CONDENSER ENTERING AIR TEMPERATURES °F
75 85 95 105 115 125
CFM EWB
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
38CKC048-37, 57, 67 Outdoor Section With CD5AA048 Indoor Section continued
1400
72 52.15 26.71 4.28 50.93 26.32 4.65 49.35 25.76 5.07 47.45 25.07 5.53 45.28 24.23 6.02 42.93 23.34 6.56
67 48.54 32.98 4.22 47.00 32.42 4.60 45.12 31.66 5.03 42.92 30.69 5.46 40.62 29.73 5.90 38.12 28.70 6.36
62 44.42 38.98 4.17 42.53 38.06 4.53 40.48 37.04 4.89 38.33 35.96 5.29 36.07 34.76 5.71 33.59 33.59 6.15
57 41.62 41.62 4.13 40.15 40.15 4.46 38.59 38.59 4.83 37.00 37.00 5.25 35.27 35.27 5.68 33.41 33.41 6.14
1600
72 52.80 27.51 4.38 51.66 27.24 4.75 50.11 26.78 5.16 48.22 26.17 5.62 46.02 25.37 6.11 43.64 24.51 6.65
67 49.41 34.64 4.31 47.91 34.23 4.69 46.00 33.55 5.11 43.84 32.65 5.58 41.50 31.69 6.03 38.93 30.67 6.49
62 45.41 41.50 4.26 43.55 40.60 4.65 41.42 39.49 5.01 39.24 38.27 5.40 36.98 36.98 5.83 34.93 34.93 6.30
57 43.46 43.46 4.24 41.95 41.95 4.60 40.33 40.33 4.97 38.63 38.63 5.38 36.85 36.85 5.83 34.95 34.95 6.30
1800
72 53.25 28.20 4.47 52.20 28.04 4.85 50.61 27.66 5.26 48.77 27.15 5.71 46.55 26.42 6.21 44.15 25.60 6.73
67 50.03 36.13 4.40 48.53 35.85 4.77 46.65 35.31 5.19 44.49 34.51 5.66 42.17 33.57 6.15 39.57 32.54 6.61
62 46.11 43.67 4.34 44.33 42.80 4.73 42.08 42.08 5.11 40.08 40.08 5.52 38.20 38.20 5.97 36.19 36.19 6.45
57 44.93 44.93 4.33 43.48 43.48 4.73 41.78 41.78 5.10 40.02 40.02 5.51 38.21 38.21 5.97 36.21 36.21 6.45
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Cooling Indoor
Section Size
Cooling
Capacity Power Capacity Power
CK5A/CK5BX 060 1.02 0.93 CK3BA 048 0.98 0.95
COILS + 58MVP080-20 VARIABLE SPEED FURNACE 060 1.01 0.95
CC5A/CD5AA 060 0.99 0.96 CK5A/CK5BA 048 0.99 0.96
CC5A/CD5AC 048 0.97 0.96 060 1.01 0.95
CC5A/CD5AW 048 0.99 0.96 CK5A/CK5BT 048 0.99 0.96
CD5AA 048 0.99 0.96 060 1.01 0.95
CE3AA 048 0.99 0.96 CK5A/CK5BW 048 0.99 0.95
060 1.01 0.96 CK5A/CK5BX 060 1.02 0.96
CK3BA 048 0.98 0.95 COILS + 58MVP120-20 VARIABLE SPEED FURNACE
060 1.01 0.96 CC5A/CD5AA 060 0.99 0.95
CK5A/CK5BA 048 0.99 0.96 CC5A/CD5AC 048 0.97 0.95
060 1.01 0.96 CC5A/CD5AW 048 0.99 0.96
CK5A/CK5BT 048 0.99 0.96 CD5AA 048 0.99 0.96
060 1.01 0.96 CE3AA 048 0.99 0.95
CK5A/CK5BW 048 0.99 0.96 060 1.01 0.95
CK5A/CK5BX 060 1.02 0.96 CK3BA 048 0.98 0.94
COILS + 58MVP100-20 VARIABLE SPEED FURNACE 060 1.01 0.95
CC5A/CD5AA 060 0.99 0.96 CK5A/CK5BA 048 0.99 0.95
CC5A/CD5AC 048 0.97 0.95 060 1.01 0.95
CC5A/CD5AW 048 0.99 0.96 CK5A/CK5BT 048 0.99 0.95
CD5AA 048 0.99 0.96 060 1.01 0.95
CE3AA 048 0.99 0.96 CK5A/CK5BW 048 0.99 0.95
060 1.01 0.95 CK5A/CK5BX 060 1.02 0.95
31
Detailed cooling capacities* continued
NOTE: When the required data fall between the published data, interpolation may be performed. Extrapolation is not an acceptable practice.
* Detailed cooling capacities are based on indoor and outdoor unit at the same elevation per ARI standard 210/240-94. If additional tubing length
and/or indoor unit is located above outdoor unit, a slight variation in capacity may occur.
†Total and sensible capacities are net capacities. Blower motor heat has been subtracted.
‡Sensible capacities shown are based on 80°F (27°C) entering air at the indoor coil. For sensible capacities at other than 80°F (27°C), deduct 835
Btuh (245 kW) per 1000 CFM (480 L/S) of indoor coil air for each degree below 80°F (27°C), or add 835 Btuh (245 kw) per 1000 CFM (480 L/S) of
indoor coil air per degree above 80°F (27°C).
When the required data falls between the published data, interpolation may be performed.
** Unit kW is total of indoor and outdoor unit kilowatts.
EWB — Entering Wet Bulb
EVAPORATOR
AIR
CONDENSER ENTERING AIR TEMPERATURES °F
75 85 95 105 115 125
CFM EWB
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**
Capacity
MBtuh† Tot
Sys
kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
38CKC060-37, 57, 67 Outdoor Section With CC5A/CD5AW060 Indoor Section
1775
72 65.64 33.89 5.33 63.80 33.32 5.81 61.47 32.48 6.34 58.69 31.45 6.92 55.71 30.33 7.54 52.51 29.14 8.18
67 60.86 41.99 5.23 58.67 41.16 5.71 56.15 40.11 6.23 53.36 38.91 6.81 50.21 37.62 7.34 46.77 36.22 7.90
62 55.51 49.61 5.13 53.16 48.46 5.57 50.64 47.19 6.02 47.87 45.76 6.51 44.88 44.10 7.03 41.81 41.81 7.58
57 52.57 52.57 5.07 50.70 50.70 5.48 48.79 48.79 5.96 46.71 46.71 6.47 44.36 44.36 7.00 41.83 41.83 7.59
2000
72 66.37 34.83 5.44 64.52 34.34 5.92 62.25 33.67 6.45 59.43 32.67 7.03 56.43 31.61 7.64 53.19 30.45 8.28
67 61.83 43.95 5.34 59.63 43.24 5.81 57.00 42.23 6.33 54.19 41.11 6.90 51.04 39.81 7.49 47.54 38.42 8.05
62 56.59 52.46 5.24 54.18 51.25 5.72 51.59 49.85 6.17 48.67 48.67 6.65 45.97 45.97 7.20 43.35 43.35 7.79
57 54.51 54.51 5.20 52.64 52.64 5.64 50.62 50.62 6.13 48.40 48.40 6.64 45.99 45.99 7.20 43.37 43.37 7.79
2250
72 66.96 35.78 5.56 65.17 35.42 6.04 62.90 34.87 6.57 60.06 33.95 7.15 57.04 32.93 7.75 53.79 31.82 8.39
67 62.64 45.96 5.46 60.40 45.42 5.93 57.74 44.50 6.44 54.88 43.44 7.01 51.76 42.19 7.64 48.17 40.74 8.22
62 57.48 55.24 5.35 55.10 53.95 5.83 52.51 52.51 6.32 50.04 50.04 6.84 47.55 47.55 7.41 44.79 44.79 7.99
57 56.36 56.36 5.34 54.44 54.44 5.82 52.34 52.34 6.32 50.06 50.06 6.84 47.57 47.57 7.41 44.81 44.81 7.99
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Cooling Indoor
Section Size
Cooling
Capacity Power Capacity Power
CC5A/CD5AA 060 0.96 0.98 CK5A/CK5BT 060 0.98 0.96
CC5A/CD5AW 060 1.00 1.00 CK5A/CK5BX 060 1.00 0.95
CE3AA 060 1.00 0.99 COILS + 58CV(A,X)135-22 VARIABLE SPEED FURNACE
CK3BA 060 0.98 0.99 CC5A/CD5AA 060 0.96 0.96
CK5A/CK5BA 060 0.98 0.99 CC5A/CD5AW 060 0.98 0.95
CK5A/CK5BT 060 0.98 0.99 CE3AA 060 0.98 0.95
CK5A/CK5BX 060 1.02 1.00 CK3BA 060 0.98 0.96
F(A,B)4(A,B)N(F,B,C) 060 1.01 1.04 CK5A/CK5BA 060 0.98 0.96
FB4(A,B)NB 070 1.02 1.01 CK5A/CK5BT 060 0.98 0.96
FC4(B,C)N(F,B) 060 1.01 1.04 CK5A/CK5BX 060 1.00 0.95
FC4(B,C)NB 070 1.02 1.01 COILS + 58CV(A,X)155-22 VARIABLE SPEED FURNACE
FG3AAA 060 0.99 1.00 CC5A/CD5AA 060 0.96 0.95
FK4(C,D)NB 006 1.02 0.96 CC5A/CD5AW 060 0.98 0.95
COILS + 58CV(A,X)110-22 VARIABLE SPEED FURNACE CE3AA 060 0.98 0.94
CC5A/CD5AA 060 0.96 0.95 CK3BA 060 0.98 0.96
CE3AA 060 0.98 0.95 CK5A/CK5BA 060 0.98 0.96
CK3BA 060 0.98 0.96 CK5A/CK5BT 060 0.98 0.96
CK5A/CK5BA 060 0.98 0.96 CK5A/CK5BX 060 1.00 0.94
32
Condenser only ratings*
See notes on pg. 34.
SST
°F
CONDENSER ENTERING AIR TEMPERATURES °F
55 65 75 85 95 105 115 125
38CKC018-34
30 TCG 17.60 16.00 14.40 12.90 11.30 9.90 8.50 7.10
KW 1.21 1.27 1.32 1.37 1.41 1.44 1.46 1.47
SDT 90.30 98.50 106.70 114.90 123.20 131.20 139.00 146.60
35 TCG 19.70 18.00 16.30 14.60 13.00 11.50 10.00 8.50
KW 1.25 1.32 1.38 1.43 1.49 1.53 1.56 1.59
SDT 93.00 101.10 109.20 117.30 125.40 133.50 141.10 148.60
40 TCG 21.80 20.00 18.20 16.50 14.80 13.10 11.40 9.80
KW 1.30 1.37 1.43 1.50 1.56 1.62 1.66 1.70
SDT 95.80 103.80 111.70 119.70 127.70 135.70 143.20 150.50
45 TCG 24.00 22.10 20.20 18.40 16.50 14.70 12.90 11.10
KW 1.34 1.42 1.49 1.56 1.64 1.70 1.76 1.81
SDT 98.60 106.50 114.30 122.20 130.00 137.80 145.20 152.20
50 TCG 26.20 24.20 22.30 20.30 18.30 16.30 14.40 12.40
KW 1.39 1.47 1.55 1.63 1.71 1.78 1.85 1.91
SDT 101.50 109.20 116.90 124.60 132.30 139.90 147.10 153.70
55 TCG 28.50 26.40 24.30 22.20 20.10 18.00 15.80 13.70
KW 1.43 1.52 1.60 1.69 1.78 1.86 1.93 2.00
SDT 104.40 111.90 119.50 127.00 134.50 141.90 148.80 155.20
38CKC024-34
30 TCG 24.60 22.40 20.40 18.30 16.40 14.50 12.80 11.10
KW 1.66 1.73 1.79 1.85 1.90 1.95 2.00 2.06
SDT 92.40 99.70 107.10 114.70 122.20 129.90 137.80 145.70
35 TCG 27.30 25.10 22.90 20.70 18.60 16.60 14.70 12.80
KW 1.74 1.82 1.89 1.96 2.02 2.08 2.14 2.21
SDT 95.60 102.90 110.20 117.50 125.00 132.50 140.10 147.70
40 TCG 30.20 27.90 25.50 23.20 21.00 18.80 16.60 14.50
KW 1.82 1.91 1.99 2.07 2.14 2.21 2.28 2.36
SDT 99.00 106.10 113.30 120.50 127.70 135.00 142.30 149.70
45 TCG 33.10 30.60 28.20 25.70 23.30 20.90 18.60 16.20
KW 1.90 2.00 2.09 2.18 2.27 2.35 2.43 2.51
SDT 102.40 109.40 116.40 123.40 130.50 137.50 144.70 151.70
50 TCG 36.00 33.40 30.80 28.30 25.70 23.10 20.50 17.80
KW 1.98 2.09 2.19 2.29 2.39 2.48 2.57 2.66
SDT 105.80 112.60 119.50 126.40 133.20 140.10 146.90 153.50
55 TCG 39.00 36.20 33.50 30.80 28.00 25.30 22.40 19.50
KW 2.07 2.18 2.29 2.40 2.51 2.61 2.71 2.80
SDT 109.30 115.90 122.60 129.30 135.90 142.50 149.10 155.40
38CKC030-34, 52
30 TCG 29.90 27.40 25.10 22.80 20.70 18.60 16.50 14.30
KW 1.91 2.02 2.12 2.22 2.30 2.39 2.47 2.55
SDT 98.20 106.50 114.90 123.20 131.50 139.70 147.80 154.90
35 TCG 32.90 30.30 27.80 25.30 22.90 20.60 18.20 15.80
KW 2.00 2.12 2.24 2.35 2.44 2.54 2.63 2.71
SDT 101.10 109.30 117.50 125.60 133.80 141.80 149.60 156.40
40 TCG 36.10 33.30 30.60 27.90 25.30 22.70 19.90 17.30
KW 2.09 2.23 2.35 2.47 2.58 2.69 2.79 2.87
SDT 104.00 112.10 120.10 128.10 136.00 143.80 151.20 157.80
45 TCG 39.30 36.30 33.40 30.50 27.60 24.70 21.60 18.80
KW 2.18 2.33 2.47 2.60 2.72 2.83 2.94 3.02
SDT 107.00 114.90 122.80 130.60 138.30 145.70 152.80 159.10
50 TCG 42.60 39.40 36.20 33.10 29.90 26.70 23.30 20.50
KW 2.27 2.43 2.58 2.72 2.86 2.98 3.09 3.17
SDT 110.00 117.70 125.40 133.00 140.40 147.60 154.30 160.00
55 TCG 45.90 42.50 39.10 35.70 32.20 28.70 25.00 22.40
KW 2.36 2.53 2.69 2.85 2.99 3.12 3.24 3.31
SDT 113.00 120.50 128.00 135.40 142.50 149.40 155.60 160.70
33
Condenser only ratings* continued
See notes on pg. 34.
SST
°F
CONDENSER ENTERING AIR TEMPERATURES °F
55 65 75 85 95 105 115 125
38CKC036-35, 55, 63
30 TCG 35.60 32.70 29.80 26.80 23.80 20.90 18.00 15.20
KW 2.20 2.35 2.49 2.62 2.74 2.84 2.92 2.97
SDT 95.20 103.60 112.00 120.30 128.50 136.60 144.50 151.50
35 TCG 39.20 36.20 33.10 30.00 26.80 23.70 20.50 17.40
KW 2.30 2.46 2.61 2.76 2.90 3.02 3.12 3.20
SDT 97.90 106.20 114.50 122.70 130.80 138.80 146.50 153.30
40 TCG 43.00 39.80 36.50 33.20 29.80 26.40 22.90 19.50
KW 2.40 2.57 2.73 2.90 3.05 3.20 3.32 3.41
SDT 100.70 108.90 117.00 125.10 133.10 140.90 148.40 154.90
45 TCG 46.90 43.50 40.00 36.50 32.90 29.20 25.40 21.60
KW 2.50 2.68 2.85 3.03 3.20 3.36 3.51 3.62
SDT 103.50 111.60 119.60 127.50 135.30 142.90 150.20 156.50
50 TCG 50.80 47.20 43.50 39.70 35.90 31.90 27.70 23.70
KW 2.61 2.79 2.98 3.17 3.35 3.52 3.68 3.81
SDT 106.40 114.30 122.10 129.90 137.50 144.90 151.90 157.90
55 TCG 54.80 50.90 47.00 43.00 38.90 34.60 29.90 25.80
KW 2.72 2.91 3.10 3.30 3.49 3.67 3.85 3.97
SDT 109.30 117.00 124.70 132.20 139.60 146.70 153.40 159.20
38CKC042-35, 55, 62
30 TCG 42.90 40.20 37.60 34.80 32.00 29.10 26.00 22.70
KW 2.55 2.79 3.03 3.27 3.49 3.70 3.89 4.05
SDT 95.70 104.00 112.20 120.40 128.40 136.20 143.90 151.20
35 TCG 46.80 44.00 41.10 38.10 35.10 31.90 28.60 24.90
KW 2.65 2.90 3.16 3.41 3.64 3.87 4.08 4.26
SDT 98.70 106.80 114.90 122.90 130.80 138.40 145.90 153.00
40 TCG 50.80 47.80 44.70 41.50 38.20 34.80 31.10 27.00
KW 2.76 3.02 3.28 3.55 3.80 4.04 4.26 4.47
SDT 101.70 109.70 117.70 125.50 133.20 140.70 147.90 154.80
45 TCG 54.90 51.70 48.30 44.90 41.40 37.60 33.60 29.20
KW 2.87 3.14 3.41 3.68 3.95 4.20 4.44 4.66
SDT 104.90 112.70 120.50 128.10 135.60 142.90 149.80 156.50
50 TCG 59.20 55.70 52.10 48.40 44.50 40.50 36.10 31.50
KW 2.97 3.25 3.54 3.82 4.10 4.36 4.61 4.84
SDT 108.10 115.70 123.30 130.80 138.00 145.00 151.70 158.30
55 TCG 63.50 59.70 55.90 51.90 47.70 43.30 38.50 34.00
KW 3.09 3.38 3.67 3.96 4.25 4.52 4.77 5.00
SDT 111.30 118.80 126.20 133.40 140.40 147.10 153.40 159.90
38CKC048-37, 57, 67
30 TCG 49.30 46.50 43.70 40.80 37.80 34.60 31.20 27.50
KW 2.80 3.07 3.37 3.70 4.03 4.38 4.74 5.09
SDT 93.80 102.50 111.10 119.70 128.00 136.30 144.30 151.90
35 TCG 53.70 50.70 47.70 44.50 41.20 37.80 34.10 29.90
KW 2.88 3.16 3.46 3.78 4.12 4.48 4.84 5.20
SDT 96.50 105.10 113.50 121.90 130.10 138.10 145.90 153.30
40 TCG 58.30 55.10 51.70 48.30 44.70 40.90 36.90 32.30
KW 2.97 3.25 3.55 3.88 4.22 4.57 4.93 5.29
SDT 99.30 107.60 116.00 124.20 132.20 140.00 147.50 154.60
45 TCG 63.00 59.50 55.90 52.20 48.30 44.20 39.70 34.70
KW 3.06 3.34 3.64 3.97 4.31 4.67 5.03 5.38
SDT 102.10 110.40 118.50 126.50 134.30 141.90 149.10 155.90
50 TCG 67.90 64.10 60.10 56.10 51.90 47.40 42.50 37.20
KW 3.16 3.44 3.74 4.07 4.41 4.76 5.11 5.46
SDT 105.10 113.10 121.00 128.90 136.40 143.70 150.70 157.20
55 TCG 72.80 68.70 64.40 60.10 55.50 50.60 45.30 39.80
KW 3.26 3.54 3.84 4.17 4.50 4.85 5.19 5.53
SDT 108.00 115.90 123.60 131.20 138.50 145.60 152.10 158.40
34
Condenser only ratings* continued
*ARI listing applies only to systems shown in Combinations Rating table.
KW — Outdoor Unit Kilowatts Only (kW).
SDT — Saturated Temperature Leaving Compressor (°F)
SST — Saturated Temperature Entering Compressor (°F)
TCG — Gross Cooling Capacity (1000 Btuh)
SST
°F
CONDENSER ENTERING AIR TEMPERATURES °F
55 65 75 85 95 105 115 125
38CKC060-37, 57, 67
30 TCG 62.90 59.20 55.40 51.40 47.20 43.00 38.40 33.30
KW 3.57 3.93 4.33 4.76 5.20 5.61 6.01 6.40
SDT 99.60 108.50 117.50 126.40 135.10 142.60 149.80 156.80
35 TCG 68.50 64.50 60.30 55.90 51.30 46.60 41.60 36.10
KW 3.69 4.05 4.46 4.89 5.34 5.76 6.15 6.55
SDT 102.60 111.30 120.10 128.80 137.40 144.70 151.50 158.40
40 TCG 74.30 69.90 65.30 60.50 55.40 50.20 44.60 39.00
KW 3.81 4.18 4.59 5.02 5.48 5.90 6.28 6.67
SDT 105.70 114.20 122.80 131.20 139.60 146.80 153.20 159.90
45 TCG 80.20 75.40 70.40 65.20 59.60 53.70 47.60 42.40
KW 3.95 4.31 4.72 5.15 5.61 6.03 6.41 6.75
SDT 108.90 117.20 125.50 133.70 141.70 148.80 154.80 161.10
50 TCG 86.20 81.00 75.60 69.80 63.70 57.20 50.60 46.20
KW 4.09 4.45 4.87 5.29 5.74 6.16 6.52 6.79
SDT 112.20 120.30 128.40 136.30 143.90 150.80 156.40 161.50
55 TCG 92.40 86.70 80.70 74.50 67.80 60.60 53.60 54.10
KW 4.24 4.61 5.02 5.43 5.87 6.29 6.63 6.30
SDT 115.60 123.40 131.20 138.80 146.10 152.70 158.00 152.80
35
System design summary
1. Intended for outdoor installation with free air inlet and outlet. Outdoor fan external static pressure available is less than 0.01-in. wc.
2. Minimum outdoor operating air temperature without low-ambient operation accessory is 55°F (12.8°C).
3. Maximum outdoor operating air temperature is 125°F (51.7°C).
4. For reliable operation, unit should be level in all horizontal planes.
5. Maximum elevation of indoor coil above or below base of outdoor unit is: indoor coil above = 50 ft, indoor coil below = 150 ft.
6. For interconnecting refrigerant tube lengths between 50 and 175 ft or 20 ft vertical differential, consult Residential’s Split System Long-Line
Application Guideline available from equipment distributor.
7. Crankcase heater required when interconnecting refrigerant tube length exceeds 50 ft.
8. If any refrigerant tubing is buried, provide a 6 in. vertical rise to the valve connections at the unit. Refrigerant tubing lengths up to 36 in. may
be buried without further consideration. For buried lines longer than 3 ft, consult your local distributor.
9. Use only copper wire for electric connection at unit. Aluminum and clad aluminum are not acceptable for the type of connector provided.
Carrier Corporation • Indianapolis, IN 46231 01-04
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
Book 1 2 4 Page 44 Catalog No. 523-80107 Printed in U.S.A. PC 101 Form 38CKC-8PD
Tab 3a 1a 2a Replaces: 38CKC-7PD
Guide specifications
GENERAL
System Description
Outdoor-mounted, air-cooled, split-system air conditioner
unit suitable for ground or rooftop installation. Unit consists
of a hermetic compressor, an air-cooled coil, propeller-type
condenser fan, and a control box. Unit will discharge supply
air upward as shown on contract drawings. Unit will be used
in a refrigeration circuit to match up to a packaged fan coil or
coil unit.
Quality Assurance
Unit will be rated in accordance with the latest edition of
ARI Standard 210.
Unit will be certified for capacity, efficiency, and listed in
the latest ARI directory.
Unit construction will comply with latest edition of ANSI/
ASHRAE and with NEC.
Unit will be constructed in accordance with UL standards
and will carry the UL label of approval. Unit will have c-UL
approval.
Unit cabinet will be capable of withstanding Federal Test
Method Standard No. 141 (Method 6061) 500-hr salt spray
test.
Air-cooled condenser coils will be leak tested at 150 psig
and pressure tested at 300 psig.
Unit constructed in ISO 9001 approved facility.
Delivery, Storage, and Handling
Unit will be shipped as single package only and is stored
and handled per unit manufacturer’s recommendations.
Warranty (for inclusion by specifying engineer)
U.S. and Canada only.
PRODUCTS
Equipment
Factory-assembled, single-piece, air-cooled air conditioner
unit. Contained within the unit enclosure is all factory
wiring, piping, controls, compressor, refrigerant charge
(R22), and special features required prior to field start-up.
Unit Cabinet
Unit cabinet will be constructed of galvanized steel,
bonderized, and coated with a powder coat paint.
Fans
Condenser fan will be direct-drive propeller type,
discharging air upward.
Air-Cooled, Split-System
Air Conditioner
38CKC
1-1/2 to 5 Tons Nominal
Condenser fan motors will be totally enclosed, 1-phase type
with class B insulation and permanently lubricated bearings.
Shafts will be corrosion resistant.
Fan blades will be statically and dynamically balanced.
Condenser fan openings will be equipped with PVC-coated
steel wire safety guards.
Compressor
Compressor will be hermetically sealed.
Compressor will be mounted on rubber vibration isolators.
Condenser Coil
Condenser coil will be air cooled.
Coil will be constructed of aluminum fins mechanically
bonded to copper tubes which are then cleaned, dehydrated,
and sealed.
Refrigeration Components
Refrigeration circuit components will include liquid line
shutoff valve with sweat connections, suction line shutoff
valves with sweat connections, system charge of R-22
refrigerant, and compressor oil.
Operating Characteristics
The capacity of the unit will meet or exceed _____ Btuh at
a suction temperature of _____ °F. The power consumption
at full load will not exceed _____ kW.
Combination of the unit and the evaporator or fan coil unit
will have a total net cooling capacity of _____ Btuh or
greater at conditions of _____ CFM entering air temperature
at the evaporator at _____ °F wet bulb and _____ °F dry bulb,
and air entering the unit at _____ °F.
The system will have a SEER of _____ Btuh/watt or greater
at DOE conditions.
Electrical Requirements
Nominal unit electrical characteristics will be _____ v,
single phase, 60 hz. The unit will be capable of satisfactory
operation within voltage limits of _____ v
to _____ v.
Unit electrical power will be single point connection.
Control circuit will be 24v.
Special Features
Refer to section of this literature identifying accessories
and descriptions for specific features and available
enhancements.
