Open the PDF directly: View PDF
.
Page Count: 1

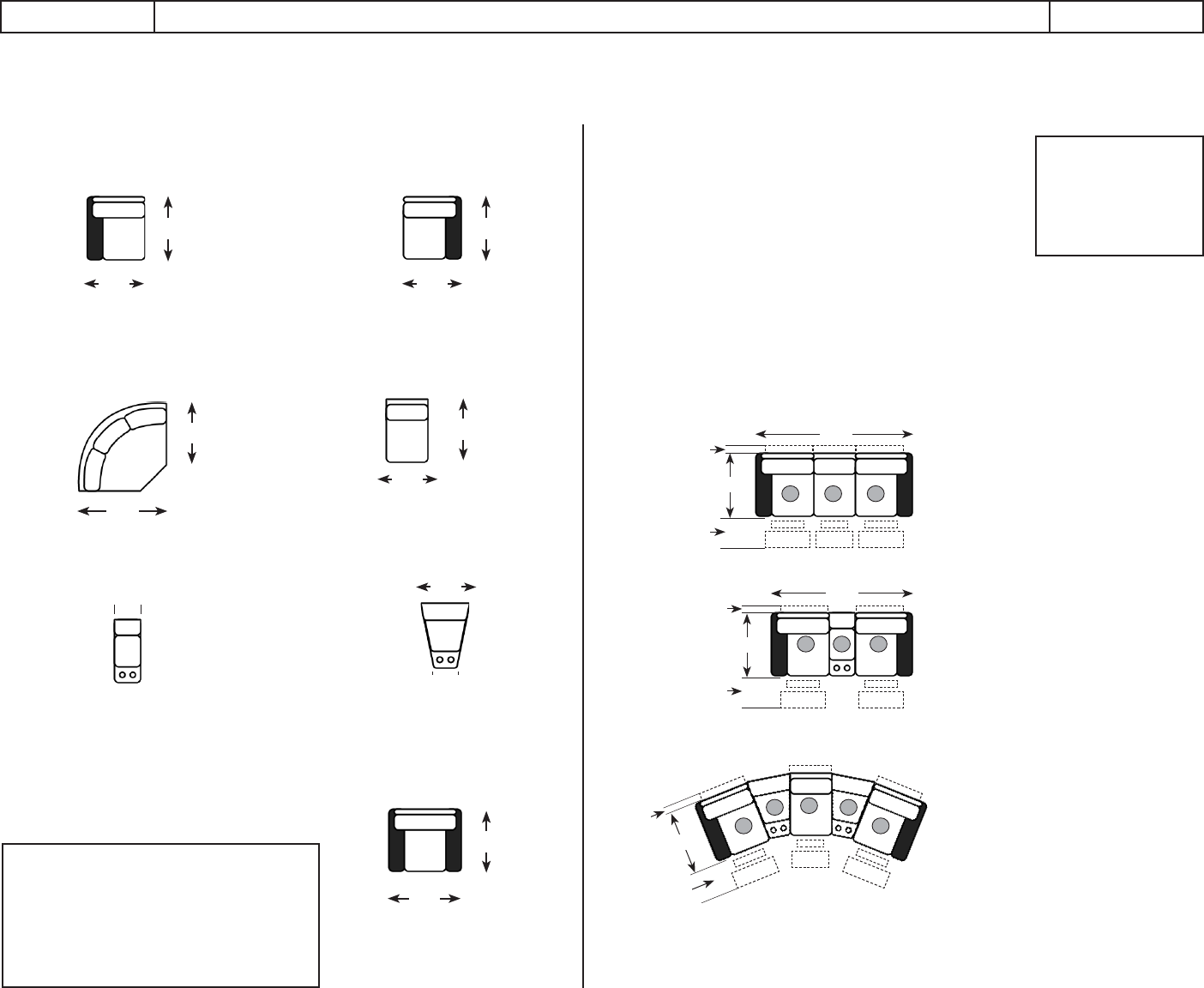

AVAILABLE PIECES
Diagrams are not drawn to scale. Shaded area represents the arm. Our innovative
bracketing system
keeps the units
together and prevents
shifting or separating.
EXAMPLE COMBINATIONS
Note that armless sides have exposed connector brackets, so all configurations must have
an arm at both the left and right ends.
COMMON DIMENSIONS
Overall height .................................................................... 40”
Seat height ......................................................................... 20”
Seat depth .......................................................................... 19”
Arm height ......................................................................... 27”
Arm height on consoles ..................................................... 24”
Recliner footrest length ...................................................... 19”
Required distance from wall for recliner back ...................... 3”
Wall distance for 421-59 (swivel glider reclining chair)...... 12”
Choose from 12 different pieces to create an infinite number of combinations. Each piece in the 421 Style is a single seat, and our innovative bracket system allows you to position them
in any configuration: from a simple reclining sofa to a custom-sized sectional. The available pieces in this series are shown below, as well as some example configurations.
41”
31” 31”
41”
86”
41”
Three-cushion Reclining Sofa:
1. Reclining LAF Chair2
2. Manual Reclining Armless Chair
3. Reclining RAF Chair2
1 2 3
3”
19”
421 MODULAR SECTIONAL WITH STATIONARY OR MOTION PIECES 421
421-74: Manual Reclining LAF Chair
421-66: Motorized Reclining LAF Chair
421-75: Manual Reclining RAF Chair
421-67: Motorized Reclining RAF Chair
41”
24”
421-68: Manual Reclining Armless Chair
421-36: Stationary Armless Chair
41”
38”
421-37: Manual Reclining Chair
421-38: Motorized Reclining Chair
421-59: Swivel Glider Reclining Chair
77”
41”
Reclining Loveseat with Console:
1. Reclining LAF Chair2
2. Straight Console
3. Reclining RAF Chair2
1 2 3
3”
19”
421-71: Deluxe Straight Console
15”
421-73: Deluxe Angled Console
27”
12”
Consoles feature cup holders, a storage bin with lid, USB charging ports, and a drawer. Reclining Conversation Sofa:
1. Reclining LAF Chair2
2. Angled Console
3. Manual Reclining Armless Chair
4. Angled Console
5. Reclining RAF Chair2
41”
3”
19”
1 5
234
55”
41”
421-53: Wedge
1
1 The Wedge must be attached to at least one
stationary chair on either end so that recliner
footrests can all open at the same time without
interference.
2 Reclining chairs with arms may be manual or
motorized.
