42LZ196 47LZ196 E

User Manual: 42LZ196

Open the PDF directly: View PDF .
Page Count: 94

LZ196 (E/F) Web 213:276

HIGH-DEFINITION TELEVISION

42LZ196

47LZ196

YC/M VX1A00019400

Integrated High Definition

LCD Television

Owner’s Record

The model number and serial number are on the back of

your TV. Record these numbers in the spaces below.

Refer to these numbers whenever you communicate

with your Toshiba dealer about this TV.

Model number:

Serial number:

For an overview of steps for setting up your new TV, see page 6.

Note: To display a High Definition picture, the TV must be receiving a

High Definition signal (such as an over-the-air High Definition TV

broadcast, a High Definition digital cable program, or a High Definition

digital satellite program). For details, please contact your TV antenna

installer, cable provider, or satellite provider.

IMPORTANT NOTE

Before connecting, operating, or adjusting this product, carefully

read the Important Safety, Installation, Care, and Service

information in the separate Installation Guide.

LZ196_EN.book Page 1 Tuesday, August 1, 2006 6:04 PM

Rec'd 8-2-06 due 8-4-06

LZ196 (E/F) Web 213:276

FCC Declaration of Conformity

Compliance Statement

(Part 15):

The Toshiba 42LZ196 and 47LZ196 Televisions comply

with Part 15 of the FCC rules.

Operation is subject to the following two conditions: (1) this

device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that

may cause undesired operation.

The party responsible for compliance to these rules is:

Toshiba America Consumer Products, L.L.C.

82 Totowa Rd. Wayne, NJ 07470.

Ph: 1-800-631-3811

Note: This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to Part 15

of the FCC rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is

no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by

removing and applying power to the equipment, the user is

encouraged to try to correct the interference by one or more of

the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the

receiver.

• Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for

help.

Caution: Changes or modifications to this equipment not

expressly approved by Toshiba could void the user’s authority

to operate this equipment.

Important notes about your

LCD TV

The following symptoms are technical limitations of LCD

Display technology and are not an indication of malfunction;

therefore, Toshiba is not responsible for perceived issues

resulting from these symptoms.

1) An afterimage (ghost) may appear on the screen if a fixed, non-

moving image is displayed for a long period of time. The

afterimage is not permanent and will disappear in a short period of

time.

2) The LCD panel contained in this TV is manufactured using an

extremely high level of precision technology; however, there may

be an occasional pixel (dot of light) that does not operate properly

(does not light, remains constantly lit, etc.). This is a structural

property of LCD technology, is not a sign of malfunction, and is

not covered under your warranty. Such pixels are not visible when

the picture is viewed from a normal viewing distance.

Note: Interactive video games that involve shooting a “gun”

type of joystick at an on-screen target may not work with this

TV.

Your TV may be connected to the internet to support

firmware update, remote scheduling and e-mail capabilities.

You should carefully review the information in this manual

before connecting the TV to the internet or using these

features.

• If you use the remote scheduling capability of the TV, you

will need an e-mail account that is used only for the TV. Use

of non-dedicated accounts (e.g. accounts used to receive

regular e-mail) will result in the deletion of e-mail in those

accounts–even if they are used only for “test” purposes. See

page 75 for more information.

• If you set up any personal e-mail accounts on the TV, any

person with access to the TV will be able to read mail from all

of those accounts. See page 71 for more information.

• If you connect the TV to the internet, any person with access

to the TV will be able to configure the TV to access e-mail

accounts for which they have account access information

(user name, password and server addresses). See page 71 for

more information.

LZ196_EN.book Page 2 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Trademark Information

• This product incorporates copyright protection technology that is

protected by U.S. patents and other intellectual property rights. Use

of this copyright protection technology must be authorized by

Macrovision, and is intended for home and other limited viewing

uses only unless otherwise authorized by Macrovision. Reverse

engineering or disassembly is prohibited.

• WOW, TruSurround, SRS and l symbol are trademarks of SRS

Labs, Inc.

WOW and TruSurround technologies are incorporated under

license from SRS Labs, Inc.

• Manufactured under license from Dolby Laboratories.

Dolby, Pro Logic, and the double-D symbol are registered

trademarks of Dolby Laboratories.

• CableCARD™ is a trademark of Cable Television Laboratories, Inc.

• HDMI, the HDMI logo and High-Definition Multimedia Interface are

trademarks or registered trademarks of HDMI Licensing LLC.

• In the United States, TV GUIDE and other related marks are

registered marks of Gemstar-TV Guide International, Inc. and/or one

of its affiliates. In Canada, TV GUIDE is a registered mark of

Transcontinental Inc., and is used under license by Gemstar-TV

Guide International, Inc. The TV Guide On Screen system is

manufactured under license from Gemstar-TV Guide International,

Inc. and/or one of its affiliates. The TV Guide On Screen system is

protected by one or more of the following United States patents

4,908,713; 6,498,895; 6,850,693; 6,396,546; 5,940,073; 6,239,794

to Gemstar-TV Guide International, Inc. and/or its subsidiaries.

• GEMSTAR-TV GUIDE INTERNATIONAL INC. AND/OR ITS

RELATED AFFILIATES ARE NOT IN ANY WAY LIABLE FOR THE

ACCURACY OR AVAILABILITY OF THE PROGRAM SCHEDULE

INFORMATION OR OTHER DATA IN THE TV GUIDE ON SCREEN

SYSTEM AND CANNOT GUARANTEE SERVICE AVAILABILITY IN

YOUR AREA. IN NO EVENT SHALL GEMSTAR-TV GUIDE

INTERNATIONAL, INC. AND/OR ITS RELATED AFFILIATES BE

LIABLE FOR ANY DAMAGES IN CONNECTION WITH THE

ACCURACY OR AVAILABILITY OF THE PROGRAM SCHEDULE

INFORMATION OR OTHER DATA IN THE TV GUIDE ON SCREEN

SYSTEM.

LZ196_EN.book Page 3 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Contents

FCC Declaration of Conformity Compliance Statement

(Part 15): . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Important notes about your

LCD TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Trademark Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Chapter 1: Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Welcome to Toshiba . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Features of your new TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Overview of steps for installing, setting up, and

using your new TV. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

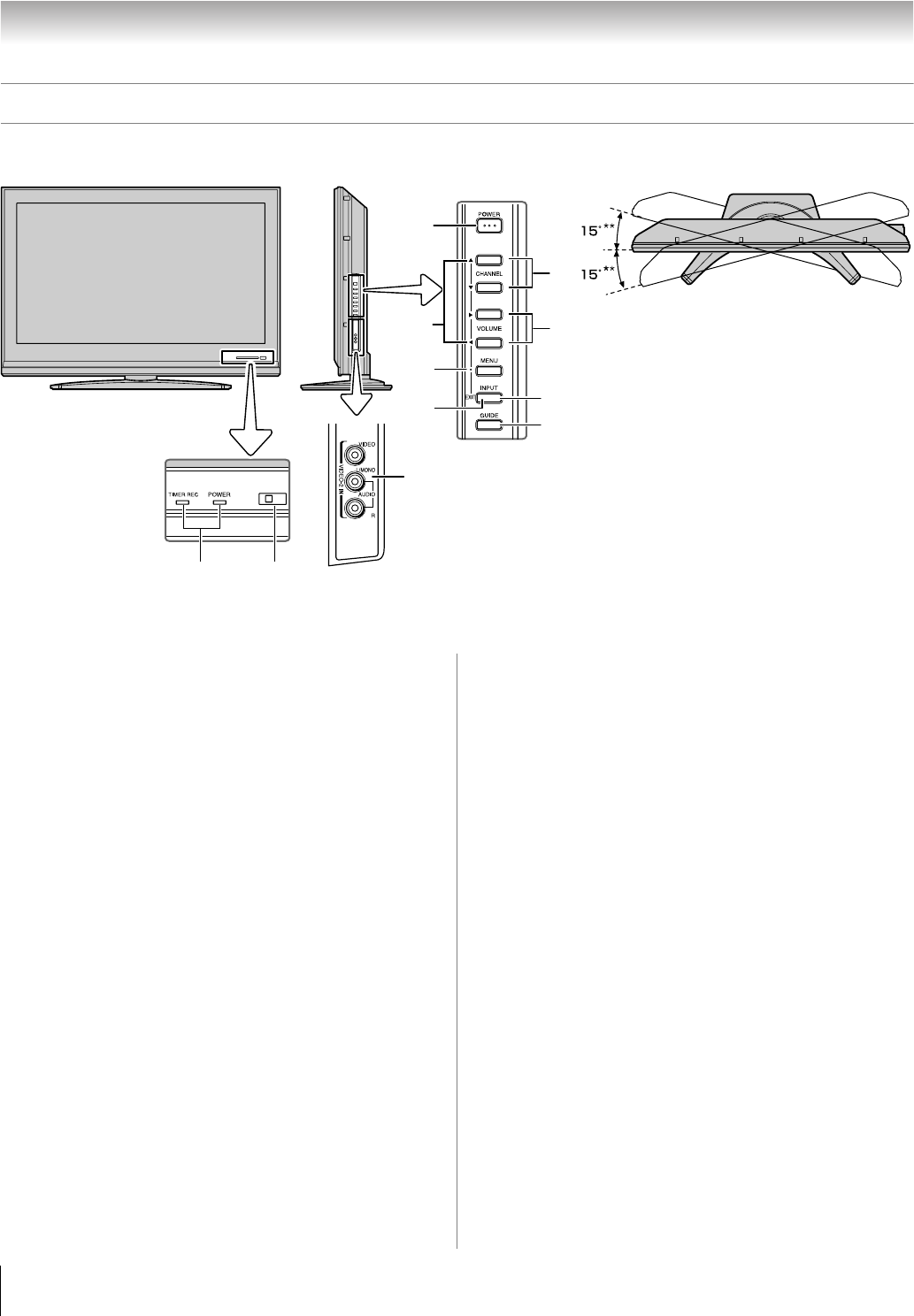

TV front and side panel controls and connections . . . . . . . . . 8

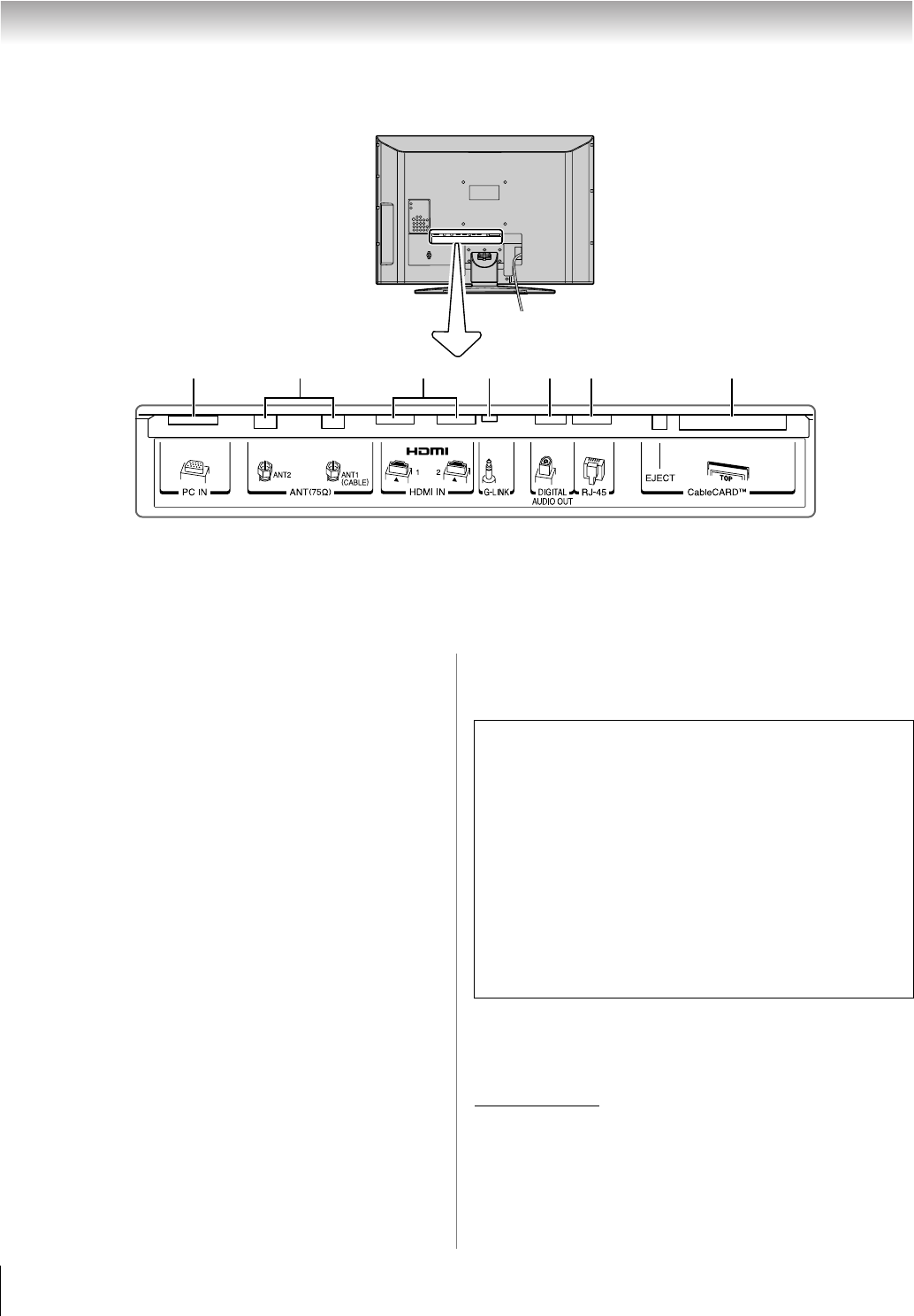

TV back panel connections. . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Chapter 2: Using the remote control . . . . . . . . . . . . . . . . . . .11

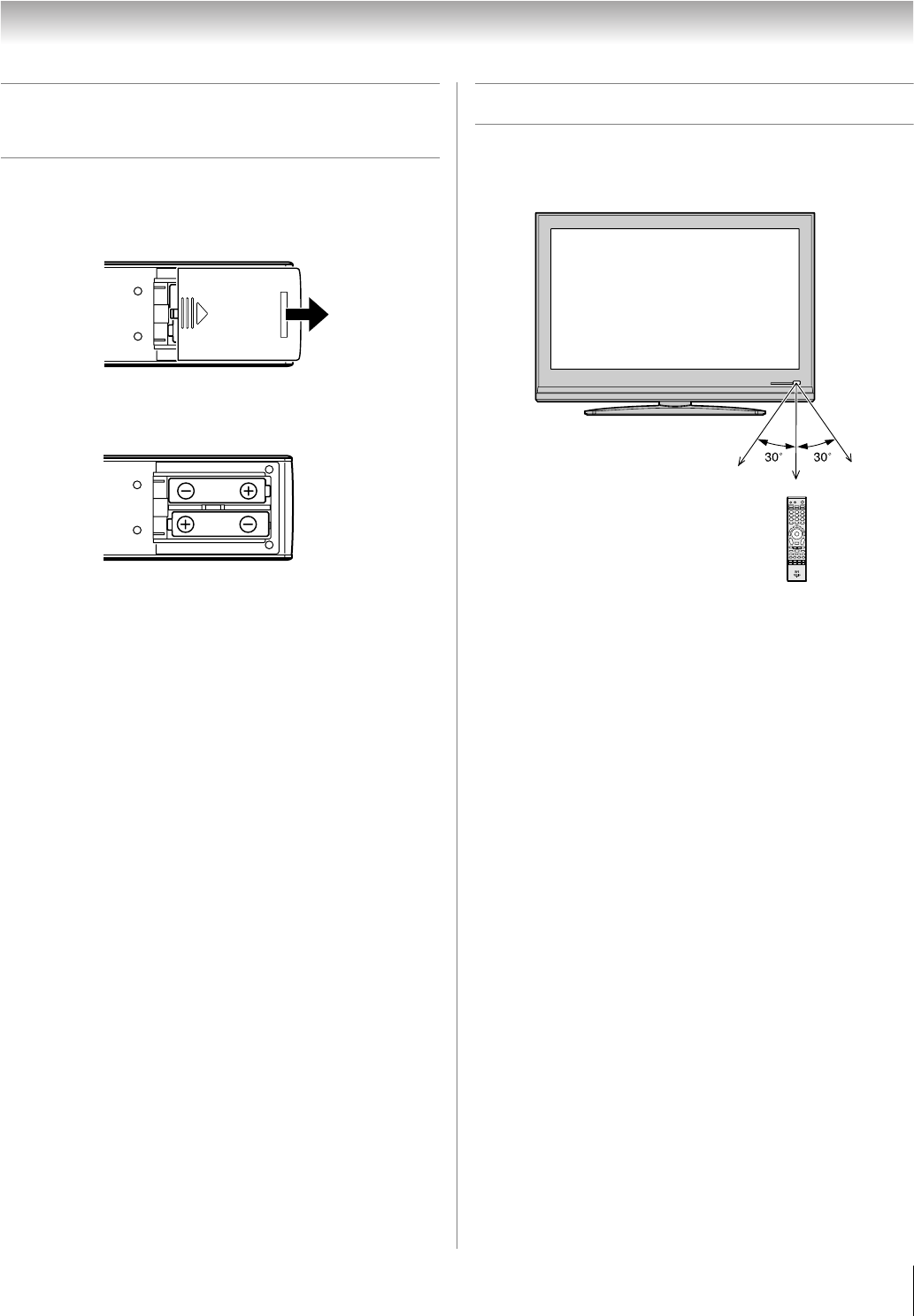

Installing the remote control batteries . . . . . . . . . . . . . . . . . 11

Remote control effective range. . . . . . . . . . . . . . . . . . . . . . . 11

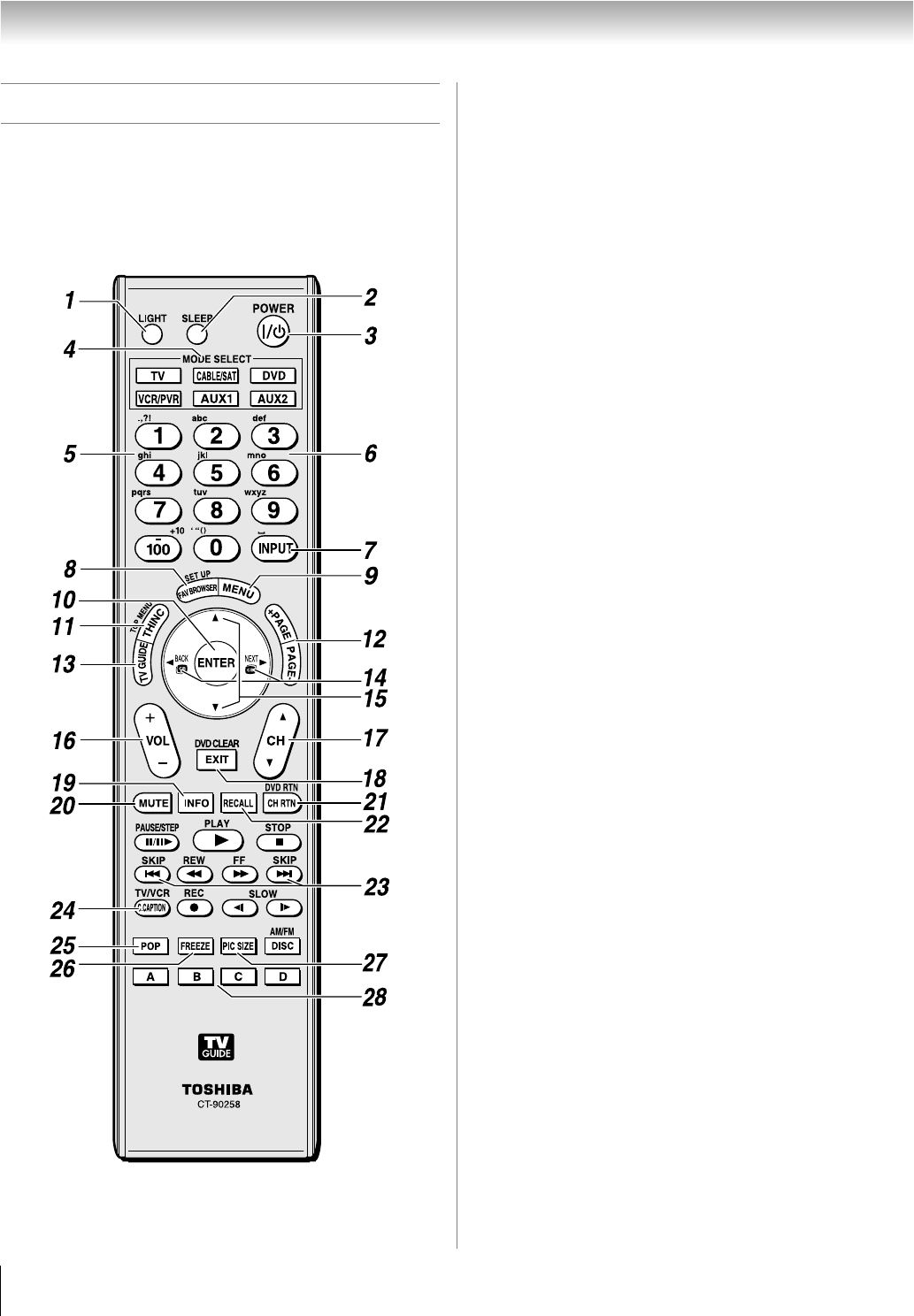

Learning about the remote control . . . . . . . . . . . . . . . . . . . . 12

Remote Control functional key chart . . . . . . . . . . . . . . . . . . 14

Using the remote control to operate your other devices . . . . 16

Programming the remote control to operate

your other devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Device code setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Searching and sampling the code of a device (8500). . . 17

Using the volume lock feature (8000) . . . . . . . . . . . . . . 17

Operational feature reset (8900). . . . . . . . . . . . . . . . . . . 17

Multi-brand remote control device codes . . . . . . . . . . . . . . . 18

Chapter 3: Menu layout and navigation . . . . . . . . . . . . . . . . .22

Main menu layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Setup/Installation menu layout . . . . . . . . . . . . . . . . . . . . . . . 23

THINC™ menu layout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Navigating the menu system. . . . . . . . . . . . . . . . . . . . . . . . . 24

Chapter 4: Setting up your TV. . . . . . . . . . . . . . . . . . . . . . . .25

Selecting the menu language . . . . . . . . . . . . . . . . . . . . . . . . 25

Configuring the antenna input sources for the

ANT 1 and ANT 2 terminals . . . . . . . . . . . . . . . . . . . . . 25

Programming channels into the TV’s channel memory . . . . 26

Programming channels automatically . . . . . . . . . . . . . . 26

Manually adding and deleting channels in the channel

memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Setting the time and date. . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Setting the HDMI™ audio mode . . . . . . . . . . . . . . . . . . . . . . 28

Viewing the CableCARD™ menu. . . . . . . . . . . . . . . . . . . . . 29

Viewing the digital signal meter. . . . . . . . . . . . . . . . . . . . . . 29

Viewing the system status. . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Chapter 5: Using the TV’s features . . . . . . . . . . . . . . . . . . . .31

Selecting the video input source to view . . . . . . . . . . . . . . . 31

Labeling the video input sources . . . . . . . . . . . . . . . . . . . . . 31

Tuning channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

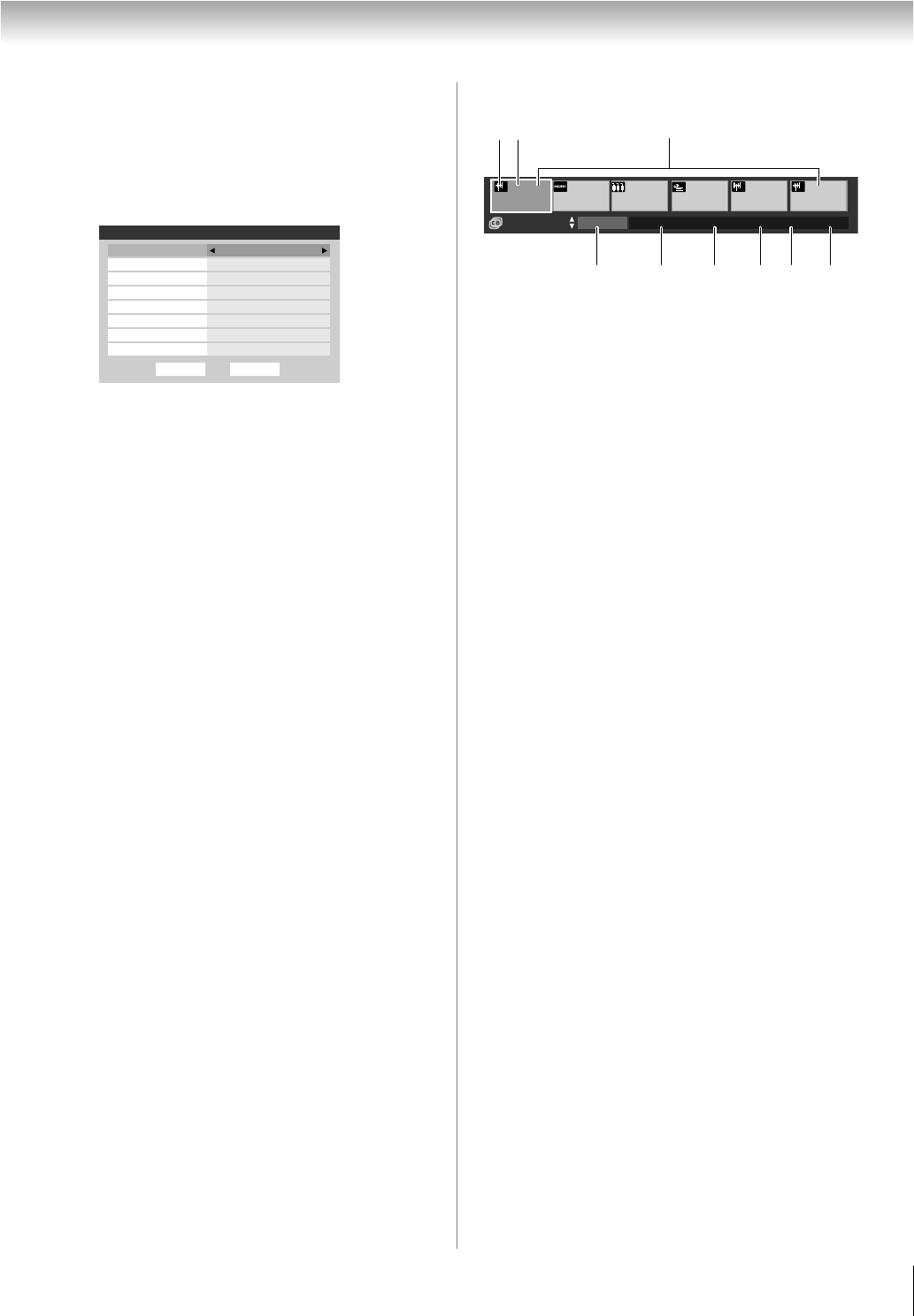

Tuning channels using the Channel Browser™ . . . . . . . 32

Tuning to the next programmed channel . . . . . . . . . . . . 34

Tuning to a specific channel (programmed or

unprogrammed) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Switching between two channels

using Channel Return . . . . . . . . . . . . . . . . . . . . . . . 35

Switching between two channels using SurfLock™. . . . 35

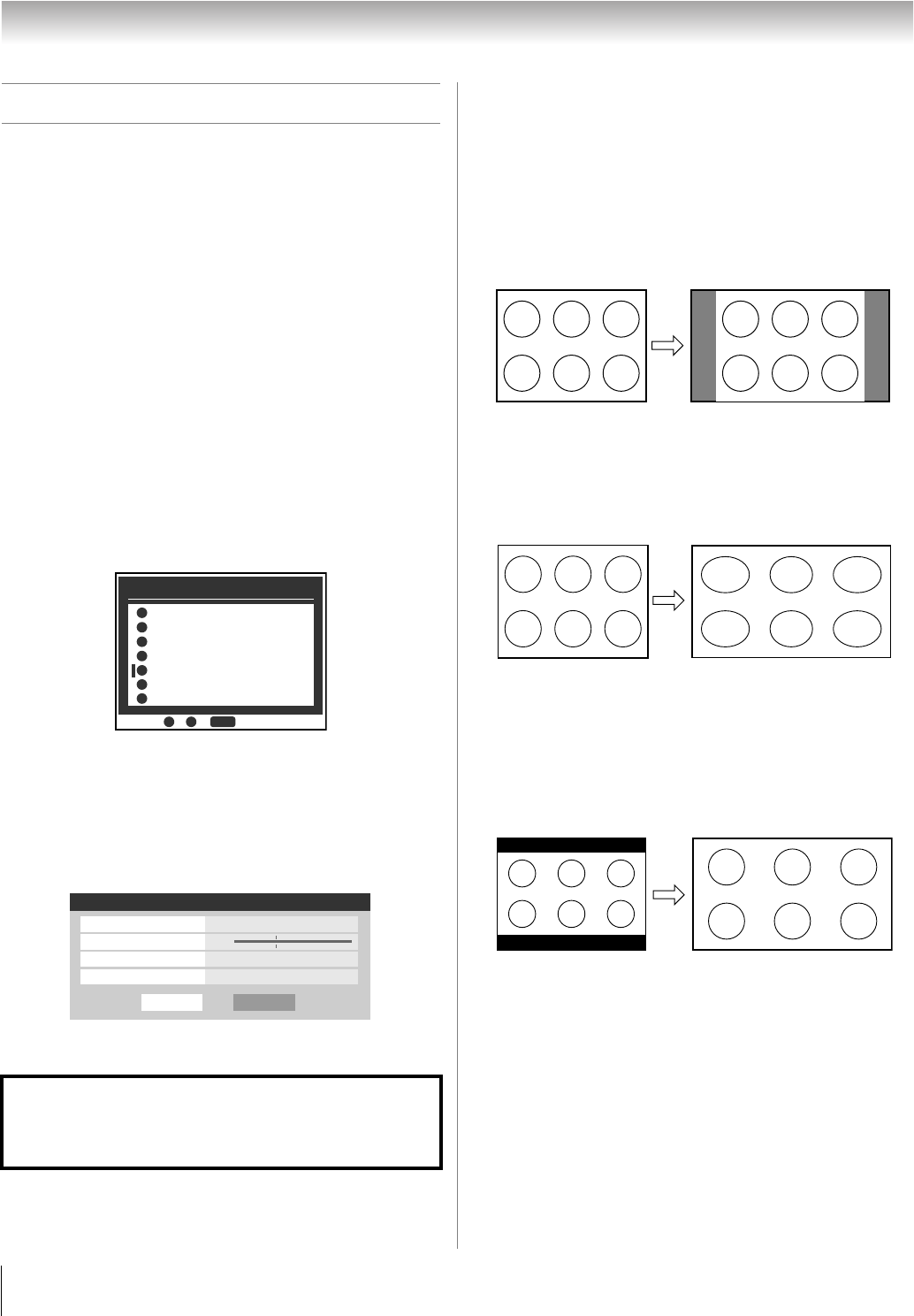

Selecting the picture size . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Scrolling the TheaterWide® picture

(TheaterWide 2 and 3 only) . . . . . . . . . . . . . . . . . . . . . . 37

Using the auto aspect ratio feature . . . . . . . . . . . . . . . . . . . . 38

Selecting the cinema mode (480i signals only) . . . . . . . . . . 38

Using the POP features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Using the POP double-window feature . . . . . . . . . . . . . 39

Selecting the POP window audio out. . . . . . . . . . . . . . . 40

Using the FREEZE feature . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Adjusting the picture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Selecting the picture mode . . . . . . . . . . . . . . . . . . . . . . . 41

Adjusting the picture quality . . . . . . . . . . . . . . . . . . . . . 41

Using the closed caption mode . . . . . . . . . . . . . . . . . . . . . . . 42

Closed Caption Advanced . . . . . . . . . . . . . . . . . . . . . . . 42

Digital closed captions . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Using the Closed Caption button on the

remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Adjusting the audio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Muting the sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Using the digital audio selector . . . . . . . . . . . . . . . . . . . 43

Selecting stereo/SAP broadcasts . . . . . . . . . . . . . . . . . . 44

Adjusting the audio quality . . . . . . . . . . . . . . . . . . . . . . 44

Using the StableSound® feature. . . . . . . . . . . . . . . . . . . 44

Turning off the built-in speakers . . . . . . . . . . . . . . . . . . 45

Selecting the optical audio output format . . . . . . . . . . . 45

Using the Dolby Digital Dynamic Range

Control feature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Using the Locks menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Entering the PIN code . . . . . . . . . . . . . . . . . . . . . . . . . . 46

If you cannot remember your PIN code. . . . . . . . . . . . . 46

Changing your PIN code . . . . . . . . . . . . . . . . . . . . . . . . 46

Blocking TV programs and movies

by rating (V-Chip) . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Downloading an additional rating system

for blocking TV programs and movies . . . . . . . . . . 47

Blocking channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Unlocking programs temporarily . . . . . . . . . . . . . . . . . . 49

Using the input lock feature . . . . . . . . . . . . . . . . . . . . . . 49

Using the GameTimer™. . . . . . . . . . . . . . . . . . . . . . . . . 50

Using the control panel lock feature . . . . . . . . . . . . . . . 50

Setting the sleep timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Setting the On/Off Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Using the PC settings feature . . . . . . . . . . . . . . . . . . . . . . . . 52

Setting the PC Audio mode . . . . . . . . . . . . . . . . . . . . . . . . . 52

Displaying TV status information using RECALL . . . . . . . 53

Understanding the auto power off feature . . . . . . . . . . . . . . 53

Understanding the last mode memory feature . . . . . . . . . . . 53

Chapter 6: Using the TV’s advanced features . . . . . . . . . . . . .54

Using the advanced picture settings features . . . . . . . . . . . . 54

Using dynamic contrast . . . . . . . . . . . . . . . . . . . . . . . . . 54

Using the static gamma feature . . . . . . . . . . . . . . . . . . . 54

Selecting the color temperature . . . . . . . . . . . . . . . . . . . 55

Using the Vertical Edge Enhancer feature . . . . . . . . . . . 55

Using CableClear® digital noise reduction . . . . . . . . . . 56

Using MPEG noise reduction. . . . . . . . . . . . . . . . . . . . . 56

Using the Color Management Pro feature . . . . . . . . . . . 57

Using the Game Mode feature . . . . . . . . . . . . . . . . . . . . 58

Using the advanced audio settings features . . . . . . . . . . . . . 59

Using the SRS WOW™ surround sound feature . . . . . . 59

Using the virtual surround sound feature

(Dolby® Virtual/SRS TruSurround™) . . . . . . . . . . . 59

LZ196_EN.book Page 4 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 7: Using the THINC™ home network feature . . . . . . . .60

A. Connecting the TV to your home network . . . . . . . . . . . 60

B. Setting up the network address . . . . . . . . . . . . . . . . . . . . 61

Automatically setting up the network address . . . . . . . . 61

Manually setting up the network address. . . . . . . . . . . . 62

Resetting the network address . . . . . . . . . . . . . . . . . . . . 63

C. Setting up file sharing on your PC . . . . . . . . . . . . . . . . . . 63

Compatible operating systems . . . . . . . . . . . . . . . . . . . . 63

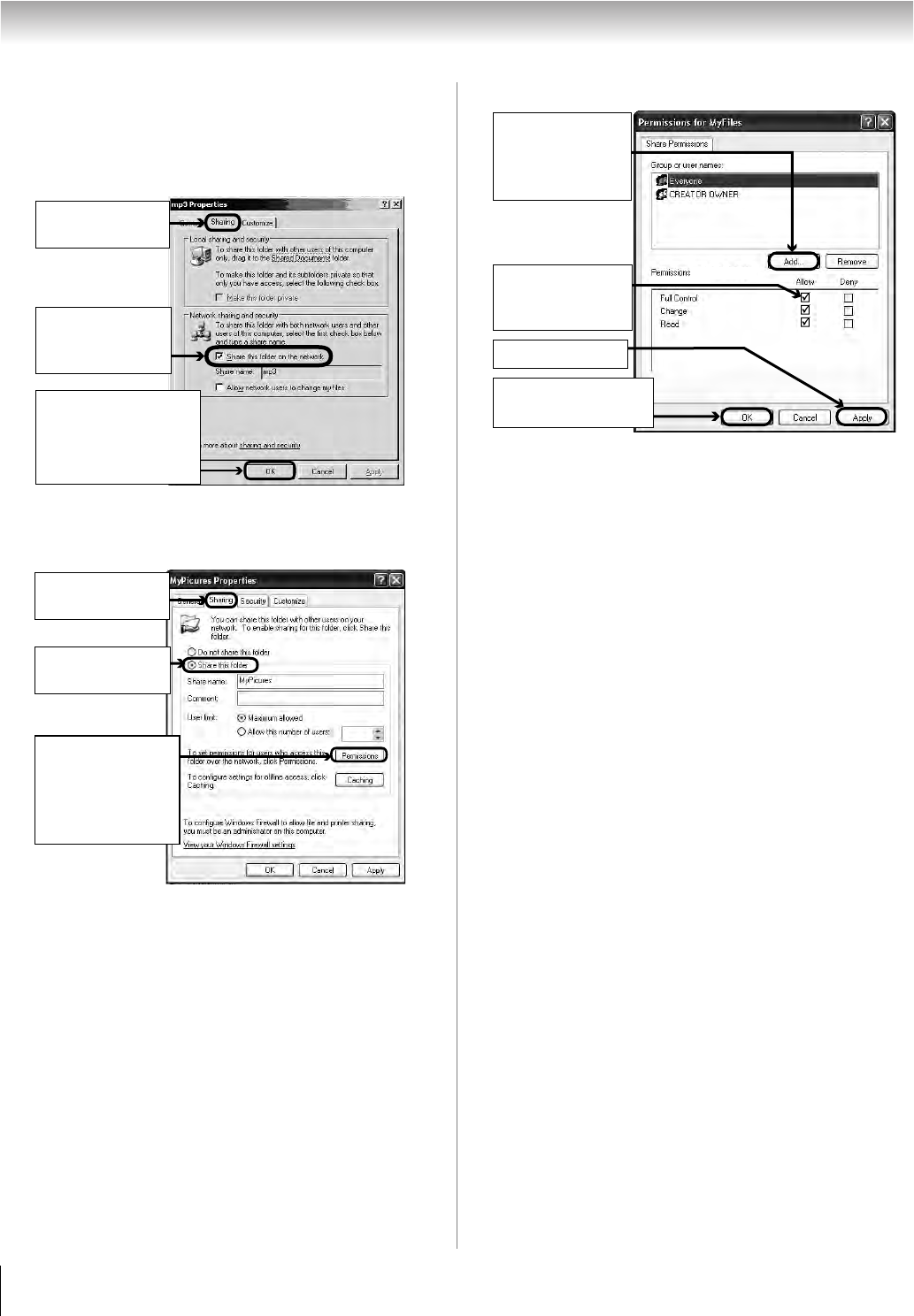

Setting up file sharing on a PC with Microsoft®

Windows® XP Service Pack 1 or Service Pack 2 . . 63

Setting up file sharing on a PC with Microsoft®

Windows® 2000. . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

D. Setting up file sharing on the TV . . . . . . . . . . . . . . . . . . . 66

Using the software keyboard . . . . . . . . . . . . . . . . . . . . . 67

About the Software Upgrade feature . . . . . . . . . . . . . . . 67

E. Viewing/playing shared files on the TV. . . . . . . . . . . . . . 67

Media specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

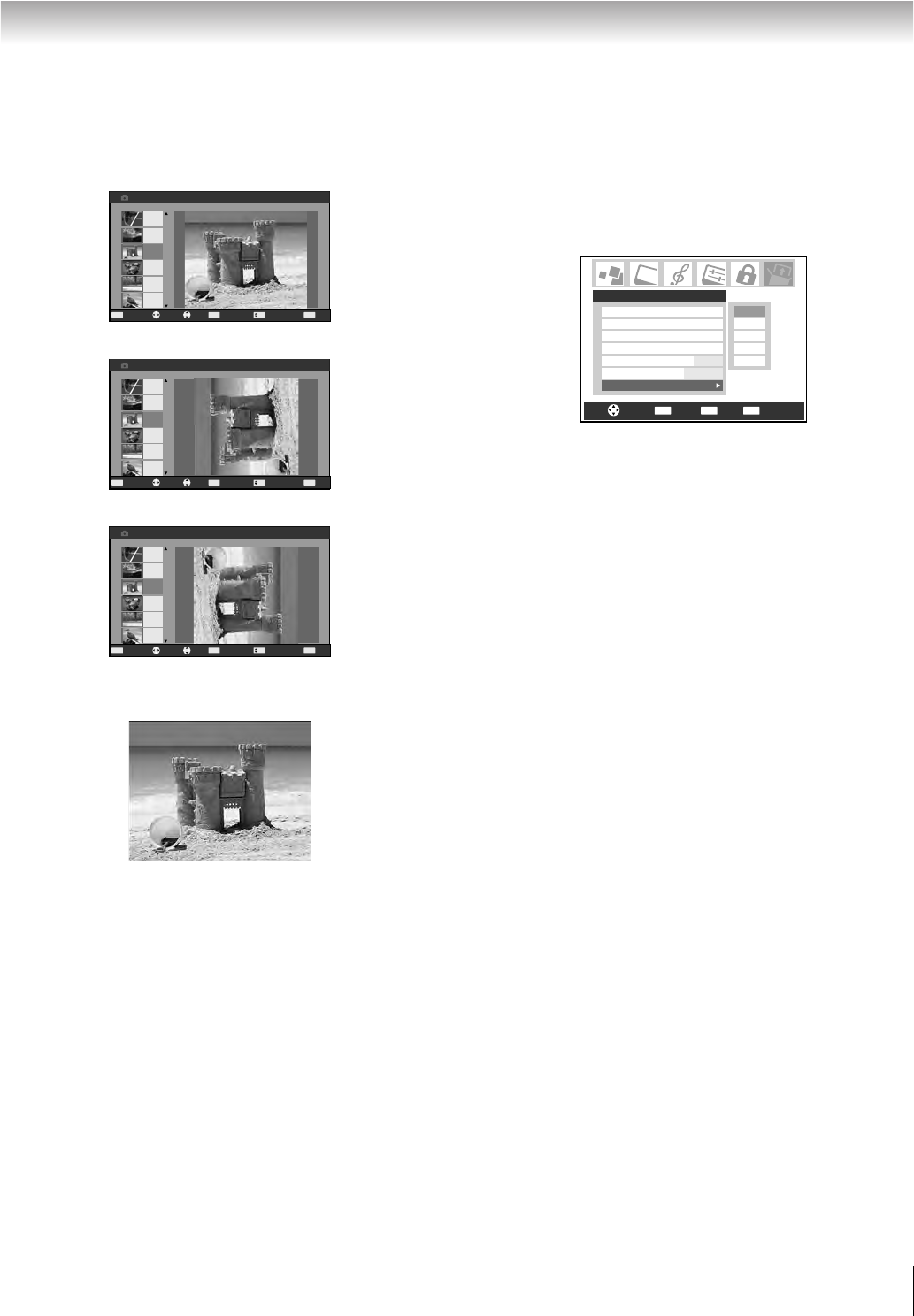

Using the Picture Viewer . . . . . . . . . . . . . . . . . . . . . . . . 68

Using the Audio Player . . . . . . . . . . . . . . . . . . . . . . . . . 70

F. Setting up Personal E-mail . . . . . . . . . . . . . . . . . . . . . . . . 71

Required information and services. . . . . . . . . . . . . . . . . 71

Setting up personal e-mail . . . . . . . . . . . . . . . . . . . . . . . 71

G. Using the Personal E-mail . . . . . . . . . . . . . . . . . . . . . . . . 73

Unread E-mail Notification . . . . . . . . . . . . . . . . . . . . . . 73

E-mail Inbox. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Read View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Message editing views . . . . . . . . . . . . . . . . . . . . . . . . . . 75

H. Setting up e-mail scheduling . . . . . . . . . . . . . . . . . . . . . . 75

Required information and services. . . . . . . . . . . . . . . . . 75

Setting up e-mail scheduling . . . . . . . . . . . . . . . . . . . . . 76

Description of fields in the “E-mail Scheduling Setup”

window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Description of fields in the “E-mail Account Setup”

window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

I. Using e-mail scheduling . . . . . . . . . . . . . . . . . . . . . . . . . . 79

E-mail parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Sending a request e-mail to the TV . . . . . . . . . . . . . . . . 79

Formatting a request e-mail . . . . . . . . . . . . . . . . . . . . . . 80

Sample request e-mails . . . . . . . . . . . . . . . . . . . . . . . . . 80

Receiving an e-mail from the TV. . . . . . . . . . . . . . . . . . 81

Modifying an existing recording or reminder . . . . . . . . 81

Chapter 8: Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . .82

General troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Home network troubleshooting . . . . . . . . . . . . . . . . . . . . . . 84

LED indications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Chapter 9: Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Limited United States Warranty

for LCD Televisions 26” and Larger . . . . . . . . . . . . . . . 88

Limited Canada Warranty

for LCD Televisions. . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91

LZ196_EN.book Page 5 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 1: Introduction

Welcome to Toshiba

Thank you for purchasing this Toshiba TV, one of the most

innovative LCD TVs on the market.

This digital television is capable of receiving analog basic,

digital basic, and digital premium cable television

programming by direct connection to a cable system providing

such programming. A security card provided by your cable

operator is required to view encrypted digital programming.

Certain advanced and interactive digital cable services (such as

video-on-demand, a cable operator's enhanced program guide,

or data-enhanced television services) may require the use of a

set-top box. For more information, call your local cable

operator.

We have provided three separate Guides to facilitate the

installation and operation of your TV.

Please use the Guides in the order shown below to get the

most enjoyment from your new TV.

1) The Installation Guide explains how to connect your TV

to your antenna and equipment.

2) The Operating Guide (this Guide) provides step-by-step

instructions for using your TV's many features.

3) The TV Guide On Screen™ Interactive Program Guide

explains how to set up and navigate the TV Guide

On Screen™ system in your TV.

Note: The TV screen graphics in the Guides are for illustration

purposes only and may be different from the screens

displayed on your TV.

Features of your new TV

The following are just a few of the many exciting features of

your new Toshiba widescreen, integrated HD, LCD TV:

•Integrated digital tuning (8VSB ATSC and QAM)

eliminates the need for a separate digital converter set-top

box (in most cases).

•TV Guide On Screen™ no-fee interactive program guide

(- TV Guide On Screen™ Interactive Program Guide).

•Digital CableCARD™ slot for viewing encrypted digital

Cable TV programs (- Installation Guide).

•Two HDMI™ digital, high-definition multimedia interfaces

(- Installation Guide).

•Two sets of ColorStream® HD high-resolution component

video inputs (- Installation Guide).

•SRS WOW™ and Dolby Virtual/SRS TruSurround™

(- page 59) audio technologies.

•Digital Audio Out optical audio connection with Dolby®

Digital optical output format (- page 45; also see the

Installation Guide).

•CableClear® digital picture noise reduction

(- page 56).

•Double-window POP feature (- page 39).

•PC IN (Analog RGB) computer terminal (- Installation

Guide).

•Ethernet (RJ-45) (THINC™) port for connecting the TV

to a home network to enable file sharing (JPEG, MP3), using

personal e-mail, and e-mail scheduling of recordings and

reminders (- Chapter 7 and Installation Guide).

•Color Management Pro allows to adjust standard colors as

well as create 3 custom user colors. The menu will consist

of 3 items: Color Management Control, Color Palette

Adjustment, and Reset. The menu will also have a unique

“black” design to enhance the contrast of the colors against

the background.

•Built-in E-mail client for composing, viewing, replying and

forwarding e-mails.

LZ196_EN.book Page 6 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 1: Introduction

Overview of steps for installing,

setting up, and using your new TV

Follow these steps to set up your TV and begin using its many

exciting features.

1Carefully read the important safety, installation, care, and

service information in the separate Installation Guide.

Keep this manual for future reference.

2Observe the following when choosing a location for the

TV:

•Read the separate Installation Guide.

•Read the separate TV Guide On Screen™ Interactive

Program Guide.

•Read “Important notes about your LCD TV”

(- page 2).

•Place the TV on the floor or a sturdy, level, stable

surface that can support the weight of the unit. Secure

the TV to a wall, pillar, or other immovable structure as

described in the Installation Guide.

•Place the TV in a location where light does not reflect

on the screen.

•Place the TV far enough from walls and other objects to

allow proper ventilation. Inadequate ventilation may

cause overheating, which will damage the TV. THIS

TYPE OF DAMAGE IS NOT COVERED UNDER

THE TOSHIBA WARRANTY.

3Do not plug in any power cords until AFTER you have

connected all cables and devices to your TV.

4BEFORE connecting cables or devices to the TV, learn

the functions of the TV’s connections and controls

(- pages 8–10).

5Connect your other electronic device(s) to the TV

(- Installation Guide).

6Connect the supplied G-LINK™/IR blaster cable from

your VCR and/or Cable box (if applicable) to the

G-LINK™ terminal so you can use the TV Guide

On Screen™ features (applies to VCRs and cable boxes

only) (- Installation Guide).

7Install the batteries in the remote control (- page 11).

8See “Learning about the remote control” (- page 12) for

an overview of the buttons on the remote control.

9Program the remote control to operate your other

device(s) (- pages 16–21).

10 AFTER connecting all cables and devices, plug in the

power cords for your TV and other devices.

11 AFTER connecting all cables and devices, plug in the

power cords for your TV and other devices. The red LED

will blink until the TV goes into standby mode.

When the TV is in standby mode, press POWER on the

TV control panel or remote control to turn on the TV.

If the TV stops responding to the controls on the remote

control or TV control panel and you cannot turn the TV

off or on, press and hold the POWER button for 5

seconds to reset the TV.

12 See “Menu layout and navigation” for a quick overview of

the TV’s menu system (- page 22).

13 See the separate TV Guide On Screen™ Interactive

Program Guide for details on setting up and using the

TV Guide On Screen™ system (if available in your area).

14 Program channels into the TV’s channel memory

(- page 26).

15 For details on using the TV’s features, see Chapters 5

and 6.

16 For details on connecting the TV to a home network to

enable file sharing, use personal e-mails, and e-mail

scheduling of recordings, see Chapter 7.

17 For help, refer to the Troubleshooting Guide, Chapter 8.

18 For technical specifications and warranty information, see

Chapter 9.

19 Enjoy your new TV!

LZ196_EN.book Page 7 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 1: Introduction

TV front and side panel controls and connections

Right side panel TV top

TV front

Control panel

** Swivel angle

1Blue and Red LEDs

See “LED indications” on page 86 for additional

information.

2Remote sensor — Point the remote control toward this

remote sensor (- “Remote control effective range” on

page 11).

3VIDEO-2 IN — The side panel A/V connections are

referred to as “VIDEO 2” and include standard A/V

inputs.

4POWER — Press to turn the TV on and off.

If the TV stops responding to the controls on the remote

control or TV control panel and you cannot turn off the

TV, press and hold the POWER button on the TV control

panel for 5 or more seconds to reset the TV.

5ARROWS BbC c — When a menu is on-screen, these

buttons function as up/down/left/right menu navigation

buttons.

6*MENU (ENTER) — Press to access the menu system

(- pages 22–23). When a menu is on-screen, the MENU

button on the TV’s side control panel functions as the

ENTER button.

7EXIT — Press to instantly close an on-screen menu.

8CHANNEL bB — When no menu is on-screen, these

buttons change the channel (programmed channels only;

- page 26). When a menu is on-screen, these buttons

function as up/down menu navigation buttons.

9VOLUME C c — When no menu is on-screen, these

buttons adjust the volume level. When a menu is

on-screen, these buttons function as left/right menu

navigation buttons.

10 INPUT — Repeatedly press to change the source

you are viewing (ANT 1, VIDEO 1, VIDEO 2,

ColorStream HD-1, ColorStream HD-2, HDMI 1,

HDMI 2, PC, ANT 2).

11 GUIDE — Press to access the TV Guide On Screen™

program guide (- TV Guide On Screen™ Interactive

Program Guide).

LZ196_EN.book Page 8 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 1: Introduction

TV back panel connections

For an explanation of cable types and connections, see the Installation Guide.

Power cord

TV back

Cable clamper

1IR OUT — For controlling infrared remote-controlled

devices through the TV. You can connect up to two

devices with an IR blaster cable, and then control the

devices using the TV’s IR pass-through features.

IR IN — For connecting to IR OUT on other devices

(-Installation Guide).

2VIDEO 1 IN — Composite video and analog audio inputs

plus optional S-video inputs for connecting devices with

composite video or S-video output.

Note: Composite video and S-video cables carry only

video information; separate audio cables are required for

a complete connection.

3ColorStream® HD-1 IN and ColorStream® HD-2 IN

— Two sets of ColorStream® high-definition component

video inputs (with analog stereo audio inputs) for

connecting devices with component video output, such as

a Toshiba DVD player with ColorStream®.

Note: Component video cables carry only video

information; separate audio cables are required for a

complete connection.

4PC/HDMI-1 (AUDIO) IN — These analog audio inputs

are shared between PC IN (item 7 on next page) and

HDMI (DVI) IN (item 9 on next page). Their use can be

configured in the Setup menu (- page 52).

5Variable Audio OUT — Standard analog audio outputs

for connecting an analog amplifier with external speakers.

When the POP double-window is open, the active window

sound is output (- page 40).

6A/V OUT — Standard composite video and analog audio

outputs for connecting a VCR for editing and dubbing.

When the POP double-window is open, the active window

sound is output (- page 40).

Note: The A/V OUT terminals will output AUDIO ONLY (no

video) in the following instances:

•When the TV's INPUT mode is HDMI, ColorStream, or

PC (- “Selecting the video input source to view,”

page 31).

•When the MP3 Audio Player is active (- page 70).

(continued)

LZ196_EN.book Page 9 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 1: Introduction

78 9101112 13

TV back

7PC IN — For connecting a personal computer.

8ANT 1 and ANT 2 — Two inputs that support analog

(NTSC) and digital (ATSC) off-air antenna signals and

analog and digital Cable TV (QAM) signals.

Note: If you have an antenna only, connect it to ANT 1. If

you have both cable TV and an antenna, connect the

cable TV to ANT 1 and the antenna to ANT 2.

9HDMI™ 1 IN and HDMI™ 2 IN — Two High-Definition

Multimedia Interface inputs receive digital audio and

uncompressed digital video from an HDMI device or

uncompressed digital video from a DVI device.

Also see item 4.

10 G-LINK™ — For use with the enclosed IR blaster/

G-LINK™ cable to enable the TV Guide On Screen™

recording features (- Installation Guide).

11 Digital Audio OUT — Optical audio output in Dolby*

Digital or PCM (pulse-code modulation) format for

connecting an external Dolby Digital decoder, amplifier,

A/V receiver, or home theater system with optical audio

input.

12 RJ-45 (Ethernet) (THINC™ system**) — For

connecting the TV to your home network. See boxed note

below.

13 CableCARD™ slot — For use with a digital security

card and digital cable TV service (provided by your local

cable operator) to view encrypted digital programming

(- page 29).

HDMI, the HDMI logo and High-Definition Multimedia Interface are

trademarks or registered trademarks of HDMI Licensing LLC.

CableCARD is a trademark of Cable Television Laboratories, Inc.

*Manufactured under license from Dolby Laboratories.

Dolby, Pro Logic, and the double-D symbol are registered

trademarks of Dolby Laboratories.

**THINC™ system

(Toshiba Home Interactive Network Connection)

The RJ-45 (Ethernet) port allows your Toshiba TV to

connect to your home network. You can use this

revolutionary home entertainment networking system to

access MP3 audio files and JPEG picture files that are

stored as shared files on a networked PC and play/display

them on your TV.

You also can play your shared MP3 audio files through a

connected audio system.

Personal e-mail and E-mail scheduling of recording and

reminders are also enabled with THINC system.

See Chapter 7 for details. Also see the Installation Guide.

LZ196_EN.book Page 10 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 2: Using the remote control

Installing the remote control

batteries

To install the remote control batteries:

1Slide the battery cover off the back of the remote control.

2Install two “AA” size alkaline batteries. Match the + and

– symbols on the batteries to the symbols on the battery

compartment.

3Slide the battery cover on to the remote control until the

lock snaps.

Caution: Never throw batteries into a fire.

Note:

•Be sure to use AA size alkaline batteries.

•Dispose of batteries in a designated disposal area.

•Batteries should always be disposed of with the

environment in mind. Always dispose of batteries in

accordance with applicable laws and regulations.

•If the remote control does not operate correctly, or if the

operating range becomes reduced, replace batteries with

new ones.

•When necessary to replace batteries in the remote control,

always replace both batteries with new ones. Never mix

battery types or use new and used batteries in combination.

•Always remove the batteries from the remote control if they

are dead or if the remote control is not to be used for an

extended period of time. This will prevent battery acid from

leaking into the battery compartment.

Remote control effective range

For optimum performance, aim the remote control directly at

the TV remote sensor. Make sure there are no obstructions

between the remote control and the TV.

16.4 ft (5m)

Point remote control

toward remote sensor

on front of TV.

LZ196_EN.book Page 11 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 2: Using the remote control

Learning about the remote control

The buttons used for operating the TV only are described here.

For a complete list of the remote control’s functions, see the

remote control functional key chart (- pages 14–15).

For a list of the buttons that operate the TV Guide On Screen™

system, see the separate TV Guide On Screen™ Interactive

Program Guide.

Note: The error message “Not Available” may appear if you

press a key for a function that is not available.

1LIGHT illuminates the keypad for five seconds.

The MODE SELECT key that is being selected blinks

three times.

2SLEEP accesses the sleep timer (- page 51).

3POWER turns the TV on and off. When the TV is on, the

blue LED indicator on the TV front will be illuminated.

4MODE SELECT sets the six remote control device

modes: TV, CABLE/SAT, DVD, VCR/PVR, AUX 1,

and AUX 2. Press TV until the keypad blinks 3 times to

control the TV.

The selected MODE key blinks each time any key is

pressed. (- page 16).

5Software Keyboard (0-9, INPUT, 100/-/+10) used for

entering alpha-numeric data in conjunction with the

THINC features (- page 67).

6Channel Numbers (0–9, –/100) directly tune

channels. The = button is used to tune digital channels

(- page 34) or to edit the Favorite List (- page 32).

7INPUT selects the video input source (- page 31).

8FAV BROWSER accesses the Favorites List in the

Channel Browser™ (- page 32).

9MENU accesses the main TV menu system (- pages 22

and 23) or opens a menu in the TV Guide On Screen™

system (- TV Guide On Screen™ Interactive Program

Guide).

10 ENTER activates highlighted items in the main menu

system and the TV Guide On Screen™ system.

11 THINC accesses the THINC menu (- page 24).

12 PAGE + - When the TV Guide On Screen™ system is

open, moves from one set of screen information to the

next, when applicable. They are also used for scrolling

with the personal e-mail feature.

13 TV GUIDE opens the TV Guide On Screen™ system

(-TV Guide On Screen™ Interactive Program Guide).

14 3 C / # c While watching TV, these buttons open the

Channel Browser™ and tune to the previous/next channel

in the History List (- page 33). (Also see “Arrow

buttons,” below.)

15 Arrow buttons (BbC c) When a menu is on-screen,

these buttons select or adjust programming menus. (Also

see 3 C/# c.)

16 VOL + - adjusts the volume level.

17 CH Bb cycles through programmed channels when no

menu is on-screen (- page 26), and functions as page up/

down when a menu is on-screen or when the TV Guide

On Screen™ system is open (- TV Guide On Screen™

Interactive Program Guide).

LZ196_EN.book Page 12 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 2: Using the remote control

18EXIT closes on-screen menus and the TV Guide

On Screen™ system.

19 INFO provides detailed information on highlighted items

in the TV Guide On Screen™ system (- TV Guide

On Screen™ Interactive Program Guide).

20 MUTE reduces or turns off the sound (- page 43).

21 CH RTN returns to the last viewed channel (- page 35),

or stops the Picture Viewer slide show (- page 69). Also

can be used to switch between the song select view and

file select view in the Audio Player (- page 70).

22 RECALL displays TV status information (-page 53).

23 SKIP Z and SKIP z jump backward and forward one

day at a time in the TV Guide On Screen™ listings

(- TV Guide On Screen™ Interactive Program Guide).

Also can be used for jumping to the beginning and the

ending of lines when used with the software keyboard.

(- page 67).

24 C.CAPTION (TV/VCR) opens the closed caption/audio

selector screen. (The audio selector is not available for

analog channels.) (- pages 42–43.) Also can be used to

select the TV mode to view one program while recording

another.

25 POP opens the POP double-window (- page 39) or

locks/unlocks the TV Guide On Screen™ video window

(- TV Guide On Screen™ Interactive Program Guide).

26 FREEZE freezes the picture. Press again to restore the

moving picture.

27 PIC SIZE cycles through the pictures sizes: Natural,

TheaterWide 1/2/3, Full, 4:3 HD, and Native

(- page 36).

28f g h j are used with the Color Management

Pro (- page 57) and THINC features (- page 73).

LZ196_EN.book Page 13 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 2: Using the remote control

Remote Control functional key chart

REMOTE

CONTROL KEY

Toshiba TV

(TV) CABLE SAT

(satellite) VCR

•

DVD/VCR

combo

• DVD/

DVD-R

Receiver/

AMP

(AUDIO) PVR

MODE

SELECT Remote control device mode selection

LIGHT Lights the remote key.*1

SLEEP Sleep timer s TV s TV s TV s TV s TV s TV s TV

POWER Power Power Power Power Power Power Power Power

1 (. , ? !) Digit 1*2 Digit 1 Digit 1 Digit 1 Digit 1 AV input 1 Digit 1 Digit 1

2 (a b c) Digit 2*2 Digit 2 Digit 2 Digit 2 Digit 2 AV input 2 Digit 2 Digit 2

3 (d e f) Digit 3*2 Digit 3 Digit 3 Digit 3 Digit 3 AV input 3 Digit 3 Digit 3

4 (g h i) Digit 4*2 Digit 4 Digit 4 Digit 4 Digit 4 AV input 4 Digit 4 Digit 4

5 (j k l) Digit 5*2 Digit 5 Digit 5 Digit 5 Digit 5 CD Digit 5 Digit 5

6 (m n o) Digit 6*2 Digit 6 Digit 6 Digit 6 Digit 6 Tuner Digit 6 Digit 6

7 (p q r) Digit 7*2 Digit 7 Digit 7 Digit 7 Digit 7 Phono Digit 7 Digit 7

8 (t u v) Digit 8*2 Digit 8 Digit 8 Digit 8 Digit 8 Cassette Digit 8 Digit 8

9 (w x y z) Digit 9*2 Digit 9 Digit 9 Digit 9 Digit 9 Aux Digit 9 Digit 9

0 (‘ “ ( )) Digit 0*2 Digit 0 Digit 0 Digit 0 Digit 0 --- Digit 0, 10 Digit 0

100/–/+10 – (digital

separator)*2 --- –/--,

+10,

+100 +100 –/--,

+10,

+100 --- --- ---

INPUT ( ) TV/Video

select*2 s TV s TV s TV s TV Input s TV s TV

PIC SIZE Selects the

image shape s TV s TV s TV s TV s TV s TV s TV

MENU Menu/Guide

Menu Menu Menu --- Menu Menu Menu Menu

FAV

BROWSER/

SET UP

FAV

BROWSER --- --- --- Setup --- --- ---

THINC/

TOP MENU THINC s TV s TV s TV Top menu s TV s TV s TV

TV GUIDE TV Guide Guide Guide --- Guide --- --- Guide

INFO Guide Info Info Info --- Display --- --- Info

ENTER Enter Select Select --- Select --- --- Select

BMenu select

up Cursor up Cursor up --- Cursor up --- --- Cursor up

bMenu select

down Cursor

down --- Cursor

down --- --- Cursor

down

C 3 # c

Menu select

left/right

3 Back

# Next

Cursor left/

right Cursor left/

right --- Cursor left/

right --- --- Cursor left/

right

EXIT/

DVD CLEAR Exit Exit Exit --- DVD clear --- --- Exit

PAGE +/– Page up/

down Page up/

down --- Page up/

down --- --- ---

VOL +/– Volume up/

down*3

Volume up/

down*3

Volume up/

down*3

Volume up/

down*3

Volume up/

down*3

Volume up/

down*3

Volume

up/down*3

Volume

up/down*3

LZ196_EN.book Page 14 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 2: Using the remote control

Note:

•“---” = key does not send a signal in that remote control mode.

•“s TV” = key will affect the TV, even though the remote control is in another mode.

•* Not available for your TV.

*1 Does not send IR signal.

*2 Performs a function when in the Software Keyboard mode.

*3 Volume will affect the TV by default. When the volume is unlocked, all the devices will have their own volume if their ID has volume data. The

AUDIO modes (receiver, CD) will have their own volume if volume lock is set on TV, CABLE/SAT, VCR/PVR, or DVD mode. See “Using the

volume lock feature” (- page 17).

*4 DVD/VCR combo : TV/VCR

*5 DVD/VCR combo : DVD/VCR

*6 DVD/DVD-R : RECORD is only for DVD-R, no function is picked for DVD.

CH RTN/

DVD RTN Previous

channel Previous

channel --- DVD RTN --- --- ---

RECALL On-screen

display s TV s TV s TV s TV s TV s TV s TV

MUTE Sound mute Sound

mute*3

Sound

mute*3

Sound

mute*3

Sound

mute*3

Sound

mute*3

Sound

mute*3

Sound

mute*3

SLOW Slow FWD*

Slow REW* --- --- Slow FWD

Slow REW Slow FWD

Slow REW --- --- Slow FWD

Slow REW

SKIP z

SKIP Z

DAY+*2

DAY–*2 --- --- --- Skip FWD

Skip REW --- Skip FWD

Skip REW ---

REW Rewind* Rewind Rewind Rewind Rewind --- Rewind Rewind

PAUSE/STEP Pause* Pause Pause Pause Pause --- Pause Pause

PLAY Play* Play Play Play Play --- Play Play

FF Fast FWD* Fast FWD Fast FWD Fast FWD Fast FWD --- Fast FWD Fast FWD

C.CAPTION

TV/VCR C.Caption --- TV/SAT TV/VCR ---*4 --- --- ---

DISC/AM/FM --- --- --- --- ---*5 AM/FM Disc SKIP

Disc select Instant

replay

STOP Stop* Stop Stop Stop Stop --- Stop Stop

REC REC Menu

(Single

click)

Record

(Double

click)

Record

(Double

click)

Record

(Double

click)

Record

(Double

click)*6 --- --- Record

(Double

click)

CH B b Channel up/

down Channel up/

down Channel

up/down Channel

up/down --- Channel

up/down

POP Split s TV s TV s TV s TV s TV s TV s TV

FREEZE Freeze s TV s TV s TV s TV s TV s TV s TV

A - D A - D --- --- --- --- --- --- ---

REMOTE

CONTROL KEY

Toshiba TV

(TV) CABLE SAT

(satellite) VCR

•

DVD/VCR

combo

• DVD/

DVD-R

Receiver/

AMP

(AUDIO) PVR

LZ196_EN.book Page 15 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 2: Using the remote control

Using the remote control to operate

your other devices

Your TV remote control has one dedicated TV mode and five

programmable multi-brand modes: CABLE/SAT, DVD,

VCR/PVR, AUX 1, and AUX 2. The default device modes

and programmable device modes are listed below.

Note: The TV remote control is preprogrammed to operate

most Toshiba devices. To operate a non-Toshiba device or a

Toshiba device that the remote control is not preprogrammed

to operate, you will need to program the remote control. See

“Programming the remote control to operate your other

devices” (at right).

Note: Although your new TV’s remote control includes codes

for many devices, it may not include codes for some or all of

the features on certain devices you wish to control. If you are

unable to program the TV’s remote control to operate your

device or some of the features on that device, use the device’s

original remote control (or the control buttons on the device).

Programming the remote control to

operate your other devices

Device code setup

1Find the code for your device brand in the remote control

device code table on pages 18–21.

If more than one code is listed, try each one separately

until you find one that works.

2Press the applicable MODE SELECT button (CABLE/

SAT, DVD, VCR/PVR, AUX 1, or AUX 2), until the

MODE SELECT button blinks 3 times.

3While holding down E, press the Number buttons to

enter the category code (0, 1, 2, 3, 4, or 5, as described

below) plus the four-digit device code for your device.

•If a valid code is entered, the MODE SELECT button

will blink twice.

•If an invalid code is entered, the MODE SELECT

button will blink one long blink.

4Point the remote control at the device and press p to test

the code.

•If the device responds to the remote control, you have

entered the correct code.

•If the device does not respond to the remote control,

repeat steps 3 and 4 using another code.

Note: After programming the remote control, make sure

all necessary keys on the TV remote control (in addition to

p) operate your device. If some keys are not

operational, repeat the device code setup using another

code (if other codes are listed for your device). If, after

trying all listed codes, the necessary keys do not operate

your device, use the device’s original remote control.

MODE SELECT Default device mode control (before

programming)

TV Toshiba TV

CABLE/SAT Toshiba DST 3100 Satellite receiver

DVD Orion DVD

VCR/PVR Toshiba VCR

AUX 1 Yamaha Audio receiver

AUX 2 Onkyo Audio receiver

MODE SELECT Device mode control after programming

TV Toshiba TV

CABLE/SAT

Multi-brand video/audio devices

DVD

VCR/PVR

AUX 1

AUX 2

Category Category code

TVs (Toshiba) 0

Cable boxes

Satellite receivers

Cable/PVR combos

DBS/PVR combos (1)

DVD players 2

VCRs

PVRs

DBS/PVR combos (2)

Audio Amps

Audio Amps/Tuners 4

CD players 5

LZ196_EN.book Page 16 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 2: Using the remote control

5To control the TV, press the TV MODE SELECT button.

Note:

•Although the TV remote control includes codes for many

devices, it may not include codes for some or all of the

features on certain devices you want to control. If you are

unable to program the TV remote control to operate your

device or some of the features on that device, use the

device’s original remote control (or the control buttons on

the device).

•Every time you change the batteries you will need to

reprogram the remote control.

•Some newer VCRs respond to either of two codes. These

VCRs have a switch labeled “VCR1/VCR2.” If your VCR has

this kind of switch and does not respond to the codes for

your VCR brand, set the switch to the other position (“VCR1”

or “VCR2”) and reprogram the remote control.

Searching and sampling the code of a

device (8500)

If you do not know the device code for a particular device, you

can cycle the remote control through the available codes for

that device mode and sample the functions to find the code that

operates the target device. The keys available to be sampled,

provided they are applicable to that mode, are p, 1, z, <,

and S. Invalid keys will be ignored while in program mode.

To cycle through each available device code and

sample its functions:

1Press the appropriate MODE SELECT button on the

remote control.

2While holding down E, press 8, 5, 0, 0. The remote

control will enter program mode.

3Point the remote control at the target device and press p

(or other function buttons that are available to be

sampled).

4If the device responds to the remote control:

Press E to store the device code. The MODE

SELECT button will blink two times and the remote

control will exit the program mode.

If the device does not respond to the remote control:

Press B, and then press p. Repeat this step until the

device responds to the remote control, and then press

Note: When a search cycle is completed, the MODE

SELECT button will blink three times. The remote control

will begin to cycle through the available codes again. If no

key is pressed within 10 seconds during programming,

the remote control will exit the program mode and return

to the previous code.

Using the volume lock feature (8000)

By default (factory setting), the remote control’s volume keys

(z Z and W) are locked to the “TV” device mode.

The remote control will operate the TV’s volume, even when

“TV” is not the current device mode. (This includes all remote

control device modes except AUX 1 and AUX 2).

If you unlock the remote control’s volume keys, each device

mode will have its own volume (if the device ID has volume

data). The remote control will operate the volume of the device

associated with the current device mode. (This includes all

remote control device modes.)

If you lock the remote control’s volume keys to a specific

device mode, the remote control will operate the volume of the

device associated with the locked mode, even when the locked

mode is not the current device mode. (This includes all device

modes except AUX 1 and AUX 2).

When the remote control is in AUX 1 (or AUX 2) mode, the

remote control will operate the volume of the device associated

with the AUX 1 (or AUX 2) mode, even when the volume is

locked to another mode.

See “Using the remote control to operate your other devices”

on page 16.

To lock the remote control’s volume keys to a specific

mode (CABLE/SAT in this example):

1Press CABLE/SAT.

2While holding down the E button, press 8, 0, 0, 0.

3Press z. The CABLE/SAT MODE SELECT button will

blink two times (locked).

The remote control’s volume keys will now operate the

volume of the device associated with the CABLE/SAT

mode, even when CABLE/SAT is not the current device

mode. (for all device modes except AUX 1 and AUX 2).

To unlock the remote control’s volume keys:

1While holding down E, press 8, 0, 0, 0.

2Press Z. The CABLE/SAT MODE SELECT button will

blink four times (unlocked).

Operational feature reset (8900)

This feature clears all programmed remote control features not

related to “Device code setup” and resets the volume lock to

the “TV” device mode.

To reset the remote control:

While holding down E, press 8, 9, 0, 0. The MODE

SELECT button will blink four times.

LZ196_EN.book Page 17 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 2: Using the remote control

Multi-brand remote

control device codes

TVs

Cable boxes

Satellite receivers

DVD players

Brand Code

Toshiba 1524

Brand Code

ABC 0003, 0008

Americast 0899

Bell South 0899

Clearmaster 0883

ClearMax 0883

Coolmax 0883

Digeo 1187

Director 0476

GoldStar 0144

Hamlin 0009, 0273

Memorex 0000

Motorola/

General Instrument/

Jerrold 0276, 0476, 0810

Motorola 1187, 1376

General Instrument/

Jerrold 0003

Multitech 0883

Pace 0008, 0237, 1877

Panasonic 0000, 0107

Paragon 0000

Philips 0317, 1305

Pioneer 0144, 0533, 0877,

1877

Pulsar 0000

Quasar 0000

RadioShack 0883

Regal 0273, 0279

Runco 0000

Samsung 0144

Scientific Atlanta 0008, 0477, 0877,

1877

Sony 1006

Starcom 0003

Supercable 0276

Supermax 0883

Torx 0003

Toshiba 0000

Tristar 0883

V2 0883

Viewmaster 0883

Vision 0883

Vortex View 0883

Zenith 0000, 0525, 0899

Brand Code

AlphaStar 0772

Chaparral 0216

Crossdigital 1109

DirecTV 0099, 0247, 0392,

0566, 0639, 0724,

0749, 0819,

1076, 1108, 1109,

1142, 1377, 1392,

1414, 1442,

1443, 1444, 1609,

1639, 1640, 1749,

1856

Dish Network System 0775, 1005, 1170,

1505, 1775

Dishpro 0775, 1005, 1505,

1775

Echostar 0775, 1005, 1170,

1505, 1775

Expressvu 0775, 1775

GE 0392, 0566

GOI 0775, 1775

Goodmans 1246

Hisense 1535

Hitachi 0819, 1250

HTS 0775, 1775

Hughes 0749, 1442, 1749

Hughes Network

Systems 0749, 1142, 1442,

1443, 1444, 1749

iLo 1535

Janeil 0152

JVC 0775, 1170, 1775

LG 1226, 1414

Magnavox 0722, 0724

Memorex 0724

Mitsubishi 0749

Motorola/General

Instrument/Jerrold 0869

Motorola 0856

NEC 0102, 0178, 1270

Next Level 0869

Panasonic 0152, 0247, 0701

Paysat 0724

Philips 0099, 0722, 0724,

0749, 0819, 1076,

1142, 1442,

1749

Pioneer 1442

Proscan 0392, 0566

Proton 1535

RadioShack 0869

RCA 0143, 0392, 0566,

0855, 1392

Samsung 1108, 1109, 1142,

1276, 1377, 1442,

1609

Sanyo 1219

Sony 0639, 1639, 1640

Star Choice 0869

Tivo 1142, 1442, 1443,

1444

Toshiba 0082, 0749, 0790,

0819, 1285, 1286,

1287, 1289, 1749,

1857, 1858

UltimateTV 1392, 1640

Uniden 0722, 0724

US Digital 1535

USDTV 1535

Voom 0869

Zenith 1856

Brand Code

Aiwa 0641

Akai 0695, 0770, 1089

Alco 0790

Allegro 0869

Amphion Media

Works 0872

AMW 0872

Apex Digital 0672, 0717, 0755,

0794, 0796, 0797,

1004, 1020,

1056, 1061, 1100

Aspire Digital 1168, 1407

Audiovox 0790, 1041, 1072

Axion 1072

B & K 0655, 0662

Blaupunkt 0717

Blue Parade 0571

Broksonic 0695

California Audio Labs 0490

Cinea 0831

CineVision 0833, 0869, 0876

Citizen 1277

Coby 0778, 0852, 1086,

1107, 1177, 1351

Craig 0831

Curtis Mathes 1087

CyberHome 0816, 0874, 1023,

1024, 1117, 1129

Daewoo 0705, 0784, 0833,

0869, 1169, 1172,

1234, 1242

Daytek 0872

Denon 0490, 0634

Desay 1407

Disney 0675, 1270

Dual 1068, 1085

Durabrand 1127

DVD2000 0521

Emerson 0591, 0675, 0821

Enterprise 0591

Fisher 0670

Funai 0675, 1334

Gateway 1073, 1077, 1158

GE 0522, 0717, 0815

Go Video 0715, 0741, 0744,

0783, 0833, 0869,

1044, 1075,

1099, 1158, 1304,

1730

GoVision 1072

GoldStar 0741

GPX 0699, 0769

Gradiente 0490

Greenhill 0717

Grundig 0539

Harman/Kardon 0582, 0702

Hitachi 0573, 0664

Hiteker 0672

iLo 1348

Initial 0717

Integra 0571, 0627

Jaton 1078

LZ196_EN.book Page 18 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 2: Using the remote control

VCRs

JBL 0702

JSI 1423

JVC 0558, 0623, 0867,

1164

jWin 1049, 1051

Kawasaki 0790

Kenwood 0490, 0534

KLH 0717, 0790, 1020,

1149

Konka 0711

Koss 0651, 1423

Landel 0826

Lasonic 0798, 1173

Lecson 1533

Lenoxx 1127

LG 0591, 0741, 0801,

0869

LiteOn 1058, 1158, 1416,

1440

Loewe 0511

Magnavox 0503, 0539, 0646,

0675, 0821

Malata 0782, 1159

Marantz 0539

McIntosh 1533

Memorex 0695, 0831, 1270

Microsoft 0522

Mintek 0717, 0839

Mitsubishi 0521, 1521

Momitsu 1082

NAD 0591, 0692, 0741

NEC 0785

Nesa 0717

Next Base 0826

NexxTech 1402

Norcent 0872, 1003, 1107,

1265

Onkyo 0503, 0627, 0792

Oritron 0651

Panasonic 0490, 0503, 0703,

1362, 1462, 1490,

1762

Philips 0503, 0539, 0646,

0675, 1267, 1354

PianoDisc 1024

Pioneer 0525, 0571, 0631

Polaroid 1020, 1061, 1086

Polk Audio 0539

Portland 0770

Presidian 0675

Proceed 0672

Proscan 0522

ProVision 0778

Qwestar 0651

RCA 0522, 0571, 0717,

0790, 0822

Rio 0869

RJTech 1360

Rotel 0623

Rowa 0823

Sampo 0698, 0752

Samsung 0490, 0573, 0744,

0820, 1044, 1075

Sansui 0695

Sanyo 0670, 0695, 0873

Sensory Science 1158

Sharp 0630, 0675, 0752,

1256

Sharper Image 1117

Sherwood 0633, 0770, 1043,

1077

Shinsonic 0533, 0839

Sonic Blue 0869, 1099

Sony 0533, 0864, 1033,

1431, 1533

Sungale 1074

Superscan 0821

SVA 0860, 1105

Sylvania 0675, 0821

Symphonic 0675

Teac 0790, 0809

Technics 0490, 0703

Technosonic 0730

Techwood 0692

Theta Digita 0571

Toshiba 0503, 0695, 1154,

1854

Tredex 0800, 0803, 0804

Urban Concepts 0503

US Logic 0839

Venturer 0790

Vizio 1064, 1226

Xbox 0522

Yamaha 0490, 0539, 0545

Yamakawa 0872

Zenith 0503, 0591, 0741,

0869

Zoece 1265

Brand Code

ABS 1972

Admiral 0048, 0209, 0479

Adventura 0000

Aiko 0278

Aiwa 0000, 0037, 0124

Akai 0041, 0061, 0175

Alienware 1972

America Action 0278

American High 0035

Asha 0240

Audiovox 0037, 0278

Beaumark 0240

Bell & Howell 0104

Broksonic 0002, 0121, 0184,

0209, 0479

Calix 0037

Canon 0035

Carver 0081

CCE 0072, 0278

Citizen 0037, 0278

Colt 0072

Craig 0037, 0047, 0072,

0240

Curtis Mathes 0035, 0041, 0060,

0162

Cybernex 0240

CyberPower 1972

Daewoo 0045, 0278

Dell 1972

Denon 0042

DirecTV 0739

Durabrand 0038, 0039

Dynatech 0000

Electrohome 0037, 0043

Electrophonic 0037

Emerex 0032

Emerson 0000, 0002, 0037,

0043, 0061, 0121,

0184, 0209,

0212, 0278, 0479,

0593, 1593

Fisher 0047, 0104

Fuji 0033, 0035

Funai 0000, 0593, 1593

Garrard 0000

Gateway 1972

GE 0035, 0060, 0065,

0240, 0807

Go Video 0240, 0432, 0526

GoldStar 0037, 0038

Gradiente 0000

Harley Davidson 0000

Harman/Kardon 0038, 0075, 0081

Harwood 0072

Headquarter 0046

Hewlett Packard 1972

HI-Q 0047

Hitachi 0000, 0041, 0042,

0065, 0089, 0105

Howard Computers 1972

HP 1972

Hughes Network

Systems

0042, 0739

Humax 0739

Hush 1972

iBUYPOWER 1972

Jensen 0041

JVC 0008, 0041, 0067

KEC 0037, 0278

Kenwood 0038, 0041, 0067

KLH 0072

Kodak 0035, 0037

Linksys 1972

Lloyd's 0000

Logik 0072

LXI 0037

Magnasonic 0593

Magnavox 0000, 0035, 0039,

0081, 0149, 0563,

0593

Magnin 0240

Marantz 0035, 0081

Marta 0037

Matsushita 0035, 0162

Media Center PC 1972

MEI 0035

Memorex 0000, 0035, 0037,

0039, 0046, 0047,

0048, 0104,

0162, 0209, 0240,

0479

MGA 0043, 0061, 0240

MGN Technology 0240

Microsoft 1972

Mind 1972

Minolta 0042, 0105

(continued)

LZ196_EN.book Page 19 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 2: Using the remote control

PVRs

Cable/PVR combos

DBS/PVR combos (1)

DBS/PVR combos (2)

Mitsubishi 0043, 0061, 0067,

0075, 0173, 0807

Motorola 0035, 0048

MTC 0000, 0240

Multitech 0000, 0072

NEC 0038, 0040, 0041,

0067, 0104

Nikko 0037

Nikon 0034

Niveus Media 1972

Noblex 0240

Northgate 1972

Olympus 0035, 0226

Onkyo 0222

Optimus 0037, 0048, 0104,

0162, 0432, 0593,

1062

Orion 0002, 0184, 0209,

0479

Panasonic 0035, 0077, 0162,

0225, 0226, 0616,

1062

Penney 0035, 0037, 0038,

0040, 0042, 0240

Pentax 0042, 0065, 0105

Philco 0035

Philips 0035, 0081, 0618,

0739, 1081, 1181

Pilot 0037

Pioneer 0067

Polk Audio 0081

Profitronic 0240

Proscan 0060

Protec 0072

Pulsar 0039

Quarter 0046

Quartz 0046

Quasar 0035, 0077, 0162

RadioShack 0000

Radix 0037

Randex 0037

RCA 0042, 0060, 0065,

0077, 0105, 0149,

0240, 0807,

0880

Realistic 0000, 0035, 0037,

0046, 0047, 0048,

0104

ReplayTV 0614, 0616

Ricavision 1972

Ricoh 0034

Runco 0039

Salora 0075

Samsung 0045, 0240, 0739

Sanky 0039, 0048

Sansui 0000, 0041, 0067,

0209, 0479

Sanyo 0046, 0047, 0104,

0159, 0240

Scott 0043, 0045, 0121,

0184, 0210, 0212

Sears 0000, 0035, 0037,

0042, 0046, 0047,

0104, 0105

Sharp 0048, 0807, 0848

Shintom 0072

Shogun 0240

Singer 0072

Sonic Blue 0614, 0616

Sony 0000, 0032, 0033,

0034, 0035, 0636,

1032, 1972

Stack 9 1972

STS 0042

Sylvania 0000, 0035, 0043,

0081, 0593, 1593

Symphonic 0000, 0593, 1593

Systemax 1972

Tagar Systems 1972

Tatung 0041

Teac 0000, 0041

Technics 0035, 0162

Teknika 0000, 0035, 0037

Thomas 0000

Tivo 0618, 0636, 0739,

1996

TMK 0240

Toshiba 0043, 0045, 0209,

0210, 0212, 0366,

0845, 1008,

1145, 1972, 1996

Totevision 0037, 0240

Touch 1972

Unitech 0240

Vector 0045

Vector Research 0038, 0040

Video Concepts 0040, 0045, 0061

Videomagic 0037

Videosonic 0240

Viewsonic 1972

Villain 0000

Voodoo 1972

Wards 0000, 0035, 0042,

0047, 0048, 0060,

0072, 0081,

0149, 0212, 0240

White Westinghouse 0072, 0209

XR-1000 0000, 0035, 0072

Yamaha 0038

Zenith 0000, 0033, 0034,

0039, 0209, 0479,

1139

ZT Group 1972

Brand Code

ABS 1972

Alienware 1972

CyberPower 1972

Dell 1972

Direc TV 0739

Gateway 1972

Hewlett Packard 1972

Howard Computers 1972

HP 1972

Hughes Network

Systems 0739

Humax 0739

Hush 1972

iBUYPOWER 1972

Linksys 1972

Media Center PC 1972

Microsoft 1972

Mind 1972

Niveus Media 1972

Northgate 1972

Panasonic 0616

Philips 0618, 0739

RCA 0880

ReplayTV 0614, 0616

Sonic Blue 0614, 0616

Sony 0636, 1972

Stack 9 1972

Systemax 1972

Tagar Systems 1972

Tivo 0618, 0636, 0739

Toshiba 1008, 1972

Touch 1972

Viewsonic 1972

Voodoo 1972

ZT Group 1972

Brand Code

Americast 0899

Digeo 1187

Motorola/

General Instrument/

Jerrold 0476, 0810

Motorola 1187, 1376

Pace 0237, 1877

Pioneer 0877, 1877

Scientific Atlanta 0877, 1877

Sony 1006

Supercable 0276

Zenith 0899

Brand Code

DirecTV 0099, 0392, 0639,

1076, 1142, 1377,

1392, 1442,

1443, 1444, 1640

Dish Network System 0775, 1505

Dishpro 0775, 1505

Echostar 0775, 1170, 1505

Expressvu 0775

Hughes Network

Systems 1142, 1442, 1443,

1444

JVC 1170

Motorola 0869

Philips 1142, 1442

Proscan 0392

RCA 1392

Samsung 1442

Sony 0639, 1640

Star Choice 0869

Brand Code

Hughes Network

Systems 0739

Philips 0739

Samsung 0739

LZ196_EN.book Page 20 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 2: Using the remote control

Audio Amps

CD players

Audio Amps/Tuners

Brand Code

Adcom 0577, 1100

Bose 0674

Carver 0892

Durabrand 1561

Elan 0647

GE 0078

Harman/Kardon 0892

JVC 0331

LeftCoast 0892

Lenoxx 1561

Luxman 0165

Marantz 0321, 0892

McIntosh 0251

Nakamichi 0321

NEC 0264

Optimus 0395, 0823

Parasound 0246

Philips 0892

Pioneer 0823

PolkAudio 0892

RCA 0823

Realistic 0395

Sansui 0321

Shure 0264

Sony 0689, 0815, 1126

Soundesign 0078, 0211

Victor 0331

Wards 0078, 0211

Yamaha 0133, 0143, 0354,

0504

Brand Code

Adcom 0234

Aiwa 0124, 0157

Akai 0156

Arcam 0157

Audio-Technica 0170

Burmester 0420

California Audio Labs 0029, 0303

Carver 0157, 0299

Denon 0003, 0034

DKK 0000

DMX Electronics 0157

Garrard 0393, 0420

Genexxa 0032

Harman/Kardon 0083, 0157, 0173

Hitachi 0032, 0139

Integra 0101

JVC 0072, 0655, 1294

Kenwood 0028, 0037, 0190,

0626

Krell 0157

Linn 0157

Magnavox 0038, 0157

Marantz 0029, 0038, 0157,

0180, 0435, 0626

MCS 0029

MGA 0083

Miro 0000

Mission 0157

Mitsubishi 0083

MTC 0420

NAD 0019, 0299

NEC 0234

Nikko 0170

NSM 0157

Onkyo 0101, 0102, 0138,

0381, 1327

Optimus 0000, 0032, 0037,

0087, 0420, 0468

Panasonic 0029, 0303, 0388,

0752

Parasound 0420

Philips 0157, 0274, 0626

Pioneer 0032, 0468, 0551,

1062, 1087

Polk Audio 0157

Proceed 0420

Proton 0157

QED 0157

Quad 0157

Quasar 0029

RCA 0032, 0053, 0420,

0468, 1062

Realistic 0180, 0420

Rotel 0157, 0420

SAE 0157

Sansui 0157

Sanyo 0087

Sharp 0037, 0180

Sherwood 0180

Sonic Frontiers 0157

Sony 0000, 0100, 0185,

0490, 0604, 0605,

0673, 1364

Sugden 0157

TAG McLaren 0157

Tascam 0420

Teac 0180, 0378, 0393,

0420

Technics 0029, 0303

Toshiba 0019, 0299

Victor 0072

Wards 0053, 0157

Yamaha 0036, 0170, 0187,

0490, 1292

Brand Code

ADC 0531

Aiwa 0121, 0189, 1243,

1388, 1405, 1641

Akai 1255, 1512

Alco 1390

AMC 1077

Anam 1074, 1609

Apex Digital 1774

Arcam 1189

Audiotronic 1189

Audiovox 1390

Bose 0639, 1229, 1253,

1933

Capetronic 0531

Carver 0121, 0189, 1189,

1289

Delphi 1414

Denon 0121, 1142, 1360

Fisher 1801

Harman/Kardon 0110, 0189, 0891,

1289, 1304, 1306

Hitachi 1273, 1801

Integra 0135, 1298, 1320

JBL 0110, 1306

JVC 1058, 1374, 1495,

1811

Kenwood 0186, 1313, 1569,

1570

KLH 1390, 1428

Linn 0189

Magnavox 0189, 0531, 1189,

1269, 1514

Marantz 0189, 1189, 1269,

1289

McIntosh 1289

Micromega 1189

Mitsubishi 1393

Myryad 1189

Nakamichi 1313

Onkyo 0135, 0380, 0842,

1298, 1320, 1531

Optimus 0186, 0531, 1023,

1074

Panasonic 0309, 1288, 1308,

1316, 1350, 1363,

1518, 1548,

1633, 1763, 1764

Philips 0189, 1189, 1266,

1269

Pioneer 0014, 0150, 0531,

0630, 1023, 1384

Polk Audio 0189, 1289, 1414

Proscan 1254

RCA 0531, 1023, 1074,

1254, 1390, 1511,

1609

Samsung 1295, 1304, 1500

Sansui 0189, 1189

Sanyo 1469, 1801

Sharp 0186

Sherwood 1077

Sirius 1811

Sony 0168, 1058, 1258,

1406, 1441, 1558,

1622, 1658,

1758, 1759, 1858

Stereophonics 1023

Sunfire 1313

Teac 1074, 1267, 1390,

1528

Technics 0309, 1308, 1518,

1633

Thorens 1189

Toshiba 0135

Venturer 1390

Wards 0014, 0189

XM 1406, 1414

Yamaha 0176, 0186, 1176,

1276, 1331, 1375

LZ196_EN.book Page 21 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 3: Menu layout and navigation

Main menu layout

The tables below and on the next page provide a quick overview of your TV’s menu system.

To open the main menus (illustrated below), press Y on the remote control or TV control panel.

Icon Item Option

Picture Viewer S[Launches the JPEG Picture Viewer]

Audio Player S[Launches the MP3 Audio Player]

Personal E-mail S[Launches the Personal E-mail]

Channel Browser™S[Launches the Channel Browser™]

TV Guide On Screen™S[Opens the TV Guide On Screen™ feature]

Digital CC/Audio Selector S[Launches the ATSC Digital CC Selector] (This feature is not available

if the TV is not tuned to a digital channel).

CableCARD™SDynamic list of items provided by Cable company.

(This option is not available if a CableCARD™ is not inserted.)

Mode SSports/Standard/Movie/Preference/Pro 1/Pro 2

Picture Settings S[Opens the Picture Settings menu]

Noise Reduction S[Opens the Noise Reduction menu]

Color Management Pro S[Opens the Color Management Pro menu]

Game Mode SOn/Off

Theater Settings S[Opens the Theater Settings menu]

Audio Settings S[Opens the Audio Settings menu]

Advanced Audio Settings S[Opens the Advanced Audio Settings menu]

Audio Setup S[Opens the Audio Setup menu]

Closed Caption Mode SOFF/CC1/CC2/CC3/CC4/T1/T2/T3/T4

Closed Caption Advanced S[Opens the Closed Caption Advanced menu]

Input Labeling S[Opens the Input Labeling menu]

Menu Language SEnglish/French/Spanish

Channel Browser Setup S[Opens the Channel Browser Setup menu]

Enable Rating Blocking SOff/On

Edit Rating Limits S[Opens the Edit Rating Limits menu]

Channels Block S[Opens the Channels block menu]

Input Lock SOff/Video/Video+

Front Panel Lock SOff/On

GameTimer™SOff/30 Min/60 Min/90 Min/120 Min

New PIN Code S[Opens the New PIN Code entry screen]

Installation S[Opens the Installation menu (- page 23)]

Sleep Timer S[Opens the Sleep Timer menu]

On/Off Timer S[Opens the On/Off Timer menu]

PC Settings S[Opens the PC Settings menu]

PC Audio SNo/Yes

HDMI 1 Audio SAuto/Digital/Analog

Slide Show Interval S2 Sec/5 Sec/10 Sec/15 Sec/20 Sec

Applications

Video

Audio

Preferences

Locks

Setup

LZ196_EN.book Page 22 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 3: Menu layout and navigation

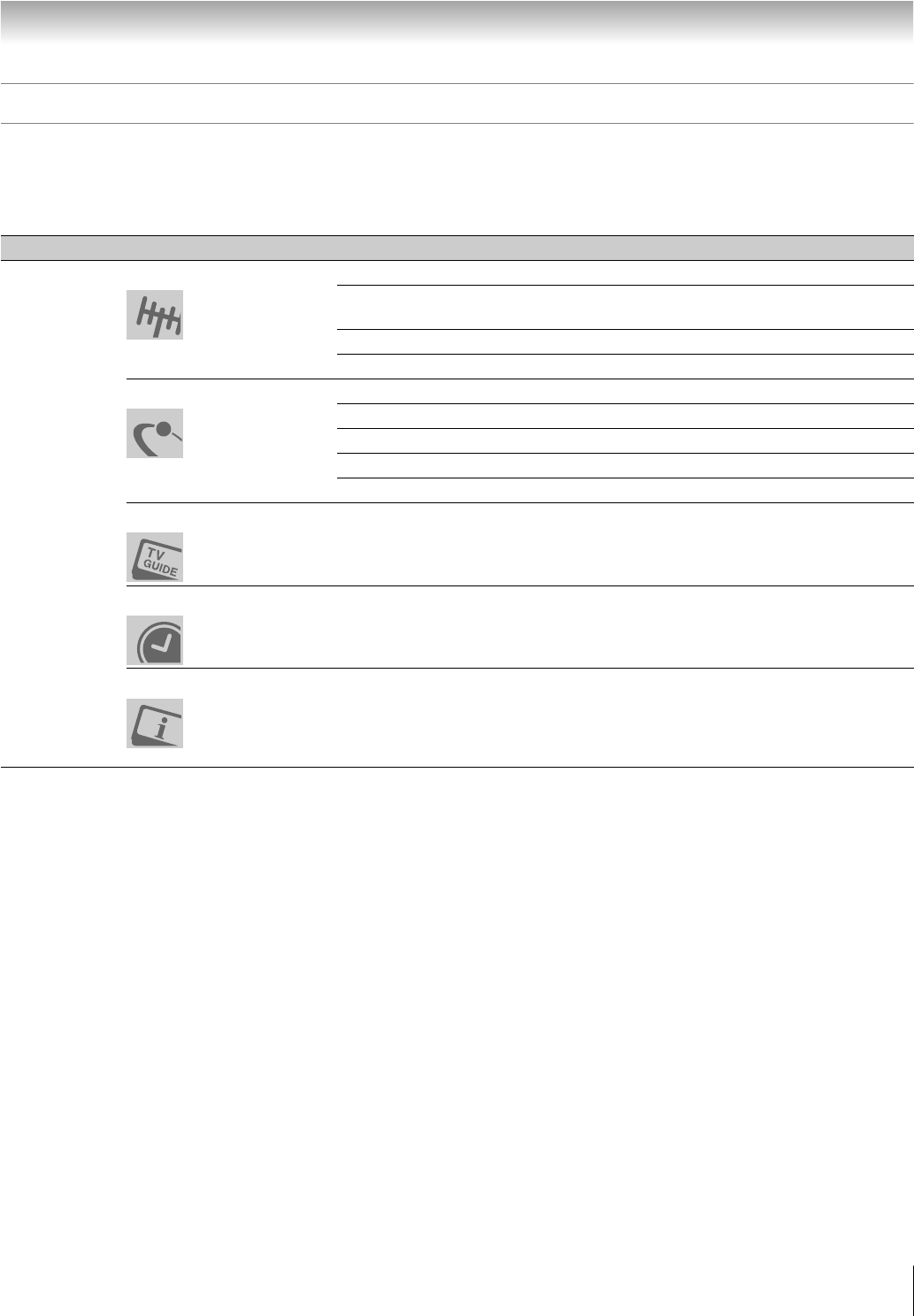

Setup/Installation menu layout

The Installation menu contains the Terrestrial, Network, TV Guide On Screen™ Setup, Time and Date, and System Status menus

(as described below).

To open the Installation menu (illustrated below), press Y on the remote control or TV control panel, open the Setup menu,

select Installation, and press T.

Icon Item Option

Press Y,

open the

Setup menu,

and then

open the

Installation

sub-menu.

Input Configuration S[Opens the Input Configuration menu]

Channel Program SANT1 S [Scans for new channels on ANT1]

SANT2 S [Scans for new channels on ANT2]

Channel Add/Delete S[Opens the Channel Add/Delete menu]

Signal Meter S[Opens the Signal Meter menu]

Basic Network Setup S[Opens the Basic Network Setup menu]

Personal E-mail Setup S[Opens the Personal E-mail Setup menu]

E-mail Scheduling Setup S[Opens the E-mail Scheduling Setup menu]

Home File Server Setup S[Opens the Home File Server Setup menu]

Software Upgrade S[Opens the Software Upgrade menu]

Start S[Opens the TV Guide On Screen™ Setup

menu]

Start Setup S[Opens the Time and Date Setup menu]

System Information S[Opens the System Information screen]

Terrestrial

Network

TV Guide On Screen™ Setup

Time and Date

System Status

LZ196_EN.book Page 23 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

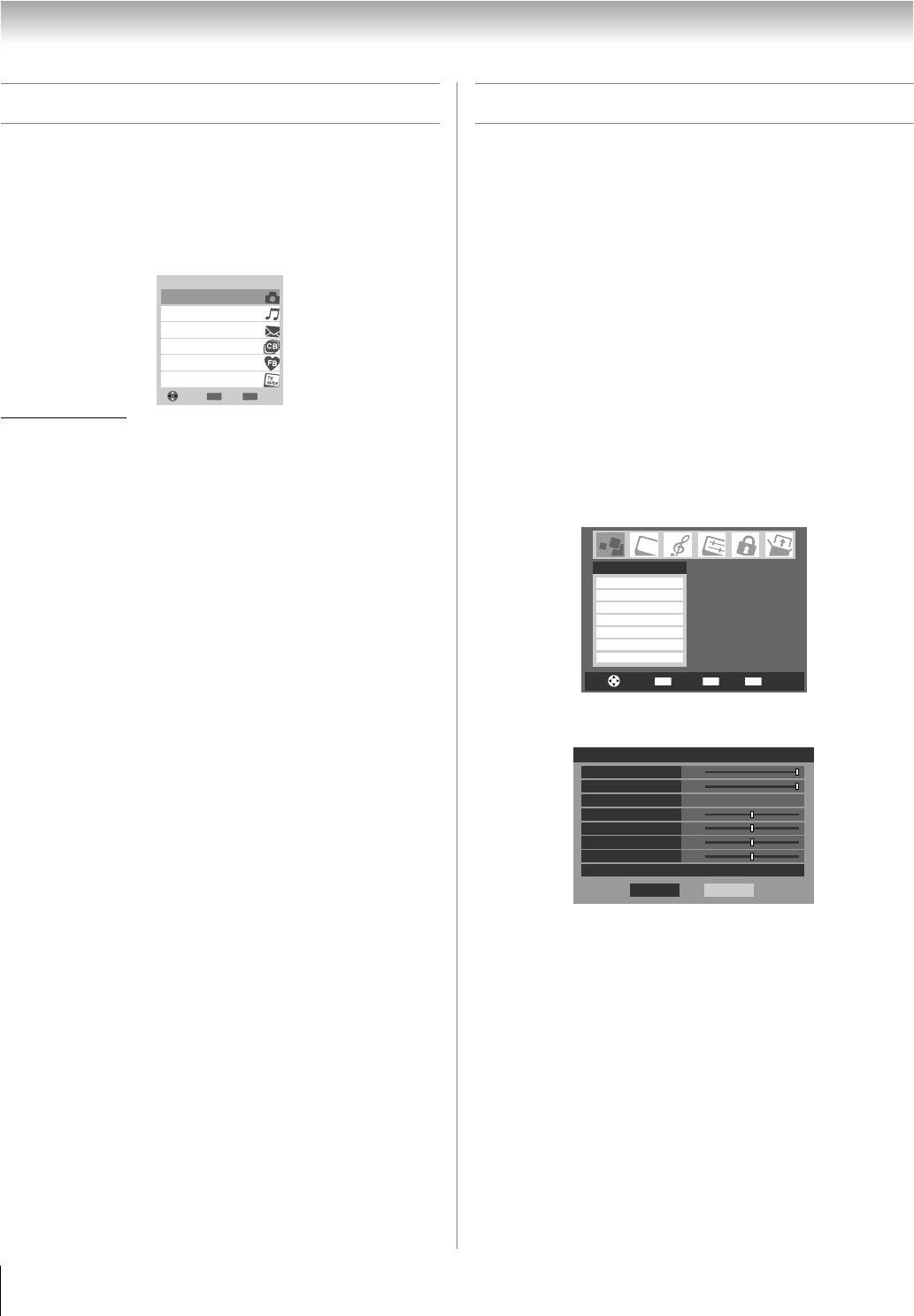

Chapter 3: Menu layout and navigation

THINC™ menu layout

The THINC* menu provides access to the Picture Viewer,

Audio Player, Personal E-mail, Channel Browser,

Favorites Browser, and TV Guide On Screen features.

The THINC menu is not part of the main menu system. You

can only view the THINC menu by pressing C on the

remote control.

*Toshiba Home Interactive Network Connection.

Navigating the menu system

You can use the buttons on the remote control or TV control

panel to access and navigate your TV’s on-screen menu

system.

•Press Y to open the menu system.

•When a menu is open, use the up/down/left/right arrow

buttons (BbC c) on the remote control or TV control panel

to move in the corresponding direction in the menu.

•Press T to save your menu settings or select a highlighted

item. (A highlighted menu item appears in a different color

in the menu.)

•All menus close automatically if you do not make a selection

within 60 seconds, except the signal meter menu, which

closes automatically after about 5 minutes.

•To close a menu instantly, press O.

Note:

•The menu backgrounds may sometimes appear black,

depending on the signal the TV is receiving. This is not a

sign of malfunction.

•The Video sub-menu appears with a black background

which looks different from other menus.

ENTER

EXIT

Navigate Select Exit

THINC Applications

Picture Viewer

Audio Player

Personal E-mail

Channel Browser

Favorites Browser

TV Guide On Screen

CH RTNENTER

EXIT

Navigate Select Back Exit

Picture Viewer

Audio Player

Personal E-mail

Channel Browser

TV Guide On Screen

CableCARD

Digital CC/Audio Selector

Applications

Done

Picture Settings

Contrast 100

Dynamic Back Light

Back Light 100

Brightness

Reset

Mode: Sports

Color

Tint

Advanced Picture Settings

Sharpness

LZ196_EN.book Page 24 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

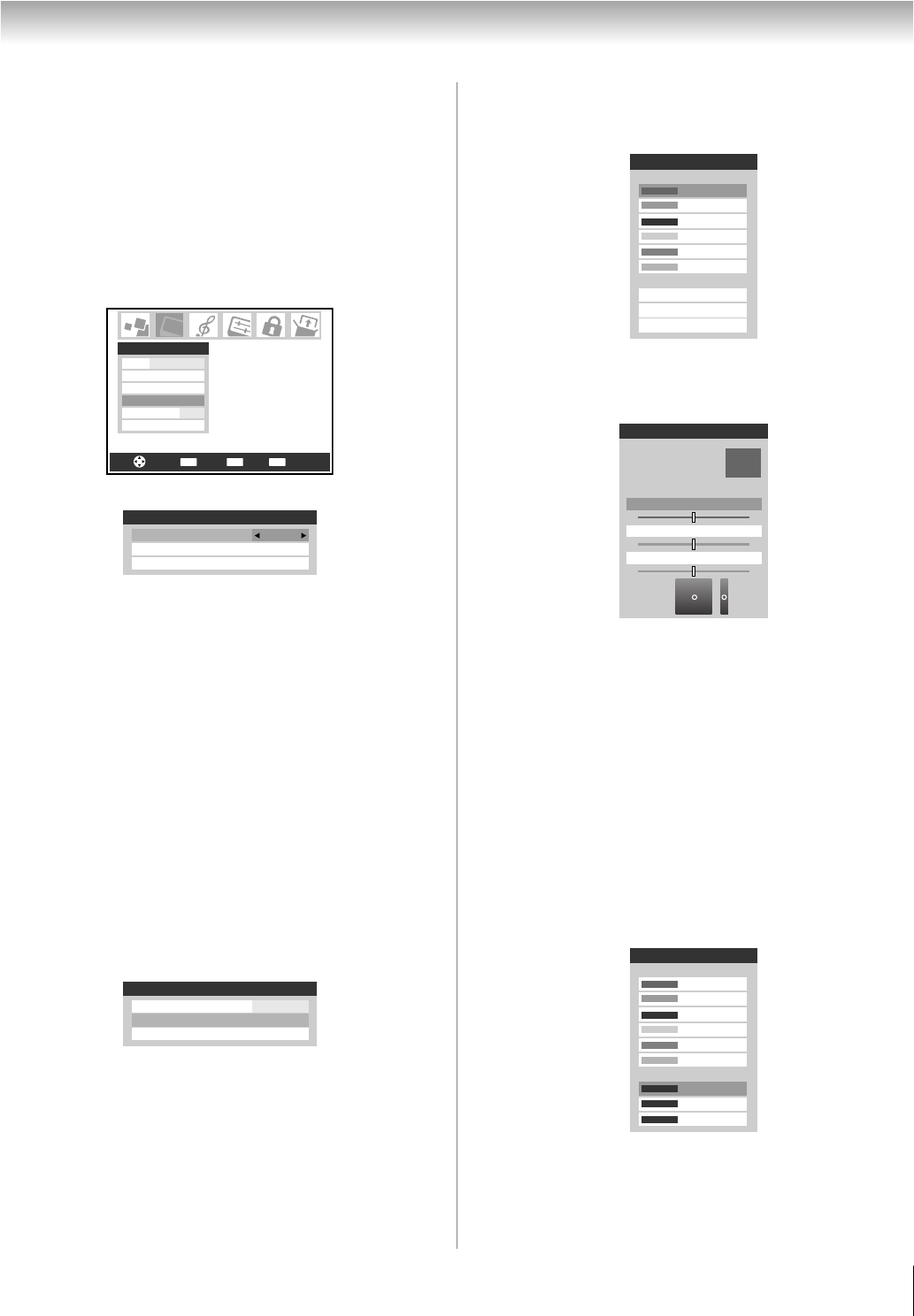

Chapter 4: Setting up your TV

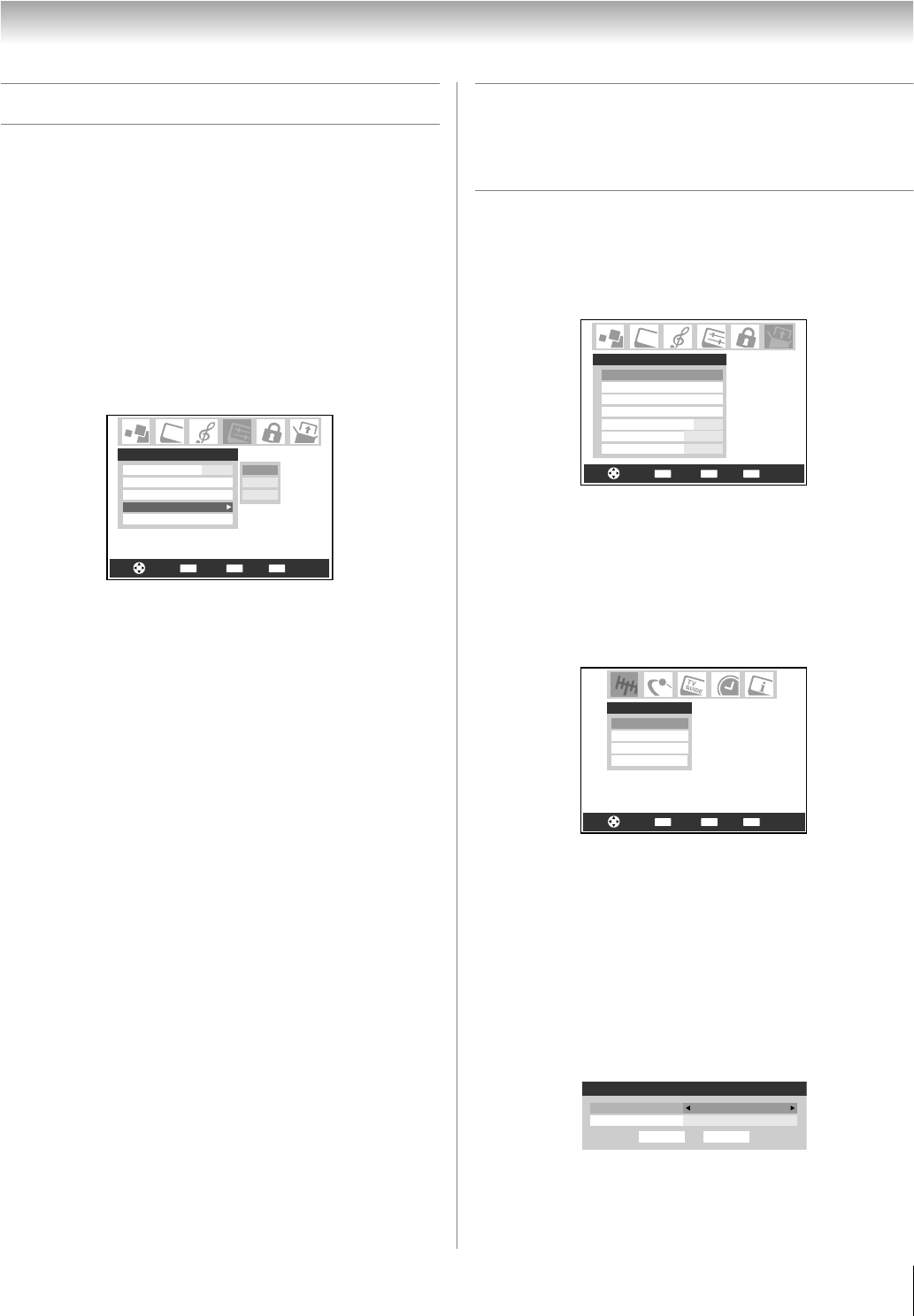

Selecting the menu language

You can choose from three different languages (English,

French, and Spanish) for the on-screen display of menus and

messages.

Note: The TV Guide On Screen™ menus are in English,

regardless of the language selected in this menu.

To select the menu language:

1Press Y and open the Preferences menu.

2Highlight Menu Language and press c.

3Press B or b to select your preferred menu language and

press T.

4Press O to close the Preferences menu.

Configuring the antenna input

sources for the ANT 1 and ANT 2

terminals

To configure the ANT 1 and ANT 2 input sources:

1Press Y and open the Setup menu.

2Highlight Installation and press T.

3(A new set of Installation menu icons will appear on-

screen, as shown below.) Open the Terrestrial menu,

highlight Input Configuration, and press T.

Note: The Terrestrial menu may not be accessible (items

will be “grayed out”) in some instances (for example, if a

cable box is connected to the ANT 1 input or if one of the

VIDEO modes is the current input during TV Guide

On Screen™ setup).

4Press B or b to highlight Antenna 1 In, and then press

C or c to select the input source (Cable or Antenna) for

the ANT 1 input on the TV.

Note: If a cable box is connected to the ANT 1 input

during TV Guide On Screen™ setup, the entire Terrestrial

menu will not be accessible, including the input source for

ANT 1, which will automatically display “Cable Box.”

5Press b to highlight Antenna 2 In and then C or c to

select the input source (Cable or Antenna) for the

ANT 2 input on the TV, if applicable. If you have not

connected anything to the ANT 2 input, skip this step.

6To save your new settings, highlight Done and press T.

To revert to your original settings, highlight Cancel and

press T.

CH RTNENTER

EXIT

Navigate Select Back Exit

Channel Browser Setup

English

Français

Español

Closed Caption Mode

Off

Closed Caption Advanced

Input Labeling

Menu Language English

Preferences

CH RTNENTER

EXIT

Navigate Select Back Exit

Installation

Sleep Timer

PC Settings

On/Off Timer

Setup

PC Audio

Auto

2 Sec

HDMI 1 Audio

Slide Show Interval

CH RTNENTER

EXIT

Navigate Select Back Exit

Terrestrial

Input Configuration

Channel Program

Channel Add/Delete

Signal Meter

Input Configuration

Antenna 1 In

Antenna 2 In

Cable

Antenna

Cancel Done

LZ196_EN.book Page 25 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 4: Setting up your TV

Programming channels into the

TV’s channel memory

When you press < or , on the remote control or TV control

panel, your TV will stop only on the channels you programmed

into the TV’s channel memory.

Follow the steps below to program channels into the TV’s

channel memory.

Programming channels automatically

Your TV can automatically detect all active channels in your

area and store them in its memory. After the channels are

programmed automatically, you can manually add or erase

individual channels in the channel memory.

Note:

•You must configure the antenna input source before

programming channels (- page 25).

•If the Antenna 1 input signal type is set to Cable, the

automatic channel programming process erases channels

that were previously programmed into the TV’s memory.

•If the Antenna 1 input signal type is set to Antenna, the

automatic channel programming process adds newly found

channels to the existing set of programmed channels

(and does NOT erase channels that were previously

programmed into the TV’s memory). To remove an antenna

source channel from the memory, you must manually

delete it.

•To tune the TV to a channel not programmed in the channel

memory, you must use the Channel Number buttons on the

remote control.

•Programming channels when the antenna input is

configured for Cable will take substantially longer than when

the antenna input is configured for Antenna. This is normal;

however, once channel programming is finished, you should

not have to repeat the programming process again unless

your Cable TV service lineup changes significantly.

•If you have a CableCARD™ inserted, channel programming

for the ANT 1 input is disabled because the CableCARD™

automatically loads the Cable channel list into the TV’s

channel memory. See the Installation Guide for details on

CableCARD™.

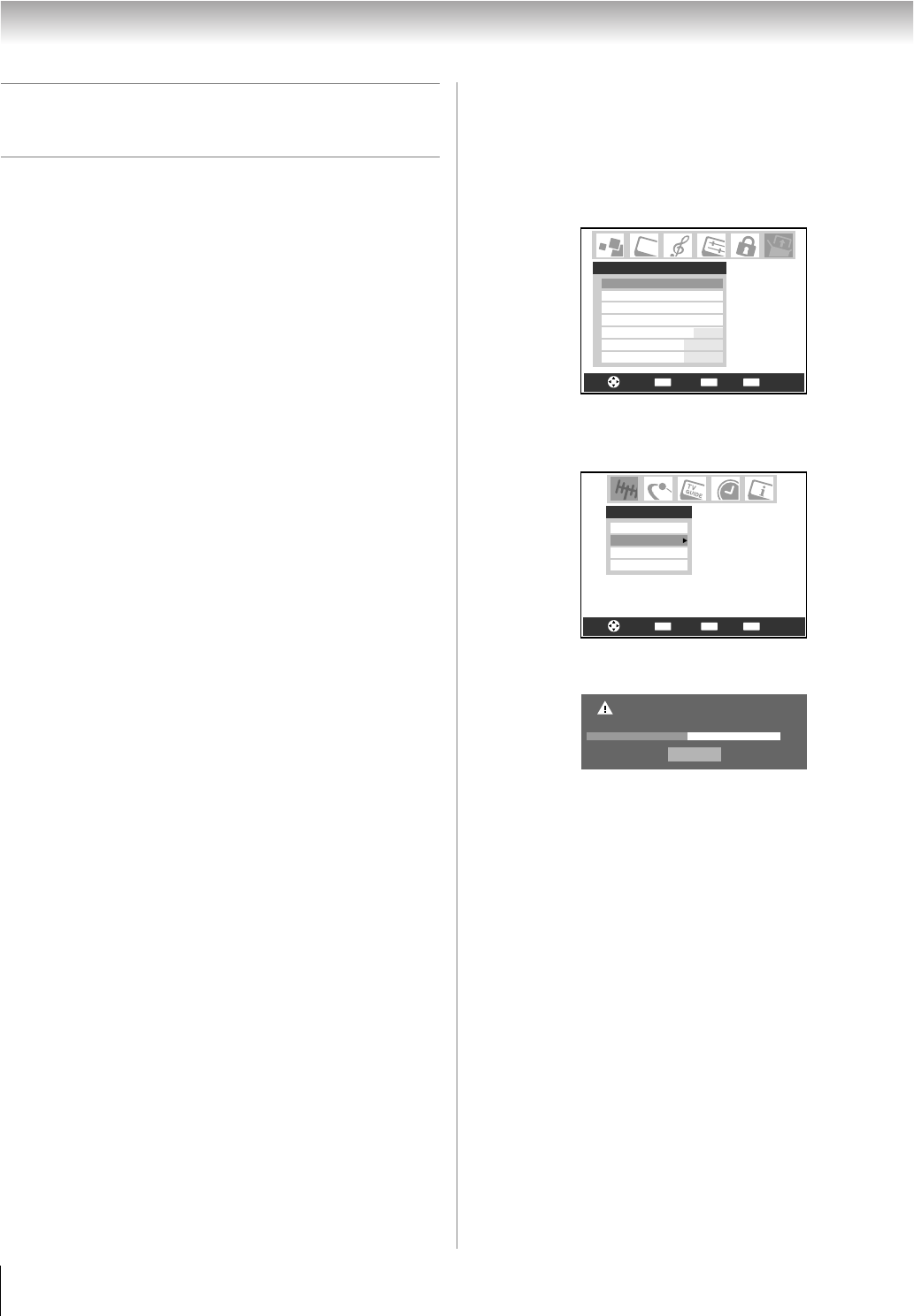

To program channels automatically:

1Configure the antenna input sources, if you have not

already done so (- page 25).

2Press Y and open the Setup menu.

3Highlight Installation and press T.

4(A new set of Installation menu icons will appear, as

shown below.) Open the Terrestrial menu, highlight

Channel Program, and press T.

5Highlight ANT 1 (or ANT 2) and then press T to start

automatic channel programming.

The TV will automatically cycle through all the antenna

channels, and store all active channels in the channel

memory. While the TV is cycling through the channels,

the message “Scanning channels, please wait” appears (as

shown above).

6To cancel channel programming, press O on the remote

control (or highlight Abort in the on-screen display and

press T).

When channel programming is finished, press <or , to

view the programmed channels.

CH RTNENTER

EXIT

Navigate Select Back Exit

Installation

Sleep Timer

PC Settings

On/Off Timer

Setup

PC Audio

Auto

2 Sec

HDMI 1 Audio

Slide Show Interval

CH RTNENTER

EXIT

Navigate Select Back Exit

Terrestrial

Input Configuration

Channel Program

Channel Add/Delete

Signal Meter

ANT 1 Antenna

Scanning channels, please wait ...

Abort

52%

LZ196_EN.book Page 26 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 4: Setting up your TV

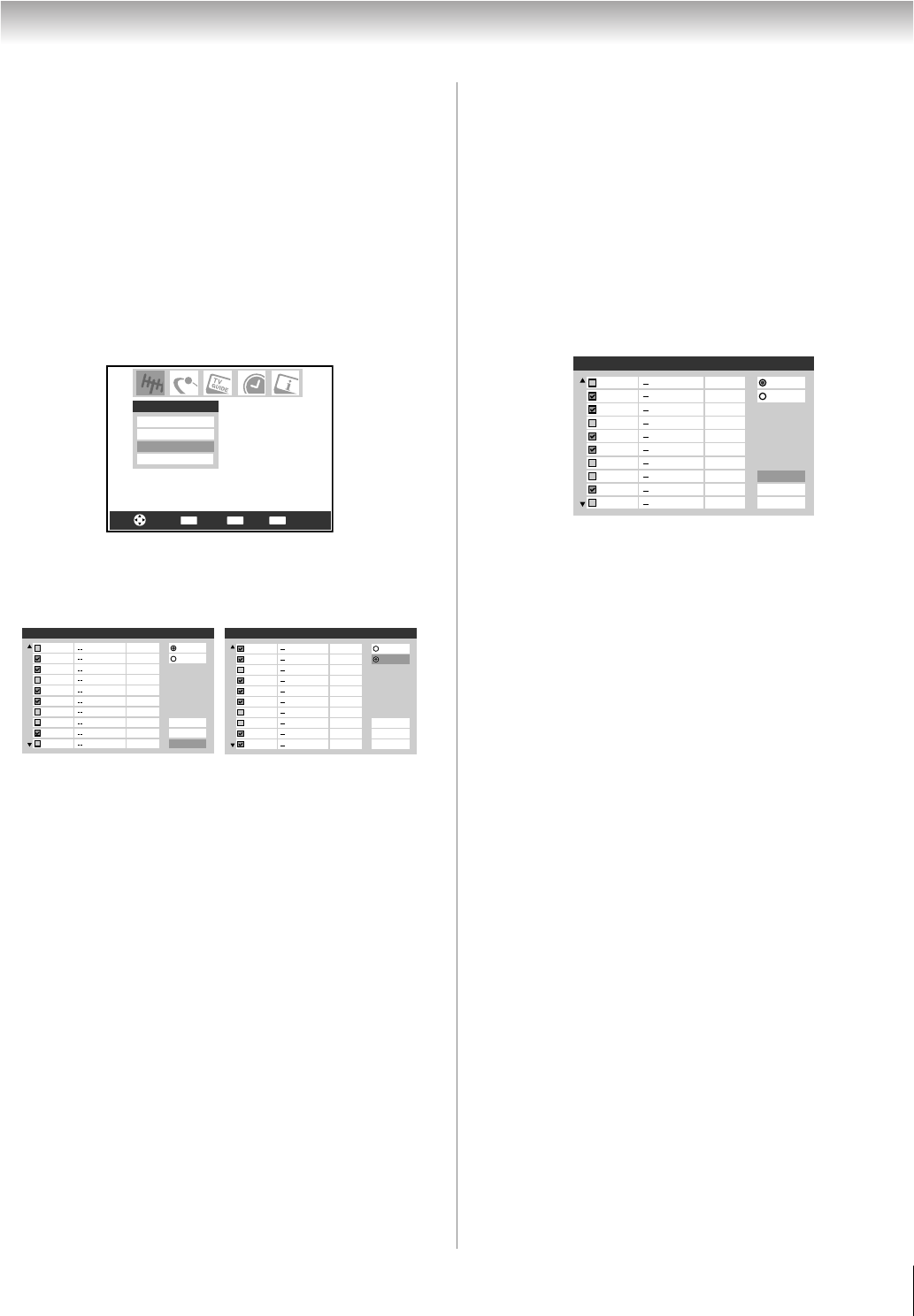

Manually adding and deleting channels

in the channel memory

After automatically programming channels into the channel

memory, you can manually add or delete individual channels.

To add or delete channels in the channel memory:

1Press Y and open the Setup menu.

2Highlight Installation and press T.

3(A new set of Installation menu icons will appear, as

shown below.) Open the Terrestrial menu, highlight

Channel Add/Delete, and then press T.

4The illustration below left shows channels programmed

for the ANT 1 antenna input. To view the list of channels

programmed for the ANT 2 or Cable box antenna input,

press Bb to highlight ANT 2 and press T.

To add a channel to the channel memory:

Highlight the unchecked box next to the channel number you

want to add, and then press T to check the box.

To manually add digital subchannels on a physical

channel:

Use the Channel Numbers and the Dash (=) on the remote

control to enter the channel number (for example, 56–1).

If the channel is found, the number will be added to the list and

the box will be checked.

If the channel is not found, a message will appear.

To remove a channel from the channel memory:

Highlight the checked box next to the channel number you

want to remove, and then press T to uncheck the box.

To save your new settings:

Highlight Done and press T.

To revert to your original settings:

Highlight Cancel and press T before saving.

To remove all channels from the channel memory:

Highlight Reset and press T, and then highlight Done and

press T.

Note: This action applies to the current antenna input only. To

delete/add channels on the other input, highlight the other

input and press T.

CH RTNENTER

EXIT

Navigate Select Back Exit

Terrestrial

Input Configuration

Channel Program

Channel Add/Delete

Signal Meter

Channel Add/Delete

2Analog ANT 1

ANT 2

Reset

Cancel

Done

Digital

Analog

Digital

Analog

2 - 1

2 - 2

7 - 1

Channel Add/Delete

1Analog ANT 1

ANT 2

Analog

Reset

Cancel

Done

Channel Add/Delete

2Analog ANT 1

ANT 2

Reset

Cancel

Done

Digital

Analog

Digital

Analog

Digital

Analog

2 - 1

2 - 2

7 - 1

LZ196_EN.book Page 27 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 4: Setting up your TV

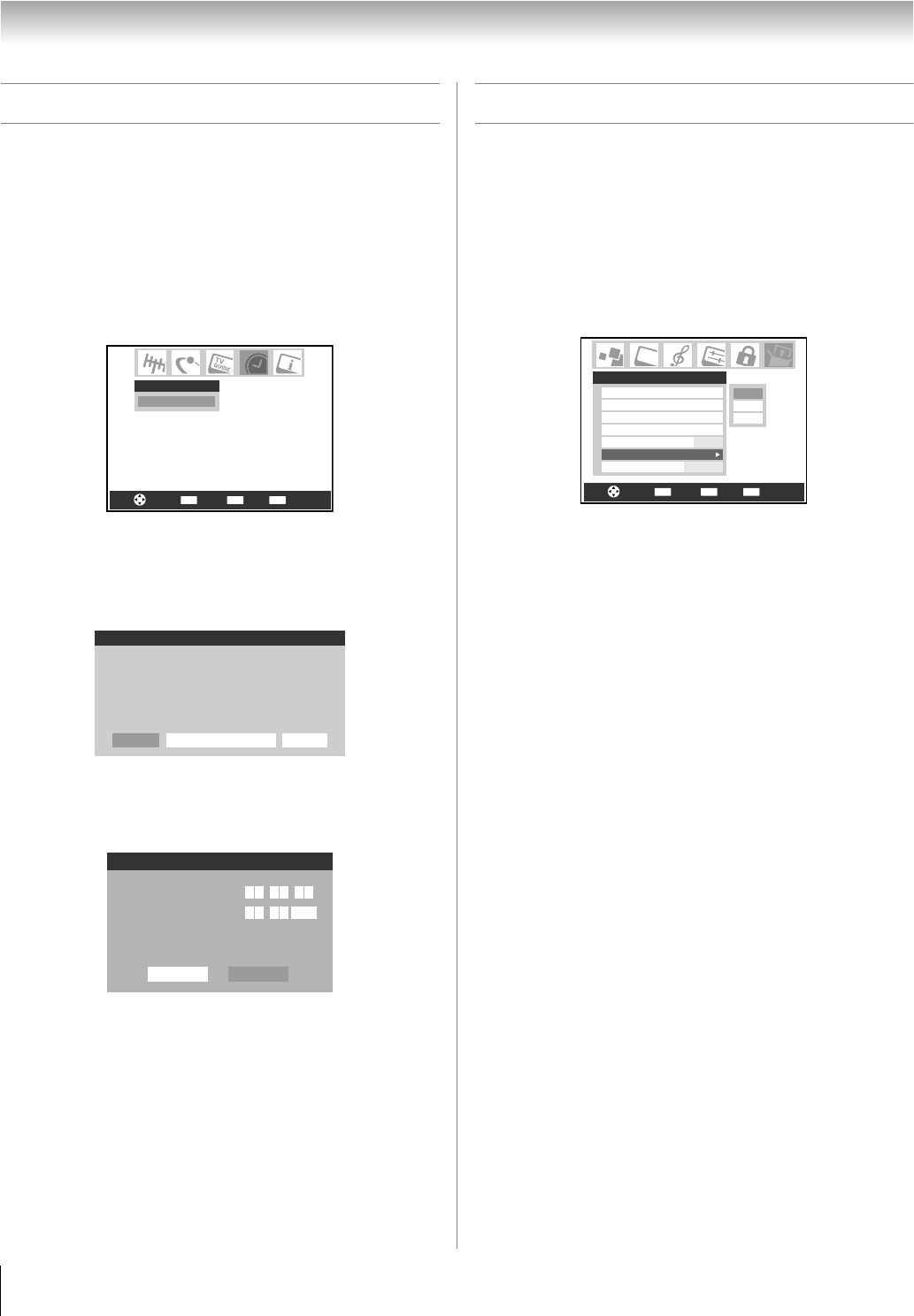

Setting the time and date

Note: If you already set up the TV Guide On Screen™ system,

the time and date were set automatically and you can skip this

step.

To set the time and date:

1Press Y and open the Setup menu.

2Highlight Installation and press T.

3(A new set of Installation menu icons will appear, as

shown below.) Open the Time And Date menu,

highlight Start Setup, and press T.

If you have not set up the TV Guide On Screen™ system,

the following screen will appear. To set the time, highlight

TV Guide On Screen™ and press T. The TV Guide

On Screen™ setup sequence will start, and the time and

date will be set automatically.

If you have already set up the TV Guide On Screen™

system, or if you have not set up the time, the Time and

Date setting screen will appear and you will need to

manually set the time and date.

Note:

•If you highlight TV Guide On Screen™ (above) to set the

time and date through the TV Guide On Screen™ system and

a power outage occurs, the time and date will be updated

automatically when the power is restored.

•If you highlight Manual (above) to set the time and date

manually and a power outage occurs, you will lose the time

and date settings when the power is restored.

•If you manually set the time and date and then perform

TV Guide On Screen™ setup, the manual time and date

settings will be overridden by the TV Guide On Screen™

settings.

Setting the HDMI™ audio mode

To set the HDMI audio mode:

1Press Y and open the Setup menu.

2Highlight HDMI 1 Audio and press c.

3Press b or B to select the HDMI audio mode (Auto,

Digital, or Analog) and press T. (Auto is the

recommended mode.) See “Connecting an HDMI or DVI

device to the HDMI input” (- Installation Guide).

Note: Because the PC IN and HDMI (DVI) IN inputs share the

same set of analog audio inputs, the PC Audio menu setting

influences the HDMI 1 Audio menu setting. If PC Audio is set

to “No,” the HDMI 1 Audio setting changes to “Auto.” If PC

Audio is set to “Yes,” the HDMI Audio setting is set to “Digital”

and is grayed out in the menu. (Also see item 4 on page 9 and

“Setting the PC Audio mode” on page 52.)

CH RTNENTER

EXIT

Navigate Select Back Exit

Time And Date

Start Setup

Cancel

Time And Date

Manual TV Guide On Screen

Your TV Guide On Screen system can provide accurate

time and date information.

It is recommended you set up TV Guide On Screen

first and use it to obtain the time and date.

In the event that your TV Guide On Screen system

has acquired time, the television will use network

acquired time rather than manually enterred time.

Cancel

Date (MM/DD/YY)

Time (HH:MM)

Done

Time And Date

:11 11

/06 30/05

CH RTNENTER

EXIT

Navigate Select Back Exit

Analog

Digital

Auto

Installation

Sleep Timer

PC Settings

On/Off Timer

Setup

PC Audio

Auto

2 Sec

HDMI 1 Audio

Slide Show Interval

LZ196_EN.book Page 28 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 4: Setting up your TV

Viewing the CableCARD™ menu

A CableCARD™ enables you to view encrypted digital

channels. For connection and subscription information, see

“Connecting a digital CableCARD™” in the Installation

Guide.

Note: Connecting your TV directly to the Audio/Video output of

your set-top box may provide a more vivid picture.

After the CableCARD™ is inserted, a CableCARD™ option

appears in the Applications menu, with informational

screens provided by your digital CableCARD™ service (see

sample illustration under step 3, below).

To view the CableCARD™ menu:

1Press Y and open the Applications menu.

2Highlight CableCARD™ and press c.

3Press B or b to select one of the side menu items and then

press T to display the information.

Note: The CableCARD™ menu is for informational

purposes only and has no user-adjustable options.

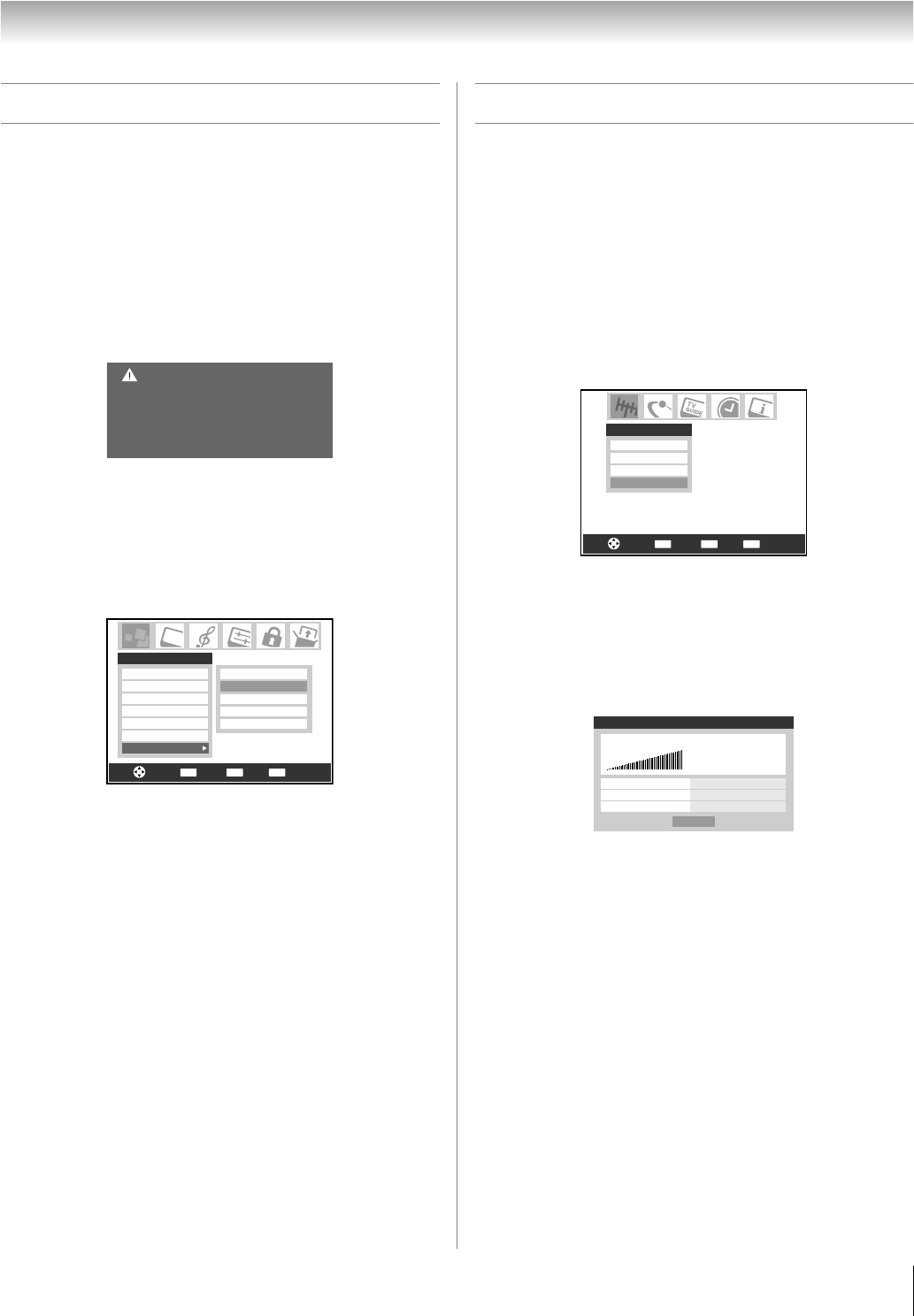

Viewing the digital signal meter

You can view the digital signal meter for the ANT 1 and

ANT 2 digital TV input sources only.

To view the digital signal meter:

1Press Y and open the Setup menu.

2Highlight Installation and press T.

3A new set of Installation menu icons will appear, as shown

below.

Open the Terrestrial menu, highlight Signal Meter,

and press T.

4Press BbC c to select the antenna input and digital

channel whose signal you want to check.

Note: The physical digital channel number listed in the

Signal Meter screen may not correspond to a virtual TV

channel number. Contact your local broadcasters to

obtain the RF channel numbers for your local digital

stations.

To close the screen and return to the Terrestrial

menu:

Highlight Done and press T.

To return to normal viewing:

Press O.

CableCard Connected -- Acquiring

channel information.

CableCard services will only operate

with cable signal connected to Antenna 1.

CH RTNENTER

EXIT

Navigate Select Back Exit

IP Service

Conditional Access

CableCARD(tm) Status

Network Setup

CableCARD(tm) Pairing

Picture Viewer

Audio Player

Personal E-mail

Channel Browser

TV Guide On Screen

CableCARD

Digital CC/Audio Selector

Applications

CH RTNENTER

EXIT

Navigate Select Back Exit

Terrestrial

Input Configuration

Channel Program

Channel Add/Delete

Signal Meter

Antenna 1

Physical Digital Channel 4

Virtual Digital Channel

Done

4-1

Signal Locked

Peak

LZ196_EN.book Page 29 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 4: Setting up your TV

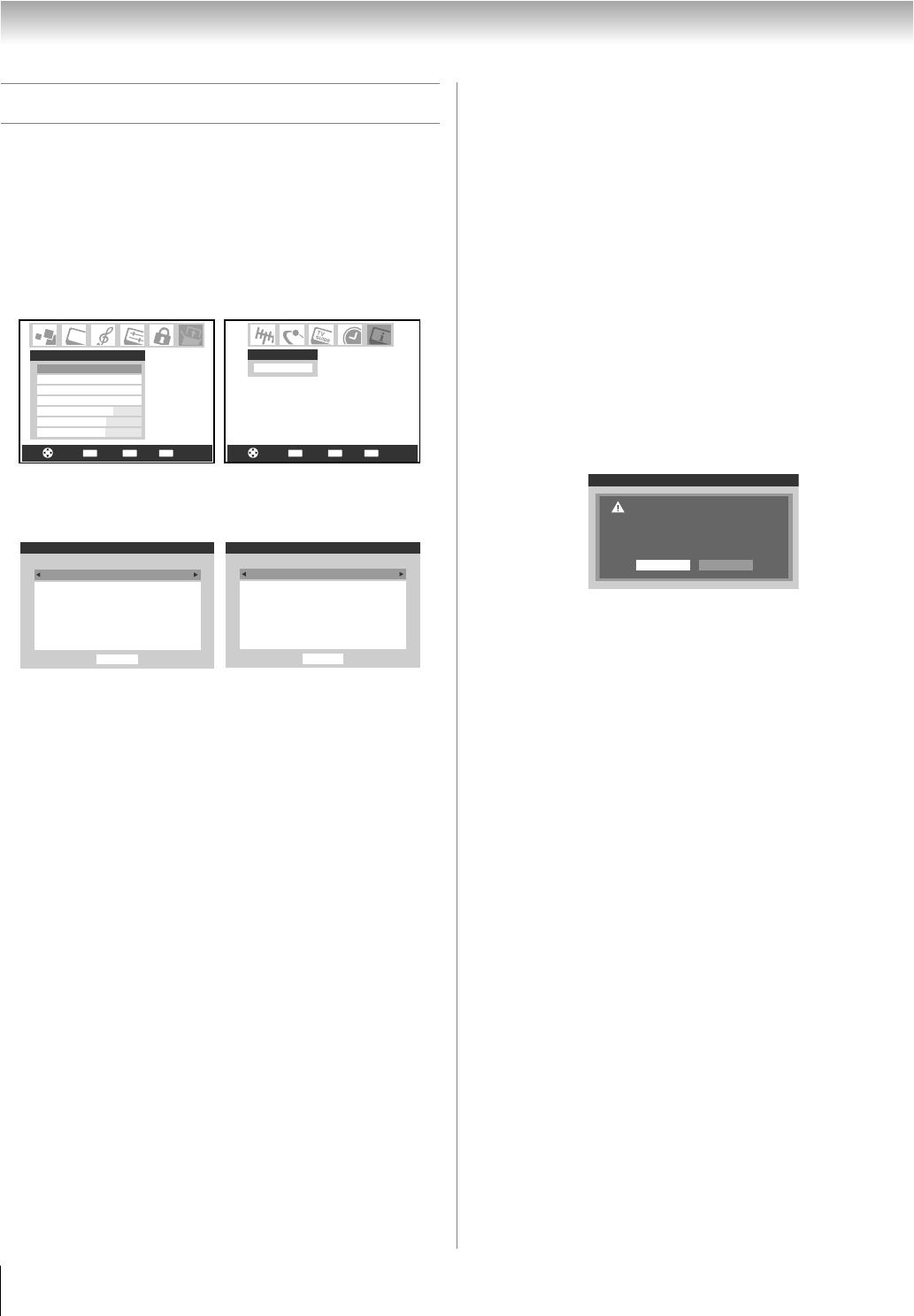

Viewing the system status

To view the system status:

1Press Y and open the Setup menu.

2Highlight Installation and press T.

3A new set of Installation menu icons will appear, as shown

below right. Open the System Status menu, highlight

System Information, and press T.

4Press C c to scroll through the menu bar to select either

Product Information or Software Version and view

the related information.

To close the screen and return to the Installation

menu:

Highlight Done and press T.

To return to normal viewing:

Press O.

Reset Factory Defaults

To reset all settings and channels to their factory

default values:

1Press Y and open the Setup menu.

2Highlight Installation and press T. A new set of

Installation menu icons will appear.

3Open the System Status menu, highlight System

Information, and press T.

4Press C c to scroll through the menu bar to select

Factory Defaults.

5Enter your PIN code (or 0000 if no PIN code has been set).

6Highlight Yes and press T. The TV will turn off

automatically after a few seconds. After the TV turns off,

unplug the TV power cord and then plug it in again to

complete the reset process.

To cancel the reset:

Highlight No and press T.

CH RTNENTER

EXIT

Navigate Select Back Exit

CH RTNENTER

EXIT

Navigate Select Back Exit

Setup

Installation

Sleep Timer

PC Settings

On/Off Timer

PC Audio

2 Sec

Auto

HDMI 1 Audio

Slide Show Interval

System Infomation

System Status

System Information

Done

Brand:

Model:

Toshiba

42LZ196

Product Information

System Information

Done

2.3.55.0

Jun 20 2006 - 15:05:15

FW: 37

Software Version

System Information

Press YES to confirm. After the TV

turns off, unplug it and plug it back

in to complete the reset.

YesNo

LZ196_EN.book Page 30 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 5: Using the TV’s features

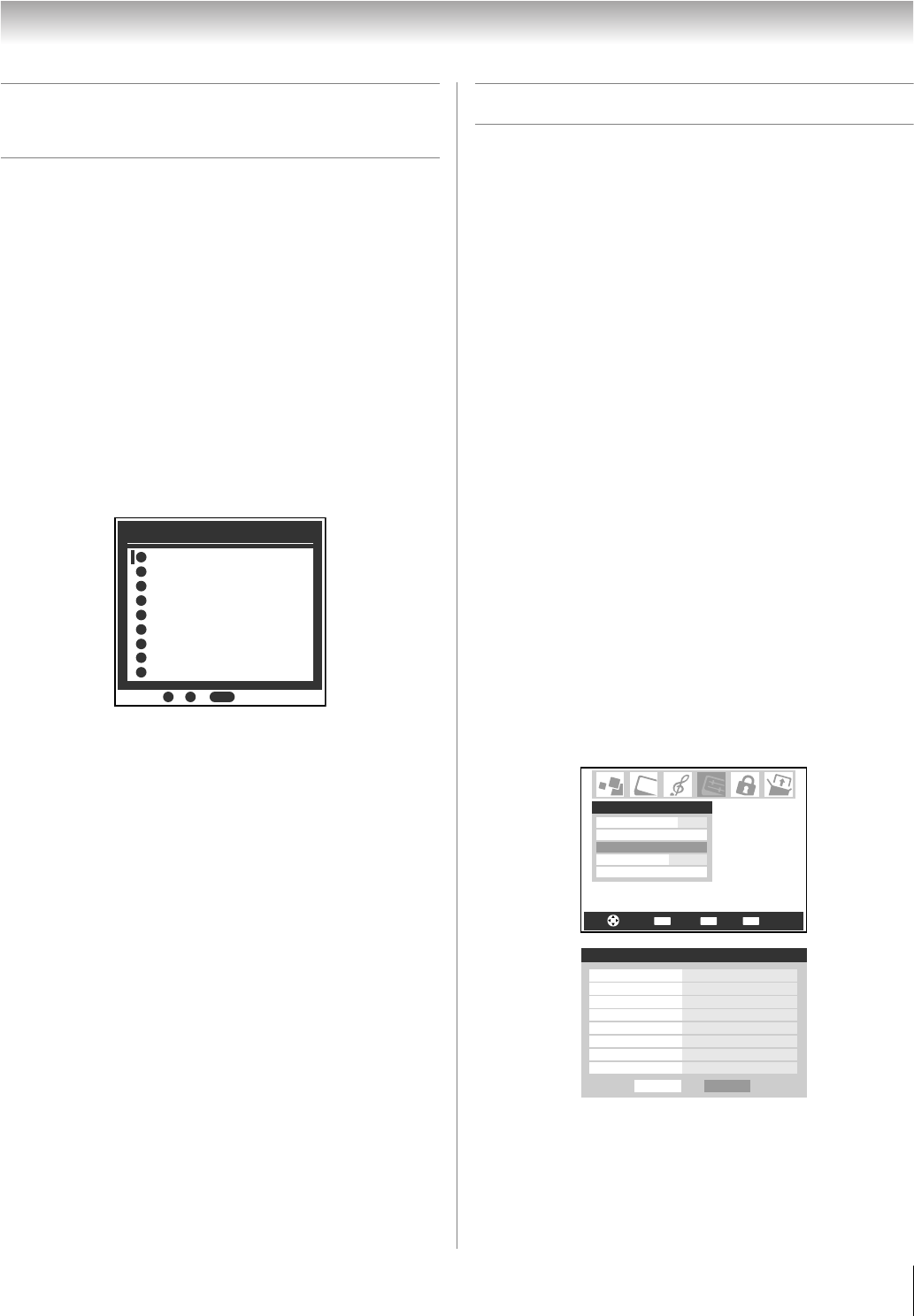

Selecting the video input source

to view

The video inputs available to view will be determined by the

input terminals you used to connect your devices

(see the Installation Guide).

To select the video input source to view:

1Press + on the remote control or TV control panel.

2And then either:

a) Press 0-8; or

b) Repeatedly press Bb on the remote control (or

CHANNEL Bb on the control panel) to change the

input; or

c) Repeatedly press + on the remote control or TV

control panel to change the input.

The current signal source displays in the top right corner

of the Input Selection screen.

Note:

•You can label the video input sources according to the

specific devices you have connected to the TV

(- “Labeling the video input sources” at right).

•The source can be “hidden” (- “Labeling the video input

sources” at right).

Labeling the video input sources

You can label each video input source to describe the type of

device you connected to each source. You can choose from the

following preset list of labels:

•“– –” (default label)

•Cable

•DTV

•Satellite/DSS

•VCR

•Laser Disk

•DVD

•HD DVD

•Audio Receiver

•Compact Disc

•Video Recorder

•Game Console

•Hide (to skip over an unused input in the Input Selection

screen)

Note:

• If you select ANT 2 in the Input selection screen, you can

choose only “– –” or “Hide” as the label.

•If you select PC in the Input Selection screen, you can

choose only “– –,” “Hide,” or “Game Console” as the label.

To label the video input sources:

1Press Y and open the Preferences menu.

2Highlight Input Labeling and press T.

3Press B or b to highlight the video source you want to

label.

4Press C or c to select the desired label for that input

source. If a particular input is not used, you can select

Hide as the label, which will cause that input to be

“grayed out” in the Input Selection screen and skipped

over when you press + on the remote control.

INPUT

Input Selection ANT 1

ANT 1ANT 1

Video 1

Video 2

ColorStream HD1

ColorStream HD2

HDMI 1

ANT 2

- / to Select

HDMI 2

CH RTNENTER

EXIT

Navigate Select Back Exit

Channel Browser Setup

Closed Caption Mode

Off

Closed Caption Advanced

Input Labeling

Menu Language English

Preferences

Done

Input Labeling

Video 1 DVD

Video 2 Cable

ColorStream HD 1 Video Recorder

ColorStream HD 2 Hide

HDMI 1 DTV

HDMI 2 Satellite/DSS

ANT 2

Reset

(continued)

LZ196_EN.book Page 31 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 5: Using the TV’s features

5To save the new input labels, highlight Done and

press T.

To revert to the factory default labels, highlight Reset

and press T.

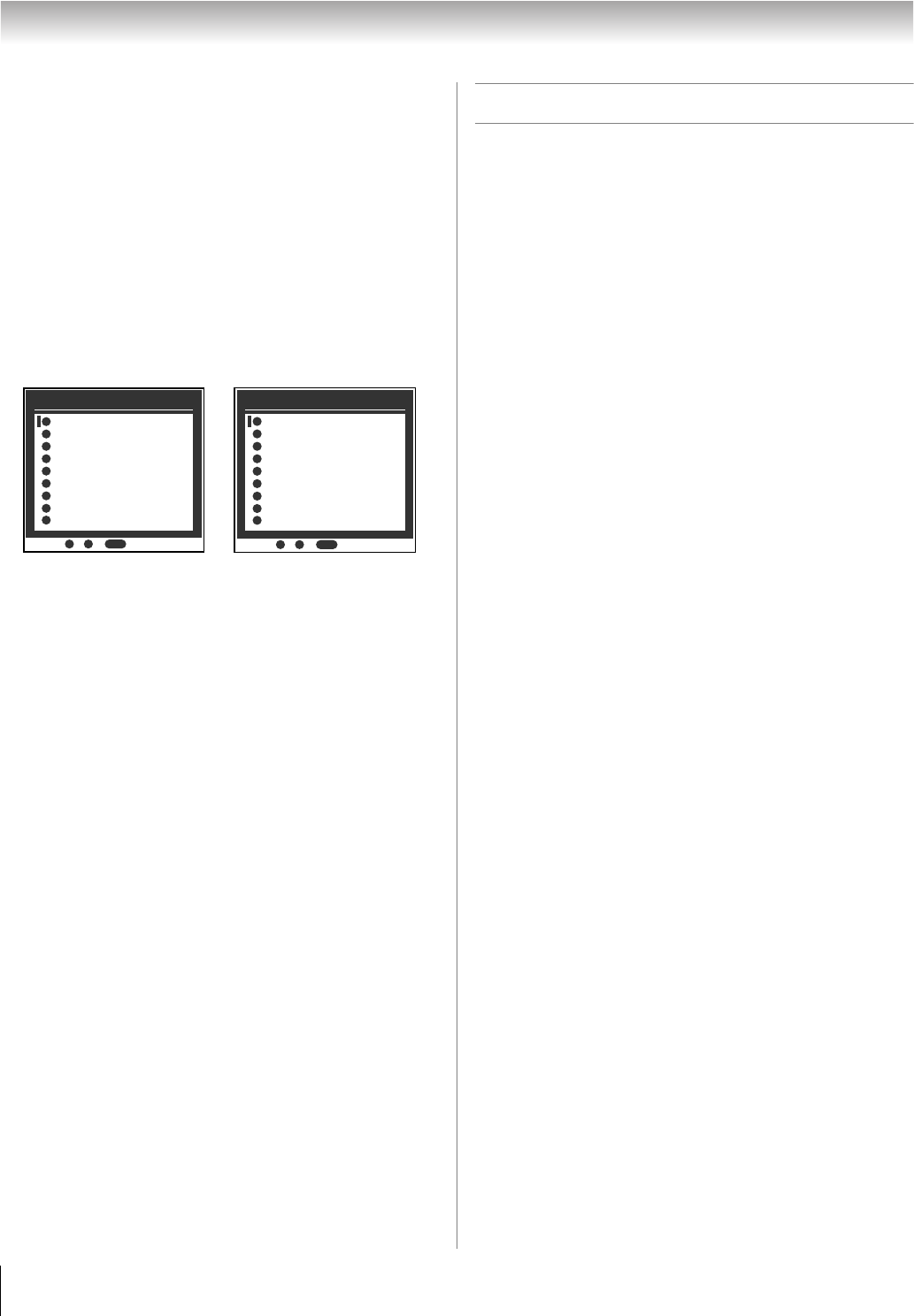

Input labeling example:

The screen below left shows the default Input Selection

screen (with none of the inputs labeled as a specific device).

The screen below right is an example of how you could label

the inputs if you connected a DVD player to VIDEO 1, Cable

TV to VIDEO 2, a video recorder to ColorStream HD1, a DTV

set-top box to HDMI 1, and a satellite/DSS set-top box to

HDMI 2. Also note that the ColorStream HD2 input is labeled

“Hidden,” which means that input will be skipped over when

+ is pressed.

To clear the input labels:

1Press Y and open the Preferences menu.

2Highlight Input Labeling and press T.

3Highlight Reset and press T.

Tuning channels

Tuning channels using the

Channel Browser™

The Channel Browser™ provides an easy navigation interface

for all your channels and inputs. This feature allows you to:

•Navigate the contents of all of your inputs.

•Keep a list of your favorite channels (see “Favorite

Browser,” below).

•Provide Cable Box and Satellite Box lists.

•Keep a history of the last 32 channels or inputs viewed.

•Quickly surf and tune your recently viewed channels/inputs

from the Channel Browser™ History List (illustrated on the

next page).

•Surf via Browse mode (to immediately tune channels as you

highlight them in the Channel Browser™) or Select mode (to

surf over channels in the Channel Browser™ before you

select one to tune).

•Quickly change inputs from the Inputs List.

Favorite Browser

The Favorite Browser allows you to quickly set up a favorite

channels/inputs list that is integrated into the Channel Browser

™

To add a favorite channel/input:

1Tune to the channel or input.

2Press and hold n for 3 seconds.

Note: Additions are added to the beginning of the Favorite list

on the left side of the Channel Browser™.

To delete a favorite channel/input:

1Press n to open the Favorite browser list.

2Highlight the channel or input to delete by pressing

3 C or # c.

3Press and hold = for 3 seconds. The channel/input will

be removed from the Favorite list.

Picture Preview

•A small thumbnail preview of the current channel or input

will appear in the list.

•Picture snapshots will be taken when a source change occurs

from the Channel Browser™.

•Up to 32 picture previews can be stored in the Channel

Browser™ across all lists. If you add a new picture when the

total = 32, the oldest thumbnail will be deleted.

One thumbnail is counted only once against the total, no

matter how many times it appears in various lists.

•Turning off the TV deletes all of the current thumbnails.

INPUT

Input Selection ANT 1

ANT 1ANT 1

Video 1

Video 2

ColorStream HD1

ColorStream HD2

HDMI 1

ANT 2

- / to Select

HDMI 2

Input Selection ANT 1

ANT 2

- / to Select

ANT 1ANT 1

DVD

Cable

Video Recorder

ColorStream HD2 (Hidden)

DTV

Satellite/DSS

Input Selection screen with

no inputs labeled.

Input Selection screen with

all inputs labeled except input 4,

which has been hidden.

LZ196_EN.book Page 32 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 5: Using the TV’s features

To set up the Channel Browser™:

1Press Y and open the Preferences menu.

2Highlight Channel Browser Setup and press T.

3Press B to highlight Navigation, and then press C or c

to select either Browse Mode or Select Mode.

4Press b to highlight History List, and then press C or c

to select the setting you prefer: either Power Off Clear

(On), On, or Off.

Note: When History List is set to On, the channels and

inputs stored in the list will be saved every power on/off

cycle. When History List is set to Power Off Clear (On),

the channels and inputs stored in the list will be cleared

with every power on/off cycle of the TV.

5Press b to highlight ANT1 List, and then press C or c to

select On or Off.

6Press b to highlight ANT2 List, and then press C or c to

select On or Off.

7Press b to highlight Cable Box List, and then press C or

c to select On or Off.

8Press b to highlight Satellite Box List, and then press

C or c to select On or Off.

9Press b to highlight Inputs List, and then press C or c

to select On or Off.

10 Press b to highlight Favorites List, then press C or c to

select On or Off.

11 To save your entries, highlight Done and press T.

To return to factory defaults, highlight Reset and

press T.

Note: Cable Box List and Satellite Box List will be

grayed out and set to Off by default. They will remain this

way until a Cable Box and/or Satellite Box is configured

from the TV Guide setup.

To open the Channel Browser™:

•Press 3 C, # c, or n on the remote control.

•Press 3 C to surf backward through the currently selected

list.

•Press # c to surf forward through the currently selected list.

Note: The Channel Browser™ is not available while the TV is in

POP mode.

Elements of the Channel Browser™

1Input type

2Highlighted item (channel or input)

3Channels with thumbnails stored in the History List

4Current list (History, ANT 1, ANT 2, Cable Box,

Satellite Box, Inputs, or Favorites)

5Current input

6Current antenna type (cable or TV)

7Active channel number

8Channel call letters (if available)

9Resolution

To toggle among the available lists:

After opening the Channel Browser™, press B or b to toggle

among History, ANT 1, ANT 2, Cable Box, Satellite Box,

Inputs and Favorites.

Note:

•The Channel Browser™ opens the History List by default.

Once another list has been selected, the Channel Browser™

will open the last selected list.

•If all lists are turned off, pressing 3 C, # c, or n will not

display the Channel Browser™. If Favorites List is turned

off, n will have no effect.

•Pressing n will bring up the Channel Browser™ Favorite

list regardless of the last selected list in the

Channel Browser™.

To tune to a channel or input in Browse mode:

1While watching TV, press 3 C or # c to open the

Channel Browser™ and surf back to a previous item or

forward to the next item in the list.

In Browse mode, when you stop on an item in the

Channel Browser™, it will be highlighted and the TV will

automatically tune to the channel or input.

2Press O to close the Channel Browser™.

Note: The Channel Browser™ will close automatically if

you do not make a selection within 30 seconds.

Done

Channel Browser Setup

Navigation

History List

Favorites List On

Inputs List On

Satellite Box List On

Cable Box List Off

ANT2 List On

ANT1 List On

Reset

Select Mode

Power Off Clear (On)

History

Channel Browser

ANT 1 CABLE 4 AAA 480i

14-1

ClrStrmHD1

HDMI 1

110 78 8

4567 8 9

123

(continued)

LZ196_EN.book Page 33 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 5: Using the TV’s features

To tune to a channel or input in Select mode:

1While watching TV, press 3 C or # c to open the

Channel Browser™ and surf back to a previous item or

forward to the next item in the list.

In Select mode, when you stop on an item in the

Channel Browser™, it will be highlighted but you must

press T to tune the TV to the highlighted item.

2Press O to close the Channel Browser™.

Adding and clearing channels and inputs in the

History List

Adding channels and inputs to the History List:

As a channel or input is tuned, the Channel Browser™ adds it

to the History List and displays it on the “right side” of the

Channel Browser™. Previously tuned channels/inputs are

“shifted” to the left, eventually moving off the left side. Press

3 C to surf backward through the previously tuned channels/

inputs. Any channel or input that is tuned repeatedly will not

be repeated in the History List, but instead is moved to the end

of the list on the right side of the Channel Browser™.

The Channel Browser™ will store the following channels:

•All channels that are tuned using the numeric buttons on the

remote control.

•All channels that are tuned using < or , on the remote

control for at least 5 seconds.

•All inputs that are tuned for at least 5 seconds.

Note: Whenever an item is selected that cannot be tuned (for

various reasons), the TV will automatically tune to the

previously viewed channel or input.

Clearing channels from the History List:

•Reconfiguring the ANT 1 or ANT 2 input will clear the

History List.

Note: See page 25 for details on configuring the antenna

inputs.

•Removing the CableCARD™ will clear the History List.

•Once 32 channels or inputs are stored in the History List, the

oldest item will be removed from the list when a new

channel or input is tuned.

•If History List in the Channel Browser Setup is set to

“Power Off Clear (On),” turning off the TV will clear the

History List.

Tuning to the next programmed channel

To tune to the next programmed channel:

Press < or , on the remote control or TV control panel.

Note: This feature will not work unless you program channels

into the TV’s channel memory (- page 26).

Tuning to a specific channel (programmed

or unprogrammed)

Tuning analog channels:

Press the Channel Number buttons (0–9) on the remote

control. For example, to select channel 125, press 1, 2, 5.

Tuning digital channels:

Press the Channel Number (0–9) on the remote control,

followed by the dash (=) and then the sub-channel number.

For example, to select digital channel 125-1, press 1, 2, 5, –, 1.

Note: If a digital channel is not programmed—either through

the automatic channel scan (- page 26) or the channel add/

delete function (- page 27)—you will have to tune the RF

channel using the Channel Numbers and dash (=) on the

remote control.

Inputs

Channel Browser

ANT 1 CABLE 4 AAA 480i

ClrStrmHD1

Satellite..

__ __

1ANT 1

ClrStrmHD2

Video 2

HDMI 1

LZ196_EN.book Page 34 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 5: Using the TV’s features

Switching between two channels using

Channel Return

The Channel Return feature allows you to switch between two

channels without entering an actual channel number each time.

1Select the first channel you want to view.

2Select a second channel using the Channel Number

buttons (and the dash (=) button if selecting a digital

channel).

3Press R on the remote control. The previous channel

will be tuned. Each time you press R, the TV will switch

back and forth between the last two channels that were

tuned.

Note: If you press R from a non-antenna input, the TV

will return to the last-viewed ANT input and channel.

Switching between two channels using

SurfLock™

The SurfLock™ feature temporarily “memorizes” one channel

in the R button, so you can return to that channel quickly

from any other channel by pressing R.

To memorize a channel in the R button:

1Tune the TV to the channel you want to program into the

R button.

2Press and hold R for about 2 seconds until the message

“Channel Memorized” appears on-screen. The channel

has been programmed into the R button.

3You can then change channels repeatedly, and when you

press R, the memorized channel will be tuned.

The TV will return to the memorized channel one time only.

Once you press R and then change channels again, the

CH RTN memory will be cleared and the button will function

as Channel Return, by switching back and forth between the

last two channels that were tuned.

LZ196_EN.book Page 35 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 5: Using the TV’s features

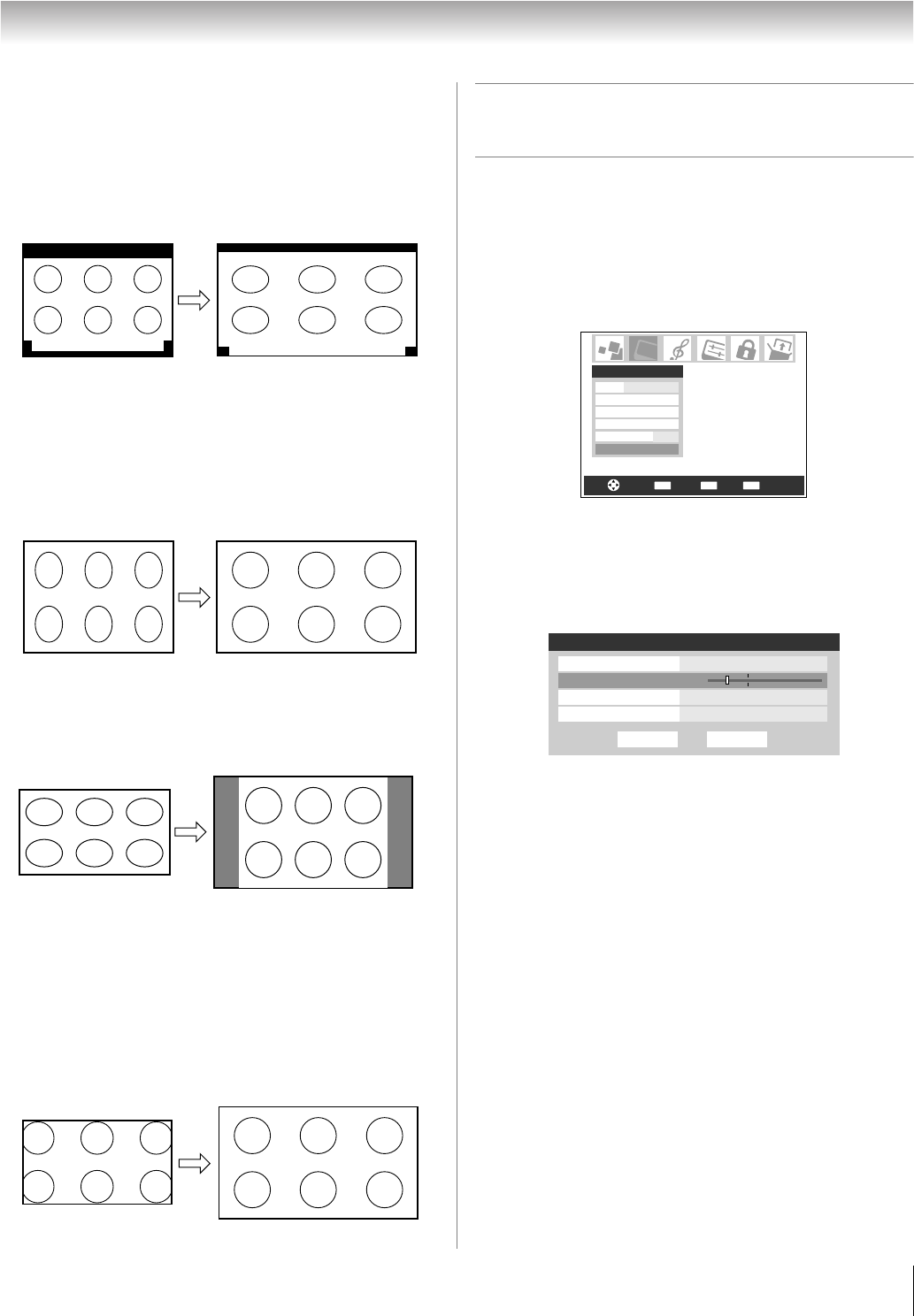

Selecting the picture size

You can view many program formats in a variety of picture

sizes—Natural, TheaterWide 1, TheaterWide 2,

TheaterWide 3, Full, 4:3 HD and Native.

Note: The “picture size” illustrations are examples only. The

format of the image (in any of the picture sizes) will vary

depending on the format of the signal you are currently

watching. Select the picture size that displays the current

program the way that looks best to you.

You can save separate picture size preferences for each input

on your TV.

To select the picture size using the remote control:

1Press I on the remote control.

2While the Picture Size screen is open, you can do one of

the following to select the desired picture size:

•Repeatedly press I.

•Press the corresponding Number button (0-6) while the

Picture Size screen is open.

•Press B or b while the Picture Size screen is open.

To select the picture size using the menus:

1Select Picture Size in the Theater Settings menu.

2Select the input for which you want to save your picture

settings.

3Highlight Done and press T.

Note: Full picture size may not be available for some program

formats (it will be “grayed out” in the Picture Size screen).

Note: If you select one of the TheaterWide® picture sizes, the

top and bottom edges of the picture (including subtitles or

captions) may be hidden. To view the hidden edges, either

scroll the picture (TheaterWide 2 and 3 only) or try viewing the

program in Full or Natural picture size.

Natural picture size

•The image is displayed close to its originally formatted

proportion. Some program formats will display with

sidebars and/or bars at the top and bottom.

TheaterWide 1 picture size (for 4:3 format programs)

•The center of the picture remains close to its original

proportion, but the left and right edges are stretched wider to

fill the screen.

TheaterWide 2 picture size (for letter box programs)

•The picture is stretched wider to fill the width of the screen,

but only slightly stretched taller.

•The top and bottom edges of the picture may be hidden. To

view the hidden areas, see “Scrolling the TheaterWide®

picture” on the next page.

Using these functions to change the picture size (i.e.,

changing the height/width ratio) for any purpose other than

your private viewing may be prohibited under the Copyright

Laws of the United States and other countries, and may

subject you to civil and criminal liability.

PIC SIZE

Picture Size

Natural

TheaterWide 1

TheaterWide 2

TheaterWide 3

Native

Full

4:3 HD

- / to Select

Done

Theater Settings

Picture Size Natural

Picture Scroll

Cinema Mode Film

Auto Aspect Ratio On

Reset

Natural picture size example

TheaterWide 1 picture size example

A B C D E F G - - - - - - - - - - - - - - - -

TheaterWide 2 picture size example

LZ196_EN.book Page 36 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 5: Using the TV’s features

TheaterWide 3 picture size (for letter box programs

with subtitles)

•The picture is stretched wider to fill the width of the screen,

but only slightly stretched taller.

•The top and bottom edges are hidden. To view the hidden

areas (such as subtitles or captions), see “Scrolling the

TheaterWide® picture,” at right.

Full picture size (for 16:9 [480i, 480p] source

programs only)

•If receiving a squeezed 4:3 format program, the picture is

stretched wider to fill the width of the screen, but not

stretched taller.

•None of the picture is hidden.

4:3 HD picture size (for 720p, 1080i, and 1080p

program sources only)

•The picture is squeezed to its original proportion.

Native picture size (for 1080i and 1080p signal

programs)

•If receiving a 1080i or 1080p signal program, the Native

mode displays the entire picture without scaling.

Note: Native picture size is available for 1080i and 1080p

signals only. If the signal being received is other than 1080i or

1080p, “Native” will be grayed out in the Picture Size screen.

Scrolling the TheaterWide® picture

(TheaterWide 2 and 3 only)

You can set separate scroll settings for the TheaterWide 2 and

TheaterWide 3 modes for each input.

To set the scroll settings:

1Press Y and open the Video menu.

2Highlight Theater Settings and press T.

3In the Picture Size field, select either TheaterWide 2

or TheaterWide 3 (you cannot scroll in any other mode).

4Press b to highlight the Picture Scroll field.

5Press C or c to scroll the picture up and down as needed,

from –10 to +20.

6To save the new settings, highlight Done and press T.

To revert to the factory defaults, highlight Reset and

press T.

A B C D E F G - - - - - - - - - - - - - - - -

A B C D E F G - - - - - - - - - - - - - - - - - - - - - - - - - -

TheaterWide 3 picture size example

Full picture size example

4:3 HD picture size example

Native picture size example

CH RTNENTER

EXIT

Navigate Select Back Exit

Mode Sports

Off

Picture Settings

Noise Reduction

Color Management Pro

Game Mode

Theater Settings

Video

DoneReset

Theater Settings

Picture Size TheaterWide 2

Picture Scroll -5

Cinema Mode Film

Auto Aspect Ratio On

LZ196_EN.book Page 37 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 5: Using the TV’s features

Using the auto aspect ratio feature

When the auto aspect ratio feature is set to On, the TV will

automatically select the picture size when one of the following

input sources is received:

•A 480i signal from the VIDEO 1, VIDEO 2, ColorStream

HD-1, or ColorStream HD-2 input.

•A 1080i, 1080p, 480i, 480p, or 720p signal from the HDMI

input.

Note: The auto aspect ratio feature is not applicable to

antenna or cable input sources.

To turn on the auto aspect ratio feature:

1Press Y and open the Video menu.

2Highlight Theater Settings and press T.

3In the Auto Aspect Ratio field, select On.

4To save the new settings, highlight Done and press T.

To revert to the factory defaults, highlight Reset and

press T.

To turn off the auto aspect ratio feature:

Select Off in step 3 above.

Selecting the cinema mode

(480i signals only)

When you view a DVD (480i signal; 3:2 pulldown processed)

from a DVD player connected to the VIDEO 1, VIDEO 2,

ColorStream HD-1, ColorStream HD-2 (component

video), or HDMI input on the TV, smoother motion can be

obtained by setting the Cinema Mode to Film.

To set the Cinema Mode to Film:

1Press Y and open the Video menu.

2Highlight Theater Settings and press T.

3In the Cinema Mode field, select Film.

4To save the new settings, highlight Done and press T.

To revert to the factory defaults, highlight Reset and

press T.

To set the Cinema Mode to Video:

Select Video in step 3 above.

Aspect ratio of

signal source

Automatic aspect size (automatically

selected when Auto Aspect is On)

4:3 normal Natural (with sidebars)

4:3 letter box TheaterWide 2

16:9 full Full

Not defined

(no ID-1 data

or HDMI

aspect data)

The current picture size you set under

“Selecting the picture size” on page 36.

DoneReset

Theater Settings

Picture Size Natural

Picture Scroll --

Cinema Mode Film

Auto Aspect Ratio On

DoneReset

Theater Settings

Picture Size Natural

Picture Scroll --

Cinema Mode

Auto Aspect Ratio On

Film

LZ196_EN.book Page 38 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 5: Using the TV’s features

Using the POP features

Using the POP double-window feature

The POP (picture-out-picture) double-window feature splits

the screen into two windows so you can watch two programs

at the same time.

To display a program in the POP window:

1Press P to open the POP double-window.

2Press C or c to highlight the desired window. When

highlighted, the window will have a green border.

3Press + to open the Input Selection window. Select

the input source for the POP window by pressing the

corresponding Number button (0–8). The current source

displays in red.

Left window — ANT 1 and ANT 2 inputs are selectable.

Right window — ColorStream HD1 and HD2 (only for

480p,1080i and 720p) and HDMI 1 and 2 are selectable.

Note:

•The message “Current video format cannot be

displayed” will appear if you press P when the TV is

in ColorStream HD1 or HD2 mode and is receiving a

480i format signal.

•The FREEZE feature is not available when the POP

double-window is open. If you press B when the POP

double-window is open, the message “Not available

from current video mode” will appear.

•If you labeled all of the inputs as HIDE (- page 31), the

POP feature will be disabled and the message “Not

Available” will appear if you try to open the POP double-

window.

•The message “Not Available” will appear If you try to

open the POP double-window when the Input Lock

feature is in Video or Video+ mode.

To tune to the highlighted window (and close the POP

double-window):

Press T after highlighting the window you want to view as a

normal picture.

Notes about recording:

•If the POP window is open and you attempt to start

recording, the POP window will close before recording

starts.

•If you use the TV’s remote control to start recording, you will

not be able to open the POP window and the message “Not

Available” will appear if you try to do so.

•It is recommended that you use the TV’s remote control to

start recording. If you use a device other than the TV’s

remote control to start recording, you may accidentally open

the POP window during the recording process. If this

happens, the recorded audio will reflect the audio of the

active window (left or right), which may not be the audio you

intended to record.

Left window Right window

Green border

(denotes active window)

POP double-window

POPANT1

TV 12 ColorStream HD1

INPUT

Input Selection

ANT 1ANT 1

Video 1

Video 2

ColorStream HD1

ColorStream HD2

HDMI 1

ANT 2

- / to Select

HDMI 2

Input Selection

ANT 2

- / to Select

ANT 1ANT 1

Video 1

Video 2

ColorStream HD1

ColorStream HD2

HDMI 1

HDMI 2

Left window Right window

ANT 1

ColorStream HD1

LZ196_EN.book Page 39 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 5: Using the TV’s features

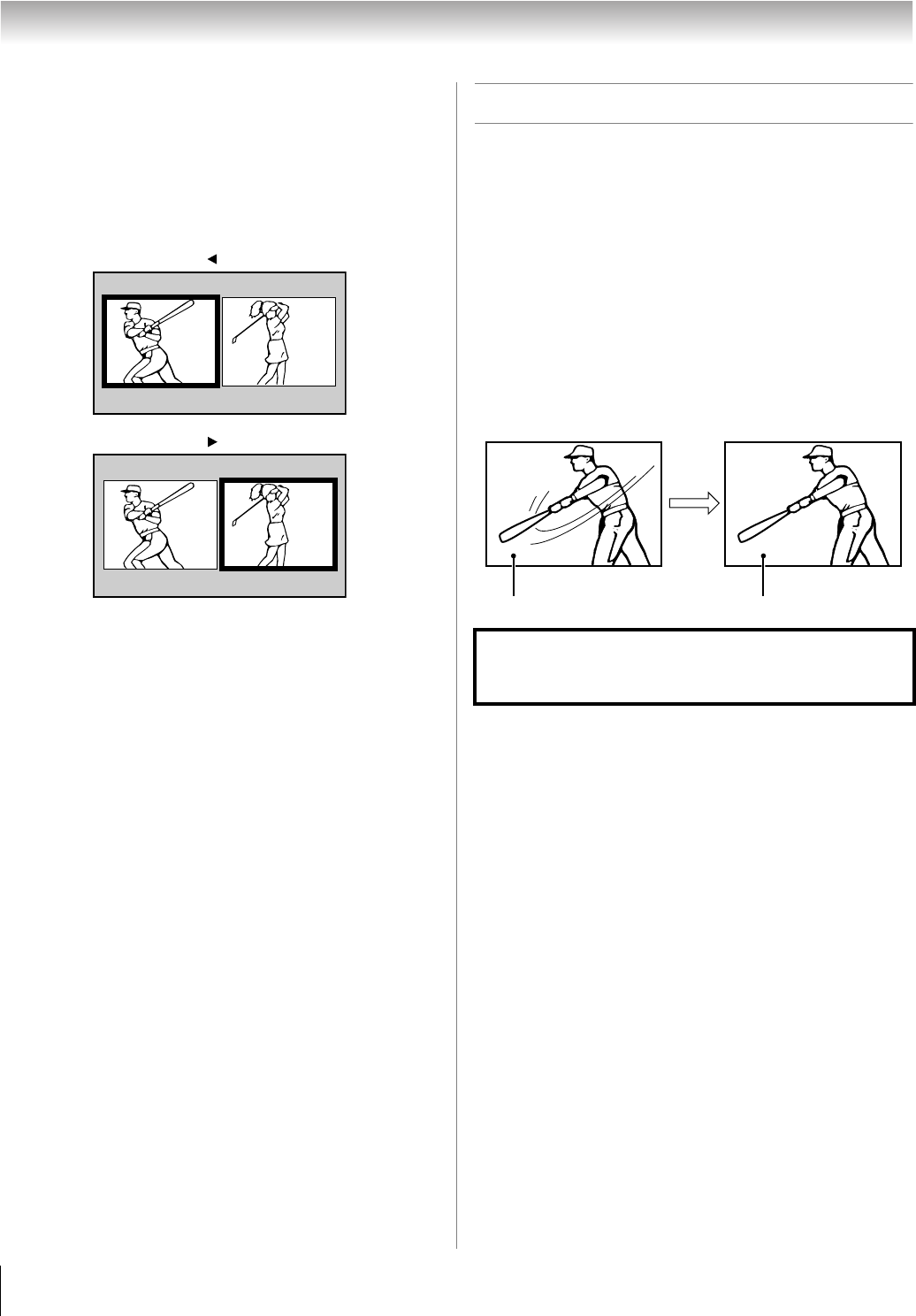

Selecting the POP window audio out

While the POP double-window is open, press C or c to select

which audio (left or right POP window) to be output from the

TV speakers (and also from the VARIABLE AUDIO OUT

and A/V AUDIO OUT terminals).

The window with the active audio is outlined with a green

border.

Using the FREEZE feature

To use the FREEZE feature:

1When viewing the TV, press B to make the picture a

still picture.

2To return to the moving picture, press B again (or any

other button).

Note:

•The FREEZE feature is not available when the POP

double-window is open. If you press B, the message

“Not available from current video mode” will appear.

•If the TV is left in FREEZE mode for more than 15

minutes, the FREEZE mode will automatically be

released and the TV will return to the moving picture.

Example: Press

Using the FREEZE function for any purpose other than your

private viewing may be prohibited under the Copyright Laws

of the United States and other countries, and may subject

you to civil and criminal liability.

Still pictureMoving picture

LZ196_EN.book Page 40 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 5: Using the TV’s features

Adjusting the picture

Selecting the picture mode

You can select your desired picture settings from four different

modes, as described below.

To select the picture mode:

1Press Y and open the Video menu.

2Highlight Mode and press T.

3Press B or b to select the picture mode you prefer and

press T.

Note:

•The picture mode you select affects the current input

only. You can select a different picture mode for each

input.

•If you select one of the factory-set picture modes

(Sports, Standard, or Movie) and then change a

picture quality setting (for example, increase the

contrast or change the color temperature), the picture

mode automatically changes to Preference.

•If you select Pro 1 or Pro 2 mode and then change a

picture quality setting, those values are reflected in

Pro 1 or Pro 2 mode.

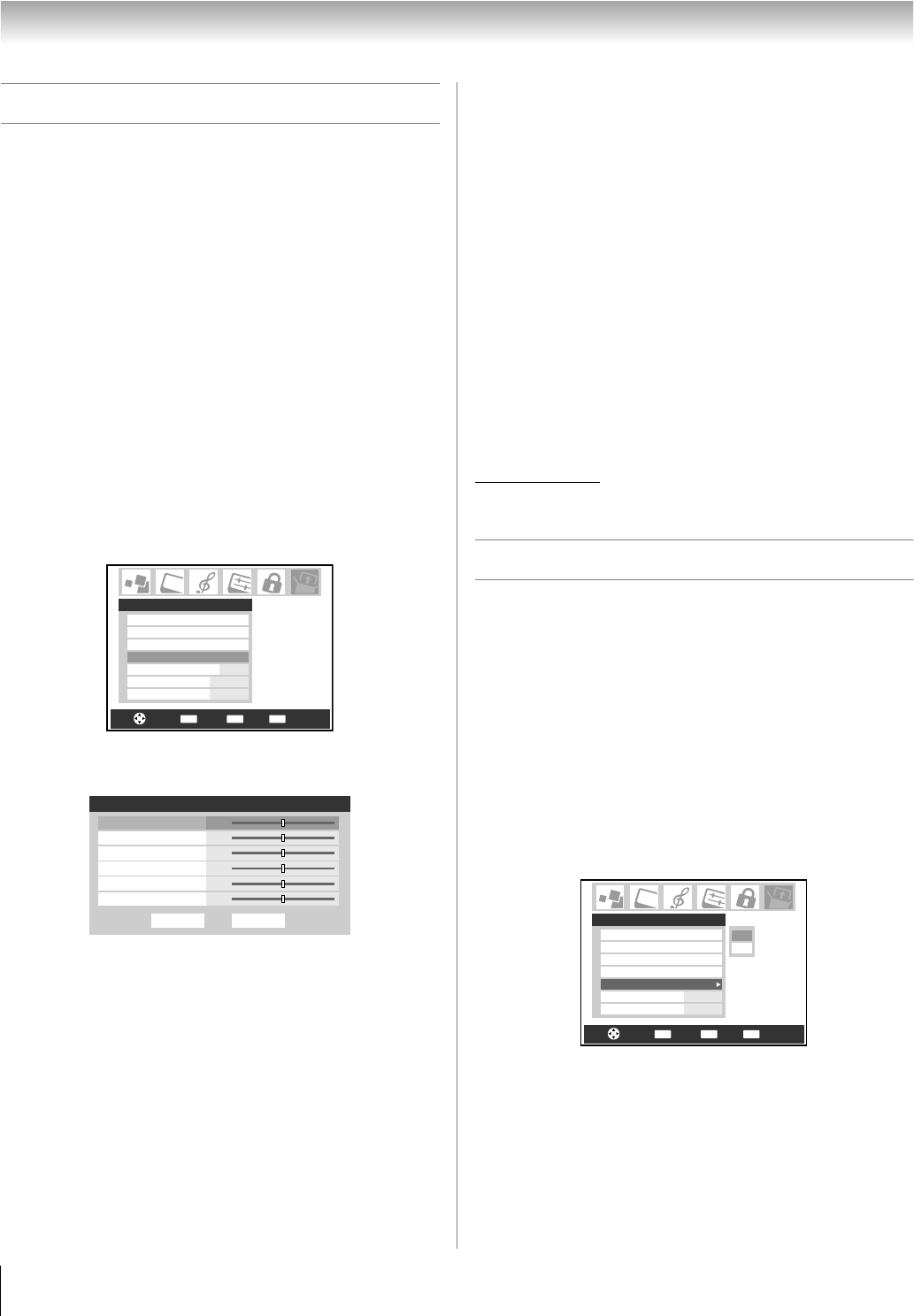

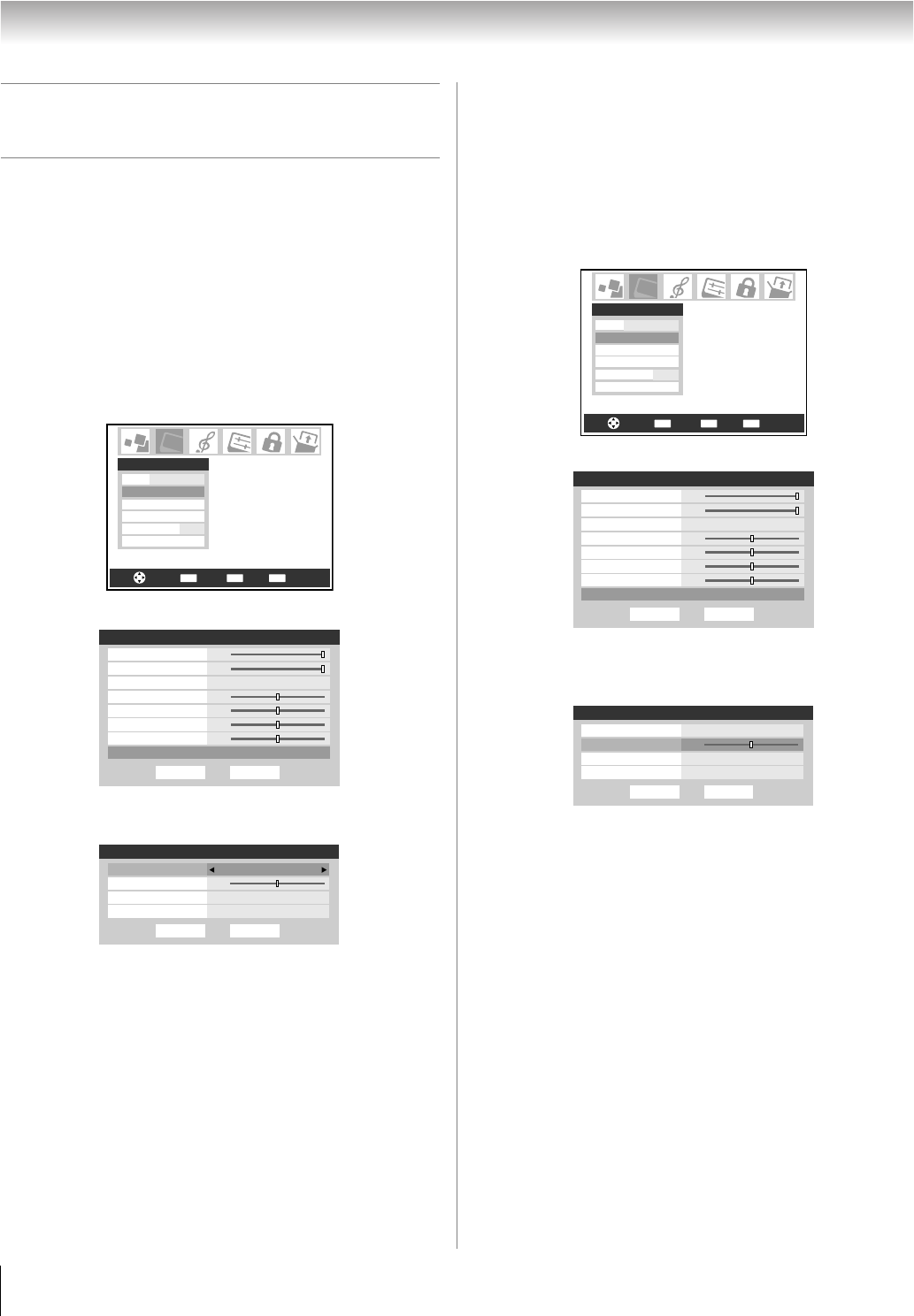

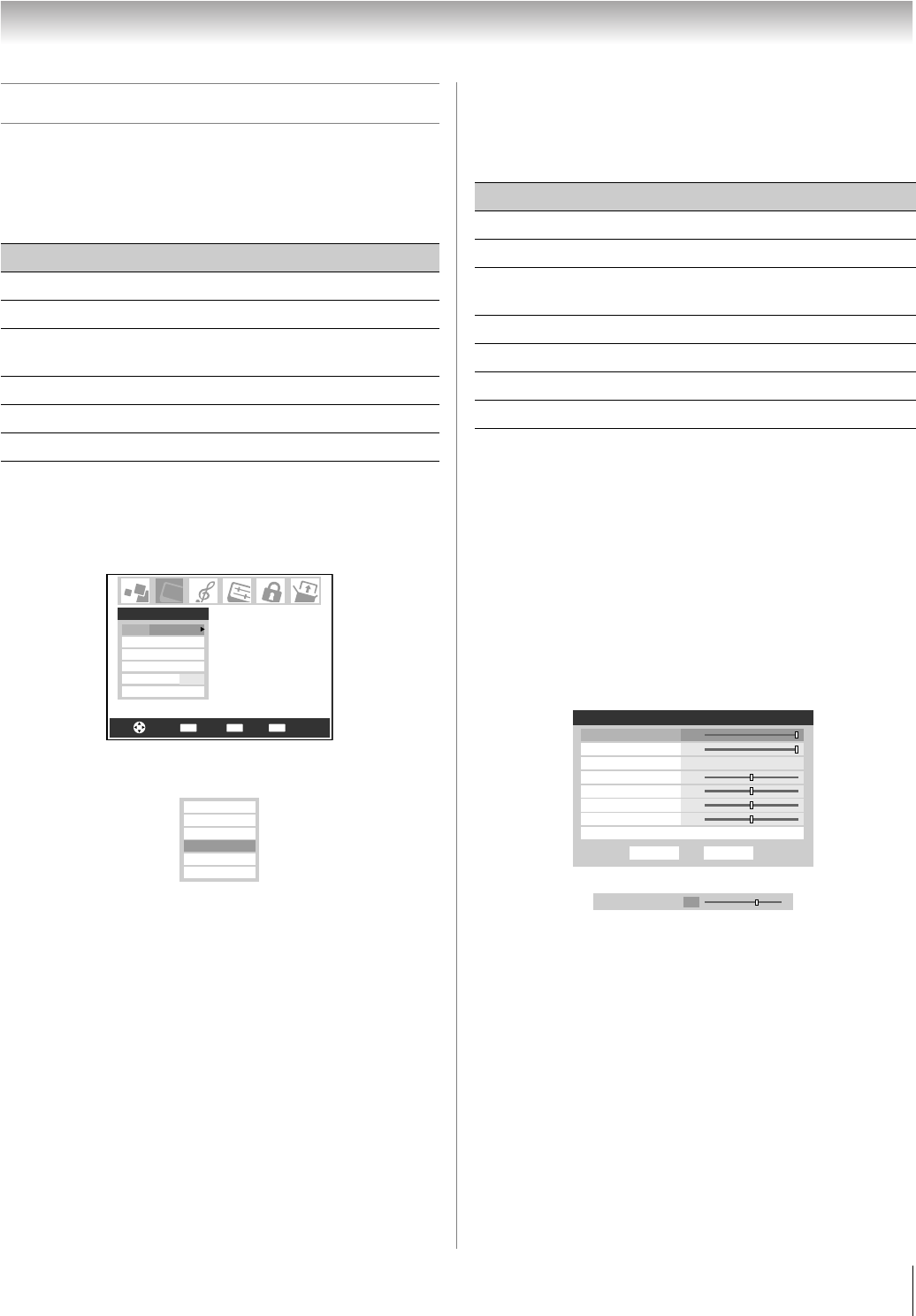

Adjusting the picture quality

You can adjust the picture quality (Contrast, Back Light,

Dynamic Back Light, Brightness, Color, Tint, and Sharpness)

to your personal preferences.

*Back Light: This function adjusts brightness of the entire screen.

**Dynamic Back Light: This function automatically strengthens the

black coloring of dark area according to the level of darkness.

To adjust the picture quality:

1Press Y and open the Video menu.

2Highlight Picture Settings, and press T.

3Press B or b to select the picture quality you want to

adjust (Contrast, Back Light, Dynamic Back Light,

Brightness, Color, Tint, or Sharpness), and then

press C and c to adjust the setting, as described in the

table above.

4To save the new settings, highlight Done and press T.

To revert to the factory defaults, highlight Reset and

press T.

Note:

•If you select the picture mode other than Pro 1 or Pro 2,

the picture qualities you adjusted are automatically

saved in the Preference mode (- “Selecting the

picture mode,” at left).

•If you select Pro 1 or Pro 2 picture mode and then

change a picture quality setting, those values are

saved in Pro 1 or Pro 2 mode.

Mode Picture Quality

Sports Bright and dynamic picture (factory setting)

Standard Standard picture settings (factory setting)

Movie Lower contrast for darkened room (factory

setting)

Preference Your personal preferences

Pro 1 Custom settings based on Standard mode

Pro 2 Custom settings based on Movie mode

CH RTNENTER

EXIT

Navigate Select Back Exit

Mode Sports

Off

Picture Settings

Noise Reduction

Color Management Pro

Game Mode

Theater Settings

Video

Sports

Standard

Movie

Preference

Pro 2

Pro 1

Selection Pressing CPressing c

Contrast lower higher

Back Light* darker lighter

Dynamic Back

Light** On/Off On/Off

Brightness darker lighter

Color paler deeper

Tint reddish greenish

Sharpness softer sharper

Done

Picture Settings

Contrast 100

Dynamic Back Light

Back Light 100

Brightness

Reset

Mode: Sports

Color

Tint

Advanced Picture Settings

Sharpness

Picture Settings Mode: Preference

Contrast 70

LZ196_EN.book Page 41 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 5: Using the TV’s features

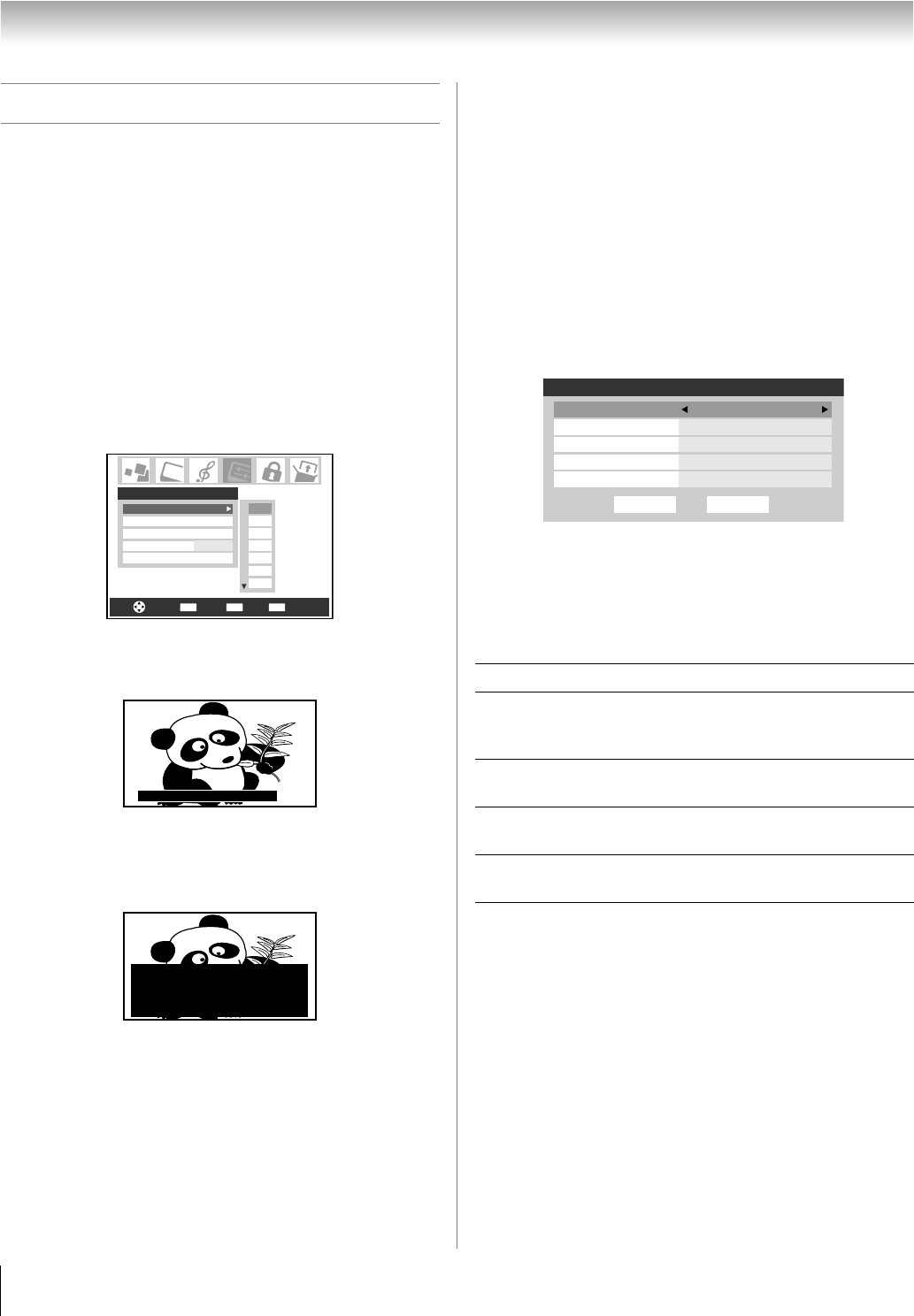

Using the closed caption mode

The closed caption mode has two options:

•Captions—An on-screen display of the dialogue, narration,

and sound effects of TV programs and videos that are closed

captioned (usually marked “CC” in program guides).

•Text—An on-screen display of information not related to

the current program, such as weather or stock data (when

provided by individual stations).

To view captions or text:

1Press Y and open the Preferences menu.

2Highlight Closed Caption Mode and press c.

3Press B or b to select the desired closed caption mode and

press T.

•To view captions:

Highlight CC1, CC2, CC3, or CC4. (CC1 displays

translation of the primary language in your area.)

Note: If the program or video you selected is not closed

captioned, no captions will display.

•To view text:

Highlight T1, T2, T3, or T4.

Note: If text is not available in your area, a black rectangle

may appear on-screen. If this happens, set the Closed

Caption Mode to Off.

•To turn off the Closed Caption mode:

Select Off in step 3 above.

Note: A closed caption signal may not display in the following

situations:

•When a videotape has been dubbed

•When the signal reception is weak

•When the signal reception is non-standard

Closed Caption Advanced

You can customize the closed caption display characteristics

by changing the background color, text size, type, edge, and

color.

Note:

•This feature is available for digital channels only.

•You cannot set the Caption Text and Background as the

same color.

To customize the closed captions:

1Press Y and open the Preferences menu.

2Highlight Closed Caption Advanced and press T.

3Press B or b to highlight the characteristic you want to

change, and then press C or c to select the format for that

characteristic (see table below).

4To save the new settings, highlight Done and press T.

To revert to the factory defaults, highlight Reset and

press T.

CH RTNENTER

EXIT

Navigate Select Back Exit

Channel Browser Setup

Closed Caption Mode

Off

Closed Caption Advanced

Input Labeling

Menu Language English

Preferences

Off

CC1

CC2

CC3

CC4

Giant pandas eat leaves.

WORLD WEATHER

Temps Current

F C Weather

LONDON 51 11

MOSCOW

PARIS

ROME

TOKYO

57 14

53 12

66 19

65 18

Cloudy

Clear

Cloudy

Rain

Clear

Caption Size Auto, Small, Standard, Large

Caption Text

Type

Auto, Default, Mono w. Serif, Prop. w. Serif,

Mono w/o Serif, Prop. w/o Serif, Casual,

Cursive, Small Capitals

Caption Text

Edge

Auto, None, Raised, Depressed, Uniform,

Left Drop Shadow, Right Drop shadow

Caption Text

Color

Auto, Black, White, Red, Green, Blue,

Yellow, Magenta, Cyan

Background

Color

Auto, Black, White, Red, Green, Blue,

Yellow, Magenta, Cyan

Done

Closed Caption Advanced

Caption Size Auto

Auto

Caption Text Type

Caption Text Edge

Caption Text Color

Background Color

Reset

Auto

LZ196_EN.book Page 42 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 5: Using the TV’s features

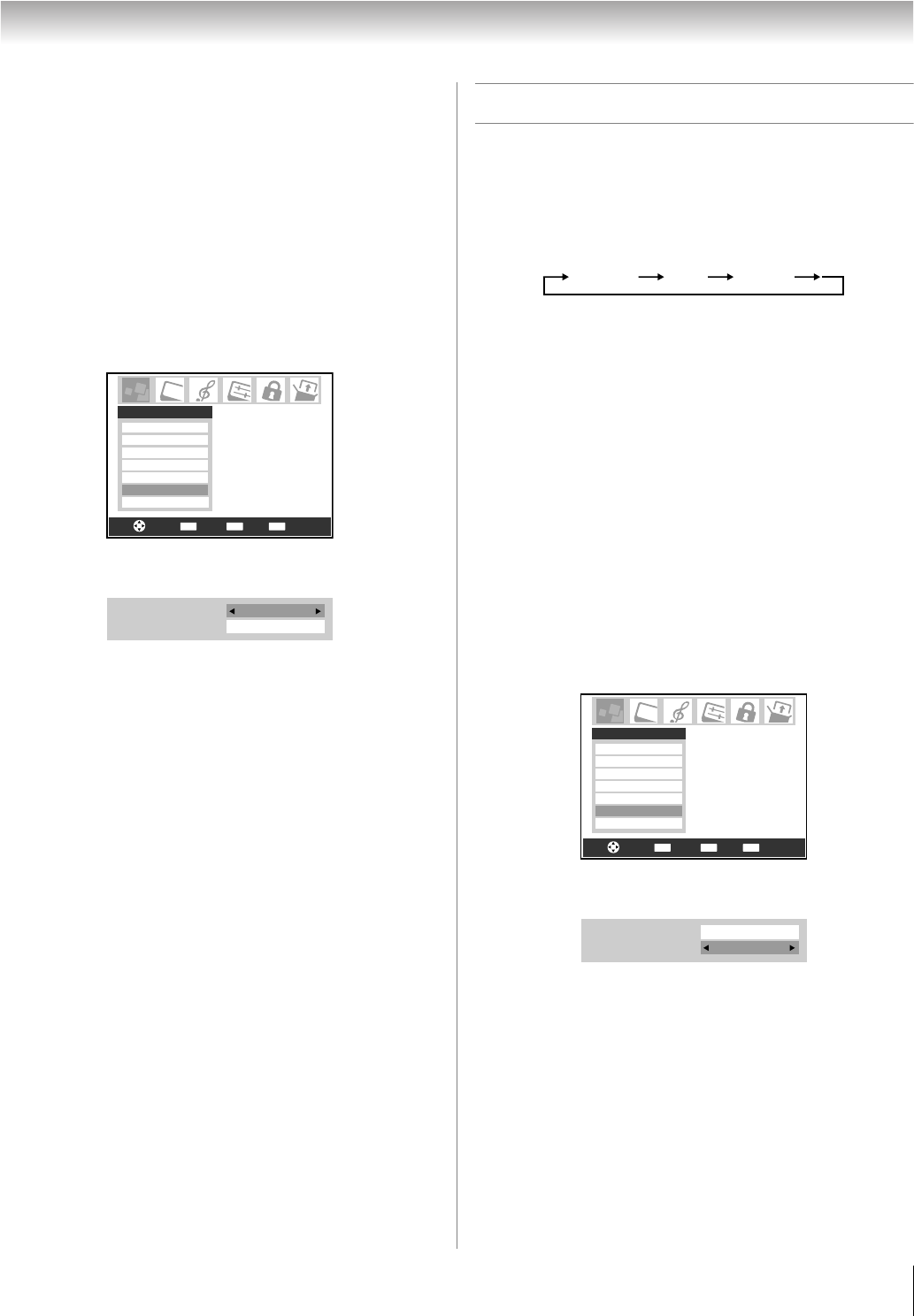

Digital closed captions

You can use the Digital CC/Audio Selector to select digital

closed caption services (if available), which will temporarily

override regular closed captions on digital channels (only).

When such services are not available, the Digital CC/Audio

Selector presents a default list of services. If the selected

service is not available, the next available service will be used

instead.

To select digital closed captions:

1Press Y and open the Applications menu.

2Highlight Digital CC/Audio Selector and press T.

3Press B or b to select Closed Caption, and then press

C or c to select the desired service.

4Press O.

Using the Closed Caption button on

the remote control

If you press ; when an analog channel is tuned:

•The CC selector will be active and will display CC1-4 and

T1-4 as the options.

•The audio selector will be disabled.

If you press ; when a digital channel is tuned:

•The CC selector will be active and will display the possible

caption options (available languages) for that channel or

service. For example, in addition to English, a channel

might offer closed captions in Spanish and/or French.

•The audio selector will be active and will offer different

audio choices for the digital channel (Dolby or AC3, for

example).

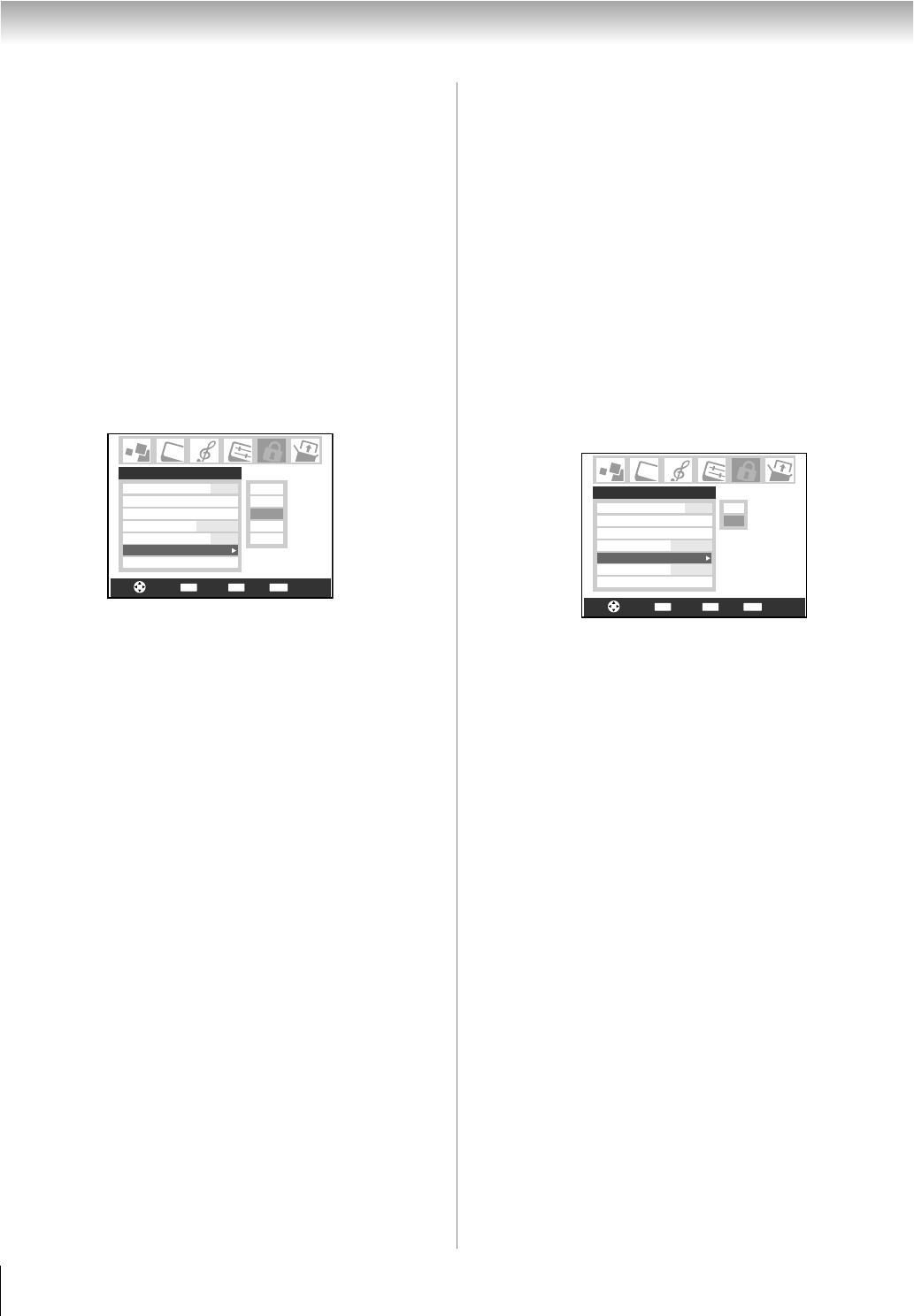

Adjusting the audio

Muting the sound

Press W to partially reduce (1/2 MUTE) or turn off (MUTE)

the sound. Each time you press W, the mute mode will

change in the following order:

If the closed caption mode is set to Off when you select MUTE

mode, the closed caption feature is automatically activated. To

mute the audio without automatically activating the closed

caption feature, use Z to set the volume to 0. See “Using the

closed caption mode” (- page 42) for more information on

closed caption modes.

Using the digital audio selector

You can use the Digital Audio Selector to conveniently switch

between audio tracks on a digital channel (for those channels

that have multiple audio tracks). This temporarily overrides the

audio track chosen by the language option under Audio

Setup (- “Selecting stereo/SAP broadcasts” on page 44).

To use the digital audio selector:

1Press Y and open the Applications menu.

2Highlight Digital CC/Audio Selector and press T.

3Press B or b to select Audio, and then press C or c to

select the desired service.

4Press O.

CH RTNENTER

EXIT

Navigate Select Back Exit

Picture Viewer

Audio Player

Personal E-mail

Channel Browser

TV Guide On Screen

CableCARD

Digital CC/Audio Selector

Applications

CC 1Closed Caption

Audio None

Volume1/2 Mute Mute

CH RTNENTER

EXIT

Navigate Select Back Exit

Picture Viewer

Audio Player

Personal E-mail

Channel Browser

TV Guide On Screen

CableCARD

Digital CC/Audio Selector

Applications

CC 1Closed Caption

Audio None

LZ196_EN.book Page 43 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 5: Using the TV’s features

Selecting stereo/SAP broadcasts

The multi-channel TV sound (MTS) feature allows you to

output high-fidelity stereo sound. MTS also can transmit a

second audio program (SAP) containing a second language,

music, or other audio information (when provided by

individual stations).

When the TV receives a stereo or SAP broadcast, the word

“STEREO” or “SAP” appears when E is pressed. The MTS

feature is not available when the TV is in VIDEO mode.

To listen to stereo sound:

1Press Y and open the Audio menu.

2Highlight Audio Setup and press T.

3In the MTS field, select Stereo.

4To save the new settings, highlight Done and press T.

To reset the settings to the factory defaults, highlight

Reset and press T.

Note:

•You can typically leave the TV in Stereo mode,

because it will automatically output the type of sound

being broadcast (stereo or monaural).

•If the stereo sound is noisy, select Mono to reduce the

noise.

To listen to a second audio program on an analog

station (if available):

Select SAP in step 3 above.

Note:

•A second audio program (SAP) can be heard only on those

TV stations that offer it. For example, a station might

broadcast another language as a second audio program. If

you have SAP on, you will see the current program on the

screen but hear the other language instead of the program’s

normal audio.

•If you have SAP on and the station you are watching is not

broadcasting a second audio program, the station’s normal

audio will be output. However, occasionally there is no

sound at all in SAP mode. If this happens, set the MTS

feature to Stereo mode.

To listen to an alternate language on an ATSC digital

station (if available):

Highlight the Language field in step 3 at left, and then press

C or c to select the language you prefer.

Adjusting the audio quality

You can adjust the audio quality by adjusting the bass, treble,

and balance.

To adjust the audio quality:

1Press Y and open the Audio menu.

2Highlight Audio Settings and press T.

3Press b or B to highlight the item you want to adjust

(Bass, Treble, or Balance).

4Press C or c to adjust the level.

•C makes the bass or treble weaker or increases the

balance in the left channel (depending on the item

selected).

•c makes the bass or treble stronger or increases the

balance in the right channel (depending on the item

selected).

5To save the new settings, highlight Done and press T.

To reset the settings to the factory defaults, highlight

Reset and press T.

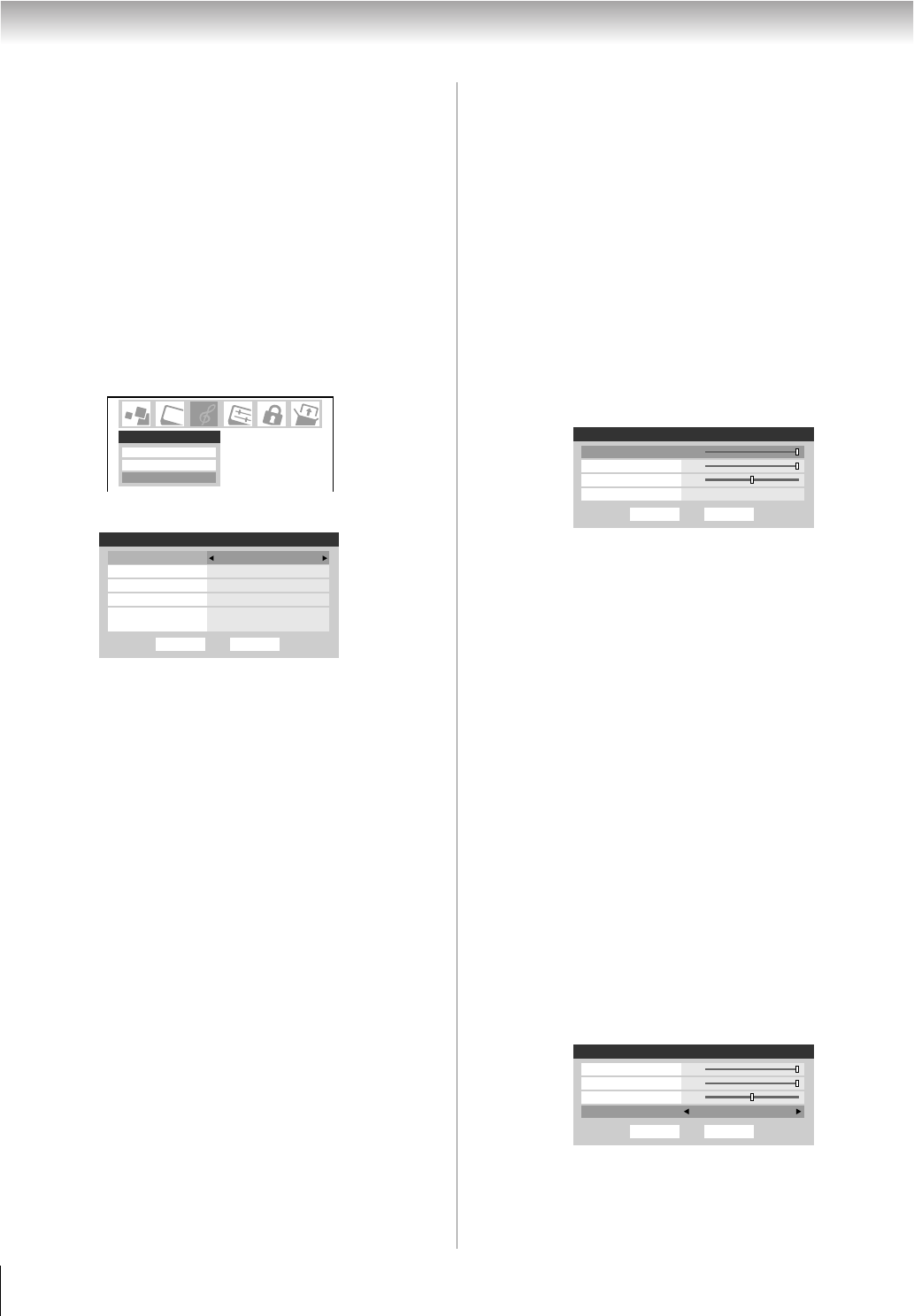

Using the StableSound® feature

The StableSound® feature limits the highest volume level to

prevent extreme changes in volume when the signal source

changes (for example, to prevent the sudden increase in

volume that often happens when a TV program switches to a

commercial).

To turn on the StableSound® feature:

1Press Y and open the Audio menu.

2Highlight Audio Settings and press T.

3In the StableSound field, select On.

Audio Settings

Advanced Audio Settings

Audio Setup

Audio

Done

Audio Setup

Language

Speakers

Reset

MTS Stereo

English

Dolby Digital

Optical Output Format

Dynamic Range Control Compressed

Dolby Digital

Done

Audio Settings

Bass 100

Treble

Reset

100

Balance

StableSound Off

Done

Audio Settings

Bass 100

Treble

Reset

100

Balance

StableSound On

LZ196_EN.book Page 44 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 5: Using the TV’s features

4To save the new settings, highlight Done and press T.

To revert to the factory defaults, highlight Reset and

press T.

Note: The RESET function returns your audio adjustments

to the following factory settings:

Bass . . . . . . . . . center (50)

Treble. . . . . . . . center (50)

Balance . . . . . . center (0)

StableSound. . . Off

To turn off the StableSound feature:

Select Off in step 3 above.

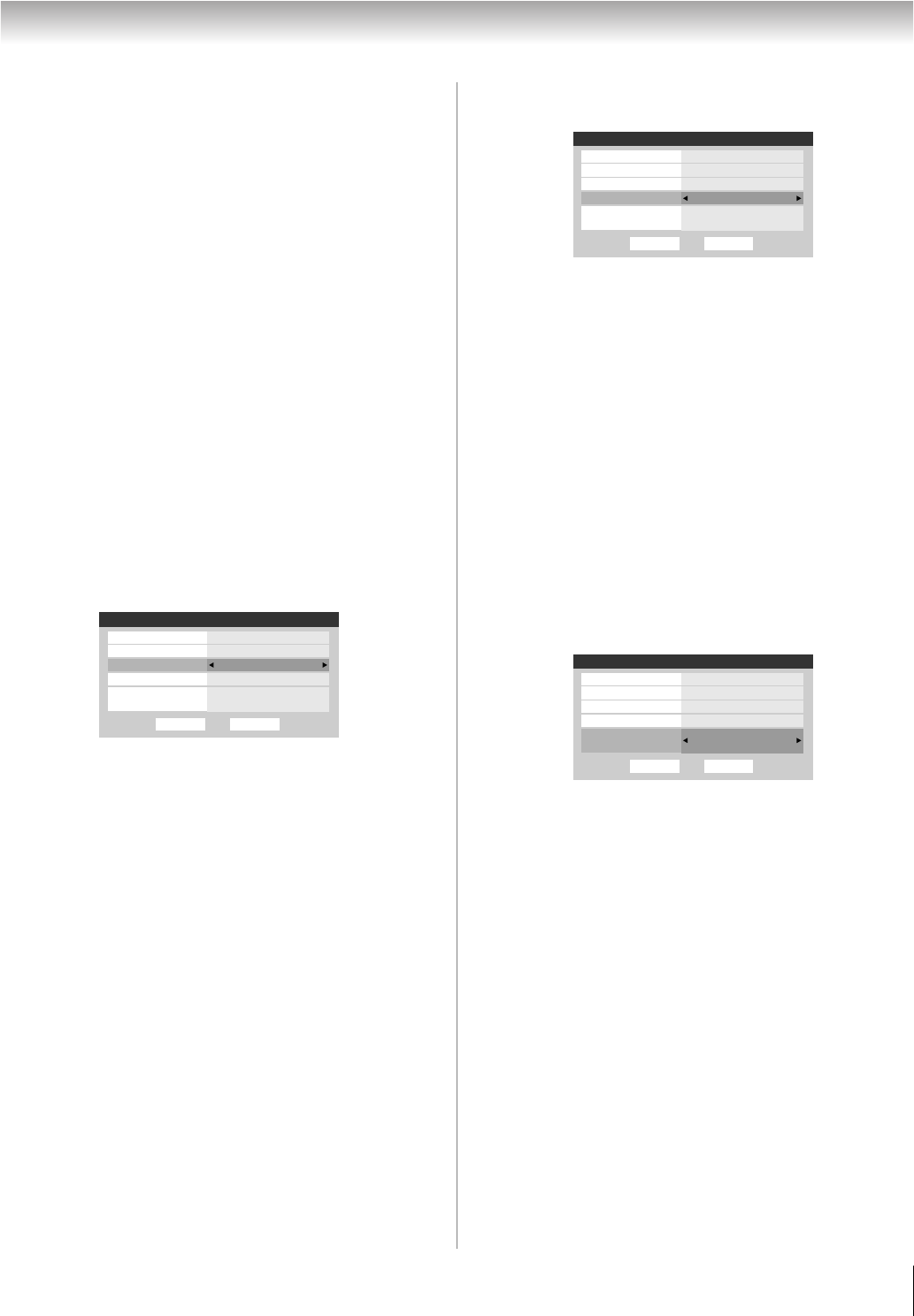

Turning off the built-in speakers

You can use this feature to turn off the TV speakers when you

connect an audio system to your TV (- “Connecting a digital

audio system” and “Connecting an analog audio system” in the

Installation Guide).

To turn off the built-in speakers:

1Press Y and open the Audio menu.

2Highlight Audio Setup and press T.

3In the Speakers field, select Off.

4To save the new settings, highlight Done and press T.

To revert to the factory defaults, highlight Reset and

press T.

To turn on the built-in speakers:

Select On in step 3 above.

Selecting the optical audio output format

You can use this feature to select the optical audio output

format when you connect a Dolby Digital decoder or other

digital audio system to the Optical Audio Out terminal on

the TV (- “Connecting a digital audio system” in the

Installation Guide).

To select the optical audio output format:

1Press Y and open the Audio menu.

2Highlight Audio Setup and press T.

3In the Optical Output Format field, select either

Dolby Digital or PCM, depending on your device.

4To save the new settings, highlight Done and press T.

To revert to the factory defaults, highlight Reset and

press T.

Using the Dolby Digital Dynamic Range

Control feature

This dynamic range control feature causes the ATSC dynamic

range to be further compressed, allowing you to switch from

ATSC to analog broadcasts at the same dynamic range.

To use the Dolby Digital Dynamic Range Control:

1Press Y and open the Audio menu.

2Highlight Audio Setup and press T.

3In the Dolby Digital Dynamic Range Control field,

select Compressed. When Standard is selected, the

audio is output with minimal compression.

4To save the new settings, highlight Done and press T.

To revert to the factory defaults, highlight Reset and

press T.

Note:

•This item will be grayed out for NTSC signals, Video,

ColorStream, and PC inputs.

•The Dolby Digital Dynamic Range Control will function in

relation to Optical Output Format.

Done

Audio Setup

Language

Speakers

Reset

MTS Stereo

English

Off

Dolby Digital

Optical Output Format

Dynamic Range Control Compressed

Dolby Digital

Done

Audio Setup

Language

Speakers

Reset

MTS Stereo

English

Dolby Digital

Optical Output Format

Dynamic Range Control Compressed

Dolby Digital

Done

Audio Setup

Language

Speakers

Reset

MTS Stereo

English

Off

Dolby Digital

Optical Output Format

Dynamic Range Control Compressed

Dolby Digital

LZ196_EN.book Page 45 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 5: Using the TV’s features

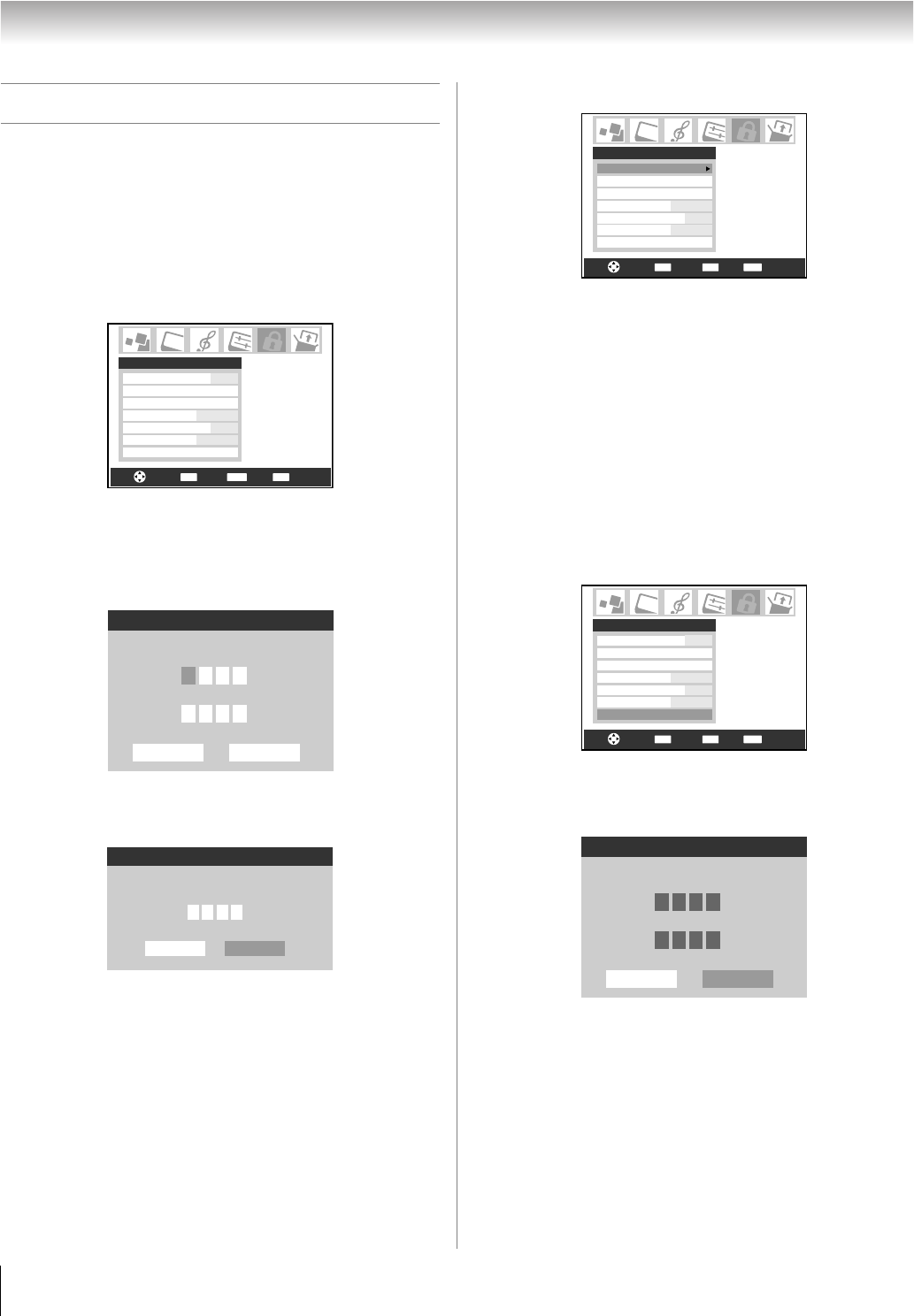

Using the Locks menu

The Locks menu includes the Enable Rating Blocking, Edit

Rating Limits, Channels Block, Input Lock, Front (control)

Panel Lock, and New PIN Code features. You can use these

features after entering the correct PIN code.

Entering the PIN code

1Press Y and highlight the Locks menu icon.

2Press b, which displays the PIN code entry screen.

•The Lock System screen (below) appears if a PIN

code has not been stored. Press the Channel Number

buttons to enter a new four-digit code, enter the code a

second time to confirm, and press T.

•The Locks/Active screen (below) appears if the PIN

code is already stored. Use the Number buttons to enter

your four-digit code and press T.

If the wrong PIN code is entered, the message “Incorrect PIN

code, please try again!” appears. Highlight Retry and press

T. Enter the code again and press T.

When the correct PIN code is entered, the Locks menu opens.

If you cannot remember your PIN code

While the PIN code entering screen is displayed, press E four

times within five seconds. The PIN code will be cleared and

you can enter a new PIN code.

Changing your PIN code

1Press Y and highlight the Locks menu icon.

2Press b to display the PIN code entering screen.

3Enter your four-digit PIN code and press T.

4Press b to highlight New PIN Code and press T.

5Press the Number buttons to enter a new four-digit code.

Reenter the PIN code to confirm it.

6Press T. The new PIN code is now active.

CH RTN

ENTER

EXIT

Navigate Select Back Exit

Enable Rating Blocking

Edit Rating Limits

Channels Block

Input Lock

Off

OffFront Panel Lock

New PIN Code

Game Timer

Locks

Off

Please enter a 4 digit PIN code

Confirm PIN code

Cancel Done

Lock System

Locks Active

Please enter the 4 digit PIN code

Cancel

****

Done

ENTER

Navigate Select Back

MENU EXIT

Exit

Enable Rating Blocking

Edit Rating Limits

Channels Block

Input Lock

Off

OffFront Panel Lock

New PIN Code

Game Timer

Locks

Off

ENTER

Navigate Select Back

MENU EXIT

Exit

Enable Rating Blocking

Edit Rating Limits

Channels Block

Input Lock

Off

OffFront Panel Lock

New PIN Code

Game Timer

Locks

Off

Please enter a 4 digit PIN code

Confirm PIN code

Cancel Done

New PIN Code

****

LZ196_EN.book Page 46 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 5: Using the TV’s features

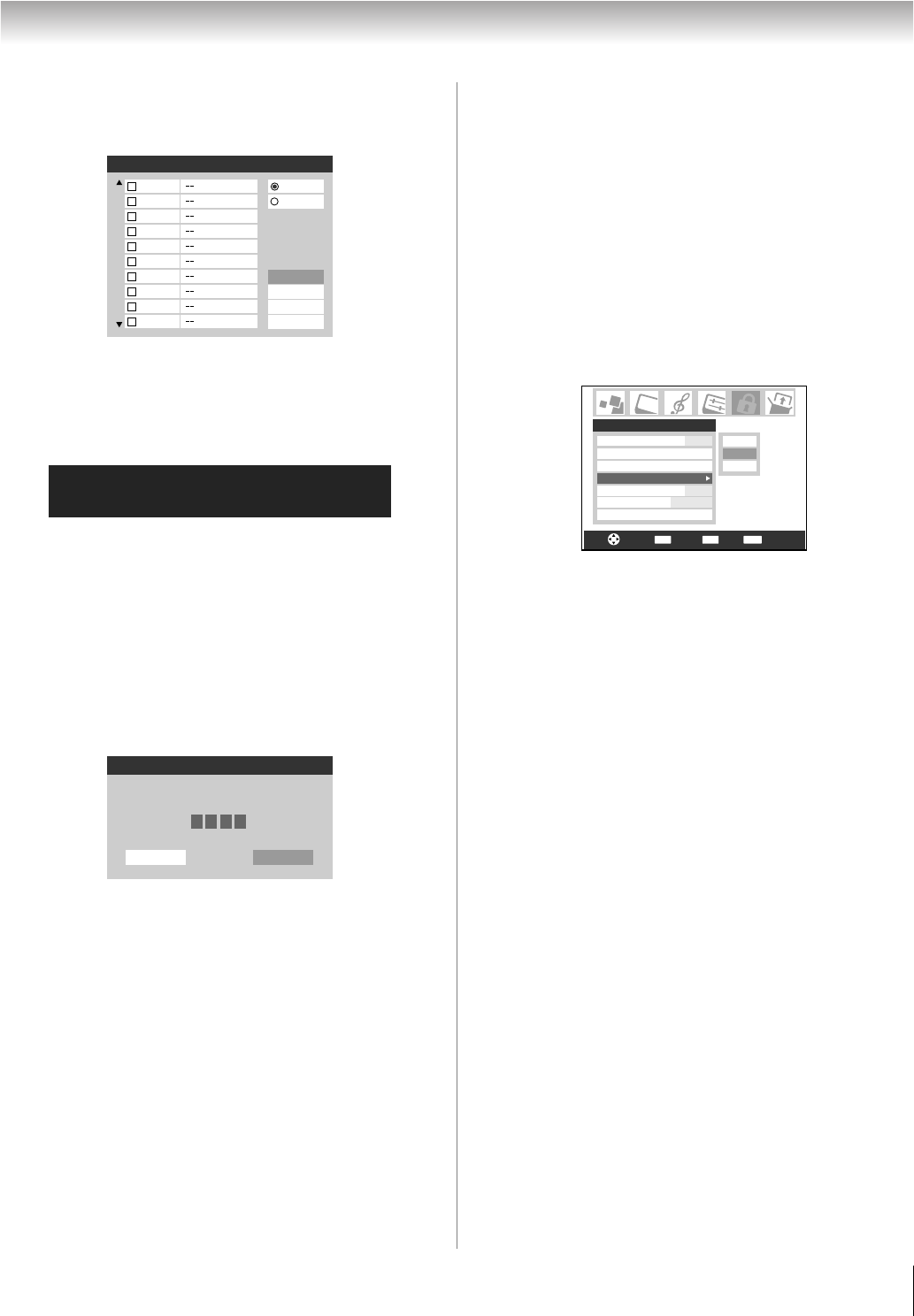

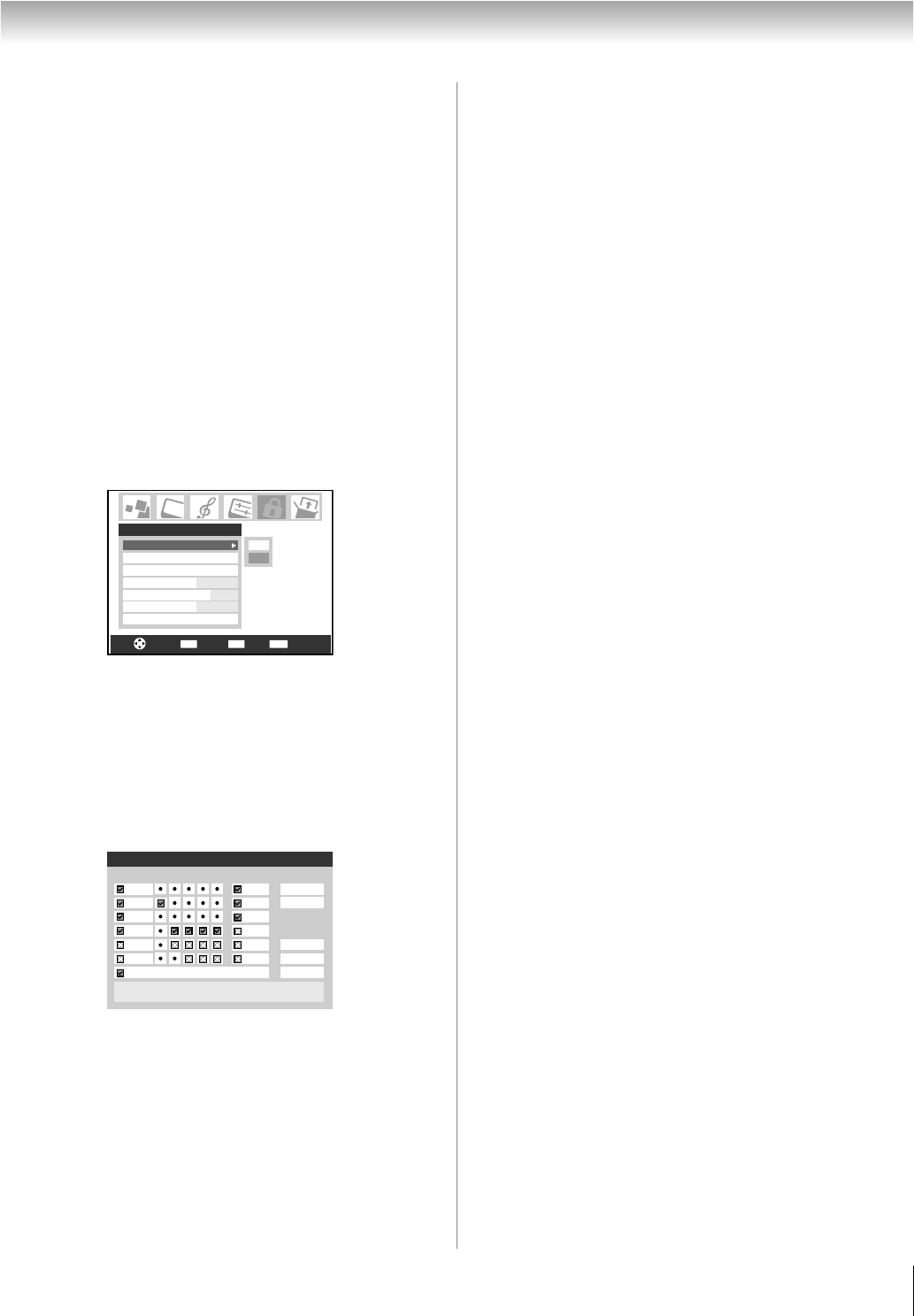

Blocking TV programs and movies

by rating (V-Chip)

Some TV programs and movies include signals that classify

the content of the program (violence, sex, dialog, language).

The V-Chip feature in this TV detects the signals and blocks

the programs according to the ratings you select. (For rating

descriptions, see the tables on the next page.)

Note: Rating blocking is a function of the V-Chip feature in this

TV, which supports the U.S. V-Chip system only.

To block and unblock TV programs and movies:

1Press Y and highlight the Locks menu icon.

2Press b to display the PIN code entering screen.

3Enter your four-digit PIN code and press T.

4Press b to highlight Enable Rating Blocking.

5Press c and b to select On, and press T.

6Press b to highlight Edit Rating Limits and press T.

The Edit Rating Limits screen (below) appears.

7Press BbC c and then press T to select the level of

blocking you prefer. A box with an “5” is a rating that will

be blocked. As you highlight a rating, a definition for the

rating appears at the bottom of the screen.

8When you are finished selecting the ratings you want to

block, highlight Done and press T.

Downloading an additional rating system

for blocking TV programs and movies

In the future, an additional rating system may become

available for use in selectively blocking programs.

Note: The currently tuned station must be receiving a digital

signal before an additional rating system can be downloaded.

To download the additional rating system

(if available):

1Press Y and highlight the Locks menu icon.

2Press b to display the PIN code entering screen.

3Enter your four-digit PIN code and press T.

4Press b to highlight Enable Rating Blocking.

5Press c and b to select On, and press T.

6Press b to highlight Edit Rating Limits and press T.

The Edit Rating Limits screen appears.

7Highlight Alt RS and press T. The Edit Alternate

Ratings screen will appear.

Note:

•The Alt RS button will only be available if an additional

rating system is currently available.

•It may take several minutes for the TV to download the

additional rating system.

•The information displayed in the Alternate Ratings

screen will depend on the configuration of the

additional rating system available at the time of

download.

8Press B b C c and then press T to select the level of

blocking you prefer. A box with an “5” is a rating that will

be blocked.

9When you are finished selecting the ratings you want to

block, highlight Done and press T.

10 In the Edit Rating Limits screen, highlight Done and

press T.

Note:

•The additional rating system can only be downloaded one

time. You will not be able to download any updates to the

rating system should such updates become available.

•The additional rating system is not designed, transmitted, or

controlled by the TV or Toshiba, nor is the availability of an

additional rating system determined or controlled by

Toshiba. Similarly, the rating of programs in an additional

rating system is not determined, transmitted, or controlled

by the TV or Toshiba.

•The additional rating system is an evolving technology;

therefore, availability, content, and format may vary.

ENTER

Navigate Select Back

MENU EXIT

Exit

Enable Rating Blocking

Edit Rating Limits

Channels Block

Input Lock

Off

OffFront Panel Lock

New PIN Code

Game Timer

Locks

Off

Edit Rating Limits

(V-CHIP)

D L S V

TV-Y

TV-Y7

TV-G

TV-PG

TV-14

TV-MA

"None" Rated

Movies

Children

Youth

Cancel

Done

Alt RS

PG-13

NC-17

(continued)

LZ196_EN.book Page 47 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 5: Using the TV’s features

Note:

•If you place an “5” in the box next to “‘None’ Rated,”

programs rated “None” will be blocked; however, programs

that do not provide any rating information will not be

blocked.

•To display the rating of the program you are watching, press

E on the remote control. If it is rated “None,” the word

“NONE” appears in the RECALL screen (as shown below

right). If rating information is not provided, no rating will

appear in the RECALL screen.

Blocking channels

With the Channels Block feature, you can block specific

channels. You will not be able to tune blocked channels unless

you unblock them.

To block channels:

1Press Y and highlight the Locks menu icon.

2Press b to display the PIN code entering screen.

3Enter your four-digit PIN code and press T (- page 46).

4Press b to highlight Channels Block and then press T.

5Press BbC c to select the input for which you want to

block channels (ANT1 or ANT2) and press T.

A list of the channels available for that input will be

displayed along with the call letters for each channel, if

available.

6Press Bb to highlight the channel you want to block and

press T, which puts an “5” in the box next to that

channel.

7Repeat step 6 for other channels you want to block.

8Highlight Done and press T.

To unblock individual channels:

In step 6 above, press Bb to highlight the channel you want to

unblock, press T to remove the “5” from the box, highlight

Done and press T.

To block all channels at once:

Highlight Block All in step 6 above, and then highlight Done

and press T.

Independent rating system for broadcasters

Ratings Description and Content themes

TV-MA

Mature Audience Only (This program is specifically

designed to be viewed by adults and therefore may

be unsuitable for children under 17.)

L) Crude or indecent language S) Explicit sexual

activity V) Graphic violence

TV-14

Parents Strongly Cautioned (This program contains

some material that many parents would find

unsuitable for children under 14 years of age.)

D) Intensely suggestive dialog L) Strong, coarse

language S) Intense sexual situations V) Intense

violence

TV-PG

Parental Guidance Suggested (This program

contains material parents may find unsuitable for

younger children.)

D) Some suggestive dialog L) Infrequent coarse

language S) Some sexual situations V) Moderate

violence

TV-G General Audience (Most parents would find this

program suitable for all ages.)

TV-Y7,

TV-Y7FV

Directed to Older Children (This program is designed

for children age 7 and above. Note: Programs in

which fantasy violence may be more intense or more

combative than other programs in this category are

designated TV-Y7FV.)

TV-Y All Children (This program is designed to be

appropriate for all children.)

Independent rating system for movies

Ratings Description and Content themes

XX-rated (For adults only)

NC-17 Not intended for anyone 17 and under

RRestricted (Under 17 requires accompanying parent

or adult)

PG-13 Parents Strongly Cautioned (Some material may be

inappropriate for children under 13)

PG Parental Guidance Suggested (Some material may

not be suitable for children)

GGeneral Audience (Appropriate for all ages)

TV PG L V– NONE

ENTER

Navigate Select Back

MENU EXIT

Exit

Enable Rating Blocking

Edit Rating Limits

Channels Block

Input Lock

Off

OffFront Panel Lock

New PIN Code

Game Timer

Locks

Off

Channels Block

1ANT 1

ANT 2

Cancel

Done

Block All

Allow All

LZ196_EN.book Page 48 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 5: Using the TV’s features

To unblock all blocked channels at once:

Highlight Allow All in step 6 on the previous page, and then

highlight Done and press T.

Unlocking programs temporarily

If you try to tune the TV to a program that exceeds the rating

limits you set, the TV will enter program lock mode and the

following message will appear:

You can either temporarily unlock the program or select an

unlocked program to watch.

To temporarily unlock the program:

1Press W.

2Enter your four-digit PIN code and press T. If the correct

code is entered, the program lock mode is released and the

normal picture appears. All locking is disabled until the

TV is turned off, and will be enabled when the TV is

turned on again.

Using the input lock feature

You can use the Input Lock feature to lock the video inputs

(VIDEO 1, VIDEO 2, ColorStream HD-1, ColorStream

HD-2, HDMI 1, HDMI 2, and PC) and channels 3 and 4. You

will not be able to view the input sources or channels until you

unlock the inputs.

To lock/unlock the video inputs:

1Press Y and highlight the Locks menu icon.

2Press b to display the PIN code entering screen.

3Enter your four-digit PIN code and press T.

4Press b to highlight Input Lock and press c.

5Press B or b to select the desired level of video input

locking (Video, Video+, or Off, as described below),

and then press T.

Video: Locks VIDEO 1, VIDEO 2, ColorStream HD1/

HD2, HDMI 1/HDMI 2, and PC.

Video+: Locks VIDEO 1, VIDEO 2, ColorStream HD1/

HD2, HDMI 1/HDMI 2, PC and channels 3 and 4.

•Select Video+ if you play video tapes via an ANT input.

•When a CableCARD™ is inserted, Video+ will not lock

channels 3 and 4.

Off: Unlocks all video inputs and channels 3 and 4.

Channels Block

1ANT 1

ANT 2

Cancel

Done

Block All

Allow All

This program exceeds the rating limit you set.

Push 'mute' to enter PIN.

Locks Active

Enter PIN code to temporarily un-block.

Cancel

****

Done

ENTER

Navigate Select Back

MENU EXIT

Exit

Enable Rating Blocking

Edit Rating Limits

Channels Block

Input Lock

Off

OffFront Panel Lock

New PIN Code

Game Timer

Locks

Off

Video

Video +

LZ196_EN.book Page 49 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 5: Using the TV’s features

Using the GameTimer™

You can use the GameTimer to set a time limit for playing a

video game (30–120 minutes). When the GameTimer is

activated, the TV enters Input Lock mode and locks out the

input source for the video game device.

To set the GameTimer™:

1Press Y and highlight the Locks menu icon.

2Press b to display the PIN code entering screen.

3Enter your four-digit PIN code and press T.

4Press b to highlight Game Timer and press c.

5Press B or b to select the length of time until the Input

Lock is activated (30, 60, 90, or 120 minutes) and press

To cancel the GameTimer™:

Select Off in step 5 above.

To deactivate the Input Lock once the GameTimer

has activated it:

Set the Input Lock to Off (- “Using the input lock feature”

on the previous page).

Note:

•A message will appear when 10 minutes, 3 minutes, and 1

minute remain on the GameTimer.

•If the TV loses power with time remaining on the GameTimer,

when power is restored the TV will enter Input Lock mode

(as if the GameTimer had been activated) and you will have

to deactivate the Input Lock (as described above).

Using the control panel lock feature

You can lock the control panel to prevent your settings from

being changed accidentally (by children, for example). When

the control panel lock is On, none of the controls on the TV

control panel will operate except POWER.

To lock the control panel:

1Press Y and highlight the Locks menu icon.

2Press b to display the PIN code entering screen.

3Enter your four-digit PIN code and press T.

4Press b to highlight Front Panel Lock.

5Press c, and then B or b to highlight On and press T.

When the control panel is locked and any button on the

control panel (except POWER) is pressed, the message

“Not Available” appears.

To unlock the control panel:

Highlight Off in step 5 above, or press and hold the

VOLUME – button on the TV control panel for about 10

seconds until the volume icon appears.

ENTER

Navigate Select Back

MENU EXIT

Exit

Enable Rating Blocking

Edit Rating Limits

Channels Block

Input Lock

Off

OffFront Panel Lock

New PIN Code

Game Timer

Locks

Off

60 min

90 min

120 min

Off

30 min

ENTER

Navigate Select Back

MENU EXIT

Exit

Enable Rating Blocking

Edit Rating Limits

Channels Block

Input Lock

Off

OffFront Panel Lock

New PIN Code

Game Timer

Locks

Off

LZ196_EN.book Page 50 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 5: Using the TV’s features

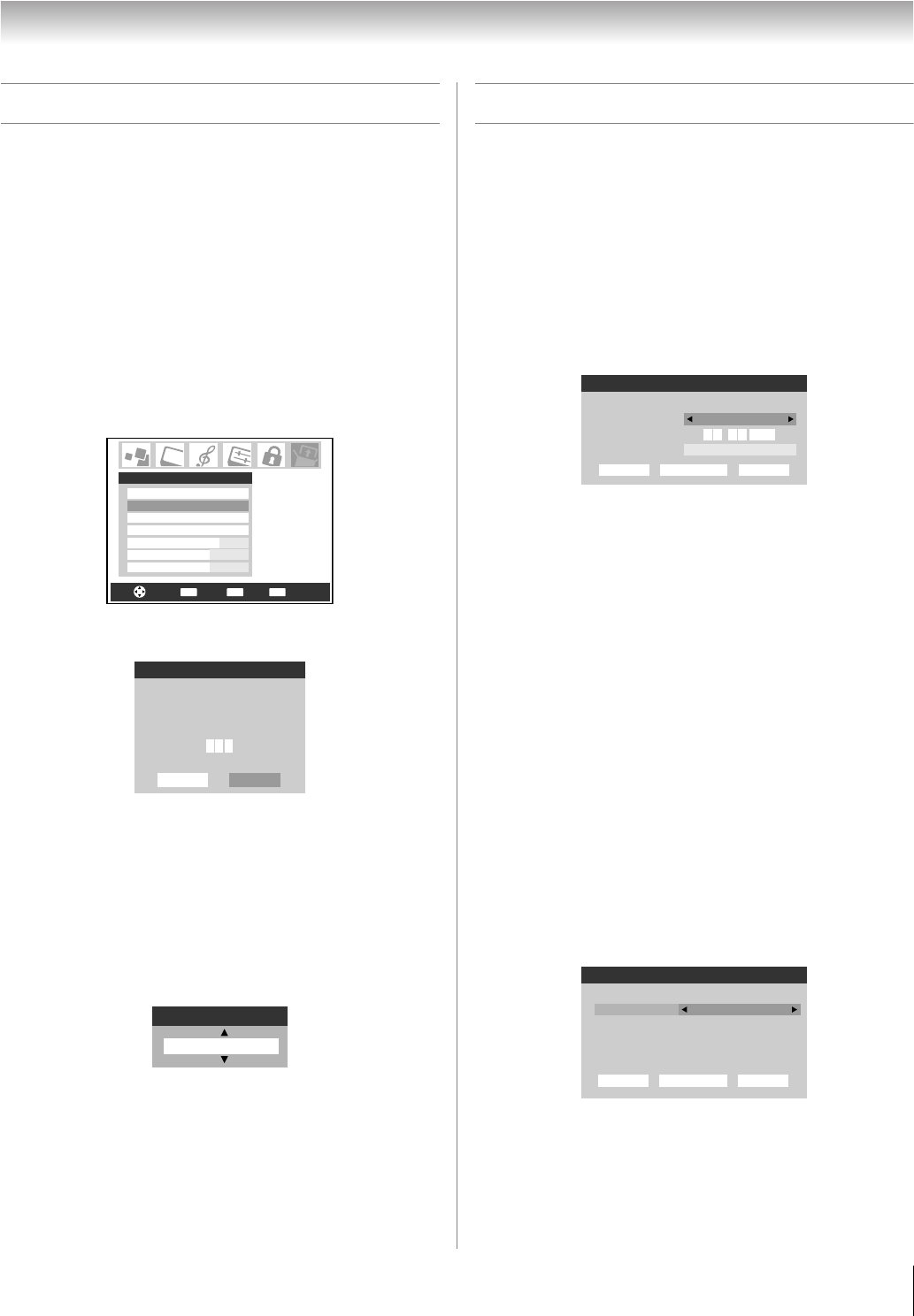

Setting the sleep timer

You can set the sleep timer to turn off the TV after a set length

of time (maximum of 180 minutes).

To set the sleep timer using the remote control:

Press [ on the remote control to set the length of time until

the TV turns off. Repeatedly press [ to increase the time in

10-minute increments, or press B or b to increase or decrease

the time in 10-minute increments, to a maximum of 180

minutes.

To set the sleep timer using the menus:

1Press Y and open the Setup menu.

2Highlight Sleep Timer and press T.

3Press the Number buttons to enter the length of time

in 10-minute increments.

4Highlight Done and press T.

Note:

•When a power failure occurs, the sleep timer setting

may be cleared.

•A message will display when there is one minute

remaining on the sleep timer.

To display the remaining sleep time:

Press [.

Note: You also can view the remaining sleep time by pressing

To cancel the sleep timer:

Repeatedly press [ until it is set to 0 minutes.

Setting the On/Off Timer

You can set the On/Off Timer to turn the TV on and off

automatically at a preset time on a recurring basis.

Note: You must first set the time (- page 28).

To set the On/Off Timer:

1Press Y and open the Setup menu.

2Highlight On/Off Timer and press T.

3In the DAY field, press C or c to select the recurrence

(weekends, weekdays, every day, etc).

4Press b to highlight the Time field, and then use the

Number buttons to enter the time you want the TV to turn

on automatically.

5When the AM/PM field is highlighted, press c to select

AM or PM.

6Press b to highlight the TV ON Duration field, and then

press C or c to select the length of time until the TV turns

off (30 Minutes, 1Hour, 2 Hours, 4Hours,

8 Hours, or 12 Hours).

7Highlight Done and press T.

8Turn off the TV. The TV will turn on automatically on the

day(s) and at the time you set. The TV will then turn off

automatically after the length of time you set in the

TV ON Duration field.

Note:

•When a power failure occurs, the On/Off Timer settings

may be cleared.

•To display the On/Off Timer setting, press E.

To turn off the On/Off Timer:

Select Not Set in step 3 above.

CH RTNENTER

EXIT

Navigate Select Back Exit

Installation

Sleep Timer

PC Settings

On/Off Timer

Setup

PC Audio

Auto

2 Sec

HDMI 1 Audio

Slide Show Interval

Sleep Timer

Enter total minutes until the TV

turns off automatically (Maximum

180 minutes)

120

Cancel Done

Sleep Timer

120 Minutes

On/Off Timer

Turn TV ON:

Weekends

Time (HH:MM)

TV ON Duration:

30 Minutes

Reset DoneCancel

Day

09 00 AM

On/Off Timer

Turn TV ON:

Not Set

Day

Reset DoneCancel

LZ196_EN.book Page 51 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 5: Using the TV’s features

Using the PC settings feature

You can view the image from a PC on the TV screen. The PC

must be connected to the TV’s PC IN terminals

(- Installation Guide).

The PC Settings feature allows you to make any necessary

adjustments to the image.

If the edges of the image are not visible, you can adjust the

Horizontal Position/Width and Vertical Position/

Height.

If the picture is affected by interference, you can adjust the

Clock Phase and Sampling Clock.

To adjust the PC settings:

1Repeatedly press + to select PC input mode

(- “Selecting the video input source to view” page 31).

2Press Y and open the Setup menu.

3Highlight PC Settings and press T.

Note: If a PC is not connected, this feature will be grayed

out in the Setup menu.

4Press B or b to highlight the item you want to adjust.

5Press C or c to make the appropriate adjustments.

Note: The screen is disrupted momentarily when

adjusting the PC settings. This is not a sign of malfunction.

•Horizontal Position:

Moves the picture left/right.

The adjustment range is within ±5 from center.*

•Vertical Position:

Moves the picture up/down.

The adjustment range is within ±5 from center.*

•Horizontal Width:

Adjusts the width of the picture.

The adjustment range is within ±5 from center.*

•Vertical Height:

Adjusts the height of the picture.

The adjustment range is within ±5 from center.*

•Clock Phase:

Helps to reduce noise and sharpen the picture.

The adjustment range is within ±2 from center.*

•Sampling Clock:

Helps to reduce noise and minimize periodic vertical stripes

on the screen.

The adjustment range is within ±15 from center.*

*The range of adjustment may vary slightly.

Setting the PC Audio mode

This function allows you to output the sound from your PC (if

connected) or mute the sound from your PC and output the

sound from your HDMI (DVI) connection. (- Installation

Guide)

To set the PC Audio:

1Press Y and open the Setup menu.

2Highlight PC Audio.

3Press c and then press b to select No or Yes.

Yes: Outputs the sound from your PC.

No: Mutes the sound from your PC, and outputs the

sound from the HDMI connection.

Note: Because the PC IN and HDMI (DVI) IN inputs share

the same set of analog audio inputs, the PC Audio menu

setting influences the HDMI 1 Audio menu setting. If PC

Audio is set to “No,” the HDMI 1 Audio setting changes

to “Auto.” If PC Audio is set to “Yes,” the HDMI Audio

setting is set to “Digital” and is grayed out in the menu.

(Also see item 4 on page 9 and “Setting the HDMI™ audio

mode” on page 28.)

CH RTNENTER

EXIT

Navigate Select Back Exit

Installation

Sleep Timer

PC Settings

On/Off Timer

Setup

PC Audio

Auto

2 Sec

HDMI 1 Audio

Slide Show Interval

Done

PC Settings

Horizontal Width 0

Vertical Position

Reset

Horizontal Position 0

Vertical Height

Clock Phase

Sampling Clock

CH RTNENTER

EXIT

Navigate Select Back Exit

Yes

Installation

Sleep Timer

PC Settings

On/Off Timer

Setup

PC Audio

Auto

2 Sec

HDMI 1 Audio

Slide Show Interval

LZ196_EN.book Page 52 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 5: Using the TV’s features

Displaying TV status information

using RECALL

To display TV status information:

Press E on the remote control.

The following information will display (if applicable):

•Current input (ANT 1, ANT 2, VIDEO 1, etc.)

•If ANT 1 or ANT 2 is the current input, either “CABLE”

(for cable TV) or “TV” (for over-the-air broadcasts).

•Channel number (if in ANT 1 or ANT 2 mode)

•Digital signal strength indicator (bar graph in lower right

corner of screen; for ATSC signal only)

•Time (if set)

•On timer setting (if set)

•Remaining time on game timer (if set)

•Remaining time on sleep timer (if set)

•Stereo or SAP audio status

•V-Chip rating status

•Picture size

•Video resolution

To close the RECALL screen:

Press E again.

Understanding the auto power off

feature

The TV will automatically turn itself off after approximately

15 minutes if it is tuned to a vacant channel or a station that

completes its broadcast for the day. This feature functions in

ANT 1 and ANT 2 modes only.

Understanding the last mode

memory feature

If the power is cut off while you are viewing the TV, the

Last Mode Memory feature automatically turns on the TV

when the power is resupplied.

Note: You should unplug the TV’s power cord if it is possible

that you will be away from the TV for an extended period of time

after the power is restored. This will prevent the TV from turning

on automatically in your absence.

STEREO

CABLE 81-1

ANT 1

NC-17

Sleep Timer: 18 min.

Game Timer: 28 min.

Natural

480i 5:32 pm

Sample RECALL screen

LZ196_EN.book Page 53 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 6: Using the TV’s advanced features

Using the advanced picture settings

features

Using dynamic contrast

When dynamic contrast is set to Low, Middle, or High, the

TV will detect changes in the picture quality that affect the

appearance of your contrast settings and then automatically

adjust the video.

To select dynamic contrast preferences:

1Press Y and open the Video menu.

2Highlight Picture Settings and press T.

3Highlight Advanced Picture Settings and press T.

4In the Dynamic Contrast field, select either Off, Low,

Middle or High.

5To save the new settings, highlight Done and press T.

To revert to the factory defaults, highlight Reset and

press T.

Note: If the current picture mode is Movie ( - page 41),

when the dynamic contrast is set to Low, Middle, or High,

the picture mode will automatically change to Preference.

Using the static gamma feature

The static gamma feature allows you to correct the levels of

black in the picture.

To adjust the static gamma settings:

1Press Y and open the Video menu.

2Highlight Picture Settings and press T.

3Highlight Advanced Picture Settings and press T.

4In the Static Gamma field, and then press C or c to

adjust the static gamma.

The adjustment range is within ±5 from center.

•If the setting is moved in the minus direction, black

colors will be submerged when they are raised.

•If the setting is moved in the plus direction, black colors

will be raised when they are submerged.

5To save the new settings, highlight Done and press T.

To revert the factory defaults, highlight Reset and

press T.

CH RTNENTER

EXIT

Navigate Select Back Exit

Mode Sports

Off

Picture Settings

Noise Reduction

Color Management Pro

Game Mode

Theater Settings

Video

Done

Picture Settings

Contrast 100

Dynamic Back Light

Back Light 100

Brightness

Reset

Mode: Sports

Color

Tint

Advanced Picture Settings

Sharpness

Done

Advanced Picture Settings Mode: Preference

Static Gamma

Reset

Dynamic Contrast Off

Cool

Color Temperature

High

Vertical Edge Enhancer

CH RTNENTER

EXIT

Navigate Select Back Exit

Mode Sports

Off

Picture Settings

Noise Reduction

Color Management Pro

Game Mode

Theater Settings

Video

Done

Picture Settings

Contrast 100

Dynamic Back Light

Back Light 100

Brightness

Reset

Mode: Sports

Color

Tint

Advanced Picture Settings

Sharpness

Done

Advanced Picture Settings Mode: Preference

Static Gamma

Reset

Dynamic Contrast High

Cool

Color Temperature

High

Vertical Edge Enhancer

LZ196_EN.book Page 54 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 6: Using the TV’s advanced features

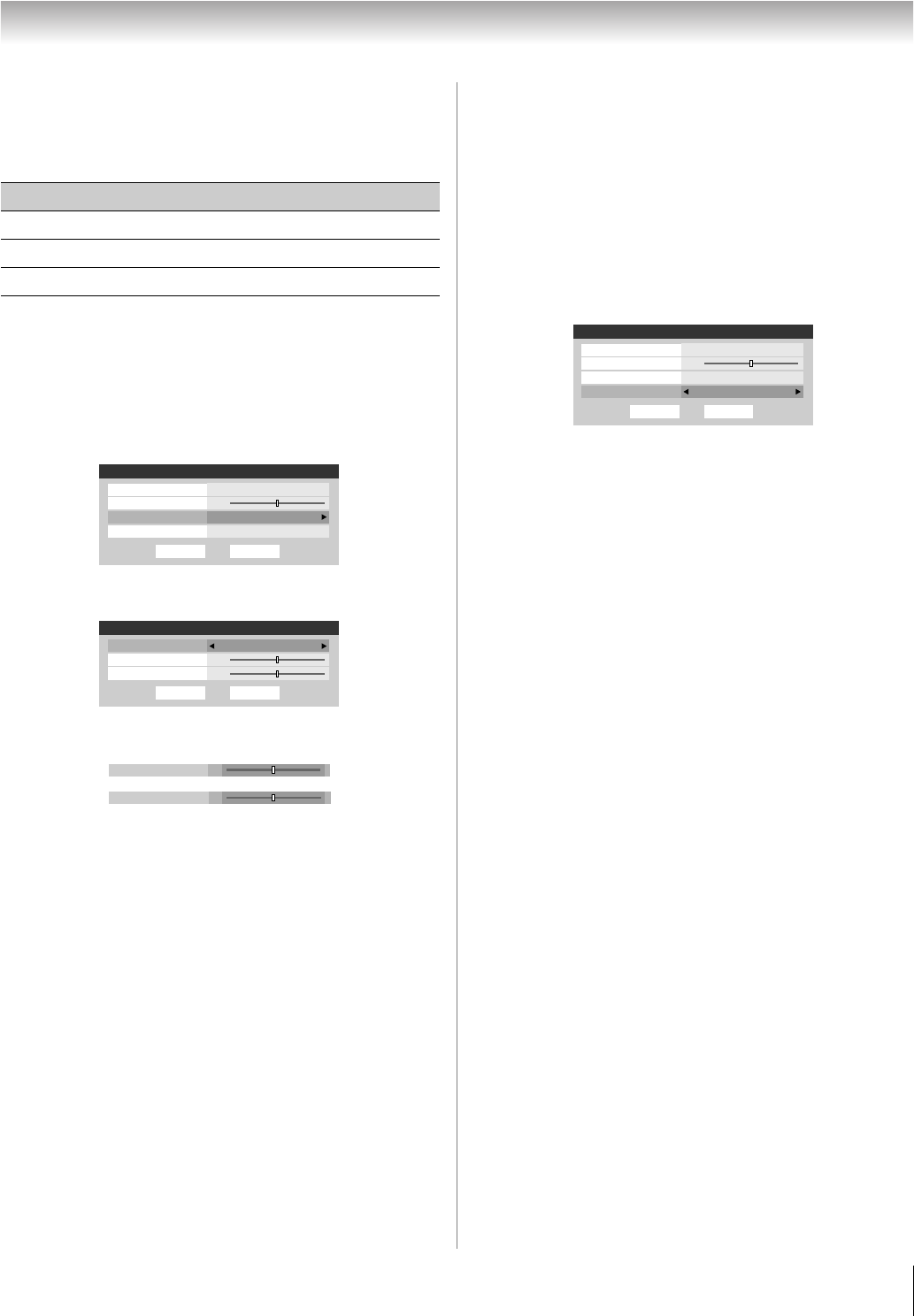

Selecting the color temperature

You can change the quality of the picture by selecting from

three preset color temperatures (cool, medium, and warm), as

described below.

To select the color temperature:

1Press Y and open the Video menu.

2Highlight Picture Settings and press T.

3Highlight Advanced Picture Settings and press T.

4Highlight Color Temperature and press T.

5In the Color Temperature field, select the mode you

prefer (Cool, Medium, or Warm).

6Press B or b to select either B Drive or G Drive, and

then press C or c to adjust the settings.

•B Drive: c makes the picture blueish.

•G Drive: c makes the picture greenish.

Note: The B Drive and G Drive settings are connected to

the Color Temperature settings and will change based

on which is selected in step 5 above.

7To save the new settings, highlight Done and press T.

To revert to the factory defaults, highlight Reset and

press T.

Note: If you select one of the factory-set picture modes

(Sports, Standard, or Movie) and then change the color

temperature mode, the picture mode automatically

changes to Preference.

Using the Vertical Edge Enhancer feature

The Vertical Edge Enhancer feature strengthens video contour.

To turn on the Vertical Edge Enhancer feature:

1Press Y and open the Video menu.

2Highlight Picture Settings and press T.

3Highlight Advanced Picture Settings and press T.

4In the Vertical Edge Enhancer field, select the mode

you prefer (Off, Low, Middle, or High).

5To save the new settings, highlight Done and press T.

To revert to the factory defaults, highlight Reset and

press T.

Note:

•Changing the setting of this item will cause the Mode to

automatically change to Preference.

•When the input is changed to PC, this future is automatically

set to High and grayed out in the menu.

Mode Picture Quality

Cool blueish

Medium neutral

Warm reddish

Done

Advanced Picture Settings Mode: Preference

Static Gamma

Reset

Dynamic Contrast High

Cool

Color Temperature

High

Vertical Edge Enhancer

Done

Color Temperature Mode: Preference

B Drive

Reset

Color Temperature Cool

G Drive

B Drive

G Drive

Done

Advanced Picture Settings Mode: Preference

Static Gamma

Reset

Dynamic Contrast High

Cool

Color Temperature

High

Vertical Edge Enhancer

LZ196_EN.book Page 55 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 6: Using the TV’s advanced features

Using CableClear® digital noise reduction

The CableClear® digital noise reduction feature allows you to

reduce visible interference in your TV picture. This may be

useful when receiving a broadcast with a weak signal

(especially a Cable channel) or playing a noisy video cassette

or disc.

To change the CableClear settings:

1Press Y and open the Video menu.

2Highlight Noise Reduction and press T.

3In the CableClear field, select your desired setting.

Note:

•If the current input is ANT 1, ANT 2, VIDEO 1, or

VIDEO 2, the menu will display the text “CableClear.”

The available selections are Off, Low, Middle, High,

and Auto.

•If the current input is ColorStream HD1, ColorStream

HD2, or HDMI, the menu will display the text “DNR.” The

available selections are Off, Low, Middle, High, and

Auto. Auto will react proportionally to the strength of

the noise. Low, Middle, and High will reduce the noise

in varying degrees, from lowest to highest, respectively.

4To save the new settings, highlight Done and press T.

To revert to the factory defaults, highlight Reset and

press T.

Using MPEG noise reduction

The MPEG noise reduction feature allows you to reduce

visible interference caused by MPEG compression. Choices

for MPEG noise reduction are Off, Low, Middle, and High.

Off is automatically selected when this feature is disabled

(“grayed out”).

To select the MPEG noise reduction level:

1Press Y and open the Video menu.

2Highlight Noise Reduction and press T.

3Press B or b to highlight the MPEG Noise Reduction

field, and then press C or c to select either Off, Low,

Middle or High.

4To save the new settings, highlight Done and press T.

To revert to the factory defaults, highlight Reset and

press T.

CH RTNENTER

EXIT

Navigate Select Back Exit

Mode Preference

Off

Picture Settings

Noise Reduction

Color Management Pro

Game Mode

Theater Settings

Video

Done

Noise Reduction ANT 1

Reset

CableClear Auto

Low

MPEG Noise Reduction

Done

Noise Reduction ANT 1

Reset

CableClear Auto

Low

MPEG Noise Reduction

LZ196_EN.book Page 56 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 6: Using the TV’s advanced features

Using the Color Management Pro feature

The new color management pro feature allows you to adjust

standard colors as well as create 3 custom user colors. The

menu will consist of 3 items: color management control, color

palette adjustment, and reset.

Turning the Color Management Pro on:

1Press Y and open the Video menu.

2Highlight Color Management Pro and press T.

3 In the Color Management field, select On.

Note: If you select one of the factory-set picture modes

(Sports, Standard, or Movie) and then set the Color

Management Pro to On, the picture mode automatically

changes to Preference.

Turning Color Management off:

Select Off in Step 3 above.

To use the Color Palette Adjustment

When the color palette adjustment is selected, the list of base

colors and user colors will be displayed. You can select a base

color to adjust or choose to create a user color.

Note: To use the Color Palette Adjustment, the Color

Management must be set to On.

To adjust the Base Colors:

1From the Color Management Pro menu, highlight

Color Palette Adjustment and press T.

2The Select Standard Color window will be displayed.

Press B or b to highlight the color you want to adjust, and

then press T.

3The Color Adjustment window will be displayed.

Press B to freeze the picture.

To return to the moving picture, press B again.

4Press B or b to select either Hue, Saturation, or

Brightness, and then press C and c to adjust the setting.

Note: Press f to return to the Hue, Saturation, and

Brightness to their factory settings for the selected color.

5Press R to return to the previous menu.

6Repeat steps 2 through 5 to adjust any other color.

To adjust the User Colors:

1From the Color Management Pro menu, highlight

Color Palette Adjustment, and then press T.

2The Select Standard Color window will be displayed.

Press B or b to highlight either User 1, User 2, or

User 3 mode, and then press T.

CH RTNENTER

EXIT

Navigate Select Back Exit

Mode Preference

Off

Picture Settings

Noise Reduction

Color Management Pro

Game Mode

Theater Settings

Video

Color Management Pro ANT 1

Color Palette Adjustment

Color Management On

Reset

Color Management Pro ANT 1

Color Palette Adjustment

Color Management On

Reset

Green

Blue

Yellow

Magenta

Red

Base Colors

User Colors

Select Standard Color

Cyan

User 1

User 2

User 3

Hue 0

Red

Standard Color

After Adjustment

Color Adjustment

Saturation 0

Brightness 0

Green

Blue

Yellow

Magenta

Red

Base Colors

User Colors

Select Standard Color

Cyan

User 1

User 2

User 3

(continued)

LZ196_EN.book Page 57 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

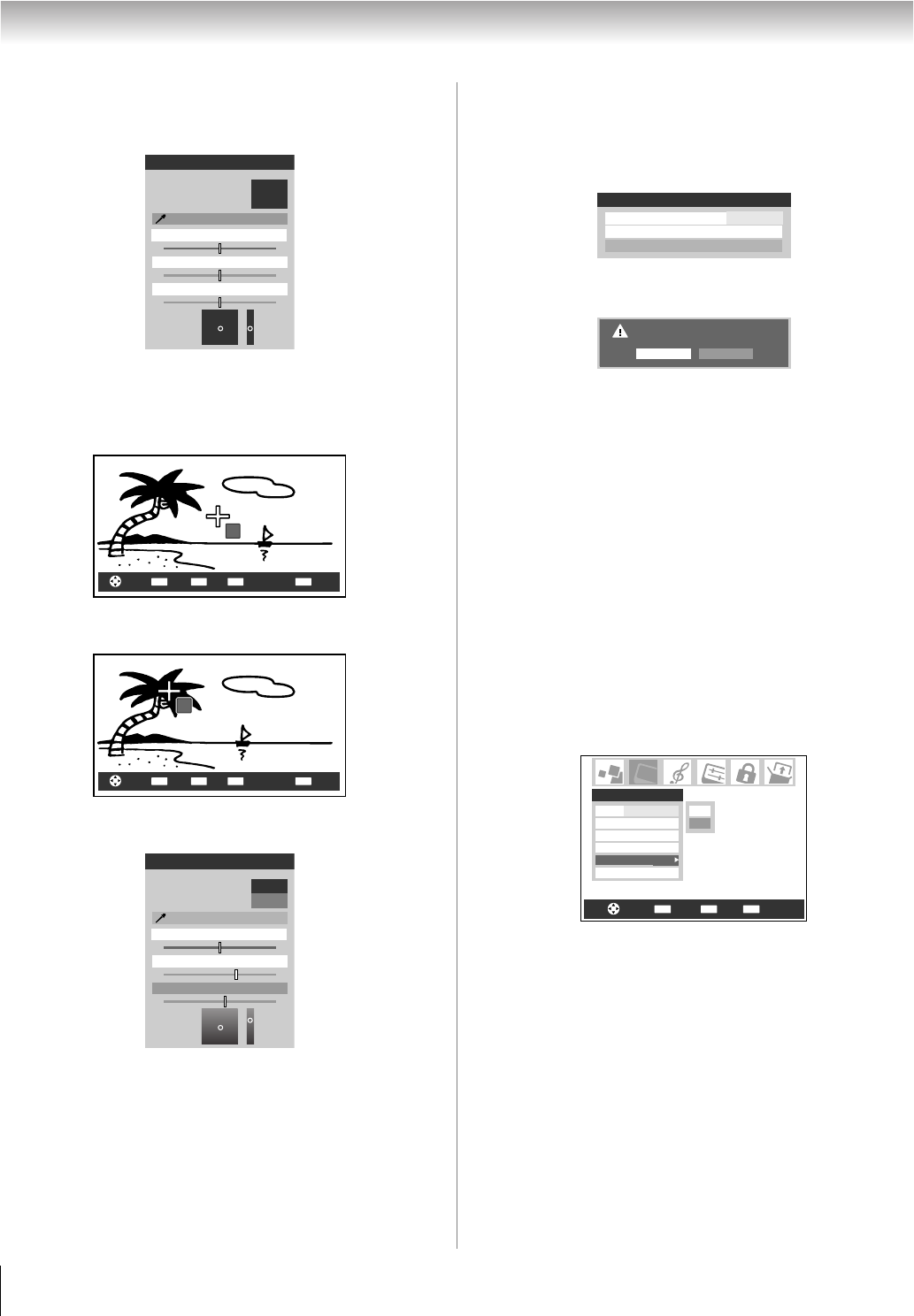

Chapter 6: Using the TV’s advanced features

3The Color Adjustment window will be displayed.

Press B or b to highlight Change Standard Color, and

then press T.

The video on- screen will automatically freeze and the

cross hairs will appear on the video.

Note: The frozen video can be released at any time using

4Press BbC c to move the cross hairs on the color you

want to adjust, and then press T.

5Press B or b to select either Hue, Saturation, or

Brightness, and then press C or c to adjust the setting.

Note: You can reset the Hue, Saturation, and

Brightness colors to "0" for any user color by

pressing f.

6Repeat step 5 for other items.

7Press O.

To reset the Color Management Pro to the factory set

status:

1From the Color Management Pro menu, highlight

Reset, and then press T.

2The comfirming message appears. Highlight OK, and

then press T.

3Press O.

Using the Game Mode feature

You can use the Game Mode feature for shorter frame delays

when playing a video game requiring split-second timing

between the on-screen display and input from the controller

(such as music creation and high-action games).

Note: To use the Game Mode feature, the current video input

must be Video 1, Video 2, ColorStream HD1,

ColorStream HD2, HDMI 1 or HDMI 2. The Game Mode

cannot be turned on when any other video input is selected.

To turn on Game Mode:

1Press Y and open the Video menu.

2Press B or b to highlight the Game Mode field, and then

press C or c to select On.

To turn off Game Mode:

Select Off in step 2 above, change the video input, or turn the

TV off and then on again.

Note: You can change the video input in any of the following

ways:

•Pressing + on the remote control (- page 31).

•Changing the channel using the Numbers or < / ,, R,

3C, #c.

Change Standard Color

User 1

Standard Color

After Adjustment

Color Adjustment

Saturation --

Brightness --

Hue --

CH RTNENTER

EXIT

Navigate Select Back

FREEZE

Freeze/Unfreeze Exit

CH RTNENTER

EXIT

Navigate Select Back

FREEZE

Freeze/Unfreeze Exit

Change Standard Color

User 1

Standard Color

After Adjustment

Color Adjustment

Saturation +30

Brightness +11

Hue 0

Color Management Pro ANT 1

Color Palette Adjustment

Color Management On

Reset

Are you sure?

OKCancel

CH RTNENTER

EXIT

Navigate Select Back Exit

Mode Preference

Picture Settings

Noise Reduction

Color Management Pro

Game Mode

Theater Settings

Video

Off

LZ196_EN.book Page 58 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 6: Using the TV’s advanced features

Using the advanced audio settings

features

Using the SRS WOW™ surround sound

feature

SRS WOW™ is a special combination of SRS Labs audio

technologies (SRS 3D, SRS Focus, and SRS TruBass) that

creates a thrilling surround sound experience with deep, rich

bass from stereo sound sources. Your TV’s audio will sound

fuller, richer, and wider.

To adjust the WOW™ settings:

1Put the TV in STEREO mode (- “Selecting stereo/SAP

broadcasts” on page 44).

2Press Y and open the Audio menu.

3Highlight Advanced Audio Settings and press T.

4Press b or B to highlight the WOW feature you want to

adjust, and then press C or c to adjust the item.

•WOW: SRS 3D — To turn the surround sound effect

On or Off.

Note: If the broadcast is monaural, the SRS 3D effect

will not work.

•WOW: SRS Focus — To turn the vocal emphasis effect

On or Off.

•WOW: SRS TruBass — To select the desired bass

expansion level (Off, Low, or High).

5To save the new settings, highlight Done and press T.

To revert to the factory defaults, highlight Reset and

press T.

WOW, TruSurround, SRS and l symbol are trademarks of SRS Labs,

Inc.

WOW and TruSurround technologies are incorporated under license

from SRS Labs, Inc.

Using the virtual surround sound feature

(Dolby® Virtual/SRS TruSurround™)

The Dolby Virtual/SRS TruSurround feature allows you to

enjoy virtual surround sound from the TV’s speakers.

To turn on the Dolby Virtual/SRS TruSurround

feature:

1Press Y and open the Audio menu.

2Highlight Advanced Audio Settings and press T.

3In the Dolby Virtual/SRS TruSurround field, select

On.

4To save the new settings, highlight Done and press T.

To revert to the factory defaults, highlight Reset and

press T.

To turn off the Dolby Virtual/SRS TruSurround

feature:

Select Off in step 3 above.

Note: The Dolby Virtual/SRS TruSurround and WOW SRS

3D features cannot be on at the same time. If you set one to

On, the other will automatically be set to Off.

Done

Advanced Audio Settings

WOW: SRS 3D

WOW: SRS Focus

WOW: SRS TruBass High

Reset

Off

Dolby Virtual

SRS TruSurround On

Done

Advanced Audio Settings

WOW: SRS 3D

WOW: SRS Focus

WOW: SRS TruBass High

Reset

Off

Dolby Virtual

SRS TruSurround On

LZ196_EN.book Page 59 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 7: Using the THINC™ home network feature

The Toshiba Home Interactive Network Connection

(THINC™) feature allows you to connect the TV to your home

network, which will enable access to file sharing, personal

e-mail, and e-mail scheduling features.

File sharing

You can access JPEG and MP3 files that are stored on your

networked home PC and view/play them on the TV.

Note: Requires a home network* (- Installation Guide).

Does NOT require Internet/e-mail service.

Personal E-mail

Personal e-mail feature allows you to access your e-mail server

through your TV. You may compose a new e-mail and view,

reply and forward e-mails including e-mails with picture

attachments (JPEG format only).

E-mail scheduling of recordings and reminders

You can schedule recordings and reminders by sending an

e-mail to the TV from any PC.

Note:

•Requires a compatible recording device (- Installation

Guide); a home network* (- Installation Guide); and

home Internet service with a dedicated POP3 e-mail

address for the TV (different from your personal e-mail

address).

•Contact your Internet Service Provider (ISP) to obtain

and set up Internet/e-mail service.

•You will NOT be able to access or browse the Internet

through the TV.

Follow the steps in sections A through D (- pages 60–66)

to set up and use the TV’s home network features.

*The THINC™ home network feature is compatible only with

Microsoft® Windows® 2000 and the Home and Professional

versions of Microsoft® Windows® XP Service Pack 1 and

Service Pack 2.

Microsoft and Windows are either registered trademarks or

trademarks of Microsoft Corporation in the United States and/or

other countries.

A. Connecting the TV to your home

network

1Connect the TV to your home network via the TV’s

RJ-45 (Ethernet) port. See the Installation Guide for

connection instructions.

2If you want to use file sharing only and do not have

Internet service in your home:

Go to section B, “Setting up the network address,” on the

next page.

Note: If you do not have Internet service, you will not be

able to use the personal e-mail and e-mail scheduling

features.

If you want to use file sharing, personal e-mail, and

e-mail scheduling:

a) You must have Internet service in your home and a

dedicated e-mail address for the TV (different from

your personal e-mail address). Contact your ISP to

obtain and set up Internet/e-mail service in your home.

b) After you have obtained Internet/e-mail service in your

home (from your ISP), go to section B, “Setting up the

network address” on the next page.

For home network troubleshooting tips, see Chapter 8.

The unauthorized recording, use, distribution, or revision of

television programs, videotapes, DVDs, and other materials is

prohibited under the Copyright Laws of the United States and

other countries, and may subject you to civil and criminal

liability.

LZ196_EN.book Page 60 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

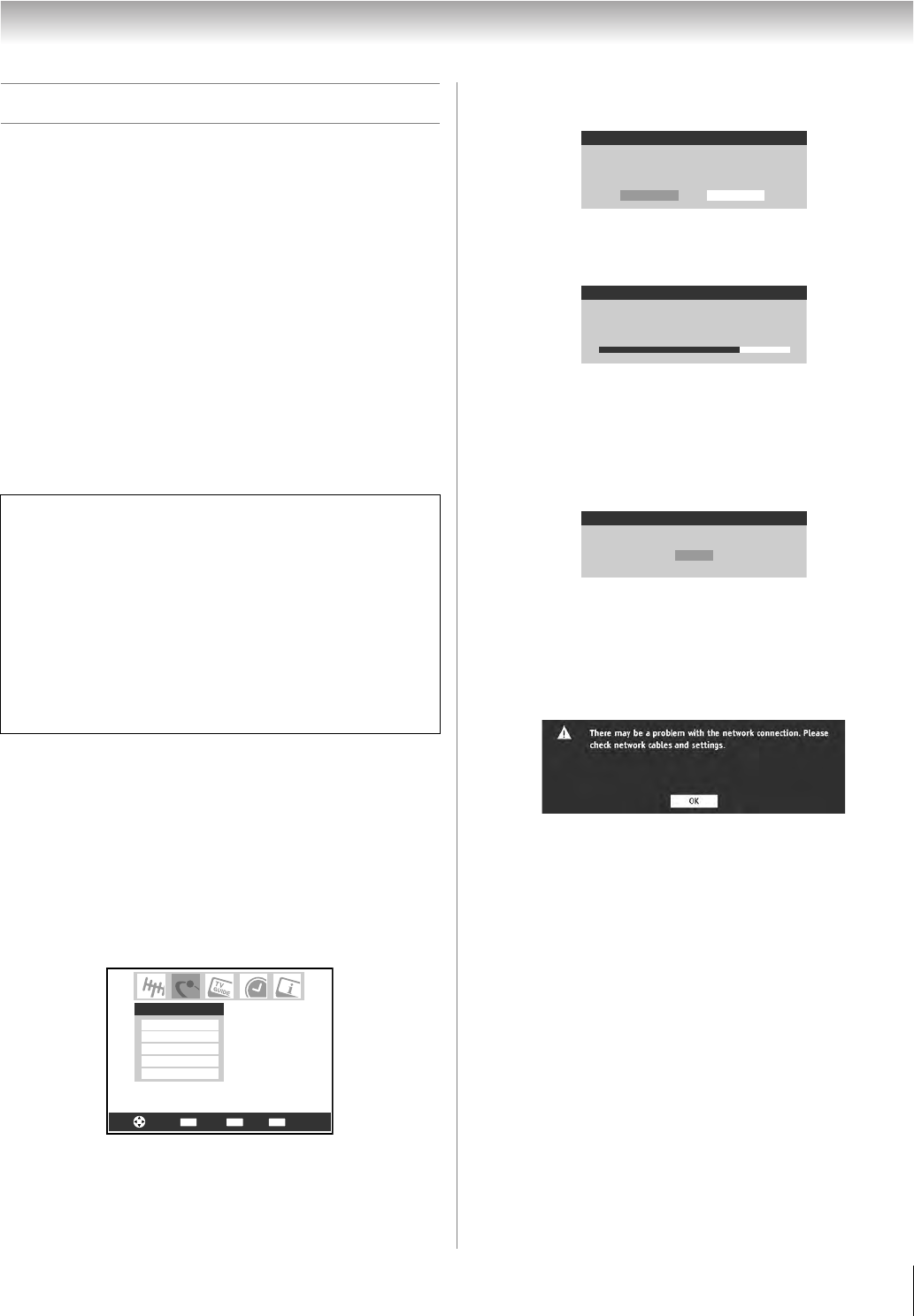

Chapter 7: Using the THINC™ home network feature

B. Setting up the network address

To set up the network address:

1First, try automatically setting up the network address

(below).

2If the automatic setup is not successful, you can either

retry the automatic setup (below) or try manually setting

up the network address (- page 62).

Note:

•If you used an Ethernet crossover cable to connect your PC

directly to the TV, you will not be able to use the automatic

setup, and must manually set up the network address.

•If you used a hub or switch to connect the TV to your home

network, you will not be able to use the automatic setup, and

must manually set up the network address.

•If you used a router with built-in DHCP functionality, use the

automatic setup. Manual setup may not work.

Automatically setting up the network

address

1Press Y and open the Setup menu.

2Highlight Installation and press T. The Installation

menu appears.

3Open the Network menu.

4Highlight Basic Network Setup and press T.

5The message “Obtain network address automatically?”

will display. Highlight Yes and press T.

6The message “Please wait…” will display while the TV is

attempting to load the network address information from

the DHCP server.

If the automatic network address setup is successful,

go to step 7.

If the automatic network address setup is not

successful, go to step 8.

7If the automatic network address setup is successful, the

following screen will appear:

a) Press T to close the screen and return to the Network

menu.

b) Skip to section C, “Setting up file sharing on your PC”

(- page 63).

8If the automatic network address setup is not successful,

the following screen will appear:

a) Make sure all cables for your home network are

securely connected.

b) Make sure your home network is set up properly. See

the Installation Guide for TV connection

information. Also consult the owner’s manuals for

your other components.

c) Make sure the DHCP and security settings on your

home router are correct. Consult the owner’s manual

for your router.

d) Retry the automatic network address setup by following

these steps:

(1) Highlight OK and press T.

(2) Repeat steps 1–6. (If you have already repeated

this setup process, go to step 9.)

Router technology, like all new and emerging technology,

may from time to time cause compatibility issues because of

the differences in router systems implemented by the

various router manufacturers; however, most issues can be

easily resolved. If you think your Toshiba TV and router

might have compatibility problems, please contact the

following:

•

In the U.S.

, call TACP Consumer Solutions at

1-800-631-

3811

or visit

http://www.tacp.com/customersupport/

contact.asp

•In Canada, call TCL Customer Service at

1-800-268-3404 or visit http://www.toshiba.ca.

CH RTNENTER

EXIT

Navigate Select Back Exit

Basic Network Setup

Personal E-mail Setup

E-mail Scheduling Setup

Home File Server Setup

Software Upgrade

Network

Basic Network Setup

Obtain network address automatically?

Yes No

Basic Network Setup

Please wait...

Basic Network Setup

Done! Network address information has been found!

Exit

(continued)

LZ196_EN.book Page 61 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 7: Using the THINC™ home network feature

9If, after repeating steps 1–6, you receive the error

message shown in step 8:

Either…

a) Highlight “OK” and press T.

b) Go to “Manually setting up the network address.”

Or…

a) Highlight “OK” and press T.

b) Continue to sections C, D, and E (- pages 63–67)

(to set up and use file sharing) and/or to sections F, G,

H, and I (- pages 75–81) (to set up and use personal

e-mail and e-mail scheduling).

If the file sharing and/or personal e-mail and e-mail

scheduling features work correctly, then the

automatic network address setup was successful (even

though the TV displayed the error message).

Manually setting up the network address

This setup requires the data listed below. You can get this

data from either your ISP or the configuration utility for

your DSL/cable modem or router.

1Press Y and open the Setup menu.

2Highlight Installation and press T. The Installation

menu appears.

3Open the Network menu.

4Highlight Basic Network Setup and press T.

5The message “Obtain network address automatically?”

appears.

Highlight No and press T.

6The Basic Network Setup menu appears.

Press B or b to highlight the IP Address field, and then

use the Number buttons on the remote control to input the

IP address.

7Press b to highlight the Subnet Mask field, and then use

the Number buttons to input the Subnet Mask.

8Press b to highlight the Gateway (Router) field, and

then use the Number buttons to input the Gateway

(Router) address.

9Press b to highlight the DNS (Domain Name Server)

field, and then use the Number buttons to input the DNS

address.

10 When finished, highlight Done and press T.

The Basic Network Setup menu closes and the

Network menu appears.

11 Go to section C, “Setting up file sharing on your PC.”

IP address:

___ ___ ___ . ___ ___ ___ . ___ ___ ___ . ___ ___ ___

Subnet mask:

___ ___ ___ . ___ ___ ___ . ___ ___ ___ . ___ ___ ___

Gateway (Router) address:

___ ___ ___ . ___ ___ ___ . ___ ___ ___ . ___ ___ ___

DNS (Domain Name Server) address:

___ ___ ___ . ___ ___ ___ . ___ ___ ___ . ___ ___ ___

Basic Network Setup

Obtain network address automatically?

Yes No

Basic Network Setup

Please enter your Network Address Information

IP Address

Subnet Mask

Gateway (Router)

DNS (Domain Name Saver)

0000

000 0

225 225 225 0

Cancel Done

LZ196_EN.book Page 62 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

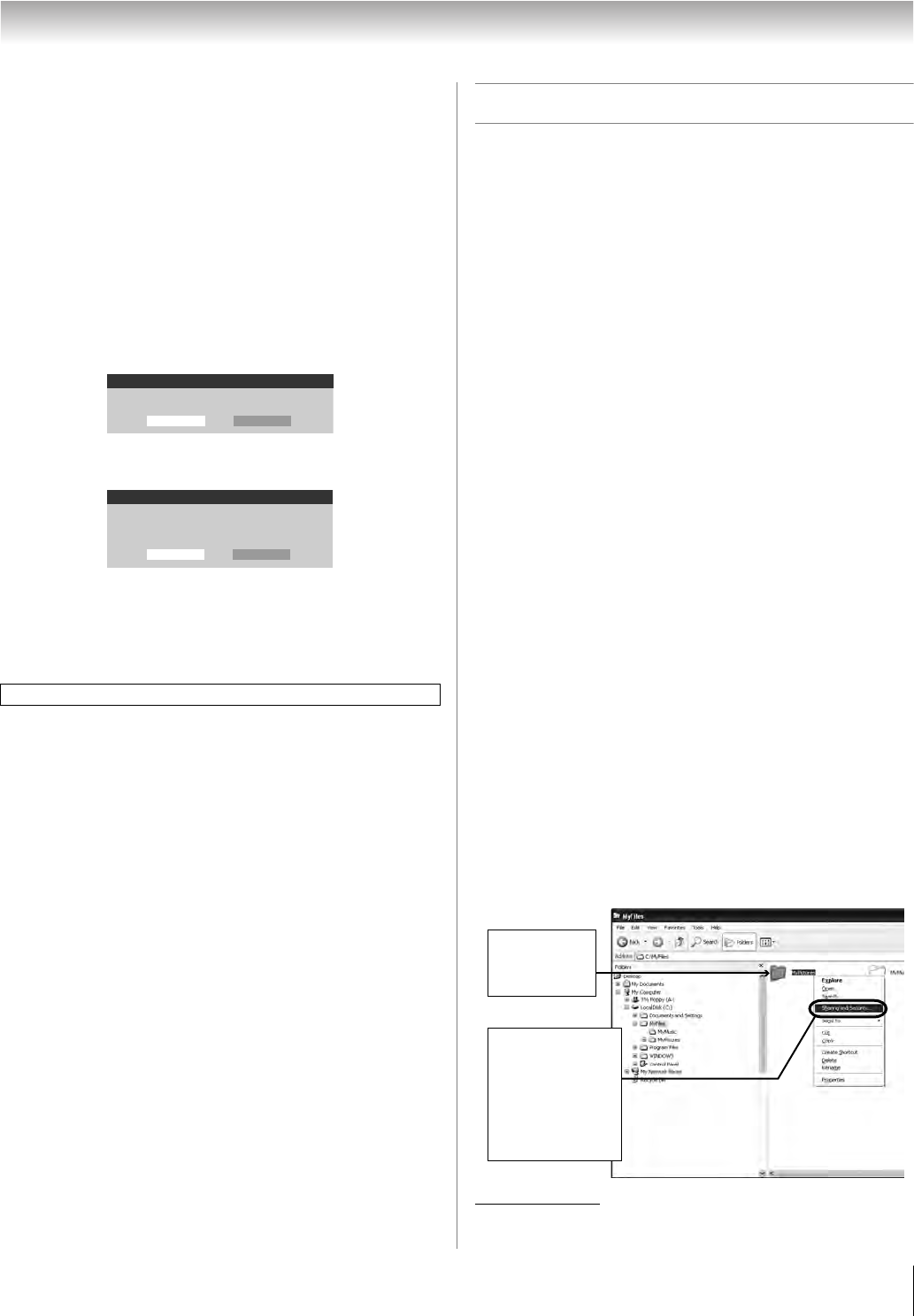

Chapter 7: Using the THINC™ home network feature

Resetting the network address

1Press Y and open the Setup menu.

2Highlight Installation and press T. The Installation

menu appears.

3Open the Network menu.

4Highlight Basic Network Setup and press T.

5The message “Your Basic Network Setup is complete.

Would you like to start over?” will appear.

To continue, highlight Yes and press T.

To return to the Network menu, highlight No and press

6If you selected Yes in step 5, the message “Obtain

network address automatically?” will appear.

To obtain the network address automatically, go to step 5

under “Automatically setting up the network address”

(- page 61).

To manually enter the network address, go to “Manually

setting up the network address.”

C. Setting up file sharing on your PC

Compatible operating systems

The following operating systems are compatible for file

sharing with the TV:

•Microsoft® Windows® XP Service Pack 2

(Home Edition and Professional) [See setup details below]

•Microsoft® Windows® XP Service Pack 1

(Home Edition and Professional) [See setup details below]

•Microsoft® Windows® 2000 [See setup details on page 65]

No other operating systems are compatible with the TV.

Note:

•The name of any directory/folder on your PC that you are

setting up for file sharing with the TV cannot be longer than

12 characters and cannot contain any special characters.

•See “Media specifications” (- page 67) for details on

compatible JPEG and MP3 files.

•The network (NETBIOS) name of your PC that you are setting

up for file sharing must be 15 characters or less.

To determine which operating system and service

pack (if applicable) are on your PC:

1On your PC, click the “Start” button.

2Click “Settings | Control Panel.”

3In the Control Panel, double-click “System.”

4Select the “General” tab, which will display your PC’s

current operating system and service pack.

Setting up file sharing on a PC with

Microsoft® Windows® XP Service Pack 1 or

Service Pack 2

1On your PC:

*Microsoft product screen shot(s) reprinted with permission from

Microsoft Corporation.

For home network troubleshooting tips, see Chapter 8.

Basic Network Setup

Your Basic Network Setup is complete. Would you like to start over?

Yes No

Basic Network Setup

Obtain network address automatically?

Yes No

b) Click “Sharing

and Security...”

(which will open

the Properties

window for the

selected folder.)

a) Right-click

the folder

to be shared.

(continued)

LZ196_EN.book Page 63 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 7: Using the THINC™ home network feature

2If the “Sharing” tab on your PC does not have a

“Permissions” button, follow step 2.1 below.

If the “Sharing” tab on your PC has a “Permissions”

button, follow step 2.2 below.

2.1

Go to section D, “Setting up file sharing on the TV,” on

page 66.

2.2

Go to step 3.

3In the Permissions window for the selected folder:

4Go to section D, “Setting up file sharing on the TV,” on

page 66.

a) Click to display

the “Sharing” tab.

b) Click to select

“Share this folder

on the network.”

c) Click “OK”

(which will close the

Permissions window

for the selected folder).

a) Click to display

the “Sharing” tab.

b) Click to select

“Share this folder.”

c) Click “Permissions”

(which will open

the Permissions

window for the

selected folder).

d) Click “OK”

to close the window.

c) Click “Apply.”

a) Click “Add...”

and then select the

user to be given

sharing privileges.*

*This user must match

the user stored in the

TV’s “Home File Server

Setup” menu.

b) Click to check

“Allow” next to

“Full Control.”

LZ196_EN.book Page 64 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 7: Using the THINC™ home network feature

Setting up file sharing on a PC with

Microsoft® Windows® 2000

1On your PC:

2In the Properties window for the selected folder:

3In the Permissions window for the selected folder:

4In the Properties window:

5The shared folder will display with a “shared folder” icon

(a hand holding a folder).

6Go to section D, “Setting up file sharing on the TV,” on

the next page.

a) Right-click

the folder

to be shared.

b) Click “Sharing...”

(which will open

the Properties

window for the

selected folder).

a) Click to display

the “Sharing” tab.

b) Click to select

“Share this folder.”

c) Click “Permissions”

(which will open

the Permissions

window for the

selected folder).

d) Click “OK”

(which closes the

Permissions window).

c) Click “Apply.”

a) Click “Add...”

and then select the

user to be given

sharing privileges.*

*This user must match

the user stored in the

TV’s “Home File Server

Setup” menu.

b) Click to check

“Allow” next to

“Full Control.”

For home network troubleshooting tips, see Chapter 8.

Click “OK”

(which closes

the Properties

window).

LZ196_EN.book Page 65 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 7: Using the THINC™ home network feature

D. Setting up file sharing on the TV

1Press Y and open the Setup menu.

2Highlight Installation and press T. The Installation

menu will appear.

Open the Network menu.

3Highlight Home File Server Setup and press T. The

Home File Server Setup window will appear.

After a few moments, the message “Please Wait...” will

appear until the network finds your networked PC.

The networked PC will act as the “Home Server” for file

sharing with the TV.

4Press Bb to highlight Home Server Name, and then

press C c to select the name of the PC you set up for file

sharing.

If you have multiple PCs on your home network that have

shared folders, press C c to select the PC (home server)

from which you want to access files.

5a. Press Bb to highlight User Name and then press T

to open the software keyboard for that field.

b. Enter the User Name for your PC using the software

keyboard. See “Using the software keyboard” on the

next page.

Note: The User Name is case sensitive.

c. When finished entering all characters, highlight Done

and press T.

6Repeat step 5 for the Password field.

Note: The Password is case sensitive.

7Press Bb to highlight either JPEG Picture Directory

or MP3 Music Directory.

Note: The first time you highlight either of these fields, the

message “Please Wait...” will appear until the field is

populated with the files in your PC’s shared folder(s).

8Press C c to select the shared folder (on your PC) that

contains the JPEG and/or MP3 files you want to view/play

on the TV.

Note: Make sure you select the correct folder in this step.

9To exit the window and save your settings, highlight

Done and press T.

To exit the window without saving your settings, highlight

Cancel and press T.

CH RTNENTER

EXIT

Navigate Select Back Exit

Basic Network Setup

Personal E-mail Setup

E-mail Scheduling Setup

Home File Server Setup

Software Upgrade

Network

Home File Server Setup

Home Server Name

Please enter your Home Server Setup Information.

Software Upgrade Directory

User Name

Password

XYZ

MP3 Music Directory MP3

*******

Cancel Done

ABCD

JPEG Picture Directory JPEG

Home File Server Setup

Home Server Name

Please enter your Home Server Setup Information.

Software Upgrade Directory

User Name

Password

XYZ

MP3 Music Directory MP3

*******

Cancel Done

ABCD

JPEG Picture Directory JPEG

Home File Server Setup Please Wait...

Home Server Name

Please enter your Home Server Setup Information.

JPEG Picture Directory

MP3 Music Directory

User Name

Password

XYZ

ABCD

Software Upgrade Directory

Cancel Done

*******

LZ196_EN.book Page 66 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 7: Using the THINC™ home network feature

Using the software keyboard

a) Press corresponding button on the remote control repeatedly

to highlight the alpha-numeric character you desire.

For example, each time you press w, the alpha-numeric

character will change in the following order:

a S b S c S 2 S A S B S C

b) The highlighted character will be entered after you either

begin to enter another character using ANOTHER button,

press c, or after a 2 second pause.

c) Repeat steps a) and b) until you have entered all the text you

desire.

d) Press R to close the software keyboard and return to the

previous screen.

Example of entering text

To type ‘Hello 123’, enter the following key sequence:

Help instructions are provided in the display. They include

specific remote control button instructions which are

applicable in certain views. Such as, x / X = scrolling up

and down. Z and z = home and end of lines. T = new line.

O = Exits entire screen and will not save entries.

About the Software Upgrade feature

This feature allows you to download software updates to your

television from a shared folder on your home network.

If you experience any difficulties that can only be resolved by

a software update, your Toshiba customer service

representative will provide you with the appropriate upgrade

files and assist you in the proper use of this feature.

E. Viewing/playing shared files on

the TV

You can use the Picture Viewer to view compatible JPEG-

format photos on the TV.

You can use the Audio Player to play compatible MP3 files

on the TV.

The TV can access JPEG and/or MP3 files stored on a

networked PC (as described on pages 68–70 in this Guide and

also in the Installation Guide).

Note:

•If you are viewing/playing files stored on a networked PC,

IT IS RECOMMENDED THAT YOU BACK UP YOUR DATA.

Toshiba is not liable for any damage caused by the use of

any networked PC or shared files with this TV. Toshiba will

not compensate for any lost data or recording(s) caused by

the use of such PCs or data.

•The technical criteria set out in this manual are meant as a

guide only.

•You must obtain any required permission from

content. Toshiba cannot and does not grant such

permission.

Media specifications

File/folder name specifications

–Maximum file name length: 255 characters.

–Maximum shared folder* name length: 12 characters.

–File names must contain US-ASCII characters only.

–File and folder names cannot contain any special

characters, such as \ / : ? “ ” < > | .

*The words “folder” and “directory” are used interchangeably.

Picture Viewer/JPEG file specifications

–Maximum JPEG file size: 8 MB

•JPEG files larger than 8 MB will not display.

–Maximum JPEG image resolution: 6000 5 4000 pixels

•Images with a resolution higher than 6000 5 4000 pixels

will not display.

–The Picture Viewer is designed to display only pictures

stored in compatible JPEG formats with a file extension of

“.jpg.”

–JPEG images processed and/or edited on a personal

computer (PC) may not display properly or at all.

– Some digital cameras may store images in a format that is

not compatible with the TV.

–JPEG files stored on a networked PC that are not in a file

and folder format compatible with the TV will not

display on the TV.

H e l l o (space) 123

6 times

twice

thrice

once

4 times

100

Backspace

1 . , ? ! : ; a b c 2 A B C

j k l 5 J K L

t u v 8 T U V

& $

p q r s 7 P Q R S

@% # ~ _ | \ `

0 ' " ( ) =/ + - ^ <* > [ ] { }

g h i 4 G H I

Space

w x y z 9 W X Y Z

m n o 6 M N O

INPUT

d e f 3 D E F

Software keyboard example

(continued)

LZ196_EN.book Page 67 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 7: Using the THINC™ home network feature

Audio Player/MP3 file specifications

–Maximum MP3 file size: 50 MB

•MP3 files larger than 50 MB will not play.

–The Audio Player is designed to play only music files

stored in compatible MP3 formats with a file extension of

“.mp3.”

–MP3 files processed and/or edited on a PC may not play

properly or at all. Some MP3 files may be in a format that is

not compatible with the TV.

–MP3 files must be in the following format:

•MPEG1 (ISO/IEC 11172-3) Layer3.

•Sampling frequency—MPEG1: 32 kHz, 44.1 kHz,

48 kHz.

•Bitrate—MPEG1: 32–320 kbps.

•Channels—Stereo, Joint stereo, Dual channel, Single

channel.

•ID3 Ver. 1, Ver. 2.

–The meta-data for MP3 files (artist name, album name,

song title, etc.) must be in the following format:

ISO-8859-1 (US-ASCII/ Western European) character

sets

–MP3 files stored on a networked PC that are not in a file

and folder format compatible with the TV will not play

on the TV.

Networked PC specifications

Maximum number of files per shared folder:

– JPEG = 1,000

•All JPEG files over the 1,000th in a shared folder will not

display.

– MP3 = 200

•All MP3 files over the 200th in a shared folder will not play.

Maximum number of nested folder levels: 10 levels

•Files in folders more than 10 levels down from the top level

folder will not display/play.

•See pages 60–66 for details on networking your TV and PC

for file sharing.

Using the Picture Viewer

You can use the TV’s Picture Viewer to display your digital

photos (JPEG files) on your TV’s screen in thumbnail mode or

as a slide show.

Note:

•You cannot use the Picture Viewer and Audio Player at the

same time.

•You must obtain any required permission from

content. Toshiba cannot and does not grant such

permission.

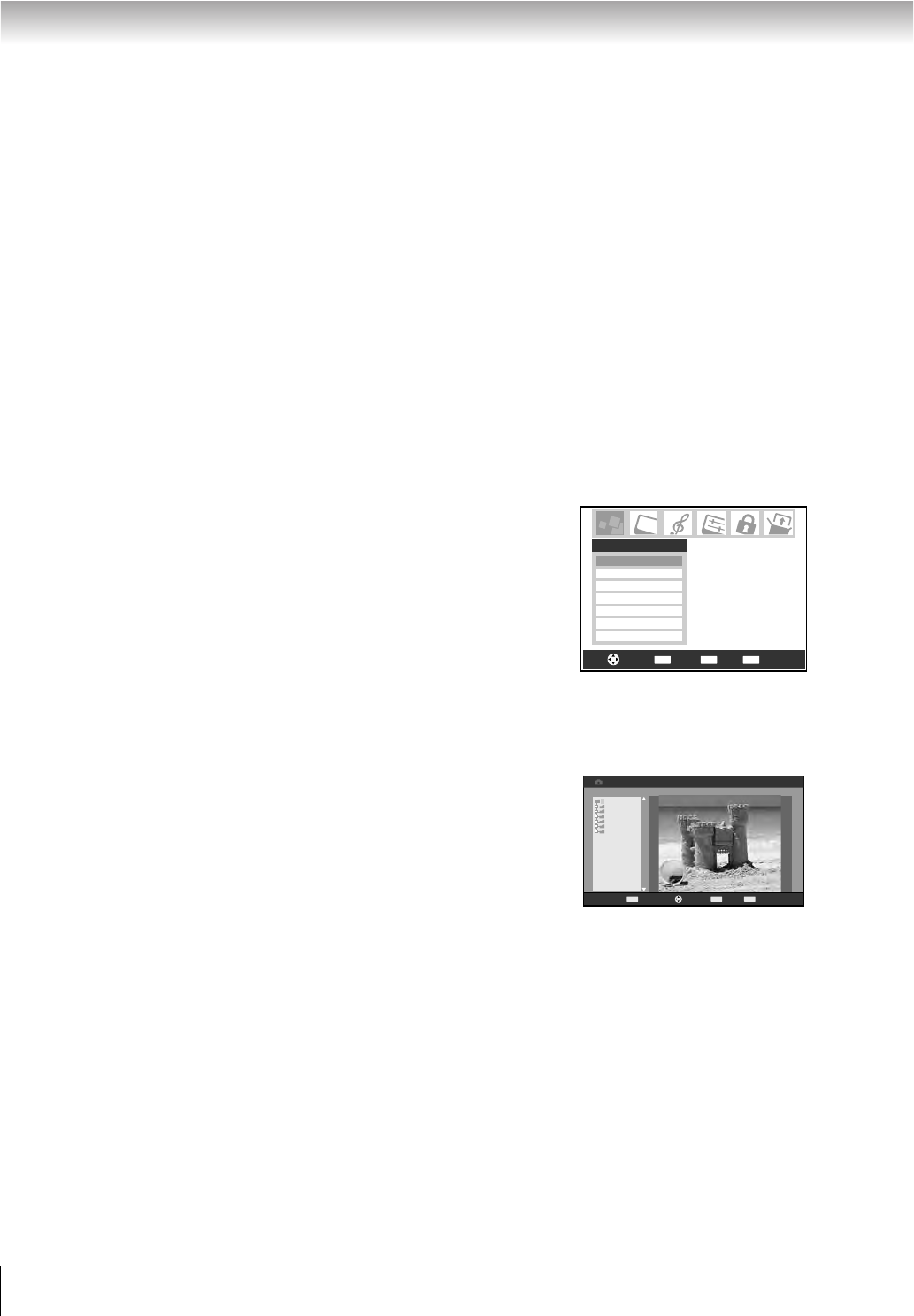

Accessing JPEG files stored on a networked PC

1Make sure you have correctly set up your home network

and file sharing (- pages 60–66 in this Guide; also see

the Installation Guide).

2Press Y and open the Applications menu.

3Highlight Picture Viewer and press T.

If the network is available, it will retrieve the JPEG

picture list via the network.

4Press B or b to access the folder or directory that contains

the JPEG pictures you want to view.

To expand a particular folder to view a list of images,

press c on the folder.

To close the folder or directory, press C on the folder.

Pressing C on a file will move the focus up to the folder

that contains the file.

Pressing c on a file will move the focus down to the next

folder.

If you press T on a particular folder, the first file in the

folder will be displayed as the first file in the thumbnail

list.

If you press T on a particular file, that file will be

displayed as the first file in the thumbnail list.

Note: You can use R to toggle between the thumbnail

and folder views. The last item selected will be highlighted

upon return to the Picture Viewer.

CH RTNENTER

EXIT

Navigate Select Back Exit

Picture Viewer

Audio Player

Personal E-mail

Channel Browser

TV Guide On Screen

CableCARD

Digital CC/Audio Selector

Applications

EXIT

ENTERCH RTN

Navigate

Picture Viewer

ExitSelectImage Select

//BEARD-DESK/C

Copy of isi mip

IQAWG_A

isiImip

INCD

WINNT

Documents and Settings

LZ196_EN.book Page 68 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 7: Using the THINC™ home network feature

Viewing JPEG files on the TV

1After accessing your JPEG files from your networked PC

(- page 68), the images automatically display on-screen,

with one as a large picture and six in thumbnail format.

2Press C to rotate the large picture 90° counterclockwise.

3Press c to rotate the large picture 90° clockwise.

4Press B or b to select another picture as the large picture.

5Press T to view your pictures in a slide show.

During the slide show:

•To stop on an image during the slide show, press T.

•To resume the slide show, press T again.

•To rotate the picture, press C or c.

•To select another image, press B or b.

•To stop the slide show and return to the picture viewer, press

•To stop the slide show and return to the regular TV screen,

press O.

To set the slide show interval:

1Press O to close the Picture Viewer (if it is open).

2Press Y and open the Setup menu.

3Highlight Slide Show Interval and press T.

4Select the interval from the menu sidebar (2, 5, 10, 15, or

20 seconds).

To view your JPEG files in Native Resolution mode:

Press < or , during the slideshow. This will expand the

image to its non-compressed format.

Press E to display a help bar that will show how to scroll to

the edges of the image using the Bb C c buttons.

To exit Native Resolution and return to the normal slideshow,

press T.

To return to the thumbnail view, press either O or R. If an

image is too large to display in Native Resolution mode

(6MB), a warning message will display.

To close the Picture Viewer:

Press O to close the Picture Viewer and return to the

regular TV screen.

EXIT

ENTERCH RTN

Rotate Next

Picture Viewer

ExitSlide Show

Page Up/DownFile Select

//ALLENMPC/Pics/Directory3/Subdirectory1/shelby concept.jpg.

3 of 8

Feb 10 05

2 of 8

Jun 25 01

1 of 8

Nov 2 05

6 of 8

Feb 10 05

5 of 8

Jun 25 01

4 of 8

Feb 8 05

EXIT

ENTERCH RTN

Rotate Next

Picture Viewer

ExitSlide Show

Page Up/DownFile Select

//ALLENMPC/Pics/Directory3/Subdirectory1/shelby concept.jpg.

3 of 8

Feb 10 05

2 of 8

Jun 25 01

1 of 8

Nov 2 05

6 of 8

Feb 10 05

5 of 8

Jun 25 01

4 of 8

Feb 8 05

EXIT

ENTERCH RTN

Rotate Next

Picture Viewer

ExitSlide Show

Page Up/DownFile Select

//ALLENMPC/Pics/Directory3/Subdirectory1/shelby concept.jpg.

3 of 8

Feb 10 05

2 of 8

Jun 25 01

1 of 8

Nov 2 05

6 of 8

Feb 10 05

5 of 8

Jun 25 01

4 of 8

Feb 8 05

CH RTNENTER

EXIT

Navigate Select Back Exit

Installation

Sleep Timer

PC Settings

On/Off Timer

Setup

PC Audio

Auto

2 Sec

HDMI 1 Audio

Slide Show Interval

2 Sec

15 Sec

10 Sec

20 Sec

5 Sec

LZ196_EN.book Page 69 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 7: Using the THINC™ home network feature

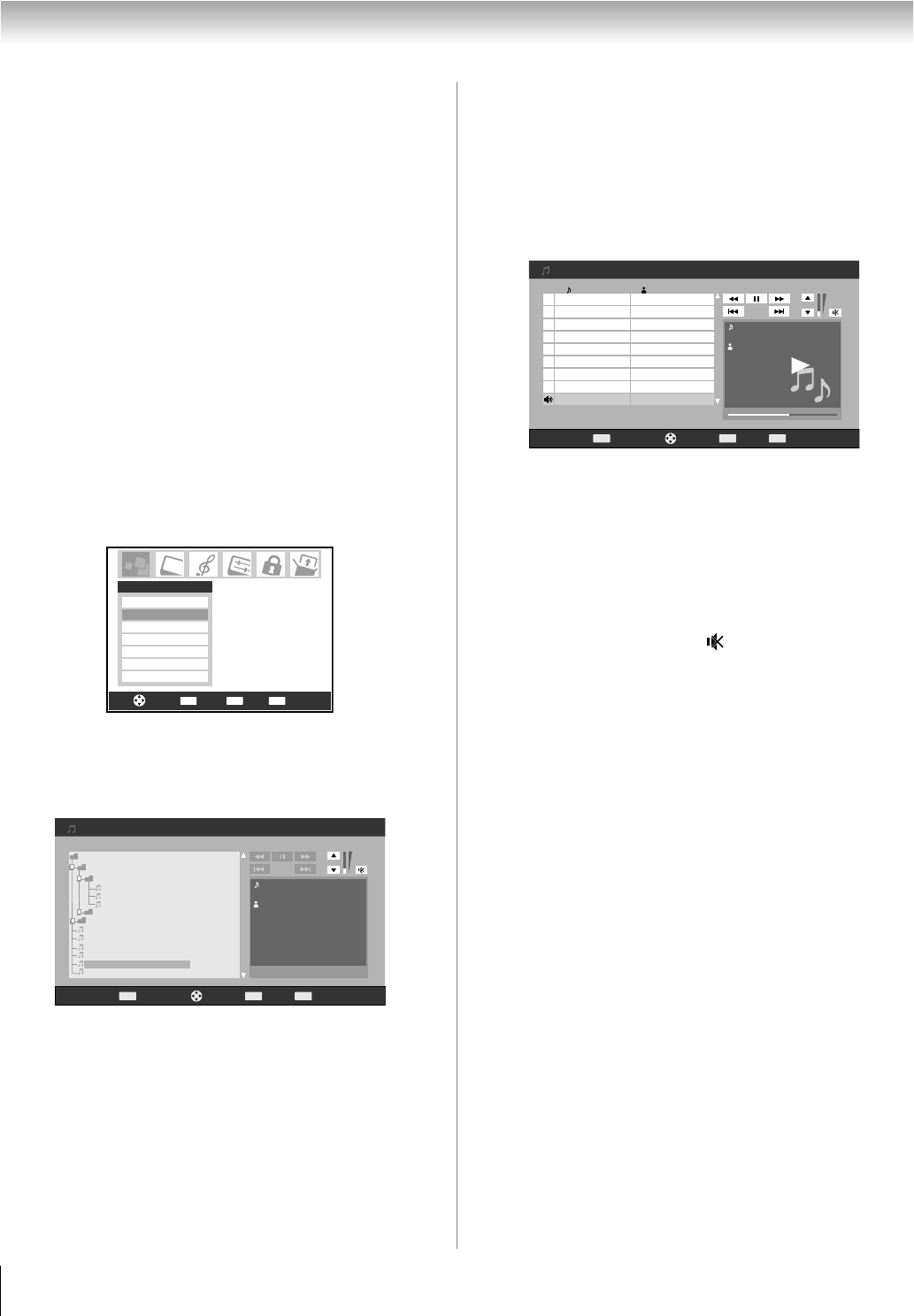

Using the Audio Player

You can use the TV’s Audio Player to listen to MP3 files on

the TV.

Note:

•Make all desired adjustments to the TV’s audio features

(e.g., surround, bass, treble, balance) before starting the

Audio Player.

•You cannot use the Picture Viewer and Audio Player at the

same time.

•You must obtain any required permission from

content. Toshiba cannot and does not grant such

permission.

Playing MP3 files stored on a networked PC

1Make sure you have correctly set up your home network

and file sharing (- pages 60–66 in this Guide; also see

the Installation Guide).

2Press Y and open the Applications menu.

3Highlight Audio Player and press T.

If the network is available, the TV will retrieve the MP3

file through the network.

4Press B or b to access the folder or directory that contains

the MP3 files you want to play.

To expand a particular folder to view a list of images,

press c on the folder.

To close the folder, press C on the folder.

Pressing C on a file will move the focus up to the folder

which contains the file.

Pressing c on a file will move the focus down to the next

folder.

If you press T on a particular folder, the first file in the

folder will display as the first file in the list in song select

view.

If you press T on a particular file, that file will display as

the first file in the list in song select view.

Note: You can use R to toggle between the thumbnail

and folder. The last item selected will be highlighted upon

return to the Audio Player.

5The Audio Player will begin playing the first MP3 file

in the list. Press BbC c to navigate to the rewind, pause,

fast forward, skip backward, skip forward, volume, and

mute buttons—or to select another MP3 file—and then

press T.

To adjust or mute the volume:

Press z Z or W on the remote control (see page 43 for

details on muting the sound), or press Bb C c to navigate to

the on-screen VOL and MUTE ( ) buttons and press T.

To close the Audio Player:

Press O to close the Audio Player and return to the regular

TV screen.

CH RTNENTER

EXIT

Navigate Select Back Exit

Picture Viewer

Audio Player

Personal E-mail

Channel Browser

TV Guide On Screen

CableCARD

Digital CC/Audio Selector

Applications

EXIT

ENTERCH RTN

Navigate ExitSelectSong Select

//ALLENMPC/MP3's/Dir1/Queen - pain Is Close to Pleasure.mp3

Dir 1

Dir 2

Queen - A Kinnd of Magic.mp3

Queen - Forever.mp3

Queen - Gimme the Prize.mp3

Queen - One Vision.mp3

Simon and Garfunkel - Cecilial.mp3

Sub 1

03 - Take Five.mp3

04 -

Lá Breá Fán Dtuath.mp3

05 - An Tûll.mp3

Sub 2

MP3,s

Queen - Pain is So Close to Pleasure.mp3

Audio Player

VOL

EXIT

ENTERCH RTN

Navigate ExitSelectFile Select

//ALLENMPC/MP3's/Dir1/Sub1/03-Moonlight Sonata.mp3

Audio Player

Title

Ser No.1 in D, Op.11... SCO/Sir Charles...

Requiem, Op. 5: IV. R... Robert Shaw/Atla...

Rapsodie Espagnole:... Jesus Lopez-Cobo...

III. Sanctus: Sanctu... Boston Baroque/M...

Piano Sonata, K. 545... A-M Classical

Pathétique Sonata, m... A-M Classical

A-M Classical

Chopin Prelude No. ... Andrys

Piano Sonata, K. 545...

A-M Classical

Moolight Sonata, mo...

A-M Classical

Moolight Sonata, movement

Artist

VOL

LZ196_EN.book Page 70 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 7: Using the THINC™ home network feature

F. Setting up Personal E-mail

The Personal E-mail Setup will allow up to 4 users to set up

profiles from which each profile may access their e-mail

account.

Required information and services

Before you can set up the personal e-mail feature, you must

have the following information and related services:

a) A valid POP3 e-mail account which you normally use to

receive e-mails.

b) Login and password settings for above.

c) Name or IP address of the incoming (POP3) mail server.

d) Name or IP address of the outgoing (SMTP) mail server.

To obtain the required e-mail services listed above, contact

your ISP.

To obtain the required addresses and settings listed above,

either contact your ISP or use the configuration utility for

your DSL/cable modem or router.

Note: If you set up any personal e-mail accounts on the TV,

any person with access to the TV will be able to read mail from

all of those accounts. If you connect the TV to the internet, any

person with access to the TV will be able to configure the TV to

access e-mail accounts for which they have account access

information (user name, password and server addresses). You

should consider these factors in deciding whether to set up

personal e-mail accounts and whether to keep the TV set

connected (or make available easy connection) to the internet.

Setting up personal e-mail

1Press Y and open the Setup menu.

2Highlight Installation and press T. The Installation

menu appears.

3Open the Network menu.

4Highlight Personal E-mail Setup and press T.

5The Personal E-mail Setup window appears.

Press B or b to highlight one of the blank profiles and

press T.

Note: If profiles have already been created, you can

select a profile and make updates/changes to the

personal information.

6The E-mail Profile Setup window will appear.

Highlight Display Name field and press T, the pop-up

software keyboard will appear.

Enter the display name using this software keyboard.

See “Using the software keyboard” (- page 67) for

instructions on entering data in the fields using the

software keyboard.

7Press b to highlight Check for New Mail, then press C

or c to select your desired setting.

•E-mail checking duration (Off, 5 min, 10 min, 15 min,

30 min, 60 min, 120 min). When the check for new mail

duration is set to Off, the new e-mail notifications will

not appear.

CH RTNENTER

EXIT

Navigate Select Back Exit

Basic Network Setup

Personal E-mail Setup

E-mail Scheduling Setup

Home File Server Setup

Software Upgrade

Network

Personal E-mail Setup

Please select a profile

Done

E-mail Profile Setup

Display Name

Check for New Mail

Cancel

Profile Lock

E-mail Account Setup

Enter PIN Code

Disabled

Every 5 minutes

100

Backspace

1 . , ? ! : ; a b c 2 A B C

j k l 5 J K L

t u v 8 T U V

& $

p q r s 7 P Q R S

@% # ~ _ | \ `

0 ' " ( ) =/ + - ^ <* > [ ] { }

g h i 4 G H I

Space

w x y z 9 W X Y Z

m n o 6 M N O

INPUT

d e f 3 D E F

Software keyboard example

(continued)

LZ196_EN.book Page 71 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 7: Using the THINC™ home network feature

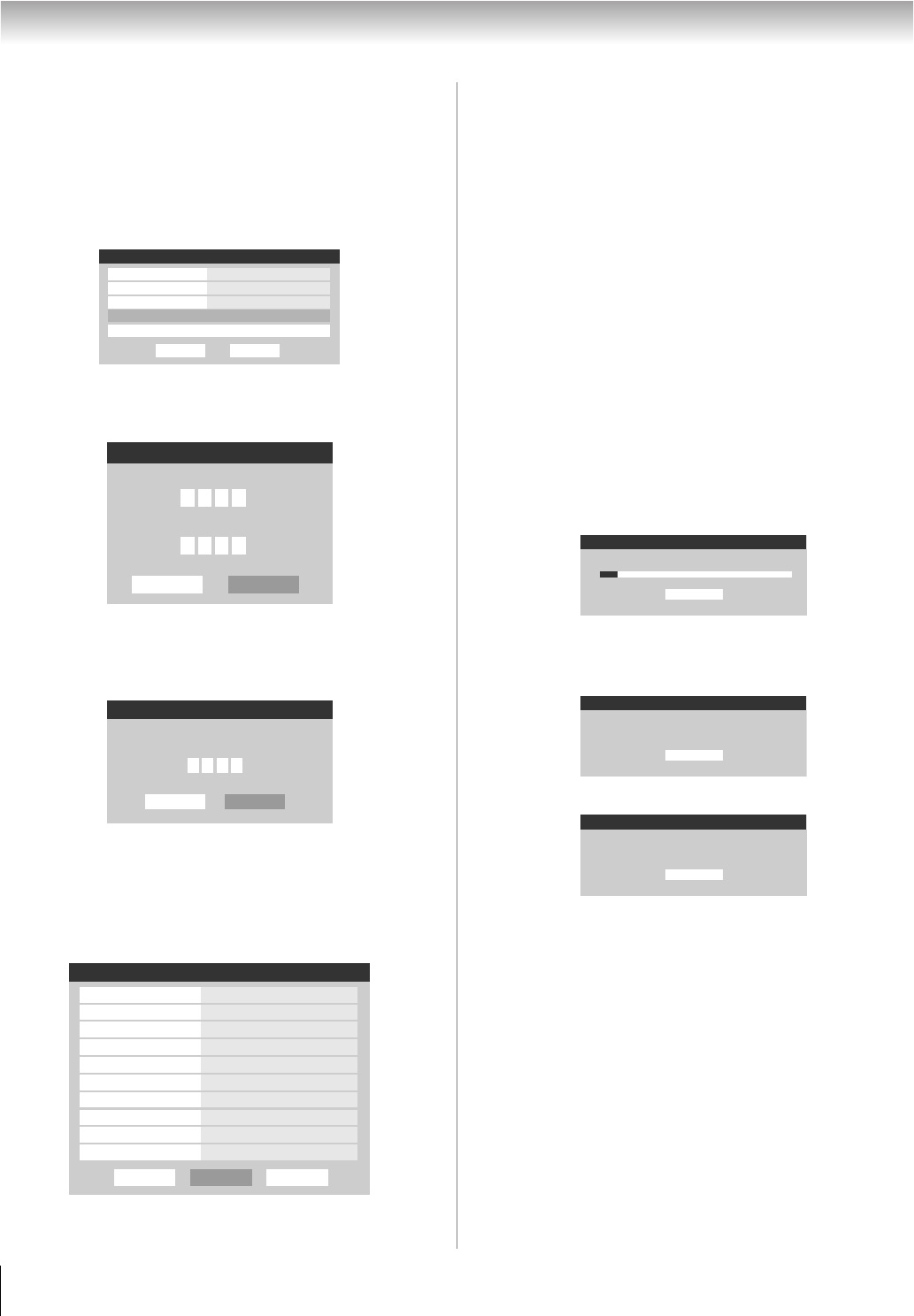

8You can choose to protect your profile settings and to

secure your e-mail from other TV user by activating PIN

code protection for the account.

If you want to activate PIN code protection:

a) Press b to highlight Profile Lock field, then press C

or c to select Abled.

b) Highlight Enter PIN Code field and press T.

c) Press Channel Number buttons to enter a new four-digit

code, enter the code a second time to confirm, and

press T.

Note: If the profile is being locked, E-mail Profile Unlock

window will appear. You can unlock the account by

entering the four-digit PIN set. Without the correct PIN, the

account will not be accessible.

If you cannot remember your PIN code, while the E-mail

Unlock Profile window is displayed, press recall four (4)

times within five (5) seconds. The PIN code will be cleared

and you can enter a new PIN code.

9Highlight E-mail Account Setup field, and press T.

The E-mail Account Setup window appears.

10 Highlight a particular field and press T. The pop-up

software keyboard will appear as shown in step 6.

Note: The pop-up software keyboard will change based

on the buttons that are available for the current item.

Using the pop-up software keyboard, enter the appropriate

information in the fields.

•E-mail Address

•POP3 Server Address

•POP3 Port Number: Uses to default if left blank

•POP3 User Name: this is e-mail account login

•POP3 Password: password

•SMTP Server Address

•SMTP Port Number: Uses to default if left blank

See “Description of fields in the E-mail Account Setup

window” (- page 78) for details on the settings for these

fields.

11 Highlight Test and press T to confirm the e-mail

account settings work correctly.

During testing, the TV will display the following

message.

12 When testing is finished, a message will appear indicating

whether the e-mail account test passed or not.

If the e-mail account test is successful:

If the e-mail account test failed:

13 Press T.

14 To exit the window and save your settings, highlight

Done and press T.

To exit the window without saving your settings, highlight

Cancel and press T.

Done

E-mail Profile Setup

Display Name

Check for New Mail

Cancel

Profile Lock

E-mail Account Setup

Enter PIN Code

Abled

Every 5 minutes

****

Please enter a 4 digit PIN code

Confirm PIN code

Cancel Done

E-mail Account Setup

E-mail Profile Unlock

has locked e-mail profile.

Please enter 4 digit code to unlock

Cancel

****

Done

Cancel

E-mail Account Setup

E-mail Address

POP3 Server Address

POP3 Port Number

POP3 User Name

SMTP Password

Test Done

POP3 Password

SMTP Server Address

SMTP Port Number

SMTP Authentication Not required

SMTP User Name

E-Mail Account Test

Connecting to POP3 server...

Cancel

E-Mail Account Test

All tests were successful.

E-Mail Account Test

All tests failed.

LZ196_EN.book Page 72 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 7: Using the THINC™ home network feature

G. Using the Personal E-mail

The Personal E-mail feature allows you to:

1) Create new e-mails

2) View and reply to received messages

3) Forward received messages

4) View attached JPEG files (*Users will not be able to attach

files to messages that they send.)

In addition, multiple user accounts can be created (up to 4

users). These profiles can be PIN (- page 71) protected to

prevent unwanted activity.

Access to this feature will be available from several different

windows.

•By selecting Personal E-mail from the Applications

menu.

•By bringing up the THINC menu and selecting Personal

E-mail.

•By pressing T when the “unread e-mail notification”

appears (see below).

Unread E-mail Notification

The envelope notification will appear at the bottom right hand

corner of the screen when the TV detects unread e-mail in a

user’s inbox. It will show the user’s name and number of

unread messages.

Note:

•The frequency at which the system checks for unread

messages can be controlled by the user from the item

“Check for New Mail” in the E-mail Profile Setup menu

(- page 71).

•This message will not be displayed while other applications

such as Picture Viewer, Audio Player, etc. are running.

•This message will not be included in any video recorded

from the TV using the video outputs.

Press T while the unread e-mail is displayed to open the

Inbox View.

You can dismiss the unread e-mail notification and continue

watching TV by pressing O.

E-mail Inbox

You can bring up the inbox view by pressing T while the

unread e-mail icon is being displayed. From the inbox view,

you can view a list of e-mails received with unread messages

denoted by an envelope icon.

1PIP window

As a special feature, you can continue viewing the current

channel through a PIP (picture-in-picture) window that

will be provided on the LEFT-hand side of the inbox view.

(You can change channels in the PIP window by pressing

< / , on the remote control unless the TV is currently

recording.)

2From and Subject information will be shown for each

message.

3User name

4Scroll arrows

You can scroll down through additional messages one-by-

one using B b or page-by-page using x / X. Up to

100 messages can be accessed in the inbox.

5(Refresh) button will remove messages marked for

deletion and check for newly arrived messages.

6Various icons will convey information about messages in

the Inbox.

(Trash Can) mark will indicate that a message has

been marked for deletion. To mark a message for deletion,

you will select the message and press j. To remove the

delete mark, you can press j again.

A purple envelope will indicate that a message is new

and has not yet been viewed. After viewing, the envelope

will disappear.

A paperclip will indicate that a message has a jpeg

attachment.

A red "No Entry" sign will indicate that the size of a

message is too large and it cannot be opened. The

maximum allowable message size is 300 KB.

my name x 57

Personal E-mail Inbox Adam

Read Scroll New Message

EXIT

Exit

Delete

Anne

Nancy

Kent

07/14/06 10:40 AM

09/14/06 10:40 AM

09/14/06 10:50 AM

09/14/06 11:10 AM

09/14/06 11:15 AM

09/14/06 11:20 AM

09/14/06 11:30 AM

09/14/06 11:40 AM

09/14/06 11:48 AM

09/14/06 11:55 AM

Ben

Ichiro

Nancy

Lucy

Nakata

Eve

Ben

E-mail

Pictures

Fw:Pictures

Fw: Fwd: FW: Party

Re: Party

Re: Happy Birthday

Fw: Party

Party

RE: Happy Birthday

Fw: Party

Refresh

From Received Subject

Navigate

ENTER +PAGE PAGE

(continued)

LZ196_EN.book Page 73 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 7: Using the THINC™ home network feature

7Read, New Message, Delete

From the inbox view, you can reply to messages, forward

messages, delete messages, or create new messages by

pressing the appropriate buttons as shown in the guide at

the bottom of the screen. You cannot add attachments to

an outgoing e-mail, but you may forward an e-mail that

includes attachments.

Note: If you delete an e-mail on the TV, it will also be

deleted from the e-mail server identified in the account

setup–even if the message indicates that it cannot be

read by the TV.

8Exit

Pressing O at any time will always close the Personal

E-mail and return to the regular TV screen on the last

channel viewed.

Read View

To read mail:

From the E-mail Inbox window, select the mail you want to

read and press T. The read view shown below will appear.

From the read view, you can scroll up and down to view the

entire message by using B b.

If you wish to reply to the current message, press f. If the

e-mail has more that one recipients, press g to reply to all

(attachments will be discarded). To forward an e-mail to other

recipients, press h (attachments will be included).

When a JPEG attachment is present, you can view this from the

Picture Viewer. Highlight the JPEG attachment icon and press

To return to the Read View from the Picture Viewer, press O.

To return to the Inbox View from the Read view, press R.

Pressing O at any time will always close the Personal E-mail

and return to the regular TV screen on the last channel viewed.

Navigate

ENTER

CH RTN

View JPEG

Inbox

Reply All

ForwardScroll

EXIT

Exit

From: "Nancy" <Nancy@XXXX.com>

To: "my TV" <Tom @cXXX.net >

Cc:

Subject: FW: Pictures

xxxxxxx xxxx xxxxxxxxxxxxxxx

Xxxxxxxx xxxxxx xxxx xxxxxxx xxxxxxxxx xxxx xx xxxxxxxxxxx xxxxxxxx xxxxxx xxxxxxx.

Xxxxx xxxxxx xx xxxxxx xxxxxxxxx xxxxxxxxxx xxxxxx xxx xxxxxxxxx xxxxxxxxxxxxxxxx xxxxxx.

Xxx xxxxx xxxxxxxxx xxxxxx

1. xxxxxxxx xx xxx x x xxxxxxxxxx xxxxxxxxxx

2. xxxxxx xxxxxx xx xxxxxxxxx xxx xxxxxxxxxx xxxxx xxx x x xxxxxx xxxx

3. xxxxx xxxxxx xxxx xxxxxxx xxxxxx xxxxxxxxxxxxxxxx (xxxxxxxx xx xxxxxxxx xxxxx xxxxx)

4. xxxxxx xxxxxx xx xxxxxx xxxxx, xxxxxxxxx

5. xxx xxxxxx xxxxxxx xxxxxx xxxxxxxxxx xxxxxxxxxxx xxx xxxxxxx

6. xxxx xxxxxxxx xxxxxxxxxxxxx xxxxxxxx xx xxxxxxx xxxxxxxxx xxxxxxxxx

7. xxxxxxx xxxxxxx xxxx xxxxxxxxxxxxx xxxxxxxxxxxxxxxxxx xxxxxxxx xxxxxxxx

Personal E-mail Read Adam

jPEG x 5 unknownx 1

+PAGE

PAGE-

LZ196_EN.book Page 74 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 7: Using the THINC™ home network feature

Message editing views

When composing an e-mail, you can move through the fields

(To, from, Cc subject) with C cBb on your remote, and edit

those fields by pressing T. From the Read View, you can

reply or forward that message (- page 74), and the screen will

enter message editing view.

When sending messages to more than one recipient, you must

enter the “To” or “Cc” field and choose, “Add new recipient.”

To delete a recipient, highlight it, then immediately highlight

the Delete button using C on your remote control and press T.

H. Setting up e-mail scheduling

You can remotely schedule and delete recordings and

reminders by sending an e-mail to the TV from any PC.

Note:

•If you have not already done so, follow the instructions in

sections A and B (- page 60), before proceeding.

•Before you can schedule recordings, the time and date in

the TV Guide On Screen feature must be set (- “Setting the

time and date” on page 28).

Required information and services

Before you can set up the e-mail scheduling feature, you must

have the following information and related services:

a) A valid POP3 e-mail address dedicated for use by the TV

only.

Note: The e-mail address assigned to the TV must be a

dedicated POP3 address, different from your personal e-

mail address. Assigning your personal e-mail address to the

TV will eventually lead to the deletion of all of your personal

e-mails (including attachments). This is NOT covered under

the Toshiba warranty.

b) A personal e-mail address (different from the TV’s

dedicated e-mail address) from which you can send

e-mails to the TV.

c) Login and password settings for the TV’s POP3 e-mail

account.

d) Name or IP address of the incoming (POP3) mail server.

e) Name or IP address of the outgoing (SMTP) mail server.

To obtain the required e-mail services listed above, contact

your ISP. You may also be able to use the “home page” or

“configuration portal” supplied by your ISP to configure

additional e-mail accounts.”

To obtain the required addresses and settings listed above,

either contact your ISP or use the configuration utility for

your DSL/cable modem or router.

Note:

•Toshiba is not responsible for any damage or loss

caused directly or indirectly by the failure of the e-mail

scheduling feature to record content intended to be

recorded.

•Toshiba is not responsible for, nor has any control over,

any content recorded and/or viewed using the e-mail

scheduling feature. Further, the e-mail scheduling

feature is not meant to be used for unauthorized

recording and/or viewing of copyrighted works.

•The recording, use, distribution or revision of television

programs, videotapes, DVDs and other materials in

violation of applicable laws (including copyright law)

and/or agreements may subject you to criminal and civil

liability.

--------------------.Original message:

From: "Tom"

To: "Adam"

Received: from xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

Subject: Picture

Select

ENTER

CH RTN

Edit

Cancel

Send

EXIT

Exit

From: "Adam" <Adam@XXXX.com>

To: "Tom" <Tom @cXXX.net >

Cc:

Subject: Re: Pictures

Xxx xxxxx xxxxxxxxx xxxxxx

xxxxxxxx xx xxx x x xxxxxxxxxx xxxxxxxxxx

xxxxxx xxxxxx xx xxxxxxxxx xxx xxxxxxxxxx xxxxx xxx x x xxxxxx xxxx

xxxxx xxxxxx xxxx xxxxxxx xxxxxx xxxxxxxxxxxxxxxx (xxxxxxxx xx xxxxxxxx xxxxx xxxxx)

xxxxxx xxxxxx xx xxxxxx xxxxx, xxxxxxxxx

xxx xxxxxx xxxxxxx xxxxxx xxxxxxxxxx xxxxxxxxxxx xxx xxxxxxx

Personal E-mail Reply Adam

Personal E-mail Address List Adam

Cursor

CH RTN

Back

EXIT

Exit

Add new recipient

Delete

100

Backspace

1 . a b c 2

j k l 5

t u v 8

pq r s 7

gh i 4

w x y z 9

m n o 6

d e f 3

For home network troubleshooting tips, see Chapter 8.

LZ196_EN.book Page 75 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 7: Using the THINC™ home network feature

Setting up e-mail scheduling

1Press Y and open the Setup menu.

2Highlight Installation and press T. The Installation

menu appears.

3Open the Network menu.

4Highlight E-mail Scheduling Setup and press T. The

E-mail Scheduling Setup window opens.

5Enter the required data in the fields.

See “Description of fields in the E-mail Scheduling Setup

window” (- page 77) for details on the settings for these

fields.

•For the fields listed below, press B or b to highlight the

field, and then press C or c to select the settings:

– E-mail Scheduling: On or Off

– Check for New Mail: Options are 5 min,

15 min, 30 min and 1 hour.

– ID Required: Yes or No

•For the fields listed below, press B or b to highlight the

field, press T to open the software keyboard window

for the selected field, and then enter the required

information using the software keyboard:

–ID

– Authorized E-mail

See “Using the software keyboard” (- page 67) for

instructions on entering data in the fields using the

software keyboard.

6Highlight E-mail Account Setup, then press T. The

E-mail Account Setup window will appear.

7Enter the data in the fields as you did in step 5. See

“Description of fields in the E-mail Account Setup

window” (- page 78) for details on the settings for these

fields.

Press B or b to highlight the field, press T to open the

software keyboard window for the selected field, and then

enter the required information using the software

keyboard:

– E-mail Address

– POP3 Server Address

– POP3 Port Number

– POP3 User Name

– POP3 Password

– SMTP Server Address

– SMTP Port Number

– SMTP Authentication

– SMTP User Name

– SMTP Password

8When you are finished entering all characters for the

selected field, highlight Test and press T to test the

e-mail setup.

During testing, the TV will display the E-Mail Account

Test window.

Note: Depending on your configuration, the e-mail test

can take several minutes. Do not press O during this

time.

9When testing is finished, a message will appear indicating

whether the e-mail test passed or not.

If the e-mail test passes:

The “All tests were successful” message (shown below)

will appear.

Done

E-mail Scheduling Setup

Check for New Mail

Cancel

Every 5 minutes

Yes

ID Required

E-mail Account Setup

Authorized E-mail

E-mail Scheduling On

Display Name

Check for New Mail

Authorized E-mail

Every 5 minutes

DoneCancel

E-mail Account Setup

100

Backspace

1 a b c 2 A B C

j k l 5 J K L

t u v 8 T U V

p q r s 7 P Q R S

g h i 4 G H I

w x y z 9 W X Y Z

m n o 6 M N O

d e f 3 D E F

Cancel

E-mail Account Setup

E-mail Address

POP3 Server Address

POP3 Port Number

POP3 User Name

SMTP Password

Test Done

POP3 Password

SMTP Server Address

SMTP Port Number

SMTP Authentication Not required

SMTP User Name

E-Mail Account Test

All tests were successful.

LZ196_EN.book Page 76 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 7: Using the THINC™ home network feature

If the e-mail test does not pass:

a) An error message and code will appear on-screen

(similar to the example below).

b) Make sure you entered the correct information for the

fields in the E-mail Account Setup window. Repeat

steps 7-8.

10 To exit the E-mail Scheduling Setup window and

save your settings, highlight Done and press T.

To exit the E-mail Scheduling Setup window without

saving your settings, highlight Cancel and press T.

Description of fields in the “E-mail

Scheduling Setup” window

For instructions on entering data in these fields, see step 5

under “Setting up e-mail scheduling” (- page 76).

E-mail Scheduling

You can select On or Off for the E-mail Scheduling field.

–When this field is set to On, it will be possible for the TV

to receive e-mails from any PC to remotely schedule and

modify recordings and reminders.

–When this field is set to Off, it will not be possible for the

TV to receive any e-mail, the other fields in this window will

be disabled (“grayed out”), and it will not be possible to

remotely schedule recordings or reminders via e-mail.

Check for New Mail

This field controls the frequency of checking e-mail. Options

are 5 min, 15 min, 30 min, and 1 hour.

ID Required

You can select Yes or No for the ID Required field.

–When this field is set to Yes (recommended), the ID you

entered in the “ID” field must be included in all e-mails you

send to the TV. This is a security feature to protect your TV

from unauthorized e-mail access.

–When this field is set to No, you do not need to include the

ID in e-mails you send to the TV.

Use the software keyboard to enter six to 16 numbers and/or

letters to create your ID (spaces and punctuation are not

allowed).

Note:

•To help protect your privacy, you may want to choose an ID

that is different from any of your usual passwords or security

PINs (e.g., different from your personal e-mail password,

banking login code, social security number, etc.).

•The ID is case sensitive.

Authorized E-mail

Enter the single e-mail address that is authorized to send

e-mails to the TV (e.g., your personal e-mail address).

IMPORTANT NOTE

To use e-mail scheduling, you must first set up the

TV Guide On Screen™ system. E-mail scheduling will

not be available unless the TV Guide On Screen™ system is

fully operational. See the separate TV Guide On

Screen™ Interactive Program Guide for details on

setting up the TV Guide On Screen™ system.

If you experience any issues with e-mail scheduling, please

contact the following:

•In the U.S., call TACP Consumer Solutions at

1-800-631-3811 or visit

http://www.tacp.com/

customersupport/contact.asp.

•In Canada, call TCL Customer Service at

1-800-268-3404 or visit http://www.toshiba.ca.

For home network troubleshooting tips, see Chapter 8.

E-Mail Account Test

All tests failed.

Done

E-mail Scheduling Setup

Check for New Mail

Cancel

Every 5 minutes

Yes

ID Required

E-mail Account Setup

Authorized E-mail

E-mail Scheduling On

LZ196_EN.book Page 77 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 7: Using the THINC™ home network feature

Description of fields in the “E-mail Account

Setup” window

E-mail Address

Use the software keyboard to enter the TV’s dedicated e-mail

address (different from your personal e-mail address). You

will send e-mails to this address to add, modify, or delete

schedules and reminders.

POP3 Server Address

Use the software keyboard to enter the POP3 server address

that hosts the TV’s e-mail account.

Note: The TV does not support encrypted e-mail.

POP3 Port Number

Denotes the port number used by the user’s POP3 (incoming

mail) server. This is set to 110 by default.

POP3 User Name

Use the software keyboard to enter the TV’s e-mail account

address or just the characters in the e-mail address before the

“@” sign.

POP3 Password

Use the software keyboard to enter the password for the TV’s

e-mail account.

Note: To help protect your other personal Internet or e-mail

accounts, create a password that is significantly different from

any of your usual passwords and security PINs (e.g., different

from your e-mail password, banking log-ons, social security

code, etc.).

SMTP Server Address

Use the software keyboard to enter the SMTP mail server

associated with the TV’s e-mail account. (The TV will use this

server for sending reply e-mails to your personal e-mail

account.)

SMTP Port Number

Denotes the port number used by the user’s SMTP (outgoing

mail) server. This is set to 25 by default. Some ISPs block this

port to prevent mail relay attacks and specify an alternate port.

SMTP Authentication

This field controls the SMTP authentication feature, and is set

to Off by default. Setting this to “Same as POP” fills the SMTP

Username and SMTP Password fields with the data filled in

the “POP3 User Name” and “POP3 Password” fields. Select

“Different” if the username and password for your outgoing

(SMTP) mail server are different from your incoming (POP3)

mail server.

SMTP User Name

This field holds the user name required by the SMTP (outgoing

email) server. This is typically the same as the “POP3 User

Name” field, but may be different depending on the ISP/SMTP

server used. This field is enabled only if SMTP authentication

field above is set to “Different.”

SMTP Password

This field holds the password required by the SMTP server.

This is typically the same as the “POP3 Password” field used

to receive e-mails, but may be different depending on the ISP/

SMTP server used. This field is enabled only if SMTP

authentication field (described above) is set to “Different.”

Note: There are several techniques used for SMTP

authentication by e-mail providers. Only the most commonly

used techniques (Network address-based, “POP before

SMTP,” and “AUTH LOGIN”) are provided for your TV e-mail

scheduler. SSL and TLS are currently not supported.

Cancel

E-mail Account Setup

E-mail Address mymail@isp.com

pop.isp.com

POP3 Server Address

POP3 Port Number

POP3 User Name

SMTP Password

Test Done

110

user_name

POP3 Password ******

smtp.isp.com

SMTP Server Address

SMTP Port Number

SMTP Authentication

Same as POP3

******

SMTP User Name user_name

For home network troubleshooting tips, see Chapter 8.

LZ196_EN.book Page 78 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 7: Using the THINC™ home network feature

I. Using e-mail scheduling

You can use the e-mail scheduling feature to schedule and

delete recordings and reminders by sending a “request e-mail”

to the TV’s e-mail address from any PC.

The four commands the TV will accept are ADD, DELETE,

GET, and HELP, as described in this section.

If you have not already done so, follow the instructions in

sections A and B (- page 60), and in section H (- page 75),

before proceeding.

When a recording is scheduled via e-mail, the recording device

used will be the VCR connected to the TV's analog A/V OUT

terminals (see item 4 on page 9 for the location of the A/V

OUT terminals; see the separate Installation Guide for various

VCR connection examples).

E-mail parameters

Note: Some e-mail clients automatically insert e-mail

signatures, which the TV will try to process. These may

generate unwanted error messages.

•The maximum allowable e-mail size is 16 KB. E-mails over

16 KB will be automatically deleted.

•E-mails sent to the TV cannot contain any attachments. The

TV will automatically delete any e-mail with an attached

file.

•E-mails can be formatted either Plain Text or Rich Text

Format (HTML style).

•E-mails sent to the TV that are not properly formatted,

are from the wrong e-mail address, or have the wrong ID

(if specified) will be deleted.

•All e-mails sent to the TV will be deleted eventually.

Note:

•Toshiba is not responsible for any damage or loss

caused directly or indirectly by the failure of the e-mail

scheduling feature to record content intended to be

recorded.

•Toshiba is not responsible for, nor has any control over,

any content recorded and/or viewed using the e-mail

scheduling feature. Further, the e-mail scheduling

feature is not meant to be used for unauthorized

recording and/or viewing of copyrighted works.

•The unauthorized recording, use, distribution, or

revision of television programs, videotapes, DVDs, and

other materials is prohibited under the Copyright Laws

of the United States and other countries, and may

subject you to civil and criminal liability.

Sending a request e-mail to the TV

To send a request e-mail to the TV:

1Format the e-mail following according to the instructions

under “Formatting a request e-mail” on the next page.

2Send the e-mail to the TV.

3After the TV receives and processes the e-mail, the TV

will send a reply e-mail indicating whether the e-mailed

request succeeded or failed. See “Receiving an e-mail

from the TV” (- page 81).

LZ196_EN.book Page 79 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 7: Using the THINC™ home network feature

Formatting a request e-mail

Recognized tags

When you send an ADD, DELETE, GET, or HELP request

e-mail to the TV, the TV will recognize only the tags listed

below. These tags (and their accompanying data) must be

listed in the body of the request e-mail in the following order:

•ID [your ID*]

(not required if you set the “ID Required” field to Off)

•COMMAND ADD

(or COMMAND DELETE or COMMAND GET or

COMMAND HELP)

•INPUT [name of input to record]

•CHANNEL [channel number of recording or reminder]

•DATE [date of recording or reminder]

•START TIME [start time of recording or reminder]

•DURATION [length of recording or reminder]

•TYPE RECORD

(or TYPE REMIND)

Tag and data formats

The data for each tag can be formatted in various ways, as

described in the following table:

*The ID is case sensitive. The ID tag is required only if you created

an ID in the “ID” field and set the “ID Required” field to On. If you

set the “ID Required” field to Off, you do not need to include the ID

tag line in your request e-mail. See “Description of fields in the

E-mail Scheduling Setup window” (- page 77).

**“Set-top box” and “STB” refer to a satellite set-top box.

Sample request e-mails

•The examples shown below are for illustration purposes

only.

•Styles applied to the sample e-mail text (such as bold, italic,

and underline) are for illustration purposes only. You do not

need to style the text in your request e-mails.

•The only text in a request e-mail that is case sensitive is the

ID. All other text is not case sensitive.

ADD request e-mail

The ADD request allows you to schedule a new recording or

reminder.

The required tags for an ADD request e-mail are (in this

order):

•ID [your ID*]

(not required if you set the “ID Required” field to Off)

•COMMAND ADD

•INPUT [name of input]

•CHANNEL [channel number of recording or reminder]

•DATE [date of recording or reminder]

•START TIME [start time of recording or reminder]

•DURATION [length of recording or reminder]

•TYPE RECORD ...or... TYPE REMIND

GET request e-mail

When you send a GET request e-mail to the TV, you will

receive a reply e-mail that lists all currently scheduled

recordings and/or reminders.

The only required tag and data for a GET request e-mail is

GET.

Tag formats Data formats

ID* [6- to 16-character alphanumeric]

MYID1234* (example only)

COMMAND

(or CMD)

ADD

DELETE (or DEL)

GET

HELP

INPUT

(or INP)

ANT1 (or ANT-1)

ANT2 (or ANT-2)

CABLEBOX (or CB)

SETTOPBOX (or STB)**

CHANNEL

(or CH)

5 … 38 … 100 … 5-1 … 120-1

[Use a hyphen for digital channels]

DATE

7-4 (or 7-4-05 or 7-4-2005 or 7/4/05, etc.)

[If the year is not specified, the current

year is assumed.]

START TIME

(

START)

8AM ... 9:30PM

[Noon = 12PM; Midnight = 12AM]

DURATION

(or DUR)

30M (or 30MIN)

2H30M (or 2HR30MIN or 2:30)

TYPE RECORD (or REC)

REMIND (or REM)

Sample

ADD

request e-mail

to schedule a new

recording:

Sample ADD request e-mail

to schedule a new reminder:

To: [TV’s email address]

[Subject can be left blank]

To: [TV’s email address]

[Subject can be left blank]

ID MYID1234*

COMMAND ADD

INPUT ANT-1

CHANNEL 102-1

DATE 06/10/2005

START TIME 7 PM

DURATION 2H15M

TYPE RECORD

ID MYID1234*

cmd add

input cb

ch 4

date 7-4

start 8:30pm

dur 1hr

type remind

Sample GET request e-mail:

To: [TV’s email address]

[Subject can be left blank]

GET

LZ196_EN.book Page 80 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 7: Using the THINC™ home network feature

DELETE request e-mail

The DELETE request allows you to cancel a scheduled

recording or reminder.

The required tags for a DELETE request e-mail are (in this

order):

•ID [your ID*]

(not required if you set the “ID Required” field to Off)

•COMMAND DELETE

•INPUT [name of input]

•CHANNEL [channel number of recording or reminder]

•DATE [date of recording or reminder]

•START TIME [start time of recording or reminder]

•DURATION [length of recording or reminder]

•TYPE RECORD ...or... TYPE REMIND

HELP request e-mail

When you send a HELP request e-mail to the TV, you will

receive a reply e-mail that contains helpful information about

formatting a request e-mail (syntax, definition of the various

commands, etc.).

The only required tag for a HELP request e-mail is HELP.

*The ID is case sensitive.

The ID tag is required only if you created an ID in the “ID” field and

set the “ID Required” field to On. If you set the “ID Required” field

to Off, you do not need to include the ID tag line in your request

e-mail. See “Description of fields in the E-mail Scheduling Setup

window” (- page 77).

Receiving an e-mail from the TV

If the request e-mail was successful, the reply e-mail from

the TV to your PC will contain one of the following (or similar)

messages, depending on the command you sent to the TV:

•ADD SUCCESS

•DELETE SUCCESS

•GET SUCCESS

•HELP SUCCESS

If the request e-mail was not successful, the reply e-mail

from the TV to your PC will contain one of the following (or

similar) messages, depending on the command you sent to the

TV:

•FAILED – SCHEDULE CONFLICT.

The new recording or reminder you attempted to schedule

conflicts with an existing one that was previously scheduled.

If you want to schedule the new recording or reminder, you

will have to DELETE the existing one first, and then ADD

the new one.

•FAILED – COULD NOT UNDERSTAND “Line x.”

The request e-mail has an error in the line of text referenced

in the error message. Correct the text and resend the e-mail.

•FAILED – NO DEVICE AVAILABLE.

Make sure you have a recording device connected to the TV

and that all cables are properly connected.

•FAILED – MISC ERROR.

Make sure all devices and cables are properly connected and

that the text in the body of your e-mail is correct, and then

send the corrected e-mail to the TV.

Modifying an existing recording or

reminder

To modify an existing scheduled recording or

reminder:

1Send a DELETE request e-mail to cancel the existing

recording or reminder.

2Send an ADD request e-mail to schedule the modified

recording or reminder.

Sample DELETE request

e-mail to delete an existing

recording:

Sample DELETE request

e-mail to delete an existing

reminder:

To: [TV’s email address]

[Subject can be left blank]

To: [TV’s email address]

[Subject can be left blank]

ID MYID1234*

COMMAND DELETE

INPUT ANT-1

CHANNEL 102-1

DATE 06/10/2005

START TIME 7 PM

DURATION 2H15M

TYPE REC

ID MYID1234*

cmd del

input cb

ch 4

date 7-4

start 8:30pm

dur 1hr

type rem

Sample HELP request

e-mail:

To: [TV’s email address]

[Subject can be left blank]

HELP

For home network troubleshooting tips, see Chapter 8.

LZ196_EN.book Page 81 Tuesday, August 1, 2006 6:04 PM

LZ196 (E/F) Web 213:276

Chapter 8: Troubleshooting

General troubleshooting

Before calling a service technician, please check this chapter

for a possible cause of the problem and some solutions you can

try.

Black box on screen

•The Closed Caption feature is set to one of the Text

modes (T1, T2, T3, or T4). Set the Closed Caption

feature to Off (- page 42).

LED indications while in reboot from standby

•When you plug the power cord in the red LED will blink

until the TV enters standby mode, (plugged in but not

powered on). This is normal and is not a sign of

malfunction.

TV stops responding to controls

•If the TV stops responding to the controls on the remote

control or TV control panel and you cannot turn off the

TV, press and hold the POWER button on the TV control

panel for 5 or more seconds to reset the TV.
