9” X 20” GEARED HEAD, BELT
DRIVEN, BENCH LATHE
Model
45861
SET UP AND OPERATING INSTRUCTIONS
Distributed exclusively by Harbor Freight Tools®.
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright© 2008 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any
artwork contained herein may be reproduced in any shape or form without the express written
consent of Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due
to continuing improvements, actual product may differ slightly from the product described herein.
For technical questions or replacement parts, please call 1-800-444-3353.
Page 2SKU 45861 For technical questions, please call 1-800-444-3353.
CONTENTS
IMPORTANT SAFETY
INFORMATION ............................ 3
GENERAL POWER TOOL
SAFETY WARNINGS.......................3
LATHE SAFETY WARNINGS ............5
GROUNDING ................................. 6
GROUNDED TOOLS: TOOLS
WITH THREE PRONG PLUGS .......6
EXTENSION CORDS .........................7
SYMBOLOGY .....................................7
SPECIFICATIONS .......................... 9
UNPACKING .................................. 9
LIST OF CONTENTS ..........................9
INSTRUCTIONS FOR PUTTING
INTO USE .................................... 9
MOUNTING .........................................9
FUNCTIONS .....................................10
OPERATING INSTRUCTIONS .... 10
TOOL SET UP ..................................10
WORKPIECE AND WORK AREA
SET UP ..........................................10

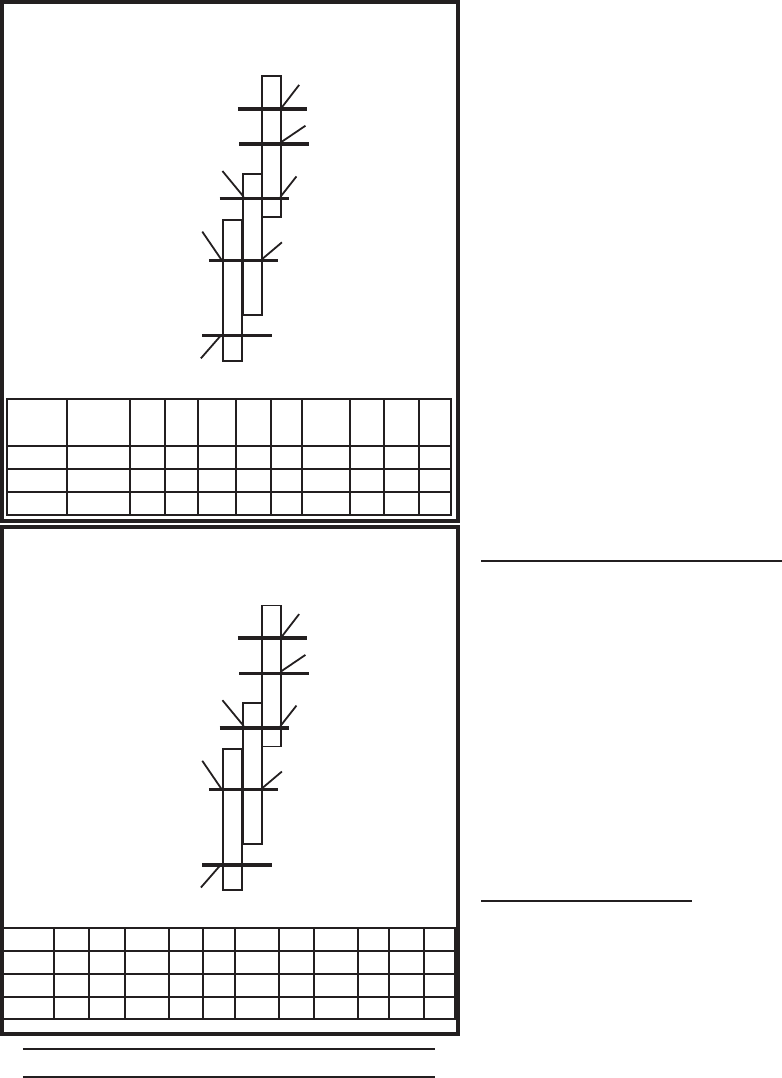

SPINDLE SPEEDS ........................... 14
GENERAL OPERATING
INSTRUCTIONS ............................16
MAINTENANCE AND
SERVICING ............................... 19
CLEANING AND MAINTENANCE ...19
LUBRICATION ..................................19
HEADSTOCK PARTS LIST ......... 21
HEADSTOCK DIAGRAM ............. 21

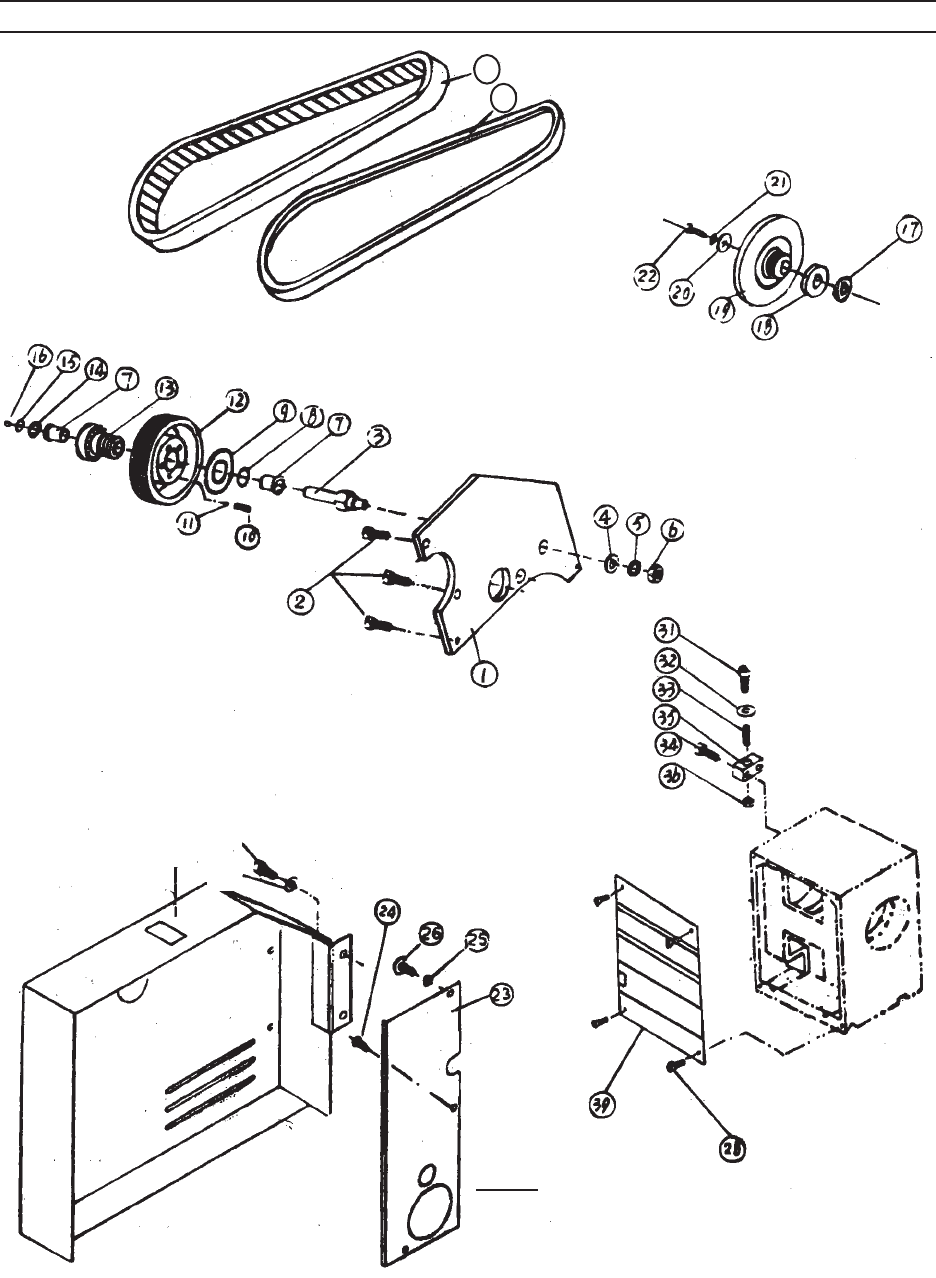

DRIVE PARTS LIST ..................... 22
DRIVE DIAGRAM ........................ 23
TENSIONING ROLLER PARTS
LIST ........................................... 24
QUADRANT PARTS LIST ........... 25
MOTOR HOUSING PARTS LIST . 26
BED PARTS LIST ........................ 27

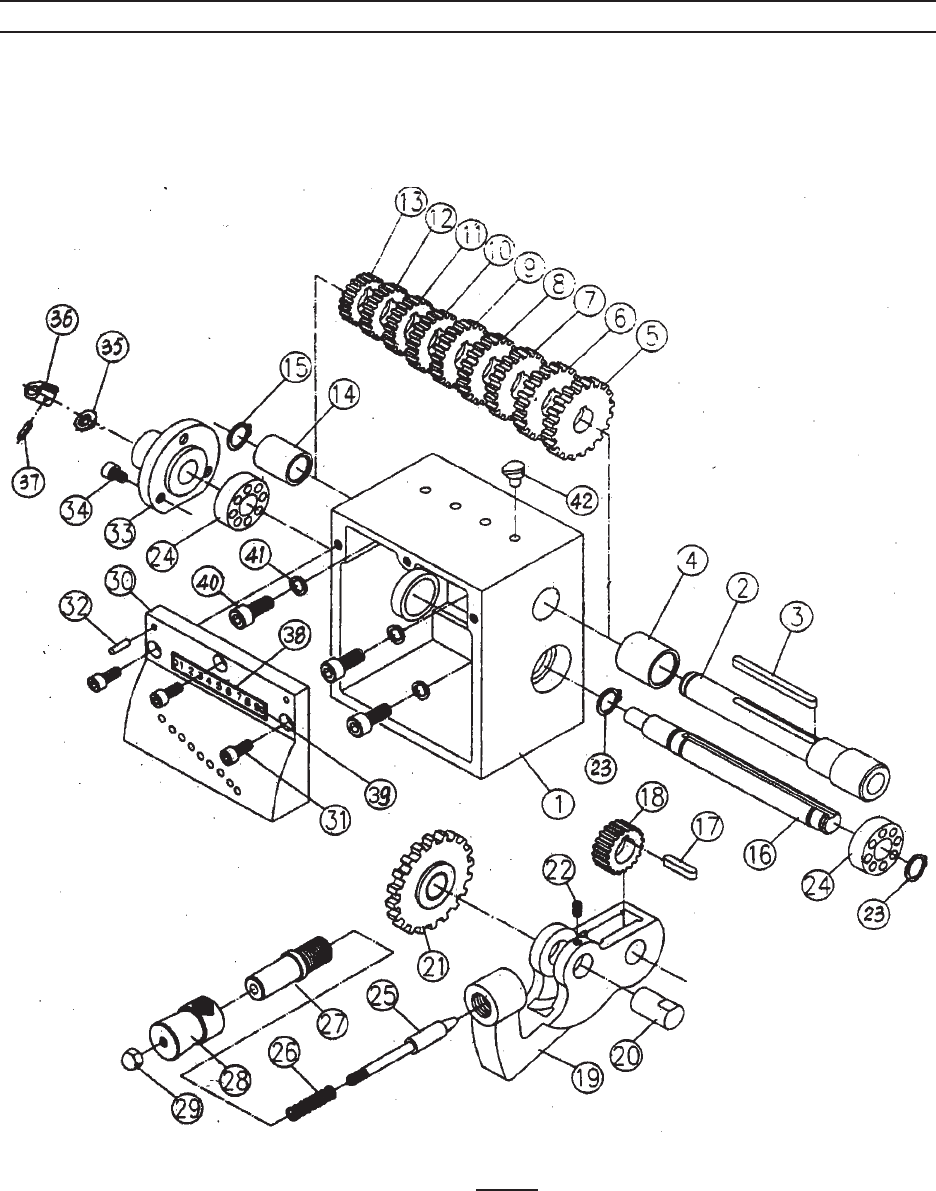

GEAR BOX PARTS LIST ............. 28
GEAR BOX DIAGRAM ................ 29
APRON PARTS LIST ................... 30
APRON PARTS LIST
CONTINUED .............................. 31

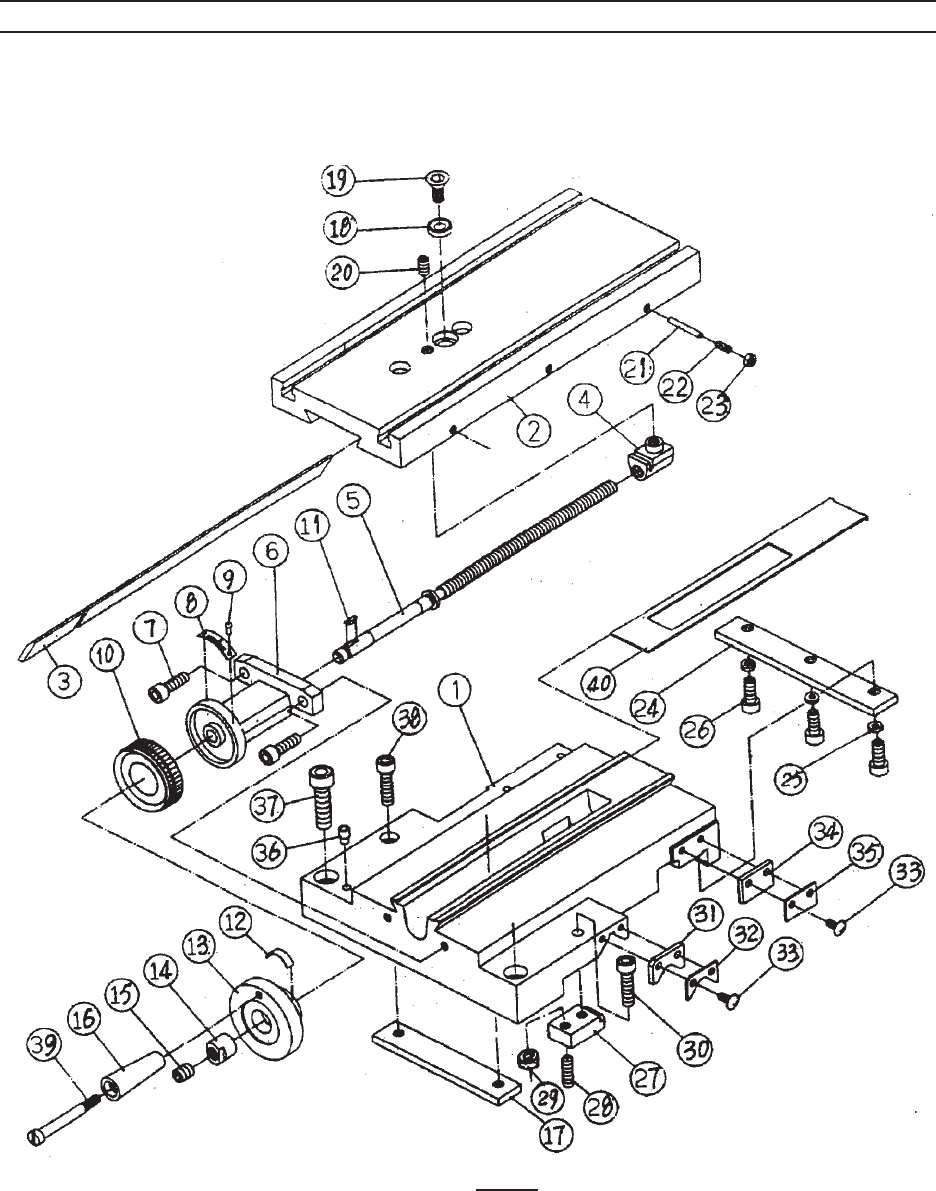

SADDLE AND CROSS SLIDE
PARTS LIST .............................. 32
SADDLE AND CROSS SLIDE
DIAGRAM .................................. 33
TAILSTOCK PARTS LIST ............ 34
TAILSTOCK DIAGRAM ............... 35
TRAVELLING REST PARTS
LIST ........................................... 36

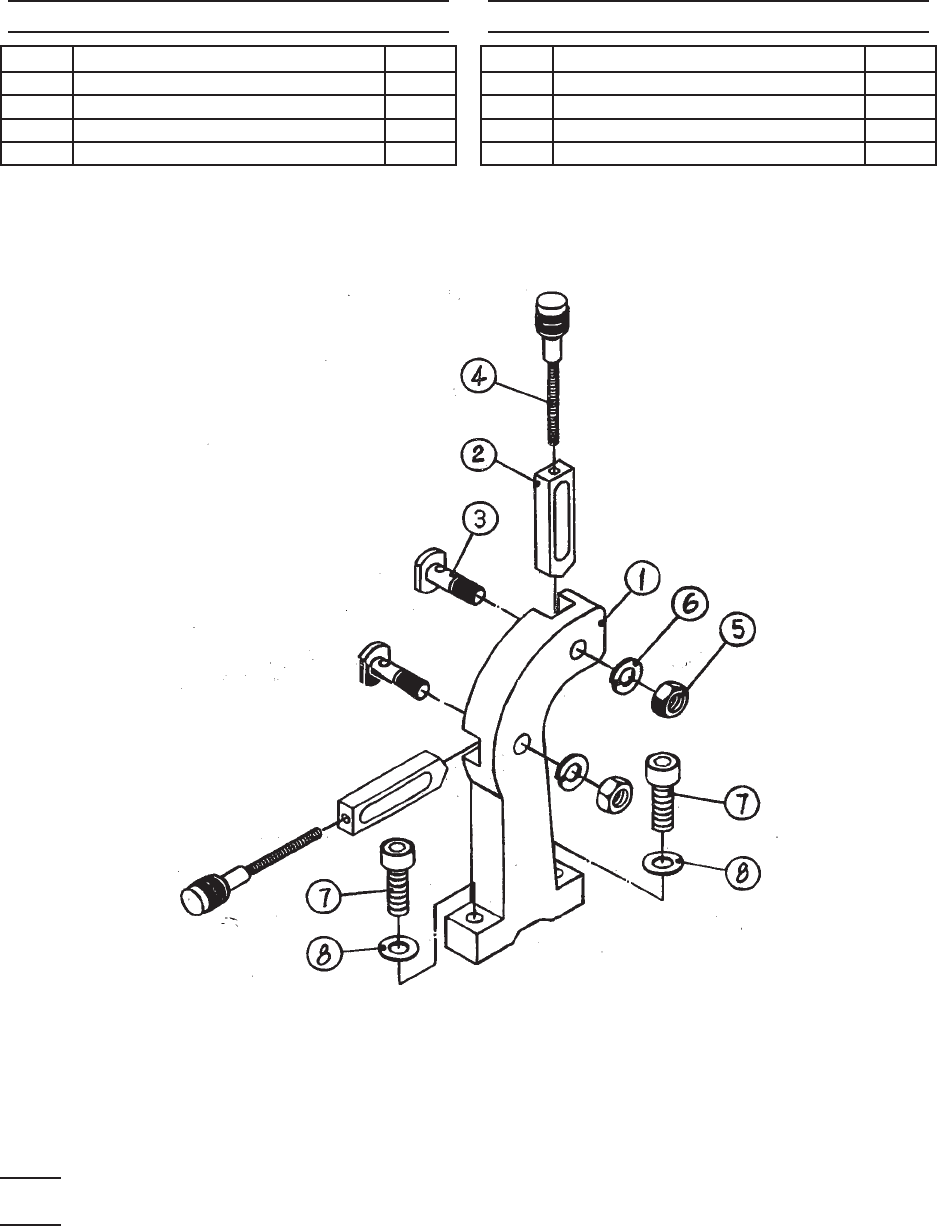

STEADY REST PARTS LIST ....... 37
WIRING DIAGRAM ...................... 38
WIRING DIAGRAM ...................... 39
LIMITED 1 YEAR / 90 DAY
WARRANTY .............................. 40
Page 3SKU 45861 For technical questions, please call 1-800-444-3353.
SAVE THIS MANUAL
Keep this manual for the safety warn-
ings and precautions, assembly, operat-
ing, inspection, maintenance and cleaning
procedures. Write the product’s serial
number in the back of the manual near the
assembly diagram (or month and year of
purchase if product has no number). Keep
this manual and the receipt in a safe and
dry place for future reference.
IMPORTANT SAFETY
INFORMATION
In this manual, on the labeling,
and all other information
provided with this product:
This is the safety alert
symbol. It is used to alert
you to potential personal
injury hazards. Obey all
safety messages that
follow this symbol to avoid
possible injury or death.
DANGER indicates
a hazardous
situation which, if not
avoided, will result in death or
serious injury.
WARNING
indicates a
hazardous situation which, if
not avoided, could result in
death or serious injury.
CAUTION, used
with the safety
alert symbol, indicates a
hazardous situation which, if
not avoided, could result in
minor or moderate injury.
NOTICE is used to
address practices
not related to personal injury.
CAUTION, without
the safety alert
symbol, is used to address
practices not related to
personal injury.
General Power Tool Safety
Warnings
WARNING Read all safety
warnings and instructions.
Failure to follow the warnings and
instructions may result in electric
shock, re and/or serious injury.
Save all warnings and
instructions for future reference.
The term ″power tool″ in the
warnings refers to your mains-
operated (corded) power tool.
Work area safety1.
Keep work area clean and well lit. a.
Cluttered or dark areas invite acci-
dents.
Do not operate power tools in b.
explosive atmospheres, such as in
the presence of ammable liquids,
gases or dust. Power tools create
sparks which may ignite the dust or
fumes.
Keep children and bystanders c.
away while operating a power tool.
Distractions can cause you to lose
control.
Electrical safety2.
Power tool plugs must match the a.
outlet. Never modify the plug in
any way. Do not use any adapter
plugs with grounded power tools.
Page 4SKU 45861 For technical questions, please call 1-800-444-3353.
Unmodied plugs and matching out-
lets will reduce risk of electric shock.
Avoid body contact with grounded b.
surfaces such as pipes, radiators,
ranges and refrigerators. There is
an increased risk of electric shock if
your body is grounded.
Do not expose power tools to rain c.
or wet conditions. Water entering
a power tool will increase the risk of
electric shock.
Do not abuse the cord. Never d.
use the cord to unplug the power
tool. Keep cord away from heat,
oil, sharp edges or moving parts.
Damaged or entangled cords in-
crease the risk of electric shock.
If operating a power tool in a damp e.
location is unavoidable, use a
Ground Fault Circuit Interrupter
(GFCI) protected supply. Use of
a GFCI reduces the risk of electric
shock.
Personal safety3.
Stay alert, watch what you are do-a.
ing and use common sense when
operating a power tool. Do not use
a power tool while you are tired
or under the inuence of drugs,
alcohol or medication. A moment
of inattention while operating power
tools may result in serious personal
injury.
Use safety equipment. Always b.
wear ANSI-approved eye protec-
tion. Safety equipment such as dust
mask, full face shield, heavy-duty
work gloves, non-skid safety shoes,
hard hat, or hearing protection used
for appropriate conditions will reduce
personal injuries.
Remove any adjusting key or c.
wrench before turning the power
tool on. A wrench or a key left at-
tached to a rotating part of the power
tool may result in personal injury.
Do not overreach. Keep proper d.
footing and balance at all times.
This enables better control of the
power tool in unexpected situations.
Dress properly. Do not wear loose e.
clothing or jewelry. Keep your
hair, clothing and gloves away
from moving parts. Loose clothes,
jewelry or long hair can be caught in
moving parts.
If devices are provided for the con-f.
nection of dust extraction and col-
lection facilities, ensure these are
connected and properly used. Use
of these devices can reduce dust-
related hazards.
Power tool use and care4.
Do not force the power tool. Use a.
the correct power tool for your ap-
plication. The correct power tool will
do the job better and safer at the rate
for which it was designed.
Do not use the power tool if the b.
switch does not turn it on and off.
Any power tool that cannot be con-
trolled with the switch is dangerous
and must be repaired.
Disconnect the plug from the c.
power source before making any
adjustments, changing accesso-
ries, or storing power tools. Such
preventive safety measures reduce
the risk of starting the power tool ac-
cidentally.
Store idle power tools out of the d.
reach of children and do not allow
persons unfamiliar with the power
Page 5SKU 45861 For technical questions, please call 1-800-444-3353.
tool or these instructions to oper-
ate the power tool. Power tools are
dangerous in the hands of untrained
users.
Maintain power tools. Check for e.
misalignment or binding of moving
parts, breakage of parts and any
other condition that may affect the
power tool’s operation. If dam-
aged, have the power tool repaired
before use. Many accidents are
caused by poorly maintained power
tools.
Keep cutting tools sharp and f.
clean. Properly maintained cutting
tools with sharp cutting edges are
less likely to bind and are easier to
control.
Use the power tool, accessories g.
and tool bits etc. in accordance
with these instructions, taking into
account the working conditions
and the work to be performed. Use
of the power tool for operations differ-
ent from those intended could result
in a hazardous situation.
Service5.
Have your power tool serviced by a.
a qualied repair person using
only identical replacement parts.
This will ensure that the safety of the
power tool is maintained.
Lathe Safety Warnings
Maintain labels and nameplates on 1.
the tool. These carry important safety
information. If unreadable or miss-
ing, contact Harbor Freight Tools for a
replacement.
Do not run the Lathe without its cov-2.
ers and guards in place.
Use a brush or compressed air to 3.
remove metal shavings; never your
hands. The metal shavings will be
sharp.
The tool must always be tight within 4.
the tool post or chuck and adjusted
to limit projection from the post. This
will reduce the possibility of the tool
breaking or bending.
Avoid unintentional starting. Prepare 5.
to begin work before turning on the
tool.
Do not reach across the Lathe while it 6.
is running.
Industrial applications must follow 7.
OSHA guidelines.
Do not use the Lathe if it is off-bal-8.
ance, or the workpiece is not properly
centered.
Only feed workpiece into a cutting 9.
tool against the direction of rotation.
Do not leave the tool unattended 10.
when it is plugged into an electrical
outlet. Turn off the tool, and unplug it
from its electrical outlet before leav-
ing.
This product is not a toy. Keep it out 11.
of reach of children.
People with pacemakers should 12.
consult their physician(s) before use.
Electromagnetic elds in close prox-
imity to heart pacemaker could cause
pacemaker interference or pacemak-
er failure. In addition, people with
pacemakers should:
• Avoid operating alone.
• Do not use with power switch locked
on.
• Properly maintain and inspect to
Page 6SKU 45861 For technical questions, please call 1-800-444-3353.
avoid electrical shock.
• Any power cord must be properly
grounded. Ground Fault Circuit Inter-
rupter (GFCI) should also be imple-
mented – it prevents sustained elec-
trical shock.
Some dust created by power sand-13.
ing, sawing, grinding, drilling, and
other construction activities, contains
chemicals known [to the State of Cali-
fornia] to cause cancer, birth defects
or other reproductive harm. Some
examples of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and ce-
ment or other masonry products
• Arsenic and chromium from chemi-
cally treated lumber
Your risk from these exposures var-
ies, depending on how often you do
this type of work. To reduce your
exposure to these chemicals: work in
a well ventilated area, and work with
approved safety equipment, such as
those dust masks that are specially
designed to lter out microscopic
particles. (California Health & Safety
Code § 25249.5, et seq.)
The warnings, precautions, and in-14.
structions discussed in this instruction
manual cannot cover all possible con-
ditions and situations that may occur.
It must be understood by the operator
that common sense and caution are
factors which cannot be built into this
product, but must be supplied by the
operator.
SAVE THESE
INSTRUCTIONS.
GROUNDING
TO PREVENT
ELECTRIC SHOCK
AND DEATH FROM
INCORRECT GROUNDING
WIRE CONNECTION:
Check with a qualied
electrician if you are in doubt
as to whether the outlet is
properly grounded. Do not
modify the power cord plug
provided with the tool. Never
remove the grounding prong
from the plug. Do not use the
tool if the power cord or plug
is damaged. If damaged, have
it repaired by a service facility
before use. If the plug will not
t the outlet, have a proper
outlet installed by a qualied
electrician.
Grounded Tools: Tools with Three
Prong Plugs

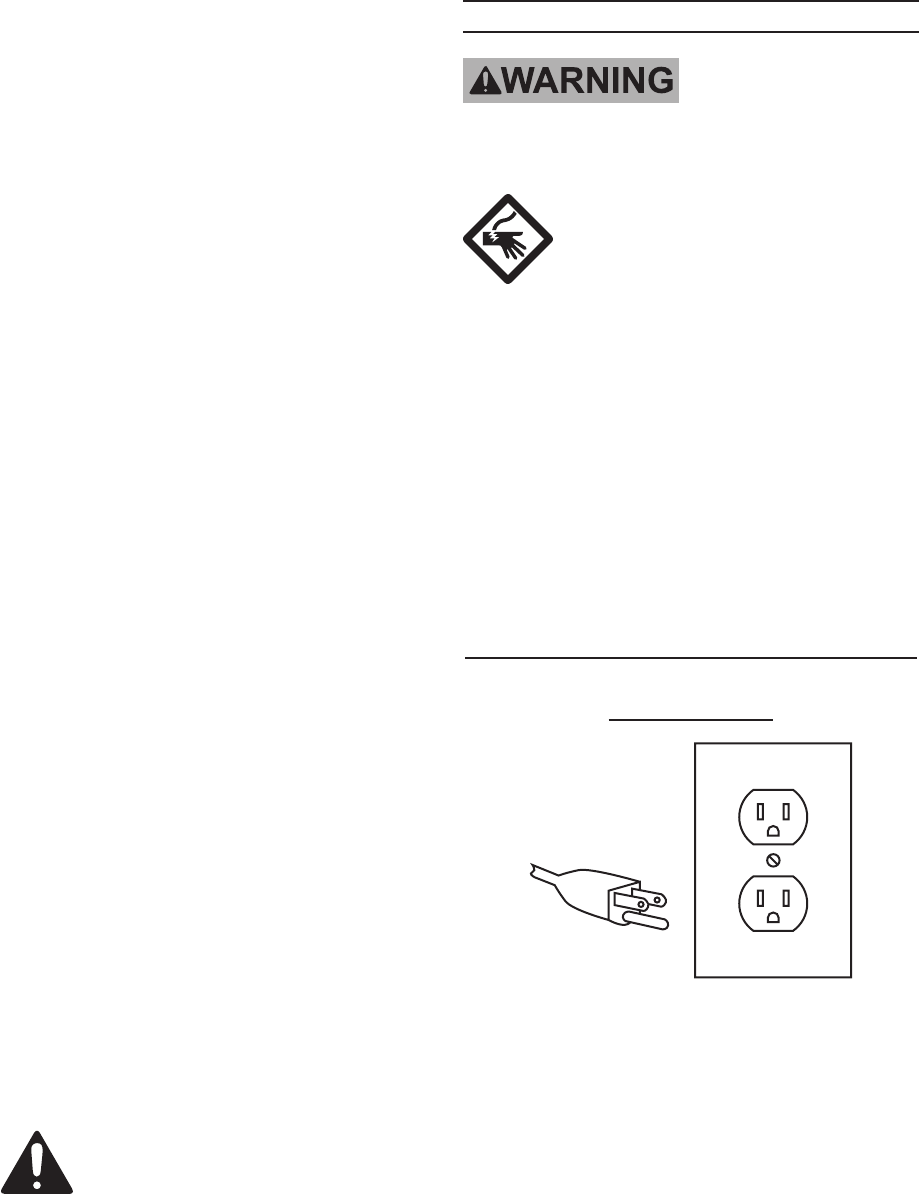

3-Prong Plug and Outlet
1. Tools marked with “Grounding Re-
quired” have a three wire cord and
three prong grounding plug. The
plug must be connected to a properly
grounded outlet. If the tool should
electrically malfunction or break
down, grounding provides a low
resistance path to carry electricity
away from the user, reducing the risk
Page 7SKU 45861 For technical questions, please call 1-800-444-3353.
of electric shock. (See 3-Prong Plug
and Outlet.)
The grounding prong in the plug is 2.
connected through the green wire in-
side the cord to the grounding system
in the tool. The green wire in the cord
must be the only wire connected to
the tool’s grounding system and must
never be attached to an electrically
“live” terminal. (See 3-Prong Plug
and Outlet.)
The tool must be plugged into an 3.
appropriate outlet, properly installed
and grounded in accordance with all
codes and ordinances. The plug and
outlet should look like those in the
preceding illustration. (See 3-Prong
Plug and Outlet.)
Extension Cords
Grounded1. tools require a three wire
extension cord. Double Insulated
tools can use either a two or three
wire extension cord.
As the distance from the supply outlet 2.
increases, you must use a heavier
gauge extension cord. Using exten-
sion cords with inadequately sized
wire causes a serious drop in voltage,
resulting in loss of power and pos-
sible tool damage.
(See Table A.) The smaller the
gauge number of the wire, the greater
the capacity of the cord. For ex-
ample, a 14 gauge cord can carry a
higher current than a 16 gauge cord.
(See Table A.)
When using more than one exten-3.
sion cord to make up the total length,
make sure each cord contains at
least the minimum wire size required.
(See Table A.)
If you are using one extension cord 4.
for more than one tool, add the
nameplate amperes and use the sum
to determine the required minimum
cord size. (See Table A.)
If you are using an extension cord 5.
outdoors, make sure it is marked with
the sufx “W-A” (“W” in Canada) to
indicate it is acceptable for outdoor
use.
Make sure the extension cord is prop-6.
erly wired and in good electrical con-
dition. Always replace a damaged
extension cord or have it repaired by
a qualied electrician before using it.
Protect the extension cords from 7.
sharp objects, excessive heat, and
damp or wet areas.
RECOMMENDED MINIMUM WIRE
GAUGE FOR EXTENSION CORDS*
(120/240 VOLT)
NAMEPLATE
AMPERES
(at full load)
EXTENSION CORD
LENGTH
25’
50’
75’
100’
150’
0 – 2.0 18 18 18 18 16
2.1 – 3.4 18 18 18 16 14
3.5 – 5.0 18 18 16 14 12
5.1 – 7.0 18 16 14 12 12
7.1 – 12.0 18 14 12 10 -
12.1 – 16.0 14 12 10 - -
16.1 – 20.0 12 10 - - -
TABLE A
* Based on limiting the line
voltage drop to ve volts at
150% of the rated amperes.
Symbology
Double Insulated
Canadian Standards Association
Page 8SKU 45861 For technical questions, please call 1-800-444-3353.
Symbology
Underwriters Laboratories, Inc.
V~ Volts Alternating Current
AAmperes
n0 xxxx/min. No Load Revolutions per Minute
(RPM)
Page 9SKU 45861 For technical questions, please call 1-800-444-3353.
SPECIFICATIONS
Electrical Requirements 120 V~ / 60 Hz
Lathe Type Metal Cutting
Motor 3/4 HP
Motor Speed 1790 RPM
Spindle Speed 120, 320, 420, 620,
1130 & 2000
Spindle Taper MT-3
Spindle Bore 3/4”
Chuck 3 Jaw
Chuck Capacity 4”
Tail Stock Quill Travel 1-3/4”
Tail Stock Quill Taper MT-2
Tool Post Capacity 3/4”
Swing Over Bed 9”
Distance Between Centers 20”
UNPACKING
When unpacking, check to make sure
that the item is intact and undamaged. If
any parts are missing or broken, please
call Harbor Freight Tools at the number
shown on the cover of this manual as soon
as possible.
Proper lubrication is essential. To
be safe, and to become more familiar with
the Lathe, disassemble the lathe entirely,
then clean and lubricate each part with
white lithium grease before rst use.
List of contents
Description Qty
9” X 20” Bench Lathe 1
4” 3-Jaw Chuck 1
Reverse Jaws For Chuck. 3
Chuck Wrench 1
Dead Center Mt#2 1
Dead Center Mt#3 1
Live Center 1
10-12 Open-End Wrench 1
14-17 Open-End Wrench 1
Description Qty
17-19 Open-End Wrench 1
Round Nut Wrench 45-52 1
Tool Post Wrench 1
Hex Wrenches - 3, 4, 5, 6mm 1 ea.
Drive Belts 2
Threading Gear Set 28,30, 36,42,45 & 80T 1
Oil Can 1
Splash Guard 1
Operators Manual 1
INSTRUCTIONS FOR
PUTTING INTO USE
Read the ENTIRE IMPORTANT
SAFETY INFORMATION section
at the beginning of this manual
including all text under
subheadings therein before set
up or use of this product.
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION:
Turn the Power Switch of the
tool to its “OFF” position and
unplug the tool from its
electrical outlet before
assembling or making any
adjustments to the tool.
Note: For additional information regarding
the parts listed in the following pages,
refer to the Assembly Diagram near
the end of this manual.
Mounting
Unbolt and remove the Lathe from 1.
the crate.
The Lathe will need to be mounted 2.
to a surface capable of bearing the
combined weight of the Lathe and
intended workpieces. The surface
must be able to withstand the vibra-
Page 10SKU 45861 For technical questions, please call 1-800-444-3353.
tion generated by the Lathe during
operation. The cabinet recommend-
ed for use with this Lathe is SKU
46378; this product is available from
Harbor Freight Tools.
Use a hoist or a forklift to lift the 3.
Lathe onto the cabinet or workbench.
Mount the Spacer Blocks. The Lathe 4.
must be completely level, left-to-right
and front-to-back, or the Lathe will
not mill properly and may become
damaged.
Mount the dip tray.5.
Thread on the belt tensioner lever.6.
The unpainted surfaces are coated 7.
with a waxy oil to protect them from
corrosion during shipment. Remove
the coating with a solvent cleaner or
citrus-based degreaser. Avoid chlo-
rine-based solvents since they will
damage the paint.
When connecting
or removing the
chuck, take care to protect the
ways by placing a piece of
wood, or other guard, over
them. Damaging the ways
may permanently disable the
lathe.
Functions
The Lathe can be used to shape 1.
metal, make screws, and bore screw
threads.
OPERATING INSTRUCTIONS
Read the ENTIRE IMPORTANT
SAFETY INFORMATION section
at the beginning of this manual
including all text under
subheadings therein before set
up or use of this product.
Tool Set Up
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION:
Turn the Power Switch of the
tool to its “OFF” position and
unplug the tool from its
electrical outlet before
performing any inspection,
maintenance, or cleaning
procedures.
Settings for the spindle, chuck, gibs, 1.
ways, and ends, will be determined
by the length of the stock and the
intended operation.
The Lathe speed must be set to “0” 2.
before restarting.
Workpiece and Work Area Set Up
Designate a work area that is clean 1.
and well-lit. The work area must not
allow access by children or pets to
prevent injury and distraction.
Route the power cord along a safe 2.
route to reach the work area without
creating a tripping hazard or exposing
the power cord to possible damage.
Secure loose workpieces to prevent 3.
movement while working.
Denition of Terms
Apron: The front part of the carriage
assembly where the carriage hand-
wheel is mounted.
Page 11SKU 45861 For technical questions, please call 1-800-444-3353.

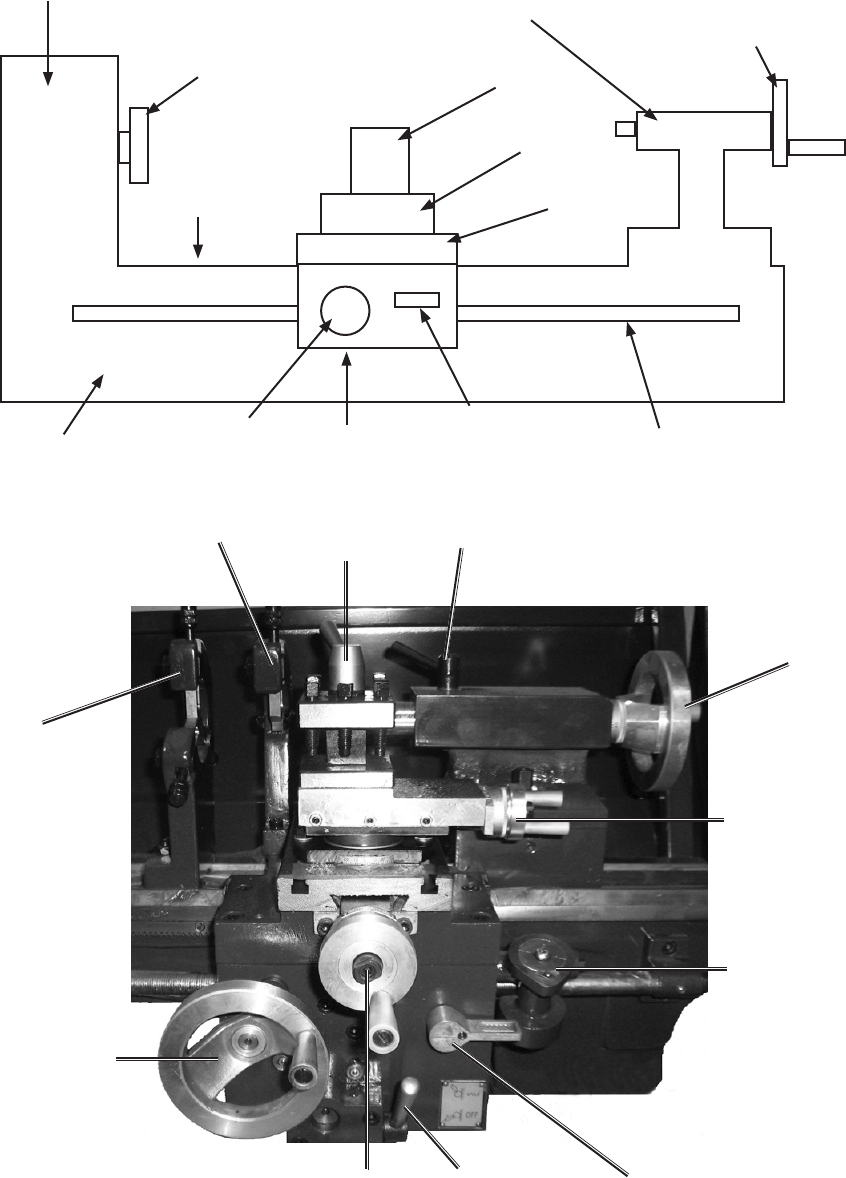

Lathe
Headstock
Faceplate (or chuck)
Bed
Ways Cross Slide
Compound
Tool Holder
Tailstock Tailstock
Handwheel
Carriage
Halfnut
Lever Leadscrew
Carriage
Handwheel
Steady
Rest
Follow Rest Tool
Lock Tailstock Lock
Tailstock
Handwheel
Handrail
Tool
Thread
Indicator
Gear Engage
Gear
Lock
Cross Slide
Handwheel
Apron
Handwheel
Page 12SKU 45861 For technical questions, please call 1-800-444-3353.
Bed: Main supporting casting run-
ning the length of the lathe
Between Centers: A dimension
representing the maximum length
of a workpiece that can be turned
between centers. Also a method of
holding a workpiece by mounting it
between the centers of the headstock
and the tailstock spindles.
Carriage: The assembly that moves
the tool post and cutting tool along
the ways.
Carriage Handwheel: A wheel with
a handle used to move the carriage
by hand.
Center: A precision ground tapered
cylinder with a 60º pointed tip and
a Morse Taper shaft. Used in the
tailstock to support the end of long
workpieces. May also be used in the
headstock spindle to support work
between centers at both ends.
Center Drill: A short drill used to
form pilot holes and countersunk
holes.
Centerline: An imaginary line ex-
tending from the center of the spindle
through the center of the tailstock
ram, representing the central axis
of the lathe around which the work
rotates.
Chuck: A clamping device for hold-
ing work in the lathe or for holding
drills in the tailstock.
Compound: Movable platform
where the tool post is mounted; it can
be set at an angle to the workpiece
(also known as compound slide and
compound rest).
Compound Handwheel: The wheel
used to move the compound slide in
and out.
Cross Slide: Platform that moves
along the lathe axis under control of
the cross-slide handwheel.
Cross Slide Handwheel: The wheel
used to move the cross slide in and
out (also called cross feed).
Faceplate: A metal plate with a at
face-mounted spindle to hold irregu-
larly shaped work.
Facing: A lathe operation in which
metal is removed from the end of a
workpiece to create a smooth sur-
face.
Gib: An adjustable length of steel or
brass with a diamond shaped cross-
section that engages one side of the
dovetail slide. Used to adjust the
dovetail for optimum tightness and to
compensate for wear.
Halfnut: A nut formed from two
halves which clamp around the lead-
screw to move the carriage.
Halfnut Lever: This Lever engages
the carriage with the leadscrew.
Headstock: The main casting
mounted on the left end of the bed
where the spindle is mounted. Hous-
es the spindle gears.
Leadscrew: Screw used to drive the
carriage under power for turning and
thread cutting operations. Smaller
leadscrews are used within the cross-
slide and compound to move those
parts by precise amounts.
Morse Taper (MT): A taper of spe-
cic dimensions used to mate match-
Page 13SKU 45861 For technical questions, please call 1-800-444-3353.
ing male and female parts together
tightly. The spindle has a #3 Morse
Taper (MT-3) and the tailstock has a
#2 Morse Taper (MT-2).
Saddle: An “H” shaped casting that
rides along the ways. A main compo-
nents of the carriage.
Spindle: Main rotating shaft on
which the chuck is mounted. It pass-
es through the headstock.
Spindle Through-hole: A dimen-
sion indicating the minimum diameter
of the hole that passes through the
spindle. A workpiece with a diameter
smaller than this can pass through
the spindle to work on longer pieces.
Swing: A dimension representing
the largest diameter workpiece that a
lathe can rotate. The 9x20 lathe has a
9” swing, meaning that the maximum
size workpiece that can rotate without
hitting the bed is 9” in diameter.
Tailstock: Assembly that slides
along the ways and can be locked in
place. Used to hold long workpieces
in place or to mount a drill chuck.
Tailstock Handwheel: Moves the
tailstock in and out. Has a tapered
internal bore to accept a #2 Morse
Taper shank.
Tool Post: A device mounted on the
compound that holds the cutting tool.
Turning: A lathe operation that re-
moves metal from the outside diam-
eter of the workpiece.
Ways: Surface along the top of the
bed on which the saddle rides. The
ways are aligned with the centerline
of the lathe.
Installing a Chuck
Place a piece of wood on the bed of 1.
the Lathe to prevent possible damage
to the Ways.
The 3-jaw chuck is a scroll-type 2.
chuck, meaning that all three jaws
move in unison when adjustments
are made.
The setscrew at the back of the 3.
Chuck prevents it from unscrewing
when rotating the lathe in the reverse
direction.

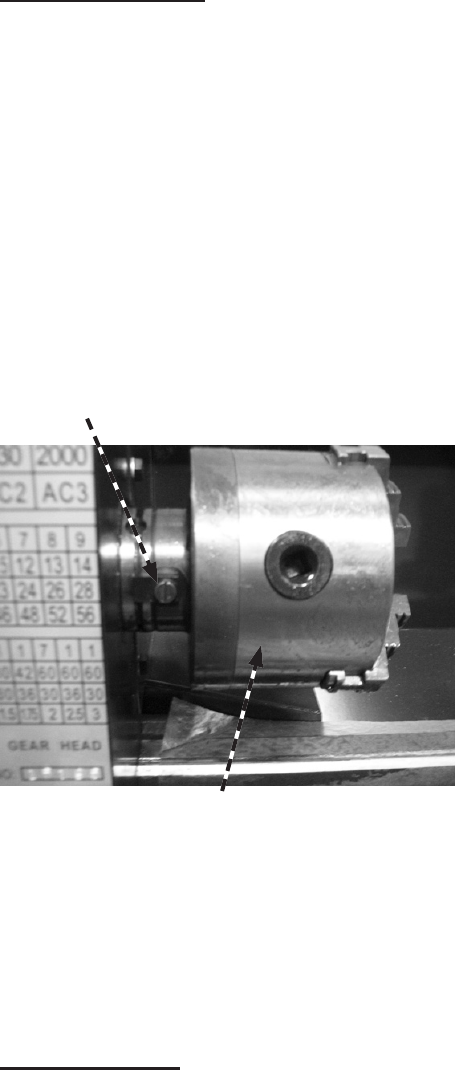

Setscrew
Chuck
4. Loosen the setscrew, and use the
provided Chuck removal wrenches
to remove the Chuck. Use one tool
to hold the spindle in place and the
other to rotate the Chuck counter-
clockwise.
The Live Center
The Live Center supports stock that 1.
is too long to be supported by the
chuck alone. Stock protruding more
than three times its diameter should
also be supported by the live center.
When using a Live Center, the tail-
Page 14SKU 45861 For technical questions, please call 1-800-444-3353.
stock barrel should protrude about
1/2’’ and not more than 3’’.
To remove the Live Center, back the 2.
tailstock barrel all the way into the
casting. The Live Center will pop out;
catch it when it comes out to avoid
damaging it.
Steady Rest
The steady rest supports long, small 1.
diameter stock that otherwise could
not be turned. The steady rest can
also replace the tailstock to allow for
cutting tool access at the outboard
end of the workpiece.
To mount the Steady Rest, secure the 2.
bedway from below with the locking
plate, and use setscrews to secure it
in place.
Follow Rest
The follow rest is used with small 1.
diameter stock to prevent the work-
piece from ‘’springing’’ under pres-
sure from the turning tool.
The follow rest is secured to the 2.
saddle with two cap screws.
Spindle Speeds
The rotation speed of the headstock 1.
is controlled by the position of the
belts on the pulleys. The cover on
the end of the headstock must be
removed to access them. Refer to the
following chart (or the plate on the
headstock) to determine which belt
combinations produce what speeds.
The speed settings on this machine
are 120, 320, 420, 620, 1130 and

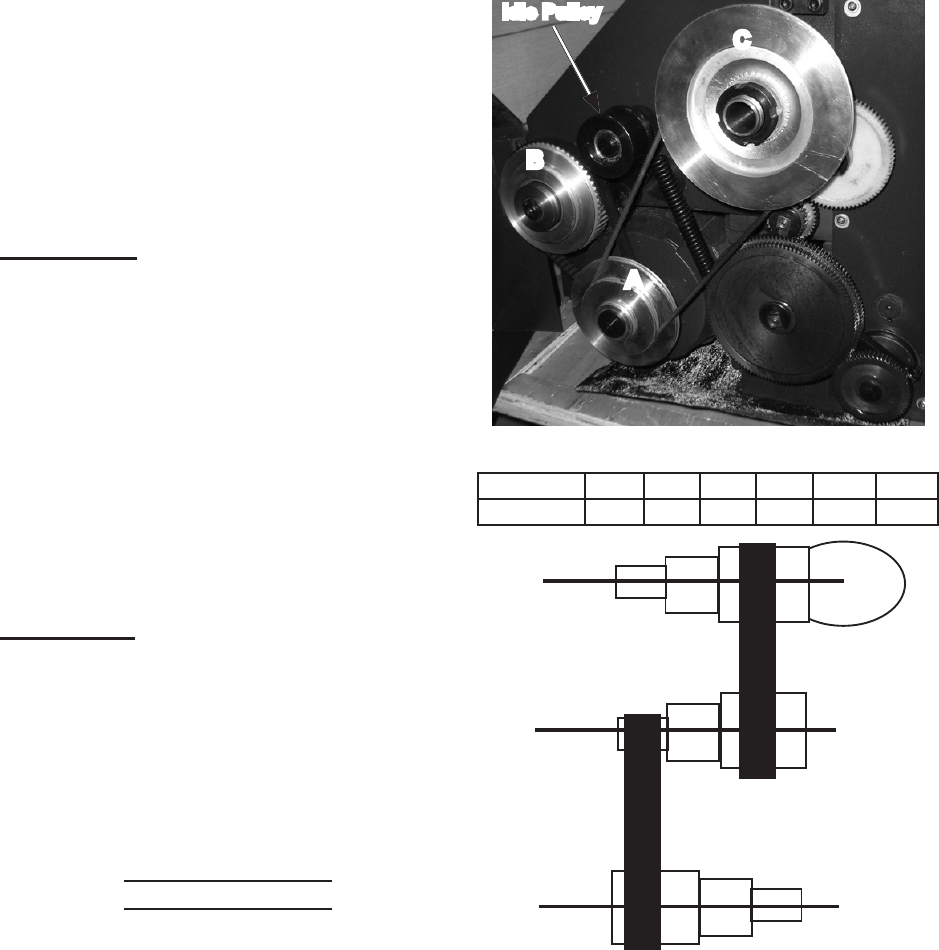

2200 RPM. See photograph, chart
and diagram below.
A
B
C
Idle Pulley
Speed 120 320 420 620 1130 2200
Settings BC1 BC2 AC1 BC3 AC2 AC3
C
B
A
123

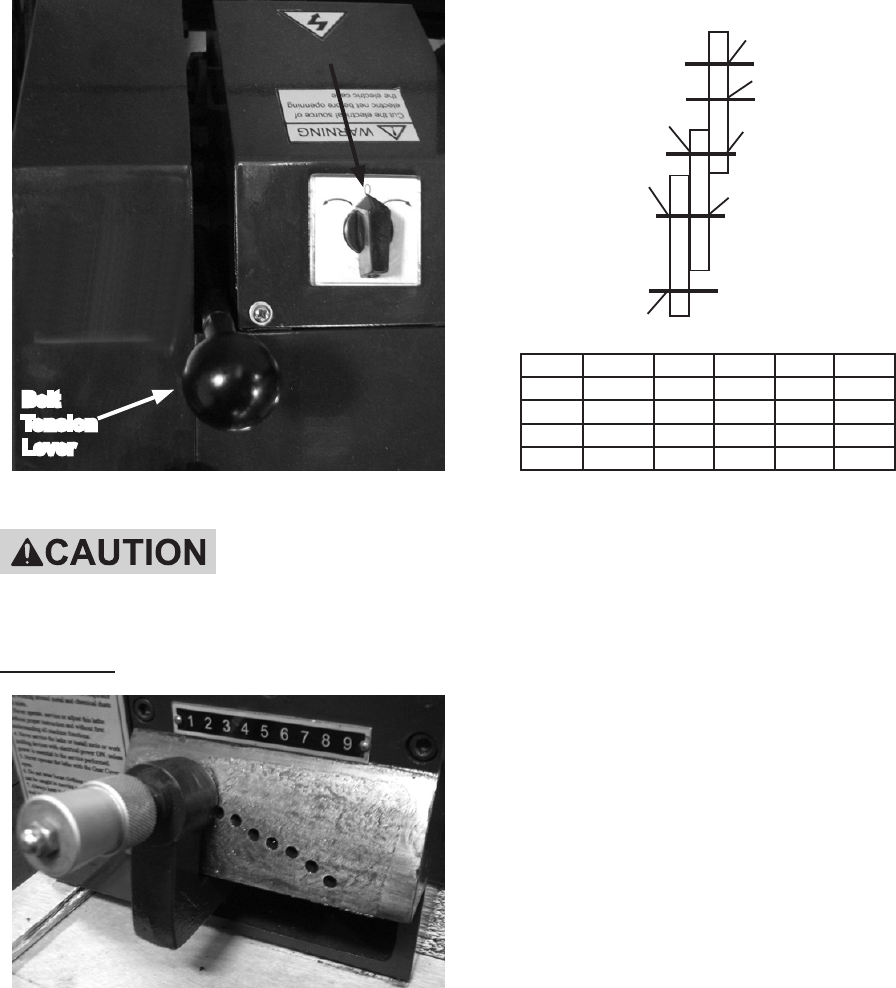

The Belt Tension Lever on the top 2.
of the headstock, loosens the drive
belt to allow the operator to change
speeds and can be used like a clutch
during operation. See photograph
below.
Page 15SKU 45861 For technical questions, please call 1-800-444-3353.
Direction Switch
Belt
Tension
Lever
Do not change the
Direction Switch
rotation while running Lathe.
Feed Rate
1. The Feed Rate Lever (above) chang-
es the number of threads-per-inch
(TPI) that can be cut. The plate on
the machine and the following charts
list typical settings.
40
80
40
127
a
c
b
Feed rate portion of machine plate
Lever 9 1 9 1 1
a 28 28 28 28 45
b 80 80 60 60 60
c 80 80 120 120 120
Feed 0.0023 0.004 0.005 0.008 0.013
During metric thread cutting the half 2.
nut must remain engaged through
entire threading process. The thread
dial cannot be utilized.
Page 16SKU 45861 For technical questions, please call 1-800-444-3353.
40
80
40
120
a
80
b
Threading rate portion of machine plate
for Inches
Lever
a
Lever
b
1 2 3 4 5 6 7 8 9
60 30 8 9 9.5 10 11 11.5 12 13 14
30 30 16 18 19 20 22 23 24 26 28
30 60 32 36 38 40 44 46 48 52 56
40
80
40
127
a
120
b
Threading rate portion of machine plate
for Millimeters
Lever 7 1 1 4 7 1 1 1 7 1 1
a 30 28 30 30 30 30 30 42 60 60 60
b 60 60 60 45 30 36 30 36 30 36 30
0.5 0.7 0.75 0.8 1 1.25 1.5 1.75 2 2.5 3
General Operating Instructions
Every ten hours of operation, lubri-
cate the lathe’s gears and ways with white
lithium grease, as directed in the Mainte-
nance Section of this manual.
The Lathe can perform a wide variety 1.
of operations; the purchase of refer-
ence materials, such as books about
machining or engineering tables, is
highly recommended.
If Lathe use requires a higher de-2.
gree of accuracy than supplied by
the standard set-up, have the Lathe
serviced by a qualied machinist.
Settings for the spindle, chuck, gibs, 3.
ways, and ends, will be determined
by the length of the stock and the
intended operation.
Turn the chuck by hand to make sure 4.
it rotates smoothly.
Plug the Lathe into a standard, 5.
grounded 120V electrical outlet.
General Milling Guidelines
When performing any operation with 1.
the Lathe it is best to proceed slowly
and make several passes.
A 1000th of an inch of movement 2.
yields a 2000th inch cut.
Use of a high-quality cutting uid (not 3.
included) will greatly aid in most mill-
ing processes.
Facing Operations
Facing is the process of removing
metal from the end of a workpiece to pro-
duce a at surface.
To safely perform a facing operation 1.
the jaws of the chuck must be as
close as possible to the end of the
workpiece. The workpiece should
not extend more than 2 or 3 times its
diameter from the chuck jaws unless
the steady rest is used to support the
end of the workpiece.
Page 17SKU 45861 For technical questions, please call 1-800-444-3353.
Softer metals require higher cutting 2.
speeds. Consult a machining manual
to determine the rotation speed that
must be set to cut the metal.
The tumbler gear lever must be in the 3.
neutral position so that the leadscrew
does not rotate.
Clamp the half nut on the leadscrew 4.
to keep the saddle from being forced
back from the workpiece during cut-
ting.
To center the workpiece; close the 5.
chuck until the jaws touch its surface,
twist the workpiece to seat it; then
tighten the jaws. Tighten the jaws
from all three chuck key positions to
ensure even gripping by the jaws.
Clamp the cutting tool in the tool post 6.
and turn the toolpost so that the tip
of the cutting tool will meet the end of
the workpiece at a slight angle. The
tip of the cutting tool must be at the
centerline of the lathe, or the work will
be marred.
Clamp the toolpost in place and 7.
advance the carriage until the tool is
even with, but not touching the end of
the workpiece.
Set the lathe to its lowest speed and 8.
turn it on. Make sure the leadscrew
is not turning.
Turn the lathe off and press the 9.
Halfnut lever down to engage it with
the leadscrew. Locking the half-nut
to the leadscrew will prevent the
carriage from moving back away
from the workpiece during the facing
operation.
Use the compound crank to advance 10.
the tool until it touches the end of the
workpiece. Use the cross feed crank
to back off the tool until it is beyond
the diameter of the workpiece.
Turn the lathe on and adjust the 11.
speed to low RPM.
Use the cross feed crank to slowly 12.
move the tool towards the workpiece.
When the tool touches the workpiece 13.
it should start to remove metal from
the end. Continue advancing the tool
until it reaches the center of the work-
piece, then crank the tool back until it
is past the end of the workpiece.
Continue slowly moving the tool clos-14.
er to the workpiece until the desired
facing is achieved.
After the facing operation is complet-15.
ed the sides of the workpiece should
be led to eliminate the sharp edge.
Drilling
Face the workpiece as described 1.
above to ensure a clean surface for
drilling.
Note: Drill chucks, center drills and drills
are not included with this Lathe.
Attach a drill chuck and secure a cen-2.
ter drill into it.
Use the center drill that is about the 3.
same size as the hole you intend to
drill to bore a starter hole. Drilling a
starter hole will prevent the drill from
wandering off-center.
Allow the center drill to cool before 4.
removing it from the drill chuck and
inserting the drill.
Use the drill to bore a hole two full 5.
diameters of the drill at a time. After
Page 18SKU 45861 For technical questions, please call 1-800-444-3353.
advancing the drill twice its diameter,
back the drill out and clean off shav-
ings before continuing.
Continue until the desired depth is 6.
drilled.
Turning
Turning is the removal of metal from
the outer diameter of a cylindrical work-
piece to reduce the diameter and to pro-
duce a smooth nish on the metal. Longer
workpieces may need to use a dead or live
center in the tailstock to support the work-
piece.
Attach tool to the chuck.1.
Adjust the angle of the tool holder so 2.
the tool is perpendicular to the side of
the workpiece. The left side of the tip
of the tool should engage the work,
but not the entire front edge.
Make sure the half nut and feed le-3.
vers are disengaged.
Turn the motor on. The leadscrew 4.
should now be rotating counterclock-
wise.
Position the tool beyond the end of 5.
the workpiece and engage the half-
nut lever. The carriage should move
slowly to the left under power from
the leadscrew. When the tool gets to
within about 1/4” of the chuck, disen-
gage the half-nut to stop the carriage
motion.
Repeat until the desired diameter is 6.
reached.
Note: When cutting under power be care-
ful to not run the tool into the chuck.
Thread Cutting
Set the machine up for the desired 1.
thread pitch.
Insert the appropriate tool into the 2.
chuck and secure.
Start the machine and engage the 3.
half nut.
When the tool reaches the workpiece, 4.
it will cut the initial threading pass.
When the tool reaches the end of the 5.
cut, stop the machine by turning the
motor off.
Back the tool out of the workpiece so 6.
that it clears the thread. Do not disen-
gage the half nut lever.
Reverse the motor direction to allow 7.
the cutting tool to traverse back to the
starting point.
Repeat until you have obtained the 8.
desired results.
Page 19SKU 45861 For technical questions, please call 1-800-444-3353.
MAINTENANCE AND
SERVICING
Procedures not specically
explained in this manual
must be performed only by a
qualied technician.
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION:
Turn the Power Switch of the
tool to its “OFF” position and
unplug the tool from its
electrical outlet before
performing any inspection,
maintenance, or cleaning
procedures.
TO PREVENT SERIOUS
INJURY FROM TOOL
FAILURE:
Do not use damaged
equipment. If abnormal noise
or vibration occurs, have the
problem corrected before
further use.
Cleaning and Maintenance
BEFORE EACH USE,1. inspect the
general condition of the tool. Check
for loose screws, misalignment or
binding of moving parts, cracked or
broken parts, damaged electrical wir-
ing, and any other condition that may
affect its safe operation.
AFTER USE,2. clean external surfaces
of the tool with clean cloth.
3. WARNING! If the supply cord of
this power tool is damaged, it must
be replaced only by a qualied
service technician.

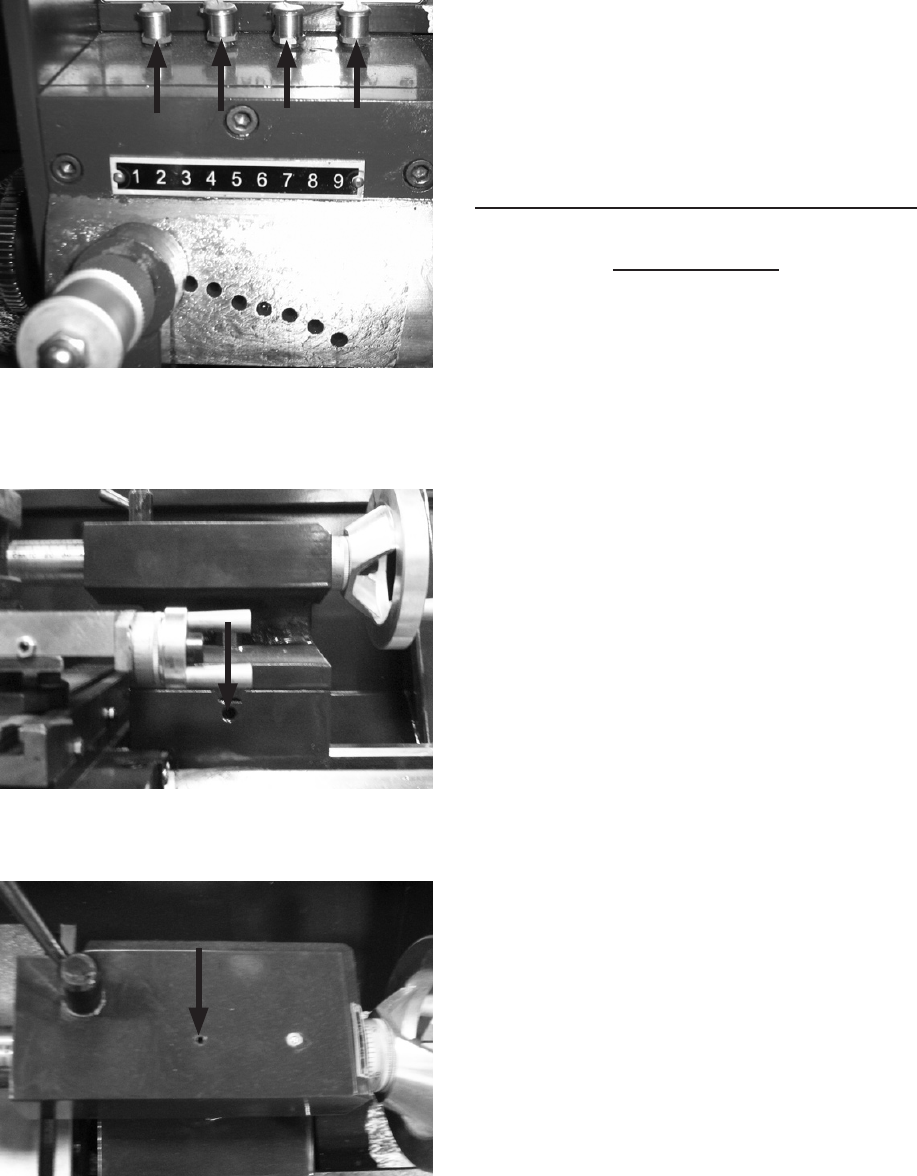

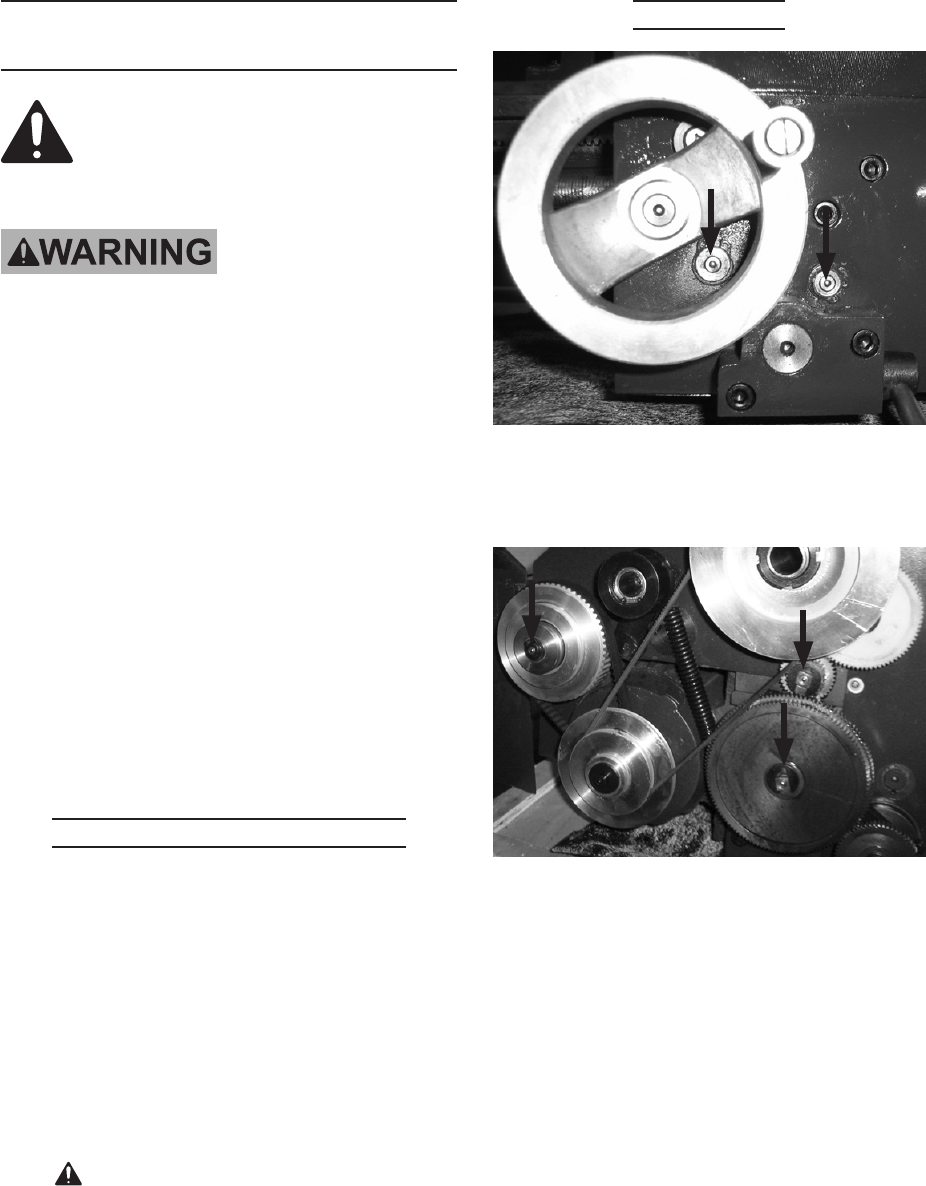

Lubrication
1. Lubricate the Apron through the t-
tings on the front face with ISO 68 or
SAE 20W oil.
2. Lightly oil the hubs and gear teeth in
the gear area. Avoid getting oil on
the belt or pulleys.
Page 20SKU 45861 For technical questions, please call 1-800-444-3353.
3. Lubricate the Gearbox through the
four oil caps. Add a few squirts of oil
every three hours of use.
4. Lubricate the leadscrew and lead-
screw bearing frequently.
5. Lubricate the tailstock oiling point
every ve uses, or once per week if
used frequently.
Wipe down the ways and slides after 6.
each use and lubricate with white
lithium grease.
Applying oil to the bedways and other 7.
metal parts will protect the Lathe from
rusting and pitting.
PLEASE READ THE FOLLOWING
CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR
HAS PROVIDED THE PARTS LIST AND
ASSEMBLY DIAGRAM IN THIS MANUAL AS
A REFERENCE TOOL ONLY. NEITHER THE
MANUFACTURER OR DISTRIBUTOR MAKES
ANY REPRESENTATION OR WARRANTY OF
ANY KIND TO THE BUYER THAT HE OR SHE
IS QUALIFIED TO MAKE ANY REPAIRS TO THE
PRODUCT, OR THAT HE OR SHE IS QUALIFIED
TO REPLACE ANY PARTS OF THE PRODUCT.
IN FACT, THE MANUFACTURER AND/OR
DISTRIBUTOR EXPRESSLY STATES THAT
ALL REPAIRS AND PARTS REPLACEMENTS
SHOULD BE UNDERTAKEN BY CERTIFIED
AND LICENSED TECHNICIANS, AND NOT BY
THE BUYER. THE BUYER ASSUMES ALL RISK
AND LIABILITY ARISING OUT OF HIS OR HER
REPAIRS TO THE ORIGINAL PRODUCT OR
REPLACEMENT PARTS THERETO, OR ARISING
OUT OF HIS OR HER INSTALLATION OF
REPLACEMENT PARTS THERETO.
Page 21SKU 45861 For technical questions, please call 1-800-444-3353.

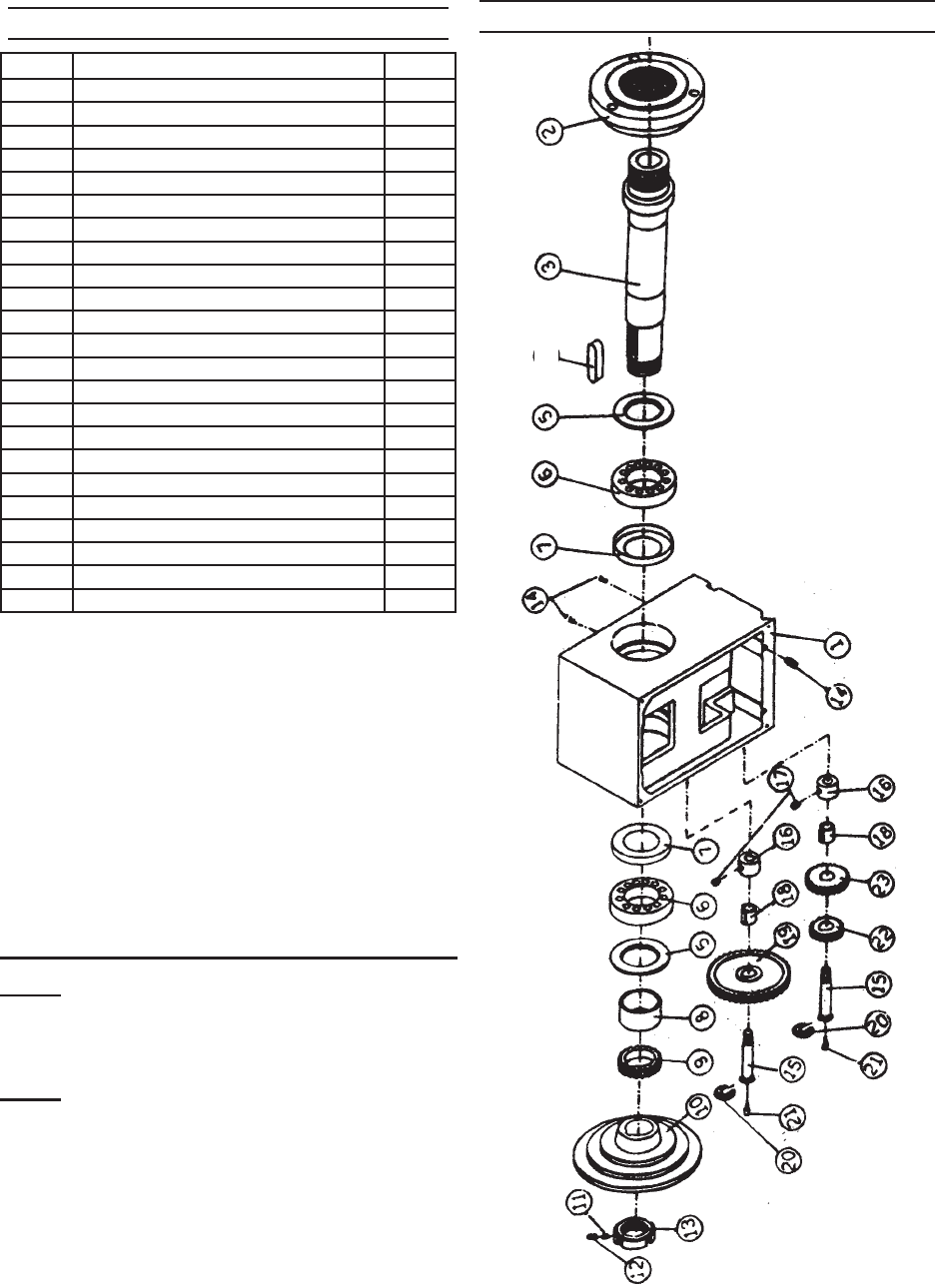

HEADSTOCK PARTS LIST
Part Description Qty.
1 Headstock 1
2 Flange Joint 1
3 Spindle 1
4 Key 1
5 Gasket 2
6 Bearing 2
7 Cover 2
8 Spacing Ring 1
9 Gear 1
10 Pulley 1
11 Bushing 1
12 Set Screw M4x6 4
13 Nut M28 1
14 Set Screw M4x10 4
15 Shaft 2
16 Spacing Ring 2
17 Set Screw M4x6 2
18 Bushing 2
19 Gear 1
20 Washer 2
21 Oil Feeder 2
22 Gear 1
23 Gear 1
HEADSTOCK DIAGRAM
Record Product’s Serial Number Here:
Note: If product has no serial number,
record month and year of purchase
instead.
Note: Some parts are listed and shown for
illustration purposes only, and are not
available individually as replacement
parts.
4
Page 22SKU 45861 For technical questions, please call 1-800-444-3353.
DRIVE PARTS LIST
Part Description Qty.
1A Bracket Plate 1
2A Screw M8x20 3
3A Belt Pulley Shaft 1
4A Washer 1
5A Spring Washer 1
6A Nut M10 1
7A Bushing 2
8A Snap Ring 1
9A Washer 5
10A Spring 5
11A Ball 5
12A Pulley 1
13A Pulley 1
14A Washer 1
15A Snap Ring 1
16A Oil Feeder 1
17A Spacer 1
18A Collar 1
19A Motor Pulley 1
20A Washer 1
DRIVE PARTS LIST
Part Description Qty.
21A Spring Washer 1
22A Cap Screw 1
23A Cover Mount 1
24A Screw M6x12 1
25A Washer 1
26A Screw M5x8 1
27A Cover 1
28A Screw M4x10 4
29A Washer 2
30A Screw M6x10 2
31A Screw M6x25 1
32A Washer 1
33A Spring 1
34A Screw M6x20 2
35A Clamp Piece 1
36A Nut M6 1
37A V-Belt 1
38A Tooth Belt 1
39A Plate 1
Note: When ordering parts from this list be sure to include the correct sufx.
Note: Some parts are listed and shown for illustration purposes only, and are not avail-
able individually as replacement parts.
Page 23SKU 45861 For technical questions, please call 1-800-444-3353.
DRIVE DIAGRAM
Note: When ordering parts from this dia-
gram be sure to include the correct
“A” sufx.
27 33
29
37
38
REV 08i
Page 24SKU 45861 For technical questions, please call 1-800-444-3353.
TENSIONING ROLLER
PARTS LIST
Part Description Qty.
1B Washer 1
2B Bolt 1
3B Lever Bracket 1
4B Lever 1
5B Bearing 1
6B Roller 1
7B Washer 1
8B Snap Ring 1
9B Snap Ring 1
10B Washer 1
11B Nut M10 2
12B Washer 1
TENSIONING ROLLER
PARTS LIST
Part Description Qty.
13B Spring 1
14B Bolt 1
15B Toggle 1
16B Bolt 1
17B Sleeve 1
18B Snap Ring 1
19B Set Screw M8x12 1
20B Wave Washer 1
21B Snap Ring 1
22B Lever 1
23B Lever 1
24B Knob 1
Note: When ordering parts from this list be sure to include the correct sufx.
Note: Some parts are listed and shown for illustration purposes only, and are not avail-
able individually as replacement parts.
Page 25SKU 45861 For technical questions, please call 1-800-444-3353.
QUADRANT PARTS LIST
Part Description Qty.
1C Bracket 1
2C T-nut 1
3C Washer 1
4C Shaft 1
5C Bushing 2
6C Gear 1
7C Gear 1
8C Washer 1
9C Oil Feeder 1
10C Washer 1
11C Pin 1
12C Gear 2
QUADRANT PARTS LIST
Part Description Qty.
13C Spacer 1
14C Washer 1
15C Screw M6x10 1
16C Spring Washer 1
17C Screw M6x35 1
18C Gear 28T 1
19C Gear 36T 1
20C Gear 42T 1
21C Gear 45T 1
22C Gear 60T 1
23C Gear 80T 1
Note: When ordering parts from this list be sure to include the correct sufx.
Note: Some parts are listed and shown for illustration purposes only, and are not avail-
able individually as replacement parts.
Page 26SKU 45861 For technical questions, please call 1-800-444-3353.
MOTOR HOUSING PARTS
LIST
Part Description Qty.
1D E-housing 1
2D Screw 4
3D Lock Washer 4
4D Cover 1
5D Clip 1
6D Condenser 1
7D Lock Nut 1
MOTOR HOUSING PARTS
LIST
Part Description Qty.
8D Screw Coupling 1
9D Switch 1
10D Hex Screw 4
11D Motor 1
12D Lock Washer 4
13D Nut 1
14D Screw M5x10 1
Note: When ordering parts from this list be sure to include the correct sufx.
Note: Some parts are listed and shown for illustration purposes only, and are not avail-
able individually as replacement parts.
Page 27SKU 45861 For technical questions, please call 1-800-444-3353.

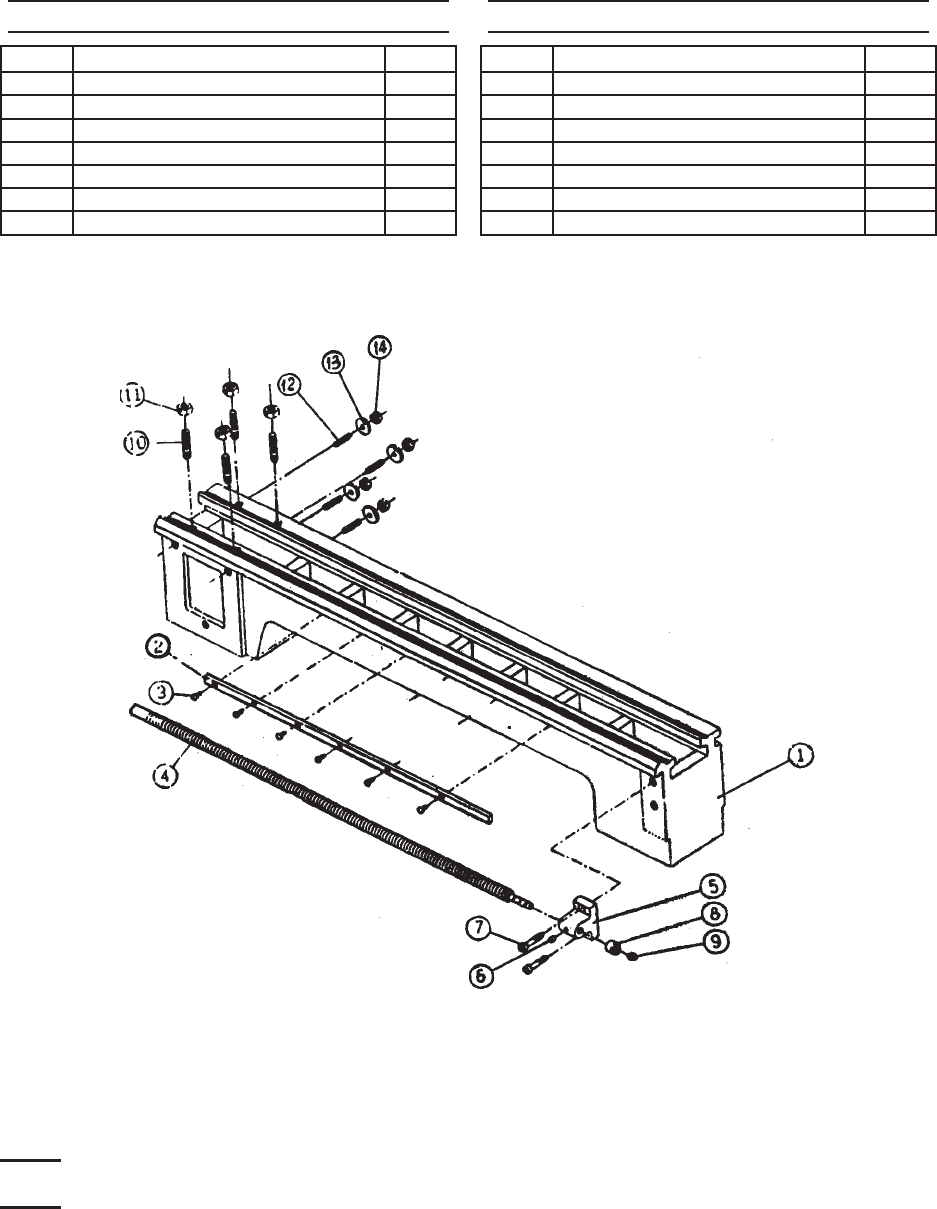

BED PARTS LIST
Part Description Qty.
1E Bed 1
2E Rack 1
3E Screw M4x8 6
4E Head Screw 1
5E Bracket 1
6E Oil Feeder 1
7E Screw M6x20 2
BED PARTS LIST
Part Description Qty.
8E Nut 1
9E Set Screw M8x6 1
10E Stud M8x28 4
11E Nut M8 4
12E Set Screw M6x25 4
13E Spring Washer 1
14E Nut M6 4
Note: When ordering parts from this list be sure to include the correct sufx.
Note: Some parts are listed and shown for illustration purposes only, and are not avail-
able individually as replacement parts.
Page 28SKU 45861 For technical questions, please call 1-800-444-3353.
GEAR BOX PARTS LIST
Part Description Qty.
1G Gear Box 1
2G Shaft 1
3G Key 1
4G Bushing 1
5G Gear 28T 1
6G Gear 26T 1
7G Gear 24T 1
8G Gear 23T 1
9G Gear 22T 1
10G Gear 20T 1
11G Gear 19T 1
12G Gear 18T 1
13G Gear 16T 1
14G Bushing 1
15G Snap Ring 1
16G Shaft 1
17G Key 1
18G Gear 16T 1
19G Arm 1
20G Shaft 1
21G Gear 36T 1
22G Set Screw M5x10 1
GEAR BOX PARTS LIST
Part Description Qty.
23G Snap Ring 2
24G Bearing 2
25G Plunger 1
26G Spring 1
27G Bushing 1
28G Handle 1
29G Cap Nut M10 1
30G Front Cover 1
31G Cap Screw M6x15 3
32G Pin 6x22 2
33G Bracket 1
34G Cap Screw M6x10 3
35G Washer 1
36G Bushing 1
37G Pin 4x14 1
38G Plate 1
39G Rivet 2x5 2
40G Cap Screw M8x20 3
41G Spring Washer 3
42G Oil Cap 4
43G
Note: When ordering parts from this list be sure to include the correct sufx.
Note: Some parts are listed and shown for illustration purposes only, and are not avail-
able individually as replacement parts.
Page 29SKU 45861 For technical questions, please call 1-800-444-3353.
GEAR BOX DIAGRAM
Note: When ordering parts from this dia-
gram be sure to include the correct
“G” sufx.
Page 30SKU 45861 For technical questions, please call 1-800-444-3353.

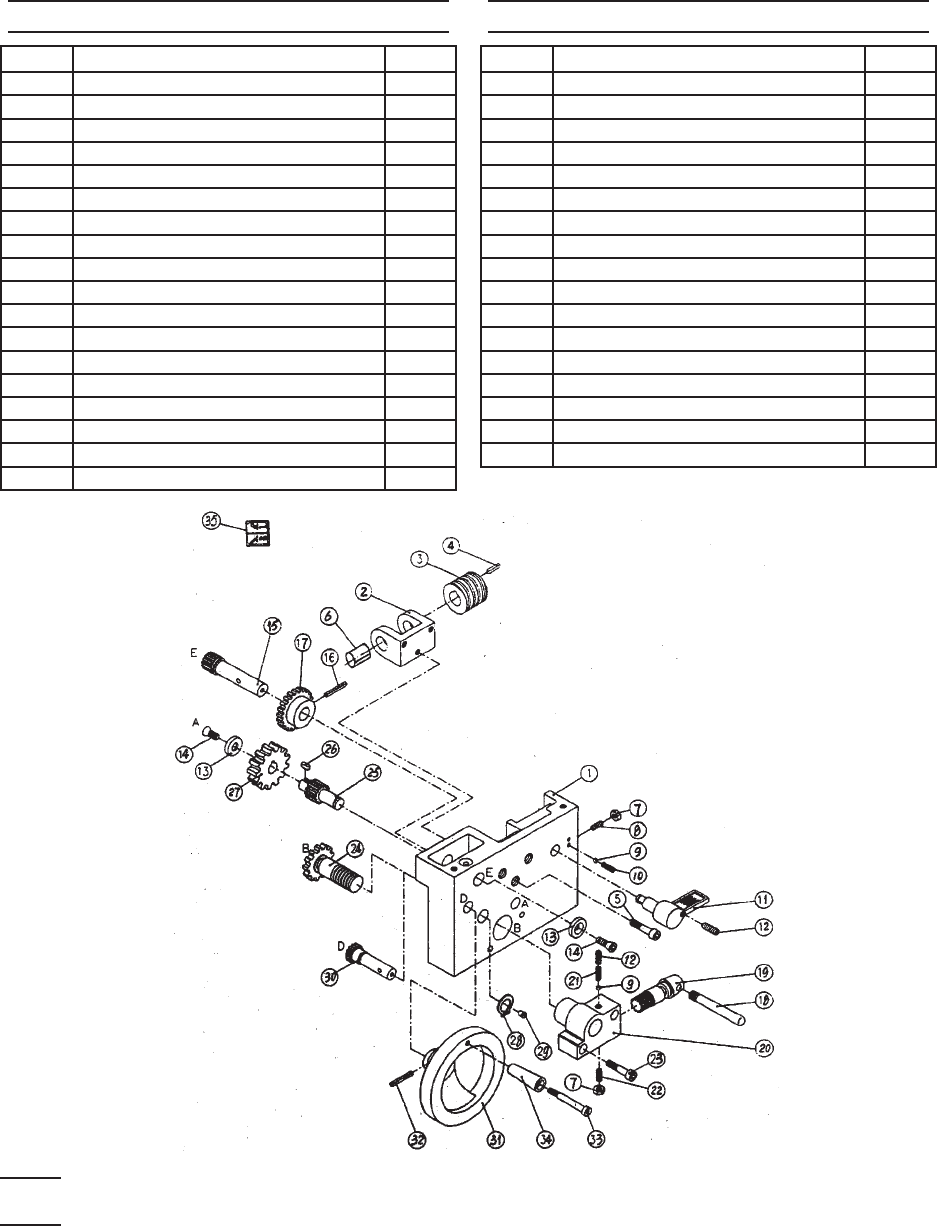

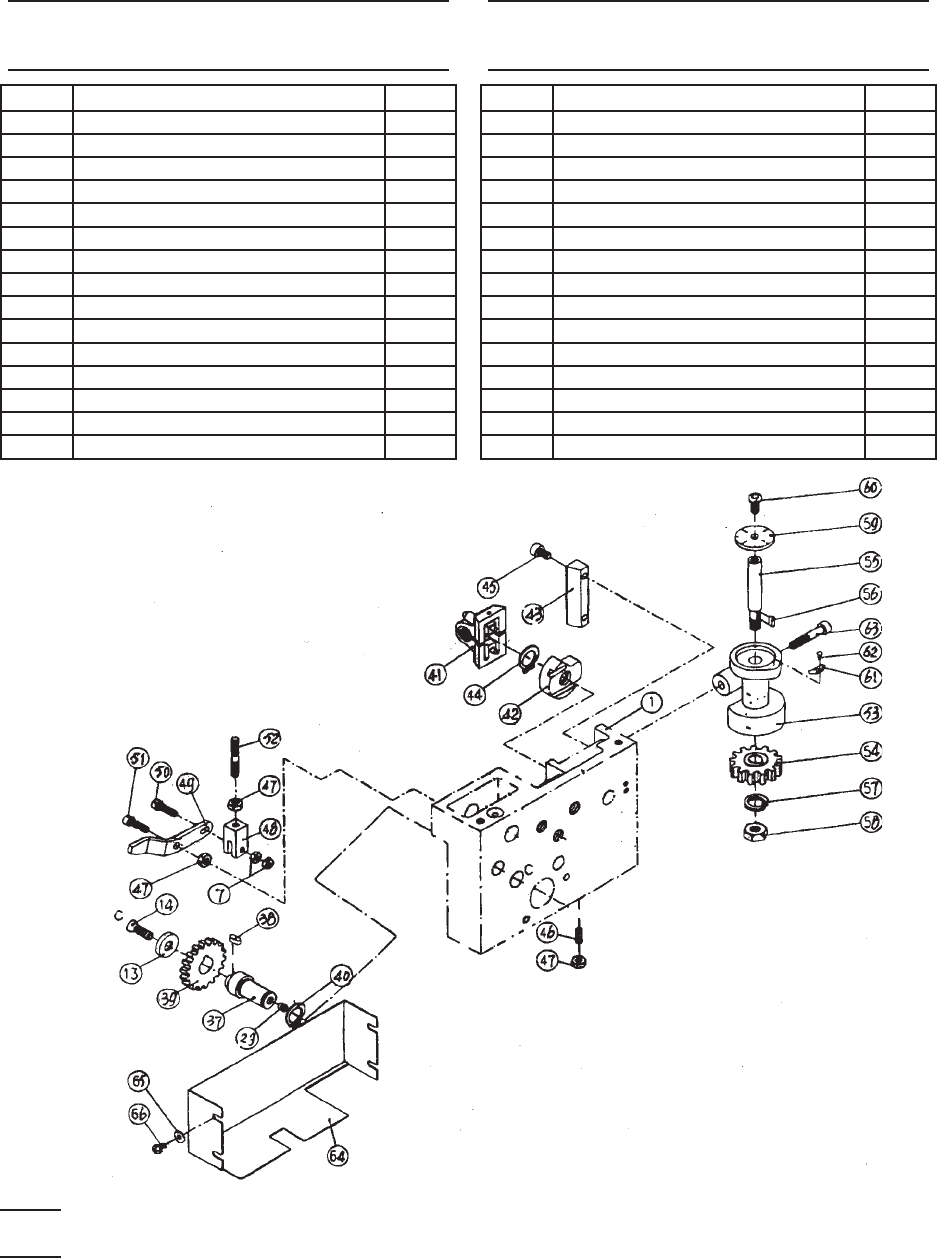

APRON PARTS LIST
Part Description Qty.
1H Apron Cover 1
2H Bracket 1
3H Worm 1
4H Key 3x25 1
5H Cap Screw M6x25 3
6H Feed Screw 1
7H Nut M4 5
8H Set Screw M4x12 2
9H Ball 2
10H Spring 1
11H Handle 1
12H Set Screw M6x6 2
13H Washer 3
14H Screw M6x8 3
15H Gear 12T 1
16H Spring Pin 4x30 1
17H Gear 43T 1
18H Handle 1
APRON PARTS LIST
Part Description Qty.
19H Gear 13T 1
20H Bracket 1
21H Spring 1
22H Set Screw M4x10 1
23H Cap Screw M6x30 2
24H Gear 36T 1
25H Gear 18T 1
26H Key 4x5 1
27H Worm Gear 1
28H Ring 1
29H Oil Feeder 2
30H Gear 17T 1
31H Hand Wheel 1
32H Spring Pin 4x25 1
33H Screw 1
34H Handle 1
35H Plate 1
Note: When ordering parts from this list be sure to include the correct sufx.
Note: Some parts are listed and shown for illustration purposes only, and are not avail-
able individually as replacement parts.
Page 31SKU 45861 For technical questions, please call 1-800-444-3353.
APRON PARTS LIST
CONTINUED
Part Description Qty.
37H Shaft 1
38H Key 4x11 3
39H Gear 41T 1
40H Ring 1
41H Half Nut 1
42H Locking Cam 1
43H Guide 2
44H Ring 1
45H Cap Screw M4x16 5
46H Set Screw M5x25 5
47H Nut M5 5
48H Control Plate 1
49H Joint Plate 1
50H Cap Screw M4x20 1
51H Cap Screw M5x16 1
APRON PARTS LIST
CONTINUED
Part Description Qty.
52H Screw 1
53H Thread Dial Body 1
54H Worm Gear 64T 1
55H Shaft 1
56H Key 3x10 1
57H Spring Washer 1
58H Nut M8 1
59H Dial 1
60H Screw M6x8 1
61H Pointer 1
62H Rivet 2x5 1
63H Screw M6x60 1
64H Apron Cover 4
65H Washer 2
66H Screw M4x8 2
Note: When ordering parts from this list be sure to include the correct sufx.
Note: Some parts are listed and shown for illustration purposes only, and are not avail-
able individually as replacement parts.
Page 32SKU 45861 For technical questions, please call 1-800-444-3353.
SADDLE AND CROSS SLIDE
PARTS LIST
Part Description Qty.
1J Saddle 1
2J Cross Slide 1
3J Gib 1
4J Nut 1
5J Lead Screw 1
6J Bracket 1
7J Screw M6x15 2
8J Plate 1
9J Rivet 2x5 2
10J Graduated Ring 1
11J Key 3x13 1
12J Spring 1
13J Hand Wheel 1
14J Nut 1
15J Set Screw M8x6 1
16J Handle 1
17J Slide Guide 1
18J Bushing 1
19J Screw M6x12 1
20J Screw M4x8 1
SADDLE AND CROSS SLIDE
PARTS LIST
Part Description Qty.
21J Pin 3
22J Set Screw M4x12 3
23J Nut M4 3
24J Slide Guide 1
25J Washer 3
26J Cap Screw M6x15 3
27J Mount 1
28J Set Screw M6x20 1
29J Nut M6 1
30J Cap Screw M6x25 1
31J Way Cover 2
32J Cover Mount 2
33J Screw M4x6 8
34J Way Cover 2
35J Cover Mount 2
36J Oil Feeder 1
37J Cap Screw M8x30 2
38J Cap Screw M6x25 2
39J Screw 1
40J Cover Mount 1
Note: When ordering parts from this list be sure to include the correct sufx.
Note: Some parts are listed and shown for illustration purposes only, and are not avail-
able individually as replacement parts.
Page 33SKU 45861 For technical questions, please call 1-800-444-3353.
SADDLE AND CROSS SLIDE DIAGRAM
Note: When ordering parts from this dia-
gram be sure to include the correct “J”
sufx.
Page 34SKU 45861 For technical questions, please call 1-800-444-3353.
TOOL POST PARTS LIST
Part Description Qty.
1K Longitudinal Slide 1
2K Swivel Base 1
3K Gib 1
4K Clamping Ring 1
5K Micrometer Pan 1
6K Lead Screw Nut 1
7K Adjusting Screw 1
8K Screw 1
9K T-cap Screw 2
10K Pin 3
13K Screw M5x10 2
14K Screw M6x12 3
15K Set Screw M4x10 3
16K Nut M4 3
17K Nut M6 2
18K Lock Pin 3x8 1
TOOL POST PARTS LIST
Part Description Qty.
19K Lock Pin 3x14 1
23K Lead Screw 1
24K Lead Screw Mount 1
25K Micrometer Collar 1
26K Handwheel 1
27K Handle 2
28K Key 3x13 1
29K Feed Spring 1
30K Nut 1
31K Set Screw M8x6 1
32K Lock Pin 3x12 1
35K Tool Post 1
36K S-Washer 1
37K Hand Nut 1
38K Handle 1
39K S-screw M8x30 8
Note: When ordering parts from this list be sure to include the correct sufx.
Note: Some parts are listed and shown for illustration purposes only, and are not avail-
able individually as replacement parts.
Page 35SKU 45861 For technical questions, please call 1-800-444-3353.

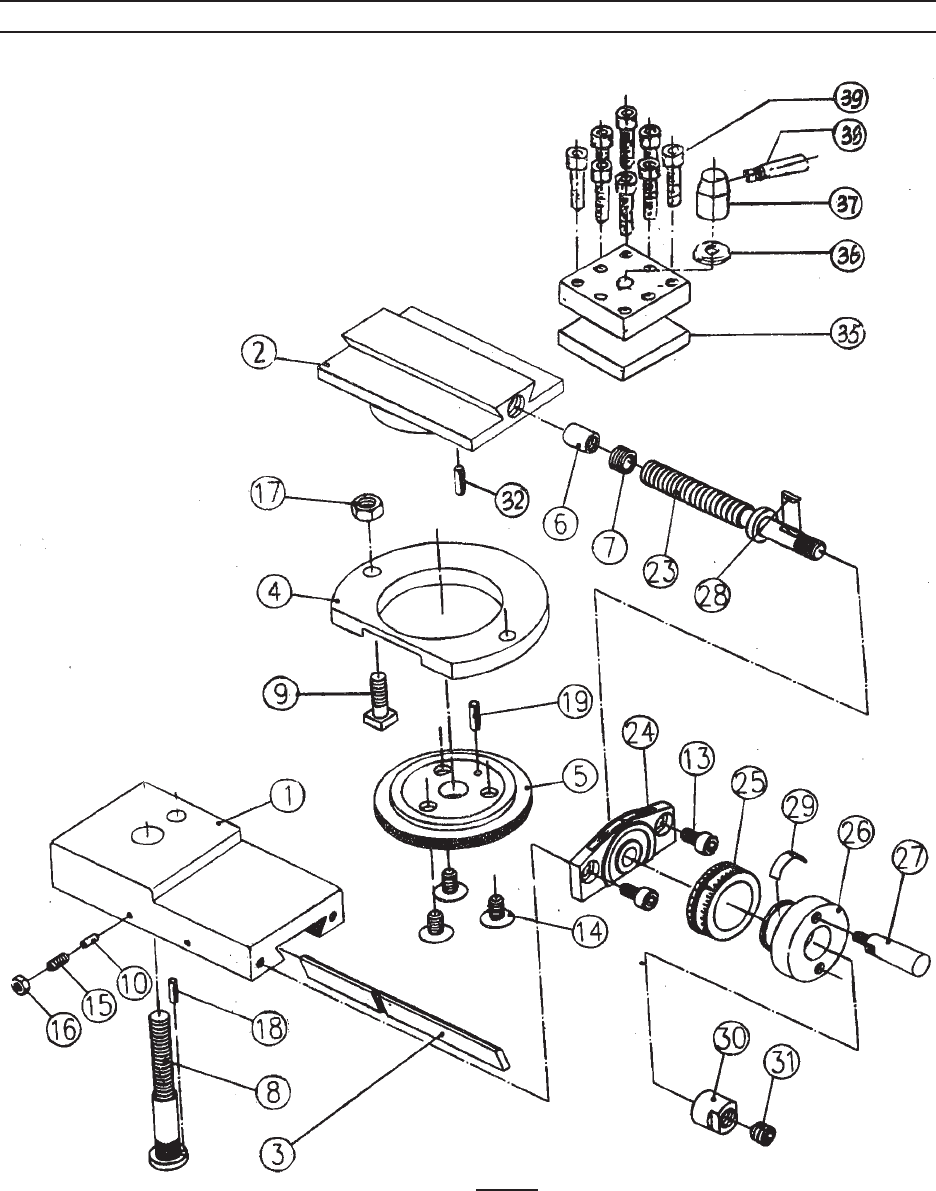

TOOL POST DIAGRAM
Note: When ordering parts from this dia-
gram be sure to include the correct
“K” sufx.
Page 36SKU 45861 For technical questions, please call 1-800-444-3353.

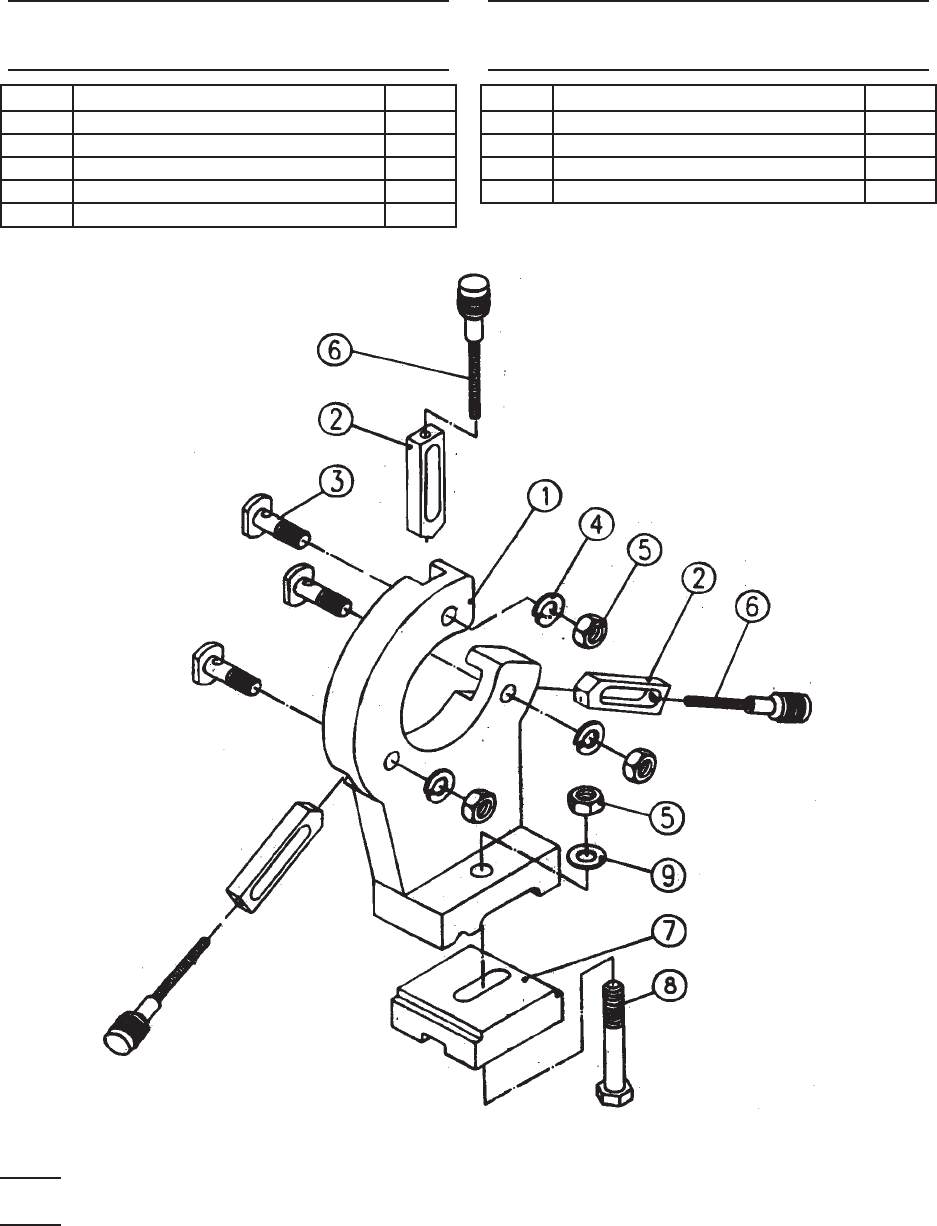

TRAVELLING REST PARTS
LIST
Part Description Qty.
1M Rest 1
2M Jaw 2
3M Screw 2
4M Spring Washer 2
5M Nut M8 2
TRAVELLING REST PARTS
LIST
Part Description Qty.
6M Adjustment Screw 2
7M Clamping Plate 2
8M Hex Screw M8x60 2
9M Washer 1
Note: When ordering parts from this list be sure to include the correct sufx.
Note: Some parts are listed and shown for illustration purposes only, and are not avail-
able individually as replacement parts.
Page 37SKU 45861 For technical questions, please call 1-800-444-3353.
STEADY REST PARTS LIST
Part Description Qty.
1P Rest 1
2P Jaw 2
3P Screw 2
4P Adjustment Screw 2
STEADY REST PARTS LIST
Part Description Qty.
5P Nut M8 2
6P Spring Washer 2
7P Cap Screw M8x30 2
8P Washer 2
Note: When ordering parts from this list be sure to include the correct sufx.
Note: Some parts are listed and shown for illustration purposes only, and are not avail-
able individually as replacement parts.
Page 38SKU 45861 For technical questions, please call 1-800-444-3353.

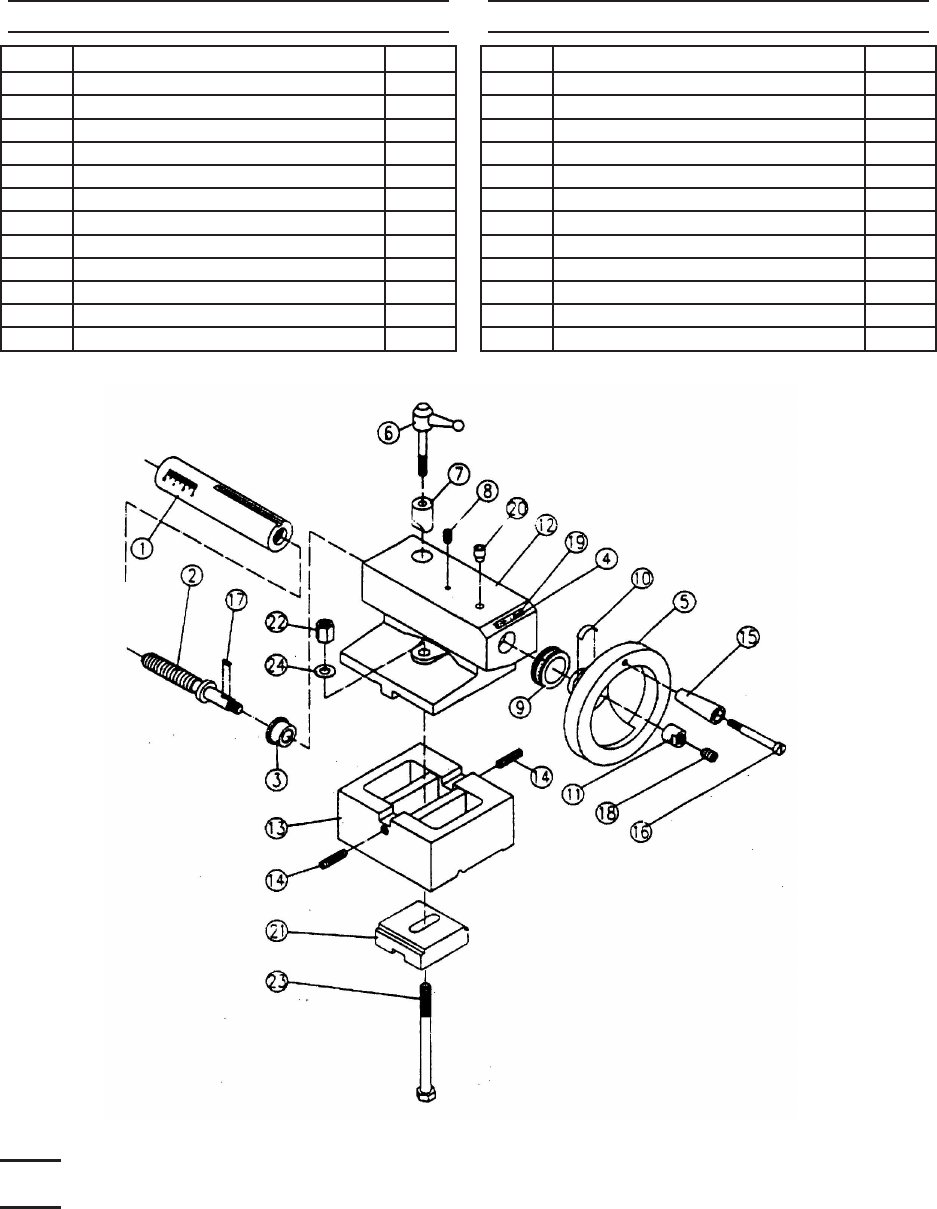

TAIL STOCK PARTS LIST
Part Description Qty.
1Q Tailstock Ram 1
2Q Lead Screw 1
3Q Bushing 1
4Q Plate 1
5Q Handwheel 1
6Q Lever 1
7Q Clamp 1
8Q Guide Pin 1
9Q Micrometer Collar 1
10Q Feed Spring 1
11Q Nut 2
12Q Tailstock 1
TAIL STOCK PARTS LIST
Part Description Qty.
13Q Tailstock Base 1
14Q Set Screw 2
15Q Handle 1
16Q Screw 1
17Q Key 1
18Q Set Screw 1
19Q Rivet 2
20Q Oil Feeder 1
21Q Clamping Plate 2
22Q Nut 1
23Q Screw 1
24Q Washer 1
REV 09c
Note: When ordering parts from this list be sure to include the correct sufx.
Note: Some parts are listed and shown for illustration purposes only, and are not avail-
able individually as replacement parts.
Page 39SKU 45861 For technical questions, please call 1-800-444-3353.

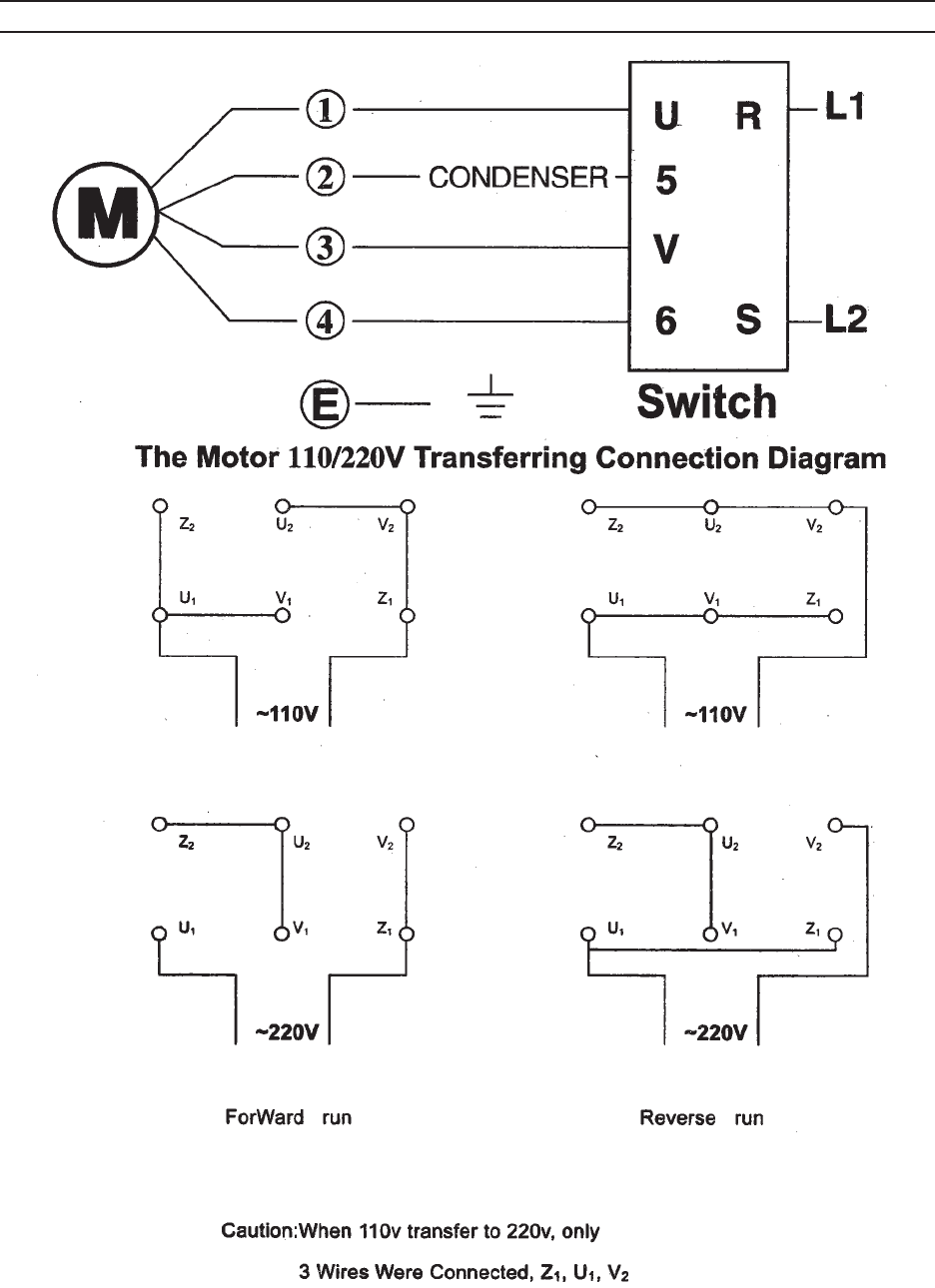

WIRING DIAGRAM
Page 40SKU 45861 For technical questions, please call 1-800-444-3353.

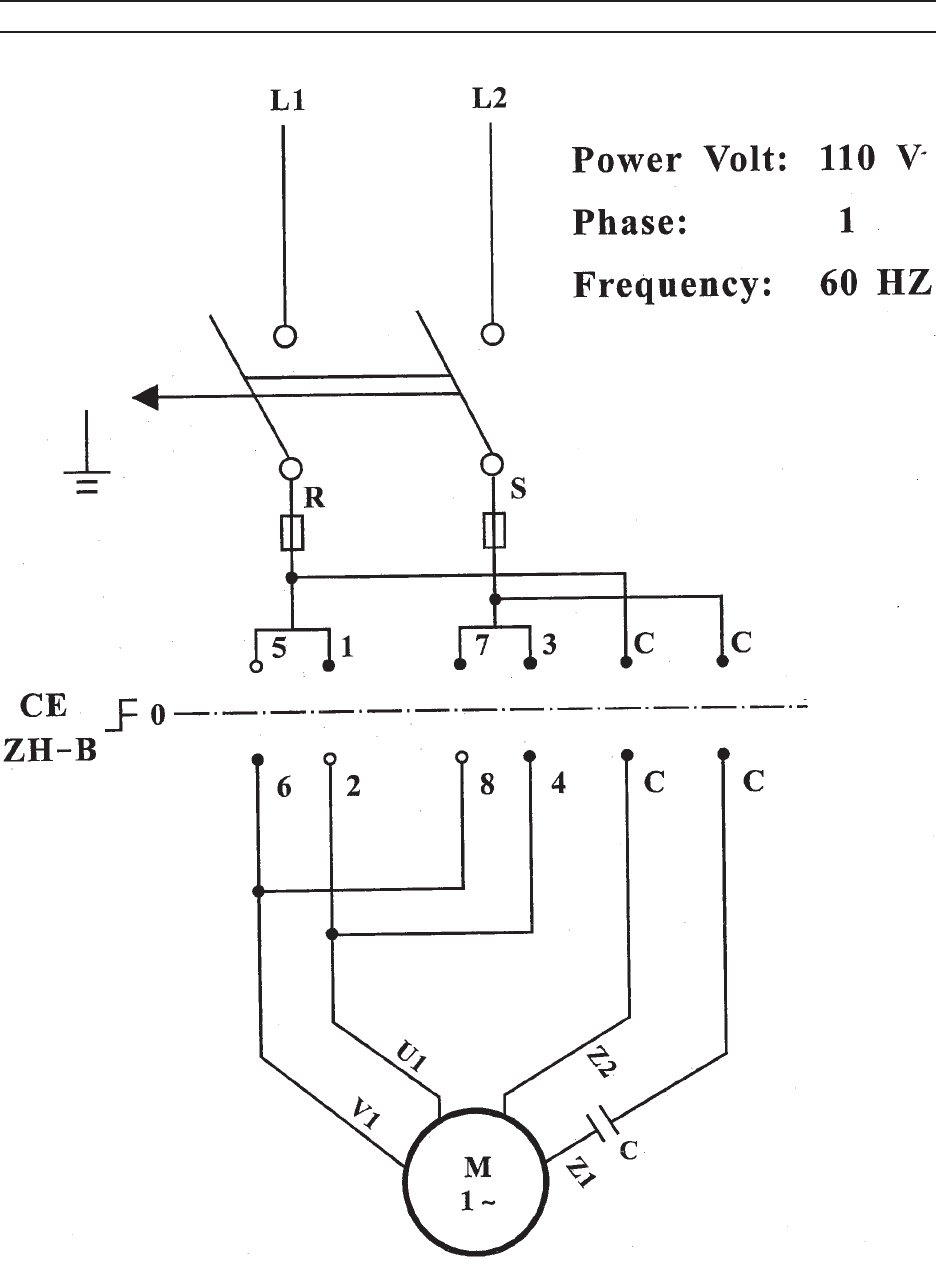

WIRING DIAGRAM
Page 41SKU 45861 For technical questions, please call 1-800-444-3353.
LIMITED 1 YEAR / 90 DAY WARRANTY
Harbor Freight Tools Co. makes every effort to assure that its products meet high
quality and durability standards, and warrants to the original purchaser that for a period
of one year from date of purchase that the tank is free of defects in materials and work-
manship (90 days if used by a professional contractor or if used as rental equipment).
Harbor Freight Tools also warrants to the original purchaser, for a period of ninety days
from date of purchase, that all other parts and components of the product are free from
defects in materials and workmanship. This warranty does not apply to damage due di-
rectly or indirectly to misuse, abuse, negligence or accidents, repairs or alterations out-
side our facilities, normal wear and tear, or to lack of maintenance. We shall in no event
be liable for death, injuries to persons or property, or for incidental, contingent, special
or consequential damages arising from the use of our product. Some states do not allow
the exclusion or limitation of incidental or consequential damages, so the above limita-
tion of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF
ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES
OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with
transportation charges prepaid. Proof of purchase date and an explanation of the com-
plaint must accompany the merchandise. If our inspection veries the defect, we will ei-
ther repair or replace the product at our election or we may elect to refund the purchase
price if we cannot readily and quickly provide you with a replacement. We will return re-
paired products at our expense, but if we determine there is no defect, or that the defect
resulted from causes not within the scope of our warranty, then you must bear the cost
of returning the product.
This warranty gives you specic legal rights and you may also have other rights
which vary from state to state.
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • (800) 444-3353
