CROSSOVER UTILITY VEHICLES
GATOR™ XUV SERIES
Olive & Black
Green & Yellow
Vertis QCA
1300 19th Street, Suite 200
East Moline, IL 61244
Cyan Magenta Yellow Black 46123 Gator XUV Spec Sheet Front
Vertis QCA
1300 19th Street, Suite 200
East Moline, IL 61244
Cyan Magenta Yellow Black
Specifications are based on published information at the time of publication. Specifications are subject to change without notice. Contact your local
John Deere dealer for more information. Prices are subject to change without notice. In all cases, current published price lists and incentive program
bulletins will take precedence. This literature has been compiled for worldwide circulation. While general information, pictures and descriptions are
provided, some illustrations and text may include finance, credit, insurance, product options and accessories NOT AVAILABLE in all regions. PLEASE
CONTACT YOUR LOCAL DEALER FOR DETAILS. John Deere reserves the right to change specification, design and price of the products described in this
literature without notice. John Deere’s green and yellow color scheme, the leaping deer symbol, and JOHN DEERE are trademarks of Deere & Company.
DKE6498 (10-05) Litho in USA. Job # 45823
Engine and Electrical
Type 4-cycle gas, Electronic Fuel
Injection (EFI)
4-cycle gas, Electronic Fuel
Injection (EFI)
4-cycle diesel
Cylinders/Valving 3, DOHC, 4 valves per cyl. 2, OHV 3, OHV
Horsepower* 50 (37.28 kW)* 23 (17.2 kW)* 25 (18.6 kW)*
Displacement 812cc 617cc 854cc
Maximum torque 47 ft-lbs. (64 Nm)
@3200 rpm
34.6 ft-lbs. (46.9 Nm)
@2100 rpm
36.9 ft-lbs. (50 Nm)
@2400 rpm
Cooling system Liquid Liquid Liquid
Battery 340CCA 340CCA 480CCA
Alternator 75 amp @ 6000 rpm,
regulated, 1012 watts
25.5 amp @ 3200 rpm,
regulated, 306 watts
40 amp @ 3200 rpm,
regulated, 540 watts
Lights
Headlights Two 27 watt halogen Two 27 watt halogen Two 27 watt halogen
On-demand true
4WD system
Front Differential Auto-locking Auto-locking Auto-locking
Rear Differential Positive locking,
mechanically actuated
Positive locking,
mechanically actuated
Positive locking,
mechanically actuated
Transmission
Type Continuously Variable
Transmission (CVT) with
full clutch enclosure
Continuously Variable
Transmission (CVT) with
full clutch enclosure
Continuously Variable
Transmission (CVT) with
full clutch enclosure
Ground speed, mph (km/h) 0-44 (0-71) Hi Forward,
0-27 (0-43) Lo Forward,
0-30 (0-48) Reverse
0-30 (0-48) Hi Forward,
0-17 (0-27) Lo Forward,
0-20 (0-32) Reverse
0-32 (0-52) Hi Forward,
0-15 (0-24) Lo Forward,
0-18 (0-29) Reverse
Transaxle Two speed (hi-lo), oil bath Two speed (hi-lo), oil bath Two speed (hi-lo), oil bath
Front/Rear Brakes Hydraulic disc with twin
piston front calipers
Hydraulic disc with twin
piston front calipers
Hydraulic disc with twin
piston front calipers
Park brake Driveline, internal wet
multi-disc
Driveline, internal wet
multi-disc
Driveline, internal wet
multi-disc
Bearings Sealed, double-row ball Sealed, double-row ball Sealed, double-row ball
Suspension and Steering
Front Suspension Fully Independent dual
control arm with adjustable
spring preload
Fully Independent dual
control arm with adjustable
spring preload
Fully Independent dual
control arm with adjustable
spring preload
Front Suspension Travel 8 in. (203 mm) 8 in. (203 mm) 8 in. (203 mm)
Rear Suspension Fully independent dual
control arm with adjustable
spring preload and sway bar
Fully independent dual
control arm with adjustable
spring preload and sway bar
Fully independent dual
control arm with adjustable
spring preload and sway bar
Rear Suspension Travel 9 in. (228.6 mm) 9 in. (228.6 mm) 9 in. (228.6 mm)
Turning radius 15.9 ft. (4.8 m) 15.9 ft. (4.8 m) 15.9 ft. (4.8 m)
Hitches
Front and Rear Standard 2 in. (50.8 mm)
receiver
Standard 2 in. (50.8 mm)
receiver
Standard 2 in. (50.8 mm)
receiver
Occupant Protective
System (OPS)
Tubular overhead structure 1.75 in. (44.4 mm) steel tube 1.75 in. (44.4 mm) steel tube 1.75 in. (44.4 mm) steel tube
Seat belts 3-point seat belts 3-point seat belts 3-point seat belts
Certifi cation SAE J2194 and OSHA ROPS SAE J2194 and OSHA ROPS SAE J2194 and OSHA ROPS
Ground Clearance
Ground Clearance Front - 11.0 in. (280 mm),
Rear - 11.0 in. (280 mm)
Front - 11.0 in. (280 mm),
Rear - 11.0 in. (280 mm)
Front - 11.0 in. (280 mm),
Rear - 11.0 in. (280 mm)
Under Foot Platform 12.25 in. (311 mm) 12.25 in. (311 mm) 12.25 in. (311 mm)
Dimensions
Length 119 in. (3035 mm)
Width 62 in. (1571 mm)
Front/Rear-tread Centers 44.8 in. (1137mm)/
47.9 in. (1216mm)
Height (with OPS) 75 in. (1903 mm)
Wheelbase 79 in. (2007 mm)
Weight (dry weight) 1630 lb. (739 kg)
Towing Capacity 1,500 lb. (680 kg)
Payload Capacity 1400 lb. (635 kg)
Sound rating (driver's ear) 89.4 dB(A)
Cargo Box
Material Hybrid steel/
glass-fi lled poly
Dimensions, in. (mm) 45 x12 x52
(1143 x304.8x1320)
Volume 16.4 ft3 (0.46 m3)
Weight 1000 lb. (454 kg)
Dump Manual with lift assist
shock (factory installed
power lift option)
Tailgate Center truck-style latch
Tires
Front
Maxxis Big Horn 2.0, Radial 27x9xR14
Ancla MT (Mud Terrain) 26x9xR12
Terrahawk AT (All Terrain) 25x9xR12
Rear
Maxxis Big Horn 2.0, Radial 27x11xR14
Ancla MT (Mud Terrain) 26x11xR12
Terra Hawk AT (All Terrain) 25x11xR12
Color options Green & Yellow
Camoufl age
Olive & Black
*The engine horsepower information is provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower may be less. Specifications are based on published information at
the time of publication. Specifications are subject to change without notice. Contact your local John Deere dealer for more information. Prices are subject to change without notice. In all cases, current published price
lists and incentive program bulletins will take precedence. This literature has been compiled for worldwide circulation. While general information, pictures and descriptions are provided, some illustrations and text may
include finance, credit, insurance, product options and accessories NOT AVAILABLE in all regions. PLEASE CONTACT YOUR LOCAL DEALER FOR DETAILS. John Deere reserves the right to change specification, design and
price of the products described in this literature without notice. John Deere’s green and yellow color scheme, the leaping deer symbol, and JOHN DEERE are trademarks of Deere & Company.
DKE46123 (10-06) Litho in USA. Job #46123
XUV 825i XUV 625i XUV 855D ALL MODELS
See the latest at
JohnDeere.com/Gator

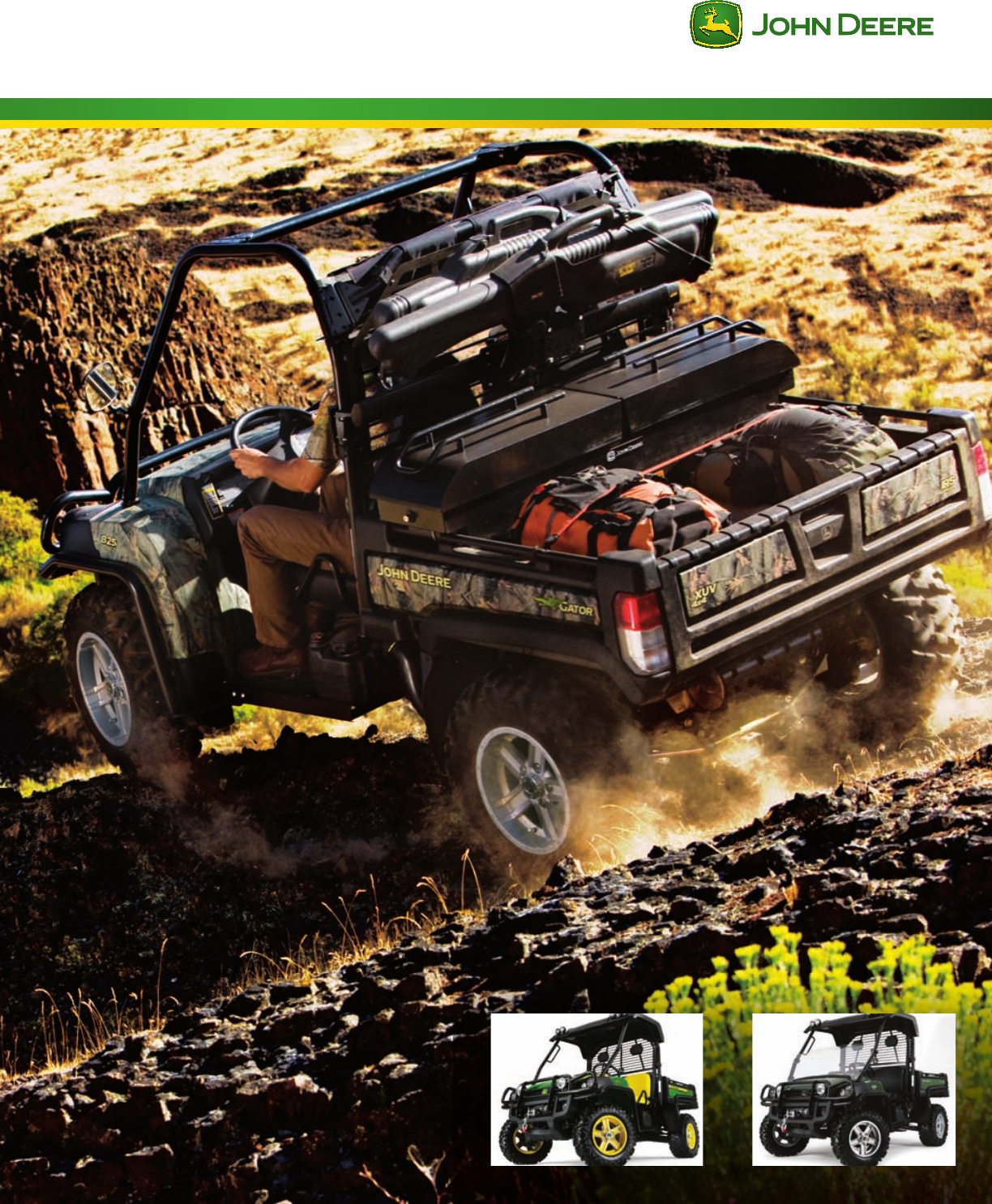

The All-New Gator™ XUV Series. Introducing the
fastest, most powerful Gator UVs yet. The headline
act: The 50-hp 825i, with the most advanced
engine in its class, with 3-cylinders and dual
overhead cams. Then there’s the 855D model, the
fastest diesel UV ever, and the 625i, with exclusive
power management. Every vehicle in this trifecta
features an advanced performance suspension,
Deluxe Cargo Box with the highest capacity in its
class, and the real-world engineering that makes
a John Deere, a John Deere. Test drive one today.
Prepare to be blown away.
