Assembly Instructions
S3.25
Leg Press Option
S3.25 Leg Press Option Assembly Instructions
page 2
IMPORTANT SAFETY INSTRUCTIONS
Important Safety Instructions
Important Safety Instructions
Before beginning any fitness program, you should
obtain a complete physical examination from your
physician.
Il est conseillé de subir un examen médical complet
avant d’entreprendre tout programme d’exercise. Si
vous avez des étourdissements ou des faiblesses,
arrêtez les exercices immédiatement.
When using exercise equipment, basic precautions
should always be taken, including the following:
• Read all instructions before using the Leg Press
Option. These instructions are written to ensure
your safety and to protect the unit.
• Do not allow children on or near the equipment.
• Use the equipment only for its intended
purpose as described in this guide. Do not
use accessory attachments that are not
recommended by the manufacturer: such
attachments might cause injuries.
• Wear proper exercise clothing and shoes for
your workout—no loose clothing.
• Use care when getting on or off the unit.
• Do not overexert yourself or work to
exhaustion.
• If you feel any pain or abnormal symptoms,
stop your workout immediately and consult
your physician.
• Never operate the unit when it has been
dropped or damaged. Return the equipment to a
service center for examination and repair.
• Never drop or insert objects into any opening
in the equipment. Keep hands away from moving
parts.
• Always check the unit and its cables before
each use. Make sure that all fasteners and
cables are secure and in good working
condition.
• Do not use the equipment outdoors.
Personal Safety During Assembly
• It is strongly recommended that a qualified dealer
assemble the equipment.
Assistance is required.
• Read each step in the assembly instructions and
follow the steps in sequence. Do not skip ahead. If
you skip ahead, you may learn later that you have
to disassemble components and that you may
have damaged the equipment.
• Assemble and operate the Leg Press Option on a
solid, level surface. Locate the unit a few feet from
walls or furniture to provide easy access.
The Leg Press Option is designed for your enjoyment. By
following these precautions and using common sense,
you will have many safe and pleasurable hours of
healthful exercise with your Precor equipment.
Obtaining Service
Do not attempt to service the Leg Press
Option yourself. This unit does not contain
any user-serviceable parts.
For information about product operation or
service, check out the Precor web site at
www.precor.com or contact an authorized
Precor dealer or a Precor factory-authorized
service company. To locate the dealer or service
person nearest you, call 1-800-347-4404.
If you call or e-mail Customer Support, have
your serial and part numbers available.
You can find the serial number printed on a
label on the Upright Seat Support of the Leg
Press Option. For future reference, write the
serial number in the space below.
Serial number: _____________
S3.25 Leg Press Option Assembly Instructions
page 3
Table of Contents
Table of Contents
Important Safety Instructions ............................................................... 2
Personal Safety During Assembly ................................................................................. 2
Obtaining Service .......................................................................................................... 2
Before You Begin ................................................................................... 4
Unpacking the Equipment ............................................................................................. 4
Preparations........................................................................................... 5
Required Tools............................................................................................................... 5
Installation Requirements .............................................................................................. 5
Assembly Tips ............................................................................................................... 5
Assembly Instructions .......................................................................... 6
1. Remove the Shroud ................................................................................................... 7
2. Attach the Cross Brace to the S3.25 ......................................................................... 8
3. Assemble the Frame .................................................................................................. 9
4. Assemble the Seat Pads............................................................................................ 11

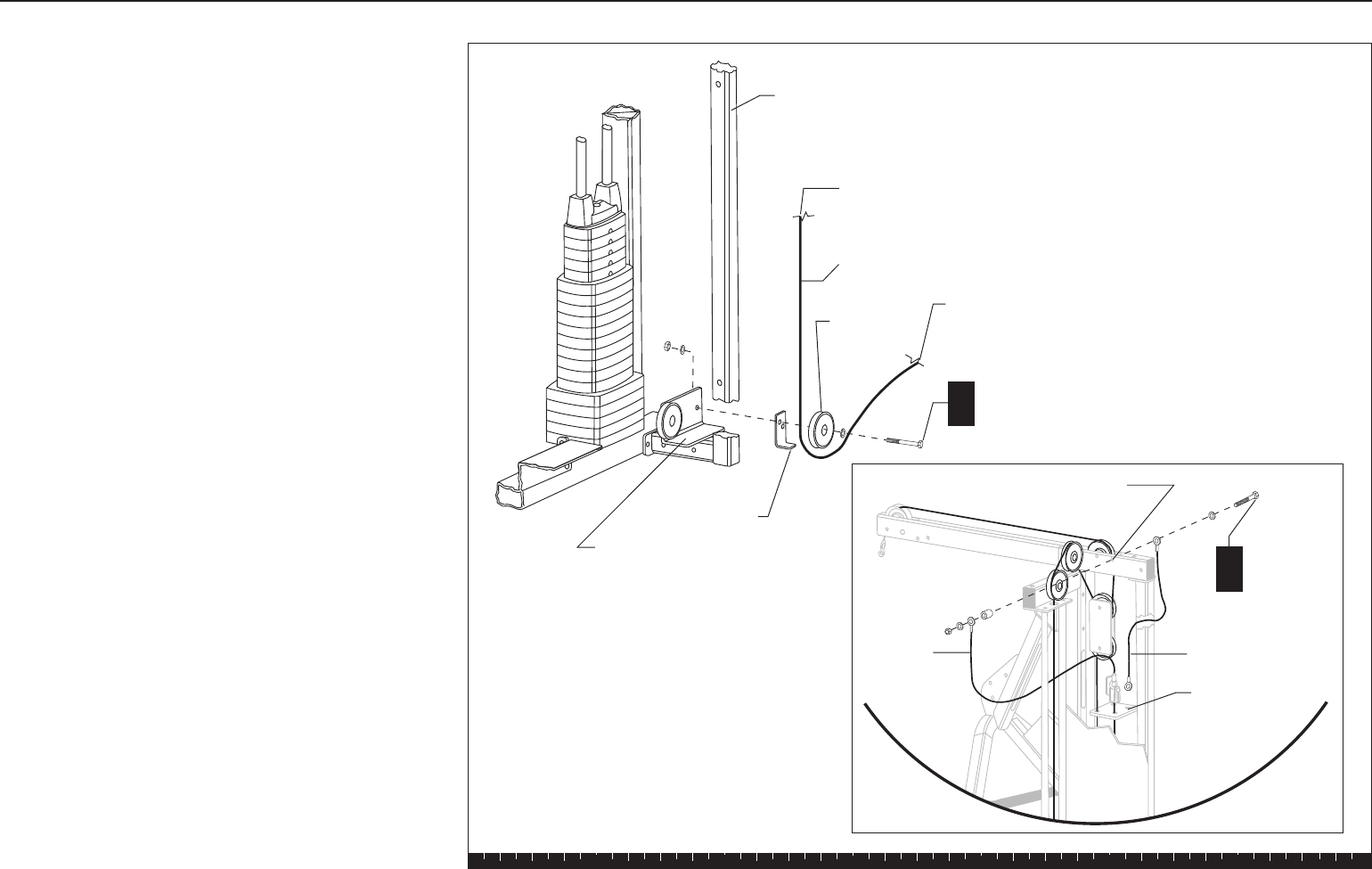

5. Route the Cable ......................................................................................................... 12

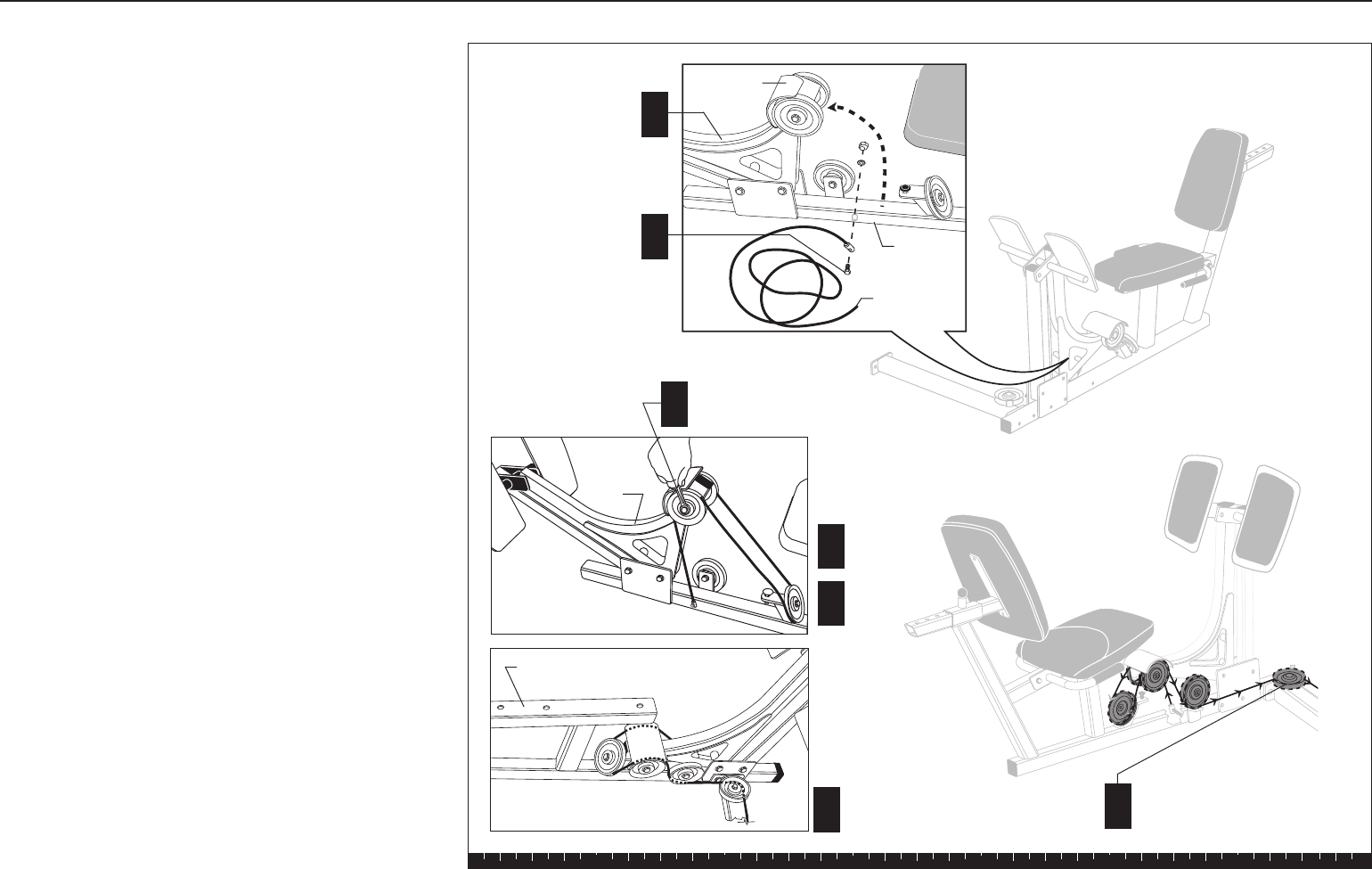

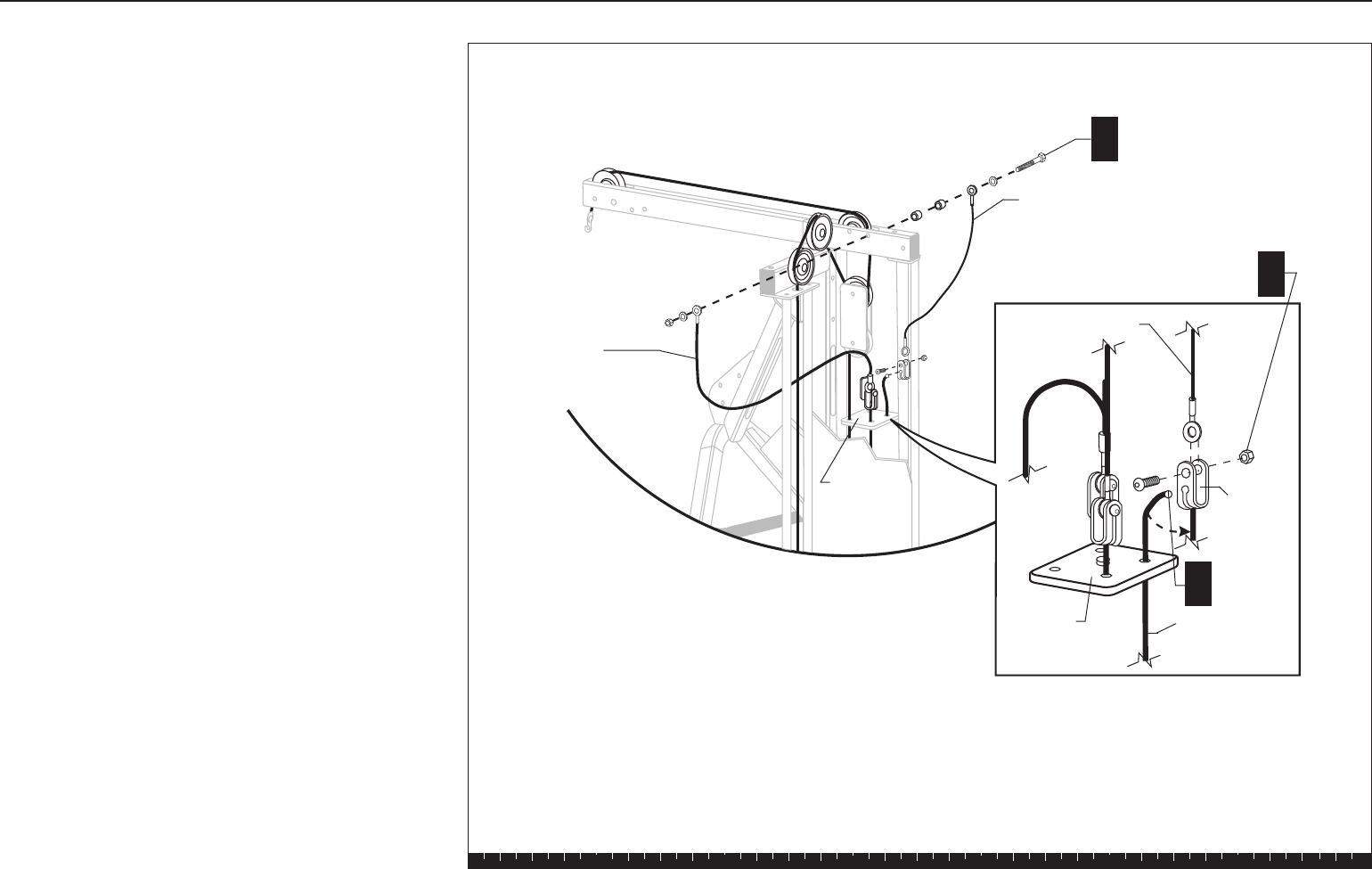

6. Assemble the Cable and Pulleys ............................................................................... 13
7. Replace the Shroud ................................................................................................... 15

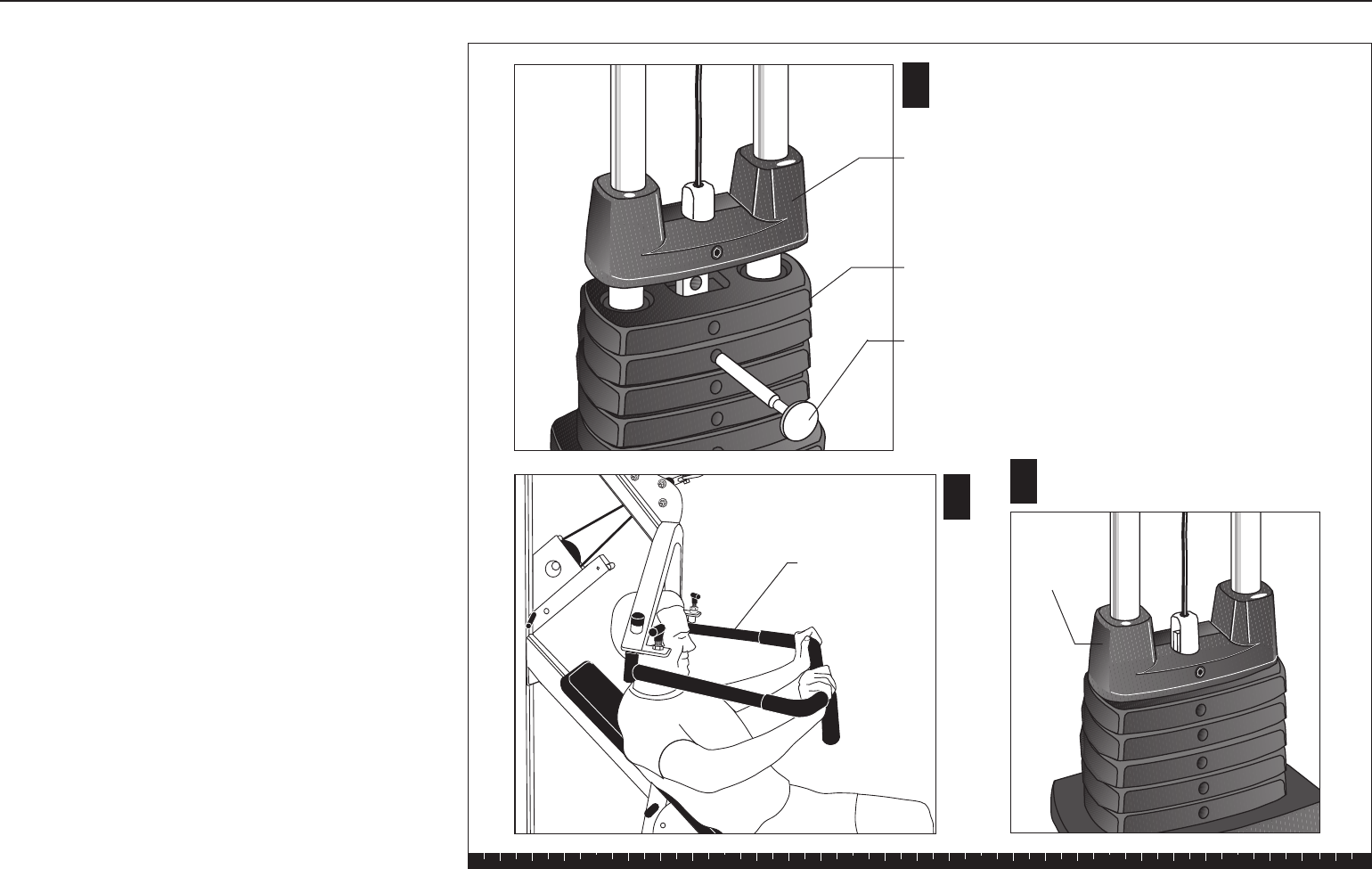

Adjustments ........................................................................................... 16

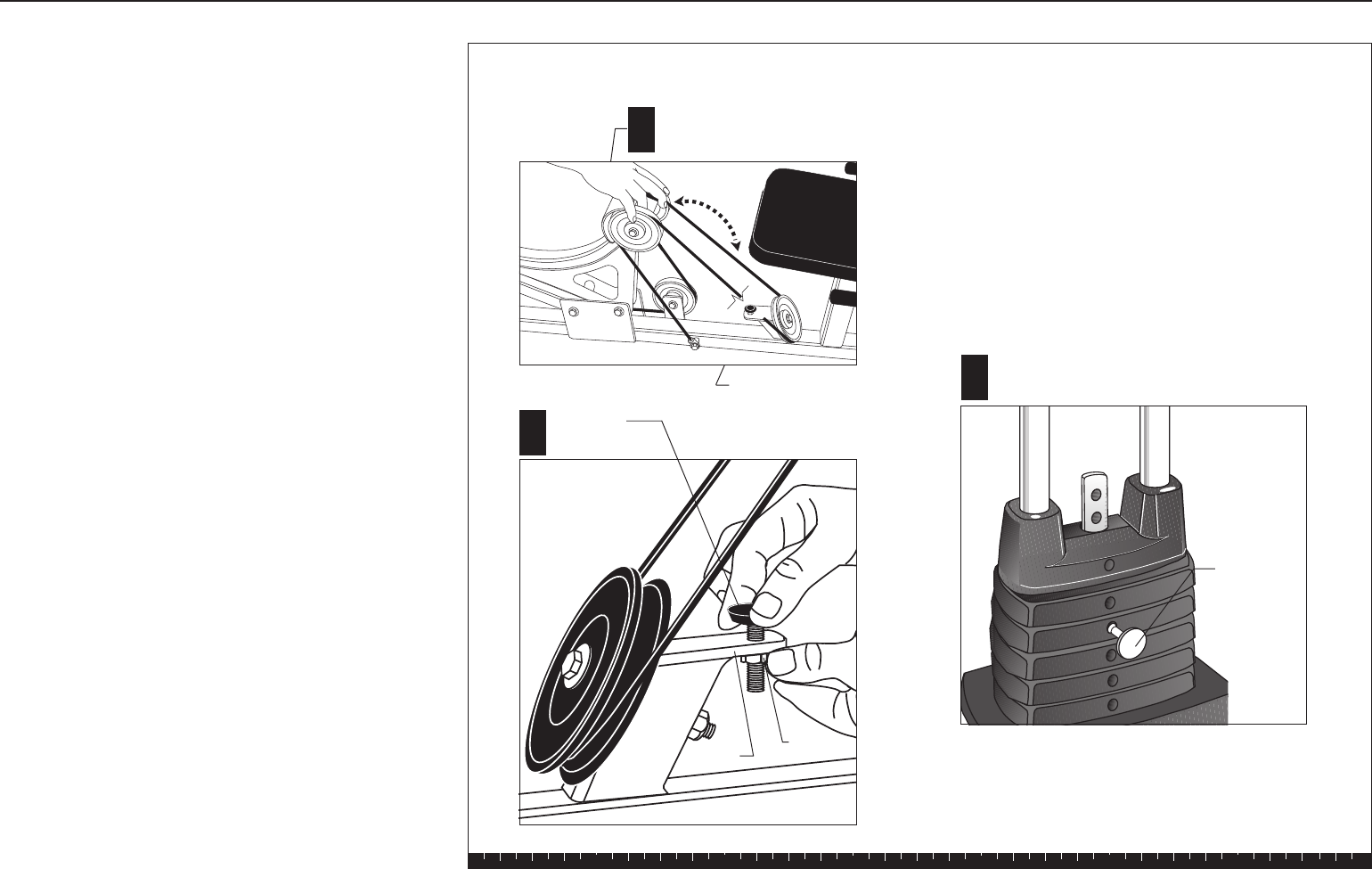

1. Stretch the Cable ....................................................................................................... 16
2. Rotate the Cam Washer ............................................................................................ 17
3. Adjust the Rubber Bumper on the Leg Press Option ................................................. 18
Warranty Registration ........................................................................... 19
Warranty Card and Specifications ...................................... Back cover
1
2
3
4
S3.25 Leg Press Option Assembly Instructions
page 4
1Before You Begin
Before You Begin
Thank you for purchasing the Leg Press Option for
your Precor equipment. This option will add a new
dimension to your strength-training regimen. For
proper installation, please read this guide thoroughly
and follow the assembly instructions.
Unpacking the Equipment
The Leg Press Option is carefully tested and inspected
before shipment. Precor ships the unit in several
pieces that require assembly. Two people are required
to assemble this equipment. Ask for assistance during
the assembly process.
• Review the
Installation Requirements
on the
next page.
• Carefully unpack the pieces and lay them on
the floor near the place where you plan to use
the equipment.
If any items are missing, contact the dealer from whom
you purchased the unit or call 1-800-347-4404 to find
the dealer nearest you.
S3.25 Leg Press Option Assembly Instructions
page 5
2Preparations
Preparations
CAUTION: To set up this equipment, you will need
assistance. Do not attempt assembly by yourself.
You must review and follow the instructions in this
guide. If you do not assemble and use the Leg Press
Option according to the following guidelines, you could
void the Precor limited warranty.
Required Tools
You need to obtain these tools before assembling
the unit:
❑¾-inch socket wrench
❑¾-inch box-end wrench
❑⁹⁄₁₆-inch socket wrench
❑⁹⁄₁₆-inch box-end wrench
❑Two adjustable pliers or crescent wrenches
❑Standard set of metric Allen wrenches
❑Utility knife or scissors
❑Measuring tape
Installation Requirements
Follow these installation requirements when
assembling the unit:
•Fill out and mail the limited warranty card.
The warranty card is found on the back cover of
this guide.
•Set up the Leg Press Option on a solid, flat
surface. A smooth, flat surface under the unit helps
keep it level. A level unit has fewer malfunctions.
•Provide ample space around the machine.
Open space around the machine allows for easier
access.
•Insert all bolts in the same direction. For
aesthetic purposes, insert all the bolts in the same
direction unless specified (in text or illustrations) to
do otherwise.
•Leave room for adjustments. Tighten fasteners
such as bolts, nuts, and screws, so that the unit is
stable, but leave room for adjustments. Do not fully
tighten fasteners until instructed in the assembly
steps to do so.
Assembly Tips
• A 6-inch scale is provided at the bottom of every
assembly instruction page. Use this scale to identify
the correct size bolts and spacers. The head of a
bolt is not used in measuring the length of a bolt.
To find out the length of a particular bolt, measure its
shank (the long, narrow part beneath the head).
Refer to the following diagram.
• Read all caution notes on each page before
completing that step.
• Some pieces have extra holes that you will not use.
Use only those holes indicated in the instructions
and illustrations.
• While you may be able to assemble the Leg Press
Option by using the illustrations only, refer to the
text for important safety cautions and notes.
Bolt head
Bolt threads
Shank
To determine the
length of a bolt,
measure its shank.
S3.25 Leg Press Option Assembly Instructions
page 6
1 2 3 4 5 6
3Assembly
Instructions
Assembly Instructions
Assembly of the Leg Press Option takes professional
installers about 1 hour to complete. If this is the first time
you have assembled this type of equipment, plan on
significantly more time.
Professional installers are highly recommended!
CAUTION: Obtain assistance! Do not attempt
to assemble the Leg Press Option by yourself.
Because of the weight and size of the Leg Press
Option, you could be injured or damage the
equipment. Review the
Installation Requirements
on page 5 before proceeding.
The Leg Press Option comes in one box. It can be
installed on either the S3.25 or S3.45 Precor Strength
Training Equipment. Note that the location where you
attach the Cross Brace to the Seat Frame differs.
As you read through the assembly instructions, be
sure that you are using the correct mounting holes for
your unit.
Be careful to assemble the components in the
sequence presented in this guide.
Note: As with any assembled part, proper alignment and
adjustment is critical. While tightening the fasteners, be
sure to leave room for adjustments. Do not fully tighten
the fasteners until instructed to do so.
S3.25 Leg Press Option Assembly Instructions
page 7
1 2 3 4 5 6

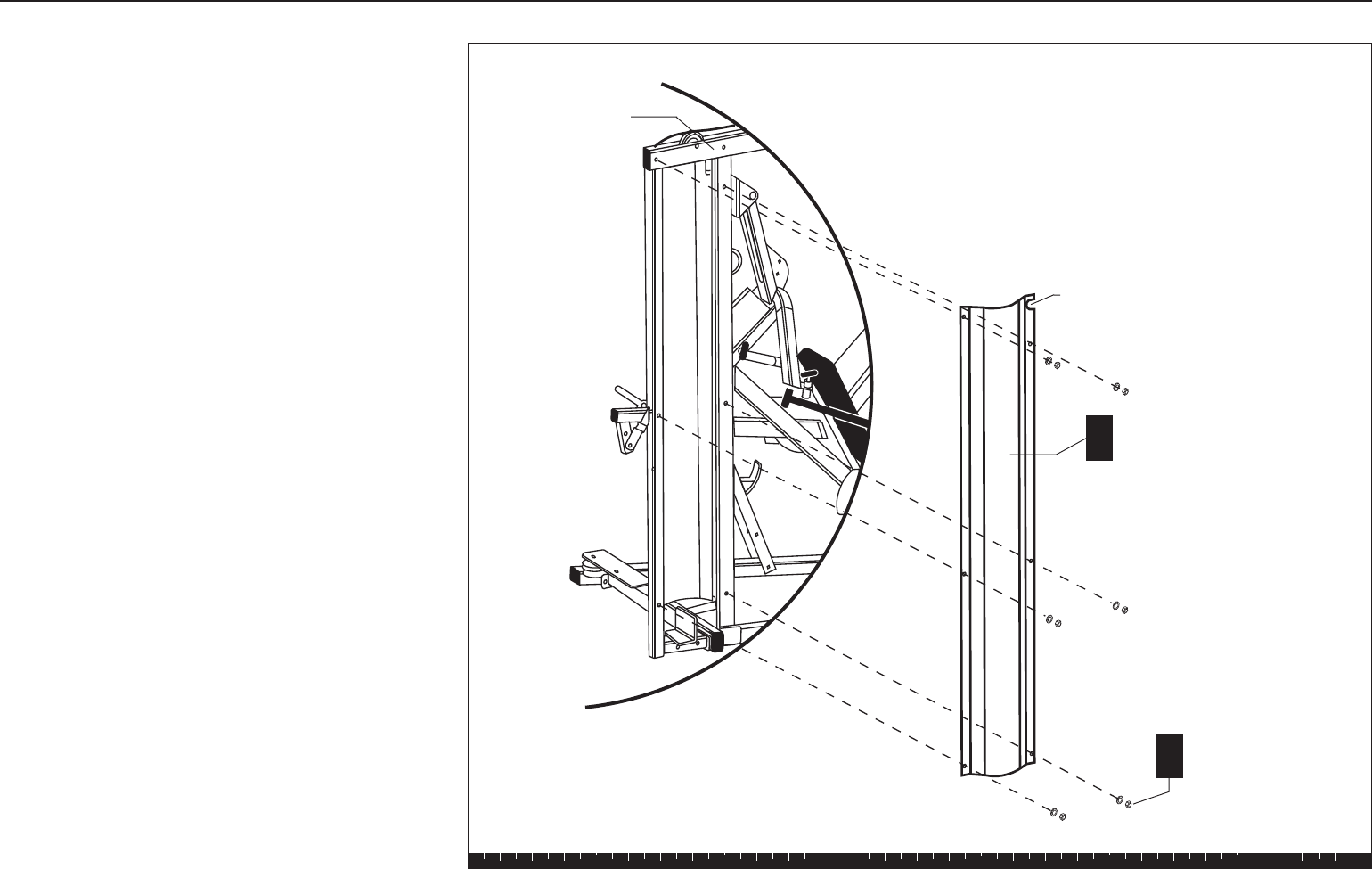

1. Remove the Shroud
Important: For ease of assembly, the fasteners and
hardware for each step are labeled and packaged in
separate bags.
Note: If you are assembling the Leg Press Option
along with your S3.25, go directly to Step 2.
Before you can attach the Leg Press Option to the unit,
you must remove the Shroud.
A. Remove the Shroud by loosening and removing
six 2¾-inch bolts
six washers
six locknuts
B. Pull the Shroud away from the S3.25 and lay it and
its fasteners on the floor in a secure place.
Note: The top of the Shroud has a notch in it to
help you clear the Top Beam fastener.
A6 - 2¾" bolts
6 - washers
6 - locknuts
B
Remove Shroud
Notch in Shroud fits
around Top Beam
fastener
Top Beam
Step 1. Remove the Shroud
S3.25 Leg Press Option Assembly Instructions
page 8
1 2 3 4 5 6
2. Attach the Cross Brace to the
S3.25
Note: If you are assembling the Leg Press Option
along with the S3.25, you should complete Step 10 in
the
S3.25 Assembly and Maintenance Guide
before
attaching the Cross Brace.
A. Align the Cross Brace to the S3.25 Rear Upright
and secure it using
two 3-inch bolts
four washers
two locknuts
Wrench tighten.
A2 - 3" bolts
4 - washers
2 - locknuts
Cross Brace
Step 2. Attach the Cross Brace to the S3.25
S3.25 Leg Press Option Assembly Instructions
page 9
1 2 3 4 5 6

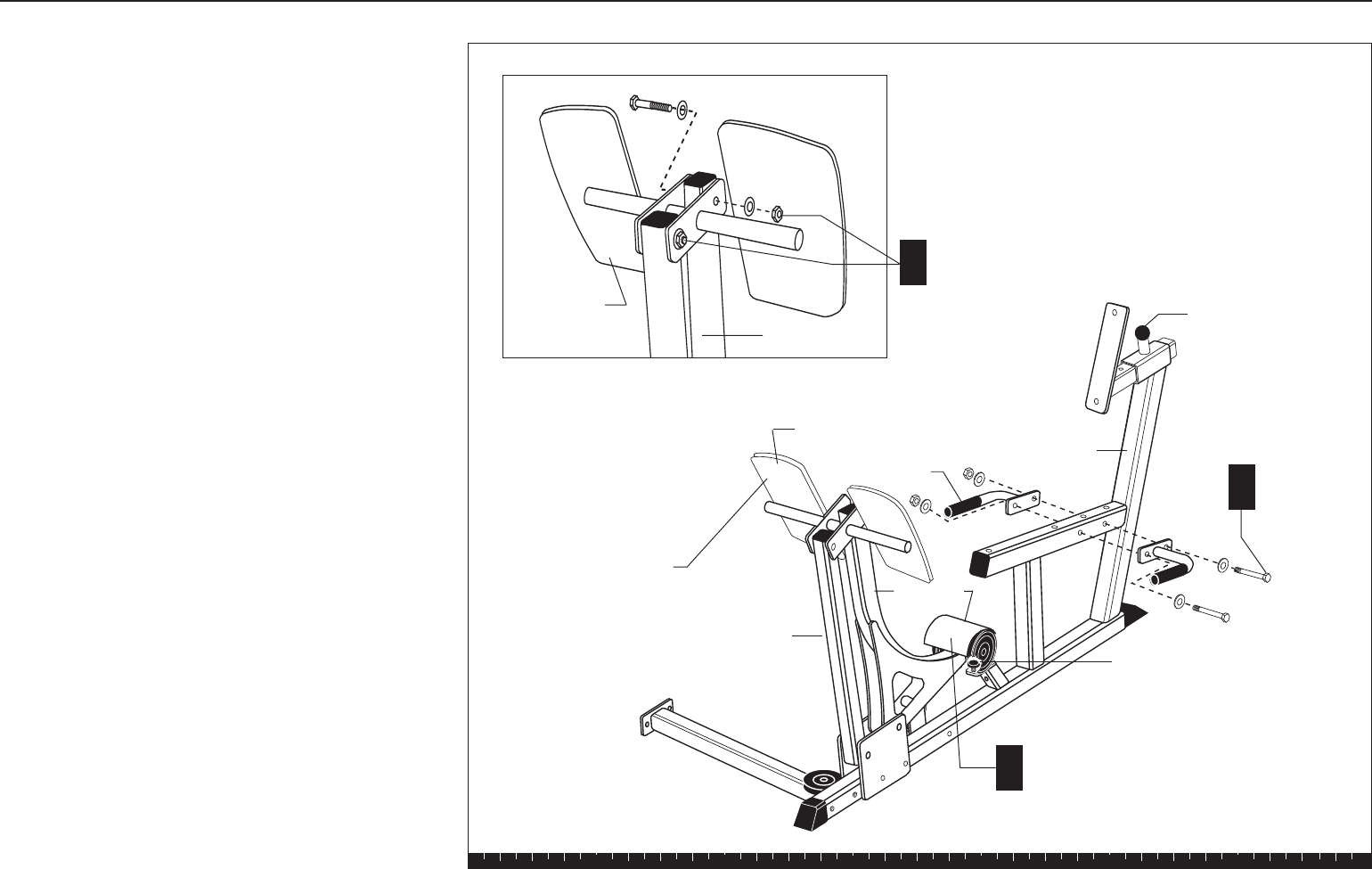

3. Assemble the Frame
A. With someone helping you, lift the Seat Frame
upright. Have your assistant hold it in place while
you attach the Cross Brace in the next step.
B. Attach the Cross Brace to the holes found at the
front of the Seat Frame using
two 3-inch bolts
four washers
two locknuts
Wrench tighten.
Important: A label on the Seat Frame indicates the
mounting holes you must use to attach the Cross
Brace to the S3.25 Leg Press Option.
C. Slide the Backpad Support into the Seat Frame,
locking it in place with the Pop Pin.
Label indicates mounting
location for the S3.25 B2 - 3" bolts
4 - washers
2 - locknuts
Cross Brace
Seat Frame
Have an assistant hold
the Seat Frame stable
and upright while you
attach the Cross Brace
A
C
Backpad
Support
Backpad
Support
Pop Pin
Step 3. Assemble the Frame
S3.25 Leg Press Option Assembly Instructions
page 10
1 2 3 4 5 6
D. Assemble the Footrest by resting the Pivot Arm
on the Rubber Bumper. Make sure that the red
arrow on the back of the Footrest points toward
the ceiling.
E. Attach the Footrest to the Pivot Arm and Pivot
Tube using
two large ½-inch by 3-¼-inch bolts
four ½-inch-diameter washers
two large ½-inch locknuts
Wrench tighten enough to allow free movement of
the Pivot Arm.
F. Attach the Handle to the Seat Frame using
two 3¼-inch bolts
four washers
two locknuts
Wrench tighten.
Seat Frame
Footrest
Rubber Bumper
F2 - 3¼" bolts
4 - washers
2 - locknuts
Pivot Tube
Pivot Arm
Handle
Pop Pin
Red Arrow Label
Rest the Pivot Arm on the
Rubber Bumper
D
Step 3. Assemble the Frame, Continued
2 - large ½" x 3¼" bolts
4 - ½" diameter washers
2 - large ½" locknuts
E
Footrest
Pivot Arm
S3.25 Leg Press Option Assembly Instructions
page 11
1 2 3 4 5 6

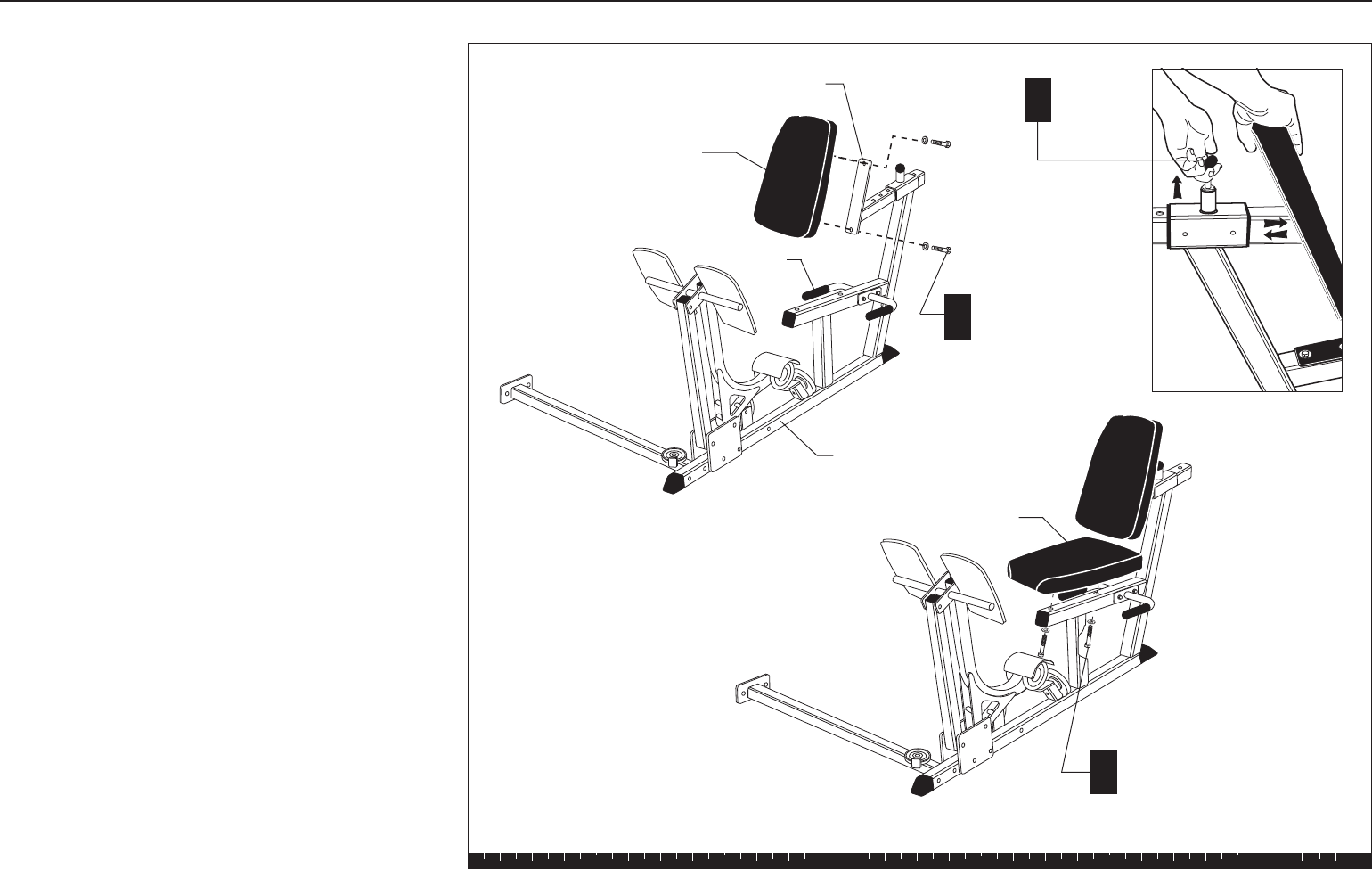

4. Assemble the Seat Pads
A. Attach one of the Seat Pads to the Seat Bracket
Support using
two 1¼-inch bolts
two washers
Wrench tighten.
B. Lift the Pop Pin and slide the Seat Pad out of the
way to assemble the other Seat Pad.
C. Attach the remaining Seat Pad to the Seat Frame
using
two 3-inch bolts
two washers
Wrench tighten.
Note: Make sure that the seams on the Seat Pads
face down toward the frame.
Note: If you are assembling the Leg Press Option and
the S3.25 simultaneously, return to Step 11 in the
S3.25 Assembly and Maintenance Guide
now.
Seat Pad
used as a
back rest
A2 - 1¼" bolts
2 - washers
Seat Bracket Support
Handle
C2 - 3" bolts
2 - washers
B
Seat Frame
Seat Pad
Lift the Pop
Pin to slide
the back rest
Step 4. Assemble the Seat Pads
S3.25 Leg Press Option Assembly Instructions
page 12
1 2 3 4 5 6
Step 5. Route the Cable
5. Route the Cable
As you route the Cable through the pulleys on the Leg
Press Option, wrench tighten the fasteners on each
pulley as you go. Make sure that the Cable slides freely
along the pulley (and beneath the cable retainer).
Make sure that you are using the correct Cable before
you tighten the fasteners.
A. Attach the barrel end of Cable 40538-103 to the
Seat Frame using
one 4-inch bolt
one washer
one locknut
Wrench tighten so that the barrel end of the Cable
rotates freely.
B. Loosen all the fasteners that attach the pulleys to
the Seat Frame.
C. Push the Pivot Arm forward so that the pulleys are
easily accessible.
D. Route the Cable around the pulley inside the Pivot
Arm Cover that is on the same side as the barrel
end of the Cable (see illustration). The Cable
should slide along the pulley beneath the cable
retainer. Wrench tighten this pulley’s fasteners.
E. You may need to slide the bolt out of the Pivot Arm
Cover to wrap the Cable around the pulley.
F. Continue to route the Cable around the pulleys as
shown in the illustration. Make sure that the Cable
slides freely along the pulleys (and beneath the
cable retainers) before you wrench tighten their
fasteners.
G. Wrap the Cable around the 4½-inch pulley (and
beneath its cable retainer) that is attached to the
Cross Brace. Wrench tighten.
A
1 - 4" bolt
1 - washer
1 - locknut Seat
Frame
Push the Pivot
Arm forward
C
G
Wrap the Cable around the
4½" pulley attached to the
Cross Brace
Cable
40538-103
Pivot Arm
Loosen the pulley
fasteners
B
D
E
F
Pivot
Arm
Note: The Seat Pad is not shown.
S3.25 Leg Press Option Assembly Instructions
page 13
1 2 3 4 5 6
Step 6. Assemble the Cable and Pulleys
3½" Pulley
A1 - 2" bolt
2 - washers
1 - locknut
Attach this
end to the
Cable Tree
Cable Retainer
Lower Pulley Bracket
This end is
attached to the
Leg Press
Rear Upright
B
Discard
1 - 3¼" bolt
1 - 1" barrel
spacer
2 - washers
1 - locknut
Note that no pulley is
attached to this bolt hole
Surgical
Tube
Cable Tree
Cable 40538-103
Surgical
Tube
6. Assemble the Cable and
Pulleys
You can identify Cables by the white numbers placed
at the end of the Cable.
A. Place Leg Press Option Cable 40538-103 between a
cable retainer and one 3½-inch pulley. Attach the
pulley to the Lower Pulley Bracket located at the
base of the Rear Upright using
one 2-inch bolt
two washers
one locknut
Wrench tighten.
B. From the Top Beam, remove the surgical tube and
its fasteners.
Note: Discard the fasteners
one 3¼-inch bolt
one one-inch barrel spacer
two washers
one locknut
S3.25 Leg Press Option Assembly Instructions
page 14
1 2 3 4 5 6
C. Reattach the end of the original Surgical Tube from
the Cable Tree to its prior location and place the
new Surgical Tube that came with the Leg Press
Option to the outside of the Top Beam using
one 4-inch bolt
two washers
two ½-inch barrel spacers
one locknut
Wrench tighten.
D. Place the ball-end of Leg Press Option Cable
40538-103 up through the Cable Tree and place
it securely in the U-clip.
E. Remove the buttonhead bolt and nylock nut from
the U-clip.
F. Attach the end of the original surgical tube to the
Cable Tree using the 1¼-inch buttonhead bolt and
thin nylock nut removed in Step 6E. Wrench
tighten.
Note: If you are assembling the Leg Press Option and
the S3.25 simultaneously, go to Step 21 in the
S3.25
Assembly and Maintenance Guide
now.
Step 6. Assemble the Cable and Pulleys, Continued
1 - 1¼" button head bolt
1 - thin nylock nut
1 - 4" bolt
2 - washers
2 - ½" barrel spacers
1 - locknut
C
Original
Surgical Tube
Cable Tree
New Surgical
Tube
Cable Tree Cable 40538-103
(from Leg Press)
U-clip
Attach ball-
end of Cable
to U-clip
New Surgical
Tube
D
E
S3.25 Leg Press Option Assembly Instructions
page 15
1 2 3 4 5 6
7. Replace the Shroud
A. Pick up the Shroud and fasteners from the location
where you left them in Step 4B.
B. Replace the Shroud by realigning the mounting
holes and inserting
six 2¾-inch bolts
six washers
six locknuts
Wrench tighten.
Step 7. Replace the Shroud
B6 - 2¾" bolts
6 - washers
6 - locknuts
A
Replace Shroud
Notch in Shroud fits
around Top Beam
fastener
Top Beam
S3.25 Leg Press Option Assembly Instructions
page 16
1 2 3 4 5 6
4Adjustments
Adjustments
B
A
Top Cap
Weight
C
Chest Press Arms
Weight Pin
Top Cap Weight
Top Weight
After the Leg Press Option is assembled, you should
check the Cables for proper tension. These are some
obvious signs that cable problems exist:
✔Excess slack exists in the Cable.
✔The Top Cap Weight does not rest squarely on the
Weight Stack.
✔The Cable rubs the inside edges of the pulleys.
CAUTION: Take the time to perform the following
steps. If the Cables do not have
the proper tension, you could damage the
machine and void the Precor Limited Warranty.
Note: To adjust the Selector Stem, refer to the
S3.25 Assembly and Maintenance Guide
.
1. Stretch the Cable
A. Sometimes a new cable must be stretched so that
the Top Cap Weight rests on the Weight Stack. To
lengthen the Cable, insert the Weight Pin at a
comfortable weight level.
B. Push up on the Chest Press Arms, and then slowly
lower them.
C. Make sure the Top Cap Weight rests squarely on
the Weight Stack. If it does, no more adjustments
are needed, and the Leg Press Option is ready to
use. If the Top Cap Weight does not rest on the Top
Weight then further adjustments are needed.
Continue with steps 2 and 3.
S3.25 Leg Press Option Assembly Instructions
page 17
1 2 3 4 5 6
B
Rotate the
Cam Washer
Top Cap
Weight
Weight Pin
A
Top Cap
Weight
C
Top Weight
2. Rotate the Cam Washer
If the Top Cap Weight does not rest on the Top Weight,
you must make further adjustments.
A. Remove excess tension from the Cable by placing
the Weight Pin into the Selector Stem just under
the Top Cap Weight.
B. To tighten or loosen the Cable tension, rotate the
Cam Washer.
C. Look to see that Top Cap Weight rests squarely on
the Weight Stack. If it does, no more adjustments
are needed and the Leg Press Option is ready to
use. If the Top Cap Weight does not rest on the Top
Weight, then further adjustments are needed.
Continue with step 3.
Step 2. Rotate the Cam Washer
S3.25 Leg Press Option Assembly Instructions
page 18
1 2 3 4 5 6
B
Adjust the
Rubber Bumper
Locknut
Bracket
C
Weight Pin
3. Adjust the Rubber Bumper
on the Leg Press Option
If the Top Cap Weight still does not rest on the Top
Weight, you can make one final adjustment.
A. If the Cable tension still needs adjusting, push the
Pivot Arm up so that you can adjust the Rubber
Bumper on the Leg Press Option.
B. Rotate the Rubber Bumper up or down to tighten
or loosen the Cable tension.
Important: Tighten the locknut against the bracket
after you have properly adjusted the Cable tension.
C. Check the weights. Move the Weight Pin to each
Weight and Selector Stem location and replace the
Weight Pin in the Weight Stack.
With the slack removed from the Cables, you are now
ready to use the Leg Press Option. Thank you for
choosing Precor Strength-Training Equipment.
Note: For maintenance instructions, refer to your
S3.25
Assembly and Maintenance Guide.
Step 3. Adjust the Rubber Bumper on the Leg Press Option
A
Push the Pivot Arm up to adjust
the Rubber Bumper
Rubber Bumper
page 19
Fold along dotted line and tape closed before mailing.
RET.
To allow us to serve you better, please take a few moments to
complete and return your warranty registration.
YOU MAY ALSO REGISTER ONLINE AT
www.precor.com/warranty
If you have questions or need additional information, contact your
local dealer or call Precor Customer Support at 800-347-4404.
Thank You and Welcome to Precor
Precor Incorporated
20031 142nd Avenue NE
PO Box 7202
Woodinville, WA 98072-4002
PLACE
STAMP
HERE
page 20
TELL US ABOUT YOUR NEW PRECOR PRODUCT
Purchased
from:
The serial number is located on the shipping box and on the product.
Product
Serial
Number:
Please indicate the type of product purchased:
❑Elliptical Fitness CrossTrainer (EFX®)
❑Treadmill
❑Strength Training System
TELL US ABOUT YOU
Date of
Purchase:
❑Mr.
❑Mrs.
❑Ms. First Name
Apt./Suite:
TELL US ABOUT YOUR PURCHASE
Please detach and mail in the warranty registration within ten days of purchase.
❑StretchTrainerTM
❑Cycle
❑Stair Climber
Middle Initial Last Name
Street Address
Zip CodeCity State
Gender: Marital status: Age:Annual household income: What are your fitness goals?
❑Male ❑Married ❑Under 18 ❑Under $50,000 ❑Weight loss/management
❑Female ❑Divorced ❑18-24 ❑$51,000-75,000 ❑Muscle tone enhancement
❑Widowed ❑25-34 ❑$76,000-100,000 ❑Cardiovascular improvement
❑Never been married ❑35-44 ❑$101,000-150,000 ❑Overall health
❑45-54 ❑$151,000+ ❑Increase energy and flexibility
❑55-64 ❑Stress reduction
❑65+ ❑Rehabilitation
❑Other
Purchase (check all that apply): How did you FIRST become aware of Precor
❑First Precor product products (choose only one):
❑Replaces a Precor product of the same type ❑A gift
❑Replaces same type of product – different brand ❑Friend/relative
❑Addition to equipment currently owned ❑Physician
❑Fitness club
❑Internet
What factors MOST influenced your decision to ❑News report or product review
purchase your Precor product (choose up to three): ❑Magazine advertisement or article
❑Precor reputation ❑Print advertisement
❑Prior use of Precor product(s) ❑In-store display or demonstration
❑Design/appearance ❑Other
❑Value for the price
❑Special product features
❑Rebate or sale price
❑Quality/durability
❑Warranty
❑Physician recommendation
Month Day Year
Your Email Address
Area Code Telephone
Dealer Name
Effective 01 July 2004
P/N 45623-102
Effective 01 January 2003
P/N 36287-110
Precor Residential Equipment Limited Warranty
PLEASE READ THESE WARRANTY TERMS AND CONDITIONS CAREFULLY BEFORE USING
YOUR PRECOR INCORPORATED PRODUCT. BY USING THE EQUIPMENT, YOU ARE
CONSENTING TO BE BOUND BY THE FOLLOWING WARRANTY TERMS AND CONDITIONS.
Limited Warranty.
Precor Incorporated warrants all new Precor products to be free from defects in materials and
manufacture for the warranty period set forth below. The warranty period commences on the
invoice date of original purchase. This warranty applies only against defects discovered within
the warranty period and extends only to the original purchaser of the product. Parts repaired or
replaced under the terms of this warranty will be warranted for the remainder of the original
warranty period only. To make claim under warranty, the buyer must notify Precor or their
authorized Precor dealer within 30 days after the date of discovery of any nonconformity and
make the affected product available for inspection by Precor or its service representative.
Precor’s obligations under this warranty are limited and set forth below.
Warranty Periods and Coverage
All residential products and commercial products used in the home are warranted for the
following periods:
• Lifetime frame and welds
• 10 years parts and wear items
• 1 year labor
• Coverage for options and accessories defined below.
Options / Accessories
Many options or accessories have components that are connected internally or mounted inside the
electronic console. The following guidelines determine the warranty for these components. If the
internal components are installed by the factory or by an authorized dealer as part of the original
sale and delivery, they have a warranty that is identical to the warranty of the equipment in which
they are connected or mounted. If the internal components are not installed by the factory or by an
authorized dealer as part of the original sale and delivery, they have a 90-day parts and labor
limited warranty. All components that are not internally connected have 90-day parts only limited
warranty. Satisfactory proof of purchase is required in all cases.
Conditions and Restrictions
This warranty is valid only in accordance with the conditions set forth below:
1. The warranty applies to the Precor product only while:
a. It remains in the possession of the original purchaser and proof of purchase is
demonstrated
b. It has not been subjected to accident, misuse, abuse, improper service, or non-Precor
modifications
c. Claims are made within the warranty period
2. This warranty does not cover damage or equipment failure caused by electrical wiring not in
compliance with electrical codes or Precor owner’s manual specifications, or failure to provide
reasonable and necessary maintenance as outlined in the owner’s manual.
3. Warranty of all Precor products applies to residential use only and is void when products are
used in a nonresidential environment or installed in a country other than where sold.
4. Except in Canada, Precor does not pay labor outside the United States.
5. Warranties outside the United States and Canada may vary. Please contact your local Dealer
for details.
This limited warranty shall not apply to:
1. Software version upgrades
2. Cosmetic items, including, but not limited to the following: grips, seats, and labels.
3. Repairs performed on Precor equipment missing a serial number or with a serial tag that has
been altered or defaced.
4. Service calls to correct installation of the equipment or instruct owners on how to use the
equipment.
5. Pickup, delivery, or freight charges involved with repairs.
6. Any labor costs incurred beyond the applicable labor warranty period.
Disclaimer and Release
The warranties provided herein are the exclusive warranties given by Precor and supersede any prior,
contrary or additional representations, whether oral or written. ANY IMPLIED WARRANTIES, INCLUDING THE
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE THAT APPLY TO ANY PARTS DESCRIBED ABOVE
ARE LIMITED IN DURATION TO THE PERIODS OF EXPRESS WARRANTIES GIVEN ABOVE FOR THOSE SAME PARTS. PRECOR
HEREBY DISCLAIMS AND EXCLUDES THOSE WARRANTIES THEREAFTER. Some states do not allow limitation on how
long an implied warranty lasts, so the above limitation may not apply to you. PRECOR ALSO HEREBY DISCLAIMS
AND EXCLUDES ALL OTHER OBLIGATIONS OR LIABILITIES, EXPRESS OR IMPLIED, ARISING BY LAW OR OTHERWISE, WITH
RESPECT TO ANY NONCONFORMANCE OR DEFECT IN ANY PRODUCT, INCLUDING BUT NOT LIMITED TO: (A) ANY OBLIGATION,
LIABILITY, RIGHT, CLAIM OR REMEDY IN TORT, WHETHER OR NOT ARISING FROM THE NEGLIGENCE OF PRECOR OR ITS
SUPPLIERS (WHETHER ACTIVE, PASSIVE OR IMPUTED); AND (B) ANY OBLIGATION, LIABILITY, RIGHT, CLAIM, OR REMEDY FOR
LOSS OF OR DAMAGE TO ANY EQUIPMENT. This disclaimer and release shall apply even if the express warranty set
forth above fails of its essential purpose.
Exclusive Remedies
For any product described above that fails to conform to its warranty, Precor will provide, at their option, one of
the following: (1) repair; (2) replacement; or (3) refund of the purchase price. Precor Limited Warranty service
may be obtained by contacting the authorized dealer from whom you purchased the item. Precor
compensates Servicers for warranty trips within their normal service area to repair equipment at the owner’s
location. You may be charged a trip charge outside the service area. THESE SHALL BE THE SOLE AND EXCLUSIVE
REMEDIES OF THE BUYER FOR ANY BREACH OF WARRANTY.
Exclusion of Consequential and Incidental Damages
PRECOR AND/OR ITS SUPPLIERS SHALL HAVE NO OBLIGATION OR LIABILITY, WHETHER ARISING IN CONTRACT
(INCLUDING WARRANTY), TORT (INCLUDING ACTIVE, PASSIVE, OR IMPUTED NEGLIGENCE AND STRICT LIABILITY), OR
OTHERWISE, FOR DAMAGE TO THE EQUIPMENT, PROPERTY DAMAGE, LOSS OF USE, REVENUE OR PROFIT, COST OF
CAPITAL, COST OF SUBSTITUTE EQUIPMENT, ADDITIONAL COST INCURRED BY BUYER (BY WAY OF CORRECTION OR
OTHERWISE) OR ANY OTHER INCIDENTAL, SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, WHETHER
RESULTING FROM NONDELIVERY OR FROM THE USE, MISUSE OR INABILITY TO USE THE PRODUCT. This exclusion
applies even if the above warranty fails of its essential purpose and regardless of whether such damages
are sought for breach of warranty, breach of contract, negligence, or strict liability in tort or under any other
legal theory. Some states do not allow the exclusion or limitation of incidental or consequential damages,
so the above limitation might not apply.
This warranty gives you specific legal rights, and you may also have other rights, which vary state
to state.
Complete this portion and keep for your records.
Purchased From: ____________________________ Example: Dealer or store name.
Phone Number: _____________________________ Example: Dealer or store telephone number.
Product/model: _____________________________ Example: M9.31
Serial number: ______________________________ The serial number is found on the shipping container

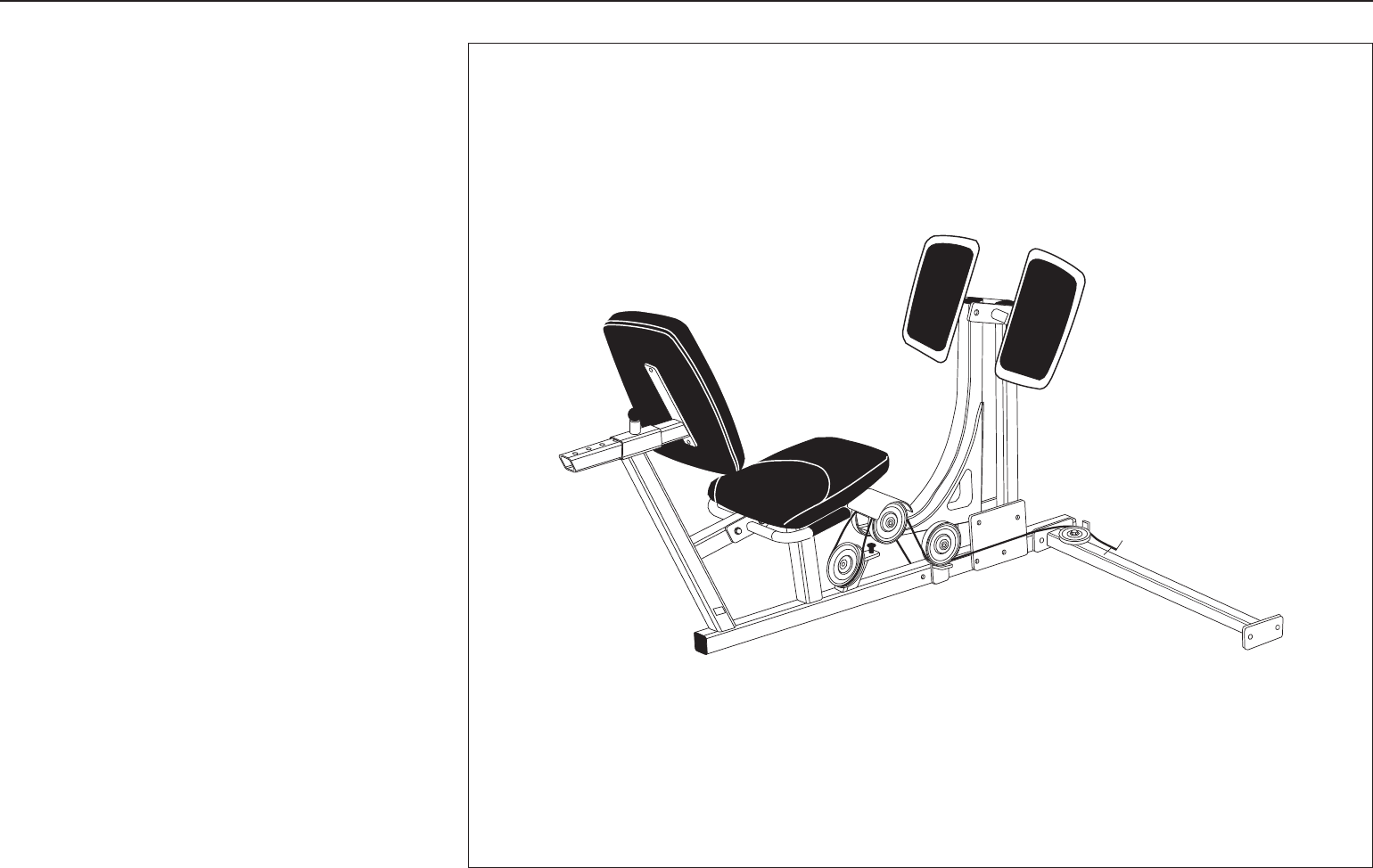

S3.25 Leg Press Option Specifications
Length: 60 inches (152 cm)
Height: 33 inches (84 cm)
Width: 30 inches (76 cm)
Shipping weight: 125 lb (57 kg)
S3.25 LPO Literature Kit # 47942-104
Leg Press Assembly Instructions # 47989-104
Warranty Registration # 45623-102
Warranty Card # 36287-110
Effective date: 22 April, 2005
Precor and Pacific Fitness are registered trademarks of Precor Incorporated.
Specifications subject to change without notice.
Copyright 2005 Precor Incorporated.
Precor web site: www.precor.com
Precor Incorporated
20031 142nd Avenue NE
P.O. Box 7202
Woodinville, WA USA 98072-4002
NOTICE:
Precor is widely recognized for its innovative, award winning designs of exercise equipment. Precor aggressively seeks U.S. and foreign patents for
both the mechanical construction and the visual aspects of its product design. Any party contemplating the use of Precor’s product designs is hereby
forewarned that Precor considers the unauthorized appropriation of its proprietary rights to be a very serious matter. Precor will vigorously pursue all
unauthorized appropriation of its proprietary rights.

Navigation menu
