Zoning Solutions
AIR CLEANERS HUMIDIFIERS UV SYSTEMS WATER SOLUTIONSTHERMOSTATS ZONING VENTILATION COMBUSTIONDEHUMIDIFIERS
Honeywell Zoning Products:
More Choices, More Solutions
The Smart Zoning
Choice is Honeywell
TrueZONE®
Complete Product Line
For complete zoning solutions for nearly any application, the only name you need to know is Honeywell. Updates to
the line, like the TrueZONE® Damper, make zoning easier and more efficient than ever. You can count on the most
extensive and innovative product line available, including conventional and wireless solutions. All are designed for
installation ease, and in many cases pre-packaged kits simplify ordering and make installation even easier. With the
innovative TrueZONE Panel and new TrueZONE Dampers, giving your customers the many benefits of zoning has
never been simpler.
According to the 2013 Decision
Analysts survey, 68% of
homeowners feel uncomfortably
warm in at least one room of their
residence. Zoning is the perfect
solution to satisfy homeowners
and increase your profits.
Of Homeowners
Want Zoning
68%
ZONING
Honeywell has been manufacturing the highest-quality, most-used residential zoning
products since 1948, and the Honeywell brand is preferred by millions of professional
contractors and the customers they serve.
And no wonder. In addition to a toll-free zoning hotline and a powerful five-year
warranty, Honeywell also supports contractors with marketing materials and training
services to help increase sales and profits.
Proven Performance
Technical Support
Use the dedicated toll-free zoning hotline — 1-800-TAT-TEMP (1-800-828-8367) — for all
technical questions ranging from system design to troubleshooting. You can also access the
local technical expertise of Honeywell Contractor Development Specialists (CDS), including
diagnostics, on-site training and more.
Marketing And Training Support
Honeywell backs your zoning efforts with training and demonstrations, free homeowner
literature and a personal-use program. With every zoning purchase, you’ll earn Contractor
PRO™ points you can use for additional products and marketing materials, helping to add
even more profit to your bottom line.
Warranty
Honeywell zoning panels and dampers feature a 5-year warranty.
Support
2
ZONING
When Honeywell re-invented zoning panels with TrueZONE®, it said
goodbye dip switches and hello simplicity. Installation is fast and easy,
and because TrueZONE ensures that the system is operating properly
before the installer leaves the jobsite, callbacks are virtually eliminated.
TrueZONE® Panels
Intuitive Installer Setup — Easy-to-follow,
digital display guides you through the installation.
(HZ432 and HZ322)
RedLINKTM Wireless Technology — Eliminates pulling
thermostat wires to the TrueZONE panel and allows for
added comfort control with the Portable Comfort Control
and Wireless Outdoor Air Sensor. (HZ432 and HZ322
only, Wireless Adapter Required)
Standardized Checkout Procedure — Ensures that
every installer checks out in the same way every time
and that all zones are operating correctly before leaving
the jobsite. Only one installer needed for checkout.
(HZ432 and HZ322)
Robust Push Terminals — Cut wiring time in half
compared to screw terminals — with no screwdriver
required. Plus, wires lock in to the terminals for a tight fit.
Common-Sense LEDs — Indicate which zones are
calling, what stage they are calling for (heat/cool) and
when the emergency heat is on.
Universal Application — Works with virtually any
brand equipment for zone control of conventional,
heat pump or dual-fuel systems.
Clean, Professional Installation — Patented wire
channel allows installer to run wires on the side, top,
bottom or backside of the panel and wire anchors
help hold wires in place.
Smaller Footprint — All panels are only eight inches
wide and can be mounted anywhere — on the return
duct, studs or wall next to the system.
Variable-Speed Fan Control — Reduces blower
speed in cooling when one zone is calling.
Discharge Temperature (DATS) Staging —
Downstages equipment when discharge air
temperature is near the limit or shuts down.
Advanced Dual-Fuel Operation — Offers dual-fuel
changeover based on outdoor temperature and/or
thermostat staging. (HZ432 only)

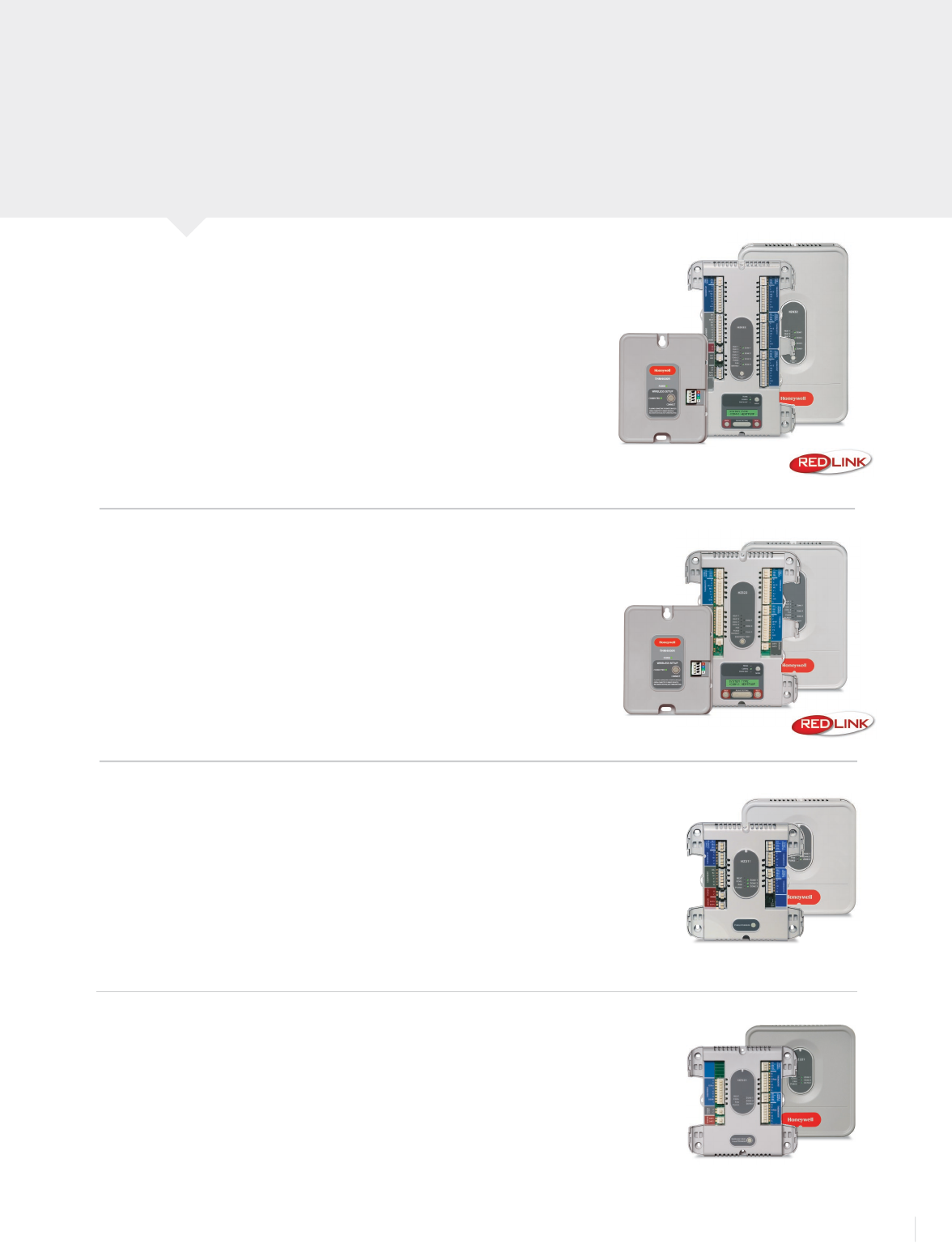

Description Part Number Kit*
4 zone, 3H/2C panel used for conventional, heat pump or dual-fuel systems; RedLINK
enabled; expand up to 32 zones with TAZ-4 HZ432 -
3 zone, 2H/2C panel used for conventional or heat pump equipment; RedLINK enabled HZ322 -
3 zone, 1H/1C panel used for conventional equipment HZ311 -
2 zone, 2H/1C panel used for heat pumps with auxiliary heat HZ221 -
Includes (1) HZ432 panel, (1) transformer and (1) C7735A discharge air temperature sensor - HZ432K
Includes (1) HZ332 panel, (1) transformer and (1) C7735A discharge air temperature sensor - HZ322K
Includes (1) HZ311 panel, (1) transformer and (1) C7735A discharge air temperature sensor - HZ311K
Includes (1) HZ221 panel, (1) transformer and (1) C7735A discharge air temperature sensor - HZ221K
Honeywell delivers ease and simplicity with TrueZONE panels:
TrueZONE® Panels
*Kit includes discharge air temperature sensor and 40 VA Transformer
3
ZONING
All Honeywell TrueZONE panels feature Robust Push Terminals, Common-Sense LEDs, Universal
Application, Variable-Speed Fan Control, Discharge Air Temperature Staging and a 5-Year Warranty.

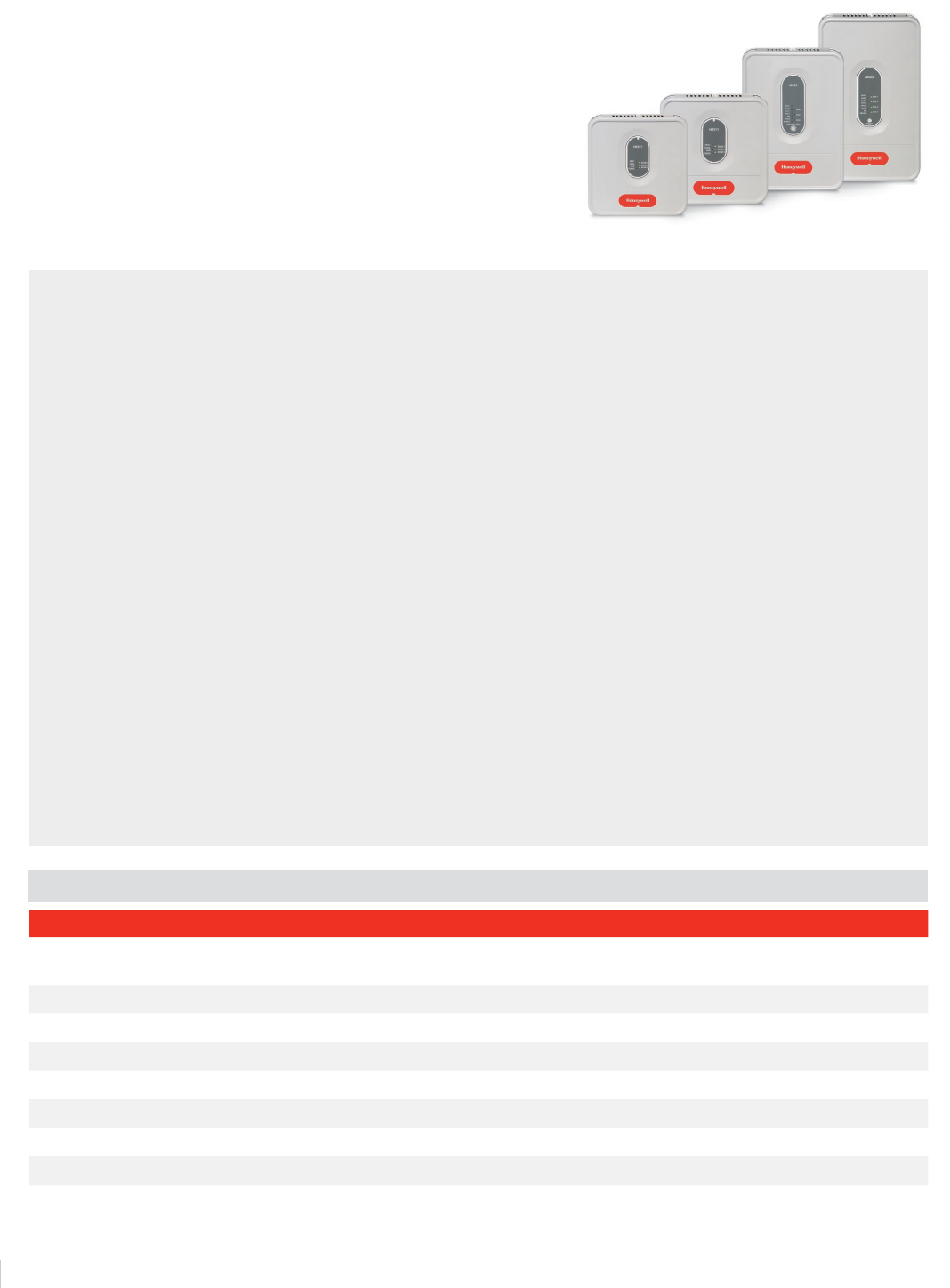

TrueZONE® HZ432 Panel
For conventional, heat pump or dual-fuel applications.
4-zone panel, expandable up to 32 zones.
• Up to 3H/2C Conventional or Heat Pump
• Intuitive Installer Setup
• RedLINK Enabled with Wireless Adapter (up to 4 zones)
• Standardized Checkout Procedure
• Advanced Dual-Fuel Operation, up to 2 Compressor and
2 Fossil Fuel Stages
TrueZONE HZ322 Panel
For conventional and heat pump applications.
Up to 3 zones.
• Up to 2H/2C Conventional or 2H/1C Heat Pump
• Intuitive Installer Setup
• RedLINK Enabled with Wireless Adapter
• Standardized Checkout Procedure
TrueZONE HZ311 Panel
For conventional, single-stage applications.
Up to 3 zones.
• 1H/1C Conventional
• Clean, Professional Installation
• Smaller Footprint
• Great for New Construction
TrueZONE HZ221 Panel
For single-stage heat pump applications
with auxiliary heat.
• 2H/1C Heat Pump
• Clean, Professional Installation
• Smaller Footprint
• Great for New Construction
Options for Every Application
4
ZONING
Add — One Wired, One Wireless
When one room or area is too hot or cold, the perfect solution is a RedLINK-
enabled TrueZONE panel and Wireless Adapter Kit. Because TrueZONE
panels support both wired and wireless thermostats, you can keep a wired
model and simply add a RedLINK-enabled thermostat like the Prestige IAQ
or the VisionPRO® 8000.
Four Zones Made Effortless and Wireless
Often homeowners want more than two zones. With a TrueZONE HZ432
panel and the Wireless Adapter Kit, you can add up to four zones (per panel)
without running thermostat wires. The Wireless Outdoor Sensor offers more
control possibilities. The remote temperature sensing ensures better overall
comfort, plus the sensors provide the homeowner with temperature and
humidity information.
Wireless Zoning Systems
With Honeywell’s exclusive RedLINK™ Wireless Technology, our full suite of wireless-enabled comfort solutions let
you easily – and wirelessly – add zoning to a home or building; or, add more zones to an existing system. Accessory
add-ons offer comfort, convenience and remote connectivity for your customers.
Control and monitor home
comfort anywhere, anytime.
RedLINK Accessories Give Homeowners More Control Options
In today’s world where nearly everything is a click or two away, homeowners expect innovative control choices
for their HVAC systems. Honeywell lets you offer a range of solutions that add control from anywhere in the home
and around the world.

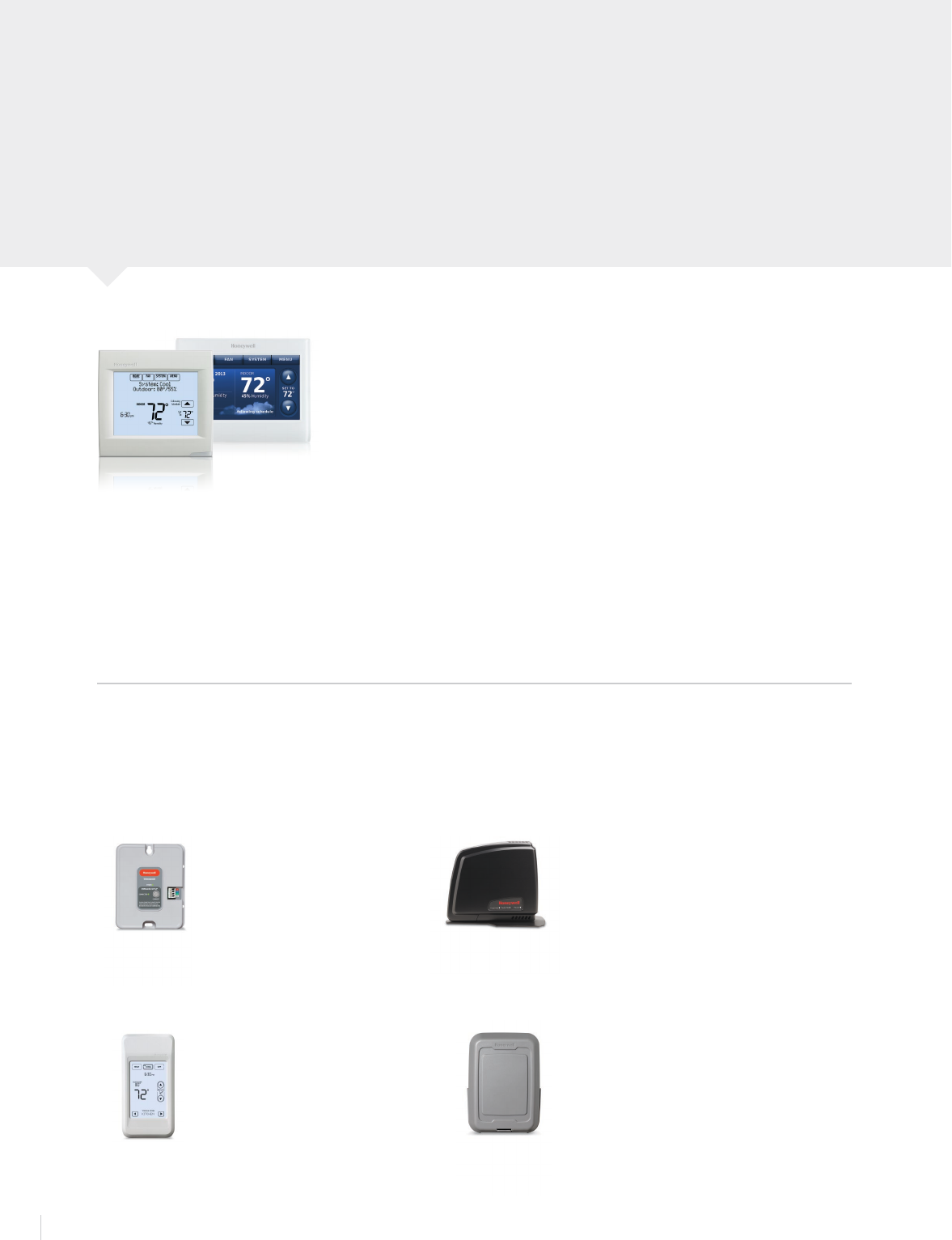

Portable Comfort Control
Allows you to sense and control
the temperature from any room
in the house.
Wireless Adapter
Enables RedLINK
capabilities on the
HZ432 and HZ322
Zone Panels.
RedLINK Enabled Internet Gateway
Connects to any RedLINK-enabled
thermostat to access Honeywell’s Total
Connect Comfort Services; a system to
remotely monitor and manage your heating
and cooling system through your PC, smart
phone or tablet device.
Wireless Outdoor Air Sensor
Wirelessly sends signals to display outdoor
temperature and humidity on all of your
RedLINK-enabled thermostats as well as
the Portable Comfort Control.
5
ZONING
With the ease, efficiency and cost savings of Honeywell zoning
solutions, there’s no longer a need to zone using two separate
systems. The advantages of a one-piece Honeywell zoning
system add up year after year.
* In order to enable IAQ device control, configure input sensors, and other advanced RedLINK functionality, enroll the thermostat
into a supported equipment interface module, and wire the equipment interface module into the TrueZONE panel.
Honeywell Zoning vs. Two Systems
Lower Installed Cost
Installing a zoning system instead of two pieces of equipment can lower the total installed cost as much
as 25 percent. You’ll be able to deliver a more complete system at an affordable price, plus you’ll be able
to add profitable system enhancements that increase homeowner comfort and control.
Energy Savings
Heating and cooling a home requires the same level of BTUs regardless of the number of pieces of
equipment. A Honeywell zoning system reduces operating costs and energy use through a lower amp draw
and reduced cycle time.
Less Maintenance
With a Honeywell zoning system, the average maintenance costs can be 50 to 75 percent less over time
compared to servicing two pieces of equipment. Plus, adding indoor air quality products requires adding
only one of each item instead of two, reducing future maintenance costs even more.
Part Number Description
THX9421R5021WW Prestige® color touchscreen thermostat with RedLINK technology (white/white). Controls
up to 4H/2C heat pump or 3H/2C conventional. Thermostat Only*
TH8110R1008 VisionPRO® 8000 with RedLINK Technology. Controls up to 4H/2C heat pump or 3H/2C
conventional. Thermostat only.*
TH6320R1004 RedLINK Wireless FocusPRO® 6000 5-1-1 Day Programmable Thermostat, up to 3H/2C.
Thermostat only.
Part Number Description
THM4000R1000 Wireless Adapter
THM5421R1021 Equipment Interface Module (for use with Prestige or VisionPRO to control IAQ Products
or advanced RedLINK features.)*
C7089R1013 Wireless Outdoor Air Sensor
THM6000R1002 RedLINK Internet Gateway
REM5000R1001 Portable Comfort Control
RedLINK-Enabled Thermostats
RedLINK Accessories
RedLINK Thermostats and Accessories
6
ZONING
Honeywell’s popular damper lineup is now even better with the addition of TrueZONE Dampers. A direct
replacement for today’s legacy dampers, TrueZONE Dampers are built for installation ease and flexibility,
reliability, and reduced callbacks.
TrueZONE® Dampers
TrueZONE Makes Installation Truly Easy
For fast, accurate installation with no callbacks, the TrueZONE Damper has you
covered with a range of features that simplify installation in every application:

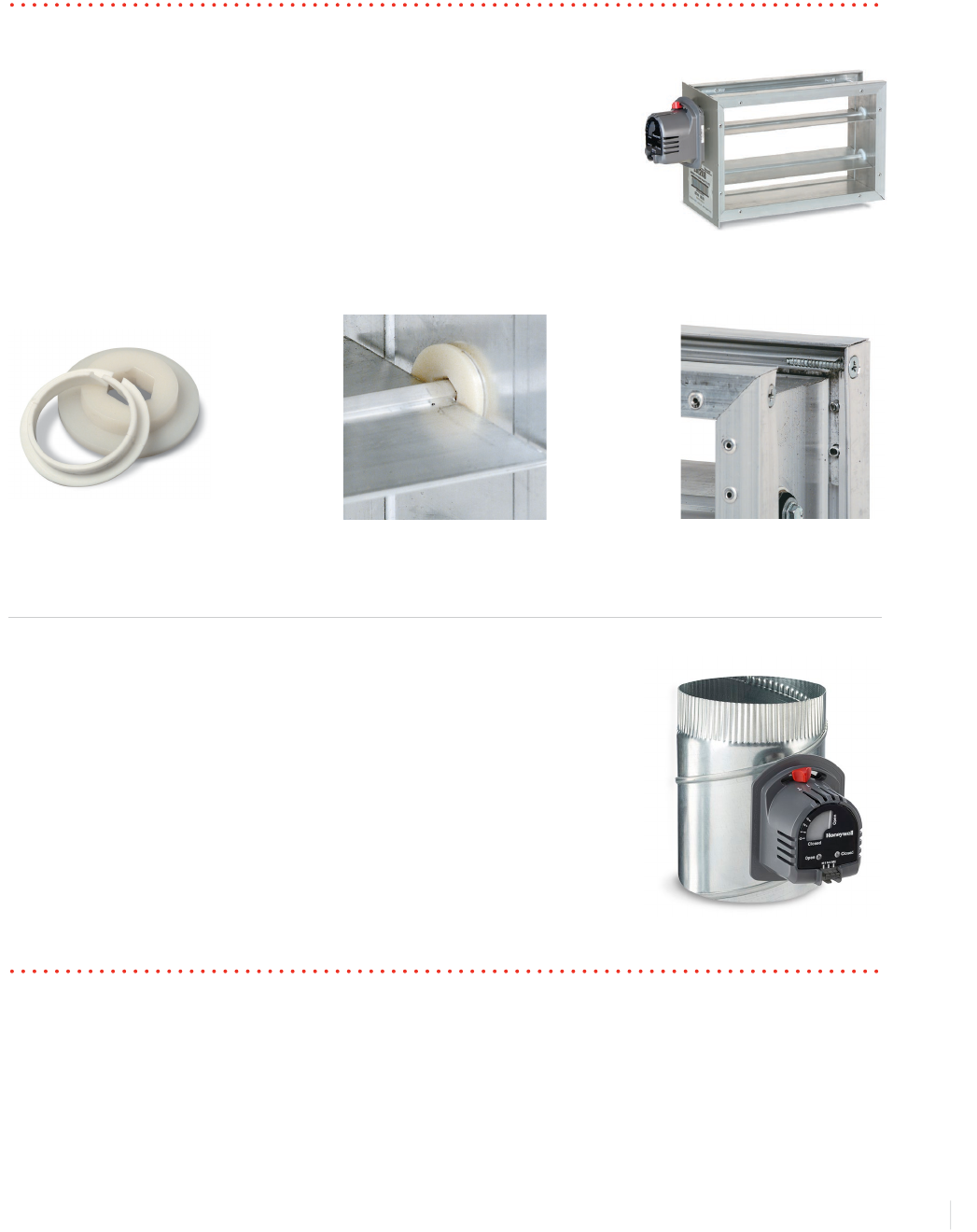

• Adjustable Range Stops — Easy to understand and set by utilizing a push-in lever.
They’re used to bleed air into the zones which helps lower pressure and reduce noise.
• Mechanical Position Indicator — Easy viewing through a clear window.
• Push-In Terminals — The same easy wiring design used on TrueZONE Panels. No tools
needed, has space for two wires.
• LED Indicator Lights — Red indicates the damper is closed and green indicates
open (used in 3-wire applications)
• Tapi n g Fla ng e — Lets you position insulation under it before sealing with foil tape.
TrueZONE Dampers
More than 120 variations are available.
The most common are listed above.
Round Supply Dampers — common sizes
ARD6TZ ARD8TZ ARD10TZ ARD12TZ
Rectangular Supply Dampers — common sizes
Motor is mounted on second dimension.
For bottom-mounted motor, reverse the dimensions.
ZD10x8TZ ZD12x8TZ ZD14x8TZ ZD16x8TZ
ZD18x8TZ ZD20x8TZ ZD20x10TZ ZD24x8TZ
7
ZONING

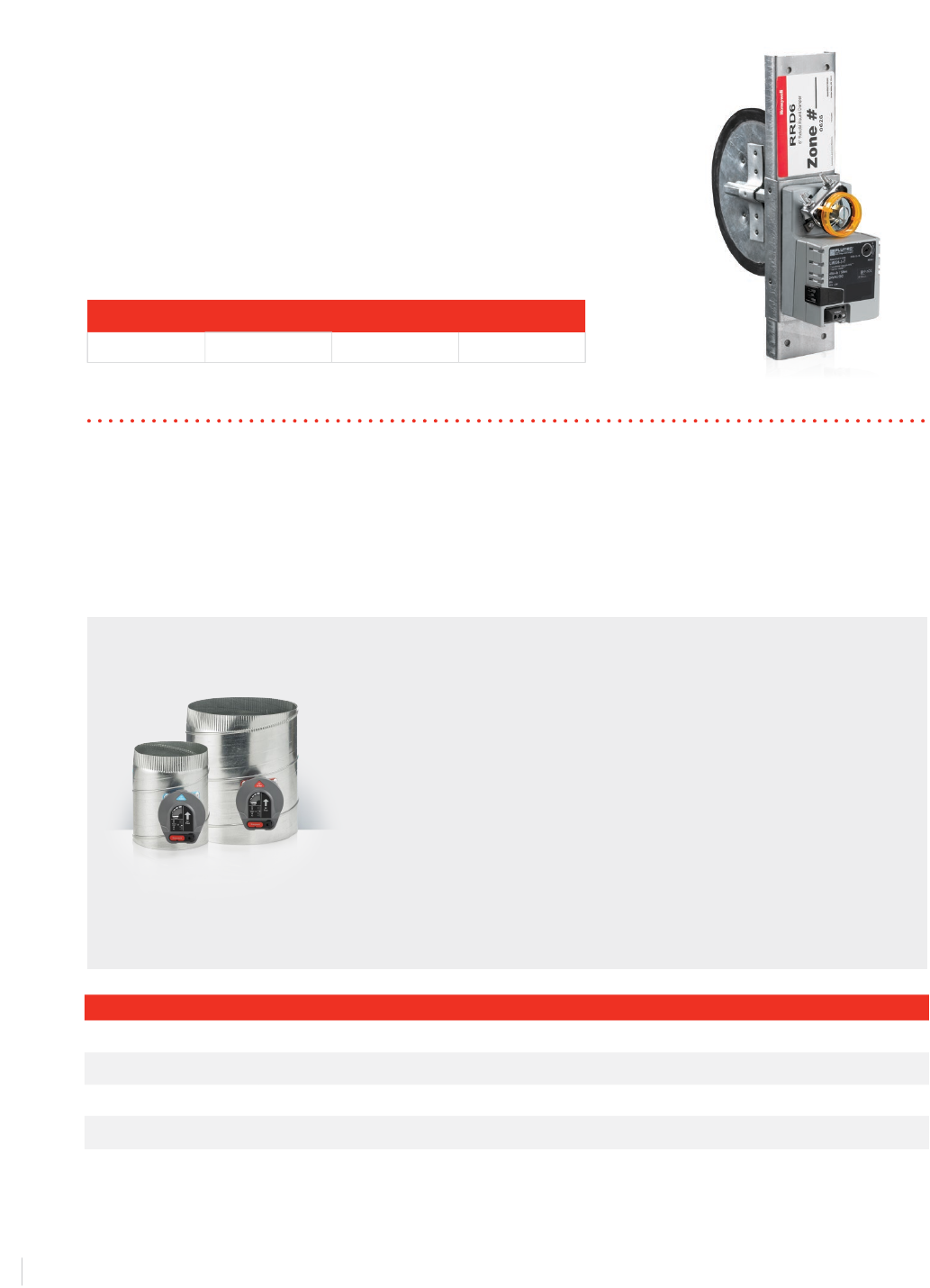

Round ARD Dampers
Honeywell Automatic Round Dampers (ARD) are single-blade models that close
tightly to minimize leakage and feature a position indicator for damper status.
• Outstanding seal — Built with gasket to ensure low leakage of less than 1 percent
• Sizes available from 5" to 20"
• Modulating round dampers (MARD) available from 6" to 18"
• Fresh air dampers available in power open/spring close orientation (EARD)
• Rugged construction built to last
• 5-Year Warranty

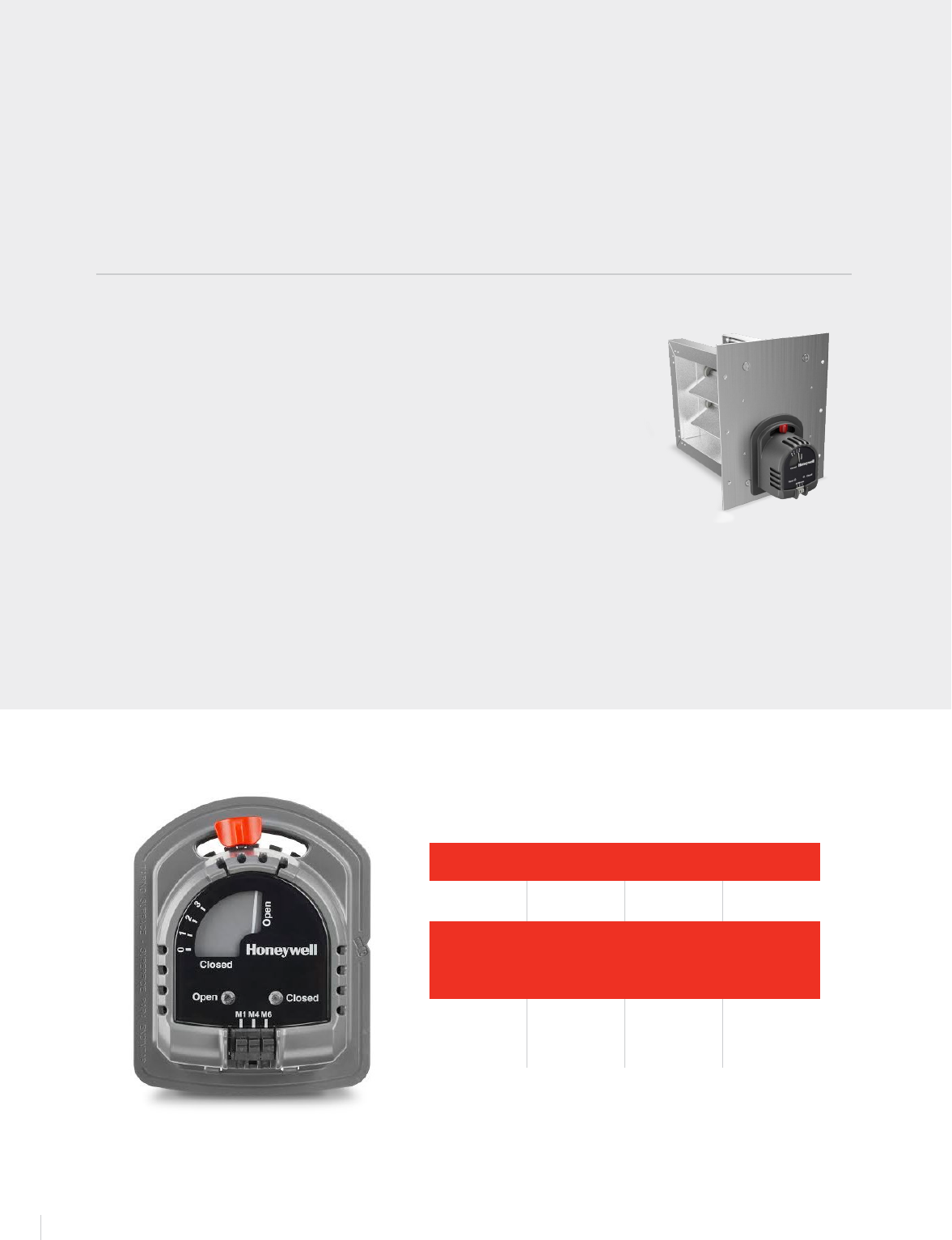

Rectangular ZD Dampers
Honeywell ZD dampers are available in both side-mount and bottom-mount models.
A power-close, spring-open damper, the ZD operates quietly and features a parallel
blade design for low-leakage performance. Available in over 125 sizes.
Two-piece bearing for long
life and quiet operation.
Parallel blade with extruded
lip for low leakage.
Durable construction —
riveted and screwed corners.
8
ZONING
Bypass Dampers
Bypass dampers are required in nearly all zoning installations to relieve pressure. The latest addition to
Honeywell’s lineup is the timesaving TrueZONE® Bypass Damper that truly simplifies installation.
TrueZONE Bypass Dampers
By replacing the old weight system with a simple crank, Honeywell has
created one of the most game changing bypass damper innovations to
come along in years. Installation that used to take one to two hours now
takes just 15 minutes.
• No weights to balance
• Can be installed in any orientation, including angles
• Designed to provide constant pressure relief regardless of blower speed
• Quiet, efficient and reliable
• 5-Year Warranty
TrueZONE Bypass Dampers
CPRD8 Bypass up to 600 CFM (replaces 8" and 10" weighted round barometric damper)
CPRD10 Bypass up to 1000 CFM (replaces 12" weighted round barometric damper)
CPRD12 Bypass up to 1400 CFM (replaces 14" weighted round barometric damper)
CPRD14 Bypass over 1400 CFM (replaces 16" weighted round barometric damper)
Retrofit Round Dampers Easily slides into rigid round duct.
RRD5TZ RRD6TZ RRD7TZ RRD8TZ
Round RRD Dampers
Ideal for retrofit applications in rigid duct, Honeywell’s complete line of retrofit dampers
ensures that you will have the right size for any job.
• Sizes available from 5" to 8"
• Cycle tested to 100,000 cycles with less than 5 percent leakage at .5 wc
• Visual position indicator, range stops and manual position adjustment
• Features a 2.5 VA actuator, enabling the connection of up to 12 dampers
on any of the Honeywell zone panels without a damper expansion module
• 5-Year Warranty
9
ZONING
In addition to zoning systems, only Honeywell provides you with the leading portfolio of residential
control products to meet your needs for every application, budget and customer.
The Home Comfort And Energy-Efficiency Leader
Thermostats
Honeywell thermostats are the #1
choice of both homeowners and
contractors.
Whole-House Humidifiers
Steam. Powered. Bypass.
Honeywell whole-house humidifiers
come in a variety of styles, so you
can meet any situation.
Whole-House Dehumidifiers
Honeywell’s Whole-House
Dehumidifiers remove the latent
heat (moisture) from air to increase
comfort and safeguard the home.
UV Treatment Systems
Choose from a complete array of
single- and dual-lamp systems
with built-in safety features, lamps
that install without tools and
SmartLamp™ Technology that
extends lamp life.
Whole-House Ventilation
Honeywell offers a variety of
energy-efficient ventilation systems
for both new construction and
retrofit applications.
Water Solutions
From hydronic heating controls to
mixing valves, Honeywell helps
you grow your business by adding
Honeywell water solutions products
to your portfolio.
Whole-House Air Cleaners
Honeywell whole-house air
cleaners and replacement filters
come with exclusive industry
features like filter composition,
roll-formed steel cabinets and
five-year warranties.
Simple and Smart
Honeywell zoning solutions save you time on every project with easy installation of components and living-space
controls along with the famous Honeywell reliability that reduces callbacks. Add in the high level of homeowner
satisfaction with the improved comfort control and energy savings, and it’s easy to see how Honeywell zoning
solutions help you gain long-term customers.

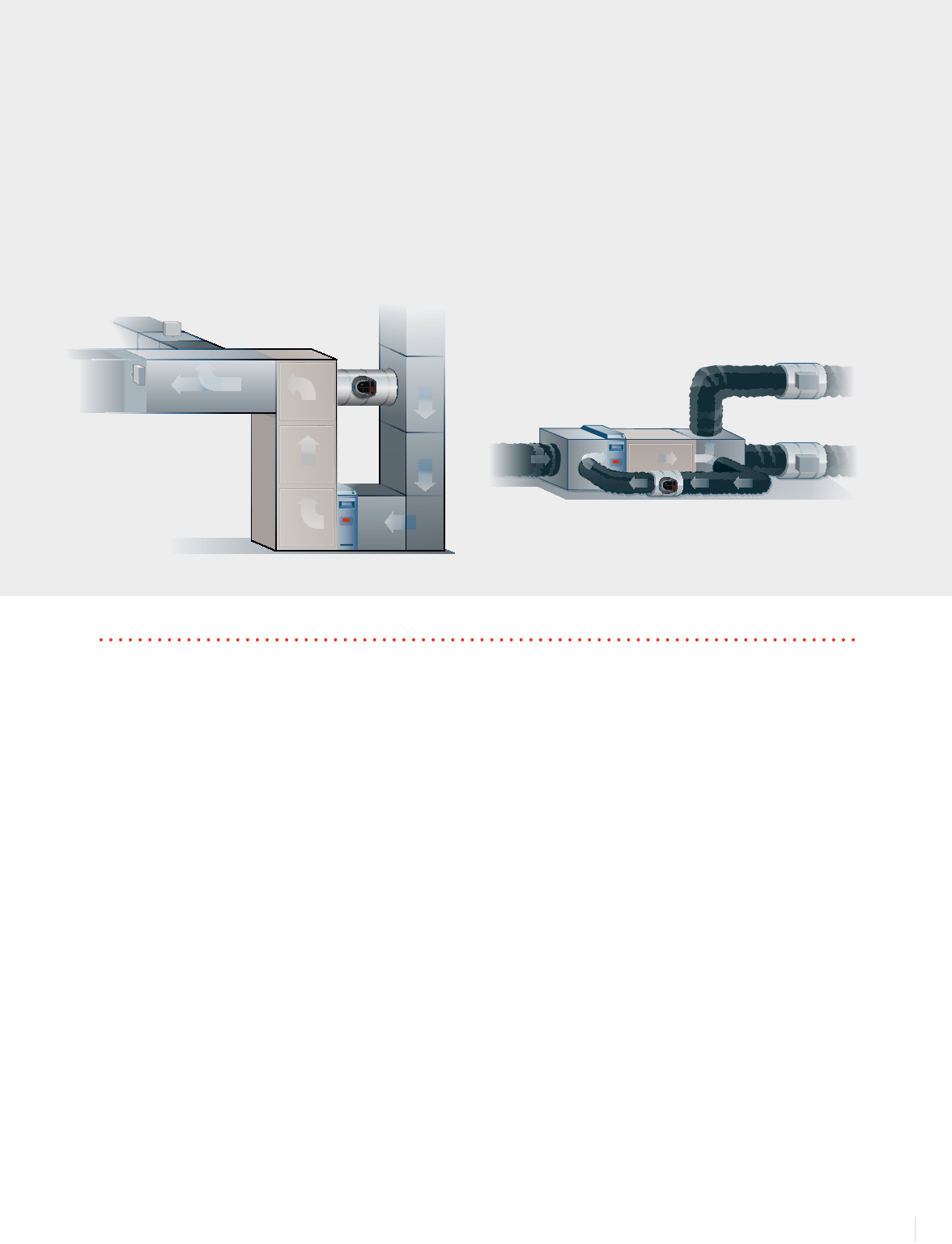

Air
Flow
Air
Flow
10
Automation and Control Solutions
Honeywell
1985 Douglas Drive North
Golden Valley, MN 55422-3992
www.honeywell.com
50-9420 PM
January 2015
©2015 Honeywell International Inc.
YouTube : @honeywellcpro
Honeywell Sales and Marketing Support
No one backs its products and your business like Honeywell. From Contractor PRO™ rewards to free literature to
detailed training demos and materials, Honeywell has you covered.
Contractor PRO Rewards
Get rewards back on purchases
www.contractorpro.com
FREE Literature
Free sales/installation literature
www.literature.honeywell.com
Zoning Sales and Technical Resource
All Honeywell Zoning sales/technical literature
in one book
Product #63-7067
www.customer.honeywell.com
Zoning Customer Service Hotline
A dedicated toll-free resource to answer your technical
questions right over the phone
1-800-TAT-TEMP (1-800-828 -8367)
“What’s Your Zone-Ability?”
Training Material Includes Zoning Training DVD
Training presentation, videos, and sales/technical
information
Product #50-1310
www.customer.honeywell.com
RedLINK Zoning Demo Display
Includes product for an HZ432 RedLINK Zoning System
Product #DSP3525-R
www.customer.honeywell.com
Order online or through your
Honeywell Sales Rep or
Honeywell Customer Care Rep.

Navigation menu
