PLASMA TV

SERVICE MANUAL

CAUTION

BEFORE SERVICING THE CHASSIS,

READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS : PP78A

MODEL : 50PC52 50PC52-ZD

website:http://biz.LGservice.com

- 2 -

CONTENTS

CONTENTS .............................................................................................. 2

SAFETY PRECAUTIONS ..........................................................................3

SPECIFICATION ........................................................................................4

ADJUSTMENT INSTRUCTION .................................................................6

TROUBLE SHOOTING ............................................................................15

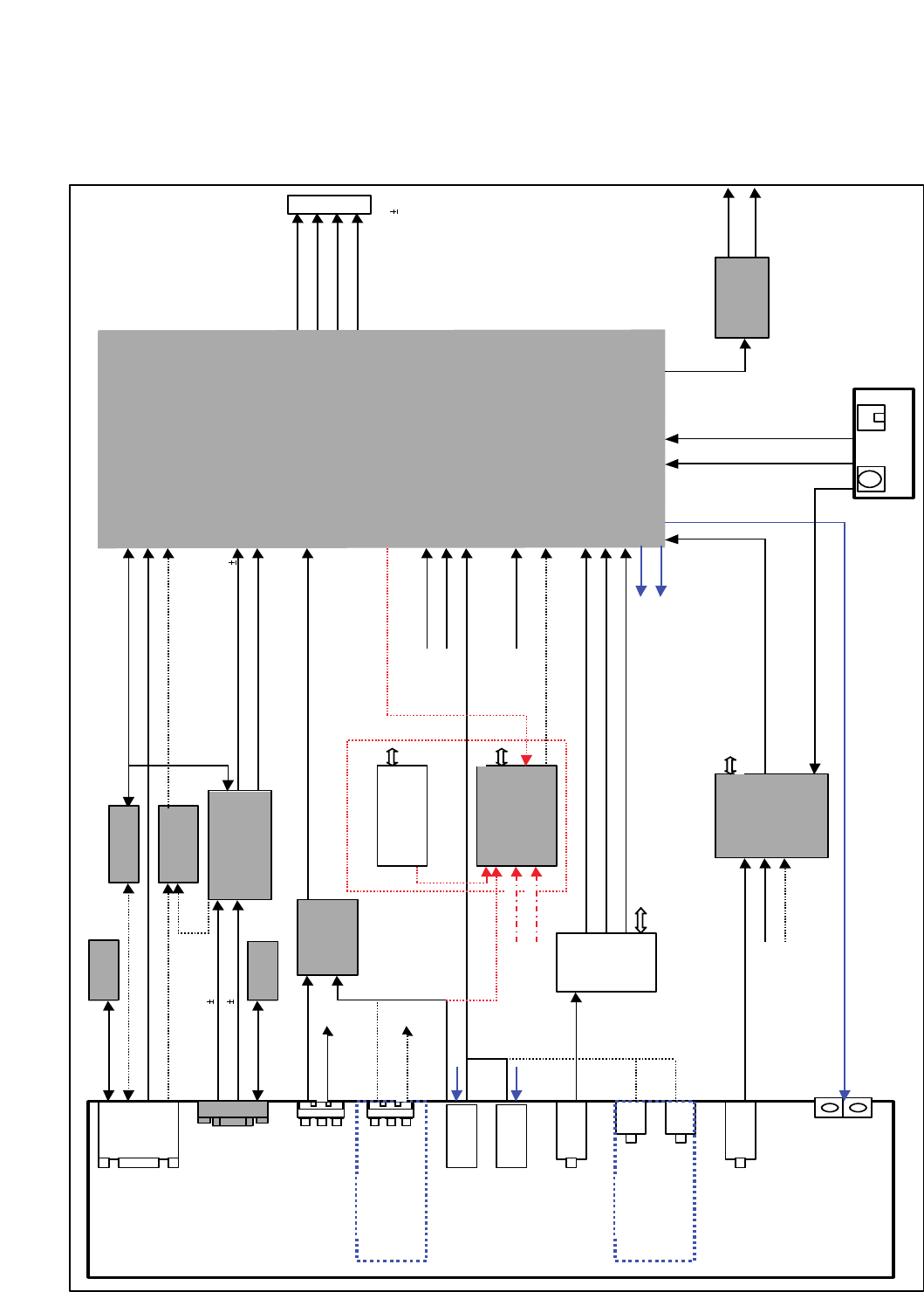

BLOCK DIAGRAM...................................................................................23

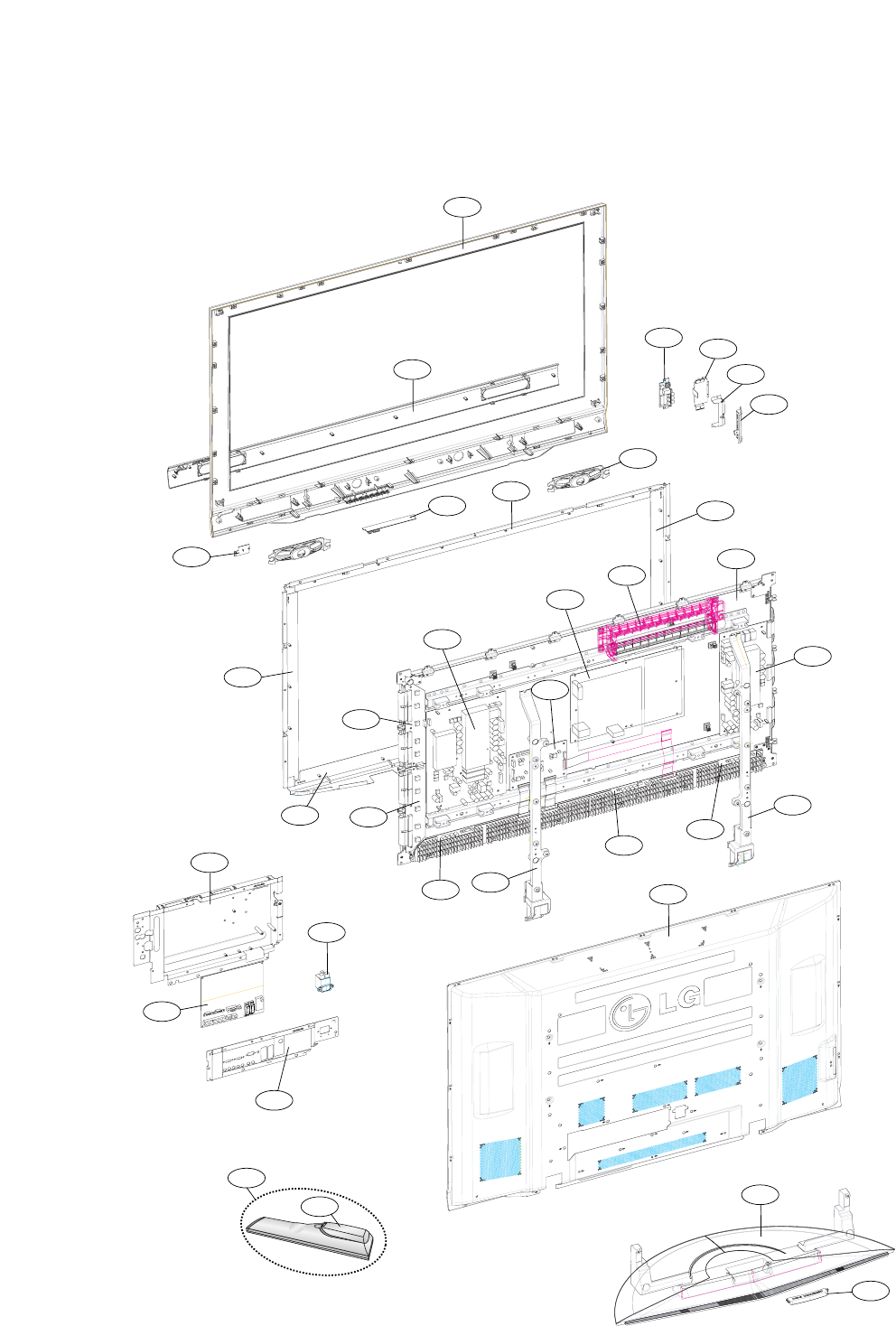

EXPLODED VIEW .................................................................................. 24

EXPLODED VIEW PARTS LIST ............................................................ 25

REPLACEMENT PARTS LIST ............................................................... 26

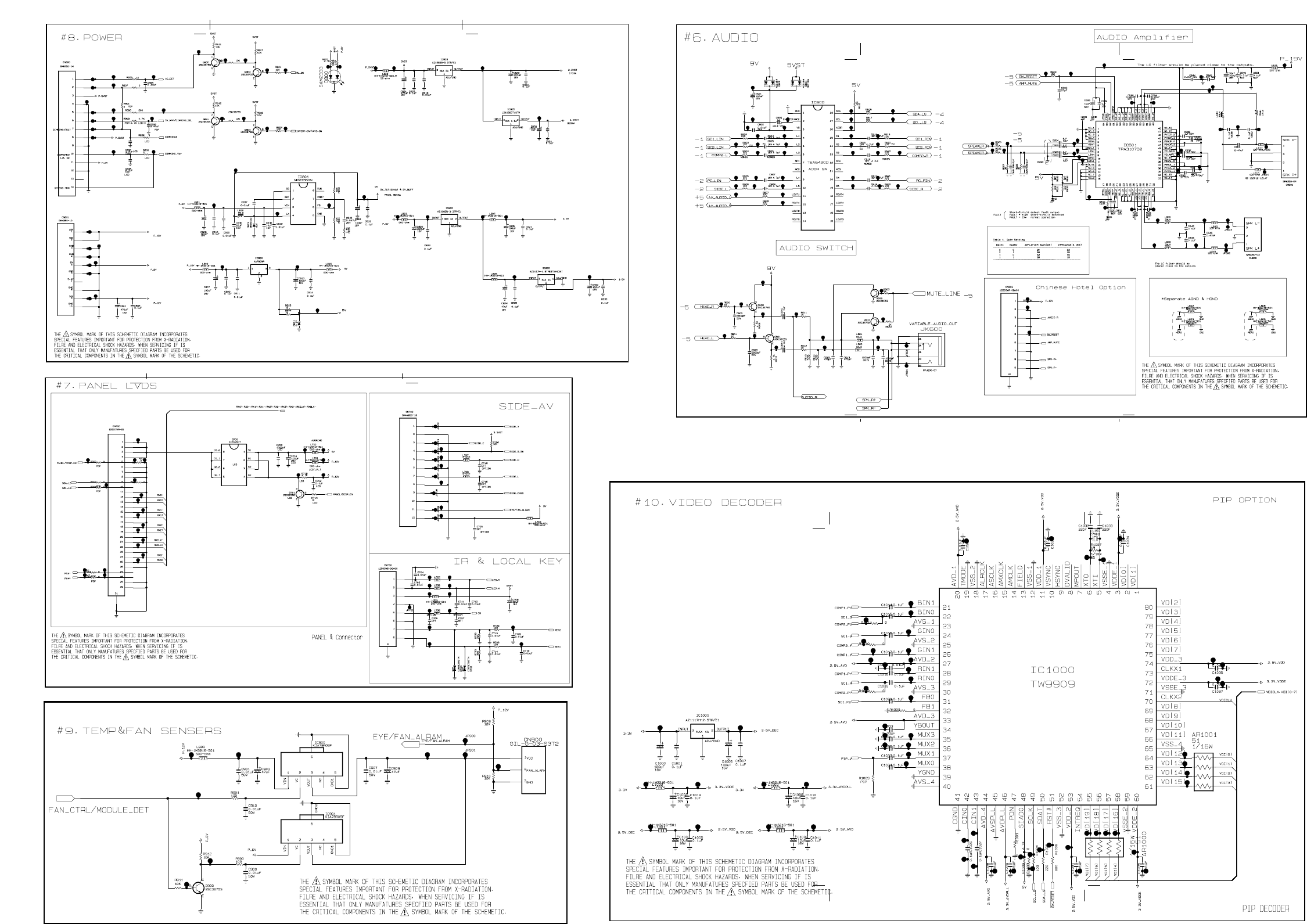

SVC. SHEET ...............................................................................................

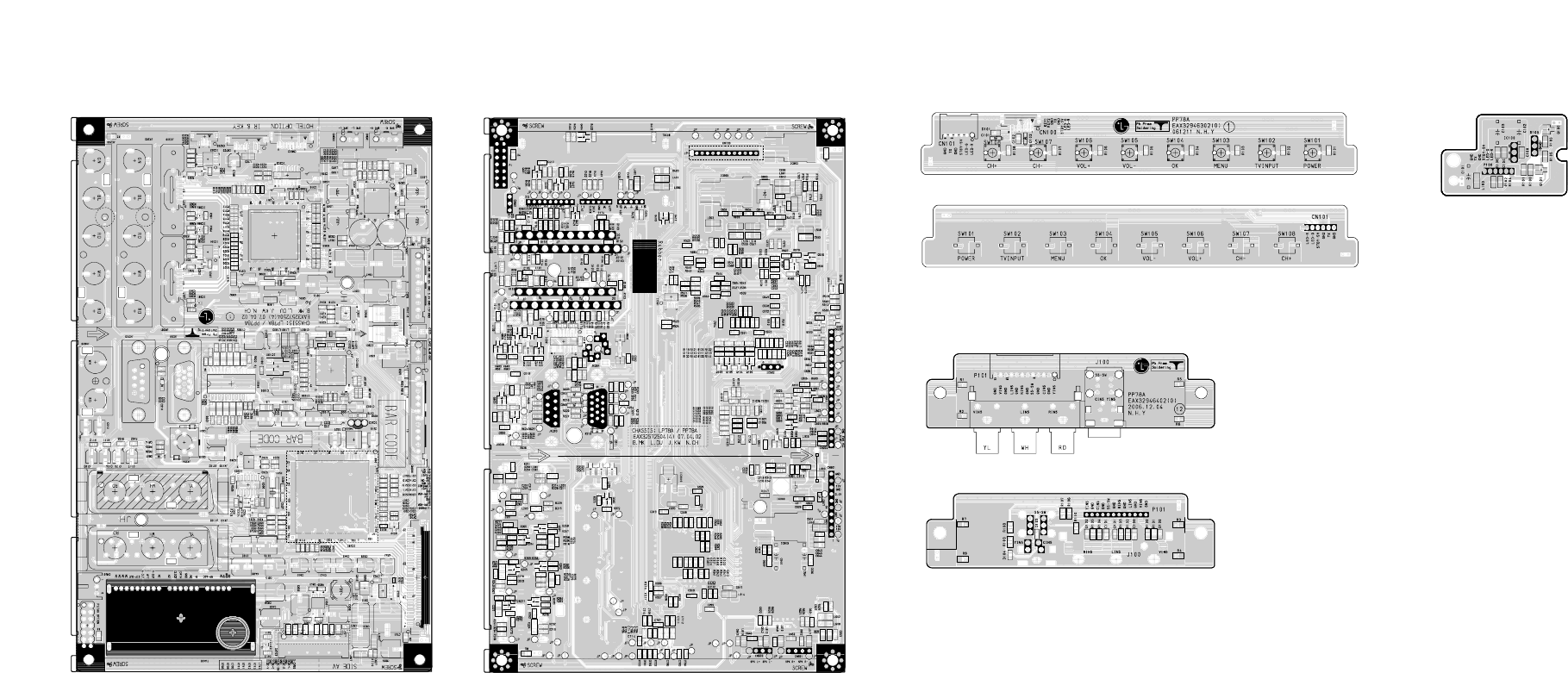

PRINTED CIRCUIT DIAGRAM ....................................................................

- 3 -

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the

Schematic Diagram and Replacement Parts List.

It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent

X-RADIATION, Shock, Fire, or other Hazards.

Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the

servicing of a receiver whose chassis is not isolated from the AC

power line. Use a transformer of adequate power rating as this

protects the technician from accidents resulting in personal injury

from electrical shocks.

It will also protect the receiver and it's components from being

damaged by accidental shorts of the circuitry that may be

inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this monitor is blown, replace it

with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor,

over 1W), keep the resistor 10mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Due to high vacuum and large surface area of picture tube,

extreme care should be used in handling the Picture Tube.

Do not lift the Picture tube by it's Neck.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an

electrical jumper across the two AC plug prongs. Place the AC

switch in the on position, connect one lead of ohm-meter to the AC

plug prongs tied together and touch other ohm-meter lead in turn to

each exposed metallic parts such as antenna terminals, phone

jacks, etc.

If the exposed metallic part has a return path to the chassis, the

measured resistance should be between 1MΩ and 5.2MΩ.

When the exposed metal has no return path to the chassis the

reading must be infinite.

An other abnormality exists that must be corrected before the

receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor

between a known good earth ground (Water Pipe, Conduit, etc.)

and the exposed metallic parts.

Measure the AC voltage across the resistor using AC voltmeter

with 1000 ohms/volt or more sensitivity.

Reverse plug the AC cord into the AC outlet and repeat AC voltage

measurements for each exposed metallic part. Any voltage

measured must not exceed 0.75 volt RMS which is corresponds to

0.5mA.

In case any measurement is out of the limits specified, there is

possibility of shock hazard and the set must be checked and

repaired before it is returned to the customer.

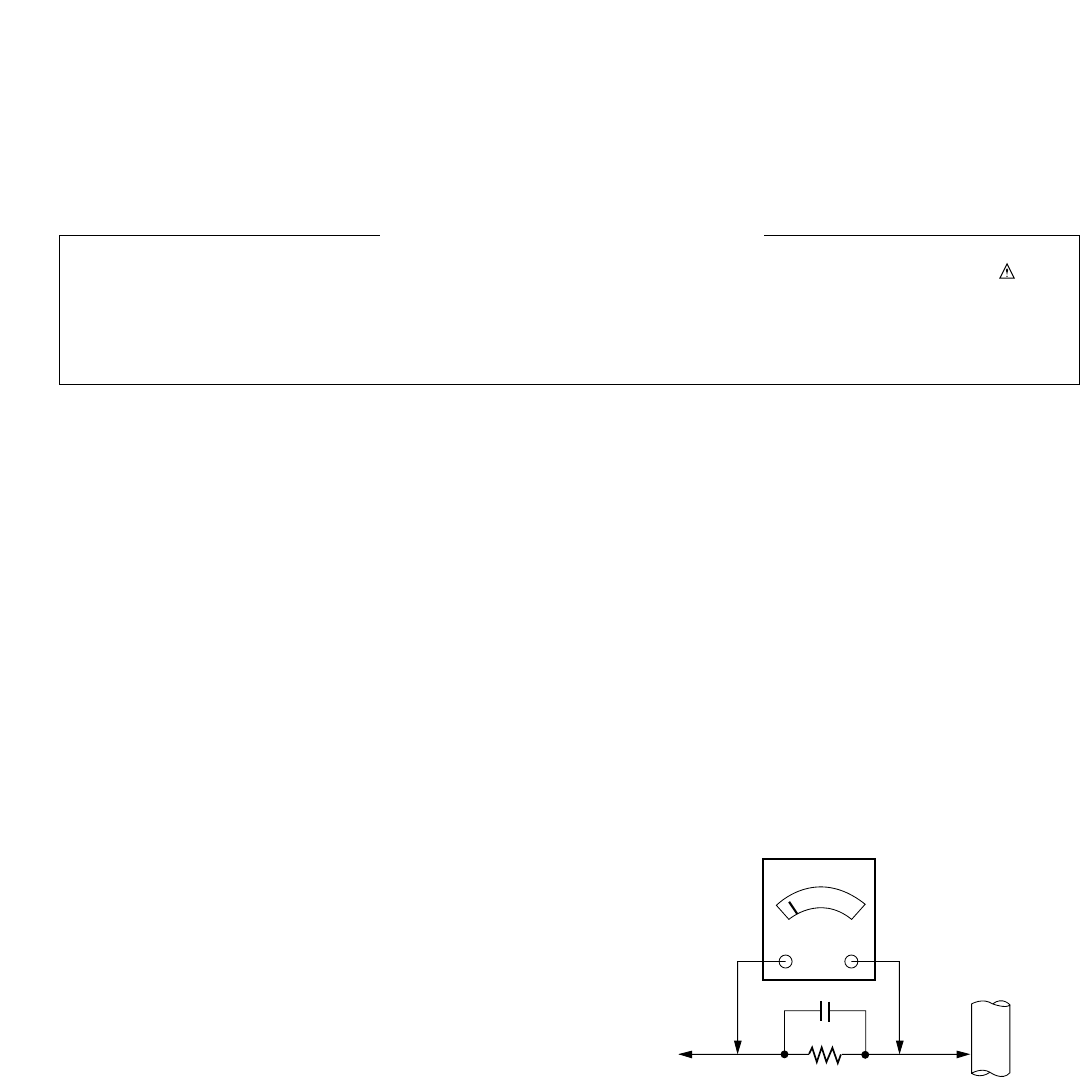

Leakage Current Hot Check circuit

1.5 Kohm/10W

To Instrument's

exposed 

METALLIC PARTS

Good Earth Ground

such as WATER PIPE,

CONDUIT etc.

AC Volt-meter

IMPORTANT SAFETY NOTICE

0.15uF

- 4 -

SPECIFICATIONS

NOTE : Specifications and others are subject to change without notice for improvement

VApplication Range

This spec is applied to the 50” PLASMA TV used PP78A Chassis.

V Specification

Each part is tested as below without special appointment.

1) Temperature : 25±5°C (77±9°F), CST : 40±5

2) Relative Humidity: 65±10%

3) Power Voltage: Standard Input voltage (100-240V~, 50/60Hz)

* Standard Voltage of each product is marked by models.

4) Specification and performance of each parts are followed each drawing and specification by part number in accordance with SBOM.

5) The receiver must be operated for about 20 minutes prior to the adjustment.

VTest Method

1) Performance : LGE TV test method followed.

2) Demanded other specification

Safety : CE, IEC specification

EMC : CE, IEC

VGeneral Specification ( 50”XGA )

Chassis

PP78A 50PC52-ZD EU LG

Model Name Market Brand Remark

50PC52-ZD Safety : IEC/EN60065, EMI : EN55013, EMS : EN55020EU

Model ApplianceMarket

TEST

Remark

Display Screen Device

Aspect Ratio

PDP Module

Operating Environment

Storage Environment

Input Voltage

No Item Specification Remark

50” Wide Color Display Module

16:9

PDP50X4,

RGB Closed Type

1)Temp. : 0~40deg

2)Humidity : 0~85%

3)Temp. : -20~60deg

4)Humidity : 0~85%

100-240V~, 50/60Hz

Plasma Display Panel

Clear Filter

LGE SPEC.

Maker : Sanken

- 5 -

VModule Specification2

Market

Broadcasting system

Available Channel

Receiving system

SCART Jack(2EA)

Video Input (1EA)

S-Video Input (1EA)

Component Input (1EA)

RGB Input(1EA)

HDMI Input(1EA)

Audio Input (5EA)

Audio variable out(1EA)

No Item Specification Remark

PAL-BG/I/DK, NTSC, SECAM

BAND PAL

VHF/UHF C1~C69

CATV S1~S47

Upper Heterodyne

PAL, SECAM, NTSC

Y/Cb/Cr, Y/Pb/Pr

RGB-PC

HDMI-DTV

PC Audio, Component(1EA),

AV (2EA), SIDE AV(1EA)

FULL SCART, HALF SCART

SIDE AV

SIDE S-VIDEO

L/R Input

VModule Specification (PDP50X4)

Display area

Outline dimension

Number of Pixels

Cell pitch

Color arrangement

Weight(net)

Temperature

Operating Environment Humidity

Pressure

Temperature

Storage Environment Humidity

Pressure

Image stick Start time

minimization Low Brightness Arrival Time

mode

1106.5 (H) * 662.1(V)±0.5

1190 (W) x 700 (H) x 52 (D)±1

1366 (H) x 768(V)

270um (H) x 810um (V)

RGB closed type

13.8 14.3 14.8

0 ~ 40

20 ~ 80

800 ~ 1100

-20 ~ 60

10 ~ 90

700 ~ 1100

4.5 5 5.5

14 16 16

No Item Remark

1Pixel=3RGB Cells

Altitude : 0 to 2000M

Altitude : 0 to 3000M

deg

hPa

deg

hPa

min

Min Typ Max Unit

- 6 -

ADJUSTMENT INSTRUCTION

1. Application Object

These instructions are applied to all of the 50” PLASMA TV,

PP78A Chassis.

2. Note

(1) Because this is not a hot chassis, it is not necessary to use

an isolation transformer. However, the use of isolation

transformer will help protect test instrument.

(2) Adjustment must be done in the correct order.

(3) The adjustment must be performed in the circumstance of

25±5°C of temperature and 65±10% of relative humidity if

there is no specific designation.

(4) The input voltage of the receiver must keep 100-220V~,

50/60Hz.

(5) Before adjustment, execute Heat Run for 30 minutes.

3. Adjustment items

3.1. PCB assembly adjustment items

(1) Download the VCTP main software (IC500,VCT_Pro)

(2) Channel memory (IC501,EEPROM)

(3) Color carrier Adjustment

3.2. SET assembly adjustment items

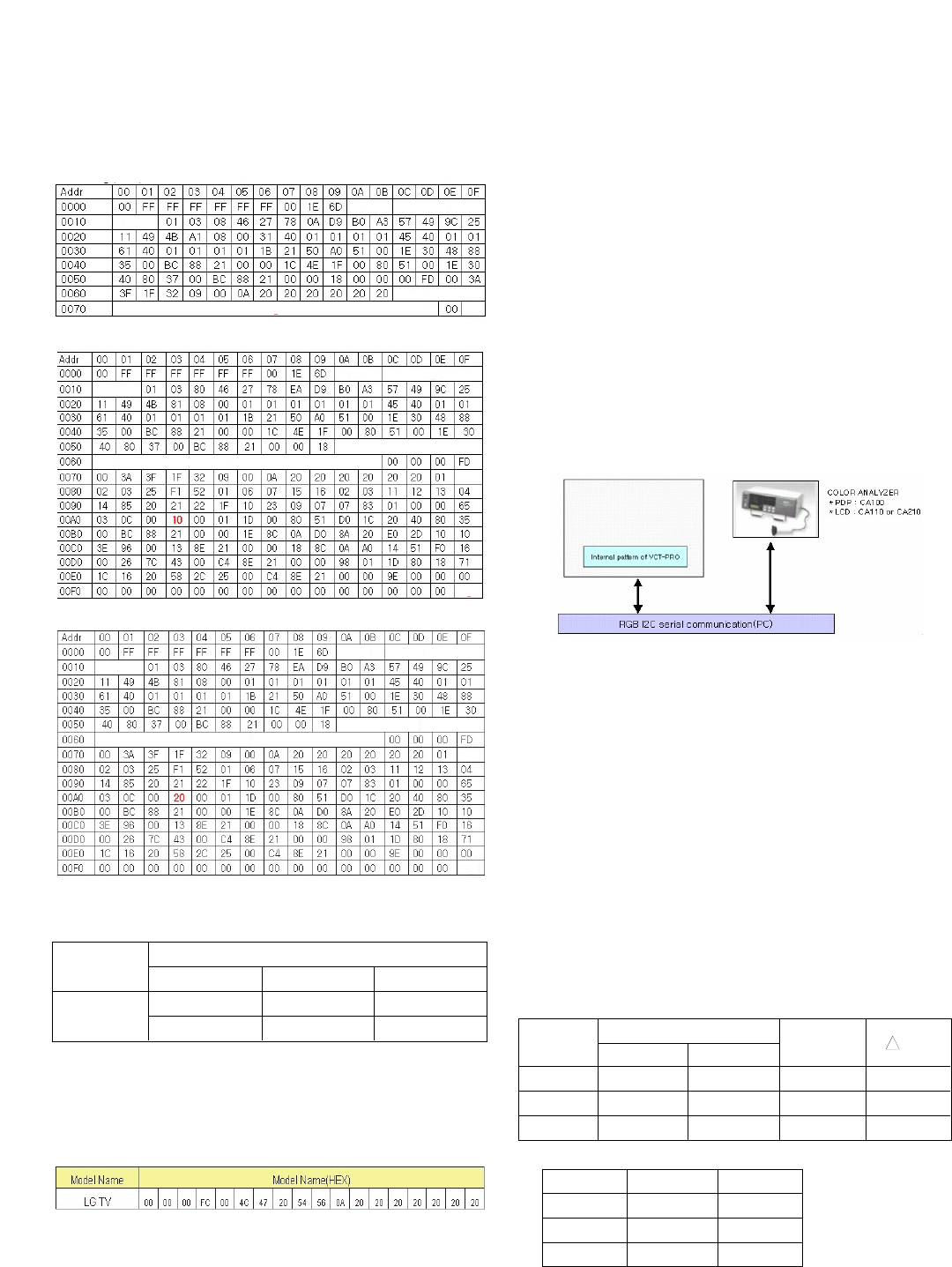

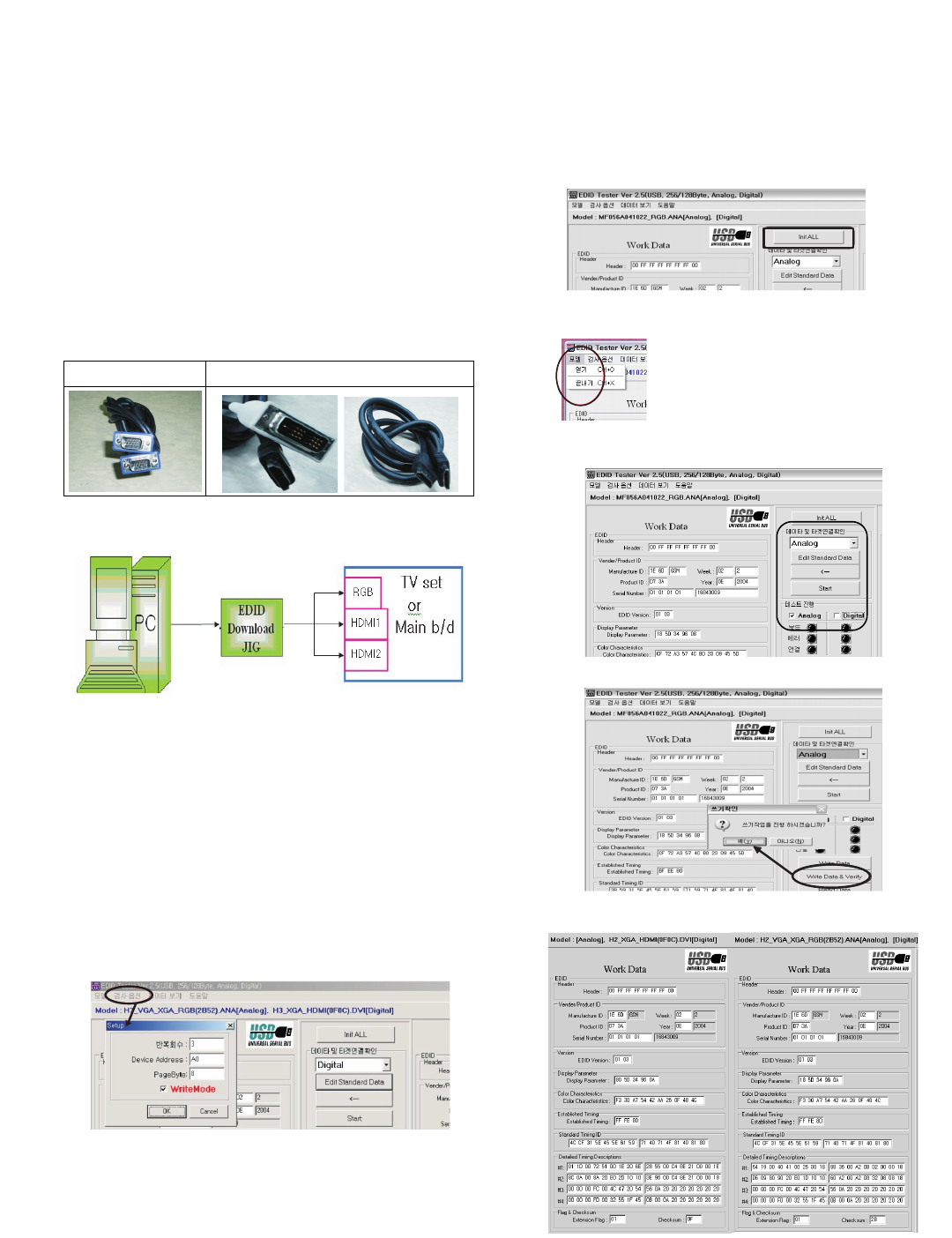

(1) DDC Data input.

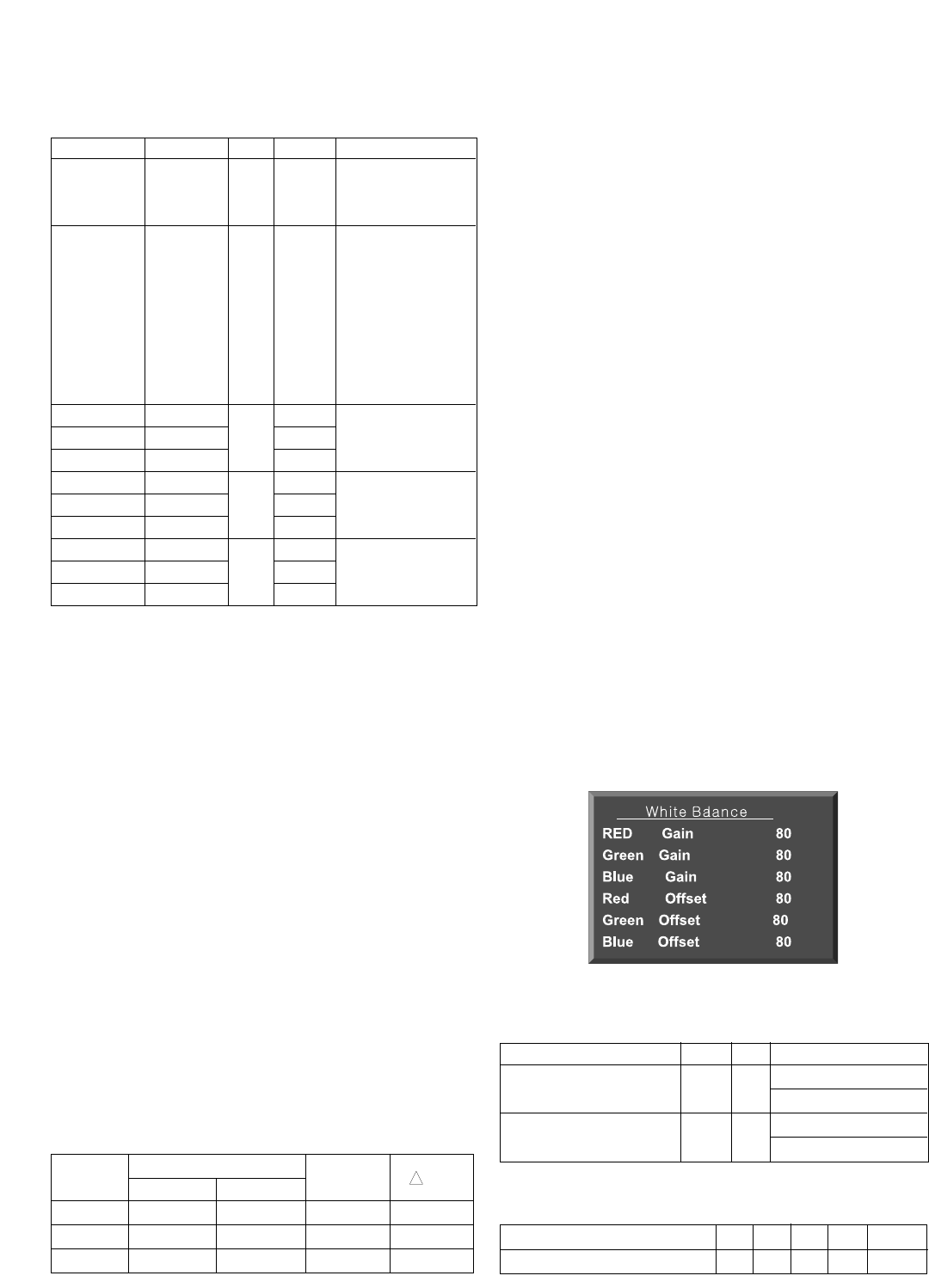

(2) Adjustment of White Balance.

(3) Factoring Option Data input.

4. PCB assembly adjustment method

(Using VCTP Download program)

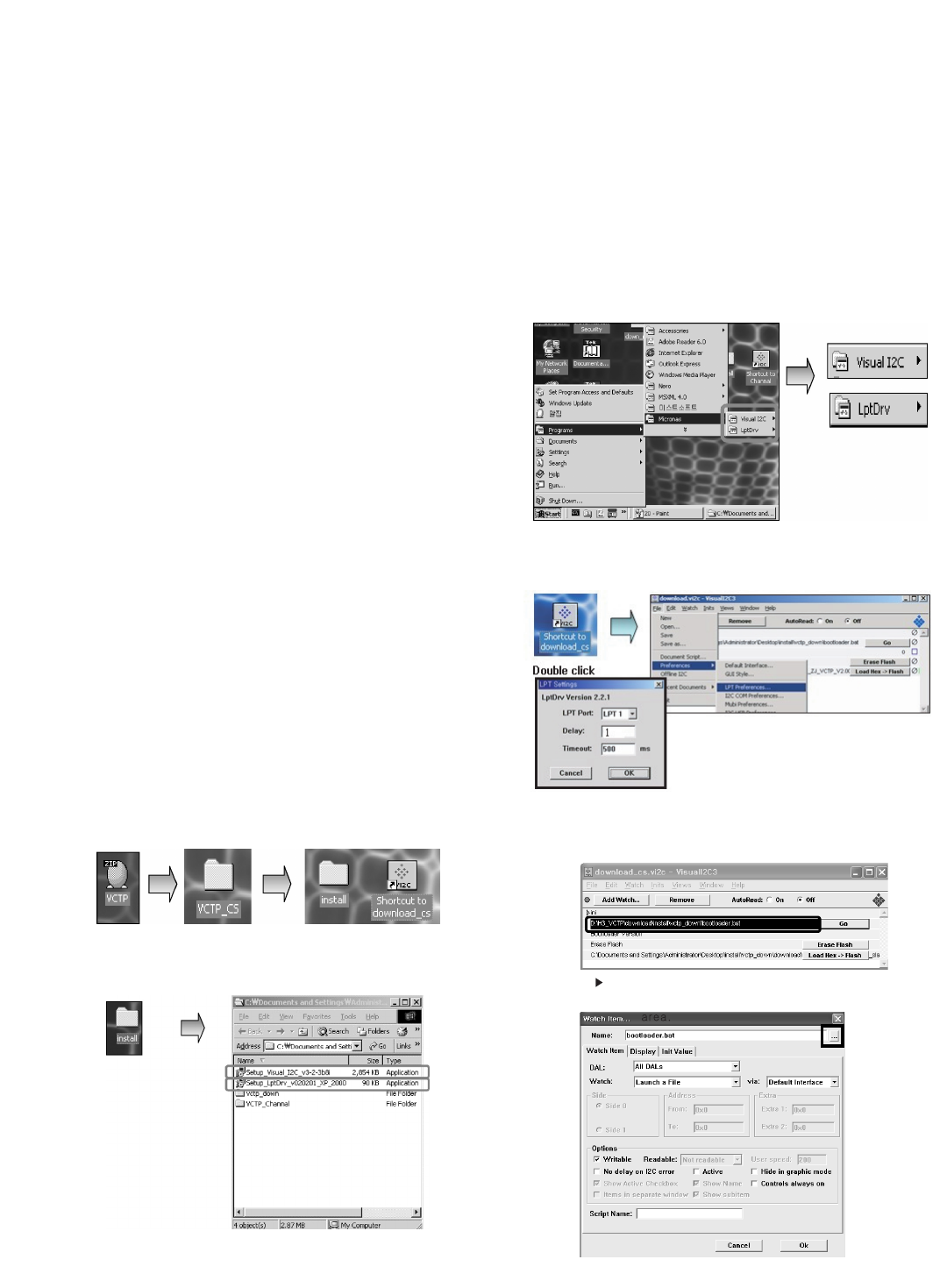

4-1. Download program installation

(1) Extract a Zip file.

(2) Visual I2C & LPT Driver Installation.

LPT Port Driver (LptDrv) Setups : Program Files > Micronas >

Visual I2C > Port_Driver

*Use for Windows 95/98 : Setup_LptDrv_v0104_9x.exe

*Use for Windows 2000/XP : Setup_LptDrv_v0202_XP_2000.exe

Use for Windows NT : Setup_LptDrv_v0104_NT.exe

(3) Verification.(Start > Programs > Micronas > Visual I2C or

LptDrv)

(4) LPT delay setting.(File > Preference > LPT preferences)

(5) Exchange the “bootloader.bat” file.

Click the red area

Double click the Red

Install the LPT Driver

Install the Visual I2C

*LPT SETTING

- Delay => 1

- Time out => 500 ms

- 7 -

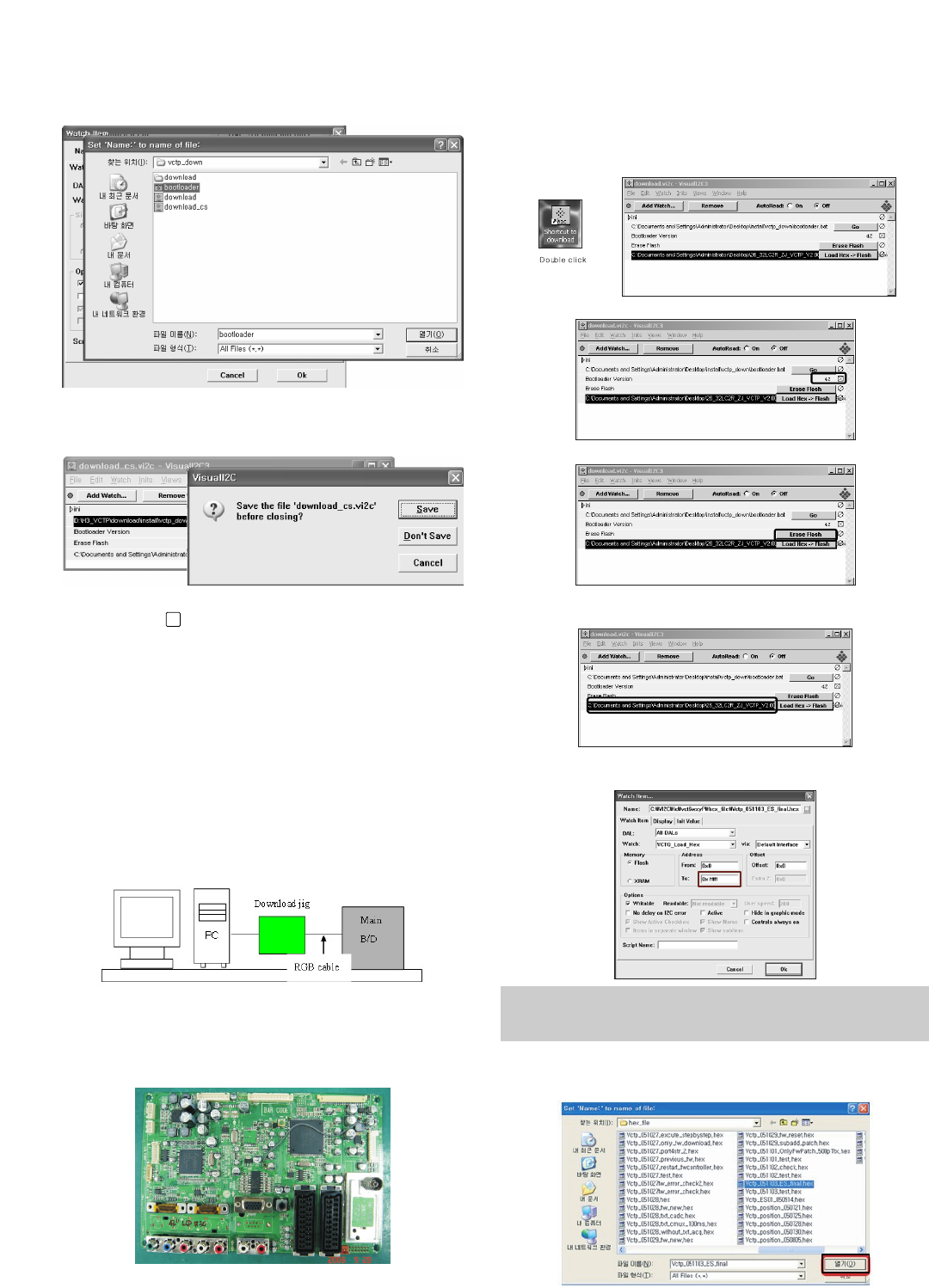

=> Select the "Bootloader.bat" file.

(install > VCTP_download > Bootloader)

=> Push "OK".

Finish the program, after saving the file "download_cs.vi2c".

(if you click , the massage appears automatically)

5. S/W program download

5-1. Profile

: This is for downloading the s/w to the flash memory of the

vctp(IC500)

5-2. Required Test Equipment

(1) PC.

(2) Visual IIC program.

(3) Download jig.

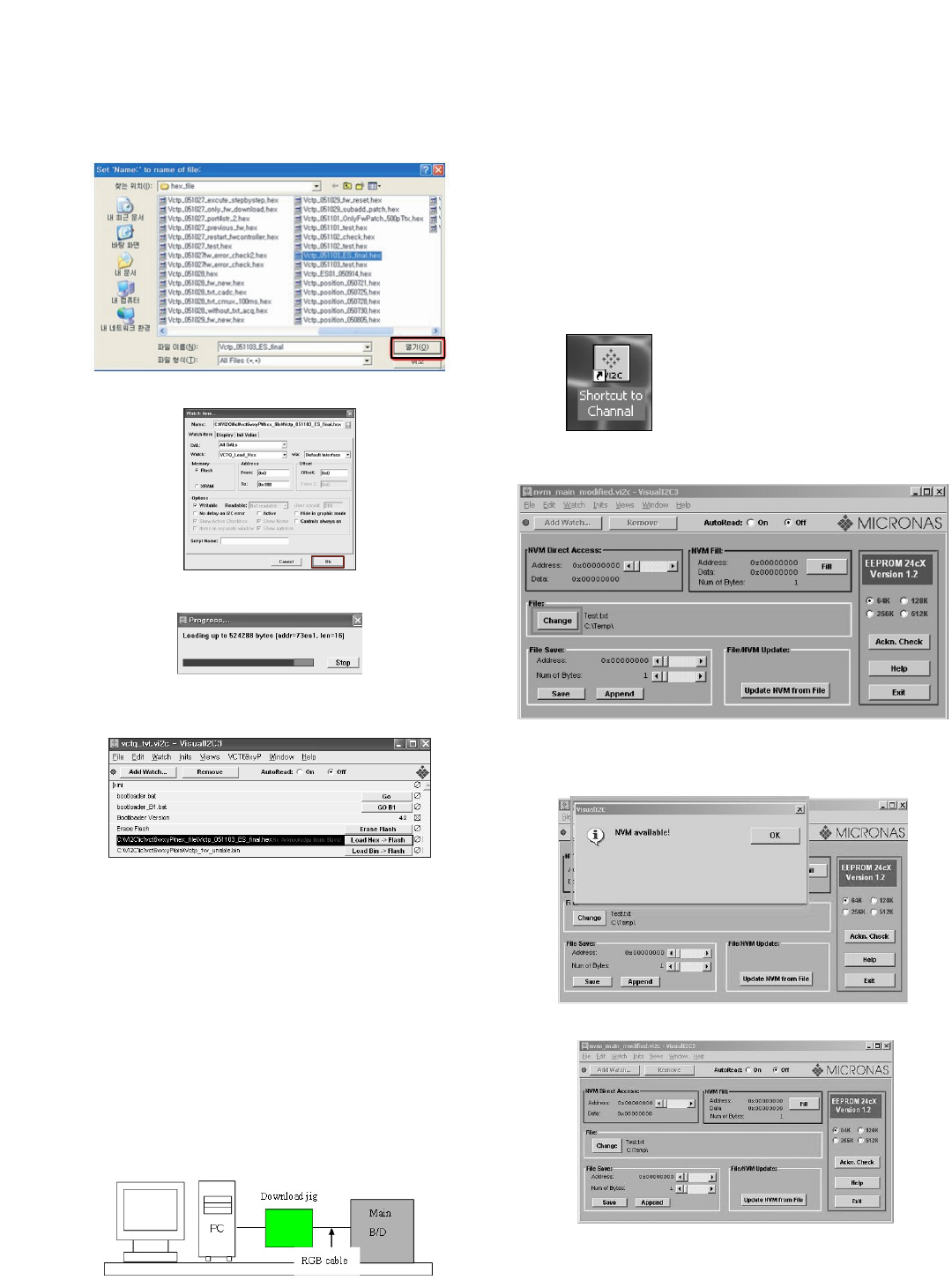

5-3. Connection structure

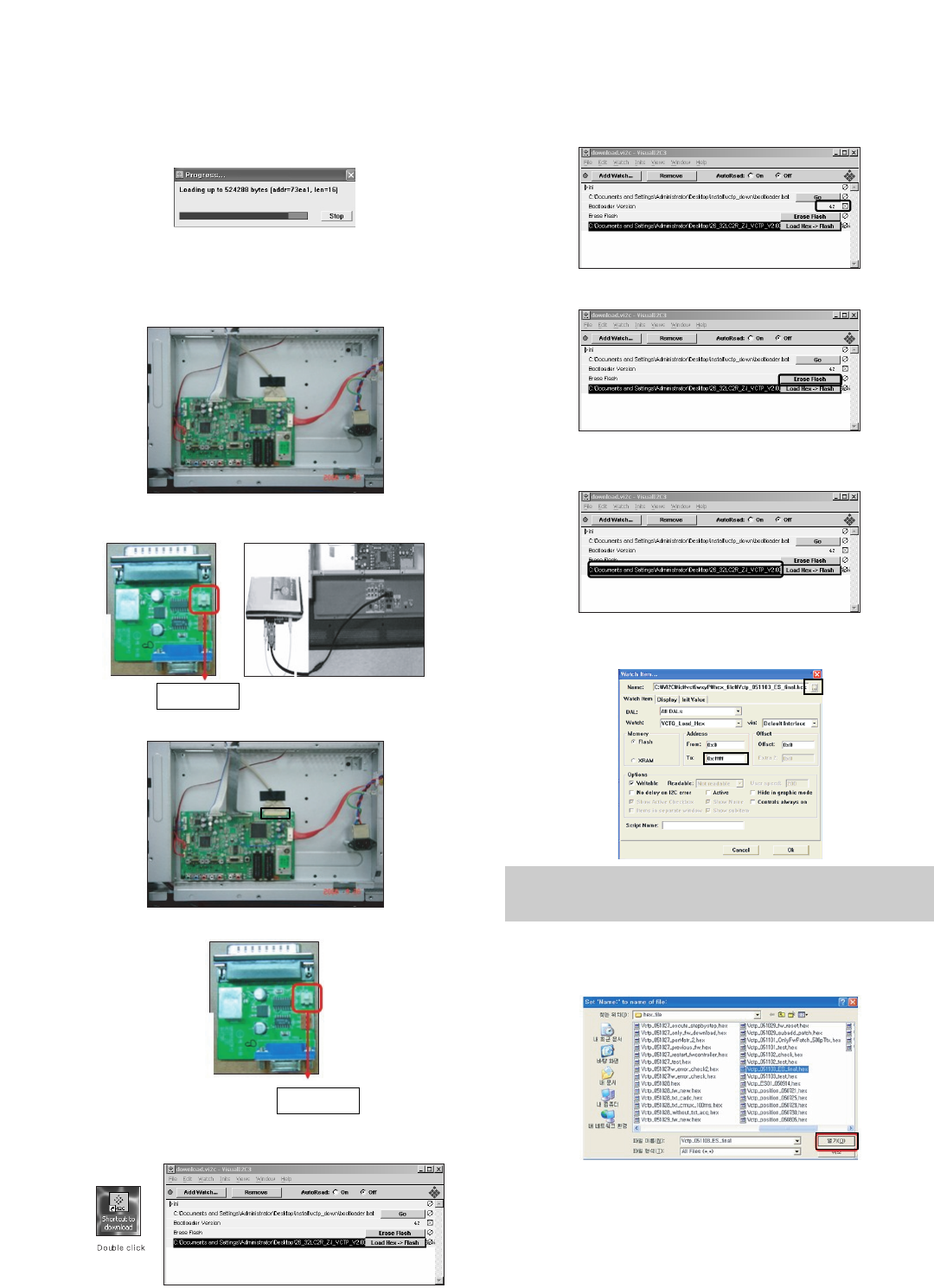

6. Download method

6-1. Download method 1 (PCB Ass’y)

(1) Connect the download jig to D-sub jack.

(2) Execute ‘Download.vi2c’ program in PC, then a main

window will be opened.

(3)

Double click the blue box and confirm "Bootloader Version" as 42.

(4) Click the "Erase Flash" button.

(5) Double click the download file low, then "edit" window will

be opened.

(6) Click the choice button in the “edit window”, then “file

choice window” will be opened.

(7) Choose the Hex file in folder and execute downloading

with click " open" button.

You must verify the words of “0xfffff” in the black box of figure.

(In case of H3 Service it is 0x7ffff : If you make H4 service after

the H3 service, there could be some problem)

- 8 -

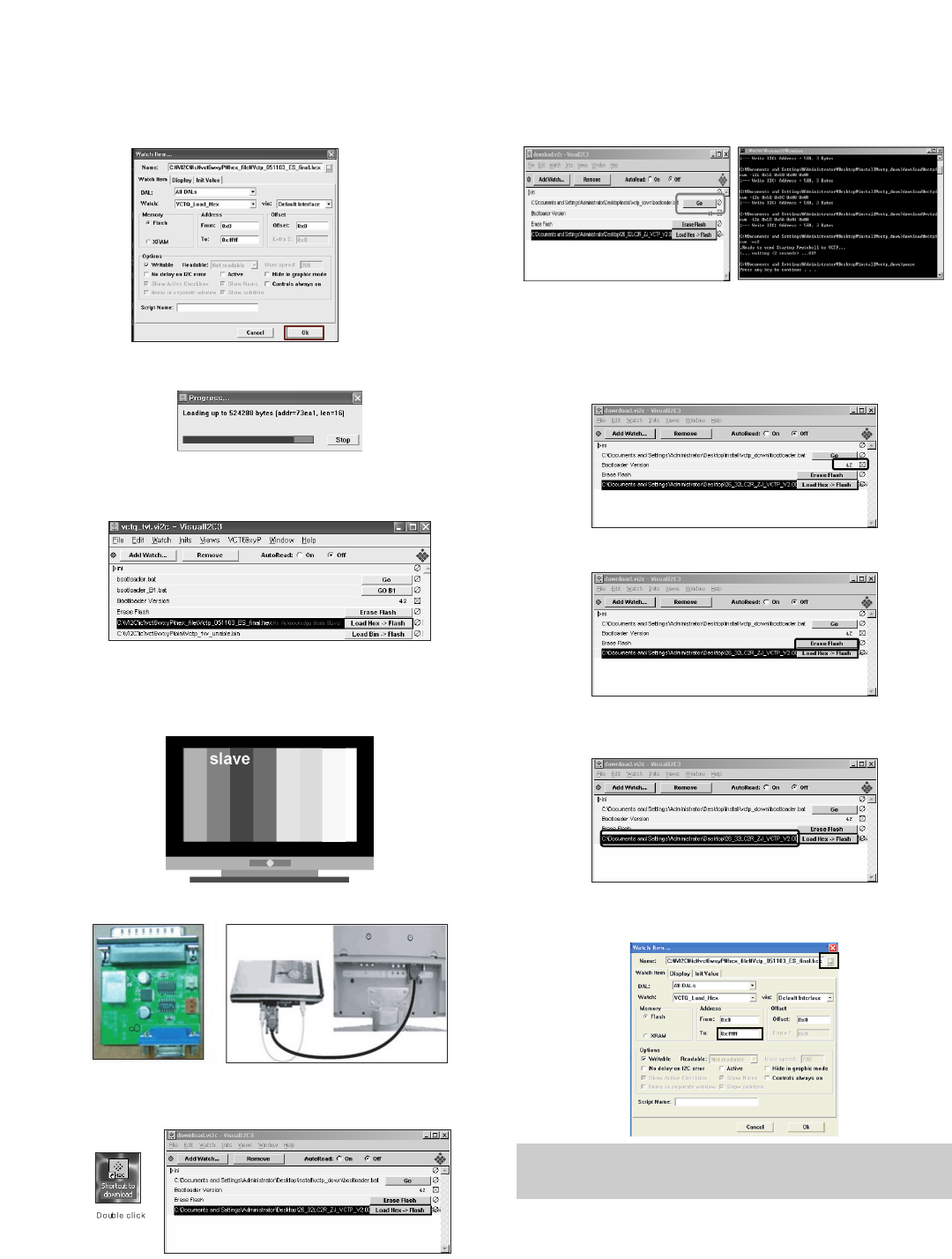

(8) Click OK button at the "edit window".

(9) Under Downloading process.

(10) If download is failed, for example "No acknowledge from

slave". Execute download again from(1).

6-2.Download method 2 (AV Plate Ass’y)

(1) Push S/W ‘ON" (connect SCL to GND using switch at Jig )

and connect the download jig to D-sub jack.

(2) Supply the power (Stand-by 5V) and wait for 3 seconds.

(3)

Push the S/W off.(Disconnect SCL to GND using switch at jig).

(4) Execute ‘Download.vi2c’ program in PC, then a main

widow will be opened.

(5)

Double click the blue box and confirm "Bootloader Version" as 42

(6) Click the "Erase Flash" button.

(7) Double click the download file low then, "edit" window will

be opened.

(8) Chick the choice button I n the "edit window", then "file

choice window’ will be opened.

(9) Click the “load > flash” button.

(10) Choose the Hex file in folder and execute downloading

with click "open button".

Push S/W

You must verify the words of “0xfffff” in the black box(A) of figure.

(In case of H3 Service it is 0x7ffff : If you make H4 service after

the H3 service, there could be some problem)

- 9 -

(11) Click OK button at the "edit window".

(12) Under Downloading progress.

(13) If download is failed, for example "No acknowledge from

slave", execute download again from (1).

6-3.Download method 3 (SET)

(1) Push the “Tilt” button in an Adjust Remocon Then the

PLASMA TV will change a “slave mode”.

(2) Connect Zig to TV using a D-sub cable.

(3) Execute ‘Download_CS.vi2c’ program in PC, then a main

widow will be opened.

(4) Click "GO" button.

If you don’t push the “go”, the Hex file would not be

downloaded although the download proceeds normally at

first glance.

(5) Double click the blue box and confirm "Bootloader

Version" as 42.

(6) Click the "Erase Flash" button.

(7) Double click the download file low then, "edit" window will

be opened.

(8) Chick the choice button I n the "edit window", then "file

choice window’ will be opened.

(9) Click the “load > flash” button.

You must verify the words of “0xfffff” in the black box(A) of figure.

(In case of H3 Service it is 0x7ffff : If you make H4 service after

the H3 service, there could be some problem)

- 10 -

(10) Choose the Hex file in folder and execute downloading

with click "open button".

(11) Click OK button at the "edit window".

(12) Under Downloading progress.

(13) If download is failed, for example "No acknowledge from

slave", execute download again from (1).

7. Channel memory download

7-1. Profile

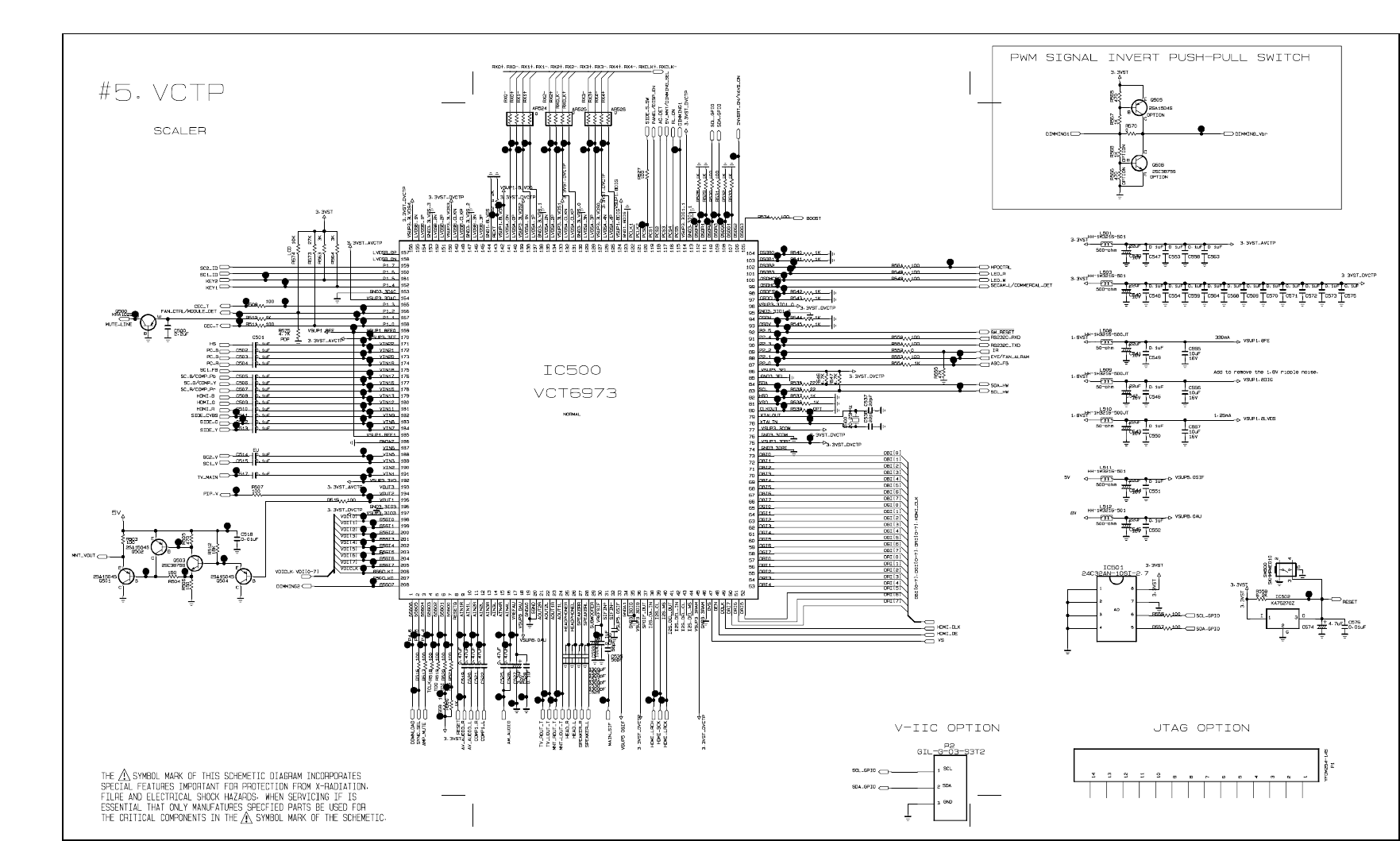

: This is for downloading the s/w to the flash memory of the

vctp(IC500)

7-2. Required Test Equipment

(1) PC.

(2) Visual IIC program.

(3) Download jig.

7-3. Connection structure

(1) Connect the download jig to D-sub jack.

(2) Execute ‘Channel.vi2c’ program in PC, then a main

window will be opened.

7-4. Connection condition

(1) IC name and circuit number : VCTP and IC500.

(2) Use voltage : 3.3V.

(3) SCL : 15pin.

(4) SDA : 12pin.

(5) Tact time : about 3seconds.

7-5. Download method

(1) Connect the download jig to D-sub jack.

(2) ‘Execute ‘Channel vi2c’ program in PC, then a main

window will be opened.

(3) Push the button change and select the Channel memory

data.

(4) Check the communication is OK or not.

=> Push the Read area (Ackn. Check) and check Cyan area

is OK message.

(5) Push the Update NVM from File

- 11 -

8. Tool Option Area Option Change

8-1. Profile

Must be changed the option value because being different with

some setting value depend on module, inch and market.

8-2. Required Test Equipment

1) Adjustment remocon.

8-3. Adjustment method

Before PCB check, have to change the Tool option and Area option.

Option values are below.

(If on changed the option, the input menu can differ the model spec.)

The input methods are same as other chassises.(Use adj Key

on the Adjust Remocon)

* After done all adjustments, Press ADJ button and compare

Tool option and Area option value with its BOM, if it is

correctly same then unplug the AC cable.

If it is not same, then correct it same with BOM and unplug AC cable.

For correct it to the model’s module from factory JIG model.

9. Color carrier Adjustment

(Inspection process)

9-1. Profile

: To have the margin about the deviation of color carrier to

satisfy the spec.

9-2. Required Test Equipment

1) Adjustment remocon.

2) Pal RF signal.

9-3. Connection

: TV set should connected with the pal RF signal(EU 5CH).

9-4. Adjustment method

(1) tuning the RF signal

ZA/ZB, TA/TB : PAL Philips Pattern (with Color Bar)

(2) push the “adj” key in the adjustment remocon.

10. POWER PCB Assy Voltage

Adjustments (Va, Vs Voltage adjustments)

10-1. Profile

: To supply the Va, Vs voltage that the module want.

10-2. Required Test Equipment

(1) Stick for adjustment.

(2) DMM.

10-3. Connection structure

10-4. Connection Diagram for Measuring

: refer to (Fig. 1)

10-5. Adjustment Method

(1) Va Adjustment

1) After receiving 100% Full White Pattern, HEAT RUN.

2) Connect + terminal of D. M..M. to Va pin of P812, connect

-terminal to GND pin of P812.

After turning VR901,voltage of D.M.M adjustment as

same as Va voltage which on label of panel right/top.

(deviation;

0.5V)

(2) Vs Adjustment

1) Connect + terminal of D. M..M. to Vs pin of P812, connect

-terminal to GND pin of P812.

After turning VR951, voltage of D.M.M adjustment as

same as Vs voltage which on label of panel right/top.

(deviation ; ±0.5V)

Each PCB assembly must be checked by check JIG set.

(Because power PCB Assembly damages to PDP Module,

especially be careful)

PC5R

PC6R

PC7R

PB3R

TOOL OPTION ZA/ZB TA/TB

2260

2516

2772

3028

4308

4564

4820

5076

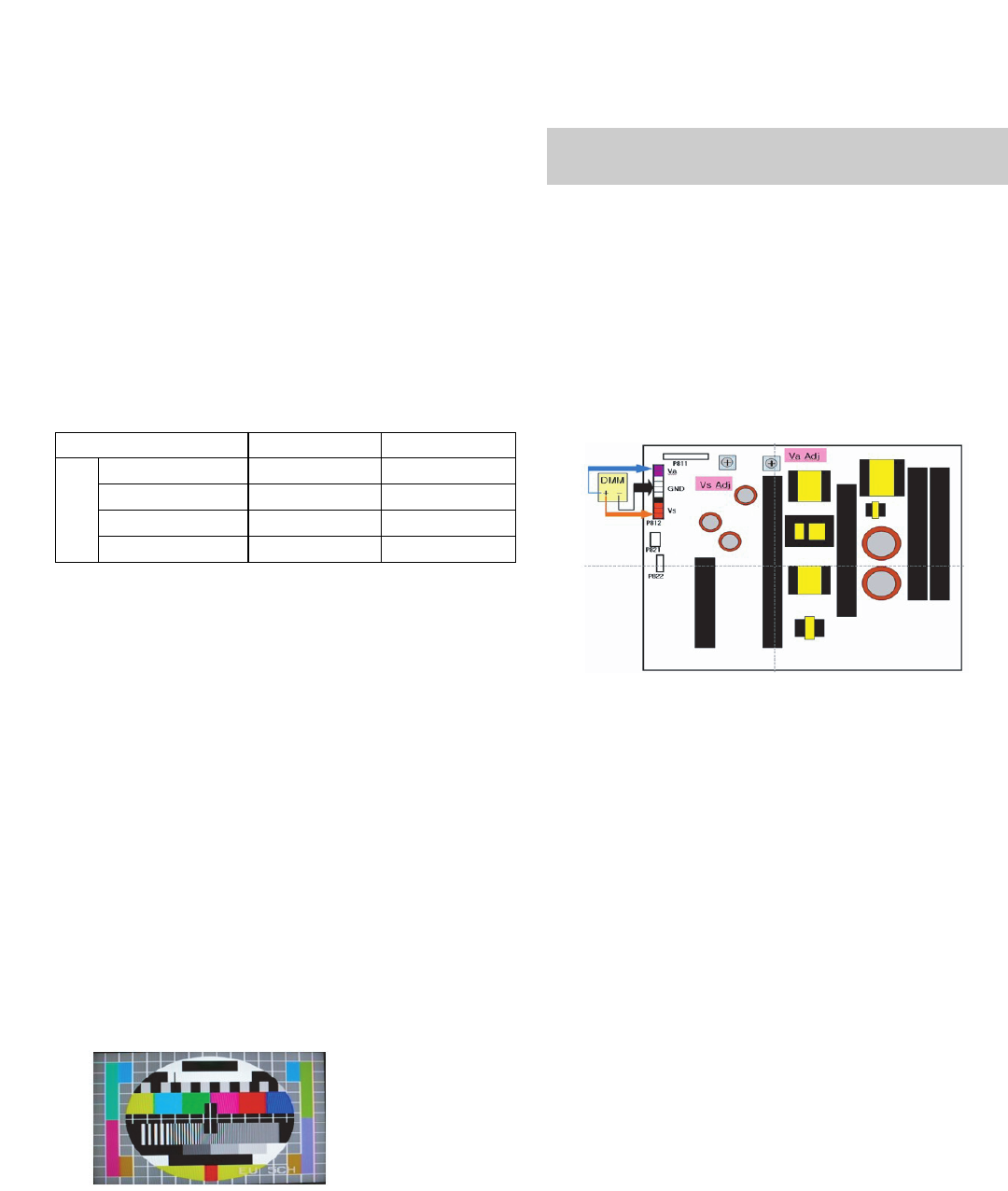

(Fig. 1) Connection Diagram of power adjustment for measuring.

11. EDID(The Extended Display Identification Data )

/DDC(Display Data Channel) download

11-1. Profile

: To be possible for plug and play.

11-2. Required Test Equipment

(1) Adjusting PC with S/W for writing EDID Data.

(S/W : EDID TESTER Ver.2.5)

(2) A Jig for EDID Download.

(3) Cable : Serial(9Pin or USB) to D-sub 15Pin cable, D-sub

15Pin cable, DVI to HDMI cable.

11-3. Connection structure

* Caution

- Never connect HDMI & D-SUB Cable at the same time.

- Use the proper cables below for EDID Writing.

11-4. Preparation for Adjustment

(1) As above (Fig. 2), Connect the Set, EDID Download Jig,

PC & Cable.

(2) Turn on the PC & EDID Download Jig. And Execute the

S/W : EDID TESTER Ver 2.5.

(3) Set up S/W option.

Repeat Number : 5

Device Address : A0

PageByte : 8

(4) Power on the Set.

11-5. Sequence of Adjustment

(1) DDC data of Analog-RGB

1) Init the data.

2) Load the EDID data.(Open File).

[ Analog

RGB

: PP78A_RGB.ANA ]

[ Digital-HDMI1 :

PP78A_HDMI1.DVI ]

[ Digital-HDMI2 :

PP78A_HDMI2.DVI ]

3) Set the S/W as below.

(4) Push the “Write Data & Verify”button. And confirm “Yes”.

(5) If the writing is finished, you will see the “OK” message.

- 12 -

For RGB EDID For HDMI EDID

(Fig. 2) Connection Diagram of DDC download

Open FileOpen File

- 13 -

11-6. EDID Data

(1) XGA

< Digital1 (HDMI/DVI1) >

< Digital2 (HDMI/DVI2) >

=> Detail EDID Options are below(1,2,3,4,5)

1. Product ID

2. Serial No : Controlled on production line

3. Month, Year : Controlled on production line

ex) Monthly: '03' => '03'

Year: '2005' => '0F'

4. Model Name : model name -> LG TV

- LG TV

5. Checksum (7EH) -> Changeable by total EDID data.

12. Adjustment of White Balance

12-1. Purpose and Principle for adjustment

of the color temperature

(1) Purpose : Adjust the color temperature to reduce the

deviation of the module color temperature.

(2) Principle : To adjust the white balance without the

saturation, Fix the one of R/G/B gain to 80 and decrease

the others.

12-2.Adjustment mode

: Two modes of Cool and Warm.(Medium data is

automatically calibrated by the cool data)

12-3. Required Equipment

(1) Remote control for adjustment.

(2) Color Analyzer.(CA-110 or same product) - CH : 10

(3) Auto W/B adjustment instrument.(only for Auto adjustment)

12-4. Connecting diagram of equipment for

measuring (For Automatic Adjustment)

(1) Enter the DDC adjust mode.

- Enter the white balance adjustment mode at the same

time heat-run mode when pushing the power on by power

only key.

- Maintain the white balance adjustment mode with same

condition of Heat-run.

Maintain after AC off/on in status of Heat-run pattern display.

(2) Release the DDC adjust mode.

- Release the adjust mode after AC off/on or std-by off/on

in status of finishing the Hear-run mode.

- Release the Adjust mode when receiving the aging off

command(F3 00 00) from adjustment equipment.

- Need to transmit the aging off command to TV set after

finishing the adjustment.

* Standard color coordinate and temperature when using the

CA-110 or CA210 equipment.

* Synchronization relation between PSM and CSM.

Model

Name

50PC5R

(50PC51/52)

DEC

50007 (A)

50008 (D)

Product ID

HEX

C357

C358

EDID table

57C3

58C3 Color Coordinate

0.283±0.002

0.293±0.002

0.329±0.00

11,000K

9,300K

6,500K

0.000

0.003

0.276±0.002

0.285±0.002

0.313±0.00

COOL

MEDIUM

WARM

Mode Temp uv

CSM Remark

Cool

Normal

Warm

Dynamic

Standard

Mild

PSM

4 5

1 2

- 14 -

(3) DDC adjustment support command set.

* R/G/B GAIN max value : 80

12-5. Adjustment of White Balance

(For Manual adjustment)

- Adjustment mode : Two modes of Cool (Dynamic) and

Warm(Mild).

(Medium data is automatically calibrated by the cool data)

- Color analyzer(CA110, CA210) should be used in the

calibrated ch by CS-1000.(PDP : CH10)

- Operate the zero-calibration of the CA-110 or CA-210, then

stick sensor to the module when adjusting.

- For manual adjustment, it is also possible by the following

sequence.

(1) Select RF no signal by pressing “POWER ON” key on

remote control for adjustment then operate heat run more

than 15 minutes.

(If not executed this step, the condition for W/B will be differ.)

(2) Changing to the av mode by pushing the input or front av

key.(av mode : av1 or av2 or av3)

(3) Display the internal pattern of the VCT-Pro IC by pushing

the IN-START.

(4) Stick sensor to center of the screen and select each items

(Red/Green/Blue Gain and Offset) using D/E (CH+/-) key

on R/C.

(5) Adjust R Gain / B Gain using F/G(VOL+/-) key on R/C.

(6) Adjust two modes of Cool(Dynamic) and Warm(Mild) as

below figure.

(Fix the one of R/G/B and change the others)

1. Push the one time the in-start key : Dynamic(Cool)

2. Push the two more the in-start key : Mild(Warm)

* Refer to the below case to know what value is fixed.

* CASE

- First adjust the coordinate much away from the target

value(x, y).

1) x, y > target

(1) Decrease the R, G.

2) x, y < target

(1) First decrease the B gain.

(2) Decrease the one of the others.

- In case of decreasing the x, decreasing the R : fix G

- In case of decreasing the y , decreasing the G : fix R

3) x > target , y < target

(1) First decrease B, so make y a little more than the

target.

(2) Adjust x value by decreasing the R.

4) x < target , y > target

(1) First decrease B, so make x a little more than the

target.

(2) Adjust x value by decreasing the G.

(7) When adjustment is completed, Exit adjustment mode

using EXIT key on R/C.

13. Input the Shipping Option Data

(1) Push the ADJ key in a Adjust Remote control.

(2) Input the Option Number that was specified in the BOM,

into the Shipping area.

(3) The work is finished, Push AKey.

14. Default Value in Adjustment mode

(Default values maybe modified the module condition)

14-1. White Balance

15. Internal press test

16. Sound spec.

Adjustment

Aging On/Off

Input select

R GAIN

G GAIN

B GAIN

R GAIN

G GAIN

B GAIN

R GAIN

G GAIN

B GAIN

CMD(HEX)

ADR

VALUE

FF/00

00 - FE

Detail

OO : OFF

01 : ON

FF : WB Ready

0x10 : TV

0x20 : AV1

0x21 : AV2

0x23 : AV3

0x40 : Component1

0x50 : RGB DTV

0x60 : RGB PC

0x90 : HDMI1 DTV

GAIN adjustment

CSM COOL

GAIN adjustment

CSM NORMAL

GAIN adjustment

CSM WARM

Color Coordinate

0.283±0.002

0.293±0.002

0.329±0.00

11,000K

9,300K

6,500K

0.000

0.003

0.276±0.002

0.285±0.002

0.313±0.00

COOL

MEDIUM

WARM

Mode Temp uv

Item

Dielectric Voltage (AC <-> FG)

Dielectric Voltage (Without FG)

Value

1.5

Unit

Remark

At 100mA for 1sec (Line)

At 100mA for 1min (OQC)

At 100mA for 1sec (Line)

At 100mA for 1min (OQC)

Item Min Typ Max Unit Remark

Audio Practical Max Output, L(Mono)/R 9 10 12 W PDP

- 15 -

TROUBLESHOOTING

1. No power

(1) Symptom

1) Minute discharge does not occur at module.

2) Front LED does not activate.

(2) Press check

Plug in the power cord

Start Check

Yes

Is the power cord

plugged in?

Connect the cable.

Plasma(CN1)

Yes

Are the line filter and

PSU connected?

Replace the fuse.

Yes

Is the correct fuse for

the PSU in place?

Plasma(F101)

Connect the 13-14pin cable.

Next remove all cables connected to the PSU and

switch the AV voltage to manual.

If the ST-by 5V does not operate, replace the PSU.

Yes

Is the PSU and 13-

14pin cable connected

to the VSC board?

- 16 -

2. Protect mode

(1) Symptom

1) After lighting once it does not discharge minutely from the module.

2) The relay falls.(there is an audible “Click”.)

3) The color of the front LED turns from green to red.

(2) Follow check

Is the Power Board

normal ?

Replace Power Board.

Is the output the normal Low/High

voltage except for the Stand-by 5V?

Yes

No No

Are all the connectors

normal?

Replace the connector.

Replace the fuse.

Replace the Y-Board.

After checking each connector does

is operate correctly?

Yes

No No

Is the Y-Board

normal?

Is the appropriate

fuse (FS2,FS3) on the

Y-B/D?

Is the output voltage

normal after removing the

P1 connector of the Y-B/D?

Yes

No No

Replace the Z-Board.

Is the Z-Board

normal?

Is appropriate

fuse (FS1,FS2) on

the Z-B/D?

Is the output voltage

normal after removing the

P1 connector of the Z-B/D?

Yes

No No

Is the X- Board

normal?

Is the

output voltage normal

after removing the P100, 110,

200, 210 connector of

the X-B/D?

After removing the P100, 110 and the output

voltage is normal : Replace the Right X-B/D

After removing the P200, 210 and the output

voltage is normal : Replace the Left X-B/D

Yes

Replace the fuse.

Yes

Start Check

- 17 -

3. No Raster

(1) Symptom

1) No OSD or image are displayed on the screen.

2) The front LED remains green.

(2) Follow check

4. In the case an unusual display in RF mode.

Check the PDP Module

Replace the

Power board.

Does

minute discharge

at Module?

Is the inverter

/VaVs on?

Is output the normal

Low/High voltage except

for the Stand-by 5V?

Yes

No No

Is there a fault with

the link cable?

Yes

Is the output for the

IC500 normal?

Reconnect the link cable in

P803(Plasma).

Replace the VSC.

Yes

Check the power.(L1103)

Is the

video output of the

Tuner normal? (Check

TU400_Pin13)

Is the

input voltage

normal?(Check

Pin3)

Is the I2C communication normal?

(Check Pin9, Pin10)

Yes

No Yes

Is the LVDS

Cable connected?

Yes

Change the IC(IC500)

Re-insert the cable.

Check the Tuner.

Start Check

- 18 -

5. In the case of an unusual display in rear AV mode.

Is video input of

the A/V jack normal?

(Check R172)

Yes

Sam as Block A

Check the input source.

6. In the case of an unusual display in Side AV mode.

Is the video input

of the A/V jack normal?

(Check CN703

Pin9)

Yes

Sam as Block A

Check the input source.

7. In the case of an unusual display in Side S-Video mode.

Is the video input

of the A/V jack normal?

(Check CN703 Pin1,

Pin3)

Yes

Sam as Block A

Check the input source.

- 19 -

8. In the case of an unusual display in SCART 1 mode.

Is the video input

of the A/V jack normal?

(Check R172)

Yes

Sam as Block A

Check the input source.

9. In the case of an unusual display in SCART 1_RGB mode.

Is the

video input of

the A/V jack normal?(Check

R110,R170, R171,

R173)

Yes

Sam as Block A

Check the input source.

10. In the case of an unusual display in SCART 2 mode.

Is the video input of

the A/V jack normal?

(Check R174)

Yes

Sam as Block A

Check the input source.

- 20 -

11. In the case of an unusual display in component 1 mode.

Is the video

input of the A/V jack

normal? (Check R248,

R249,R250)

Yes

Change the IC(IC500)

Check the input source.

12. In the case of an unusual display in component 2 mode.

Yes

Change the IC(IC500)

Check the input source.

Is the video

input of the A/V Jk202

normal? (Check R241,

R242, R243)

13. In the case of an unusual display in RGB mode.

Yes

Change the IC(IC500)

Check the input source.

Is the

R, G, B input

and H, V sync of the

JK201 normal?(Check R220,

R221, R253, R254,

R255)

- 21 -

14. No Sound

(1) Symptom

1) LED is green.

2) There is a picture but no sound.

(2) Follow check

Is there sound in any

mode?

Is the speaker

on?

Yes Yes

Is the speaker

cable normal?

Yes

Is there no sound

only for HDMI?

Yes

Is there no

sound only AV

/COM2/PC?

Is the output

of IC600(R607, R608)

normal?

Yes

Is there no sound

only for RF?

Download the EDID data.

Set speaker on

in the menu.

No Replace the

IC600

Check the Speaker

cable

Is the IC500

operating normal? Replace the IC500

Yes

Is the IC601

operating normal? Replace the IC601

Replace the VSC BD

Yes

Check the signal after IC600.

refer to circuit diagram.

Check the Tuner In/Out.

- 22 -

15. HDMI mode

Is only video

normal?

Is only audio

normal?

Yes

Download EDID data each port.

Check the TMDS line wave.

(R312~E3273)

1. Check the HDMI receiver’s status register. (0x60, offset 0x66)

- If the value is 0xf or 0x8, it is normal.

2. Check the HDCP register. (0x6, offset 0x32)

- Enable bit 6 : HDCP key loaded

- Enable bit 5 : HDCP decryption active

- Enable bit 4 : HDCP authentication attempted

Reset TMDS power down/ on register.

- 0x60, offset 0x3f => 0xff

Check HDMI source.

Change to another source or cable.

Yes

Is the wave

continuous?

Normal video,

Normal audio?

Yes

Replace the IC303.

1. Check TV input mode.

(HDMI 1 port support HDMI and DVI.

So if you input DVI signal and PC audio from

phone jack, You can hear PC audio.)

2. Unplug and plug in the HDMI cable.

(sometimes ESD surge occurred at HDMI port.)

3. Check the HDMI Mute register. (0x68, offset 0x37)

4. Check the Audio-out channel mute register (0x68,

offset 0x32) is appropriately enabled.

Yes

- 23 -

BLOCK DIAGRAM

SIDE_Y/C

PC_Audio

PC_Audio_L/R

TUNER

TV_V

S I F

AV_RCA

MNT_OUT MNT_OUT

COMP1

COMP2

COMP_Y/Pb/Pr

TDA3107D2 TDA3107D2

AmpAmp

Tx0/1/2/3/4/C

12V Panel /DISP_EN

R_SPK_OUT

#1 RX 0/1/2/CLK

DDC_SCL/SDA1/2

HDMI

(PC/DTV)

SCART1

SCART2

SCARTSCART RGBRGB

COMP1_Y/Pb/Pr

TV_OUT TV_OUT

SCART1,2_R/L R/L_Audio

(Analog_out)

RGB

(PC/DTV) PC_RGB

A V S-A V

SIDE_V

PC_SCL/SDA

I2 C L_SPK_OUT

RT-OPTION

RGB_HS/VS

HDMI_HS/VS

30P_LVDS

HEAD_OUT

L/R HEAD_OUTHEAD_OUT

L/R L/R

COMP2_R/L

HS/VS

PIP OPTION

ANX9021ANX9021

(TMDS RECIEVER)(TMDS RECIEVER)

TEA6420TEA6420

Sound switch Sound switch

#2 RX 0/1/2/CLK

SIDE_R/L

SCART1,2_V (RCA1,2_V)

EEPROMEEPROM

SUB-TUNER

VIDEO_DECODERVIDEO_DECODER

TW9909TW9909

EEPROMEEPROM

VCT-ProVCT-Pro

(Lip-sync)(Lip-sync)

SCART_FB

AV_AUDIO R/L

AM_AUDIO

COMP1_R/L

I2 C

RX 0/1/2/CLK

TV_OUTTV_OUT

MNT_OUTMNT_OUT

PIP_VPIP_V

ITU-656_IN

SCART1,2_I D

HDMI_Y/Pb/Pr(1080P )

SCART_RGB

STMAV335

(MUX)

RT- OPTION

COMP1_R/L

RCA1,2_V(OPTION)

COMP2_Y/Pb/Pr

(OPTION)

COMP2_R/L

MC74HC4066MC74HC4066

DOWNLOAD_SW

I2 C

COMP1_Y/Pb/PrCOMP1_Y/Pb/Pr

COMP2_Y/Pb/PrCOMP2_Y/Pb/Pr

(OPTION)(OPTION)

74ACT25374ACT253

(MUX)(MUX)

TV_SUBTV_SUB

- 24 -

EXPLODED VIEW

300

306

600

400

900

501

590

520

502

303

207

302

101

301

570

204

250

208

203

580

205

200

560

120

202

304

201

240

901

206

603

601

602

A21

- 25 -

101 5900904001A Fan Module, 1.7KRPM DC 12V 250UA 3W 50HZ 1.5M3 per MIN 396X60.2X108.3MM DONGYANG CHEMICAL

120 EAB33775101 Speaker, Full Range EN1562C-6712 ND 10W 8OHM 82DB 100HZ 193.5 X 42 X 39.9 LUG KOREA TOPTONE

200 EAJ37050601 PDP, Module-XGA PDP50X40501.ASLGB XGA 50INCH 1365X768 16/9 PDP DIVISION

201 6871QCH083A Hand Insert PCB Assembly, CTRL Board CTRL ASS’Y HAND INSERT 50” CTRL PDP DIVISION

202 6871QDH115A Hand Insert PCB Assembly, Y DRIVE TOP YDRV ASS’Y HAND INSERT 50” X4 PDP DIVISION

203 6871QDH116A Hand Insert PCB Assembly, Y DRIVE BOTTOM YDRV ASS’Y HAND INSERT 50” X4 YDRV BTM PDP DIVISION

204 6871QLH063A Hand Insert PCB Assembly, X_LEFT BOARD XRLT ASS’Y HAND INSERT 50” X4 PDP DIVISION

205 6871QRH073A Hand Insert PCB Assembly, X_RIGHT BOARD XRRT ASS’Y HAND INSERT 50” X4 PDP DIVISION

206 6871QXH034A Hand Insert PCB Assembly, X_CENTER BOARD XRCT ASS’Y HAND INSERT 50” X4 PDP DIVISION

207 EBR36223601 Hand Insert PCB Assembly, YSUS ASS’Y HAND INSERT 50” X4. Adapted OSP. PDP DIVISION

208 EBR36223801 Hand Insert PCB Assembly, ZSUS ASS’Y HAND INSERT 50” X4. Adapted OSP. PDP DIVISION

240 AJJ31591603 Supporter Assembly, 50PC5 SUPPORTER VERTICAL RIGHT FOR SKD

250 AJJ31591604 Supporter Assembly, 50PC5 SUPPORTER VERTICAL LEFT FOR SKD

300 ABJ31591214 Cabinet Assembly, 50PC5D-ZB NON 50” 50PC5D1-ZD ALL BLACK LGEMA LOCAL PHANTOM

301 AJJ31592505 Supporter Assembly, 50PC5 SUPPORTER TOP ASSY FOR PHANTOM,LGEMA ASSY

302 AJJ31592605 Supporter Assembly, 50PC5 SUPPORTER BOTTOM ASSY FOR PHANTOM,LGEMA ASSY

303 AJJ31592705 Supporter Assembly, 50PC5 SUPPORTER RIGHT ASSY FOR PHANTOM,LGEMA ASSY

304 AJJ31592805 Supporter Assembly, 50PC5 SUPPORTER LEFT ASSY FOR PHANTOM,LGEMA ASSY

306 ABA31592904 Bracket Assembly, DECO 50PC52-ZB,50PC56-ZD NON DECO BRACKET ASSY (Direct Grill) LGEMA 1ton Black

400 ACQ31591305 Cover Assembly, 50PC5R-ZB NON 50” PCM SECD 0.5t FOR LGEMA local

501 AGU31681115 Plate Assembly, ASSY PLATE TUNER BOT SMALL, 42PC5R-ZB, MA LCOAL

502 AGU31680921 Plate Assembly, ASSY 42PC5R-ZB(MA LOCAL)

520 EBR32773017 Hand Insert PCB Assembly, Main1 M.I PP78A H4 VCT-PRO 50PC5R-ZB. PDP 50” HAND INSERT . FOR LGEMP CKD

520 EBR32773024 Hand Insert PCB Assembly, Main1 M.I PP78A H4 VCT-PRO. 50PC5R SKD HAND INSERT SKD

560 EBR33804108 Hand Insert PCB Assembly, CONTROL M.I PP78A 50PC5R-ZB . H4 50INCH SKD HAND INSERT

570 EBR33809706 Hand Insert PCB Assembly, SUB M.I PP78A 50PC5R-ZB . H4 PREAMP SKD HAND INSERT

580 EAY32929001 SMPS, AC/DC 1H372W 100VTO240V 530W 50 TO 60HZ UL/CE/TUY 50INCH PDP XPOWER SANKEN PSU 1H372W

590 EAM35012703 Filter, AC Line IF2-N06CEWL2 5.3mH 250VAC 6A 0.22uF 1000pF VDE/CSA/K/CCC 450/130MM CORE ADDTION

600 EBR33799328 Hand Insert PCB Assembly, SUB M.I PP78A 50PC5R-ZB . SIDE AV HAND INSERT

601 MJH32554901 Supporter, PRESS SBHG 1 GUIDE EGI 42PC5, SUPP. SIDE AV

602 MGJ32369301 Plate, Shield PRESS SPTE 0.3 SHIELD SPTE 42PC5, SHIELD CASE SIDE AV

603 ABA31583301 Bracket Assembly, SIDE AV 42PC5 AB NON

900 AAN31593104 Base Assembly, STAND 50PC5 NON 50PC5 FIX STAND FOR “PLASMA DISPLAY PANEL” SKD

901 MCK32604801 Cover, MOLD ABS 42PC5 ABS CABLE MANAGEMENT

A2 MKJ32022825 Remote Controller, COMPLEX PA71A 50PC5R-ZA H4_NON PIP, REMOTE CONTROLLER

A21 3550V00590A Cover, MOLD BATTERY TN-50PY20 ABS 6710V00142

EXPLODED VIEW PARTS LIST

No. Part No. Descriptions

The components identified by mark is

critical for safety.

Replace only with part number specified.

- 26 -

C100 0CH5101K416 C2012C0G1H101JT 100pF 5% 50V C0G -

C100 0CC102CK41A C1608C0G1H102JT 1nF 5% 50V C0G -55

C100 0CH5101K416 C2012C0G1H101JT 100pF 5% 50V C0G -

C101 0CE4763F618 ESF476M016T1A5E05G 47uF 20% 16V 60

C101 0CH5101K416 C2012C0G1H101JT 100pF 5% 50V C0G -

C101 0CC102CK41A C1608C0G1H102JT 1nF 5% 50V C0G -55

C102 0CE227SF6DC MVG6.3TP16VC220M 220uF 20% 16V 130

C102 0CE4763F618 ESF476M016T1A5E05G 47uF 20% 16V 60

C103 0CE106SF6DC VMV106M016S0ANB010 10uF 20% 16V 17

C103 0CE4763F618 ESF476M016T1A5E05G 47uF 20% 16V 60

C104 0CE106SF6DC VMV106M016S0ANB010 10uF 20% 16V 17

C104 0CH5471K416 C2012C0G1H471JT 470pF 5% 50V C0G -

C105 0CC102CK41A C1608C0G1H102JT 1nF 5% 50V C0G -55

C106 0CC102CK41A C1608C0G1H102JT 1nF 5% 50V C0G -55

C110 0CK682CK51A C1608Y5P1H682KT 6.8nF 10% 50V Y5P

C111 0CK682CK51A C1608Y5P1H682KT 6.8nF 10% 50V Y5P

C112 0CK682CK51A C1608Y5P1H682KT 6.8nF 10% 50V Y5P

C113 0CK682CK51A C1608Y5P1H682KT 6.8nF 10% 50V Y5P

C114 0CC102CK41A C1608C0G1H102JT 1nF 5% 50V C0G -55

C115 0CC102CK41A C1608C0G1H102JT 1nF 5% 50V C0G -55

C116 0CE227SF6DC MVG6.3TP16VC220M 220uF 20% 16V 130

C117 0CE106SF6DC VMV106M016S0ANB010 10uF 20% 16V 17

C118 0CC102CK41A C1608C0G1H102JT 1nF 5% 50V C0G -55

C119 0CC102CK41A C1608C0G1H102JT 1nF 5% 50V C0G -55

C120 0CE106SF6DC VMV106M016S0ANB010 10uF 20% 16V 17

C200 0CC102CK41A C1608C0G1H102JT 1nF 5% 50V C0G -55

C201 0CC102CK41A C1608C0G1H102JT 1nF 5% 50V C0G -55

C204 0CK103CK56A 0603B103K500CT 10nF 10% 50V X7R -5

C205 0CK103CK56A 0603B103K500CT 10nF 10% 50V X7R -5

C206 0CE106SF6DC VMV106M016S0ANB010 10uF 20% 16V 17

C206 0CE106WFKDC MVK4.0TP16VC10M 10uF 20% 16V 16MA

C213 0CC102CK41A C1608C0G1H102JT 1nF 5% 50V C0G -55

C214 0CC102CK41A C1608C0G1H102JT 1nF 5% 50V C0G -55

C215 0CK105CF94A 0603F105Z160CT 1uF -20TO+80% 16V Y

C216 0CK105CF94A 0603F105Z160CT 1uF -20TO+80% 16V Y

C217 0CK105CF94A 0603F105Z160CT 1uF -20TO+80% 16V Y

C218 0CK105CF94A 0603F105Z160CT 1uF -20TO+80% 16V Y

C219 0CK105CF94A 0603F105Z160CT 1uF -20TO+80% 16V Y

C220 0CK105CF94A 0603F105Z160CT 1uF -20TO+80% 16V Y

C221 0CK104CF56A 0603B104K160CT 100nF 10% 16V X7R -

C225 EAE32755801 CL31A106K5HNNNE 10uF 10% 16V X5R -

C226 EAE32755801 CL31A106K5HNNNE 10uF 10% 16V X5R -

C227 EAE32755801 CL31A106K5HNNNE 10uF 10% 16V X5R -

C302 0CK103CK56A 0603B103K500CT 10nF 10% 50V X7R -5

C303 0CK103CK56A 0603B103K500CT 10nF 10% 50V X7R -5

C307 0CK103CK56A 0603B103K500CT 10nF 10% 50V X7R -5

C308 0CC180CK41A C1608C0G1H180JT 18pF 5% 50V C0G -5

C309 0CK103CK56A 0603B103K500CT 10nF 10% 50V X7R -5

C310 0CC180CK41A C1608C0G1H180JT 18pF 5% 50V C0G -5

C311 0CE106SH6DC VMV106M025S0ANB010 10uF 20% 25V 20

C312 0CK103CK51A 0603B103K500CT 10nF 10% 50V Y5P -3

C316 0CE106WFKDC MVK4.0TP16VC10M 10uF 20% 16V 16MA

C317 0CK103CK56A 0603B103K500CT 10nF 10% 50V X7R -5

C318 0CE106SH6DC VMV106M025S0ANB010 10uF 20% 25V 20

C319 0CK103CK56A 0603B103K500CT 10nF 10% 50V X7R -5

C320 0CC220CK41A C1608C0G1H220JT 22pF 5% 50V C0G -5

C321 0CC220CK41A C1608C0G1H220JT 22pF 5% 50V C0G -5

C322 0CC220CK41A C1608C0G1H220JT 22pF 5% 50V C0G -5

C400 0CK103CK56A 0603B103K500CT 10nF 10% 50V X7R -5

C401 0CC390CK41A C1608C0G1H390JT 39pF 5% 50V C0G -5

C402 0CC390CK41A C1608C0G1H390JT 39pF 5% 50V C0G -5

C403 0CE107SF6DC VMV107M016S0ANE010 100uF 20% 16V 9

C404 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C405 0CK103CK56A 0603B103K500CT 10nF 10% 50V X7R -5

C406 0CK273CK56A 0603B273K500CT 27nF 10% 50V X7R -5

C408 0CE227SF6DC MVG6.3TP16VC220M 220uF 20% 16V 130

C409 0CK273CK56A 0603B273K500CT 27nF 10% 50V X7R -5

C410 0CC220CK41A C1608C0G1H220JT 22pF 5% 50V C0G -5

C411 0CK103CK56A 0603B103K500CT 10nF 10% 50V X7R -5

C412 0CK103CK56A 0603B103K500CT 10nF 10% 50V X7R -5

C500 0CK225DD66A LMK212JB225MG-T 2.2uF 20% 10V X7R

C501 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C502 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C503 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C504 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C505 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C506 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C507 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C508 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C509 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C510 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C511 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C512 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C513 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C514 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C515 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C516 0CE106SF6DC VMV106M016S0ANB010 10uF 20% 16V 17

C516 0CE106WFKDC MVK4.0TP16VC10M 10uF 20% 16V 16MA

C517 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C518 0CK103CK56A 0603B103K500CT 10nF 10% 50V X7R -5

C519 0CK474CH94A 0603F474Z250CT 470nF -20TO+80% 25V

C520 0CK474CH94A 0603F474Z250CT 470nF -20TO+80% 25V

C521 0CK474CH94A 0603F474Z250CT 470nF -20TO+80% 25V

C522 0CK474CH94A 0603F474Z250CT 470nF -20TO+80% 25V

C525 0CK474CH94A 0603F474Z250CT 470nF -20TO+80% 25V

C526 0CK474CH94A 0603F474Z250CT 470nF -20TO+80% 25V

C527 0CE335WK6D8 MVK4.0TP50VC3.3M 3.3uF 20% 50V 14M

C528 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C529 0CK332CK56A C1608X7R1H332KT 3.3nF 10% 50V X7R

LOC. NO. PART NO. DESCRIPTION / SPECIFICATION LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

REPLACEMENT PARTS LIST

DATE: 2007. 06. 05.

CAPACITORs

- 27 -

C530 0CK332CK56A C1608X7R1H332KT 3.3nF 10% 50V X7R

C531 0CK332CK56A C1608X7R1H332KT 3.3nF 10% 50V X7R

C532 0CK332CK56A C1608X7R1H332KT 3.3nF 10% 50V X7R

C533 0CE106WH6DC MVK5.0TP25VC10M 10uF 20% 25V 25MA

C534 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C535 0CC560CK41A C1608C0G1H560JT 56pF 5% 50V C0G -5

C536 0CC560CK41A C1608C0G1H560JT 56pF 5% 50V C0G -5

C537 0CC220CK41A C1608C0G1H220JT 22pF 5% 50V C0G -5

C538 0CC220CK41A C1608C0G1H220JT 22pF 5% 50V C0G -5

C539 0CE226WF6DC MVK5.0TP16VC22M 22uF 20% 16V 30MA

C540 0CE226WF6DC MVK5.0TP16VC22M 22uF 20% 16V 30MA

C541 0CE226WF6DC MVK5.0TP16VC22M 22uF 20% 16V 30MA

C542 0CE226WF6DC MVK5.0TP16VC22M 22uF 20% 16V 30MA

C543 0CE226WF6DC MVK5.0TP16VC22M 22uF 20% 16V 30MA

C544 0CE226WF6DC MVK5.0TP16VC22M 22uF 20% 16V 30MA

C545 0CE226WF6DC MVK5.0TP16VC22M 22uF 20% 16V 30MA

C546 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C547 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C548 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C549 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C550 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C551 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C552 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C553 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C554 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C555 0CK106EF56A C3216X7R1C106KT 10uF 10% 16V X7R -

C556 0CK106EF56A C3216X7R1C106KT 10uF 10% 16V X7R -

C557 0CK106EF56A C3216X7R1C106KT 10uF 10% 16V X7R -

C558 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C559 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C563 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C564 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C568 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C569 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C570 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C571 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C572 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C573 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C574 0CE475WJ6DC MVK4.0TP35VC4.7M 4.7uF 20% 35V 15M

C575 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C576 0CK103CK56A 0603B103K500CT 10nF 10% 50V X7R -5

C600 0CK682CK51A C1608Y5P1H682KT 6.8nF 10% 50V Y5P

C601 0CE107WF6DC MVK6.3TP16VC100M 100uF 20% 16V 110

C602 0CK103CK56A 0603B103K500CT 10nF 10% 50V X7R -5

C603 0CK682CK51A C1608Y5P1H682KT 6.8nF 10% 50V Y5P

C604 0CK475EF67A C3216X5R1C475MT 4.7uF 20% 16V X5R

C605 0CK475EF67A C3216X5R1C475MT 4.7uF 20% 16V X5R

C607 0CK475EF67A C3216X5R1C475MT 4.7uF 20% 16V X5R

C608 0CK475EF67A C3216X5R1C475MT 4.7uF 20% 16V X5R

C609 0CE226WF6DC MVK5.0TP16VC22M 22uF 20% 16V 30MA

C610 0CE475WJ6DC MVK4.0TP35VC4.7M 4.7uF 20% 35V 15M

C611 0CE475WJ6DC MVK4.0TP35VC4.7M 4.7uF 20% 35V 15M

C612 0CC471CK41A C1608C0G1H471JT 470pF 5% 50V C0G -

C613 0CC471CK41A C1608C0G1H471JT 470pF 5% 50V C0G -

C614 0CK475EF67A C3216X5R1C475MT 4.7uF 20% 16V X5R

C615 0CK475EF67A C3216X5R1C475MT 4.7uF 20% 16V X5R

C617 0CK475EF67A C3216X5R1C475MT 4.7uF 20% 16V X5R

C618 0CK475EF67A C3216X5R1C475MT 4.7uF 20% 16V X5R

C619 0CK102CK56A 0603B102K500CT 1nF 10% 50V X7R -55

C620 0CK102CK56A 0603B102K500CT 1nF 10% 50V X7R -55

C621 0CK682CK51A C1608Y5P1H682KT 6.8nF 10% 50V Y5P

C622 0CK682CK51A C1608Y5P1H682KT 6.8nF 10% 50V Y5P

C623 0CC270CK41A C1608C0G1H270JT 27pF 5% 50V C0G -5

C624 0CK105DK94A 0805F105Z500CT 1uF -20TO+80% 50V Y

C625 0CK105DK94A 0805F105Z500CT 1uF -20TO+80% 50V Y

C626 0CK105DK94A 0805F105Z500CT 1uF -20TO+80% 50V Y

C627 0CK105DK94A 0805F105Z500CT 1uF -20TO+80% 50V Y

C628 JCE8106J691 MVK5.0TP35VC10M 10uF 20% 35V 25MA

C628 0CE106WH6DC MVK5.0TP25VC10M 10uF 20% 25V 25MA

C629 0CK105DK94A 0805F105Z500CT 1uF -20TO+80% 50V Y

C630 0CK103CK56A 0603B103K500CT 10nF 10% 50V X7R -5

C631 0CK105CF94A 0603F105Z160CT 1uF -20TO+80% 16V Y

C632 0CK224DK56A CS2012X7R224K500NR 220nF 10% 50V X

C633 0CK224DK56A CS2012X7R224K500NR 220nF 10% 50V X

C634 0CK224DK56A CS2012X7R224K500NR 220nF 10% 50V X

C635 0CK224DK56A CS2012X7R224K500NR 220nF 10% 50V X

C636 0CK105DK94A 0805F105Z500CT 1uF -20TO+80% 50V Y

C637 0CK105DK94A 0805F105Z500CT 1uF -20TO+80% 50V Y

C638 0CK105DK94A 0805F105Z500CT 1uF -20TO+80% 50V Y

C639 0CK105DK94A 0805F105Z500CT 1uF -20TO+80% 50V Y

C640 0CE477BJ618 ESM477M035T1G5H20G 470uF 20% 35V 6

C641 0CE477BJ618 ESM477M035T1G5H20G 470uF 20% 35V 6

C642 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C643 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C644 0CK105DK94A 0805F105Z500CT 1uF -20TO+80% 50V Y

C645 0CK105DK94A 0805F105Z500CT 1uF -20TO+80% 50V Y

C646 0CK474CH94A 0603F474Z250CT 470nF -20TO+80% 25V

C647 0CE107WJ6DC MVK10TP35VC100M 100uF 20% 35V 310M

C648 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C649 0CK103CK56A 0603B103K500CT 10nF 10% 50V X7R -5

C650 0CK474CH94A 0603F474Z250CT 470nF -20TO+80% 25V

C651 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C652 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C653 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C703 0CK103CK56A 0603B103K500CT 10nF 10% 50V X7R -5

C704 0CK103CK56A 0603B103K500CT 10nF 10% 50V X7R -5

C708 0CE226SF6DC VMV226M016S0ANB010 22uF 20% 16V -

C709 0CK103CK56A 0603B103K500CT 10nF 10% 50V X7R -5

C710 0CK103CK56A 0603B103K500CT 10nF 10% 50V X7R -5

C711 0CK103CK56A 0603B103K500CT 10nF 10% 50V X7R -5

C712 0CK103CK56A 0603B103K500CT 10nF 10% 50V X7R -5

C713 0CK103CK56A 0603B103K500CT 10nF 10% 50V X7R -5

C714 0CK103CK56A 0603B103K500CT 10nF 10% 50V X7R -5

C801 0CE227WF6DC MVK8.0TP16VC220M 220uF 20% 16V 80M

C804 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C805 0CK474CH94A 0603F474Z250CT 470nF -20TO+80% 25V

C806 0CK474CH94A 0603F474Z250CT 470nF -20TO+80% 25V

C807 0CE107WH6DC MVK8.0TP25VC100M 100uF 20% 25V 180

LOC. NO. PART NO. DESCRIPTION / SPECIFICATION LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

- 28 -

C808 0CE107WF6DC MVK6.3TP16VC100M 100uF 20% 16V 110

C809 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C810 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C811 0CK103CK56A 0603B103K500CT 10nF 10% 50V X7R -5

C812 0CK103CK56A 0603B103K500CT 10nF 10% 50V X7R -5

C813 0CE107WF6DC MVK6.3TP16VC100M 100uF 20% 16V 110

C814 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C815 0CE107WF6DC MVK6.3TP16VC100M 100uF 20% 16V 110

C816 0CE107WF6DC MVK6.3TP16VC100M 100uF 20% 16V 110

C818 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C819 0CK103CK56A 0603B103K500CT 10nF 10% 50V X7R -5

C820 0CE107WF6DC MVK6.3TP16VC100M 100uF 20% 16V 110

C821 0CE477WF6DC MVK10TP16VC470M 470uF 20% 16V 80MA

C822 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C823 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C824 0CE476SF6DC VMV476M016S0ANC010 47uF 20% 16V -

C825 0CE107WF6DC MVK6.3TP16VC100M 100uF 20% 16V 110

C826 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C827 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C828 0CE107WF6DC MVK6.3TP16VC100M 100uF 20% 16V 110

C828 0CE227WF6DC MVK8.0TP16VC220M 220uF 20% 16V 80M

C829 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C830 0CE107WF6DC MVK6.3TP16VC100M 100uF 20% 16V 110

C831 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C832 0CE107SF6DC VMV107M016S0ANE010 100uF 20% 16V 9

C833 0CK104CK56A 0603B104K500CT 100nF 10% 50V X7R -

C836 0CK226FF67A EMK325BJ226MM-T 22uF 20% 16V X5R -

C837 0CK103CK56A 0603B103K500CT 10nF 10% 50V X7R -5

C838 0CK106EF56A C3216X7R1C106KT 10uF 10% 16V X7R -

C839 0CK103CK56A 0603B103K500CT 10nF 10% 50V X7R -5

C840 0CK272CK46A 0603B272J500CT 2.7nF 10% 50V X7R -

C900 0CK103CK56A 0603B103K500CT 10nF 10% 50V X7R -5

C901 0CK103CK56A 0603B103K500CT 10nF 10% 50V X7R -5

C903 0CE226WF6DC MVK5.0TP16VC22M 22uF 20% 16V 30MA

C907 0CK103CK56A 0603B103K500CT 10nF 10% 50V X7R -5

C909 0CE226WF6DC MVK5.0TP16VC22M 22uF 20% 16V 30MA

C910 0CK103CK56A 0603B103K500CT 10nF 10% 50V X7R -5

C101 0DR050008AA SD05.TC - 6V 14.5V 24A 350W SOD323

C102 0DR050008AA SD05.TC - 6V 14.5V 24A 350W SOD323

D100 EAH33945901 CDS3C30GTH 30V 50V 120V 1.9A 1W SO

D101 EAH33946001 CDS3C05GTA 5.6V 6.4V 19V 1.9A 1W S

D101 EAH33945901 CDS3C30GTH 30V 50V 120V 1.9A 1W SO

D101 0DR050008AA SD05.TC - 6V 14.5V 24A 350W SOD323

D102 EAH33946001 CDS3C05GTA 5.6V 6.4V 19V 1.9A 1W S

D102 0DR050008AA SD05.TC - 6V 14.5V 24A 350W SOD323

D103 EAH33945901 CDS3C30GTH 30V 50V 120V 1.9A 1W SO

D104 EAH33945901 CDS3C30GTH 30V 50V 120V 1.9A 1W SO

D104 EAH33946001 CDS3C05GTA 5.6V 6.4V 19V 1.9A 1W S

D105 EAH33945901 CDS3C30GTH 30V 50V 120V 1.9A 1W SO

D106 EAH33946001 CDS3C05GTA 5.6V 6.4V 19V 1.9A 1W S

D107 EAH33945901 CDS3C30GTH 30V 50V 120V 1.9A 1W SO

D108 EAH33945901 CDS3C30GTH 30V 50V 120V 1.9A 1W SO

D109 EAH33945901 CDS3C30GTH 30V 50V 120V 1.9A 1W SO

D110 EAH33945901 CDS3C30GTH 30V 50V 120V 1.9A 1W SO

D111 EAH33945901 CDS3C30GTH 30V 50V 120V 1.9A 1W SO

D112 EAH33946001 CDS3C05GTA 5.6V 6.4V 19V 1.9A 1W S

D200 EAH33946001 CDS3C05GTA 5.6V 6.4V 19V 1.9A 1W S

D201 EAH33946001 CDS3C05GTA 5.6V 6.4V 19V 1.9A 1W S

D202 EAH33945901 CDS3C30GTH 30V 50V 120V 1.9A 1W SO

D203 EAH33945901 CDS3C30GTH 30V 50V 120V 1.9A 1W SO

D204 EAH33945901 CDS3C30GTH 30V 50V 120V 1.9A 1W SO

D205 EAH33945901 CDS3C30GTH 30V 50V 120V 1.9A 1W SO

D206 EAH33945901 CDS3C30GTH 30V 50V 120V 1.9A 1W SO

D207 EAH33945901 CDS3C30GTH 30V 50V 120V 1.9A 1W SO

D208 0DR050008AA SD05.TC - 6V 14.5V 24A 350W SOD323

D208 EAH33945901 CDS3C30GTH 30V 50V 120V 1.9A 1W SO

D209 0DR050008AA SD05.TC - 6V 14.5V 24A 350W SOD323

D209 EAH33945901 CDS3C30GTH 30V 50V 120V 1.9A 1W SO

D210 0DR050008AA SD05.TC - 6V 14.5V 24A 350W SOD323

D210 EAH33945901 CDS3C30GTH 30V 50V 120V 1.9A 1W SO

D211 0DR050008AA SD05.TC - 6V 14.5V 24A 350W SOD323

D211 EAH33945901 CDS3C30GTH 30V 50V 120V 1.9A 1W SO

D219 EAH33946001 CDS3C05GTA 5.6V 6.4V 19V 1.9A 1W S

D220 EAH33946001 CDS3C05GTA 5.6V 6.4V 19V 1.9A 1W S

D221 0DR050008AA SD05.TC - 6V 14.5V 24A 350W SOD323

D222 EAH33945901 CDS3C30GTH 30V 50V 120V 1.9A 1W SO

D223 EAH33945901 CDS3C30GTH 30V 50V 120V 1.9A 1W SO

D224 0DSIH00028A MC2838-T112-1 1.2V 75V 300MA 4A 3N

D300 0DSIH00028A MC2838-T112-1 1.2V 75V 300MA 4A 3N

D301 0DSIH00028A MC2838-T112-1 1.2V 75V 300MA 4A 3N

D302 0DSIH00028A MC2838-T112-1 1.2V 75V 300MA 4A 3N

D600 0DSIH00028A MC2838-T112-1 1.2V 75V 300MA 4A 3N

D700 EAH33945901 CDS3C30GTH 30V 50V 120V 1.9A 1W SO

D701 EAH33945901 CDS3C30GTH 30V 50V 120V 1.9A 1W SO

D801 0DZKE00048A KDZ8.2V 8.2V 7.7TO8.7V 20OHM 200MW

D803 0DR340009AA MBRS340 525MV 40V 4A 0SEC 0F 0W DO

D100 0DL200000CA LED, SAM5670(DL-2LRG) ROUND 4.8MM Y-GRE

D800 0DL233309AC LED, SAM2333 RED/Y-GREEN 2.7V 2.8V 30mA

IC200 0IMMRAL014D AT24C02BN-10SU-1.8 2KBIT 256x8BIT

IC202 0ISTL00031A MC74HC4066ADR2G MC74HC4066ADR2G,LF

IC203 0IFA742530B 74ACT253SC 4.5TO5.5V 0.004mA MULTI

IC302 0IMMRAL014D AT24C02BN-10SU-1.8 2KBIT 256x8BIT

IC303 0IPRP00735A ANX9021 3.3V 60u 17MHZ TQFP TR 144

IC304 0IMMRAL014D AT24C02BN-10SU-1.8 2KBIT 256x8BIT

IC500 EAN35336801 VCT7993P- FA-A1-H-000 1.71VTO1.89V

IC501 0IMMRAL025A AT24C32AN-10SU-2.7 32KBIT 4096X8BI

IC502 0IFA752700A KA75270Z 2.55TO2.85V 0 200MW TO92

IC600 0IPRP00665A TEA6420D 8TO10.2V 8mA 0 SO R/TP 28

IC601 EAN35502001 TPA3107D2 10TO26V 50mV 0.1% 15W 0W

IC800 EAN32662801 KA7809ERTM 35V to 40V 9V 1W DPAK R

IC801 EAN35520901 MP2355DN-LF-Z 4.75V ~ 23V 2.5V ~ 1

LOC. NO. PART NO. DESCRIPTION / SPECIFICATION LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

DIODEs

ICs

- 29 -

IC802 0IPMG78341A AZ1085S-3.3TR/E1,LF 12V 3.3V 0W TO

IC803 0IPMG78341A AZ1085S-3.3TR/E1,LF 12V 3.3V 0W TO

IC805 EAN34140401 AZ1085S-1.8TRE1 1.238V to 12V 1.8

IC807 EAN32724702 STMAV340 4.0TO5.5V 5NSEC 5NSEC 0W

IC809 0IPMG00049A AZ1117H-1.8TR/E1[H13A] 3.2TO10V 1.

IC900 0IPMGKE032A KIA78R09F 10TO25V 9V 8W DPAK R/TP

IC901 0IPMGKE032A KIA78R09F 10TO25V 9V 8W DPAK R/TP

AL308 6210TCE002B HB-4M3216-121JT 120OHM 3.2X1.6X1.3

AL309 6210TCE002B HB-4M3216-121JT 120OHM 3.2X1.6X1.3

AL310 6210TCE002B HB-4M3216-121JT 120OHM 3.2X1.6X1.3

AL311 6210TCE002B HB-4M3216-121JT 120OHM 3.2X1.6X1.3

AL312 6210TCE002B HB-4M3216-121JT 120OHM 3.2X1.6X1.3

AL313 6210TCE002B HB-4M3216-121JT 120OHM 3.2X1.6X1.3

F1 6210VH0004A 6210VH0004A 100OHM 30MM 13MM 34MM

L100 6210TCE001A HB-1S2012-080JT 8OHM 2X1.25X1MM SM

L101 6210TCE001A HB-1S2012-080JT 8OHM 2X1.25X1MM SM

L102 6210TCE001A HB-1S2012-080JT 8OHM 2X1.25X1MM SM

L103 6210TCE001A HB-1S2012-080JT 8OHM 2X1.25X1MM SM

L104 6210TCE001A HB-1S2012-080JT 8OHM 2X1.25X1MM SM

L105 6210TCE001A HB-1S2012-080JT 8OHM 2X1.25X1MM SM

L106 6210TCE001A HB-1S2012-080JT 8OHM 2X1.25X1MM SM

L107 6210TCE001A HB-1S2012-080JT 8OHM 2X1.25X1MM SM

L108 6210TCE001A HB-1S2012-080JT 8OHM 2X1.25X1MM SM

L109 6210TCE001A HB-1S2012-080JT 8OHM 2X1.25X1MM SM

L200 6210TCE001A HB-1S2012-080JT 8OHM 2X1.25X1MM SM

L201 6210TCE001A HB-1S2012-080JT 8OHM 2X1.25X1MM SM

L204 6210TCE001A HB-1S2012-080JT 8OHM 2X1.25X1MM SM

L205 6210TCE001A HB-1S2012-080JT 8OHM 2X1.25X1MM SM

L314 6210TCE001G HH-1M3216-501JT 500OHM 3.2X1.6X1.3

L315 6210TCE001G HH-1M3216-501JT 500OHM 3.2X1.6X1.3

L400 6210TCE001G HH-1M3216-501JT 500OHM 3.2X1.6X1.3

L501 6210TCE001G HH-1M3216-501JT 500OHM 3.2X1.6X1.3

L503 6210TCE001G HH-1M3216-501JT 500OHM 3.2X1.6X1.3

L508 6210TCE001B HH-1H3216-500JT 50OHM 3.2X1.6X1.3M

L509 6210TCE001B HH-1H3216-500JT 50OHM 3.2X1.6X1.3M

L510 6210TCE001B HH-1H3216-500JT 50OHM 3.2X1.6X1.3M

L511 6210TCE001G HH-1M3216-501JT 500OHM 3.2X1.6X1.3

L512 6210TCE001G HH-1M3216-501JT 500OHM 3.2X1.6X1.3

L602 6210TCE001G HH-1M3216-501JT 500OHM 3.2X1.6X1.3

L603 6210TCE001G HH-1M3216-501JT 500OHM 3.2X1.6X1.3

L608 6210TCE001G HH-1M3216-501JT 500OHM 3.2X1.6X1.3

L609 6210TCE001G HH-1M3216-501JT 500OHM 3.2X1.6X1.3

L610 6210TCE001P HB-1S2012-121JT(H:1mm) 120OHM 2X1.

L612 6210TCE001P HB-1S2012-121JT(H:1mm) 120OHM 2X1.

L615 6210TCE001P HB-1S2012-121JT(H:1mm) 120OHM 2X1.

L617 6210TCE001P HB-1S2012-121JT(H:1mm) 120OHM 2X1.

L618 6210TCE001G HH-1M3216-501JT 500OHM 3.2X1.6X1.3

L703 6210TCE001G HH-1M3216-501JT 500OHM 3.2X1.6X1.3

L704 6200J00005N HH-1M2012-121JT(H:1mm) 120OHM 2X1.

L705 6200J00005N HH-1M2012-121JT(H:1mm) 120OHM 2X1.

L706 6200J00005N HH-1M2012-121JT(H:1mm) 120OHM 2X1.

L707 6210TCE001A HB-1S2012-080JT 8OHM 2X1.25X1MM SM

L708 6210TCE001A HB-1S2012-080JT 8OHM 2X1.25X1MM SM

L709 6210TCE001A HB-1S2012-080JT 8OHM 2X1.25X1MM SM

L800 6210TCE001G HH-1M3216-501JT 500OHM 3.2X1.6X1.3

L801 6210TCE001G HH-1M3216-501JT 500OHM 3.2X1.6X1.3

L802 6210TCE001B HH-1H3216-500JT 50OHM 3.2X1.6X1.3M

L803 6210TCE001G HH-1M3216-501JT 500OHM 3.2X1.6X1.3

L806 6210TCE001G HH-1M3216-501JT 500OHM 3.2X1.6X1.3

L807 6210TCE001G HH-1M3216-501JT 500OHM 3.2X1.6X1.3

L808 6210TCE001G HH-1M3216-501JT 500OHM 3.2X1.6X1.3

L900 6210TCE001G HH-1M3216-501JT 500OHM 3.2X1.6X1.3

X300 6202TST001H Crystal, SX-1 27MHZ 30PPM 27MHZ 30PPM 20pF

X500 6202VDT002P Crystal, HC-49/SM 20.25000MHZ 20.25MHZ 30PP

L100 0LC1032101A Inductor, FI-C3216-103KJT 10UH 10% - 50MA 0.

L600 0LCML00020C Inductor, MLI-201212-100K 10UH 10% - 15MA 1.

L601 0LCML00020C Inductor, MLI-201212-100K 10UH 10% - 15MA 1.

L605 EAP32842807 Inductor, NR8040T330M 33UH 20% 250V 1.7A 0.1

L606 EAP32842807 Inductor, NR8040T330M 33UH 20% 250V 1.7A 0.1

L613 EAP32842807 Inductor, NR8040T330M 33UH 20% 250V 1.7A 0.1

L614 EAP32842807 Inductor, NR8040T330M 33UH 20% 250V 1.7A 0.1

L810 0LCTO00019A Inductor, D75C-646CY-220M=P3 22UH 20% 0V 1.0

IC301 0TFTH80001A FET, SSM6N15FU N-CHANNEL MOSFET 30V +-2

IC305 0TFTH80001A FET, SSM6N15FU N-CHANNEL MOSFET 30V +-2

IC306 0TFTH80001A FET, SSM6N15FU N-CHANNEL MOSFET 30V +-2

IC400 0TFTH80001A FET, SSM6N15FU N-CHANNEL MOSFET 30V +-2

Q100 0TRIY80001A 2SC3052 NPN 6V 50V 50V 200MA 100NA

Q101 0TRIY80001A 2SC3052 NPN 6V 50V 50V 200MA 100NA

Q103 0TRIY80001A 2SC3052 NPN 6V 50V 50V 200MA 100NA

Q104 0TRIY80001A 2SC3052 NPN 6V 50V 50V 200MA 100NA

Q105 0TRIY80001A 2SC3052 NPN 6V 50V 50V 200MA 100NA

Q106 0TRIY80001A 2SC3052 NPN 6V 50V 50V 200MA 100NA

Q107 0TRIY80001A 2SC3052 NPN 6V 50V 50V 200MA 100NA

Q108 0TRIY80001A 2SC3052 NPN 6V 50V 50V 200MA 100NA

Q109 0TRIY80001A 2SC3052 NPN 6V 50V 50V 200MA 100NA

Q110 0TRIY80001A 2SC3052 NPN 6V 50V 50V 200MA 100NA

Q200 0TRIY80001A 2SC3052 NPN 6V 50V 50V 200MA 100NA

Q204 0TRIY80001A 2SC3052 NPN 6V 50V 50V 200MA 100NA

Q205 0TRIY80001A 2SC3052 NPN 6V 50V 50V 200MA 100NA

Q206 0TRIY80001A 2SC3052 NPN 6V 50V 50V 200MA 100NA

Q400 0TRIY80001A 2SC3052 NPN 6V 50V 50V 200MA 100NA

Q401 0TRIH80002A 2SA1530A-T112-1R PNP -6V -60V -50V

Q403 0TRIY80001A 2SC3052 NPN 6V 50V 50V 200MA 100NA

Q404 0TRIH80002A 2SA1530A-T112-1R PNP -6V -60V -50V

Q411 0TRIH80002A 2SA1530A-T112-1R PNP -6V -60V -50V

Q500 0TR102009AM KRA102S PNP -30V 0V -50V -0.1A -0.

Q501 0TRIH80002A 2SA1530A-T112-1R PNP -6V -60V -50V

Q502 0TRIH80002A 2SA1530A-T112-1R PNP -6V -60V -50V

Q503 0TRIY80001A 2SC3052 NPN 6V 50V 50V 200MA 100NA

Q504 0TRIH80002A 2SA1530A-T112-1R PNP -6V -60V -50V

Q600 0TRIY80001A 2SC3052 NPN 6V 50V 50V 200MA 100NA

Q601 0TRIY80001A 2SC3052 NPN 6V 50V 50V 200MA 100NA

Q602 0TRIY80001A 2SC3052 NPN 6V 50V 50V 200MA 100NA

LOC. NO. PART NO. DESCRIPTION / SPECIFICATION LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

FETs & TRANSISTORs

FILTERs & INDUCTORs

- 30 -

Q603 0TRIY80001A 2SC3052 NPN 6V 50V 50V 200MA 100NA

Q800 0TRIY80001A 2SC3052 NPN 6V 50V 50V 200MA 100NA

Q801 0TRIY80001A 2SC3052 NPN 6V 50V 50V 200MA 100NA

Q803 0TRIY80001A 2SC3052 NPN 6V 50V 50V 200MA 100NA

Q804 0TRIY80001A 2SC3052 NPN 6V 50V 50V 200MA 100NA

Q900 0TRIY80001A 2SC3052 NPN 6V 50V 50V 200MA 100NA

L402 0RJ0000G676 MCR18EZHJ00 0OHM 5% 1/4W 3216 R/TP

L710 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2012 R/T

R1 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2012 R/T

R100 0RH0332D622 MCR10EZHJ330 33OHM 5% 1/8W 2012 R/

R100 0RJ0752D677 MCR03EZPJ750 75OHM 5% 1/10W 1608 R

R100 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2012 R/T

R101 0RH0752D622 MCR10EZHJ750 75OHM 5% 1/8W 2012 R/

R101 0RJ9101D677 MCR03EZPJ912 9.1KOHM 5% 1/10W 1608

R101 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2012 R/T

R101 0RH9101D622 MCR10EZHJ912 9.1KOHM 5% 1/8W 2012

R101 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2012 R/T

R102 0RH4700D622 MCR10EZHJ471 470OHM 5% 1/8W 2012 R

R102 0RJ0752D677 MCR03EZPJ750 75OHM 5% 1/10W 1608 R

R102 0RH4700D622 MCR10EZHJ471 470OHM 5% 1/8W 2012 R

R102 0RH3301D622 MCR10EZHJ332 3.3KOHM 5% 1/8W 2012

R102 0RH1101D622 MCR10EZHJ112 1.1KOHM 5% 1/8W 2012

R103 0RH2203D622 MCR10EZHJ224 220KOHM 5% 1/8W 2012

R103 0RJ0752D677 MCR03EZPJ750 75OHM 5% 1/10W 1608 R

R103 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2012 R/T

R103 0RH3301D622 MCR10EZHJ332 3.3KOHM 5% 1/8W 2012

R103 0RH1101D622 MCR10EZHJ112 1.1KOHM 5% 1/8W 2012

R104 0RH4700D622 MCR10EZHJ471 470OHM 5% 1/8W 2012 R

R104 0RJ0752D677 MCR03EZPJ750 75OHM 5% 1/10W 1608 R

R104 0RH5111D422 MCR10EZHF5111 5.11KOHM 1% 1/8W 201

R104 0RH4700D622 MCR10EZHJ471 470OHM 5% 1/8W 2012 R

R104 0RH9101D622 MCR10EZHJ912 9.1KOHM 5% 1/8W 2012

R104 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2012 R/T

R105 0RH2203D622 MCR10EZHJ224 220KOHM 5% 1/8W 2012

R105 0RJ0752D677 MCR03EZPJ750 75OHM 5% 1/10W 1608 R

R105 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2012 R/T

R105 0RH9101D622 MCR10EZHJ912 9.1KOHM 5% 1/8W 2012

R105 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2012 R/T

R106 0RH0332D622 MCR10EZHJ330 33OHM 5% 1/8W 2012 R/

R106 0RJ3601D677 MCR03EZPJ362 3.6KOHM 5% 1/10W 1608

R106 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2012 R/T

R106 0RH3301D622 MCR10EZHJ332 3.3KOHM 5% 1/8W 2012

R106 0RH1101D622 MCR10EZHJ112 1.1KOHM 5% 1/8W 2012

R107 0RH0752D622 MCR10EZHJ750 75OHM 5% 1/8W 2012 R/

R107 0RJ0752D677 MCR03EZPJ750 75OHM 5% 1/10W 1608 R

R107 0RH3301D622 MCR10EZHJ332 3.3KOHM 5% 1/8W 2012

R107 0RH1101D622 MCR10EZHJ112 1.1KOHM 5% 1/8W 2012

R108 0RH0332D622 MCR10EZHJ330 33OHM 5% 1/8W 2012 R/

R108 0RJ2203D677 MCR03EZPJ224 220KOHM 5% 1/10W 1608

R108 0RH9101D622 MCR10EZHJ912 9.1KOHM 5% 1/8W 2012

R108 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2012 R/T

R109 0RH0752D622 MCR10EZHJ750 75OHM 5% 1/8W 2012 R/

R109 0RJ2203D677 MCR03EZPJ224 220KOHM 5% 1/10W 1608

R110 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2012 R/T

R110 0RJ2000D677 MCR03EZPJ201 200OHM 5% 1/10W 1608

R111 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R112 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R114 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2012 R/T

R115 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2012 R/T

R116 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2012 R/T

R117 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2012 R/T

R119 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R120 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R121 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R122 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R132 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10W 1608

R133 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10W 1608

R140 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10W 1608

R141 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10W 1608

R153 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1608 R/

R154 0RJ0752D677 MCR03EZPJ750 75OHM 5% 1/10W 1608 R

R155 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1608 R/

R156 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1608 R/

R157 0RJ9101D677 MCR03EZPJ912 9.1KOHM 5% 1/10W 1608

R158 0RJ0752D677 MCR03EZPJ750 75OHM 5% 1/10W 1608 R

R159 0RJ2203D677 MCR03EZPJ224 220KOHM 5% 1/10W 1608

R160 0RJ2203D677 MCR03EZPJ224 220KOHM 5% 1/10W 1608

R161 0RJ3601D677 MCR03EZPJ362 3.6KOHM 5% 1/10W 1608

R162 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R163 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R164 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R165 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R166 0RJ2001D677 MCR03EZPJ202 2KOHM 5% 1/10W 1608 R

R167 0RJ2001D677 MCR03EZPJ202 2KOHM 5% 1/10W 1608 R

R168 0RJ2001D677 MCR03EZPJ202 2KOHM 5% 1/10W 1608 R

R169 0RJ2001D677 MCR03EZPJ202 2KOHM 5% 1/10W 1608 R

R170 0RJ0332D677 MCR03EZPJ330 33OHM 5% 1/10W 1608 R

R171 0RJ0332D677 MCR03EZPJ330 33OHM 5% 1/10W 1608 R

R172 0RJ0332D677 MCR03EZPJ330 33OHM 5% 1/10W 1608 R

R173 0RJ0332D677 MCR03EZPJ330 33OHM 5% 1/10W 1608 R

R174 0RJ0332D677 MCR03EZPJ330 33OHM 5% 1/10W 1608 R

R2 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2012 R/T

R200 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10W 1608

R201 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10W 1608

R202 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R203 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R204 0RJ2203D677 MCR03EZPJ224 220KOHM 5% 1/10W 1608

R205 0RJ2203D677 MCR03EZPJ224 220KOHM 5% 1/10W 1608

R206 0RJ0752D677 MCR03EZPJ750 75OHM 5% 1/10W 1608 R

R207 0RJ0752D677 MCR03EZPJ750 75OHM 5% 1/10W 1608 R

R208 0RJ0752D677 MCR03EZPJ750 75OHM 5% 1/10W 1608 R

R209 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10W 1608

R210 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R211 0RJ0752D677 MCR03EZPJ750 75OHM 5% 1/10W 1608 R

R212 0RJ0752D677 MCR03EZPJ750 75OHM 5% 1/10W 1608 R

LOC. NO. PART NO. DESCRIPTION / SPECIFICATION LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

RESISTORs

- 31 -

R213 0RJ0752D677 MCR03EZPJ750 75OHM 5% 1/10W 1608 R

R216 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10W 1608

R219 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10W 1608

R220 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R221 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R222 0RJ2200D677 MCR03EZPJ221 220OHM 5% 1/10W 1608

R223 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R227 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R233 0RJ2200D677 MCR03EZPJ221 220OHM 5% 1/10W 1608

R234 0RJ2203D677 MCR03EZPJ224 220KOHM 5% 1/10W 1608

R235 0RJ2203D677 MCR03EZPJ224 220KOHM 5% 1/10W 1608

R237 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R239 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1608 R/

R244 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10W 1608

R245 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R246 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10W 1608

R247 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1608 R/

R248 0RJ0332D677 MCR03EZPJ330 33OHM 5% 1/10W 1608 R

R249 0RJ0332D677 MCR03EZPJ330 33OHM 5% 1/10W 1608 R

R250 0RJ0332D677 MCR03EZPJ330 33OHM 5% 1/10W 1608 R

R251 0RJ0332D677 MCR03EZPJ330 33OHM 5% 1/10W 1608 R

R252 0RJ0332D677 MCR03EZPJ330 33OHM 5% 1/10W 1608 R

R253 0RJ0332D677 MCR03EZPJ330 33OHM 5% 1/10W 1608 R

R254 0RJ0332D677 MCR03EZPJ330 33OHM 5% 1/10W 1608 R

R255 0RJ0332D677 MCR03EZPJ330 33OHM 5% 1/10W 1608 R

R265 0RJ1502D677 MCR03EZPJ153 15KOHM 5% 1/10W 1608

R266 0RJ6801D677 MCR03EZPJ682 6.8KOHM 5% 1/10W 1608

R267 0RJ2201D677 MCR03EZPJ222 2.2KOHM 5% 1/10W 1608

R268 0RJ1502D677 MCR03EZPJ153 15KOHM 5% 1/10W 1608

R269 0RJ6801D677 MCR03EZPJ682 6.8KOHM 5% 1/10W 1608

R270 0RJ2201D677 MCR03EZPJ222 2.2KOHM 5% 1/10W 1608

R271 0RJ1502D677 MCR03EZPJ153 15KOHM 5% 1/10W 1608

R272 0RJ6801D677 MCR03EZPJ682 6.8KOHM 5% 1/10W 1608

R273 0RJ2201D677 MCR03EZPJ222 2.2KOHM 5% 1/10W 1608

R3 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2012 R/T

R300 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R301 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R302 0RJ4702D677 MCR03EZPJ473 47KOHM 5% 1/10W 1608

R303 0RJ4702D677 MCR03EZPJ473 47KOHM 5% 1/10W 1608

R304 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R305 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R306 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R307 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R308 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10W 1608

R310 0RJ4702D677 MCR03EZPJ473 47KOHM 5% 1/10W 1608

R311 0RJ4702D677 MCR03EZPJ473 47KOHM 5% 1/10W 1608

R312 0RJ0122D677 MCR03EZPJ120 12OHM 5% 1/10W 1608 R

R313 0RJ0122D677 MCR03EZPJ120 12OHM 5% 1/10W 1608 R

R314 0RJ0122D677 MCR03EZPJ120 12OHM 5% 1/10W 1608 R

R315 0RJ0122D677 MCR03EZPJ120 12OHM 5% 1/10W 1608 R

R316 0RJ0122D677 MCR03EZPJ120 12OHM 5% 1/10W 1608 R

R317 0RJ0122D677 MCR03EZPJ120 12OHM 5% 1/10W 1608 R

R318 0RJ0122D677 MCR03EZPJ120 12OHM 5% 1/10W 1608 R

R319 0RJ0122D677 MCR03EZPJ120 12OHM 5% 1/10W 1608 R

R320 0RJ0122D677 MCR03EZPJ120 12OHM 5% 1/10W 1608 R

R321 0RJ0122D677 MCR03EZPJ120 12OHM 5% 1/10W 1608 R

R322 0RJ0122D677 MCR03EZPJ120 12OHM 5% 1/10W 1608 R

R323 0RJ0122D677 MCR03EZPJ120 12OHM 5% 1/10W 1608 R

R324 0RJ0122D677 MCR03EZPJ120 12OHM 5% 1/10W 1608 R

R325 0RJ0122D677 MCR03EZPJ120 12OHM 5% 1/10W 1608 R

R326 0RJ0122D677 MCR03EZPJ120 12OHM 5% 1/10W 1608 R

R327 0RJ0122D677 MCR03EZPJ120 12OHM 5% 1/10W 1608 R

R328 0RJ2001D677 MCR03EZPJ202 2KOHM 5% 1/10W 1608 R

R329 0RJ2001D677 MCR03EZPJ202 2KOHM 5% 1/10W 1608 R

R330 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R331 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R332 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R333 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R334 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R335 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R336 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R337 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R338 0RJ0682D677 MCR03EZPJ680 68OHM 5% 1/10W 1608 R

R338 0RJ0222D677 MCR03EZPJ220 22OHM 5% 1/10W 1608 R

R339 0RJ0682D677 MCR03EZPJ680 68OHM 5% 1/10W 1608 R

R339 0RJ0222D677 MCR03EZPJ220 22OHM 5% 1/10W 1608 R

R340 0RJ0682D677 MCR03EZPJ680 68OHM 5% 1/10W 1608 R

R340 0RJ0222D677 MCR03EZPJ220 22OHM 5% 1/10W 1608 R

R341 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1608 R/

R342 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1608 R/

R344 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1608 R/

R345 0RJ0332D677 MCR03EZPJ330 33OHM 5% 1/10W 1608 R

R346 0RJ1004D677 MCR03EZPJ105 1MOHM 5% 1/10W 1608 R

R347 0RJ3300D677 MCR03EZPJ331 330OHM 5% 1/10W 1608

R349 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10W 1608

R350 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1608 R/

R352 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1608 R/

R353 0RJ0222D677 MCR03EZPJ220 22OHM 5% 1/10W 1608 R

R354 0RJ0222D677 MCR03EZPJ220 22OHM 5% 1/10W 1608 R

R355 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1608 R/

R356 0RJ0222D677 MCR03EZPJ220 22OHM 5% 1/10W 1608 R

R358 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10W 1608

R359 0RJ0222D677 MCR03EZPJ220 22OHM 5% 1/10W 1608 R

R361 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10W 1608

R362 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10W 1608

R363 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10W 1608

R364 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10W 1608

R365 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10W 1608

R366 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10W 1608

R367 0RJ0392D677 MCR03EZPJ390 39OHM 5% 1/10W 1608 R

R368 0RJ0392D677 MCR03EZPJ390 39OHM 5% 1/10W 1608 R

R369 0RJ0392D677 MCR03EZPJ390 39OHM 5% 1/10W 1608 R

R370 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10W 1608

R371 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10W 1608

R4 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2012 R/T

R401 0RJ3300D677 MCR03EZPJ331 330OHM 5% 1/10W 1608

R402 0RJ3300D677 MCR03EZPJ331 330OHM 5% 1/10W 1608

R403 0RJ0000G676 MCR18EZHJ00 0OHM 5% 1/4W 3216 R/TP

LOC. NO. PART NO. DESCRIPTION / SPECIFICATION LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

- 32 -

R404 0RJ7501D677 MCR03EZPJ752 7.5KOHM 5% 1/10W 1608

R405 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10W 1608

R407 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R408 0RJ4700D677 MCR03EZPJ471 470OHM 5% 1/10W 1608

R410 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R411 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10W 1608

R412 0RJ0822D677 MCR03EZPJ820 82OHM 5% 1/10W 1608 R

R413 0RJ2200D677 MCR03EZPJ221 220OHM 5% 1/10W 1608

R421 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1608 R/

R422 0RJ2200D677 MCR03EZPJ221 220OHM 5% 1/10W 1608

R423 0RJ1500D677 MCR03EZPJ151 150OHM 5% 1/10W 1608

R423 0RJ4700D677 MCR03EZPJ471 470OHM 5% 1/10W 1608

R424 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1608 R/

R5 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2012 R/T

R503 0RJ2000D477 MCR03EZPF201 200OHM 1% 1/10W 1608

R504 0RJ1500D677 MCR03EZPJ151 150OHM 5% 1/10W 1608

R505 0RJ4700D677 MCR03EZPJ471 470OHM 5% 1/10W 1608

R506 0RJ1500D677 MCR03EZPJ151 150OHM 5% 1/10W 1608

R508 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R509 0RJ2000D477 MCR03EZPF201 200OHM 1% 1/10W 1608

R510 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R511 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R512 0RJ1802D677 MCR03EZPJ183 18KOHM 5% 1/10W 1608

R513 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10W 1608

R514 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10W 1608

R515 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R516 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R517 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R518 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R519 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R520 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R521 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R522 0RJ6201D677 MCR03EZPJ622 6.2KOHM 5% 1/10W 1608

R523 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1608 R/

R524 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1608 R/

R527 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R528 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R529 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R530 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R531 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R532 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R533 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R534 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R535 0RJ0222D677 MCR03EZPJ220 22OHM 5% 1/10W 1608 R

R536 0RJ0222D677 MCR03EZPJ220 22OHM 5% 1/10W 1608 R

R537 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R538 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R540 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R541 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R542 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R543 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R544 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R545 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R546 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10W 1608

R547 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10W 1608

R548 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R549 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R550 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R551 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R552 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1608 R/

R553 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R554 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R555 0RJ4702D677 MCR03EZPJ473 47KOHM 5% 1/10W 1608

R556 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R557 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R558 0RJ8201D677 MCR03EZPJ822 8.2KOHM 5% 1/10W 1608

R559 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R560 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R561 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R563 0RJ3001D677 MCR03EZPJ302 3KOHM 5% 1/10W 1608 R

R564 0RJ3001D677 MCR03EZPJ302 3KOHM 5% 1/10W 1608 R

R565 0RJ4700D677 MCR03EZPJ471 470OHM 5% 1/10W 1608

R567 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R570 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1608 R/

R573 0RJ2702D677 MCR03EZPJ273 27KOHM 5% 1/10W 1608

R575 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10W 1608

R6 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2012 R/T

R600 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R601 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R602 0RJ1000D477 MCR03EZPF101 100OHM 1% 1/10W 1608

R603 0RJ1000D477 MCR03EZPF101 100OHM 1% 1/10W 1608

R605 0RJ1000D477 MCR03EZPF101 100OHM 1% 1/10W 1608

R606 0RJ1000D477 MCR03EZPF101 100OHM 1% 1/10W 1608

R607 0RJ1000D477 MCR03EZPF101 100OHM 1% 1/10W 1608

R608 0RJ1000D477 MCR03EZPF101 100OHM 1% 1/10W 1608

R609 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10W 1608

R610 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10W 1608

R611 0RJ2001D677 MCR03EZPJ202 2KOHM 5% 1/10W 1608 R

R612 0RJ2001D677 MCR03EZPJ202 2KOHM 5% 1/10W 1608 R

R613 0RJ4703D677 MCR03EZPJ474 470KOHM 5% 1/10W 1608

R614 0RJ4703D677 MCR03EZPJ474 470KOHM 5% 1/10W 1608

R615 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10W 1608

R616 0RJ1000D477 MCR03EZPF101 100OHM 1% 1/10W 1608

R617 0RJ1000D477 MCR03EZPF101 100OHM 1% 1/10W 1608

R618 0RJ1000D477 MCR03EZPF101 100OHM 1% 1/10W 1608

R619 0RJ1000D477 MCR03EZPF101 100OHM 1% 1/10W 1608

R621 0RJ1000D477 MCR03EZPF101 100OHM 1% 1/10W 1608

R622 0RJ1000D477 MCR03EZPF101 100OHM 1% 1/10W 1608

R623 0RJ2001D677 MCR03EZPJ202 2KOHM 5% 1/10W 1608 R

R624 0RJ2001D677 MCR03EZPJ202 2KOHM 5% 1/10W 1608 R

R625 0RJ2001D677 MCR03EZPJ202 2KOHM 5% 1/10W 1608 R

R626 0RJ2001D677 MCR03EZPJ202 2KOHM 5% 1/10W 1608 R

R627 0RJ3001D677 MCR03EZPJ302 3KOHM 5% 1/10W 1608 R

R628 0RJ3001D677 MCR03EZPJ302 3KOHM 5% 1/10W 1608 R

R629 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R631 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10W 1608

R633 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10W 1608

R634 0RJ1003D677 MCR03EZPJ104 100KOHM 5% 1/10W 1608

LOC. NO. PART NO. DESCRIPTION / SPECIFICATION LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

- 33 -

R635 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2012 R/T

R636 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2012 R/T

R7 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2012 R/T

R700 0RJ0000C678 MCR01MZPJ000 0OHM 5% 1/16W 1005 R/

R700 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1608 R/

R701 0RJ0000C678 MCR01MZPJ000 0OHM 5% 1/16W 1005 R/

R701 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1608 R/

R702 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1608 R/

R703 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1608 R/

R704 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1608 R/

R708 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2012 R/T

R709 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2012 R/T

R710 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2012 R/T

R711 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2012 R/T

R712 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2012 R/T

R713 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2012 R/T

R720 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10W 1608

R722 0RJ2002D677 MCR03EZPJ203. 20KOHM 5% 1/10W 1608

R723 0RJ2002D677 MCR03EZPJ203. 20KOHM 5% 1/10W 1608

R725 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R726 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R8 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2012 R/T

R801 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1608 R/

R806 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W 1608 R

R807 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1608 R/

R808 0RJ2000D677 MCR03EZPJ201 200OHM 5% 1/10W 1608

R809 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10W 1608

R810 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1608 R/

R811 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10W 1608

R812 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10W 1608

R814 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10W 1608

R815 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10W 1608

R817 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10W 1608

R818 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10W 1608

R821 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10W 1608

R823 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10W 1608

R825 0RJ0752D677 MCR03EZPJ750 75OHM 5% 1/10W 1608 R

R826 0RJ0752D677 MCR03EZPJ750 75OHM 5% 1/10W 1608 R

R827 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10W 1608

R828 0RJ1201D677 MCR03EZPJ122 1.2KOHM 5% 1/10W 1608

R833 0RJ6802D677 MCR03EZPJ683 68KOHM 5% 1/10W 1608

R834 0RJ2202D677 MCR03EZPJ223 22KOHM 5% 1/10W 1608

R835 0RJ7501D677 MCR03EZPJ752 7.5KOHM 5% 1/10W 1608

R900 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R901 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W 1608

R902 0RS0332H609 RS-92T1J33R0 33OHM 5% 1/2W 9.0X3.0

R909 0RJ1202D677 MCR03EZPJ123 12KOHM 5% 1/10W 1608

R910 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10W 1608

R911 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10W 1608

R912 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10W 1608

C1 6631900010Q Harness, SMH200 SMH200 1200mM 2.00MM 12P UL

C2 6631900012E Harness, SMH250 SMH250 300mM 2.50MM 10P UL1

C3 6631900099A Harness, SMH250 SMP250 300mM 2.50MM 3P UL10

C4 6631T20029E Harness, 6p(2.0mm) SMH200-06 SMH200-06 460m

C5 6631T25024H Harness, 4P(H-T) CONNECTOR ASSY SMH250 3509

C6 6631T25026B Harness, 6631T25026B SMH250 35098 750mM 2.5

C7 6631V39015F Harness, GP390-04S-CS 1-1123722-04 350mM 3.

C8 6631V39016E Harness, GP390-10S-CS 1-1123722-10 300mM 3.

C9 EAD30301901 Harness, DMS 4P CONNECTOR ASSY SMH200-04P S

C10 EAD35682503 Harness, LVDS PDP STD_300MM FH12524-31(Foos

C11 EAD35862901 Harness, SMH250-13 SMH250-14 300MM 2.50MM 1

C12 EAD36774101 Harness, 8P 1533(SHIELD) 12505HS-8 12505HS-

JK201 6630G70016A DSUB, A03-7071-094 D-SUB 15P 2.29MM STRA

CN100 6602T12005G Wafer, 12505WR-08A00 8P 1.25MM 1R ANGLE S

CN101 6602T20009E Wafer, SMAW200-06P 6P 2.00MM 1R ANGLE DIP

CN200 6630VF01604 Wafer, 53398-0490 4P 1.25MM 1R STRAIGHT S

CN501 366-932B Wafer, GIL-G-03P-S3T2-E(TYPOE) 3P 2.50MM

CN600 6602T25008B Wafer, SMW250-03P 3P 2.50MM 1R STRAIGHT D

CN601 6602T25008C Wafer, SMW250-04P 4P 2.50MM 1R STRAIGHT D

CN700 6630VF00530 Wafer, 12507WR-30A00 30P 1.25MM 1R ANGLE

CN702 6602T12004G Wafer, 12505WS-08A00 8P 1.25MM 1R STRAIGH

CN703 6602T20009L Wafer, SMAW200-12P 12P 2.00MM 1R ANGLE DI

CN800 6602T25008N Wafer, SMW250-14P 14P 2.50MM 1R STRAIGHT

CN801 6602T25008J Wafer, SMW250-10P 10P 2.50MM 1R ANGLE DIP

CN900 366-932B Wafer, GIL-G-03P-S3T2-E(TYPOE) 3P 2.50MM

P100 6602T20009E Wafer, SMAW200-06P 6P 2.00MM 1R ANGLE DIP

P101 6602T20009L Wafer, SMAW200-12P 12P 2.00MM 1R ANGLE DI

JK100 6612J10033A PMJ016-13 13P DIN/RCA 14MM ANGLE D

JK100 6612M00010A PSC003-01 21P 21P/1C 3.81MM STRAIG

JK101 6612M00010A PSC003-01 21P 21P/1C 3.81MM STRAIG

JK200 6612J10031A PPJ209-02 14.0MM 1RX5C STRAIGHT TR

JK204 6612F00099A PEJ024-01 1P 4P STRAIGHT TR 3.6MM

JK300 6612B00015C DC1R019WDH. SOCKET 21P STRAIGHT SM

JK301 6612B00015C DC1R019WDH. SOCKET 21P STRAIGHT SM

JK600 6612J10043A PPJ200-07 15MM 1RX4C ANGLE BK 3P

SW101 140-313B KPT-1115AM 1C1P 12VDC 0.05A HORIZO

SW102 140-313B KPT-1115AM 1C1P 12VDC 0.05A HORIZO

SW103 140-313B KPT-1115AM 1C1P 12VDC 0.05A HORIZO

SW104 140-313B KPT-1115AM 1C1P 12VDC 0.05A HORIZO

SW105 140-313B KPT-1115AM 1C1P 12VDC 0.05A HORIZO

SW106 140-313B KPT-1115AM 1C1P 12VDC 0.05A HORIZO

SW107 140-313B KPT-1115AM 1C1P 12VDC 0.05A HORIZO

SW108 140-313B KPT-1115AM 1C1P 12VDC 0.05A HORIZO

LOC. NO. PART NO. DESCRIPTION / SPECIFICATION LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

JACKs

HARNESSs & CONNECTORs

SWITCHs

- 34 -

B1 MAY32943814 Box, BOX DW 1298 150 424 NO PRINTING 50PC5

B2 MAY39567901 Box, BOX DW 1314 444 987 2 COLOR (DD-DW6

IC100 6712000013A Receiver Module, TSOP4438SO1 5V 1.5MA 38KHZ 35M

SA1 SAA30955103 S/W, Firmware 3.16 2D96 WORLD WIDE FLASH

TU400 EBL35311207 Tuner, Tuner/Modulator TAFT-W005D 38.9M 35DB

A1 SAC30653107 Title, NEW MDL 26lan EU all CD MANUAL

A1 MFL37396705 Manual, Owners NEW MDL EU all 26lan H4 simple book

A2 MKJ32022825 Remote Controller, REMOTE CONTROLLER

A21 3550V00590A Cover, MOLD BATTERY TN-50PY20 ABS 6710V00142

A3 EAD36223101 Power Cord, LP34A+LS60L LP-34A LS-60L 1.87M BLACK

A4 4972V00178A Supporter, COMPLEX METAL ASSY PDP SET

A5 3880TKZ004D Bag, COMPLEX VINYL 200*200 0.58 H&C MODEL

A6 4950TKA320A Plate, PRESS SBHG T1.2 SUPPORT UPSET

A7 FAB30021701 Screw, Machine 1SZZVMR001A RING WALL 5MM 25MM

LOC. NO. PART NO. DESCRIPTION / SPECIFICATION LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

ACCESSORY

OTHERs

MAIN(TOP) MAIN(BOTTOM)

SIDE A/V(TOP)

SIDE A/V(BOTTOM)

IR/LED

CONTROL(TOP)

CONTROL(BOTTOM)

PRINTED CIRCUIT BOARD

Jun., 2007

Printed in KoreaP/NO : MFL38559904

50PC52 ZD

Navigation menu

Versions of this User Manual:

Views

Navigation
