VCRB SERIES
RESTAURANT SERIES GAS CHARBROILER
Model VCRB36
VCRB25 253⁄8" wide
VCRB36 36" wide
VCRB47 463⁄4" wide
STANDARD FEATURES
Stainless steel front, sides and front top ledge. ■
Full width front grease drawers. ■
13" cooking height on 4" adjustable legs. ■
Heavy duty cast iron char-radiants. ■
5 ■1⁄4" wide cast iron grates are reversible for level or inclined
broiling positions.
One 14,500 BTU/hr. cast iron burner for each broiler grate. ■
One innite heat control valve for each burner. ■
Standing pilot ignition system. ■
Underburner deector system reects heat upwards ■
creating a “Cool Zone” in the grease drawer and drip
areas.
■3⁄4" rear gas connection and convertible gas pressure
regulator for LP service.
Constructed standard for natural gas service. LP ■
conversion kit supplied with unit.
One year limited parts and labor warranty. ■
SPECIFICATIONS
Low prole gas charbroiler, Vulcan Model No.____________.
Stainless steel front, sides and front top ledge. 13" cooking
height on 4" legs. Full width front grease drawers. Heavy duty
cast iron char-radiants. 51⁄4" wide cast iron grates are reversible
for level or inclined broiling positions. One 14,500 BTU/hr. cast
iron burner for each broiler grate. One innite heat control valve
for each burner. Standing pilot ignition system. Underburner
deector system reects heat upwards. 3⁄4" rear gas connection
and convertible gas pressure regulator for LP service.
Exterior Dimensions:
_____"w x 27" d x 13" h on 4" legs.
CSA design certied. NSF listed.
P.O. Box 696 ■ Louisville, KY 40201 ■ Toll-free: 1-800-814-2028 ■ Local: 502-778-2791 ■ Quote & Order Fax: 1-800-444-0602
a division of ITW Food Equipment Group LLC
GRIDDLES & BROILERS
F-38310 (04/10)
VCRB SERIES
RESTAURANT SERIES GAS CHARBROILER
INSTALLATION INSTRUCTIONS:
NOTE: In line with its policy to continually improve its products, Vulcan reserves the right to change materials and specications without notice.
1. A gas pressure regulator supplied with the unit must be installed:
Natural Gas 4.0" (102 mm) W.C.
Propane Gas 10.0" (254 mm) W.C.
2. All models require a 3" (76 mm) clearance at both sides and rear
adjacent to non-combustible constructions. All models require a
4" (102mm) bottom clearance and must be installed with minimum
4" legs.
An adequate ventilation system is required for Commercial
Cooking Equipment (NFPA No. 96). Information may be obtained
by writing to the National Fire Protection Association,
Batterymarch Park, Quincy, MA 02169.
3. These units are manufactured for installation in accordance with
National Fuel Gas Code, ANSI-Z223.1/NFPA #54 (latest edition).
Copies may be obtained from The American Gas Association,
Accredited Standards Committee Z223 @ 400 N. Capital St. NW,
Washington, DC 20001, or the Secretary Standards Council,
NFPA, 1 Batterymarch Park, Quincy, MA 02169-7471.
NOTE: In The Commonwealth of Massachusetts
All gas appliances vented through ventilation hood or exhaust
system equipped with a damper or with a power means of exhaust
shall comply with 248 CMR.
4. This appliance is manufactured for commercial installation only
and is not intended for home use.
MODEL WIDTH DEPTH
OVERALL
HEIGHT*
WORKING
HEIGHT*
NO. OF
BURNERS
TOTA L
BTU/HR
NO. OF
DRAWERS
APPROX.
S H I P. W T.
VCRB25 25.4" 27" 13" 13" 458,000 1 290 lbs/131 kg
VCRB36 36" 27" 13" 13" 687,000 1370 lbs/167 kg
VCRB47 46.8" 27" 13" 13" 8116,000 2 450 lbs/203 kg
*These are nominal dimensions and can vary by +1.75" with adjustable legs.

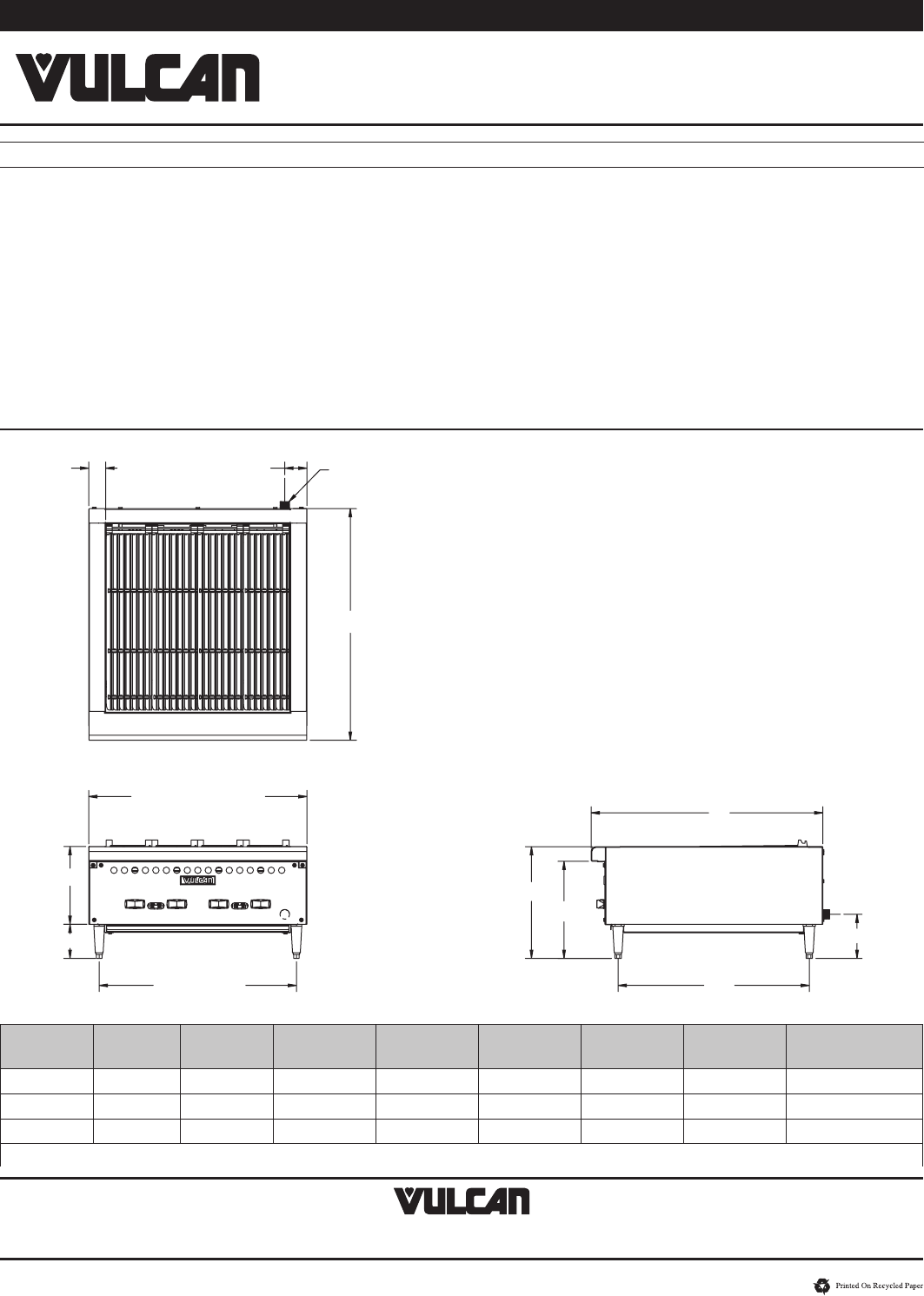

9.0
4.0
2.6
26.9
2.0 3/4" NPT
GAS INLET
5.1
22.2
11.3
27
13.0
WIDTH: 25.4", 36", 46.8"
22.9", 33.5", 44.3"
