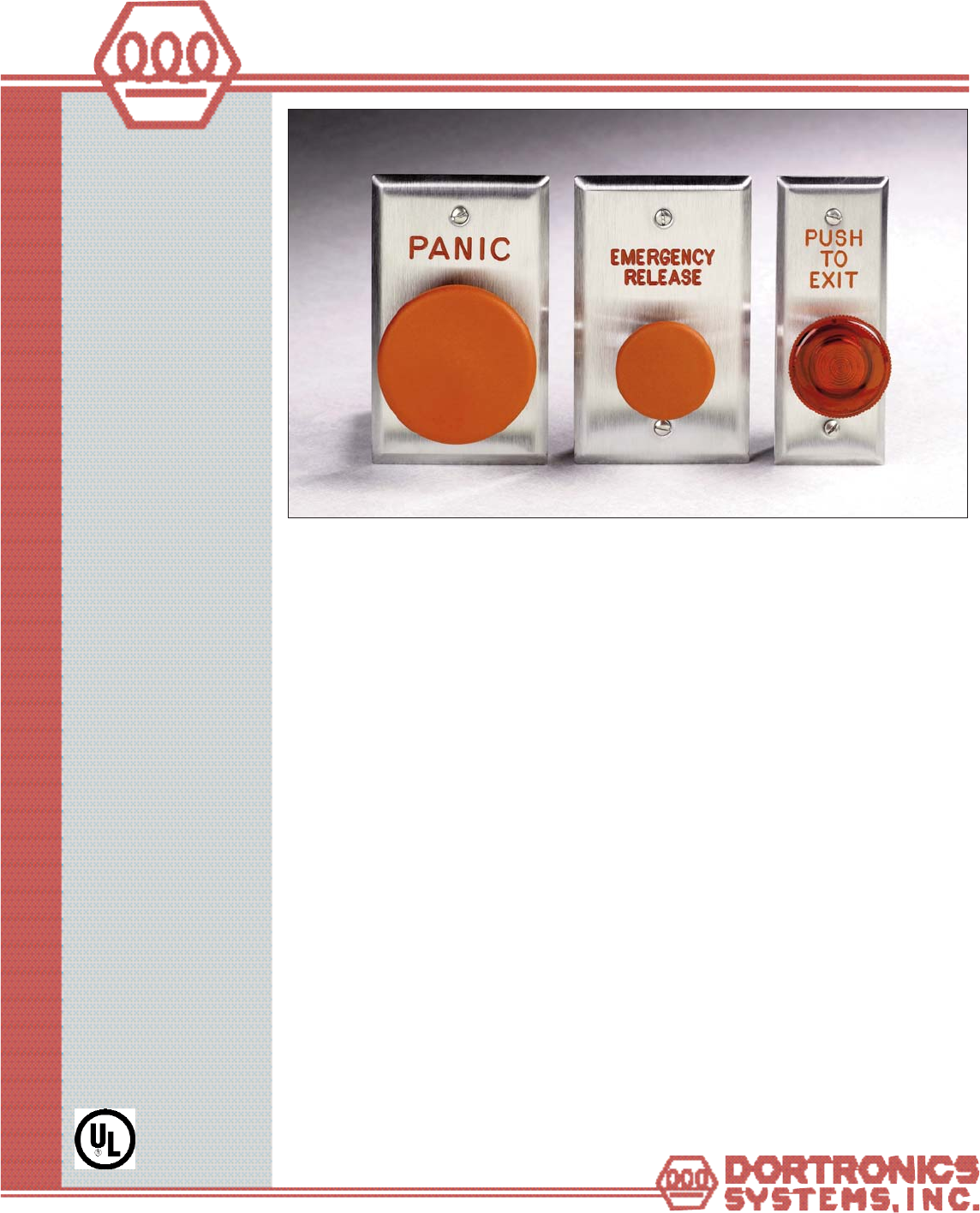

5210 EXIT RELEASE PUSH BUTTONS

Immediate

Release

Highly Visible

Reliable

Operation

Independent

Dual Contacts

Pneumatic

Time Delayed

Reset

Custom

Engraving

PDS 5210-08/15

Easily Recognized and Operated:

The 5210 Series of heavy duty palm button

assemblies provide conspicuous, door release

for electric door locks. These, easy to operate,

request-to-exit controls are ideal for use in hos-

pitals, industrial complexes, office buildings

and institutions.

Single or Double Gang Mounting:

Standard 5210 Exit Release Switches can be

supplied on single or double gang stainless

steel switch plates. The “N” Series switch

plate is furnished with a narrow 1-3/4” switch

plate for mounting on door frame mullions.

Large Button Caps:

These push button switches are furnished with

standard 1-9/16” diameter caps. The 5216

Push Button Switches are supplied with a large

2-3/8” diameter cap to meet code requirements

for some localities.

The caps can be supplied in colors other than

red as may be needed for electrically locked

exit doors. In addition, 5210 Push Button

Assemblies can be furnished with illuminated

button caps.

Safe Redundant Contacts:

Dual contact blocks, one normally open and

one normally closed set are furnished standard.

This allows the magnetic lock power to be cut

by the normally closed contacts upon switch

activation while simultaneously signalling an

access control panel with the normally open

contact block. The P23DA Pneumatic Time

Delay version operates the same. Since both

sets of contacts are electrically isolated from

each other, there are no problems with voltage

compatibility.

Status Indicators:

All 5210 Series switch assemblies are available

with one or more Bi-Polar LEDs. These indi-

cators can be wired to give a red, amber or

green illumination. When LEDs are utilized

with door position switches and magnetic bond

sensors, the security condition of the door can

be indicated.

Custom Engraving:

The stainless steel switch plates can be

engraved with standard or custom wording.

Block style lettering is typically 1/4” tall.

Engraved letters are typically filled in red to

enhance readability.

The City

of

New York

ME A

APPROVED

Model Description:

PUSH BUTTONS:

#5211 = 1-9/16” Mushroom Push Button

Switch on Single Gang Plate

#N5211 = 1-9/16” Mushroom Push But-

ton Switch on Narrow Switch Plate

#5216 = 2-3/8” Mushroom Push Button

Switch on Single Gang Plate

#D5216 = 2-3/8” Mushroom Push Button

Switch on Double Gang Plate

SWITCH CONTACT OPTIONS:

MP23 = Momentary (1-N.O. N.C.)

*MP24 = Maintained (1-N.O. & 1-N.C.)

*LMP23 = Illuminated Mom. DPST

MP23PP=Latching Push-Pull DPST

MP23DA = Pneumatic Time Delay

Form-Z (1-N.O. & 1-N.C.)

COLORED BUTTON OPTIONS:

/R = Red Button Cap

/G = Green Button Cap

/B = Black Button Cap

/BL = Blue Button Cap(non stock)

LED INDICATOR OPTIONS:

xL = One Bi Color LED

ENGRAVING OPTIONS:

xE1 = “PUSH TO EXIT”

xE2 = “PANIC”

xE3 = “EMERGENCY RELEASE”

xE4 = “PUSH TO RELEASE”

xE5 = “PULL TO RELEASE”

xE6 = Custom Engraved

WEATHER RESISTANT:

PREFIX WR = GASKETED

PLATE/BUTTON

Electrical Specification:

Continuous = 10 amps max current

AC or DC

Make = 60 amps Inductive @ 120

VAC Max.

Break = 6 amps Inductive@ 120

VAC Max.

Contacts :

Blocks:

An almost unlimited number of circuit

control options are possible using various

combinations of contact blocks. Multiple

contact blocks with normally open and/or

normally closed may be stacked together

for low voltage switching, dependent

upon clearance space available. Each

additional contact adds 1” to the depth

of the switch clearance,

*The MP24 requires an additional 1/2”

*The LMP lamp option requires an

additional 1” Double break silver

contacts are enclosed in a tough molded

housing,

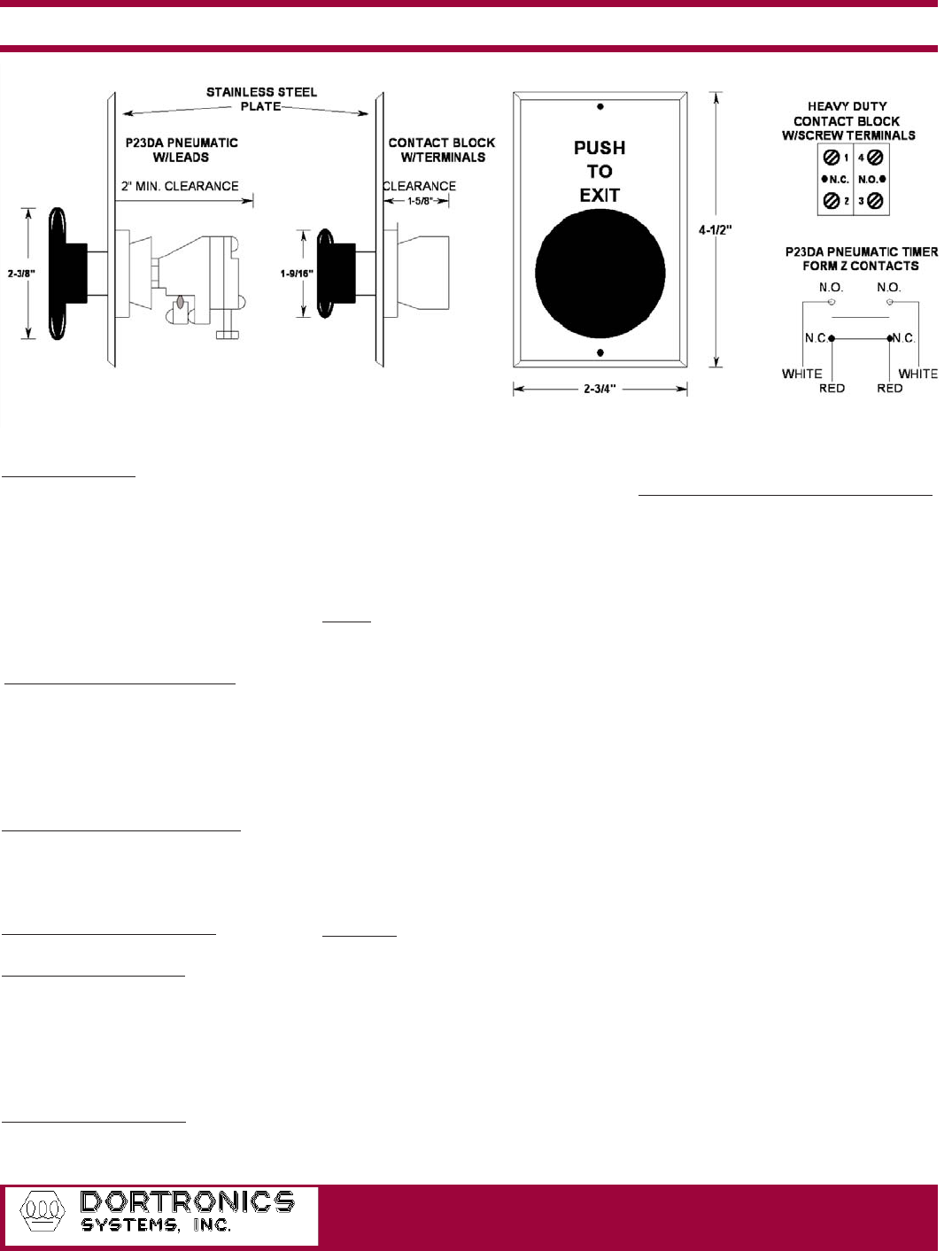

Pneumatic:

The P23DA Time Delay switch allows 2

- 60 seconds of adjustable time. The brass

knurled knob is turned in the desired

direction to set the timer.

6” color coded leads provide easy wiring

connections.

5216 Series UL File# EX4421

FOR OPTIONAL PLEXIGLASS COVER

Part # 5210/COV (see price book)

Environmental:

OPERATING TEMPERATURE RANGE:

BLOCKS -200C to +700C

PNUEMATIC -90C to +490C

Specification Guide:

Switch controls shall be manufactured by

Dortronics Systems, Inc. Push button

switch controls shall be momentary, alter-

nate action or time delayed with DPST (6

amps @ 125VAC minimum)as scheduled.

Push Button Switch caps shall be at least

1-9/16” or 2-3/8” diameter as required by

local fire code authority.

Push button switch assemblies shall be

flush wall mounted to standard, recessed,

electrical boxes. Mounting screws shall

be slotted oval head stainless steel. Pin in

Hex Head tamper resistant screws shall be

supplied where required.

Push button switch mounting plates shall

be constructed of stainless steel in single

gang, double gang or narrow style for

mullion mounting as noted. Switch plates

shall have beveled edges on all four sides.

Switch plate assemblies shall be supplied

with engraved, paint filled lettering as

designated.

1668 SAG HARBOR TURNPIKE, SAG HARBOR, NY 11963

www.dortronics.com - (800) 906-0137 - (516) 725-4234 FAX

5211 & 5216 SERIES PUSH BUTTON SWITCHES

L

M

P

- 1" -
