M
P/N 52750:M ECN 15-642
Document 52750
11/20/2015 Rev:
Addressable Fire Alarm Control Panel
MS-9200UDLS
MS-9200UDLSE
MS-9200UDLSC
Manual
2MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Fire Alarm & Emergency Communication System Limitations
While a life safety system may lower insurance rates, it is not a substitute for life and property insurance!
An automatic fire alarm system—typically made up of smoke
detectors, heat detectors, manual pull stations, audible warning
devices, and a fire alarm control panel (FACP) with remote notifi-
cation capability—can provide early warning of a developing fire.
Such a system, however, does not assure protection against
property damage or loss of life resulting from a fire.
An emergency communication system—typically made up of
an automatic fire alarm system (as described above) and a life
safety communication system that may include an autonomous
control unit (ACU), local operating console (LOC), voice commu-
nication, and other various interoperable communication meth-
ods—can broadcast a mass notification message. Such a
system, however, does not assure protection against property
damage or loss of life resulting from a fire or life safety event.
The Manufacturer recommends that smoke and/or heat
detectors be located throughout a protected premises following
the recommendations of the current edition of the National Fire
Protection Association Standard 72 (NFPA 72), manufacturer's
recommendations, State and local codes, and the
recommendations contained in the Guide for Proper Use of
System Smoke Detectors, which is made available at no charge
to all installing dealers. This document can be found at http://
www.systemsensor.com/appguides/. A study by the Federal
Emergency Management Agency (an agency of the United
States government) indicated that smoke detectors may not go
off in as many as 35% of all fires. While fire alarm systems are
designed to provide early warning against fire, they do not
guarantee warning or protection against fire. A fire alarm system
may not provide timely or adequate warning, or simply may not
function, for a variety of reasons:
Smoke detectors may not sense fire where smoke cannot
reach the detectors such as in chimneys, in or behind walls, on
roofs, or on the other side of closed doors. Smoke detectors
also may not sense a fire on another level or floor of a building.
A second-floor detector, for example, may not sense a first-floor
or basement fire.
Particles of combustion or “smoke” from a developing fire
may not reach the sensing chambers of smoke detectors
because:
• Barriers such as closed or partially closed doors, walls, chim-
neys, even wet or humid areas may inhibit particle or smoke
flow.
• Smoke particles may become “cold,” stratify, and not reach
the ceiling or upper walls where detectors are located.
• Smoke particles may be blown away from detectors by air
outlets, such as air conditioning vents.
• Smoke particles may be drawn into air returns before reach-
ing the detector.
The amount of “smoke” present may be insufficient to alarm
smoke detectors. Smoke detectors are designed to alarm at var-
ious levels of smoke density. If such density levels are not cre-
ated by a developing fire at the location of detectors, the
detectors will not go into alarm.
Smoke detectors, even when working properly, have sensing
limitations. Detectors that have photoelectronic sensing cham-
bers tend to detect smoldering fires better than flaming fires,
which have little visible smoke. Detectors that have ionizing-type
sensing chambers tend to detect fast-flaming fires better than
smoldering fires. Because fires develop in different ways and
are often unpredictable in their growth, neither type of detector is
necessarily best and a given type of detector may not provide
adequate warning of a fire.
Smoke detectors cannot be expected to provide adequate warn-
ing of fires caused by arson, children playing with matches
(especially in bedrooms), smoking in bed, and violent explosions
(caused by escaping gas, improper storage of flammable materi-
als, etc.).
Heat detectors do not sense particles of combustion and alarm
only when heat on their sensors increases at a predetermined
rate or reaches a predetermined level. Rate-of-rise heat detec-
tors may be subject to reduced sensitivity over time. For this
reason, the rate-of-rise feature of each detector should be tested
at least once per year by a qualified fire protection specialist.
Heat detectors are designed to protect property, not life.
IMPORTANT! Smoke detectors must be installed in the same
room as the control panel and in rooms used by the system for
the connection of alarm transmission wiring, communications,
signaling, and/or power. If detectors are not so located, a devel-
oping fire may damage the alarm system, compromising its abil-
ity to report a fire.
Audible warning devices such as bells, horns, strobes,
speakers and displays may not alert people if these devices
are located on the other side of closed or partly open doors or
are located on another floor of a building. Any warning device
may fail to alert people with a disability or those who have
recently consumed drugs, alcohol, or medication. Please note
that:
• An emergency communication system may take priority over
a fire alarm system in the event of a life safety emergency.
• Voice messaging systems must be designed to meet intelligi-
bility requirements as defined by NFPA, local codes, and
Authorities Having Jurisdiction (AHJ).
• Language and instructional requirements must be clearly dis-
seminated on any local displays.
• Strobes can, under certain circumstances, cause seizures in
people with conditions such as epilepsy.
• Studies have shown that certain people, even when they hear
a fire alarm signal, do not respond to or comprehend the
meaning of the signal. Audible devices, such as horns and
bells, can have different tonal patterns and frequencies. It is
the property owner's responsibility to conduct fire drills and
other training exercises to make people aware of fire alarm
signals and instruct them on the proper reaction to alarm sig-
nals.
• In rare instances, the sounding of a warning device can cause
temporary or permanent hearing loss.
A life safety system will not operate without any electrical
power. If AC power fails, the system will operate from standby
batteries only for a specified time and only if the batteries have
been properly maintained and replaced regularly.
Equipment used in the system may not be technically compat-
ible with the control panel. It is essential to use only equipment
listed for service with your control panel.
Telephone lines needed to transmit alarm signals from a prem-
ises to a central monitoring station may be out of service or tem-
porarily disabled. For added protection against telephone line
failure, backup radio transmission systems are recommended.
The most common cause of life safety system malfunction is
inadequate maintenance. To keep the entire life safety system in
excellent working order, ongoing maintenance is required per the
manufacturer's recommendations, and UL and NFPA stan-
dards. At a minimum, the requirements of NFPA 72 shall be fol-
lowed. Environments with large amounts of dust, dirt, or high air
velocity require more frequent maintenance. A maintenance
agreement should be arranged through the local manufacturer's
representative. Maintenance should be scheduled monthly or as
required by National and/or local fire codes and should be per-
formed by authorized professional life safety system installers
only. Adequate written records of all inspections should be kept.
Limit-D-1-2013
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 3
Installation Precautions
Adherence to the following will aid in problem-free installation with long-term reliability:
WARNING - Several different sources of power can be
connected to the fire alarm control panel. Disconnect all
sources of power before servicing. Control unit and associ-
ated equipment may be damaged by removing and/or insert-
ing cards, modules, or interconnecting cables while the unit is
energized. Do not attempt to install, service, or operate this
unit until manuals are read and understood.
CAUTION - System Re-acceptance Test after Software
Changes: To ensure proper system operation, this product
must be tested in accordance with NFPA 72 after any pro-
gramming operation or change in site-specific software. Re-
acceptance testing is required after any change, addition or
deletion of system components, or after any modification,
repair or adjustment to system hardware or wiring. All compo-
nents, circuits, system operations, or software functions known
to be affected by a change must be 100% tested. In addition,
to ensure that other operations are not inadvertently affected,
at least 10% of initiating devices that are not directly affected
by the change, up to a maximum of 50 devices, must also be
tested and proper system operation verified.
This system meets NFPA requirements for operation at 0-49º
C/32-120º F and at a relative humidity 93% ± 2% RH (non-
condensing) at 32°C ± 2°C (90°F ± 3°F). However, the useful
life of the system's standby batteries and the electronic com-
ponents may be adversely affected by extreme temperature
ranges and humidity. Therefore, it is recommended that this
system and its peripherals be installed in an environment with
a normal room temperature of 15-27º C/60-80º F.
Verify that wire sizes are adequate for all initiating and indi-
cating device loops. Most devices cannot tolerate more than a
10% I.R. drop from the specified device voltage.
Like all solid state electronic devices, this system may
operate erratically or can be damaged when subjected to light-
ning induced transients. Although no system is completely
immune from lightning transients and interference, proper
grounding will reduce susceptibility. Overhead or outside aerial
wiring is not recommended, due to an increased susceptibility
to nearby lightning strikes. Consult with the Technical Ser-
vices Department if any problems are anticipated or encoun-
tered.
Disconnect AC power and batteries prior to removing or
inserting circuit boards. Failure to do so can damage circuits.
Remove all electronic assemblies prior to any drilling, filing,
reaming, or punching of the enclosure. When possible, make
all cable entries from the sides or rear. Before making modifi-
cations, verify that they will not interfere with battery, trans-
former, or printed circuit board location.
Do not tighten screw terminals more than 9 in-lbs. Over-
tightening may damage threads, resulting in reduced terminal
contact pressure and difficulty with screw terminal removal.
This system contains static-sensitive components.
Always ground yourself with a proper wrist strap before han-
dling any circuits so that static charges are removed from the
body. Use static suppressive packaging to protect electronic
assemblies removed from the unit.
Follow the instructions in the installation, operating, and pro-
gramming manuals. These instructions must be followed to
avoid damage to the control panel and associated equipment.
FACP operation and reliability depend upon proper installation.
Precau-D1-9-2005
FCC Warning
WARNING: This equipment generates, uses, and can
radiate radio frequency energy and if not installed and
used in accordance with the instruction manual may
cause interference to radio communications. It has been
tested and found to comply with the limits for class A
computing devices pursuant to Subpart B of Part 15 of
FCC Rules, which is designed to provide reasonable
protection against such interference when devices are
operated in a commercial environment. Operation of this
equipment in a residential area is likely to cause interfer-
ence, in which case the user will be required to correct
the interference at his or her own expense.
Canadian Requirements
This digital apparatus does not exceed the Class A limits
for radiation noise emissions from digital apparatus set
out in the Radio Interference Regulations of the Cana-
dian Department of Communications.
Le present appareil numerique n'emet pas de bruits radi-
oelectriques depassant les limites applicables aux appa-
reils numeriques de la classe A prescrites dans le
Reglement sur le brouillage radioelectrique edicte par le
ministere des Communications du Canada.
LiteSpeed™, Lite-Connect™, and SWIFT™ are trademarks; and Fire-Lite® Alarms is a registered trademark of Honeywell International Inc. Microsoft®
and Windows® are registered trademarks of the Microsoft Corporation. The Chrome™ browser is a trademark of Google Inc.
©2015 by Honeywell International Inc. All rights reserved. Unauthorized use of this document is strictly prohibited.
4MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Software Downloads
In order to supply the latest features and functionality in fire alarm and life safety technology to our customers, we make
frequent upgrades to the embedded software in our products. To ensure that you are installing and programming the latest
features, we strongly recommend that you download the most current version of software for each product prior to
commissioning any system. Contact Technical Support with any questions about software and the appropriate version for a
specific application.
Documentation Feedback
Your feedback helps us keep our documentation up-to-date and accurate. If you have any comments or suggestions about our
online Help or printed manuals, you can email us.
Please include the following information:
•Product name and version number (if applicable)
•Printed manual or online Help
•Topic Title (for online Help)
•Page number (for printed manual)
•Brief description of content you think should be improved or corrected
•Your suggestion for how to correct/improve documentation
Send email messages to:
FireSystems.TechPubs@honeywell.com
Please note this email address is for documentation feedback only. If you have any technical issues, please contact Technical
Services.
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 5
Table of Contents
Section 1: Product Description .............................................................................................13
1.1: Features and Options ...................................................................................................................................13
1.2: Specifications...............................................................................................................................................15
1.3: Controls and Indicators................................................................................................................................17
1.4: Digital Alarm Communicator/Transmitter ..................................................................................................18
1.5: Components .................................................................................................................................................18
1.5.1: Intelligent Addressable Detectors: Newer Series ..............................................................................19
1.5.2: Intelligent Addressable Modules: Newer Series ...............................................................................19
1.5.3: 300 Series Intelligent Addressable Devices ......................................................................................20
1.5.4: Addressable Device Accessories .......................................................................................................20
End-of-Line Resistor Assembly ...........................................................................................................20
Power Supervision Relay .....................................................................................................................20
EOL-C(R/W) Mounting Plate ..............................................................................................................20
1.6: Optional Modules ........................................................................................................................................20
1.7: Accessories ..................................................................................................................................................20
1.7.1: PS-Tools Programming Utility..........................................................................................................20
1.7.2: DP-9692 Dress Panel.........................................................................................................................21
1.7.3: Trim Ring ..........................................................................................................................................21
1.7.4: Multi-Module Mounting Bracket ......................................................................................................21
1.7.5: Battery Box........................................................................................................................................21
BB-26 ...................................................................................................................................................21
BB-55F .................................................................................................................................................21
1.7.6: Battery Charger..................................................................................................................................22
CHG-75 Battery Charger......................................................................................................................22
CHG-120F Battery Charger .................................................................................................................22
1.7.7: IPDACT Internet Protocol DACT.....................................................................................................22
1.7.8: ECC-50/100.......................................................................................................................................22
1.7.9: ECC-FFT ...........................................................................................................................................22
1.7.10: W-GATE Wireless Gateway ...........................................................................................................22
1.7.11: ANN-BUS Annunciators/Modules..................................................................................................23
Guidelines.............................................................................................................................................23
ANN-80 Remote Fire Annunciator ......................................................................................................23
ANN-S/PG Serial/Parallel Interface Module .......................................................................................24
ANN-I/O LED Driver Module .............................................................................................................24
ANN-LED Annunciator Module..........................................................................................................24
ANN-RLY Annunciator Module..........................................................................................................24
ANN-LC Lite-Connect Module ...........................................................................................................24
1.7.12: Legacy ACS Series LED Zone Type Annunciators ........................................................................24
LCD-80F/LCD-80FC Remote Fire Annunciator/Indicator..................................................................25
LDM Series Lamp Driver Modules (Graphic Annunciator) ................................................................25
Legacy ACM-8RF Relay Control Module...........................................................................................25
1.8: Getting Started .............................................................................................................................................25
1.9: Telephone Requirements and Warnings.......................................................................................................25
1.9.1: Telephone Circuitry...........................................................................................................................25
1.9.2: Digital Communicator .......................................................................................................................26
1.9.3: Telephone Company Rights and Warnings .......................................................................................26
1.9.4: For Canadian Applications ..............................................................................................................27
Section 2: Installation............................................................................................................. 28
2.1: Mounting the Backbox ................................................................................................................................28
2.2: Mounting Optional Transformer/Remounting Chassis................................................................................29
2.3: Power ...........................................................................................................................................................32
2.3.1: AC Power and Earth Ground Connection .........................................................................................32
2.3.2: Battery Power ....................................................................................................................................33
Table of Contents
6MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
2.3.3: Special Application DC Power Output Connection ..........................................................................33
2.4: Relays...........................................................................................................................................................33
2.5: Notification Appliance Circuits ...................................................................................................................34
2.5.1: Style Y (Class B) NAC Wiring .........................................................................................................34
2.5.2: Style Z (Class A) NAC Wiring with ZNAC-92 Converter ...............................................................35
2.6: Remote Synchronization Output..................................................................................................................35
2.7: UL Power-limited Wiring Requirements .....................................................................................................36
2.8: Digital Communicator .................................................................................................................................37
2.8.1: Ferrite Clamp Installation ..................................................................................................................38
2.9: Optional Module Installation .......................................................................................................................38
2.9.1: 4XTMF Transmitter Module Installation ..........................................................................................38
2.9.2: ANN-BUS Annunciators/Modules....................................................................................................41
ANN-BUS Wiring ................................................................................................................................41
ANN-BUS Device Addressing.............................................................................................................44
ANN-80 Remote Fire Annunciator ......................................................................................................45
ANN-S/PG Serial/Parallel Interface Module........................................................................................48
ANN-I/O LED Driver Module .............................................................................................................52
ANN-LED Annunciator Module ..........................................................................................................54
ANN-RLY Annunciator Module..........................................................................................................56
ANN-LC Lite-Connect Module............................................................................................................58
2.9.3: Printer ................................................................................................................................................59
Installation ............................................................................................................................................60
Printer Configuration............................................................................................................................60
2.9.4: ECC-FFT Firefighter Telephone .......................................................................................................61
2.9.5: W-GATE Wireless Gateway .............................................................................................................61
2.10: Automatic Audio Panel Control.................................................................................................................62
Section 3: Programming ........................................................................................................ 64
3.1: Programming Data Entry .............................................................................................................................64
3.2: User Programming .......................................................................................................................................65
3.3: Initial Power-up............................................................................................................................................66
3.4: Programming Screens Description ..............................................................................................................66
3.5: Programming and Passwords.......................................................................................................................66
3.6: Master Programming Level .........................................................................................................................67
3.6.1: Autoprogram......................................................................................................................................67
3.6.2: Point Program ....................................................................................................................................68
Detector Programming..........................................................................................................................68
Enable/Disable Detector .......................................................................................................................71
Type ......................................................................................................................................................71
Verification...........................................................................................................................................71
Walktest ................................................................................................................................................72
PAS.......................................................................................................................................................72
Pre-signal ..............................................................................................................................................72
Zone Assignment..................................................................................................................................73
Noun/Adjective.....................................................................................................................................73
Description............................................................................................................................................75
Recall/Increment Function....................................................................................................................75
Module Programming...........................................................................................................................76
Enable/Disable Module ........................................................................................................................78
Type Monitor........................................................................................................................................78
Pre-signal ..............................................................................................................................................80
Walktest ................................................................................................................................................80
Zone Assignment..................................................................................................................................80
Noun/Adjective.....................................................................................................................................80
Description............................................................................................................................................82
Recall/Increment Function....................................................................................................................82
Enable/Disable Module ........................................................................................................................83
Table of Contents
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 7
Type......................................................................................................................................................84
Silenceable............................................................................................................................................84
Walktest................................................................................................................................................84
Zone Assignment..................................................................................................................................85
Noun/Adjective.....................................................................................................................................85
Description ...........................................................................................................................................87
Recall/Increment Function ...................................................................................................................87
MNS Override ......................................................................................................................................87
3.6.3: Zone Setup.........................................................................................................................................88
Enable ...................................................................................................................................................88
Disable..................................................................................................................................................88
Zone 97, 98 and 99 ...............................................................................................................................88
Zones Installed......................................................................................................................................89
Zones Enabled ......................................................................................................................................89
Zones Disabled .....................................................................................................................................89
Zone Type.............................................................................................................................................90
Zones Available....................................................................................................................................90
Zone Message.......................................................................................................................................91
3.6.4: Loop Setup.........................................................................................................................................91
Style......................................................................................................................................................91
Loop Protocol .......................................................................................................................................91
Device Addressing................................................................................................................................92
3.6.5: System Setup .....................................................................................................................................92
Trouble Reminder.................................................................................................................................93
Banner...................................................................................................................................................93
Time-Date.............................................................................................................................................94
Timers...................................................................................................................................................95
NAC (Notification Appliance Circuit) .................................................................................................97
Relays .................................................................................................................................................101
Canadian Option.................................................................................................................................101
Waterflow Silenceable........................................................................................................................102
MNS Override ....................................................................................................................................102
Lite-Connect.......................................................................................................................................102
3.6.6: Verify Loop .....................................................................................................................................103
3.6.7: History .............................................................................................................................................103
View Events........................................................................................................................................103
Erase History ......................................................................................................................................104
3.6.8: Walktest...........................................................................................................................................104
3.6.9: Option Modules ..............................................................................................................................105
Annunciators.......................................................................................................................................106
ANN-I/O Options ...............................................................................................................................109
Onboard DACT ..................................................................................................................................119
Central Station Primary and Secondary Phone Numbers...................................................................121
Test Time Interval ..............................................................................................................................121
Account Code .....................................................................................................................................122
24 Hour Test Time..............................................................................................................................122
Phone Number ....................................................................................................................................122
Communication Format......................................................................................................................122
Event Codes........................................................................................................................................123
Ademco Contact ID & SIA Formats ..................................................................................................123
Report Style ........................................................................................................................................125
Printer/PC ...........................................................................................................................................126
3.6.10: Password Change...........................................................................................................................126
3.6.11: Clear Program................................................................................................................................127
3.6.12: Program Check ..............................................................................................................................127
3.7: Maintenance Programming Level..............................................................................................................128
3.7.1: Disable Point ...................................................................................................................................129
Table of Contents
8MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
3.7.2: History .............................................................................................................................................129
3.7.3: Program Check ................................................................................................................................130
3.7.4: Walktest ...........................................................................................................................................131
3.7.5: System..............................................................................................................................................132
3.7.6: Zone Setup .......................................................................................................................................132
Section 4: Operating Instructions ....................................................................................... 134
4.1: Panel Control Buttons ................................................................................................................................134
4.1.1: Acknowledge/Step...........................................................................................................................134
4.1.2: Alarm Silence ..................................................................................................................................134
4.1.3: Drill/Hold 2 Sec...............................................................................................................................134
4.1.4: Reset ................................................................................................................................................134
4.2: LED Indicators...........................................................................................................................................134
4.3: Normal Operation ......................................................................................................................................135
4.4: Trouble Operation ......................................................................................................................................136
4.5: Alarm Operation ........................................................................................................................................137
4.6: Supervisory Operation ...............................................................................................................................138
4.7: Process Monitor Operation ........................................................................................................................139
4.8: Hazard/Tornado Condition Operation........................................................................................................139
4.9: Medical Alert Condition Operation ...........................................................................................................140
4.10: Mass Notification Operation....................................................................................................................140
4.11: NAC Operation ........................................................................................................................................140
4.12: Programmed Zone Operation...................................................................................................................141
4.13: Disable/Enable Operation ........................................................................................................................141
4.14: Waterflow Circuits Operation ..................................................................................................................141
4.15: Detector Functions ...................................................................................................................................141
4.16: Time Functions: Real-Time Clock...........................................................................................................142
4.17: Synchronized NAC Operation .................................................................................................................142
4.18: Coded Operation ......................................................................................................................................142
4.19: Presignal...................................................................................................................................................142
4.20: Positive Alarm Sequence .........................................................................................................................143
4.21: Special System Timers.............................................................................................................................143
4.21.1: Silence Inhibit Timer .....................................................................................................................143
4.21.2: Autosilence Timer .........................................................................................................................144
4.21.3: Trouble Reminder..........................................................................................................................144
4.21.4: Waterflow Retard Timer................................................................................................................144
4.21.5: Alarm Verification (None or One Minute) ....................................................................................144
4.22: Walktest....................................................................................................................................................145
4.23: Read Status...............................................................................................................................................145
4.23.1: System Point ..................................................................................................................................146
4.23.2: Zones..............................................................................................................................................147
4.23.3: Power .............................................................................................................................................147
4.23.4: Trouble Reminder..........................................................................................................................148
4.23.5: Timers ............................................................................................................................................148
4.23.6: NAC...............................................................................................................................................148
4.23.7: Relays ............................................................................................................................................148
4.23.8: Program Check ..............................................................................................................................149
4.23.9: History ...........................................................................................................................................149
4.23.10: Annunciators................................................................................................................................149
4.23.11: Phone Line ...................................................................................................................................150
4.23.12: Central Station .............................................................................................................................150
4.23.13: Service Terminal..........................................................................................................................151
4.23.14: Printer/PC ....................................................................................................................................151
4.23.15: Print..............................................................................................................................................151
Chamber Value ...................................................................................................................................152
Maintenance Alert ..............................................................................................................................152
Drift Compensation ............................................................................................................................153
Table of Contents
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 9
4.23.16: Time-Date....................................................................................................................................153
Section 5: Central Station Communications......................................................................154
5.1: Transmittal Priorities .................................................................................................................................155
Section 6: Remote Site Upload/Download..........................................................................157
6.1: Remote Download .....................................................................................................................................157
6.2: Transferring a Program..............................................................................................................................158
6.2.1: Security Features .............................................................................................................................158
Secret Code Verification ....................................................................................................................158
Time-out at Control Panel ..................................................................................................................159
Error Checking ...................................................................................................................................159
Central Station Data Protection ..........................................................................................................159
Section 7: Power Supply Calculations................................................................................160
7.1: Overview....................................................................................................................................................160
7.2: Calculating the AC Branch Circuit............................................................................................................160
7.3: Calculating the System Current Load........................................................................................................160
7.3.1: Overview .........................................................................................................................................160
7.3.2: How to Calculate System Current Load ..........................................................................................161
7.4: Calculating the Battery Size ......................................................................................................................163
7.4.1: NFPA Battery Requirements ...........................................................................................................163
7.4.2: Selecting and Locating Batteries .....................................................................................................163
Appendix A: Software Zones...............................................................................................164
A.1: Correlations...............................................................................................................................................164
Appendix B: Default Programming .....................................................................................170
Appendix C: NFPA Standard-Specific Requirements ....................................................... 171
C.1: Central Station/Remote Station Transmitter: Connection to FACP Dry Contacts....................................175
C.2: MBT-1 Municipal Box Trip - Silenceable ................................................................................................176
Appendix D: FACP with Keltron ..........................................................................................177
Appendix E: Wire Requirements ......................................................................................... 178
E.1: NAC Wiring ..............................................................................................................................................180
Appendix F: HVAC Control ..................................................................................................181
F.1: Control Module Operation.........................................................................................................................181
F.1.1: HVAC SHUTDN ............................................................................................................................181
F.2: Monitor Module Operation ........................................................................................................................181
F.2.1: HVAC RESTART...........................................................................................................................181
F.2.2: HVAC OVRRIDE...........................................................................................................................182
Appendix G: Ademco Contact ID Format Event Code Descriptions................................ 183
G.1: Transmission Format Between DACT and Receiver ................................................................................183
G.2: Ademco Contact ID Typical Printout........................................................................................................183
Appendix H: Central Station Points .................................................................................... 188
Appendix I: Canadian Application.......................................................................................190
Index....................................................................................................................................... 193
MS-9200UDLS Series Fire Alarm Control Panel
Operating Instructions .........................................................................................................201
10 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
It is imperative that the installer understand the requirements of the Authority Having Jurisdiction
(AHJ) and be familiar with the standards set forth by the following regulatory agencies:
• Underwriters Laboratories/Underwriters Laboratories Canada
• National Fire Protection Association
NFPA Standards
NFPA 72 National Fire Alarm Code
NFPA 70 National Electrical Code
Underwriters Laboratories Documents:
UL 38 Manually Actuated Signaling Boxes
UL 217 Smoke Detectors, Single and Multiple Station
UL 228 Door Closers–Holders for Fire Protective Signaling Systems
UL 268 Smoke Detectors for Fire Protective Signaling Systems
UL 268A Smoke Detectors for Duct Applications
UL 346 Waterflow Indicators for Fire Protective Signaling Systems
UL 464 Audible Signaling Appliances
UL 521 Heat Detectors for Fire Protective Signaling Systems
UL 864 Standard for Control Units for Fire Protective Signaling Systems
UL 1481 Power Supplies for Fire Protective Signaling Systems
UL 1610 Central Station Burglar Alarm Units
UL 1638 Visual Signaling Appliances
UL 1971 Signaling Devices for Hearing Impaired
UL 2017 General-Purpose Signaling Devices and Systems
UL 2572 Communication and Control Units for Mass Notification Systems
CAN/ULC - S524-01 Standard for Installation of Fire Alarm Systems
CAN/ULC - S559-04 Equipment for Fire Signal Receiving Centers and Systems
CAN/ULC - S561-03 Installation and Services for Fire Signal Receiving Centers and Systems
CAN/ULC - S527-99 Standard for Control Units for Fire Alarm Systems
This Class (A) digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe (A) est conforme à la norme NMB-003 du Canada.
Other:
Canadian Electrical Code, Part I
EIA-232E Serial Interface Standard
EIA-485 Serial Interface Standard
NEC Article 250 Grounding
NEC Article 300 Wiring Methods
NEC Article 760 Fire Protective Signaling Systems
Applicable Local and State Building Codes
Requirements of the Local Authority Having Jurisdiction (LAHJ)
Fire-Lite Documents:
Fire-Lite Device Compatibility Document #15384
SLC Wiring Manual Document #51309
ECC-50/100 Manual Document #LS10001-000FL-E
ECC-FFT Manual Document #LS10031-000FL-E
Wireless Sensor Gateway Manual Document #LS10036-000FL-E
ACS Series Annunciators Document #51480
CHG-120F Battery Charger Document #50888
CHG-75 Battery Charger Document #51315
LDM Series Lamp Driver Modules Document #50055
LCD-80F Remote Fire Annunciator Document #50055
ACM-8RF Relay Control Module Document #50362
IPDACT Communicator/Transmitter Document #53109
ANN-80 Product Installation Document Document #52749
ANN-(R)LED Product Installation Doc. Document #50055
ANN-I/O Product Installation Document Document #151416
ANN-RLY Product Installation Document Document #50055
ANN-S/PG Product Installation Document Document #151417
ANN-LC Product Installation Document Document #LS10158-000FL-E
ACC-25/50(ZS/T) Manual Document #51889
This product has been certified to comply with the requirements in the Standard for Control Units and Accessories for Fire
Alarm Systems, UL 864, 9th Edition. Operation of this product with products not tested for UL 864, 9th Edition has not
been evaluated. Such operation requires the approval of the local Authority Having Jurisdiction (AHJ).
Before proceeding, the installer should be familiar with the following documents.
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 11
+ 24V -
NON-RST
POWER
+ 24V -
RST
POWER
REMOTE PWR
SUPPLY SYNC
+ -
1B+ 3B+ 3B- 1B- 2B+ 4B+ 4B- 2B- NO NC C NO NC C NC NO C
TB5
TB3 TB7
TB2 TB1 TB4
T
B
9
TB8
TB6
T
B
1
0
J10
3
2
1
JP4
1
2
3
JP6
JP7
J14
H
O
N
E
U
T
E
A
R
T
H
TB11
J11
TRANSFORMER 1
TRANSFORMER 2
JP5
- +
BATTERY
J9
J8
J3
P
H
1
5
P
R
I
.
P
H
O
N
E
L
I
N
E
S
E
C
.
P
H
O
N
E
L
I
N
E
P
H
1
6
J
1
2
MINI DIN
KEYBOARD CONN.
S
W
1
J
5
J
6
JP3
JP2
LCD DISPLAY
KEYPAD
I/F
J1 J4
4XTM
Xmt Rcv Dtr Gnd
A B
In+ In- Out+ Out-
+ -
A B B+ A+ B- A- A B
Slc Slc Slc Slc Shield
++
+
+
++
++
++
+
+
J7
D
B
9
F
5 4 3 2 1
9 8 7 6
R
C
V
TB8
G
N
D
D
T
R
X
M
T
T
B
8
5 4 3 2 1
25 24 23 22 21 20 19 18 17 16 15 14
9 8 7 613 12 11 10
R
C
V
D
T
R
G
N
D
X
M
T
CAUTION! HIGH VOLTAGE
Supervisory* Alarm* Trouble
2 Programmable Relays &
Fixed Trouble Relay
Non-supervised relay contacts
Contact rating:
2.0 amps @ 30 VDC (resistive)
0.5 amps @ 30 VAC (resistive)
Contacts shown below in
normal condition (AC power
with no alarm, trouble, or
supervisory activity)
AC Fail Safe Trouble relay
switches to the NO position
during trouble conditions and
under loss of all power.
(*Factory default relay
programming)
Convert NAC circuits
from Style Y (Class B)
to Style Z (Class A)
with the ZNAC-92
converter module.
Cut this jumper
to enable
Supervisory
relay when
4XTMF is
installed Auxiliary
Trouble
Input
Cut this jumper to supervise
the 4XTMF when installed
(see J5 & J6)
Flash Memory Load Enable
Switch: UP is normal
position for switch, DOWN
position allows to factory
software upgrades
USB Port J12 for local
programming using a
personal computer and
PS-Toolsutilty
To disable ground fault
detection, remove
jumper/shunt from JP7.
Important! Removing
Ground Fault Disable
Jumper JP7 voids
UL/NFPA Style/Class
identifications for
circuits. Remove
jumper JP7 only with
the approval of the AHJ
(Authority Having
Jurisdiction).
Configure TB1, Terminals
1&2 (JP4) and 3&4 (JP6) as
Resettable or Nonresettable
Power.
Resettable Power- jumper
pins 2&3.
Nonresettable Power-
jumper pins 1&2.
Jumpers are installed at the
factory as shown.
Transformer 2 Connector
Transformer 1 Connector
AC Power
(Supervised,
Nonpower-Limited)
120 VAC, 60 Hx, 2.0 amps
220/240 VAC, 50 Hz, 1.2 amps
Cut this jumper to disable
the FACP battery charger
when using an external
battery charger
Battery
24 VDC, supervised,
nonpower-limited,
18 AH maximum
Off-board piezo
sounder- J8
(Canadian
Applications
only)
PS2 Keyboard Interface DACT Phone LIne Jacks
(Nonpower-Limited)
OR
TERM
(EIA-485)
to LCD-80F
OR
Secondary
ANN-BUS
to Annunciators
(power-limited,
supervised)
Primary
ACS/ANN-BUS
to Annunciators
(power-limited,
supervised)
SLC Loop
(supervised) TB8 (option to DB-25)
NAC #1 NAC #3 NAC #2NAC #4
Notification Applicance Circuits
NAC #1, #2, #3, & #4 Style Y (Class B)
(Supervised, Power-Limited) (Special
application) 2.5 amps max. per circuit
Special Application DC Power Outputs (24 VDC)
Nonsupervised, Power-Limited circuits
Supervise with a power supervision relay EOLR-1
Nonresettable Power suitable for powering
annunciators; Resettable Power suitable for
powering smoke detectors.
EIA-232
to printer or
personal computer
(nonsupervised)
For EDP-listed
equipment or personal
computer with FACP
Upload/Download
Utility.
50 foot maximum
within same room.
ELRs, 4.7K, 1/2W
(for Style Y wiring)
OR
Resettable or Nonresettable Power
Jumper selectable by JP6, 24 VDC filtered,
power-limited (1.0 amp maximum).
Supervision required.
Nonresettable or Resettable Power
Jumper selectable by JP4, 24 VDC filtered,
power-limited (1.0 amp maximum).
Supervision required.
Remote Synchronization Output
Supervised, Power-Limited circuits
24 VDC filtered (0.35 amp maximum),
Requires a 4.7 Kohm End-of-Line Resistor
{
{
{
2
1+ -
2
1
4
3
Basic System Connections
9200udlsbrd.wmf
+ - + -
Red
White
Green
Black
12 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Peripheral Devices and Their Documents:
Addressable Devices and SLC Wiring Doc. #51309
Wireless Gateway Doc. #LS10036-000FL-E
CHG-120F Charger
Doc. #50888
ANN-BUS - TB9/TB8
SLC Loop - TB10
Battery Connector - J9
9200udLSannperi.wmf
ANN-80(C)
LCD Text
Annunciator/Indicator
Doc. #52749
ANN-I/O
LED Driver
Doc. #151416
ANN-S/PG
Printer Driver
Doc. #151417
CHG-75 Charger
Doc. # 51315
ANN-(R)LED
LED Display
Doc. #53032
ANN-RLY
10 Form-C
Relay Card
Doc. #53033
4XTMF
Reverse Polarity Module
J5 & J6
ANN Audio Control for ECC-50/100 Doc. #LS10001-000FL-E or ACC-25/50(ZS/T) Doc. #51889
IPDACT
Internet
Communicator
Doc. #53109
PH15 & PH16 Telephone Connections
ANN-LC
Lite-Connect module
Doc. #LS10158-000FL-E
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 13
Section 1: Product Description
The Fire-Lite MS-9200UDLS is a combination FACP (Fire Alarm Control Panel) and DACT
(Digital Alarm Communicator/Transmitter) all on one circuit board. This compact, cost effective,
intelligent addressable control panel has an extensive list of powerful features.The combination of
Fire-Lite’s newer series devices and legacy 300 Series devices, along with the MS-9200UDLS
FACP, offer the latest in fire protection technology. The power supply and all electronics are con-
tained on a single circuit board housed in a metal cabinet, providing a complete fire control system
for most applications. Optional modules, which plug into the main circuit board, are available for
special functions. Available accessories include LED, graphic and LCD annunciators, reverse
polarity/city box transmitter, local and remote upload/download software and remote power expan-
sion.
The integral DACT transmits system status (alarms, troubles, AC loss, etc.) to a Central Station via
the public switched telephone network. It also allows remote programming or interrogation of the
control panel using the PS-Tools Upload/Download utility via the public switched telephone net-
work. Local programming and interrogation is also possible using the PS-Tools and the USB port
(J12) on the FACP. Any personal computer with WINDOWS® XP or greater, and compatible
modem with a speed of 2400 baud or faster and PS-Tools software may serve as a Service Termi-
nal. This allows download of the entire program or upload of the entire program, history file, walk-
test data, current status and system voltages.
Inventory
When MS-9200UDLS shipment is received, check that all parts have been included in shipment.
The MS-9200UDLS shipment consists of one of each of the following:
main circuit board with display
backbox with door
plastic bag containing screws, cables, key, etc.
manual
1.1 Features and Options
• Automated activation of the ECC-50/100 Emergency Command Center
• ECC-FFT Firefighter Telephone option
• LiteSpeed™ polling protocol for faster SLC response time
• SLC operates up to 10,000 ft. (3,000 m) in LiteSpeed mode with twisted, unshielded wire
(refer to “Wire Requirements” on page 178)
• Built-in DACT (Digital Alarm Communicator/Transmitter)
• Single addressable SLC loop which meets NFPA Style 4, 6 and 7 requirements
• 198 addressable device capacity (99 detectors and 99 control/relay/monitor modules)
• 99 software zones
• Four (4) Style Y (Class B) NACs (Notification Appliance Circuits) with the option to convert
to four (4) Style Z (Class A) circuits - special application power
• 3.0 amps total 24 VDC output circuit current, expandable to 6.0 amps with optional
transformer
• Two programmable relay outputs and one fixed trouble relay
• Synchronization output for remote power supply applications (special application)
• Built-in Programmer
NOTE: MS-9200UDLS is used in this manual to refer to both the MS-9200UDLS/C (120 VAC
versions) and the MS-9200UDLSE (240 VAC version) FACPs.
14 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Product Description Features and Options
• Telephone Line Active LEDs
• Communication Confirmation (Kissoff) LED
• Touchtone/Rotary dialing
• Programmable Make/Break Ratio
• EIA-232 Printer/PC interface (variable baud rate)
• 80-character LCD display (backlit)
• Real-time clock/calendar with daylight savings time control
• History file with 1,000 event capacity
• Advanced fire technology features:
Automatic drift compensation
Maintenance alert
Detector sensitivity test capability (NFPA 72 compliant)
Automatic device type-code verification
Point trouble identification
• Waterflow selection per module point
• Alarm verification selection per detector point
• Walktest, silent or audible
• PAS (Positive Alarm Sequence) and Pre-signal per point (NFPA 72 compliant)
• Silence inhibit timer option per NAC
• Autosilence timer option per NAC
• Continuous, March Time, Temporal or California code for main circuit board NACs with two-
stage capability
• Selectable strobe synchronization per NAC
• Remote Acknowledge, Alarm Silence, Reset and Drill via addressable modules, ACS
annunciators or ANN-80 Remote annunciator
• Auto-program (learn mode) reduces installation time. Reports two devices set to the same
address
• Password and key-protected nonvolatile memory
• User programmable password
• Fully programmable from local keypad or optional keyboard
• Optional PS-Tools programming utility for local or remote Upload/Download of programming
and data (available for download from www.firelite.com)
• Compatible with Fire-Lite’s newer series devices in LiteSpeed and CLIP mode (refer to SLC
Wiring Manual for a list of compatible addressable devices)
• Compatible with legacy Fire-Lite 300 Series devices in CLIP mode only (refer to the SLC
Wiring Manual for a list of compatible addressable devices)
• Optional 4XTMF module (conventional reverse polarity/city box transmitter)
• Optional ZNAC-92 Class A converter module for NACs
• ANN-BUS for connection to following optional modules (cannot be used if ACS annunciators
are used):
ANN-80 Remote Annunciator
ANN-80C Remote Indicator (Canadian Applications)
ANN-I/O LED Driver
ANN-S/PG Printer Module
ANN-RLY Form-C Relay Module
ANN-LED Annunciator Module annunciates alarm, trouble and supervisory (required for
Canada and emergency signaling)
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 15
Specifications Product Description
ANN-RLED Annunciator Module annunciates alarms only
ANN-LC Lite-Connect Module
• Automated activation of the ACC-25/50(ZS/T) Audio-Command-Center
• Legacy ACS/TERM Annunciators (cannot be used if ANN annunciators are used):
ACS Series-LED Zone Annunciators
LDM Graphic Annunciator Series
LCD-80F Liquid Crystal Display point annunciator
LCD-80FC Remote Fire Indicator (Canadian applications)
ACM-8RF Relay Module
1.2 Specifications
Refer to Illustration on page 10 for terminal locations and connections.
AC Power - TB11
MS-9200UDLS: 120 VAC, 60 Hz, 2.0 amps
MS-9200UDLSE: 220/240 VAC, 50 Hz, 1.2 amps
Wire size: minimum 14 AWG (2.00 mm2) with 600 V insulation
Battery (Sealed Lead Acid Only) - J9
Maximum Charging Circuit: Normal Flat Charge – 27.6 VDC @ 1.4 amps
Maximum Battery Charger Capacity: 18 Amp Hour (FACP cabinet holds maximum of two 18 Amp
Hour batteries. The BB-26 Battery Box holds two 26 Amp Hour batteries and the CHG-75. For
greater than 26 Amp Hour up to 120 Amp Hour batteries, use the CHG-75 or CHG-120F Battery
Charger and BB-55F Battery Box).
Minimum Battery Size: 7 Amp Hour
Note: Jumper JP5, on the FACP main circuit board, must be cut to disable the FACP battery charger
when using an external battery charger.
Communication Loop - TB10
24 VDC nominal, 27.6 VDC maximum
Maximum length - refer to “Wire Requirements” on page 178)
Maximum loop current is 400 mA (short circuit) or 100 mA (normal)
Maximum loop resistance is 40 ohms
Supervised and power-limited circuit
Refer to SLC Loop manual for wiring information
Notification Appliance Circuits - TB3 & TB4
Four (4) Style Y (Class B) NAC circuits, which can be converted to four (4) Style Z (Class A)
circuits with optional ZNAC-92 converter module
Special Application full-wave rectified power
Power-limited circuitry
NAC wiring requirements refer to “NAC Wiring” on page 180
Nominal operating voltage: 24 VDC
Current-limit: fuseless, electronic, power-limited circuitry
Maximum signaling current per circuit: 2.5 amps special application, 250 mA regulated (see
Figure 1.1 on page 17)
End-of-Line Resistor: 4.7 kΩ, ½ watt (P/N 71252 UL listed) required for each circuit
Refer to the Device Compatibility Document for listed compatible devices
Two Programmable Relays and One Fixed Trouble Relay - TB5, TB6 & TB7
Contact rating: 2.0 amps @ 30 VDC (resistive), 0.5 amps @ 30 VAC (resistive)
Form-C relays
Refer to Figure 2.7 on page 33 for information on power-limited relay circuit wiring
16 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Product Description Specifications
Nonresettable or Resettable Special Application Power (24 VDC Nominal) - TB1,
Terminals 1 (+) & 2 (-)
Factory-set as nonresettable, suitable for powering annunciators
Jumper selectable (JP4) for conversion to resettable power output
Maximum ripple voltage: 20mVRMS
Total DC current available is up to 1.0 amp (see Figure 1.1 on page 17)
Power-limited circuit
Resettable or Nonresettable Special Application Power (24 VDC Nominal) - TB1,
Terminals 3 (+) & 4 (-)
Factory-set as resettable, suitable for powering four-wire smoke detectors
Jumper selectable (JP6) for conversion to nonresettable power output
Maximum ripple voltage: 20 mVRMS
Total DC current available is up to 1.0 amp (see Figure 1.1)
Power-limited circuit
Refer to the Device Compatibility Document for listed compatible devices
Remote Sync Output - TB2
Remote power supply synchronization output
24 VDC nominal special application power
Maximum current is 350 mA
End-of-Line Resistor: 4.7KΩ
Output linked to NAC 1 control
Supervised and power-limited circuit
EIA-485 (TERM) or EIA-232 Serial or ANN-BUS2 - TB8
EIA-485 Terminal Mode annunciator connections: Terminal 1 (In +), 2 (In -),
3 (Out +), 4 (Out -)
EIA-232 PC/Printer applications connections: Terminal 1 (Transmit), 2 (Receive),
3 (DTR) 4 (Ground)
EIA-485 ANN Ancillary indicator connections: Terminal 3 (“A” data), 4 (“B” data)
Annunciators require non-resettable power
EIA-485 ACS or ANN-BUS1 - TB9
ACS/ANN-BUS annunciator connector, Terminal 1 (+/A) and Terminal 2 (-/B)
Annunciators require non-resettable power
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 17
Controls and Indicators Product Description
The following figure illustrates the maximum current that is possible for each major panel output
circuit and the total current available from the FACP.
1.3 Controls and Indicators
LCD Display
The FACP uses an 80-character
(4 lines X 20 characters) high viewing angle LCD display.
The display includes a long life LED backlight that remains
illuminated. If AC power is lost and the system is not in
alarm, the LED backlight will turn off to conserve batteries.
LED Indicators
LED indicators are provided to annunciate the following conditions:
• AC Power (green)
• Fire Alarm (red)
• Supervisory (yellow)
• Trouble (yellow)
• Maintenance (yellow)
• Alarm Silenced signals (yellow)
• Disabled (yellow)
• Battery fault (yellow)
• Ground fault (yellow)
Figure 1.1 Current Availability
powerdist9200ud2.wmf
Refer to the battery calculations section for additional information.
6.0 amps with optional
second XRM-24B(E)
transformer.
3.0 amps max. with only
standard transformer
installed.
Standby
2.0 amps
max
per panel
Special Application
Nonresettable or
Resettable Power
Special Application
Resettable or
Nonresettable Power
NAC #1
NAC #3
NAC #2
NAC #4
1.0 amp max
per circuit
1.0 amp max
per circuit
2.5 amps max
per circuit
2.5 amps max
per circuit
2.5 amps max
per circuit
2.5 amps max
per circuit
Alarm
6.0 amps
max
per panel
0.35 amp max
per circuit
Remote
Synchronization
Output
HONEYWELL
LIFE SAFETY
SYSTEM ALL NORMAL
10:00A 012102
18 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Product Description Digital Alarm Communicator/Transmitter
Key Panel
Mounted on the main circuit board, the key panel includes a window for the LCD display and LED
indicators as listed above. The key panel, which is visible with the cabinet door closed, has 25
keys, including a 16 key alpha-numeric pad similar to a telephone keypad.
Function keys:
• Acknowledge/Step
• Alarm Silence
• Drill
• Reset (lamp test)
Service/program keys:
• Keys labeled 1 to 9
• * key
• # key
• 0 (recall) key
• 1st Event key
• Clear key
• Escape key
• Mode key
• Four cursor keys (up, down, left and right)
• Enter key
Local Piezo Sounder
A piezo sounder provides separate and distinct pulse rates for alarm, trouble and supervisory condi-
tions.
1.4 Digital Alarm Communicator/Transmitter
Two modular phone jacks allow easy connection to telephone lines. Modular jacks are labeled PH1
for Primary Phone Line and PH2 for Secondary Phone Line. Two telephone line active red LEDs
are provided as well as a green Kissoff LED. The integral digital communicator provides the fol-
lowing functions:
• Line Seizure: takes control of the phone lines disconnecting any premises phones
• Off/On Hook: performs on and off-hook status to the phone lines
• Listen for dial tone: 440 Hz tone typical in most networks
• Dialing the Central Station(s) number: default is Touch-Tone®, programmable to rotary
• For tone burst or touchtone type formats: discern proper Ack and Kissoff tone(s). The
frequency and time duration of the tone(s) varies with the transmission format. The control
panel will adjust accordingly.
• Communicate in the following formats:
Ademco Contact ID
SIA DCS 8
SIA DCS 20
1.5 Components
Main Circuit Board
The main circuit board contains the system’s CPU, power supply, other primary components and
wiring interface connectors. The 4XTMF option module plugs in and is mounted to the main cir-
cuit board.
Figure 1.2 Membrane/Display Panel
9600kypd.wmf
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 19
Components Product Description
Cabinet
The MS-9200UDLS backbox provides space for two batteries (up to 18 Amp Hour). Ample
knockouts are provided for system wiring. Also available is an optional dress panel (DP-9692),
which mounts to the inside of the cabinet (required by ULC for Canadian installations).
Transformer Assembly
One 100VA transformer is provided standard with the
panel (3.0 amps maximum for output circuits). An optional
100 VA transformer XRM-24B (XRM-24BE for the MS-
9200UDLSE) is available to provide maximum system and
accessory power (6.0 amps total). Note that the XRM-24B
and XRM-24BE are only suitable for use with MS-
9200UDLS(E) with a main circuit board assembly number
9200UDLS-PCX Rev Y, where “X” and “Y” can be any
letter or number. This circuit board can also be identified by using the software revision of
#9200UDV4.0 (meaning version 4.0) or later.
Batteries
The MS-9200UDLS cabinet provides space for two bat-
teries (up to 18 Amp Hour). Batteries larger than 18
Amp Hour require an external charger such as the CHG-
75 or CHG-120F and a UL listed battery box such as the
BB-26 or BB-55F. Batteries must be ordered separately.
1.5.1 Intelligent Addressable Detectors: Newer Series
Intelligent, addressable detectors provide information to the control panel on an SLC Signaling
Line Circuit (refer to the SLC Wiring Manual for detailed information on device installation, wir-
ing and operation). This allows the control panel to continually process the information to deter-
mine the status (alarm, trouble, maintenance or normal) of each detector. Each detector responds to
an SLC address that is set in the detector head using built-in rotary decimal switches. The maxi-
mum address cannot exceed address 99. Note that a blinking LED on an intelligent detector indi-
cates communication between the detector and the control panel.
These devices (350 Series or newer) can operate in CLIP mode (Classic Loop Interface Protocol) or
LiteSpeed mode to provide a quicker response. They are also compatible with older 300 Series
devices. If a mix of old and new series devices are installed on the same loop, the FACP must be
programmed to operate in CLIP mode. Refer to the SLC Wiring Manual for a list of compatible
addressable detectors.
1.5.2 Intelligent Addressable Modules: Newer Series
The newer series of Control Modules and Monitor Modules provide an interface between the con-
trol panel and conventional notification and initiating devices. Each module can be set to respond
to an address with built-in rotary switches. The maximum address cannot exceed address 99. Note
that a blinking LED on an addressable module indicates communication between the module and
the control panel.
These devices (i.e., MMF-300, MMF-301, MMF-302, CMF-300, CRF-300) can operate in CLIP
mode (Classic Loop Interface Protocol) or LiteSpeed mode to provide a quicker response. They are
also compatible with older 300 series devices. If a mix of old and new series devices are installed
on the same loop, the FACP must be programmed to operate in CLIP mode. Refer to the SLC Wir-
ing Manual for a list of compatible addressable modules. Refer to the Device Compatibility Docu-
ment for a list of approved conventional notification and initiating devices.
Standard
XRM-24B(E)
Optional
XRM-24B(E)
xrm-24s.wmf
Battery Cable P/N 75287
9200batt.wmf
20 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Product Description Optional Modules
1.5.3 300 Series Intelligent Addressable Devices
Fire-Lite’s 300 Series Intelligent Addressable Devices are fully compatible with the MS-
9200UDLS FACP. The address of 300 Series devices cannot be set above 99. Refer to the SLC
Wiring Manual for a list of compatible addressable devices.
1.5.4 Addressable Device Accessories
End-of-Line Resistor Assembly
The End-of-Line resistors are included with each module. Refer to the specific module documenta-
tion for specific information.
Power Supervision Relay
The UL listed End-of-Line power supervision relay is used to supervise the power to 4-wire smoke
detectors and notification appliances.
EOL-C(R/W) Mounting Plate
The EOL-CR (red) and EOL-CW (white) are single End-of-Line resistor plates which are required
for use in Canada. An ELR, which is supplied with each module and fire alarm control panel, is
mounted to the EOL-C(R/W) plate. Resistors mounted to the plate can be used for the supervision
of a monitor and control module circuit.
1.6 Optional Modules
The MS-9200UDLS main circuit board includes option module connectors for the following
modules:
4XTMF Transmitter Module
The 4XTMF provides a supervised output for local energy municipal box transmitter, alarm and
trouble reverse polarity. It includes a disable switch and disable trouble LED. A jumper on the
module is used to select an option which allows the reverse polarity circuit to open with a system
trouble condition if no alarm condition exists. The module plugs into connectors J5 and J6 which
are located near the right edge the main circuit board. When the 4XTMF module is installed,
Jumper JP3, on the main circuit board, must be cut to allow supervision of the module.
ZNAC-92 Class A Converter Module
The ZNAC-92 is an optional Class A conversion module which mounts to connector J14 on the
upper left side of the MS-9200UDLS circuit board. This module allows the MS-9200UDLS to sup-
port four (4) Style Z (Class A) Notification Appliance Circuits.
1.7 Accessories
1.7.1 PS-Tools Programming Utility
The PS-Tools Programming Utility can be used to locally or remotely program the FACP from
most IBM compatible computers (PC), running Windows® XP (or newer). The FACP program
files can also be created and stored on the PC for future download to the control panel. The PK-CD
Kit includes the Windows-based Programming Utility software on CD-ROM with on-line help file.
A standard USB cable with male-A to male-B connectors, which must be purchased separately, is
required for local connection of the PC to the USB port J12 on the FACP main circuit board.
Remote programming requires that the PC have a 2400 baud (or faster) modem.
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 21
Accessories Product Description
Important: Remote modification of FACP programming requires that the panel be enabled for
remote download (refer to “Remote Site Upload/Download” on page 157). Remote interrogation
of panel programming, history logs, detector status, etc., is possible without enabling the remote
download option.
1.7.2 DP-9692 Dress Panel
An optional dress panel DP-9692 is available for the MS-9200UDLS (required by ULC for Cana-
dian installations). The dress panel restricts access to the system wiring while allowing access to
the key panel. A ground strap must be connected between the stud on the inside of the dress panel
and the ground stud in the backbox.
1.7.3 Trim Ring
An optional Trim Ring (P/N TR-CE) is available for the FACP backbox. The Trim Ring adds 1.5”
of wall coverage around the backbox, concealing hardware and providing a finished appearance for
a semi-flush mounted panel.
1.7.4 Multi-Module Mounting Bracket
An addressable Multi-Module can be installed inside the FACP backbox using the
MULTIMOD-BRKT module mounting bracket. Refer to the MULTIMOD-BRKT Installation
Document P/N 53547 for additional information.
1.7.5 Battery Box
BB-26
The BB-26 battery box may be used to house up to two 26 AH batteries and the CHG-75 Battery
Charger.
BB-55F
The BB-55F battery box may be used to house two 26 AH batteries, two 60 AH batteries or one
100 AH battery. When the CHG-120F is mounted in the BB-55F, two 26 AH or one 60 AH battery
may also be housed in the battery box.
dp9200udls.wmf
22 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Product Description Accessories
1.7.6 Battery Charger
CHG-75 Battery Charger
The CHG-75 is capable of charging up to 75 AH lead-acid batteries with the MS-9200UDLS
FACP. The FACP battery charger must be disabled, by removing jumper JP5, when using the
CHG-75. The charger and up to 26 AH batteries can be housed in the BB-26 battery box. Larger
batteries and the charger can be housed in the BB-55F battery box which can be mounted up to 20
feet away from the control panel. Refer to the CHG-75 Manual for additional information.
CHG-120F Battery Charger
The CHG-120F is capable of charging up to 120 AH lead-acid batteries with the MS-9200UDLS
FACP. The FACP battery charger must be disabled, by removing jumper JP5, when using the
CHG-120F. The batteries and charger can be housed in the BB-55F battery box which can be
mounted up to 20 feet away from the control panel. Note that when using the BB-55F for housing
the charger and batteries greater than 26AH, multiple BB-55Fs are required. Refer to the
CHG-120F Manual for additional information.
1.7.7 IPDACT Internet Protocol DACT
The IPDACT is a compact, Internet Protocol Digital Alarm Communicator/Transmitter designed to
allow FACP status communication to a Central Station via the internet. No telephone lines are
required when using the IPDACT. Using Contact ID protocol from the FACP, the IPDACT con-
verts the standard DACT phone communication to a protocol that can be transmitted and received
via the internet. It also checks connectivity between the FACP and Central Station. The IPDACT
can be mounted inside the FACP cabinet, while still maintaining space for two 18 amp hour batter-
ies, using the IPBRKT moutning bracket. Refer to the IPDACT Product Installation Document
P/N 53109 for additional information.
1.7.8 ECC-50/100
The ECC-50/100 is a single channel, 50 watt, 25 VRMS, emergency voice evacuation panel that
may be used for fire applications, mass notification applications, or both. Automatic activation of
the ECC-50/100 is possible via eight Command Input Circuits (CMD) or via the ACS/ANN BUS
serial communications link from the MS-9200UDLS FACP. Not for use in Canadian applications.
1.7.9 ECC-FFT
An ECC-FFT Fire Fighter Telephone provides supervision, annunciation, and control for local and
remote telephone handsets. The ECC-FFT’s keypad provides indications of phone activation and
corresponding trouble conditions. Not for use in Canadian applications.
1.7.10 W-GATE Wireless Gateway
The W-GATE Wireless Gateway acts as a bridge between a group of wireless fire devices and a
LiteSpeed SLC loop on the MS-9200UDLS. It is powered by the SLC loop or by a regulated,
external 24VDC UL-listed power supply. Available wireless devices include a photo detector, a
photo/heat detector, a fixed-temperature heat detector, a rate-of-rise heat detector, and a monitor
module. For details about wireless devices, system setup, and operation, see the SWIFT™ Smart
Wireless Integrated Fire Technology Instruction Manual #LS10036-000FL-E.
NOTE: The W-GATE, as part of the wireless network, has been tested for compliance with the
Federal Communications Commission (FCC) requirements of the United States Government. It
has not been evaluated for use outside the USA. Use of this system outside the USA is subject to
local laws and rules to which this product may not conform. It is the sole responsibility of the user
to determine if this product may be legally used outside the USA.
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 23
Accessories Product Description
1.7.11 ANN-BUS Annunciators/Modules
Guidelines
• The legacy ACS annunciators may not be used on connector TB9 if new ANN-BUS
annunciators are being used on the primary ANN-BUS (connector TB9) due to incompatible
serial communication protocols.
• A variety of optional annunciation devices can be connected to an ANN-BUS communication
circuit. ANN Series devices can be connected to the primary communication circuit (EIA-
485) terminals on TB9. A secondary communication circuit for these devices is available at
TB8. Each ANN-BUS communication circuit supports up to eight (8) annunciators.
Compatible devices include the following:
– ANN-80 LCD Annunciator
– ANN-80C LCD Indicator (Canadian Applications)
– ANN-S/PG Serial/Parallel Printer Interface Module
– ANN-I/O LED Driver Module
– ANN-LED Annunciator Module (alarm, trouble, supervisory LEDs)
– ANN-RLED Annunciator Module (red alarm LEDs only)
– ANN-RLY Relay Module (can be mounted in the supplied FACP chassis)
– ANN-LC Lite-Connect Module (secondary ANN-BUS only)
• When operating two ANN-BUS circuits, only one ANN-S/PG Printer module can be used in
the system. If using the local printer to print, an ANN-S/PG Printer module cannot be installed
in the system.
• The panel is capable of operating a primary ANN-BUS (TB9) and a secondary ANN-BUS
(TB8) simultaneously.
• The panel is capable of operating the ACS-BUS (connector TB9) and the secondary
ANN-BUS (connector TB8) simultaneously.
• The secondary ANN-BUS (on connector TB8) does not support legacy ACS annunciators.
• The secondary ANN-BUS can be configured to support either terminal mode annunciators,
printer/PC devices, or ANN-BUS devices.
• Only one audio system (ECC-50/100 or ACC-25/50) may be connected to the ANN-BUS.
ANN-80 Remote Fire Annunciator
The ANN-80 Annunciator is a compact, 80 character, backlit LCD remote fire annunciator. It
mimics the display on the control panel and will annunciate device type, point alarm, trouble or
supervisory condition, zone assignment plus any custom alpha labels programmed into the FACP.
The annunciator also provides system status LEDs to display AC Power, Alarm, Trouble, Supervi-
sory and Alarm Silenced conditions. Additionally, the annunciator is capable of remotely perform-
ing critical system functions such as Acknowledge, Silence, Reset and Drill. Communication
between the ANN-80 and FACP is accomplished over a two wire RS-485 serial interface employ-
ing the ANN-BUS communication format. The devices are powered, via two additional wires,
from either the host FACP or remote UL-listed, filtered, power supply.
The function buttons, keyswitch and piezo sounder may be individually enabled and disabled
through the FACP software. Refer to “ANN-80 Options” on page 118 for a description of this fea-
ture and programming information.
!
WARNING: RISK OF ELECTRICAL SHOCK AND EQUIPMENT DAMAGE
DISCONNECT ALL SOURCES OF POWER (AC AND DC) BEFORE INSTALLING OR REMOVING
ANY MODULES OR WIRING.
24 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Product Description Accessories
Note that if the keyswitch is enabled and remains in the unlocked position for more than two min-
utes without any buttons being pressed on the annunciator, a trouble indication will be annunciated.
The ANN-80C (for Canadian applications) does not provide FACP control for Acknowledge,
Reset, Silence, or Drill.
ANN-S/PG Serial/Parallel Interface Module
The ANN-S/PG Serial/Parallel Interface module allows the connection of a remote serial or parallel
printer to the FACP for a real-time log of system events, detector status reports and event history.
The module is provided with a plastic enclosure for surface mounting.
ANN-I/O LED Driver Module
The ANN-I/O is an LED driver module that can be used in a wide variety of applications, including
as an interface with most customized graphic annunciators. The ANN-I/O can drive up to 40
LEDs. The module is provided with a plastic wall mount.
ANN-LED Annunciator Module
The ANN-LED and ANN-RLED annunciator modules provide LED annunciation of general sys-
tem faults and input zones/points when used with a compatible FACP. The ANN-LED module pro-
vides alarm (red), trouble (yellow) and supervisory (yellow) indication for up to ten input zones or
addressable points. The ANN-RLED provides alarm (red) indication for up to 30 input zones or
addressable points. Multiple ANN-(R)LED modules may be used for full system coverage.
ANN-RLY Annunciator Module
The ANN-RLY relay module provides 10 programmable Form-C relays when used with a compat-
ible FACP.
ANN-LC Lite-Connect Module
The ANN-LC module provides a multi-FACP system where a single communicator and phone line
for Alarm, Supervisory, and Trouble reporting to a central station are shared using fiber-optic
cables. Each FACP requires its own ANN-LC. The FACP/ANN-LC pair are referred to as a node
on the fiber circuit. Each node requires a unique node address. The node communicates with other
nodes via fiber-optic media from one ANN-LC to the next.
1.7.12 Legacy ACS Series LED Zone Type Annunciators
The legacy ACS annunciators may not be used if new ANN-BUS annunciators are being used on
the primary ANN-BUS connector (TB9) due to incompatible serial communication protocols.
Refer to “Guidelines” on page 23 for rules governing the use of various annunciator types.
The legacy ACS Series Annunciators remotely display alarm and trouble status as well as system
status. In addition, they can provide remote Acknowledge, Silence, Reset and Drill functions. For
more detailed information, refer to the appropriate annunciator manual. Following is a list of
annunciators which can be used with the MS-9200UDLS.
•ACM-16ATF* Annunciator Control Module annunciates 16 zones with 16 red alarm LEDs
and 16 yellow trouble LEDs. In addition, it has a System Trouble LED, an On Line/Power
LED and a local piezo sounder.
•AEM-16ATF Annunciator Expander Module annunciates 16 zones with 16 red alarm LEDs
and 16 yellow trouble LEDs
•ACM-32AF* Annunciator Control Module annunciates 32 alarm zones with 32 red LEDs. In
addition, it has a System Trouble LED, an On Line/Power LED and a local piezo sounder. It
also has a switch for local piezo silence.
!
WARNING: RISK OF ELECTRICAL SHOCK AND EQUIPMENT DAMAGE
DISCONNECT ALL SOURCES OF POWER (AC AND DC) BEFORE INSTALLING OR REMOVING
ANY MODULES OR WIRING.
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 25
Getting Started Product Description
•AEM-32AF Annunciator Expander Module annunciates 32 alarm zones with 32 red LEDs
* In Canada, the color red must be used to indicate active alarm inputs. Yellow indicates supervi-
sory, burglary or trouble signals. Green indicates the presence of power, or an activated output.
LCD-80F/LCD-80FC Remote Fire Annunciator/Indicator
The LCD-80F/LCD-80FC annunciator/Indicator is an 80-character backlit LCD remote fire annun-
ciator/indicator that is capable of displaying English language text. Communications between the
control panel and the annunciator is accomplished over a serial interface employing the EIA-485
communication standard. Up to 32 LCD-80F/LCD-80FC annunciators/indicators may be con-
nected to the EIA-485 circuit. The annunciators/indicators may be powered from the host FACP or
a remote UL listed filtered power supply such as the FCPS Series. For more detailed information,
refer to the LCD-80F and LCD-80FC manuals.
LDM Series Lamp Driver Modules (Graphic Annunciator)
The LDM Series Lamp Driver Modules, which consist of the LDM-32F master and LDM-E32F
expander modules, are used to provide an interface to a custom graphic LED annunciator.
Legacy ACM-8RF Relay Control Module
The ACM-8RF module provides eight Form-C relays with contacts rated for 5 amps. The
ACM-8RF mounts in the lower right corner of the FACP backbox using the ACM-8RF-BRKT
mounting bracket, also allowing space for batteries.
1.8 Getting Started
The following is a brief summary of the minimal steps involved in bringing an MS-9200UDLS on-
line:
• Install Backbox and Main Circuit Board (refer to “Mounting the Backbox” on page 28)
• Address and Install Intelligent Devices (refer to the SLC Wiring Manual)
• Enter Autoprogramming (refer to “Autoprogram” on page 67)
• Resolve Programming Conflicts
• Go to Point Program to Enter Specific Data (refer to “Point Program” on page 68). Use the
right and left arrow keys to navigate between devices.
1.9 Telephone Requirements and Warnings
1.9.1 Telephone Circuitry
Ringer Equivalence Number (REN) = 0.0B
AC Impedance: 10.0 Mega Ohm
Complies with FCC Part 68
Mates with RJ31X Male Connector
Supervision Threshold: loss of phone line voltage for 2 minutes
The REN is used to determine the quantity of devices which may be connected to the telephone
line. Excessive RENs on the telephone line may result in the devices not ringing in response to an
incoming call. In most, but not all areas, the sum of the RENs should not exceed five (5.0). To be
certain of the number of devices that may be connected to the line as determined by the total RENs,
contact the telephone company to determine the maximum REN for the calling area.
26 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Product Description Telephone Requirements and Warnings
1.9.2 Digital Communicator
Before connecting the control panel to the public switched telephone network, the installation of
two RJ31X jacks is necessary. If trouble is experienced with this equipment, for repair or warranty
information, please contact:
Manufacturer: Fire•Lite Alarms, Inc.
One Fire-Lite Place
Northford, CT 06472
(203) 484-7161
Product Model Number: MS-9200UDLS
FCC Registration Number: US:1W6AL11B9200UDLS
Ringer Equivalence: 1.1B
Alarm dialing equipment must be able to seize the telephone line and place a call in an emergency
situation. It must be able to do this even if other equipment (telephone, answering system, com-
puter modem, etc.) already has the telephone line in use. To do so, alarm dialing equipment must
be connected to a properly installed RJ31X jack that is electrically in series with and ahead of all
other equipment attached to the same telephone line. If there are any questions concerning these
instructions, consult the telephone company or a qualified installer about installing the RJ31X jack
and alarm dialing equipment. Refer to “Digital Communicator” on page 37 for an illustration of
the proper installation of this equipment.
Important! The DACT must not be used to dial a phone number that is call-forwarded.
1.9.3 Telephone Company Rights and Warnings
The telephone company, under certain circumstances, may temporarily discontinue services and/or
make changes in its facilities, services, equipment or procedures which may affect the operation of
this control panel. However, the telephone company is required to give advance notice of such
changes or interruptions.
If the control panel causes harm to the telephone network, the telephone company reserves the right
to temporarily discontinue service. Advance notification will be provided except in cases when
advance notice is not practical. In such cases, notification will be provided as soon as possible.
The opportunity will be given to correct any problems and to file a complaint with the FCC if you
believe it is necessary.
DO NOT CONNECT THIS PRODUCT TO COIN TELEPHONE, GROUND START, OR PARTY
LINE SERVICES.
When the control panel activates, premise phones will be disconnected.
Two separate phone lines are required. Do not connect both telephone interfaces to the same tele-
phone line.
The control panel must be connected to the public switched telephone network upstream (as first
device) of any private telephone system at the protected premises.
A plug and jack used to connect this equipment to the premises wiring and telephone network must
comply with the applicable FCC Part 68 rules and requirements adopted by ACTA. This equipment
is designed to be connected to the telephone network or premises wiring using a compliant RJ31X
male modular plug and compatible modular jack that is also compliant.
NOTE: This equipment complies with Part 68 of the FCC rules and the requirements adopted by
the ACTA. On the inside of the FACP door is a label that contains, among other information, a
product identifier in the format US:AAAEQ##TXXXX. If requested, this number must be provided
to the telephone company.
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 27
Telephone Requirements and Warnings Product Description
1.9.4 For Canadian Applications
The following is excerpted from CP-01 Issue 5:
NOTICE: The Industry Canada (IC) label identifies certified equipment. This certification means
that the equipment meets certain telecommunications network protective, operational and safety
requirements as prescribed in the appropriate Terminal Equipment Technical Requirements docu-
ment(s). The Department does not guarantee the equipment will operate to the users’s satisfaction.
Before installing this equipment, users should ensure that it is permissible to be connected to the
facilities of the local telecommunications company. The equipment must also be installed using an
acceptable method of connection. The customer should be aware that compliance with the above
conditions may not prevent degradation of service in some situations.
Repairs to certified equipment should be made by an authorized Canadian maintenance facility des-
ignated by the supplier. Any repairs or alterations made by the user to this equipment, or equip-
ment malfunctions, may give the telecommunications company cause to request the user to
disconnect the equipment.
Users should ensure, for their own protection, that the electrical ground connections of the power
utility, telephone lines and internal metallic water pipe system, if present, are connected together.
This precaution may be particularly mportant in rural areas.
CAUTION
Users should not attempt to make such connections themselves, but should contact the appropriate
electric inspections authority, or electrician.
“The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication
of the maximum number of terminals allowed to be connected to a telephone interface. the termi-
nation of an interface may consist of any combination of devices subject only to the requirement
that the sum of the REN of all devices does not exceed 5.”
DOC Compliance - “This digital apparatus does not exceed the Class A limits for radio noise emis-
sions from digital apparatus set out in the Radio Interference Regulations of the Canadian Depart-
ment of Communications.”
Representative: NOTIFIER/FIRE•LITE, CANADA
10 Whitmore Road
Woodbridge, Ontario L4L 7Z4
Phone: (905) 856-8733
FAX: (905) 856-9687
IC Certificate Number:
Ringer Equivalence Number (REN): 1.3B
Load Number: 2
28 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Section 2: Installation
The cabinet may be either semi-flush or surface mounted. The cabinet mounts using two key slots
and two 0.250” (6.35 mm) diameter holes located in the backbox. The key slots are located at the
top of the backbox and the two securing holes at the bottom.
Carefully unpack the system and check for shipping damage. Mount the cabinet in a clean, dry,
vibration-free area where extreme temperatures are not encountered. The area should be readily
accessible with sufficient room to easily install and maintain the panel. Locate the top of the cabi-
net approximately 5 feet (1.5 m) above the floor with the hinge mounting on the left. Determine the
number of conductors required for the devices to be installed. Sufficient knockouts are provided
for wiring convenience. Select the appropriate knockout(s) and pull the conductors into the box.
All wiring should be in accordance with the National and/or Local codes for fire alarm systems.
2.1 Mounting the Backbox
To prevent damage to the circuit board and to facilitate backbox mounting, the chassis with main
circuit board and transformer can be easily removed. Loosen the two 3/8” nuts securing the top
flanges of the chassis, then slide the chassis up to free it from the lower tabs. Place the chassis
assembly in a safe location until it can be reinstalled in the backbox.
1. Mark and predrill hole in the wall for the center top keyhole mounting bolt using the dimen-
sions illustrated in Figure 2.3 on page 30.
2. Install center top fastener in the wall with the screw head protruding.
3. Place backbox over the top screw, level and secure.
4. Mark and drill the left and right upper and lower mounting holes.
Note: Outer holes (closest to sidewall) are used for 16” O.C. stud mounting.
5. Install remaining fasteners and tighten.
!
CAUTION: STATIC SENSITIVE COMPONENTS
THE CIRCUIT BOARD CONTAINS STATIC-SENSITIVE COMPONENTS. ALWAYS GROUND
YOURSELF WITH A PROPER WRIST STRAP BEFORE HANDLING ANY BOARDS SO THAT
STATIC CHARGES ARE REMOVED FROM THE BODY. USE STATIC SUPPRESSIVE
PACKAGING TO PROTECT ELECTRONIC ASSEMBLIES.
Figure 2.1 MS-9200UDLS Chassis Removal
Backbox
Main Circuit Board on chassis
mounting studs
9200udcchassisinbox.wmf
grounding stud
mounting slots
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 29
Mounting Optional Transformer/Remounting Chassis Installation
2.2 Mounting Optional Transformer/Remounting Chassis
One XRM-24B(E) transformer is supplied standard with the control panel. An optional second
XRM-24B(E) transformer can be ordered and installed to provide maximum system power. Note
that the XRM-24B and XRM-24BE are only suitable for use with MS-9200UDLS(E) with a main
circuit board assembly number 9200UDLS-PCX Rev Y, where “X” and “Y” can be any letter or
number. Install the transformers in the locations indicated in the following illustration.
1. The standard transformer is premounted to the chassis. If the optional second transformer has
been ordered, mount it to the chassis as illustrated below.
The chassis does not need to be removed to install the optional transformer.
2. When the location is dry and free of construction dust, install the chassis/transformer/circuit
board assembly.
3. Mount the chassis to the backbox by aligning the two mounting tabs with the slots in the
backbox, then position the two mounting hole tabs over the studs with nuts located in the upper
portion of the backbox.
4. Slide the tabs located on the bottom of the chassis into the mounting slots in the backbox by
pressing the chassis down.
5. Secure the chassis to the backbox by tightening the two mounting nuts (#10-32) at the top, and
to ensure proper grounding, use a 3/8” nut driver or socket.
6. If the main circuit board is not already attached to the chassis, install it by positioning the ten
mounting holes over the studs on the chassis and secure with the supplied screws.
7. Connect the Standard XRM-24B(E) Transformer plug to Transformer 1 Connector J10 on the
FACP main circuit board
8. Connect the Optional XRM-24B(E) Transformer plug to Transformer 2 Connector J11 on the
FACP main circuit board.
9. Complete the installation as detailed in the following sections.
Figure 2.2 MS-9200UDLS Main Board/Chassis Installation
Standard XRM-24B(E) Transformer
Mounting Slot
Mounting Studs
Optional XRM-24B(E)
Transformer Installation
Remove screw
and spacer
from chassis.
Slide top
flange of
XRM-24B(E)
into slot at top
left of chassis.
Slide bottom
flange of
XRM-24B(E)
onto
transformer
mounting stud.
Secure with
spacer and
screw.
Optional XRM-24B(E)
Transformer mounting location
30 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Installation Mounting Optional Transformer/Remounting Chassis
Figure 2.3 MS-9200UDLS Cabinet Mounting
9050udencl.wmf
Semi-Flush Mounting
Do not recess box more
than 3.875” into wall to
avoid covering venting
holes on top of box.
Hinge Slot for optional
Dress Panel
Hinge Slot for optional
Dress Panel
Semi-flush
mounting hole
Mounting
slots for
optional
Trim Ring
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 31
Mounting Optional Transformer/Remounting Chassis Installation
An optional Trim Ring (P/N TR-CE-) is also available for semi-flush mount installations.
Figure 2.4 MS-9200UDLS Cabinet Dimensions
Top Depth
Depth
Door
Backbox
Door
Backbox
Left Side
Bottom
Right Side
32 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Installation Power
2.3 Power
2.3.1 AC Power and Earth Ground Connection
Primary power required for the FACP is 120 VAC, 60 Hz, 2.0 amps
for the MS-9200UDLS or 220/240 VAC, 50 Hz, 1.2 amps for the
MS-9200UDLSE. Overcurrent protection for this circuit must com-
ply with Article 760 of the National Electrical Code (NEC) and/or
local codes. Use 14 AWG (2.00 mm2) or larger wire with 600 volt
insulation rating. Make certain that the AC mains circuit breaker is
off before wiring any connections between the mains and the control
panel. Connect wiring from the AC mains to TB11 on the FACP,
being careful to observe proper connections.
Remove the two keps nuts from the grounding stud in the backbox. Connect the incoming earth
ground wire to supplied cable #71073 with a wire nut. Position the ring terminal end over the
grounding stud. Secure with one of the keps nuts. Place the ring terminal from the other supplied
ground cable #71073 over the ground stud and secure with the second keps nut. Wire the ground
cable to the bottom position of TB11. Refer to Figure 2.1 on page 28 for location of the stud.
Ensure that the ground for AC mains is the first cable installed, closest to the backbox. This con-
nection is vital in reducing the panel’s susceptibility to transients generated by lightning and elec-
trostatic discharge. Apply AC power to the panel only after the system is completely installed and
visually checked. Note that AC power must be applied to the panel before installing the battery
interconnect cable (refer to the following section).
!
WARNING: RISK OF EQUIPMENT DAMAGE AND PERSONAL INJURY
SEVERAL DIFFERENT SOURCES OF POWER CAN BE CONNECTED TO THIS PANEL.
DISCONNECT ALL SOURCES OF POWER BEFORE SERVICING. THE PANEL AND
ASSOCIATED EQUIPMENT MAY BE DAMAGED BY REMOVING AND/OR INSERTING CARDS,
MODULES OR INTERCONNECTING CABLES WHILE THIS UNIT IS ENERGIZED.
J10
HOT NEUT EARTH
TB11
J11
TRANSFORMER 1
2
JP5
-
BATTE
J9
LC
J1
Figure 2.5 Earth Ground Connection
9200grnd.wmf
grounding stud
keps nut
keps nut
Grounding
Cable #71073
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 33
Relays Installation
2.3.2 Battery Power
The batteries must be sealed lead acid type. Before con-
necting the batteries to the FACP, make certain that the
interconnect cable between the batteries is not connected.
Do not connect the interconnect cable until the system is
completely installed. Observe polarity when connecting
the batteries. Connect the battery cable to J9 on the main
circuit board. Refer to “Power Supply Calculations” on
page 160, for calculation of the correct battery rating.
2.3.3 Special Application DC Power Output Connection
All Special Application DC power outputs are power-limited (refer to“UL Power-limited Wiring
Requirements” on page 36).
2.4 Relays
The FACP provides two programmable Form-C relays and one fixed fail-safe Form-C trouble
relay, all with contacts rated for 2.0 amps @ 30 VDC (resistive) or 0.5 amps @ 30 VAC (resistive).
Note that relay connections may be power-limited or nonpower-limited, provided that 0.25” spac-
ing is maintained between conductors of power-limited and nonpower-limited circuits. Refer to
UL Power-limited wiring requirements.
-
-
+
+
Interconnect
Cable
!
WARNING: RISK OF PERSONAL INJURY
BATTERY CONTAINS SULFURIC ACID WHICH CAN CAUSE SEVERE BURNS TO THE SKIN
AND EYES AND CAN DESTROY FABRICS. IF CONTACT IS MADE WITH SULFURIC ACID,
IMMEDIATELY FLUSH THE SKIN OR EYES WITH WATER FOR 15 MINUTES AND SEEK
IMMEDIATE MEDICAL ATTENTION.
+ 24V -
NON-RST
POWER
+ 24V -
RST
POWER
3
2
1
1
2
3
1 2 3 4
+ - + -
Figure 2.6 Special Application Power Outputs - 24 VDC
Power-limited Non-resettable or Resettable Power
1.0 amperes max., 24 VDC nominal filtered, non-
resettable or resettable power can be drawn from TB1
Terminals 1(+) and 2(-)
Power-limited Resettable or Non-resettable Power
1.0 amperes max., 24 VDC nominal filtered, resettable or
non-resettable power can be drawn from TB1 Terminals
3(+) and 4(-)
92udctb1.wmf
JP4
TB1
JP4 is used to configure TB1,
Terminals 1 & 2 for:
• Resettable Power - jumper pins
2 & 3 of JP4
• Nonresettable Power - jumper
pins 1 & 2 of JP4 as shown
JP6
JP6 is used to configure TB1,
Terminals 3 & 4 for:
• Resettable Power - jumper pins 2
& 3 of JP4
• Nonresettable Power - jumper
pins 1 & 2 of JP4 as shown
NO NO NO
NC NC NC
CCC
Figure 2.7 Relay Terminals
Relay contacts shown with power
applied to panel and no active
troubles, alarms or supervisories
TB7
Note that the programmable relay
labeled as Relay 1 is factory default
programmed as Alarm and
programmable Relay 3 is factory default
programmed as Supervisory.
The relay labeled Relay 2 is fixed as a
Trouble relay and cannot be changed.
It is a fail-safe relay which will transfer
on any trouble or total power failure.
92udrly.wmf
TB5 TB6
RELAY 3 RELAY 1 RELAY 2
34 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Installation Notification Appliance Circuits
2.5 Notification Appliance Circuits
The control panel provides four Style Y (Class B) or four Style Z (Class A) NACs (Notification
Appliance Circuits) when using the optional ZNAC-92 Class A converter module. Each circuit is
capable of 2.5 amps of current. Total current in alarm for all external devices cannot exceed 6.0
amps (refer to “Calculating the System Current Load” on page 160). Use UL listed 24 VDC notifi-
cation appliances only. Circuits are supervised and power-limited. Refer to the Device Compatibil-
ity Document for a listing of compatible notification appliances. The NACs, which are located on
the main circuit board, may be expanded via the FCPS Series field charger/power supplies.
The following sections describe the configuration and wiring of Style Y and Style Z Notification
Appliance Circuits on the MS-9200UDLS main circuit board.
2.5.1 Style Y (Class B) NAC Wiring
Figure 2.8 NAC Style Y (Class B) Wiring
4 Style Y (Class B) Notification Appliance Circuits, supervised and power-limited - 4.7 kΩ, ½ watt P/N:71252 UL listed
Polarized Bells Polarized Bells
Polarized HornsPolarized Horns
Polarized Strobes
Notification Appliance Circuit
polarity shown in alarm state
Dummy Load all unused circuit
TB4
9200nacy.wmf
Polarized Strobes
circuit number
NAC 1 NAC 3 NAC 4 NAC 2
TB3
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 35
Remote Synchronization Output Installation
2.5.2 Style Z (Class A) NAC Wiring with ZNAC-92 Converter
2.6 Remote Synchronization Output
Synchronization is a feature that controls the activation of notification appliances in such a way that
all devices will turn on and off at exactly the same time. This is particularly critical when activat-
ing strobes which must be synchronized to avoid random activation and a potential hazard to indi-
viduals. Devices connected directly to the control panel’s NACs can be synchronized as described
in “Type” on page 97.
Notification appliances connected to FCPS NAC power supplies require synchronization with the
FACP’s devices. This can be accomplished by connecting the Remote Synchronization Output
from TB2 of the MS-9200UDLS to the sync input of the FCPS-24FS6/8 Power Supply. The
24 VDC signal from TB2 follows, that is mimics, the signal on NAC1. This allows the devices
connected to the power supply to be synchronized with the devices connected to NAC1 on the
FACP.
The Remote Synchronization Output is power-limited and supervised (refer to “UL Power-limited
Wiring Requirements” on page 36). A 4.7 KΩ ELR resistor must be connected to the end of the
wiring at the remote power supply.
4 Style Z (Class A) Notification Appliance Circuits, supervised and power-limited
Polarized Bells
Polarized HornPolarized Horn
Notification Appliance Circuit
polarity shown in alarm state
Polarized Bell
Polarized Strobe Polarized Strobe
Figure 2.9 NAC Style Z (Class A) Wiring
NAC 1 NAC 2
TB3 TB4
NAC 3 NAC 4
Dummy Load all unused circuits
circuit number
Polarized Bell
Polarized Horns
Polarized Strobes
circuit number
TB1 TB2
9200cnacz.wmf
ZNAC-92
1B+ 3B+ 3B- 1B- 2B+ 4B+ 4B- 2B-
TB3 TB4
+ 24V -
NON-RST
POWER
+ 24V -
RST
POWER
TB1
JP7
REMOTE PWR
SUPPLY SYNC
+ -
TB2
Figure 2.10 Remote Sync Output
Remote Power Supply
FACP main circuit board
Remote Sync Output
Sync Input
4.7 KΩ ELR
92udcsync.wmf
36 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Installation UL Power-limited Wiring Requirements
2.7 UL Power-limited Wiring Requirements
Power-limited and nonpower-limited circuit wiring must remain separated in the cabinet. All
power-limited circuit wiring must remain at least 0.25” (6.35 mm) away from any nonpower-lim-
ited circuit wiring and nonpower-limited circuit wiring must enter and exit the cabinet through dif-
ferent knockouts and/or conduits. When connecting the ground cables, be sure that the AC mains
ground is the first one installed, closest to the backbox. A typical wiring diagram for the MS-
9200UDLS is shown below.
Figure 2.11 Typical UL Power-limited Wiring Requirements
Power-limited Circuits (Class 2) Power-limited Circuits (Class 2)
Nonpower-limited Circuits
Power-limited
Circuits (Class 2)
Nonpower-limited,
(Class 1) supervised
Telephone Circuit
AC
Power
Grounding
Stud (see
Figure 2.5)
92udculpw3.wmf
Nonpower-limited Circuits
To
Batteries
maintain minimum
0.25” between
power-limited and
nonpower-limited
circuits wiring
Ground
Cable
#71073
Ferrite Clamps
(See Section 2.8.1
for for more
information.)
Wire Nut
dashed lines
represent wiring
behind PCB
Power-limited
Circuits (Class 2)
Nonpower-limited,
supervised
Fiber Circuit
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 37
Digital Communicator Installation
2.8 Digital Communicator
Two independent telephone lines can be connected to the control panel. Telephone line con-
trol/command is made possible via double line seizure as well as usage of an RJ31X style intercon-
nection. Note that it is critical that the panel's digital communicator be located as the first device
on the incoming telephone circuit to properly function.
Important! The DACT must not be used to dial a phone number that is call-forwarded.
The control panel's digital communicator is built into the main circuit board. Connection and wir-
ing of two phone lines is required as shown below.
Figure 2.12 DACT Installation
Customer Premises Equipment and Wiring
Telephone
Line
FACP with DACT
Network
Service
Provider’s
Facilities
Network
Demarcation
Point
RJ31X
Jack
Unused
RJ-11 Jack
Unused
RJ-11 Jack
Telephone
Telephone
Telephone Answering
System
Fax Machine
Computer
actadact.wmf
1
2
3
4
5
6
7
7
8
123456 8
KISSOFF
PRI. ACTIVE SEC. ACTIVE
SEC. PHONE LINE
PRI. PHONE LINE
J15 J16
Figure 2.13 Wiring Phone Jacks
Ring
Tip
To premise phones
Ring
Tip Green Wire
Red Wire
Ring
Tip Green Wire
Red Wire
(Secondary Lines)
Incoming Telco Phone Lines
Ring
Tip
To premise phones
(Primary Lines)
Incoming Telco Phone Lines
RJ31X
Jack
RJ31X
Jack
Note: Shorting
bars inside RJ31X
Jack removed
during installation.
7 foot Cable
MCBL-7
(ordered
separately)
Primary Phone
Line PH1
Secondary
Phone Line
PH2
Module Female
Connectors
Male Plug
Connectors Ferrite Clamps (see Section 2.8.1)
92udjack.wmf
38 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Installation Optional Module Installation
2.8.1 Ferrite Clamp Installation
Per FCC requirements, ferrite clamps (supplied) are required on both phone lines. Apply one
clamp per phone line inside the FACP cabinet as shown in Figures 2.11 and 2.13. To install, simply
close the clamp around the phone line until it snaps shut. It is not necessary to loop the phone line
around the clamp.
2.9 Optional Module Installation
2.9.1 4XTMF Transmitter Module Installation
The 4XTMF provides a supervised output for a local energy municipal box transmitter in addition
to alarm and trouble reverse polarity. A jumper option allows the reverse polarity circuit to open
with a system trouble condition if no alarm condition exists. A disable switch allows disabling of
the transmitter output during testing to prevent accidental calling of the monitoring service.
Local Energy Municipal Box Service (NFPA 72 Auxiliary Fire Alarm Systems):
Supervisory Current: 5.0 mA
Trip Current: 350 mA (subtracted from notification appliance power)
Coil Voltage: 3.65 VDC
Maximum Coil Resistance: 14.6 ohms
Maximum allowable wire resistance between panel and trip coil: 3 ohms
Municipal Box wiring can leave the building
Remote Station Service (NFPA 72 Remote Station Fire Alarm Systems) - Intended for connec-
tion to a polarity reversal circuit or a Remote Station receiving unit having compatible rat-
ings:
Maximum load for each circuit: 10 mA
Reverse polarity output voltage: 24 VDC
Remote Alarm and Remote Trouble wiring can leave the building
Figure 2.14 Ferrite Clamp Installation
Ferrite Clamp in open position Ferrite Clamp in closed position
Simply clasp the clamp
around the phone line.
There is no need to
loop the phone line
around the clamp.
92ferr.wmf
!
WARNING: RISK OF ELECTRIC SHOCK AND EQUIPMENT DAMAGE
DISCONNECT ALL SOURCES OF POWER (AC AND DC) BEFORE INSTALLING OR REMOVING
ANY MODULES OR WIRING.
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 39
Optional Module Installation Installation
Before installing the module, place the disconnect switch to the right (disconnect) position to pre-
vent accidental activation of the municipal box. Note that a Disconnect LED will illuminate after
the module is installed in the MS-9200UDLS. In addition, the System Trouble LED will turn on to
indicate the Disconnect condition.
The following steps must be followed when installing the 4XTMF module:
1. Remove all power (Primary and Secondary) from the FACP before installing 4XTMF.
2. Cut jumper JP3 on the main circuit board to allow the control panel to supervise the 4XTMF
module.
3. Carefully plug the connectors on the 4XTMF module into connectors J5 and J6 on the MS-
9200UDLS main circuit board, being careful not to bend any pins.
4. Secure 4XTMF module to standoffs with supplied screws.
5. Reapply power to the FACP.
6. For proper 4XTMF operation, the output relays must be programmed for the factory default
settings: Alarm Relay 1, Trouble Relay 2 and Supervisory Relay 3.
7. When the installation has been complete, enable the 4XTMF module by sliding the disconnect
switch to the left.
8. Test system for proper operation.
Figure 2.15 4XTMF Transmitter Module
Connect to FACP J5 & J6
Disconnect Switch
shown in
disconnect position
TBL Jumper
}Remote Alarm (power-limited)*
}Remote Trouble (power-limited)*
No connection
}Municipal Box (nonpower-limited)*
1 2 3 4 5 6 7
+ - + - + -
Polarities are shown for module activation
Note: The 4XTMF Module is not directly suitable for transmitting a reverse polarity
supervisory signal. For applications using reverse polarity of a supervisory signal, refer to
“FACP with Keltron” on page 177.
* Wiring from these
terminals can exit the
protected premises.
Dummy load
terminals 6 and 7
(4.7kΩ, ¼ watt
resistor) if Municipal
Box is not connected.
Disconnect LED
4xtmf.wmf
40 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Installation Optional Module Installation
NO NC C NC NO C
TB5 TB9
TB8TB6 TB10
PH15
PRI. PHONE LINE
SEC. PHONE LINE
PH16
J12
SW1
J5 J6
JP3
4XTM
Xmt Rcv Dtr Gnd
A B
In+ In- Out+ Out-
+ -
A B
B+ A+ B- A- A B
Slc Slc Slc Slc Shield
J7
Figure 2.16 4XTMF Connectors to MS-9200UDLS Connectors
J5 & J6 Connectors
Cut Jumper JP3
Standoff Standoff
4XTMF
FACP main circuit board
92udlsc4xtm.wmf
NOTE: Jumper JP2 on the FACP main circuit board can be used to configure the FACP
supervisory relay for operation with the 4XTMF module. Relay 3 at TB5 must be programmed as
a supervisory relay.
Cutting JP2 will allow the 4XTMF to generate a trouble if the supervisory contact opens
Leaving JP2 in will prevent generation of a trouble if the supervisory contact opens.
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 41
Optional Module Installation Installation
2.9.2 ANN-BUS Annunciators/Modules
ANN-BUS Wiring
This section contains information on calculating ANN-BUS wire distances and the types of wiring
configurations (Class B).
Calculating Wiring Distance for ANN-BUS Modules
The following instructions will guide the installer in determining the type of wire and the maximum
wiring distance that can be used with FACP ANN-BUS accessory modules.
To calculate the wire gauge that must be used to connect ANN-BUS modules to the FACP, it is nec-
essary to calculate the total worst case current draw for all modules on a single 4-conductor bus.
The total worst case current draw is calculated by adding the individual worst case currents for each
module. The individual worst case values are shown in the following table:
After calculating the total worst case current draw, Table 2.1 specifies the maximum distance the
modules can be located from the FACP on a single wire run. The table ensures 6.0 volts of line
drop maximum. In general, the wire length is limited by resistance, but for heavier wire gauges,
capacitance is the limiting factor. These cases are marked in the chart with an asterisk (*). Maxi-
mum length can never be more than 6,000 feet (1,800 m), regardless of gauge used. The formula
used to generate this chart is shown in the note below.
Model Number Worst Case Current Draw1
1 When powering the ANN-BUS from one of the (nonresettable) DC power out-
puts at TB1, the total worst case current draw cannot exceed 1.0 amp. If
sharing this DC output with other devices, the worst case current drawn by
these devices must be combined with the ANN-BUS current draw, and the
total cannot exceed 1.0 amp. If the total current demand exceeds 1.0 amp,
refer to “Powering ANN-BUS Devices from an Auxiliary Power Supply” on
page 44.
ANN-80(C) LCD Annunciator/Indicator 0.040 amps
ANN-S/PG Serial/Parallel Printer Interface Module 0.040 amps
ANN-I/O LED Driver Module 0.200 amps
ANN-(R)LED Annunciator Module 0.068 amps
ANN-RLY Relay Module 0.075 amps
ANN-LC Lite-Connect Module 0.150 amps
Wiring Distance: ANN-BUS Modules to FACP
Total Worst Case Current
Draw (amps) 22 Gauge 18 Gauge 16 Gauge 14 Gauge
0.100 1,852 ft. 4,688 ft. * 6,000 ft. *6,000 ft.
0.200 926 ft. 2,344 ft. 3,731 ft. 5,906 ft.
0.300 617 ft. 1,563 ft. 2,488 ft. 3,937 ft.
0.400 463 ft. 1,172 ft. 1,866 ft. 2,953 ft.
0.500 370 ft. 938 ft. 1,493 ft. 2,362 ft.
Table 2.1 Wiring Distances
42 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Installation Optional Module Installation
The following formulas were used to generate the wire distance chart:
Exception: When using the ANN-RLY module, the installer must ensure that the maximum
24VDC power line drop does not exceed 0.3 volts. This results in the following wiring limitations:
Wiring Distance Calculation Example:
Suppose a system is configured with the following ANN-BUS modules:
• 3 ANN-80 Remote Fire Annunciators
• 1 ANN-S/PG Serial/Parallel Printer Interface Module
The total worst case current is calculated as follows:
Using this value and referring to the Wiring Distance Table 2.1 on page 41, it can be found that the
available options are:
926 feet maximum using 22 Gauge wire
2,344 feet maximum using 18 Gauge wire
3,731 feet maximum using 16 Gauge wire
5,906 feet maximum using 14 Gauge wire
Maximum Resistance (Ohms) =
6.0 Volts
Total Worst Case Current Draw (amps)
Maximum Wire Length (feet)
=
Maximum Resistance (Ohms)
*500
(6,000 feet maximum) Rpu
where: Rpu = Ohms per 1,000 feet for various Wire Gauges (see table below)
Wire Gauge Ohms per 1,000 feet (Rpu)
22 16.2
18 6.4
16 4.02
14 2.54
Wire Gauge Maximum Wire Length
18 312 feet
16 497 feet
14 787 feet
12 1,250 feet
ANN-80 Current Draw = 3 X 0.040 amps = 0.120 amps
ANN-S/PG Current Draw = 1 X.0.040 amps = 0.040 amps
Total Worst Case Current Draw = 0.160 amps
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 43
Optional Module Installation Installation
Wiring Configuration
Figure 2.17 illustrates the wiring between the FACP’s Primary ANN-BUS and ANN-BUS devices.
Figure 2.18 illustrates the wiring between the FACP’s Secondary ANN-BUS and ANN-BUS
devices.
Powering Both ANN-BUS Circuits Simultaneously
When simultaneously using the Primary and Secondary ANN-BUS circuits on the FACP, power
can be shared from the Nonresettable Power output on TB1. Alternately, one ANN-BUS can be
powered by the Resettable Power output (TB1 Terminals 3 and 4) once it is reconfigured as Nonre-
settable Power using JP6. This provides the benefit of independently acting power-limiting for the
two ANN-BUS circuits (required for Canadian applications).
B+ A+ B- A- A B
ANN
ACS
SHIELDSLC
SLC
SLC
SLC
TB9 TB10
TB1
B A (+) (-)
4 3 2 1
A B
+ -
+ 24V -
NON-RST
POWER
+ 24V -
RST
POWER
TB1
JP7
1
2
3
+ -
REMOTE PWR
SUPPLY SYNC
+ -
TB2
Figure 2.17 Primary ANN-BUS wiring to ANN-BUS Device
ANN-BUS Device
MS-9200UDLS
ANN-BUS and power wiring are
supervised and power-limited
24 VDC
nonresettable
Primary ANN-BUS
92udblsctoann80.wmf
+ 24V -
NON-RST
POWER
+ 24V -
RST
POWER
B+ A+ B- A- A B
ANN
ACS
SHIELD
SLC
SLC
SLC
SLC
TB1 TB8 TB9 TB10
JP7
1
2
3
TB1
B A (+) (-)
4 3 2 1
A B
+ -
+ -
REMOTE PWR
SUPPLY SYNC
+ -
TB2
Xmt Rcv Dtr Gnd
A B
In+ In- Out+ Out-
Figure 2.18 Secondary ANN-BUS wiring to ANN-BUS Device
ANN-BUS Device
MS-9200UDLS
ANN-BUS and power wiring are
supervised and power-limited
24 VDC
nonresettable
Secondary ANN-BUS
92udblsc2toann80.wmf
44 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Installation Optional Module Installation
Powering ANN-BUS Devices from an Auxiliary Power Supply
Figure 2.19 illustrates the powering of ANN-BUS devices from an auxiliary power supply such as
the FCPS-24FS6/8, when the total ANN-BUS power requirements exceed the panel’s DC Power
Output capability.
ANN-BUS Device Addressing
Each ANN-BUS device requires a unique address (ID Number) in order to communicate with the
FACP. A 5-position DIP switch on each device is used to set this address. The address set for these
devices must also be programmed at the FACP for the specific device (refer to the programming
section titled “ANN-BUS Options” on page 108).
A maximum of 8 devices can be connected to each FACP ANN-BUS communication circuit.
Device addresses do not need to be sequential and can be set to any number between 01 and 08.
This applies to both ANN-BUS communication circuits. Note that 00 is not a valid address. The
following table shows the DIP switch setting for each address.
When installed and enabled through FACP programming, the ANN-LC will always be set to
address 08. No dip switch settings are used to set the address on the ANN-LC.
TB1
B A (+) (-)
4 3 2 1
1 2 3 4 5 6 7 8
ON
SW1 TB4
JP3
J3
TB5
TB2
JP1
JP2
OUT4
- NAC4 +
OUT3
- NAC3 +
OUT2
- NAC2 +
OUT1
- NAC1 +
8 7 6 5 4 3 2 1
3 2 1
10
9
8
7
6
5
4
3
2
1
AUX -
IN2-
IN2+
OUT1-
OUT1+
IN1-
IN1+
SYNC IN -
SYNC IN +
AUX +
NO NC
AUX TBL
COM
B+ A+ B- A- A B
ANN
ACS
SHIELDSLC
SLC
SLC
SLC
TB9 TB10
A B
+ -
+ 24V -
NON-RST
POWER
+ 24V -
RST
POWER
TB1
JP7
1
2
3
-
REMOTE PWR
SUPPLY SYNC
+ -
TB2
Figure 2.19 Powering ANN-BUS Devices from FCPS-24FS6/8
ANN-80
MS-9200UDLS
FCPS-24FS6/8
-24 VDC
+24 VDC
nonresettable
Cut Ground Fault Detection jumper JP1
(FACP monitors for ground faults).
ANN-BUS and power wiring are
supervised and power-limited
92udblsCtofcpstoann.wmf
Primary ANN-BUS
NOTE: Address (ID Number) DIP switches on some devices may have more than 5 switch
positions. Unless otherwise specified in the documentation supplied with each device, switch
positions 6 and above must be set to OFF.
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 45
Optional Module Installation Installation
Switch 5 must be set to OFF for ANN-BUS devices to be recognized.
ANN-80 Remote Fire Annunciator
Specifications
• Operating Voltage Range: 18 VDC to 28 VDC
• Current Consumption @ 24 VDC nominal (filtered and nonresettable):
Normal/Standby (no activity): 37.0 mA
Trouble: 39.0 mA
Alarm: 40.0 mA
AC Fail ( not backlit): 15.0 mA
• For use indoors in a dry location
Installation
Ensure that all power (AC and DC) has been removed from the FACP before installing the annunci-
ator.
Opening/Closing Annunciator
The following procedure details the steps used to open the annunciator in order to access the termi-
nal block and DIP switches (refer to figure below):
1. Turn the key switch to the ON (Unlocked) position by turning the key counter-clockwise.
2. Push in the snap latch located on the right side of the unit while pulling the cover open.
3. To close the cover, make certain the key switch is in the ON (Unlocked) position. Swing the
cover closed, snapping it shut.
Address Switch 5 Switch 4 Switch 3 Switch 2 Switch 1
not valid OFF OFF OFF OFF OFF
01 OFF OFF OFF OFF ON
02 OFF OFF OFF ON OFF
03 OFF OFF OFF ON ON
04 OFF OFF ON OFF OFF
05 OFF OFF ON OFF ON
06 OFF OFF ON ON OFF
07 OFF OFF ON ON ON
08 OFF ON OFF OFF OFF
46 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Installation Optional Module Installation
4. Turn the key switch to the OFF (Locked) position by turning clockwise and remove the key.
Mounting
The ANN-80 can be surface or semi-flush mounted to a single, double or 4” square electrical box.
Select and remove the appropriate knockout(s), pull the necessary wires through the knockouts and
mount the annunciator in or on the wall depending on the type of installation desired.
The ANN-SB80KIT(-R/-B/-W) is an available mounting kit for the ANN-80 annunciator. The kit
comes with a surface backbox and surface wedge for angled viewing. The two pieces can be used
separately or can be stacked together.
The ANN-80 cover must be attached to the annunciator backplate before mounting the annunciator
to the electrical box/wall. The cover cannot be reattached or removed after the annunciator has
been mounted.
ann-80_iso2.wmf
Key switch shown in
OFF/Locked position
Press in latch
and
Pull annunciator
cover open
Annunciator cover
with LCD display
Annunciator backplate
ann80kitmount.wmf
Annunciator mounted on
surface wedge from the
ANN-SB80KIT
Annunciator mounted on stacked
surface wedge and backbox from
the ANN-SB80KIT
Annunciator mounted on
surface backbox from the
ANN-SB80KIT
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 47
Optional Module Installation Installation
Wiring ANN-80 to FACP
The following steps can be used as a guide to wire the annunciator. Make certain all power has
been removed from the FACP prior to annunciator installation.
1. Route wires from hole in backplate, through wiring channel and then to ANN-80 terminal
block TB1
2. Remove appropriate amount of wire insulation
3. Connect the wiring from the FACP ANN-BUS to annunciator TB1 terminals 3 (A) & 4 (B).
Make certain to connect A to A and B to B
4. If appropriate, connect the wiring going to the next device on the ANN-BUS to TB1 terminals
3 & 4. Make certain to connect A to A and B to B
5. Connect the wiring from the 24 VDC power source to annunciator TB1 terminals 1 (-) & 2 (+).
Make certain to observe proper polarity
6. If appropriate, connect the power wiring going to the next device to terminals
1 (-) & 2 (+). Make certain to observe proper polarity
7. After all connections are made, remove extra wire from inside of annunciator by dressing it
neatly through wire channel, with any excess wire pushed back through hole into electrical box
wiring channel
wires
TB1
ann-80boxinside.wmf
B+ A+ B- A- A B
ANN
ACS
SHIELDSLC
SLC
SLC
SLC
TB9 TB10
TB1
B A (+) (-)
4 3 2 1
A B
+ -
+ 24V -
NON-RST
POWER
+ 24V -
RST
POWER
TB1
JP7
1
2
3
+ -
REMOTE PWR
SUPPLY SYNC
+ -
TB2
Figure 2.20 ANN-80 Wiring to FACP
ANN-80
ANN-BUS and power wiring are
supervised and power-limited
24 VDC
nonresettable
ANN-BUS
92udblsctoann80.wmf
Primary ANN-BUS
MS-9200UDLS
48 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Installation Optional Module Installation
The following table shows the ANN-80 connections to the MS-9200UDLS.
Programming
Following installation and wiring of the ANN-80 LCD annunciator to the FACP, the annunciator
must be added to the system via FACP programming. Refer to the programming section titled
“ANN-BUS Options” on page 108 in this manual for detailed programming information. Select
the LCD option for programming.
Trouble Response
If the ANN-80 is installed but the ANN-BUS is not enabled at the FACP, the ANN-80 will indicate
a trouble condition by NOT turning on its AC Power indicator. The LCD will also display Key Bus
Trouble and the piezo will sound approximately once every 10 seconds. Note that the FACP will
provide no indication of an ANN-80 trouble.
To clear the ANN-80 trouble condition, enable the ANN-BUS and program the address correspond-
ing to the address set on the ANN-80 at the FACP.
ANN-S/PG Serial/Parallel Interface Module
Installation
1. Ensure that all power (AC and DC) has been removed from the FACP.
2. Connect the ANN-S/PG to the FACP as illustrated in Figure 2.21
3. Using the DIP switches on the back of the ANN-S/PG module, assign an ID number (address)
to the module.
4. Select the address and configuration options for the ANN-S/PG module as described in the
Programming section of this manual (refer to “ANN-BUS Options” on page 108).
Note that the Auto-configure feature allows the programmer to quickly bring all installed
ANN-BUS modules online (refer to “Auto-Configure” on page 117).
MS-9200UDLS ANN-80 (TB1)
Terminal GND (-) on TB1 Terminal 1 (-)
Terminal PWR (+)TB1 Terminal 2 (+)
Terminal Data (A) on TB9 Terminal 3 (A)
Terminal Data (B) on TB9 Terminal 4 (B)
(-)
(+)
A
B
B+ A+ B- A- A B
ANN
ACS
SHIELDSLC
SLC
SLC
SLC
TB9 TB10
A B
+ -
+ 24V -
NON-RST
POWER
+ 24V -
RST
POWER
TB1
JP7
1
2
3
+ -
REMOTE PWR
SUPPLY SYNC
+ -
TB2
Figure 2.21 ANN-S/PG Connection to FACP
ANN-S/PG Module
Cable Connectors for
connection to printer
Parallel
Serial
ANN-BUS and power wiring are
supervised and power-limited
24 VDC
nonresettable Primary ANN-BUS
92udblsctospg.wmf
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 49
Optional Module Installation Installation
5. Connect a printer to the ANN-S/PG Parallel or Serial connectors (refer to Figure 2.21). Only
one printer can be connected.
Specifications
• Operating Voltage: 24 VDC
• Current (Alarm and Standby): 45 mA
• Ambient Temperature: 32°F to 120°F (0°C to 49°C)
• Max. Wiring Distance from FACP: 6,000 ft. (1,800 m)
• Mounting: Surface
• Dimensions: 6”W x 7-3/4”H x 1-7/16”D (15.2 cm W x 19.7 cm H x 3.7 cm D)
• For indoor use in a dry location only
Connecting a PRN-7 Printer
Remote printers require a primary AC power source. If required for the fire alarm system
configuration (for example, a Proprietary Fire Alarm System), a remote printer requires a
secondary power source (battery backup). Since a secondary power source is not provided as a
standard feature, a separate UL-listed Uninterruptible Power Supply (UPS) should be used. The
building emergency power supply may be used, as long as it meets the power continuity
requirements of NFPA 72. Refer to NFPA 72 for further details.
Connect the remote printer to the FACP via the ANN-S/PG module using a standard DB-9 cable.
One end of the cable will plug into the DB-9 connector on the PRN-7 printer and the other end
plugs into the serial connector on the ANN-S/PG module.
Setting Printer Options
Refer to the documentation supplied with the PRN-7 printer for instructions on using the printer
menu controls. Set the printer options (under the menu area) as shown in the following table:
PRN-6F Printer Installation
When connected to the FACP via the ANN-S/PG module, the PRN-6F prints the status changes
within the control panel and time-stamps the printout with the time of day and date that the event
occurred. It provides 80 columns of data on standard 9” x 11” tractor-feed paper. This section con-
tains information on connecting a printer to the control panel and setting the printer options.
Option Setting Option Setting
Font HS Draft CPI 10CPI
LPI 6 LPI Skip 0.5
ESC Character ESC Emulate LQ-2550
Bidirectional Copy ON I/O
CG-TAB Graphic Buffer 64K
Country E-US ASCII Serial
Auto CR OFF Baud 9600 or 2400
Color Option Not Installed Format 7 Bit, Even, 1 Stop
Formien Protocol XON/XOFF
Lines 6LPI=60 Character Set Standard
Standard Exec 10.5 SI.Zero On
Barcode Off Auto LF On
Barcode Unsecured
Table 2.2 PRN-7 Setup Options
50 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Installation Optional Module Installation
Connecting PRN-6F Printer
Remote printers require a primary AC power source. If required for the fire alarm system configu-
ration (for example, a Proprietary Fire Alarm System), a remote printer requires a secondary power
source (battery backup). Since a secondary power source is not provided as a standard feature, a
separate UL-listed Uninterruptible Power Supply (UPS) should be used. The building emergency
power supply may be used, as long as it meets the power continuity requirements of NFPA 72.
Refer to NFPA 72 for further details.
Connect the remote printer to the FACP via the ANN-S/PG module using a standard DB-25 cable.
One end of the cable will plug into the DB-25 connector on the PRN printer and the other end plugs
into the parallel connector on the ANN-S/PG module. Note that the 9-pin DB-9 port on the
ANN-S/PG is used to connect a serial printer. The 25-pin port is used for a Centronics parallel
printer cable. Connect either a serial or parallel printer, but not both at the same time.
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 51
Optional Module Installation Installation
Setting Printer Options
Refer to the documentation supplied with the PRN-6F printer for instructions on using the printer
menu controls. Set the printer options (under the menu area) as shown in the following table:
Option Setting Option Setting
Font HS Draft CPI 10CPI
LPI 6 LPI Skip 0.5
ESC Character ESC Emulate Epson FX-850
Bidirectional Copy ON I/O
CG-TAB Graphic Buffer 40K
Country E-US ASCII Serial
Auto CR OFF Baud 9600 or 2400
Color Option Not Installed Format 7 Bit, Even, 1 Stop
Formien Protocol XON/XOFF
Lines 6LPI=60 Character Set Standard
Standard Exec 10.5 SI.Zero On
Auto LF On
PAPER
BIN 1 12/72”
BIN 2 12/72”
SINGLE 12/72”
PUSH TRA 12/72”
PULL TRA 12/72”
PAP ROLL 12/72”
Table 2.3 PRN-6F Setup Options
52 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Installation Optional Module Installation
ANN-I/O LED Driver Module
ANN-I/O Board Layout
Figure 2.22 illustrates the ANN-I/O board showing locations of screw terminals for connection to
the FACP, pin connectors for connecting LEDs and the DIP switch for selecting the ANN-BUS ID
number.
Specifications
• Max. ANN-BUS Voltage: 28 VDC
• Max. Current:
Alarm: 200 mA
Standby: 35 mA
Each LED: 10 mA
• Operating Temperature: 32°F to 120°F (0°C to 49°C)
• For indoor use in a dry location only
1
10
11
20
21
30
31
40
LED Out
LED Power
not used
LED Out
LED Power
not used
LED Out
LED Power
not used
LED Out
LED Power
not used
ANN-BUS (ID#)
Address Dip switch
ANN-BUS Connector
ann-iobrd2.wmf
Figure 2.22 ANN-I/O Board Layout
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 53
Optional Module Installation Installation
ANN-I/O Connection to FACP
The ANN-I/O connects to the FACP via the ANN-BUS as illustrated in Figure 2.23. After the
ANN-I/O is connected to the panel, it must be added to the system via FACP programming. Refer
to the section titled “ANN-I/O Options” on page 109.
ANN-I/O Module LED Wiring
There are four 12-pin connectors on the ANN-I/O module for connecting LEDs. Each set of 10
LEDs get their power from Pin 11 of the corresponding connector. Internal resistors are sized so
that there is approximately 10 mA of current for each LED. No series resistors are required. LED
outputs can be mapped to output circuits. Refer to the programming section titled “ANN-I/O
Options” on page 109 of this manual.
The LEDs are wired as illustrated in Figure 2.24. Note that the illustration depicts only connectors
P1 and P2. Wiring is identical for P3 (LEDs 21-30) and P4 (LEDs 31-40).
P1 P2 P3 P4
1
2
3
4
5
B+ A+ B- A- A B
ANN
ACS
SHIELD
SLC
SLC
SLC
SLC
TB9 TB10
A B
+ -
+ 24V -
NON-RST
POWER
+ 24V -
RST
POWER
TB1
JP7
1
2
3
+ -
REMOTE PWR
SUPPLY SYNC
+ -
TB2
Figure 2.23 ANN-I/O Connection to FACP
ANN-I/O Module
ANN-BUS and power wiring are
supervised and power-limited
92udblsctoannio2.wmf
Primary ANN-BUS
24 VDC
nonresettable
LED Out
LED Power
Not Used
LED Out
LED Power
Not Used
LED Out
LED Power
Not Used
LED Out
LED Power
Not Used
10
1
112020
21
30
31
40
54 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Installation Optional Module Installation
ANN-LED Annunciator Module
Figure 2.24 ANN-I/O LED Wiring
ann-ioleds2.wmf
LED1
LED2
LED3
LED4
LED5
LED6
LED7
LED8
LED9
LED10
LED Power
no connection
Pin #
1
2
3
4
5
6
7
8
9
10
11
12
LED11
LED12
LED13
LED14
LED15
LED16
LED17
LED18
LED19
LED20
LED Power
no connection
P1
P2 Pin #
1
2
3
4
5
6
7
8
9
10
11
12
Cathode
LEDs
Anode
Cathode
LEDs
Anode
Figure 2.25 ANN-LEDs (shown in possible stacked configuration)
ann-ledstacked.wmf
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 55
Optional Module Installation Installation
Specifications
• Max. ANN-BUS Voltage: 24 VDC
• Max. Current:
Alarm: 68 mA
Standby: 28 mA
• Operating Temperature: 32°F to 120°F (0°C to 49°C)
• For indoor use in a dry location only
Mounting/Installation
The ANN-LED Module is supplied with a metal backbox, mounting bracket, and cover. Refer to
the ANN-LED Installation Document #53032 for more information.
Figure 2.26 Exploded View of ANN-LED
ann-led.wmf
56 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Installation Optional Module Installation
ANN-LED Board Layout and Connection to FACP
Figure 2.27 illustrates the ANN-LED board showing locations of screw terminals for connection to
the FACP and the DIP switches for selecting the ANN-BUS ID number.
ANN-RLY Annunciator Module
Specifications
• Operating Voltage: 24 VDC
• Max. Current:
Alarm: 75 mA
Standby: 15 mA
• Operating Temperature: 32°F to 120°F (0°C to 49°C)
• For indoor use in a dry location only
TB1
J1
SW1
JP2
ANN-BUS
1 2 3 4 5 6 7 8
B+ A+ B- A- A B
ANN
ACS
SHIELD
SLC
SLC
SLC
SLC
TB9 TB10
A B
+ -
+ 24V -
NON-RST
POWER
+ 24V -
RST
POWER
TB1
JP7
1
2
3
+ -
REMOTE PWR
SUPPLY SYNC
+ -
TB2
Figure 2.27 ANN-LED Board Layout and Connection to FACP
MS-9200UDLS
ANN-LED
Primary ANN-BUS
+24 VDC -24 VDC
ANN-BUS and power wiring are
supervised and power-limited
92udblsctoled.wmf
ANN-BUS (ID#)
Address DIP switch
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 57
Optional Module Installation Installation
Mounting/Installation
The ANN-RLY relay module can be mounted inside the FACP main circuit board chassis or inside
the ROME Series enclosure. Refer to the ANN-RLY Installation Document #53033 for instructions
on chassis mounting or to the ROME Series Installation Document #53530 for mounting in the sep-
arate backbox.
mounting holes
mounting hooks through
mounting slots
grounding wire
ANN-RLY
ANN-MBRLY
mounting bracket
mounting holes
mounting holes
FACP Backbox Installation
using ANN-MBRLY mounting bracket
FACP Chassis Installation
mounting holes
mounting holes
ANN-RLY on
ANN-MBRLY
mounting bracket
ROME Series Installation
using ANN-MBRLY mounting bracket
Figure 2.28 ANN-RLY Mounting Options
ann-rlyinchassis.wmf
ann_mbliyincab3.wmf
rome-relay-plate3.wmf
58 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Installation Optional Module Installation
ANN-RLY Board Layout and Connection to FACP
Figure 2.29 illustrates the ANN-RLY board showing locations of screw terminals for connection to
the FACP and the DIP switches for selecting the ANN-BUS ID number.
ANN-LC Lite-Connect Module
Specifications
• Operating Voltage: 24 VDC
• Max. Current: 150 mA
• Operating Temperature: 32°F to 120°F (0°C to 49°C)
• For indoor use in a dry location only
Installation
Ensure that all power (AC and DC) has been removed from the FACP before installing the commu-
nication module.
TB1
J1
SW1
JP2
ANN-BUS
1 2 3 4 5 6 7 8
TB6
TB3
TB5
TB4
TB2
B+ A+ B- A- A B
ANN
ACS
SHIELDSLC
SLC
SLC
SLC
TB9 TB10
A B
+ -
+ 24V -
NON-RST
POWER
+ 24V -
RST
POWER
TB1
JP7
1
2
3
+ -
REMOTE PWR
SUPPLY SYNC
+ -
TB2
Figure 2.29 ANN-RLY Board Layout and Connection to FACP
ANN-RLY
Primary ANN-BUS
+24 VDC -24 VDC
ANN-BUS and power wiring are
supervised and power-limited
92udblsctorly.wmf
MS-9200UDLS
ANN-BUS (ID#)
Address DIP switch
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 59
Optional Module Installation Installation
Mounting
The ANN-LC mounts inside the FACP cabinet. Slide the two tabs of the bracket into the backbox
protrusions on the lower right side. Secure with the included self-tapping screw. Refer to the
ANN-LC Product Installation Document for more information.
Wiring the ANN-LC to the Panel
The ANN-LC connects to the MS-9200UDLS via the FACP’s secondary ANN-BUS. Connect non-
resettable power at TB1 on the MS-9200UDLS to TB1 on the ANN-LC. Connect the secondary
ANN-BUS of the MS-9200UDLS at TB8 to TB1 on the ANN-LC.
Programming
Following installation and wiring of the ANN-LC module to the FACP, the module must be added
to the system via FACP programming. Select the LCD option for system programming. Refer to the
programming section titled “Lite-Connect” on page 102 in this manual for detailed programming
information.
2.9.3 Printer
A serial printer may be connected to TB8 Terminals 1 - 4 on the FACP when TB8 is not being used
for annunciators or a local PC connection. The printer can be used to provide a hard-copy printout
of real-time events, history file and walktest data. Installation the device requires panel program-
ming to allow the FACP to communicate with the device.
ANN-LC
backbox
protrusions
Figure 2.30 Mounting the ANN-LC into the Backbox
FLLCmnttabs.wmf
TB1 TB8
TB1
MS-9200UDLS
ANN-LC
+
-
B
A
Figure 2.31 Wiring the ANN-LC to the MS-9200UDLS
92udctofllc.wmf
to ANN-BUS
devices
downstream
power-
limited,
supervised
power-
limited,
supervised
Note: Figure 2.31 is just a graphical
representation for terminal wiring
purposes only. Actual wiring from the
FACP to the ANN-LC should be run
behind the board, between the board and
chassis. Maintain at least 0.25” (6.35
mm) spacing between power-limited and
nonpower-limited circuit wiring.
60 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Installation Optional Module Installation
A parallel printer may also be connected to the FACP using the optional ANN-S/PG Serial/Parallel
Interface Module. Refer to “ANN-S/PG Serial/Parallel Interface Module” on page 24 for installa-
tion details. Refer to “ANN-BUS Options” on page 108 for programming information.
Installation
Serial printers and PCs require separate primary power. Also required is the serial
PRT/PK-CABLE which is an interface cable prewired to a DB9F connector. Wire the PRT/PK-
CABLE to TB8 Terminals 1 - 4 as illustrated in the following figure. Connect the DB9F connector
to the printer or PC serial EIA-232 port. If a nine-pin serial connector is not available on the printer
or PC, use a DB25 adapter. Make certain that the DB25 adapter does not swap the Transmit and
Receive lines. Apply power to the FACP and printer or PC. Note that a ground fault (zero imped-
ance to ground) may occur on the FACP, dependent on the printer or PC being used, due to this
connection. For this reason, it is important that there be no preexisting ground fault on the panel.
Note that the printer may or may not be supervised as determined by user programming. Refer
to“Printer/PC” on page 126.
Printer Configuration
Refer to the documentation supplied with the printer for pertinent information about printer setup.
Set the printer’s options as listed in the following table:
!
CAUTION: POSSIBLE EQUIPMENT DAMAGE
DO NOT CONNECT A PRINTER OR PC TO THE MS-9200UDLS FACP IF A GROUND FAULT
(ZERO IMPEDANCE TO GROUND) EXISTS ON THE CONTROL PANEL. CIRCUIT DAMAGE
MAY RESULT. REMOVE ALL POWER (PRIMARY AND SECONDARY) BEFORE INSTALLING OR
REMOVING ANY WIRING.
COMMUNICATION SETUP
BUFFER: LARGE
DATA BITS: 7
PARITY: EVEN
STOP BIT: 1 STOP
BAUD RATE: 2400/4800/9600
AUTOMATIC LINE FEED NO
AUTOMATIC CARRIAGE RETURN NO
DTR READY
Table 2.4 Printer Options
B+ A+ B- A- A B
ACS
SHIELDSLC
SLC
SLC
SLC
IN+ IN- OUT+ OUT-
TB8 TB9 TB10
DB9F
5 4 3 2 1
9 8 7 6
T
XR
C
V
G
N
D
D
T
R
PRT/PK-CABLE
92udlsctb8.wmf
Figure 2.32 Serial Printer and Computer Connections
Red
White
Green
Black
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 61
Optional Module Installation Installation
2.9.4 ECC-FFT Firefighter Telephone
The ECC-FFT connects from TB1 (non-resettable aux power) on the FACP to the DC Power input
on the ECC-FFT board.
2.9.5 W-GATE Wireless Gateway
The W-GATE connects to the FACP’s SLC connection at TB10. The W-GATE can be powered by
either the SLC or an external 24 VDC power source. Refer to the SWIFT™ Smart Wireless Inte-
grated Fire Technology Manual for more information.
1B+ 3B+ 3B- 1B- 2B+ 4B+ 4B- 2B-
TB3 TB4
+ 24V -
NON-RST
POWER
+ 24V -
RST
POWER
TB1
JP7
REMOTE PWR
SUPPLY SYNC
+ -
TB2
- + A B
+ -
MS-9200UDLS
ECC-FFT
Figure 2.33 ECC-FFT Connections
92udlsctofft.wmf
TB9
TB8 TB10
Xmt Rcv Dtr Gnd
A B
In+ In- Out+ Out-
+ -
A B B+ A+ B- A- A B
Slc Slc Slc Slc Shield
out to next
SLC device
Figure 2.34 W-GATE SLC Connection
92udlstoWG.wmf
MS-9200UDLS
W-GATE
mounting plate
NOTE: The W-GATE, as part of the wireless network, has been tested for compliance with the
Federal Communications Commission (FCC) requirements of the United States Government. It
has not been evaluated for use outside the USA. Use of this system outside the USA is subject to
local laws and rules to which this product may not conform. It is the sole responsibility of the user
to determine if this product may be legally used outside the USA.
62 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Installation Automatic Audio Panel Control
2.10 Automatic Audio Panel Control
The FACP annunciator bus serves as the “FACP Data Bus” to the ECC-50/100 or ACC-25/50 audio
system. User programming is required to set up the operation of the audio system. To set up the
annunciator bus, refer to Section 2.9.2 on page 41. The annunciator protocol, ANN-Bus or legacy
ACS-Bus, must be selected and enabled. Note that only one of the protocols may be enabled in the
system. Refer to “Guidelines” on page 23 for conditions when using the ANN-Bus.
When using the ACS-Bus protocol, ACS address 01 must be enabled in the FACP programming.
When using the ANN-Bus protocol, the FACP will automatically detect the audio system connec-
tion during annunciator “auto-configuration”. No ANN-Bus address selection is necessary at the
FACP.
Once the FACP can communicate with the audio system, FACP zones Z33 through Z56 become
automatically dedicated as output zones for speaker circuits 1 through 24 respectively. FACP zone
Z32 is dedicated to turn on all speaker circuits. FACP programming allows association between
any addressable SLC input device (module, detectors) with any of the speaker circuits. In addition
1 of 14 messages (1 of 5 using the legacy ACC panel) can be generated over the selected speaker
circuit. Any fault in the ECC-50/100 audio system is sent to the FACP via the FACP Data Bus and
is indicated as an annunciator fault on the FACP display. A fault at the ACC-25/50ZS Series panel
will cause the FACP to indicate a System Trouble and the display will indicate a Voice Evac Fault.
For speaker circuit mapping and audio message assignment, refer to “Zone Message” on page 91.
Also, refer to “Programmed Activation by FACP” in chapter 3 of the ECC-50/100 Instruction Man-
ual (Doc. LS10001-000FL-E) or Appendix D, “Programmed Activation by FACP” in the ACC-
25/50ZS Series Instruction Manual (Doc. 51889).
Connect the ECC-50/100 panel’s FACP Data Bus at TB13 to TB9 on the MS-9200UDLS FACP.
+ -
B+ A+ B- A- A B
ACS SHIELD
SLC
SLC
SLC
SLC
OUT+ IN+ OUT- IN-
TB8 TB9 TB10
Figure 2.35 FACP Connection to ECC-50/100 Series Audio Panel
9200udecc.wmf
MS-9200UDLS
ECC-50/100
to other ACS/ANN
devices
A B
ANN
ACS
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 63
Automatic Audio Panel Control Installation
The only connection between the FACP and ACC-25/50ZS Series audio panel is a pair of commu-
nication wires connected between the A(+)/B(-) terminals on TB9 of the FACP and TB1 terminals
2 & 3 of the ACC-ZPMK module on the audio panel.
1 2 3 4 5 6 7 8
ON
S1 ON
S3
0
5
4
3
2
1
9
8
7
6
0
5
4
3
2
1
9
8
7
6
S2
TENS ONES
+ -
NO NC C NC NO C
TB5 TB9
TB8
TB6 TB10
Xmt Rcv Dt r Gnd
A B
In+ In- Out+ Out-
+ -
A B B+ A+ B- A- A B
Slc Slc Slc Slc Shield
A (+) B (-)
ACC-ZPMK
on ACC-25/50ZS(T) Series
Figure 2.36 FACP Connection to ACC-25/50ZS(T) Series Audio Panel (Legacy)
Primary ANN-BUS
92udblsctozpmk.wmf
MS-9200UDLS
64 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Section 3: Programming
3.1 Programming Data Entry
Programming can be accomplished using the MS-9200UDLS keypad or by connecting an optional
standard computer keyboard. The keyboard can be connected to the PS-2 connector J3 on the
control panel main circuit board.
The information presented in this section refers to programming the MS-9200UDLS via the
onboard keypad. If an optional computer keyboard is connected to the MS-9200UDLS main circuit
board, the following table describes the keyboard keys which correspond to the onboard keypad
keys.
NOTICE TO USERS, INSTALLERS, AUTHORITIES HAVING JURISDICTION
AND OTHER INVOLVED PARTIES
This product incorporates field-programmable software. In order for the product to comply with the requirements in the Standard for
Control Units and Accessories for Fire Alarm Systems, UL 864, certain programming features or options must be limited to specific
values or not used at all as indicated below:
Program feature or
option
Permitted in
UL 864? (Y/N) Possible settings Settings permitted in UL
864
Trouble Call Limit N Refer to “Trouble Call Limit (Dialer Runaway Prevention)” on
page 121.
Trouble Call Limit = 0 (factory default): unlimited calling to
Central Station for any trouble condition
Trouble Call Limit = 1 - 99: limits call for each unique trouble
to from 1 to 99 within a 24 hour period
Trouble Call Limit = 0 for
unlimited Central Station
trouble calls
Remote Download Y Refer to “Remote Site Upload/Download” on page 157.
Remote Download - Proprietary No
Remote Download - Proprietary Yes
Remote Download
Proprietary Yes for
Proprietary system intended
to protect only contiguous
properties
Keypad Keys Computer Keyboard Keys
1st Event Home
CLR Delete
ESC Esc
RECALL Insert
**
##
A - Z A - Z
0 - 9 0 - 9
■ (on QZ key) Space bar
——
//
••




ENTER Enter
ACK/STEP F1
SILENCE F2
DRILL F3
RESET F4
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 65
User Programming Programming
3.2 User Programming
The MS-9200UDLS is completely field programmable and requires no special software skills.
While programming the MS-9200UDLS, the fire protection capabilities of the control panel are
enabled.
Site-specific programming may be accomplished in any of the following ways:
•Autoprogramming Feature - This is a convenient method for quickly bringing the FACP
addressable SLC devices on-line without the necessity of programming each device
individually. Refer to “Autoprogram” on page 67 for a detailed description of
Autoprogramming.
• Manual programming or editing, using the FACP keypad or a PC keyboard
• Remote Programming and Editing Feature - allows creation and editing of site-specific custom
programs using a Windows-based computer and modem. For programs requiring a large
amount of data entry, this method may be preferred. A PK-CD programming CD-ROM can be
ordered for this purpose.
• Local Programming and Editing Feature - allows creation and editing of site-specific custom
programs using a Windows-based computer and the FACP USB connection. For programs
requiring a large amount of data entry, this method may be preferred. A PK-CD programming
CD-ROM can be ordered for this purpose.
The System All Normal screen will be displayed in a programmed system with no active alarms,
troubles or supervisories, as illustrated below:
Read Status mode can be entered while the panel is in any mode of operation. If an alarm or
supervisory event exists at the panel, the event must be cleared before entering Programming mode.
To access any of the programming or read status features, the Enter or Mode key must be pressed,
which will cause the LCD to display the following:
Pressing 1, while this screen is being displayed, will cause the control panel to enter the Read
Status Mode which allows the user to view the programmed features and status of the control panel
The Read Status feature is not password protected. Refer to “Read Status” on page 145 for a
detailed description of this feature.
Pressing 2 will select user Programming Mode which may only be accomplished by an authorized
person. After pressing 2, a screen will prompt for a password. After entering the correct password,
the user may select from a list of programming options.
Pressing 3 will select Remote Download which allows the user to enable the remote programming
option. Refer to “Remote Site Upload/Download” on page 157.
Exit Programming, Read Status
The programmer can exit any mode by repeatedly pressing the keypad ESC (Escape) key until the
display reads System All Normal. Note that the data which is entered during Programming mode
is not saved until the programmer exits this mode by repeatedly pressing the ‘ESC’ key. If the Reset
key is pressed or power is lost before exiting Programming mode, all data just entered will be lost.
SYSTEM ALL NORMAL
10:00A 012106
1=READ STATUS MODE
2=PROGRAMMING MODE
3=REMOTE DOWNLOAD
66 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Programming Initial Power-up
User Programming Levels
There are two user programming levels:
• User Master Program Level 1 is used for programming panel specific data relating to device
types, zoning, messages, control panel functions, etc.
• User Maintenance Program Level 2 is used by a qualified operator to access features such as
Disable/Enable, View and Clear History, Walktest and System Time Change.
3.3 Initial Power-up
The following sections describe the initial programming procedures for a new system. The same
procedures are used to modify programming in an existing system.
After completing the wiring of addressable devices to the SLC, apply power to the control panel. If
the addressable devices have not yet been programmed into the FACP, their LEDs will not flash and
the following trouble message will be displayed.
3.4 Programming Screens Description
The options available when the Enter key is pressed are: Read Status, Programming. The Read
Status and Programming options have multiple functions or features which may be chosen. To
view all of the choices, it is necessary that the programmer scroll through a number of additional
subscreens. These selections are displayed on multiple screens to make them more readable for the
programmer. Refer to “Master Programming Level” on page 67, for additional information on the
various screens.
The title of the main option screen will always be displayed at the top of the subscreens for the
programmer’s convenience. If additional subscreens exist, an Up or Down arrow will be displayed
in the upper right corner of the screen being viewed. The programmer can then press the keypad
Up or Down arrow key to view the new subscreen. To select one of the choices in a screen, the
programmer presses the keypad numerical key corresponding to the desired choice.
Note that subscreens may also have multiple options which require viewing more than one screen.
The same process, as detailed in the previous paragraphs, is followed to view all option choices.
3.5 Programming and Passwords
There are two factory set programming passwords which will access the Programming screens as
indicated in the following examples. From either of the screens, access to specific system and
device features or programming may be obtained. All user programming entries are stored in non-
volatile memory. The factory set passwords can be changed by the user as described in “Password
Change” on page 126. If an invalid password in entered, the blinking cursor will return to the first
password character position. To exit Programming or Read Status mode at any time, press the ESC
(Escape) key repeatedly. Note that Programming mode must be exited using the ESC key in order
to store the program data entered during this mode. If the Reset key is pressed or power is lost
before exiting Programming mode, the data just entered will not be saved.
To access user Programming mode, press the Enter or Mode key. The LCD will display the follow-
ing.
TROUBL IN SYSTEM
NO DEVICES INSTALLED
09:03A 012106
1=READ STATUS MODE
2=PROGRAMMING MODE
3=REMOTE DOWNLOAD
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 67
Master Programming Level Programming
To enter the user Programming mode, press 2. The display will read as follows:
Entering the Master level password (default 00000) will cause the following screen to appear:
If the Maintenance level password (default 11111) is entered, the following screen will appear:
Note that in the two preceding screens, an arrow appears to inform the programmer that additional
options can be viewed by pressing the keypad down arrow key.
3.6 Master Programming Level
When the Master Program Level password is entered, the control panel will enter user
Programming mode. In this mode, the piezo sounder remains off, the trouble relay is activated and
the system Trouble LED flashes until Programming mode is exited. The following display will
appear:
The down arrow which appears in the display indicates that additional programming choices can be
viewed by pressing the down arrow key on the keypad. If a down and up arrow appear in the
display, pressing the ‘down’ arrow key will display the subsequent Programming Screens as
illustrated below while pressing the ‘up’ arrow key will display the previous screen.
3.6.1 Autoprogram
Pressing 1 while viewing Programming Screen #1, will select the Autoprogram option, which
prompts the control panel to poll all devices installed on the SLC loop. The primary purpose of
autoprogramming is to allow the installer a fast and easy way to bring the system on-line as quickly
as possible. The first time the system is powered-up, it should be autoprogrammed.
If the system is already programmed and Autoprogram is initiated, the system will only add default
values for newly installed devices.
PROGRAMMING
ENTER PASSWORD

PROGRAMMING
1=AUTOPROGRAM
2=POINT PROGRAM
3=ZONE SETUP
PROGRAMMING
1=POINT PROGRAM
2=HISTORY
3=PROGRAM CHECK
PROGRAMMING
1=AUTOPROGRAM
2=POINT PROGRAM
3=ZONE SETUP
Programming Screen #1
PROGRAMMING
1=LOOP SETUP
2=SYSTEM SETUP
3=VERIFY LOOP
PROGRAMMING
1=HISTORY
2=WALKTEST
3=OPTION MODULES
PROGRAMMING
1=PASSWORD CHANGE
2=CLEAR PROGRAM
3=PROGRAM CHECK
Programming Screen #2 Programming Screen #3 Programming Screen #4
PROGRAMMING
1=AUTOPROGRAM
2=POINT PROGRAM
3=ZONE SETUP
Programming Screen #1
68 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Programming Master Programming Level
When Autoprogram is selected, the control panel will begin autoprogramming the system by
communicating with each addressable device installed on the SLC loop. While autoprogramming,
the panel will display the following:
When Autoprogramming is completed, the control panel will display the type and quantity of each
device installed on the SLC loop similar to the following display:
In the preceding example, the display indicates that the SLC Loop has 55 addressable detectors, 35
monitor modules and 30 control modules installed.
Pressing the ESC key will return the display to Programming Screen #1.
3.6.2 Point Program
The Point Program option allows the programmer to add a new addressable device to an SLC loop,
delete an existing device from a loop or change the programming for an existing device. Pressing
2, while viewing Programming Screen #1, will select the Point Program option and display the
following screen:
Detector Programming
Pressing 1, while viewing the Point Program Screen, will allow the programmer to add, delete or
change the programming of an addressable detector. The following screen will be displayed by the
control panel:
Add Detector
Pressing 1 while viewing the Detector Screen will display the following screen which allows the
programmer to add a new detector address to programming:
A flashing cursor will appear in the position of the first asterisk to the left. The programmer keys in
the three digit detector address, such as 005.
AUTOPROGRAM
AUTOPROGRAMMING!
PLEASE WAIT
Autoprogram Progress Screen
# OF DET LOOP1 055
# OF MON LOOP1 035
# OF CON LOOP1 030
Autoprogram Result Screen #1
PROGRAMMING
1=AUTOPROGRAM
2=POINT PROGRAM
3=ZONE SETUP
Programming Screen #1
POINT PROGRAM
SELECT TYPE
1=DETECTOR
2=MODULE
Point Program Screen
DETECTOR
1=ADD
2=DELETE
3=EDIT
Detector Screen
ADD DETECTOR
ENTER DETECTOR#

Add Detector Screen
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 69
Master Programming Level Programming
When the last digit is keyed-in, the following screen will be displayed:
Press the down arrow key to view additional choices. Press the number corresponding to the
desired selection to program that type to the newly added detector.
When the type has been selected, the following screen will be displayed:
The programmer can continue adding detectors by pressing the ESC key which will return the
display to the Add Detector Screen.
Delete Detector
Pressing 2 in the Detector Screen will display the Delete Detector Screen which allows the
programmer to delete a specific detector:
A flashing cursor will appear in the position of the first asterisk to the left. The programmer keys in
the three digit detector address, such as 005. When the last digit is keyed-in, the following screen
will be displayed:
The programmer can continue deleting detectors by pressing the ESC key which will return the
display to the Delete Detector Screen.
Edit Detector
The programmer can change a detectors existing or factory default programming by pressing 3 in
the Detector Screen. The following screen will be displayed:
A flashing cursor will appear in the position of the first asterisk to the left. The programmer keys in
the three digit detector address, such as 017.
When the last digit is keyed-in, if the selected address has not been added to programming, a screen
showing information about a device that is installed with a lower address, closest to the selected
address, will be displayed.
DETECTOR TYPE
1=SMOKE(PHOTO)
2=USER-DEFINED-1
3=SMOKE(ION)
ADD DETECTOR
DETECTOR# 005
IS ADDED
DETECTOR
1=ADD
2=DELETE
3=EDIT
Detector Screen
DELETE DETECTOR
ENTER DETECTOR#

Delete Detector Screen
DELETE DETECTOR
DETECTOR# 005
IS DELETED
EDIT DETECTOR
ENTER POINT ADDRESS

Edit Detector Screen
70 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Programming Master Programming Level
If no detectors have been installed on the loop, the following will be displayed:
If the selected address has been added to programming, device summary screens will be displayed.
These screens allow the programmer to view all device settings at a single glance. Pressing the left
or right arrow keys will allow the programmer to rapidly view the devices at the previous or next
address (if installed).
If a detector (such as a photoelectric detector) with the selected address is not physically installed
on the SLC or has a communication fault but the address is programmed in the system, the
following screen will be displayed:
If the selected address has been added to programming and a detector (such as a photoelectric
detector) with the selected address is physically installed on the SLC and is communicating with
the control panel, the following will be displayed:
To change the programming for the displayed detector, press the keyboard ‘down’ arrow key to
view the Edit Detector screens.
In the preceding example:
Normal - indicates that the detector with the selected address is physically installed on the
SLC and communicating with the control panel (enabled)
<ADJ><NOUN> - represents the adjective and noun, which have been programmed,
describing the location of the displayed device
ZNNN - represents the first of five possible software zones that the detector is assigned to
(NNN = the three digit zone number from 000 - 099)
V or * - indicates whether or not alarm verification is enabled (V = alarm verification
enabled and * = alarm verification disabled)
1D017 - represents the Loop, Device type and Device address (1 = SLC Loop, D=Detector
and 017 = Detector Address 017)
The following examples show the editing of a photoelectric smoke detector with address 017,
located on the SLC loop:
NO DETECTOR
INSTALLED
Edit Detector Screen #1
TROUBL SMOKE(PHOTO)
<ADJ><NOUN>
ZNNN
1D017
Edit Detector Screen #1
NORMAL SMOKE (PHOTO)
<ADJ><NOUN>
ZNNN
V 1D017
Edit Detector Screen #1
EDIT DETECTOR 1D017
1=ENABLED YES
2=TYPE SMOKE(PHOTO)
3=VERIFICATION OFF
Edit Detector Screen #2
EDIT DETECTOR 1D017
1=WALKTEST NO
2=PAS NO
3=PRE-SIGNAL NO
Edit Detector Screen #3
EDIT DETECTOR 1D017
1=ZONE ASSIGNMENT
00 
Edit Detector Screen #4 Edit Detector Screen #5
EDIT DETECTOR 1D017
1=NOUN/ADJECTIVE
2=DESCRIPTION

MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 71
Master Programming Level Programming
Enable/Disable Detector
To Enable or Disable the detector, press the 1 key while viewing the Edit Detector Screen #2. Each
press of the key will toggle the screen between Enabled Yes and Enabled No. If Enabled No is
selected, the detector will not be polled by the control panel, preventing the detector from reporting
alarms and troubles to the panel. The control panel will display the device type and address which
has been disabled and will turn on the Trouble LED and Disable LED.
Type
To select the type of detector being programmed, press the 2 key while viewing the Edit Detector
Screen #2. This will cause the control panel to display the following Detector Type Screens:
Pressing the down arrow key will display additional detector types as indicated in the following
table.
While viewing either Detector Type screen, select the type of detector being programmed by
pressing the corresponding keyboard number key. The display will return to Edit Detector Screen
#2 and indicate the selection next to the Type option.
Verification
Alarm verification is used to confirm that a smoke detector activation is a true alarm condition and
not a false alarm. This feature is selected by pressing 3 while viewing the Edit Detector Screen #2
so that the display reads Verification On. Each time the 3 key is pressed, the display will toggle
between Verification On and Verification Off. For a detailed description, refer to “Alarm
Verification (None or One Minute)” on page 144.
Detector Type Action When Activated
Smoke Photo Fire Alarm
User-Defined-1 same as previous (Smoke Photo)
Smoke Ion Fire Alarm
User-Defined-2 same as previous (Smoke Ion)
Heat Detect Fire Alarm
User-Defined-3 same as previous (Heat Detect)
Smoke DuctP Fire Alarm
User-Defined-4 same as previous (Smoke DuctP)
Photo w/Heat Fire Alarm
User-Defined-5 same as previous (Photo w/Heat)
Duct-Superv Supervisory, latching
User-Defined-6 same as previous (Superv DuctP)
Photo-SupervAR Supervisory, nonlatching (works only in LiteSpeed)
User-Defined-7 same as previous (Photo-SupervAR)
ADAPT Fire Alarm
User-Defined-8 same as previous (ADAPT)
Beam Fire Alarm
User-Defined-9 same as previous (Beam)
EDIT DETECTOR
1=ENABLED
2=TYPE
3=VERIFICATION
Edit Detector Screen #2
EDIT DETECTOR
1=ENABLED
2=TYPE
3=VERIFICATION
Edit Detector Screen #2
DETECTOR TYPE
1=SMOKE(PHOTO)
2=USER-DEFINED-1
3=SMOKE (ION)
Detector Type Screen #1
NOTE: If a detector is selected to be a SUPERV DUCTP type, it will function like a supervisory
point not a fire alarm point. The supervisory LED and supervisory relay will activate, not the fire
alarm LED or alarm relay, if the detector senses smoke.
72 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Programming Master Programming Level
Walktest
The Walktest feature allows one person to test the system devices without the necessity of manually
resetting the control panel after each device activation. To enable a device for the Walktest feature,
press 1 while viewing the Edit Detector Screen #3 until the display reads Walktest Yes. Each press
of the 1 key will cause the display to toggle between Walktest Yes and Walktest No. Refer to
“Walktest” on page 145.
PAS
The PAS (Positive Alarm Sequence) option will program the detector to delay panel activation
(including alarm relay and communicator) for a period of 15 seconds plus a programmable time of
up to 3 minutes. Zone 97, however, will activate immediately and may be used to connect a
signaling device to indicate PAS activation (do not use a Notification Appliance Circuit for this
purpose). To enable the PAS feature, press 2 while viewing the Edit Detector Screen #3 until the
display reads PAS Yes. Each press of the 2 key will cause the display to toggle between PAS Yes and
PA S N o . Refer to “Positive Alarm Sequence” on page 143.
For example, if a detector with address 005 is to be configured for PAS operation:
Select PAS Yes when editing the detector set to address 005
Program the desired zone or zones to be activated by this detector, in this example Z001
Program an output, such as a control module that is to be activated by detector 005 by
assigning the same zone to it; in this example Z001
Program an output, such as a control module, for PAS activation by assigning zone Z97 to it.
This control module may be connected to a signaling device used to indicate a PAS
condition (do not use a Notification Appliance Circuit for this purpose)
Enable zones Z001 and Special Purpose Zone PAS 97 and set the PAS delay timer to some
value
With the preceding program settings, when the detector with address 005 is activated, zone Z97
will cause its associated control module to activate immediately, sounding the connected PAS
signaling device. Following the PAS delay time, zone Z001 will cause its associated control
module to activate and the control panel will initiate an alarm condition.
Note that a detector can be enabled for either PAS or Pre-signal but not both
Pre-signal
The Pre-signal option programs the detector to delay panel activation for a preprogrammed time
delay of up to three minutes while allowing for visual verification by a person. Note that the alarm
relay and communicator will respond to the initial alarm immediately. In addition, Zone 98 will
activate. This zone can be programmed to a control module which may be used to activate a
sounder or indicator which the installer designates as a Presignal indication (do not use a
Notification Appliance Circuit for this purpose). To enable the Pre-signal feature, press 3 while
viewing Edit Detector Screen #3 until the display reads Pre-signal Yes. Each press of the 3 key will
cause the display to toggle between Pre-signal Yes and Pre-signal No. Refer to “Presignal” on
page 142.Q
For example, if a detector with address 005 is to be configured for Pre-Signal operation:
Select Pre-signal Yes when editing the detector set to address 005
Program the desired zone or zones to be activated by this detector, in this example Z001
Program an output, such as a control module that is to be activated by detector 005 by
assigning the same zone to it; in this example Z001
Program an output, such as a control module, for Pre-signal activation by assigning zone
Z98 to it. This control module may be connected to a signaling device used to indicate a
Pre-signal condition (do not use a Notification Appliance Circuit for this purpose)
Enable zones Z001 and Special Purpose Zone Pre-signal 98 and set the Pre-signal delay
timer to some value
EDIT DETECTOR
1=WALKTEST
2=PAS
3=PRE-SIGNAL
Edit Detector Screen #3
EDIT DETECTOR
1=WALKTEST
2=PAS
3=PRE-SIGNAL
Edit Detector Screen #3
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 73
Master Programming Level Programming
With the preceding program settings, when the detector with address 005 is activated, zone Z98
will cause its associated control module to activate immediately, sounding the connected signaling
device to indicate the Pre-signal condition. Following the Pre-signal delay time, zone Z001 will
cause its associated control module to activate and the control panel will initiate an alarm condition.
Note that a detector can be enabled for either PAS or Pre-signal but not both
Zone Assignment
A maximum of five zones can be programmed to each addressable detector. Pressing 1 while
viewing Edit Detector Screen #4 displays the following screen:
Note that Z** represents the Zone Number(s) corresponding to this device. The factory default for
an unprogrammed device is Z00 for general alarm zone. A flashing cursor will appear on the first 0
to the left. Enter the two digit number corresponding to the zone that is to be assigned to this
device. The cursor moves to the next Z** designation. Continue entering zone assignments or the
remaining zones can be left blank or programmed as general alarm zone Z00. When all desired
changes have been made, press the Enter key to store the zone assignments. The display will return
to the Edit Detector Screen #4. Note that the left and right arrow keys can be used to navigate
through the zones and the CLEAR key can be used to quickly clear a zone.
Noun/Adjective
The Noun/Adjective selection allows the programmer to enter specific descriptors about the
detector currently being programmed. Pressing 1 while viewing Edit Detector Screen #5 will cause
the following screen to be displayed:
EDIT DETECTOR
1=ZONE ASSIGNMENT
00 
Edit Detector Screen #4
ZONE ASSIGNMENT
Z00 Z Z Z Z
Zone Assignment Screen
EDIT DETECTOR
1=NOUN/ADJECTIVE
2=DESCRIPTION

Edit Detector Screen #5
1=STANDARD ADJECTIVE
2=STANDARD NOUN
3=CUSTOM ADJECTIVE
4=CUSTOM NOUN
Noun/Adjective Screen
74 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Programming Master Programming Level
Pressing 1 while viewing the Noun/Adjective Screen will cause the following screen(s) to be dis-
played. Note that the keyboard down arrow key must be pressed to see all the Adjective screens.
Press the number corresponding to the adjective that is to be used as a descriptor for the location of
the detector currently being programmed. When an adjective has been selected, it will appear at the
top of the display as indicated by the asterisks.
Pressing 2 while viewing the Noun/Adjective Screen will cause the following screen(s) to be
displayed. Note that the keyboard down arrow key must be pressed to see all the Noun screens.
Press the number corresponding to the noun that is to be used as a descriptor for the location of the
detector currently being programmed. When a noun has been selected, it will appear at the top of
the display as indicated by the asterisks.
Pressing 3 or 4 while viewing the Noun/Adjective Screen will display screens similar to the
previous Adjective and Noun Screens. The new screens will list custom Adjectives and Nouns
which have been programmed into the control panel using the PS-Tools utility. These descriptors
are selected as described in the previous sections.
1=STANDARD ADJECTIVE
2=STANDARD NOUN
3=CUSTOM ADJECTIVE
4=CUSTOM NOUN
Noun/Adjective Screen

1=NORTH
2=SOUTH
3=EAST
Adjective Screen #1

1=WEST
2=FRONT
3=CENTER
Adjective Screen #3

1=REAR
2=UPPER
3=LOWER
Adjective Screen #5

1=MAIN
2=FIRST
3=2ND
Adjective Screen #7

1=3RD
2=4TH
3=5TH
Adjective Screen #2
Adjective Screen #6

1=FLOOR1
2=FLOOR2
3=FLOOR3
Adjective Screen #4

1=FLOOR5
2=FLOOR6
3=ROOM
1=STANDARD ADJECTIVE
2=STANDARD NOUN
3=CUSTOM ADJECTIVE
4=CUSTOM NOUN
Noun/Adjective Screen

1=BASEMENT
2=BOILER RM
3=CLASSROOM
Noun Screen #1

1=CLOSET
2=CORRIDOR
3=ELECTRIC RM
Noun Screen #3

1=ELEVATOR
2=ENTRANCE
3=FLOOR
Noun Screen #5

1=GARAGE
2=HALLWAY
3=HVAC RM
Noun Screen #7

1=KITCHEN
2=LOBBY
3=OFFICE
Noun Screen #2

1=STAIRWAY
2=STOREROOM
3=WING
Noun Screen #6

1=PATIENT
2=RESTROOM
3=ROOM
Noun Screen #4

1=ZONE
Noun Screen #8
1=STANDARD ADJECTIVE
2=STANDARD NOUN
3=CUSTOM ADJECTIVE
4=CUSTOM NOUN
Noun/Adjective Screen
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 75
Master Programming Level Programming
Description
The Description selection allows the programmer to enter additional information about the detector
currently being programmed. This information will be displayed as part of the device label on the
display. Pressing 2 while viewing Edit Detector Screen #5 will cause the following screen to be
displayed:
A flashing cursor will appear at the first asterisk to the left. The programmer can enter additional
descriptive information about the device being programmed. This information will appear on the
display along with the standard device label information.
A maximum of 20 characters (including spaces) can be entered. To enter alphanumeric characters
from the keypad, repeatedly press the appropriate key until the desired character is displayed in the
first position. For example, to enter the letter B, press the 2 (ABC) key three times to toggle
through the characters 2, A and B. Press the right arrow key to move the cursor one position to the
right and repeat the process to enter the next character. To enter a space, press the * (QZ) key four
times until a blank appears in the desired position. When all characters have been entered, press the
Enter key to store the information. The display will return to the Edit Detector Screen #5,
displaying the new information at the bottom of the screen.
Recall/Increment Function
In addition, the user may use the Recall/Increment function at any time when the cursor is on the
first letter of the Description, Adjective or Noun field as follows:
• If the zero key is pressed, a 0 is placed in the first letter position
• If the zero key is then pressed a second time with no intervening key actions, the entire field is
replaced with the field entered for the previous device programmed, and the cursor moves to
the last character of the field (Recall function). The Recalled Adjective or Noun field may
now be changed letter-by-letter
• If the zero key is pressed again with no other intervening key actions and the last character in
the field is a number 0-9, the number is incremented by one. If the last character is a letter, it
changes to a 0. If the last character is 9 it goes to 0
• The above increment function may be repeated with each press of the zero key
As an example, the user could quickly enter ‘FLR_3_ROOM_305’ as follows:
1. The cursor is on the first letter of the Adjective field. Press the zero key twice to display
FLR_3
2. With the cursor on the first letter of the Noun field, press the zero key twice to recall the dis-
play ROOM_304. The cursor automatically jumps from the first to the last letter of the Noun
field
3. With the cursor on the last letter of the Noun field, press the zero key again to increment the
room number to 305
4. Press the right arrow key to advance the zone field
5. Select a zone number from 00 to 99. Z00 (default zone) is the general alarm zone. Z01
through Z99 may be selected to link software zones
EDIT DETECTOR
1=NOUN/ADJECTIVE
2=DESCRIPTION
Edit Detector Screen #5
DESCRIPTION 1D002
NOUN/ADJECTIVE

Adjective/Noun Screen
76 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Programming Master Programming Level
Module Programming
Pressing 2, while viewing Point Program Screen #2, will allow the programmer to add, delete or
change the programming of an addressable module. The following screen will be displayed by the
control panel:
Add Module
Pressing 1 while viewing the Modules Screen will display the following screen which allows the
programmer to add a new module address to programming:
A flashing cursor will appear in the position of the first asterisk to the left. The programmer keys in
the three digit module address, such as 005.
When the last digit is keyed-in, the following screen will be displayed:
Pressing 1 for Control Module or 2 for Monitor Module will cause the following screen to be
displayed:
The programmer can continue adding modules by pressing the ESC or left arrow key which will
return the display to the Add Module Screen #1.
Delete Module
Pressing 2 in the Modules Screen will display the Delete Module Screen which allows the
programmer to delete a specific module:
A flashing cursor will appear in the position of the first asterisk to the left. Using the panel keypad,
key in the module address such as 005. When the last digit is keyed in, the following confirmation
that the module has been deleted will be displayed:
POINT PROGRAM
SELECT TYPE
1=DETECTOR
2=MODULE
Point Program Screen #2
MODULES
1=ADD
2=DELETE
3=EDIT
Modules Screen
ADD MODULE
ENTER MODULE#

Add Module Screen #1
ADD MODULE
1=CONTROL
2=MONITOR
Add Module Screen #2
ADD MODULE
MODULE# 005
IS ADDED
Add Module Screen #3
MODULES
1=ADD
2=DELETE
3=EDIT
Modules Screen
DELETE MODULE
ENTER MODULE#

Delete Module Screen
DELETE MODULE
MODULE# 005
IS DELETED
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 77
Master Programming Level Programming
Edit Module Screen for Monitor Module
The programmer can change a modules existing or factory default programming by pressing 3 in
the Modules Screen. The following screen will be displayed:
A flashing cursor will appear in the position of the first asterisk to the left. The programmer keys in
the three digit module address, such as 012. When the last digit is keyed-in, if the selected address
has not been added to programming, a screen showing information about a device that is installed
with a lower address, closest to the selected address, will be displayed. If no modules are installed
on the loop, the following screen will be displayed:
If the selected address has been added to programming but a module (such as a monitor module)
with the selected address is not physically installed on the SLC or has a communication fault, the
following screen will be displayed:
If the selected address has been added to programming and a module (such as a monitor module)
with the selected address is physically installed on the SLC and is communicating with the control
panel, the following screen will be displayed:
To change the programming for the displayed module, press the keyboard down arrow key to view
the following Edit Monitor screens. In the preceding example:
Normal - indicates that the module with the selected address is physically installed on the
SLC and communicating with the control panel (enabled)
<ADJ><NOUN> - represents the adjective and noun, which have been programmed,
describing the location of the displayed device
ZNNN - represents the first of five possible software zones that the module is assigned to
(NNN = the two digit zone number from 000 - 099)
1M012 - represents the Loop, Device type and Device address (1 = SLC Loop 1, M=Module
and 012 = Module Address 012)
W or * - indicates whether or not the device is programmed for Walktest (W = programmed
for walktest, * = not programmed for walktest).
If the selected address corresponds to a control module, a screen displaying information about the
control module with the selected address will be displayed as shown in “Edit Module Screen for
Control Modules” on page 83.
EDIT MODULE
ENTER MODULE ADDRESS

Edit Module Screen
NO MODULE
INSTALLED
Edit Module Screen
TROUBL MONITOR
<ADJ><NOUN>
ZNNN
1M012
NORMAL MONITOR
<ADJ><NOUN>
ZNNN
W 1M012
78 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Programming Master Programming Level
If the selected address corresponds to a monitor module, a screen displaying information about the
module with the selected address will be displayed as illustrated in the following:
Enable/Disable Module
To Enable or Disable the monitor module, press the 1 key while viewing the Edit Module Screen
#2. Each press of the key will toggle the screen between Enabled Yes and Enabled No. If Enabled
No is selected, the module will not be polled by the control panel, preventing the module from
reporting alarms and troubles to the panel. The control panel will indicate a system trouble
condition and the Disable LED with turn on if any devices are disabled.
Type Monitor
Using the PS-Tools Upload/Download utility program, unique user-defined monitor types can be
created and loaded into the FACP for later use. The FACP response to the activation of a user-
defined type is the same as most previous standard types in the list, thus allowing a variety of user-
defined types and responses. To select the type of monitor module being programmed, press the 2
key while viewing the Edit Monitor Screen #2. This will cause the control panel to display the
following Monitor Type Screens:
Pressing the down arrow key will display additional Monitor Type screens. While viewing one of
the Monitor Type screens, select the type of monitor module being programmed by pressing the
corresponding keypad number key. The display will return to the Edit Monitor Screen #2 which
will show the new type selection.
Table 3.1 on page 79 lists the Monitor Types and their respective functions.
NORMAL MONITOR
<ADJ><NOUN>
ZNNN
1M012
EDIT MONITOR 1M012
1=ENABLED YES
2=TYPE MONITOR
Edit Monitor Screen #2
EDIT MONITOR 1M012
1=PRE-SIGNAL NO
Edit Monitor Screen #3
EDIT MONITOR 1M012
1=WALKTEST YES
2=ZONE ASSIGNMENT
00    
Edit Monitor Screen #4
EDIT MONITOR 1M012
1=ADJECTIVE/NOUN
2=DESCRIPTION

Edit Monitor Screen #5
EDIT MONITOR
1=ENABLED
2=TYPE MONITOR
Edit Monitor Screen #2
MONITOR TYPE
1=PULL-STATION
2=USER-DEFINED-1
3=WATERFLOW
Monitor Type Screen #1
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 79
Master Programming Level Programming
Monitor module type selection will affect the function of the point as follows:
Monitor Type Action When Activated
Pull-Station Fire Alarm
User-Defined-1 same as previous (Pull-Station)
Waterflow Fire Alarm Delayed
User-Defined-2 same as previous (Waterflow)
Monitor Fire Alarm
User-Defined-3 same as previous (Monitor)
Future not used
Future not used
Smoke-Conventional Fire Alarm
User-Defined-5 same as previous (Smoke-Conventional)
Heat-Conventional Fire Alarm
User-Defined-6 same as previous (Heat-Detector)
Medic-Alert 1
1 Combination systems employing these non-fire monitor types require the SLC
loop to be programmed by the installer for Style 4 operation and isolator modules
must be employed on each non-fire branch of the SLC as per Figure 13 in the
SLC Wiring Manual (document number 51309). Fire and non-fire devices must
not be used on the same SLC branch. For UL2017 compliance, The ANN-LED
annunciator must be used to indicate the active, dedicated zone or device
General Purpose Signaling, latching
User-Defined-7 same as previous (Medic-Alert)
Hazard-Alert 1General Purpose Signaling, latching
User-Defined-8 same as previous (Hazard-Alert)
Tornado-Alert 1General Purpose Signaling, latching
User-Defined-9 same as previous (Tornado-Alert)
Phone Active Phone (LCD display only)
User-Defined-10 same as previous (Phone)
Tamper Supervisory, nonlatching (tracking)
User-Defined-11 same as previous (Tamper)
Supervisory Supervisory, latching
User-Defined-12 same as previous (Supervisory)
Supervisory-AR 2
2 For entries ending in AR, AR refers to AutoResettable.
Supervisory, nonlatching (tracking)
User-Defined-13 same as previous (Supervisory-AR)
HVAC OVRRIDE 3
3 For HVAC RESTART and HVAC OVRRIDE descriptions, refer to “Monitor
Module Operation” on page 181.
Switch Supervisory, nonlatching (tracking)
Power-Monitor Power Fault
User-Defined-14 same as previous (Power Monitor)
Trouble-Monitor Trouble
User-Defined-15 same as previous (Trouble Monitor)
Process-Monitor General Purpose Signaling, latching
User-Defined 16 1same as previous (Process-Monitor)
Process-Monitor-AR 1,2 General Purpose Signaling, nonlatching (tracking)
User-Defined-17 same as previous (Process-Monitor-AR)
MNS Event Allows the Mass Notification System to override FACP programming and
turn off designated active outputs
Future not used
Ack-Switch Acts like panel Acknowledge Key
Sil-Switch Acts like panel Silence Key
Reset-Switch Acts like panel Reset Key
Drill-Switch Acts like panel Drill Key
PAS-Bypass PAS Disable
HVAC RESTART 3Switch (see note 2)
Drill-Switch-AR 2Acts like panel Drill Key, nonlatching (tracking)
Table 3.1 Monitor Types
80 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Programming Master Programming Level
Pre-signal
To enable the Pre-signal feature, press 1 while viewing Edit Monitor Screen #3 until the display
reads Pre-signal Yes. Each press of the 1 key will cause the display to toggle between Pre-signal
Yes and Pre-signal No. Refer to“Presignal” on page 142 for additional information.
Walktest
The Walktest feature allows one person to test the system devices without the necessity of manually
resetting the control panel after each device activation. To enable devices, which are connected to
a monitor module, for the Walktest feature, press 1 while viewing the Edit Monitor Screen #4 until
the display reads Walktest Yes. Each press of the 1 key will cause the display to toggle between
Walktest Yes and Walktest No. Refer to “Walktest” on page 145 for additional information.
Zone Assignment
A maximum of five zones can be programmed to each addressable monitor module. Pressing 2
while viewing Edit Monitor Screen #4 displays the following screen:
Note that Z** represents the Zone Number(s) corresponding to this device. The factory default for
an unprogrammed device is Z00 for general alarm zone. A flashing cursor will appear on the first 0
to the left. Enter the two digit number corresponding to the zone that is to be assigned to this
device. The cursor moves to the next Z** designation. Continue entering zone assignments or the
remaining zones can be left blank or programmed as general alarm zones Z00. When all desired
changes have been made, press the Enter key to store the zone assignments. The display will return
to the Edit Monitor Screen #4.
Noun/Adjective
The Noun/Adjective selection allows the programmer to enter specific descriptors about the
monitor module currently being programmed. Pressing 1 while viewing Edit Monitor Screen #5
will cause the following screen to be displayed:
EDIT MONITOR
1=PRE-SIGNAL
Edit Monitor Screen #3
EDIT MONITOR
1=WALKTEST
2=ZONE ASSIGNMENT
00    
Edit Monitor Screen #4
MON ZONE ASSIGN
Z00 Z Z Z Z
Zone Assignment Screen
EDIT MONITOR
1=NOUN/ADJECTIVE
2=DESCRIPTION

Edit Monitor Screen #5
1=STANDARD ADJECTIVE
2=STANDARD NOUN
3=CUSTOM ADJECTIVE
4=CUSTOM NOUN
Noun/Adjective Screen
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 81
Master Programming Level Programming
Pressing 1 while viewing the Noun/Adjective Screen will cause the following screen(s) to be
displayed. Note that the keyboard down arrow key must be pressed to see all the Adjective screens.
Press the number corresponding to the adjective that is to be used as a descriptor for the location of
the monitor module currently being programmed.
Pressing 2 while viewing the Noun/Adjective Screen will cause the following screen(s) to be
displayed. Note that the keyboard down arrow key must be pressed to see all the Noun screens.
Press the number corresponding to the noun that is to be used as a descriptor for the location of the
monitor module currently being programmed.
Pressing 3 or 4 while viewing the Noun/Adjective Screen will display screens similar to the
previous Adjective and Noun Screens. The new screens will list Custom Adjectives and Nouns
which have been programmed into the control panel using the PS-Tools utility.
1=STANDARD ADJECTIVE
2=STANDARD NOUN
3=CUSTOM ADJECTIVE
4=CUSTOM NOUN
Noun/Adjective Screen

1=NORTH
2=SOUTH
3=EAST
Adjective Screen #1

1=WEST
2=FRONT
3=CENTER
Adjective Screen #3

1=REAR
2=UPPER
3=LOWER
Adjective Screen #5

1=MAIN
2=FIRST
3=2ND
Adjective Screen #7

1=3RD
2=4TH
3=5TH
Adjective Screen #2

1=FLOOR 4
2=FLOOR 5
3=ROOM
Adjective Screen #6

1=FLOOR 1
2=FLOOR 2
3=FLOOR 3
Adjective Screen #4
1=STANDARD ADJECTIVE
2=STANDARD NOUN
3=CUSTOM ADJECTIVE
4=CUSTOM NOUN
Noun/Adjective Screen

1=BASEMENT
2=BOILER RM
3=CLASSROOM
Noun Screen #1

1=CLOSET
2=CORRIDOR
3=ELECTRIC RM
Noun Screen #3

1=ELEVATOR
2=ENTRANCE
3=FLOOR
Noun Screen #5

1=GARAGE
2=HALLWAY
3=HVAC RM
Noun Screen #7

1=KITCHEN
2=LOBBY
3=OFFICE
Noun Screen #2

1=STAIRWAY
2=STOREROOM
3=WING
Noun Screen #6

1=PATIENT
2=RESTROOM
3=ROOM
Noun Screen #4

1=ZONE
Noun Screen #8
82 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Programming Master Programming Level
Description
The Description selection allows the programmer to enter additional information about the monitor
module currently being programmed. This information will be displayed as part of the device label
on the LCD display. Pressing 2 while viewing Edit Monitor Screen #5 will cause the following
screen to be displayed:
A flashing cursor will appear at the first asterisk to the left. The programmer can enter additional
descriptive information about the device being programmed. This information will appear on the
LCD display along with the standard device label information.
A maximum of 20 characters (including spaces) can be entered. To enter alphanumeric characters
from the keypad, repeatedly press the appropriate key until the desired character is displayed in the
first position. For example, to enter the letter B, press the 2 (ABC) key three times to toggle
through the characters 2, A and B. Press the right arrow key to move the cursor one position to the
right and repeat the process to enter the next character. To enter a space, press the * (QZ) key four
times until a blank appears in the desired position. When all characters have been entered, press the
Enter key to store the information. The display will return to the Edit Monitor Screen #4,
displaying the new information at the bottom of the screen.
Recall/Increment Function
In addition, the user may use the Recall/Increment function at any time when the cursor is on the
first letter of the Adjective or Noun field as follows:
• If the zero key is pressed, a 0 is placed in the first letter position
• If the zero key is then pressed a second time with no intervening key actions, the entire
Adjective field is replaced with the field entered for the previous device programmed, and the
cursor moves to the last character of the field (Recall function). The Recalled Adjective or
Noun field may now be changed letter-by-letter
• If the zero key is pressed again with no other intervening key actions and the last character in
the field is a number 0-9, the number is incremented by one. If the last character is a letter, it
changes to a 0. If the last character is 9 it goes to 0
• The above increment function may be repeated with each press of the zero key
As an example, the user could quickly enter ‘FLR_3_ROOM 305’ as follows:
1. The cursor is on the first letter of the Adjective field. Press the zero key twice to display
FLR_3
2. With the cursor on the first letter of the Noun field, press the zero key twice to recall the dis-
play ROOM_304. The cursor automatically jumps from the first to the last letter of the Noun
field
3. With the cursor on the last letter of the Noun field, press the zero key again to increment the
room number to 305
4. Press the right arrow key to advance the zone field
5. Select a zone number from 00 to 99. Z00 (default zone) is the general alarm zone. Z01
through Z99 may be selected to link software zones
EDIT MONITOR
1=NOUN/ADJECTIVE
2=DESCRIPTION

Edit Monitor Screen #5
DESCRIPTION 1M012
NOUN/ADJECTIVE

Noun/Adjective Screen
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 83
Master Programming Level Programming
Edit Module Screen for Control Modules
The programmer can change a module’s existing or factory default programming by pressing 3 in
the Modules Screen. The following screen will be displayed:
A flashing cursor will appear in the position of the first asterisk to the left.
The programmer keys in the three digit module address, such as 002. When the last digit is keyed-
in, if the selected address corresponds to a control module, a screen displaying information about
the control module with the selected address will be displayed as illustrated in the following:
In the preceding example:
Normal - indicates that the module with the selected address is physically installed on the
SLC and communicating with the control panel (enabled)
<ADJ><NOUN> - represents the adjective and noun, which have been programmed,
describing the location of the displayed device
Control - indicates that the selected module is a control module
S or * - represents Silenceable (S) or Nonsilenceable (*)
W or * - represents Waterflow Timer Delay (W = Waterflow Timer Delay enabled, * =
Waterflow Timer Delay disabled)
ZNNN - represents the first of five possible software zones that the module is assigned to
(NNN = the three digit zone number from 000 - 099)
1M002 - represents the Loop, Device type and Device address (1 = SLC Loop, M=Module
and 002 = Module Address 02)
To change the programming for the displayed module, press the keyboard down arrow key to view
the following Edit Control screens:
Enable/Disable Module
To Enable or Disable the control module, press the 1 key while viewing the Edit Control Screen #2.
Each press of the key will toggle the screen between Enabled Yes and Enabled No. If Enabled No
is selected, the module will not be polled by the control panel, preventing the module from
activating its output devices. The control panel will indicate a system trouble condition and the
Disable LED will turn on if any devices are disabled.
MODULES
1=ADD
2=DELETE
3=EDIT
Modules Screen
EDIT MODULE
ENTER MODULE ADDRESS

Edit Module Screen
NORMAL CONTROL
<ADJ><NOUN>
ZNNN
SW 1M002
Edit Control Screen #1
EDIT CONTROL
1=ENABLED YES
2=TYPE CONTROL
3=SILENCEABLE YES
Edit Control Screen #2
EDIT CONTROL
1=WALKTEST YES
2=ZONE ASSIGNMENT
00    
Edit Control Screen #3
EDIT CONTROL
1=NOUN/ADJECTIVE
2=DESCRIPTION

Edit Control Screen #4
EDIT CONTROL
1=MNS OVERRIDE NO
Edit Control Screen #5
EDIT CONTROL
1=ENABLED
2=TYPE
3=SILENCEABLE
Edit Control Screen #2
84 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Programming Master Programming Level
Type
To select the type of control module being programmed, press the 2 key while viewing the Edit
Control Screen #2. This will cause the control panel to display the following Control Type Screens.
Press the down arrow key to view additional screens and selections.
While viewing one of the Control Type screens, select the type of control module being
programmed by pressing the corresponding keypad number key. The display will return to the Edit
Control Screen #2 and indicate the new type selection.
The following table contains control module type codes and their functions which are displayed in
the Control Type screens:
Silenceable
The Silenceable selection allows the programmer to select whether output devices connected to the
control module can be silenced, either by pressing the Alarm Silence key or by enabling
Autosilence. Pressing the 3 key while viewing Edit Control Screen #2 will enable the Silenceable
feature causing the display to read Silenceable Yes. Repeated presses of the 3 key will cause the
display to toggle between Silenceable Yes and Silenceable No.
Walktest
The Walktest feature allows one person to test the system devices without the necessity of manually
resetting the control panel after each device activation. To enable devices, which are connected to
a control module, for the Walktest feature, press 1 while viewing the Edit Control Screen #3 until
the display reads Walktest Yes. Each press of the 1 key will cause the display to toggle between
Walktest Yes and Walktest No. Refer to “Walktest” on page 145 for additional information.
EDIT CONTROL
1=ENABLED
2=TYPE
3=SILENCEABLE
Edit Control Screen #2
CONTROL TYPE
1=BLANK
2=BELL-CIRCUIT
3=HORN-CIRCUIT
Control Type Screen #1
NOTE: A control relay module set to the Resettable Power type will follow the main circuit board
24 VDC resettable power unless the control relay module is disabled.
Control Type Special Function
Bell Circuit NAC Type - supervised
Horn Circuit NAC Type - supervised
Sounders NAC Type - supervised
Relay Ignore Open Circuit
Strobe Circuit NAC Type - supervised
Control NAC Type - supervised
Resettable Power 1
1 When using a control relay module to supply resettable
power to conventional 2-wire smoke detectors, the
addressable monitor module must be programmed for
Smoke-Conventional operation
Relay Type - Ignore Open Circuit
HVAC SHUTDN 2
2 For HVAC SHUTDN description, refer to “Control
Module Operation” on page 181.
Relay Type - Ignore Open Circuit
EDIT CONTROL
1=ENABLED
2=TYPE
3=SILENCEABLE
Edit Control Screen #2
EDIT CONTROL
1=WALKTEST
2=ZONE ASSIGNMENT
00 QQ QQ QQ QQ
Edit Control Screen #3
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 85
Master Programming Level Programming
Zone Assignment
A maximum of five zones can be programmed to each addressable control module. Pressing 2
while viewing Edit Control Screen #3 displays the following screen:
Note that Z** represents the Zone Number(s) corresponding to this device. The factory default for
an unprogrammed device is Z00 for general alarm zone. A flashing cursor will appear on the first 0
to the left. Enter the two digit number corresponding to the zone that is to be assigned to this
device. The cursor moves to the next Z** designation. Continue entering zone assignments or the
remaining zones can be left blank or programmed as general alarm zones Z00. When all desired
changes have been made, press the Enter key to store the zone assignments. The display will return
to the Edit Control Screen #3.
Noun/Adjective
The Noun/Adjective selection allows the programmer to enter specific descriptors about the control
module currently being programmed. Pressing 1 while viewing Edit Control Screen #4 will cause
the following screen to be displayed:
ZONE ASSIGNMENT
Z00 Z Z Z Z
Zone Assignment Screen
EDIT CONTROL
1=NOUN/ADJECTIVE
2=DESCRIPTION
Edit Control Screen #4
1=STANDARD ADJECTIVE
2=STANDARD NOUN
3=CUSTOM ADJECTIVE
4=CUSTOM NOUN
Noun/Adjective Screen
86 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Programming Master Programming Level
Pressing 1 while viewing the Noun/Adjective Screen will cause the following screen(s) to be
displayed. Note that the keyboard down arrow key must be pressed to see all the Adjective screens.
Press the number corresponding to the adjective that is to be used as a descriptor for the location of
the control module currently being programmed.
Pressing 2 while viewing the Noun/Adjective Screen will cause the following screen(s) to be
displayed. Note that the keyboard down arrow key must be pressed to see all the Noun screens.
Press the number corresponding to the noun that is to be used as a descriptor for the location of the
control module currently being programmed.
Pressing 3 or 4 while viewing the Noun/Adjective Screen will display screens similar to the
previous Adjective and Noun Screens. The new screens will list Custom Adjectives and Nouns
which have been programmed into the control panel using the PS-Tools programming utility.
1=STANDARD ADJECTIVE
2=STANDARD NOUN
3=CUSTOM ADJECTIVE
4=CUSTOM NOUN
Noun/Adjective Screen

1=NORTH
2=SOUTH
3=EAST
Adjective Screen #1

1=WEST
2=FRONT
3=CENTER
Adjective Screen #3

1=REAR
2=UPPER
3=LOWER
Adjective Screen #5

1=MAIN
2=FIRST
3=2ND
Adjective Screen #7

1=3RD
2=4TH
3=5TH
Adjective Screen #2

1=FLOOR 4
2=FLOOR 5
3=ROOM
Adjective Screen #6

1=FLOOR 1
2=FLOOR 2
3=FLOOR 3
Adjective Screen #4
1=STANDARD ADJECTIVE
2=STANDARD NOUN
3=CUSTOM ADJECTIVE
4=CUSTOM NOUN
Noun/Adjective Screen

1=BASEMENT
2=BOILER RM
3=CLASSROOM
Noun Screen #1

1=CLOSET
2=CORRIDOR
3=ELECTRIC RM
Noun Screen #3

1=ELEVATOR
2=ENTRANCE
3=FLOOR
Noun Screen #5

1=GARAGE
2=HALLWAY
3=HVAC RM
Noun Screen #7

1=KITCHEN
2=LOBBY
3=OFFICE
Noun Screen #2

1=STAIRWAY
2=STOREROOM
3=WING
Noun Screen #6

1=PATIENT
2=RESTROOM
3=ROOM
Noun Screen #4

1=ZONE
Noun Screen #8
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 87
Master Programming Level Programming
Description
The Description selection allows the programmer to enter additional information about the control
module currently being programmed. This information will be displayed as part of the device label
on the display. Pressing 2 while viewing Edit Control Screen #4 will cause the following screen to
be displayed:
A flashing cursor will appear at the first asterisk to the left. The programmer can enter additional
descriptive information about the device being programmed. This information will appear on the
display along with the standard device label information.
A maximum of 20 characters (including spaces) can be entered. To enter alphanumeric characters
from the keypad, repeatedly press the appropriate key until the desired character is displayed in the
first position. For example, to enter the letter B, press the 2 (ABC) key three times to toggle
through the characters 1, A, and B. Press the right arrow key to move the cursor one position to the
right and repeat the process to enter the next character. To enter a space, press the * (QZ) key four
times until a blank appears in the desired position. When all characters have been entered, press the
Enter key to store the information. The display will return to the Edit Control Screen #4, displaying
the new information at the bottom of the screen.
Recall/Increment Function
In addition, the user may use the Recall/Increment function at any time when the cursor is on the
first letter of the Adjective or Noun field as follows:
• If the zero key is pressed, a 0 is placed in the first letter position.
• If the zero key is then pressed a second time with no intervening key actions, the entire
Adjective field is replaced with the field entered for the previous device programmed, and the
cursor moves to the last character of the field (Recall function). The Recalled Adjective or
Noun field may now be changed letter-by-letter.
• If the zero key is pressed again with no other intervening key actions and the last character in
the field is a number 0-9, the number is incremented by one. If the last character is a letter, it
changes to a 0. If the last character is 9 it goes to 0.
• The above increment function may be repeated with each press of the zero key.
As an example, the user could quickly enter ‘FLR_3_ROOM 305’ as follows:
1. The cursor is on the first letter of the Adjective field. Press the zero key twice to display
F. L R _ 3
2. With the cursor on the first letter of the Noun field, press the zero key twice to recall the dis-
play ROOM_304. The cursor automatically jumps from the first to the last letter of the Noun
field.
3. With the cursor on the last letter of the Noun field, press the zero key again to increment the
room number to 305.
4. Press the right arrow key to advance the zone field
5. Select a zone number from 00 to 99. Z00 (default zone) is the general alarm zone. Z01
through Z99 may be selected to link software zones.
MNS Override
The MNS Override feature, when enabled, allows the ECC-50/100 to override the FACP and turn
off an active control module or prevent the control module from activating during a mass notifica-
tion event. Pressing 1 while viewing Edit Control Screen #5 will cause the display to change from
the factory default of MNS Override No to MNS Override Yes. Each press of the 1 key will cause
the display to toggle between the two options.
EDIT CONTROL
1=ADJECTIVE/NOUN
2=DESCRIPTION
Edit Control Screen #4
DESCRIPTION 1M002
NOUN/ADJECTIVE

Adjective/Noun Screen
EDIT CONTROL
1=MNS OVERRIDE NO
Edit Control Screen #5
88 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Programming Master Programming Level
3.6.3 Zone Setup
Pressing 3 while viewing Programming Screen #2 will access the Zone Setup screens as illustrated
below:
Enable
Pressing 1 for Enable, while viewing Zone Setup Screen #1, will display the following screen:
This screens allows the programmer to enable zones, one at a time. A flashing cursor appears next
to the Z, prompting the programmer to enter a two digit zone number (01 - 99). When the second
digit is entered, the zone will be enabled and the cursor returns to the original position next to the Z.
Another zone can then be enabled.
Disable
Pressing 2 for Disable, while viewing Zone Setup Screen #1, displays the following:
This screen allows the programmer to disable zones, one at a time. A flashing cursor appears next
to the Z, prompting the programmer to enter a two digit zone number (01 - 99). When the second
digit is entered, the zone will be disabled and the cursor will return to the original position next to
the Z. Another zone can then be disabled.
Zone 97, 98 and 99
Pressing 3 for Zone 97, 98 and 99, while viewing Zone Setup Screen #1, will display the following
screen:
Zones 97, 98 and 99 can be programmed for normal zone operation or for special purpose
applications. In the above illustration, the three zones are shown Off, which means they can be
programmed to function in the same manner as all other zones, by assigning them to input and
output devices in the Programming Zone Assignment Screen.
Pressing 1 will cause the display to change to PA S 9 7 O n . Each press of the 1 key will cause the
display to toggle between PAS 97 On and PAS 97 Off. When Zone 97 is programmed On, a PAS
(Positive Alarm Sequence) activation of any smoke detector will cause Zone 97 to activate. By
assigning Zone 97 to a control module in the Programming Zone Assignment Screen, an output
device connected to the control module can be used to indicate a PAS condition in the control
PROGRAMMING
1=AUTOPROGRAM
2=POINT PROGRAM
3=ZONE SETUP
Programming Screen #2
ZONE SETUP
1=ENABLE
2=DISABLE
3=ZONE 97 98 99
Zone Setup Screen #1
ZONE SETUP
1=ZONES INSTALLED
2=ZONES ENABLED
3=ZONES DISABLED
Zone Setup Screen #2
ZONE SETUP
1=ZONE TYPES
2=ZONES AVAILABLE
3=ZONE MESSAGE
Zone Setup Screen #3
ZONE SETUP
1=ENABLE
2=DISABLE
3=ZONE 97 98 99
Zone Setup Screen #1
ZONE TO ENABLE
Z
Enable Screen
ZONE SETUP
1=ENABLE
2=DISABLE
3=ZONE 97 98 99
Zone Setup Screen #1
ZONE TO DISABLE
Z
Disable Screen
SPEC PURPOSE ZONE
1=PAS 97 OFF
2=PRESIGNAL 98 OFF
3=TWO STAGE 99 OFF
Zone 97, 98 and 99 Screen
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 89
Master Programming Level Programming
panel. Do not assign Zone 97 to a Notification Appliance Circuit when using this zone to indicate a
PAS condition. Attempting to do so will generate an error message and will be prevented by
software checks.
Pressing 2 will cause the display to change to Pre-signal 98 On. Each press of the 2 key will cause
the display to toggle between Pre-signal 98 On and Pre-signal 98 Off. When Zone 98 is
programmed On, a Pre-signal activation of any device will cause Zone 98 to activate. By assigning
Zone 98 to a control module in the Programming Zone Assignment Screen, an output device
connected to the control module can be used to indicate a Pre-signal condition in the control panel.
Do not assign Zone 98 to a Notification Appliance Circuit when using this zone to indicate a Pre-
signal condition. Attempting to do so will generate an error message and will be prevented by
software checks.
Pressing 3 will cause the display to change to Two Stage 99 On. Each press of the 3 key will cause
the display to toggle between Two Stage 99 On and Two Stage 99 Off. Refer to “Two Stage
Operation” on page 99 for a description of this feature.
Zones Installed
Pressing 1 for Zones Installed, while viewing Zone Setup Screen #2, will display a screen similar to
the following:
This display will show all of the zones that have been programmed into the control panel. Note that
an up and/or down arrow may appear in the upper right corner of the display, indicating that
additional screens of zone information exists. Press the up or down arrow keys to view the
additional zones.
Zones Enabled
Pressing 2 for Zones Enabled, while viewing Zone Setup Screen #2, will display a screen similar to
the following:
This display will show all of the zones that are enabled in the control panel. Note that an up and/or
down arrow may appear in the upper right corner of the display, indicating that additional screens
of zone information exists. Press the up or down arrow keys to view the additional zones.
Zones Disabled
Pressing 3 for Zones Disabled, while viewing Zone Setup Screen #2, will display a screen similar
to the following:
This display will show all of the zones that are disabled in the control panel. Note that an up and/or
down arrow may appear in the upper right corner of the display, indicating that additional screens
of zone information exists. Press the up or down arrow keys to view the additional zones.
ZONE SETUP
1=ZONES INSTALLED
2=ZONES ENABLED
3=ZONES DISABLED
Zone Setup Screen #2
ZONES INSTALLED
00 01 02 03 04 05
Zones Installed Screen
ZONES ENABLED
00 01 02 04 05 06 07
08 09 10 11 12 13 14
15 16 17 18 19 20 21
Zones Enabled Screen
ZONES DISABLED
03
Zones Disabled Screen
90 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Programming Master Programming Level
Zone Type
Zone Types must be programmed only if a DACT, programmed for zone reporting, is installed on
the control panel. Pressing 1 for Zone Types, while viewing Zone Setup Screen #3, will display a
screen similar to the following:
This display will show the system zones (default and user programmed) and their associated types.
Note that an up and/or down arrow will appear in the upper right corner of the display, indicating
that additional screens of zone information exists. Press the up or down arrow keys to view zones
Z00 through Z99.
Zone types can be changed by pressing the keypad number key corresponding to the zone in each
Zones Installed Screen. Available zone types will be displayed in the resultant screens. For
example, to change the zone type for zone Z02 in the screen illustrated above, press 3. The
following screens will be displayed:
To change the zone type for Z02 to Pull Station, scroll the display until Zone Type Program Screen
#2 is displayed. Press 2 to program zone Z02 as a Pull Station zone. The display will return to the
Zones Installed Screen showing zone Z02 and the Pull Station program type. Repeat the procedure
for each zone to be changed.
IMPORTANT! In Zone Type Program Screen #1, selecting WATERFLOW will assign a Waterflow
silenceable zone type to the selected zone. Any signaling devices programmed to the same zone can
be silenced by pressing the Alarm Silence key or by using the auto-silence feature.
To program a waterflow circuit as nonsilenceable, refer to “System Setup” on page 92.
Zones Available
Pressing 2 while viewing Zone Setup Screen #3 will display the following screen:
The display will show all of the zones that are still available for programming. Note that an up
and/or down arrow may appear in the upper right corner of the display, indicating that additional
screens of zone information exists. Press the up or down arrow key to view additional screens.
ZONE SETUP
1=ZONE TYPES
2=ZONES AVAILABLE
3=ZONE MESSAGE
Zone Setup Screen #3
ZONE TYPE PROG
1=Z00 MONITOR
2=Z01 MONITOR
3=Z02 MONITOR
Zones Installed Screen
ZONE TYPE PROG
1=MONITOR
2=SMOKE PHOTO
3=WATERFLOW
Zone Type Program Screen #1
ZONE TYPE PROG
1=MEDICAL
2=HAZARD
3=TAMPER
Zone Type Program Screen #2
ZONE TYPE PROG
1=SUPERVISORY
2=PROC. MON
3=SMOKE ION
Zone Type Program Screen #4
ZONE TYPE PROG
1=HEAT
2=PULL STATION
3=DUCT
Zone Type Program Screen #3
NOTE: Zone Types are only relevant for Central Station reporting. Changing a zone type will
only change how it is reported to the Central Station.
ZONE SETUP
1=ZONE TYPES
2=ZONES AVAILABLE
3=ZONE MESSAGE
Zone Setup Screen #3
ZONES AVAILABLE
01 02 03 04 05 06 07
08 09 10 11 12 13 14
15 16 17 18 19 20 21
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 91
Master Programming Level Programming
Zone Message
Pressing 3 while viewing Zone Setup Screen #3 will display the following screen:
Pressing the down arrow key will display additional screens for Zones up to Z99. Press the number
key corresponding to the Zone to be programmed. Screens will be displayed allowing the
programmer to select Audio Messages 1 through 14. When an audio message is selected, the
display will return to the Zone Message screen, showing the message selected for that particular
zone. In the example above, Zone 01 has been programmed for Audio Message 1.
3.6.4 Loop Setup
Loop Setup allows the programmer to configure the SLC Loop for NFPA Style 4, 6, or 7 wiring and
to select the loop protocol. Pressing 1 while viewing Programming Screen #2 will cause the
following screen to be displayed:
Style
To program the SLC Style for the selected loop, press 1 for Style, while viewing Loop Setup
Screen. In the preceding example, the control panel is programmed for Style 4 SLC wiring as
indicated by the 4 to the right of Style in the display. To change the wiring style, press 1 to toggle
the display to read Style 6. Each press of the 1 key will cause the display to toggle between Style 4
and Style 6. Note that, when programming the Loop Style, the programmer can only select between
Style 4 and Style 6. To program a system for Style 7 wiring, the programmer must select the Loop
Setup for Style 6. Style 7 wiring is the same as Style 6 with the added requirement that each
addressable device on the loop must have a pair of isolator modules, one on each side.
Loop Protocol
Loop Protocol refers to the SLC loop mode of operation. Refer to “Wire Requirements” on
page 178 for wire specifications based upon SLC protocol. There are two Loop Protocols available:
• CLIP (Classic Loop Interface Protocol) - which is used for the older legacy addressable
devices such as the M300 Series modules and detectors.
• LiteSpeed (factory default setting) - used for the 350 Series or newer addressable devices for
quicker response times. Note that the legacy devices can operate only in CLIP mode while the
newer devices are compatible with CLIP and LiteSpeed modes of operation.
Pressing 2 while viewing the Loop Setup Screen will toggle between CLIP and LiteSpeed
Protocols.
ZONE MESSAGE
1=Z00 NO MESSAGE
2=Z01 MESSAGE 1
3=Z02 NO MESSAGE
PROGRAMMING
1=LOOP SETUP
2=SYSTEM SETUP
3=VERIFY LOOP
Programming Screen #2
LOOP SETUP
1=STYLE 4
2=PROTOCOL LITESPEED
Loop Setup Screen
NOTE on SLC Troubles: If the FACP reports an open fault on an SLC Loop programmed for
Style 6, the trouble condition will latch at the FACP. When the SLC Loop has been repaired, the
Reset button must be pressed at the FACP (at least 2 minutes after the trouble has been repaired)
to clear the SLC trouble.
92 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Programming Master Programming Level
Device Addressing
It is important to note that the MS-9200UDLS addressable device capacity is 99 detectors and 99
control/monitor modules. Newer devices can be set to addresses higher than 99 but these addresses
will not function with the MS-9200UDLS.
Note that It is permissible to mix old and new devices on the same loop but the FACP must be set
for CLIP mode when older devices are installed.
3.6.5 System Setup
System Setup allows the programmer to configure the following control panel features:
•Trouble Reminder: This feature, when enabled, provides an audible reminder that an alarm or
trouble still exists on the FACP after the control panel has been silenced. The control panel
piezo sounder will pulse once every 15 seconds during an alarm and every two minutes during
a trouble condition, after the Alarm Silence or Acknowledge key is pressed. The piezo will
continue to sound at these rates until the alarm or trouble condition is cleared. If the trouble
condition is not cleared within 24 hours, the panel will reactivate the trouble sounder and
retransmit the trouble condition to the central station if connected.
•Banner: This option allows the user to change the top two lines of the LCD display from the
blank factory default readout to a user defined readout when the control panel is in Normal
condition.
•Time-Date: This feature allows the programmer to set the time, display format (24 hr or 12 hr),
date and daylight savings time feature into the FACP memory
•Timers: This option allows the programmer to set the PAS (Positive Alarm Sequence) time
delay, Pre-Signal time delay and Waterflow time delay.
•NACs: This feature allows the programmer to configure the control panel Notification
Appliance Circuits for a variety of options, such as circuit type, silenceable/nonsilenceable,
autosilence, coding, silence inhibit, zone assignment and enable/disable.
•Relays: This option allows programming of two onboard relays for activation by various
control panel events, such as alarm, trouble, supervisory, etc.
•Canadian Option: This option allows the programming of certain options to Canadian
specifications.
•Waterflow Silenceable: This option provides the ability to silence any output circuit activated
by a monitor module programmed as a waterflow type.
•MNS Override: This option allows the Mass Notification System to override the FACP’s
specified NACs and control modules.
•Lite-Connect: This option allows the programmer to enable the ANN-LC Lite-Connect module
and configure the Lite-Connect network.
Pressing 2 for System Setup, while viewing Programming Screen #2, will cause the following
screens to be displayed:
PROGRAMMING
1=LOOP SETUP
2=SYSTEM SETUP
3=VERIFY LOOP
Programming Screen #2
SYSTEM SETUP
1=TROUBLE REM OFF
2=BANNER
3=TIME-DATE
System Setup Screen #1
SYSTEM SETUP
1=TIMERS
2=NAC
3=RELAYS
System Setup Screen #2
SYSTEM SETUP
1=CANADIAN OPT. OFF
2=WATERFLOW SIL. NO
3=MNS OVERRIDE NO
System Setup Screen #3
SYSTEM SETUP
1=LITE-CONNECT
System Setup Screen #4
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 93
Master Programming Level Programming
Trouble Reminder
The Trouble Reminder features causes the control panel piezo to sound a reminder ‘beep’ for
alarms and troubles, after the panel has been silenced. Refer to “System Setup” on page 92, for a
detailed description of this feature. Pressing 1 while viewing System Setup Screen #1 will cause
the display to toggle to Trouble Rem On, which enables this feature. Each press of the 1 key will
cause the display to toggle between Trouble Rem On and Trouble Rem Off.
Banner
The top line of the display, which appears when the control panel is in normal mode, can be
changed by using the Banner option. Pressing 2 while viewing System Setup Screen #1 will cause
the following to be displayed:
Pressing 1 while viewing the Banner Screen will select the blank factory default banner setting and
display the following screen:
Pressing the Enter key will store this selection in nonvolatile memory and return the display to the
Banner Screen.
Pressing 2 while viewing the Banner Screen will cause the following screens to be displayed:
These screens allow the programmer to enter a two line custom banner. A flashing cursor will
appear in the bottom left corner of each display. A maximum of 20 characters (including spaces)
can be entered into each screen for a total of two lines with 40 characters. After entering up to 20
characters in the first screen, press Enter to view the second screen. Enter up to 20 characters in the
second screen in the same manner or just press Enter if a second banner line is not being entered.
To quickly clear the current banner, press the CLR key.
To enter alphanumeric characters from the keypad, repeatedly press the appropriate key until the
desired character is displayed in the first position. For example, to enter the letter B, press the 2
(ABC) key three times to toggle through the characters 1, A, and B. Press the right arrow key to
move the cursor one position to the right and repeat the process to enter the next character. To enter
a space, press the * (QZ) key four times to place a blank in the desired position. When all
characters have been entered, press the Enter key to store the information. The display will return
to the Banner Screen.
BANNER
1=FACTORY
2=USER DEFINED
Banner Screen
BANNER
1=FACTORY
2=USER DEFINED
Banner Screen
FACTORY BANNER
Factory Banner Screen
USER DEFINED BANNER
PRESS ENTER IF OK
User Defined Banner Screen #1
USER BANNER - LINE 2
PRESS ENTER IF OK

User Defined Banner Screen #2
94 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Programming Master Programming Level
Time-Date
The control panel time and date can be changed by pressing 3 while viewing the System Setup
Screen #1. The following screen will be displayed:
Time
To change the time, press 1 while viewing the Time-Date Screen. The following screen will be
displayed:
A flashing cursor is located toward the top left of the display. Below the cursor is the current time.
To change the time, enter the two-digit hours followed by the two-digit minutes. The cursor will
move one position to the right each time a digit is entered. After the last minutes digit is entered,
the cursor will again move one position to the right. At this point enter 1 for AM or 2 for PM. The
display will then return to the Time-Date Screen which will show the new time entry. If an error is
made while entering a digit, press the CLR key to delete the entire entry and beginning again.
Date
To change the date, press 2 while viewing the Time-Date Screen. The following screen will be
displayed:
A flashing cursor is located toward the top left of the display. Below the cursor is the current date.
To change the date, enter the two-digit month followed by the two-digit day and then the two-digit
year (01 for 2001, 02 for 2002, etc.). The cursor will move one position to the right each time a
digit is entered. After the last year digit is entered, the display will return to the Time-Date Screen
which will show the new date entry. If an error is made while entering a digit, press the CLR key to
delete the entire entry and beginning again.
Clock Format
The clock can be configured to display 12 hour (AM & PM) or 24 hour (military) time. Pressing 3
while viewing the Time-Date screen will cause the display to toggle between 12HR and 24HR.
Select 12HR for 12 hour display or 24HR for 24 hour display.Note:
SYSTEM SETUP
1=TROUBLE REM
2=BANNER
3=TIME-DATE
System Setup Screen #1
TIME AND DATE
1=TIME 10:00 AM
2=DATE 04-07-2006
3=CLOCK FORMAT 12HR
Time-Date Screen #1
TIME AND DATE
1=DAYLIGHT SAVINGS
Time-Date Screen #2
ENTER TIME
10:00 AM
1=AM 2=PM
Time Screen
ENTER DATE
MONTH DAY YEAR
10-07-2013
Date Screen
NOTE: If the clock is changed to 24 hour (military) format, the date will change to the European
standard of Day-Month-Year (for display purposes only).
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 95
Master Programming Level Programming
Daylight Savings Time
Pressing 1 while viewing Time-Date Screen #2 will cause the following screens to be displayed:
Pressing 1 while viewing Daylight Savings Screen #1 will cause the display to toggle between
Enabled Yes and Enabled No. The control panel will automatically update the time for daylight
savings time when Enabled Yes is selected.
Pressing 2 while viewing Daylight Savings Screen #1 will display another screen which allows the
programmer to select the month that daylight savings time will begin. In this sub-screen, pressing
1 will select March, 2 will select April, and 3 will select May.
Pressing 3 while viewing Daylight Savings Screen #1 will display two sub-screens which allow the
programmer to select the week of the month that daylight savings time will begin. In the first sub-
screen, pressing 1 will select the first week, 2 will select the second week and 3 will select the third
week, while in the second sub-screen, pressing 1 will select the fourth week and 2 will select the
last week of the selected month.
Pressing 1 while viewing Daylight Savings Screen #2 will display another screen which allows the
programmer to select the month that daylight savings time will end. In this sub-screen, pressing 1
will select September, 2 will select October, and 3 will select November.
Pressing 2 while viewing Daylight Savings Screen #2 will display two sub-screens which allow the
programmer to select the week of the month that daylight savings time will end. In the first sub-
screen, pressing 1 will select the first week, 2 will select the second week and 3 will select the third
week, while in the second sub-screen, pressing 4 will select the fourth week and 5 will select the
last week of the selected month.
Timers
Timer delays for PAS, Pre-signal and waterflow activation can be programmed by pressing 1 while
viewing System Setup Screen #2. The following screen will be displayed:
PAS (Positive Alarm Sequence) Delay
The factory default setting for PAS is 000 for no delay. To select a PAS delay of 001 to 180 seconds
for all devices programmed for PAS, press 1 while viewing Timer Screen #1. The following
display will appear:
A flashing cursor is positioned in the lower left corner of the display. Enter a delay time consisting
of three digits, such as 005 for five seconds. Upon entering the third digit, the time delay will be
stored in the control panel memory and the display will return to the Delay Screen which will
indicate the new delay time.
TIME AND DATE
1=DAYLIGHT SAVINGS
Time & Date Screen #2
DAYLIGHT SAVINGS
1=ENABLED YES
2=START MONTH MAR
3=START WEEK WEEK-2
Daylight Savings Screen #1 Daylight Savings Screen #2
DAYLIGHT SAVINGS
1=END MONTH NOV
2=END WEEK WEEK-1
SYSTEM SETUP
1=TIMERS
2=NAC
3=RELAYS
System Setup Screen #2
TIMERS
1=PAS DELAY 000
2=PRE SIGNAL 000
3=WATERFLOW 000
Timer Screen #1 Timer Screen #2
TIMERS
1=AC LOSS DELAY 000
TIMERS
1=PAS DELAY 000
2=PRE SIGNAL 000
3=WATERFLOW 000
Timer Screen #1
PAS DELAY
RANGE 0-180 SECONDS
PAS Delay Screen
96 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Programming Master Programming Level
Pre-signal Delay
The factory default setting for Pre-signal delay is 000 for no delay. To select a Pre-signal delay of
001 to 180 seconds for all devices programmed for Pre-signal, press 2 while viewing Timer Screen
#1. The following screen will be displayed:
A flashing cursor is positioned in the lower left corner of the display. Enter a delay time consisting
of three digits, such as 009 for nine seconds. Upon entering the third digit, the time delay will be
stored in the control panel memory and the display will return to the Delay Screen which will
indicate the new delay time.
Note that the FACP allows programming for PAS and Pre-signal timers, but a detector can only be
programmed for either PAS or Pre-signal operation. Refer to“Edit Detector” on page 69 for
programming details.
Waterflow Delay
A delay can be added prior to declaring a waterflow type of alarm. Be careful to include any built-
in delays of the waterflow device. The factory default setting for Waterflow delay is 000 for no
delay. To select a Waterflow delay of 01 to 90 seconds for all devices programmed for Waterflow
delay, press 3 while viewing Timer Screen #1. The following screen will be displayed:
A flashing cursor is positioned in the lower left corner of the display. Enter a delay time consisting
of two digits, such as 25 for twenty-five seconds. Upon entering the second digit, the time delay
will be stored in the control panel memory and the display will return to the Delay Screen which
will indicate the new delay time.
AC Loss Delay
The reporting of a loss of AC power to a central station can be delayed by programming the length
of the desired delay. The factory default setting is 2 hours. Press 1 while viewing Timer Screen #2
to display the following:
Pressing 1 while viewing AC Loss Delay Screen #1 will program the FACP to transmit an AC Loss
report immediately to the central station.
Pressing 2 while viewing AC Loss Delay Screen #1 will display the following:
PRESIGNAL DELAY
RANGE 0-180 SECONDS
Pre-signal Delay Screen
TIMER
1=PAS DELAY 000
2=PRE SIGNAL 000
3=WATERFLOW 000
Timer Screen #1
WATERFLOW DELAY
RANGE 0-90 SECONDS
Waterflow Delay Screen
TIMER
1=AC LOSS DELAY
Timer Screen #2
AC LOSS DELAY
1=NO DELAY
2=ENTER DELAY
AC Loss Delay Screen #1
AC LOSS DELAY
RANGE 00-23
AC Loss Delay Screen #2
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 97
Master Programming Level Programming
A flashing cursor will appear in the lower left corner of the display. Type the two digit AC loss
reporting delay in hours (00 to 23 hour delay). When the second digit is entered, the display will
return to AC Loss Delay Screen #1.
NAC (Notification Appliance Circuit)
The options for the NACs on the control panel main circuit board can be configure by pressing 2
while viewing System Setup Screen #2. The following screens will be displayed:
The Notification Appliance Circuits can be configured independently by pressing 1 for NAC 1, 2
for NAC 2, 3 for NAC 3, or 4 for NAC 4.
The following screens will be displayed for each selection:
Enabled
Pressing 1 while viewing NAC Screen #1 will cause the display to change to Enabled No. This will
prevent the selected main circuit board NAC from activating its devices. Each press of the 1 key
will cause the display to toggle between Enabled Yes and Enabled No.
Type
The main circuit board NAC type can be programmed by pressing 2 while viewing NAC Screen #1.
The following screen will be displayed. Press the down arrow key to view additional screens:
Select the NAC device type by pressing the number corresponding to the type in the appropriate
screen. When the selection is made, the display will return to NAC Screen #1.
NOTE: Upon the loss of AC power at the control panel, relays programmed for ‘AC Loss’ will
transfer immediately, regardless of the AC Loss Delay setting. If no trouble exists at the panel
other than AC Loss, the System Trouble relay will delay its activation for the duration of the AC
Loss Delay setting.
SYSTEM SETUP
1=TIMERS
2=NAC
3=RELAYS
System Setup Screen #2
NACS
1=NAC 1 3=NAC 3
2=NAC 2 4=NAC 4
NAC Selection Screen
NAC #
1=ENABLED YES
2=TYPE BELL
3=SILENCEABLE YES
NAC Screen #1
NAC #
1=ZONE
00 00 00 00 00
2=SIL INHIBITED NO
NAC Screen #2
NAC #
1=AUTO SILENCE 00
2=CODING
TEMPORAL
NAC Screen #3
NAC #
1=SYNC TYPE S
2=MNS OVERRIDE NO
NAC Screen #4
NOTE: The programming for NAC 1 will determine the operation of the remote power supply sync.
NAC #
1=ENABLED
2=TYPE
3=SILENCEABLE
NAC Screen #1
NAC TYPE
1=BELL
2=HORN
3=STROBE
Type Screen #1
98 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Programming Master Programming Level
The following table contains NAC type codes and their functions:
Silenceable
Pressing 3 while viewing NAC Screen #1 will cause the display to change to Silenceable No. This
will prevent the selected main circuit board NAC from being silenced by pressing the Alarm
Silence key or by the Auto Silence feature. Each press of the 3 key will cause the display to toggle
between Silenceable Yes and Silenceable No.
Important: When a Notification Appliance Circuit with a mix of audible and visual devices is
programmed for silenceable and the Synced Strobe feature is selected, only the audible devices will
be turned off if the Silence key is pressed or if the Autosilence feature is enabled. The visual devices
(strobes, etc.) will continue to operate. If the Strobe Sil Sync feature is selected, Silence or
Autosilence will turn off both audible and visual devices.
Auto Silence
The Auto Silence feature, when enabled, automatically silences all main circuit board silenceable
notification appliances after a programmed length of time. To enable this feature and program the
time delay before Auto Silence activation, press 1 while viewing NAC Screen #2. The following
screens will be displayed:
To disable the Auto Silence feature, press 1 for No while viewing Auto Silence Screen #1. To
enable the Auto Silence feature, press the number corresponding to the time delay which will
elapse before Auto Silence activates. This information will be stored in memory and the display
will return to NAC Screen #2.
NAC Type Code Special Function
Bell None
Horn None
Strobe None
Synced Strobe Synchronized to manufacturer
Strobe Sil Sync Same as Synced Strobe but Silence turns off audible & visual devices
Future Use None
Future Use None
Future Use None
Blank None
NAC #
1=AUTO SILENCE
2=CODING
TEMPORAL
NAC Screen #2
AUTO SILENCE
1=NO
2=5 MINUTES
3=10 MINUTES
Auto Silence Screen #1
AUTO SILENCE
1=30 MINUTES
Auto Silence Screen #2
AUTO SILENCE
1=15 MINUTES
2=20 MINUTES
3=25 MINUTES
Auto Silence Screen #3
NOTE: All silenceable control modules as well as the remote power supply sync will be
controlled by the Autosilence timer for NAC 1.
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 99
Master Programming Level Programming
Coding (only for NACs not programmed as Sync Strobe Type)
The Coding feature allows the programmer to select the type of output that the main circuit board
notification appliances will generate when activated. Pressing 2 while viewing NAC Screen #2
will cause the following displays to appear:
The programmer can select the notification appliance output by pressing the number corresponding
to the desired output. The coding selections are:
• Steady - a continuous output with no coding
• March Time - 120 ppm (pulse-per-minute) output
• California - 10 seconds on and 5 seconds off
• Temporal - ½ second on, ½ second off, ½ second on, ½ second off, ½ second on, 1½ second off
• Two Stage - refer to “Two Stage Operation” on page 99 for a description
Selection of one of the above options will cause the control panel to store the information in
memory and return the display to NAC Screen #2, which will display the new coding choice.
Two Stage Operation
Two Stage operation consists of the following:
• 1st stage output - 20 ppm (pulse-per-minute) coding
• 2nd stage output - Temporal coding as described above
• Acknowledge button functions as the automatic alarm signal cancel button
If Two Stage operation is programmed as the Coding option, the following sequence of events will
occur during an alarm.
1. The on-board NACs which are programmed to General Alarm Zone 0 will activate with a 1st
stage output upon activation of any alarm point.
2. If the activated alarm point is directly mapped to a zone which is programmed to an on-board
NAC, that NAC will go directly to 2nd stage coding output. All other NACs not directly
mapped to the activated alarm point’s zone but assigned to Zone 0 will activate with a 1st stage
output.
3. If, after the programmed time of 3 or 5 minutes, the Acknowledge switch has not been pressed,
all NACs presently in 1st stage activation will go to 2nd stage activation.
4. If an Acknowledge switch has been pressed, the Alarm LED will turn from flashing to steady.
Any NACs currently in 1st stage activation will remain in 1st stage. Pressing the Acknowl-
edge switch does not affect NACs already in 2nd stage activation.
5. If another alarm point is activated and the countdown timer is counting, the alarm point will
have no effect on the NACs unless the alarm point’s zones are directly mapped to one of the
NACs, in which case it will follow the procedure outlined in step 2.
6. If another alarm point is activated and the countdown timer has stopped counting due to the
Acknowledge switch being pressed, the countdown timer will restart and the NACs will
respond as outlined in step 2. NACs already in 2nd stage activation will not be affected.
7. Any control modules assigned to special Zone 99 will be activated either by direct mapping of
an input device programmed to Zone 99 or if the timer counts down to zero or when any NAC
goes into 2nd stage coding.
8. Control modules that are programmed to the same zone as the activated input device will not
be delayed for activation.
CODING
1=STEADY
2=MARCH TIME
3=CALIFORNIA
Coding Screen #1
CODING
1=TEMPORAL
2=TWO STAGE 3 MIN
3=TWO STAGE 5 MIN
Coding Screen #2
100 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Programming Master Programming Level
Zone
A maximum of five zones can be programmed to each main circuit board NAC. Pressing 1 while
viewing NAC Screen #3 displays the following screen:
Note that Z** represents the Zone Number(s) corresponding to the selected NAC. The factory
default for an unprogrammed device is Z00 for general alarm zone. A flashing cursor will appear
on the first 0 to the left. Enter the two digit number corresponding to the zone that is to be assigned
to this NAC. The cursor moves to the next Z** designation. Continue entering zone assignments
or the remaining zones can be left blank or programmed as general alarm zone Z00. When all
desired changes have been made, press the Enter key to store the zone assignments. The display
will return to the NAC Screen #3 which will show the zone assignments just entered.
Silence Inhibited
The Silence Inhibit feature, when enabled, prevents the silencing of the selected main circuit board
NAC for a period of one minute. Resetting the FACP will also be prevented for one minute while
the NAC programmed for silence inhibit is activated. Pressing 2 while viewing NAC Screen #3
will cause the display to change from the factory default of Silence Inhibit No to Silence Inhibit Yes.
Each press of the 2 key will cause the display to toggle between the two options.
Sync Type
If synchronized strobes were selected as the Type of device installed, the type of synchronization
must be selected in this option. Pressing 1 while viewing NAC Screen #4 will cause the following
screen to be displayed:
Pressing 1 while viewing this screen will select System Sensor synchronization, 2 will select
Wheelock, and 3 will select Gentex.
Maximum Number of Strobes for Synchronization
The total current draw for each Notification Appliance Circuit cannot exceed 2.5 amps. Refer to
the manufacturer’s documentation supplied with the Strobes to determine the maximum current
draw for each strobe and ensure that the circuit maximum is not exceeded.
To ensure proper strobe and circuit operation, there is also a limit to the number of strobes that can
be attached to each circuit. Following is a list of the strobes that have been tested with this FACP
and the maximum number that can be connected to each NAC. Make sure that the NAC maximum
current is not exceeded:
System Sensor: 40 Strobes
Wheelock: 25 Strobes
Gentex: 23 Strobes
MNS Override
The MNS Override feature, when enabled, allows the ECC-50/100 to override the FACP and turn
off an active NAC or prevent the NAC from activating during a mass notification event. Pressing 2
while viewing NAC Screen #4 will cause the display to change from the factory default of MNS
Override No to MNS Override Yes. Each press of the 2 key will cause the display to toggle between
the two options.
NAC #
1=ZONE
00 00 00 00 00
2=SIL INHIBITED NO
NAC Screen #3
ZONE ASSIGNMENT
Z00 Z Z Z Z
Zone Screen
NAC #
1=SYNC TYPE
2=MNS OVERRIDE
NAC Screen #4
NAC SYNC TYPE
1=SYSTEM SENSOR
2=WHEELOCK
3=GENTEX
NAC #
1=SYNC TYPE
2=MNS OVERRIDE
NAC Screen #4
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 101
Master Programming Level Programming
Relays
Pressing 3 while viewing System Setup Screen #2 will allow the programmer to configure two
main circuit board Form-C relays from the following screen:
To program Relay 1 or Relay 3, press the number corresponding to the selected relay. Note that
Relay 2 is fixed as a Trouble relay. Selecting Relay 2 will have no effect on its programming. The
following screen will appear for each relay to be programmed:
Pressing 1 for Type while viewing the Relay Screen will cause the following screens to be
displayed:
While viewing the selected screen, press the number corresponding to the desired relay type to
program the main circuit board relay. The choice will be stored in memory and the display will
return to the Relay Type Screen which will show the programmed type choice. Press the Escape
key to return to the Relays Selection Screen and repeat the preceding procedure for the remaining
relays.
Canadian Option
Pressing 1 while viewing System Setup Screen #3 will configure the FACP to comply with
Canadian requirements. The display will change to Canadian Opt. On. Each press of the 1 key
will cause the display to toggle between Canadian Opt. On and Canadian Opt. Off.:
Important! For Canadian Applications, this option must be set to ON prior to any other panel
programming.
SYSTEM SETUP
1=TIMERS
2=NAC
3=RELAYS
System Setup Screen #2
RELAYS
1=RELAY 1
2=RELAY 2
3=RELAY 3
Relays Selection Screen
RELAY #
1=TYPE
ALARM
Relay Type Screen
RELAY
1=ALARM
2=SUPERVISORY
3=SUPERVISORY AR
Relay Screen #1
RELAY
1=TROUBLE
2=COMM FAIL
3=PROCESS-MON
Relay Screen #2
RELAY
1=PROCESS MON AR
2=AC LOSS
3=HAZARD
Relay Screen #3
RELAY
1=MEDICAL
2=SILENCEABLE ALARM
Relay Screen #4
NOTES:
1. AR (AutoResettable) in SUPERVISORY AR and PROCMON AR means that a relay with the
Supervisory and/or Process Monitor type code, when activated, will automatically reset when the
corresponding condition is cleared.
2. A relay programmed with the Silenceable Alarm type will activate upon any alarm and
deactivate when the FACP Alarm Silenced LED is illuminated.
SYSTEM SETUP
1=CANADIAN OPT. OFF
2=WATERFLOW SIL. NO
3=MNS OVERRIDE
System Setup Screen #3
SYSTEM SETUP
1=CANADIAN OPT. OFF
2=WATERFLOW SIL. NO
3=MNS OVERRIDE NO
102 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Programming Master Programming Level
The Canadian Options configures the FACP with the following as required by Canada:
• The following monitor module type codes are not available:
monitor
non-latching supervisory
non-latching drill
non-latching process monitor
process monitor
hazard
tornado
medical alert
• The auto-silence timer is fixed at 20 minutes and cannot be changed.
• Addressable ionization smoke detector sensitivity is automatically monitored using Canadian
specifications.
• The Positive Alarm Sequence and Pre-Signal option are not available for Canadian
applications.
Waterflow Silenceable
Pressing 2 while viewing System Setup Screen #3 will allow the programmer to configure the
system for silenceable on nonsilenceable waterflow circuits. Each press of the 2 key will toggle the
display between Waterflow Sil. No and Waterflow Sil. Yes. When Waterflow Sil. No is selected, all
output devices associated with a waterflow type input device, will be nonsilenceable. When
Waterflow Sil. Yes is selected, all output devices associated with a waterflow type input device, will
be silenceable.
MNS Override
Pressing 3 while viewing System Setup Screen #3 will allow the programmer to configure the
system for use with the Mass Notification System (ECC-50/100 panel). Each press of the 3 key
will toggle the display between MNS Override No and MNS Override Yes. When MNS Override
No is selected, the ECC-50/100 panel does not have permission to override the FACP. When MNS
Override Yes is selected, the ECC-50/100 panel will override the FACP, taking control of its NACs
and control modules during a mass notification event. Refer to the ECC-50/100 Manual for more
information. When the Canadian Option is set to On, the MNS Override feature will become
unavailable.
Lite-Connect
Pressing 1 while viewing System Setup Screen #4 will allow the programmer to configure the
system for the Lite-Connect circuit.
Pressing 1 while viewing the Node Mode Setup Screen will allow the programmer to enable the
Lite-Connect circuit. Select Enabled Yes if an ANN-LC has been installed and wired to the
secondary ANN-BUS. Each press of the 1 key will toggle the display between Enabled No and
Enabled Yes.
SYSTEM SETUP
1=LITE-CONNECT
System Setup Screen #4
NODE MODE SETUP
1=ENABLED YES
2=ADDRESS ##
Node Mode Setup Screen
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 103
Master Programming Level Programming
Pressing 2 while viewing the Node Mode Setup Screen will allow the programmer to enter the
address of the node on the Lite-Connect circuit..
A flashing cursor will appear in the lower left corner of the display. Enter the two-digit address
which can be a value between 02 and 17. (Address 01 is reserved for the hub.) After the second
digit is entered, the display will return to the Node Mode Setup screen.
3.6.6 Verify Loop
Pressing 3 while viewing Programming Screen #2, will select the Verify Loop option. During loop
verification, the FACP polls each device on the SLC to determine if the device is communicating
and whether or not it responds with the proper type identification. The following screen will be
displayed while verification is in progress:
When Loop verification has been completed, the display will indicate that the system is OK or, if
problems have been detected, any device type programming errors. Use the up and down arrow
keys to view all detected errors.
3.6.7 History
The History option allows an authorized user to view or erase events which have occurred in the
control panel. Pressing 1 while viewing Programming Screen #3 will display the History options
as shown in the following display:
View Events
Pressing 1 while viewing the History Screen will allow the user to select the events to be viewed as
illustrated in the following:
While displaying the View Events screen, press 1 to view all events, 2 to view only alarms or 3 to
view other events. Use the up and down arrow keys to scroll through all of the displayed events.
NODE ADDRESS
ENTER NODE ADDRESS
RANGE 02-17
Node Mode Setup Screen
PROGRAMMING
1=LOOP SETUP
2=SYSTEM SETUP
3=VERIFY LOOP
Programming Screen #2
VERIFYING LOOPS
PLEASE WAIT
Verification Progress Screen
PROGRAMMING
1=HISTORY
2=WALKTEST
3=OPTION MODULES
Programming Screen #3
HISTORY
1=VIEW EVENTS
2=ERASE HISTORY
History Screen
HISTORY
1=VIEW EVENTS
2=ERASE HISTORY
History Screen
HISTORY
1=VIEW ALL
2=VIEW ALARMS
3=VIEW OTHER EVENTS
View Events Screen
104 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Programming Master Programming Level
Erase History
The Erase History option allows a user to erase all events from the history file. This will provide a
clean slate in order to use the history file to track future events. Pressing 2 while viewing the
History Screen will display the following screen:
Pressing 1 while viewing the Erase History Screen will erase all events from the History file.
During this process, the display will read as follows:
After the History file has been erased, the display will return to the History Screen.
3.6.8 Walktest
Walktest allows an individual to test the fire alarm system without the necessity to reset the control
panel after each device activation. Pressing 2 while viewing the Programming Screen #3 will cause
the following Walktest options to be displayed:
To perform a silent walktest which will not sound the NACs, press 1 while viewing the Walktest
Screen. To perform an audible walktest, which will sound the NACs, press 2 while viewing the
Walktest Screen. When either option is chosen, the panel will enter Walktest Mode and the
following screen will be displayed::
From this screen, it is possible to view the walktest log, untested system points or a summary of the
addressable devices tested during the current walktest. The user can select between any of these
screens without interrupting the current walktest session. The walktest session will not end until
the Unit In Walktest screen is exited by pressing the Escape key.
Pressing 1 for View Walktest Log while viewing the Unit In Walktest screen will cause a screen
similar to one of the following two screens to be displayed:
If there are no events in the current walktest session, the first screen will be displayed, indicating no
events have been stored in the walktest log. If any events have been stored, a screen similar to the
second will be displayed indicating the latest event. As walktest events occur, the display will
change to indicate the latest event. All stored events can be scrolled on the screen by pressing the
up or down arrow keys. To return to the first event, press the 1st Event key.
ERASE HISTORY
PROCEED ?
1=YES 2=NO
Erase History Screen
ERASING HISTORY
PLEASE WAIT
Erase History Wait Screen
PROGRAMMING
1=HISTORY
2=WALKTEST
3=OPTION MODULES
Programming Screen #3
WALKTEST
1=SILENT
2=AUDIBLE
3=VIEW RESULT
Walktest Screen
UNIT IN WALKTEST
1=VIEW WALKTEST LOG
2=VIEW POINTS
3=VIEW SUMMARY
Unit In Walktest Screen
NO EVENTS IN
WALKTEST LOG
ALARM: MONITOR
NORTH CLASSROOM
Z001
1015A 012308 1M006
OR
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 105
Master Programming Level Programming
Pressing 2 for View Points while viewing the Unit In Walktest screen will display one of the
following screens:
If the system has no points installed, the first screen will be displayed. If points are installed, the
second screen will be displayed, which allows the viewing of all untested system points and their
status relating to the current walktest session. The up and down arrow keys will allow viewing of
all untested points. If a point is tested while it is being displayed, the screen will update and display
the next untested point. The first line indicates the total number of untested points. The second line
displays information about an untested point. A description on the bottom of the screen will
indicate if the displayed point has been disabled, if the Walktest option has been disabled for that
point or if the point is not yet tested. The up and down arrow keys allow the user to scroll through
all untested points.
Pressing 3 for View Summary while viewing the Unit In Walktest screen will display a new screen
which will show a total of the tested detectors, tested modules, untested detectors and untested
modules for the current walktest session.
The user can perform a one-person walktest by activating devices throughout the system. As each
device is activated, the information about the activated device is stored in the Walktest Log. The
information can be viewed by choosing one of the options from the Unit In Walktest screen.
To end the Walktest session, press the Escape key to return to the Walktest screen. Pressing 3 for
View Results while viewing the Walktest screen, after a walktest session has been completed, will
allow the operator to view the final results of the most recent walktest. The following screen will
be displayed:
Use the up and down arrow keys to view all of the walktest results which will be displayed. Note
that the Walktest log is stored in RAM. If all power (AC and DC) is removed from the FACP, the
Walktest log information will be lost. This information is also overwritten when subsequent
walktests are performed.
3.6.9 Option Modules
Options available for the MS-9200UDLS include ANN-BUS annunciators, legacy ACS BUS
annunciators, and the LCD-80F Terminal Mode annunciator, printer connection for acquiring
hardcopy printouts of panel data, and PC (Personal Computer) connection for uploading and
downloading panel data.
Pressing 3 while viewing Programming Screen #3 will display the following screen:
Note that PR4800 in the display indicates that a supervised printer, configured for 4800 baud, has
been previously programmed into the system.
NO POINTS IN
SYSTEM OR
UNTESTED POINTS 010
1D001 SMOKE (PHOTO)

NOT TESTED
WALKTEST RESULTS
View Result Screen
PROGRAMMING
1=HISTORY
2=WALKTEST
3=OPTION MODULES
Programming Screen #3
OPTION MODULES
1=ANNUNCIATORS
2=ONBOARD DACT
3=PRINTER/PC PR4800
Options Screen
106 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Programming Master Programming Level
Annunciators
Pressing 1 while viewing the Options Screen will cause the control panel to display the following
screens:
An LCD-80F Terminal Mode annunciator, ACS BUS annunciator, or ANN-BUS
annunciator/module can be installed in the MS-9200UDLS system. Refer to “Guidelines” on
page 23 for rules governing the use of various annunciator types. Do not use a mix of ACS
annunciators and ANN annunciators since they use different communication protocols. ACS or
ANN annunciators use the same TB9 terminal block connection. To install any of these devices,
press the number corresponding to the desired device shown in the Annunciator Screen.
Term Options
While viewing the Annunciators screen, each press of the 1 key for Term Enabled, will cause the
display to toggle between Term Enabled No and Term Enabled Yes.
Notes:
1. The LCD-80F is a Terminal Mode annunciator. To enable the MS-9200UDLS for LCD-80F
operation, press 1 for Term Enabled Yes.
2. The Terminal Mode annunciator (LCD-80F) and the Printer/PC use the same TB8 terminal
block on the MS-9200UDLS main circuit board. Only one device can be connected at one
time, therefore, enabling an annunciator in the Term Option will disable any Printer/PC com-
munications.
ACS Options
Pressing 2 for ACS Options while viewing the Annunciators screen, will display the following
screen:
Pressing 1 while viewing the ACS Options screen will cause the display to toggle between ACS
Enabled Yes and ACS Enabled No. To install an ACS annunciator, the display must read ACS
Enabled Yes.
If ACS has been enabled, press 2 while viewing the Annunciator Screen to select addresses for the
ACS annunciators. The following screen will be displayed:
Pressing the down arrow key will allow the programmer to view additional screens displaying
Addresses 1 -31. Each screen will indicate if an address has been used for an installed ACS
annunciator. To select one or more addresses for the installed ACS annunciator(s), press the
number key corresponding to the address in each screen. The display for the selected address will
change from No to Yes. Each press of the number key will cause the display to toggle between No
and Yes . The address of each installed annunciator must be enabled to allow communication
between the FACP and annunciator.
ANNUNCIATORS
1=TERM ENABLED NO
2=ACS OPTIONS
3=ANN-BUS OPTIONS
ANNUNCIATORS
1=TERM ENABLED
2=ACS OPTIONS
3=ANN-BUS OPTIONS
Annunciator Screen
ACS OPTIONS
1=ACS ENABLED NO
2=ACS INSTALLED
ANNUNCIATOR
1=ADDRESS 1 YES
2=ADDRESS 2 NO
3=ADDRESS 3 NO
ACS Installed Screen
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 107
Master Programming Level Programming
Annunciator addressing is specific to the MS-9200UDLS control panel. The following table
describes the annunciator addresses and the corresponding addressable devices that will be annun-
ciated at each annunciator address.
The MS-9200UDLS must be programmed for the annunciators installed on the system. Refer to
“Annunciators” on page 106 for information on annunciator programming. Make certain to
program the annunciator addresses that have been physically installed on the system.
ACS Annunciator Address Annunciator Displays the Following Points
1 8 General System Status Points & Zones 1 - 56
2 Zones 57 - 99 & 4 NACs
3 SLC Loop, Module Addresses 1 - 64
4 not used
5 SLC Loop, Module Addresses 65 - 99
6 not used
7 not used
8 SLC Loop, Detector Addresses 1 - 64
9 not used
10 SLC Loop, Detector Addresses 65 - 99
11 not used
12 not used
13 not used
14 not used
15 not used
16 not used
17 not used
18 not used
19 not used
20 8 General System Status Points & Zones 1 - 56
21 Zones 57 - 99 & 4 NACs
22 SLC Loop, Module Addresses 1 - 64
23 not used
24 SLC Loop, Module Addresses 65 - 99
25 not used
26 not used
27 SLC Loop, Detector Addresses 1 - 64
28 not used
29 SLC Loop, Detector Addresses 65 - 99
30 not used
31 not used
32 not used
NOTE: The 8 General System Status Points include the following:
•General Alarm
•General Trouble
•General Supervisory
•Alarm Silenced
•System Off Normal
•AC Loss
•Battery Fault
•NAC Fault
108 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Programming Master Programming Level
ANN-BUS Options
Pressing 3 for ANN-BUS Options, while viewing the Annunciators screen, will cause the following
screens to be displayed:.
A printer module, graphic annunciator module, LCD annunciator module, LED annunciator
module and relay module can be programmed into the MS-9200UDLS system. These devices
communicate with the FACP over the ANN-BUS terminals on the control panel.
Two ANN-BUS circuits are available on the MS-9200UDLS. Press 1 to configure the Primary
ANN-BUS or press 2 to configure the Secondary ANN-BUS. The following screen will be
displayed for either ANN-BUS circuit.
ANN-BUS Enabled
The ANN-BUS must be enabled if any modules are connected to the ANN-BUS terminals. To
enable the ANN-BUS, press 1 while viewing ANN-BUS screen #1 so that the display reads ANN-
BUS Enabled Yes. Each press of the 1 key will cause the display to toggle between ANN-BUS
Enabled Yes and ANN-BUS Enabled No.
Modules Installed
If an ANN-BUS module is installed, press 2 for Modules Installed to select ANN-BUS addresses
for the module(s). The only difference between the two programming screens are the addresses.
The Primary Bus module addresses will have a prefix of “1-” while the Secondary Bus module
addresses will have a prefix of “2-”. The following screen will be displayed for either bus circuit.
Pressing the down arrow key will allow the programmer to view additional screens displaying
Addresses 1-8. To select one or more addresses for the installed module(s), press the number key
corresponding to the module address in each screen. The following screen will be displayed for
each address:
Pressing 1 for Type will display the following screens:
ANNUNCIATORS
1=TERM ENABLED NO
2=ACS OPTIONS
3=ANN-BUS OPTIONS
Annunciators Screen #3
ANN-BUS SELECT
1=PRIMARY
2=SECONDARY
3=ANN-BUS OPTIONS
ANN-BUS Select Screen
PRIMARY ANN-BUS
1=ENABLED NO
2=MODULES INSTALLED
3=AUTO-CONFIGURE
ANN-BUS Screen
ANN-BUS MODULES
1=ADDR. X-1 NONE
2=ADDR. X-2 NONE
3=ADDR. X-3 NONE
ANN-BUS Modules Screen #1
ANN-BUS MODULE X-1
ANN-BUS ADDRESS
1=TYPE NONE
ANN-BUS Address Screen
ANN-BUS MODULE TYPE
1=NOT INSTALLED
2=ANN-80 MODULE
3=ANN-I/O MODULE
Module Type Screen #1
ANN-BUS MODULE TYPE
1=ANN-S/PG MODULE
2=ANN-LED MODULE
3=ANN-RLY MODULE
Module Type Screen #2
ANN-BUS MODULE TYPE
1=ANN-ACC
2=ANN-ECC
Module Type Screen #3
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 109
Master Programming Level Programming
Press the number corresponding to the module/device type that is installed with the selected
address.
If ANN-I/O, ANN-LED, or ANN-RLY is the selected module type, the following ANN-BUS
Address Screen will be displayed:
Since the options for each of these module types can be individually set, pressing 2 for Module
Options, while viewing the ANN-BUS Address Screen will display the available options as
described below.
ANN-I/O Options
Pressing 2 for Module Options while viewing ANN-BUS Address screen when the ANN-I/O
option is selected will display the following screen:
The first screen indicates that the ANN-I/O at ANN-BUS address 1 is programmed to annunciate
SLC Loop #1 addressable Detectors with addresses 1 through 30. The programming can be
changed using ANN-I/O Address Screens 2 and 3.
Pressing 1 while viewing ANN-I/O Address Screen #2 will program the annunciator module to
annunciate either Point (addressable device address) information or Zone information.
Pressing 1 while viewing ANN-I/O Address Screen #3 will select the Point or Zone range to be
annunciated (refer to the tables in “ANN-I/O Zone Option” on page 110 and “ANN-I/O Point
Option” on page 111).
Pressing 2 while viewing ANN-I/O Address Screen #3 will select either addressable detectors or
addressable modules to be annunciated.
NOTE: If the module type selected is the ANN-80, ANN-S/PG, or ANN-ACC or if Not Installed is
selected, the ANN-BUS Address Screen shown on the previous page will be displayed following
the module selection. The options selected for each of these modules will be the same for all
modules of the same type (refer to “ANN-S/PG (Print) Options” on page 117 and “ANN-80
Options” on page 118).
ANN-BUS MODULE X-1
ANN-BUS ADDRESS
1=TYPE ANN-I/O
2=MODULE OPTIONS
ANN-BUS Address Screen
ANN-I/O - ADDR X-1
LOOP1 DET 1-30
ACTIVE LEDS ONLY
ANN-I/O Address Screen #1
ANN-I/O - ADDR X-1
1=POINT/ZONE
ANN-I/O Address Screen #2
ANN-I/O - ADDR X-1
1=RANGE
2=DET/MOD
ANN-I/O Address Screen #3
110 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Programming Master Programming Level
ANN-I/O Zone Option
If Zone is selected as the module option, the first ten LEDs on the first ANN-I/O module will
display the system status information. The remaining 30 LEDs on the first module and 40 LEDs on
the remaining modules will display the active/alarm status of each zone in the Zone Range
programmed for that particular module. The LED assignments for each ANN-I/O module will be
as follows.
Module LED Zone Range 0-29 Zone Range 30-69 Zone Range 70-99
1 AC Fault Zone 30 Zone 70
2 Fire Alarm Zone 31 Zone 71
3 Supervisory Zone 32 Zone 72
4 Trouble Zone 33 Zone 73
5 Alarm Silenced Zone 34 Zone 74
6 Earth Fault Zone 35 Zone 75
7 Battery Fault Zone 36 Zone 76
8 Charger Fault Zone 37 Zone 77
9 NAC Fault Zone 38 Zone 78
10 Disabled Zone 39 Zone 79
11 Zone 00 Zone 40 Zone 80
12 Zone 01 Zone 41 Zone 81
13 Zone 02 Zone 42 Zone 82
14 Zone 03 Zone 43 Zone 83
15 Zone 04 Zone 44 Zone 84
16 Zone 05 Zone 45 Zone 85
17 Zone 06 Zone 46 Zone 86
18 Zone 07 Zone 47 Zone 87
19 Zone 08 Zone 48 Zone 88
20 Zone 09 Zone 49 Zone 89
21 Zone 10 Zone 50 Zone 90
22 Zone 11 Zone 51 Zone 91
23 Zone 12 Zone 52 Zone 92
24 Zone 13 Zone 53 Zone 93
25 Zone 14 Zone 54 Zone 94
26 Zone 15 Zone 55 Zone 95
27 Zone 16 Zone 56 Zone 96
28 Zone 17 Zone 57 Zone 97
29 Zone 18 Zone 58 Zone 98
30 Zone 19 Zone 59 Zone 99
31 Zone 20 Zone 60 Not Used
32 Zone 21 Zone 61 Not Used
33 Zone 22 Zone 62 Not Used
34 Zone 23 Zone 63 Not Used
35 Zone 24 Zone 64 Not Used
36 Zone 25 Zone 65 Not Used
37 Zone 26 Zone 66 Not Used
38 Zone 27 Zone 67 Not Used
39 Zone 28 Zone 68 Not Used
40 Zone 29 Zone 69 Not Used
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 111
Master Programming Level Programming
ANN-I/O Point Option
If Point is selected as the module option, the first ten LEDs on the first ANN-I/O module will
display the system status information. The remaining 30 LEDs on the first module and 40 LEDs on
each additional module will display the active/alarm status of each point in the Point Range
programmed for that particular module. The points that will be annunciated on a particular ANN-
I/O module depend on the programming options selected as far as the device type (detector or
module) to be annunciated. The LED assignments for each ANN-I/O module will be as follows.
Module LED Point Range
1-30
Point Range
31-70
Point Range
71-99
1 AC Fault Point 31 Point 71
2 Fire Alarm Point 32 Point 72
3 Supervisory Point 33 Point 73
4 Trouble Point 34 Point 74
5 Alarm Silenced Point 35 Point 75
6 Earth Fault Point 36 Point 76
7 Battery Fault Point 37 Point 77
8 Charger Fault Point 38 Point 78
9 NAC Fault Point 39 Point 79
10 Disabled Point 40 Point 80
11 Point 01 Point 41 Point 81
12 Point 02 Point 42 Point 82
13 Point 03 Point 43 Point 83
14 Point 04 Point 44 Point 84
15 Point 05 Point 45 Point 85
16 Point 06 Point 46 Point 86
17 Point 07 Point 47 Point 87
18 Point 08 Point 48 Point 88
19 Point 09 Point 49 Point 89
20 Point 10 Point 50 Point 90
21 Point 11 Point 51 Point 91
22 Point 12 Point 52 Point 92
23 Point 13 Point 53 Point 93
24 Point 14 Point 54 Point 94
25 Point 15 Point 55 Point 95
26 Point 16 Point 56 Point 96
27 Point 17 Point 57 Point 97
28 Point 18 Point 58 Point 98
29 Point 19 Point 59 Point 99
30 Point 20 Point 60 Not Used
31 Point 21 Point 61 Not Used
32 Point 22 Point 62 Not Used
33 Point 23 Point 63 Not Used
34 Point 24 Point 64 Not Used
35 Point 25 Point 65 Not Used
36 Point 26 Point 66 Not Used
37 Point 27 Point 67 Not Used
38 Point 28 Point 68 Not Used
39 Point 29 Point 69 Not Used
40 Point 30 Point 70 Not Used
112 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Programming Master Programming Level
ANN-LED Options
Pressing 2 for Module Options while viewing the ANN-BUS Address Screen when the ANN-LED
option is selected, will display the following screen:
The first screen indicates that the ANN-LED at the selected ANN-BUS address is programmed to
annunciate Alarms, Supervisories, and Troubles for SLC Loop #1 addressable Detectors with
addresses 1 through 10. The programming can be changed using ANN-LED Address Screens 2
and 3.
Pressing 1 while viewing ANN-LED Address Screen #2 will program the annunciator module to
annunciate either Point (addressable device address) information or Zone information.
Pressing 2 while viewing ANN-LED Address Screen #2 will program the annunciator module to
annunciate only Alarms for addressable device addresses 1-30 or Alarms, Supervisories, and
Troubles for addressable device addresses 1-10.
Pressing 1 while viewing ANN-LED Address Screen #3 will select the Point or Zone range to be
annunciated - refer to the tables in “ANN-LED Zone Option - Alarm Only (for use with ANN-
RLED module)” on page 112 and “ANN-LED Point Option - Alarm Only (for use with ANN-
RLED module)” on page 114.
Pressing 2 while viewing ANN-LED Address Screen #3 will select either addressable detectors or
addressable modules to be annunciated.
ANN-LED Zone Option - Alarm Only (for use with ANN-RLED module)
If Zone is selected as the module option, and the module is programmed to annunciate alarms only,
the first ten LEDs on the first ANN-LED module will display the system status information. The
remaining 30 LEDs on the first module and the last 30 LEDs on the remaining modules will display
the active/alarm status of each zone in the Zone Range programmed for that particular module. The
LED assignments for each ANN-LED module will be as follows.
Alarm Silenced NAC 1 Fault NAC 2 Fault NAC 3 Fault NAC 4 Fault
Earth Fault Battery Fault Charger Fault Disabled Maintenance
Zone 00
Active/Alarm
Zone 01
Active/Alarm
Zone 02
Active/Alarm
Zone 03
Active/Alarm
Zone 04
Active/Alarm
Zone 05
Active/Alarm
Zone 06
Active/Alarm
Zone 07
Active/Alarm
Zone 08
Active/Alarm
Zone 09
Active/Alarm
Zone 10
Active/Alarm
Zone 11
Active/Alarm
Zone 12
Active/Alarm
Zone 13
Active/Alarm
Zone 14
Active/Alarm
Zone 15
Active/Alarm
Zone 16
Active/Alarm
Zone 17
Active/Alarm
Zone 18
Active Alarm
Zone 19
Active/Alarm
Zone 20
Active/Alarm
Zone 21
Active/Alarm
Zone 22
Active/Alarm
Zone 23
Active/Alarm
Zone 24
Active/Alarm
Zone 25
Active/Alarm
Zone 26
Active/Alarm
Zone 27
Active/Alarm
Zone 28
Active/Alarm
Zone 29
Active/Alarm
Table 3.2 ANN-RLED Module #1
PRIMARY ANN-BUS
1=ENABLED YES
2=MODULES INSTALLED
3=AUTO-CONFIGURE
ANN-BUS Screen #2
ANN-LED - ADDR X-1
SLC 1 DET 1-10
ALARM, TBL, SUPV
ANN-LED Address Screen #1
ANN-LED - ADDR X-1
1=POINT/ZONE
2=ALARM/ATS
ANN-LED Address Screen #2
ANN-LED - ADDR X-1
1=RANGE
2=DET/MOD
ANN-LED Address Screen #3
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 113
Master Programming Level Programming
The LED assignments for the modules annunciating Zone Ranges 60 - 89 and 90 - 99, will follow
the same pattern as the second ANN-RLED module.
ANN-LED Zone Option - Alarm, Trouble and Supervisory
If Zone is selected as the module option, and the module is programmed to annunciate alarms,
troubles and supervisories, the first ten LEDs on the first ANN-LED module will display the
system status information. The remaining 30 LEDs on the first module and the last 30 LEDs on the
remaining modules will display the alarm, trouble and supervisory status for each of the ten zones
in the Zone Range programmed for that particular module. The LED assignments for each ANN-
LED module will be as follows.
Not Used Not Used Not Used Not Used Not Used
Not Used Not Used Not Used Not Used Not Used
Zone 30
Active/Alarm
Zone 31
Active/Alarm
Zone 32
Active/Alarm
Zone 33
Active/Alarm
Zone 34
Active/Alarm
Zone 35
Active/Alarm
Zone 36
Active/Alarm
Zone 37
Active/Alarm
Zone 38
Active/Alarm
Zone 39
Active/Alarm
Zone 40
Active/Alarm
Zone 41
Active/Alarm
Zone 42
Active/Alarm
Zone 43
Active/Alarm
Zone 44
Active/Alarm
Zone 45
Active/Alarm
Zone 46
Active/Alarm
Zone 47
Active/Alarm
Zone 48
Active Alarm
Zone 49
Active/Alarm
Zone 50
Active/Alarm
Zone 51
Active/Alarm
Zone 52
Active/Alarm
Zone 53
Active/Alarm
Zone 54
Active/Alarm
Zone 55
Active/Alarm
Zone 56
Active/Alarm
Zone 57
Active/Alarm
Zone 58
Active/Alarm
Zone 59
Active/Alarm
Table 3.3 ANN-RLED Module #2
Alarm Silenced NAC 1 Fault NAC 2 Fault NAC 3 Fault NAC 4 Fault
Earth Fault Battery Fault Charger Fault Disabled Maintenance
Zone 00
Active/Alarm
Zone 01
Active/Alarm
Zone 02
Active/Alarm
Zone 03
Active/Alarm
Zone 04
Active/Alarm
Zone 00
Trouble
Zone 01
Trouble
Zone 02
Trouble
Zone 03
Trouble
Zone 04
Trouble
Zone 00
Supervisory
Zone 01
Supervisory
Zone 02
Supervisory
Zone 13
Supervisory
Zone 04
Supervisory
Zone 05
Active/Alarm
Zone 06
Active/Alarm
Zone 07
Active/Alarm
Zone 08
Active Alarm
Zone 09
Active/Alarm
Zone 05
Trouble
Zone 06
Trouble
Zone 07
Trouble
Zone 08
Trouble
Zone 09
Trouble
Zone 05
Supervisory
Zone 06
Supervisory
Zone 07
Supervisory
Zone 08
Supervisory
Zone 09
Supervisory
Table 3.4 ANN-LED Module #1
114 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Programming Master Programming Level
The LED assignments for the modules annunciating Zone Ranges 20 - 29, 30 - 39, 40 - 49, 50 - 59,
60 - 69, 70 - 79, 80 - 89 and 90 - 99, will follow the same pattern as the second ANN-LED module.
ANN-LED Point Option - Alarm Only (for use with ANN-RLED module)
If Point is selected as the module option and the module is programmed to annunciate alarms only,
the first ten LEDs on the first ANN-LED module will display the system status information. The
remaining 30 LEDs on the first module and the last 30 LEDs on each additional module will
display the active/alarm status of each point in the Point Range programmed for that particular
module. The points that will be annunciated on a particular ANN-LED module depend on the
programming options selected as far as which SLC loop and the device type (detector or module) to
be annunciated. The LED assignments for each ANN-LED module will be as follows.
Not Used Not Used Not Used Not Used Not Used
Not Used Not Used Not Used Not Used Not Used
Zone 10
Active/Alarm
Zone 11
Active/Alarm
Zone 12
Active/Alarm
Zone 13
Active/Alarm
Zone 14
Active/Alarm
Zone 10
Trouble
Zone 11
Trouble
Zone 12
Trouble
Zone 13
Trouble
Zone 14
Trouble
Zone 10
Supervisory
Zone 11
Supervisory
Zone 12
Supervisory
Zone 13
Supervisory
Zone 14
Supervisory
Zone 15
Active/Alarm
Zone 16
Active/Alarm
Zone 17
Active/Alarm
Zone 18
Active/Alarm
Zone 19
Active/Alarm
Zone 15
Trouble
Zone 16
Trouble
Zone 17
Trouble
Zone 18
Trouble
Zone 19
Trouble
Zone 15
Supervisory
Zone 16
Supervisory
Zone 17
Supervisory
Zone 18
Supervisory
Zone 19
Supervisory
Table 3.5 ANN-LED Module #2
Alarm Silenced NAC 1 Fault NAC 2 Fault NAC 3 Fault NAC 4 Fault
Earth Fault Battery Fault Charger Fault Disabled Maintenance
Point 01
Active/Alarm
Point 02
Active/Alarm
Point 03
Active/Alarm
Point 04
Active/Alarm
Point 05
Active/Alarm
Point 06
Active/Alarm
Point 07
Active/Alarm
Point 08
Active/Alarm
Point 09
Active/Alarm
Point 10
Active/Alarm
Point 11
Active/Alarm
Point 12
Active/Alarm
Point 13
Active/Alarm
Point 14
Active/Alarm
Point 15
Active/Alarm
Point 16
Active/Alarm
Point 17
Active/Alarm
Point 18
Active/Alarm
Point 19
Active/Alarm
Point 20
Active/Alarm
Point 21
Active/Alarm
Point 22
Active/Alarm
Point 23
Active/Alarm
Point 24
Active/Alarm
Point 25
Active/Alarm
Point 26
Active/Alarm
Point 27
Active/Alarm
Point 28
Active/Alarm
Point 29
Active/Alarm
Point 30
Active/Alarm
Table 3.6 ANN-RLED Module #1 (Point Range 01 - 30)
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 115
Master Programming Level Programming
The LED assignments for the modules annunciating Point Ranges 61 - 90 and 91 - 99, will follow
the same pattern as the second ANN-RLED module.
ANN-LED Point Option - Alarm, Trouble and Supervisory
If Point is selected as the module option, and the module is programmed to annunciate alarms,
troubles and supervisories, the first ten LEDs on the first ANN-LED module will display the
system status information. The remaining 30 LEDs on the first module and the last 30 LEDs on the
remaining modules will display the alarm, trouble and supervisory status for each of the ten zones
in the Point Range programmed for that particular module. The LED assignments for each ANN-
LED module will be as follows.
Not Used Not Used Not Used Not Used Not Used
Not Used Not Used Not Used Not Used Not Used
Point 31
Active/Alarm
Point 32
Active/Alarm
Point 33
Active/Alarm
Point 34
Active/Alarm
Point 35
Active/Alarm
Point 36
Active/Alarm
Point 37
Active/Alarm
Point 38
Active/Alarm
Point 39
Active/Alarm
Point 40
Active/Alarm
Point 41
Active/Alarm
Point 42
Active/Alarm
Point 43
Active/Alarm
Point 44
Active/Alarm
Point 45
Active/Alarm
Point 46
Active/Alarm
Point 47
Active/Alarm
Point 48
Active/Alarm
Point 49
Active/Alarm
Point 50
Active/Alarm
Point 51
Active/Alarm
Point 52
Active/Alarm
Point 53
Active/Alarm
Point 64
Active/Alarm
Point 55
Active/Alarm
Point 56
Active/Alarm
Point 57
Active/Alarm
Point 58
Active/Alarm
Point 59
Active/Alarm
Point 60
Active/Alarm
Table 3.7 ANN-RLED Module #2 (Point Range 31 - 60)
Alarm Silenced NAC 1 Fault NAC 2 Fault NAC 3 Fault NAC 4 Fault
Earth Fault Battery Fault Charger Fault Disabled Maintenance
Point 01
Active/Alarm
Point 02
Active/Alarm
Point 03
Active/Alarm
Point 04
Active/Alarm
Point 05
Active/Alarm
Point 01
Trouble
Point 02
Trouble
Point 03
Trouble
Point 04
Trouble
Point 05
Trouble
Point 01
Supervisory
Point 02
Supervisory
Point 03
Supervisory
Point 04
Supervisory
Point 05
Supervisory
Point 06
Active/Alarm
Point 07
Active/Alarm
Point 08
Active/Alarm
Point 09
Active/Alarm
Point 10
Active/Alarm
Point 06
Trouble
Point 07
Trouble
Point 08
Trouble
Point 09
Trouble
Point 10
Trouble
Point 06
Supervisory
Point 07
Supervisory
Point 08
Supervisory
Point 09
Supervisory
Point 10
Supervisory
Table 3.8 ANN-LED Module #1 (Point Range 01 - 10)
116 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Programming Master Programming Level
The LED assignments for the modules annunciating Point Ranges 21 - 30, 31 - 40 and 41 - 50, 51 -
60, 61 - 70, 71 - 80, 81 - 90 and 91 - 99, will follow the same pattern as the second ANN-LED
Module.
ANN-RLY Options
Pressing 2 for Module Options while viewing the ANN-BUS Address Screen when the ANN-RLY
option is selected, will cause the following screen to be displayed:
The ANN-RLY module provides ten Form-C relays which can be programmed for various
functions. The initial screen displays Relays 1 through 3. Pressing the down arrow key will
display the remaining relays for this module.
To program any of the ANN-RLY relays, while viewing the appropriate ANN-RLY Option screen,
press the number key corresponding to the relay to be programmed. Following is a list of the
available programming options for each relay:
•Alarm
• Supervisory
• Supervisory AR
• Trouble
• Comm Fail
• Process Mon
• Process Mon AR
•AC Loss
• Hazard
• Medical
• Silenceable Alarm
• Zone Active XX
Not Used Not Used Not Used Not Used Not Used
Not Used Not Used Not Used Not Used Not Used
Point 11
Active/Alarm
Point 12
Active/Alarm
Point 13
Active/Alarm
Point 14
Active/Alarm
Point 15
Active/Alarm
Point 11
Trouble
Point 12
Trouble
Point 13
Trouble
Point 14
Trouble
Point 15
Trouble
Point 11
Supervisory
Point 12
Supervisory
Point 13
Supervisory
Point 14
Supervisory
Point 15
Supervisory
Point 16
Active/Alarm
Point 17
Active/Alarm
Point 18
Active/Alarm
Point 19
Active/Alarm
Point 20
Active/Alarm
Point 16
Trouble
Point 17
Trouble
Point 18
Trouble
Point 19
Trouble
Point 20
Trouble
Point 16
Supervisory
Point 17
Supervisory
Point 18
Supervisory
Point 19
Supervisory
Point 20
Supervisory
Table 3.9 ANN-LED Module #2 (Point Range 11 - 20)
PRIMARY ANN-BUS
1=ENABLED YES
2=MODULES INSTALLED
3=AUTO-CONFIGURE
ANN-BUS Screen #2
ANN-RLY - ADDR. X-1
1=RLY 1 ZONE 00
2=RLY 2 ZONE 01
3=RLY 3 ZONE 02
ANN-RLY Options Screen
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 117
Master Programming Level Programming
Auto-Configure
The ANN-BUS Auto-Configure features allows the programmer to quickly bring all installed
ANN-BUS modules online on the selected ANN-BUS. The software will search the selected
circuit for all ANN-BUS modules and automatically program the device type and address into the
system. For the Auto-Configure to work, the selected ANN-BUS must be enabled, the
annunciators must be connected/powered, and a unique address must be set on each annunciator.
Pressing 3 while viewing ANN-BUS Screen #1 will begin the Auto-Configure process and cause
the following screen to be displayed:
ANN-BUS
Pressing 3 for ANN-BUS Options, while viewing the ANN-BUS Select screen, will display the
following screen.
ANN-S/PG (Print) Options
The Print option allows the programmer to configure the optional printer. Pressing 1 while viewing
the ANN-BUS screen will display the following screens:
Pressing 1 for Port while viewing ANN-S/PG Options screen #1 will allow the programmer to
select between a Parallel and Serial Port for printer connection. Each press of the 1 key will cause
the display to toggle between Port PAR (parallel) and Port SER (serial). It is important to note that
the interface selected determines which options are available to the user.
If the Parallel Port option is selected, the user has the option to supervise the printer and select an
offline timer for the supervision by pressing 2 for Printer Supervision while viewing Print Options
screen #1. Each press of the 2 key will cause the display to toggle between Printer Supv NO for no
supervision and Printer Supv YES for printer supervision. Note that this option is not selectable if
the Serial Port option has been selected.
If the Parallel Port option is selected, the user has the ability to select an Offline Timer by pressing
3 while viewing Print Options screen #1. The resultant screen allows the programmer to program
the Offline Timer for a delay of between 0 and 255 seconds before loss of printer supervision is
reported as a trouble.
If the Serial Port option is selected, the Printer Supv and Offline Timer options will not be available.
The Baud Rate, Data Bits, Parity and Stop Bits options are only available when the Serial Port
option has been selected.
Pressing 1 for Baud Rate while viewing ANN-S/PG Options screen #2 will cause a screen to appear
which allow the user to select a Baud Rate of 19200, 9600, or 2400.
Pressing 2 for Data Bits while viewing ANN-S/PG Options screen #2 will cause a screen to appear
which allows the user to select 7 or 8 Data Bits.
[SELECTED] ANN-BUS
1=ENABLED YES
2=MODULES INSTALLED
3=AUTO-CONFIGURE
ANN-BUS Screen #2
ANN-BUS
AUTO-CONGFIGURE
IN PROGRESS
PLEASE WAIT
Auto-Configure Screen
ANN-BUS SELECT
1=PRIMARY
2=SECONDARY
3=ANN-BUS OPTIONS
ANN-BUS Select Screen
ANN-BUS
1=ANN-S/PG OPTIONS
2=ANN-LED OPTIONS
3=ANN-80 OPTIONS
ANN-BUS Options Screen
ANN-BUS
1=ANN-S/PG OPTIONS
2=ANN-LED OPTIONS
3=ANN-80 OPTIONS
ANN-BUS Screen
ANN-S/PG OPTIONS
1=PORT PAR
2=PRINTER SUPV NO
3=OFFLINE TIMER 60
ANN-S/PG Options Screen #1
ANN-S/PG OPTIONS
1=BAUD RATE N/A
2=DATA BITS N/A
3=PARITY N/A
ANN-S/PG Options Screen #2
ANN-S/PG OPTIONS
1=STOP BITS N/A
ANN-S/PG Options Screen #3
118 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Programming Master Programming Level
Pressing 3 for Parity while viewing ANN-S/PG Options screen #2 will cause a screen to appear
which allows the user to select between No Parity, Even Parity, or Odd Parity.
Pressing 1 for Stop Bits while viewing ANN-S/PG Options screen #3 will cause a screen to appear
which allows the user to select between 1.0 or 2.0 Stop Bits.
ANN-LED Options
This option allows the programmer to configure the optional ANN-LED annunciator. Pressing 2
while viewing the ANN-BUS screen will display the following screens.
The Piezo Enable option allows the programmer to select whether the piezo sounder on any
installed ANN-LED module will ever sound. Pressing 1 while viewing the ANN-LED Options
Screen causes the display to toggle between Piezo Enable Yes and Piezo Enable No.
The Lamp Test Enable (LMP TST ENABLE) option allows the programmer to select whether the
Lamp Test button on any installed ANN-LED annunciator will function normally or always be
ignored. Pressing 2 while viewing the ANN-LED Options Screen causes the display to toggle
between Lmp Tst Enable Yes (Lamp Test button functions normally) and Lmp Tst Enable No (Lamp
Test button never functions).
The Silence Button Enable (SIL BTN ENABLE) option allows the programmer to select whether the
Silence button on any installed ANN-LED annunciator will function normally or always be
ignored. Pressing 3 while viewing the ANN-LED Options Screen causes the display to toggle
between Sil Btn Enable Yes (Silence button functions normally) and Sil Btn Enable No (Silence
button never functions).
ANN-80 Options
Pressing 3 while viewing the ANN-BUS screen will display the following screen:
The Piezo Enable option allows the programmer to select whether the piezo sounder on any
installed ANN-80 module will ever sound. Pressing 1 while viewing the ANN-80 Options Screen
#1 causes the display to toggle between Piezo Enable Yes and Piezo Enable No.
The Lock Enable option allows the programmer to select whether or not any installed ANN-80
annunciator must be unlocked by its key before any annunciator key presses will function. Pressing
2 while viewing the ANN-80 Options Screen #1 causes the display to toggle between Lock Enable
Yes (annunciator must be unlocked for keys to function) and Lock Enable No (lock position is
ignored).
The Acknowledge Button Enable (ACK BTN ENABLE) option allows the programmer to select
whether the Ack/Step button on any installed ANN-80 annunciator will function normally or
always be ignored. Pressing 3 while viewing the ANN-80 Options Screen #1 causes the display to
toggle between Ack Btn Enable Yes (Ack/Step button functions normally) and Ack Btn Enable No
(Ack/Step button never functions).
The Silence Button Enable (SIL BTN ENABLE) option allows the programmer to select whether the
Silence button on any installed ANN-80 annunciator will function normally or always be ignored.
Pressing 1 while viewing the ANN-80 Options Screen #2 causes the display to toggle between Sil
Btn Enable Yes (Silence button functions normally) and Sil Btn Enable No (Silence button never
functions).
ANN-BUS
1=ANN-S/PG OPTIONS
2=ANN-LED OPTIONS
3=ANN-80 OPTIONS
ANN-BUS Select Screen
ANN-LED OPTIONS
1=PIEZO ENABLE
2=LMP TST ENABLE
3=SIL BTN ENABLE
ANN-LED Options Screen
ANN-BUS
1=ANN-S/PG OPTIONS
2=ANN-LED OPTIONS
3=ANN-80 OPTIONS
ANN-BUS Screen
ANN-80 OPTIONS
1=PIEZO ENABLE
2=LOCK ENABLE
3=ACK BTN ENABLE
ANN-80 Options Screen #1
ANN-80 OPTIONS
1=SIL BTN ENABLE
2=RST BTN ENABLE
3=DRL BTN ENABLE
ANN-80 Options Screen #2
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 119
Master Programming Level Programming
The Reset Button Enable (RST BTN ENABLE) option allows the programmer to select whether the
Reset button on any installed ANN-80 annunciator will function normally or always be ignored.
Pressing 2 while viewing the ANN-80 Options Screen #2 causes the display to toggle between Rst
Btn Enable Yes (Reset button functions normally) and Rst Btn Enable No (Reset button never
functions).
The Drill Button Enable (DRL BTN ENABLE) option allows the programmer to select whether the
Drill button on any installed ANN-80 annunciator will function normally or always be ignored.
Pressing 3 while viewing the ANN-80 Options Screen #2 causes the display to toggle between Drl
Btn Enable Yes (Drill button functions normally) and Drl Btn Enable No (Drill button never
functions).
Onboard DACT
The Onboard DACT (Digital Alarm Communicator/Transmitter) provides communication to a
central station. Pressing 2 while viewing the Option Module Screen will cause the following
screens to be displayed:
Onboard DACT Enable
To enable the onboard DACT, press 1 while viewing Onboard DACT Screen #1 until the display
reads Enabled Yes. The display will toggle between Enabled Yes and Enabled No with each press
of the key.
Primary Phone
Press 2 while viewing On Board DACT Screen #1 to program the type of primary phone line being
connected to the DACT. The following screen will be displayed:
To select the type, press 1 while viewing the Primary Phone Line screen. The following screen will
be displayed:
Press 1 to select Touchtone dialing, 2 to select Rotary dialing with a make/break ratio of 67/33 or 3
to select Rotary dialing with a make/break ratio of 62/38.
Secondary Phone
Press 3 while viewing On Board DACT Screen #1 to program the type of secondary phone line\
being connected to the DACT. The following screen will be displayed:
OPTION MODULES
1=ANNUNCIATORS
2=ON BOARD DACT
3=PRINTER/PC
Option Module Screen
ON BOARD DACT
1=ENABLED YES
2=PRIMARY PHONE
3=SECONDARY PHONE
On Board DACT Screen #1
ON BOARD DACT
1=SERVICE TERMINAL
2=CENTRAL STATION
3=SUPERV PHONE LINE
On Board DACT Screen #2
ON BOARD DACT
PRIMARY PHONE LINE
1=TYPE TOUCHTONE
Primary Phone Line Screen
PHONE LINE
1=TOUCHTONE
2=ROTARY 67/33
3=ROTARY 62/38
Primary Phone Type Screen
ON BOARD DACT
1=ENABLED
2=PRIMARY PHONE
3=SECONDARY PHONE
On Board DACT Screen #1
ON BOARD DACT
SECONDARY PHONE LINE
1=TYPE TOUCHTONE
Secondary Phone Line Screen
120 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Programming Master Programming Level
To select the type, press 1 while viewing the Secondary Phone Line screen. The following screen
will be displayed:
Press 1 to select Touchtone dialing, 2 to select Rotary dialing with a make/break ratio of 67/33, or 3
to select Rotary dialing with a make/break ratio of 62/38.
Service Terminal
The FACP can be programmed remotely from a PC using a modem and telephone line.
Information can also be retrieved from the FACP using the same method. The Upload/Download
option allows an operator to set the necessary parameters to allow the uploading and downloading
of data between the FACP and PC. The Service Terminal selection provides the means for entering
these parameters.
Pressing 1 while viewing On Board DACT Screen #2 will cause the following screen to appear:
Ring Count
The ring count designates the number of rings allowed on the phone line prior to answering an
incoming call from a service terminal. The factory default is 0 which means the control panel will
not answer an incoming call. This entry may be programmed for 1 to 25 rings.
To change the Ring Count, press 1 while viewing the Service Terminal Screen #2. The following
screen will be displayed:
A flashing cursor will appear in the lower left corner of the display. Enter the two-digit ring count
which can be a value between 00 and 25. After the second digit is entered, the display will return to
the Service Terminal screen.
Central Station
Central Station programming configures the control panel DACT for contacting the central station.
Pressing 2 while viewing On Board DACT Screen #2 will cause the following screens to be
displayed:
Reporting Enable
To enable the DACT for reporting FACP activity to the central station, press 1 while viewing
Central Station Screen #1 so the display reads Reporting Enabled. Each press of the 1 key will
toggle the display between Reporting Disabled and Reporting Enabled.
PHONE LINE
1=TOUCHTONE
2=ROTARY 67/33
3=ROTARY 62/38
Secondary Phone Type Screen
ON BOARD DACT
1=SERVICE TERMINAL
2=CENTRAL STATION
3=SUPERV PHONE LINE
On Board DACT Screen #2
SERVICE TERMINAL
1=RING COUNT 00
Service Terminal Screen
SERVICE TERMINAL
1=RING COUNT
Service Terminal Screen
RING COUNT
RANGE 0-25 RANGE
Ring Count Screen
ON BOARD DACT
1=SERVICE TERMINAL
2=CENTRAL STATION
3=SUPERV PHONE LINE
On Board DACT Screen #2
CENTRAL STATION
1=REPORTING DISABLD
2=REPORT BACKUP
3=CALL LIMIT
Central Station Screen #1
CENTRAL STATION
1=PRIMARY
2=SECONDARY
3=REPORT STYLE
Central Station Screen #2
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 121
Master Programming Level Programming
Trouble Call Limit (Dialer Runaway Prevention)
The Call Limit option limits the number of DACT trouble calls to the Central Station, to a
programmed amount between 0 and 99, for each unique trouble within a 24 hour period. Separate
limit counters keep track of each unique type of trouble. Note that the number of phone line
(communication) faults called to the Central Station are not limited by this feature. No subsequent
restoral message is sent to the Central Station(s) for a particular trouble whose call limit has been
reached. Local DACT annunciation will still track the particular trouble and restoral.
To set the Trouble Call Limit, press 3 while viewing Central Station Screen #1. The following
screen will be displayed.
Enter a value between 00 and 99, then press Enter to set the Call Limit to this value.
Central Station Primary and Secondary Phone Numbers
Pressing 1 for Primary or 2 for Secondary will display the following screens.
Note that the following information must be entered for both the Primary and Secondary Central
Station Phone Numbers.
Test Time Interval
Pressing 1 while viewing Primary/Secondary Screen #1 will cause the following screens to be
displayed:
The test report sent to the Central Station phone number may be sent once every 6, 8, 12, or 24
hours. Select the desired Test Time Interval by pressing the corresponding digit in the screens
shown above.
TROUBLE CALL LIMIT
00-99 RANGE
Trouble Call Limit Screen
NOTE: Entering a value of 00 will disable the Trouble Call Limit allowing the DACT to call the
Central Station an unlimited number of times.
CENTRAL STATION
1=PRIMARY
2=SECONDARY
3=REPORT STYLE
Central Station Screen #2
CENTRAL STATION #
1=TEST TIME INT 24
2=ACCOUNT CODE 0000
3=24HR TST TIME 0021
Primary/Secondary Screen #1
CENTRAL STATION
1=PHONE NUMBER
Primary/Secondary Screen #2
CENTRAL STATION
1=COMM FORMAT
ADEMCO-CONTACT-ID
Primary/Secondary Screen #3
CENTRAL STATION
1=EVENT CODES
Primary/Secondary Screen #4
CENTRAL STATION
1=TEST TIME INT
2=ACCOUNT CODE
3=24HR TST TIME
Primary/Secondary Screen #1
TEST TIME INTERVAL
1=24 HOURS
2=12 HOURS
3=8 HOURS
Test Time Interval Screen #1
TEST TIME INTERVAL
1=6 HOURS
Test Time Interval Screen #2
122 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Programming Master Programming Level
Account Code
Pressing 2 while viewing Primary/Secondary Screen #1 will cause the following screen to be
displayed:
The Account Code, which is assigned by a Central Station, depends on the communication format
being used. The Account Code screen will have a flashing cursor in the lower left corner. Enter the
supplied account code using 0 - 9 and A- F keys.
24 Hour Test Time
Pressing 3 while viewing Primary/Secondary Screen #1 will cause the following screen to be
displayed:
Use the 24 Hour Test Time screen to program the time that the DACT will transmit the 24 Hour
Test to the Central Station. A flashing cursor will appear in the lower left corner of the screen.
Enter a four digit number representing the test time using military time (0000 = midnight and 2359
= 11:59PM).
Phone Number
Pressing 1 while viewing Primary/Secondary Screen #2 will cause the following screen to be
displayed:
The Phone Number screen is used to enter the Central Station phone number that the DACT will be
contacting. A maximum of 20 characters can be entered with valid entries being 0 - 9 and A - C
where A = *, B = # and C = 2 seconds pause.
A flashing cursor will appear in the lower left corner of the screen. Enter the first digit then press
the right arrow key to move the cursor to the right one position. Enter the second digit and repeat
the process until all digits are entered. Press the Enter key to store the phone number in memory.
Enter the digits as you would like the number to be dialed. For example, if it’s necessary to dial 9
before dialing a number outside the building, you may wish to pause after dialing 9. Enter 9
followed by D for a three second pause or E for a five second pause then the phone number
followed by an F to indicate the end of the number.
Communication Format
Pressing 1 while viewing Primary/Secondary Screen #3 will cause the following screen to be
displayed:
ACCOUNT CODE
4 CHAR RANGE 0-F
Account Codes Screen
CENTRAL STATION
1=TEST TIME INT
2=ACCOUNT CODE
3=24HR TST TIME
Primary/Secondary Screen #1
24 HOUR TEST TIME
RANGE 0000-2359
24 Hour Test Time Screen
CENTRAL STATION
1=PHONE NUMBER
Primary/Secondary Screen #2
PHONE NUMBER
20 NUMBERS MAXIMUM
Phone Number Screen
CENTRAL STATION
1=COMM FORMAT
Primary/Secondary Screen #3
COMM FORMAT
1=ADEMCO CONTACT ID
2=SIA 8
3=SIA 20
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 123
Master Programming Level Programming
The Communication Format is determined by the type of receiver that the DACT is transmitting to.
Consult your Central Station for proper selection or consult our factory representatives. For any
format chosen, the control panel automatically programs all of the event codes.
Select the Communication Format by pressing the corresponding number key while viewing the
Comm Format screen. The following table describes each format:
Event Codes
Pressing 1 while viewing Primary/Secondary Screen #4 will cause the following screen to be
displayed:
Pressing the down arrow key allows viewing of all Events associated with the selected
Communication Format. Pressing the number corresponding to the event displayed in each screen
will display its default event code which can be customized by the programmer. For example,
pressing 1 for Pull Station will display the following screen which allows the Event Code to be
changed from the default value.
The tables on the following pages list all of the Events and their default Event Codes for the various
Communication Formats.
Ademco Contact ID & SIA Formats
The information shown in Table 3.11 is automatically programmed for the Central Station phone
number Event Codes when the Ademco Contact ID or SIA Format is selected. Enter 0s for an
Event Code Setting to disable the report. Disabled reports will not get called to the Central Station.
The programmer may enable the Event Types in programming as described on the previous page.
Screen Selection Communication Format Description
ADEMCO CONTACT ID Contact ID, DTMF, 1400/2300 ACK
SIA 8 Security Industry Association, 8 messages per call
SIA 20 Security Industry Association, 20 messages per call
Table 3.10 Communication Formats
CENTRAL STATION
1=EVENT CODES
Primary/Secondary Screen #4
EVENT CODES
1=PULL STATION
2=MON-USER-DEF-1
3=WATERFLOW
Event Code Screen
PULL STATION
ALARM 000
Event Code Screen
Event Description Ademco Contact ID SIA
Active Zone Point Active Restoral
PULL STATION 115 Zone Point FA FH
MON-USER-DEF-1 115 Zone Point FA FH
WATERFLOW 113 Zone Point SA SH
MON-USER-DEF-2 113 Zone Point SA SH
SMOKE (PHOTO) 111 Zone Point FA FH
DET-USER-DEF-1 111 Zone Point FA FH
SMOKE (ION) 111 Zone Point FA FH
DET-USER-DEF-2 111 Zone Point FA FH
HEAT DETECT 114 Zone Point KA KH
DET-USER-DEF-3 114 Zone Point KA KH
SMOKE DUCT-P 116 Zone Point FA FH
DET-USER-DEF-4 116 Zone Point FA FH
Table 3.11 Event Codes
124 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Programming Master Programming Level
PHOTO W/HEAT 111 Zone Point FA FH
DET-USER-DEF-5 111 Zone Point FA FH
DUCT SUPERVISORY 200 Zone Point FS FV
DET-USER-DEF-6 200 Zone Point FS FV
PHOTO SUPERV 200 Zone Point FS FV
DET-USER-DEF-7 200 Zone Point FS FV
PHOTO ADAPT 111 Zone Point FA FH
DET-USER-DEF-8 111 Zone Point FA FH
PHOTO BEAM 111 Zone Point FA FH
DET-USER-DEF-9 111 Zone Point FA FH
MONITOR 110 Zone Point FA FH
MON-USER-DEF-3 110 Zone Point FA FH
SMOKE CONVEN 111 Zone Point FA FH
MON-USER-DEF-5 111 Zone Point FA FH
HEAT CONVENTIONAL 114 Zone Point KA KH
MON-USER-DEF-6 114 Zone Point KA KH
MEDIC ALERT 100 Zone Point MA MH
MON-USER-DEF-7 100 Zone Point MA MH
HAZARD ALERT 150 Zone Point PA PH
MON-USER-DEF-8 150 Zone Point PA PH
TORNADO ALRT 150 Zone Point PA PH
MON-USER-DEF-9 150 Zone Point PA PH
MON-PHONE 000 00 00
MON-USER-DEF-10 000 00 00
TAMPER 144 Zone Point TA TH
MON-USER-DEF-11 144 Zone Point TA TH
MON SUPERVISORY 200 Zone Point FS FV
MON-USER-DEF-12 200 Zone Point FS FV
MON SUPERV AUTO 200 Zone Point FS FV
MON-USER-DEF-13 200 Zone Point FS FV
HVAC OVRRIDE 200 Zone Point FS FV
POWER MON 330 Zone Point AT AR
MON-USER-DEF-14 330 Zone Point AT AR
TROUBLE MON POINT_FAULT code will always be transmitted
MON-USER-DEF-15 POINT_FAULT code will always be transmitted
PROCESS MON 000 00 00
MON-USER-DEF-16 000 00 00
PROCMON AR 000 00 00
MON-USER-DEF-17 000 00 00
POINT_FAULT 380 Zone Point FT FJ
POINT_DISABLE 570 Zone Point FB FU
AC_FAIL 301 000 000 AT AR
DRILL 604 000 000 FI FK
SLC 1 OPEN FAULT 371 000 000 ET1 ER1
SLC 1 SHORT FAULT 372 000 000 ET1 ER1
GROUND FAULT 310 000 000 ET ER
LOW BATTERY 302 000 000 YT YR
NO_BATTERY 311 000 000 YT YR
TELCO LINE 1 351 000 000 LT LR
TELCO LINE 2 352 000 000 LT LR
COMM FAULT 1 354 001 001 YC YK
COMM FAULT 2 354 002 002 YC YK
TOTAL COMM FLT 000 N/A N/A 00 00
PRINTER FAULT 336 000 000 VT VR
NAC 1 FAULT 321 001 001 YA YR
NAC 2 FAULT 322 002 002 YA YR
NAC 3 FAULT 326 003 003 YA YR
NAC 4 FAULT 327 004 004 YA YR
24 VDC FAULT 300 000 000 YP YQ
VOICE EVAC FAULT 330 000 000 ET ER
Table 3.11 Event Codes (Continued)
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 125
Master Programming Level Programming
Report Style
Pressing 3 while viewing Central Station Screen #2 will cause the Report Style display to toggle
between Point and Zone. Setting the Report Style to Point will program the DACT to report
individual point status to the Central Station. The control panel is capable of monitoring a total of
198 addressable devices. Setting the Report Style to Zone will program the DACT to report zone
status to the Central Station. The control panel is capable of monitoring a total of 99 individual
zones.
Supervised Phone Line
The Supervised Phone Line feature allows the user to disable the supervision of Phone Line 2 by
the DACT when using an alternate means of secondary transmission path. The factory default
setting is Phone Line 2 supervised.
Pressing 2 for Superv Phone Line while viewing Onboard DACT Screen 2 will cause the following
screen to be displayed:
Each press of the 1 key while viewing this screen will toggle the option between Supervise Phone
Line 2 Yes and No.
ACS/ANN-BUS FAULT 333 000 000 EM EN
LCD_80F FAULT 330 000 000 EM EN
NAC 1 DISABLE 521 001 001 ET ER
NAC 2 DISABLE 522 002 002 ET ER
NAC 3 DISABLE 526 003 003 ET ER
NAC 4 DISABLE 527 004 004 ET ER
CS CALC FAULT 304 000 000 YF
CHARGER FAULT 300 000 000 YP YQ
OPTION CARD 1 FAULT 331 000 000 ET ER
REMOTE SYNC FAULT 332 000 000 OU OV
ZONE DISABLE 570 000 000 FB FU
NAC_KEY_FLT 300 000 000 ET ER
NO_DEVICES_INSTLLD 380 000 000 ET ER
OFF_NORMAL_MESSAGE 308 000 000 LB LX
24_HOUR_TEST 602 000 000 RP
24 HOUR ABNORMAL TES 608 000 000 RY
UPDOWN REQUEST 411 000 000 RB
UPLOAD SUCCESS 416 000 000 RS
DOWNLOAD SUCCESS 412 000 000 RS
UPDOWN FAILURE 413 000 000 RR
GENERAL_ALARM 000 000 000 00 00
GENERAL_SUPERVISORY 000 000 000 00 00
MNS OVERRIDE 580 000 000 00 00
AUDIO MESSAGE 000 000 Message # 00 00
Table 3.11 Event Codes (Continued)
CENTRAL STATION
1=PRIMARY
2=SECONDARY
3=REPORT STYLE POINT
Central Station Screen #2
NOTES:
1. Detector Address 01 will be reported to the Central Station as Point 01, Detector Address 02
as Point 02, with reports continuing in a similar fashion all the way up to Detector Address 99
which will be reported as Point 99.
2. Module Address 01 will be reported to the Central Station as Point 160, Module Address 02 will
be reported to the Central Station as Point 161, with reports continuing in a similar fashion all the
way up to Module Address 99 which will be reported as Point 258.
ON BOARD DACT
1=SERVICE TERMINAL
2=CENTRAL STATION
3=SUPERV PHONE LINE
On Board DACT Screen #2
SUPERVISE PHONE LINE
1=PHONE LINE 2 YES
Supervised Phone Line Screen
126 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Programming Master Programming Level
Printer/PC
A Printer or a PC can be connected to the control panel. Pressing 3 while viewing the Option
Module Screen will cause the following screen to appear:
Pressing 1 while viewing the Printer-PC Screen will program the control panel for an unsupervised
(NO SU) printer. The display will change to the Printer Baud Rate Screen as shown below.
Pressing 2 while viewing the Printer-PC Screen will program the control panel for a supervised
(SU) printer. Printer supervision, when enabled, will typically detect the removal of the printer
cable and will detect when the printer power has been turned off. Depending upon the brand of
printer, other errors such as paper empty or printer off-line may be detected.
The following screen will appear, which allows the programmer to select the baud rate for the
printer communication:
Pressing the number key corresponding to the desired baud rate (2 for 4800 Baud for example) will
program the control panel for the selected baud rate and return the display to the Option Module
Screen which will indicate Printer/PC PR4800 for a supervised printer installed at 4800 baud rate.
Pressing 3 while viewing the Printer-PC Screen will program the control panel for a PC connection.
The display will return to the Option Module Screen which will indicate Printer/PC PC for
personal computer installed.
3.6.10 Password Change
The factory set passwords, which have been programmed into the control panel, can be changed by
selecting the Password Change option. Pressing 1 while viewing Programming Screen #4 will
cause the following screen to be displayed:
Press 1 to change the Master Programming Level password, 2 to change the Maintenance Level
password or 3 to change the Remote Download password. Note that the passwords will not be
displayed on LCD annunciators.
OPTION MODULES
1=ANNUNCIATORS/UDACT
2=ON BOARD DACT
3=PRINTER/PC NO
Option Module Screen
PRINTER-PC
1=PRINTER NO SU NO
2=PRINTER SU YES
3=PC NO
Printer-PC Screen
PRINTER BAUD RATE
1=2400 BAUD
2=4800 BAUD
3=9600 BAUD
Printer Baud Rate Screen
NOTE: The LCD-80F and the Printer/PC use the same TB8 terminal block. Only one device can
be used at any one time. Setting any option in the Printer/PC screen to Yes will disable
communications with the LCD-80F. The printer must be installed in the same room and within 50
feet of the FACP.
PROGRAMMING
1=PASSWORD CHANGE
2=CLEAR PROGRAM
3=PROGRAM CHECK
Programming Screen #4
PASSWORD CHANGE
1=MASTER
2=MAINTENANCE
3=REMOTE DOWNLOAD
Password Change Screen
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 127
Master Programming Level Programming
The following screen will appear when any change option is selected:
A flashing cursor will appear in the center of the display. Enter a new five digit password (such as
10101 for the Master Level). After the fifth digit is entered, the following screen will be displayed:
Re-enter the new password to accept the change. The display will return to the initial Password
Change Screen.
3.6.11 Clear Program
Pressing 2 while viewing Programming Screen #4, will select the Clear Program option. This will
cause the LCD to display the following screen:
Pressing 1, for Whole System while viewing the Clear Program Screen #1, will clear all general
system programming options and all programmed addressable devices from the nonvolatile
memory of the FACP. This function is useful when the control panel is first installed, prior to
autoprogramming. Note that it is necessary to autoprogram after using the Clear Whole System
function.
Pressing 2, for ALL POINTS while viewing the Clear Program Screen #1, will clear all
programming related to the SLC loop and connected addressable devices.
Before executing any of the Clear commands listed above, the control panel will provide a warning
to the user by prompting with the following display:
Pressing 1 will cause the control panel to carry out the selected clear option. Pressing 2 will
prevent programming from being cleared.
3.6.12 Program Check
The Program Check feature allows the programmer to view the zones which have been
programmed to the Notification Appliance Circuits on the control panel but have not been
programmed to Initiating Devices as well as other circuits with no input or output correlations.
Pressing 3 while viewing Programming Screen #4 will cause the following screen to be displayed:
ENTER NEW FIVE DIGIT
PASSWORD
Enter Password Screen
VERIFY NEW PASSWORD
Password Change Screen
PROGRAMMING
1=PASSWORD CHANGE
2=CLEAR PROGRAM
3=PROGRAM CHECK
Programming Screen #4
CLEAR PROGRAM
1=WHOLE SYSTEM
2=ALL POINTS
Clear Program Screen #1
WARNING!
SYSTEM CHANGE
PROCEED?
1=YES 2=NO
PROGRAMMING
1=PASSWORD CHANGE
2=CLEAR PROGRAM
3=PROGRAM CHECK
Programming Screen #4
PROGRAM CHECK
1=NACS NO INPUT
2=ZONES NO INPUT
3=ZONES NO OUTPUT
128 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Programming Maintenance Programming Level
Pressing 1 while viewing the Program Check screen will display an NAC screen similar to the
following.
The example above indicates that NAC 1 has been programmed to Zones 25, 31, 44, 55 and 67 but
no input devices have been programmed to any of these zones. Use the up and down arrow keys to
view all the NAC zones without input assignments for NAC 1, NAC2, NAC 3 and NAC 4.
Pressing 2 while viewing the Program Check screen will display a screen similar to the following:
The Zone No Input screen allows the programmer to view the zones which have not been
programmed to at least one input device (not including general alarm Zone 00). The example in the
preceding screen indicates that Zones 05, 07, 09, 10 and 11 have been programmed to an
addressable module (control module in this example) with an address of 001 on loop 1 but have not
been programmed to any input devices. Use the up and down arrow keys to view all the zones
without input assignments.
Pressing 3 while viewing Program Check screen will cause a screen similar to the following to be
displayed:
The Zone No Output feature allows the programmer to view the zones which have not been
programmed to at least one output device (not including general alarm Zone 00). The example in
the preceding screen indicates that Zones 05, 07, 09, 10 and 11 have been programmed to an
addressable detector with an address of 001 on loop 1 but have not been programmed to any output
devices. Use the up and down arrow keys to view all the zones without output assignments.
3.7 Maintenance Programming Level
To access Maintenance Programming mode, press the Enter key. The LCD will display the
following:
To enter the Maintenance Programming mode, press 2. The display will read as follows:
When the Maintenance level password (default 11111) is entered, the following screen will appear:
PROGRAM CHECK
1=NACS NO INPUT
2=ZONES NO INPUT
3=ZONES NO OUTPUT
Program Check Screen
NACS NO INPUT
NAC 1
25 31 44 55 67
ZONES NO INPUT
05 07 09 10 11 1M001
ZONES NO OUTPUT
05 07 09 10 11 1D001
1=READ STATUS
2=PROGRAMMING
3=REMOTE DOWNLOAD
PROGRAMMING
ENTER PASSWORD
PROGRAMMING
1=POINT PROGRAM
2=HISTORY
3=PROGRAM CHECK
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 129
Maintenance Programming Level Programming
Note that in the preceding screens, an arrow appears to inform the programmer that additional
options can be viewed by pressing the keypad down arrow key, as shown in the following screen.
3.7.1 Disable Point
Pressing 1 for Point Program, while viewing Maintenance Screen #1 will cause the following
screens to be displayed:
Select the device type by pressing 1 for an addressable detector or 2 for an addressable module.
The operator will be prompted to enter the three digit device address as shown in the following
example for a detector:
A flashing cursor will appear in the bottom left corner of the display, prompting for the three digit
device address. When the third digit is enter, 001 for example, a screen will appear which will
allow enabling or disabling of the selected point, as illustrated in the following example:
Pressing 1 repeatedly will cause the display to toggle between Enabled Yes and Enabled No.
3.7.2 History
Pressing 2 while viewing Maintenance Screen #1 will cause the following screen to be displayed:
The History feature allows the operator to view control panel events which have been stored in a
history file in memory and erase the contents of the history file
Pressing 1 while viewing the History screen will cause the following screen to be displayed:
To view all the events which have occurred in the control panel since the history file was last
erased, press 1 while viewing the Events screen. To view only alarms which have occurred, press 2
while viewing the Events screen. To view events other than alarms, press 3. The most recent event
PROGRAMMING
1=WALKTEST
2=SYSTEM
3=ZONE SETUP
PROGRAMMING
1=POINT PROGRAM
2=HISTORY
3=PROGRAM CHECK
Maintenance Screen #1
POINT PROGRAM
1=DETECTOR
2=MODULE
Device Select Screen
EDIT DETECTOR
ENTER POINT ADDRESS

Address Select Screen
EDIT DETECTOR 1D001
1=ENABLED YES
Enable/Disable Select Screen
PROGRAMMING
1=POINT PROGRAM
2=HISTORY
3=PROGRAM CHECK
Maintenance Screen #1
HISTORY
1=VIEW EVENTS
2=ERASE HISTORY
History Screen
HISTORY
1=VIEW ALL
2=VIEW ALARMS
3=VIEW OTHER EVENTS
Events Screen
130 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Programming Maintenance Programming Level
will be displayed on the screen. To view all of the selected events, press the up or down arrow keys
to scroll through the list of events. If no events have occurred, the display will read NO EVENTS
IN HISTORY.
Pressing 2 while viewing the History Screen will cause the following screen to be displayed:
Pressing 1 while viewing the Erase History Screen will cause the message ERASING HISTORY,
PLEASE WAIT to be displayed. The display will then return to the History Screen. Pressing 2 will
cause the display to return to the History Screen without erasing the History file.
3.7.3 Program Check
Pressing 3 while viewing Maintenance Screen #1 will cause the following screen to be displayed:
The Program Check feature allows the programmer to view the zones which have been
programmed to the Notification Appliance Circuits on the control panel but have not been
programmed to Initiating Devices as well as other circuits with no input or output correlations.
Pressing 1 while viewing Program Check screen will cause a screen similar to the following to be
displayed.
The example above indicates that NAC 1 has been programmed to Zones 25, 31, 44, 55 and 67 but
no input devices have been programmed to any of these zones. Use the up and down arrow keys to
view all the NAC zones without input assignments for both NAC 1, NAC 2, NAC 3 and NAC 4.
Pressing 2 while viewing the Program Check screen will display a screen similar to the following:
The Zone No Input screen allows the programmer to view the zones which have not been
programmed to at least one input device (not including general alarm Zone 00). The example in the
preceding screen indicates that Zones 05, 07, 09, 10 and 11 have been programmed to an
addressable module (control module in this example) with an address of 001 on loop 1 but have not
been programmed to any input devices. Use the up and down arrow keys to view all the zones
without input assignments.
Pressing 3 while viewing Program Check screen will cause a screen similar to the following to be
displayed:
ERASE HISTORY
PROCEED ?
1=YES 2=NO
Erase History Screen
PROGRAMMING
1=POINT PROGRAM
2=HISTORY
3=PROGRAM CHECK
Maintenance Screen #1
PROGRAM CHECK
1=NACS NO INPUT
2=ZONES NO INPUT
3=ZONES NO OUTPUT
Program Check Screen
NACS NO INPUT
NAC 1
25 31 44 55 67
ZONES NO INPUT
05 07 09 10 11 1M001
ZONES NO OUTPUT
05 07 09 10 11 1D001
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 131
Maintenance Programming Level Programming
The Zone No Output feature allows the programmer to view the zones which have not been
programmed to at least one output device (not including general alarm Zone 00). The example in
the preceding screen indicates that Zones 05, 07, 09, 10 and 11 have been programmed to an
addressable detector with an address of 001 on loop 1 but have not been programmed to any output
devices. Use the up and down arrow keys to view all the zones without output assignments.
3.7.4 Walktest
To perform a walktest, press 1 while viewing Maintenance Screen #2. The following screen will be
displayed:
The operator can press 1 to perform a silent walktest or 2 to perform an audible walktest. Pressing
1 or 2 will cause the control panel to enter Walktest Mode and will display the following screen:
From this screen, it is possible to view the walktest log, untested system points or a summary of the
addressable devices tested during the current walktest. The user can select between any of these
screens without interrupting the current walktest session. The walktest session will not end until
the Unit In Walktest screen is exited by pressing the Escape key to return to the Walktest Screen.
Pressing 1 for View Walktest Log while viewing the Unit In Walktest screen will cause a screen
similar to one of the following two screens to be displayed:
If there are no events in the current walktest session, the first screen will be displayed, indicating no
events have been stored in the walktest log. If any events have been stored, a screen similar to the
second will be displayed indicating the latest event. As walktest events occur, the display will
change to indicate the latest event. All stored events can be scrolled on the screen by pressing the
up or down arrow keys. To return to the first event, press the 1st Event key.
Pressing 2 for View Points while viewing the Unit In Walktest screen will display one of the
following screens:
If the system has no points installed, the first screen will be displayed. If points are installed, the
second screen will be displayed, which allows the viewing of all untested system points and their
status relating to the current walktest session. The up and down arrow keys will allow viewing of
all untested points. If a point is tested while it is being displayed, the screen will update and display
the next untested point. The first line indicates the total number of untested points. The second line
displays information about an untested point. A description on the bottom of the screen will
indicate if the displayed point has been disabled, if the Walktest option has been disabled for that
point or if the point is not yet tested. The up and down arrow keys allow the user to scroll through
all untested points.
PROGRAMMING
1=WALKTEST
2=SYSTEM
3=ZONE SETUP
Maintenance Screen #2
WALKTEST
1=SILENT
2=AUDIBLE
3=VIEW RESULT
Walktest Screen
UNIT IN WALKTEST
1=VIEW WALKTEST LOG
2=VIEW POINTS
3=VIEW SUMMARY
Unit In Walktest Screen
NO EVENTS IN
WALKTEST LOG OR
ALARM: MONITOR
NORTH CLASSROOM
Z001
1015A 012308 1M006
NO POINTS IN
SYSTEM OR
UNTESTED POINTS 010
1D001 SMOKE (PHOTO)

NOT TESTED
132 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Programming Maintenance Programming Level
Pressing 3 for View Summary while viewing the Unit In Walktest screen will display a new screen
which will show a total of the tested detectors, tested modules, untested detectors and untested
modules for the current walktest session.
To end the Walktest session, press the Escape key to return to the Walktest screen. Pressing 3 for
View Results while viewing the Walktest screen, after a walktest session has been completed, will
allow the operator to view the final results of the most recent walktest.
3.7.5 System
To program the time and date into the control panel, press 2 while viewing Maintenance Screen #2.
The following display will appear:
Pressing 1 while viewing the System Screen will cause the following screen to be displayed:
To change the time, press 1 to display the following screen:
A flashing cursor will appear on the left side of the display. Enter the four digit number
corresponding to the time (0000 - 1259). When the fourth digit is entered, the cursor will move one
position to the right. Press 1 for AM or 2 for PM to complete entering the time. The display will
return to the Time and Date Screen displaying the new time.
To change the date, press 2 while viewing the Time and Date Screen. The following screen will be
displayed:
A flashing cursor will appear on the left side of the display. Enter the two digit month, two digit
day and four digit year. The cursor will move one position to the right after each entry. When the
fourth digit of the year has been entered, the display will return to the Time and Date Screen which
will show the new date.
3.7.6 Zone Setup
Pressing 3 while viewing Maintenance Screen #2 will display the following screen:
SYSTEMS
1=TIME/DATE
System Screen
TIME AND DATE
1=TIME 01:00 AM
2=DATE 01-01-2006
12HR
Time and Date Screen
ENTER TIME
01:00 AM
1=AM 2=PM
Time Screen
ENTER DATE
MONTH DAY YEAR
01-01-2006
Date Screen
PROGRAMMING
1=WALKTEST
2=SYSTEM
3=ZONE SETUP
Maintenance Screen #2
ZONE SETUP
1=ENABLE
2=DISABLE
3=ZONE 97 98 99
Zone Setup Screen
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 133
Maintenance Programming Level Programming
Pressing 1 while viewing Zone Setup screen will display the following screen:
A flashing cursor appears to the right of the Z. To enable a zone, enter the two digit zone number
(00 - 99). After the second digit is entered, the zone will be enabled and the cursor will return to the
original position. The next zone to be enabled can then be entered. Press Esc (Escape) to return to
the previous screen.
Pressing 2 while viewing Zone Setup screen will display the following screen:
A flashing cursor appears to the right of the Z. To disable a zone, enter the two digit zone number
(00 - 99). After the second digit is entered, the zone will be disabled and the cursor will return to
the original position. The next zone to be disabled can then be entered. Press Esc (Escape) to
return to the previous screen.
Pressing 3 while viewing Zone Setup screen will display the following screen:
Zones 97, 98 and 99 can be programmed for normal zone operation or for special purpose
applications. In the above illustration, the three zones are shown Off, which means they can be
programmed to function in the same manner as all other zones, by assigning them to input and
output devices in the Programming Zone Assignment Screen.
Pressing 1 will cause the display to change to PA S 9 7 O n . Each press of the 1 key will cause the
display to toggle between PAS 97 On and PAS 97 Off. When Zone 97 is programmed On, a PAS
(Positive Alarm Sequence) activation of any smoke detector will cause Zone 97 to activate. By
assigning Zone 97 to a control module in the Programming Zone Assignment Screen, an output
device connected to the control module can be used to indicate a PAS condition in the control
panel. Do not assign Zone 97 to a Notification Appliance Circuit when using this zone to indicate a
PAS condition.
Pressing 2 will cause the display to change to Pre-signal 98 On. Each press of the 2 key will cause
the display to toggle between Pre-signal 98 On and Pre-signal 98 Off. When Zone 98 is
programmed On, a Pre-signal activation of any device will cause Zone 98 to activate. By assigning
Zone 98 to a control module in the Programming Zone Assignment Screen, an output device
connected to the control module can be used to indicate a Pre-signal condition in the control panel.
Do not assign Zone 98 to a Notification Appliance Circuit when using this zone to indicate a Pre-
signal condition.
Pressing 3 will cause the display to change to Two Stage 99 On. Each press of the 3 key will cause
the display to toggle between Two Stage 99 On and Two Stage 99 Off. Refer to “Two Stage
Operation” on page 99 for a description of this feature.
ZONE TO ENABLE
Z
Enable Screen
ZONE TO DISABLE
Z
Disable Screen
SPEC PURPOSE ZONE
1=PAS 97 OFF
2=PRE-SIGNAL 98 OFF
3=TWO STAGE 99 OFF
Disable Screen
134 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Section 4: Operating Instructions
4.1 Panel Control Buttons
4.1.1 Acknowledge/Step
The first press of the Acknowledge/Step key silences the piezo sounder, changes flashing LEDs to
steady and also changes the status field on the LCD display from capital letters to small letters.
When the piezo is silenced, an acknowledge message is sent to the printer and the history file.
Acknowledge also sends a silence piezo command to the optional annunciators connected to the
FACP.
When more than one event exists, the first press of the Acknowledge/Step key functions as
described in the preceding paragraph. Subsequent pressing of the key steps through each off-
normal active event, with alarm events having a higher priority than trouble and supervisory events.
4.1.2 Alarm Silence
The Alarm Silence key performs the same functions as Acknowledge/Step. In addition, if an alarm
exists, it turns off all silenceable NACs (Notification Appliance Circuits) and causes the Alarm
Silenced LED to turn on. It also sends an ‘alarm silenced’ message to the printer, history file and
optional annunciators. A subsequent new alarm will resound the system NACs. Note that the
Alarm Silenced LED is turned off by pressing the Reset key, the Drill key or subsequent activation
of the NACs.
4.1.3 Drill/Hold 2 Sec
When the Drill key is held for a minimum of two seconds (time required to prevent accidental
activations), the FACP turns on both main panel NAC outputs and all silenceable circuits such as
control modules that are programmed as silenceable, and turns off the Alarm Silenced LED if it
was previously on. The EVAC IN SYSTEM message is shown on the LCD display. The same
message is sent to the printer and history file. The Alarm Silence key can be used to turn off all
silenceable NAC outputs following activation by the Drill key.
4.1.4 Reset
Pressing and releasing the Reset key turns off all control modules and NACs, temporarily turns off
resettable power to 4-wire detectors, causes a RESET IN SYSTEM message to be displayed on the
LCD and sends the same message to the printer and history file. It also performs a lamp test by
turning on all LEDs (except the Ground LED), piezo sounder and LCD display segments after the
Reset key is released. Any alarm or trouble that exists after a reset will resound the system.
4.2 LED Indicators
The nine LED indicators, which are located on the front panel, operate as follows:
AC Power
This is a green LED which illuminates if AC power is applied to the FACP. A loss of AC power
will turn off this LED
Fire Alarm
This red LED flashes when one or more alarms occur. It illuminates steady when the
Acknowledge/Step or Alarm Silence key is pressed. The Fire Alarm LED turns off when the Reset
key is pressed. The LED will remain off if all alarms have been cleared.
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 135
Normal Operation Operating Instructions
Supervisory
This is a yellow LED that flashes when one or more supervisory conditions occur, such as a
sprinkler valve tamper condition. It illuminates steady when the Acknowledge/Step or Alarm
Silence key is pressed. It turns off when the Reset key is pressed and remains off if all supervisory
alarms have been cleared.
Trouble
This is a yellow LED that flashes when one or more trouble conditions occur. It stays on steady
when the Acknowledge/Step or Alarm Silence key is pressed. The LED turns off when all trouble
conditions are cleared. This LED will also illuminate if the microprocessor watchdog circuit is
activated.
Maintenance
This is a yellow LED that flashes to indicate that a smoke detector requires cleaning or replacement
due to an invalid chamber reading or excessive drift.
Alarm Silenced
This is a yellow LED that turns on after the Alarm Silence key is pressed while an alarm condition
exists. It turns off when the Drill or Reset key is pressed.
Disabled
This is a yellow LED that flashes to indicate that a zone, NAC, detector or module has been
temporarily disabled in programming by the user.
Battery
This is a yellow LED that flashes to indicate a low battery voltage condition.
Ground
This is a yellow LED that flashes to indicate a ground fault condition (zero impedance from the
FACP to ground).
Primary Line Active
This is a red LED that indicates the primary phone line is active.
Secondary Line Active
This is a red LED that indicates the secondary phone line is active
Kiss-off
This is a green LED that blinks when a Central Station has acknowledged receipt of each
transmitted message or when a portion of upload or download data has been accepted from a
Service Terminal
4.3 Normal Operation
With no alarms or troubles in the system, the display message is System All Normal along with the
current time and date as shown below. To set the time and date, refer to the appropriate section in
this manual.
The MS-9200UDLS performs the following functions at regular intervals while in Normal mode:
HONEYWELL
LIFE SAFETY
SYSTEM ALL NORMAL
10:00A 012110
136 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Operating Instructions Trouble Operation
Monitors AC input voltage and battery voltage
Monitors and reports status of SLC loop, option cards and control panel
Polls all devices on the SLC loop and flashes each device LED while checking for valid
replies, alarms, troubles, etc.
Refreshes LCD display and updates time
Scans control panel keypad for key presses
Performs autotest for all SLC devices
Tests memory
Updates and reads all communications buses (EIA-485, EIA-232, etc.)
4.4 Trouble Operation
With no alarms in the system, the detection of a trouble will cause the following:
• The piezo to pulse 1 second On and 1 second Off
• The system Trouble LED to flash one second On and one second Off
• The trouble relay to activate
•TROUBL with device type, noun/adjective, address and trouble description will appear on the
LCD display
• The same message, along with the time and date, is sent to the optional printer and the history
buffer.
• Communicate the trouble conditions to the Central Station
• Terminate upload or download communications
Note that specific troubles will initiate additional actions; for example, loss of AC power will turn
off the AC Power LED, a ground fault will turn on the Ground LED, etc.
Addressable Smoke Detectors, Monitor Modules and Control Modules
For addressable devices connected to the SLC loop, the following is a typical message that could
appear on the LCD display for a device trouble:
The information displayed in the above example provides the following information:
• First line in display:
The type of event; in this example TROUBL indicating a device trouble
Device type identifier; in this example, SMOKE (PHOTO) indicates a Photoelectric smoke
detector. Other device type identifiers which can be displayed include SMOKE (ION) for
Ionization Detector, HEAT for Heat Detector, CONTROL for Control Module and
MONITOR for Monitor Module, PULL STATION for a manual pull box, etc. Refer to “Edit
Detector” on page 69, “Edit Module Screen for Monitor Module” on page 77 and “Edit
Module Screen for Control Modules” on page 83 for information on additional device types.
• Second line in display:
<ADJ>; refers to the user programmed adjective descriptor from library list resident in the
control panel or custom entry via PC.
<NOUN>; refers to the user programmed noun descriptor from library list resident in the
control panel or custom entry via PC.
• Third line in display: INVREP indicates an invalid reply from the addressable device. Other
possible troubles include:
– SHORT - indicating a shorted circuit on an addressable device
TROUBL SMOKE (PHOTO)
<ADJ> <NOUN>
INVREP
10:00A 010806 1D001
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 137
Alarm Operation Operating Instructions
–OPEN - indicating an open circuit on an addressable device
–DIRTY1 - maintenance alert indicating that a detector is near but below the allowed alarm
limit and is in need of maintenance before the performance is compromised
–DIRTY2 - maintenance alert indicating that a detector needs immediate maintenance since it
has been within 80% of its alarm threshold for 24 hours
–INVREP - maintenance alert indicating a hardware or communication problem in the
detector
–TEST F - indicating a detector has failed the automatic test operation which functionally
checks its sensing chamber and electronics
–INV ID - indicating that an incorrect device code (Type ID) has been programmed for an
installed device (for example, Photo has been programmed but an Ion detector has been
installed)
–SW TBL - indicating a module has failed the testing of its Class A switching relay
–BLOCK - indicating that a beam detector’s beam is totally blocked
–ALIGN - indicating that a beam detector is in beam alignment mode
• Fourth line in display:
Time; the current time in this example is 10:00A which represents 10:00 AM
Date; the current month, day and year in this example is 01 for January, 08 for the 8th day of
the month and 01 for the year 2001
Device Address; 1D001 in this example 1 represents SLC Loop, D represents a detector and
001 represents device address 001
Pressing the Acknowledge/Step or Alarm Silence key will cause the pulsing piezo to silence and the
system Trouble LED to change from flashing to on steady. This block acknowledgment occurs
regardless of the number of troubles, alarms and supervisory events active in the system. When the
Acknowledge/Step key is pressed and at least one new alarm or trouble exists in the system, the
‘acknowledge’ message is sent to the printer and history file. If the trouble clears, either before or
after the Acknowledge/Step key is pressed, the ‘clear trouble’ message is sent to the printer and
history file.
If all troubles clear and there are no supervisory or fire conditions active in the system, the system
returns to normal mode operation and the System All Normal message is shown on the LCD display
and sent to the history and printer files. The auto-restore feature will restore cleared troubles even if
the troubles were never acknowledged. Note that pressing the Alarm Silence key when only
troubles exist in the system will have the same effect as pressing the Acknowledge/Step key except
the Alarm Silenced LED will light.
4.5 Alarm Operation
Alarm operation is similar to trouble operation with the following differences:
• The piezo sounder produces a steady output as opposed to a pulsed output
• The Fire Alarm LED flashes 1 second On and 1 second Off
• The LCD displays Alarm along with the device name, type, address, adjective/noun, associated
zones and time/date
• Communicate the alarm to the Central Station
• Alarms latch and are not allowed to clear automatically
• Alarms activate software zones if so programmed
• Timers for Silence Inhibit, Autosilence and Trouble Reminder are started
• Alarms activate the general alarm relay and general alarm zone Z00
• The trouble relay is not activated
• Store event in history buffer
138 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Operating Instructions Supervisory Operation
• Terminate upload or download communications
• Alarms must be Acknowledged before the FACP can be reset
A typical alarm display would be as illustrated below:
Note that the device type, which in this example is PULL STATION, can be any other
programmable alarm type.
The information displayed in the above example provides the following information:
• First line in display:
The type of event; in this example ALARM indicating an alarm condition
Device type identifier; in this example, PULL STATION indicates a manual pull box. Other
device type identifiers which can be displayed include SMOKE (ION) for Ionization
Detector, HEAT for Heat Detector, CONTROL for Control Module and MONITOR for
Monitor Module, PULL STATION for a manual pull box, etc. Refer to “Edit Detector” on
page 69, “Edit Module Screen for Monitor Module” on page 77 and “Edit Module Screen
for Control Modules” on page 83 for information on additional device types.
• Second line in display:
<ADJ>; refers to the user programmed adjective descriptor from library list resident in the
control panel or custom entry via PC.
<NOUN>; refers to the user programmed noun descriptor from library list resident in the
control panel or custom entry via PC.
• Third line in display: Z000 indicates the zone programmed to this device which, in this
example, is general alarm Zone 000. Note that a single device can be programmed to five
different zones but only the first zone will be displayed.
• Fourth line in display:
Time; the current time in this example is 10:00A which represents 10:00 AM
Date; the current month, day and year in this example is 01 for January, 08 for the 8th day of
the month and 01 for the year 2001
Device Address; 1M001 in this example 1 represents SLC Loop, M represents a module and
001 represents device address 001
4.6 Supervisory Operation
Supervisory operation is similar to alarm operation but with the following differences:
• The piezo sounder pulses ½ second On and ½ second Off
• The Supervisory LED flashes ½ second On and ½ second Off
• The LCD displays the status label Active Supervisory along with the device name, type,
address, adjective/noun, associated zones, and time/date
• Communicate the supervisory condition to the Central Station
• The supervisory relay is activated
• The alarm relay is not activated
• Silenced alarms are resounded
• Timers are not started
• Store event in history buffer
• Terminate upload or download communications
ALARM PULL STATION
<ADJ> <NOUN>
Z000
10:00A 010810 1M001
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 139
Process Monitor Operation Operating Instructions
A typical Supervisory event would be displayed as illustrated in the following:
Note that, like alarms, supervisory signals latch (except when programmed for supervisory autore-
settable) and can be assigned to software zones. Supervisory alarms do not cause resound as do
other alarm conditions. Open circuits in supervisory wiring are processed by the control panel the
same way as other trouble conditions. Refer to “Alarm Operation” on page 137, for a description of
the information displayed on the control panel LCD.
4.7 Process Monitor Operation
Process Monitor operation will initiate the following events:
• The piezo sounder pulses ¼ second On and ¼ second Off
• The LCD displays a process monitor message along with the device name, type, address,
adjective/noun, associated zones, and time/date
• Communicate the process monitor condition to the Central Station (if the default event code
has been changed from 000 to a reportable event code)
• Relays programmed for process monitoring will be activated
• The alarm relay is not activated
• Fire Alarm NACs will not activate
• SLC NACs (control modules) will activate
• Timers are not started
• Store event in history buffer
• Activate appropriate LED on the ANN-LED annunciator (required for this application)
• Each ANN-LED can support up to 10 zones.
Note that, like supervisories, process monitor signals latch (except when programmed for process
monitor autoresettable) and can be assigned to software zones.
4.8 Hazard/Tornado Condition Operation
Hazard/Tornado operation is intended for Manual activation.
Hazard/Tornado Condition operation will initiate the following events:
• The piezo sounder pulses 1/4 second On, 1/4 second Off
• The LCD displays a hazard message along with the device name, type, address,
adjective/noun, associated zones, and time/date
• Communicate the hazard condition to the Central Station (if the default event code has been
changed from 000 to a reportable event code)
• Relays programmed for hazard will be activated
• The alarm relay is not activated
• Fire Alarm NACs will not activate
• SLC NACs (control modules) will activate
• Timers are not started
• Store event in history buffer
• Activate appropriate LED on the ANN-LED annunciator (required for this application)
• Each ANN-LED can support up to 10 zones.
Hazard conditions latch. They can be assigned to software zones.
ACTIVE SUPERVISORY
<ADJ> <NOUN>
Z000
10:00A 012110 1M001
140 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Operating Instructions Medical Alert Condition Operation
4.9 Medical Alert Condition Operation
Medical alert operation is:
• not intended for nurse call stations (applications) per UL1069.
• not intended for signaling professional medical staff.
• to be used for summoning security guards or other trained personnel within the facility
• intended for Manual activation.
Medical Alert Condition operation will initiate the following events:
• The piezo sounder 1/4 second On, 1/4 second Off
• The LCD displays a medical alert message along with the device name, type, address,
adjective/noun, associated zones, and time/date
• Communicate the medical alert condition to the Central Station
• Relays programmed for medical alert will be activated
• The alarm relay is not activated
• Fire Alarm NACs will not activate
• SLC NACs (control modules) will activate
• Timers are not started
• Store event in history buffer
• Activate appropriate LED on the ANN-LED annunciator (required for this application)
• Each ANN-LED can support up to 10 zones.
Medical alert conditions latch. They can be assigned to software zones.
4.10 Mass Notification Operation
The FACP may be installed with an ECC-50/100 audio system to provide mass notification opera-
tion. The FACP must control the ECC-50/100 via the ANN-BUS. Refer to “Automatic Audio Panel
Control” on page 62 for details and wiring information.
Some mass notification installations may require that the activation of the audio system results in
an override of an active fire notification at the FACP. This is determined by a risk assessment in
accordance with the local AHJ. The FACP provides the flexibility to accommodate override or non-
override operation. For override operation, FACP NACs and/or other SLC control modules may be
deactivated while the mass notification event is active. No other FACP operation is overridden or
interrupted. If override operation has been selected, notification for a fire event will resume upon
termination of the mass notification event at the audio system.
When mass notification override is enabled, mass notification alarms will result in a mass notifica-
tion event being sent to the central station. An event code can also be sent indicating which mes-
sage is playing on the audio system. Message event code transmission must be enabled in
programming.
Refer to page 102 for programming mass notification override at the system level.
Refer to page 87 for programming mass notification override for SLC control modules.
Refer to page 100 for programming mass notification override for onboard NACs.
Refer to page 123 for programming message event code transmission to the central station.
4.11 NAC Operation
There are four programmable NACs (Notification Appliance Circuits) resident on the
MS-9200UDLS main circuit board. All NACs may be programmed as silenceable or
nonsilenceable and may also be programmed for steady or coded operation. Coded operation
provides a choice between March Time, Temporal or California coding.
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 141
Programmed Zone Operation Operating Instructions
4.12 Programmed Zone Operation
Each addressable detector and monitor module can be assigned to a maximum of five software
alarm zones. A general alarm zone Z00 may be listed for output (control) points, but it is not
necessary to list Z00 for input points, since this is the default zone for all alarm input devices. Zone
Z00 is not activated by supervisory points.
When an input device alarms and is not disabled, it activates all software zones assigned to it. An
output device that is not disabled is turned on when any of the software zones to which it is
programmed become active. Only alarms, hazards/tornado alerts can turn on any of the four main
NACs.
4.13 Disable/Enable Operation
Input points which are disabled do not cause an alarm or any zone activation. Disabled output
points are held in the off state. All disabled points are treated as if they were in trouble, with the
exception being the status label that will be displayed is DISABL.
4.14 Waterflow Circuits Operation
If an alarm exists from a monitor module point that has a waterflow type code and its mapped NAC
control module outputs are programmed for nonsilenceable operation, the Alarm Silence key will
not function. Also, any output zone activated by a waterflow device will not be silenceable if the
Waterflow Silenceable option is set to NO in system programming.
4.15 Detector Functions
Maintenance Alert
Each addressable detector is monitored by the control panel for its maintenance status. If a detector
is near but below the allowed alarm limit, a ‘maintenance alert’ message will automatically be
displayed, signaling that the detector is in need of servicing.
Automatic Test Operation
An automatic test of an addressable detector is performed each minute, resulting in a complete SLC
loop test in approximately 5 hours (if the loop has the maximum number of devices installed). The
detector’s sensing chamber and electronics are functionally tested for normal, safe operation. A
trouble message is displayed upon failure of this test. A System Reset will clear this trouble.
Type Code Supervision
The FACP monitors addressable hardware device codes at slow intervals. Mismatch of any type
code, compared to the system program, will cause a device trouble.
System Alarm Verification
The control panel may be programmed to perform alarm verification to help eliminate the nuisance
of false alarms. Alarm verification applies to smoke detectors only.
Smoke Detector Data
Smoke detector data is monitored by the FACP, eliminating the need to test the sensitivity of each
detector at its location. A printout of each detector’s data can be retrieved from the FACP using an
optional printer or Windows© HyperTerminal. Detector sensing ability can decrease with age and
should be monitored as part of a system’s routine maintenance.
142 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Operating Instructions Time Functions: Real-Time Clock
4.16 Time Functions: Real-Time Clock
The MS-9200UDLS includes a crystal-based clock that provides time of day, date and day of week.
Time is displayed as 12 or 24 hour time with month/day/year and is stored in RAM. Daylight
savings time change-over is programmable and automatic. If both AC and battery are lost, the time
must be reset.
4.17 Synchronized NAC Operation
Synchronization is a panel feature that controls the activation of notification appliances in such a
way that all devices will turn on and off at exactly the same time. This is particularly critical when
activating strobes which must be synchronized to avoid random activation and a potential hazard or
confusion. The FACP can be programmed to operate with a variety of manufacturer’s devices.
NAC synchronization can only be supported properly by the Remote Power Supply Sync Terminal,
which follows NAC 1 programming.
Important: When a Notification Appliance Circuit with a mix of audible and visual devices is
programmed for silenceable and the synchronization feature is selected, only the audible devices
will be turned off if the Silence key is pressed. The visual devices (strobes, etc.) will continue to
operate.
4.18 Coded Operation
The NAC circuits resident on the control panel main circuit board can be programmed for coded
operation. The available pulse rates which can be programmed for coded operation are as follows:
• Continuous: Steady output with no pulsing
• March Time: Pulses at 120 ppm (pulses per minute)
• Temporal Code: Pulses at 1/2 second On, 1/2 second Off, 1/2 second On,
1/2 second Off, 1/2 second On, 1-1/2 second Off
• California Code: 10 seconds On, 5 seconds Off
• Two-Stage Pulses at 20 ppm (pulses per minute) for 3 or 5 minutes (depending on
programming) and then changes to Temporal
4.19 Presignal
Presignal option programs an initiating device to delay the activation of NACs and/or control
modules while allowing visual verification by a person. Once a detector or monitor module
triggers an alarm, the onboard piezo sounds immediately, but the NACs are not activated for a user
programmed time duration of up to three minutes. Note that the alarm relay and communicator will
respond to the initial alarm immediately. In addition, Zone 98 will activate. This zone can be
programmed to a control module which may be used to activate a sounder or indicator which the
installer designates as a Presignal indication. Do not assign Zone 98 to a Notification Appliance
Circuit when using this zone to indicate a Pre-signal condition.
After the programmed delay, the NACs will activate if the source of the alarm is not cleared. Note
that if a second alarm occurs during the programmed time delay, the alarm will be processed
immediately, causing activation of the appropriate output zones. The events which occur upon
Presignal activation are as follows:
onboard piezo sounds immediately
control panel LCD display will indicate a presignal event and the active point
control points programmed to Zone 98 will activate
annunciators (if enabled) will sound the local piezo, and pulse the alarm LED and zone LED
outputs (NACs and control modules) of associated zones will be inhibited from activating
for a user programmed time delay of up to three minutes
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 143
Positive Alarm Sequence Operating Instructions
second alarm occurring anytime during the time delay will cause immediate activation of all
associated outputs
Presignal does not affect monitor modules programmed as waterflow, supervisory, process
monitoring or remote switches. Presignal operation requires the approval of the local Authority
Having Jurisdiction.
4.20 Positive Alarm Sequence
PAS (Positive Alarm Sequence) option will program a smoke detector to delay panel activation
(including alarm relay and communicator) for a period of 15 seconds. Zone 97, however, will
activate immediately and may be used to connect a signaling device to indicate PAS activation. Do
not assign Zone 97 to a Notification Appliance Circuit when using this zone to indicate a PAS
condition.
When a detector triggers an alarm, the onboard piezo sounds immediately, but the NACs are
prevented from activating for 15 seconds. This inhibit time is factory set and cannot be changed.
Pressing the Alarm Silence or Acknowledge/Step key during the 15 second inhibit time will silence
the piezo sounder and start a timer which prevents activation of NACs for an additional time
duration which can be user programmed for up to three minutes. After the programmed delay, the
NACs will activate if the source of the alarm is not cleared. Note that if a second alarm occurs
during either time delay, the alarm will be processed immediately, causing activation of the
appropriate output zones. The events which occur upon PAS activation are as follows:
onboard piezo sounds immediately
control panel LCD display will indicate a presignal event and the active point
control points programmed to Zone 97 will activate
ACS annunciators (if enabled) will pulse the Zone 97 PAS LED immediately upon PAS
activation. They will sound the local piezo, and pulse the alarm, associated zone and
detector address point LEDs after 15 seconds of an unacknowledged PAS activation. Note
that if the Alarm Silence or Acknowledge/Step button is pressed, the annunciators will be
inhibited from activating for an additional time delay
outputs (NACs and control modules) of associated zones will be inhibited from activating
for a factory set duration of 15 seconds
pressing the Alarm Silence or Acknowledge/Step key will start a timer which inhibits output
activation for additional time delay of up to three minutes which is user programmable
second alarm occurring anytime during either time delay will cause immediate activation of
all associated outputs
PAS operation requires the approval of the local Authority Having Jurisdiction.
Note that the PAS BYPASS monitor type code, when activated, will inhibit the PAS capability until
the PA S B YPAS S monitor is deactivated. While PAS is inhibited, signaling devices will immediately
place the control panel into alarm. This feature may be employed by wiring a normally open
device, such as a switch, to a monitor module which has been programmed for PA S B Y PA S S.
4.21 Special System Timers
4.21.1 Silence Inhibit Timer
This option, if selected, prevents the Alarm Silence key from functioning for 60 seconds following
an alarm. A new alarm during the initial 60 second period will not cause the timer to restart with a
new 60 seconds. Silence Inhibit operation requires the approval of the local Authority Having
Jurisdiction.
144 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Operating Instructions Special System Timers
4.21.2 Autosilence Timer
If Autosilence is selected, the notification appliances, programmed as silenceable, will
automatically be silenced after a programmable duration of from 5 to 30 minutes. Pressing the Drill
key will restart the timer. Autosilence operation requires the approval of the local Authority Having
Jurisdiction.
4.21.3 Trouble Reminder
If selected, this feature causes a reminding ‘beep’ every 15 seconds during an alarm (after the
Alarm Silence key is pressed) and every two minutes during a trouble condition (after the
Acknowledge/Step or Alarm Silence key is pressed). The ‘beeps’ from the onboard piezo sounder
will occur until the alarm or fault is cleared.
Note that if the trouble is not cleared within 24 hours, the piezo will resound, indicating that the
trouble condition still exists.
4.21.4 Waterflow Retard Timer
If selected, this option will delay the activation of a waterflow type alarm for a programmable time
duration from 1 to 90 seconds. This delay is in addition to any time delay inherent in the waterflow
device. This feature requires the approval of the local Authority Having Jurisdiction.
4.21.5 Alarm Verification (None or One Minute)
If alarm verification is selected, an addressable smoke detector's alarm is ignored for a retard time
of 13 seconds and the detector's alarm condition is automatically reset. There will be no alarm
indication at the FACP during the Retard period. A confirmation period of 60 seconds follows,
during which a subsequent alarm from the same detector will cause the panel to immediately
activate the appropriate outputs and indicate the alarm condition at the FACP. If a different detector
alarms any time during the first detector's verification period, the panel will immediately activate
all appropriate outputs and indicate the alarm condition at the FACP. If no additional detector
alarms occur within 73 seconds of the first alarm (13 second retard plus 60 second confirmation),
the timer resets and the panel is ready to verify any new detector alarms which may occur. The
following is a graphic representation of Alarm Verification.
NOTE: Alarm Verification is available only for addressable smoke detectors, not conventional
smoke detectors.
73 sec.
13 sec.
0 sec.
CONFIRMATION (60 seconds)
RETARD
Alarm Ignored Control Panel Processes Alarm if Same Detector is Still in Alarm
Control Panel Immediately Processes Alarm
Detector Alarm Verification
(Retard + Confirmation)
Detector Goes Into Alarm
Different Detector Alarms
During First Detector's
Verification Period
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 145
Walktest Operating Instructions
4.22 Walktest
Walktest is a feature which allows one person to test the fire alarm system. An audible walktest will
momentarily sound the Notification Appliance Circuits in the building and store the walktest
information in a file at the panel. A silent walktest will not sound the NACs but will store the
walktest information in a file which can be viewed at the panel. Disabled NAC devices will not
activate during walktest.
Alarm/Shorted Condition
When in audible Walktest, the panel responds to each new alarm and activates its programmed
control outputs for four seconds, if those outputs have been programmed for silenceable activation.
It also stores each alarm in the walktest history file which can be sent to an optional printer. The
stored display will be the same as if the device actually activated except the colon (:) in the time
stamp is replaced with an asterisk (*).
Note that if the system under test includes one or more enabled MMF-302 monitor modules, the
following may apply:
If the MMF-302 monitor module is used for a supervised, 2-wire smoke zone, alarming any
monitor module in the system will result in the activation of programmed control outputs for
an additional eight seconds or less. This is caused by the temporary removal of 24 VDC
resettable power from the MMF-302. The MMF-302 reports this loss of power as an open
condition in addition to the alarm condition.
Open Condition
Addressable devices are monitored for fault conditions during Walktest mode. When a new trouble
condition occurs, the FACP will activate all NACs and control modules programmed for Walktest
and mapped to the faulty device, then shut them off after eight seconds.
While in Walktest, the trouble relay is activated and the system Trouble LED flashes (as in all of
the Program and status change operations). The alarm relay is not activated.
4.23 Read Status
Read Status functions do not require a password. The control panel will continue to provide fire
protection while in Read Status mode. This mode can be entered while the control panel is in alarm
or trouble. If a new alarm or trouble occurs during these functions, the Read Status is exited to
prevent confusion.
Read Status Entry
When the operator presses the control panel ENTER key, the LCD will display the following:
Pressing 1, while this screen is being displayed, will cause the control panel to enter the Read
Status mode which allows the user to view and print the programmed features and status of the
control panel.
1=READ STATUS MODE
2=PROGRAMMING MODE
3=REMOTE DOWNLOAD
4=MANUAL DIAL MODE
146 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Operating Instructions Read Status
The following screens will be displayed:
4.23.1 System Point
Pressing 1 while viewing Read Status Screen #1 will cause the following screen to be displayed:
The operator selects the type of device which is to be viewed by pressing 1 for Detector or 2 for
Module. If 1 is pressed, the display will change to the following screen:
Entering the three digit detector address will cause the control panel to display the current status of
the selected device. For example, if a detector with address 001 on the SLC loop is entered, a
display similar to the following will appear:
The information in the preceding display includes:
•NORMAL - the present status (could also be ALARM, TROUBL, DISABL, etc.)
•SMOKE (PHOTO) - the device type which is a photoelectric smoke detector (could also be
ION for ionization smoke detector)
•NORTH CLASSROOM - the Adjective/Noun label for this device
•Z005 - the first of five possible assigned software zones
•1D001 - 1 = SLC Loop, D = Detector, 001 = Address 001
• V - Alarm Verification Enabled (V = Yes, * = No)
• S - Silenceable for control modules (S = Yes, * = No)
• W - Walktestable for control and monitor modules (W = Yes, * = No)
Pressing the down arrow key, while viewing the screen shown above, will allow the operator to
view additional programming information about the selected device, such as:
• Enable/Disable Status
• Device Type
• Alarm Verification On/Off (for detectors)
• Walktest Yes/No
• PAS (Positive Alarm Sequence) Yes/No (for detectors only)
READ STATUS
1=SYSTEM POINT
2=ZONES
3=POWER
READ STATUS
1=TROUBLE REMINDER
2=TIMERS
3=NACS
Read Status Screen #1 Read Status Screen #3
READ STATUS
1=RELAYS
2=PROGRAM CHECK
3=HISTORY
Read Status Screen #5
READ STATUS
1=ANNUNCIATORS
2=PHONE LINE
3=CENTRAL STATION
Read Status Screen #2
READ STATUS
1=SERVICE TERMINAL
2=PRINTER/PC
3=PRINT
Read Status Screen #4
READ STATUS
1=TIME-DATE
Read Status Screen #6
READ STATUS
1=SYSTEM POINT
2=ZONES
3=POWER
Read Status Screen #1
READ SYSTEM POINT
SELECT TYPE
1=DETECTOR
2=MODULE
READ SYSTEM POINT
ENTER DETECTOR#

NORMAL SMOKE(PHOTO)
NORTH CLASSROOM
Z005
V 1D001
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 147
Read Status Operating Instructions
• Pre-Signal Yes/No (for detectors and monitor modules)
• Zone Assignments (five maximum)
• Chamber Value
• Adjective/Noun descriptor
• Silenceable Yes/No (for control modules)
• MNS Override Enabled/Disabled (for control modules)
4.23.2 Zones
Pressing 2 while viewing Read Status Screen #1 will cause the following screens to be displayed:
From the preceding screens, the control panel operator can view:
•Zones Installed - all software zones programmed into the system (99 maximum)
•Zones Enabled - all software zones that are enabled
•Zones Disabled - all software zones that have been disabled
•Special Purpose - on or off programming for Special Purpose Zones 97 reserved for PAS, 98
reserved for Pre-signal and 99 reserved for Two Stage
•Zone Type - the Type assigned to each installed zone (default is Alarm)
•Zone Message - the Message assigned to each installed zone
4.23.3 Power
Pressing 3 while viewing Read Status Screen #1 will cause the following screens to be displayed:
The following table lists the circuit being measured, possible conditions and their respective
voltage ranges:
READ STATUS
1=SYSTEM POINT
2=ZONES
3=POWER
Read Status Screen #1
ZONES
1=ZONES INSTALLED
2=ZONES ENABLED
3=ZONES DISABLED
Zones Screen #1
ZONES
1=SPECIAL PURPOSE
2=ZONE TYPE
3=ZONE MESSAGE
Zones Screen #2
Circuit Condition Voltage Range
Battery
Normal Battery (nominal) 27.05 to 28.15 VDC
Low Battery 20.0 to 20.8 VDC
No Battery 0 to 18.36 VDC
24V Resettable Normal 21.25 to 27.50 VDC
24V Nonresettable Normal 21.25 to 27.50 VDC
Charger Normal 21.87 to 29.84 VDC
NAC 1 - NAC 4
Normal -1.3 to -1.6 VDC
Open Circuit -2.3 to -2.5 VDC
Short Circuit 0 to 1.0 VDC
POWER
BATTERY 27.21V
24 V RST 25.31
Power Screen #1
POWER
CHARGER 28.36V
NAC 1 -1.49V
NAC 2 -1.49V
Power Screen #2
POWER
NAC 3 -1.49V
NAC 4 -1.49V
Power Screen #3
148 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Operating Instructions Read Status
4.23.4 Trouble Reminder
Pressing 1 while viewing Read Status Screen #2 will display the following screen:
The screen indicates whether the Trouble Reminder feature is On or Off.
4.23.5 Timers
Pressing 2 while viewing Read Status Screen #2 will cause the following Timer screens to be
displayed:
These screens will indicate the delay time, in seconds, for each of the first three possible delay
options. The AC Loss Delay time is displayed in hours.
4.23.6 NAC
Each NAC can be programmed individually with unique settings with the exception of Canadian
Mode. When the Canadian Option is seletected in programming (see “Canadian Option” on
page 101), all NAC settings are changed to that of NAC 1. While in Canadian Mode, if any NAC is
setting is changed, all other NACs will get those same settings. Pressing 3 while viewing Read
Status Screen #2 will display the following screen:
The operator can press 1 to view the programmed options for NAC 1, 2 to view the programmed
options for NAC 2, 3 to view the programmed options for NAC 3, or 4 to view the programmed
options for NAC 4. The resulting screens will display the following information:
• Enable/Disable Status
• Circuit Type (Bell, Strobe, etc.)
• Silenceable/Nonsilenceable
• Auto Silence Enable/Disable and time delay (in minutes)
• Coding Selection (Temporal, Steady, etc.)
• Zone Assignments
• Silence Inhibit Enabled/Disabled
• Synchronization Type (System Sensor, Wheelock, or Gentex)
• MNS Override Enabled/Disabled
4.23.7 Relays
Pressing 1 while viewing Read Status Screen #3 will display the following screen:
READ STATUS
1=TROUBLE REMINDER
2=TIMERS
3=NAC
Read Status Screen #2
TROUBLE REMINDER
TROUBLE REM ON
TIMERS
PAS DELAY 000
PRE SIGNAL 000
WATERFLOW 000
TIMERS
AC LOSS DELAY 4
NAC
1=NAC 1 3=NAC 3
2=NAC 2 4=NAC 4
READ STATUS
1=RELAYS
2=PROGRAM CHECK
3=HISTORY
Read Status Screen #3
RELAY
1=RELAY 1
2=RELAY 2
3=RELAY 3
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 149
Read Status Operating Instructions
The operator can view the programmed option for each relay by pressing the corresponding number
key.
4.23.8 Program Check
Pressing 2 while viewing Read Status Screen #3 will cause a screen similar to the following to be
displayed:
Pressing 1 while viewing the Program Check screen will display a screen which will indicate if any
input zones have not been programmed to one of the Notification Appliance Circuits. Use the up
and down arrow keys to view all NACs.
Pressing 2 while viewing the Program Check screen will display a screen which will indicate if any
output zones have not been programmed to at least one input zone. Use the up and down arrow
keys to view all zones.
Pressing 3 while viewing the Program Check screen will display a screen which will indicate if any
input zones have not been programmed to at least one output zone. Use the up and down arrow
keys to view all zones.
4.23.9 History
Pressing 3 while viewing Read Status Screen #3 will display the following screen:
The operator can view all events which have been stored in the history file, only alarms or other
events, such as troubles or supervisories, by pressing the corresponding number key.
4.23.10 Annunciators
Pressing 1 while viewing Read Status Screen #4 will display the following screens:
The Annunciator Screen indicates if Terminal mode options are enabled or disabled.
Pressing 2 for ACS Options while viewing the Annunciator Screen allows the operator to view the
ACS Options screen:
The ACS Options screen indicates if the ACS option has been enabled YES or disabled NO.
Pressing 2 for ACS Addresses while viewing the ACS Options screen will display screens with
ACS addresses 1 -31 and whether a device is installed at that address YES or not installed NO.
The ACS Options screen indicates if a UDACT is installed YES or if a UDACT is not installed NO.
PROGRAM CHECK
1=NACS NO INPUT
2=ZONES NO INPUT
3=ZONES NO OUTPUT
HISTORY
1=VIEW ALL
2=VIEW ALARMS
3=VIEW OTHER EVENTS
READ STATUS
1=ANNUNCIATORS
2=PHONE LINE
3=CENTRAL STATION
Read Status Screen #4
ANNUNCIATORS
TERM ENABLED YES
2=ACS OPTIONS
3=ANN-BUS OPTIONS
Annunciator Screen
ACS OPTIONS
ACS ENABLED NO
2=ACS ADDRESSES
UDACT ENABLED NO
ACS Options Screen
150 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Operating Instructions Read Status
Pressing 3 for ANN-BUS Options while viewing the Annunciator Screen will display the following
screens:
The ANN-BUS Screen #1 indicates if the ANN-BUS has been enabled YES or disabled NO.
Pressing 2 for Modules Installed while viewing ANN-BUS Screen #1 will display screens for
ANN-BUS Addresses 1 -8 and the devices installed at each address. Subscreens will display the
options that have been programmed for each device.
Pressing 3 for ANN-S/PG Options while viewing ANN-BUS Screen #1 will display the options
selected for the installed serial or parallel printer.
Pressing 1 for ANN-80 Options while viewing ANN-BUS Screen #2 will display the options
selected for the installed ANN-80 annunciators.
4.23.11 Phone Line
Pressing 2 while viewing Read Status Screen #4 will display the following screen:
The second and third lines of this screen indicate that both the Primary and Secondary phone lines
have been configured for touchtone dialing operation.
Pressing 3 while viewing the Phone Line screen will cause the following screen to be displayed:
This screen indicates whether or not Phone Line 2 is being supervised. In this example, Phone Line
2 No indicates the phone line is not being supervised.
4.23.12 Central Station
Pressing 3 while viewing Read Status Screen #4 will display the following screens:
Central Station Screen #1 indicates whether the Central Station Reporting is enabled or disabled, if
the Reports will be sent to one or both the Primary and Secondary Central Station phone numbers
and the Call Limit for DACT trouble calls within a 24 hour period.
Central Station Screen #2 provides information on the Primary and Secondary Central Station
programming which includes:
• Test Time Interval
• Account Code
• 24 Hour Test Time
• Phone Number
ANN-BUS
ENABLED NO
2=MODULES INSTALLED
3=ANN-S/PG OPTIONS
ANN-BUS Screen #1
ANN-BUS
1=ANN-80 OPTIONS
ANN-BUS Screen #2
PHONE LINE
PRIMARY TOUCHTONE
SECONDARY TOUCHTONE
3=SUPERV PHONE LINE
SUPERVISE PHONE LINE
PHONE LINE 2 NO
READ STATUS
1=ANNUNCIATORS
2=PHONE LINE
3=CENTRAL STATION
Read Status Screen #4
CENTRAL STATION
REPORTING ENABLED
REPORT BOTH
CALL LIMIT 10
Central Station Screen #1
CENTRAL STATION
1=PRIMARY
2=SECONDARY
3=REPORT STYLE
Central Station Screen #2
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 151
Read Status Operating Instructions
• Communication Format
• Event Codes
4.23.13 Service Terminal
Pressing 1 while viewing Read Status Screen #5 will display the following screens:
The Ring Count is displayed in the Service Terminal Screen.
4.23.14 Printer/PC
Pressing 2 while viewing Read Status Screen #5 will display the following screen:
The display will inform the operator as to whether the control panel is configured for a printer or a
PC. In the example above, PR4800 indicates that the panel is configured for a printer with a baud
rate of 4,800.
4.23.15 Print
To print program data or control panel status, press 3 while viewing Read Status Screen #5. The
following screens will be displayed:
Pressing 1 while viewing Print Screen #1 allows the user to print the History file which will detail
all of the system activities since the file was last cleared from memory.
Pressing 2 while viewing Print Screen #1 allows the user to print the Walktest log which will detail
all of the system activations during walktest since the log was last cleared. Refer to “Walktest” on
page 104 for additional information on the display.
Pressing 3 while viewing Print Screen #1 allows the user to print the detector data for each
addressable smoke detector connected to the system. A printout, similar to the following example,
will be generated if an optional printer is connected to the FACP.
READ STATUS
1=SERVICE TERMINAL
2=PRINTER/PC
3=PRINT
Read Status Screen #5
SERVICE TERMINAL
RING COUNT
Service Terminal Screen
PRINTER PC
PRINTER PC PR4800
Printer/PC Screen
READ STATUS
1=FUTURE USE
2=PRINTER/PC
3=PRINT
Read Status Screen #5
PRINT
1=HISTORY
2=WALKTEST LOG
3=DETECTOR DATA
PRINT
1=EXIT PRINTING
Print Screen #2
Print Screen #1
152 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Operating Instructions Read Status
Chamber Value
The Chamber value should be within the recommended range for the following smoke detectors:
• SD355, SD350(T) D350P(R) and SD300(T) Addressable Photoelectric Smoke Detectors: 405
- 2100 (obscuration of 1.00%/ft to 3.66%/ft.)
• CP355, CP350, and CP300 Addressable Ionization Smoke Detectors: 750 - 2100 (obscuration
of 0.50%/ft. to 1.44%/ft.)
The smoke detector will still function properly beyond the high limit in the above recommended
range, up to a point where the FACP issues a maintenance warning. However, it is recommended
that the smoke detectors be maintained within the recommended range to avoid maintenance warn-
ings or false alarms.
If the smoke detector’s chamber reading is not within the recommended range, clean the detector
and check the chamber reading again. If the reading is still not within the recommended range, the
detector is suspect (not cleanable) and should be replaced.
Maintenance Alert
The software determines when the drift compensation for a detector reaches an unacceptable level
that can compromise detector performance. When a detector reaches an unacceptable level, the
control panel indicates a maintenance alert. Table 4.1 summarizes the three levels of maintenance
alert:
Figure 4.1 illustrates a graphic representation of the maintenance levels:
LOOP NO. DETECTOR
ADDRESS
DETECTOR
TYPE
CUSTOM
LABEL
UPPER
LIMIT
CHAMBER
READING
%OBS./FT.
1 2 SMOKE (PHOTO) 4012 1999 1.73
1 3 SMOKE (ION) 2844 1350 0.8333
1 4 SMOKE (PHOTO) 4096 1694 1.73
Maintenance Level: FACP Status Displays: Indicates:
Low Chamber Value INVREP A hardware problem in the detector
Maintenance Alert DIRTY1 Dust accumulation that is near but below the allowed
limit. DIRTY 1 indicates the need for maintenance
before the performance of the detector is
compromised
Maintenance Urgent DIRTY2 Dust accumulation above the allowed limit.
Table 4.1 Maintenance Alert Levels
Figure 4.1 Diagram of Maintenance Levels
DIRTY
Functional
Range
Maintenance Urgent
Maintenance Alert
Low Chamber Reading
LOW
VALUE
Recommended
Range
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 153
Read Status Operating Instructions
Drift Compensation
Drift compensation uses software algorithms that identify and compensate for long-term changes in
the data readings from each addressable smoke detector. These long-term changes in detector data
readings are typically caused by dirt and dust accumulation inside the smoke chamber. Drift
compensation performs the following functions:
• Samples photoelectric smoke detectors every 6 seconds and ionization smoke detectors every 3
seconds
• Allows a smoke detector to retain its original ability to detect actual smoke and resist false
alarms, even as dirt and dust accumulate
• Reduces maintenance requirements by allowing the control panel to automatically perform the
periodic sensitivity measurements required by NFPA Standard 72
The FACP software also provides filters to remove transient noise signals, usually caused by
electrical interference.
4.23.16 Time-Date
The operator can view the daylight savings time and the month and week when daylight savings
time will begin and end. Pressing 1 while viewing Read Status Screen #6 will display the following
screens:
READ STATUS
1=TIME-DATE
Read Status Screen #6
DAYLIGHT SAVINGS
ENABLED YES
START MONTH MAR
START WEEK WEEK-2
DAYLIGHT SAVINGS
END MONTH NOV
END WEEK WEEK-1
154 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Section 5: Central Station Communications
The control panel transmits zone and system status reports to Central Stations via the public
switched telephone network. Two supervised telephone line connections are made to interface the
control panel to the telephone lines. Two optional 7 foot telephone cords are available for this
purpose and can be purchased separately.
The control panel supervises both telephone lines for proper voltage. A delay of two minutes will
occur before a fault in either phone line connection is reported as a trouble. When a fault is
detected, an audible trouble signal will sound, the yellow trouble LED will blink, the LCD display
will indicate the phone line trouble and the trouble condition will be reported to the Central Station
over the remaining operational phone line.
The control panel comes with line seizure capability provided for both the primary and secondary
telephone line interfaces. Any time that the control panel needs to make a call to a Central Station,
line seizure will disconnect any local premises phones sharing the same telephone line.
All transmissions to the Central Stations will be sent over the primary phone line. In the event of
noisy phone lines, transmissions will be sent over the backup secondary phone line.
Two phone numbers must be programmed, the primary Central Station phone number and the
secondary Central Station phone number. All system reports will be transmitted to the primary
Central Station phone number. Reports will automatically be sent to the secondary Central Station
phone number if attempts to transmits to the primary Central Station phone number are
unsuccessful. If 10 total attempts to communicate are unsuccessful, a Communicator Failure report
will be displayed.
The MS-9200UDLS meets NFPA 72 National Fire Code reporting requirements for: (a) the type of
signal, (b) condition and (c) location of the reporting premises. The general priority reporting
structure is:
1. Zone Alarms and Restores
2. Zone Troubles and Restores
3. System Troubles and Restores
4. 24-hour Test
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 155
Transmittal Priorities Central Station Communications
5.1 Transmittal Priorities
The integral communicator transmits highest priority events first. Events, in terms of priority, are
listed below in descending order:
1. Alarms (highest priority level)
Pull stations
Waterflow
Smoke detector
Other alarm types
2. Supervisory Zone
3. System Troubles
Zone disabled
Fire drill
AC fail (after delay)
Zonal faults
Earth fault
Low battery
Telephone line fault
Notification Appliance Circuits fault
Communication trouble
Annunciator trouble
System off normal
4. Restoral Reports
Zone alarm
Supervisory
Zone(s) enabled
Fire drill
AC
Zone fault
Earth
Battery
Telephone line
Notification Appliance Circuits
Communication
Annunciator trouble
System off normal
5. 24 Hour Test (lowest priority)
Red LEDs are provided on the circuit board to identify which telephone line is activated. Also, a
green LED labeled Kissoff will turn on whenever the control panel has successfully transmitted
reports to the Central Station. The Kissoff LED may turn on several times during communications
with a Central Station.
156 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Central Station Communications Transmittal Priorities
The table below shows UL listed receivers which are compatible with the MS-9200UDLS.
1. With 685-8 Line Card with Rev. 4.4d software
2. With 124060V206B and 124063 Line Card Rev. B
3. With version V2.4 Receiver and 126047 Line Card Rev. G
4. With 124077V2.00 Receiver and 126047 Line Card Rev. M
5. With V.7301 Receiver S/W
6. With 01.01.03 Receiver S/W and Line Card 01.01.03
7. With software V1.86
8. With software V1.72
9. With DSP4016 and V1.6 Line Card
10. With software V3.9
IMPORTANT! It is the installer’s responsibility to ensure that the Digital Alarm
Communicator/Transmitter is compatible with the Central Station Receiver, utilized by the
monitoring service, prior to installation. The Compatibility Table provides a list of compatible
receivers and associated software versions for the receivers. Changes in the hardware and/or
software by the receiver manufacturers may affect the receiver compatibility with the FACP DACT.
After completing the installation, communication between the DACT and Central Station Receiver
must be tested and verified.
Format
Ademco
685 (1)
Ademco
MX8000 (2)
Silent Knight
9500 (3)
Silent Knight
9800 (4)
Osborne Hoffman
2000E (5)
Radionics
6600 (6)
SurGard
MLR2 (7)
SurGard
System III (8)
SurGard
MLR-2000 (9)
FBI
CP220FB (10)
0 SIA-DCS-8   
1 SIA-DCS-20   
2 Ademco Contact ID 
Table 5.1 Compatible UL Listed Receivers
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 157
Section 6: Remote Site Upload/Download
Important! The FACP will automatically reset 2 minutes after completion of a user program
download via the PS-Tools programming utility. To prevent program corruption, the operator must
wait until this panel reset occurs before performing any panel operations.
The control panel may be programmed or interrogated off-site via the public switched telephone
network or locally using a USB cable. Any personal computer with Windows™ XP or NEWER,
with a 2400 baud compatible modem and Upload/Download software PS-Tools, may serve as a
Service Terminal. This allows download of the entire program or upload of the entire program,
history file, walktest data, current status, system voltages, time and date.
The control panel may also communicate to a local PC at the job-site. The PC must be connected
to the USB connector J12 on the FACP main circuit board. A standard USB cable with male-A to
male-B connectors, which must be purchased separately, is required.
Important: Remote modification of FACP programming requires that the panel be enabled for
remote download (refer to “Remote Site Upload/Download” on page 157). Remote interrogation
of panel programming, history logs, detector status, etc., is possible without enabling the remote
download option.
CAUTION: After successfully downloading a program, make certain to perform the following
steps:
1. Print out all programmed data via Print Mode or manually view programmed entries and
compare to intended program data
2. Test all affected panel operations
3. Immediately correct any problems found
6.1 Remote Download
NFPA 72 requirements state that a technician be on-site and at the control panel whenever the
PS-Tools Programming Utility is used to download any information to the FACP. This applies to
local and remote programming. For this reason, a new option has been added to the FACP which
allows an individual at the FACP to enter a password and either enable the proprietary mode where
downloading will be allowed at any time or access a specific password protected screen where
downloading will be allowed regardless of the current proprietary setting. The Remote Download
option can be selected from the main menu screen as shown below:
Pressing 3 for Remote Download while viewing the main menu will cause the following screen to
be displayed:
The Remote Download password (default 00000) must be entered to access the Remote Download
feature. Note that the default password can be changed using the Password Change option (refer to
“Password Change” on page 126). Entering the correct password will cause the following screen to
be displayed:
1=READ STATUS MODE
2=PROGRAMMING MODE
3=REMOTE DOWNLOAD
4=MANUAL DIAL MODE
REMOTE DOWNLOAD
ENTER PASSWORD

REMOTE DOWNLOAD
1=PROPRIETARY NO
2=ACCEPT DOWNLOAD
158 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Remote Site Upload/Download Transferring a Program
Pressing 1 for Proprietary No (factory default setting), while viewing the Remote Download
screen, will cause the display to toggle from Proprietary No to Proprietary Yes. Each press of the 1
key will cause the display to toggle between Proprietary No and Proprietary Yes. Selecting
Proprietary Yes will program the FACP to allow remote programming downloads from the
PS-Tools programming utility at all times without the need to access the Remote Download screen.
Pressing 2 for Accept Download will cause the following screen to be displayed:
While this screen is displayed, remote programming downloads are allowed regardless of the
Proprietary setting. Exiting this screen will disable any further downloads to the FACP. Also,
following 30 minutes of inactivity (including up/downloading), the Accept Download screen will
time-out, causing the display to return to the System All Normal screen.
6.2 Transferring a Program
The first time that the control panel is downloaded (whether initiated at the jobsite or remotely), a
secret code is loaded in by a Service Terminal. Future upload or download requests cause
verification of the secret code by the control panel before processing of data is allowed. If the
secret code is not verified, the control panel will terminate the request.
While the control panel is communicating with the Service Terminal, one of the DACT’s red phone
line active LEDs and the green Kissoff LED will turn on steady.
In order to download the panel (whether initiated at the jobsite or remotely), the following must be
true:
The control panel must be in the Normal Mode of operation. Downloading is not possible if
the panel is in any other mode
There cannot be any active communications ongoing with a Central Station receiver
All active events must be successfully 'kissed-off' by the Central Station(s). The
communicator must be in a standby state with no new information waiting to be transmitted
to a Central Station
6.2.1 Security Features
Upload and download with the control panel have been carefully designed to include key security
features to ensure proper functionality. Any time a transfer is initiated, the control panel and the
Service Terminal will communicate and transfer data before contacting a Central Station. When
the data transfers are completed and the control panel disconnects from the Service Terminal, the
control panel will call the Central Station and report one of the following conditions:
• Upload/Download request received
• Upload and/or Download request successful
• Upload/Download failed
The key features are listed and explained in the following sections.
Secret Code Verification
A secret code is stored in the control panel by a Service Terminal to prevent unauthorized access.
The secret code is created at the Service Terminal by the master user and cannot be viewed or
changed by anyone other than a master user. Viewing of the secret code is prohibited at the control
panel. Prior to allowing an upload or download of data, the control panel will verify the secret code
transmitted by the Service Terminal.
ALLOWING DOWNLOADS
IF YOU EXIT THIS
SCREEN DOWNLOADS
WILL BE DISABLED!
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 159
Transferring a Program Remote Site Upload/Download
Time-out at Control Panel
Upon answering an incoming call on the primary Central Station phone line, the control panel will
listen for a modem connection signal. If this signal is not received within 50 seconds, the control
panel will disconnect the call. Upon successful connection (secret code verified), if no
communication occurs within 30 minutes, the panel will disconnect the call. Upon time-out,
transfer activity will be reported to the Central Station (if enabled) and the connection will be
terminated.
Error Checking
As each block of data is received by the control panel, it is checked for accuracy. If an error is
detected, the block is retransmitted until correct, up to a maximum of four times. If the Secret Code
is not verified and four errors occur, the call is disconnected and the report that the
upload/download was not successful is called to the Central Station(s).
Central Station Data Protection
The primary and secondary Central Station phone numbers, communications format, account code,
test time and programmable event codes are vital Central Station information. These blocks of data
are protected from partial programming due to faulty phone connections, line noise and other
errors. This prevents the panel from being confused due to a wrong phone number, account code,
test time and most critical formatting errors.
160 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Section 7: Power Supply Calculations
7.1 Overview
This section contains instructions and tables for calculating power supply currents in alarm and
standby conditions. This is a four-step process, consisting of the following:
1. Calculating the total amount of AC branch circuit current required to operate the system
2. Calculating the worst-case system current load on the control panel, when primary (AC) power
is applied, to assure that the limit of the its internal power supply will not be exceeded. This
considers the fire alarm condition only.
3. Calculating the total current load on the batteries (secondary power source) in the event of an
AC power loss. This considers both standby and fire alarm conditions.
4. Calculating the size of the batteries required to support the system if AC power loss occurs,
based on the total battery current load, plus a regulatory agency mandated derating factor.
7.2 Calculating the AC Branch Circuit
The control panel requires connection to a separate, dedicated AC branch circuit, which must be
labeled FIRE ALARM. This branch circuit must connect to the line side of the main power feed
of the protected premises. No other non-fire alarm equipment may be powered from the fire alarm
branch circuit. The branch circuit wire must run continuously, without any disconnect devices,
from the power source to the control panel. Overcurrent protection for this circuit must comply
with Article 760 of the National Electrical Codes as well as local codes. Use 14 AWG (2.00 mm2)
wire with 600 volt insulation for this branch circuit.
Use Table 7.1 , to determine the total amount of current, in AC amperes (A), that must be supplied
to the system.
7.3 Calculating the System Current Load
7.3.1 Overview
The control panel’s internal power supply must support all connected devices while primary (AC)
power is applied. The continuous system current load is highest during a fire alarm condition. To
caluclate the fire alarm load on the internal power supply, use Calculation Column 1 in Table 7.3 on
page 162.
The secondary power source (batteries) must be able to power the system under both standby and
fire alarm conditions upon loss of primary (AC) power. To calculate the fire alarm load on the
secondary power source, use Calculation Column 2 in Table 7.3 on page 162. To calculate the
standby load on the secondary power source, use Calculation Column 3 in Table 7.3 on page 162.
Device Type Number of
Devices
Current Draw
(AC amps)
Total Current
per Device
MS-9200UDLS
or
MS-9200UDLSE
1X
3.00
or
1.50
=
CHG-75 [ ] X 2.05 =
CHG-120F [ ] X 2.00 =
[ ] X [ ] =
Sum Column for AC Branch Current Required =
Table 7.1 AC Branch Circuit Requirements
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 161
Calculating the System Current Load Power Supply Calculations
All currents are given in amperes (A). Table 7.2 shows how to convert milliamperes and
microamperes to full amperes.
7.3.2 How to Calculate System Current Load
Use Table 7.3 on page 162 to calculate current load as follows:
1. Enter the quantity of devices in all three columns.
2. Enter the current draw where required. Refer to the Device Compatibility Document for
compatible devices and their current draw.
3. Calculate the current draws for each in all columns.
4. Sum the currents for each column. This is the total load.
5. Verify that the total from Column 1 is less than or equal to the value specified in the note.
6. Copy the totals from Column 2 and Column 3 to Table 7.4 on page 163.
To convert... Multiply Example
Milliamperes (mA) to
amperes (A)
mA x 0.001 3 mA x 0.001 = 0.003A
Microamperes (µA) to
amperes (A)
µA x 0.000001 300 µA x 0.000001 = 0.0003 A
Table 7.2 Converting to Full Amperes
162 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Power Supply Calculations Calculating the System Current Load
Table 7.3 contains columns for calculating current load. For each column, calculate the current and
enter the total (in amperes) in the bottom row. When finished, copy the totals from Calculation
Column 2 and Calculation Column 3 to Table 7.4 on page 163. For maximum output current
available per circuit and per panel, refer to Section 1.2, “Specifications”, on page 15.
Device Type
Calculation Column 1
Primary (AC) Power Source
Fire Alarm Current (amps)
Calculation Column 2
Secondary (Battery) Power Source
Fire Alarm Current (amps)
Calculation Column 3
Secondary (Battery) Power Source
Standby Current (amps)
Qty X[current draw]= Total Qty X[current draw]= Total Qty X[current draw]= Total
Main Circuit Board 1 X[0.275]= 0.275 1 X[0.145]= 0.145
ANN-80(C) [ ] X[0.040]= [ ] X[0.040]= [ ] X[0.015]=
ANN-(R)LED [ ] X[0.068]= [ ] X[0.068]= [ ] X[0.028]=
ANN-RLY [ ] X[0.075]= [ ] X[0.075]= [ ] X[0.015]=
ANN-I/O [ ] X[0.200]= [ ] X[0.200]= [ ] X[0.035]=
ANN-S/PG [ ] X[0.045]= [ ] X[0.045]= [ ] X[0.045]=
ANN-LC [ ] X[0.150]= [ ] X[0.150]= [ ] X[0.150]=
ACM-8RF [ ] X[0.158]1= [ ] X[0.158]= [ ] X[0.030]=
ACM-16ATF
ACM-32AF
[ ] X[0.056]2= [ ] X[0.056]= [ ] X[0.040]=
AEM-16ATF
AEM-32AF
[ ] X[0.018]2= [ ] X[0.018]= [ ] X[0.002]=
AFM-16ATF
AFM-32AF
[ ] X[0.056]2= [ ] X[0.056]= [ ] X[0.040]=
AFM-16AF [ ] X[0.065]2= [ ] X[0.065]= [ ] X[0.025]=
LDM-32F [ ] X[0.056]3= [ ] X[0.056]= [ ] X[0.040]=
LDM-E32F [ ] X[0.018]= [ ] X[0.018]= [ ] X[0.002]=
LCD-80F [ ] X[0.064]= [ ] X[0.064]= [ ] X[0.025]=
ECC-FFT N/A [ ] X[0.230]= [ ] X[0.120]=
4XTMF [ ] X[0.011]4= [ ] X[0.011]= [ ] X[0.005]=
4-wire Detector Heads [ ] X[ ]= [ ] X[ ]5= [ ] X[ ]=
Power Supervision
Relays6[ ] X[0.025]= [ ] X[0.025]= [ ] X[0.025]=
CP350 & CP355
maximum alarm draw
for all devices = 0.400 maximum alarm draw
for all devices = 0.400
[ ] X[0.00030]=
SD350 & SD355 [ ] X[0.00030]=
SD350T & SD355T [ ] X[0.00030]=
AD350 & AD355 [ ] X[0.00030]=
H350 & H355 [ ] X[0.00030]=
H350R & H355R [ ] X[0.00030]=
H355HT [ ] X[0.00030]=
D350P & D350PL [ ] X[0.00030]=
D350RP & D350RPL [ ] X[0.00030]=
B501BH & B501BHT7 [ ] X[0.001]=
B224RB Relay Base [ ] X[0.00050]=
B224BI Isolator Base [ ] X[0.00045]=
MMF-300 [ ] X[0.00040]=
MMF-300-10 [ ] X[0.00350]=
MDF-300 [ ] X[0.00075]=
MMF-301 [ ] X[0.000375]=
MMF-302 [ ] X[0.00027]=
MMF-302-6 [ ] X[0.00200]=
BG-12LX [ ] X[0.00030]=
CMF-300 [ ] X[0.00039]=
CMF-300-6 [ ] X[0.00225]=
CRF-300 [ ] X[0.00027]=
CRF-300-6 [ ] X[0.00145]=
I300 [ ] X[0.00040]=
W-GATE [ ] X[0.040] or [0.024]8
NAC #1 [ ] X[ ]= [ ] X[ ]=
NAC #2 [ ] X[ ]= [ ] X[ ]=
NAC #3 [ ] X[ ]= [ ] X[ ]=
NAC #4 [ ] X[ ]= [ ] X[ ]=
FCPS (remote sync) [ ] X[0.02]= [ ] X[0.0217]=
Current Draw from TB3 [ ] [ ]= [ ] [ ]= [ ] [ ]=
Sum each column for
totals
AC Powered,
Fire Alarm Load 9 =
Battery Powered,
Fire Alarm Load =
Battery Powered,
Standby Load =
Table 7.3 System Current Load Calculations
1 All eight ACM-8RF relays activated on a single module.
2 All annunciator LEDs on
3 LDM-32F or ANN-I/O with LEDs on
4 If using the Reverse Polarity Alarm output, add 0.005 amps; if using the Reverse Polarity Trouble output, add another
0.005 amps.
5 Refer to the Device Compatibility Document for standby current.
6 Must use compatible listed Power Supervision Relay.
7 Maximum alarm current for each sounder base is 0.015 amps which must be supplied by aux. 24VDC source.
8 When powered by an external source, use 0.040A. When powered by the SLC, use 0.024A.
9 Total current load cannot exceed 3.0 amps with one transformer or 6.0 amps with optional XRM-24B(E) added.
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 163
Calculating the Battery Size Power Supply Calculations
7.4 Calculating the Battery Size
Use Table 7.4 to calculate the total Standby and Alarm load in ampere hours (AH). This total load
determines the battery size (in AH), required to support the system upon loss of primary (AC)
power. Complete Table 7.4 as follows:
1. Enter the totals from Table 7.3 on page 162, Calculation Columns 2 and 3 where shown
2. Enter the NFPA Standby and Alarm times (refer to ‘NFPA Requirements’ below)
3. Calculate the ampere hours for Standby and Alarm, then sum the Standby and Alarm ampere
hours
4. Multiply the sum by the derating factor of 1.2 to calculate the proper battery size (in AH)
5. Write the ampere hour requirements on the Protected Premises label located inside the cabinet
door
7.4.1 NFPA Battery Requirements
• NFPA 72 Local, Proprietary, Central, Auxiliary and Remote Fire Alarm Systems require 24
hours of standby power followed by 5 minutes in alarm
7.4.2 Selecting and Locating Batteries
Select sealed lead acid batteries that meet or exceed the total ampere hours calculated in Table 7.4 .
The control panel can charge batteries in the 7 AH to 18 AH range. The control panel cabinet is
capable of housing batteries up to 18 AH. Batteries larger than 18 AH require a UL listed external
battery charger and cabinet such as the BB-26, BB-55F or other UL listed external battery cabinet.
Total Standby Load, Battery Powered
(from Table 7.3 Calculation Column 3)
[ ]
Required Standby Time
(24 hours)
X[ ] = AH
Total Fire Alarm Load, Battery Powered
(from Table 7.3 Calculation Column 2)
[ ]
Required Alarm Time
(for 5 min., enter 0.084,
for 10 min., enter 0.168)
X[ ] = AH
Sum of Standby and Alarm Ampere Hours = AH
Multiply by the Derating Factor X 1.2
Battery Size, Total Ampere Hours Required = AH
Table 7.4 Total Secondary Power Requirements at 24 VDC
164 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Appendix A: Software Zones
A.1 Correlations
Setup and configuration of an addressable system is different than a conventional system. In a
conventional system, assignment of input devices (smoke detectors, pull stations, heat detectors,
etc.) to zones is accomplished through wiring. The wiring is direct from clearly marked panel
terminals to any device assigned to a particular zone. Connection of output devices (horns, bells,
strobes, etc.) in a conventional system is accomplished by direct wiring of the output devices to
Notification Appliance Circuit terminals.
In an addressable system, a minimum of a single pair of wires (SLC communication loop) is used
to connect all addressable input and output devices. Communications between the FACP (Fire
Alarm Control Panel) and all addressable devices takes place over the wire pair which originates
from the FACP. Software programming is used to configure the system as opposed to direct wiring.
Zone assignments are created via software means, hence the term software zones.
Setup of an MS-9200UDLS software zone is accomplished by panel programming. Each
addressable device can be assigned to a maximum of five software zones. Each software zone,
however, may have from 1 to 99 addressable input devices assigned to it and from 1 to 99
addressable output devices assigned to it.
Monitor and control modules comprise one group of 99 addresses, with each module having a
unique address from 1 to 99. Detectors comprise a separate group of 99 addresses, each detector
having a unique address from 1 to 99 in its group. Be careful not to duplicate addresses within any
one group (modules and detectors). Refer to the following page for an example of zoning.
In the example on the following page:
• Zone 01 has the following addressable devices assigned to it:
SD355 smoke detectors with addresses 01 and 02
MMF-300 monitor module with address 01
MMF-302 monitor module with address 02 and 03
CMF-300 control modules with addresses 05, 06, 07, 09 and 13
• Zone 02 has the following addressable devices assigned to it:
MMF-302 monitor module with addresses 02 and 03
CP355 smoke detectors with addresses 03 and 04
CMF-300 control modules with addresses 08, 09 and 10
• Zone 03 has the following addressable devices assigned to it:
SD355 smoke detectors with addresses 05, 06 and 07
MMF-302 control module with address 04
CMF-300 control modules with addresses 09, 11 and 12
The example points out some of the key assignment features of the MS-9200UDLS. Addresses of
detectors are not duplicated. Addresses of monitor and control modules are not duplicated. The
control module with address 09 is assigned to three software zones (providing floor above and floor
below). Be careful to properly plan the installation prior to installing any devices.
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 165
Correlations Software Zones
Correlation of Input and Output Zones
The zone correlations which are shown graphically above are also presented in Table A.1 on page
166 and Table A.2 on page 167.
Input Devices Zones Output Devices
ZONE
01
ZONE
02
ZONE
03
SD355
01
SD355
02
MMF-300
01
MMF-302
02
MMF-302
03
CP355
03
CP300
04
SD355
05
SD355
06
SD355
07
MMF-302
04
CMF-300
06
CMF-300
05
CMF-300
07
CMF-300
09
CMF-300
08
CMF-300
10
CMF-300
11
CMF-300
12
CMF-300
13
166 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Software Zones Correlations
DETECTOR ZONE ASSIGNMENT
Address Device
Type
Zone
Number ADJ/NOUN Address Device
Type
Zone
Number ADJ/NOUN
01 SD355 1 FIRST HALL 51
02 SD355 1 ELEV. LOBBY 52
03 CP355 2 2ND FLOOR 53
04 CP355 2 ROOM 210 54
05 SD355 3 3RD FLOOR 55
06 SD355 3 MEZZANINE 56
07 SD355 3 MECH. ROOM 57
08 58
09 59
10 60
11 61
12 62
13 63
14 64
15 65
16 66
17 67
18 68
19 69
20 70
21 71
22 72
23 73
24 74
25 75
26 76
27 77
28 78
29 79
30 80
31 81
32 82
33 83
34 84
35 85
36 86
37 87
38 88
39 89
40 90
41 91
42 92
43 93
44 94
45 95
46 96
47 97
48 98
49 99
50
Table A.1 Detector Programming Sheet Example
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 167
Correlations Software Zones
MONITOR/CONTROL MODULE ZONE ASSIGNMENT
Address Device
Type
Zone
Number ADJ/NOUN Address Device
Type
Zone
Number ADJ/NOUN
01 MMF-300 1 51
02 MMF-302 1, 2 52
03 MMF-302 1, 2 53
04 MMF-302 3 54
05 CMF-300 1 55
06 CMF-300 1 56
07 CMF-300 1 57
08 CMF-300 2 58
09 CMF-300 1, 2, 3 59
10 CMF-300 2 60
11 61
12 62
13 63
14 64
15 65
16 66
17 67
18 68
19 69
20 70
21 71
22 72
23 73
24 74
25 75
26 76
27 77
28 78
29 79
30 80
31 81
32 82
33 83
34 84
35 85
36 86
37 87
38 88
39 89
40 90
41 91
42 92
43 93
44 94
45 95
46 96
47 97
48 98
49 99
50
Table A.2 Module Programming Sheet Example
168 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Software Zones Correlations
DETECTOR ZONE ASSIGNMENT
Address Device
Type
Zone
Number ADJ/NOUN Address Device
Type
Zone
Number ADJ/NOUN
01 51
02 52
03 53
04 54
05 55
06 56
07 57
08 58
09 59
10 60
11 61
12 62
13 63
14 64
15 65
16 66
17 67
18 68
19 69
20 70
21 71
22 72
23 73
24 74
25 75
26 76
27 77
28 78
29 79
30 80
31 81
32 82
33 83
34 84
35 85
36 86
37 87
38 88
39 89
40 90
41 91
42 92
43 93
44 94
45 95
46 96
47 97
48 98
49 99
50
Table A.3 Blank Detector Programming Sheet
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 169
Correlations Software Zones
MONITOR/CONTROL MODULE ZONE ASSIGNMENT
Address Device
Type
Zone
Number ADJ/NOUN Address Device
Type
Zone
Number ADJ/NOUN
01 51
02 52
03 53
04 54
05 55
06 56
07 57
08 58
09 59
10 60
11 61
12 62
13 63
14 64
15 65
16 66
17 67
18 68
19 69
20 70
21 71
22 72
23 73
24 74
25 75
26 76
27 77
28 78
29 79
30 80
31 81
32 82
33 83
34 84
35 85
36 86
37 87
38 88
39 89
40 90
41 91
42 92
43 93
44 94
45 95
46 96
47 97
48 98
49 99
50
Table A.4 Blank Module Programming Sheet
170 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Appendix B: Default Programming
The following table provides a list of the programming options and their factory default settings.
Program Option Factory Default Program Option Factory Default
Detector Programming Not Installed Relay 1 Alarm
Detector Type Smoke-Photo Relay 2 Trouble (fixed)
Detector Verification Off Relay 3 Supervisory
Detector Walktest Yes Annunciator Terminal Mode No
Detector PAS No Annunciator ACS Mode No
Detector Presignal No UDACT No
Detector Zone Assign. 000 only ACS Installed No
Detector Adj/Noun none Onboard DACT No
Module Programming Not Installed Printer-PC No
Module Type Monitor Printer Baud 9600
Module Walktest Yes Service Terminal Panel ID 0000
Module Presignal No Ring Count 0
Module Zone Assign. 000 only Primary Phone Type Touchtone
Module Adj/Noun none Secondary Phone Type Touchtone
Zone 0 Enable Enabled DACT Communication OFF
Zone 1 Enable Enabled AC Loss Delay 2
Zone 2 Enable Enabled Backup Reporting First Available
Zone 3 Enable Enabled Primary Reporting Style Report Point
.........................through.......... ..................... Secondary Reporting Style Report Point
Zone 96 Enable Enabled Primary Account Code 0000
Zones 97, 98 & 99 Enabled Secondary Account Code 0000
Loop Style Style 4 Primary 24 Hour Test Time 0100
Loop Protocol LITESPEED Secondary 24 Hour Test Time 0200
Trouble Reminder Off Primary Phone Number
Banner Secondary Phone Number
Time Format 12 Hr Primary DACT Format Ademco Contact ID
Hours Setting 12 Secondary DACT Format Ademco Contact ID
Minutes Setting 00 ANN-Primary Enabled No
Second Settings ANN-Primary Modules Addr. 1 - 8 None
AM-PM Setting AM ANN-Secondary Enabled No
Month Setting 01 ANN-Secondary Modules Addr. 1 - 8 None
Day Setting 01 ANN-S/PG Port
Year Setting 00 ANN-S/PG Baud 9600
Daylight Savings Enabled ANN-S/PG Data Bits 7
Month Start Daylight Savings March ANN-S/PG Parity Even
Week Start Daylight Savings Week 2 ANN-S/PG Stop Bits 1
Month End Daylight Savings November ANN-S/PG Offline Timer 60
Week End Daylight Savings Week 1 ANN-S/PG Printer Supervision No
Verification OFF ANN-80 Piezo Enabled Yes
PAS Timer 0 ANN-80 Lock Enabled Yes
Presignal Timer 0 ANN-80 Acknowledge Button Enabled Yes
Waterflow Retard Timer 0 ANN-80 Silence Button Enabled Yes
NAC 1, 2, 3 & 4 Enable Enabled ANN-80 Reset Button Enabled Yes
NAC 1, 2, 3 & 4 Silenceable Yes ANN-80 Drill Button Enabled Yes
NAC 1, 2, 3 & 4 Type Bell ANN-I/O Point/Zone Zone
NAC 1, 2, 3 & 4 Sync Type System Sensor ANN-I/O Range 00-29
NAC 1, 2, 3 & 4 Autosilence 0 ANN-I/O Active LEDs Only
NAC 1, 2, 3 & 4 Coding Steady ANN-RLY Relay 1 Zone 1
NAC 1, 2, 3 & 4 Zones Zone 000 only ................through....................... ............
NAC 1, 2, 3 & 4 Silence Inhibit No ANN-RLY Relay 10 Zone 10
Canadian Option Enabled No ANN-LED Point/Zone Zone
Waterflow Silenceable No ANN-LED Alarms/ATS (Alarm, Trbl, Supv) ATS
MNS Override No ANN-LED Range 0 - 9
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 171
Appendix C: NFPA Standard-Specific Requirements
The MS-9200UDLS has been designed for use in commercial, industrial, and institutional
applications and meets the requirements for service under the National Fire Protection Association
(NFPA) Standards outlined in this Appendix. The minimum system components required for
compliance with the appropriate NFPA standard are listed below:
MS-9200UDLS Control Panel
Contains the main control board, cabinet (backbox and door), main power supply transformer and
power supply.
Batteries
Refer to “Power Supply Calculations” on page 160, for Standby Power Requirements.
Initiating Devices
Connected to one of the control panel's Initiating Device Circuits.
Notification Appliances
Connected to the control panel's Notification Appliance Circuits via a control module.
The following additional equipment is needed for compliance with the NFPA 72 standards listed
below:
NFPA 72 NATIONAL FIRE ALARM STANDARDS FOR:
NFPA 72 Central Station Service (Protected Premises Unit) or Remote Station
Service
Onboard Digital Alarm Communicator Transmitter for connection to a compatible listed
Central Station DACR or Protected Premises Receiving Unit. This unit must be installed
as outlined in “Digital Alarm Communicator/Transmitter” on page 18.
OR
4XTMF Transmitter Module for connection to the RS82 Remote Station Receiver. See
Figure C.2, “Remote Station Connection Using 4XTMF Module,” on page 173, for
installation instructions for this unit.
NFPA 72 Auxiliary Fire Alarm System
4XTMF Transmitter Module for connection to a compatible listed Local Energy Municipal Box.
This unit must be installed as illustrated in the section titled “4XTMF Transmitter Module
Installation” on page 38 and as outlined in Figure C.1, “Municipal Box Connected to 4XTMF
Transmitter Module” on page 172.
NFPA 72 Proprietary Fire Alarm System
MS-9200UDLS Alarm, Trouble and Supervisory contacts connected to Transmitter(s). See Figure
C.3, “Proprietary Protective Signaling System,” on page 174, for installation instructions for this
unit.
172 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
NFPA Standard-Specific Requirements
NFPA 72 Auxiliary Fire Alarm System
All connections are power-limited and supervised. This application is not suitable for separate
transmission of sprinkler supervisory or trouble conditions.
Notes:
1. 3 ohms maximum loop resistance allowed for wiring from control panel to Municipal Box.
2. Cut JP3 on the MS-9200UDLS main circuit board to supervise placement of 4XTMF module
and circuit.
3. Cut JP2 on the MS-9200UDLS main circuit board to enable FACP Supervisory relay.
4. Refer to “4XTMF Transmitter Module Installation” on page 38 for detailed information.
FIRE
Gamewell Model M34-56 Local
Energy Municipal Box
Polarities shown in alarm condition
+
Nonpower-limited
Municipal Box
Circuit
+
-
-
4XTMF
Figure C.1 Municipal Box Connected to 4XTMF Transmitter Module
4xtmf.wmf
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 173
NFPA Standard-Specific Requirements
NFPA 72 Remote Station Protective Signaling System
Notes:
1. Cut Jumper JP3 on the MS-9200UDLS main circuit board to supervise placement of the
4XTMF module.
2. Refer to “4XTMF Transmitter Module Installation” on page 38 for detailed information.
RS82 Remote Station Receiver UL listed.
Refer to Instruction Manual for Remote Station Receiver Model RS82.
+ -
Polarity Shown is
Normal Standby
4XTMF Transmitter Module
Cutting TBL Jumper allows the
reverse polarity circuit to open with
a system trouble condition if no
alarm condition exists.
Power-limited
Figure C.2 Remote Station Connection Using 4XTMF Module
+
-
(Dummy load with a 4.7KΩ, ¼ watt resistor
when no connection is made)
4xtmfassy.wmf
174 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
NFPA Standard-Specific Requirements
NFPA 72 Proprietary Protective Signaling Systems
Figure C.3 Proprietary Protective Signaling System
Form-C relay contact programmed
to activate on Supervisory condition.
Form-C Trouble contact which will
automatically activate on any Trouble condition.
Form-C Alarm contact programmed
to activate on General Alarm.
MS-9200UDLS Main Board
MS-9200UDLS Addressable Fire Control Panel
Notes:
1. Connection between the MS-9200UDLS and the
transmitter are supervised by the transmitter.
2. This MS-9200UDLS/Transmitter arrangement can be
employed for NFPA 72 Proprietary Protective Signaling
System.
3. Potter Electric Model EFT-C has not been tested for UL
864 9th Edition and is for use in retrofit applicationsonly.
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 175
Central Station/Remote Station Transmitter: Connection to FACP Dry Contacts NFPA Standard-Specific Requirements
C.1 Central Station/Remote Station Transmitter: Connection
to FACP Dry Contacts
The dry contacts of the FACP programmable relays can be used to trip a UL-864 Listed Central
Station/Remote Station Transmitter. The FACP contacts must be supervised by the Central
Station/Remote Station Transmitter module using End-of-Line Resistors (ELRs) with a value
determined by the Transmitter manufacturer. Power is also provided by the Central Station/Remote
Station Transmitter manufacturer. Refer to the Central Station/Remote Station Transmitter
manufacturer’s manual for details.
O
U
T
+
RELAY 3 RELAY 1 RELAY 2
NO NC C NO NC C NC NO C
TB5 TB6 TB8 TB9 TB10
JP2
TB7
Xmt Rcv Dtr Gnd
A B
In+ In- Out+ Out-
+ -
A B
B+ A+ B- A- A B
Slc Slc Slc Slc Shield
Figure C.4 FACP Dry Contacts Connection to Central Station/Remote Station Transmitter
Typical Central Station/Remote Station Transmitter Module
Typical Input Zone Triggers
FACP Main Circuit Board
Alarm
Trouble*
Supervisory
*Note: The Trouble Relay is a fail-safe
relay. With power applied to the FACP
and no troubles in the panel, the wiring
should be connected to the NO and C
contacts as indicated in the illustration.
ms9200udlscdryxmit.wmf
176 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
NFPA Standard-Specific Requirements MBT-1 Municipal Box Trip - Silenceable
C.2 MBT-1 Municipal Box Trip - Silenceable
The following figure illustrates the connection of the MBT-1 (Municipal Box Trip) between the
FACP and a Local Energy Municipal Box. The use of an addressable control module programmed
for General Alarm and Silenceable allows silencing of the Municipal Box without resetting the
panel or box.
FIRE
T11
T10
T9
T8
T7
T6
T1
T2
T3
T4
T5
+ 24V -
NON-RST
POWER
+ 24V -
RST
POWER
REMOTE PWR
SUPPLY SYNC
+ -
1B+ 3B+ 3B- 1B-
2B+ 4B+ 4B- 2B-
NO NC C NO NC C NC NO C
TB5
TB3 TB7
TB2 TB1 TB4 TB9
TB8TB6 TB10
JP7
Xmt Rcv Dtr Gnd
A B
In+ In- Out+ Out-
+ -
A B B+ A+ B- A- A B
Slc Slc Slc Slc Shield
FACP Main Circuit Board
CMF-300
Control Module*
24 VDC, Nonresettable
+ -
SLC Loop
B+ -BShield
red black
MBT-1
brown wire
white wire
EOLR-1 Power
Supervision Relay
Alarm polarity shown!
-
+
- To next device
+ on SLC Loop
Braided-shield/Drain Wire
The addressable Control Module must be programmed
as Silenceable and General Alarm.
Gamewell Model M34-56
Local Energy Municipal Box
Note: 10Ω maximum loop
resistance due to wiring from
power supply to Municipal Box.
Connect wires to two
red terminals on box.
(All contacts shown in energized position).
Figure C.5 MBT-1 Silenceable
92udlsc-MBT1new.wmf
*If the SLC device does not match the one in this figure, refer to the SLC manual wiring conversion
charts for legacy and newer versions of the modules.
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 177
Appendix D: FACP with Keltron
The following figure illustrates the connections between the FACP and Keltron
Receiver/Transmitter.
IMPORTANT! All connections between the FACP and Keltron modules must be made within 20
feet and enclosed within conduit or equivalently protected against mechanical injury.
!
CAUTION: POSSIBLE EQUIPEMENT DAMAGE
FOR REASONS OF WIRING DIAGRAM CLARITY, TERMINAL DESIGNATIONS OF KELTRON
MODULES ARE NOT SHOWN IN ACTUAL ORDER. FOLLOW KELTRON MANUAL AND
MODULE MARKINGS FOR EXACT TERMINAL LOCATIONS TO PREVENT SEVERE MODULE
DAMAGE!
Fire Alarm Control Panel
(terminal blocks are not shown
in their actual positions in order
to clarify wiring connections.
Keltron 95M3158 TTM-RPS
1. Terminals 7 and 8: Remote station alarm/trouble inputs.
2. Terminals 9 and 10: Sprinkler supervisory input.
Note: Cut TBL jumper on 4XTMF module to send
alarm/trouble signal from the same pair or terminals.
Alarm/Trouble Signal
Sprinkler Supervisory Signal
*Note: For more
information, refer to
the Keltron manual.
4XTMF Module
24 VDC
nonresettable power
Figure D.1 FACP with Keltron Wiring
178 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Appendix E: Wire Requirements
T-tapping of the SLC loop wiring is allowed for 2-wire (Style 4) configurations. The total
resistance of any branch cannot exceed 40 ohms. The total wire length of all branches cannot
exceed 10,000 feet (3,000 m).
Connecting external system accessories to the MS-9200UDLS main circuits must be carefully
considered to ensure proper operation. It is important to use the correct type of wire, gauge and run
length for each MS-9200UDLS circuit. Reference the chart below to specify wire requirements
and limitations for each MS-9200UDLS circuit.
Note:
1. If the SLC loop is to be run in conduit with Notification Appliance Circuits, the risk of
encountering problems can be greatly reduced by exclusively employing electronic sounders
instead of more electronically noisy notification appliances such as electromechanical bells or
horns.
2. The SLC can be programmed to operate in LiteSpeed mode (factory default setting) for a
quicker device response time. While shielded wire is not required in LiteSpeed mode, it is
recommended that all SLC wiring be twisted-pair to minimize the effects of electrical
interference. Use the following table to determine the specific wiring requirements for the
SLC when unshielded wire is used:
Refer to Table E.1 on page 179 and Table E.2 on page 180 for wiring requirements.
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 179
Wire Requirements
CIRCUIT CONNECTIONS WIRE REQUIREMENTS
Circuit Type Circuit Function Wire Type and Limitations
Recommended
Max. Distance
Feet (meters)
Wire Gauge and Compatible Brands
SLC loop
(power-limited)
Connects to
Addressable
Devices
CLIP MODE
Twisted, shielded pair
40 ohms maximum per
length of Style 6 and 7
loops. 40 ohms per branch
maximum for Style 4 loops
10,000 (3,000 m)
8,000 (2,400 m)
4,875 (1,450 m)
3,225 (980 m)
12 AWG (3.25 mm2): Genesis 4410,
Signal 98230, Belden 9583, WPW999
14 AWG (2.00 mm2):Genesis 4408 & 4608
Signal 98430, Belden 9581, WPW995
16 AWG (1.30 mm2): Genesis 4406 & 4606
Signal 98630, Belden 9575, WPW991
Direct Burial Cable Isotec NP713110VNQ-S
18 AWG (0.75 mm2): Genesis 4402 & 4602
Signal 98300, Belden 9574, WPW975
Direct Burial Cable Isotec NP714110VNQ-S
LITESPEED
MODE
Twisted, unshielded pair
40 ohms maximum per
length of Style 6 and 7
loops. 40 ohms per branch
maximum for Style 4 loops
10,000 (3,000 m)
8,000 (2,400 m)
4,875 (1,450 m)
3,225 (980 m)
12 AWG (3.25 mm2): Belden 5020UL &
6020UL, Genesis WG-4315 & WG-4515
14 AWG (2.00 mm2):Belden 5120UL &
6120UL, Genesis WG-4313 & WG-4513
16 AWG (1.30 mm2): Belden 5220UL &
6220UL, Genesis WG-4311 & WG-4511
18 AWG (0.75 mm2): Belden 5320UL &
6320UL, Genesis WG-4306 & WG-4506
Untwisted, unshielded pair13,000 (900 m) 12-18 AWG (3.25 - 0.75 mm2) using listed wire
ACS-BUS
(EIA-485)
(power-limited)
Connects to
annunciator
modules/
ECC-50/100
Twisted pair with a
characteristic impedance of
120 ohms
6,000 (1,800 m) 12 AWG (0.75 mm2)
ANN-BUS
(EIA-485)
(power-limited)
Connects to
annunciator
modules/
ECC-50/100
Twisted pair 6,000 (1,800 m) Refer to “ANN-BUS Wiring” on page 41 for
information on device wiring
EIA-232
(power-limited)
connects to remote
PC computer
Twisted, shielded pair 50 (15 m) 18 AWG (0.75 mm2) minimum
MMF-300 and
MMF-301
(power-limited)
Initiating Device
Circuit: Contact
Closure
Maximum loop wire
resistance is 1500 ohms
2,500 (760 m) 12-18 AWG (3.25 - 0.75 mm2)
MMF-302
(power-limited)
Initiating Device
Circuit: Two-wire
Modules
No more than a 2.4 volt
drop allowed at end of
circuit. Maximum loop wire
resistance is 25 ohms
2,500 (760 m) 12-18 AWG (3.25 - 0.75 mm2)
CMF-300
(power-limited)
Notification
Appliance Circuit
In alarm, no more than a 1.2
volt drop allowed at end of
circuit
Distance limitation
set by 1.2 volt
maximum line drop
12-18 AWG (3.25 - 0.75 mm2)
Remote Sync
Output
Provides strobe
and normal sync for
remote NAC power
supplies
Untwisted, unshielded pair
wire
Distance set by 295
ohm resistance
limitation
12-18 AWG (3.25 - 0.75 mm2)
Table E.1 FACP Wire Specifications
1 When using untwisted, unshielded wire, full conduit is recommended for optimum EMI/RFI protection.
180 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Wire Requirements NAC Wiring
E.1 NAC Wiring
The following table lists NAC wiring requirements for the FACP.
Notes:
1. Calculations are based on Direct-Current Resistance data for uncoated copper wire, per
National Electrical Code (2005 Edition) Table 8, Conductor Properties.
2. These distances reflect the worst case scenario and are based on the current draw of the highest
candela strobes at the low end of the supported NAC voltage with the entire load at the end of
the circuit. Further distances can be achieved by performing a point-to-point voltage
calculation that more accurately reflects the specific devices used and how they are dispersed
on the circuit.
NAC Load
(Amps)
Max.
allowable
total loop
resistance
(ohms)
CLASS-B
Max. allowable wire pair length
(feet)
CLASS-A
Max. allowable wire pair length
(feet)
AWG 12
solid
AWG 14
solid
AWG 16
solid
AWG 18
solid
AWG 12
solid
AWG 14
solid
AWG 16
solid
AWG 18
solid
0.25 12.72 3295 2072 1301 819 1648 1036 650 409
0.5 6.36 1648 1036 650 409 824 518 325 205
0.75 4.24 1098 691 434 273 549 345 217 136
1 3.18 824 518 325 205 412 259 163 102
1.25 2.54 659 414 260 164 330 207 130 82
1.5 2.12 549 345 217 136 275 173 108 68
1.75 1.82 471 296 186 117 235 148 93 58
2 1.59 412 259 163 102 206 129 81 511
2.25 1.41 366 230 145 91 183 115 72 45
2.5 1.27 330 207 130 82 165 104 65 41
Table E.2 NAC Wiring Requirements for FACP
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 181
Appendix F: HVAC Control
The FACP can be programmed to shut down a building’s HVAC fans in the event of a fire. The
fans cannot be restarted until the fire alarm condition has been cleared and the FACP has been reset
to a normal (non-alarm) condition.
IMPORTANT! This HVAC feature is not to be used for smoke control. It is only designed to shut
down fans during a fire alarm condition.
F.1 Control Module Operation
F.1.1 HVAC SHUTDN
The HVAC SHUTDN type code can be assigned to any addressable control relay module for the
purpose of shutting down HVAC fans during a fire alarm condition. Devices connected to a
module with this type code are unsupervised. To program this feature in the FACP:
• Program the HVAC SHUTDN type code to the control module which will be used to shut
down the fans (refer to Type under the section titled “Edit Module Screen for Control
Modules” on page 83).
• Program the control module to a software zone and program alarm input devices which, when
activated are to cause fan shutdown, to the same software zone (refer to Zone Assignment
under the section titled“Edit Module Screen for Control Modules” on page 83).
• Monitor the control module using an addressable monitor module programmed for Trouble
Monitor. The monitor module label should be programmed to indicate HVAC SHUTDOWN.
When the control module is active (HVAC SHUTDN), the monitor module will indicate a
trouble condition at the FACP and the display should indicate the HVAC is shut down.
Once activated, the HVAC SHUTDN control module remains activated, even if the FACP is
silenced or reset. After the alarm condition on the FACP has been cleared and the panel reset, the
HVAC SHUTDN control module remains activated and the fans remain off. The monitor module
programmed for Trouble Monitor which is being used to supervise the control module, will indicate
a trouble condition at the control panel and the LCD should display that the HVAC is shut down.
The fans can only be restarted when the HVAC SHUTDN control module is deactivated by the
HVAC RESTART module.
F.2 Monitor Module Operation
F.2.1 HVAC RESTART
The HVAC RESTART type code can be assigned to any addressable monitor module for the
purpose of resetting (deactivating) the HVAC SHUTDN control module and turning the fans back
on. The HVAC RESTART monitor module acts globally throughout the FACP system and
therefore is not programmed to a particular software zone. To program this feature in the FACP:
• Program the HVAC RESTART type code to the monitor module which will be used to
deactivate the HVAC SHUTDN control module and restart the fans (refer to Type Monitor
under the section titled “Edit Module Screen for Monitor Module” on page 77).
The HVAC RESTART monitor module does not latch when activated. Pressing a switch connected
to the monitor module will deactivate the HVAC SHUTDN control relay module only if there are
no alarm conditions. The HVAC SHUTDN control relay module can be deactivated if trouble
conditions exist on the FACP.
182 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
HVAC Control Monitor Module Operation
F.2.2 HVAC OVRRIDE
The HVAC OVRRIDE type code can be assigned to any addressable monitor module for the
purpose of overriding or preventing the HVAC SHUTDN control modules from activating. The
HVAC OVRRIDE monitor module acts globally throughout the FACP system and therefore is not
programmed to a particular software zone. To program this feature in the FACP:
• Program the HVAC OVRRIDE type code to the monitor module which will be used to
override the HVAC SHUTDN control module and prevent the fans from turning off (refer to
Type Monitor under the section titled “Edit Module Screen for Monitor Module” on page 77).
The HVAC OVRRIDE monitor module does not latch when activated. Activating a switch
connected to the monitor module will override all HVAC SHUTDN control relay modules in the
system, preventing the HVAC SHUTDN modules from activating and causing the FACP LCD to
display an active HVAC OVRRIDE module and turn on the Supervisory LED. Releasing the
switch will allow the HVAC SHUTDN control relay modules to activate with subsequent alarms,
turning off the fans.
As an example, pressing the HVAC OVRRIDE switch with no alarms in the system will prevent the
fans from being turned off when an alarm does occur. As long as the switch is activated, the fans
will not shutdown for any alarms. If the system is still in alarm when the switch is released, the
fans will not shutdown unless another alarm occurs after the switch is released.
Important! If an alarm exists in the system and HVAC Shutdown has already occurred, HVAC
OVRRIDE will have no effect on the HVAC SHUTDN control relay modules. HVAC OVRRIDE
will prevent HVAC Shutdown from occurring only if it is initiated prior to an alarm condition.
NOTE: Activation of the HVAC OVRRIDE module causes a supervisory event that will be
communicated to the Central Station if enabled.
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 183
Appendix G: Ademco Contact ID Format Event Code
Descriptions
This appendix describes the various Event Codes and their messages which are available for the
Ademco Contact ID Format.
G.1 Transmission Format Between DACT and Receiver
The transmission string for the Ademco Contact ID Format is as follows:
SSSS 18 QXYZ GG CCC where
SSSS Four digit Subscriber ID Account Code
18= Identifies transmission as Contact ID to the receiver at the Central Station
Q= Event Qualifier where 1 = New Event and 3 = New Restore
XYZ= Event code
GG= Group number
CCC= Zone/Point number
Notes:
1. 18, which is used in the reporting structure to identify the transmission as Contact ID, is not
printed out in the alarm and trouble report.
2. GG Group Number is fixed at '00' except for multi-building systems using the Lite-Connect
(ANN-LC) fiber card where GG indicates the node number.
3. CCC for Zone or Point Number:
Zone Number is transmitted as ‘01’ for zone 1 up to ‘99’ for zone 99
Point Number is transmitted as ‘01’ for point/address 1 up to ‘99’ for point/address 99
G.2 Ademco Contact ID Typical Printout
A typical printout from a Central Station receiver (such as the Ademco 685) of alarm and trouble
reports in the Ademco Contact ID Reporting Structure follows:
Notes:
1. 11 is an example of a Receiver/Line Card, showing which receiver and line card the message
was transmitted to.
2. Q, which is the Event Qualifier for the reporting structure, is printed out in the report as an E
for New Event or R for New Restore.
Time Date Rcvr/Line ID SSSS QXYZ GG CCCC
11:28 03/25 11 7777 E110 00 C001 - general fire alarm on zone one
11:28 03/25 11 7777 E111 00 C002 - smoke detector alarm on zone two
11:28 03/25 11 7777 E380 00 C003 - fault on zone three
11:28 03/25 11 7777 E570 00 C009 - Zone nine disabled
11:28 03/25 11 7777 R110 00 C001 - Zone one alarm restored
11:28 03/25 11 7777 R111 00 C002 - smoke detector zone two restored
11:28 03/25 11 7777 R380 00 C003 - zone three fault restored
11:28 03/25 11 7777 R570 00 C009 - zone nine reenabled
11:28 03/25 11 7777 E158 00 C006 - high temperature, zone six
11:28 03/25 11 7777 E151 00 C007 - gas detected, zone seven
184 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Ademco Contact ID Format Event Code Descriptions Ademco Contact ID Typical Printout
EVENT CODE CLASSIFICATIONS
100
ALARMS
200
SUPERVISORY
300
TROUBLES
400
OPEN/CLOSE
REMOTE ACCESS
500
DISABLES/BY
PASSES
600
TEST/MISC.
Medical
Fire
Panic
Burglary
General
24 Hour
Fire System
Sounder/Relay
System Peripheral
Communication
Protective Loop
Sensor
Open/Close
Remote Access
Access Control
System
Sounder/Relay
System Peripheral
Communication
Test
EVENT MESSAGE
Medical Alarms - 100
100 Medical EMERG - Personal Emergency - #
101 Pendant Transmitter EMERG - Personal Emergency - #
102 Fail to report in EMERG - Fail to Check-in - #
Fire Alarms - 110
110 Fire Alarm FIRE - Fire Alarm - #
111 Smoke FIRE - Smoke Detector - #
112 Combustion FIRE - Combustion - #
113 Waterflow FIRE - Waterflow - #
114 Heat FIRE - Heat Sensor - #
115 Pull Station FIRE - Pull Station - #
116 Duct FIRE - Duct Sensor - #
117 Flame FIRE - Flame Sensor - #
118 Near Alarm FIRE - Near Alarm - #
Panic Alarms - 120
120 Panic Alarm PANIC - Panic - #
121 Duress PANIC - Duress - #
122 Silent PANIC - Silent Panic - #
123 Audible PANIC - Audible Panic - #
Burglar Alarms - 130
130 Burglary BURG - Burglary - #
131 Perimeter BURG - Perimeter - #
132 Interior BURG - Interior - #
133 24-Hour BURG - 24-Hour
134 Entry/Exit BURG - Entry/Exit - #
135 Day/Night BURG - Day/Night - #
136 Outdoor BURG - Outdoor - #
137 Tamper BURG - Tamper - #
General Alarms - 140
140 General Alarm ALARM - General Alarm - #
141 Polling loop open ALARM - Polling Loop Open - #
142 Polling loop short ALARM - Polling Loop Short - #
143 Expansion module failure ALARM - Exp. Module Fail - #
144 Sensor tamper ALARM - Sensor Tamper - #
145 Expansion module tamper ALARM - Exp. Module Tamper - #
24-Hour Non-Burglary - 150 and 160
150 24-Hour Non-Burg ALARM - 24-Hr. Non-Burg - #
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 185
Ademco Contact ID Typical Printout Ademco Contact ID Format Event Code Descriptions
151 Gas detected ALARM - Gas Detected - #
152 Refrigeration ALARM - Refrigeration - #
153 Loss of heat ALARM - Heating System - #
154 Water leakage ALARM - Water Leakage - #
155 Foil break ALARM - Foil Break - #
156 Day trouble ALARM - Day Zone - #
157 Low bottled gas level ALARM - Low Gas Level - #
158 High Temp ALARM - High Temperature - #
159 Low Temp ALARM - Low Temperature - #
161 Loss of air flow ALARM - Air Flow - #
Fire Supervisory - 200 and 210
200 Fire supervisory SUPER. - Fire Supervisory - #
201 Low water pressure SUPER. - Low Water Pressure - #
202 Low CO2 SUPER. - Low CO2
203 Gate valve sensor SUPER. - Gate Valve - #
204 Low water level SUPER. - Low Water Level - #
205 Pump activated SUPER. - Pump Activation - #
206 Pump failure SUPER. - Pump Failure - #
System Troubles - 300 and 310
300 System trouble TROUBLE - System Trouble
301 AC loss TROUBLE - AC Power
302 Low system battery TROUBLE - System Low Battery
303 RAM checksum bad TROUBLE - RAM Checksum (restore not applicable)
304 ROM checksum bad TROUBLE - ROM Checksum (restore not applicable)
305 System reset TROUBLE - System Reset (restore not applicable)
306 Panel program changed TROUBLE - Prog. Change (restore not applicable)
307 Self-test failure TROUBLE - Self Test Failure
308 System shutdown TROUBLE - System Shutdown
309 Battery test failure TROUBLE - Battery Test Failure
310 Ground fault TROUBLE - Ground Fault - #
311 No battery TROUBLE - No Battery
Sounder/Relay Troubles - 320
320 Sounder/Relay TROUBLE - Sounder/Relay - #
321 Bell 1 TROUBLE - Bell/Siren #1
322 Bell 2 TROUBLE - Bell/Siren #2
323 Alarm relay TROUBLE - Alarm Relay
324 Trouble relay TROUBLE - Trouble Relay
325 Reversing relay TROUBLE - Reversing Relay
326 Bell 3 TROUBLE - Bell/Siren #3
327 Bell 4 TROUBLE - Bell/Siren #4
System Peripheral Troubles - 330 and 340
330 System peripheral TROUBLE - Sys. Peripheral - #
331 Polling loop open TROUBLE - Polling Loop Open
332 Polling loop short TROUBLE - Polling Loop Short
333 Expansion module failure TROUBLE - Expansion Module Failure - #
334 Repeater Failure TROUBLE - Repeater Failure - #
335 Local printer paper out TROUBLE - Printer Paper Out
336 Local printer failure TROUBLE - Local Printer
Communication Troubles - 350 and 360
350 Communication TROUBLE - Communication Trouble
351 Telco 1 fault TROUBLE - Phone Line #1
352 Telco 2 fault TROUBLE - Phone Line #2
353 Long range radio transmitter fault TROUBLE - Radio Transmitter
354 Fail to communicate TROUBLE - Fail to Communicate
355 Loss of radio supervision TROUBLE - Radio Supervision
356 Loss of central polling TROUBLE - Central Radio Polling
EVENT MESSAGE
186 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Ademco Contact ID Format Event Code Descriptions Ademco Contact ID Typical Printout
Protection Loop Troubles - 370
370 Protection loop TROUBLE - Protection Loop - #
371 Protection loop open TROUBLE - Protection Loop Open - #
372 Protection loop short TROUBLE - Protection Loop Short - #
373 Fire trouble TROUBLE - Fire Loop - #
Sensor Troubles - 380
380 Sensor trouble TROUBLE - Sensor Trouble - #
381 Loss of supervision - RF TROUBLE - RF Sensor Supervision - #
382 Loss of supervision - RPM TROUBLE - RPM Sensor Supervision - #
383 Sensor tamper TROUBLE - Sensor Tamper - #
384 RF transmitter low battery TROUBLE - RF Sensor Batt. - #
Open/Close - 400
400 Open/Close OPENING CLOSING
401 Open/Close by user OPENING - User # CLOSING - User #
402 Group Open/Close OPENING - Group User # CLOSING - Group User #
403 Automatic Open/Close OPENING - Automatic CLOSING - Automatic
404 Late Open/Close OPENING - Late CLOSING - Late
405 Deferred Open/Close Opening not used Closing not used
406 Cancel OPENING - Cancel CLOSING - Cancel
407 Remote arm/disarm OPENING - Remote CLOSING - Remote
408 Quick arm Opening not applicable CLOSING - Quick Arm
409 Keyswitch Open/Close OPENING - Keyswitch CLOSING - Keyswitch
Remote Access - 410
411 Callback request made REMOTE - Callback Requested (restore not applicable)
412 Success - download/access REMOTE - Successful Access (restore not applicable)
413 Unsuccessful access REMOTE - Unsuccessful Access (restore not applicable)
414 System shutdown REMOTE - System Shutdown
415 Dialer shutdown REMOTE - Dialer Shutdown
416 Success - upload/access REMOTE - Successful Access (restore not applicable)
Access Control - 420
421 Access denied ACCESS - Access Denied - User # (restore not used)
422 Access report by user ACCESS - Access Granted - User # (restore not used)
System Disables - 500 and 510
Sounder/Relay Disables - 520
520 Sounder/Relay disable DISABLE - Sounder/Relay - #
521 Bell 1 disable DISABLE - Bell/Siren - #1
522 Bell 2 disable DISABLE - Bell/Siren - #2
523 Alarm relay disable DISABLE - Alarm Relay
524 Trouble relay disable DISABLE - Trouble Relay
525 Reversing relay disable DISABLE - Reversing Relay
526 Bell 3 disable DISABLE - Bell/Siren - #3
527 Bell 4 disable DISABLE - Bell/Siren - #4
System Peripheral Disables - 530 and 540
Communication Disables - 550 and 560
551 Dialer disabled DISABLE - Dialer Disable
552 Radio transmitter disabled DISABLE - Radio Disable
Bypasses - 570
570 Zone bypass BYPASS - Zone Bypass - #
571 Fire bypass BYPASS - Fire Bypass - #
572 24-Hour zone bypass BYPASS - 24-Hour Bypass - #
573 Burglar bypass BYPASS - Burg. Bypass - #
574 Group bypass BYPASS - Group Bypass - #
EVENT MESSAGE
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 187
Ademco Contact ID Typical Printout Ademco Contact ID Format Event Code Descriptions
Test Misc. - 600
601 Manual trigger test TEST - Manually Triggered (restore not applicable)
602 Periodic test report TEST - Periodic (restore not applicable)
603 Periodic RF transmission TEST - Periodic Radio (restore not applicable)
604 Fire test TEST - Fire Test (restore not used)
605 Status report to follow STATUS - Status Follows (restore not applicable)
606 Listen-in to follow LISTEN - Listen-in Active (restore not applicable)
607 Walk test mode TEST - Walk Test Mode
608 System abnormal test TEST - System Abnormal Test
EVENT MESSAGE
188 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Appendix H: Central Station Points
The control panel transmits Central Station Reports in a numerical format which indicates the
FACP addressable device address that is reporting. The following table indicates the Central
Station Report (CS Report) number that will be transmitted and the addressable device address it
represents.
CS
Report
Detector
Address
CS
Report
Detector
Address
CS
Report
Detector
Address
CS
Report
Detector
Address
001 001 033 033 065 065 097 097
002 002 034 034 066 066 098 098
003 003 035 035 067 067 099 099
004 004 036 036 068 068 100 not used
005 005 037 037 069 069
006 006 038 038 070 070
007 007 039 039 071 071
008 008 040 040 072 072
009 009 041 041 073 073
010 010 042 042 074 074
011 011 043 043 075 075
012 012 044 044 076 076
013 013 045 045 077 077
014 014 046 046 078 078
015 015 047 047 079 079
016 016 048 048 080 080
017 017 049 049 081 081
018 018 050 050 082 082 through
019 019 051 051 083 083
020 020 052 052 084 084
021 021 053 053 085 085
022 022 054 054 086 086
023 023 055 055 087 087
024 024 056 056 088 088
025 025 057 057 089 089
026 026 058 058 090 090
027 027 059 059 091 091
028 028 060 060 092 092
029 029 061 061 093 093
030 030 062 062 094 094
031 031 063 063 095 095
032 032 064 064 096 096 159 not used
Table H.1 Addressable DETECTORS
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 189
Central Station Points
CS
Report
Module
Address
CS
Report
Module
Address
CS
Report
Module
Address
CS
Report
Module
Address
160 001 192 033 224 065 256 097
161 002 193 034 225 066 257 098
162 003 194 035 226 067 258 099
163 004 195 036 227 068
164 005 196 037 228 069
165 006 197 038 229 070
166 007 198 039 230 071
167 008 199 040 231 072
168 009 200 041 232 073
169 010 201 042 233 074
170 011 202 043 234 075
171 012 203 044 235 076
172 013 204 045 236 077
173 014 205 046 237 078
174 015 206 047 238 079
175 016 207 048 239 080
176 017 208 049 240 081
177 018 209 050 241 082
178 019 210 051 242 083
179 020 211 052 243 084
180 021 212 053 244 085
181 022 213 054 245 086
182 023 214 055 246 087
183 024 215 056 247 088
184 025 216 057 248 089
185 026 217 058 249 090
186 027 218 059 250 091
187 028 219 060 251 092
188 029 220 061 252 093
189 030 221 062 253 094
190 031 222 063 254 095
191 032 223 064 255 096
Table H.2 Addressable MODULES
190 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Appendix I: Canadian Application
• The MS-9200UDLSC is supplied with the DP-9692 Dress Panel.
• When installing and programming the FACP, the Canadian Option must be set to ON prior to
any other panel programming (refer to “Canadian Option” on page 101 of the Programming
Section of this manual).
• ACS Series annunciators are not compatible for Canadian applications.
• At least one ANN-LED must be installed adjacent to the FACP as it is part of the primary
operator interface. Wiring to the ANN-LED must be in metal conduit and must be connected
to the FACP’s Primary ANN-BUS.
• If remote indicators are desired, they must be connected to the Secondary ANN-BUS circuit
and the other special application power output.
• The installer must write in the Date of Final Assembly on the Master Marking and Warranty
Label located on the FACP backbox door.
• To comply with CAN/ULC-S559-04, the 4XTMF option must be utilized along with the
configuration shown in Figure I.3.
• Positive Alarm Sequence (PAS), the Pre-Signal option, and the Silence Inhibit Timer are not
available for Canadian applications.
FIRE SYSTEM
ACTIVE
SYSTEM
CONTROL
ALL
CALL
1
2
3
4
5
6
7
8
9
10
11
12
13
18
19
20
21
22
23
24
16
17
14
15
LITFI
®
AL
by Honeywell
Figure I.1 FACP Minimum Configuration - Single ANN-LED
FACP
ANN-LED
ANN-LED
ANN-80C
ANN-I/O
ANN-S/PG
ANN-RLY
Optional Secondary ANN-BUS (data on
connector TB8, power on TB1 Terminals
3&4 with JP6 pins 1&2 jumpered)
Primary ANN-BUS
(data on connector
TB9, power on TB1
Terminals 1&2)
in metal conduit
(adjacent to FACP)
9200ulsc-annled.wmf
optional
ECC-50/100
audio system
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 191
Canadian Application
FIRE SYSTEM
ACTIVE
SYSTEM
CONTROL
ALL
CALL
1
2
3
4
5
6
7
8
9
10
11
12
13
18
19
20
21
22
23
24
16
17
14
15
LITFI
®
AL
by Honeywell

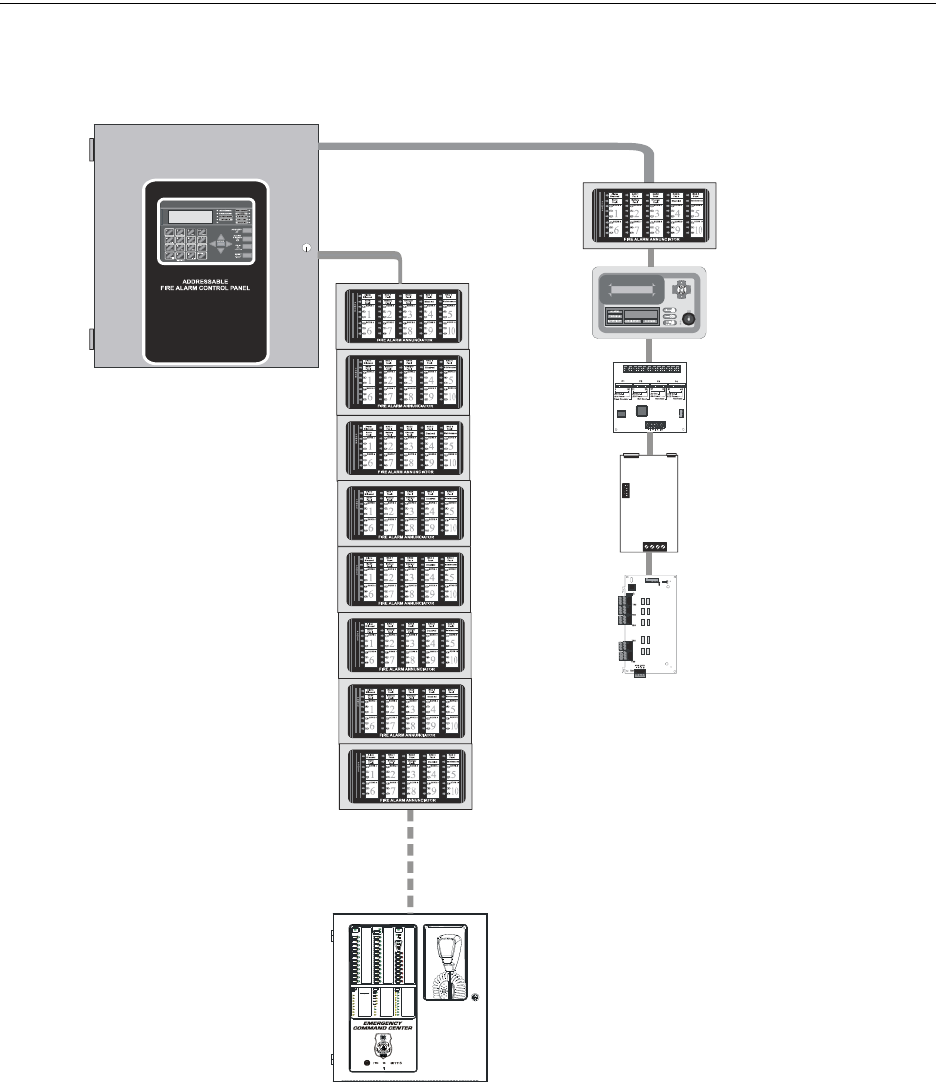

Figure I.2 FACP Maximum Configuration - Eight ANN-LEDs
ANN-LEDs
FACP
ANN-LED
ANN-80C
ANN-I/O
ANN-S/PG
ANN-RLY
9200ulsc-annled8.wmf
Optional Secondary ANN-BUS (data on
connector TB8, power on TB1 Terminals
3&4 with JP6 pins 1&2 jumpered)
Primary ANN-BUS (data
on connector TB9, power
on TB1 Terminals 1&2)
in metal conduit (adjacent
to FACP)
optional
ECC-50/100
audio system
When using an audio system,
6 ANN-LEDs can be used.
192 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Canadian Application
T11
T10
T9
T8
T7
T6
T1
T2
T3
T4
T5
T1
T2
T3
T4
T5
T11
T10
T9
T8
T7
T6
B-
B+
-
+
*
EOLR-1
*
Non-resettable
Aux Power
24 VDC- TB1
-
+
FACP
(to remote station receiver)
Notes:
1. The and the must be mapped to the
same zone which is programmed for
supervisory operation.
2. No other device can be mapped to
that supervisory zone.
3. Wire gauge must be 18AWG
minimum.
-
+
red (+)
black (-)
violet
violet
47KΩ
resistor
TB10-
SLC Loop
Output
Figure I.3 Alternate Transmission for Supervisory Signals
revpol.wmf
+
-
T10 - Comm2
T9 - N.C. 2
T8 - N.O. 2
T7 - Comm1
T6 - N.C. 1
T1 - SLC -
T2 - SLC +
T5 - N.O. 1
-
+
*
Terminal IDs
*If the SLC device does not match the one in this figure, refer to the SLC manual
appendix, which contains wiring conversion charts for type V and type H modules.
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 193
Index
Numerics
24 Hour Test Time 122
300 Series addressable devices 20
4XTMF module 172, 173
coil resistance 38
current 38
installation 38
installation steps 39
see also Transmitter Module 14, 20
supervisory relay configuration 40
voltage 38
A
AC Branch Circuit
calculations 160
AC Loss Delay 96
AC Power 32
current 15
current, maximum 32
voltage 15
wiring 15, 32
Account Code 122
Acknowledge/Step 18, 134
ACM Series
see also annunciator 24
ACM-16ATF Annunciator 24
ACM-32AF Annunciator 24
ACM-8RF 15
contact rating 25
see also Relay Control Module 25
ACM-8RF-BRKT mounting bracket 25
ACS LED annunciator 15
add Detector 68
add Module 76
addressable 13
addressable detectors
see also detectors 14
Addressable Device Accessories 20
addressable modules 19
see also modules 14
addressing
annunciators 107
see also device addressing 92
see also module or detector addressing 19
Ademco Contact ID format 183
Adjective
control module 86
list 74
monitor module 81
multiple entries 75
AEM-16ATF Annunciator 24
AEM-32AF Annunciator 25
Alarm 137
Alarm Silence 18, 134
alarm verification 14, 71, 141, 144
ANN-80 Annunciator Module 14, 23, 45
ANN-80C Indicator Module 14, 23
ANN-BUS
guidelines 23
power 43, 44
primary 16, 108, 190
secondary 16, 108, 190
ANN-I/O LED Driver 14, 23, 24, 52
ANN-LC 15, 23, 24, 58
ANN-LED Annunciator Module 14, 23, 24, 54
ANN-RLED Annunciator Module 15, 23, 24
ANN-RLY Relay Module 14, 23, 24, 56
ANN-S/PG Printer Module 14, 23, 24, 48
ANN-SB80KIT Mounting Kit 46
annunciator 23
ACM 15, 107
ACM-8RF 15
LCD-80F 15
LDM Graphic 15
annunciator addressing 107
annunciator guidelines 23
annunciator module 14, 15, 23, 24, 54
annunciator, graphic
see also LDM Series 25
annunciator, remote
see also LCD-80F 25
Audio Command Center 15, 62
audio panel control 62
Automatic Test Operation 141
Autoprogramming 14, 65, 67
Autosilence 14, 144
NAC 98
auxiliary DC power 33
B
backbox 19
see also cabinet 31
Banner 92
setting 93
battery 19
cable connection 33
charger capacity 15
see also secondary power 15, 33
battery box 21
BB-26 19
battery charger 22
disable 15
external 22
baud rate 126
194 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
C–D Index
BB-26 19
BB-55F
see also battery box 19, 21
C
cabinet
dimensions 30, 31
cabinet mounting 28
Calculate System Current Draw 161
Calculating the Battery Size 163
Canadian Applications 27, 190
Canadian Option 92, 101, 190
Central Station 120, 159
account code 122
communications 154
phone number 122
Phone Numbers 121
point assignments 188
report style 125
Central Station Reports 188
CHG-120F
see also battery charger 22
see also remote battery charger 15
CHG-75
see also battery charger 22
see also remote battery charger 15
Clasic Loop Interface Protocol 91
Class A 34
Class B 34
NAC wiring 34
CLIP mode
see also Classic Loop Interface Protocol 91
Clock Format 94
Coded Operation 142
Coding
NAC 99
coding
two stage operation 99
communications format 122, 123
Control Buttons 134
control module 19
description display 87
display 83
edit 83
enable/disable 83
MNS Override 87
noun 86
noun/adjective 85, 86
silenceable 84
type 84
type codes 84
Converter Module
see also ZNAC-92 module 14, 20
Correlations 164
current
AC Power 32
availability 17
maximum 17
Current Draw Calculations 162
D
DACT
enable 119
onboard 119
data
see also detector data and sensitivity 141
Data Entry
via computer keyboard 64
via keypad 64
data values
see also detector data and sensitivity 14
Date setting 94
Daylight Savings Time 95
DC power
non-resettable 33
resettable 33
see also auxiliary DC power 33
Default Programming 170
Delete Detector 69
Delete Module 76
Description
control module 87
detector label 75
monitor module 82
Detector
add 68
adding description 73
delete 69
edit 69
enable/disable 71
screen display 70
type 71
verification 71
detector data 141, 152, 153
printout 151
recommended range 152
Detector Programming 68
device addressing 92
Digital Communicator 26
dimensions
cabinet 30
DIRTY1 152
DIRTY2 152
Disable 88
Disable Point
Maintenance Level 129
Downloading 158
dress panel 19, 21, 190
drift compensation 14, 153
definition 153
Drill 18, 134
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 195
Index E–L
E
earth ground 32
ECC-50/100 22, 62, 102
ECC-FFT 22, 61
edit
control module 83
detector 69
detector screens 70
module, monitor 77
EIA-232 60
for PC/Printer connection 16
see also Printer/PC interface 14
EIA-485
for ACS annunciators 16
for LCD-80F 16
Emergency Command Center 13
Enable 88
Enable/Disable
control module 83
detector 71
module, monitor 78
End-of-Line Resistor Assembly 20
Enter key 66
EOL-C(R/W) Mounting Plate 20
Erase History 104
Error Checking 159
event code classification 184
event codes 123
exiting
programming 65, 66
Read Status 65
read status 66
F
FACP
see also Fire Alarm Control Panel 13
Features 13
Fire Alarm Control Panel
see also FACP 13
firefigter telephone 61
Form-C relay 25, 33
G
general alarm zone 80
see also zone Z00 73
ground fault 60
guidelines
ANN-BUS annunciators 23
H
Hazard Condition 139
History 103
erase 104
Maintenance Level 129
view events 103
History file 14
HVAC Control 181
HVAC OVRRIDE 182
HVAC RESTART 181
HVAC SHUTDN 181
I
indicator
LCD-80FC 15
Indicators 17
Installation 28
intelligent 13
Internet Protocol DACT 22
Inventory 13
INVREP 152
IPDACT 22
K
Key Panel 18
function keys 18
service/program keys 18
keyboard and keypad 64
L
lamp test 18
LCD display 14, 17
LCD-80F annunciator 15, 25
LCD-80FC indicator 15, 25
LDM Series annunciator 25
LDM-32 Graphic Annunciator 15
LED
AC Power 134
Alarm Silenced 135
Battery 135
Disabled 135
Fire Alarm 134
Ground 135
Kiss-off 135
Maintenance 135
Primary Line Active 135
Secondary Line Active 135
see also Indicators 17
Supervisory 135
Trouble 135
LED annunciator 24
LED driver 14, 23, 24, 52
Lite connect 92
Lite-Connect 15, 23, 24
Lite-Connect module 58
Local Energy Municipal Box Service 38
Local Programming 65
Loop Setup 91
196 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
M–P Index
M
Maintenance Alert 14, 141
levels 152
Maintenance Program Level 2 66, 128
Manual programming 65
Master Program Level 1 66, 67
Medical Alert 140
MNS Override 87, 92, 100, 102
Mode key 66
Module
add 76
addressing 19
delete 76
edit monitor 77
enable/disable 78
see also addressable modules 19
Module Programming 76
Monitor module 19
adjective 81
enable/disable 78
noun 81
noun/adjective 80
type 78
type action 79
Type list 78
type selection 79
Mounting
cabinet 28
main circuit board 28
municipal box transmitter
see also 4XTMF module 38
N
NAC 15, 97, 140
Auto Silence 98
coded 142
coding 99
current 15
End-of-Line Resistor 15
MNS Override 100
power 13
see also Notification Appliance Circuit 13,
34
silence inhibit 100
silenceable 98
Style Y wiring diagram 34
Style Z wiring diagram 35
synchronized 142
type codes 98
voltage drop 15
voltage, operating 15
wiring Style 34
NAC converter module 34
NAC enable/disable 97
NAC options 92
NFC-50/100 22
NFPA 72 Auxiliary Fire Alarm System 171, 172
NFPA 72 Central Station Service (Protected
Premises Unit) or Remote Station Service 171
NFPA 72 Proprietary Fire Alarm System 171
NFPA 72 Proprietary Protective Signaling Sys-
tems 174
NFPA 72 Remote Station Protective Signaling
System 173
NFPA Battery Requirements 163
NFPA Standard 171
nonpower-limited
relay connections 33
nonresettable power 33
current 16, 33
nonsilenceable
waterflow 90, 102
Normal 135
normal display 65
Notification Appliance Circuit 15, 97
see also NAC 13, 34
Noun
list 74
monitor module 81
multiple entries 75
Noun/Adjective 73, 74
control module 85
monitor module 80
O
Operating Instructions 134
Operation
alarm 137
disable/enable 141
hazard condition 139
medical alert 140
NAC 140
normal 135
process monitor 139
programmed zone 141
supervisory 138
trouble 136
waterflow 141
Option Modules 20, 38, 105
annunciators/UDACT 106
Printer/PC 126
Options 13
P
PAS 72, 88, 143
see also Positive Alarm Sequence 14, 72
PAS BYPASS 143
PAS timer 95
Password 14
change 126
Maintenance Level 2 128
password 66
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 197
Index R–R
PC (personal computer)
ground fault 60
Phone Line 2
supervision 125
Phone Number 122
Piezo
see also sounder 18
PK-CD Programming Utility 20
point assignments 188
Point Program 68
Positive Alarm Sequence 72, 143
see also PAS 14
power
NAC 13
nonresettable 16
resettable 16
power supply calculations 160
power-limited
relay connections 33
Power-up
first time 66
Pre-signal 14, 72, 89
function 142
selection 80
Pre-signal Delay timer 96
Pre-signal timer 95
primary ANN- BUS 16, 108, 190
Primary Phone 119
primary power
see also AC Power 32
printer
baud rate 126
configuration 60
connection 59
ground fault 60
setup 60
printer connection 49
printer module 14, 23, 24, 48
printer options 49
Printer/PC interface 14
Process Monitor 139
PROCMON AR 101
Program
check 127
check correlations 127
clear 127
Program Check
Maintenance Level 130
program keys
see also Key Panel 18
Programming 64, 65
autoprogramming 65
exiting 65
factory default 170
Level 1 66
Level 2 66
manual 65
Master Level 1 67
modules 76
off-line computer 65
via computer keyboard 64
via panel keypad 64
Programming Levels 66
Programming Screens 66
Programming Sheet 166, 167, 168, 169
Programming Utility
see also PK-CD 20
programming utility 13, 20, 74
Proprietary Yes
see also Remote Upload 158
PRT/PK-CABLE
for PC/Printer connection 60
PS-Tools Programming Utility 13, 20, 74
R
Read Status 65, 145
annunciators 149, 150
exiting 65
history 149
NAC 148
power 147
Print 151
printer/PC 151
program check 149
relay 148
system point 146
Time-Date 153
timers 148
trouble reminder 148
zones 147
Real-Time Clock 142
Recall/Increment Function 75, 82, 87
Receivers 156
Relay 15, 33, 101
connections 33
contact rating 15, 33
fixed 33
Form-C 15, 101
programmable 13, 33
programming 101
selections 101
trouble 13, 33
Relay Control Module
see also ACM-8RF 25
relay module 14, 23, 24, 56
Relay options 92
remote annunciator 14, 23, 45
Remote Download 157
remote indicator 14, 23
Remote Programming 65
Remote Station Service 38
remote switch functions 14
remote sync output 16
198 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
S–T Index
Remote Synchronization 35
REN
see also Ringer Equivalence Number 25
Report Style 125
Reporting Enable 120
Reset 18, 134
resettable power 16, 33
current 33
Ring Count 120
Ringer Equivalence Number 25
ROME Series 57
S
secondary ANN- BUS 16, 108, 190
Secondary Phone 119
Secondary Power Requirements 163
Secret Code 158
Security Features 158
sensitivity 141, 153
see also smoke detector sensitivity 141
Service Terminal 120
Signal rate 14
Signaling Line Circuit
see also SLC 15
Silence Inhibit 14, 100, 143
Silenceable
control module 84
NAC 98
waterflow 102
Silenceable Alarm Relay 101
silenceable circuits
synchronized signals 98
Silenceable waterflow 90
SLC 13
current 15
reference manual 15
resistance 15
see also Signaling Line Circuit 13, 15
voltage 15
wiring length 15
SLC Loop Protocol 91
SLC Style 91
smoke detector
chamber reading 152
data 141, 152
sensitivity 14, 141
smoke detector power
current 16
Software Zones 13, 164
sounder 18
Specifications 15
strobe synchronization 14
Style 13
Style Y 34
NAC wiring 34
Style Z 34
NAC wiring 35
wiring 35
subscreen 66
supervision
Phone Line 2 125
Supervisory 138
SUPERVISORY AR 101
supervisory relay
configuring for 4XTMF 40
sync
programming 97
see also synchronization 100
sync output 16
current 16
End-of-Line resistor 16
voltage 16
synchronization 35, 142, 148
by manufacturer 100
programming 100
see also strobe synchronization 14
synchronized 142
synchronized signals 142
and silenceable circuits 98
System
Maintenance Level 132
System Point 146
System Setup 92
T
Telephone Circuitry 25
Telephone Company
Rights and Warnings 26
telephone line 37
Terminal 120
Test Time Interval 121, 122
Time and Date
Maintenance Level 132
Time setting 94
Time-Date setting 92, 94
Time-out 159
Timers 92
Transformer Assembly 19
Transmittal Priorities 155
Transmitter Module 38
see also 4XTMF module 14, 20
Trouble 136
trouble display 136
trouble relay 13
Trouble Reminder 92, 144, 148
trouble responses 136
Two Stage 89, 133
two stage operation 99
Type
control module 84
detector 71
monitor module 78
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 199
Index U–Z
NAC 97
type code
control module 84
supervision 141
verification 14
U
UL power-limited wiring requirements 36
see also power-limited and nonpower-lim-
ited 33
Upload/Download 157
V
Verification
detector 71
Verify Loops 103
View Events 103
voltage
measurements 147
ranges 147
W
Walktest 14, 72, 84, 104
audible 104
Maintenance Level 131
operation 145
selection 80
silent 104
waterflow
nonsilenceable 90, 102
silenceable 90, 102
Waterflow Delay timer 95, 96
Waterflow Retard Timer 144
Waterflow Silenceable 92
W-GATE 22
wiring 61
Wire Requirements 178
wireless gateway 22
wiring 61
wiring
AC Power 32
earth ground 32
NAC Style Y 34
NAC Style Z 35
wiring Style 13
X
XRM-24
see Transformer
Z
Z00 73, 80
Z97
PAS zone 72
Z98 73
ZNAC-92 Converter module 34, 35
see also Converter Module 14, 20
Zone 97 88
Zone 98 88
Zone Assignment 73, 80, 100
control module 85
Zone Setup 88
Maintenance Level 132
zone type 90
list 90
Zone Z97 72
Zone Z98
pre-signal zone 73
Zones 147, 164
see also software zones 13
Zones Disabled 89
Zones Enabled 89
Zones Installed 89
zones per device 73
200 MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015
Z–Z Index
Cut along dotted line.
MS-9200UDLS Series Fire Alarm Control Panel
Operating Instructions
NORMAL - Only AC POWER is illuminated green.
All other indicators are off. LCD display will read SYSTEM ALL
NORMAL.
PANEL KEY - The key to open the panel can be found at the following
location:
________________________________________________________
To return to normal after an alarm
1. Do not enter the protected area until safe to do so.
2. Clear all initiating devices. Smoke detectors will not reset if there is
still smoke in the area.
3. Reset the control panel (PRESS the RESET button)
Power failure or brownout
If AC power drops too low or fails, AC POWER indicator will extinguish,
the system TROUBLE indicator will turn on yellow, and the panel
buzzer and any other audible trouble devices will sound. Contact
authorized service personnel immediately. See below.
Manual activation (Fire Drill or otherwise)
Notification Appliance Circuits (NACs) can be activated by pressing and
holding the DRILL button for at least two seconds.
NOTE: You may want to disconnect the municipal box by
sliding the DISCONNECT switch, located on the 4XTMF
module, to its disconnect position (to the right). If a DACT is
connected, notify the monitoring service before conducting
any fire drills or tests.
Alarm Silencing
Notification Appliance Circuits may be silenced by pressing the ALARM
SILENCE button. ALARM SILENCED will turn on yellow. Subsequent
alarms will reactivate circuits. Press the RESET button to clear the
"silenced" condition.
NOTE: Notification Appliance Circuits may be programmed
as nonsilenceable. Also, Signal Silence Inhibit, if enabled,
will prevent silencing of NACs for one minute after an alarm
(see manual).
To test the indicators, LCD display and piezo
Press and release the RESET button and check all indicators/LEDs.
Every indicator/LED should be on, LCD shows all pixels on, piezo
sounder beeps.
For more information, refer to the MS-9200UDLS Series Manual,
Document #52750. It is kept in the following location:
_______________________________________________________
THIS SHEET SHALL BE FRAMED ADJACENT TO THE
CONTROL PANEL
WHEN AUDIBLE DEVICES ARE SOUNDING -
FOR AN ALARM
1. Evacuate the protected area
2. Notify the monitoring service and/or the Fire Department immediately. Tell them briefly what happened and what your current status is.
Phones: ________________________________________ _____________________________________________
Fire Department Monitoring Service
3. If the Fire Department is responding, be prepared to provide directions to arriving firefighters.
FOR TROUBLE, SUPERVISORY, AND EMERGENCY ALARMS
1. Notify the monitoring service and/or applicable first responders if this panel is connected to either one, and tell them what is happening.
2. Silence audible devices by unlocking and opening the panel and pressing the ACKNOWLEDGE/STEP button. The applicable indicator will
remain illuminated. Contact authorized service personnel immediately! (See Below).
WARNING!
DO NOT ALLOW TROUBLE CONDITIONS TO REMAIN LOGGED IN THE SYSTEM. THE PROTECTION THE
SYSTEM OFFERS HAS BEEN COMPROMISED OR ELIMINATED, WHEN A TROUBLE CONDITION EXISTS.
In the event of trouble, contact the
local Fire-Lite Service Representative
Name: _____________________________________
Company: __________________________________
Address: ___________________________________
Telephone Number: __________________________
Document #52773 Rev. B 6/10/2010 ECN 10-365
Cut along dotted line.
Manufacturer Warranties and Limitation of Liability
Manufacturer Warranties. Subject to the limitations set forth herein,
Manufacturer warrants that the Products manufactured by it in its
Northford, Connecticut facility and sold by it to its authorized
Distributors shall be free, under normal use and service, from defects
in material and workmanship for a period of thirty six months (36)
months from the date of manufacture (effective Jan. 1, 2009). The
Products manufactured and sold by Manufacturer are date stamped at
the time of production. Manufacturer does not warrant Products that
are not manufactured by it in its Northford, Connecticut facility but
assigns to its Distributor, to the extent possible, any warranty offered
by the manufacturer of such product. This warranty shall be void if a
Product is altered, serviced or repaired by anyone other than
Manufacturer or its authorized Distributors. This warranty shall also
be void if there is a failure to maintain the Products and the systems in
which they operate in proper working conditions.
MANUFACTURER MAKES NO FURTHER WARRANTIES, AND
DISCLAIMS ANY AND ALL OTHER WARRANTIES, EITHER
EXPRESSED OR IMPLIED, WITH RESPECT TO THE PRODUCTS,
TRADEMARKS, PROGRAMS AND SERVICES RENDERED BY
MANUFACTURER INCLUDING WITHOUT LIMITATION,
INFRINGEMENT, TITLE, MERCHANTABILITY, OR FITNESS FOR
ANY PARTICULAR PURPOSE. MANUFACTURER SHALL NOT BE
LIABLE FOR ANY PERSONAL INJURY OR DEATH WHICH MAY
ARISE IN THE COURSE OF, OR AS A RESULT OF, PERSONAL,
COMMERCIAL OR INDUSTRIAL USES OF ITS PRODUCTS.
This document constitutes the only warranty made by Manufacturer
with respect to its products and replaces all previous warranties and is
the only warranty made by Manufacturer. No increase or alteration,
written or verbal, of the obligation of this warranty is authorized.
Manufacturer does not represent that its products will prevent any loss
by fire or otherwise.
Warranty Claims. Manufacturer shall replace or repair, at
Manufacturer's discretion, each part returned by its authorized
Distributor and acknowledged by Manufacturer to be defective,
provided that such part shall have been returned to Manufacturer with
all charges prepaid and the authorized Distributor has completed
Manufacturer's Return Material Authorization form. The replacement
part shall come from Manufacturer's stock and may be new or
refurbished. THE FOREGOING IS DISTRIBUTOR'S SOLE AND
EXCLUSIVE REMEDY IN THE EVENT OF A WARRANTY CLAIM.
Warn-HL-08-2009.fm
MS-9200UDLS Series Manual — P/N 52750:M 11/20/2015 203
World Headquarters
1 Firelite Place
Northford, CT 06472-1653 USA
203-484-7161
fax 203-484-7118
www.firelite.com
