Mass Termination
IDC Systems
134
Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312
PRODUCT DESCRIPTION
The T&B Manual Bench Presses are
rugged, easy-to-use production crimp
tools designed for medium to large
volume mass termination of flat cable to
connectors. A complete series of
interchangeable base plates
and platens accommodates the full
range of Thomas & Betts IDC
connectors and eliminates the need for
wire stripping or soldering.
DESIGN ADVANTAGES
• Includes standard platen 779-3130.
• Modified platens for special
connectors are available
(purchased seperately).
• A full series of base plate inserts
are available for mass terminating
all Thomas & Betts IDC connector
families.
• Base plates and platens can be
rotated 90° to accommodate cable
clearance for mid-span crimping.
• Cable guide assures that cable
enters connector at right angles
and load is evenly distributed over
the connector cover during the
compression cycle.
• Crimp reliability provided through
the positive bottoming action of
platen die on the connector.
• Base plate and platen rotation for
mid-span crimping maximizes
installation versatility.
ORDERING EXAMPLES
To apply Slimline PCB Solder
Transition Connectors before
connector is soldered to the board,
use Base Plate 779-3153 with Platen
779-3130.
To apply Slimline PCB Solder
Transition Connectors after
connector is soldered to the board,
use Base Plate 779-3154 with Platen
779-3133.

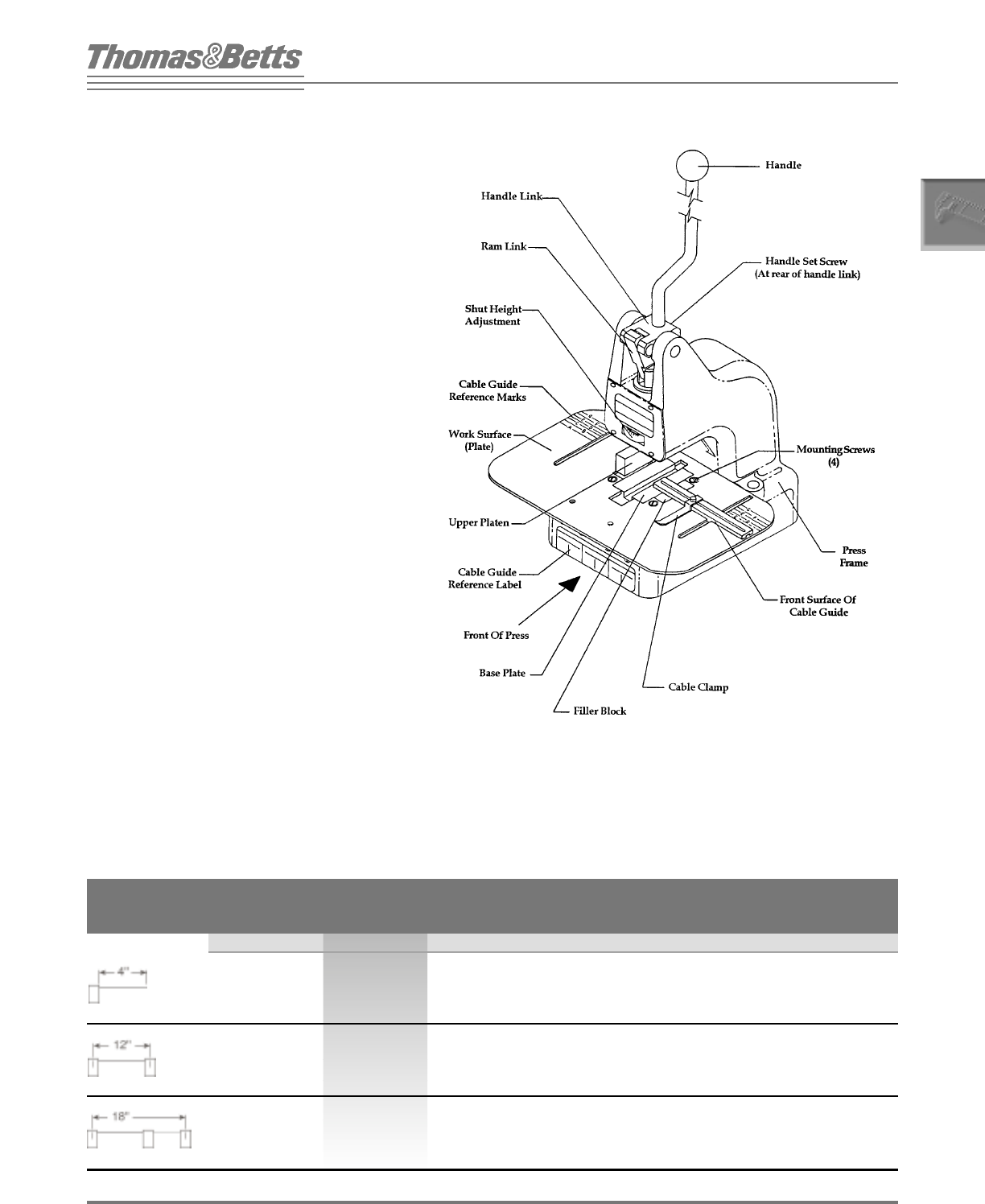

779-3200
MANUAL BENCH PRESS

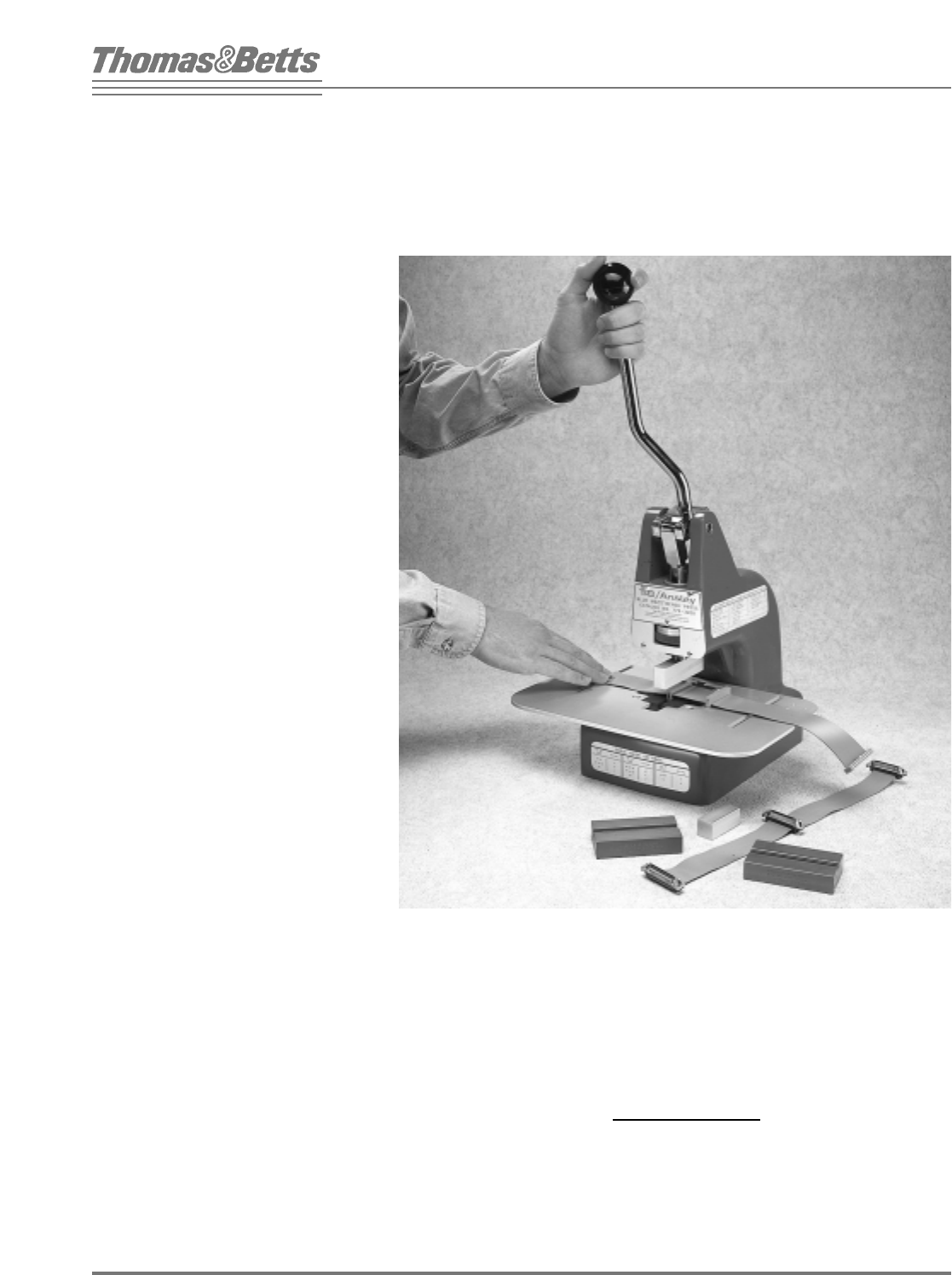

779-3200
Manual Bench Press
with Standard Platen (779-3130)
Mass Termination
IDC Systems
135
Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312 Dimensions shown are for reference only. Dimensions are in millimeters (inches).
779-3200
MANUAL BENCH PRESS
P
HYSICAL
P
ROPERTIES
W
EIGHT
:2.1 lbs.
779-2100 779-3200 779-3500XT 779-7500 779-9000 779-9001
TYPE OF HAND TOOL BENCH PRESS PNEUMATIC PRESS SEMI-AUTO AUTO MACH. AUTO MACH.
ASSEMBLY MACH. STANDARD FINE PITCH
No Test No Test No Test No Test Short Test Full Test
150-200 190-240 205-255 850-1100 1700-1900 1600-1900
75-100 90-130 100-140 450-600 650-750 500-700
40-60 65-85 70-100 N/A 490-560 400-555
Assembly Cycle Time (Assy. / Hour)
