55LH95 UA_COVER 55LHX

User Manual: 55LHX

Open the PDF directly: View PDF .
Page Count: 82

#EV#

TV COM1 COM2AV1 AV2 R GB

WIRELESS

1 2 3 4

LED LCD TV

SERVICE MANUAL

CAUTION

BEFORE SERVICING THE CHASSIS,

READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS : LA92E

MODEL : 55LHX 55LH95-UA

North/Latin America http://aic.lgservice.com

Europe/Africa http://eic.lgservice.com

Asia/Oceania http://biz.lgservice.com

Internal Use Only

Printed in KoreaP/NO : MFL41946836 (0910-REV01)

Only for training and service purposes - 2 - LGE Internal Use Only

CONTENTS

CONTENTS ............................................................................................. 2

PRODUCT SAFETY ................................................................................. 3

SPECIFICATION ....................................................................................... 6

ADJUSTMENT INSTRUCTION .............................................................. 11

EXPLODED VIEW .................................................................................. 17

SVC. SHEET ...............................................................................................

Only for training and service purposes - 3 - LGE Internal Use Only

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the

Schematic Diagram and Exploded View.

It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent

Shock, Fire, or other Hazards.

Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the

servicing of a receiver whose chassis is not isolated from the AC

power line. Use a transformer of adequate power rating as this

protects the technician from accidents resulting in personal injury

from electrical shocks.

It will also protect the receiver and it's components from being

damaged by accidental shorts of the circuitry that may be

inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown,

replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor,

over 1W), keep the resistor 10mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed

metallic parts of the cabinet, such as antennas, terminals, etc., to

be sure the set is safe to operate without damage of electrical

shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an

electrical jumper across the two AC plug prongs. Place the AC

switch in the on position, connect one lead of ohm-meter to the AC

plug prongs tied together and touch other ohm-meter lead in turn to

each exposed metallic parts such as antenna terminals, phone

jacks, etc.

If the exposed metallic part has a return path to the chassis, the

measured resistance should be between 1MΩand 5.2MΩ.

When the exposed metal has no return path to the chassis the

reading must be infinite.

An other abnormality exists that must be corrected before the

receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor

between a known good earth ground (Water Pipe, Conduit, etc.)

and the exposed metallic parts.

Measure the AC voltage across the resistor using AC voltmeter

with 1000 ohms/volt or more sensitivity.

Reverse plug the AC cord into the AC outlet and repeat AC voltage

measurements for each exposed metallic part. Any voltage

measured must not exceed 0.75 volt RMS which is corresponds to

0.5mA.

In case any measurement is out of the limits specified, there is

possibility of shock hazard and the set must be checked and

repaired before it is returned to the customer.

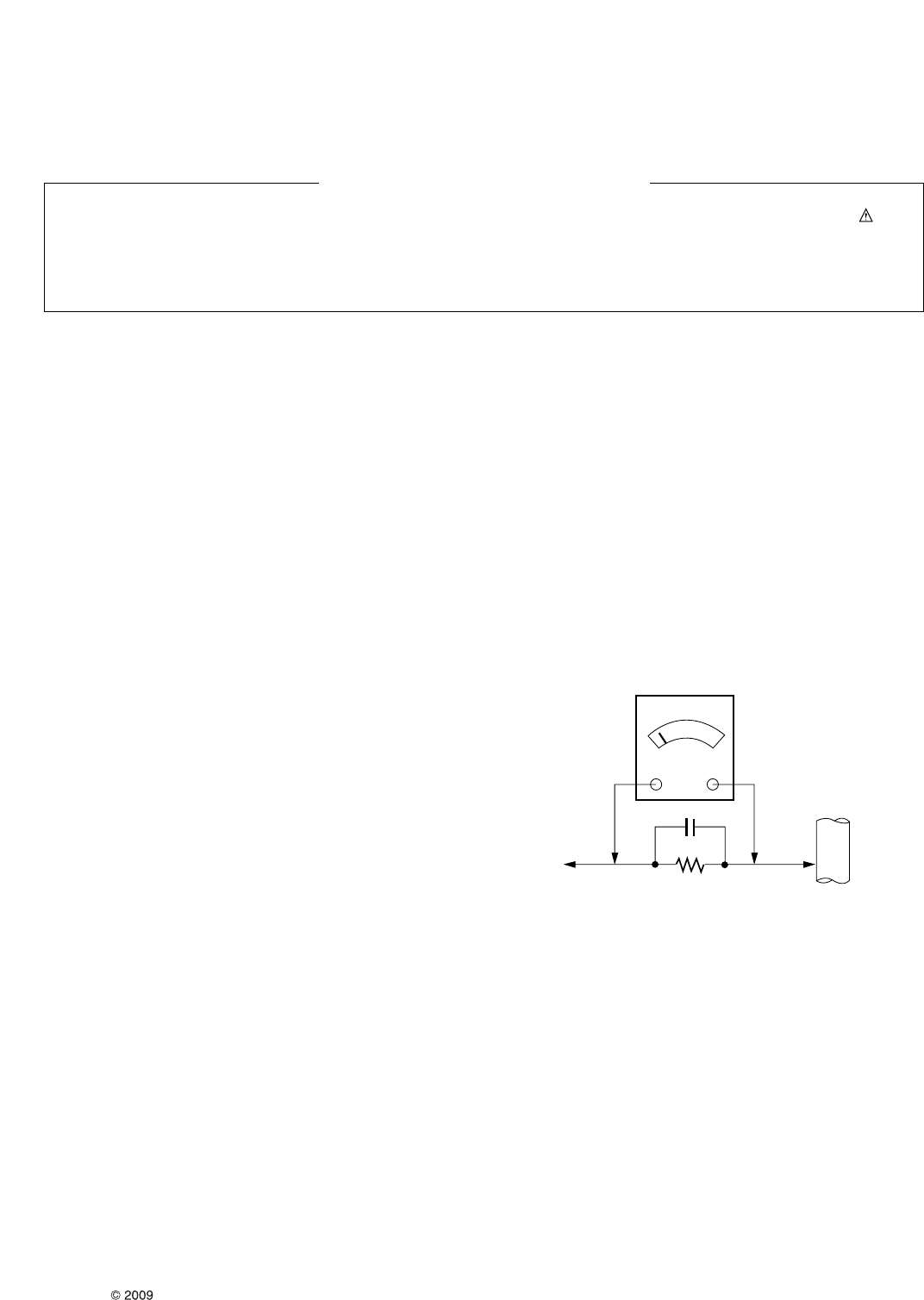

Leakage Current Hot Check circuit

1.5 Kohm/10W

To Instrument’s

exposed

METALLIC PARTS

Good Earth Ground

such as WATER PIPE,

CONDUIT etc.

AC Volt-meter

IMPORTANT SAFETY NOTICE

0.15uF

Only for training and service purposes LGE Internal Use Only

- 4 -

CAUTION: Before servicing receivers covered by this service

manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication.

NOTE: If unforeseen circumstances create conflict between the

following servicing precautions and any of the safety precautions on

page 3 of this publication, always follow the safety precautions.

Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power

source before;

a. Removing or reinstalling any component, circuit board

module or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver.

CAUTION: A wrong part substitution or incorrect polarity

installation of electrolytic capacitors may result in an

explosion hazard.

2. Test high voltage only by measuring it with an appropriate high

voltage meter or other voltage measuring device (DVM,

FETVOM, etc) equipped with a suitable high voltage probe.

Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its

assemblies.

4. Unless specified otherwise in this service manual, clean

electrical contacts only by applying the following mixture to the

contacts with a pipe cleaner, cotton-tipped stick or comparable

non-abrasive applicator; 10% (by volume) Acetone and 90% (by

volume) isopropyl alcohol (90%-99% strength)

CAUTION: This is a flammable mixture.

Unless specified otherwise in this service manual, lubrication of

contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which

receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its

electrical assemblies unless all solid-state device heat sinks are

correctly installed.

7. Always connect the test receiver ground lead to the receiver

chassis ground before connecting the test receiver positive

lead.

Always remove the test receiver ground lead last.

8. Use with this receiver only the test fixtures specified in this

service manual.

CAUTION: Do not connect the test fixture ground strap to any

heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily

by static electricity. Such components commonly are called

Electrostatically Sensitive (ES) Devices. Examples of typical ES

devices are integrated circuits and some field-effect transistors and

semiconductor "chip" components. The following techniques

should be used to help reduce the incidence of component

damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or

semiconductor-equipped assembly, drain off any electrostatic

charge on your body by touching a known earth ground.

Alternatively, obtain and wear a commercially available

discharging wrist strap device, which should be removed to

prevent potential shock reasons prior to applying power to the

unit under test.

2. After removing an electrical assembly equipped with ES

devices, place the assembly on a conductive surface such as

aluminum foil, to prevent electrostatic charge buildup or

exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES

devices.

4. Use only an anti-static type solder removal device. Some solder

removal devices not classified as "anti-static" can generate

electrical charges sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate

electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective

package until immediately before you are ready to install it.

(Most replacement ES devices are packaged with leads

electrically shorted together by conductive foam, aluminum foil

or comparable conductive material).

7. Immediately before removing the protective material from the

leads of a replacement ES device, touch the protective material

to the chassis or circuit assembly into which the device will be

installed.

CAUTION: Be sure no power is applied to the chassis or circuit,

and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged

replacement ES devices. (Otherwise harmless motion such as

the brushing together of your clothes fabric or the lifting of your

foot from a carpeted floor can generate static electricity

sufficient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate

tip size and shape that will maintain tip temperature within the

range or 500°F to 600°F.

2. Use an appropriate gauge of RMA resin-core solder composed

of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wire-

bristle (0.5 inch, or 1.25cm) brush with a metal handle.

Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique

a. Allow the soldering iron tip to reach normal temperature.

(500°F to 600°F)

b. Heat the component lead until the solder melts.

c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique.

a. Allow the soldering iron tip to reach a normal temperature

(500°F to 600°F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there

only until the solder flows onto and around both the

component lead and the foil.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

SERVICING PRECAUTIONS

Only for training and service purposes - 5 - LGE Internal Use Only

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through

which the IC leads are inserted and then bent flat against the

circuit foil. When holes are the slotted type, the following technique

should be used to remove and replace the IC. When working with

boards using the familiar round hole, use the standard technique

as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently

prying up on the lead with the soldering iron tip as the solder

melts.

2. Draw away the melted solder with an anti-static suction-type

solder removal device (or with solder braid) before removing the

IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and

solder it.

3. Clean the soldered areas with a small wire-bristle brush.

(It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor

Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as

possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining

on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding

leads extending from the circuit board and crimp the "U" with

long nose pliers to insure metal to metal contact then solder

each connection.

Power Output, Transistor Device

Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit

board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as

possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit

board.

3. Observing diode polarity, wrap each lead of the new diode

around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of

the two "original" leads. If they are not shiny, reheat them and if

necessary, apply additional solder.

Fuse and Conventional Resistor

Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow

stake.

2. Securely crimp the leads of replacement component around

notch at stake top.

3. Solder the connections.

CAUTION: Maintain original spacing between the replaced

component and adjacent components and the circuit board to

prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit

board will weaken the adhesive that bonds the foil to the circuit

board causing the foil to separate from or "lift-off" the board. The

following guidelines and procedures should be followed whenever

this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the

following procedure to install a jumper wire on the copper pattern

side of the circuit board. (Use this technique only on IC

connections).

1. Carefully remove the damaged copper pattern with a sharp

knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if

used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and

carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper

pattern and let it overlap the previously scraped end of the good

copper pattern. Solder the overlapped area and clip off any

excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern

at connections other than IC Pins. This technique involves the

installation of a jumper wire on the component side of the circuit

board.

1. Remove the defective copper pattern with a sharp knife.

Remove at least 1/4 inch of copper, to ensure that a hazardous

condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern

break and locate the nearest component that is directly

connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the

nearest component on one side of the pattern break to the lead

of the nearest component on the other side.

Carefully crimp and solder the connections.

CAUTION: Be sure the insulated jumper wire is dressed so the

it does not touch components or sharp edges.

Only for training and service purposes LGE Internal Use Only

- 6 -

4. General Specification(TV)

1. Application Range

This specification sheet is applied to the LCD TV used LA92E

chassis.

2. Specification

Each part is tested as below without special appointment

1) Temperature : 25 ± 5°C (77 ± 9ºF), CST : 40 ± 5ºC

2) Relative Humidity : 65 ±10%

3) Power Voltage : Standard input voltage

(100-240V@ 50/60Hz)

* Standard Voltage of each products is marked by models

4) Specification and performance of each parts are followed

each drawing and specification by part number in

accordance with BOM.

5) The receiver must be operated for about 20 minutes prior to

the adjustment.

3. Test method

1) Performance : LGE TV test method followed.

2) Demanded other specification

- Safety : UL, CSA, IEC specification

- EMC : FCC, ICE, IEC specification

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

No Item Specification Remark

1. Receiving System 1) ATSC / NTSC-M

2. Available Channel 1) VHF : 02~13

2) UHF : 14~69

3) DTV : 02-69

4) CATV : 01~135

5) CADTV : 01~135

3. Input Voltage 1) AC 100 ~ 240V 50/60Hz Mark : 110V, 60Hz (N.America)

Mark : 220V,60Hz (Korea)

NORTH AMERICA 55LH95-UA 4. Market

KOREA 55LH95QD-NB/55LH93QD-NA

5. Screen Size 55 inch Wide(1920 ◊ 1080) FHD 55LH95-UA/55LH95QD-NB/55LH93QD-NA

6. Aspect Ratio 16:9

7. Tuning System FS

8. Module LC550WUL-SBT1 LGD 55LH95-UA/55LH95QD-NB/55LH93QD-NA

9. Operating Environment 1) Temp : 0 ~ 40 deg

2) Humidity : ~ 80 %

10. Storage Environment 1) Temp : -20 ~ 60 deg

2) Humidity : ~ 85 %

Only for training and service purposes LGE Internal Use Only

- 7 -

5. Chroma & Brightness

No Item Min Typ Max Unit Remark

1. Max Luminance

(Center 1-point / Full White Pattern) 400 500 cd/m 55LH95-UA / 55LH95QD-NB

/ 55LH93QD-NA

2. Luminance uniformity 77 % Full white

3. 0.644

RED

0.332

5. 0.284

GREEN

0.630

7. 0.148

BLUE

0.060

9. 0.279

10.

Color

coordinate

WHITE

Typ.

-0.03

0.292

Typ.

+0.03

11. Color coordinate uniformity N/A

900 1300

Local Dimming ON

12. Contrast ratio

1,800,000 2,000,000 DCR

0.254 0.269 0.284

Cool 0.258 0.273 0.288 13000K

x 0.270 0.285 0.300

Medium y

0.278 0.293 0.308 9300K

x 0.298 0.313 0.328

13. Color

Temperature

Warm y 0.314 0.329 0.344 6500K

85% Full white pattern

14. Color Distortion, DG 10.0 %

15. Color Distortion, DP 10.0 deg

16. Color S/N, AM/FM 43.0 dB

17. Color Killer Sensitivity -80 dBm

Only for training and service purposes LGE Internal Use Only

- 8 -

7. RGB input (PC)

6. Component Video Input (Y, CB/PB, CR/PR)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock Proposed

1. 720*480 15.73 60 13.5135 SDTV ,DVD 480I

2. 720*480 15.73 59.94 13.5 SDTV ,DVD 480I

3. 720*480 31.50 60 27.027 SDTV 480P

4. 720*480 31.47 59.94 27.0 SDTV 480P

5. 1280*720 45.00 60.00 74.25 HDTV 720P

6. 1280*720 44.96 59.94 74.176 HDTV 720P

7. 1920*1080 33.75 60.00 74.25 HDTV 1080I

8. 1920*1080 33.72 59.94 74.176 HDTV 1080I

9. 1920*1080 67.500 60 148.50 HDTV 1080P

10. 1920*1080 67.432 59.94 148.352 HDTV 1080P

11. 1920*1080 27.000 24.000 74.25 HDTV 1080P

12. 1920*1080 26.97 23.976 74.176 HDTV 1080P

13. 1920*1080 33.75 30.000 74.25 HDTV 1080P

14. 1920*1080 33.71 29.97 74.176 HDTV 1080P

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed

PC DDC

1. 640*350 31.468 70.09 25.17 EGA

2. 720*400 31.469 70.08 28.32 DOS O

3. 640*480 31.469 59.94 25.17 VESA(VGA) O

4. 800*600 37.879 60.31 40.00 VESA(SVGA) O

5. 1024*768 48.363 60.00 65.00 VESA(XGA) O

6. 1280*768 47.776 59.870 79.5 CVT(WXGA)

7. 1360*768 47.712 60.015 85.50 VESA (WXGA)

8. 1280*1024 63.981 60.020 108.00 VESA (SXGA) O

9. 1600*1200 75.00 60.00 162 VESA (UXGA) O

10 1920*1080 66.587 59.934 148.5 HDTV 1080P O

Only for training and service purposes

9. Mechanical Specification

1) Media Box

No Item CONTENT Unit REMARK

1 Protrusion TBD

2 Appearance

quality Satisfy appearance inspection LG(56)-G3-1002

Before Packing 426(W) X 234.5(D) X 68.6(H) mm

3 Product

Dimension After Packing 432(W) X 249(D) X 76(H) mm

Media-Box ONLY 2.6 Kg

4 Product

Weight With BOX 3.1 Kg

GAP

단차

TOP COVER & BOTTOM Measure(DQA)

SPEC

1mm mm

TOP COVER & BOTTOM Measure(DQA)

SPEC

1mm mm

REAR SHIELD & BOTTOM SHIELD Measure(DQA)

GAP MAX 1mm mm

BOTTOM COVER & REAR SHIELD Measure(DQA)

Measure(DQA)

GAP MAX

MAX

1mm

MAX

1.2mm mm

5 Test SPEC

TOP COVER & REAR SHIELD

8. HDMI input (PC/DTV)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed

PC DDC

1. 640*350 31.468 70.09 25.17 EGA

2. 720*400 31.469 70.08 28.32 DOS O

3. 640*480 31.469 59.94 25.17 VESA(VGA) O

4. 800*600 37.879 60.31 40.00 VESA(SVGA) O

5. 1024*768 48.363 60.00 65.00 VESA(XGA) O

6. 1280*768 47.776 59.870 79.5 CVT(WXGA)

7. 1360*768 47.712 60.015 85.50 VESA (WXGA) O

8. 1280*1024 63.981 60.020 108.00 VESA (SXGA) O

9. 1600*1200 75.00 60.00 162 VESA (UXGA) O

10. 1920*1080 67.5 60 148.5 HDTV 1080P O

DTV

1 720*480 31.47 60 27.027 SDTV 480P

2 720*480 31.47 59.94 27.00 SDTV 480P

3 1280*720 45.00 60.00 74.25 HDTV 720P

4 1280*720 44.96 59.94 74.176 HDTV 720P

5 1920*1080 33.75 60.00 74.25 HDTV 1080I

6 1920*1080 33.72 59.94 74.176 HDTV 1080I

7 1920*1080 67.500 60 148.50 HDTV 1080P

8 1920*1080 67.432 59.939 148.352 HDTV 1080P

9 1920*1080 27.000 24.000 74.25 HDTV 1080P

10 1920*1080 26.97 23.976 74.176 HDTV 1080P

11 1920*1080 33.75 30.000 74.25 HDTV 1080P

12 1920*1080 33.71 29.97 74.176 HDTV 1080P

Only for training and service purposes

2) 55LH95-UA

NO ITEM CONTENT UNIT REMARK

Width Height

1295.7 879 mm With Stand

W/O Packing 1295.7 798 mm W/O Stand

1455 1020 mm With Stand

1 Product

Dimension

With Packing 1456

Depth

378

37.5

426 68.6 mm234.5

540

331 964 mm W/O Stand

- Kg With Stand

W/O Packing

(CCFL Module) -Kg

W/O Stand

36.8 Kg With Stand

W/O Packing

(LED Module) 30

2.6

Kg W/O Stand

- Kg With Stand

With Packing

(CCFL Module) -

W/O Stand

7.2 Kg

2 Only Media BOX

Product

Weight

Packing 5.6 Kg

Box

Packing

64 With Stand

40ft

(Normal) 114

195

–20¡

W/O Stand

With Stand

3 Container

Quantity Individual 40ft

(H-Cubic)

Set

Swivel YES/NO

YES/NO

Angle Degree

Tilt

Funchion

Angle Front( )/Back( ) Degree

Width Height

655

Depth

378 365.7

843 531 438

mm With Neck

Dimension

(W/O Packing)

-- -- 6.8

-- -- 9.2

mm W/O Neck

Dimension(With Packing) mm Commercial

Weight(W/O Packing) Kg With Neck

4 Stand Assy

Weight(With Packing)

Only for training and service purposes

1. Application Object

This specification sheet applied to LA92E Chassis applied

LCD TV all models manufactured in TV factory.

2. Notes

1) Because this is not a hot chassis, it is not necessary to use

an isolation transformer. However, the use of isolation

transformer will help protect test instrument.

2) Adjustment must be done in the correct order.

3) The adjustment must be performed in the circumstance of

25±5°C of temperature and 65±10% of relative humidity if

there is no specific designation.

4) The input voltage of the receiver must keep 100~240V,

50/60Hz.

5) The receiver must be operated for about 5 minutes prior to

the adjustment when module is in the circumstance of over

15°C.

In case of keeping module is in the circumstance of 0°C, it

should be placed in the circumstance of above 15°C for 2

hours.

In case of keeping module is in the circumstance of below -

20°C, it should be placed in the circumstance of above

15°C for 3 hours.

6) The TV and the Media-box must be connected by Wireless

or Wire. : Even if there is only the TV set, it is possible to

adjust the White balance.

• Entry process of White Pattern

1) Press the POWER ON key on R/C for adjustment.

2) Press the ADJ key on R/C and enter EZ ADJUST.

3) Select ‘7. Test Pattern’ by using CH +/- key and select

“White” by using VOL +/-.

* Set is activated HEAT RUN without signal generator in this

mode.

* Single color pattern (RED/BLUE/GREEN) of HEAT RUN

mode uses to check panel.

Caution) If the still image is displayed more than 20 minutes

(Especially digital pattern, cross hatch pattern), an after-

image may occur in the black level area of the screen.

3. Adjustment list

• Check the TOOL OPTION prior to adjustment. If the TOOL

OPTION is incorrect, correct it then execute the power

off/on to apply the modification (refer to 7.3 TOOL

OPTION)

• In case of this chassis,

Set the Media-box option in connection with Wireless or Wire.

Set the TV option in HDMI5 mode. (remove the wired HDMI

cable)

3.1 Board-level adjustment

•ADC adjustment (Media-Box ONLY)

•EDID/DDC download

* Manual ADC Confirmation : [IN-START] -> [1.Adjust Check]

•After Board level adjustment, set volume setting value 0

3.2 Final assembly adjustment

•White Balance adjustment

•RS-232C functionality check

•EYE-Q TEST

•Wireless Pairing (it is worked in the Wired status)

•Shipment mode setting (In-Stop)

3.3 Etc

•Shipment mode

•Service Option

4. Board-level adjustment

4.1 ADC(LGE3369) adjustment

4.1.1 Overview

•ADC adjustment is needed to find the optimum black level

and gain in Analog-to-Digital device and to compensate

RGB deviation.

4.1.2 Equipment & Condition

1) Jig (RS-232C protocol)

2) External/Internal PATTERN

- Adjustment : ADC Comp Comp 480i

=> Using a Pattern Generator(MSPG-925FA - Model:209,

Pattern:65 or etc), enter component signals like below

image into the Media-box.

- Adjustment : ADC Comp 1080p / RGB

=> Use the Internal Pattern

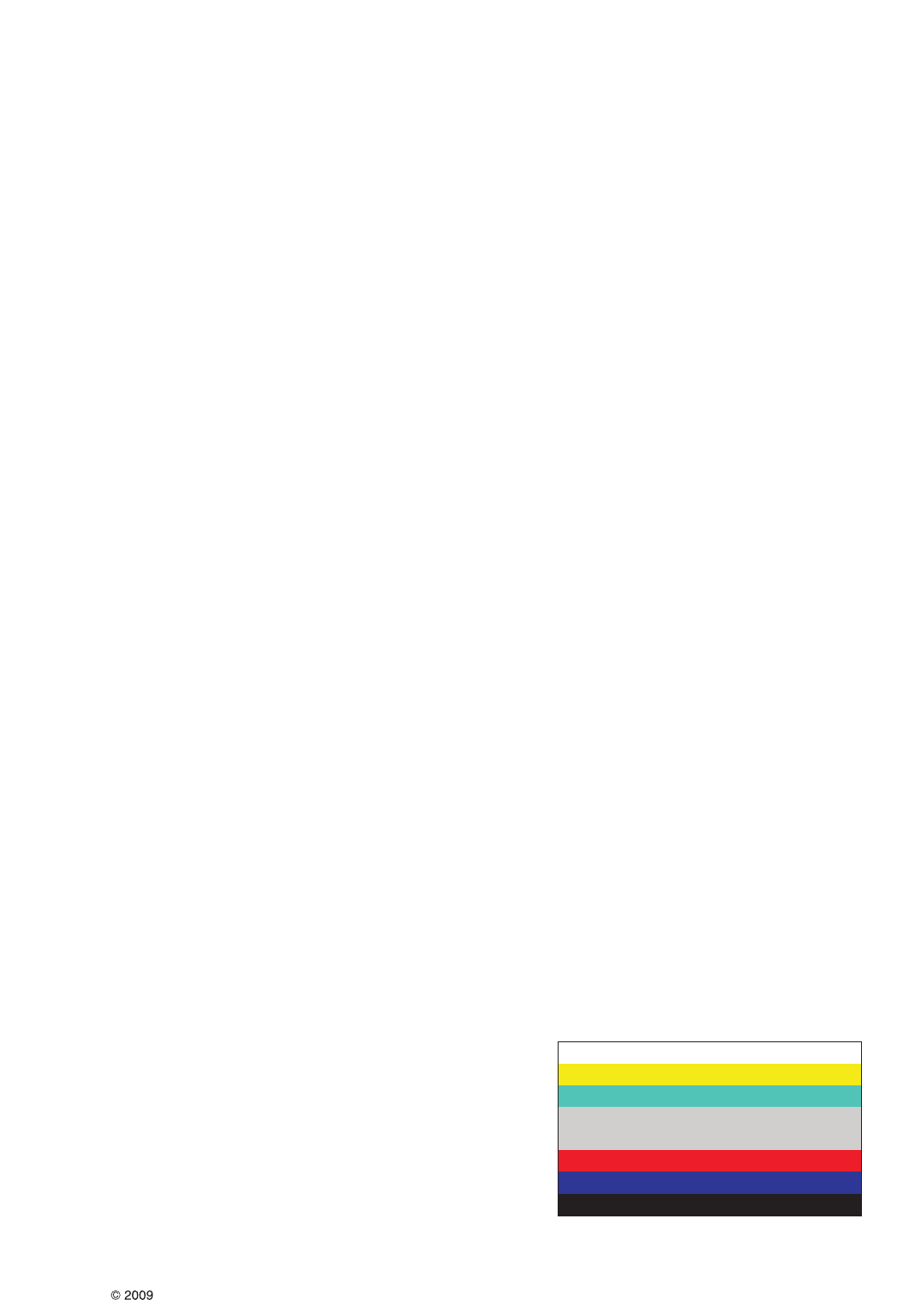

* External input Image

LGE Internal Use Only

- 11 -

ADJUSTMENT INSTRUCTION

4.1.3 Adjustment

4.1.3.1 Method

•Using RS-232C, adjust items listed in 3.1 in the order shown

in”4.1.3.3”.

4.1.3.2 Adj. protocol

Ref.) ADC adjustment RS232C Protocol_Ver1.0

4.1.3.3 Adj. order

•ad 00 00 [Enter ADC adj. mode]

•kb 00 04 [Component1 input mode]

•ad 00 10 [Adjust 480i Comp1]

•kb 00 06 [RGB-DTV input mode]

•ad 00 10 [Adjust 1080p Comp1/RGB]

•ad 00 90 [End adj.]

4.2. EDID(The Extended Display Identification

Data)/DDC(Display Data Channel) download

4.2.1 Overview

•It is a VESA regulation. A PC or a MNT will display an

optimal resolution through information sharing without any

necessity of user input. It is a realization of “Plug and

Play”.

4.2.2 Equipment

•Adj. R/C

•Since embedded EDID data is used, EDID download jig,

HDMI cable and D-sub cable are not need.

4.2.3 Download method

1) Press Adj. key on the Adj. R/C, then select “8.EDID

D/L”. By pressing Enter key, enter EDID D/L menu.

2) Select [Start] button by pressing Enter key, HDMI1 /

HDMI2 / HDMI3 / HDMI4 / RGB are Writing and display OK

or NG.

* For HDMI5 EDID D/L, Change the TV input mode into

HDMI5 mode then using Adj. R/C, download the HDMI5

EDID.

* HDMI5 / RGB can be downloaded by JIG and cable

4.2.4 EDID DATA

• HDMI

EDID Block 0 table =

EDID Block 1 table =

Only for training and service purposes

Protocol Command Set ACK

Enter adj. mode aa 00 00 a 00 OK00x

Source change xb 00 40 b 00 OK40x (Adjust 480i Comp1 )

xb 00 60 b 00 OK60x (Adjust 1024*768 RGB)

Begin adj. ad 00 10

Return adj. result OKx (Case of Success)

NGx (Case of Fail)

Read adj. data (main) (main)

ad 00 20 000000000000000000000000007c007b006dx

(sub) (Sub)

ad 00 21 000000070000000000000000007c00830077x

Confirm adj. ad 00 99 NG 03 00x (Fail)

NG 03 01x (Fail)

NG 03 02x (Fail)

OK 03 03x (Success)

End adj. aa 00 90 a 00 OK90x

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 02 00 01 01 01 01

10 VV WW 01 03 80 73 41 78 0A CF 74 A3 57 4C B0 23

20 09 48 4C A1 08 00 A9 40 81 80 61 40 45 40 31 40

30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C

40 45 00 7E 8A 42 00 00 1E 01 1D 00 72 51 D0 1E 20

50 6E 28 55 00 7E 8A 42 00 00 1E 00 00 00 FD 00 39

60 3F 1F 52 10 00 0A 20 20 20 20 20 20 00 00 00 FC

70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 XX

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 02 03 1F F1 47 10 22 20 05 84 03 02 26 15 07 50

10 09 07 07 67 03 0C 00 YY YY B8 2D E3 05 03 01 02

20 3A 80 18 71 38 2D 40 58 2C 04 05 7E 8A 42 00 00

30 1E 01 1D 80 18 71 1C 16 20 58 2C 25 00 7E 8A 42

40 00 00 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00 7E

50 8A 42 00 00 1E 66 21 50 B0 51 00 1B 30 40 70 36

60 00 7E 8A 42 00 00 1E 26 36 80 A0 70 38 1F 40 30

70 20 25 00 7E 8A 42 00 00 1A 00 00 00 00 00 00 XX

•HDMI 1

- VV: 01

- WW: 13

- XX: 1D (Block 0) / CC (Block1)

- YY: 10 00

•HDMI 2

- VV: 01

- WW: 13

- XX: 1D (Block 0) / BC (Block1)

- YY: 20 00

•HDMI 3

- VV: 01

- WW: 13

- XX: 1D (Block 0) / AC (Block1)

- YY: 30 00

•HDMI 4

- VV: 01

- WW: 13

- XX: 1D (Block 0) / 9C (Block1)

- YY: 40 00

•HDMI 5

- VV: 01

- WW: 13

- XX: 1D (Block 0) / 8C (Block1)

- YY: 50 00

• RGB

EDID Block 0 table =

• Reference

- HDMI1 ~ HDMI4 / RGB: Media-Box, HDMI5: TV

- In the data of EDID, bellows may be different by S/W or

Input mode.

=> VV: Week Manufacture

=> WW: Year Manufacture

=> XX: C/S

=> YY: Physical address

(Generally, HDMI1 : 10 00, HDMI2 : 20 00 ...)

5. Final assembly adjustment

5.1 White Balance adjustment

5.1.1 Overview

•W/B adj. : Objective & How-it-works

- Objective: To reduce each panel’s W/B deviation.

- How-it-works: When R/G/B gain in the OSD is at 192, it

means the panel is at its Full Dynamic Range. In order to

prevent saturation of Full Dynamic range and data, one of

R/G/B is fixed at 192, and the other two is lowered to find the

desired value.

5.1.2 Equipment

1) Color Analyzer : CA-210 (NCG: CH9 / WCG: CH12 / LED

Module: CH14)

2) Adj. Computer(During auto adj., RS-232C protocol is

needed)

3) Adj. R/C

4) Video Signal Generator MSPG-925F 720p/216Gray

(Model:217, Pattern:78) -> Only when internal pattern is

not available.

•Color Analyzer Matrix should be calibrated using CS-1000.

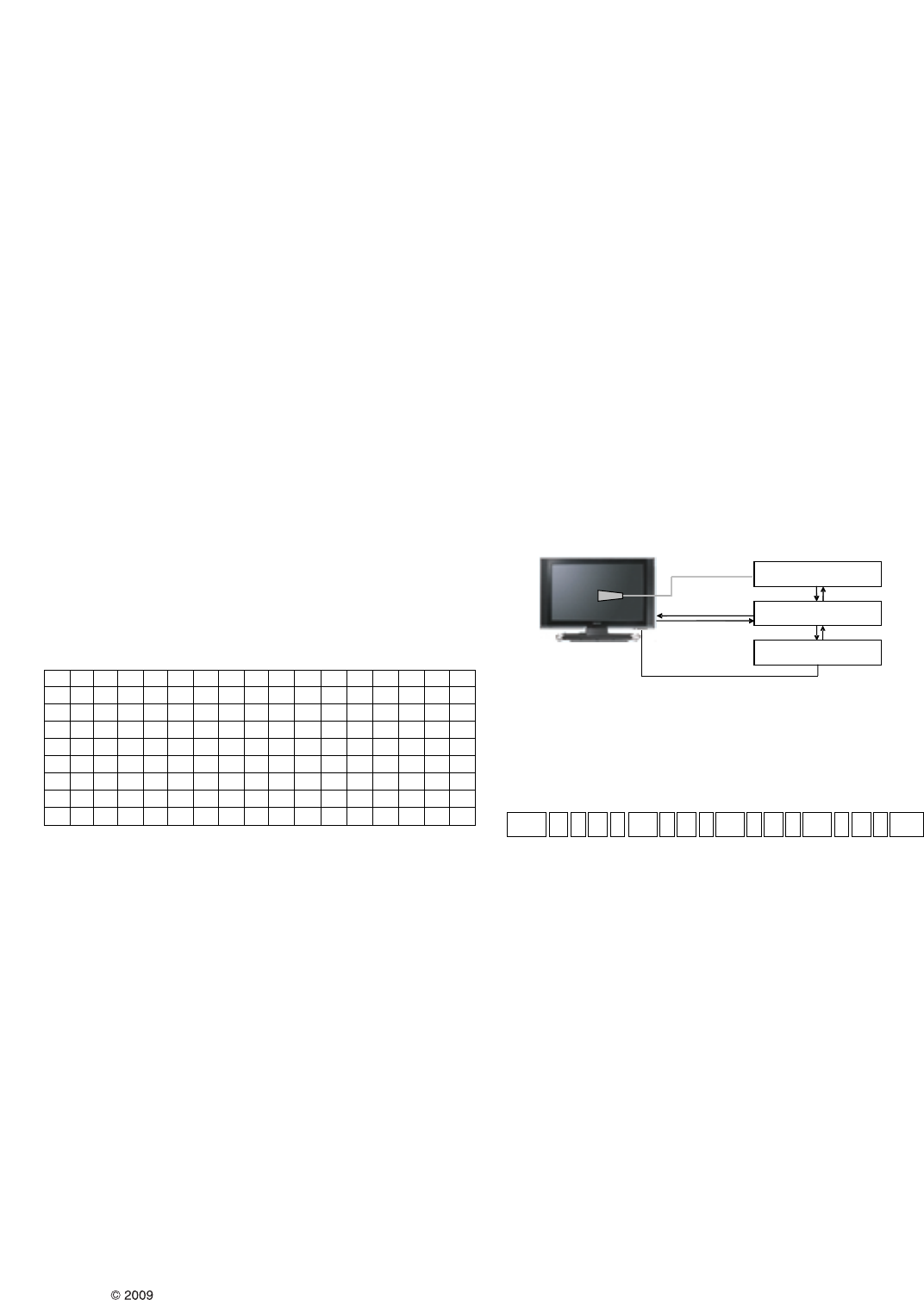

5.1.3 Equipment connection map

5.1.4 Adj. Command (Protocol)

•Protocol

- LEN : Number of Data Byte to be sent

- CMD : Command

- VAL : FOS Data value

- CS : Checksum of sent data

- A : Acknowledge

Ex) [Send: JA_00_DD] / [Ack: A_00_okDDX}

Only for training and service purposes

Color Analyzer

Computer

Pattern Generator

RS-232C

Probe

Signal Source

* If TV internal pattern is used, not needed

Connection Diagram of Automatic Adjustment

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 02 00 01 01 01 01

10 01 13 01 03 68 73 41 78 0A CF 74 A3 57 4C B0 23

20 09 48 4C A1 08 00 A9 40 81 80 61 40 45 40 31 40

30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C

40 45 00 7E 8A 42 00 00 1E 01 1D 00 72 51 D0 1E 20

50 6E 28 55 00 7E 8A 42 00 00 1E 00 00 00 FD 00 39

60 3F 1F 52 10 00 0A 20 20 20 20 20 20 00 00 00 FC

70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 00 36

START 6E 50 03 00 CSLEN CMD VAL STOPA A A A A A A A

•RS-232C Command used during auto-adj.

Ex) wb 00 00 -> Begin white balance auto-adj.

wb 00 10 -> Gain adj.

ja 00 ff -> Adj. data

jb 00 c0

...

wb 00 1f -> Gain adj. completed

*(wb 00 20(Start), wb 00 2f(completed)) -> Off-set adj.

wb 00 ff -> End white balance auto-adj.

•Adj. Map

5.1.5 Adj. method

5.1.5.1 Auto-adj. method

1) Set TV in adj. mode using POWER On key.

2) Zero calibrate probe then place it on the center of the

Display.

3) Connect Cable(RS-232C).

4) Select the model in adj. program and begin adjustment.

5) When adj. is completed (OK sign), check adj. status per

mode. (Warm / Medium / Cool)

6) Remove the probe and RS-232C cable to complete adj.

•Adjustment must be begun “wb 00 00”, and ended “wb 00 ff”.

If it is needed, adjust the Offset value.

5.1.5.2 Manual adj. method

1) Set TV in adj. mode using POWER On key.

2) Press ADJ key => EZ ADJUST using adj. R/C.

3) sing CH +/- key, select [7.Test Pattern] then press ENTER

to place in HEAT RUN mode and wait for 30 minutes.

4) Check a zero calibration for the probe of color analyzer,

then place it on the center of LCD module within 10• of the

surface.

5) Press ADJ key [6.White Balance] then press the cursor to

the right (

▶

) key. (When

▶

is pressed, Full White internal

pattern will be displayed)

6) One of R Gain / G Gain / B Gain should be fixed at 192,

and the rests will be lowered to meet the desired value.

7) Adj. is performed in COOL, MEDIUM, WARM 3 modes of

color temperature.

•Adj. condition and cautionary items

1) Lighting condition in surrounding area

Surrounding lighting should be lower than 10 lux. Try to

isolate adj. area into dark surrounding.

2) Probe location

- LCD: Color Analyzer (CA-210) probe should be within 10•

and perpendicular of the module surface (80°~ 100°).

* In case of LCD, Back Light On should be checked using no

signal or Full white pattern.

5.1.6 Reference (White Balance adj. coordinate and color

temperature)

•Luminance: Full white 216 Gray

•Standard color coordinate and temperature using CS-1000

Only for training and service purposes

ITEM Command Data Range Default

(Hex.) (Decimal)

Cmd 1 Cmd 2 Min Max

Cool R-Gain j g 00 C0 TBD

G-Gain j h 00 C0 TBD

B-Gain j i 00 C0 TBD

R-Cut TBD

G-Cut TBD

B-Cut TBD

Medium R-Gain j a 00 C0 TBD

G-Gain j b 00 C0 TBD

B-Gain j c 00 C0 TBD

R-Cut TBD

G-Cut TBD

B-Cut TBD

Warm R-Gain j d 00 C0 TBD

G-Gain j e 00 C0 TBD

B-Gain j f 00 C0 TBD

R-Cut TBD

G-Cut TBD

RS-232C COMMAND Meaning

[CMD ID DATA]

wb 00 00 White Balance adjustment start.

wb 00 10 Start of adjust gain (Inner white pattern)

wb 00 1f End of gain adjust

wb 00 20 Start of offset adjust(Inner white pattern)

wb 00 2f End of offset adjust

wb 00 ff

End of White Balance adjust(Inner pattern disappeared)

Coordinate

Mode x y Temp uv∆

Cool 0.269 0.273 11000K 0.0000

Medium 0.285 0.293 9300K 0.0000

Warm 0.313 0.329 6500K 0.0000

5.2 EYE-Q function check

Step 1) Turn on TV

Step 2) Press EYE key of Adj. R/C

Step 3) Cover the Eye Q II sensor on the front of the using

your hand and wait for 6 seconds

Step 4) Confirm that R/G/B value is lower than 10 of the “Raw

Data (Sensor data, Back light )” . If after 6 seconds,

R/G/B value is not lower than 10, replace Eye Q II

sensor

Step 5) Remove your hand from the Eye Q II sensor and wait

for 6 seconds

Step 6) Confirm that “ok” pop up.

If change is not seen, replace Eye Q II sensor

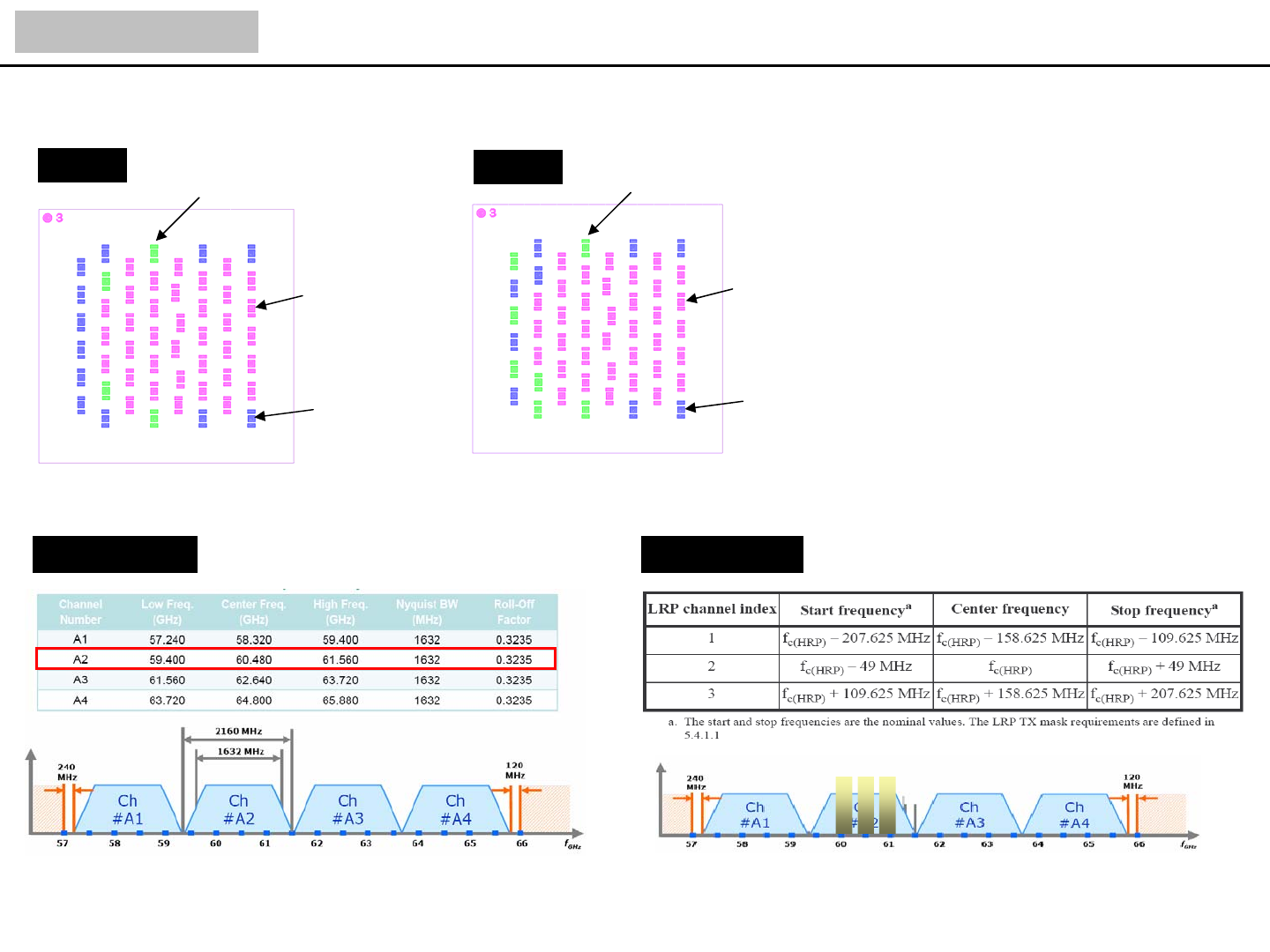

5.3 Wireless Pairing

5.3.1 Overview

•For the wireless connection between TV and Media-Box,

Select the communication channel and fix the Mac address.

* The adjustment should be executed with being Wired.

(HDMI cable connection)

5.3.2 Method

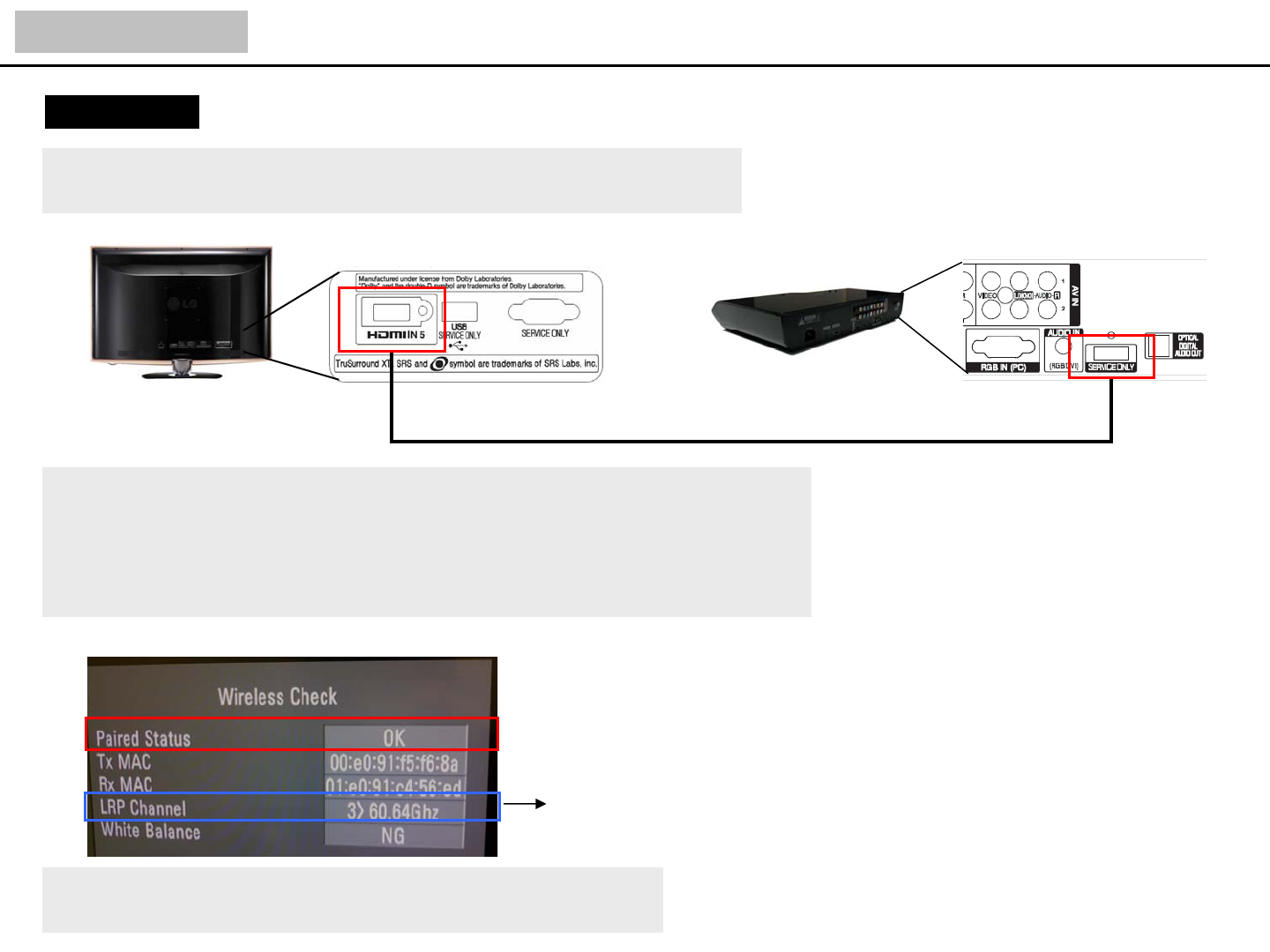

1) Press IN-START key on adj. R/C then select [9.Wireless

Check].

2) After Choosing the LRP Channel, Set OK in Paired Status.

3) Remove the HDMI cable and turn off/on TV and Media-box.

4) Check the Wireless status.

5.4 Shipment mode check(In-stop)

• After final inspection, press IN-STOP key of the Adj. R/C and

check that the unit goes to Stand-by mode.

6. GND and Internal Pressure(I/P) check

6.1 Inspection method

1) GND & Internal Pressure auto-check preparation

- Check that Power cord is fully inserted to the set.

(If loose, re-insert)

2) Perform GND & Internal Pressure auto-check

- Unit with fully inserted POWER CORD, TUNER CABLE

and A/V CABLE arrives to the auto-check process.

- Connect D-terminal AV JACK TESTER

- Auto CONTROLLER(GWS103-4) ON

- Perform GND TEST

- If NG, BUZZER will sound to inform the operator

- If OK, changeover to I/P check automatically

(Remove CORD, A/V from AV JACK BOX)

- Perform I/P TEST

- If NG, BUZZER will sound to inform the operator

- If OK, Good lamp will lit up and the stopper will allow the

pallet to move on to next process

6.2 Check point

• TEST voltage

- GND:1.5KV/min at 100mA

- SIGNAL:3KV/min at 100mA

• TEST time:1 sec.

• TEST POINT

- GND TEST = POWER CORD GND & SIGNAL CABLE

METAL GND

- I/P TEST = POWER CORD GND & LIVE & NEUTRAL

• LEAKAGE CURRENT: set to 0.5mArms

Only for training and service purposes

7. Etc.

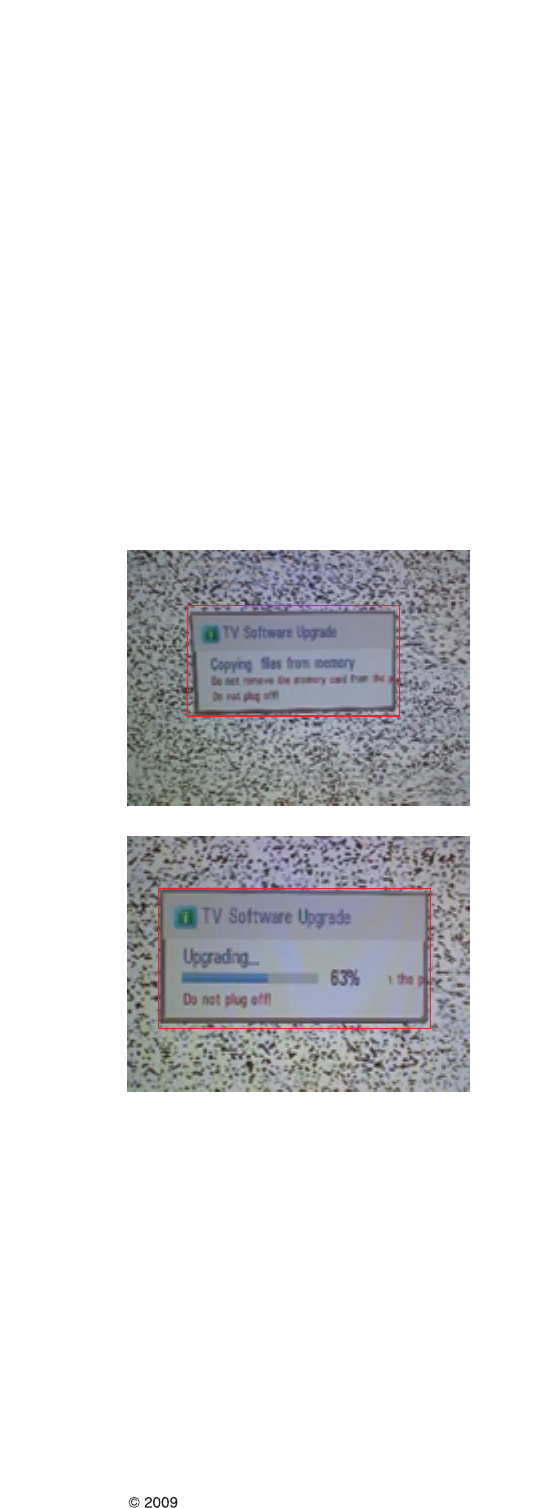

7.1 USB S/W Download (option)

7.1.1 Overview

• USB download allows fast S/W upgrade in SVC areas or

during Board-level production.

7.1.2 Dowunload method

1) After Set on, confirm that image is displayed.

2) Insert USB memory stick that contains the S/W and after a

few seconds, Upgrade OSD is displayed.

(If the version of download file in USB is lower than the

current version, Upgrade OSD is not displayed)

3) After download is finished, automatically Power off/on is

executed. (If auto power on/off is not executed, perform the

power off/on manually)

4) S/W upgrade is completed and eject USB Memory Stick

form USB jack.

5) By pressing IN-START key on the adj. R/C, check the S/W

version.

7.2 TOOL OPTION

7.2.1 Overview

•The model name and spec. will be confirmed and modified by

adj. menu.

•No Modification at discretion

7.2.2 Confirm/Modify method

1) By Pressing ADJ key, [EZ ADJUST] -> [0.Tool Option1].

2) In the Tool Option1, It is possible to modify the Inch/ Tool/

Module maker/ Module revision.

3) Contents of Tool Option 1~4 are like the section 7.2.3.

* Entering into IN-START mode, [1.Adjust Check] shows Tool

Options.

7.2.3 Contents of Tool Option

7.2.3.1 Tool Option1

•Inch

•Tool

•Maker

•Module Rev.

7.2.3.2 Tool Option2

•HDMI Count

•HDMI Switch IC

•Component Count

•S-Video

•RCA AV Count

•Scart Count

7.2.3.3 Tool Option3

•EMF(JPEG,MP3)

•Divx

•Bluetooth

•Digital Eye.

•Headphone

•OPC

•EPA

•e-Manual

•Audio Amp

•LED Type

•New E-Con

7.2.3.4 Tool Option4

•Clear QAM

•Local Dimming

•THX

•Digital Demod

•Analog Demod

•THX Media Director

LGE Internal Use Only

- 16 -

Only for training and service purposes - 17 - LGE Internal Use Only

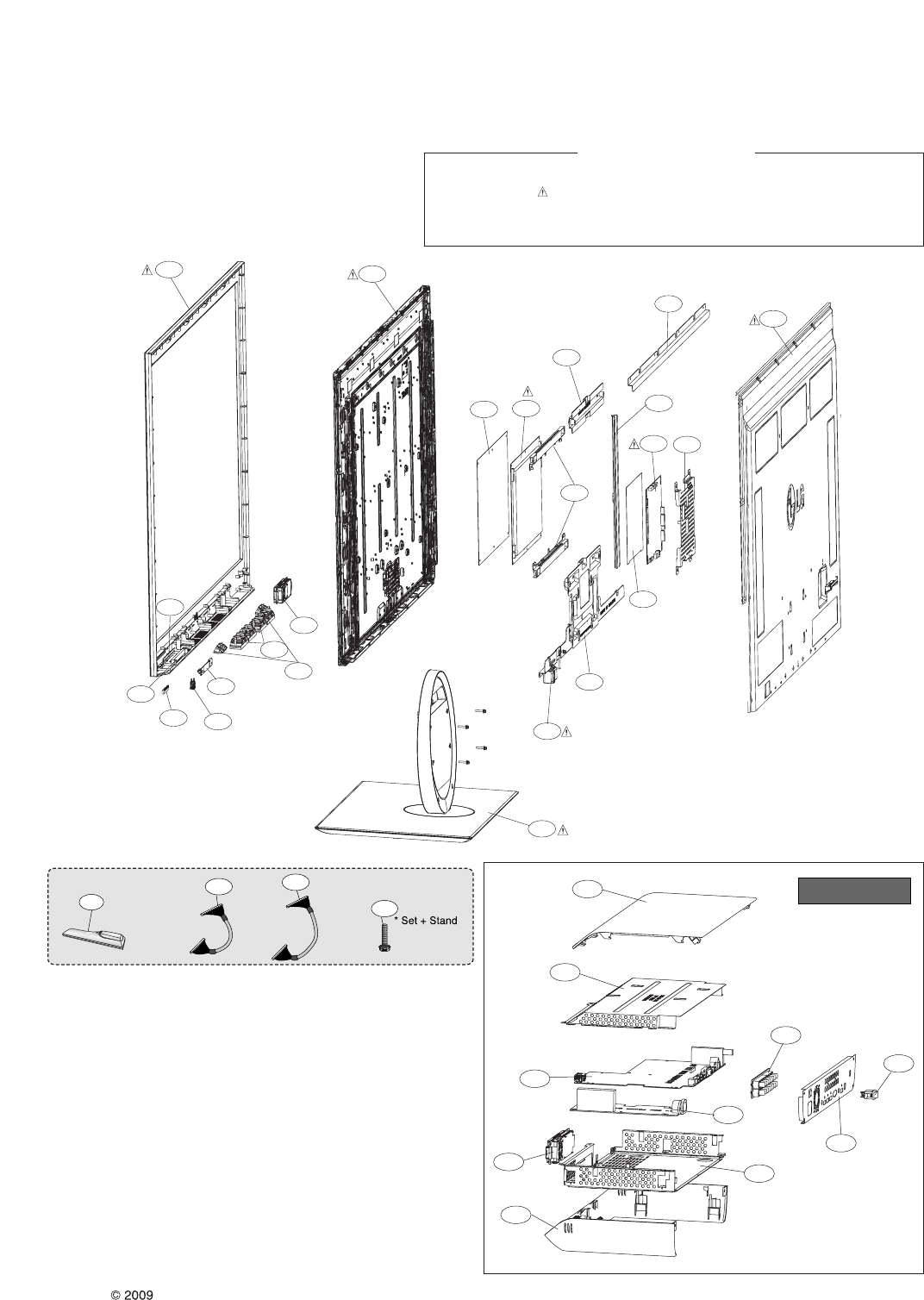

EXPLODED VIEW

300 200

310

510

340

900

531 530

400

800

801

802

541

540

542

803

550

500

320

120

121

300

532

700

710

770

780

790

720

730

750

740

760

LV1

A10

LV2

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These

parts are identified by in the Schematic Diagram and EXPLODED VIEW.

It is essential that these special safety parts should be replaced with the same components as

recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.

Do not modify the original design without permission of manufacturer.

IMPORTANT SAFETY NOTICE

Media Box

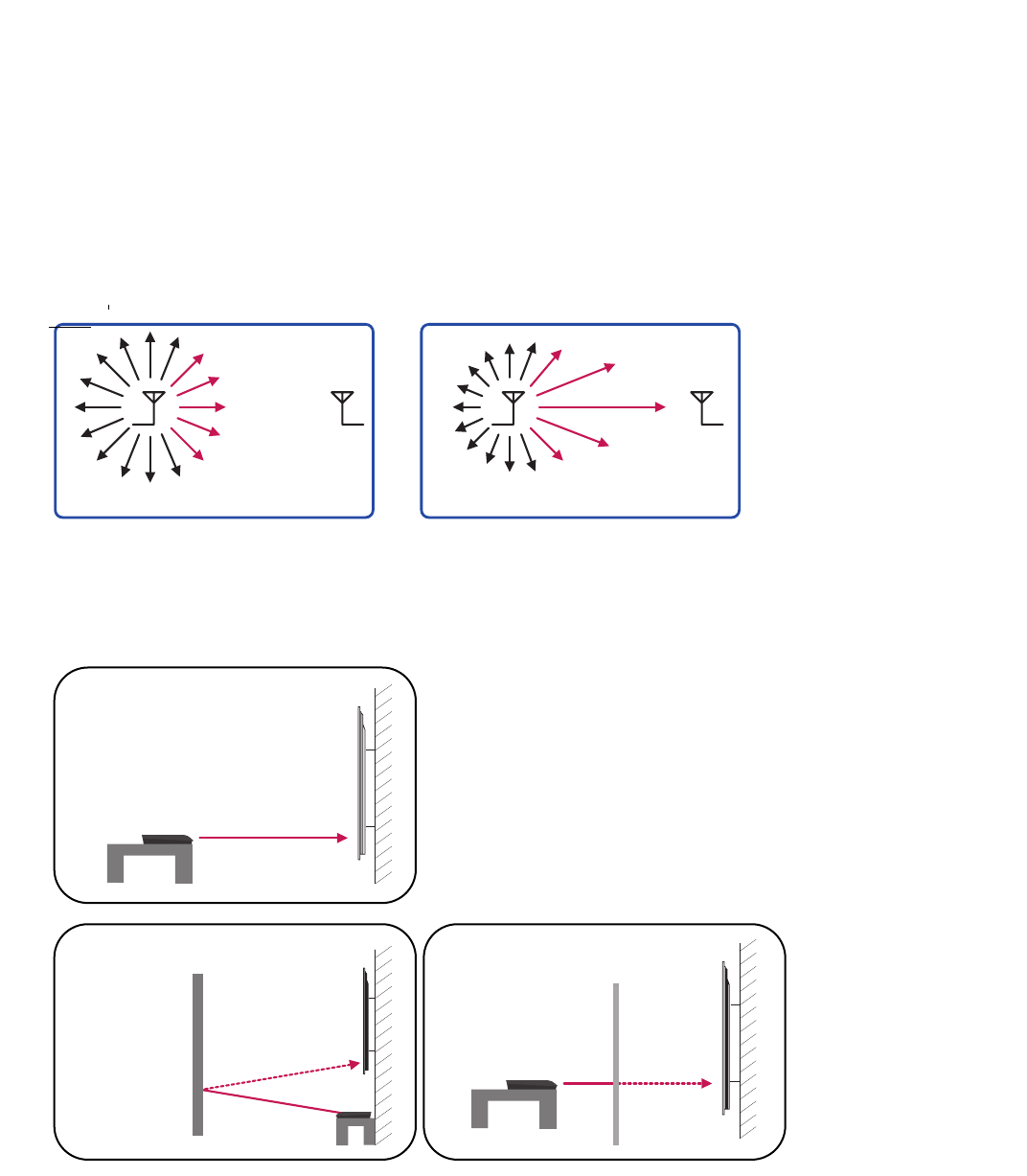

WIRELESS TV’S OPERATING PRINCIPLE

This product can transmit a video of 1080p HD picture quality as wireless.

Wireless TV uses a high-frequency signal of 60GHz to transmit the image and voice of 1080p HD class picture quality without a loss.

60GHz high-frequency signal has a nature of going straight ahead unlike a radial form wireless instrument (Wireless Lan, DMB,

Bluetooth, mobile phone, etc.) using an electric wave of some GHz band.

Thus, when there is an object at an electric wave progressing direction between media box and TV, due to high-frequency signal’s

characteristic, it could be penetrated or reflected according to the kind of an object and then the signal’s diminution can happen.

(In case of an electric wave of a mobile phone, it is similar to the fact that the quality of a telephone call lowers because stuff consisting

of a metal does not pass through.)

General Wireless Instument High-Frequency Wireless Instrument

When there is no signal’s diminution.

When a signal’s diminution occurs. When a signal’s diminution occurs.

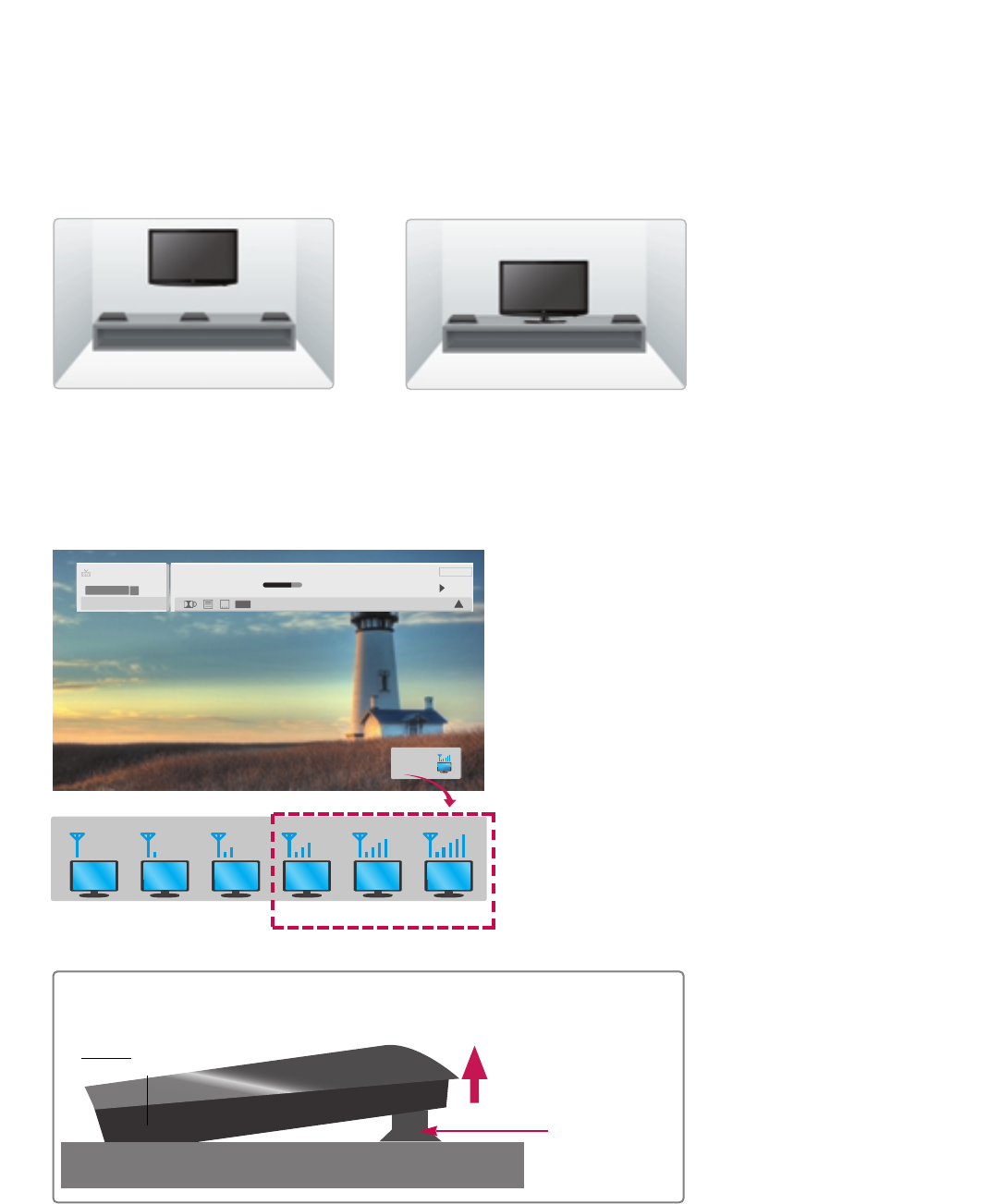

OPTIMAL INSTALLATION METHOD

If you install TV and media box toward the same direction like a picture, you can watch wireless TV with an optimal picture quality.

Please install making the number of an antenna to be more than three as you move media box.

To check a signal intensity, please press remote controller’s confirm or information

display button.

A wireless signal’s reception is in good condition.

Please install TV and media box for wireless connection intensity to

be like this.

CNN

DOLBY DIGITAL

Brief Info Title Test..

Sat, Feb 21, 2009 10:10 AM 11:40 AM

10:40 AM

Multilingual CaptionD 1080i TV-PG D L S V

Wireless

Signal

DTV 70

⇥⇤

⇧⌃⇥⌥ ⌥ ⌦↵⇥

7 HD Digital

IT S ACADEMIC

Thu. 8 Mar. 2007 16: 00 16: 30

16: 21

16:9 576p

In case of a wrong installation In case of a wrong installation

When you need to install media box’s front side slightly uplifted to match wireless

connection intensity, please raise it by using provided rubber support.

Rubber support

(accessories)

When you install media box inside of a cabinet, a wireless TV might not operate normally if the

cabinet door is sealed up.

Installation example

Cabinet structure

Problem phenomenon

Handling method

Recommended installation method

• Glass

• Open type

• Partially open type (Anelectric wave

transmitting part should be exposed to

the outside.)

It is possible to watch wire-less TV

normally.

Please check if an antenna of wireless

connection intensity is more than three.

Wrong installation method

• In case that there is media box inside a

sealed cabinet

• In case that an electric wave transmitting

part of media box is obstructed

• In case that a cabinet inside consists of

a metal

• In case that a media box is installed

deep inside of a cabi-net

It is impossible to watch wireless TV.

Please install media box outside of a

cabinet.

PLEASE CHECK BEFORE REPORTING A DEFECT.

• This is the case that TV power is switched on by a remote controller but the power of media box is not switched on.

Q. If switching on the power by a remote controller, I keep seeing the guidance of “It is connecting to a media box. Please wait for a

moment.”

A. Please check if media box’s power switch is on.

A. Please check if media box’s LED is switched on.

A. Please check if there are any obstacles around media box and wireless transmitting/receiving part of TV front side.

• This is the case that a connection between TV or media box is cut because wireless receiving environment is affected.

Q. I keep seeing the guid-ance of “It is connecting to a media box. Please wait for a moment.” while watching TV through a wireless

connection.

A. Please do not let an object or person directly obstruct media box or TV’s front side.

A. Please do not make any obstacles between media box and TV.

• This is the case that a wireless signal is weakly connected.

Q. A screen breaking problem keeps happening after a wireless connection.

A. Please set up by moving the location of media box for an antenna display of wireless connection intensity to be more than three.

• This is the case that a wireless conditiongets bad b an obstacle around or moving object.

Q. After a wireless connection, a horizontal stripe/screen vibration momentarily occurs at a screen.

A. If there is an obstacle or it passes between TV and media box, it is not a product disorder because it is the characteristic of a

wireless signal occurring in an instant.

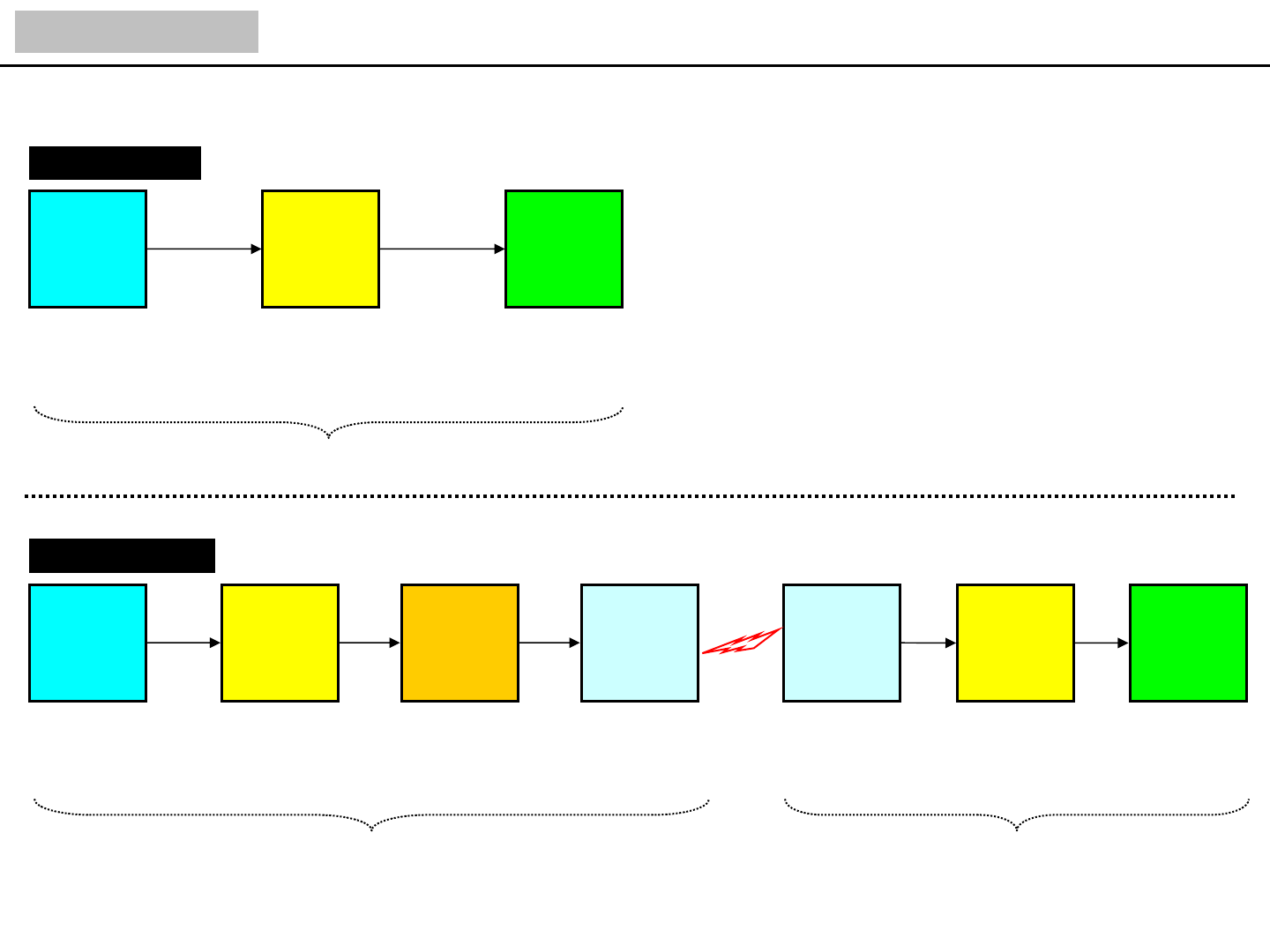

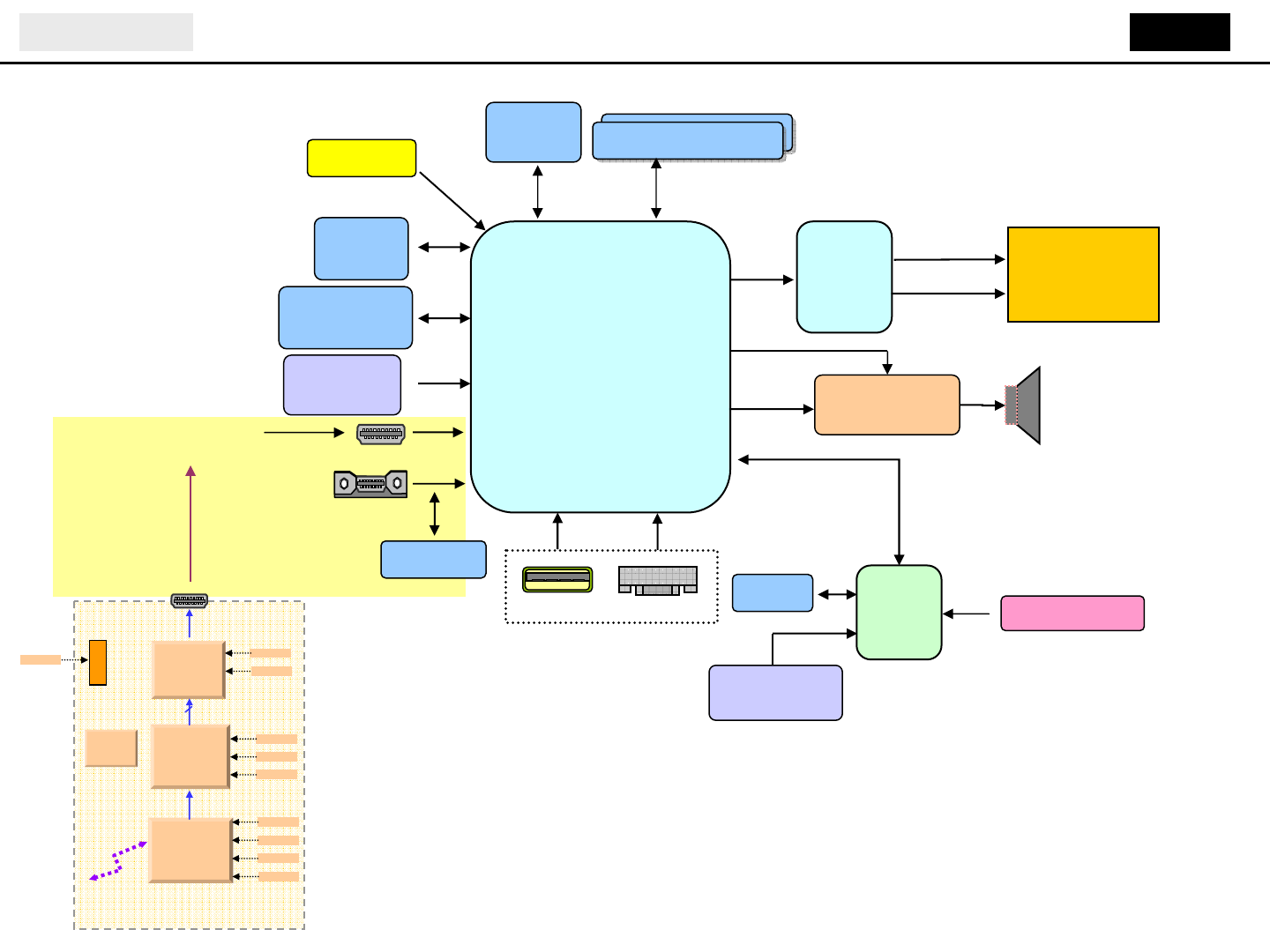

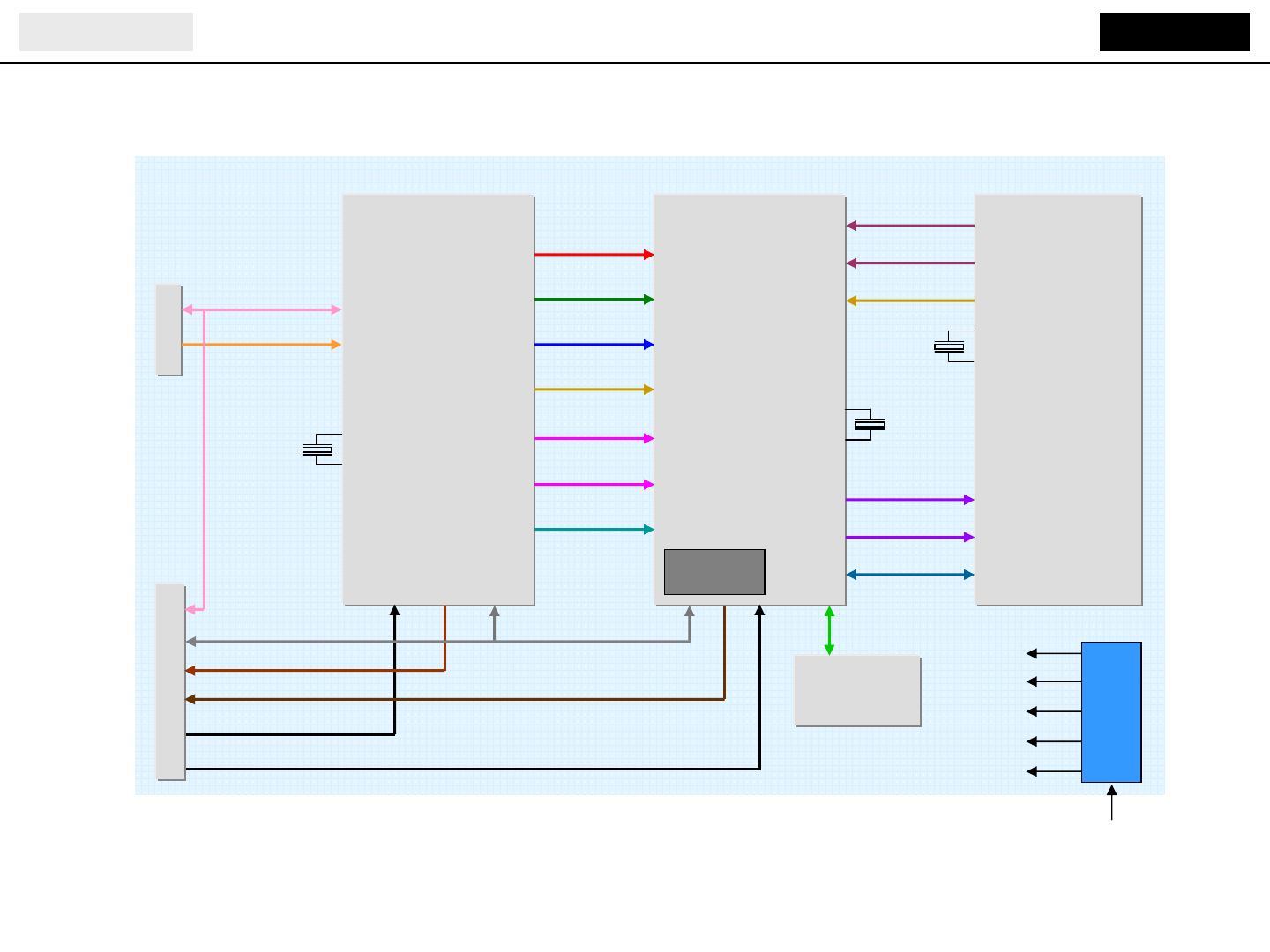

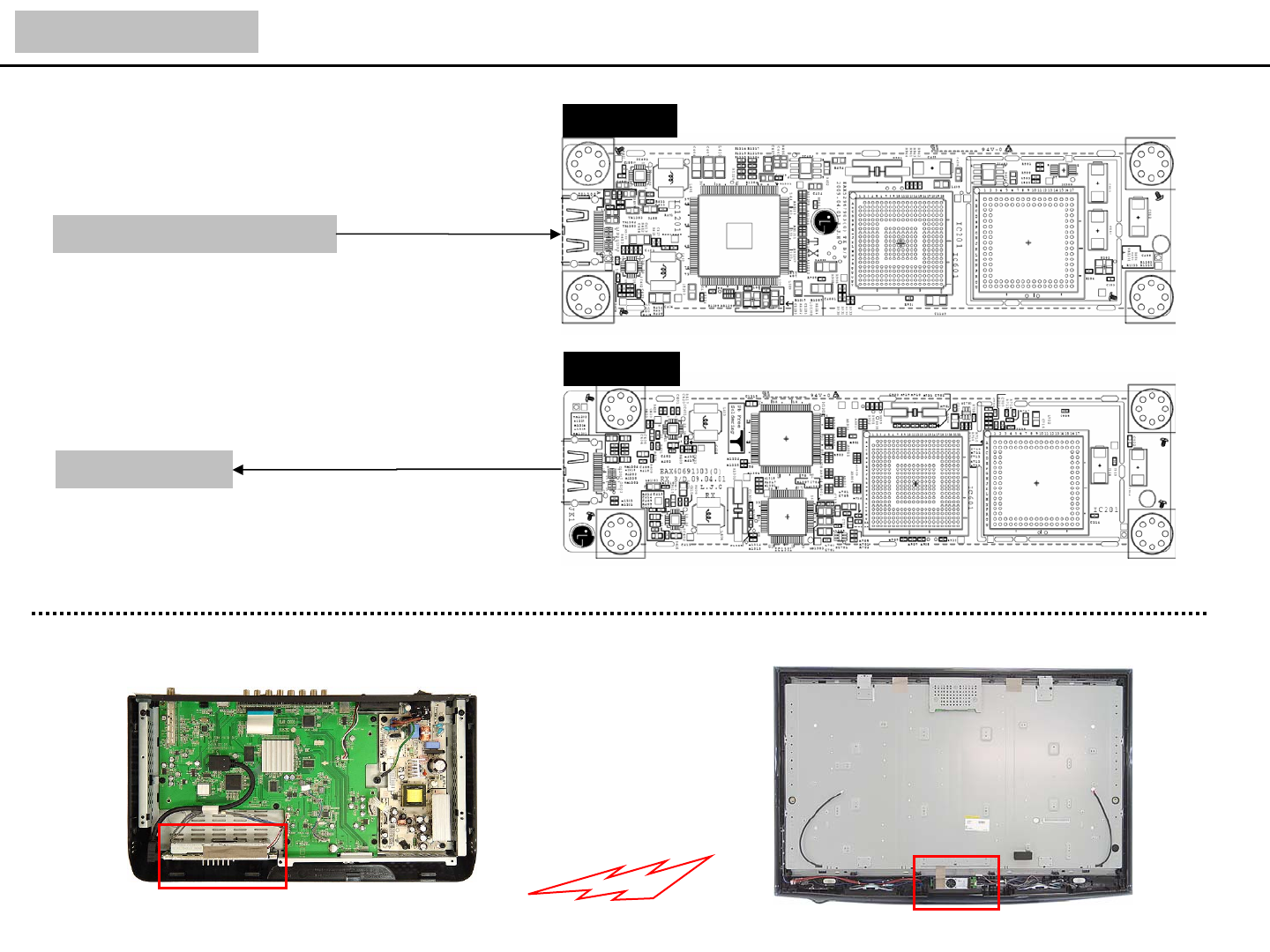

INPUT MAIN IC

Component

HDMI

RGB

LGE3159

Analog

Digital

WIRELESS MODEL

SIGNAL

CONVERTER

DTC30LM36 +

SIL9134

LVDS

MEDIA-BOX

TX MODULE

HDMI

SIL9125 +

SB9120 +

SB9110

RX MODULE

SB9111 +

SB9121 +

SIL9134

MAIN IC LCD

MODULE

LGE3369 +

LGE7329

LGD V4

LVDS

Wireless

TV SET

HDMI

a b c d e f g

Service

only

HDMI JACK

HDMI5

HDMI JACK

Wired

HDMI CABLE

▶Check main ic basic power & power

sequence

▶Control line check (I2C & etc)

▶Check input/output video & audio

signal

No effect directly

No connection

Bad image

- IC’s cold soldering or memory defect accompanied noise on osd

Bad sound / No sound

Wireless connecting osd is displayed continually

- There is no video signal from Rx module to TV main ic, so TV

understand this time like disconnection state and display

connecting

osd continually. And then, if TV is not activated rightly within

15min,

it will go to st-by mode.

▶Check power & control line

▶Check input/output signal

▶Check inner HDMI cable connection

status

(There can be cable’s defect.)

No effect directly

No connection

Bad image / Bad or No sound

Wireless connecting osd is displayed continually

-No image

No effect directly

Wireless connection

▶Check the EDID of HDMI & RGB

▶Check cable & contact error

Bad (noise) image / No image

- osd is good

Bad sound / No sound

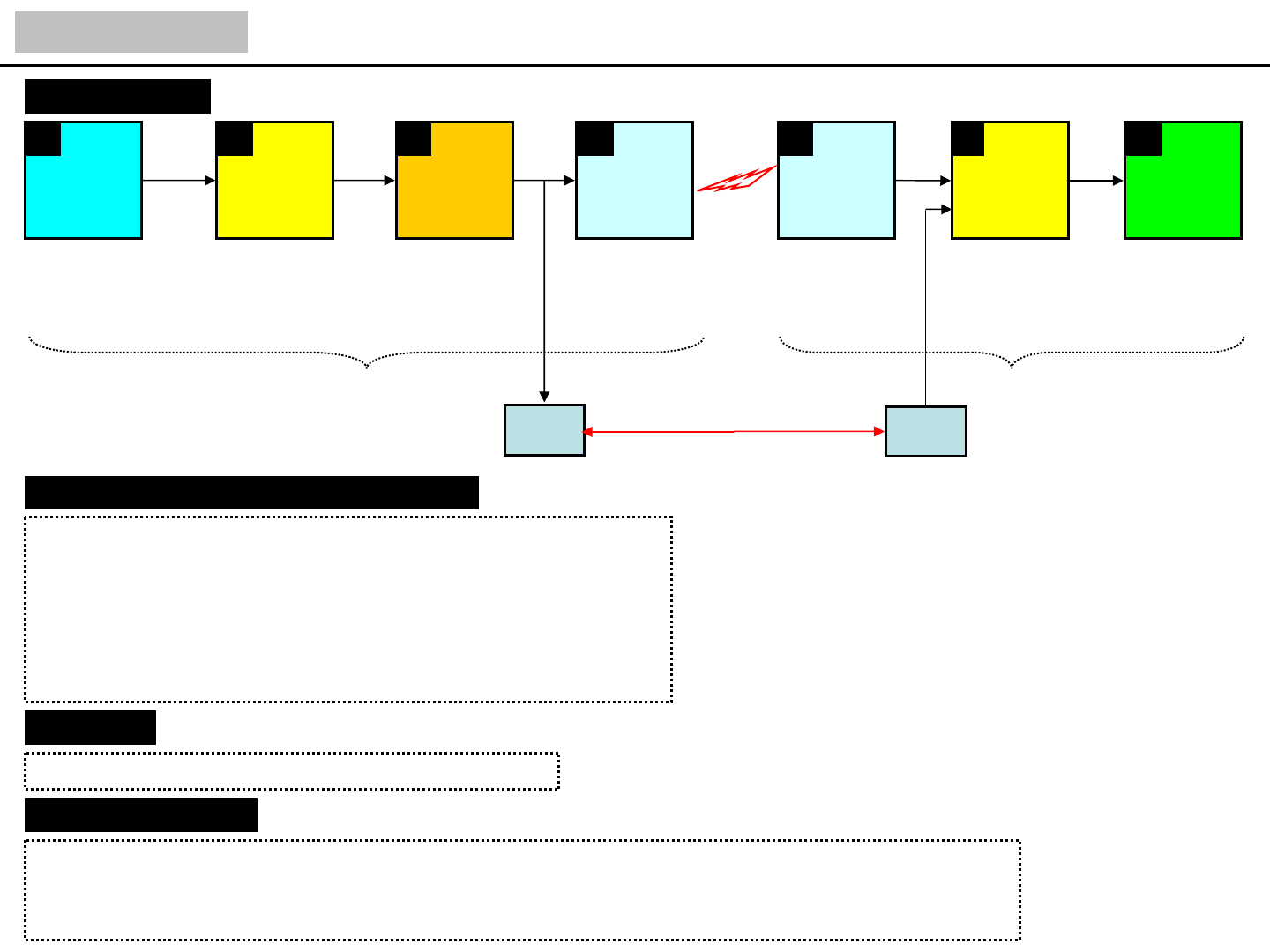

CheckSymptomsDefect block

Trouble shooting

OSD OSD

＊Focused on Wireless connection

INPUT MAIN IC

Component

HDMI

RGB

Analog

Digital

WIRELESS MODEL

SIGNAL

CONVERTER

DTC30LM36 +

SIL9134

LVDS

MEDIA-BOX

TX MODULE

HDMI

SIL9125 +

SB9120 +

SB9110

RX MODULE

SB9111 +

SB9121 +

SIL9134

MAIN IC LCD

MODULE

LGD V4

LVDS

Wireless

TV SET

HDMI

a b c d e f g

Service

only

HDMI JACK

HDMI5

HDMI JACK

Wired

HDMI CABLE

▶Check main ic basic power & power

sequence

▶Check control line (I2C & etc)

▶Check input/output video & audio

signal

▶Check LVDS cable & wafer locking

(There can be cable’s defect.)

No effect directlyBad image / No image

- IC’s cold soldering or memory defect accompanied noise on osd

Bad sound / No sound

▶Ticon b/d or Inverter check

▶Check power

No effect directlyBad image or No image

No connection

connection

Wireless connection

▶Check Wireless connecting osd

▶Check inner HDMI cable connection

status

(There can be cable’s defect.)

Wireless connection osd is displayed continually

- That osd can be appeared by HDMI cable or Jack defect even

though wireless connection is completed.

(only Rx module)

CheckSymptomsDefect block

Trouble shooting

OSD OSD

＊Defect block means from itself to ahead of next part.

＊Wireless TV is similar with the model using LGE3159 or LGE3369 except for wireless parts.

LGE3159 LGE3369 +

LGE7329

INPUT MAIN IC

Component

HDMI

RGB

Analog

Digital

WIRELESS MODEL

SIGNAL

CONVERTER

DTC30LM36 +

SIL9134

LVDS

MEDIA-BOX

TX MODULE

HDMI

SIL9125 +

SB9120 +

SB9110

RX MODULE

SB9111 +

SB9121 +

SIL9134

MAIN IC LCD

MODULE

LGD V4

LVDS

Wireless

TV SET

HDMI

a b c d e f g

Service

only

HDMI JACK

HDMI5

HDMI JACK

Wired

HDMI CABLE

-Pairing

- S/W version check

- Fan defect

▷TV Rx module fan defect: Check Fan error of TV In-start menu

▷Media-Box fan defect: Check the red led’s blinking of Media-Box front

- Wireless interference check

▷Refer to the installation method guide

- Inner HDMI cable’s connection status (From Rx/Tx module to Main)

Trouble shooting

OSD OSD

※Check first when Wireless connection is disable!

※Check Tip

-In some cases, TV only or Wired mode make easy to check.

※Caution & Information

-TV set & Media-Box is just 1:1 connection. (No multiple device connection)

- In order to download TV set, you must change the mode to HDMI5 or turn off Media-Box.

- Rx/Tx module’s performance is very sensitive to temperature. So, When you repair the defect, should keep up with

the original assembly state.

LGE3159 LGE3369 +

LGE7329

Trouble shooting

Pairing for SVC

1. Turn on the TV SET & Media-Box

2. Connect TV HDMI5 Jack & Media-Box rear [Service only] Jack with HDMI cable

HDMI CABLE

3. Enter the [IN START(Media Box)] menu and go to sub-title [9.Wireless check]

Enter menu and Push the left or right remote-controller button.

Check the Paired Status if changed from NG to OK

※If s/w version of Tx/Rx module & TV/Media-box main isn’t matched, Wireless can’t be

connected, So at that time check the version and upgrade by usb

4. Remove HDMI cable & check wireless connection.

If connection is not completed, power off and on the TV & Media-Box.

If there are 2 or more wireless tv set, it’s need to be set

channel respectively. (Must separate them more than 10m)

Trouble shooting

Circuit diagram

TV SET

1. TV MAIN(SD/BD) 2. RX module (SD/BD)

/ /

AX60691303_S

AX60691303_B

Media-Box

1. Box MAIN(SD/BD) 2. TX module (SD/BD)

/ /

AX60692502_S

AX60692502_B

AX52967903_S

AX52967903_B

Apply model

N.America: 47LH85-UC / 55LH85-UC

Korea: 42LH80YD-NB / 47LH80YD-NB / 55LH80YD-NB

Total programmable IC

TV MAIN B/D

IC102: MAIN S-FLASH

IC103: MAIN N-FLASH

IC700: FRC S-FLASH

IC902: MICOM

IC105: HDCP

IC101: NVRAM

IC300: HDMI5 EDID

RX MODULE

IC901: SIBEAM B/B S-FLASH

IC1301: PIC MICOM

Media-Box MAIN B/D

IC101: MAIN S-FLASH

IC102: MAIN N-FLASH

IC401: MICOM

IC105: HDCP

IC104: NVRAM

IC502: HDMI S/W EDID

TX MODULE

IC901: SIBEAM B/B S-FLASH

Blue: USB upgrade

Total download files are under 6ea

AX52983302_S

AX52983302_B

About Wireless TV

INPUT MAIN IC LCD

MODULE

Component

HDMI

RGB

MSTAR

BCM

LGD

AUO

CMO

Analog

Digital

LVDS

NORMAL MODEL

INPUT MAIN IC

Component

HDMI

RGB

Analog

Digital

WIRELESS MODEL

TV SET

SIGNAL

CONVERTER

DTC30LM36 +

SIL9134

LVDS

MEDIA-BOX

TX MODULE

HDMI

SIL9125 +

SB9120 +

SB9110

RX MODULE

SB9111 +

SB9121 +

SIL9134

MAIN IC LCD

MODULE

LGD V4

LVDS

Wireless

TV SET

HDMI

LGE3159 LGE3369 +

LGE7329

From Media-Box Main b/d

SIL9125

SB9120

[B/B] SB9110

[RF]

To TV Main b/d

HDMI Cable

HDMI Cable SIL9134

SB9121

[B/B] SB9111

[RF]

PIC32MX

[MICOM]

TX Module

RX Module

Media-Box TV SET

TX module

RX module

About Wireless TV

Unused

SB9110 SB9111

Top view of RF IC (Antenna)

HRP Channel Fc(HRP)= 60.48㎓

LRP Channel

About Wireless TV

TX module RX module

Wireless

LRP

HRP

LRP: Control data

HRP: Video & Audio data

Wireless TV is similar to the walkie-talkie. We must match the channel of Tx & Rx module.

There are 4 HRP channel(A1~A4). We use only A2 channel and 3 LRP channel like this [60.32㎓],

[60.48㎓],[60.64㎓].

First thing, the LRP channel setting has to be matched in wired mode. There are not only channel

but also mac address that Tx/Rx modules have it’s own for preventing wireless interference.

Set the LRP channel and share the mac address each other, that’s called pairing.

After pairing, Antenna search and set the wireless path by LRP and then send video & audio data to

HRP channel.

About Wireless TV

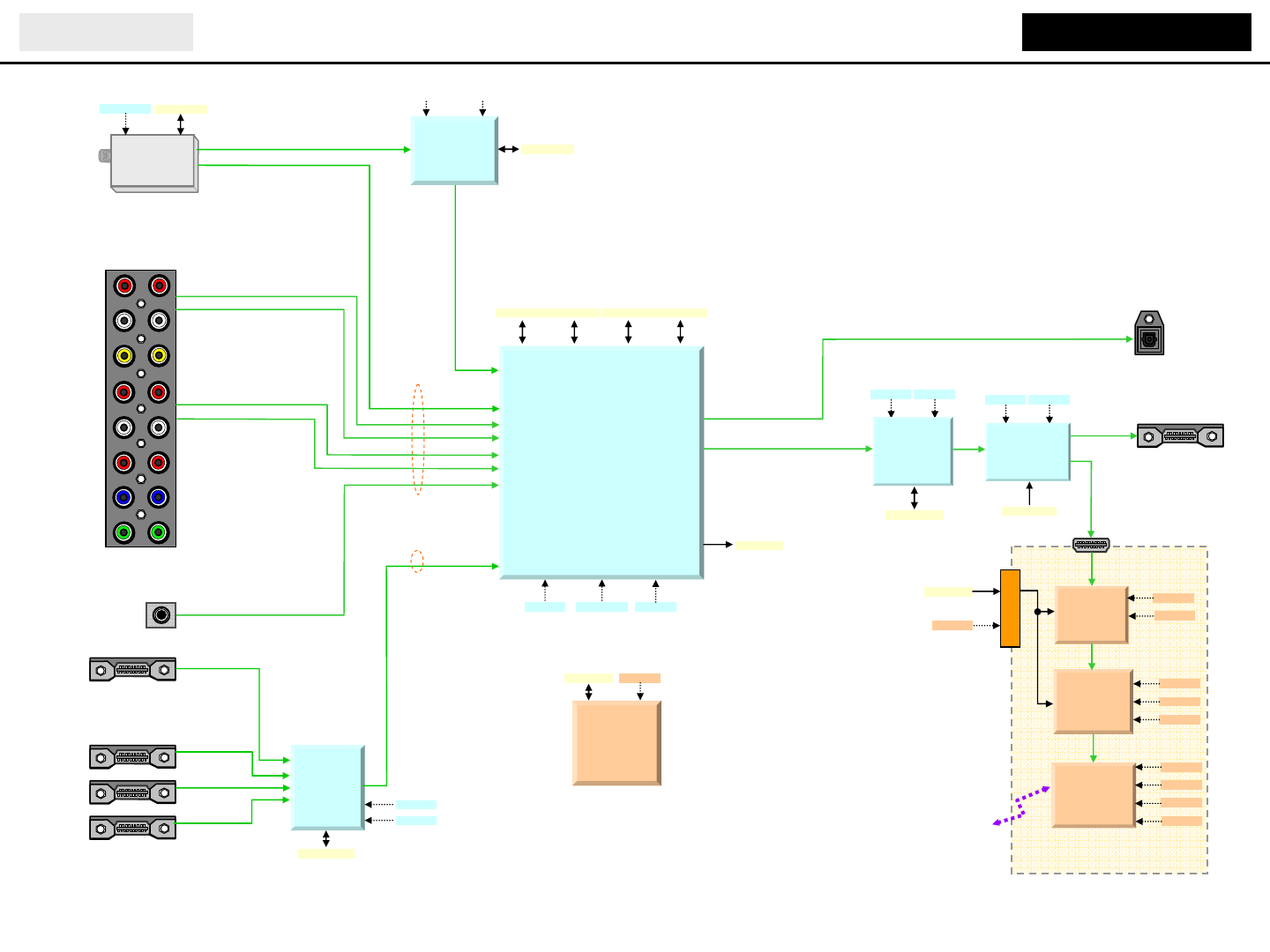

Block Diagram TV SET

S-Flash

(32Mb)

NTP3100L

(D-AMP)

X100

X-tal(12㎒)

Reset

I2S

MCLK

For wireless

IR & Local KEY

24C16

DDR2 (1Gb)

X900

X-tal(24㎒)

NVRAM

24C512

EEPROM

DDR(512Mb)

DDR2(512Mb)

NAND-Flash

(512Mb)

LGE3159GV

KIA7427F

For wired

& wide use

LGE7329

Ursa

USB RS-232

Only for service

WT61P8

Micom

MODULE

NOT FOR USER

Connect to Rx b/d

I2C

FHD 120HZ

Transceiver

[SB9111]

Network

Processor

[SB9121]

HDMI

Transmitter

[SiI9134]

8p wafer

Wireless RX Module

5.0V

3.3V_L

2.5V_L

1.0V_L

2.5V_L

1.5V_L

1.2V_L

1.0V_L

3.3V_L

1.8V_L

MICOM

[PIC32]

HDMI CABLE

HDMI5

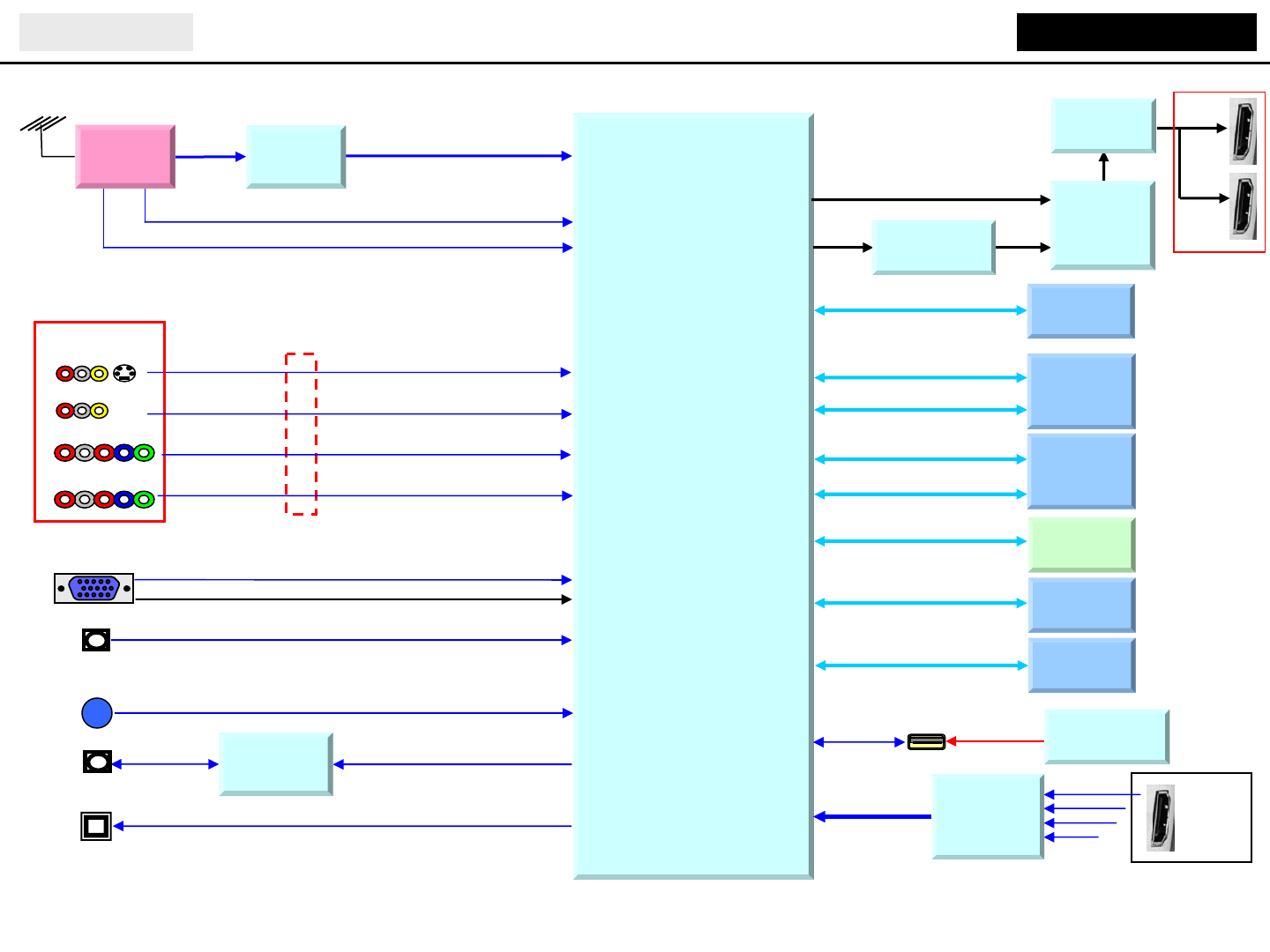

LGE3369A

RGB

COMPONENT1

AV1 AV1_CVBS_IN

DSUB_ R/G/B

FE_VMAIN

TS_DATA[0:7]

SPDIF

SPDIF_OUT

DSUB_H/VSYNC

AUDIO IN

DGB_TX/RX

USB

PCM_A[0:7]

ADDR_D[0:15]

BDDR_D[0:15]

ADDR_A[0:12]

USB Power

BDDR_A[0:12]

USB_DM/DP

HDMI

1/2/3/4R

ear : 3

Front :1

TMDS[0:7]

HDMI_CEC

HPD

5V_HDMI

I2S

30P Wafer : rear jack

b’d & main b’d (P1200)

Service

only

For

wireless

HDMI In

HDMI

Out

I2C

IR (For test)

LVDS TTL

I2C

SPI_CK/CS/D0/D1

Rear jack b’d

FE_SIF

COMPONENT2

AV2 AV2_CVBS_IN

COMP1_Y/Pb/Pr

COMP2_Y/Pb/Pr

Can Tuner

(TDVW-H154F) Demodulator

(LGDT3305)

RS-232C

(MAX3232CDR)

HDMI Splitter

(PI3HDMI1210)

HDMI

Transmitter

(SiI9134)

LVDS Receiver

(THC63LVD1024)

Serial Flash

For Boot

DDR2 SDRAM

(1Gbit)

HYNIX

DDR2 SDRAM

(512Mbit)

HYNIX

MICOM

Weltrend

NAND Flash

HYNIX

(64MB)

EEPROM

AT24C512

MIC2009YM6-TR

USB Power

HDMI

4:1 Switch

(TDA9996)

MEDIA-BOX(SIMPLE)Block Diagram

NTSC/VSB

Half-NIM

TUNER

LCD/PDP

DIGITAL TV

PROCESSOR

[LGE3369A]

HDMI

Switch

(4-to-1)

[TDA9996]

CEC_RX

HDMI

DDC_RGB

AV1_CVBS_IN

AV2_CVBS_IN

COMP1-Y/Pb/Pr

COMP2-Y/Pb/Pr

DSUB-R/G/B

ANALOG

VIDEO

INPUT

DIGITAL

VIDEO

INPUT

MiCOM

[WT61P8S]

I2C_CH4

CEC_RX

DDC_RGB

I2C_CH1

LVDS

Receiver

[DTC30LM36]

DUAL

LVDS

HDMI

Transmitter

[SiI9134]

HDMI

DeMUX

[PI3HDMI1210]

Transceiver

[SB9110]

Network

Processor

[SB9120]

HDMI

Receiver

[SiI9125]

I2C_CH2

HDMI

3.3V_2

3.3V_L

3.3V_2 3.3V_2 1.8V_1 3.3V_2 5.0V_1

TX_SEL

1.26V_1 1.8V_DDR 3.3V_1

CEC_TX

SiBEAM I/F

I2C_CH4

Wireless TX Module

5.0V_ST

3.3V_L

2.5V_L

1.0V_L

2.5V_L

1.5V_L

1.2V_L

1.0V_L

3.3V_L

1.8V_L

Composite

Video

Component

(Y,Pb,Pr)

ANT/

CABLE

RGB

HDMI

(x4)

SERVICE

only

5.0V_TU I2C_CH6

FE_VMAIN

FRONT

BACK

TX_SEL

CEC_TX

I2C_CH2

VSB/QAM

Demodulator

[LGDT3305]

3.3V_VSB 1.2V_VSB

I2C_CH2

I2C_CH2 I2C_CH4 I2C_CH6

1.8V_1

Block Diagram MEDIA-BOX(VIDEO)

NTSC/VSB

Half-NIM

TUNER

LCD/PDP

DIGITAL TV

PROCESSOR

[LGE3369A]

HDMI

Switch

(4-to-1)

[TDA9996]

MiCOM

[WT61P8S]

I2C_CH4

I2C_CH1

I2C_CH2

3.3V_2

3.3V_L

3.3V_2 1.8V_1 3.3V_2 5.0V_1

TX_SEL

1.26V_1 1.8V_DDR 3.3V_1

I2C_CH4

5.0V_ST

Composite

Video

Component

(Y,Pb,Pr)

ANT/

CABLE

RGB

HDMI

(x4)

5.0V_TU I2C_CH6

BACK

TX_SEL

I2C_CH2

VSB/QAM

Demodulator

[LGDT3305]

I2C_CH2

I2C_CH2 I2C_CH4 I2C_CH6

1.8V_1

A/V Audio-1

A/V Audio-2

COMP Audio-1

COMP Audio-2

RGB Audio

ANALOG

AUDIO

INPUT

DIGITAL

AUDIO

INPUT

I2S

S/PDIF

OUT

FRONT

FE_SIF

HDMI

Transmitter

[SiI9134]

HDMI

DeMUX

[PI3HDMI1210]

Transceiver

[SB9110]

Network

Processor

[SB9120]

HDMI

Receiver

[SiI9125]

HDMI

SiBEAM I/F

3.3V_L

2.5V_L

1.0V_L

2.5V_L

1.5V_L

1.2V_L

1.0V_L

3.3V_L

1.8V_L

HDMI

SERVICE

only

Wireless TX Module

MEDIA-BOX(AUDIO)Block Diagram

TX MODULEBlock Diagram

SB9120

Network

Processor

SB9110

Transceiver

ADCI_P/N

ADCQ_P/N

PCLK_P/N

DACI_P/

DACQ_P/N

RF Control

SLEEP

XTAL

(3.6864MHz)

OSC

(54MHz)

Embedded

CPU

SiI9125

HDMI

Receiver

MX1605

Serial Flash

SPI Bus(4line)

D[35:0]

H/VSYNC

IDCK

I2S

SPDIFI

I2C(2line)

DDC(2line)

TMDS(8line)

HDMI_RST#

SiBEAM_INT

HDMI_INT

Power

3.3V

2.5V

1.5V

1.2V

1.0V

SiBEAM_RST#

Power Source

(5V)

MCLK/SCK/W

XTAL

(28.322MHz)

HDMI

CABLE

Control

Power

CABLE

(12p)

RX MODULEBlock Diagram

SB9121

Network

Processor

SB9111

Receiver

Embedded

CPU

SiI9134

HDMI

Transceiver

MX1605

Serial Flash

SPI Bus

D[35:0]

H/VSYNC

IDCK

I2S(4line)

SPDIFO

I2C(2line)

DDC(2line)

TMDS(8line)

RST#

INT

Power

3.3V

2.5V

1.5V

1.2V

1.0V

VCXO VCXO

Video

PLL Video

DAC Audio

PLL Audio

DAC

I2CI2C ACLKVCLK

Micom

(PIC32MX340F256H)

RST#

Power

Source

(5V)

ADCI_P/N

ADCQ_P/N

PCLK_P/N

DACI_P/N

DACQ_P/N

RF Control

SLEEP

XTAL

(3.6864MHz)

OSC

(54MHz)

MCLK/SCK/W

I2C(2line)

XTAL

(27MHz)

XTAL

(27MHz)

Power

CABLE

(8p)

HDMI

CABLE

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

1 13

W-TV Rx

Wireless TV Receiver Board

2009.02.03

1.Title Sheet

2.RFIC

3.Power

4.Power Supply1

5.Power Supply2

6.BBIC IF

7.BBIC Clock Recovery

8.BBIC Audio / Video Out

9.BBIC Control

10.BBIC Misc

11.BBIC Power/Ground

12.HDMI Tx

13.uController

Title Sheet

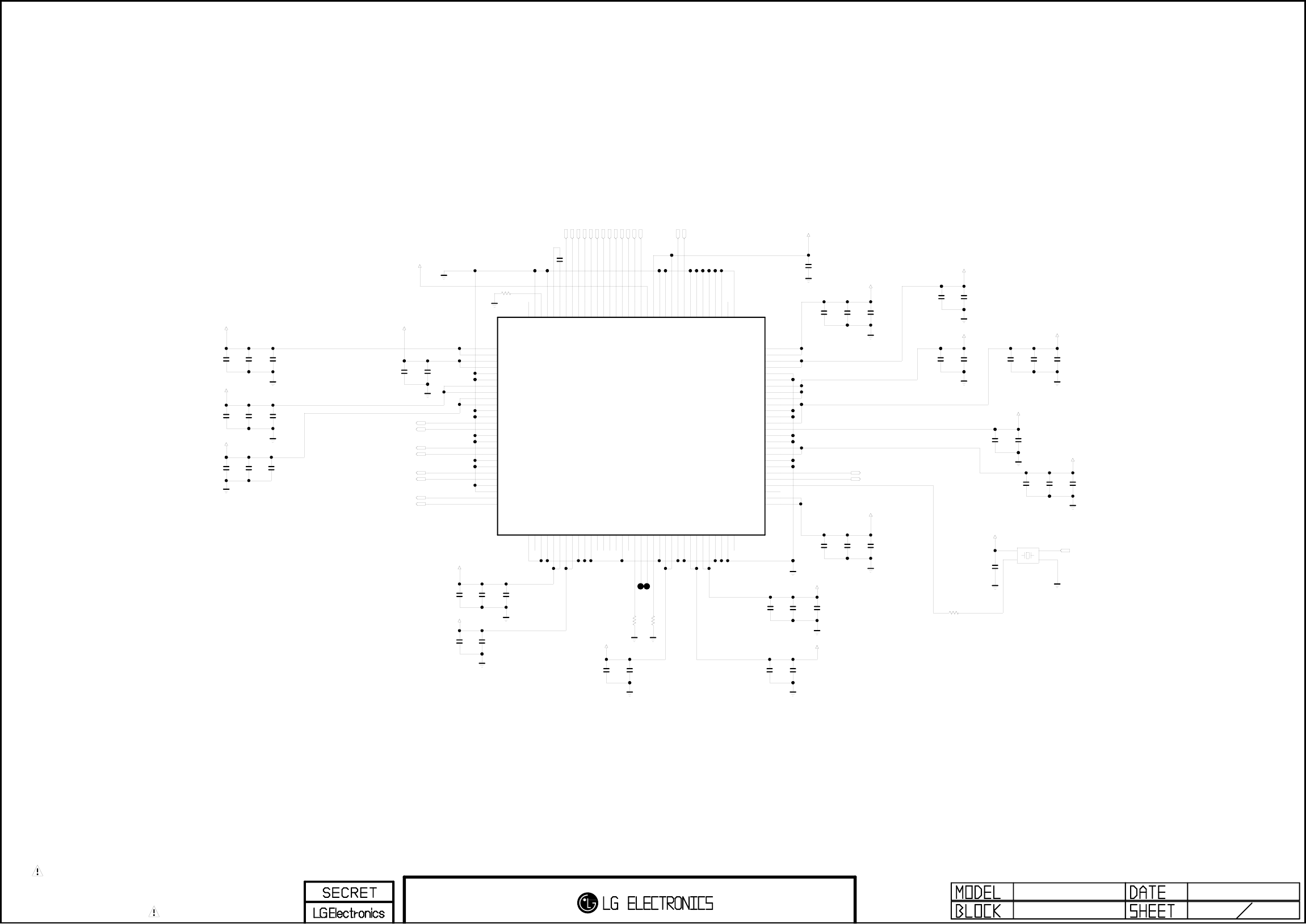

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

HSCS_P 6:Y11

HSCS_N 6:Y10

HSCLK_P 6:Y11

HSCLK_N 6:Y11

HSD0_P 6:Y12

HSD0_N 6:Y12

HSD1_P 6:Y12

HSD1_N 6:Y12

HSD2_P 6:Y13

HSD2_N 6:Y13

HSD3_P 6:Y14

HSD3_N 6:Y13

HSDOUT 6:Y14

BBINQ_P6:Y16

BBINQ_N6:Y16

BBOUTI_N6:Y18

BBOUTI_P6:Y18

BBOUTQ_P6:Y18

BBOUTQ_N6:Y17

BBINI_N6:Y17

BBINI_P6:Y17

RFMODE_STBY 6:Y14

XO_EN AL12;6:Y15

PCLK_P 6:Y16

PCLK_N 6:Y16

VCC1.0V(RF)

VCC1.2V VCC1.2V

VDD_+2.5V_RxicM

VCC1.0V(RF)

VCC1.2V

VDD_+2.5V_RxicM

VCC1.2V

AVDD_XO_+3.3V

DVDDIO_VCC3.3V

VCC1.2V

C241

0.1uF

16V

1005

C212

0.1uF

16V

1005

C225

0.1uF

16V

1005

C231

0.1uF

16V

1005

C238

0.1uF

16V

1005

C207

0.1uF

16V

1005

C232

0.1uF

16V

1005

C239

0.1uF

16V

1005

OPT

C221

0.1uF

16V

1005

C227

0.1uF

16V

1005

C216

0.1uF

16V

1005

C209

0.1uF

16V

1005

C203

0.1uF

16V

1005

C222

0.1uF

16V

1005

C236

0.1uF

16V

1005

C204

0.1uF

16V

1005

C217

0.1uF

16V

1005

C205

0.1uF

16V

1005

C237

100pF

50V

1005

C206

100pF

50V

1005

C219

100pF

50V

1005

C201

100pF

50V

1005

C213

100pF

50V

1005

C233

100pF

50V

1005

C214

100pF

50V

1005

OPT

C208

100pF

50V

1005

C234

100pF

50V

1005

OPT

C228

100pF

50V

1005

C223

100pF

50V

1005

C229

100pF

50V

1005

C240

100pF

50V

1005

OPT

C218

100pF

50V

1005

C211

100pF

50V

1005

C224

100pF

50V

1005

TP301

TP302

C235

10V

3216

22uF

C215

10V

3216

22uF

R203

3.01K

1005

R201

3.01K

1005

C246

4.7uF

6.3V

1608

C230

4.7uF

6.3V

1608

C226

4.7uF

6.3V

1608 C220

4.7uF

6.3V

1608

C245

4.7uF

6.3V

1608

C210

4.7uF

6.3V

1608

C202

4.7uF

6.3V

1608

XO_EN V22;6:Y15

R206

1005

IC201

SB9111

VDDARF_1

VDDARF_2

VDDARF_5

VDDARF_6

VSSA_6

VSSA_7

VDDAPL_1

VDDAPL_2

VDDHARF_1

VDDHARF_2

VSSA_10

VSSA_11

BBINI_N

BBINI_P

VSSA_14

VSSA_15

BBINQ_P

BBINQ_N

VSSA_18

VSSA_19

BBOUTI_N

BBOUTI_P

VSSA_22

VSSA_23

BBOUTQ_P

BBOUTQ_N

VSSA_24

NC_6

VSSA_25

VSSA_31

VDDARF_15

VDDARF_19

VDDARF_16

VDDARF_20

VSSA_26

VSSA_32

VSSA_27

NC_7

NC_3

NC_8

NC_4

VSSA_33

NC_5

REFRESTRIM

ATB_N

T10

ATB_P

U10

REFRES

T11

VSSA_34

U11

VDDHA_1

T12

VDDHA_2

U12

VSSA_28

T13

VSSA_35

U13

VDDARF_17

T14

VDDARF_21

U14

VDDARF_18

T15

VDDARF_22

U15

VSSA_29

T16

VSSA_36

U16

VSSA_30

T17

NC_9

U17

VDDARF_3 C16

VDDARF_4 C17

VDDARF_7 D16

VDDARF_8 D17

VSSA_8 E16

VSSA_9 E17

VDDARF_9 F16

VDDARF_10 F17

VDDARF_11 G16

VDDARF_12 G17

VSSA_12 H16

VSSA_13 H17

VDDARF_13 J16

VDDARF_14 J17

VSSA_16 K16

VSSA_17 K17

VDDABB_1 L16

VDDABB_2 L17

VSSA_20 M16

VSSA_21 M17

PCLK_P N16

PCLK_N N17

XTALIN P16

XTALOUT P17

VDDXO_1 R16

VDDXO_2 R17

NC_1 A1

VSSA_2 B1

REXT A2

VSSA_3 B2

SYNTHCAPP A3

SYNTHCAPN B3

HSCSP A4

HSCSN B4

HSCLKP A5

HSCLKN B5

HSD0P A6

HSD0N B6

HSD1P A7

HSD1N B7

HSD2P A8

HSD2N B8

HSD3P A9

HSD3N B9

HSDOUT A10

VDD_1 B10

VDDIO A11

VSS_4 B11

VSS_1 A12

VDD_2 B12

STBY A13

XOEN B13

VSS_2 A14

VSS_5 B14

VSS_3 A15

VSS_6 B15

VSSA_1 A16

VSSA_4 B16

NC_2 A17

VSSA_5 B17

C244

0.1uF

1005

DVDDIO_VCC3.3V

X203

54.0000MHz

PARTRON

VDD 1TRISTATE/OPEN

2GND

OUTPUT

R202

4.53K

RFIC

2009.02.03

2 13

W-TV Rx

G N VD AJAES AF AMAKIE L ABYJ WF ADU AOK AIQ ZR AA AG AHM XH P AL ANACOC T

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

VCC3.3V

VCC2.5V

VCC1.8VH

VCC3.3V

VCC1.8VH

IOVCC3.3V

CVCC1.8V PVCC1.8V

AVCC1.8V

DVDDIO_VCC3.3V

AVDD_XO_+3.3V

VDD_+2.5V_RxicM

L310

CIC21J601

L312

CIC21J601

L302

CIC21J601

L309

CIC21J601

L308

CIC21J601

C306

4.7uF

10V

2012

C307

4.7uF

10V

2012

C308

4.7uF

10V

2012

C309

4.7uF

10V

2012

C302

10uF

16V

3216

C301

10uF

16V

3216

VCC1.8VH

VCC3.3V

L311

CIC21J601

C310

10uF

16V

3216

C311

10uF

16V

3216

C312

10uF

16V

3216

L303

3.3uH

L304

3.3uH

IC301

AZ1117R-1.8TRE1

SOT89_3PIN

ADJ/GND

2OUTPUT

INPUT

Power

2009.02.03

3 13

A G N VD AJAES AF AMAKIE L ABB YJ WF ADU AOK AIQ ZR AA AG AHM XH P AL ANACOC T

W-TV Rx

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

VCC5V

VCC1.0V

C405

270pF

VCC1.4V

C411 0.047uF

VCC5V

C406

2.7pF

1005

C413

1000pF

1005

C403

1000pF

1005

R402

1005

R409

10K

1005

R403

10K

1005

R414

10K

1005

R413

10K

1005

R412

1005

R404

30K

1005

C404

270pF

L404

2uH

NR8040T2R0N

L403

2uH

NR8040T2R0N

C412

1uF

10V

1608

C414

10uF

16V

3216

C419

10uF

16V

3216

C408

22uF

10V

3216

C407

10uF

16V

3216

R418 47K 1005

C423

22pF 1005

C421

22pF 1005

C422

22pF 1005

C424

22pF 1005

VCC1.0VVCC1.4V

R419

10 1005

R422

10 1005

R421

10 1005

R420

10 1005

AGND0

L405

CIC21J601

AGND1

L406

CIC21J601

AGND1

R423

4.7K

IC403

SC4215ISTRT

3VIN

2EN

4NC_2

1NC_1

NC_3

ADJ

GND

R424

15K

1/10W

R425

4.7K

1/10W

VCC5V

IC404

SC4215ISTRT

3VIN

2EN

4NC_2

1NC_1

NC_3

ADJ

GND

R426

4.7K

VCC2.5VVCC3.3V

VCC3.3V

C426

47uF

6.3V

7343

C418

47uF

6.3V

7343

C417

47uF

6.3V

7343

C429

47uF

6.3V

7343

L407

CIC21J601

L408

CIC21J601

C428

22uF

10V

3216

C430

22uF

10V

3216

R406 10K 1005

R415 12K 1005

R417 10K 1005

R401

20K

1005

C420 1.2pF 1005

C415 1.2pF 1005

R405

10K

C401

0.047uF

1005

C402

1uF

10V

1608

C425

0.1uF

16V

C427

0.1uF

16V

C431

0.1uF

16V

C432

0.1uF

16V

IC401

SC4624MLTRT

PVIN1

NC_1

NC_3

COMP

11 FB

12 VCC_2

13 AGND

14 SYNC/EN

15 PGND1

16 PGND2

17 PH1

18 PH2

19 PH3

20 PVIN2

VCC_1

NC_2

PGOOD

ISET

IC402

SC4624MLTRT

PVIN1

NC_1

NC_3

COMP

11 FB

12 VCC_2

13 AGND

14 SYNC/EN

15 PGND1

16 PGND2

17 PH1

18 PH2

19 PH3

20 PVIN2

VCC_1

NC_2

PGOOD

ISET

R408

1.2K

1005

R411

18K

1005

R407

1.8K

1608

C416

330pF

1608 C409

3.3pF

1608

C410

220pF

1608

R416

24.9K1%

1005

R410

24.9K

1005

4 13

2009.02.03

Power Supply1

A G N VD AJAES AF AMAKIE L ABB YJ WF ADU AOK AIQ ZR AA AG AHM XH P AL ANACOC T

W-TV Rx

3.3V/2A 2.5V/2A

1.4V/3.5A 1.0V/3A

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

VCC5V

C505

0.1uF

16V

1005

R505

4.7K

1005

R506

4.7K

1005

VCC3.3V

R507

4.7K

1005 R508

4.7K

1005

VCC1.2V

R502

10K

1005

VCC1.4V

R503

1005

R509

1005

R510

10K

1005

VCC1.0V(RF)

C509

0.1uF

16V

1005

C507

0.1uF

16V

1005

C511

47uF

6.3V

7343

C512

47uF

6.3V

7343

C513

0.1uF

16V

1005

C514

47uF

6.3V

7343

C503

4.7uF

10V

2012

C501

1uF

6.3V

1005

C504

0.01uF

25V

1005

C506

0.01uF

25V

1005

C510

1uF

6.3V

1005

IC501

SC338IMSTRT

EN1

ADJ1

PGD1

DRV1

GND 6PGD2

7EN2

8ADJ2

9DRV2

10 IN

R501

15K

1005

R504

12K

1005

C502

10uF

6.3V

1608

C508

10uF

6.3V

1608

Q501

SI4804BDY

@compC

5D2_1

6D2_2

7D1_1

8D1_2

5 13

2009.02.03

Power Supply2

A G N VD AJAES AF AMAKIE L ABB YJ WF ADU AOK AIQ ZR AA AG AHM XH P AL ANACOC T

W-TV Rx

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BBOUTI_P 2:N14

BBOUTI_N 2:N15

BBOUTQ_N 2:N14

BBOUTQ_P 2:N14

PCLK_P 2:AA15

PCLK_N 2:AA14

HSDOUT 2:U22

RFMODE_STBY 2:V22

R601

3.01K

1005

XO_EN 2:V22;2:AL12

HSCS_P 2:R22

HSCS_N 2:R22

HSCLK_N 2:S22

HSCLK_P 2:S22

HSD3_P 2:T22

HSD3_N 2:T22

HSD2_P 2:T22

HSD2_N 2:T22

HSD1_P 2:S22

HSD1_N 2:T22

HSD0_P 2:S22

HSD0_N 2:S22

BBINI_P 2:N16

BBINI_N 2:N16

BBINQ_P 2:N15

BBINQ_N 2:N15

IC601

SB9121

ADCI_P R22

ADCI_N R21

ADCQ_P U21

ADCQ_N U22

DACI_P L22

DACI_N L21

DACQ_P N21

DACQ_N N22

PCLK_P N19

PCLK_N M19

REFRES H19

XOEN E20

STBY D20

HSDOUT F20

HSD3_P D21

HSD3_N D22

HSD2_P E21

HSD2_N E22

HSD1_P F21

HSD1_N F22

HSD0_P G21

HSD0_N G22

HSCLK_P H21

HSCLK_N H22

HSCS_P J21

HSCS_N J22

BBIC IF

2009.02.03

6 13

A G ND AJAE AF AMAKIE L ABB YJF AD AOAIZ AA AG AHM XH P AL ANACOC

W-TV Rx

Digital Analog

Baseband I/F

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

VCLK_27 Z18

VCLK_IN K17

VCC3.3V

VCC1.8VH

VCC3.3V

VCC1.8VH

VCLK_IN AF21

VCLK_27 K17

ACLK_IN K15

ACLK_27 K15

ACLK_IN AF9

ACLK_27 Z6

GPIO4 9:I14

GPIO3 9:I14

GPIO6 9:I14

GPIO5 9:I14

R707

4.7K

1005

OPT

R708

4.7K

1005

R717

4.7K

1005

OPT

R713

4.7K

1005

R705

4.7K

1005

R701

4.7K

1005

R714

4.7K

1005

R709

4.7K

1005

R718

1005

C705

0.1uF

16V

1005

C704

0.1uF

16V

1005

C707

0.1uF

16V

1005

C706

0.1uF

16V

1005

C703

0.1uF

16V

1005

C708

0.1uF

16V

1005

OPT

C710

0.1uF

16V

1005

L702

CIC21J601

VCC3.3V

R721

1005

R722

1005

VCC3.3V

R702

4.7K

1005

R720

4.7K

1005

OPT

L703

CIC21J601

C701

0.1uF

16V

1005

R710

4.7K

1005

R716

4.7K

1005

R715

4.7K

1005

R719

4.7K

1005

OPT

L704

CIC21J601

VCC3.3V

C709

0.1uF

16V

1005

R703

1005

R706

1.2K

1005

SB9121

IC601

VDAC_SDA C10

VDAC_SCL A9

VCLK27 C11

VCLK B9

ACLK B13

ACLK27 A13

ADAC_SDA A14

ADAC_SCL C13

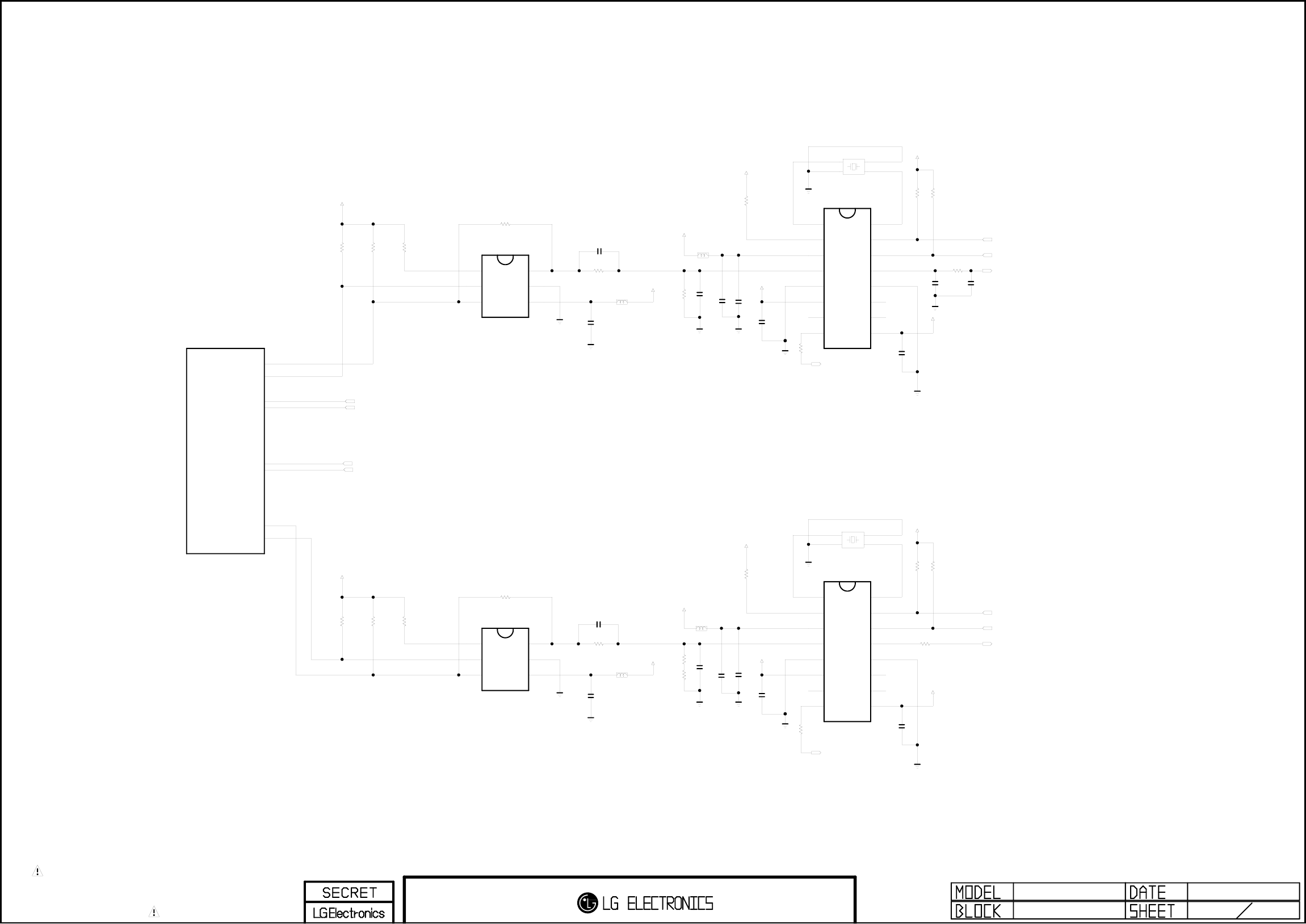

IC702

CDCE925PWR

VDD

VCTR

XIN/CLK

VDDOUT_1

GND_1

Y5 9VDDOUT_2

10 Y3

11 Y2

12 GND_2

13 Y1

14 S2/SCL

15 S1/SDA

16 XOUT

IC704

CDCE925PWR

VDD

VCTR

XIN/CLK

VDDOUT_1

GND_1

Y5 9VDDOUT_2

10 Y3

11 Y2

12 GND_2

13 Y1

14 S2/SCL

15 S1/SDA

16 XOUT

IC701

AD5622BKSZ-2500RL7

SDA

SCL

4VDD

ADDR 6VOUT

5GND

IC703

AD5622BKSZ-2500RL7

SDA

SCL

4VDD

ADDR 6VOUT

5GND

C711

4.7uF 6.3V

C702

1nF

50V

1005

R711

14K

1005

R712

16K

1005

R723

1005

L701

CIC21J601

C713

4.7uF

6.3V

R704

1005

C714

150pF

50V

C715

150pF

50V

OPT

C712

1uF 6.3V

C716

4.7uF

6.3V

X701

27MHz

MAIN: SUNNY / SUB: PARTRON

4GND_2

X-TAL_1

GND_1 3X-TAL_2

X702

27MHz

MAIN: SUNNY / SUB: PARTRON

4GND_2

X-TAL_1

GND_1 3X-TAL_2

BBIC Clock Recovery

2009.02.03

7 13

A G N VD AJAES AF AMAKIE L ABB YJ WF ADU AOK AIQ ZR AA AG AHM XH P AL ANACOC T

W-TV Rx

Clock Recovery

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

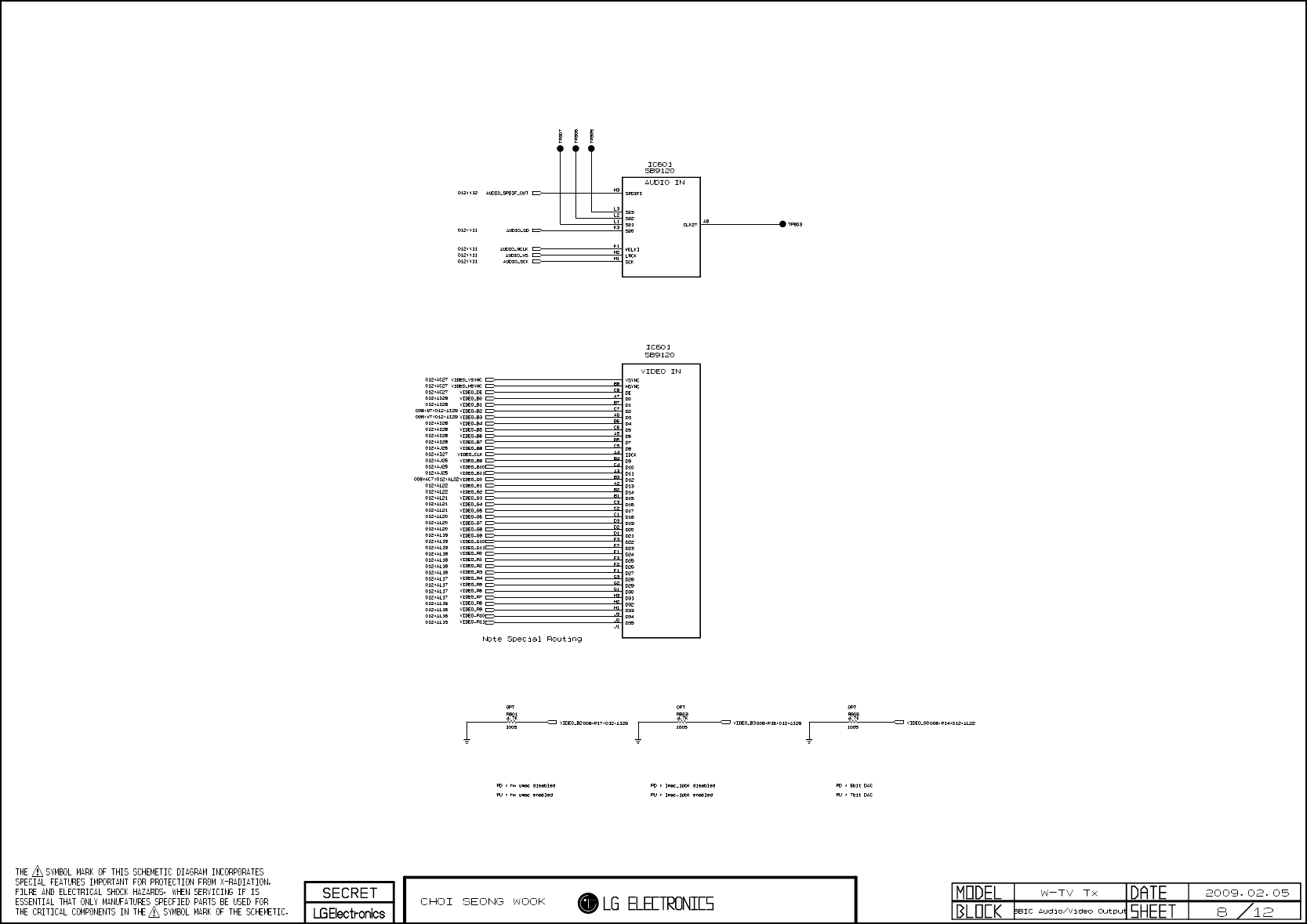

AUDIO_SD0 12:E17

AUDIO_MCLK 12:E17

AUDIO_SCLK 12:E16

AUDIO_WS 12:E16

VIDEO_D05 12:K23

VIDEO_D28 12:S16

VIDEO_D19 12:S18

VIDEO_CLK 12:L23

VIDEO_D08 12:K23

VIDEO_D30 12:S15

VIDEO_D18 12:N23

VIDEO_D10 12:L23

VIDEO_D09 12:L23

VIDEO_D11 12:M23

VIDEO_D07 12:K23

VIDEO_D29 12:S16

VIDEO_D20 12:S18

VIDEO_D33 12:S15

VIDEO_DE 12:E18

VIDEO_HSYNC 12:E18

VIDEO_D16 12:N23

VIDEO_D22 12:S18

VIDEO_D06 12:K23

VIDEO_VSYNC 12:E18

VIDEO_D00 12:J23

VIDEO_D23 12:S17

VIDEO_D31 12:S15

VIDEO_D35 12:S14

VIDEO_D34 12:S15

VIDEO_D21 12:S18

VIDEO_D17 12:N23

VIDEO_D32 12:S15

VIDEO_D12 AA6;12:M23

VIDEO_D02 P6;12:J23

VIDEO_D03 U6;12:J23

VIDEO_D12 X12;12:M23VIDEO_D02 X9;12:J23 VIDEO_D03 X9;12:J23

AR806 22 2010_A4

TP803

TP804

TP805

TP806

TP807

TP808

R801

4.7K

1005

OPT

R802

4.7K

1005

OPT

R803

4.7K

1005

OPT

VIDEO_D27 12:S17

VIDEO_D26 12:S17

VIDEO_D25 12:S17

VIDEO_D24 12:S17

VIDEO_D15 12:M23

VIDEO_D14 12:M23

VIDEO_D13 12:M23

VIDEO_D04 12:K23

VIDEO_D01 12:J23

IC601

SB9121

D35 K1

D34 K2

D33 K3

D32 J1

D31 J2

D30 J3

D29 H1

D28 H2

D27 H3

D26 G1

D25 G2

D24 G3

D23 F1

D22 F2

D21 F3

D20 E1

D19 E2

D18 E3

D17 D1

D16 D2

D15 D3

D14 C1

D13 C3

D12 A3

D11 C4

D10 B4

D9 A4

ODCK C5

D8 B5

D7 A5

D6 C6

D5 B6

D4 A6

D3 C7

D2 B7

D1 A7

D0 C8

DE B8

HSYNC A8

VSYNC C9

SB9121

IC601

CLK27

C12

SPDIFO P1

SD3 M3

SD2 M2

SD1 M1

SD0 L1

MCLKO L3

LRCK N2

SCK N1

MUTE P2

R804 47

AR811 47 2010_A4

AR802 47 2010_A4

AR808 47 2010_A4

AR810 47 2010_A4

AR803 47 2010_A4

AR805 47 2010_A4

AR807 47 2010_A4

AR804 47 2010_A4

AR801 47 2010_A4

AR809 47 2010_A4

C800

150pF

50V OPT

2009.02.03

BBIC Audio/Video Output

8 13

A G N VD AJAES AF AMAKIE L ABB YJ WF ADU AOK AIQ ZR AA AG AHM XH P AL ANACOC T

W-TV Rx

PD : lmac_1pbk disabledPD : hw umac disabled

Note Special Routing

Audio I/O

Video Out

PD : 6bit DAC

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

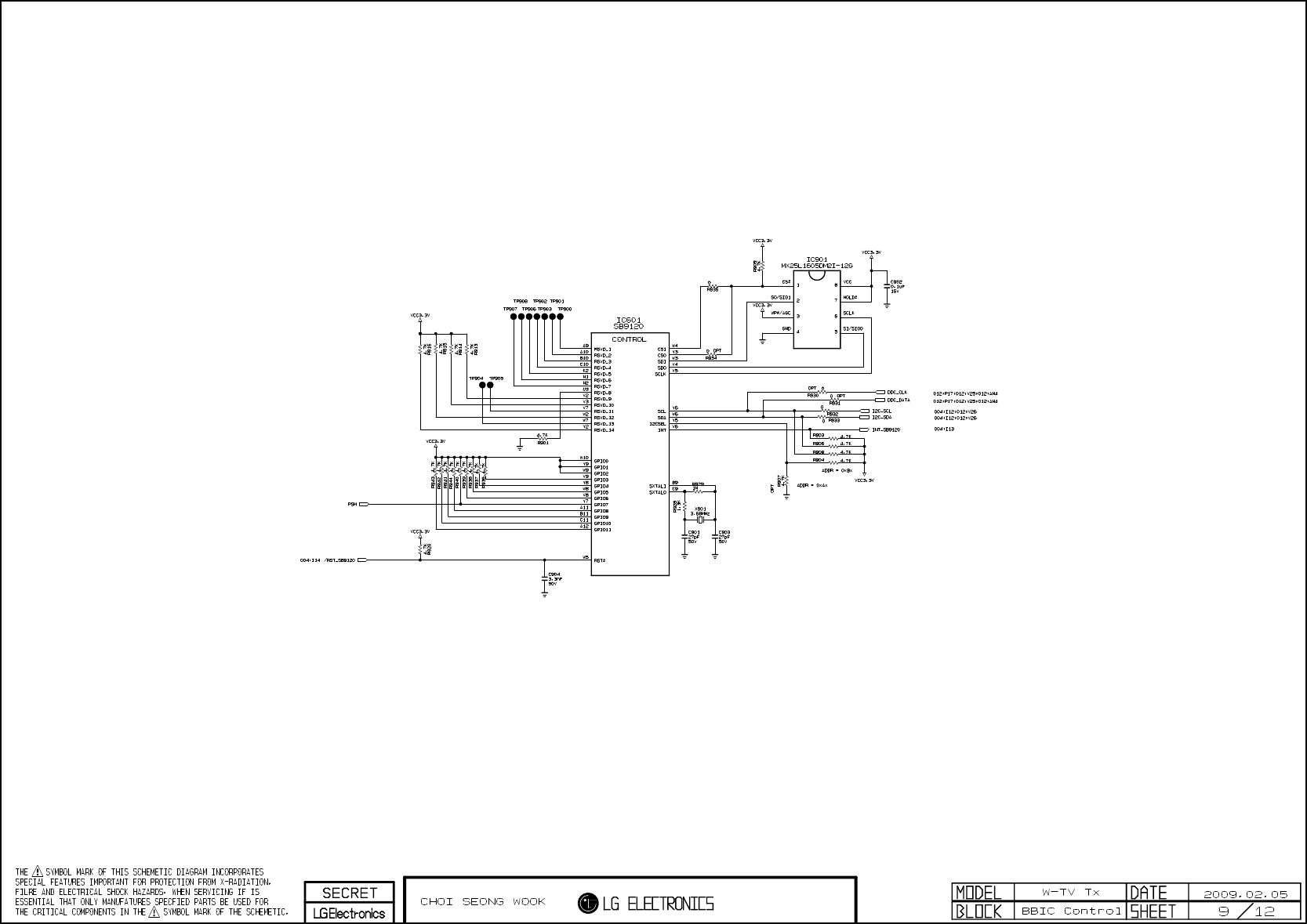

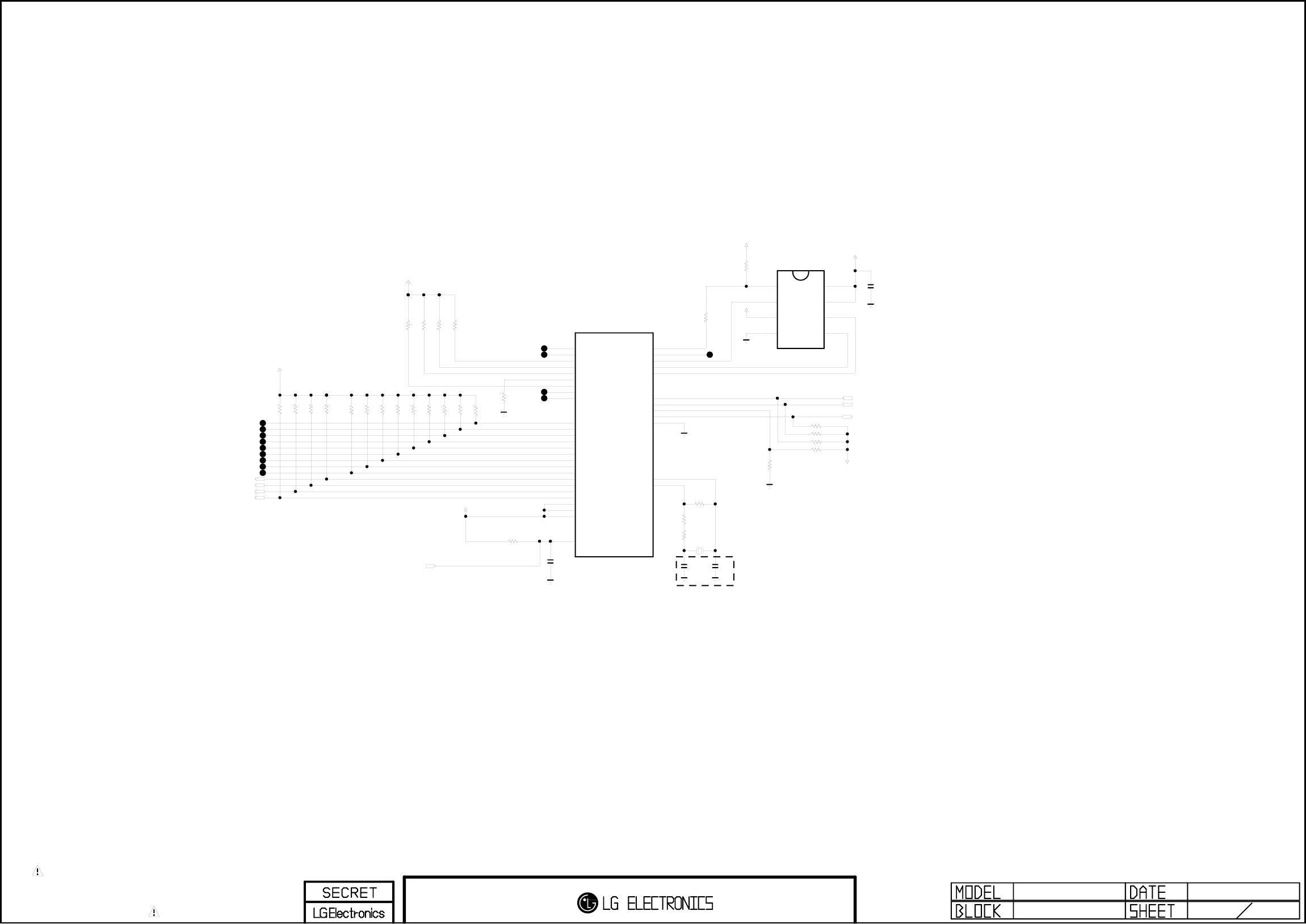

SPI_CS0N

VCC3.3V

BB_INTN 13:W16;13:AH9

VCC3.3V

I2C_SDA 12:N7;12:Z14;13:W14;13:AH10

I2C_SCL 12:N7;12:Z14;13:W14;13:AH10

R908 4.7K1005OPT

R911

4.7K

1005

OPT

R906

4.7K

1005

R907 4.7K1005

OPT

R909 4.7K1005

C902

0.1uF

16V

1005

R920

1005

R919

1M 1%

1005

X901

3.68MHz

TP902

R910

1K 1%

1005

R921

300 1%

1005

R922 4.7K1005

BB_RSTN

13:L9;13:AH8

R936

4.7K

1005

SB9121

IC601

RSVD_1

RSVD_2

RSVD_3

RSVD_4

RSVD_5

RSVD_6

RSVD_7

RSVD_8

AA8

RSVD_9

AB7

GPIO[15]

B11

GPIO[14]

A11

GPIO[13]

A10

GPIO[12]

B10

GPIO[11]

B15

GPIO[10]

C14

GPIO[9]

A15

GPIO[8]

B14

GPIO[7]

GPIO[6]

AB8

GPIO[5]

AA9

GPIO[4]

Y10

GPIO[3]

AB9

GPIO[2]

AA10

GPIO[1]

AB10

GPIO[0]

Y11

RST#

AA6

CS1 Y6

CS0 AA4

SDI Y4

SDO Y5

SCLK AA5

SCL AB6

SDA AA7

I2CSEL Y8

INT AB5

VSS_130 Y7

SXTALI B12

SXTALO A12

VCC3.3V

R923

4.7K

1005

GPIO37:AF10

TP911

TP908

GPIO57:AF22

R931

4.7K

1005

R926

4.7K

1005

R935

4.7K

1005

TP912

TP910

TP913

R928

4.7K

1005

VCC3.3V

R929

4.7K

1005

GPIO47:AF10

TP915

R933

4.7K

1005

TP907

R927

4.7K

1005

R924

4.7K

1005

R925

4.7K

1005

TP909

TP914

R932

4.7K

1005

GPIO67:AF22

R930

4.7K

1005

R934

4.7K

1005

R913

4.7K

1005

R915

4.7K

1005

TP903

R903

4.7K

1005

R914

4.7K

1005

TP904

TP905

TP906

R916

4.7K

1005

VCC3.3V

C904

3.3nF

50V

IC901

MX25L1605DM2I-12G

@compC

WP#/AGC

SO/SIO1

GND

CS#

5SI/SIO0

6SCLK

7HOLD#

8VCC

C901

30pF

1005

C903

30pF

1005

2009.02.03

BBIC Control

9 13

A G N VD AJAES AF AMAKIE L ABB YJ WF ADU AOK AIQ ZR AA AG AHM XH P AL ANACOC T

W-TV Rx

ADDR = 0xAx

Control

ADDR = 0xBx

Crystal matching

27pF -> 30pF

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

VCC3.3V

IC601

SB9121

VSS_97

VSS_83

VSS_94

VSS_95

VSS_82

VSS_108

VSS_120

VSS_109

VSS_96

VSS_123

VSS_121

VSS_125

VDDIO_26

VDDIO_27

VDDIO_28

VSS_122

NC_17

M20

VSSA_11

L19

VSSA_7

K19

NC_19

T20

NC_18

R19

VSS_135

AA11

VSS_128

W12

NC_11 C15

NC_1 A16

NC_6 B16

NC_12 C16

NC_2 A17

NC_7 B17

NC_13 C17

NC_3 A18

NC_8 B18

NC_14 C18

NC_4 A19

NC_9 B19

NC_15 C19

NC_5 A20

NC_10 B20

NC_16 C20

NC_20 U20

NC_21 V20

NC_24 W22

NC_23 W21

NC_22 W20

NC_36 Y22

NC_35 Y21

NC_34 Y20

NC_33 Y19

NC_44 AA19

NC_32 Y18

NC_43 AA18

NC_52 AB18

NC_31 Y17

NC_42 AA17

NC_51 AB17

NC_30 Y16

NC_41 AA16

NC_50 AB16

NC_29 Y15

NC_40 AA15

NC_49 AB15

NC_28 Y14

NC_39 AA14

NC_48 AB14

NC_27 Y13

NC_38 AA13

NC_47 AB13

NC_26 Y12

NC_37 AA12

NC_46 AB12

NC_45 AB11

2009.02.03

BBIC Misc

10 13

A G N VD AJAES AF AMAKIE L ABB YJ WF ADU AOK AIQ ZR AA AG AHM XH P AL ANACOC T

W-TV Rx

Interface is NC

Misc

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

VDDHA_2.5V_BBic

VDDA_1.0V_BBic

VCC3.3V

VCC2.5V

C1134

0.1uF

16V

1005

C1114

0.1uF

16V

1005

C1112

0.1uF

16V

1005

C1115

0.1uF

16V

1005

C1124

0.1uF

16V

1005

C1118

0.1uF

16V

1005

C1128

0.1uF

16V

1005

C1116

0.1uF

16V

1005

C1130

0.1uF

16V

1005

C1113

0.1uF

16V

1005

C1123

0.1uF

16V

1005

C1127

0.1uF

16V

1005

C1129

0.1uF

16V

1005

C1111

0.1uF

16V

1005

C1126

0.1uF

16V

1005

C1125

0.1uF

16V

1005

C1117

0.1uF

16V

1005

C1119

0.1uF

16V

1005

C1121

0.1uF

16V

1005

C1131

0.1uF

16V

1005

C1136

0.1uF

16V

1005

C1138

0.1uF

16V

1005

C1139

0.1uF

16V

1005

C1132

0.1uF

16V

1005

C1133

0.1uF

16V

1005

C1135

0.1uF

16V

1005

C1140

0.1uF

16V

1005

C1142

0.1uF

16V

1005

C1144

0.1uF

16V

1005

C1145

0.1uF

16V

1005

C1146

0.1uF

16V

1005

C1147

0.1uF

16V

1005

C1148

0.1uF

16V

1005

C1149

0.1uF

16V

1005

C1150

0.1uF

16V

1005

C1151

0.1uF

16V

1005

C1109

0.1uF

16V

1005

C1106

0.1uF

16V

1005

C1105

0.1uF

16V

1005

C1102

0.1uF

16V

1005

C1110

0.1uF

16V

1005

C1101

0.01uF

25V

1005

C1107

0.01uF

25V

1005

VCC1.0V

C1103

10V

3216

22uF

C1108

10V

3216

22uF

C1120

10uF

10V

2012

C1104

10uF

10V

2012

C1141

10uF

10V

2012

VCC1.0V VCC1.0V

VCC1.0V

VCC3.3V

C1137

10uF

6.3V

1608

C1143

10uF

6.3V

1608

C1122

10uF

6.3V

1608

IC601

SB9121

VDD_50

V11

VDD_49

V10

VDD_48

VDD_47

VDD_56

VDD_55

VDD_46

VDD_45

VDD_43

VDD_42

VDD_41

VDD_40

VDD_38

VDD_37

VDD_36

VDD_35

VDD_34

VDD_33

VDD_31

VDD_30

VDD_29

VDD_28

VDD_24

E19

VDD_23

E18

VDD_22

E15

VDD_21

E14

VDD_20

E13

VDD_19

E12

VDD_18

E11

VDD_17

E10

VDD_16

VDD_15

VDD_14

VDD_13

VDD_12

D19

VDD_11

D18

VDD_10

D15

VDD_9

D14

VDD_8

D11

VDD_7

D10

VDD_6

VDD_5

VDD_4

VDD_3

VDD_2

VDD_1

VDD_51 V12

VDD_52 V13

VDD_53 V16

VDD_54 V17

VDD_57 W8

VDD_58 W9

VDD_59 W13

VDD_60 W14

VDD_61 W15

VDD_62 W16

VDD_63 W17

VDD_64 W18

VDD_65 W19

VDD_25 F18

VDD_26 F19

VDD_32 J18

VDD_27 G18

VDDIO_5 E8

VDDIO_6 E9

VDDIO_1 D12

VDDIO_2 D13

VDDIO_3 D16

VDDIO_4 D17

VDDIO_7 E16

VDDIO_8 E17

VDDIO_9 F4

VDDIO_10 F5

VDDIO_11 G4

VDDIO_12 G5

VDDIO_13 K4

VDDIO_14 L4

VDDIO_15 P5

VDDIO_16 R5

VDDIO_18 V6

VDDIO_19 V7

VDDIO_22 W6

VDDIO_23 W7

VDDIO_24 W10

VDDIO_25 W11

VDDIO_20 V14

VDDIO_21 V15

VDDIO_17 U19

IC601

SB9121

VSS_61

L16

VSS_60

L15

VSS_59

L14

VSS_58

L13

VSS_57

L12

VSS_56

L11

VSS_55

L10

VSS_54

VSS_53

VSS_52

VSS_51

K16

VSS_50

K15

VSS_49

K14

VSS_48

K13

VSS_47

K12

VSS_46

K11

VSS_45

K10

VSS_44

VSS_43

VSS_42

VSS_41

J16

VSS_40

J15

VSS_39

J14

VSS_38

J13

VSS_37

J12

VSS_36

J11

VSS_35

J10

VSS_34

VSS_33

VSS_32

VSS_31

H16

VSS_30

H15

VSS_29

H14

VSS_28

H13

VSS_27

H12

VSS_26

H11

VSS_25

H10

VSS_24

VSS_23

VSS_22

VSS_21

G16

VSS_20

G15

VSS_19

G14

VSS_18

G13

VSS_17

G12

VSS_16

G11

VSS_15

G10

VSS_14

VSS_13

VSS_12

VSS_1

VSS_4

VSS_5

VSS_6

VSS_9

VSS_2

A21

VSS_3

A22

VSS_7

B21

VSS_8

B22

VSS_10

C21

VSS_11

C22

VSS_136

AA20

VSS_119 T16

VSS_118 T15

VSS_117 T14

VSS_116 T13

VSS_115 T12

VSS_114 T11

VSS_113 T10

VSS_112 T9

VSS_111 T8

VSS_110 T7

VSS_107 R16

VSS_106 R15

VSS_105 R14

VSS_104 R13

VSS_103 R12

VSS_102 R11

VSS_101 R10

VSS_100 R9

VSS_99 R8

VSS_98 R7

VSS_93 P16

VSS_92 P15

VSS_91 P14

VSS_90 P13

VSS_89 P12

VSS_88 P11

VSS_87 P10

VSS_86 P9

VSS_85 P8

VSS_84 P7

VSS_81 N16

VSS_80 N15

VSS_79 N14

VSS_78 N13

VSS_77 N12

VSS_76 N11

VSS_75 N10

VSS_74 N9

VSS_73 N8

VSS_72 N7

VSS_71 M16

VSS_70 M15

VSS_69 M14

VSS_68 M13

VSS_67 M12

VSS_66 M11

VSS_65 M10

VSS_64 M9

VSS_63 M8

VSS_62 M7

VSS_131 AA1

VSS_132 AA2

VSS_133 AA3

VSS_139 AB1

VSS_140 AB2

VSS_141 AB3

VSS_142 AB4

VSS_147 AB22

VSS_146 AB21

VSS_145 AB20

VSS_144 AB19

VSS_138 AA22

VSS_137 AA21

IC601

SB9121

VDDA_1

M18

VDDA_2

N18

VDDA_3

P19

VDDA_4

P20

VDDHA_1

K18

VDDHA_2

L18

VDDHA_3

P18

VDDHA_4

R18

VDDHA_5

T18

VDDHA_6

T19

VDDHA_7

U18

VDDHA_8

V18

VDDHA_9

V19

VSSA_1

G19

VSSA_2

G20

VSSA_3

H18

VSSA_4

H20

VSSA_5

J19

VSSA_6

J20

VSSA_8

K20

VSSA_9

K21

VSSA_10

K22

VSSA_12

L20

VSSA_13

M21

VSSA_14

M22

VSSA_15

N20

VSSA_16

P21

VSSA_17

P22

VSSA_18

R20

VSSA_19

T21

VSSA_20

T22

VSSA_21

V21

VSSA_22

V22

VCC1.0V(RF)

L1102

120-ohm

L1101

OPT

120-ohm

L1103

120-ohm

2009.02.03

BBIC Power/Ground

11 13

A G N VD AJAES AF AMAKIE L ABB YJ WF ADU AOK AIQ ZR AA AG AHM XH P AL ANACOC T

W-TV Rx

SB9121 Bypass Caps

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

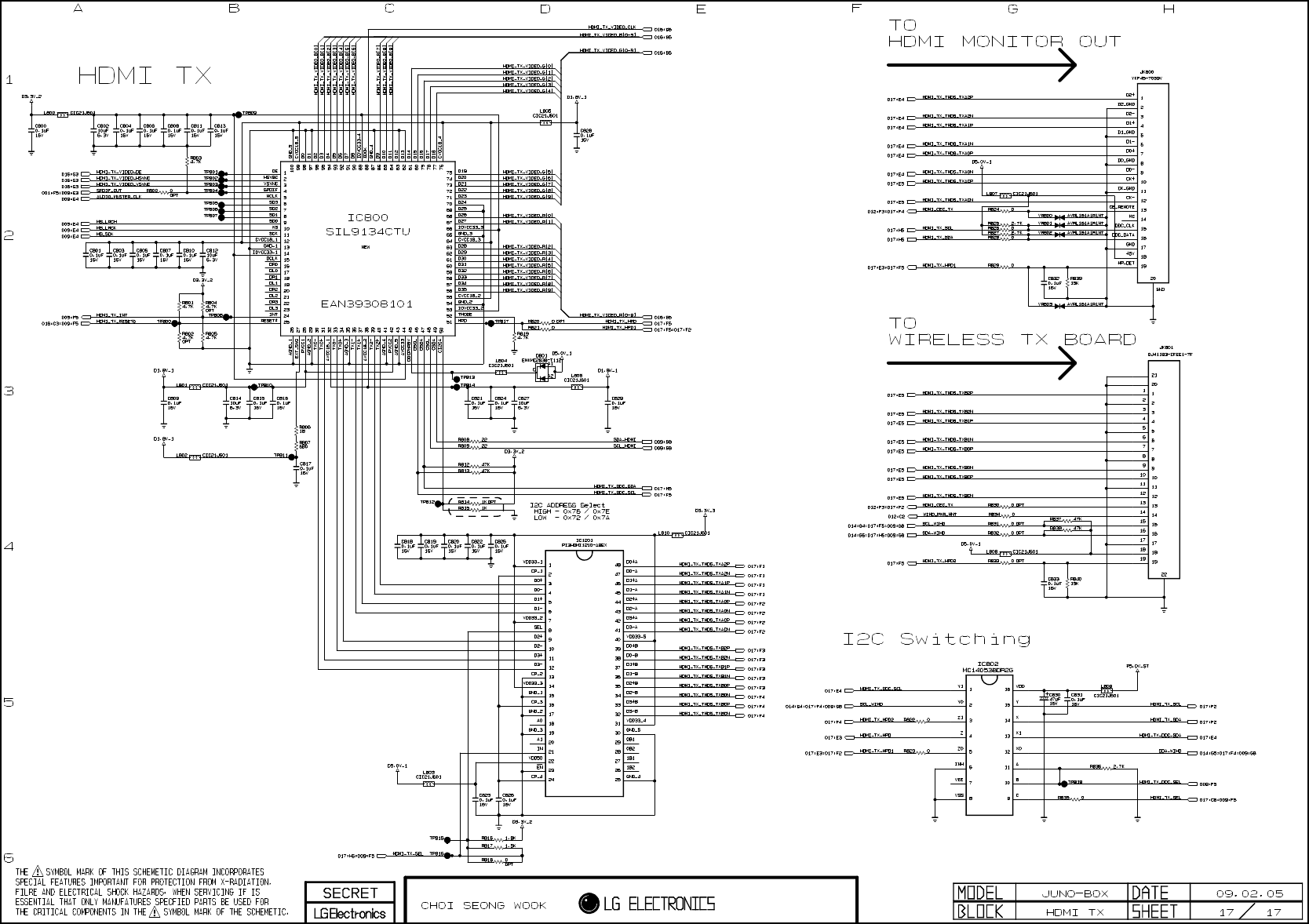

Tx_HPD

VCC5V

HDMI_CEC

VIDEO_D29 8:X15

VIDEO_VSYNC

8:X8

VIDEO_HSYNC

8:X8

VIDEO_D31 8:X15

VIDEO_D28 8:X15

VIDEO_D09 8:X11

VIDEO_D21 8:X13

VIDEO_D35 8:X16

VIDEO_D08 8:X10

VIDEO_D06 8:X10

VIDEO_D30 8:X15

VIDEO_D18 8:X13

VIDEO_CLK 8:AB10

VIDEO_D17 8:X13

VIDEO_D23 8:X14

VIDEO_D22 8:X14

VIDEO_D16 8:X12

VIDEO_D32 8:X16

VIDEO_D10 8:X11

VIDEO_D11 8:X11

VIDEO_D34 8:X16

VIDEO_D07 8:X10

VIDEO_D19 8:X13

VIDEO_D33 8:X16

VIDEO_DE

8:X8

VIDEO_D05 8:X10

VIDEO_D04 8:X9

AUDIO_MCLK

8:X20

AUDIO_WS

8:X20

AUDIO_SD0

8:X20

AUDIO_SCLK

8:X19

I2C_SCL

9:AA17;Z14;13:W14;13:AH10

HDMI_RSTN

13:L9;13:AH8

VCC3.3V

CVCC1.8V

IOVCC3.3V

AVCC1.8V

VCC5V

Tx_SCL

Z14

Tx_CLK-

Z15

Tx_CLK+

Z16

Tx_0+

Z17

Tx_0-

Z17

Tx_1+

Z18

Tx_1-

Z18

Tx_2+

Z19

Tx_2-

Z19

VA1201

AVRL161A1R1NT

VA1202

AVRL161A1R1NT

VA1203

AVRL161A1R1NT

VA1204

AVRL161A1R1NT

VCC5V

Tx_HPD

S13

Tx_HPD Z13

Tx_SDA

Z14

I2C_SDA

9:AA17;Z14;13:W14;13:AH10

Tx_1-

K11

Tx_0-

K11

Tx_0+

K11

Tx_CLK-

J11

Tx_2-

L11

Tx_1+

L11

Tx_2+

L11

Tx_CLK+

J11

Tx_SDA

Tx_SCL

HDMI_INTN

13:W16;13:AH9

VCC3.3V

C1207

0.1uF

16V

1005

C1204

0.1uF

16V

1005

C1210

0.1uF

16V

1005

C1209

0.1uF

16V

1005

C1206

0.1uF

16V

1005

C1205

0.1uF

16V

1005

C1208

0.1uF

16V

1005

R1210 4.7K

1005

R1201

4.7K

1005

R1206

4.7K

1005

R1208 4.7K1005

OPT

R1209 4.7K1005

OPT

R1211 4.7K1005

R1212 4.7K1005

R1213

4.7K

1005

OPT

R1207

1K 1005

R1202

1K 1005

OPT

R1205

4.7K

1005

L1201

CIC21J601

PVCC1.8V

AVCC1.8V

TP1201

TP1202

TP1203

TP1204

C1203

10uF

10V

2012

C1211

10uF

10V

2012

C1202

10uF

3216

C1201

10uF

16V

3216

R1221

1005

R1222

01005

R1223

0 1005

R1224

0 1005

R1225

0 1005

OPT

R1218

0 1005

OPT

R1220

01005

I2C_SDA9:AA17;N7;13:W14;13:AH10 R1219

01005

I2C_SCL9:AA17;N7;13:W14;13:AH10

UART0_TXD13:U14

UART0_RXD13:U14

I2C_SCL113:W12 R1203

01005

OPT

I2C_SDA1

13:W12

R1216

01005

OPT

VIDEO_D00 8:X9

VIDEO_D01 8:X9

VIDEO_D02 8:P6;8:X9

VIDEO_D03 8:U6;8:X9

VIDEO_D12 8:X12;8:AA6

VIDEO_D13 8:X12

VIDEO_D14 8:X12

VIDEO_D15 8:X12

VIDEO_D24 8:X14

VIDEO_D25 8:X14

VIDEO_D26 8:X14

VIDEO_D27 8:X15

VIDEO_D20 8:X13

R1217

1005

R1204

680

1608

IC1201

SIL9134CTU

HSYBC

VSYNC

SPDIF

MCLK

SD3

SD2

SD1

SD0

SCK

CVCC18_1

GND_1

IOVCC33_1

DCLK

DR0

DL0

DR1

DL1

DR2

DL2

DR3

DL3

INT

RESET#

AGND_1

EXT_SWG

PVCC1

AGND_2

TXC-

TXC+

AVCC18_1

TX0-

TX0+

AGND_3

TX1-

TX1+

AVCC18_2

TX2-

TX2+

AGND_4

PVCC2

AGND_5

AVCC33

DDCPWR5V

DSCL

DSDA

CSCL

CSDA

CI2CA

51 HPD

52 TMODE

53 IOVCC33_2

54 GND_2

55 CVCC18_2

56 D35

57 D34

58 D33

59 D32

60 D31

61 D30

62 D29

63 D28

64 CVCC18_3

65 GND_3

66 IOVCC33_3

67 D27

68 D26

69 D25

70 D24

71 D23

72 D22

73 D21

74 D20

75 D19

76 CVCC18_4

77 D18

78 D17

79 D16

80 D15

81 D14

82 D13

83 D12

84 D11

85 D10

86 D9

87 GND_4

88 IDCK

89 IOVCC33_4

90 D8

91 D7

92 D6

93 D5

94 D4

95 D3

96 D2

97 D1

98 D0

99 CVCC18_5

100 GND_5

C1212

0.1uF

16V

1005

D1201

RCLAMP0524P

GND1

IN2

IN3

IN1

IN4 6OUT4

7OUT3

8GND2

9OUT2

10 OUT1

D1202

RCLAMP0524P

GND1

IN2

IN3

IN1

IN4 6OUT4

7OUT3

8GND2

9OUT2

10 OUT1

JK1

YKF45-7060V

CEC

BODY_SHIELD

SDA

SCL

R1214

4.7K

1005

OPT

C1213

3.3nF

50V

ESD

2009.02.03

HTMI Tx

12 13

A G N VD AJAES AF AMAKIE L ABB YJ WF ADU AOK AIQ ZR AA AG AHM XH P AL ANACOC T

W-TV Rx

Address CI2CA=High CI2A=Low

First Device Address 0x76 0x72

Second Device Address 0x7E 0x7A

Stuff Option

Near Video_clk

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

LD1301

SML-201MT

I2C_SCL 9:AA17;12:N7;12:Z14;AH10

I2C_SDA1 12:Z13

R1301

4.7K 1005

I2C_SCL1 12:Z15

UART0_TXD 12:AH15

UART0_RXD 12:AH14

L1301

UBW3216-121

BB_RSTN9:N12;AH8

R1302

1005

R1303

0 1005

VCC3.3V

R1304

1M 1005

VCC3.3V

R1305

470

1005

HDMI_INTN 12:E14;AH9

R1306

4.7K 1005

VCC5V

RB7/AN7AH12

RB6/AN6AH12

C1303

22uF

10V

3216

/MCLR

AH13

LD1302

SML-201MT

R1307

470

1005

R1308

4.7K 1005

R1309

1005

OPT

R1310

1005

LD1303

SML-201MT

TP1301

HDMI_RSTN12:E13;AH8

VCC3.3V

R1311

4.7K 1005

BB_INTN 9:AA16;AH9

TP1302

I2C_SDA 9:AA17;12:N7;12:Z14;AH10

/MCLRF15

RB7/AN7J10

RB6/AN6J10

R1313

0 1005

R1314

0 1005

R1315

0 1005

R1316

0 1005

R1317

0 1005

R1318

0 1005

R1319

0 1005

R1312

0 1005

I2C_SCL9:AA17;12:N7;12:Z14;W14

I2C_SDA9:AA17;12:N7;12:Z14;W14

UART1_RXDL9

UART1_TXDM9

HDMI_INTN12:E14;W16

BB_INTN9:AA16;W16

HDMI_RSTN12:E13;L9

BB_RSTN9:N12;L9

UART1_RXDAH11

UART1_TXDAH11

R1320

4.7K 1005

R1321

4.7K 1005

VCC3.3V

R1322

4.7K 1005

R1323

4.7K 1005

TP1303

R1324

4.7K 1005

DETECTQ17

R1325

4.7K 1005

DETECT AH7

IC1301

PIC32MX340F256H

PMD5/RE5

PMD6/RE6

PMD7/RE7

PMA5/SCK2/CN8/RG6

PMA4/SDI2/CN9/RG7

PMA3/SDO2/CN10/RG8

MCLR

PMA2/SS2/CN11/RG9

VSS_1

VDD_1

C1IN+/AN5/CN7/RB5

C1IN-/AN4/CN6/RB4

C2IN+/AN3/CN5/RB3

C2IN-/AN2/SS1/CN4/RB2

PGC1/EMUC1/AN1/VREF-/CVREF-/CN3/RB1

PGD1/EMUD1/PMA6/AN0/VREF+/CVREF+/CN2/RB0

PGC2/EMUC2/AN6/OCFA/RB6

PGD2/EMUD2/AN7/RB7

AVDD

AVSS

U2CTS/C1OUT/AN8/RB8

PMA7/C2OUT/AN9/RB9

TMS/CVREFOUT/PMA13/AN10/RB10

TDO/PMA12/AN11/RB11

VSS_2

VDD_2

TCK/PMA11/AN12/RB12

TDI/PMA10/AN13/RB13

PMALH/PMA1/U2RTS/BCLK2/AN14/RB14

PMALL/PMA0/AN15/OCFB/CN12/RB15

PMA9/U2RX/SDA2/CN17/RF4

PMA8/U2TX/SCL2/CN18/RF5

33 U1TX/SDO1/RF3

34 U1RX/SDI1/RF2

35 U1RTS/BCLK1/SCK1/INT0/RF6

36 SDA1/RG3

37 SCL1/RG2

38 VDD_3

39 OSC1/CLKI/RC12

40 OSC2/CLKO/RC15

41 VSS_3

42 IC1/RTCC/INT1/RD8

43 IC2/U1CTS/INT2/RD9

44 IC3/PMCS2/PMA15/INT3/RD10

45 IC4/PMCS1/PMA14/INT4/RD11

46 OC1/RD0

47 SOSCI/CN1/RC13

48 SOSCO/T1CK/CN0/RC14

49 OC2/RD1

50 OC3/RD2

51 OC4/RD3

52 PMWR/OC5/IC5/CN13/RD4

53 PMRD/CN14/RD5

54 CN15/RD6

55 CN16/RD7

56 VCAP/VDDCORE

57 ENVREG

58 RF0

59 RF1

60 PMD0/RE0

61 PMD1/RE1

62 PMD2/RE2

63 PMD3/RE3

64 PMD4/RE4

C1302

0.1uF

1005

C1306

150uF

6.3V

7343

C1304

150uF

6.3V

7343

X1301

8MHz

C1307

0.1uF

C1308

0.1uF

P1302

12507WS-08L

P1301

12507WS-15L

C1305

13pF

50V

C1301

13pF

50V

A G N VD AJAES AF AMAKIE L ABB YJ WF ADU AOK AIQ ZR AA AG AHM XH P AL ANACOC T

uController

2009.03.21W-TV Rx

13 13

Crystal matching

22pF -> 13pF

55LH95 UA_COVER 55LHX

Navigation menu

Versions of this User Manual:

Views

Navigation
