Operator's

Manual

ENCORE

S28/L28

S33/L33

S38/L38

U.S. Patent No. 6,105,192; No. 5,383,251; No. 6,493,896 (Deluxe Machines) and other Patents Pending

Division of

Page -2- Clarke® Operator's Manual -Encore S28/L28/S33/L33/S38/L38

Table of Contents

Operator Safety Instructions ............................................................................................................................. 3

Introduction & Machine Specifications "L" Class ............................................................................................. 5

Introduction & Machine Specifications "S" Class ............................................................................................ 6

Procedures For Transporting ........................................................................................................................... 7

Symbols Used On Encore Machines ............................................................................................................... 8

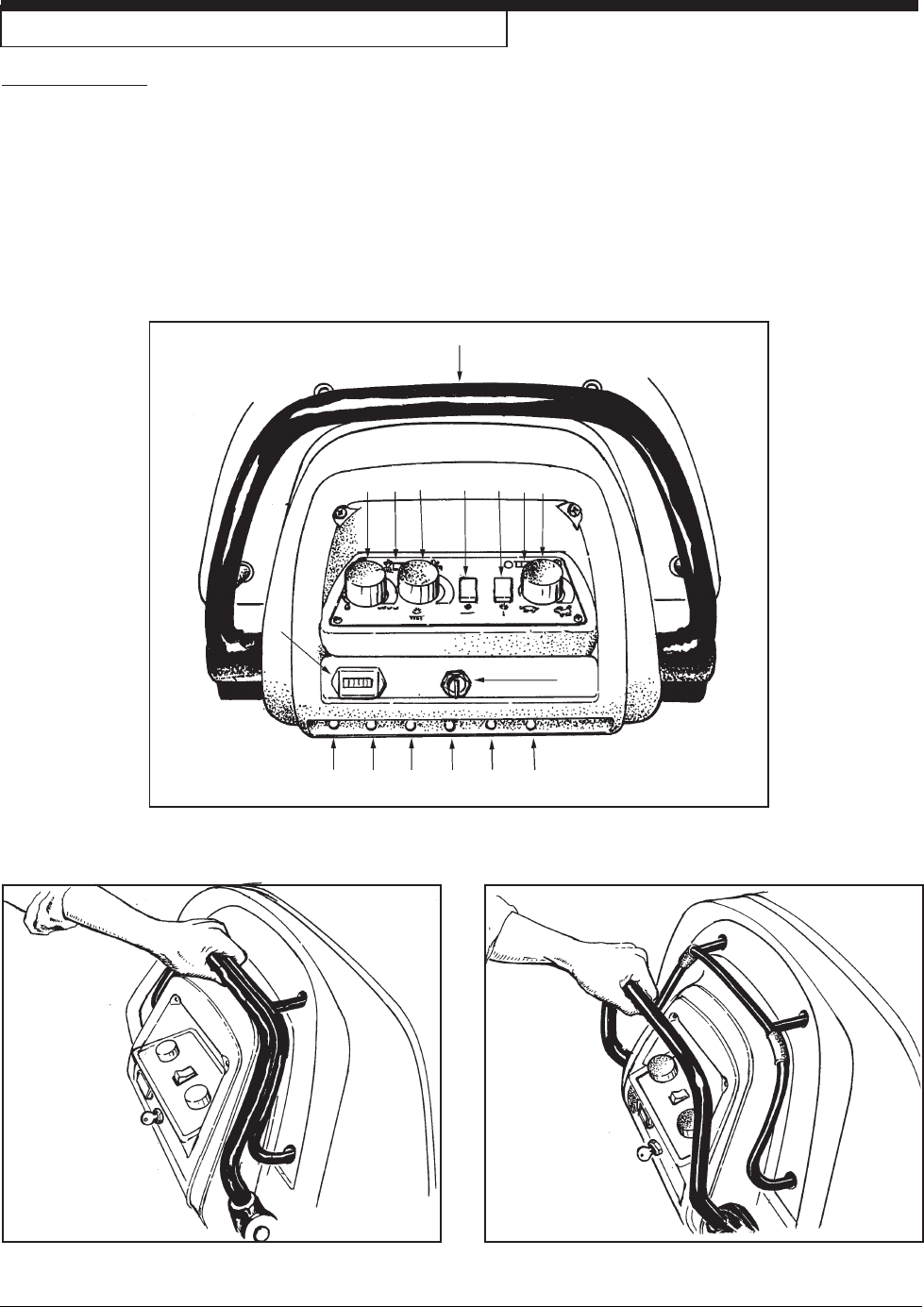

Machine Control Panel "S" Class .................................................................................................................... 10

Machine Control Panel "L" Class ..................................................................................................................... 11

Machine Controls and Features ...................................................................................................................... 13

How To Prepare The Machine For Operation .................................................................................................. 14

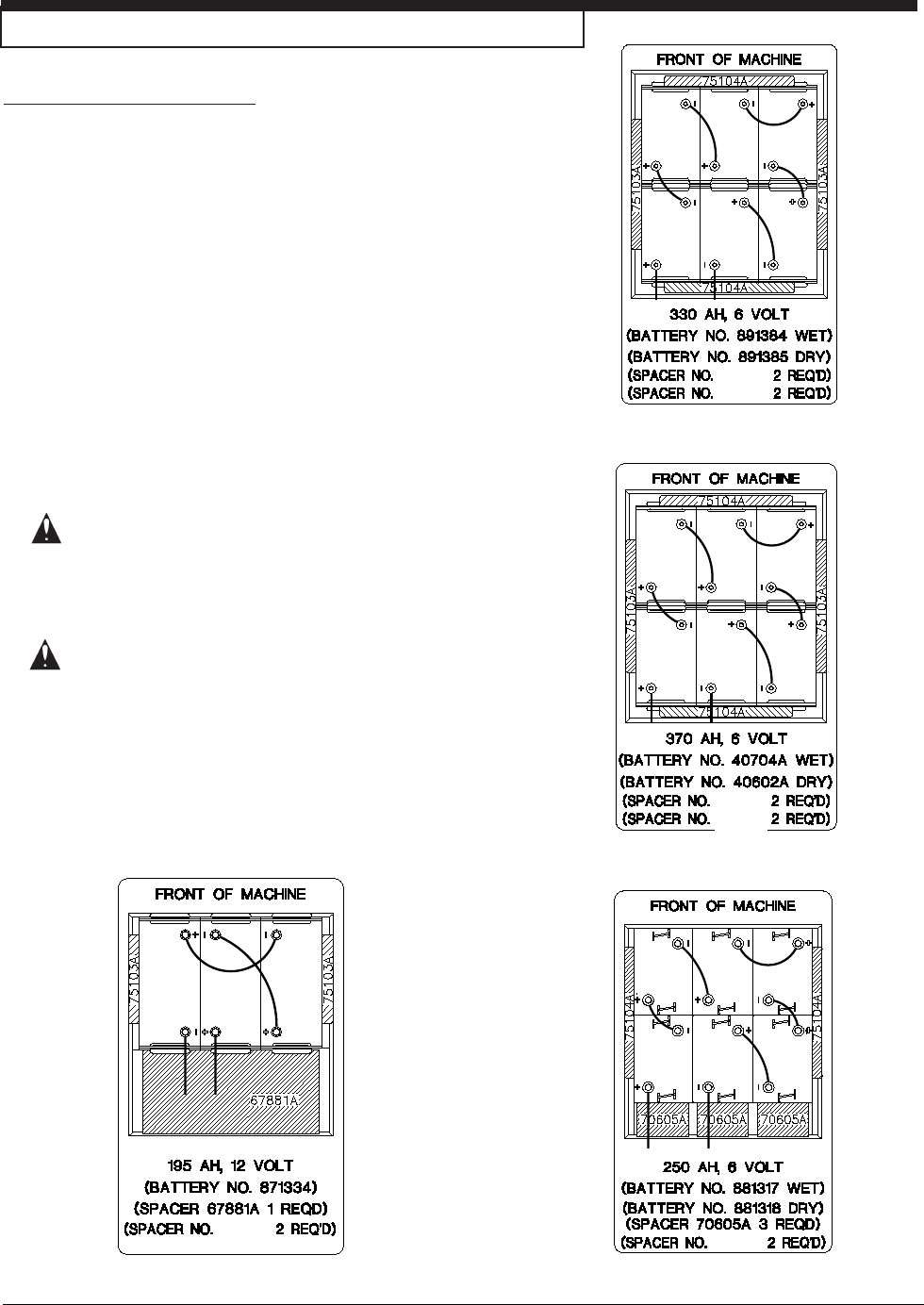

How To Install The Batteries ............................................................................................................. 14

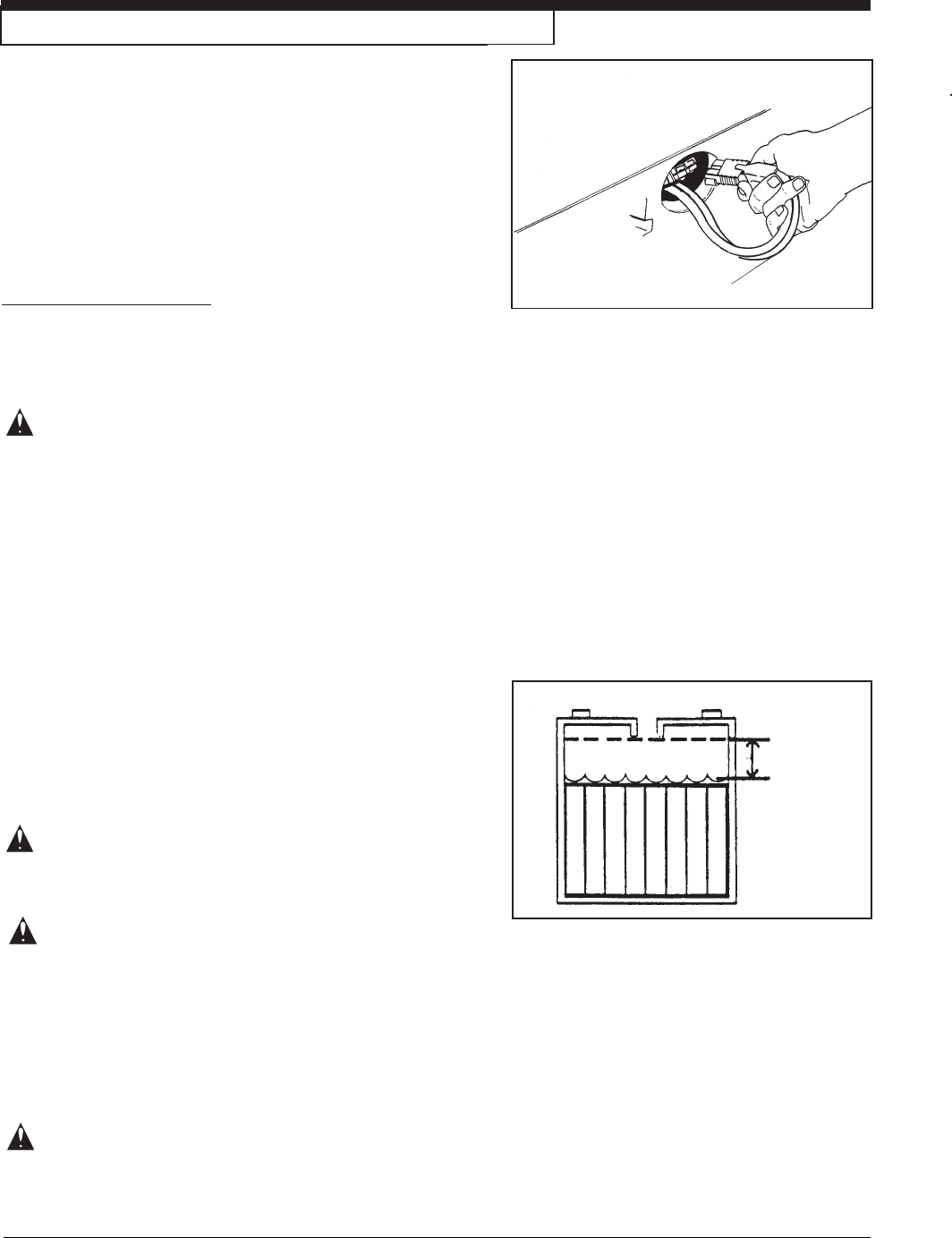

Battery Maintenance ........................................................................................................................... 15

How To Charge The Batteries ........................................................................................................... 16

How To Install The Brushes Or Pad Drivers ..................................................................................... 17

How To Remove The Brushes Or Pad Drivers ................................................................................. 17

How To Operate The Machine ......................................................................................................................... 18

How To Operate The Squeegee ........................................................................................................ 18

How To Fill The Solution Tank ........................................................................................................... 18

How To Clean A Floor ........................................................................................................................ 20

Maintenance ..................................................................................................................................................... 21

Accessories...................................................................................................................................................... 26

Section II Parts and Service Manual

How To Correct Problems In The Machine ...................................................................................................... 28

Maintenance, Head Position System ............................................................................................................... 29

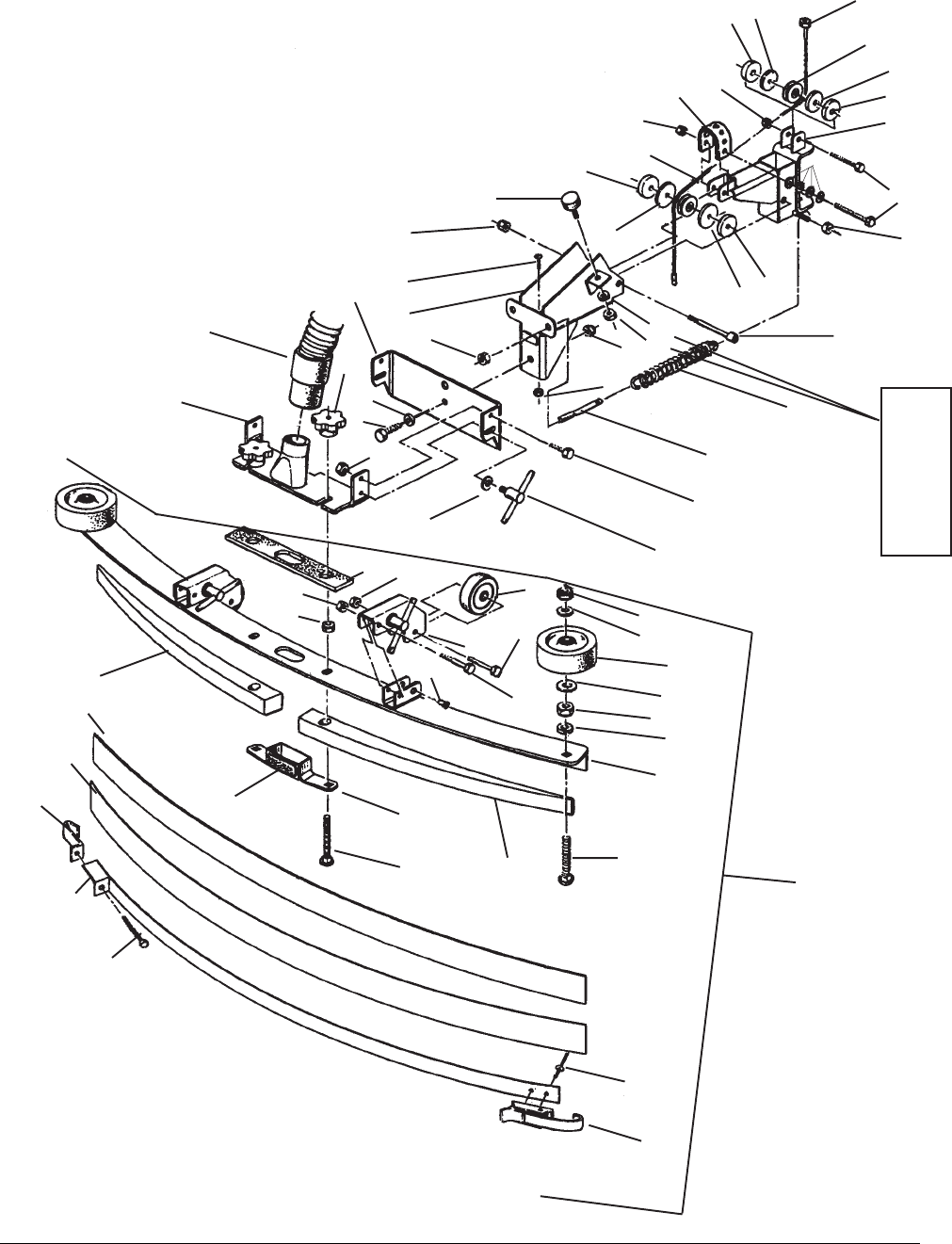

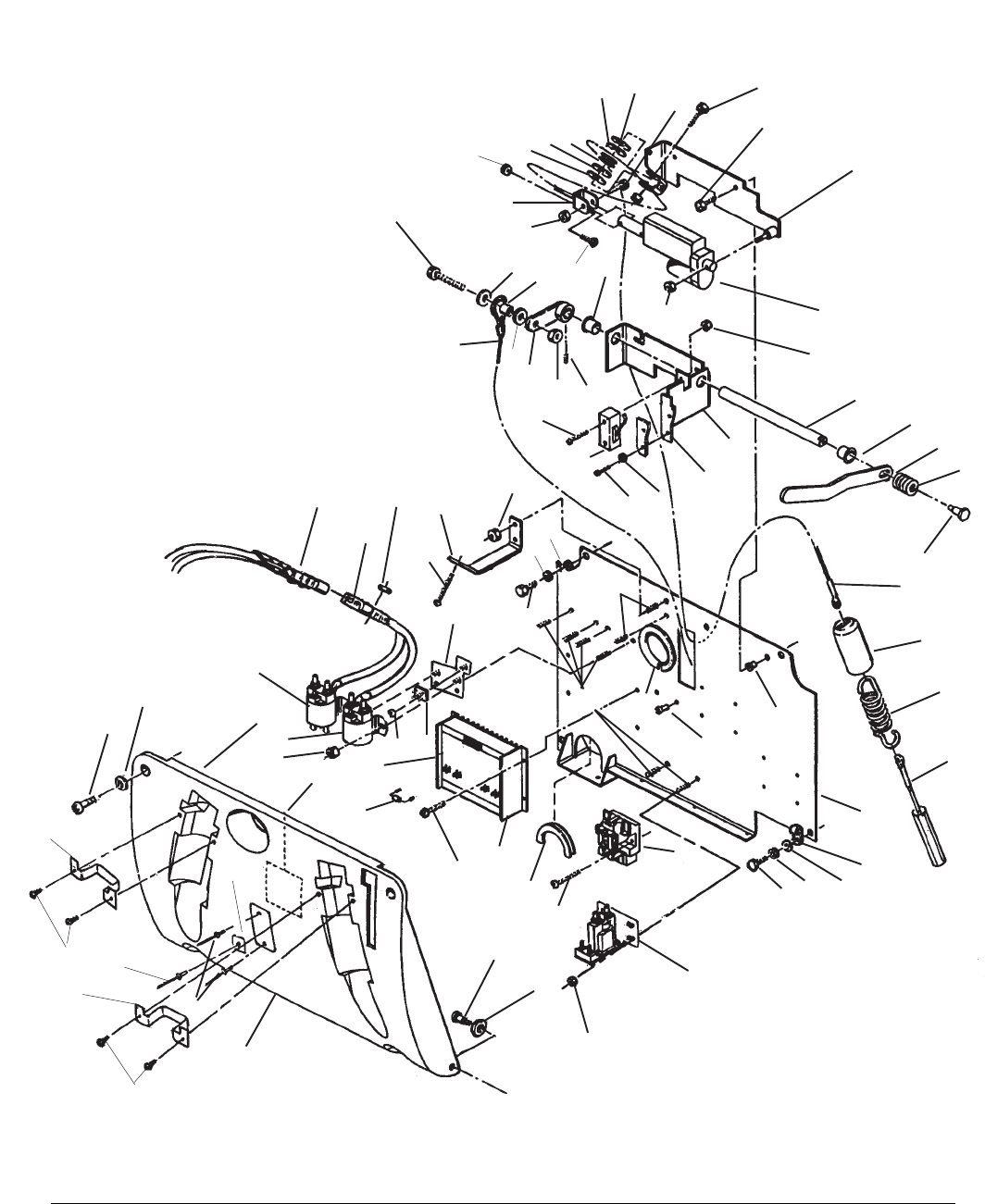

Squeegee/Swing Arm Assembly Drawing....................................................................................................... 30

Parts List ............................................................................................................................................ 31

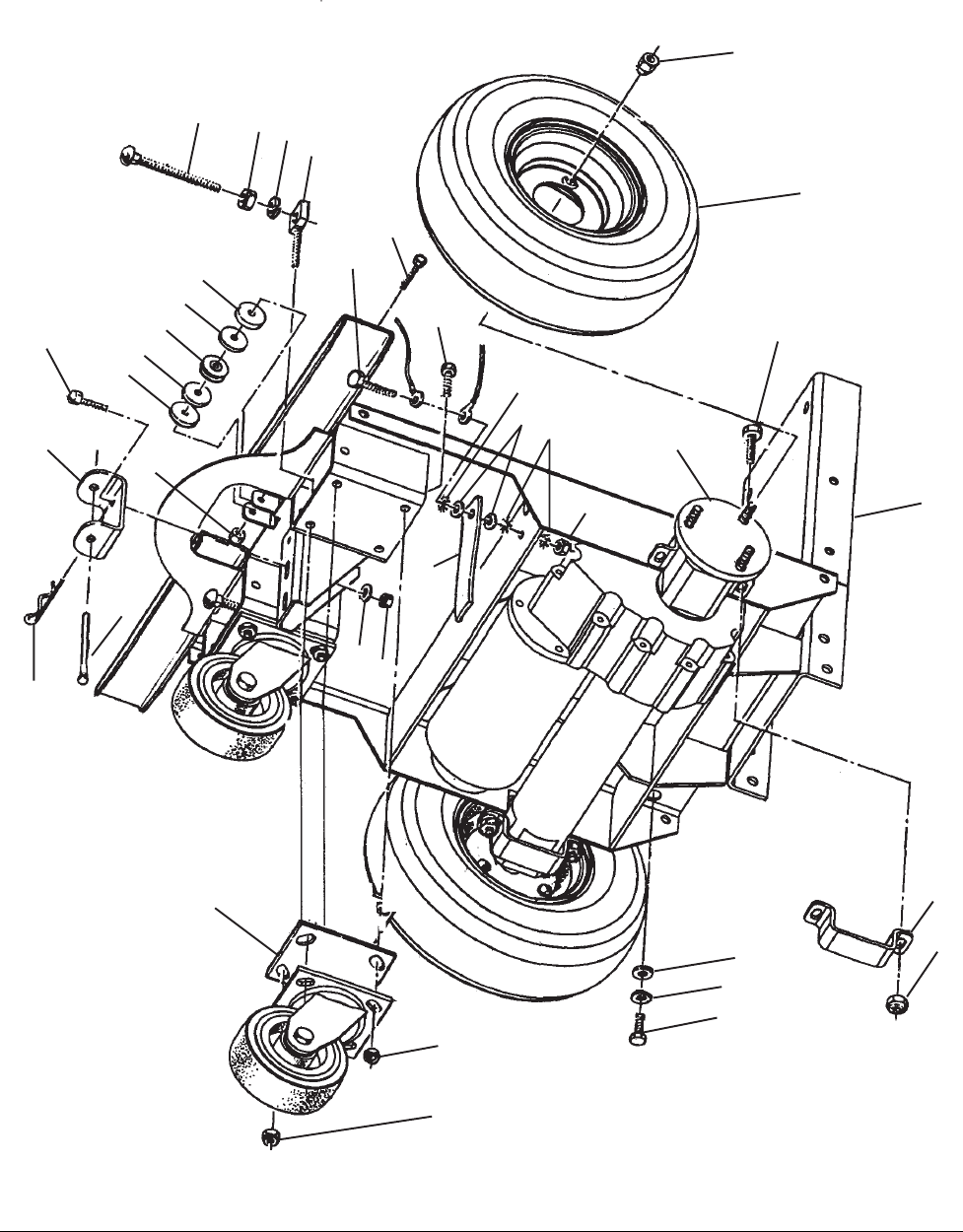

Traverse System Assembly Drawing ............................................................................................................... 32

Parts List ............................................................................................................................................ 33

Brush Head Assembly Drawing...................................................................................................................... 34

Parts List ............................................................................................................................................ 35

Solution/Recovery System Assembly Drawing ................................................................................................ 36

Parts List ............................................................................................................................................ 37

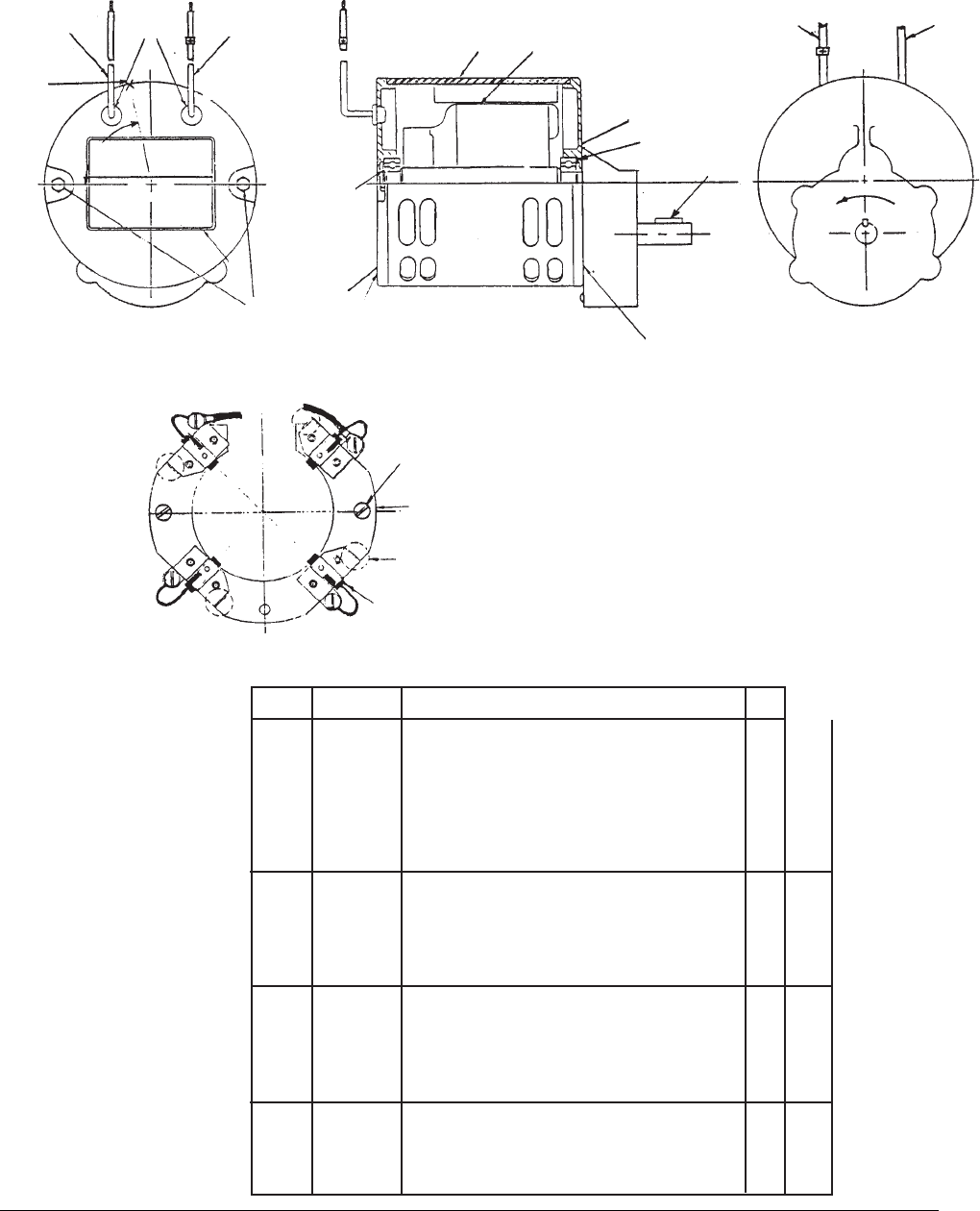

Brush Motor Drawing & Parts List .................................................................................................................... 38

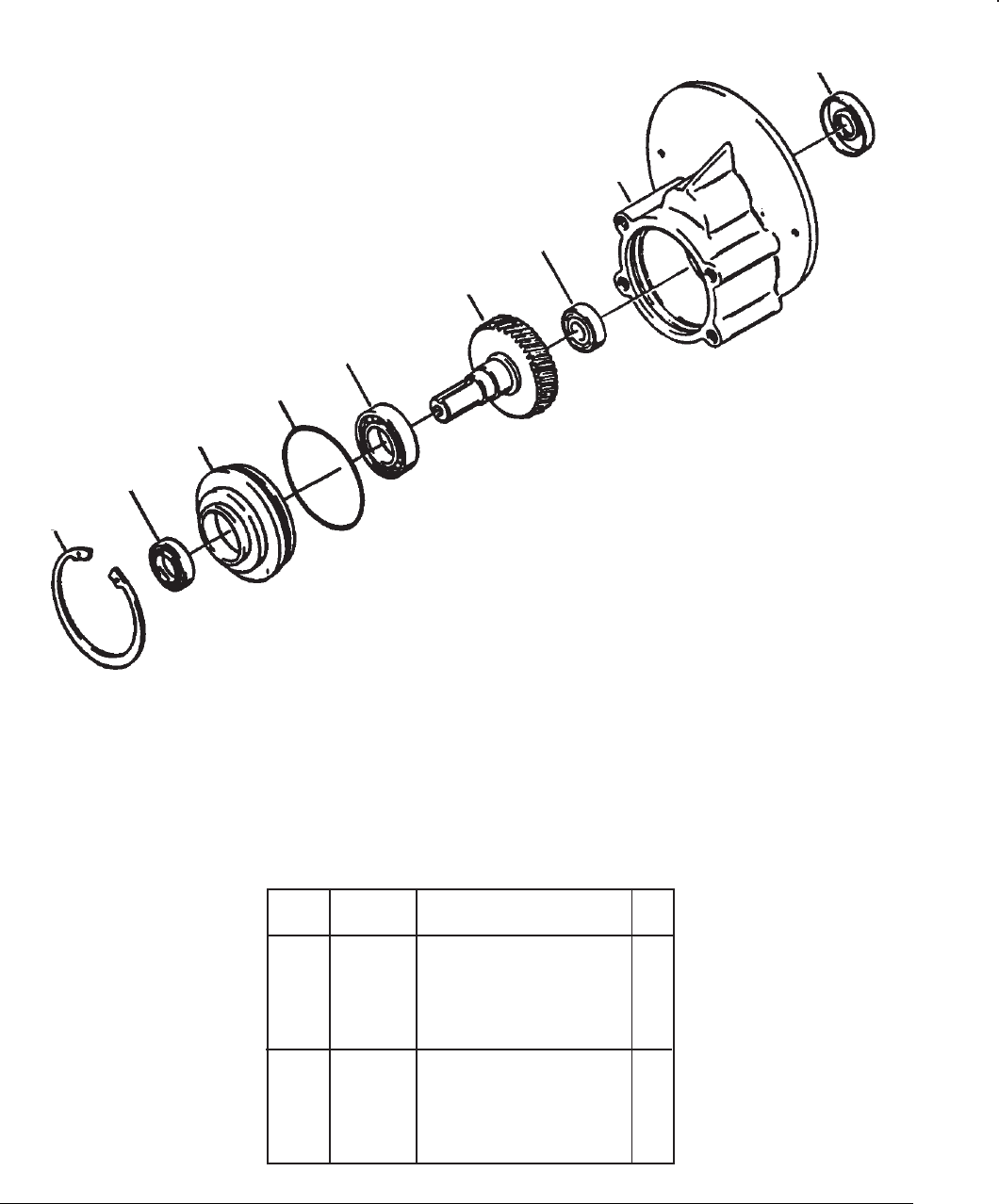

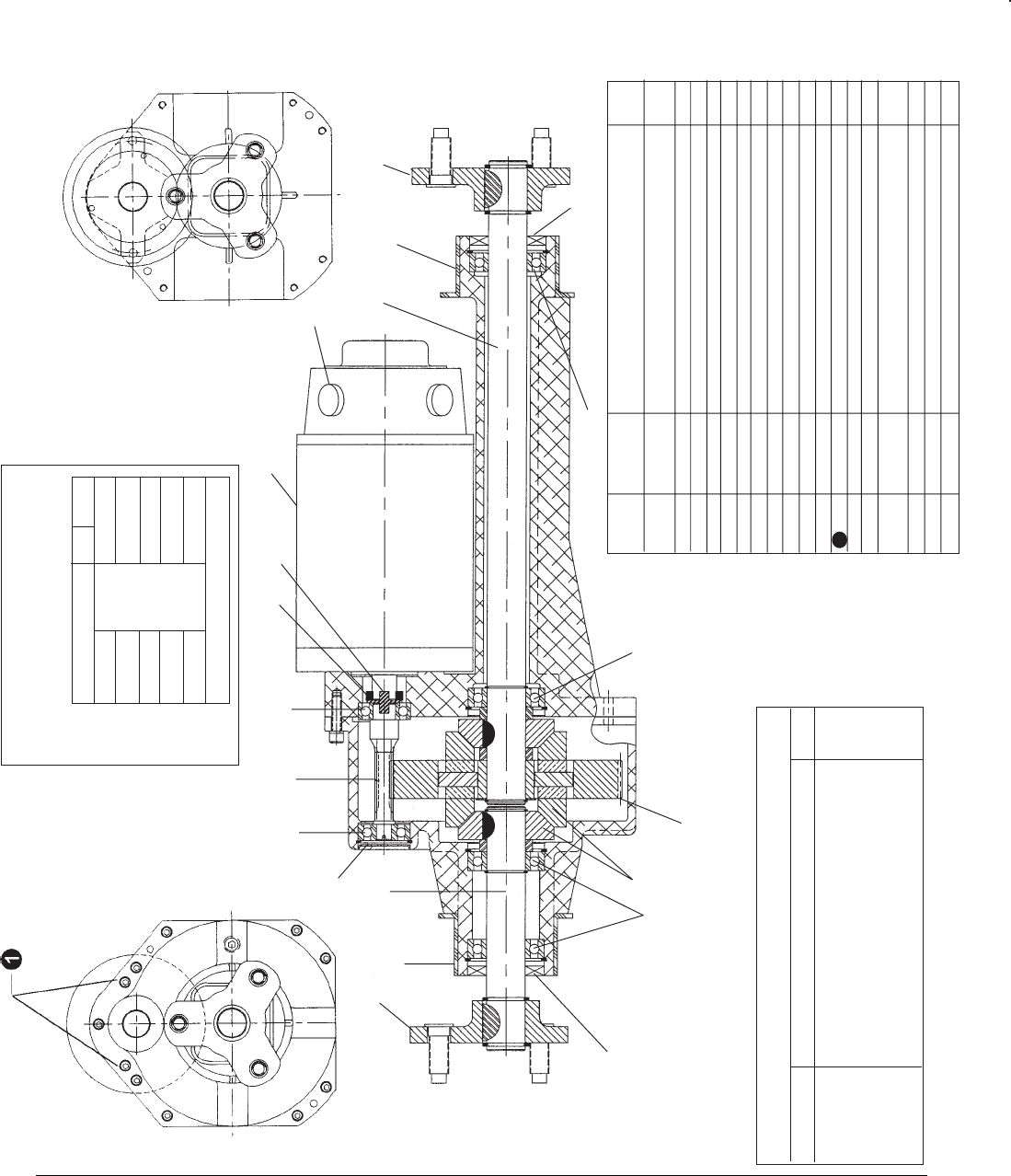

Gear Box Assembly Drawing & Parts List ....................................................................................................... 39

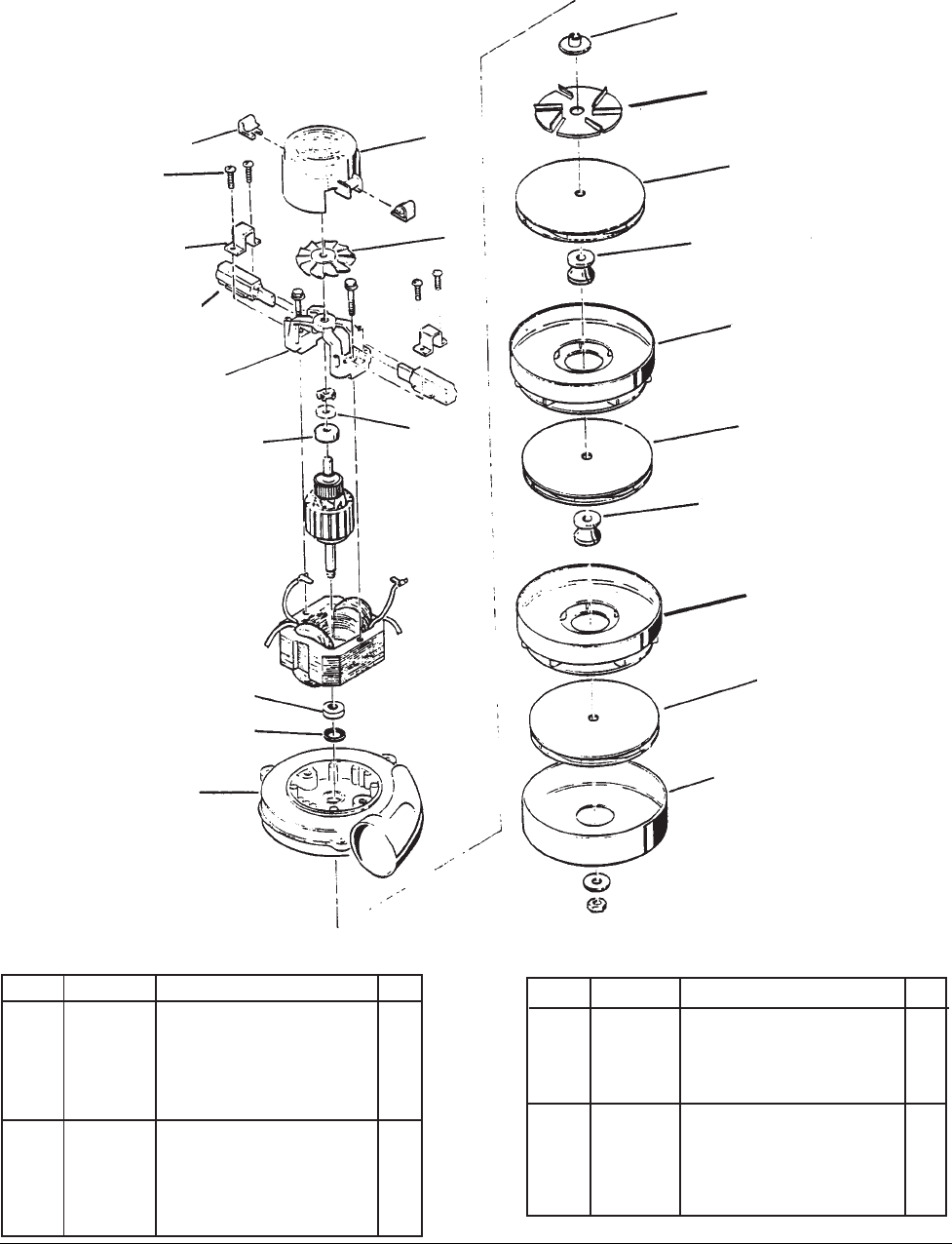

Vac Motor .......................................................................................................................................................... 40

L33/L38 Brake and Transaxle Imperial ........................................................................................................... 41

36 Volt Battery Charger Drawing & Parts List .................................................................................................. 42

Components for machines with 41135C Traverse Controller ........................................................................ 44-51

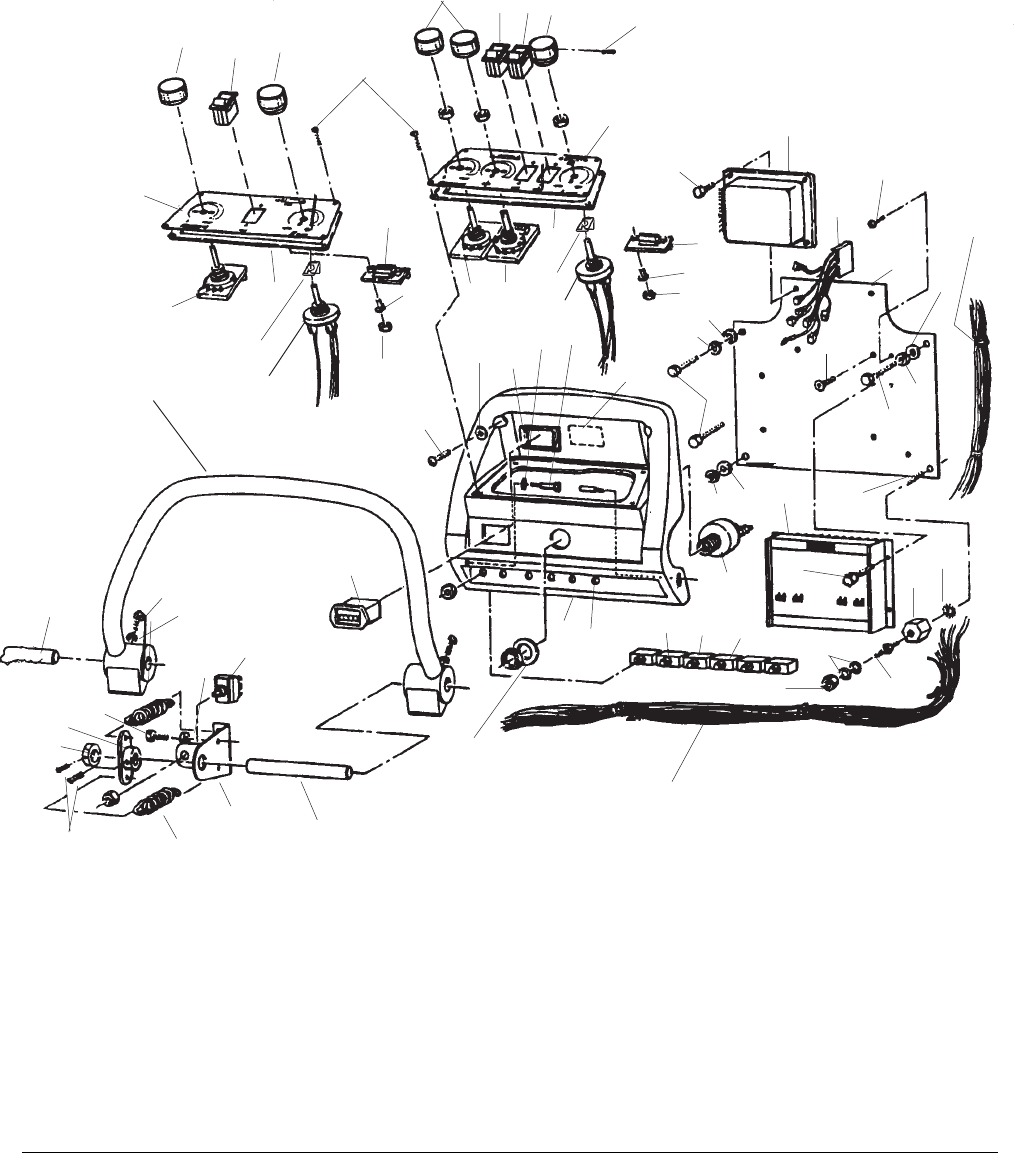

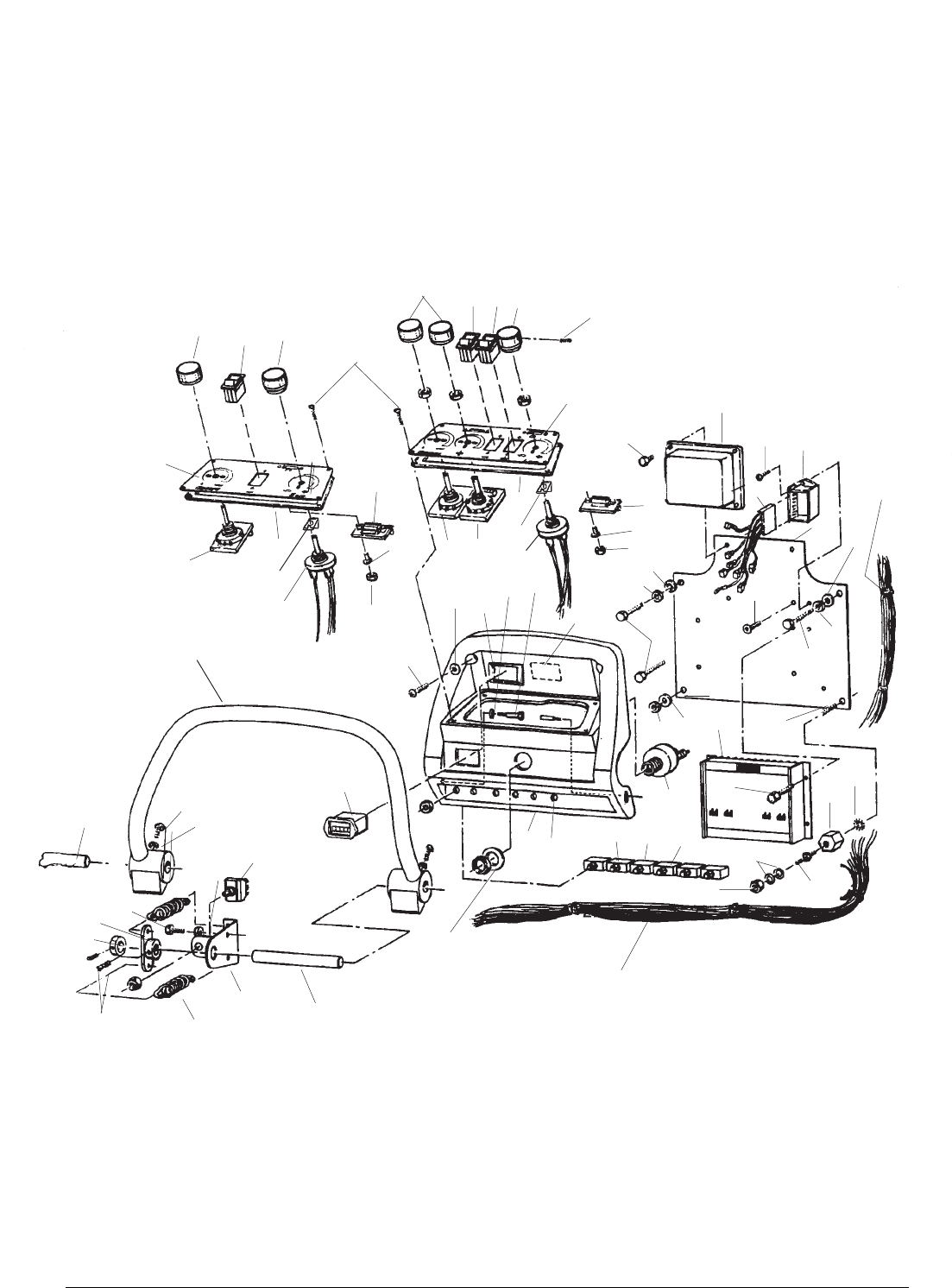

Control Housing Assembly Drawing ................................................................................................. 44

Parts List ...................................................................................................................................... 45

Rear Cover Assembly Drawing ......................................................................................................... 46

Parts List ...................................................................................................................................... 47

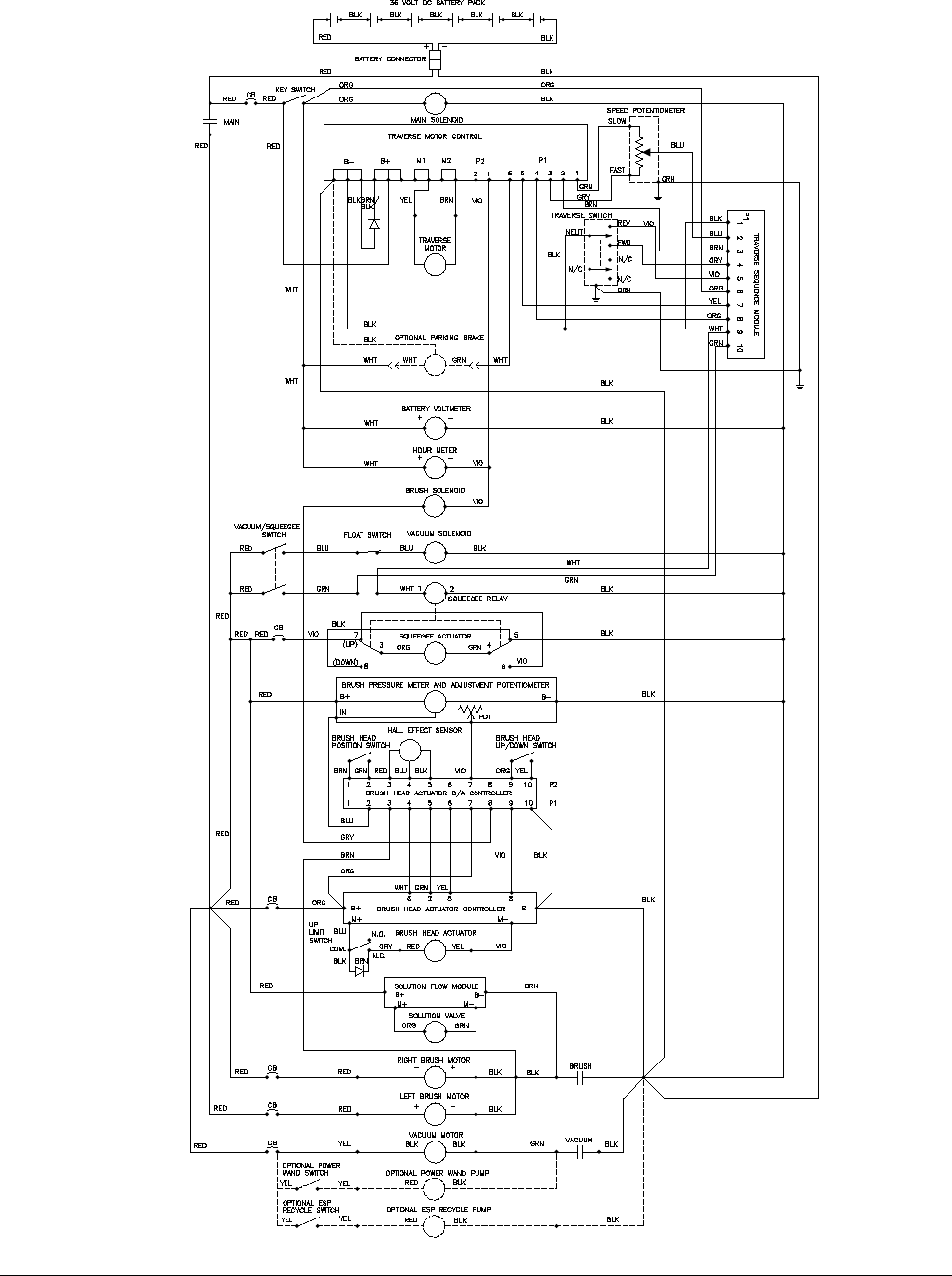

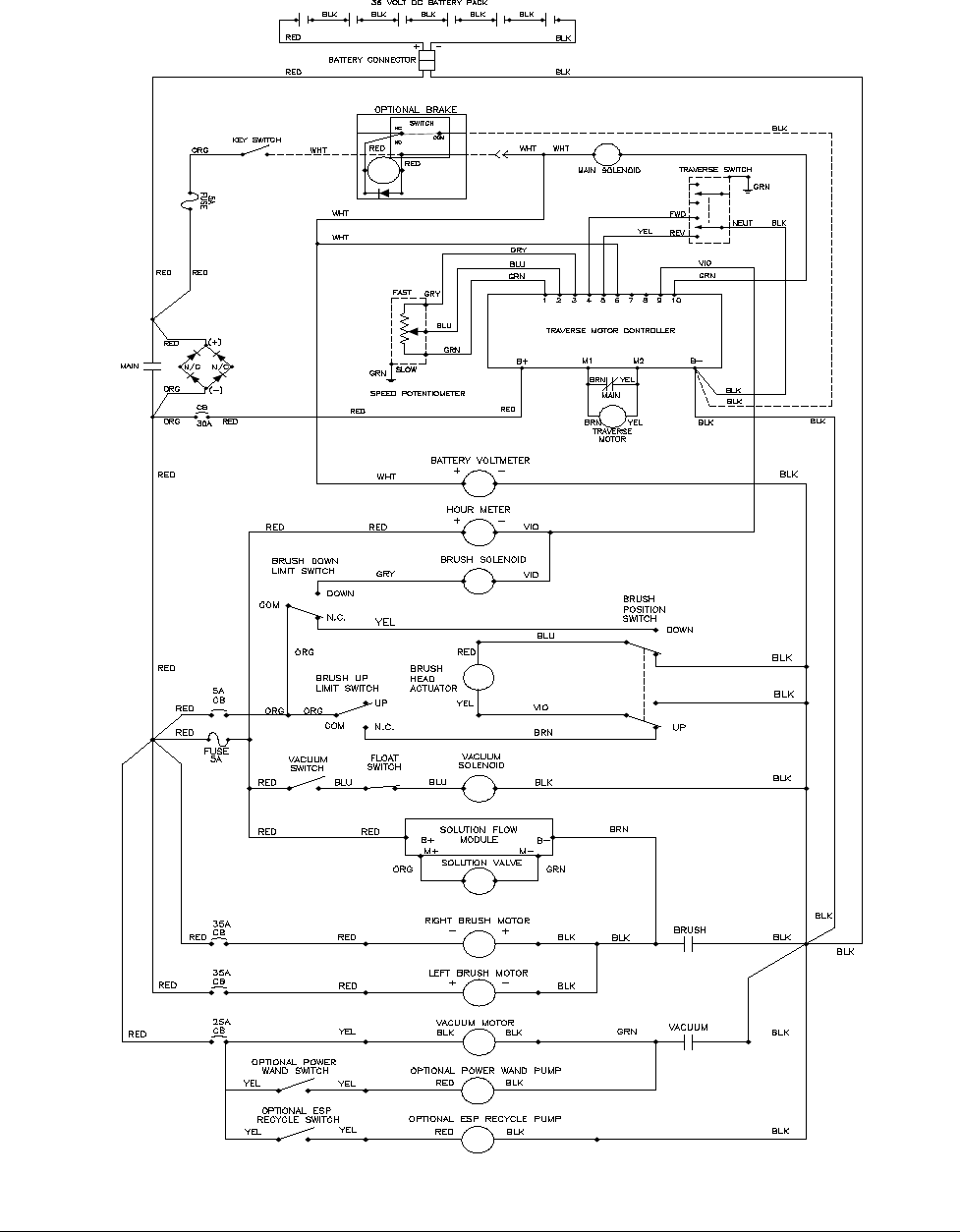

S28/S33/S38 Electrical Schematic .................................................................................................... 48

S28/S33/S38 Connection Diagram ................................................................................................... 49

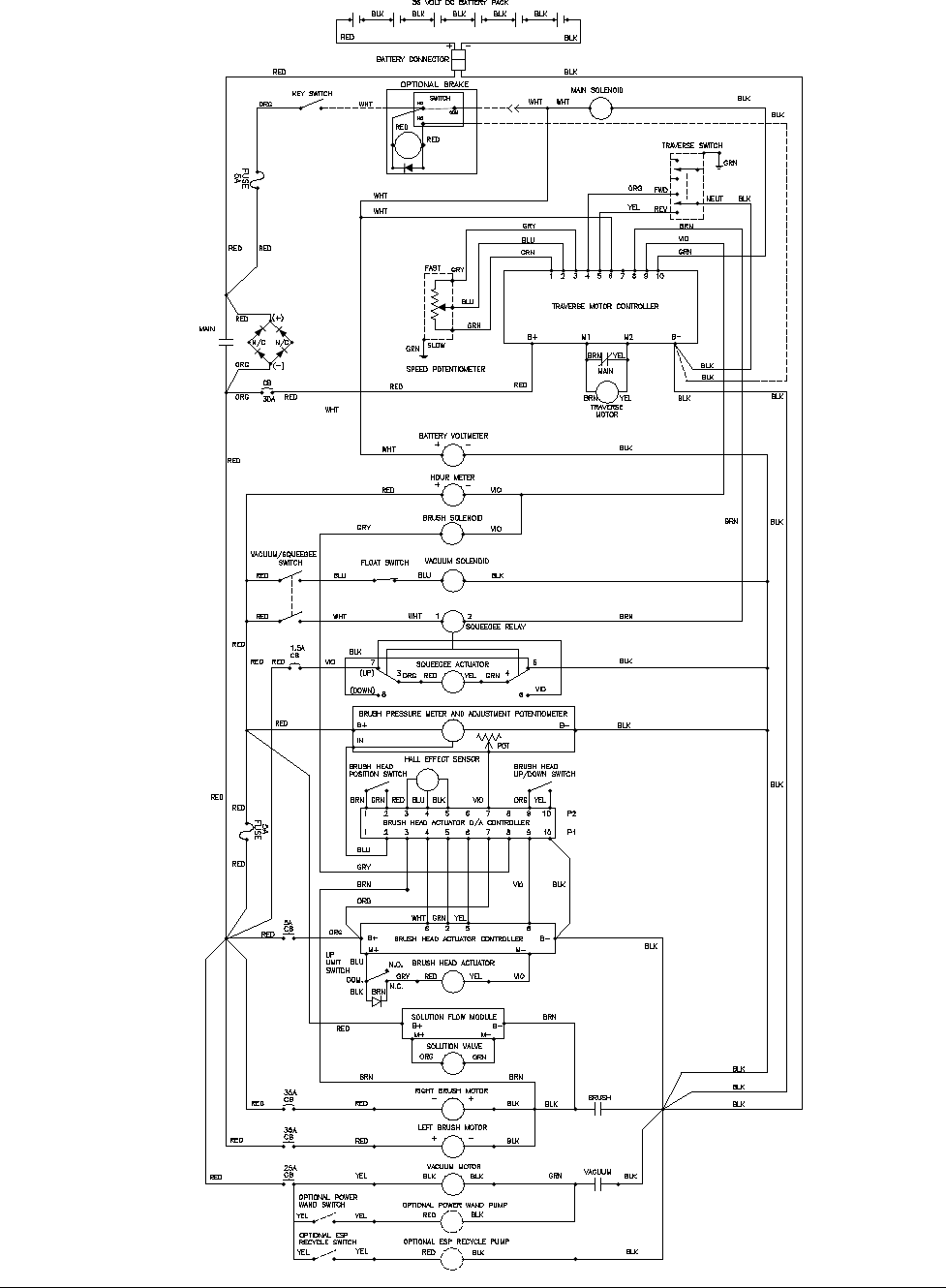

L28/L33/L38 Electrical Schematic ..................................................................................................... 50

L28/L33/L38 Connection Diagram ................................................................................................... 51

Components for machines with 40089A Traverse Controller......................................................................... 54-61

Control Housing Assembly Drawing ................................................................................................. 54

Parts List ...................................................................................................................................... 55

Rear Cover Assembly Drawing ......................................................................................................... 56

Parts List ...................................................................................................................................... 57

S28/S33/S38 Electrical Schematic .................................................................................................... 58

S28/S33/S38 Connection Diagram ................................................................................................... 59

L28/L33/L38 Electrical Schematic ..................................................................................................... 60

L28/L33/L38 Connection Diagram .................................................................................................... 61

Clarke® Operator's Manual - Encore S28/L28/S33/L33/S38/L38 - 3 -

OPERATOR SAFETY INSTRUCTIONS

WARNING AVERTISSEMENT ADVERTENCIA

DANGER: Failure to read and observe all DANGER statements could result in

severe bodily injury or death. Read and observe all DANGER

statements found in your Owner's Manual and on your machine.

WARNING: Failure to read and observe all WARNING statements could result

in injury to you or to other personnel; property damage could

occur as well. Read and observe all WARNING statements found in

your Owner's Manual and on your machine.

CAUTION: Failure to read and observe all CAUTION statements could result in

damage to the machine or to other property. Read and observe all

CAUTION statements found in our Owner's Manual and on your

machine.

DANGER: Failure to read the Owner's Manual prior to operating or attempting any service or

maintenance procedure to your Clarke machine could result in injury to you or to

other personnel; damage to the machine or to other property could occur as well.

You must have training in the operation of this machine before using it. If your

operator(s) cannot read English, have this manual explained fully before attempting

to operate this machine.

DANGER: Operating a machine that is not completely or fully assembled could result in

injury or property damage. Do not operate this machine until it is completely

assembled. Inspect the machine carefully before operation.

DANGER: Machines can cause an explosion when operated near flammable materials and

vapors. Do not use this machine with or near fuels, grain dust, solvents, thinners,

or other flammable materials. This machine is not suitable for picking up

hazardous dust.

DANGER: Lead acid batteries generate gases which can cause an explosion. Keep sparks

and flames away from batteries. Do not smoke around the machine. Charge the

batteries only in an area with good ventilation. Make sure that you unplug the AC

charger from the wall outlet before diconnecting from the machine.

DANGER: Working with batteries can be dangerous! Always wear eye protection and

protective clothing when working near batteries. Remove all jewelry. Do not put

tools or other metal objects across the battery terminals, or the tops of the

batteries.

DANGER: Using a charger with a damaged power cord could result in an electrocution. Do

not use the charger if the power cord is damaged.

WARNING: Operating this machine from anywhere other than the back of the machine could result

in injury or damage. Operate this machine only from the rear.

WARNING: This machine is heavy. Get assistance before attempting to transport or move it. Use

two able persons to move the machine on a ramp or incline. Always move slowly. Do

not turn the machine on a ramp. If operating machine on a gradient over 2%, do not

stop, turn or park. Read the "Procedures For Transporting" in this manual before

transporting.

WARNING: Machines can topple over if guided over the edges of stairs or loading docks and cause

injury or damage. Stop and leave this machine only on a level surface. When you stop

the machine, turn the key "OFF". Set the parking brake.

Page -4- Clarke® Operator's Manual -Encore S28/L28/S33/L33/S38/L38

WARNING: Maintenance and repairs performed by unauthorized personnel could result in damage

or injury. Maintenance and repairs must be performed by authorized Clarke personnel

only.

WARNING: Any alterations or modifications of this machine could result in damage to the machine

or injury to the operator or other bystanders. Alterations or modifications not authorized

by the manufacturer voids any and all warranties and liabilities.

WARNING: Electrical components of this machine can "short-out" if exposed to water or moisture.

Keep the electrical components of the machine dry. Wipe the machine down after each

use. For storage, keep the machine in a dry building.

WARNING: Operating a machine without observing all labels and instructional information could

result in injury or damage. Read all machine labels before attempting to operate. Make

sure all of the labels and instructional information are attached or fastened to the

machine. Get replacement labels and plates from your Clarke distributor.

WARNING: Wet floor surfaces can be slippery. Water solutions or cleaning materials used with this

type of machine can leave wet areas on the floor surface. These areas can cause a

dangerous condition for the operator or other persons. Always put "Caution" signs

around/near the area you are cleaning.

WARNING: Improper discharge of waste water may damage the environment and be illegal. The

United States Environmental Protection Agency has established certain regulations

regarding discharge of waste water. Also, city and state regulations regarding this

discharge may be in your area. Understand and follow the regulations in your area. Be

aware of the environmental hazards of chemicals that you dispose.

CAUTION: Use of this machine to move other objects or to climb on could result in injury or dam-

age. Do not use this machine as a step or furniture. Do not ride on this machine.

CAUTION: Your machine warranty will be voided if anything other than genuine Clarke parts are

used on your machine. Always use Clarke parts for replacement.

Clarke® Operator's Manual - Encore S28/L28/S33/L33/S38/L38 - 5 -

SPECIFICATIONS:

Model L38 - 00740A L33 - 00720A L28 - 00700A

Motor, Vac 1 HP (.67kw) three 1HP (.67kw) three 1HP (.67kw)three

stage tangential stage tagential stage tagential

discharge discharge discharge

Power Supply 36 volt (6-6V batteries) 36 volt (6-6V batteries) 36 volt (6-6V batteries)

250AH, 330AH, or 370AH 250AH, 330AH, or 370AH 250AH, 330AH, or 370AH

Solution Tank 30 gallon (114 liter) 30 gallon (114 liter) 30 gallon (114 liter)

Recovery Tank 30 gallon (114 liter) 30 gallon (114 liter) 30 gallon (114 liter)

Motors, Brush (2) 1 hp PM (.74kw) 1hp PM (.74kw) .75 hp PM (.56kw)

Motor Traction .50 hp PM (.37kw) .50 hp PM (.37kw) .50 hp PM (.37kw)

Brushes (2) 19 inch (48cm) 17 inch (43cm) 14 inch (36cm)

w/.5" (1.5cm) overlap w/1" (3cm) overlap w/.5" (1.5cm) overlap

Brush Speed 200 rpm 200 rpm 200 rpm

Brush Pressure Variable 120 lbs-220lbs Variable 120 lbs-220 lbs Variable 120 lbs-220 lbs

Speed, Forward Variable to 230 ft/min. Variable to 230 ft/min. Variable to 230 ft/min.

Speed, Reverse Variable to 180ft/min. Variable to 180ft/min. Variable to 180ft/min.

Charger 36V, 25A, 115V/60hz 36V, 25A, 115V/60hz 36V, 25A, 115V/60hz

Length 66 inches (168cm) 63 inches (160cm) 62.5 inches (159cm)

Width - Machine 28 inches (71cm) 28 inches (71cm) 28 inches (71cm)

Height 44 inches (112cm) 44 inches (112cm) 44 inches (112cm)

Cleaning Rate 42,000 sq ft/hr 35,000 sq ft/hr 29,700 sq. ft/hr

(3,901 sq. m/hr) (3,252 sq. m/hr) (2,750 sq. m/hr)

Cleaning Swath 38 inch 33 inch 28 inch (66cm)

Grade Cleaning 6° Incline 6° Incline 6° Incline

Weight w/Batteries (330AH) 1038 lbs. 471kg 1028 lbs. 467kg 1018 lbs. 462kg

Shipping Weight 1341 lbs. 608kg 1331 lbs. 604kg 1321 lbs. 599kg

w/batteries (330AH)

Introduction & Machine Specifications

Clarke’s newly designed Encore 38, 33 and 28 automatic scrubbers are efficient and superior floor cleaning

machines. The Encore 38 uses two brushes or pads to scrub a path 38 inches wide. The Encore 33 uses two

brushes or pads to scrub a path 33 inches wide. The Encore 28 uses two brushes or pads to scrub a path 28

inches wide. A squeegee wipes the floor while the vacuum motor removes the dirty solution from the floor - all

in one pass.

The Encore 38, 33 and 28 automatic scrubbers come complete with six - 6 volt batteries, five battery

connector cables, one battery cable assembly, one battery charger, either two brushes or two pad drivers,

and one operator’s manual.

Page -6- Clarke® Operator's Manual -Encore S28/L28/S33/L33/S38/L38

Introduction & Machine Specifications (Con't)

SPECIFICATIONS:

Model S38 - 00680A S33 - 00660A S28 - 00640A

Motor, Vac 1 HP (67kw) three 1HP (67kw) three 1HP (67kw) three

stage tangential stage tagential stage tagential

discharge discharge discharge Power

Supply 36 volt (6-6V batteries) 36 volt (6-6V batteries) 36 volt (6-6V batteries)

250AH, 330AH, or 370AH 250AH, 330AH, or 370AH 250AH, 330AH, or 370AH

Solution Tank 30 gallon (114 liter) 30 gallon (114 liter) 30 gallon (114 liter)

Recovery Tank 30 gallon (114 liter) 30 gallon (114 liter) 30 gallon (114 liter)

Motors, Brush (2) 1 hp PM (.74kw) .75 hp PM (.56kw) .75 hp PM (.56kw)

Motor Traction .50 hp PM (.37kw) .50 hp PM (.37kw) .50 hp PM (.37kw)

Brushes (2) 19 inch (48cm) 17 inch (43cm) 14 inch (36cm)

w/.5" (1.5cm) overlap w/1" (3 cm) overlap w/.5" (1.5 cm) overlap

Brush Speed 200 rpm 200 rpm 200 rpm

Brush Pressure 150 lbs. 150 lbs. 150 lbs.

Speed, Forward Variable to 230 ft./min. Variable to 230 ft./min. Variable to 230 ft./min.

Speed, Reverse Variable to 180 ft./min. Variable to 180 ft./min. Variable to 180 ft./min.

Charger 36V, 25A, 115V/60hz 36V, 25A, 115V/60hz 36V, 25A, 115V/60hz

Length 66 inches (168cm) 63 inches (160cm) 62.5 inches (159cm)

Width - Machine 28 inches (71cm) 28 inches (71 cm) 28 inches (71 cm)

Height 44 inches (112cm) 44 inches (112 cm) 44 inches (112 cm)

Cleaning Rate 42,000 sq ft/hr 35,000 sq ft/hr 29,7000 sq ft./hr

(3,901 sq. m/hr) (3,252 sq. m/hr) (2,750 sq ft./hr)

Cleaning Swath 37.5 inch (95.3cm) 33 inch (84cm) 28, inch (70cm)

Grade Cleaning 6° Incline 6° Incline 6° Incline

Weight w/Batteries (330AH) 1038 lbs. 471kg 1028 lbs. 467kg 1018 lbs. 462kg

Shipping Weight 1341 lbs. 608kg 1331 lbs. 604kg 1321 lbs. 599kg

w/batteries (330AH)

Clarke® Operator's Manual - Encore S28/L28/S33/L33/S38/L38 - 7 -

PROCEDURES FOR TRANSPORTING

How To Put The Machine In A Van Or Truck

WARNING: The machine is heavy. Make sure you use two able persons to assist

the machine in climbing the ramp.

1. Make sure the loading ramp is at least eight (8) feet long, and strong enough to support the machine.

2. Make sure the ramp is clean and dry.

3. Put the ramp in position.

4. Remove squeegee assembly, brush housings, & brushes or pad drivers before loading.

5. Turn key switch "ON".

6. Align the machine on a level surface ten (10) feet in front of the ramp.

7. Put the traverse speed switch in the "HI" position.

8. Push the control handles toward the machine all the way.

9. Push the machine to the top of the ramp.

10. Turn the key switch "OFF".

11. Fasten the machine to the vehicle.

How To Remove The Machine From A Van Or Truck

1. Make sure there are no obstructions in the area.

2. Make sure the unloading ramp is at least eight (8) feet long and strong enough to support the machine.

3. Make sure the ramp is clean and dry.

4. Put the ramp in position.

5. Unfasten the machine.

WARNING: The machine is heavy. Make sure you use two able persons to assist in

moving the machine down the ramp.

6. Turn the key switch "ON".

7. Carefully and slowly, pull the machine to the top of the ramp.

8. Put the traverse speed switch in the "HI" position.

9. As the machine begins to travel down the ramp, push the control handles toward the machine to

maintain a slow downward speed.

10. Replace squeegee assembly, brush housings, & brushes or pad drivers after the machine is unloaded

and ready to use.

Page -8- Clarke® Operator's Manual -Encore S28/L28/S33/L33/S38/L38

SYMBOLS USED ON ENCORE S38, S33, & S28

and L38, L33, & L28

Warning ("L Class" & "S Class')

Power ("L Class" & "S Class")

On/Off Key Switch ("L Class" & "S Class")

Traverse Speed Control ("L Class" & "S Class")

Solution Control ("L Class" & "S Class")

Brush Up/Down ("L Class" & "S Class")

Clarke® Operator's Manual - Encore S28/L28/S33/L33/S38/L38 - 9 -

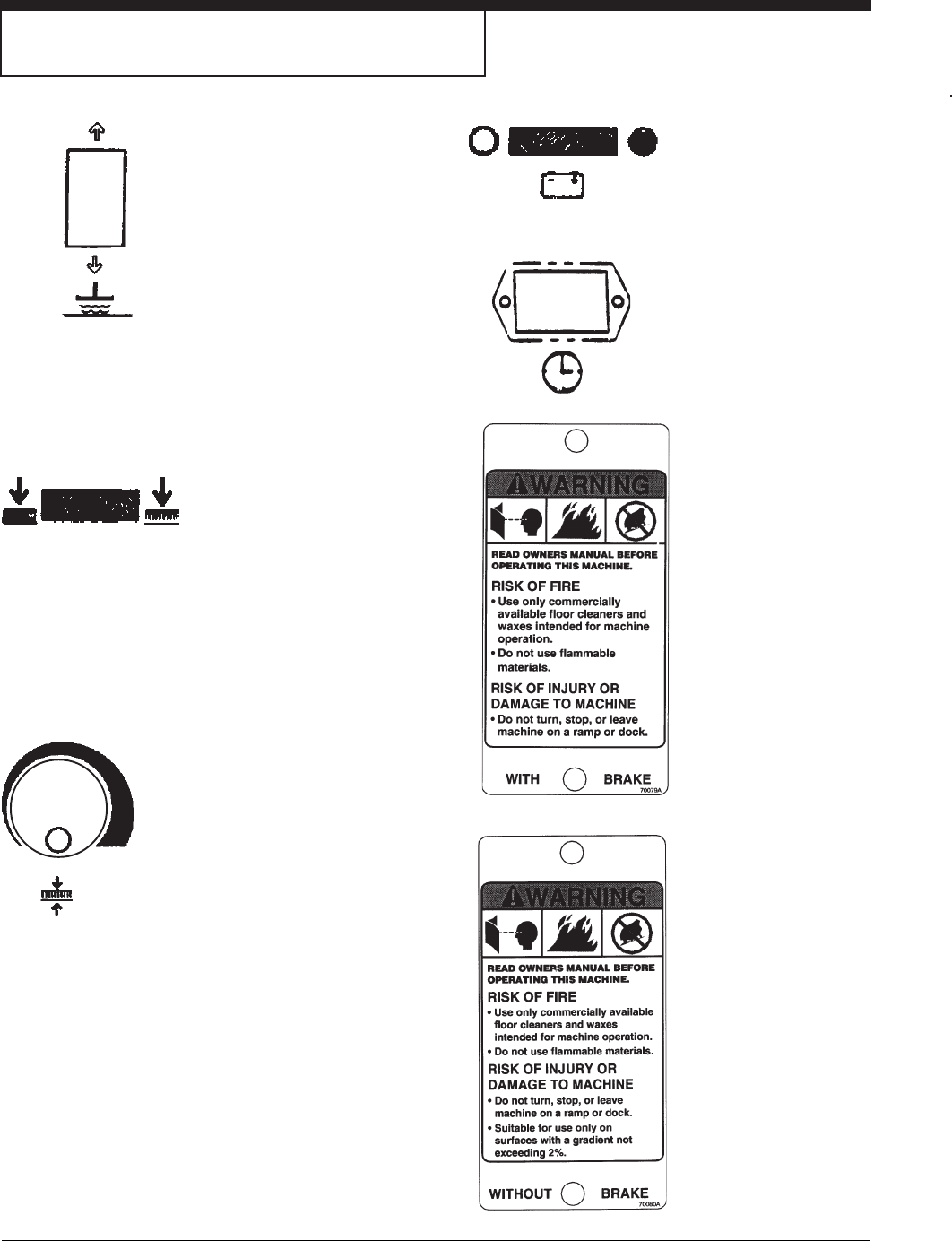

SYMBOLS USED ON ENCORE S38, S33 & S28

L38, L33, & L28

Battery Meter

("L Class" & "S Class")

Hour Meter

("L Class" & "S Class")

Warning Label

("L Class" & "S Class")

with parking brake

Warning Label

("L Class" & "S Class")

without parking brake

Squeegee/Vacuum

("L Class" Only)

Brush Pressure

Increase/Decrease

("L Class" Only)

Brush Pressure Meter

("L Class" Only)

Page -10- Clarke® Operator's Manual -Encore S28/L28/S33/L33/S38/L38

MACHINE CONTROL PANEL (S38, S33 & S28)

Key Switch (See Figure #1, Item "A")

The key switch turns "ON" the power to the control panel. "0" is "OFF" and "1" is "on".

Traverse Speed Switch (See Figure #1, Item "B")

The speed control varies from low to high speed. To increase the speed, turn the knob to the right. To decrease the

speed, turn the knob to the left.

Brush Up/Down Switch (See Figure #1, Item "C")

The brush switch has two positions: "Up" positions the brushes up; "Down" positions the brushes on the floor. The

brush motors start when the brushes are down.

Solution Control Knob (See Figure #1, Item "D")

The solution control knob regulates the flow of cleaning solution to the floor. To increase the flow turn the knob clock-

wise. To decrease the flow, turn the knob counter-clockwise.

Control Handle (See Figure #1, Item "E")

The control handle is located at the rear of the machine. It controls the direction of the machine. Push forward to go

forward. (See Figure #3, page 10). Pull back to move in reverse. (See Figure #4, page 10).

Circuit Breakers (See Figure #1, Item "F"-"J")

The circuit breaker reset buttons are located on the rear cover, below the control handle. The breakers are located as

follows: Item F & G - Brush Motors (35A)

Item H - Traverse Motor (30A)

Item I - Vac Motor (25A)

Item J - Actuator Motor, Brush Head (5A)

If a circuit breaker trips, determine which motor is not operating and turn the key switch "OFF". Wait five minutes and

push the reset button back in. Turn the key switch "ON", and try again. An authorized service person should be

contacted if the breaker trips again.

Hour Meter (See Figure #1, Item K)

The hour meter indicates the number of hours the machine has operated. It runs only when the machine is moving

forward or reverse.

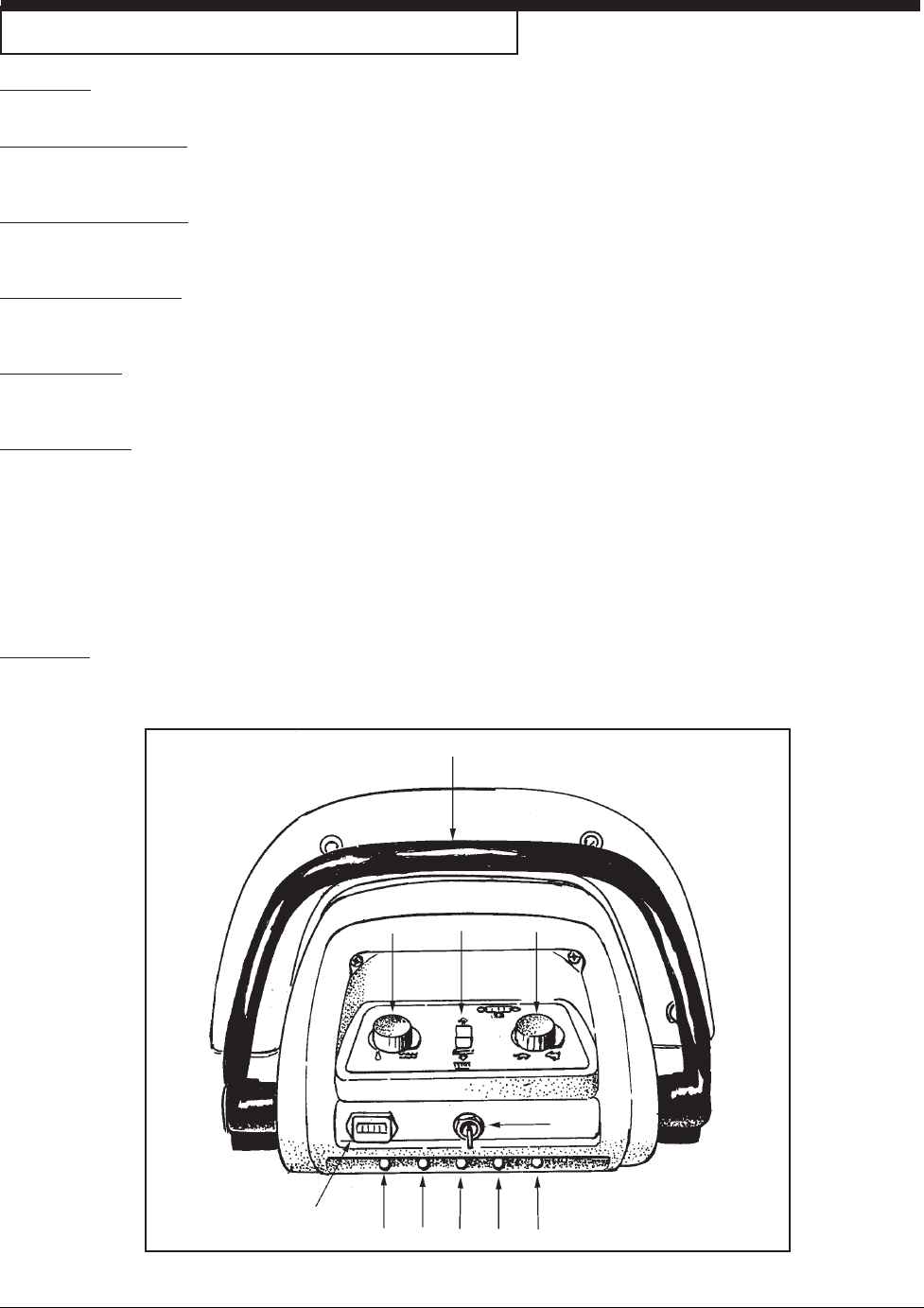

Figure #1

JIHGF

Clarke® Operator's Manual - Encore S28/L28/S33/L33/S38/L38 - 11 -

MACHINE CONTROL PANEL (L38, L33 & L28)

Key Switch (See Figure #2, Item "A")

The key switch turns "ON" the power to the control panel. "0" is "OFF" and "1" is "on".

Traverse Speed Control Knob (See Figure #2, Item "B")

The speed control varies from low to high speed. To increase the speed, turn the knob to the right. To

decrease the speed, turn the knob to the left.

Brush Head Up/Down Switch (See Figure #2, Item "C")

The brush switch has two positions: "Up" positions the brushes up; "Down" positions the brushes on the

floor. The brush motors will not run until the control handles are activated.

Brush Pressure Knob (See Figure #2, Item "D")

The brush pressure knob is used to increase the pressure on the brushes from the initial scrub position. Turn

the knob counter clockwise to decrease pressure. Trun knob clockwise to increase pressure.

Solution Control Knob (See Figure #2, Item "E")

The solution control knob regulates the flow of cleaning solution to the floor. To increase the flow turn the

knob clockwise. To decrease the flow, turn the knob counter-clockwise.

Squeegee/Vacuum Switch (See Figure #2, Item "F")

The 3 position squeegee switch positions the squeegee either: (1) Up with vac motor "OFF", (2) Up with vac

motor "ON", or (3) Down with vac motor "ON". The squeegee will automatically raise up when the control

handles are pulled into reverse.

Control Handle (See Figure #2, Item "G")

The control handle controls the direction that the machine moves. It is at the back of the machine. Push

forward to go forward (see figure #3), pull back to move in reverse (see figure #4).

Note: The reverse speed is automatically reduced by approximately 30 percent. Releasing the

control handle to the center position applies a dynamic brake to the traverse motor to slow

the machine down. If the machine is scrubbing and the control handle is released, the

brush motors will stop after two seconds.

Battery Meter (See Figure #2, Item "H")

The battery meter indicates the relative charge on the battery pack. Do not continue to run the machine when

the meter is in "red" area. This will shorten the life of the battery.

Brush Pressure Meter (See Figure #2, Item "I")

The brush pressure meter indicates the relative amount of pressure the brushes or pads are putting on the

floor. To maximize run time on a battery charge, keep the light bars towards the center of the green area. To

avoid damage to the brush motors, do not run the machine in the "red" area.

Hour Meter (See Figure #2, Item "J")

The hour meter indicates the number of hours the machine has operated. It runs only when the machine is

moving forward or reverse.

Page -12- Clarke® Operator's Manual -Encore S28/L28/S33/L33/S38/L38

MACHINE CONTROL PANEL (L38, L33 & L28)

Figure #2

Figure #3 Figure #4

Circuit Breakers (See Figure #2, Item "K"-"P")

The circuit breaker reset buttons are located on the rear cover, below the control handle. The breakers are

located as follows: Item K & L - Brush Motors (35A)

Item M - Traverse Motor (30A)

Item N - Vac Motor (25A)

Item O - Actuator Motor, Brush Head (5A)

Item P - Actuator Motor, Squeegee (1.5 Amp)

If a circuit breaker trips, determine which motor is not operating and turn the key switch "OFF". Wait five

minutes and push the reset button back in. Turn the key switch "on" and try again. Contact an authorized

service person if the breaker trips again.

EFH

PONML K

Clarke® Operator's Manual - Encore S28/L28/S33/L33/S38/L38 - 13 -

MACHINE CONTROLS & FEATURES

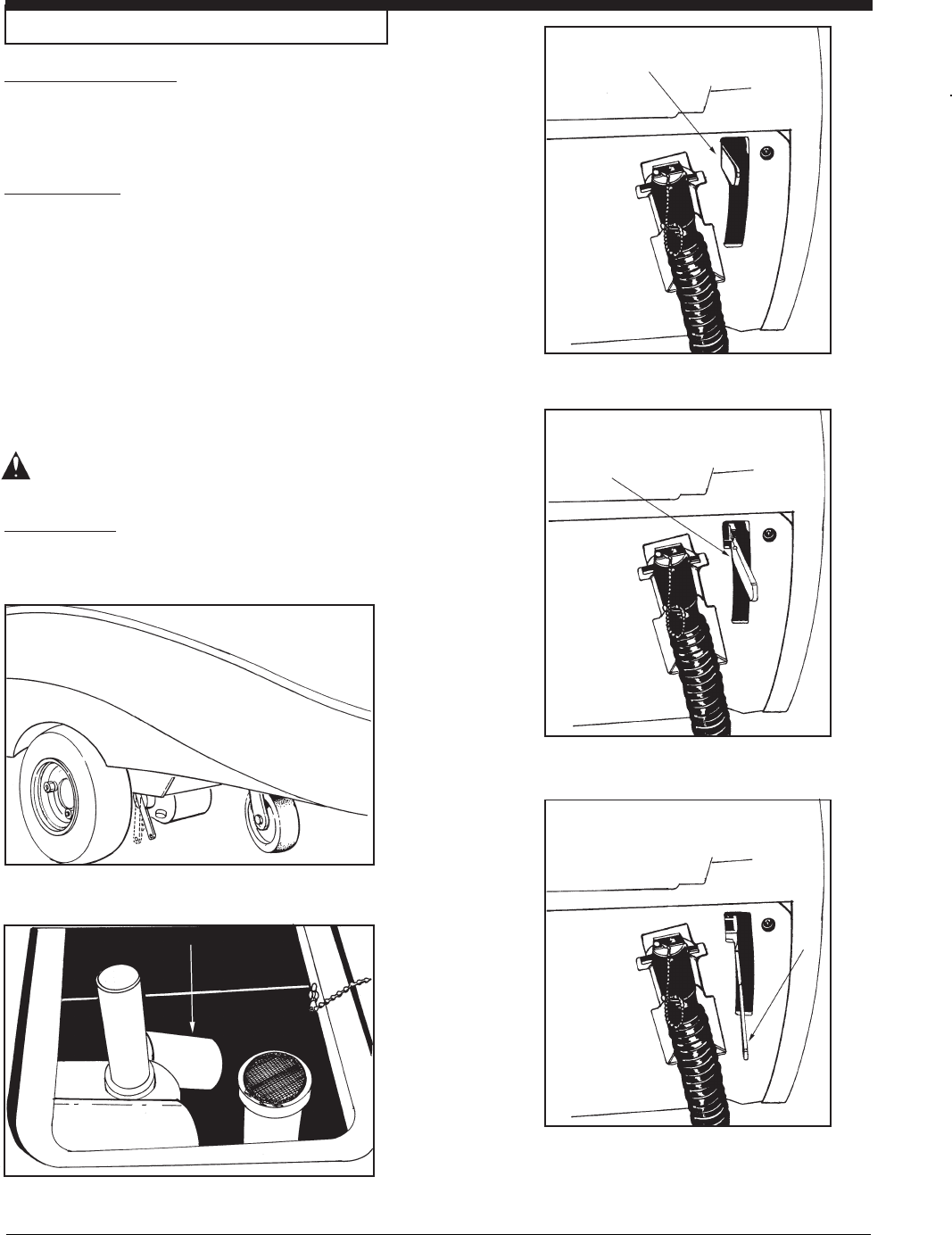

Squeegee Lift Handle See Figure #5a, 5b, & 5c.

The squeegee lift handle is located below the control

handles on the right side. It is used to raise or lower the

squeegee. The vac motor is turned on when the handle is

lowered. (S38, S33 & S28 models only).

Parking Brake (Optional)See Figure #6.

The parking brake prevents movement of the machine. The

brake is located on the left hand side of the transaxle

motor. Turn the key switch off or disconnect the power to

the battery to apply the brake.

There is a mechanical lever located on the brake. This

lever is an override. To manually release the brake, rotate

the lever toward the rear of machine (counter clockwise).

To return the brake to normal or to apply the brake, rotate

the lever towards the front of the machine (clockwise).

NOTE: If the lever is left in the override position, the

brake will not function with the key switch, and the

machine will not operate.

CAUTION: Do not activate the brake while the machine

is moving.

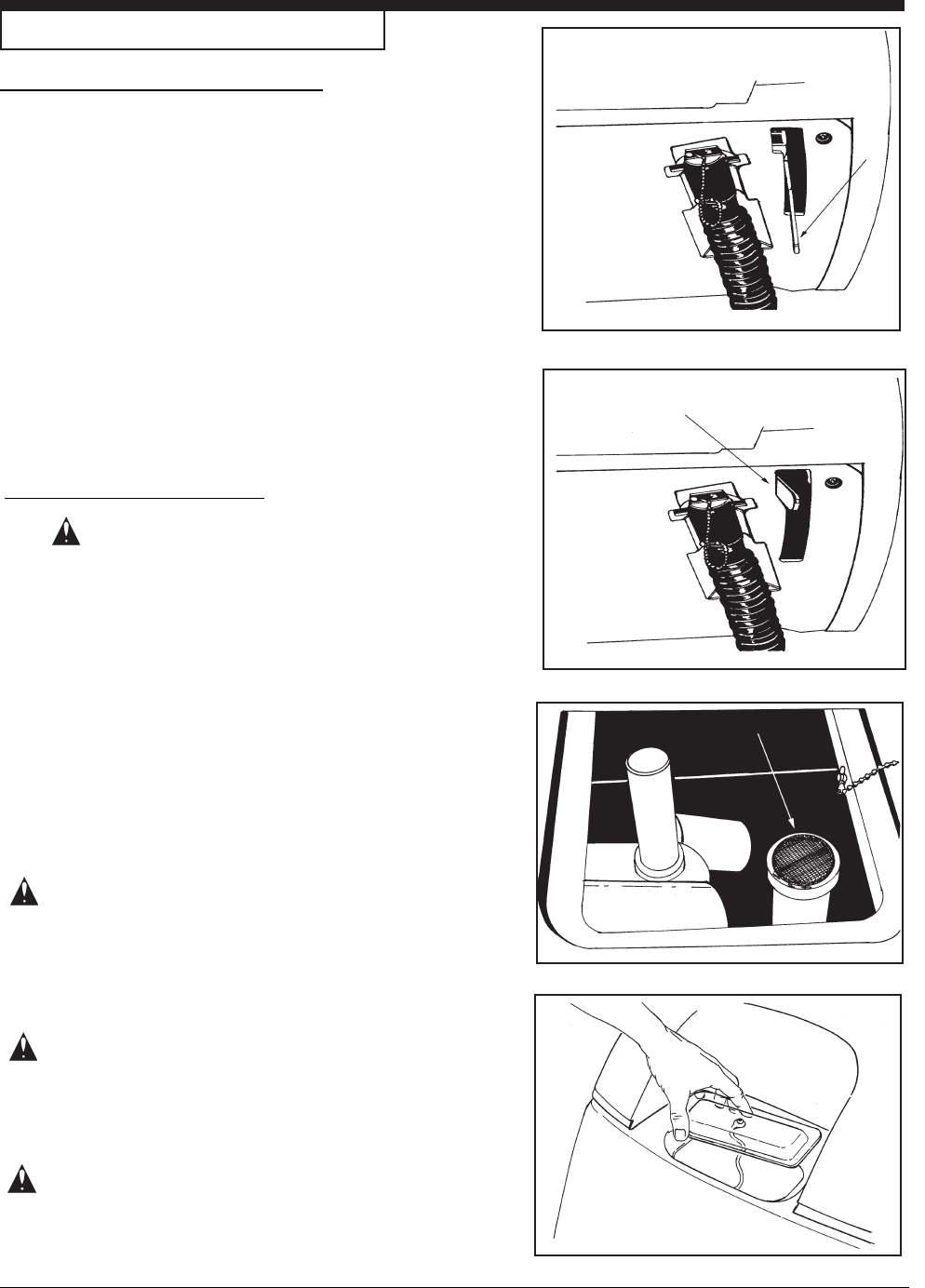

Float Shut Off See Figure #7.

The shut-off switch for the vac motor is located in the

recovery tank. It automatically turns off the vac motor when

the recovery tank is full.

Figure #5a

Figure #5b

Figure #5c

Figure #7

Figure #6

Page -14- Clarke® Operator's Manual -Encore S28/L28/S33/L33/S38/L38

HOW TO PREPARE THE MACHINE FOR OPERATION

How To Install The Batteries

The 38, 33 and 28 Encore machines use six 6-volt or

three 12-volt batteries. The batteries are located in

the battery compartment under the recovery tank.

To Install the batteries, follow this procedure:

1. Turn key switch off.

2. Make sure both tanks are empty.

3. Disconnect the hoses from the recovery tank

(upper tank) & unplug the vac motor.

Remove the recovery tank.

4. Place the batteries in the solution tank as

shown in figures 8a - 8d.

WARNING: Lifting batteries without

help could result in an

injury. Get help to lift the

batteries. The batteries are

heavy.

WARNING: Working with batteries can

be dangerous. Always

wear eye protection and

protective clothing when

working near batteries.

NO SMOKING!

5. Connect the battery cables between

batteries and install long battery cable

assembly as indicated. See figure 8a - 8d.

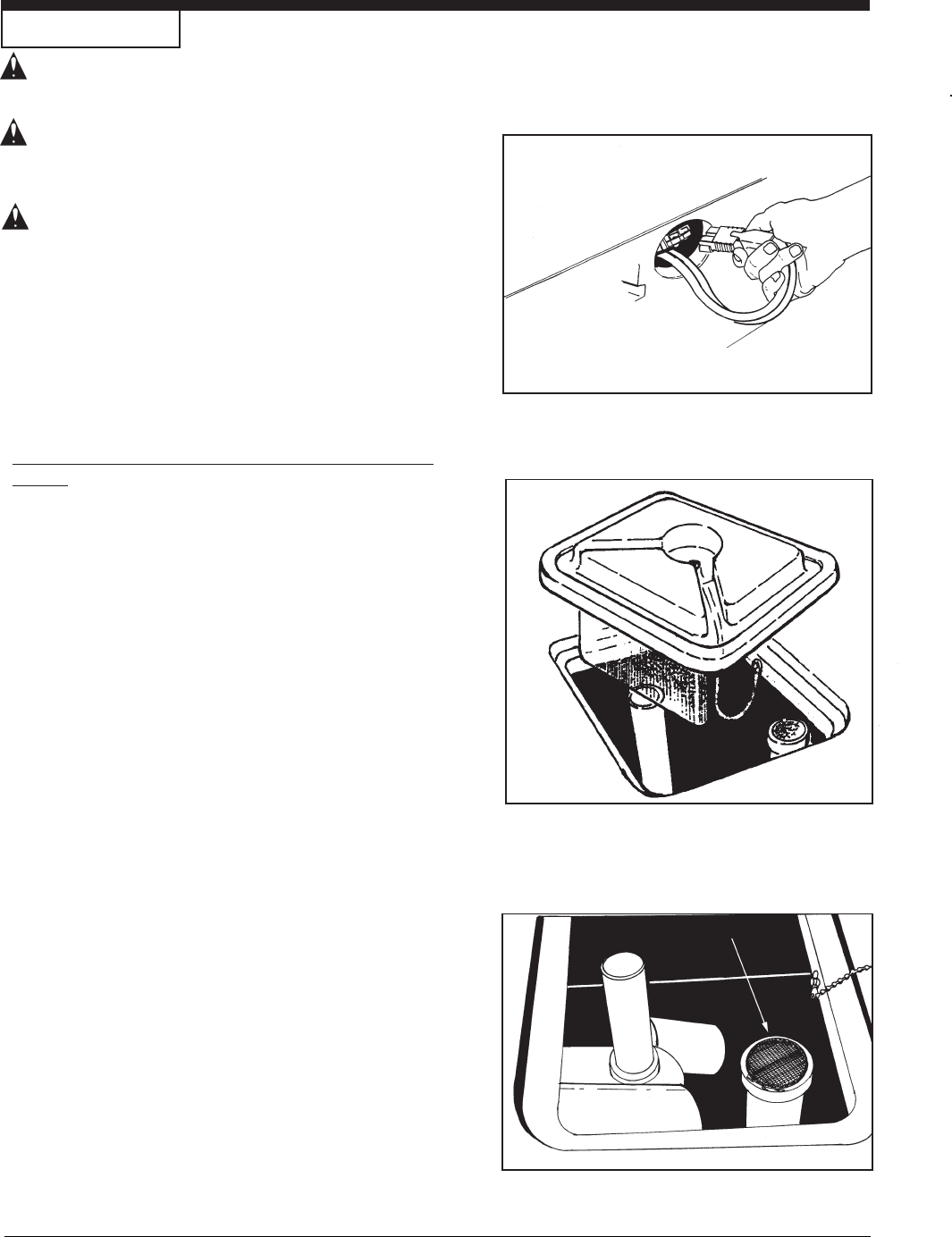

Figure #8a

Figure #8b

Figure #8cFigure #8d

38720B

38722B

38720B

38722B

38720B

38722B

38720B

38722B

Clarke® Operator's Manual - Encore S28/L28/S33/L33/S38/L38 - 15 -

6. Join the connector from the battery pack to

the connector on the control panel. See

figure #9.

7. Install the tank, reconnecting hoses and

replace the two screws attaching the

solution tank to the rear of the frame.

NOTE: Charge the batteries before using the

machine.

Battery Maintenance

The electrical power to operate the machine comes from

the storage batteries. Storage batteries need preventive

maintenance.

WARNING: Working with batteries can be dan-

gerous. Always wear eye protec-

tion and protective clothing when

working near batteries.

NO SMOKING!

To maintain the batteries in good condition, follow these

instructions:

1. Keep the electrolyte at the correct level. The correct

level is between 1/4" below the bottom of the tube in

each cell and above the tops of the plates. Check the

level of the electrolyte each time you charge the

batteries. See figure #10.

NOTE: Check the level of electrolyte prior to charging the

batteries. Be sure the plates in each cell are covered with

electrolyte . Do not top off the cells prior to charging the

battery. Electrolyte expands during charging. As a result,

the electrolyte could overflow from the cells. Always top

off the cells with distilled water after charging.

CAUTION: Irreversible damage will occur to

the batteries if the electrolyte level

does not cover the plates. Keep the

electrolyte at the correct level.

CAUTION: Machine damage and discharge

across the tops of the batteries can

occur if the batteries are filled

above the bottom of the tube in

each cell. Do not fill the batteries up

to the bottom of the tube in each

cell. Wipe any acid from the ma-

chine or the tops of the batteries.

Never add acid to a battery after

installation.

CAUTION: Tap water may contain contami-

nants that will damage batteries.

Batteries must be re-filled with dis-

tilled water only.

Figure #10

HOW TO PREPARE THE MACHINE FOR OPERATION

Figure #9

Correct fill level

2. Keep the tops of the batteries clean and dry.

Keep the terminals and connectors clean. To

clean the top of the batteries, use a damp cloth

with a weak solution of ammonia or bicarbonate

of soda solution. To clean the terminals and

connectors, use a terminal and connector clean-

ing tool. Do not allow ammonia or bicarbonate of

soda to get into batteries.

3. Keep the batteries charged.

Page -16- Clarke® Operator's Manual -Encore S28/L28/S33/L33/S38/L38

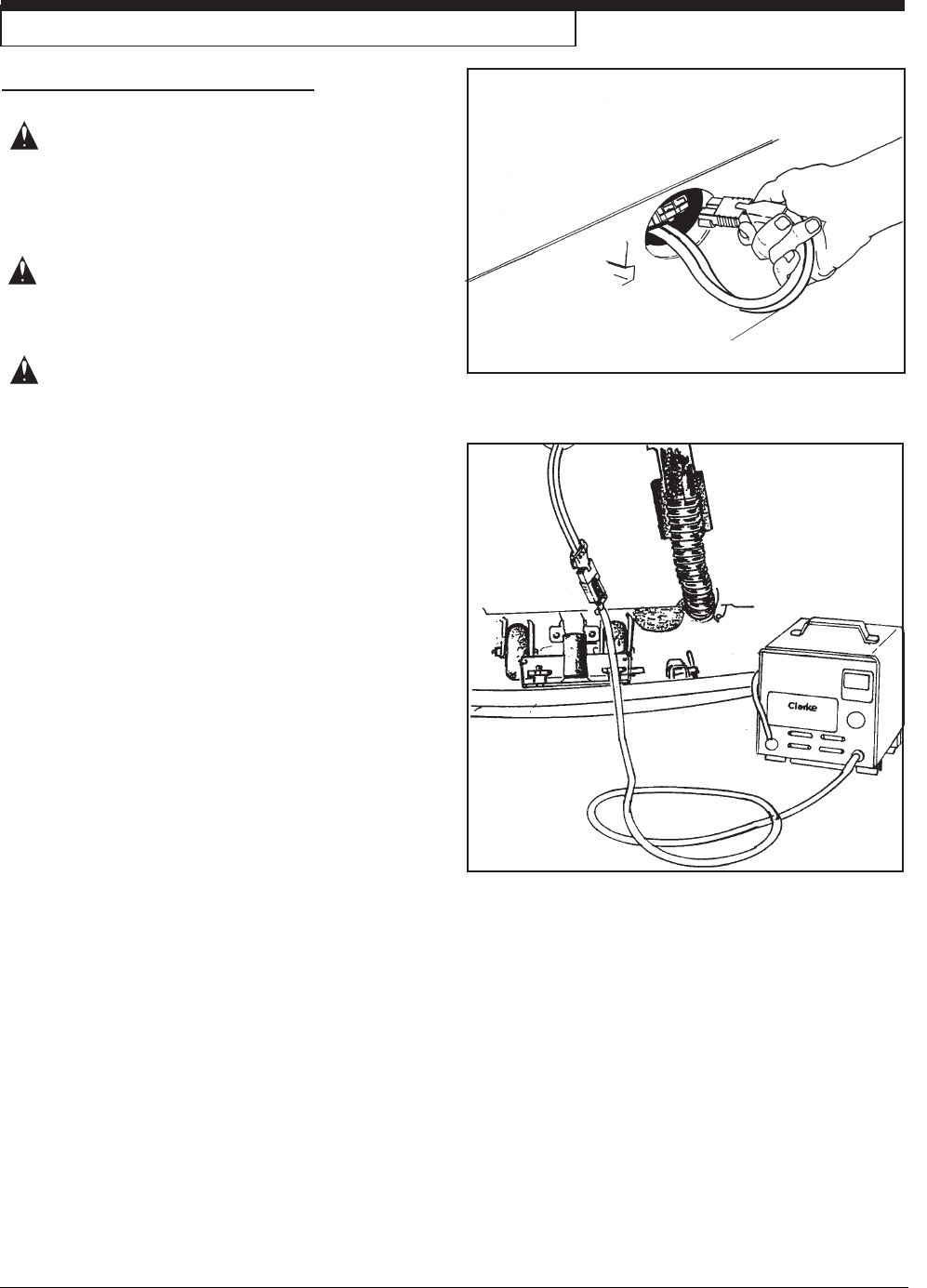

How To Charge The Batteries

WARNING: Charging the batteries in an area

without adequate ventilation

could result in an explosion. To

prevent an explosion, charge the

batteries only in an area with

good ventilation.

WARNING: Lead acid batteries generate

gases which could explode.

Keep sparks and flames away

from batteries. NO SMOKING!

WARNING: Failure to disconnect the AC plug

from the wall receptacle before

connecting or disconnecting the

DC connector on the charger

could result in an explosion. Al-

ways disconnect the AC plug

from the wall receptacle before

connecting or disconnecting the

DC connector on the charger.

To charge the batteries, follow this procedure:

1. Put the charger on a flat surface. Make sure the

vents on the sides are at least two inches away

from walls and other objects. Make sure there are

no objects near the vents on the bottom of the

charger.

2. Make sure the key switch is in the “OFF” position.

3. Disconnect the battery pack connector from the

control housing connector. See figure #11.

4. Connect the DC connector on the charger to the

battery pack connector. See figure #12.

5. Connect the charger to a properly grounded single

phase (3-wire) wall receptacle having the voltage,

frequency, and ampere capacity specified on the

nameplate of the charger.

For more instruction on the use of the charger, read the

instruction book supplied with the charger.

HOW TO PREPARE THE MACHINE FOR OPERATION

Figure # 11

Figure #12

Clarke® Operator's Manual - Encore S28/L28/S33/L33/S38/L38 - 17 -

How To Install The Brushes Or Pad Drivers

To install the brushes or pad drivers on the machine,

follow this procedure:

1. Turn the key switch "ON".

2. Put the brush switch in the "UP" position.

3. Turn the key switch "OFF".

4. Go to the front of the machine.

5. Unlatch right and left brush housings and remove

them. See figure #13.

6. Put a brush or pad driver under the brush motor plate.

See figure #14.

7. Align the lugs on the motor gimbal with the slots in the

brush gimbal.

8. Pull the brush up until the gimbal locks.

9. Repeat steps 6, 7, and 8 to install the second brush

or pad driver.

How To Remove The Brushes Or Pad Drivers

To remove the brushes or pad drivers from the

machine,follow this procedure:

1. Turn the key switch "ON".

2. Put the brush switch in the "UP" position.

3. Turn the key switch "OFF".

4. Go to the front of the machine.

5. Push down on two sides of the brush or pad driver until

the gimbals release.

HOW TO PREPARE THE MACHINE FOR OPERATION

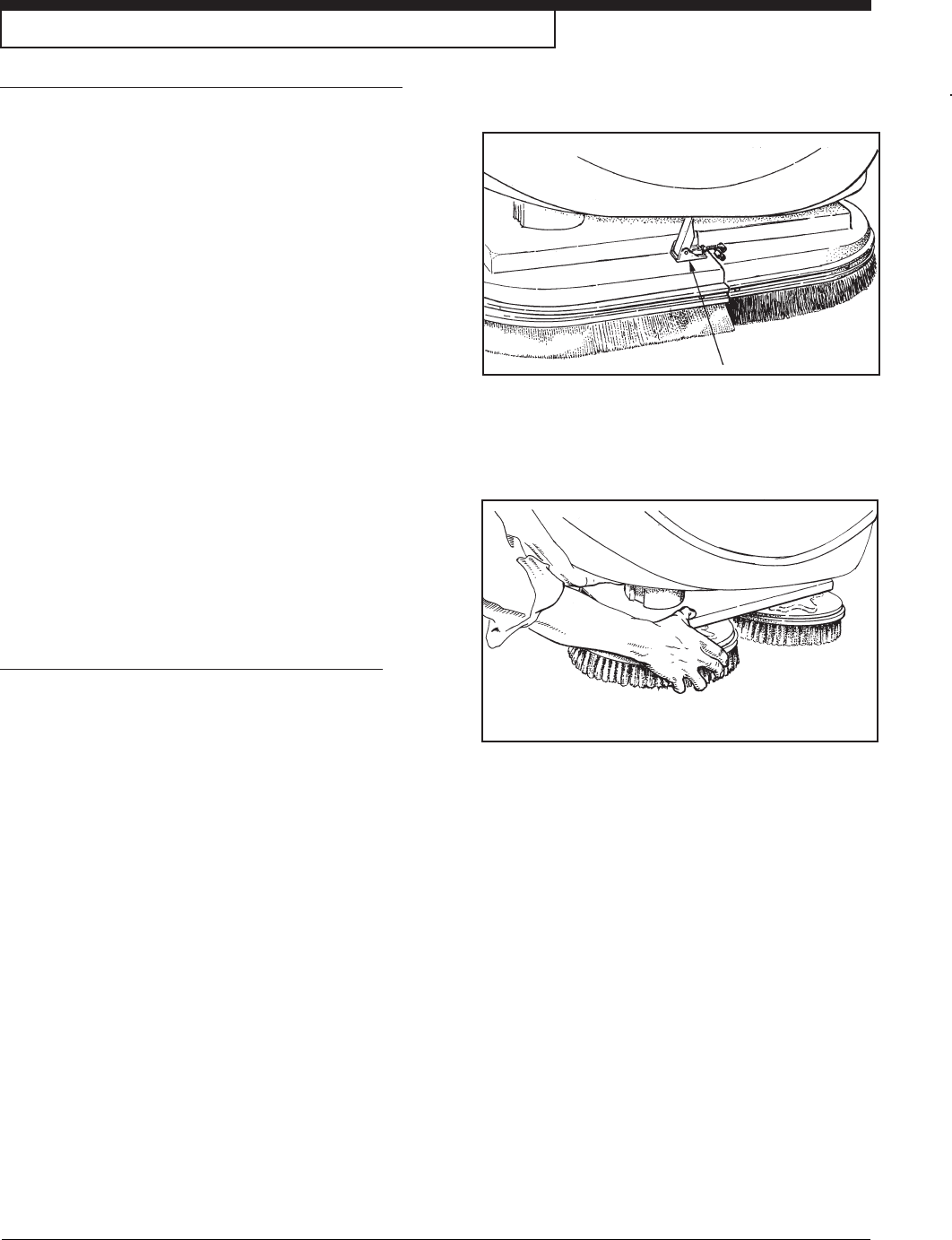

Figure #13

Figure #14

Page -18- Clarke® Operator's Manual -Encore S28/L28/S33/L33/S38/L38

HOW TO OPERATE THE MACHINE

How To Operate the Squeegee

("S Class" models only)

The squeegee wipes the floor while the vacuum motor

removes the dirty solution from the floor. Use your right

hand to lower or raise the squeegee handle. To operate

the squeegee, follow this procedure:

1. To lower the squeegee and start the vac motor move

the squeegee lever to the right and down. See figure

#15.

2. To raise the squeegee, lift the squeegee lever up.

See figure #16.

Note: The center position lets the vac motor continue

to run with the squeegee off the floor to avoid drips.

How to Fill The Solution Tank

CAUTION: Make sure water or solution

does not enter the opening for

the vacuum motor See figure

#17.

The solution tank lid is at the front. To fill the solution tank

follow this procedure:

1. Remove the solution tank lid. See figure #18

2. Fill the solution tank with water.

3. Add a cleaning chemical to the water. for the

correct amount, follow the directions shown on the

container.

WARNING: Water solutions or cleaning materials

used with this type of machine can leave

wet areas on the floor surface. These

areas can cause a dangerous condition

for the operator or other persons.

Always put CAUTION signs near the

area you are cleaning.

WARNING: Machines can ignite flammable materials

and vapors. Do not use with or near

flammables such as gasoline, grain

dust, solvents, and thinners. Only use a

cleaning concentration recommended by

the chemical manufacturer.

WARNING: Clarke recommends a maximum water

temperature of 120°F(49°C)

4. Replace the solution tank lid.

Figure #15

Figure #16

Figure #17

Figure #18

Clarke® Operator's Manual - Encore S28/L28/S33/L33/S38/L38 - 19 -

NOTE: Put the machine in the slow traverse speed.

Use the machine in an area that has no furniture and

objects until you can do the following:

1. Move the machine in a straight direction, forward and

backward.

2. Stop the machine safely.

3. Move the machine in a straight direction after you turn

the machine.

To move the machine, follow this procedure:

1. Turn the key switch “ON” position.

2. Put the brush switch in the "UP" position.

3. Raise the squeegee.

4. To go forward, push the control handles toward the

machine. See figure #19.

5. To stop the machine, put the handles in the center

position.

6. To go backward, pull the handles away from the

machine. See figure #20.

7. To turn the machine, push the rear of the machine to

the side.

8. When you stop the machine, turn the key switch

"OFF".

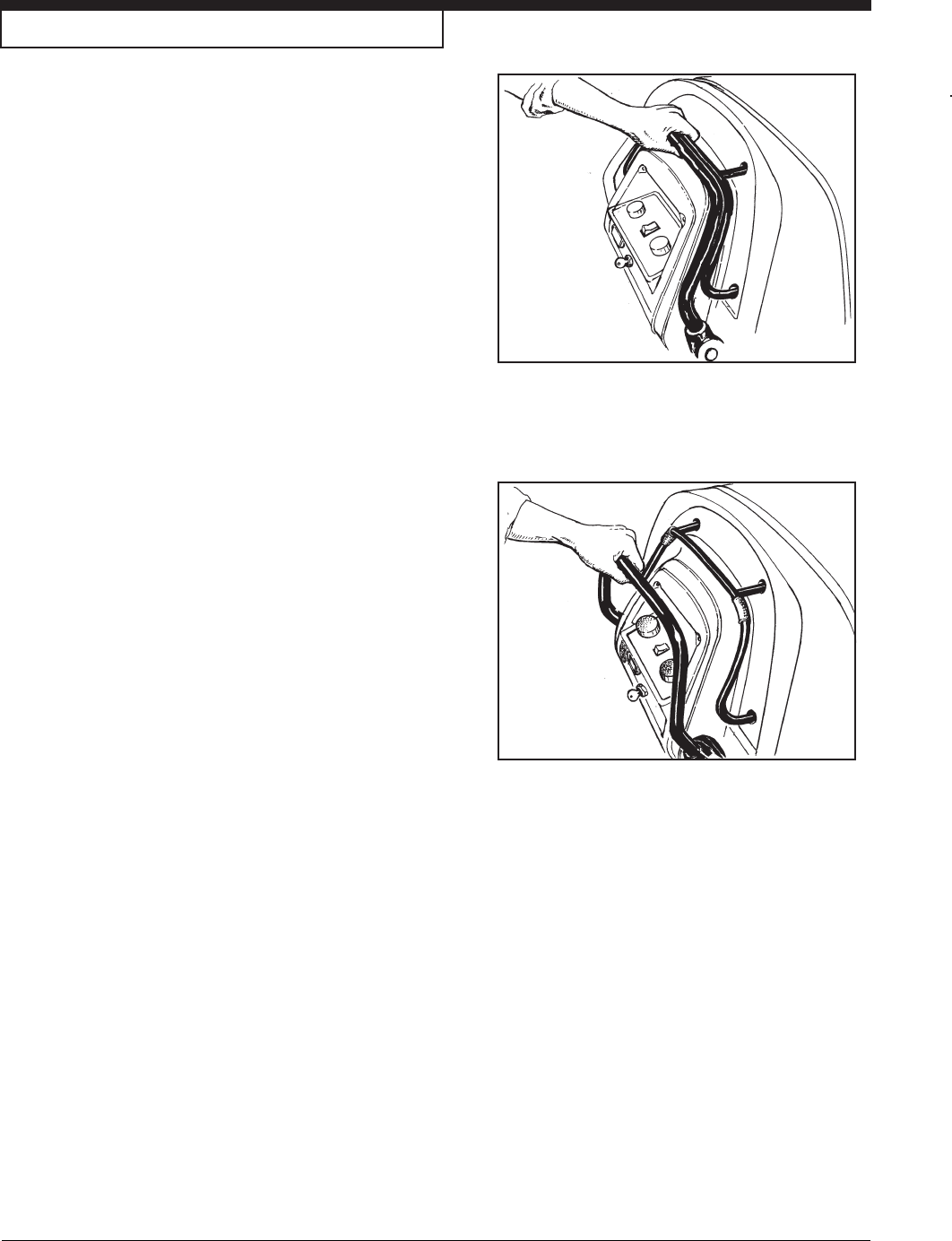

Figure # 19

Figure #20

HOW TO OPERATE THE MACHINE (cont.)

Page -20- Clarke® Operator's Manual -Encore S28/L28/S33/L33/S38/L38

HOW TO OPERATE THE MACHINE (cont.)

HOW TO CLEAN A FLOOR

WARNING: Water solutions or cleaning mate-

rials used with this type of machine

can leave wet areas on the floor

surfaces. These areas can cause a

dangerous condition for the opera-

tor or other persons. Always put

CAUTION signs near the area you

are cleaning.

To clean a floor, follow this procedure:

1. Put the water and a cleaning chemical in the clean

solution tank.

2. Turn the key switch "ON".

3. Lower the squeegee.

4. Put the brush switch in the "DOWN" position.

5. Turn the solution knob to the right to activate the flow

of solution. Adjust the flow of clean solution to the

flow desired.

6. Move the machine across the floor in the forward

direction. See figure #21 (1).

7. When the machine is one machine length from the

end of the area to be cleaned (figure #21 (2)), rotate

the solution knob to the left.

8. Make a 1800 turn. See figure #21 (3).

NOTE: When you make more passes across the floor, let

the brushes clean approximately 2 inches of the

area already cleaned by the brushes. See figure

#21 (4).

NOTE: During most cleaning procedures, apply and

remove the solution in one operation.

HOW TO CLEAN A VERY DIRTY FLOOR

To clean a very dirty floor, follow this procedure:

1. Apply solution to the floor.

2. Do not lower the squeegee.

3. Do not activate the vacuum motor.

4. Lower the brushes and scrub the floor.

5. Leave the solution on the floor long enough for the

solution to begin cleaning the floor.

6. Scrub the floor again with additional solution, picking

up all the solution with the squeegee

Figure #21

Clarke® Operator's Manual - Encore S28/L28/S33/L33/S38/L38 - 21 -

WARNING: Maintenance and repairs must be

done by authorized personnel only.

WARNING: Always empty the solution tank and

recovery tank before doing any

maintenance.

WARNING: Keep all fasteners tight.

These Maintenance Procedures Must Be Done Ev-

ery Day

Keep the machine clean, it will need fewer repairs and

have longer life.

Do These Procedures When You Begin Your Work

Period

1. Turn off key switch.

2. Disconnect the plug on the charger from the

connector on the back of the machine. See figure

#22.

3. Join the connector from the batteries (1) to the

control panel cable connection. See figure #22.

4. Make sure the recovery tank lid is on correctly.

See figure #23, Item A.

5. Make sure the Screen filter over the vacuum motor

is clean and in position. See figure #24, Item B.

6. Make sure the valves on the drain hoses are clean.

Tightly close the valves.

7. Make sure brush housings and skirts are in

position on the brush head.

8. Make sure the brushes are in position and

installed correctly

9. Check the installation of the squeegee and

squeegee hose.

MAINTENANCE

Figure #22

Figure #23

Figure #24

Page -22- Clarke® Operator's Manual -Encore S28/L28/S33/L33/S38/L38

Do These Procedures When You End Your Work

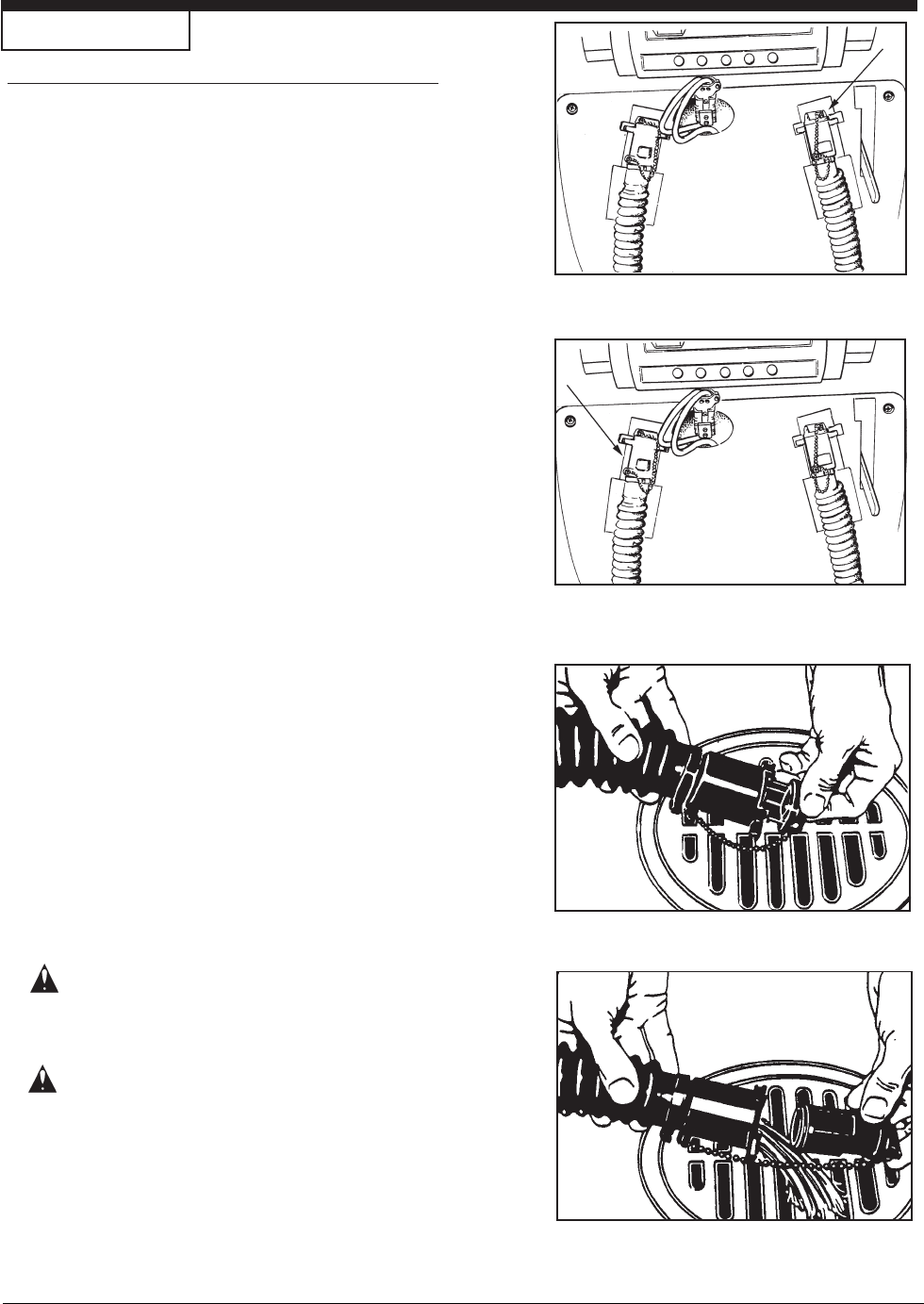

1. Drain the solution tank (Figure #25a) and the recovery

tank (Figure #25b). To drain the tanks , follow this

procedure:

2. Drain the solution tank (Figure #25a) and the recovery

tank (Figure #25b). To drain the tanks , follow this

procedure:

a. Turn the key switch “OFF”.

b. Remove the drain hose from the back of the

machine.

c. Put the end of the hose over a drain or bucket.

d. Turn the valve handle to the left. Pull the handle

out to open the drain. (Figure #25c)

NOTE: Have the opening in the side of the valve away

from you when you open the valve.

e. To open the valve completely, turn the handle

to the right. Pull the handle out of valve.

(Figure #25d)

2. Flush the tanks. To flush the tanks, put clean water in

the tank through the opening on top of the tank.

3. If a tank or drain hose has an obstruction, use a high

pressure water hose to flush the tank or hose. Put the

water hose into the drain hose.

4. Leave the tanks and the drain valves open to dry in the

air.

5. Check the squeegee blade. Use a cloth to clean the

squeegee blade. If the squeegee blade is damaged or

worn, turn or replace the blade.

6. Check and clean the solution lid gasket. Use a mild

cleaning solution and rinse the parts in clean water.

Check the batteries and add distilled water as needed.

The correct level is within 1/4 inch of the bottom of the tube

in each cell.

CAUTION:Tap water may contain contami-

nants that will damage batteries.

Batteries must be re-filled with

distilled water only.

WARNING: Lead acid batteries generate

gases which can cause an explo-

sion. NO SMOKING. Always wear

eye protection and protective

clothing when working near

batteries.

Use a clean cloth and wipe the surface of the machine.

Charge the batteries. See the instruction in the section of

this book called “How To Charge The Batteries”.

MAINTENANCE

Figure #25a

Figure #25b

Figure #25c

Figure #25d

Clarke® Operator's Manual - Encore S28/L28/S33/L33/S38/L38 - 23 -

These Maintenance Procedures Must Be Done Every

Week:

WARNING: Maintenance and repairs must be

done by authorized personnel only.

Always empty the solution tank and

the recovery tank before doing any

maintenance. Keep all fasteners

tight.

WARNING: Always wear eye protection and pro-

tective clothing when working near

batteries. Do not put tools or other

metal objects across the battery ter-

minals or the tops of the batteries.

CAUTION: To prevent damage to the machine,

and discharge across the tops of the

batteries, do not fill the batteries

above the bottom of the tube in each

cell. Wipe any acid from the machine

or the tops of the batteries. Do not

add acid to battery after installation.

NOTE: Always turn off key switch before servicing the

machine.

WARNING: Always wear eye protection and

protective clothing when working

near batteries. NO SMOKING!

1. To inspect batteries, tip up recovery tank until it locks

in up position. See Figure #26.

2. Disconnect the batteries. Use a cloth and a solution

of ammonia or bicarbonate of soda to wipe the top of

the batteries. Clean the battery terminals. Recon-

nect the batteries.

3. Check the hoses for leaks, obstructions and other

damages.

4. Check and clean the filter screen in the solution hose.

To clean the screen, follow this procedure:

a. Turn the connector to the left.

b. Remove and clean the filter screen.

c. Install the filter screen in the hose. Turn the

connector to the right to connect the hose.

5. Use a grease gun to lubricate the drive wheel and the

casters. See figure #27.

6. Check tire pressure. Tire pressure should be about 50

psi.

MAINTENANCE

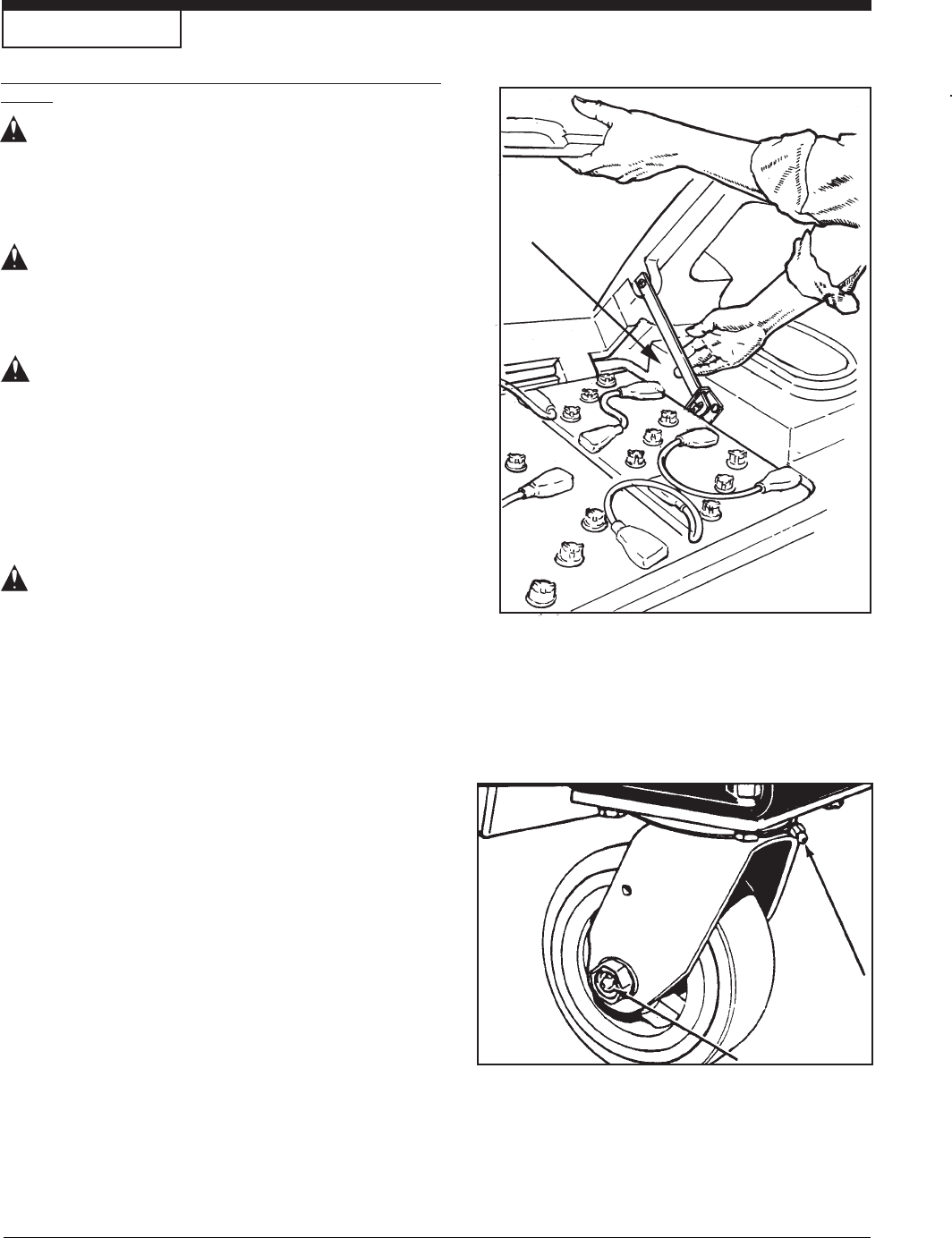

Figure #26

Figure #27

Page -24- Clarke® Operator's Manual -Encore S28/L28/S33/L33/S38/L38

7. Check the squeegee and the scrub brushes or the pad

drivers for damage.

8. Check the squeegee and the vacuum hose for dam

age, leaks and obstructions.

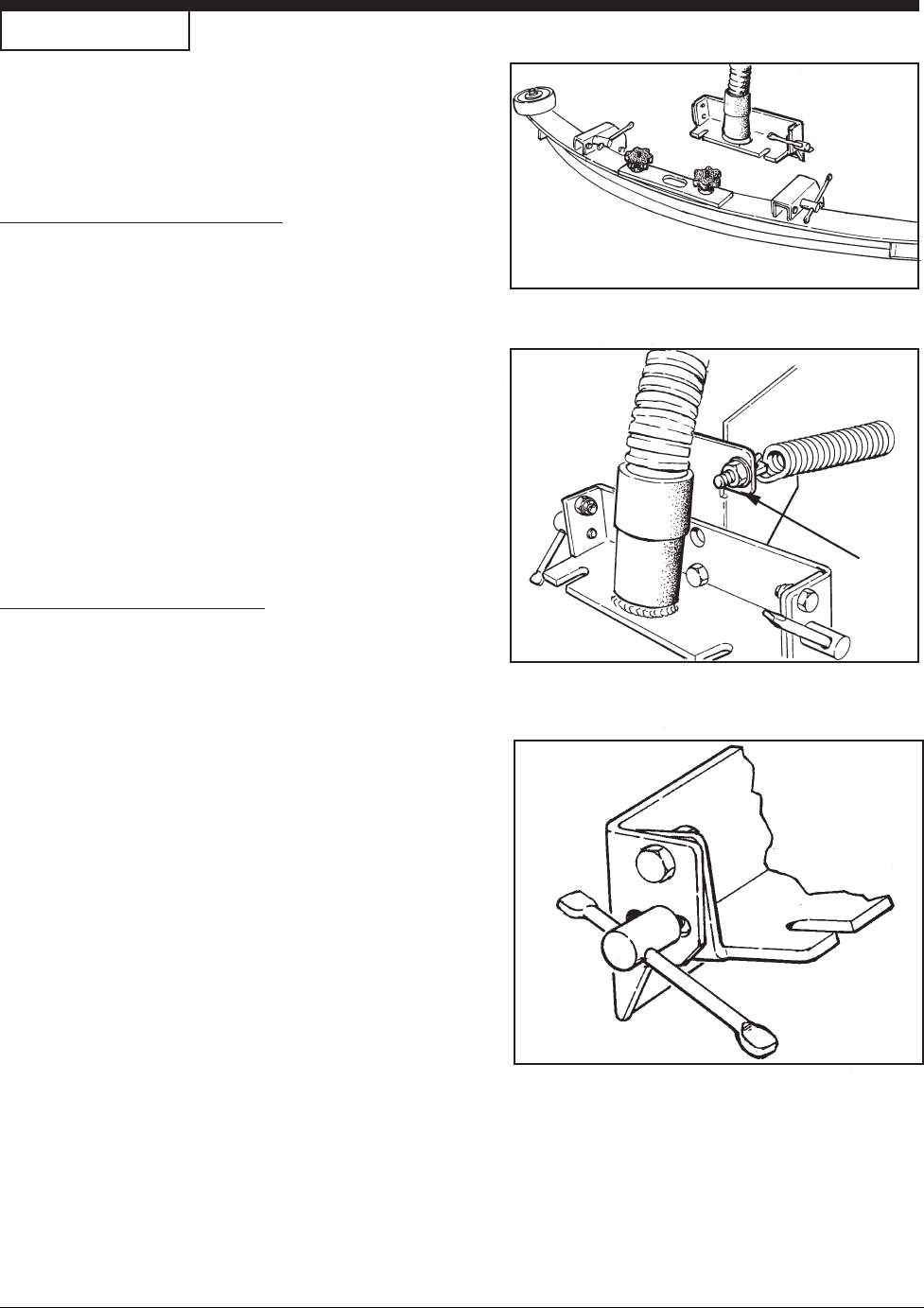

Maintenance For The Squeegee

To remove the squeegee, follow this procedure:

1. Remove the squeegee assembly by loosening the two

knobs that attach the squeegee to the machine. Pull

the squeegee assembly off. See figure #28.

2. Inspect the squeegee blade.

3. If the blade is worn, turn the blade so that a new edge

is in the wiping position.

4. Reinstall squeegee assembly on the machine.

How To Adjust The Squeegee

The following adjustments are set at the factory, however

they may require slight adjustment.

Adjusting Squeegee Pressure:

To adjust the pressure, refer to Figure #29. Proper

adjustment will produce a uniform flare along the rear

blade when the machine is moved forward. To increase

pressure, tighten the nuts on each side of the swing arm.

To decrease the pressure, loosen the nuts on each side.

Adjusting Squeegee Tilt:

The tilt of the squeegee causes the rear blade to raise up

in the center or on the ends, depending on which

direction the tilt is changed. For tilt adjustment, refer to

figure # 30. Loosen left and right screw "X". In order to

bring the rear blade down in the center, tip "Y" down. To

bring both ends down, tip "Y" up. Make very small

adjustments and try it until a uniform flare is achieved.

Changing the tilt may also require readjusting the squee-

gee pressure.

MAINTENANCE

Figure #28

Figure #29

Figure #30

Clarke® Operator's Manual - Encore S28/L28/S33/L33/S38/L38 - 25 -

MAINTENANCE

Adjusting Squeegee Blades

When properly installed the front blade should be ap-

proximately .06 above the rear blade. See figure #31.

Adjusting Squeegee Support Wheels:

The support wheels should be set at .12 above the floor

with the rear blade touching the floor. See figure #31.

WARNING: Maintenance and repairs must be

done by authorized personnel

only .

WARNING: Electrical repairs must be done

by authorized personnel only.

Consult your Clarke Authorized Service Person to do the

service procedures.

Use only genuine Clarke parts.

How to Clean the Solution Line

If the solution line becomes clogged, pull the filter

assembly out from behind the brush housing (Figure #32

and remove the filter screen (Figure # 33) and clean or

replace it. Push filter assembly back inside frame.

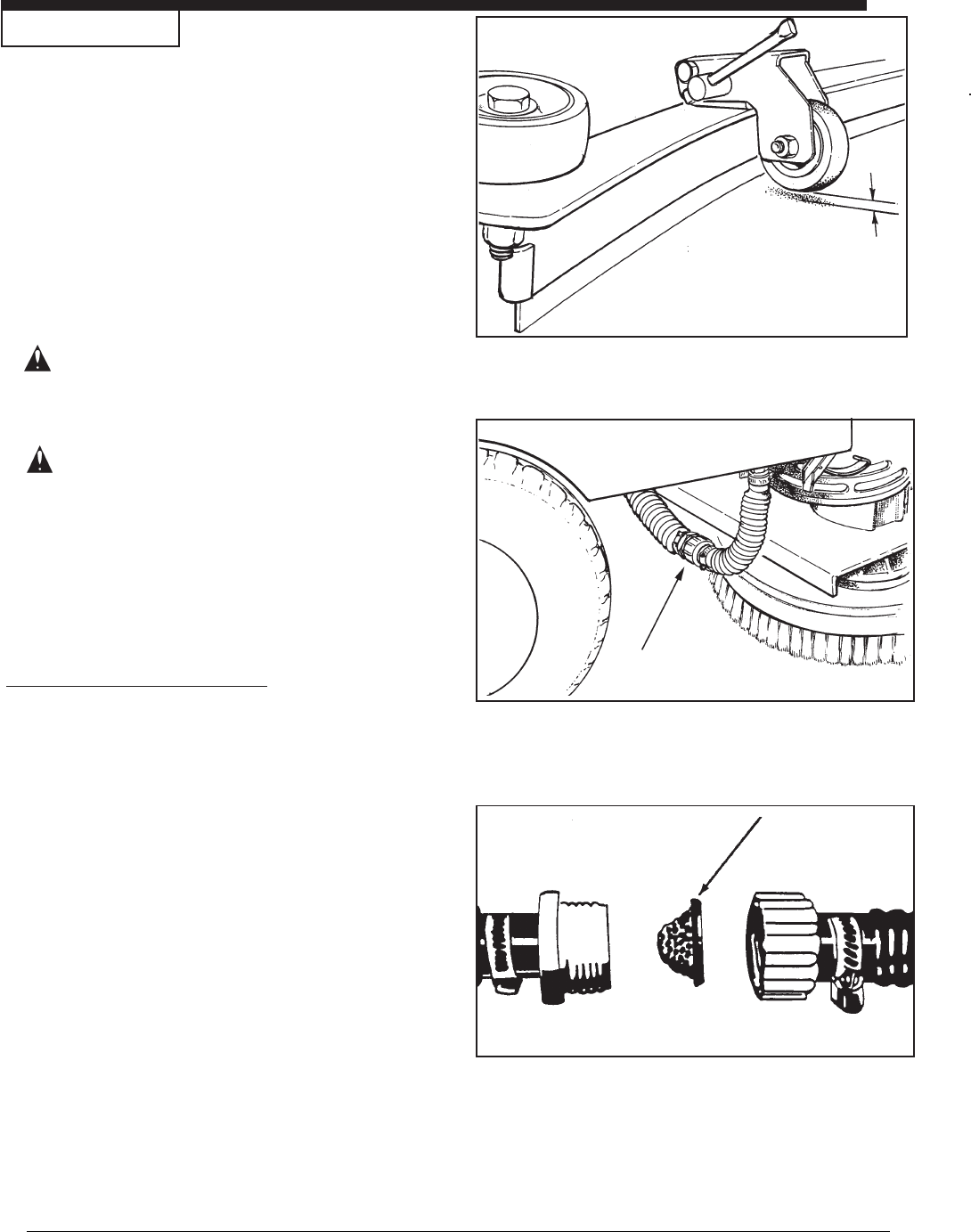

Figure #31

Figure #32

Figure #33

.12

Page -26- Clarke® Operator's Manual -Encore S28/L28/S33/L33/S38/L38

Clarke® Encore 28/33/38

Accessories - 6/02

ACCESSORIES

Description Part No.

Power Wand System Kit 10674A

ESP Recycle System Kit 10675A

Soft Caster Asm. 52127A

Clarke Care Kit 14607A

Squeegee Asm., Optional 29" (28 model only) 18818A

Drive Wheel, Foam Filled 59955A

Stature Electric Parking Brake Kit 10676A

Imperial Electric Parking Brake Kit 10684A

Brushes: Size Description Part No.

17" Poly 11424B

17" Grit-Heavy 11425B

17" Grit-Medium 11430B

17" Grit-Lite 10384A

17" Soft Nylon 11428B

14" Poly 11427B

14" Grit-Heavy 11426B

14" Grit-Medium 11431B

14" Grit-Lite 10383A

14" Soft Nylon 11429B

19" Poly 11434B

19" Grit-Heavy 11433B

19" Grit-Medium 11432B

19" Grit-Lite 10385A

19" Soft Nylon 11435B

Pad Drivers: Size Part No.

19" 17524B

17" 17520C

14" 17521C

Manual Numbers for Translations:

Part No. Description Part No. Description Part No. Description

79049B-FR French 79049B-DK Danish 79049B-DE German

79049B-ES Spanish 79049B-NL Dutch 79049B-SE Swedish

79049B-NO Norwegian 79049B-CZ Czk 79049B-IT Italian

79049B-PT Portuguese 79049B-FI Finnish

Optional Squeegee Blades

Machine Blade Type Material Length Part No.

28 Inner Optional Urethane, Ribbed (60) 25.88" 30951A

28 Inner Optional Urethane, Notched, 1/16" (80) 25.88" 30955A

28 Inner Optional Urethane, Ribbed (60) 35.88" 30952A

28 Inner Optional-Grout Urethane, Notched 1/16" (80) 35.88" 30957A

33 Inner Optional Urethane, Ribbed (60) 40.25" 30953A

33 Inner Optional-Grout Urethane, Notched 1/16" (80) 41.00" 30958A

38 Inner Optional Urethane, Ribbed (60) 46.00" 30954A

38 Inner Optional-Grout Urethane, Notched, 1/16" (80) 46.00" 30959A

28 Outer Optional Nitrile, Solid (40) 28.12" 30938A

28 Outer Optional Nitrile, Solid (40) 38.50" 30936A

33 Outer Optional Nitrile, Solid (40) 42.12" 30937A

38 Outer Optional Nitrile, Solid (40) 48.00" 30939A

Clarke® Operator's Manual - Encore S28/L28/S33/L33/S38/L38 - 27 -

Encore

S28/L28/S33/L33/S38/L38

Section II

Parts and Service Manual

(70656A)

Division of

U.S. Patent No. 6,105,192; No. 5,383,251; No. 6,493,896 (Deluxe Machines) and other Patents Pending

Page -28- Clarke® Operator's Manual -Encore S28/L28/S33/L33/S38/L38

Replace the fuses.

Check the batteries connections.

Check parking brake overide lever

position (if installed)

NOTE: If the motors continue to stop,

consult an authorized service person.

The cleaning is not even. The scrub brushes or pads are worn.

There is damage to the brush assembly,

casters or the solution valve.

The brush motors are not running

The solution level is low.

The machine does not run. The machine loses power. Reset the circuit breaker.

Check wire connection to traverse motor.

Replace the scrub brushes or pads.

Have an authorized service person make

the needed repairs.

Check for tripped breaker, reset. Check

for loose connections.

Fill the solution tank.

NOTE: If the motors continue to stop

consult an authorized service person.

The machine does not remove all the

water from the floor.

The batteries do not give the normal

running time.

Lower the squeegee.

Drain the tank.

Clean the screen filter.

Remove the obstruction or repair the damage.

Check for tripped breaker. Have an authorized

service person make repairs.

Connect the hose.

Turn or replace the squeegee blade.

Correctly install the squeegee blade.

Adjust the pressure of the squeegee.

Replace the gaskets.

Clean the terminals and connectors. Replace

the damaged cables. Charge the batteries.

Add distilled water to each cell and charge the

batteries.

Charge the batteries for a full 16 hour charge.

Have an authorized service person repair the

charger.

Check voltage of each cell while discharging.

Connect the batteries.

PROBLEM CAUSE ACTION

The squeegee is up

The vacuum tank is full.

The screen filter is dirty.

There is an obstruction or damage in the

squeegee, squeegee hose or standpipe.

The vacuum motor is not running.

The squeegee hose is disconnected.

The squeegee blade is damaged, worn, or

incorrectly installed.

The squeegee pressure is not correctly

adjusted.

The gaskets on the cover of the recovery

tank are damaged.

The battery terminals are dirty or damaged.

The electrolyte level is too low.

The batteries are not fully charged.

The charger is damaged.

The battery is defective.

The batteries are disconnected.

HOW TO CORRECT PROBLEMS IN THE MACHINE

Clarke® Operator's Manual - Encore S28/L28/S33/L33/S38/L38 - 29 -

MAINTENANCE

Adjusting Brush Head Position Switch: (See figure 34)

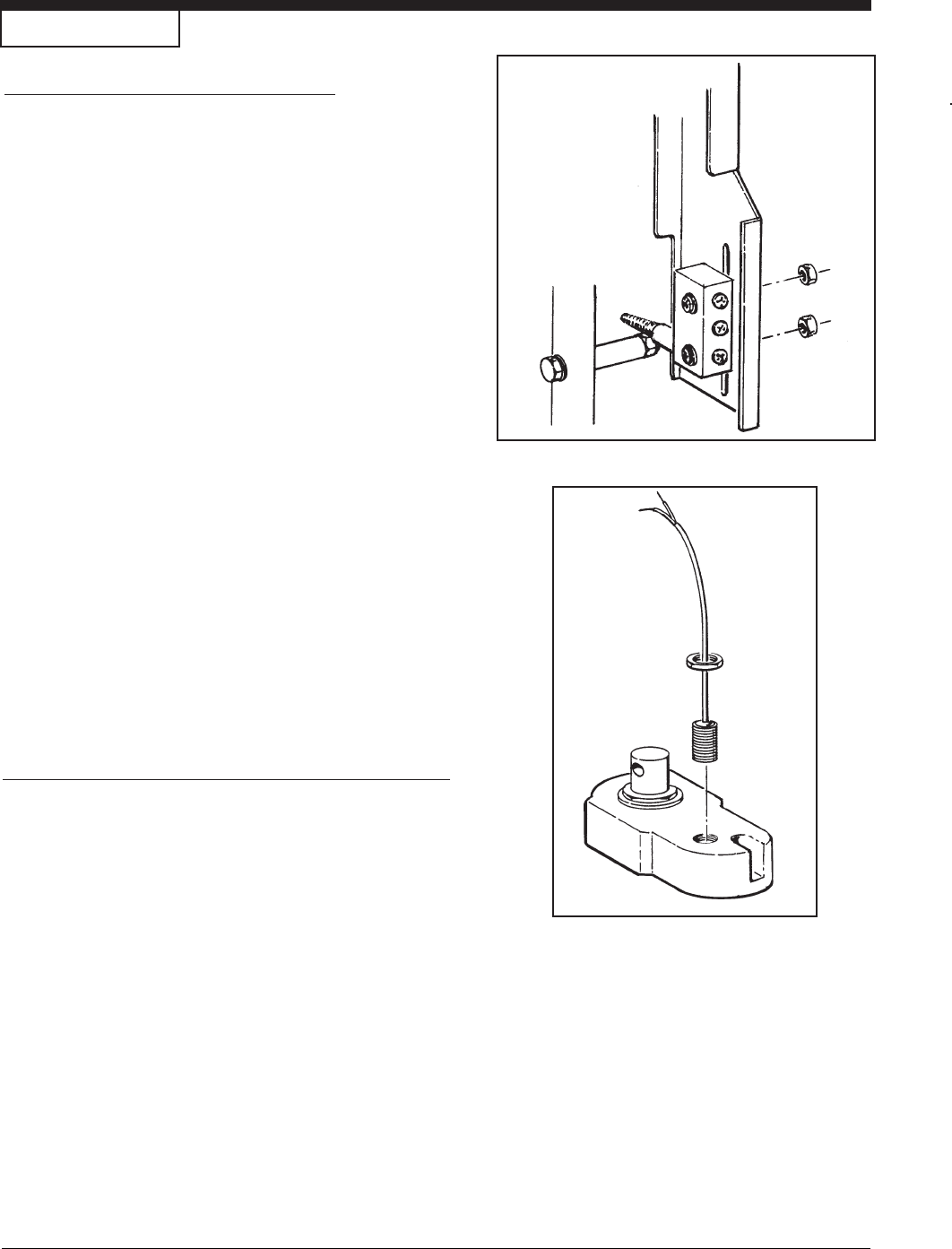

Figure #34

Figure #35

1.Turn "ON" the key switch.

2. Start with the brush head up/down switch in the "Up"

position and the brush pressure knob set to minimum,

fully counter clockwise. This should cause the brush

head to be in the full "Up" position.

3. Install the proper brushes or pads and pad drivers for

the machine.

4. Leave the brush pressure knob set to minimum, fully

counter clockwise. Switch the brush head up/down

switch to the "Down" position. This should cause the

brush head to travel down to the floor until the brush

position switch (47422A) is closed. At this time the

brush head actuator will stop running down.

5. Check at the front of the machine to see if the brushes

or pads are completely flat on the floor. The screw, that

goes through the brush head actuator tube (69188A),

should be at the top of the 1.25 inch slot in the tube. If

the brushes or pads are not on the floor, or the screw

is not at the top of the slot, the brush position switch

(47422A) needs to be loosened and moved up or down

in the slot on the switch mount bracket (65972A).

Retighten the brush position switch.

6.Keep the brush pressure knob set to minimum, fully

counter clockwise. The brush head will need to be

raised and lowered again with the brush up/down

switch. Check to see if the adjustment put the brushes

or pads on the floor and kept the screw at the top of the

tube. If no, repeat step #5 until this step is completely

accomplished.

Replacing a Defective Brush Head Hall Affect Sensor

(L Series only)(See figure 35)

1.Remove the brush head actuator assembly from the

machine.

2. Loosen the locking nut on the brush head hall affect

sensor at the top of the brush head actuator.

3. Unscrew the brush head hall affect sensor (Part Num-

ber 46742A) from the top of the brush head actuator.

4. Screw in the new brush head hall affect sensor into the

top of the brush head actuator until it touches the metal

disk on the motor gear. Unscrew the brush head hall

affect sensor from the top of the brush head actuator

three (3) complete turns.

5. Using the supplied jam nut, lock the brush head hall

affect sensor down using loctite thread locker.

6.Reinstall the brush head actuator assembly on the

machine.

Page -30- Clarke® Operator's Manual -Encore S28/L28/S33/L33/S38/L38

Clarke® Encore S28/S33/S38 and L28/L33/L38

Squeegee/Swing Arm Assembly Drawing 5/04

Drawing # 16616A - L

Drawing # 16617A - S

12 13

27 10

30 48

40 38

39* 37

NOTE:

#51 and

#52 are

on top of

the

bracket

for the

"S"

models

* Apply antiseize to threads

Clarke® Operator's Manual - Encore S28/L28/S33/L33/S38/L38 - 31 -

Ref # Part No. Description Qty Model

1 57275A Pulley 2 All

2 87623A Washer, Nylon 1¼x¼x1/82 All

3 60452A Swing Arm, Front 1 All

4 86004A Screw, .25-20 x 1½ 2 All

5 85730A Screw, .375-16 x 1¼ 1 All

6 81104A Nut, Hex ESNA SS 6 All

7 38021A Strap 1 All

8 61679A Cable, Lower 1 All

9 51613A Bumper 1 All

10 920110 Nut, ESNA 3 All

11 60332A Swing Arm, Rear 1 All

12 920256 Nut, Hex 2 All

13 81105A Nut, ESNA SS 1 All

14 920296 Nut, 10-24 ESNA SS 1 All

15 962798 Screw, 10-24 x .50 1 All

16 87624A Washer, Nylon 1½x¼x1/82 All

17 80015A Screw, Shoulder 1 All

18 53423A Spring, Squ. Pressure 2 All

19 68016A Stud 2 All

20 170915 Screw, SS Hex 2 All

21 64905A T Handle 3 All

22 980651 Washer, Flat .312 1 All

23 60678C Pivot Bracket 1 All

24 25201A Knob 2 All

25 35192A Hose, Squeegee Rec. 1 All

26 61267A Tube Bracket 1 All

27 34260B Squeegee Gasket 1 All

28 81301A Nut, Jam SS 4 All

29 59971A Wheel 2 All

30 65975A Wheel Mount Bracket 2 All

31 920248 Nut, Jam 2 All

32 980645 Washer, Flat 4 All

33 59950A Guide Wheel 2 All

34 980638 Washer, Lock 2 All

NOTE: When changing squeegee blades, it might be

necessary to loosen screw #39; install and secure blades

with clamp #44; then retighten screw #39. This will allow

for different thickness.

Clarke® Encore S28/S33/S38 and L28/L33/L38

Squeegee/Swing Arm Assembly Parts List 5/04

Ref # Part No. Description Qty Model

35 69673A Squeegee Base 1 28

69674A Squeegee Base 1 33

69675A Squeegee Base 1 38

69636A Squeegee Base, 29" acc. 1 28

36 85610A Screw, PN Phillips 2 All

37 38710A Spacer 2 28

38711A Spacer 2 33

38715A Spacer 2 38

38713A Spacer, 29" accessory 2 28

38 62712A Air Duct 1 All

39 80011A Screw, .375-16 x 3.00 2 All

40 37016A Grip Pad 1 All

41*30914A Blade, Inner 1 28

30915A Blade, Inner 1 33

30934A Blade, Inner 1 38

30930A Blade, Inner Ribbed 29" 1 28

42*30912A Blade, Outer 1 28

30913A Blade, Outer 1 33

30935A Blade, Outer 1 38

30931A Bade, Outer 29" acc. 1 28

43 62421A End Clamp 1 All

44 62442A Clamp, Weld 1 28

62443A Clamp, Weld 1 33

62444A Clamp, Weld 1 38

62441A Clamp, Weld 29" acc. 1 28

45 86004A Screw, .25-20 x 1.50 Hex 1 All

46 170932 Rivet 2 All

47 85702A Screw, .25-20 x 1.75 2 All

48 85816A Screw, .312-18 x 1.75 2 All

49 55722A Squeegee Strap Latch 1 All

50 81217A Nut, ½-20 1 All

51 920208 Nut, Hex ¼-20 1 All

52 980657 Washer, ¼ Lock 1 All

53 87625A Washer,Nylon 1¼x¼x1/32 4 All

54 18815K Asm., Squeegee 1 28

18816K Asm., Squeegee 1 33

18817K Asm., Squeegee 1 38

18818A Asm., Squeegee* 1 28

55 81303A Nut, ¼-28 1 All

56 54766A Insert,Threaded 5/16-24 2 All

57 87026A Washer 4 All

58 87031A Washer, 3/8 Flat 1 All

* See accessory page

Page -32- Clarke® Operator's Manual -Encore S28/L28/S33/L33/S38/L38

Clarke® Encore S28/S33/S38 and L28/L33/L38

Traverse System Assembly Drawing 8/03

Drawing 19021A

Clarke® Operator's Manual - Encore S28/L28/S33/L33/S38/L38 - 33 -

Ref # Part No. Description Qty Model

1 66531A Swing Arm Pin 1 All

2 836711 Hair Pin 1 All

3 81104A Nut, .25-20 ESNA 2 All

4 69877A Swing Bracket 1 All

5 85811A Screw, .312-18 x .75 2 All

6 57275A Cable Pulley 1 All

7 87623A Washer, Nylon 1¼x¼IDx.120 2 All

8 86004A Screw, .25-20 x 1.50 1 All

9 85703A Screw, .375-16 x 1.50 6 All

10 85700A Screw, .25-20 x 1 1 All

11 920110 Nut, .312-16 ESNA 2 All

12 899769 Caster Assembly 2 All

13 81105A Nut, .375-16 ESNA 12 All

14 59116A Transaxle, Imperial 1 All

(see page 46, 45 for parts)

15 85730A Screw, Hex 4 All

16 59969A Wheel Assembly* 2 All

59955A Wheel, Foam Filled (opt.) 2 All

18 81221A Lug Nut, 50-20 UNF 6 All

19 980614 Washer, Star Lock .25 3 All

20 60230A Main Frame 1 All

21 65963A Transaxle Mount 2 All

22 69712A Spacer 2 All

23 87625A Washer, Nylon 1¼x¼IDx3/32 2 All

24 80011A Screw, 3/8-16 x 3 2 All

25 81207A Nut, 3/8-16 2 All

26 170883 Washer, Lock 3/8 2 All

27 58419A Stud, 3/8M x 3/8F 2 All

28 980205 Washer, .25 Fender 2 All

29 69639A Strap, Static 1 All

30 980645 Washer, Flat 3/8 6 All

31 962244 Screw, 3/8-16 x ¾ 4 All

32 980638 Lockwasher 3/8 4 All

*30039A tube, inner (included in item #16) 1 Ref.

Clarke® Encore S28/S33/S38 and L28/L33/L38

Traverse System Assembly Parts List 8/03

Drawing 19021A

Page -34- Clarke® Operator's Manual -Encore S28/L28/S33/L33/S38/L38

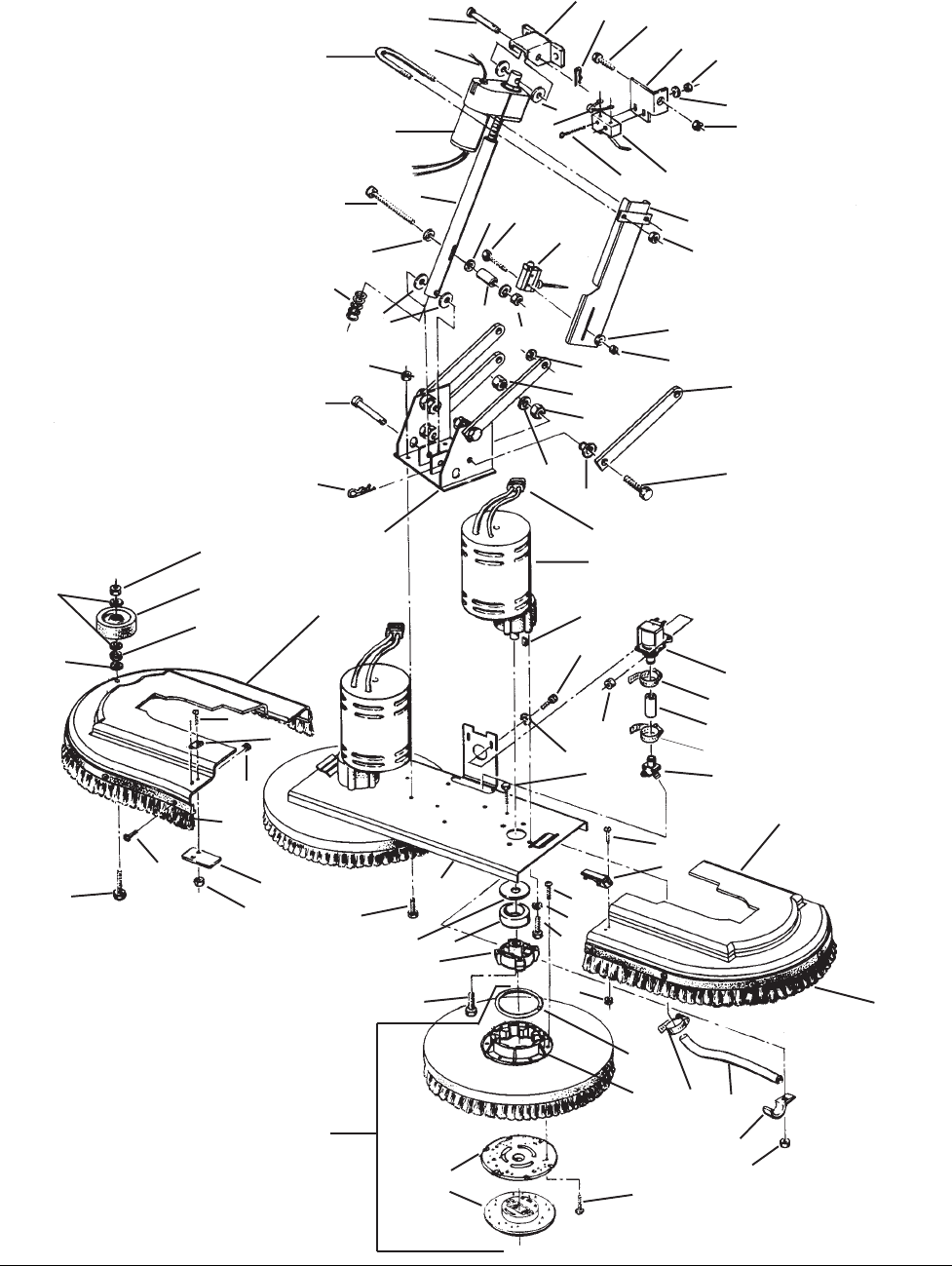

Clarke® Encore S28/S33/S38 and L28/L33/L38

Brush Head Assembly Drawing 6/02

Drawing # (i) 11453A, 11449A, 11452A

Drawing # (ix) 11448A, 11445A, 11450A

23457

18 12 20 10

29 28 27

18 35

52 58

56 57

72 44



Clarke® Operator's Manual - Encore S28/L28/S33/L33/S38/L38 - 35 -

Clarke® Encore S28/S33/S38 and L28/L33/L38

Brush Head Assembly Parts List 8/04

Ref # Part No. Description Qty Model

1 82501A Pin 2 All

2 60230A Main Frame Ref All

3 766780 Hair Pin 2 All

4 962244 Screw, .375-16x.75 9 All

5 69883A Switch Bracket 1 All

6 980608 Washer, #6 4 All

7 920056 Nut, #6-32 ESNA 4 All

8 81105A Nut, .375-16 ESNA 1 All

9 920110 Nut, .312-18 ESNA 6 All

10 65972A Switch Mount 1 All

11 47374A Lever, Switch 1 All

12 962980 Screw, #6-32x1.00 PN 4 All

13 38708A Nylon Spacer 2 All

14 42401A Diode 1 L series

15 50208A Actuator & Tube Asm. 1 S series

50209A Actuator & Tube Asm. 1 L series

(includes item #73)

16 69188A Head Pressure Tube 1 All

17 85744A Screw, .25-20x2.75 1 All

18 87007A Washer, Flat .25 5 All

20 47422B Whisker Switch 1 All

21 63032A Linkage Bar 4 All

22 85838A Screw, .50-201.50 8 All

23 67705B Sleeve Bearing 8 All

24 920278 Nut, Jam 50-20 16 All

25 980626 Washer, Lock .50 8 All

26 980673 Washer * 4 All

27 81104A Nut, .25-20 ESNA 5 All

28 38725A Sleeve 1 All

29 38723A Nylon Spacer 2 All

30 53421A Head Pressure Spring 1 L series

53422a Head Pressure Spring 1 S series

31 65966A Brush Head Mount 1 All

32 41601A Connector 4 All

41602A Housing 4 All

3345036B Brush Motor 1.00 HP 2

All

34 915102 Key 2 All

35 170915 Screw, Hex 4 All

36 80044A "U" Bolt 1 All

37 48703A Electric Valve 1 All

3850248A Hose Clamp 2 All

39 30455A Hose 1 All

40 38014A Solution Splitter 1 All

41 35250B Left Brush Housing 1 28

35244B Left Brush Housing 1 33

35246B Left Brush Housing 1 38

42 38242A Left Skirt 1 28

38244A Left Skirt 1 33

38246A Left Skirt 1 38

*Used only as required to square up linkage bars #21 to the frame.

**Attach to Brush Motor.

***See page 27 for installation

NOTE:  indicates a change has been made since the last

publication of this manual.

Ref # Part No. Description Qty Model

43 782002 Clamp 2 All

44 30453A Brush Hose 2 All

45 81109A Nut, 8-32 ESNA SS 4 All

46 833802 Gimbal, Female 2 All

47 838301 Brush Holder Spring 2 All

48 55721A Latch 1 All

49 962992 Screw, 8-32x.62 SS 4 All

50 980638 Washer, Lock .375 8 All

51 962495 Screw, .25-20x1.00Pn Hd 6 All

52 59856A Rubber Washer 2 All

53 34400B Gimbal, Male 2 All

54 962714 Screw,.312-18x.75 Soc. 2 All

55 11427B Poly Brush Assembly-14 2 28

11424B Poly Brush Assembly-17 2 33

11434B Poly Brush Assembly-19 2 38

11426B Grit Brush Assembly-14 2 28

11425B Grit Brush Assembly-17 2 33

11433B Grit Brush Assembly-19 2 38

17521C Pad Driver Assembly-14 2 28

17520C Pad Driver Assembly-17 2 33

17524B Pad Driver Assembly-19 2 38

56 56941A Center-Lok Asm. 2 All

(Pad Driver Only)

57 962737 Screw, 10-16x.88 6 All

(Pad Driver Only)

58 61658A Gimbal Collar 2 All

59 66232A Brush Plate-28 1 28

66233A Brush Plate-33 1 33

66234A Brush Plate-38 1 38

60 85811A Screw, .312-18x.75 Hex 4 All

61 38243A Right Skirt 1 28

38245A Right Skirt 1 33

38247A Right Skirt 1 38

62 69186A Latch Tab 1 All

63 85610A Screw, .375-16x2.5

SS Pn 1

All

64 85616A Screw, 10-22x.62

Pn SS

11 28

85616A Screw, 10-22x.62

Pn SS

12 33 38

65 82004A "T" Nut 10-32 11 28

82004A "T" Nut 10-32 12 33 38

66 55451A Keeper 1 All

67 30245A Right Brush Housing 1 28

30246A Right Brush Housing 1 33

30247A Right Brush Housing 1 38

68 920248 Nut, .375-16

Jam Thin ESNA

2 All

69 59950A Guide Wheel 1 All

70 980645 Washer, Flat .375 2 All

71 980638 Lockwasher 1 All

72 722021 Hose Clamp 2 All

73*** 46742A Brush Head Sensor 1 Lseries

**NI 77353A Label, Front Motor 1 Sseries

**NI 77352A Label, Front Motor 1 Lseries

**NI 77091A Label, Moving Parts 2 All

Page -36- Clarke® Operator's Manual -Encore S28/L28/S33/L33/S38/L38

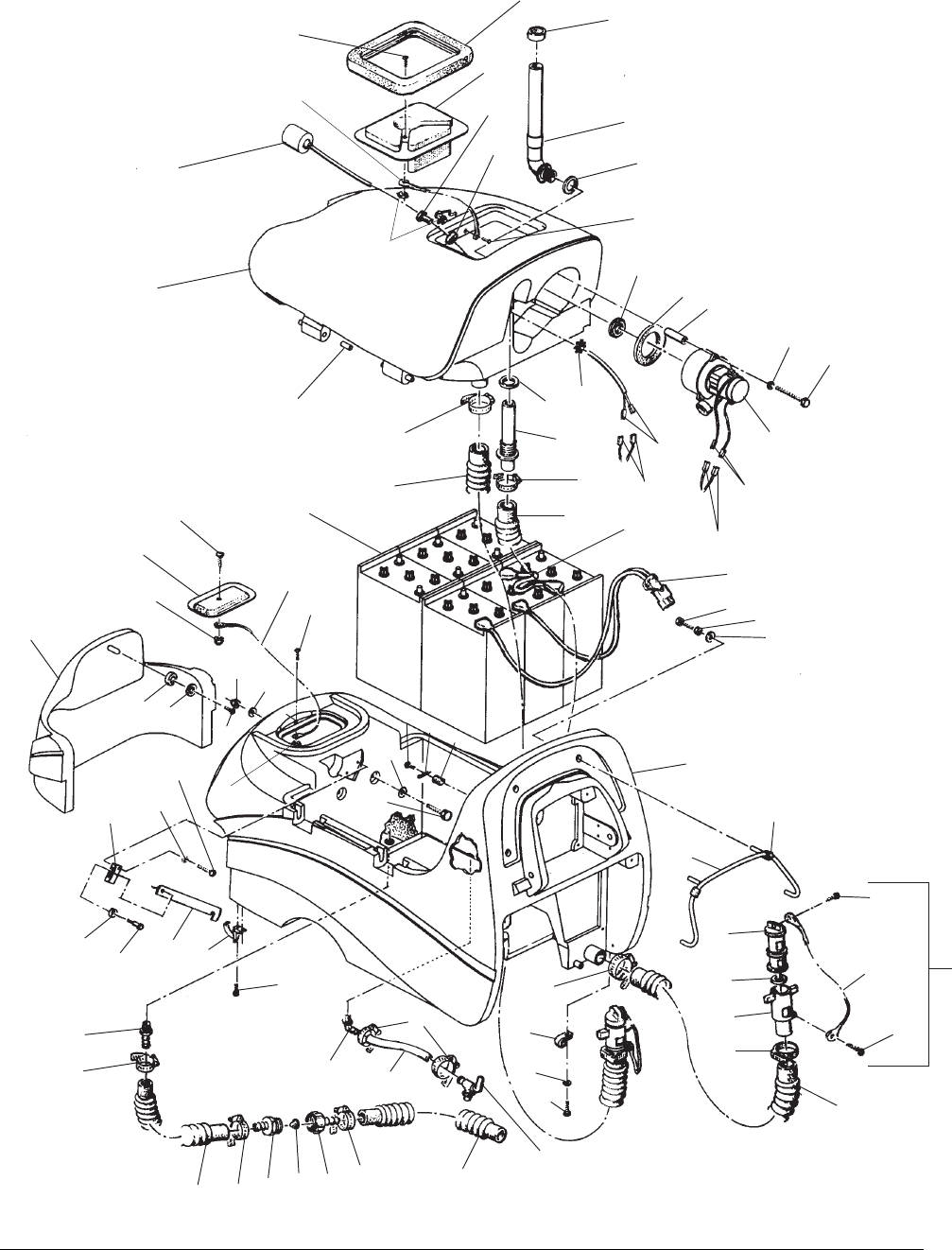

Clarke® Encore S28/S33/S38 and L28/L33/L38

Solution/Recovery System Assembly Drawing 6/02

166

720

18 45

15 16

38 39 40 41

35 36

73 74 75

31 30

7778 79

2876

Clarke® Operator's Manual - Encore S28/L28/S33/L33/S38/L38 - 37 -

Ref # Part No. Description Qty Model

1 34265A Recovery Lid Gasket 1 All

2 36204A Recovery Lid 1 All

3 39338A Stand Tube 1 All

4 40002A Float Switch (include #5 1 All

& 2 each #21 & #68)

5 56459A Strain Relief 1 All

6 87612A Seal 1 All

7 837304 O-Ring 2 All

8* 920797 Nut 1 All

9 643418 Gasket 1 All

10 58533A Vac Motor Spacer 3 All

11 87026A Washer, Flat .25 3 All

12 85728A Screw, .25-20 x 4.00 Hex 3 All

13 45019A Vac Motor (also order 1 All

2 each #21 and #69)

14 77365B Label, Battery Installation 1 All (NI*)

15 85815A Screw, .312-18x1.25 Hex 4 All

16 980652 Washer, Lock .312 4 All

17 980205 Washer, Fender .312 4 All

18 35192A Vac Hose 1 All

19 77093A Label, Falling Parts 1 All (NI*)

20 30133A Squeegee Adapter 1 All

21 41809A Contact 4 All

22 82100A Locknut 1 All

23 35165A Recovery Tank Drain Hose 1 All

24 872010 Hose Clamp 3 All

25 36903A Hinge Pin 4 All

26 30243A Recovery Tank, incl #25 1 All

27 881317 Battery - 250 AH - 6 Volt 6 All

891384 Battery - 330 AH - 6 Volt 6 All

40704A Battery - 370 AH - 6 Volt 6 All

28 38020A Strap 4 All

29 962798 Screw, 10-24x.5 Pan 2 All

30 980645 Washer, Flat .375 2 All

31 81105A Nut, .375-16 ESNA 2 All

32 920296 Nut, 10-24 ESNA 4 All

33 36200A Solution Lid 1 All

34 32409B Front Cover 1 28, 33

32419B Front Cover 1 38

Clarke® Encore S28/S33/S38 and L28/L33/L38

Solution/Recovery System Assembly Parts List 8/04

Ref # Part No. Description Qty Model

35 69879A Support Bracket 1 All

36 170892 Washer, Lock .25 2 All

37 170915 Screw, .25-20x.75 SS Hex 2 All

38 87622A Washer, Nylon 5/16x5/8x1/32 1 All

39 80043A Screw,Shoulder.25-20x25 1 All

40 69548A Recovery Tank Support 1 All

41 55723A Latch 2 All

42 962027 Screw, 8-32x.50 Pn. 4 All

4350359A Bar, ½ NPTF x 3/4 Hose 1 All

44 722030 Hose Clamp 6 All

45 842406 Series Cable - 9" 3 All

41206A Series Cable - 16" 2 All

46 41208A Battery Cable 1 All

47 87054A Washer,Fender .375x1¼ 2 All

48 85703A Screw, .375-16x 1.50 Hex 2 All

49 30242A Solution Tank 1 All

50 64900A Stationary Handle 1 All

51 30454A Hose 2 All

52 962987 Screw, 10-24x.375 Pn. 2 All

53 833901 Drain Valve Handle 2 All

54 833407 Drain Gasket 2 All

55 839401 Drain Valve 2 All

56 832002 Hose Clamp, Drain Valve 2 All

57 962943 Screw, 8-18x.5 Pn. 2 All

58 30449A Drain Hose 1 All

59 59614A Battery Drain Valve 1 All

60 30445A Solution Hose 2 All

61 50358A Connector 1 All

62 838517 Filter Screen 1 All

63 830214 Hose Adapter 1 All

64 822802 Elbow 1 All

65 30453A Hose 1 All

66 58069A Vac Filter 1 All

67 98465A Clamp, Metal 1 All

68 43402A Housing, Blue 2 All

69 43401A Housing - Black 2 All

70 839410 Asm., Drain Valve

71 980657 Washer, ¼ Lock 1 All

72 962139 Screw, ¼-20x5/8 1 All

73 39713A Washer, Rubber 1 All

74 87032A Washer 1 All

75 85524A Screw 1 All

76 962666 Screw 2 All

77 962113 Screw 10-32x1 1 All

78 51867A Cable Clamp 1 All

79 81800A Well Nut 1 All

80 77092A Label, Gases & Chem. 1 All(NI*)

*Recommended torque

175 5 inch/ pounds.

*klskfjlksdjflkjflksajflkjfdlksfdj

(NI*) = Not Illustrated

NOTE:  indicates a change has been made

since the last publication of this manual.

Page -38- Clarke® Operator's Manual -Encore S28/L28/S33/L33/S38/L38

Ref # Part No. Description Qty

1 56478A Stator Assembly (w/Magnets & Clips) 1 x

46734A Stator Assembly (w/Magnets & Clips) 1 x

2 40312A Armature Asm.

(w/B.E. & F.E. bearings)

40318A Armature Asm.

(w/B.E. & F.E. bearings)

3 902654 Bearings B.E. 1 x x

4 902550 Bearing F.E. 1 x x

5 51840A Commutator Bracket Assembly 1 x x

(w/Brush BRD Assembly Leads)

6 50520A Commutator Bracket 1 x x

7 56480A Strain Relief 2 x x

8 962546 Brush Board Screw 2 x x

9 50517A Brush Board Asm.

(w/springs & brushes)

1xx

10 448396 Brush Spring 4 x x

11 40826A Brush Assembly 4 x x

12 55657A Lead Assembly, Positive 1 x x

13 55656A Lead Assembly, Negative 1 x x

14 59805A Helical Washer 1 x x

15 50515A Thru Bolt 2 x x

16 80501A Shaft Key 1 x x

17 54238A B.E. Bracket Assembly (Gear Box) 1 x x

45036A

45033A

Seam Location

712

15 56

14 16

12 13

Rotation

Clarke®

Encore S28/S33/S38 and L28/L33/L38 12/03

Brush Motor #45033A (S33, L28, S28)

Brush Motor #45036A (L38, L33, S38)

Clarke® Operator's Manual - Encore S28/L28/S33/L33/S38/L38 - 39 -

Ref # Part No. Description Qty

1 57846A Ring, Snap 1

2 507641 Seal, Oil, Small 1

3 52050A Cap End 1

4 56668A O'Ring 1

5 51176A Bearing, Large 1

6 58316A Shaft & Gear, Gearbox 1

7 902605 Bearing, Small 1

8 54883A Housing 1

9 58144A Seal, Oil Large 1

NI Darina Grease 4oz.

Clarke®

Encore S28/S33/S38 and L28/L33/L38

Gear Box #54238A 6/02

Page -40- Clarke® Operator's Manual -Encore S28/L28/S33/L33/S38/L38

Ref # Part No. Description Qty

11 59803A Washer - neoprene 1

12 50610A Bracket and shell 1

13 58501A Spacer 1

14 53914A Fan - Rotating 3

15 658201 Spacer 2

16 53908A Fan - Stationary 1

17 658506 Shell 1

18 53995A Fan, Air Seal 1

19 53996A Fan, Stationary 1

Ref # Part No. Description Qty

1 51913A Clip (optional) 2

2 54809A Housing 1

3 53905A Fan 1

4 85303A Screw - 8-32 x 3/84

5 40830A Carbon Brushes 2

6 51914A Clamp 2

7 50618A Bracket 1

8 53100A Disc 1

9 902679 Bearing - Ball 1

10 902648 Bearing - ball, radial 1

12 17

Clarke®

Encore S28/S33/S38 and L28/L33/L38

Vac Motor Assembly #45019A 6/02

Clarke® Operator's Manual - Encore S28/L28/S33/L33/S38/L38 - 41 -

Clarke®

Encore L33/L38

Imperial Transaxle Parts 12/03

PN 59116A

Transaxle has black motor

All models after SN#YH

To replace coupler

remove these two

screws (Black)

to seperate the

motor from gearbox

to allow access to

coupler

Parking Brake Spare Parts

Part No. Description Qty

53384A Pad, Friction 1

53385A Hub, Shaft 1

80121A Key, 4 MM - Hub 1

80122A Set Screw, M3 - Hub 1

PERMANENT MAGNET MOTOR

MFG. IN USA

Model 4BC-2800 HP .50

RPM 1200 Ins. Cl. F

Volt 36 VDC Mount Flange

AMP. 15 Shaft Tang

Duty Cont

Date Ser. No.

16:1 Ratio

Clarke

Ref # Part # Description Qty

Wheel Flange Kit (includes Flange,

1 10357A Studs, Key, Snap Rings & Shims) 2

2 36508A Rubber Mount 2

3 53374A Axle Oil Seal 2

4 53375A Axle Bearing 4

5 53376A Short Axle 1

6 53377A Output Gear 1

7 53378A Input Plug 1

8 53379A Outer Pinion Bearing 1

9 53380A Pinion 1

10 53381A Inner Pinion Bearing 1

11 52663A Steel Ring, Coupler 1

12 69195A Rubber Coupler 1

13 45048A Motor 1

14 51720A Brushes w/Springs (Set of 4) 1

15 30074A Motor Brush Cap (internal Threads) 4

53382A Motor Brush Cap (External Threads) 4

16 53383A Long Axle 1

54282A Gearbox Asm w/o motor 1

17 53435A Miter Gear 4

8910 11 12 13

16 21

Page -42- Clarke® Operator's Manual -Encore S28/L28/S33/L33/S38/L38

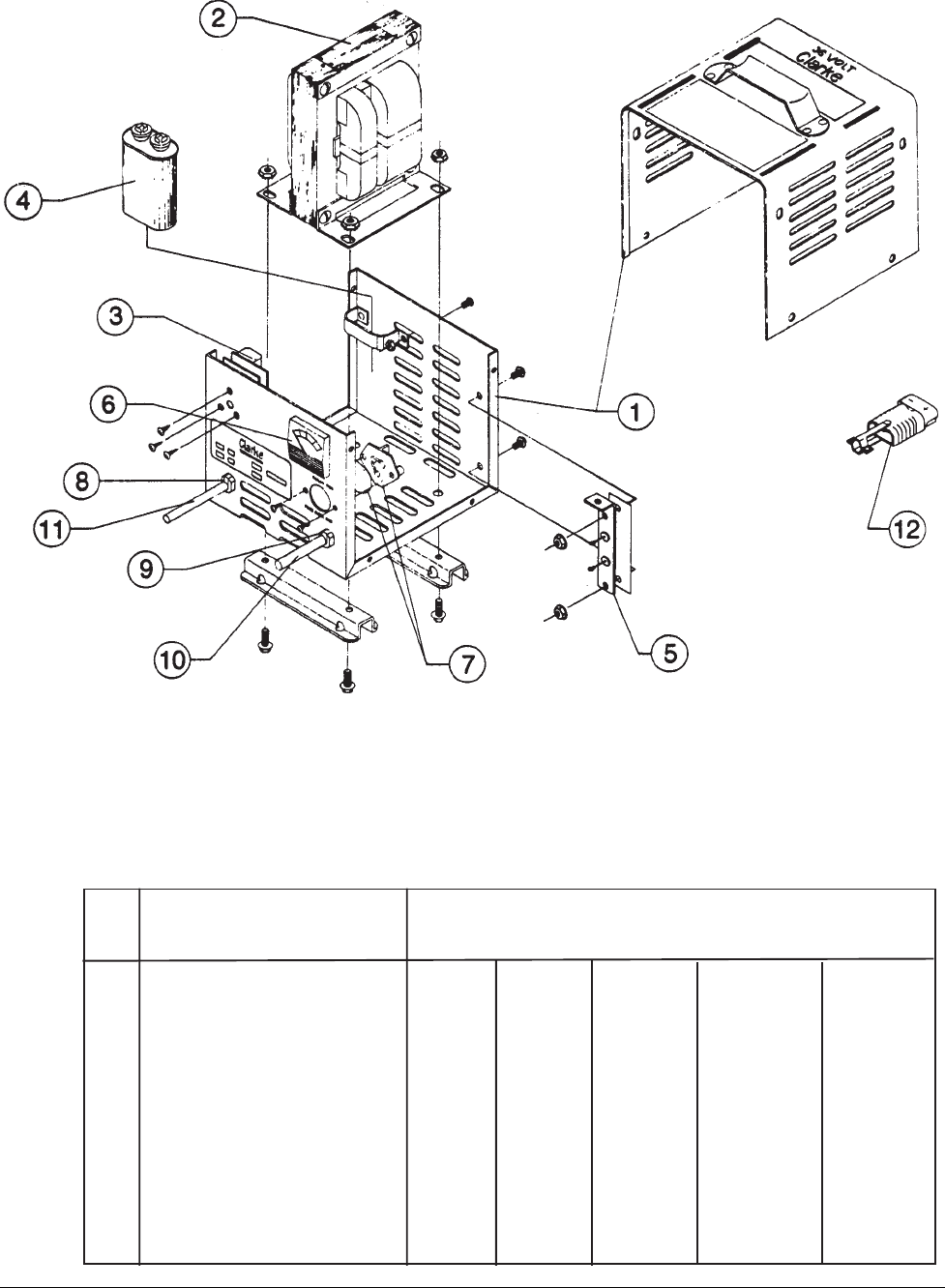

Charger Model Number

40506A 40507A 40505A 40514A 40515A

Ref # Description Part # Part # Part # Part # Part #

1 Charger Case 42503A 42504A 51959A 41139A 51856A

2 Transformer 48400A 48412A 48401A Ref Ref

3 Electronic Timer Kit 41102A 41103A 41103A 41102A 41103A

4 Capacitor,

6 Mfd., 660 V.A.C.

912132 912132 912132 912132 912132

5 Heat Sink Assembly 912212 912212 912212 43301A 43301A

6 Ammeter 40200A 40200A 40200A 40210A 40210A

7 Fuse Assembly 912382 912382 912382 42704A 42704A

8 Strain Relief, A.C. Cord 837525 837525 837525 747553 747553

9 Strain Relief, D.C. Cord 747553 747553 747553 737502 737502

10 D.C. Cord Assembly 51973A 51973A 51973A 42303A 42303A

11 A.C. Cord Assembly 51974A 908947 908947 51974A 51857A

12 D.C. Plug 911185 911185 911185 911185 911185

D.C. Plug Lock Key 795020 795020 795020 795020 795020

WARNING: All electrical repairs must be performed by qualified personnel only.

PARTS LIST FOR BATTERY CHARGERS

40506A - 36 Volt D.C., 25A, 115 Volt A.C., 60 Hz

40505A - 36 Volt D.C., 25A, 230 Volt A.C., 50 Hz

40507A - 36 Volt D.C., 25A, 230 Volt A.C., 60 Hz

40514A - 36 Volt D.C., 36A, 115 Volt A.C., 60 Hz

40515A - 36 Volt D.C., 36A, 230 Volt A.C., 50Hz

Clarke®

Encore S28/S33/S38 and L28/L33/L38

36 Volt Battery Charger 6/02

Clarke® Operator's Manual - Encore S28/L28/S33/L33/S38/L38 - 43 -

SEE

PAGES 44 - 51

FOR

COMPONENTS

FOR MACHINES

WITH A

41135C

TRAVERSE

CONTROLLER

Page -44- Clarke® Operator's Manual -Encore S28/L28/S33/L33/S38/L38

Clarke® Encore S28/S33/S38 and L28/L33/L38

Control Housing Assembly Drawing 12/03

Drawing# 13712A (IX) and 13713A (I)

(for machines wtih a 41135C Traverse Controller)

53 43

20 45

2425

28 56

45 44 19 21

14 45

59 57

3938

712

Clarke® Operator's Manual - Encore S28/L28/S33/L33/S38/L38 - 45 -

Ref # Part No. Description Qty Model

1 55502A Knob 2 S series

55502A Knob 3 L series

2 47381B Switch, Head up & down Rocker 1 All

3 47383A Switch, Squeegee/Vac 3 Pos./Rocker 1 L series

4 85612A Screw, 10-24 x .375 Pn. 6 All

5 77344B Control Panel Label 1 L series

60060A Control Panel 1 L series

6 77343B Control Panel Label 1 S series

60058A Control Panel 1 S series

7 44308B Solution Flow Module 1 All

8 40622A Speed Control Harness 1 L series

40623A Speed Control Harness 1 S series

9 44416B Battery Meter 1 All

10 38724B Spacer 2 All

11 920056 Nut, 6-32 ESNA 2 All

12 50170A Head Pressure Adjustor 1 L series

13 85391A Screw, .25-20 x .62 Pn 2 All

14 962139 Screw, .25-20 x .62 5 L series

962139 Screw, .25-20 x .62 2 S series

15 962992 Screw 8-32 x .75 Pn 4 L series

16 41153A Head Pressure Control Board 1 L series

17 66241A Upper Electrical Panel 1 L series

18 47380A Key Switch 1 All

18A 55413A Key, Spare

19 41154A Actuator Control Board 1 L series

20 854849 Insulator 1 All

21 170781 Screw, ¼-20 x 3/4 Set 1 All

22 41431A Circuit Breaker 35A 2 All

23 962262 Screw, 8-32 x .25 Set 3 L series

962262 Screw, 8-32 x .25 Set 2 S series

24 41448A Circuit Breaker 30A Scr. 1 All

25 41422A Circuit Breaker 25A Scr. 1 All

26 41423A Circuit Breaker 5A 1 All

27 41430A Circuit Breaker 1.5A 1 L series

28 35243B Control Housing 1 L series

35252B Control Housing 1 S series

29 87052A Nylon Washer, Key Switch 1 All

30 912226 Hour Meter 1 All

31 24309B Control Handle 1 All

32 85390A Screw, .25-20 x 1.25 Pn 2 All

33 66549A Pin, Left Hand 1 All

34 49778A Actuator, Control Harness 1 L series

35 170892 Washer, Lock .25 2 All

36 10052A Toggle Switch 1 All

37 60662A Centering Bracket 1 All

38* 962304 Screw, Set .312-18 x .5 4 All

39 53038A Control Handle Spring 2 All

40 61266A Control Bracket 1 All

41 66548A Pin, Right Hand 1 All

42 49777A Main Harness (L Series Only) 1 L series

49779A Main Harness (S Series only) 1 S series

43 83302A Stud 1 All

44 87007A Washer 2 S series

87007A Washer 5 L series

45 980657 Lock Washer 6 L series

980657 Lock Washer 3 S series

46 54763A Insert 8 L series

47 85613A Screw, 8-32 x 7/84 L series

48 980651 Washer, Nylon IDxODx.034 1 All

49 80043A Screw, Shoulder 1 All

50 30022A Gasket, Panel 1 S series

30025A Gasket, Panel 1 L series

51 77350B Label, Control Wiring 1 L series

77351B Label, Control Wiring 1 S series

52 87026A Washer 2 All

53 81104A Nut, ¼-20 ESNA 1 All

54 61651A Collar 1 All

55 66871A Retainer Key/Hour Meter 1 All

56 60042A Stud, 5/16 x 1/4 -20 Thread 1 All

57 40083B Module Sequencer 1 All

58 40085A Harness, Sequencer 1 All

59 85388A Screw, 10-24 x ½ 2 L Series

60 50883A Potentiometer Retainer 1 All

Clarke® Encore S28/S33/S38 and L28/L33/L38

Control Housing Assembly Parts List 12/03 (for machines wtih a 41135C Traverse Controller)

*#38 must use red loctite

set screws.

Page -46- Clarke® Operator's Manual -Encore S28/L28/S33/L33/S38/L38

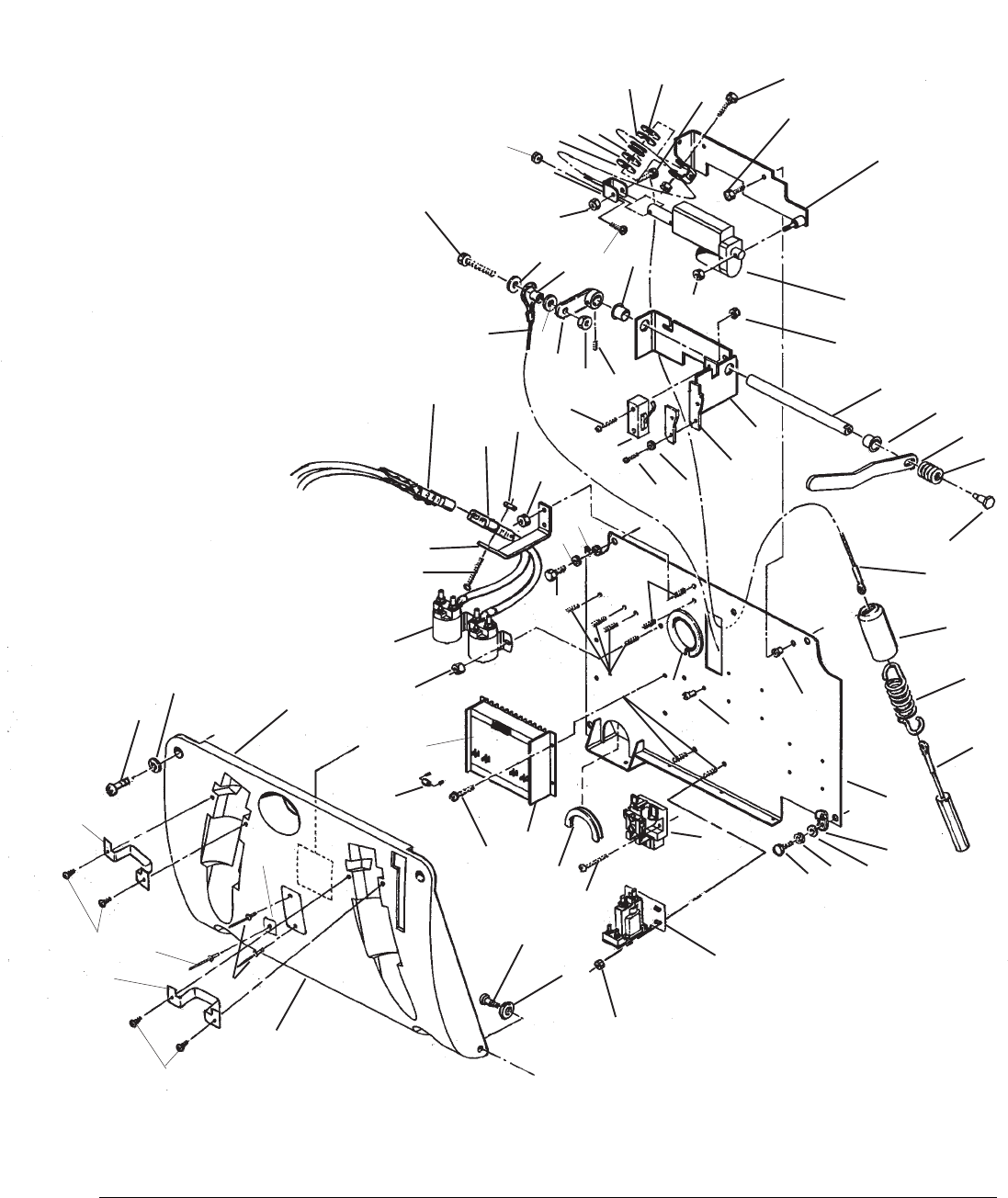

Clarke® Encore S28/S33/S38 and L28/L33/L38

Rear Cover Assembly Drawing 6/02

Drawing 13712A & 13713A

(for machines wtih a 41135C Traverse Controller)

8910

24 523

511

10 14

27 12

40 39

44 4350

61 62

Clarke® Operator's Manual - Encore S28/L28/S33/L33/S38/L38 - 47 -

Clarke® Encore S28/S33/S38 and L28/L33/L38

Rear Cover Assembly Parts List 6/02 (for machines wtih a 41135C Traverse Controller)

*#23 must use red

loctite.

Ref # Part No. Description Qty Model

1 61264A Actuator, Mount Bracket 1 L series

2 962139 Screw, .25-20x.62 Hex 5 All

3 86004A Screw, .25-20x1.50 Hex 2 L series

4 57275A Cable Pulley 1 L series

5 81104A Nut, .25-20 ESNA 11 L series

81104A Nut, .25-20 ESNA 9 S series

6 69872A Pulley Bracket 1 L series

7 85700A Screw, .25-20x1.00 Hex 1 S series

8 87026A Washer, Flat .25 2 S series

9 608210 Spacer 1 S series

10 902731 Nylon Bearing 2 S series

11 40102B Actuator 1 L series

12 920056 Nut, 6-32 ESNA 2 L series

920056 Nut, 6-32 ESNA 4 S series

13 67476A Shaft 1 S series

14 65629A Squeegee Lever 1 S series

15 438360 Spring 1 S series

16 960510 Shoulder Screw 1 S series

17 61265A Squeegee Lift Bracket 1 S series

18 68643A Wear Plate 1 S series

19 980675 Washer 2 S series

20 962546 Screw, 10-24 x .50 Pn 2 S series

21 47388A Switch 1 S series

22 962980 Screw, 6-32 x 1.00 Pn 2 L series

962980 Screw, 6-32 x 1.00 Pn 4 S series

23* 962304 Screw, .312-18 x .50 Set 2 S series

24 65628A Lever Weld. 1 S series

25 61682A Upper Cable Assembly 1 S series

26 41208A Battery Cable Ref All

27 41140A Cable Assembly 1 All

28 41801A Solenoid - Main / Brush 2 All

29 69878A Plug Bracket 1 All

30 61681A Upper Cable, Asm. 1 L series

31 58409A Sleeve 1 L series

32 53424A Cable Spring 1 L series

33 61680A Cable Assembly Spring 1 L series

34 69372A Lower Electrical Panel 1 All

35 46309A Relay - Squeegee Up / Down 1 L series

36 40125A Solenoid - Vac 1 All

37 980651 Washer 2 All

38 80043A Shoulder Screw 2 All

39 41135C Traverse, Control Board 1 All

40 962992 Screw, 8-32 x.74 Pn 4 All

41 32410B Rear Cover 1 L series

32418B Rear Cover 1 S series

42 85391A Screw, .25-20 x.62 Pn 2 All

43 87007A Washer 6 All

44 980657 Washer, Lock 4 All

45 85806A Screw, ¼-20 x 3/4 Hex 1 All

46 85614A Screw, 8-32 x 7/8 PN 2 L series

47 193951 Trim, 4½" & 8" 1 All

48 87625A Washer, Nylon 1¼x¼x1/32 0-4 L series

49 87624A Washer, Nylon 1½x¼x7/82 L series

50 98465A Clamp, Metal 7/18 1 All

51 77079A Label, w/Brake Warning 1

77080A Label, w/o Brake Warning 1

52 930093 Rivet 2 All

53 83307A Stud, ¼-20 8 All

54 42405A Diode 1 All

55 54763A Insert 6 L series

54763A Insert 4 S series

56 54764A Insert 2 All

57 60233A Hose Bracket 2 All

58 962957 Screw, 10-16 x ½ 4 All

59 962798 Screw 1 L Series

60 920296 Nut 1 L Series

61 77354B Label 1 L Series

77355B Label 1 S Series

62 77194B Label, Traverse 1 All

63 77221A Serial Tag 1 All

64 83010A Rivet, Pop 1 All

Clarke® Encore S28/S33/S38

Electrical Schematic 6/02

(for machines wtih a 41135C Traverse Controller)

Page -48- Clarke® Operator's Manual -Encore S28/L28/S33/L33/S38/L38

Clarke® Encore S28/S33/S38

Connection Diagram 6/02

(for machines wtih a 41135C Traverse Controller)

Clarke® Operator's Manual - Encore S28/L28/S33/L33/S38/L38 - 49 -

Page -50- Clarke® Operator's Manual -Encore S28/L28/S33/L33/S38/L38

Clarke® Encore L28/L33/L38

Electrical Schematic 6/02

(for machines wtih a 41135C Traverse Controller)

Clarke® Operator's Manual - Encore S28/L28/S33/L33/S38/L38 - 51 -

Clarke® Encore L28/L33/L38

Connection Diagram 6/02

(for machines wtih a 41135C Traverse Controller)

NOTES

Page -52- Clarke® Operator's Manual -Encore S28/L28/S33/L33/S38/L38

SEE

PAGES 54-61

FOR

COMPONENTS

FOR MACHINES

WITH A

40089A

TRAVERSE

CONTROLLER

Clarke® Operator's Manual - Encore S28/L28/S33/L33/S38/L38 - 53 -

Clarke® Encore S28/S33/S38 and L28/L33/L38

Control Housing Assembly Drawing 12/03

(for machines wtih a 40089A Traverse Controller)

Page -54- Clarke® Operator's Manual -Encore S28/L28/S33/L33/S38/L38

53 43

20 45

2425

28 56

45 44 19 21

14 45

3938

712

Ref # Part No. Description Qty Model

1 55502A Knob 2 S series

55502A Knob 3 L series

2 47381B Switch, Head up & down Rocker 1 All

3 47383A Switch, Squeegee/Vac 3 Pos./Rocker 1 L series

4 85612A Screw, 10-24 x .375 Pn. 6 All

5 77344B Control Panel Label 1 L series

60060A Control Panel 1 L series

6 77343B Control Panel Label 1 S series

60058A Control Panel 1 S series

7 44308B Solution Flow Module 1 All

8 40622A Speed Control Harness 1 L series

40623A Speed Control Harness 1 S series

9 44416B Battery Meter 1 All

10 38724B Spacer 2 All

11 920056 Nut, 6-32 ESNA 2 All

12 50170A Head Pressure Adjustor 1 L series

13 85391A Screw, .25-20 x .62 Pn 2 All

14 962139 Screw, .25-20 x .62 5 L series

962139 Screw, .25-20 x .62 2 S series

15 962992 Screw 8-32 x .75 Pn 4 L series

16 41153A Head Pressure Control Board 1 L series

17 66241A Upper Electrical Panel 1 L series

18 47380A Key Switch 1 All

18A 55413A Key, Spare

19 41154A Actuator Control Board 1 L series

20 854849 Insulator 1 All

21 170781 Screw, ¼-20 x 3/4 Set 1 All

22 41431A Circuit Breaker 35A 2 All

23 962262 Screw, 8-32 x .25 Set 3 L series

962262 Screw, 8-32 x .25 Set 2 S series

24 41448A Circuit Breaker 30A Scr. 1 All

25 41422A Circuit Breaker 25A Scr. 1 All

26 41423A Circuit Breaker 5A 1 All

27 41430A Circuit Breaker 1.5A 1 L series

28 35243B Control Housing 1 L series

35252B Control Housing 1 S series

29 87052A Nylon Washer, Key Switch 1 All

30 912226 Hour Meter 1 All

31 24309B Control Handle 1 All

32 85390A Screw, .25-20 x 1.25 Pn 2 All

33 66549A Pin, Left Hand 1 All

34 49778A Actuator, Control Harness 1 L series

35 170892 Washer, Lock .25 2 All

36 10052A Toggle Switch 1 All

37 60662A Centering Bracket 1 All

38* 962304 Screw, Set .312-18 x .5 4 All

39 53038A Control Handle Spring 2 All

40 61266A Control Bracket 1 All

41 66548A Pin, Right Hand 1 All

42 49777B Main Harness (L Series Only) 1 L series

49779B Main Harness (S Series only) 1 S series

43 83302A Stud 1 All

44 87007A Washer 2 S series

87007A Washer 5 L series

45 980657 Lock Washer 6 L series

980657 Lock Washer 3 S series

46 54763A Insert 8 L series

47 85613A Screw, 8-32 x 7/84 L series

48 980651 Washer, Nylon IDxODx.034 1 All

49 80043A Screw, Shoulder 1 All

50 30022A Gasket, Panel 1 S series

30025A Gasket, Panel 1 L series

51 77350C Label, Control Wiring 1 L series

77351C Label, Control Wiring 1 S series

52 87026A Washer 2 All

53 81104A Nut, ¼-20 ESNA 1 All

54 61651A Collar 1 All

55 66871A Retainer Key/Hour Meter 1 All

56 60042A Stud, 5/16 x 1/4 -20 Thread 1 All

57 85388A Screw, 10-24 x ½ 2 L Series

58 40622A Harness, Traverse 1 L Series

40623A Harness, Traverse 1 S Series

59 50883A Potentiometer Retainer 1 All

NI 42909A Fuse, 5 Amp ACG (included w/item#42) 2 All

Clarke® Encore S28/S33/S38 and L28/L33/L38

Control Housing Assembly Parts List (for machines wtih a 40089A Traverse Controller) 12/03

*#38 must use red

loctite set screws.

Clarke® Operator's Manual - Encore S28/L28/S33/L33/S38/L38 - 55 -

Clarke®

Encore S28/S33/S38 and L28/L33/L38

Rear Cover Assembly Drawing 10/02

(for machines wtih a 40089A Traverse Controller)

8910

24 523

511

10 14

12 5

40 39

44 4350

61 62

Page -56- Clarke® Operator's Manual -Encore S28/L28/S33/L33/S38/L38

Clarke® Operator's Manual - Encore S28/L28/S33/L33/S38/L38 - 57 -

Clarke®

Encore S28/S33/S38 and L28/L33/L38

Rear Cover Assembly Parts List 10/02 (for machines wtih a 40089A Traverse Controller)

*#23 must use red

loctite.

Ref # Part No. Description Qty Model

1 61264A Actuator, Mount Bracket 1 L series

2 962139 Screw, .25-20x.62 Hex 5 All

3 86004A Screw, .25-20x1.50 Hex 2 L series

4 57275A Cable Pulley 1 L series

5 81104A Nut, .25-20 ESNA 11 L series

81104A Nut, .25-20 ESNA 9 S series

6 69872A Pulley Bracket 1 L series

7 85700A Screw, .25-20x1.00 Hex 1 S series

8 87026A Washer, Flat .25 2 S series

9 608210 Spacer 1 S series

10 902731 Nylon Bearing 2 S series

11 40102B Actuator 1 L series

12 920056 Nut, 6-32 ESNA 2 L series

920056 Nut, 6-32 ESNA 4 S series

13 67476A Shaft 1 S series

14 65629A Squeegee Lever 1 S series

15 438360 Spring 1 S series

16 960510 Shoulder Screw 1 S series

17 61265A Squeegee Lift Bracket 1 S series

18 68643A Wear Plate 1 S series

19 980675 Washer 2 S series

20 962546 Screw, 10-24 x .50 Pn 2 S series

21 47388A Switch 1 S series

22 962980 Screw, 6-32 x 1.00 Pn 2 L series

962980 Screw, 6-32 x 1.00 Pn 4 S series

23* 962304 Screw, .312-18 x .50 Set 2 S series

24 65628A Lever Weld. 1 S series

25 61682A Upper Cable Assembly 1 S series

26 41208A Battery Cable Ref All

27 41140A Cable Assembly 1 All

28 41802A Solenoid - Main 1 All

29 69878A Plug Bracket 1 All

30 61681A Upper Cable, Asm. 1 L series

31 58409A Sleeve 1 L series

32 53424A Cable Spring 1 L series

33 61680A Cable Assembly Spring 1 L series

34 69372A Lower Electrical Panel 1 All

35 46309A Relay - Squeegee Up / Down 1 L series

36 40125A Solenoid - Vac 1 All

37 980651 Washer 2 All

38 80043A Shoulder Screw 2 All

39 40089A Traverse, Control Board 1 All

40 962992 Screw, 8-32 x.74 Pn 4 All

41 32410B Rear Cover 1 L series

32418B Rear Cover 1 S series

42 85391A Screw, .25-20 x.62 Pn 2 All

43 87007A Washer 6 All

44 980657 Washer, Lock 4 All

45 85806A Screw, ¼-20 x 3/4 Hex 1 All

46 85614A Screw, 8-32 x 7/8 PN 2 L series

47 193951 Trim, 4½" & 8" 1 All

48 87625A Washer, Nylon 1¼x¼x1/32 0-4 L series

49 87624A Washer, Nylon 1½x¼x7/82 L series

50 98465A Clamp, Metal 7/18 1 All

51 77079A Label, w/Brake Warning 1

77080A Label, w/o Brake Warning 1

52 930093 Rivet 2 All

53 83307A Stud, ¼-20 8 All

54 42405A Diode 1 All

55 54763A Insert 6 L series

54763A Insert 4 S series

56 54764A Insert 2 All

57 60233A Hose Bracket 2 All

58 962957 Screw, 10-16 x ½ 4 All

59 962798 Screw 1 L Series

60 920296 Nut 1 L Series

61 77354B Label 1 L Series

77355B Label 1 S Series

62 77194B Label, Traverse 1 All

63 77221A Serial Tag 1 All

64 83010A Rivet, Pop 1 All

65 41801A Solenoid, Brush 1 All

66 60552A Bracket, Solenoid Main 1 All

67 920722 Nut, 10 ESNA 1 All

68 912287 Rectifier 1 All

Clarke®

Encore S28/S33/S38

Electrical Schematic 4/03

(for machines wtih a 40089A Traverse Controller)

Page -58- Clarke® Operator's Manual -Encore S28/L28/S33/L33/S38/L38

Clarke®

Encore S28/S33/S38

Connection Diagram 10/02

(for machines wtih a 40089A Traverse Controller)

Clarke® Operator's Manual - Encore S28/L28/S33/L33/S38/L38 - 59 -

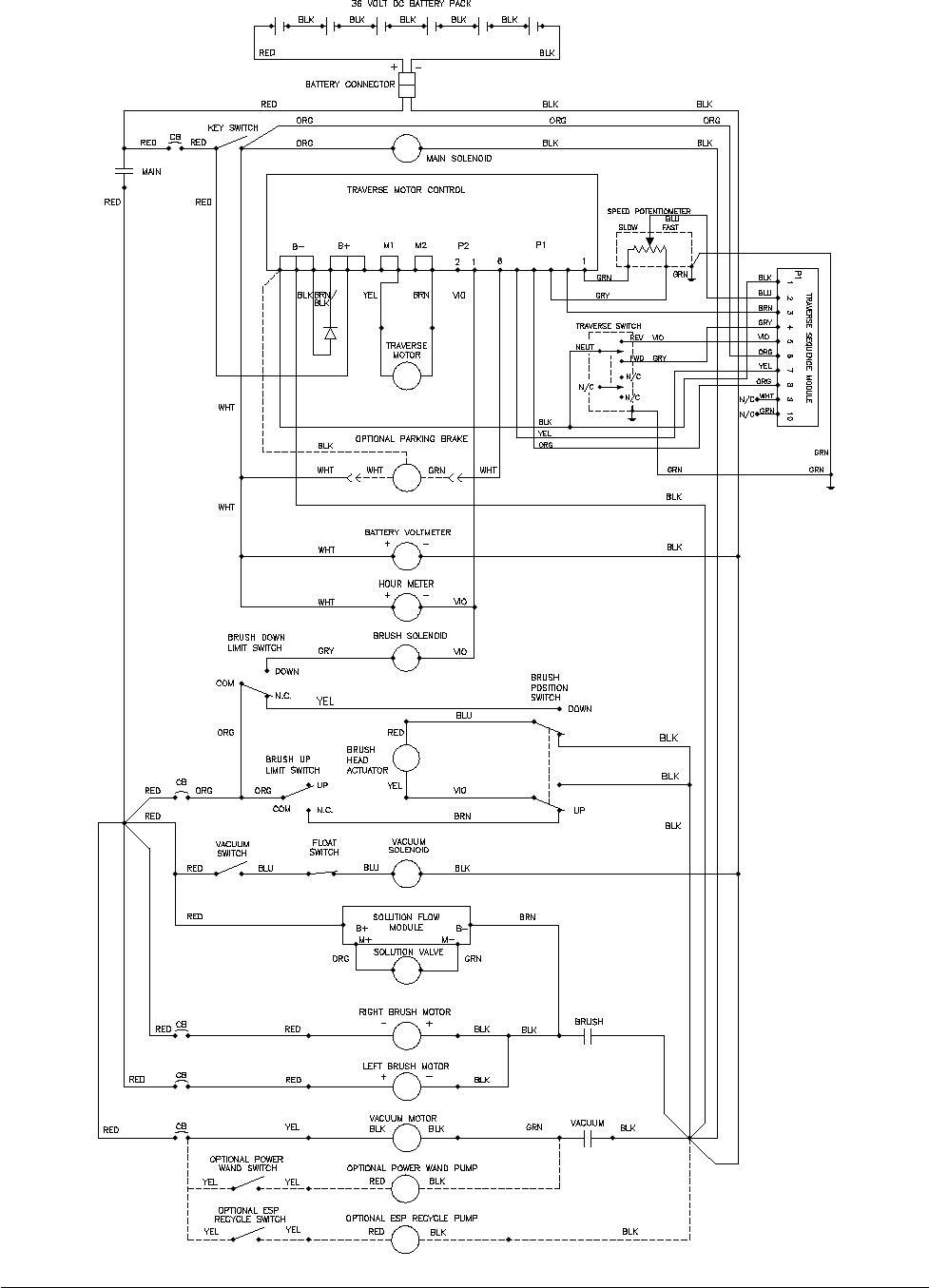

Clarke®

Encore L28/L33/L38

Electrical Schematic 8/04

(for machines wtih a 40089A Traverse Controller)

Page -60- Clarke® Operator's Manual -Encore S28/L28/S33/L33/S38/L38

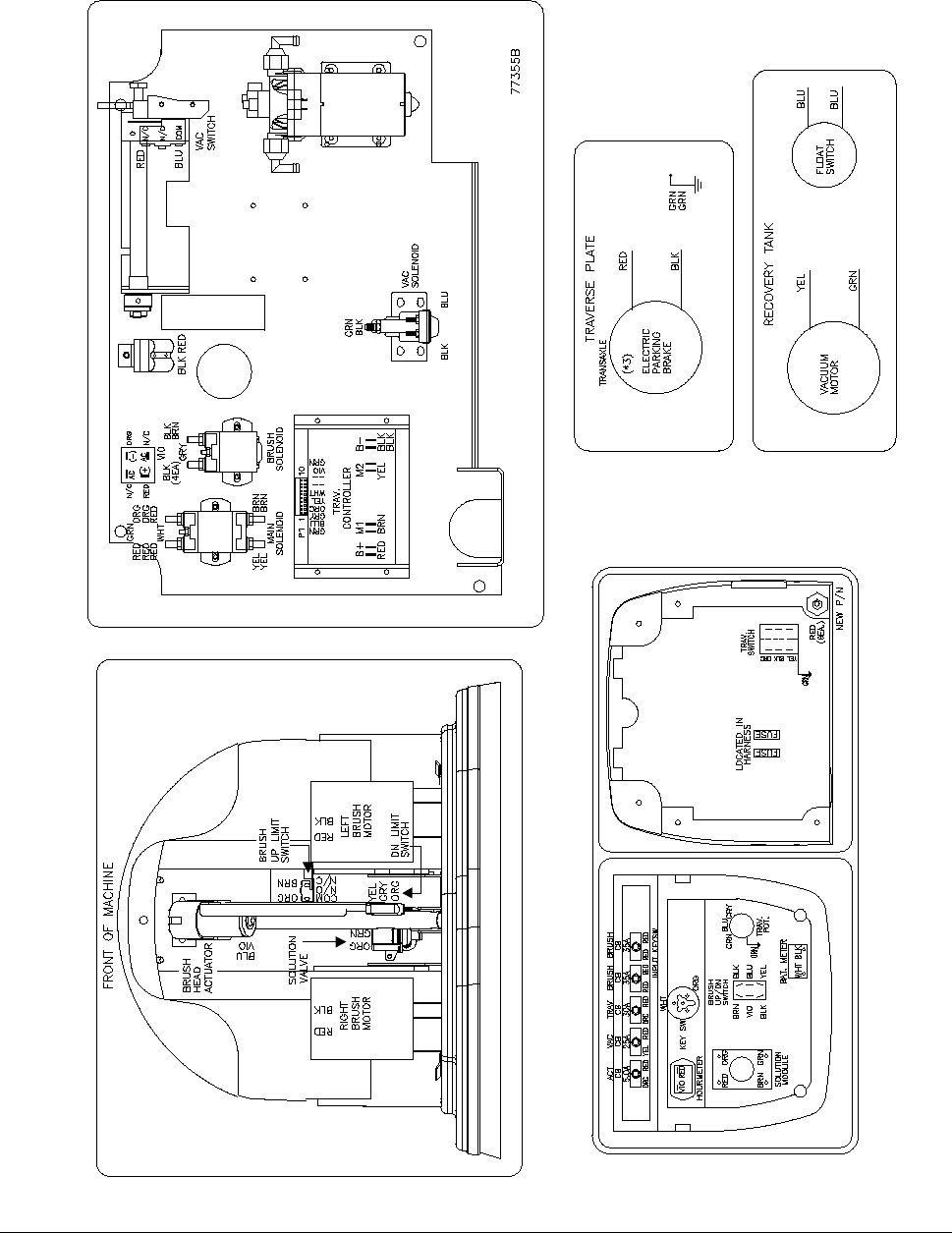

Clarke®

Encore L28/L33/L38

Connection Diagram 4/03

(for machines wtih a 40089A Traverse Controller)

Clarke® Operator's Manual - Encore S28/L28/S33/L33/S38/L38 - 61 -

NOTES

CLARKE PRODUCT SUPPORT BRANCHES

PRODUCTION FACILITIES

ALTO Danmark A/S, Aalborg

Blytaekkervej 2

DK-9000 Aalborg

+45 72 18 21 00

ALTO Danmark A/S, Hadsund

Industrikvarteret

DK-9560 Hadsund

+45 72 18 21 00

SALES SUBSIDIARIES

Clarke® Canada Ltd., Rexdale Ontario

24 Constellation Ct.

(416) 675-5830

ALTO Overseas Inc., Sydney (Australia)

1B/8 Resolution Drive

Caringbah NSW 2229

+61 2 9524 6122

ALTO Cleaning Systems Asia Pte Ltd., Singapore

No. 17 Link Road

Singapore 619034

+65 268 1006

ALTO Deutschland GmbH, Bellenberg (Germany)

Guido-Oberdorfer-Straße 2-8

89287 Bellenberg

+49 0180 5 37 37 37

ALTO Cleaning Systems (UK) Ltd., Penrith

Gilwilly Industrial Estate

Penrith

Cumbria CA11 9BN

+44 1768 868 995

ALTO France S.A. Strasbourg

B.P. 44, 4 Place d’Ostwald

F-67036 Strasbourg

Cedex 2

+33 3 8828 8400

ALTO Nederland B.V.

Postbus 65

3370 AB Hardinxveld-Giessendam

The Netherlands

+31 184 677 200

ALTO Sverige AB, Molndal (Sweden)

Aminogatan 18

Box 4029

S-431 04 Molndal

+46 31 706 73 00

ALTO Norge A/S, Oslo (Norway)

Bjornerudveien 24

N-1266

+47 2275 1770

U. S. A. Locations European Locations

CORPO

PRODUCTION FACILITIES

Clarke® , Springdale, Arkansas

2100 Highway 265

Springdale, Arkansas 72764

(479) 750-1000

Customer Service - 1-800-253-0367

Technical Service - 1-800-356-7274

American Lincoln®, Bowling Green, Ohio 43402

1100 Haskins Road

SERVICE FACILITIES

Clarke®, Elk Grove, Illinois 60007

2280 Elmhurst Road

(847) 956-7900

Clarke®, Denver, Colorado 80204

1955 West 13th Ave.

(303) 623-4367

Clarke®, Houston, Texas 77040

7215 North Gessner Road

713-937-7717

SERVICE AND SALES FACILITY

American Lincoln® / Clarke, Madison Heights,

Michigan 48071-0158

29815 John R.

(810) 544-6300

American Lincoln® / Clarke, Marietta, Georgia 30066

1455 Canton Road

(770) 973-5225

SALES AND DISTRIBUTION CENTER

Clarke®, Secaucus, NJ 07094

74 Henry Street

(201) 864-5503

Clarke®

Clarke American Sanders

A.L. Cook

Customer Service Headquarters and Factory

2100 Highway 265

Springdale, Arkansas 72764

(479) 750-1000

Technical Service

1-800-356-7274

Clarke® U.S. LIMITED WARRANTY

This Clarke Industrial/Commercial Product is warranted to be free from defects in materials and workmanship under normal

use and service for a period of one year from the date of purchase, when operated and maintained in accordance with Clarke's

Maintenance and Operations instructions.

The brush drive and traverse motors are warranted to be free from defects in materials and workmanship under normal

use and service for one additional year, for a total of two years, from the date of purchase, provided the motors are inspected

for carbon motor brush wear at six-month intervals by an authorized Clarke repair station. Failure to comply with the six-month

inspection requirement or failure to replace worn motor brushes identified during the inspection will void the additional one-year

warranty on the motors. Cost of the six-month inspection and replacement of carbon motor brushes is the responsibility of the

purchaser. In the event of a warranty claim on the motors, proof of inspection and any required motor brush replacement must

be provided.

This warranty is extended only to the original purchaser for use of the product. It does not cover normal wear parts such

as electrical cable, rubber parts, hoses and motor brushes.

Clarke's liability under this warranty is limited to repair of the product and/or replacement of parts and is given to purchaser in

lieu of all other remedies, including INCIDENTAL AND CONSEQUENTIAL DAMAGES.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE SPECIFIED HEREIN. THERE ARE NO WARRAN-

TIES WHICH EXTEND BEYOND THE DESCRIPTION OF THE FACE HEREOF. NO WARRANTIES, INCLUDING BUT

NOT LIMITED TO WARRANTY OF MERCHANTABILITY, SHALL BE IMPLIED. A warranty registration card is provided with

your Clarke product. Return the card to assist Clarke in providing the performance you expect from your new floor machine.

If a difficulty develops with the product, you should: a) Contact the nearest authorized Clarke repair location or contact the

Clarke Service Operations Department, 2100 Highway 265, Springdale, Arkansas 72764, for the nearest authorized Clarke repair

location. Only these locations are authorized to make repairs to the product under this warranty. (b) Return the product to the

nearest Clarke repair location. Transportation charges to and from the repair location must be prepaid by the purchaser. Clarke

will repair the product and/or replace any defective parts with out charge within a reasonable time after reciept of the product.

Clarke®, 2100 Highway 265, Springdale, Arkansas 72764.

BATTERY U.S. WARRANTY

In addition to the items above (except as to the one-year period), any original equipment Clarke Battery which becomes unser-

viceable under normal use within a period of ninety (90) days from date of sale to the original user will be repaired or replaced with

one of equal specification at our option, F.O.B. any authorized Clarke Sales or Service Branch, with no charge to the user,

except transportation costs. After expiration of the above ninety (90) day period, any battery which fails under normal use will be

adjusted to the original user with a new battery of equal specification on an eighteen (18) months pro rate basis from the date of

purchase. Adjustment will be determined using the then current list price, plus transportation costs.

Warranty is rendered null and void if battery is not kept filled to the proper level with DISTILLED WATER.

Clarke®: POLYDUR® AUTOMATIC SCRUBBER

SOLUTION AND RECOVERY TANK

U.S. EIGHT-YEAR GUARANTEE

Your new Clarke Encore Automatic Scrubber has polydur Solution and Recovery Tanks. Polydur is a rotationally molded, low-

density linear polyethylene that won't crack or dent, and withstands most corrosives and temperature extremes. Clarke backs

up your Polydur tanks with an eight-year guarantee. If a tank breaks or leaks under normal use within eight years of the date of

purchase, it will be replaced free.

Clarke® UNIBODY FRAME

U.S. FIVE-YEAR WARRANTY

Clarke warranties the frame for the new Encore automatic Scrubbers for a period of five years against defects in materials and

workmanship under normal use and service.

Clarke reserves the right to make changes or improvements to its machine without notice.

Always use genuine Clarke Parts for repair.

2100 Highway 265

Springdale, Arkansas, 72764

Division of

70656A.pmd FOCUS S17 5735C60C24C54B51B75E1D83A534AC90

Navigation menu

Versions of this User Manual:

Views

Navigation
