For use with TO-220 packages
Part Number - 574502B00000G

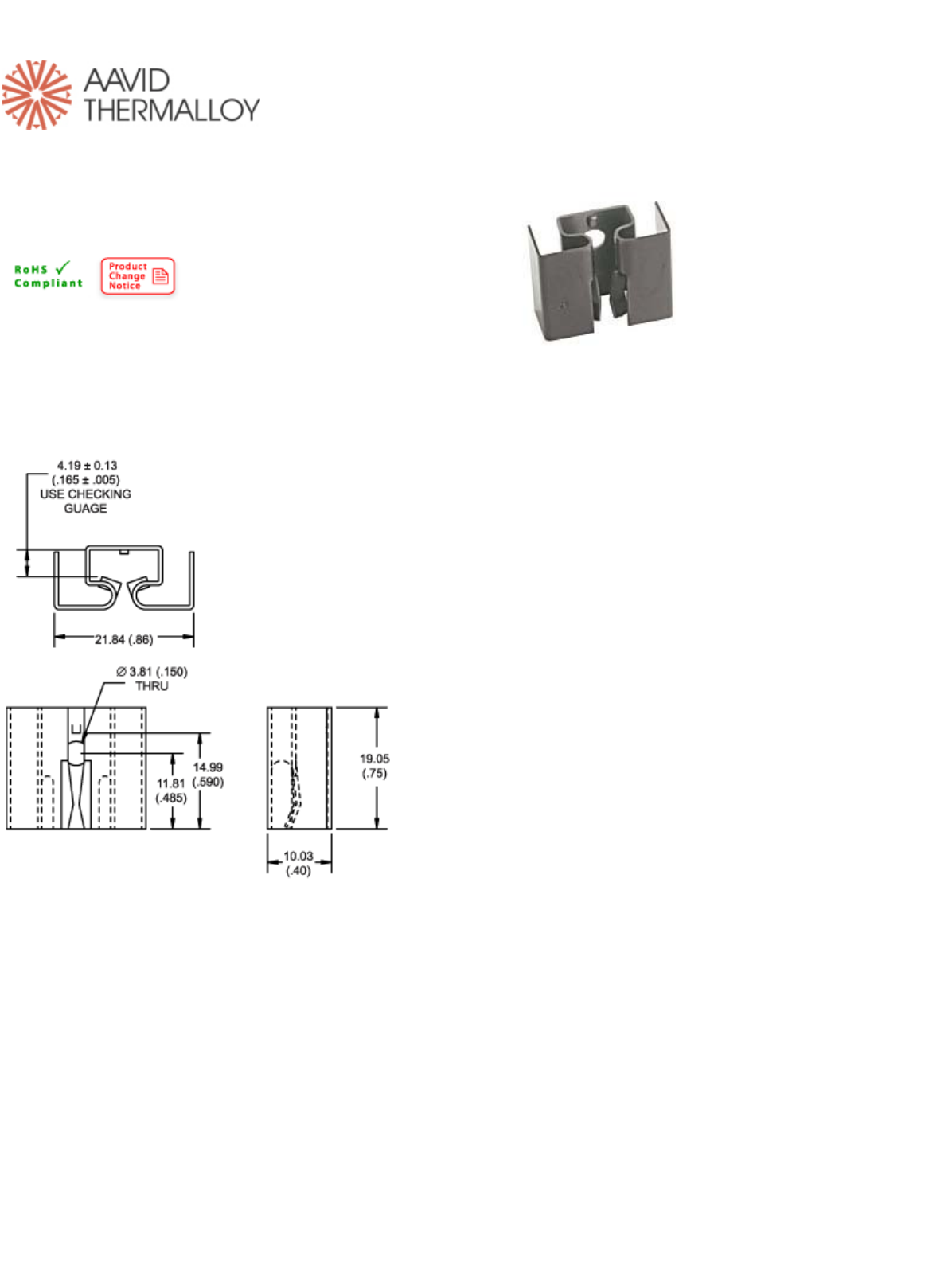

Mechanical Outline Drawing

Thermal resistance value is
based on a 75°C rise in
natural convection
Product Information
Part # Description Finish Board
Mounting
574502B00000G Low cost labor saving slide
on heat sink featuring
spring action
Black
Anodize N/A
This non-electronic component is functionally unaffected by the normal
soldering or reflow processes used for semiconductor circuits. The heat
resistance time or heat resistance temperature is not applicable for the
component.
Thermal Curves
Thermal
Resistance
Thermal
Resistance
Thermal
Resistance
Thermal
Resistance 21.2021.2021.2021.20
