5995427241 January 2005

White-Westinghouse®

Product Information

and Technical Guide

Side by Side and Top Mount Refrigerators

April 2004 - December 2004

TABLE OF CONTENTS

Safe Servicing Practices ------------------------------------------------------------------------------------------ 2

Service Data Sheet, Refrigerant Charge & Energy Efficiency Rating Indexes ------------------- 3 - 17

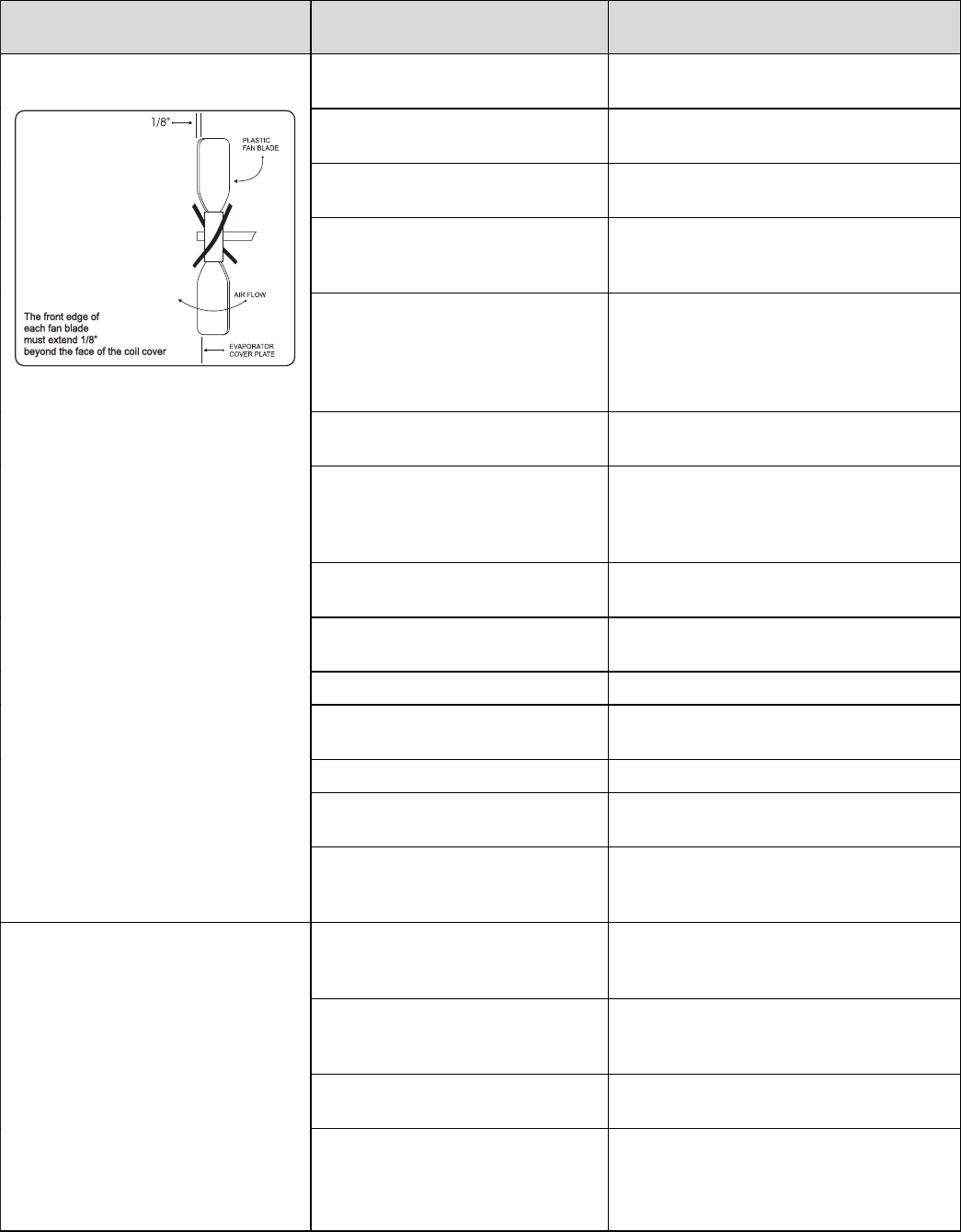

Troubleshooting Guide --------------------------------------------------------------------------------------------- 18- 22

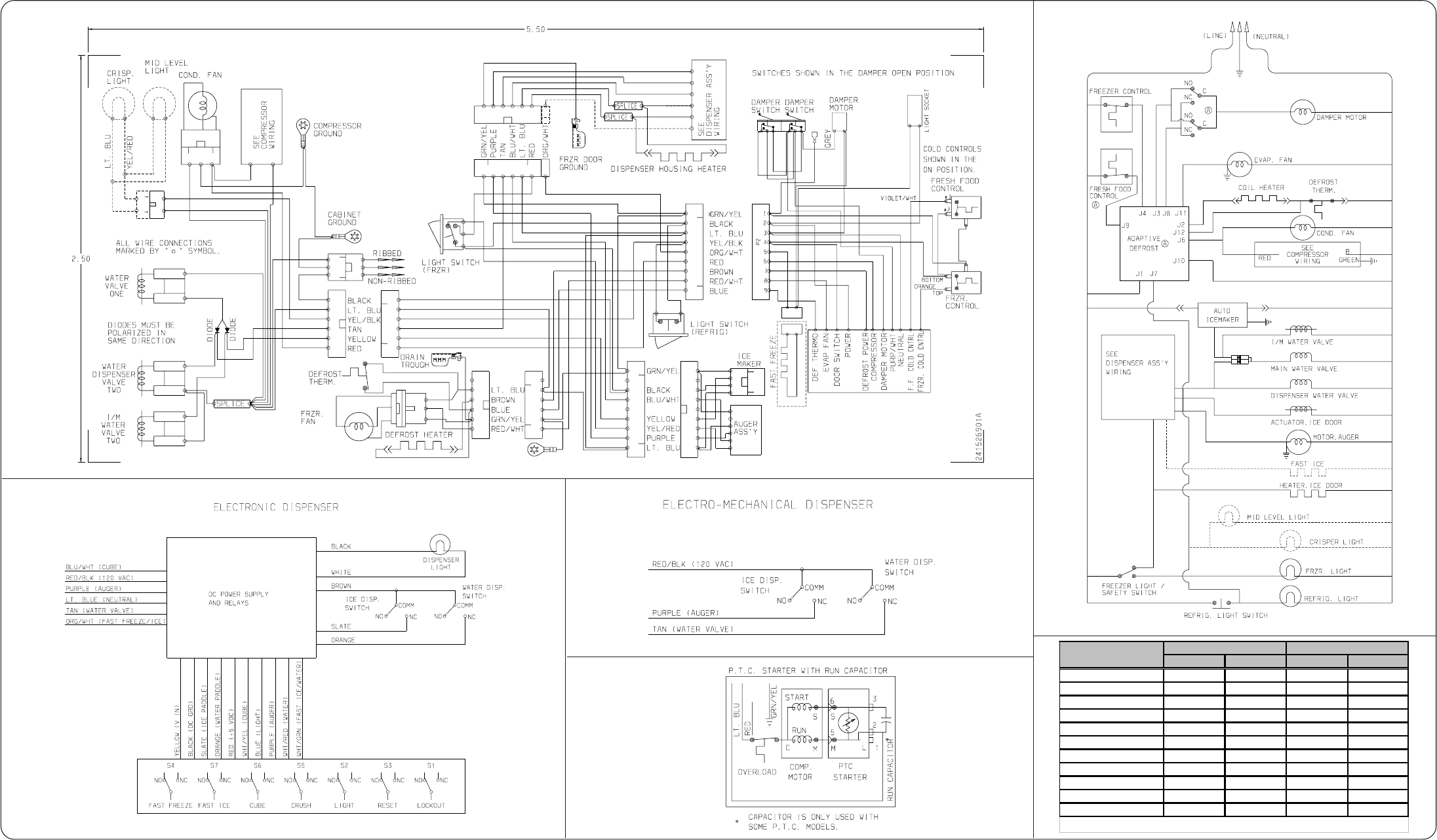

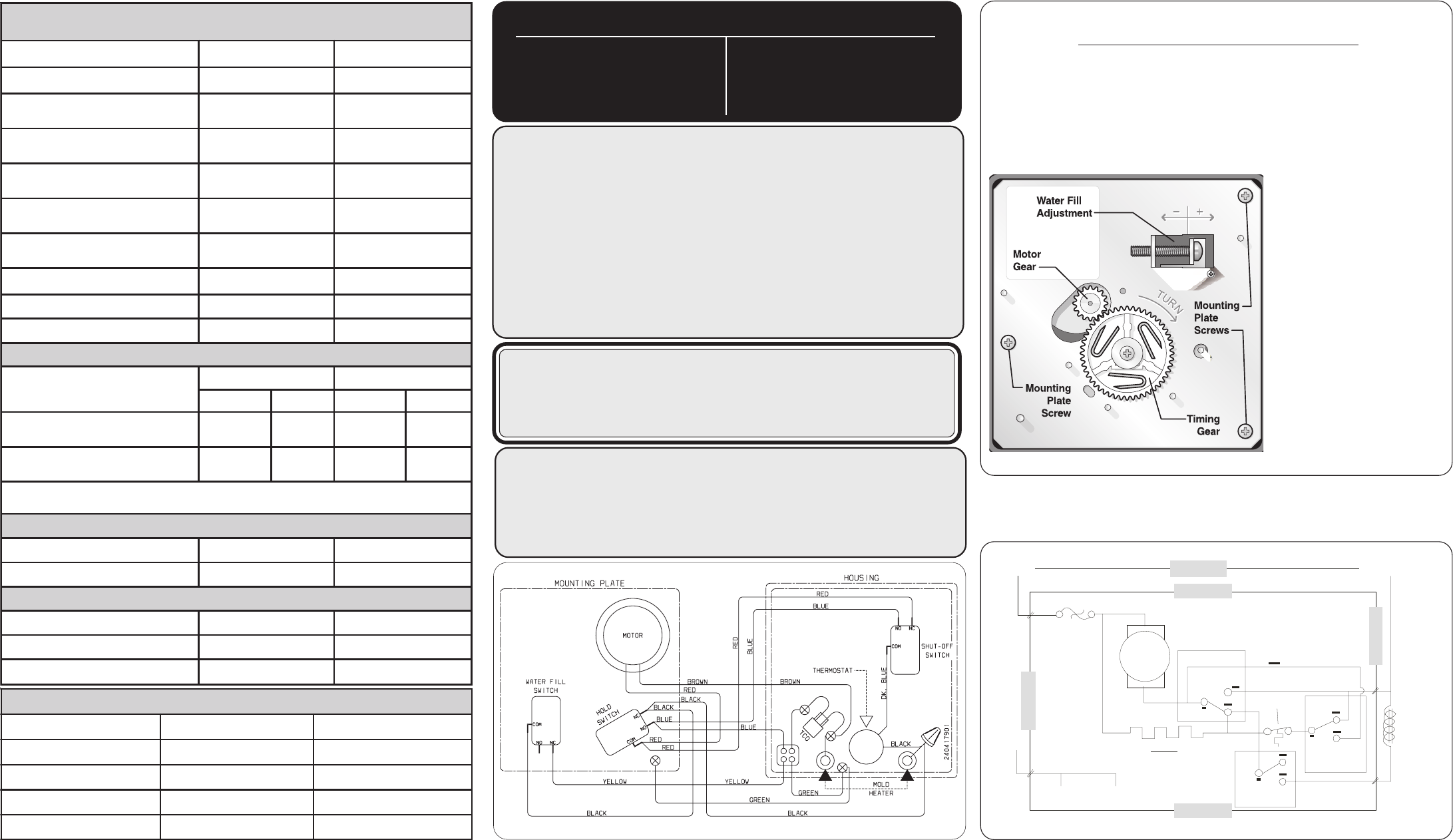

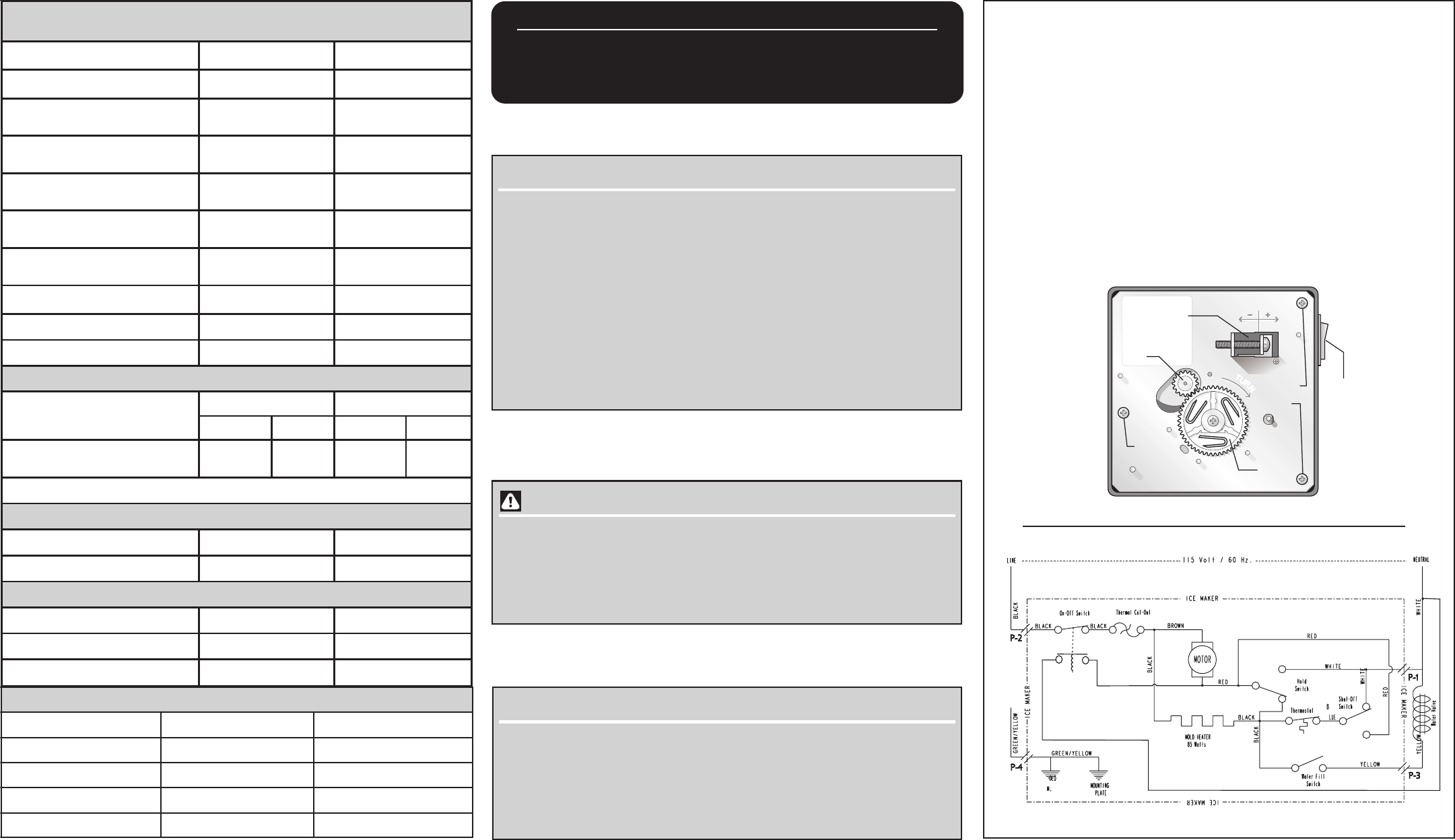

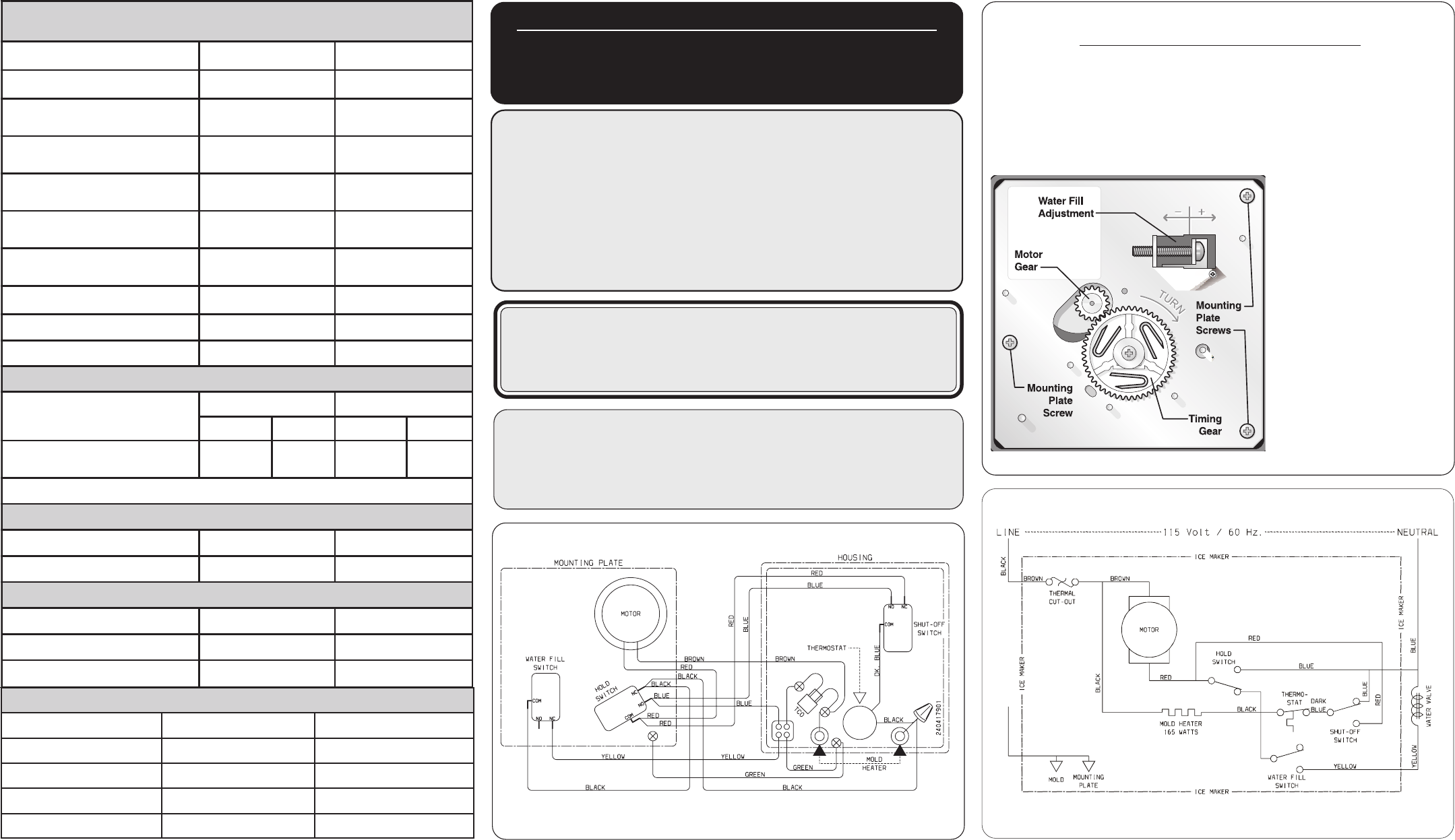

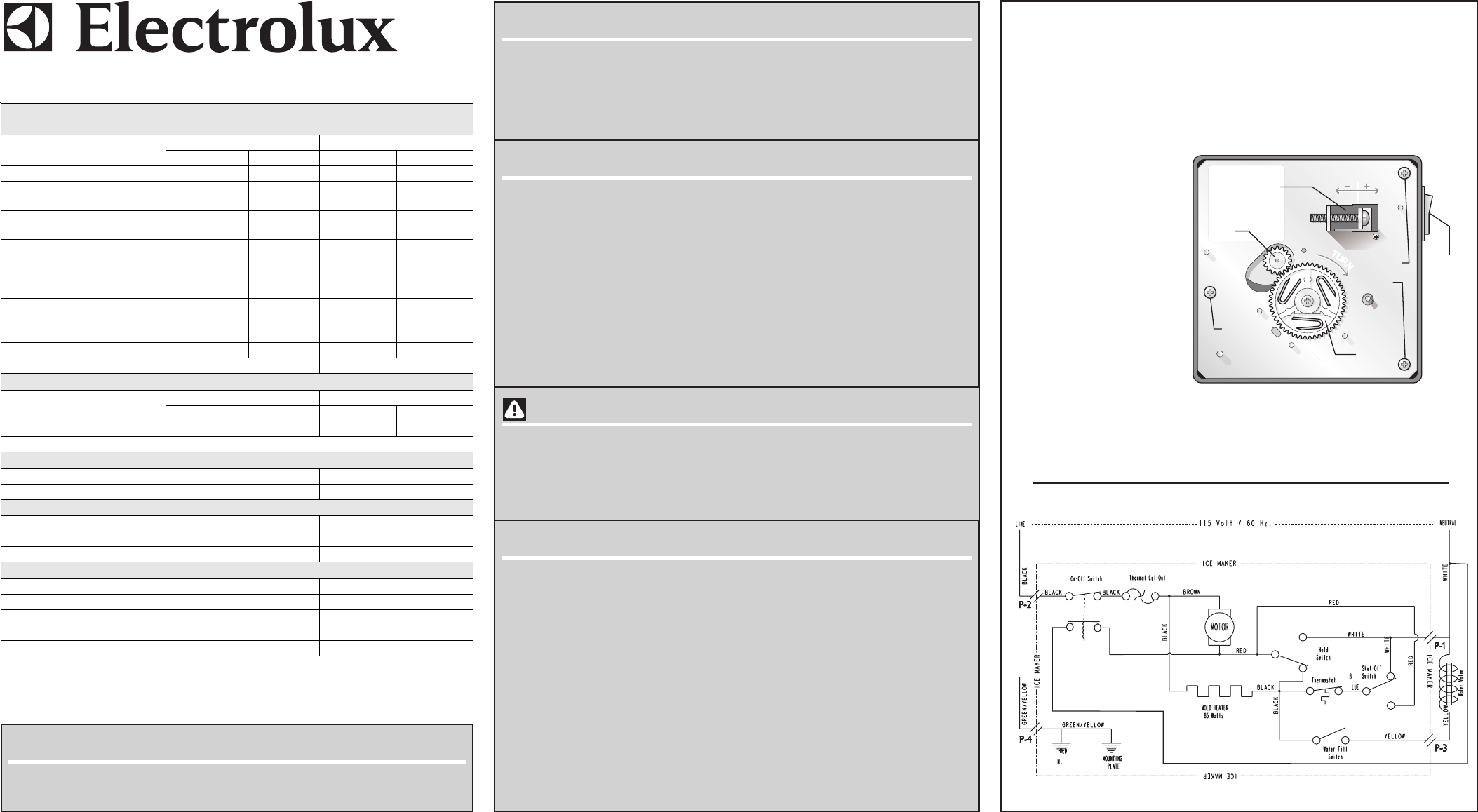

Appendix A - Service Data Sheets

240379014 --------------------------------------------------------------------------------------------------------- A1 - A2

240379015 --------------------------------------------------------------------------------------------------------- A3 - A4

241588200 --------------------------------------------------------------------------------------------------------- A5 - A6

240389616 --------------------------------------------------------------------------------------------------------- A7 - A8

240389618 --------------------------------------------------------------------------------------------------------- A9 - A10

240389621 --------------------------------------------------------------------------------------------------------- A11 - A12

241532603 --------------------------------------------------------------------------------------------------------- A13 - A14

ATTENTION!!!

This service manual is intended for use by persons having electrical and mechnical

training and a level of knowledge of these subjects generally considered acceptable in the

appliance repair trade. Electrolux Home Products, Inc. cannot be responsible, nor assume

any liability, for injury or damage of any kind arising from the use of this manual.

SAFE SERVICING PRACTICES - ALL APPLIANCES

To avoid personal injury and/or property damage, it is important that Safe Servicing

Practices be observed. The following are some limited examples of safe practices:

1. DO NOT attempt a product repair if you have any doubts as to your ability to

complete it in a safe and satisfactory manner.

2. Before servicing or moving an appliance:

• Remove the power cord from the electrical outlet, trip the circuit breaker to the

OFF position, or remove the fuse.

• Turn off the gas supply.

• Turn off the water supply.

3. Never interfere with the proper operation of any safety device.

4. USE ONLY REPLACEMENT PARTS CATALOGED FOR THIS APPLIANCE.

SUBSTITUTIONS MAY DEFEAT COMPLIANCE WITH SAFETY

STANDARDS SET FOR HOME APPLIANCES.

5. GROUNDING: The standard color coding for safety ground wires is GREEN, or

GREEN with YELLOW STRIPES. Ground leads are not to be used as current

carrying conductors. It is EXTREMELY important that the service technician

reestablish all safety grounds prior to completion of service. Failure to do so will

create a hazard.

6. Prior to returning the product to service, ensure that:

• All electrical connections are correct and secure

• All electrical leads are properly dressed and secured away from sharp edges,

high-temperature components, and moving parts

• All non-insulated electrical terminals, connectors, heaters, etc. are adequately

spaced away from all metal parts and panels

• All safety grounds (both internal and external) are correctly and securely

connected

• All panels are properly and securely reassembled

Model Service Data Sheet Charge Energy Efficiency Rating Brand

CRTE183AQ4 240379015 4.25 479 CROSLEY

CRTE183AQ8 240379015 4.25 479 CROSLEY

CRTE183AW4 240379015 4.25 479 CROSLEY

CRTE183AW8 240379015 4.25 479 CROSLEY

E23CS75DSS2 241532603 5.75 687 ELECTROLUX

E23CS75DSS3 241532603 5.75 687 ELECTROLUX

E23CS78DSS0 241532603 6 584 ELECTROLUX

E23CS80DSS0 241532603 6 584 ELECTROLUX

FLSC238DB0 241532603 6 584 FRIGIDAIRE

FLSC238DB1 241532603 6 584 FRIGIDAIRE

FLSC238DS0 241532603 6 584 FRIGIDAIRE

FLSC238DS1 241532603 6 584 FRIGIDAIRE

FLSC238DS2 241532603 6 584 FRIGIDAIRE

FLSC238DS3 241532603 6 584 FRIGIDAIRE

FLSC238DW0 241532603 6 584 FRIGIDAIRE

FLSC238DW1 241532603 6 584 FRIGIDAIRE

FLSC23F6DB1 241532603 6 584 FRIGIDAIRE

FLSC23F6DS0 241532603 6 584 FRIGIDAIRE

FLSC23F6DS1 241532603 6 584 FRIGIDAIRE

FLSC23F6DW0 241532603 6 584 FRIGIDAIRE

FLSC23F6DW1 241532603 6 584 FRIGIDAIRE

FRS23F4DB2 240389618 5 686 FRIGIDAIRE

FRS23F4DQ1 240389618 5 686 FRIGIDAIRE

FRS23F4DQ2 240389618 5 686 FRIGIDAIRE

FRS23F4DW1 240389618 5 686 FRIGIDAIRE

FRS23F4DW2 240389618 5 686 FRIGIDAIRE

FRS23F4DW3 240389618 5 686 FRIGIDAIRE

FRS23H5DSB1 240389618 5 583 FRIGIDAIRE

FRS23H5DSB2 240389618 5 583 FRIGIDAIRE

FRS23H5DSB3 240389618 5 583 FRIGIDAIRE

FRS23KF5DB0 240389618 5 686 FRIGIDAIRE

FRS23KF5DB1 240389618 5 686 FRIGIDAIRE

FRS23KF5DB2 240389618 5 686 FRIGIDAIRE

FRS23KF5DQ0 240389618 5 686 FRIGIDAIRE

FRS23KF5DQ2 240389618 5 686 FRIGIDAIRE

FRS23KF5DS0 240389618 5 686 FRIGIDAIRE

FRS23KF5DS1 240389618 5 686 FRIGIDAIRE

FRS23KF5DS2 240389618 5 686 FRIGIDAIRE

FRS23KF5DW0 240389618 5 686 FRIGIDAIRE

FRS23KF5DW1 240389618 5 686 FRIGIDAIRE

FRS23KF5DW2 240389618 5 686 FRIGIDAIRE

FRS23KF6DB0 240389618 5 583 FRIGIDAIRE

FRS23KF6DB1 240389618 5 583 FRIGIDAIRE

FRS23KF6DB2 240389618 5 583 FRIGIDAIRE

FRS23KF6DQ0 240389618 5 583 FRIGIDAIRE

FRS23KF6DQ1 240389618 5 583 FRIGIDAIRE

FRS23KF6DQ2 240389618 5 583 FRIGIDAIRE

FRS23KF6DW0 240389618 5 583 FRIGIDAIRE

FRS23KF6DW1 240389618 5 583 FRIGIDAIRE

FRS23KF6DW2 240389618 5 583 FRIGIDAIRE

FRS23LH5DB0 240389616 5 583 FRIGIDAIRE

FRS23LH5DB1 240389616 5 583 FRIGIDAIRE

FRS23LH5DB2 240389616 5 583 FRIGIDAIRE

FRS23LH5DB3 240389616 5 583 FRIGIDAIRE

FRS23LH5DB4 240389616 5 583 FRIGIDAIRE

FRS23LH5DB6 240389616 5 583 FRIGIDAIRE

Model Service Data Sheet Charge Energy Efficiency Rating Brand

FRS23LH5DB8 240389616 5 583 FRIGIDAIRE

FRS23LH5DQ0 240389616 5 583 FRIGIDAIRE

FRS23LH5DQ1 240389616 5 583 FRIGIDAIRE

FRS23LH5DQ2 240389616 5 583 FRIGIDAIRE

FRS23LH5DQ3 240389616 5 583 FRIGIDAIRE

FRS23LH5DQ4 240389616 5 583 FRIGIDAIRE

FRS23LH5DQ6 240389616 5 583 FRIGIDAIRE

FRS23LH5DQ8 240389616 5 583 FRIGIDAIRE

FRS23LH5DS1 240389616 5 583 FRIGIDAIRE

FRS23LH5DS2 240389616 5 583 FRIGIDAIRE

FRS23LH5DS3 240389616 5 583 FRIGIDAIRE

FRS23LH5DS4 240389616 5 583 FRIGIDAIRE

FRS23LH5DS6 240389616 5 583 FRIGIDAIRE

FRS23LH5DW1 240389616 5 583 FRIGIDAIRE

FRS23LH5DW2 240389616 5 583 FRIGIDAIRE

FRS23LH5DW3 240389616 5 583 FRIGIDAIRE

FRS23LH5DW4 240389616 5 583 FRIGIDAIRE

FRS23LH5DW5 240389616 5 583 FRIGIDAIRE

FRS23LH5DW8 240389616 5 583 FRIGIDAIRE

FRS23R4CB6 240389616 5 686 FRIGIDAIRE

FRS23R4CB7 240389616 5 686 FRIGIDAIRE

FRS23R4CQ6 240389616 5 686 FRIGIDAIRE

FRS23R4CQ7 240389616 5 686 FRIGIDAIRE

FRS23R4CW6 240389616 5 686 FRIGIDAIRE

FRS23R4CW7 240389616 5 686 FRIGIDAIRE

FRS23W3AQD 240389616 5 686 FRIGIDAIRE

FRS23W3AQE 240389616 5 686 FRIGIDAIRE

FRS23W3AWD 240389616 5 686 FRIGIDAIRE

FRS23W3AWE 240389616 5 686 FRIGIDAIRE

FRS24F4CQ6 240389618 5 686 FRIGIDAIRE

FRS266ZDSB0 240389616 5.25 727 FRIGIDAIRE

FRS266ZDSB1 240389616 5.25 727 FRIGIDAIRE

FRS266ZDSB2 240389616 5.25 727 FRIGIDAIRE

FRS266ZDSB3 240389616 5.25 727 FRIGIDAIRE

FRS26DR7DS2 240389618 5.25 618 FRIGIDAIRE

FRS26DR7DS3 240389618 5.25 618 FRIGIDAIRE

FRS26F4DB2 240389618 5.25 727 FRIGIDAIRE

FRS26F4DQ2 240389618 5.25 727 FRIGIDAIRE

FRS26F4DW2 240389618 5.25 727 FRIGIDAIRE

FRS26FCDB3 240389616 5.25 727 FRIGIDAIRE

FRS26FCDB4 240389616 5.25 727 FRIGIDAIRE

FRS26FCDB5 240389616 5.25 727 FRIGIDAIRE

FRS26FCDB6 240389616 5.25 727 FRIGIDAIRE

FRS26FCDB7 240389616 5.25 727 FRIGIDAIRE

FRS26FCDQ3 240389616 5.25 727 FRIGIDAIRE

FRS26FCDQ4 240389616 5.25 727 FRIGIDAIRE

FRS26FCDQ5 240389616 5.25 727 FRIGIDAIRE

FRS26FCDW1 240389616 5.25 727 FRIGIDAIRE

FRS26FCDW2 240389616 5.25 727 FRIGIDAIRE

FRS26FCDW3 240389616 5.25 727 FRIGIDAIRE

FRS26FCDW4 240389616 5.25 727 FRIGIDAIRE

FRS26FCDW5 240389616 5.25 727 FRIGIDAIRE

FRS26H5DSB1 240389618 5.25 618 FRIGIDAIRE

FRS26H5DSB2 240389618 5.25 618 FRIGIDAIRE

FRS26H5DSB3 240389618 5.25 618 FRIGIDAIRE

FRS26H5DSB4 240389618 5.25 618 FRIGIDAIRE

Model Service Data Sheet Charge Energy Efficiency Rating Brand

FRS26HR4DB2 240389616 5.25 618 FRIGIDAIRE

FRS26HR4DQ2 240389616 5.25 618 FRIGIDAIRE

FRS26HR4DW1 240389616 5.25 618 FRIGIDAIRE

FRS26HR4DW2 240389616 5.25 618 FRIGIDAIRE

FRS26KF5DB0 240389618 5.25 727 FRIGIDAIRE

FRS26KF5DB1 240389618 5.25 727 FRIGIDAIRE

FRS26KF5DB2 240389618 5.25 727 FRIGIDAIRE

FRS26KF5DQ0 240389618 5.25 727 FRIGIDAIRE

FRS26KF5DQ1 240389618 5.25 727 FRIGIDAIRE

FRS26KF5DQ2 240389618 5.25 727 FRIGIDAIRE

FRS26KF5DS0 240389618 5.25 727 FRIGIDAIRE

FRS26KF5DS4 240389618 5.25 727 FRIGIDAIRE

FRS26KF5DW0 240389618 5.25 727 FRIGIDAIRE

FRS26KF5DW1 240389618 5.25 727 FRIGIDAIRE

FRS26KF5DW2 240389618 5.25 727 FRIGIDAIRE

FRS26KF6DB0 240389618 5.25 618 FRIGIDAIRE

FRS26KF6DB2 240389618 5.25 618 FRIGIDAIRE

FRS26KF6DQ0 240389618 5.25 618 FRIGIDAIRE

FRS26KF6DQ2 240389618 5.25 618 FRIGIDAIRE

FRS26KF6DW0 240389618 5.25 618 FRIGIDAIRE

FRS26KF6DW1 240389618 5.25 618 FRIGIDAIRE

FRS26KF6DW2 240389618 5.25 618 FRIGIDAIRE

FRS26KR4CW3 240389616 5.25 627 FRIGIDAIRE

FRS26KR4DB0 240389616 5.25 627 FRIGIDAIRE

FRS26KR4DB1 240389616 5.25 627 FRIGIDAIRE

FRS26KR4DB2 240389616 5.25 727 FRIGIDAIRE

FRS26KR4DB3 240389616 5.25 727 FRIGIDAIRE

FRS26KR4DQ0 240389616 5.25 727 FRIGIDAIRE

FRS26KR4DQ1 240389616 5.25 727 FRIGIDAIRE

FRS26KR4DQ2 240389616 5.25 727 FRIGIDAIRE

FRS26KR4DQ3 240389616 5.25 727 FRIGIDAIRE

FRS26KR4DS0 240389616 5.25 727 FRIGIDAIRE

FRS26KR4DS1 240389616 5.25 727 FRIGIDAIRE

FRS26KR4DS4 240389616 5.25 727 FRIGIDAIRE

FRS26KR4DW0 240389616 5.25 727 FRIGIDAIRE

FRS26KR4DW1 240389616 5.25 727 FRIGIDAIRE

FRS26KR4DW2 240389616 5.25 727 FRIGIDAIRE

FRS26KR4DW3 240389616 5.25 727 FRIGIDAIRE

FRS26KR4DW4 240389616 5.25 727 FRIGIDAIRE

FRS26KR4DW5 240389616 5.25 727 FRIGIDAIRE

FRS26LF7DS1 240389616 5.25 618 FRIGIDAIRE

FRS26LF7DS2 240389616 5.25 618 FRIGIDAIRE

FRS26LF8CB2 240389616 5.25 618 FRIGIDAIRE

FRS26LF8CB3 240389616 5.25 618 FRIGIDAIRE

FRS26LF8CQ2 240389616 5.25 618 FRIGIDAIRE

FRS26LF8CQ3 240389616 5.25 618 FRIGIDAIRE

FRS26LF8CS2 240389616 5.25 618 FRIGIDAIRE

FRS26LF8CS3 240389616 5.25 618 FRIGIDAIRE

FRS26LF8CS4 240389616 5.25 618 FRIGIDAIRE

FRS26LF8CS5 240389616 5.25 618 FRIGIDAIRE

FRS26LF8CS6 240389616 5.25 618 FRIGIDAIRE

FRS26LF8CS7 240389616 5.25 618 FRIGIDAIRE

FRS26LF8CS8 240389616 5.25 618 FRIGIDAIRE

FRS26LF8CW2 240389616 5.25 618 FRIGIDAIRE

FRS26LF8CW3 240389616 5.25 618 FRIGIDAIRE

FRS26LH5DB2 240389616 5.25 618 FRIGIDAIRE

Model Service Data Sheet Charge Energy Efficiency Rating Brand

FRS26LH5DB4 240389616 5.25 618 FRIGIDAIRE

FRS26LH5DB5 240389616 5.25 618 FRIGIDAIRE

FRS26LH5DQ1 240389616 5.25 618 FRIGIDAIRE

FRS26LH5DQ2 240389616 5.25 618 FRIGIDAIRE

FRS26LH5DQ4 240389616 5.25 618 FRIGIDAIRE

FRS26LH5DQ5 240389616 5.25 618 FRIGIDAIRE

FRS26LH5DS1 240389616 5.25 618 FRIGIDAIRE

FRS26LH5DS2 240389616 5.25 618 FRIGIDAIRE

FRS26LH5DS3 240389616 5.25 618 FRIGIDAIRE

FRS26LH5DS4 240389616 5.25 618 FRIGIDAIRE

FRS26LH5DS5 240389616 5.25 618 FRIGIDAIRE

FRS26LH5DS6 240389616 5.25 618 FRIGIDAIRE

FRS26LH5DW1 240389616 5.25 618 FRIGIDAIRE

FRS26LH5DW2 240389616 5.25 618 FRIGIDAIRE

FRS26LH5DW3 240389616 5.25 618 FRIGIDAIRE

FRS26LH5DW4 240389616 5.25 618 FRIGIDAIRE

FRS26LH5DW5 240389616 5.25 618 FRIGIDAIRE

FRS26R2AQ9 240389616 5.25 727 FRIGIDAIRE

FRS26R2AQA 240389616 5.25 727 FRIGIDAIRE

FRS26R2AQB 240389616 5.25 618 FRIGIDAIRE

FRS26R2AQC 240389616 5.25 727 FRIGIDAIRE

FRS26R2AQE 240389616 5.25 727 FRIGIDAIRE

FRS26R2AQF 240389616 5.25 727 FRIGIDAIRE

FRS26R2AW9 240389616 5.25 727 FRIGIDAIRE

FRS26R2AWA 240389616 5.25 727 FRIGIDAIRE

FRS26R2AWB 240389616 5.25 727 FRIGIDAIRE

FRS26R2AWC 240389616 5.25 727 FRIGIDAIRE

FRS26R2AWD 240389616 5.25 727 FRIGIDAIRE

FRS26R2AWE 240389616 5.25 727 FRIGIDAIRE

FRS26R2AWF 240389616 5.25 727 FRIGIDAIRE

FRS26R2AWG 240389616 5.25 727 FRIGIDAIRE

FRS26R2AWH 240389616 5.25 727 FRIGIDAIRE

FRS26R4CB4 240389616 5.25 727 FRIGIDAIRE

FRS26R4CB5 240389616 5.25 727 FRIGIDAIRE

FRS26R4CB6 240389616 5.25 727 FRIGIDAIRE

FRS26R4CB7 240389616 5.25 727 FRIGIDAIRE

FRS26R4CB8 240389616 5.25 727 FRIGIDAIRE

FRS26R4CBA 240389616 5.25 727 FRIGIDAIRE

FRS26R4CBB 240389616 5.25 727 FRIGIDAIRE

FRS26R4CBC 240389616 5.25 727 FRIGIDAIRE

FRS26R4CQ4 240389616 5.25 727 FRIGIDAIRE

FRS26R4CQ5 240389616 5.25 727 FRIGIDAIRE

FRS26R4CQ6 240389616 5.25 727 FRIGIDAIRE

FRS26R4CQ7 240389616 5.25 727 FRIGIDAIRE

FRS26R4CQ8 240389616 5.25 727 FRIGIDAIRE

FRS26R4CQB 240389616 5.25 727 FRIGIDAIRE

FRS26R4CQC 240389616 5.25 727 FRIGIDAIRE

FRS26R4CW4 240389616 5.25 727 FRIGIDAIRE

FRS26R4CW5 240389616 5.25 727 FRIGIDAIRE

FRS26R4CW6 240389616 5.25 727 FRIGIDAIRE

FRS26R4CW7 240389616 5.25 727 FRIGIDAIRE

FRS26R4CW8 240389616 5.25 727 FRIGIDAIRE

FRS26R4CW9 240389616 5.25 727 FRIGIDAIRE

FRS26R4CWA 240389616 5.25 727 FRIGIDAIRE

FRS26R4CWB 240389616 5.25 727 FRIGIDAIRE

FRS26R4CWC 240389616 5.25 727 FRIGIDAIRE

Model Service Data Sheet Charge Energy Efficiency Rating Brand

FRS26RBCW4 240389616 5.25 727 FRIGIDAIRE

FRS26RBCW5 240389616 5.25 727 FRIGIDAIRE

FRS26RBCW6 240389616 5.25 727 FRIGIDAIRE

FRS26RBCW8 240389616 5.25 727 FRIGIDAIRE

FRS26RBCW9 240389616 5.25 727 FRIGIDAIRE

FRS26RLECS3 240389616 5.25 727 FRIGIDAIRE

FRS26RLECS4 240389616 5.25 727 FRIGIDAIRE

FRS26RLECS6 240389616 5.25 727 FRIGIDAIRE

FRS26RLECS7 240389616 5.25 727 FRIGIDAIRE

FRS26RLECS8 240389616 5.25 727 FRIGIDAIRE

FRS26RLECS9 240389616 5.25 727 FRIGIDAIRE

FRS26RLECSA 240389616 5.25 727 FRIGIDAIRE

FRS26RLECSB 240389616 5.25 727 FRIGIDAIRE

FRS26RLECSC 240389616 5.25 727 FRIGIDAIRE

FRS26RLECSE 240389616 5.25 727 FRIGIDAIRE

FRS26RLECSF 240389616 5.25 727 FRIGIDAIRE

FRS26TS6DW1 240389618 5.25 618 FRIGIDAIRE

FRS26TS6DW2 240389618 5.25 618 FRIGIDAIRE

FRS26TS6DW3 240389618 5.25 618 FRIGIDAIRE

FRS26TS7DB0 240389618 5.25 618 FRIGIDAIRE

FRS26TS7DB1 240389618 5.25 618 FRIGIDAIRE

FRS26TS7DB2 240389618 5.25 618 FRIGIDAIRE

FRS26TS7DB3 240389618 5.25 618 FRIGIDAIRE

FRS26TS7DW1 240389618 5.25 618 FRIGIDAIRE

FRS26TS7DW2 240389618 5.25 618 FRIGIDAIRE

FRS26TS7DW3 240389618 5.25 618 FRIGIDAIRE

FRS26W2AQ9 240389616 5.25 727 FRIGIDAIRE

FRS26W2AWA 240389616 5.25 727 FRIGIDAIRE

FRS26W2AWB 240389616 5.25 727 FRIGIDAIRE

FRS26W2AWC 240389616 5.25 727 FRIGIDAIRE

FRS26W2AWD 240389616 5.25 727 FRIGIDAIRE

FRS26W2AWE 240389616 5.25 727 FRIGIDAIRE

FRS26W2BSB7 240389616 5.25 727 FRIGIDAIRE

FRS26W2BSB9 240389616 5.25 727 FRIGIDAIRE

FRT15G5CSB3 240379015 4.25 443 FRIGIDAIRE

FRT15G5CSK2 240379015 4.25 443 FRIGIDAIRE

FRT15G5CSK3 240379015 4.25 443 FRIGIDAIRE

FRT15IB3AW5 240379015 4.5 443 FRIGIDAIRE

FRT17G5CSB2 240379015 4.25 460 FRIGIDAIRE

FRT17G5CSB3 240379015 4.25 460 FRIGIDAIRE

FRT17G5CSK2 240379015 4.25 460 FRIGIDAIRE

FRT17G5CSK3 240379015 4.25 460 FRIGIDAIRE

FRT17HB3CW2 240379015 4.25 391 FRIGIDAIRE

FRT17HG4DW0 240379015 4.25 391 FRIGIDAIRE

FRT17IB3AW5 240379015 4.5 460 FRIGIDAIRE

FRT18B4ATA 240379015 4.5 479 FRIGIDAIRE

FRT18FG3DW0 240379015 4.5 479 FRIGIDAIRE

FRT18FG4DW0 240379015 4.5 479 FRIGIDAIRE

FRT18FP5DK0 240379015 4.5 479 FRIGIDAIRE

FRT18FP5DQ0 240379015 4.5 479 FRIGIDAIRE

FRT18FP5DS0 240379015 4.5 479 FRIGIDAIRE

FRT18FP5DW0 240379015 4.5 479 FRIGIDAIRE

FRT18G5AQE 240379015 4.25 479 FRIGIDAIRE

FRT18G5AQF 240379015 4.25 479 FRIGIDAIRE

FRT18G5AQG 240379015 4.25 479 FRIGIDAIRE

FRT18G5AQH 240379015 4.25 479 FRIGIDAIRE

Model Service Data Sheet Charge Energy Efficiency Rating Brand

FRT18G5AWE 240379015 4.25 479 FRIGIDAIRE

FRT18G5AWF 240379015 4.25 479 FRIGIDAIRE

FRT18G5AWG 240379015 4.25 479 FRIGIDAIRE

FRT18G5AWH 240379015 4.25 479 FRIGIDAIRE

FRT18HP7DW0 240379015 4.25 407 FRIGIDAIRE

FRT18HS6AW5 240379014 4.25 407 FRIGIDAIRE

FRT18HS6DB3 240379014 4.25 407 FRIGIDAIRE

FRT18IL6DB1 240379014 4.25 479 FRIGIDAIRE

FRT18IL6DK0 240379015 4.25 479 FRIGIDAIRE

FRT18IL6DK4 240379015 4.25 479 FRIGIDAIRE

FRT18IL6DQ4 240379015 4.25 479 FRIGIDAIRE

FRT18IL6DQ6 240379015 4.25 479 FRIGIDAIRE

FRT18IL6DQ8 240379015 4.25 479 FRIGIDAIRE

FRT18IL6DS2 240379015 4.25 479 FRIGIDAIRE

FRT18IL6DS4 240379015 4.25 479 FRIGIDAIRE

FRT18IL6DS6 240379015 4.25 479 FRIGIDAIRE

FRT18IL6DW4 240379015 4.25 479 FRIGIDAIRE

FRT18IL6DW6 240379015 4.25 479 FRIGIDAIRE

FRT18IL6DW8 240379015 4.25 479 FRIGIDAIRE

FRT18IS6CW1 240379014 4.25 479 FRIGIDAIRE

FRT18IS6CW8 240379015 4.25 479 FRIGIDAIRE

FRT18KB2DW0 240379015 4.25 479 FRIGIDAIRE

FRT18KG3DW0 240379015 4.25 479 FRIGIDAIRE

FRT18KG4DW0 240379015 4.25 479 FRIGIDAIRE

FRT18KP5DK0 240379015 4.25 479 FRIGIDAIRE

FRT18KP5DQ0 240379015 4.25 479 FRIGIDAIRE

FRT18KP5DS0 240379015 4.25 479 FRIGIDAIRE

FRT18KP5DW0 240379015 4.25 479 FRIGIDAIRE

FRT18P6BSB4 240379015 4.25 479 FRIGIDAIRE

FRT18P6BSK4 240379015 4.25 479 FRIGIDAIRE

FRT18P6CQ4 240379015 4.25 479 FRIGIDAIRE

FRT18P6CQ6 240379015 4.25 479 FRIGIDAIRE

FRT18P6CQ8 240379015 4.25 479 FRIGIDAIRE

FRT18P6CQA 240379015 4.25 479 FRIGIDAIRE

FRT18P6CW4 240379015 4.25 479 FRIGIDAIRE

FRT18P6CW6 240379015 4.25 479 FRIGIDAIRE

FRT18P6CW8 240379015 4.25 479 FRIGIDAIRE

FRT18P6CWA 240379015 4.25 479 FRIGIDAIRE

FRT18S6AQF 240379015 4.25 479 FRIGIDAIRE

FRT18S6AQG 240379015 4.25 479 FRIGIDAIRE

FRT18S6AQH 240379015 4.25 479 FRIGIDAIRE

FRT18S6AWE 240379015 4.25 479 FRIGIDAIRE

FRT18S6AWF 240379015 4.25 479 FRIGIDAIRE

FRT18S6AWG 240379015 4.25 479 FRIGIDAIRE

FRT18S6AWH 240379015 4.25 479 FRIGIDAIRE

FRT21BH8DB0 241588200 4.25 432 FRIGIDAIRE

FRT21BH8DW0 241588200 4.25 432 FRIGIDAIRE

FRT21BS8DB0 241588200 4.25 432 FRIGIDAIRE

FRT21BS8DW0 241588200 4.25 432 FRIGIDAIRE

FRT21BSDSB1 241588200 4.25 432 FRIGIDAIRE

FRT21BSDSB2 241588200 4.25 432 FRIGIDAIRE

FRT21BSDSB3 241588200 4.25 432 FRIGIDAIRE

FRT21BSDSB4 241588200 4.25 432 FRIGIDAIRE

FRT21BSDSK0 241588200 4.25 432 FRIGIDAIRE

FRT21BSDSK1 241588200 4.25 432 FRIGIDAIRE

FRT21BSDSK2 241588200 4.25 432 FRIGIDAIRE

Model Service Data Sheet Charge Energy Efficiency Rating Brand

FRT21BSDSK3 241588200 4.25 432 FRIGIDAIRE

FRT21C5AQA 240379014 4.25 509 FRIGIDAIRE

FRT21C5AQB 240379014 4.25 509 FRIGIDAIRE

FRT21C5AQC 240379014 4.25 509 FRIGIDAIRE

FRT21C5AQF 240379014 4.25 509 FRIGIDAIRE

FRT21C5AQH 240379014 4.25 509 FRIGIDAIRE

FRT21C5AWA 240379014 4.25 509 FRIGIDAIRE

FRT21C5AWB 240379014 4.25 509 FRIGIDAIRE

FRT21C5AWC 240379014 4.25 509 FRIGIDAIRE

FRT21C5AWD 240379014 4.25 509 FRIGIDAIRE

FRT21C5AWE 240379014 4.25 509 FRIGIDAIRE

FRT21C5AWF 240379014 4.25 509 FRIGIDAIRE

FRT21C5AWG 240379014 4.25 509 FRIGIDAIRE

FRT21FG3DQ0 240379014 4.25 509 FRIGIDAIRE

FRT21FG3DQ1 240379014 4.25 509 FRIGIDAIRE

FRT21FG3DQ2 240379014 4.25 509 FRIGIDAIRE

FRT21FG3DQ3 240379014 4.25 509 FRIGIDAIRE

FRT21FG3DQ5 240379014 4.25 509 FRIGIDAIRE

FRT21FG3DW0 240379014 4.25 509 FRIGIDAIRE

FRT21FG3DW1 240379014 4.25 509 FRIGIDAIRE

FRT21FG3DW2 240379014 4.25 509 FRIGIDAIRE

FRT21FG3DW5 240379014 4.25 509 FRIGIDAIRE

FRT21FS6DK0 240379014 4.25 509 FRIGIDAIRE

FRT21FS6DQ0 240379014 4.25 509 FRIGIDAIRE

FRT21FS6DQ1 240379014 4.25 509 FRIGIDAIRE

FRT21FS6DS0 240379014 4.25 509 FRIGIDAIRE

FRT21FS6DW0 240379014 4.25 509 FRIGIDAIRE

FRT21FS6DW1 240379014 4.25 509 FRIGIDAIRE

FRT21G3CQ3 240379014 4.25 509 FRIGIDAIRE

FRT21G3CW4 240379014 4.25 509 FRIGIDAIRE

FRT21G3CW5 240379014 4.25 509 FRIGIDAIRE

FRT21G3CW6 240379014 4.25 509 FRIGIDAIRE

FRT21G3CW7 240379014 4.25 509 FRIGIDAIRE

FRT21G3CW9 240379014 4.25 509 FRIGIDAIRE

FRT21G4BW8 240379014 4.25 509 FRIGIDAIRE

FRT21G4BW9 240379014 4.25 509 FRIGIDAIRE

FRT21G4BWB 240379014 4.25 509 FRIGIDAIRE

FRT21H7ASB6 240379014 4.25 432 FRIGIDAIRE

FRT21H7ASB7 240379014 4.25 432 FRIGIDAIRE

FRT21H7ASB8 240379014 4.25 432 FRIGIDAIRE

FRT21H7ASB9 240379014 4.25 432 FRIGIDAIRE

FRT21H7ASK5 240379014 4.25 432 FRIGIDAIRE

FRT21H7ASK6 240379014 4.25 432 FRIGIDAIRE

FRT21H7ASK9 240379014 4.25 432 FRIGIDAIRE

FRT21HS6DB1 240379014 4.25 432 FRIGIDAIRE

FRT21HS6DQ1 240379014 4.25 432 FRIGIDAIRE

FRT21HS6DW1 240379014 4.25 432 FRIGIDAIRE

FRT21IG3DW1 240379014 4.25 509 FRIGIDAIRE

FRT21IL5DB0 240379014 4.25 509 FRIGIDAIRE

FRT21IL5DB2 240379014 4.25 509 FRIGIDAIRE

FRT21IL5DB3 240379014 4.25 509 FRIGIDAIRE

Model Service Data Sheet Charge Energy Efficiency Rating Brand

FRT21IL5DB4 240379014 4.25 509 FRIGIDAIRE

FRT21IL5DB7 240379014 4.25 509 FRIGIDAIRE

FRT21IL5DQ1 240379014 4.25 509 FRIGIDAIRE

FRT21IL5DQ2 240379014 4.25 509 FRIGIDAIRE

FRT21IL5DQ3 240379014 4.25 509 FRIGIDAIRE

FRT21IL5DQ4 240379014 4.25 509 FRIGIDAIRE

FRT21IL5DQ5 240379014 4.25 509 FRIGIDAIRE

FRT21IL5DQ7 240379014 4.25 509 FRIGIDAIRE

FRT21IL5DW2 240379014 4.25 509 FRIGIDAIRE

FRT21IL5DW3 240379014 4.25 509 FRIGIDAIRE

FRT21IL5DW4 240379014 4.25 509 FRIGIDAIRE

FRT21IL5DW7 240379014 4.25 509 FRIGIDAIRE

FRT21IS6BB5 240379014 4.25 509 FRIGIDAIRE

FRT21IS6BQ5 240379014 4.25 509 FRIGIDAIRE

FRT21IS6BW5 240379014 4.25 509 FRIGIDAIRE

FRT21KB2DW0 240379014 4.25 509 FRIGIDAIRE

FRT21KB2DW1 240379014 4.25 509 FRIGIDAIRE

FRT21KG3DQ0 240379014 4.25 509 FRIGIDAIRE

FRT21KG3DQ1 240379014 4.25 509 FRIGIDAIRE

FRT21KG3DQ5 240379014 4.25 509 FRIGIDAIRE

FRT21KG3DQ7 240379014 4.25 509 FRIGIDAIRE

FRT21KG3DW0 240379014 4.25 509 FRIGIDAIRE

FRT21KG3DW1 240379014 4.25 509 FRIGIDAIRE

FRT21KG3DW3 240379014 4.25 509 FRIGIDAIRE

FRT21KG3DW5 240379014 4.25 509 FRIGIDAIRE

FRT21KG3DW7 240379014 4.25 509 FRIGIDAIRE

FRT21KG4DQ0 240379014 4.25 509 FRIGIDAIRE

FRT21KG4DQ1 240379014 4.25 509 FRIGIDAIRE

FRT21KG4DQ7 240379014 4.25 509 FRIGIDAIRE

FRT21KG4DW0 240379014 4.25 509 FRIGIDAIRE

FRT21KG4DW1 240379014 4.25 509 FRIGIDAIRE

FRT21KG4DW2 240379014 4.25 509 FRIGIDAIRE

FRT21KG4DW5 240379014 4.25 509 FRIGIDAIRE

FRT21KG4DW7 240379014 4.25 509 FRIGIDAIRE

FRT21KS6DQ0 240379014 4.25 509 FRIGIDAIRE

FRT21KS6DQ3 240379014 4.25 509 FRIGIDAIRE

FRT21KS6DS1 240379014 4.25 509 FRIGIDAIRE

FRT21KS6DW0 240379014 4.25 509 FRIGIDAIRE

FRT21LR7ABA 240379014 4.25 432 FRIGIDAIRE

FRT21LR7ABB 240379014 4.25 432 FRIGIDAIRE

FRT21LR7AQB 240379014 4.25 432 FRIGIDAIRE

FRT21LR7AWA 240379014 4.25 432 FRIGIDAIRE

FRT21LR7AWB 240379014 4.25 432 FRIGIDAIRE

FRT21LR7DK1 240379014 4.25 432 FRIGIDAIRE

FRT21LR7DK2 240379014 4.25 432 FRIGIDAIRE

FRT21LR7DS1 240379014 4.25 432 FRIGIDAIRE

FRT21LR7DS3 240379014 4.25 432 FRIGIDAIRE

FRT21LR8DK1 240379014 4.25 432 FRIGIDAIRE

FRT21LR8DK2 240379014 4.25 432 FRIGIDAIRE

FRT21LR8DS1 240379014 4.25 432 FRIGIDAIRE

FRT21P5ABB 240379014 4.25 509 FRIGIDAIRE

FRT21P5ABC 240379014 4.25 509 FRIGIDAIRE

FRT21P5ABD 240379014 4.25 509 FRIGIDAIRE

FRT21P5ABE 240379014 4.25 509 FRIGIDAIRE

FRT21P5ABF 240379014 4.25 509 FRIGIDAIRE

FRT21P5ABG 240379014 4.25 509 FRIGIDAIRE

Model Service Data Sheet Charge Energy Efficiency Rating Brand

FRT21P5AQB 240379014 4.25 509 FRIGIDAIRE

FRT21P5AQC 240379014 4.25 509 FRIGIDAIRE

FRT21P5AQD 240379014 4.25 509 FRIGIDAIRE

FRT21P5AQE 240379014 4.25 509 FRIGIDAIRE

FRT21P5AQF 240379014 4.25 509 FRIGIDAIRE

FRT21P5AQG 240379014 4.25 509 FRIGIDAIRE

FRT21P5AWB 240379014 4.25 509 FRIGIDAIRE

FRT21P5AWC 240379014 4.25 509 FRIGIDAIRE

FRT21P5AWD 240379014 4.25 509 FRIGIDAIRE

FRT21P5AWE 240379014 4.25 509 FRIGIDAIRE

FRT21P5AWF 240379014 4.25 509 FRIGIDAIRE

FRT21P5AWH 240379014 4.25 509 FRIGIDAIRE

FRT21P6CSB4 240379014 4.25 509 FRIGIDAIRE

FRT21P6CSB5 240379014 4.25 509 FRIGIDAIRE

FRT21P6CSB7 240379014 4.25 509 FRIGIDAIRE

FRT21P6CSB8 240379014 4.25 509 FRIGIDAIRE

FRT21P6CSB9 240379014 4.25 509 FRIGIDAIRE

FRT21P6CSBA 240379014 4.25 509 FRIGIDAIRE

FRT21P6CSK4 240379014 4.25 509 FRIGIDAIRE

FRT21P6CSK5 240379014 4.25 509 FRIGIDAIRE

FRT21P6CSK6 240379014 4.25 509 FRIGIDAIRE

FRT21P6CSK7 240379014 4.25 509 FRIGIDAIRE

FRT21P6CSK9 240379014 4.25 509 FRIGIDAIRE

FRT21P6CSKA 240379014 4.25 509 FRIGIDAIRE

FRT21S6AB9 240379014 4.25 509 FRIGIDAIRE

FRT21S6AQ8 240379014 4.25 509 FRIGIDAIRE

FRT21S6AQ9 240379014 4.25 509 FRIGIDAIRE

FRT21S6AW9 240379014 4.25 509 FRIGIDAIRE

FSC23BBDSB0 241532603 6 584 FRIGIDAIRE

FSC23BBDSB2 241532603 6 584 FRIGIDAIRE

FSC23BBDSB3 241532603 6 584 FRIGIDAIRE

FSC23F7DB1 241532603 5.75 687 FRIGIDAIRE

FSC23F7DSB0 241532603 5.75 687 FRIGIDAIRE

FSC23F7DSB1 241532603 5.75 687 FRIGIDAIRE

FSC23F7DSB2 241532603 5.75 687 FRIGIDAIRE

FSC23F7DSB3 241532603 5.75 687 FRIGIDAIRE

FSC23F7DW0 241532603 5.75 687 FRIGIDAIRE

FSC23F7TDB0 241532603 5.75 687 FRIGIDAIRE

FSC23F7TDS0 241532603 5.75 687 FRIGIDAIRE

FSC23F7TDW0 241532603 5.75 687 FRIGIDAIRE

FSC23R5DB0 241532603 5.75 687 FRIGIDAIRE

FSC23R5DSB1 241532603 5.75 687 FRIGIDAIRE

FSC23R5DSB2 241532603 5.75 687 FRIGIDAIRE

FSC23R5DSB3 241532603 5.75 687 FRIGIDAIRE

FSC23R5DW0 241532603 5.75 687 FRIGIDAIRE

GHSC239DB0 241532603 6 584 FRIGIDAIRE

GHSC239DW0 241532603 6 584 FRIGIDAIRE

GHSC239TDB0 241532603 6 584 FRIGIDAIRE

GHSC239TDS0 241532603 6 584 FRIGIDAIRE

GHSC239TDS1 241532603 6 584 FRIGIDAIRE

GHSC239TDW0 241532603 6 584 FRIGIDAIRE

GLHS238ZDB0 240389618 5 583 FRIGIDAIRE

GLHS238ZDB1 240389618 5 583 FRIGIDAIRE

GLHS238ZDB2 240389618 5 583 FRIGIDAIRE

GLHS238ZDB3 240389618 5 583 FRIGIDAIRE

GLHS238ZDB4 240389618 5 583 FRIGIDAIRE

Model Service Data Sheet Charge Energy Efficiency Rating Brand

GLHS238ZDB6 240389618 5 583 FRIGIDAIRE

GLHS238ZDB7 240389618 5 583 FRIGIDAIRE

GLHS238ZDQ0 240389618 5 583 FRIGIDAIRE

GLHS238ZDQ1 240389618 5 583 FRIGIDAIRE

GLHS238ZDQ2 240389618 5 583 FRIGIDAIRE

GLHS238ZDS0 240389618 5 583 FRIGIDAIRE

GLHS238ZDS1 240389618 5 583 FRIGIDAIRE

GLHS238ZDS2 240389618 5 583 FRIGIDAIRE

GLHS238ZDS3 240389618 5 583 FRIGIDAIRE

GLHS238ZDS4 240389618 5 583 FRIGIDAIRE

GLHS238ZDS6 240389618 5 583 FRIGIDAIRE

GLHS238ZDS8 240389618 5 583 FRIGIDAIRE

GLHS238ZDS9 240389618 5 583 FRIGIDAIRE

GLHS238ZDW0 240389618 5 583 FRIGIDAIRE

GLHS238ZDW1 240389618 5 583 FRIGIDAIRE

GLHS238ZDW2 240389618 5 583 FRIGIDAIRE

GLHS238ZDW3 240389618 5 583 FRIGIDAIRE

GLHS238ZDW6 240389618 5 583 FRIGIDAIRE

GLHS238ZDW7 240389618 5 583 FRIGIDAIRE

GLHS268ZDB0 240389618 5.25 618 FRIGIDAIRE

GLHS268ZDB1 240389618 5.25 618 FRIGIDAIRE

GLHS268ZDB2 240389618 5.25 618 FRIGIDAIRE

GLHS268ZDB3 240389621 5.25 618 FRIGIDAIRE

GLHS268ZDQ0 240389618 5.25 618 FRIGIDAIRE

GLHS268ZDQ1 240389618 5.25 618 FRIGIDAIRE

GLHS268ZDQ2 240389618 5.25 618 FRIGIDAIRE

GLHS268ZDQ3 240389621 5.25 618 FRIGIDAIRE

GLHS268ZDS1 240389618 5.25 618 FRIGIDAIRE

GLHS268ZDS2 240389618 5.25 618 FRIGIDAIRE

GLHS268ZDS3 240389621 5.25 618 FRIGIDAIRE

GLHS268ZDS4 240389621 5.25 618 FRIGIDAIRE

GLHS268ZDS5 240389621 5.25 618 FRIGIDAIRE

GLHS268ZDW1 240389618 5.25 618 FRIGIDAIRE

GLHS268ZDW2 240389618 5.25 618 FRIGIDAIRE

GLHS268ZDW3 240389621 5.25 618 FRIGIDAIRE

GLHS269ZDB1 240389618 5.25 618 FRIGIDAIRE

GLHS269ZDB2 240389618 5.25 618 FRIGIDAIRE

GLHS269ZDQ0 240389618 5.25 618 FRIGIDAIRE

GLHS269ZDQ1 240389618 5.25 618 FRIGIDAIRE

GLHS269ZDQ2 240389618 5.25 618 FRIGIDAIRE

GLHS269ZDW0 240389618 5.25 618 FRIGIDAIRE

GLHS269ZDW1 240389618 5.25 618 FRIGIDAIRE

GLHS269ZDW2 240389618 5.25 618 FRIGIDAIRE

GLHS269ZDW4 240389618 5.25 618 FRIGIDAIRE

GLHS269ZDW5 240389618 5.25 618 FRIGIDAIRE

GLRS233ZDB0 240389618 5 686 FRIGIDAIRE

GLRS233ZDB1 240389618 5 686 FRIGIDAIRE

GLRS233ZDB2 240389618 5 686 FRIGIDAIRE

GLRS233ZDQ0 240389618 5 686 FRIGIDAIRE

GLRS233ZDQ1 240389618 5 686 FRIGIDAIRE

GLRS233ZDQ2 240389618 5 686 FRIGIDAIRE

GLRS233ZDW0 240389618 5 686 FRIGIDAIRE

GLRS233ZDW1 240389618 5 686 FRIGIDAIRE

GLRS233ZDW2 240389618 5 686 FRIGIDAIRE

GLRS233ZDW3 240389618 5 686 FRIGIDAIRE

GLRS237ZCQ7 240389618 5 686 FRIGIDAIRE

Model Service Data Sheet Charge Energy Efficiency Rating Brand

GLRS237ZDB0 240389618 5 686 FRIGIDAIRE

GLRS237ZDB1 240389618 5 686 FRIGIDAIRE

GLRS237ZDB2 240389618 5 686 FRIGIDAIRE

GLRS237ZDB3 240389618 5 686 FRIGIDAIRE

GLRS237ZDQ0 240389618 5 686 FRIGIDAIRE

GLRS237ZDQ1 240389618 5 686 FRIGIDAIRE

GLRS237ZDQ2 240389618 5 686 FRIGIDAIRE

GLRS237ZDW0 240389618 5 686 FRIGIDAIRE

GLRS237ZDW1 240389618 5 686 FRIGIDAIRE

GLRS237ZDW2 240389618 5 686 FRIGIDAIRE

GLRS237ZDW3 240389618 5 686 FRIGIDAIRE

GLRS263ZDB0 240389618 5.25 727 FRIGIDAIRE

GLRS263ZDB1 240389618 5.25 727 FRIGIDAIRE

GLRS263ZDB2 240389618 5.25 727 FRIGIDAIRE

GLRS263ZDB4 240389618 5.25 727 FRIGIDAIRE

GLRS263ZDB5 240389618 5.25 727 FRIGIDAIRE

GLRS263ZDQ0 240389618 5.25 727 FRIGIDAIRE

GLRS263ZDQ1 240389618 5.25 727 FRIGIDAIRE

GLRS263ZDQ2 240389618 5.25 727 FRIGIDAIRE

GLRS263ZDQ4 240389618 5.25 727 FRIGIDAIRE

GLRS263ZDQ5 240389618 5.25 727 FRIGIDAIRE

GLRS263ZDW1 240389618 5.25 727 FRIGIDAIRE

GLRS263ZDW2 240389618 5.25 727 FRIGIDAIRE

GLRS263ZDW4 240389618 5.25 727 FRIGIDAIRE

GLRS263ZDW5 240389618 5.25 727 FRIGIDAIRE

GLRS267ZCW4 240389618 5.25 727 FRIGIDAIRE

GLRS267ZDB0 240389618 5.25 727 FRIGIDAIRE

GLRS267ZDB1 240389618 5.25 727 FRIGIDAIRE

GLRS267ZDB2 240389618 5.25 727 FRIGIDAIRE

GLRS267ZDB3 240389618 5.25 727 FRIGIDAIRE

GLRS267ZDQ0 240389618 5.25 727 FRIGIDAIRE

GLRS267ZDQ1 240389618 5.25 727 FRIGIDAIRE

GLRS267ZDQ2 240389618 5.25 727 FRIGIDAIRE

GLRS267ZDQ3 240389618 5.25 727 FRIGIDAIRE

GLRS267ZDW0 240389618 5.25 727 FRIGIDAIRE

GLRS267ZDW1 240389618 5.25 727 FRIGIDAIRE

GLRS267ZDW2 240389618 5.25 727 FRIGIDAIRE

GLRS267ZDW3 240389618 5.25 727 FRIGIDAIRE

GLRT183TDQ4 240379015 4.25 479 FRIGIDAIRE

GLRT183TDQ6 240379015 4.25 479 FRIGIDAIRE

GLRT183TDQ8 240379015 4.25 479 FRIGIDAIRE

GLRT183TDW2 240379015 4.25 479 FRIGIDAIRE

GLRT183TDW4 240379015 4.25 479 FRIGIDAIRE

GLRT183TDW6 240379015 4.25 479 FRIGIDAIRE

GLRT183TDW8 240379015 4.25 479 FRIGIDAIRE

GLRT184TCQ4 240379015 4.25 479 FRIGIDAIRE

GLRT184TCQ6 240379015 4.25 479 FRIGIDAIRE

GLRT184TCQ8 240379015 4.25 479 FRIGIDAIRE

GLRT184TCQA 240379015 4.25 479 FRIGIDAIRE

GLRT184TCW4 240379015 4.25 479 FRIGIDAIRE

GLRT184TCW6 240379015 4.25 479 FRIGIDAIRE

GLRT184TCW8 240379015 4.25 479 FRIGIDAIRE

GLRT184TCWA 240379015 4.25 479 FRIGIDAIRE

GLRT185TDK4 240379015 4.25 479 FRIGIDAIRE

GLRT185TDQ2 240379015 4.25 479 FRIGIDAIRE

GLRT185TDQ4 240379015 4.25 479 FRIGIDAIRE

Model Service Data Sheet Charge Energy Efficiency Rating Brand

GLRT185TDQ6 240379015 4.25 479 FRIGIDAIRE

GLRT185TDQ8 240379015 4.25 479 FRIGIDAIRE

GLRT185TDS4 240379015 4.25 479 FRIGIDAIRE

GLRT185TDS6 240379015 4.25 479 FRIGIDAIRE

GLRT185TDW2 240379015 4.25 479 FRIGIDAIRE

GLRT185TDW4 240379015 4.25 479 FRIGIDAIRE

GLRT185TDW6 240379015 4.25 479 FRIGIDAIRE

GLRT185TDW8 240379015 4.25 479 FRIGIDAIRE

GLRT188WDB1 240379014 4.25 479 FRIGIDAIRE

GLRT212IDB2 240379014 4.25 509 FRIGIDAIRE

GLRT212IDB3 240379014 4.25 509 FRIGIDAIRE

GLRT212IDQ3 240379014 4.25 509 FRIGIDAIRE

GLRT212IDW2 240379014 4.25 509 FRIGIDAIRE

GLRT212IDW3 240379014 4.25 509 FRIGIDAIRE

GLRT214TCB4 240379014 4.25 509 FRIGIDAIRE

GLRT214TCB5 240379014 4.25 509 FRIGIDAIRE

GLRT214TCB6 240379014 4.25 509 FRIGIDAIRE

GLRT214TCQ4 240379014 4.25 509 FRIGIDAIRE

GLRT214TCQ5 240379014 4.25 509 FRIGIDAIRE

GLRT214TCQ6 240379014 4.25 509 FRIGIDAIRE

GLRT214TCQ7 240379014 4.25 509 FRIGIDAIRE

GLRT214TCQ9 240379014 4.25 509 FRIGIDAIRE

GLRT214TCQB 240379014 4.25 509 FRIGIDAIRE

GLRT214TCW4 240379014 4.25 509 FRIGIDAIRE

GLRT214TCW5 240379014 4.25 509 FRIGIDAIRE

GLRT214TCW6 240379014 4.25 509 FRIGIDAIRE

GLRT214TCW9 240379014 4.25 509 FRIGIDAIRE

GLRT214TCWB 240379014 4.25 509 FRIGIDAIRE

GLRT217TDB0 241588200 4.25 509 FRIGIDAIRE

GLRT217TDB1 241588200 4.25 509 FRIGIDAIRE

GLRT217TDB2 241588200 4.25 509 FRIGIDAIRE

GLRT217TDB3 241588200 4.25 509 FRIGIDAIRE

GLRT217TDK0 241588200 4.25 509 FRIGIDAIRE

GLRT217TDK1 241588200 4.25 509 FRIGIDAIRE

GLRT217TDK2 241588200 4.25 509 FRIGIDAIRE

GLRT217TDK3 241588200 4.25 509 FRIGIDAIRE

GLRT217TDK4 241588200 4.25 509 FRIGIDAIRE

GLRT217TDK5 241588200 4.25 509 FRIGIDAIRE

GLRT217TDQ0 241588200 4.25 509 FRIGIDAIRE

GLRT217TDQ2 241588200 4.25 509 FRIGIDAIRE

GLRT217TDQ3 241588200 4.25 509 FRIGIDAIRE

GLRT217TDQ4 241588200 4.25 509 FRIGIDAIRE

GLRT217TDS0 241588200 4.25 509 FRIGIDAIRE

GLRT217TDS1 241588200 4.25 509 FRIGIDAIRE

GLRT217TDS2 241588200 4.25 509 FRIGIDAIRE

GLRT217TDS4 241588200 4.25 509 FRIGIDAIRE

GLRT217TDS5 241588200 4.25 509 FRIGIDAIRE

GLRT217TDS6 241588200 4.25 509 FRIGIDAIRE

GLRT217TDS7 241588200 4.25 509 FRIGIDAIRE

GLRT217TDS9 241588200 4.25 509 FRIGIDAIRE

GLRT217TDW0 241588200 4.25 509 FRIGIDAIRE

GLRT217TDW2 241588200 4.25 509 FRIGIDAIRE

GLRT217TDW3 241588200 4.25 509 FRIGIDAIRE

GS18HTZDB3 240379014 4.25 407 FRIGIDAIRE

GS18HTZDC1 240379014 4.25 432 FRIGIDAIRE

GS18HTZDC2 240379014 4.25 432 FRIGIDAIRE

Model Service Data Sheet Charge Energy Efficiency Rating Brand

GS18HTZDK1 240379014 4.25 432 FRIGIDAIRE

GS18HTZDK2 240379014 4.25 432 FRIGIDAIRE

GS18HTZDPB0 240379014 4.25 432 FRIGIDAIRE

GS18HTZDPB1 240379014 4.25 407 FRIGIDAIRE

GS18HTZDPW0 240379015 4.25 407 FRIGIDAIRE

GS18HTZDPW0 240379014 4.25 432 FRIGIDAIRE

GS18HTZDPW1 240379014 4.25 432 FRIGIDAIRE

GS18HTZDW2 240379014 4.25 432 FRIGIDAIRE

GS23HSZCB4 240389616 5 583 FRIGIDAIRE

GS23HSZCB5 240389616 5 583 FRIGIDAIRE

GS23HSZCB6 240389616 5 583 FRIGIDAIRE

GS23HSZCC4 240389616 5 583 FRIGIDAIRE

GS23HSZCC6 240389616 5 583 FRIGIDAIRE

GS23HSZCQ4 240389616 5 583 FRIGIDAIRE

GS23HSZCQ5 240389616 5 583 FRIGIDAIRE

GS23HSZCW3 240389616 5 583 FRIGIDAIRE

GS23HSZCW4 240389616 5 583 FRIGIDAIRE

GS23HSZCW5 240389616 5 583 FRIGIDAIRE

GS23HSZCW6 240389616 5 583 FRIGIDAIRE

GS23HSZDC0 240389616 5 583 FRIGIDAIRE

GS23HSZDC3 240389616 5 583 FRIGIDAIRE

GS23HSZDC4 240389616 5 583 FRIGIDAIRE

GS23HSZDPB1 240389618 5 583 FRIGIDAIRE

GS23HSZDPB6 240389618 5 583 FRIGIDAIRE

GS23HSZDPW1 240389618 5 583 FRIGIDAIRE

GS23HSZDPW6 240389618 5 583 FRIGIDAIRE

GS23HSZDQ2 240389618 5 583 FRIGIDAIRE

GS23HSZDQ3 240389618 5 583 FRIGIDAIRE

GS23HSZDQ4 240389618 5 583 FRIGIDAIRE

GS23HSZDW0 240389618 5 583 FRIGIDAIRE

GS23HSZDW1 240389618 5 583 FRIGIDAIRE

GS23HSZDW2 240389618 5 583 FRIGIDAIRE

GS23HSZDW3 240389618 5 583 FRIGIDAIRE

GS23HSZDW4 240389618 5 583 FRIGIDAIRE

GS23HSZDW5 240389618 5 583 FRIGIDAIRE

GS23HSZDW7 240389618 5 583 FRIGIDAIRE

GS23HSZDW8 240389618 5 583 FRIGIDAIRE

GS26HSZCB6 240389616 5.25 618 FRIGIDAIRE

GS26HSZCC6 240389616 5.25 618 FRIGIDAIRE

GS26HSZCC7 240389616 5.25 618 FRIGIDAIRE

GS26HSZCC9 240389616 5.25 618 FRIGIDAIRE

GS26HSZCCQ6 240389616 5.25 618 FRIGIDAIRE

GS26HSZCCW6 240389616 5.25 618 FRIGIDAIRE

GS26HSZCDC2 240389618 5.25 618 FRIGIDAIRE

GS26HSZCDC4 240389618 5.25 618 FRIGIDAIRE

GS26HSZCDC5 240389618 5.25 618 FRIGIDAIRE

GS26HSZCDPB1 240389618 5.25 618 FRIGIDAIRE

GS26HSZCDPB2 240389618 5.25 618 FRIGIDAIRE

GS26HSZCDPB3 240389618 5.25 618 FRIGIDAIRE

GS26HSZCDPW1 240389618 5.25 618 FRIGIDAIRE

GS26HSZCDPW3 240389618 5.25 618 FRIGIDAIRE

GS26HSZCDQ1 240389618 5.25 618 FRIGIDAIRE

GS26HSZCDQ2 240389618 5.25 618 FRIGIDAIRE

GS26HSZCDQ3 240389618 5.25 618 FRIGIDAIRE

GS26HSZCDW0 240389618 5.25 618 FRIGIDAIRE

GS26HSZCDW2 240389618 5.25 618 FRIGIDAIRE

Model Service Data Sheet Charge Energy Efficiency Rating Brand

GS26HSZCDW3 240389618 5.25 618 FRIGIDAIRE

PHSC239DSB1 241532603 6 584 FRIGIDAIRE

PHSC239DSB2 241532603 6 584 FRIGIDAIRE

PHSC239DSB3 241532603 6 584 FRIGIDAIRE

PLHS237ZDB0 240389618 5 583 FRIGIDAIRE

PLHS237ZDB1 240389618 5 583 FRIGIDAIRE

PLHS237ZDB2 240389618 5 583 FRIGIDAIRE

PLHS237ZDB3 240389618 5 583 FRIGIDAIRE

PLHS237ZDB5 240389618 5 583 FRIGIDAIRE

PLHS237ZDB6 240389618 5 583 FRIGIDAIRE

PLHS237ZDB7 240389618 5 583 FRIGIDAIRE

PLHS237ZDB9 240389618 5 583 FRIGIDAIRE

PLHS239ZDB0 240389618 5 583 FRIGIDAIRE

PLHS239ZDB1 240389618 5 583 FRIGIDAIRE

PLHS239ZDB2 240389618 5 583 FRIGIDAIRE

PLHS239ZDB3 240389618 5 583 FRIGIDAIRE

PLHS239ZDB4 240389618 5 583 FRIGIDAIRE

PLHS239ZDB5 240389618 5 583 FRIGIDAIRE

PLHS239ZDB6 240389618 5 583 FRIGIDAIRE

PLHS239ZDB8 240389618 5 583 FRIGIDAIRE

PLHS239ZDB9 240389618 5 583 FRIGIDAIRE

PLHS267ZDB1 240389618 5.25 618 FRIGIDAIRE

PLHS267ZDB2 240389618 5.25 618 FRIGIDAIRE

PLHS267ZDB3 240389618 5.25 618 FRIGIDAIRE

PLHS267ZDB4 240389618 5.25 618 FRIGIDAIRE

PLHS267ZDB5 240389618 5.25 618 FRIGIDAIRE

PLHS269ZCB5 240389618 5.25 618 FRIGIDAIRE

PLHS269ZDB0 240389618 5.25 618 FRIGIDAIRE

PLHS269ZDB1 240389618 5.25 618 FRIGIDAIRE

PLHS269ZDB2 240389618 5.25 618 FRIGIDAIRE

PLHS269ZDB3 240389618 5.25 618 FRIGIDAIRE

PLHS269ZDB4 240389618 5.25 618 FRIGIDAIRE

PLHS269ZDB5 240389618 5.25 618 FRIGIDAIRE

PLHT219TCB1 240379014 4.25 432 FRIGIDAIRE

PLHT219TCB5 240379014 4.25 432 FRIGIDAIRE

PLHT219TCB7 240379014 4.25 432 FRIGIDAIRE

PLHT219TCB8 240379014 4.25 432 FRIGIDAIRE

PLHT219TCK5 240379014 4.25 432 FRIGIDAIRE

PLHT219TCK6 240379014 4.25 432 FRIGIDAIRE

PLHT219TCK7 240379014 4.25 432 FRIGIDAIRE

GRS23R4CW7 240389616 5 686 GIBSON

GRS26R4CQ5 240389616 5.25 727 GIBSON

GRT18C6AQE 240379015 4.25 479 GIBSON

GRT18C6AWD 240379015 4.25 479 GIBSON

GRT18C6AWE 240379015 4.25 479 GIBSON

GRT21G3CQ3 240379014 4.25 509 GIBSON

GRT21S6CQ3 240479014 4.25 509 GIBSON

WRS23MF5ASB 240389616 5 686 WHITE WESTINGHOUSE

WRS23MF5ASC 240389616 5 686 WHITE WESTINGHOUSE

WRS23MF5ASD 240389616 5 686 WHITE WESTINGHOUSE

WRS23MF5ASE 240389616 5 686 WHITE WESTINGHOUSE

WRS23MW3AWC 240389616 5 686 WHITE WESTINGHOUSE

WRS23W0AWD 240389616 5 686 WHITE WESTINGHOUSE

WRS23W0AWE 240389616 5 686 WHITE WESTINGHOUSE

WRS26MF5ASB 240389616 5.25 727 WHITE WESTINGHOUSE

WRS26MF5ASC 240389616 5.25 727 WHITE WESTINGHOUSE

Model Service Data Sheet Charge Energy Efficiency Rating Brand

WRS26MF5AW8 240389616 5.25 727 WHITE WESTINGHOUSE

WRS26MF5AW9 240389616 5.25 727 WHITE WESTINGHOUSE

WRS26MF5AWA 240389616 5.25 727 WHITE WESTINGHOUSE

WRS26MF5AWB 240389616 5.25 727 WHITE WESTINGHOUSE

WRS26MF5AWD 240389616 5.25 727 WHITE WESTINGHOUSE

WRT21MG3AQ7 240379014 4.25 509 WHITE WESTINGHOUSE

WRT21MG3AQ8 240379014 4.25 509 WHITE WESTINGHOUSE

WRT21MG3AQA 240379014 4.25 509 WHITE WESTINGHOUSE

WRT21MG3AW7 240379014 4.25 509 WHITE WESTINGHOUSE

WRT21MR7AS7 240379014 4.25 509 WHITE WESTINGHOUSE

WRT21MR7AS8 240379014 4.25 509 WHITE WESTINGHOUSE

WRT21MR7AS9 240379014 4.25 509 WHITE WESTINGHOUSE

WRT21MR7ASA 240379014 4.25 509 WHITE WESTINGHOUSE

WRT21S4AW7 240379014 4.25 509 WHITE WESTINGHOUSE

WRT21S4AW8 240379014 4.25 509 WHITE WESTINGHOUSE

TROUBLESHOOTING

GUIDE

PROBLEM CAUSE SOLUTION

No voltage at wall receptacle. Check circuit breaker, fuse or GFCI

(Ground Fault Circuit Interruptor - It

is not recommended to connect

your refrigerator to a GFCI.)

Service cord defective or unplugged

at wall receptacle.

Check service cord.

Low voltage causing compressor to

cycle on overload.

Voltage fluctuation should not

exceed ± 10% of 115 vac (104-127)

Control thermostat knob in OFF

position.

Turn control thermostat knob to ON

position.

Inoperative control thermostat. Replace control thermostat

Compressor stuck. Replace compressor.

Compressor windings open. Replace compressor.

Defrost timer stuck in defrost mode. Replace defrost timer. (if equipped)

ADC (Adaptive Defrost Control) not

turning on compressor after defrost.

Replace ADC.

Compressor overload stuck open. Replace compressor overload. (if

equipped – compressor starter relay

& overload may be plugged into

each other)

Relay lead loose. Repair or replace lead.

Relay loose or inoperative. Repair or replace relay. (if equipped)

Service cord pulled out of harness. Repair connection.

Compressor will not run.

Faulty cabinet wiring. Repair wiring.

System out of refrigerant. Check for leaks. *

Compressor not pumping. Replace compressor. *

Restricted filter drier. Replace filter drier. *

Restricted capillary tube. Replace heat exchanger and

evaporator assembly.

Compressor runs but does not cool.

Moisture in system. See NOTE. *

* NOTE:

• Repair or replace component that is leaking.

• Replace the compressor if the system is contaminated.

• Blow out remaining part of system with dry Nitrogen.

• Pump down and recharge per listing on product serial label.

• Always replace filter drier when repairing sealed system.

* See NOTE at bottom of page 18)

PROBLEM CAUSE SOLUTION

Erratic control thermostat. Replace control thermostat.

Faulty relay. Replace relay or starter.

Restricted air flow over condenser. Ensure air flow is unobstructed over

condenser.

Low voltage … fluctuation exceeds ±

10% of 115 vac (104-127).

Call qualified electrician.

Compressor draws excessive watts. Replace compressor.

Compressor short cycles.

Inoperative condenser fan motor. Replace condenser fan motor.

Control thermostat is erratic or not

properly set.

Replace control thermostat or reset to

normal position.

Refrigerator exposed to high heat.

(110° or higher)

Move refrigerator to cooler location.

High room temperature.

(110° F or higher)

Advise customer not to install

refrigerator where temperature will rise

above 110°F because compressor will

not maintain proper temperatures.

Low pumping capacity compressor. Replace compressor.

Door gaskets not sealing. Adjust doors or replace door gaskets.

System undercharged. Check for leaks. *

System overcharged. Charge per listing on product serial

plate. *

Interior light stays on. Check door switch and door

adjustment.

Contaminants in system. Flush out system. Replace filter drier,

evacuate, and recharge. *

Capillary tube kinked or partially

restricted.

Replace heat exchanger and

evaporator assembly. *

Filter drier partially restricted. Replace filter drier. *

Refrigerator and/or freezer

compartment overloaded … poor air

circulation

Advise customer.

Restricted air flow over condenser. Ensure air flow is unobstructed over

condenser.

Compressor runs too much.

Condenser fan motor is inoperative.

(Forced air condenser models only)

Replace condenser fan motor.

Tubing vibrates. Adjust tubing.

Internal compressor noise. Replace compressor.

Loose parts. Check shelving.

Noisy.

Compressor operating at high head

pressure due to restricted air flow

over condenser.

Ensure air flow is unobstructed over

condenser.

PROBLEM CAUSE SOLUTION

Inoperative evaporator fan motor. Check wiring and evaporator fan motor.

(Check ADC on Side-by-Sides.)

Improperly positioned fan blade. Position fan blade properly. See Figure

Evaporated frosted up. Check defrost system, door

adjustments, and door gaskets.

Inoperative condenser fan motor.

(Forced air condenser models

only)

Replace condenser fan motor.

Restricted air flow over condenser

– On static condensers, be sure

you have 1” between condenser

and wall, and 3” over top, or 1

side of condenser is clear.

Clean condenser. (Dynamic models

only.)

Freezer compartment overloaded

– poor air circulation.

Advise customer.

Low room temperature.(55°) Advise customer not to install

refrigerator where temperature will drop

below 60°F. Compressor will not

maintain proper temperatures.

Freezer or refrigerator

compartment doors left open.

Advise customer.

Control thermostat out of

calibration.

Replace control thermostat.

Door gaskets not sealing. Adjust doors or replace door gaskets.

Control thermostat capillary tube

improperly positioned.

Reposition temperature sensing

element.

Shortage of refrigerant. Check for leaks. *

Restricted filter drier or capillary

tube.

Check for leaks and burnt compressor

windings. *

Freezer compartment too warm.

Evaporator fan motor covered in

ice.

Check seal around ice maker fill spout.

Check seal between evaporator cover

and liner. (Side-by-sides only)

Inoperative cold control. (Top

mount-No Frost or Side-by-Side

freezer cold control)

Replace cold control.

Freezer compartment inlet air

duct is loose or restricted. Door is

loose.

Re-install air duct or remove obstruction

from inlet air duct. Adjust door.

Food compartment air return duct

blocked (Top Mount only)

If foam block is frozen, replace block. If

duct is blocked, remove obstruction.

Freezer compartment too cold.

Diffuser (foam block) in top of

food compartment is broken.

(Foam block located in control

housing.)

Replace diffuser. (Top Mount only)

Freezer compartment cold control

installed incorrectly. (Side-by-Sides

only)

Fig. A

* See NOTE at bottom of page 18

* See NOTE at bottom of page 18.

PROBLEM CAUSE SOLUTION

Inoperative evaporator fan motor. Check wiring and evaporator fan motor.

(Check ADC on Side-by-Sides.)

Improperly positioned fan blade. Position fan blade properly. See page

10, Figure A.

Evaporated frosted up. Check defrost system, door

adjustments, and door gaskets.

Refrigerator compartment

overloaded – poor air circulation.

Advise customer.

Low room temperature. (55°) Advise customer not to install

refrigerator where temperature will drop

below 60°F. Compressor will not

maintain proper temperatures.

Freezer or refrigerator

compartment doors left open.

Advise customer.

Damper control out of calibration

or not opening.

Replace damper control.

Shortage of refrigerant. Check for leaks. *

Restricted filter drier or capillary

tube.

Check for leaks and burnt compressor

windings. *

Refrigerator compartment inlet air

duct loose or restricted. Door is

loose.

Re-install air duct or remove obstruction

from air duct. Adjust door.

Freezer compartment return air

duct restricted.

Remove obstruction from return air duct.

Control thermostat knob set at too

warm a position.

Set control knob to a colder position.

Inoperative or erratic

refrigerator/freezer compartment

door switch.

Replace door switch.

Freezer compartment inlet air

duct is loose or restricted. Door is

loose.

Re-install air duct or remove obstruction

from inlet air duct. Adjust door.

Refrigerator compartment too

warm.

Food compartment air return duct

blocked (Top Mount only)

If foam block is frozen, replace block. If

duct is blocked, remove obstruction.

Inoperative cold control. Replace cold control.

Refrigerator compartment inlet air

duct loose or restricted. Door is

loose.

Re-install air duct or remove obstruction

from air duct. Adjust door.

Refrigerator compartment too cold.

Diffuser (foam block) in top of

food compartment is broken.

(Foam blocked located in control

housing.)

Replace diffuser. (Top Mounts only)

PROBLEM CAUSE SOLUTION

Inoperative cold control. Replace cold control.

Refrigerator compartment inlet air

duct loose or restricted. Door is

loose.

Re-install air duct or remove obstruction

from air duct. Adjust door.

Diffuser (foam block) in top of

food compartment is broken.

(Foam blocked located in control

housing)

Replace diffuser. (Top Mounts only)

Replace damper control.

Door in damper control not

closing or not closing all the way.

Check freezer control bulb for correct

positioning to ensure it is installed

correctly.

Refrigerator compartment too cold.

(Continued)

Cold air blowing into food

compartment with damper door

closed all the way.

Check foam seal between damper

housing and cabinet liner. Check to see

that the control box is mounted flush

against the cabinet liner.

Inoperative defrost timer. Check wiring. Repair or replace defrost

timer.

Defrost thermostat terminates too

early. Thermostat is open.

Check for correct positioning of defrost

thermostat. Repair or replace.

Refrigerator/Freezer compartment

doors left open.

Advise customer.

Open defrost heater. Replace heater.

Evaporator blocked with ice. (See

Adaptive defrost Control)

Air leak around ice maker fill tube,

or opening.

Seal with permagum.

Ice maker water line and wiring

harness openings not sealed.

Seal water line and wiring harness

openings.

Drain trough not properly formed. Ensure drain trough is at 90° angle to

back of freezer and that lip is up on front

and ends.

Frozen drain.

Divider (foam block) frozen. Replace divider. Check drain trough.

Faulty ADC board. Replace ADC board.

Adaptive Defrost Control (ADC) not

responding correctly. Bad wire between ADC, defrost

heater, and limiter.

Check wiring and wiring connectors.

A - 1

SNOITCENNOCGULPROTCENNOCREKAMECI

rebmuNeriWroloCeriW:otstcennoC

1wolleY/neerGdnuorG

2wolleYevlaVretaW

3kcalBeniL

4eulB.tLlartueN

ICE MAKER INFORMATION

Test Cycling

Remove cover by inserting screwdriver in notch at bottom and prying

cover from housing. Use screwdriver to rotate motor gear

counterclockwise until

Holding Switch

circuit is completed. All

components of ice maker should function to complete the cycle.

Water Fill Volume

The water fill adjustment

screw will change the fill

time. One full turn is

equal to 20cc (.68 oz.).

The correct fill is 95 to

105cc (3.2 to 3.6 oz.).

When a water valve is

replaced, the fill volume

must be checked.

CAUTION:

All electrical parts and wiring must be shielded

from torch flame. Do not allow torch to contact insulation; it

will char at 200°F and flash ignite (burn) at 500°F. Excessive

heat will distort the plastic liner.

SERVICE DATA SHEET

IMPORTANT SAFETY NOTICE

The information provided herein is designed to assist qualified repair

personnel only. Untrained persons should not attempt to make

repairs due to the possibility of electrical shock. Disconnect power

cord before servicing.

IMPORTANT

If any green grounding wires are moved during servicing, they

must be returned to their original position and properly secured.

ATADECNAMROFREP

GNITTESLORTNOCTNIOP-DIMTASGNINEPOROODONDNADAOLON

nuRnoitcudnIronuRroticapaCtneibmA)C°81(F°56tneibmA)C°23(F°09

emiTgnitarepO%53ot52%55ot54

erutarepmeTrezeerFF°8ot°2

C°31-ot°71-

F°5ot°0

C°51-ot°81-

erutarepmeTerutaregirfeRF°04ot°53

C°4ot°2

F°04ot°53

C°4ot°2

(erusserPediSwoL

)ni-tuc

gisp61ot8

aPk011ot55

gisp61ot8

aPk011ot55

(erusserPediSwoL

)tuo-tuc

gisp4ot1

aPk82ot7

gisp4ot1

aPk82ot7

(erusserPediShgiH

)elcycfo3/1tsaL

gisp021ot011

aPk728ot857

gisp571ot051

aPk7021ot4301

)elcycfo3/1tsaL(egattaW581ot041581ot041

)gninnuR(spmA6.1ot1.16.1ot1.1

egatloVesaB)xaMCAV721(CAV511)xaMCAV721(CAV511

SNOITACIFICEPSTSORFED

eziStenibaC

tatsomrehTretaeH

ni-tuCtuo-tuCsttaWsmhO

'12&'81 F°52

C°4-

F°74

C°8 57353

'71&'51,'41 F°52

C°4-

F°74

C°8 52314

emiTnuRrosserpmoCfosruoH01yrevEsetuniM03tsorfeD-remiTlacinahceM

emiTnuRrosserpmoCfosruoH27-6yrevEsetuniM42oTpUtsorfeD)CDA(remiTcinortcelE

ROTOMNAFRESNEDNOC

sttaWMPRspmA

3.2tfahSetisoppOWC0011gninnuR51.

SNOITACIFICEPSREKAMECI

lacirtcelE)xaMCAV721(CAV511ztreH06

tatsomrehT)C°9(F°84tasnepO)C°9-(F°51tasesolC

egattaWretaeH561

STANDARD - AUTOMATIC

DEFROST TOP FREEZER

MODELS (R134a)

P/N: 240379014

NOTE:

Some products come equipped with an Electronic

Defrost Control. To initiate defrost, depress the fresh food light

switch 5 times in 6 seconds (light bulb must be working). To

terminate defrost, depress the fresh food light switch 5 times

in 6 seconds.

POWER

ICE MAKER

CE MAKER

ICE MAKER

WATER VALVE

LINE

THER MAL

CUT-OUT

HOLD

SW IT CH

T HERMOSTAT

SHUT-OF F

SWITCH

WAT ER FILL

SWITCH

MOLD HEATER

MO L D MOUN TING

PLATE

MO T O R

NEUTRAL

BLK

BLK BLU

LT. B L U

BRN

RED

GRN / YEL

RED

YEL

P-3

P-1 P-2

P-4

A - 2

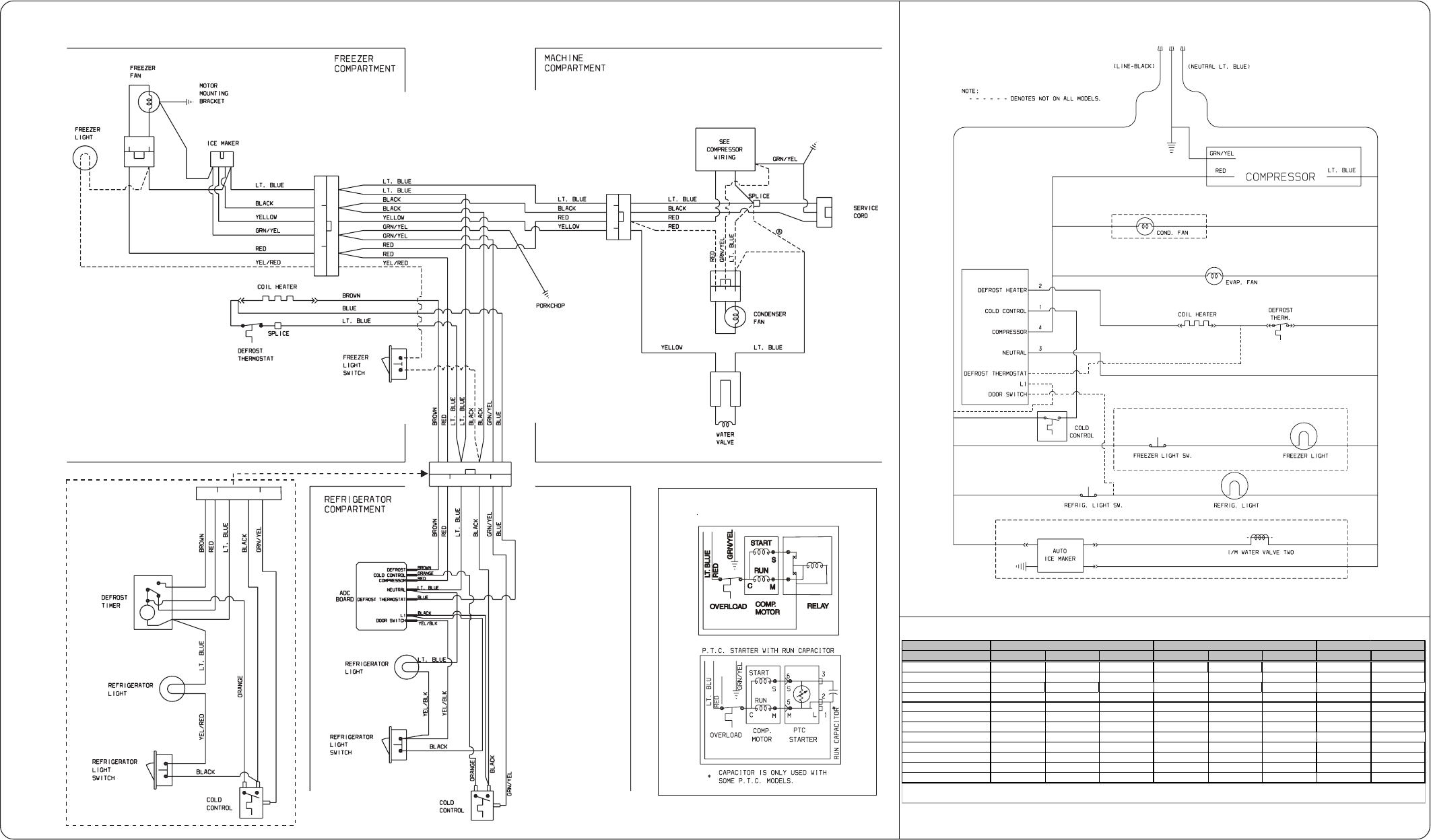

Pictorial Schematic Ladder Schematic

NOTE:

_ _ _ _ _ _ DENOTES NOT ON ALL MODELS

COMPRESSOR WIRING

Induction Run Compressor with Relay

15 & 17 CUBIC FOOT 18 CUBIC FOOT

SERVICE PARTS STATIC DYNAMIC E-STAR STATIC DYNAMIC E-STAR DYNAMIC E-STAR

Compressor / Kit *5303918264 5303918264 5303918299 5303918297 5303918297 5303918299 5303918297 5303918299

Starter/PTC/TSD *218721120 218721120 241527802 N/A N/A 241527802 N/A 241527802

Run Capacitor *218909913 218909913 218909915 N/A N/A 218909915 N/A 218909915

Relay N/A N/A N/A 5304433579 5304433579 N/A 5304433579 N/A

Overload N/A N/A N/A 5304433578 5304433578 N/A 5304433578 N/A

Temperature Control 5304421256 5304421256 5304421256 5304421256 5304421256 5304421256 5304421256 5304421256

Timer (if applicable) 215846606 215846606 215846606 215846606 215846606 215846606 215846606 215846606

ADC (if applicable) N/A N/A N/A N/A N/A N/A N/A N/A

Defrost Heater Kit 5303918203 5303918203 5303918203 5303918208 5303918208 5303918208 5303918247 5303918247

Defrost Thermostat Kit 5303918202 5303918202 5303918202 5303918202 5303918202 5303918202 5303918202 5303918202

Evaporator Fan Motor 240369701 240369701 240369701 240369701 240369701 241537301 240369701 240369701

Condenser Fan Motor N/A 240523601 240523601 N/A 240523601 240523601 240523601 241538001

21 CUBIC FOOT

* Typical compressor kit includes compressor, electrical components, and filter-drier

A - 3

SNOITCENNOCGULPROTCENNOCREKAMECI

rebmuNeriWroloCeriW:otstcennoC

1wolleY/neerGdnuorG

2wolleYevlaVretaW

3kcalBeniL

4eulB.tLlartueN

ICE MAKER INFORMATION

Test Cycling

Remove cover by inserting screwdriver in notch at bottom and prying

cover from housing. Use screwdriver to rotate motor gear

counterclockwise until

Holding Switch

circuit is completed. All

components of ice maker should function to complete the cycle.

Water Fill Volume

The water fill adjustment

screw will change the fill

time. One full turn is

equal to 20cc (.68 oz.).

The correct fill is 95 to

105cc (3.2 to 3.6 oz.).

When a water valve is

replaced, the fill volume

must be checked.

CAUTION:

All electrical parts and wiring must be shielded

from torch flame. Do not allow torch to contact insulation; it

will char at 200°F and flash ignite (burn) at 500°F. Excessive

heat will distort the plastic liner.

SERVICE DATA SHEET

IMPORTANT SAFETY NOTICE

The information provided herein is designed to assist qualified repair

personnel only. Untrained persons should not attempt to make

repairs due to the possibility of electrical shock. Disconnect power

cord before servicing.

IMPORTANT

If any green grounding wires are moved during servicing, they

must be returned to their original position and properly secured.

ATADECNAMROFREP

GNITTESLORTNOCTNIOP-DIMTASGNINEPOROODONDNADAOLON

nuRnoitcudnIronuRroticapaCtneibmA)C°81(F°56tneibmA)C°23(F°09

emiTgnitarepO%53ot52%55ot54

erutarepmeTrezeerFF°8ot°2

C°31-ot°71-

F°5ot°0

C°51-ot°81-

erutarepmeTerutaregirfeRF°04ot°53

C°4ot°2

F°04ot°53

C°4ot°2

(erusserPediSwoL

)ni-tuc

gisp61ot8

aPk011ot55

gisp61ot8

aPk011ot55

(erusserPediSwoL

)tuo-tuc

gisp4ot1

aPk82ot7

gisp4ot1

aPk82ot7

(erusserPediShgiH

)elcycfo3/1tsaL

gisp021ot011

aPk728ot857

gisp571ot051

aPk7021ot4301

)elcycfo3/1tsaL(egattaW581ot041581ot041

)gninnuR(spmA6.1ot1.16.1ot1.1

egatloVesaB)xaMCAV721(CAV511)xaMCAV721(CAV511

SNOITACIFICEPSTSORFED

eziStenibaC

tatsomrehTretaeH

ni-tuCtuo-tuCsttaWsmhO

'12&'81 F°52

C°4-

F°74

C°8 57353

'71&'51,'41 F°52

C°4-

F°74

C°8 52314

emiTnuRrosserpmoCfosruoH01yrevEsetuniM03tsorfeD-remiTlacinahceM

emiTnuRrosserpmoCfosruoH27-6yrevEsetuniM42oTpUtsorfeD)CDA(remiTcinortcelE

ROTOMNAFRESNEDNOC

sttaWMPRspmA

3.2tfahSetisoppOWC0011gninnuR51.

SNOITACIFICEPSREKAMECI

lacirtcelE)xaMCAV721(CAV511ztreH06

tatsomrehT)C°9(F°84tasnepO)C°9-(F°51tasesolC

egattaWretaeH561

STANDARD - AUTOMATIC

DEFROST TOP FREEZER

MODELS (R134a) P/N: 240379015

NOTE: Some products come equipped with an Electronic

Defrost Control. To initiate defrost, depress the fresh food light

switch 5 times in 6 seconds (light bulb must be working). To

terminate defrost, depress the fresh food light switch 5 times

in 6 seconds.

POWER

ICE MAKER

CE MAKER

ICE MAKER

WATER VALVE

LINE

THER MAL

CUT-OUT

HOLD

SW IT CH

T HERMOSTAT

SHUT-OF F

SWITCH

WAT ER FILL

SWITCH

MOLD HEATER

MO L D MOUN TING

PLATE

MO T O R

NEUTRAL

BLK

BLK BLU

LT. B L U

BRN

RED

GRN / YEL

RED

YEL

P-3

P-1 P-2

P-4

A - 4

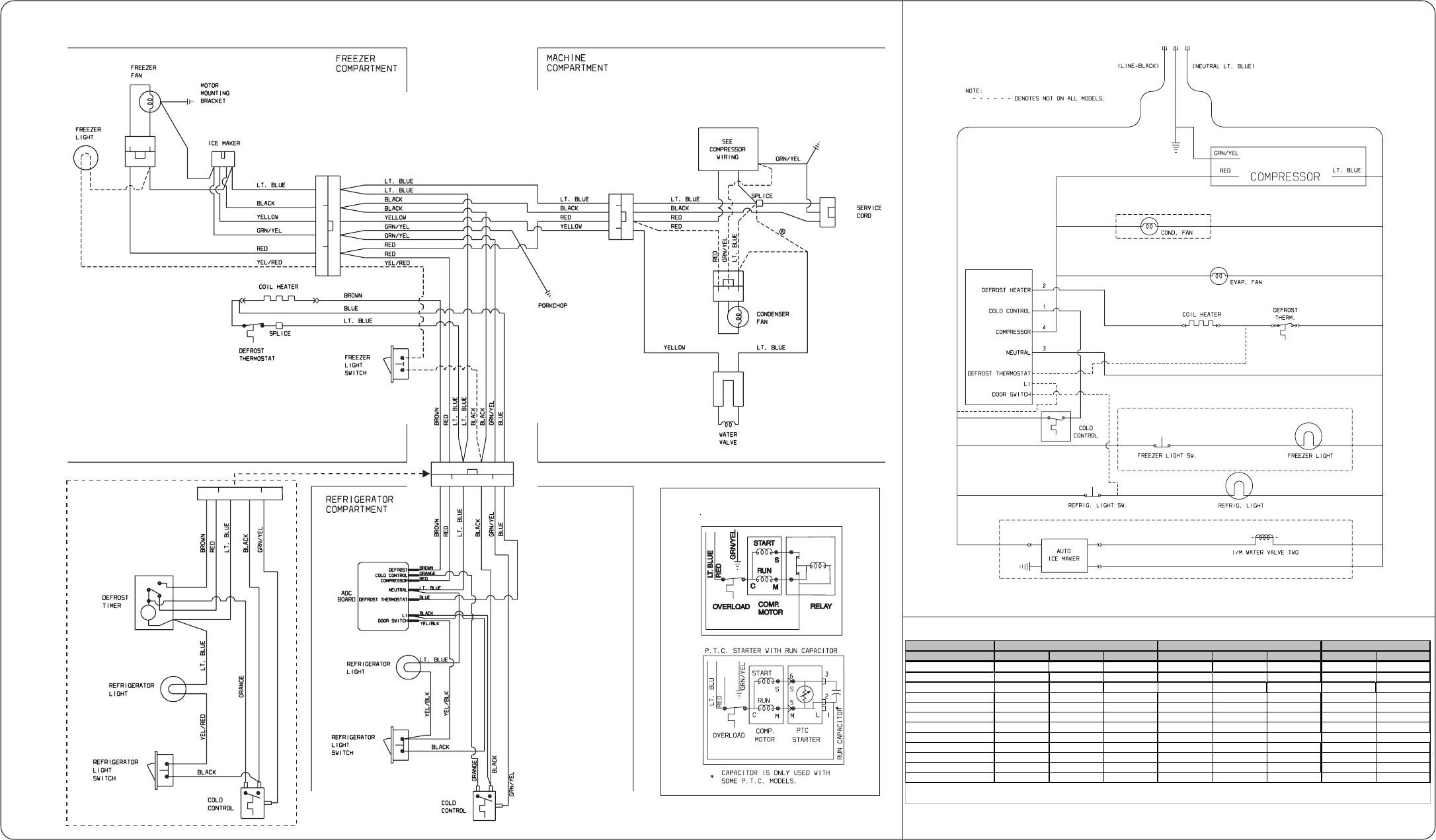

Pictorial Schematic Ladder Schematic

NOTE:

_ _ _ _ _ _ DENOTES NOT ON ALL MODELS

COMPRESSOR WIRING

Induction Run Compressor with Relay

15 & 17 CUBIC FOOT 18 CUBIC FOOT

SERVICE PARTS STATIC DYNAMIC E-STAR STATIC DYNAMIC E-STAR DYNAMIC E-STAR

Compres sor / Kit *240550915 240550915 5303918299 240550915 240550915 5303918299 240550915 5303918299

Starter/PTC/TSD *N/A N/A 241527802 N/A N/A 241527802 N/A 241527802

Run Capacitor *N/A N/A 218909915 N/A N/A 218909915 N/A 218909915

Relay 5304433579 5304433579 N/A 5304433579 5304433579 N/A 5304433579 N/A

Overload 5304433578 5304433578 N/A 5304433578 5304433578 N/A 5304433578 N/A

Temperature Control 5304421256 5304421256 5304421256 5304421256 5304421256 5304421256 5304421256 5304421256

Timer (if applicable) 215846606 215846606 215846606 215846606 215846606 215846606 215846606 215846606

ADC (if applicable) N/A N/A N/A N/A N/A N/A N/A N/A

Defrost Heater Kit 5303918203 5303918203 5303918203 5303918208 5303918208 5303918208 5303918247 5303918247

Defrost Thermostat Kit 5303918202 5303918202 5303918202 5303918202 5303918202 5303918202 5303918202 5303918202

Evaporator Fan Motor 240369701 240369701 240369701 240369701 240369701 240369701 240369701 240369701

Condenser Fan Motor N/A 240523601 240523601 N/A 240523601 240523601 240334001 240334001

21 CUBIC FOOT

* Typical compressor kit includes compressor, electrical components, and filter-drier

A - 5

SNOITCENNOCGULPROTCENNOCREKAMECI

rebmuNeriWroloCeriW:otstcennoC

1wolleY/neerGdnuorG

2wolleYevlaVretaW

3kcalBeniL

4eulB.tLlartueN

ICE MAKER INFORMATION

Test Cycling

Remove cover by inserting screwdriver in notch at bottom and prying

cover from housing. Use screwdriver to rotate motor gear

counterclockwise until

Holding Switch

circuit is completed. All

components of ice maker should function to complete the cycle.

Water Fill Volume

The water fill adjustment

screw will change the fill

time. One full turn is

equal to 20cc (.68 oz.).

The correct fill is 95 to

105cc (3.2 to 3.6 oz.).

When a water valve is

replaced, the fill volume

must be checked.

CAUTION:

All electrical parts and wiring must be shielded

from torch flame. Do not allow torch to contact insulation; it

will char at 200°F and flash ignite (burn) at 500°F. Excessive

heat will distort the plastic liner.

SERVICE DATA SHEET

IMPORTANT SAFETY NOTICE

The information provided herein is designed to assist qualified repair

personnel only. Untrained persons should not attempt to make

repairs due to the possibility of electrical shock. Disconnect power

cord before servicing.

IMPORTANT

If any green grounding wires are moved during servicing, they

must be returned to their original position and properly secured.

ATADECNAMROFREP

GNITTESLORTNOCTNIOP-DIMTASGNINEPOROODONDNADAOLON

nuRnoitcudnIronuRroticapaCtneibmA)C°81(F°56tneibmA)C°23(F°09

emiTgnitarepO%53ot52%55ot54

erutarepmeTrezeerFF°8ot°2

C°31-ot°71-

F°5ot°0

C°51-ot°81-

erutarepmeTerutaregirfeRF°04ot°53

C°4ot°2

F°04ot°53

C°4ot°2

(erusserPediSwoL

)ni-tuc

gisp61ot8

aPk011ot55

gisp61ot8

aPk011ot55

(erusserPediSwoL

)tuo-tuc

gisp4ot1

aPk82ot7

gisp4ot1

aPk82ot7

(erusserPediShgiH

)elcycfo3/1tsaL

gisp021ot011

aPk728ot857

gisp571ot051

aPk7021ot4301

)elcycfo3/1tsaL(egattaW581ot041581ot041

)gninnuR(spmA6.1ot1.16.1ot1.1

egatloVesaB)xaMCAV721(CAV511)xaMCAV721(CAV511

SNOITACIFICEPSTSORFED

eziStenibaC

tatsomrehTretaeH

ni-tuCtuo-tuCsttaWsmhO

'12&'81 F°52

C°4-

F°74

C°8 57353

'71&'51,'41 F°52

C°4-

F°74

C°8 52314

emiTnuRrosserpmoCfosruoH01yrevEsetuniM03tsorfeD-remiTlacinahceM

emiTnuRrosserpmoCfosruoH27-6yrevEsetuniM42oTpUtsorfeD)CDA(remiTcinortcelE

ROTOMNAFRESNEDNOC

sttaWMPRspmA

3.2tfahSetisoppOWC0011gninnuR51.

SNOITACIFICEPSREKAMECI

lacirtcelE)xaMCAV721(CAV511ztreH06

tatsomrehT)C°9(F°84tasnepO)C°9-(F°51tasesolC

egattaWretaeH561

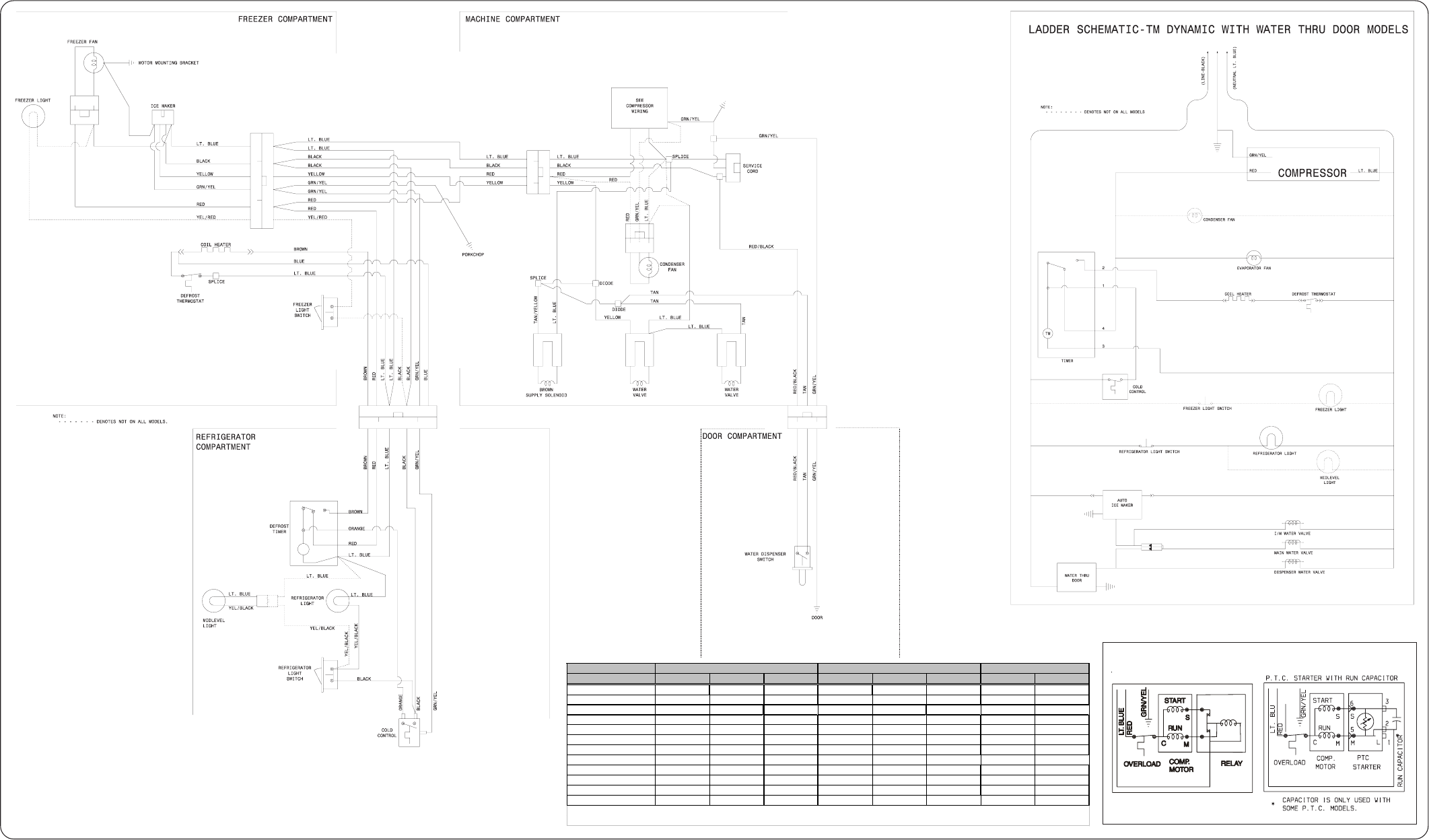

STANDARD - AUTOMATIC

DEFROST TOP FREEZER

MODELS (R134a)

P/N: 241588200

NOTE:

Some products come equipped with an Electronic

Defrost Control. To initiate defrost, depress the fresh food light

switch 5 times in 6 seconds (light bulb must be working). To

terminate defrost, depress the fresh food light switch 5 times

in 6 seconds.

POWER

ICE MAKER

CE MAKER

ICE MAKER

WATER VALVE

LINE

THER MAL

CUT-OUT

HOLD

SW IT CH

T HERMOSTAT

SHUT-OF F

SWITCH

WAT ER FILL

SWITCH

MOLD HEATER

MO L D MOUN TING

PLATE

MO T O R

NEUTRAL

BLK

BLK BLU

LT. B LU

LT. B L U

BRN

RED

GRN / YEL

RED

YEL

P-3

P-1 P-2

P-4

A - 6
