Graphite Series 600T
Corsair presents the CC600T – Corsair Graphite Series 600T
The Corsair Graphite Series 600T was designed for gamers and overclockers. With features and
expandability found normally in full-tower cases, the 600T takes mid-tower cases into a new realm of
features and functionality.
The First of Its Kind
Corsair developed the Graphite Series based on the demands of the gaming community. Eschewing the
more staid, subtle lines of the Obsidian series, the Graphite series does away with straight edges and favors
a more streamlined appearance. But it’s not done for show.
The interior of the Graphite Series 600T was designed to be functional and expandable. From the dual
200mm fans, to the eight expansion slots, the Graphite 600T is designed to provide tons of features that
gamers, overclockers, and general system builders will appreciate.
©2010 Corsair Memory, Inc. All Rights Reserved.
FEATURES and TESTING GUIDE: October 13, 2010
Page 2 of 8
Graphite Series 600T
Key Features Overview
Advanced cooling
Dual white LED 200mm fans and a single rear 120mm exhaust fan provide excellent airflow through the
front and top mesh. The integrated four-channel fan controller allows the user to customize their gaming
experience for silence or cooling performance.
Advanced cable management
Pre-cut holes in the motherboard tray provide highly flexible cable-routing options. Rubber grommet
covers ensure cabling looks neat and professional.
Six drive bays with 2.5in SSD support
The six drive bays accommodate both 3.5” and 2.5” hard drives and SSDs with no adapters needed.
Snap-in mounting brackets facilitate installation and configuration of 3.5” drives, while 2.5” drives can be
installed with the included screws.
Reconfigurable hard drive cages
The two hard drive cages each hold three drives, and can be removed entirely or relocated to the floor
of the case (directly in front of the power supply) for superior airflow from the 200MM front intake fan
to reach the graphics cards.
©2010 Corsair Memory, Inc. All Rights Reserved.
FEATURES and TESTING GUIDE: October 13, 2010
Page 3 of 8
Graphite Series 600T
Key Features in Detail
Advanced Cooling
The Corsair Graphite Series 600T focuses heavily on a smarter approach for cooling rather than the more
crude approach of simply adding more fans (and more noise) to the case. The front 200mm intake fan spins
quietly behind a dust filter that’s been optimized to catch dust but permit air to slip through with as little
obstruction as possible. Plentiful cable-routing holes populate the case, virtually guaranteeing cables won’t
negatively affect the airflow to the graphic cards, or a clean, uncluttered look.
©2010 Corsair Memory, Inc. All Rights Reserved.
FEATURES and TESTING GUIDE: October 13, 2010
Page 4 of 8
Graphite Series 600T
Reconfigurable Drive Cages

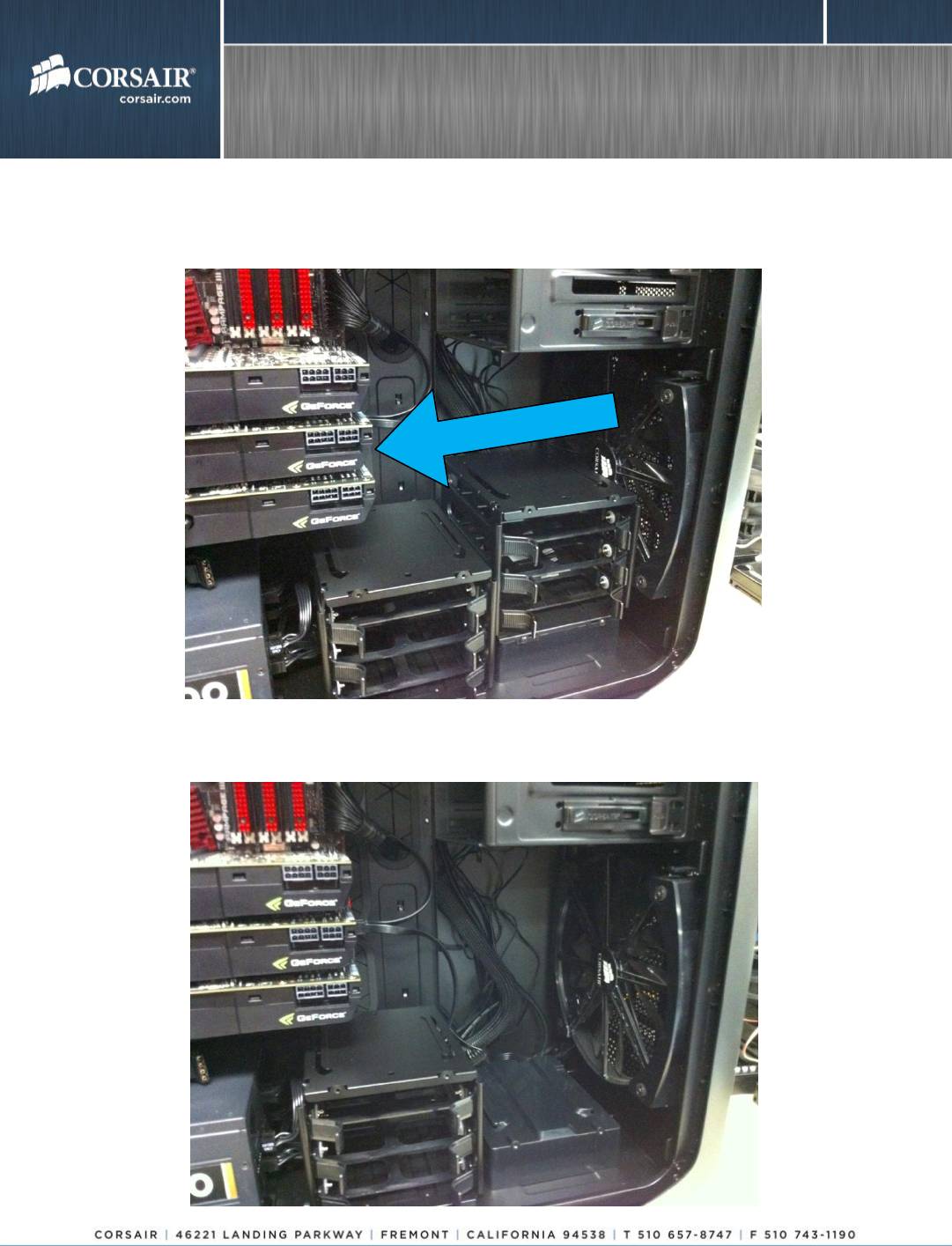

One of the more unique features of the 600T is the reconfigurable hard drive cage area. It’s possible to
configure the hard drive cages for superior airflow to the GPUs or to fit extended length GPUs.
This reconfiguration allows for direct airflow from the front intake fan to reach the graphics cards for
superior cooling performance. It’s also possible to remove the lower drive cage, as seen here.
©2010 Corsair Memory, Inc. All Rights Reserved.
FEATURES and TESTING GUIDE: October 13, 2010
Page 5 of 8
Graphite Series 600T
Advanced Cable Routing
The Graphite 600T has tons of holes for cable routing, so even when your system is chock full of graphics
cards or other hardware, you should be able to route your cables cleanly and easily.
Plentiful cable routing tie-downs
and the large gap behind the
motherboard tray allow for a great
place to hide cables.
Even with three graphics cards
using two cables each, two optical
drives, and two hard drives, the
600T still looks clean and provides
a clear airflow path from the intake
fan to the GPUs.
©2010 Corsair Memory, Inc. All Rights Reserved.
FEATURES and TESTING GUIDE: October 13, 2010
Page 6 of 8
Graphite Series 600T

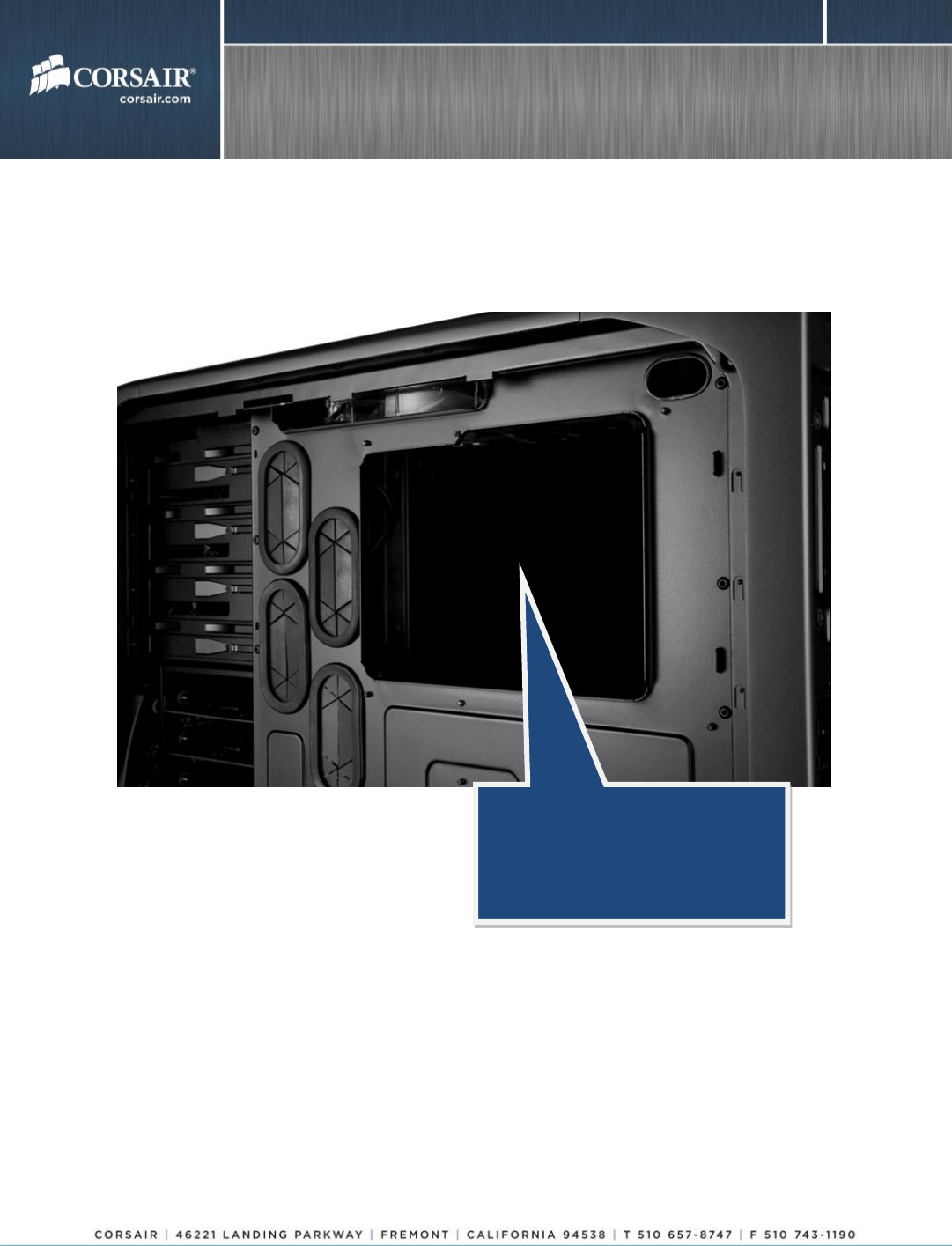

CPU Backplate Cutout
The CPU Backplate cutout is designed to allow for the installation of the backplates of large aftermarket
heatsinks without the removal of the motherboard from the case.
The CPU backplate cutout provides
the user with an easy way to install
an aftermarket heatsink that
utilizes a custom backplate for
mounting.
©2010 Corsair Memory, Inc. All Rights Reserved.
FEATURES and TESTING GUIDE: October 13, 2010
Page 7 of 8
Graphite Series 600T
Dual Radiator Installation
The Graphite Series 600T is a great air cooling case, but can also accommodate a dual 120mm radiator on
top. Simply remove the top 200mm fan, and install the radiator as shown below.
Depending on the motherboard components and clearance issues, in some cases the fans should be
installed outside the case, as shown below. There is sufficient clearance beneath the top filter exhaust for
this.
Lock for case side panel
Routing hole for fan
power
©2010 Corsair Memory, Inc. All Rights Reserved.
FEATURES and TESTING GUIDE: October 13, 2010
Page 8 of 8
Graphite Series 600T

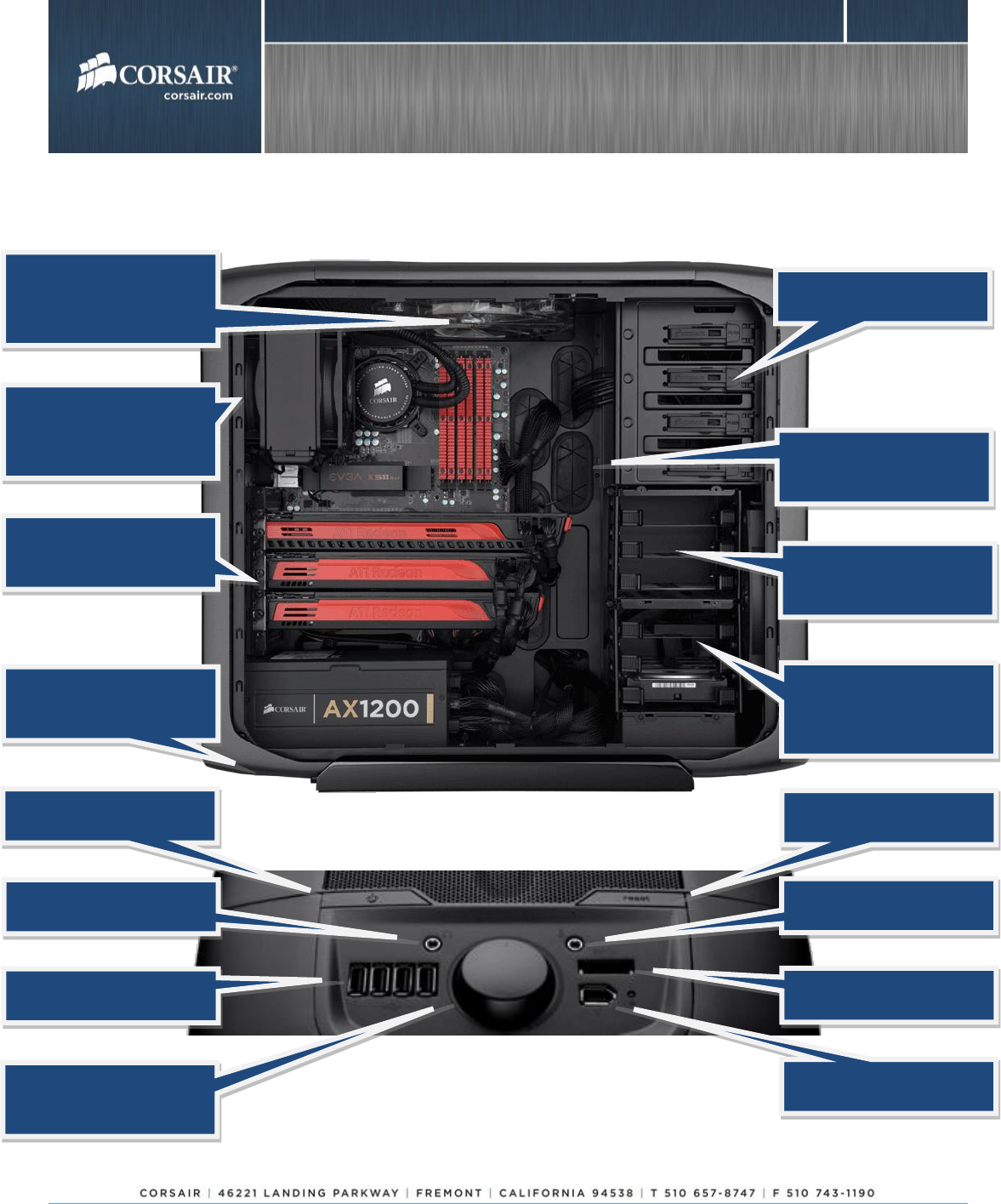

Anatomy of the Graphite 600T chassis
Tool-free drive bays
Reconfigurable hard
drive cages
Tool-free 3.5” drive
trays, with screw-in 2.5”
(SSD) compatibility
Cable-routing holes
with rubber grommets
Removable dust filter
for PSU
Eight expansion slots
for multiple GPU setups
Rear 120mm fan mount
compatible with H50 or
H70
Top 200mm fan can be
removed for 240mm
radiator
Reset switch
Firewire (1394)
USB 3.0
Microphone
Power switch & LED
4-channel fan control
knob
USB 2.0 (4)
Headphones
