Page 2 For technical questions, please call 1-888-866-5797. Item 62307
SAFETY OPERATION MAINTENANCESETUP

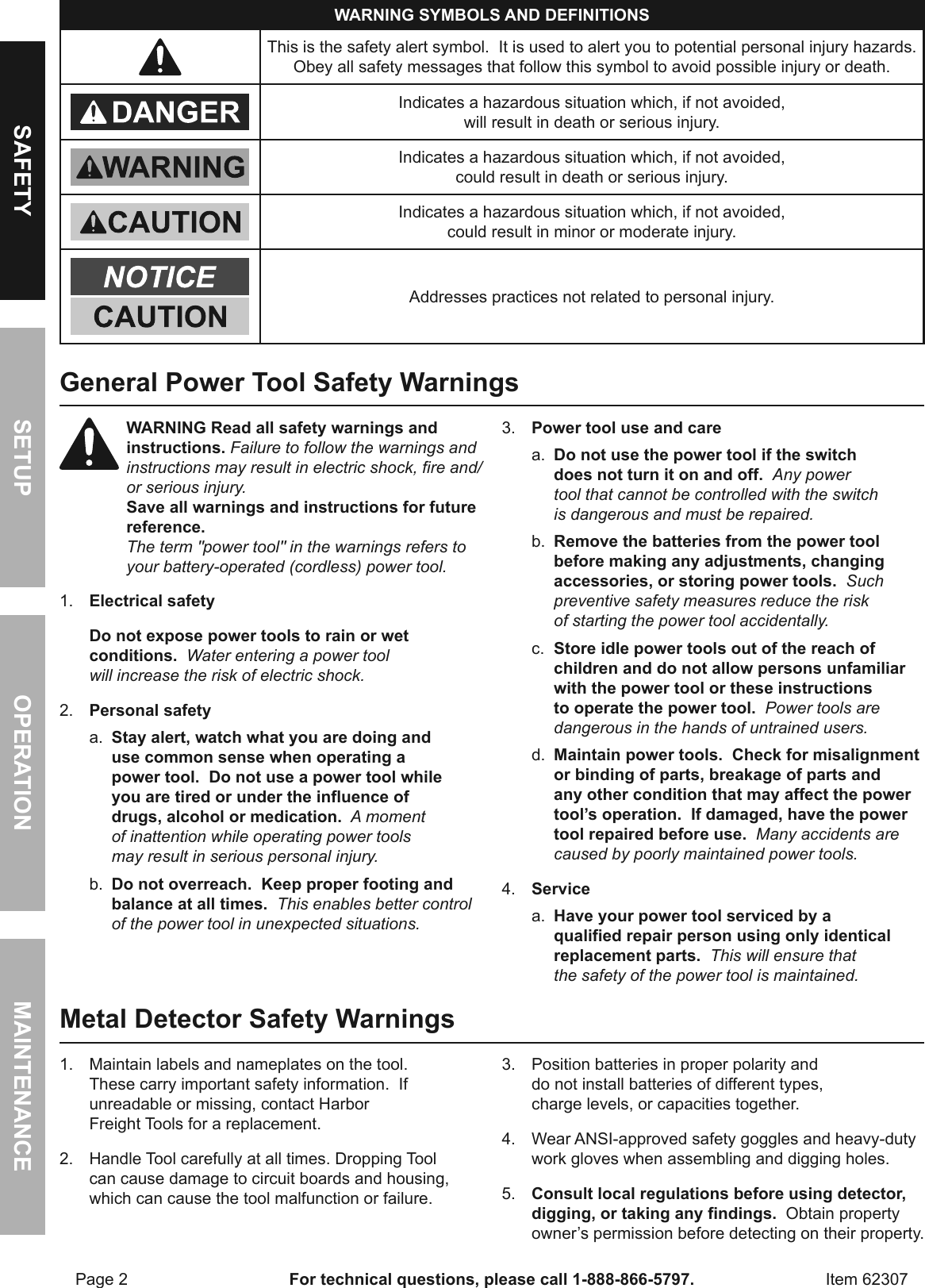

WARNING SYMBOLS AND DEFINITIONS
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
General Power Tool Safety Warnings
WARNING Read all safety warnings and
instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/
or serious injury.
Save all warnings and instructions for future
reference.
The term ″power tool″ in the warnings refers to
your battery-operated (cordless) power tool.
1. Electrical safety
Do not expose power tools to rain or wet
conditions. Water entering a power tool
will increase the risk of electric shock.
2. Personal safety
a. Stay alert, watch what you are doing and
use common sense when operating a
power tool. Do not use a power tool while
you are tired or under the influence of
drugs, alcohol or medication. A moment
of inattention while operating power tools
may result in serious personal injury.
b. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
3. Power tool use and care
a. Do not use the power tool if the switch
does not turn it on and off. Any power
tool that cannot be controlled with the switch
is dangerous and must be repaired.
b. Remove the batteries from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk
of starting the power tool accidentally.
c. Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions
to operate the power tool. Power tools are
dangerous in the hands of untrained users.
d. Maintain power tools. Check for misalignment
or binding of parts, breakage of parts and
any other condition that may affect the power
tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are
caused by poorly maintained power tools.
4. Service
a. Have your power tool serviced by a
qualified repair person using only identical
replacement parts. This will ensure that
the safety of the power tool is maintained.
Metal Detector Safety Warnings
1. Maintain labels and nameplates on the tool.
These carry important safety information. If
unreadable or missing, contact Harbor
Freight Tools for a replacement.
2. Handle Tool carefully at all times. Dropping Tool
can cause damage to circuit boards and housing,
which can cause the tool malfunction or failure.
3. Position batteries in proper polarity and
do not install batteries of different types,
charge levels, or capacities together.
4. Wear ANSI-approved safety goggles and heavy-duty
work gloves when assembling and digging holes.
5. Consult local regulations before using detector,
digging, or taking any findings. Obtain property
owner’s permission before detecting on their property.
Page 3For technical questions, please call 1-888-866-5797.Item 62307
SAFETYOPERATIONMAINTENANCE SETUP
6. Only use and store in normal temperature
environments. Extremes in temperature can
shorten effectiveness of electronic devices
and melt or damage plastic parts.
7. Avoid electrical shock. Any metal detector may
discover underground power lines, explosives
or other items which when struck could cause
personal injury. Do not use this product in areas
where there might be underground electric lines
or pipes buried at shallow depths. Never search
in military zones where bombs or other explosives
may be buried. Avoid striking any line known or
suspected to be carrying electric power. Do not
search any pipeline, particularly if it could contain
a flammable gas or liquid. In areas of uncertain
conditions, use reasonable caution before using
the Tool. If there is any question about a condition
being safe of unsafe, do not operate the Tool.
8. Keep the Metal Detector away from any lights,
TVs, computers, and mobile telephones. These
can all cause electromagnetic interference.
9. Only the Search Coil and black section of the
Lower Leg are waterproof. Do not immerse the
unit beyond the black section of the Lower Leg.
10. Keep the Tool clean. Wipe the housing after
each use. The search coil is washable and can
be fully submerged. Never submerge the control
housing. Protect the control housing from rain,
blowing surf and heavy mist. Disassemble the
Leg and wipe it clean after use in sandy areas.
11. Use the right tool for the job. There are certain
applications for which this tool was designed.
Do not modify this tool and do not use this tool
for a purpose for which it was not intended.
12. This product is not a toy. Keep
it out of reach of children.
13. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields
in close proximity to heart pacemaker could cause
pacemaker interference or pacemaker failure. In
addition, people with pacemakers should:
• Avoid operating alone.
• Properly maintain and inspect
to avoid electrical shock.
14. WARNING: This product contains or, when
used, produces a chemical known to the State
of California to cause cancer and birth defects
or other reproductive harm. (California Health
& Safety Code § 25249.5, et seq.)
15. The warnings, precautions, and instructions
discussed in this instruction manual cannot
cover all possible conditions and situations
that may occur. It must be understood by the
operator that common sense and caution are
factors which cannot be built into this product,
but must be supplied by the operator.
SAVE THESE
INSTRUCTIONS.
Specifications
Electrical Input 6 AA Batteries (not included)
Earphone Jack 3.5 mm mini-jack Socket Functions
Sensitivity Adjuster; Metal-
Type Discriminator; All-Metal
Indicator; Tone Adjuster;
Volume Control; Target Locator;
Low Battery Indicator; Auto
Ground Balance; Mode Selector
Page 4 For technical questions, please call 1-888-866-5797. Item 62307
SAFETY OPERATION MAINTENANCESETUP
Components & Controls
Figure 1
Lower Leg (10)
Upper Leg (13)
Control Box
Battery
Cover
(21)
Handle (6)
Arm Support (12)
Earphone Jack
Search Coil (19)
Knob Bolt (18)
Lock Nut (16)
Page 5For technical questions, please call 1-888-866-5797.Item 62307
SAFETYOPERATIONMAINTENANCE SETUP
Operating Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
Tool Set Up
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn the Power Switch of the tool off and remove the batteries before adjusting tool
or installing accessories.
Figure 2
Lock Nut (16)
Tapered Bushing (15)
Threaded Insert (20)
Upper Leg (13)
Note: When adjusting the length of the Metal
Detector, be careful to keep the plastic Tapered
Bushing (15) in place with the smaller end
toward the smaller end of the Lock Nut (16).
1. To attach the two legs, slide the Threaded Insert
(20) over the end of the Upper Leg (13), making
sure that the tabs inside the Insert lock into the cut-
outs at the end of the leg. Insert the tapered end
of the Tapered Bushing (15) into the Lock Nut (16)
and lightly thread the Nut over the Threaded Insert.
Slide the Lower Leg (10) into the Lock Nut. To
take the slack off the cord, rotate the Lower Leg,
enabling the cord to wind around the two Legs.
Rotate the Nut counterclockwise to lock the Legs.
2. To adjust the length of the Legs, turn the Lock
Nut in a clockwise direction, slide the Lower Leg
to the desired extension length and turn the Nut
counterclockwise to secure the Legs together.
3. To adjust the angle of the Search Coil, loosen
the Coil Pivot (17) and Knob Bolt (18) and tilt it.
Position the Search Coil so that it is parallel to
the ground when holding the unit by the Handle
with your arm in the Arm Support (12).
4. If needed, re-adjust the length of the Metal Detector
after adjusting the position of the Search Coil.
Batteries
1. Make sure the On/Off/Volume control is set
to OFF. Slide the Battery Cover (21) off of
the back of the Control Box and insert six AA
batteries (sold separately), aligning polarities
as indicated. Replace the Battery Cover.
Note: Use only fresh batteries of the required size
and type. Do not mix old and new batteries, different
types (standard, alkaline, or rechargeable), or
rechargeable batteries of different capacities.
Always remove old or weak batteries. Batteries can
leak chemicals that can destroy electric parts.
If you do not plan to use the detector for a
week or more, remove the batteries.
Dispose of spent batteries according to your
local, state and federal regulations.
Note: You can extend battery life by using earphones,
which require less power than the built-in speaker.
Note: Replace batteries when the LOW BATT
light turns on in the View Meter (1).
Headphones
1. Insert headphone (sold separately)
jack into Earphone socket.
2. To protect your hearing, set the On/Off/
Volume Control to OFF before using the
earphones, then adjust the level to the
lowest setting before you begin listening.
3. Do not listen at extremely high volume
levels. Extended high volume listening
can lead to permanent hearing loss.
4. Do not wear headphones while operating
your detector near high-trafffic areas.
Pay attention to traffic safety.
Page 6 For technical questions, please call 1-888-866-5797. Item 62307
SAFETY OPERATION MAINTENANCESETUP
Functions and Indicators
On/Off/Volume - Turns on power to the
unit and sets the sound level.
SENS - Sets the sensitivity level of the unit. Zero
setting is the lowest level and 10 is the highest.
For general use, set the sensitivity to a higher
position. In a mineralized area, or area with electrical
interference, a lower setting may be more effective.
MODE - Sets the unit to three modes:
DISC, ALL METAL and TONE.
Target Button - It is used with ALL METAL
mode to pinpoint a target object’s location.
DISC/TONE - Adjustment knob for metal identification.
View Meter - Registers signal strength
when a metal is detected.
- DISC, ALL METAL, and TONE are motion modes. You
have to move the Search Coil to find your target object.
- Target Mode is for pinpointing the location of
the item when the item is below the surface. Figure 3
Before Getting Started
Before beginning an outside search, you must test
the unit with samples of metal. Use the following:
• an iron nail
• a five-cent coin (nickel)
• a one-cent penny (zinc coin, after 1982)
• a 25-cent silver quarter.
Place the Metal Detector on a wooden or plastic table
with the Search Coil face up. Make sure the table is
away from TVs, computers, or any device that can
cause electromagnetic interference. See Figure 4.
Figure 4
NOTE: Be sure to remove any watches, rings, or
other metal objects on your fingers and hands.
Turn on the Metal Detector and set the VOLUME
dial to the middle position. Set the MODE switch
to the middle (ALL METAL). See Figure 5.
Figure 5
Sweep the metal samples 2 to 3 inches or more
above the center of the Search Coil. The Metal
Detector will respond to each with a “DI” tone and
the pointer on the View Meter will swing to the right.
NOTE: Be sure to move the samples, as
the Detector is in motion mode. Otherwise
the Detector will not respond.
NOTE: Adjusting the SENS dial from “0” to
“10” will increase the Detector’s sensitivity.
Use the DISC/TONE dial to search for
specific metals by having it not detect
(“differentiate”) other kinds of metals.
Gold
100
Iron Zinc
Aluminum/
Silver
Nickel
Copper
DISC/TONE Knob
Figure 6
On/Off/
VOLUME
(2)
SENS
(2)
DISC/TONE
(2)
MODE
Switch
Headphone
Input
(11)
View
Meter
(1)
LOW
BATTERY
Indicator
Target
Button
Page 7For technical questions, please call 1-888-866-5797.Item 62307
SAFETYOPERATIONMAINTENANCE SETUP
For example, when the DISC/TONE dial is set to “0”
the Detector will respond to ANY metal object with
a “DI” tone and the meter will swing to the right.
1. To adjust the settings to PREVENT the
unit from detecting iron metals, set the
VOLUME and SENS dials at midpoint.
2. Then set MODE switch to DISC and the DISC/
TONE dial to about “9 o’clock.” See Figure 7.
Figure 7
3. As a test, sweep the iron nail sample 2 to 3
inches above the search coil. The unit will NOT
respond (the meter pointer won’t swing and the
unit is silent.) Sweeping the other samples should
produce the “DI” tone and make the pointer move.
4. To have the unit differentiate nickel metals, set
the DISC/TONE to about “11 o’clock.” See Figure
8. Sweep the nickel in front of the Search Coil;
the unit will not respond to the nickel or to the
iron nail. But it will respond the other samples.
Figure 8
5. To prevent the zinc penny from being
detected, set the DISC/TONE dial to
about “1 o’clock” See Figure 9.
Figure 9
By now, only the silver quarter should be detected.
NOTE: The discrimination position of aluminum is
similar to silver. So both metals will be detected at
the same time. The discrimination position of gold is
similar to the nickel setting.
The Metal Detector can also be adjusted
to detect all metals, yet signal a specific
metal differently from the others.
6. Set the MODE switch to TONE and the VOLUME
and SENS dials to their halfway points.
7. Set the DISC/TONE dial to about “9 o’clock” (the
iron setting). Sweep the nail 2-3 inches above the
Search Coil. The unit will make a short “KO” sound
and the meter will swing to the right. Sweeping any
of the other samples will produce the “DI” sound.
8. Rotate the DISC/TONE dial to mark the other
specific metals with the “KO” sound.
To use the Metal Detector to “target’ specific
metals, set the MODE switch to ALL METAL and
the VOLUME and SENS dials to the middle.
9. Press the red TARGET Button (6) on the panel.
Set the silver quarter about five inches from
the center of the Search Coil. The unit will
make a continuous long tone and the meter
will swing to the right. See Figure 10.
Target
Button (6)
25¢
Figure 10
10. Keeping the coin still, release the TARGET button.
Wait two seconds, then press down the TARGET
button again; the unit’s sensitivity will be reduced.
11. NOTE: Even though the coin’s location has not
changed, when the unit’s sensitivity is reduced
the Metal Detector will stop sounding a tone.
12. Repeat the above operation, bringing the
coin closer to the Detector and making it
sound a tone. Once operating an outside
search, you can use the TARGET button
to determine the location of the metal.
Page 8 For technical questions, please call 1-888-866-5797. Item 62307
SAFETY OPERATION MAINTENANCESETUP
General Operating Instructions
Once all the proper tests and adjustments
have been made, the Metal Detector
is ready to be used outdoors.
1. When first searching, set the Mode button to
ALL METAL and SENS to the highest level.
2. Adjust the VOLUME to the desired level.
Figure 11
3. Sweep the Search Coil (19) slowly back and
forth in an arc, keeping it about 1/2” to 2”
from the ground. See Figure 11, above.
4. If you hear a beeping noise or see the
needle jump to the right on the View Meter),
you have located a metal object.
5. Use the TARGET button to pin-point the object. Then
use the DISC or TONE modes to determine what kind
of metal it is and whether you wish to dig out the item.
6. To prevent accidents, turn off the tool and
remove the batteries after use. Clean, then
store the tool indoors out of children’s reach.
Tips for Searching in Different Environments
There are many factors which influence the sensitivity
and accuracy of detecting objects, including the
angle, depth, size and oxidation of the target
object. Various soil or seawater conditions, and
also electromagnetic and electrical interference
surrounding the target can also affect readings.
Other metal detectors in the area will also cause
interference, so when there is more than one unit
in use, be sure they are at least 10 yards apart.
Some ways to help increase success are:
1. If there is interference from similar metal
detectors in your searching area, lower the
SENS setting to stop the interference.
2. If there is interference from electrical cables,
TV, radio, or other electrical devices in your
searching area, lower the SENS setting.
3. When searching in highly mineralized areas, the
unit may sound even if there is no metal. Lower the
SENS setting, set the DISC to high and increase
the distance of the Search Coil from the ground until
the false signal disappears. To set the DISC setting,
place a test metal object in highly mineralized earth
or wet sand and adjust the setting before beginning.
4. When searching in a trash area, set the DISC
to the middle setting so that the unit can reject
most invaluable metals such as nails, bottle
caps, cans, and small pieces of iron.
5. Move all metal digging tools when searching.
6. The SENS level is generally opposite the DISC
setting. The higher the sensitivity level is, the
worse the discrimination will be. You can lower
the sensitivity to have better discrimination.
Page 9For technical questions, please call 1-888-866-5797.Item 62307
SAFETYOPERATIONMAINTENANCE SETUP

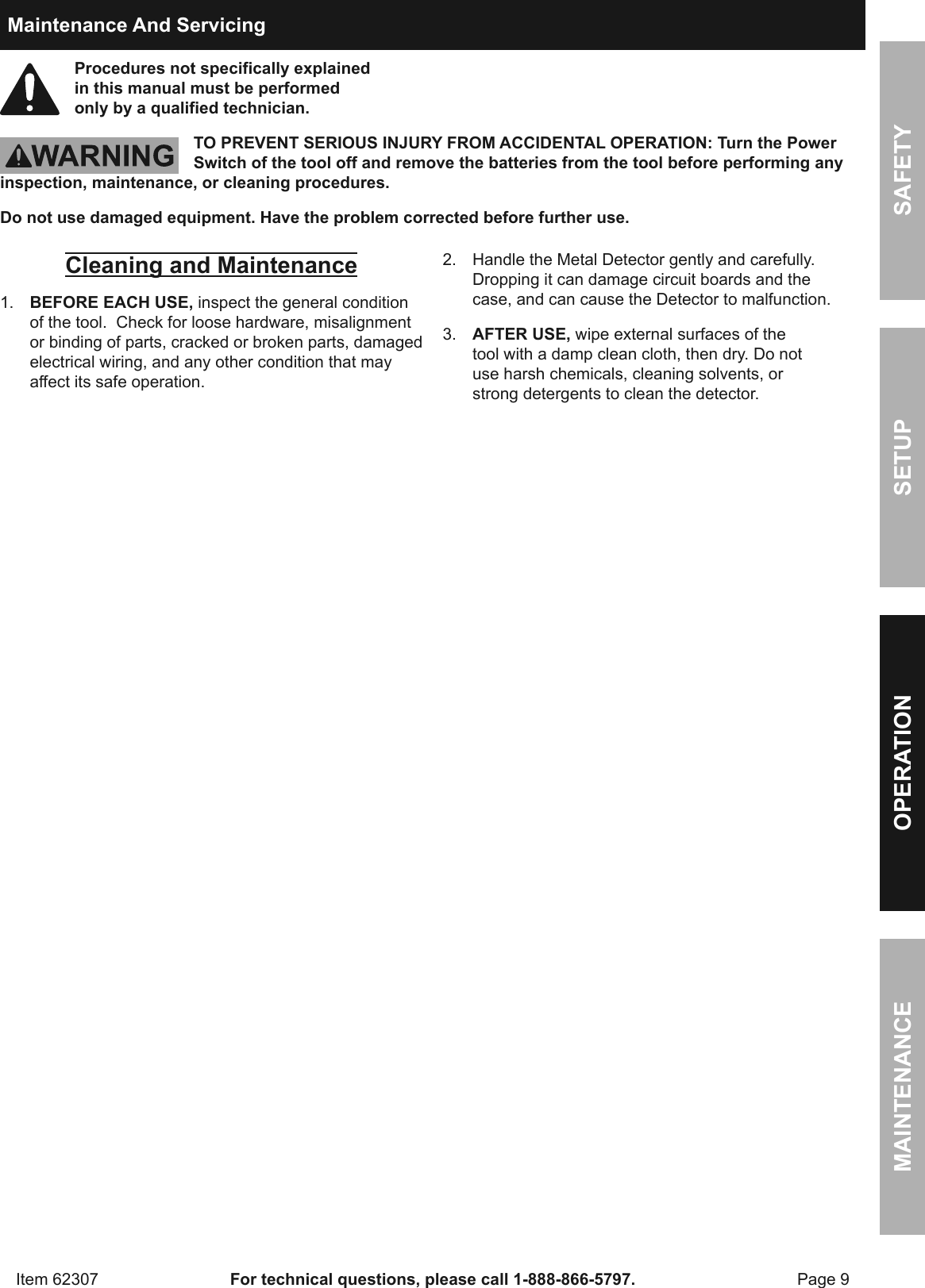

Maintenance And Servicing
Procedures not specifically explained
in this manual must be performed
only by a qualified technician.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION: Turn the Power
Switch of the tool off and remove the batteries from the tool before performing any
inspection, maintenance, or cleaning procedures.
Do not use damaged equipment. Have the problem corrected before further use.
Cleaning and Maintenance
1. BEFORE EACH USE, inspect the general condition
of the tool. Check for loose hardware, misalignment
or binding of parts, cracked or broken parts, damaged
electrical wiring, and any other condition that may
affect its safe operation.
2. Handle the Metal Detector gently and carefully.
Dropping it can damage circuit boards and the
case, and can cause the Detector to malfunction.
3. AFTER USE, wipe external surfaces of the
tool with a damp clean cloth, then dry. Do not
use harsh chemicals, cleaning solvents, or
strong detergents to clean the detector.
Page 10 For technical questions, please call 1-888-866-5797. Item 62307
SAFETY OPERATION MAINTENANCESETUP

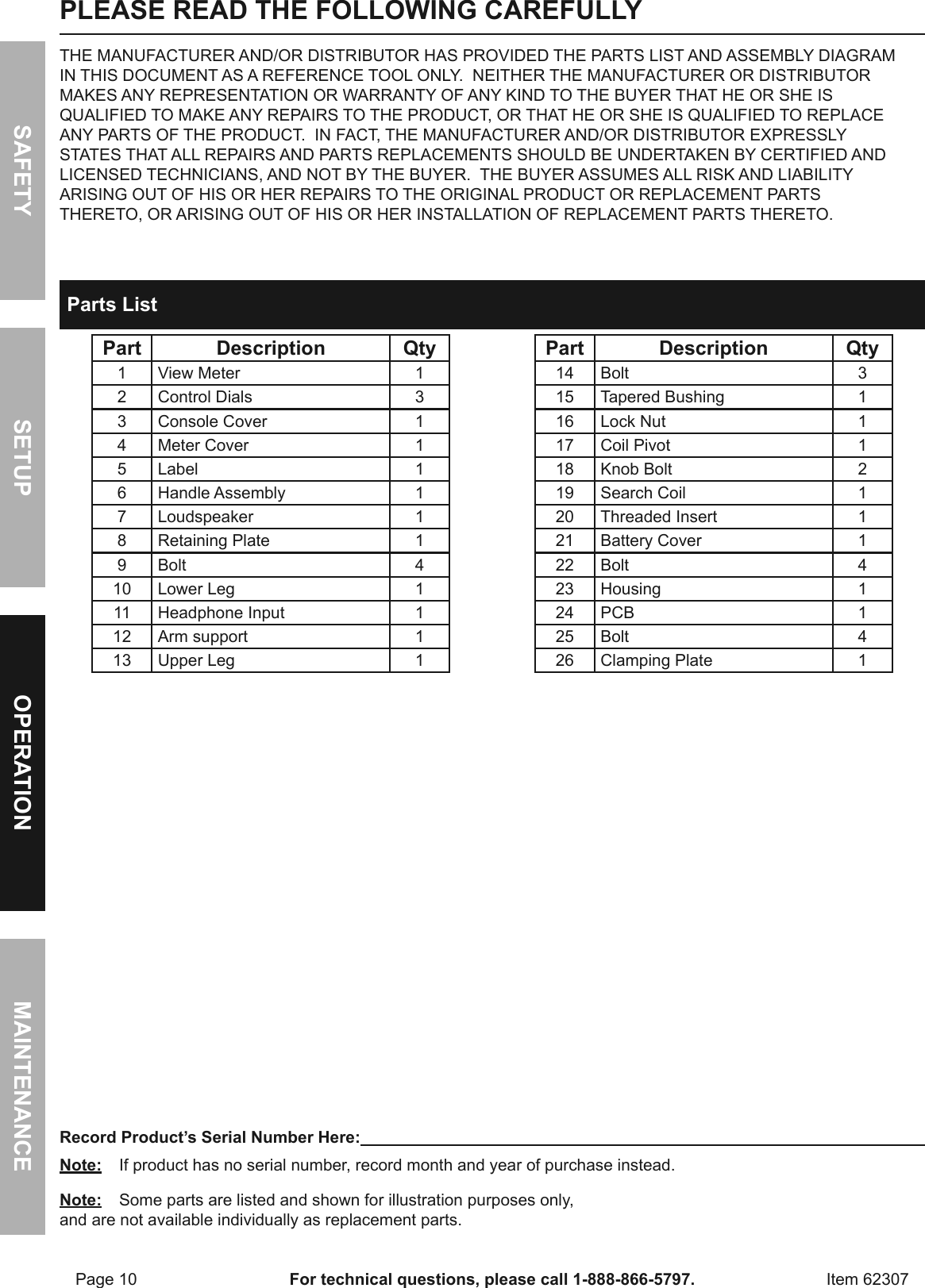

Parts List
Part Description Qty
1 View Meter 1
2 Control Dials 3
3 Console Cover 1
4 Meter Cover 1
5 Label 1
6Handle Assembly 1
7 Loudspeaker 1
8 Retaining Plate 1
9 Bolt 4
10 Lower Leg 1
11 Headphone Input 1
12 Arm support 1
13 Upper Leg 1
Part Description Qty
14 Bolt 3
15 Tapered Bushing 1
16 Lock Nut 1
17 Coil Pivot 1
18 Knob Bolt 2
19 Search Coil 1
20 Threaded Insert 1
21 Battery Cover 1
22 Bolt 4
23 Housing 1
24 PCB 1
25 Bolt 4
26 Clamping Plate 1
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts.
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS DOCUMENT AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Page 11For technical questions, please call 1-888-866-5797.Item 62307
SAFETYOPERATIONMAINTENANCE SETUP
Assembly Diagram
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • 1-888-866-5797
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
