Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright© 2016 by Harbor Freight Tools®. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
REV 16d
Page 2 For technical questions, please call 1-888-866-5797. Item 63155
SAFETY INSTALLATION PARTS LIST
Table of Contents
Safety ......................................................... 2
Specifications ............................................. 3
Installation .................................................. 4
Parts List.................................................... 11
Warranty .................................................... 12

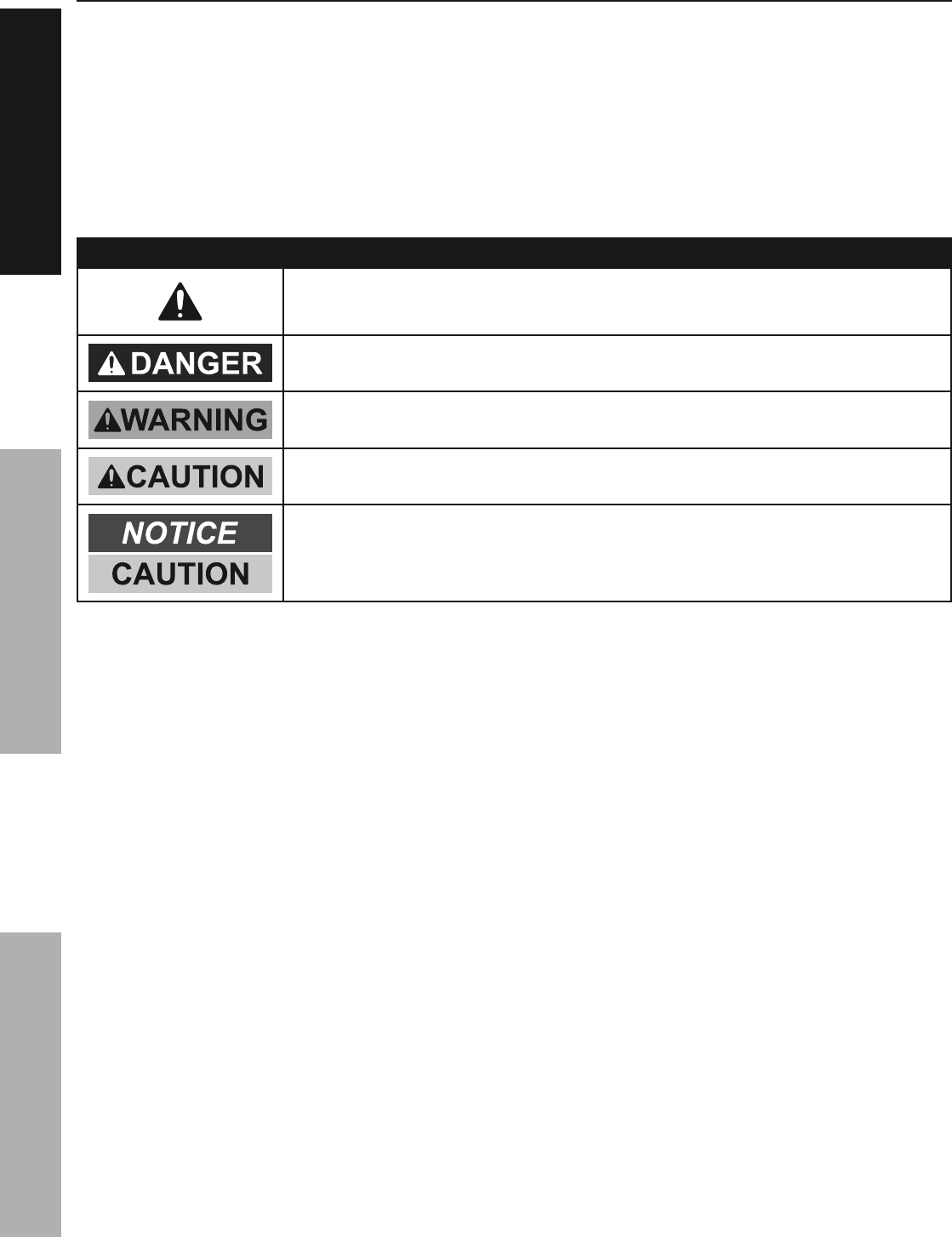

WARNING SYMBOLS AND DEFINITIONS
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
Page 3For technical questions, please call 1-888-866-5797.Item 63155
SAFETYINSTALLATIONPARTS LIST
IMPORTANT SAFETY INFORMATION
Failure to heed these warnings may result in personal injury and/or property damage:
1. Do not exceed listed weight capacity. Be aware of
dynamic loading! Sudden load movement may
briefly create excess load causing product failure.
2. Do not mount to hollow wall, gypsum board, or
similar material that will not support the weight of
the TV. Mount only to structurally-sound 2″ x 4″
or larger wood stud or concrete/brick walls that
can safely support combined weight of TV Mount,
TV and all attached hardware and components.
3. Verify that mounting surface has no hidden
utility lines before drilling or driving screws.
4. Wear ANSI-approved safety goggles and
heavy-duty work gloves during installation.
5. Inspect before installing; do not mount to wall
if parts are missing, loose or damaged.
6. Assemble and install only according to
these instructions. Improper assembly and
installation can create hazards and lead to
personal injury and property damage.
7. Keep installation area clean and well lit.
8. Do not assemble or install when tired or when
under the influence of drugs or medication.
9. Weight capacity and other product capabilities apply
to properly and completely assembled product only.
10. Use as intended only. Use to mount
VESA compliant TV to vertical wall only. Do not
mount overhead or to non-vertical surface.
11. This product is not a toy.
Do not allow children to play with or near this item.
12. Maintain product labels and nameplates.
These carry important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
13. The warnings, precautions, and instructions
discussed in this instruction manual cannot
cover all possible conditions and situations
that may occur. It must be understood by the
operator that common sense and caution are
factors which cannot be built into this product,
but must be supplied by the operator.
14. Carefully read TV instructions before
installation. Harbor Freight Tools is not
responsible for damage caused by failure to
follow TV mounting instructions, improper
installation, or improper/loose hardware.
SAVE THESE INSTRUCTIONS.
Specifications
Weight Capacity 130 lb
TV Size Range about 37″ to 80″ diagonal
VESA Compliance (in mm)
100 x 100
200 x 100 
200 x 200
300 x 300
400 x 200 
400 x 400
600 x 400 
Page 4 For technical questions, please call 1-888-866-5797. Item 63155
SAFETY INSTALLATION PARTS LIST
Installation Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.

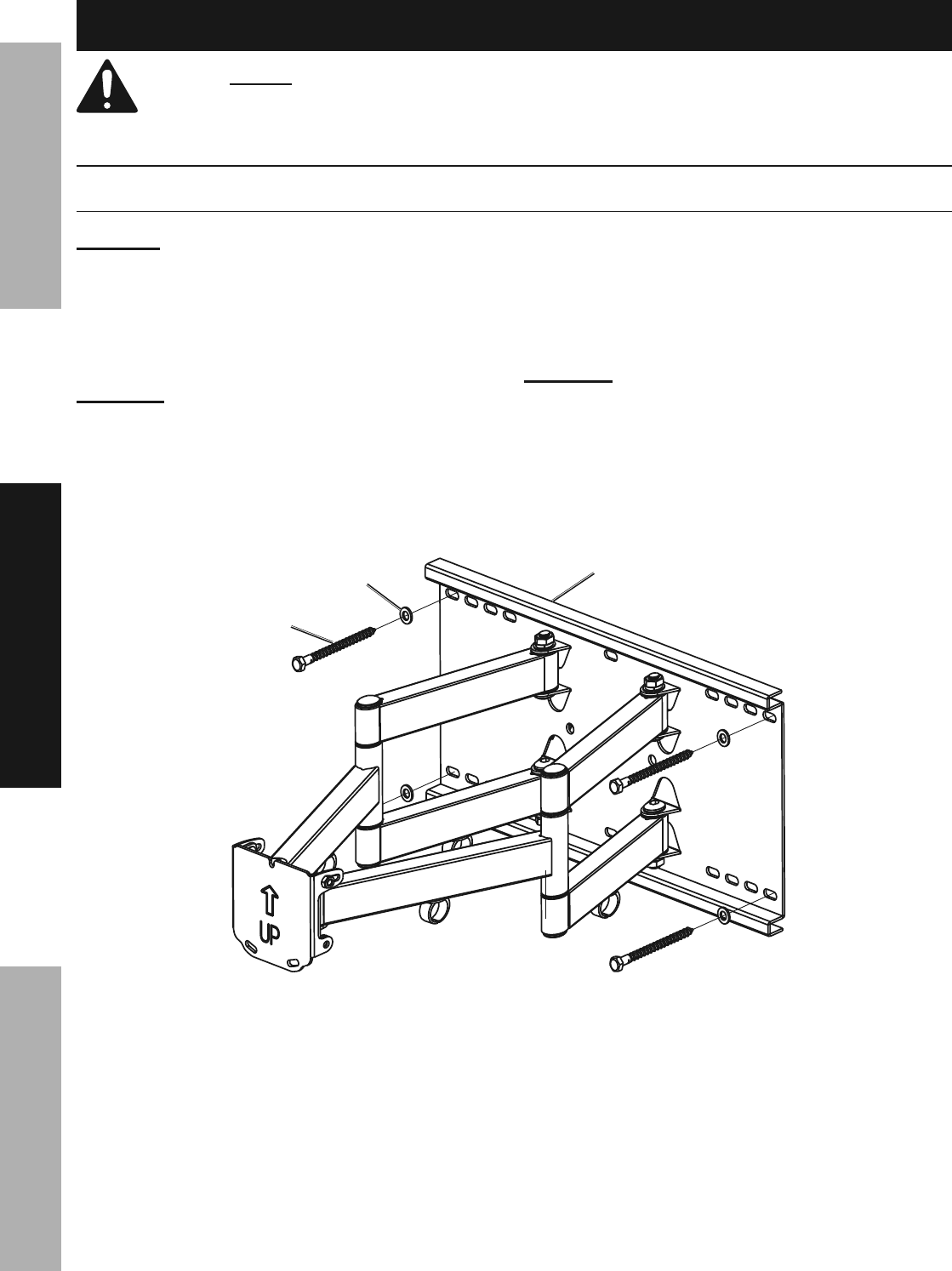

Mount Wall Mount
Wood Studs
CAUTION! Do not use included hardware
on steel stud wall. If mounting to a steel
stud wall, use appropriate hardware.
1. Verify wood studs are at least 16″ apart.
Use a stud finder (sold separately) to find two
adjacent studs 16″ apart. Mark locations of studs.
WARNING! Verify that mounting surface has no
hidden utility lines before drilling or driving screws.
2. Set Wall Mount (1) against wall at desired height.
Place a level (sold separately) on top of Wall Mount,
adjust until level. Mark locations of mounting holes.
3. Drill four 3/16″ holes 3-1/2″ deep into
studs at marked locations.
WARNING! Only mount Wall Mount to wood studs.
Do not mount Wall Mount to drywall or plaster.
4. Use four Wall Lag Bolts (17) and
four Wall Washers (19) to mount
Wall Mount to wood studs.
Wall Lag
Bolt (17)
Wall Washer
(19)
Wall
Mount (1)
Page 5For technical questions, please call 1-888-866-5797.Item 63155
SAFETYINSTALLATIONPARTS LIST
Brick or Concrete
CAUTION! Do not use included hardware
on cinder block wall. If mounting to a cinder
block wall, use appropriate hardware.
1. Set Wall Mount (1) against wall at desired height.
Place a level (sold separately) on top of Wall Mount,
adjust until level. Mark locations of mounting holes.
2. Using a 3/8″ carbide tip masonry bit, drill four
holes 3-1/2″ deep at marked locations.
3. Insert Concrete Wall Anchors (18) into holes,
making sure they are flush with wall surface.
Brick or
Concrete
Concrete Wall
Anchor (18)
3-1/2″
WARNING! Concrete Wall Anchors must be set firmly
into concrete or masonry. If mounting to a masonry
wall covered with drywall/plaster, counter bore a hole
through drywall/plaster around mounting hole locations.
Brick or
Concrete
Plaster/
Drywall
Concrete Wall
Anchor (18) 3-1/2″
4. Use four Wall Lag Bolts (17) and
Wall Washers (19) to mount Wall Mount to wall.
Wall Lag
Bolt (17)
Wall Washer
(19)
Wall
Mount (1)
Page 6 For technical questions, please call 1-888-866-5797. Item 63155
SAFETY INSTALLATION PARTS LIST
Mount TV Plate to TV
WARNING! To reduce risk of electric shock, unplug TV before threading bolts into TV’s back panel.
NOTICE: Consult TV owner’s manual before attaching this Mount. Harbor Freight Tools is not responsible for
damage caused by failure to follow TV mounting instructions, improper installation, or improper/loose hardware.
1. Cover TV screen with a towel or other soft material
and tilt it against the wall or another solid surface.
Do not lay TV face down.
2. Consult TV Owner’s Manual to determine TV’s
VESA mounting pattern and hardware requirements.
3. Mounting Hardware:
a. Use mounting hardware that came with the TV, or
b. If the TV did not come with mounting hardware,
select from included TV Bolts, TV Washers and
TV Spacers (see Parts List on page 11).
WARNING! To prevent serious injury, do not use
hardware that does not match the TV’s hardware,
that is too long or too short, or overtighten
the hardware. Doing so may damage the
TV, create a shock hazard by electrifying the
hardware/mount, and/or cause the TV to fall.
4. Select Mounting Instructions below
according to TV’s mounting pattern.

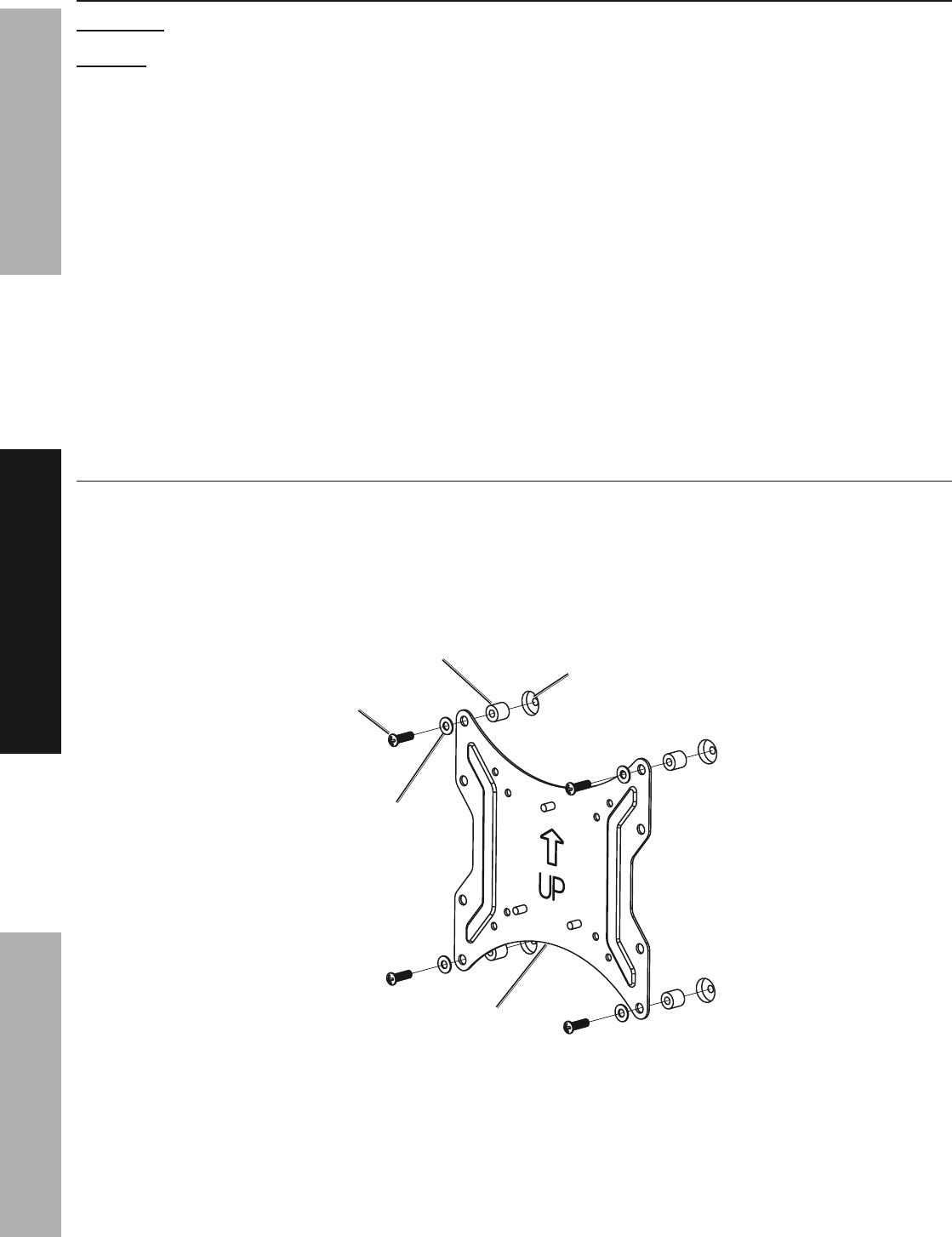

Mounting Instructions for VESA 100 x 100, 200 x 100, 200 x 200
Attach TV Plate (2) to Mounting Holes on TV using appropriate TV Bolts
and TV Washers. Use TV Spacers if necessary.
TV Spacer (13 or 14)
(if necessary)
TV Plate
(2)
Mounting
Hole on TV
TV Washer
(10 - 12)
TV Bolt
(4 - 9)
Page 7For technical questions, please call 1-888-866-5797.Item 63155
SAFETYINSTALLATIONPARTS LIST

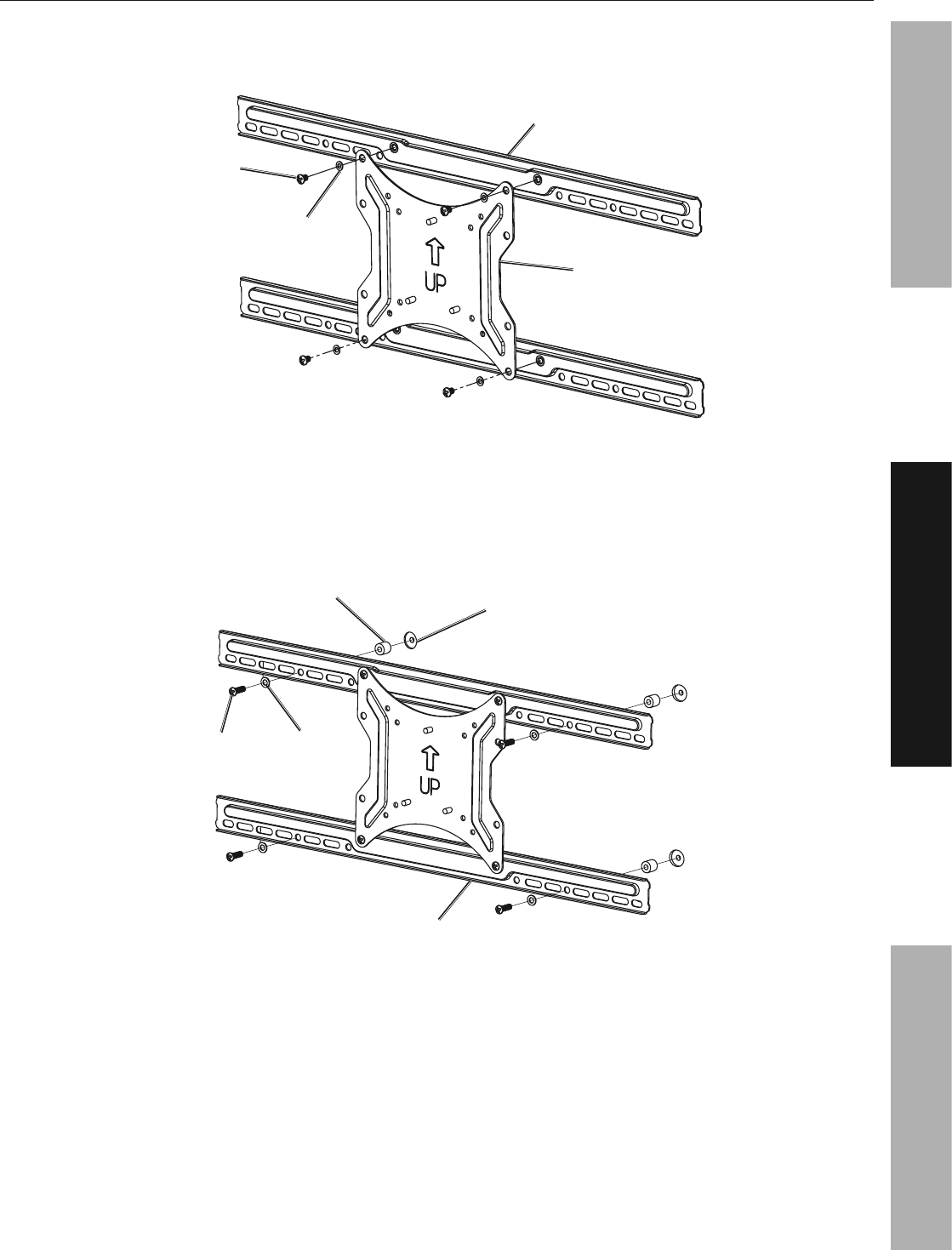

Mounting Instructions for VESA 400 x 200
1. Attach TV Plate (2) to Horizontal Bars (20), using Bar Bolts (22) and Bar Washers (23).
Horizontal
Bar (20)
TV Plate
(2)
Bar Washer
(23)
Bar Bolt
(22)
2. Attach Horizontal Bars to Mounting Holes on TV using appropriate
TV Bolts and TV Washers. Use TV Spacers if necessary.
TV Spacer (13 or 14)
(if necessary) Mounting
Hole on TV
TV Washer
(10 - 12)
TV Bolt
(4 - 9)
Horizontal
Bar
Page 8 For technical questions, please call 1-888-866-5797. Item 63155
SAFETY INSTALLATION PARTS LIST

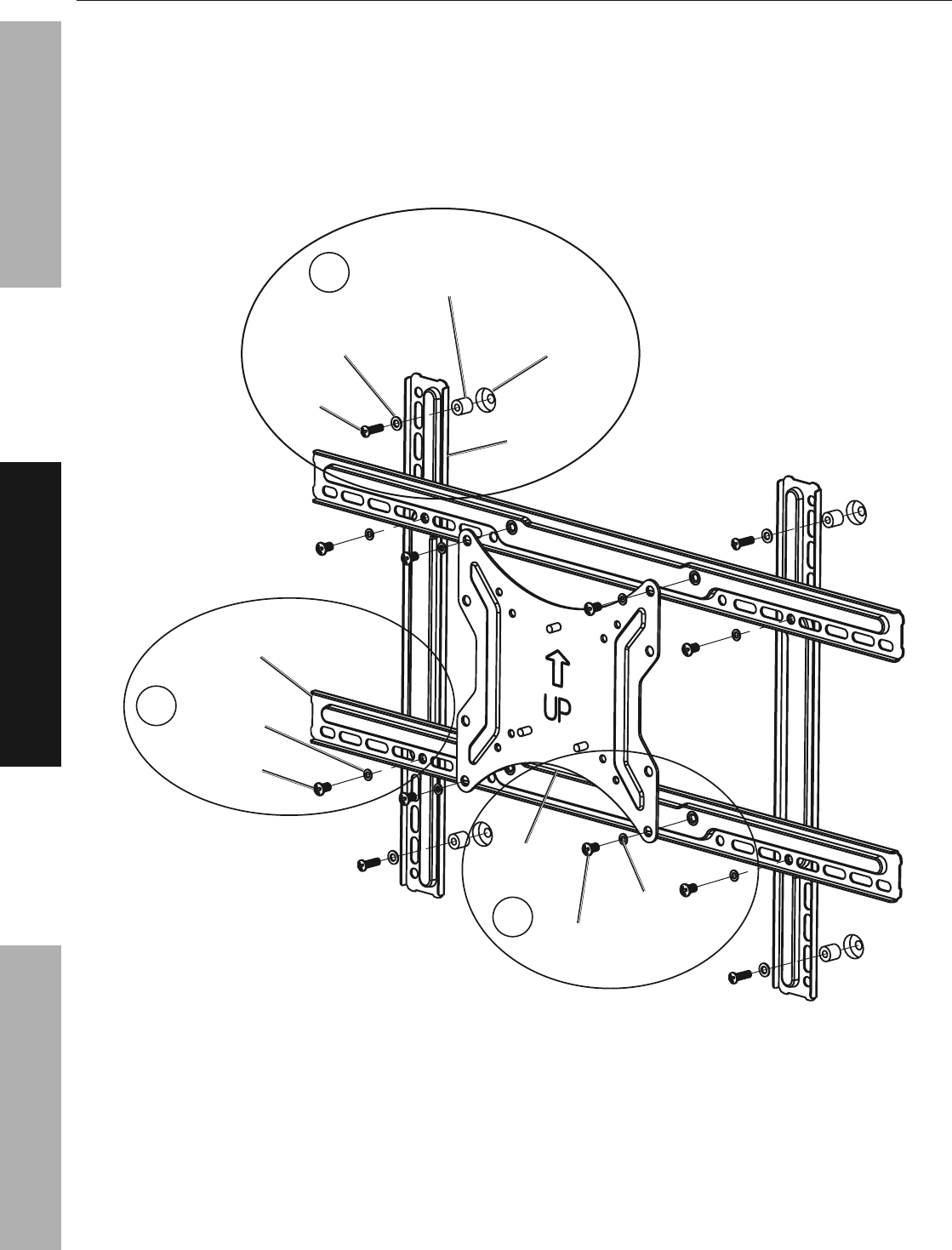

Mounting Instructions for VESA 300 x 300, 400 x 400, 600 x 400
1. Attach Vertical Bars (21) to Mounting Holes
on TV using appropriate TV Bolts and
TV Washers. Use TV Spacers if necessary.
2. Attach Horizontal Bars (20) to Vertical Bars,
using Bar Bolts (22) and Bar Washers (23).
3. Attach TV Plate (2) to Horizontal Bars, using
Bar Bolts (22) and Bar Washers (23).
Horizontal
Bar (20)
Vertical
Bar (21)
TV Plate
(2)
Bar
Washer
(23)
Bar Bolt
(22)
Bar Bolt
(22)
TV Bolt
(4 - 9)
TV Washer
(10 - 12)
TV Spacer (13 or 14)
(if necessary)
Mounting
Hole on TV
Bar
Washer
(23)
1
2
3
Page 9For technical questions, please call 1-888-866-5797.Item 63155
SAFETYINSTALLATIONPARTS LIST

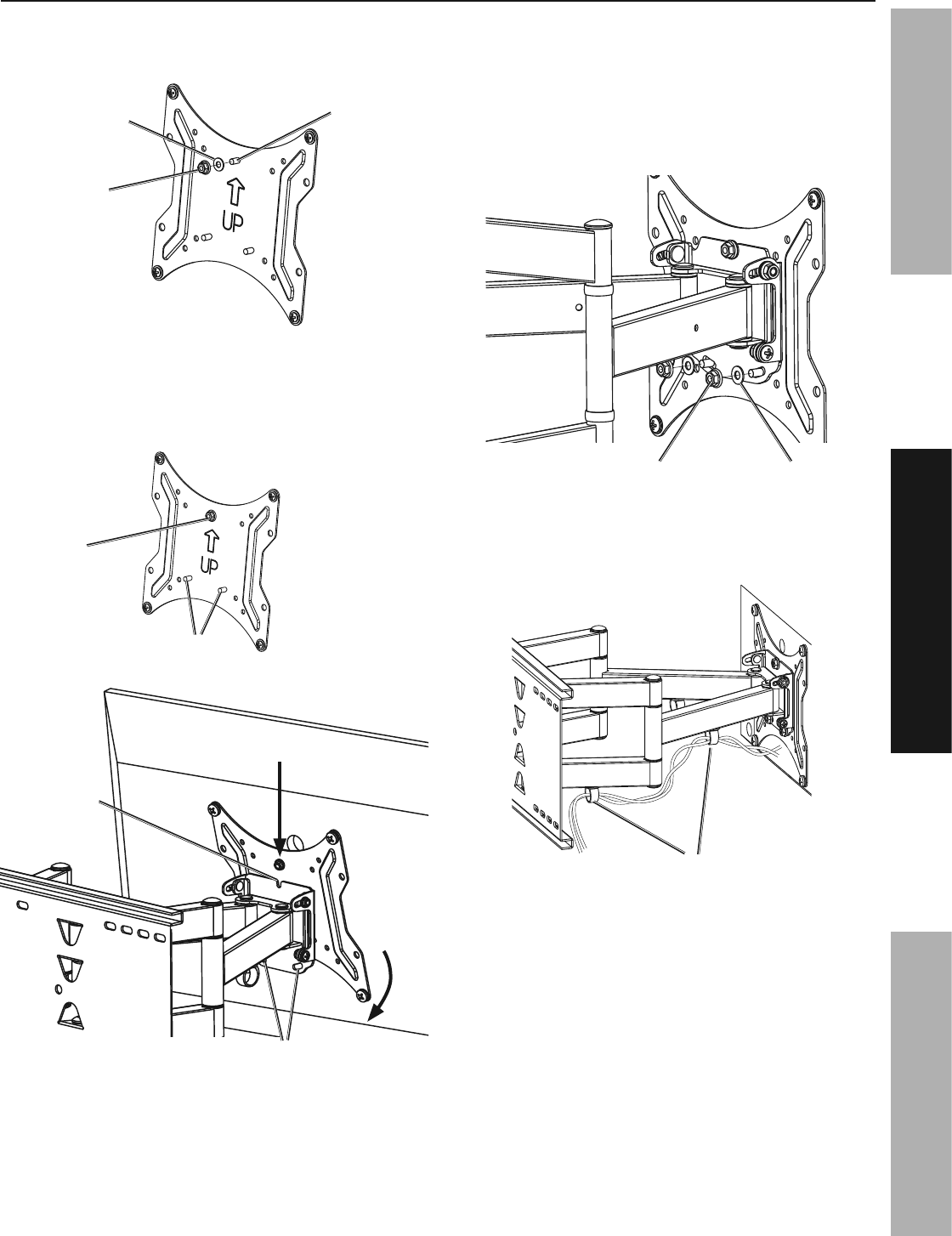

Mount TV to Wall Mount
1. Attach TV Plate Washer (16) and Nut (15) to Upper
Post using included Wrench. Do not tighten Nut.
TV Plate
Nut (15)
TV Plate
Washer (16)
Upper
Post
2. Using an assistant, lift TV, slide TV Plate
Nut over Notch on TV Mount and route
Lower Posts through Lower Post Holes.
Lower
Posts
Notch
Lower
Post Holes
TV Plate
Nut
3. Attach TV Plate Washers (16) and
Nuts (15) to Lower Posts using included
Wrench. Do not tighten Nuts.
4. Level TV, then tighten Nuts on Upper
and Lower Posts securely.
TV Plate
Washer (16)
TV Plate
Bolt (15)
5. Route TV wires through clips.
Clips
Page 10 For technical questions, please call 1-888-866-5797. Item 63155
SAFETY INSTALLATION PARTS LIST
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST IN THIS MANUAL
AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY
REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO
MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS
OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES
THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts.
Adjustment
1. Adjust Tilt if desired:
a. Loosen Tilt Adjustment Nuts on Wall Mount
(behind TV Plate) with included Wrench.
b. Adjust tilt.
c. Tighten Tilt Adjustment Nuts.
Note: Gently move the TV when changing its position.
Do not force it or press on the screen directly.
Tilt Adjustment
Nuts
Page 11For technical questions, please call 1-888-866-5797.Item 63155
SAFETYINSTALLATIONPARTS LIST

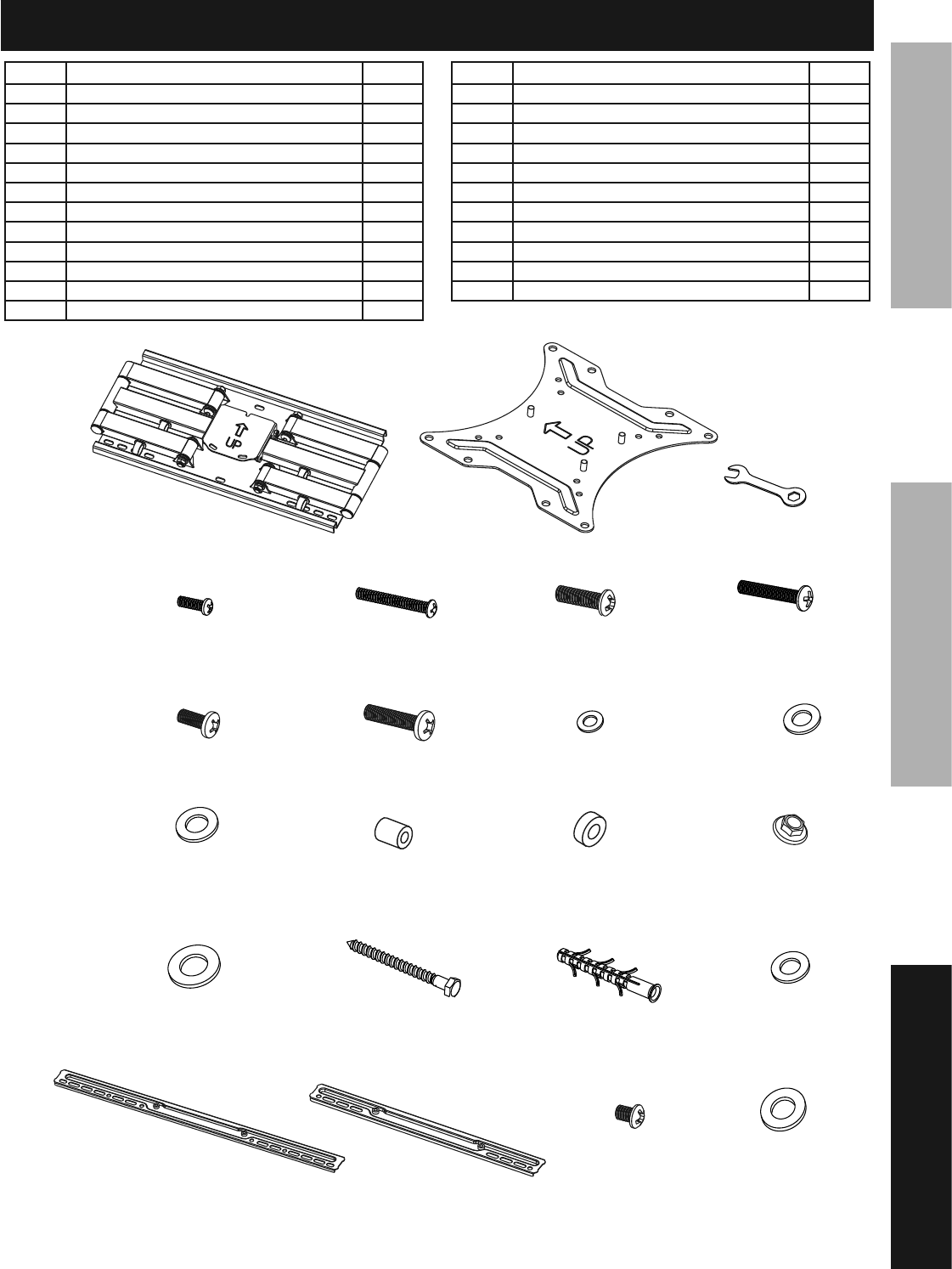

Parts List
Part Description Qty
1 Wall Mount 1
2 TV Plate 1
3 Wrench M6 1
4TV Bolt M4 x 12 4
5TV Bolt M4 x 30 4
6TV Bolt M6 x 20 4
7TV Bolt M6 x 35 4
8TV Bolt M8 x 20 4
9TV Bolt M8 x 35 4
10 TV Washer M4 4
11 TV Washer M6 4
12 TV Washer M8 4
Part Description Qty
13 TV Spacer M4 4
14 TV Spacer M6/M8 8
15 TV Plate Nut M6 3
16 TV Plate Washer M6 3
17 Wall Lag Bolt M8x90 6
18 Concrete Wall Anchor M10x80 6
19 Wall Washer 6
20 Horizontal Bar 2
21 Vertical Bar 2
22 Bar Bolt M6x8 8
23 Bar Washer M6 8
1 2 3
4
8 9 10 11
12 13 14 15
20 21 22 23
567
16 17 18 19
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • 1-888-866-5797
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

Navigation menu
