Manual For The 63353 10 Ft. X 12 Greenhouse With 4 Vents

User Manual: Manual for the 63353 10 ft. x 12 ft. Greenhouse with 4 Vents 10 ft. x 12 ft. Greenhouse with 4 Vents

Open the PDF directly: View PDF .
Page Count: 32

Shelving unit and pots not included.

Visit our website at: http://www.harborfreight.com

Email our technical support at: productsupport@harborfreight.com

Read this material before using this product.

Failure to do so can result in serious injury.

SAVE THIS MANUAL.

No portion of this manual or any artwork contained herein may be reproduced in

any shape or form without the express written consent of Harbor Freight Tools.

Diagrams within this manual may not be drawn proportionally. Due to continuing

improvements, actual product may differ slightly from the product described herein.

Tools required for assembly and service may not be included.

When unpacking, make sure that the product is intact

and undamaged. If any parts are missing or broken,

please call 1-888-866-5797 as soon as possible.

Save This Manual Keep this manual for the safety warnings and precautions, assembly, operating,

inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual

near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and

the receipt in a safe and dry place for future reference.

Owner’s Manual & Safety Instructions

Greenhouse

12’ L x 10’ W x 10’ 3” H

Owner’s Manual & Safety Instructions

Save This Manual Keep this manual for the safety warnings and precautions, assembly,

operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the

back of the manual near the assembly diagram (or month and year of purchase if product has no number).

Keep this manual and the receipt in a safe and dry place for future reference.

When unpacking, make sure that the product is intact

and undamaged. If any parts are missing or broken,

please call 1-888-866-5797 as soon as possible.

No portion of this manual or any artwork contained herein may be reproduced in

any shape or form without the express written consent of Harbor Freight Tools.

Diagrams within this manual may not be drawn proportionally. Due to continuing

improvements, actual product may differ slightly from the product described herein.

Tools required for assembly and service may not be included.

Read this material before using this product.

Failure to do so can result in serious injury.

SAVE THIS MANUAL.

REV 16j

Page 2 For technical questions, please call 1-888-866-5797. Item 63353

Table of Contents

Safety ......................................................... 3

Specifications ............................................. 4

Assembly .................................................... 5

Maintenance .............................................. 29

Warranty .................................................... 32

Parts List.................................................... 30

WARNING SYMBOLS AND DEFINITIONS

This is the safety alert symbol. It is used to alert you to potential personal injury hazards.

Obey all safety messages that follow this symbol to avoid possible injury or death.

Indicates a hazardous situation which, if not avoided,

will result in death or serious injury.

Indicates a hazardous situation which, if not avoided,

could result in death or serious injury.

Indicates a hazardous situation which, if not avoided,

could result in minor or moderate injury.

Addresses practices not related to personal injury.

Page 3For technical questions, please call 1-888-866-5797.Item 63353

IMPORTANT SAFETY INFORMATION

The warnings, precautions, and instructions discussed in this manual cannot cover all possible conditions

and situations that may occur. The operator must understand that common sense and caution are factors,

which cannot be built into this product, but must be supplied by the operator.

Assembly / Installation Precautions

1. Assemble only according to these instructions.

Improper assembly can create hazards.

2. Wear ANSI-approved safety goggles and

heavy-duty work gloves during assembly.

3. This unit contains pieces with sharp edges.

The machined edges of the aluminum parts

and the ends of the panel clips may be sharp.

Handle all parts carefully.

4. Keep assembly area clean and well lit.

5. Keep bystanders out of the area during assembly.

6. Do not assemble when tired or when under the

influence of alcohol, drugs or medication.

7. Product capabilities apply to properly and

completely assembled product only.

8. Locate the Greenhouse on a flat, level, surface.

A concrete foundation is recommended

for a high-quality installation.

9. WARNING: The brass components of this product

contain lead, a chemical known to the State

of California to cause cancer and birth defects

or other reproductive harm. (California Health

& Safety Code § 25249.5, et seq.)

Use / Service Precautions

1. This product is not a toy. Do not allow

children to play in or climb on this product.

Although this greenhouse does include some caps,

there are still some exposed sharp edges.

In addition, protective covers may fall off in time.

Children must be supervised if

allowed near the greenhouse.

2. SNOW/DEBRIS ACCUMULATION HAZARD.

The heavy weight of accumulated snow or other

debris can cause parts of this greenhouse to buckle

suddenly. Do not allow debris to accumulate on

top of the greenhouse. If snowfall is expected,

place additional supports (not provided) underneath

the Crown. NEVER enter a greenhouse

with accumulated debris on top.

3. Use as intended only.

4. Inspect periodically; replace damaged parts

immediately and do not enter greenhouse

if parts are loose or damaged.

5. For your safety, service and maintenance should

be performed regularly by a qualified technician.

SAVE THESE INSTRUCTIONS.

Page 4 For technical questions, please call 1-888-866-5797. Item 63353

Specifications

Overall Dimensions 12' L x 10' W x 10' 3" H

Window Dimensions 23-1/4" W x 31-1/4" L

Door Dimensions 75-1/2" H x 35-1/2" W x 1-1/4" Thick

Materials Aluminum Frame

Transparent Polycarbonate Sheets

Aluminum Thickness 0.038"

Polycarbonate Sheet Thickness 0.165"

Page 5For technical questions, please call 1-888-866-5797.Item 63353

Assembly

Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this document

including all text under subheadings therein before set up or use of this product.

IMPORTANT–READ THE FOLLOWING CAREFULLY BEFORE PROCEEDING

• The first step in assembly is to assemble a proper base. The greenhouse must be properly

supported to help prevent property damage and injury in the event of strong winds or

inclement weather. Wind and ground conditions may vary from site to site, and may affect

the practicality and effectiveness of anchoring methods substantially. If you have any doubt

regarding the stability of the base/foundation you are to use, consult a professional.

• It is always your responsibility to ensure that the greenhouse is properly anchored.

Harbor Freight Tools cannot be held responsible for personal injury, damage to the greenhouse,

or other property damage that occurs as a result of improperly anchoring the greenhouse.

• Be certain to check with local authorities to obtain all required building permits

and to familiarize yourself with any building codes that may apply.

• Decide on a location for the greenhouse. The location should optimally be a

level, well-lit area that is sheltered from the wind. The door of the greenhouse

should not open towards the prevailing wind, if possible.

IMPORTANT ASSEMBLY TIPS

• Assemble Bolts with their heads facing the outside of the greenhouse, unless stated otherwise.

Tighten Nuts (67) only about 1/4 turn past finger-tight; be careful not to overtighten.

• Lay out all parts by number prior to assembly.

• At least two assistants will be necessary during assembly.

• Assemble on a clear, calm day. Wind will damage the Greenhouse and make assembly difficult.

Page 6 For technical questions, please call 1-888-866-5797. Item 63353

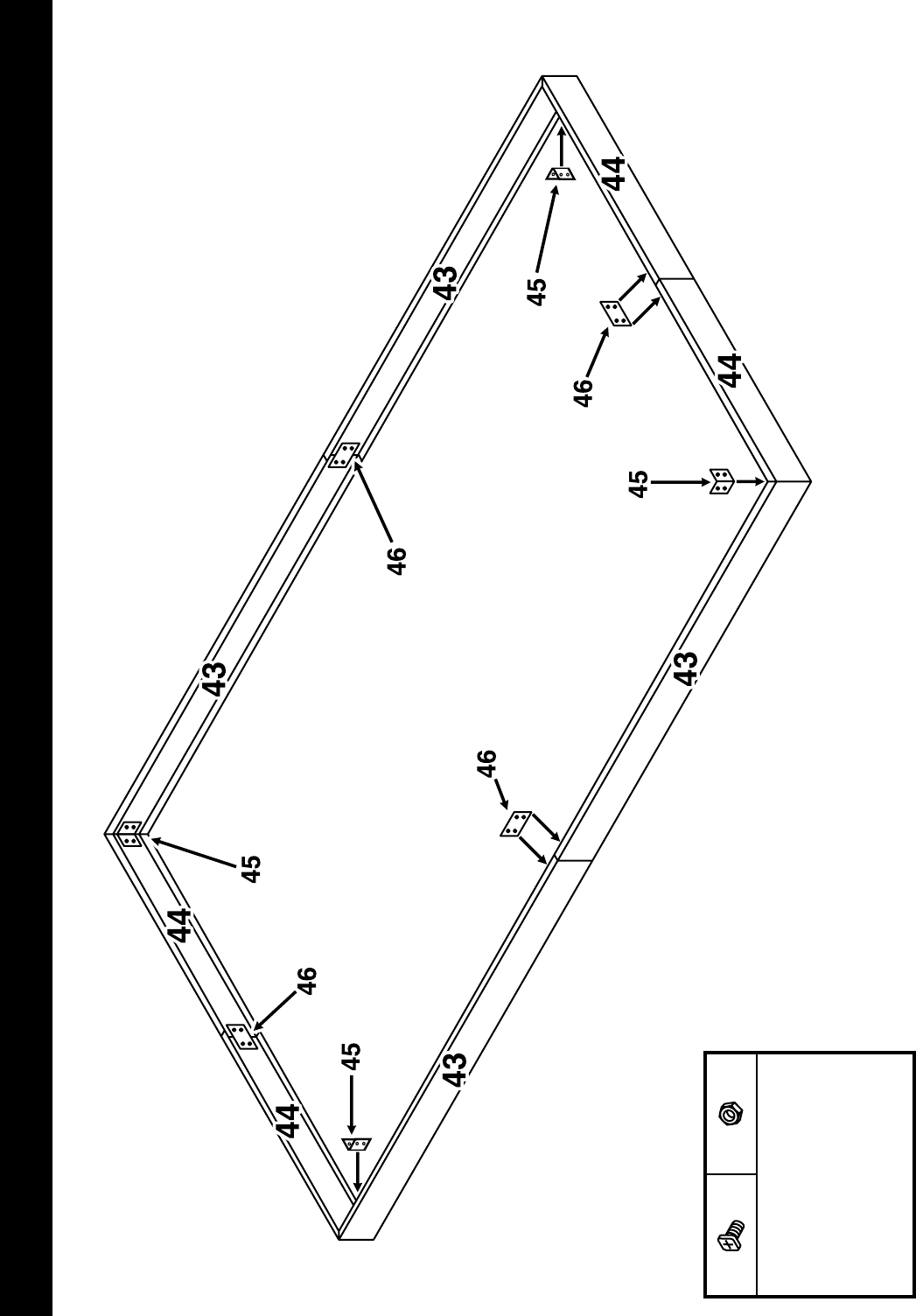

Phase 1: Base Assembly

All parts in this phase

are fastened using

32 Normal Bolts (65)

and 32 Nuts (67).

Page 7For technical questions, please call 1-888-866-5797.Item 63353

Base Assembly Instructions

1. Excavate an area for the base of the greenhouse.

The area must be 10′ 2″ wide by 12′ 2″ long by

5″ deep. The floor of the hole must be level

and square. The diagonal dimensions, from

corner to corner, should each be 15′ 5″.

2. Assemble the Base outside the hole as shown on

facing page. Note that the angled edges of the

Base Plates (43, 44) need to face the corners of

the base. Use Normal Bolts (65), Nuts (67), and

Connectors (45, 46) to secure the pieces together.

3. With assistance, lower the Base into the hole.

The diagonal dimensions,

from outside corner to outside corner,

must be equal for the base to be square.

4. Fill the hole around the outside of the base with soil.

5. This base will need to be filled with about

40 cubic feet of gravel or another appropriate

fill material (not provided). The gravel should

reach up to about 1″ below the lip of the base.

Page 8 For technical questions, please call 1-888-866-5797. Item 63353

Phase 2: Floor Plate Installation

All parts in this phase

are fastened using

16 Normal Bolts (65)

and 16 Nuts (67).

(Front)

(Right)

(Rear)

(Left)

Floor

Plate

Base

Plate

gravel

Hold-down Connector (47)

attachment

a. Slide Connector (47) under lip.

b. Insert Regular Bolt (65).

c. Fasten with Nut (67)

Grey parts are in place before this phase.

Page 9For technical questions, please call 1-888-866-5797.Item 63353

Floor Plate Installation Instructions

gravel

ground Base Plate

(43, 44)

Rear/Side

Floor Plates

(3 – 6)

Front Floor

Plate (1a, 2a)

outside

greenhouse

Cross Section

When placing the Floor Plates (1a–6) on top of

the Base Plates (43, 44), align them as illustrated

above. The lip should extend slightly over the

edge of the Base Plate and the raised flange with

bolt holes should face inside the greenhouse.

2. Place the Front-Left Floor Plate (1a)

on top of the Base Plate (44). Lay the

Front-Right Floor Plate (2a) on top of it and line

up the two holes where the Plates overlap.

3. Fasten the Front Floor Plates (1a, 2a) together,

and secure to the Base Plate (44) using a

Hold-down Connector (47) over one of the

Bolts (65); see inset on facing page.

4. Place the Side Floor Plates (4) on the

Side Base Plates (43) on the front-right

and rear left corners as illustrated. Lay the

Upper Side Floor Plates (3) on top so that the

three holes line up where the Plates overlap.

5. Fasten the Side Floor Plates (3, 4) together,

and secure to the Base Plates (43) using three

Hold-down Connectors (47) on each side

of the greenhouse in the places illustrated;

see illustration and inset on facing page.

6. Lay the Rear-right Floor Plate (6) on top of the

Rear-left Floor Plate (5) so that the two holes

line up where the Plates overlap. Fasten the

Rear Floor Plates (5, 6) together through those holes.

7. Place the assembled Rear Floor Plates

on top of the Base Plates (44).

8. Secure the Rear Floor Plates to the Base Plates

using two Hold-down Connectors (47) in the locations

shown; see illustration and inset on facing page.

Page 10 For technical questions, please call 1-888-866-5797. Item 63353

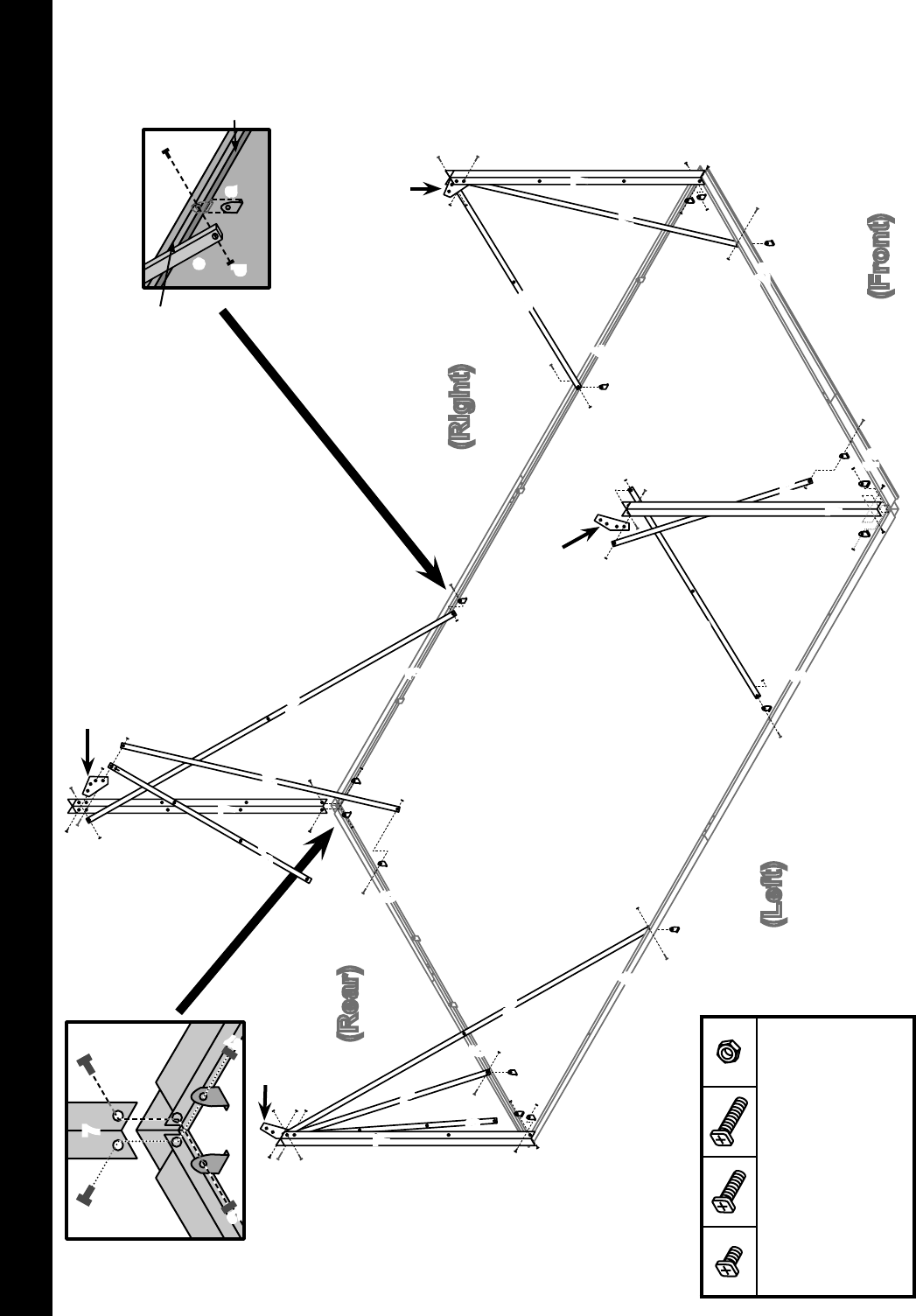

Phase 3: Corner Post Installation

Parts in this phase

are fastened using

10 Normal Bolts (65),

14 Brace Bolts (66),

2 Double Brace Bolts (78),

and 26 Nuts (67).(Front)

(Right)

(Rear)

(Left)

Floor

Plate

Base

Plate

gravel

Hold-down Connector (47)

attachment with Strut (79, 80)

a. Slide Connector (47) under lip.

b. Insert Brace Bolt (66).

c. Slide Strut (79, 80) over Bolt.

d. Fasten with Nut (67)

Grey parts are in place before this phase.

Page 11For technical questions, please call 1-888-866-5797.Item 63353

Corner Post Installation Instructions

1. There are 4 Corner Posts (7) to be attached

to the Floor Plates (1–6). The end with two

holes should be at the bottom, as shown in

the illustration in the center of this page.

2. Attach one Corner Post (7) on the outside of the

right rear Floor Plates (3, 6) using two Normal

Bolts (65), two Hold-down Connectors (47),

and two Nuts (67); see inset on facing page.

731 79

(Rear)

(Right)

(View from inside greenhouse.)

Fasten a Corner Bracket (49) to the top

of the Corner Post (7) over the Rear Floor

Plate (6) using one Normal Bolt (65) for

now. Install it angled up towards the center

of the greenhouse, as shown above.

4. Install a Double Brace Bolt (78) through the

bottom hole of the Corner Bracket. Place a Rear

Brace (31) over it with the arrow pointing towards

the Bolt. Also place Front/Rear Diagonal Strut (79)

over the Bolt, and thread on Nut (67) hand-tight.

5. Fasten a Side Diagonal Strut (80) to

the free top hole on the Corner Post (7)

using Brace Bolt (66) and Nut (67).

6. Fasten Struts (79, 80) to Floor Plates using

Brace Bolts (66), Hold-down Connectors (47),

and Nuts (67); see inset on facing page.

Allow Rear Braces to hang free.

7. Repeat steps 2 through 6 for the left rear

Corner Post (7) on the left side. Keep

in mind that the connections will be

reversed compared to the right side.

8. Attach one Corner Post (7) on the outside

of the front left Floor Plates (1a, 3) using

two Normal Bolts (65), two Hold-down

Connectors (47), and two Nuts (67).

(Front)

(Left)

(View from inside greenhouse.)

Insert a Brace Bolt (66) through the second

hole from the top of the Corner Post (7) over the

Front Floor Plate (1a). Place the bottom hole

of the Corner Bracket (49) over the Bolt with it

angled up towards the center of the greenhouse,

as shown above. Secure it using a Nut (67).

10. Fasten a Side Diagonal Strut (80) to the top

hole on the Corner Post (7) over the Side Floor

Plate using a Brace Bolt (66) and Nut (67).

11. Secure the Struts (79, 80) to the Floor

Plates using Brace Bolts (66), Hold-

down Connectors (47), and Nuts (67);

see inset on facing page.

12. Repeat steps 8 through 11 for the right

front Corner Post (7) on the right side.

Keep in mind that the connections will be

reversed compared to the left side.

BOTTOM

TOP

Corner Post (7)

Page 12 For technical questions, please call 1-888-866-5797. Item 63353

1. Insert Normal Bolts (65) through all holes in the

front of the Front Ceiling Plates (24, 25), as

shown. Thread a Nut (67) onto each

Bolt, but leave all Nuts loose for now.

2. Slide the slot on the Right

Door Rail (27) over

the heads of the 2

Bolts on the

Front-

right

Ceiling Plate (25) until the right end

is flush, as shown.

The illustration in the center of this

page shows how to slide the Rail

over the Bolt heads.

Tighten the Nuts on those 2 Bolts.

3. Slide the Bolt heads on the Front-left

Ceiling Plate (24) into the slot of the

Right Door Rail (27) from the left edge until

it rests against the Front-right Ceiling

Plate (25).

Tighten the 2 right-most

Nuts on the Ceiling Plate.

4. Slide the slot on the Left Door Rail (26) over the

heads of the remaining three Bolts in the Front-

left Ceiling Plate (24) until it presses against the

Right Door Rail (27).

Tighten the remaining Nuts.

Phase 4a: Ceiling Plate Assembly, Front

26, 27

24, 25

Parts in this phase

are fastened using

7 Normal Bolts (65)

and 7 Nuts (67).

Step 3

Tighten these two

Nuts after sliding

Step 4

26 25

Step 2

Step 1

24 25

65 65 65 65 65

Page 13For technical questions, please call 1-888-866-5797.Item 63353

Phase 4b: Ceiling Plate Assembly, Side

1. Insert a Plain Side Ceiling Plate (13) in the brackets

on the end of a Side Ceiling Plate with Brackets (12).

2. Secure in place with six Normal Bolts (65)

and six Nuts (67). The heads of the Bolts

should all face the gutter side of the Ceiling

Plates, as shown in the inset above.

3. Repeat the two previous steps for the

remaining Plain Side Ceiling Plate (13) and

Side Ceiling Plate with Brackets (12).

4. Attach an End Cap (72) to the top outer corner

of each Corner Post (7) at this point.

Parts in this phase

are fastened using

a total of

12 Normal Bolts (65)

and 12 Nuts (67).

Page 14 For technical questions, please call 1-888-866-5797. Item 63353

Phase 5: Ceiling Plate Installation

Parts in this phase are fastened using

2 Normal Bolts (65),

8 Brace Bolts (66),

and 10 Nuts (67).

Additional Bolts and Nuts are already

in place before this phase.

(Front)

(Right)

(Rear)

(Left)

24, 25

48 48

Grey parts are in place before this phase.

Means that the nearby Bolt

will be removed and then re-

attached at the same location.

Page 15For technical questions, please call 1-888-866-5797.Item 63353

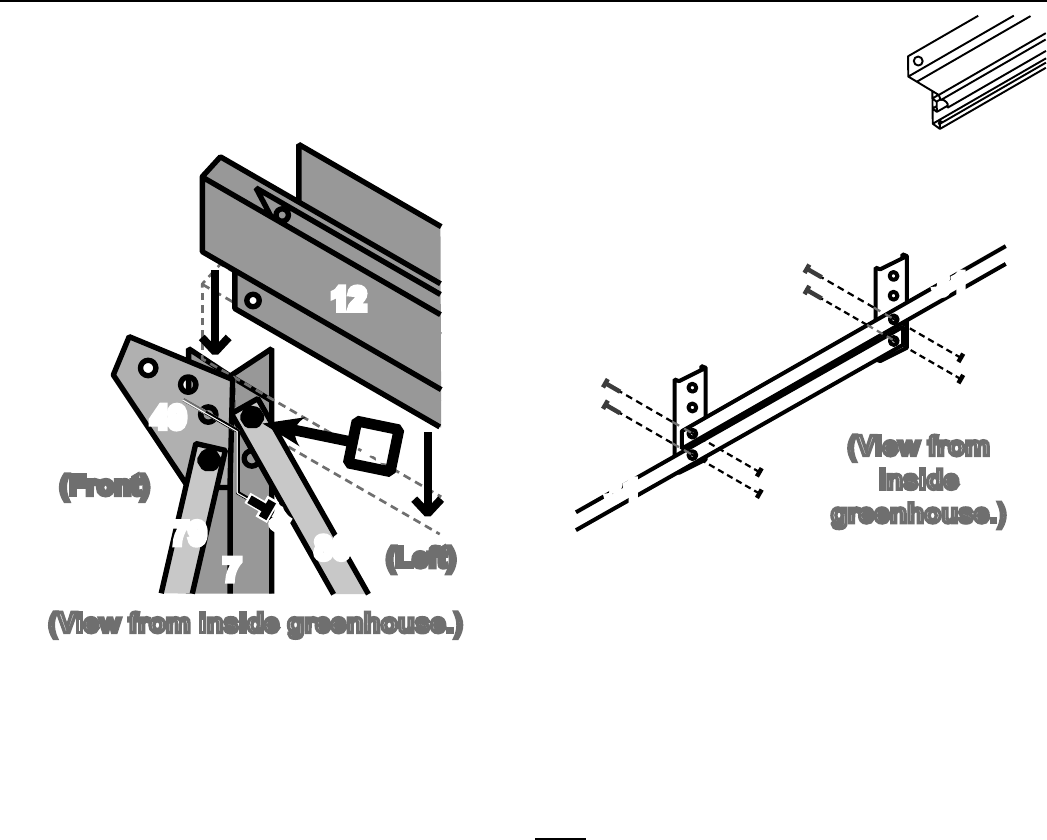

Ceiling Plate Installation Instructions

1. Insert one Normal Bolt (65) through the Corner

Bracket (49) and the upper hole in the Corner

Post (7) at both front corners of the greenhouse,

from the inside out, as shown above. This is for the

later attachment of the Front Ceiling Plate (24-27).

(View from inside greenhouse.)

(Front)

(Left)

To attach one end of a Side Ceiling Plate (12, 13):

a. Remove the Nut (67) where the Side Diagonal

Strut (80) connects to the Corner Post (7) in

one corner, marked A in the illustration above.

b. Temporarily disconnect that

Side Diagonal Strut (80) from the

Brace Bolt (66), but leave the Bolt in place.

c. Orient the gutter opening up as shown above.

d. Place the Side Ceiling Plate (12, 13) then

the Side Diagonal Strut (80) on the end of

the Bolt, and secure with a Nut (65).

3. Secure the other end of that

Side Ceiling Plate (12, 13) similarly.

4. Attach the Front Ceiling Plate (24, 25)

to the two Normal Bolts (65) put in

place in step 1 on the outside of the

greenhouse, note orientation at right.

5. Attach the remaining Side Ceiling Plate (12, 13)

along the other side according to steps 2 & 3,

with the gutter opening up.

48 48

(View from

inside

greenhouse.)

67 67

Bolt two Post Connectors (48) to a

Rear Brace (31) using Brace Bolts (66)

through their bottom holes, from the outside

in. Place Post Connectors on the outside of the

greenhouse with the flat side against the Brace,

as shown above. Only finger tighten for now.

7. Swing the Rear Braces (31) together and bolt the

second Brace to the second from bottom holes on

the Post Connectors (48), using Brace Bolts (66)

from the outside in. Only finger tighten for now.

Note: The Rear Braces will be under tension.

8. If you cannot attach the second

Post Connector (48), or if they are not parallel:

Make sure that the arrows on both

of the Rear Braces (31) are pointing

towards the Corner Posts (7).

Page 16 For technical questions, please call 1-888-866-5797. Item 63353

Phase 6: Post Installation

Parts in this phase are fastened using

8 Normal Bolts (65),

2 Brace Bolts (66),

4 Double Brace Bolts (78),

and 14 Nuts (67).

Additional Bolts and Nuts are already

in place before this phase.

(Front)

(Right)

(Rear)

(Left)

66(x4)

66,78,66

31 80

66(x4)

66,78,66

66(x4)

66(x2)

66(x4)

66,78,66

44 Brace Bolts (66)

are inserted into Posts

during this phase for

use in phase 7.

Grey parts are in place before this phase.

Means that the nearby Bolt will be removed

and then re-attached at the same location.

Means that the bolt underneath will be

loosened, a Post will slide over the bolt

head, and then it will be re-tightened.

Page 17For technical questions, please call 1-888-866-5797.Item 63353

Post Installation Instructions

Note: All Posts (14, 16, 17) in this phase

require extra Bolts to be inserted into

their slot before assembly. The small

numbers under the main part number on

the facing page are the type and number

of hardware. See the examples below:

66,78,66

66(x2)

Post Part Number

Inserted Bolt

Part Numbers

Meaning: Insert two

Brace Bolts (66) into the

Rear Right Post (17)

before attaching it.

Meaning: Insert a Brace

Bolt (66), then a Double

Brace Bolt (78), then

another Brace Bolt (66)

into this Side Post (14)

before attaching it.

1. Loosen a Bolt on one of the Side Floor Plates (3, 4)

in an attachment location as shown. Slide the slot

in a Side Post (14) over the head of that Bolt.

2. Insert the required Bolts (see note

above and illustration on facing page)

into the slot in the Side Post.

3. Attach the top of the Side Post (14) to the Ceiling

Plate (12, 13), using a Normal Bolt (65) in the slot or

using the Bolt already in place for the center Post.

4. Repeat above steps for all ten Side Posts (14)

on the left and right sides of the greenhouse.

5. Slide a white Bushing (81) over all four inserted

Double Brace Bolts (78). Place the center hole of

each Side Diagonal Strut (80) over the end of each

Double Brace Bolt and secure with a Nut (67).

6. Loosen a Bolt on the Rear Floor Plate (5, 6) in a

location that a Side Post (14) attaches, and slide

a Side Post over the head of that Bolt. Insert

four Brace Bolts (66) into the slot of that Post.

(View from outside greenhouse.)

Side Post (14) must extend

no farther than halfway up

the Post Connector (48).

Remove the two Brace Bolts (66) connecting the

Post Connector (48) near that Side Post. Slide the

heads of those Bolts into the Side Post and insert

them through the Post Connector. Align the top of

the Post with the center of the Connector as shown

above, and press it in place. Reattach the Rear

Braces (31) to the Brace Bolts (66) and secure them.

8. Repeat steps 6 & 7 for another Side

Post (14) and Post Connector (48).

9. Loosen the Bolts (66) where the Rear

Diagonal Struts (79) connect to the Rear Floor

Plate (5, 6). Slide the slot in the Rear-Left

Post (16) over the head of the left Bolt and the

Rear-Right Post (17) over the right Bolt.

10. The slanted ends of the Posts must be

on top and slant towards the center of the

greenhouse. Retighten the Bolts.

11. Slide two Brace Bolts (66) into the

slot of each Rear Post (16, 17).

12. Slide one more Brace Bolt (66) into the top

of each Rear Post. Attach the Rear Posts to

the Rear Braces (31) using those Bolts.

13. The frame should now rest square. Measure

diagonally from corner to corner at the top. If

the measurements are not equal, adjust

the frame as needed until square. Some

Nuts (67) may need to be loosened to adjust

the frame. Tighten all Nuts after adjustment.

Page 18 For technical questions, please call 1-888-866-5797. Item 63353

Phase 7: Brace Installation

Parts in this phase are fastened using

2 Normal Bolts (65),

20 Brace Bolts (66),

and 66 Nuts (67).

Additional Bolts and Nuts are already

in place before this phase.

Grey parts are in place before this phase.

Means that the nearby Bolt will be removed

and then re-attached at the same location.

(Front)

(Right)

(Rear)

(Left)

24, 25

Page 19For technical questions, please call 1-888-866-5797.Item 63353

Brace Installation Instructions

Note:

Brace

(30 - 32)

Strut (79, 80)

Post (14, 16, 17)

Corner Post (7)

All Braces are installed inside the Posts,

but outside the Struts. See diagram above,

shown from inside the greenhouse facing out.

to (left)

Corner

Post (7)

(Outside greenhouse)

(Doorway)

(Inside greenhouse)

to (right)

Corner

Post (7)

29 28

(View from above.)

Using a Normal Bolt (65) at top and the Brace

Bolt (66) already in place at the bottom for each,

attach the Left and Right Doorway Posts (28, 29)

to the outside of the Front Floor Plates (1a, 2a) and

to the inside of the Front Ceiling Plates (24, 25).

Install the Posts with the cut-outs at top and

oriented as shown in the illustration above.

2. Using Brace Bolts (66), connect the Front

Braces (32) between the Corner Posts (7) and

the Doorway Posts (28, 29). Install Braces

inside Posts but outside Struts, as shown

in the diagram at the top of this page.

Note: Install the Braces on the walls so that they are

level. If the frame is level and all Braces are level,

the Braces should not interfere with one another.

3. Connect the four remaining Rear Braces (31) onto

the rear wall as shown on the facing page, with

the arrows pointing towards the Corner Posts (7).

Secure in place using Brace Bolts (66) at the Corner

Post and the inserted Brace Bolts in the remaining

holes. Install Braces inside Posts but outside Struts,

as shown in the diagram at the top of this page.

4. Connect four Side Braces (30) onto each side

wall as shown on the facing page, with the arrows

pointing towards the Corner Posts (7). Secure in

place using Brace Bolts (66) at the Corner Post and

the inserted Brace Bolts in the remaining holes.

Install Braces inside Posts but outside Struts, as

shown in the diagram at the top of this page.

5. Place the Gutter End Caps (73) onto the ends of the

Side Ceiling Plates (12, 13) oriented with a gap in

the bottom to allow water to drain out of the gutters.

Page 20 For technical questions, please call 1-888-866-5797. Item 63353

(Front)

(Right)

(Rear)

(Left)

24, 25

21 23

19 9

Phase 8: Gable and Crown Installation

Parts in this phase are fastened using

36 Normal Bolts (65)

and 36 Nuts (67).

Additional Bolts and Nuts are already

in place before this phase.

Grey parts are in place before this phase.

Means that the bolt underneath will be

loosened, a Post will slide over the bolt

head, and then it will be re-tightened.

Page 21For technical questions, please call 1-888-866-5797.Item 63353

Gable and Crown Installation Instructions

Note: Leave Bolts (65) finger tight

until step 5 of this phase.

1. Use one Normal Bolt (65) each to attach the

Front Gable Posts (20-23) to the outside top of

the Front Ceiling Plates (24, 25) in the positions

shown on facing page. The bottoms of the two

outer Front Gable Posts (22, 23) will be secured

using the Normal Bolts already in place. The sloped

ends of the Posts must be on the top and slant

upward toward the center of the greenhouse.

2. Insert two Normal Bolts (65) into the slot in

each Rear Gable Post (18, 19), and use those

Bolts to attach them to the top two holes of

the Post Connectors (48) on the outside.

Once again, the sloped ends of the Posts

must be on the top and slant upward toward

the center of the greenhouse. The bottoms of

those Rear Gable Posts must be pressed down

flat against the tops of the Side Posts (14).

Note: The only difference between Right- and

Left-Handed Crown Beams is the location of the holes.

The Beam edges with three drilled holes should

align with the Side Ceiling Plate (12, 13) and the

edges with four holes should point down.

3. Attach the Right- and Left-Handed Crown

Beams (8, 9) to the Greenhouse using five

Normal Bolts (65) for each Beam. The angled

edges should meet at the top of the roof. The

Beams are placed on the outside of the Ceiling

Plates (12, 13) and the Corner Brackets (49)

and on the inside of the Posts (16-23).

4. Assemble the Front Crown (11) to the brackets on

the Rear Crown (10) using six Normal Bolts (65).

5. Press the Crown Beams (8, 9) down against

the tops of the Posts (16-23) while tightening

all Bolts (65) to secure them in place.

Crown (10, 11)

Right-handed

Crown Beam (8)

Left-

handed

Crown

Beam (9)

(View from underneath.)

6. With assistance, raise the completed Crown (10, 11)

up underneath the tops of the Crown Beams (8, 9),

and bolt it in place on each end to the bottom of the

Beams using two Normal Bolts (65) as shown above.

7. Attach an End Cap (72) to the top outer

corner of each Crown Beam (8, 9).

Page 22 For technical questions, please call 1-888-866-5797. Item 63353

Phase 9: Rafter and Brace Installation

Grey parts are in place before this phase.

Means that the bolt underneath will be

loosened, a Rafter will slide over the bolt

head, and then it will be re-tightened.

Parts in this phase are fastened using

24 Normal Bolts (65),

20 Brace Bolts (66),

44 Nuts (67),

and 8 Window Screws (71).

Additional Bolts and Nuts are already

in place before this phase.

(Front)

(Right)

(Rear)

(Left)

30 42 42

50,71(x2)

66,65

66,66,65

66,66

66,65

66,66,65

66,66

50,71(x2)

Page 23For technical questions, please call 1-888-866-5797.Item 63353

Rafter and Brace Installation Instructions

Note: All Rafters (15) require extra Bolts to

be inserted into their slot before assembly.

The small numbers under the main part

number on the facing page are the type and

number of hardware in the order they are

inserted from the TOP of the Rafter.

See the examples below:

66,66,65

66(x2)

Rafter Part

Number

Inserted Bolt

Part Numbers

Meaning: Insert two

Brace Bolts (66) into the

top of this Rafter (15)

before attaching

it to the frame.

Meaning: Insert two

Brace Bolts (66), then

a Normal Bolt (65)

into the top of this

Rafter (15) before

attaching it to the frame.

1. Insert the required Bolts (see note

above and illustration on facing page)

into the slot in one of the Rafters.

2. Attach the Rafter to the Ceiling Plate (12, 13) and the

Crown (10, 11), using Normal Bolts (65) in the slot or

using the Bolts already in place for the center Rafters.

3. Make sure the Rafter is completely seated over the

Normal Bolts (65) on each end before tightening.

4. Repeat above steps for all ten Rafters.

5. Connect four Side Braces (30) onto the underside

of the roof as shown on the facing page, with the

arrows pointing towards the Crown Beams (8, 9).

Secure in place using Brace Bolts (66) at the Crown

Beam and the inserted Brace Bolts in the remaining

holes. Finger tighten first and install the Braces so

that they are touching, side-by-side as shown.

(View from underneath.)

Using two Window Screws (71) each, attach a

Window Stop (50) on the flat side of each Window

Support Beam (42) with its tab pointing away

from the bolt slot openings, as shown above.

(View from underneath.)

to Crown (10, 11)

65 65

Place one of the bolt slots on a Window Support

Beam (42) over one of the inserted Normal Bolts (65)

and swing it over the inserted Normal Bolt on the

other Rafter as shown in the diagram above. Note

that the Window Stop (50) and flat side of the

Window Support Beam are both facing the inside

of the greenhouse. Thread Nuts (67) onto the

Normal Bolts and finger tighten them for now.

Page 24 For technical questions, please call 1-888-866-5797. Item 63353

Phase 10: Window Assembly and Installation

Parts in this phase are fastened

using

16 Normal Bolts (65),

16 Nuts (67),

and 8 Window Screws (71).

1. Attach the Side Window Frames (39) to the

Top Window Frame (38), as shown to the left. The threaded

shafts of the Bolts should extend out the bottom of the window.

2. Insert Normal Bolts (65) into the holes at other

end of the Side Window Frames, so that the

threads stick out the bottom of the window.

(View from underneath

window, flat side of pieces.)

3. Remove the protective film from

both sides of the Window Pane (61).

Slide the Window Pane into the three-

sided frame.

4. Slide the Bottom Window Frame (40)

onto the two Normal Bolts (65) and

the Window Pane. Secure it in place

with Nuts (67). Press on the heads of

the Bolts through the Window Pane to

allow the Nuts to thread on properly.

(View from underneath

window, flat side of pieces.)

Page 25For technical questions, please call 1-888-866-5797.Item 63353

5. Attach the Window Brace (41) to the

Bottom Window Frame (40) using two

Window Screws (71). The holes on

the Window Brace should face away

from the window, as shown below.

6. Hold the assembled window level with the ground at the

outer edge of the Crown (10, 11). Slide the top edge of the

Top Window Frame (38) into the slot at the top of the Crown –

see illustration to the left. Align the window with the Window

Brace (41) underneath it. Slide the window into place over the

Window Support Beam (42). Gradually lower it into place.

7. Loosen the Nuts (67) holding the Window Support

Beam in place and slide the Window Support Beam

up to touch the window. Secure it in place.

8. Repeat the steps in this phase for all four windows.

Crown

(10, 11)

Top Window

Frame (38)

(View from end of Crown.)

Page 26 For technical questions, please call 1-888-866-5797. Item 63353

Phase 11: Door Assembly and Installation

(Profiles exaggerated for clarity.)

33 33

51 51

34, 35

(top)

(bottom)

(top)

(bottom)

(front)

(back)

36363637

64646464

7070707070

Page 27For technical questions, please call 1-888-866-5797.Item 63353

Door Assembly and Installation Instructions

Parts in this phase are fastened using

8 Normal Bolts (65), 8 Nuts (67),

and 40 Door Screws (70).

Note: The Door Screws (70) thread directly into the

round portions in the center of the door frames. Leave all

Screws slightly loose until the door is mounted on the rail.

1. Place the Side Door Frame (33)

with the rubber flap down.

Attach three Center Door

Frames (36) to the Side Door

Frame (33). Assemble them

with the rounded portion facing

the front (away from the flap),

as shown to the right.

2. Using two Normal Bolts (65) and

two Nuts (67), attach the Door Slider

(34) to the Top Door Frame (35)

oriented as shown to the right.

3. Attach the Top Door Frame (35) to the Side

Door Frames (33) with the Door Slider (34) at

top and the rounded portion facing the front.

(view from behind)

Insert a Door Bottom Slider (51) into each end of

the Bottom Door Frame (37). Make sure that the

Sliders are assembled the correct way, with the gap

facing the back of the door – see diagram. Attach

the Bottom Door Frame to the Side Door Frames (33)

using two Screws (70) on each side – the one on the

top into the Bottom Door Frame and the bottom one

into the Door Bottom Slider.

5. Remove the protective film from both sides of four

Door Panels (64). Slide the Door Panels into the

door between the Door Frame (35-37) pieces.

6. Attach the other Side Door Frame (33) to the

Center Door Frames (36) in the same way.

(side view)

Raise the assembled Door up and insert the

first roller of its Door Slider (34) onto the Door

Rail (26, 27). Carefully align the first Bottom

Door Slider (51) over the edge of the Front Floor

Plate (1a, 2a) – see illustration above. Carefully

slide the door over and align the other top Roller

and bottom Slider as you did the first ones.

8. Assemble and install the second door

by following the previous steps.

9. Once both doors are installed,

tighten all Door Screws (70).

10. Install a Normal Bolt (65) and Nut (67) into the

hole on the end of each Door Rail (26, 27),

and in the hole on the end of each Front Floor

Plate (1a, 2a) to prevent the doors from sliding

off the rails. Attach the Left and Right Rail End

Caps (74,75) onto the ends of the Door Rails.

Page 28 For technical questions, please call 1-888-866-5797. Item 63353

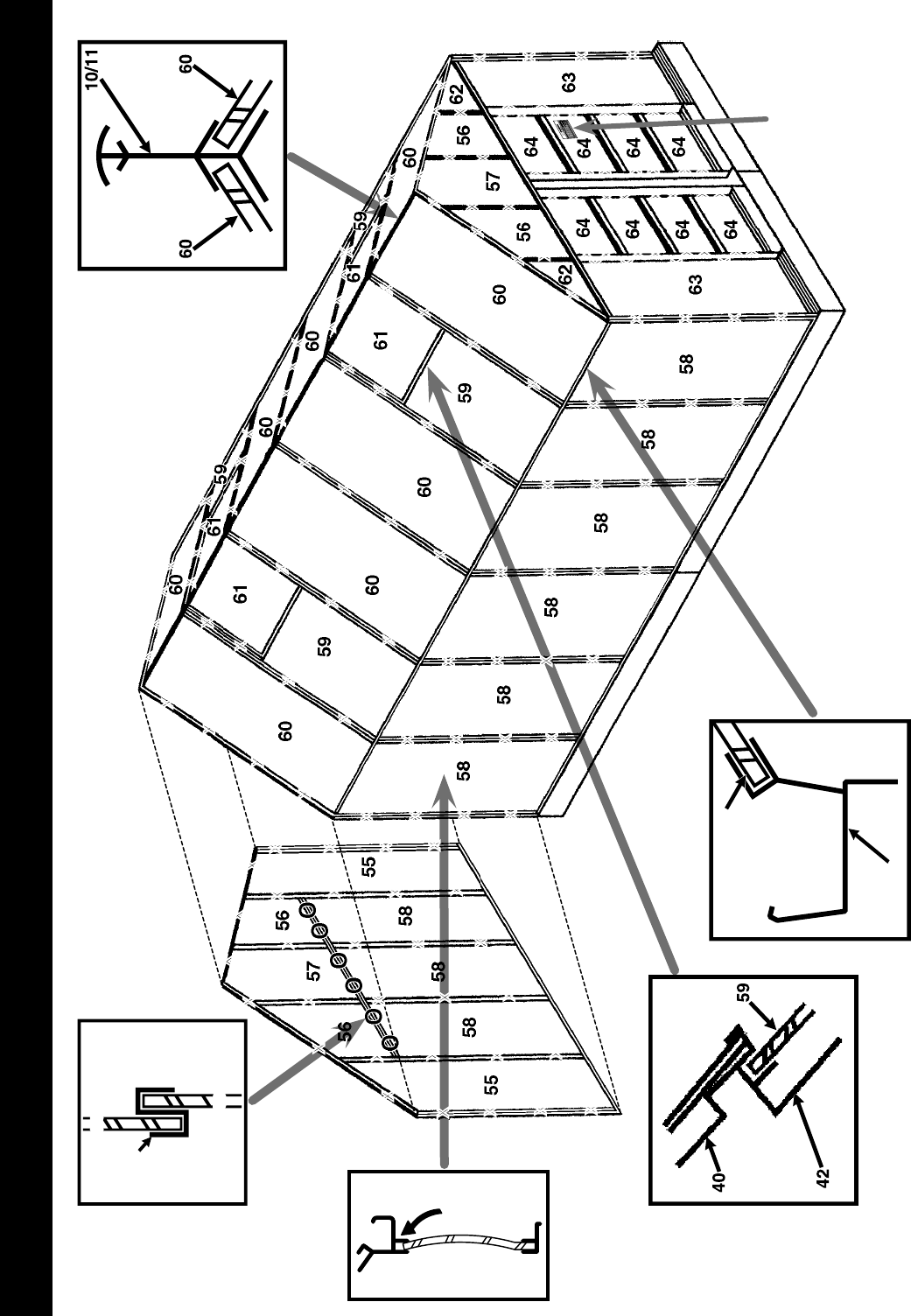

Phase 12: Panel Installation

Outside

Greenhouse

Inside

Greenhouse

56/57

X = Panel Clip (53) Location

O = Panel Connector (52) Location

12/13

59/60

XXX

XXXX

warning

label

location

Page 29For technical questions, please call 1-888-866-5797.Item 63353

Transparent Panel Installation Instructions

1. Panel Clips (53) are used to secure the Transparent

Panels in place on the Greenhouse. Their

locations are marked with X on the facing page.

Note: Remove the protective film from both sides

of all panels as they are installed.

Stick the warning label to one of the Door Panels (64)

after removing the protective film from the Panel.

Install this Door Panel so that the warning label

is easily readable from outside the greenhouse.

Refer to label location on facing page.

2. The Roof Panels (60) and the Roof Window

Panel (59) will need to be placed as shown in the

insets on the facing page. The top edges of these

panels need to be placed up under the edge of the

Crown (10, 11) or the Window Support Beam (42).

3. The Panel Connectors (52) are used to connect

the Rear Top and Center Panels (56, 57) to the

top of the Wall Panels (58) in the rear of the

Greenhouse. Refer to the locations marked

with O and the inset on the facing page.

4. One at a time, place each Transparent Panel

(55 – 64) in its proper location on the Ceiling and

Frame of the Greenhouse. Then, secure the

Transparent Panel in place, using the quantity and

location of Panel Clips as shown on facing page.

5. To attach Panel Clips, see illustration and

instructions below. Use the included Clip Placement

Tool (68) to facilitate Panel Clip installation.

a. Place the two loose ends of the Clip

into the groove in the frame

b. Swing the center portion of the

Clip up against the Panel

c. Two edges of the Clip swing under

the edge of the panel and the center

edge holds the panel in place.

Clip Placement Tool

Be careful, Panel Clip ends may be sharp and may spring back!

Use and Maintenance

1. BEFORE EACH USE, inspect the general condition

of the Greenhouse. Check for loose screws,

misalignment or binding of moving parts, cracked

or broken parts, and any other condition that

may affect the safe operation of the Greenhouse.

If a problem occurs with the Greenhouse, have it

corrected before further use.

Do not use damaged equipment.

2. TO CLEAN: Wipe with a damp cloth, using a mild

detergent.

Do not use cleaners that are combustible,

corrosive, or not compatible with aluminum.

3. WHEN STORING: Keep the Greenhouse

in a box and in a clean, dry location.

Page 30 For technical questions, please call 1-888-866-5797. Item 63353

PLEASE READ THE FOLLOWING CAREFULLY

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LISTS IN THIS DOCUMENT

AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY

REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO

MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS

OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES

THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND

LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY

ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS

THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

Parts List

Lengths given are rounded to the nearest inch. Hardware lengths are approximate.

PART DESCRIPTION QTY

1a Front-Left

Floor Plate 2' 8″ 1

2a Front-Right

Floor Plate 7' 3″ 1

3Upper Side

Floor Plate 6' 2

4 Side Floor Plate 6' 2

5Rear-Left

Floor Plate 4' 11″ 1

6Rear-Right

Floor Plate 4' 11″ 1

7 Corner Post 6' 6″ 4

8Right-handed

Crown Beam 5' 10″ 2

9Left-handed

Crown Beam 5' 10″ 2

10 Rear Crown

with Brackets 5' 9″ 1

11 Front Crown 5' 10″ 1

12 Side Ceiling Plate

with Brackets 5' 9″ 2

13 Plain Side

Ceiling Plate 5' 10″ 2

14 Side Post 6' 6″ 12

15 Rafter 5' 9″ 10

16 Rear-Left Post 7' 9″ 1

17 Rear-Right Post 7' 9″ 1

18 Rear-Left

Gable Post 2' 7″ 1

PART DESCRIPTION QTY

19 Rear-Right

Gable Post 2' 7″ 1

20 Front Center-Left

Gable Post 2' 8″ 1

21 Front Center-Right

Gable Post 2' 8″ 1

22 Front-Left

Gable Post 1' 5″ 1

23 Front-Right

Gable Post 1' 5″ 1

24 Front-Left

Ceiling Plate 7' 5″ 1

25 Front-Right

Ceiling Plate 2' 3″ 1

26 Left Door Rail 4' 10″ 1

27 Right Door Rail 4' 10″ 1

28 Left Doorway

Post 6' 6″ 1

29 Right Doorway

Post 6' 6″ 1

30 Side Brace 7' 9″ 12

31 Rear Brace 5' 10″ 6

32 Front Brace 2' 4

33 Side Door Frame 6' 3″ 4

34 Door Slider 2' 10″ 2

35 Top Door

Frame 2' 10″ 2

36 Center Door

Frame 2' 10″ 6

Page 31For technical questions, please call 1-888-866-5797.Item 63353

Lengths given are rounded to the nearest inch. Hardware lengths are approximate.

PART DESCRIPTION QTY

37 Bottom Door

Frame 2' 10″ 2

38 Top Window

Frame 1' 11″ 4

39 Side Window

Frame 2' 5″ 8

40 Bottom Window

Frame 1' 11″ 4

41 Window Brace 10″ 4

42 Window Support

Beam 2' 4

43 Side Base Plate 5' 11″ 4

44 Front/Rear Base

Plate 4' 11″ 4

45 Base Plate Corner

Connector 4

46 Base Plate End

Connector 4

47 Hold-down

Connector 25

48 Post Connector 2

49 Corner Bracket 4

50 Window Stop 4

51 Door Bottom

Slider 4

52 Panel Connector 6

53 Panel Clip 320

54 Peak Cap 2

55 Rear Side Panel 1' 11″

x 7’ 9″ 2

56 Front/Rear Top

Panel

1' 11″

x 2' 7″ 4

57 Front/Rear Center

Panel

1' 11″

x 3' 3″ 2

58 Wall Panel 1' 11″

x 6' 5″ 15

PART DESCRIPTION QTY

59 Roof Window

Panel

1' 11″

x 3' 4″ 4

60 Roof Panel 1' 11″

x 5' 9″ 8

61 Window Pane 1' 11″

x 2' 6″ 4

62 Front Corner

Panel

1' 11″

x 1' 4″ 2

63 Front Side Panel 2' x

6' 5″ 2

64 Door Panel 1' 5″ x

2' 10″ 8

65 Normal Bolt M6 x

3/8″173

66 Brace Bolt M6 x

3/4″108

67 Nut M6 287

68 Clip Placement

Tool 1

70 Door Screw 4.3 x

3/4″40

71 Window Screw 4.0 x

5/8″16

72 End Cap 8

73 Gutter End Cap 4

74 Left Rail End Cap 1

75 Right Rail End

Cap 1

76 Spanner Wrench 1

77 Wrench 1

78 Double Brace Bolt M6 x

1″ 6

79 Front/Rear

Diagonal Strut 6' 7″ 4

80 Side Diagonal

Strut 7' 7″ 4

81 Bushing Ø.5″ x

0.4″ 4

Record Serial Number Here:

Note: If product has no serial number, record

month and year of purchase instead.

Note: Some parts are listed and shown for

illustration purposes only, and are not available

individually as replacement parts.

3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • 1-888-866-5797

Limited 90 Day Warranty

Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,

and warrants to the original purchaser that this product is free from defects in materials and workmanship for the

period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,

to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper

installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries

to persons or property, or for incidental, contingent, special or consequential damages arising from the use of

our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the

above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER

WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.

To take advantage of this warranty, the product or part must be returned to us with transportation charges

prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.

If our inspection verifies the defect, we will either repair or replace the product at our election or we may

elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will

return repaired products at our expense, but if we determine there is no defect, or that the defect resulted

from causes not within the scope of our warranty, then you must bear the cost of returning the product.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

Manual For The 63353 10 Ft. X 12 Greenhouse With 4 Vents

Navigation menu

Versions of this User Manual:

Views

Navigation
