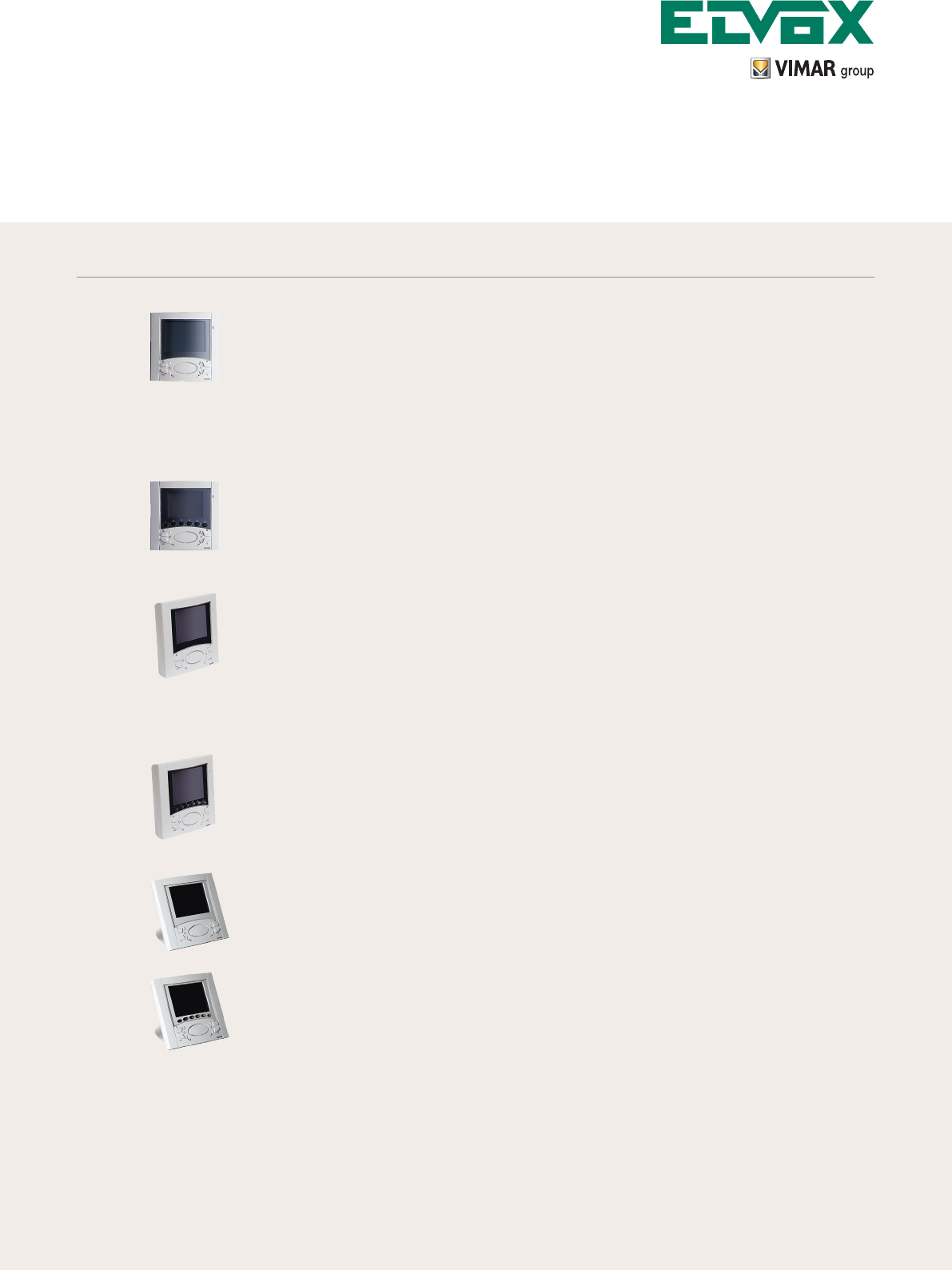

6600 SERIES
Open voice door entry monitor for ush mounting, surface wall
mounting and desktop mounting with 4" and 3.5" TFT LCD colour display
6600 SERIES
Open voice door entry monitor for ush mounting, surface wall
mounting and desktop mounting with 4" and 3.5" TFT LCD colour display
The beauty of
communication
State-of-the-art, slim monitor: small in size, huge in appeal.
Just one centimetre thick, this monitor has a distinctive
style that transforms an everyday object into a piece of
designer furnishing, capable of enhancing any home.
Wall-mountable with vertical tilt facility, the video intercom
is both elegant and functional, perfect for both the home
or workplace thanks to its singular, fashionable design.
4” - 3.5”
TFT LCD
colour display
Also available
with intercom calls
6600 SERIES
Open voice door entry monitor for ush mounting, surface wall
mounting and desktop mounting with 4" and 3.5" TFT LCD colour display
Flush-mounting
version
4” - 3.5”
TFT LCD colour display
139 mm
136 mm
59 mm 10 mm
141 mm
5
1

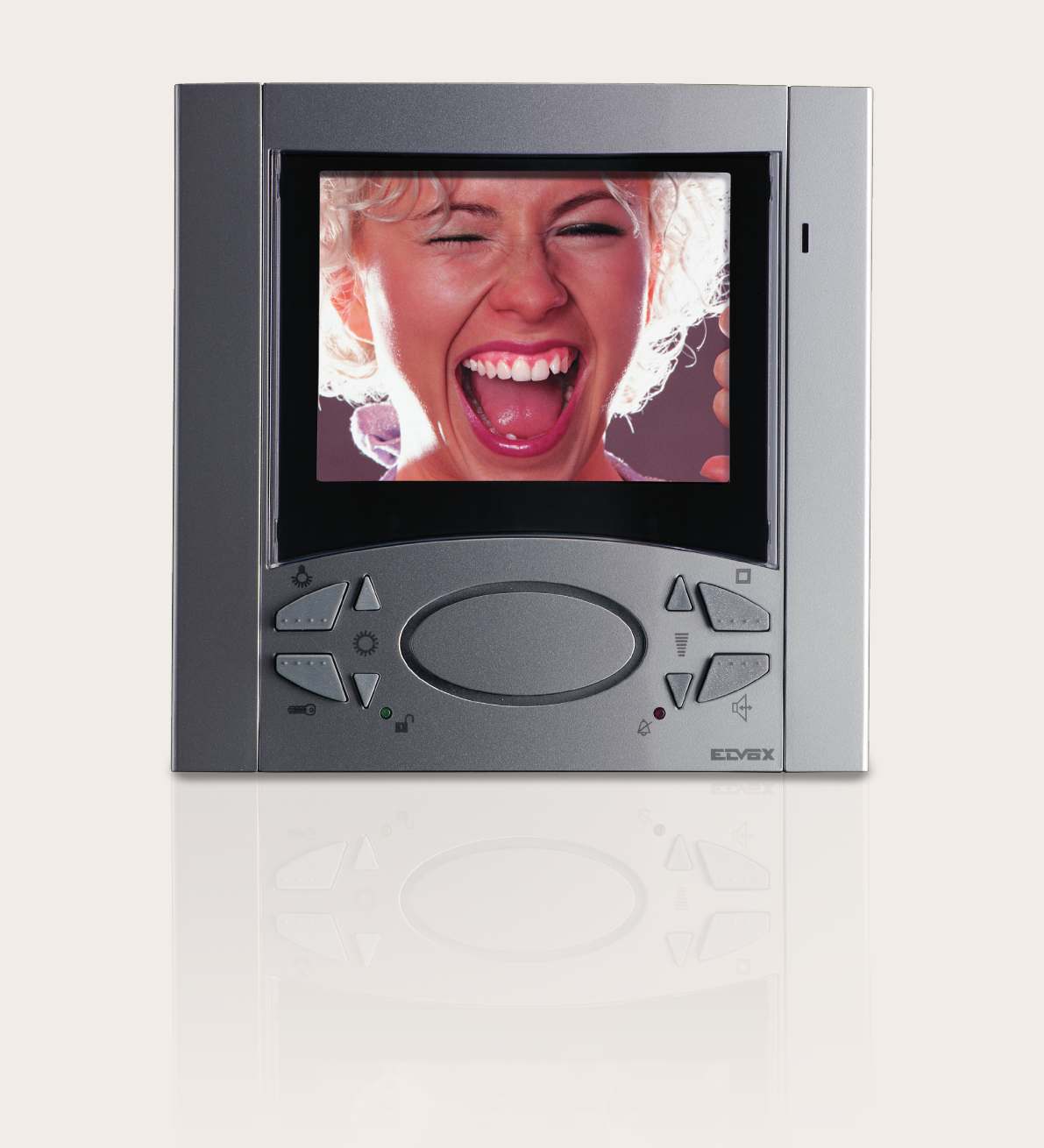

Maximum tilt equals total exibility. The non-intercom version of video interphones with 4’’ and 3.5’’ monitor have an
adjustable display to ensure consistently perfect viewing for all users.
Expand your horizons
4’’ and 3.5” TFT LCD display with maximum resolution and contrast possible for this format.
Made of thermoplastic.
Available in white, titanium or brushed steel nishes.
Crystal-clear audio quality with loudspeaker ideally positioned for maximum acoustic performance.
Eight buttons dedicated to the main video door entry functions.
Possibility of operating auxiliary functions in the Two-Wire and Digibus versions, or intercommunicating calls in the
Two-Wire version.
Green LED "door open" signal.
Privacy function which disables the ringtone. With the ringtone mute activated, in the Two-Wire and Digibus versions, a
red LED will signal up to 5 unanswered calls by ashing a corresponding number of times.
Monitor installation requires ush-mounted back box type 6149 or kit R660 for
plasterboard walls.
125 mm
141 mm 125 mm
6600 SERIES
Open voice door entry monitor for ush mounting, surface wall
mounting and desktop mounting with 4" and 3.5" TFT LCD colour display

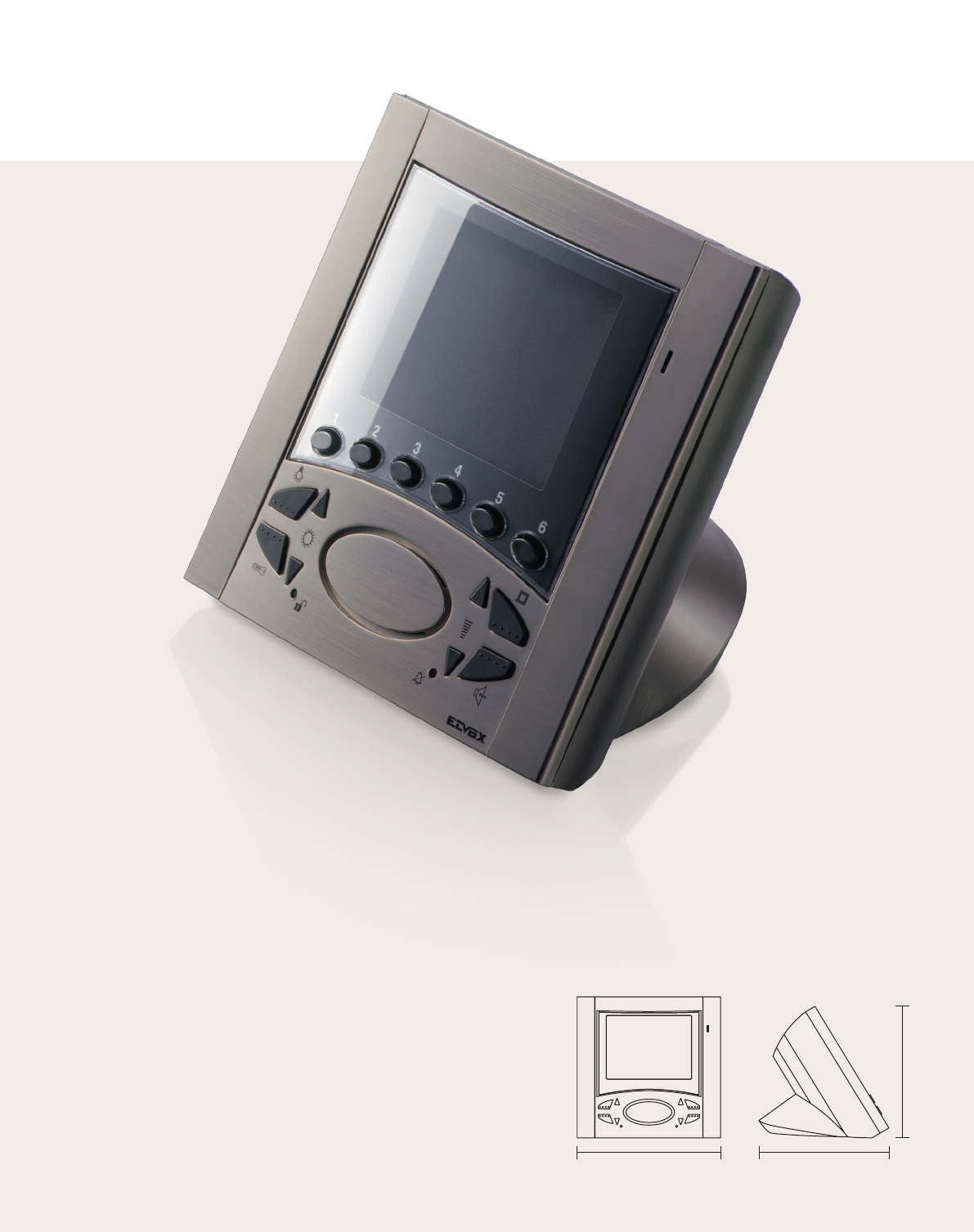

Desktop version
The desktop version is supplied with 2 metre
cable, socket and removable plug.
Beyond all imagination
The high-performance, highly efcient 6600 desktop
open voice monitor captures immediate attention thanks
to the ability of Elvox's designers to keep pace with the
constant changes in contemporary tastes.
Also available in the intercom version, that can be used
to link one or more groups without altering the main line
and without blocking the rest of the system.
141 mm 40 mm
Surface wall-mounting version
Eye-catching appeal
The graceful forms, meticulously crafted and elegantly
understated, make the Elvox door entry monitor a genuine
designer furnishing accessory to personalise the modern home.
The surface wall-mounting version of the 6600 series open
voice door entry monitor is 4 cm thick and can easily be tted
anywhere thanks to the quick coupling of the surface
wall-mounting bracket.
6600 SERIES
Open voice door entry monitor for ush mounting, surface wall
mounting and desktop mounting with 4" and 3.5" TFT LCD colour display

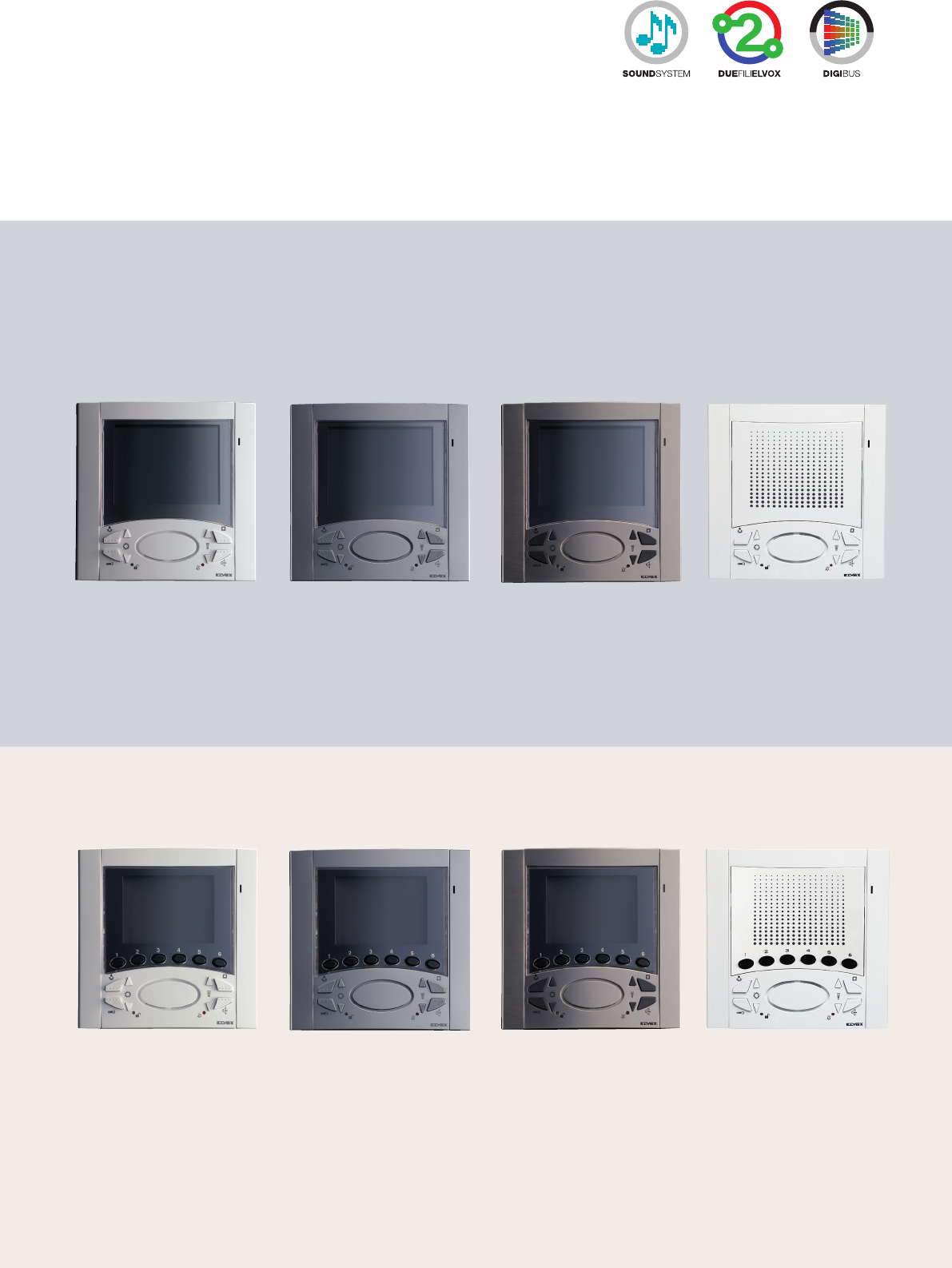

White
code 660x/ - code 670x/
Titanium
code 660x/37 - code 670x/37
Brushed steel
code 660x/40 - code 670x/40
White
code 660x/AU - code 670x/AU
White
code 661x/ - code 671x/
Titanium
code 661x/37 - code 671x/37
Brushed steel
code 661x/40 - code 671x/40
White
code 661x/AU - code 671x/AU

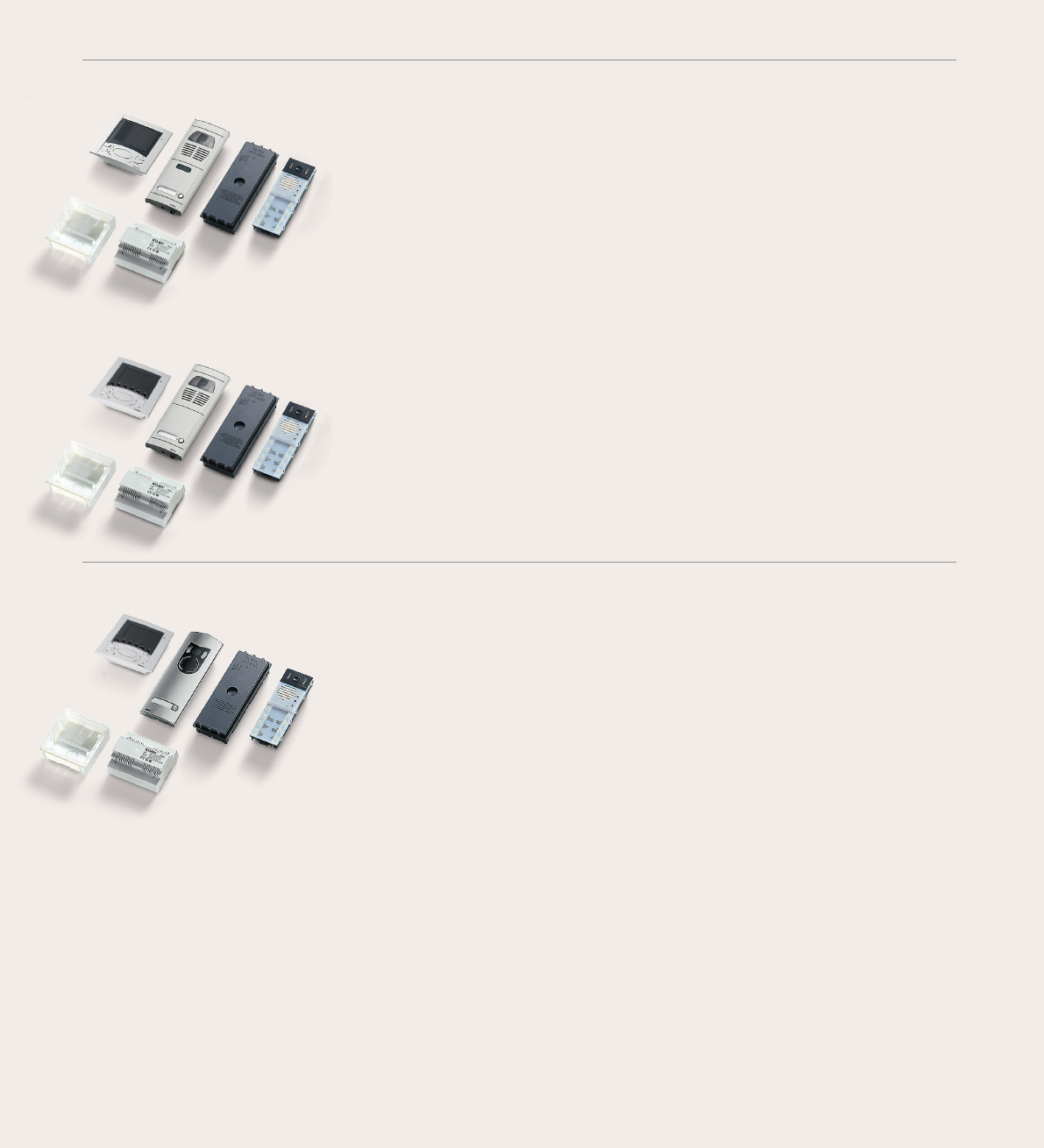

INTERCOMMUNICATING*
VIDEO DOOR ENTRY UNIT
INTERCOMMUNICATING*
AUDIO DOOR ENTRY UNIT
VIDEO DOOR ENTRY UNIT AUDIO DOOR ENTRY UNIT
*6600 series intercommunicating audio and video door entry units are not available with Sound System technology. In the Two-Wire versions
the additional push-buttons can be used for intercom calls or auxiliary services, or for auxiliary services in the Digibus versions.
INTERCOMMUNICATING*
AUDIO DOOR ENTRY UNIT
AUDIO DOOR ENTRY UNIT
Free your imagination
Metallic and painted nishes. A vast range of solutions
that provides plenty of scope for personalisation based on
one’s own taste and creativity, thereby transforming a technical
device into a novel furnishing accessory.
Desktop Flush-mounting Surface wall-mounting

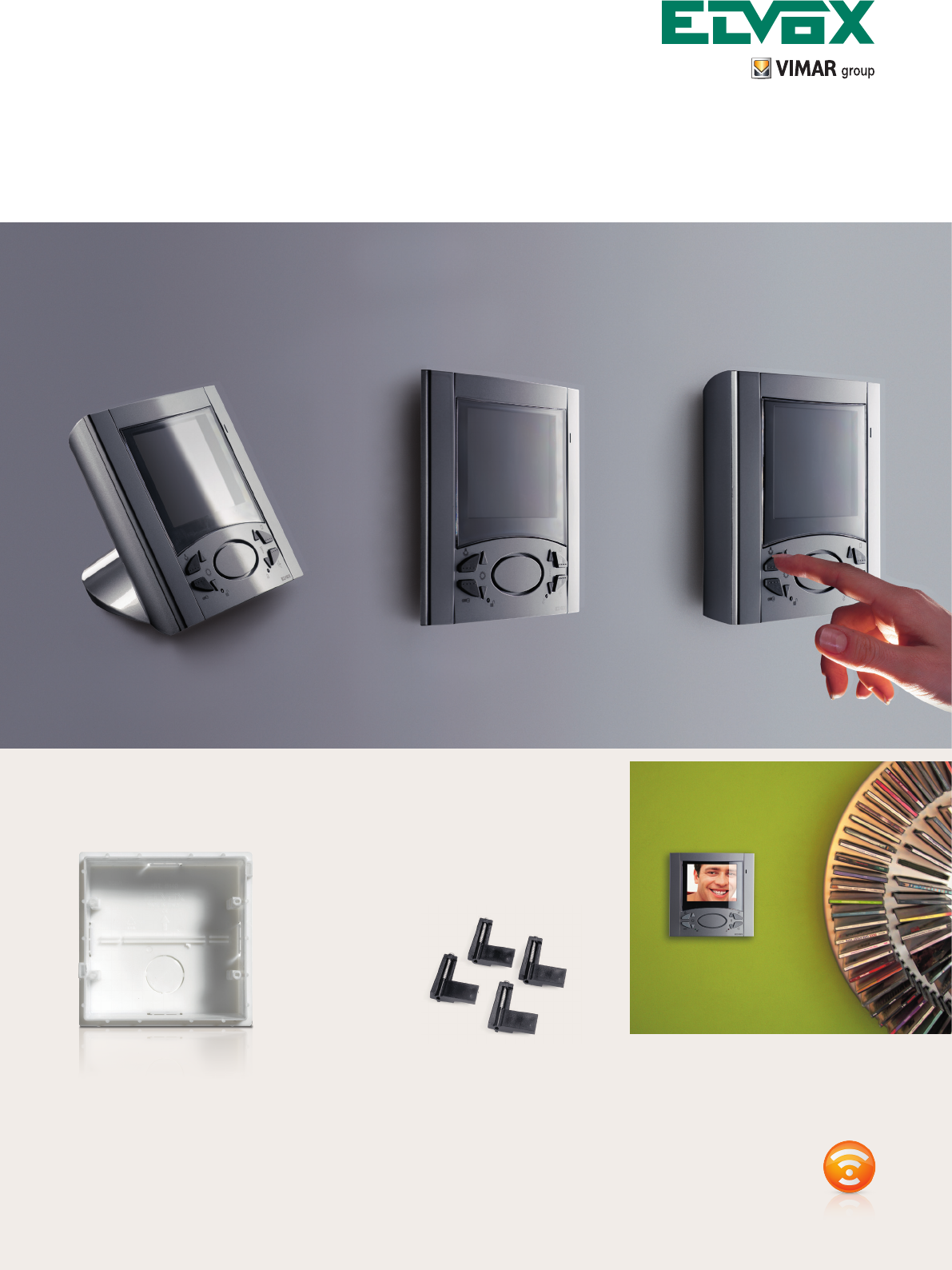

Type 6149
6800 series back box
Square back box (8P) for the 6800, 6600 and
6300 series. Dimensions: 136x136x59 mm
Type R660
Fixing kit for 6600 series ush-mounting video
entry systems for gypsum plasterboard walls.

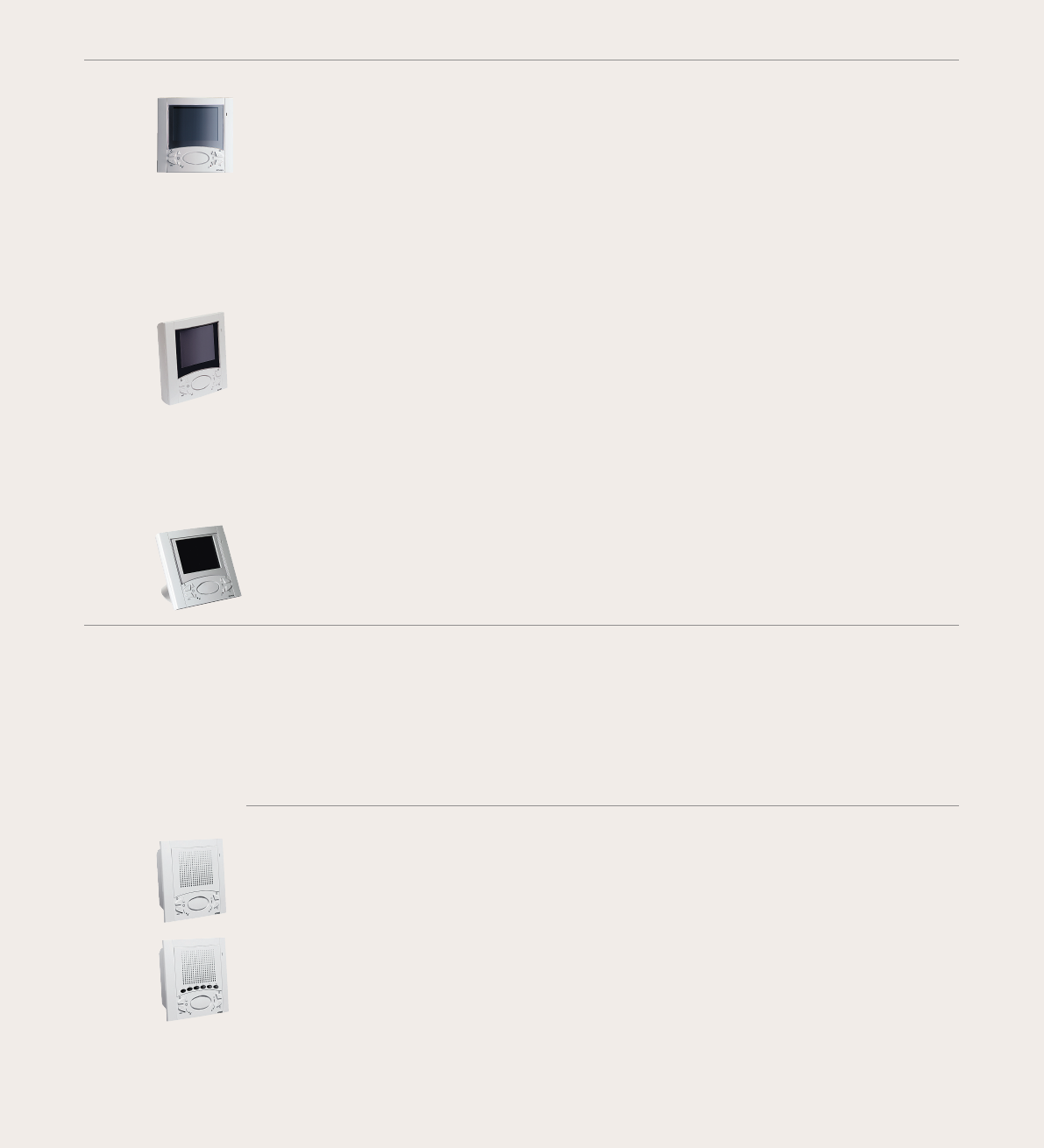

Code Description
6600 series monitors
Dual-channel open voice door entry monitor in thermoplastic with TFT LCD colour monitor and
loudspeaker for electronic call. Equipped with 8 standard push-buttons for: lock release, aux-
iliary services (stair light), conversation, internal audio volume control, ringtone volume control
and mute, ringtone selection, brightness control plus a removable terminal block. Supplied with
illuminated indicators: red LED to indicate ringtone mute and green LED to indicate door open,
when connected to a suitable lock or door.
Available colours: white (standard item, e.g. 6600), titanium (code .../37 e.g. 6600/37) and
brushed steel (code …/40 e.g. 6600/40).

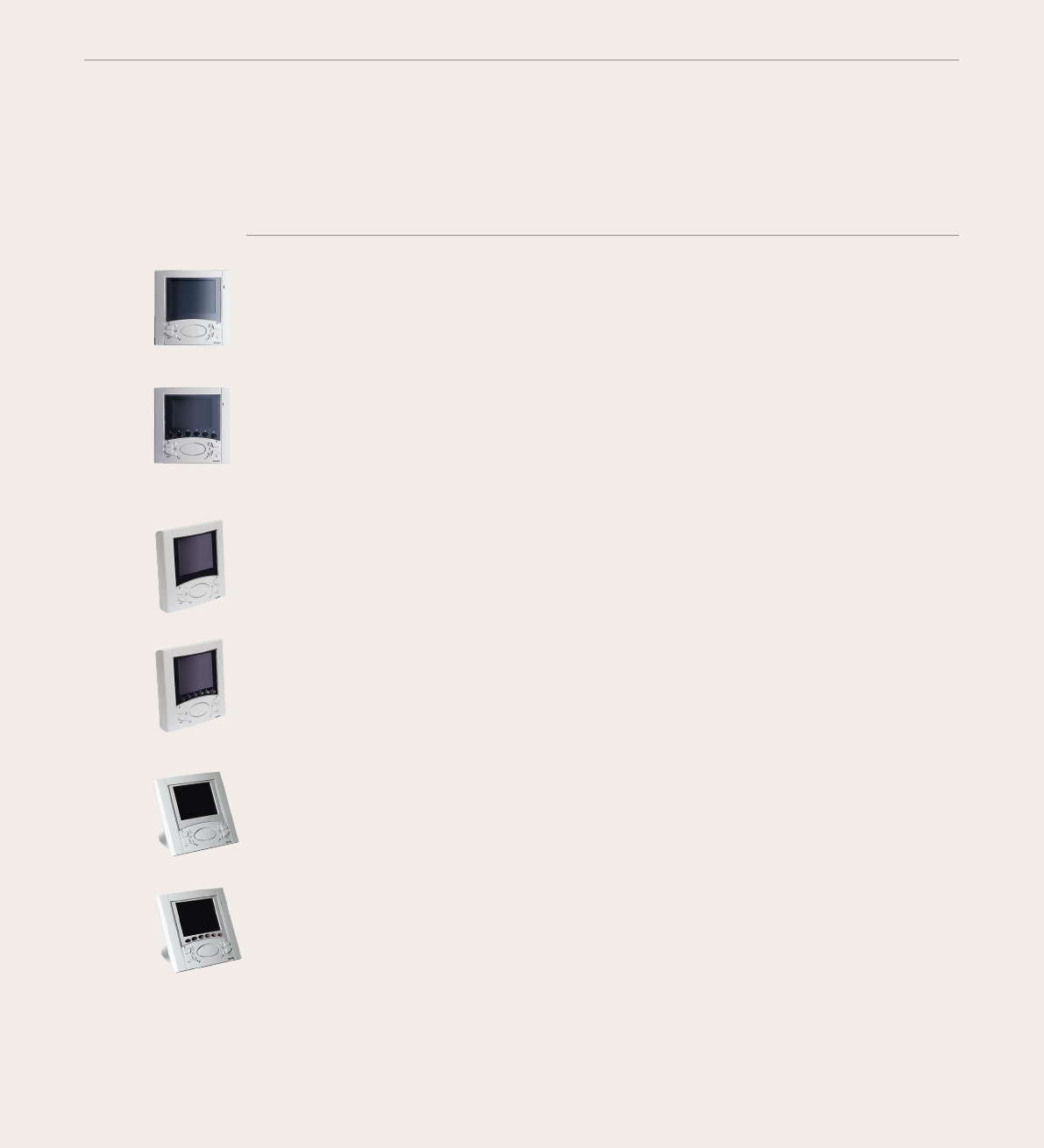

6600 series video door entry units for Two-Wire technology
6621 Flush-mounting door entry monitor with 3.5" TFT LCD colour screen and vertical tilt facility.
Installation requires a ush-mounting back box art. 6149.
Colour: white.
Dimensions: 141x139x10 mm + 45 mm (ush-mounted).
The monitor must be used with power supply unit type 6922 or 6923.
6611 Flush-mounting door entry monitor with 3.5" TFT LCD colour screen (no tilt facility).
Equipped with 6 additional programmable push-buttons, as well as the 8 standard push-but-
tons, for intercom calls or for auxiliary services. For installation, requires ush-mount back box
art. 6149.
Colour: white.
Dimensions: 141x139x10 mm + 45 mm (ush-mounted)
The monitor must be used with power supply unit type 6922 or 6923.
6721 Surface wall-mounting door entry monitor with 3.5" TFT LCD colour screen and vertical tilt facil-
ity. Supplied with wall xing bracket.
Colour: white.
Dimensions: 141x139x40 mm.
The monitor must be used with power supply unit type 6922 or 6923.
6711 Surface wall-mounting door entry monitor with 3.5" TFT LCD colour screen (no tilt facility).
Equipped with 6 additional programmable push-buttons, as well as the 8 standard push-but-
tons, for intercom calls or for auxiliary services. Supplied with wall xing bracket.
Colour: white.
Dimensions: 141x139x40
The monitor must be used with power supply unit type 6922 or 6923.
662C Desktop monitor with 3.5” TFT LCD colour screen, vertical tilt facility, supplied with 2 metre
cable, socket and removable plug.
Colour: white.
Dimensions: 141x125x125 mm.
The monitor must be used with power supply unit type 6922 or 6923.
661C Desktop monitor with 3.5’’ TFT LCD colour screen (no tilt facility), supplied with 2 metre cable,
socket and removable plug. Equipped with 6 additional programmable push-buttons, as well as
the 8 standard push-buttons, for intercom calls or for auxiliary services.
Colour: white.
Dimensions: 141x125x125 mm.
The monitor must be used with power supply unit type 6922 or 6923.
6600 SERIES
Open voice door entry monitor for ush mounting, surface wall
mounting and desktop mounting with 4" and 3.5" TFT LCD colour display
Code Description
6600 series video door entry units for Digibus technology
6604 Flush-mounting door entry monitor with 4TFT LCD colour screen, vertical tilt facility, micro-
controller for 4 or 8-digit encoding/decoding. For installation, requires ush-mounting back box
art. 6149. Colour: white.
Dimensions: 141x139x10 mm + 45 mm (ush-mounted).
The monitor must be used with power supply unit type 6948.
6624 Flush-mounting door entry monitor with 3.5TFT LCD colour screen, vertical tilt facility, micro-
controller for 4 or 8-digit encoding/decoding. For installation, requires ush-mounting back box
art. 6149. Colour: white.
Dimensions: 141x139x10 mm + 45 mm (ush-mounted).
The monitor must be used with power supply unit type 6948.
6614 Flush-mounting door entry monitor with 3.5” TFT LCD colour screen (no tilt facility), microcon-
troller for 4 or 8-digit encoding/decoding. Equipped with 6 additional programmable buttons,
as well as the 8 standard buttons, for auxiliary services. For installation, requires ush-mount
back box art. 6149. Colour: white.
Dimensions: 141x139x10 mm + 45 mm (ush-mounted).
The monitor must be used with power supply unit type 6948.
6704 Surface wall-mounting door entry monitor with 4 TFT LCD colour screen, vertical tilt facility,
microcontroller for 4 or 8-digit encoding/decoding. Supplied with wall xing bracket. Colour:
white.
Dimensions: 141x139x40 mm
The monitor must be used with power supply unit type 6948.
6724 Surface wall-mounting door entry monitor with 3.5” TFT LCD colour screen, vertical tilt facility,
microcontroller for 4 or 8-digit encoding/decoding. Supplied with wall xing bracket. Colour:
white.
Dimensions: 141x139x40 mm.
The monitor must be used with power supply unit type 6948.
6714 Surface wall-mounting door entry monitor with 3.5TFT LCD colour screen (no tilt facility), mi-
crocontroller for 4 or 8-digit encoding/decoding. Equipped with 6 additional programmable but-
tons, as well as the 8 standard buttons, for auxiliary services. Supplied with wall xing bracket.
Colour: white.
Dimensions: 141x139x40 mm
The monitor must be used with power supply unit type 6948.
660D Desktop monitor with 4” TFT LCD colour screen, vertical tilt facility, microcontroller for 4 or
8-digit encoding/decoding. Supplied with 2 metre cable with 13 conductors + 1 coaxial, and
removable plug and socket.
Colour: white.
Dimensions: 141x125x125 mm.
The monitor must be used with power supply unit type 6948.
661D Flush-mounting door entry monitor with 3.5” TFT LCD colour screen (no tilt facility), microcon-
troller for 4 or 8-digit encoding/decoding. Supplied with 2 metre cable with 13 conductors + 1
coaxial, and removable plug and socket.
Colour: white.
Dimensions: 141x125x125 mm
The monitor must be used with power supply unit type 6948.
Code Description

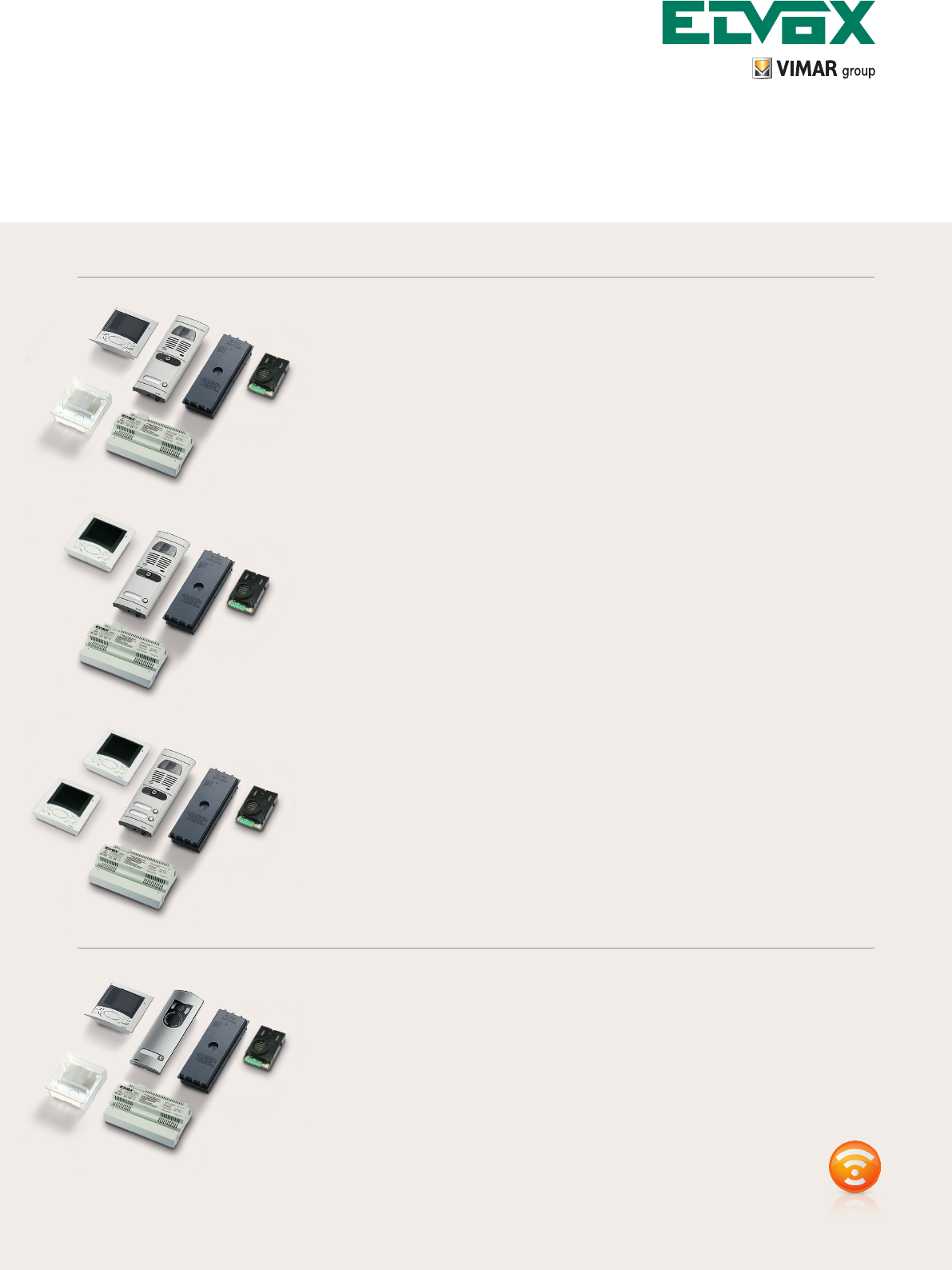

6600 series video door entry units for Sound System technology
6600 Flush-mounting door entry monitor with 4" TFT LCD colour screen and vertical tilt facility.
Installation requires ush-mounting back box art. 6149.
Colour: white.
Dimensions: 141x139x10 mm + 45 mm (ush-mounted).
The monitor must be used with power supply unit type 6680.
6620 Flush-mounting door entry monitor with 3.5" TFT LCD colour screen and vertical tilt facility.
For installation, requires ush-mount back box art. 6149.
Colour: white.
Dimensions: 141x139x10 mm + 45 mm (ush-mounted).
The monitor must be used with power supply unit type 6680.
6700 Surface wall-mounting door entry monitor with 4" TFT LCD colour screen and vertical tilt facility.
Supplied with wall xing bracket.
Colour: white.
Dimensions: 141x139x40 mm
The monitor must be used with power supply unit type 6680.
6720 Surface wall-mounting door entry monitor with 3.5" TFT LCD colour screen and vertical tilt facil-
ity. Supplied with wall xing bracket.
Colour: white.
Dimensions: 141x139x40 mm.
The monitor must be used with power supply unit type 6680.
660A Desktop monitor with 4" TFT LCD colour screen and vertical tilt facility. Supplied with 2 metre
cable with 13 conductors + 1 coaxial, and removable plug and socket.
Colour: white.
Dimensions: 141x125x125 mm.
The monitor must be used with power supply unit type 6680.

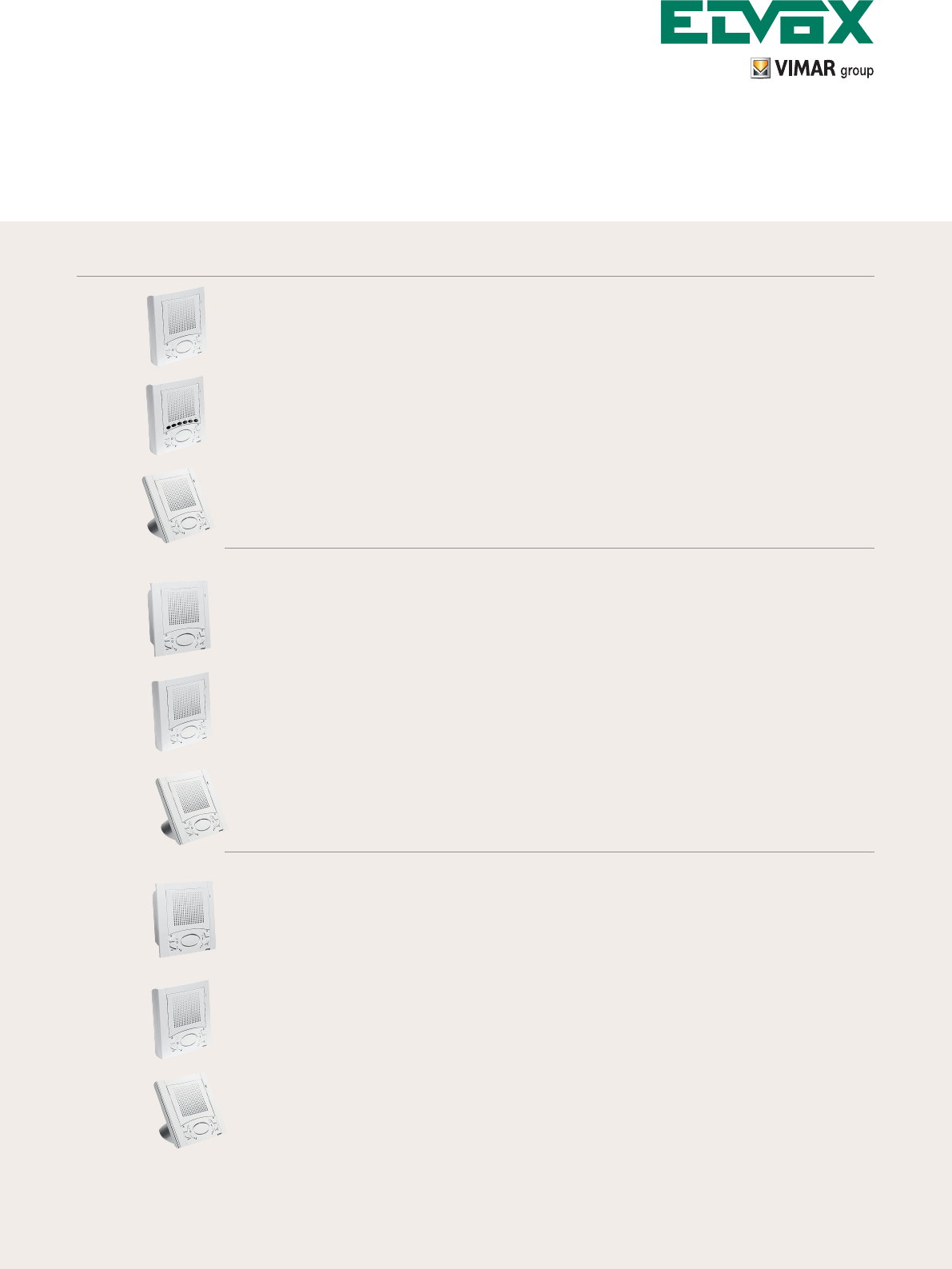

6600 series audio door entry units
Two-channel open voice audio door entry unit in thermoplastic with loudspeaker for electronic
call. Equipped with 8 standard push-buttons for: lock release, self-start, auxiliary services (stair
light), conversation, internal audio volume control, ringtone volume control and mute, ringtone
selection plus a removable terminal block. Supplied with illuminated indicators: red LED to in-
dicate ringtone mute and green LED to indicate door open, when connected to a suitable lock
or door.
Available colours: white (standard item, e.g. 6600/AU), titanium (code .../AU.37 e.g. 6600/AU.37)
and brushed steel (code …/AU.40 e.g. 6600/AU.40).
6600 series audio door entry units for Two-Wire technology
6601/AU Flush-mounting interphone. For installation, requires ush-mount back box art. 6149.
Colour: white.
Dimensions: 141x139x10 mm + 45 mm (ush-mounted)
The interphone must be used with power supply unit type 6922 or 6923.
6611/AU Flush-mounting interphone. Equipped with 6 additional programmable buttons, as well as the 8
standard buttons, for intercom calls or auxiliary services. For installation, requires ush-mount
back box art. 6149.
Colour: white.
Dimensions: 141x139x10 mm + 45 mm (ush-mounted).
The interphone must be used with power supply unit type 6922 or 6923.
6600 SERIES
Open voice door entry monitor for ush mounting, surface wall
mounting and desktop mounting with 4" and 3.5" TFT LCD colour display
Code Description
6701/AU Surface wall-mounting interphone. Supplied with wall xing bracket.
Colour: white
Dimensions: 141x139x40 mm
The interphone must be used with power supply unit type 6922 or 6923.
6711/AU Surface wall-mounting interphone. Equipped with 6 additional programmable buttons, as well
as the 8 standard buttons, for intercom calls or auxiliary services. Supplied with wall xing
bracket. Colour: white.
Dimensions: 141x139x40
The interphone must be used with power supply unit type 6922 or 6923.
660C/AU Desktop interphone, supplied with 2 metre cable, socket and removable plug.
Colour: white.
Dimensions: 141x125x125 mm.
The interphone must be used with power supply unit type 6922 or 6923.
6600 series audio door entry units for Digibus technology
6604/AU Flush-mounting interphone with microcontroller for 4 or 8-digit encoding/decoding.
For installation, requires ush-mounting back box art. 6149.
Colour: white.
Dimensions: 141x139x10 mm + 45 mm (ush-mounted).
The interphone must be used with power supply unit type 6941 or 6948.
6704/AU Surface wall-mounting interphone with microcontroller for 4 or 8-digit encoding/decoding.
Supplied with wall xing bracket.
Colour: white.
Dimensions: 141x139x40 mm
The interphone must be used with power supply unit type 6941 or 6948.
660D/AU Desktop interphone with microcontroller for 4 or 8-digit encoding/decoding. Supplied with 2
metre cable with 13 conductors + 1 coaxial, and removable plug and socket.
Colour: white.
Dimensions: 141x125x125 mm.
The interphone must be used with power supply unit type 6941 or 6948.
6600 series audio door entry units for Sound System technology
6600/AU Flush-mounting interphone. For installation, requires ush-mounting back box art. 6149.
Colour: white.
Dimensions: 141x139x10 mm + 45 mm (ush-mounted).
The interphone must be used with power supply unit type 931+6582+170/001 or 6680.
6700/AU Surface wall-mounting interphone. Supplied with wall xing bracket.
Colour: white.
Dimensions: 141x139x40 mm
The interphone must be used with power supply unit type 931+6582+170/001 or 6680.
660A/AU Supplied with 2 metre cable with 13 conductors + 1 coaxial, and removable plug and socket.
Colour: white.
Dimensions: 141x125x125 mm.
The interphone must be used with power supply unit type 931+6582+170/001 or 6680.
Code Description
6600 series Two-Wire video door entry kit and 8000 series panel
6621/K Colour video door entry kit comprising: 1 8000 series ush-mounting panel in light grey with
1 call button (type 89F5/C1 + 9192 + 8092), complete with colour video camera, speech unit
and "ENGAGED-PLEASE WAIT" indicator, 1 6600 series ush-mounting monitor in white with
3.5" TFT LCD colour screen and ush-mounting back box (type 6621 + 6149), 1 6922 power
supply unit.
6611/K Colour video door entry kit comprising: 1 8000 series ush-mounting panel in light grey with 1
call button (type 89F5/C1 + 9192 + 8092), complete with colour video camera, speech unit and
without "ENGAGED-PLEASE WAIT" indicator, 1 6600 series ush-mounting monitor in white
with 3.5" TFT LCD colour screen, 6 additional push-buttons and ush-mounting back box (type
6611 + 6149), 1 6922 power supply unit.
6600 series Two-Wire video door entry kit and 1200 series panel
6611/Ki1 Colour video door entry kit comprising: 1 1200 series ush-mounting panel in stainless steel
with 1 call button (type 1221 + 12F5 + 9192), complete with colour video camera, speech unit
and without "ENGAGED-PLEASE WAIT" indicator, 1 6600 series ush-mounting monitor in
white with 3.5" TFT LCD colour screen, 6 additional push-buttons and ush-mounting back box
(type 6611 + 6149), 1 6922 power supply unit.
6600 SERIES
Open voice door entry monitor for ush mounting, surface wall
mounting and desktop mounting with 4" and 3.5" TFT LCD colour display
Code Description
6600 series Sound System video door entry kit and 8000 series panel
66CG Colour video door entry kit comprising: 1 8000 series ush-mounting panel in light grey with 1
call button (type 8T19+80C1+8082+9192), 1 colour video camera with speech unit type 559C, 1
6600 series ush-mounting monitor in white with 4" TFT LCD colour screen and ush-mounting
back box (type 6600 + 6149), 1 6680 power supply unit.
67CG Colour video door entry kit comprising: 1 8000 series ush-mounting panel in light grey with 1
call button (type 8T19+80C1+8082+9192), 1 colour video camera with speech unit type 559C,
1 6600 series ush-mounting monitor in white with 4" TFT LCD colour screen (type 6700), 1
6680 power supply unit.
67CG/2 Colour video door entry kit comprising: 1 8000 series ush-mounting panel in light grey with
2 call buttons (type 8T19+80C2+8082+9192), 1 colour video camera with speech unit type
559C, 2 6600 series ush-mounting monitors in white with 4" TFT LCD colour screen (type
6700), 1 6680 power supply unit.
6600 series Sound System video door entry kit and 1200 series panel
66CI Colour video door entry kit comprising: 1 1200 series ush-mounting panel in stainless steel
with 1 call button (type 1221 + R200 + R260 + 9192), 1 colour video camera with speech unit
type 559B, 1 6600 series ush-mounting monitor in white with 4" TFT LCD colour screen and
ush-mounting back box (type 6600 + 6149), 1 6680 power supply unit.
Video door entry kits
Via Pontarola, 14/a
35011 Campodarsego PD - Italy
Tel. +39 049 920 2511
Fax +39 049 920 2601
www.elvox.com - elvoxexp@elvox.com
Elvox reserves the right to modify its products at any time without advance notication. Due to layout considerations, the images and drawings of the products are not in scale to each other DEP. P0E. 103 - RL02 - 03/2012

Navigation menu
