PROFILE®-II / PROFILE®-IIA / VERDICT®-II

PRODUCT INSERT

The PROFILE®-II /PROFILE®-IIA /VERDICT®-II products are one-step qualitative screening assays for the detection of one or

more of the following: Cannabinoids (THC), Opiates, Amphetamine, Cocaine, Phencyclidine, Tricyclic Antidepressants, Barbiturates,

Methadone, Benzodiazepines, Propoxyphene, Methamphetamine/ 3,4 Methylenedioxymethamphetamine and Oxycodone or their

metabolites in human urine. All PROFILE-II/PROFILE II-A/VERDICT-II product(s) are covered by this insert. Refer to

product labeling for the actual drugs assayed by the kit or system configuration.

The Lateral Flow (LatFlo®) Adulterant Strip (LFAS) is a one-step qualitative screening assay for the detection of Oxidants and

Nitrites and the Determination of Specific Gravity and pH Values in human urine. It is used to evaluate specimens for adulteration

prior to Drugs of Abuse urine (DAU) testing. The LFAS strip is only for Forensic/Toxicology use and not for in vitro diagnostic

applications. The LFAS test strip is only contained in products labeled PROFILE-IIA or VERDICT-II with “LFAS” on the

label.

1. INTENDED USE

The PROFILE-II/VERDICT-II Drugs of Abuse Test is a one-step immunochromatographic test for the rapid, qualitative detection of

one or more of the following: Cannabinoids (THC), Opiates, Amphetamine, Cocaine, Phencyclidine, Tricyclic Antidepressants,

Barbiturates, Methadone, Benzodiazepines, Propoxyphene, Methamphetamine/ 3,4 Methylenedioxymethamphetamine and Oxycodone

in human urine. It is not for over-the-counter sale. The test detects drug classes at the following cutoff concentrations:

THC Cannabinoids (11-nor-9-carboxy-∆9-THC) 50 ng/mL BAR Barbiturates (Butalbital) 200 ng/mL

OPI2 Opiates (Morphine) 2000 ng/mL MTD Methadone (Methadone) 300 ng/mL

OPI3 Opiates (Morphine) 300 ng/mL BZO Benzodiazepines (Nordiazepam) 300 ng/mL

AMP Amphetamine (d-Amphetamine) 1000 ng/mL PPX Propoxyphene (Norpropoxyphene) 300 ng/mL

COC Cocaine (Benzoylecgonine) 300 ng/mL MAMP Methamphetamine (d-Methamphetamine) 1000 ng/mL

PCP Phencyclidine (Phencyclidine) 25 ng/mL MDMA 3,4 Methylenedioxymethamphetamine 1500 ng/mL

TCA Tricyclic Antidepressants (Desipramine) 300 ng/mL OXY Oxycodone (Oxycodone) 100 ng/mL

THE PROFILE-II/VERDICT-II DRUGS OF ABUSE TEST PROVIDES ONLY A PRELIMINARY ANALYTICAL TEST

RESULT. A MORE SPECIFIC ALTERNATE CHEMICAL METHOD MUST BE USED IN ORDER TO OBTAIN A

CONFIRMED ANALYTICAL RESULT. GAS CHROMATOGRAPHY/ MASS SPECTROMETRY (GC/MS), HIGH

PERFORMANCE LIQUID CHROMATOGRAPHY (HPLC) OR LIQUID CHROMATOGRAPHY/TANDEM MASS

SPECTROMETRY (LC/MS/MS) ARE THE PREFERRED CONFIRMATORY METHODS. CLINICAL CONSIDERATION AND

PROFESSIONAL JUDGMENT SHOULD BE APPLIED TO ANY DRUG OF ABUSE TEST RESULT, PARTICULARLY WHEN

PRELIMINARY POSITIVE RESULTS ARE OBTAINED.

2. SUMMARY AND EXPLANATION OF THE TEST

Qualitative PROFILE-II / VERDICT-II Drugs of Abuse screens utilize a one-step, solid-phase immunoassay technology to provide a

very rapid test requiring no instrumentation. This test may be used to screen urine samples for one or more of the following drug

classes prior to confirmatory testing:

Marijuana (THC) is a hallucinogenic drug derived from the hemp plant. Marijuana contains a number of active ingredients

collectively known as Cannabinoids.

Opiates (OPI) are a class of natural and semi-synthetic sedative narcotic drugs that include morphine, codeine and heroin.

The “Amphetamines” are a group of drugs that are central nervous system stimulants. This group includes „amphetamine‟ and

„methamphetamine‟, and related designer drugs like „3,4 Methylenedioxymethamphetamine‟, (better known as Ecstasy or MDMA a

psychoactive drug with hallucinogenic effects). The drug „Amphetamine‟ (d-amphetamine) is detected on the device only at the

(AMP) position. Both the designer drug Ectasy (MDMA) „Methylenedioxymethamphetamine‟ and methamphetamine (d-

methamphetamine) are detected on the device only at the (MAMP) position.

Cocaine (COC) is a central nervous system stimulant. Its primary metabolite is benzoylecgonine.

Phencyclidine (PCP) is a hallucinogenic drug.

Tricyclic Antidepressants (TCA) are a group of structurally related prescription drugs that are used to manage depression.

Barbiturates (BAR) are a group of structurally related prescription drugs that are used to reduce restlessness and emotional tension,

induce sleep and to treat certain convulsive disorders.

Methadone (MTD) is a synthetic opioid used clinically as a maintenance drug for opiate abusers and for pain management.

Benzodiazepines (BZO), a group of structurally related central nervous system depressants, are primarily used to reduce anxiety and

induce sleep.

Propoxyphene (PPX) is a narcotic analgesic. It‟s primary metabolite is norpropoxyphene.3

Oxycodone (Oxycontin®, Percodan®, Percocet®, etc) is a semi synthetic narcotic analgesic that is prescribed for moderately severe

pain. It is available in both standard and sustained release oral formulations. Oxycodone is metabolized to oxymorphone and

noroxycodone.

Many factors influence the length of time required for drugs to be metabolized and excreted in the urine. A variety of factors influence

the time period during which drug metabolites are detected in urine; the rate of urine production, the volume of fluid consumption, the

amount of drug taken, the urine pH, and the length of time over which drug was consumed. Drinking large volumes of liquid or using

diuretics to increase urine volume will lower the drug concentration in the urine and may decrease the detection period. Although the

detection period for these drugs varies widely depending upon the compound taken, dose and route of administration and individual

rates of metabolism, some general times have been established and are listed below.1-4, 6

Drug Detection Period Drug Detection Period

THC Tricyclic Antidepressants 1-7 days

Single Use 1-7 days

Chronic, Use Less than 30 days Barbiturates

typical Short-Acting up to 6 days

Long-Acting up to 16 days

Opiates

Heroin 1 day Methadone 1-3 days

Morphine 1-3 days

Codeine 1-3 days Benzodiazepines 1-12 days

Amphetamine Methamphetamine/MDMA

Acid Conditions 1-3 days Acid Conditions 1-3 days

Alkaline Conditions 3-10 days Alkaline Conditions 3-10 days

Cocaine Metabolite Up to 5 days Propoxyphene up to 1 week

1 to 3 days typical

PCP Oxycodone 1-3 days

Single Use 1-8 days

Chronic Use Up to 4 weeks

The LFAS is a lateral flow strip with impregnated reagent test pads that detect specific analytes in human urine. The analytes detected

are Oxidants and Nitrites. The strip also approximates the pH and specific gravity values. Urine samples with „abnormal‟ values

should be submitted to a reference laboratory for additional testing.

Oxidants The detection is based on the oxidative activity of compounds (e.g. chromate salts and/or Bleach) that catalyze the oxidation

of an indicator by an organic hydroperoxide producing a blue/orange color. The color intensity is directly proportional to the

concentration of Oxidants present in the sample and is observed visually and compared to the color comparator chart to obtain a result.

Nitrites The test is based on the principles of the Griess reaction for the detection of Nitrites. The test pad contains an amine and a

coupling component. A red/orange colored azo compound is obtained by diazotization and subsequent coupling. The color intensity is

directly proportional to the concentration of Nitrites present in the sample and is observed visually and compared to the color

comparator chart to obtain a result.

pH The test paper contains indicators that change colors between pH 2 and pH 11. The color scale gives an approximate indication for

pH values between those levels.

Specific Gravity The test pad reacts with ions in urine to indicate concentrations from 1.000 to 1.020. The color changes range from

dark green with low ionic concentrations through green to yellow/orange in urines with high ionic concentrations. The color is

observed visually and compared to the color comparator chart to obtain an approximate result.

3. PRINCIPLES OF THE PROCEDURE

The PROFILE-II/VERDICT-II Drugs of Abuse Test is a one-step, competitive, membrane-based immunochromatographic assay. A

single urine sample can be evaluated for the presence of each of the specified classes of drug(s) in a single device. The device consists

of antibody-colloidal gold, drug-conjugates and a control line.

1. ANTIBODY-COLLOIDAL GOLD Mouse monoclonal drug antibodies were developed. Each antibody only binds drug(s) from

the drug class tested. Antibody-colloidal gold solutions were prepared by absorbing each of the individual monoclonal antibodies to

colloidal gold. The colloidal gold solutions were applied to the sample well pad in the drugs of abuse test.

2. DRUG-CONJUGATES Drug from the class tested was individually conjugated to bovine serum albumin (BSA) or IgG. Each

drug conjugate was immobilized as a line at a labeled location on the membrane strip.

3. CONTROL LINE Each test strip has anti-mouse immunoglobulin antibody immobilized as a line on the membrane at the CTRL

location on the device window. The anti-mouse immunoglobulin antibody can bind to any of the mouse antibodies coated on the

colloidal gold.

The device can be used to detect specific class(es) of drug(s) in urine because drug(s) in the urine and the drug(s) conjugated to the

protein compete to bind to the antibody-colloidal gold in a highly specific reaction. When the urine sample is placed in the sample

well(s), the dried antibody-colloidal gold on the sample pad(s) dissolves and the urine wicks up the white strips carrying the reddish-

purple antibody-colloidal gold as a solution with it.

Negative Samples

When no drug(s) is present in the urine sample, the reddish purple antibody-colloidal gold solutions migrate along the strip then binds

to the appropriate drug conjugate immobilized on the membrane. The binding of the antibody-colloidal gold to the drug conjugate

generates an easily visible reddish-purple line at each of the labeled locations in the result window. Negative results can be reported as

soon as the drug and control lines are visible.

Positive Samples

When drug(s) is present in the urine sample the antibody-colloidal gold binds to the drug(s) before it migrates along the strip. When

the antibody-colloidal gold binds to the drug(s) in the urine, it cannot bind to the drug conjugate immobilized on the membrane and no

line is generated at the drug-specific location in the result window. Read positive results at 5 minutes. The control line should be

present for the test to be valid.

CTRL Line

Each test strip has an internal procedural control. A line must form at the Control (CTRL) position in the result window to indicate

that sufficient sample was used and that the reagents are migrating properly. If a Control line does not form, the test is invalid. A

Control line forms when the antibody-colloidal gold binds to the anti-mouse immunoglobulin antibody immobilized on the membrane

at the CTRL location(s) near the top of the device window.

4. MATERIALS PROVIDED/STORAGE CONDITIONS

Each PROFILE-II/VERDICT-II Drugs of Abuse Test contains all the reagents necessary to test one urine sample simultaneously for

one or more drugs.

1. The test device contains one or more test strips composed of a membrane strip coated with drug conjugate and a pad coated with

antibody dye complexes in a protein matrix.

2. The test device may contain a membrane strip laminated with Adulterant test pads for testing the presence of Oxidants and

Nitrites, as well as determining approximate values of Specific Gravity and pH in human urine. The LFAS test strip is not

contained in every PROFILE-II/VERDICT-II product.

25 Test Kit Contents-Device Only

1. Twenty-five (25) test devices in individual foil packages containing a disposable 100 µL sample pipette.

2. One reference guide.

3. For LFAS products only, five color comparator charts.

25 Test Kit Contents-Test System

The PROFILE Drugs of Abuse Test System kit contains twenty-five (25) individually bagged test systems and one reference guide.

Test System bag Contents

1. One (1) test device in a foil package containing a disposable 100 µL sample pipette.

2. For LFAS products only, one color comparator chart.

3. Split Specimen Kit containing the following:

One (1) calibrated collection container with temperature strip.

Two (2) specimen bottles.

One (1) specimen transport (Bio-Hazard) bag.

On-Site Screening and Laboratory Confirmation Forms may be included if requested.

Storage Conditions

The kit, in its original packaging, should be stored at 2-25°C (36-77°F) until the expiration date on the label.

5. PRECAUTIONS

1. Urine specimens and all materials coming in contact with them should be handled and disposed of as if infectious and capable of

transmitting infection. Never pipette by mouth and avoid contact with broken skin.

2. Avoid cross-contamination of urine samples by using a new urine specimen container and pipette for each urine sample.

3. The device should remain in its original sealed foil pouch until ready to use. If the pouch is damaged, do not use the test.

4. Do not store the test kit at temperatures above 25°C (77°F).

5. If devices have been stored refrigerated, bring to ambient temperature (18-25°C/ 64-77°F) prior to opening foil pouch.

6. Do not use tests after the expiration date printed on the package label.

7. The drug screen portion of the device is for in vitro diagnostic use only. The LFAS strip is for Forensic/Toxicology use only.

8. If any of the lines formed are outside the arrow indicated by the drug name, the test is invalid.

6. SAMPLE COLLECTION AND PREPARATION

The urine sample should be collected in a clean glass or plastic container. Approximately 100 µL is required for each sample well.

Collection of 45 mL of urine is more than sufficient for initial and subsequent testing. No preservatives should be added. Urine may be

tested immediately following collection. The specimen may be refrigerated if testing is going to be delayed for more than a day. Urine

may be frozen for longer storage. Stored urine must be brought to ambient temperature (18 to 25°C/64 to 77°F) and mixed well to

assure a homogeneous sample prior to testing.

7. MATERIALS REQUIRED BUT NOT PROVIDED

1. External controls

2. Timer

3. A Urine collection container is not provided with the „Device Only‟ 25 Test Kit.

4. Specimen containers, external controls, disposable gloves and urine temperature strips are available from MEDTOX Diagnostics,

Inc.

8. TEST PROCEDURE

1. Open one pouch for each sample to be tested and label the device with the patient or sample identification (ID).

(You may notice a reddish-purple color in the sample well. This is normal, do not discard the test).

2. Apply 100 µl of urine to sample well as follows:

• Hold the 100 µl sample pipette by the upper bulb.

• Lower the pipette stem into the urine sample.

• Squeeze the upper bulb then release it. This motion will draw 100 µl of urine into the stem. The urine sample should reach

the top of the stem, and a drop or two should overflow into the middle bulb, if not, repeat this process.

• Dispense the urine into the sample well by squeezing the upper bulb. This will empty the stem delivering 100 µL of sample.

Excess urine in the middle bulb should remain in the bulb.

3. Repeat Step 2 for each additional sample well (for multi-strip devices).

4. Read the results at 5 minutes after application.

NOTE: For all tests except OXY, read results at 5 minutes or within 15 minutes of the sample application. The test result

after 15 minutes may not be consistent with the original reading.

For OXY only, read results at 5 minutes. The test result after 5 minutes may not be consistent with the original

reading.

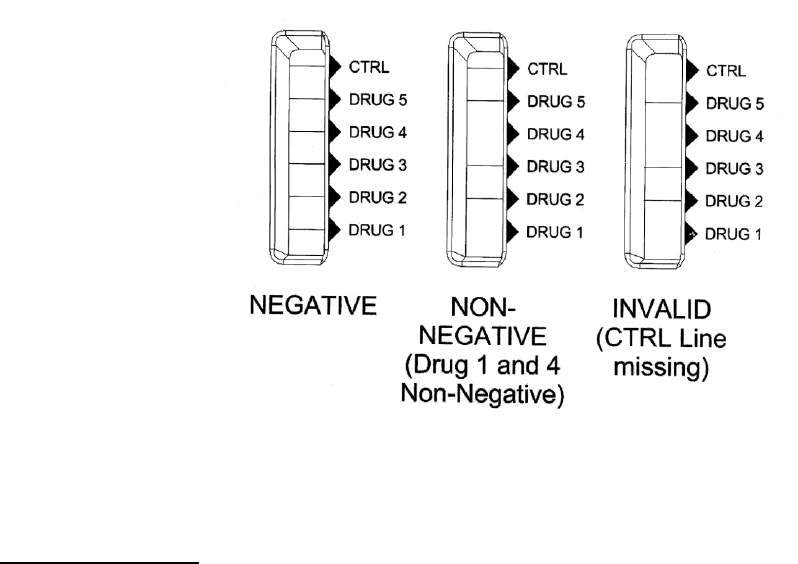

9. READING THE TEST RESULTS

Negative: The appearance of both a reddish-purple Control (CTRL) line and a specific drug line indicates a negative test result. The

color intensities of the Control line and a specific drug line may not be equal; any reddish-purple line visible at 5 minutes

indicates a negative test result. Line intensity will vary from test to test.

Non-Negative: The appearance of both a reddish-purple Control (CTRL) line and the absence of a line next to a specific drug name

at 5 minutes indicates a preliminary positive test result for that drug. Occasionally a white line (line lighter than the

background of the strip) may appear next to a specific drug name. This indicates a preliminary positive test result

for that drug.

Invalid: The absence of a reddish-purple Control (CTRL) line indicates the test is invalid. The urine sample should be retested on a

new device. If the second test is also invalid, send the urine sample to a reference laboratory for additional testing.

10. INTERPRETATION OF TEST RESULTS

A NEGATIVE test result for a specific drug indicates that the sample does not contain the drug/drug metabolite above the cutoff level.

A NON-NEGATIVE test result for a specific drug indicates that the sample may contain drug/drug metabolite near or above the cutoff

level. It does not indicate the level of intoxication or the specific concentration of drug in the urine sample. Examples of Negative and

Non-Negative results are shown below.

There are other possible results depending on the drug or combination of drugs present in the urine sample.

11. QUALITY CONTROL

An internal procedural control is included on each device. A line must form at the Control (CTRL) position in the result window to

indicate that the proper sample volume was used and that the reagents are migrating properly. If a Control line does not form, the test

is considered invalid. The Control line consists of immobilized anti-mouse antibody that reacts with the antibody-colloidal gold as it

passes this region of the membrane. Formation of a visible line verifies the Control line antibody antigen reaction occurred. This line

may be considered an internal negative procedural control. In addition, if the test has been performed correctly and the device is

working properly, the background will clear such that result lines are distinct. The cleared background may be considered an internal

positive procedural control. The visible Control line (CTRL) should always be present regardless of whether drug is absent or present

in the sample.

The purpose of quality control in laboratory testing is to ensure accuracy, reliability of results and to detect errors. Because the devices

are self-contained, single use tests, traditional quality control programs do not apply. The Quality Control program MEDTOX

recommends for these non-instrumented test devices includes a combination of the internal device controls and external controls to

ensure accuracy, reliability and to detect possible errors. The on-board reactive device controls may be one aspect of the quality

program utilized by a laboratory to satisfy the daily quality control requirement established by the Laboratory Director. Another aspect

of a quality control program includes an external negative control containing no drug and a positive drug control challenging to the

assay cutoff concentration. These controls may be used to initially test each shipment of product received by the laboratory or to verify

appropriate storage conditions and long-term stability of the test reagent. To follow good laboratory practices, we recommend that the

user document the receipt of each new lot number of devices, the results of external controls performed initially and periodically

thereafter, and the results of the internal controls within each device.

It is the responsibility of each Laboratory Director to demonstrate and document the validity of the alternate QC procedure they

choose to use in their laboratory. For additional information or forensic and workplace testing requirements, users should contact and

follow the appropriate federal, state, and local guidelines. Quality control materials are available from MEDTOX and commercial

sources. Contact MEDTOX for further information.

12. LIMITATIONS OF THE PROCEDURE

1. The PROFILE-II/VERDICT-II Drugs of Abuse Test is only for use with unadulterated human urine samples. Urine samples

which are either extremely acidic (below pH 4.0) or basic (above pH 9.0) may produce erroneous results.

2. A positive result for any drug(s) does not indicate or measure intoxication. It only indicates the presence of specific drug(s) in the

urine specimen.

3. Test results interpreted after 15 minutes (after 5 minutes for OXY) may not be consistent with the original result obtained at 5

minutes.

4. The PROFILE-II/VERDICT-II Drugs of Abuse Test was not evaluated in point-of-care settings (except OXY clone was evaluated

in point-of-care settings).

5. There is a possibility that other substances and/or factors, e.g. technical or procedural errors, may interfere with the test and cause

false results.

LFAS Strip

The purpose of the adulteration strip is to screen for abnormal conditions in human urine samples, such as dilution or the addition of

drug-test interfering substances. Occasionally medications may discolor the urine, and make it difficult to read the result. When in

doubt send the urine sample to a reference laboratory for additional testing.

Oxidant

Nitrites, acting as oxidizing agents in solution, will produce a blue/green color change on the Oxidant pad.

Nitrite

Abnormal results can be caused by the presence of diagnostic or therapeutic dyes in the urine. Very high concentrations of oxidant

such as 80% bleach will produce a brown color change on the Nitrite pad.

13. EXPECTED VALUES

The Substance Abuse and Mental Health Services Administration (SAMHSA) recommends the following

screening test cutoffs:

THC 11-nor-9-carboxy-∆9-THC 50 ng/mL

OPI Morphine 2000 ng/mL

AMP Amphetamine 1000 ng/mL

COC Benzoylecgonine 300 ng/mL

PCP Phencyclidine 25 ng/mL

MAMP Methamphetamine 1000 ng/mL

There are no SAMHSA recommended screening levels for tricyclic antidepressants, benzodiazepines, methadone, barbiturates,

MDMA, propoxyphene and oxycodone and/or their metabolites.

The PROFILE-II/VERDICT-II Drugs of Abuse Test qualitatively detects THC, opiates, amphetamines, cocaine, phencyclidine,

tricyclic antidepressants, barbiturates, methadone, benzodiazepines, propoxyphene, methamphetamine/MDMA and oxycodone and/or

their metabolites as listed (See Sensitivity).

LFAS Test:

Urines that produce an abnormal result on the LFAS adulteration strip should be sent to a reference laboratory for more definitive

testing to determine if the urine may be dilute, substituted, invalid and/or adulterated.

14. PERFORMANCE CHARACTERISTICS

Sensitivity

The PROFILE-II/VERDICT-II Drugs of Abuse Test detects one or more of the following drugs at cutoff levels listed below. Cutoffs

for cannabinoids (THC), opiates (OPI2), amphetamines, cocaine metabolite, phencyclidine, and methamphetamines are based on

SAMHSA recommendations for screening of these drugs in human urine. The opiate (OPI3) test, if present, detects opiates below the

SAMHSA recommendations for screening of opiates in human urine. There are no SAMHSA recommended screening cutoff levels

for propoxyphene, MDMA, barbiturates, benzodiazepines, methadone, tricyclic antidepressants and oxycodone.

THC 11-nor-9-carboxy-∆9-THC 50 ng/mL

OPI2 Morphine 2000 ng/mL

OPI3 Morphine 300 ng/mL

AMP Amphetamine 1000 ng/mL

COC Benzoylecgonine 300 ng/mL

PCP Phencyclidine 25 ng/mL

TCA Tricyclic Antidepressants (Desipramine) 300 ng/mL

BAR Barbiturates (Butalbital) 200 ng/mL

MTD Methadone (Methadone) 300 ng/mL

BZO Benzodiazepines (Nordiazepine) 300 ng/mL

PPX Propoxyphene (Norpropoxyphene) 300 ng/mL

MAMP Methamphetamine 1000 ng/mL

MDMA Methylenedioxymethamphetamine 1500 ng/mL

OXY Oxycodone 100 ng/mL

Accuracy

A panel of naturally metabolized urine samples for the following drug(s) was analyzed using the PROFILE-II/VERDICT-II Drugs of

Abuse Test and the Boehringer Mannheim qualitative CEDIA® assay or the ROCHE ABUSCREEN ONLINE® for each drug and the

results were compared. Results are shown in the following tables.

ACCURACY COMPARED TO THE BOEHRINGER MANNHEIM QUALITATIVE CEDIA® or

THE ROCHE ABUSCREEN ONLINE® II ASSAYS

CEDIA MULTI-LEVEL THC (50 ng/mL cutoff)

PROFILE-II/VERDICT-II Positive Negative TOTAL

THC (50 ng/mL cutoff) Positive 194 3 197

Negative 10 477 487

TOTAL 204 480 684

Overall agreement: 98% (671/684). Samples having discrepant results were analyzed by GC/MS. The three false positive samples

were found to contain 16, 28, and 32 ng/mL while the ten false negative samples contained 32, 35, 41, 42, 46, 46, 49, 50, 50, and 90

ng/mL.

ROCHE ABUSCREEN ONLINE®-II OPIATE (2000 ng/mL cutoff)

PROFILE-II/VERDICT-II Positive Negative TOTAL

OPI (2000 ng/mL cutoff) Positive 68 0 68

Negative 0 89 89

TOTAL 68 89 157

Overall agreement: 100% (157/157) CEDIA OPIATE (300 ng/mL cutoff)

PROFILE-II/VERDICT-II Positive Negative TOTAL

OPI (300 ng/mL cutoff) Positive 133 1 134

Negative 0 550 550

TOTAL 133 551 684

Overall agreement: >99% (683/684). The discrepant sample was analyzed by GC/MS. The one false positive sample did not contain

morphine or codeine detectable at the GC/MS cutoff of 300 ng/mL.

CEDIA AMPHETAMINE (1000 ng/mL cutoff)

PROFILE-II/VERDICT-II Positive Negative TOTAL

AMP(1000 ng/mL cutoff) Positive 64 0 64

Negative 2 618 620

TOTAL 66 618 684

Overall agreement: >99% (682/684). Samples having discrepant results were analyzed by GC/MS. The two false negative samples

contained amphetamine at 2353 and 3569 ng/mL.

CEDIA COCAINE (300 ng/mL cutoff)

PROFILE-II/VERDICT-II Positive Negative TOTAL

COC (300 ng/mL) Positive 96 8 104

Negative 2 578 580

TOTAL 98 586 684

Overall agreement: 99% (674/684). Samples having discrepant results were analyzed by GC/MS. Of the eight false positive samples

one contained 151 ng/mL while seven did not contain cocaine metabolite detectable at the GC/MS cutoff of 150 ng/mL. The two false

negative samples contained cocaine metabolite at 688 and 666 ng/mL.

CEDIA PHENCYCLIDINE (25 ng/mL cutoff)

PROFILE-II/VERDICT-II Positive Negative TOTAL

PCP (25 ng/mL) Positive 56 2 58

Negative 1 625 626

TOTAL 57 627 684

Overall agreement: >99% (681/684). Samples having discrepant results were analyzed by GC/MS. The two false positive samples did

not contain phencyclidine detectable at the GC/MS cutoff of 25ng/mL. The one false negative sample contained phencyclidine at 28

ng/mL.

RELATIVE SENSITIVITY AND SPECIFICITY COMPARED TO THE BOEHRINGER MANNHEIM

QUALITATIVE CEDIA® or THE ROCHE ABUSCREEN ONLINE® II ASSAYS

(THC, Opiates, Amphetamine, Cocaine, and PCP)

Relative Sensitivity Relative Specificity

THC 95% (194/204) 99% (477/480)

OPI2 100% (68/68) 100% (89/89)

OPI3 100% (133/133) >99% (550/551)

AMP 97% (64/66) 100% (618/618)

COC 98% (96/98) 99% (578/586)

PCP 98% (56/57) >99% (625/627)

ACCURACY COMPARED to GC/MS

Values for Discrepant

PROFILE-II/VERDICT-II GC/MS Samples (ng/mL)

THC Positive 48 50

Negative 52 50 35 and 46

OPI2 Positive 47 47

Negative 0 0 No Discrepants

OPI3 Positive 50 50

Negative 50 50 No Discrepants

AMP Positive 48 50

Negative 52 50 2353 and 3569

COC Positive 49 50

Negative 51 50 666

PCP Positive 49 50

Negative 51 50 28

Precision (THC, Opiates, Amphetamine, Cocaine, and PCP)

Performance around the specific cutoff for each drug was measured by testing standard drug solutions diluted in drug-free urine in

replicates of 20 each on 3 different days by 3 operators. Twenty replicates of drug-free urine were also tested on each day. At 25%

above the cutoff, the precision of each assay was as follows: THC=95%, OPI2= 96.7%, OPI3=100%, AMP=100%, COC=100%, and

PCP=100%.

Reproducibility (THC, Opiates 300, Amphetamine, Cocaine, and PCP)

A panel of 55 naturally metabolized human urine samples was prepared. All samples in the panel had been screened for the presence

or absence of THC, OPI, AMP, COC, and PCP. In addition, each of the 55 samples had also been quantitated by GC/MS conducted at

SAMHSA cutoffs for positive samples or at limit of quantitation for negative samples to determine the concentration of a specific

drug. Five of the 55 samples were drug-free negatives and 50 of the samples were positive for one or more of the five drugs. The

concentration of primary metabolite in the positive samples was between 66 and 198 ng/mL for THC; 464 and 2000 ng/mL for OPI3;

1056 and 4622 ng/mL for AMP; 487 and 1342 ng/mL for COC; and 32 and 109 ng/mL for PCP. The panel was used to evaluate the

lot-to-lot and lab-to-lab reproducibility.

Lot-to-Lot Reproducibility (THC, Opiates 300, Amphetamine, Cocaine, and PCP)

Three aliquots of each of the 55 samples were prepared and each of the three sets of aliquots was coded and used to evaluate the

performance of one of three lots of drug tests for the five drugs above. There was one incorrect result (a false negative on an

amphetamine low positive sample) on the 825 tests for a reproducibility of >99%.

Lab-to-Lab Reproducibility (THC, Opiates 300, Amphetamine, Cocaine, and PCP)

Three aliquots of each of the 55 samples were prepared and each of the three sets of aliquots was tested by one of three study

participants using one lot of the five drug test panel above. There was >99% agreement between the three participants. Overall, there

were three incorrect results, two incorrect results for OPI3 (one false negative on an opiate low positive sample and one false negative

on an opiate high positive sample) and one incorrect result for PCP (one false negative a low positive sample), on the 825 tests.

Reproducibility (Opiates 2000)

A panel of 25 naturally metabolized human urine samples was prepared. All samples in the panel had been screened for the presence

or absence of opiates. In addition, each of the positive samples had also been quantitated by GC/MS conducted at SAMHSA cutoff

for positive samples to determine the concentration of morphine and codeine. The concentration of morphine and/or codeine in the

positive samples was between 2000 and 6000 ng/mL. The panel was used to evaluate Opiates 2000 for lot-to-lot and lab-to-lab

reproducibility. There were no incorrect results on the 75 tests (25 samples x 3 lots) for a lot-to-lot reproducibility of 100%. There

were no incorrect results on the 75 tests (25 samples x 3 study participants) for a lab-to-lab reproducibility of 100%.

Accuracy (Propoxyphene)

One-hundred forty one (141) clinical samples were evaluated by the Roche Abuscreen OnLine Propoxyphene assay, using a 300

ng/mL cut off. Sixty (60) samples were found to be negative and eighty-one (81) samples were found to be positive by the Roche

method. Three aliquots of each sample were prepared, and assayed by three operators in a masked manner. There was no significant

difference in the results obtained by the three operators, therefore the results of all three operators are included in the table. Results of

this comparison are as follows:

OnLine Positive OnLine Negative

PROFILE-II/VERDICT-II 238 0

PPX (300 ng/mL cutoff) 5 180

* GC/MS results are 390, 441, 499, 536 and 679 ng/mL

In addition to the 141 clinical samples, eight additional clinical samples containing only norpropoxyphene were diluted with drug-free

urine in order to obtain an adequate number of samples that had concentrations of drug that were challenging to the cutoff. These eight

diluted samples, and the 141 clinical samples described above were analyzed by GC/MS for propoxyphene and norpropoxyphene. The

level of quantitation of the GC/MS was 30 ng/mL. Only ten of the samples contained propoxyphene, and each of these samples had

norpropoxyphene levels greater than 1,647 ng/mL. As in the study above, three aliquots of the 149 samples were prepared, coded, and

assayed by three operators in a masked manner. There was no significant difference in the results obtained by the three operators,

therefore the results of all three operators are included in the comparison table.

GC/MS Range (ng/mL) None detected 150-265 339-450 >472

Number of samples 60 8 (Diluted samples) 7 74

Positive 0 12 19 219

Negative 180 12 2 3

Sensitivity/Precision/Distribution of Random Error (Propoxyphene)

Performance around the specific cut-off of 300 ng/ml for norpropoxyphene was evaluated by testing standard drug solutions diluted in

drug-free urine in triplicate on 5 different days by 3 operators. Drug-free urine was also tested on each day. There was no significant

difference in the results of the three operators so the results were combined and are shown in the following table.

Norpropoxyphene – Cut-off = 300 ng/mL

Conc. (ng/mL) Number Tested Positive Negative % Agreement

0 45 0 45 100

30 45 0 45 100

75 45 1 44 98

150 45 9 36 80

225 45 16 29 64

300 45 37 8 82

375 45 42 3 93

450 45 44 1 98

600 45 45 0 100

Accuracy (Methamphetamine and MDMA)

A panel of naturally metabolized urine samples was analyzed using the PROFILE-II/VERDICT-II PPX/MAMP-MDMA and the

GC/MS assay for methamphetamine and MDMA. The results obtained in the two procedures are shown in the following tables.

GC/MS Methamphetamine (limit of quantitation 50 ng/mL)

PROFILE-II/VERDICT-II Positive Negative TOTAL

MAMP (1000 ng/mL cut-off) Positive 56 0 56

Negative 2 56 58

TOTAL 58 56 114

Overall agreement: >98% (112/114). Samples having discrepant results were analyzed by GC/MS. The false negative samples

contained methamphetamine at 1056 ng/mL and at 1136 ng/mL.

GC/MS MDMA (limit of quantitation 50 ng/mL)

PROFILE-II/VERDICT-II Positive Negative TOTAL

MDMA (1500 ng/mL cut-off) Positive 19 1 20

Negative 4 57 61

TOTAL 23 58 81

Percent Agreement of MAMP-MDMA Compared to GC/MS

POSITIVE NEGATIVE

MAMP 97% (56/58) 100% (56/56)

MDMA 83% (19/23) 98% (57/58)

Sensitivity/Precision MAMP-MDMA

Performance for methamphetamine and MDMA was evaluated by testing standard drug solutions diluted in drug-free urine in

duplicates of 8 drug concentrations on 5 different days by 3 operators. Drug-free urine was also tested on each day. The complete

results for both drugs are shown in the tables below.

Methamphetamine Cut-off = 1000 ng/mL MDMA Cut-off= 1500 ng/mL

Conc. (ng/mL) No. Tested (+) (-) % Agreement Conc(ng/mL) No. Tested (+) (-) % Agreement

0 30 0 30 100 0 30 0 30 100

100 30 0 30 100 500 30 0 30 100

250 30 0 30 100 750 30 0 30 100

500 30 26 4 87 1000 30 12 18 60

750 30 27 3 90 1250 30 23 7 77

1000 30 28 2 93 1500 30 25 5 83

1250 30 29 1 97 2000 30 30 0 100

1500 30 30 0 100 2500 30 30 0 100

2000 30 30 0 100 3000 30 30 0 100

Reproducibility (MAMP-MDMA)

A panel of 18 spiked human urine samples, comprised of drug-free and drug standard samples, was prepared. The panel was examined

by 3 operators, once a day for 5 days. The concentration of methamphetamine and MDMA had been quantitated by GC/MS in each of

the 18 samples. There was 100% agreement between the three operators over the 5 day period at 0 ng/mL, 1500 ng/mL (cut-off +

50%) and 2000 ng/mL (cut-off + 100%) for methamphetamine. There was also 100% agreement between the three operators over the

5 day period for 0 ng/ml, 2000 ng/mL (cut-off +33%), 2500 ng/mL (cut-off + 67%) and 3000 ng/mL (cut-off + 100%) for MDMA.

Accuracy (Tricyclic Antidepressants, Barbiturates, Methadone and Benzodiazepines)

The accuracy was evaluated by assaying a coded panel of clinical urine samples containing varying concentrations of drugs and

comparing the results to validated methods. A validated HPLC assay measured tricyclic antidepressant levels. Validated GC/MS

assays measured barbiturates, methadone and benzodiazepines levels. Results are shown in the following tables.

ACCURACY COMPARED TO GC/MS OR HPLC

(Tricyclic Antidepressants, Barbiturates, Methadone and Benzodiazepines)

DRUG CLASS Concentration Range Number PROFILE-II/VERDICT-II

(ng/mL) of Samples Results

Tricyclic

Antidepressants 305 – 19224 50 49/50 Positive

228, 235, 238, 238, 246 5 5/5 Negative

Only one tricyclic antidepressant positive sample containing a combination of nortriptyline and amitriptyline for a combined tricyclic

antidepressant concentration of 519 ng/mL tested negative.

Barbiturates

Phenobarbital 201 – 27776 36 36/36 Positive

155, 155, 156, 158, 161 5 5/5 Negative

Butalbital 240 - 3814 27 27/27 Positive

109, 151, 194 3 3/3 Positive

Pentobarbital 264 1 1/1 Positive

Methadone 306 – 70560 57 57/57 Positive

224, 226, 227, 230, 232 5 5/5 Negative

Benzodiazepines 303 – 30813 57 57/57 Positive

234, 236, 238, 250, 283 5 5/5 Negative

Additionally, the accuracy was evaluated in comparison to a validated HPLC assay for tricyclic antidepressants and to the Roche

Diagnostics Sytems, Inc, ABUSCREEN ONLINE® assays for barbiturates, methadone and benzodiazepines. A panel of clinical urine

samples was analyzed and the results obtained in the procedures were compared. Results are shown in the following tables.

ACCURACY COMPARED TO THE ROCHE ABUSCREEN ONLINE® II OR HPLC ASSAYS

(Tricyclic Antidepressants, Barbiturates, Methadone and Benzodiazepines)

HPLC Tricyclic Antidepressants (25 ng/mL limit of quantitation)

PROFILE-II/VERDICT-II Positive Negative Total

TCA (300 ng/mL cutoff) Positive 49 0 49

Desipramine Test Negative 1 45 46

Total 50 45 95

Overall agreement: 99% (94/95). Only one tricyclic antidepressant positive sample containing a combination of nortriptyline (499

ng/mL) and amitriptyline (20 ng/mL) for a combined tricyclic antidepressant concentration of 519 ng/mL tested negative.

ABUSCREEN ONLINE® II Barbiturates Result (Secobarbital)

(300 ng/mL cutoff)

PROFILE-II/VERDICT-II Positive Negative Total

BAR (200 ng/mL cutoff) Positive 62 0 62

Butalbital Test Negative 0 45 46

Total 62 45 107

Overall agreement: 100% (107/107).

ABUSCREEN ONLINE® II Methadone Result

(300 ng/mL cutoff)

PROFILE-II/VERDICT-II Positive Negative Total

MTD (300 ng/mL cutoff) Positive 55 0 55

Methadone Test Negative 0 45 45

Total 55 45 100

Overall agreement: 100% (100/100).

ABUSCREEN ONLINE® II Benzodiazepines Result

(300 ng/mL cutoff)

PROFILE-II/VERDICT-II Positive Negative Total

BZO (300 ng/mL cutoff) Positive 57 0 57

Nordiazepam Test Negative 0 45 45

Total 57 45 102

Overall agreement: 100% (102/102).

PERCENT AGREEMENT COMPARED TO ROCHE ABUSCREEN

ONLINE ASSAYS OR HPLC

(Tricyclic Antidepressants, Barbiturates, Methadone and Benzodiazepines)

POSITIVE NEGATIVE

Tricyclic Antidepressants 98% (49/50) 100% (45/45)

Barbiturates 100% (62/62) 100% (45/45)

Methadone 100% (55/55) 100% (45/45)

Benzodiazepines 100% (57/57) 100% (45/45)

Sensitivity/ Precision/ Distribution of Random Error (Tricyclic Antidepressants, Barbiturates, Methadone and Benzodiazepines)

Performance around the specific cutoff for each drug was evaluated by testing standard drug solutions diluted in drug-free urine in

triplicate on 5 different days by 3 operators. Drug-free urine was also tested on each day. Operator-to-operator agreement was

excellent, therefore, the data were combined and summarized in the following tables.

Tricyclic Antidepressants (Desipramine) Cutoff = 300 ng/mL

Conc. (ng/mL) Number Tested Positive Negative %Agreement

Negative 45 0 45 100

30 45 2 43 96

75 45 17 28 62

150 45 33 12 73

225 45 34 11 76

300 45 40 5 89

375 45 41 4 91

450 45 44 1 98

600 45 45 0 100

Barbiturates (Butalbital) Cutoff = 200 ng/mL

Conc. (ng/mL) Number Tested Positive Negative % Agreement

Negative 45 0 45 100

50 45 0 45 100

100 45 0 45 100

150 45 12 33 73

200 45 43 2 96

250 45 45 0 100

300 45 45 0 100

Methadone (Methadone) Cutoff = 300 ng/mL

Conc. (ng/mL) Number Tested Positive Negative % Agreement

Negative 45 0 45 100

30 45 3 42 93

75 45 28 17 62

150 45 35 10 78

225 45 43 2 96

300 45 45 0 100

375 45 45 0 100

450 45 43 2 96

600 45 44 1 98

Benzodiazepines (Nordiazepam) Cutoff = 300 ng/mL

Conc. (ng/mL) Number Tested Positive Negative % Agreement

Negative 45 0 45 100

30 45 0 45 100

75 45 6 39 87

150 45 27 18 60

225 45 41 4 91

300 45 42 3 93

375 45 43 2 96

450 45 45 0 100

600 45 45 0 100

Accuracy in a Point of Care setting (Oxycodone)

The accuracy was evaluated by assaying a panel of blind coded clinical urine samples containing varying concentrations of drugs and

comparing to GC/MS results. The samples were obtained from MEDTOX Laboratories. Samples that screened negative by the

predicate device were not confirmed by GC/MS. Positive samples were confirmed by GC/MS. The GC/MS determination included

Oxycodone and oxymorphone and a weighted concentration using 100% cross-reactivity for Oxycodone and a 50% cross-reactivity

for oxymorphone was calculated. Clinical urine samples containing Oxycodone and oxymorphone at higher concentrations were

diluted with negative urine to obtain the desired number of samples with concentrations below and above the cutoff. The testing was

performed by nine point of care personnel at three sites.

MEDTOX® OXYCODONE Results vs stratified GC/MS Values

MEDTOX®

OXYCODONE

Results

Negative by

Immunoassay

(Predicate

Device)

Concentration up

to 50% below the

cutoff

Near Cutoff Negative

(Between 50% below

the cutoff and the

cutoff concentration)

Near Cutoff Positive

(Between the cutoff

and 50% above the

cutoff concentration)

High Positive

(Greater than 50%

above the cutoff

concentration)

Positive

Negative

103

GC/MS values used to categorize samples in this table are determined by adding together the concentration of Oxycodone plus 50% of

the concentration of oxymorphone, based on the MEDTOX® OXYCODONE cross-reactivity studies.

% Agreement among positives is 96%

% Agreement among negatives is 97%

A second, in-house accuracy study was done using many of the same samples as in the POC study above. Results between the two

studies were similar.

Sensitivity/Precision at One Location (Oxycodone)

Performance around the specific cutoff for Oxycodone was evaluated by testing standard drug solutions diluted in drug-free urine in

triplicate on 6 different intervals by 3 in-house operators. Drug free urine was also tested on each interval. The results were

interpreted at five minutes and are summarized below:

MEDTOX® OXYCODONE Precision Study Results

Concentration of

sample (ng/mL)

Number of

determinations

Results

#Neg / #Pos

54 / 0

50 / 4

14 / 40

100

4 / 50

125

1 / 53

150

0 / 54

Sensitivity/Precision at Point of Care Sites (Oxycodone)

Performance around the cutoff was evaluated by testing standard drug solutions diluted in drug-free urine at the various concentrations

listed in the following table. 9 POC users at 3 different sites each tested 5 replicates of the 6 levels. The results obtained from the 3

sites, (Site1, Site2, Site3) are listed below:

MEDTOX® OXYCODONE Precision Study Results at Point of Care Sites

Concentration of sample

(ng/mL)

Number of determinations

Results

#Neg / #Pos

Site 1

Site 2

Site 3

Site 1

Site 2

Site 3

15 / 0

13 / 2

15 / 0

14 / 1

100

0 / 15

3 / 12

125

0 / 15

2 / 13

1 / 14

150

0 / 15

Unrelated Compounds, Prescription and Over-the-Counter Medications

The following compounds were tested for reactivity. Listed compounds were dissolved in appropriate solvents and then added to

drug-free urine for testing. Unless otherwise noted by a drug name abbreviation such as “AMP” or “BAR” etc., all of the listed

compounds were negative in each of the tests at 100 µg/mL or the highest level tested. If a drug name is followed by an abbreviation

such as “AMP” or “BAR” etc., check the “Related Compounds and Cross Reactants” listing for the drug in question under the

appropriate heading (AMP, BAR, etc.) to find its level of cross-reactivity to that test.

Acecainide (N-Acetylprocainamide)

Acetaminophen

Acetylsalicyclic Acid

Allobarbital-BAR

Alphenal-BAR

Alprazolam-BZO

Alprazolam, 1-Hydroxy-BZO

p-Aminobenzoic Acid

7-Aminoclonazepam

7-Aminoflunitrazepam

Amino glutethimide

l-Aminopyrine (4-(dimethylamino) antipyrine)

Amitriptyline-TCA

Amobarbital-BAR

Amoxapine

Amoxicillin

d-Amphetamine-AMP

l- Amphetamine-AMP

Ampicillin

Apomorphine

l-Ascorbic Acid

Aspartame

Atenolol

Atomoxetine

Atropine Sulfate

Barbital-BAR

Barbituric Acid

Benzilic Acid

Benzoic Acid

Benzocaine (ethyl-4-aminobenzoate)

Benzoylecgonine-COC

Benzphetamine

Benztropine

Brompheniramine

Buprenorphine

Bupropion

Butabarbital-BAR

Butalbital-BAR

Caffeine

Cannabidiol

Cannabinol

Captopril

Carbamazepine

Carbamazepine- 10,11 epoxide

Carisoprodol (Meprobamate)

Cephalexin

Chloral Hydrate

Chloramphenicol

Chlordiazepoxide

Chloroquine

Chlorothiazide

Chlorpheniramine

Chlorpromazine

Chlorprothixene

Clobazam-BZO

Clomipramine

Clonazepam-BZO

Clonidine

Clorazepate-BZO

Clozapine-TCA

Cocaine-COC

Codeine-OPI, OXY

Cortisone

Cotinine

Cyclobenzaprine-TCA

Cyclopentobarbital-BAR

Deoxycorticosterone

Desalkylflurazepam-BZO

Desipramine

Desmethylchlordiazepoxide-BZO

Desmethylflunitrazepam-BZO

Desmethylvenlafaxine

Dexamethasone

Dextromethorphan

Diacetylmorphine-OPI

Diazepam-BZO

Diclofenac

Diethylpropion

Diflunisal

Digoxin

Dihydrocodeine-OPI, OXY

Dimenhydrinate (Dramamine)

1,3-Dimethylbarbituric acid

Diphenhydramine

Diphenylhydantoin (Phenytoin)-BAR

Domperidone

Dopamine

Doxepin-TCA

Doxylamine

Ecgonine

EDDP-(Primary metabolite of methadone)

Efavirenz (Sustiva)

EMDP-(Secondary metabolite of methadone)

Ephedrine-MAMP

Equilin

Erythromycin

Estrone

Ethanol

Ethylmorphine-OPI, OXY

Fenfluramine-MAMP

Fenoprofen

Fentanyl (Synthetic opiate)

Flunitrazepam-BZO

Fluoxetine (Prozac)

Flurazepam

Furosemide

Fluvoxamine

Gentisic Acid (2,5-Dihydroxybenzoic acid)

Glutethimide

Guaiacol Glyceryl Ether

Haloperidol

Hexobarbital

Hippuric acid

Hydralazine

Hydrochlorothiazide

Hydrocodone-OPI, OXY

Hydrocortisone

Hydromorphone-OPI, OXY

Hydroxybupropion

Hydroxyhippuric Acid

l-11-Hydroxy-9-THC

p-Hydroxyphenobarbital-BAR

4-Hydroxyphencyclidine-PCP

3-Hydroxytyramine

Hydroxyzine

Ibuprofen

Imipramine-TCA

Iproniazid

(R)-Isoproterenol

Isoxsuprine-COC

Ketamine

Ketoprofen

Labetalol

Levorphanol-OPI

Lidocaine

Lithium carbonate

Loperamide

Lorazepam-BZO

Lorazepam glucuronide-BZO

Loxapine

Lysergic Acid

Lysergic Acid Diethylamide (LSD)

Maprotiline-TCA

MDA-AMP

MDE (MDEA)-MAMP

MDMA

Melanin

Meperidine

Mephobarbital

Mepivacaine

Mesoridazine

Methadone-MTD

d-Methamphetamine-MAMP

l-Methamphetamine-MAMP

Methaqualone

Methcathinone

Methocarbamol

Methoxyphenamine

Methylphenidate

Methylprylon

Metoprolol

Midazolam-BZO

Mirtazapine

6-Monoacetylmorphine-OPI

Morphine-OPI, OXY

Morphine 3--D-Glucuronide-OPI

Morphine 6--D-Glucuronide-OPI

Nalidixic Acid

Naltrexone-OXY

Nalorphine-OPI

Naloxone-OXY

Naproxen

Niacinamide

Nicotine

Nifedipine

Nitrazepam-BZO

Nitrofurantoin

Norclomipramine

Norcodeine-OPI, OXY

Nordiazepam-BZO

Nordoxepin-TCA

Norethindrone

Norlysergic Acid

Normeperidine

Norpropoxyphene-PPX

l-Norpseudoephedrine

Nortriptyline-TCA

Noscapine

Nylidrin

Octopamine

Ofloxacin-OPI

Olanzapine-TCA

Omeprazole

Orphenadrine

Oxalic Acid

Oxaprosin

Oxazepam-BZO

Oxazepam glucuronide-BZO

Oxolinic Acid

Oxycodone-OXY

Oxymetazoline

Oxymorphone-OXY

Papaverine hydrochloride

Penicillin G

Pentazocine

Pentobarbital-BAR

Perphenazine

Phenacetin (Acetophenetidin)

Phencyclidine-PCP

Phendimetrazine

Phenelzine

Phenethylamine-MAMP

Pheniramine

Phenmetrazine

Phenobarbital-BAR

Phenothiazine

Phentermine-AMP

Phenytoin (Diphenylhydantoin)-BAR

Phenylbutazone

Phenylephrine-MAMP

Phenylpropanolamine

Piroxicam

Prazosin

Prednisolone

Prednisone

Procaine-MAMP

Procainamide

Prochlorperazine-TCA

Promazine-TCA

Promethazine

Propoxyphene-PPX

Propranolol

Protriptyline

d-Pseudoephedrine

Pyrilamine

Quetiapine (Seroquel)-TCA

Quinidine

Ranitidine

Riboflavin

Rifampin

Salicylic Acid

Secobarbital-BAR

Selegiline (Deprenyl)

Serotonin (5-Hydroxytryptamine)

Sertraline (Zoloft)

Sildenafil (Viagra)

Sulfamethazine

Sulindac

Talbutal-BAR

Temazepam-BZO

Temazepam glucuronide-BZO

Tetracycline

9-Tetrahydrocannabinol

8-Tetrahydrocannabinol

Tetrahydrozoline

Thebaine-OPI

Theophyline

Thiamine

Thiopental

Thioridazine

Thiothixene

Tolbutamide

Tolmetin (Tolectin)

Trazodone

Triamterene

Triazolam-BZO

Triazolam, 1-hydroxy

Trifluoperazine

Trimethoprim

Trimipramine-TCA

Tripelennamine

Tryptamine

Tryptophan

Tyramine

Tyrosine

Valproic Acid

Venlafaxine

Verapamil

Zomepirac

Non Crossreactive Endogenous Compounds

Fifteen compounds were dissolved in appropriate solvents at a concentration of at least 1.0 mg/mL. Each compound was further

diluted to 100 µg/mL except for albumin (20 mg/mL) and bilirubin (200 µg/mL). None of these compounds showed cross-reactivity at

the listed concentrations.

Acetaldehyde Creatinine Hemoglobin, Human

Acetone Epinephrine Sodium Chloride

Albumin, Human -Estradiol Tetrahydrocortisone

Bilirubin Estriol d,1-Thyroxine

Cholesterol Glucose Std. Solution Uric Acid

Related Compounds and Cross Reactants

The following metabolites and compounds were tested. Reference standards for the various metabolites and compounds were

prepared in negative urine samples. None of the compounds reacted with the remaining tests in the panel. Results are expressed as

the minimum concentration required to produce a positive result in the indicated assay. Compounds that reacted with the test are

listed first, and related compounds that did not react with the highest concentration tested are listed second as Negative at 100,000

ng/mL (or highest level tested).

Cannabinoids-(THC) (11-nor-9-carboxy-9-THC) 50 ng/mL

Result

Cannabidiol Negative at 100,000 ng/mL

Cannabinol Negative at 100,000 ng/mL

l-11 Hydroxy-9-THC Negative at 50,000 ng/mL

8 –Tetrahydrocannabinol Negative at 100,000 ng/mL

9 –Tetrahydrocannabinol Negative at 100,000 ng/mL

Opiates(2000)-(OPI) (Morphine) 2000 ng/mL

Result

Codeine Positive at 800 ng/mL

Diacetylmorphine Positive at 2,000 ng/mL

Dihydrocodeine Positive at 3,000 ng/mL

Ethylmorphine Positive at 400 ng/mL

Hydrocodone Positive at 2,000 ng/mL

Hydromorphone Positive at 3,000 ng/mL

Levorphanol Positive at 12,500 ng/mL

6-Monoacetyl Morphine Positive at 3,000 ng/mL

Morphine 3--D-Glucuronide Positive at 3,000 ng/mL

Morphine 6--D-Glucuronide Positive at 25,000 ng/mL

Norcodeine Positive at 25,000 ng/mL

Ofloxacin Positive at 50,000 ng/mL

Thebaine Positive at 50,000 ng/mL

Apomorphine Negative at 100,000 ng/mL

Nalorphine Negative at 100,000 ng/mL

Naloxone Negative at 100,000 ng/mL

Naltrexone Negative at 100,000 ng/mL

Oxycodone Negative at 100,000 ng/mL

Oxymorphone Negative at 100,000 ng/mL

Procaine Negative at 100,000 ng/mL

Opiates(300)-(OPI) (Morphine) 300 ng/mL

Result

Codeine Positive at 100 ng/mL

Diacetylmorphine Positive at 200 ng/mL

Dihydrocodeine Positive at 400 ng/mL

Ethylmorphine Positive at 200 ng/mL

Hydrocodone Positive at 800 ng/mL

Hydromorphone Positive at 800 ng/mL

6-Monoacetylmorphine Positive at 200 ng/mL

Morphine 3--D-Glucuronide Positive at 200 ng/mL

Morphine 6--D-Glucuronide Positive at 12,500 ng/mL

Nalorphine Positive at 75,000 ng/mL

Norcodeine Positive at 12,500 ng/mL

Thebaine Positive at 12,500 ng/mL

Apomorphine Negative at 100,000 ng/mL

Levorphanol Negative at 100,000 ng/mL

Naloxone Negative at 100,000 ng/mL

Naltrexone Negative at 100,000 ng/mL

Oxycodone Negative at 100,000 ng/mL

Oxymorphone Negative at 100,000 ng/mL

Procaine Negative at 100,000 ng/mL

Amphetamines- (AMP) (d-Amphetamine) 1000 ng/mL

Result

l-Amphetamine Positive at 100,000 ng/mL

MDA Positive at 400 ng/mL

Phentermine Positive at 10,000 ng/mL

Ephedrine Negative at 100,000 ng/mL

MDMA Negative at 100,000 ng/mL

MDE (MDEA) Negative at 100,000 ng/mL

l-Methamphetamine Negative at 100,000 ng/mL

d-Methamphetamine Negative at 100,000 ng/mL

Phenethylamine Negative at 100,000 ng/mL

Tyramine Negative at 100,000 ng/mL

Cocaine-(COC) (Benzoylecgonine) 300 ng/mL

Result

Cocaine Positive at 800 ng/mL

Isoxsuprine Positive at 6,000 ng/mL

Ecgonine Negative at 100,000 ng/mL

Ecgonine Methyl Ester Negative at 100,000 ng/mL

Phencyclidine-(PCP) (Phencyclidine) 25 ng/mL

Result

4-Hydroxyphencyclidine Positive at 5,000 ng/mL

Tricyclic Antidepressant-(TCA) (Desipramine) 300 ng/mL

Result

Amitriptyline Positive at 500 ng/mL

Clozapine Positive at 2,000 ng/mL

Cyclobenzaprine Positive at 5,000 ng/mL

Doxepin Positive at 1,000 ng/mL

Imipramine Positive at 200 ng/mL

Maprotiline Positive at 500 ng/mL

Nordoxepin Positive at 750 ng/mL

Nortriptyline Positive at 500 ng/mL

Olanzapine Positive at 10,000 ng/mL

Prochlorperazine Positive at 25,000 ng/mL

Promazine Positive at 250 ng/mL

Quetiapine (Seroquel) Positive at 2,500 ng/mL

Trimipramine Positive at 2,500 ng/mL

Chlorpromazine Negative at 100,000 ng/mL

Chlorprothixine Negative at 100,000 ng/mL

Clomipramine Negative at 100,000 ng/mL

Loxapine Negative at 100,000 ng/mL

Mirtazepine Negative at 100,000 ng/mL

Norclomipramine Negative at 100,000 ng/mL

Perphenazine Negative at 100,000 ng/mL

Phenothiazine Negative at 100,000 ng/mL

Protriptyline Negative at 100,000 ng/mL

Thiothixene Negative at 100,000 ng/mL

Barbiturate-(BAR) (Butalbital) 200 ng/mL

Result

Allobarbital Positive at 250 ng/mL

Alphenal Positive at 100 ng/mL

Amobarbital Positive at 2,500 ng/mL

Barbital Positive at 2,500 ng/mL

Butabarbital Positive at 1,000 ng/mL

Cyclopentobarbital Positive at 250 ng/mL

Diphenylhydantoin (Phenytoin) Positive at 2,500 ng/mL

p-Hydroxyphenobarbital Positive at 500 ng/mL

Pentobarbital Positive at 500 ng/mL

Phenobarbital Positive at 800 ng/mL

Secobarbital Positive at 50 ng/mL

Talbutal Positive at 75 ng/mL

Aminoglutethimide Negative at 100,000 ng/mL

Barbituric Acid Negative at 100,000 ng/mL

1,3 Dimethylbarbituric Acid Negative at 100,000 ng/mL

Glutethimide Negative at 100,000 ng/mL

Hexobarbital Negative at 100,000 ng/mL

Mephobarbital Negative at 100,000 ng/mL

Methadone-(MTD) (Methadone) 300 ng/mL

Result

Primary metabolite (EDDP) Negative at 100,000 ng/mL

Secondary metabolite (EMDP) Negative at 100,000 ng/mL

Benzodiazepine-(BZO) (Nordiazepam) 300 ng/mL

Result

Alprazolam Positive at 100 ng/mL

Alprazolam, 1-OH Positive at 2,500 ng/mL

Clobazam Positive at 50 ng/mL

Clonazepam Positive at 250 ng/mL

Clorazepate Positive at 250 ng/mL

Desalkylflurazepam Positive at 250 ng/mL

Desmethylchlordiazepoxide Positive at 500 ng/mL

Desmethylflunitrazepam Positive at 75 ng/mL

Diazepam Positive at 100 ng/mL

Flunitrazepam Positive at 75 ng/mL

Lorazepam Positive at 750 ng/mL

Lorazepam glucuronide Positive at 250 ng/mL

Midazolam Positive at 5,000 ng/mL

Nitrazepam Positive at 50 ng/mL

Oxazepam Positive at 250 ng/mL

Oxazepam glucuronide Positive at 500 ng/mL

Temazepam Positive at 50 ng/mL

Temazepam glucuronide Positive at 250 ng/mL

Triazolam Positive at 750 ng/mL

7-Aminoclonazepam Negative at 100,000 ng/mL

7-Aminoflunitrazepam Negative at 100,000 ng/mL

Chlordiazepoxide Negative at 100,000 ng/mL

Flurazepam Negative at 100,000 ng/mL

Triazolam, 1-OH Negative at 100,000 ng/mL

Propoxyphene-(PPX) (Norpropoxyphene) 300 ng/mL

Result

Propoxyphene Positive at 50 ng/mL

Promethazine Negative at 100,000 ng/mL

Methamphetamine-(MAMP) (d-Methamphetamine) 1000 ng/mL,

(MDMA) 1500 ng/mL

Result

Ephedrine Positive at 2,500 ng/mL

Fenfluramine Positive at 25,000 ng/mL

MDE (MDEA) Positive at 5,000 ng/mL

l-Methamphetamine Positive at 7,500 ng/mL

Phenethylamine Positive at 2,500 ng/mL

Phenylephrine Positive at 50,000 ng/mL

Procaine Positive at 10,000 ng/mL

d-Amphetamine Negative at 100,000 ng/mL

l-Amphetamine Negative at 100,000 ng/mL

MDA Negative at 100,000 ng/mL

Phentermine Negative at 100,000 ng/mL

Pseudoephedrine Negative at 100,000 ng/mL

Tyramine Negative at 100,000 ng/mL

Oxycodone (OXY) 100 ng/mL Result

Codeine Positive at 2,500 ng/mL

Dihydrocodeine Positive at 2,500 ng/mL

Ethylmorphine Positive at 2,500 ng/mL

Hydrocodone Positive at 10,000 ng/mL

Hydromorphone Positive at 10,000 ng/mL

Morphine Positive at 5,000 ng/mL

Naloxone Positive at 10,000 ng/mL

Naltrexone Positive at 25,000 ng/mL

Norcodeine Positive at 50,000 ng/mL

Oxymorphone Positive at 200 ng/mL

Apomorphine Negative at 100,000 ng/mL

Diacetylmorphine Negative at 100,000 ng/mL

Levorphanol Negative at 50,000 ng/mL

6-Monoacetylmorphine Negative at 100,000 ng/mL

Morphine 3-β-D-Glucuronide Negative at 100,000 ng/mL

Morphine 6-β-D-Glucuronide Negative at 10,000 ng/mL

Nalorphine Negative at 100,000 ng/mL

Thebaine Negative at 100,000 ng/mL

Interference-Oxycodone

pH and Specific Gravity:

The MEDTOX® OXYCODONE test was assayed with six negative clinical samples with pH values of 4.0, 5.0, 6.0, 7.0, 8.0 and 9.0 ±

0.1. Each sample was assayed in triplicate. The pH samples were fortified with Oxycodone to the concentrations of 25 ng/mL and 150

ng/mL. All the pH levels gave negative results when fortified to 25 ng/mL, and all pH levels gave positive results when fortified to

150 ng/mL.

The MEDTOX® OXYCODONE test was assayed with eight samples with specific gravity values of 1.003, 1.005, 1.010, 1.015, 1.020,

1.025, 1.030 and 1.035 ± 0.001. Each sample was assayed in triplicate. The specific gravity samples were fortified with Oxycodone to

the concentrations of 25 ng/mL and 150 ng/mL. All the specific gravity levels gave negative results when fortified to 25 ng/mL, and

all specific gravity levels gave positive results when fortified to 150 ng/mL.

Common Drugs:

Following the study of M.L. Smith, et. al.5 drug free urine samples were spiked with Oxycodone to the concentrations of 25 ng/mL

and 150 ng/mL. 100 µg/mL of the common drugs were then added to the preparation and assayed by the MEDTOX® OXYCODONE

test. Samples were evaluated in triplicate by in-house operators. None of the common drugs listed in the following table affected the

expected results.

COMMON DRUGS EVALUATED WITH MEDTOX® OXYCODONE TESTS

Acetylsalicylic Acid

Chlorpheniramine

Ibuprofen

Acetaminophen

Cocaine

Morphine-OXY

Brompheniramine maleate

Dextromethorphan

Phenobarbital

Caffeine

Diphenylhydantoin

d-Pseudoephedrine

Carbamazepine

Doxylamine

Salicylic Acid

Interference Propoxyphene/Methamphetamine Only

Following the study of M.L Smith, et. al.5 the following drugs were tested to determine the degree of interference they may have on

the test. Commercial negative urine was spiked with 100 µg/mL of each of these drugs and with either 75 ng/mL or 600 ng/mL of

norpropoxyphene or methamphetamine. Each spiked sample was tested in triplicate on the test. None of these drugs affected the

expected negative or positive results with either the 75 ng/mL or 600 ng/mL fortified samples. The drugs are listed below.

Acetylsalicylic Acid Chlorpheniramine Ibuprofen

Acetaminophen Cocaine Morphine

Brompheniramine maleate Dextromethorphan Phenobarbital

Caffeine 5,5 Diphenylhydantoin d-Pseudoephedrine

Carbamazepine Doxylamine Salicyclic Acid

15. BIBLIOGRAPHY

1. Blum, K. Handbook of Abusable Drugs. Gardener Press, Inc. New York, New York, 1984. pp. 305-349.

2. DeCresce, R.P., Lifshitz, M.S., Mazura, A.C. and Tilson, J.E. Drug Testing in the Workplace. ASCP Press. American Society of

Clinical Pathologists. Chicago, Illinois. 1989. pp. 105-109.

3. Baselt, R.C. Disposition of Toxic Drugs and Chemicals in Man. Eighth Edition. Biomedical Publications. Foster City, California,

2008.

4. White, R.M. and Black, M.L. Pain Management Testing Reference. AACC Press. Washington, DC. 2007.

5. Smith, M.L., Shimomura, E.T., Summers, J., Paul, B.D., Nichols, D., Shippee, R., Jenkins, A.J., Darwin, W.D., and Cone, E.J.

Dectection Times and Analytical Performance of Commercial Urine Opiate Immunoassays Following Heroin Administration,

Journal of Analytical Toxicology. Volume 24:7. October 2000, pages 522-529.

6. Cary, P.L. The Marijuana Detection Window: Determining the Length of Time Cannabinoids will Remain Detectable in Urine

Following Smoking: A Critical Review of Relevant Research and Cannabinoid Detection Guidance for Drug Courts, Drug Court

Review. Volume V:1. 2005, pp. 23 – 58.

16. LIMITED EXPRESS WARRANTIES

The manufacturer makes no express warranty other than the diagnostic test kit will measure certain drugs and/or drug metabolites

when used in accordance with the manufacturer‟s printed instructions. The use of the kit for any other purpose is outside the intended

use of this product. The manufacturer gives no express warranty as to what the legal or clinical significance is of the levels of

drug(s)/drug metabolites detected by the PROFILE-II/VERDICT-II Drugs of Abuse Test. The manufacturer disclaims any and all

implied warranties of merchantability, fitness for use or implied utility for any other purposes. Any and all damages for failure of

the kit to perform to its instructions are limited to the replacement value of the kit.

Covered by one or more patents.

U.S. Patent Nos. 6,566,051, 6,376,251, 6,653,139

This product does not contain controlled substances.

This product does not contain hazardous or toxic chemicals as defined by the OSHA Hazard Communication Rule [29 CFR

1910.1200(g)].

MEDTOX Diagnostics Inc.

1238 Anthony Road

Burlington, NC 27215

To place an order or for technical services call 1-800-832-3244.

P/N 101505

Rev. 6/11

Printed in USA

PROFILE® II / IIA VERDICT® Screen 2 6632

Navigation menu

Versions of this User Manual:

Views

Navigation
